Developing streaming applications with apache apex (strata + hadoop world)
The document provides a technical overview of Apache Apex, a Java-based platform for developing scalable and fault-tolerant streaming applications using a directed acyclic graph (DAG) application model. It covers key topics such as application pipeline creation, event time windowing, debugging, scaling, and includes examples of API usage for building pipelines. Additionally, it highlights recent advancements and future roadmap items for Apache Apex.
Developing streaming applications with apache apex (strata + hadoop world)
- 1. Developing Streaming Applicationswith Apache Apex David Yan <davidyan@apache.org> PMC Member, Apache Apex Software Engineer, Google Strata+Hadoop World, San Jose, CA March 16, 2017

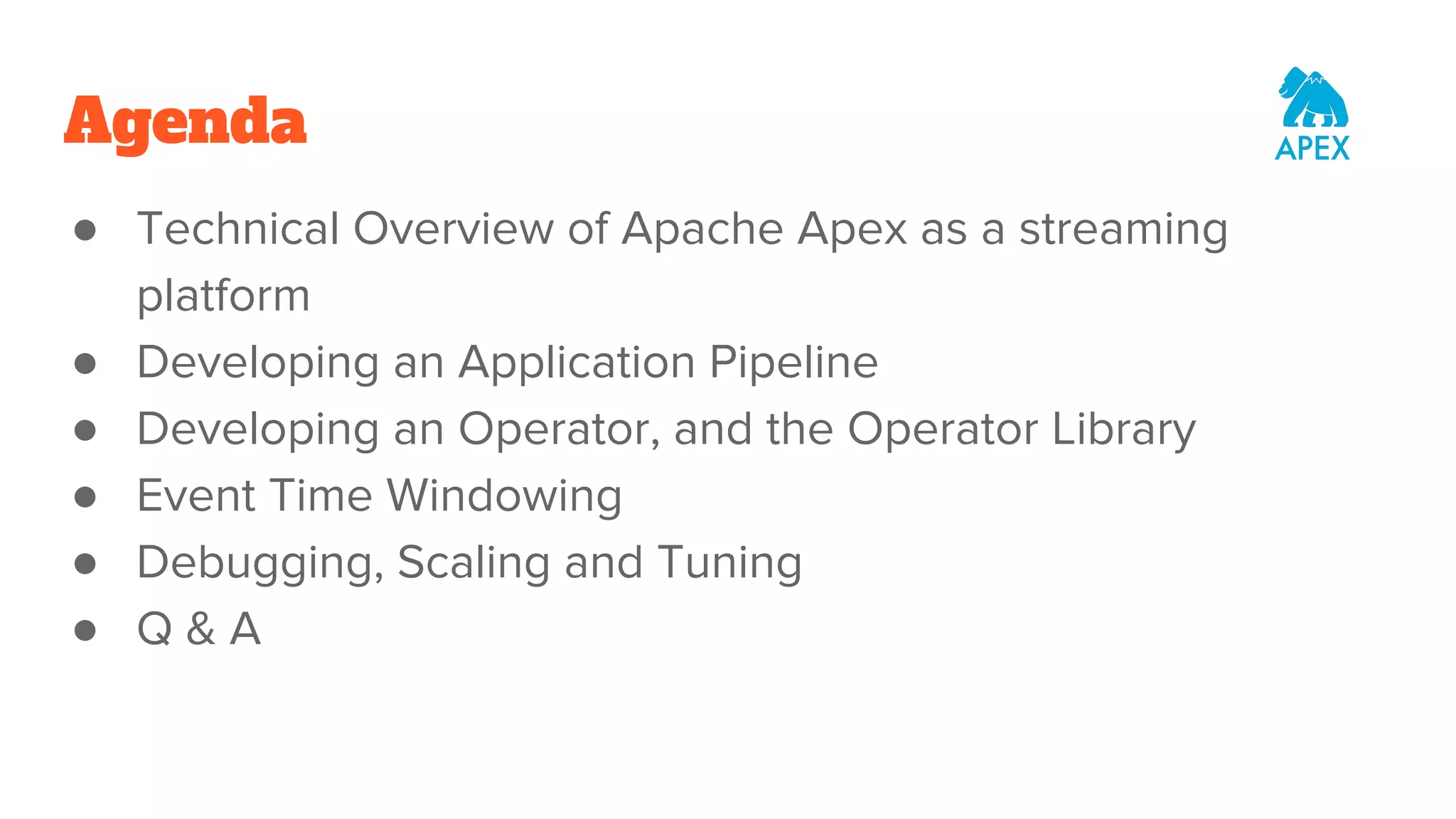

- 2. Agenda ● Technical Overviewof Apache Apex as a streaming platform ● Developing an Application Pipeline ● Developing an Operator, and the Operator Library ● Event Time Windowing ● Debugging, Scaling and Tuning ● Q & A

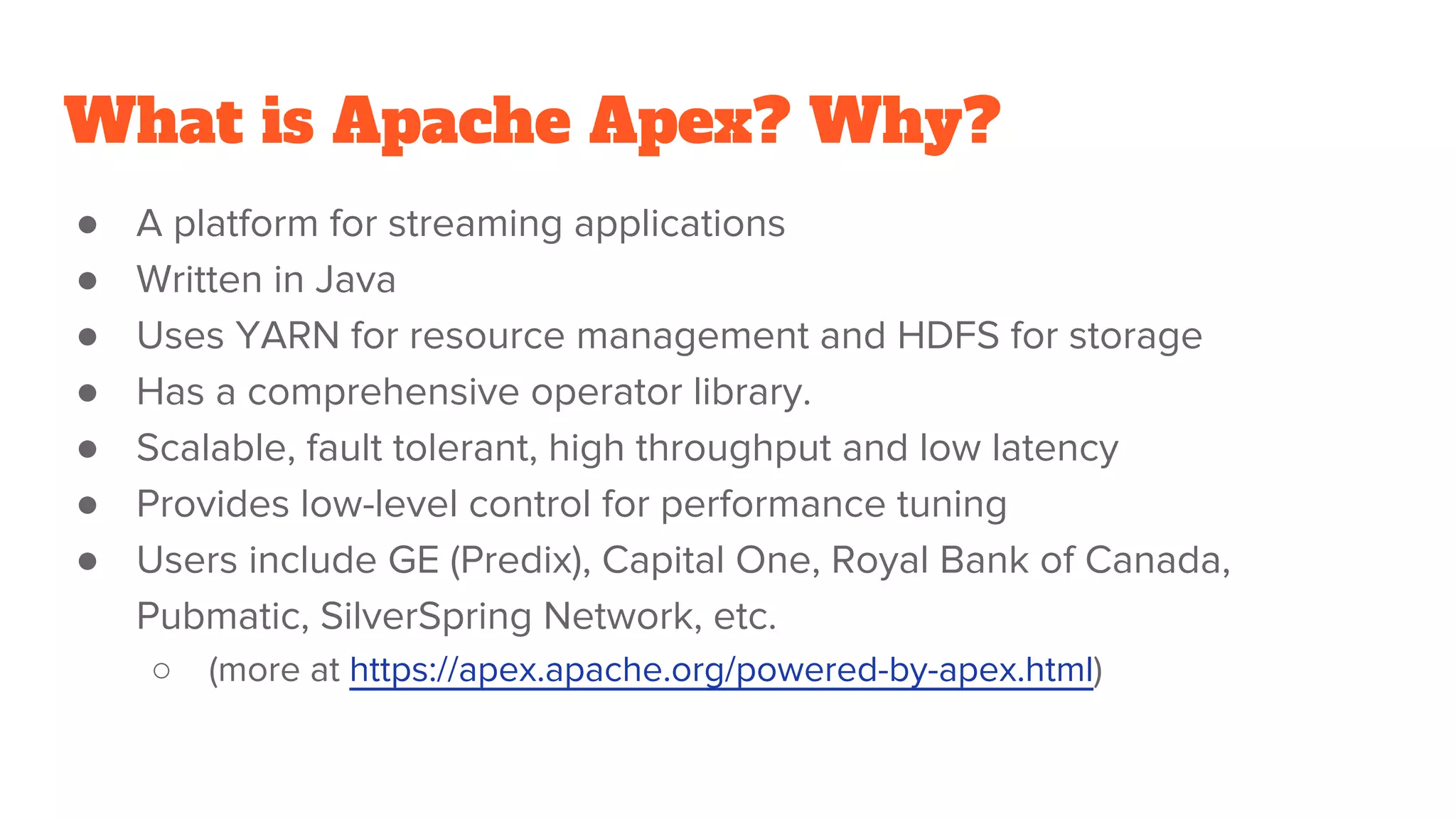

- 3. What is ApacheApex? Why? ● A platform for streaming applications ● Written in Java ● Uses YARN for resource management and HDFS for storage ● Has a comprehensive operator library. ● Scalable, fault tolerant, high throughput and low latency ● Provides low-level control for performance tuning ● Users include GE (Predix), Capital One, Royal Bank of Canada, Pubmatic, SilverSpring Network, etc. ○ (more at https://apex.apache.org/powered-by-apex.html)
- 4.

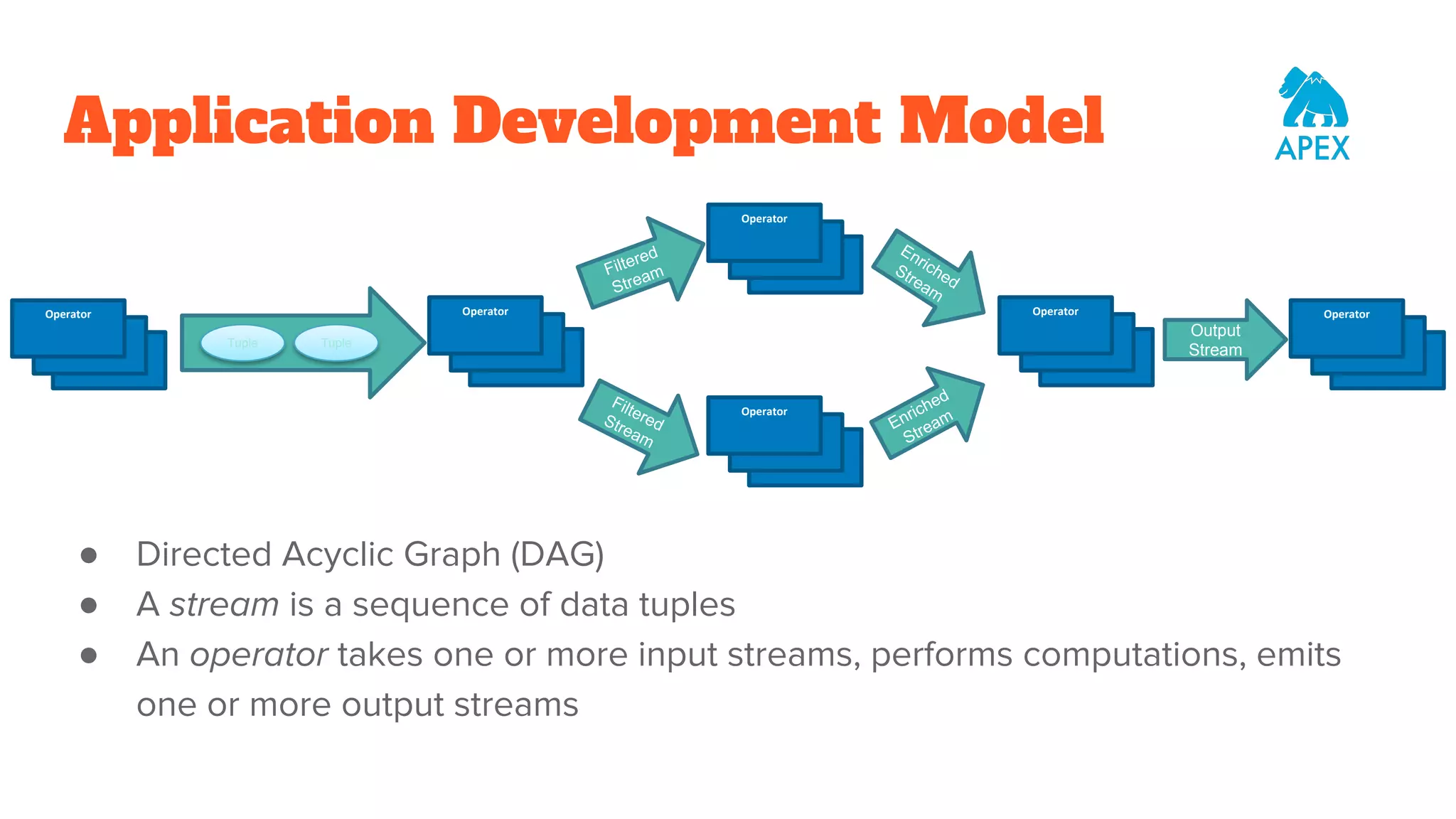

- 5. Application Development Model ●Directed Acyclic Graph (DAG) ● A stream is a sequence of data tuples ● An operator takes one or more input streams, performs computations, emits one or more output streams Filtered Stream Output Stream Tuple Tuple FilteredStream Enriched Stream Enriched Stream er Operator er Operator er Operator er Operator er Operator er Operator

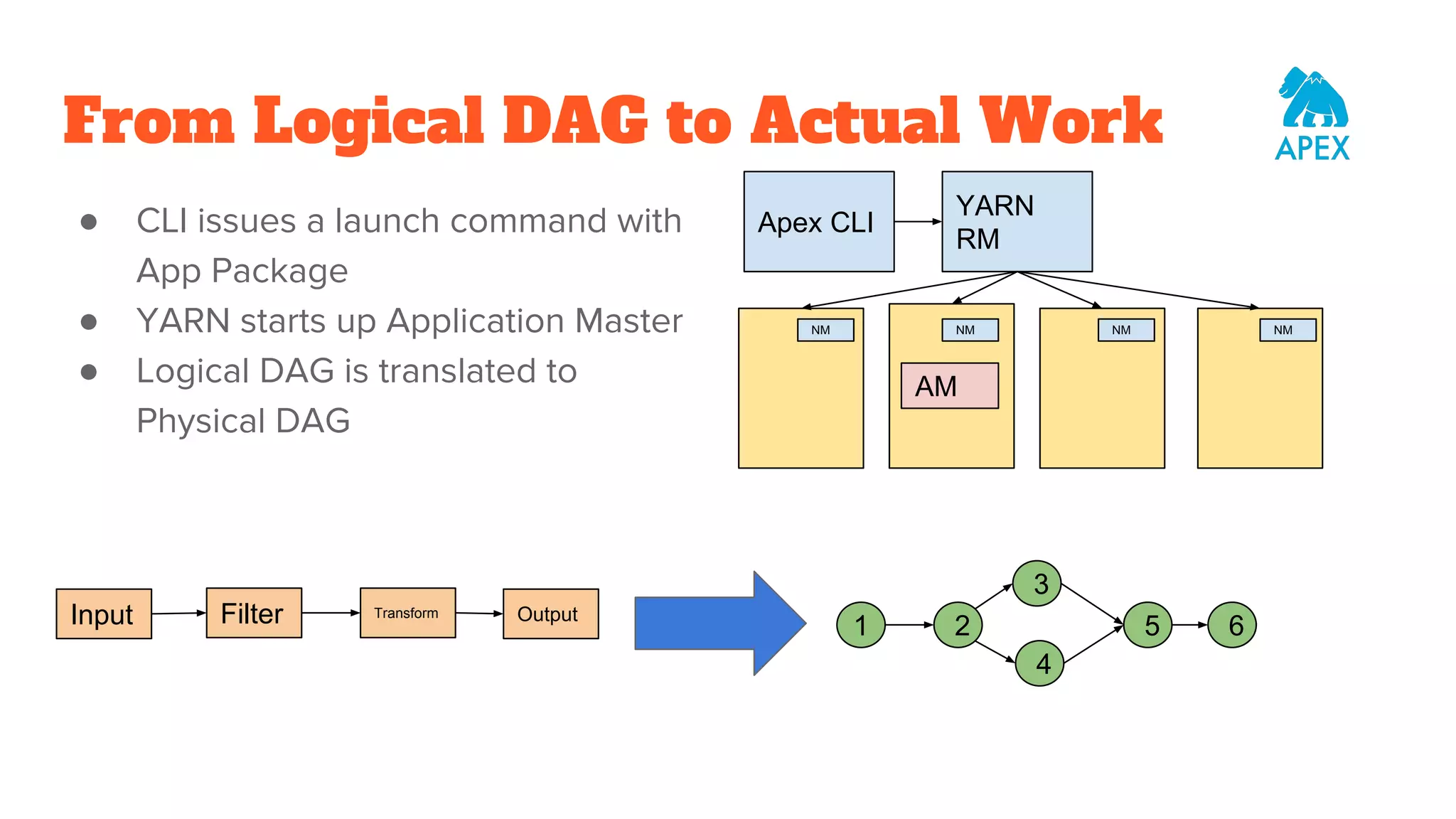

- 6. From Logical DAGto Actual Work ● CLI issues a launch command with App Package ● YARN starts up Application Master ● Logical DAG is translated to Physical DAG Apex CLI YARN RM NM NM NM NM AM 1 2 3 4 5 6Input Filter Transform Output

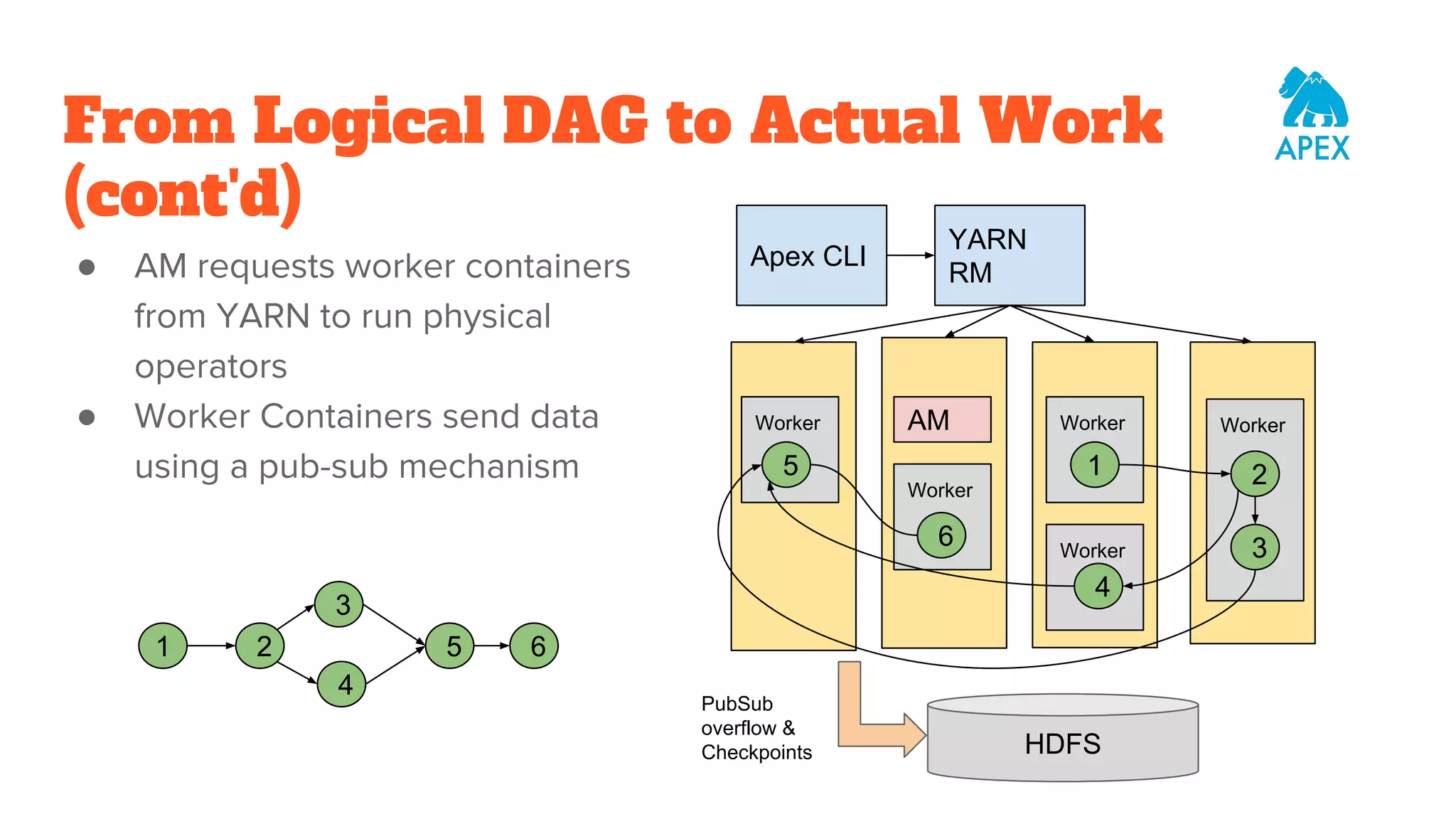

- 7. From Logical DAGto Actual Work (cont'd) ● AM requests worker containers from YARN to run physical operators ● Worker Containers send data using a pub-sub mechanism Apex CLI YARN RM AM Worker WorkerWorker Worker Worker 6 4 1 3 25 1 2 3 4 5 6 HDFS PubSub overflow & Checkpoints

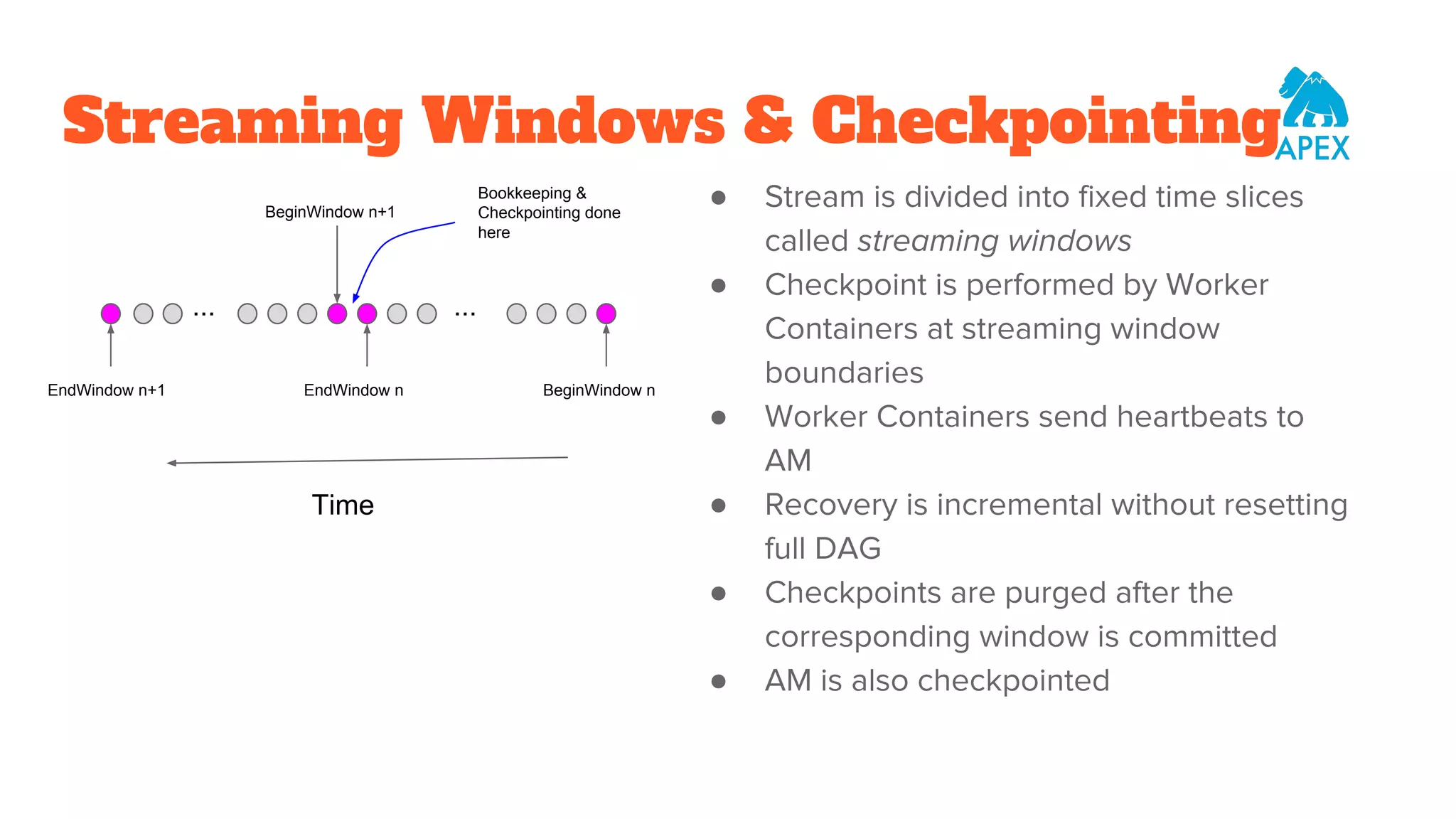

- 8. Streaming Windows &Checkpointing ● Stream is divided into fixed time slices called streaming windows ● Checkpoint is performed by Worker Containers at streaming window boundaries ● Worker Containers send heartbeats to AM ● Recovery is incremental without resetting full DAG ● Checkpoints are purged after the corresponding window is committed ● AM is also checkpointed BeginWindow nEndWindow n BeginWindow n+1 EndWindow n+1 Time ...... Bookkeeping & Checkpointing done here
- 9.

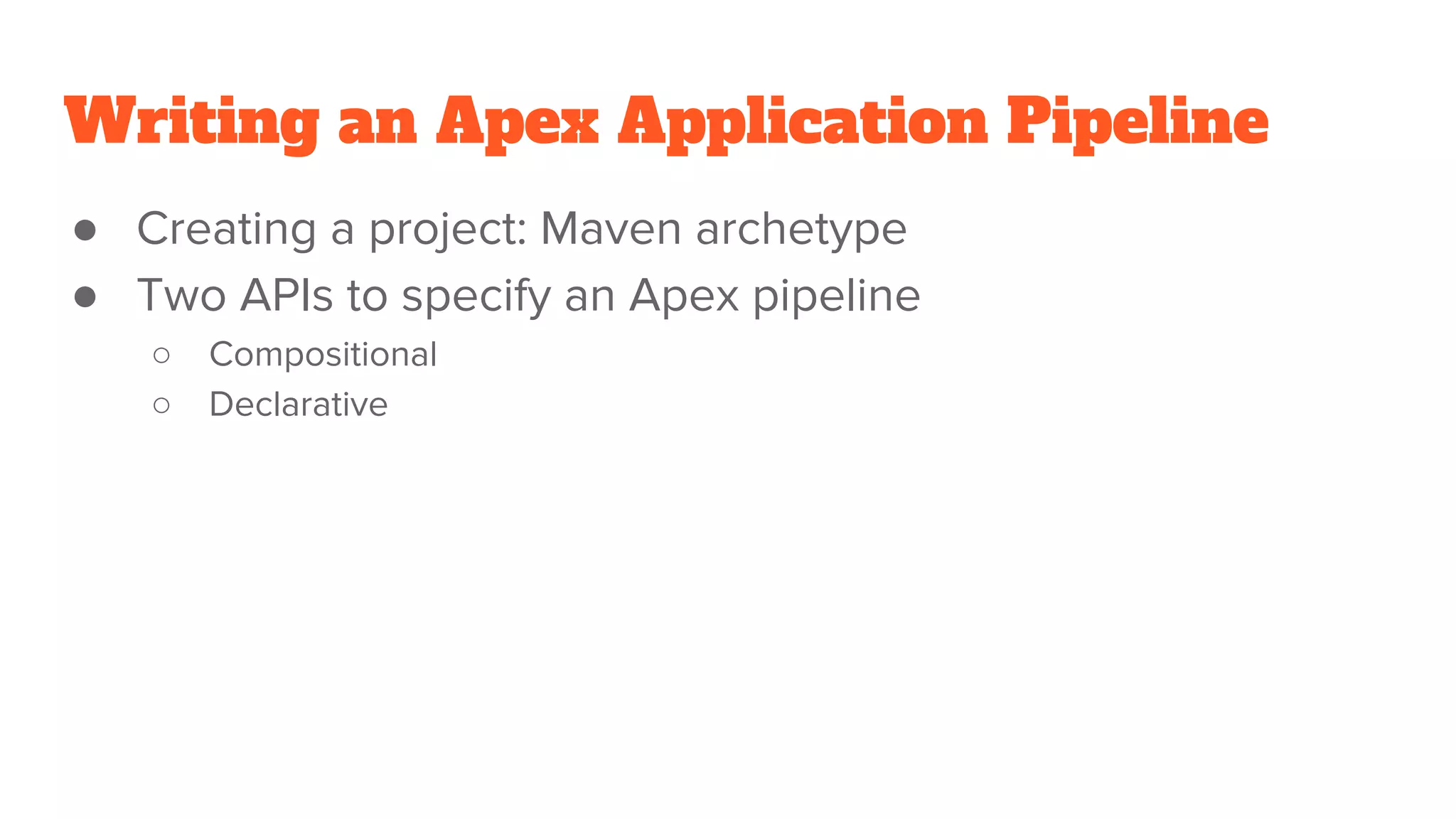

- 10. Writing an ApexApplication Pipeline ● Creating a project: Maven archetype ● Two APIs to specify an Apex pipeline ○ Compositional ○ Declarative

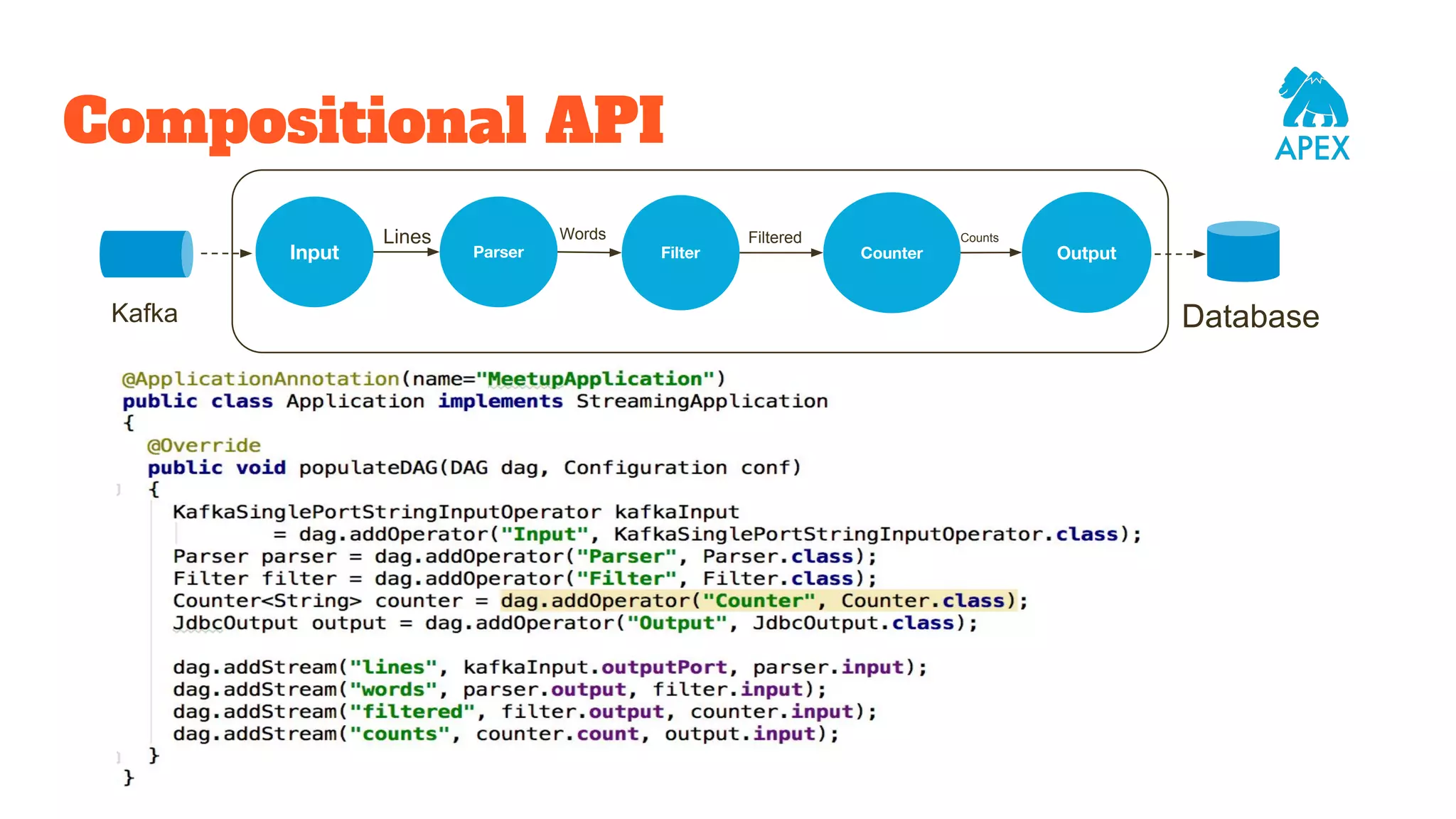

- 11. Compositional API Input ParserCounter Output CountsWordsLines Kafka Database Filter Filtered

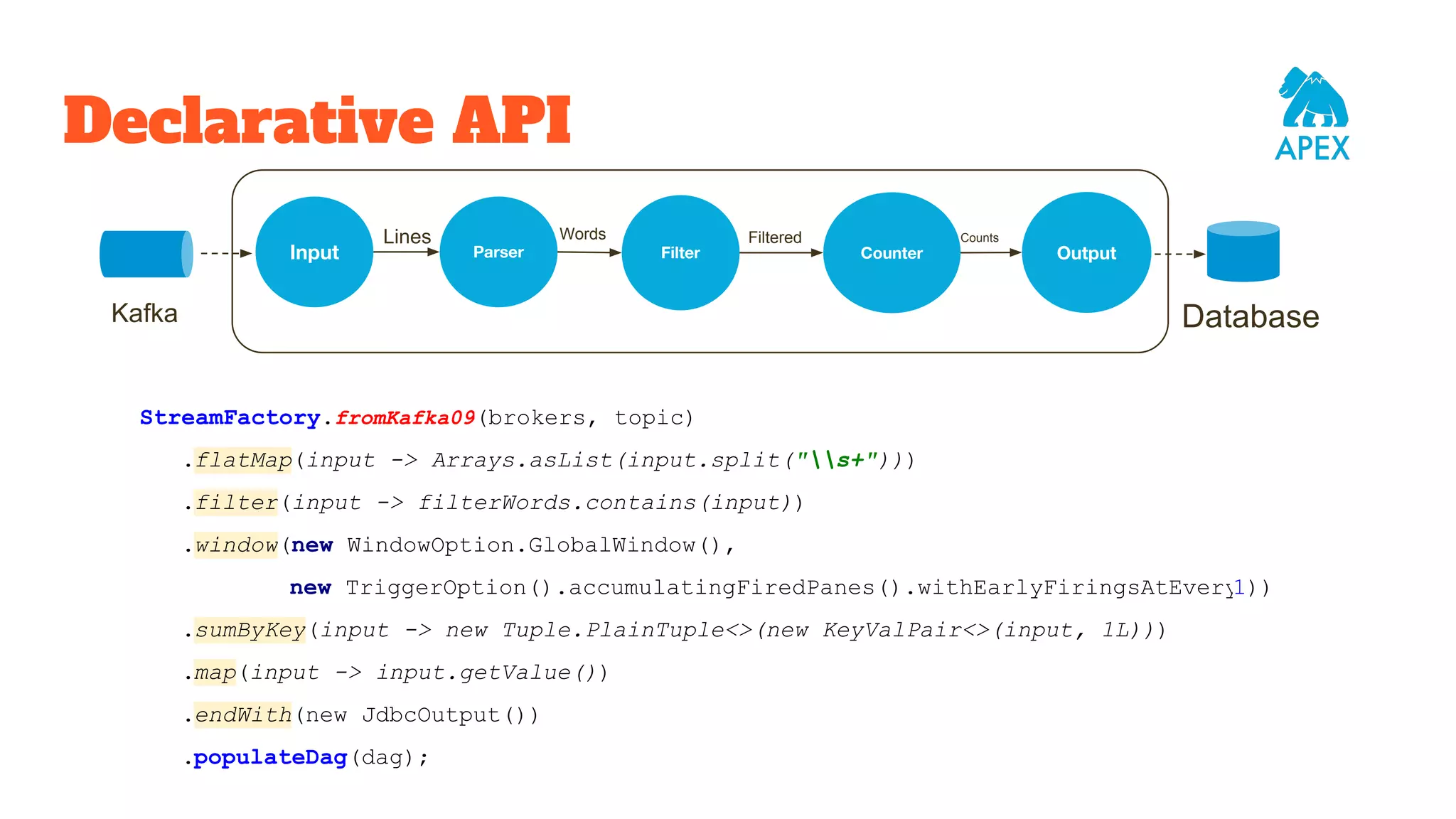

- 12. Declarative API StreamFactory.fromKafka09(brokers, topic) .flatMap(input-> Arrays.asList(input.split("s+"))) .filter(input -> filterWords.contains(input)) .window(new WindowOption.GlobalWindow(), new TriggerOption().accumulatingFiredPanes().withEarlyFiringsAtEvery(1)) .sumByKey(input -> new Tuple.PlainTuple<>(new KeyValPair<>(input, 1L))) .map(input -> input.getValue()) .endWith(new JdbcOutput()) .populateDag(dag); Input Parser Counter Output CountsWordsLines Kafka Database Filter Filtered
- 13.

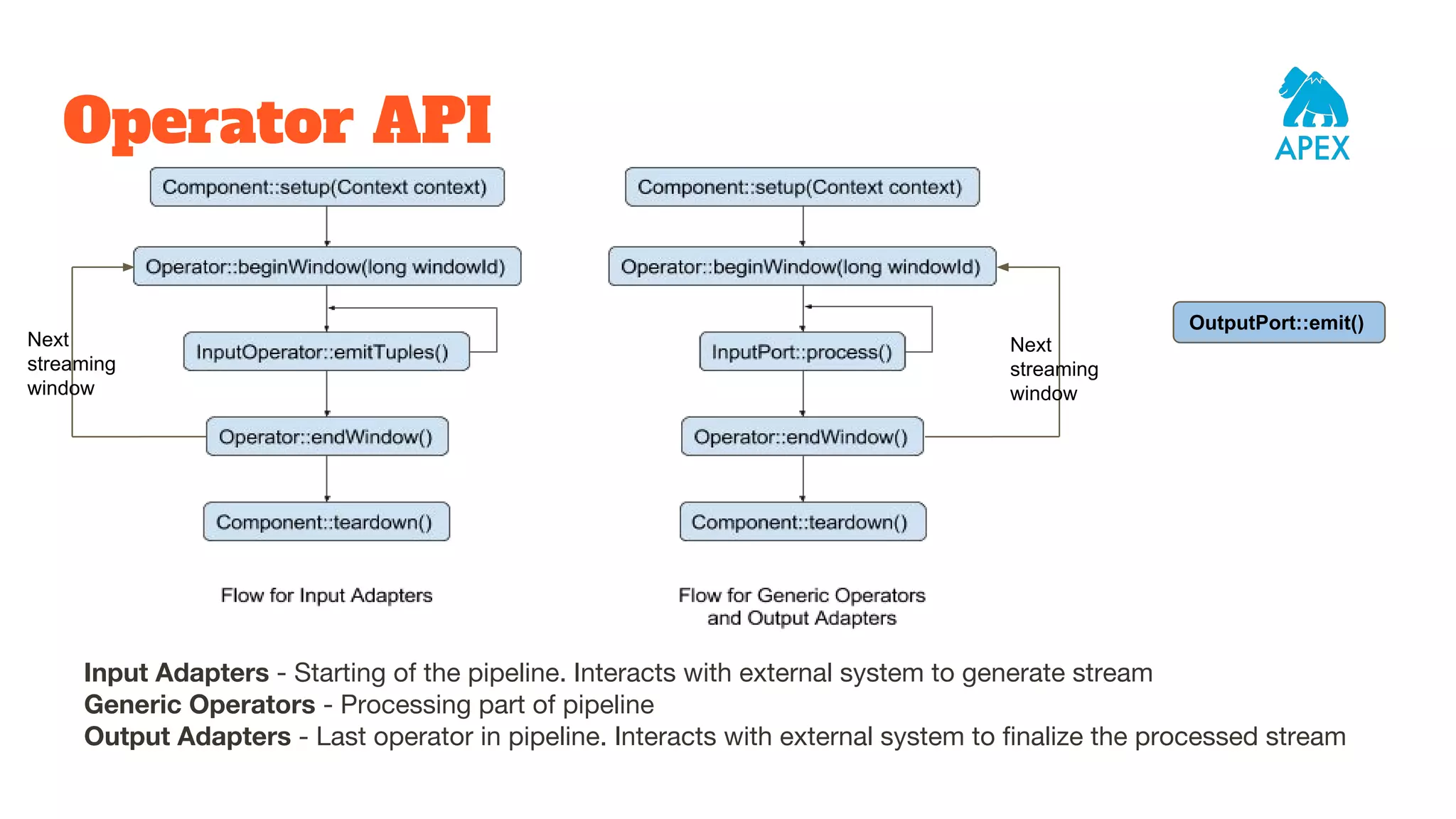

- 14. Operator API Next streaming window Next streaming window Input Adapters- Starting of the pipeline. Interacts with external system to generate stream Generic Operators - Processing part of pipeline Output Adapters - Last operator in pipeline. Interacts with external system to finalize the processed stream OutputPort::emit()
- 15.
- 16.

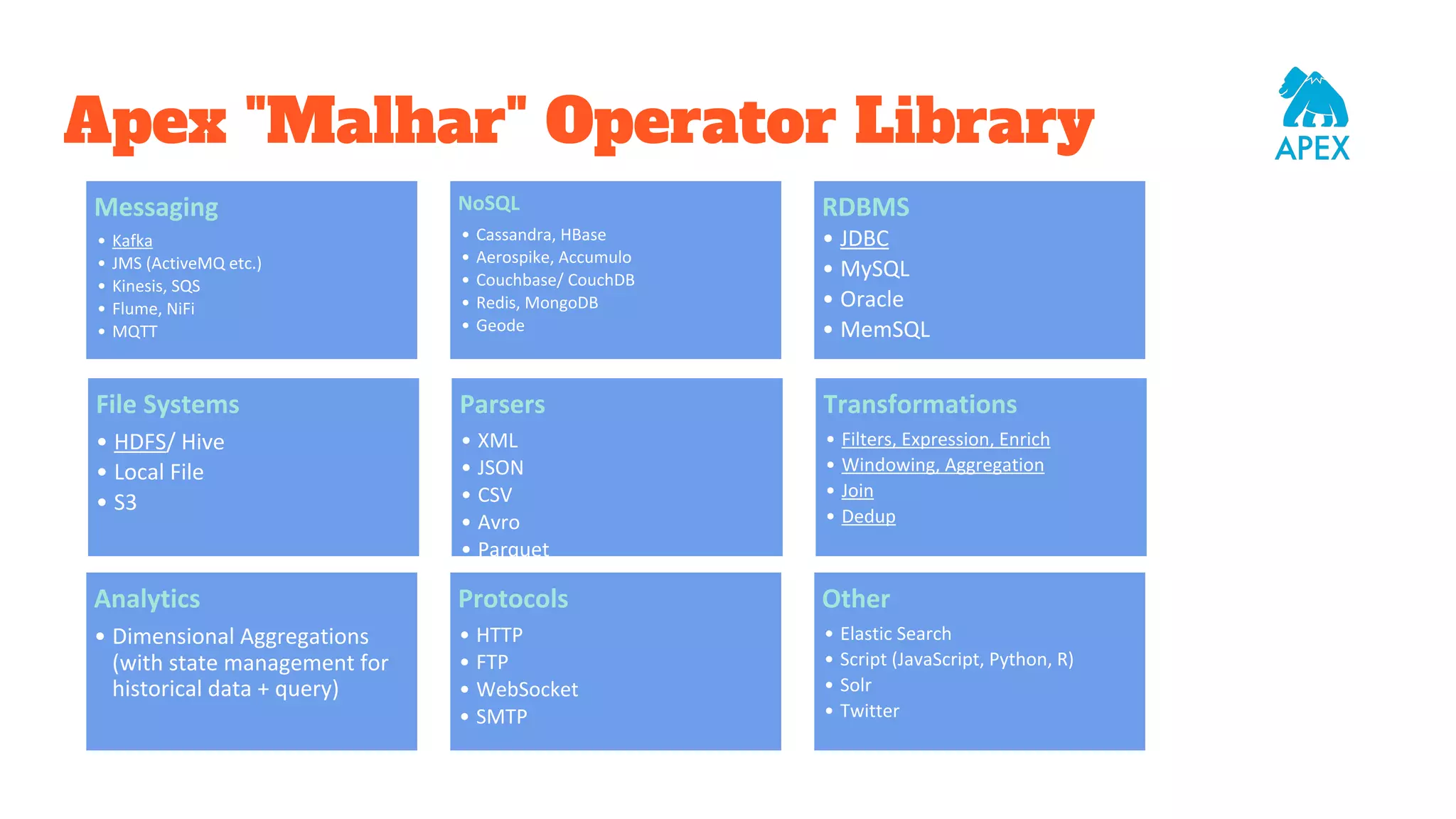

- 17. RDBMS • JDBC • MySQL •Oracle • MemSQL NoSQL • Cassandra, HBase • Aerospike, Accumulo • Couchbase/ CouchDB • Redis, MongoDB • Geode Messaging • Kafka • JMS (ActiveMQ etc.) • Kinesis, SQS • Flume, NiFi • MQTT File Systems • HDFS/ Hive • Local File • S3 Parsers • XML • JSON • CSV • Avro • Parquet Transformations • Filters, Expression, Enrich • Windowing, Aggregation • Join • Dedup Analytics • Dimensional Aggregations (with state management for historical data + query) Protocols • HTTP • FTP • WebSocket • SMTP Other • Elastic Search • Script (JavaScript, Python, R) • Solr • Twitter Apex "Malhar" Operator Library

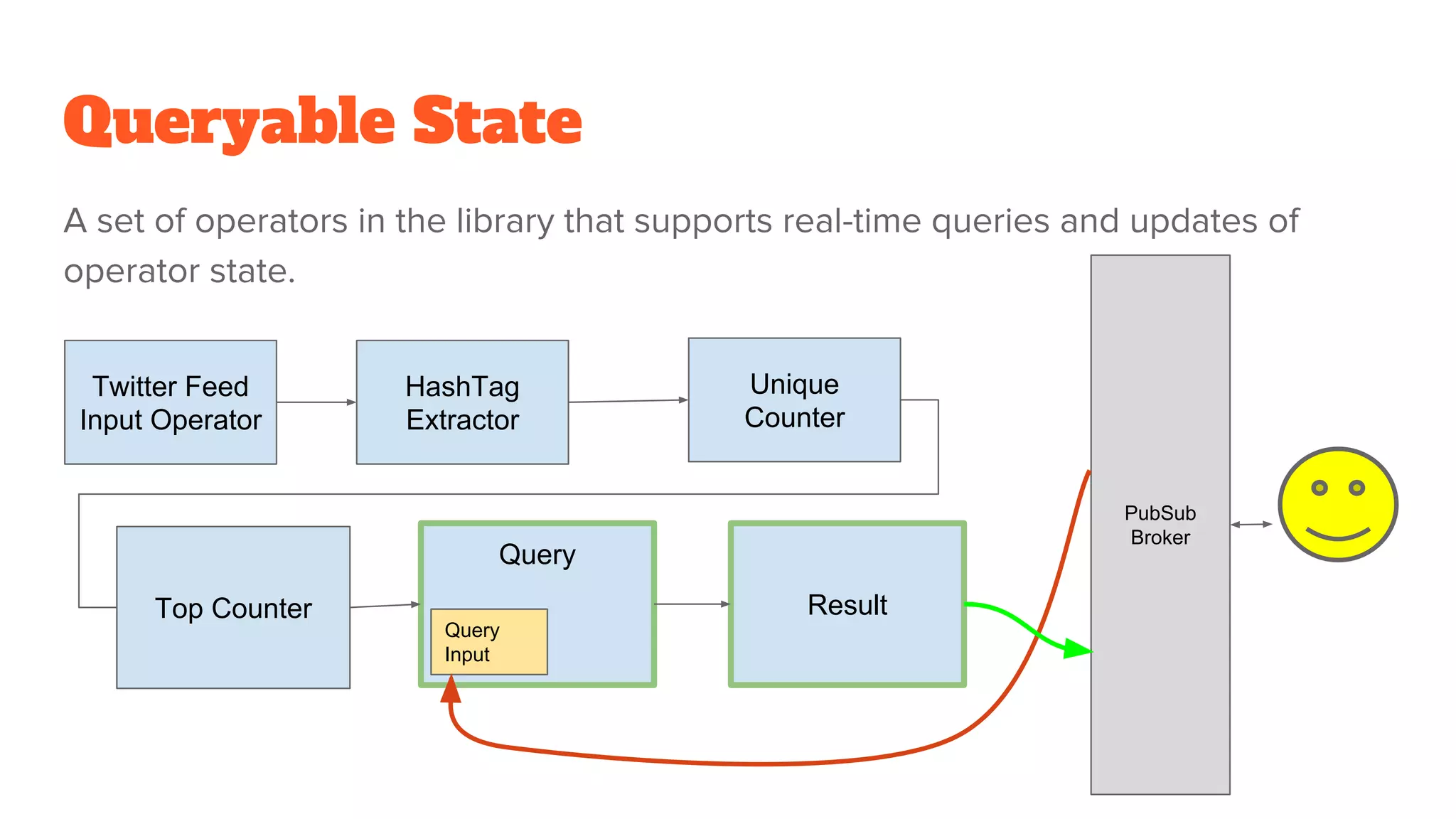

- 18. Queryable State A setof operators in the library that supports real-time queries and updates of operator state. HashTag Extractor Top Counter Twitter Feed Input Operator Unique Counter Query Result PubSub Broker Query Input
- 19.
- 20.

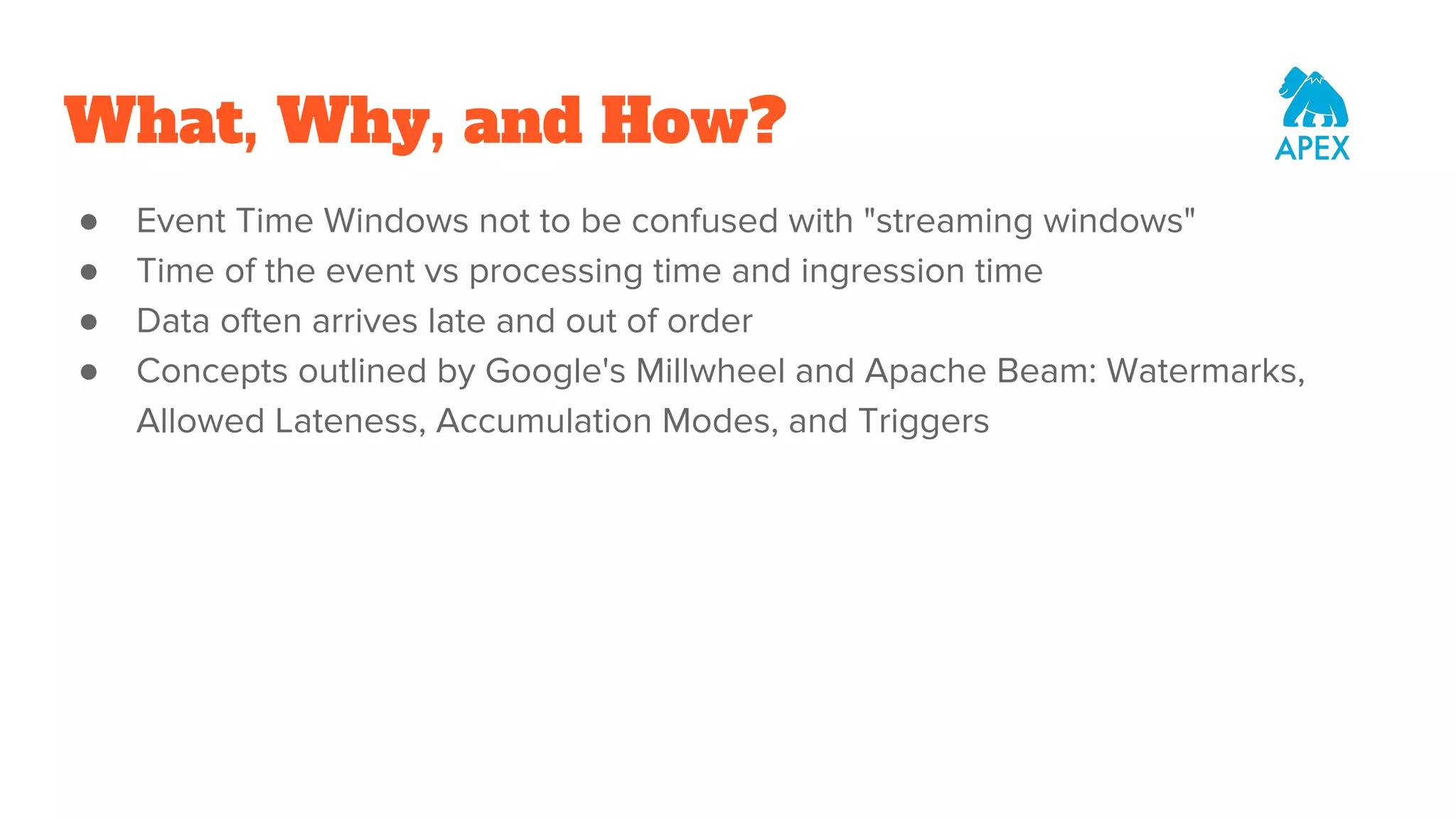

- 21. What, Why, andHow? ● Event Time Windows not to be confused with "streaming windows" ● Time of the event vs processing time and ingression time ● Data often arrives late and out of order ● Concepts outlined by Google's Millwheel and Apache Beam: Watermarks, Allowed Lateness, Accumulation Modes, and Triggers

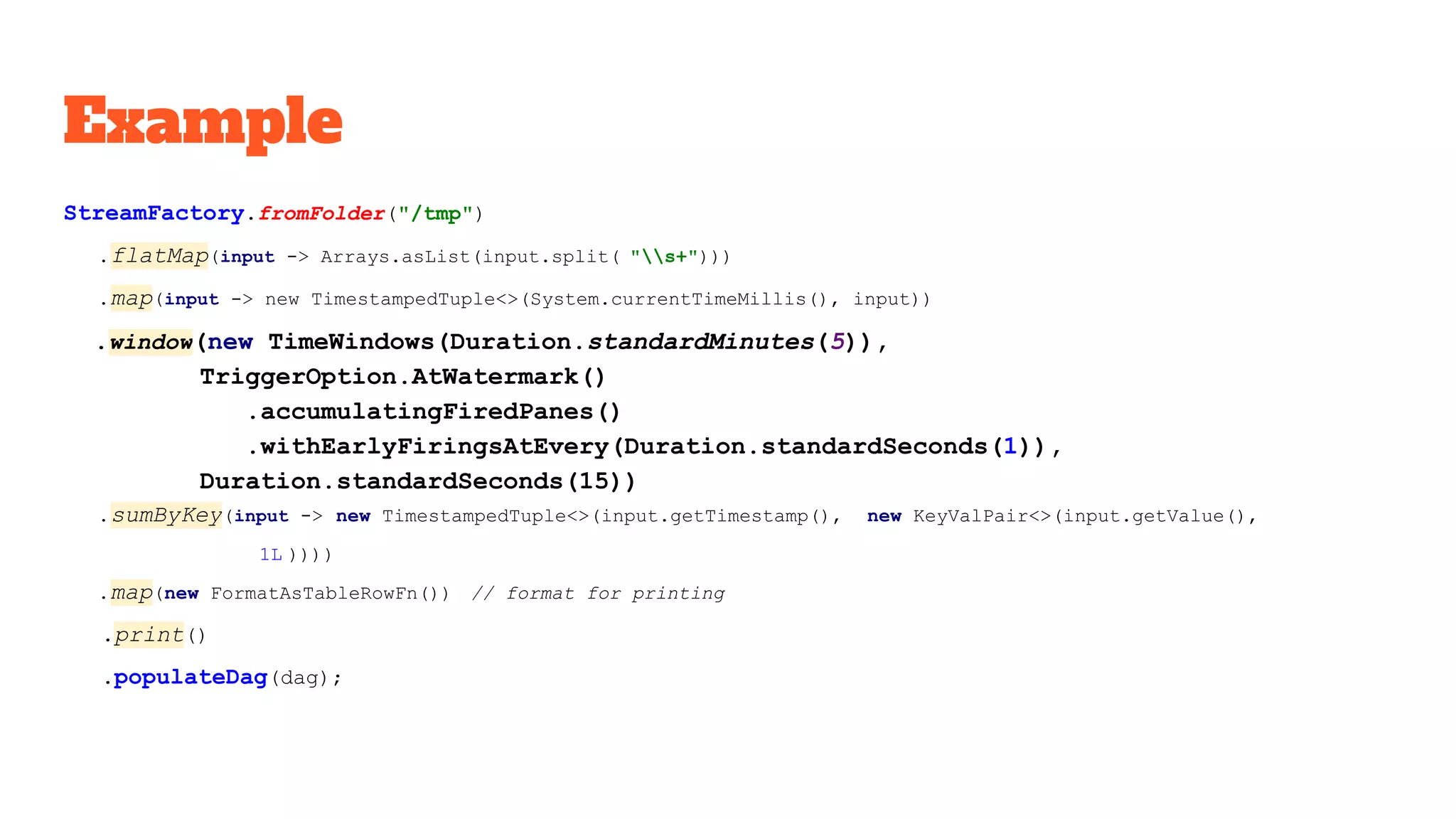

- 22. Example StreamFactory.fromFolder("/tmp") .flatMap(input -> Arrays.asList(input.split("s+"))) .map(input -> new TimestampedTuple<>(System.currentTimeMillis(), input)) .window(new TimeWindows(Duration.standardMinutes(5)), TriggerOption.AtWatermark() .accumulatingFiredPanes() .withEarlyFiringsAtEvery(Duration.standardSeconds(1)), Duration.standardSeconds(15)) .sumByKey(input -> new TimestampedTuple<>(input.getTimestamp(), new KeyValPair<>(input.getValue(), 1L )))) .map(new FormatAsTableRowFn()) // format for printing .print() .populateDag(dag);
- 23. Debugging, Scaling & TuningYour Application

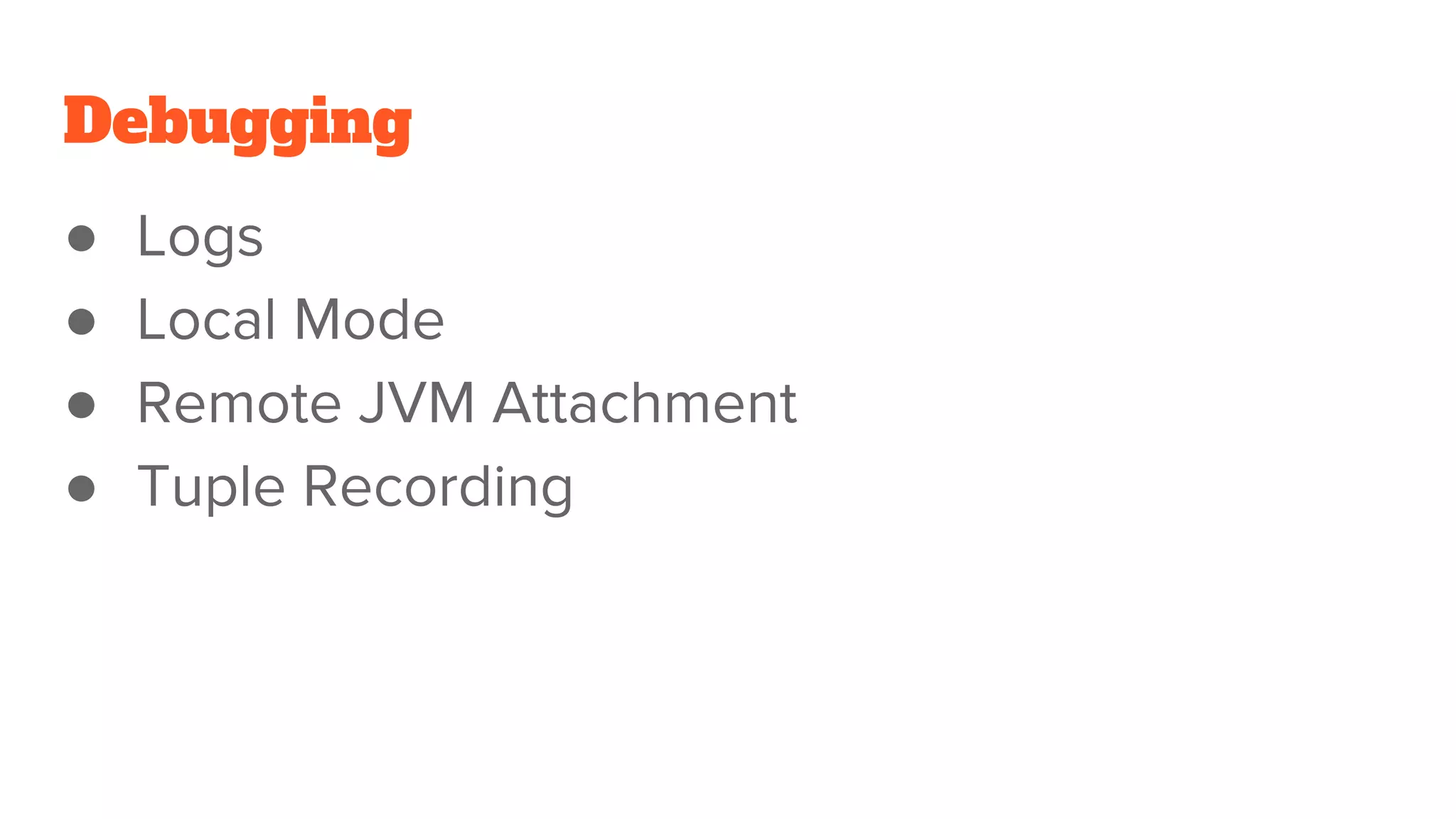

- 24. Debugging ● Logs ● LocalMode ● Remote JVM Attachment ● Tuple Recording

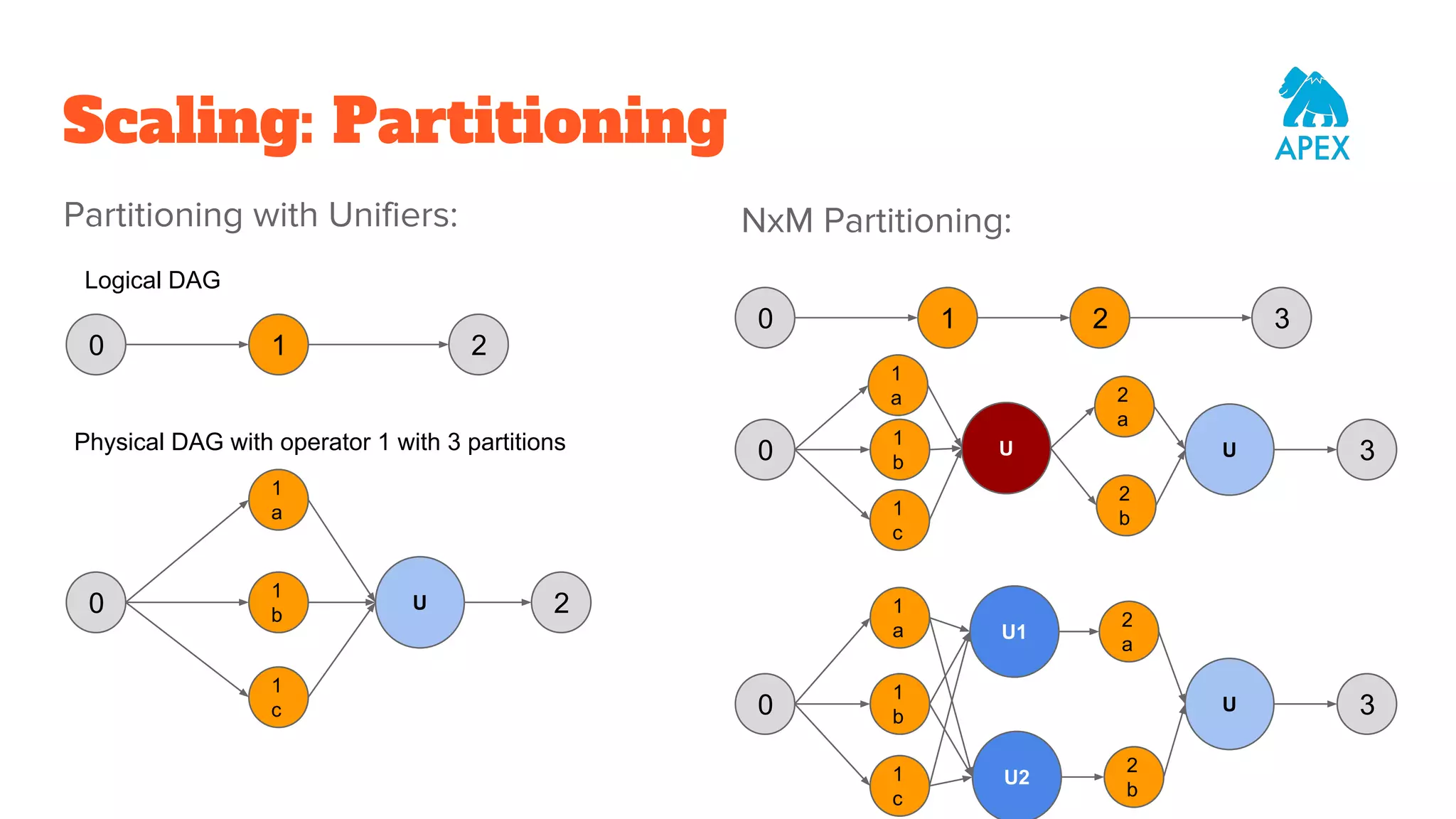

- 25. Scaling: Partitioning Partitioning withUnifiers: NxM Partitioning: 0 1 2 0 1 a 1 b 1 c U 2 Logical DAG Physical DAG with operator 1 with 3 partitions 0 21 3 0 2 a 1 b 3 1 a 1 c 2 b U U 0 2 a 1 b 3 1 a 1 c 2 b U1 U U2

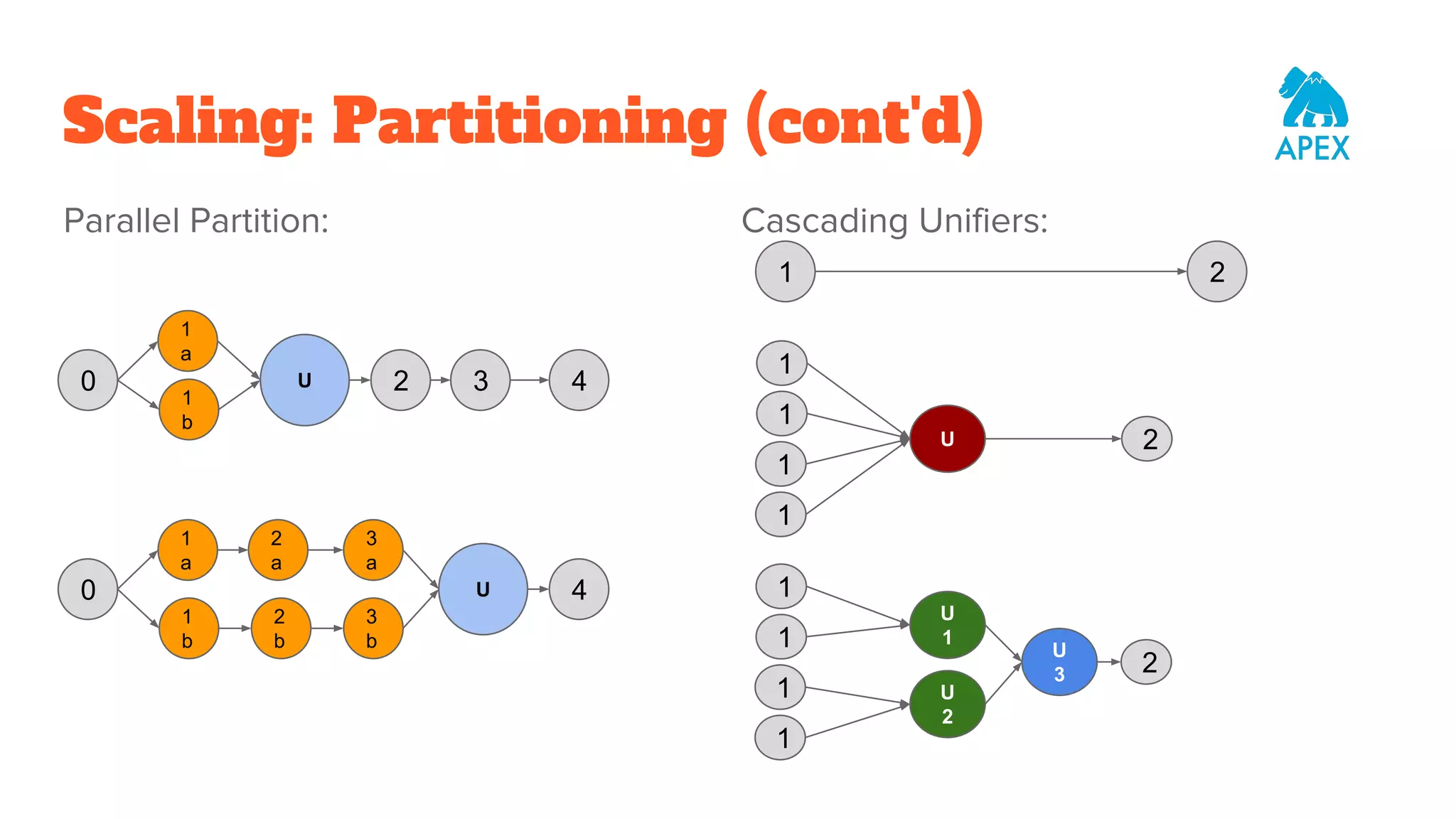

- 26. Scaling: Partitioning (cont'd) ParallelPartition: Cascading Unifiers: 0 1 a 1 b U 2 3 4 0 1 a 1 b U 4 2 a 3 a 2 b 3 b 1 2 1 1 1 1 U 2 1 1 1 1 U 1 2 U 2 U 3

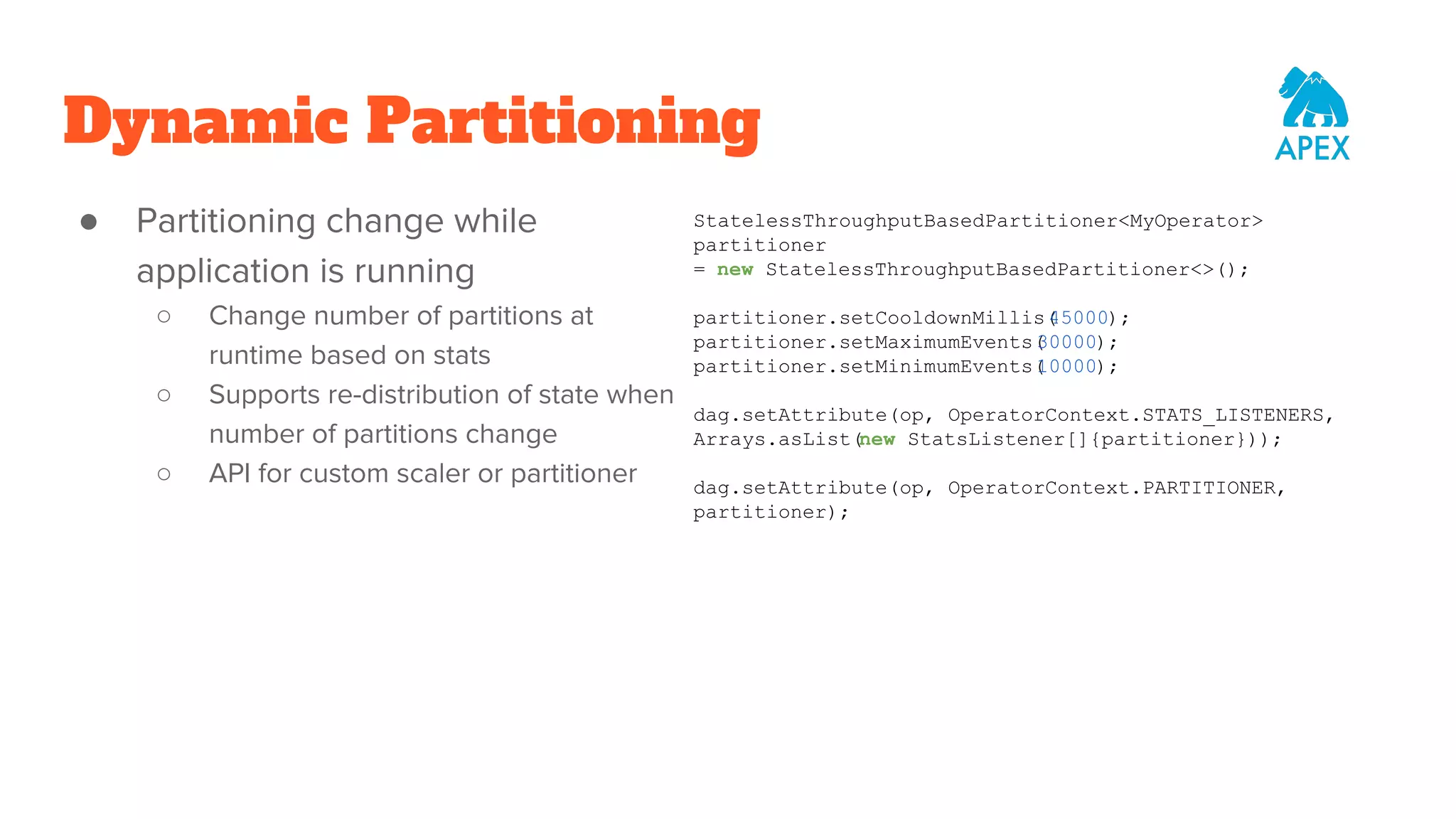

- 27. Dynamic Partitioning ● Partitioningchange while application is running ○ Change number of partitions at runtime based on stats ○ Supports re-distribution of state when number of partitions change ○ API for custom scaler or partitioner StatelessThroughputBasedPartitioner<MyOperator> partitioner = new StatelessThroughputBasedPartitioner<>(); partitioner.setCooldownMillis(45000); partitioner.setMaximumEvents(30000); partitioner.setMinimumEvents(10000); dag.setAttribute(op, OperatorContext.STATS_LISTENERS, Arrays.asList(new StatsListener[]{partitioner})); dag.setAttribute(op, OperatorContext.PARTITIONER, partitioner);

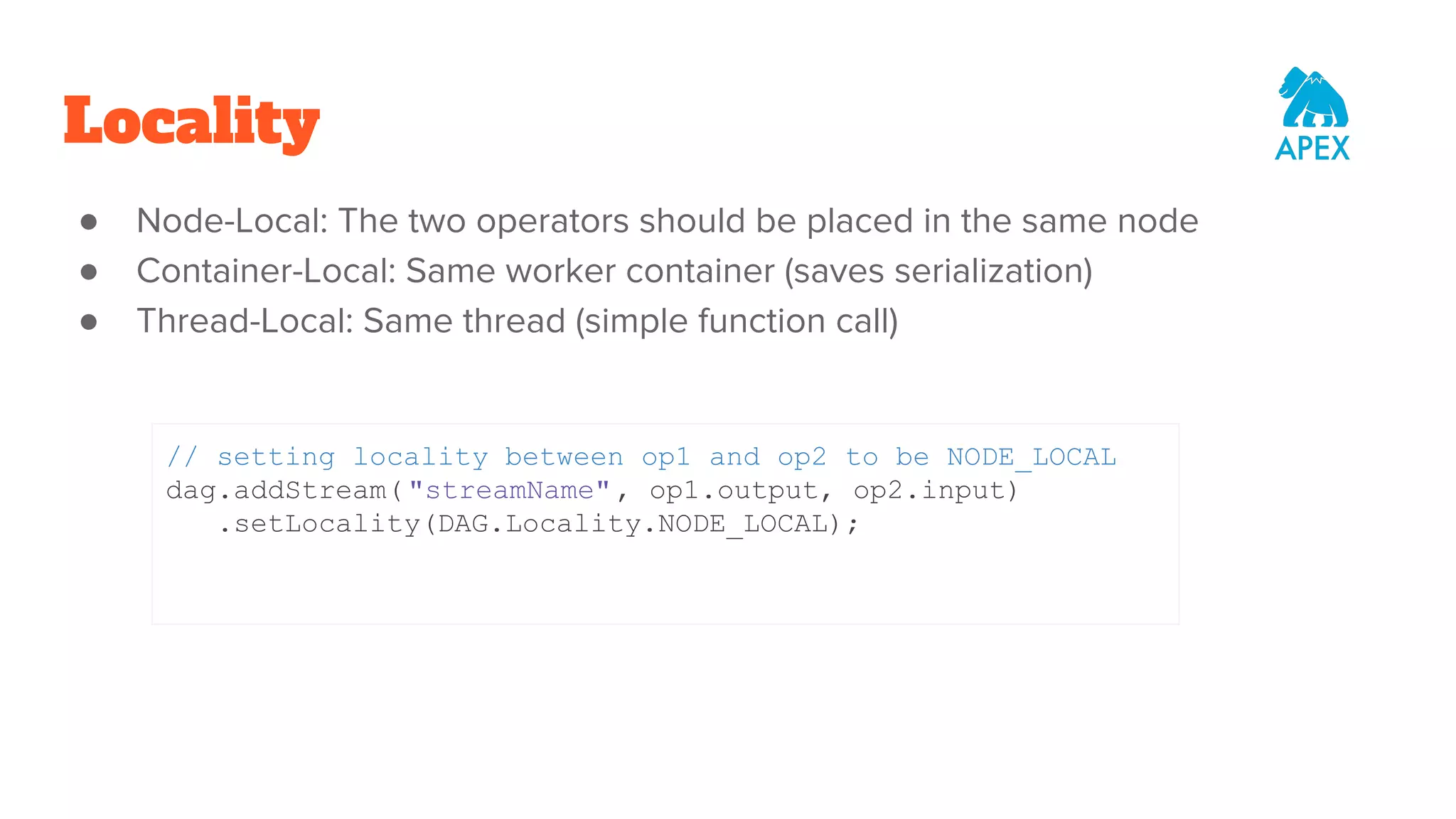

- 28. Locality ● Node-Local: Thetwo operators should be placed in the same node ● Container-Local: Same worker container (saves serialization) ● Thread-Local: Same thread (simple function call) // setting locality between op1 and op2 to be NODE_LOCAL dag.addStream( "streamName", op1.output, op2.input) .setLocality(DAG.Locality.NODE_LOCAL);

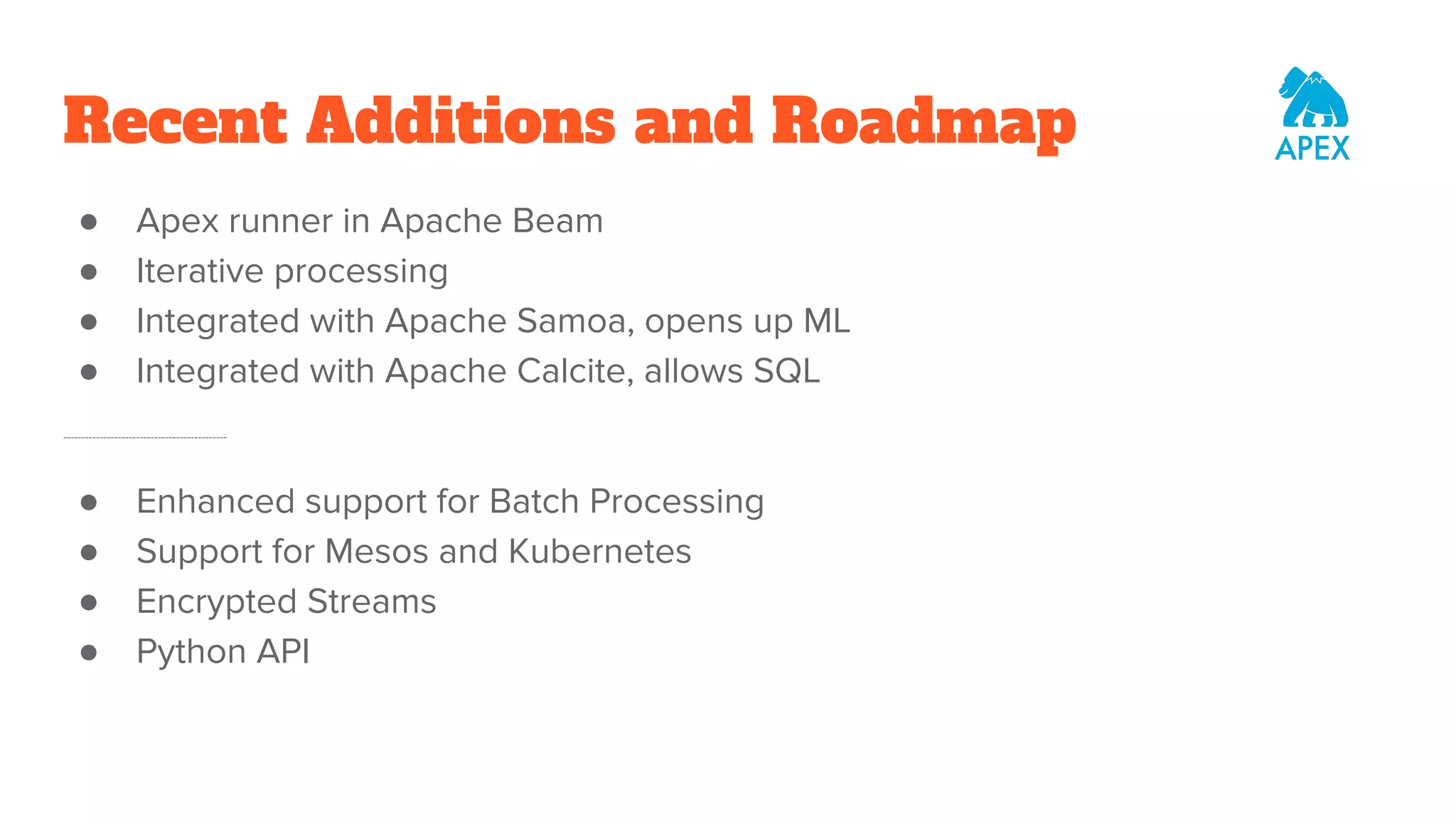

- 29. Recent Additions andRoadmap ● Apex runner in Apache Beam ● Iterative processing ● Integrated with Apache Samoa, opens up ML ● Integrated with Apache Calcite, allows SQL --------------------------------------------- ● Enhanced support for Batch Processing ● Support for Mesos and Kubernetes ● Encrypted Streams ● Python API
- 30.

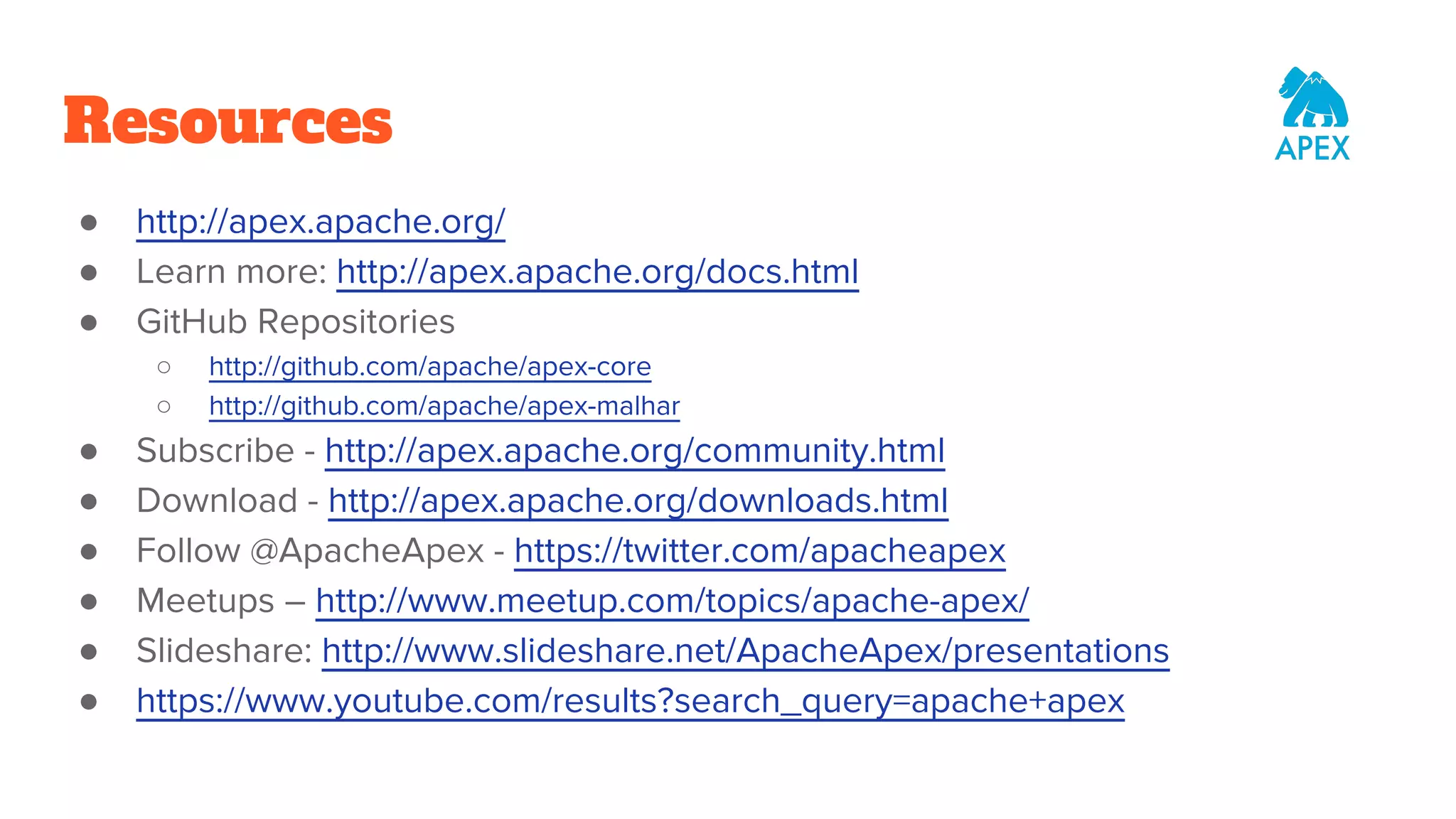

- 31. Resources ● http://apex.apache.org/ ● Learnmore: http://apex.apache.org/docs.html ● GitHub Repositories ○ http://github.com/apache/apex-core ○ http://github.com/apache/apex-malhar ● Subscribe - http://apex.apache.org/community.html ● Download - http://apex.apache.org/downloads.html ● Follow @ApacheApex - https://twitter.com/apacheapex ● Meetups – http://www.meetup.com/topics/apache-apex/ ● Slideshare: http://www.slideshare.net/ApacheApex/presentations ● https://www.youtube.com/results?search_query=apache+apex
