MongoDB.local DC 2018: Tutorial - Data Analytics with MongoDB

Jane Fine Director of Product Marketing, Analytics jane.fine@mongodb.com @janeuyvova

Bryan Reinero Product Manager bryan@mongodb.com @bryanreinero

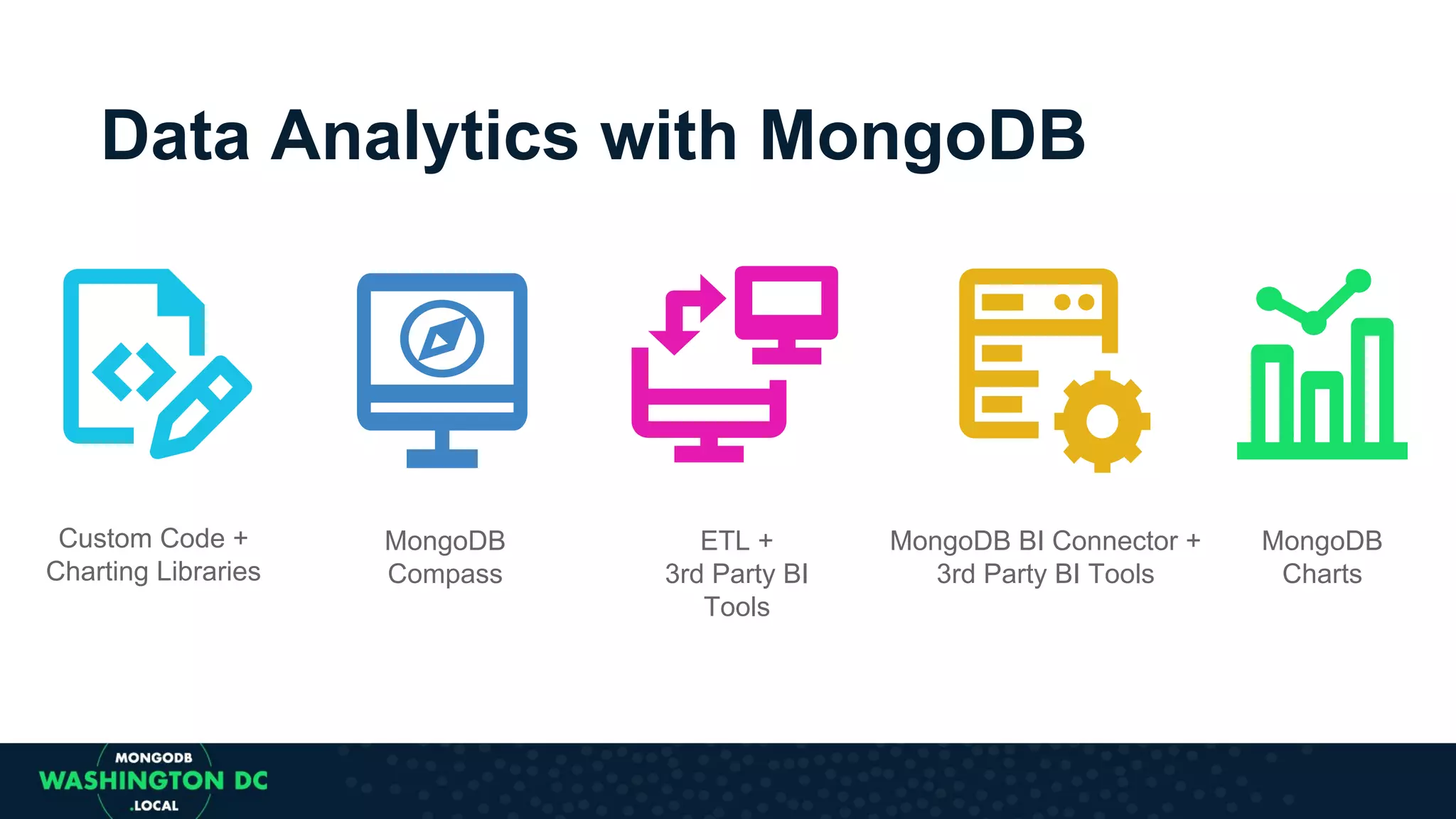

Data Analytics with MongoDB Custom Code + Charting Libraries ETL + 3rd Party BI Tools MongoDB BI Connector + 3rd Party BI Tools MongoDB Charts MongoDB Compass

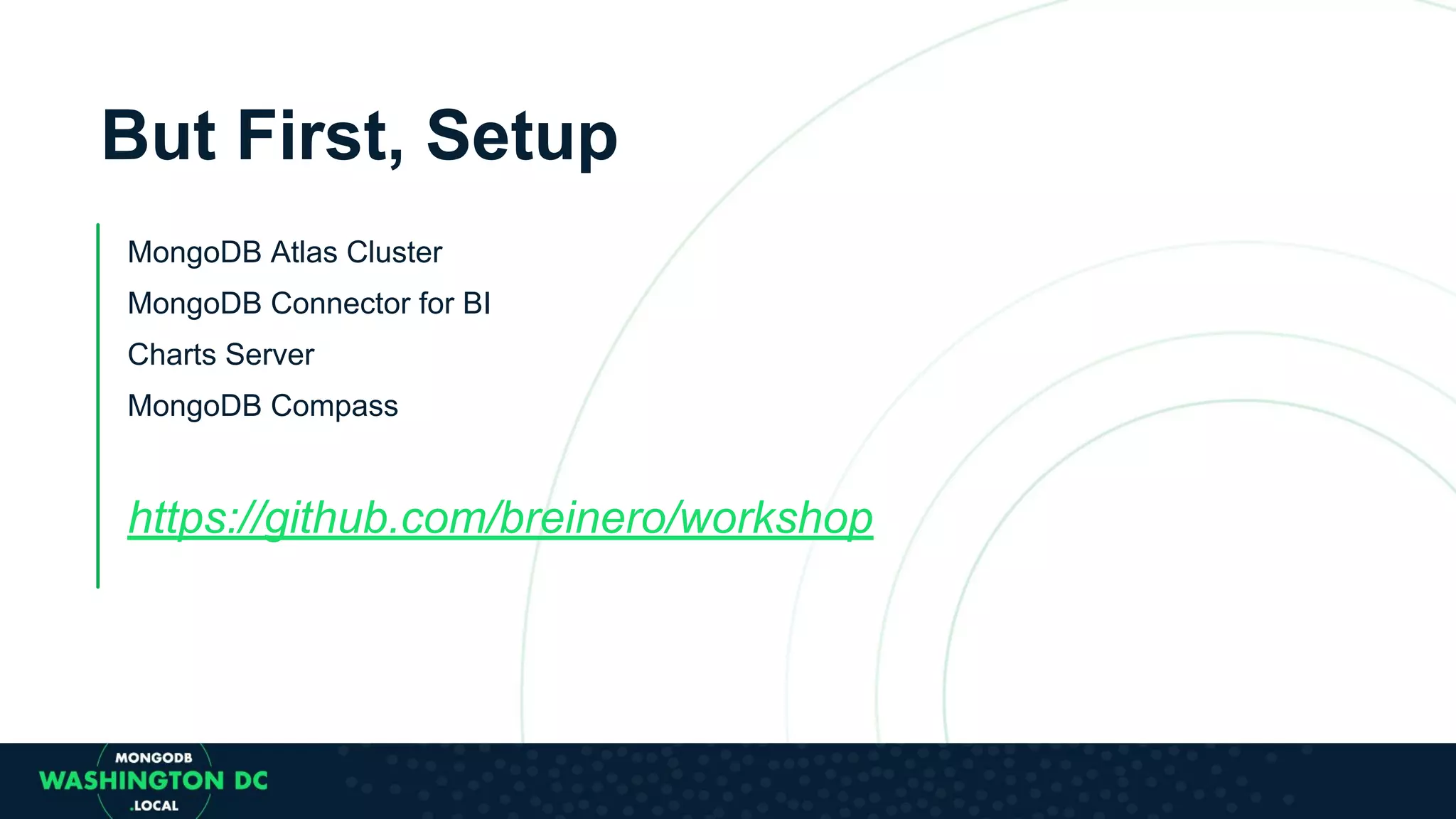

But First, Setup MongoDB Atlas Cluster MongoDB Connector for BI Charts Server MongoDB Compass https://github.com/breinero/workshop

MongoDB Connector for Business Intelligence

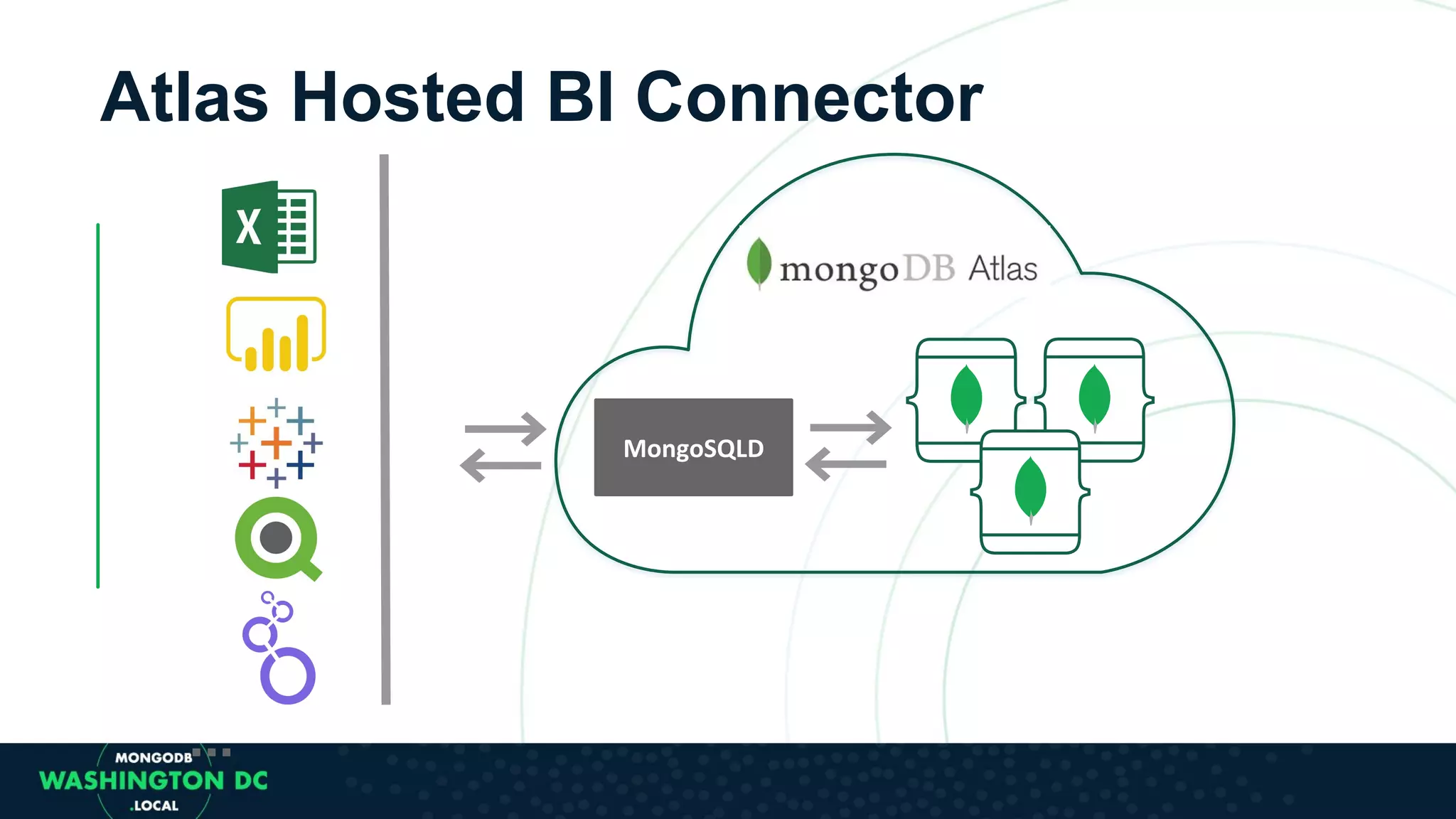

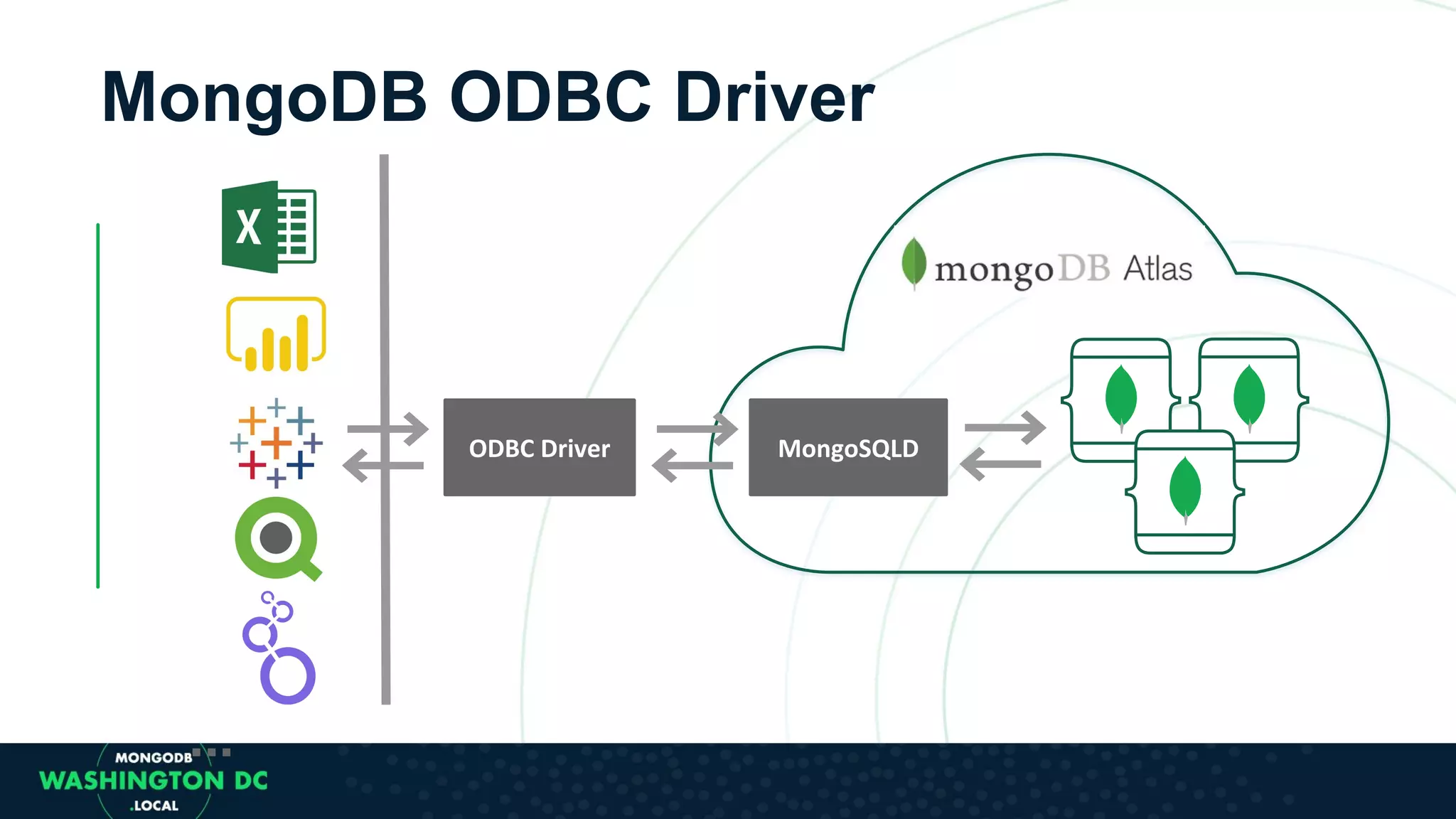

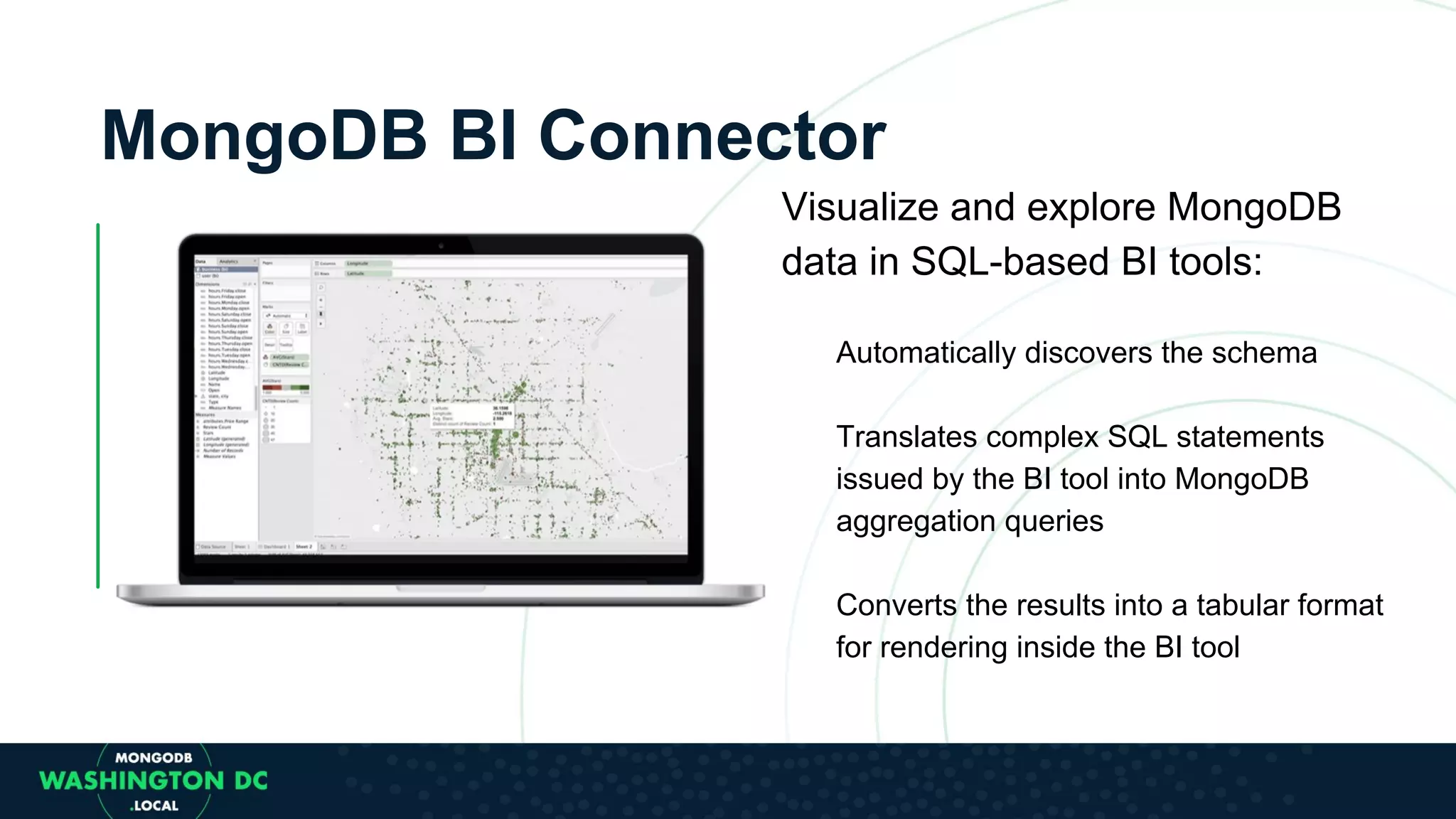

MongoDB BI Connector Visualize and explore MongoDB data in SQL-based BI tools: Automatically discovers the schema Translates complex SQL statements issued by the BI tool into MongoDB aggregation queries Converts the results into a tabular format for rendering inside the BI tool

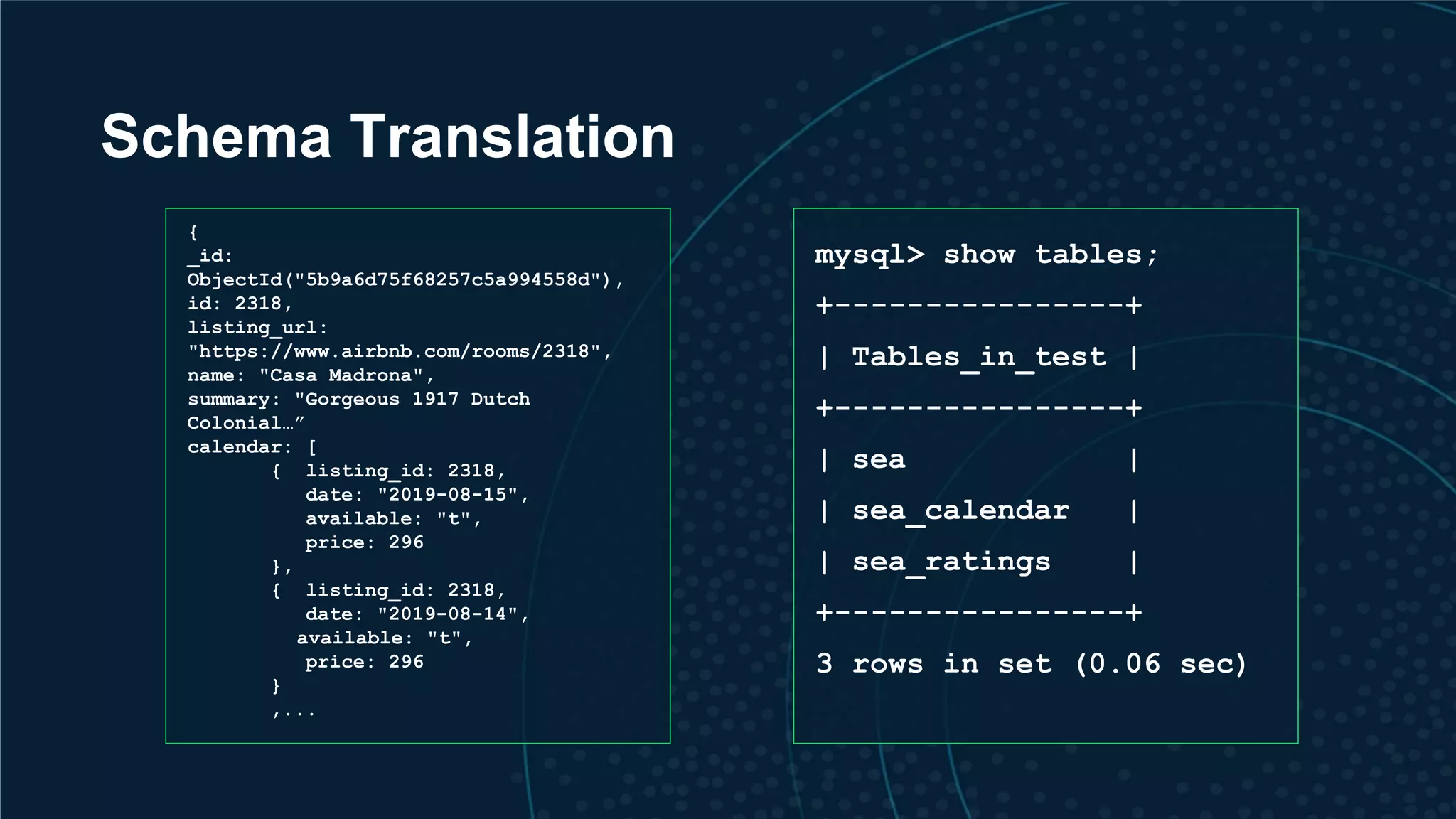

Schema Translation { _id: ObjectId("5b9a6d75f68257c5a994558d"), id: 2318, listing_url: "https://www.airbnb.com/rooms/2318", name: "Casa Madrona", summary: "Gorgeous 1917 Dutch Colonial…” calendar: [ { listing_id: 2318, date: "2019-08-15", available: "t", price: 296 }, { listing_id: 2318, date: "2019-08-14", available: "t", price: 296 } ,... mysql> show tables; +----------------+ | Tables_in_test | +----------------+ | sea | | sea_calendar | | sea_ratings | +----------------+ 3 rows in set (0.06 sec)

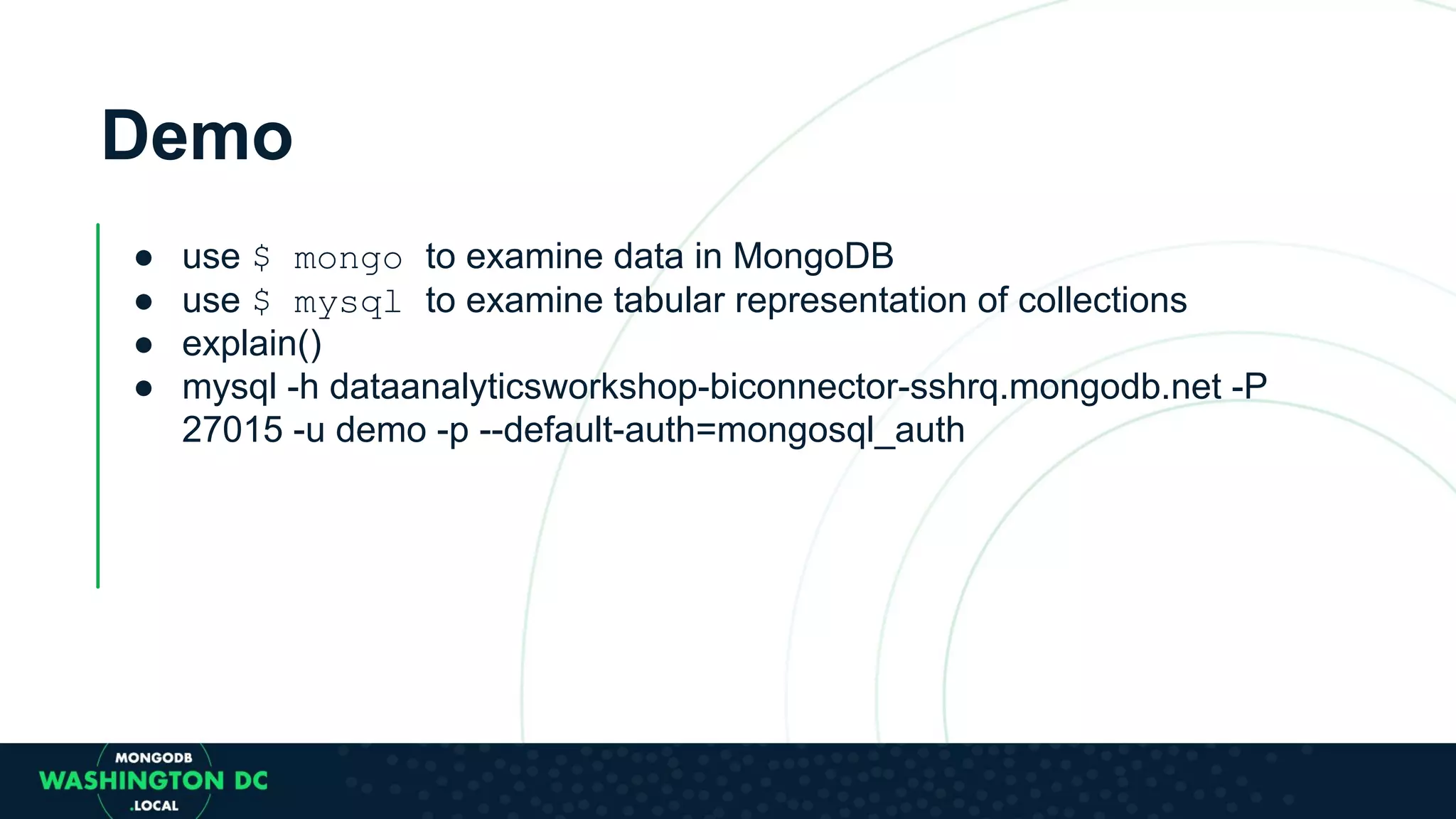

Demo ● use $ mongo to examine data in MongoDB ● use $ mysql to examine tabular representation of collections ● explain() ● mysql -h dataanalyticsworkshop-biconnector-sshrq.mongodb.net -P 27015 -u demo -p --default-auth=mongosql_auth

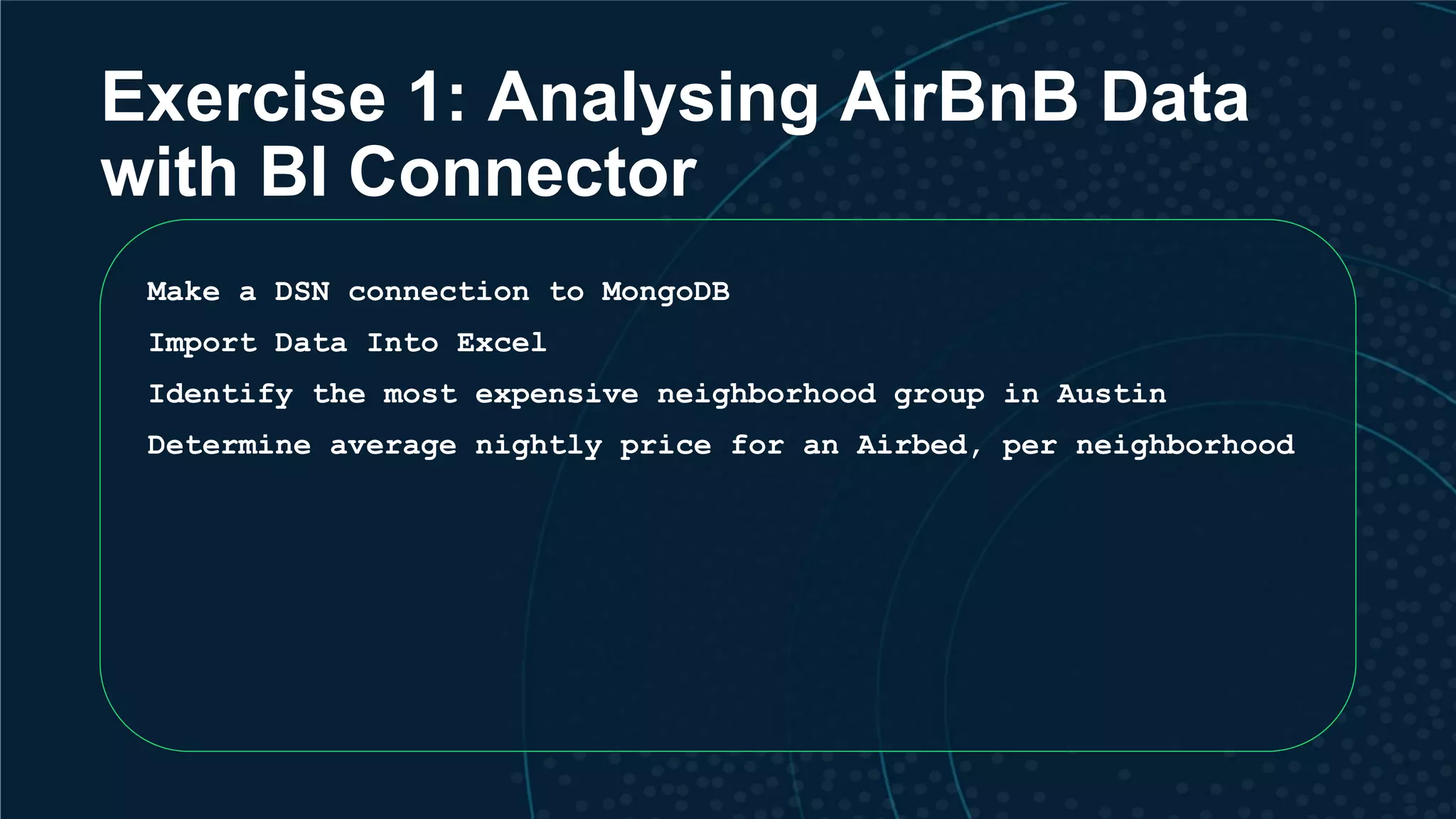

Exercise 1: Analysing AirBnB Data with BI Connector Make a DSN connection to MongoDB Import Data Into Excel Identify the most expensive neighborhood group in Austin Determine average nightly price for an Airbed, per neighborhood

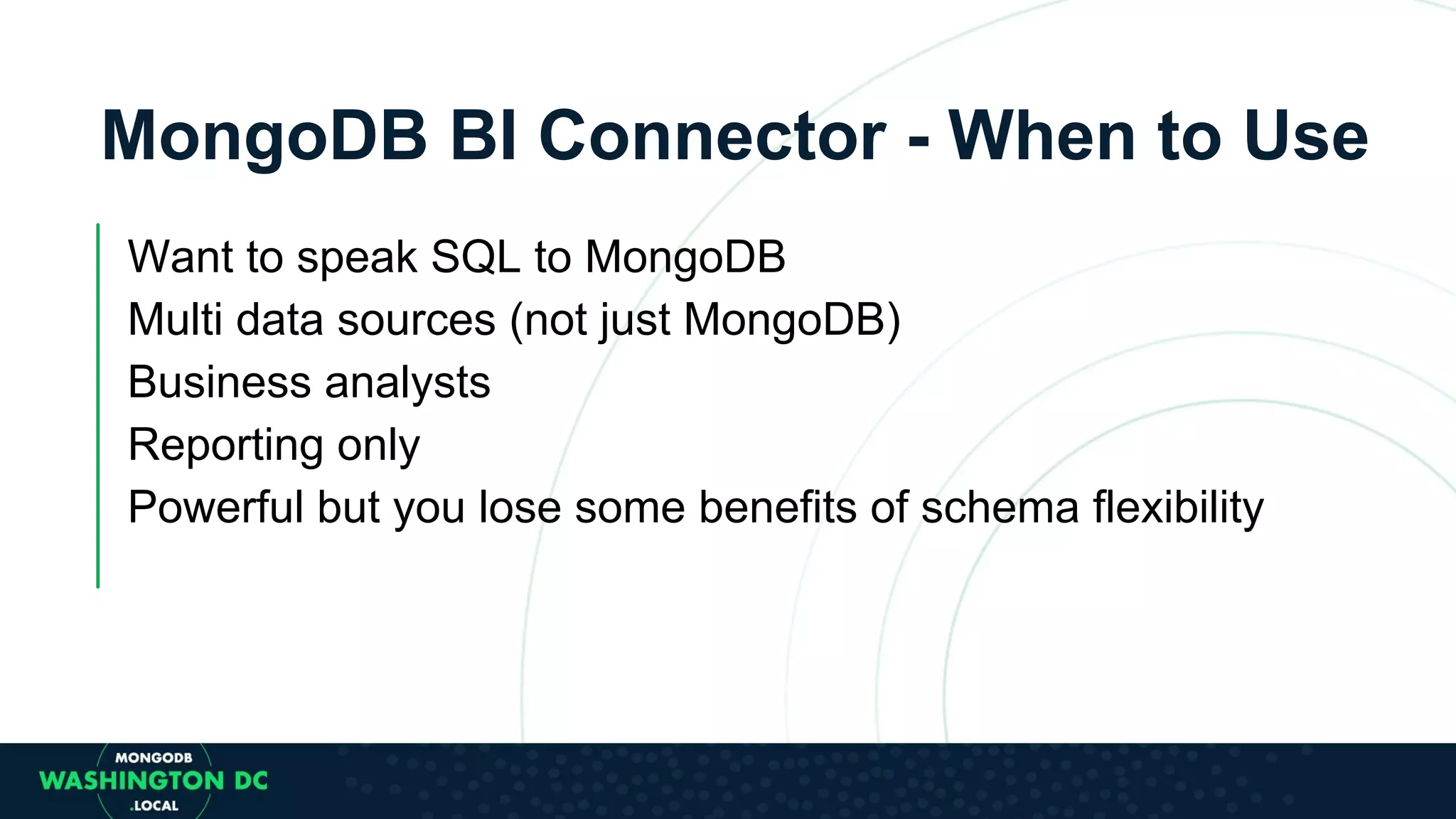

MongoDB BI Connector - When to Use Want to speak SQL to MongoDB Multi data sources (not just MongoDB) Business analysts Reporting only Powerful but you lose some benefits of schema flexibility

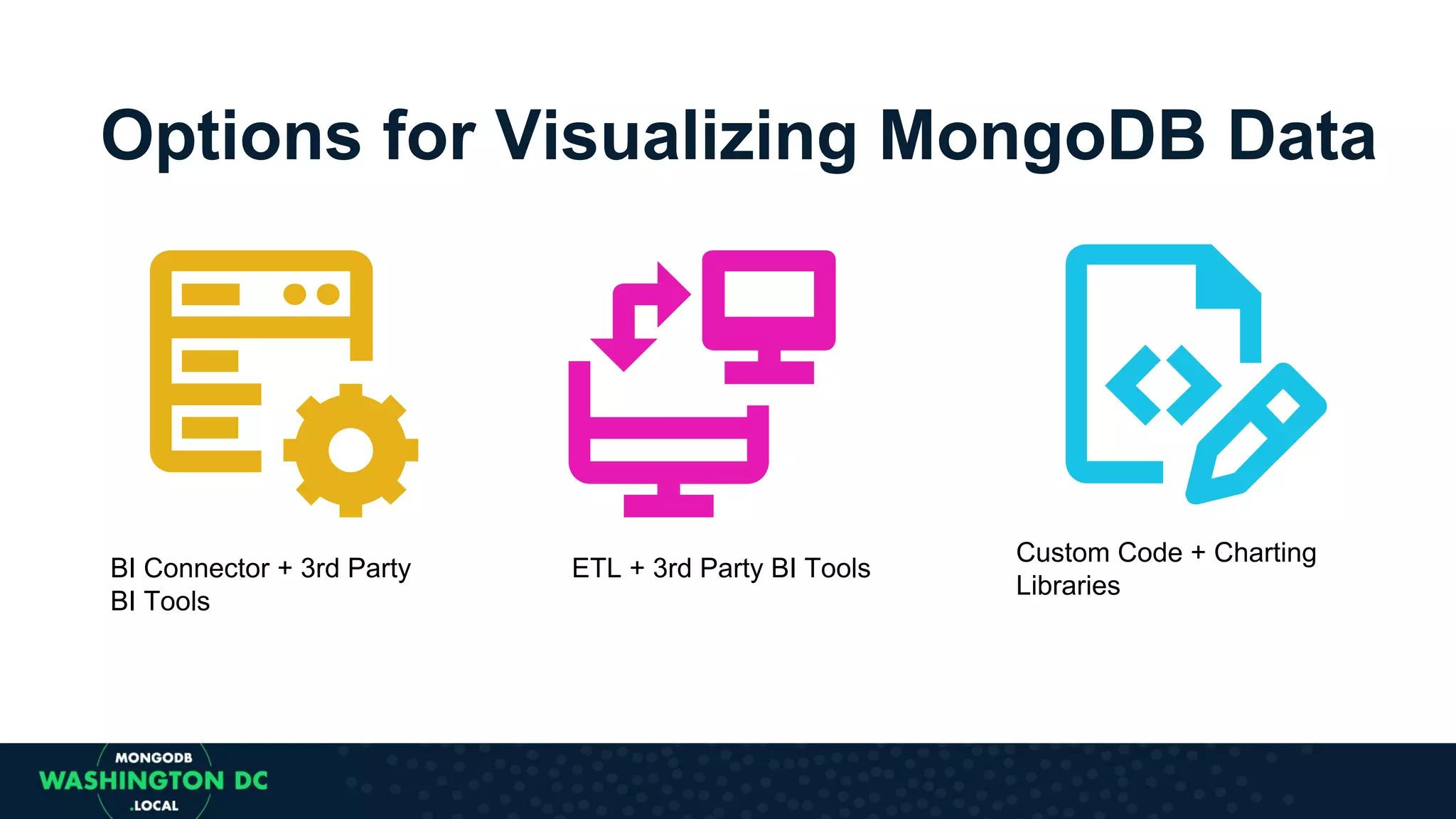

Options for Visualizing MongoDB Data Custom Code + Charting Libraries ETL + 3rd Party BI ToolsBI Connector + 3rd Party BI Tools

Wouldn’t it be nice if... You could visualize your MongoDB Data… without needing to write your own code without needing to move your data into a different repository without needing to purchase and configure third-party tools without losing the richness of the Document Model

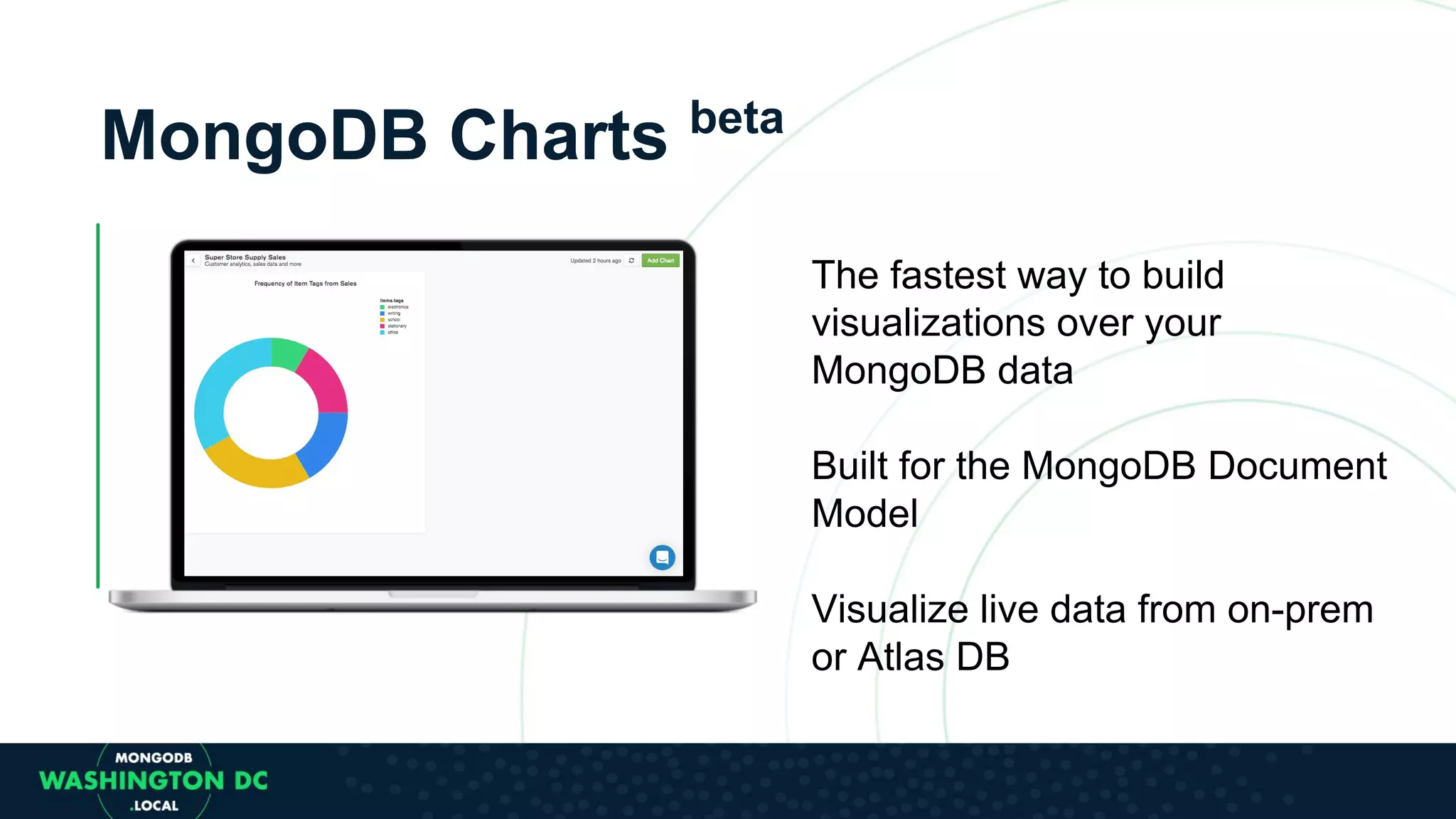

MongoDB Charts beta The fastest way to build visualizations over your MongoDB data Built for the MongoDB Document Model Visualize live data from on-prem or Atlas DB

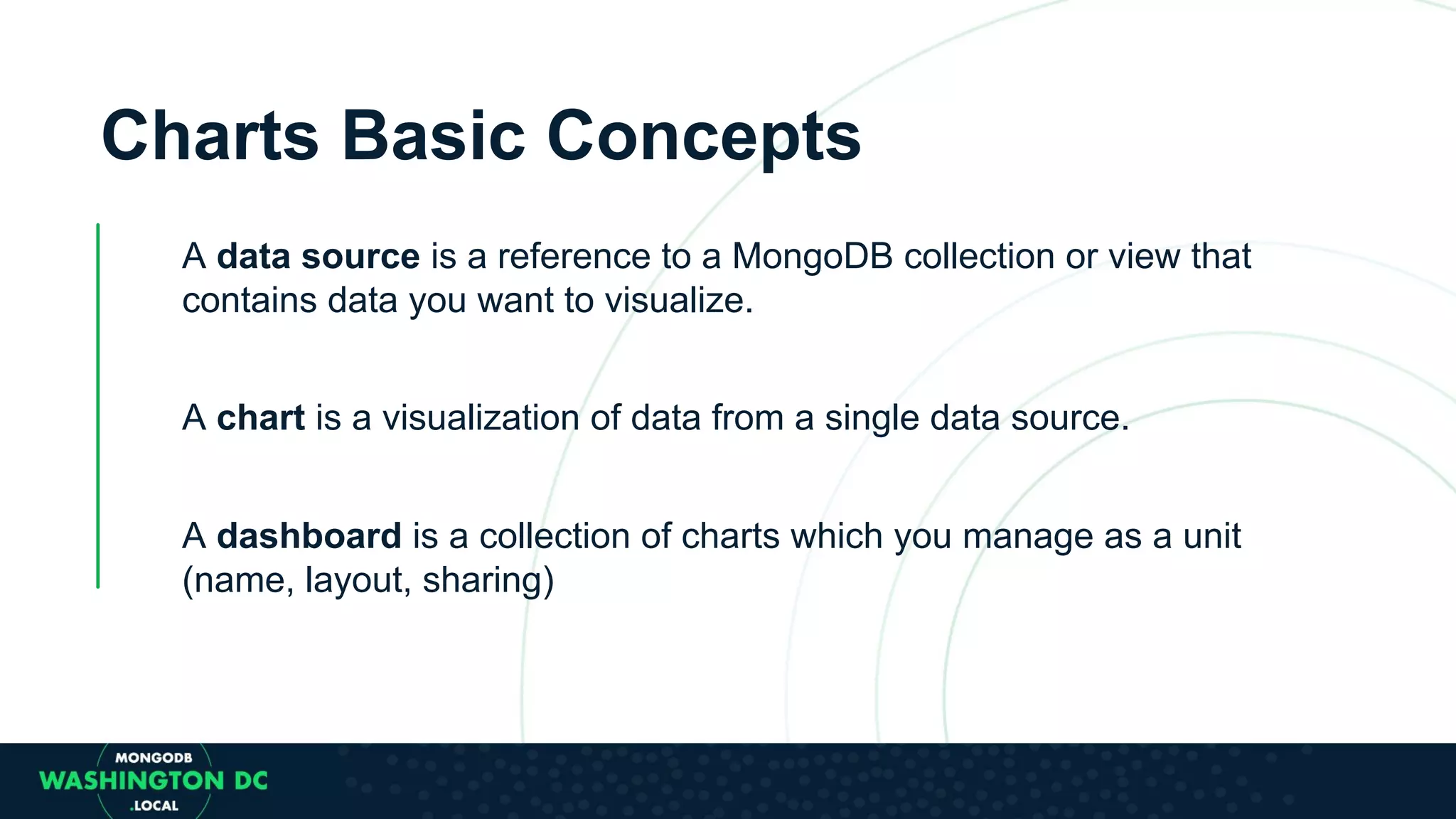

Charts Basic Concepts A data source is a reference to a MongoDB collection or view that contains data you want to visualize. A chart is a visualization of data from a single data source. A dashboard is a collection of charts which you manage as a unit (name, layout, sharing)

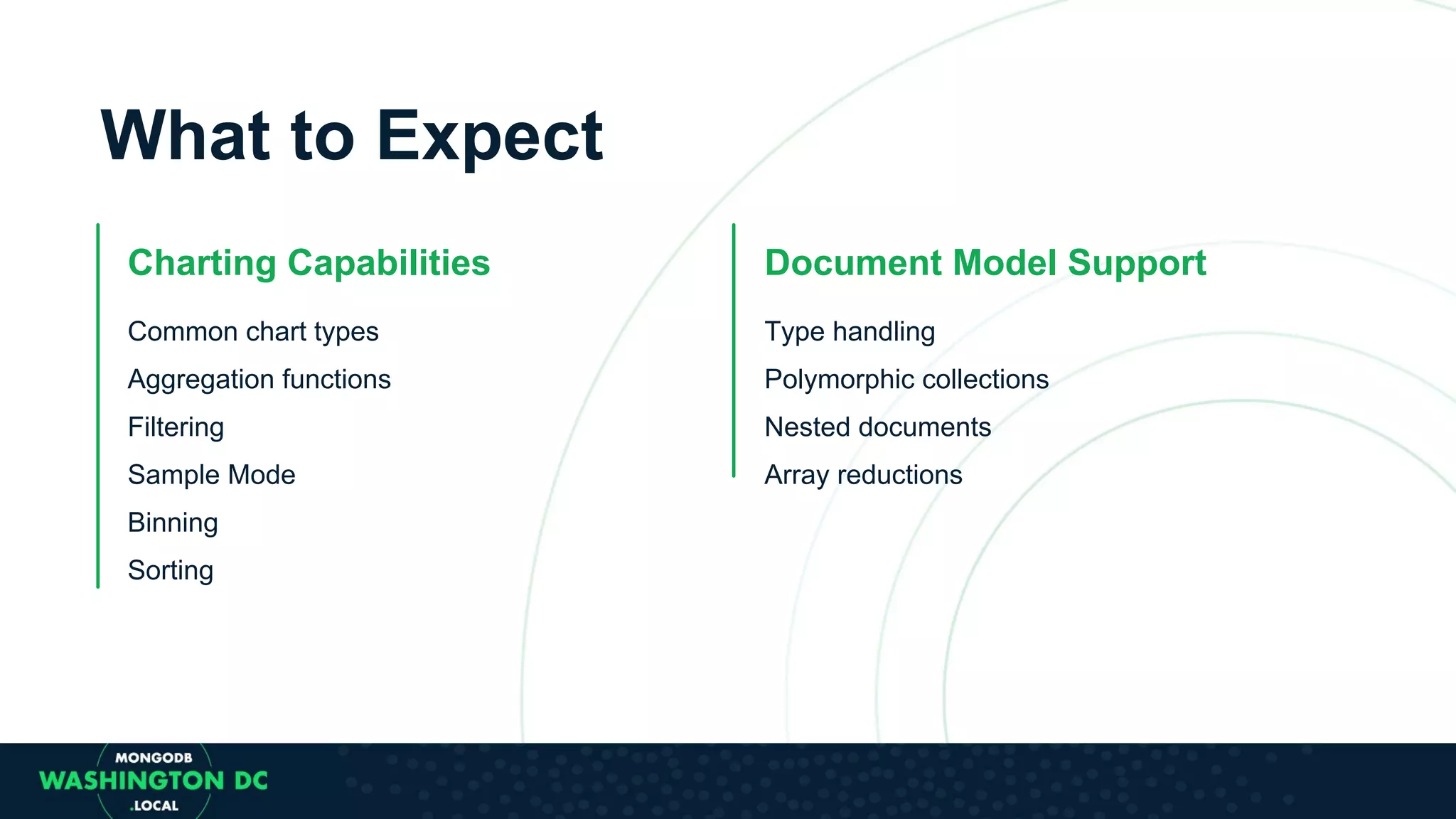

What to Expect Charting Capabilities Common chart types Aggregation functions Filtering Sample Mode Binning Sorting Document Model Support Type handling Polymorphic collections Nested documents Array reductions

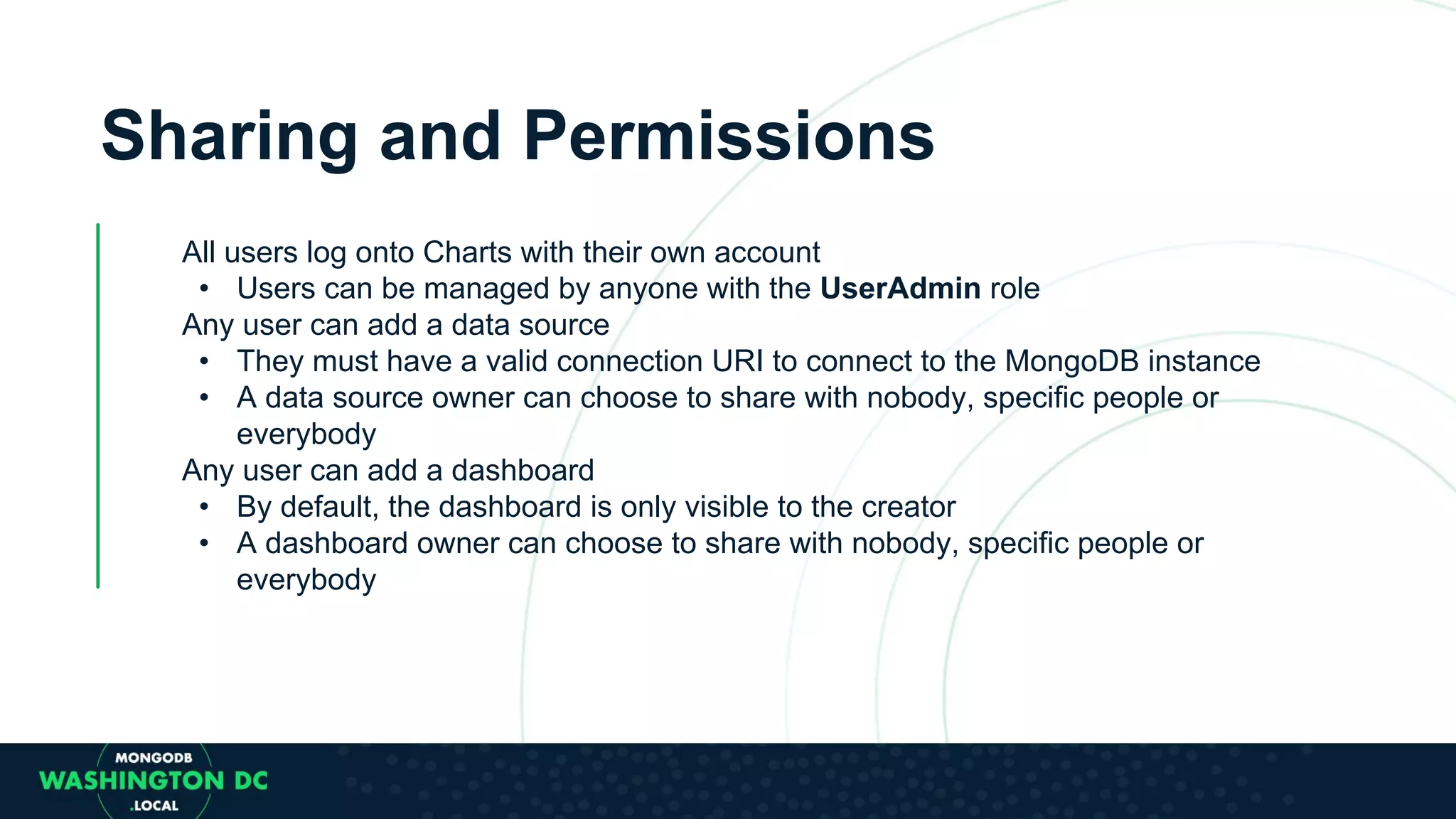

Sharing and Permissions All users log onto Charts with their own account • Users can be managed by anyone with the UserAdmin role Any user can add a data source • They must have a valid connection URI to connect to the MongoDB instance • A data source owner can choose to share with nobody, specific people or everybody Any user can add a dashboard • By default, the dashboard is only visible to the creator • A dashboard owner can choose to share with nobody, specific people or everybody

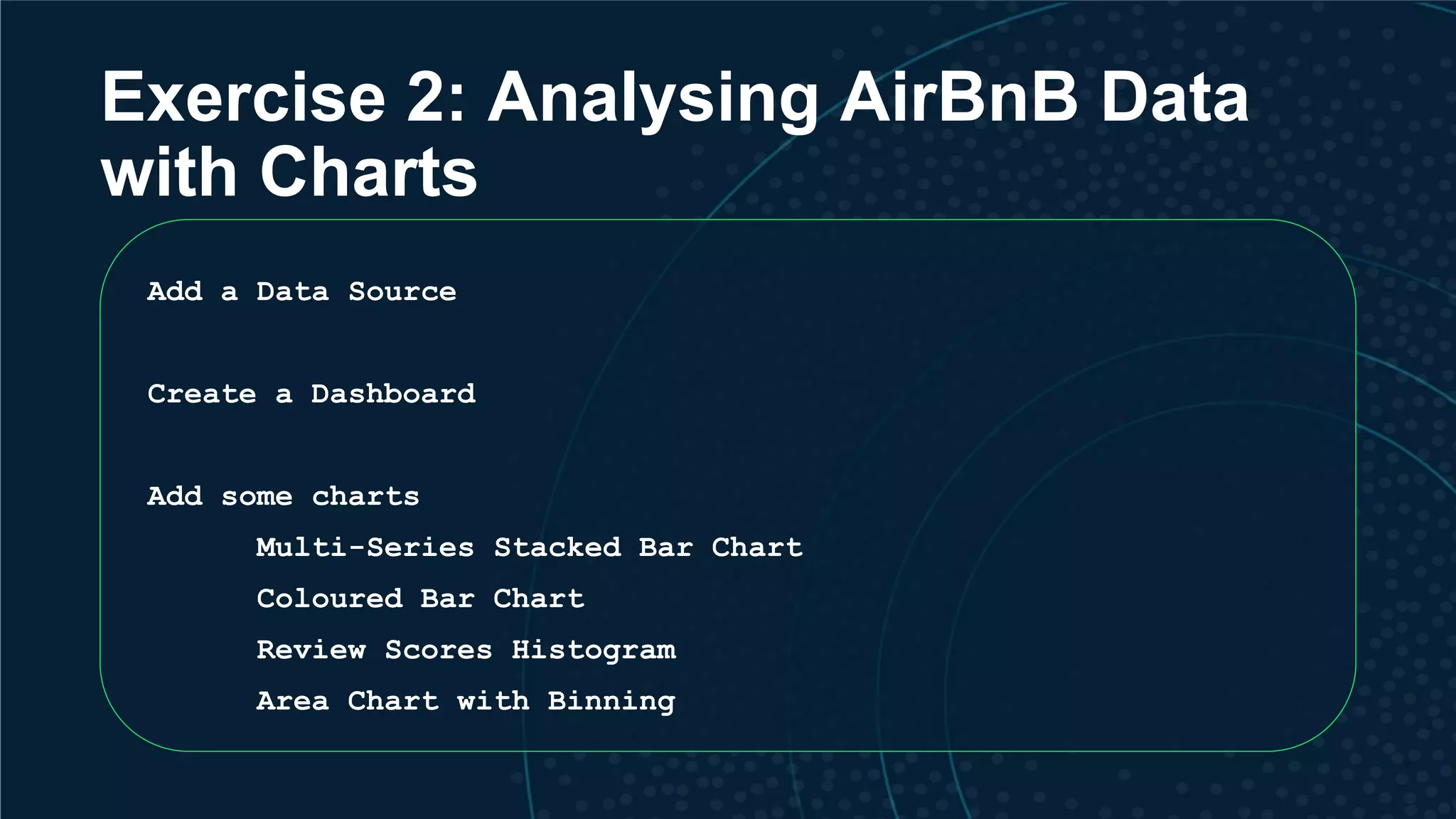

Exercise 2: Analysing AirBnB Data with Charts Add a Data Source Create a Dashboard Add some charts Multi-Series Stacked Bar Chart Coloured Bar Chart Review Scores Histogram Area Chart with Binning

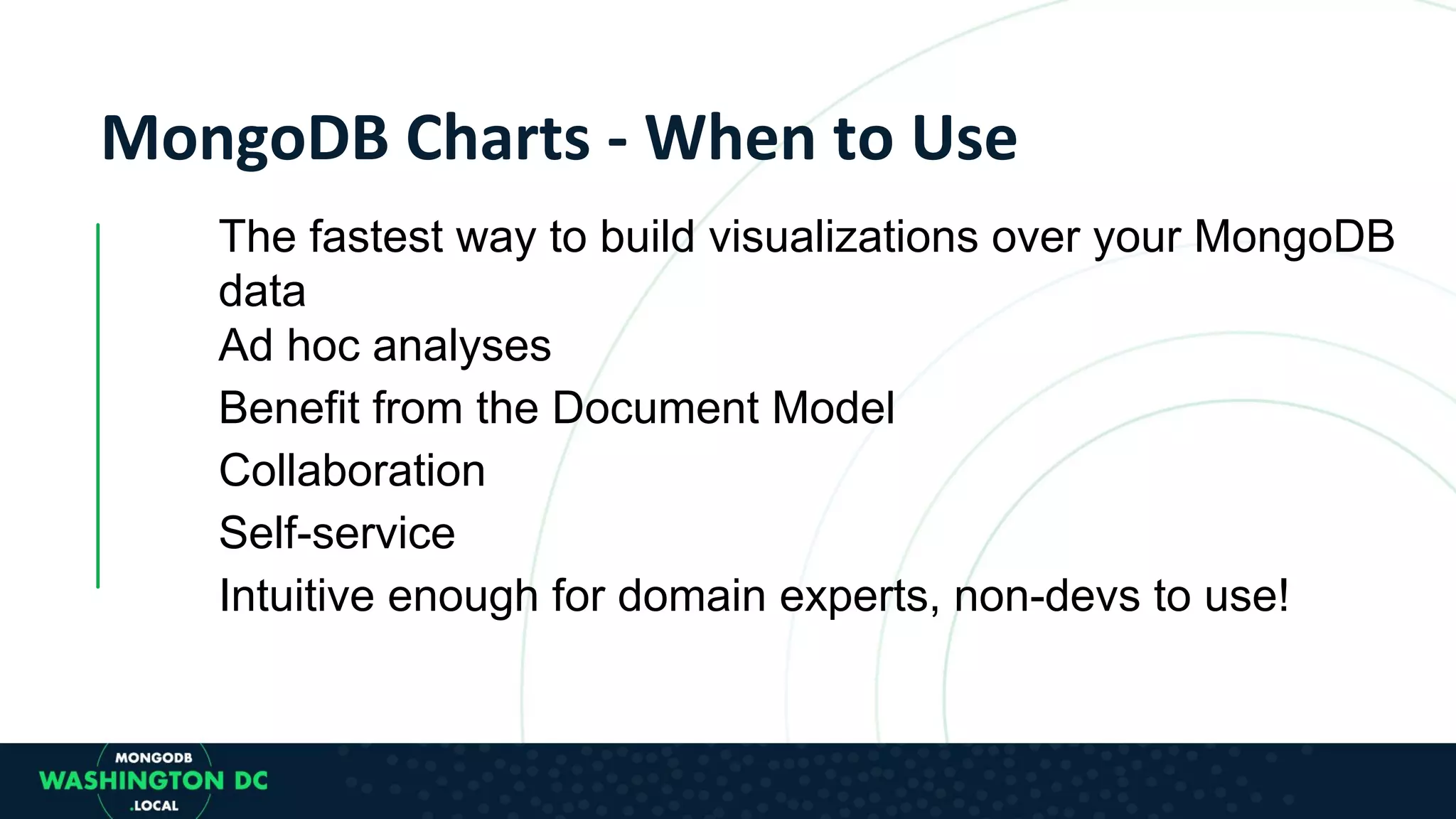

The fastest way to build visualizations over your MongoDB data Ad hoc analyses Benefit from the Document Model Collaboration Self-service Intuitive enough for domain experts, non-devs to use!

MongoDB Aggregation Framework and Compass

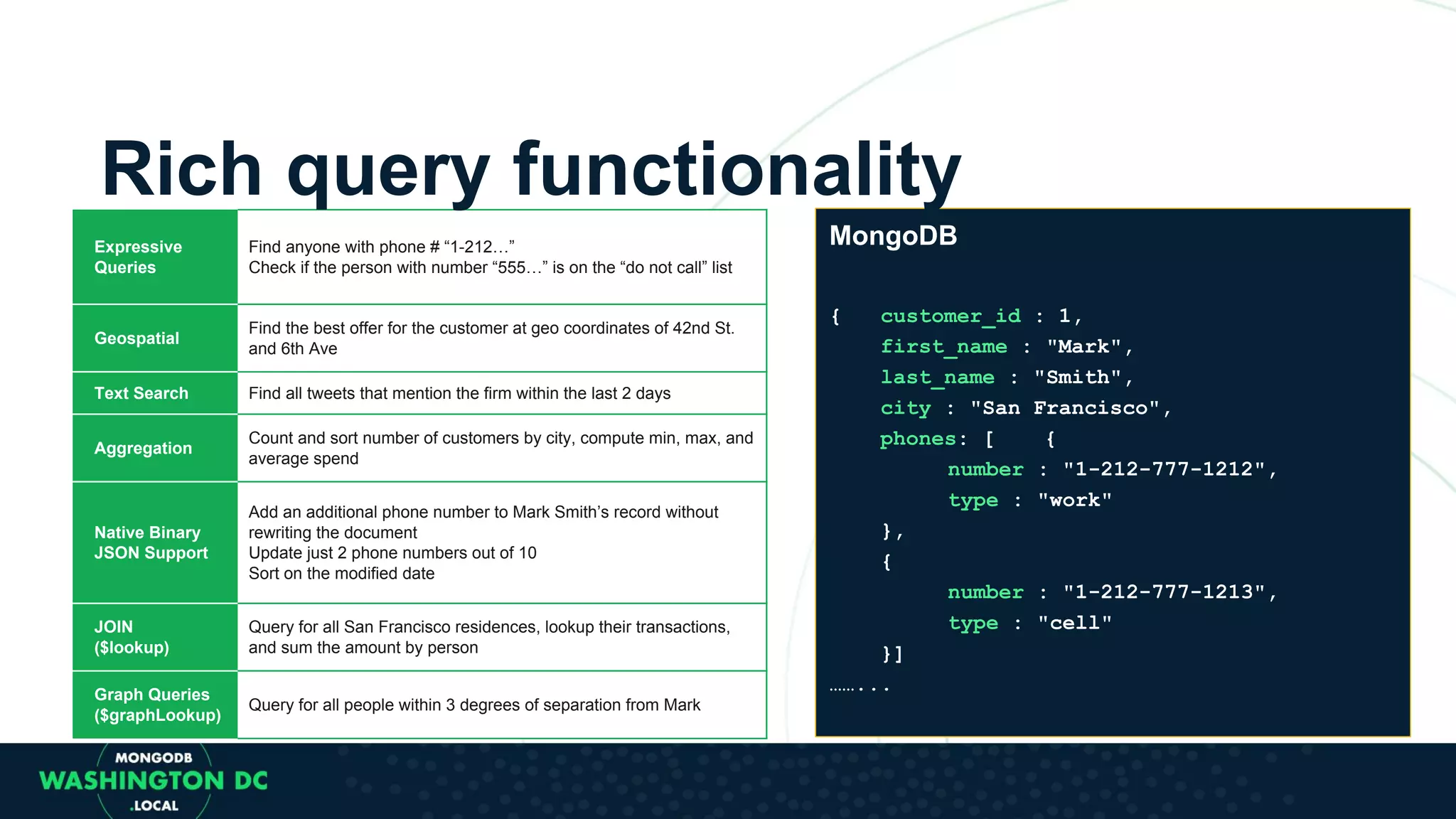

MongoDB { customer_id : 1, first_name : "Mark", last_name : "Smith", city : "San Francisco", phones: [ { number : "1-212-777-1212", type : "work" }, { number : "1-212-777-1213", type : "cell" }] ……... Expressive Queries Find anyone with phone # “1-212…” Check if the person with number “555…” is on the “do not call” list Geospatial Find the best offer for the customer at geo coordinates of 42nd St. and 6th Ave Text Search Find all tweets that mention the firm within the last 2 days Aggregation Count and sort number of customers by city, compute min, max, and average spend Native Binary JSON Support Add an additional phone number to Mark Smith’s record without rewriting the document Update just 2 phone numbers out of 10 Sort on the modified date JOIN ($lookup) Query for all San Francisco residences, lookup their transactions, and sum the amount by person Graph Queries ($graphLookup) Query for all people within 3 degrees of separation from Mark Rich query functionality

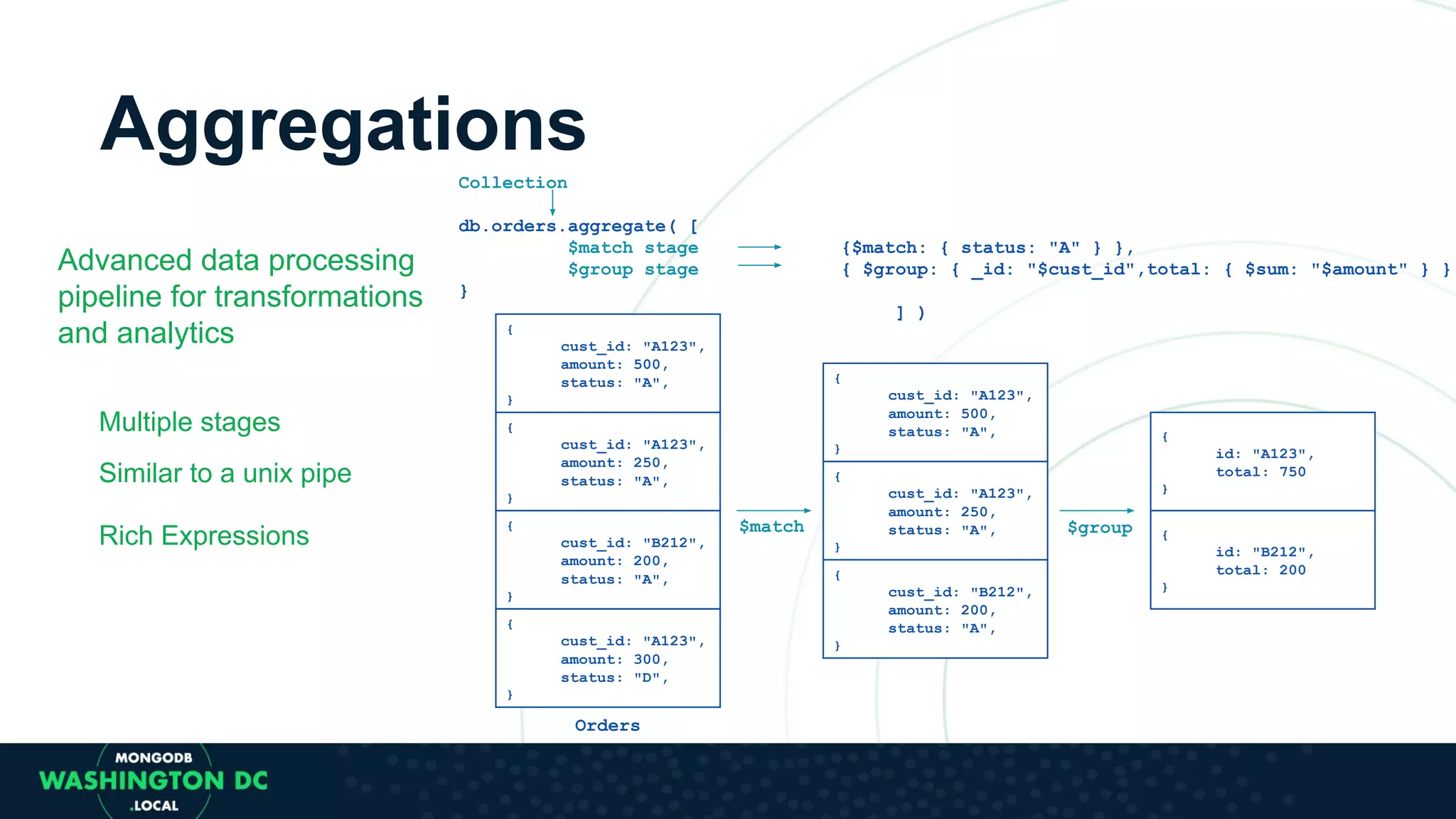

Advanced data processing pipeline for transformations and analytics Multiple stages Similar to a unix pipe Rich Expressions Collection db.orders.aggregate( [ $match stage {$match: { status: "A" } }, $group stage { $group: { _id: "$cust_id",total: { $sum: "$amount" } } } ] ) { cust_id: "A123", amount: 500, status: "A", } { cust_id: "A123", amount: 250, status: "A", } { cust_id: "B212", amount: 200, status: "A", } { cust_id: "A123", amount: 300, status: "D", } Orders { cust_id: "A123", amount: 500, status: "A", } { cust_id: "A123", amount: 250, status: "A", } { cust_id: "B212", amount: 200, status: "A", } { id: "A123", total: 750 } { id: "B212", total: 200 } $match $group Aggregations

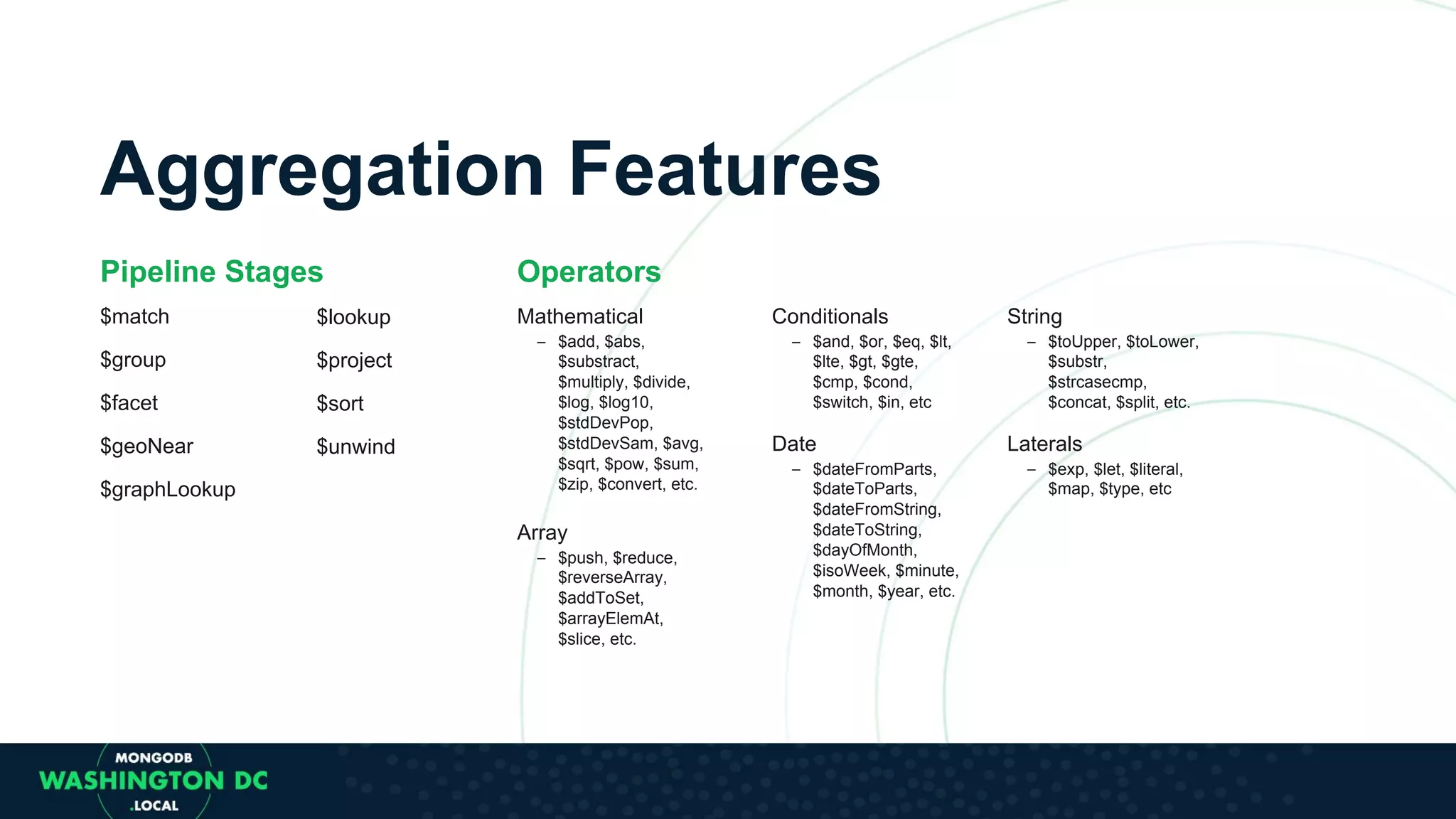

$match $group $facet $geoNear $graphLookup Pipeline Stages Mathematical $add, $abs, $substract, $multiply, $divide, $log, $log10, $stdDevPop, $stdDevSam, $avg, $sqrt, $pow, $sum, $zip, $convert, etc. Array $push, $reduce, $reverseArray, $addToSet, $arrayElemAt, $slice, etc. Operators $lookup $project $sort $unwind Conditionals $and, $or, $eq, $lt, $lte, $gt, $gte, $cmp, $cond, $switch, $in, etc Date $dateFromParts, $dateToParts, $dateFromString, $dateToString, $dayOfMonth, $isoWeek, $minute, $month, $year, etc. String $toUpper, $toLower, $substr, $strcasecmp, $concat, $split, etc. Laterals $exp, $let, $literal, $map, $type, etc Aggregation Features

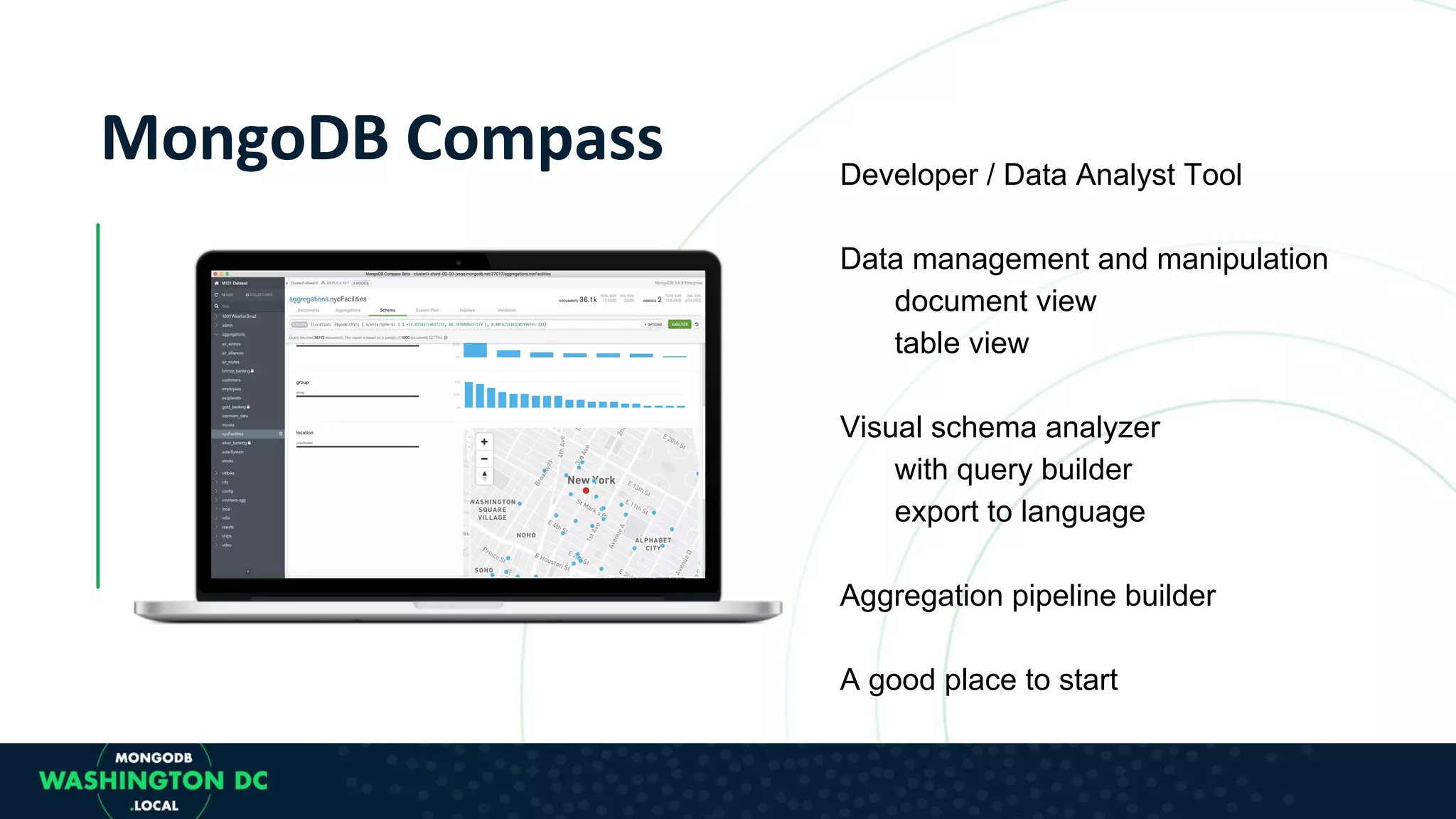

Developer / Data Analyst Tool Data management and manipulation document view table view Visual schema analyzer with query builder export to language Aggregation pipeline builder A good place to start

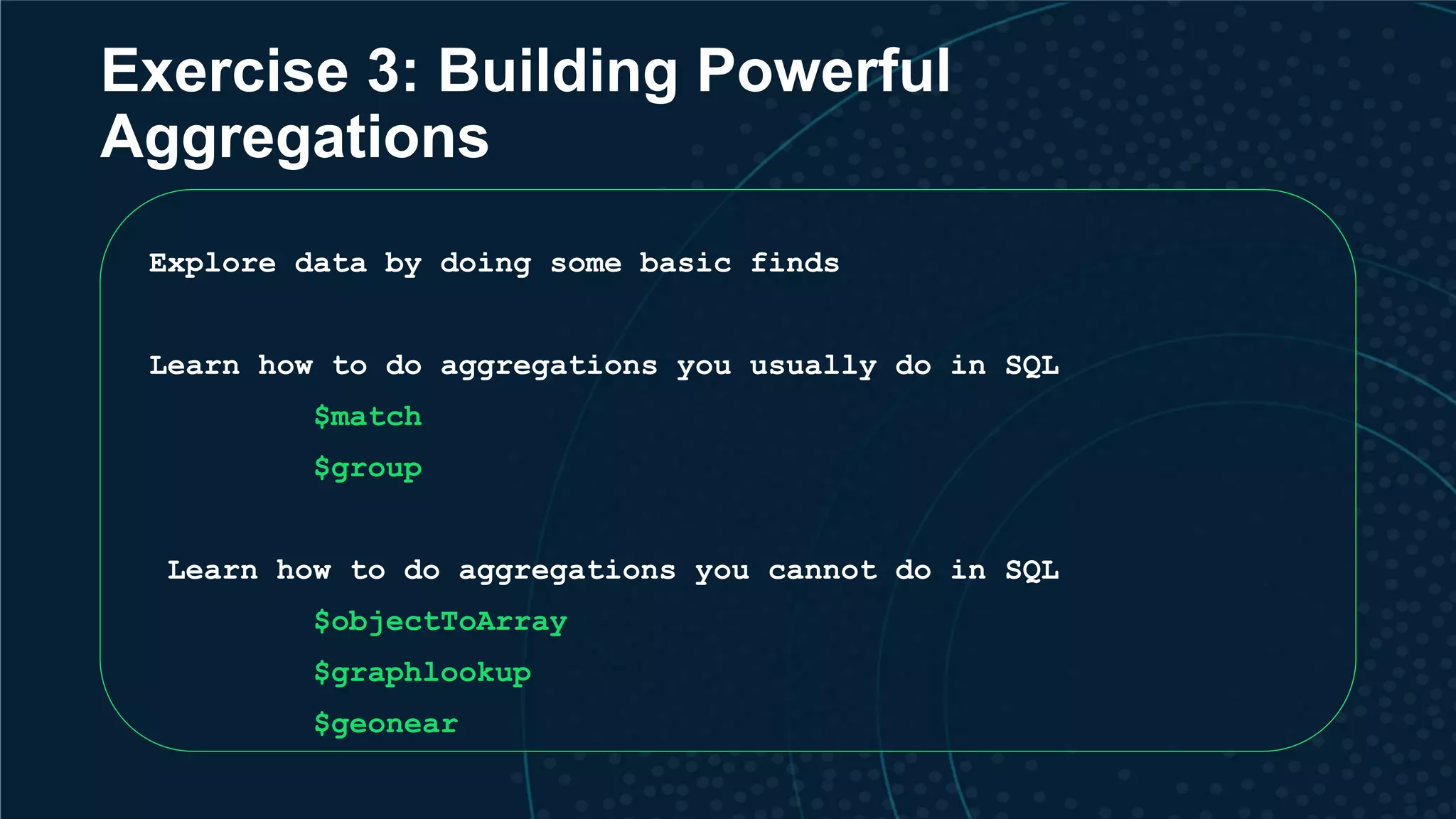

Exercise 3: Building Powerful Aggregations Explore data by doing some basic finds Learn how to do aggregations you usually do in SQL $match $group Learn how to do aggregations you cannot do in SQL $objectToArray $graphlookup $geonear

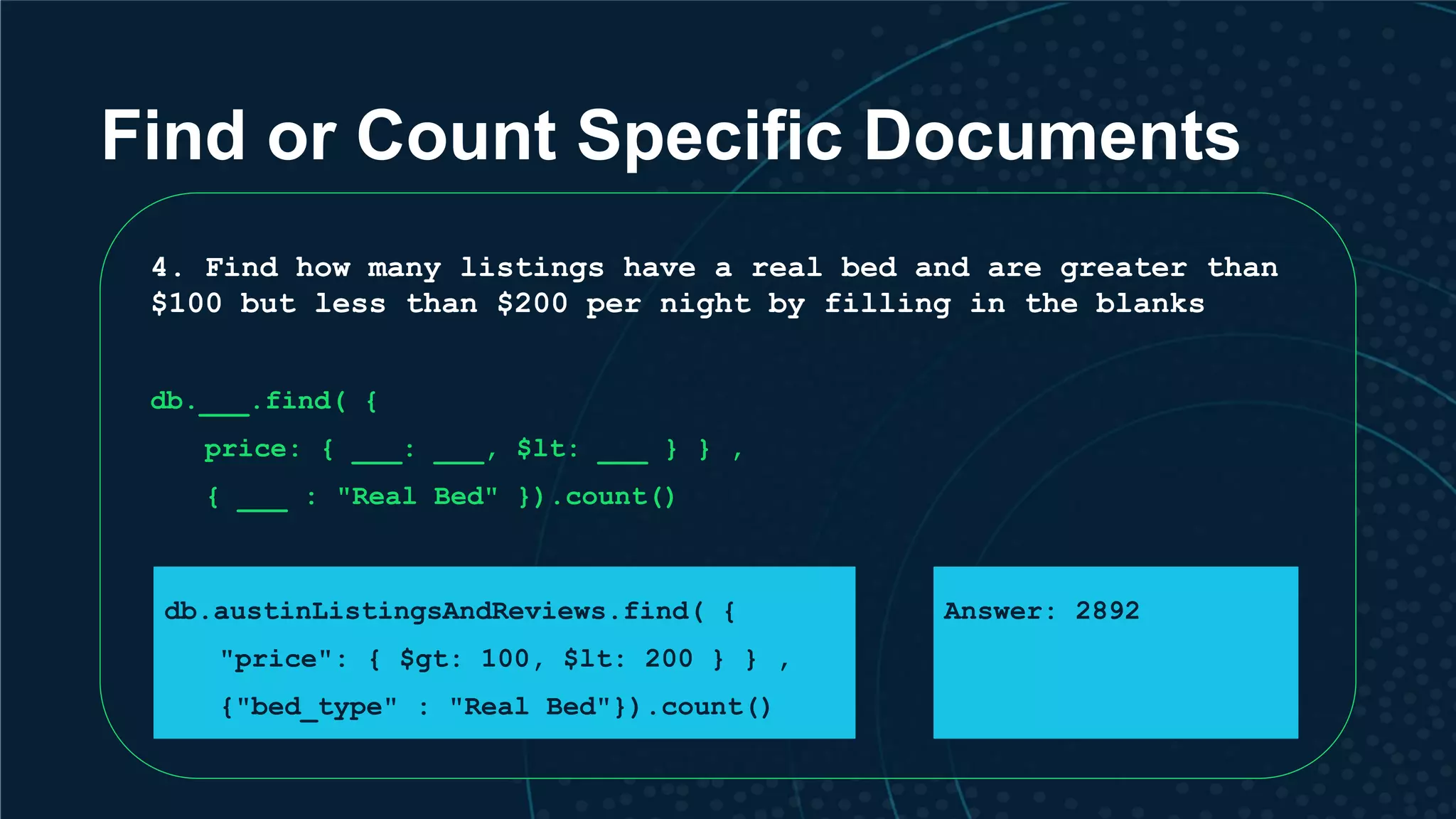

Find or Count Specific Documents 4. Find how many listings have a real bed and are greater than $100 but less than $200 per night by filling in the blanks db.___.find( { price: { ___: ___, $lt: ___ } } , { ___ : "Real Bed" }).count() db.austinListingsAndReviews.find( { "price": { $gt: 100, $lt: 200 } } , {"bed_type" : "Real Bed"}).count() Answer: 2892

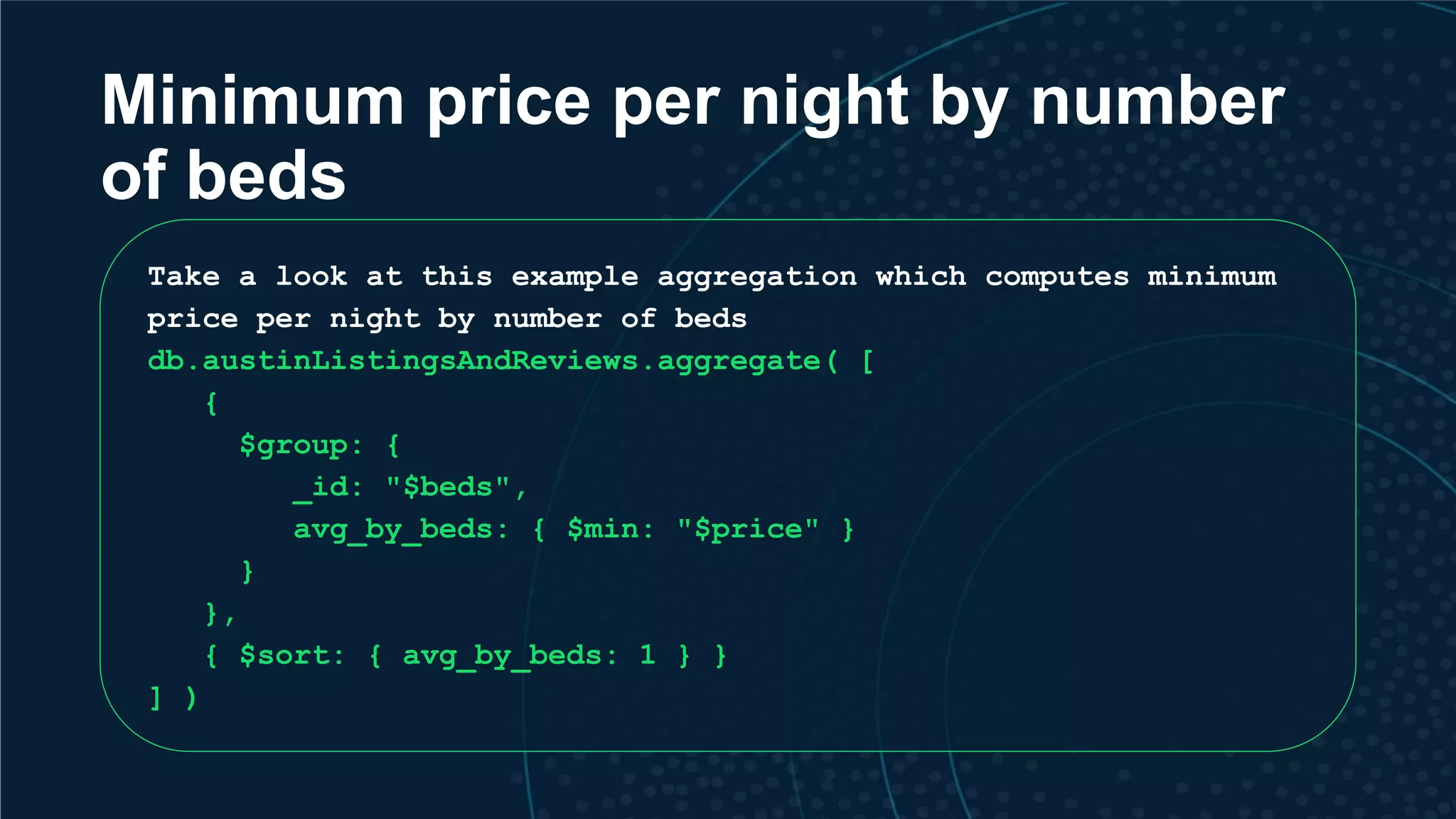

Minimum price per night by number of beds Take a look at this example aggregation which computes minimum price per night by number of beds db.austinListingsAndReviews.aggregate( [ { $group: { _id: "$beds", avg_by_beds: { $min: "$price" } } }, { $sort: { avg_by_beds: 1 } } ] )

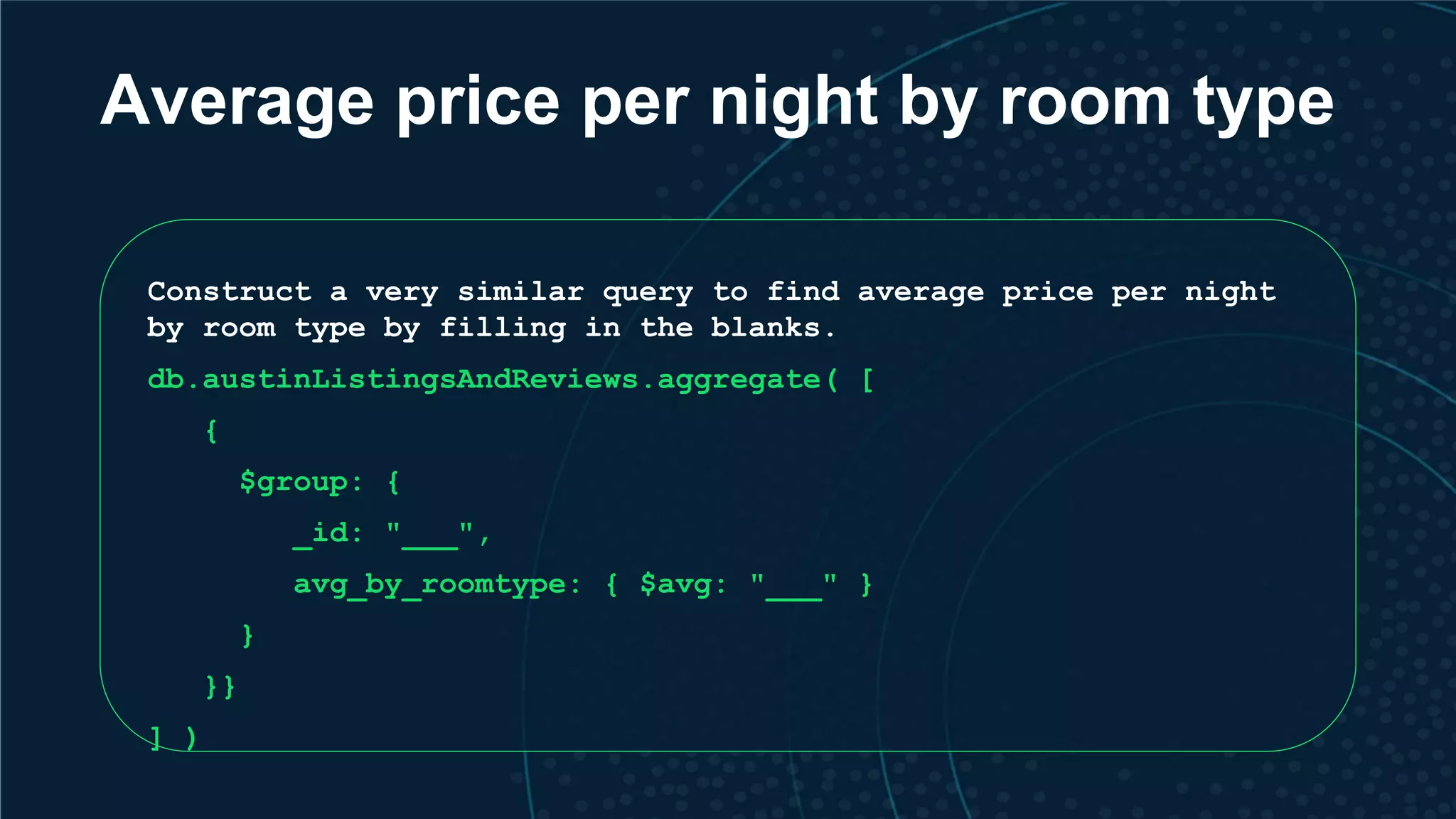

Average price per night by room type Construct a very similar query to find average price per night by room type by filling in the blanks. db.austinListingsAndReviews.aggregate( [ { $group: { _id: "___", avg_by_roomtype: { $avg: "___" } } }} ] )

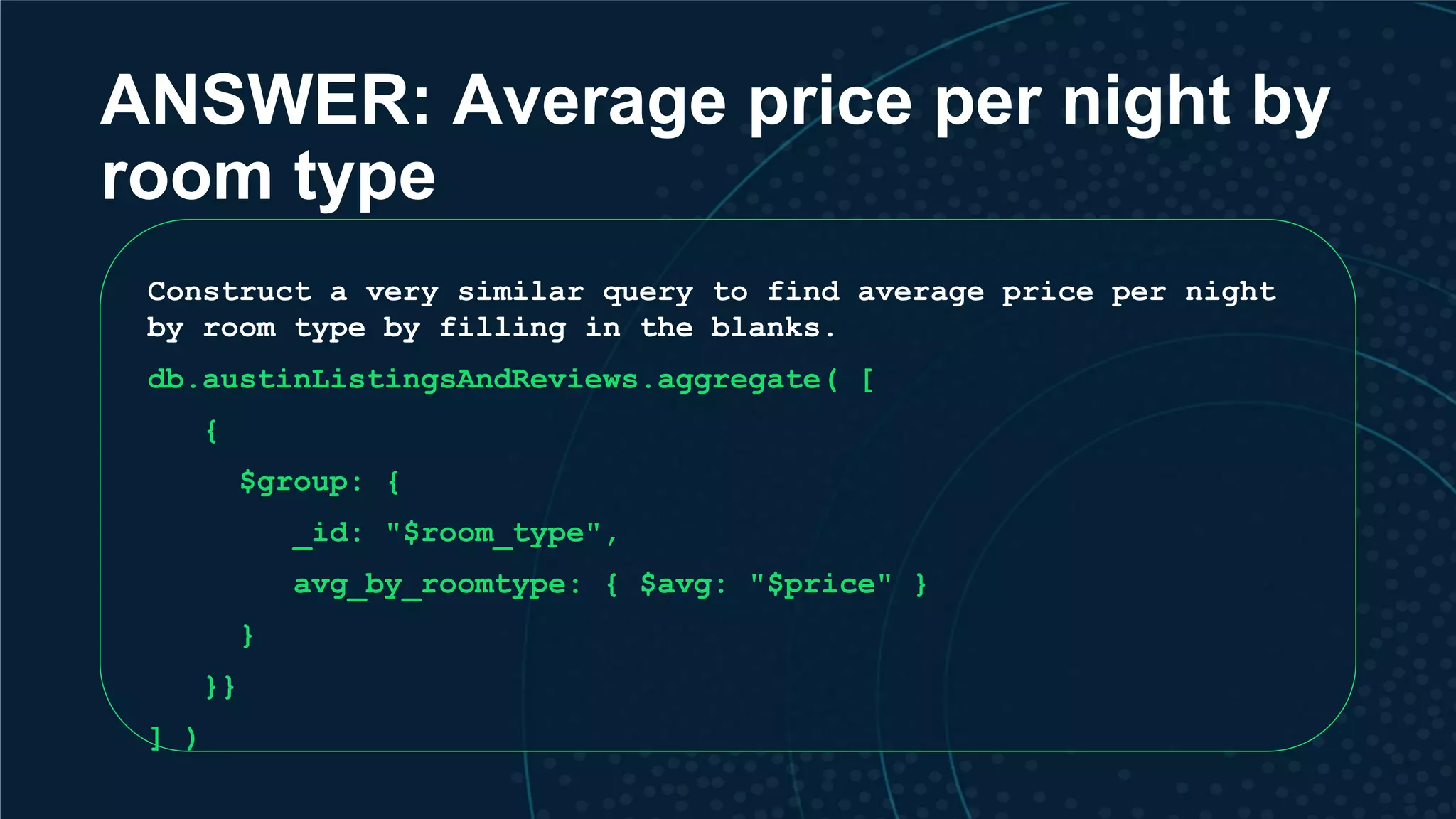

ANSWER: Average price per night by room type Construct a very similar query to find average price per night by room type by filling in the blanks. db.austinListingsAndReviews.aggregate( [ { $group: { _id: "$room_type", avg_by_roomtype: { $avg: "$price" } } }} ] )

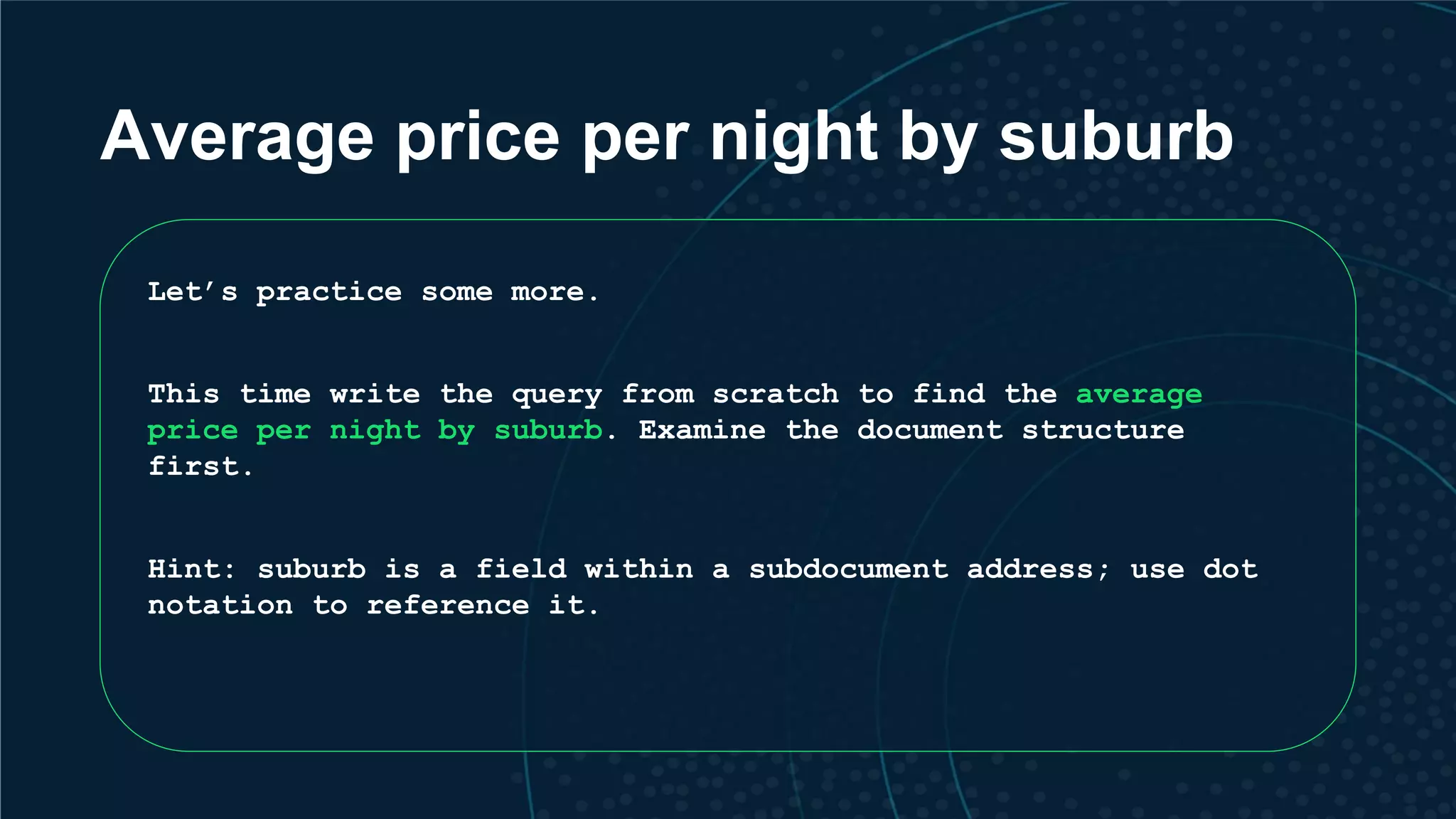

Average price per night by suburb Let’s practice some more. This time write the query from scratch to find the average price per night by suburb. Examine the document structure first. Hint: suburb is a field within a subdocument address; use dot notation to reference it.

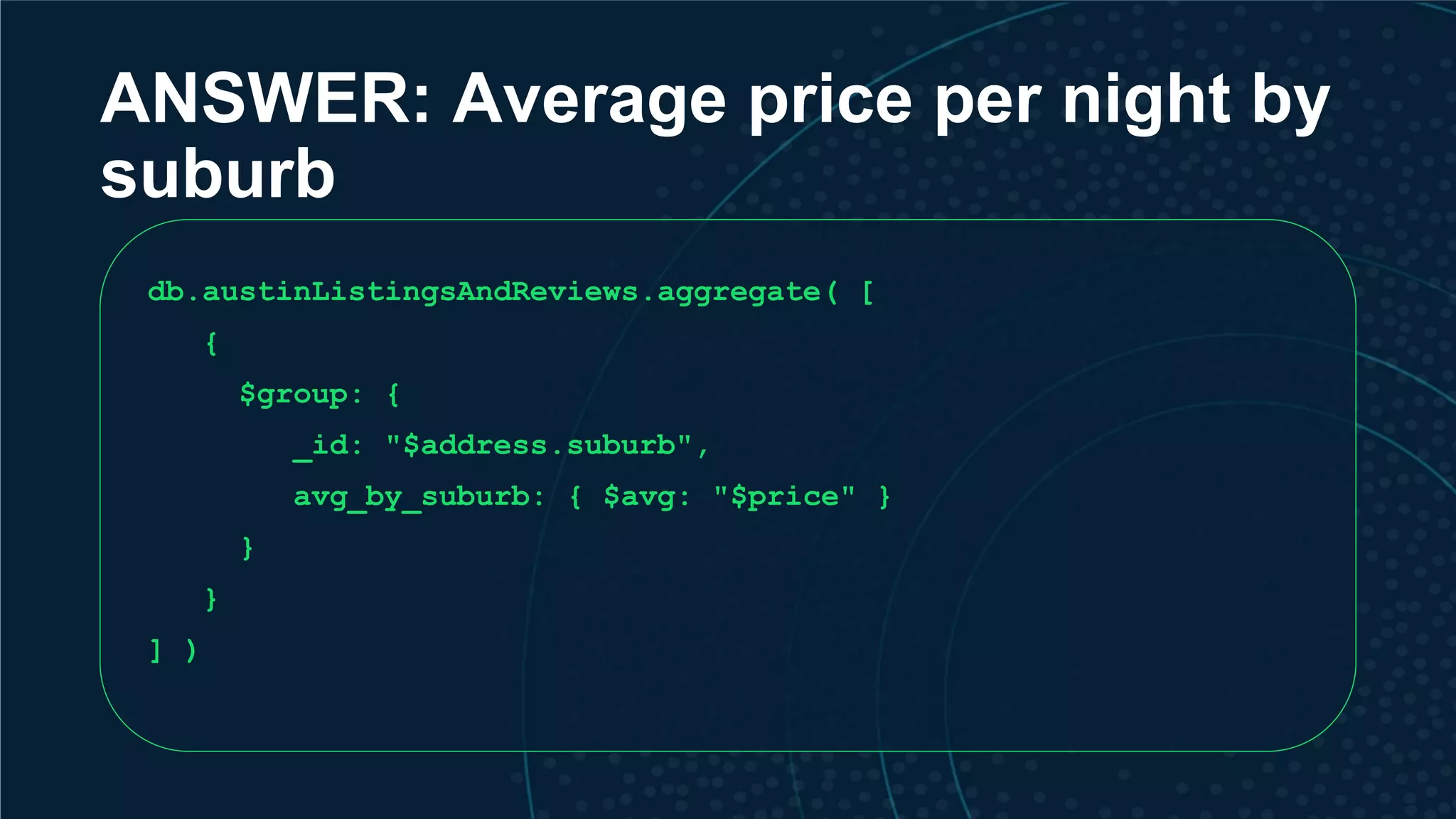

ANSWER: Average price per night by suburb db.austinListingsAndReviews.aggregate( [ { $group: { _id: "$address.suburb", avg_by_suburb: { $avg: "$price" } } } ] )

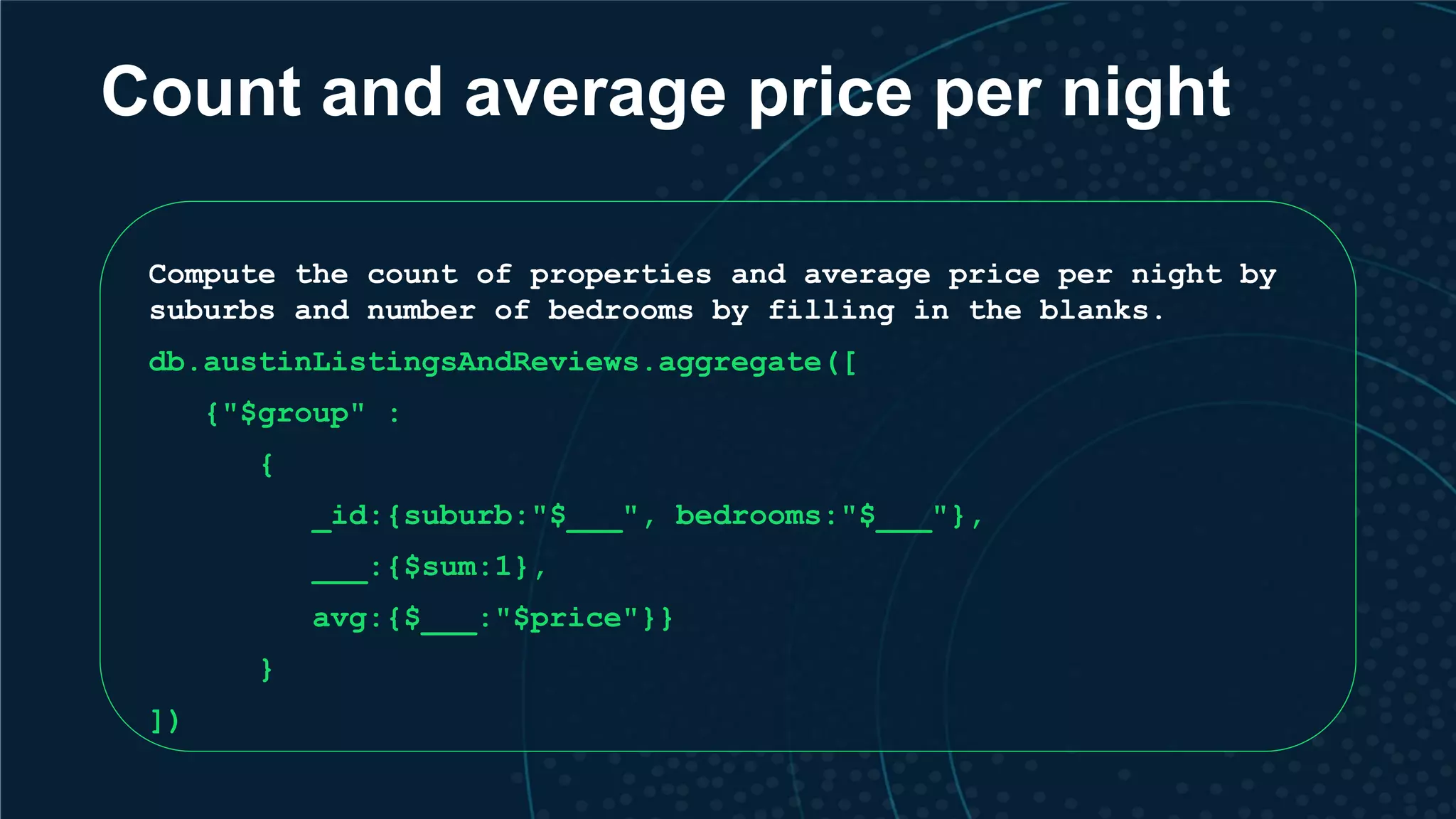

Count and average price per night Compute the count of properties and average price per night by suburbs and number of bedrooms by filling in the blanks. db.austinListingsAndReviews.aggregate([ {"$group" : { _id:{suburb:"$___", bedrooms:"$___"}, ___:{$sum:1}, avg:{$___:"$price"}} } ])

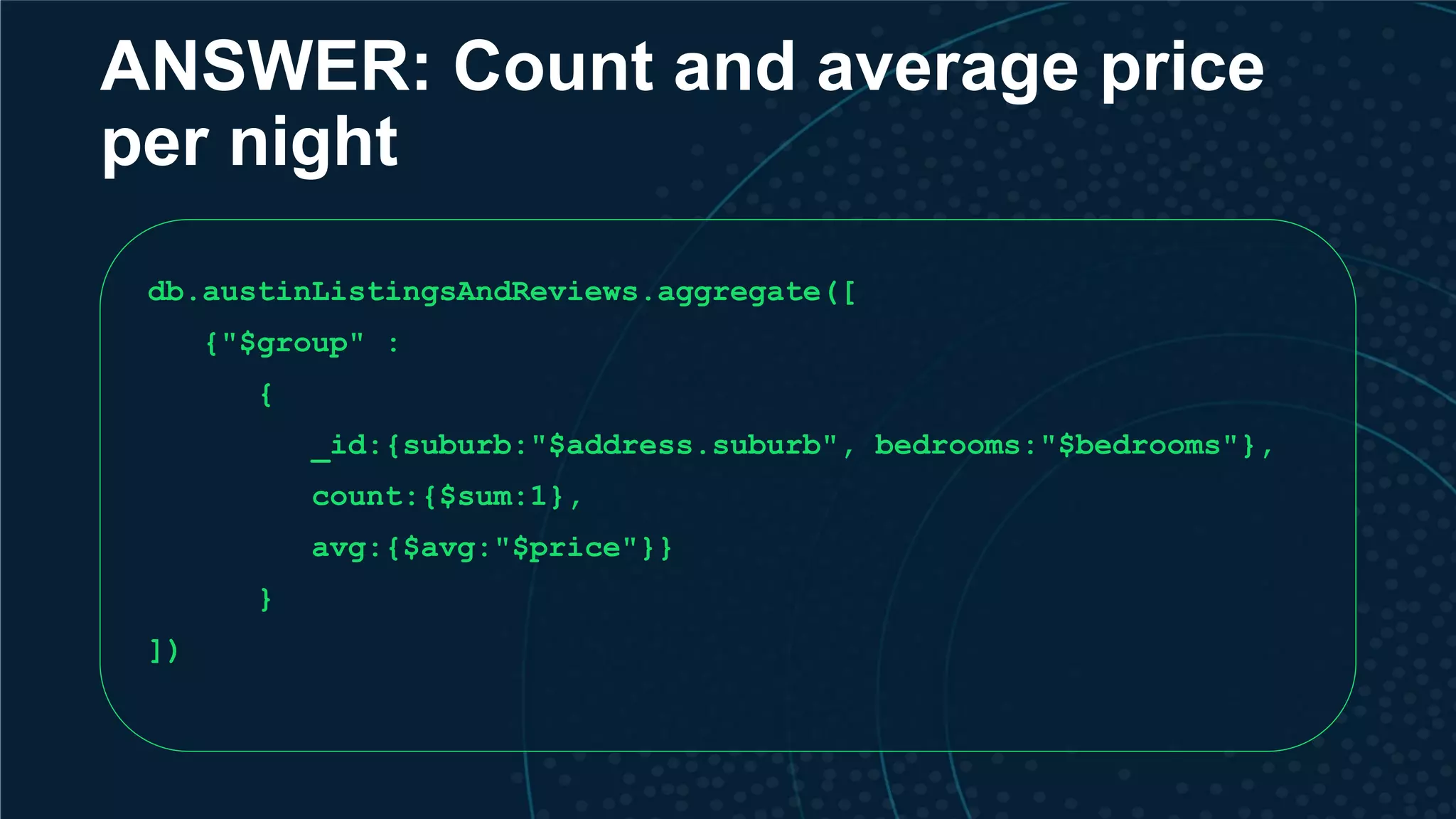

ANSWER: Count and average price per night db.austinListingsAndReviews.aggregate([ {"$group" : { _id:{suburb:"$address.suburb", bedrooms:"$bedrooms"}, count:{$sum:1}, avg:{$avg:"$price"}} } ])

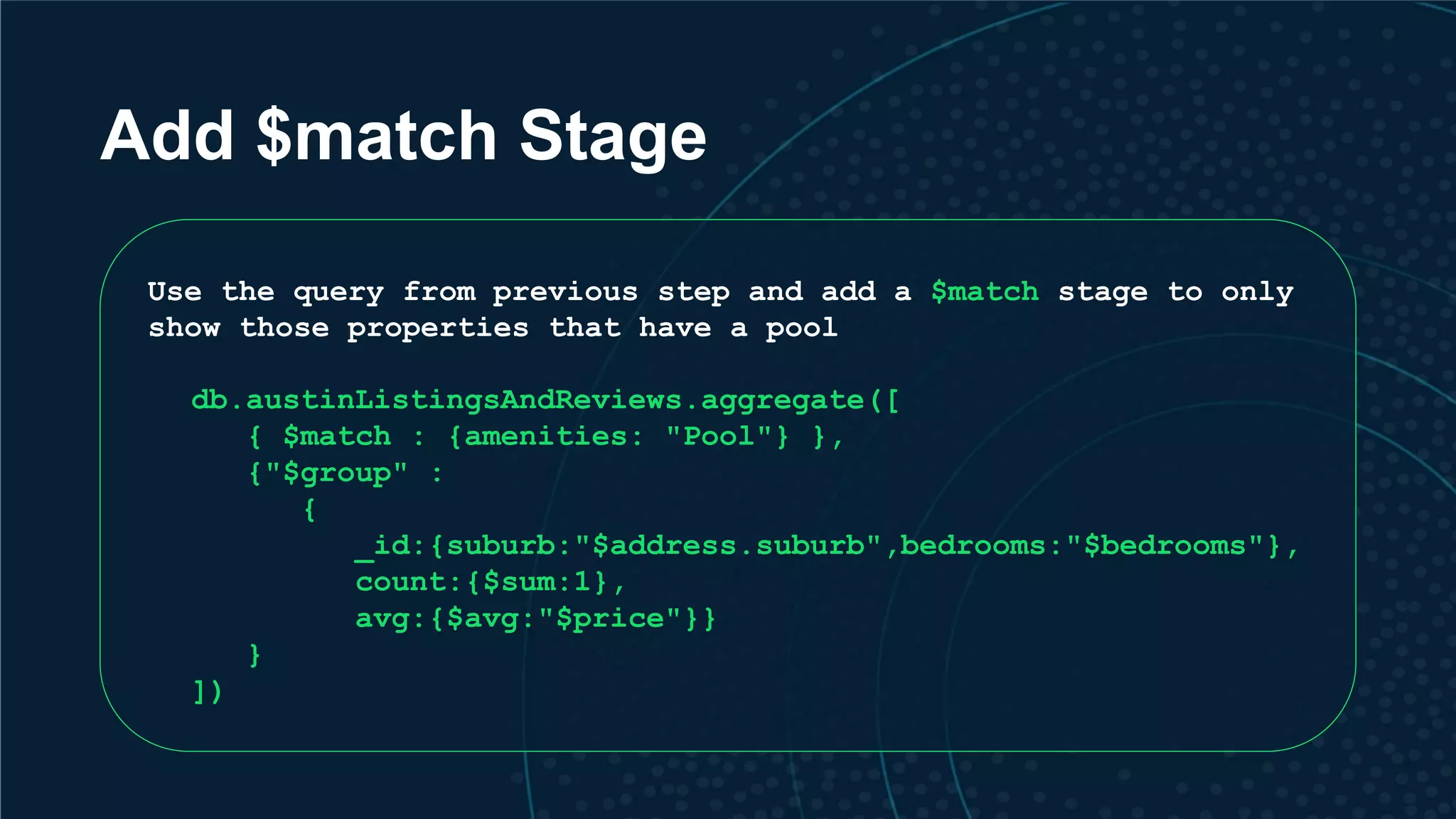

Add $match Stage Use the query from previous step and add a $match stage to only show those properties that have a pool db.austinListingsAndReviews.aggregate([ { $match : {amenities: "Pool"} }, {"$group" : { _id:{suburb:"$address.suburb",bedrooms:"$bedrooms"}, count:{$sum:1}, avg:{$avg:"$price"}} } ])

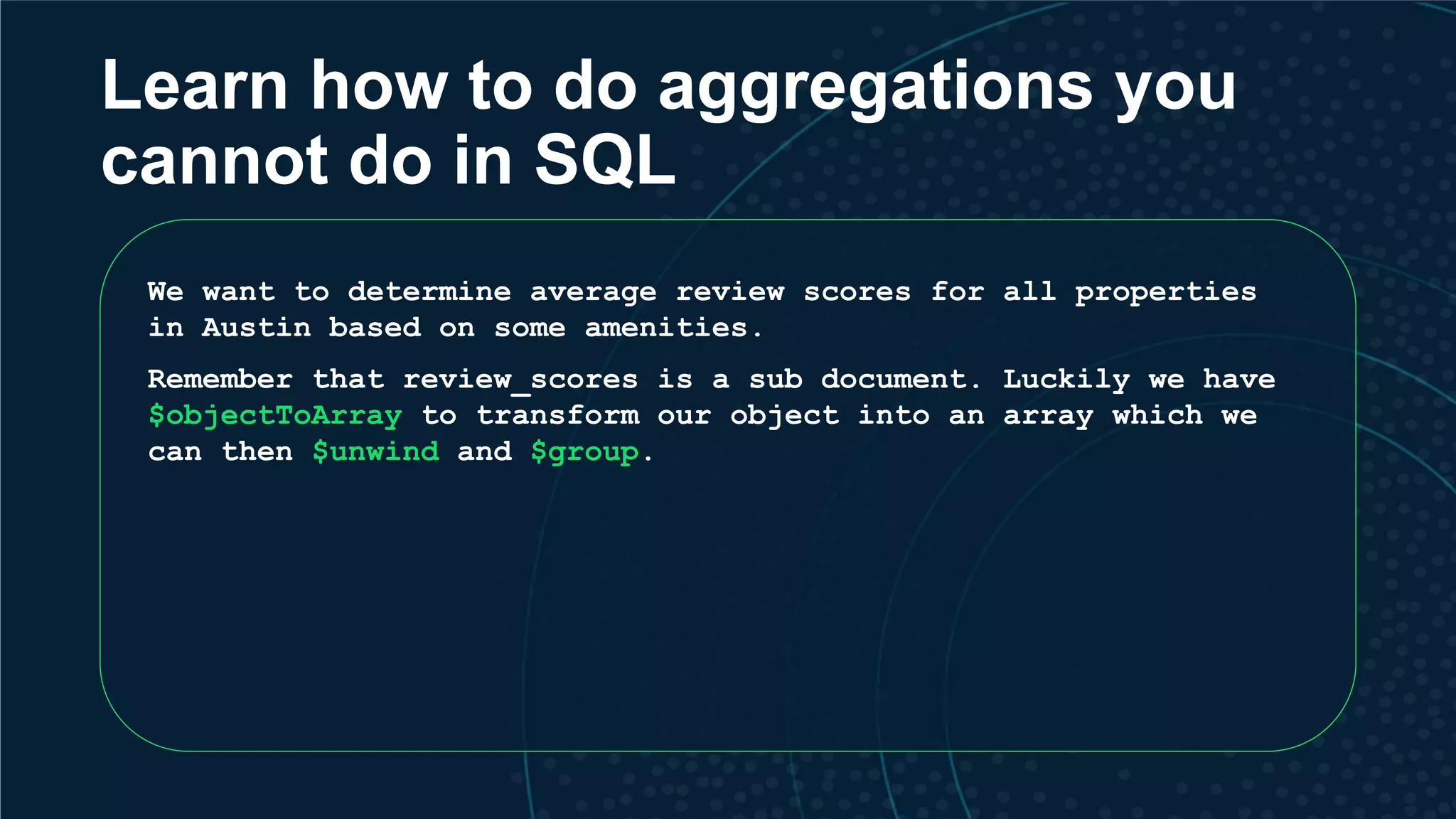

Learn how to do aggregations you cannot do in SQL We want to determine average review scores for all properties in Austin based on some amenities. Remember that review_scores is a sub document. Luckily we have $objectToArray to transform our object into an array which we can then $unwind and $group.

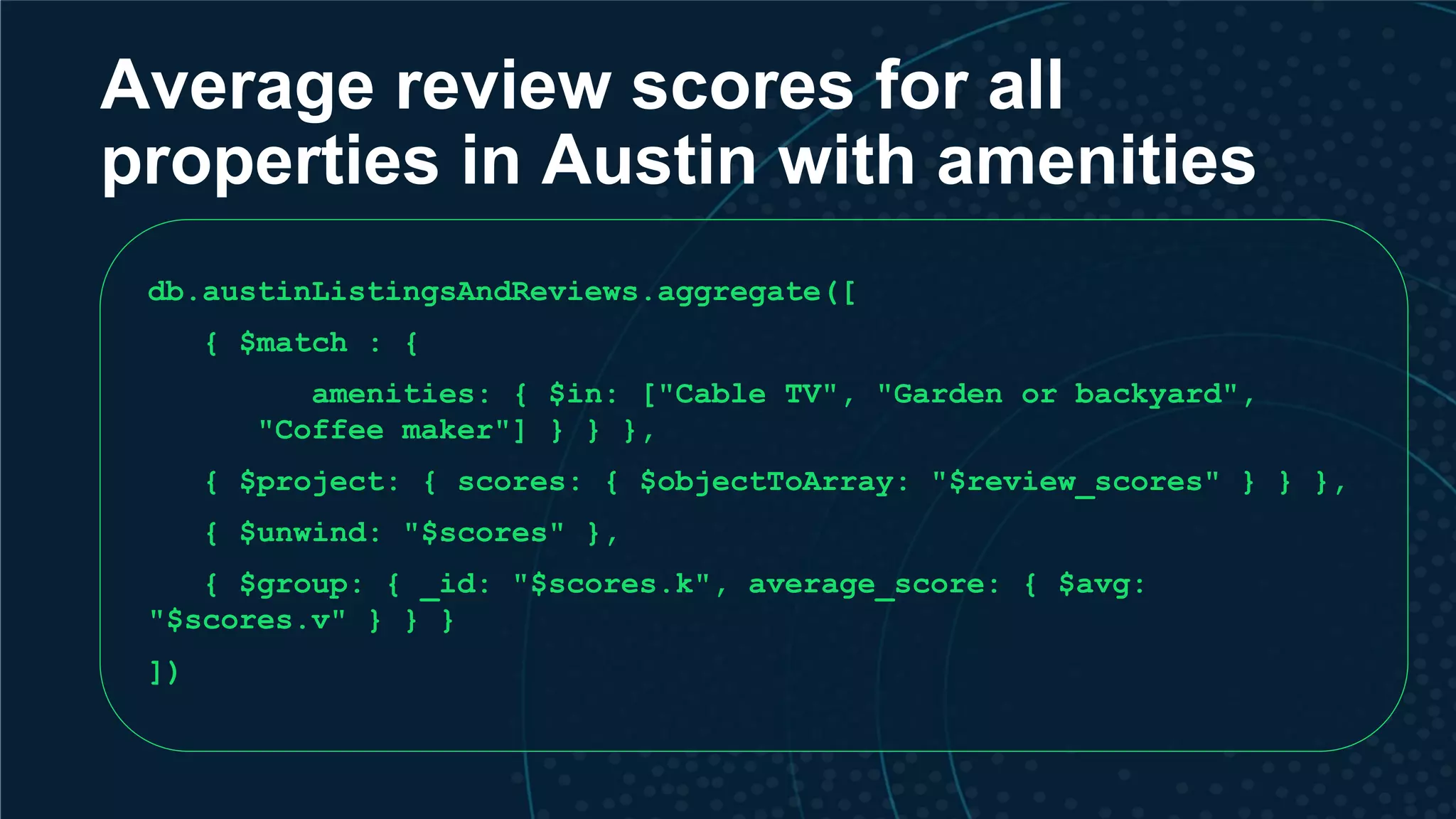

Average review scores for all properties in Austin with amenities db.austinListingsAndReviews.aggregate([ { $match : { amenities: { $in: ["Cable TV", "Garden or backyard", "Coffee maker"] } } }, { $project: { scores: { $objectToArray: "$review_scores" } } }, { $unwind: "$scores" }, { $group: { _id: "$scores.k", average_score: { $avg: "$scores.v" } } } ])

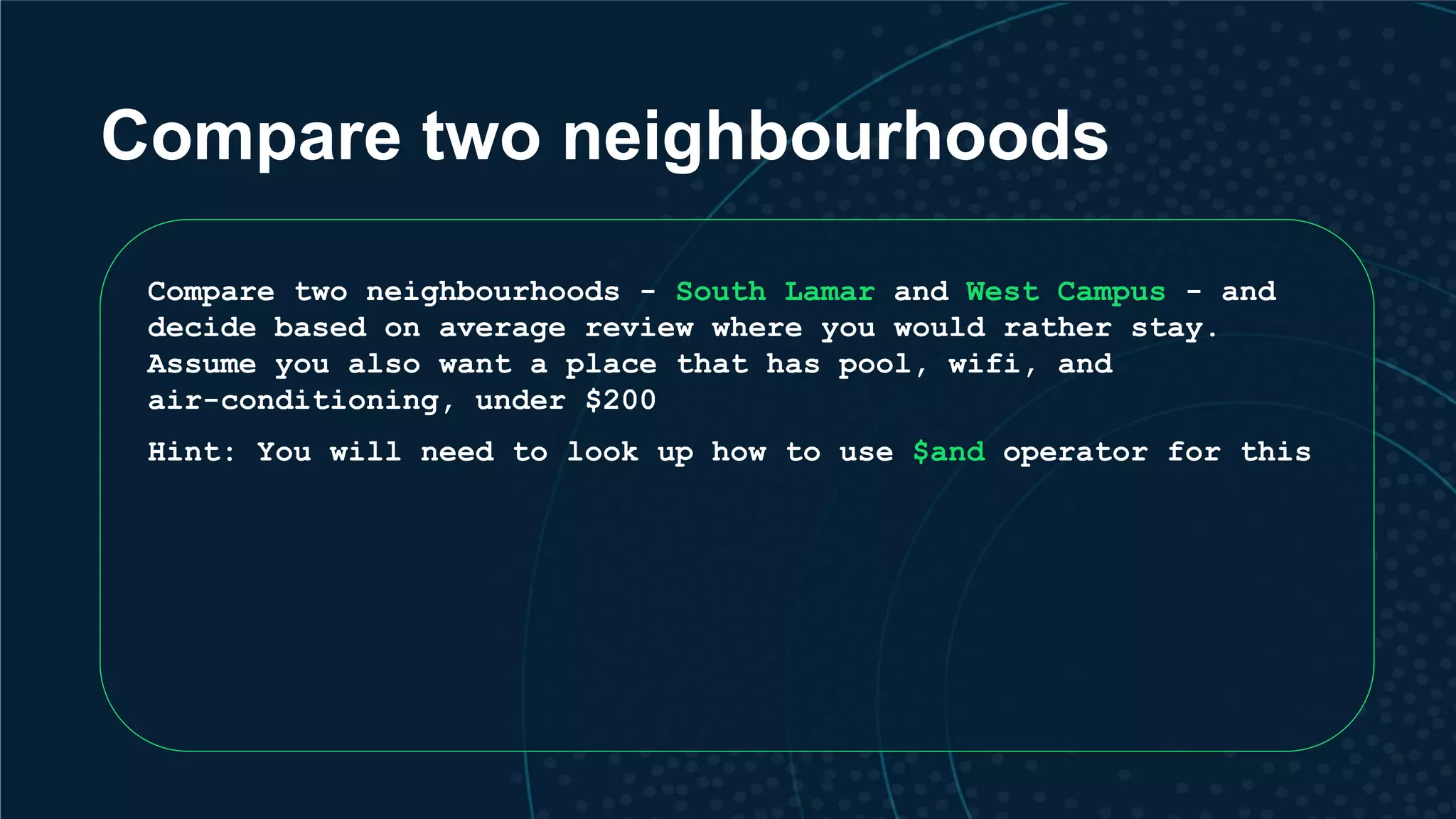

Compare two neighbourhoods Compare two neighbourhoods - South Lamar and West Campus - and decide based on average review where you would rather stay. Assume you also want a place that has pool, wifi, and air-conditioning, under $200 Hint: You will need to look up how to use $and operator for this

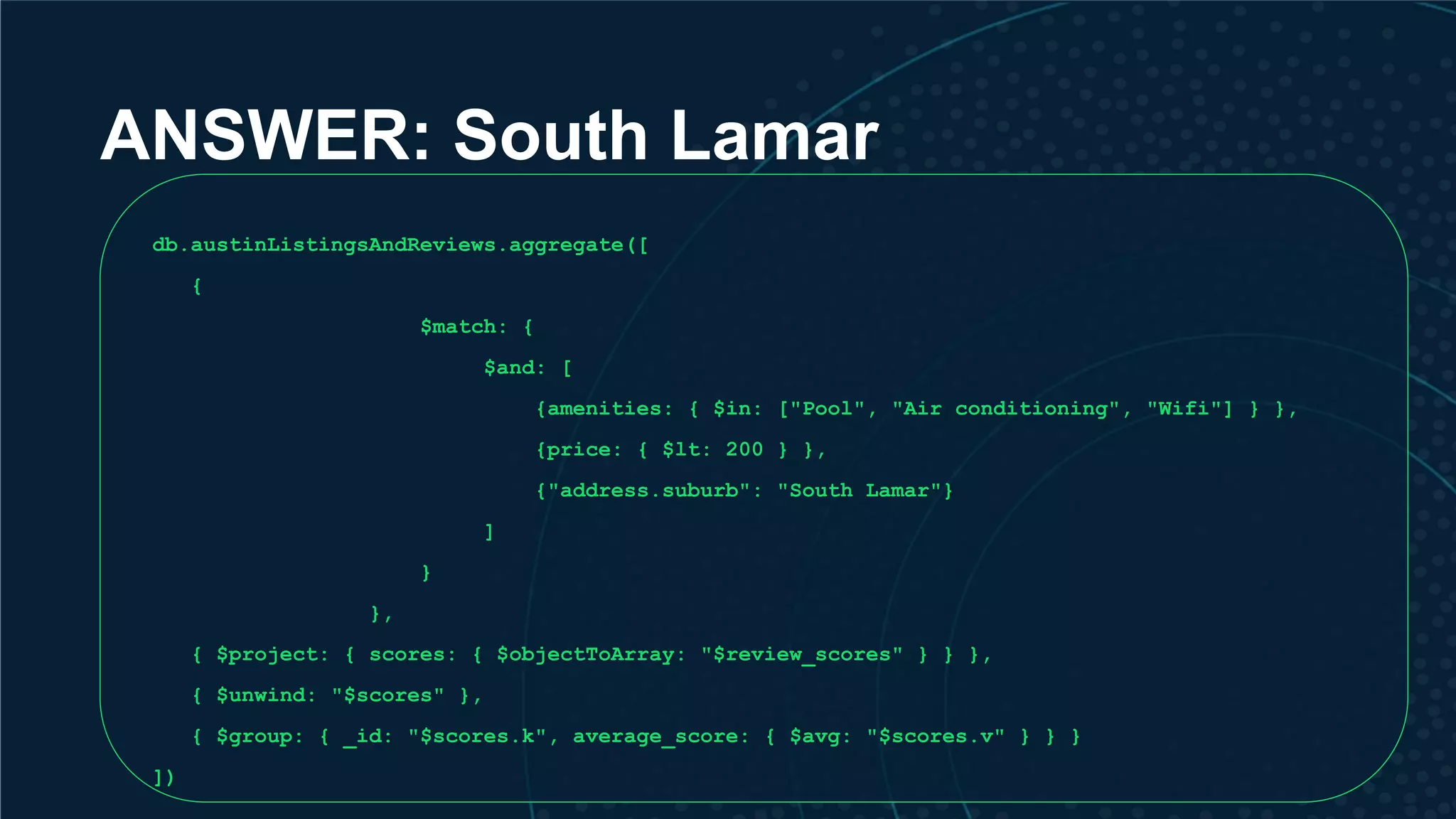

ANSWER: South Lamar db.austinListingsAndReviews.aggregate([ { $match: { $and: [ {amenities: { $in: ["Pool", "Air conditioning", "Wifi"] } }, {price: { $lt: 200 } }, {"address.suburb": "South Lamar"} ] } }, { $project: { scores: { $objectToArray: "$review_scores" } } }, { $unwind: "$scores" }, { $group: { _id: "$scores.k", average_score: { $avg: "$scores.v" } } } ])

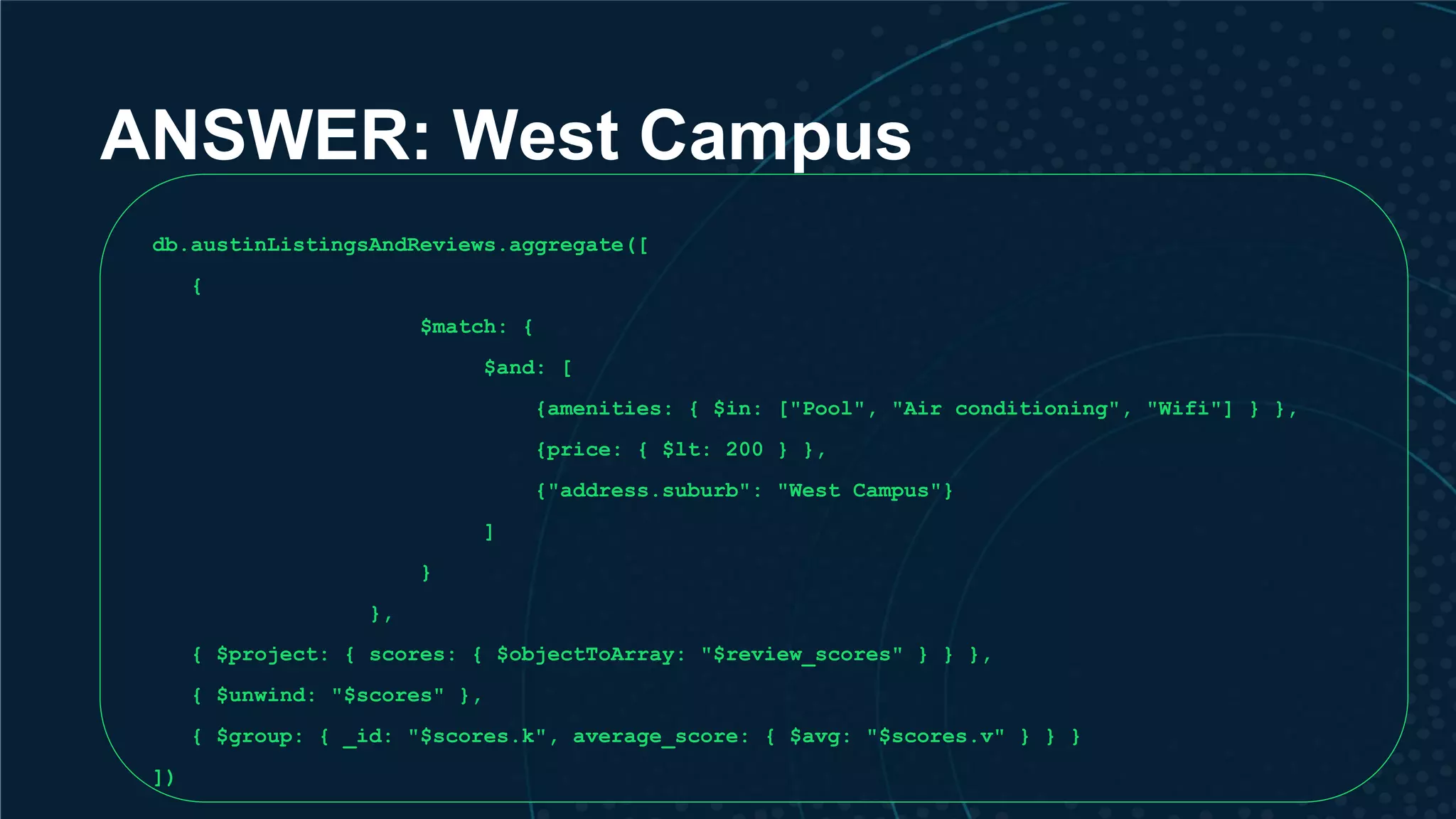

ANSWER: West Campus db.austinListingsAndReviews.aggregate([ { $match: { $and: [ {amenities: { $in: ["Pool", "Air conditioning", "Wifi"] } }, {price: { $lt: 200 } }, {"address.suburb": "West Campus"} ] } }, { $project: { scores: { $objectToArray: "$review_scores" } } }, { $unwind: "$scores" }, { $group: { _id: "$scores.k", average_score: { $avg: "$scores.v" } } } ])

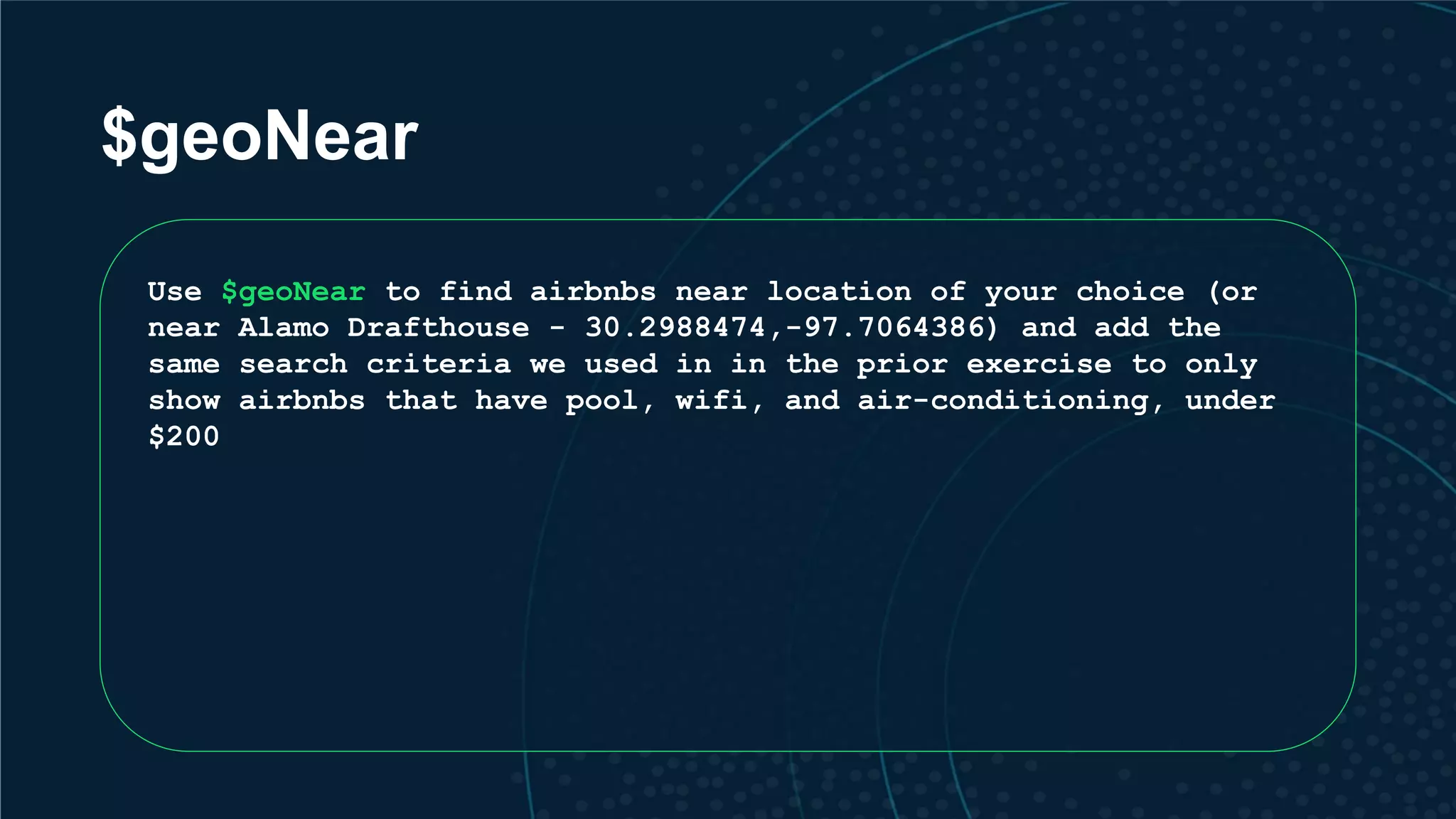

$geoNear Use $geoNear to find airbnbs near location of your choice (or near Alamo Drafthouse - 30.2988474,-97.7064386) and add the same search criteria we used in in the prior exercise to only show airbnbs that have pool, wifi, and air-conditioning, under $200

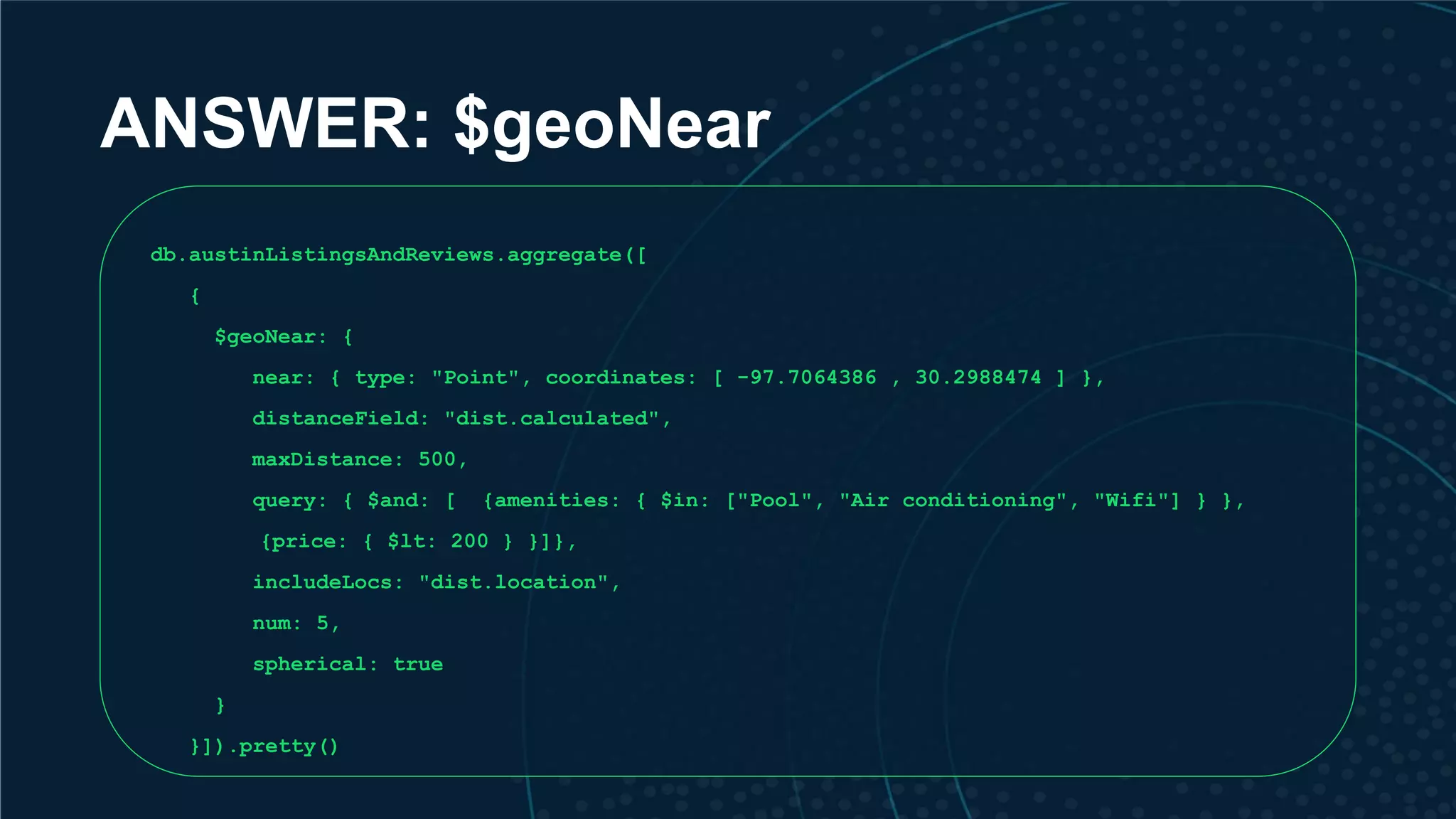

ANSWER: $geoNear db.austinListingsAndReviews.aggregate([ { $geoNear: { near: { type: "Point", coordinates: [ -97.7064386 , 30.2988474 ] }, distanceField: "dist.calculated", maxDistance: 500, query: { $and: [ {amenities: { $in: ["Pool", "Air conditioning", "Wifi"] } }, {price: { $lt: 200 } }]}, includeLocs: "dist.location", num: 5, spherical: true } }]).pretty()

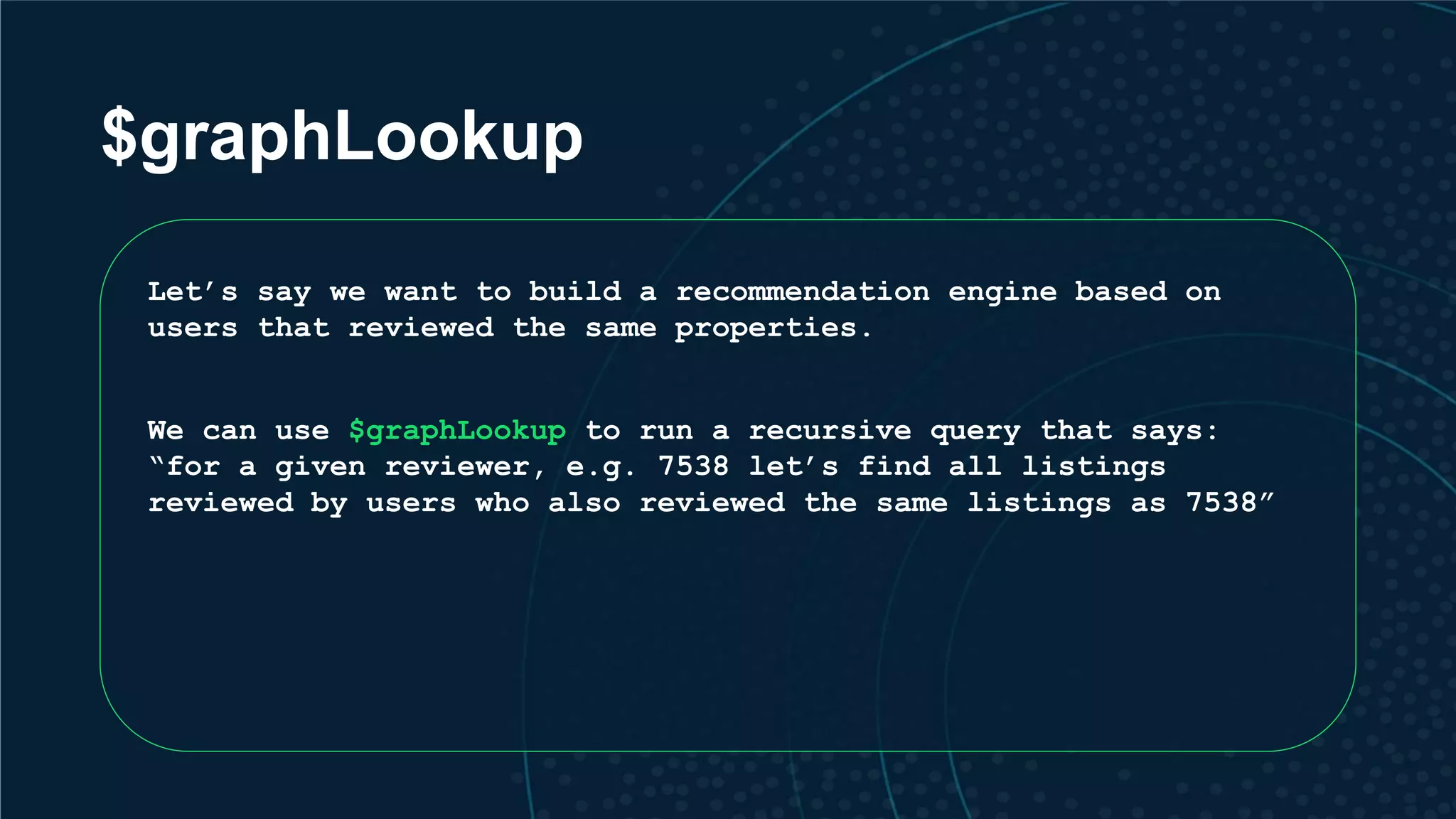

$graphLookup Let’s say we want to build a recommendation engine based on users that reviewed the same properties. We can use $graphLookup to run a recursive query that says: “for a given reviewer, e.g. 7538 let’s find all listings reviewed by users who also reviewed the same listings as 7538”

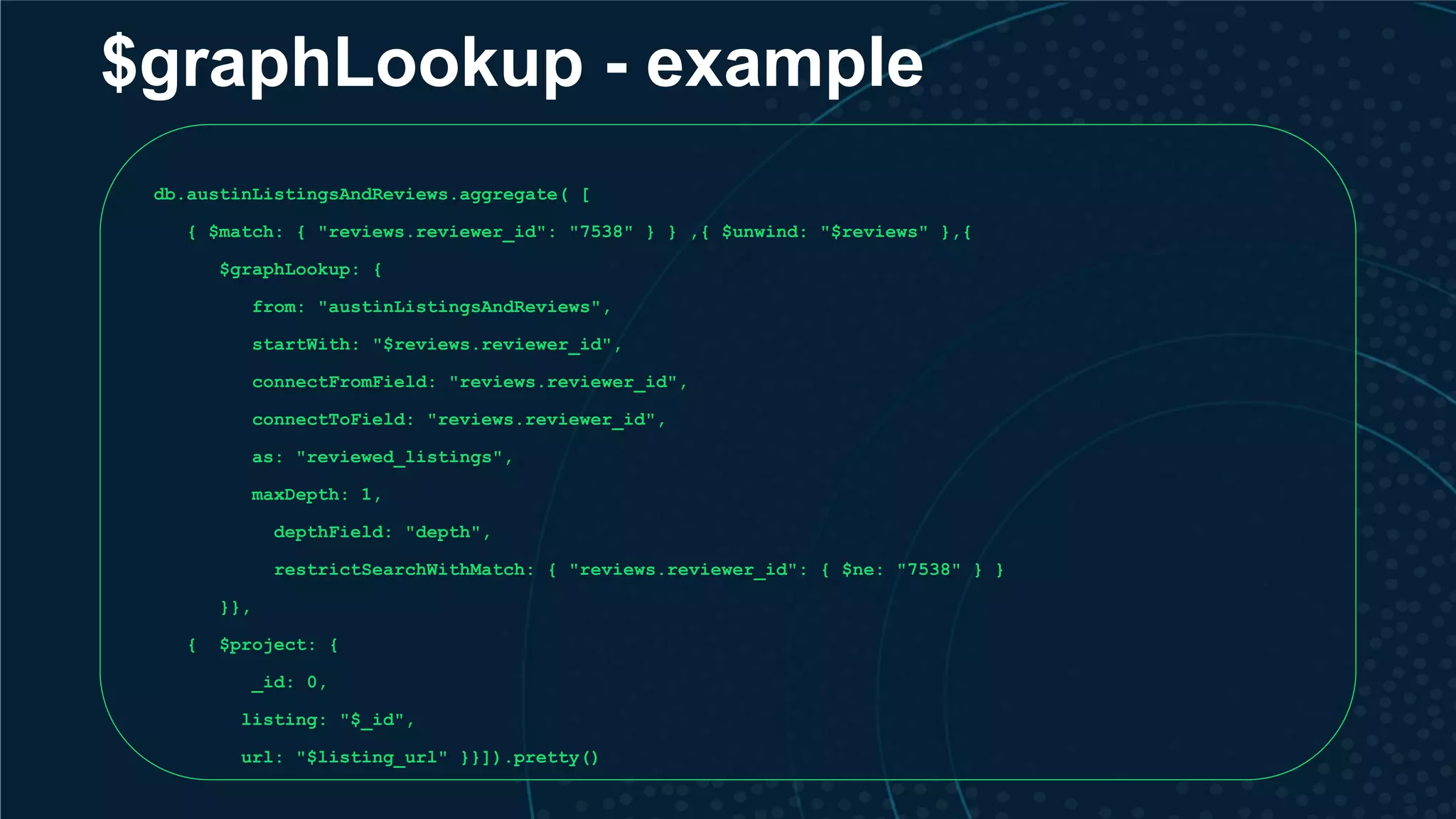

$graphLookup - example db.austinListingsAndReviews.aggregate( [ { $match: { "reviews.reviewer_id": "7538" } } ,{ $unwind: "$reviews" },{ $graphLookup: { from: "austinListingsAndReviews", startWith: "$reviews.reviewer_id", connectFromField: "reviews.reviewer_id", connectToField: "reviews.reviewer_id", as: "reviewed_listings", maxDepth: 1, depthField: "depth", restrictSearchWithMatch: { "reviews.reviewer_id": { $ne: "7538" } } }}, { $project: { _id: 0, listing: "$_id", url: "$listing_url" }}]).pretty()

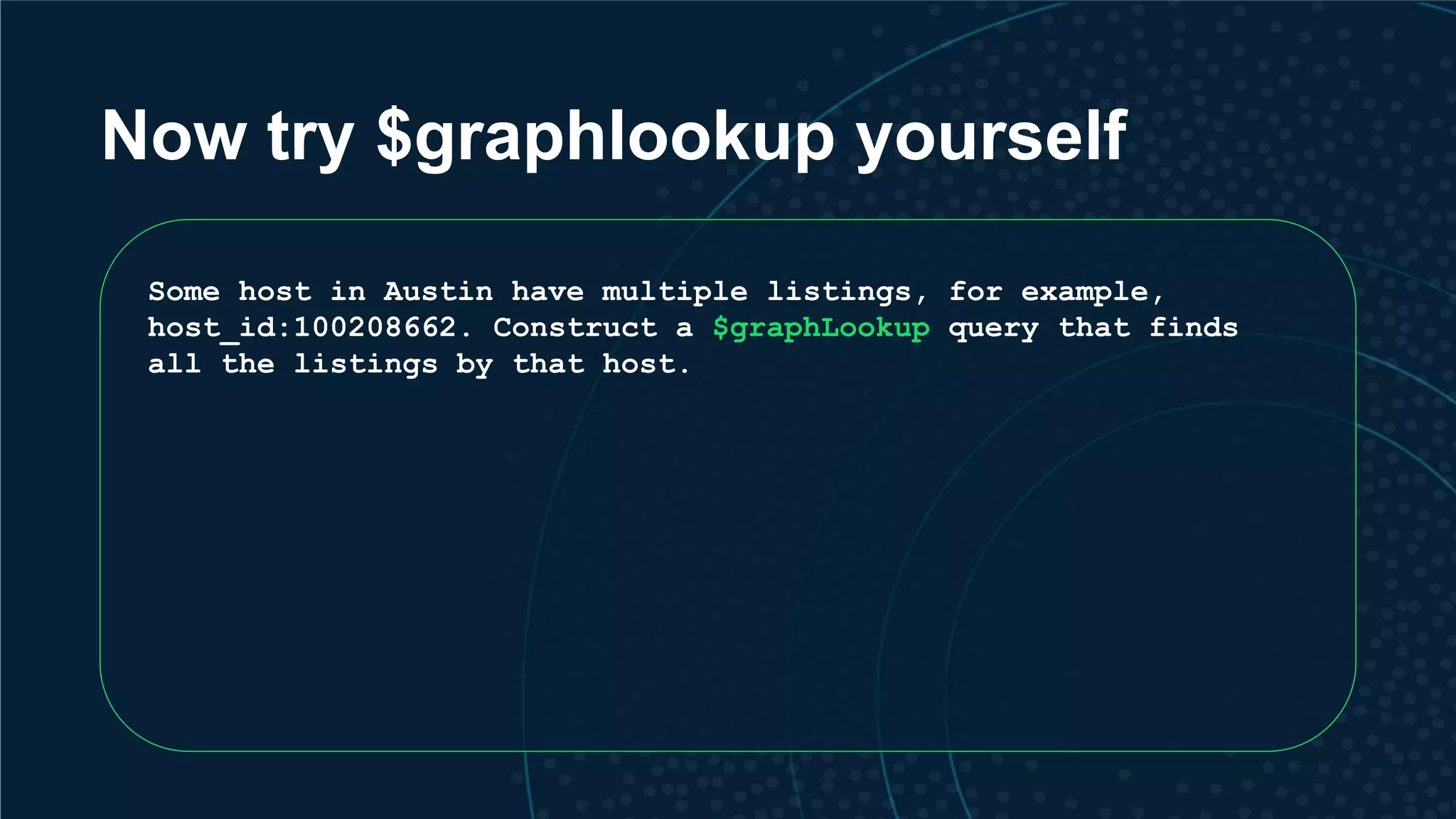

Now try $graphlookup yourself Some host in Austin have multiple listings, for example, host_id:100208662. Construct a $graphLookup query that finds all the listings by that host.

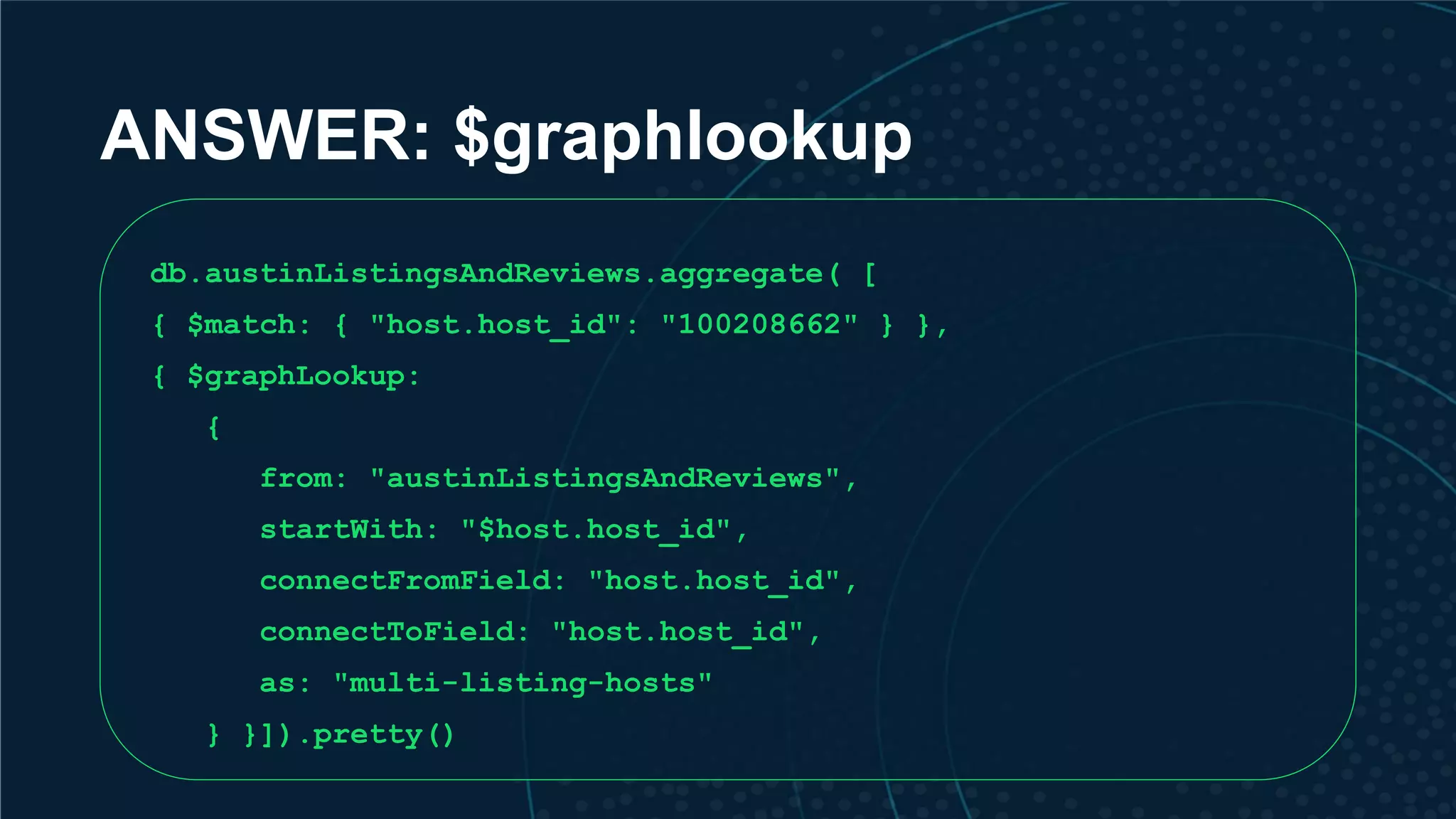

ANSWER: $graphlookup db.austinListingsAndReviews.aggregate( [ { $match: { "host.host_id": "100208662" } }, { $graphLookup: { from: "austinListingsAndReviews", startWith: "$host.host_id", connectFromField: "host.host_id", connectToField: "host.host_id", as: "multi-listing-hosts" } }]).pretty()

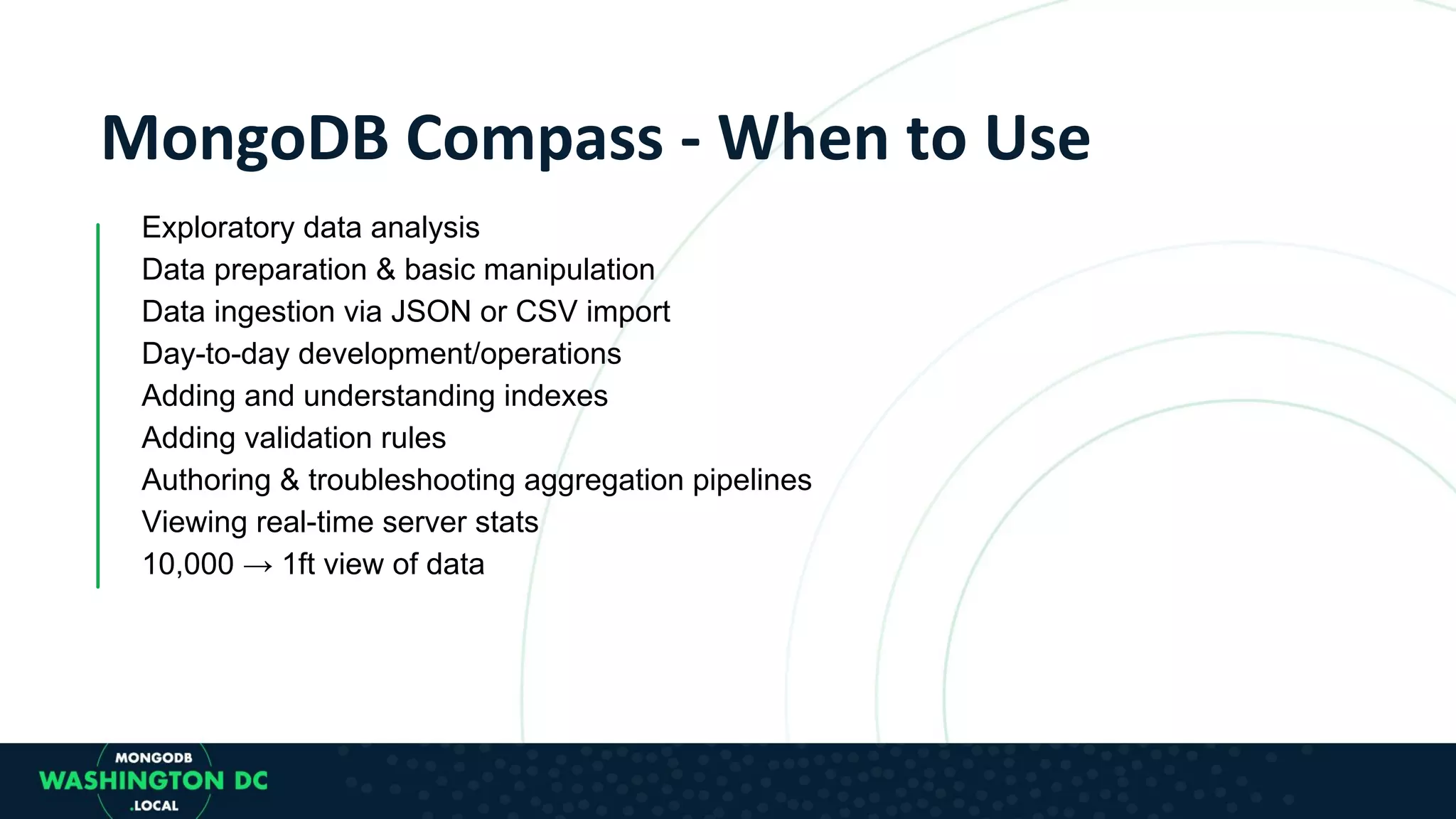

Exploratory data analysis Data preparation & basic manipulation Data ingestion via JSON or CSV import Day-to-day development/operations Adding and understanding indexes Adding validation rules Authoring & troubleshooting aggregation pipelines Viewing real-time server stats 10,000 → 1ft view of data

MongoDB Connector for Apache Spark

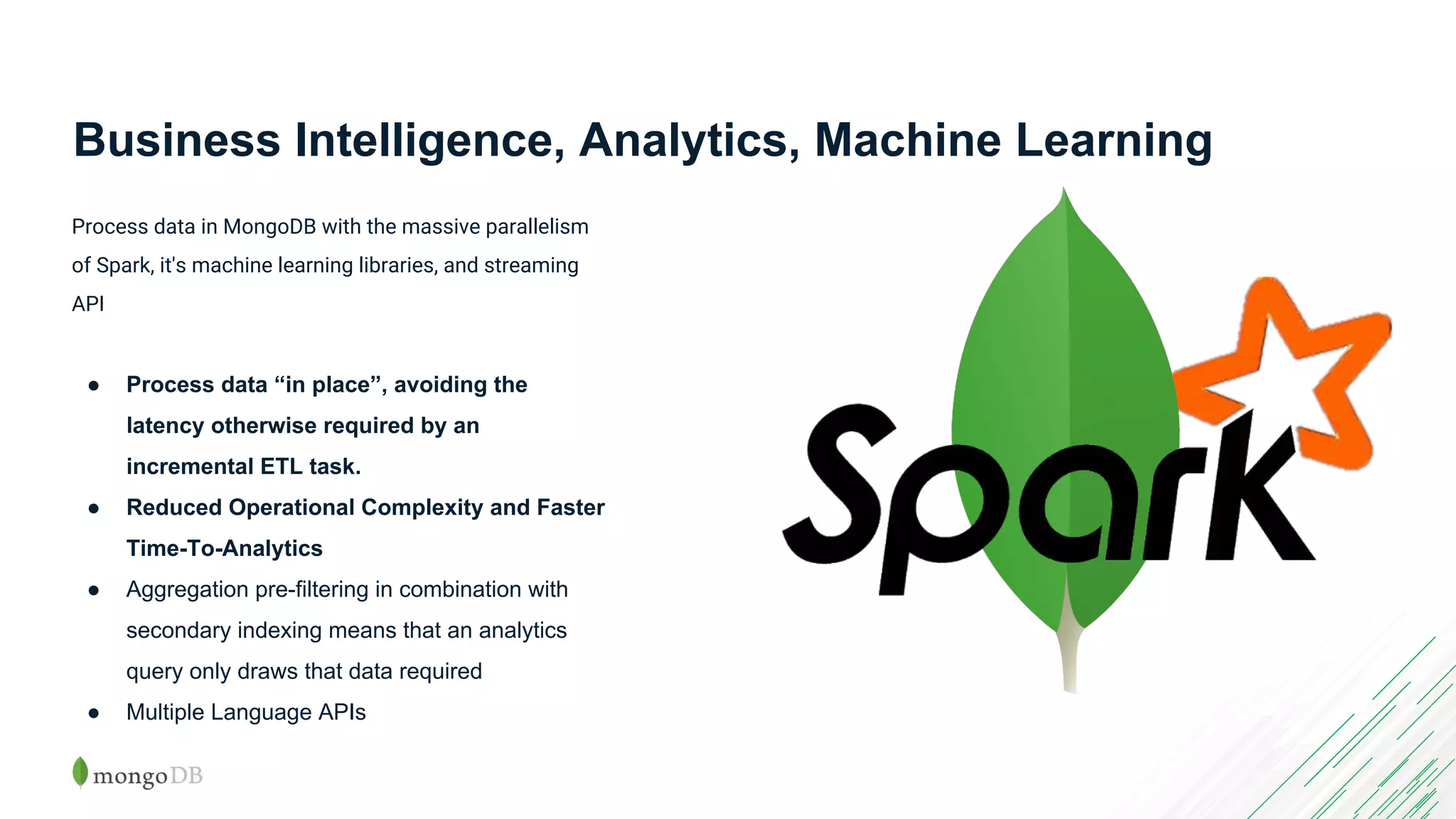

Business Intelligence, Analytics, Machine Learning Process data in MongoDB with the massive parallelism of Spark, it's machine learning libraries, and streaming API ● Process data “in place”, avoiding the latency otherwise required by an incremental ETL task. ● Reduced Operational Complexity and Faster Time-To-Analytics ● Aggregation pre-filtering in combination with secondary indexing means that an analytics query only draws that data required ● Multiple Language APIs

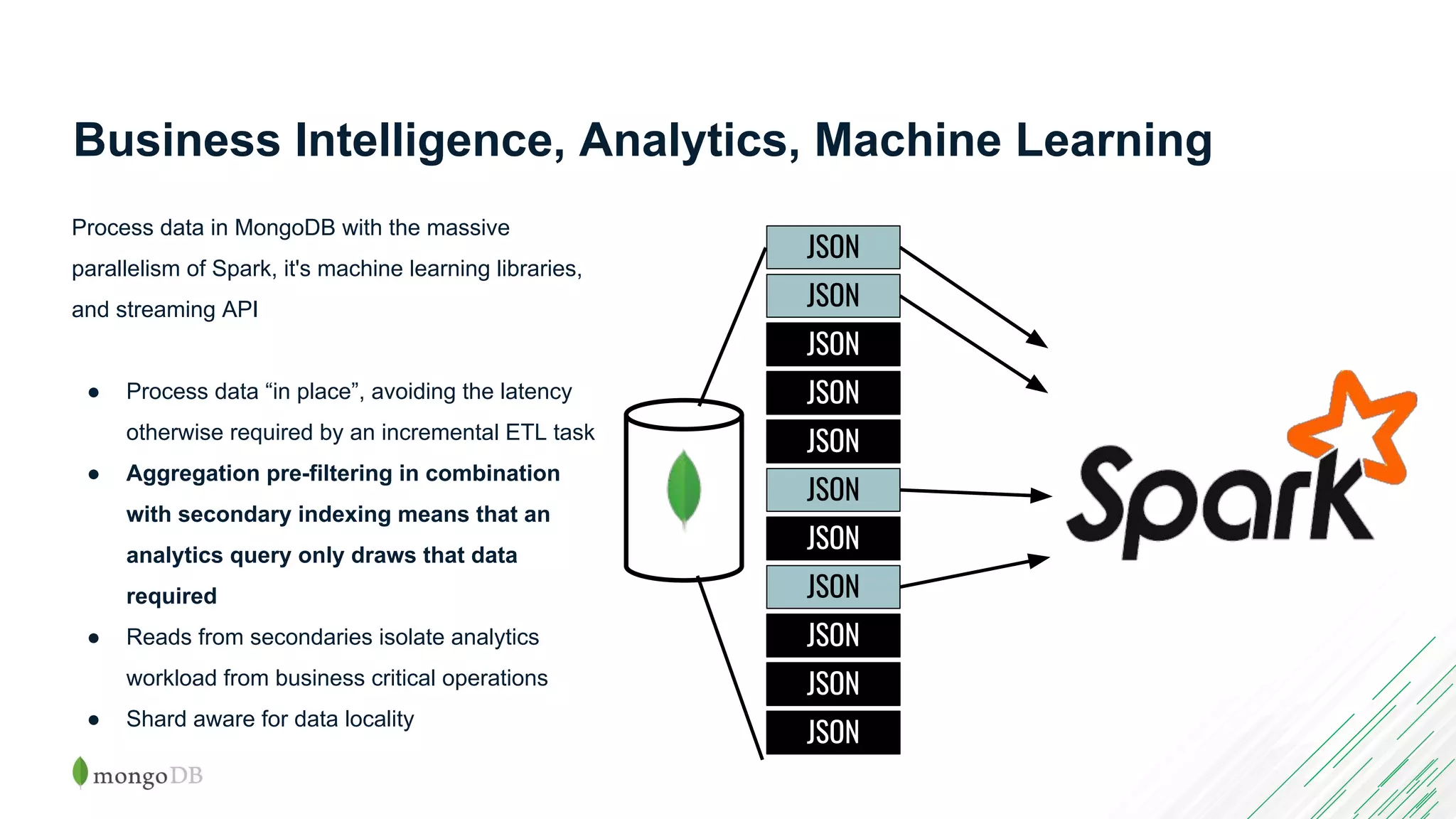

JSON JSON JSON JSON JSON JSON JSON JSON JSON JSON JSON Business Intelligence, Analytics, Machine Learning Process data in MongoDB with the massive parallelism of Spark, it's machine learning libraries, and streaming API ● Process data “in place”, avoiding the latency otherwise required by an incremental ETL task ● Aggregation pre-filtering in combination with secondary indexing means that an analytics query only draws that data required ● Reads from secondaries isolate analytics workload from business critical operations ● Shard aware for data locality

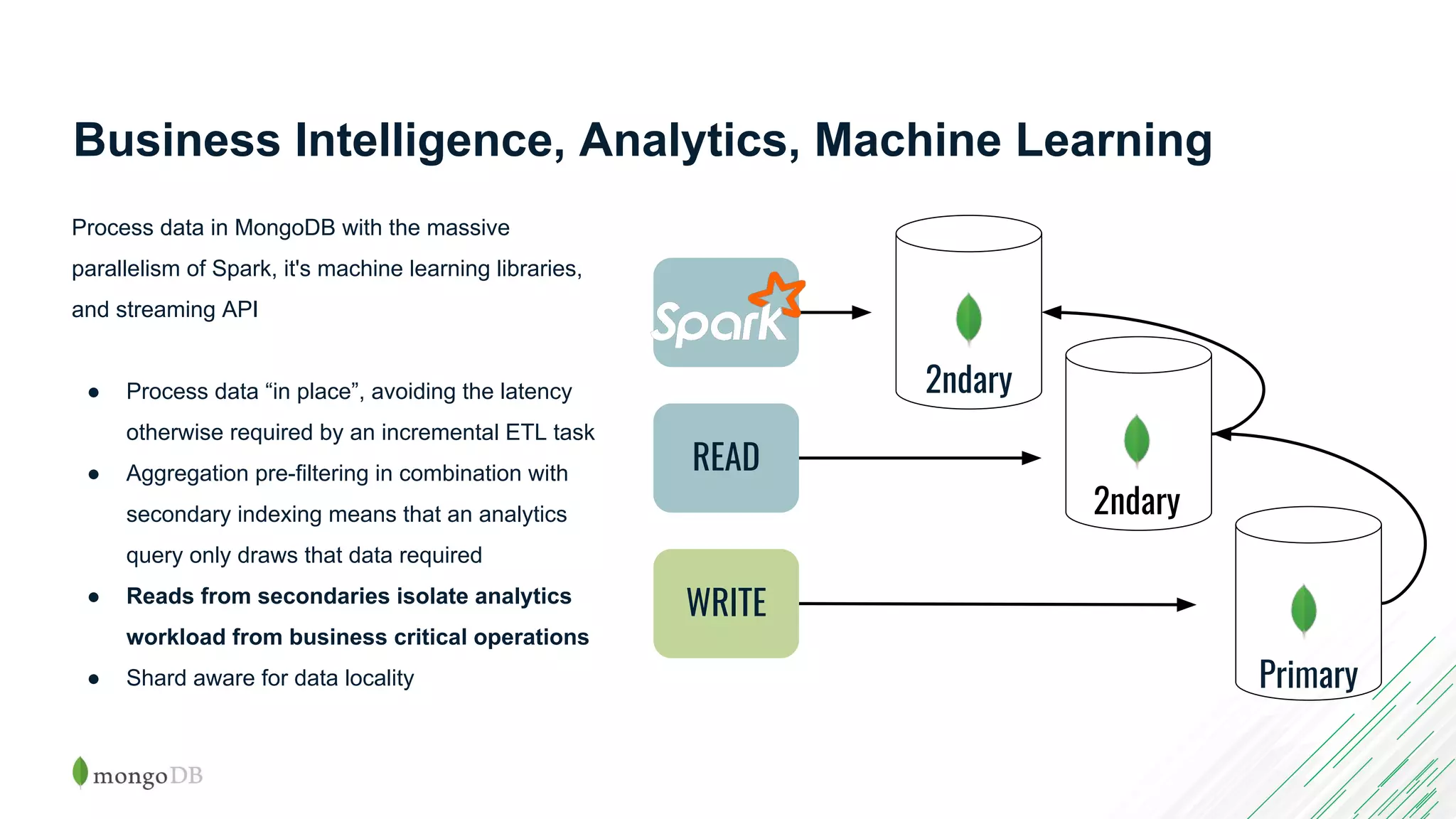

WRITE READ Primary 2ndary 2ndary Business Intelligence, Analytics, Machine Learning Process data in MongoDB with the massive parallelism of Spark, it's machine learning libraries, and streaming API ● Process data “in place”, avoiding the latency otherwise required by an incremental ETL task ● Aggregation pre-filtering in combination with secondary indexing means that an analytics query only draws that data required ● Reads from secondaries isolate analytics workload from business critical operations ● Shard aware for data locality

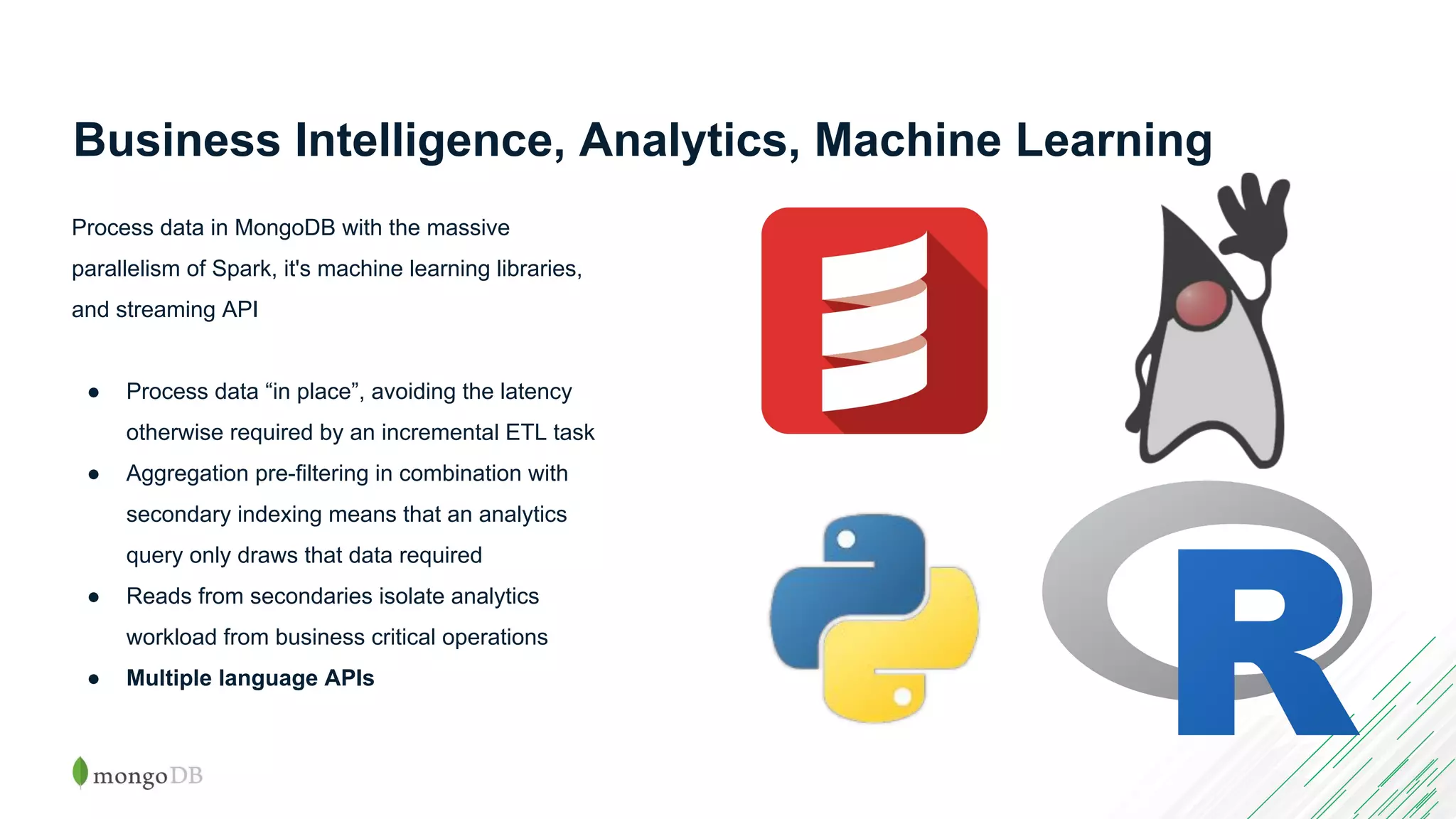

Business Intelligence, Analytics, Machine Learning Process data in MongoDB with the massive parallelism of Spark, it's machine learning libraries, and streaming API ● Process data “in place”, avoiding the latency otherwise required by an incremental ETL task ● Aggregation pre-filtering in combination with secondary indexing means that an analytics query only draws that data required ● Reads from secondaries isolate analytics workload from business critical operations ● Multiple language APIs

Partners and Certifications Coming soon,....

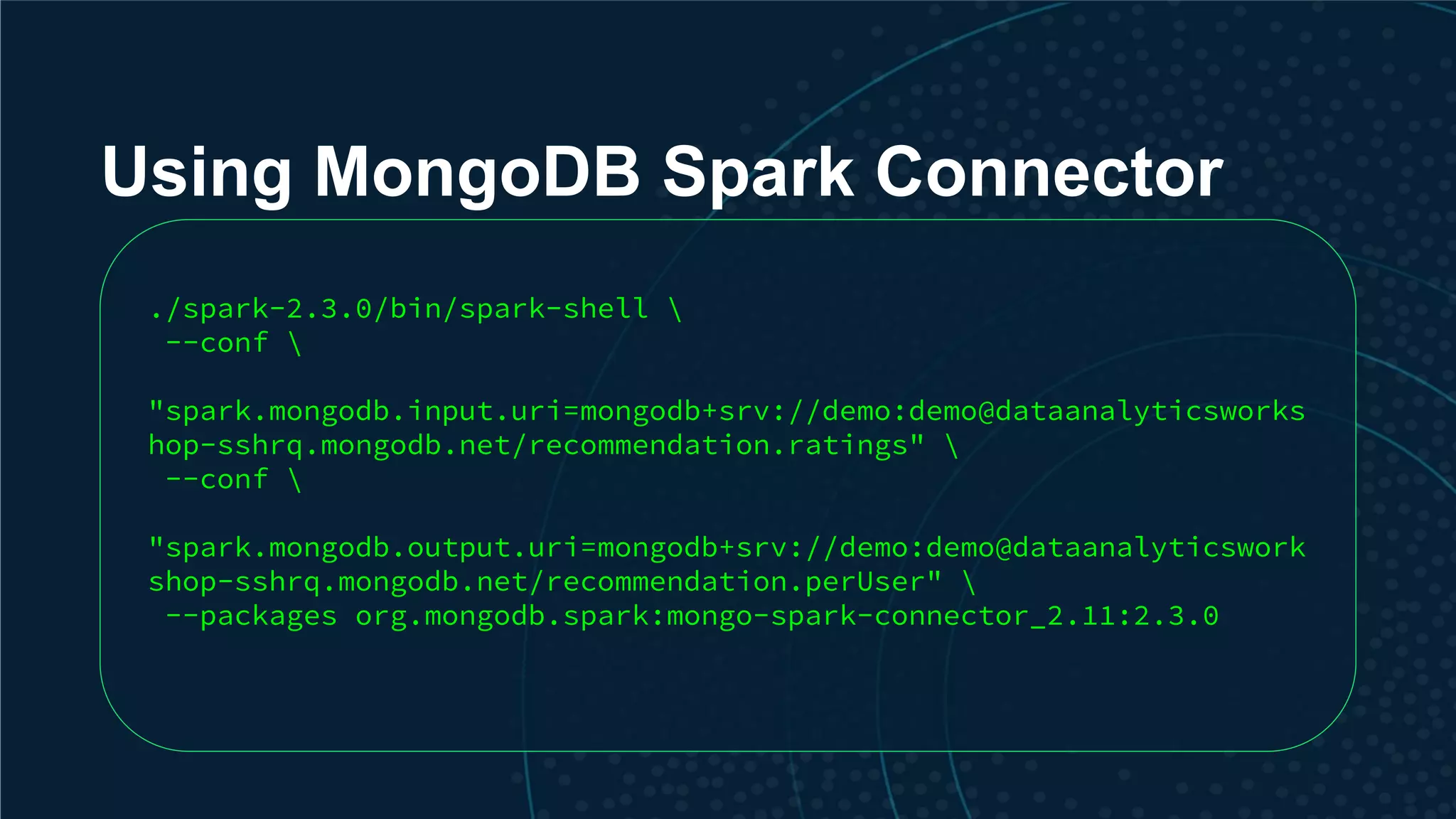

Using MongoDB Spark Connector ./spark-2.3.0/bin/spark-shell --conf "spark.mongodb.input.uri=mongodb+srv://demo:demo@dataanalyticsworks hop-sshrq.mongodb.net/recommendation.ratings" --conf "spark.mongodb.output.uri=mongodb+srv://demo:demo@dataanalyticswork shop-sshrq.mongodb.net/recommendation.perUser" --packages org.mongodb.spark:mongo-spark-connector_2.11:2.3.0

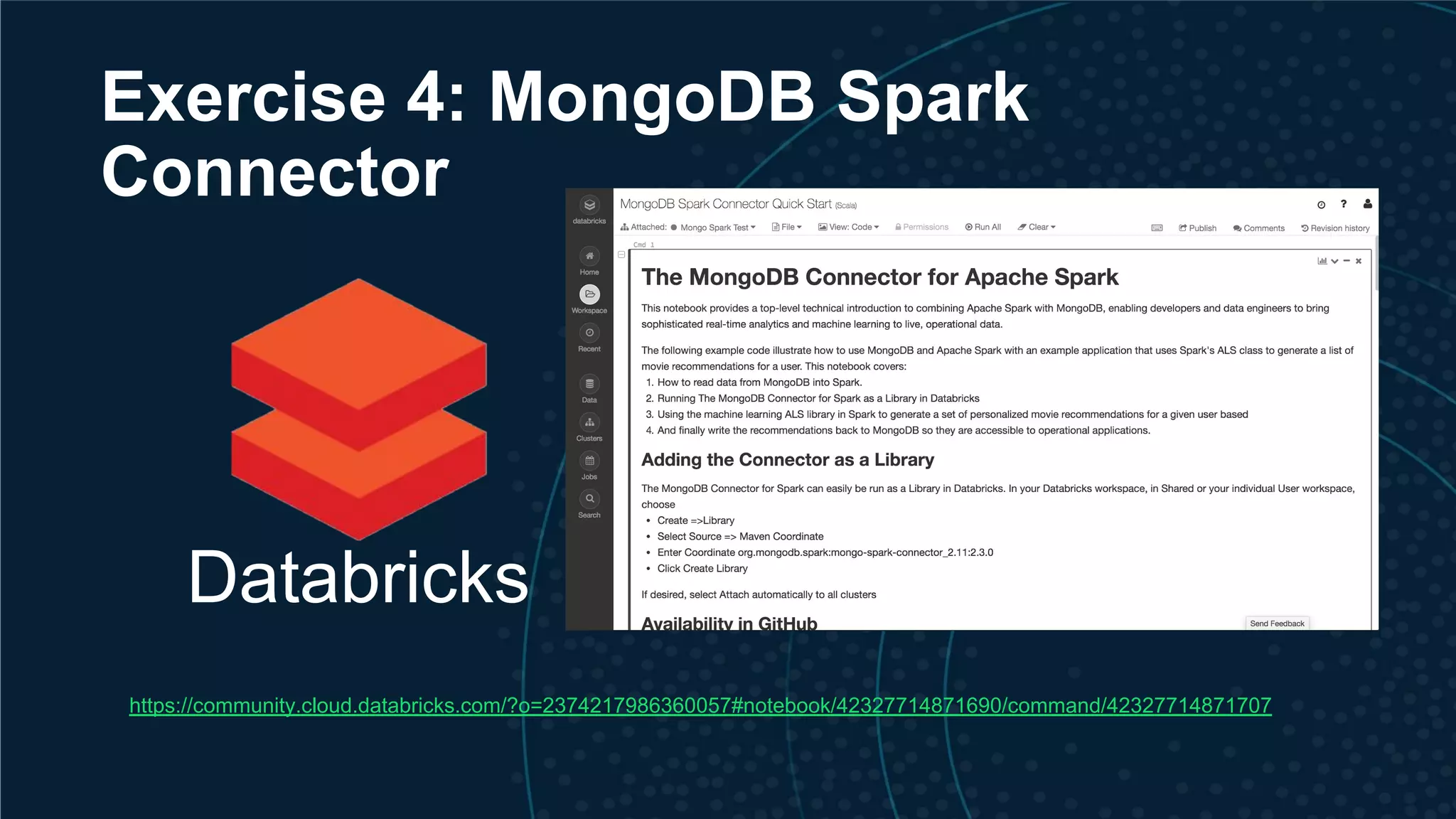

Exercise 4: MongoDB Spark Connector https://community.cloud.databricks.com/?o=2374217986360057#notebook/42327714871690/command/42327714871707 Databricks

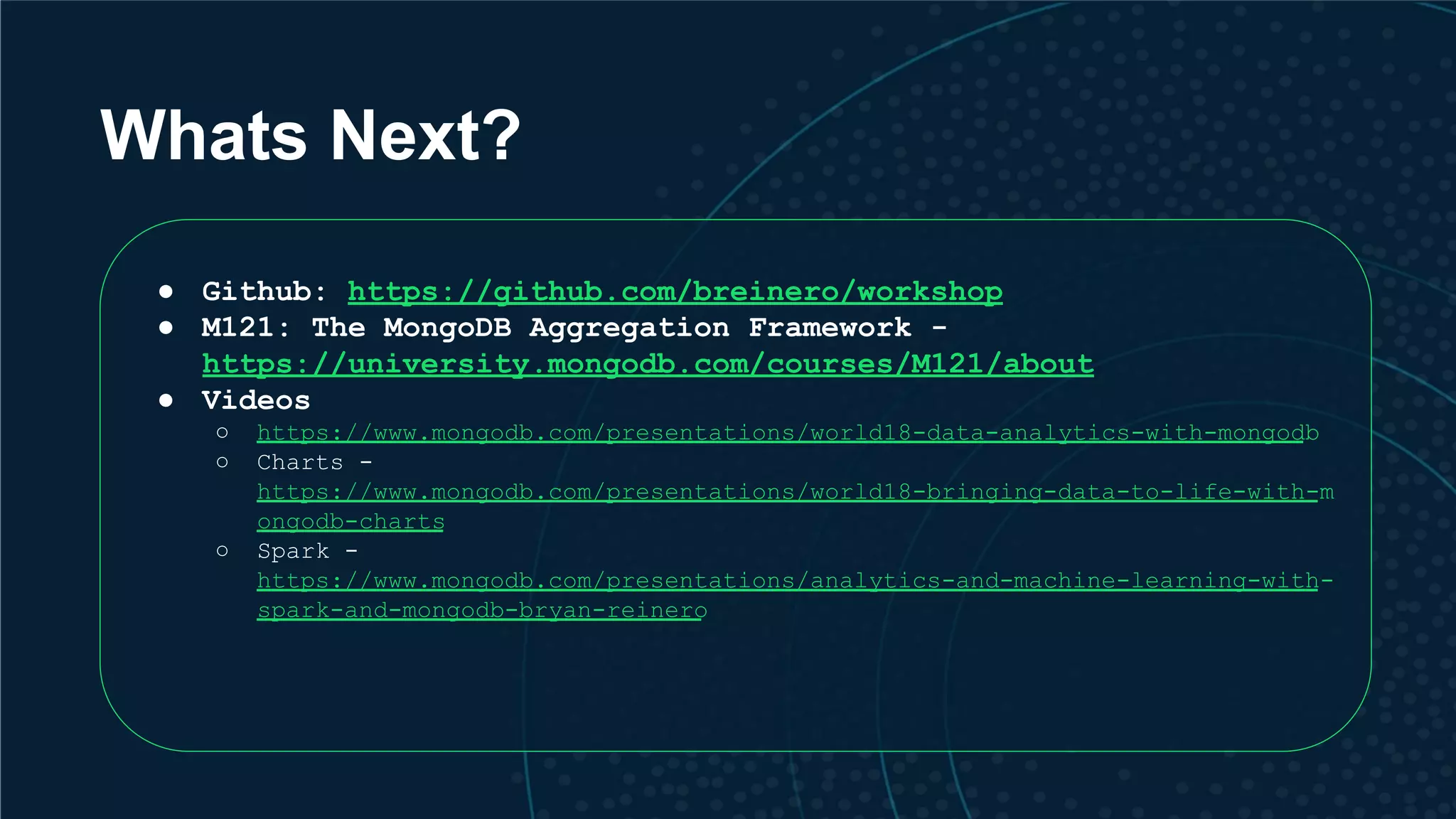

Whats Next? ● Github: https://github.com/breinero/workshop ● M121: The MongoDB Aggregation Framework - https://university.mongodb.com/courses/M121/about ● Videos ○ https://www.mongodb.com/presentations/world18-data-analytics-with-mongodb ○ Charts - https://www.mongodb.com/presentations/world18-bringing-data-to-life-with-m ongodb-charts ○ Spark - https://www.mongodb.com/presentations/analytics-and-machine-learning-with- spark-and-mongodb-bryan-reinero
