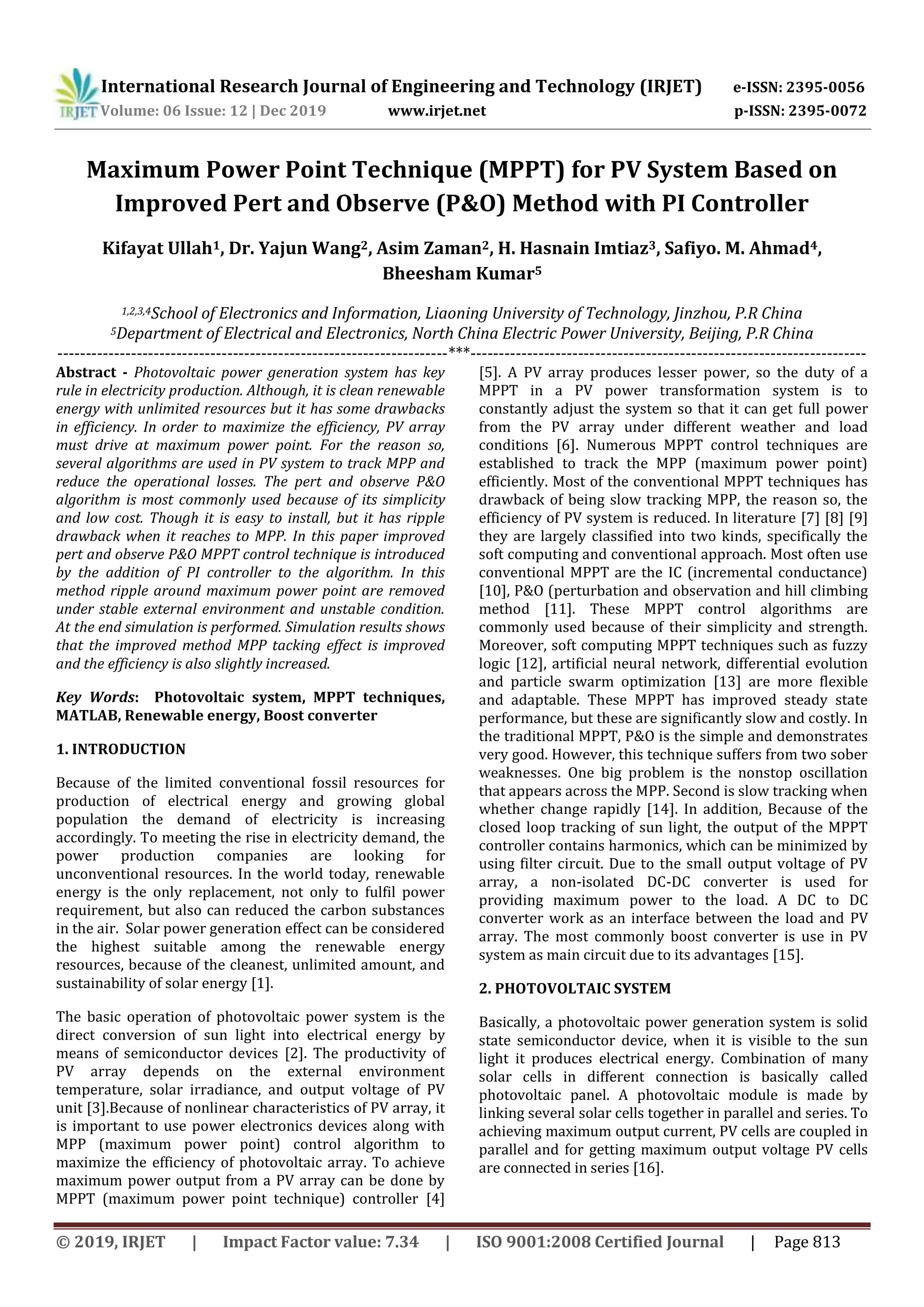

  International Research Journalof Engineering and Technology (IRJET) e-ISSN: 2395-0056 Volume: 06 Issue: 12 | Dec 2019 www.irjet.net p-ISSN: 2395-0072 © 2019, IRJET | Impact Factor value: 7.34 | ISO 9001:2008 Certified Journal | Page 813 Maximum Power Point Technique (MPPT) for PV System Based on Improved Pert and Observe (P&O) Method with PI Controller Kifayat Ullah1, Dr. Yajun Wang2, Asim Zaman2, H. Hasnain Imtiaz3, Safiyo. M. Ahmad4, Bheesham Kumar5 1,2,3,4School of Electronics and Information, Liaoning University of Technology, Jinzhou, P.R China 5Department of Electrical and Electronics, North China Electric Power University, Beijing, P.R China ---------------------------------------------------------------------***---------------------------------------------------------------------- Abstract - Photovoltaic power generation system has key rule in electricity production. Although, it is clean renewable energy with unlimited resources but it has some drawbacks in efficiency. In order to maximize the efficiency, PV array must drive at maximum power point. For the reason so, several algorithms are used in PV system to track MPP and reduce the operational losses. The pert and observe P&O algorithm is most commonly used because of its simplicity and low cost. Though it is easy to install, but it has ripple drawback when it reaches to MPP. In this paper improved pert and observe P&O MPPT control technique is introduced by the addition of PI controller to the algorithm. In this method ripple around maximum power point are removed under stable external environment and unstable condition. At the end simulation is performed. Simulation results shows that the improved method MPP tacking effect is improved and the efficiency is also slightly increased. Key Words: Photovoltaic system, MPPT techniques, MATLAB, Renewable energy, Boost converter 1. INTRODUCTION Because of the limited conventional fossil resources for production of electrical energy and growing global population the demand of electricity is increasing accordingly. To meeting the rise in electricity demand, the power production companies are looking for unconventional resources. In the world today, renewable energy is the only replacement, not only to fulfil power requirement, but also can reduced the carbon substances in the air. Solar power generation effect can be considered the highest suitable among the renewable energy resources, because of the cleanest, unlimited amount, and sustainability of solar energy [1]. The basic operation of photovoltaic power system is the direct conversion of sun light into electrical energy by means of semiconductor devices [2]. The productivity of PV array depends on the external environment temperature, solar irradiance, and output voltage of PV unit [3].Because of nonlinear characteristics of PV array, it is important to use power electronics devices along with MPP (maximum power point) control algorithm to maximize the efficiency of photovoltaic array. To achieve maximum power output from a PV array can be done by MPPT (maximum power point technique) controller [4] [5]. A PV array produces lesser power, so the duty of a MPPT in a PV power transformation system is to constantly adjust the system so that it can get full power from the PV array under different weather and load conditions [6]. Numerous MPPT control techniques are established to track the MPP (maximum power point) efficiently. Most of the conventional MPPT techniques has drawback of being slow tracking MPP, the reason so, the efficiency of PV system is reduced. In literature [7] [8] [9] they are largely classified into two kinds, specifically the soft computing and conventional approach. Most often use conventional MPPT are the IC (incremental conductance) [10], P&O (perturbation and observation and hill climbing method [11]. These MPPT control algorithms are commonly used because of their simplicity and strength. Moreover, soft computing MPPT techniques such as fuzzy logic [12], artificial neural network, differential evolution and particle swarm optimization [13] are more flexible and adaptable. These MPPT has improved steady state performance, but these are significantly slow and costly. In the traditional MPPT, P&O is the simple and demonstrates very good. However, this technique suffers from two sober weaknesses. One big problem is the nonstop oscillation that appears across the MPP. Second is slow tracking when whether change rapidly [14]. In addition, Because of the closed loop tracking of sun light, the output of the MPPT controller contains harmonics, which can be minimized by using filter circuit. Due to the small output voltage of PV array, a non-isolated DC-DC converter is used for providing maximum power to the load. A DC to DC converter work as an interface between the load and PV array. The most commonly boost converter is use in PV system as main circuit due to its advantages [15]. 2. PHOTOVOLTAIC SYSTEM Basically, a photovoltaic power generation system is solid state semiconductor device, when it is visible to the sun light it produces electrical energy. Combination of many solar cells in different connection is basically called photovoltaic panel. A photovoltaic module is made by linking several solar cells together in parallel and series. To achieving maximum output current, PV cells are coupled in parallel and for getting maximum output voltage PV cells are connected in series [16].
• 2.

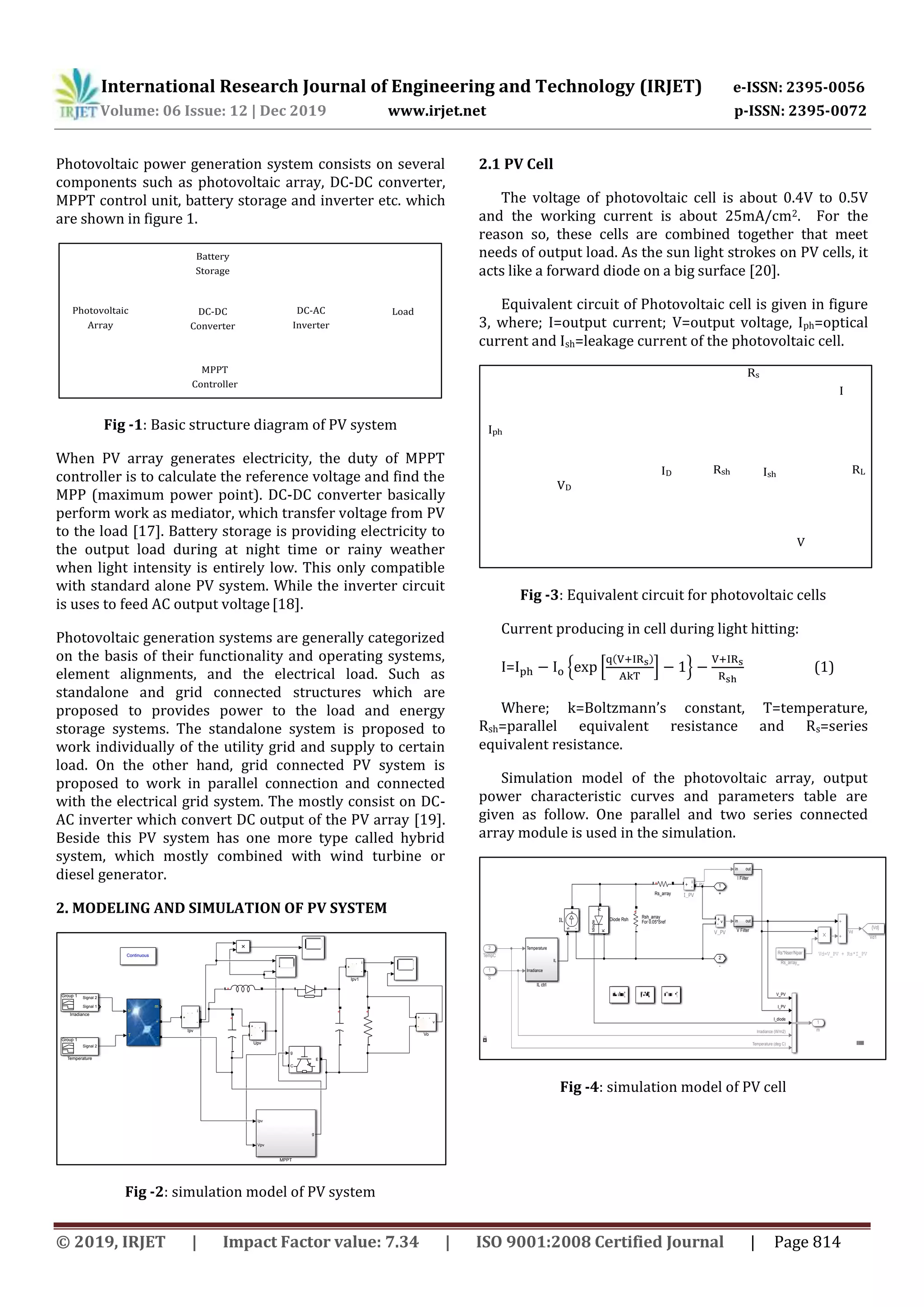

  International Research Journalof Engineering and Technology (IRJET) e-ISSN: 2395-0056 Volume: 06 Issue: 12 | Dec 2019 www.irjet.net p-ISSN: 2395-0072 © 2019, IRJET | Impact Factor value: 7.34 | ISO 9001:2008 Certified Journal | Page 814 Photovoltaic power generation system consists on several components such as photovoltaic array, DC-DC converter, MPPT control unit, battery storage and inverter etc. which are shown in figure 1. Fig -1: Basic structure diagram of PV system When PV array generates electricity, the duty of MPPT controller is to calculate the reference voltage and find the MPP (maximum power point). DC-DC converter basically perform work as mediator, which transfer voltage from PV to the load [17]. Battery storage is providing electricity to the output load during at night time or rainy weather when light intensity is entirely low. This only compatible with standard alone PV system. While the inverter circuit is uses to feed AC output voltage[18]. Photovoltaic generation systems are generally categorized on the basis of their functionality and operating systems, element alignments, and the electrical load. Such as standalone and grid connected structures which are proposed to provides power to the load and energy storage systems. The standalone system is proposed to work individually of the utility grid and supply to certain load. On the other hand, grid connected PV system is proposed to work in parallel connection and connected with the electrical grid system. The mostly consist on DC- AC inverter which convert DC output of the PV array [19]. Beside this PV system has one more type called hybrid system, which mostly combined with wind turbine or diesel generator. 2. MODELING AND SIMULATION OF PV SYSTEM Fig -2: simulation model of PV system 2.1 PV Cell The voltage of photovoltaic cell is about 0.4V to 0.5V and the working current is about 25mA/cm2. For the reason so, these cells are combined together that meet needs of output load. As the sun light strokes on PV cells, it acts like a forward diode on a big surface [20]. Equivalent circuit of Photovoltaic cell is given in figure 3, where; I=output current; V=output voltage, Iph=optical current and Ish=leakage current of the photovoltaic cell. Fig -3: Equivalent circuit for photovoltaic cells Current producing in cell during light hitting: { [ ( ) ] } (1) Where; k Boltzmann’s constant, T temperature, Rsh=parallel equivalent resistance and Rs=series equivalent resistance. Simulation model of the photovoltaic array, output power characteristic curves and parameters table are given as follow. One parallel and two series connected array module is used in the simulation. Fig -4: simulation model of PV cell Battery Storage Photovoltaic Array MPPT Controller DC-DC Converter LoadDC-AC Inverter i + - Ipv v + - Vo + Ipv Vpv g MPPT + + v + - Upv Continuous Ir T mm + - i + - Ipv1 g C E + Vpv Ipv PWM duty cycle MPPT1 Signal 2 Signal 1 Group 1 Irradiance Signal 2 Group 1 Temperature Iph VD ID Rsh Ish RL Rs I V Vd=V_PV + Rs*I_PV 2 - 1 + 1 m 2 TempC 1 S v + - V_PV Idiode A K Diode Rsh s - + IL i + - I_PV + Rs_array Rs*Nser/Npar Rs_array_ + Rsh_array For 0.05*Sref {Vd} Vd1 Temperature Irradiance IL IL ctrl in out I Filter in out V Filter V_PV I_PV I_PV Vd I_diode Irradiance (W/m2) Temperature (deg C)
• 3.

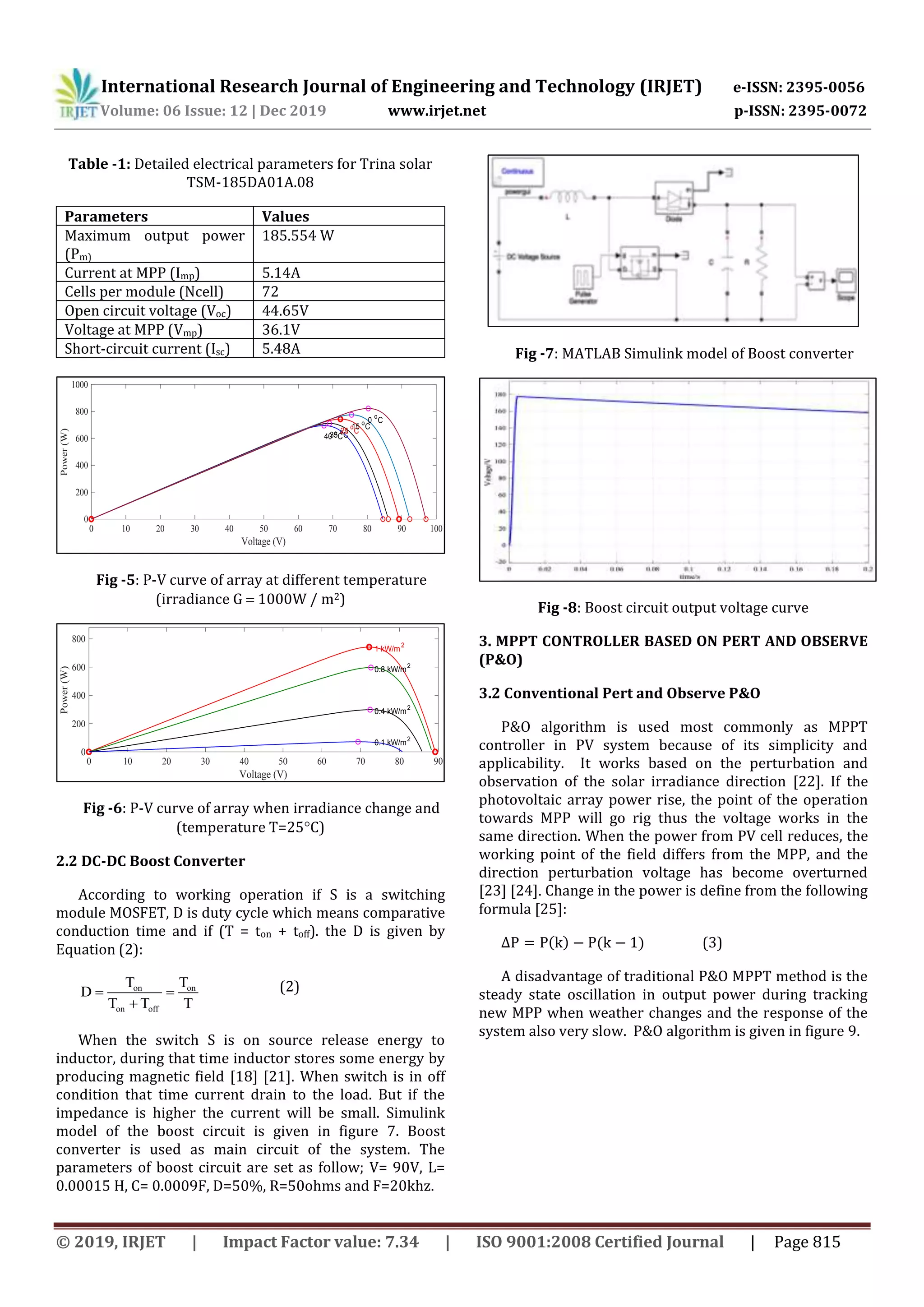

  International Research Journalof Engineering and Technology (IRJET) e-ISSN: 2395-0056 Volume: 06 Issue: 12 | Dec 2019 www.irjet.net p-ISSN: 2395-0072 © 2019, IRJET | Impact Factor value: 7.34 | ISO 9001:2008 Certified Journal | Page 815 Table -1: Detailed electrical parameters for Trina solar TSM-185DA01A.08 Parameters Values Maximum output power (Pm) 185.554 W Current at MPP (Imp) 5.14A Cells per module (Ncell) 72 Open circuit voltage (Voc) 44.65V Voltage at MPP (Vmp) 36.1V Short-circuit current (Isc) 5.48A Fig -5: P-V curve of array at different temperature (irradiance G  1000W / m2) Fig -6: P-V curve of array when irradiance change and (temperature T=25C) 2.2 DC-DC Boost Converter According to working operation if S is a switching module MOSFET, D is duty cycle which means comparative conduction time and if (T = ton + toff). the D is given by Equation (2): on on on off T T D T T T    (2) When the switch S is on source release energy to inductor, during that time inductor stores some energy by producing magnetic field [18] [21]. When switch is in off condition that time current drain to the load. But if the impedance is higher the current will be small. Simulink model of the boost circuit is given in figure 7. Boost converter is used as main circuit of the system. The parameters of boost circuit are set as follow; V= 90V, L= 0.00015 H, C= 0.0009F, D=50%, R=50ohms and F=20khz. Fig -7: MATLAB Simulink model of Boost converter Fig -8: Boost circuit output voltage curve 3. MPPT CONTROLLER BASED ON PERT AND OBSERVE (P&O) 3.2 Conventional Pert and Observe P&O P&O algorithm is used most commonly as MPPT controller in PV system because of its simplicity and applicability. It works based on the perturbation and observation of the solar irradiance direction [22]. If the photovoltaic array power rise, the point of the operation towards MPP will go rig thus the voltage works in the same direction. When the power from PV cell reduces, the working point of the field differs from the MPP, and the direction perturbation voltage has become overturned [23] [24]. Change in the power is define from the following formula [25]: ( ) ( ) (3) A disadvantage of traditional P&O MPPT method is the steady state oscillation in output power during tracking new MPP when weather changes and the response of the system also very slow. P&O algorithm is given in figure 9. 0 10 20 30 40 50 60 70 80 90 100 Voltage (V) 0 2 4 6 8 10 12 Current(A) 40 o C 35 o C 25 o C 15 o C 0 o C 0 10 20 30 40 50 60 70 80 90 100 Voltage (V) 0 200 400 600 800 1000 Power(W) 40 o C35 o C 25 o C 15 o C 0 o C 0 10 20 30 40 50 60 70 80 90 Voltage (V) 0 2 4 6 8 10 12 Current(A) 1 kW/m 2 0.8 kW/m2 0.4 kW/m2 0.1 kW/m 2 0 10 20 30 40 50 60 70 80 90 Voltage (V) 0 200 400 600 800 Power(W) 1 kW/m2 0.8 kW/m 2 0.4 kW/m 2 0.1 kW/m2
• 4.

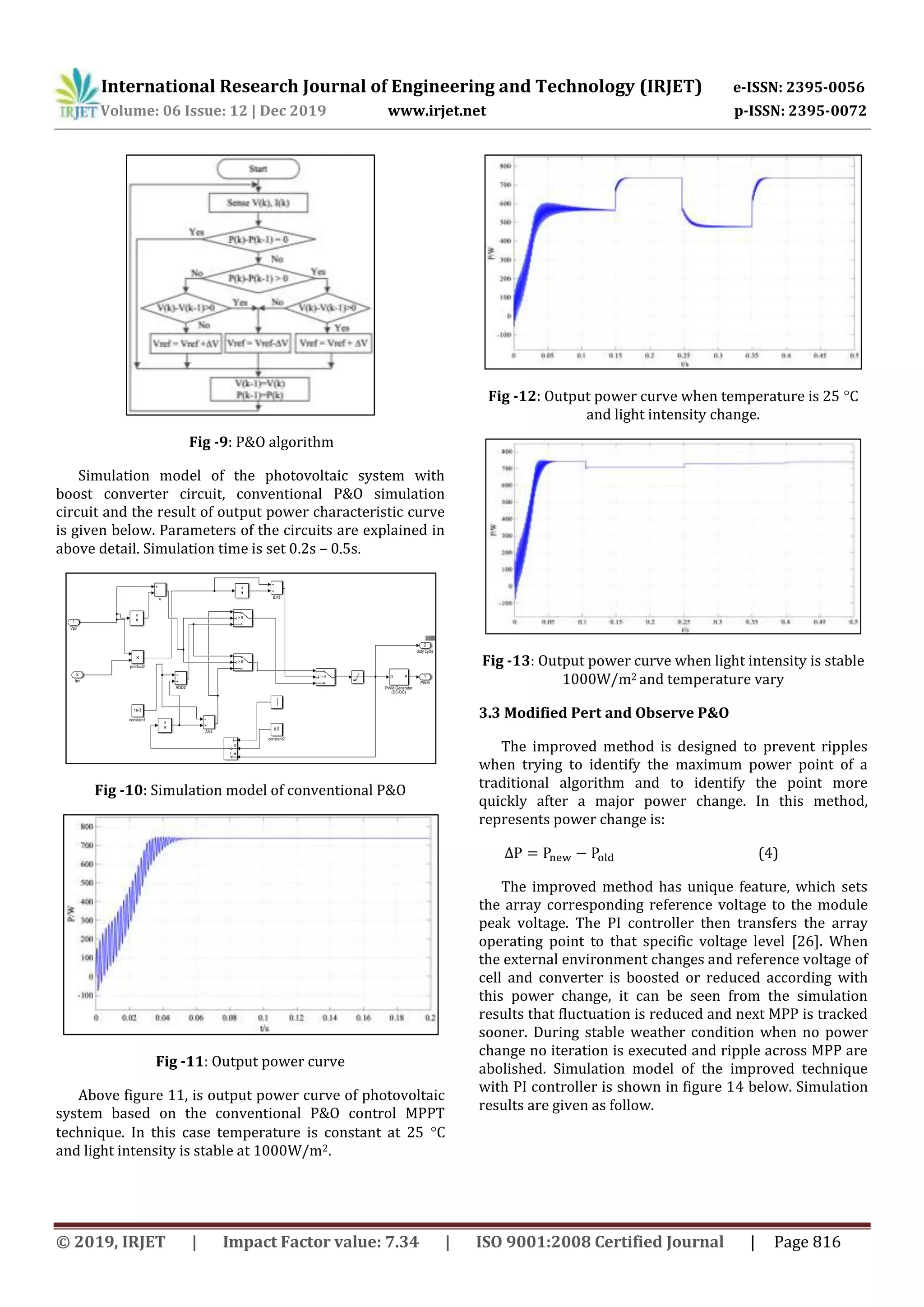

  International Research Journalof Engineering and Technology (IRJET) e-ISSN: 2395-0056 Volume: 06 Issue: 12 | Dec 2019 www.irjet.net p-ISSN: 2395-0072 © 2019, IRJET | Impact Factor value: 7.34 | ISO 9001:2008 Certified Journal | Page 816 Fig -9: P&O algorithm Simulation model of the photovoltaic system with boost converter circuit, conventional P&O simulation circuit and the result of output power characteristic curve is given below. Parameters of the circuits are explained in above detail. Simulation time is set 0.2s – 0.5s. Fig -10: Simulation model of conventional P&O Fig -11: Output power curve Above figure 11, is output power curve of photovoltaic system based on the conventional P&O control MPPT technique. In this case temperature is constant at 25 C and light intensity is stable at 1000W/m2. Fig -12: Output power curve when temperature is 25 C and light intensity change. Fig -13: Output power curve when light intensity is stable 1000W/m2 and temperature vary 3.3 Modified Pert and Observe P&O The improved method is designed to prevent ripples when trying to identify the maximum power point of a traditional algorithm and to identify the point more quickly after a major power change. In this method, represents power change is: (4) The improved method has unique feature, which sets the array corresponding reference voltage to the module peak voltage. The PI controller then transfers the array operating point to that specific voltage level [26]. When the external environment changes and reference voltage of cell and converter is boosted or reduced according with this power change, it can be seen from the simulation results that fluctuation is reduced and next MPP is tracked sooner. During stable weather condition when no power change no iteration is executed and ripple across MPP are abolished. Simulation model of the improved technique with PI controller is shown in figure 14 below. Simulation results are given as follow. 1 PWM 2 Ipv 1 Vpv D P PWM Generator (DC-DC) > 0 0 *1, V ΔV4 product2 > 0 > 0 1e-3 constant1 0.5 constant2 ADD2 ΔV3 2 duty cycle
• 5.

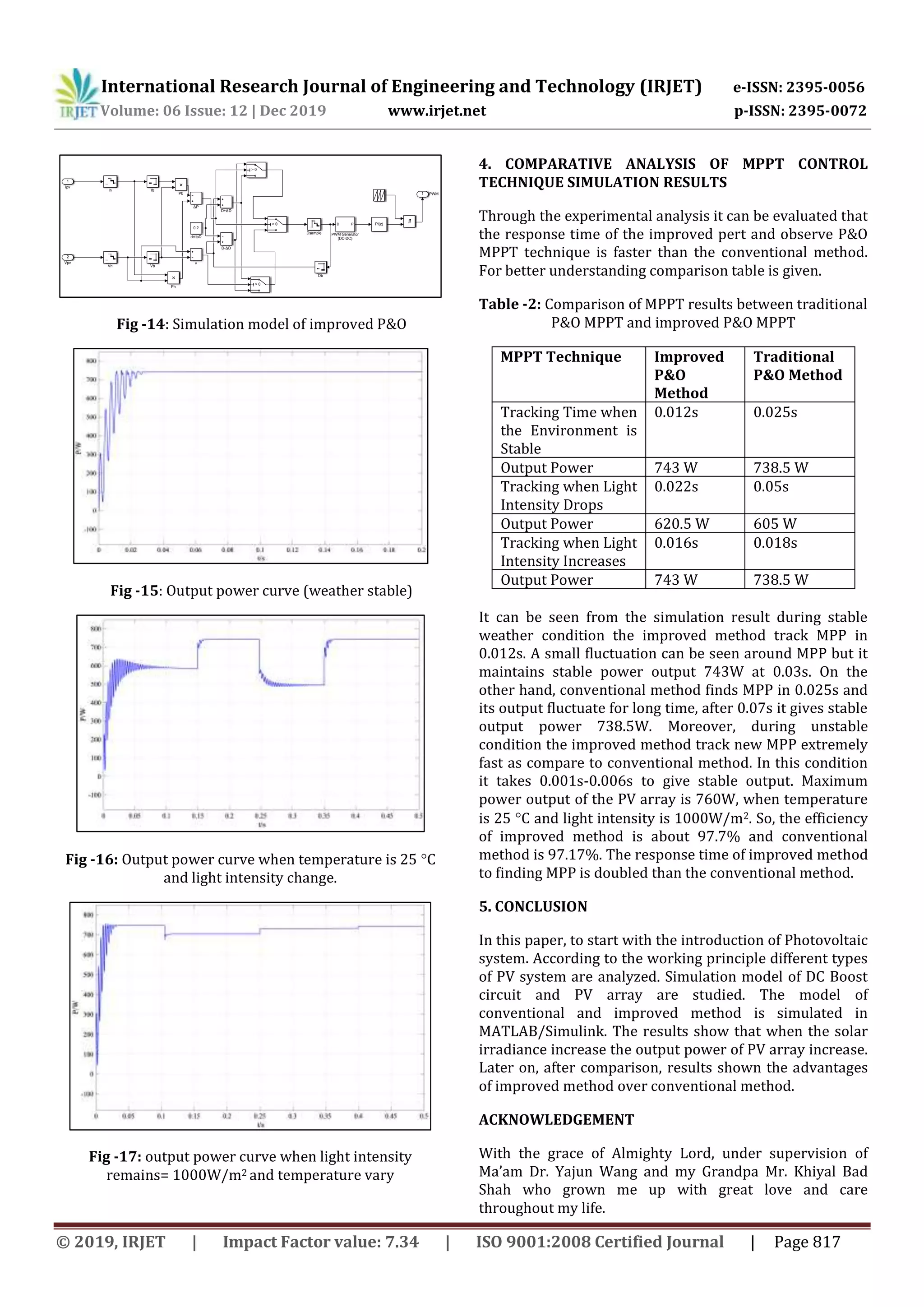

  International Research Journalof Engineering and Technology (IRJET) e-ISSN: 2395-0056 Volume: 06 Issue: 12 | Dec 2019 www.irjet.net p-ISSN: 2395-0072 © 2019, IRJET | Impact Factor value: 7.34 | ISO 9001:2008 Certified Journal | Page 817 Fig -14: Simulation model of improved P&O Fig -15: Output power curve (weather stable) Fig -16: Output power curve when temperature is 25 C and light intensity change. Fig -17: output power curve when light intensity remains= 1000W/m2 and temperature vary 4. COMPARATIVE ANALYSIS OF MPPT CONTROL TECHNIQUE SIMULATION RESULTS Through the experimental analysis it can be evaluated that the response time of the improved pert and observe P&O MPPT technique is faster than the conventional method. For better understanding comparison table is given. Table -2: Comparison of MPPT results between traditional P&O MPPT and improved P&O MPPT MPPT Technique Improved P&O Method Traditional P&O Method Tracking Time when the Environment is Stable 0.012s 0.025s Output Power 743 W 738.5 W Tracking when Light Intensity Drops 0.022s 0.05s Output Power 620.5 W 605 W Tracking when Light Intensity Increases 0.016s 0.018s Output Power 743 W 738.5 W It can be seen from the simulation result during stable weather condition the improved method track MPP in 0.012s. A small fluctuation can be seen around MPP but it maintains stable power output 743W at 0.03s. On the other hand, conventional method finds MPP in 0.025s and its output fluctuate for long time, after 0.07s it gives stable output power 738.5W. Moreover, during unstable condition the improved method track new MPP extremely fast as compare to conventional method. In this condition it takes 0.001s-0.006s to give stable output. Maximum power output of the PV array is 760W, when temperature is 25 C and light intensity is 1000W/m2. So, the efficiency of improved method is about 97.7% and conventional method is 97.17%. The response time of improved method to finding MPP is doubled than the conventional method. 5. CONCLUSION In this paper, to start with the introduction of Photovoltaic system. According to the working principle different types of PV system are analyzed. Simulation model of DC Boost circuit and PV array are studied. The model of conventional and improved method is simulated in MATLAB/Simulink. The results show that when the solar irradiance increase the output power of PV array increase. Later on, after comparison, results shown the advantages of improved method over conventional method. ACKNOWLEDGEMENT With the grace of Almighty Lord, under supervision of Ma’am Dr. Yajun Wang and my Grandpa Mr. Khiyal Bad Shah who grown me up with great love and care throughout my life. 1 Ipv 0.2 deltaD 2 Vpv Ib Vn D+ΔD v > 0 D P PWM Generator (DC-DC) In Dsample Vb Pb Pn ΔP > 0 > 0 Db D-ΔD 1 PWM PI(z)
• 6.

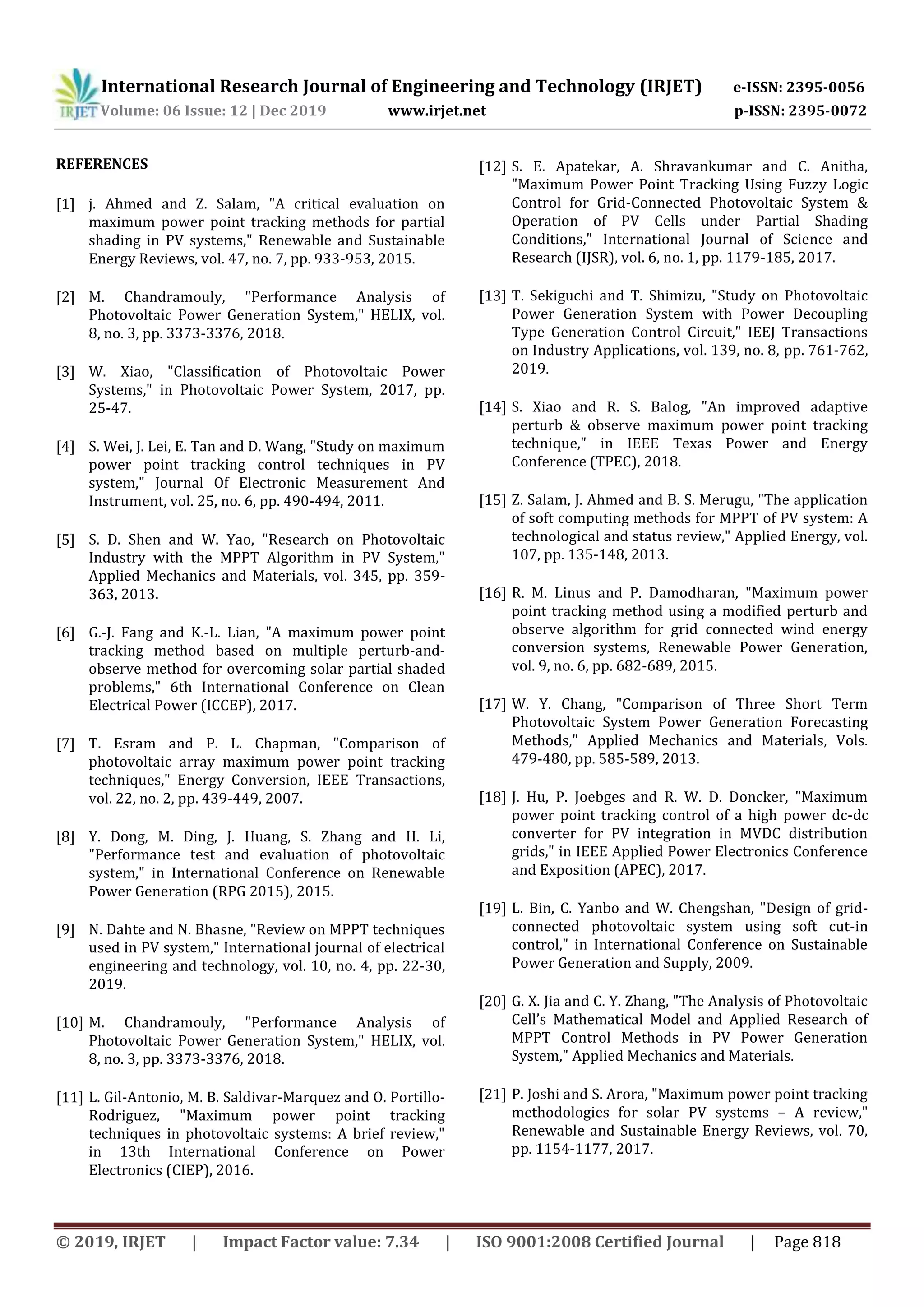

  International Research Journalof Engineering and Technology (IRJET) e-ISSN: 2395-0056 Volume: 06 Issue: 12 | Dec 2019 www.irjet.net p-ISSN: 2395-0072 © 2019, IRJET | Impact Factor value: 7.34 | ISO 9001:2008 Certified Journal | Page 818 REFERENCES [1] j. Ahmed and Z. Salam, "A critical evaluation on maximum power point tracking methods for partial shading in PV systems," Renewable and Sustainable Energy Reviews, vol. 47, no. 7, pp. 933-953, 2015. [2] M. Chandramouly, "Performance Analysis of Photovoltaic Power Generation System," HELIX, vol. 8, no. 3, pp. 3373-3376, 2018. [3] W. Xiao, "Classification of Photovoltaic Power Systems," in Photovoltaic Power System, 2017, pp. 25-47. [4] S. Wei, J. Lei, E. Tan and D. Wang, "Study on maximum power point tracking control techniques in PV system," Journal Of Electronic Measurement And Instrument, vol. 25, no. 6, pp. 490-494, 2011. [5] S. D. Shen and W. Yao, "Research on Photovoltaic Industry with the MPPT Algorithm in PV System," Applied Mechanics and Materials, vol. 345, pp. 359- 363, 2013. [6] G.-J. Fang and K.-L. Lian, "A maximum power point tracking method based on multiple perturb-and- observe method for overcoming solar partial shaded problems," 6th International Conference on Clean Electrical Power (ICCEP), 2017. [7] T. Esram and P. L. Chapman, "Comparison of photovoltaic array maximum power point tracking techniques," Energy Conversion, IEEE Transactions, vol. 22, no. 2, pp. 439-449, 2007. [8] Y. Dong, M. Ding, J. Huang, S. Zhang and H. Li, "Performance test and evaluation of photovoltaic system," in International Conference on Renewable Power Generation (RPG 2015), 2015. [9] N. Dahte and N. Bhasne, "Review on MPPT techniques used in PV system," International journal of electrical engineering and technology, vol. 10, no. 4, pp. 22-30, 2019. [10] M. Chandramouly, "Performance Analysis of Photovoltaic Power Generation System," HELIX, vol. 8, no. 3, pp. 3373-3376, 2018. [11] L. Gil-Antonio, M. B. Saldivar-Marquez and O. Portillo- Rodriguez, "Maximum power point tracking techniques in photovoltaic systems: A brief review," in 13th International Conference on Power Electronics (CIEP), 2016. [12] S. E. Apatekar, A. Shravankumar and C. Anitha, "Maximum Power Point Tracking Using Fuzzy Logic Control for Grid-Connected Photovoltaic System & Operation of PV Cells under Partial Shading Conditions," International Journal of Science and Research (IJSR), vol. 6, no. 1, pp. 1179-185, 2017. [13] T. Sekiguchi and T. Shimizu, "Study on Photovoltaic Power Generation System with Power Decoupling Type Generation Control Circuit," IEEJ Transactions on Industry Applications, vol. 139, no. 8, pp. 761-762, 2019. [14] S. Xiao and R. S. Balog, "An improved adaptive perturb & observe maximum power point tracking technique," in IEEE Texas Power and Energy Conference (TPEC), 2018. [15] Z. Salam, J. Ahmed and B. S. Merugu, "The application of soft computing methods for MPPT of PV system: A technological and status review," Applied Energy, vol. 107, pp. 135-148, 2013. [16] R. M. Linus and P. Damodharan, "Maximum power point tracking method using a modified perturb and observe algorithm for grid connected wind energy conversion systems, Renewable Power Generation, vol. 9, no. 6, pp. 682-689, 2015. [17] W. Y. Chang, "Comparison of Three Short Term Photovoltaic System Power Generation Forecasting Methods," Applied Mechanics and Materials, Vols. 479-480, pp. 585-589, 2013. [18] J. Hu, P. Joebges and R. W. D. Doncker, "Maximum power point tracking control of a high power dc-dc converter for PV integration in MVDC distribution grids," in IEEE Applied Power Electronics Conference and Exposition (APEC), 2017. [19] L. Bin, C. Yanbo and W. Chengshan, "Design of grid- connected photovoltaic system using soft cut-in control," in International Conference on Sustainable Power Generation and Supply, 2009. [20] G. X. Jia and C. Y. Zhang, "The Analysis of Photovoltaic Cell’s Mathematical Model and Applied Research of MPPT Control Methods in PV Power Generation System," Applied Mechanics and Materials. [21] P. Joshi and S. Arora, "Maximum power point tracking methodologies for solar PV systems – A review," Renewable and Sustainable Energy Reviews, vol. 70, pp. 1154-1177, 2017.
• 7.

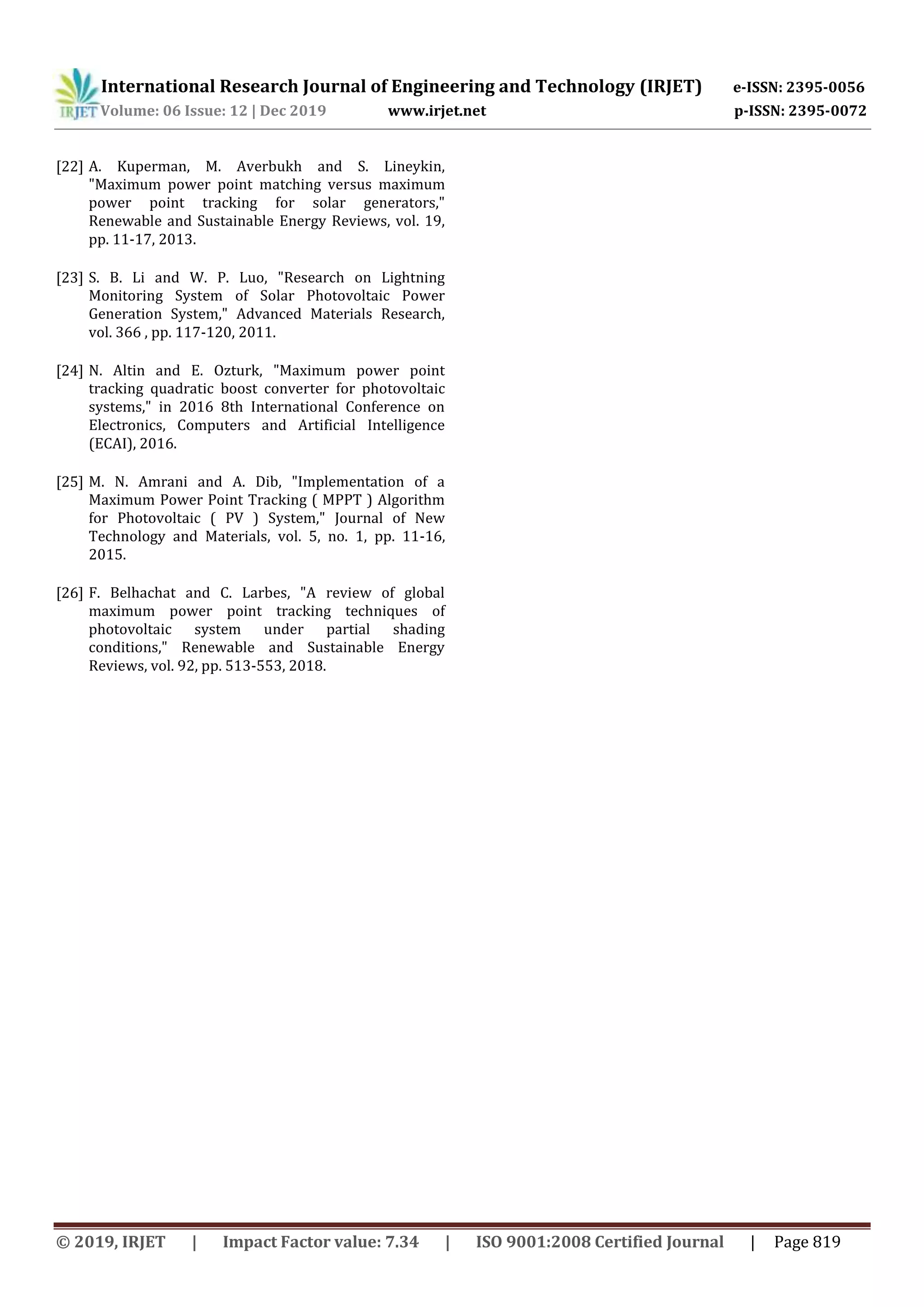

  International Research Journalof Engineering and Technology (IRJET) e-ISSN: 2395-0056 Volume: 06 Issue: 12 | Dec 2019 www.irjet.net p-ISSN: 2395-0072 © 2019, IRJET | Impact Factor value: 7.34 | ISO 9001:2008 Certified Journal | Page 819 [22] A. Kuperman, M. Averbukh and S. Lineykin, "Maximum power point matching versus maximum power point tracking for solar generators," Renewable and Sustainable Energy Reviews, vol. 19, pp. 11-17, 2013. [23] S. B. Li and W. P. Luo, "Research on Lightning Monitoring System of Solar Photovoltaic Power Generation System," Advanced Materials Research, vol. 366 , pp. 117-120, 2011. [24] N. Altin and E. Ozturk, "Maximum power point tracking quadratic boost converter for photovoltaic systems," in 2016 8th International Conference on Electronics, Computers and Artificial Intelligence (ECAI), 2016. [25] M. N. Amrani and A. Dib, "Implementation of a Maximum Power Point Tracking ( MPPT ) Algorithm for Photovoltaic ( PV ) System," Journal of New Technology and Materials, vol. 5, no. 1, pp. 11-16, 2015. [26] F. Belhachat and C. Larbes, "A review of global maximum power point tracking techniques of photovoltaic system under partial shading conditions," Renewable and Sustainable Energy Reviews, vol. 92, pp. 513-553, 2018.
