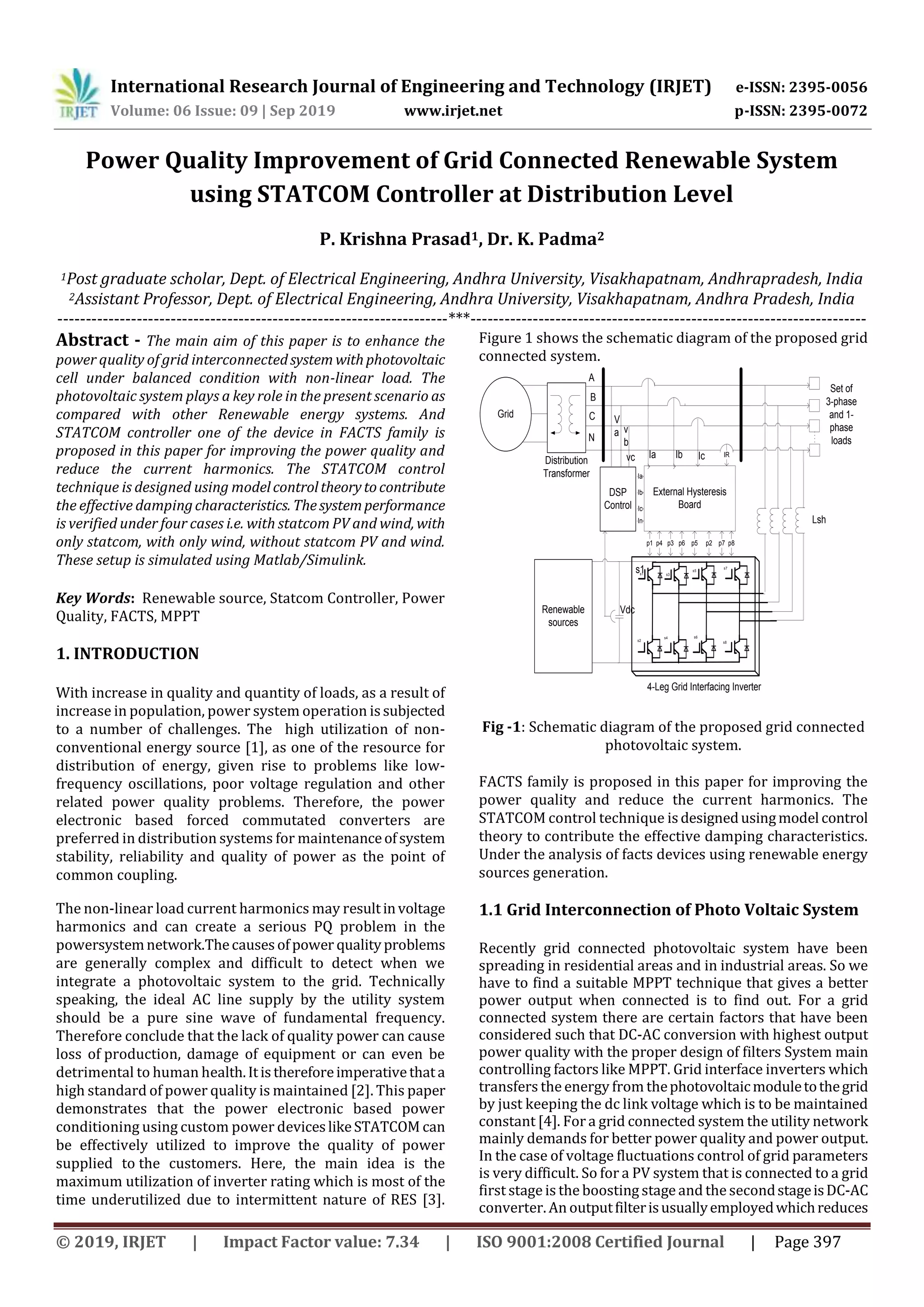

![International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056 Volume: 06 Issue: 09 | Sep 2019 www.irjet.net p-ISSN: 2395-0072 © 2019, IRJET | Impact Factor value: 7.34 | ISO 9001:2008 Certified Journal | Page 397 Power Quality Improvement of Grid Connected Renewable System using STATCOM Controller at Distribution Level P. Krishna Prasad1, Dr. K. Padma2 1Post graduate scholar, Dept. of Electrical Engineering, Andhra University, Visakhapatnam, Andhrapradesh, India 2Assistant Professor, Dept. of Electrical Engineering, Andhra University, Visakhapatnam, Andhra Pradesh, India ---------------------------------------------------------------------***---------------------------------------------------------------------- Abstract - The main aim of this paper is to enhance the power quality of grid interconnectedsystem withphotovoltaic cell under balanced condition with non-linear load. The photovoltaic system plays a key role in the present scenario as compared with other Renewable energy systems. And STATCOM controller one of the device in FACTS family is proposed in this paper for improving the power quality and reduce the current harmonics. The STATCOM control technique is designed using modelcontroltheorytocontribute the effective dampingcharacteristics. Thesystemperformance is verified under four cases i.e. with statcom PV and wind, with only statcom, with only wind, without statcom PV and wind. These setup is simulated using Matlab/Simulink. Key Words: Renewable source, Statcom Controller, Power Quality, FACTS, MPPT 1. INTRODUCTION With increase in quality and quantity of loads, as a result of increase in population, power system operation issubjected to a number of challenges. The high utilization of non- conventional energy source [1], as one of the resource for distribution of energy, given rise to problems like low- frequency oscillations, poor voltage regulation and other related power quality problems. Therefore, the power electronic based forced commutated converters are preferred in distribution systems for maintenanceofsystem stability, reliability and quality of power as the point of common coupling. The non-linear load current harmonics may resultinvoltage harmonics and can create a serious PQ problem in the powersystemnetwork.Thecausesofpower qualityproblems are generally complex and difficult to detect when we integrate a photovoltaic system to the grid. Technically speaking, the ideal AC line supply by the utility system should be a pure sine wave of fundamental frequency. Therefore conclude that the lack of quality power can cause loss of production, damage of equipment or can even be detrimental to human health.Itisthereforeimperativethata high standard of power quality is maintained [2]. This paper demonstrates that the power electronic based power conditioning using custom power deviceslikeSTATCOM can be effectively utilized to improve the quality of power supplied to the customers. Here, the main idea is the maximum utilization of inverter rating which is most of the time underutilized due to intermittent nature of RES [3]. Figure 1 shows the schematic diagram of the proposed grid connected system. Grid External Hysteresis Board DSP Control V a v b Ia Ib Ic In A B C N Renewable sources s3s1 s5 s7 s2 s4 s6 s8 4-Leg Grid Interfacing Inverter p1 p4 p3 p5p6 p2 p7 p8 Vdc IR s1 Lsh Set of 3-phase and 1- phase loads Ia Ib IcvcDistribution Transformer Fig -1: Schematic diagram of the proposed grid connected photovoltaic system. FACTS family is proposed in this paper for improving the power quality and reduce the current harmonics. The STATCOM control technique isdesignedusingmodel control theory to contribute the effective damping characteristics. Under the analysis of facts devices using renewable energy sources generation. 1.1 Grid Interconnection of Photo Voltaic System Recently grid connected photovoltaic system have been spreading in residential areas and in industrial areas. So we have to find a suitable MPPT technique that gives a better power output when connected is to find out. For a grid connected system there are certain factors that have been considered such that DC-AC conversion with highest output power quality with the proper design of filters System main controlling factors like MPPT. Grid interface inverters which transfers the energy from thephotovoltaicmoduletothegrid by just keeping the dc link voltage which is to be maintained constant [4]. For a grid connected system the utility network mainly demands for better power quality and power output. In the case of voltage fluctuations control of grid parameters is very difficult. So for a PV system that is connected to a grid first stage is the boosting stage and the secondstageisDC-AC converter. An outputfilterisusuallyemployedwhichreduces](https://image.slidesharecdn.com/irjet-v6i951-191206094020/75/IRJET-Power-Quality-Improvement-of-Grid-Connected-Renewable-System-using-STATCOM-Controller-at-Distribution-Level-1-2048.jpg)

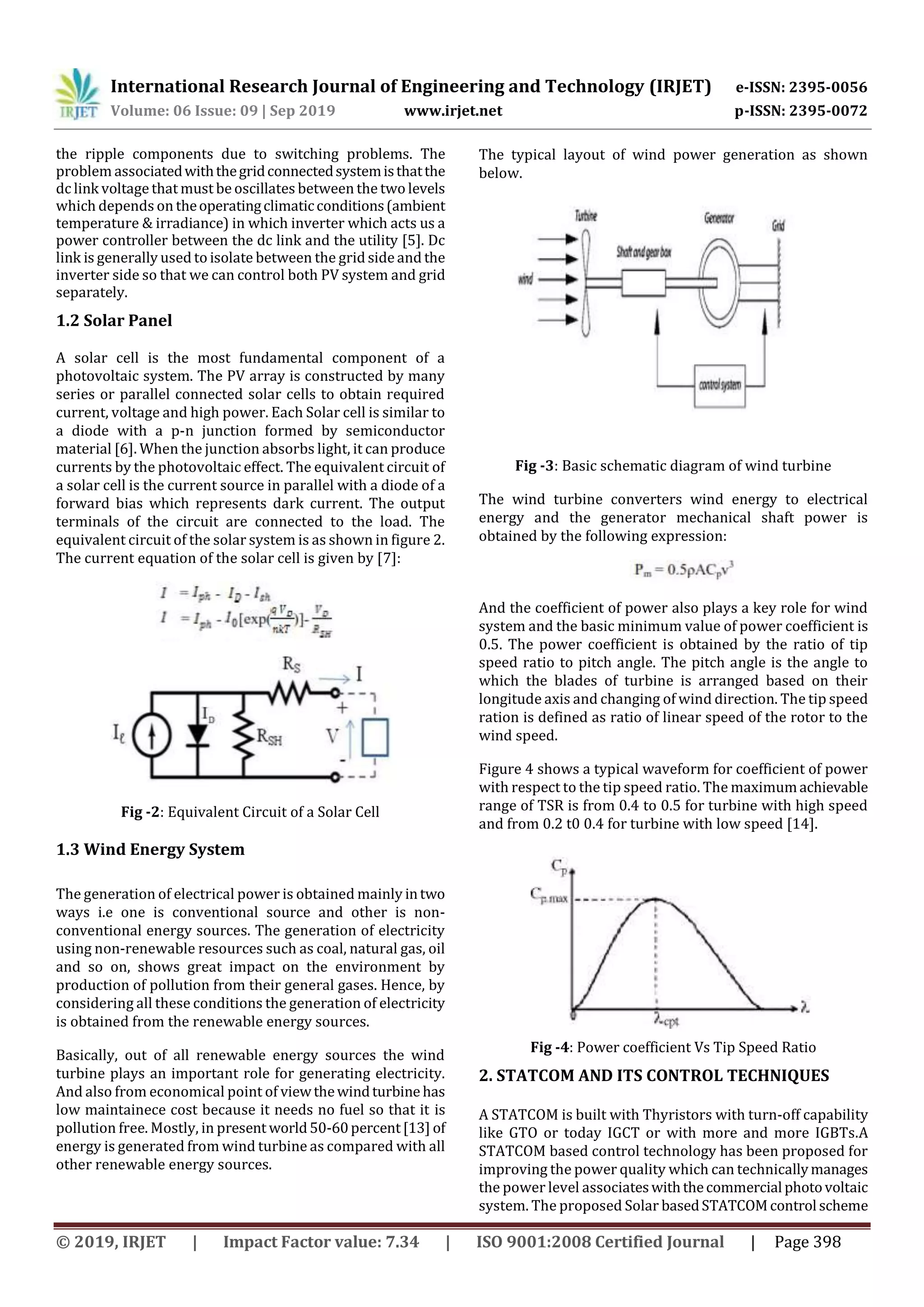

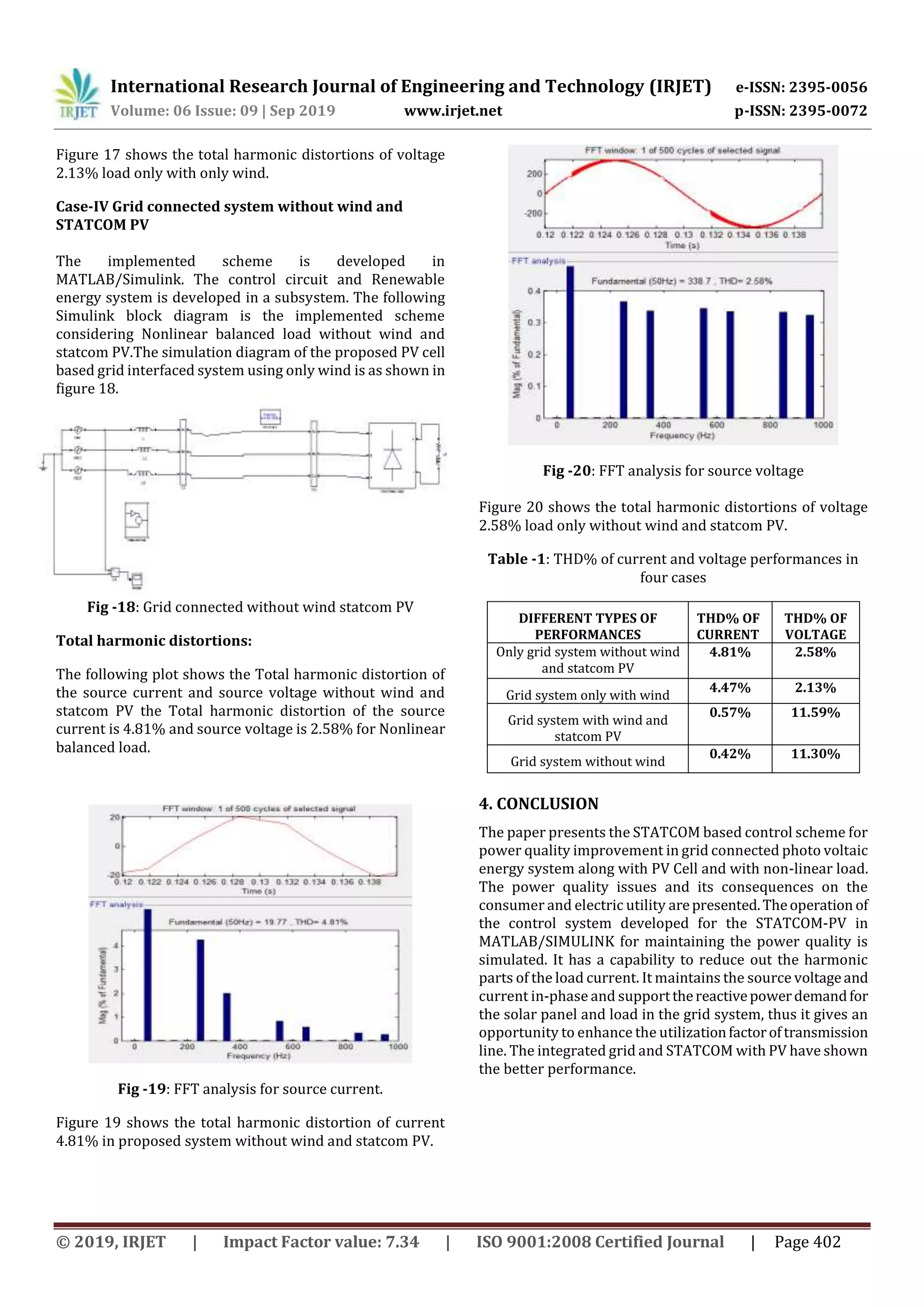

![International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056 Volume: 06 Issue: 09 | Sep 2019 www.irjet.net p-ISSN: 2395-0072 © 2019, IRJET | Impact Factor value: 7.34 | ISO 9001:2008 Certified Journal | Page 398 the ripple components due to switching problems. The problem associatedwiththegridconnectedsystemisthatthe dc link voltage that must be oscillates between the two levels which depends on theoperatingclimaticconditions(ambient temperature & irradiance) in which inverter which acts us a power controller between the dc link and the utility [5]. Dc link is generally used to isolate between the grid sideand the inverter side so that we can control both PV system and grid separately. 1.2 Solar Panel A solar cell is the most fundamental component of a photovoltaic system. The PV array is constructed by many series or parallel connected solar cells to obtain required current, voltage and high power. Each Solar cell is similar to a diode with a p-n junction formed by semiconductor material [6]. When the junction absorbs light, it can produce currents by the photovoltaic effect. The equivalent circuit of a solar cell is the current source in parallel with a diode of a forward bias which represents dark current. The output terminals of the circuit are connected to the load. The equivalent circuit of the solar system is as shown in figure 2. The current equation of the solar cell is given by [7]: Fig -2: Equivalent Circuit of a Solar Cell 1.3 Wind Energy System The generation of electrical power is obtained mainly intwo ways i.e one is conventional source and other is non- conventional energy sources. The generation of electricity using non-renewable resources such as coal, natural gas, oil and so on, shows great impact on the environment by production of pollution from their general gases. Hence, by considering all these conditions the generation of electricity is obtained from the renewable energy sources. Basically, out of all renewable energy sources the wind turbine plays an important role for generating electricity. And also from economical point of viewthewindturbine has low maintainece cost because it needs no fuel so that it is pollution free. Mostly, in present world50-60percent[13] of energy is generated from wind turbine as compared with all other renewable energy sources. The typical layout of wind power generation as shown below. Fig -3: Basic schematic diagram of wind turbine The wind turbine converters wind energy to electrical energy and the generator mechanical shaft power is obtained by the following expression: And the coefficient of power also plays a key role for wind system and the basic minimum value of power coefficient is 0.5. The power coefficient is obtained by the ratio of tip speed ratio to pitch angle. The pitch angle is the angle to which the blades of turbine is arranged based on their longitude axis and changing of wind direction. The tip speed ration is defined as ratio of linear speed of the rotor to the wind speed. Figure 4 shows a typical waveform for coefficient of power with respect to the tip speed ratio. The maximumachievable range of TSR is from 0.4 to 0.5 for turbine with high speed and from 0.2 t0 0.4 for turbine with low speed [14]. Fig -4: Power coefficient Vs Tip Speed Ratio 2. STATCOM AND ITS CONTROL TECHNIQUES A STATCOM is built with Thyristors with turn-off capability like GTO or today IGCT or with more and more IGBTs.A STATCOM based control technology has been proposed for improving the power quality which can technicallymanages the power level associateswiththecommercial photovoltaic system. The proposed Solar basedSTATCOMcontrol scheme](https://image.slidesharecdn.com/irjet-v6i951-191206094020/75/IRJET-Power-Quality-Improvement-of-Grid-Connected-Renewable-System-using-STATCOM-Controller-at-Distribution-Level-2-2048.jpg)

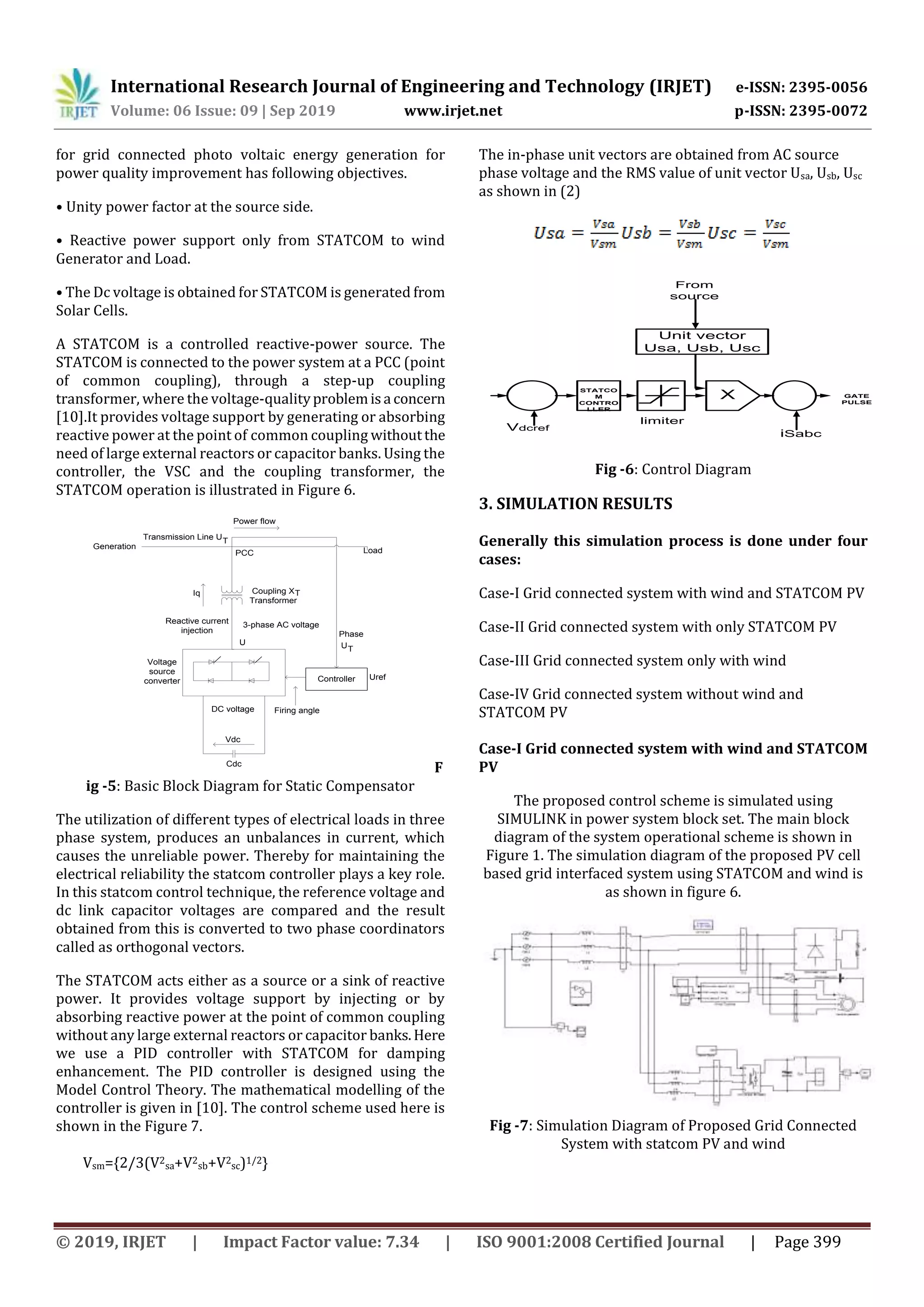

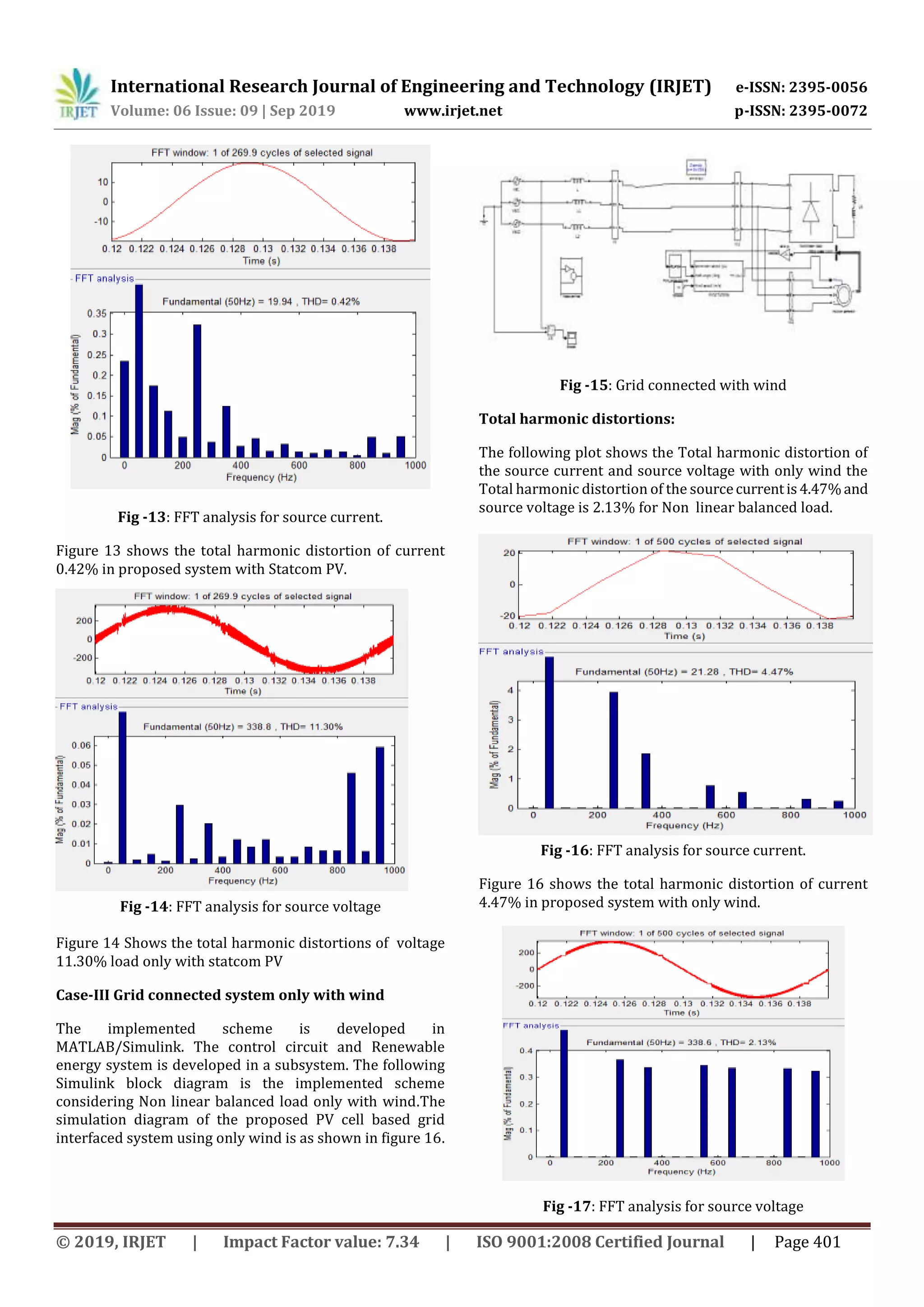

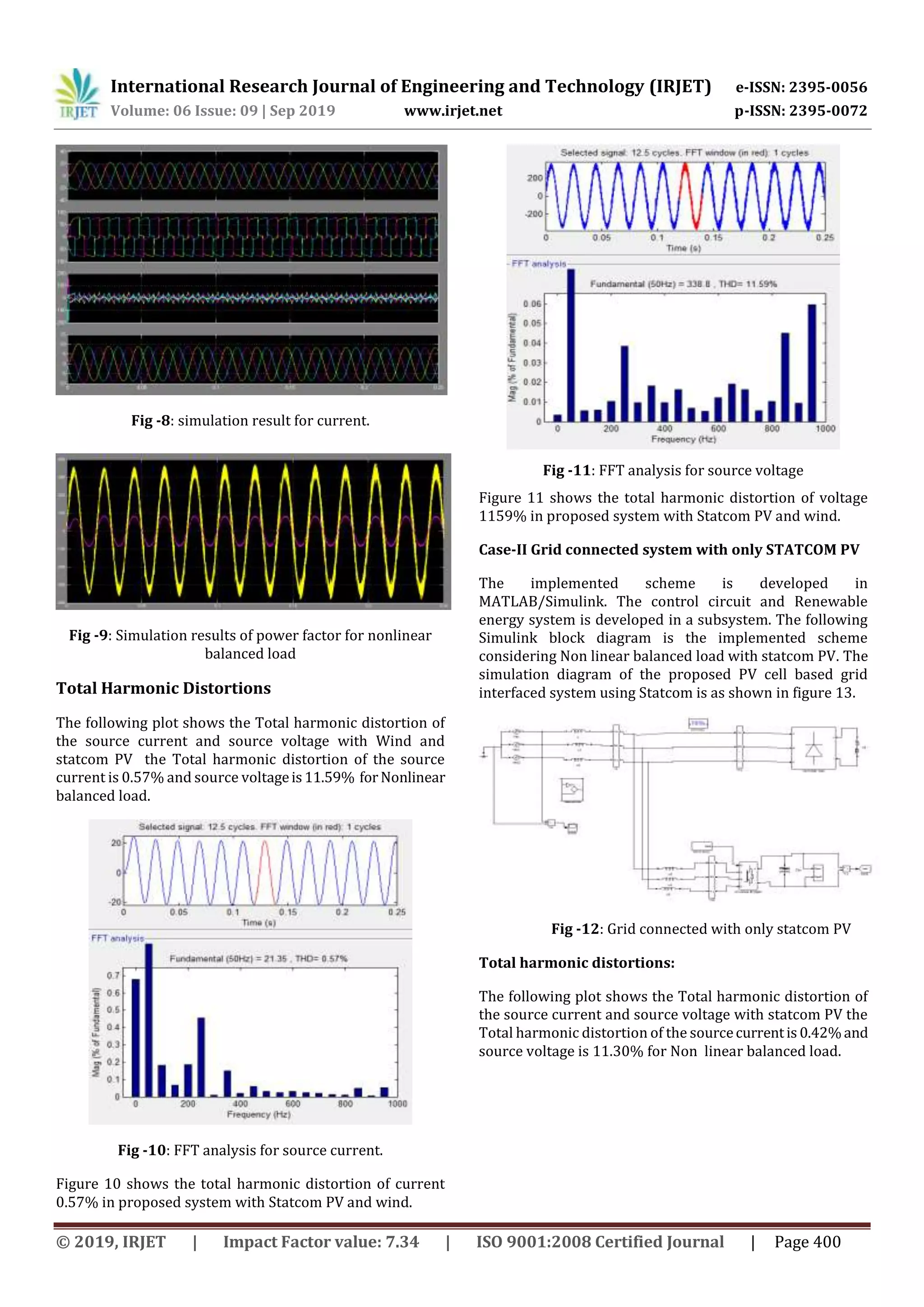

![International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056 Volume: 06 Issue: 09 | Sep 2019 www.irjet.net p-ISSN: 2395-0072 © 2019, IRJET | Impact Factor value: 7.34 | ISO 9001:2008 Certified Journal | Page 399 for grid connected photo voltaic energy generation for power quality improvement has following objectives. • Unity power factor at the source side. • Reactive power support only from STATCOM to wind Generator and Load. • The Dc voltage is obtained for STATCOM is generated from Solar Cells. A STATCOM is a controlled reactive-power source. The STATCOM is connected to the power system at a PCC (point of common coupling), through a step-up coupling transformer, where the voltage-qualityproblemisa concern [10].It provides voltage support by generating or absorbing reactive power at the point of common coupling withoutthe need of large external reactors or capacitor banks. Using the controller, the VSC and the coupling transformer, the STATCOM operation is illustrated in Figure 6. Vdc Cdc Controller Firing angleDC voltage Uref Voltage source converter 3-phase AC voltage U UT Phase Load Reactive current injection PCC Coupling X Transformer T Transmission Line UT Generation Power flow Iq F ig -5: Basic Block Diagram for Static Compensator The utilization of different types of electrical loads in three phase system, produces an unbalances in current, which causes the unreliable power. Thereby for maintaining the electrical reliability the statcom controller plays a key role. In this statcom control technique, the reference voltage and dc link capacitor voltages are compared and the result obtained from this is converted to two phase coordinators called as orthogonal vectors. The STATCOM acts either as a source or a sink of reactive power. It provides voltage support by injecting or by absorbing reactive power at the point of common coupling without any large external reactors or capacitor banks.Here we use a PID controller with STATCOM for damping enhancement. The PID controller is designed using the Model Control Theory. The mathematical modelling of the controller is given in [10]. The control scheme used here is shown in the Figure 7. Vsm={2/3(V2 sa+V2 sb+V2 sc)1/2} The in-phase unit vectors are obtained from AC source phase voltage and the RMS value of unit vector Usa, Usb, Usc as shown in (2) STATCO M CONTRO LLER Unit vector Usa, Usb, Usc X limiter iSabc Vdcref From source GATE PULSE Fig -6: Control Diagram 3. SIMULATION RESULTS Generally this simulation process is done under four cases: Case-I Grid connected system with wind and STATCOM PV Case-II Grid connected system with only STATCOM PV Case-III Grid connected system only with wind Case-IV Grid connected system without wind and STATCOM PV Case-I Grid connected system with wind and STATCOM PV The proposed control scheme is simulated using SIMULINK in power system block set. The main block diagram of the system operational scheme is shown in Figure 1. The simulation diagram of the proposed PV cell based grid interfaced system using STATCOM and wind is as shown in figure 6. Fig -7: Simulation Diagram of Proposed Grid Connected System with statcom PV and wind](https://image.slidesharecdn.com/irjet-v6i951-191206094020/75/IRJET-Power-Quality-Improvement-of-Grid-Connected-Renewable-System-using-STATCOM-Controller-at-Distribution-Level-3-2048.jpg)

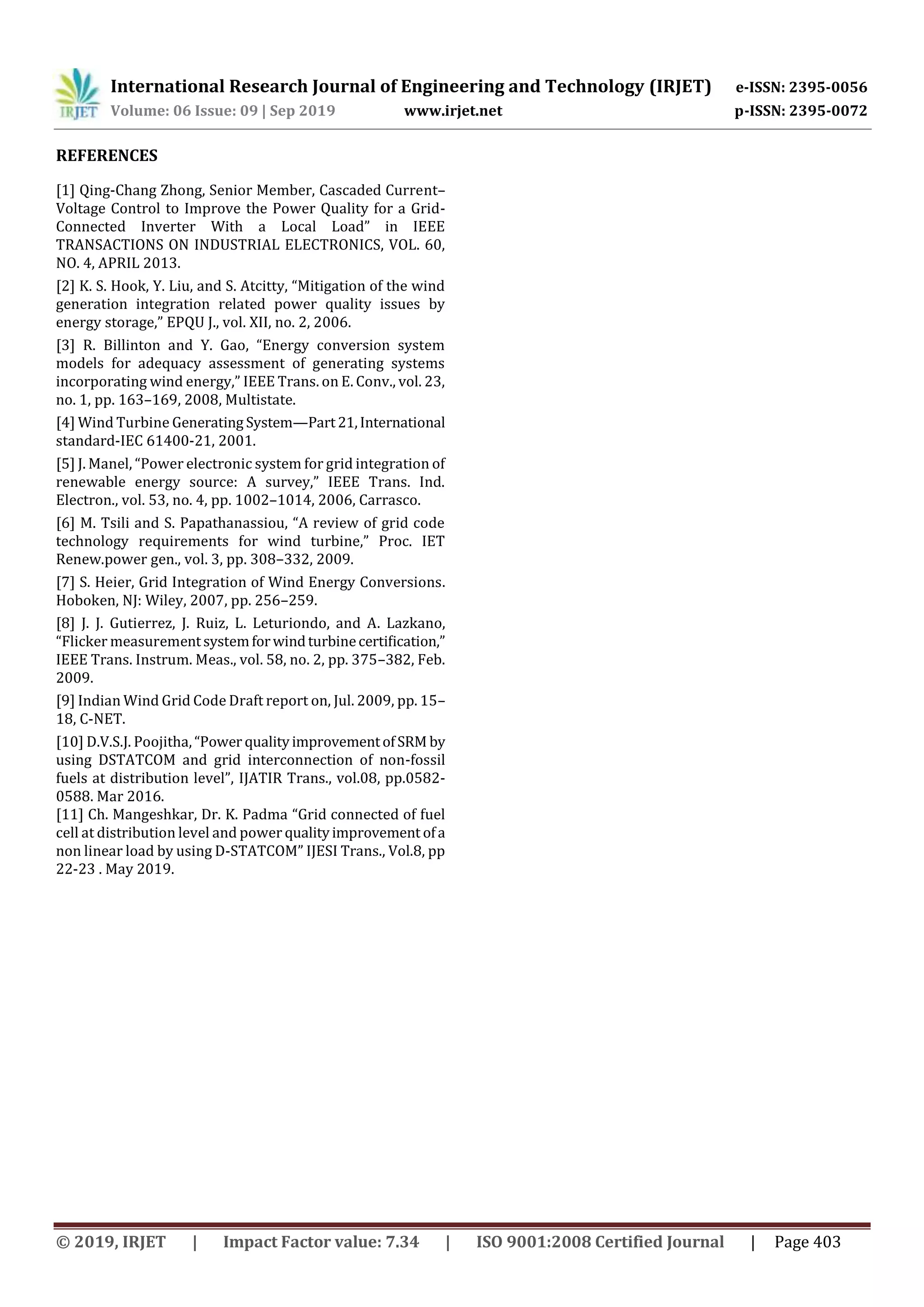

![International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056 Volume: 06 Issue: 09 | Sep 2019 www.irjet.net p-ISSN: 2395-0072 © 2019, IRJET | Impact Factor value: 7.34 | ISO 9001:2008 Certified Journal | Page 403 REFERENCES [1] Qing-Chang Zhong, Senior Member, Cascaded Current– Voltage Control to Improve the Power Quality for a Grid- Connected Inverter With a Local Load” in IEEE TRANSACTIONS ON INDUSTRIAL ELECTRONICS, VOL. 60, NO. 4, APRIL 2013. [2] K. S. Hook, Y. Liu, and S. Atcitty, “Mitigation of the wind generation integration related power quality issues by energy storage,” EPQU J., vol. XII, no. 2, 2006. [3] R. Billinton and Y. Gao, “Energy conversion system models for adequacy assessment of generating systems incorporating wind energy,” IEEE Trans. on E. Conv., vol. 23, no. 1, pp. 163–169, 2008, Multistate. [4] Wind Turbine Generating System—Part21,International standard-IEC 61400-21, 2001. [5] J. Manel, “Power electronic system for grid integration of renewable energy source: A survey,” IEEE Trans. Ind. Electron., vol. 53, no. 4, pp. 1002–1014, 2006, Carrasco. [6] M. Tsili and S. Papathanassiou, “A review of grid code technology requirements for wind turbine,” Proc. IET Renew.power gen., vol. 3, pp. 308–332, 2009. [7] S. Heier, Grid Integration of Wind Energy Conversions. Hoboken, NJ: Wiley, 2007, pp. 256–259. [8] J. J. Gutierrez, J. Ruiz, L. Leturiondo, and A. Lazkano, “Flicker measurementsystemforwindturbinecertification,” IEEE Trans. Instrum. Meas., vol. 58, no. 2, pp. 375–382, Feb. 2009. [9] Indian Wind Grid Code Draft report on, Jul. 2009, pp. 15– 18, C-NET. [10] D.V.S.J. Poojitha,“Power qualityimprovementofSRM by using DSTATCOM and grid interconnection of non-fossil fuels at distribution level”, IJATIR Trans., vol.08, pp.0582- 0588. Mar 2016. [11] Ch. Mangeshkar, Dr. K. Padma “Grid connected of fuel cell at distribution level and power qualityimprovement ofa non linear load by using D-STATCOM” IJESI Trans., Vol.8, pp 22-23 . May 2019.](https://image.slidesharecdn.com/irjet-v6i951-191206094020/75/IRJET-Power-Quality-Improvement-of-Grid-Connected-Renewable-System-using-STATCOM-Controller-at-Distribution-Level-7-2048.jpg)
