IoT: LoRa and Java on the PI
The document discusses a session about using LoRa technology and Java on Raspberry Pi, highlighting recent news including Proximus' LoRa beta program in Belgium and the launch of the Raspberry Pi Zero. It covers theoretical and practical aspects of working with LoRa, setting up a Raspberry Pi, and developing Java applications, including a simple web server example and GPIO pin usage. Additionally, it mentions alternatives to Java for programming on the Raspberry Pi, such as Python and Node.js.
IoT: LoRa and Java on the PI
- 1. 1 IoT - LoRa& Java on the Pi CC IoT Tim Ysewyn Frederick Bousson Kevin Van den Abeele Guest speaker Dave De Groote

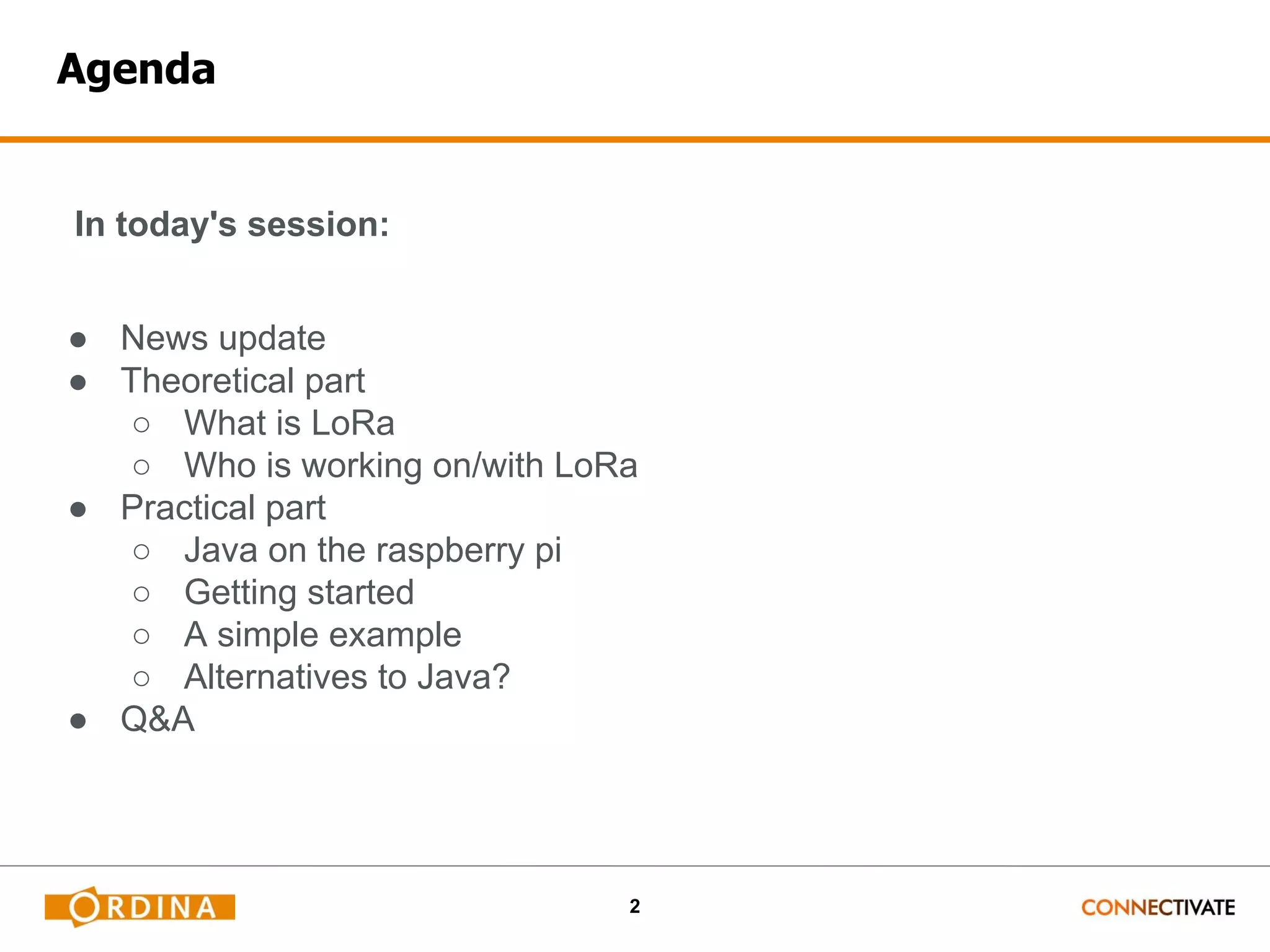

- 2. 2 Agenda In today's session: ●News update ● Theoretical part ○ What is LoRa ○ Who is working on/with LoRa ● Practical part ○ Java on the raspberry pi ○ Getting started ○ A simple example ○ Alternatives to Java? ● Q&A
- 3. 3 Can’t keep up?Don’t understand something?
- 4.

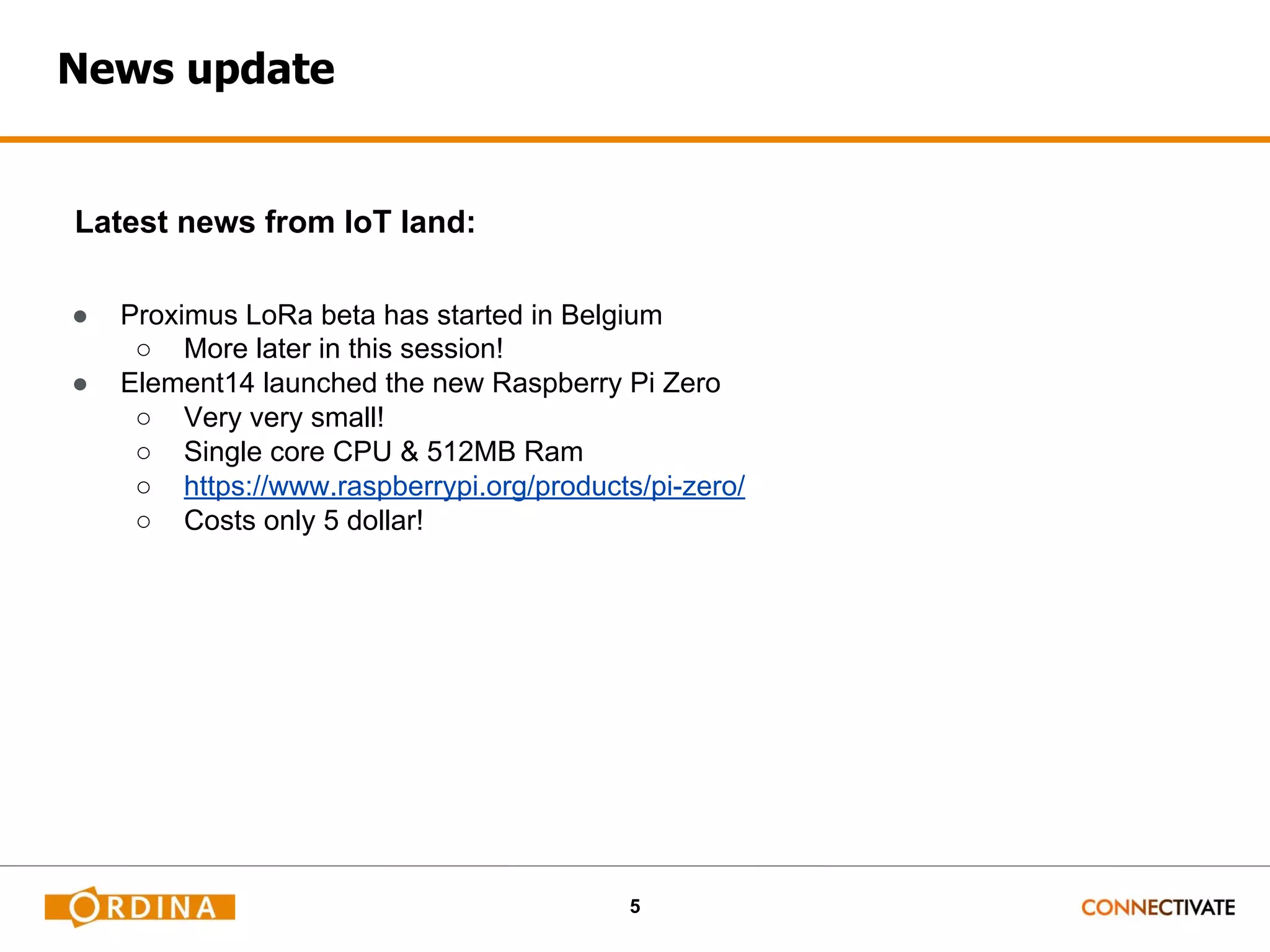

- 5. 5 News update Latest newsfrom IoT land: ● Proximus LoRa beta has started in Belgium ○ More later in this session! ● Element14 launched the new Raspberry Pi Zero ○ Very very small! ○ Single core CPU & 512MB Ram ○ https://www.raspberrypi.org/products/pi-zero/ ○ Costs only 5 dollar!
- 6.
- 7.

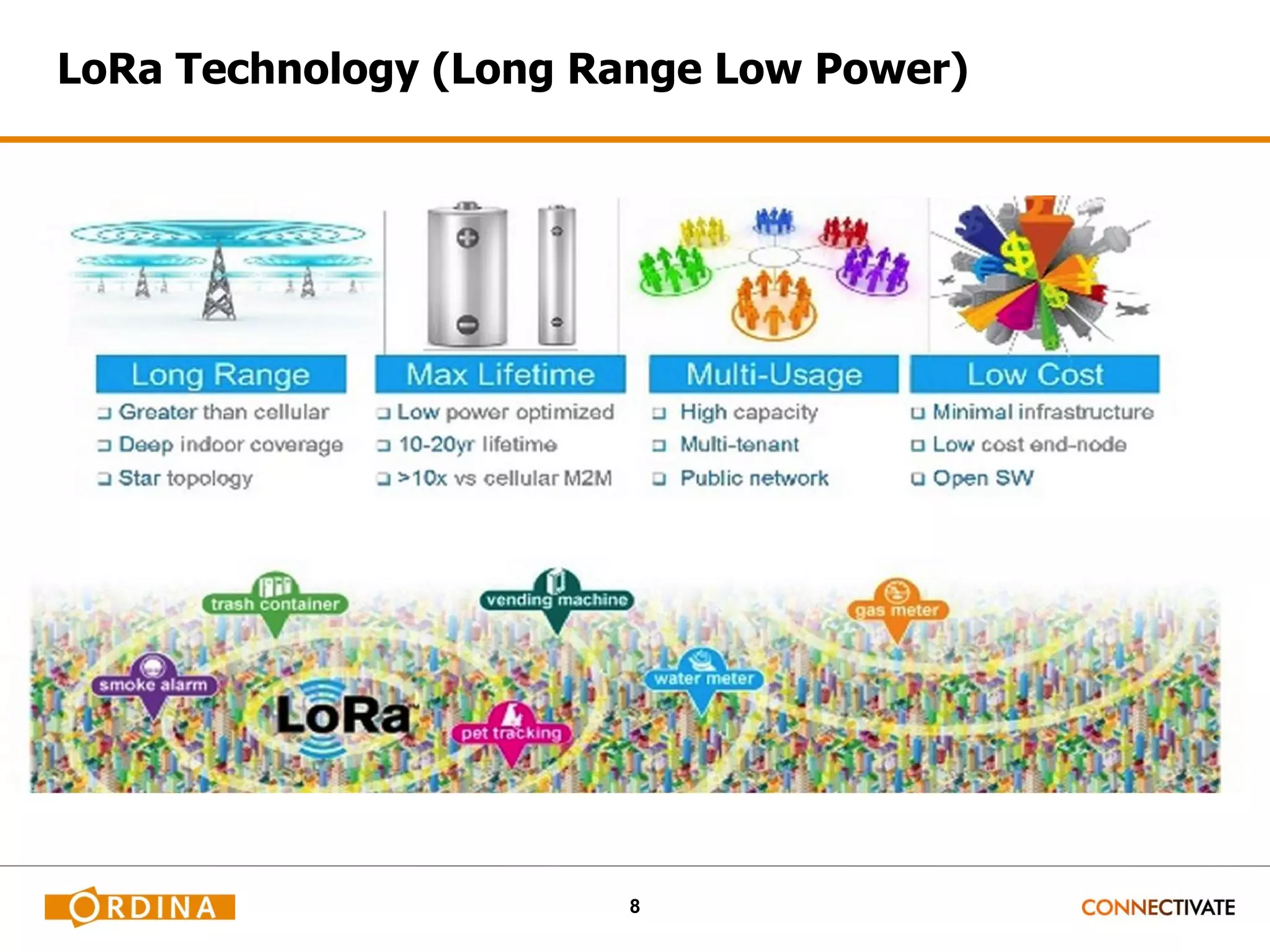

- 8. 8 LoRa Technology (LongRange Low Power)

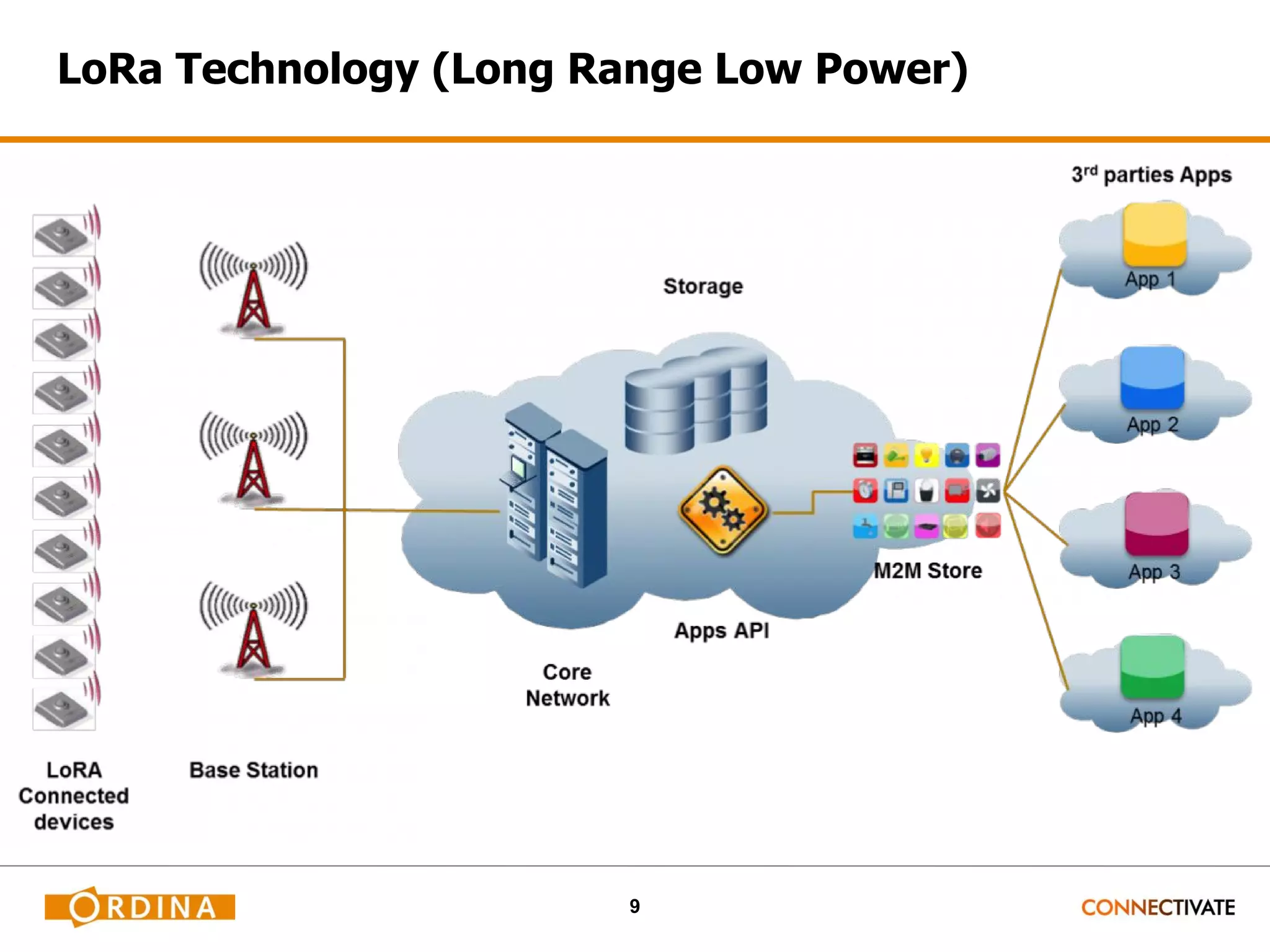

- 9. 9 LoRa Technology (LongRange Low Power)

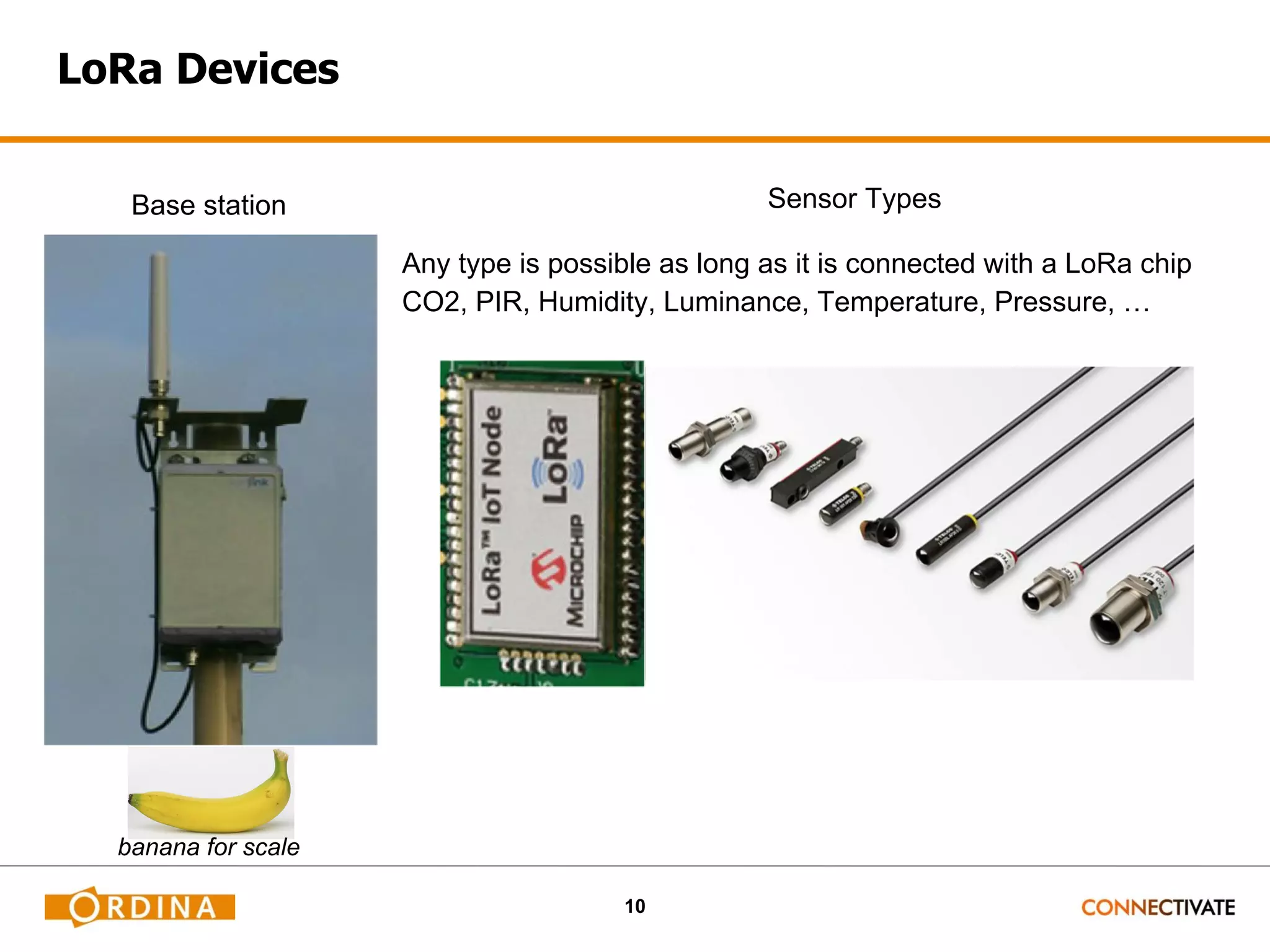

- 10. 10 LoRa Devices Base station Anytype is possible as long as it is connected with a LoRa chip CO2, PIR, Humidity, Luminance, Temperature, Pressure, … Sensor Types banana for scale
- 11.

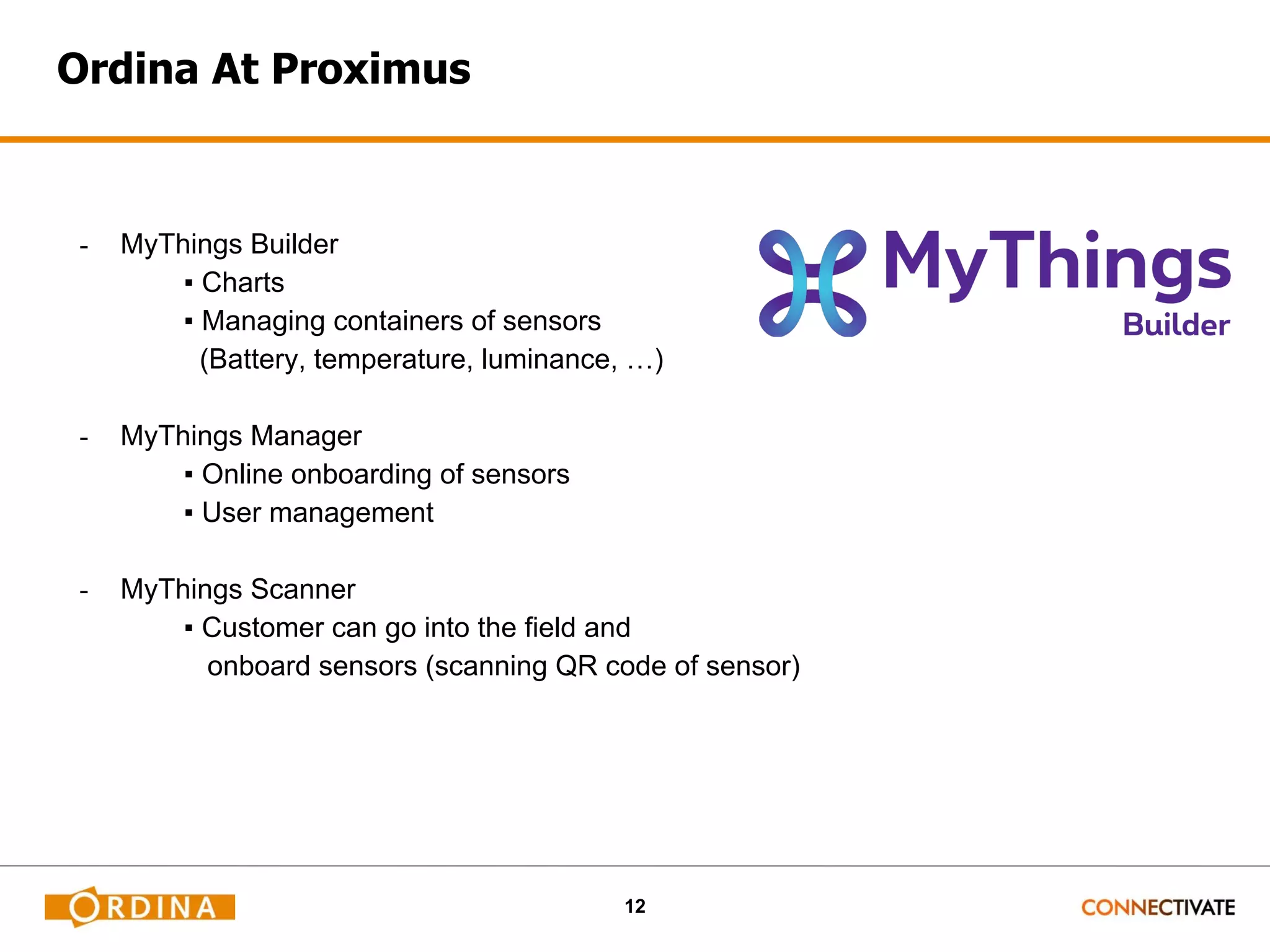

- 12. 12 Ordina At Proximus -MyThings Builder ▪ Charts ▪ Managing containers of sensors (Battery, temperature, luminance, …) - MyThings Manager ▪ Online onboarding of sensors ▪ User management - MyThings Scanner ▪ Customer can go into the field and onboard sensors (scanning QR code of sensor)
- 13.
- 14.

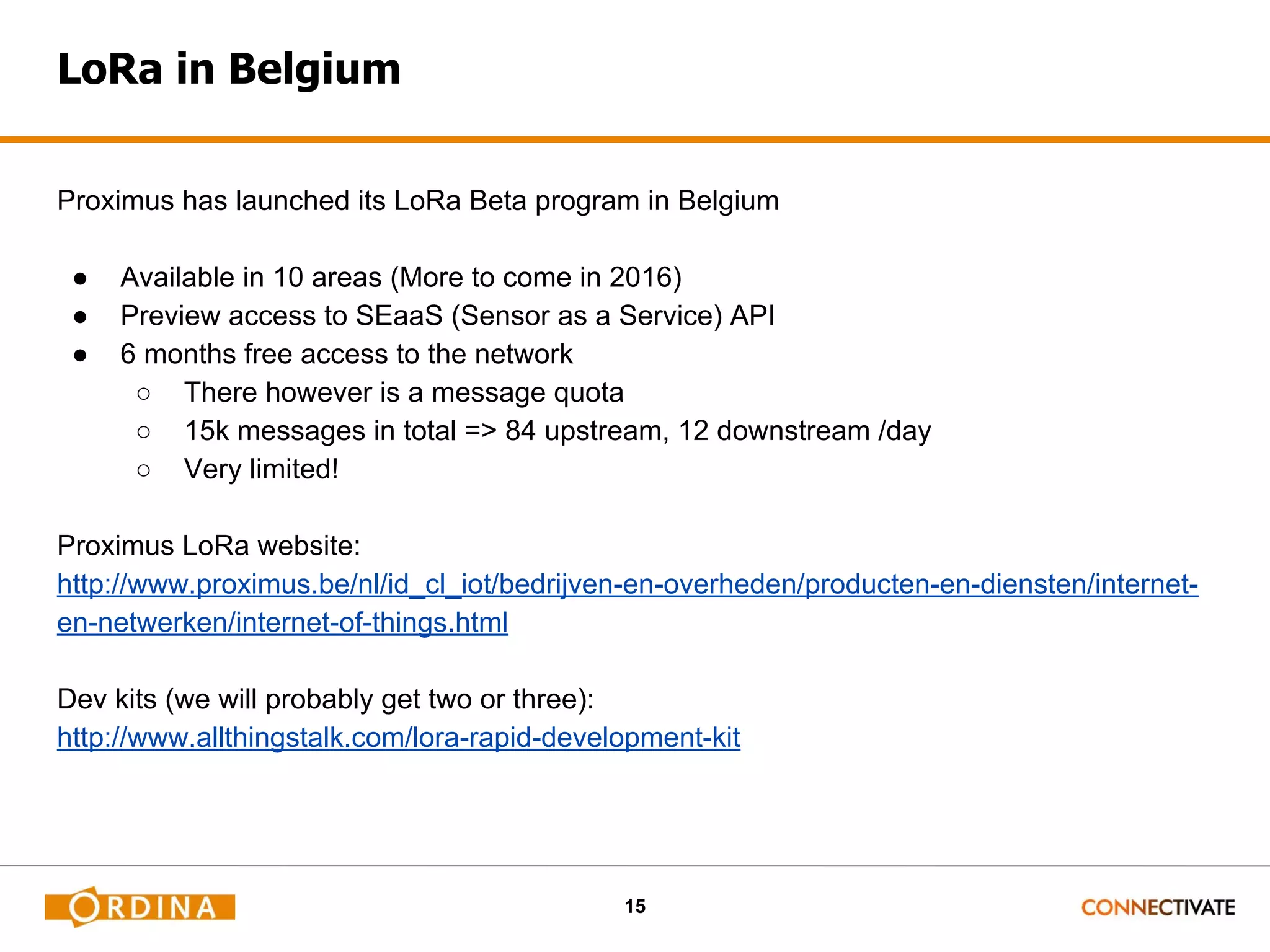

- 15. 15 LoRa in Belgium Proximushas launched its LoRa Beta program in Belgium ● Available in 10 areas (More to come in 2016) ● Preview access to SEaaS (Sensor as a Service) API ● 6 months free access to the network ○ There however is a message quota ○ 15k messages in total => 84 upstream, 12 downstream /day ○ Very limited! Proximus LoRa website: http://www.proximus.be/nl/id_cl_iot/bedrijven-en-overheden/producten-en-diensten/internet- en-netwerken/internet-of-things.html Dev kits (we will probably get two or three): http://www.allthingstalk.com/lora-rapid-development-kit
- 16. 16 Setting up yourRaspberry pi

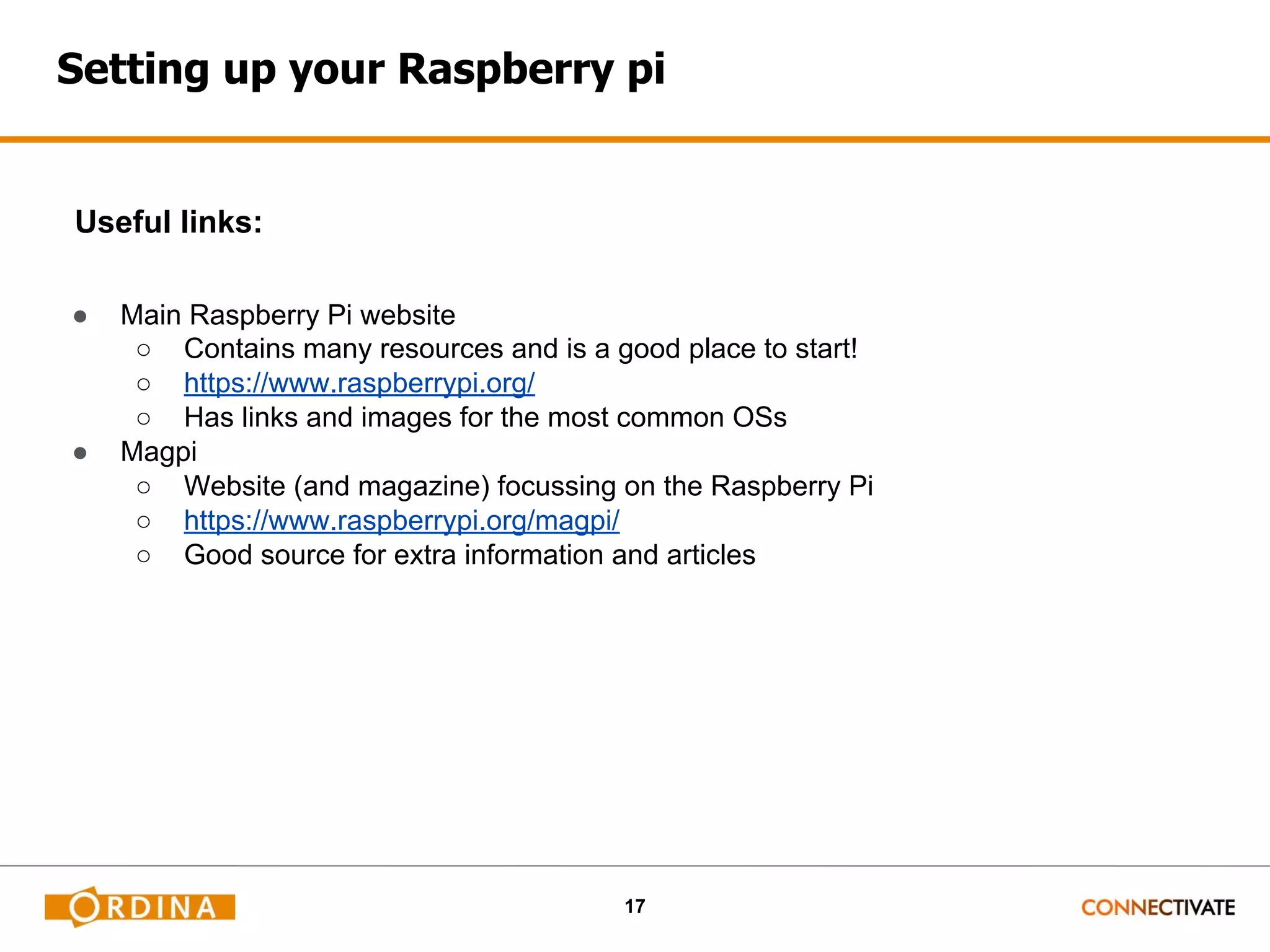

- 17. 17 Setting up yourRaspberry pi Useful links: ● Main Raspberry Pi website ○ Contains many resources and is a good place to start! ○ https://www.raspberrypi.org/ ○ Has links and images for the most common OSs ● Magpi ○ Website (and magazine) focussing on the Raspberry Pi ○ https://www.raspberrypi.org/magpi/ ○ Good source for extra information and articles

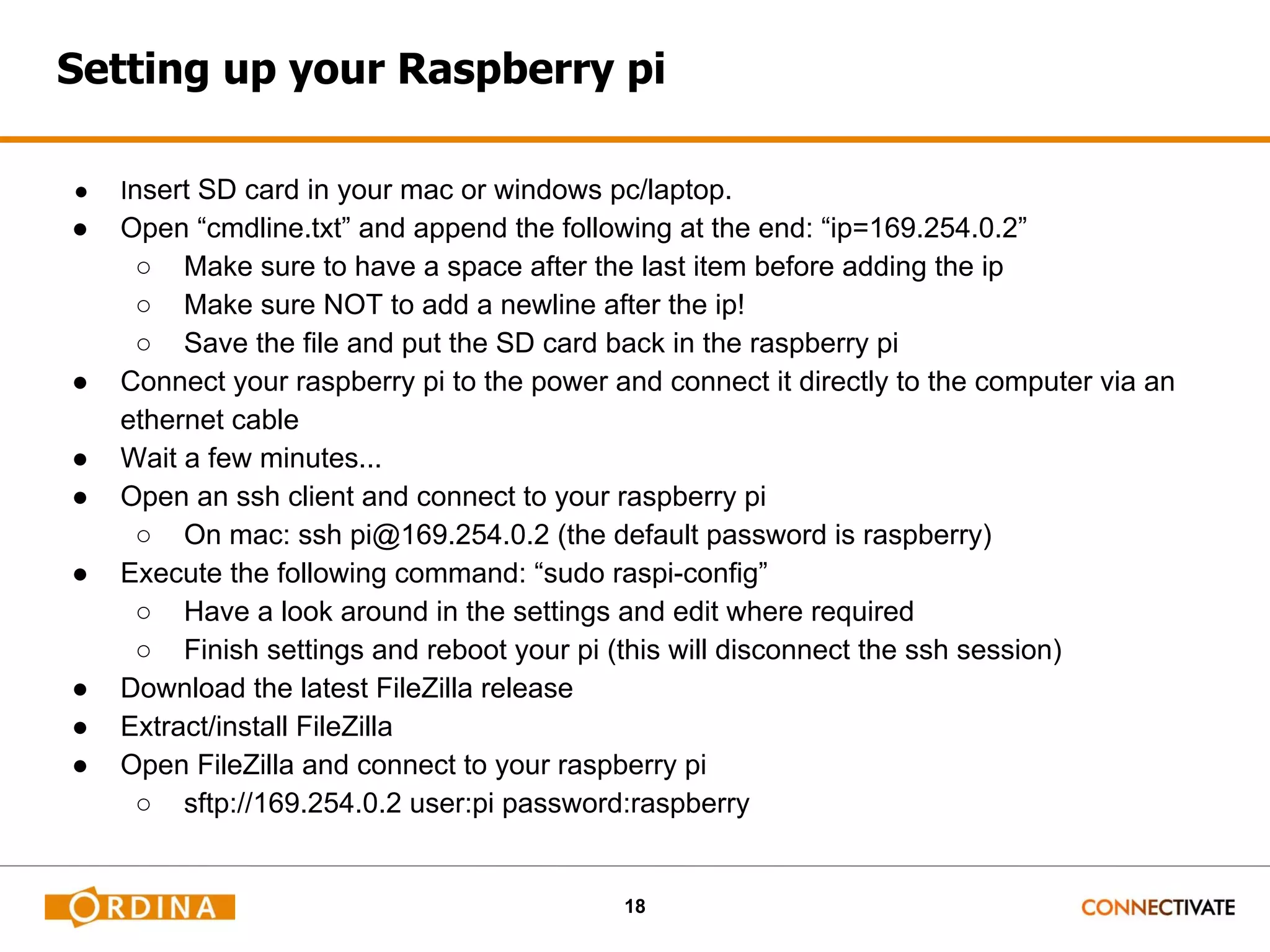

- 18. 18 Setting up yourRaspberry pi ● Insert SD card in your mac or windows pc/laptop. ● Open “cmdline.txt” and append the following at the end: “ip=169.254.0.2” ○ Make sure to have a space after the last item before adding the ip ○ Make sure NOT to add a newline after the ip! ○ Save the file and put the SD card back in the raspberry pi ● Connect your raspberry pi to the power and connect it directly to the computer via an ethernet cable ● Wait a few minutes... ● Open an ssh client and connect to your raspberry pi ○ On mac: ssh pi@169.254.0.2 (the default password is raspberry) ● Execute the following command: “sudo raspi-config” ○ Have a look around in the settings and edit where required ○ Finish settings and reboot your pi (this will disconnect the ssh session) ● Download the latest FileZilla release ● Extract/install FileZilla ● Open FileZilla and connect to your raspberry pi ○ sftp://169.254.0.2 user:pi password:raspberry
- 19. 19 Java on theRaspberry Pi

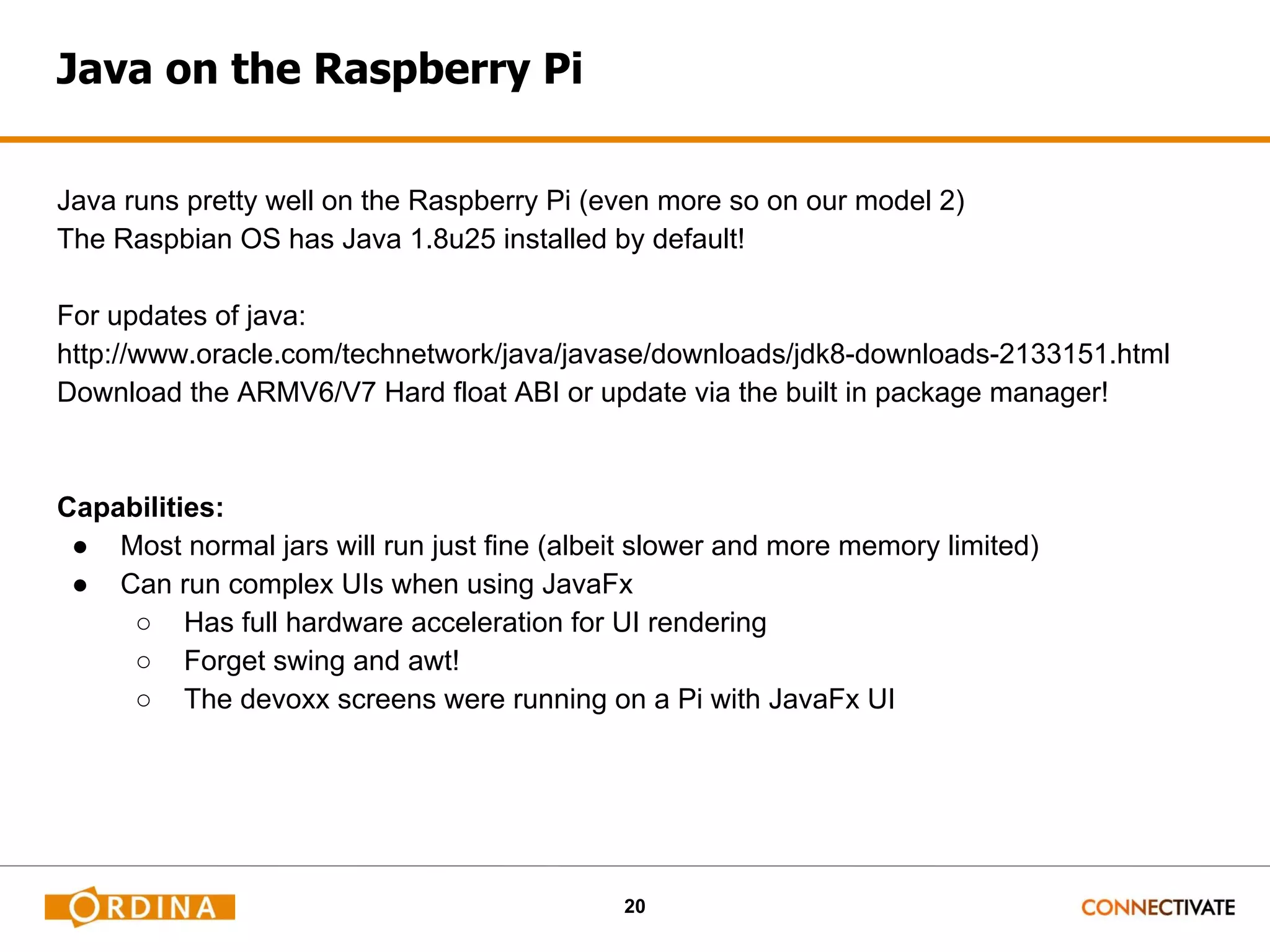

- 20. 20 Java on theRaspberry Pi Java runs pretty well on the Raspberry Pi (even more so on our model 2) The Raspbian OS has Java 1.8u25 installed by default! For updates of java: http://www.oracle.com/technetwork/java/javase/downloads/jdk8-downloads-2133151.html Download the ARMV6/V7 Hard float ABI or update via the built in package manager! Capabilities: ● Most normal jars will run just fine (albeit slower and more memory limited) ● Can run complex UIs when using JavaFx ○ Has full hardware acceleration for UI rendering ○ Forget swing and awt! ○ The devoxx screens were running on a Pi with JavaFx UI

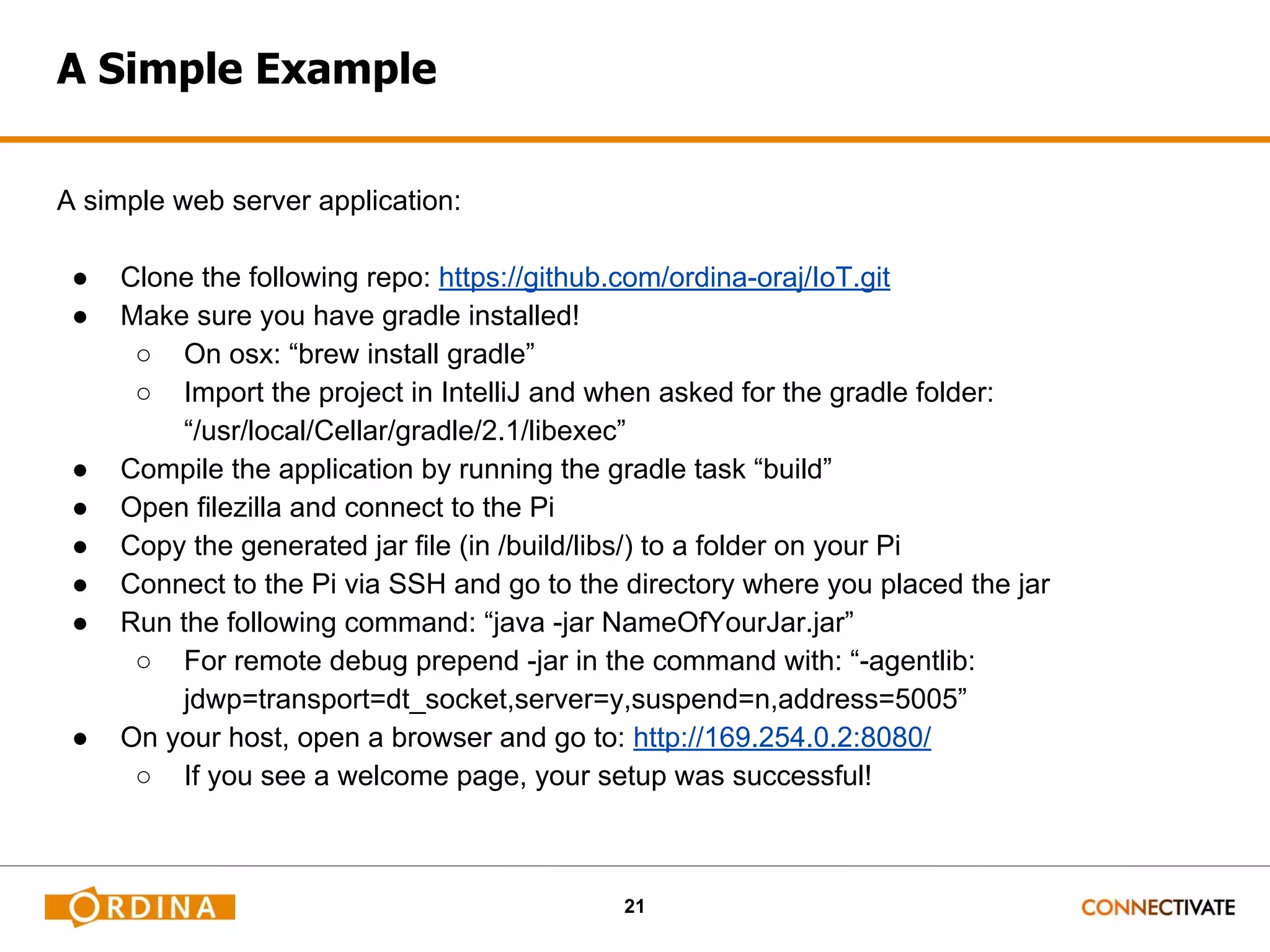

- 21. 21 A Simple Example Asimple web server application: ● Clone the following repo: https://github.com/ordina-oraj/IoT.git ● Make sure you have gradle installed! ○ On osx: “brew install gradle” ○ Import the project in IntelliJ and when asked for the gradle folder: “/usr/local/Cellar/gradle/2.1/libexec” ● Compile the application by running the gradle task “build” ● Open filezilla and connect to the Pi ● Copy the generated jar file (in /build/libs/) to a folder on your Pi ● Connect to the Pi via SSH and go to the directory where you placed the jar ● Run the following command: “java -jar NameOfYourJar.jar” ○ For remote debug prepend -jar in the command with: “-agentlib: jdwp=transport=dt_socket,server=y,suspend=n,address=5005” ● On your host, open a browser and go to: http://169.254.0.2:8080/ ○ If you see a welcome page, your setup was successful!

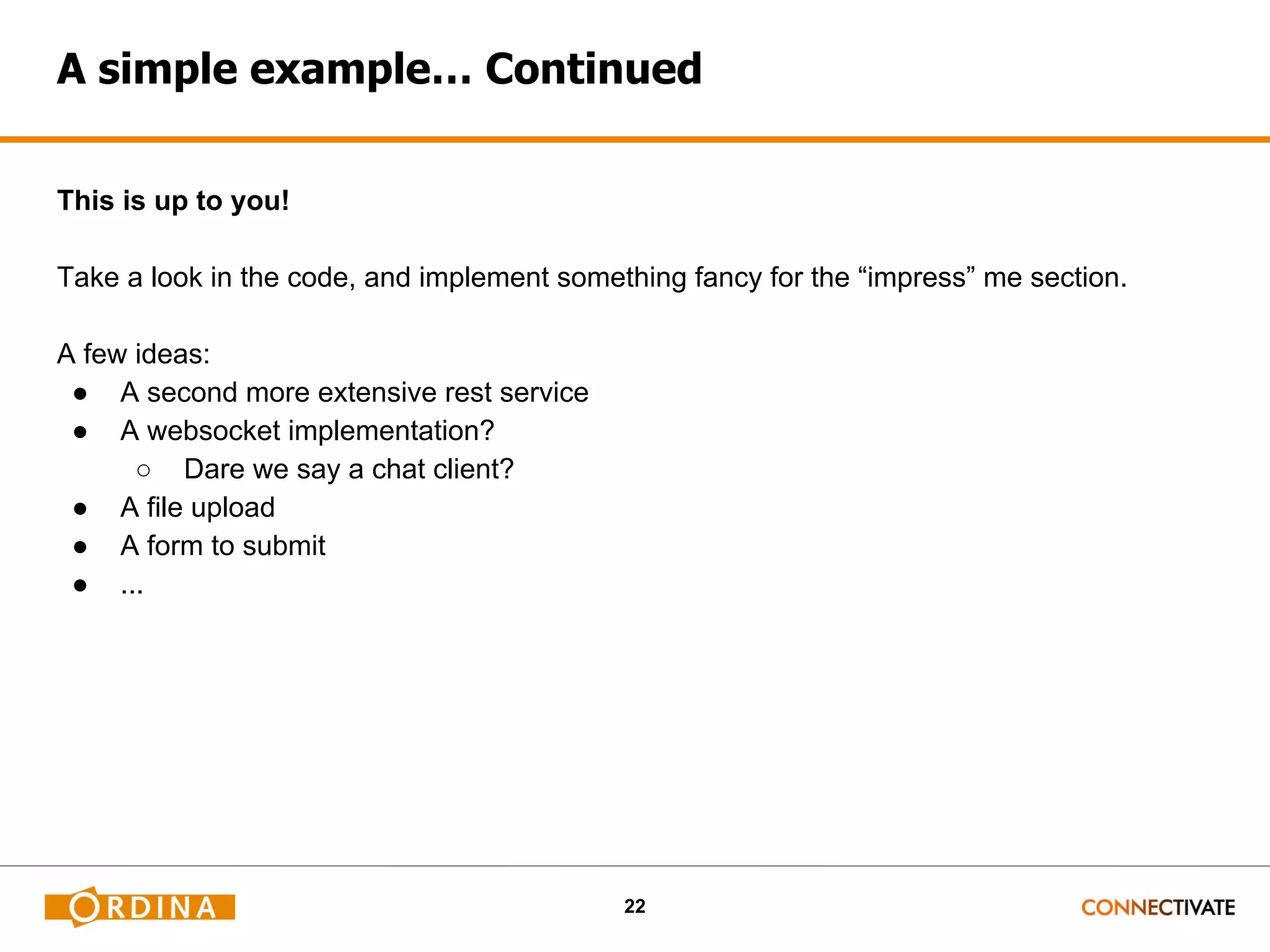

- 22. 22 A simple example…Continued This is up to you! Take a look in the code, and implement something fancy for the “impress” me section. A few ideas: ● A second more extensive rest service ● A websocket implementation? ○ Dare we say a chat client? ● A file upload ● A form to submit ● ...
- 23. 23 Java and IOpins

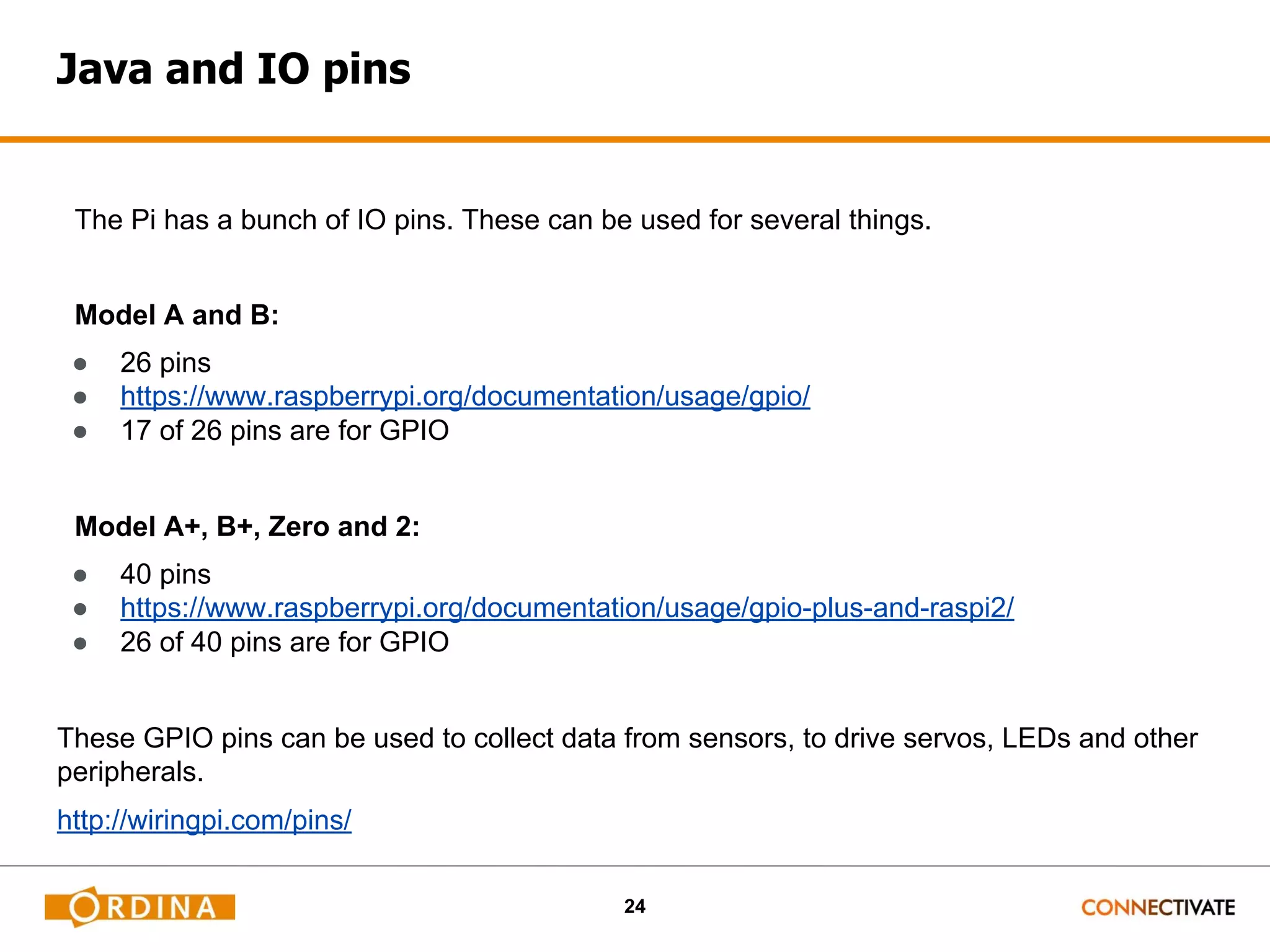

- 24. 24 Java and IOpins The Pi has a bunch of IO pins. These can be used for several things. Model A and B: ● 26 pins ● https://www.raspberrypi.org/documentation/usage/gpio/ ● 17 of 26 pins are for GPIO Model A+, B+, Zero and 2: ● 40 pins ● https://www.raspberrypi.org/documentation/usage/gpio-plus-and-raspi2/ ● 26 of 40 pins are for GPIO These GPIO pins can be used to collect data from sensors, to drive servos, LEDs and other peripherals. http://wiringpi.com/pins/

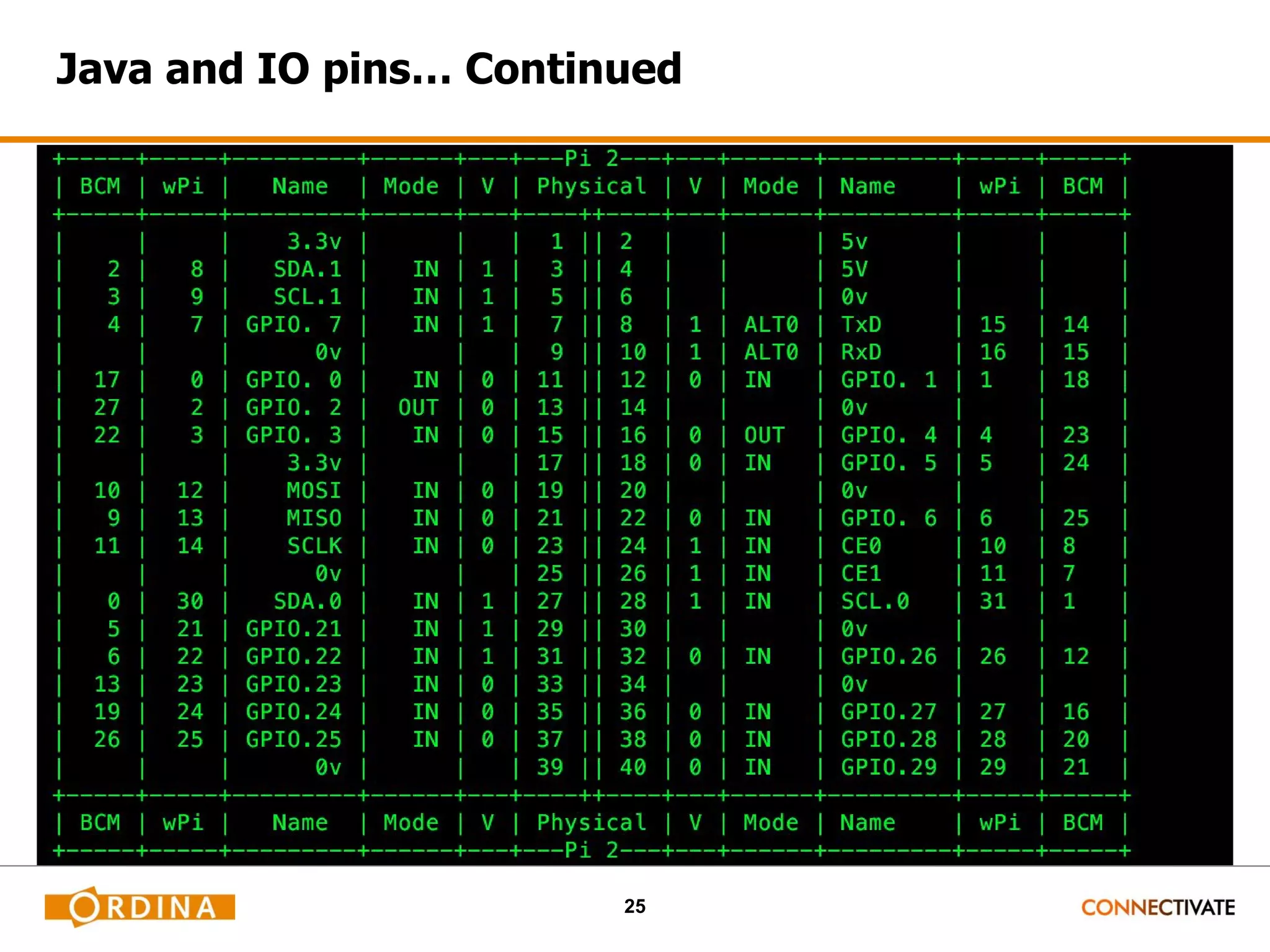

- 25. 25 Java and IOpins… Continued

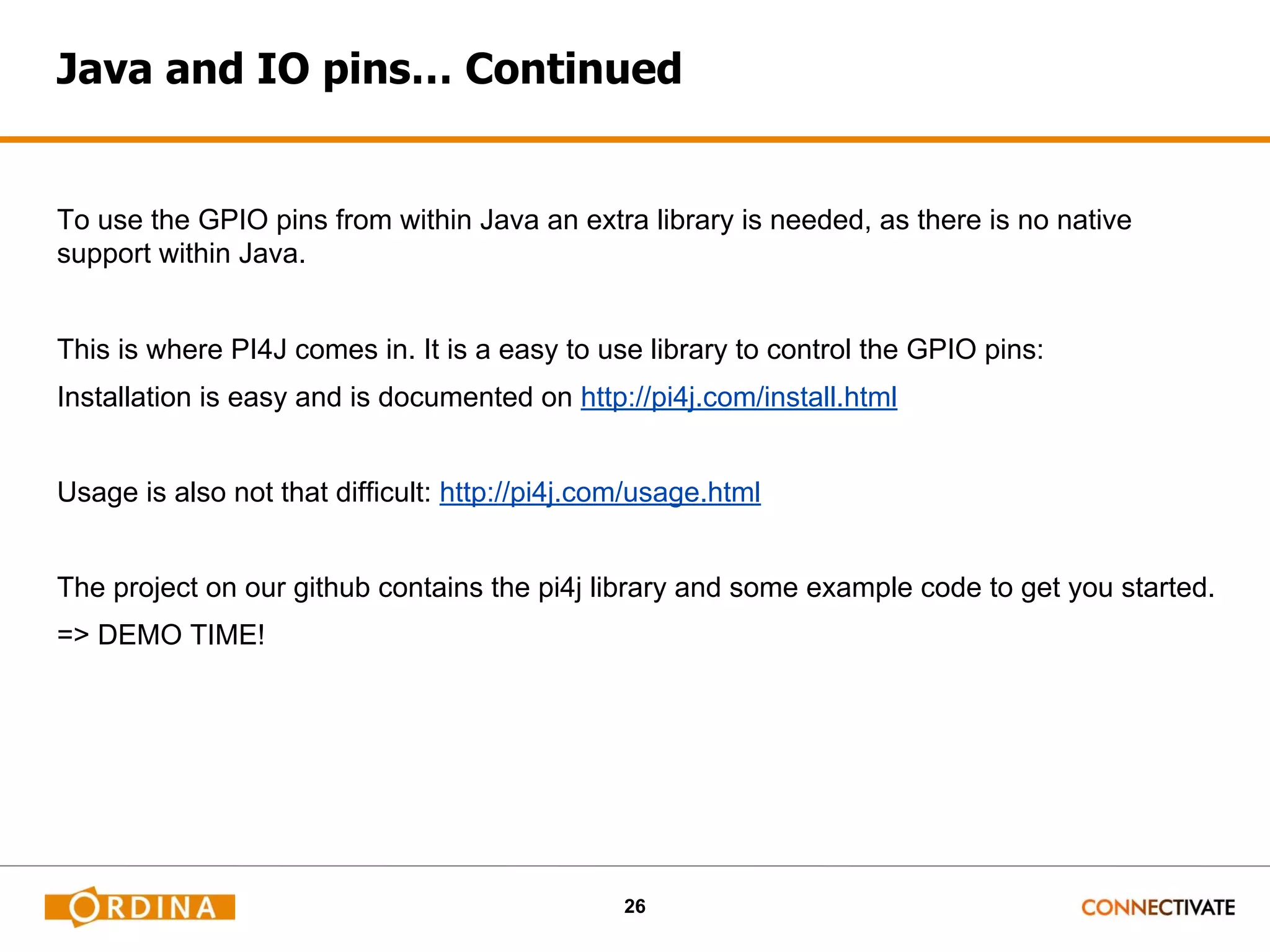

- 26. 26 Java and IOpins… Continued To use the GPIO pins from within Java an extra library is needed, as there is no native support within Java. This is where PI4J comes in. It is a easy to use library to control the GPIO pins: Installation is easy and is documented on http://pi4j.com/install.html Usage is also not that difficult: http://pi4j.com/usage.html The project on our github contains the pi4j library and some example code to get you started. => DEMO TIME!
- 27.

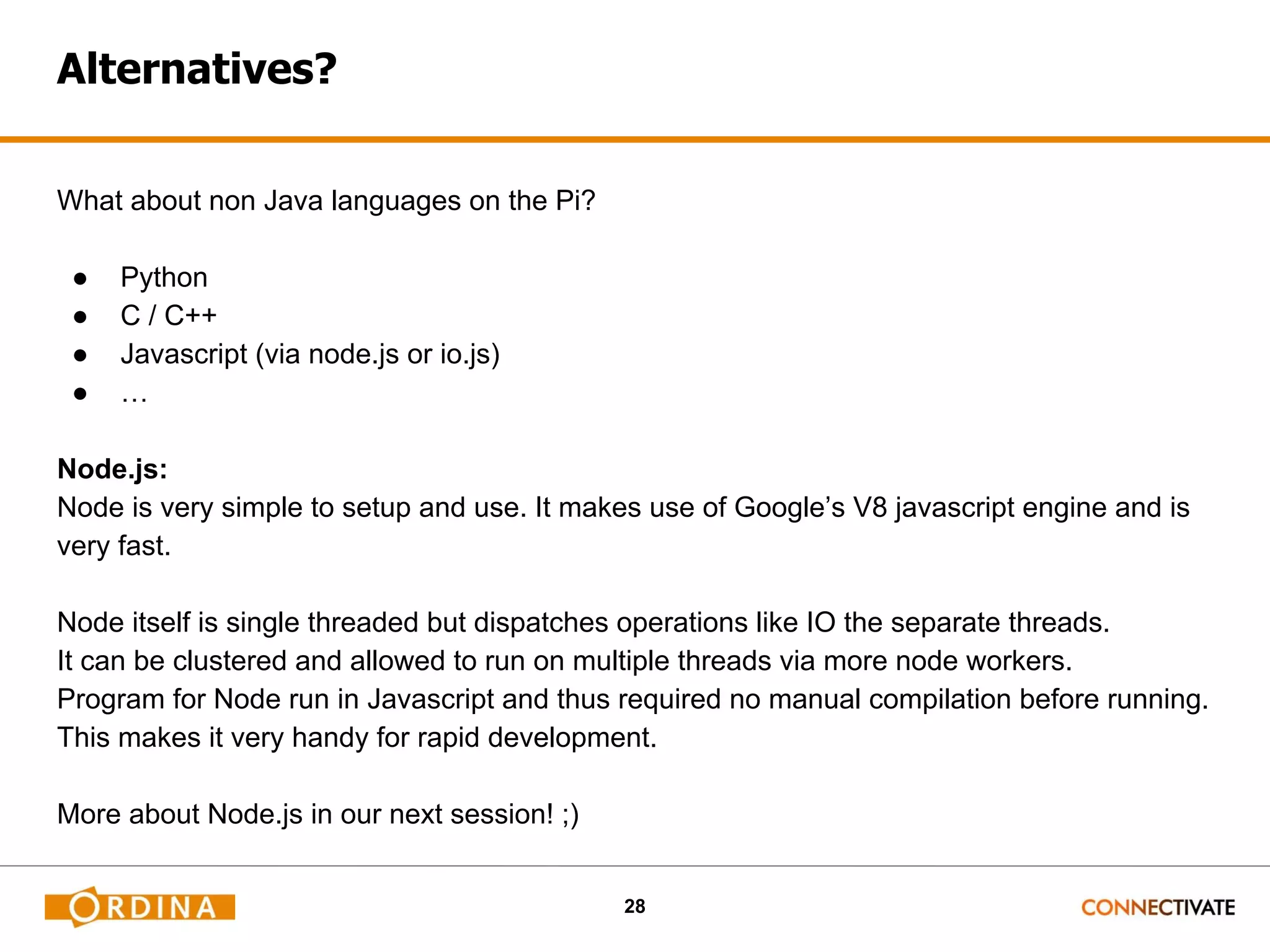

- 28. 28 Alternatives? What about nonJava languages on the Pi? ● Python ● C / C++ ● Javascript (via node.js or io.js) ● … Node.js: Node is very simple to setup and use. It makes use of Google’s V8 javascript engine and is very fast. Node itself is single threaded but dispatches operations like IO the separate threads. It can be clustered and allowed to run on multiple threads via more node workers. Program for Node run in Javascript and thus required no manual compilation before running. This makes it very handy for rapid development. More about Node.js in our next session! ;)
- 29.
- 30.
