  Using JSON Schema Validator -By Rahul Kumar
• 2.

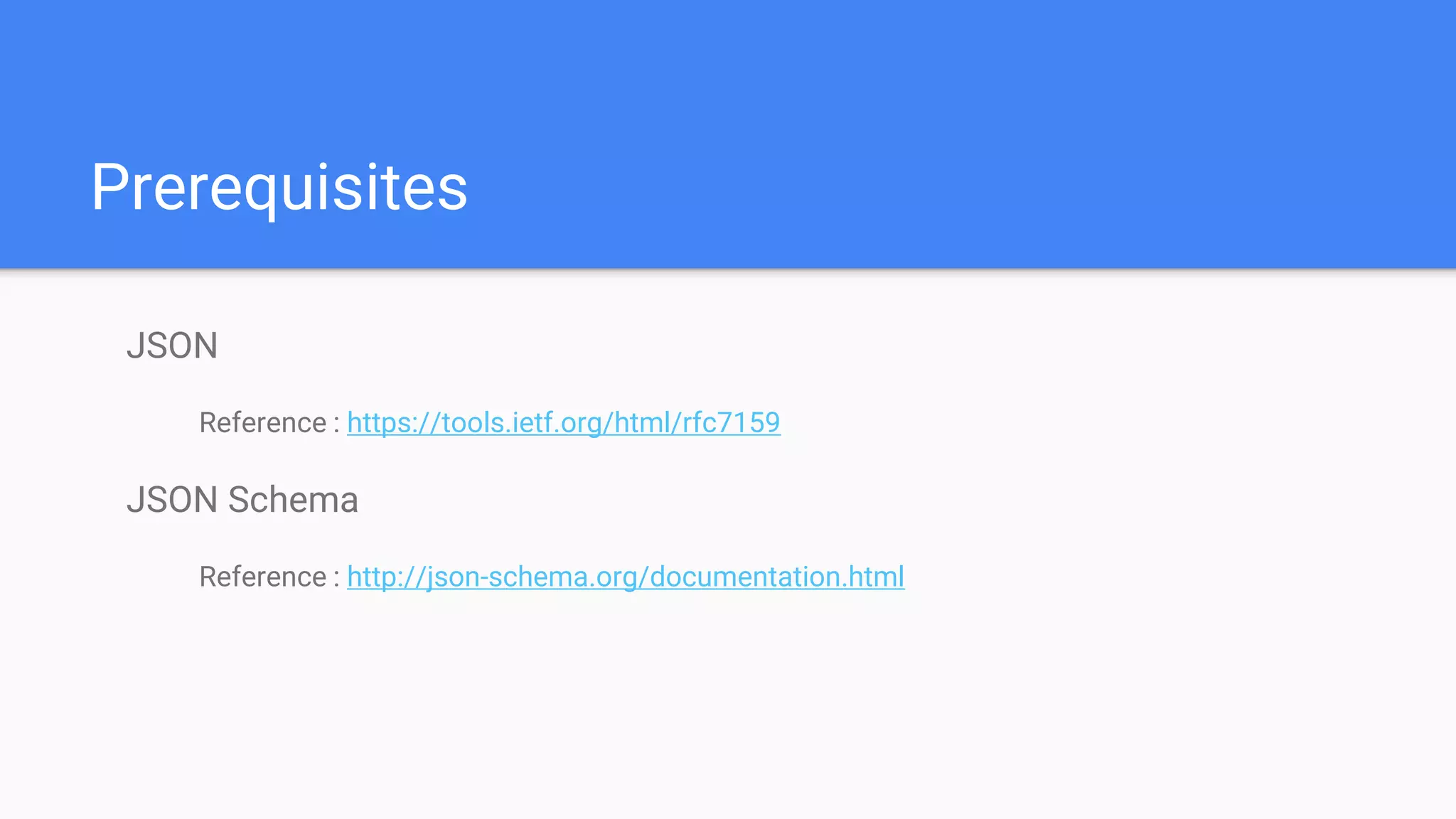

  Prerequisites JSON Reference : https://tools.ietf.org/html/rfc7159 JSONSchema Reference : http://json-schema.org/documentation.html
• 3.

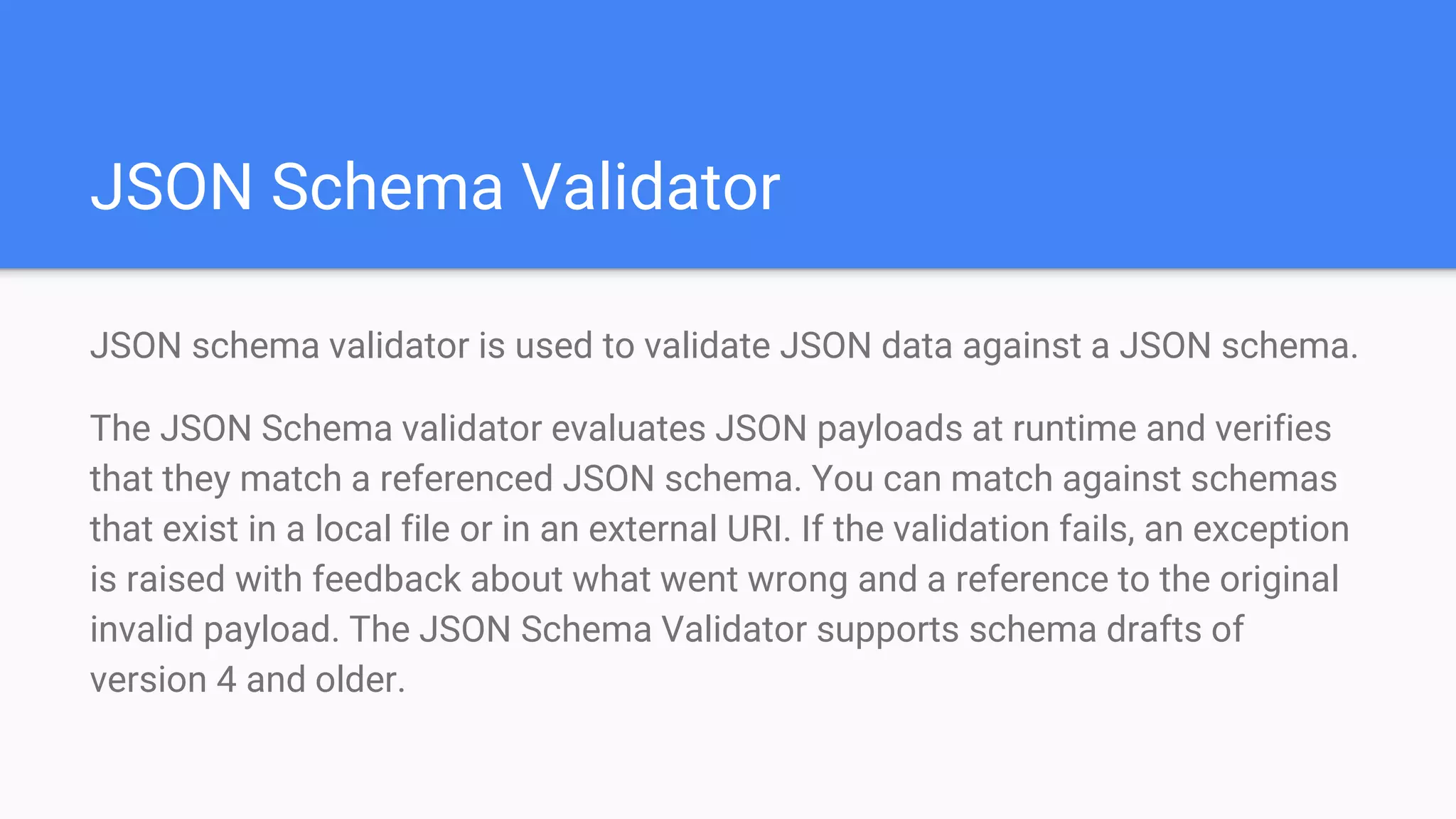

  JSON Schema Validator JSONschema validator is used to validate JSON data against a JSON schema. The JSON Schema validator evaluates JSON payloads at runtime and verifies that they match a referenced JSON schema. You can match against schemas that exist in a local file or in an external URI. If the validation fails, an exception is raised with feedback about what went wrong and a reference to the original invalid payload. The JSON Schema Validator supports schema drafts of version 4 and older.
• 4.

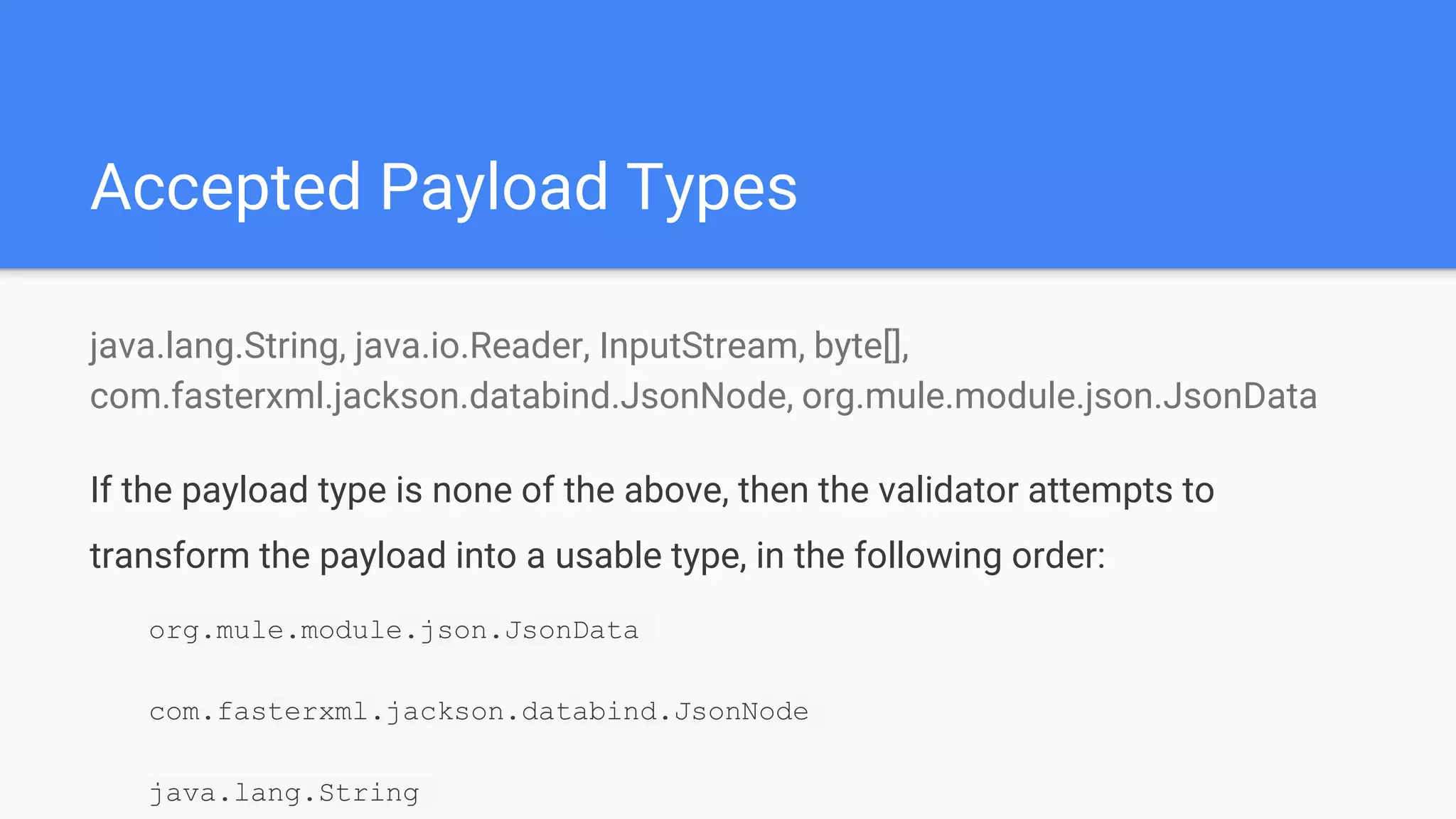

  Accepted Payload Types java.lang.String,java.io.Reader, InputStream, byte[], com.fasterxml.jackson.databind.JsonNode, org.mule.module.json.JsonData If the payload type is none of the above, then the validator attempts to transform the payload into a usable type, in the following order: org.mule.module.json.JsonData com.fasterxml.jackson.databind.JsonNode java.lang.String
• 5.

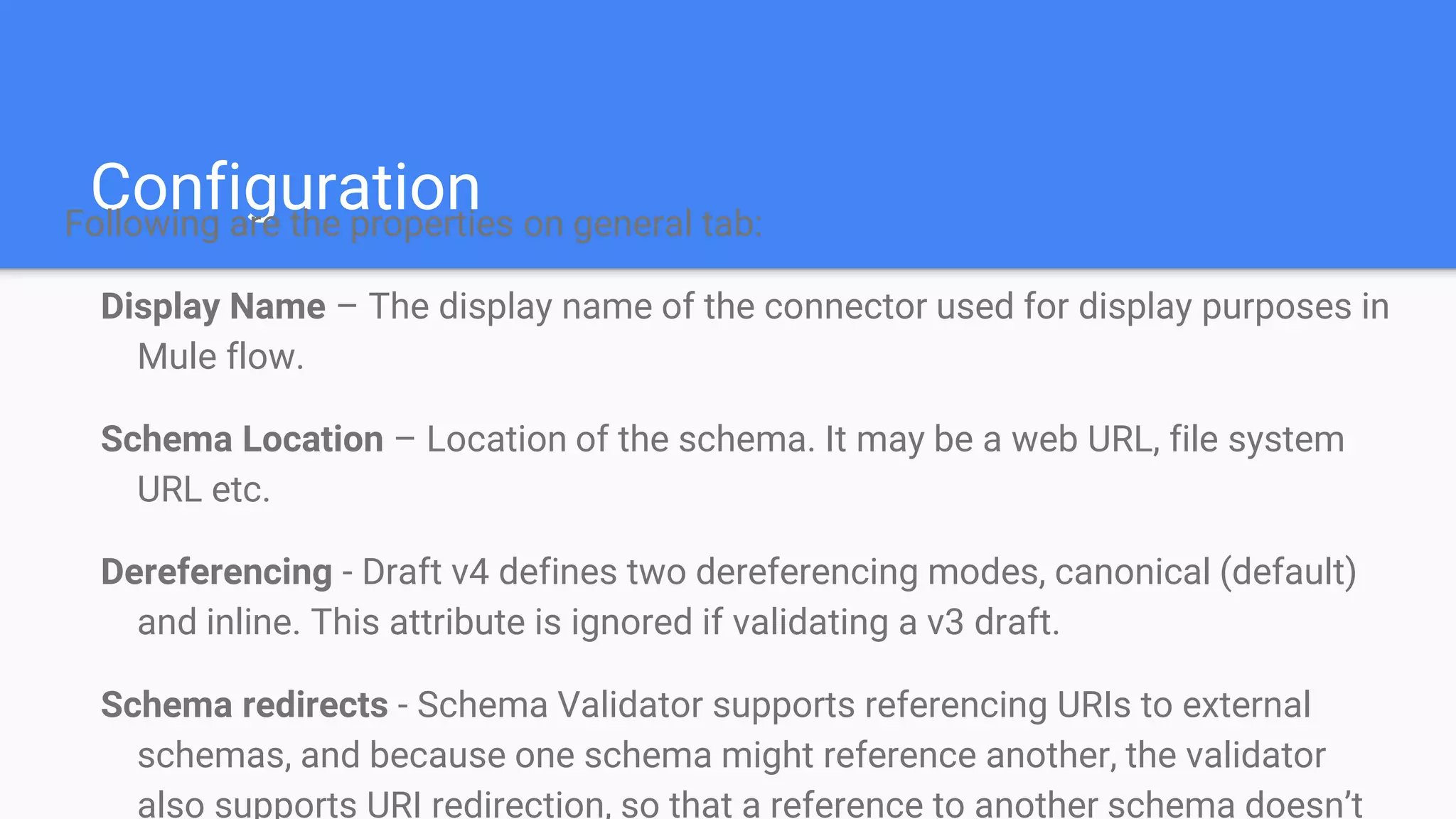

  ConfigurationFollowing are theproperties on general tab: Display Name – The display name of the connector used for display purposes in Mule flow. Schema Location – Location of the schema. It may be a web URL, file system URL etc. Dereferencing - Draft v4 defines two dereferencing modes, canonical (default) and inline. This attribute is ignored if validating a v3 draft. Schema redirects - Schema Validator supports referencing URIs to external schemas, and because one schema might reference another, the validator also supports URI redirection, so that a reference to another schema doesn’t
• 6.

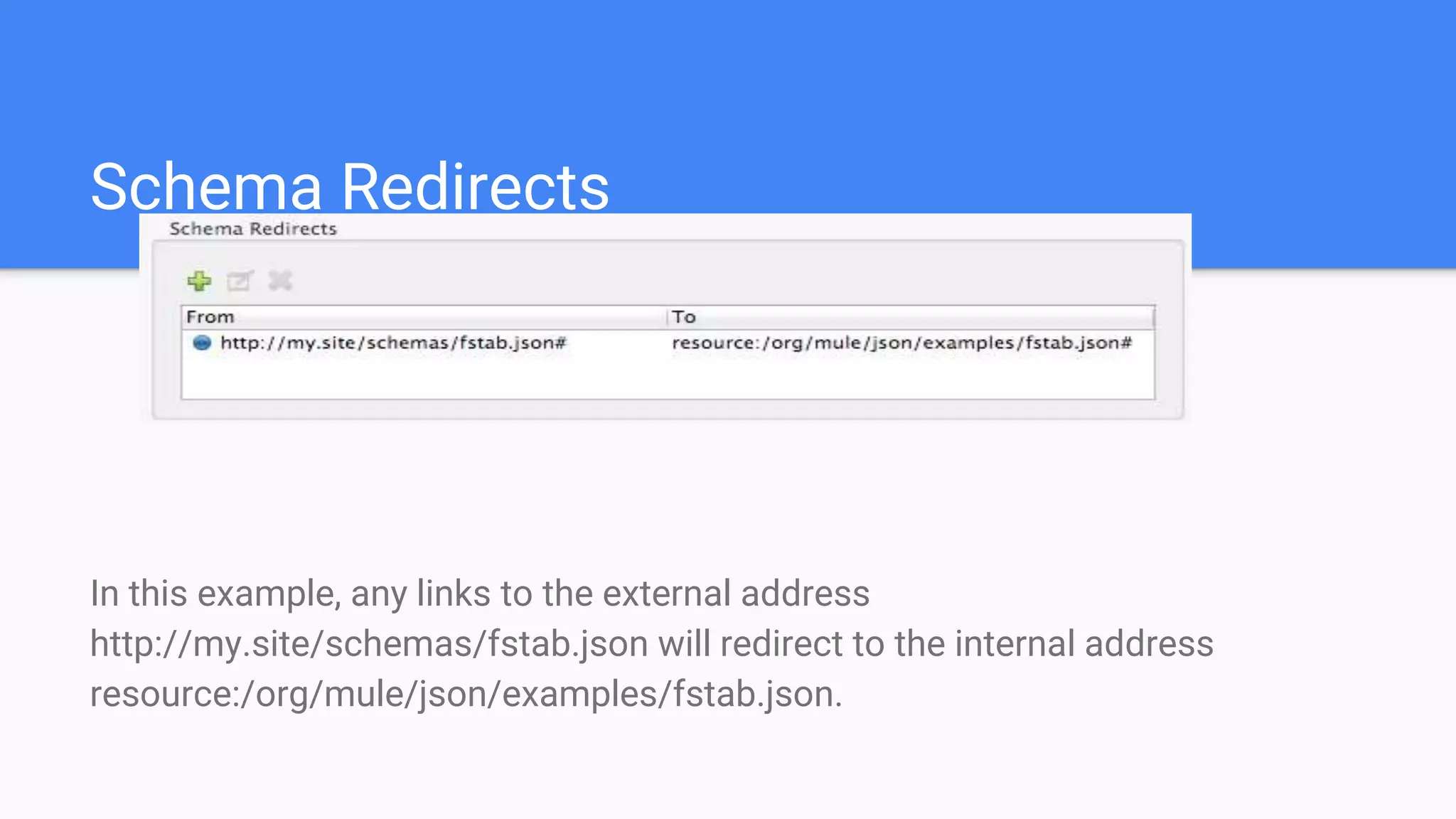

  Schema Redirects In thisexample, any links to the external address http://my.site/schemas/fstab.json will redirect to the internal address resource:/org/mule/json/examples/fstab.json.
• 7.

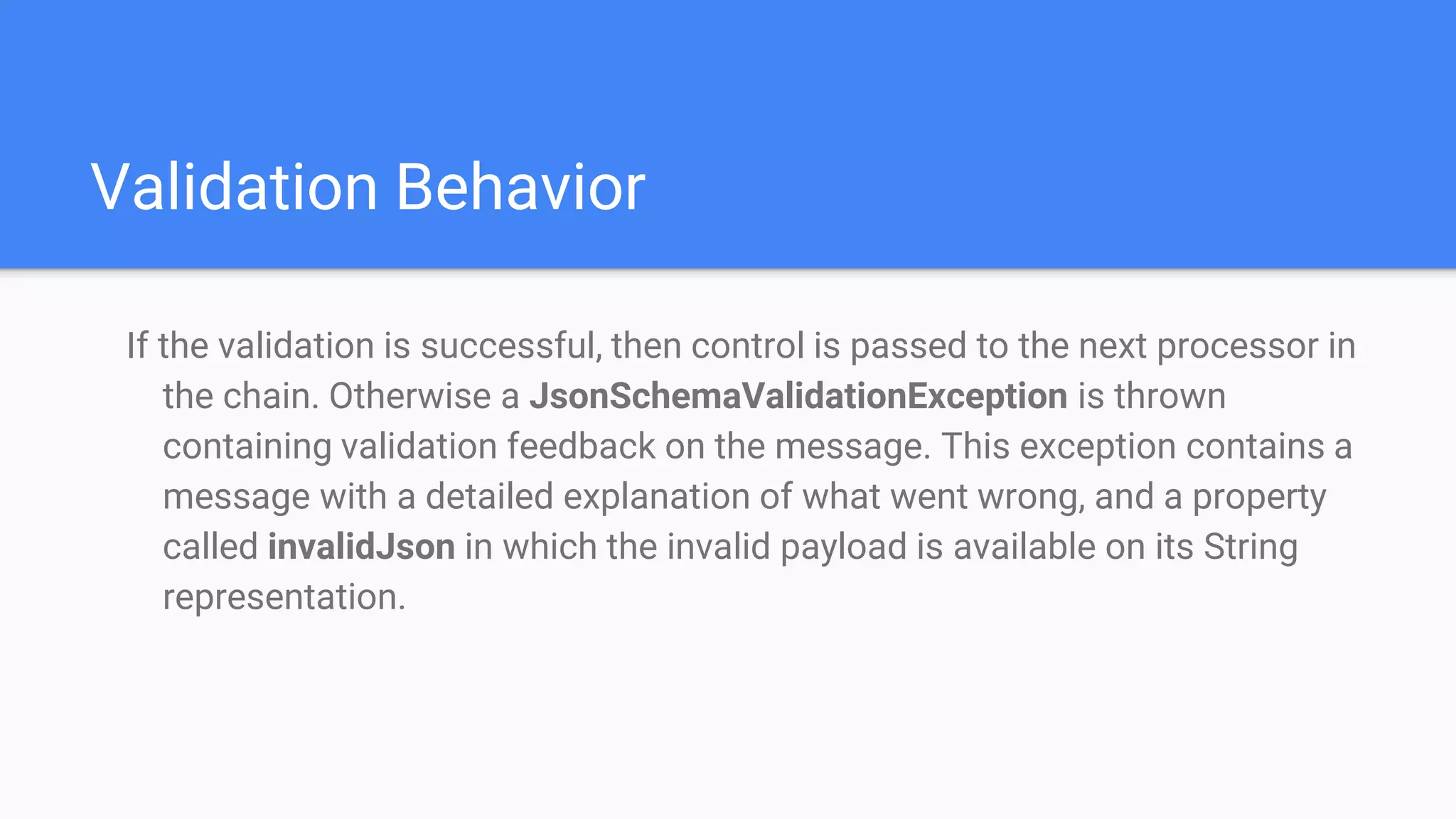

  Validation Behavior If thevalidation is successful, then control is passed to the next processor in the chain. Otherwise a JsonSchemaValidationException is thrown containing validation feedback on the message. This exception contains a message with a detailed explanation of what went wrong, and a property called invalidJson in which the invalid payload is available on its String representation.
• 8.

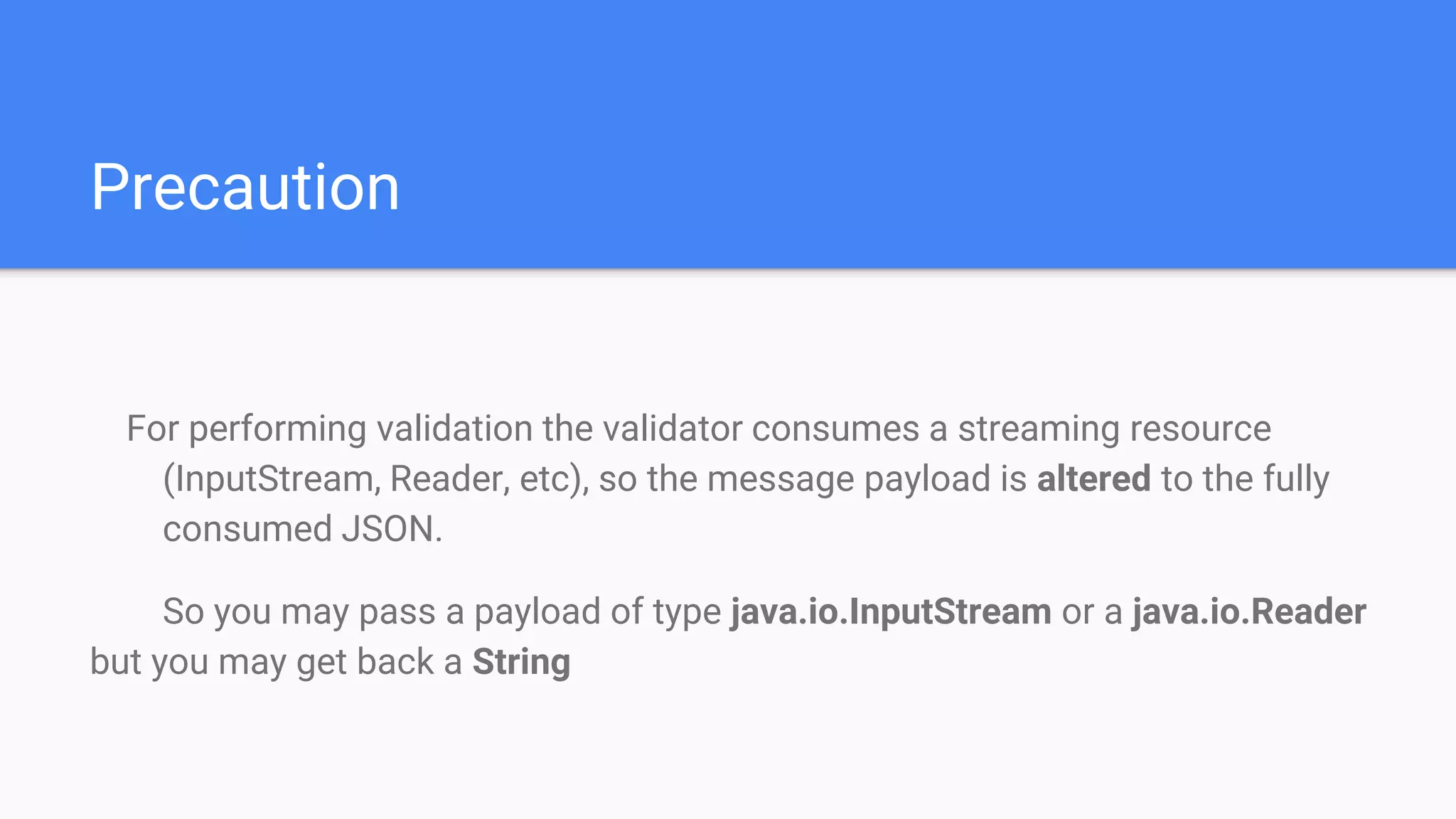

  Precaution For performing validationthe validator consumes a streaming resource (InputStream, Reader, etc), so the message payload is altered to the fully consumed JSON. So you may pass a payload of type java.io.InputStream or a java.io.Reader but you may get back a String
• 9.

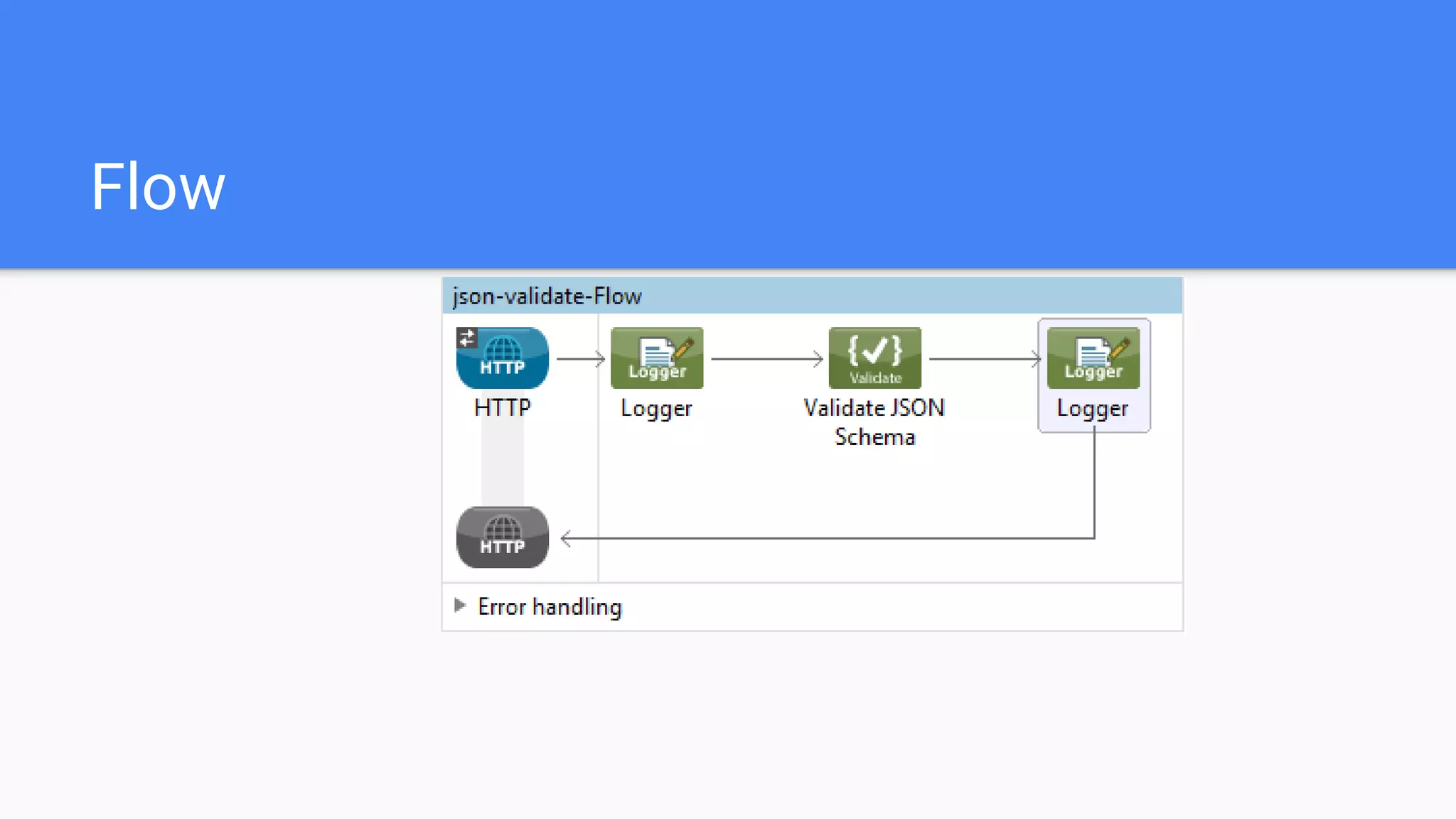

  Flow
• 10.
  Thank You !!
