APACHE SPARK Spark Programming Basic

Course Outline Lesson 1. Big Data and Apache Hadoop overview Lesson 2. Introduction to Spark Lesson 3. Introduction to Python Lesson 4. Introduction to PySpark Lesson 5. Building Spark Application

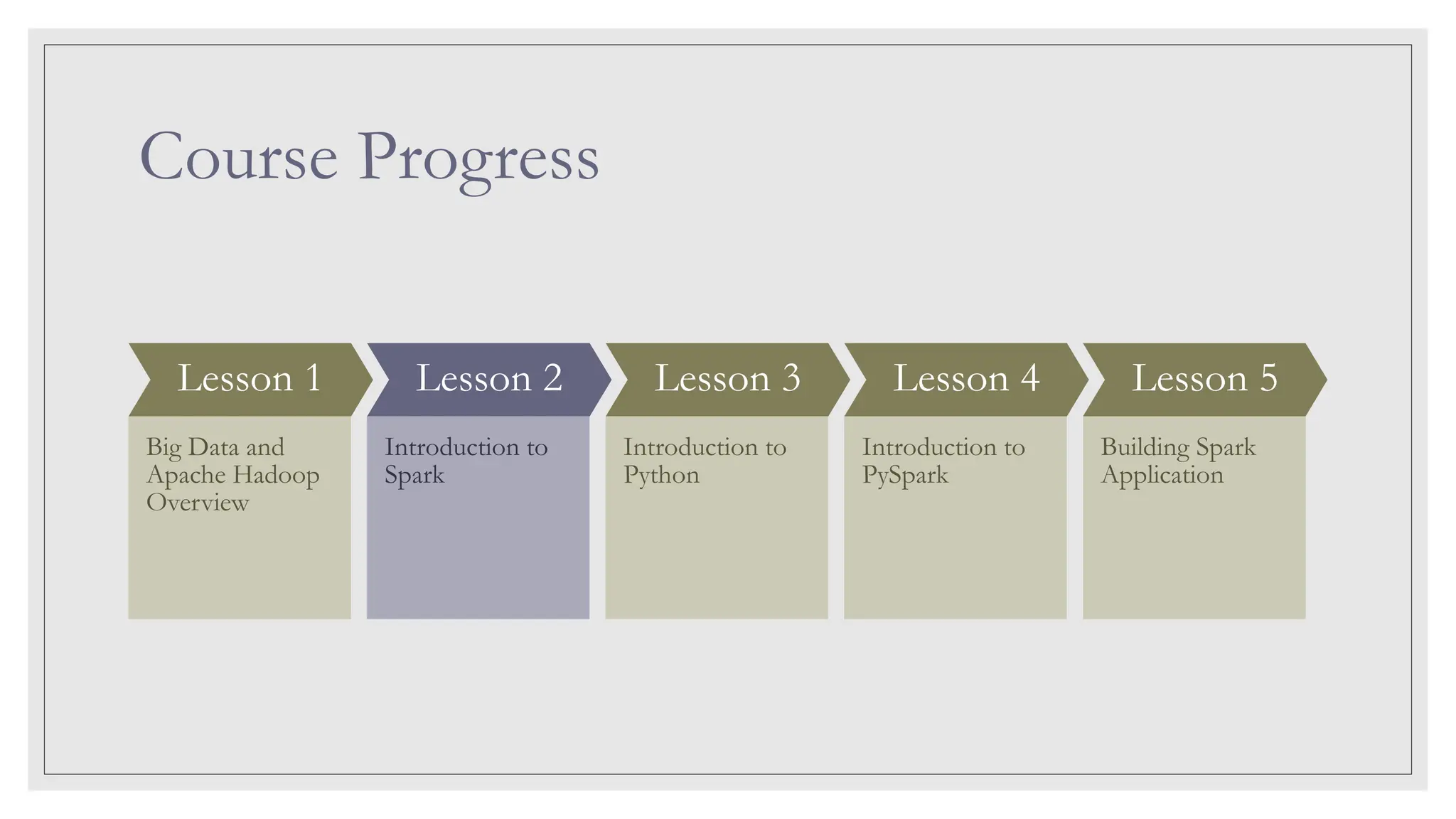

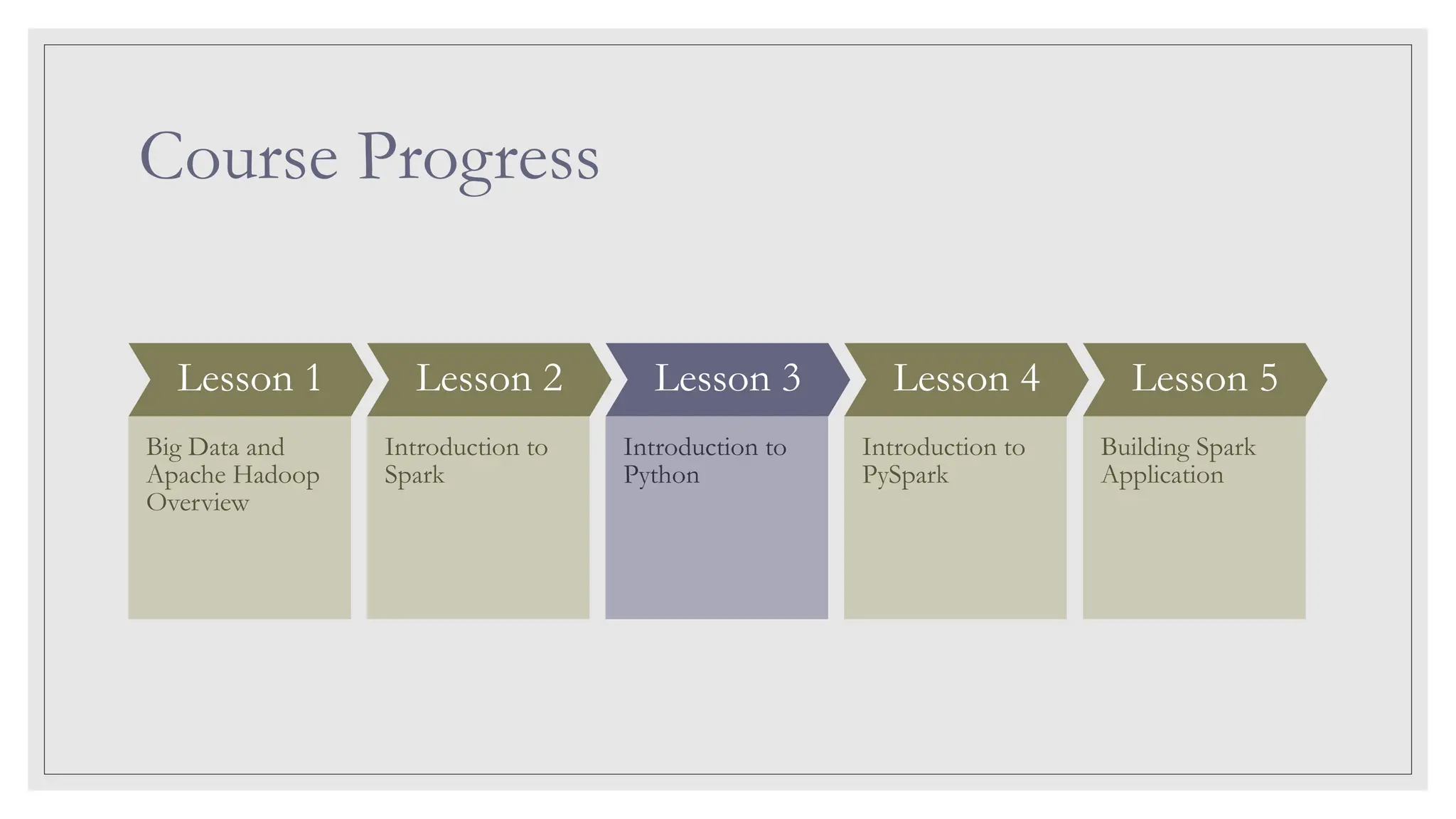

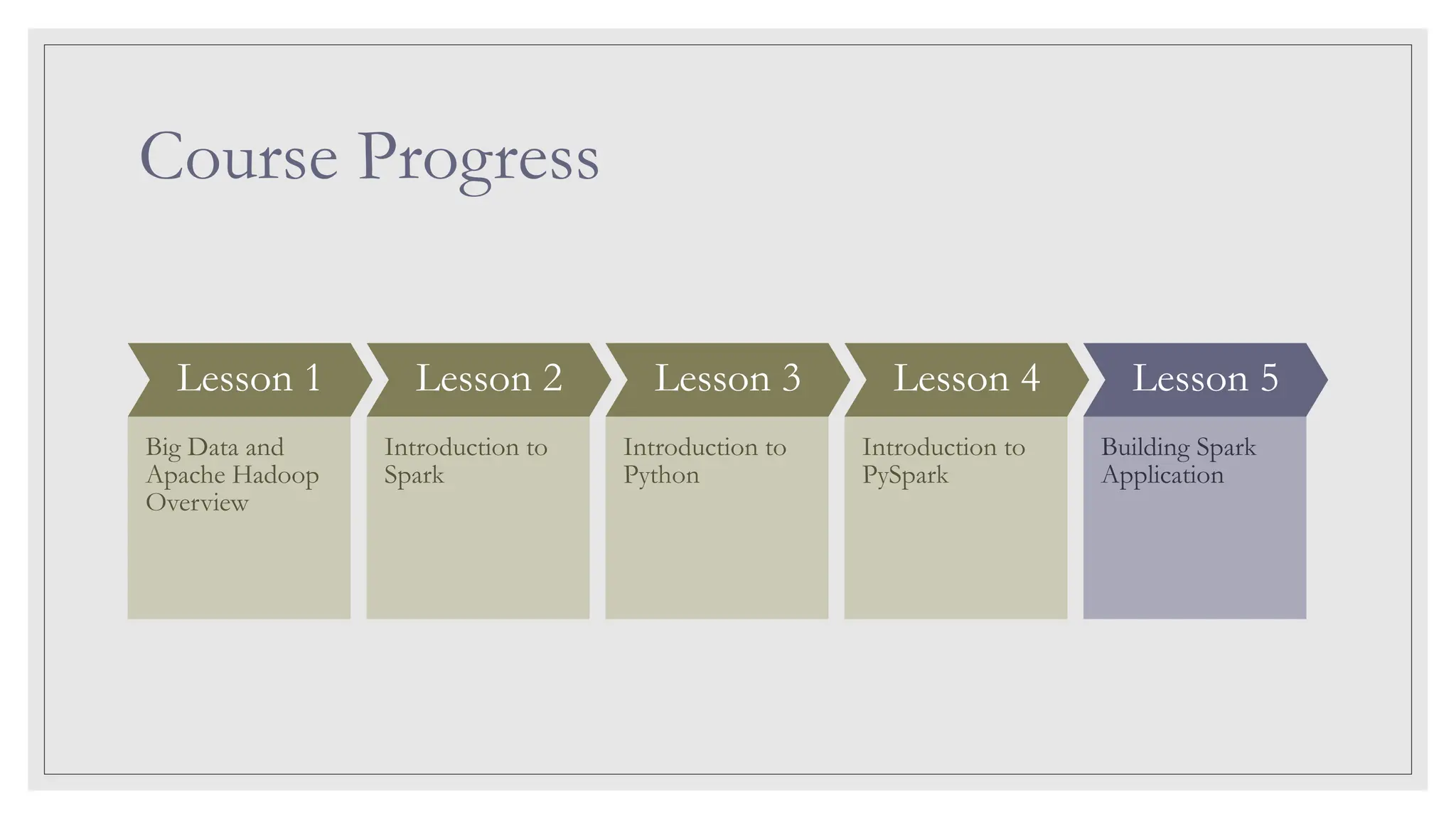

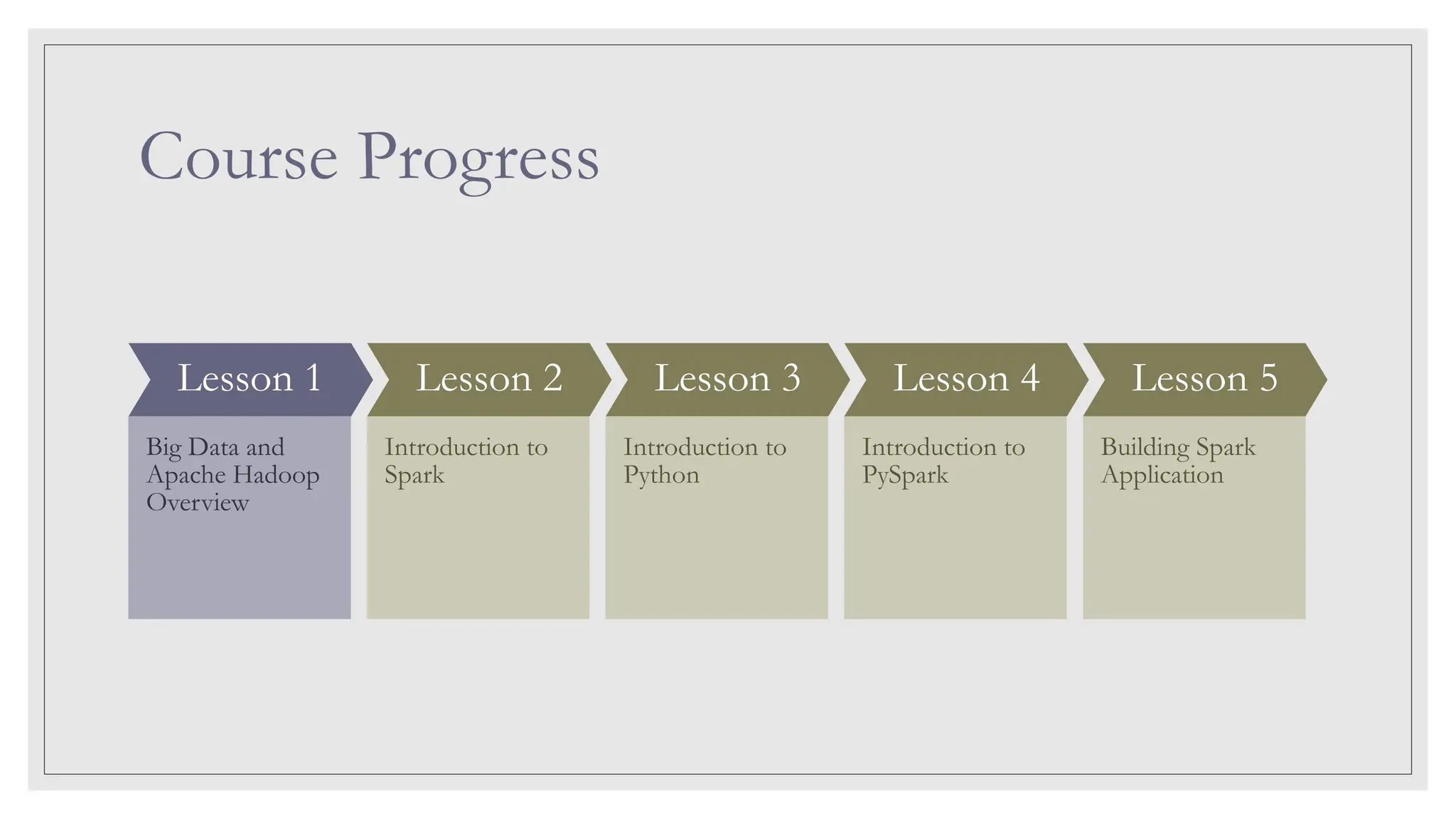

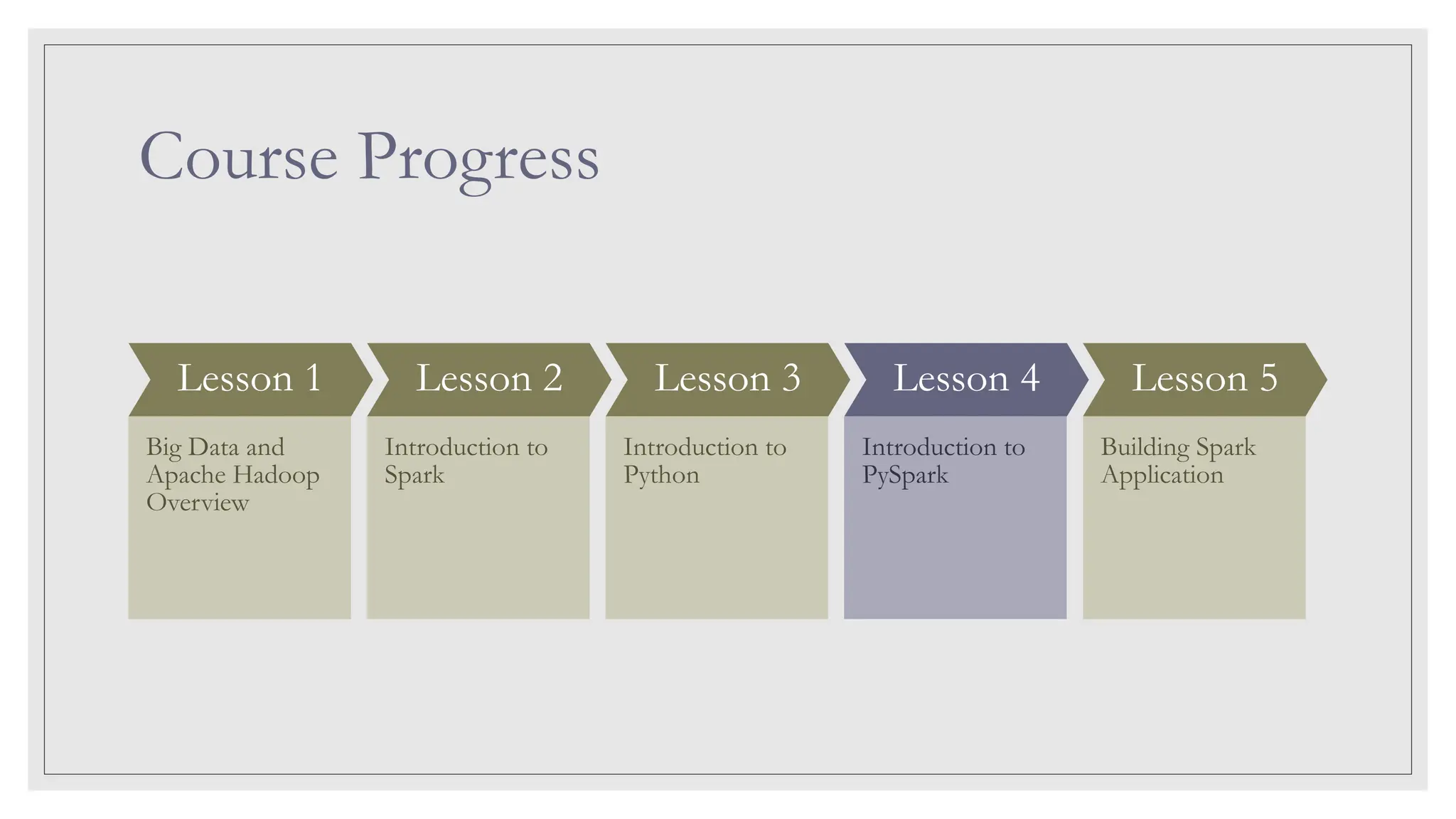

Course Progress Lesson 1 Big Data and Apache Hadoop Overview Lesson 2 Introduction to Spark Lesson 3 Introduction to Python Lesson 4 Introduction to PySpark Lesson 5 Building Spark Application

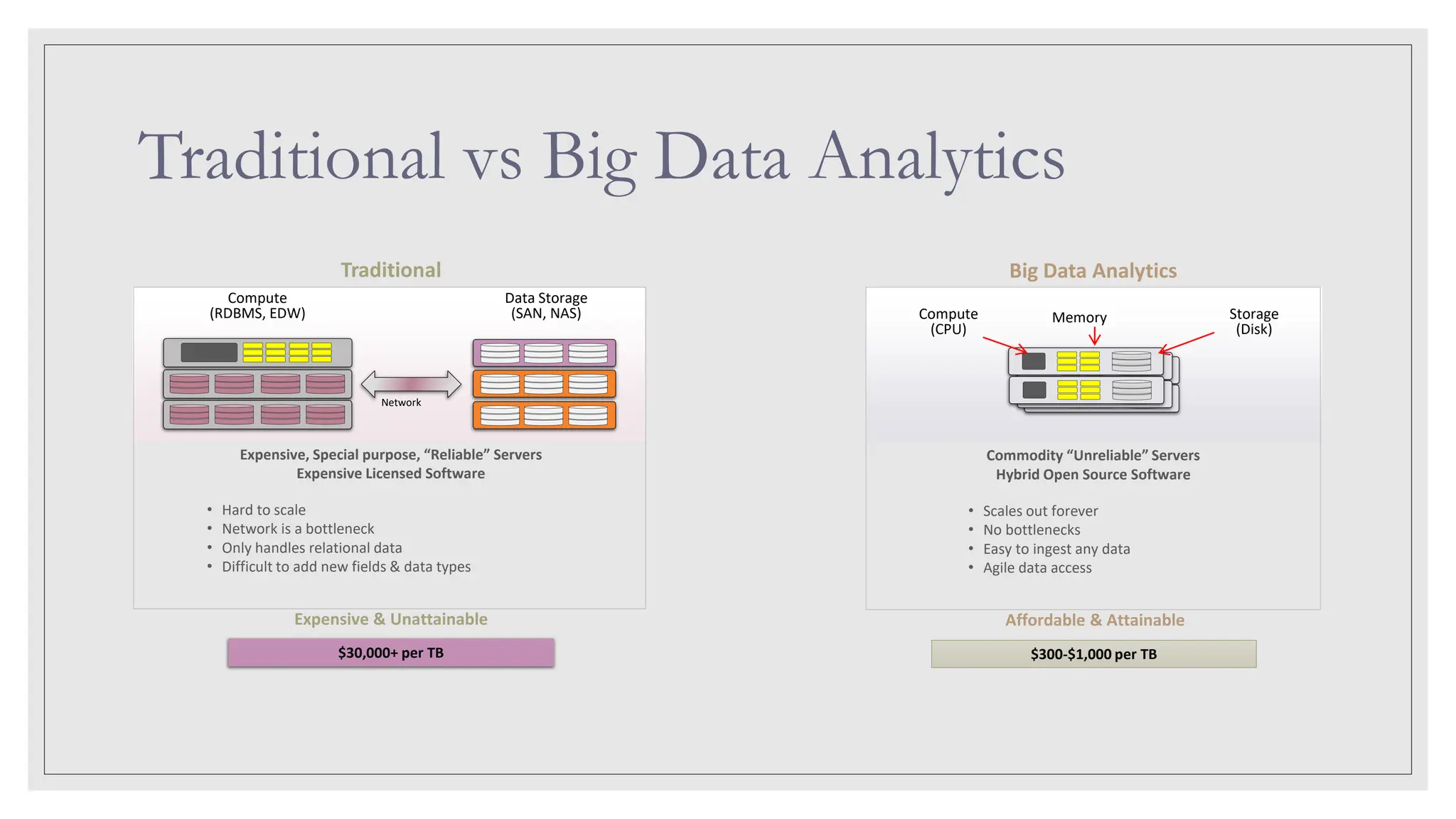

Traditional vs Big Data Analytics Big Data Analytics Traditional $30,000+ per TB Expensive & Unattainable • Hard to scale • Network is a bottleneck • Only handles relational data • Difficult to add new fields & data types Expensive, Special purpose, “Reliable” Servers Expensive Licensed Software Network Data Storage (SAN, NAS) Compute (RDBMS, EDW) $300-$1,000 per TB Affordable & Attainable • Scales out forever • No bottlenecks • Easy to ingest any data • Agile data access Commodity “Unreliable” Servers Hybrid Open Source Software Compute (CPU) Memory Storage (Disk) z z

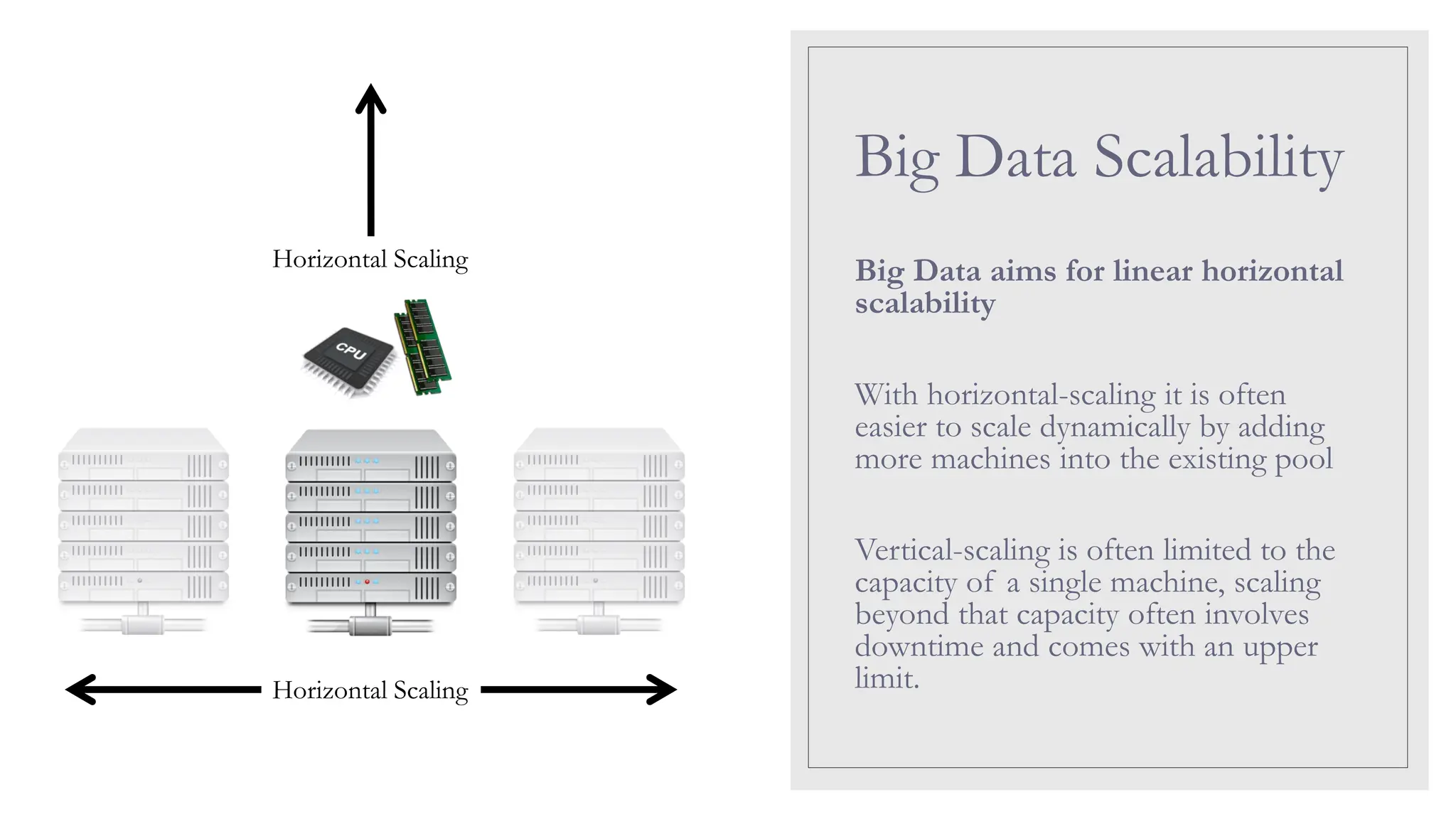

Big Data Scalability Big Data aims for linear horizontal scalability With horizontal-scaling it is often easier to scale dynamically by adding more machines into the existing pool Vertical-scaling is often limited to the capacity of a single machine, scaling beyond that capacity often involves downtime and comes with an upper limit. Horizontal Scaling Horizontal Scaling

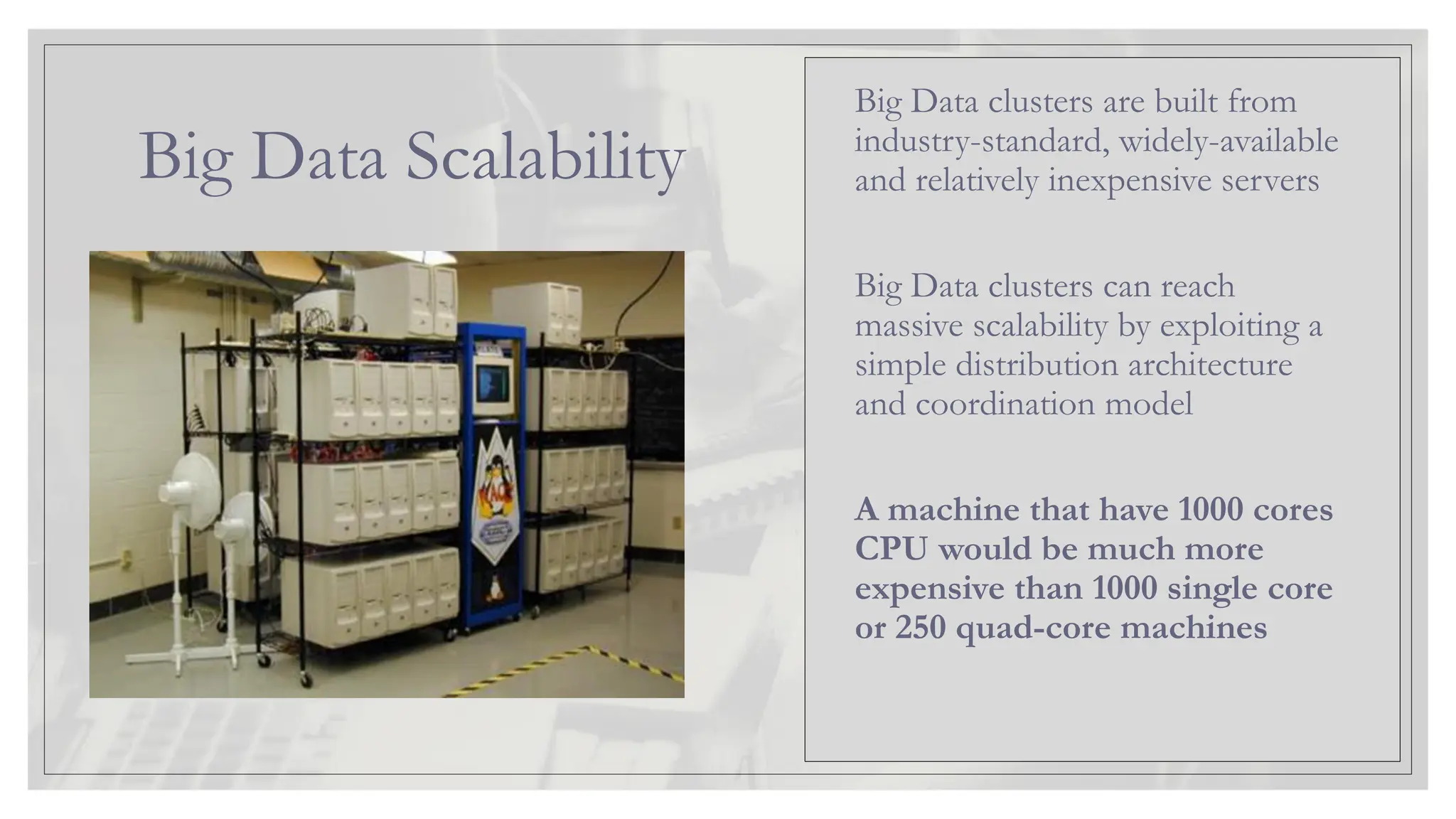

Big Data Scalability Big Data clusters are built from industry-standard, widely-available and relatively inexpensive servers Big Data clusters can reach massive scalability by exploiting a simple distribution architecture and coordination model A machine that have 1000 cores CPU would be much more expensive than 1000 single core or 250 quad-core machines

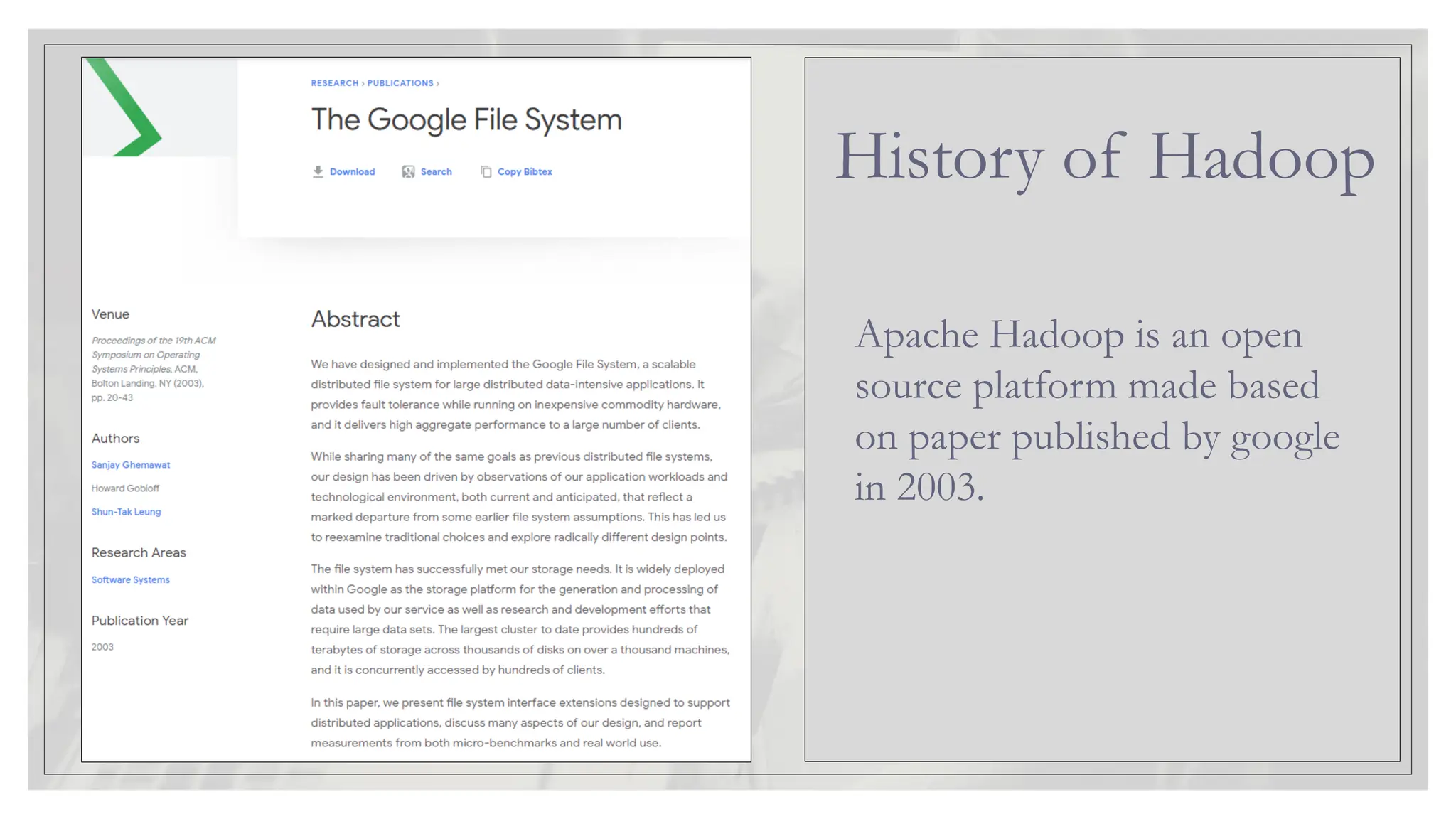

Apache Hadoop is an open source platform made based on paper published by google in 2003. History of Hadoop

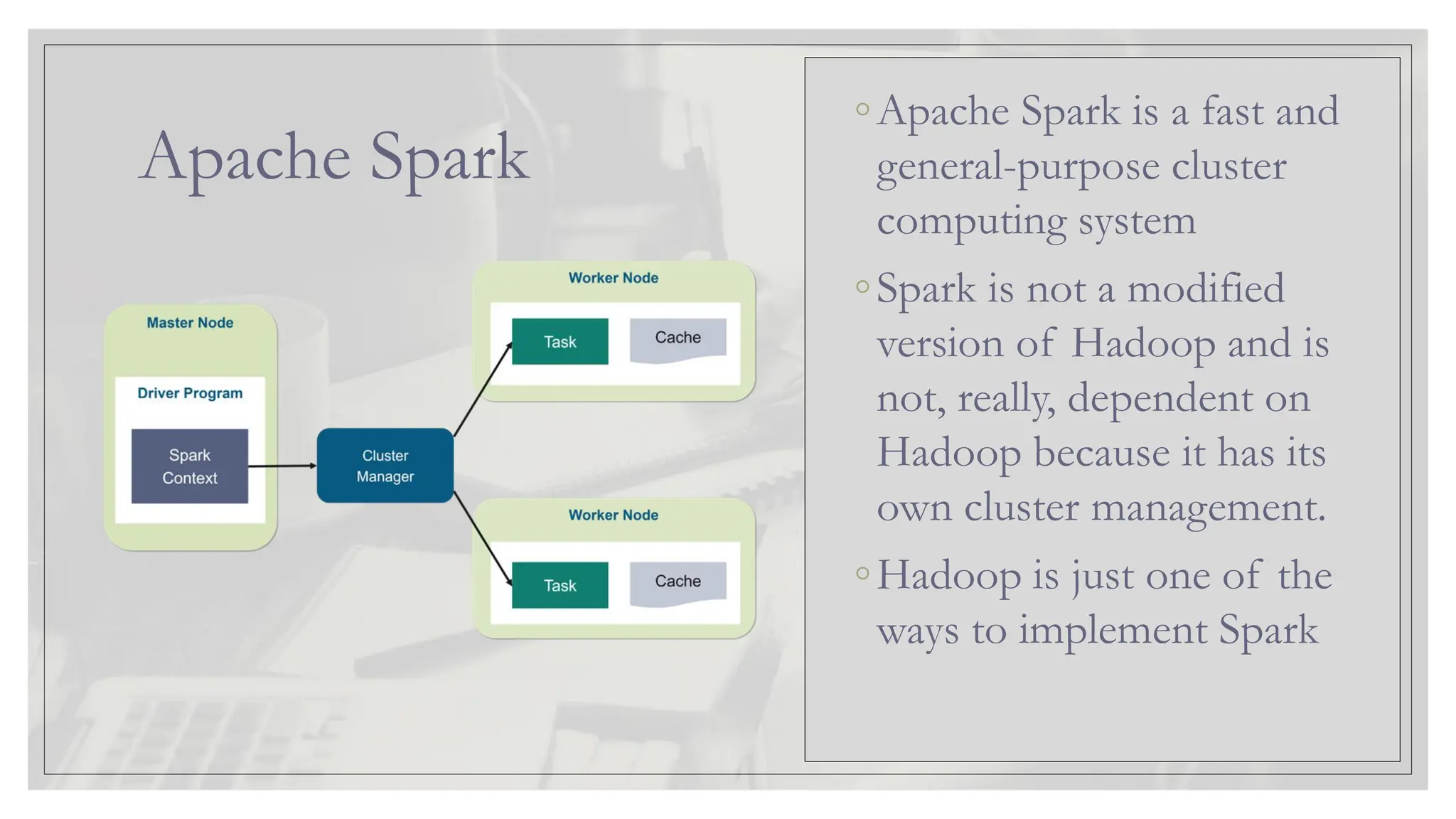

Apache Spark ◦Apache Spark is a fast and general-purpose cluster computing system ◦Spark is not a modified version of Hadoop and is not, really, dependent on Hadoop because it has its own cluster management. ◦Hadoop is just one of the ways to implement Spark

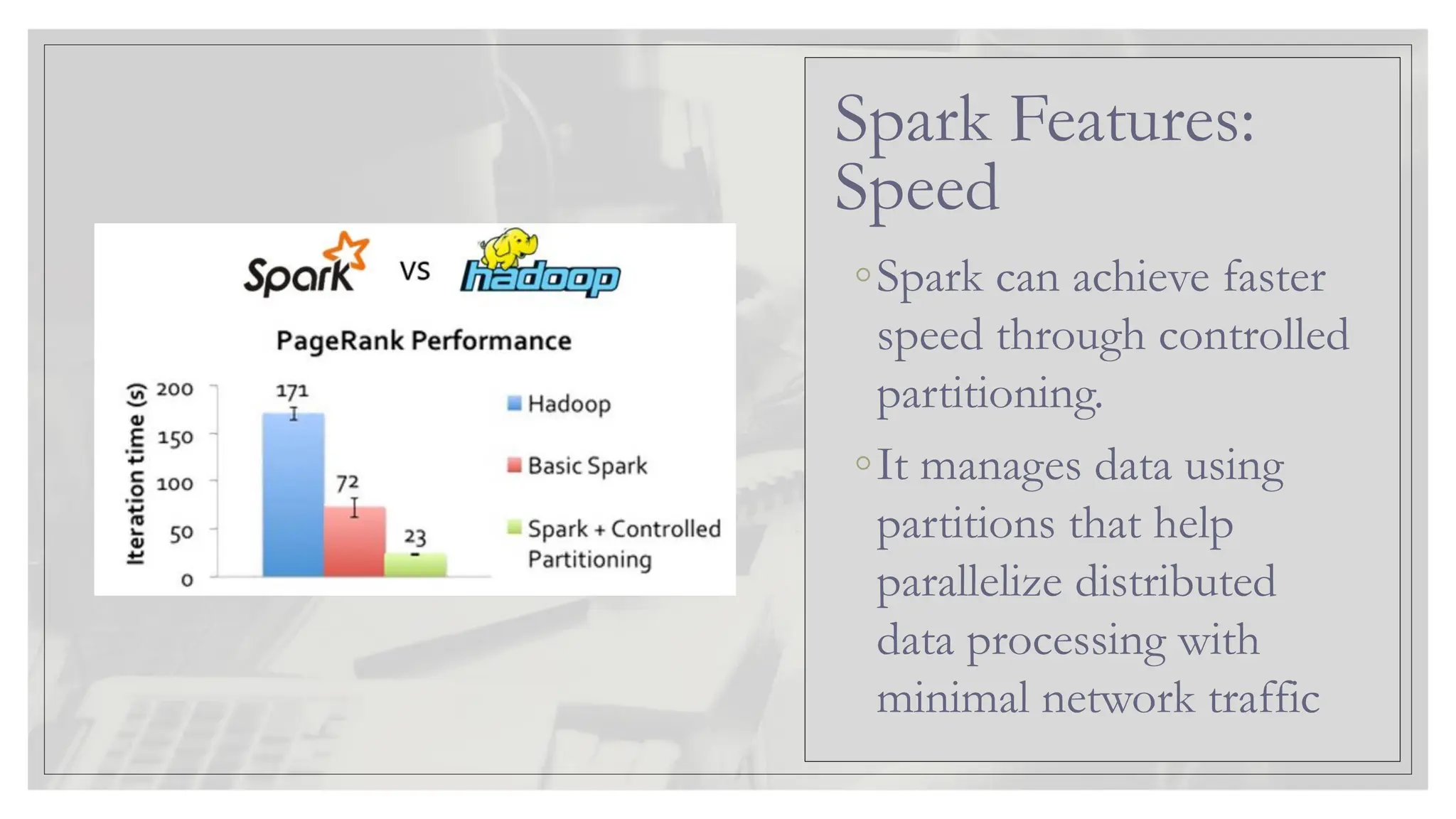

◦Spark can achieve faster speed through controlled partitioning. ◦It manages data using partitions that help parallelize distributed data processing with minimal network traffic Spark Features: Speed

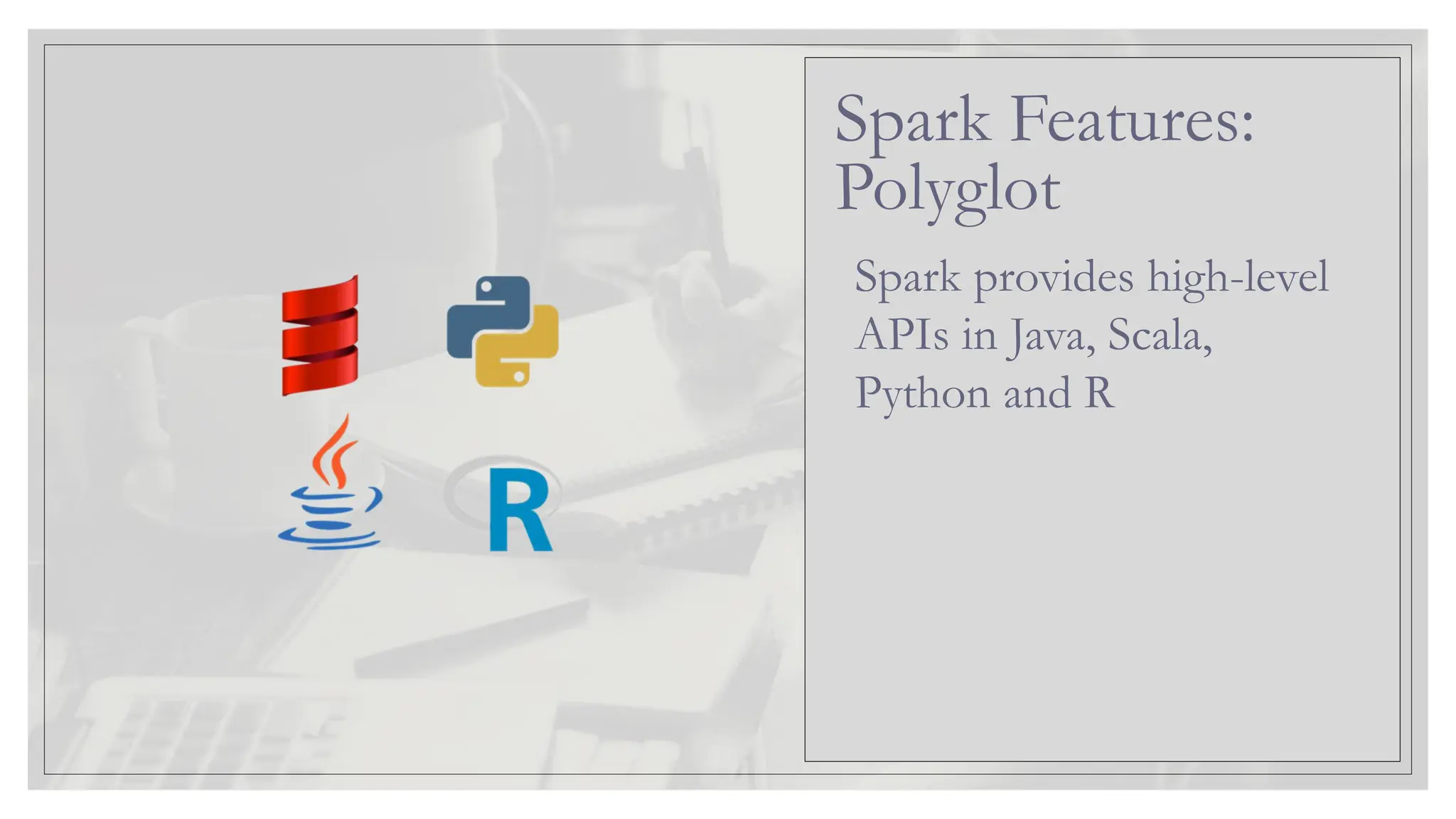

Spark provides high-level APIs in Java, Scala, Python and R Spark Features: Polyglot

Spark supports multiple data sources such as Parquet, JSON, Hive and Cassandra apart from the usual formats such as text files, CSV and RDBMS tables Spark Features: Multiple Formats

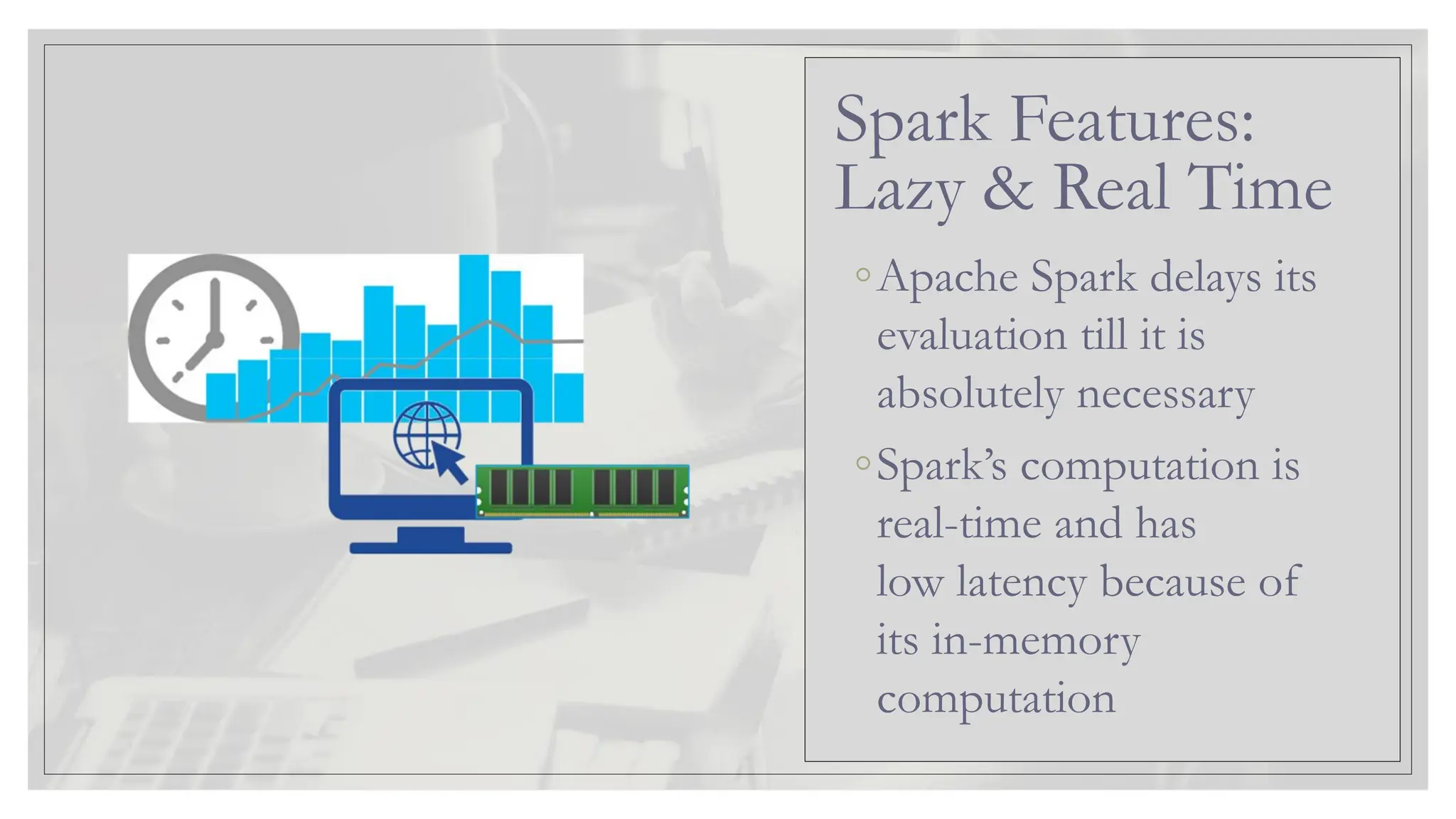

◦Apache Spark delays its evaluation till it is absolutely necessary ◦Spark’s computation is real-time and has low latency because of its in-memory computation Spark Features: Lazy & Real Time

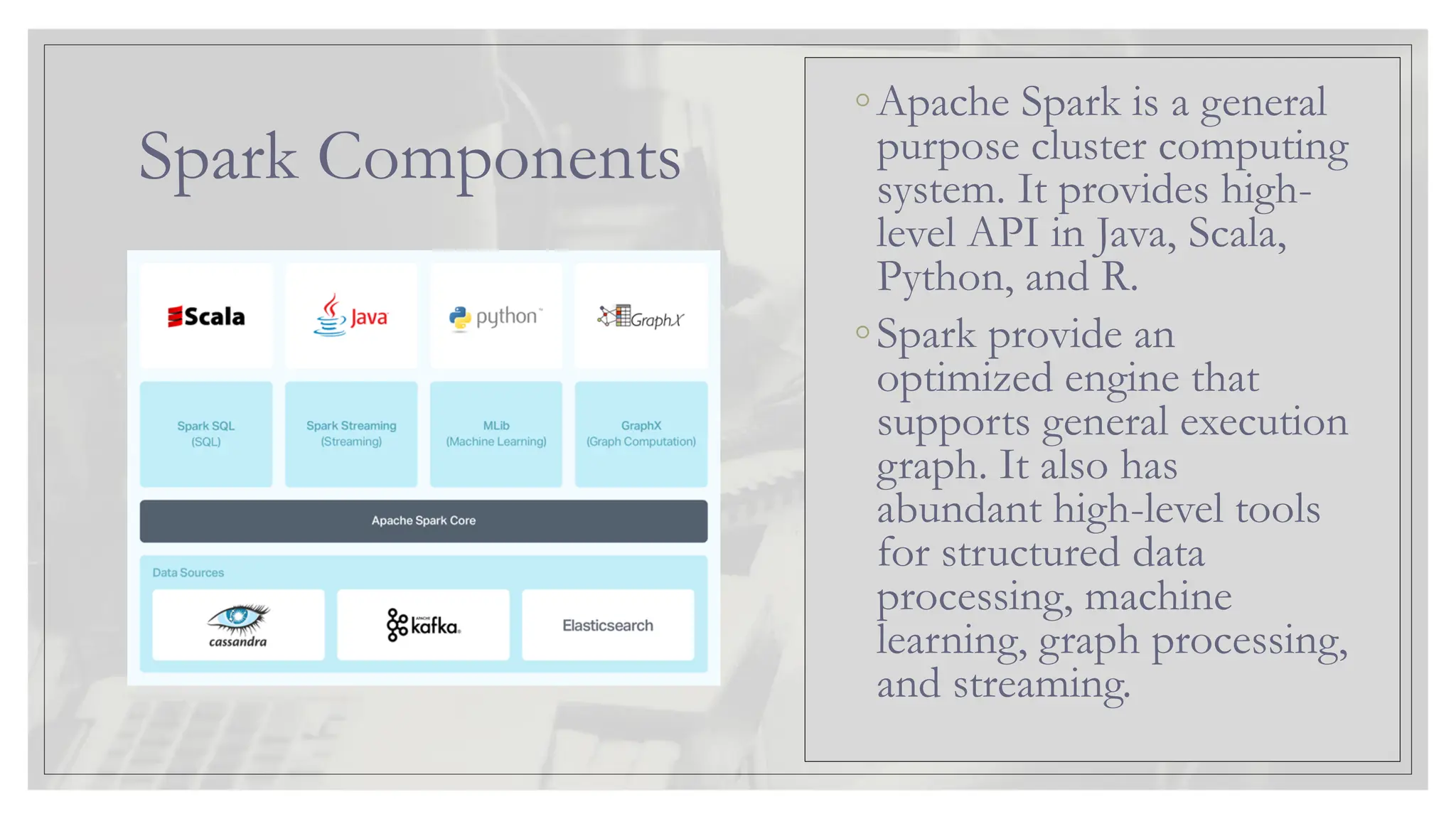

Spark Components ◦Apache Spark is a general purpose cluster computing system. It provides high- level API in Java, Scala, Python, and R. ◦Spark provide an optimized engine that supports general execution graph. It also has abundant high-level tools for structured data processing, machine learning, graph processing, and streaming.

Spark SQL lets you query structured data inside Spark programs and provide a common way to access a variety of data sources, including Hive, Avro, Parquet, ORC, JSON, and JDBC. You can even join data across these sources Spark Components: Spark SQL

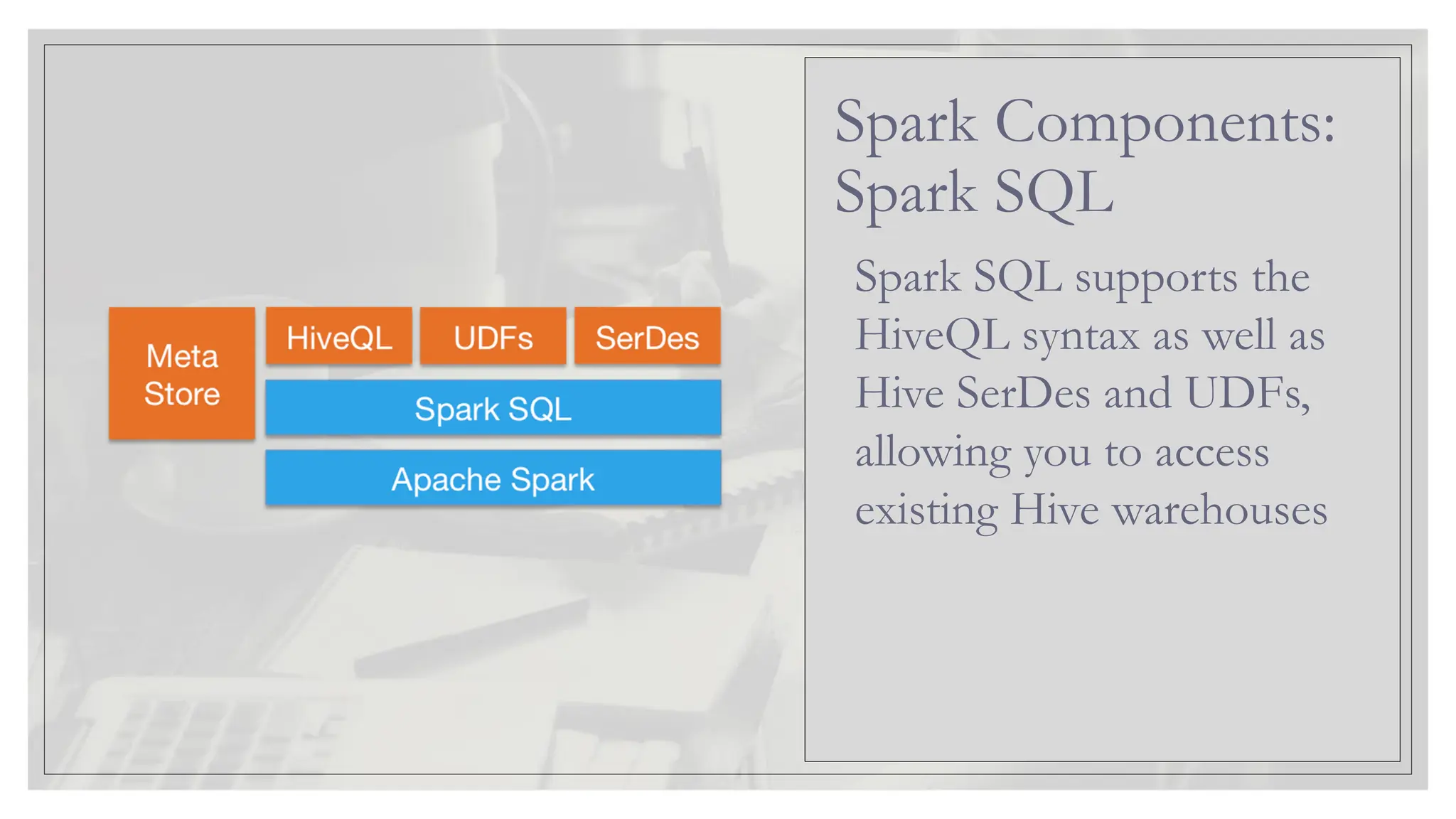

Spark SQL supports the HiveQL syntax as well as Hive SerDes and UDFs, allowing you to access existing Hive warehouses Spark Components: Spark SQL

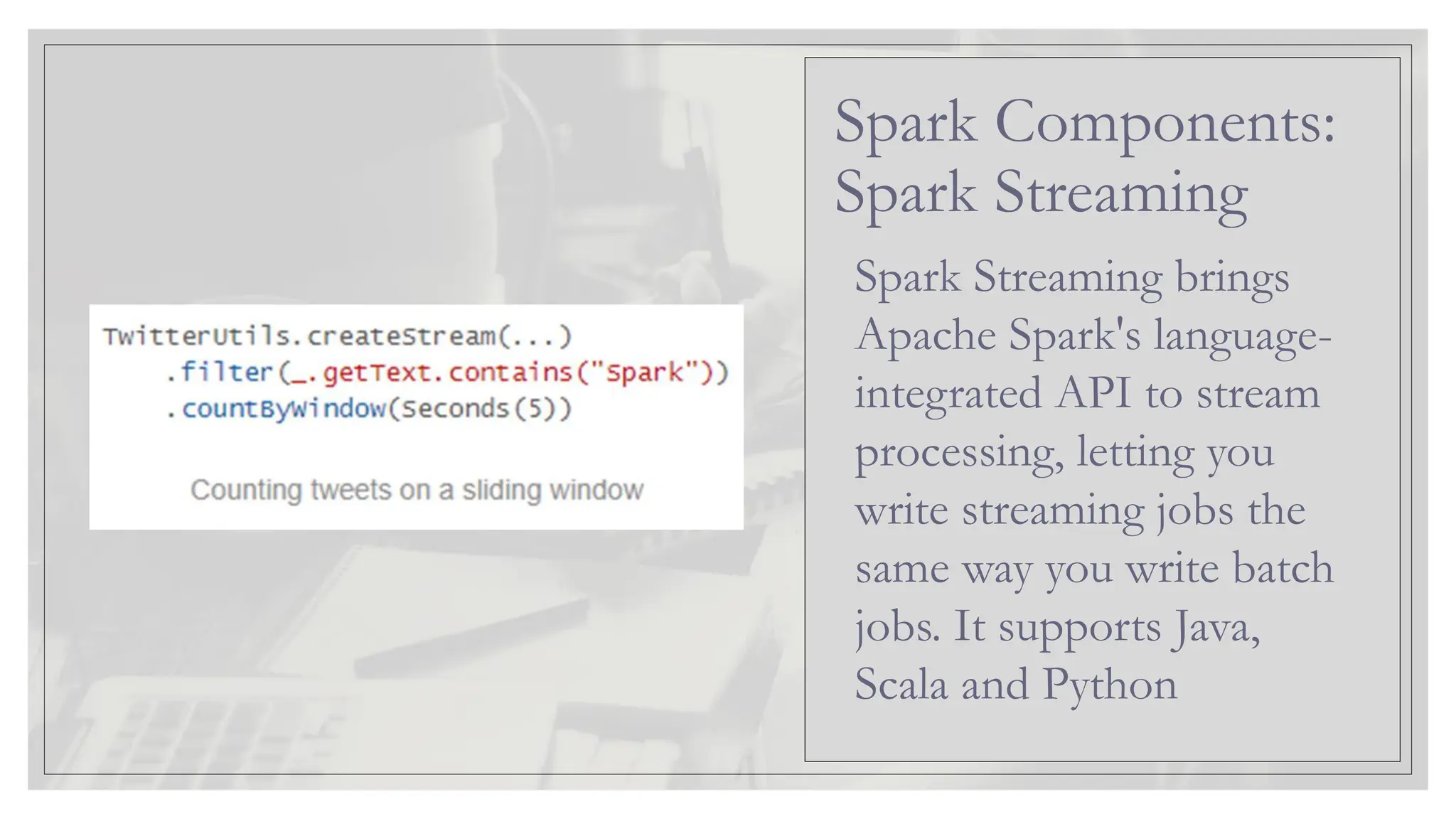

Spark Streaming brings Apache Spark's language- integrated API to stream processing, letting you write streaming jobs the same way you write batch jobs. It supports Java, Scala and Python Spark Components: Spark Streaming

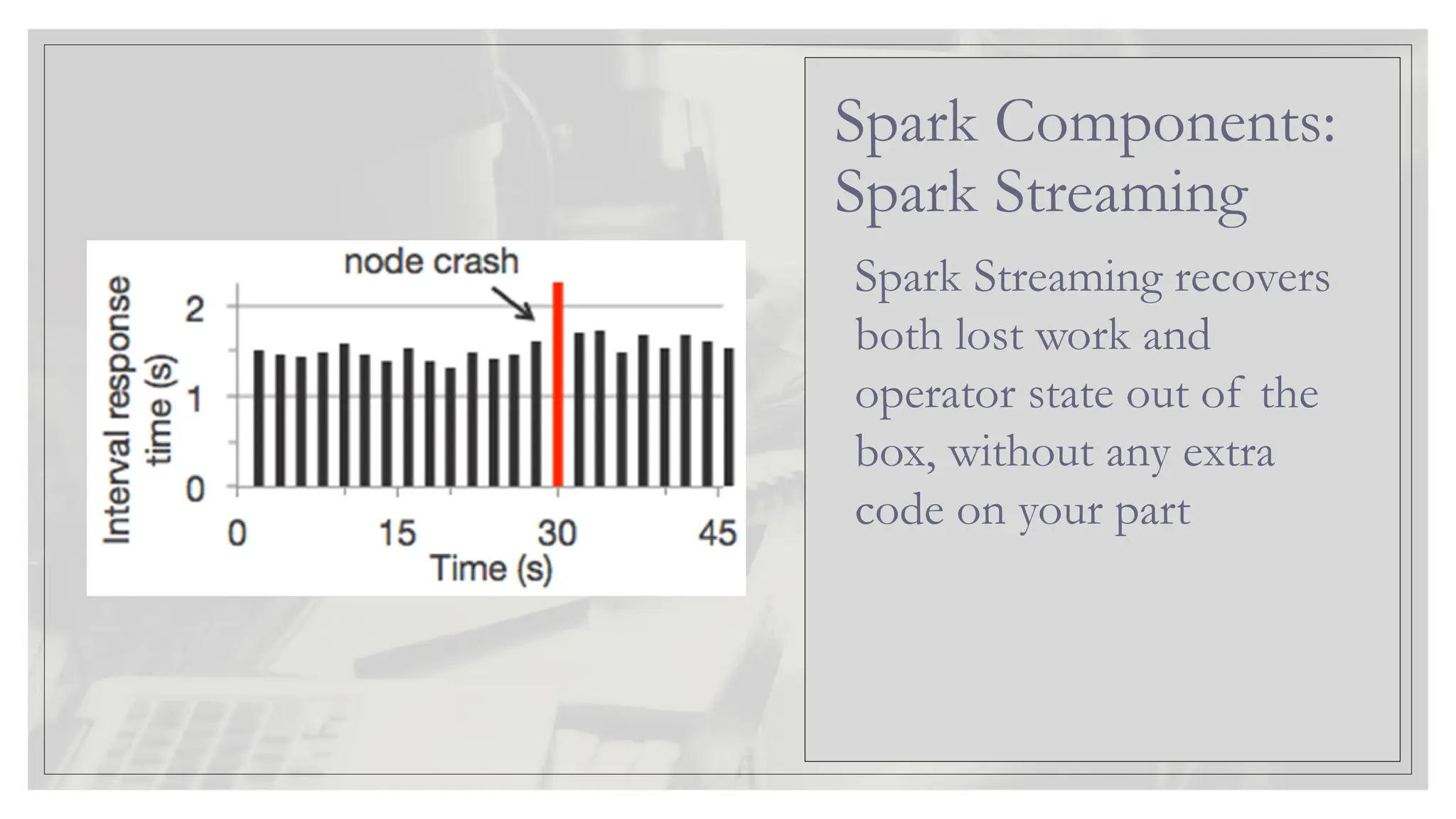

Spark Streaming recovers both lost work and operator state out of the box, without any extra code on your part Spark Components: Spark Streaming

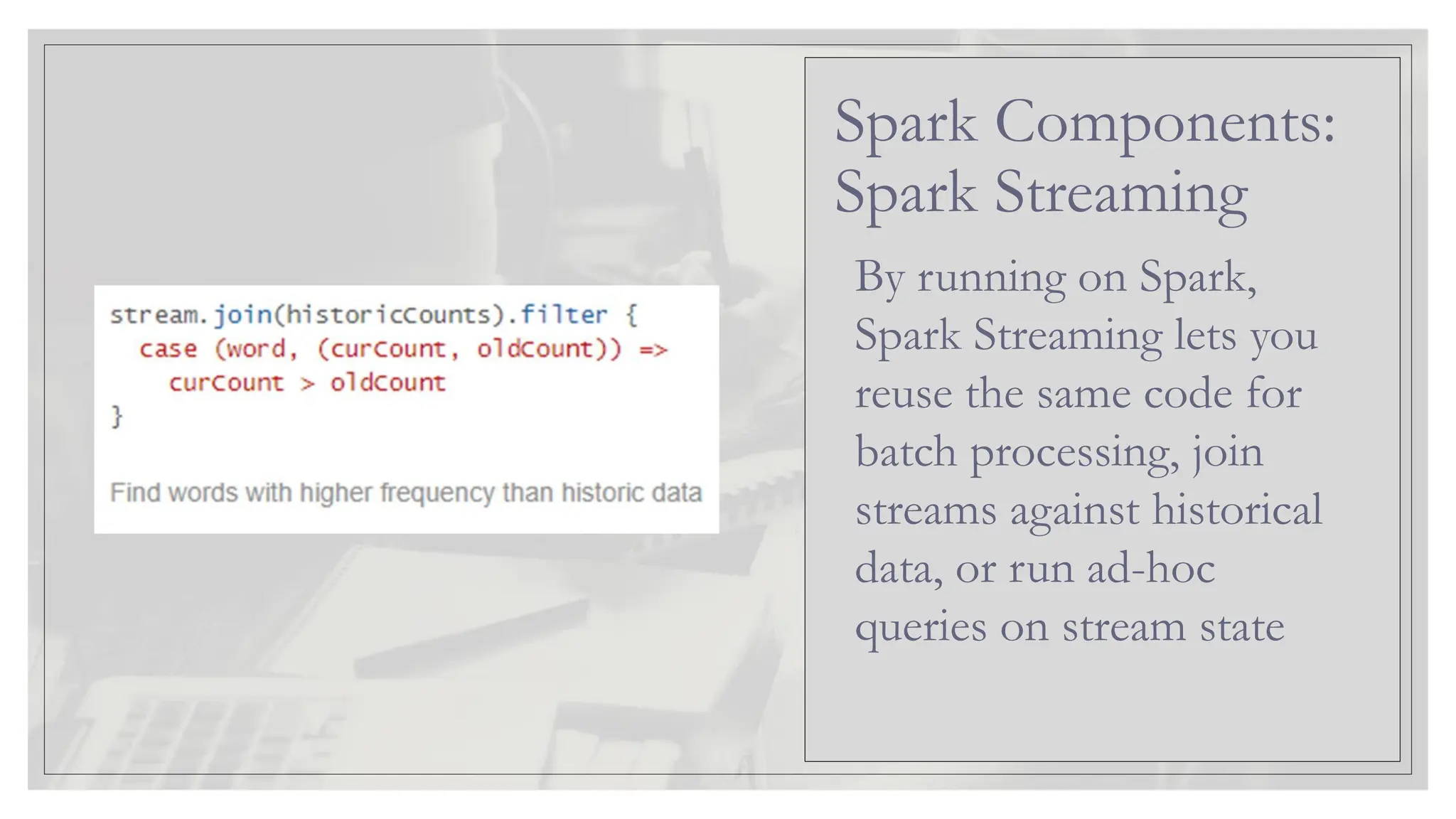

By running on Spark, Spark Streaming lets you reuse the same code for batch processing, join streams against historical data, or run ad-hoc queries on stream state Spark Components: Spark Streaming

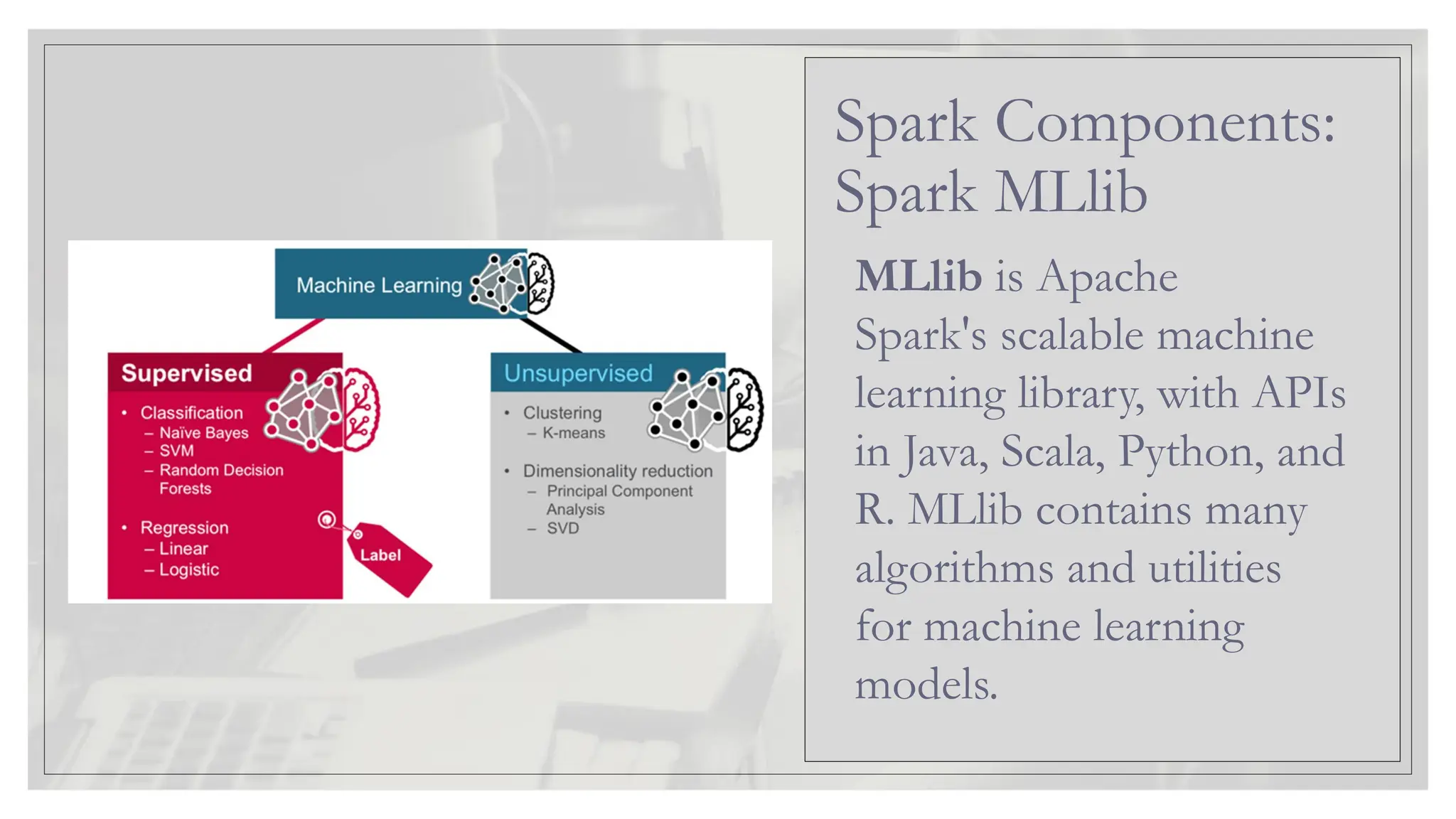

MLlib is Apache Spark's scalable machine learning library, with APIs in Java, Scala, Python, and R. MLlib contains many algorithms and utilities for machine learning models. Spark Components: Spark MLlib

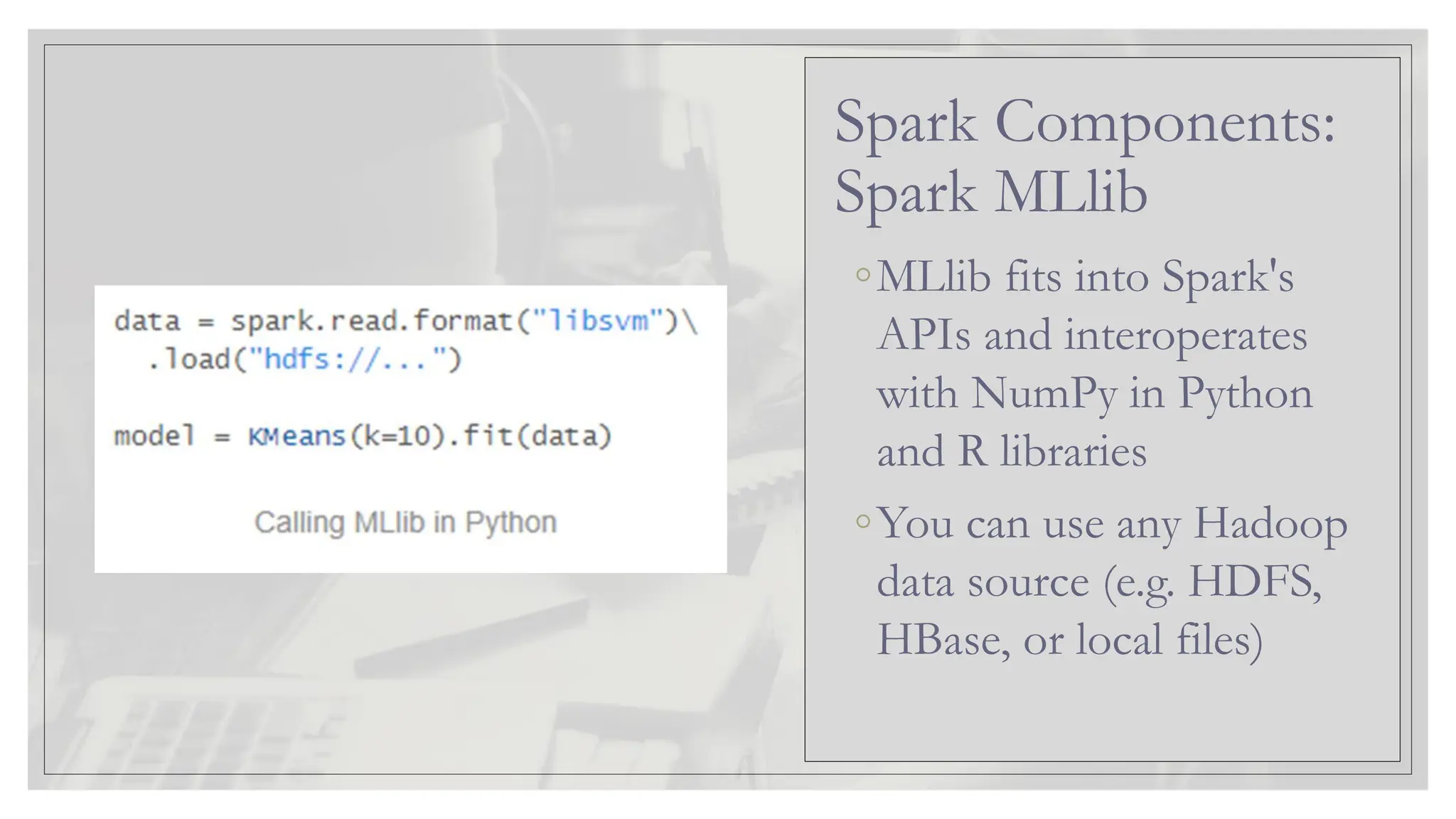

◦MLlib fits into Spark's APIs and interoperates with NumPy in Python and R libraries ◦You can use any Hadoop data source (e.g. HDFS, HBase, or local files) Spark Components: Spark MLlib

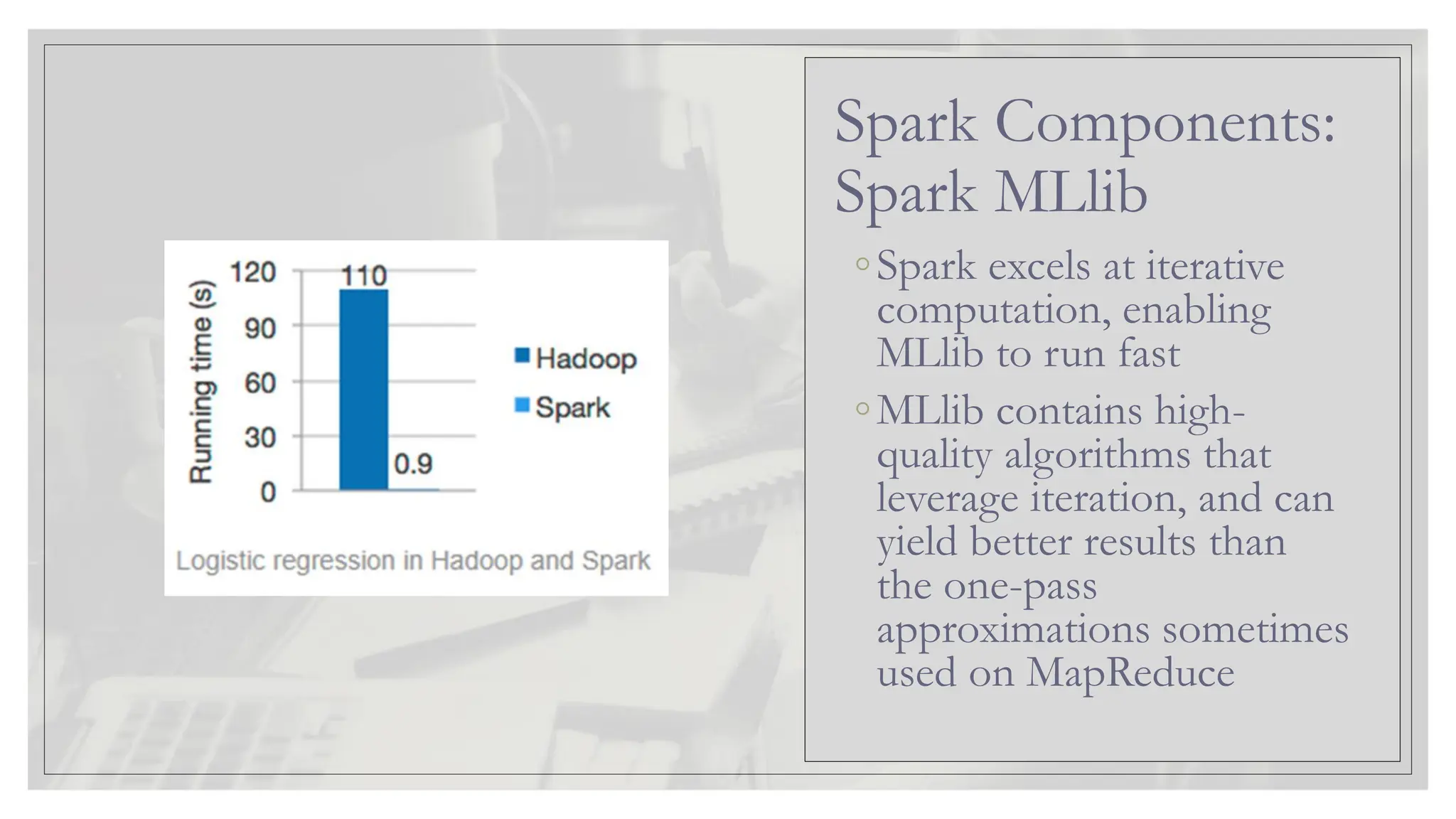

◦Spark excels at iterative computation, enabling MLlib to run fast ◦MLlib contains high- quality algorithms that leverage iteration, and can yield better results than the one-pass approximations sometimes used on MapReduce Spark Components: Spark MLlib

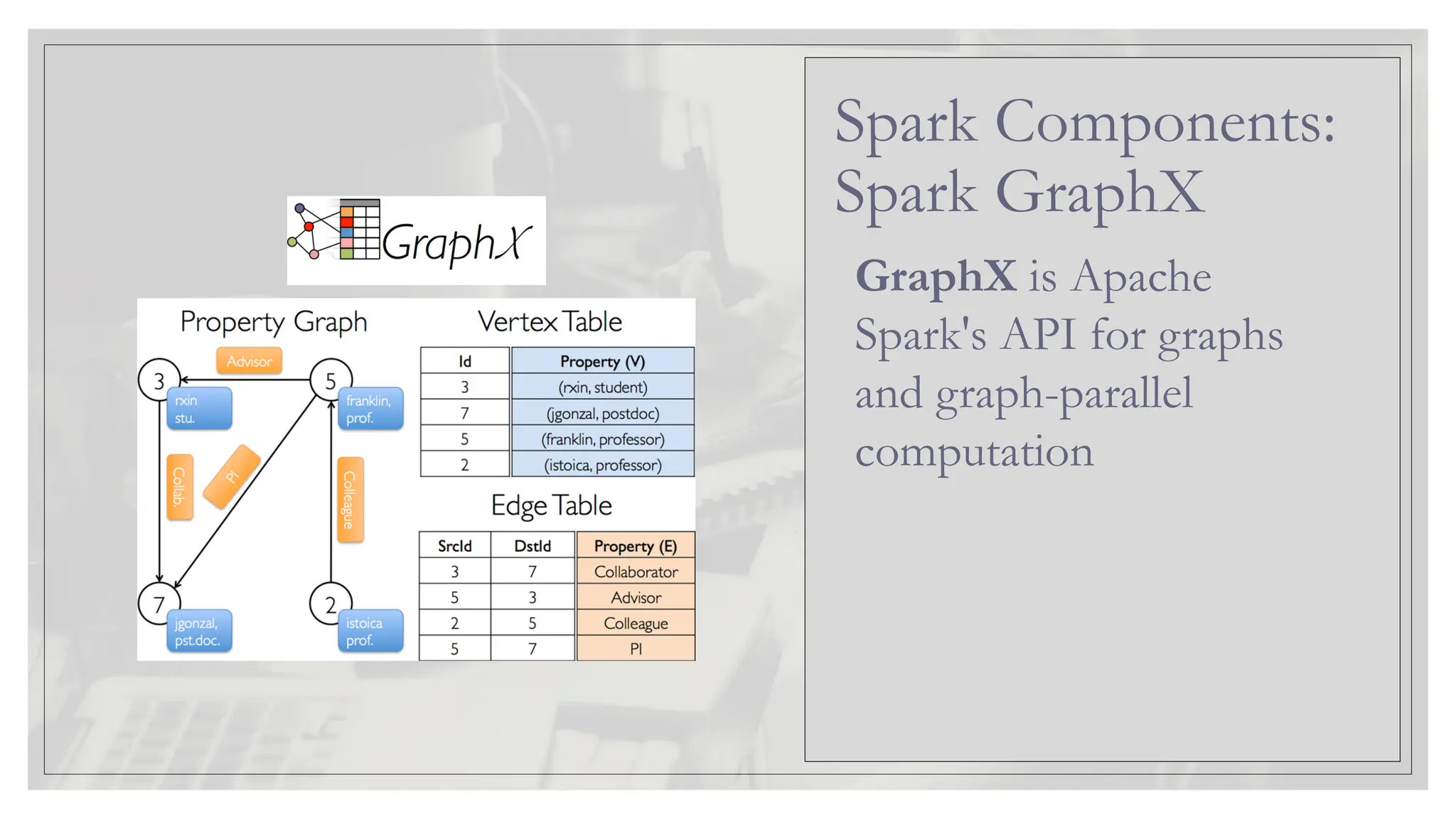

GraphX is Apache Spark's API for graphs and graph-parallel computation Spark Components: Spark GraphX

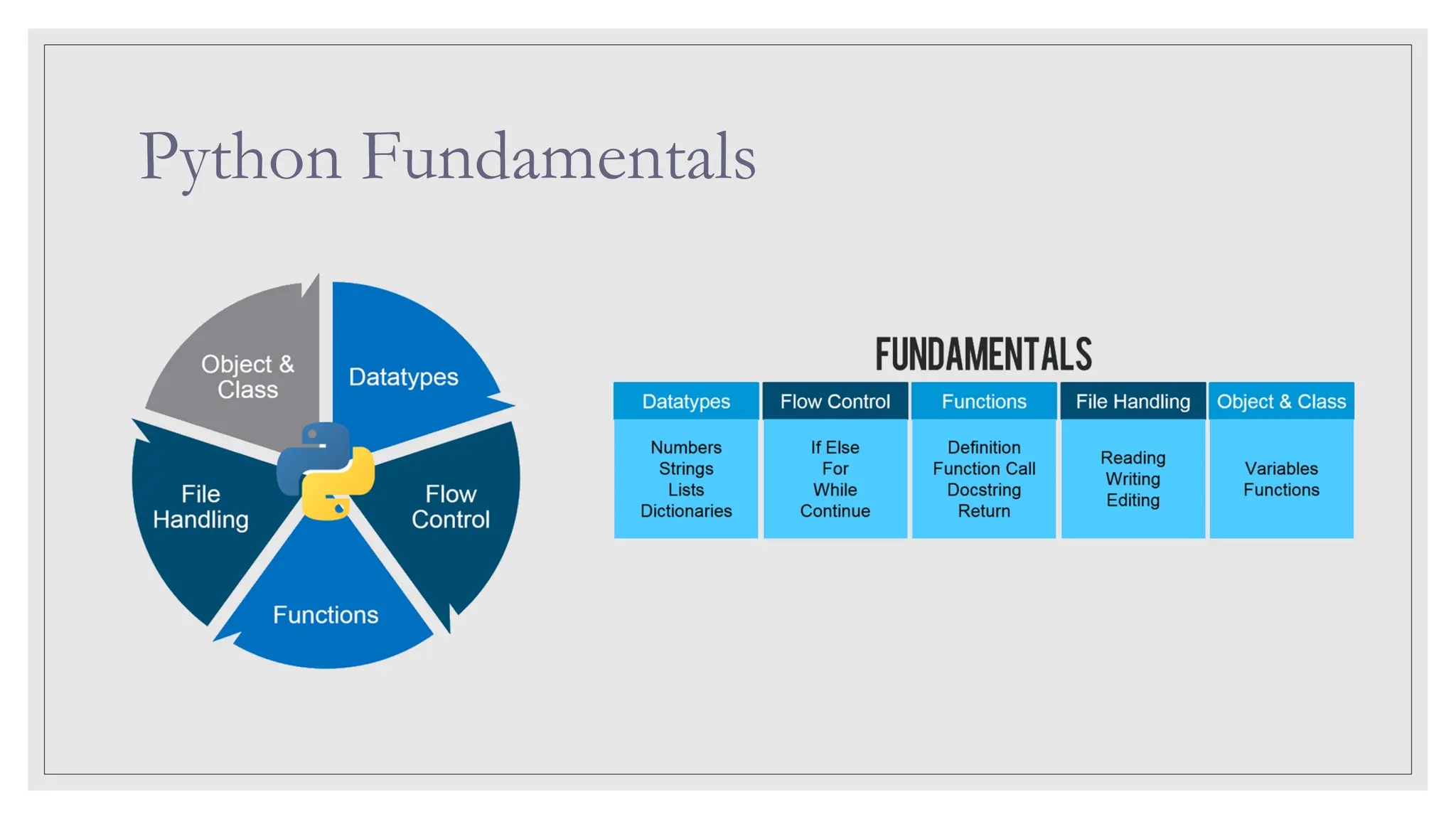

Python is a popular programming language and was mainly developed for emphasis on code readability, its syntax allows programmers to express concepts in few lines of code. It’s used for: ◦ web development (server-side), ◦ software development, ◦ mathematics, ◦ system scripting. Introduction to Python

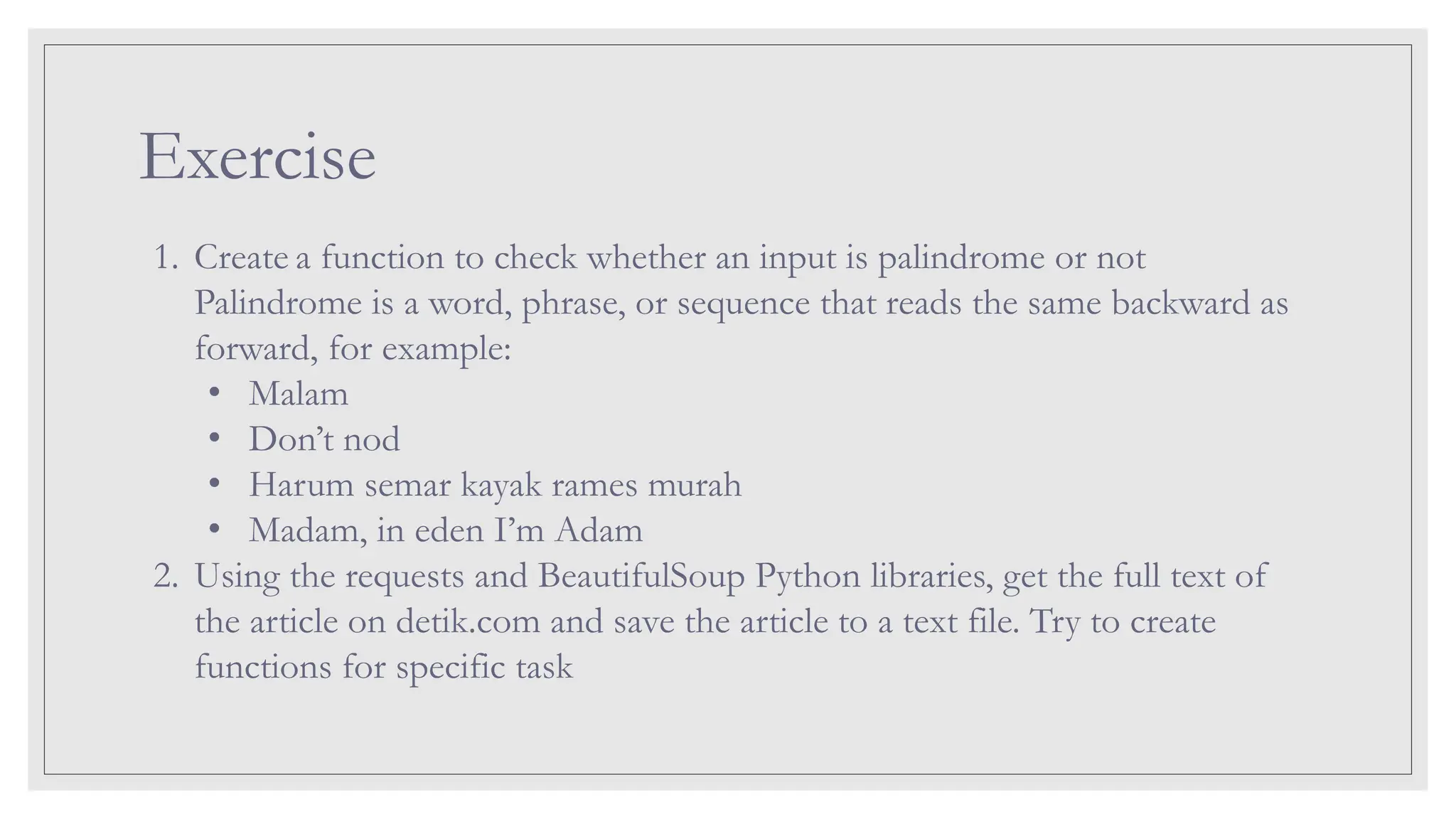

Exercise 1. Create a function to check whether an input is palindrome or not Palindrome is a word, phrase, or sequence that reads the same backward as forward, for example: • Malam • Don’t nod • Harum semar kayak rames murah • Madam, in eden I’m Adam 2. Using the requests and BeautifulSoup Python libraries, get the full text of the article on detik.com and save the article to a text file. Try to create functions for specific task

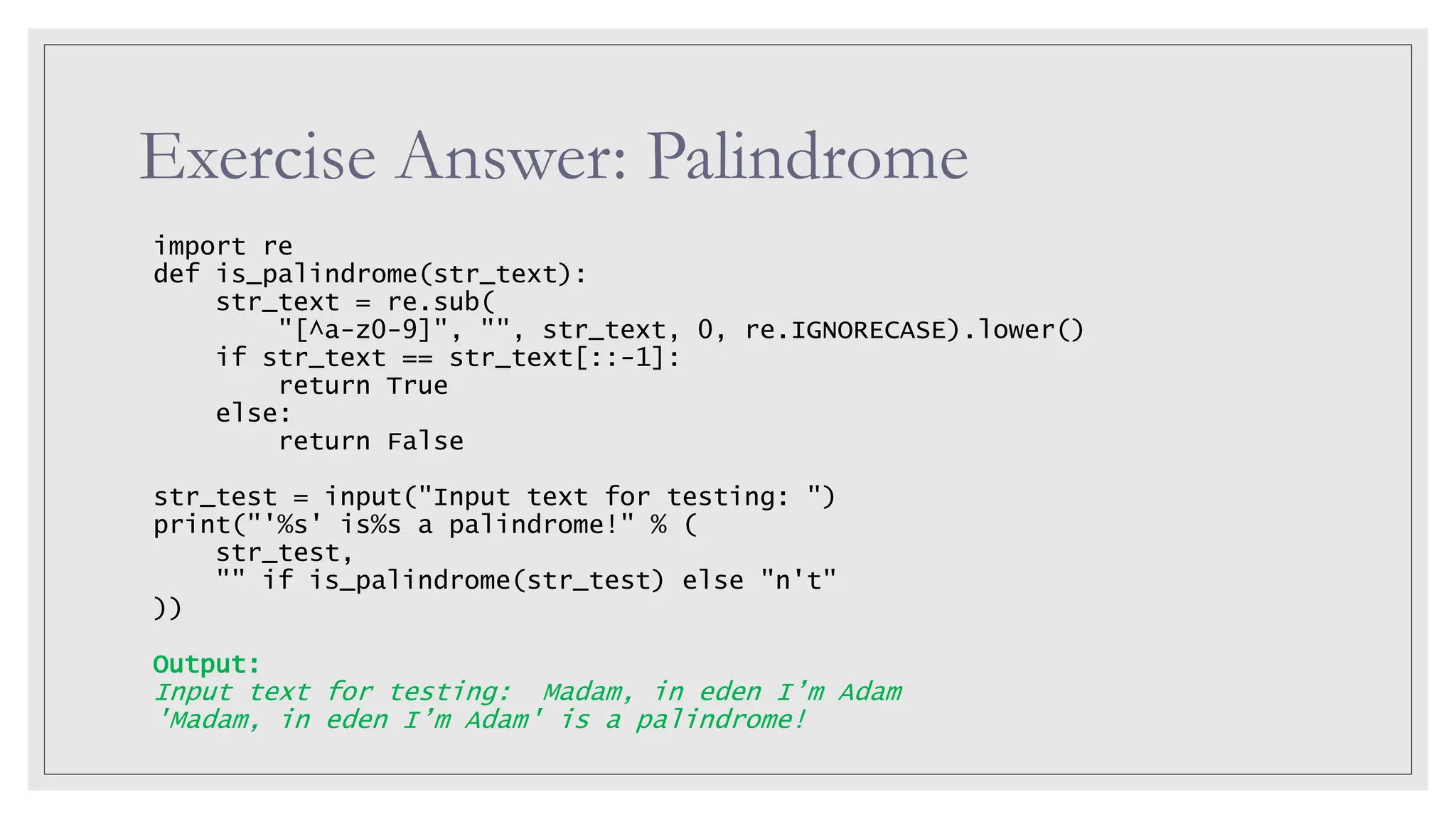

Exercise Answer: Palindrome import re def is_palindrome(str_text): str_text = re.sub( "[^a-z0-9]", "", str_text, 0, re.IGNORECASE).lower() if str_text == str_text[::-1]: return True else: return False str_test = input("Input text for testing: ") print("'%s' is%s a palindrome!" % ( str_test, "" if is_palindrome(str_test) else "n't" )) Output: Input text for testing: Madam, in eden I’m Adam 'Madam, in eden I’m Adam' is a palindrome!

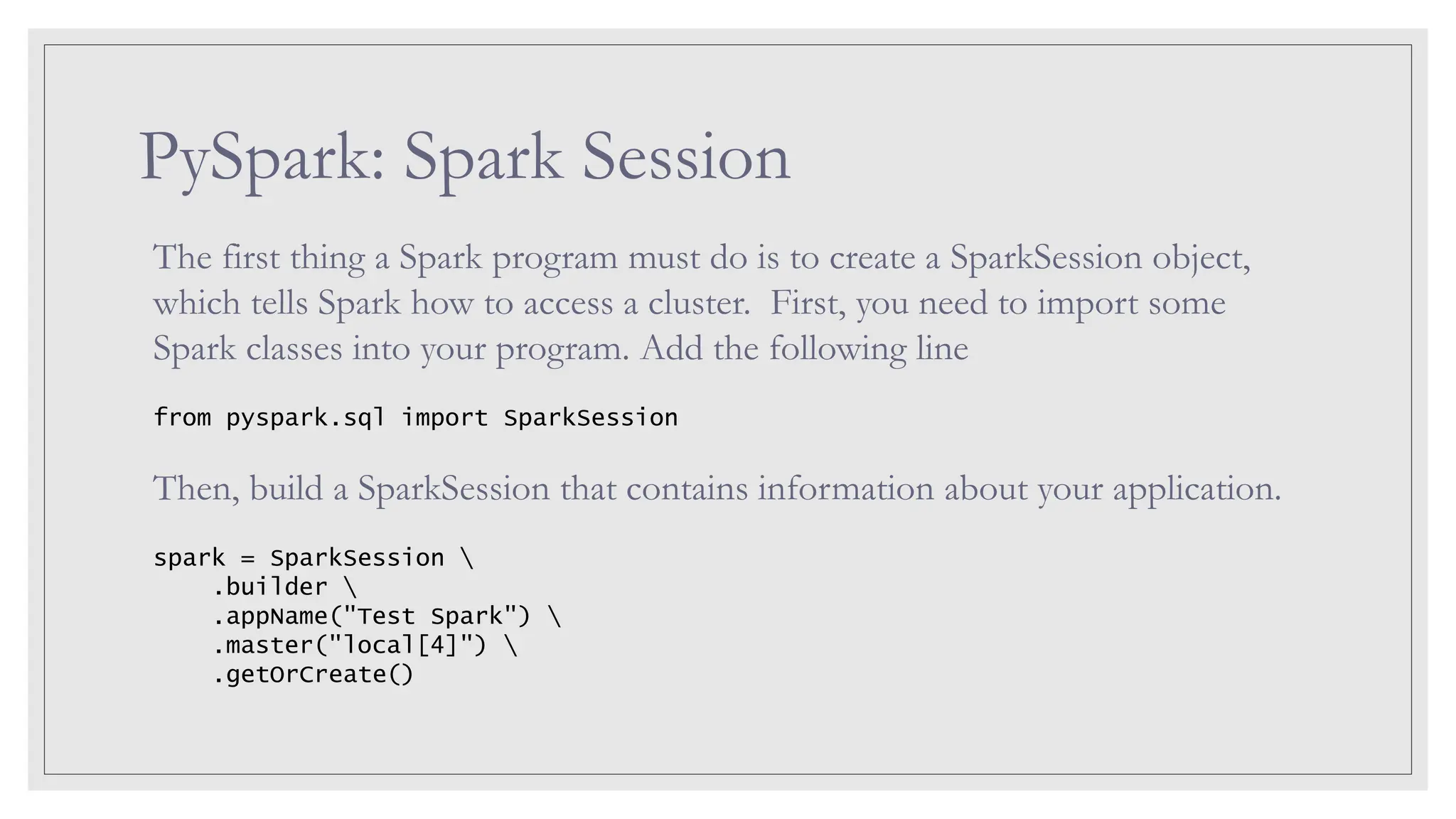

PySpark: Spark Session The first thing a Spark program must do is to create a SparkSession object, which tells Spark how to access a cluster. First, you need to import some Spark classes into your program. Add the following line from pyspark.sql import SparkSession Then, build a SparkSession that contains information about your application. spark = SparkSession .builder .appName("Test Spark") .master("local[4]") .getOrCreate()

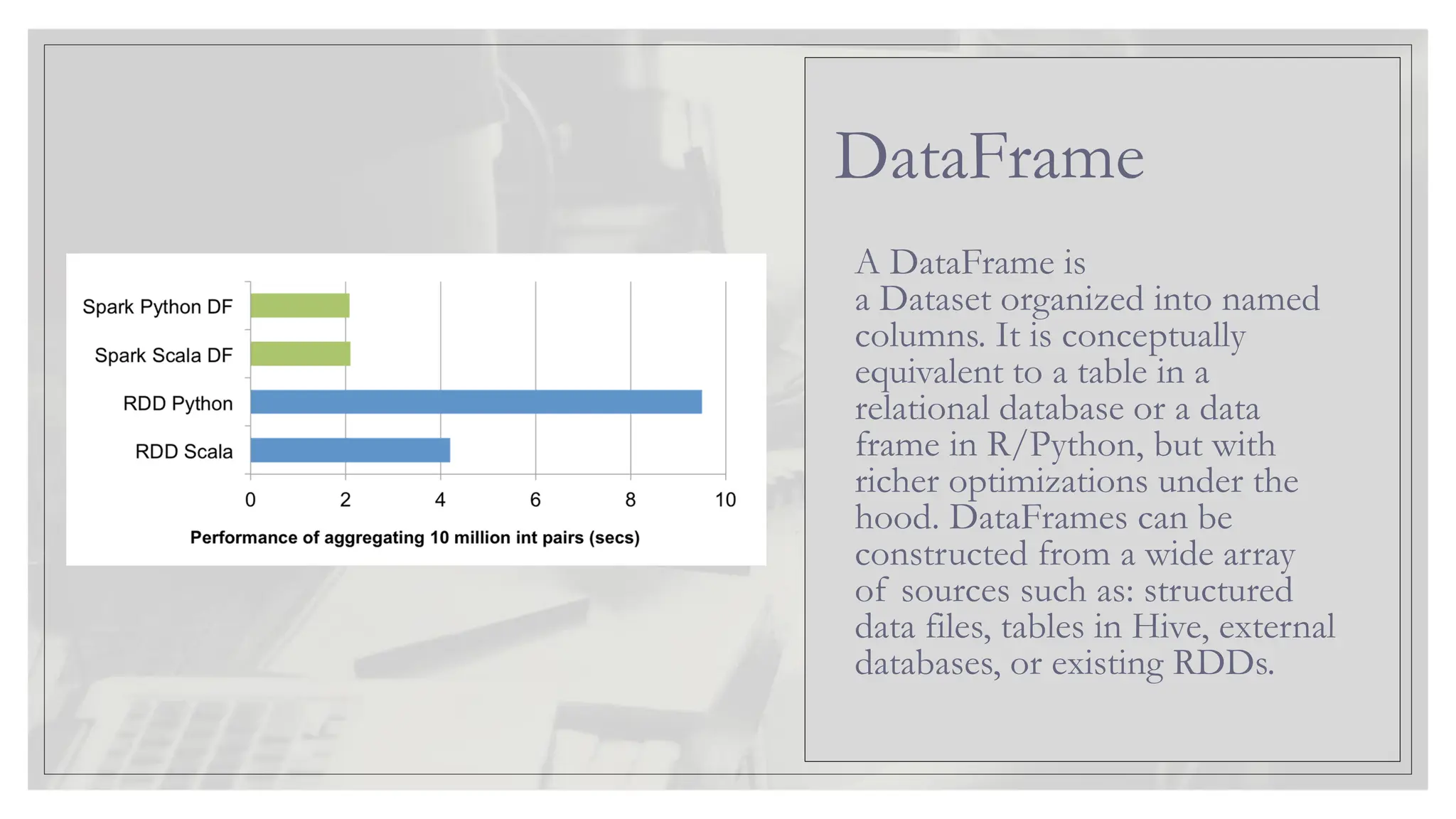

A DataFrame is a Dataset organized into named columns. It is conceptually equivalent to a table in a relational database or a data frame in R/Python, but with richer optimizations under the hood. DataFrames can be constructed from a wide array of sources such as: structured data files, tables in Hive, external databases, or existing RDDs. DataFrame

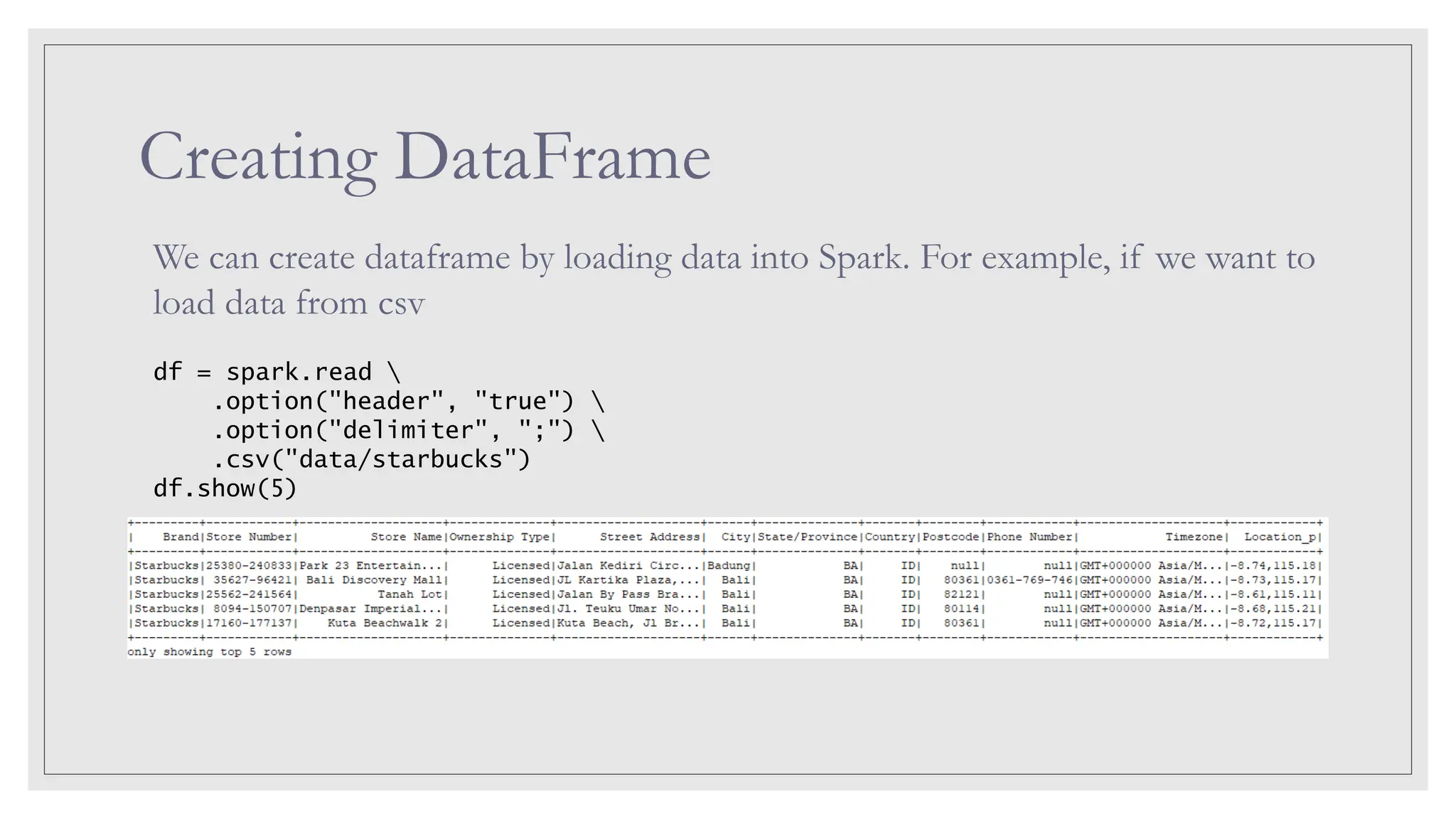

Creating DataFrame We can create dataframe by loading data into Spark. For example, if we want to load data from csv df = spark.read .option("header", "true") .option("delimiter", ";") .csv("data/starbucks") df.show(5)

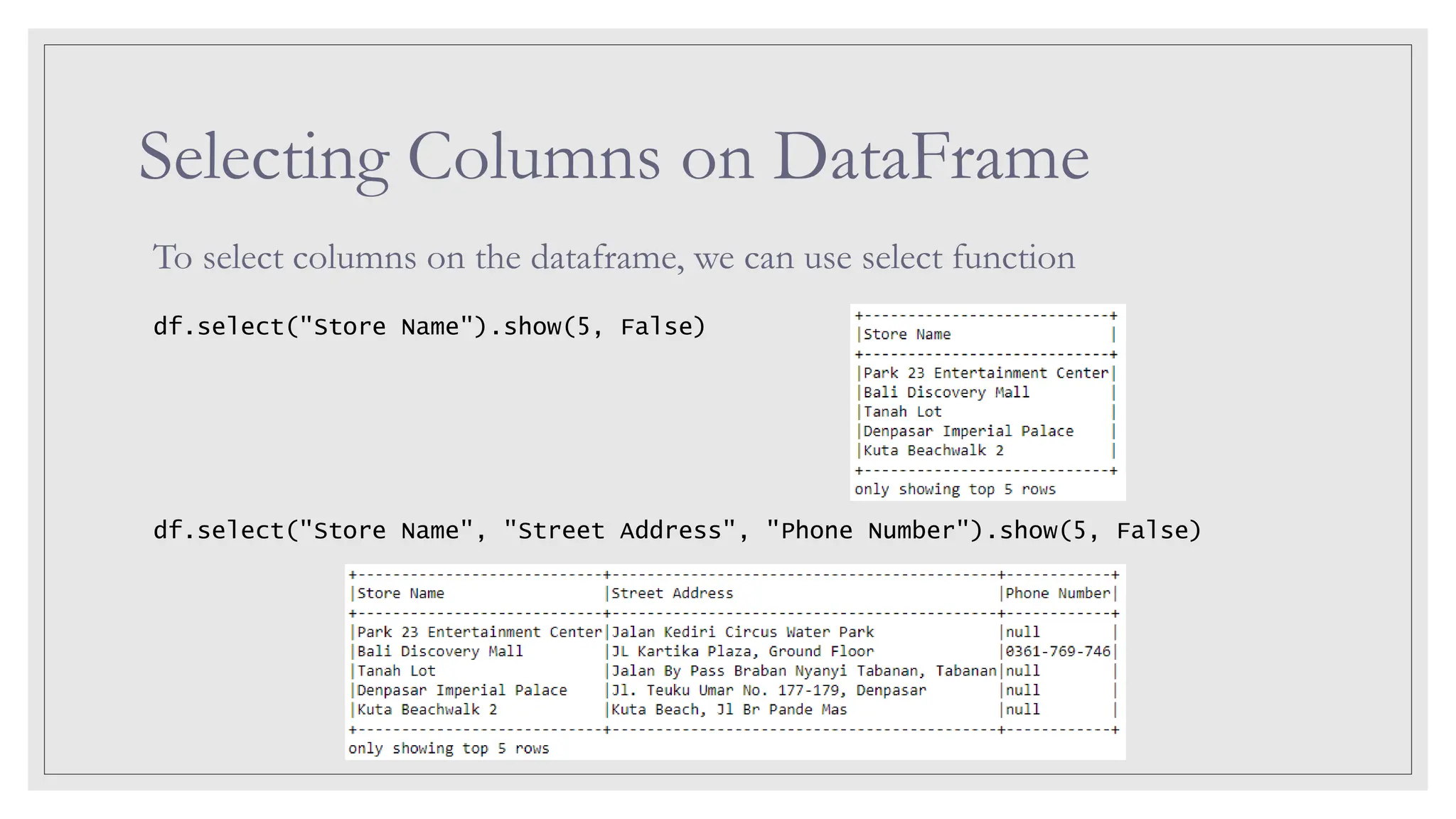

Selecting Columns on DataFrame To select columns on the dataframe, we can use select function df.select("Store Name").show(5, False) df.select("Store Name", "Street Address", "Phone Number").show(5, False)

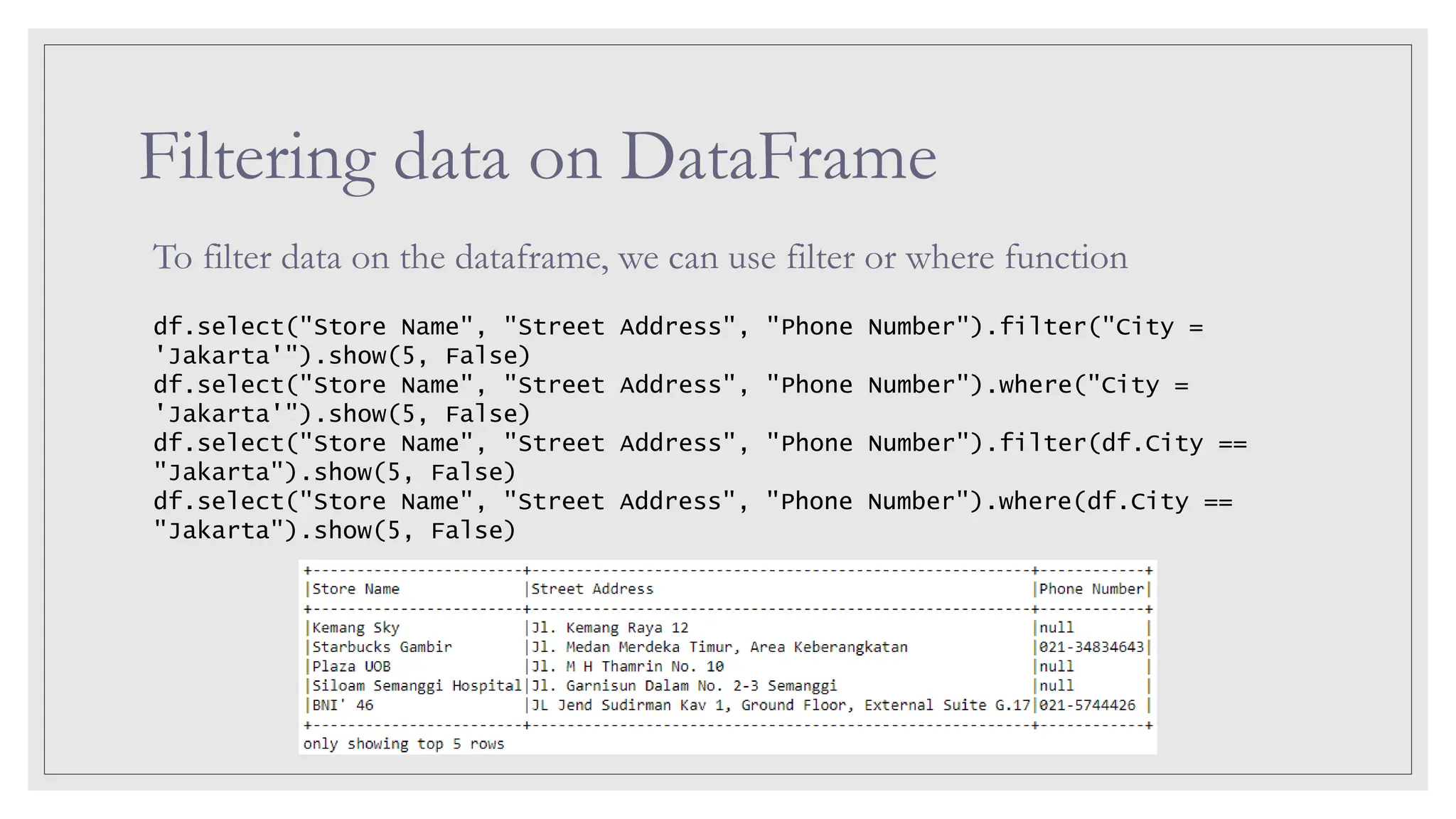

Filtering data on DataFrame To filter data on the dataframe, we can use filter or where function df.select("Store Name", "Street Address", "Phone Number").filter("City = 'Jakarta'").show(5, False) df.select("Store Name", "Street Address", "Phone Number").where("City = 'Jakarta'").show(5, False) df.select("Store Name", "Street Address", "Phone Number").filter(df.City == "Jakarta").show(5, False) df.select("Store Name", "Street Address", "Phone Number").where(df.City == "Jakarta").show(5, False)

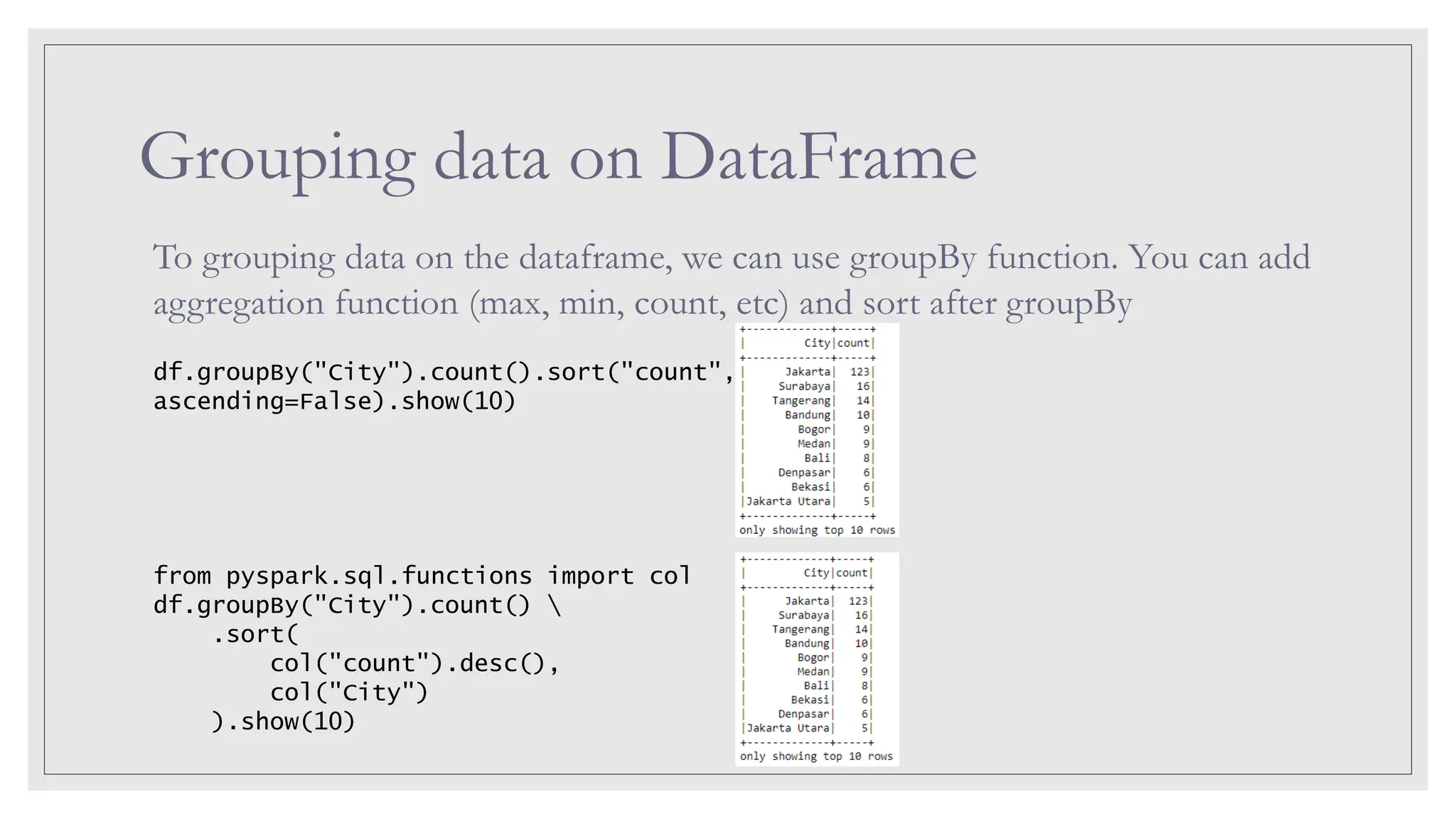

Grouping data on DataFrame To grouping data on the dataframe, we can use groupBy function. You can add aggregation function (max, min, count, etc) and sort after groupBy df.groupBy("City").count().sort("count", ascending=False).show(10) from pyspark.sql.functions import col df.groupBy("City").count() .sort( col("count").desc(), col("City") ).show(10)

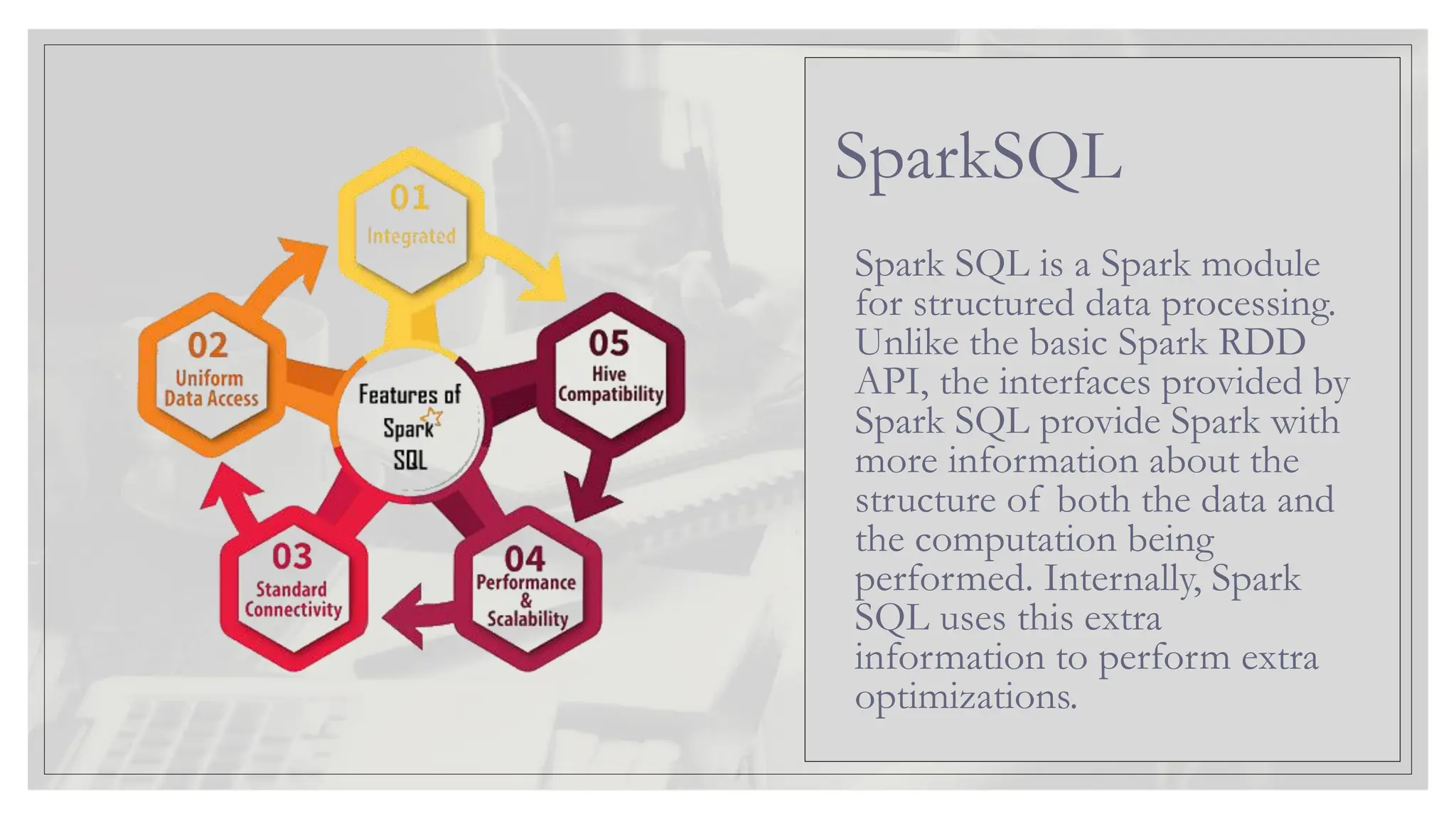

Spark SQL is a Spark module for structured data processing. Unlike the basic Spark RDD API, the interfaces provided by Spark SQL provide Spark with more information about the structure of both the data and the computation being performed. Internally, Spark SQL uses this extra information to perform extra optimizations. SparkSQL

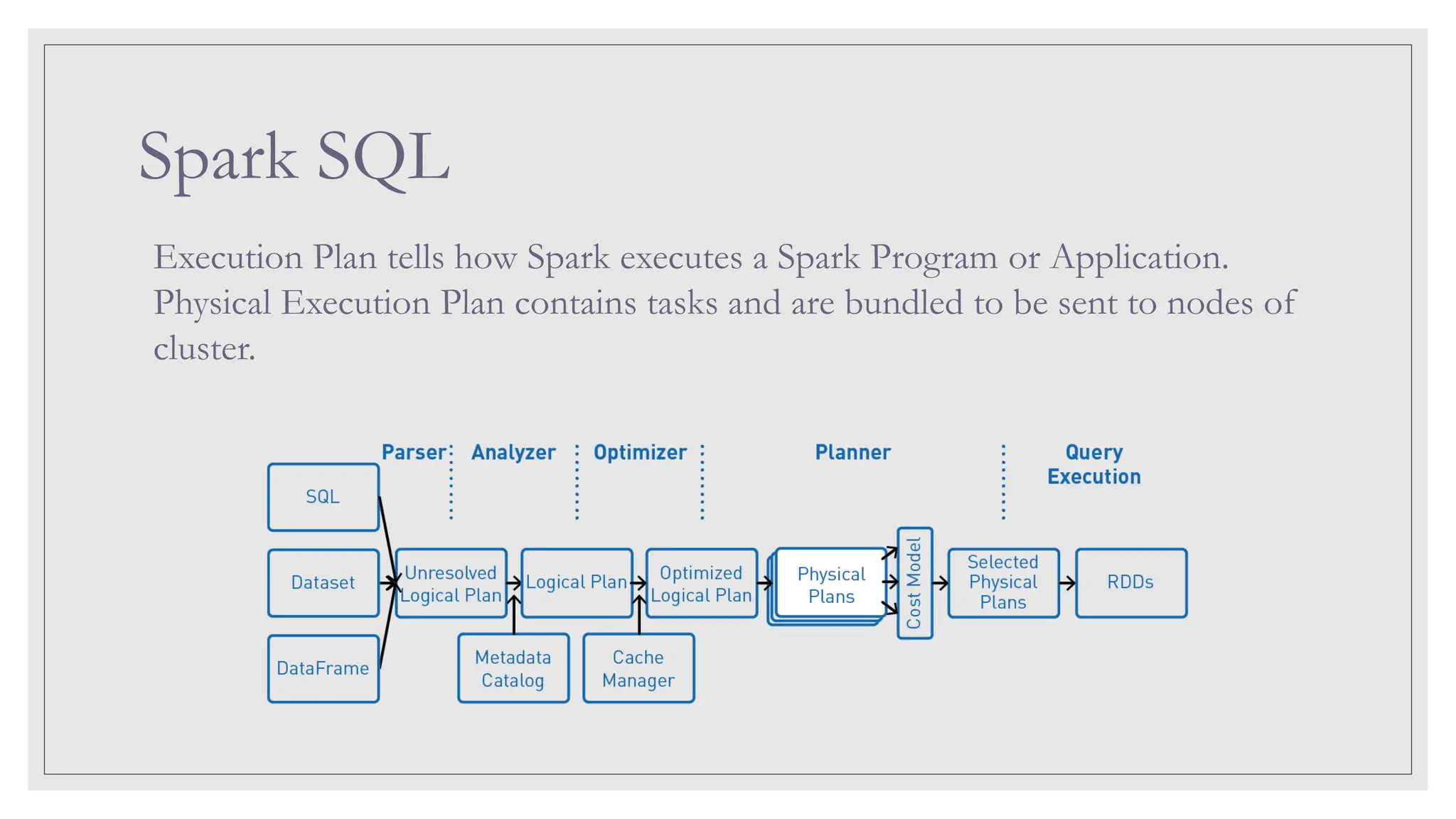

Spark SQL Execution Plan tells how Spark executes a Spark Program or Application. Physical Execution Plan contains tasks and are bundled to be sent to nodes of cluster.

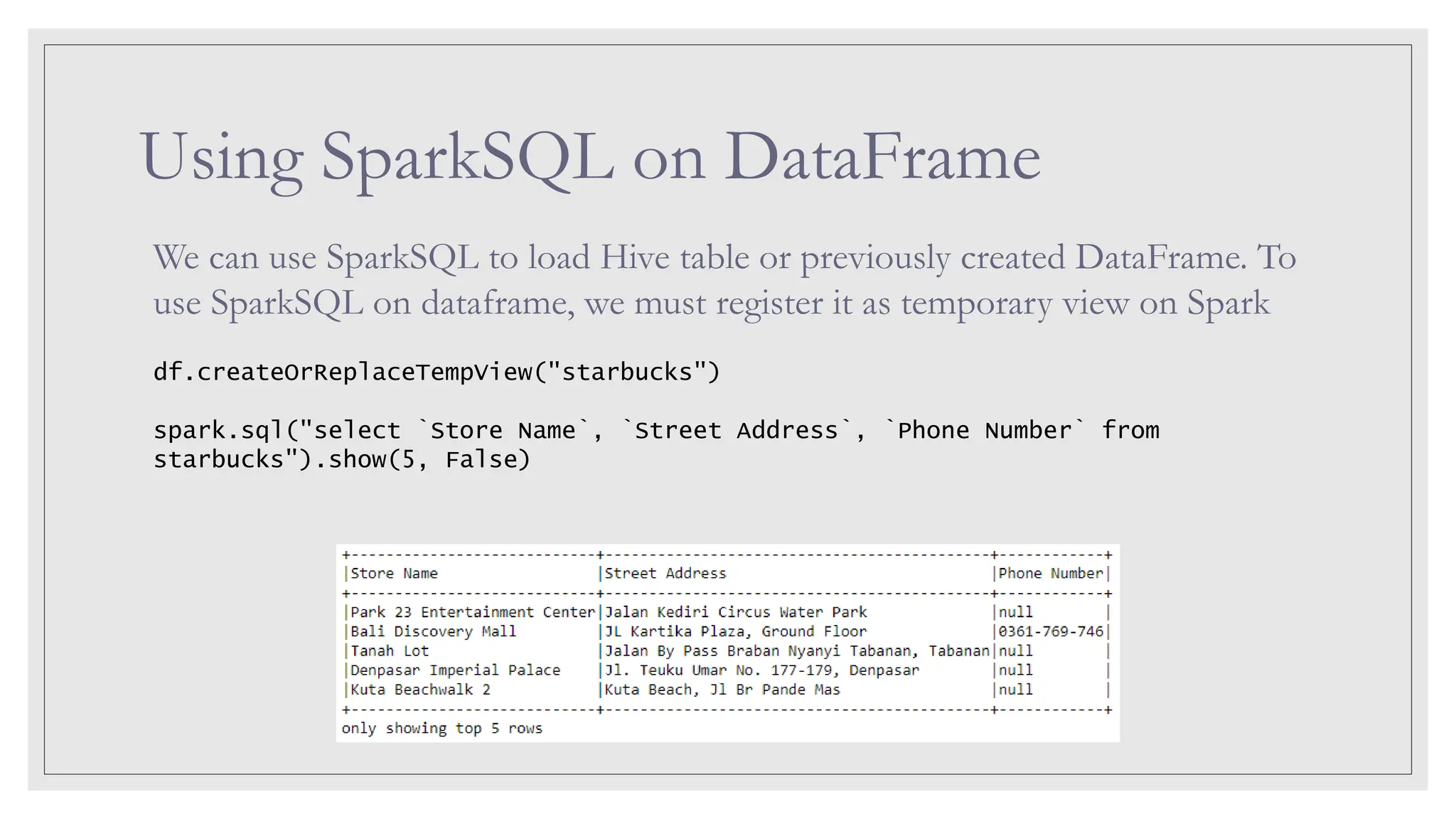

Using SparkSQL on DataFrame We can use SparkSQL to load Hive table or previously created DataFrame. To use SparkSQL on dataframe, we must register it as temporary view on Spark df.createOrReplaceTempView("starbucks") spark.sql("select `Store Name`, `Street Address`, `Phone Number` from starbucks").show(5, False)

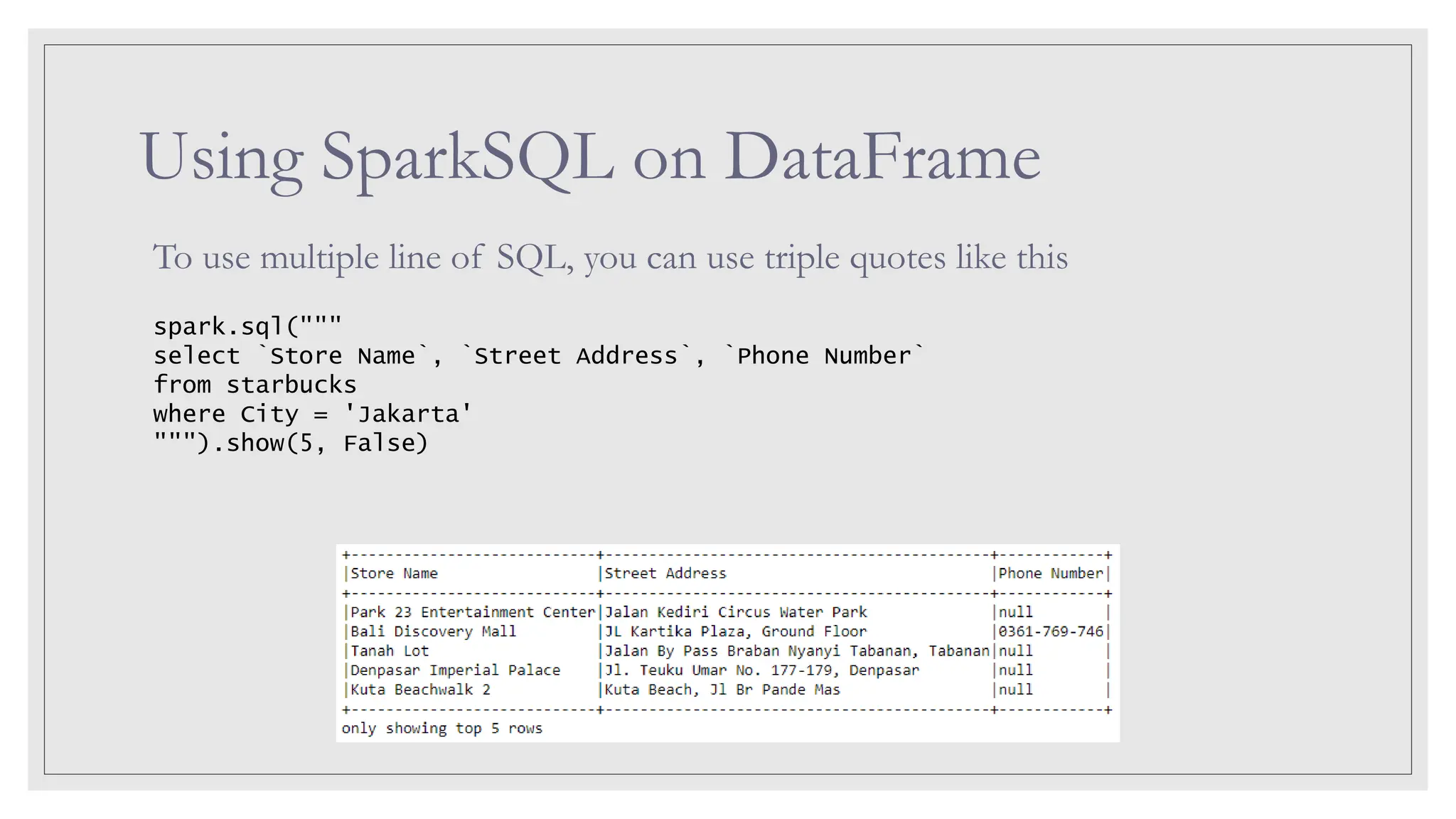

Using SparkSQL on DataFrame To use multiple line of SQL, you can use triple quotes like this spark.sql(""" select `Store Name`, `Street Address`, `Phone Number` from starbucks where City = 'Jakarta' """).show(5, False)

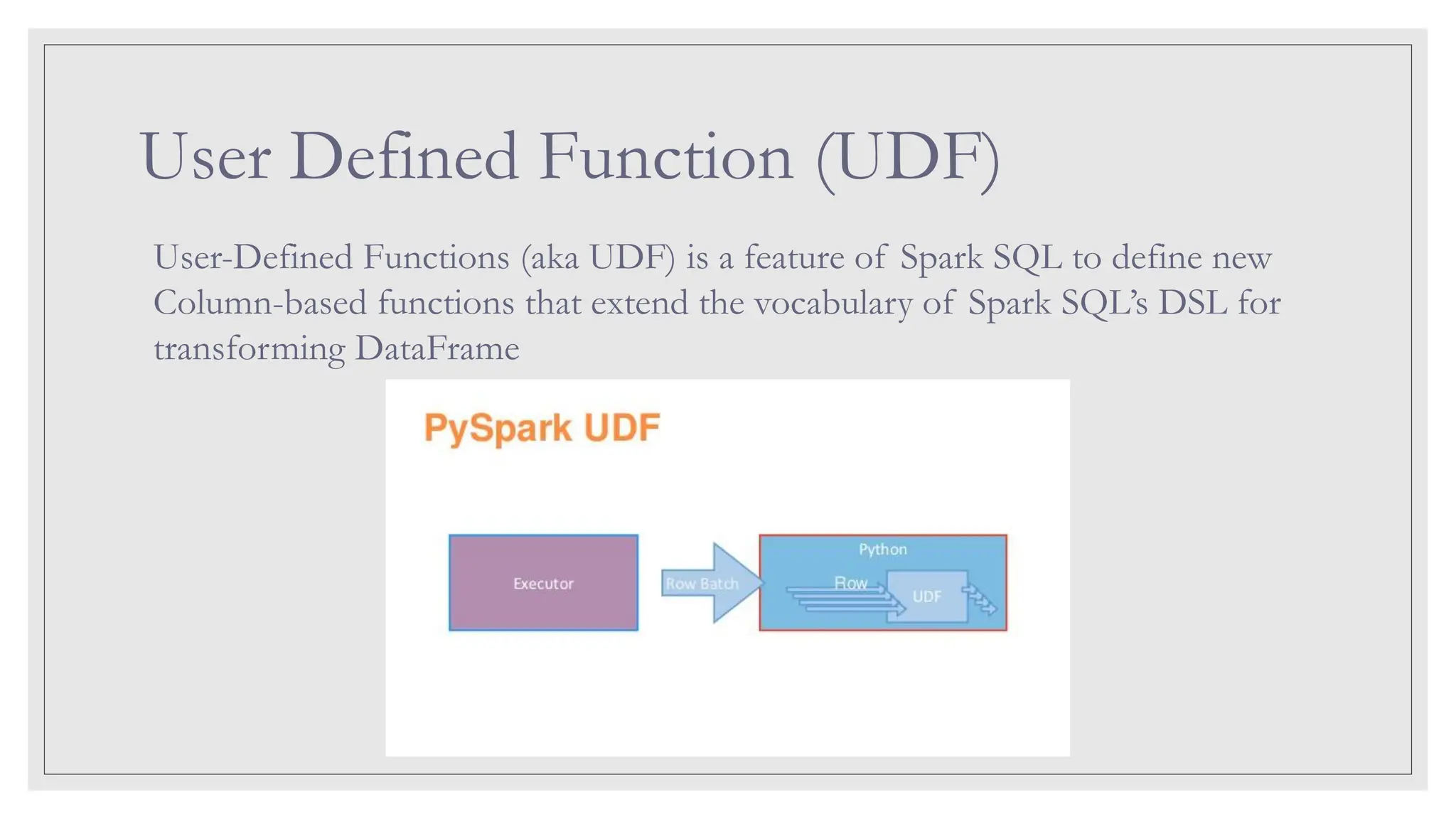

User Defined Function (UDF) User-Defined Functions (aka UDF) is a feature of Spark SQL to define new Column-based functions that extend the vocabulary of Spark SQL’s DSL for transforming DataFrame

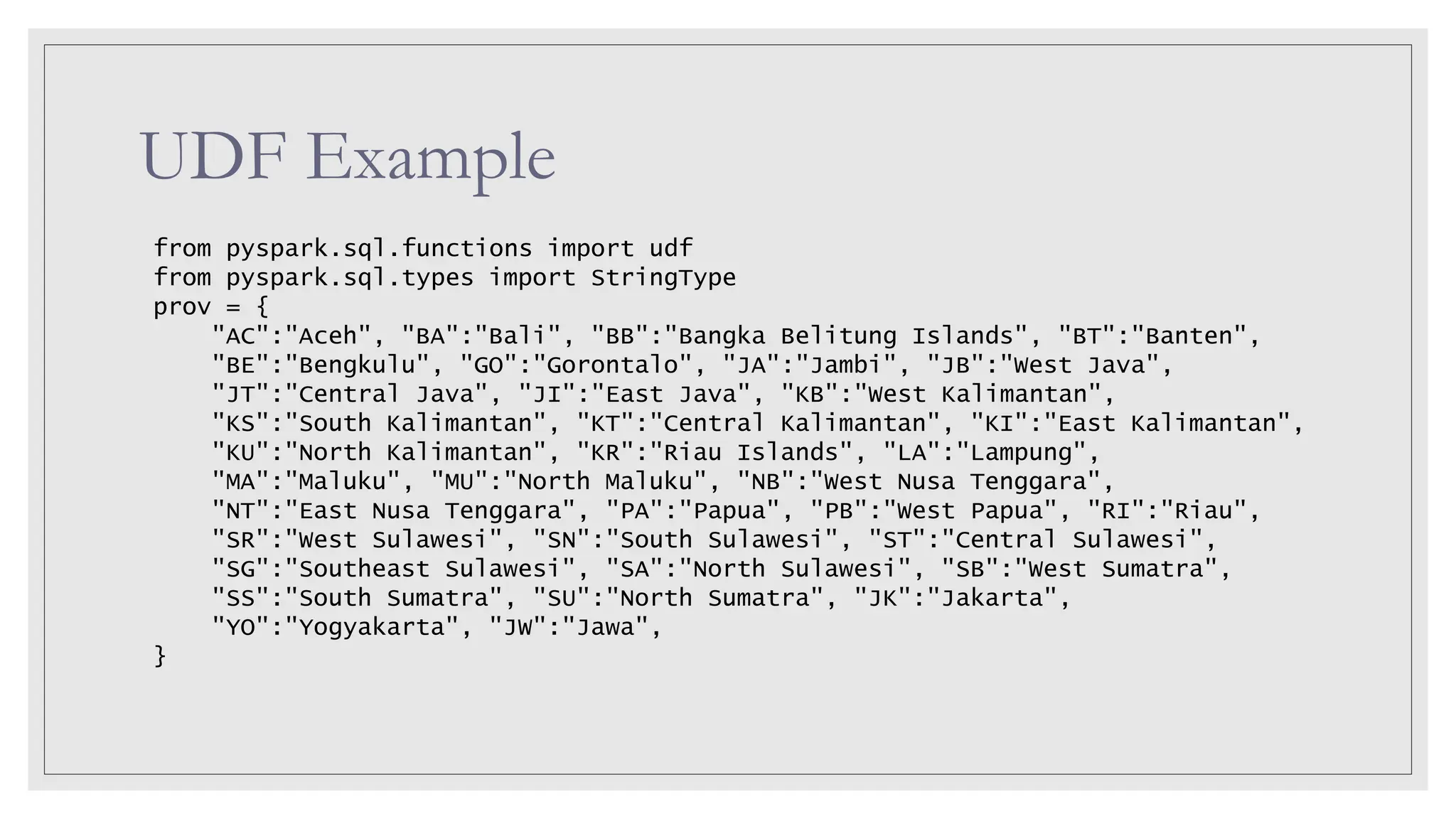

UDF Example from pyspark.sql.functions import udf from pyspark.sql.types import StringType prov = { "AC":"Aceh", "BA":"Bali", "BB":"Bangka Belitung Islands", "BT":"Banten", "BE":"Bengkulu", "GO":"Gorontalo", "JA":"Jambi", "JB":"West Java", "JT":"Central Java", "JI":"East Java", "KB":"West Kalimantan", "KS":"South Kalimantan", "KT":"Central Kalimantan", "KI":"East Kalimantan", "KU":"North Kalimantan", "KR":"Riau Islands", "LA":"Lampung", "MA":"Maluku", "MU":"North Maluku", "NB":"West Nusa Tenggara", "NT":"East Nusa Tenggara", "PA":"Papua", "PB":"West Papua", "RI":"Riau", "SR":"West Sulawesi", "SN":"South Sulawesi", "ST":"Central Sulawesi", "SG":"Southeast Sulawesi", "SA":"North Sulawesi", "SB":"West Sumatra", "SS":"South Sumatra", "SU":"North Sumatra", "JK":"Jakarta", "YO":"Yogyakarta", "JW":"Jawa", }

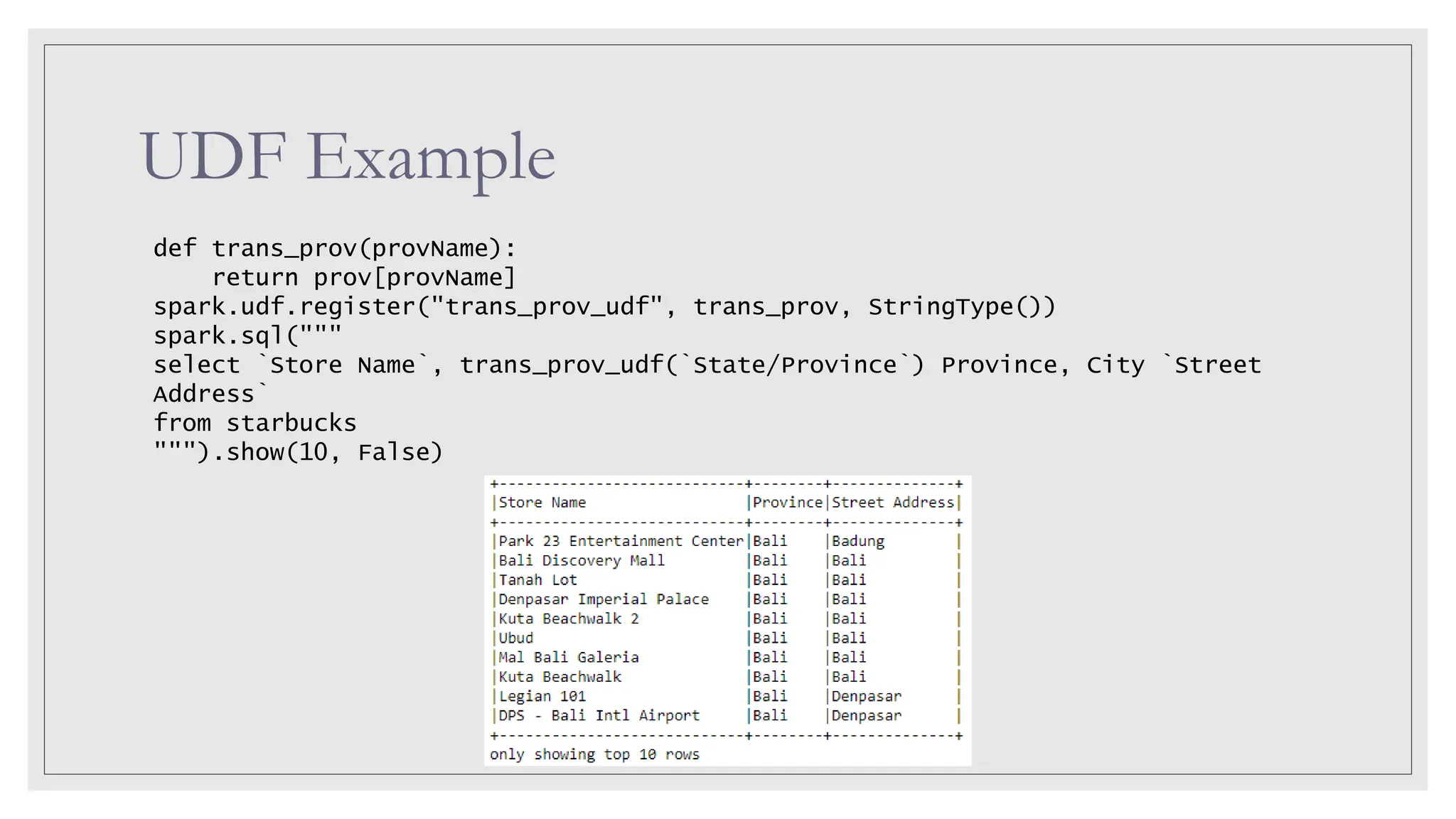

UDF Example def trans_prov(provName): return prov[provName] spark.udf.register("trans_prov_udf", trans_prov, StringType()) spark.sql(""" select `Store Name`, trans_prov_udf(`State/Province`) Province, City `Street Address` from starbucks """).show(10, False)

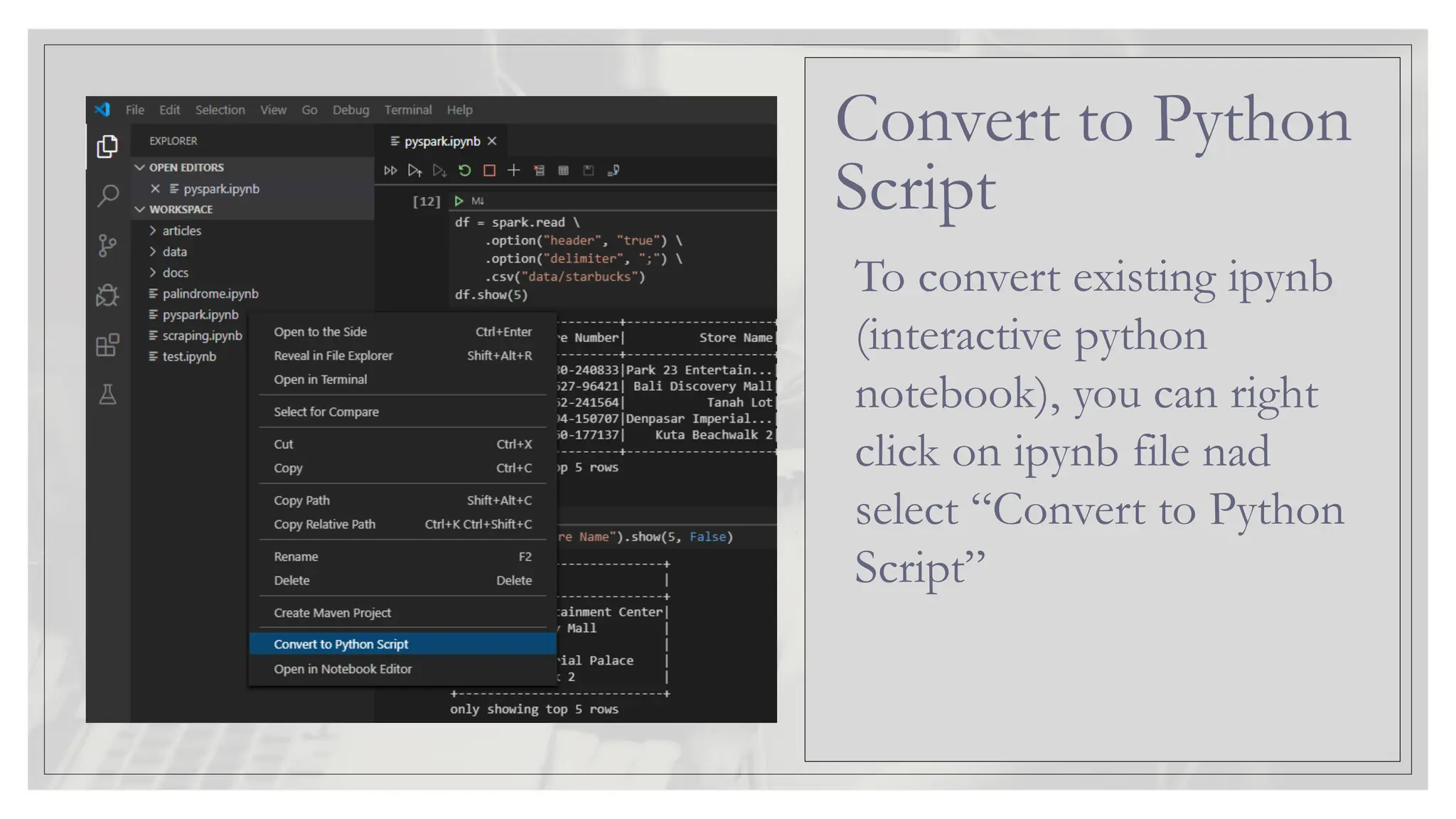

To convert existing ipynb (interactive python notebook), you can right click on ipynb file nad select “Convert to Python Script” Convert to Python Script

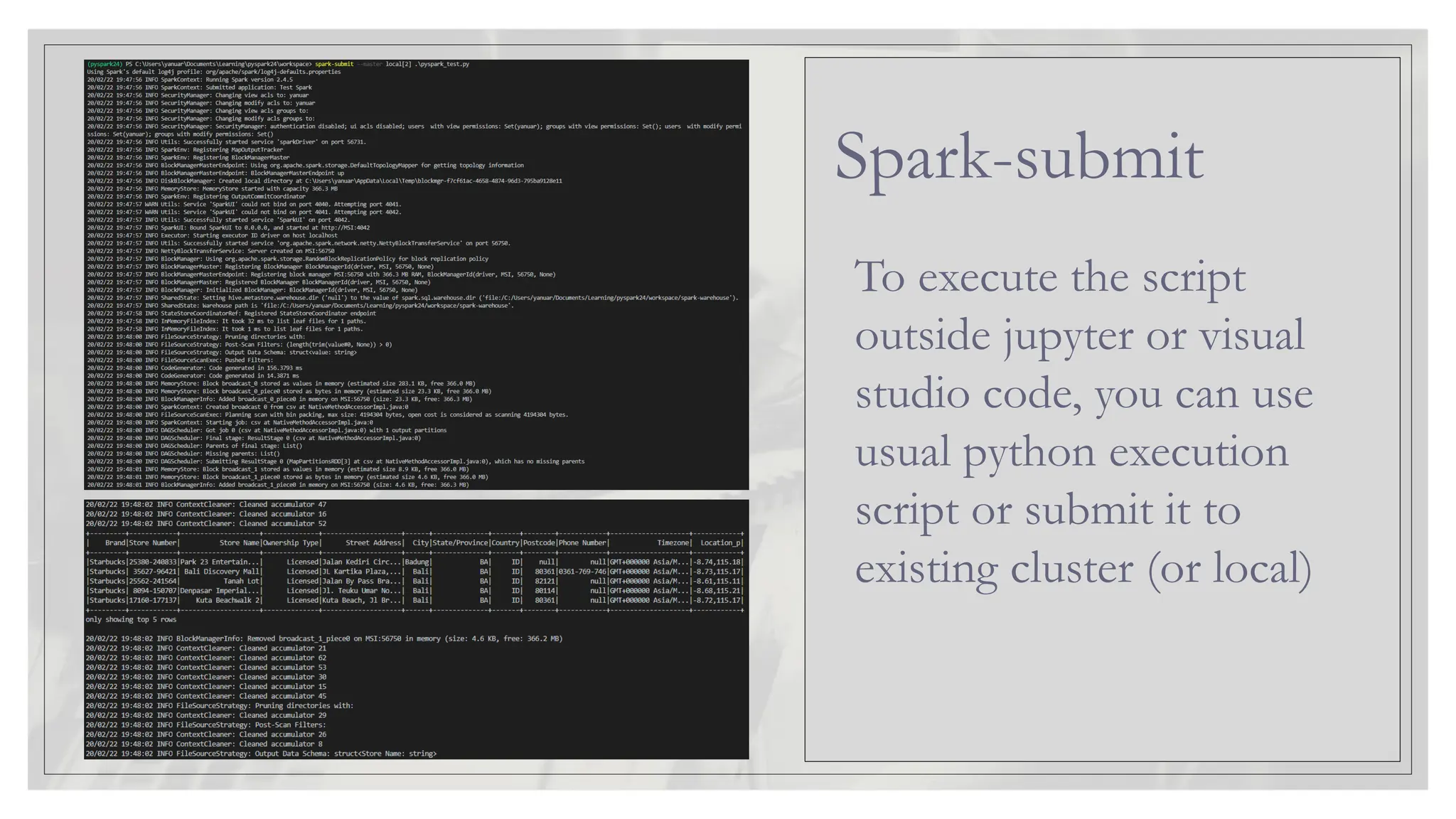

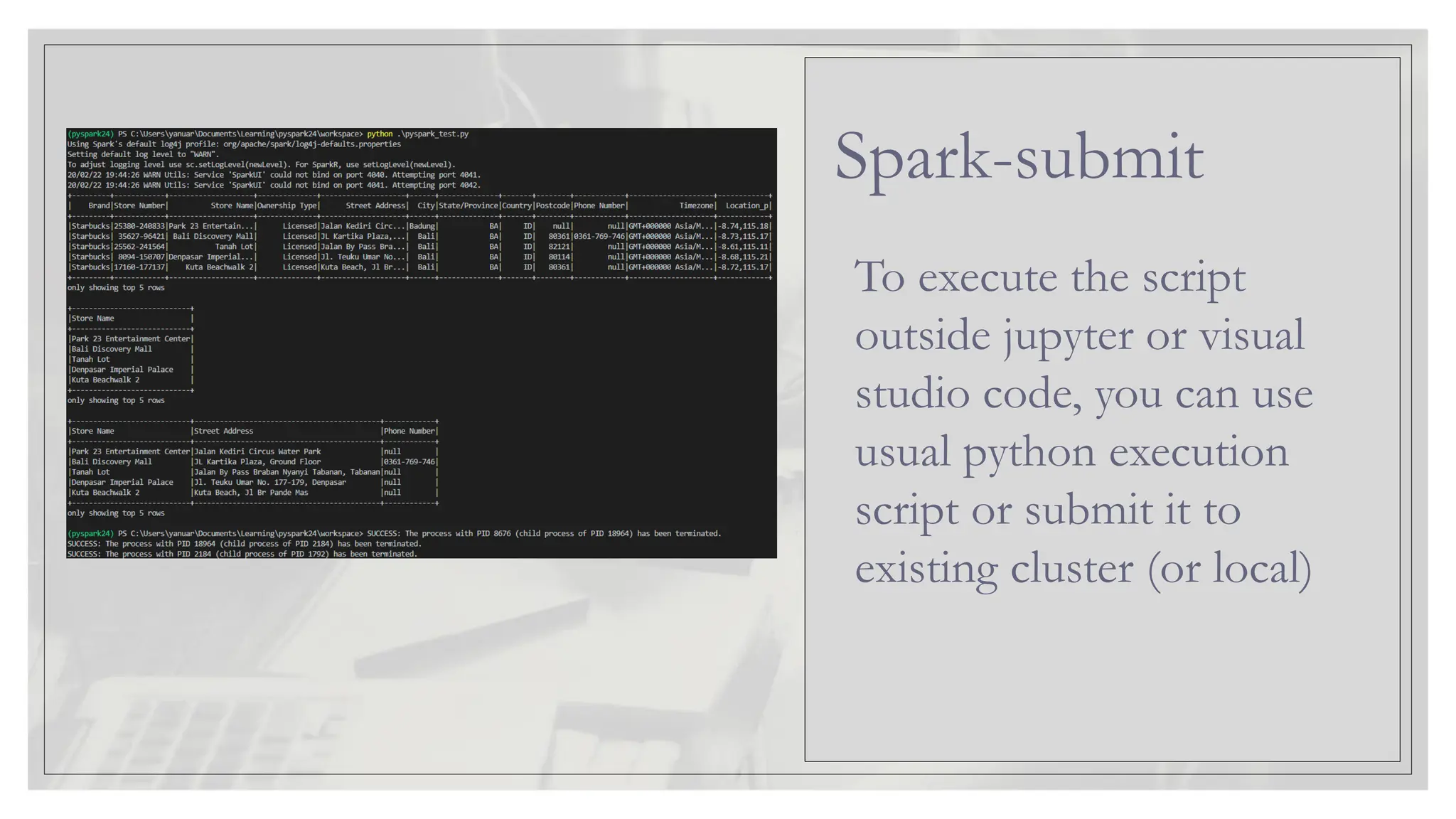

To execute the script outside jupyter or visual studio code, you can use usual python execution script or submit it to existing cluster (or local) Spark-submit

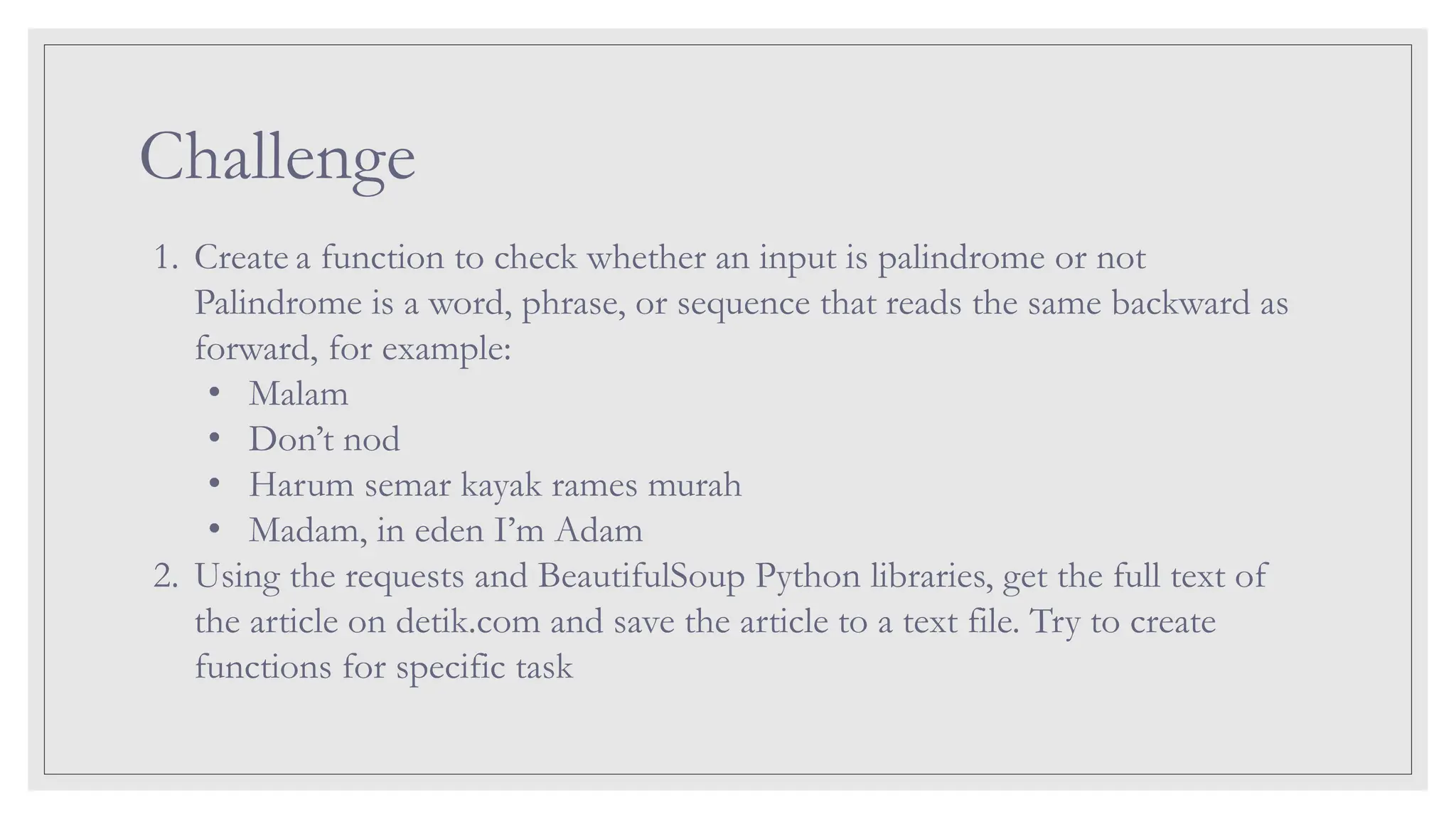

Challenge 1. Create a function to check whether an input is palindrome or not Palindrome is a word, phrase, or sequence that reads the same backward as forward, for example: • Malam • Don’t nod • Harum semar kayak rames murah • Madam, in eden I’m Adam 2. Using the requests and BeautifulSoup Python libraries, get the full text of the article on detik.com and save the article to a text file. Try to create functions for specific task

THANK YOU! yanuar.singgih@gmail.com | yanuar@xqinformatics.com 081315161641
