Radar system using arduino
This document describes the design and implementation of a radar system using an Arduino. The system uses an Arduino Uno, ultrasonic sensor, servo motor, and other components to detect objects. It provides advantages such as seeing through fog or darkness and determining an object's range, position, and velocity. Limitations include not being able to distinguish close targets or recognize color. The system was created to learn about radar technology and demonstrate its uses and capabilities.
In this document
Powered by AI
Introduction to an embedded radar system utilizing Arduino technology.
Definition of radar as an object-detection system and its applications in various fields.
List of essential apparatus for the radar system including Arduino UNO and sensors.

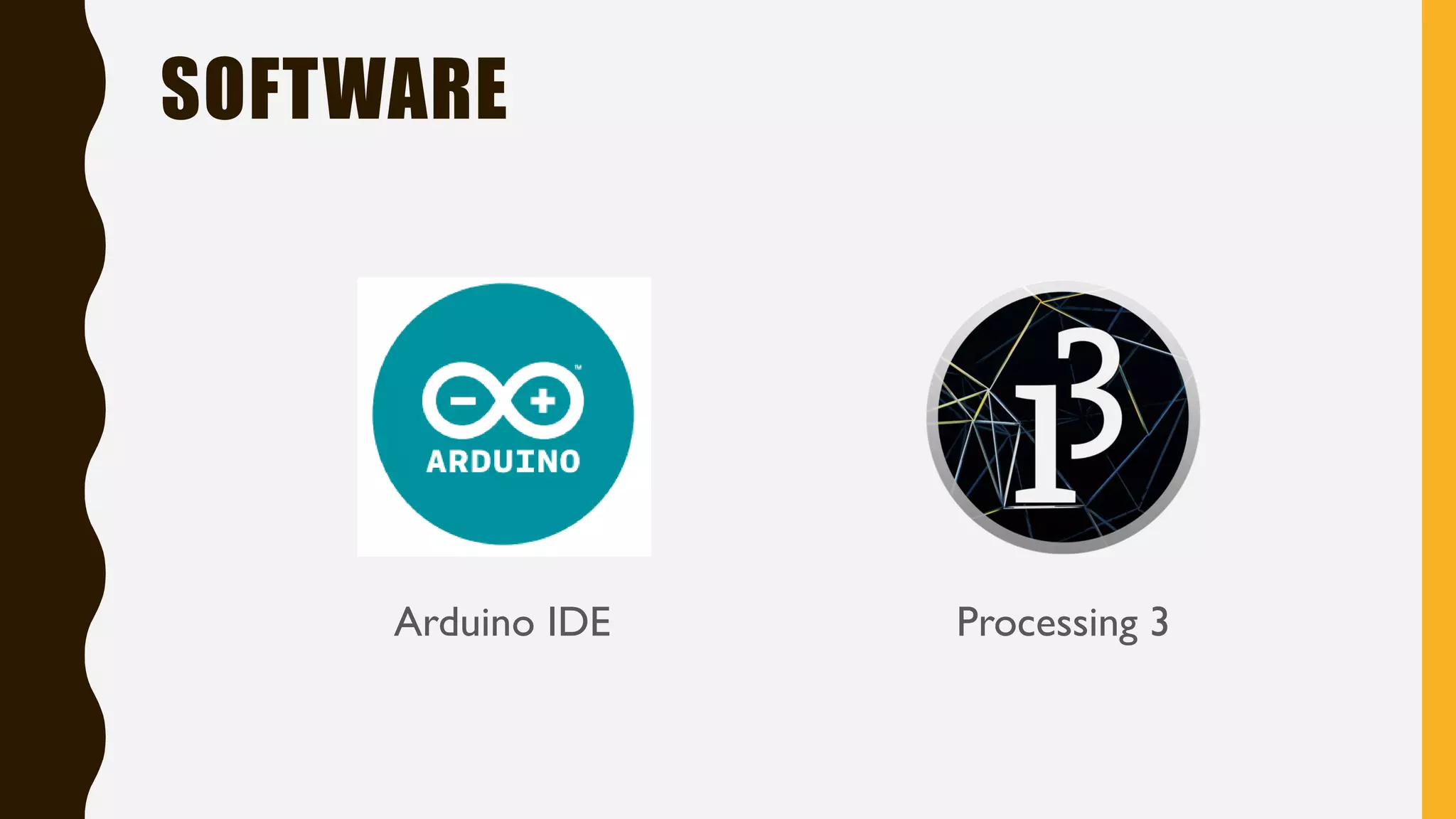

Software needed for building the radar system includes Arduino IDE and Processing 3.
Illustration of the circuit diagram used for the embedded radar system.

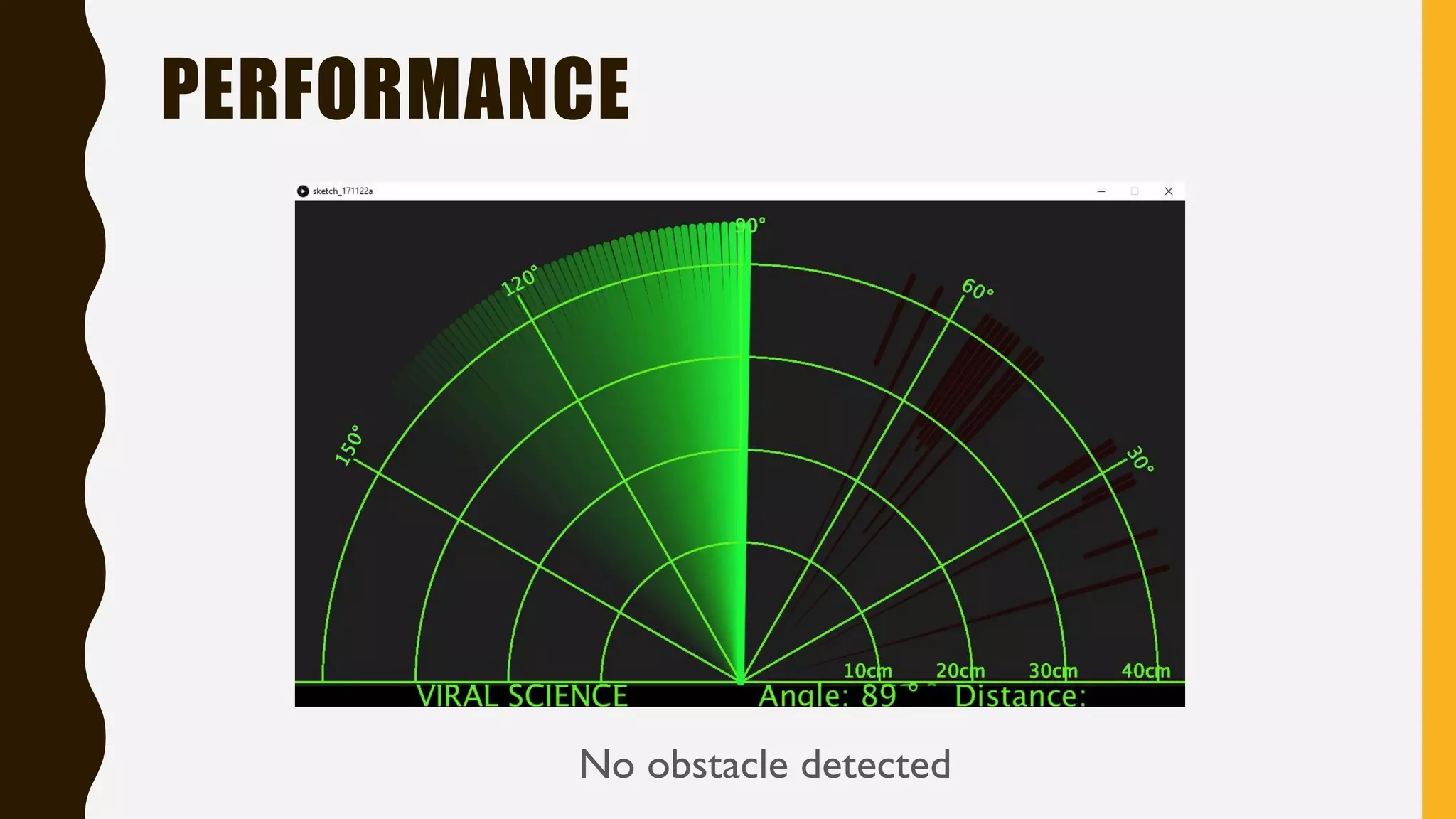

Indicates system performance when no obstacles are detected.

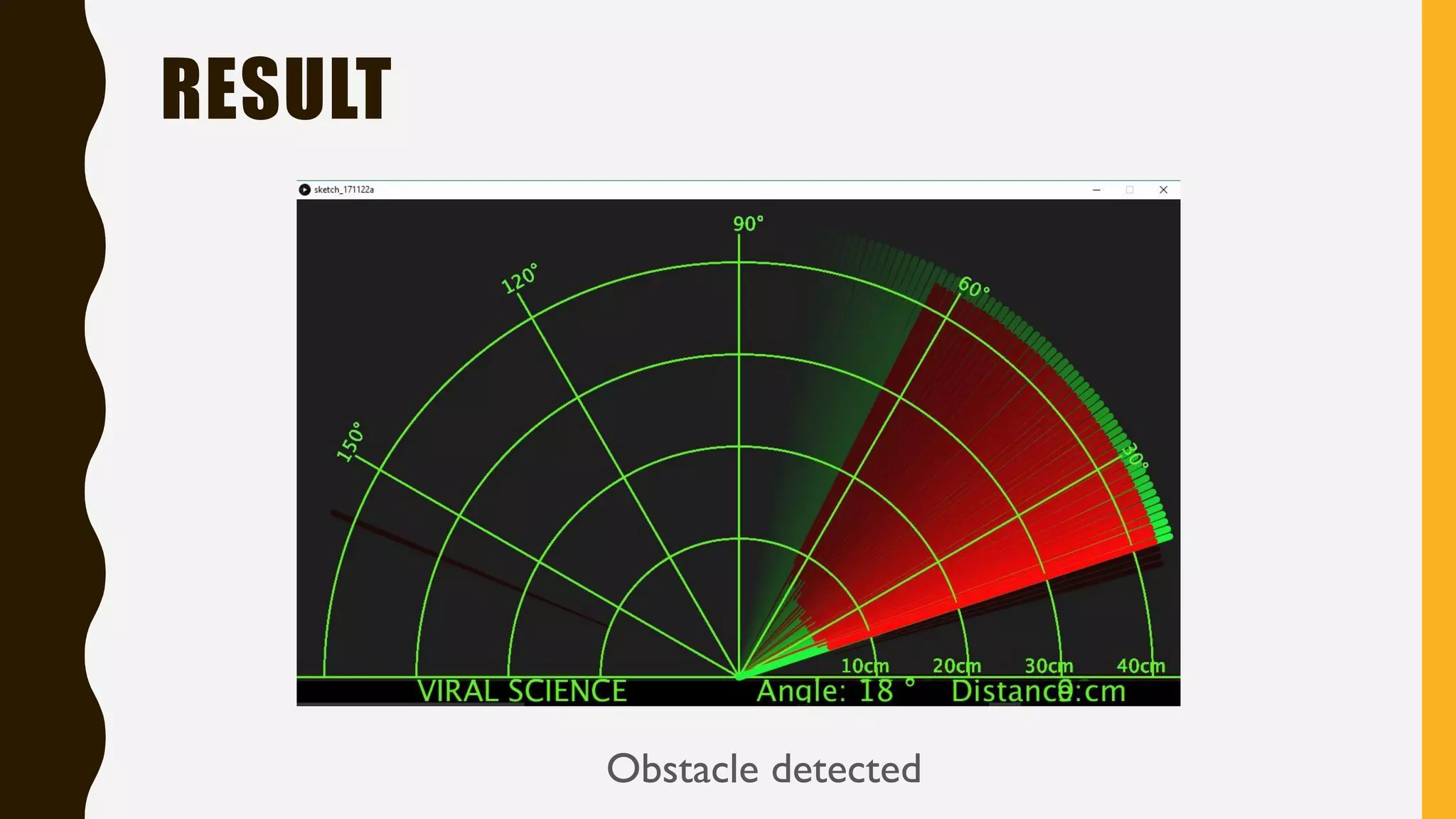

Indicates system performance when an obstacle is detected.
Benefits of radar technology such as ability to see through various conditions and measure target parameters.
Disadvantages of radar, including issues with target distinction and environmental limitations.
List of references and sources used for creating the presentation on radar systems.
Open floor for questions regarding the radar system presentation.
Radar system using arduino
- 1. EMBEDDED SYSTEM A RADAR SYSTEMUSING ARDUINO
- 2. INTRODUCTION What isRadar? - object-detection system - transmitter producing electromagnetic waves Uses - uses radio waves to determine the range, angle, or velocity of objects - used to detect aircraft, ships, spacecraft, guided missiles, motor vehicles, weather formations, and terrain
- 3. APPARATUS Arduino UNO UltrasonicSensor HC SR04 Breadboard Servo Motor MG995 Jumper Cable
- 4.
- 5.
- 6.
- 7.

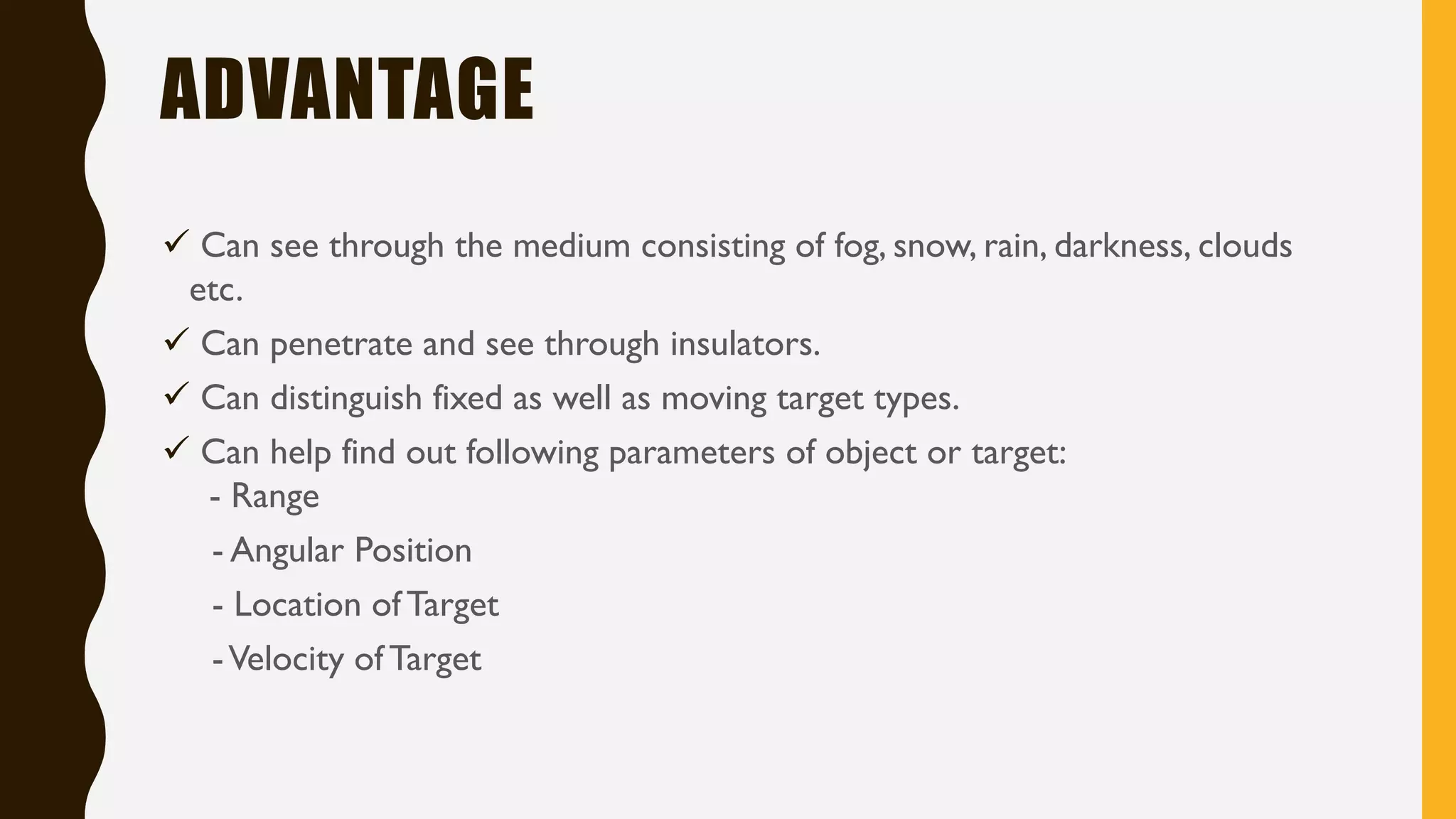

- 8. ADVANTAGE ✓ Can seethrough the medium consisting of fog, snow, rain, darkness, clouds etc. ✓ Can penetrate and see through insulators. ✓ Can distinguish fixed as well as moving target types. ✓ Can help find out following parameters of object or target: - Range - Angular Position - Location of Target -Velocity of Target

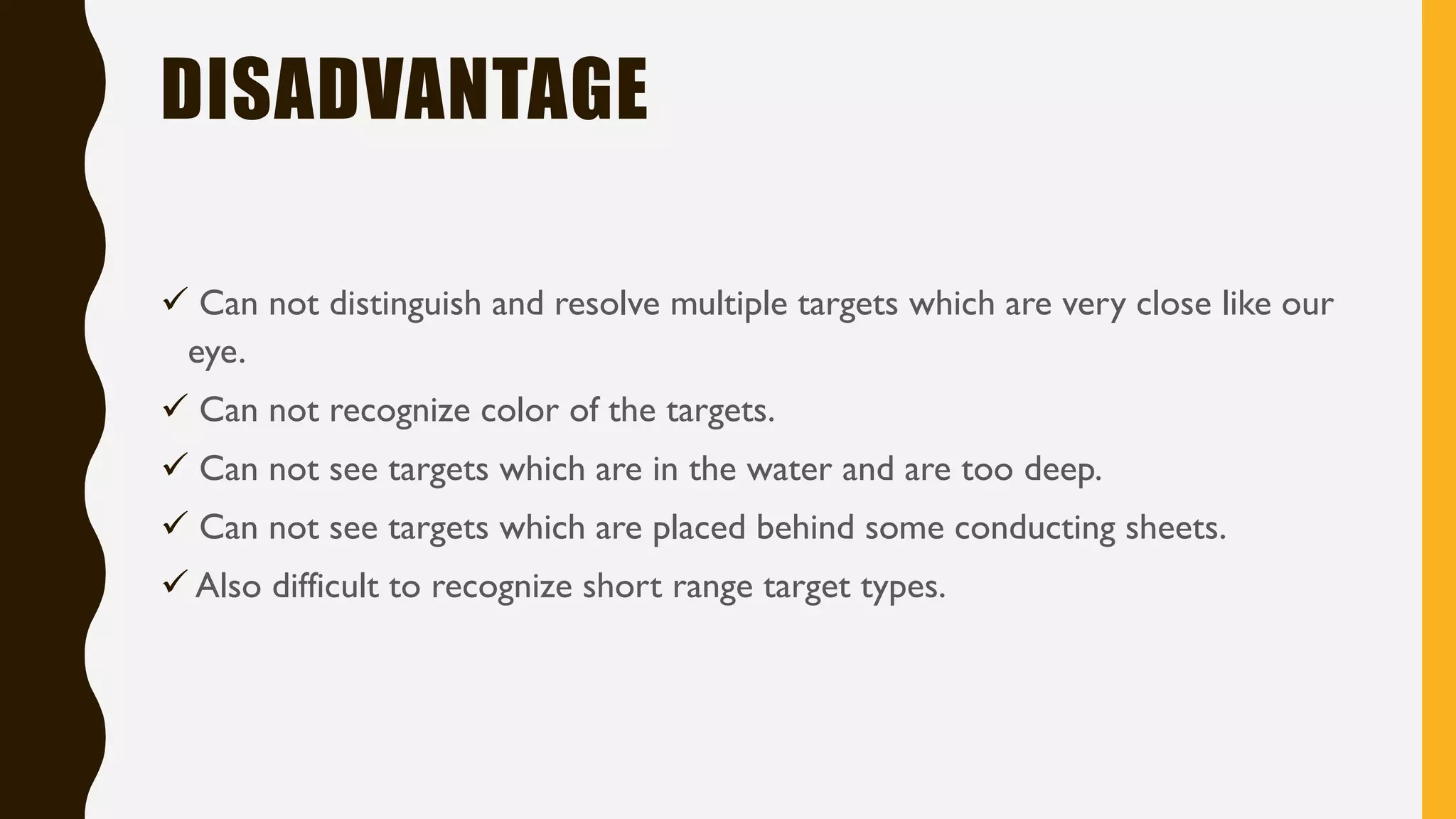

- 9. DISADVANTAGE ✓ Can notdistinguish and resolve multiple targets which are very close like our eye. ✓ Can not recognize color of the targets. ✓ Can not see targets which are in the water and are too deep. ✓ Can not see targets which are placed behind some conducting sheets. ✓ Also difficult to recognize short range target types.

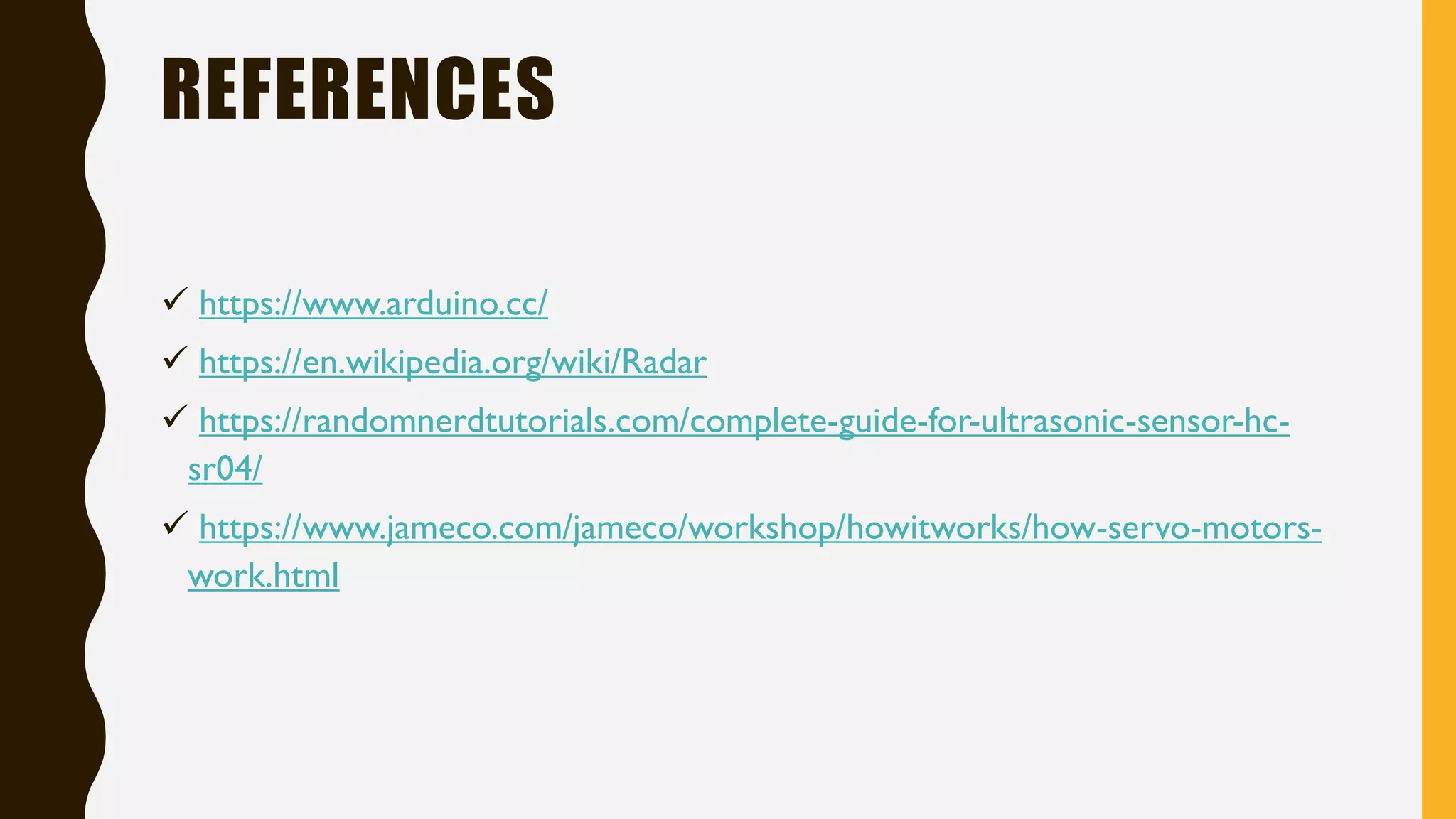

- 10. REFERENCES ✓ https://www.arduino.cc/ ✓ https://en.wikipedia.org/wiki/Radar ✓https://randomnerdtutorials.com/complete-guide-for-ultrasonic-sensor-hc- sr04/ ✓ https://www.jameco.com/jameco/workshop/howitworks/how-servo-motors- work.html
- 11.
