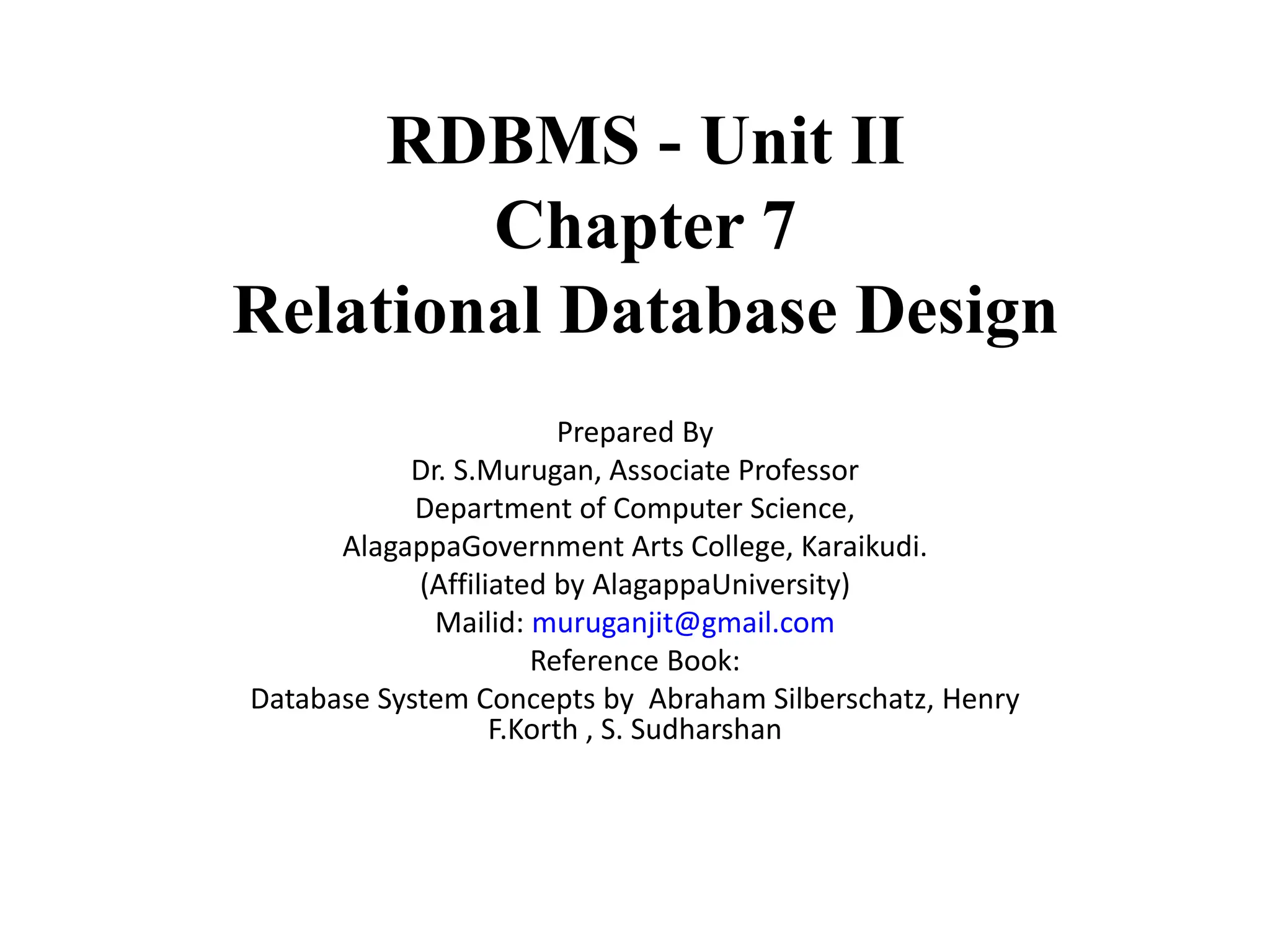

RDBMS - Unit II Chapter 7 Relational Database Design Prepared By Dr. S.Murugan, Associate Professor Department of Computer Science, AlagappaGovernment Arts College, Karaikudi. (Affiliated by AlagappaUniversity) Mailid: muruganjit@gmail.com Reference Book: Database System Concepts by Abraham Silberschatz, Henry F.Korth , S. Sudharshan

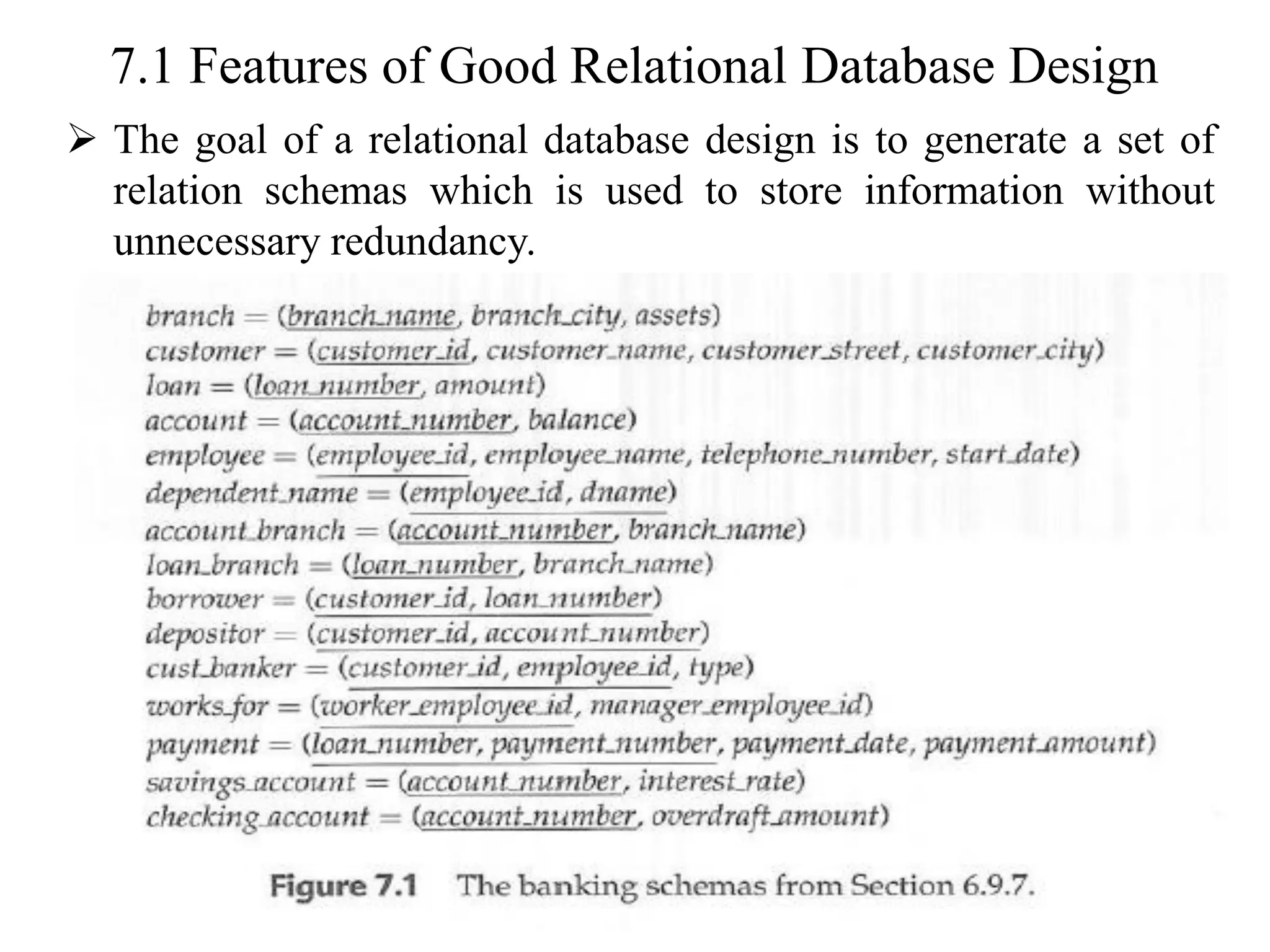

7.1 Features of Good Relational Database Design ➢ The goal of a relational database design is to generate a set of relation schemas which is used to store information without unnecessary redundancy.

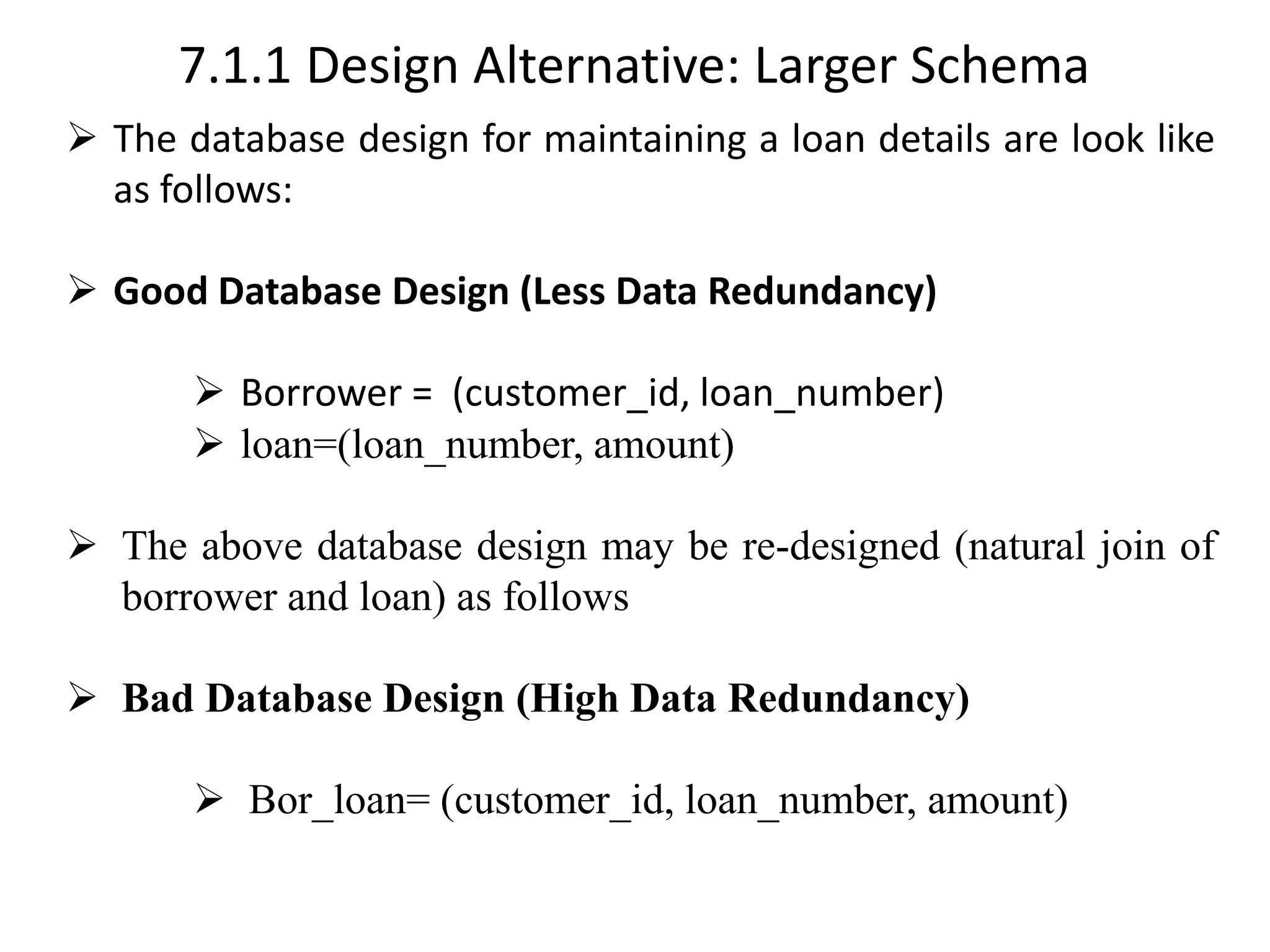

7.1.1 Design Alternative: Larger Schema ➢ The database design for maintaining a loan details are look like as follows: ➢ Good Database Design (Less Data Redundancy) ➢ Borrower = (customer_id, loan_number) ➢ loan=(loan_number, amount) ➢ The above database design may be re-designed (natural join of borrower and loan) as follows ➢ Bad Database Design (High Data Redundancy) ➢ Bor_loan= (customer_id, loan_number, amount)

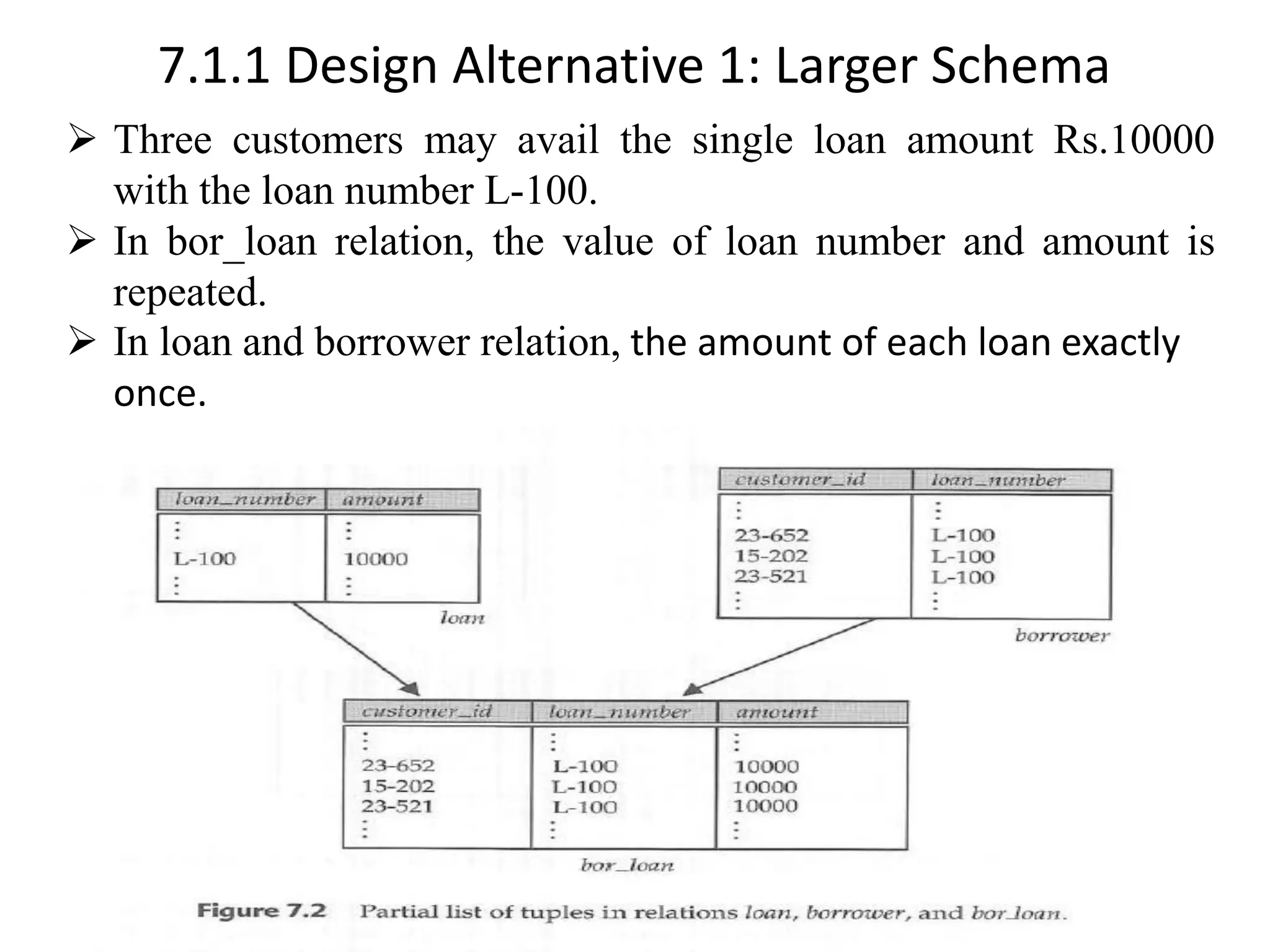

7.1.1 Design Alternative 1: Larger Schema ➢ Three customers may avail the single loan amount Rs.10000 with the loan number L-100. ➢ In bor_loan relation, the value of loan number and amount is repeated. ➢ In loan and borrower relation, the amount of each loan exactly once.

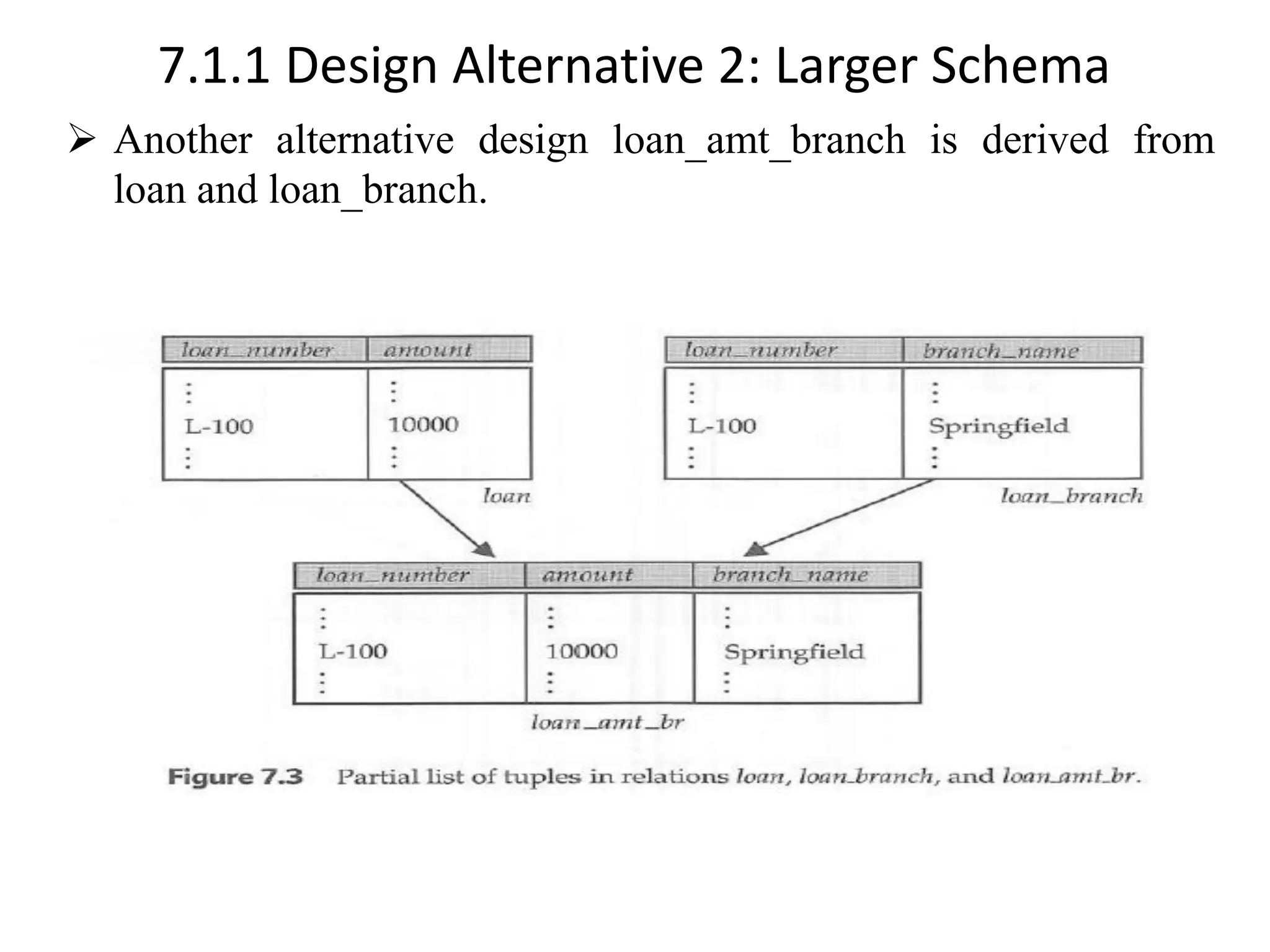

7.1.1 Design Alternative 2: Larger Schema ➢ Another alternative design loan_amt_branch is derived from loan and loan_branch.

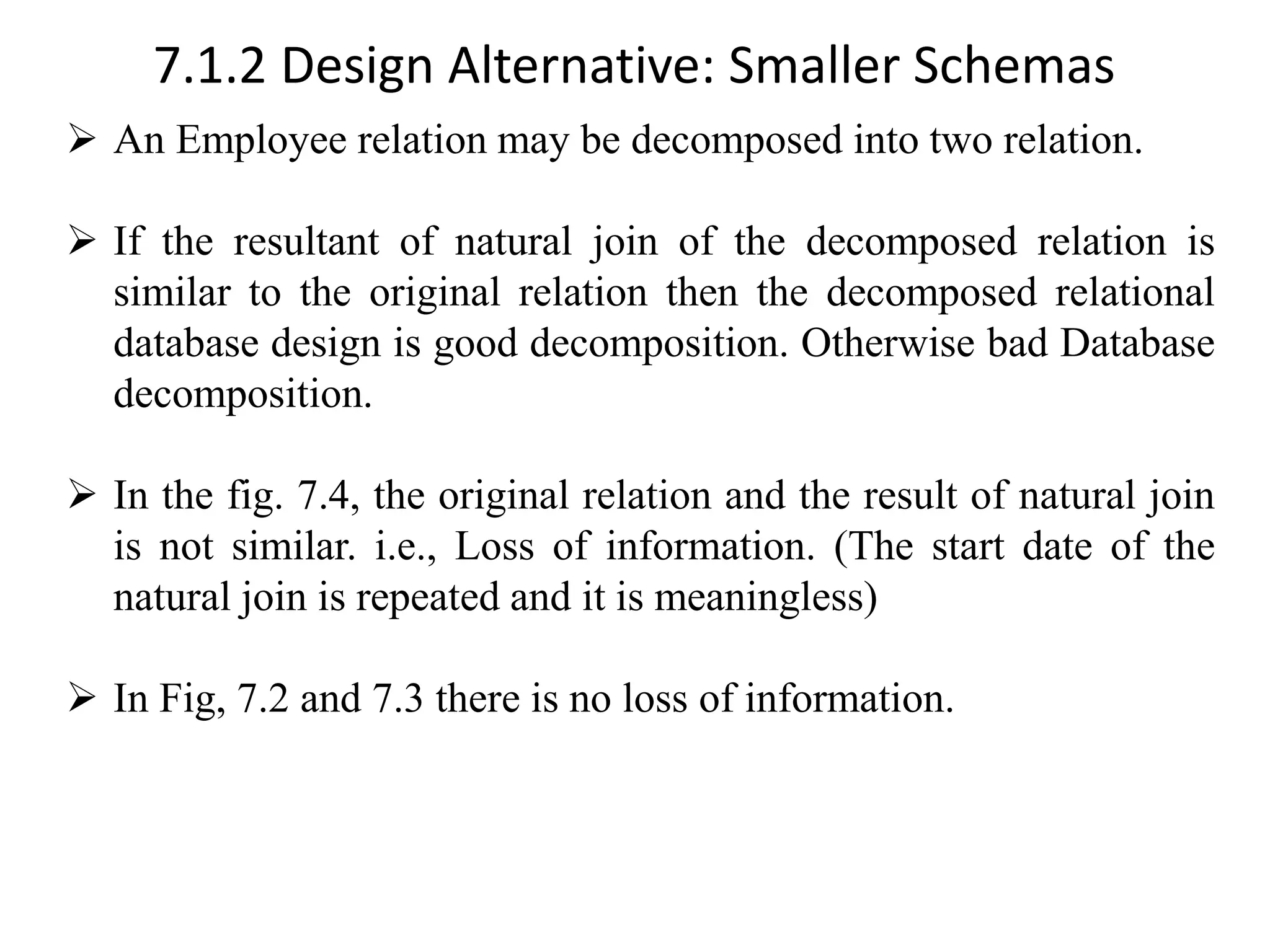

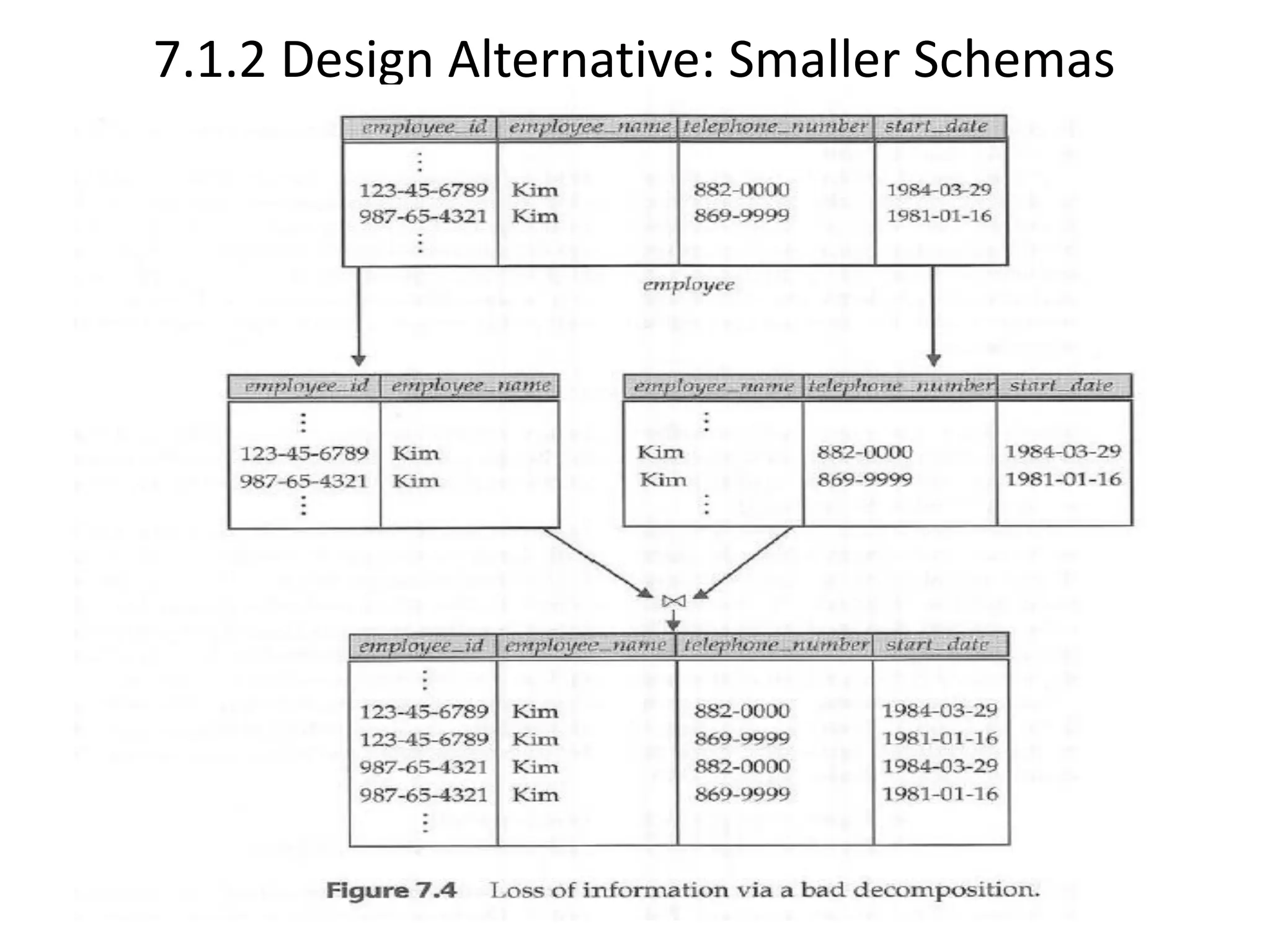

7.1.2 Design Alternative: Smaller Schemas ➢ An Employee relation may be decomposed into two relation. ➢ If the resultant of natural join of the decomposed relation is similar to the original relation then the decomposed relational database design is good decomposition. Otherwise bad Database decomposition. ➢ In the fig. 7.4, the original relation and the result of natural join is not similar. i.e., Loss of information. (The start date of the natural join is repeated and it is meaningless) ➢ In Fig, 7.2 and 7.3 there is no loss of information.

7.1.2 Design Alternative: Smaller Schemas

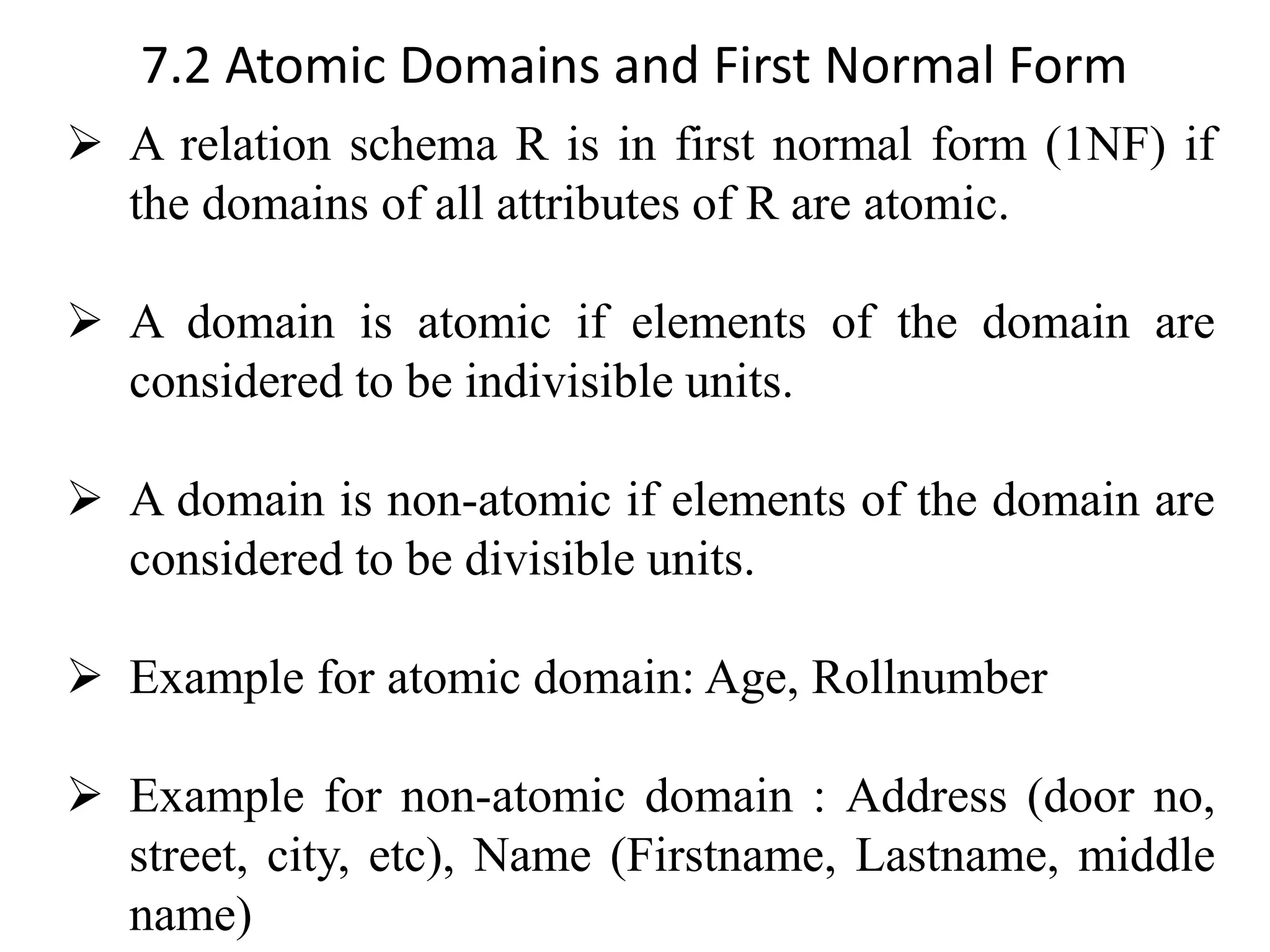

7.2 Atomic Domains and First Normal Form ➢ A relation schema R is in first normal form (1NF) if the domains of all attributes of R are atomic. ➢ A domain is atomic if elements of the domain are considered to be indivisible units. ➢ A domain is non-atomic if elements of the domain are considered to be divisible units. ➢ Example for atomic domain: Age, Rollnumber ➢ Example for non-atomic domain : Address (door no, street, city, etc), Name (Firstname, Lastname, middle name)

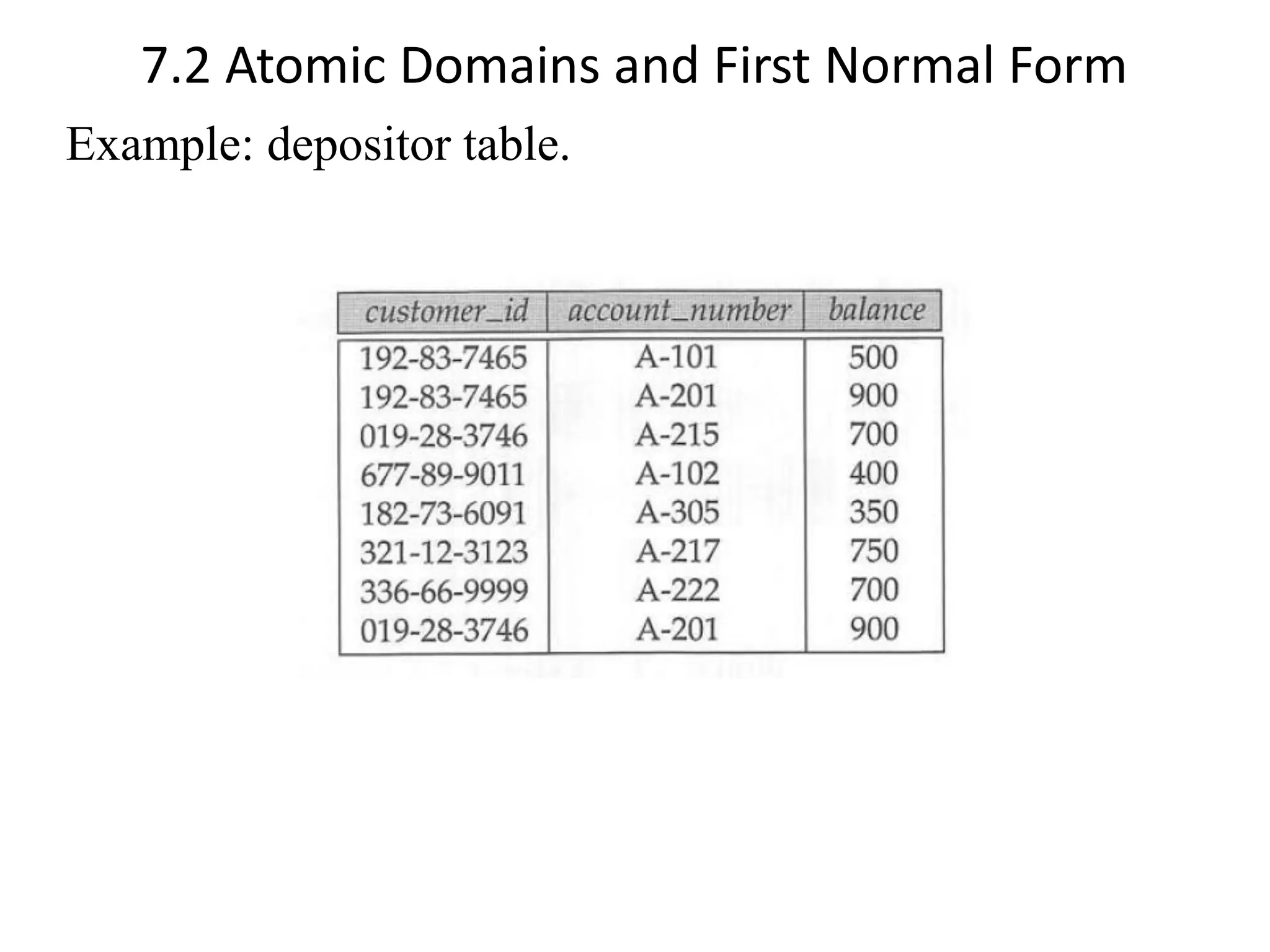

7.2 Atomic Domains and First Normal Form Example: depositor table.

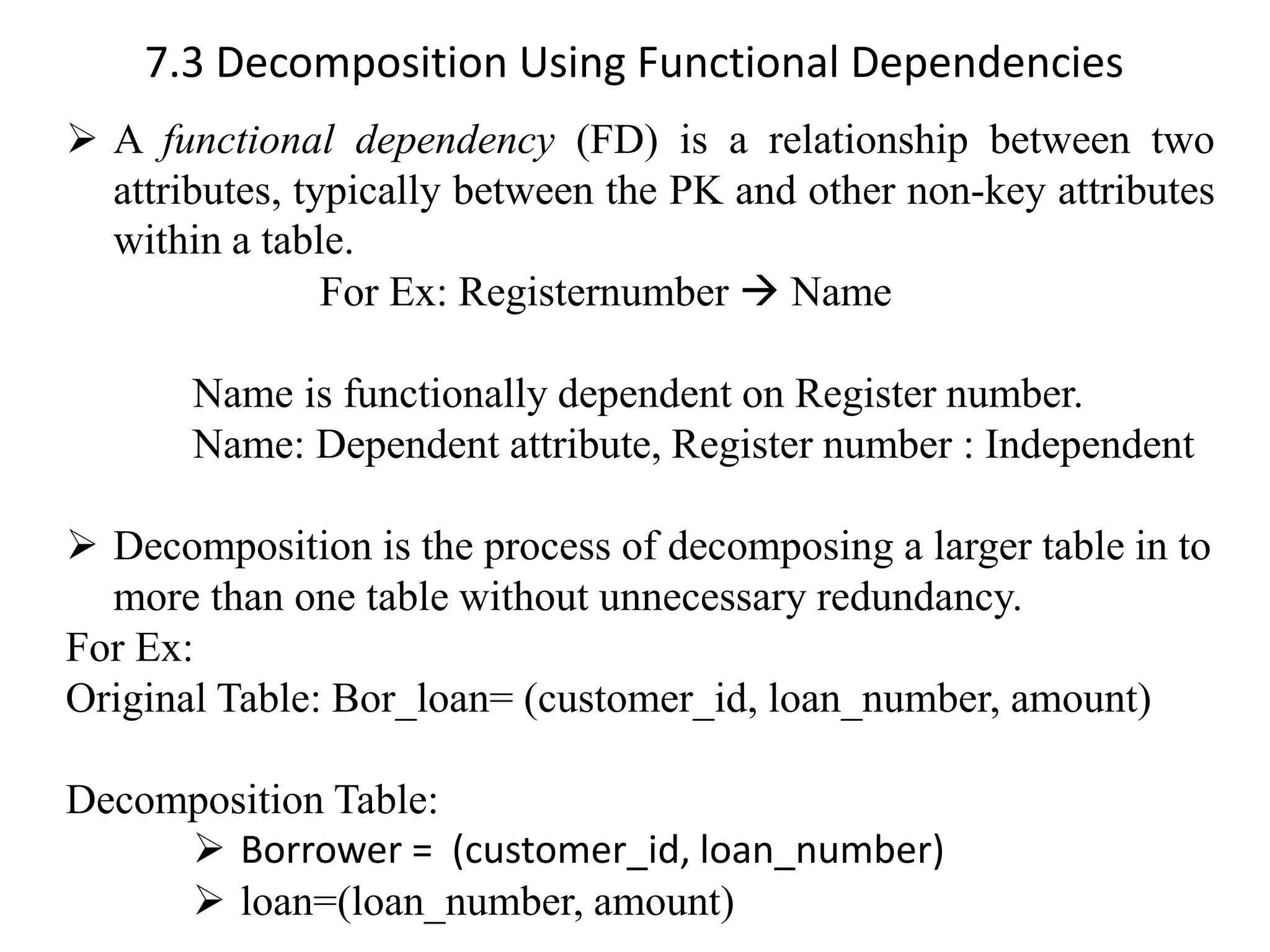

7.3 Decomposition Using Functional Dependencies ➢ A functional dependency (FD) is a relationship between two attributes, typically between the PK and other non-key attributes within a table. For Ex: Registernumber → Name Name is functionally dependent on Register number. Name: Dependent attribute, Register number : Independent ➢ Decomposition is the process of decomposing a larger table in to more than one table without unnecessary redundancy. For Ex: Original Table: Bor_loan= (customer_id, loan_number, amount) Decomposition Table: ➢ Borrower = (customer_id, loan_number) ➢ loan=(loan_number, amount)

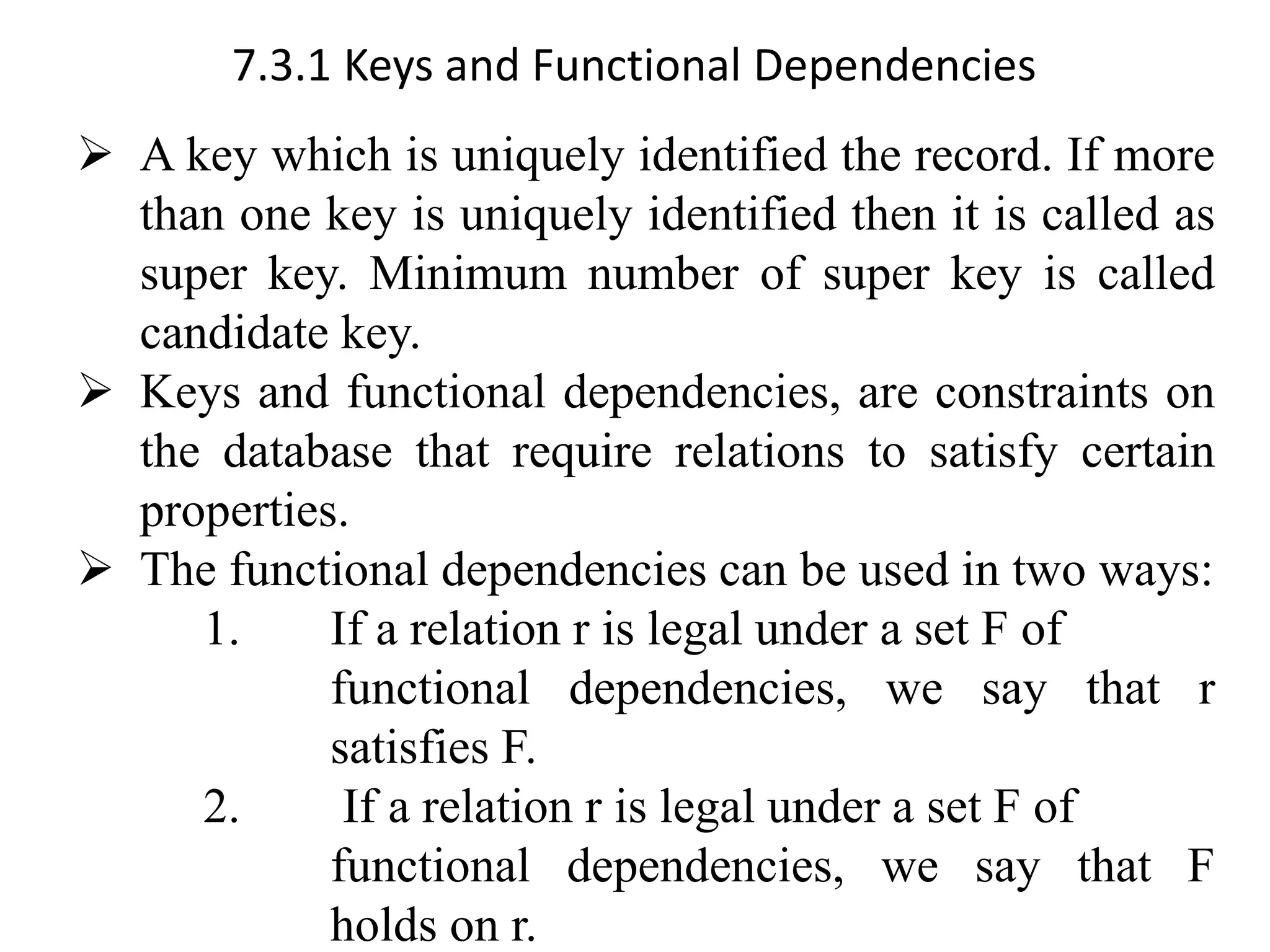

7.3.1 Keys and Functional Dependencies ➢ A key which is uniquely identified the record. If more than one key is uniquely identified then it is called as super key. Minimum number of super key is called candidate key. ➢ Keys and functional dependencies, are constraints on the database that require relations to satisfy certain properties. ➢ The functional dependencies can be used in two ways: 1. If a relation r is legal under a set F of functional dependencies, we say that r satisfies F. 2. If a relation r is legal under a set F of functional dependencies, we say that F holds on r.

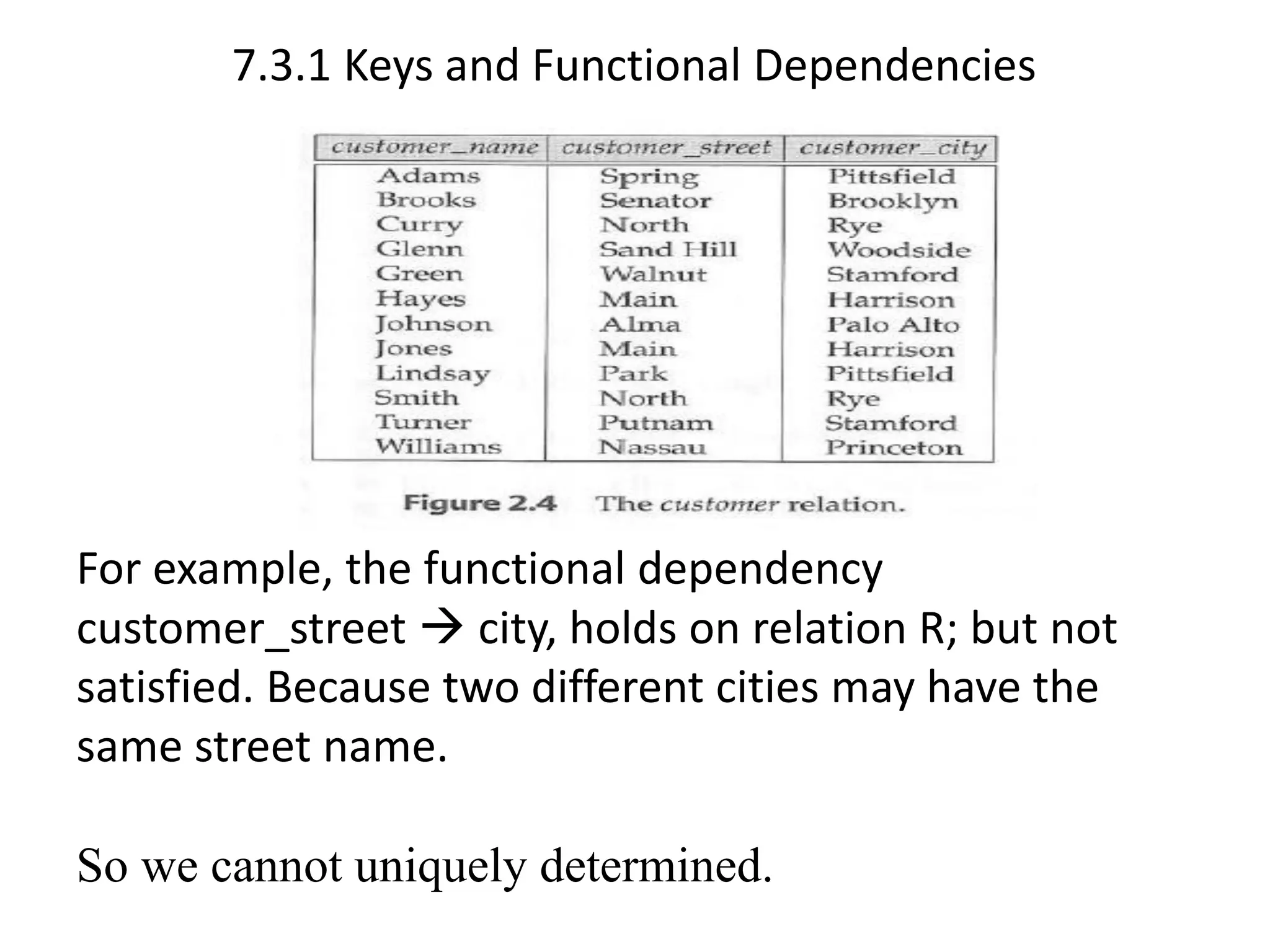

7.3.1 Keys and Functional Dependencies For example, the functional dependency customer_street → city, holds on relation R; but not satisfied. Because two different cities may have the same street name. So we cannot uniquely determined.

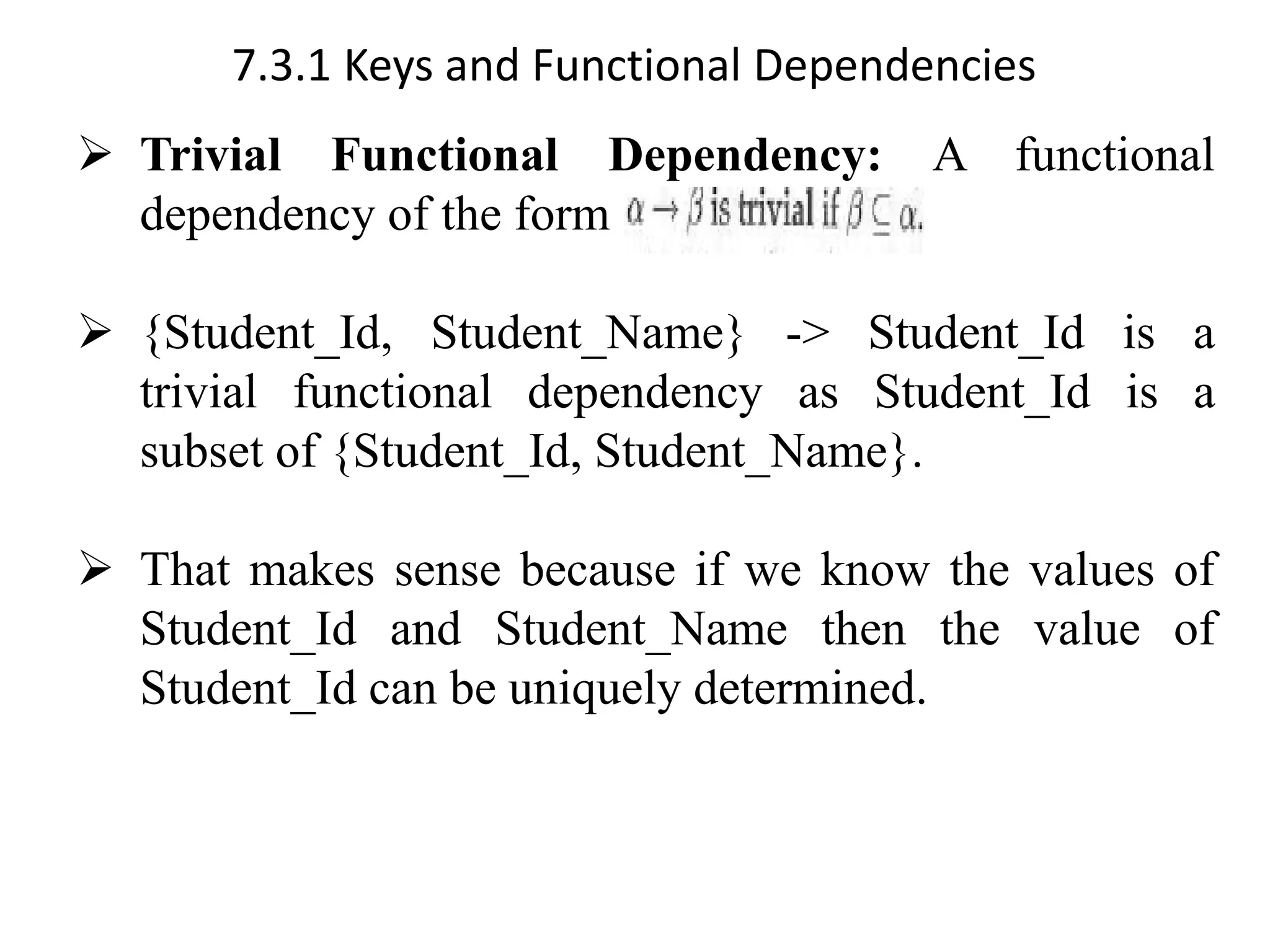

7.3.1 Keys and Functional Dependencies ➢ Trivial Functional Dependency: A functional dependency of the form ➢ {Student_Id, Student_Name} -> Student_Id is a trivial functional dependency as Student_Id is a subset of {Student_Id, Student_Name}. ➢ That makes sense because if we know the values of Student_Id and Student_Name then the value of Student_Id can be uniquely determined.

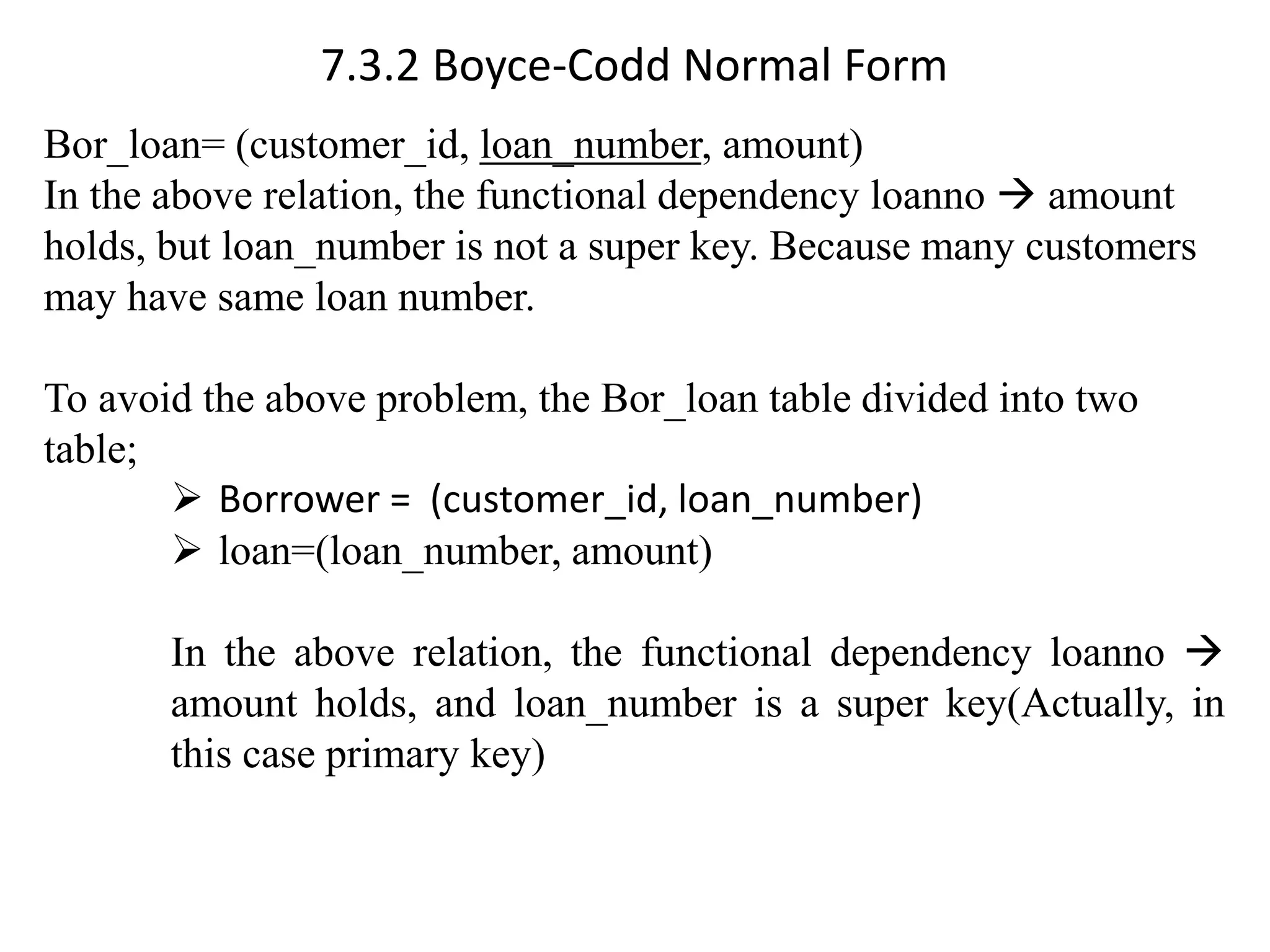

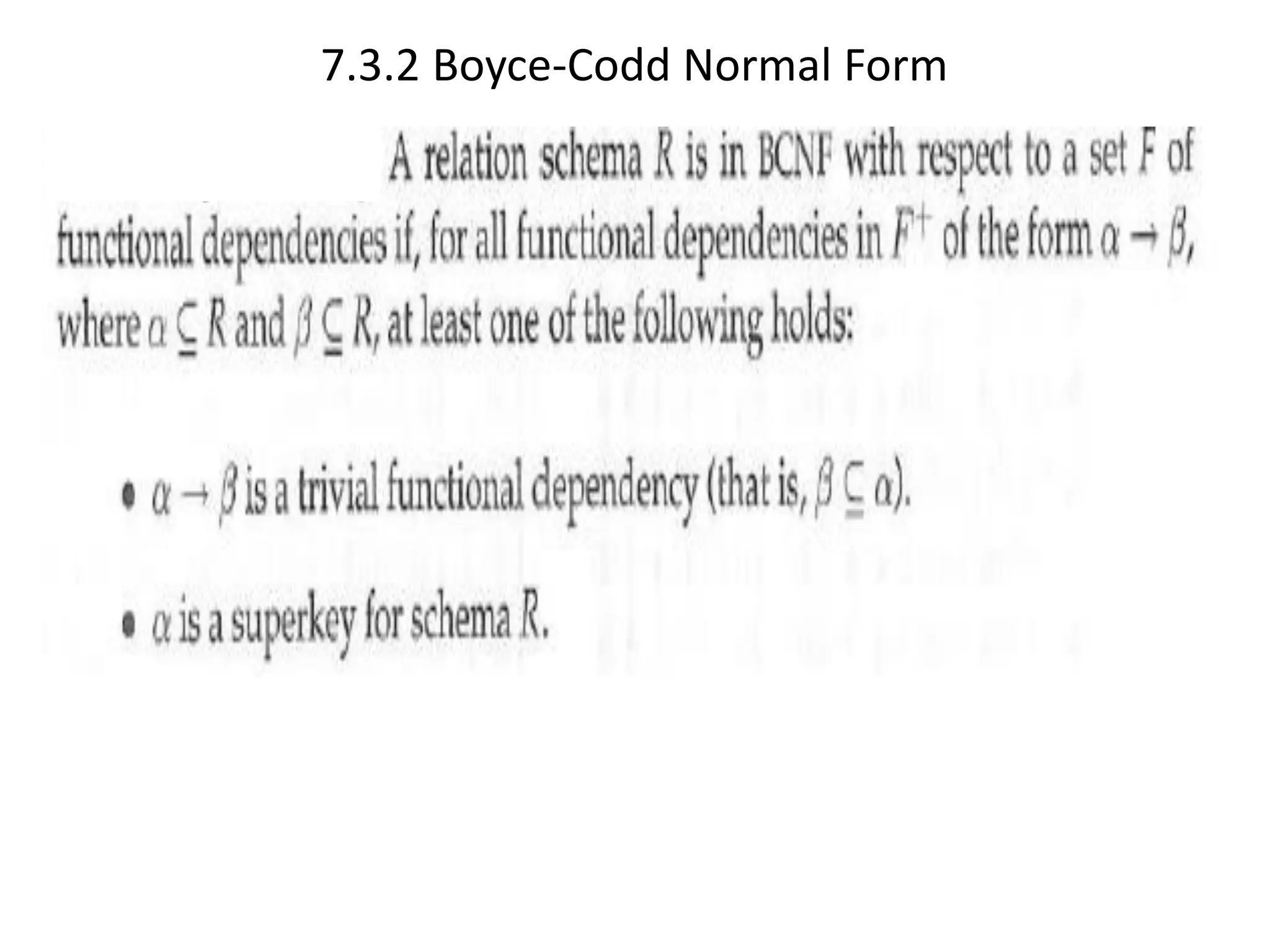

7.3.2 Boyce-Codd Normal Form Bor_loan= (customer_id, loan_number, amount) In the above relation, the functional dependency loanno → amount holds, but loan_number is not a super key. Because many customers may have same loan number. To avoid the above problem, the Bor_loan table divided into two table; ➢ Borrower = (customer_id, loan_number) ➢ loan=(loan_number, amount) In the above relation, the functional dependency loanno → amount holds, and loan_number is a super key(Actually, in this case primary key)

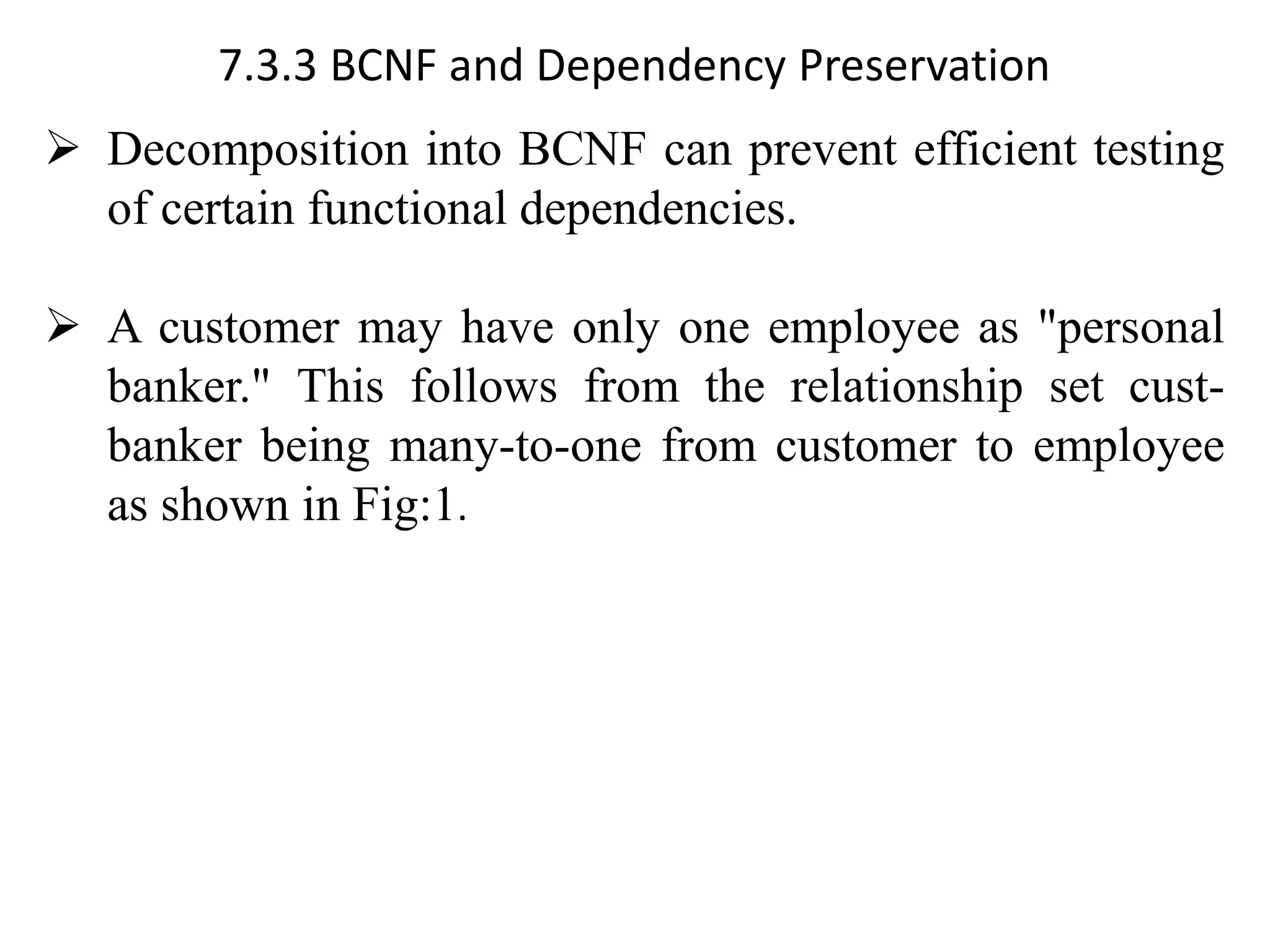

7.3.3 BCNF and Dependency Preservation ➢ Decomposition into BCNF can prevent efficient testing of certain functional dependencies. ➢ A customer may have only one employee as "personal banker." This follows from the relationship set cust- banker being many-to-one from customer to employee as shown in Fig:1.

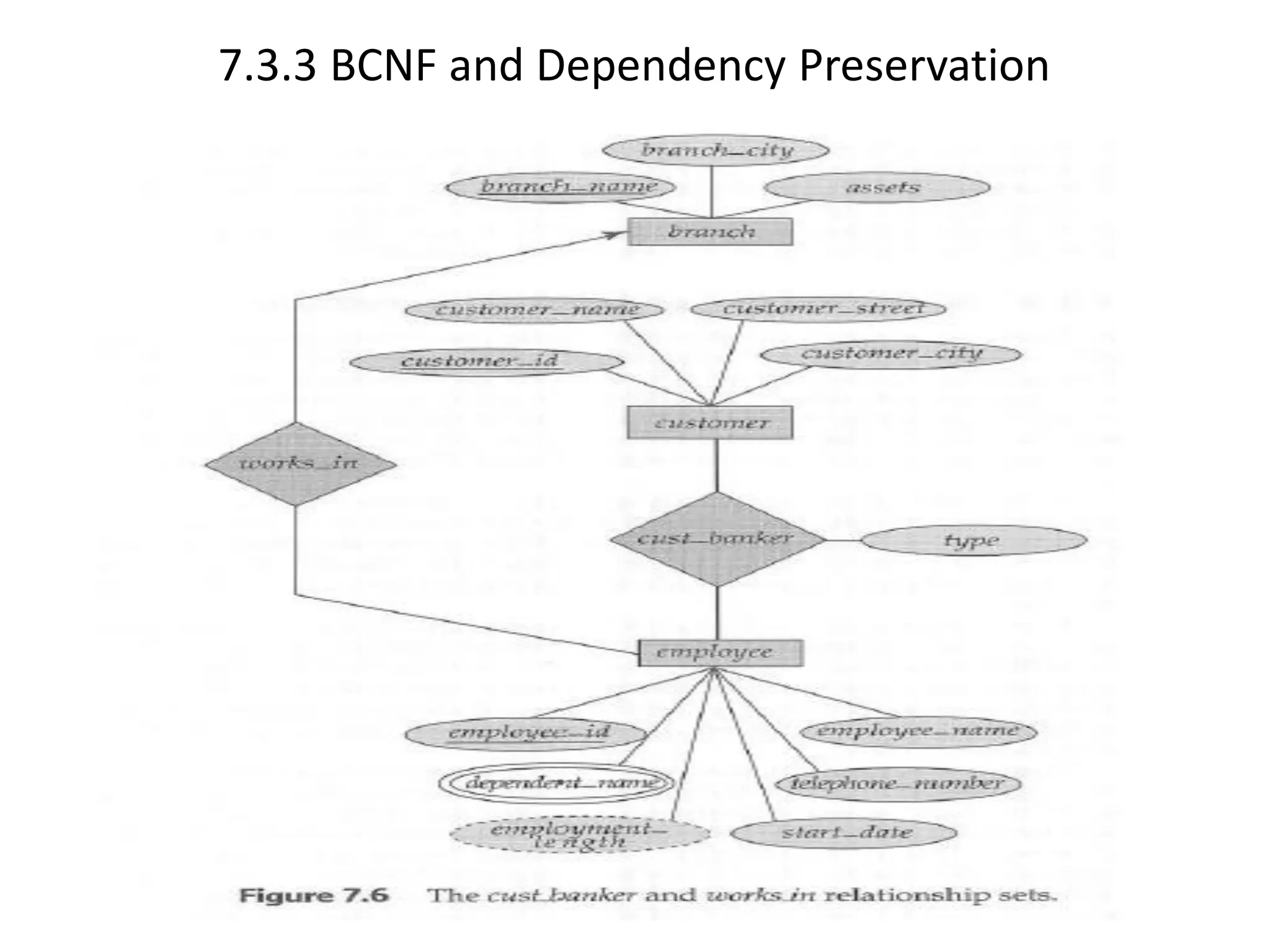

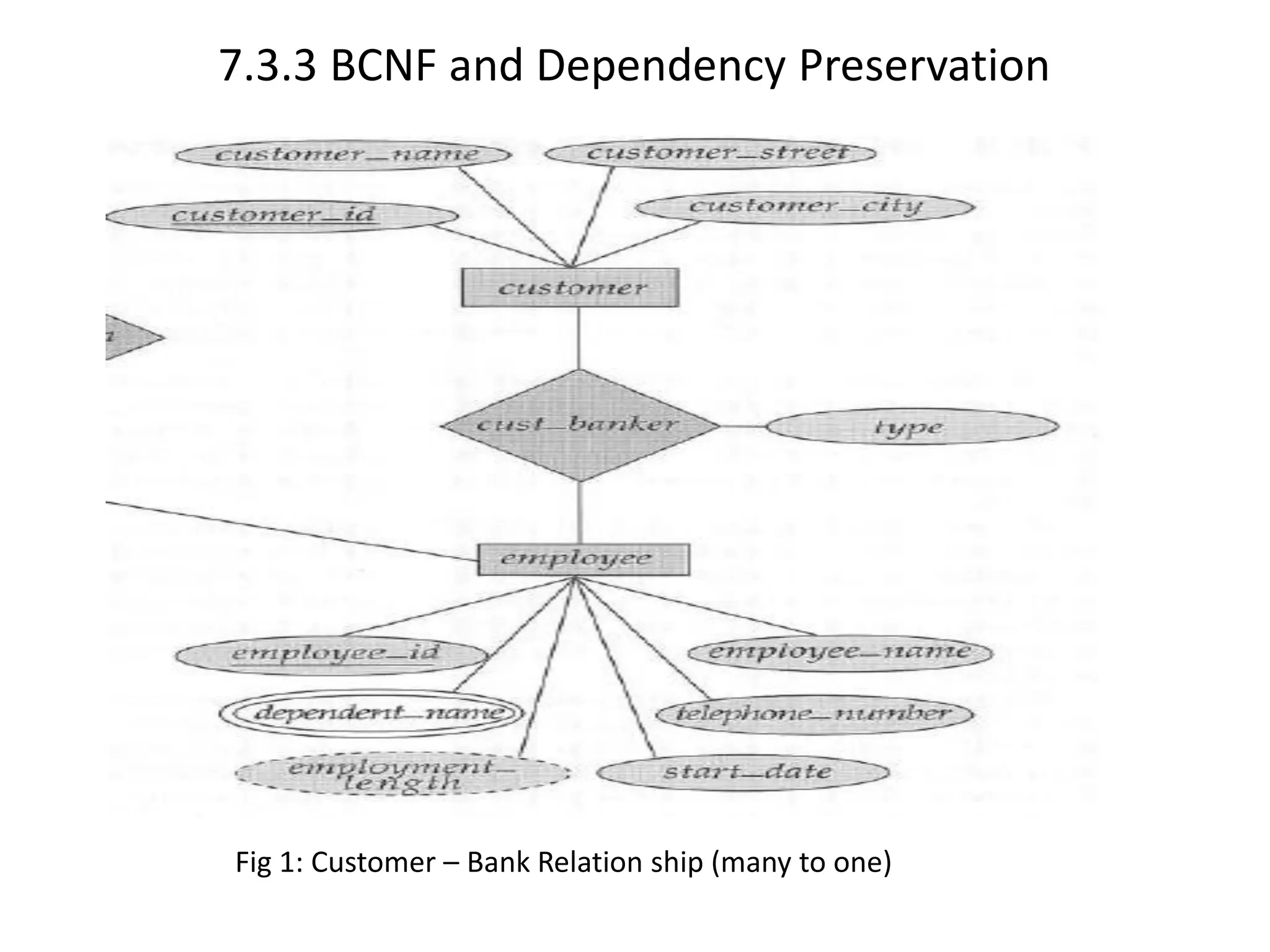

7.3.3 BCNF and Dependency Preservation Fig 1: Customer – Bank Relation ship (many to one)

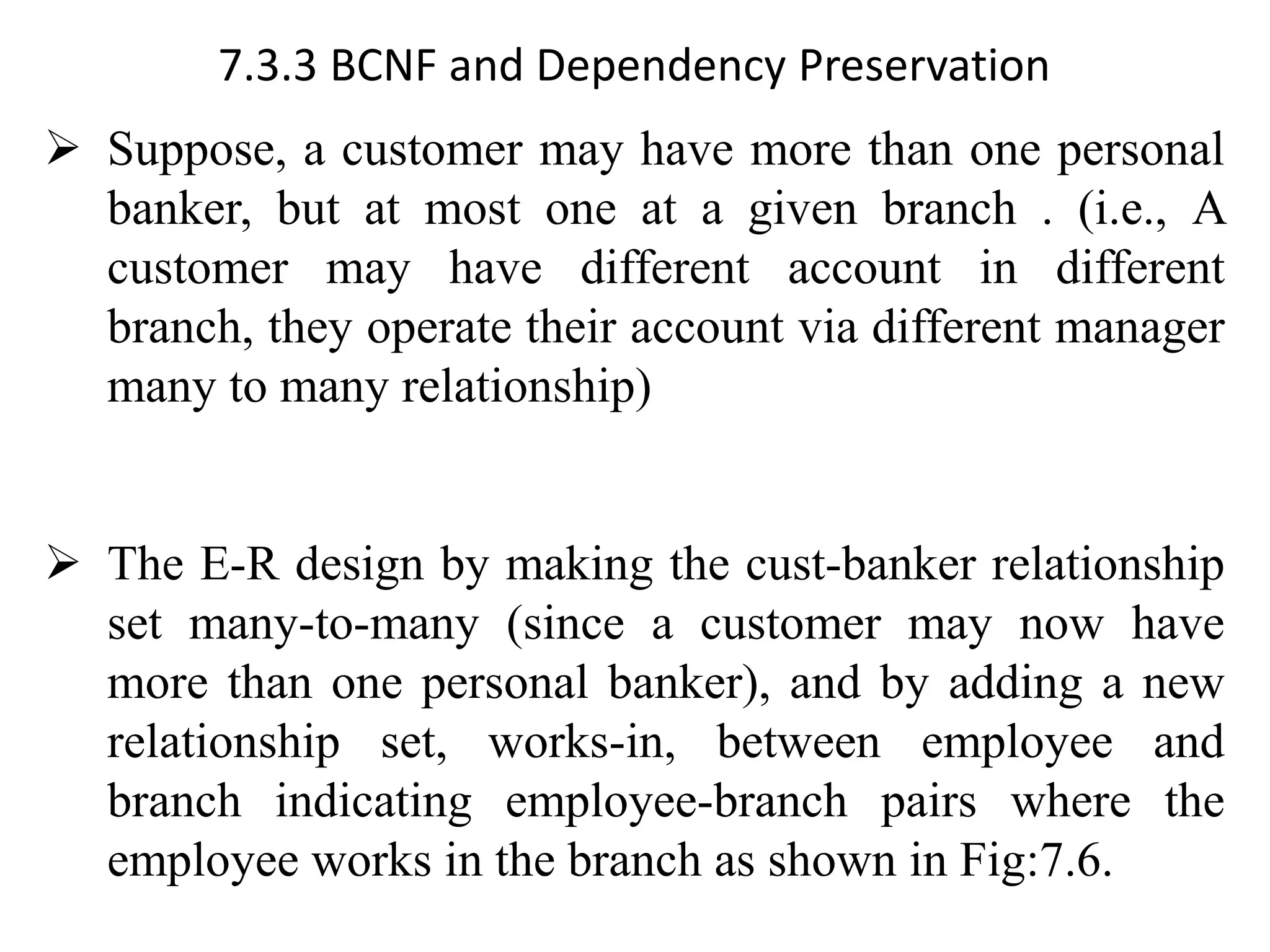

7.3.3 BCNF and Dependency Preservation ➢ Suppose, a customer may have more than one personal banker, but at most one at a given branch . (i.e., A customer may have different account in different branch, they operate their account via different manager many to many relationship) ➢ The E-R design by making the cust-banker relationship set many-to-many (since a customer may now have more than one personal banker), and by adding a new relationship set, works-in, between employee and branch indicating employee-branch pairs where the employee works in the branch as shown in Fig:7.6.

7.3.3 BCNF and Dependency Preservation

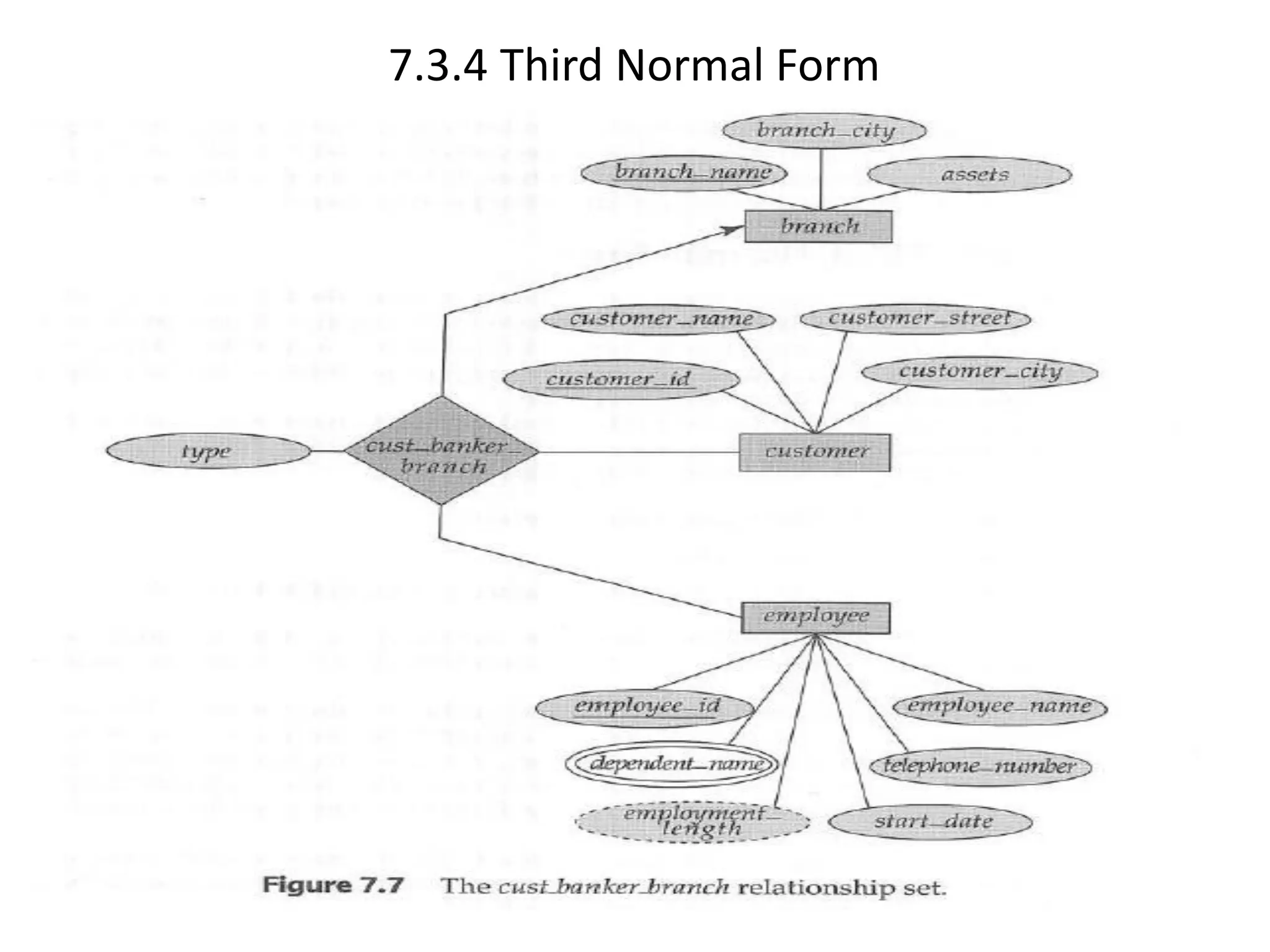

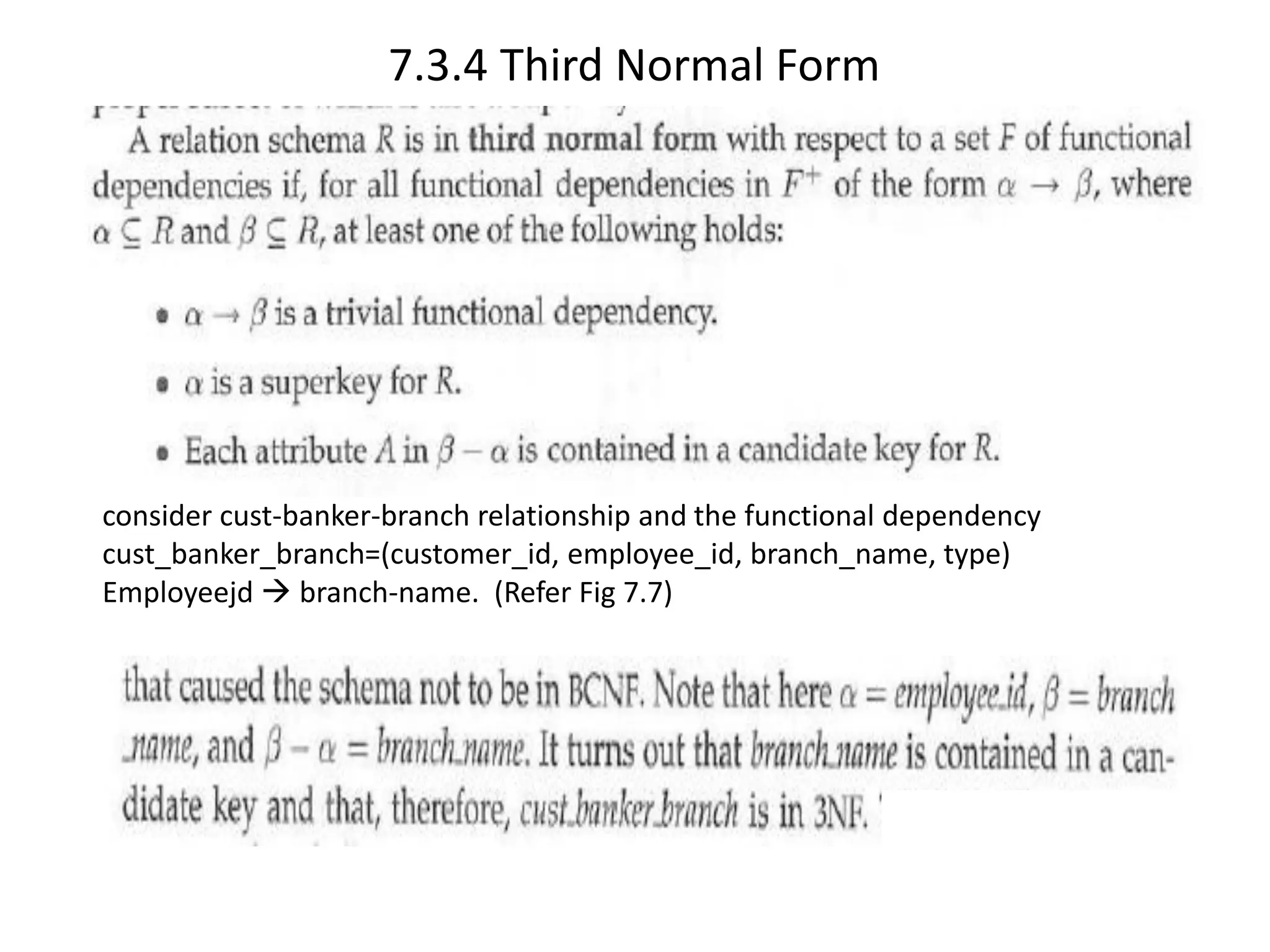

7.3.4 Third Normal Form consider cust-banker-branch relationship and the functional dependency cust_banker_branch=(customer_id, employee_id, branch_name, type) Employeejd → branch-name. (Refer Fig 7.7)

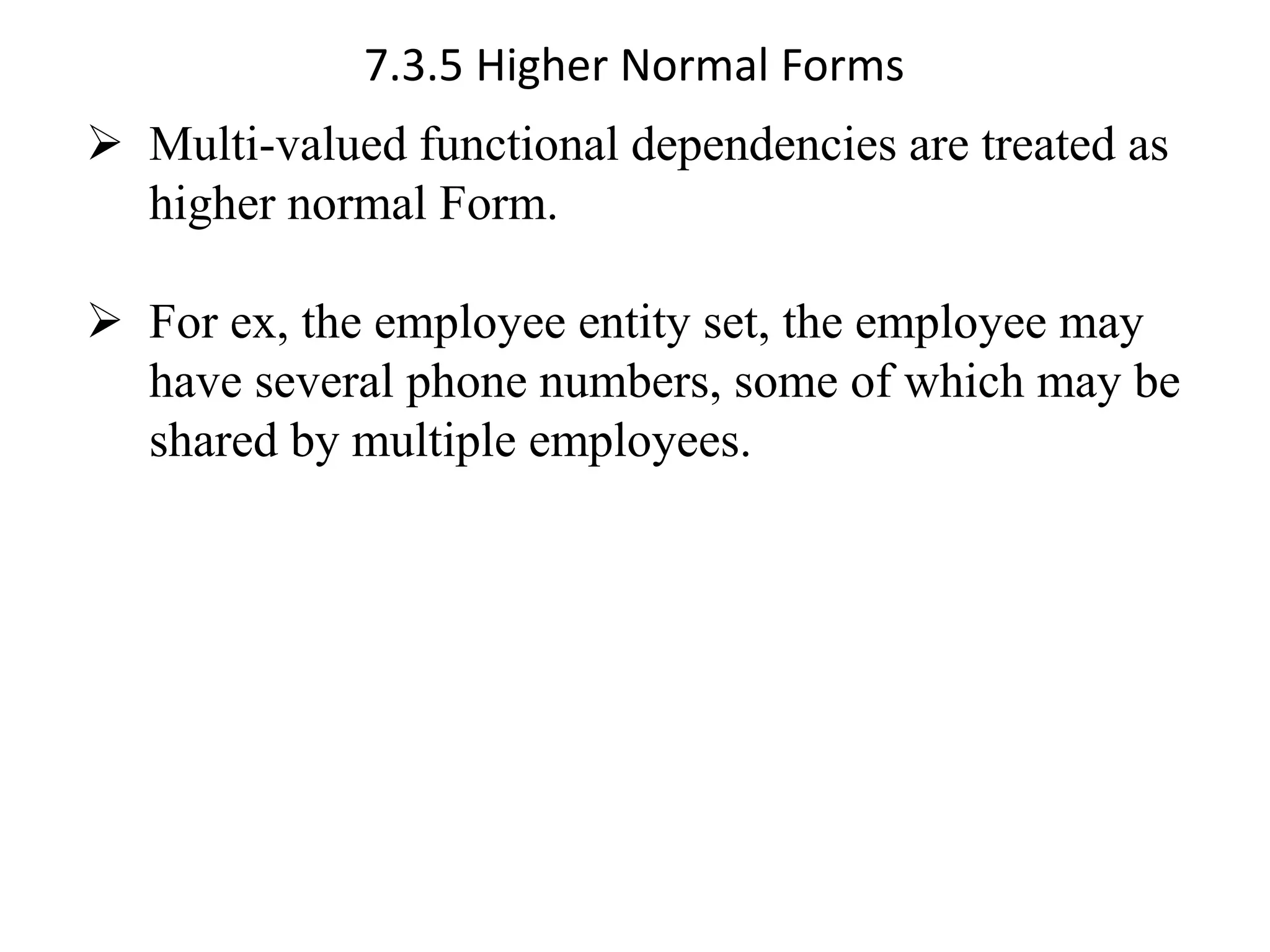

7.3.5 Higher Normal Forms ➢ Multi-valued functional dependencies are treated as higher normal Form. ➢ For ex, the employee entity set, the employee may have several phone numbers, some of which may be shared by multiple employees.

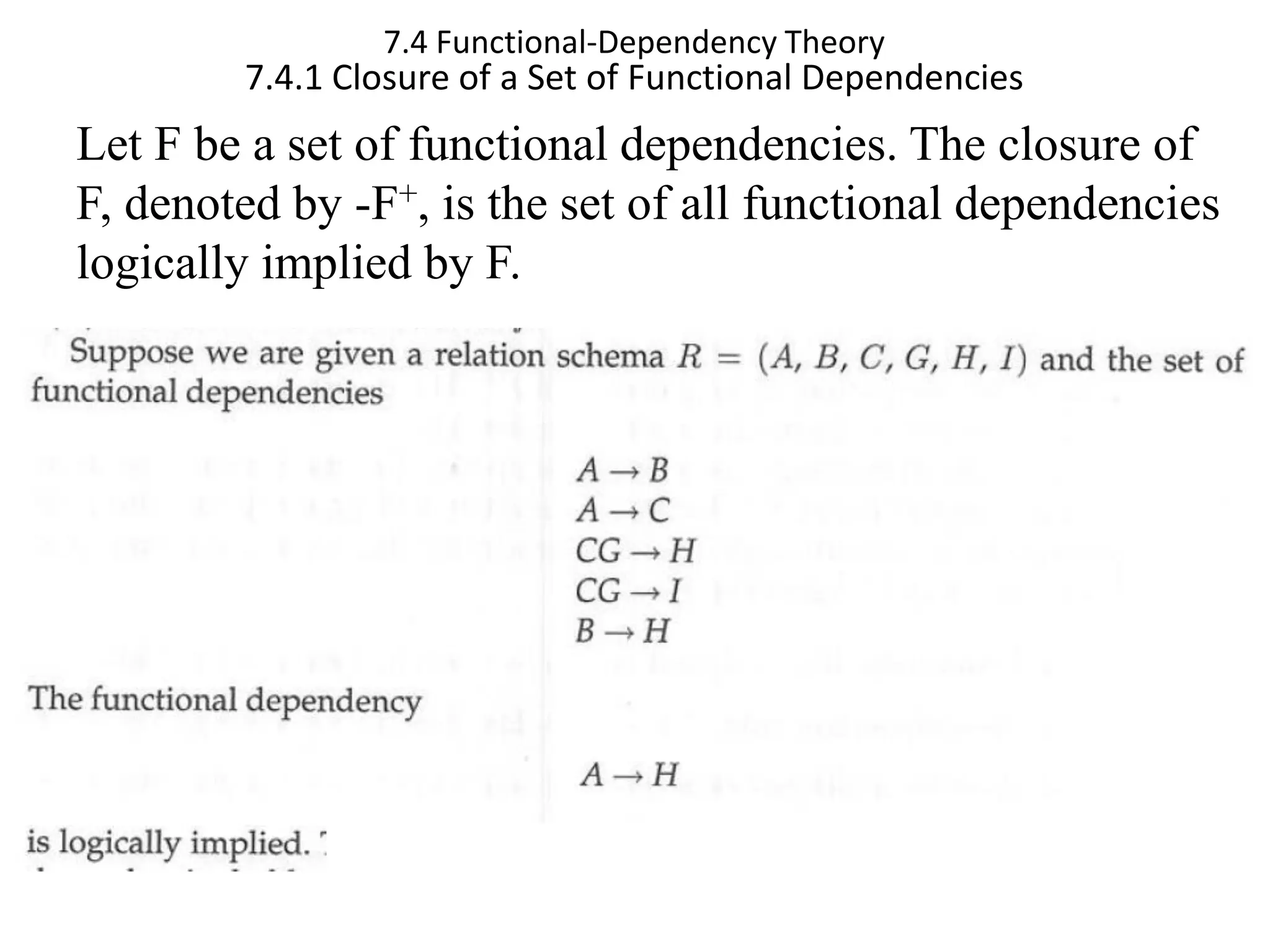

7.4 Functional-Dependency Theory 7.4.1 Closure of a Set of Functional Dependencies Let F be a set of functional dependencies. The closure of F, denoted by -F+, is the set of all functional dependencies logically implied by F.

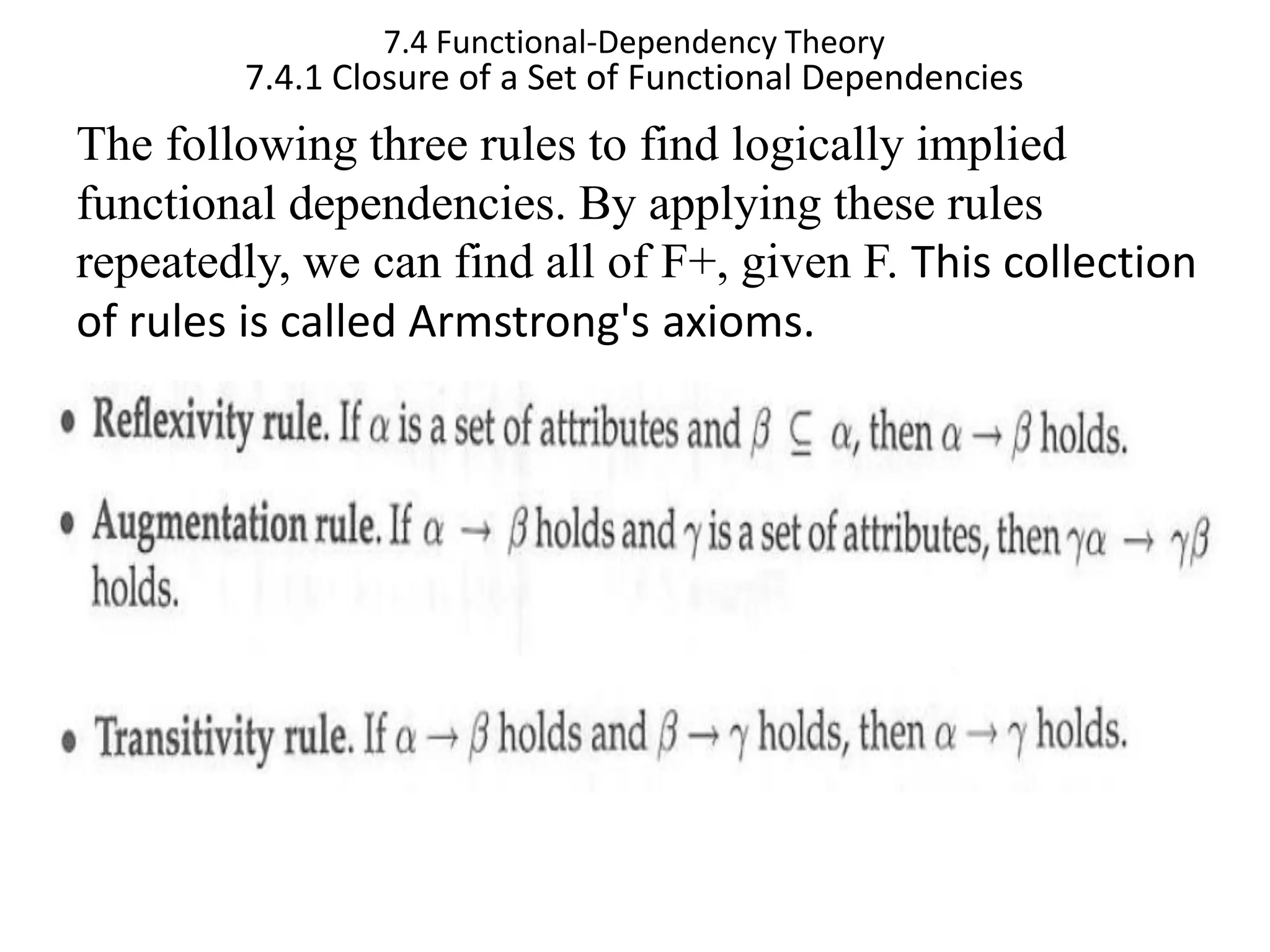

7.4 Functional-Dependency Theory 7.4.1 Closure of a Set of Functional Dependencies The following three rules to find logically implied functional dependencies. By applying these rules repeatedly, we can find all of F+, given F. This collection of rules is called Armstrong's axioms.

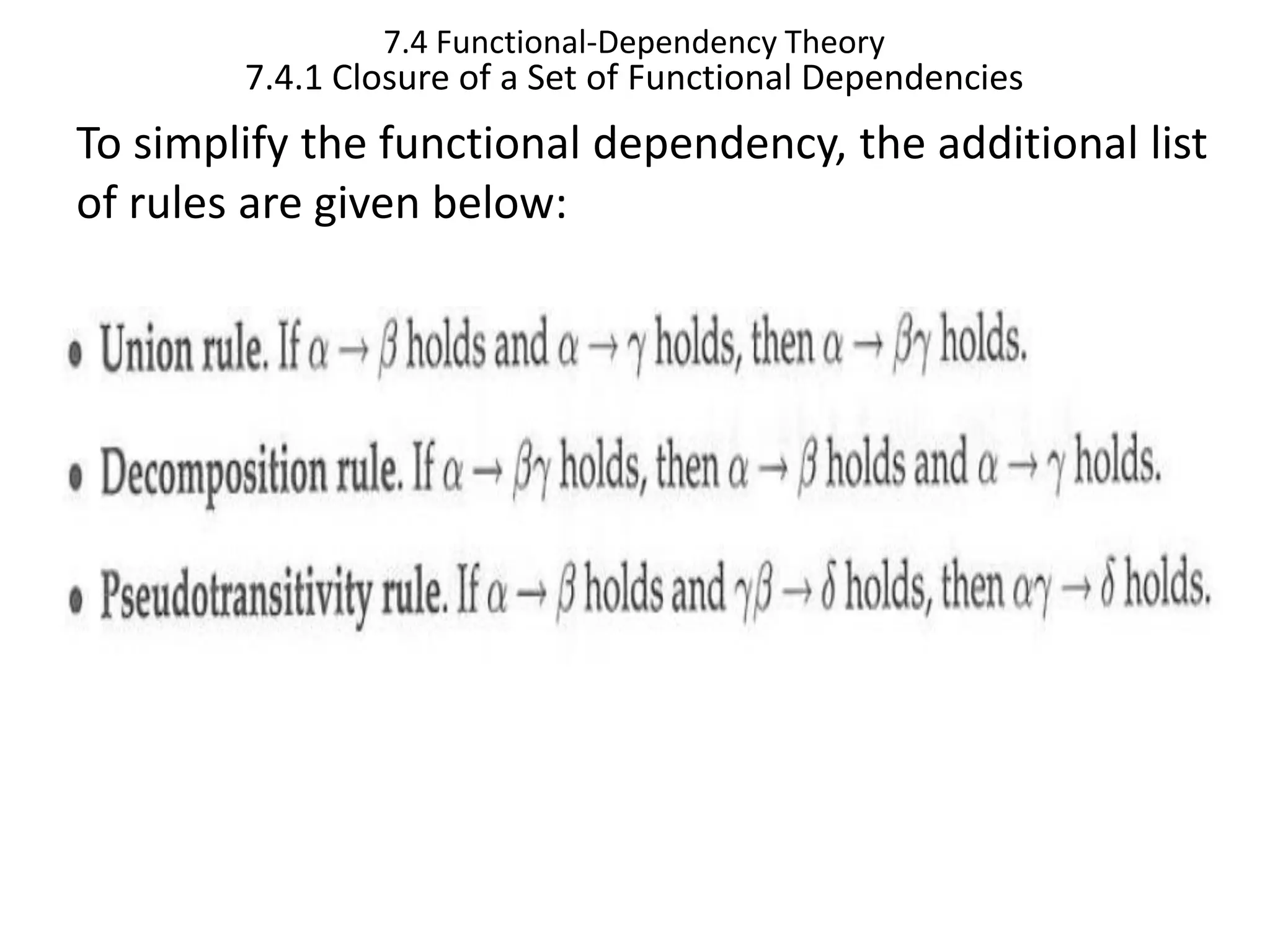

7.4 Functional-Dependency Theory 7.4.1 Closure of a Set of Functional Dependencies To simplify the functional dependency, the additional list of rules are given below:

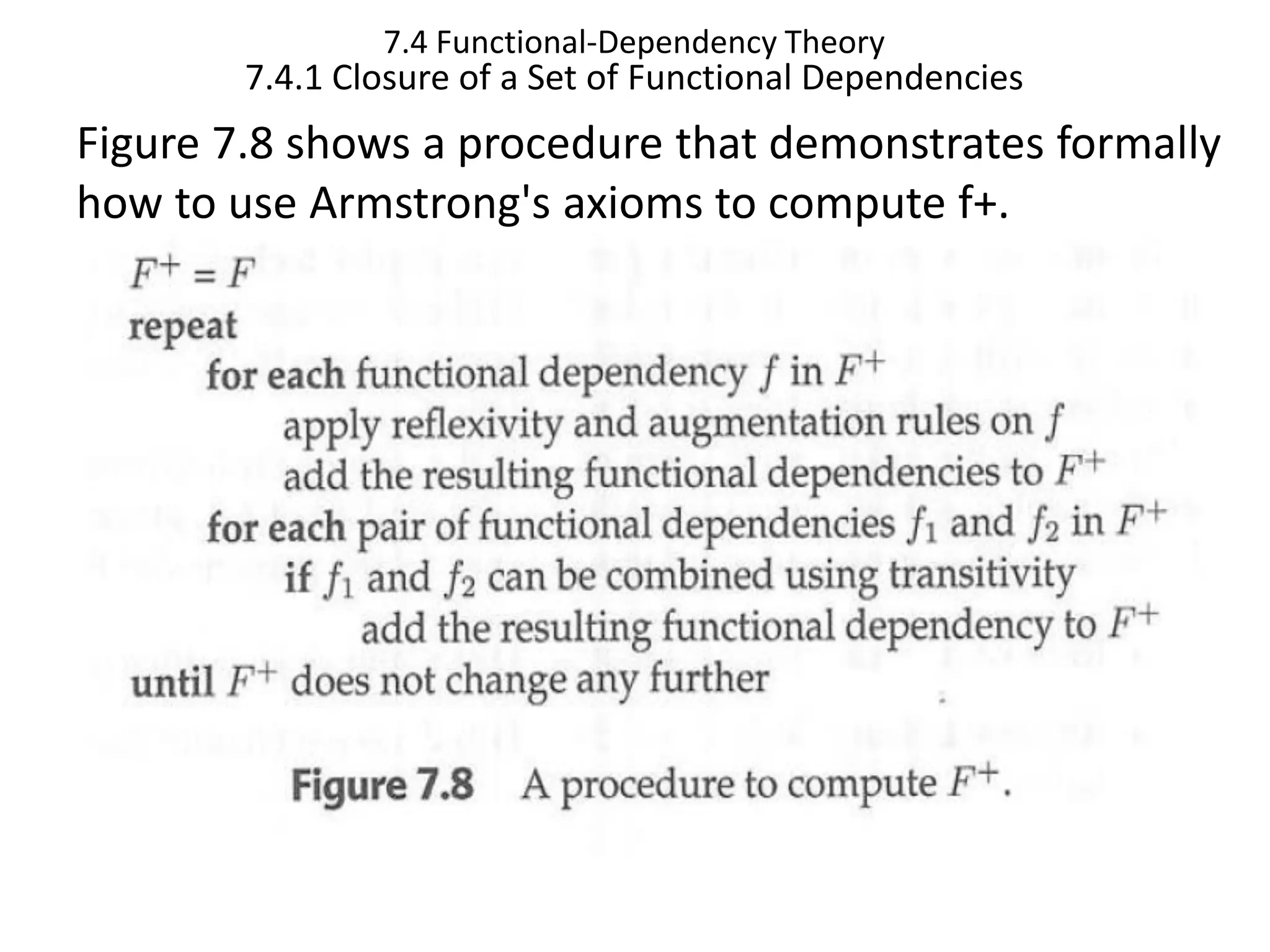

7.4 Functional-Dependency Theory 7.4.1 Closure of a Set of Functional Dependencies Figure 7.8 shows a procedure that demonstrates formally how to use Armstrong's axioms to compute f+.

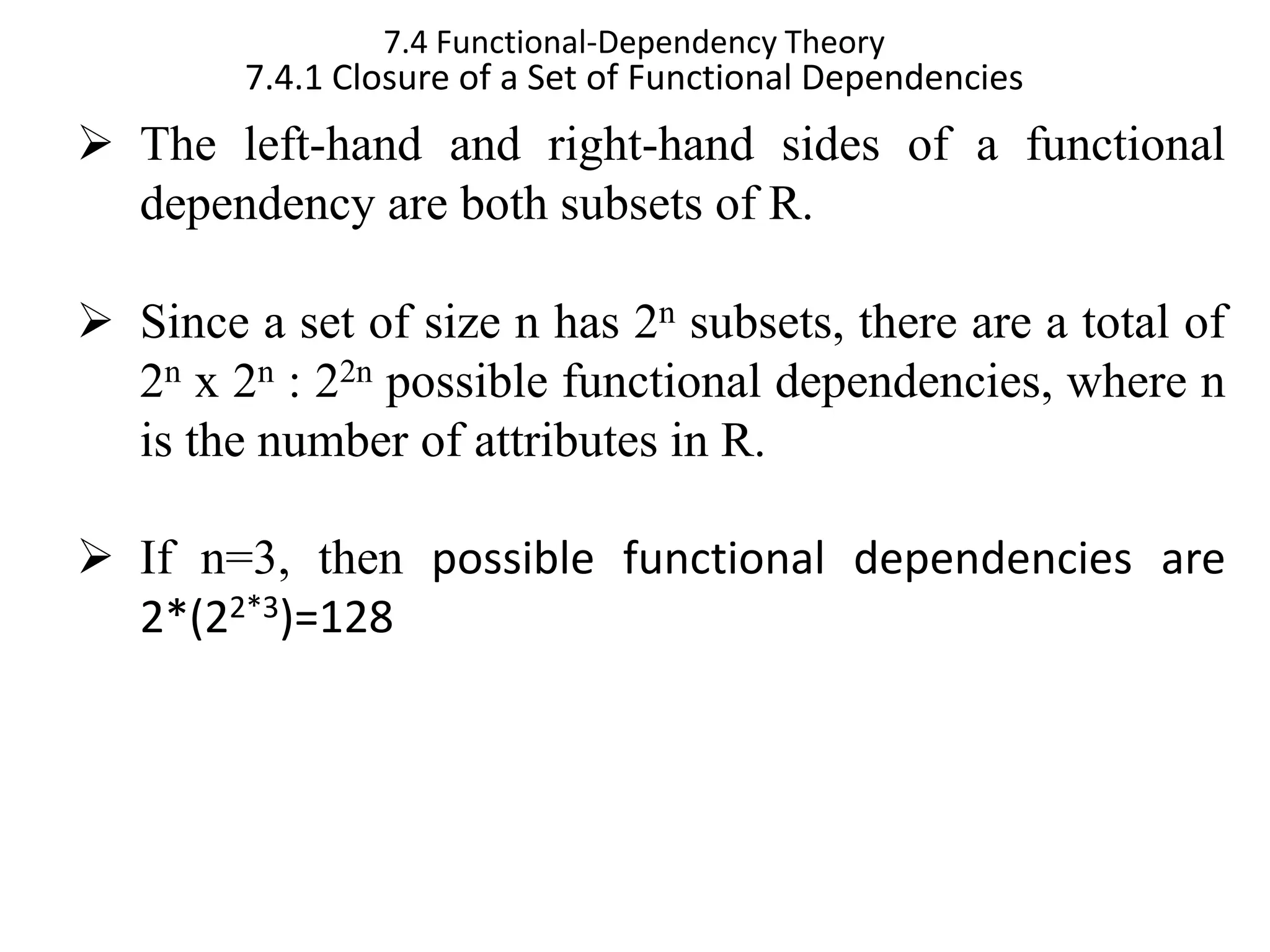

7.4 Functional-Dependency Theory 7.4.1 Closure of a Set of Functional Dependencies ➢ The left-hand and right-hand sides of a functional dependency are both subsets of R. ➢ Since a set of size n has 2n subsets, there are a total of 2n x 2n : 22n possible functional dependencies, where n is the number of attributes in R. ➢ If n=3, then possible functional dependencies are 2*(22*3)=128

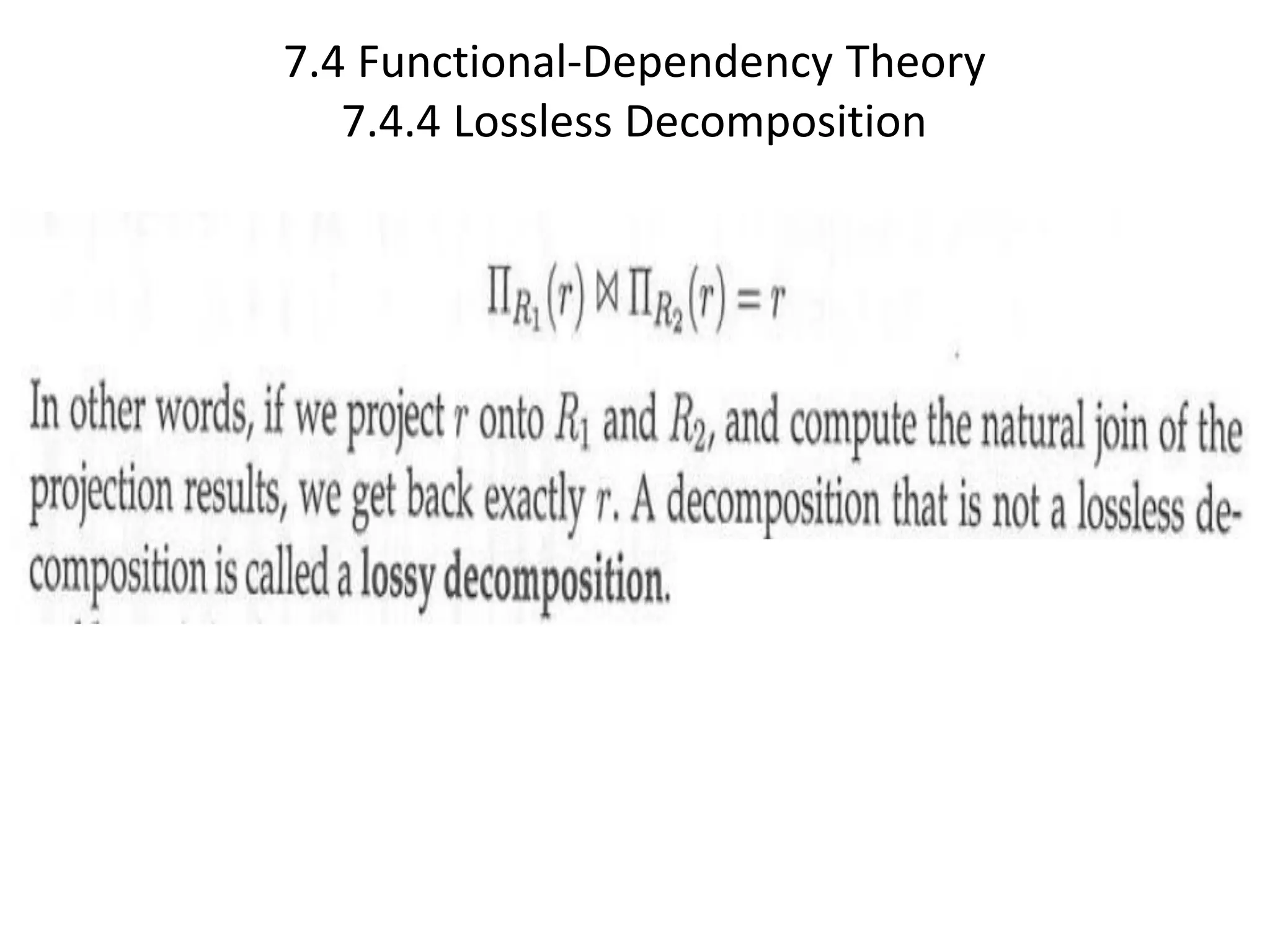

7.4 Functional-Dependency Theory 7.4.4 Lossless Decomposition

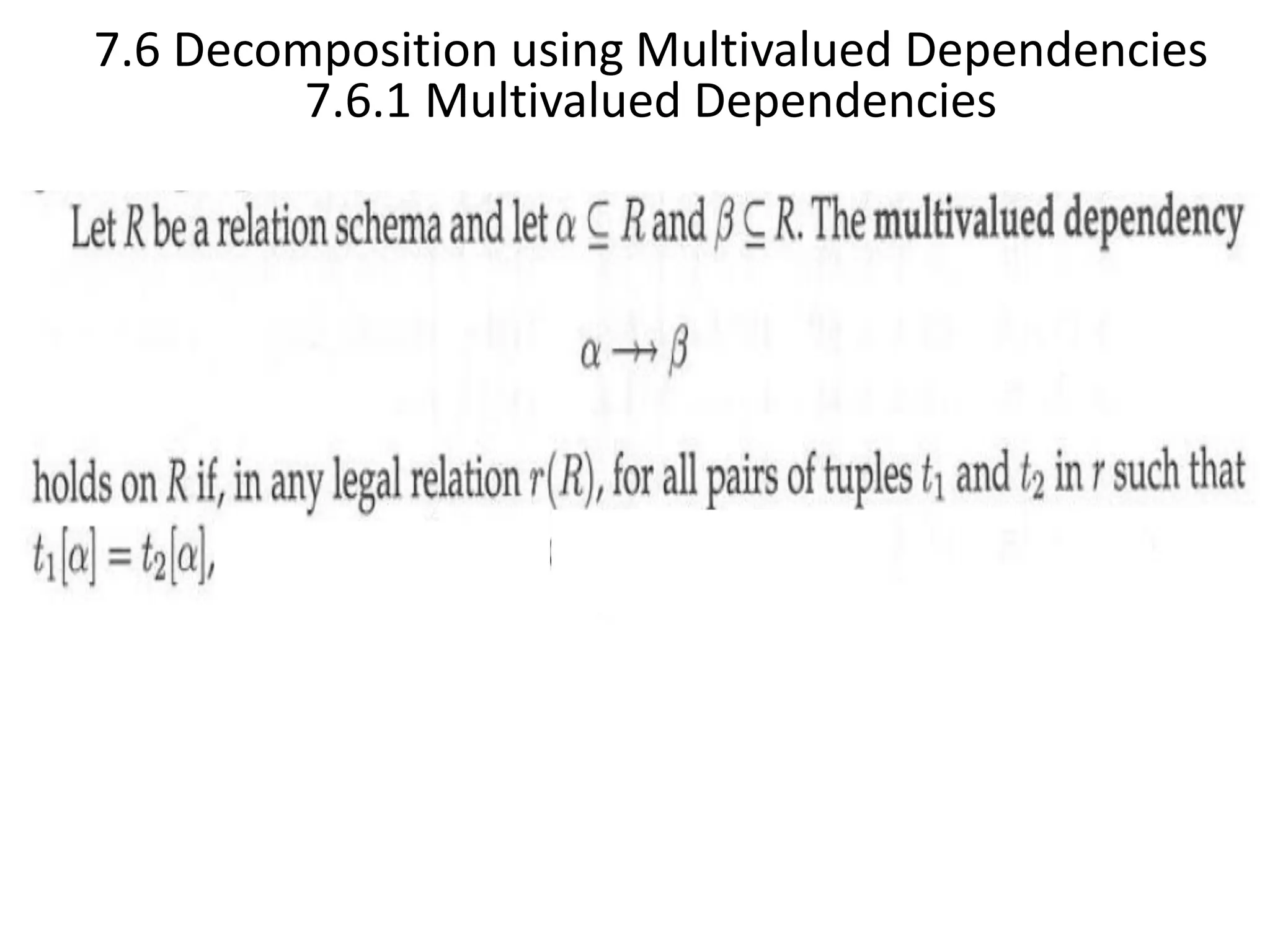

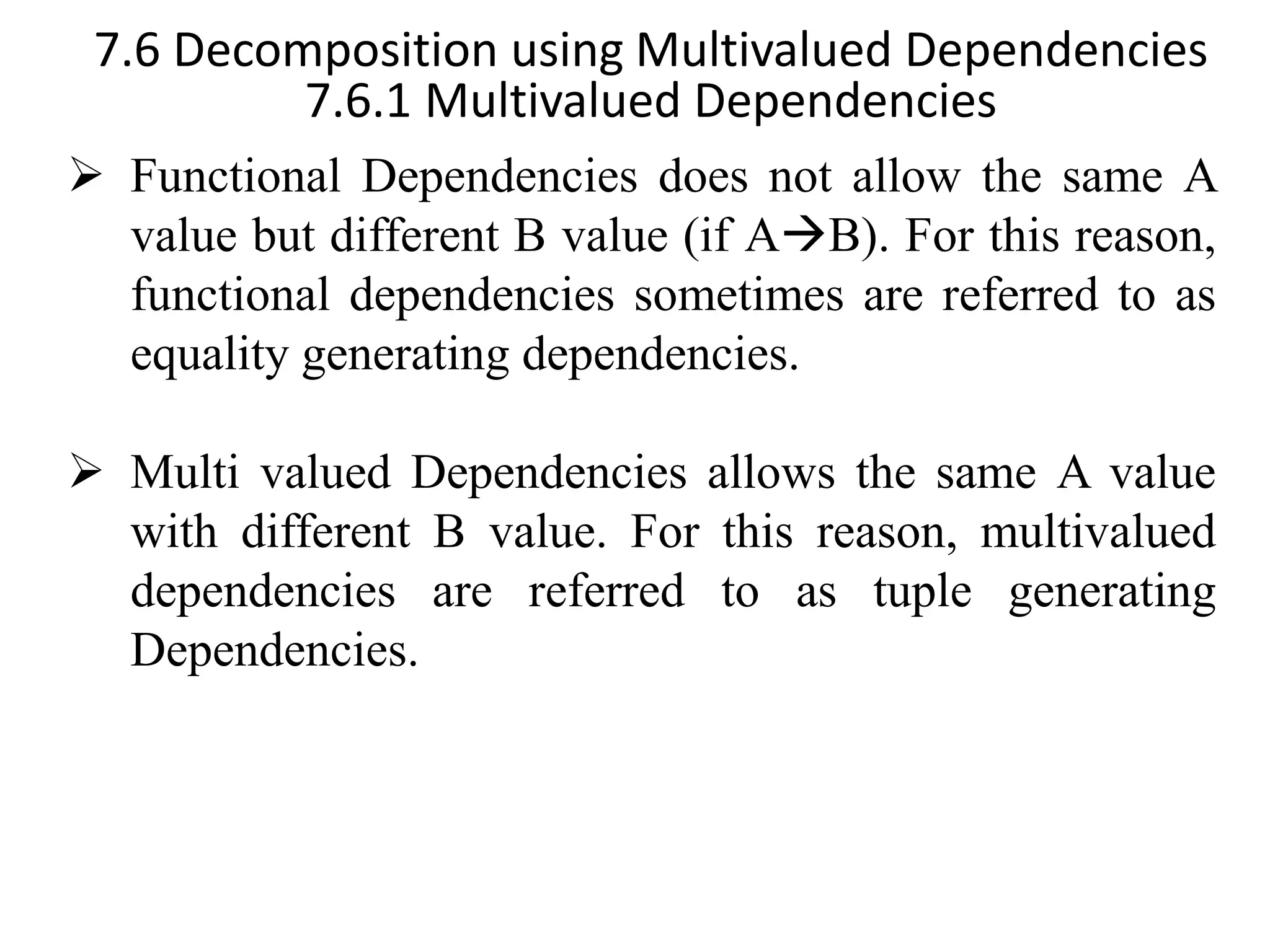

7.6 Decomposition using Multivalued Dependencies 7.6.1 Multivalued Dependencies ➢ Functional Dependencies does not allow the same A value but different B value (if A→B). For this reason, functional dependencies sometimes are referred to as equality generating dependencies. ➢ Multi valued Dependencies allows the same A value with different B value. For this reason, multivalued dependencies are referred to as tuple generating Dependencies.

7.6 Decomposition using Multivalued Dependencies 7.6.1 Multivalued Dependencies

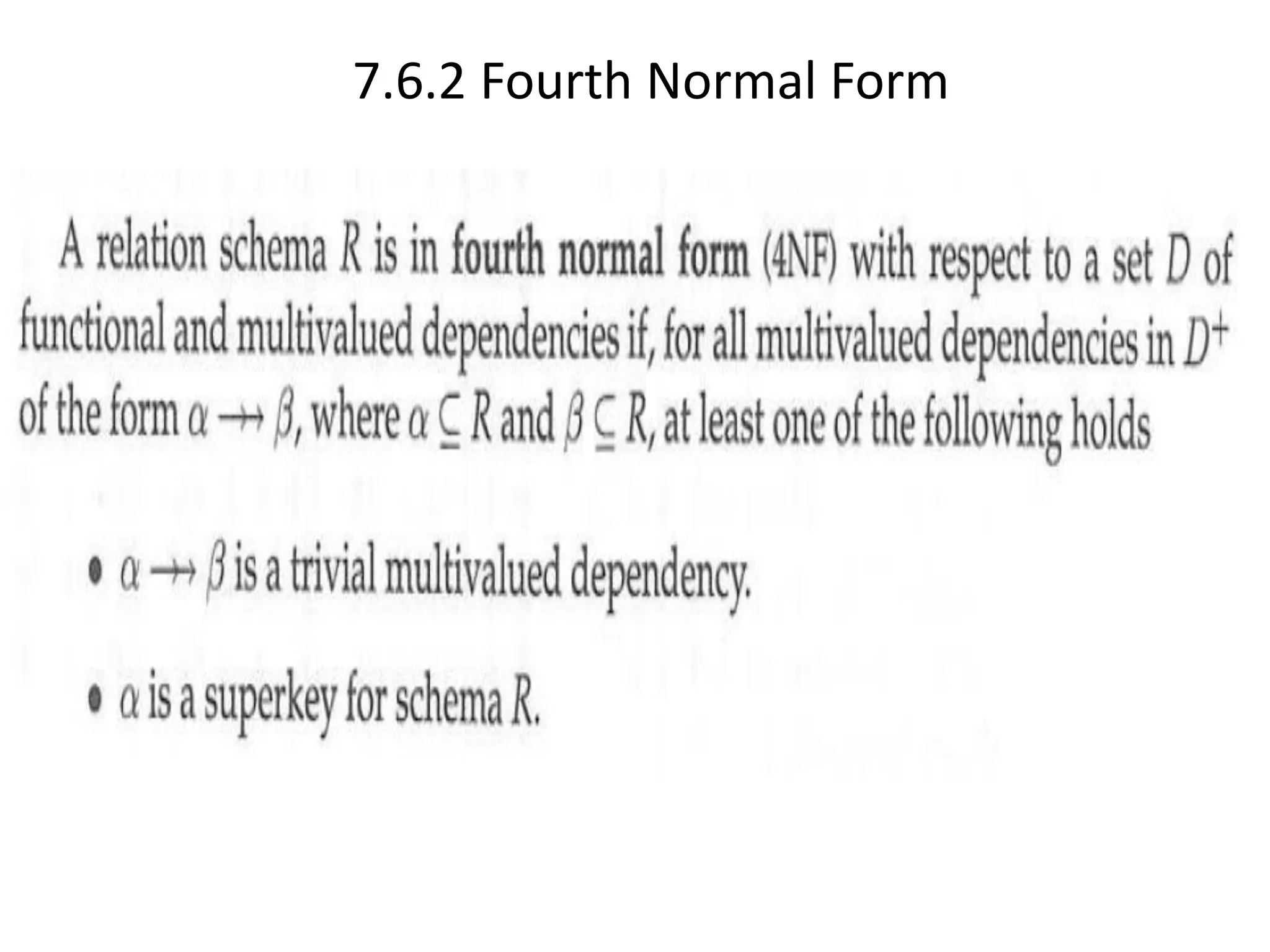

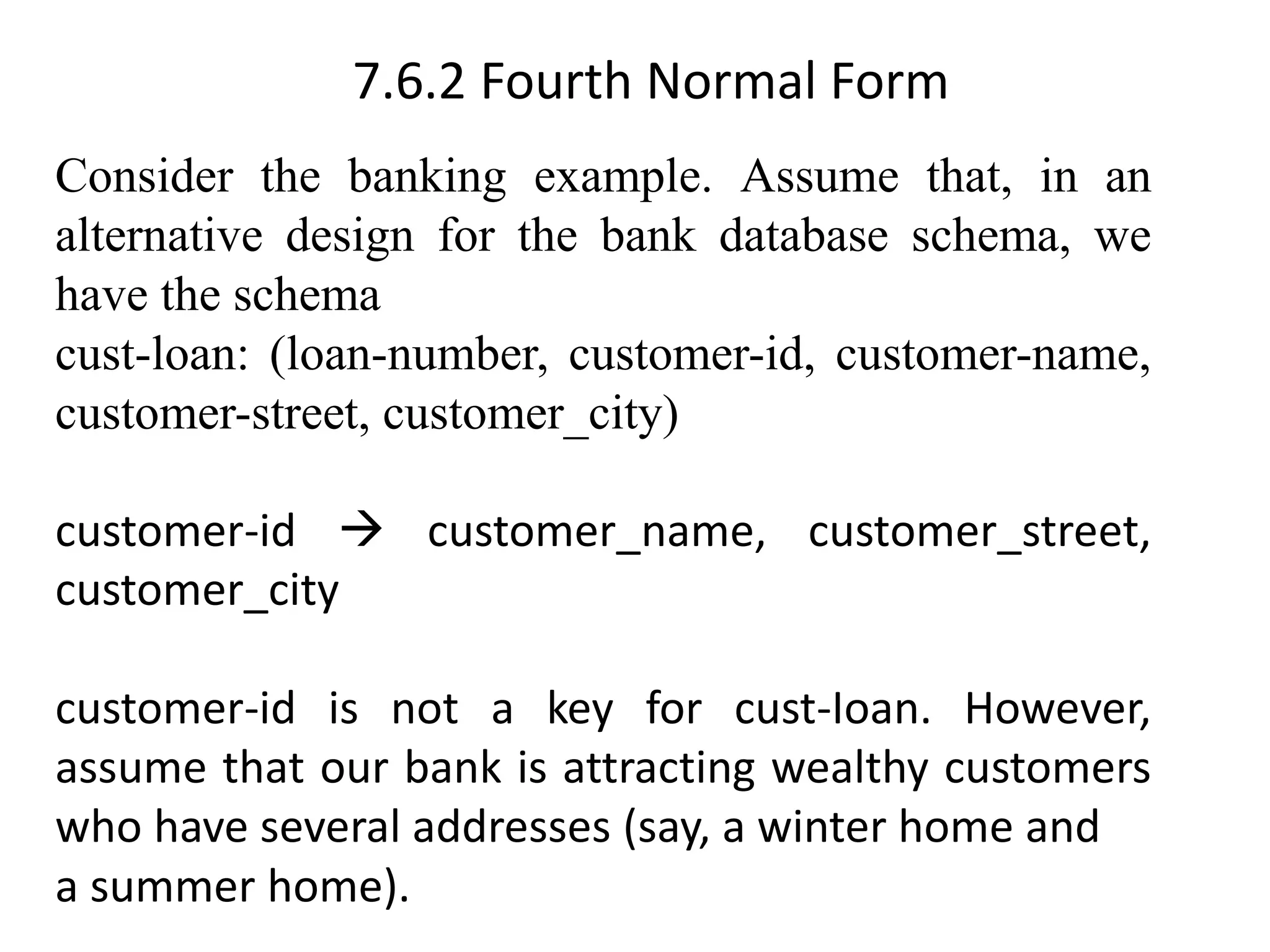

7.6.2 Fourth Normal Form Consider the banking example. Assume that, in an alternative design for the bank database schema, we have the schema cust-loan: (loan-number, customer-id, customer-name, customer-street, customer_city) customer-id → customer_name, customer_street, customer_city customer-id is not a key for cust-Ioan. However, assume that our bank is attracting wealthy customers who have several addresses (say, a winter home and a summer home).

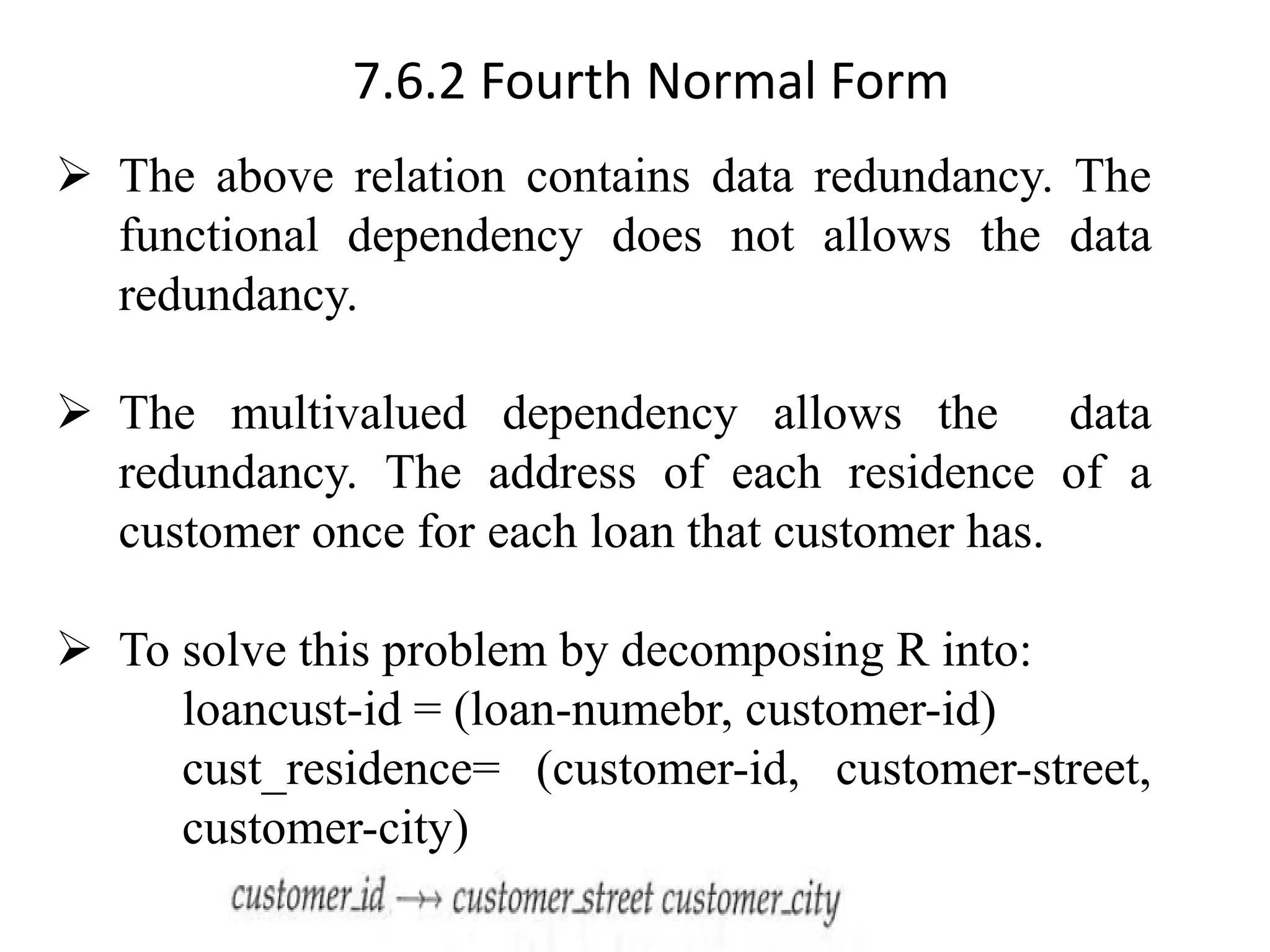

7.6.2 Fourth Normal Form ➢ The above relation contains data redundancy. The functional dependency does not allows the data redundancy. ➢ The multivalued dependency allows the data redundancy. The address of each residence of a customer once for each loan that customer has. ➢ To solve this problem by decomposing R into: loancust-id = (loan-numebr, customer-id) cust_residence= (customer-id, customer-street, customer-city)

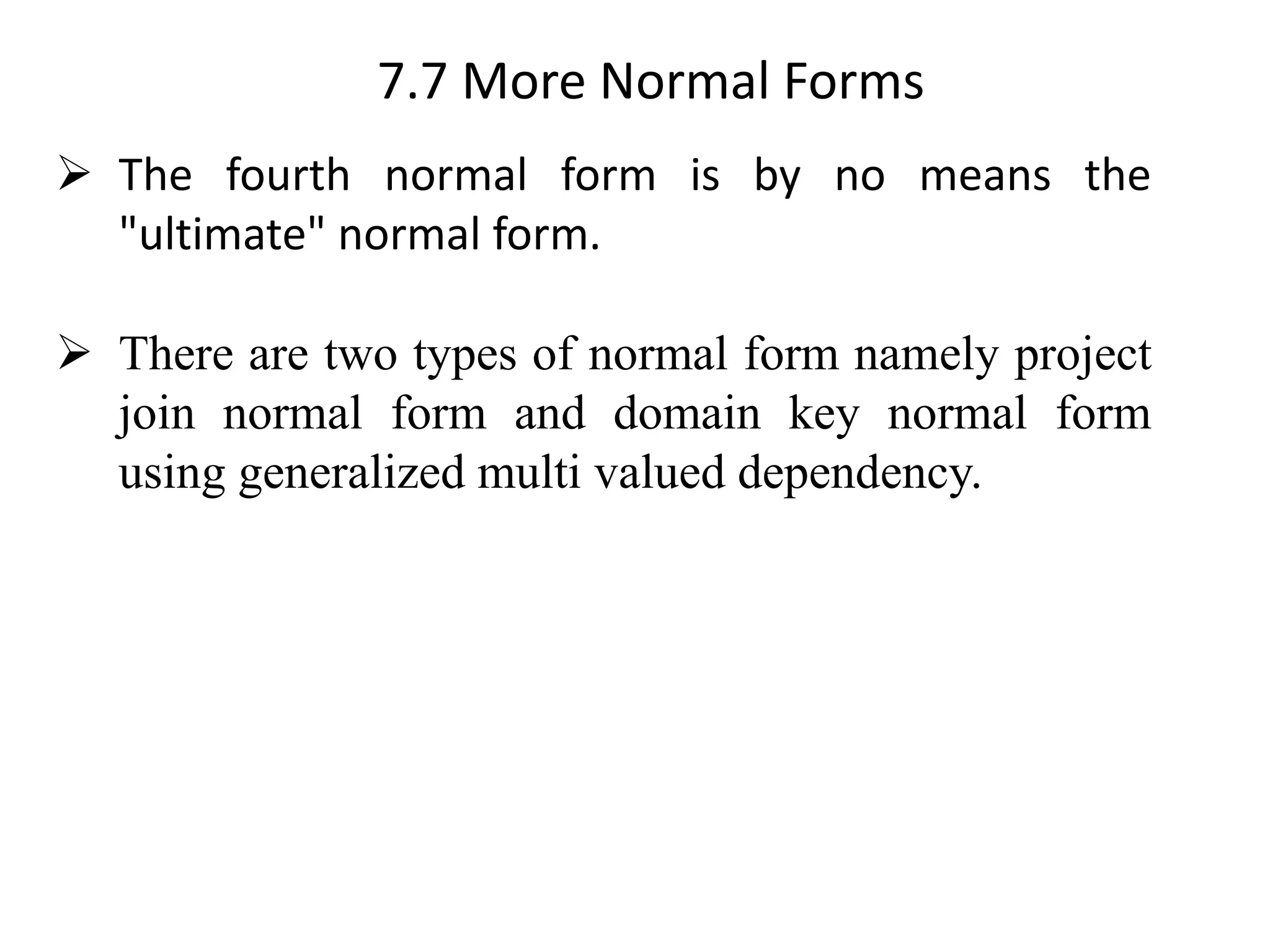

7.7 More Normal Forms ➢ The fourth normal form is by no means the "ultimate" normal form. ➢ There are two types of normal form namely project join normal form and domain key normal form using generalized multi valued dependency.

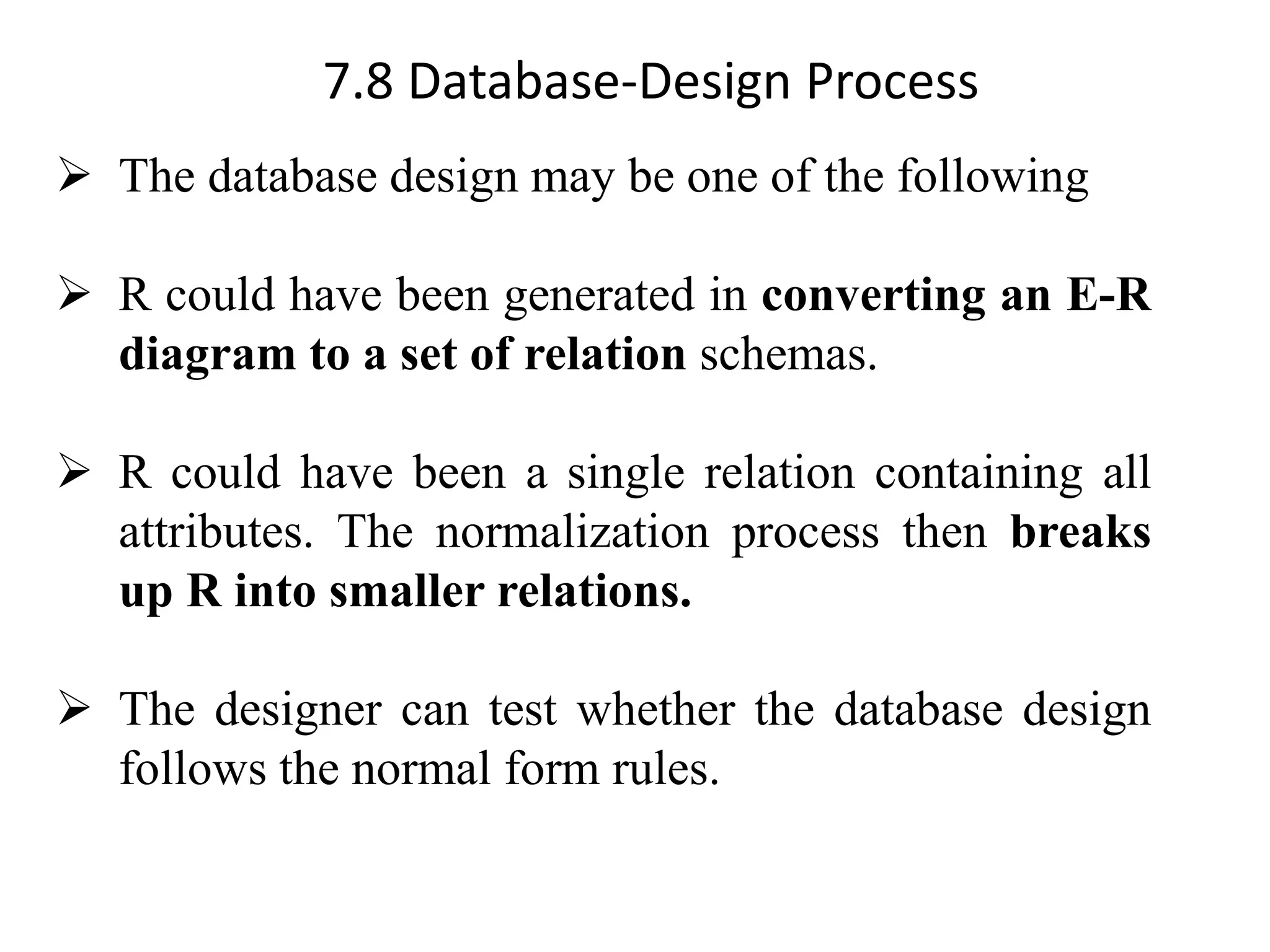

7.8 Database-Design Process ➢ The database design may be one of the following ➢ R could have been generated in converting an E-R diagram to a set of relation schemas. ➢ R could have been a single relation containing all attributes. The normalization process then breaks up R into smaller relations. ➢ The designer can test whether the database design follows the normal form rules.

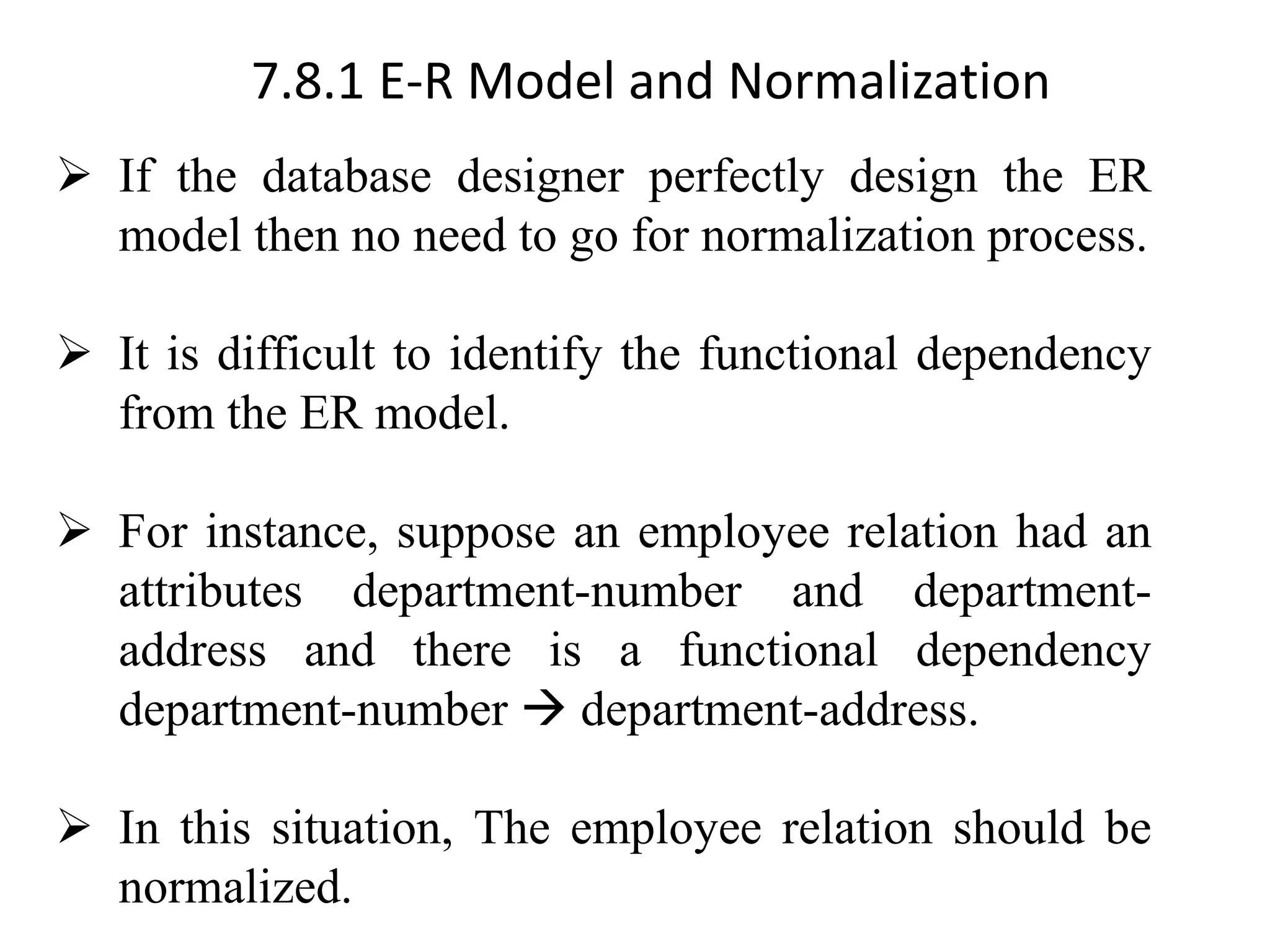

7.8.1 E-R Model and Normalization ➢ If the database designer perfectly design the ER model then no need to go for normalization process. ➢ It is difficult to identify the functional dependency from the ER model. ➢ For instance, suppose an employee relation had an attributes department-number and department- address and there is a functional dependency department-number → department-address. ➢ In this situation, The employee relation should be normalized.

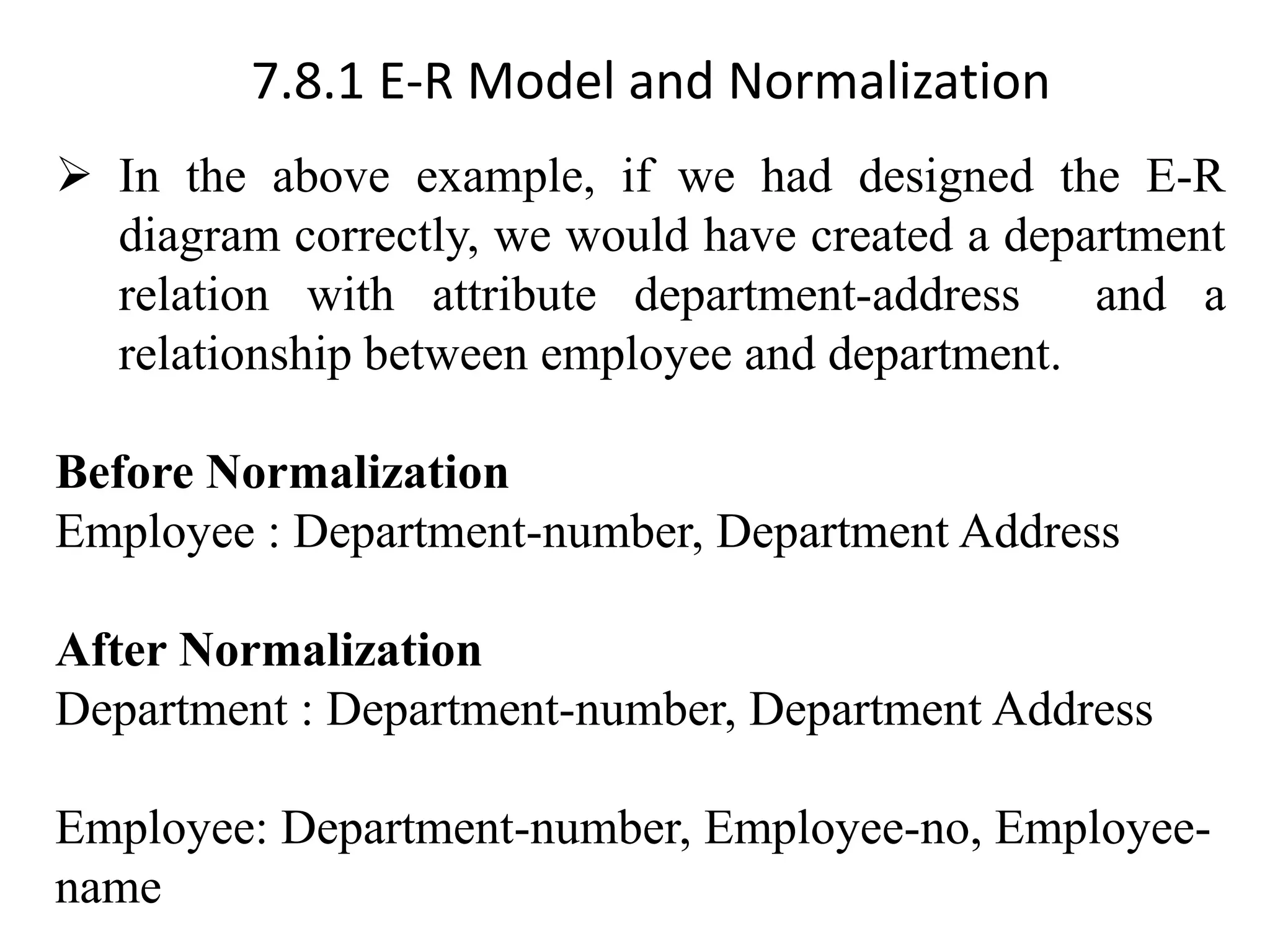

7.8.1 E-R Model and Normalization ➢ In the above example, if we had designed the E-R diagram correctly, we would have created a department relation with attribute department-address and a relationship between employee and department. Before Normalization Employee : Department-number, Department Address After Normalization Department : Department-number, Department Address Employee: Department-number, Employee-no, Employee- name

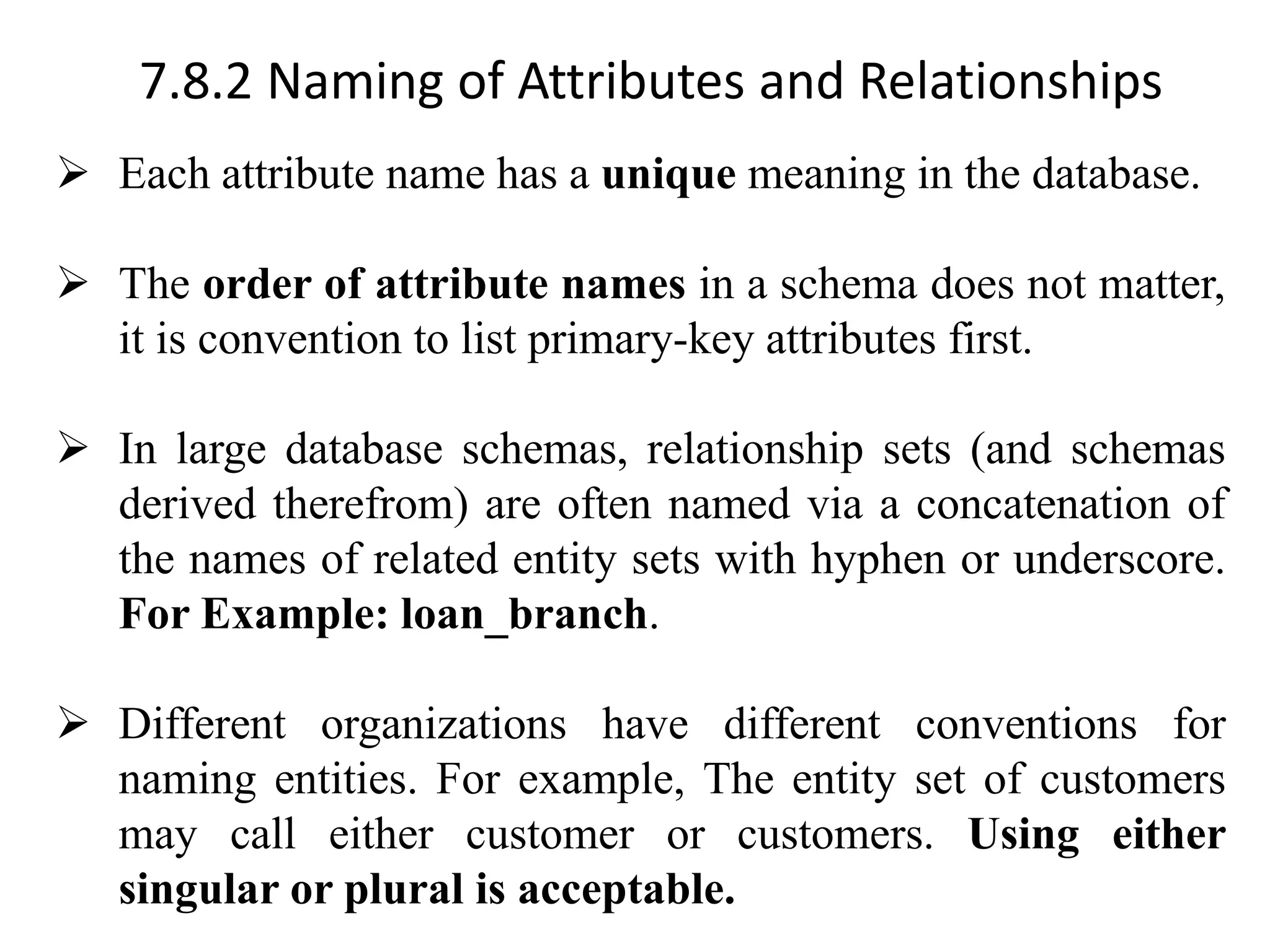

7.8.2 Naming of Attributes and Relationships ➢ Each attribute name has a unique meaning in the database. ➢ The order of attribute names in a schema does not matter, it is convention to list primary-key attributes first. ➢ In large database schemas, relationship sets (and schemas derived therefrom) are often named via a concatenation of the names of related entity sets with hyphen or underscore. For Example: loan_branch. ➢ Different organizations have different conventions for naming entities. For example, The entity set of customers may call either customer or customers. Using either singular or plural is acceptable.

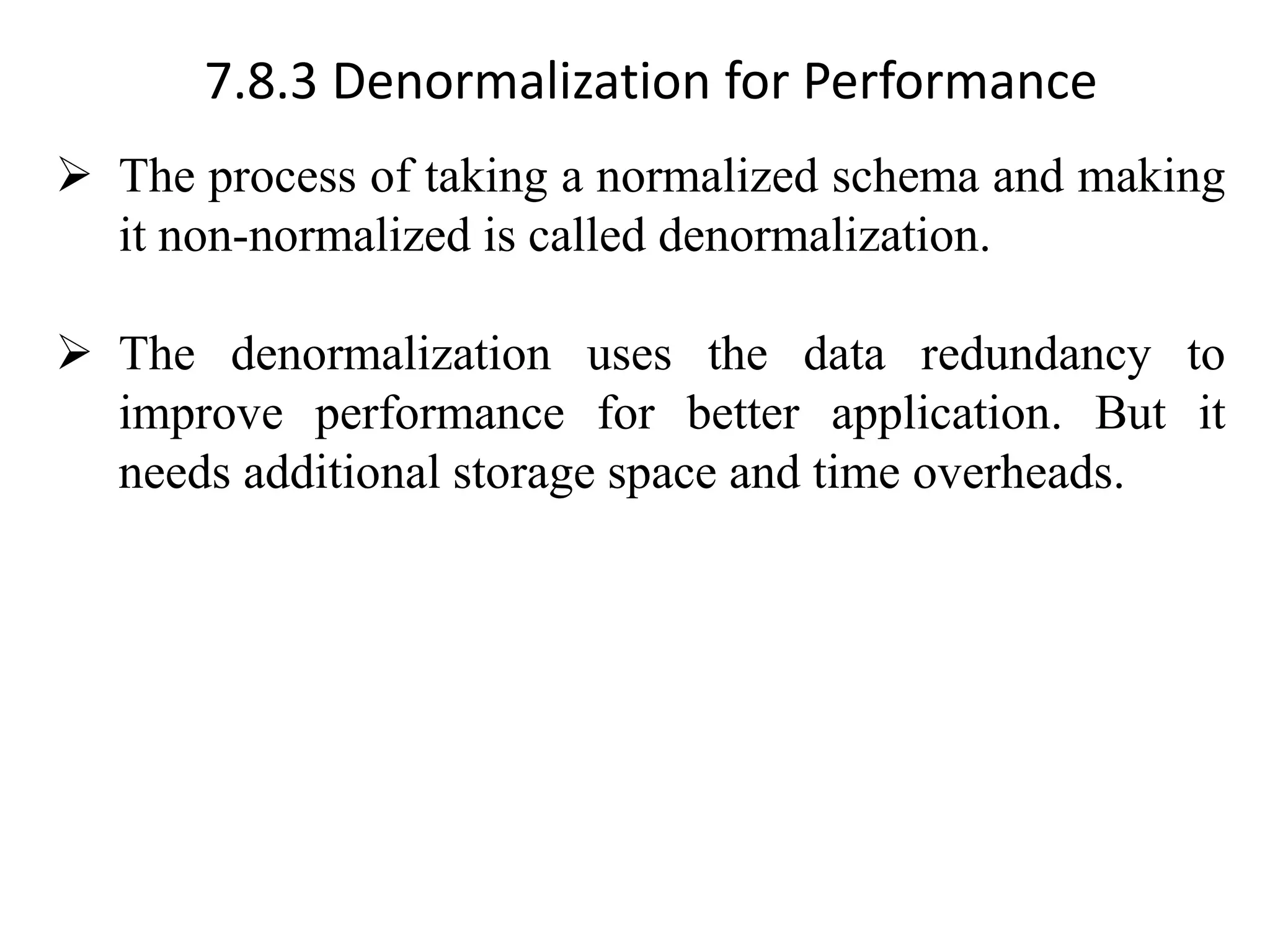

7.8.3 Denormalization for Performance ➢ The process of taking a normalized schema and making it non-normalized is called denormalization. ➢ The denormalization uses the data redundancy to improve performance for better application. But it needs additional storage space and time overheads.

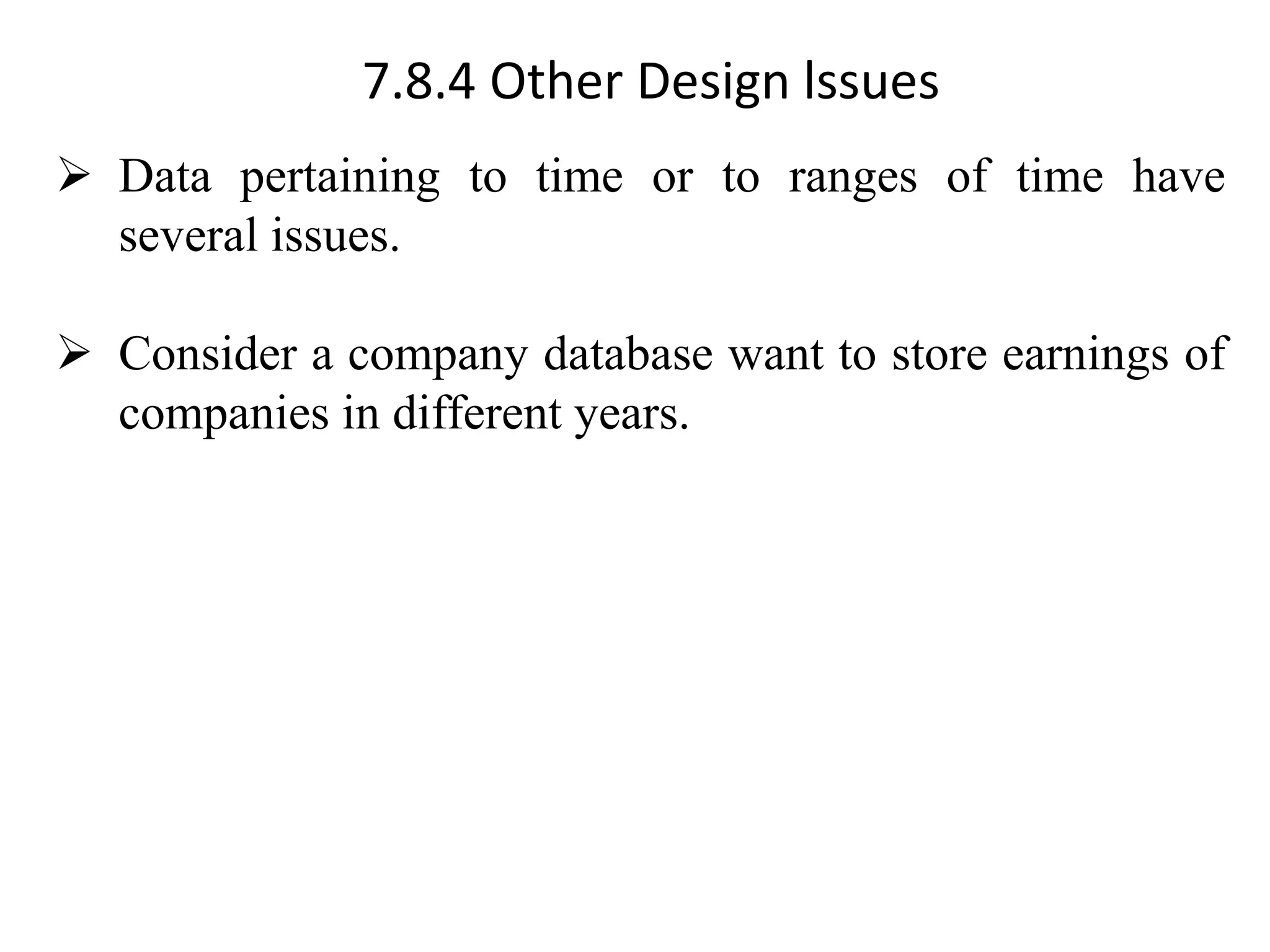

7.8.4 Other Design lssues ➢ Data pertaining to time or to ranges of time have several issues. ➢ Consider a company database want to store earnings of companies in different years.

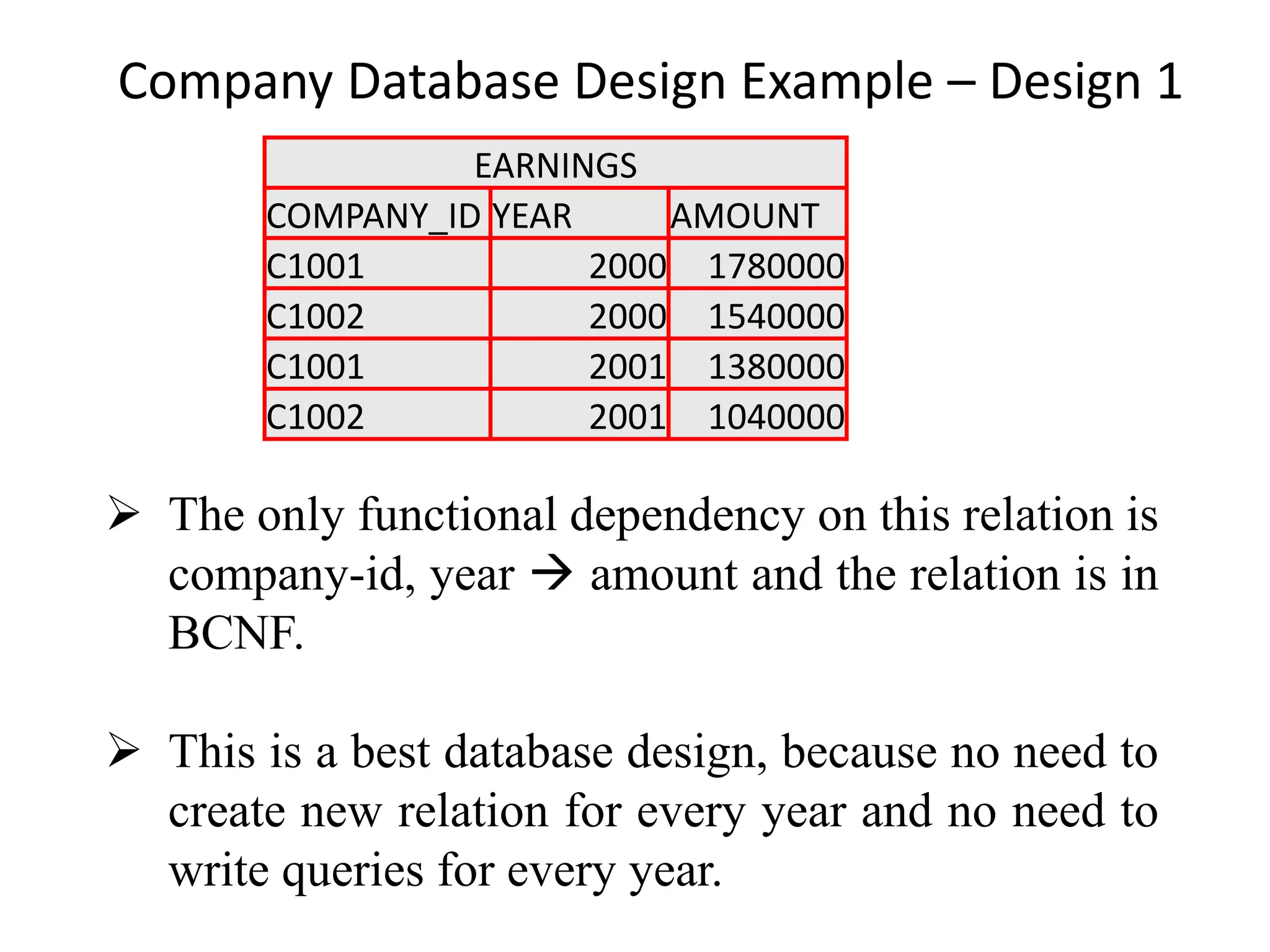

Company Database Design Example – Design 1 EARNINGS COMPANY_ID YEAR AMOUNT C1001 2000 1780000 C1002 2000 1540000 C1001 2001 1380000 C1002 2001 1040000 ➢ The only functional dependency on this relation is company-id, year → amount and the relation is in BCNF. ➢ This is a best database design, because no need to create new relation for every year and no need to write queries for every year.

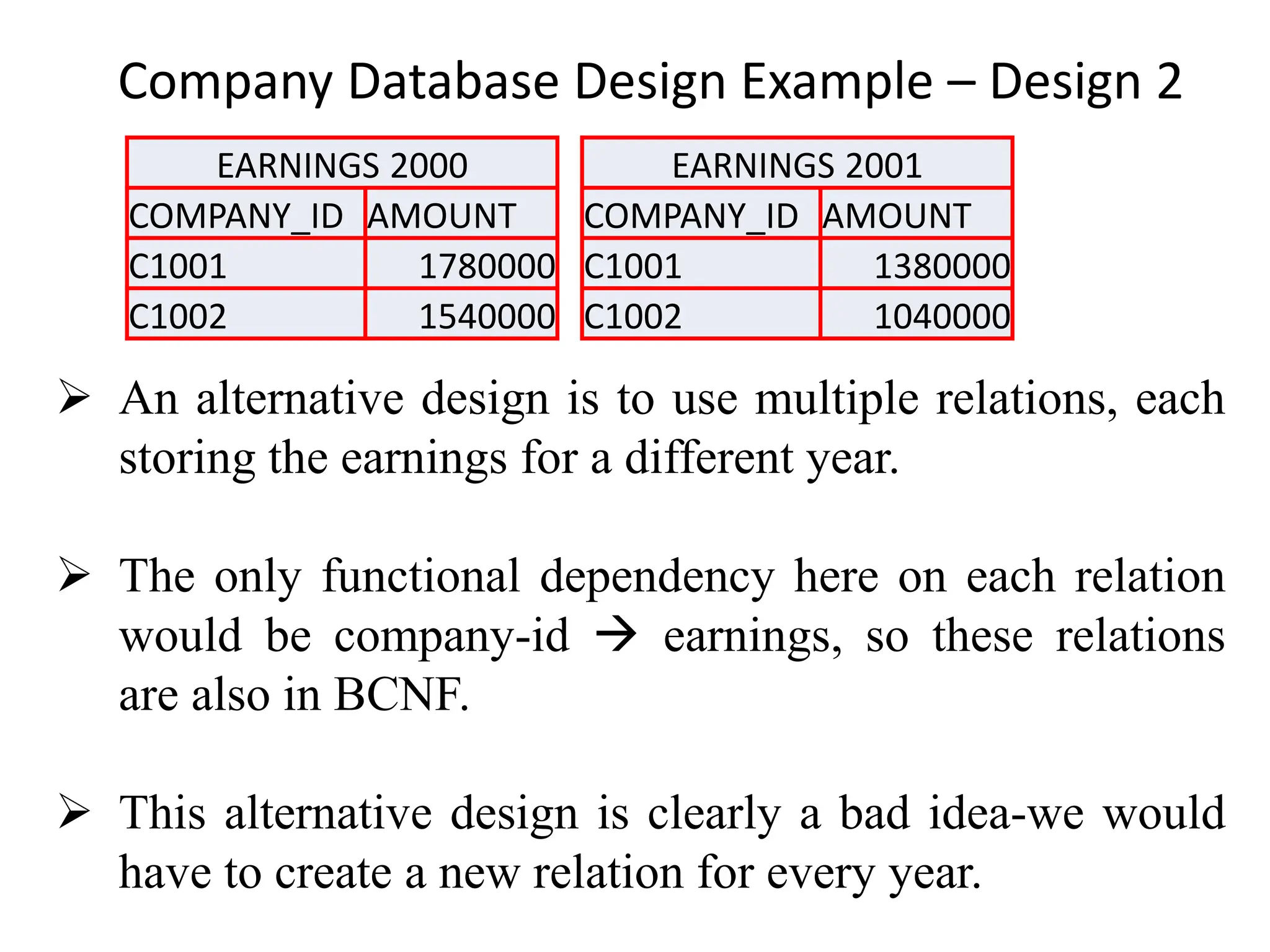

Company Database Design Example – Design 2 EARNINGS 2000 COMPANY_ID AMOUNT C1001 1780000 C1002 1540000 EARNINGS 2001 COMPANY_ID AMOUNT C1001 1380000 C1002 1040000 ➢ An alternative design is to use multiple relations, each storing the earnings for a different year. ➢ The only functional dependency here on each relation would be company-id → earnings, so these relations are also in BCNF. ➢ This alternative design is clearly a bad idea-we would have to create a new relation for every year.

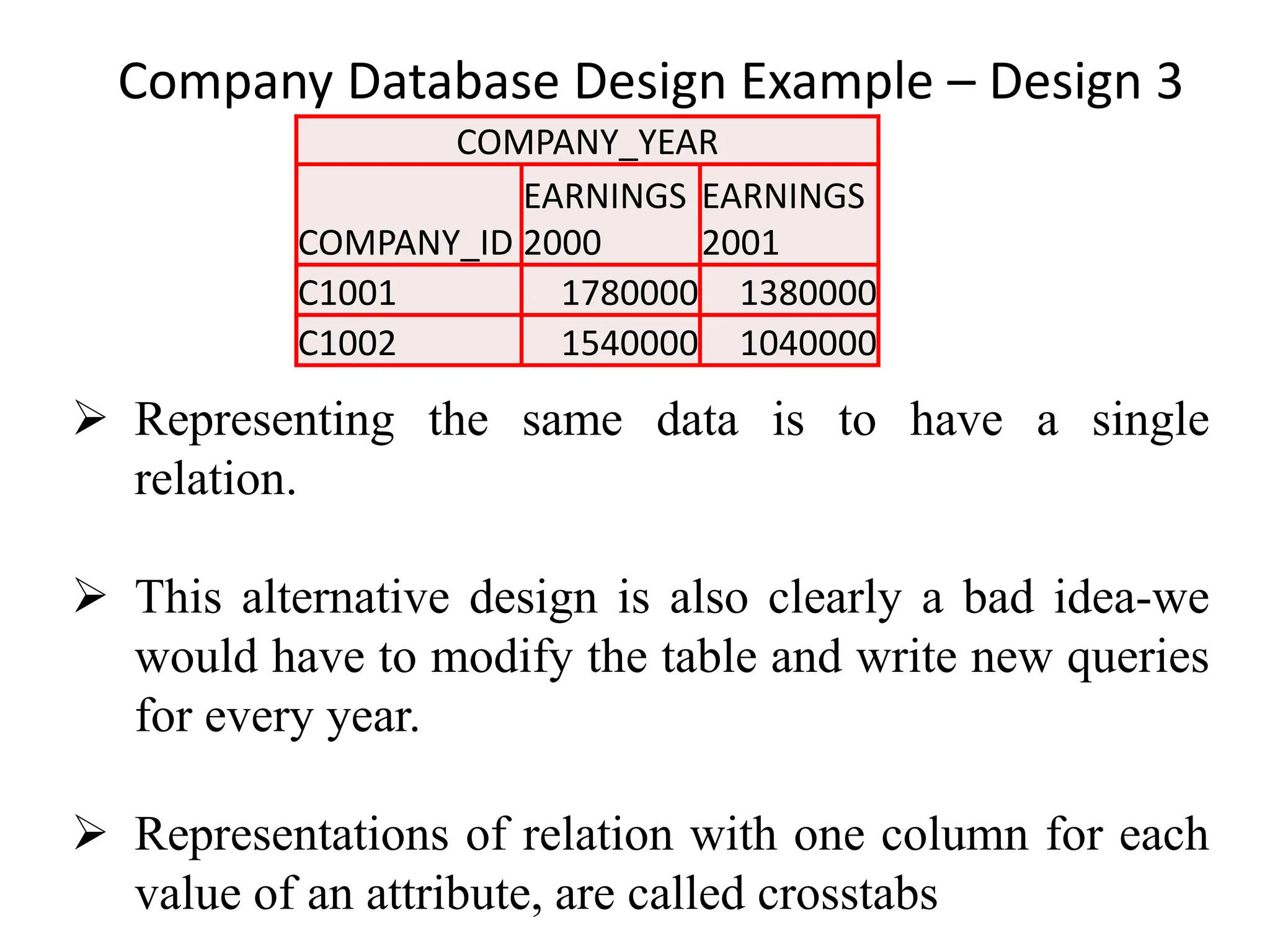

Company Database Design Example – Design 3 COMPANY_YEAR COMPANY_ID EARNINGS 2000 EARNINGS 2001 C1001 1780000 1380000 C1002 1540000 1040000 ➢ Representing the same data is to have a single relation. ➢ This alternative design is also clearly a bad idea-we would have to modify the table and write new queries for every year. ➢ Representations of relation with one column for each value of an attribute, are called crosstabs

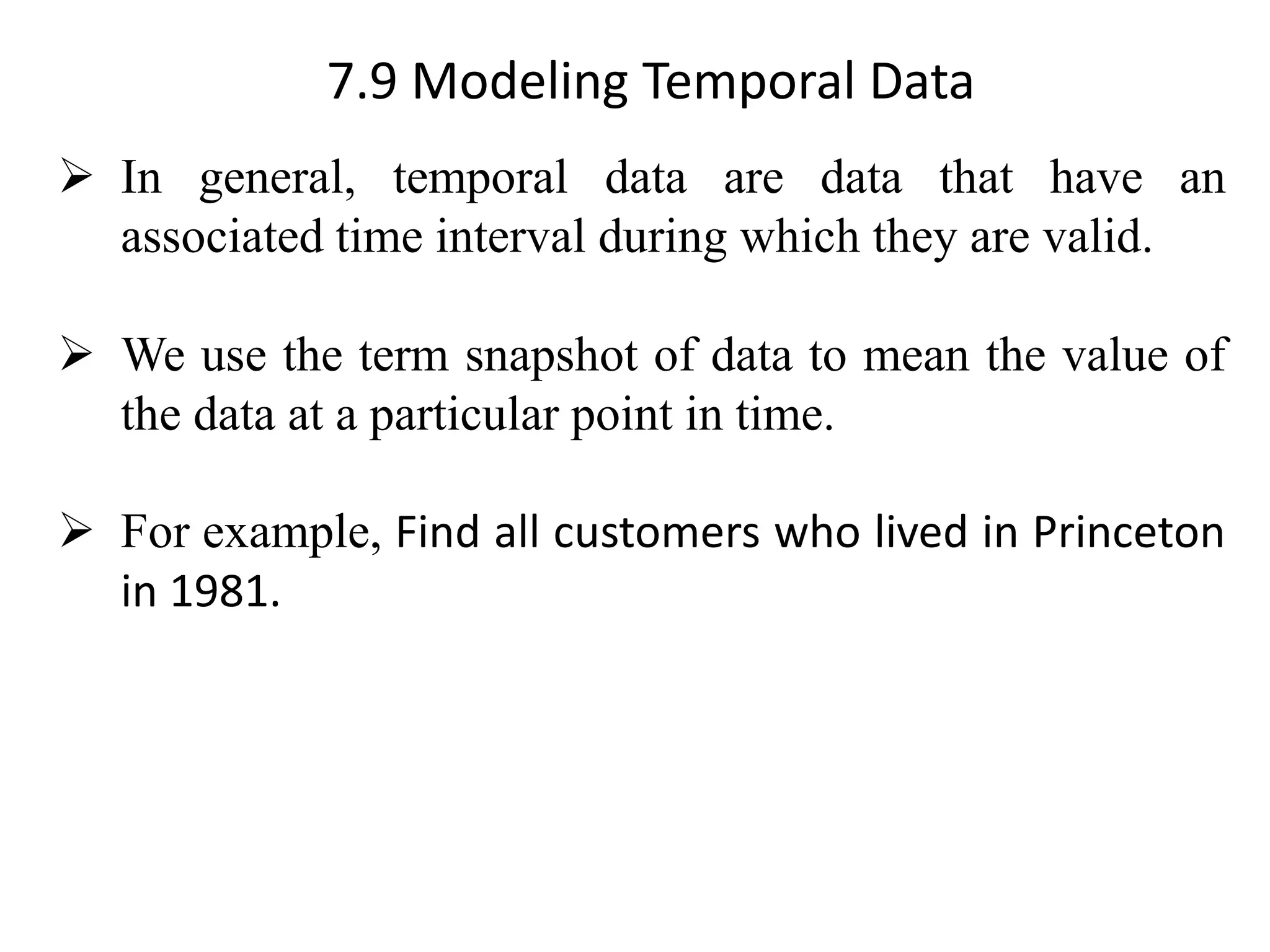

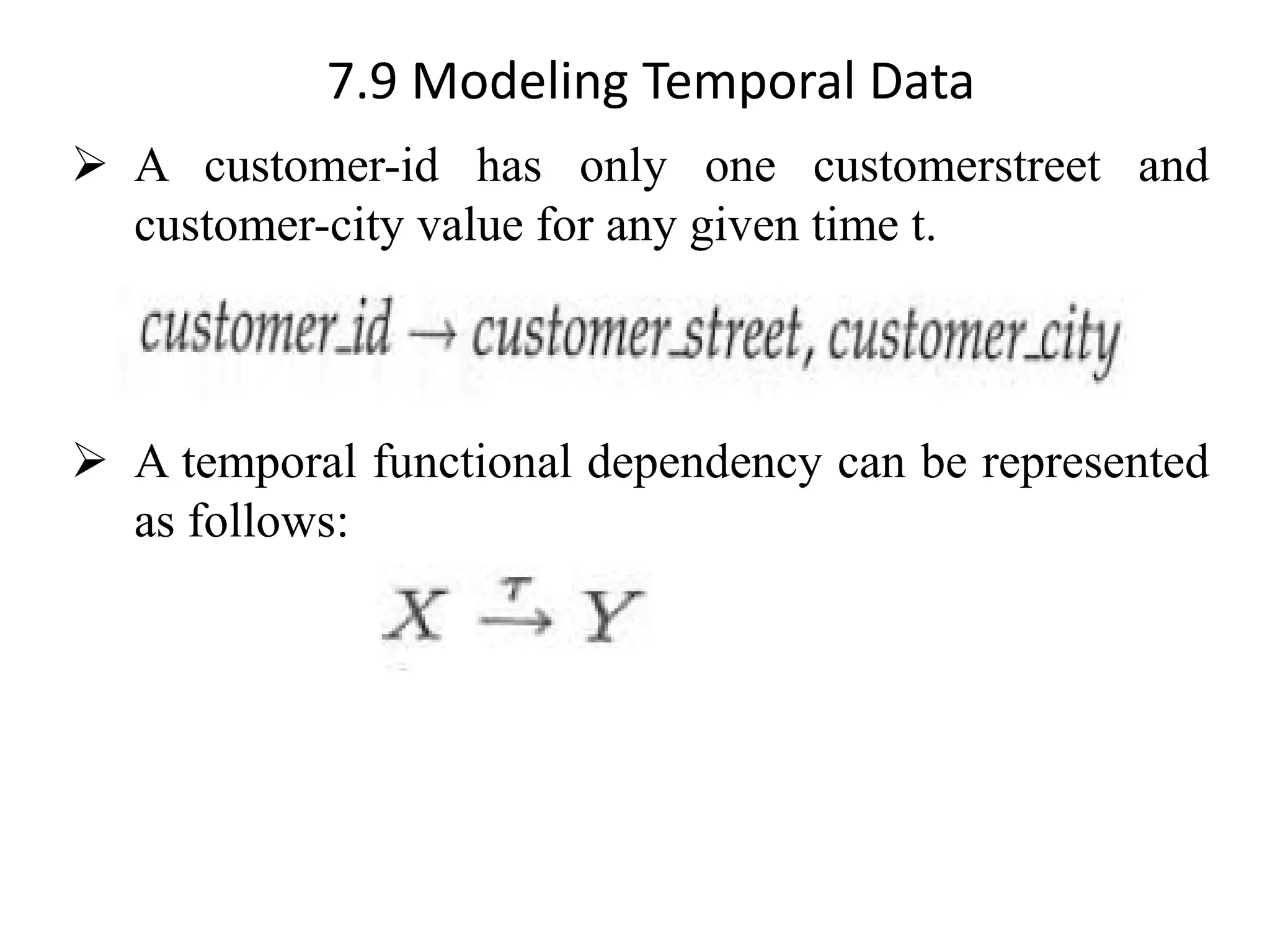

7.9 Modeling Temporal Data ➢ In general, temporal data are data that have an associated time interval during which they are valid. ➢ We use the term snapshot of data to mean the value of the data at a particular point in time. ➢ For example, Find all customers who lived in Princeton in 1981.

7.9 Modeling Temporal Data ➢ A customer-id has only one customerstreet and customer-city value for any given time t. ➢ A temporal functional dependency can be represented as follows:

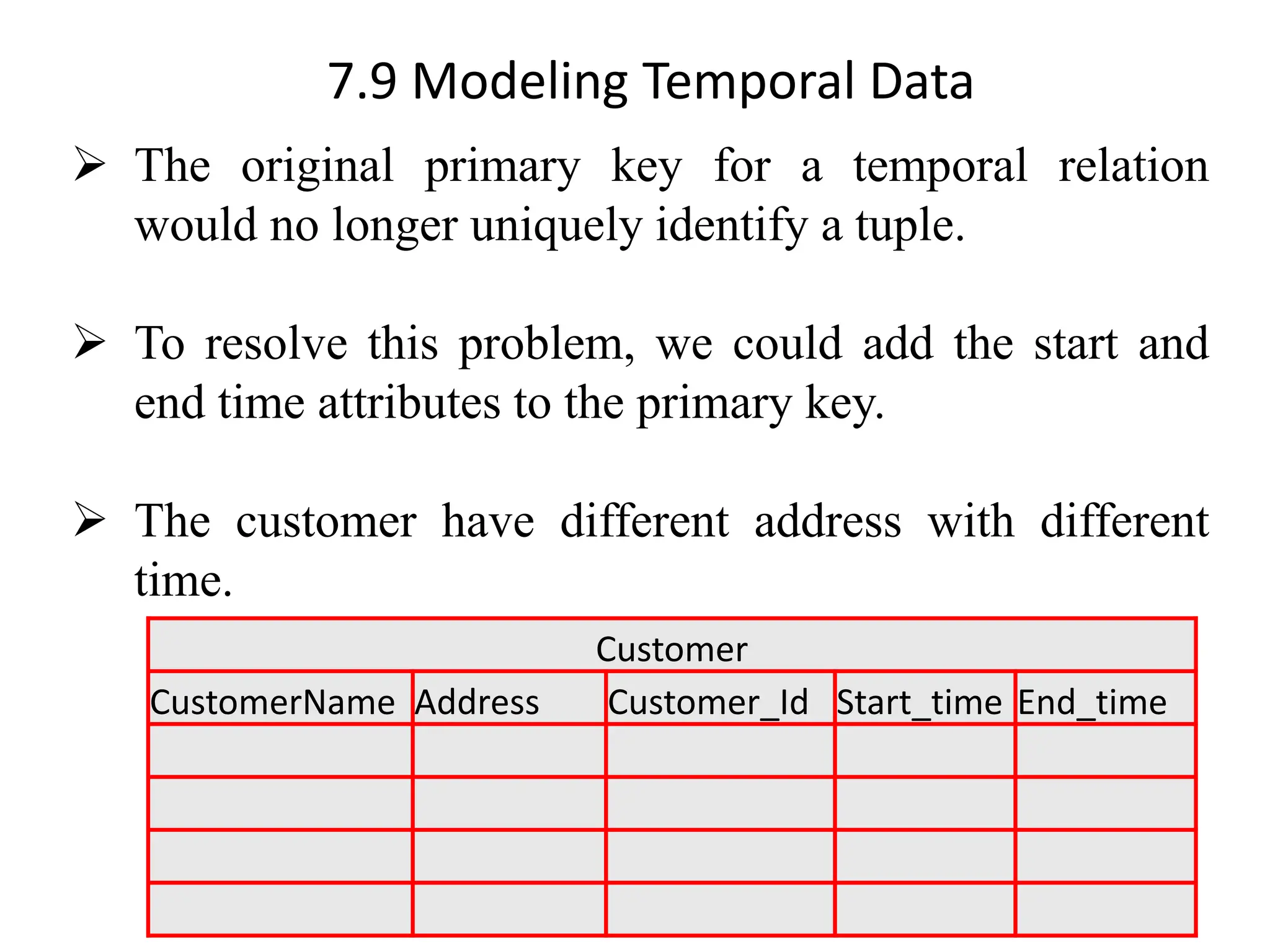

7.9 Modeling Temporal Data ➢ The original primary key for a temporal relation would no longer uniquely identify a tuple. ➢ To resolve this problem, we could add the start and end time attributes to the primary key. ➢ The customer have different address with different time. Customer CustomerName Address Customer_Id Start_time End_time

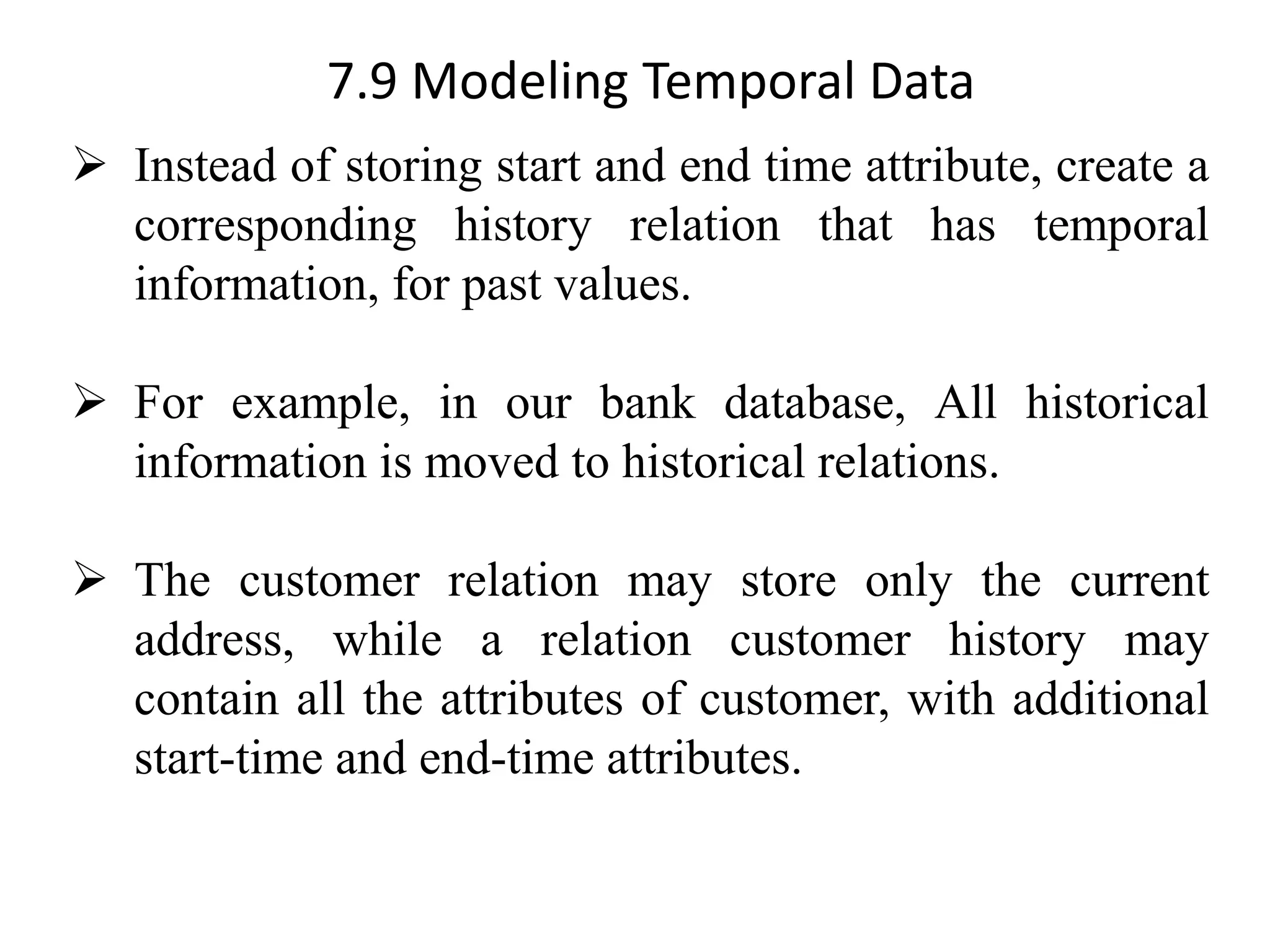

7.9 Modeling Temporal Data ➢ Instead of storing start and end time attribute, create a corresponding history relation that has temporal information, for past values. ➢ For example, in our bank database, All historical information is moved to historical relations. ➢ The customer relation may store only the current address, while a relation customer history may contain all the attributes of customer, with additional start-time and end-time attributes.

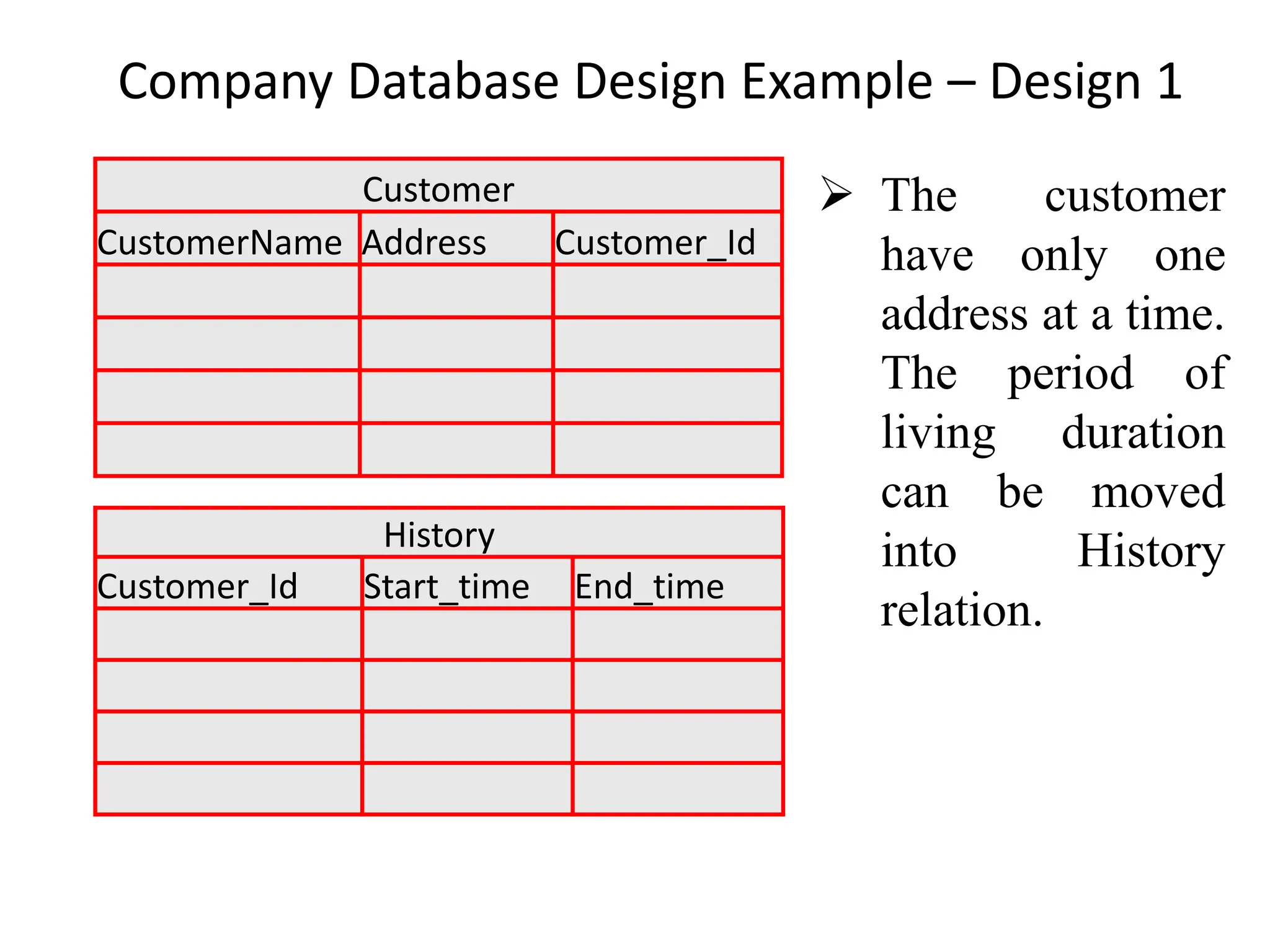

Company Database Design Example – Design 1 History Customer_Id Start_time End_time Customer CustomerName Address Customer_Id ➢ The customer have only one address at a time. The period of living duration can be moved into History relation.
