Data Flow Patterns   in Angular 2 Sebastian Müller - adesso AG EnterJS - 15.06.2016

Sebastian Müller @Sebamueller

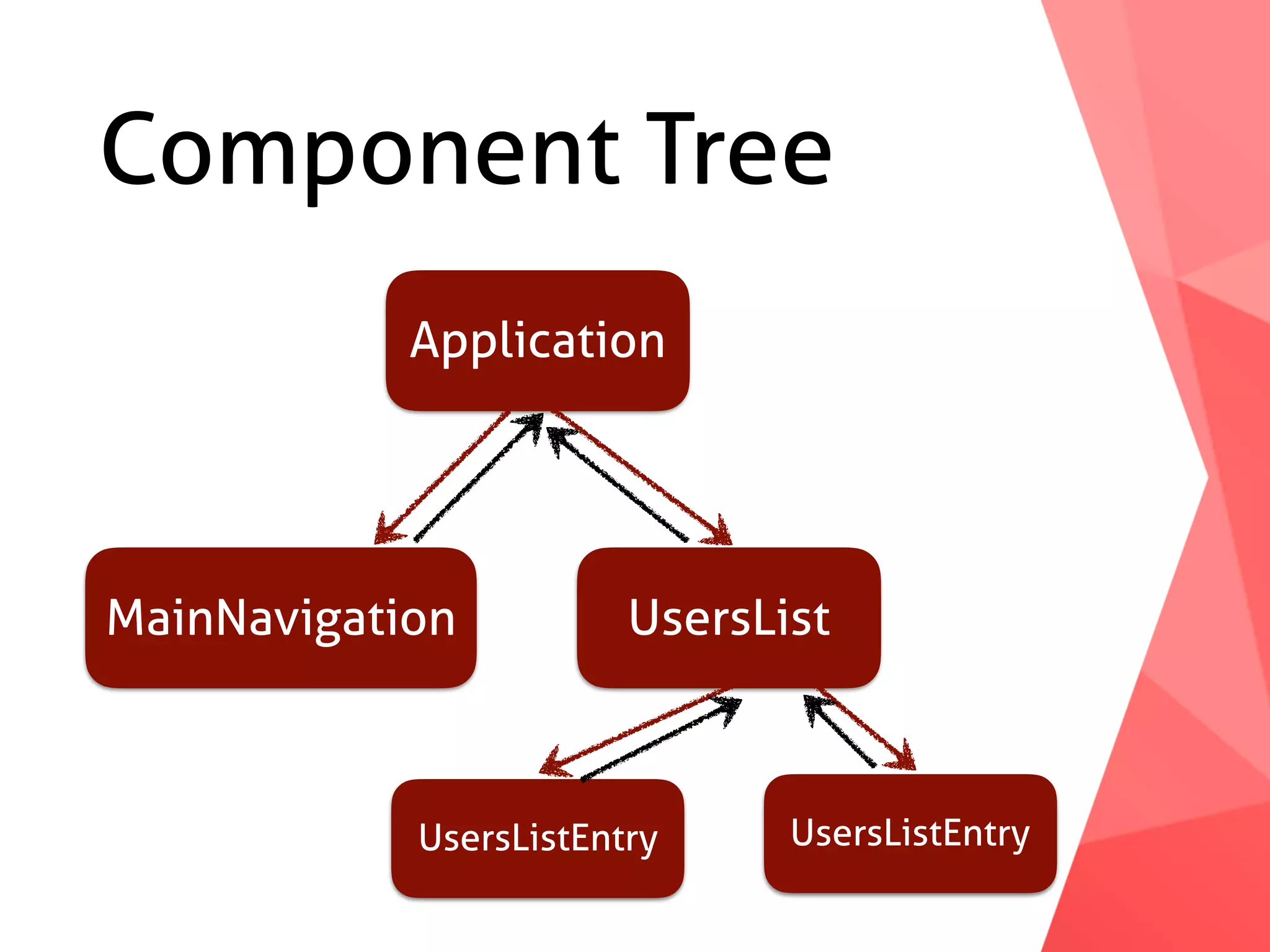

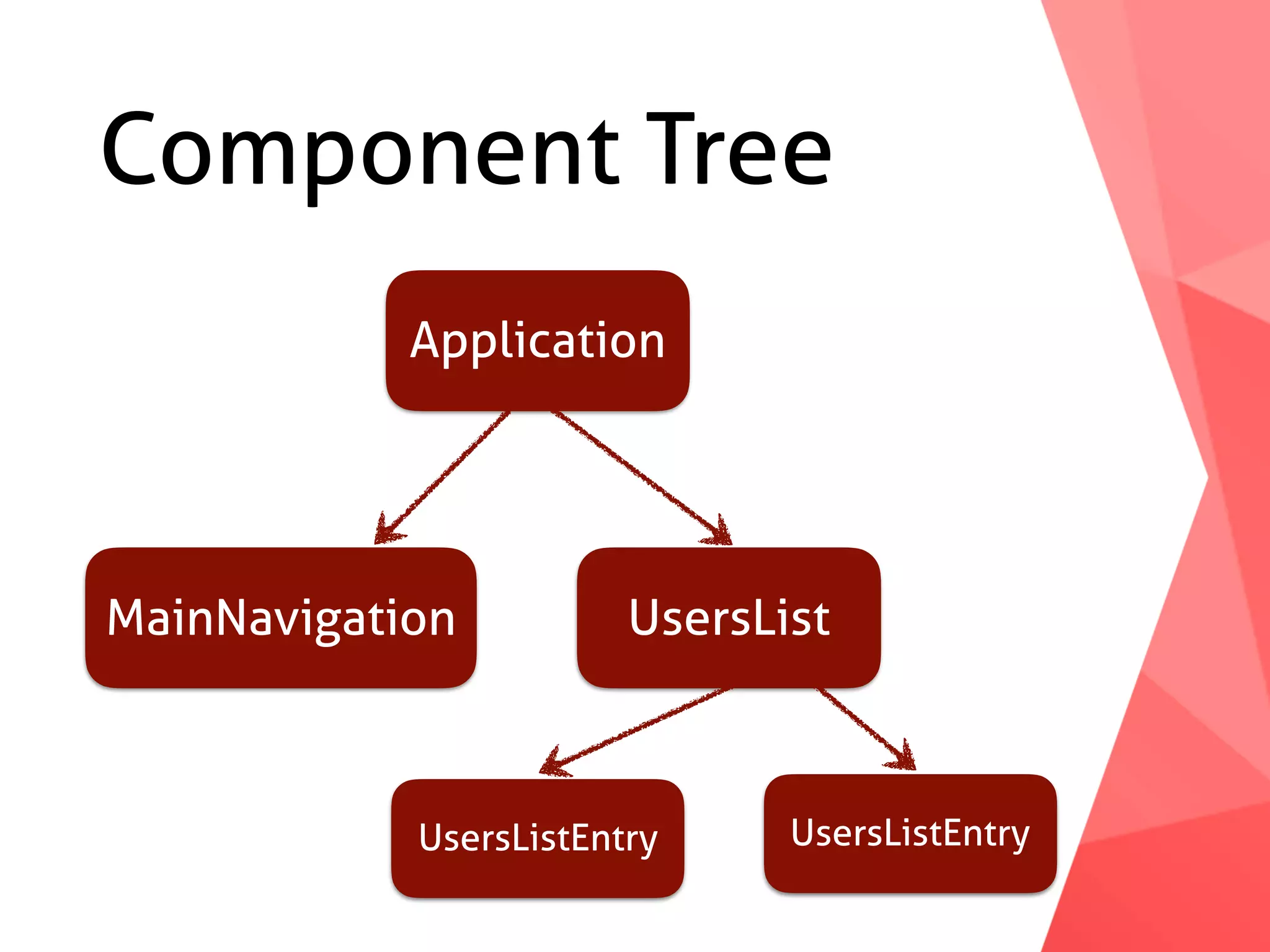

Component Tree Application MainNavigation UsersList UsersListEntry UsersListEntry

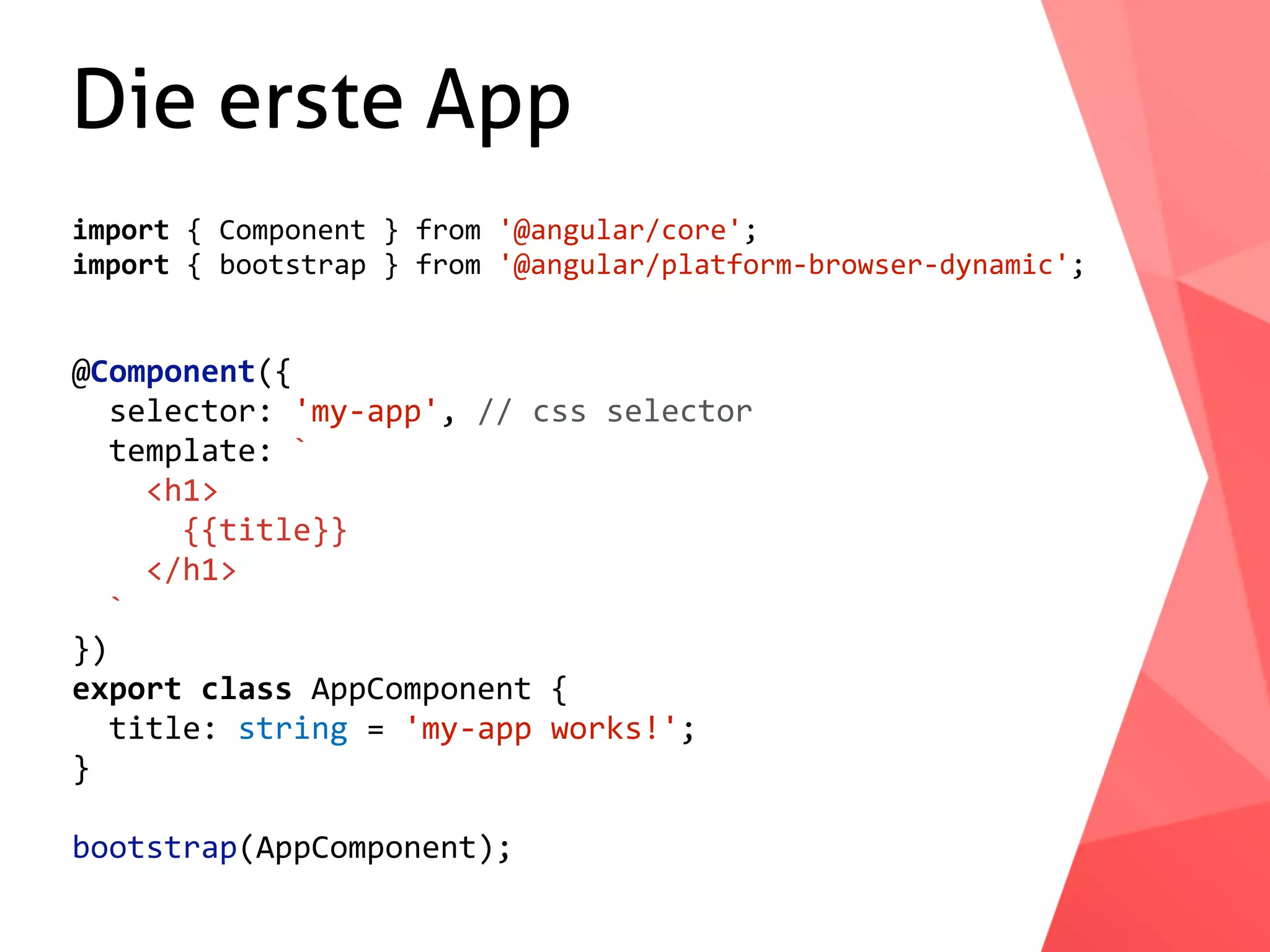

Die erste App import { Component } from '@angular/core'; import { bootstrap } from '@angular/platform-browser-dynamic'; @Component({ selector: 'my-app', // css selector template: ` <h1> {{title}} </h1> ` }) export class AppComponent { title: string = 'my-app works!'; } bootstrap(AppComponent);

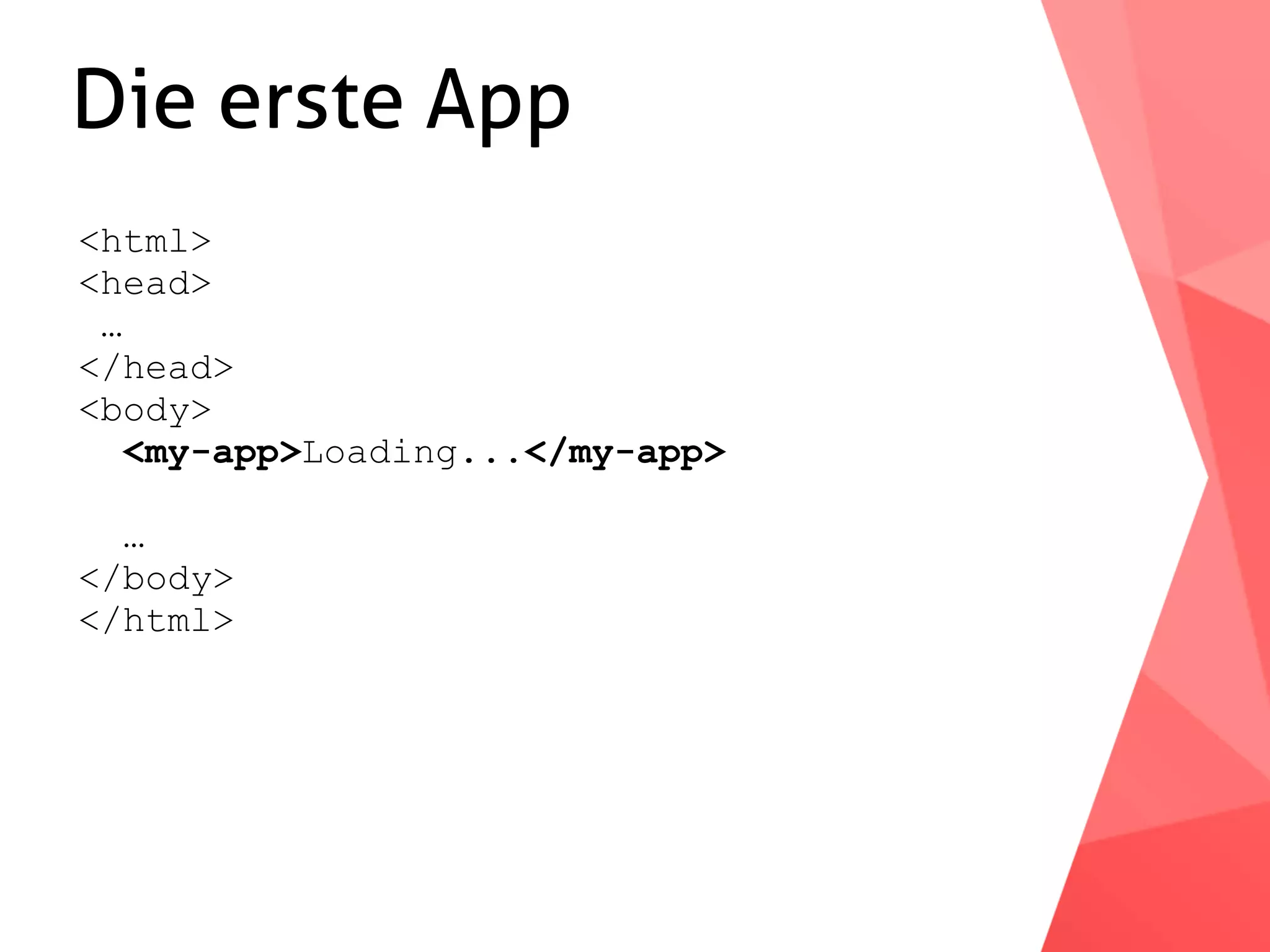

Die erste App <html> <head> … </head> <body> <my-app>Loading...</my-app> … </body> </html>

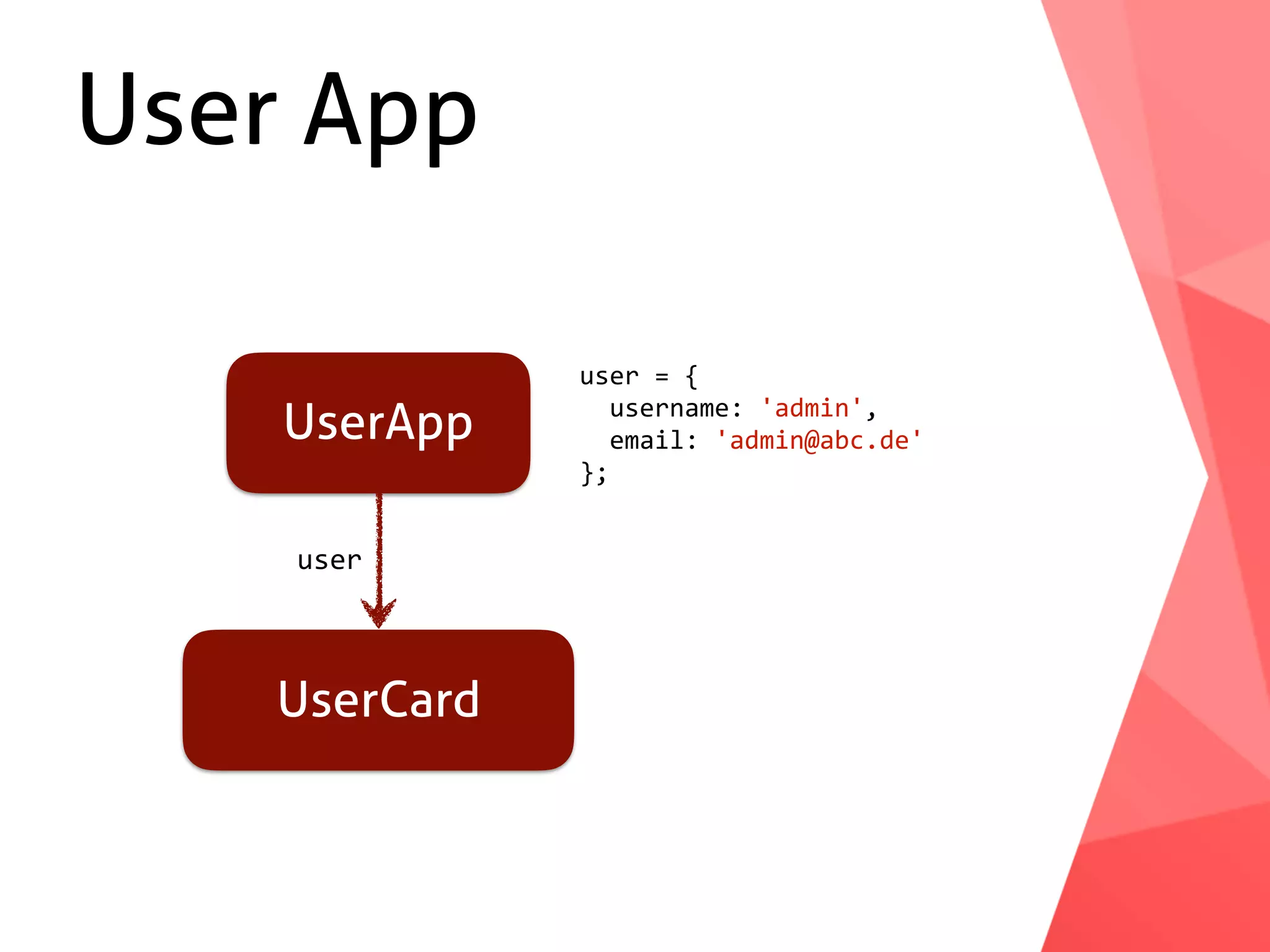

User App UserApp UserCard user = { username: 'admin', email: 'admin@abc.de' }; user

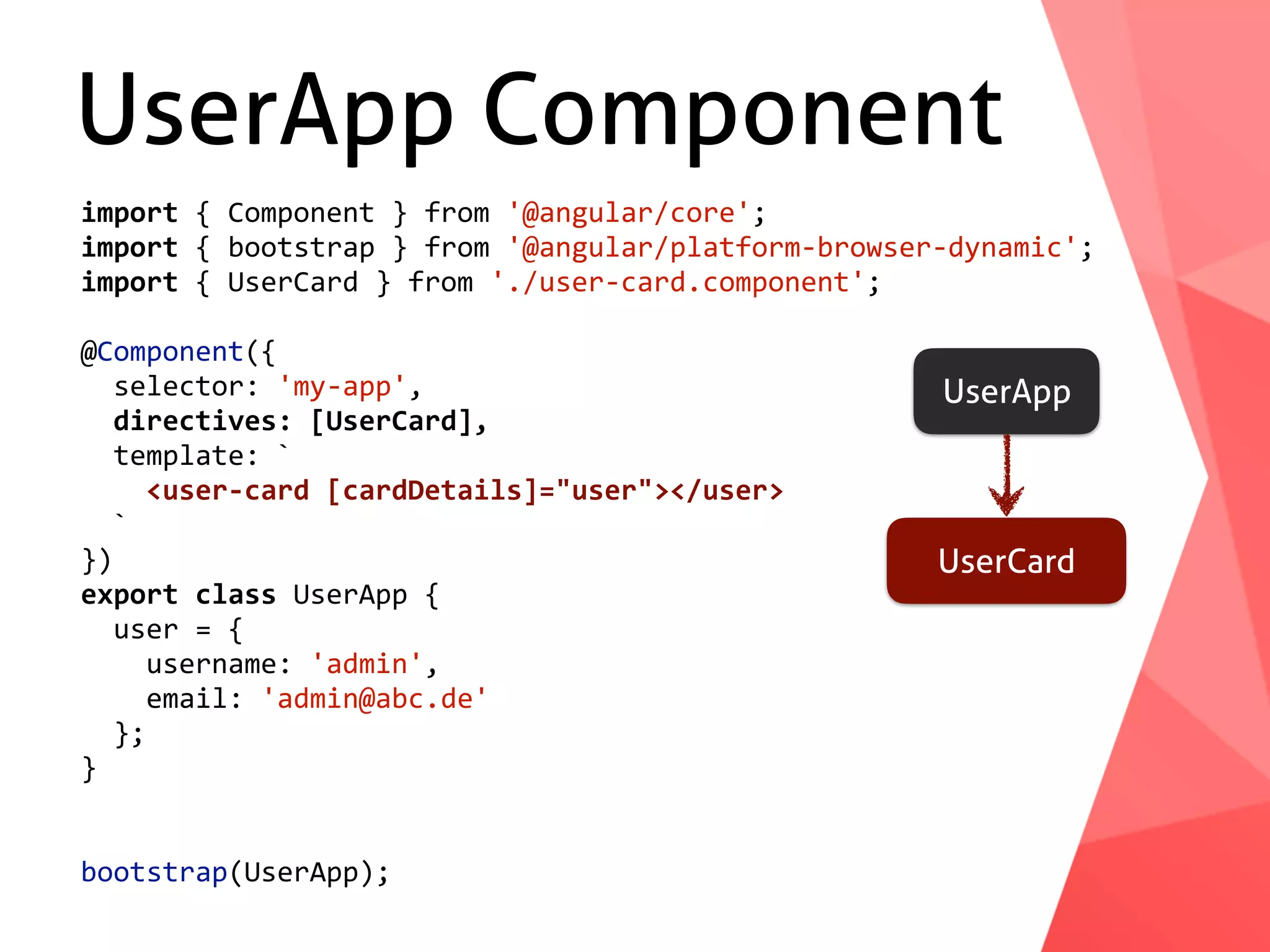

UserApp Component UserApp UserCard import { Component } from '@angular/core'; import { bootstrap } from '@angular/platform-browser-dynamic'; import { UserCard } from './user-card.component'; @Component({ selector: 'my-app', directives: [UserCard], template: ` <user-card [cardDetails]="user"></user> ` }) export class UserApp { user = { username: 'admin', email: 'admin@abc.de' }; } bootstrap(UserApp);

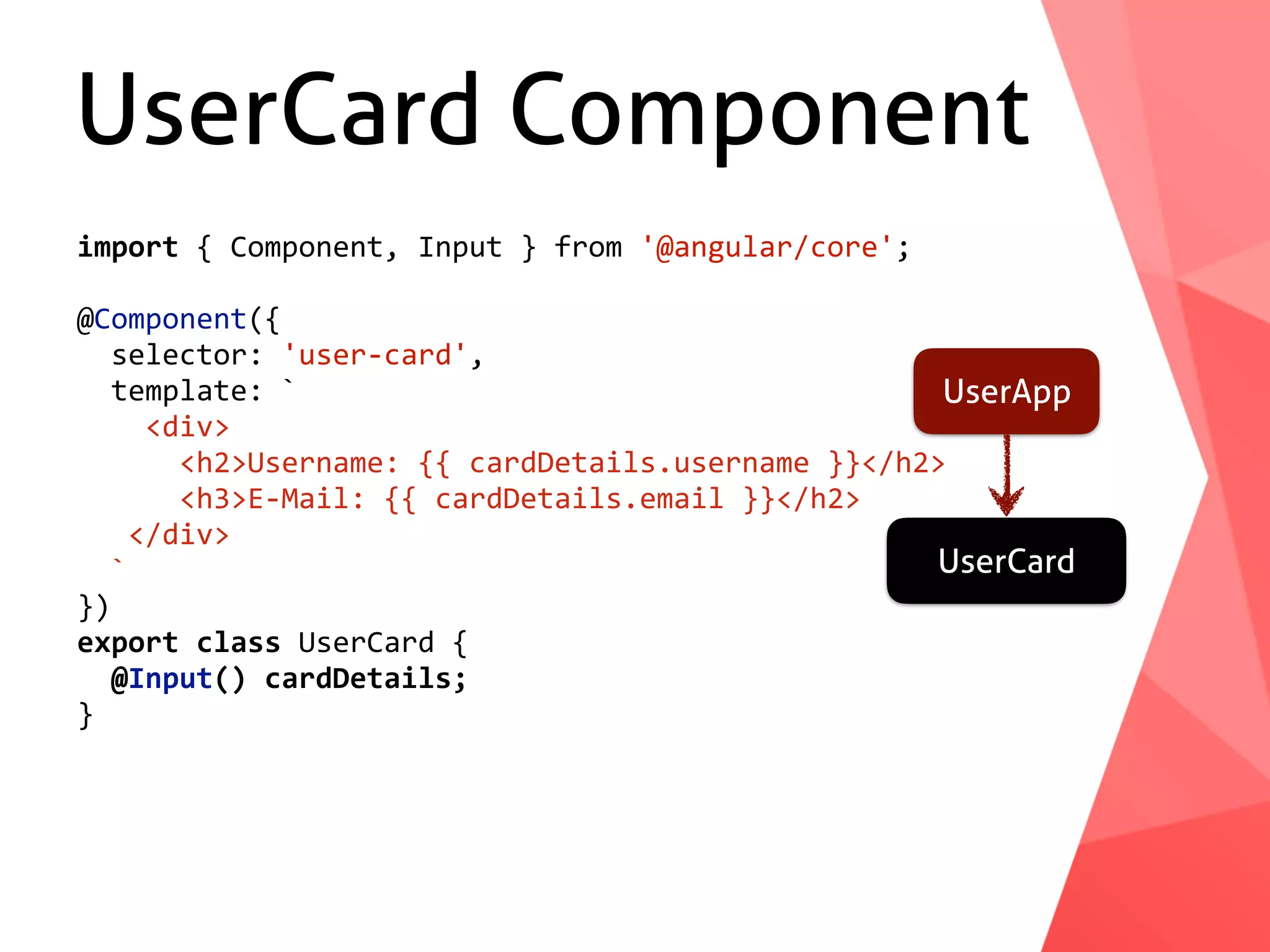

UserCard Component UserApp UserCard import { Component, Input } from '@angular/core'; @Component({ selector: 'user-card', template: ` <div> <h2>Username: {{ cardDetails.username }}</h2> <h3>E-Mail: {{ cardDetails.email }}</h2> </div> ` }) export class UserCard { @Input() cardDetails; }

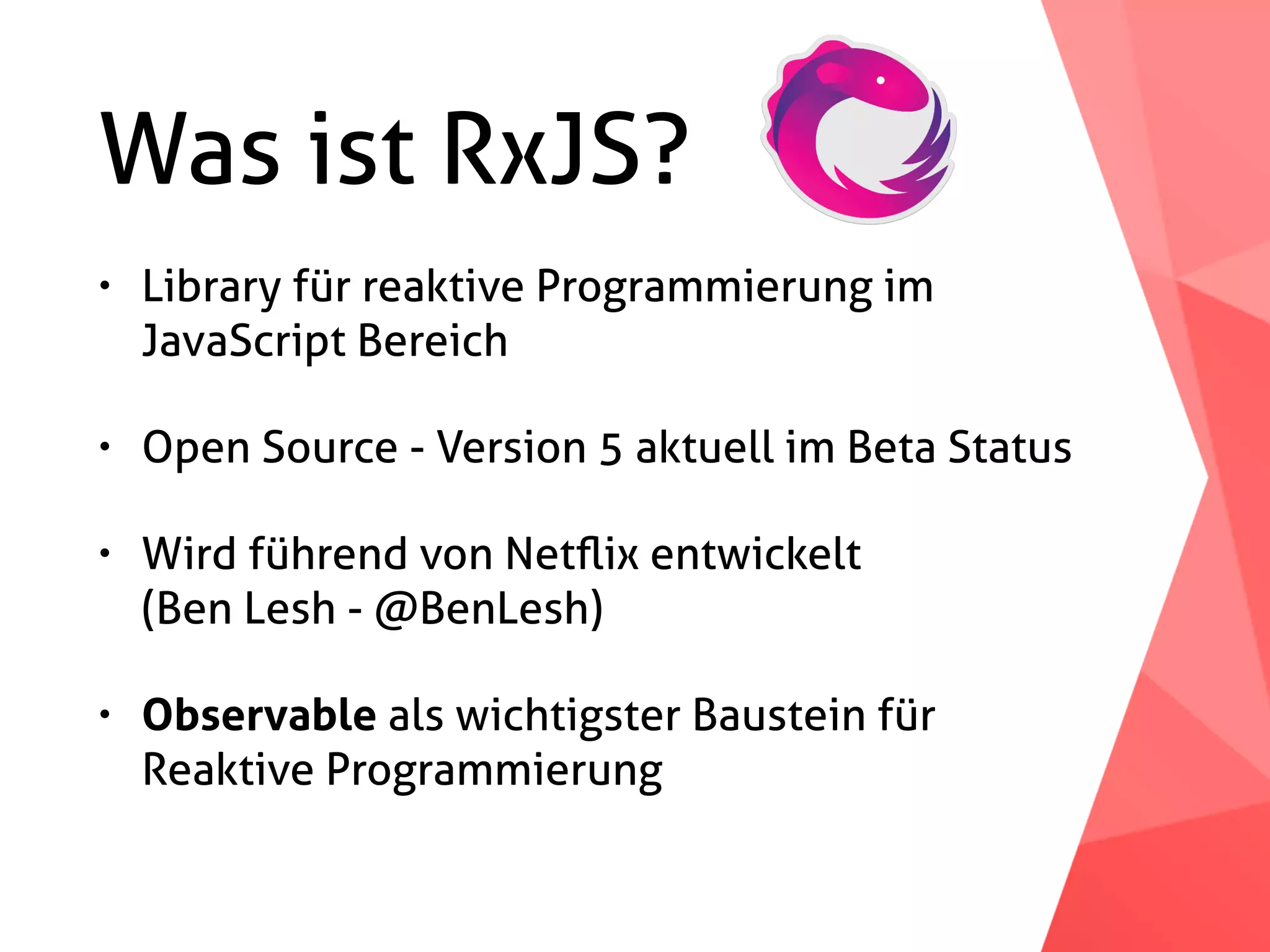

Was ist RxJS? • Library für reaktive Programmierung im   JavaScript Bereich • Open Source - Version 5 aktuell im Beta Status • Wird führend von Netﬂix entwickelt  (Ben Lesh - @BenLesh) • Observable als wichtigster Baustein für Reaktive Programmierung

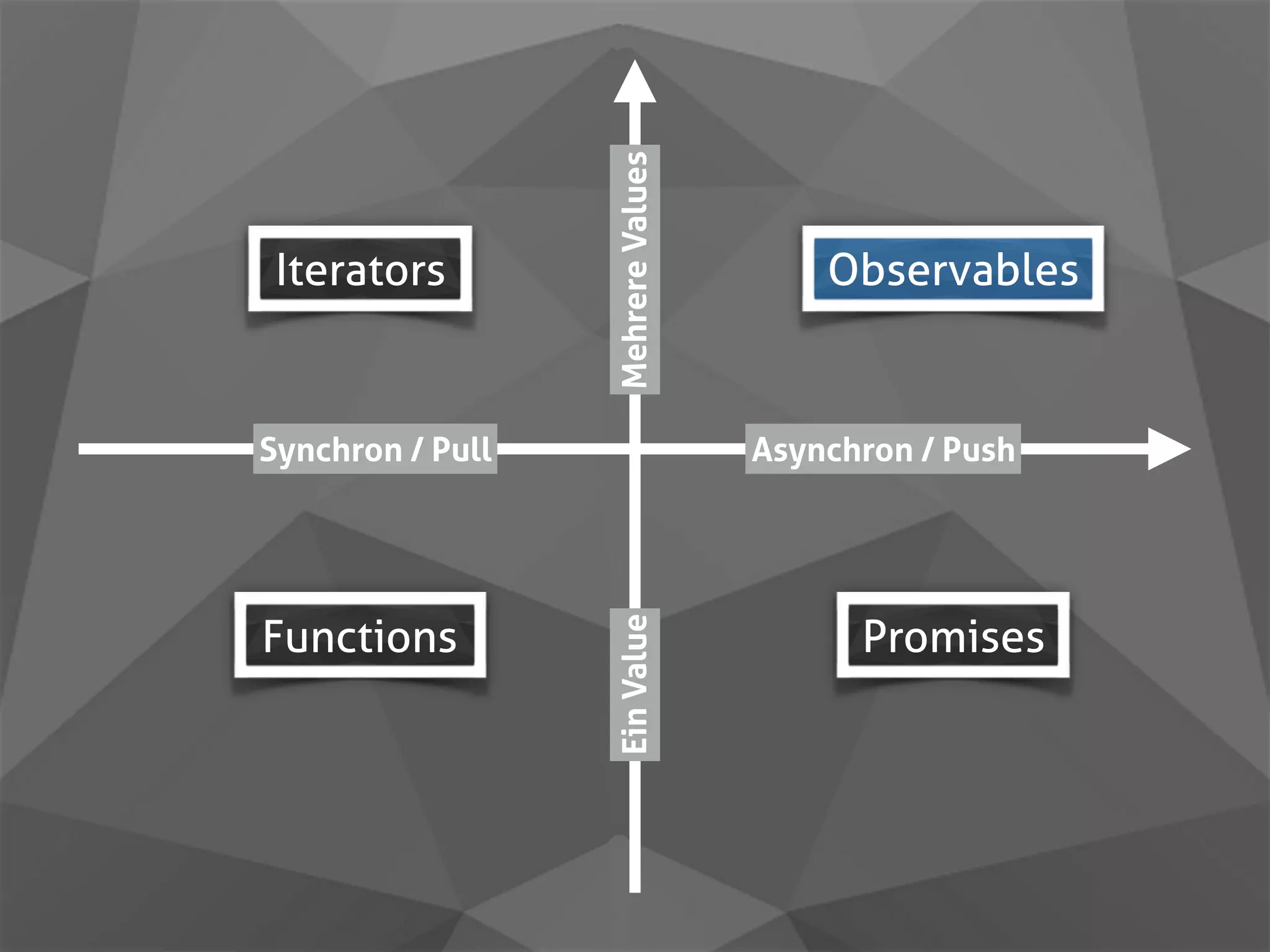

Synchron / Pull Asynchron / Push EinValueMehrereValuesFunctions Iterators Promises Observables

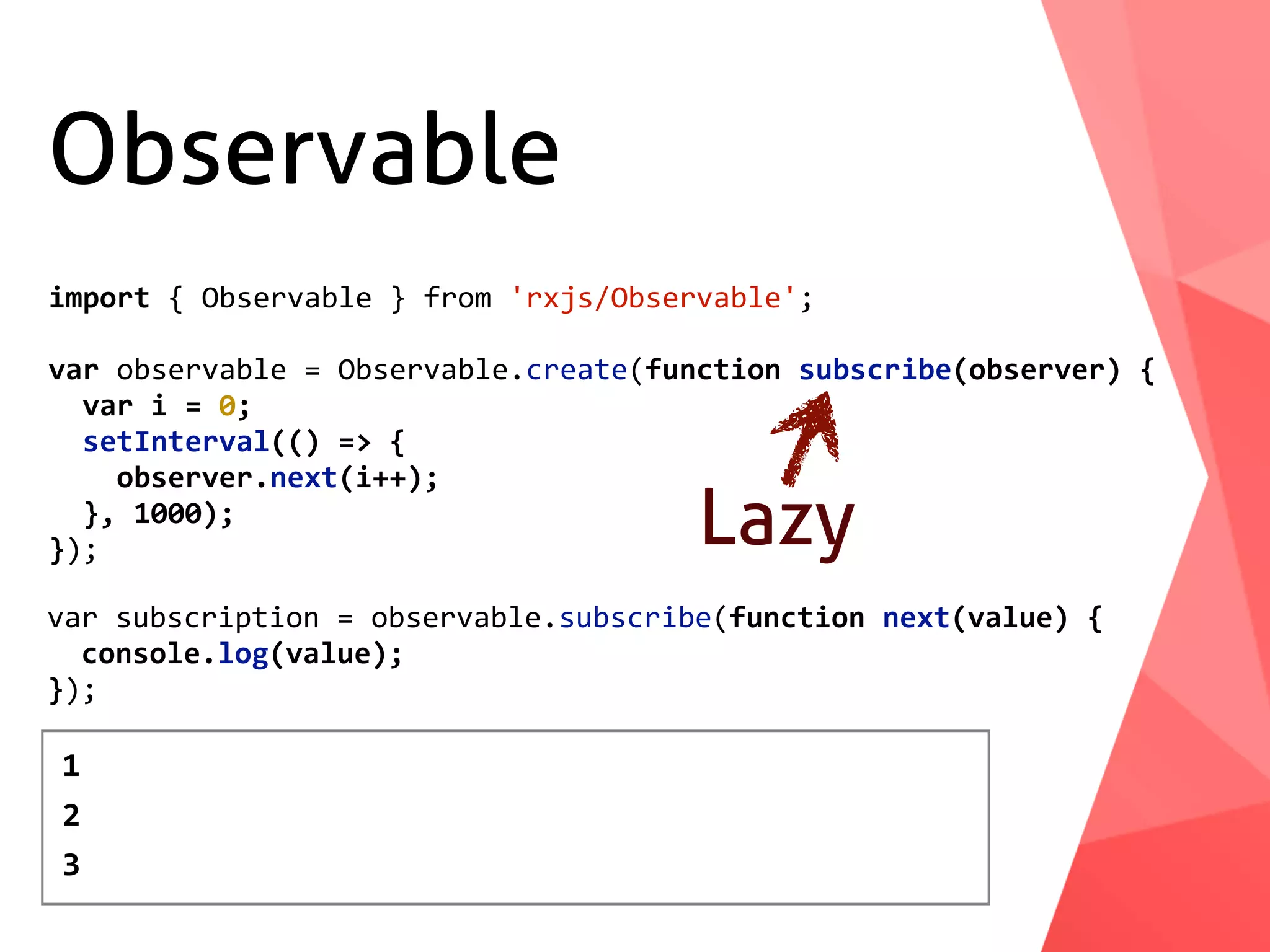

Observable import { Observable } from 'rxjs/Observable'; var observable = Observable.create(function subscribe(observer) { var i = 0; setInterval(() => { observer.next(i++); }, 1000); }); Lazy var subscription = observable.subscribe(function next(value) { console.log(value); }); 1 2 3

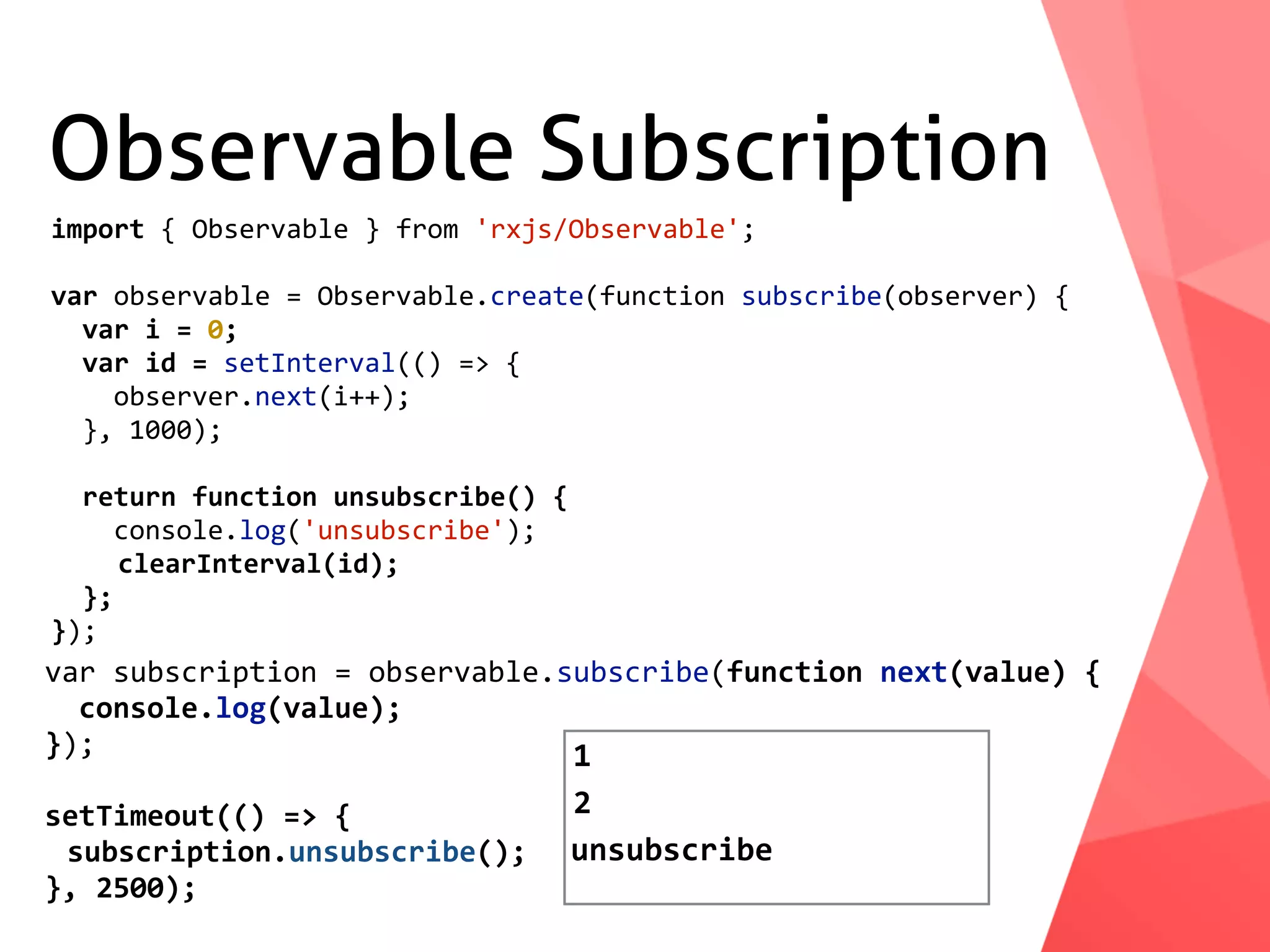

Observable Subscription import { Observable } from 'rxjs/Observable'; var observable = Observable.create(function subscribe(observer) { var i = 0; var id = setInterval(() => { observer.next(i++); }, 1000); return function unsubscribe() {  console.log('unsubscribe'); clearInterval(id); }; }); var subscription = observable.subscribe(function next(value) { console.log(value); }); setTimeout(() => { subscription.unsubscribe(); }, 2500); 1 2 unsubscribe

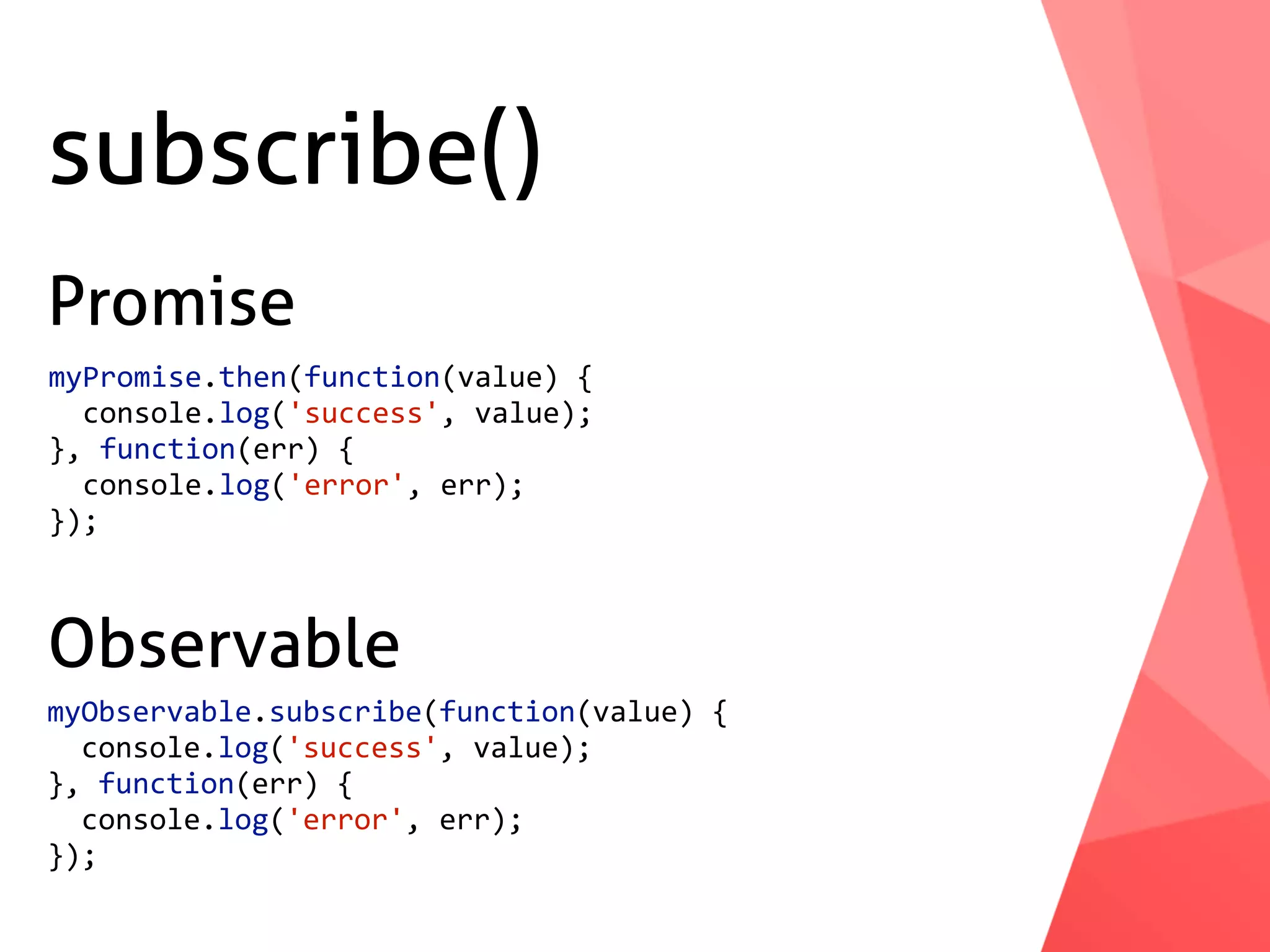

subscribe() myPromise.then(function(value) { console.log('success', value); }, function(err) { console.log('error', err); }); myObservable.subscribe(function(value) { console.log('success', value); }, function(err) { console.log('error', err); }); Promise Observable

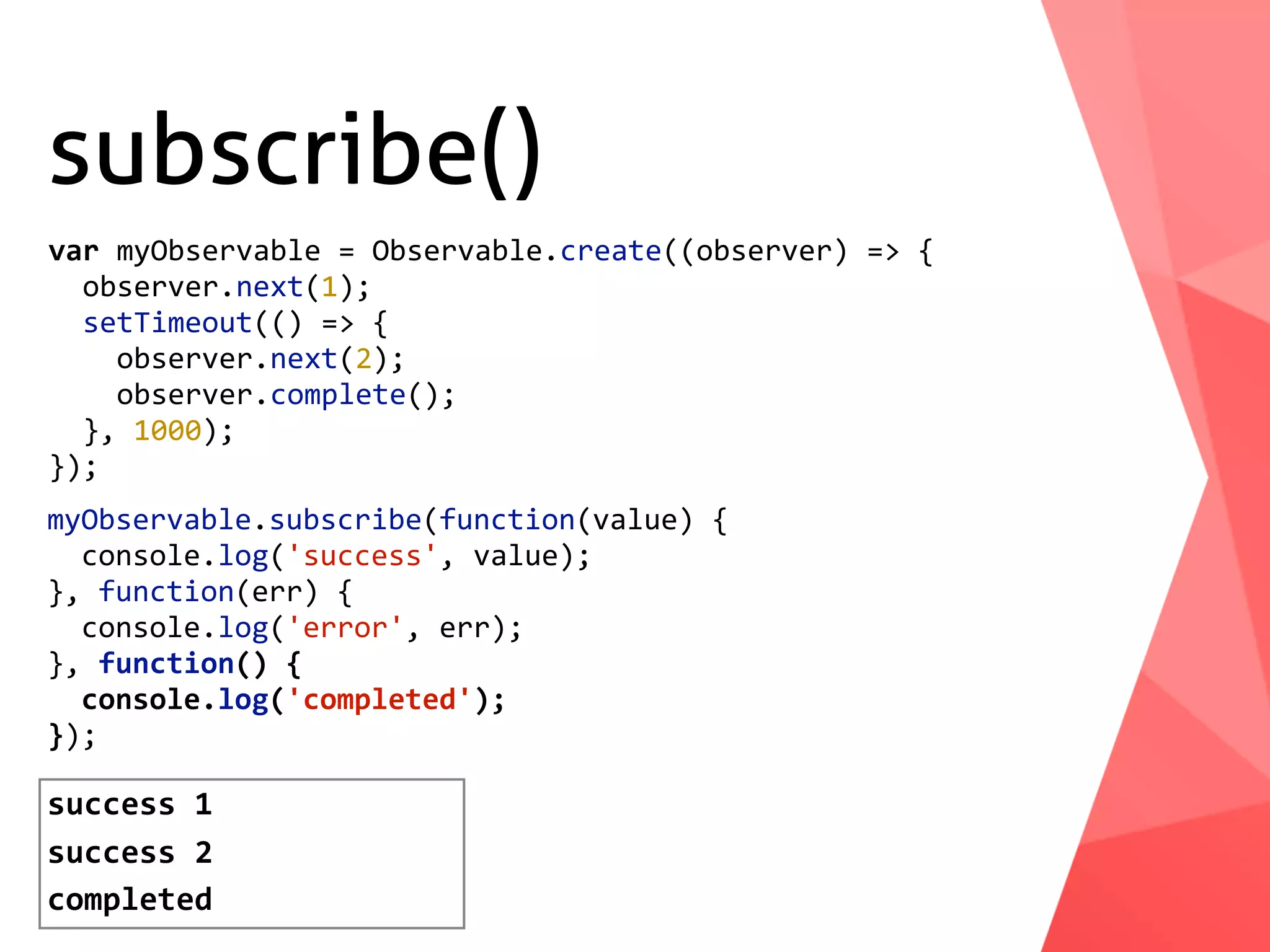

subscribe() myObservable.subscribe(function(value) { console.log('success', value); }, function(err) { console.log('error', err); }, function() { console.log('completed'); }); var myObservable = Observable.create((observer) => { observer.next(1); setTimeout(() => { observer.next(2); observer.complete(); }, 1000); }); success 1 success 2 completed

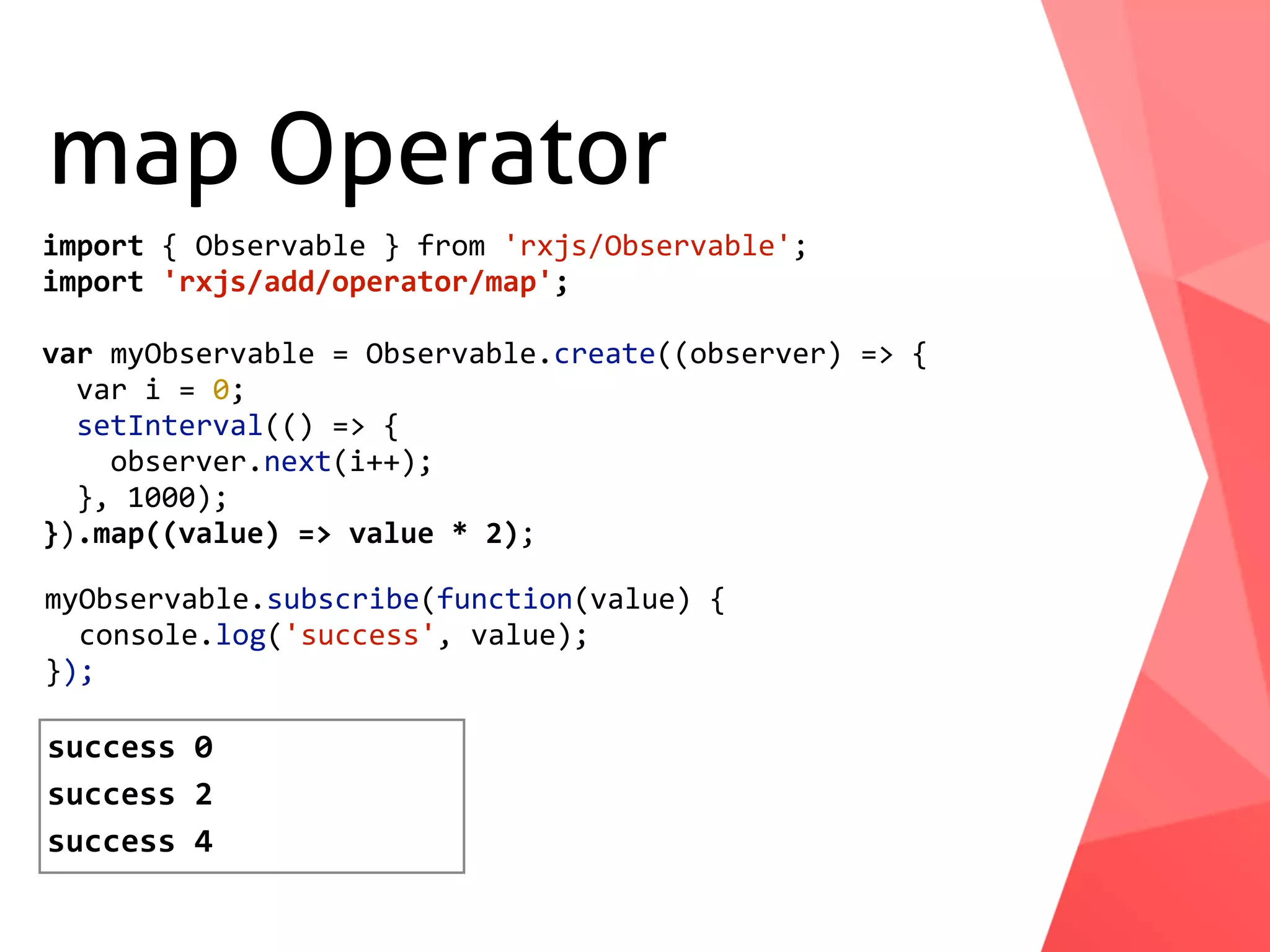

map Operator myObservable.subscribe(function(value) { console.log('success', value); }); success 0 success 2 import { Observable } from 'rxjs/Observable'; import 'rxjs/add/operator/map'; var myObservable = Observable.create((observer) => { var i = 0; setInterval(() => { observer.next(i++); }, 1000); }).map((value) => value * 2); success 4

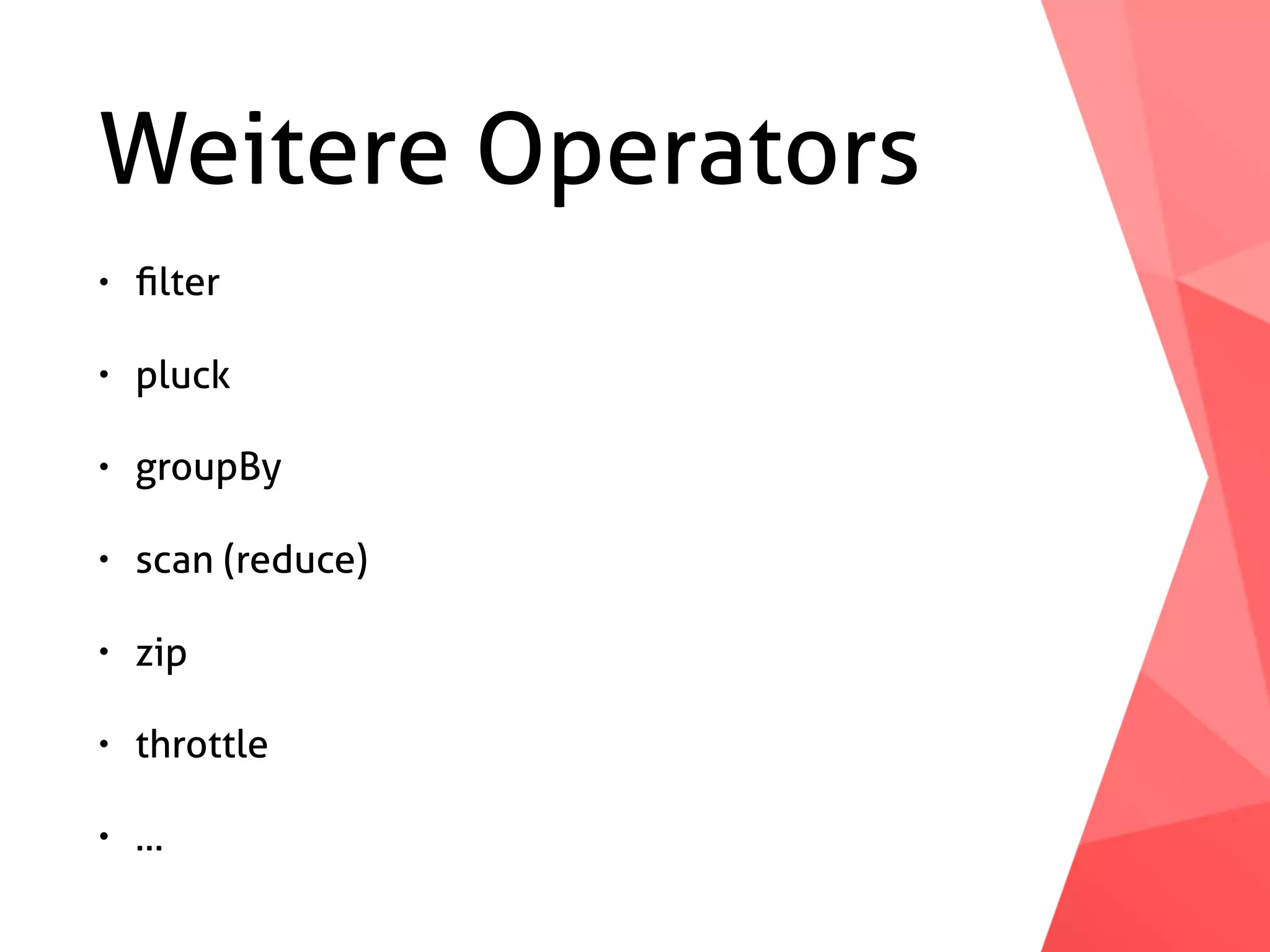

Weitere Operators • ﬁlter • pluck • groupBy • scan (reduce) • zip • throttle • …

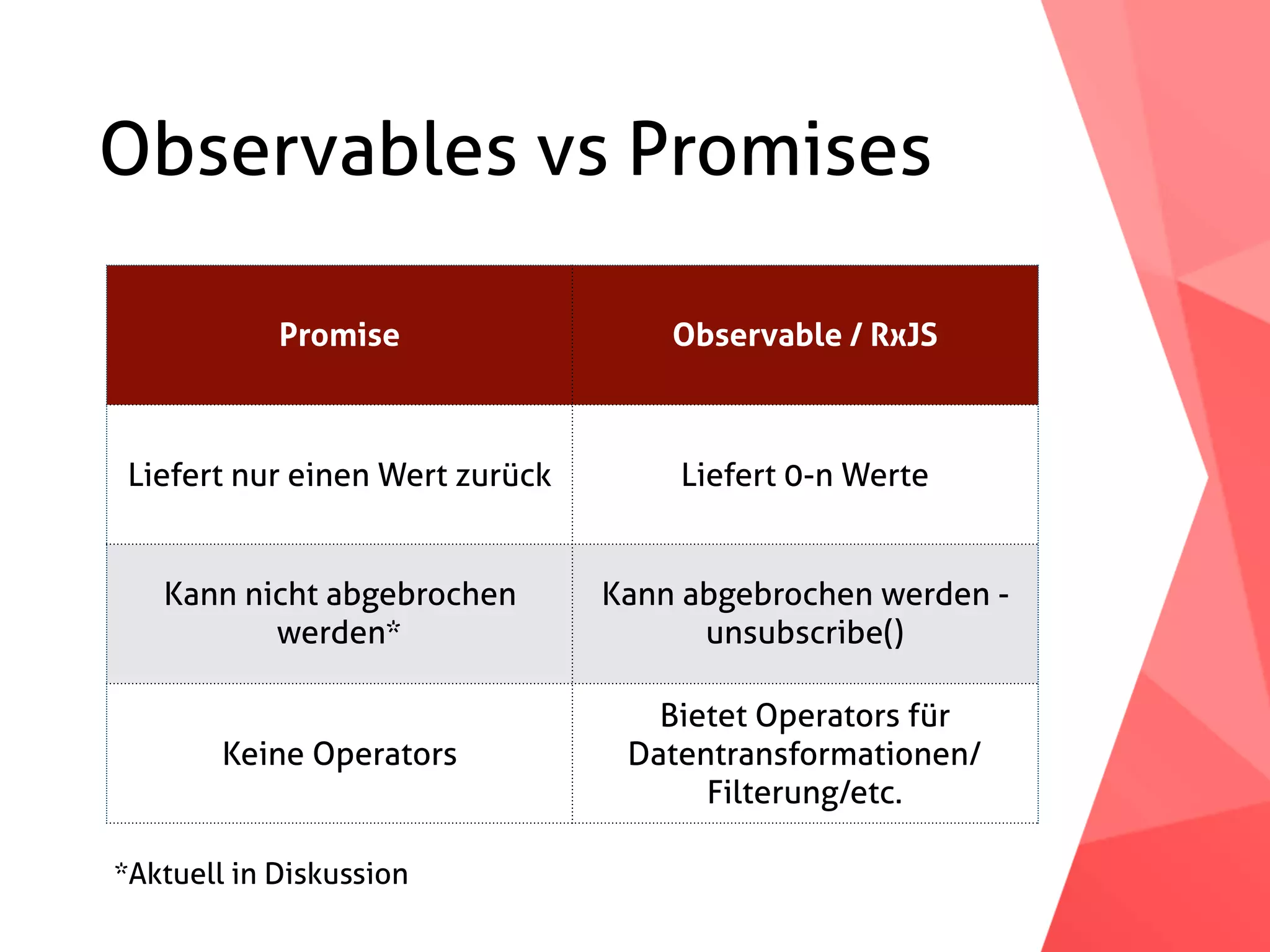

Observables vs Promises Promise Observable / RxJS Liefert nur einen Wert zurück Liefert 0-n Werte Kann nicht abgebrochen werden* Kann abgebrochen werden - unsubscribe() Keine Operators Bietet Operators für Datentransformationen/ Filterung/etc. *Aktuell in Diskussion

User App UserApp UserCard user = { username: 'admin', email: 'admin@abc.de' }; user <user-card [cardDetails|="user">  </user-card> sendEmail <user-card [cardDetails]="user"  (sendEmail)="showMailForm($event)">  </user-card>

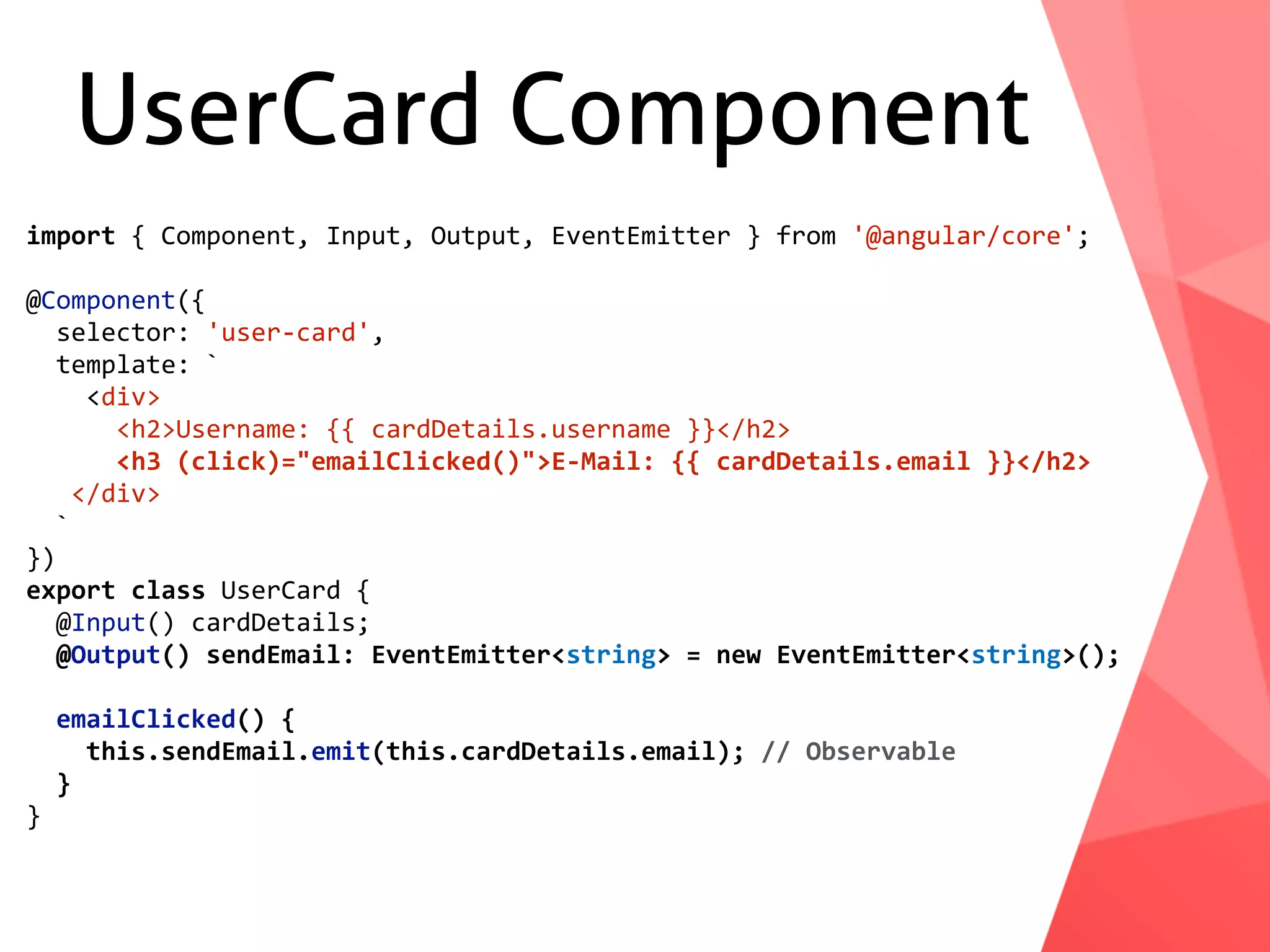

UserCard Component import { Component, Input, Output, EventEmitter } from '@angular/core'; @Component({ selector: 'user-card', template: ` <div> <h2>Username: {{ cardDetails.username }}</h2> <h3 (click)="emailClicked()">E-Mail: {{ cardDetails.email }}</h2> </div> ` }) export class UserCard { @Input() cardDetails; @Output() sendEmail: EventEmitter<string> = new EventEmitter<string>(); emailClicked() { this.sendEmail.emit(this.cardDetails.email); // Observable } }

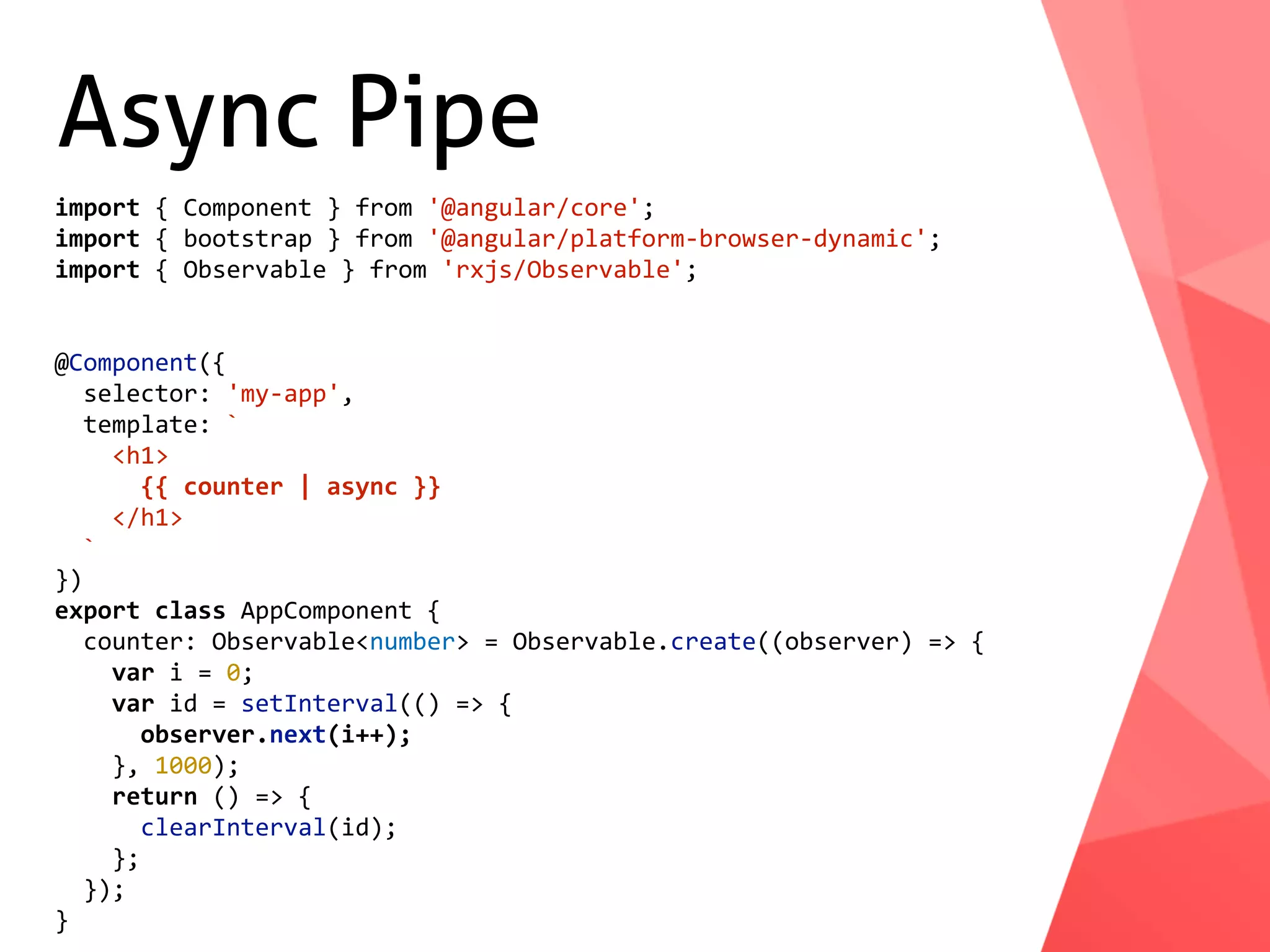

Async Pipe import { Component } from '@angular/core'; import { bootstrap } from '@angular/platform-browser-dynamic'; import { Observable } from 'rxjs/Observable'; @Component({ selector: 'my-app', template: ` <h1> {{ counter | async }} </h1> ` }) export class AppComponent { counter: Observable<number> = Observable.create((observer) => { var i = 0; var id = setInterval(() => { observer.next(i++); }, 1000); return () => { clearInterval(id); }; }); }

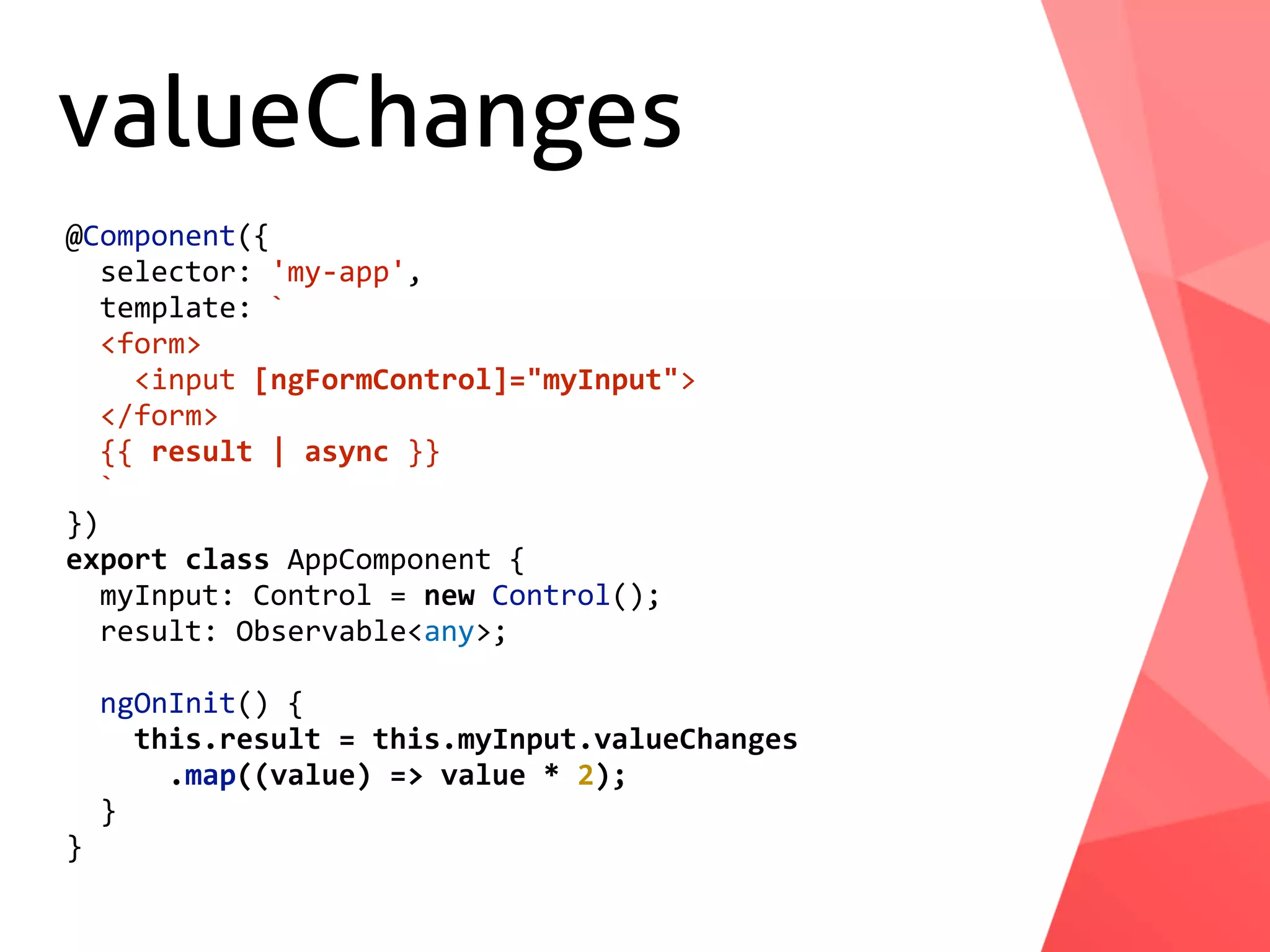

valueChanges @Component({ selector: 'my-app', template: ` <form> <input [ngFormControl]="myInput"> </form> {{ result | async }} ` }) export class AppComponent { myInput: Control = new Control(); result: Observable<any>; ngOnInit() { this.result = this.myInput.valueChanges .map((value) => value * 2); } }

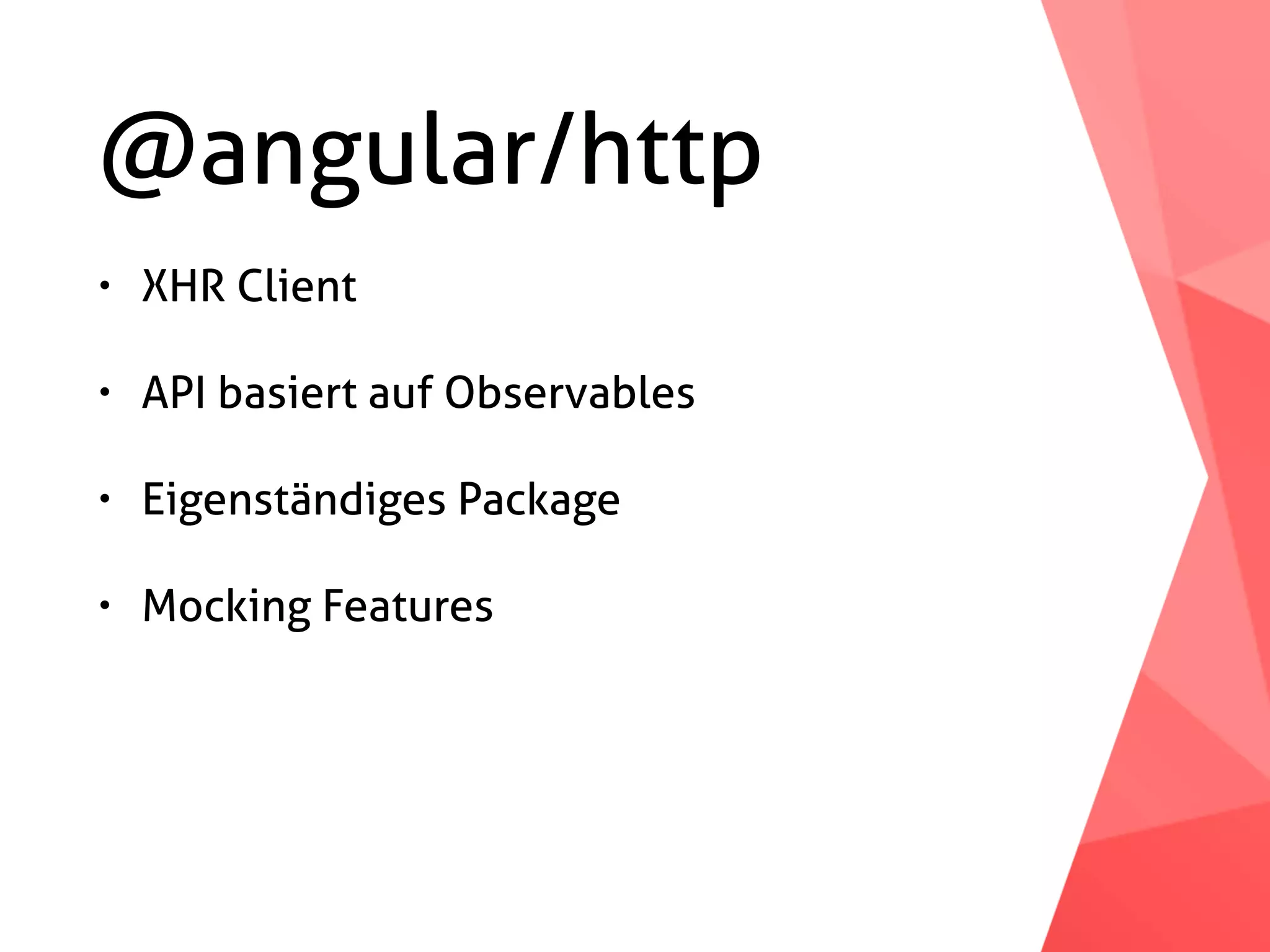

@angular/http • XHR Client • API basiert auf Observables • Eigenständiges Package • Mocking Features

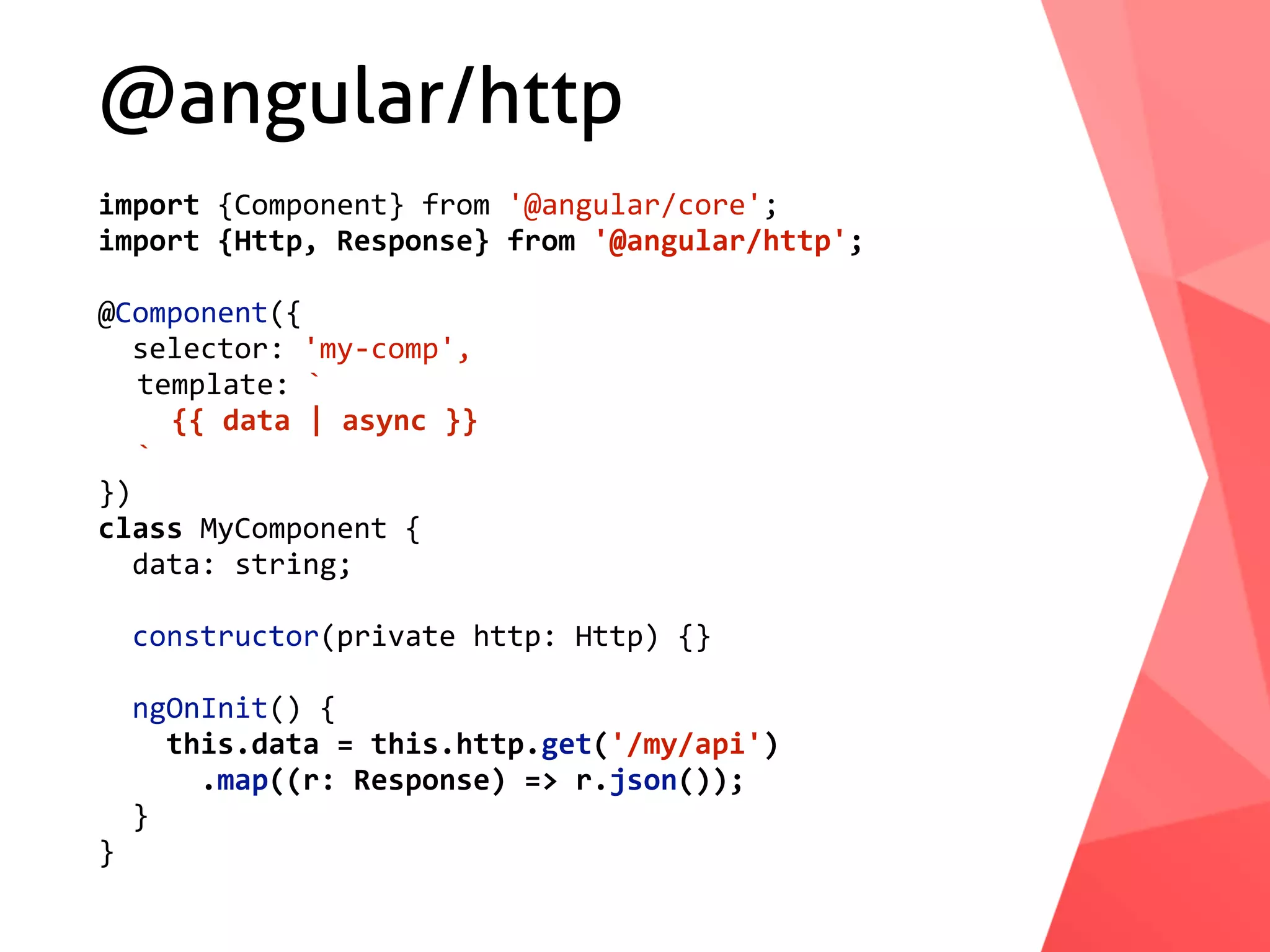

@angular/http import {Component} from '@angular/core'; import {Http, Response} from '@angular/http'; @Component({ selector: 'my-comp', template: ` {{ data | async }} ` }) class MyComponent { data: string; constructor(private http: Http) {} ngOnInit() { this.data = this.http.get('/my/api') .map((r: Response) => r.json()); } }

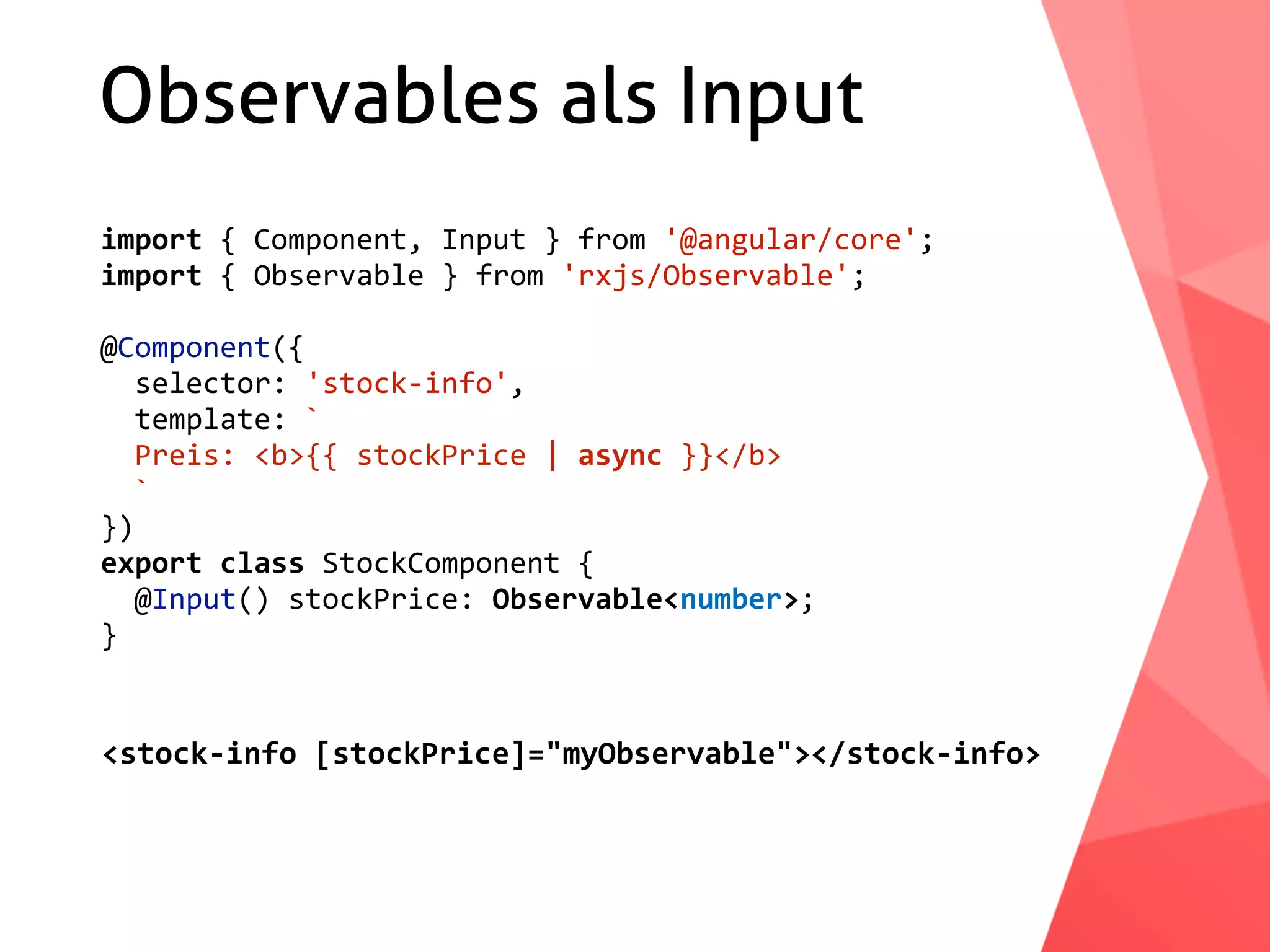

Observables als Input import { Component, Input } from '@angular/core'; import { Observable } from 'rxjs/Observable'; @Component({ selector: 'stock-info', template: ` Preis: <b>{{ stockPrice | async }}</b> ` }) export class StockComponent { @Input() stockPrice: Observable<number>; } <stock-info [stockPrice]="myObservable"></stock-info>

Change Detection in Angular 2 ist sehr schnell

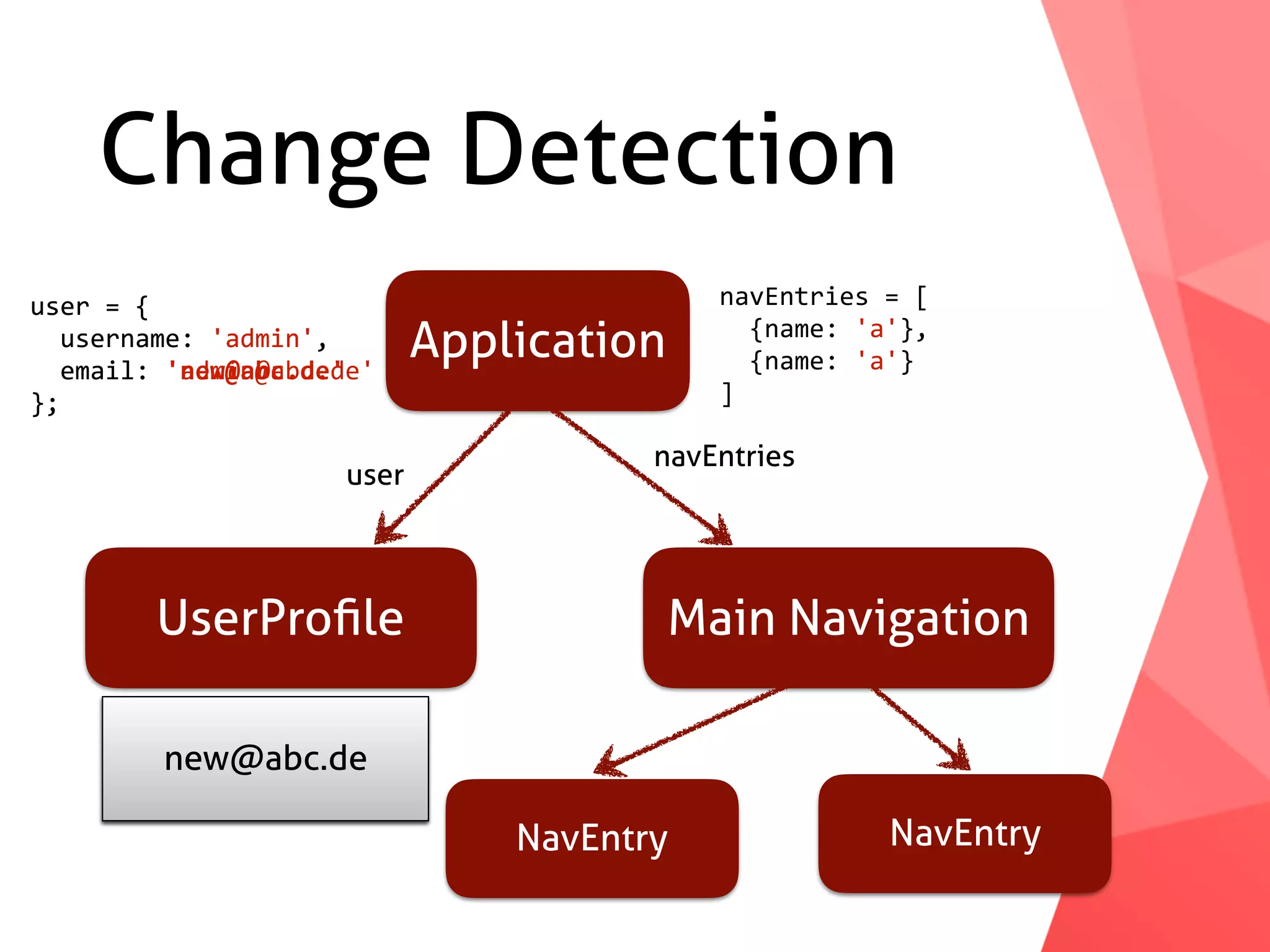

Change Detection Application UserProﬁle Main Navigation NavEntry NavEntry user = { username: 'admin', email: 'admin@abc.de' }; navEntries = [ {name: 'a'}, {name: 'a'} ] navEntries user admin@abc.denew@abc.de user = { username: 'admin', email: 'new@abc.de' };

ChangeDetectionStrategy.OnPush

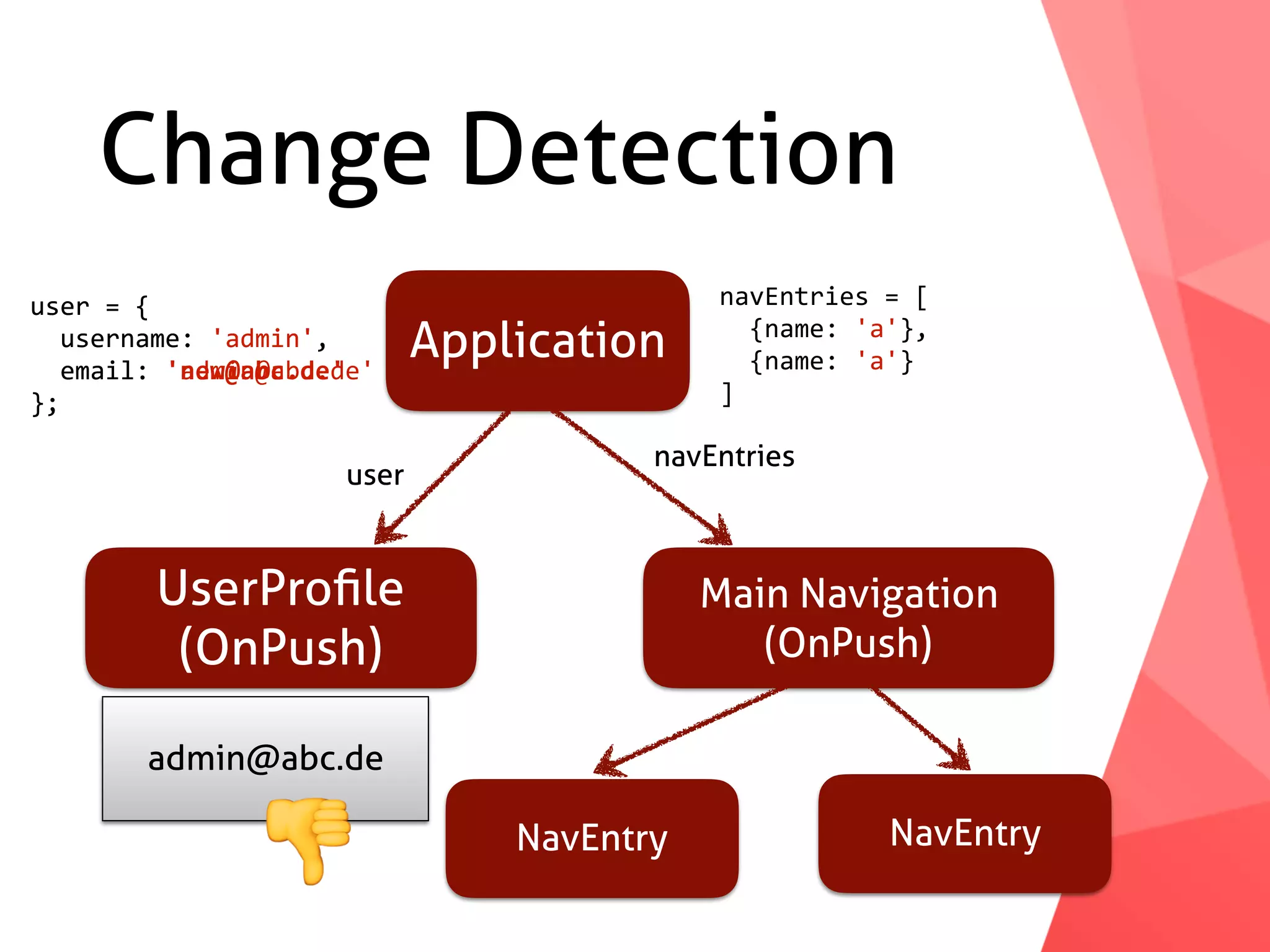

Change Detection Application UserProﬁle  (OnPush) Main Navigation  (OnPush) NavEntry NavEntry user = { username: 'admin', email: 'admin@abc.de' }; navEntries = [ {name: 'a'}, {name: 'a'} ] navEntries user admin@abc.de user = { username: 'admin', email: 'new@abc.de' }; 👎

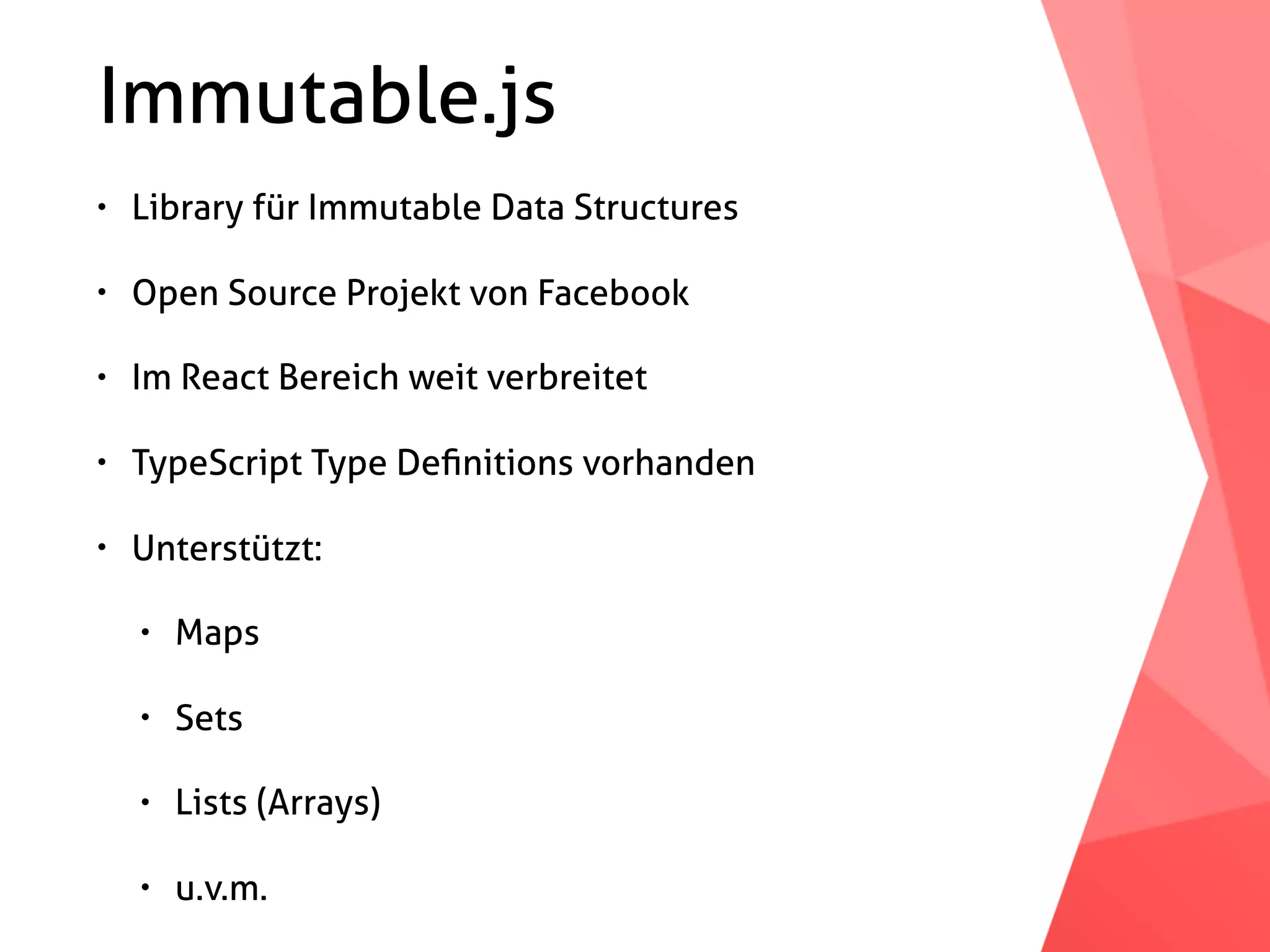

Immutable.js • Library für Immutable Data Structures • Open Source Projekt von Facebook • Im React Bereich weit verbreitet • TypeScript Type Deﬁnitions vorhanden • Unterstützt: • Maps • Sets • Lists (Arrays) • u.v.m.

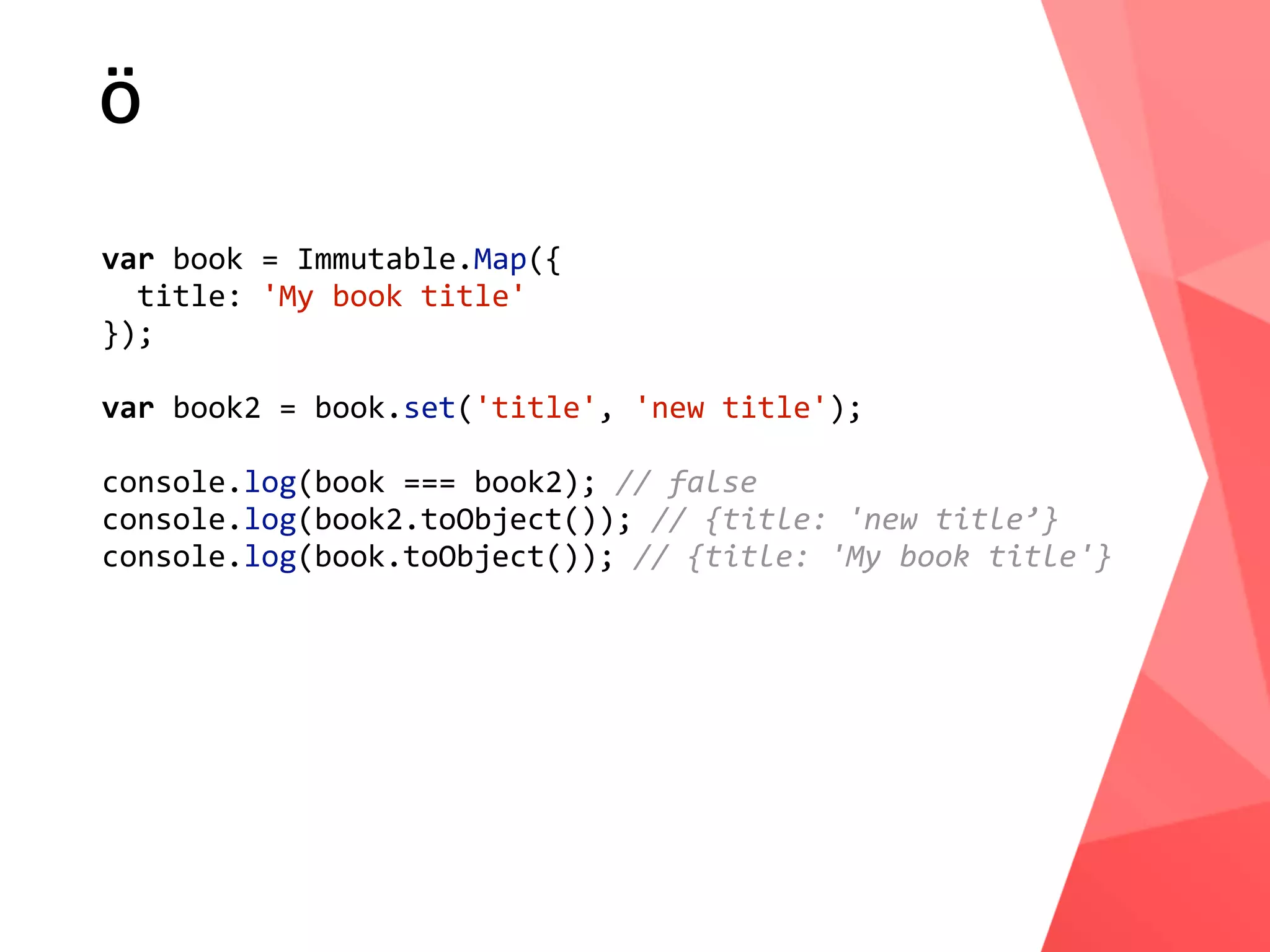

ö var book = Immutable.Map({ title: 'My book title' }); var book2 = book.set('title', 'new title'); console.log(book === book2); // false console.log(book2.toObject()); // {title: 'new title’} console.log(book.toObject()); // {title: 'My book title'}

Change Detection Application UserProﬁle  (OnPush) Main Navigation  (OnPush) NavEntry NavEntry user = { username: 'admin', email: 'admin@abc.de' }; navEntries = [ {name: 'a'}, {name: 'a'} ] navEntries user admin@abc.denew@abc.de user = user.set(  'email',  'new@abc.de'  ) "

Talk:  Angular 2 Change Detection erklärt  Pascal Precht

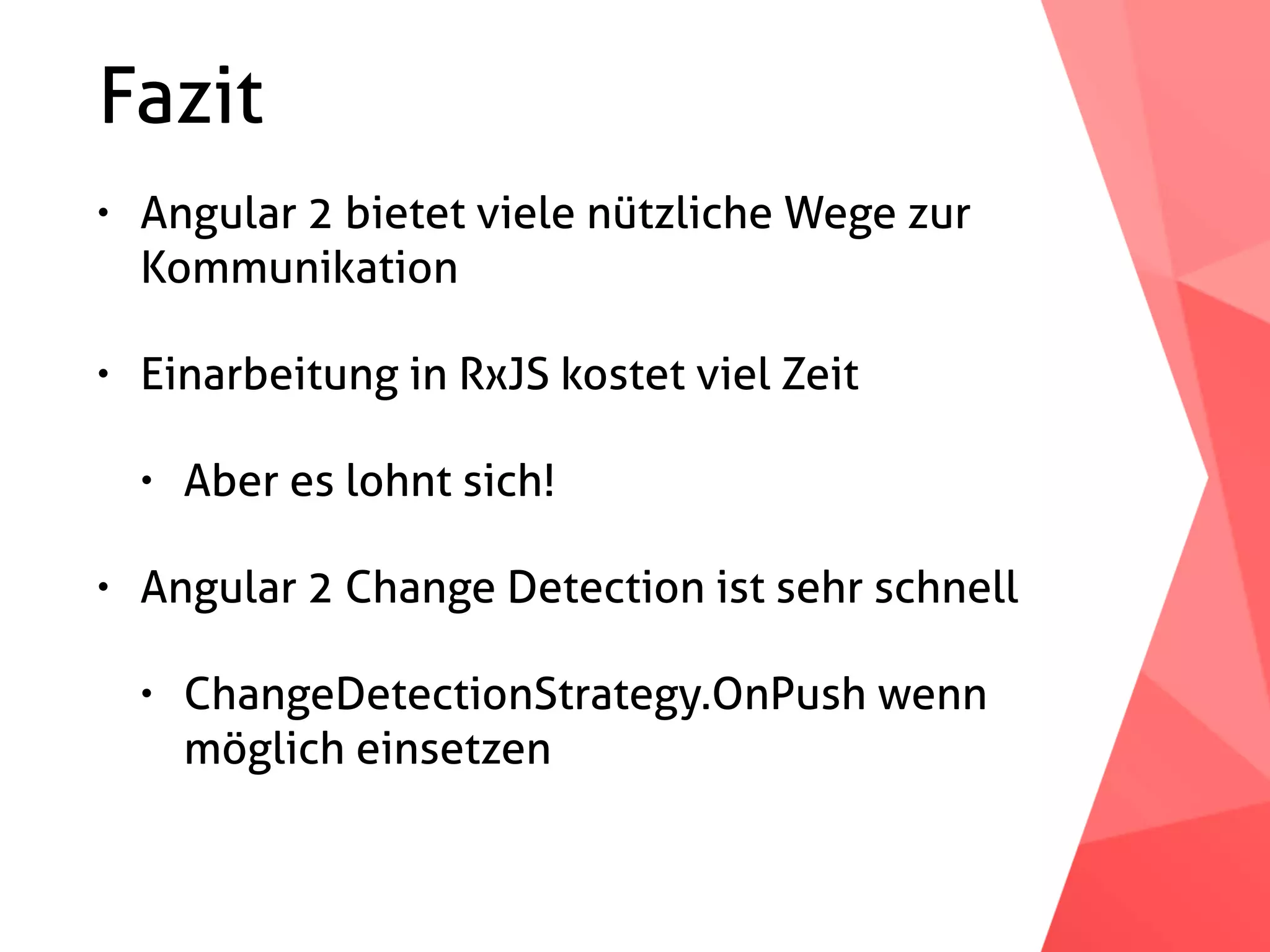

Fazit • Angular 2 bietet viele nützliche Wege zur Kommunikation • Einarbeitung in RxJS kostet viel Zeit • Aber es lohnt sich! • Angular 2 Change Detection ist sehr schnell • ChangeDetectionStrategy.OnPush wenn möglich einsetzen

Danke! EnterJS - 15.06.2016 @Sebamueller
