Writing efficient sql

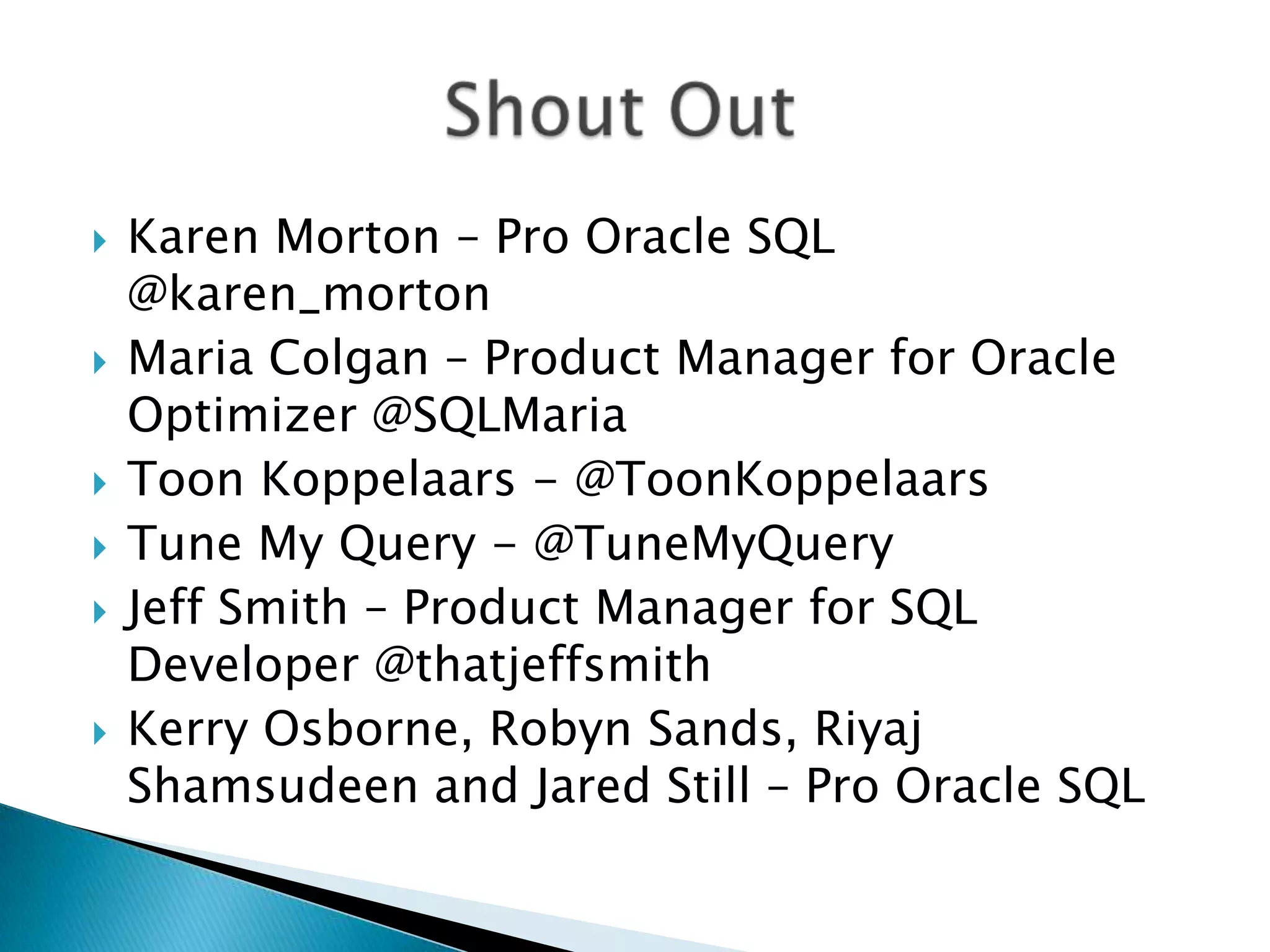

 Karen Morton – Pro Oracle SQL @karen_morton  Maria Colgan – Product Manager for Oracle Optimizer @SQLMaria  Toon Koppelaars - @ToonKoppelaars  Tune My Query - @TuneMyQuery  Jeff Smith – Product Manager for SQL Developer @thatjeffsmith  Kerry Osborne, Robyn Sands, Riyaj Shamsudeen and Jared Still – Pro Oracle SQL

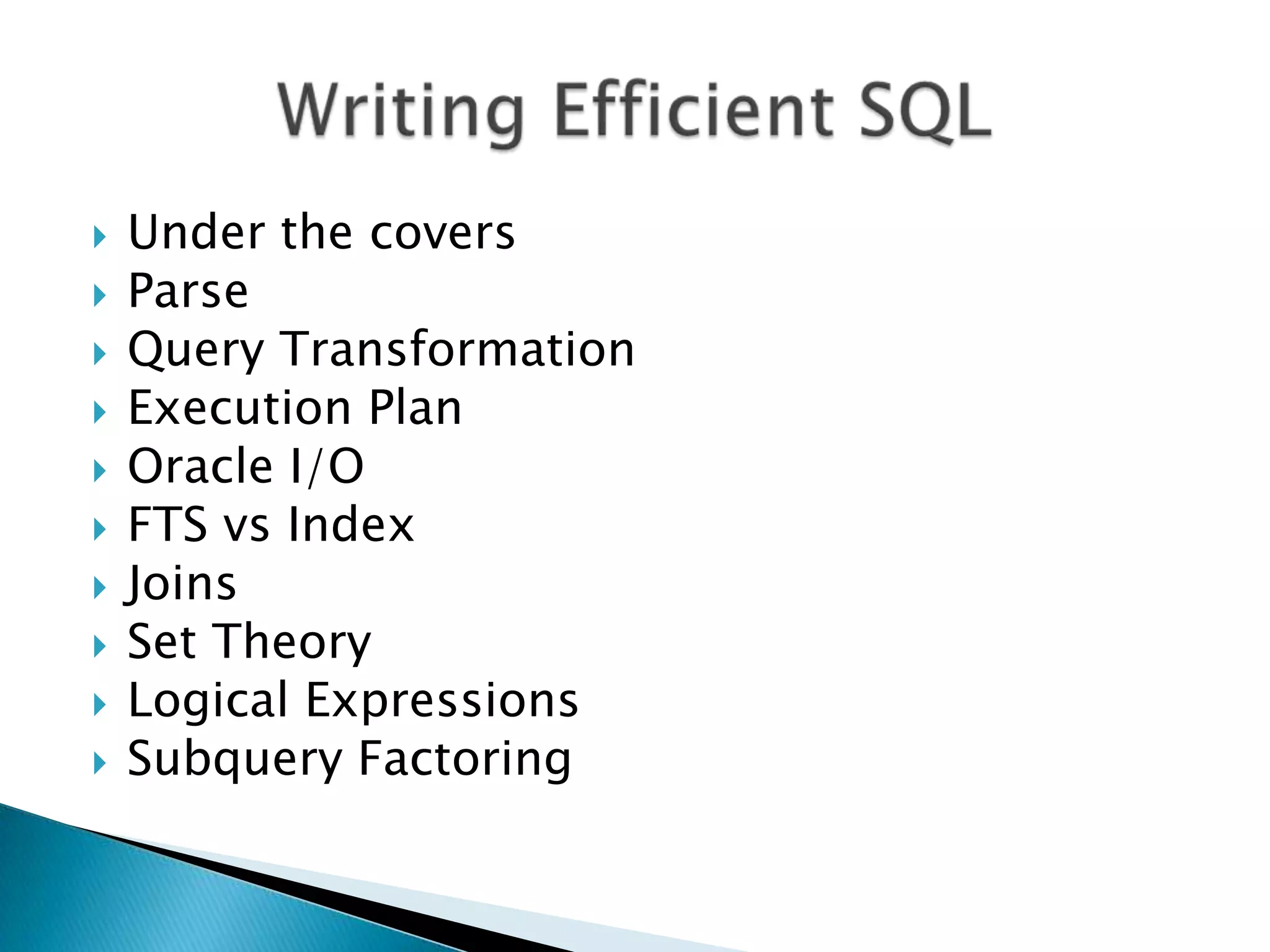

 Under the covers  Parse  Query Transformation  Execution Plan  Oracle I/O  FTS vs Index  Joins  Set Theory  Logical Expressions  Subquery Factoring

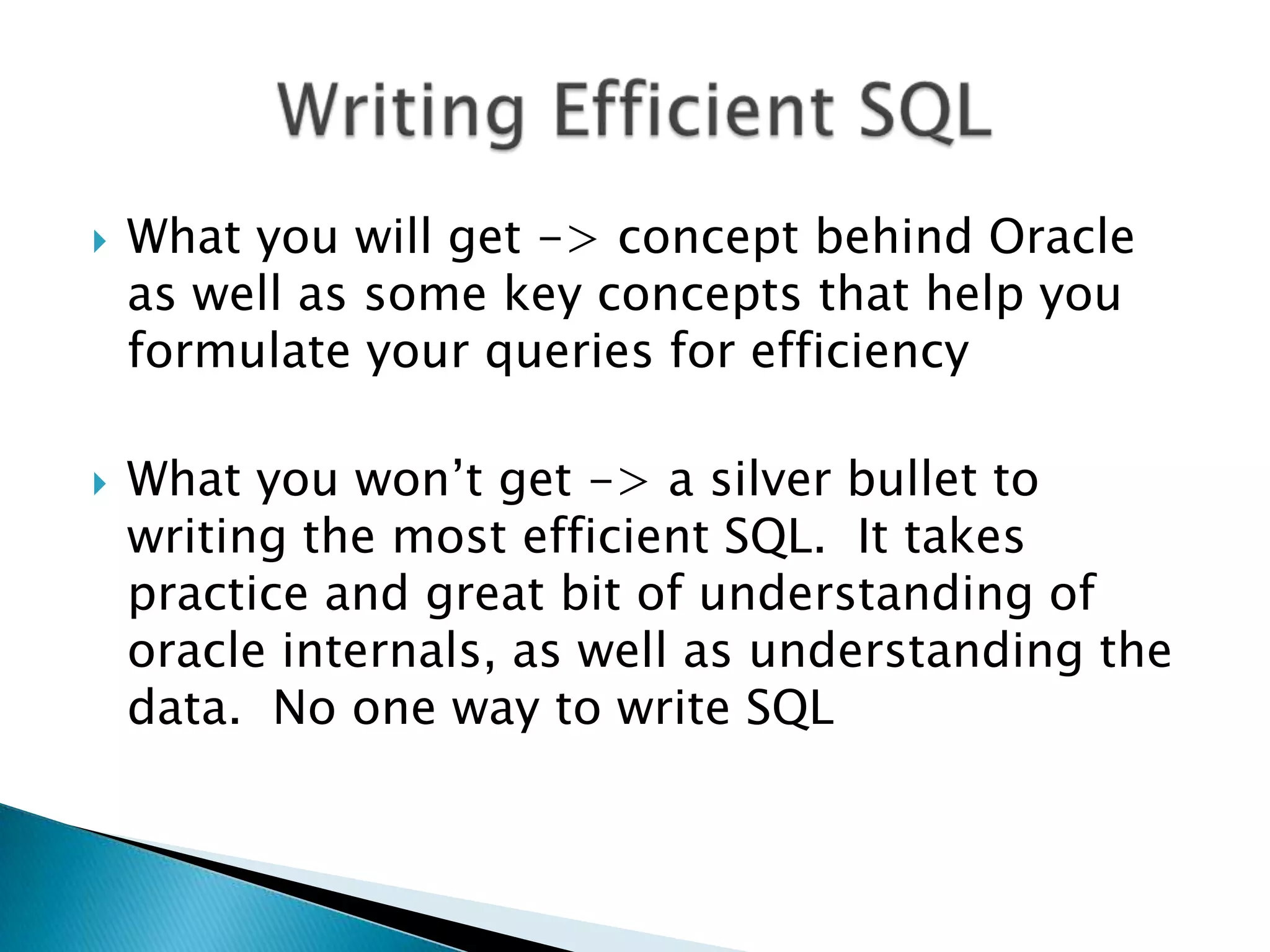

 What you will get -> concept behind Oracle as well as some key concepts that help you formulate your queries for efficiency  What you won‟t get -> a silver bullet to writing the most efficient SQL. It takes practice and great bit of understanding of oracle internals, as well as understanding the data. No one way to write SQL

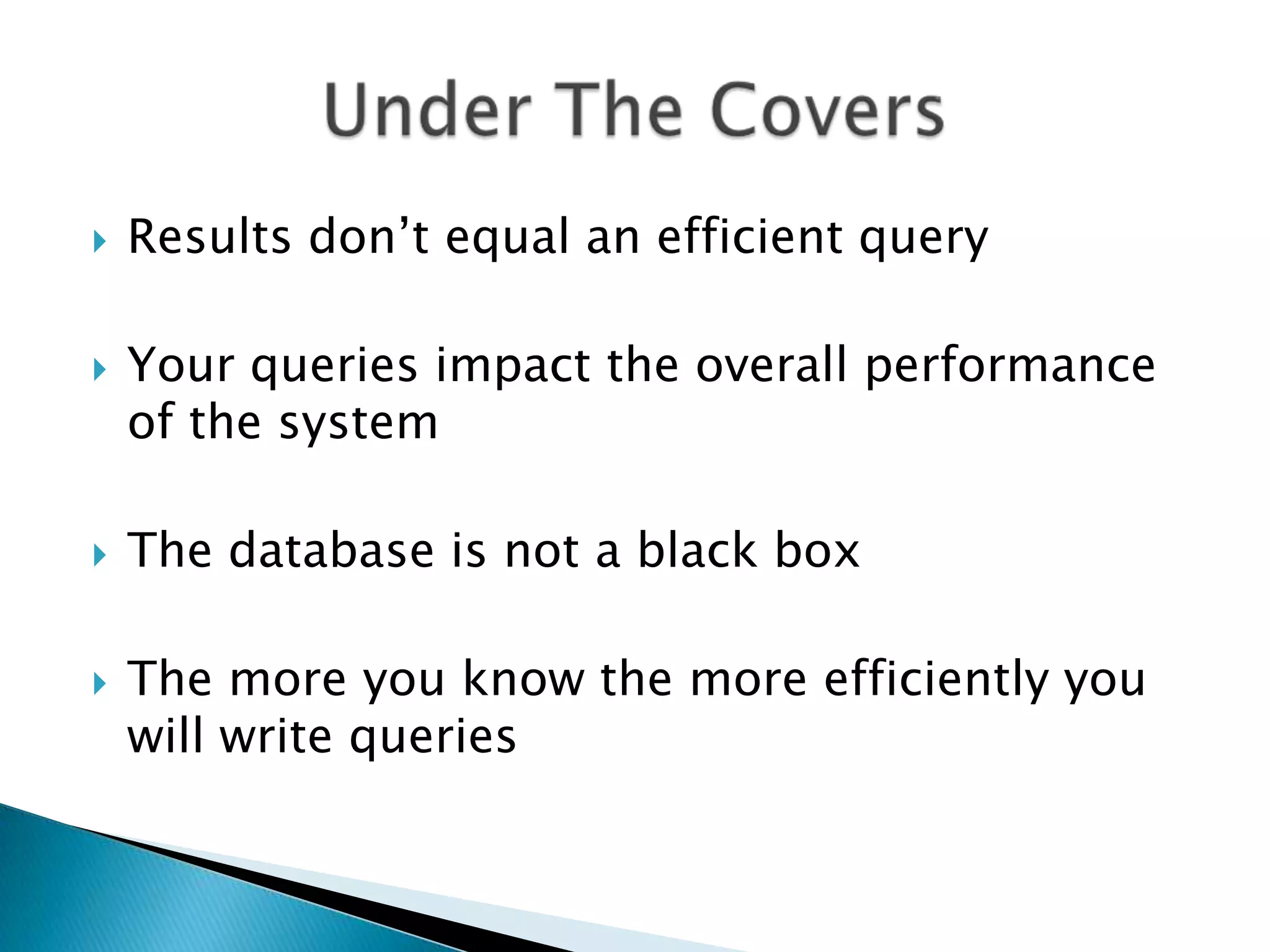

 Results don‟t equal an efficient query  Your queries impact the overall performance of the system  The database is not a black box  The more you know the more efficiently you will write queries

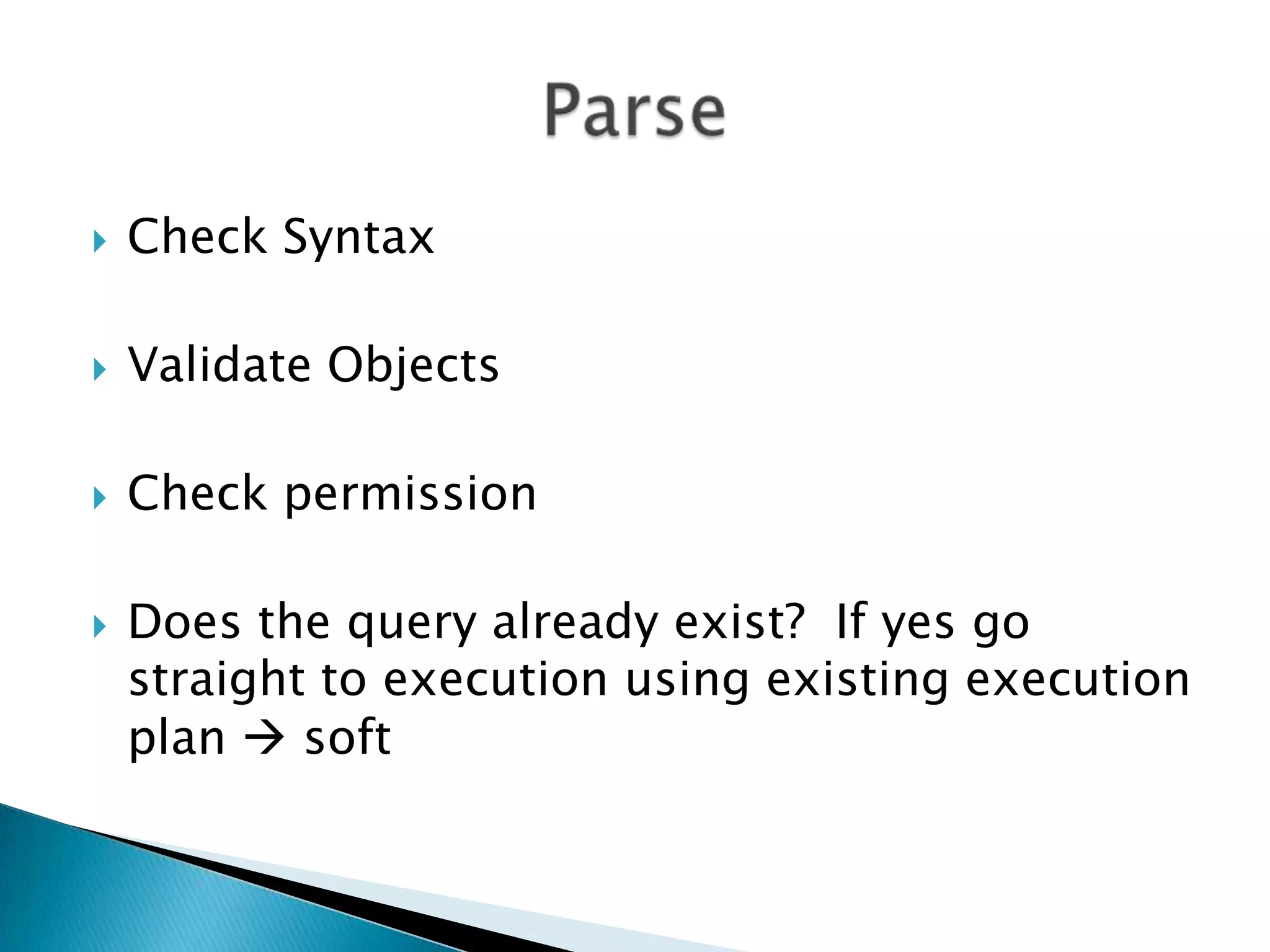

 Check Syntax  Validate Objects  Check permission  Does the query already exist? If yes go straight to execution using existing execution plan  soft

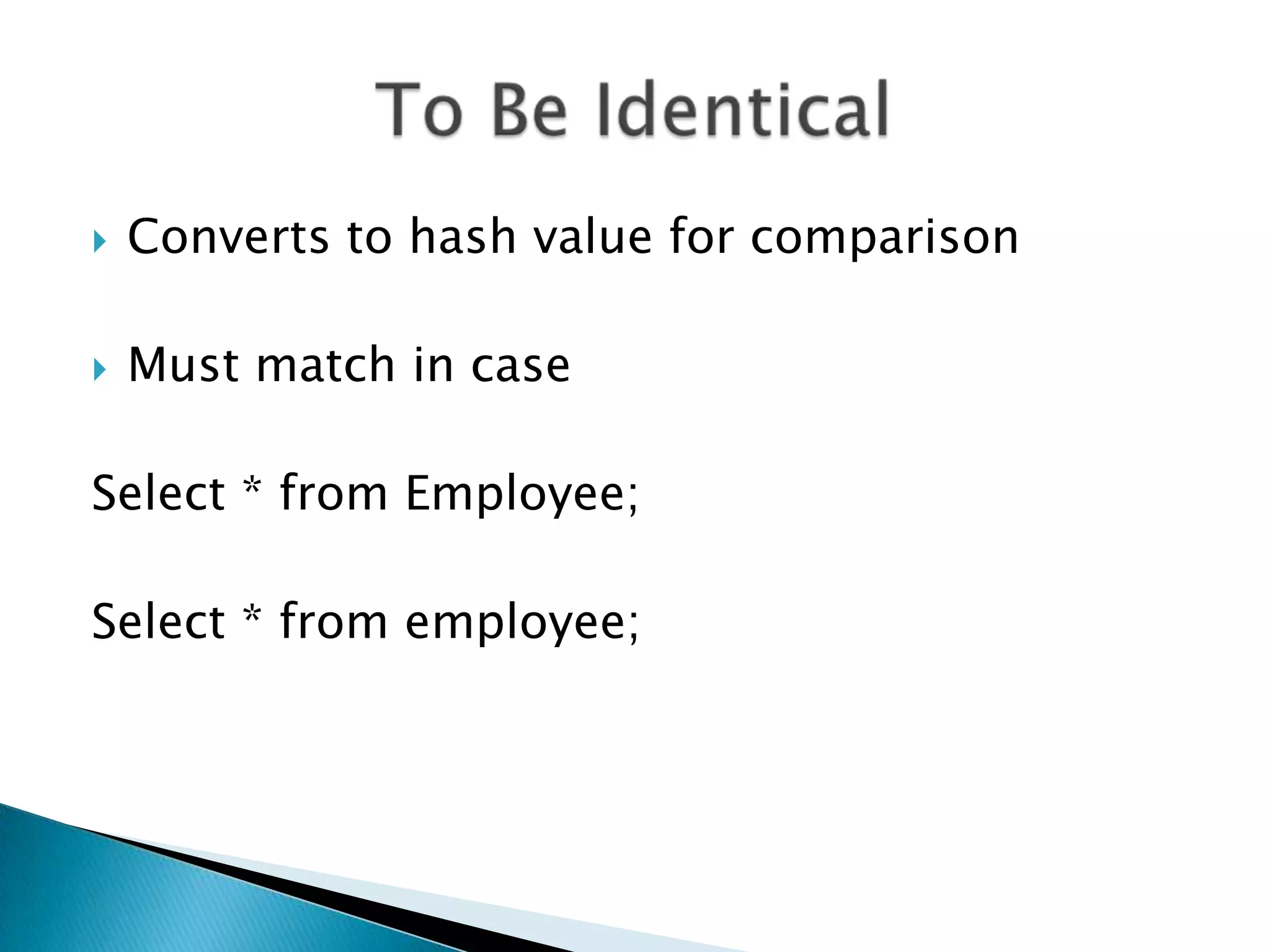

 Converts to hash value for comparison  Must match in case Select * from Employee; Select * from employee;

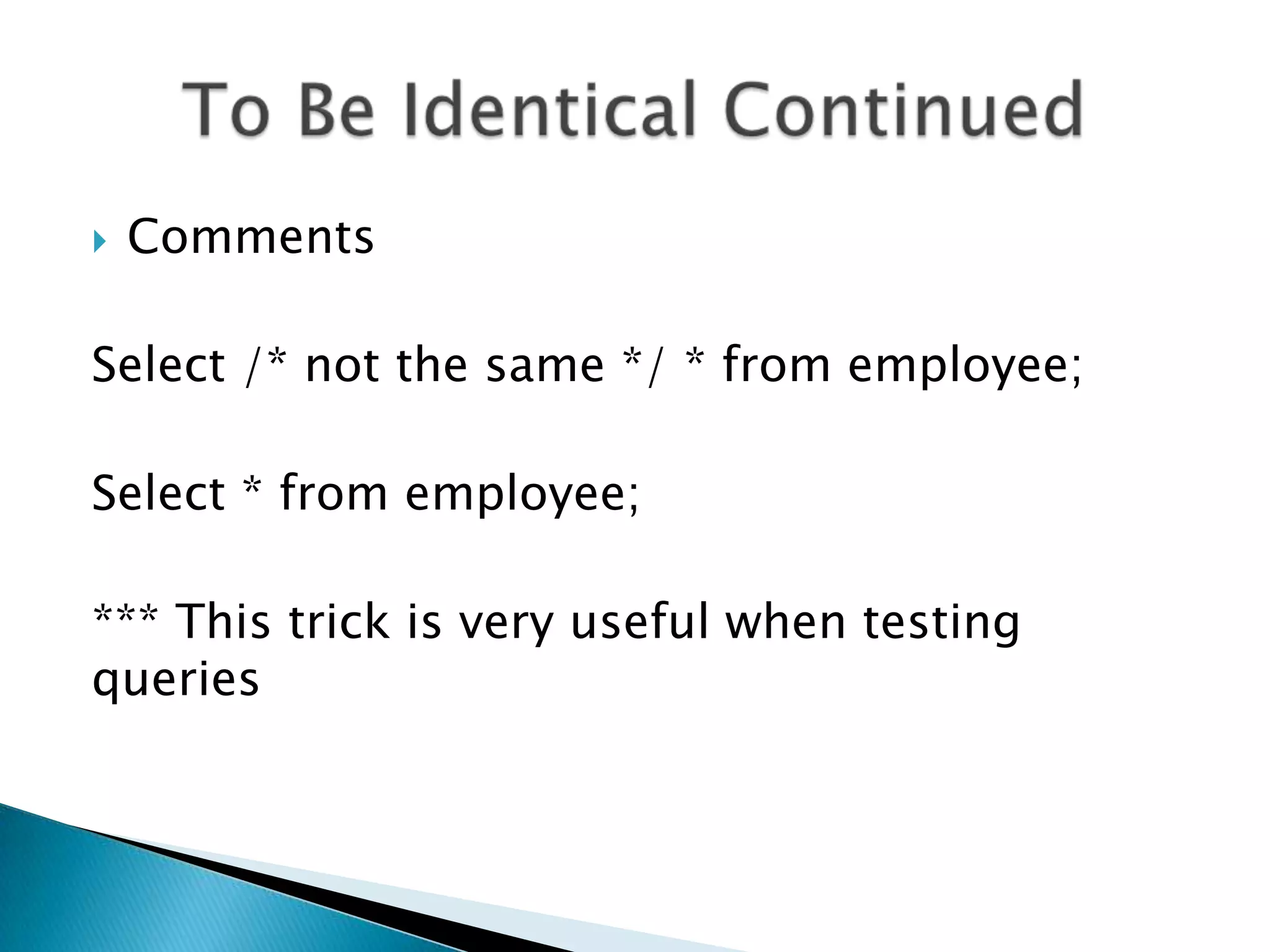

 Comments Select /* not the same */ * from employee; Select * from employee; *** This trick is very useful when testing queries

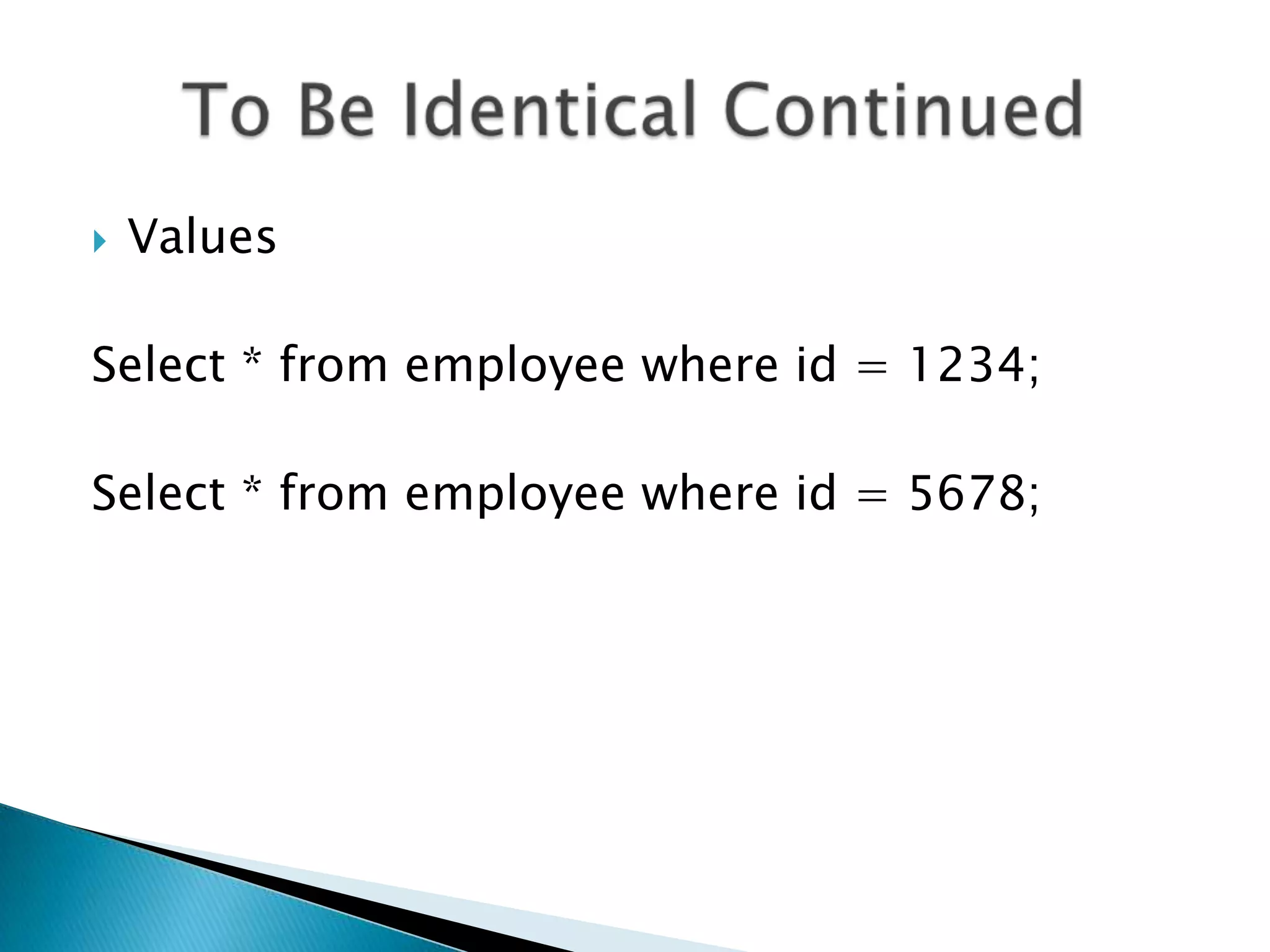

 Values Select * from employee where id = 1234; Select * from employee where id = 5678;

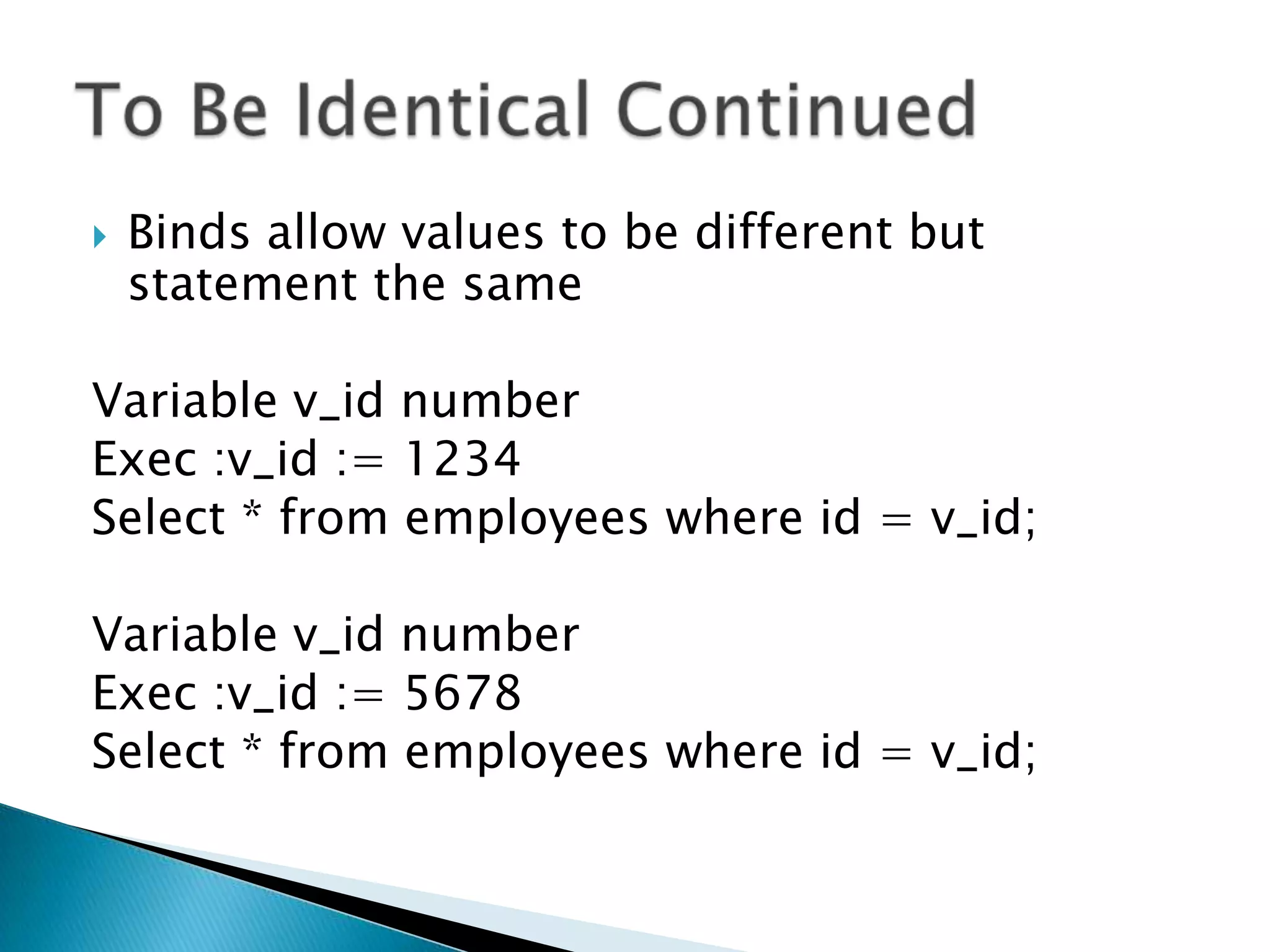

 Binds allow values to be different but statement the same Variable v_id number Exec :v_id := 1234 Select * from employees where id = v_id; Variable v_id number Exec :v_id := 5678 Select * from employees where id = v_id;

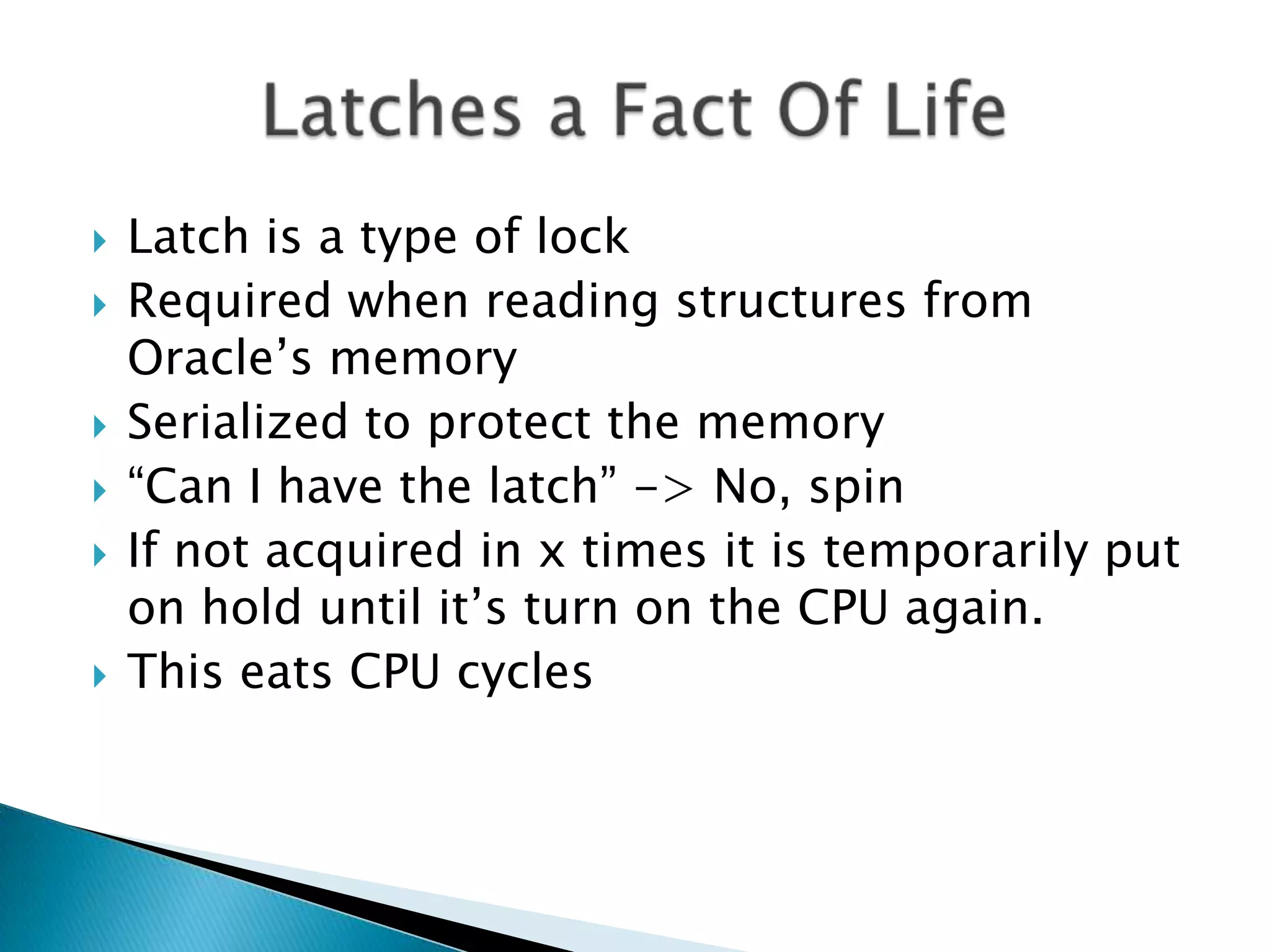

 Latch is a type of lock  Required when reading structures from Oracle‟s memory  Serialized to protect the memory  “Can I have the latch” -> No, spin  If not acquired in x times it is temporarily put on hold until it‟s turn on the CPU again.  This eats CPU cycles

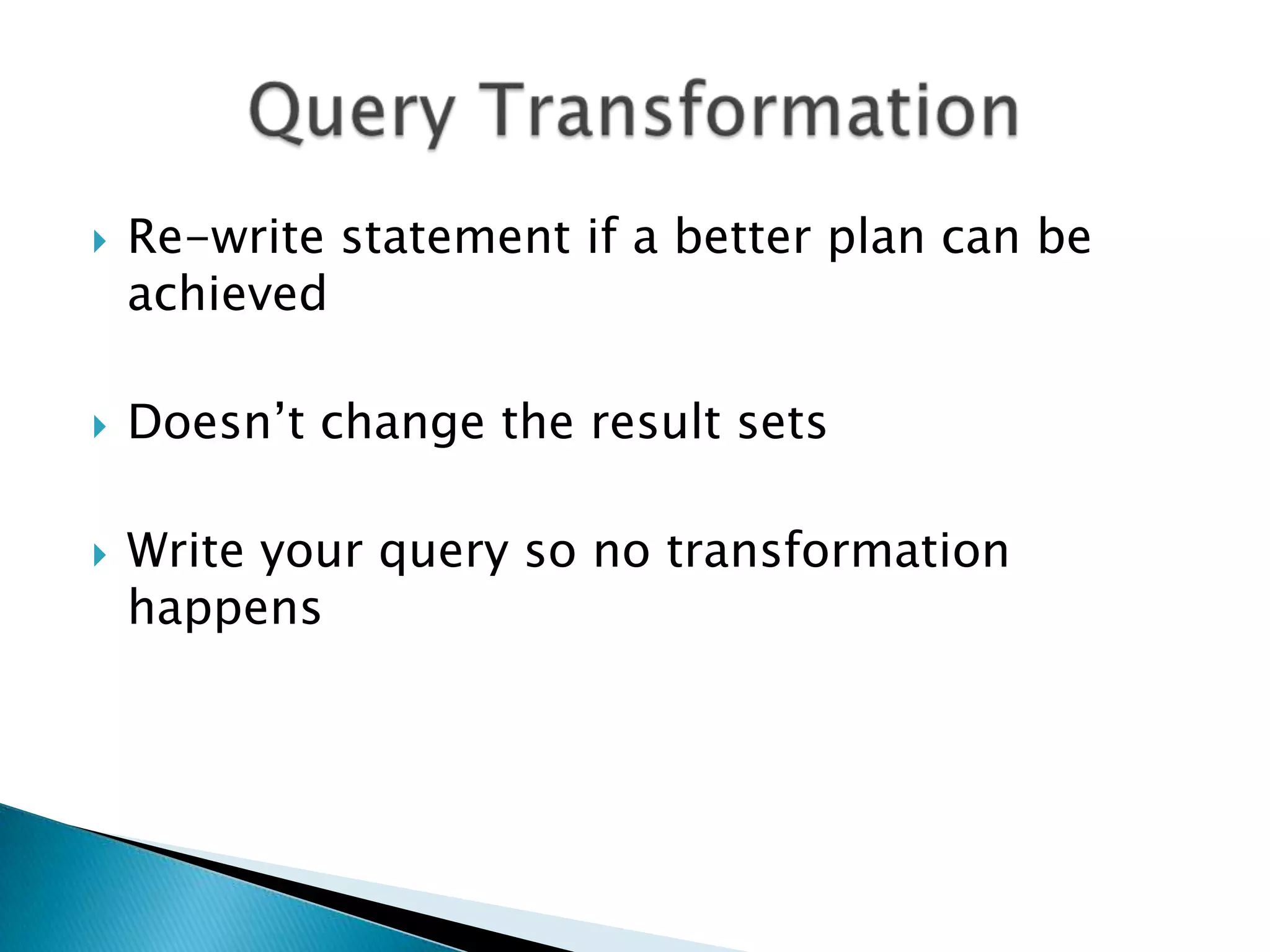

 Re-write statement if a better plan can be achieved  Doesn‟t change the result sets  Write your query so no transformation happens

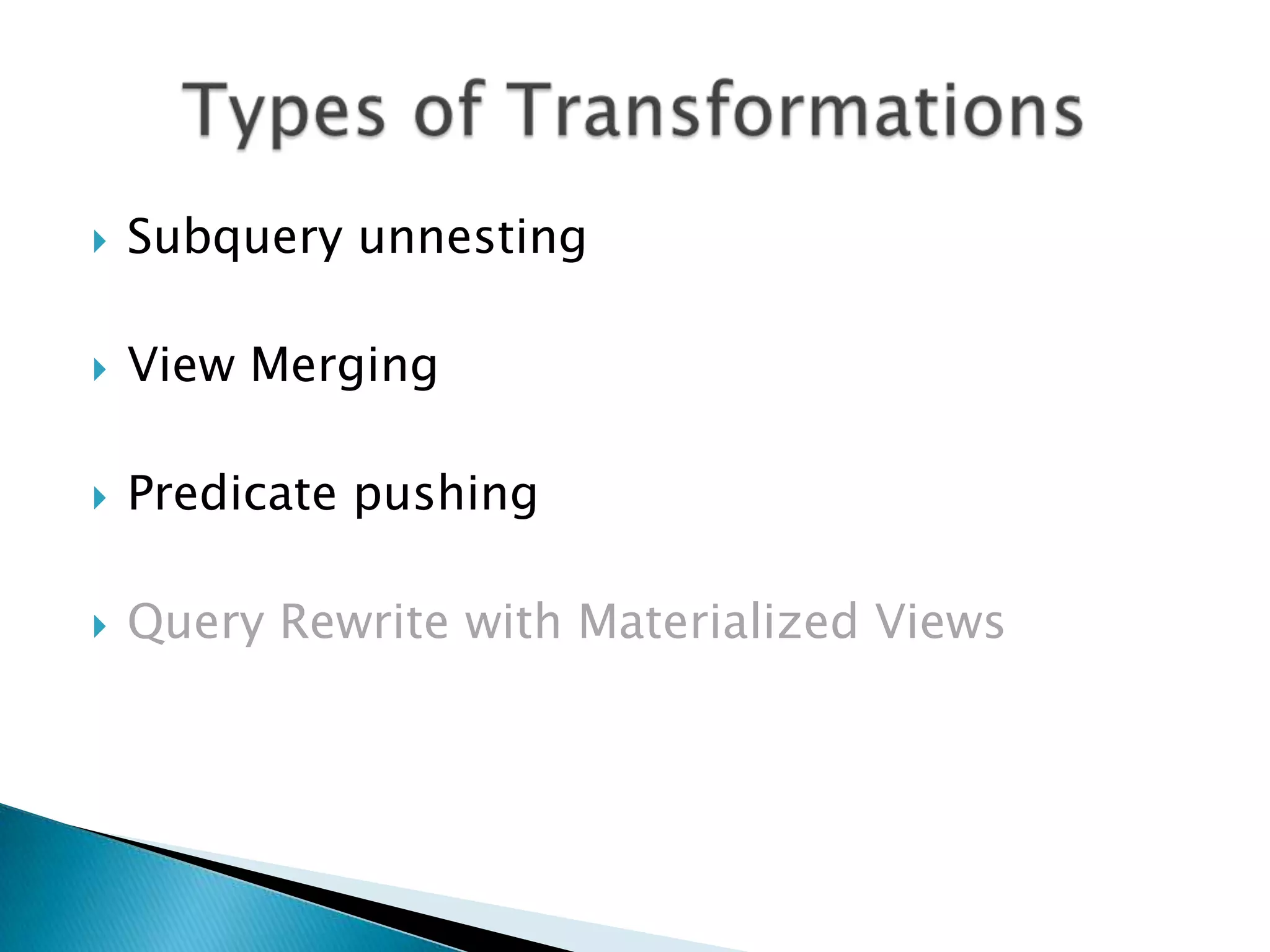

 Subquery unnesting  View Merging  Predicate pushing  Query Rewrite with Materialized Views

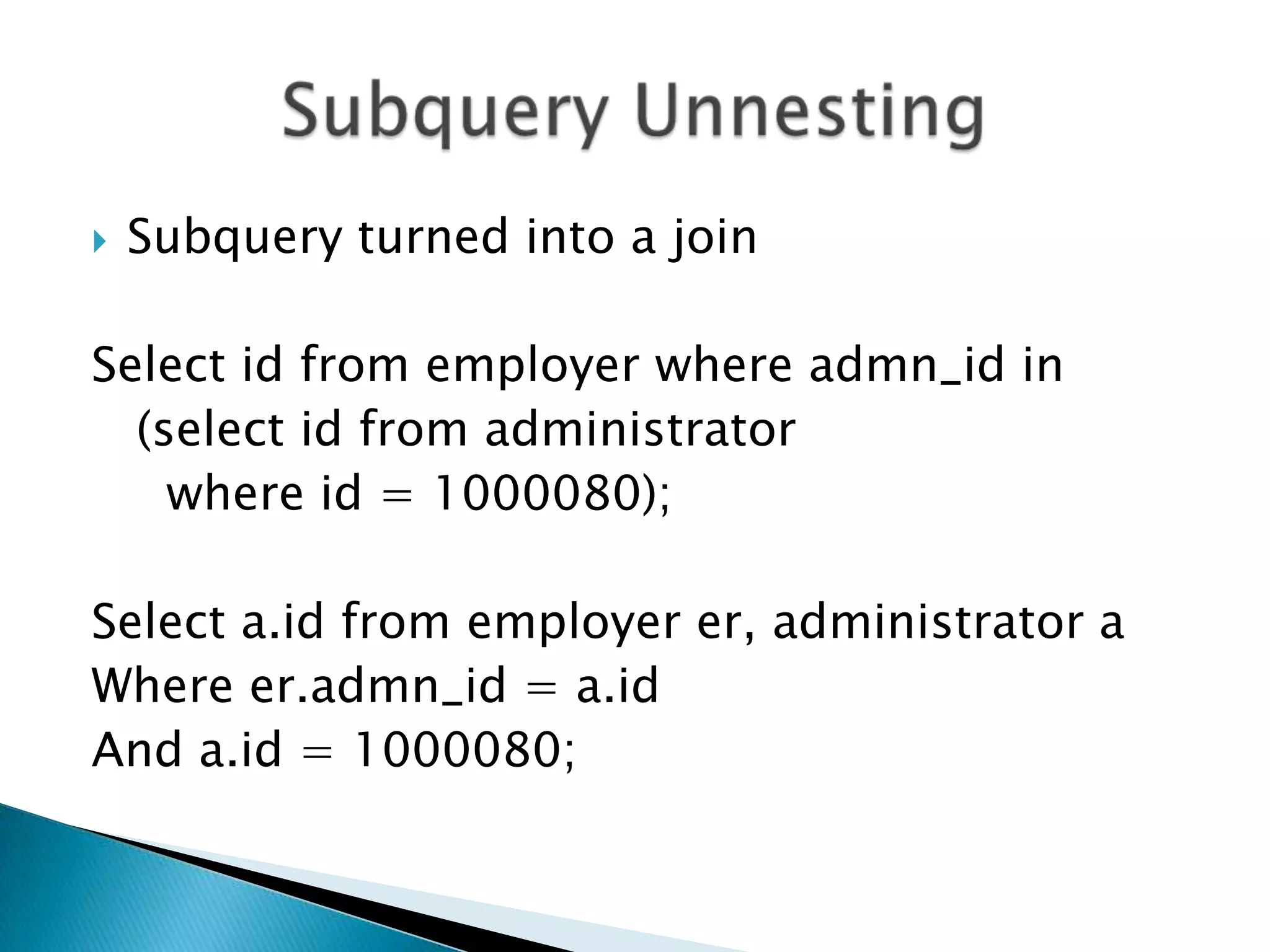

 Subquery turned into a join Select id from employer where admn_id in (select id from administrator where id = 1000080); Select a.id from employer er, administrator a Where er.admn_id = a.id And a.id = 1000080;

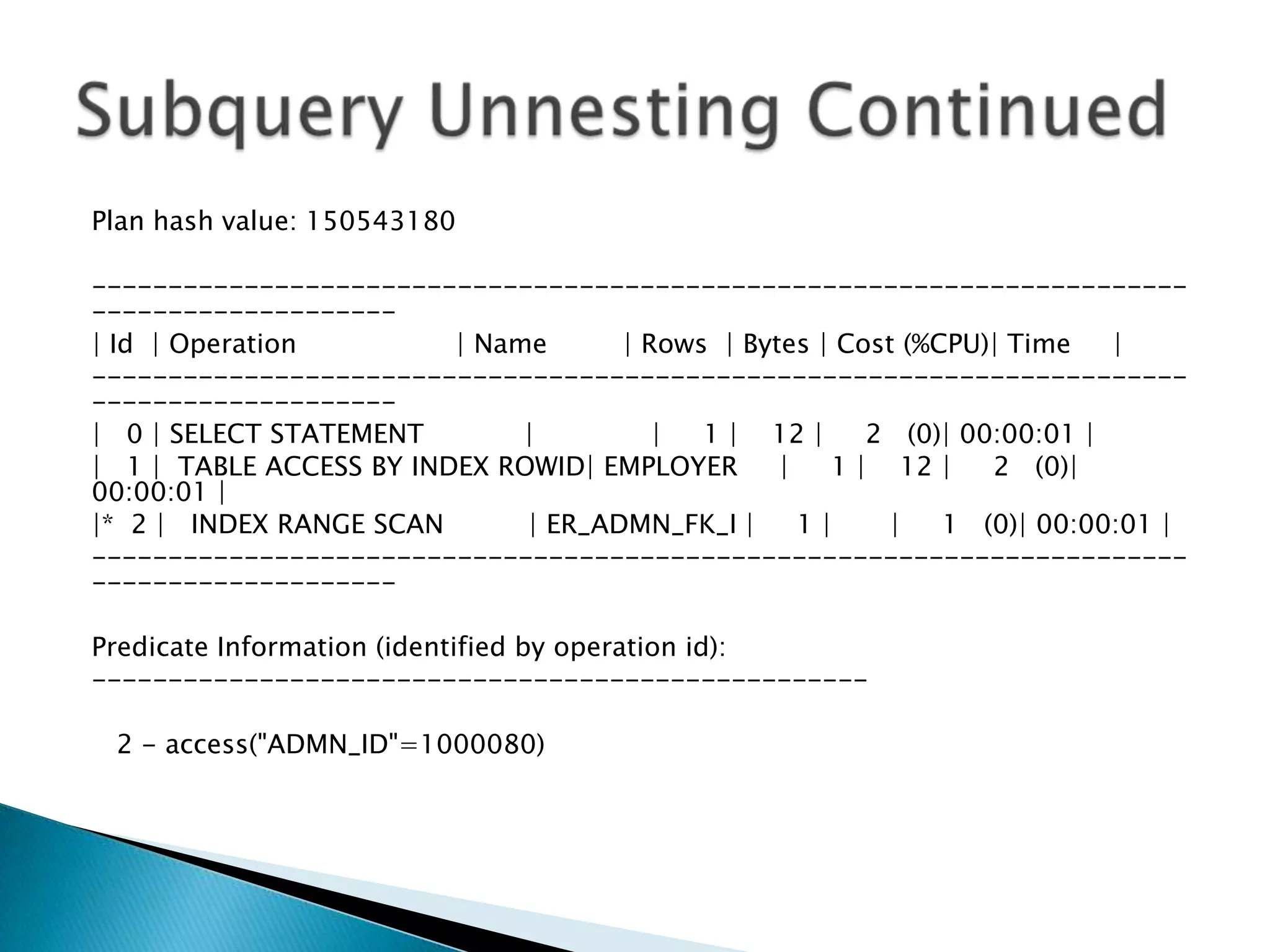

Plan hash value: 150543180 ------------------------------------------------------------------------ -------------------- | Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | ------------------------------------------------------------------------ -------------------- | 0 | SELECT STATEMENT | | 1 | 12 | 2 (0)| 00:00:01 | | 1 | TABLE ACCESS BY INDEX ROWID| EMPLOYER | 1 | 12 | 2 (0)| 00:00:01 | |* 2 | INDEX RANGE SCAN | ER_ADMN_FK_I | 1 | | 1 (0)| 00:00:01 | ------------------------------------------------------------------------ -------------------- Predicate Information (identified by operation id): --------------------------------------------------- 2 - access("ADMN_ID"=1000080)

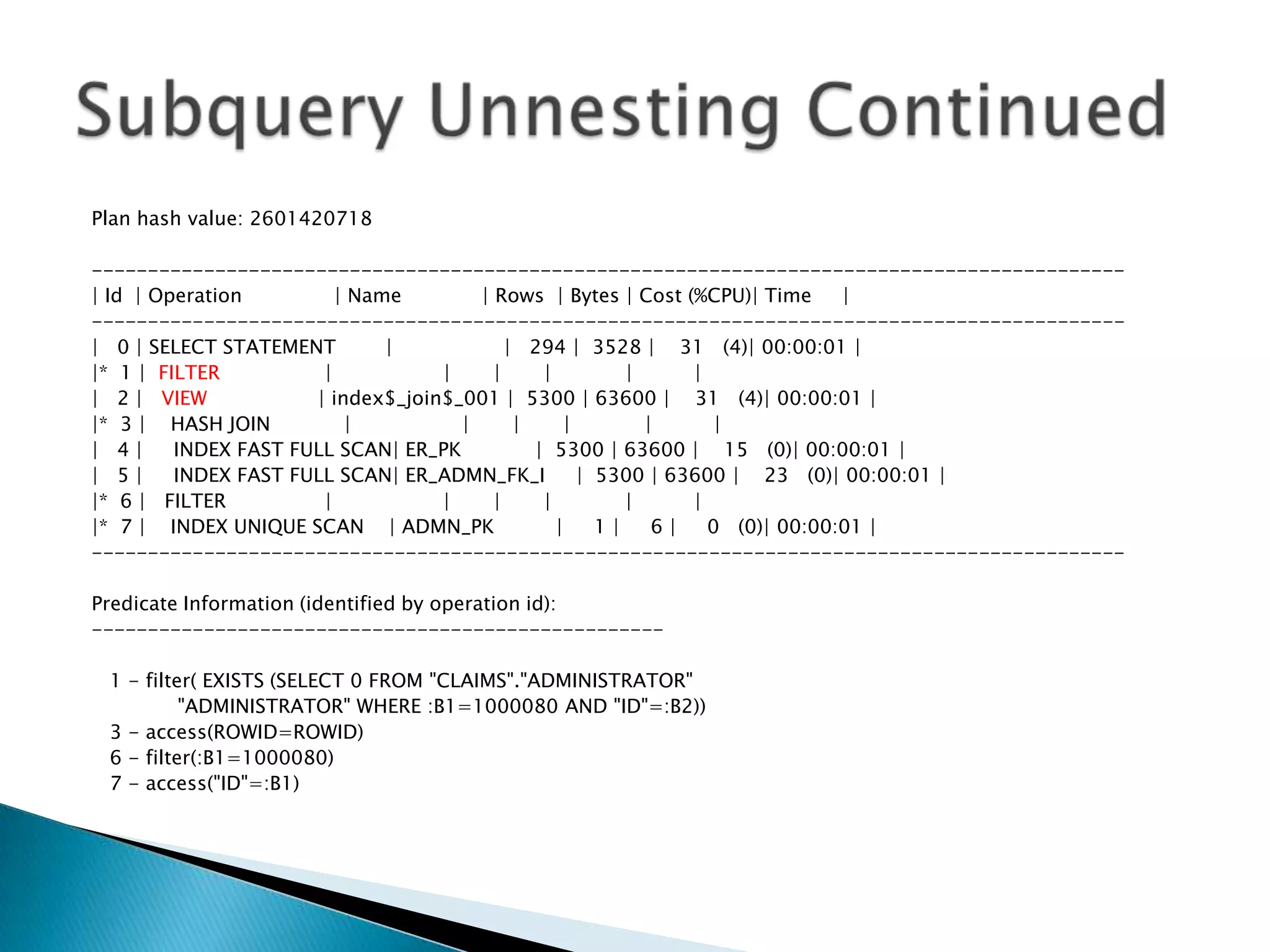

Plan hash value: 2601420718 -------------------------------------------------------------------------------------------- | Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | -------------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 294 | 3528 | 31 (4)| 00:00:01 | |* 1 | FILTER | | | | | | | 2 | VIEW | index$_join$_001 | 5300 | 63600 | 31 (4)| 00:00:01 | |* 3 | HASH JOIN | | | | | | | 4 | INDEX FAST FULL SCAN| ER_PK | 5300 | 63600 | 15 (0)| 00:00:01 | | 5 | INDEX FAST FULL SCAN| ER_ADMN_FK_I | 5300 | 63600 | 23 (0)| 00:00:01 | |* 6 | FILTER | | | | | | |* 7 | INDEX UNIQUE SCAN | ADMN_PK | 1 | 6 | 0 (0)| 00:00:01 | -------------------------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 1 - filter( EXISTS (SELECT 0 FROM "CLAIMS"."ADMINISTRATOR" "ADMINISTRATOR" WHERE :B1=1000080 AND "ID"=:B2)) 3 - access(ROWID=ROWID) 6 - filter(:B1=1000080) 7 - access("ID"=:B1)

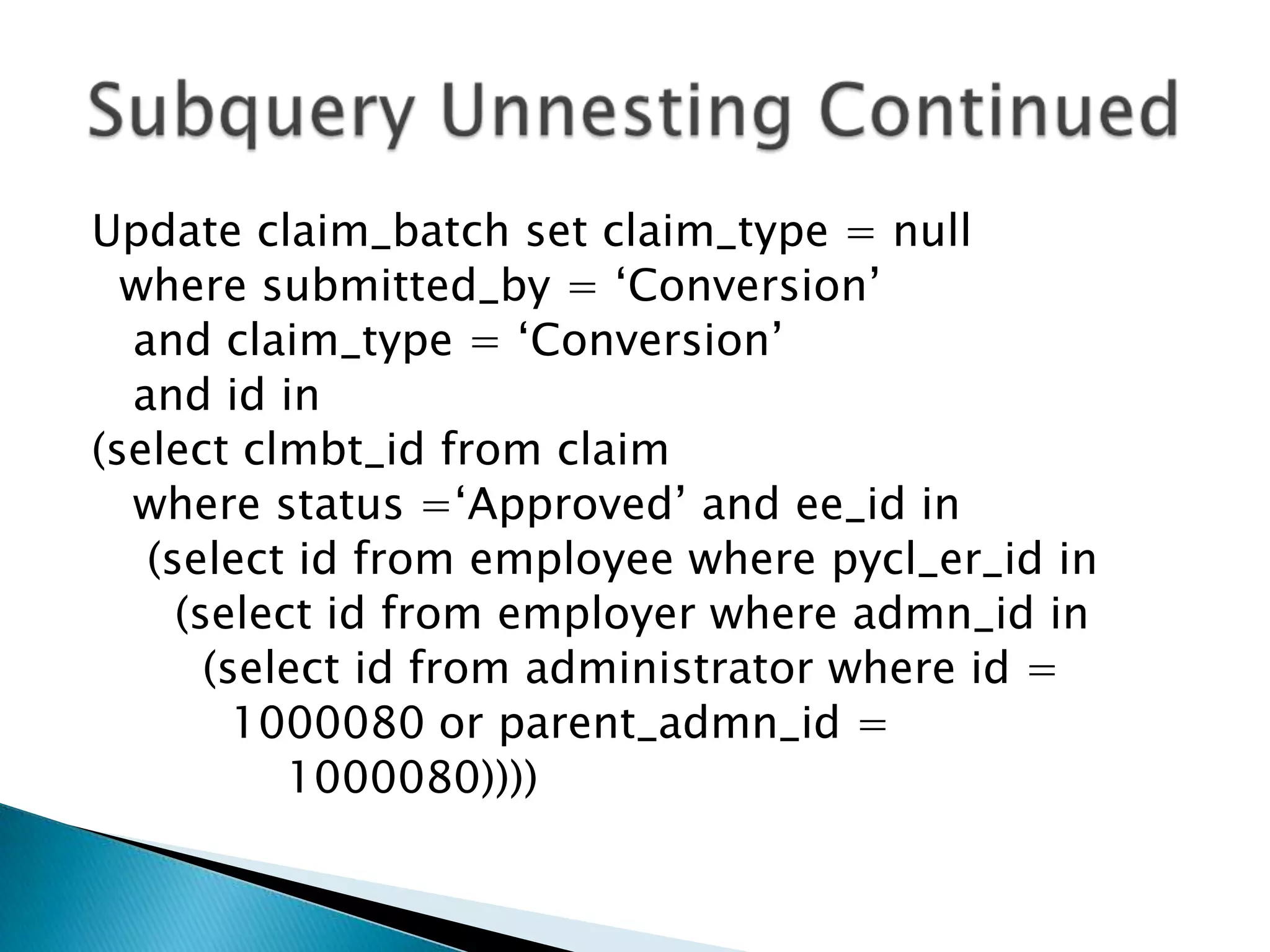

Update claim_batch set claim_type = null where submitted_by = „Conversion‟ and claim_type = „Conversion‟ and id in (select clmbt_id from claim where status =„Approved‟ and ee_id in (select id from employee where pycl_er_id in (select id from employer where admn_id in (select id from administrator where id = 1000080 or parent_admn_id = 1000080))))

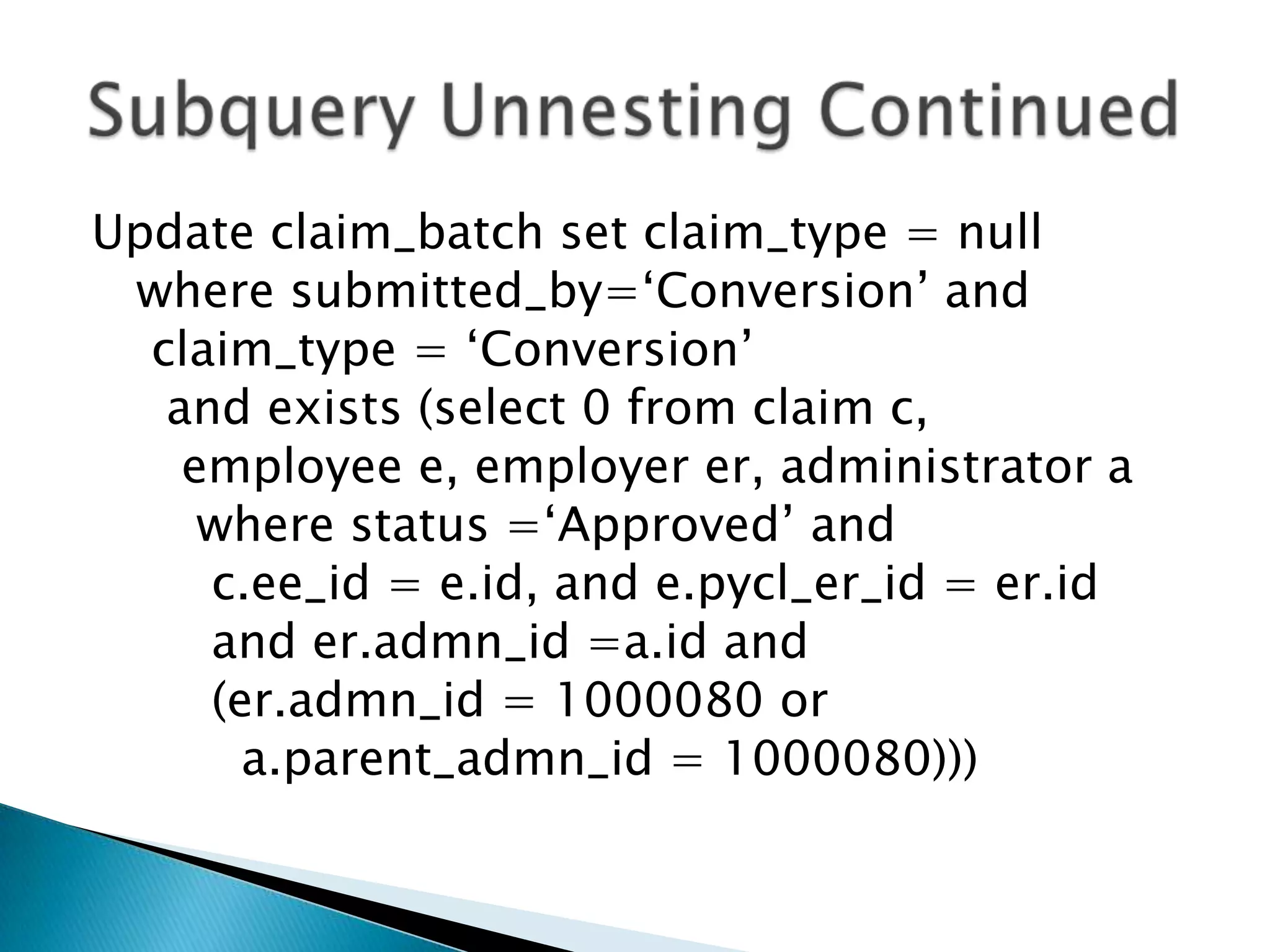

Update claim_batch set claim_type = null where submitted_by=„Conversion‟ and claim_type = „Conversion‟ and exists (select 0 from claim c, employee e, employer er, administrator a where status =„Approved‟ and c.ee_id = e.id, and e.pycl_er_id = er.id and er.admn_id =a.id and (er.admn_id = 1000080 or a.parent_admn_id = 1000080)))

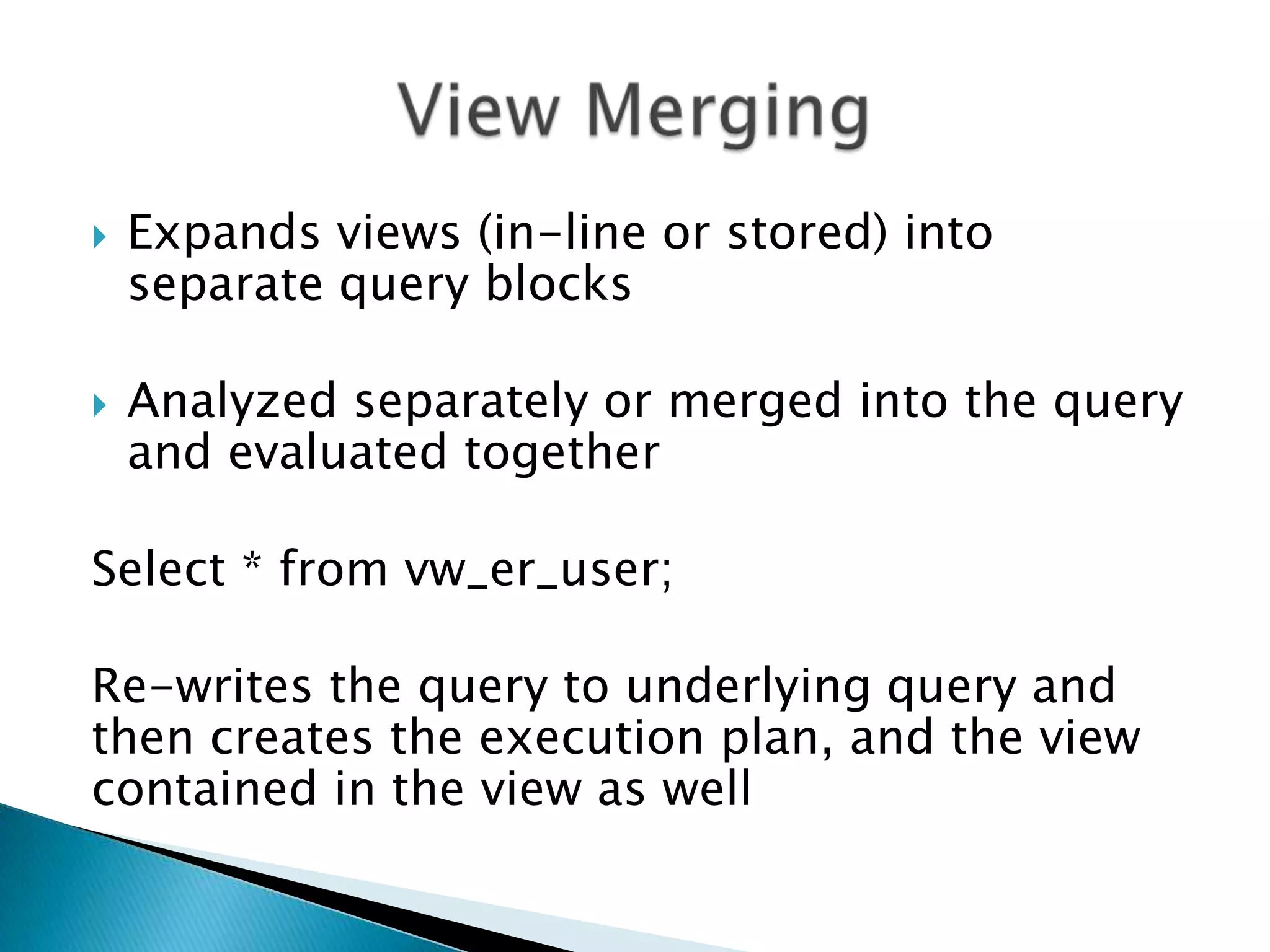

 Expands views (in-line or stored) into separate query blocks  Analyzed separately or merged into the query and evaluated together Select * from vw_er_user; Re-writes the query to underlying query and then creates the execution plan, and the view contained in the view as well

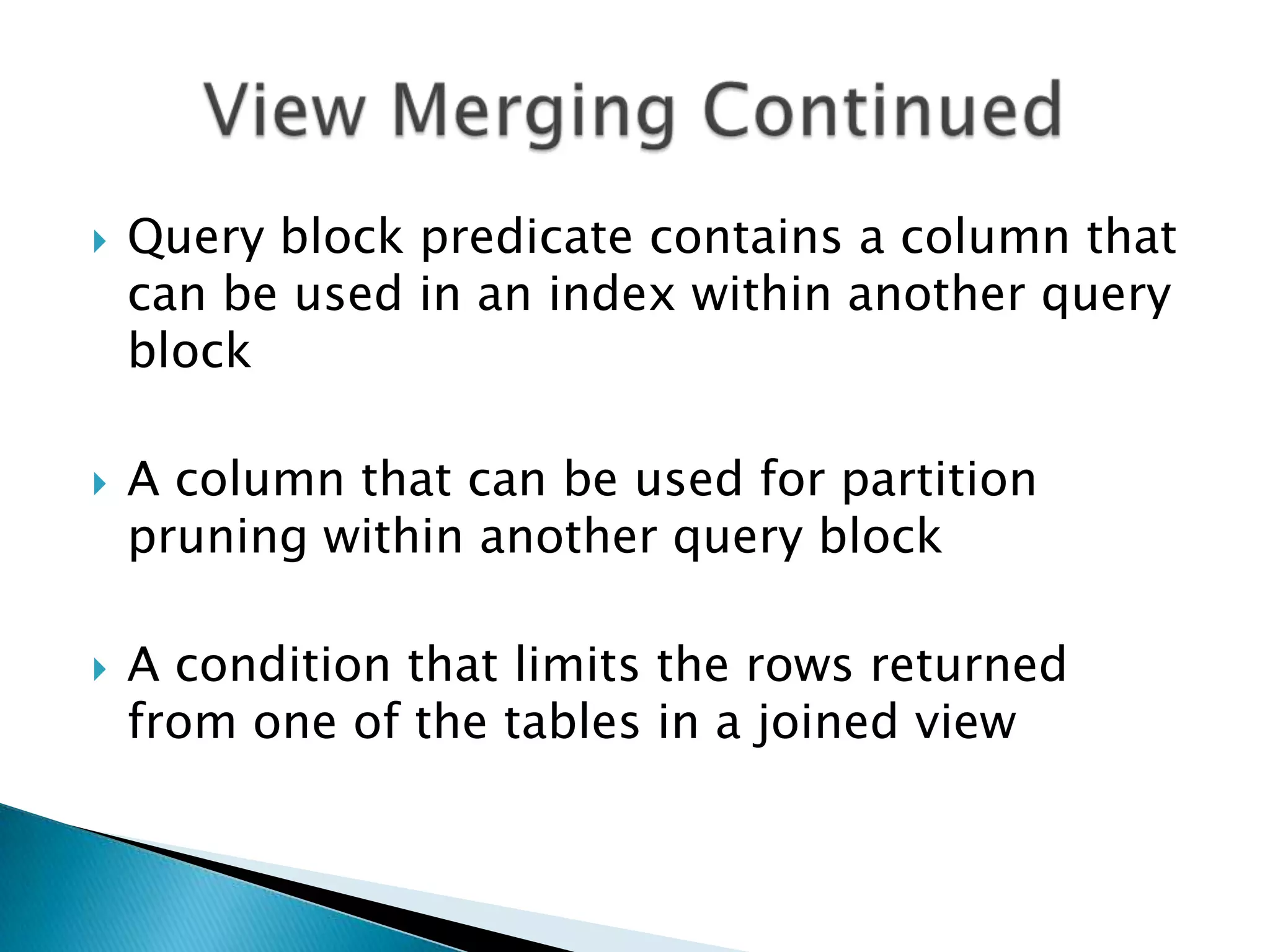

 Query block predicate contains a column that can be used in an index within another query block  A column that can be used for partition pruning within another query block  A condition that limits the rows returned from one of the tables in a joined view

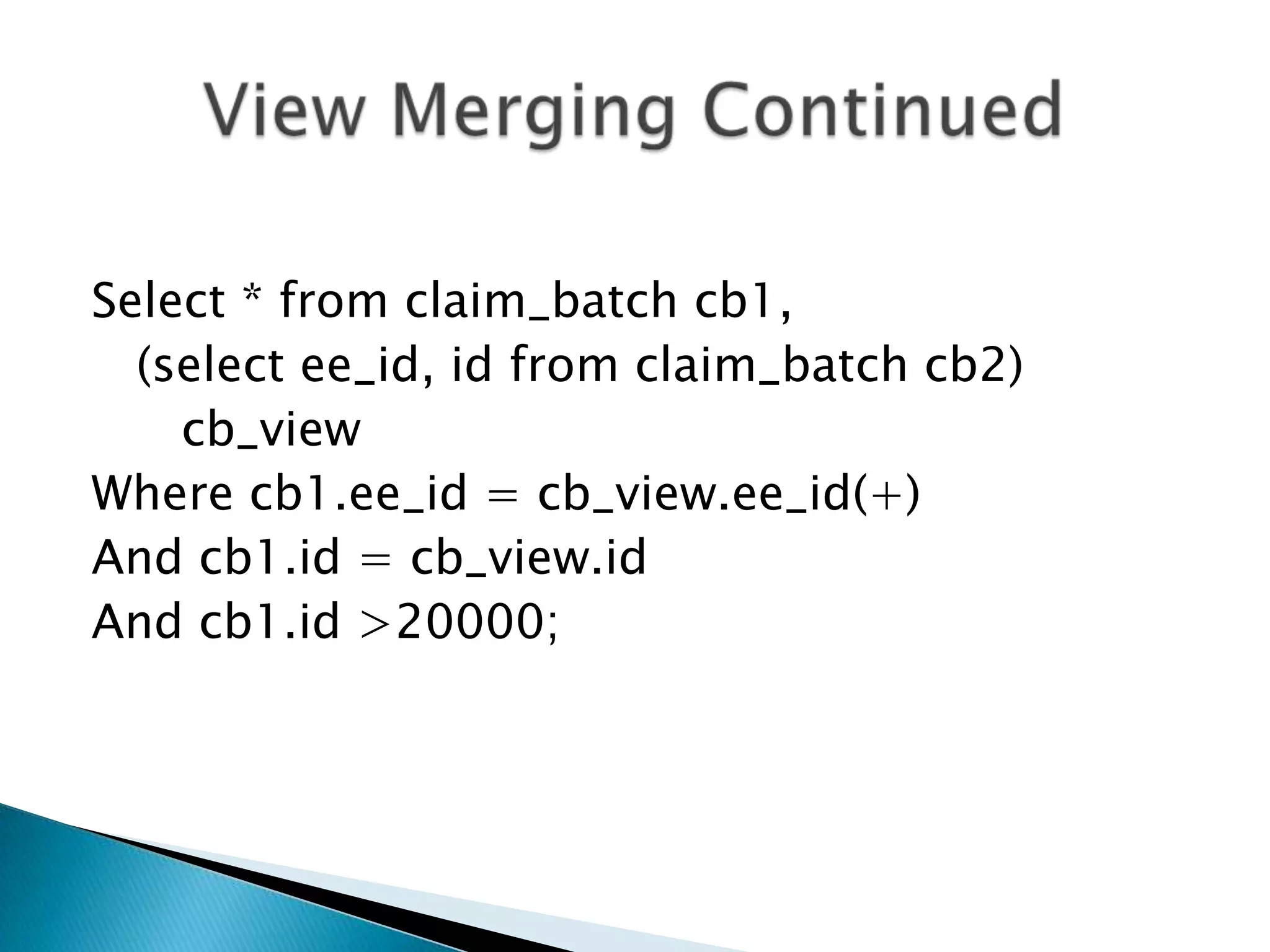

Select * from claim_batch cb1, (select ee_id, id from claim_batch cb2) cb_view Where cb1.ee_id = cb_view.ee_id(+) And cb1.id = cb_view.id And cb1.id >20000;

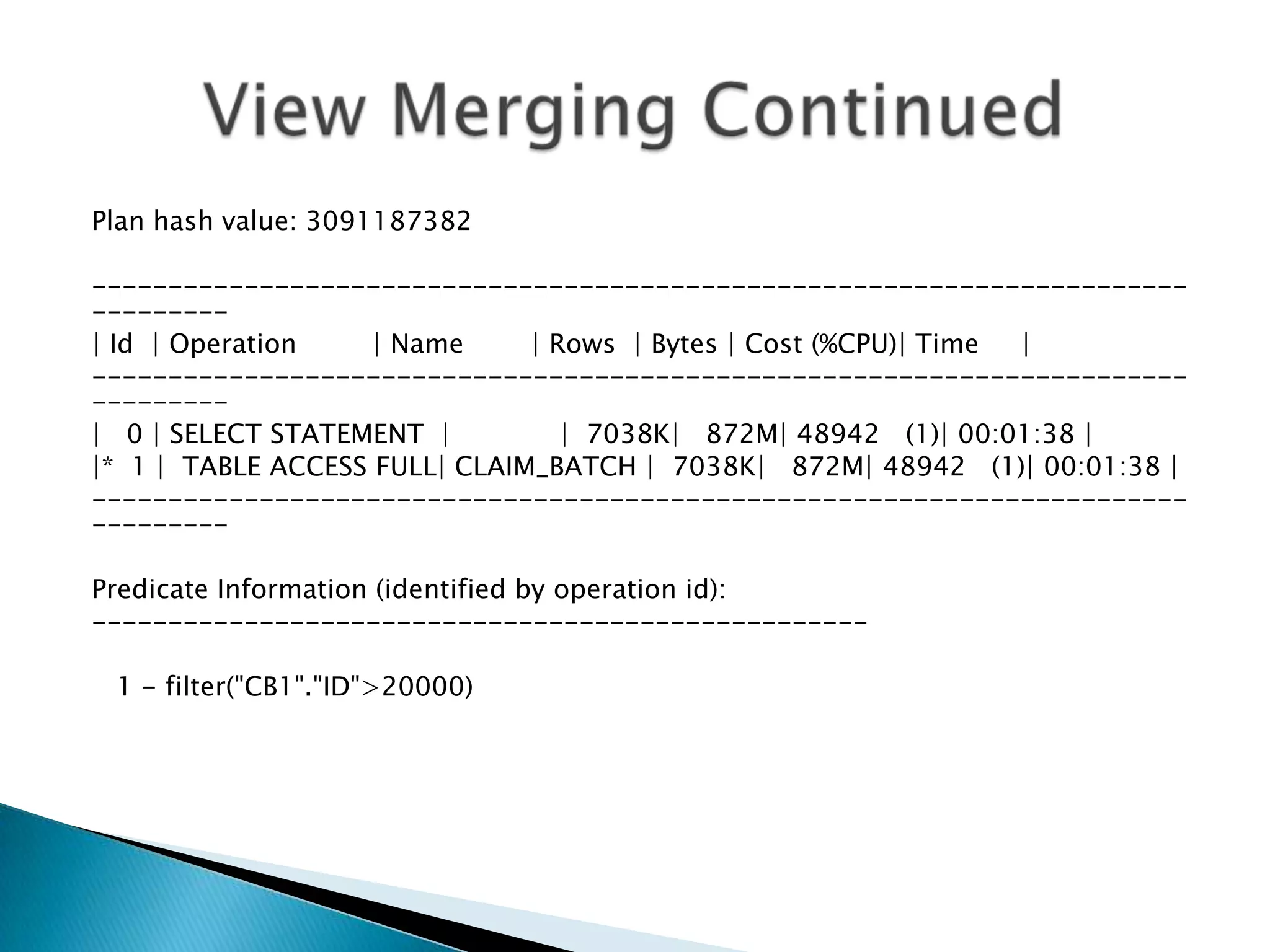

Plan hash value: 3091187382 ------------------------------------------------------------------------ --------- | Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | ------------------------------------------------------------------------ --------- | 0 | SELECT STATEMENT | | 7038K| 872M| 48942 (1)| 00:01:38 | |* 1 | TABLE ACCESS FULL| CLAIM_BATCH | 7038K| 872M| 48942 (1)| 00:01:38 | ------------------------------------------------------------------------ --------- Predicate Information (identified by operation id): --------------------------------------------------- 1 - filter("CB1"."ID">20000)

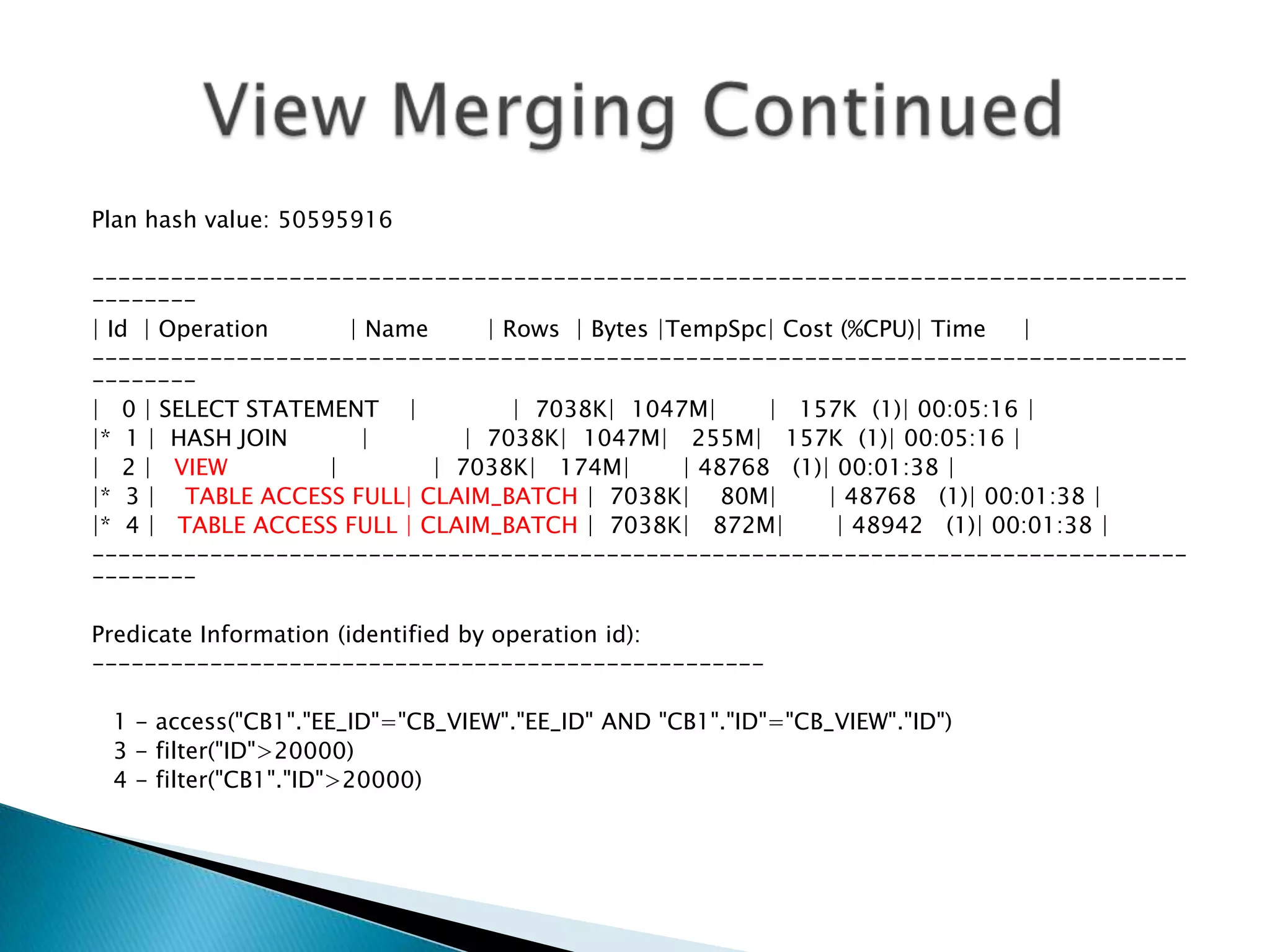

Plan hash value: 50595916 ----------------------------------------------------------------------------------- -------- | Id | Operation | Name | Rows | Bytes |TempSpc| Cost (%CPU)| Time | ----------------------------------------------------------------------------------- -------- | 0 | SELECT STATEMENT | | 7038K| 1047M| | 157K (1)| 00:05:16 | |* 1 | HASH JOIN | | 7038K| 1047M| 255M| 157K (1)| 00:05:16 | | 2 | VIEW | | 7038K| 174M| | 48768 (1)| 00:01:38 | |* 3 | TABLE ACCESS FULL| CLAIM_BATCH | 7038K| 80M| | 48768 (1)| 00:01:38 | |* 4 | TABLE ACCESS FULL | CLAIM_BATCH | 7038K| 872M| | 48942 (1)| 00:01:38 | ----------------------------------------------------------------------------------- -------- Predicate Information (identified by operation id): --------------------------------------------------- 1 - access("CB1"."EE_ID"="CB_VIEW"."EE_ID" AND "CB1"."ID"="CB_VIEW"."ID") 3 - filter("ID">20000) 4 - filter("CB1"."ID">20000)

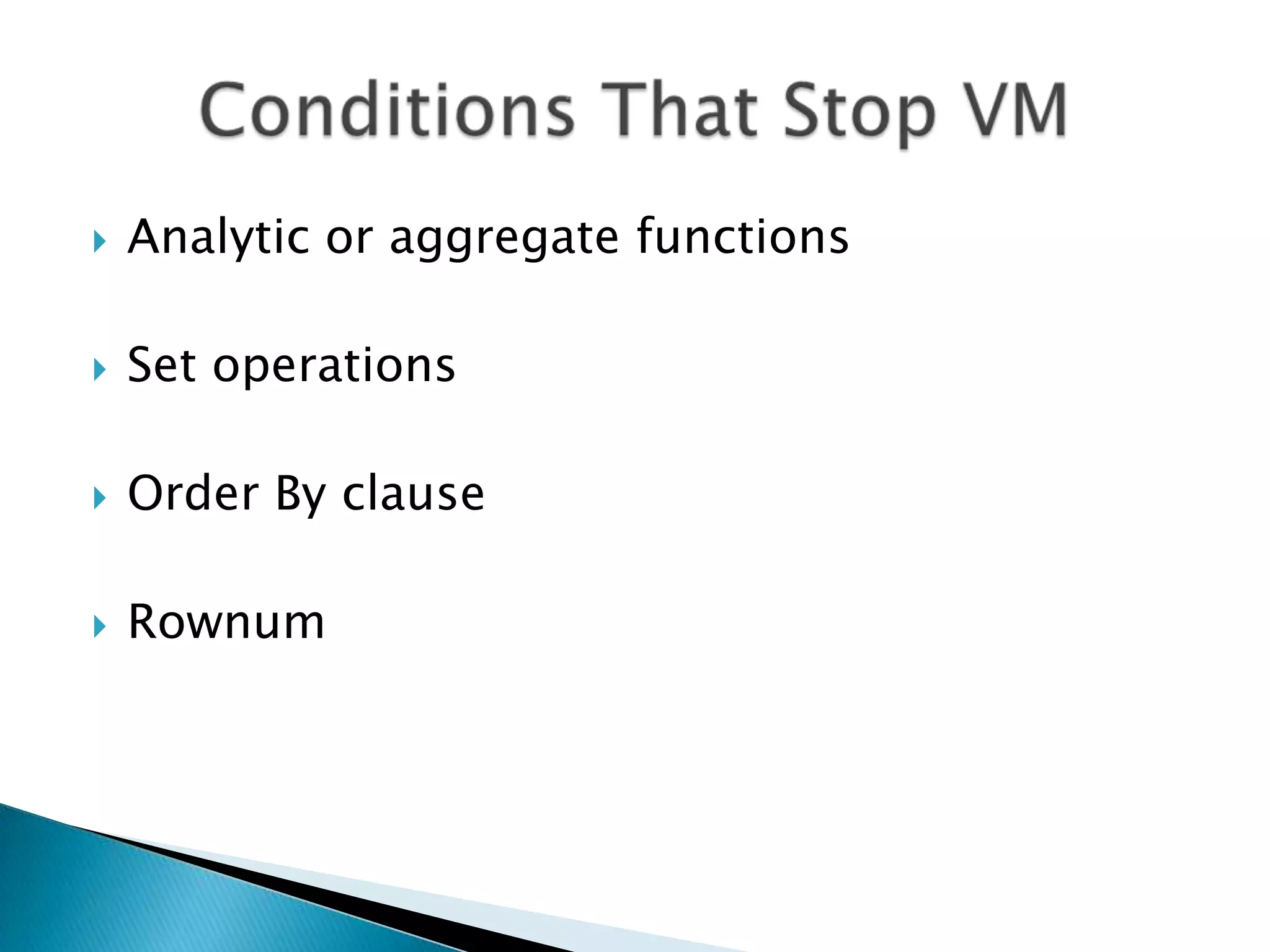

 Analytic or aggregate functions  Set operations  Order By clause  Rownum

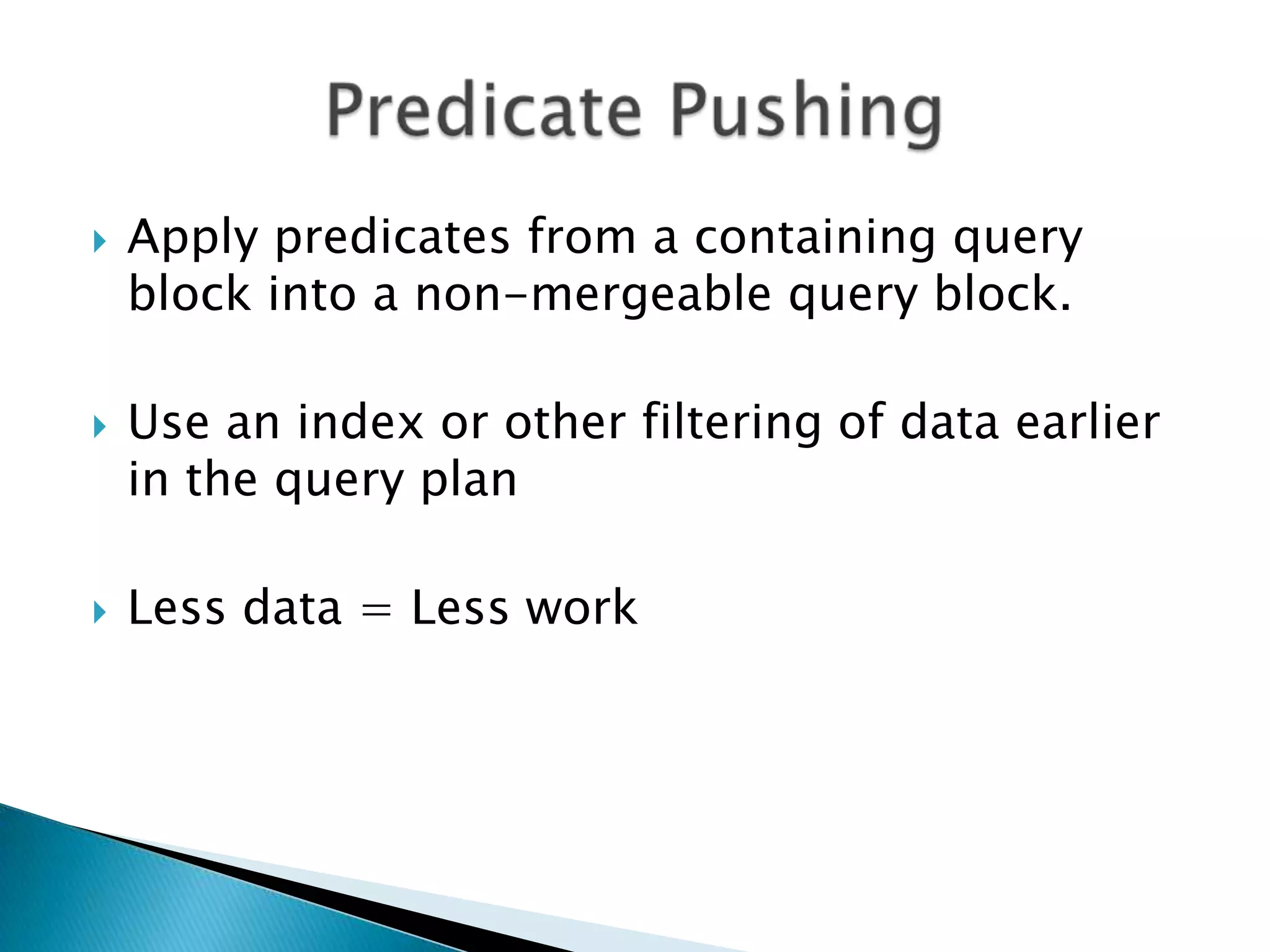

 Apply predicates from a containing query block into a non-mergeable query block.  Use an index or other filtering of data earlier in the query plan  Less data = Less work

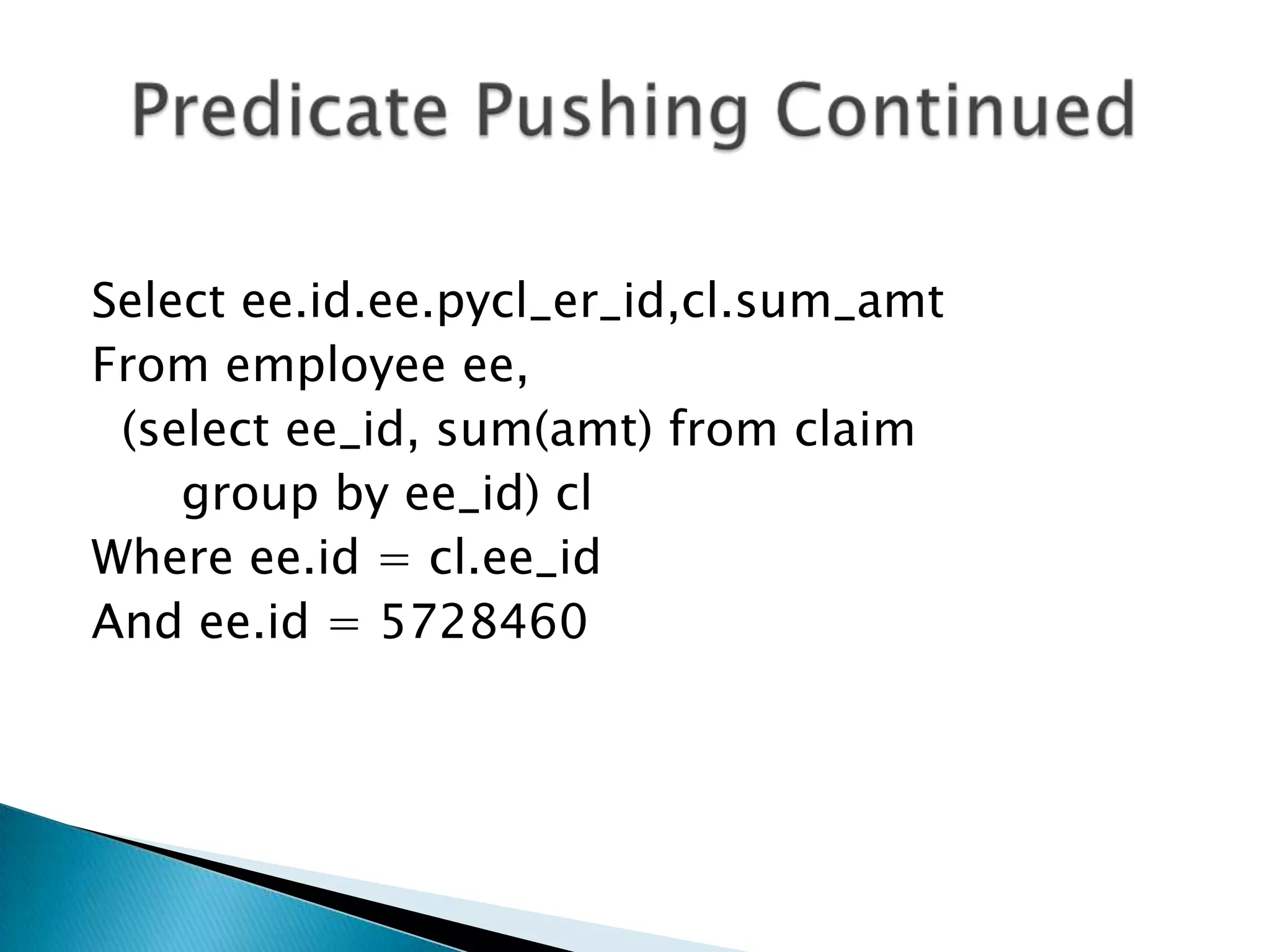

Select ee.id.ee.pycl_er_id,cl.sum_amt From employee ee, (select ee_id, sum(amt) from claim group by ee_id) cl Where ee.id = cl.ee_id And ee.id = 5728460

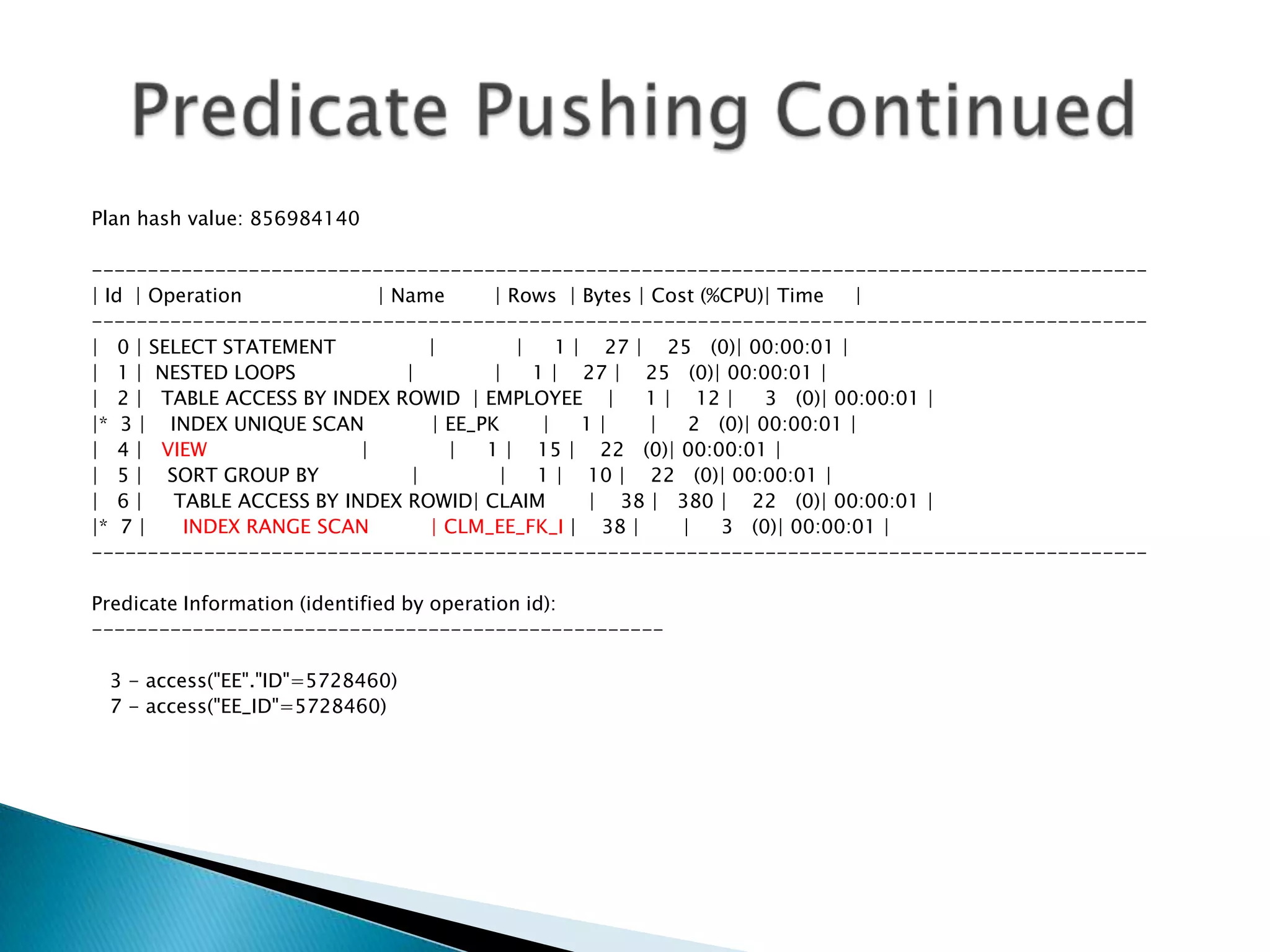

Plan hash value: 856984140 ---------------------------------------------------------------------------------------------- | Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | ---------------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 1 | 27 | 25 (0)| 00:00:01 | | 1 | NESTED LOOPS | | 1 | 27 | 25 (0)| 00:00:01 | | 2 | TABLE ACCESS BY INDEX ROWID | EMPLOYEE | 1 | 12 | 3 (0)| 00:00:01 | |* 3 | INDEX UNIQUE SCAN | EE_PK | 1 | | 2 (0)| 00:00:01 | | 4 | VIEW | | 1 | 15 | 22 (0)| 00:00:01 | | 5 | SORT GROUP BY | | 1 | 10 | 22 (0)| 00:00:01 | | 6 | TABLE ACCESS BY INDEX ROWID| CLAIM | 38 | 380 | 22 (0)| 00:00:01 | |* 7 | INDEX RANGE SCAN | CLM_EE_FK_I | 38 | | 3 (0)| 00:00:01 | ---------------------------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 3 - access("EE"."ID"=5728460) 7 - access("EE_ID"=5728460)

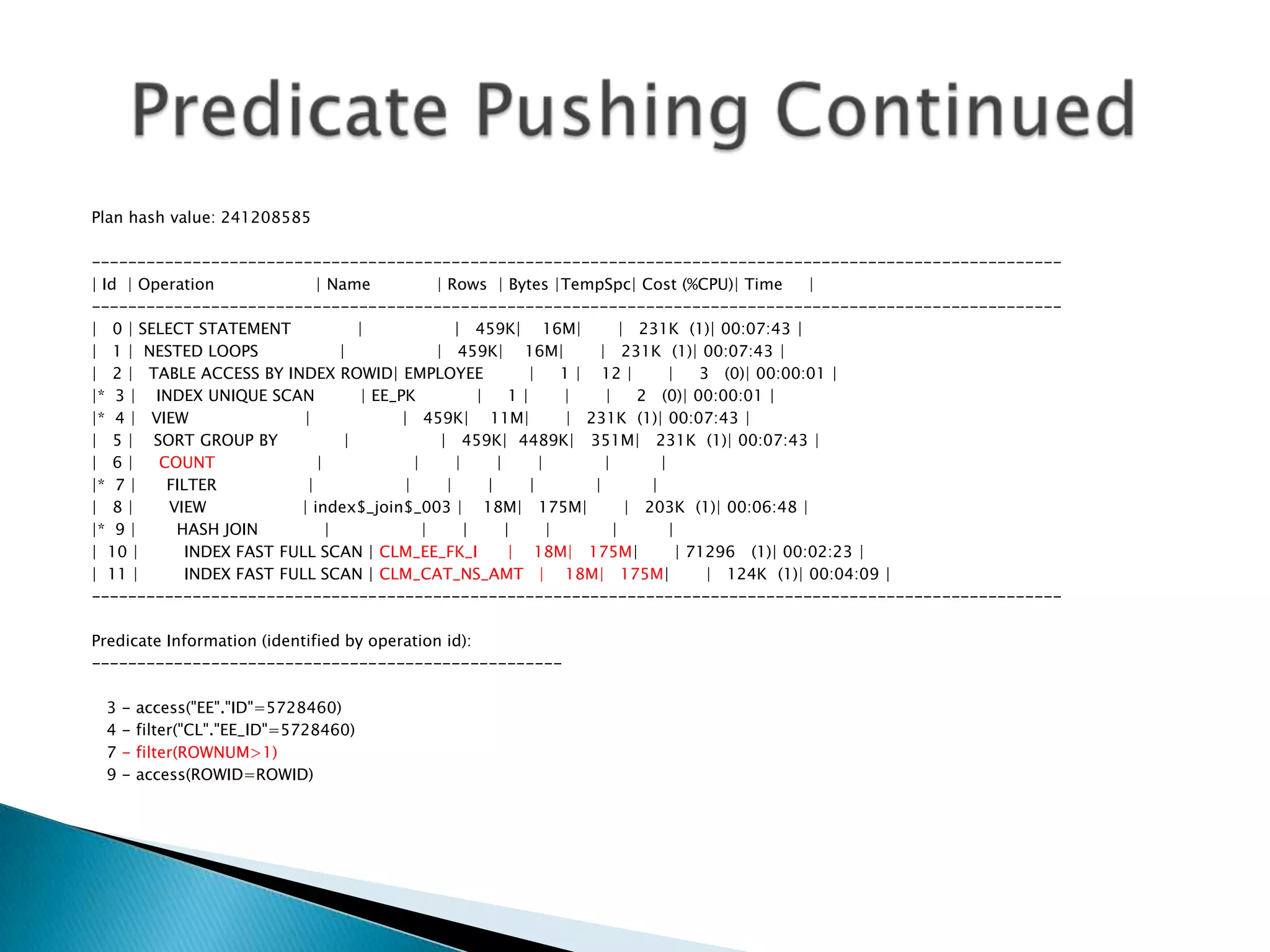

Plan hash value: 241208585 --------------------------------------------------------------------------------------------------------- | Id | Operation | Name | Rows | Bytes |TempSpc| Cost (%CPU)| Time | --------------------------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 459K| 16M| | 231K (1)| 00:07:43 | | 1 | NESTED LOOPS | | 459K| 16M| | 231K (1)| 00:07:43 | | 2 | TABLE ACCESS BY INDEX ROWID| EMPLOYEE | 1 | 12 | | 3 (0)| 00:00:01 | |* 3 | INDEX UNIQUE SCAN | EE_PK | 1 | | | 2 (0)| 00:00:01 | |* 4 | VIEW | | 459K| 11M| | 231K (1)| 00:07:43 | | 5 | SORT GROUP BY | | 459K| 4489K| 351M| 231K (1)| 00:07:43 | | 6 | COUNT | | | | | | | |* 7 | FILTER | | | | | | | | 8 | VIEW | index$_join$_003 | 18M| 175M| | 203K (1)| 00:06:48 | |* 9 | HASH JOIN | | | | | | | | 10 | INDEX FAST FULL SCAN | CLM_EE_FK_I | 18M| 175M| | 71296 (1)| 00:02:23 | | 11 | INDEX FAST FULL SCAN | CLM_CAT_NS_AMT | 18M| 175M| | 124K (1)| 00:04:09 | --------------------------------------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 3 - access("EE"."ID"=5728460) 4 - filter("CL"."EE_ID"=5728460) 7 - filter(ROWNUM>1) 9 - access(ROWID=ROWID)

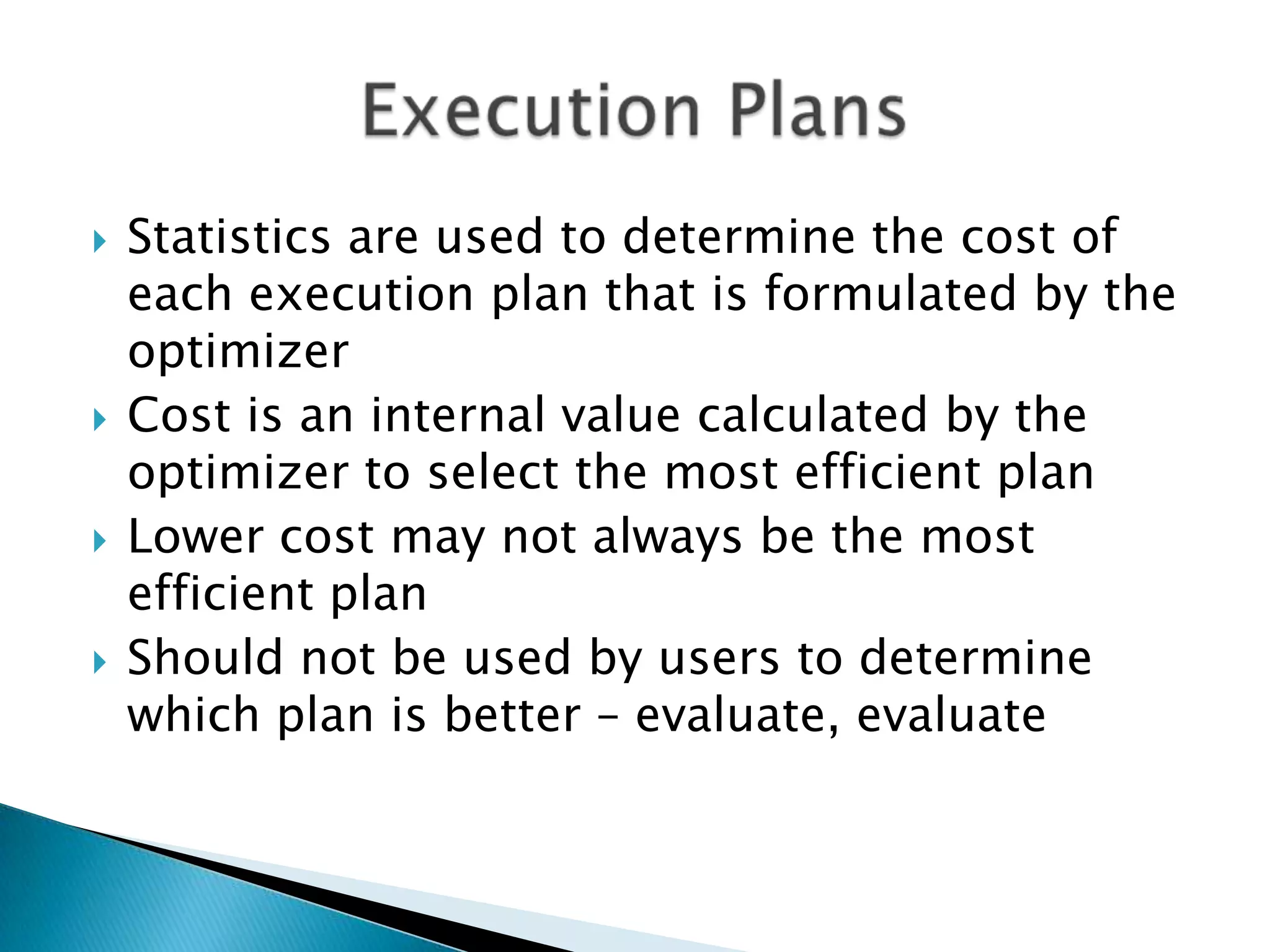

 Statistics are used to determine the cost of each execution plan that is formulated by the optimizer  Cost is an internal value calculated by the optimizer to select the most efficient plan  Lower cost may not always be the most efficient plan  Should not be used by users to determine which plan is better – evaluate, evaluate

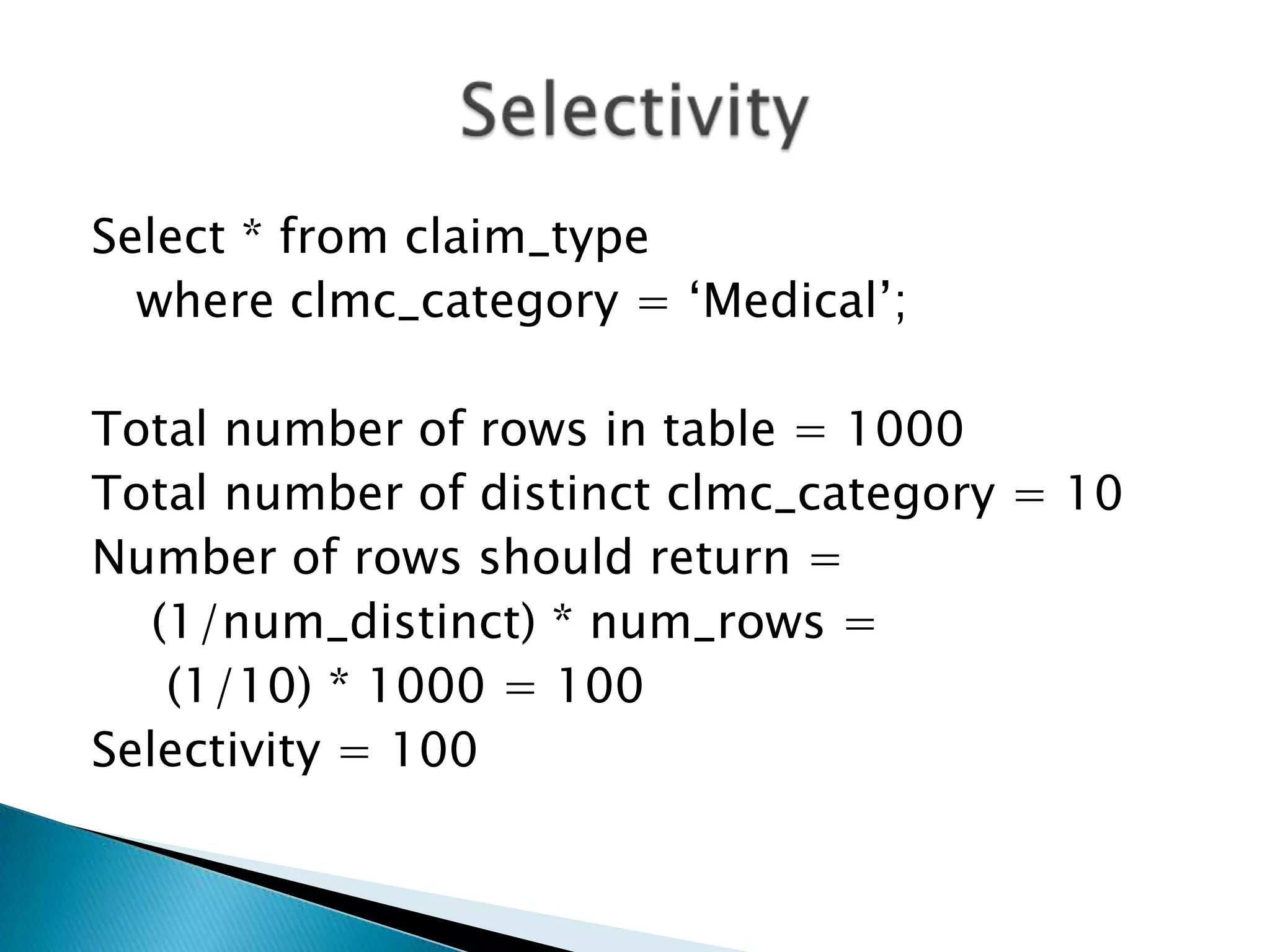

Select * from claim_type where clmc_category = „Medical‟; Total number of rows in table = 1000 Total number of distinct clmc_category = 10 Number of rows should return = (1/num_distinct) * num_rows = (1/10) * 1000 = 100 Selectivity = 100

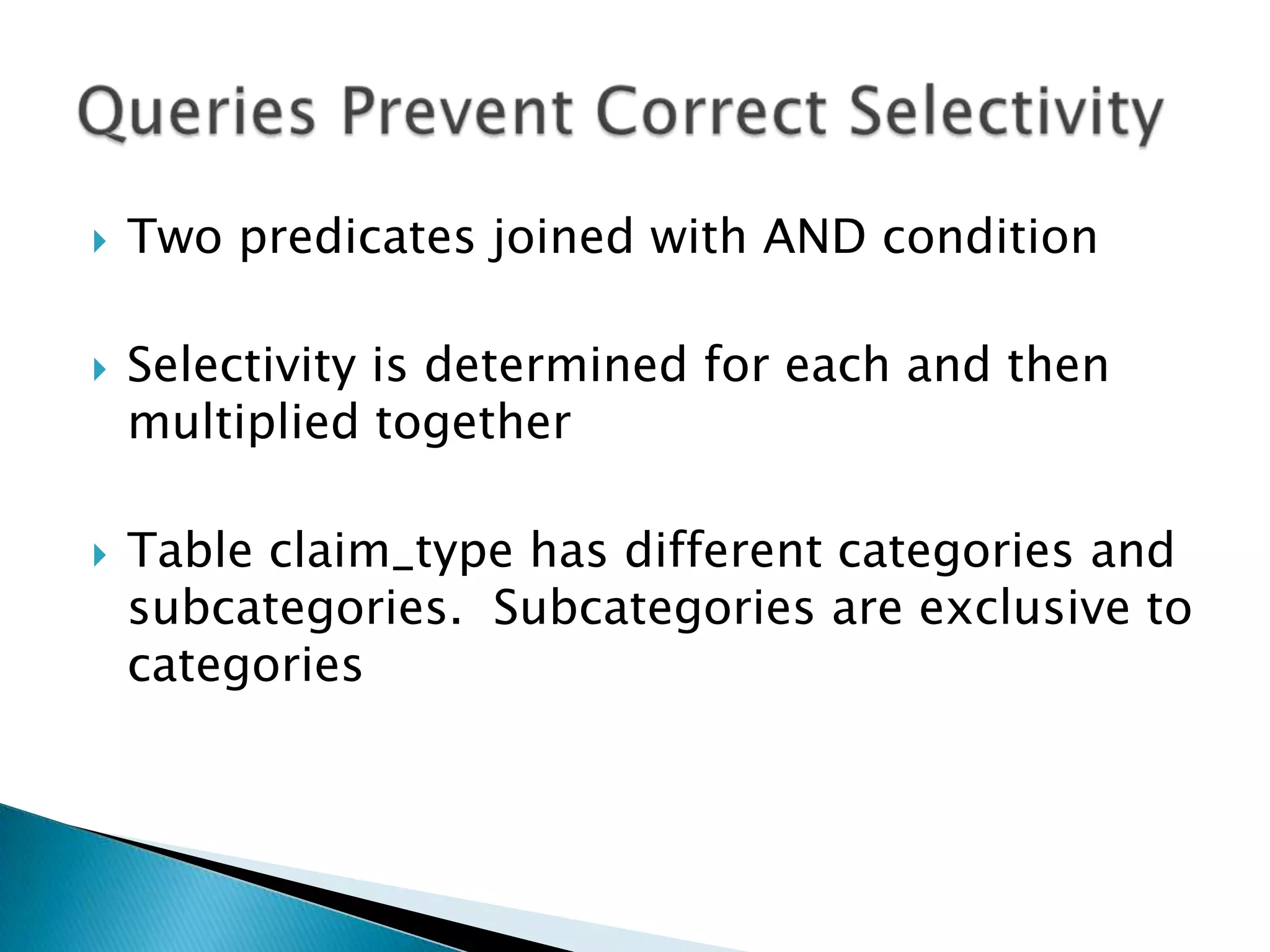

 Two predicates joined with AND condition  Selectivity is determined for each and then multiplied together  Table claim_type has different categories and subcategories. Subcategories are exclusive to categories

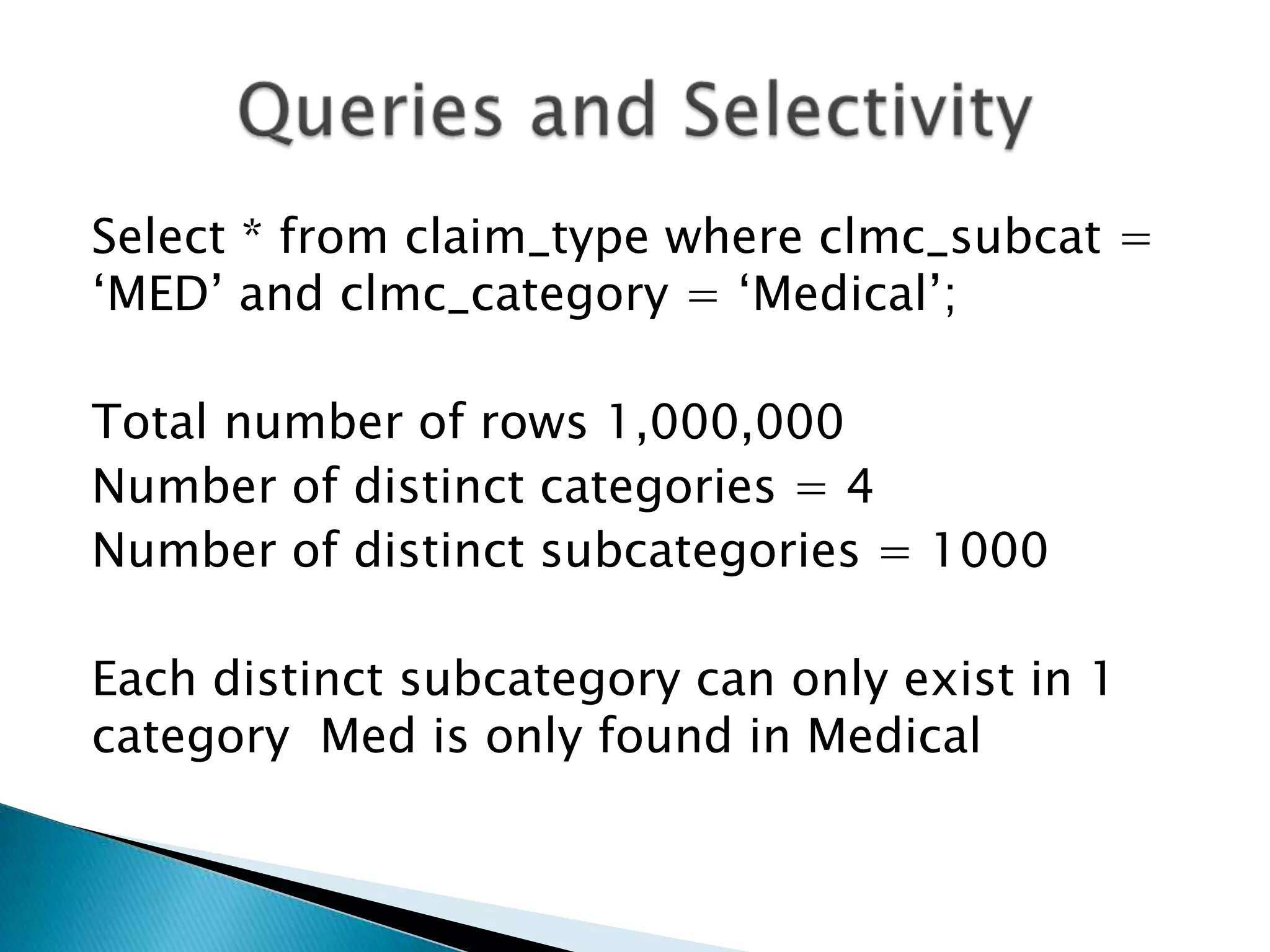

Select * from claim_type where clmc_subcat = „MED‟ and clmc_category = „Medical‟; Total number of rows 1,000,000 Number of distinct categories = 4 Number of distinct subcategories = 1000 Each distinct subcategory can only exist in 1 category Med is only found in Medical

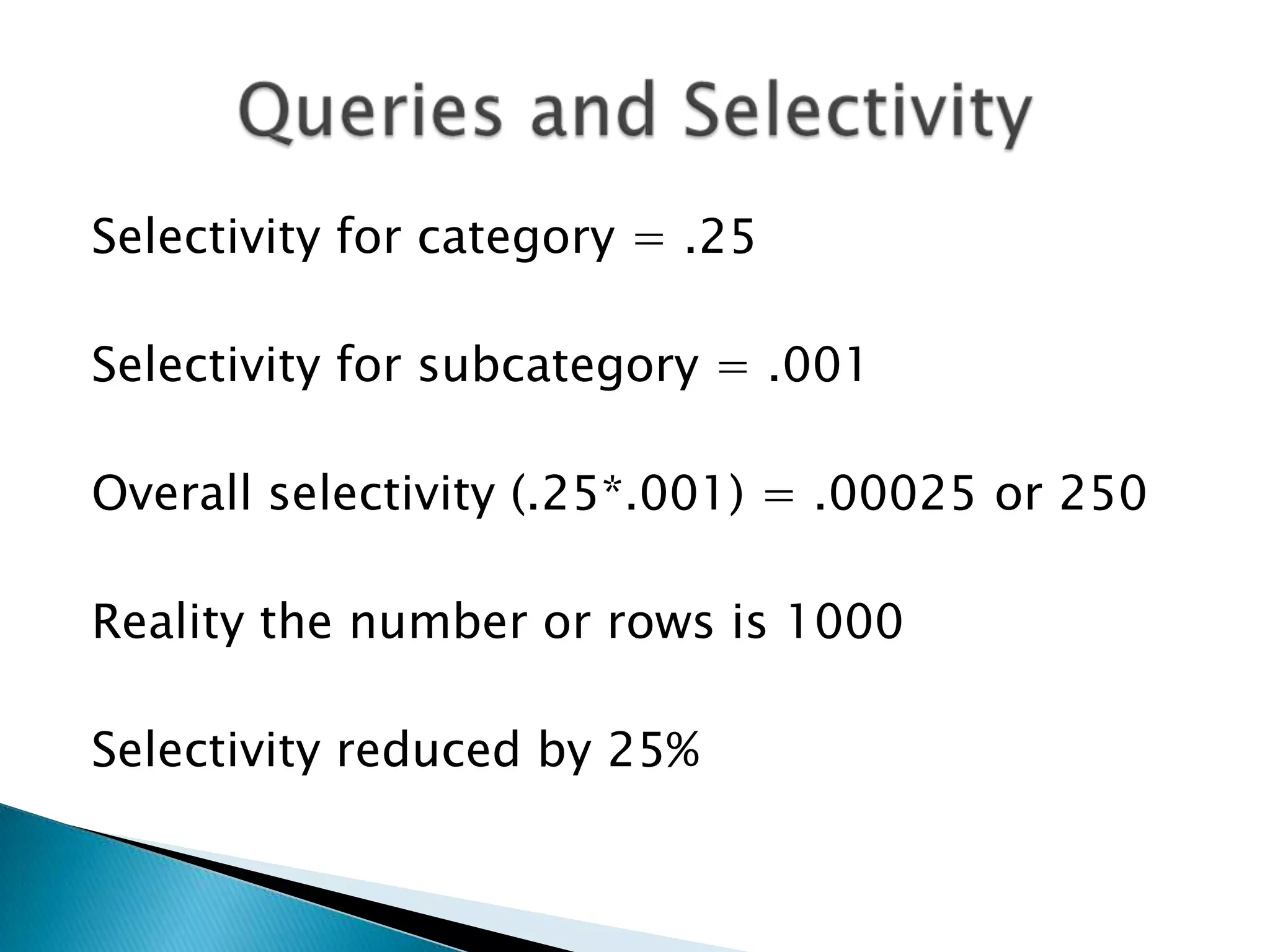

Selectivity for category = .25 Selectivity for subcategory = .001 Overall selectivity (.25*.001) = .00025 or 250 Reality the number or rows is 1000 Selectivity reduced by 25%

 Plan stored in library cache for reuse  Execute plan – instructions access method of table object, order and join methods  Fetch Rows – retrieves blocks and return to application

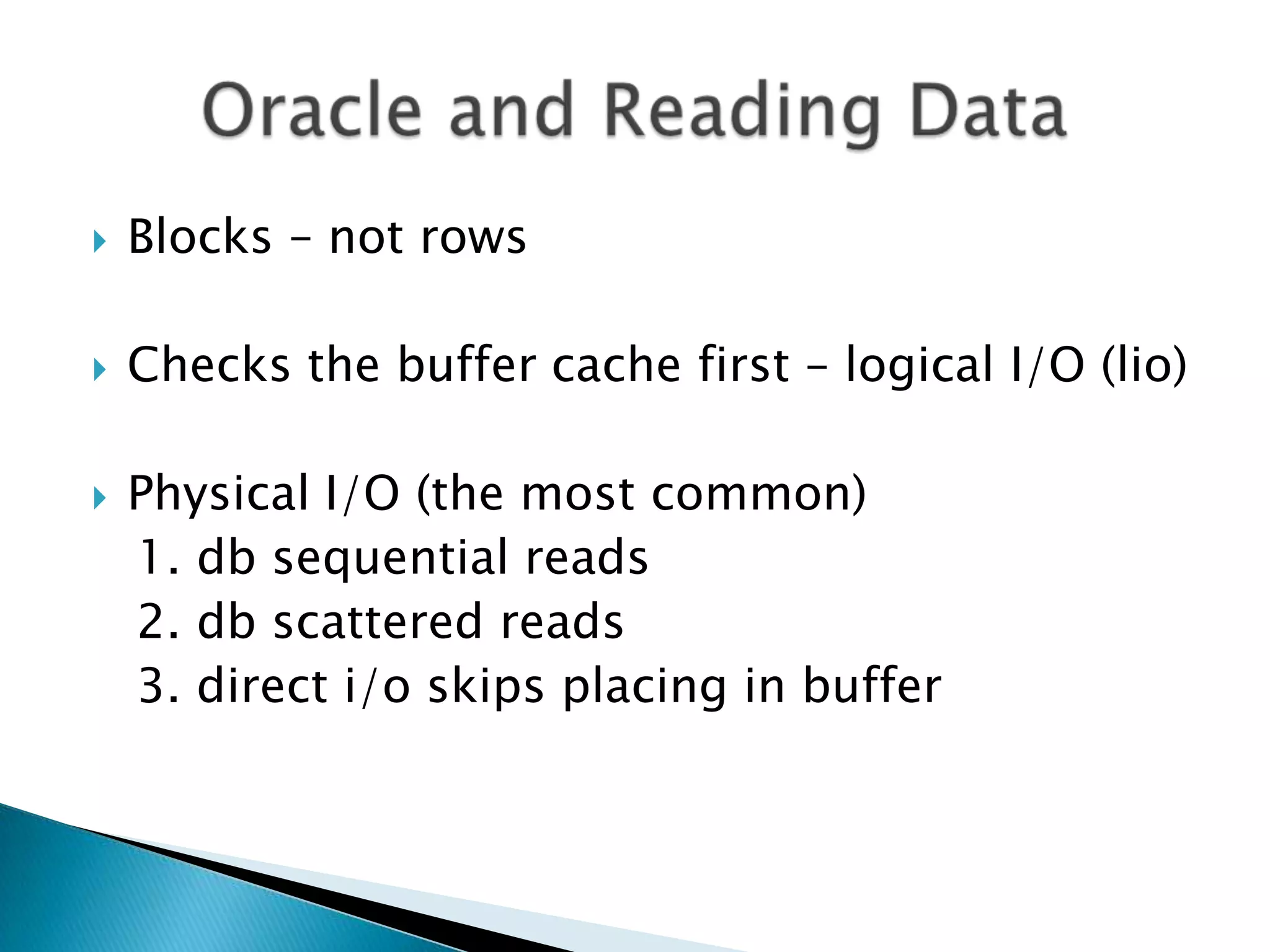

 Blocks – not rows  Checks the buffer cache first – logical I/O (lio)  Physical I/O (the most common) 1. db sequential reads 2. db scattered reads 3. direct i/o skips placing in buffer

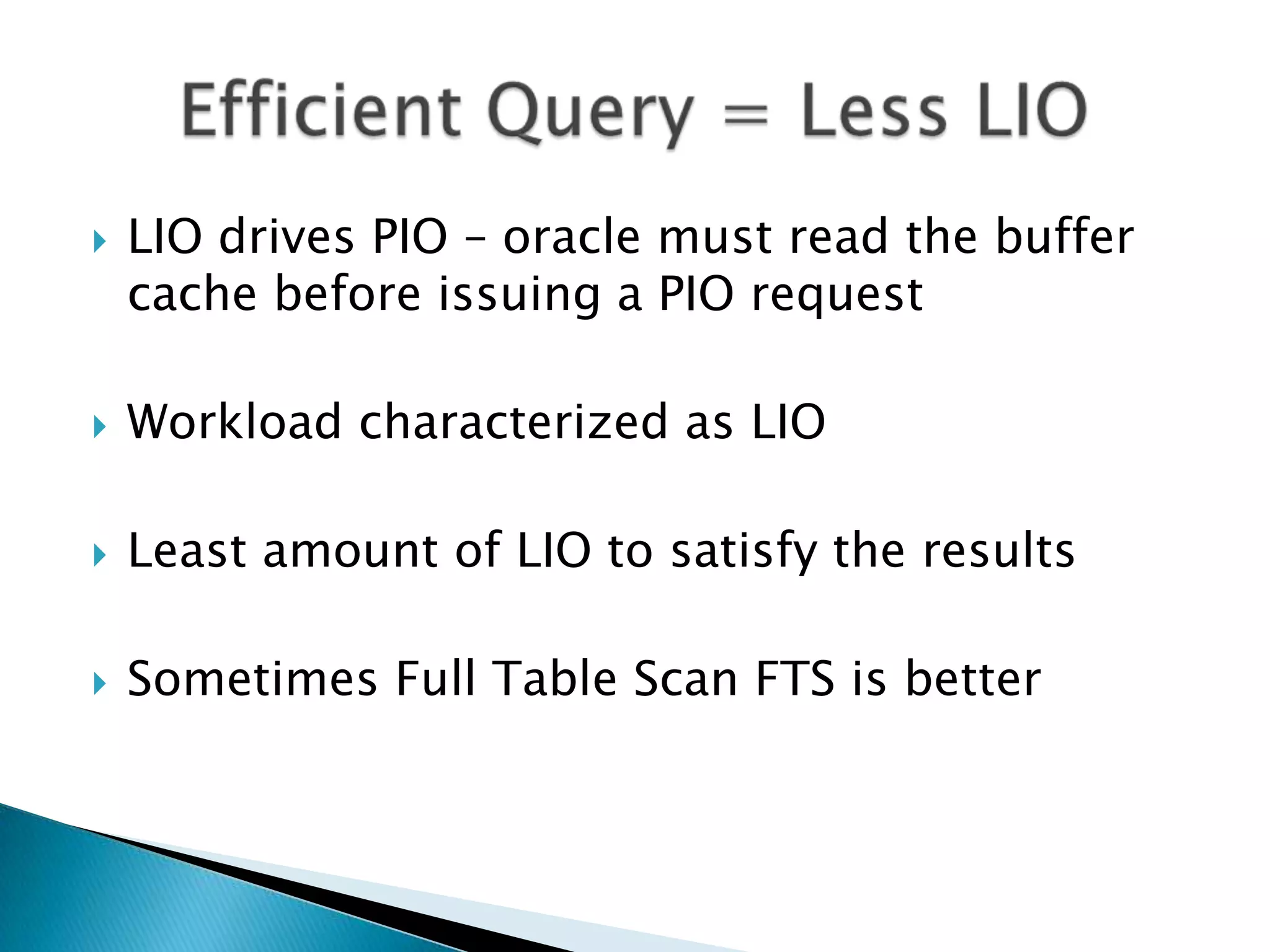

 LIO drives PIO – oracle must read the buffer cache before issuing a PIO request  Workload characterized as LIO  Least amount of LIO to satisfy the results  Sometimes Full Table Scan FTS is better

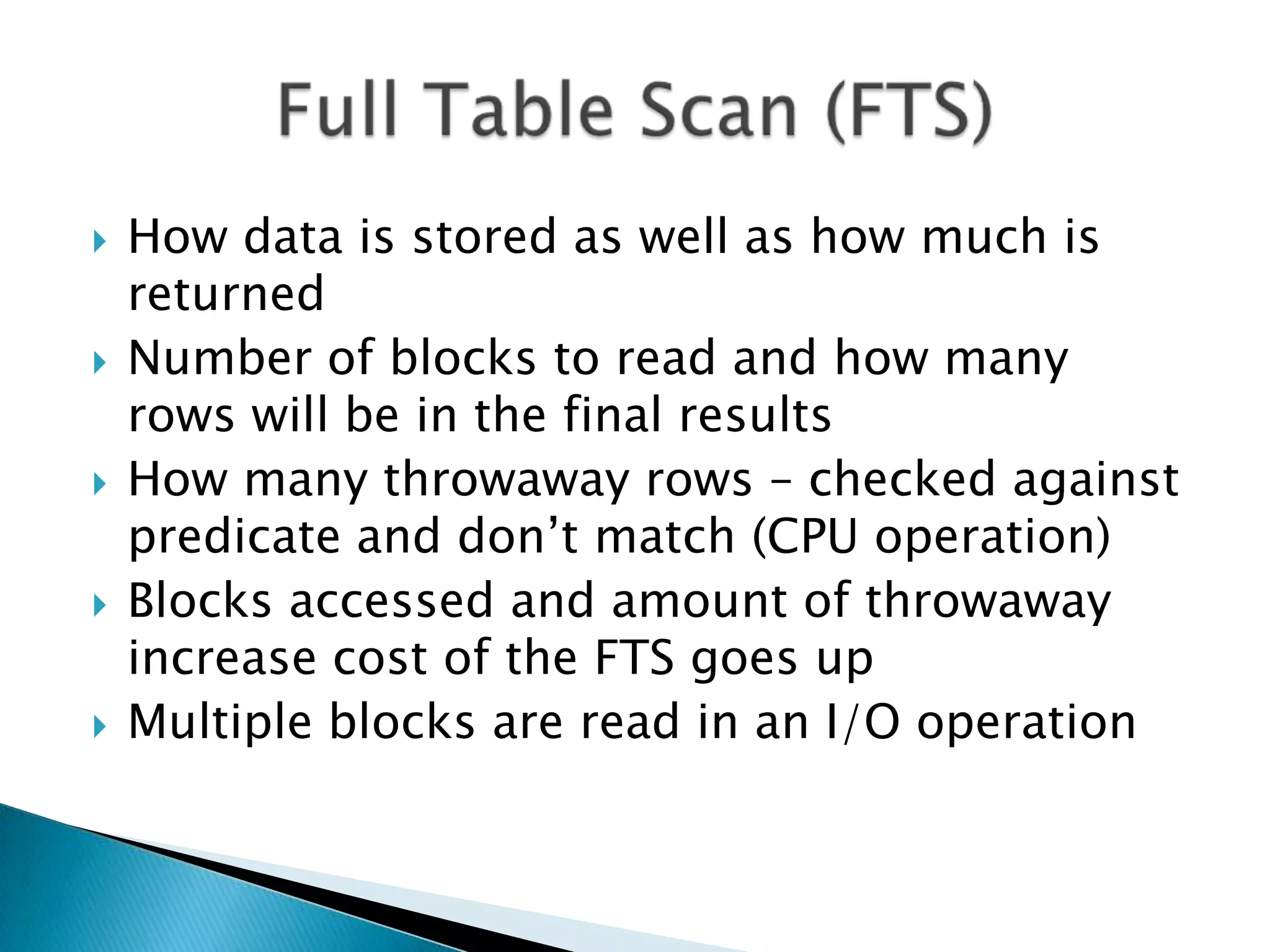

 How data is stored as well as how much is returned  Number of blocks to read and how many rows will be in the final results  How many throwaway rows – checked against predicate and don‟t match (CPU operation)  Blocks accessed and amount of throwaway increase cost of the FTS goes up  Multiple blocks are read in an I/O operation

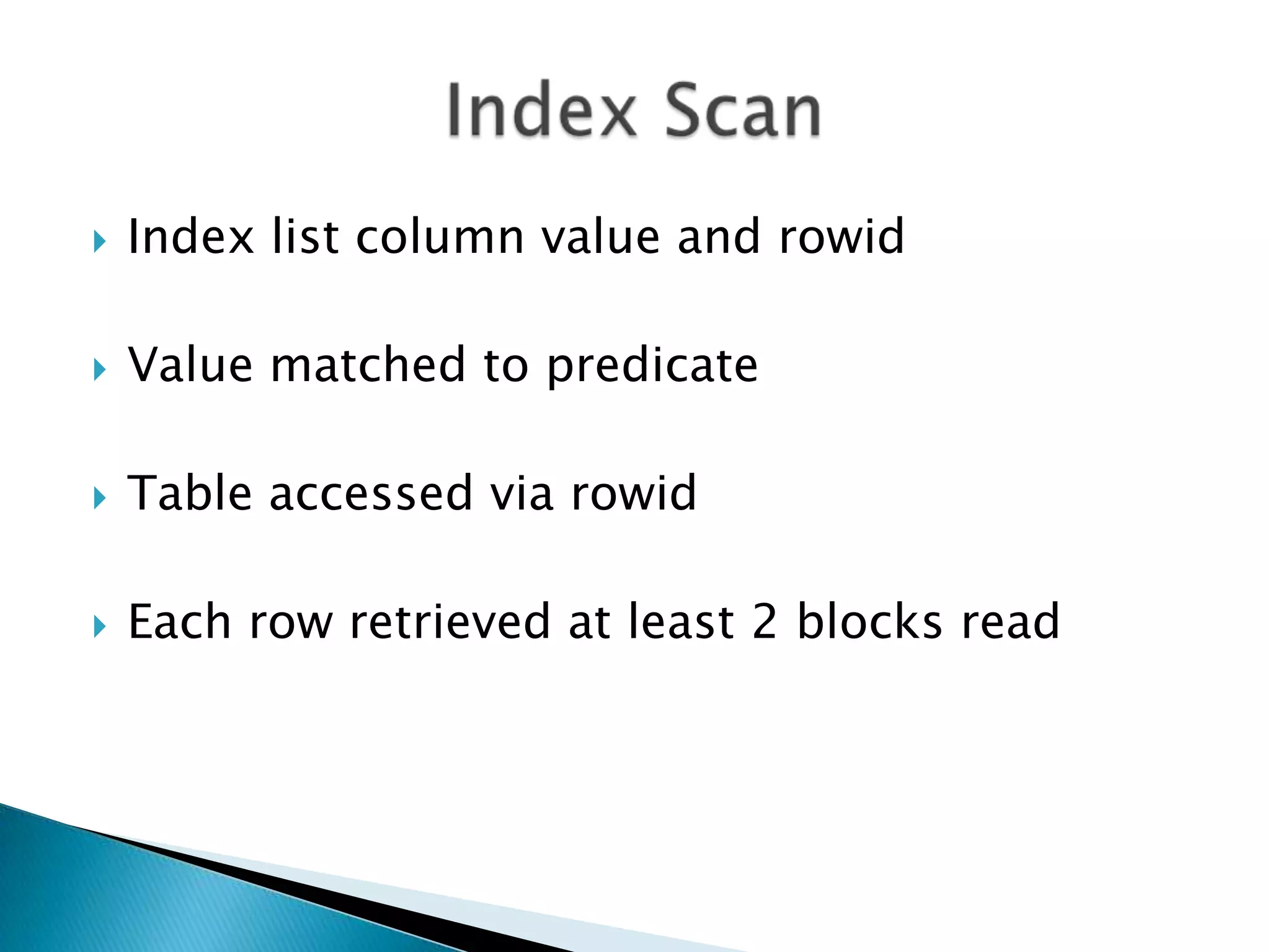

 Index list column value and rowid  Value matched to predicate  Table accessed via rowid  Each row retrieved at least 2 blocks read

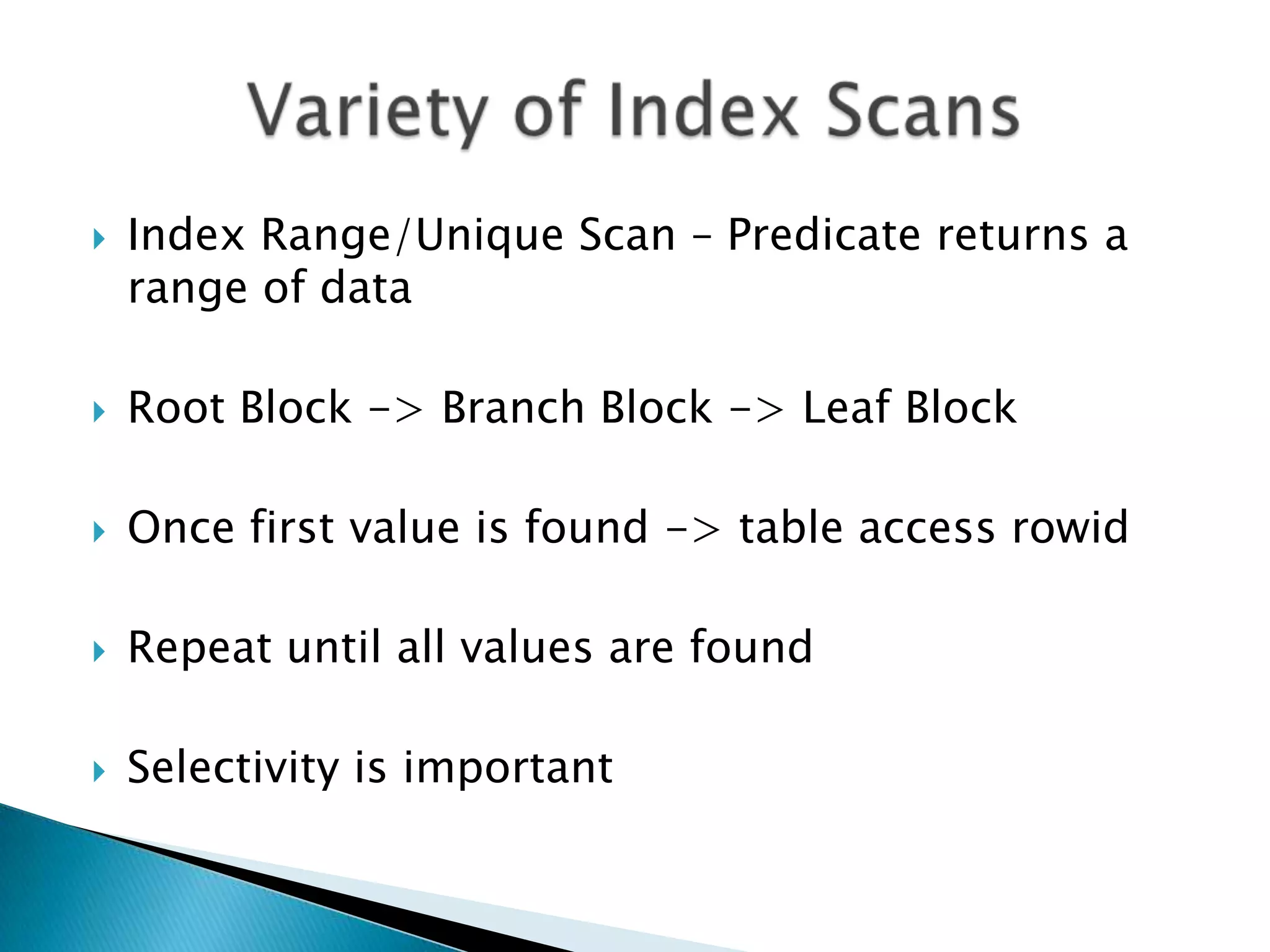

 Index Range/Unique Scan – Predicate returns a range of data  Root Block -> Branch Block -> Leaf Block  Once first value is found -> table access rowid  Repeat until all values are found  Selectivity is important

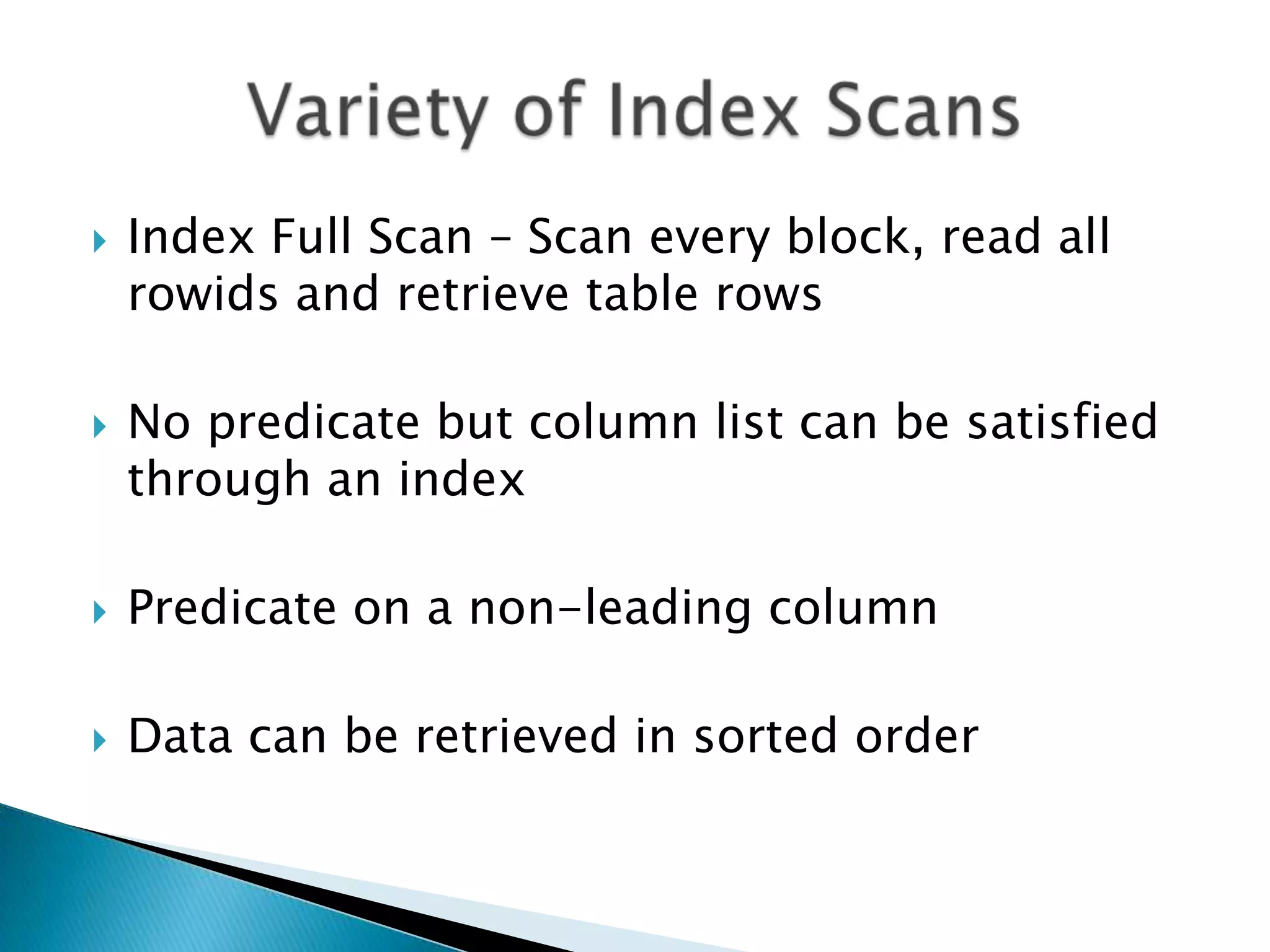

 Index Full Scan – Scan every block, read all rowids and retrieve table rows  No predicate but column list can be satisfied through an index  Predicate on a non-leading column  Data can be retrieved in sorted order

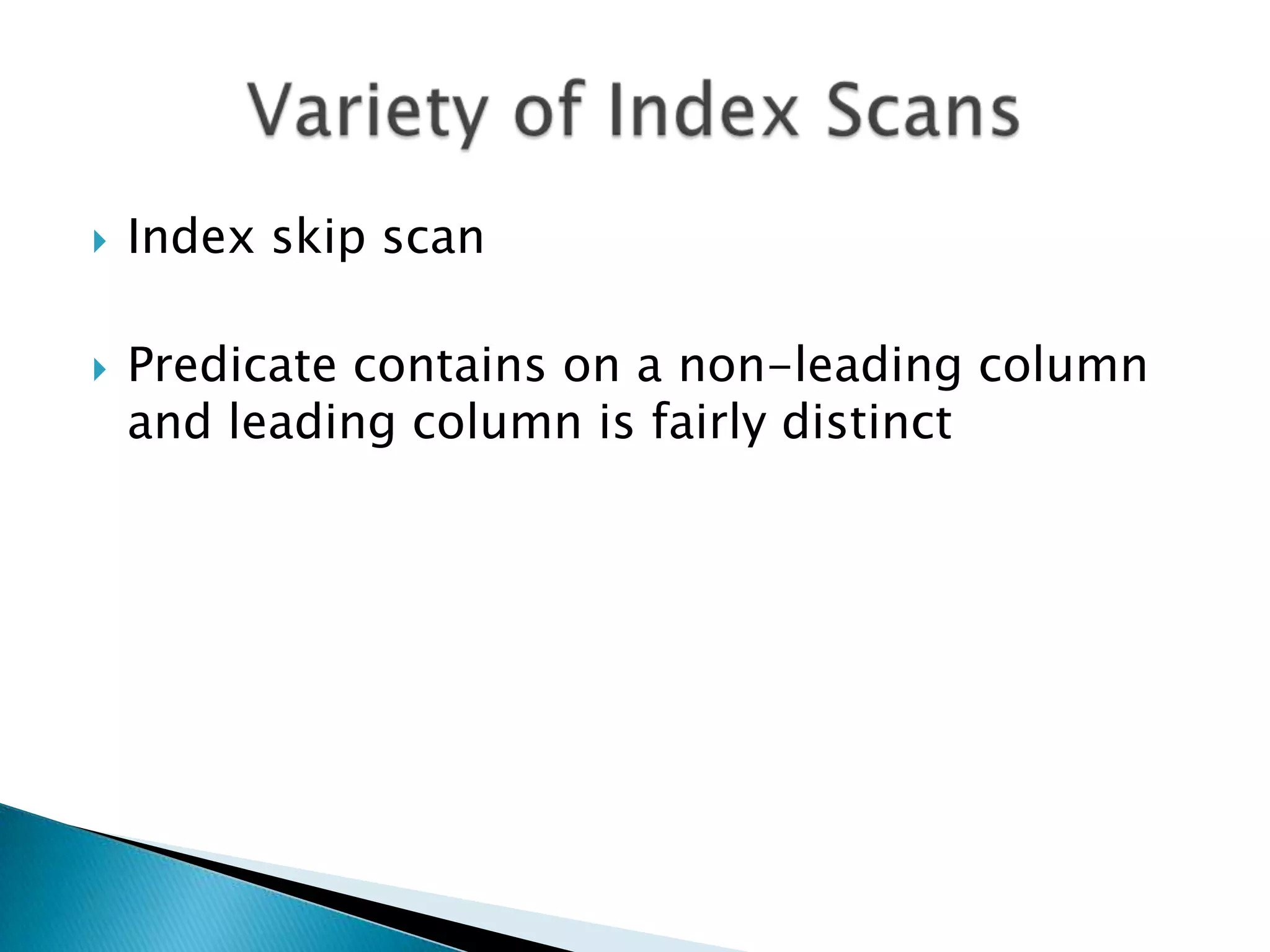

 Index skip scan  Predicate contains on a non-leading column and leading column is fairly distinct

 Index Fast Full Scan  Multiblock read  All columns exist in the index to satisfy query  At least one column has a not null constraint

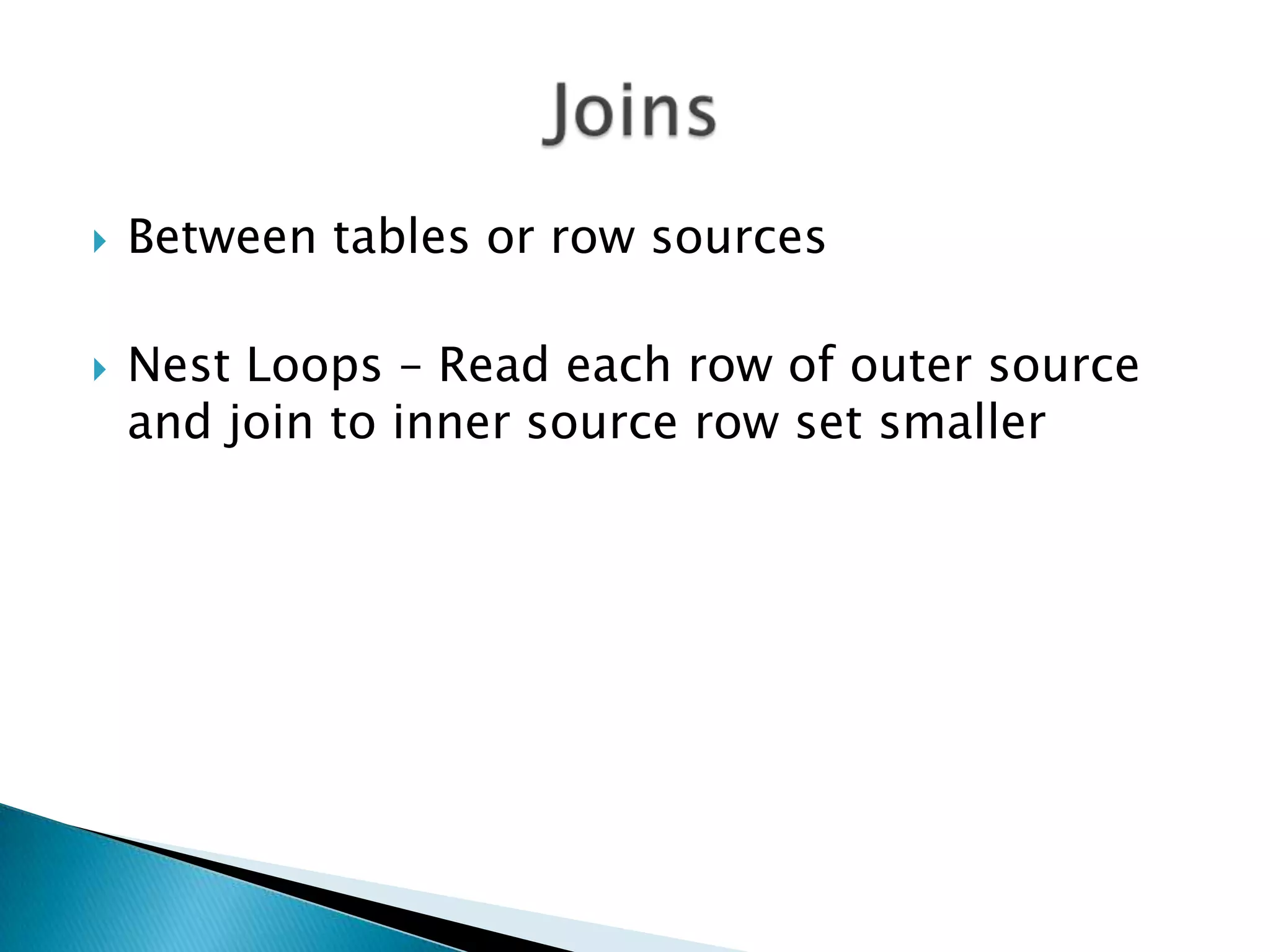

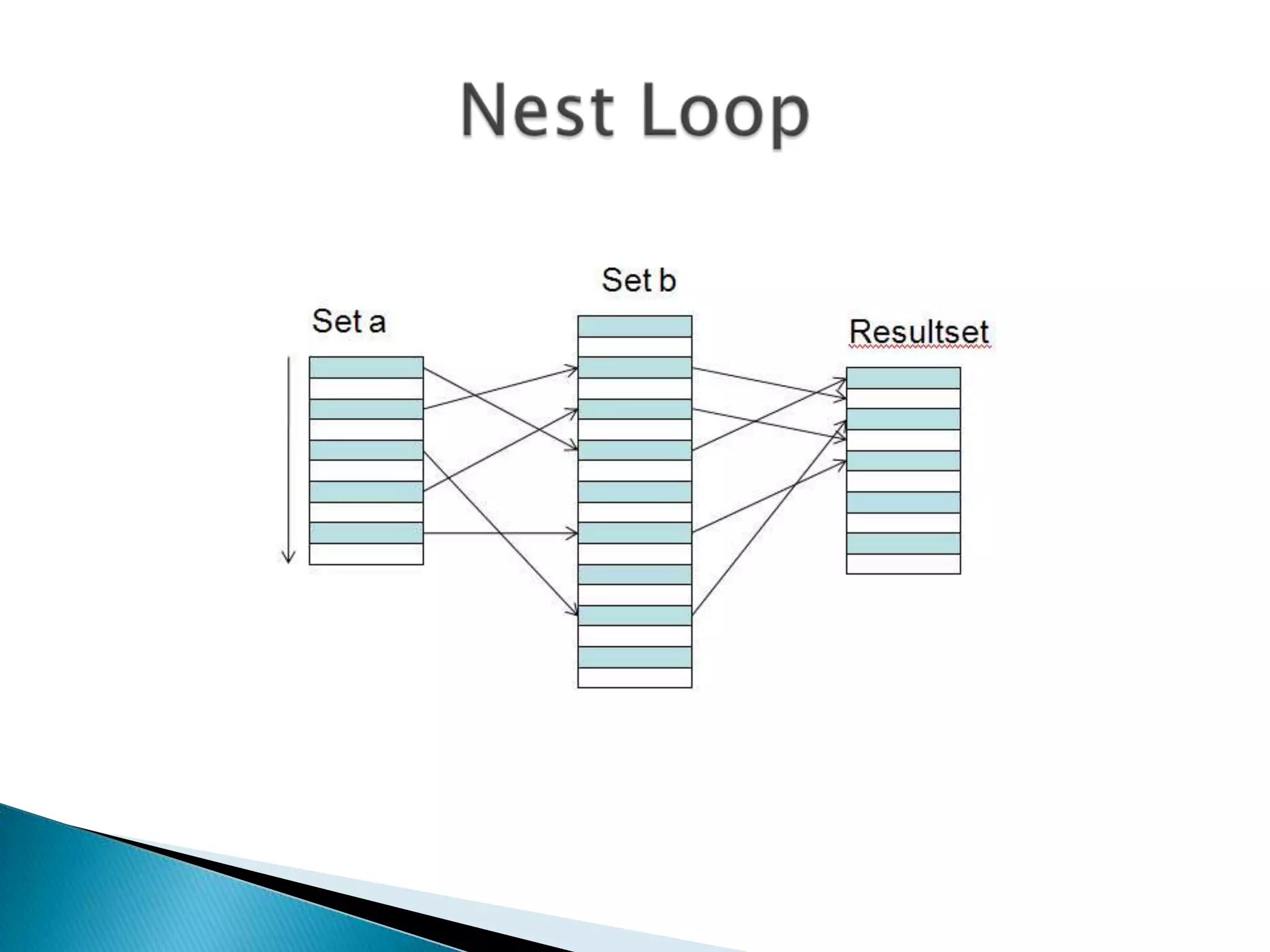

 Between tables or row sources  Nest Loops – Read each row of outer source and join to inner source row set smaller

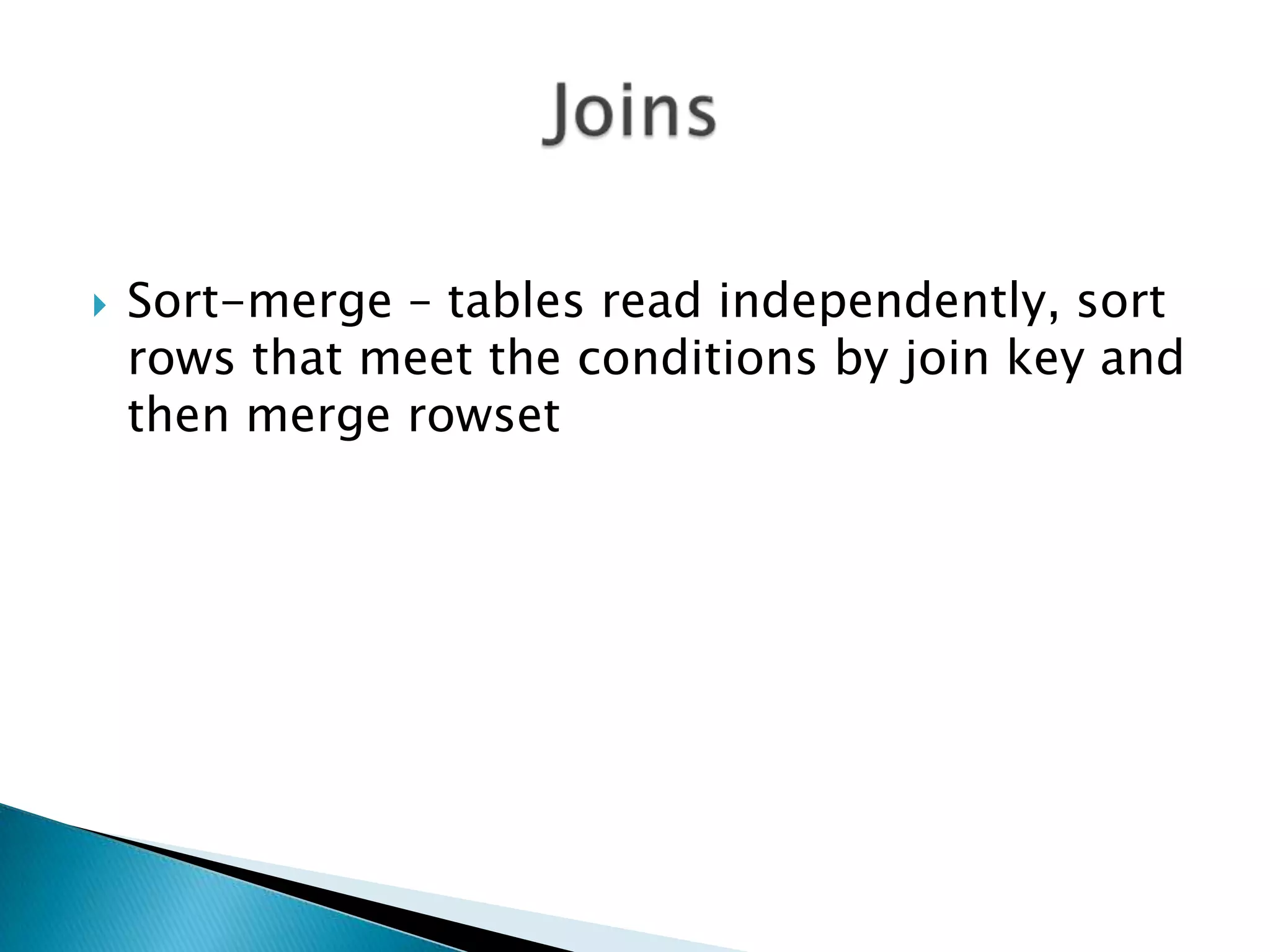

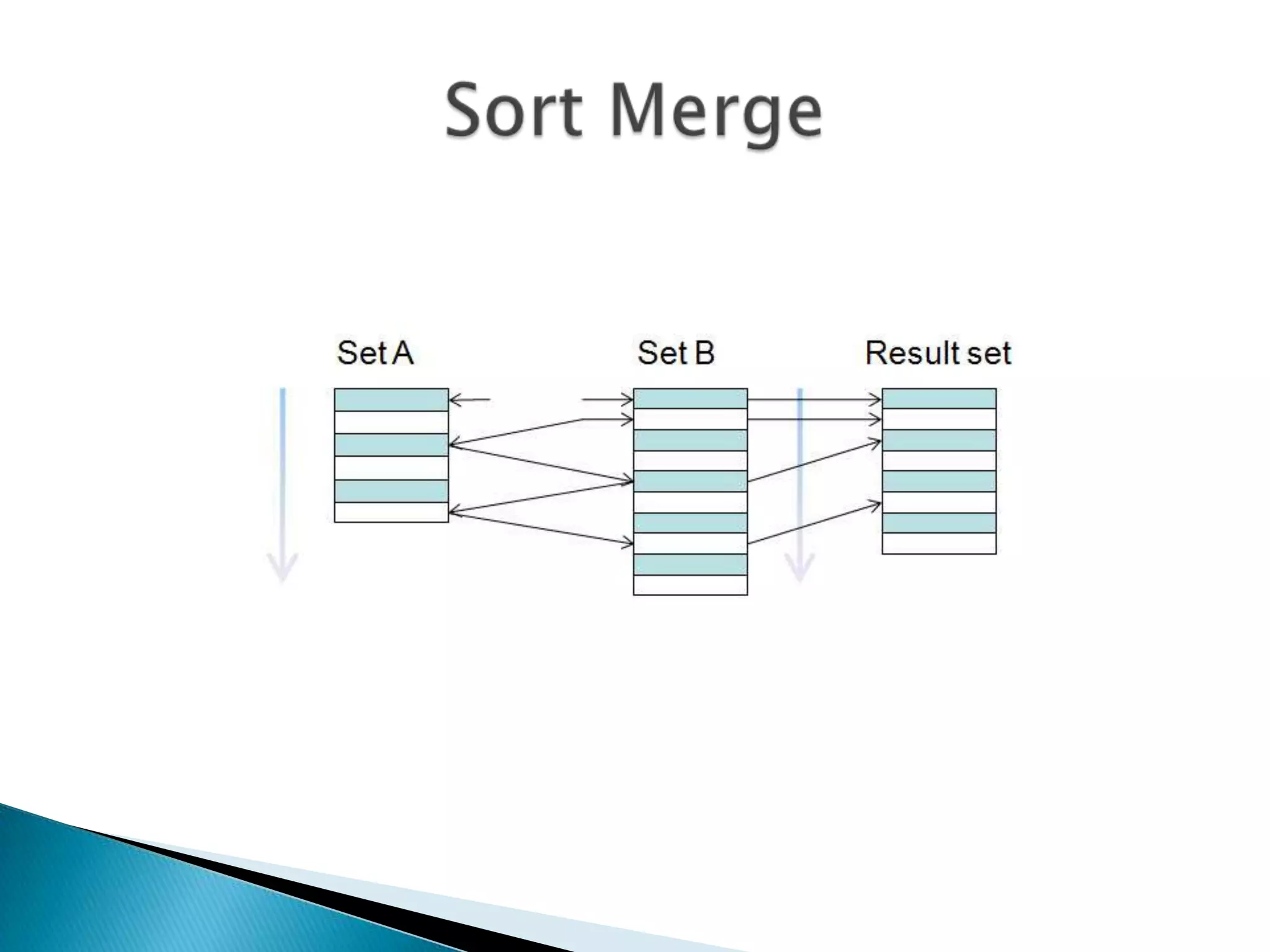

 Sort-merge – tables read independently, sort rows that meet the conditions by join key and then merge rowset

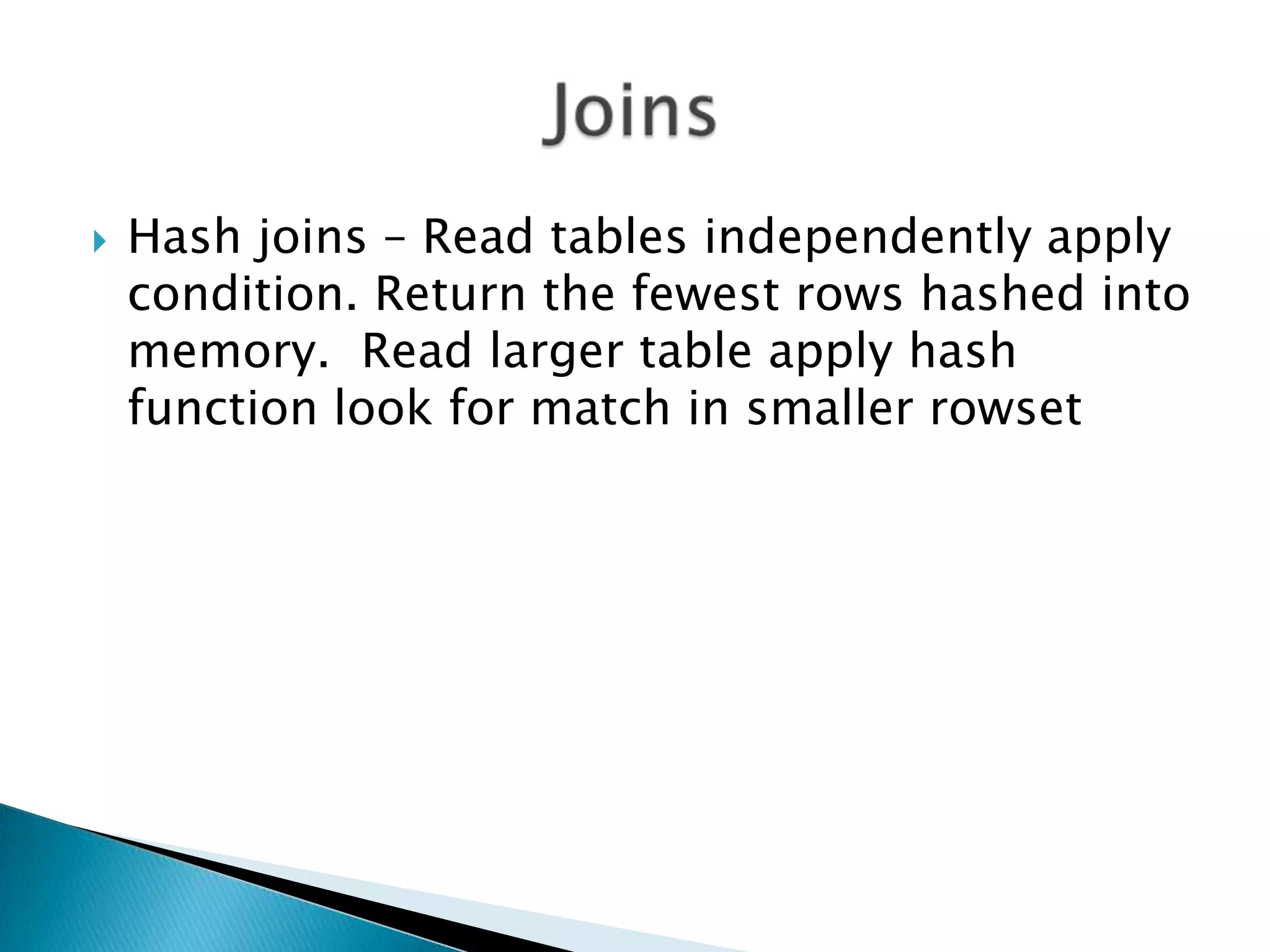

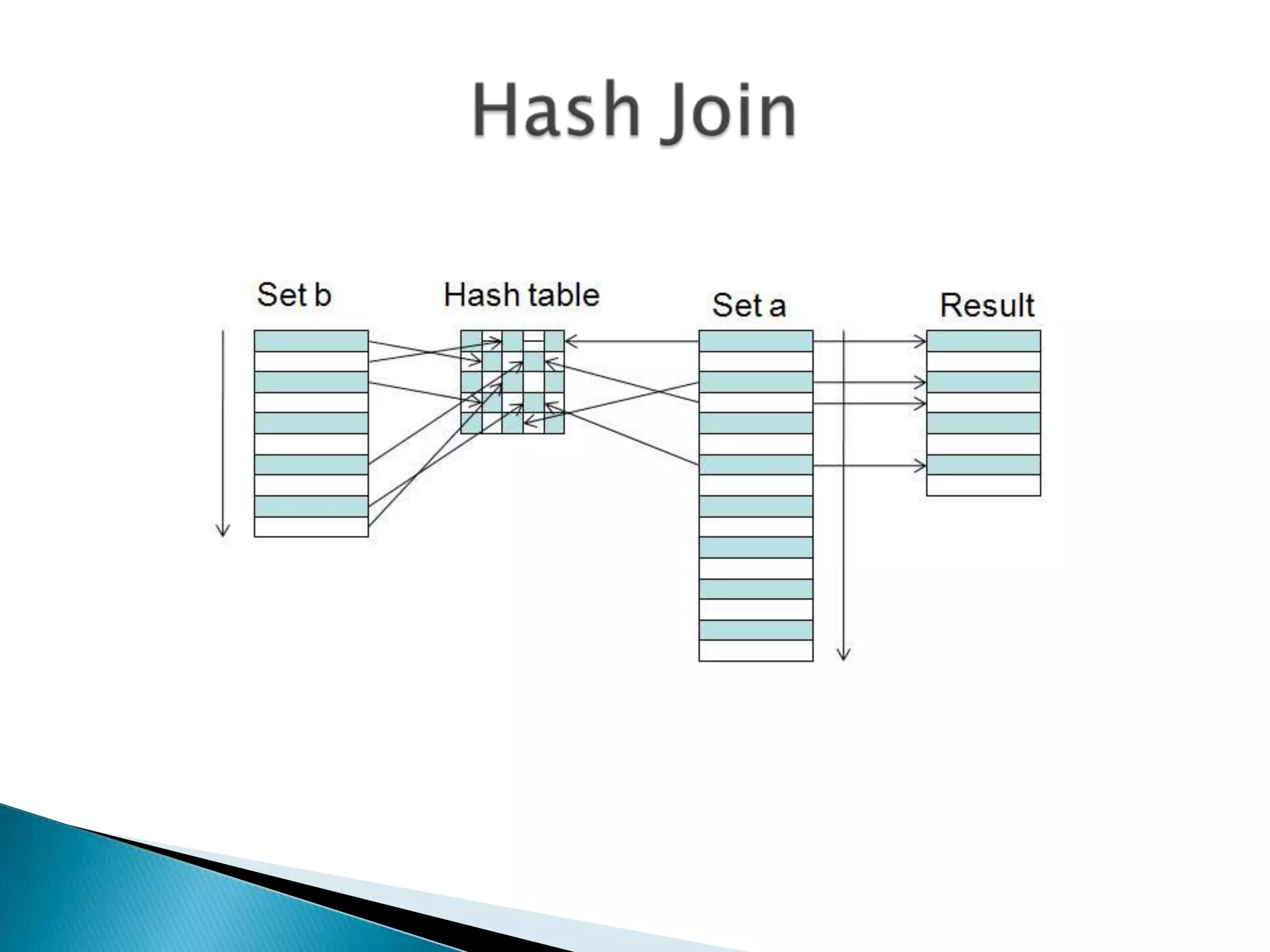

 Hash joins – Read tables independently apply condition. Return the fewest rows hashed into memory. Read larger table apply hash function look for match in smaller rowset

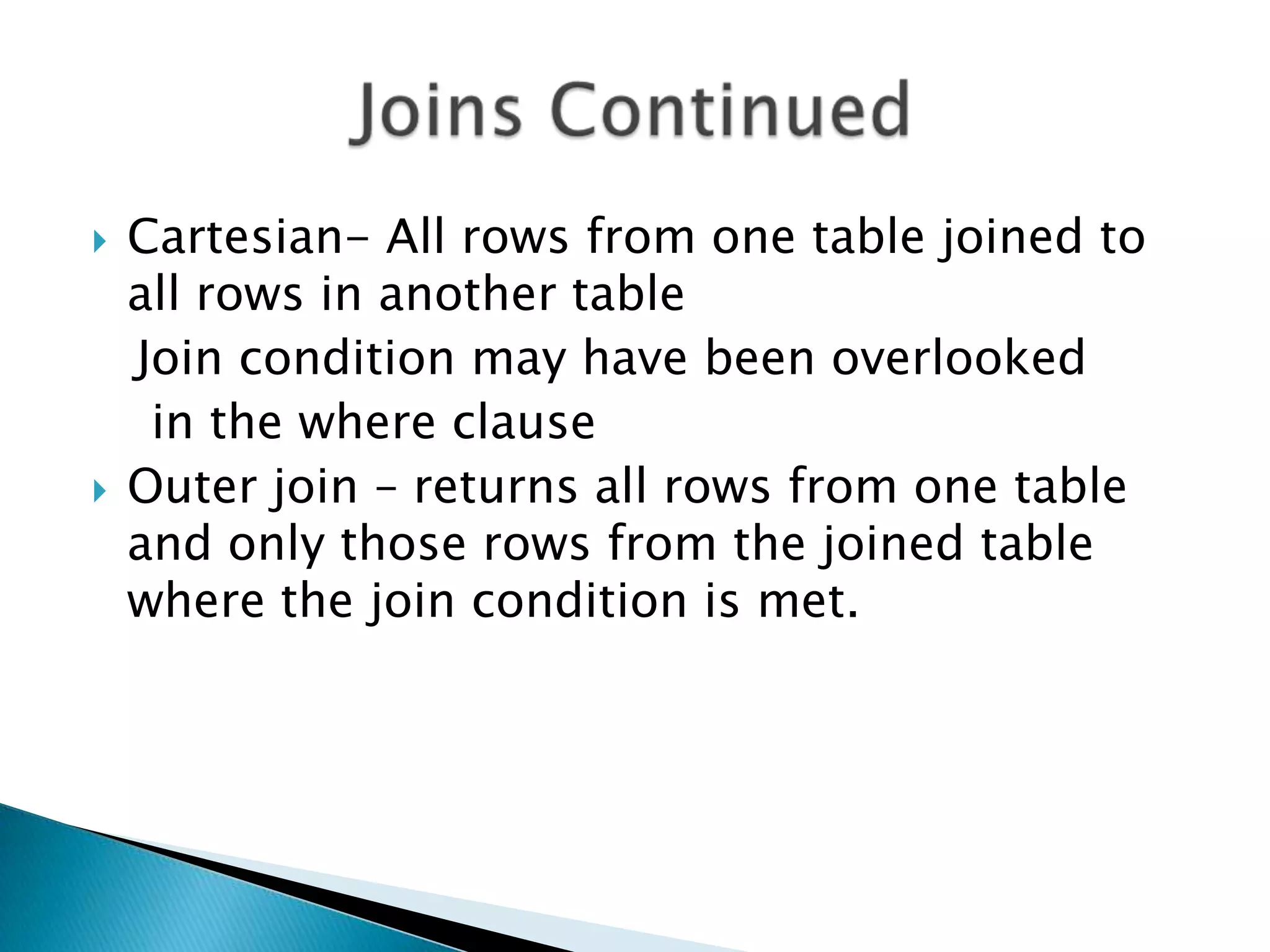

 Cartesian- All rows from one table joined to all rows in another table Join condition may have been overlooked in the where clause  Outer join – returns all rows from one table and only those rows from the joined table where the join condition is met.

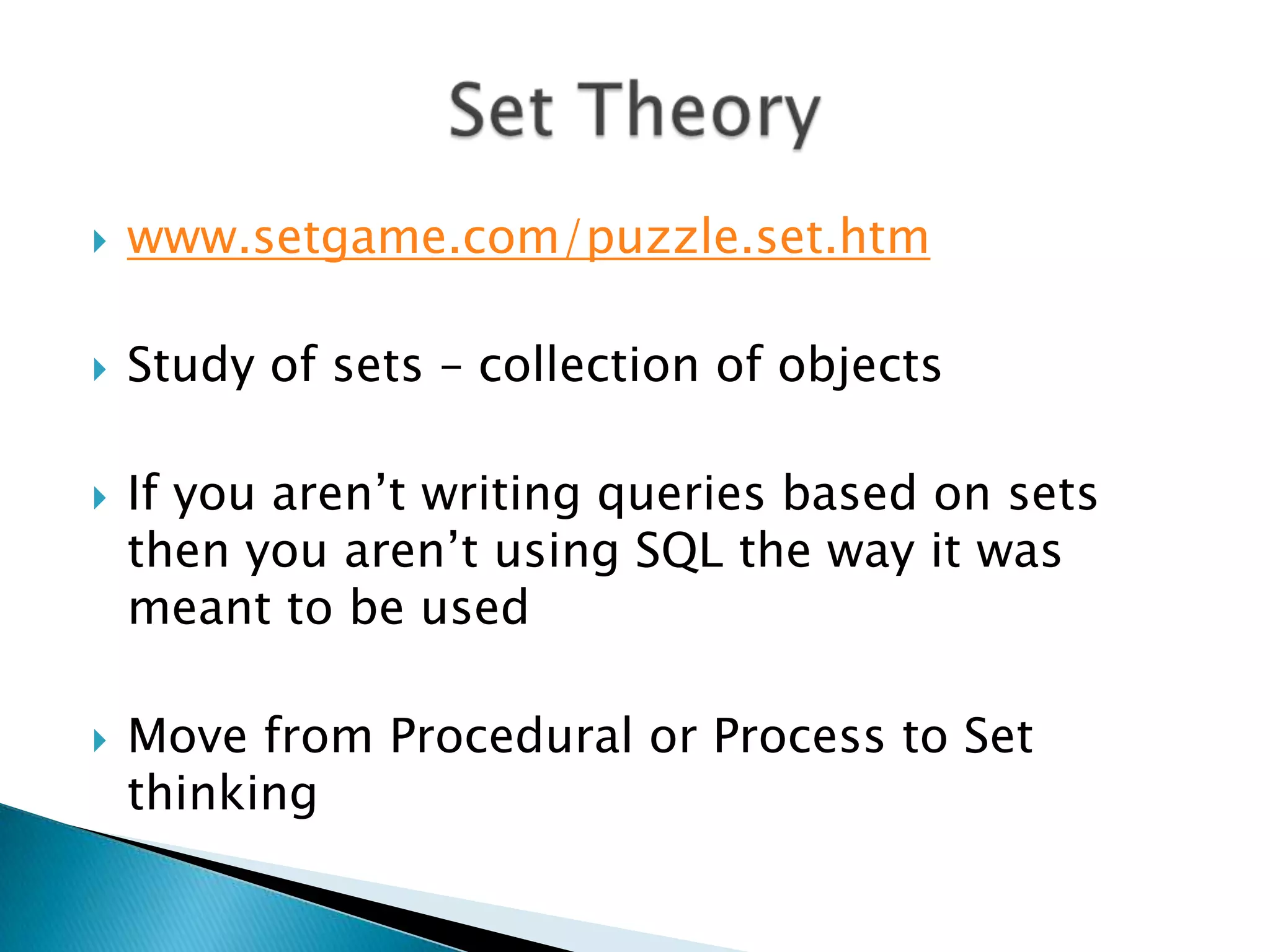

 www.setgame.com/puzzle.set.htm  Study of sets – collection of objects  If you aren‟t writing queries based on sets then you aren‟t using SQL the way it was meant to be used  Move from Procedural or Process to Set thinking

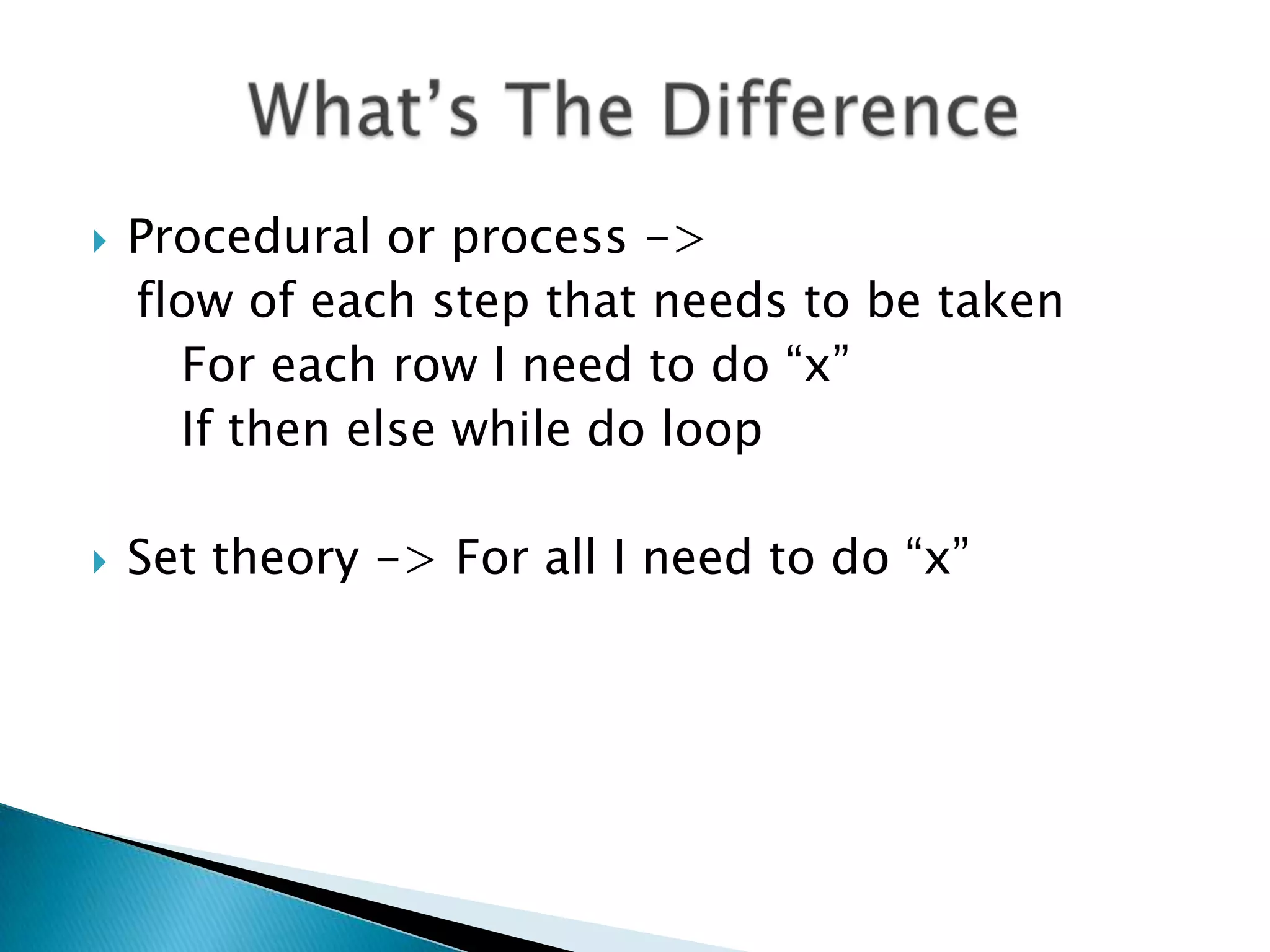

 Procedural or process -> flow of each step that needs to be taken For each row I need to do “x” If then else while do loop  Set theory -> For all I need to do “x”

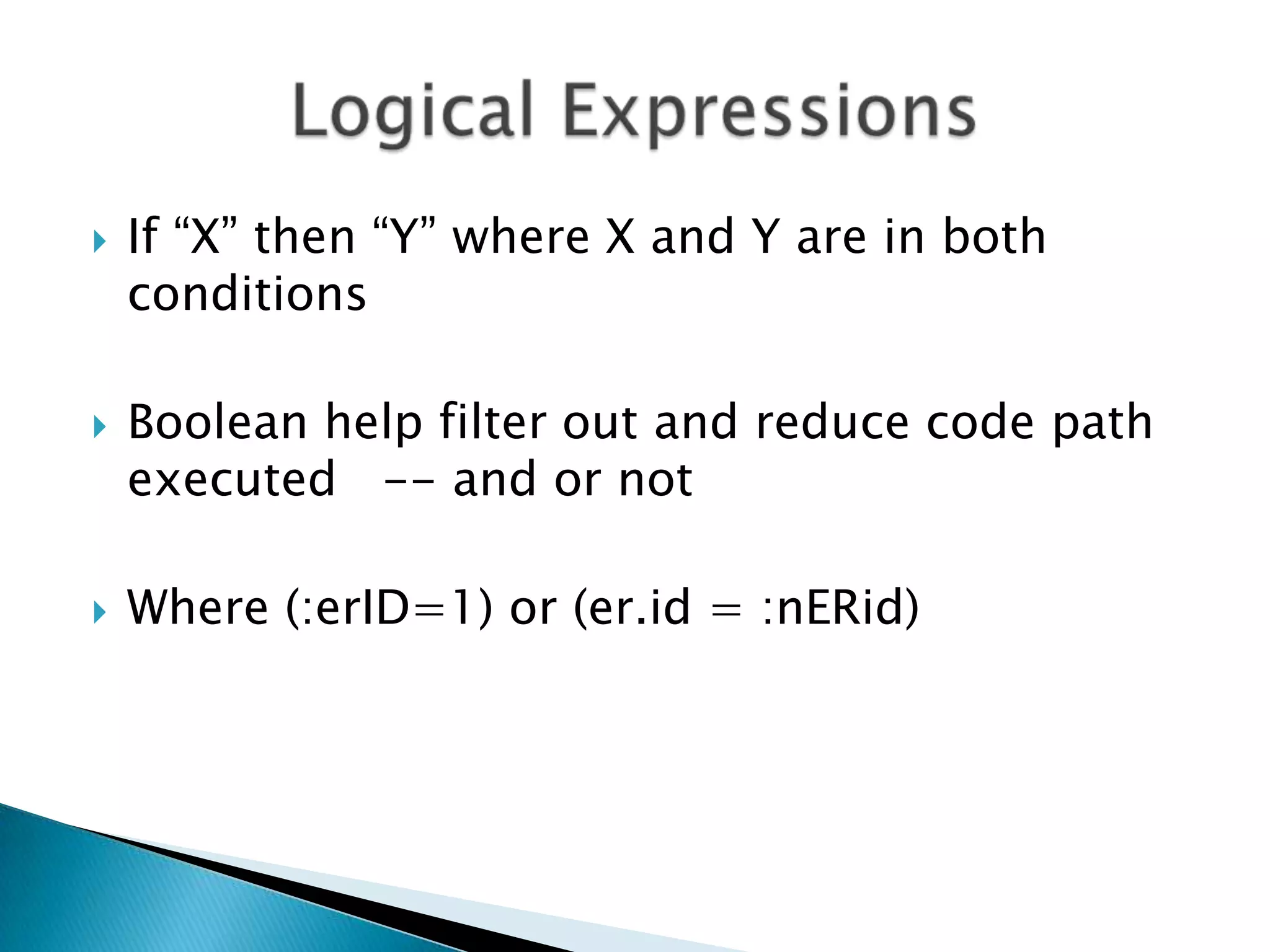

 If “X” then “Y” where X and Y are in both conditions  Boolean help filter out and reduce code path executed -- and or not  Where (:erID=1) or (er.id = :nERid)

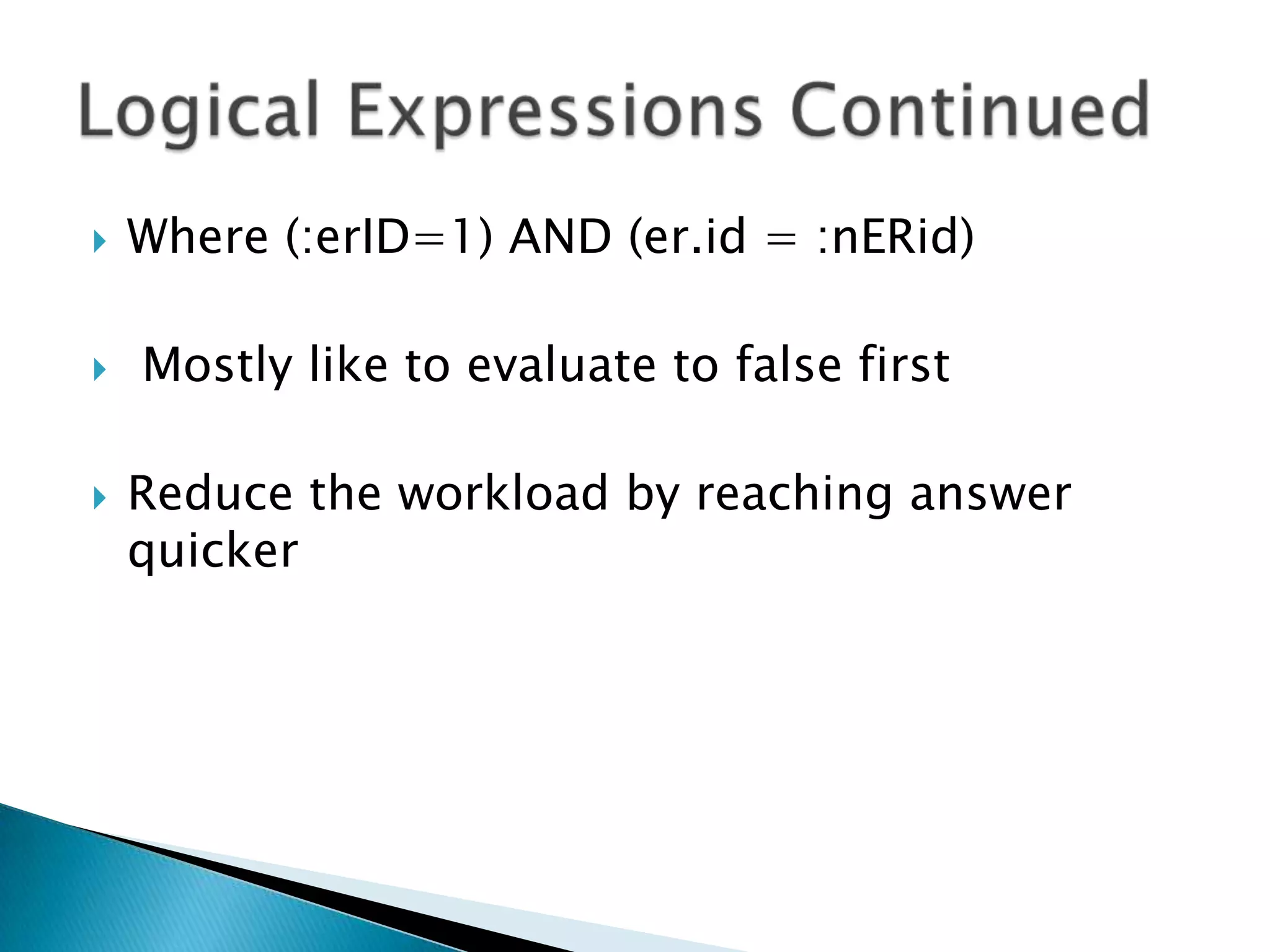

 Where (:erID=1) AND (er.id = :nERid)  Mostly like to evaluate to false first  Reduce the workload by reaching answer quicker

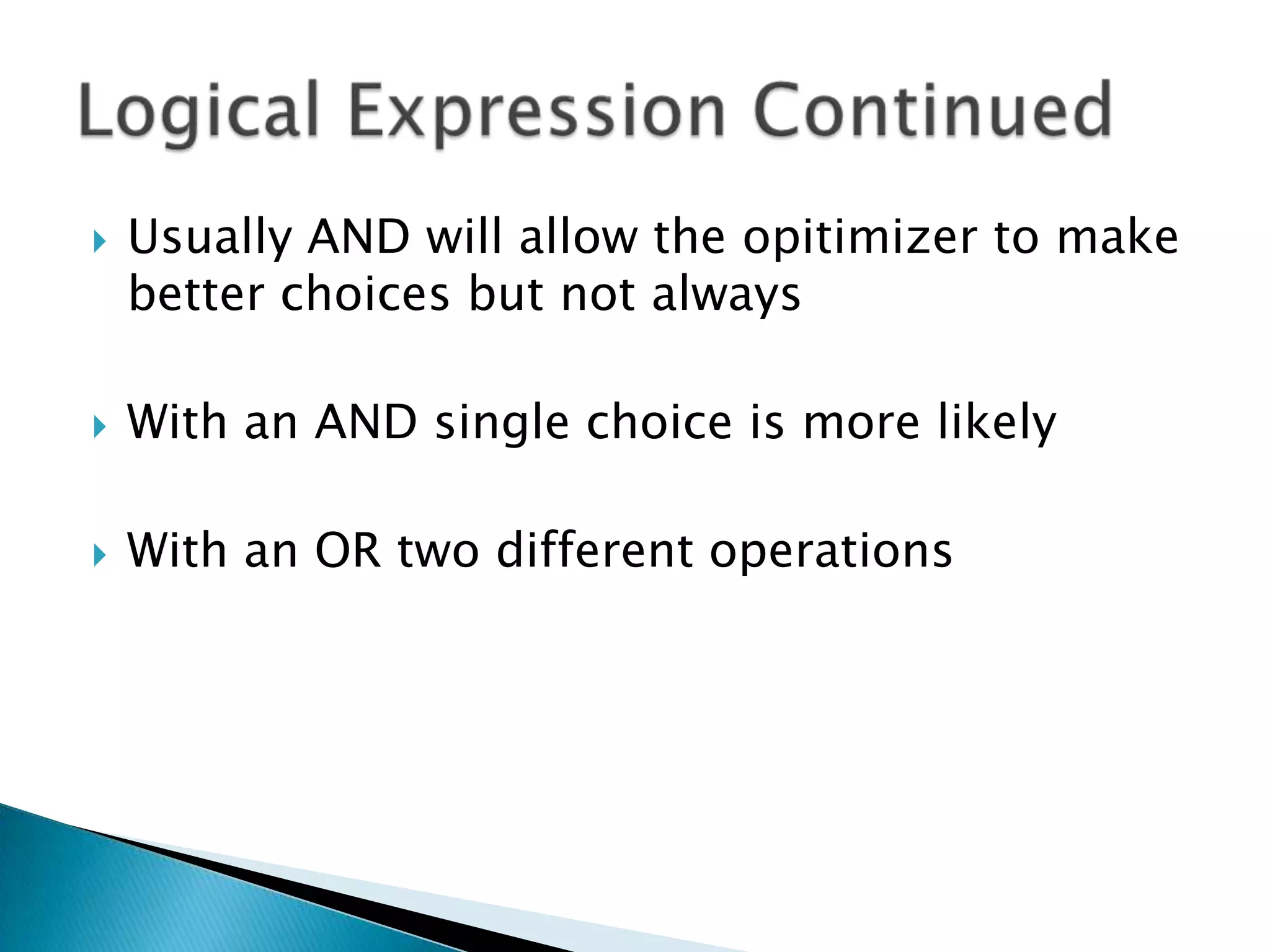

 Usually AND will allow the opitimizer to make better choices but not always  With an AND single choice is more likely  With an OR two different operations

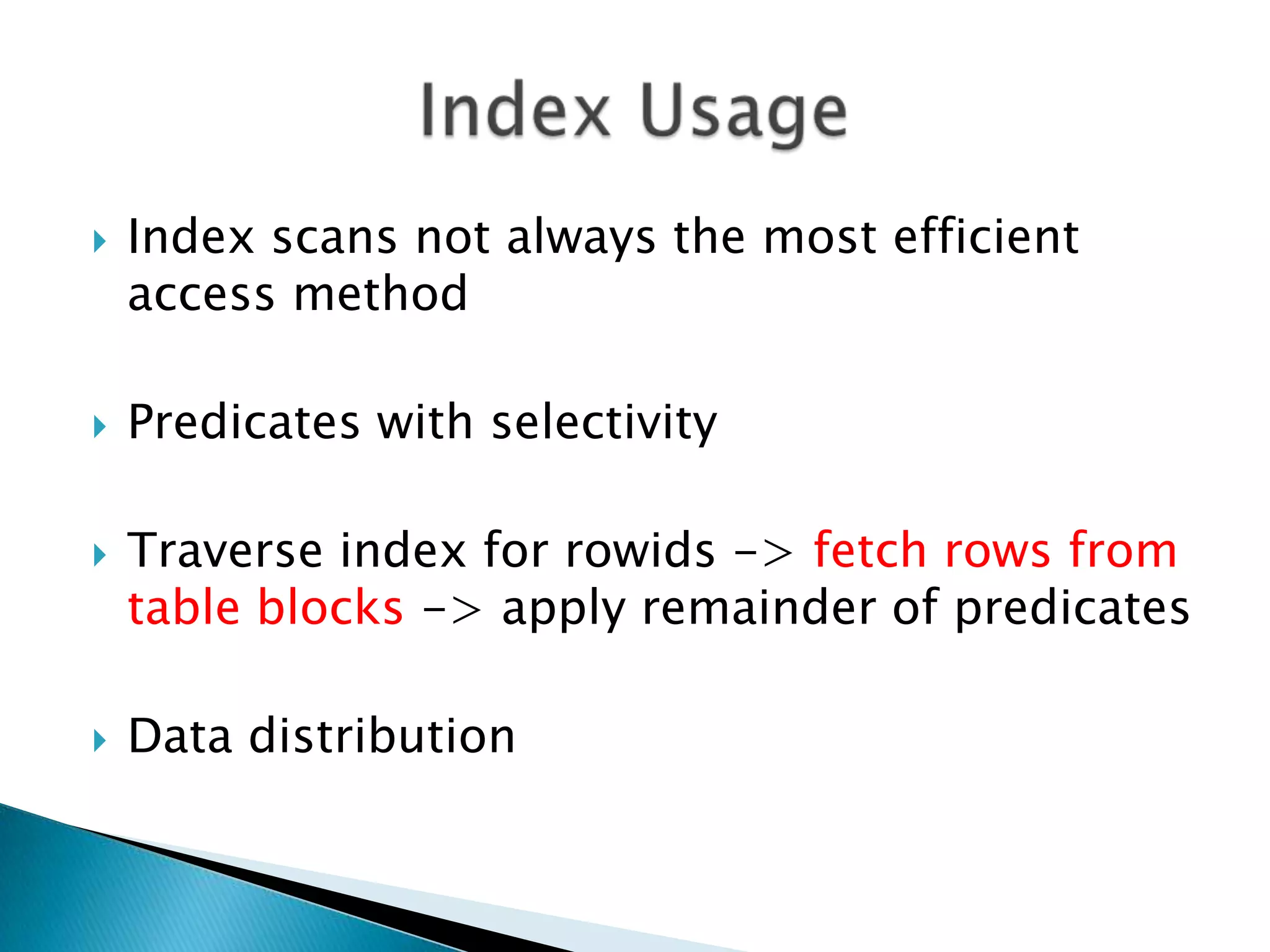

 Index scans not always the most efficient access method  Predicates with selectivity  Traverse index for rowids -> fetch rows from table blocks -> apply remainder of predicates  Data distribution

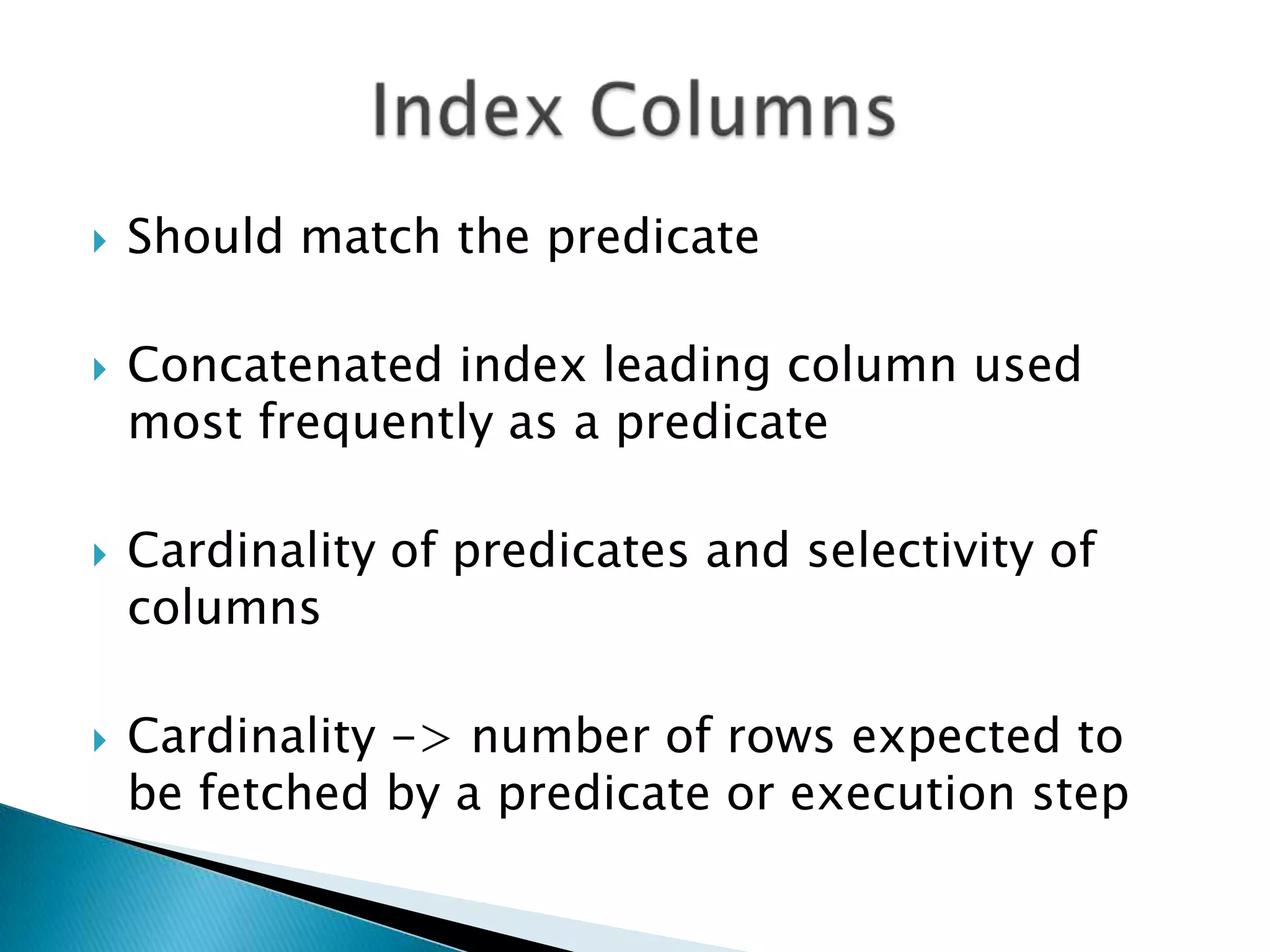

 Should match the predicate  Concatenated index leading column used most frequently as a predicate  Cardinality of predicates and selectivity of columns  Cardinality -> number of rows expected to be fetched by a predicate or execution step

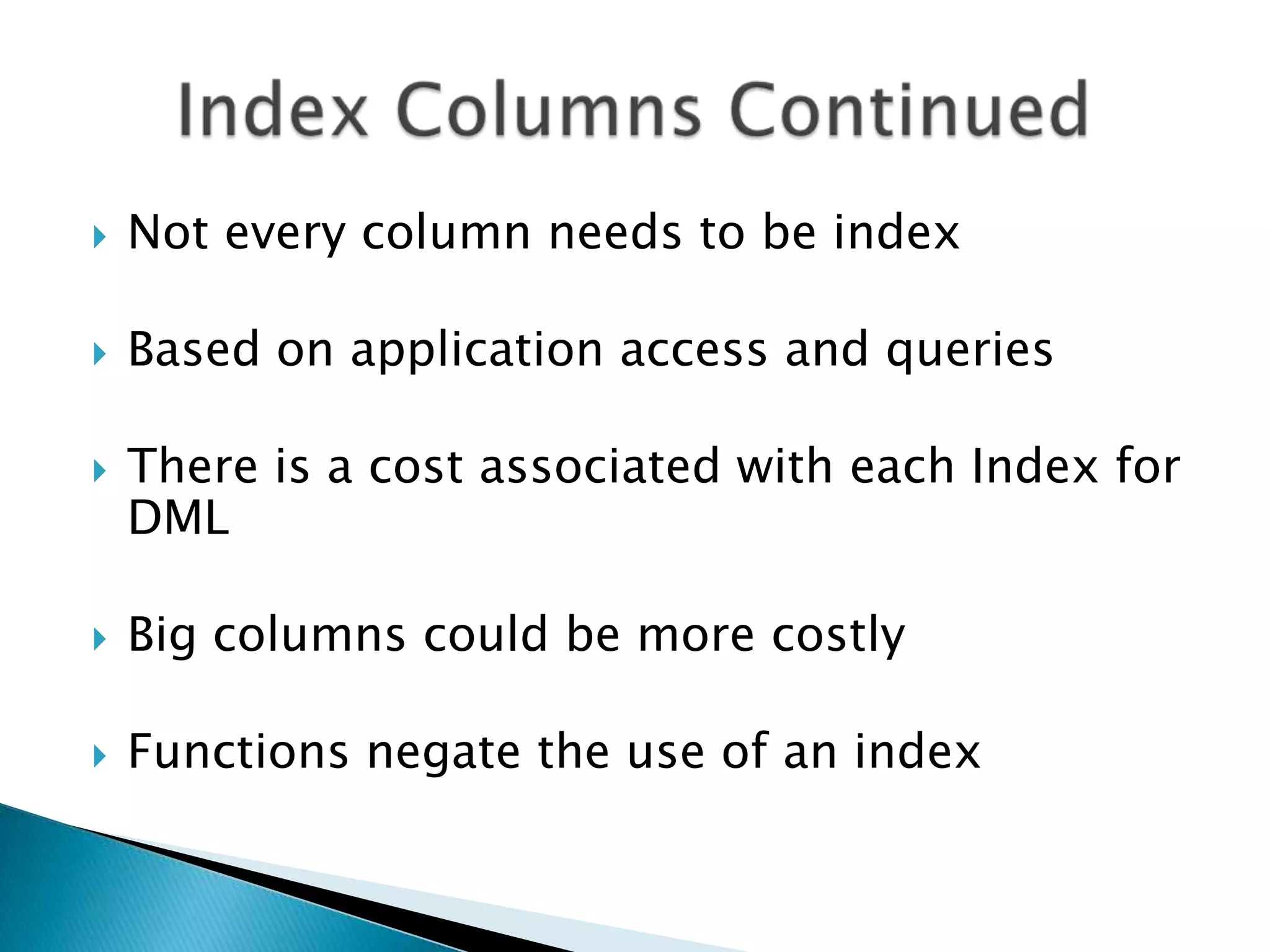

 Not every column needs to be index  Based on application access and queries  There is a cost associated with each Index for DML  Big columns could be more costly  Functions negate the use of an index

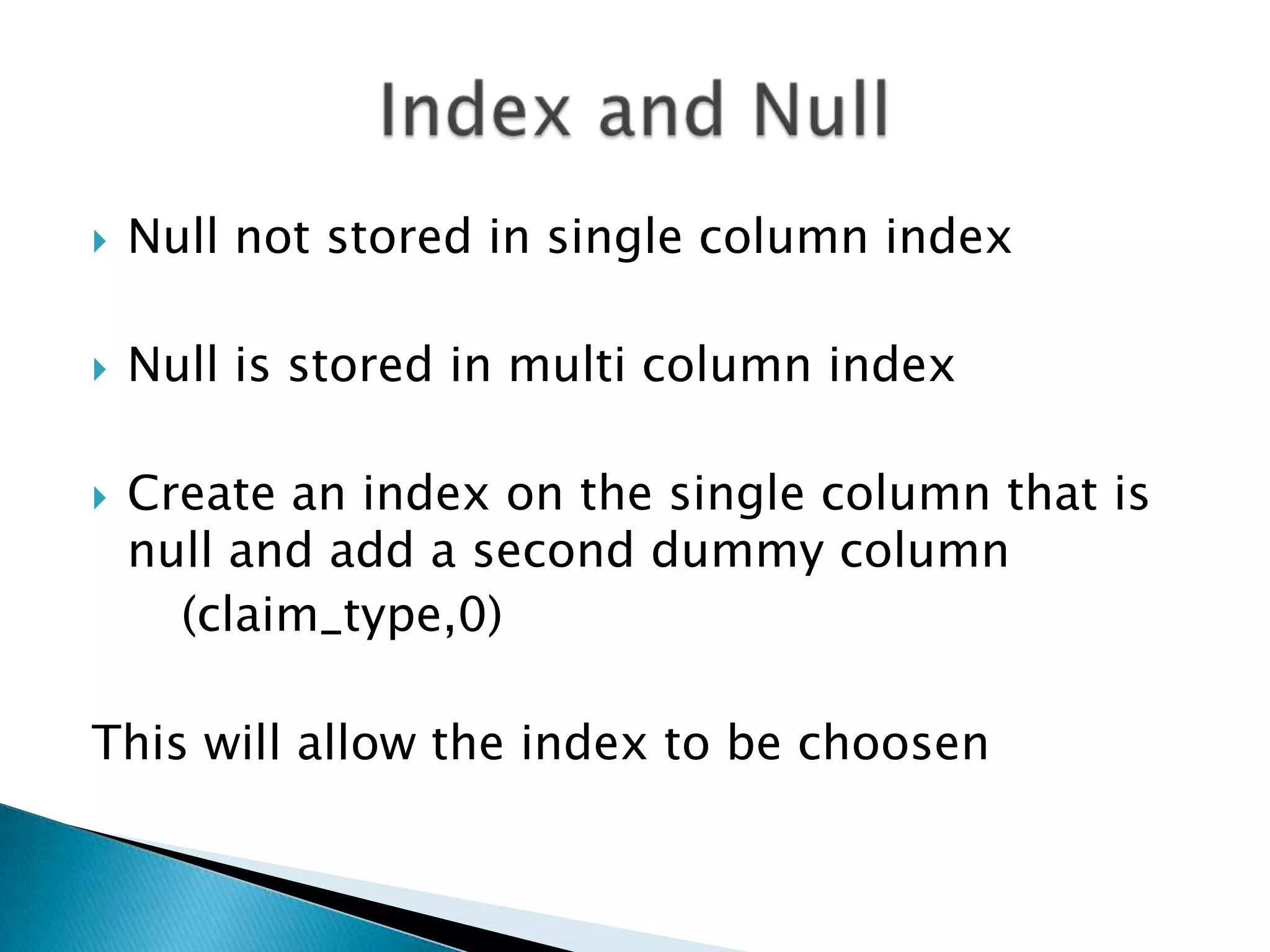

 Null not stored in single column index  Null is stored in multi column index  Create an index on the single column that is null and add a second dummy column (claim_type,0) This will allow the index to be choosen

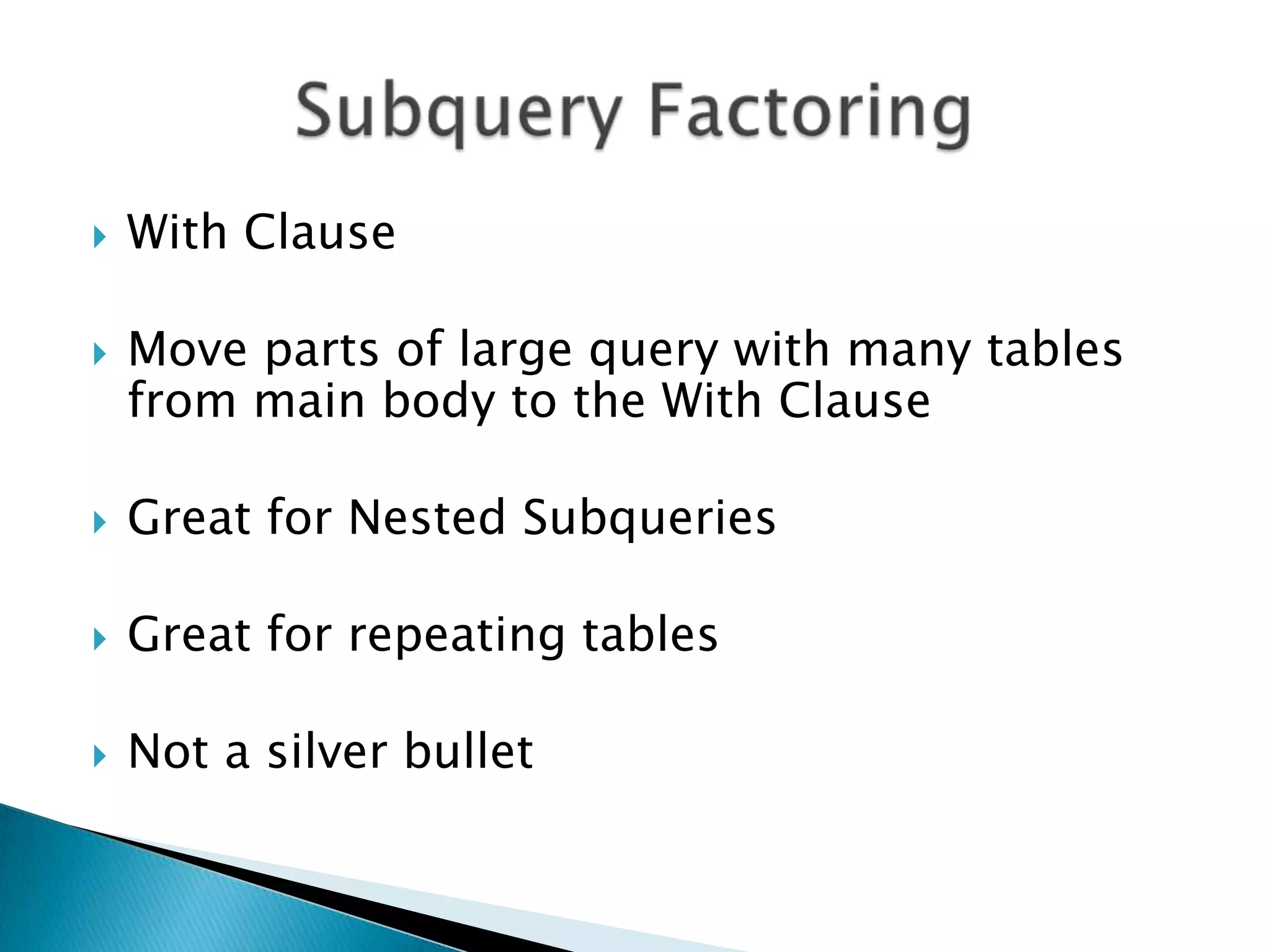

 With Clause  Move parts of large query with many tables from main body to the With Clause  Great for Nested Subqueries  Great for repeating tables  Not a silver bullet

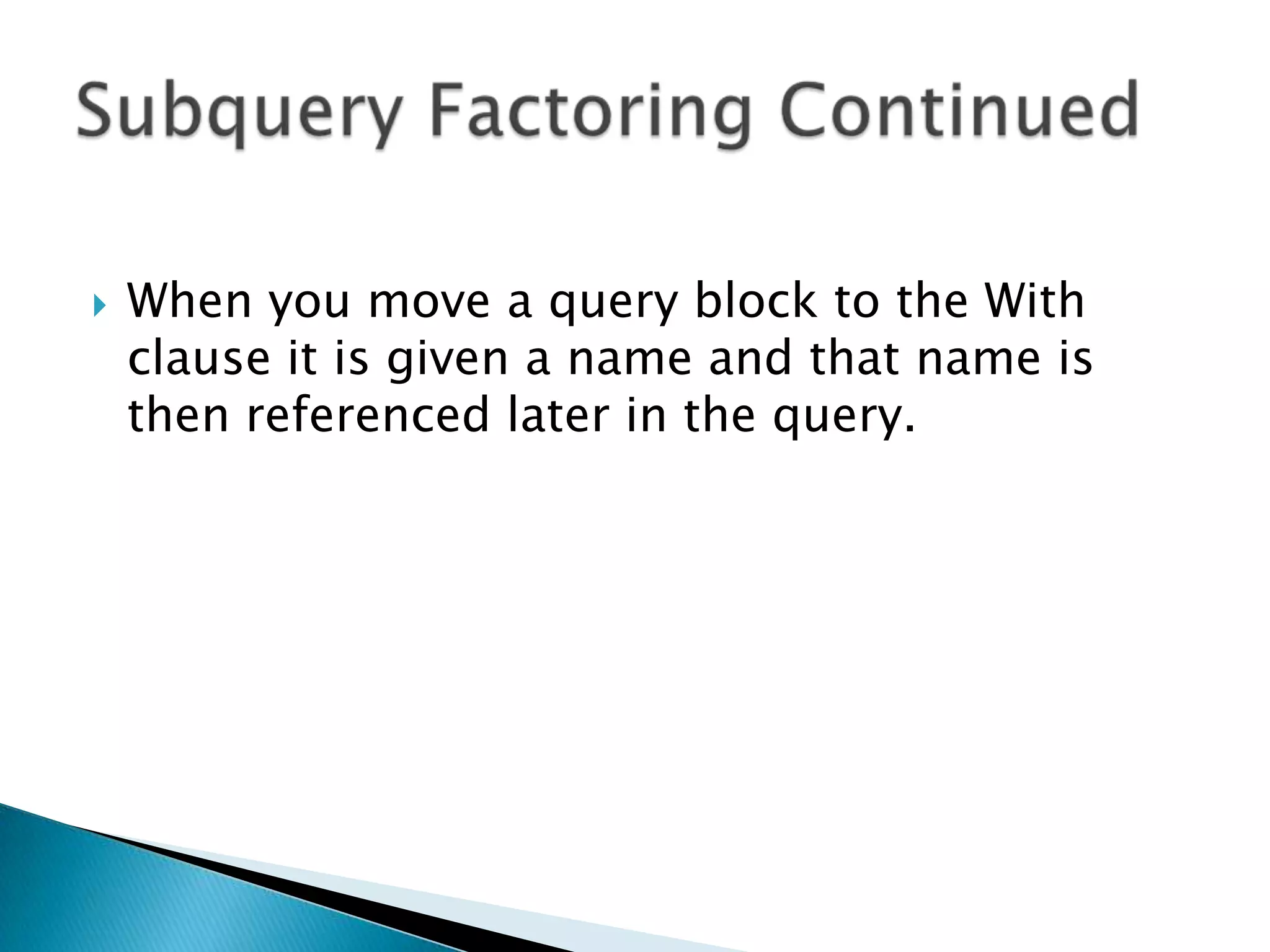

 When you move a query block to the With clause it is given a name and that name is then referenced later in the query.

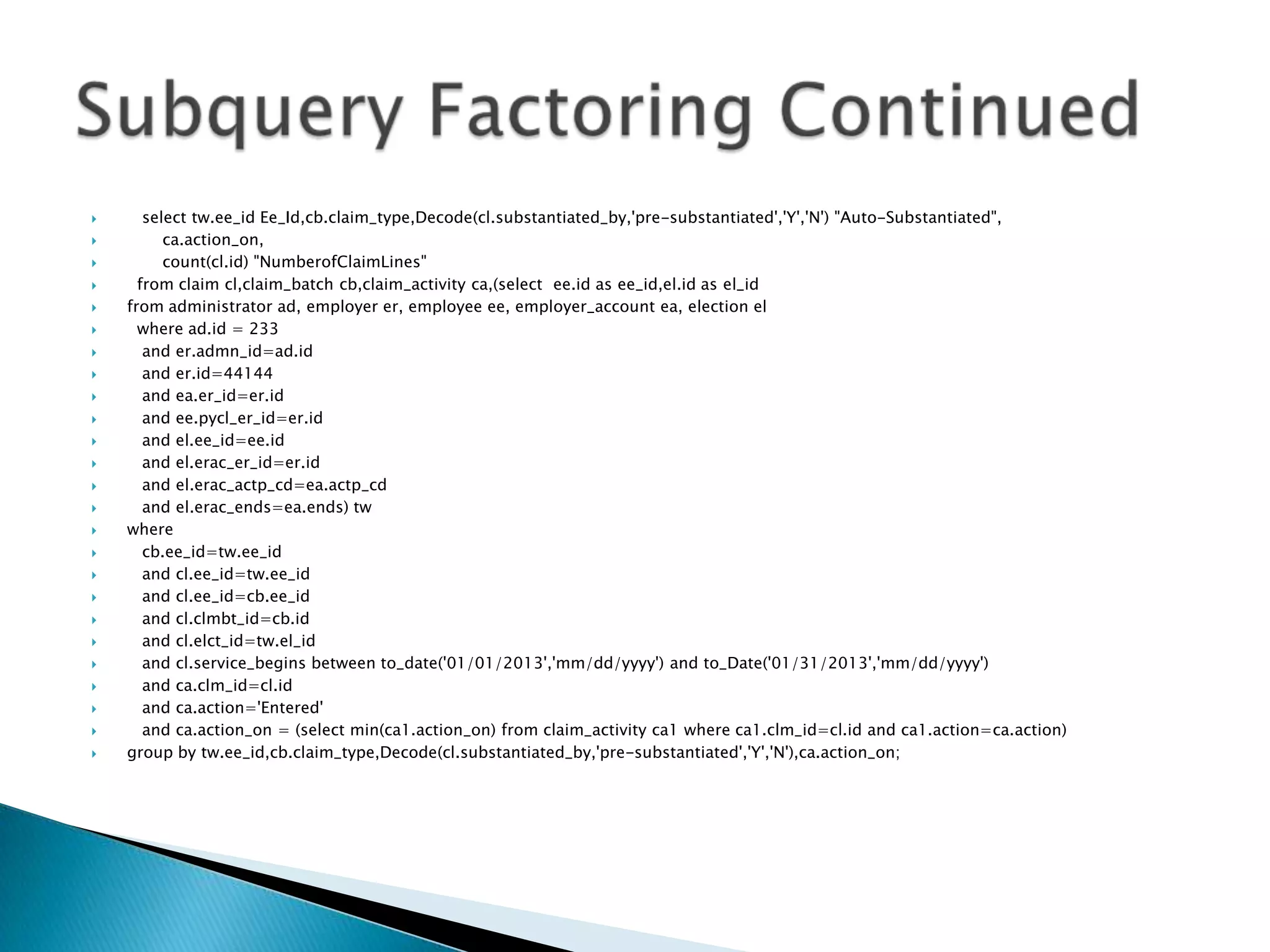

 select tw.ee_id Ee_Id,cb.claim_type,Decode(cl.substantiated_by,'pre-substantiated','Y','N') "Auto-Substantiated",  ca.action_on,  count(cl.id) "NumberofClaimLines"  from claim cl,claim_batch cb,claim_activity ca,(select ee.id as ee_id,el.id as el_id  from administrator ad, employer er, employee ee, employer_account ea, election el  where ad.id = 233  and er.admn_id=ad.id  and er.id=44144  and ea.er_id=er.id  and ee.pycl_er_id=er.id  and el.ee_id=ee.id  and el.erac_er_id=er.id  and el.erac_actp_cd=ea.actp_cd  and el.erac_ends=ea.ends) tw  where  cb.ee_id=tw.ee_id  and cl.ee_id=tw.ee_id  and cl.ee_id=cb.ee_id  and cl.clmbt_id=cb.id  and cl.elct_id=tw.el_id  and cl.service_begins between to_date('01/01/2013','mm/dd/yyyy') and to_Date('01/31/2013','mm/dd/yyyy')  and ca.clm_id=cl.id  and ca.action='Entered'  and ca.action_on = (select min(ca1.action_on) from claim_activity ca1 where ca1.clm_id=cl.id and ca1.action=ca.action)  group by tw.ee_id,cb.claim_type,Decode(cl.substantiated_by,'pre-substantiated','Y','N'),ca.action_on;

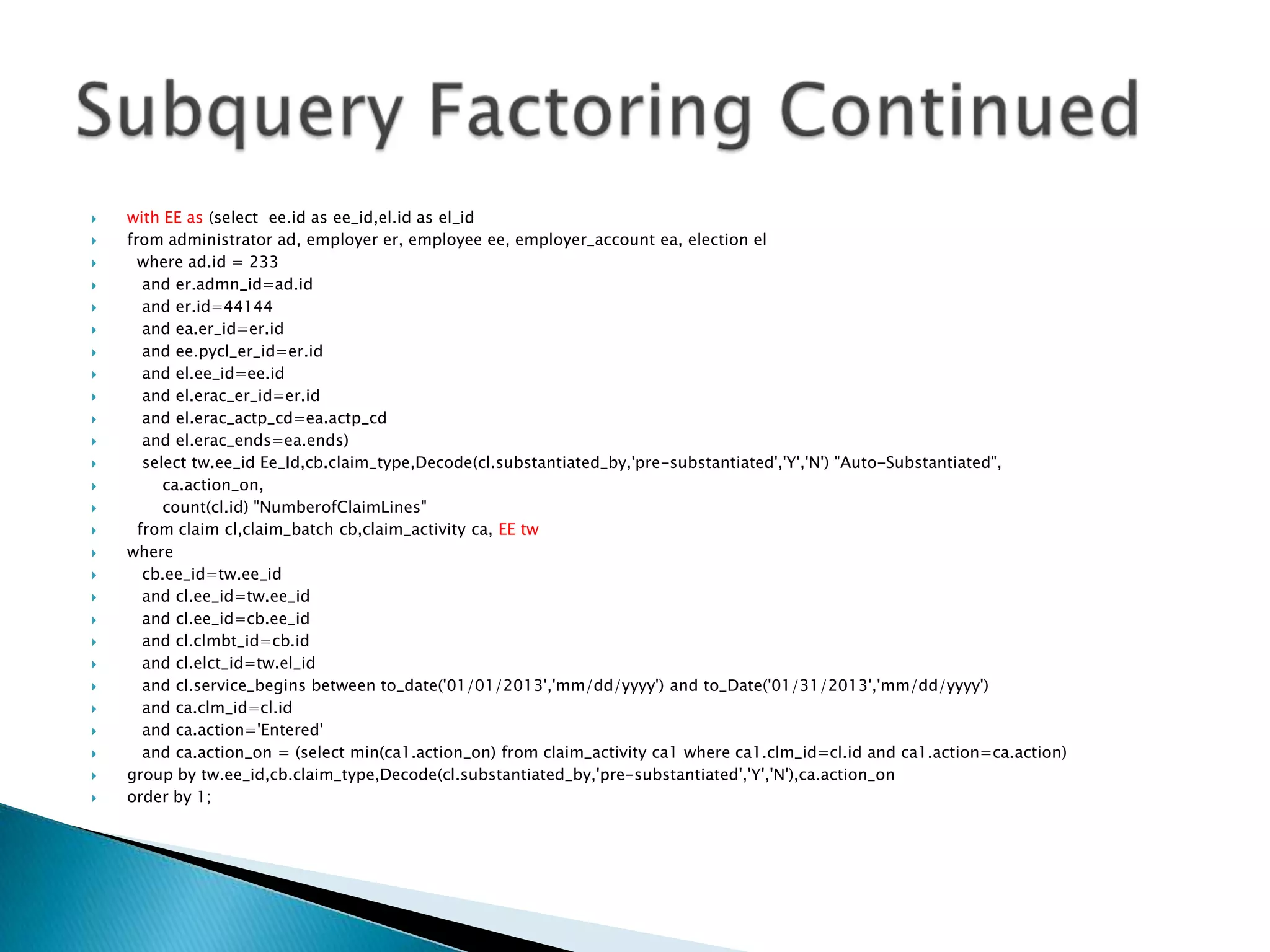

 with EE as (select ee.id as ee_id,el.id as el_id  from administrator ad, employer er, employee ee, employer_account ea, election el  where ad.id = 233  and er.admn_id=ad.id  and er.id=44144  and ea.er_id=er.id  and ee.pycl_er_id=er.id  and el.ee_id=ee.id  and el.erac_er_id=er.id  and el.erac_actp_cd=ea.actp_cd  and el.erac_ends=ea.ends)  select tw.ee_id Ee_Id,cb.claim_type,Decode(cl.substantiated_by,'pre-substantiated','Y','N') "Auto-Substantiated",  ca.action_on,  count(cl.id) "NumberofClaimLines"  from claim cl,claim_batch cb,claim_activity ca, EE tw  where  cb.ee_id=tw.ee_id  and cl.ee_id=tw.ee_id  and cl.ee_id=cb.ee_id  and cl.clmbt_id=cb.id  and cl.elct_id=tw.el_id  and cl.service_begins between to_date('01/01/2013','mm/dd/yyyy') and to_Date('01/31/2013','mm/dd/yyyy')  and ca.clm_id=cl.id  and ca.action='Entered'  and ca.action_on = (select min(ca1.action_on) from claim_activity ca1 where ca1.clm_id=cl.id and ca1.action=ca.action)  group by tw.ee_id,cb.claim_type,Decode(cl.substantiated_by,'pre-substantiated','Y','N'),ca.action_on  order by 1;

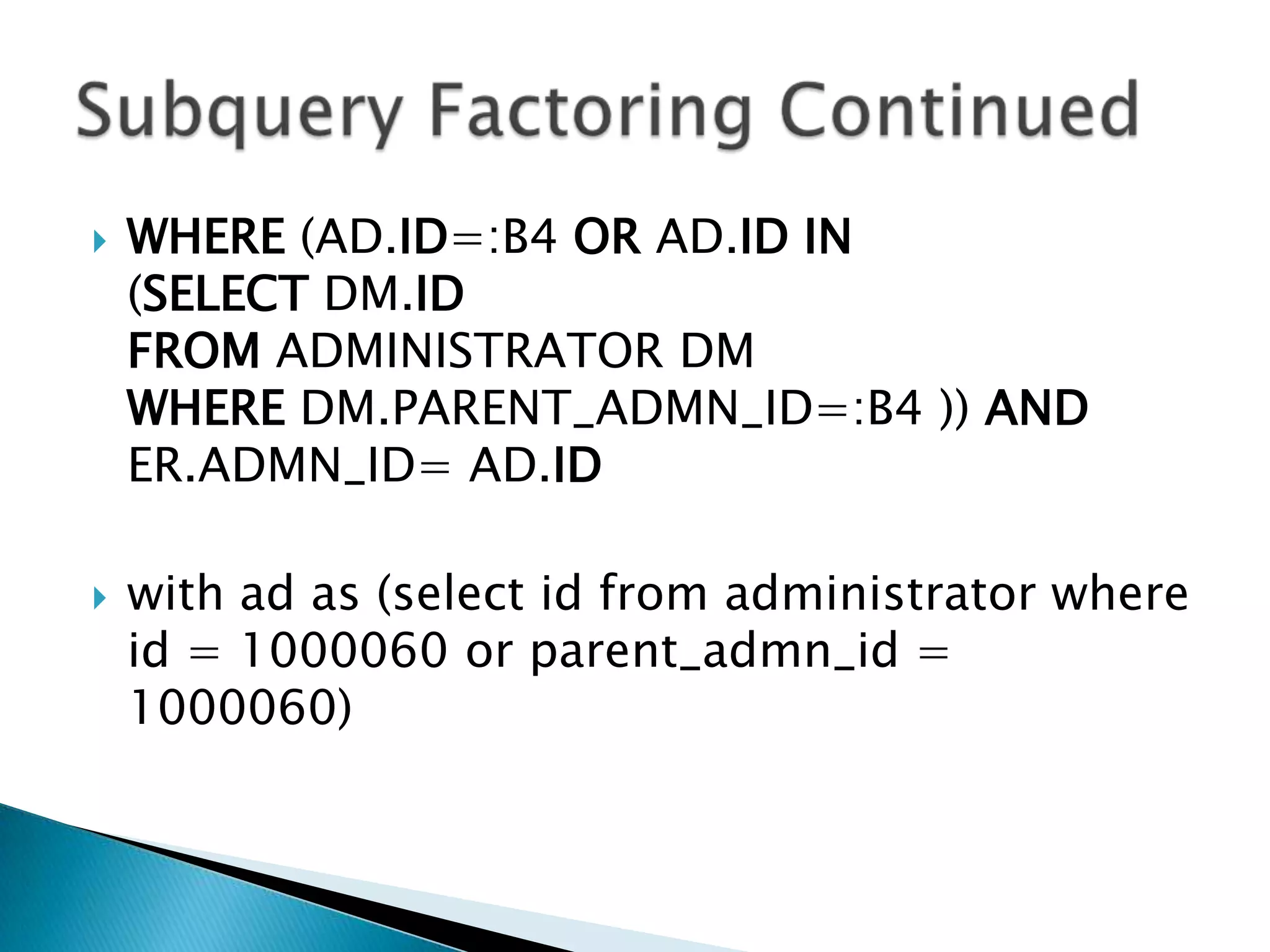

 WHERE (AD.ID=:B4 OR AD.ID IN (SELECT DM.ID FROM ADMINISTRATOR DM WHERE DM.PARENT_ADMN_ID=:B4 )) AND ER.ADMN_ID= AD.ID  with ad as (select id from administrator where id = 1000060 or parent_admn_id = 1000060)

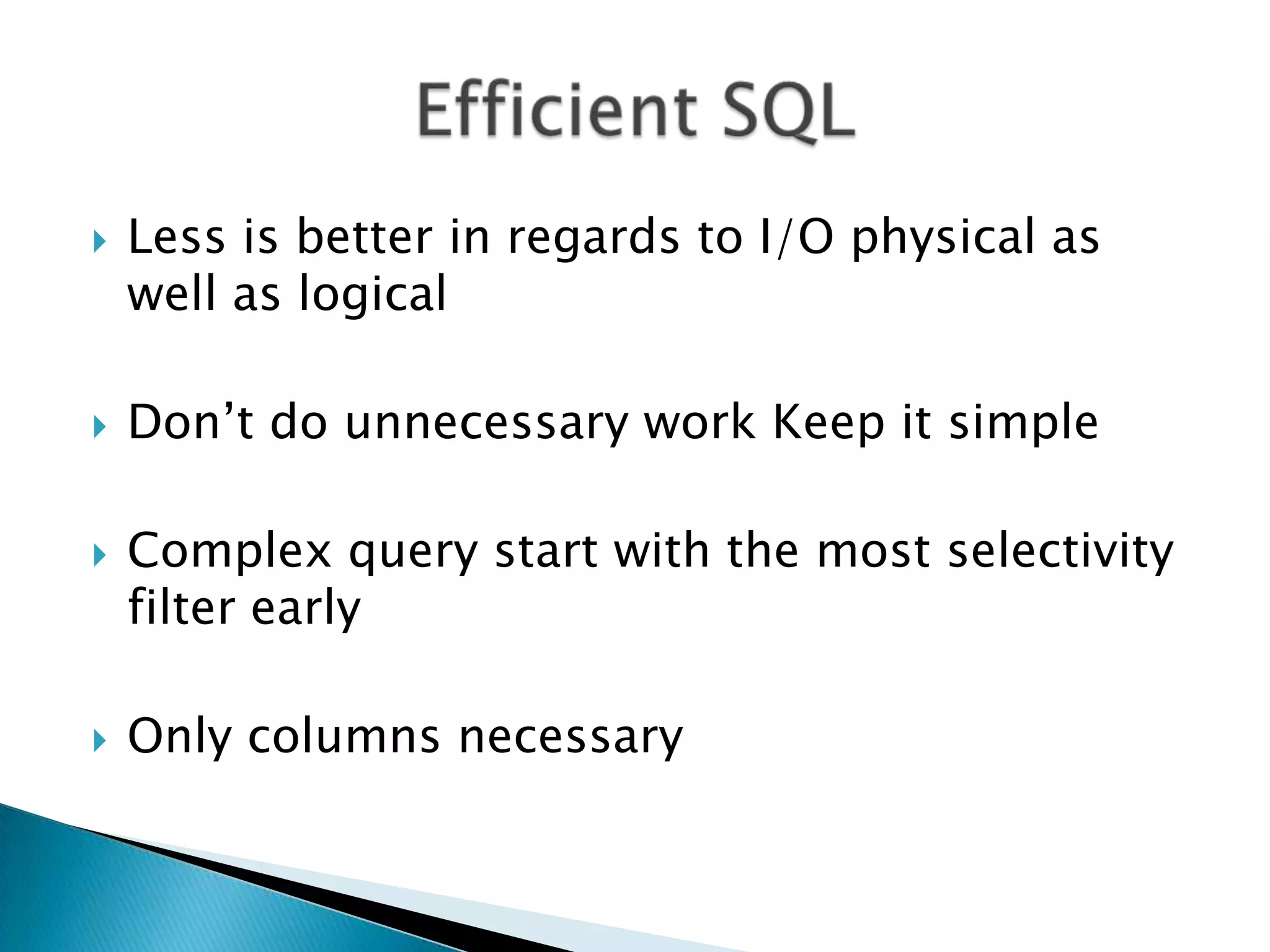

 Less is better in regards to I/O physical as well as logical  Don‟t do unnecessary work Keep it simple  Complex query start with the most selectivity filter early  Only columns necessary

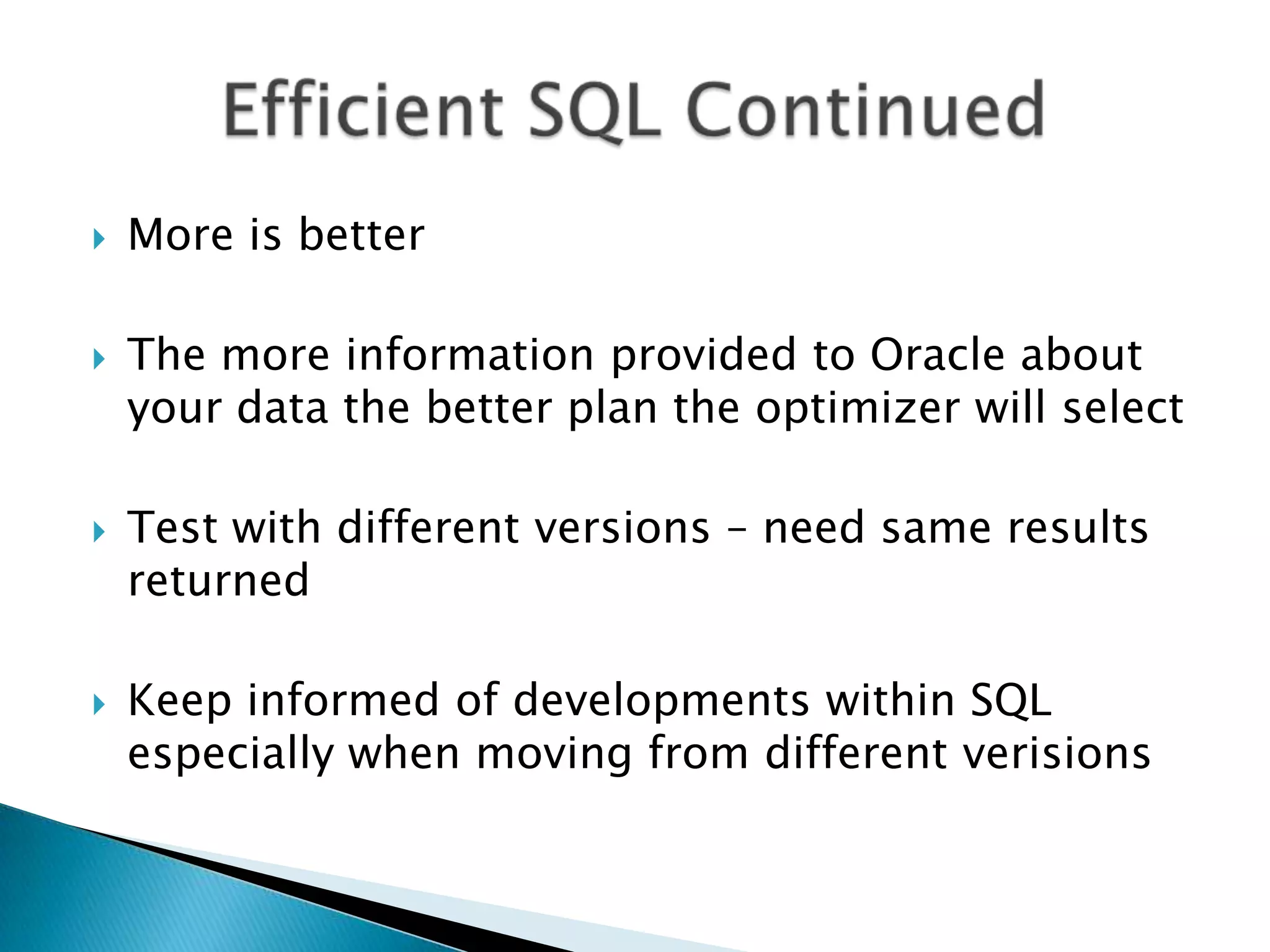

 More is better  The more information provided to Oracle about your data the better plan the optimizer will select  Test with different versions – need same results returned  Keep informed of developments within SQL especially when moving from different verisions

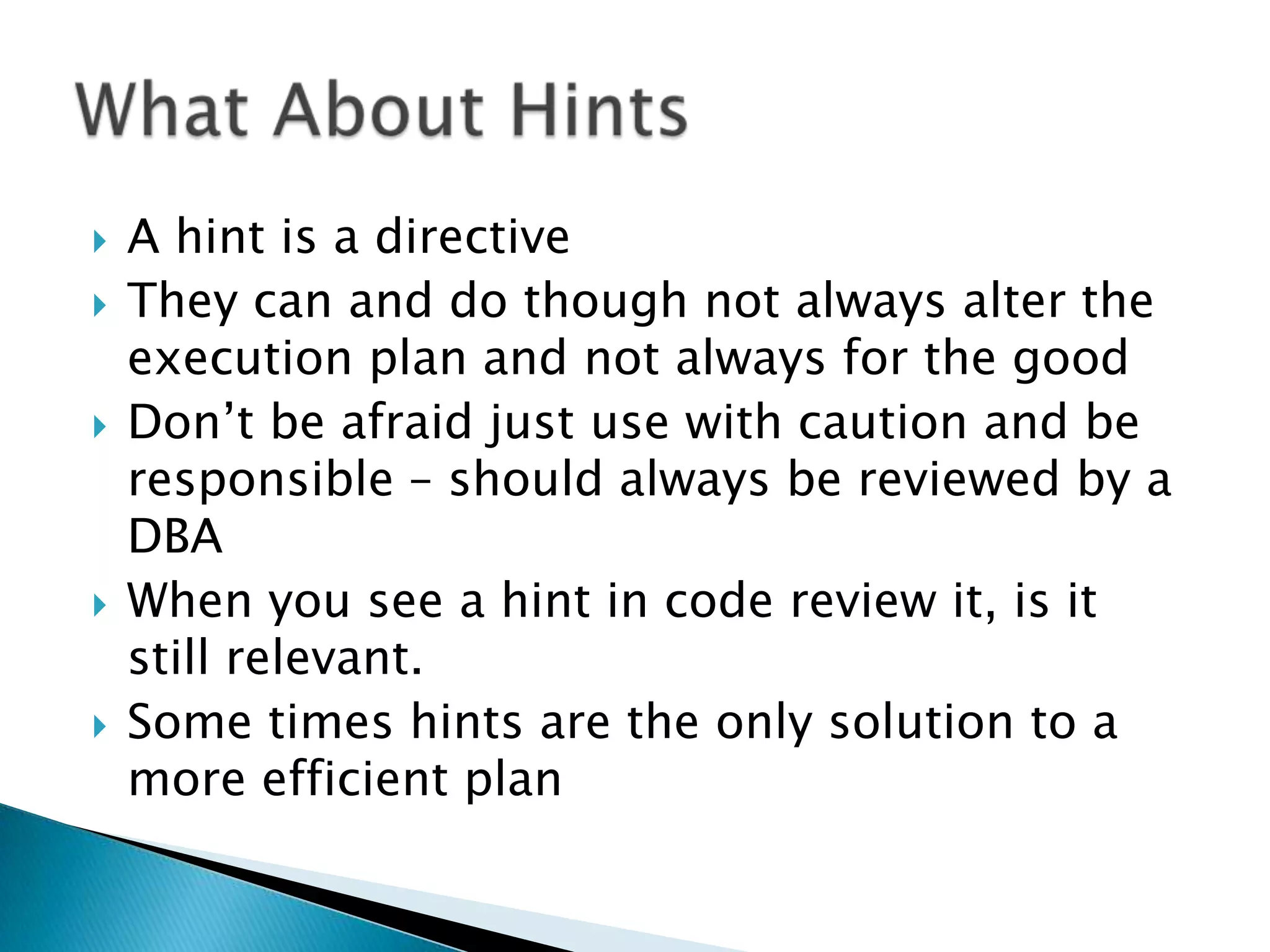

 A hint is a directive  They can and do though not always alter the execution plan and not always for the good  Don‟t be afraid just use with caution and be responsible – should always be reviewed by a DBA  When you see a hint in code review it, is it still relevant.  Some times hints are the only solution to a more efficient plan

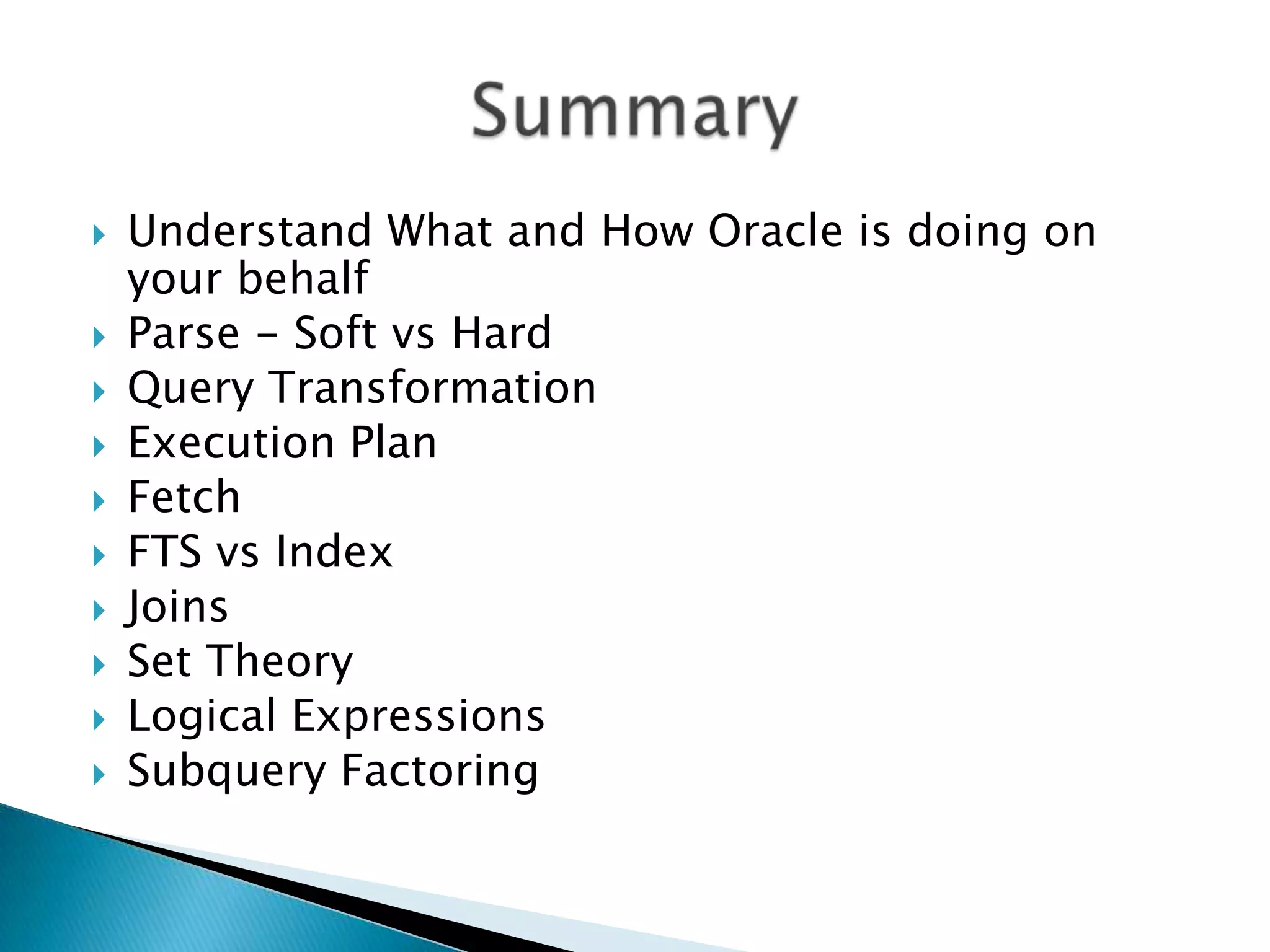

 Understand What and How Oracle is doing on your behalf  Parse - Soft vs Hard  Query Transformation  Execution Plan  Fetch  FTS vs Index  Joins  Set Theory  Logical Expressions  Subquery Factoring
