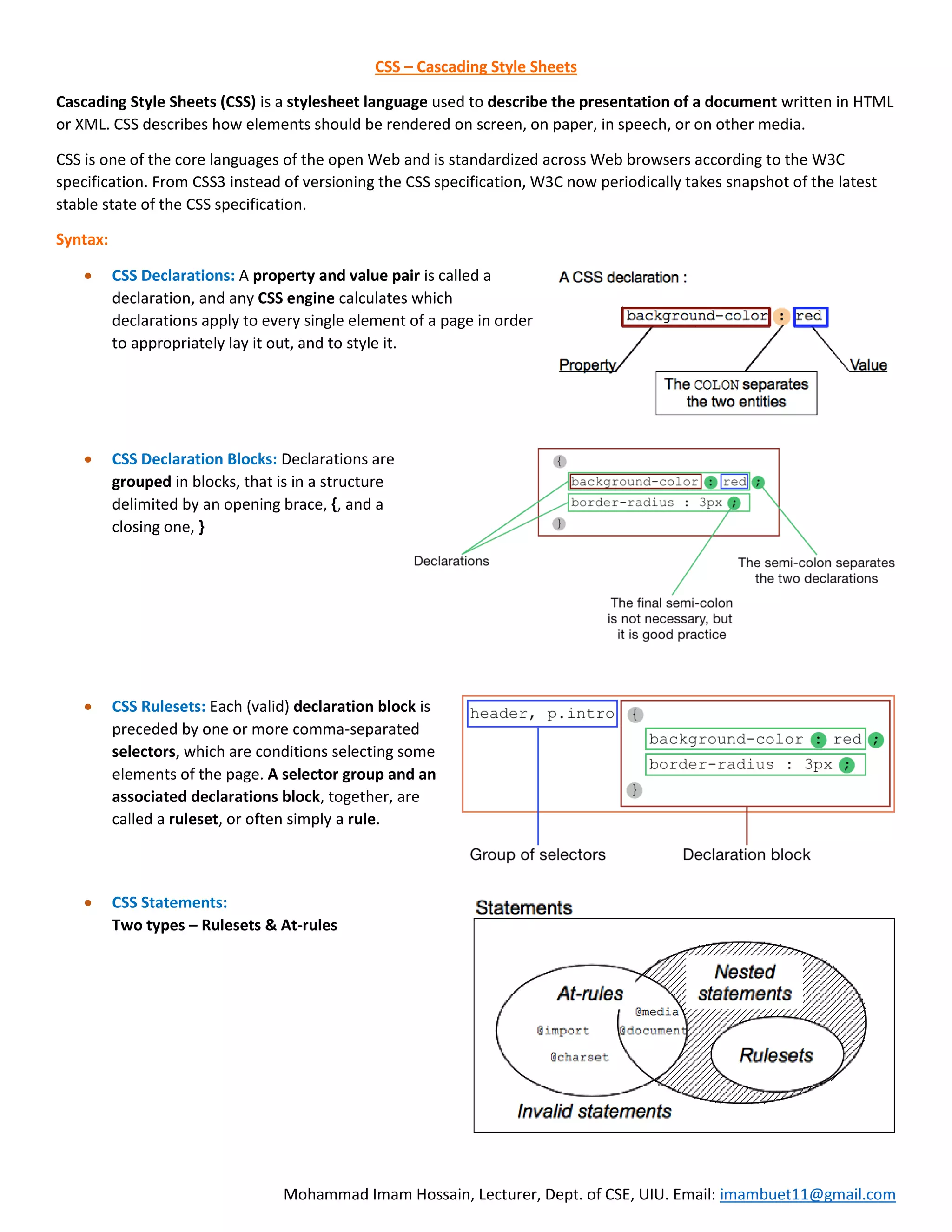

  Mohammad Imam Hossain,Lecturer, Dept. of CSE, UIU. Email: imambuet11@gmail.com CSS – Cascading Style Sheets Cascading Style Sheets (CSS) is a stylesheet language used to describe the presentation of a document written in HTML or XML. CSS describes how elements should be rendered on screen, on paper, in speech, or on other media. CSS is one of the core languages of the open Web and is standardized across Web browsers according to the W3C specification. From CSS3 instead of versioning the CSS specification, W3C now periodically takes snapshot of the latest stable state of the CSS specification. Syntax:  CSS Declarations: A property and value pair is called a declaration, and any CSS engine calculates which declarations apply to every single element of a page in order to appropriately lay it out, and to style it.  CSS Declaration Blocks: Declarations are grouped in blocks, that is in a structure delimited by an opening brace, {, and a closing one, }  CSS Rulesets: Each (valid) declaration block is preceded by one or more comma-separated selectors, which are conditions selecting some elements of the page. A selector group and an associated declarations block, together, are called a ruleset, or often simply a rule.  CSS Statements: Two types – Rulesets & At-rules
• 2.

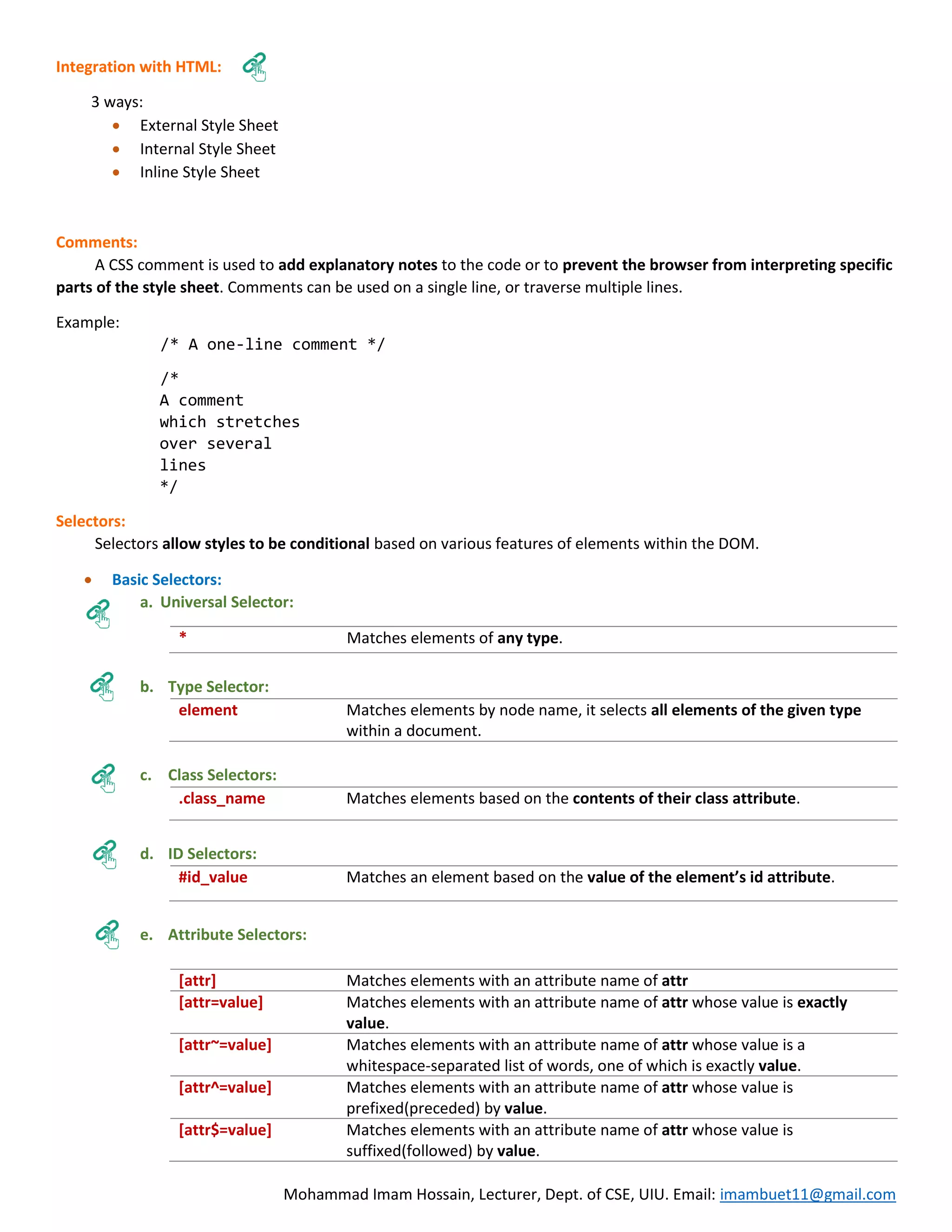

  Mohammad Imam Hossain,Lecturer, Dept. of CSE, UIU. Email: imambuet11@gmail.com Integration with HTML: 3 ways:  External Style Sheet  Internal Style Sheet  Inline Style Sheet Comments: A CSS comment is used to add explanatory notes to the code or to prevent the browser from interpreting specific parts of the style sheet. Comments can be used on a single line, or traverse multiple lines. Example: /* A one-line comment */ /* A comment which stretches over several lines */ Selectors: Selectors allow styles to be conditional based on various features of elements within the DOM.  Basic Selectors: a. Universal Selector: * Matches elements of any type. b. Type Selector: element Matches elements by node name, it selects all elements of the given type within a document. c. Class Selectors: .class_name Matches elements based on the contents of their class attribute. d. ID Selectors: #id_value Matches an element based on the value of the element’s id attribute. e. Attribute Selectors: [attr] Matches elements with an attribute name of attr [attr=value] Matches elements with an attribute name of attr whose value is exactly value. [attr~=value] Matches elements with an attribute name of attr whose value is a whitespace-separated list of words, one of which is exactly value. [attr^=value] Matches elements with an attribute name of attr whose value is prefixed(preceded) by value. [attr$=value] Matches elements with an attribute name of attr whose value is suffixed(followed) by value.
• 3.

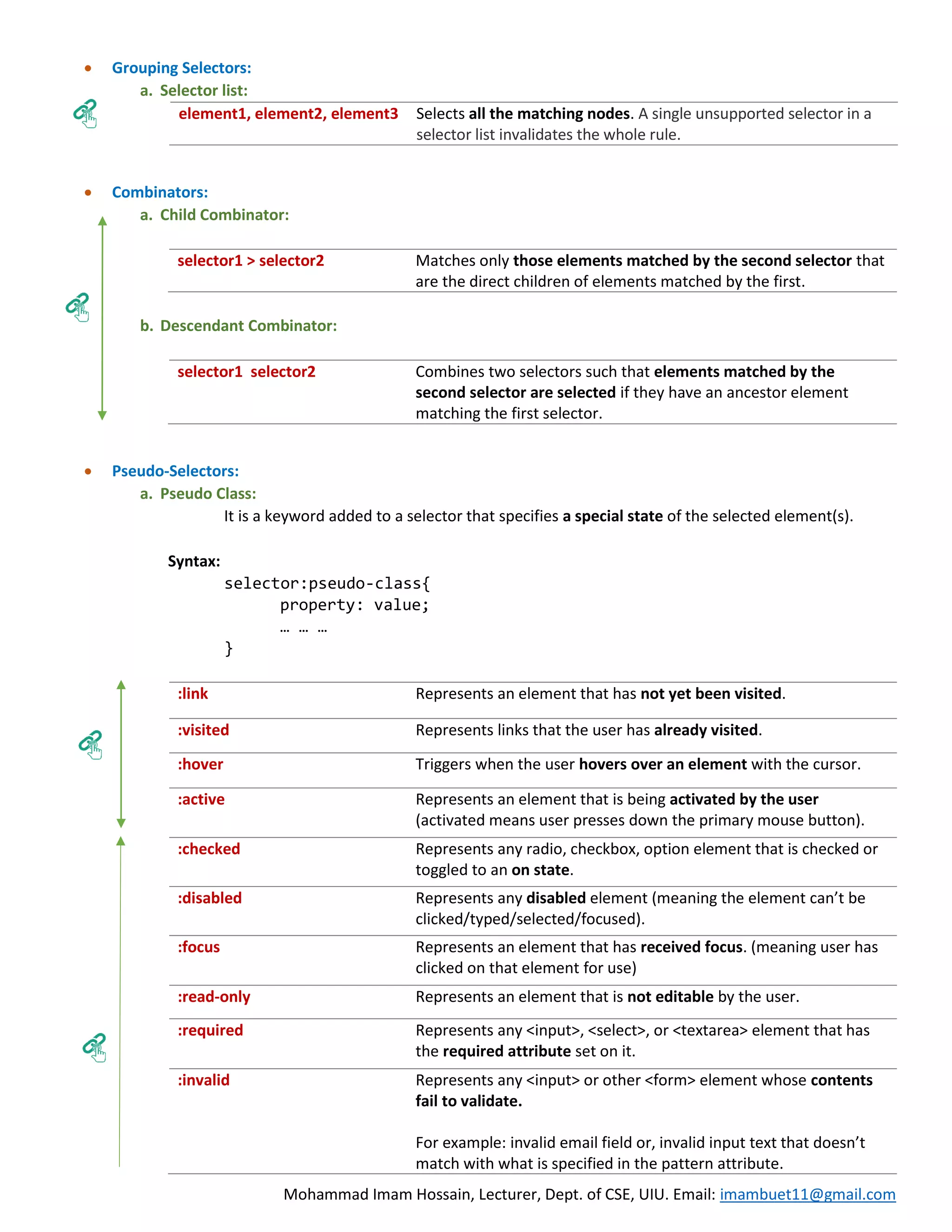

  Mohammad Imam Hossain,Lecturer, Dept. of CSE, UIU. Email: imambuet11@gmail.com  Grouping Selectors: a. Selector list: element1, element2, element3 Selects all the matching nodes. A single unsupported selector in a selector list invalidates the whole rule.  Combinators: a. Child Combinator: selector1 > selector2 Matches only those elements matched by the second selector that are the direct children of elements matched by the first. b. Descendant Combinator: selector1 selector2 Combines two selectors such that elements matched by the second selector are selected if they have an ancestor element matching the first selector.  Pseudo-Selectors: a. Pseudo Class: It is a keyword added to a selector that specifies a special state of the selected element(s). Syntax: selector:pseudo-class{ property: value; … … … } :link Represents an element that has not yet been visited. :visited Represents links that the user has already visited. :hover Triggers when the user hovers over an element with the cursor. :active Represents an element that is being activated by the user (activated means user presses down the primary mouse button). :checked Represents any radio, checkbox, option element that is checked or toggled to an on state. :disabled Represents any disabled element (meaning the element can’t be clicked/typed/selected/focused). :focus Represents an element that has received focus. (meaning user has clicked on that element for use) :read-only Represents an element that is not editable by the user. :required Represents any <input>, <select>, or <textarea> element that has the required attribute set on it. :invalid Represents any <input> or other <form> element whose contents fail to validate. For example: invalid email field or, invalid input text that doesn’t match with what is specified in the pattern attribute.
• 4.

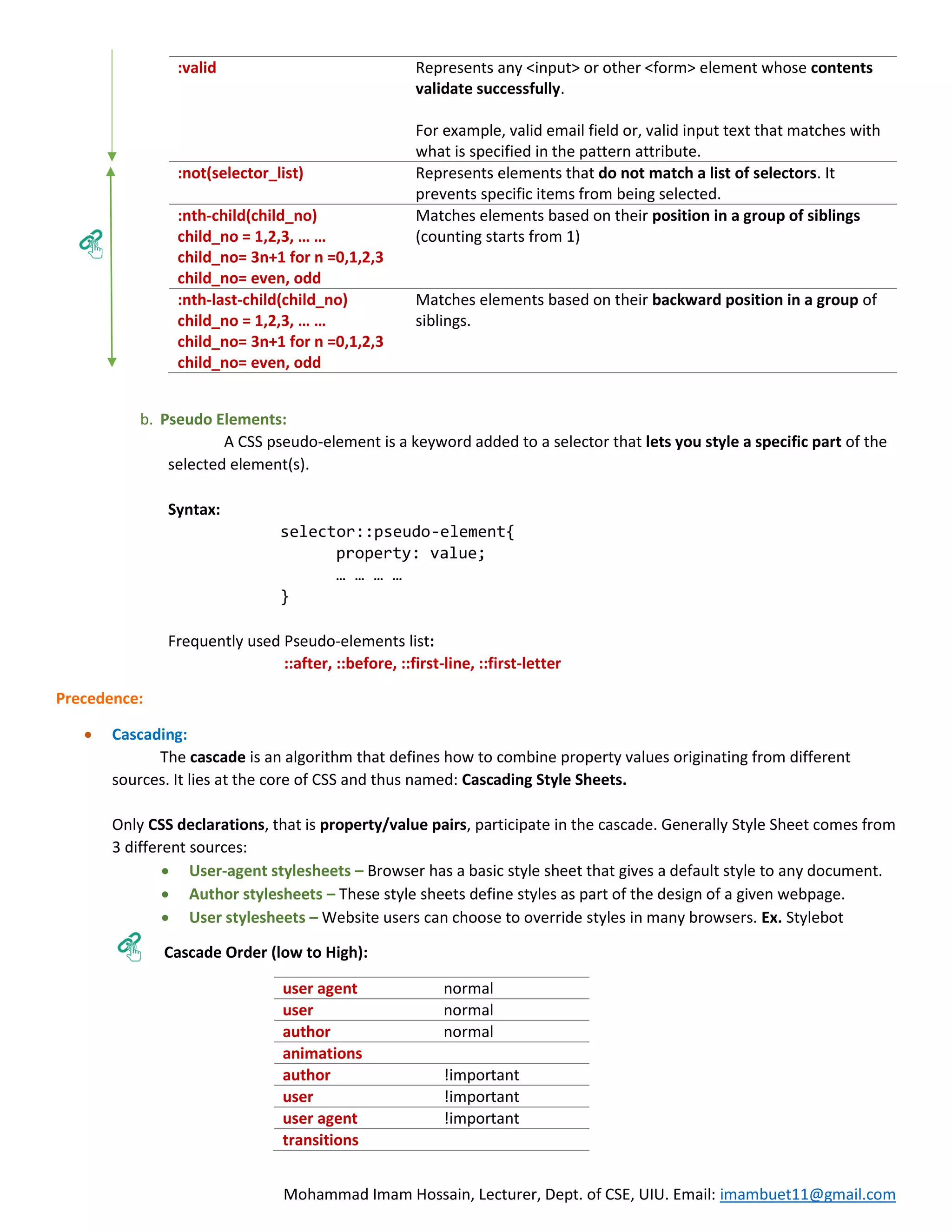

  Mohammad Imam Hossain,Lecturer, Dept. of CSE, UIU. Email: imambuet11@gmail.com :valid Represents any <input> or other <form> element whose contents validate successfully. For example, valid email field or, valid input text that matches with what is specified in the pattern attribute. :not(selector_list) Represents elements that do not match a list of selectors. It prevents specific items from being selected. :nth-child(child_no) child_no = 1,2,3, … … child_no= 3n+1 for n =0,1,2,3 child_no= even, odd Matches elements based on their position in a group of siblings (counting starts from 1) :nth-last-child(child_no) child_no = 1,2,3, … … child_no= 3n+1 for n =0,1,2,3 child_no= even, odd Matches elements based on their backward position in a group of siblings. b. Pseudo Elements: A CSS pseudo-element is a keyword added to a selector that lets you style a specific part of the selected element(s). Syntax: selector::pseudo-element{ property: value; … … … … } Frequently used Pseudo-elements list: ::after, ::before, ::first-line, ::first-letter Precedence:  Cascading: The cascade is an algorithm that defines how to combine property values originating from different sources. It lies at the core of CSS and thus named: Cascading Style Sheets. Only CSS declarations, that is property/value pairs, participate in the cascade. Generally Style Sheet comes from 3 different sources:  User-agent stylesheets – Browser has a basic style sheet that gives a default style to any document.  Author stylesheets – These style sheets define styles as part of the design of a given webpage.  User stylesheets – Website users can choose to override styles in many browsers. Ex. Stylebot Cascade Order (low to High): user agent normal user normal author normal animations author !important user !important user agent !important transitions
• 5.

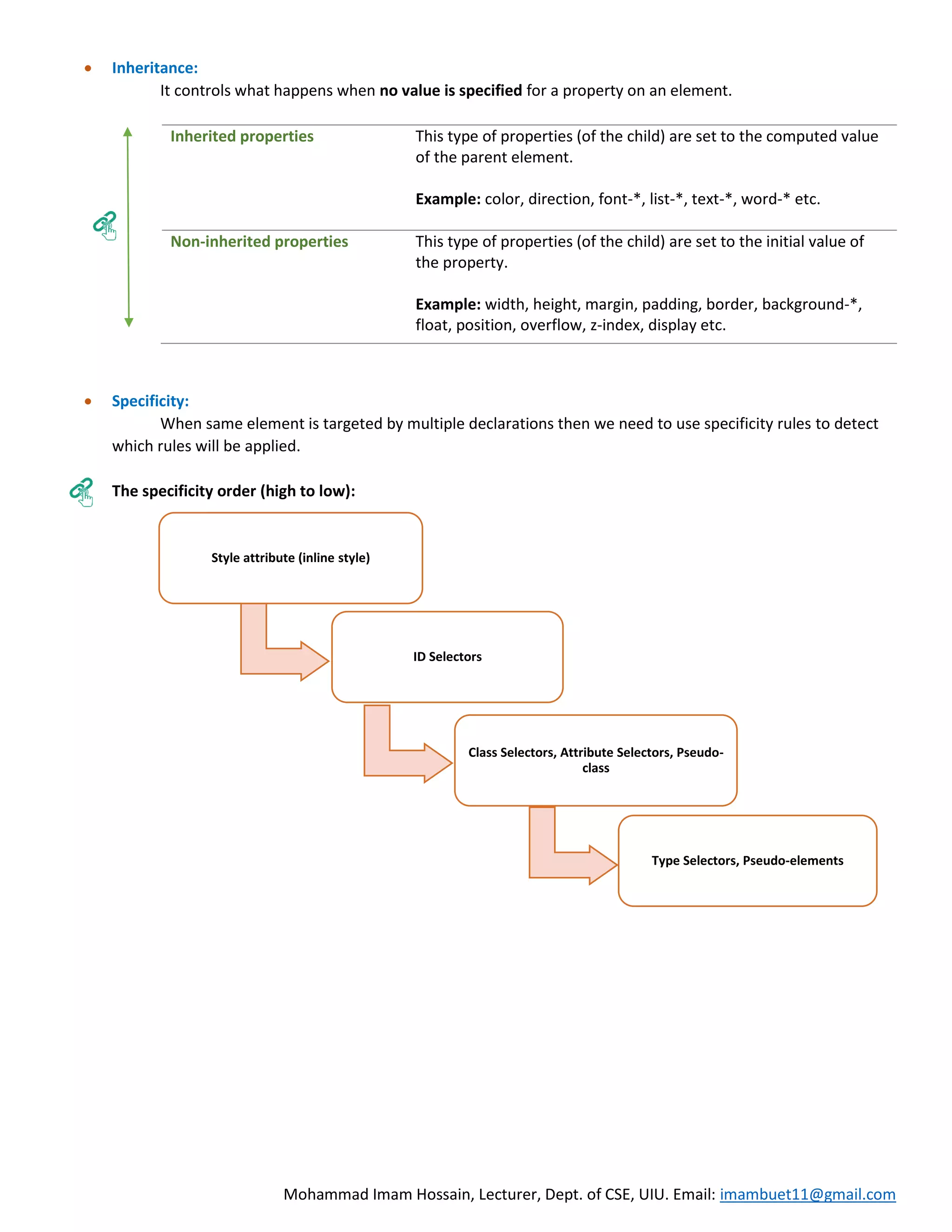

  Mohammad Imam Hossain,Lecturer, Dept. of CSE, UIU. Email: imambuet11@gmail.com  Inheritance: It controls what happens when no value is specified for a property on an element. Inherited properties This type of properties (of the child) are set to the computed value of the parent element. Example: color, direction, font-*, list-*, text-*, word-* etc. Non-inherited properties This type of properties (of the child) are set to the initial value of the property. Example: width, height, margin, padding, border, background-*, float, position, overflow, z-index, display etc.  Specificity: When same element is targeted by multiple declarations then we need to use specificity rules to detect which rules will be applied. The specificity order (high to low): Style attribute (inline style) ID Selectors Class Selectors, Attribute Selectors, Pseudo- class Type Selectors, Pseudo-elements
• 6.

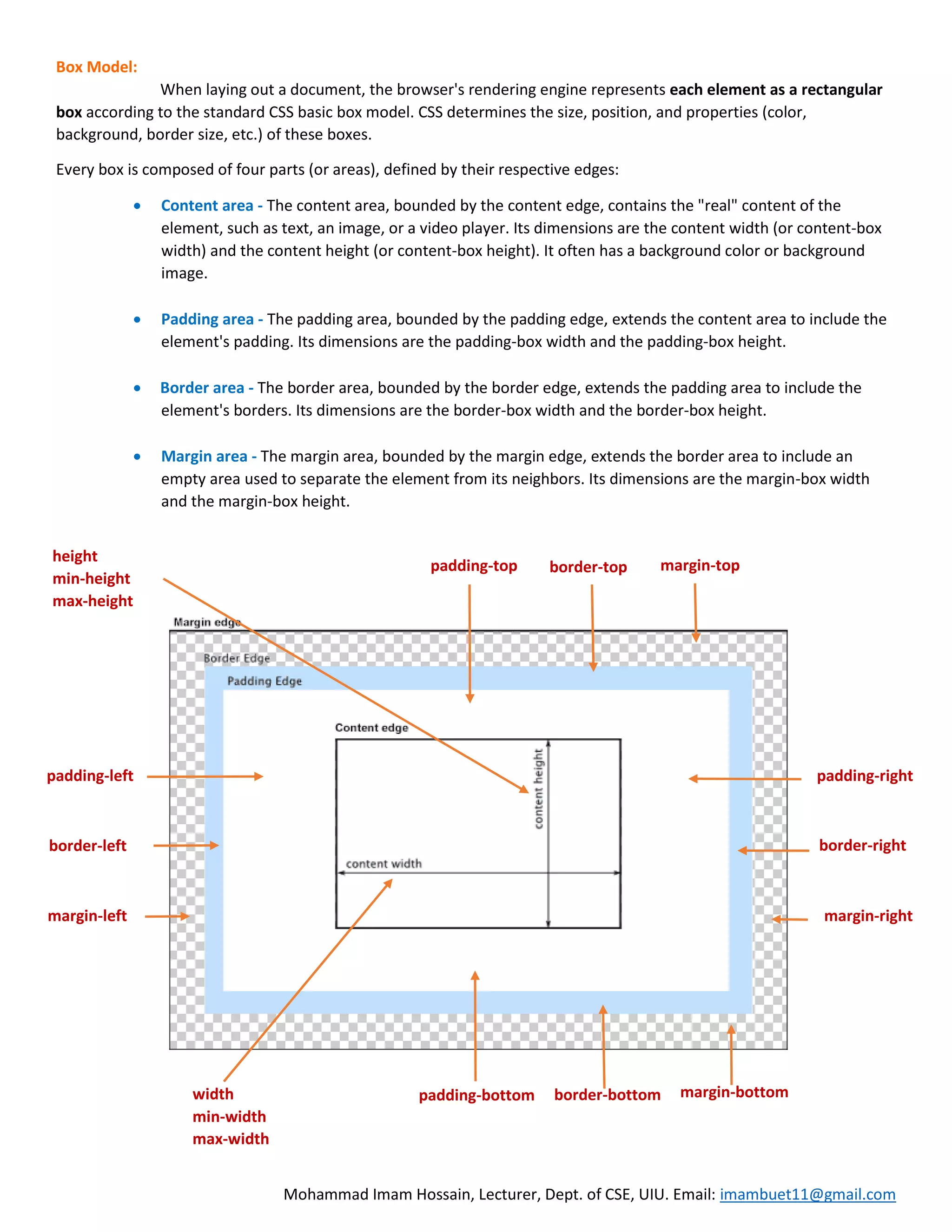

  Mohammad Imam Hossain,Lecturer, Dept. of CSE, UIU. Email: imambuet11@gmail.com Box Model: When laying out a document, the browser's rendering engine represents each element as a rectangular box according to the standard CSS basic box model. CSS determines the size, position, and properties (color, background, border size, etc.) of these boxes. Every box is composed of four parts (or areas), defined by their respective edges:  Content area - The content area, bounded by the content edge, contains the "real" content of the element, such as text, an image, or a video player. Its dimensions are the content width (or content-box width) and the content height (or content-box height). It often has a background color or background image.  Padding area - The padding area, bounded by the padding edge, extends the content area to include the element's padding. Its dimensions are the padding-box width and the padding-box height.  Border area - The border area, bounded by the border edge, extends the padding area to include the element's borders. Its dimensions are the border-box width and the border-box height.  Margin area - The margin area, bounded by the margin edge, extends the border area to include an empty area used to separate the element from its neighbors. Its dimensions are the margin-box width and the margin-box height. margin-top margin-bottom padding-top border-top border-bottompadding-bottom margin-right padding-right border-right padding-left border-left margin-left width min-width max-width m height min-height max-height m
• 7.

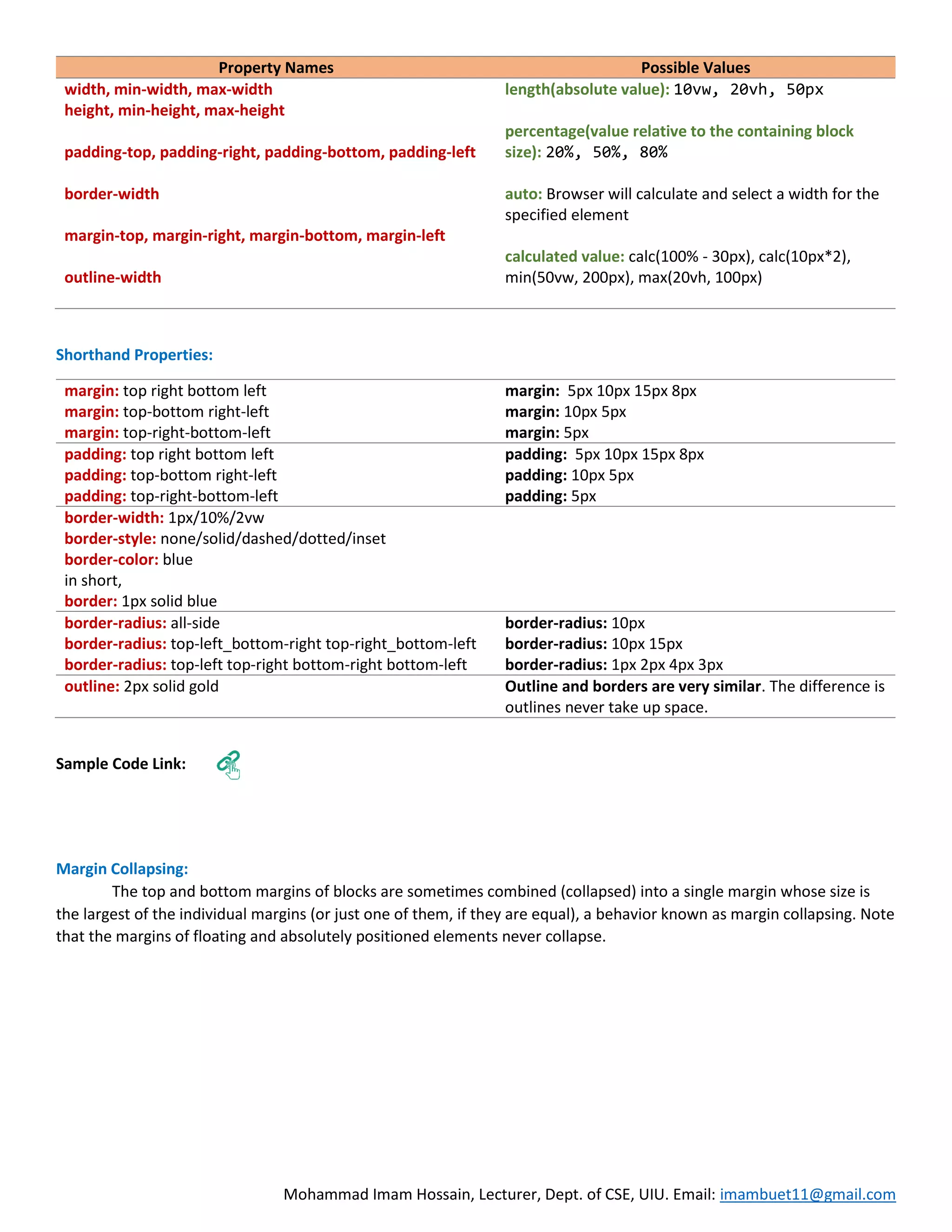

  Mohammad Imam Hossain,Lecturer, Dept. of CSE, UIU. Email: imambuet11@gmail.com Property Names Possible Values width, min-width, max-width height, min-height, max-height padding-top, padding-right, padding-bottom, padding-left border-width margin-top, margin-right, margin-bottom, margin-left outline-width length(absolute value): 10vw, 20vh, 50px percentage(value relative to the containing block size): 20%, 50%, 80% auto: Browser will calculate and select a width for the specified element calculated value: calc(100% - 30px), calc(10px*2), min(50vw, 200px), max(20vh, 100px) Shorthand Properties: margin: top right bottom left margin: top-bottom right-left margin: top-right-bottom-left margin: 5px 10px 15px 8px margin: 10px 5px margin: 5px padding: top right bottom left padding: top-bottom right-left padding: top-right-bottom-left padding: 5px 10px 15px 8px padding: 10px 5px padding: 5px border-width: 1px/10%/2vw border-style: none/solid/dashed/dotted/inset border-color: blue in short, border: 1px solid blue border-radius: all-side border-radius: top-left_bottom-right top-right_bottom-left border-radius: top-left top-right bottom-right bottom-left border-radius: 10px border-radius: 10px 15px border-radius: 1px 2px 4px 3px outline: 2px solid gold Outline and borders are very similar. The difference is outlines never take up space. Sample Code Link: Margin Collapsing: The top and bottom margins of blocks are sometimes combined (collapsed) into a single margin whose size is the largest of the individual margins (or just one of them, if they are equal), a behavior known as margin collapsing. Note that the margins of floating and absolutely positioned elements never collapse.
• 8.

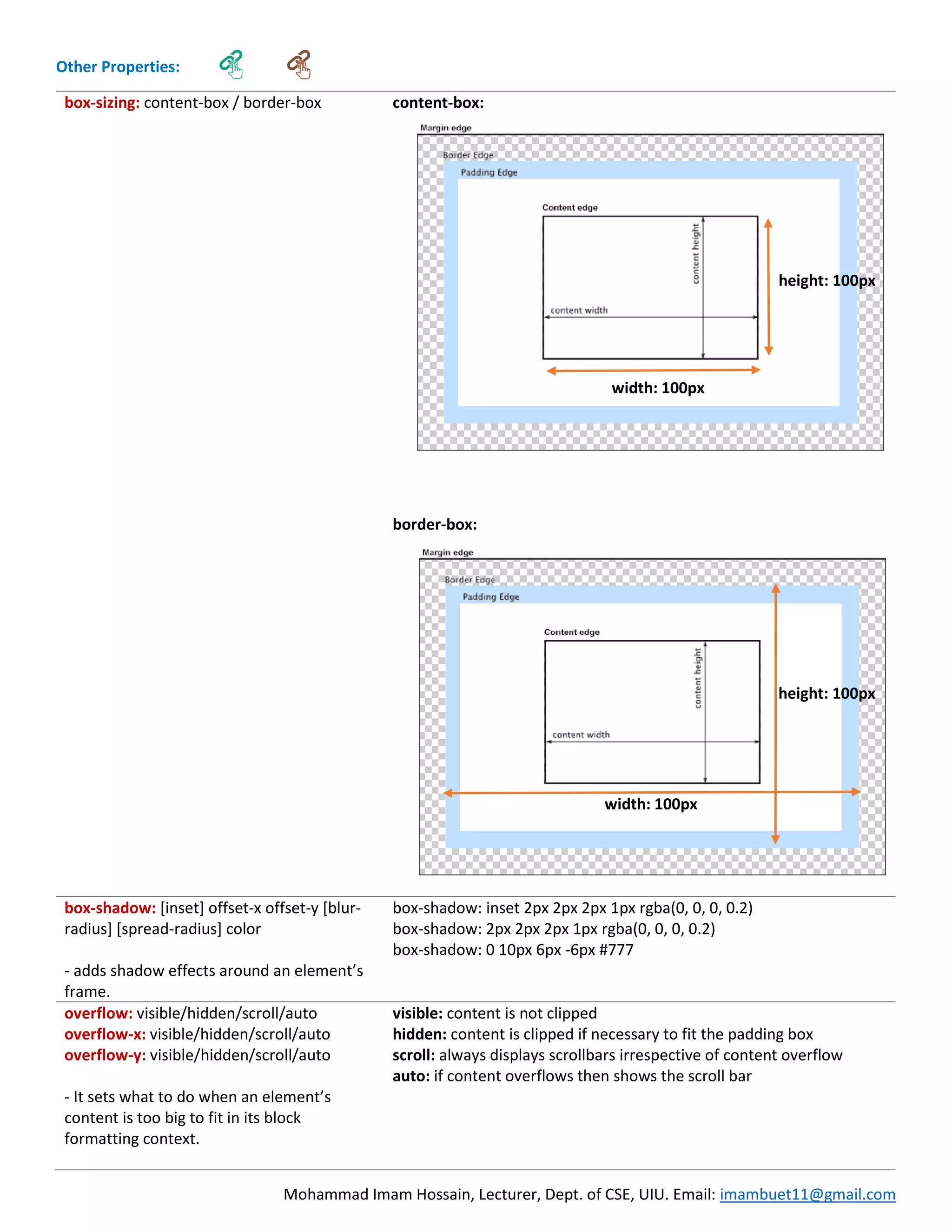

  Mohammad Imam Hossain,Lecturer, Dept. of CSE, UIU. Email: imambuet11@gmail.com Other Properties: box-sizing: content-box / border-box content-box: border-box: box-shadow: [inset] offset-x offset-y [blur- radius] [spread-radius] color - adds shadow effects around an element’s frame. box-shadow: inset 2px 2px 2px 1px rgba(0, 0, 0, 0.2) box-shadow: 2px 2px 2px 1px rgba(0, 0, 0, 0.2) box-shadow: 0 10px 6px -6px #777 overflow: visible/hidden/scroll/auto overflow-x: visible/hidden/scroll/auto overflow-y: visible/hidden/scroll/auto - It sets what to do when an element’s content is too big to fit in its block formatting context. visible: content is not clipped hidden: content is clipped if necessary to fit the padding box scroll: always displays scrollbars irrespective of content overflow auto: if content overflows then shows the scroll bar width: 100px height: 100px width: 100px height: 100px
• 9.

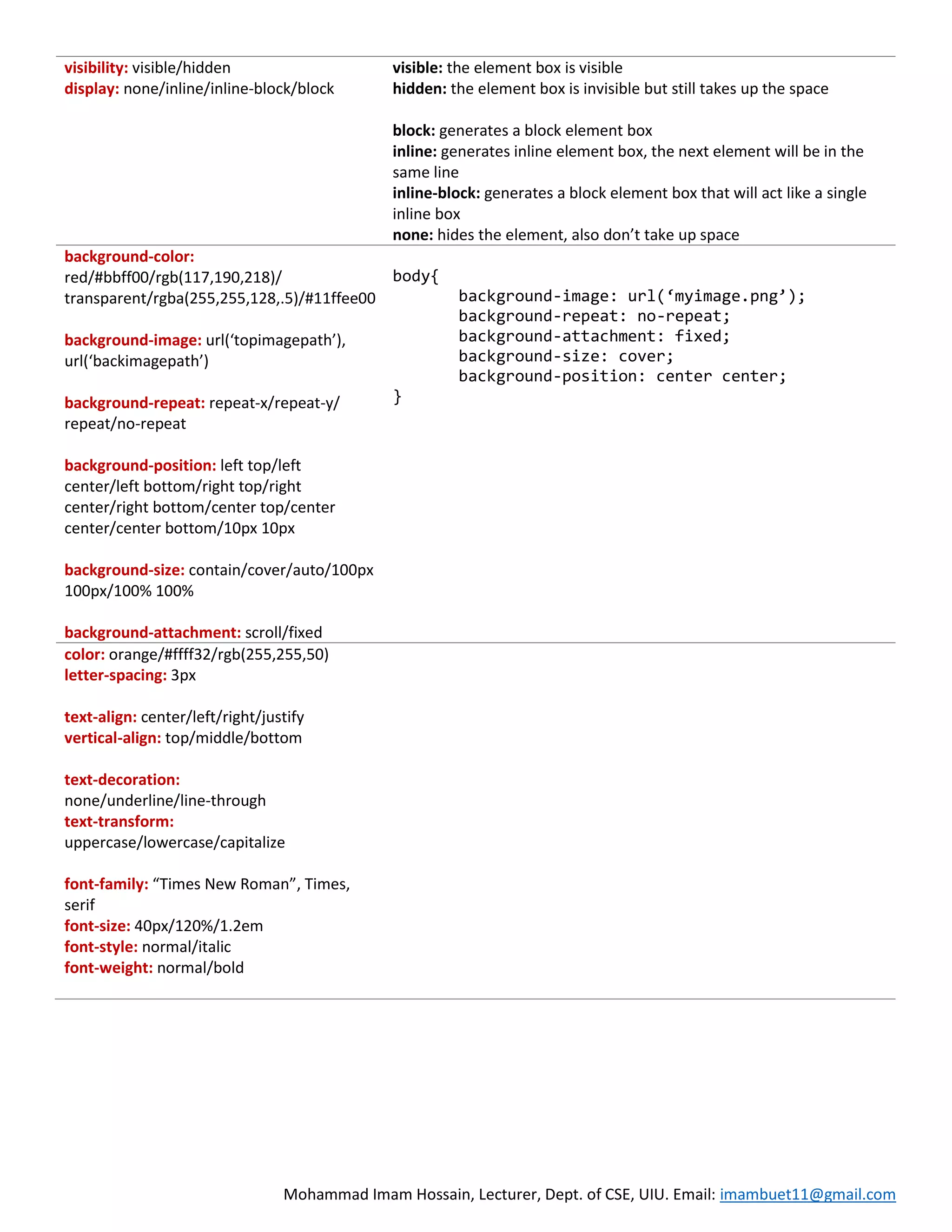

  Mohammad Imam Hossain,Lecturer, Dept. of CSE, UIU. Email: imambuet11@gmail.com visibility: visible/hidden display: none/inline/inline-block/block visible: the element box is visible hidden: the element box is invisible but still takes up the space block: generates a block element box inline: generates inline element box, the next element will be in the same line inline-block: generates a block element box that will act like a single inline box none: hides the element, also don’t take up space background-color: red/#bbff00/rgb(117,190,218)/ transparent/rgba(255,255,128,.5)/#11ffee00 background-image: url(‘topimagepath’), url(‘backimagepath’) background-repeat: repeat-x/repeat-y/ repeat/no-repeat background-position: left top/left center/left bottom/right top/right center/right bottom/center top/center center/center bottom/10px 10px background-size: contain/cover/auto/100px 100px/100% 100% background-attachment: scroll/fixed body{ background-image: url(‘myimage.png’); background-repeat: no-repeat; background-attachment: fixed; background-size: cover; background-position: center center; } color: orange/#ffff32/rgb(255,255,50) letter-spacing: 3px text-align: center/left/right/justify vertical-align: top/middle/bottom text-decoration: none/underline/line-through text-transform: uppercase/lowercase/capitalize font-family: “Times New Roman”, Times, serif font-size: 40px/120%/1.2em font-style: normal/italic font-weight: normal/bold
• 10.

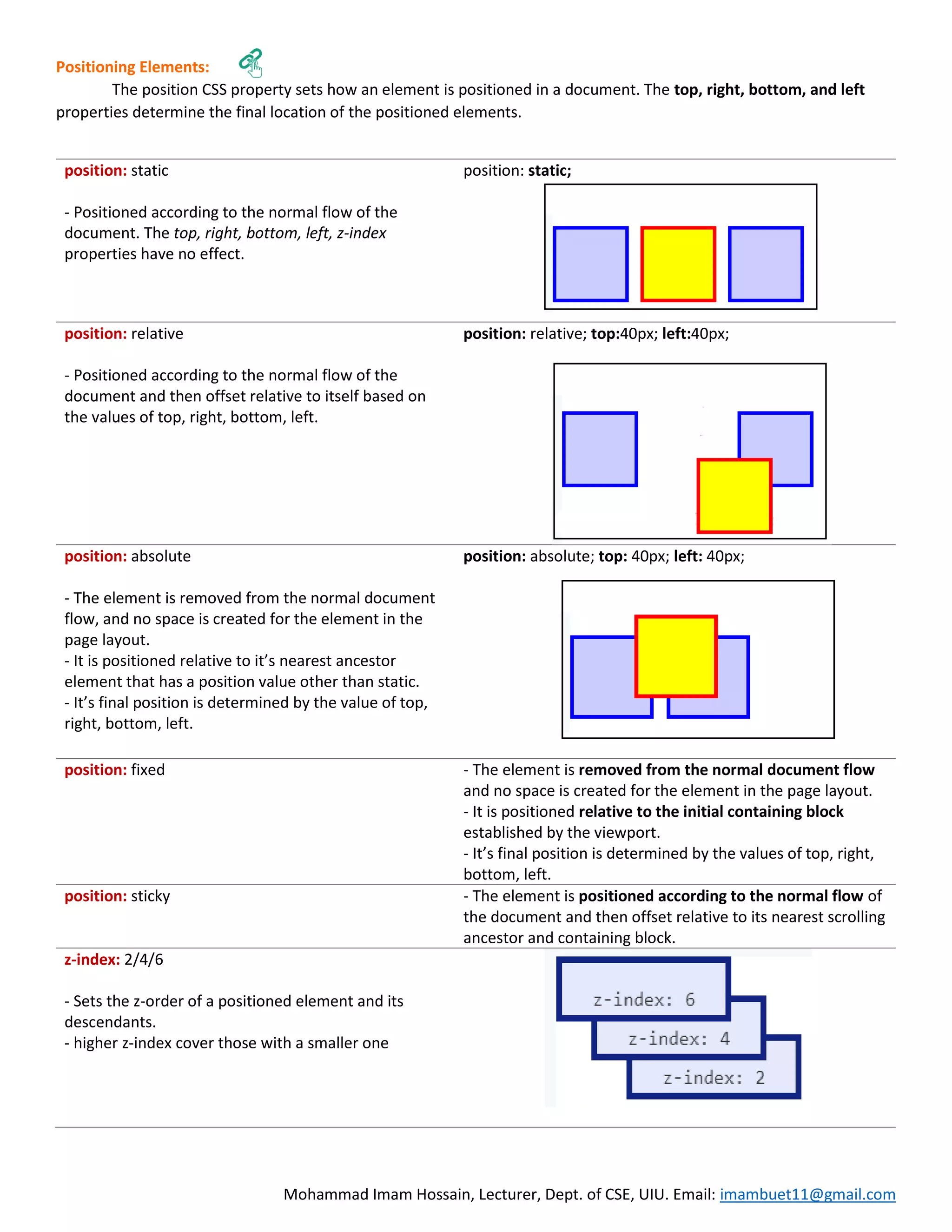

  Mohammad Imam Hossain,Lecturer, Dept. of CSE, UIU. Email: imambuet11@gmail.com Positioning Elements: The position CSS property sets how an element is positioned in a document. The top, right, bottom, and left properties determine the final location of the positioned elements. position: static - Positioned according to the normal flow of the document. The top, right, bottom, left, z-index properties have no effect. position: static; position: relative - Positioned according to the normal flow of the document and then offset relative to itself based on the values of top, right, bottom, left. position: relative; top:40px; left:40px; position: absolute - The element is removed from the normal document flow, and no space is created for the element in the page layout. - It is positioned relative to it’s nearest ancestor element that has a position value other than static. - It’s final position is determined by the value of top, right, bottom, left. position: absolute; top: 40px; left: 40px; position: fixed - The element is removed from the normal document flow and no space is created for the element in the page layout. - It is positioned relative to the initial containing block established by the viewport. - It’s final position is determined by the values of top, right, bottom, left. position: sticky - The element is positioned according to the normal flow of the document and then offset relative to its nearest scrolling ancestor and containing block. z-index: 2/4/6 - Sets the z-order of a positioned element and its descendants. - higher z-index cover those with a smaller one
• 11.

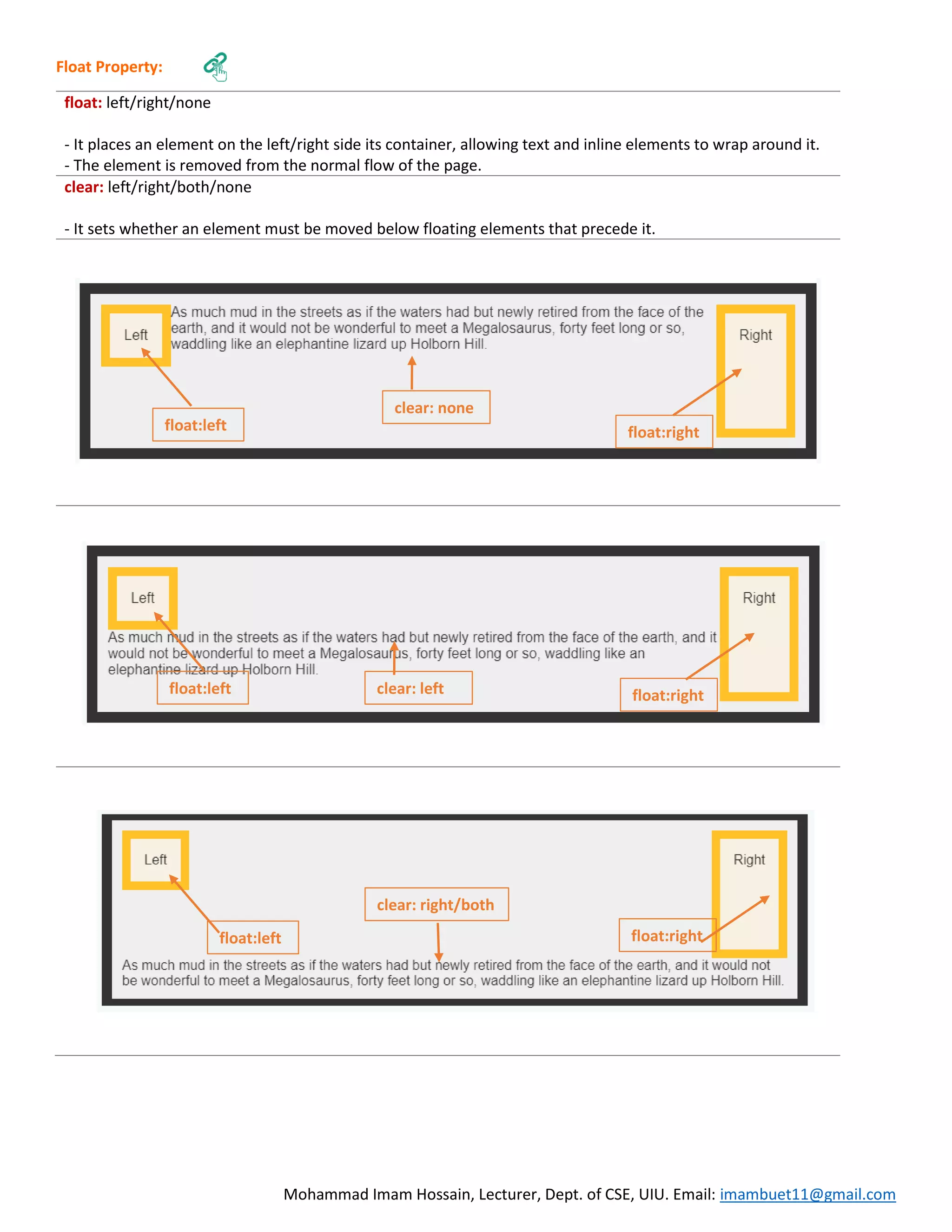

  Mohammad Imam Hossain,Lecturer, Dept. of CSE, UIU. Email: imambuet11@gmail.com Float Property: float: left/right/none - It places an element on the left/right side its container, allowing text and inline elements to wrap around it. - The element is removed from the normal flow of the page. clear: left/right/both/none - It sets whether an element must be moved below floating elements that precede it. float:left float:left float:left float:right float:right float:right clear: none clear: left clear: right/both
• 12.

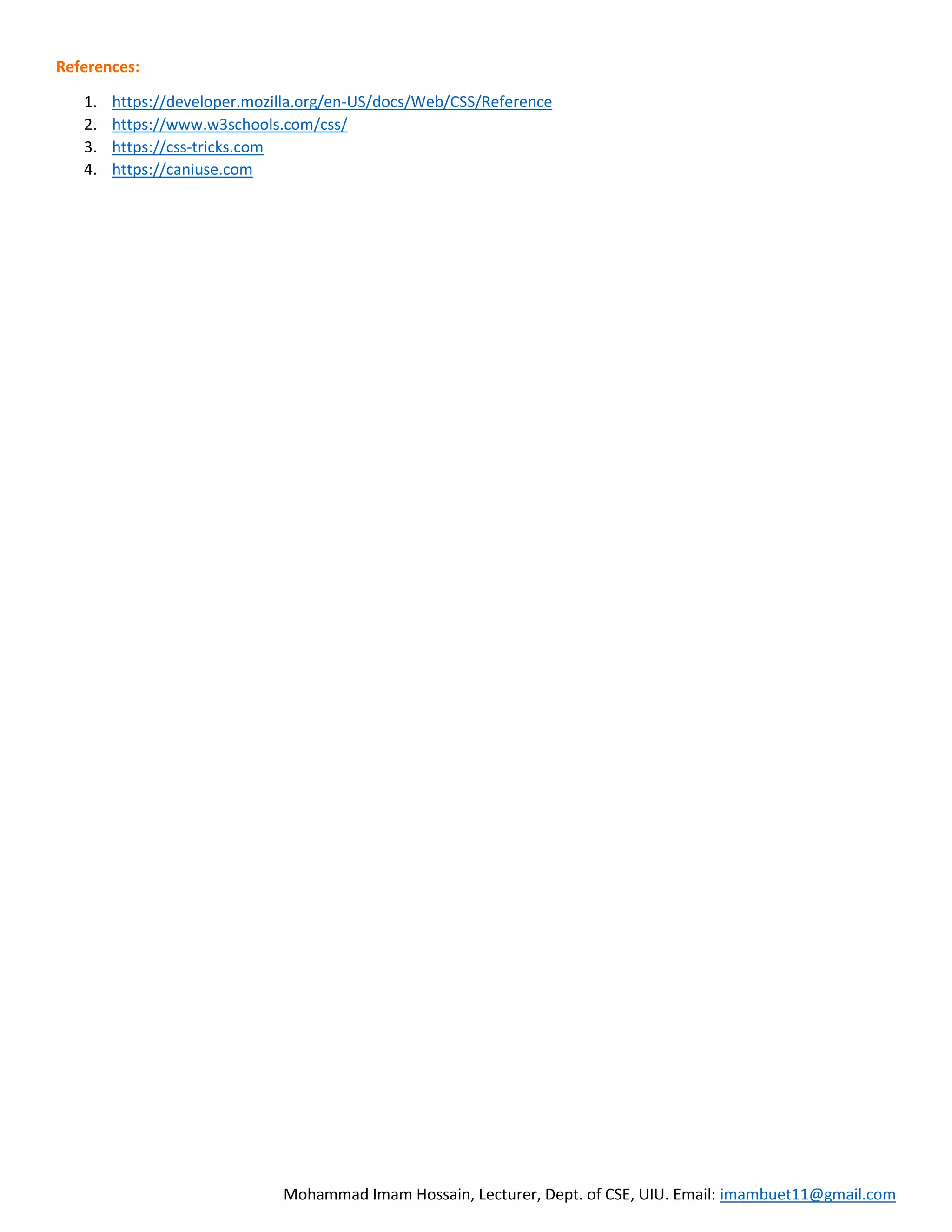

  Mohammad Imam Hossain,Lecturer, Dept. of CSE, UIU. Email: imambuet11@gmail.com References: 1. https://developer.mozilla.org/en-US/docs/Web/CSS/Reference 2. https://www.w3schools.com/css/ 3. https://css-tricks.com 4. https://caniuse.com
