Using a Field Programmable Gate Array to Accelerate Application Performance

1 Using a Field Programmable Gate Array to Accelerate Application Performance P. K. Gupta Director of Cloud Platform Technology, Intel Corporation DCWS008

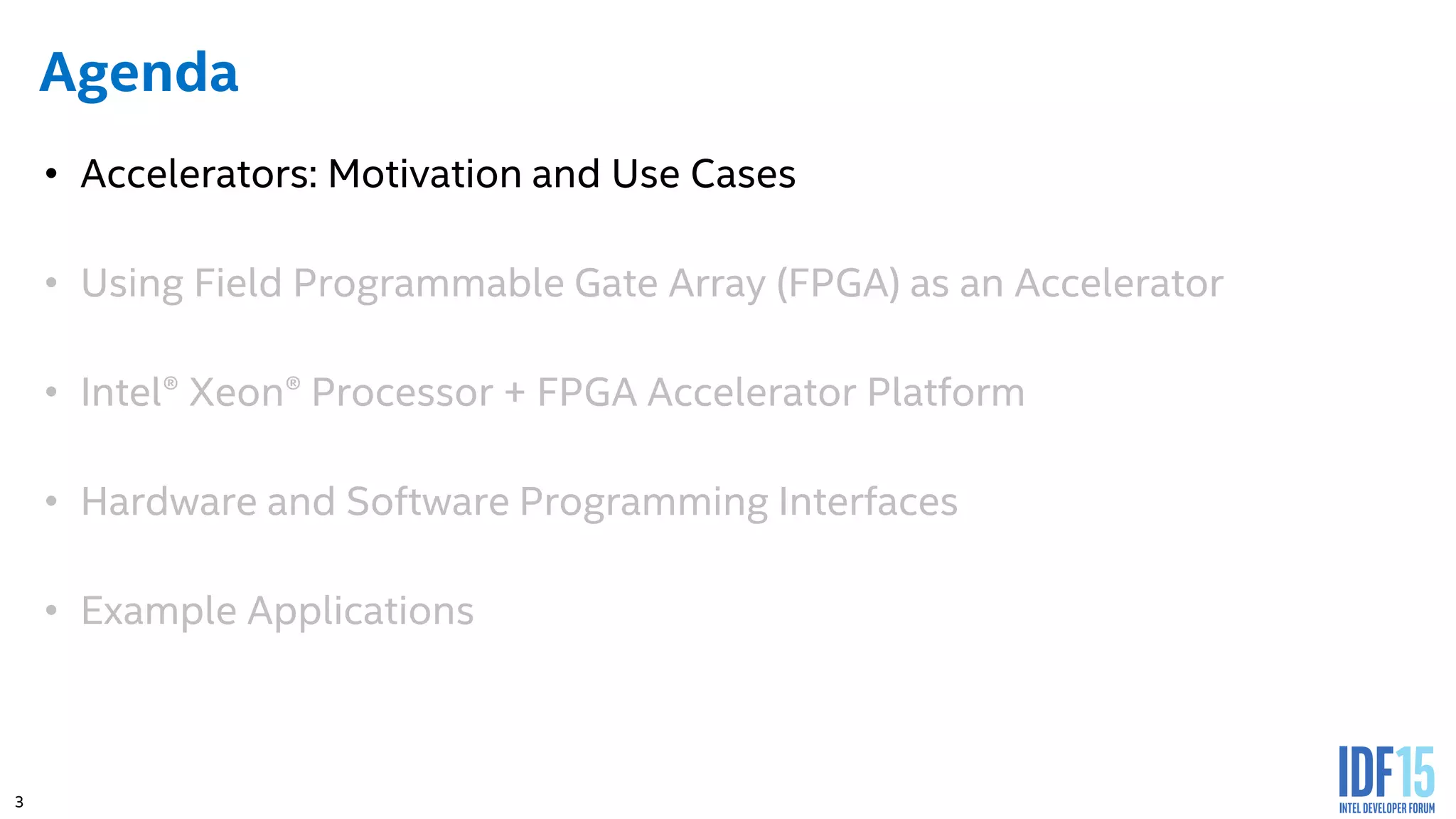

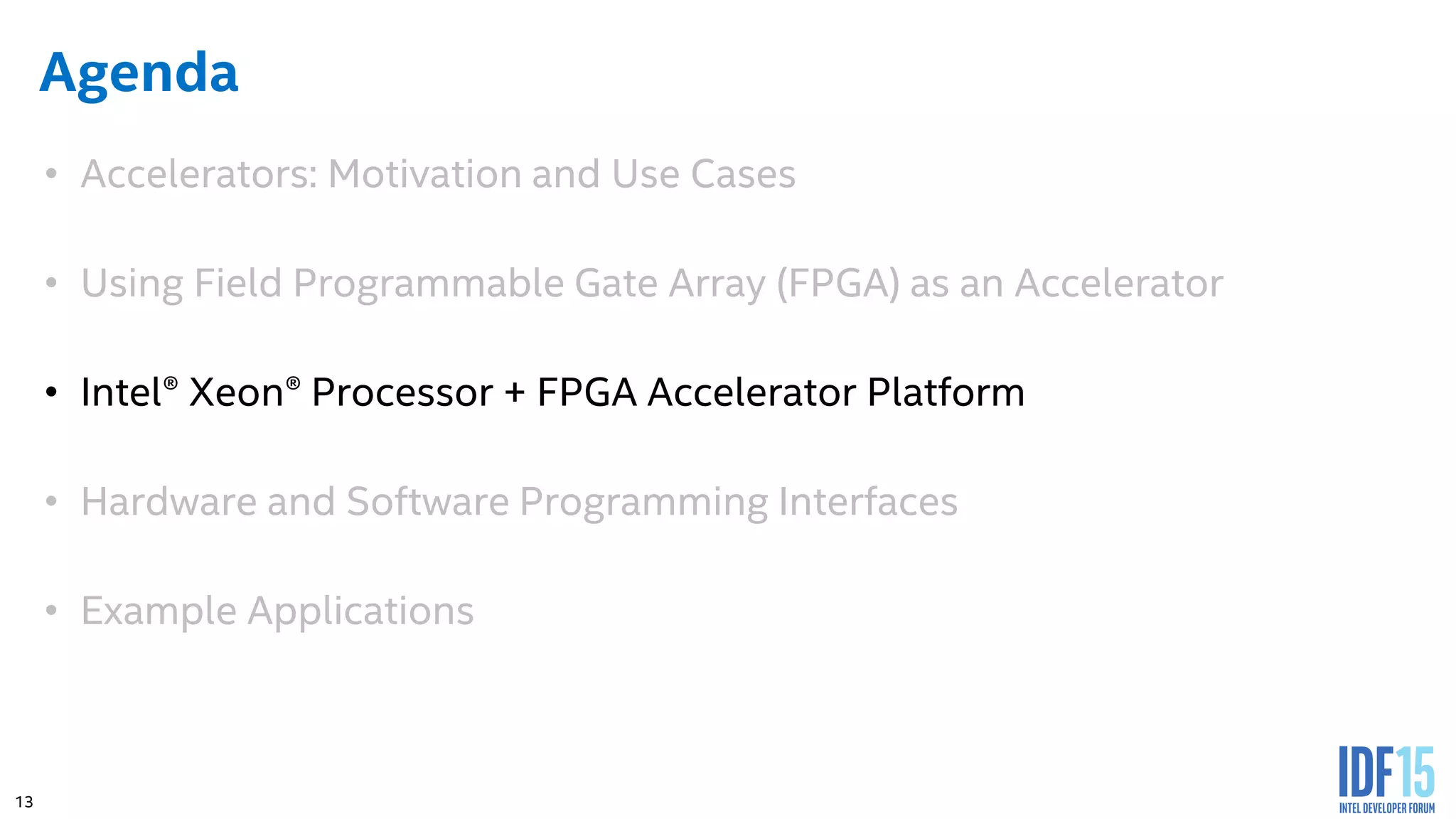

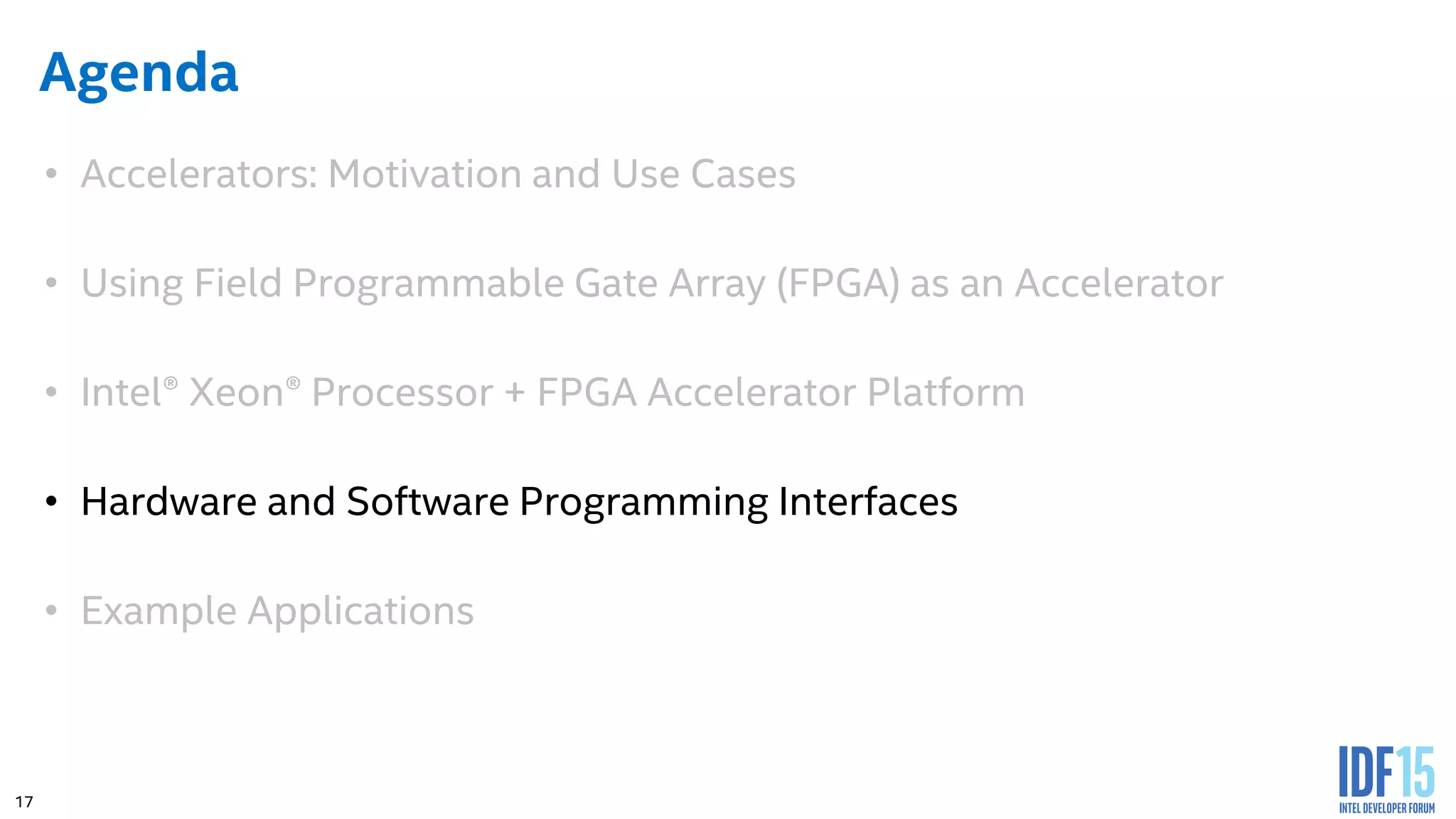

2 Agenda • Accelerators: Motivation and Use Cases • Using Field Programmable Gate Array (FPGA) as an Accelerator • Intel® Xeon® Processor + FPGA Accelerator Platform • Hardware and Software Programming Interfaces • Example Applications

4 Digital Services Economy Build out of the CLOUD $120B³ 50¹ Billion DEVICES New SERVICES $450B² 1: Sources: AMS Research, Gartner, IDC, McKinsey Global Institute, and various others industry analysts and commentators 2: Source IDC, 2013. 2016 calculated base don reported CAGR ‘13-’17 3: Source: iDATA /Digiworld, 2013 Digital Services Economy…

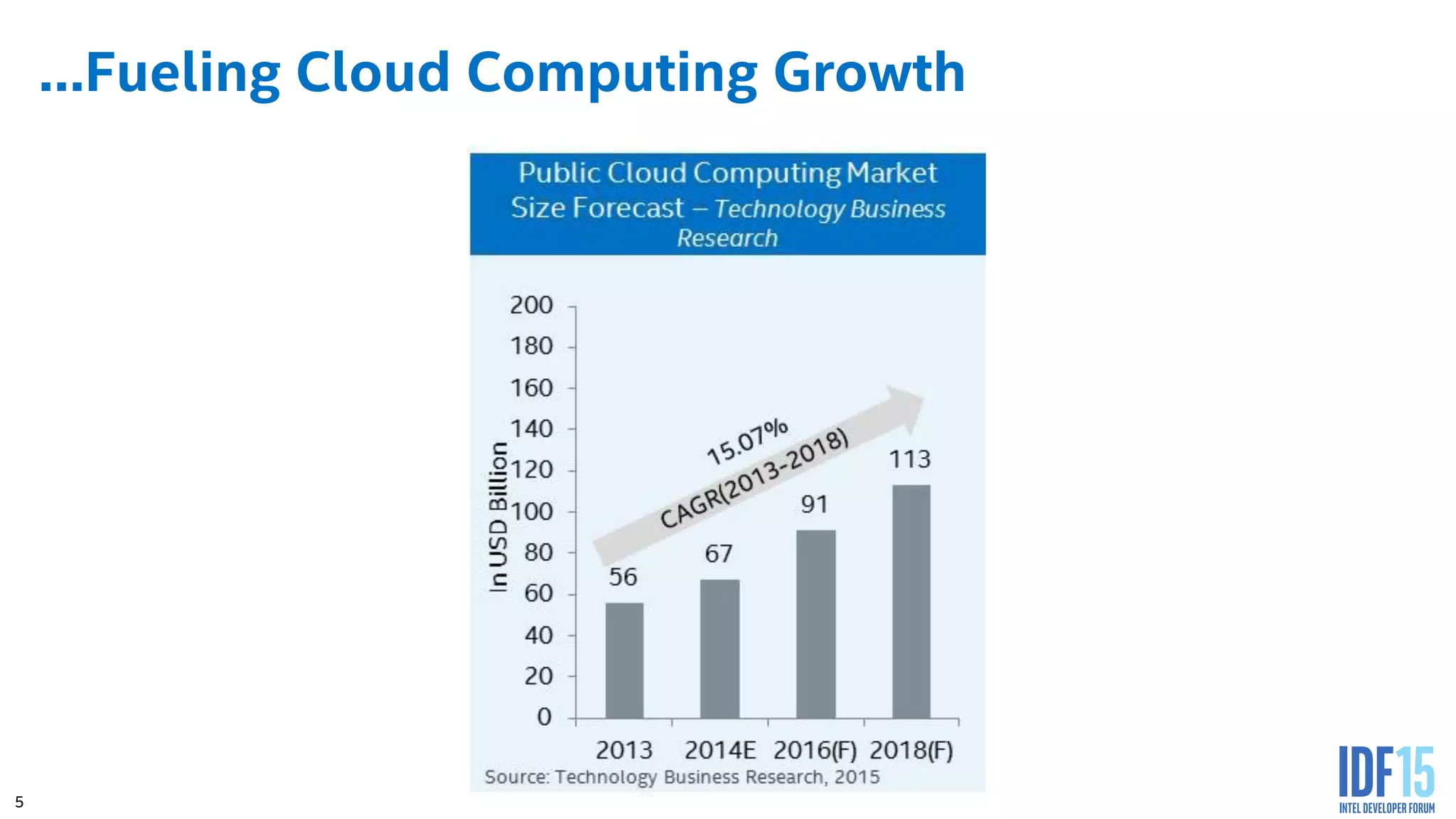

5 …Fueling Cloud Computing Growth

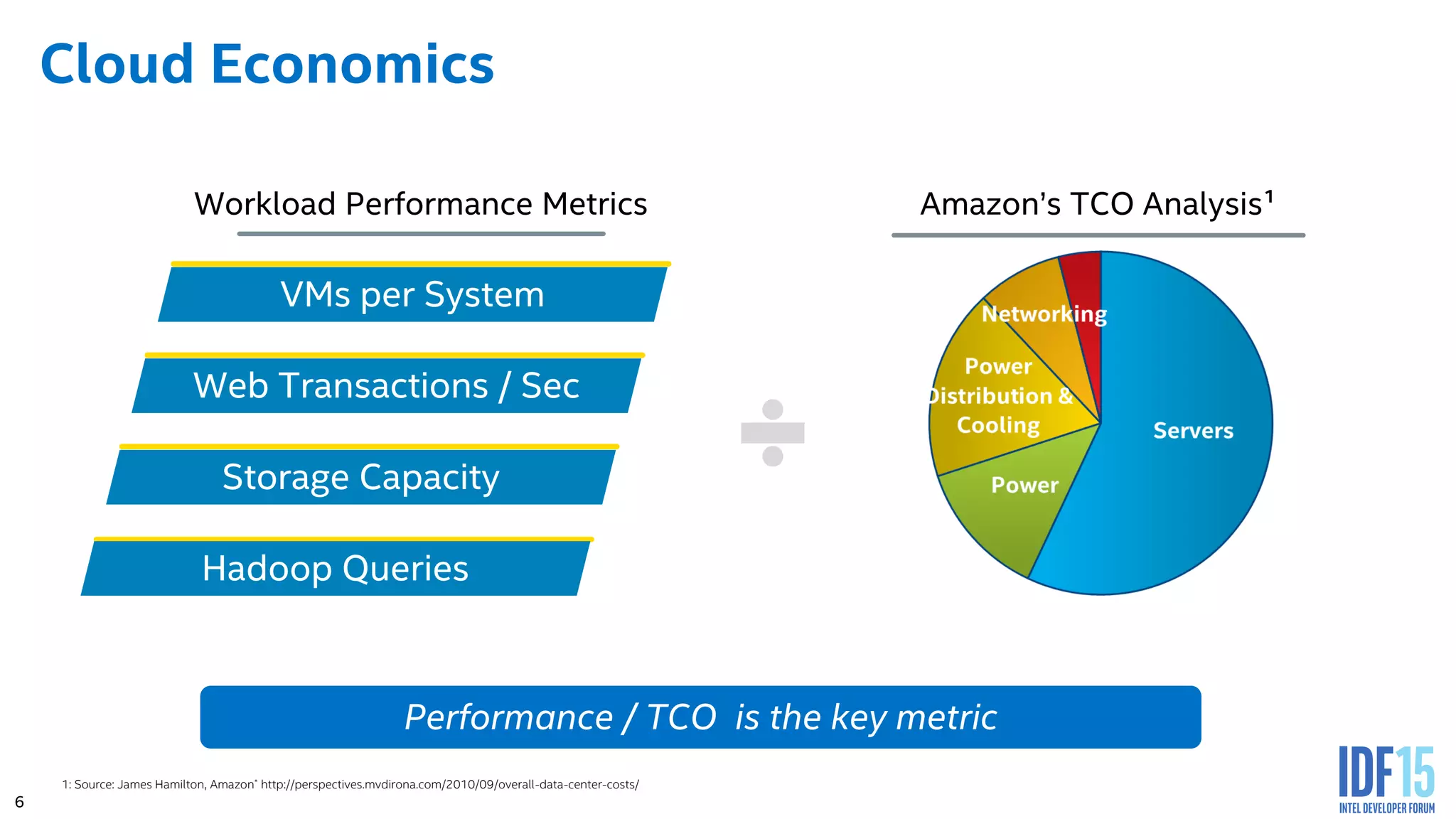

6 Cloud Economics Amazon’s TCO Analysis¹ Hadoop Queries Storage Capacity Web Transactions / Sec VMs per System Workload Performance Metrics 1: Source: James Hamilton, Amazon* http://perspectives.mvdirona.com/2010/09/overall-data-center-costs/ Performance / TCO is the key metric

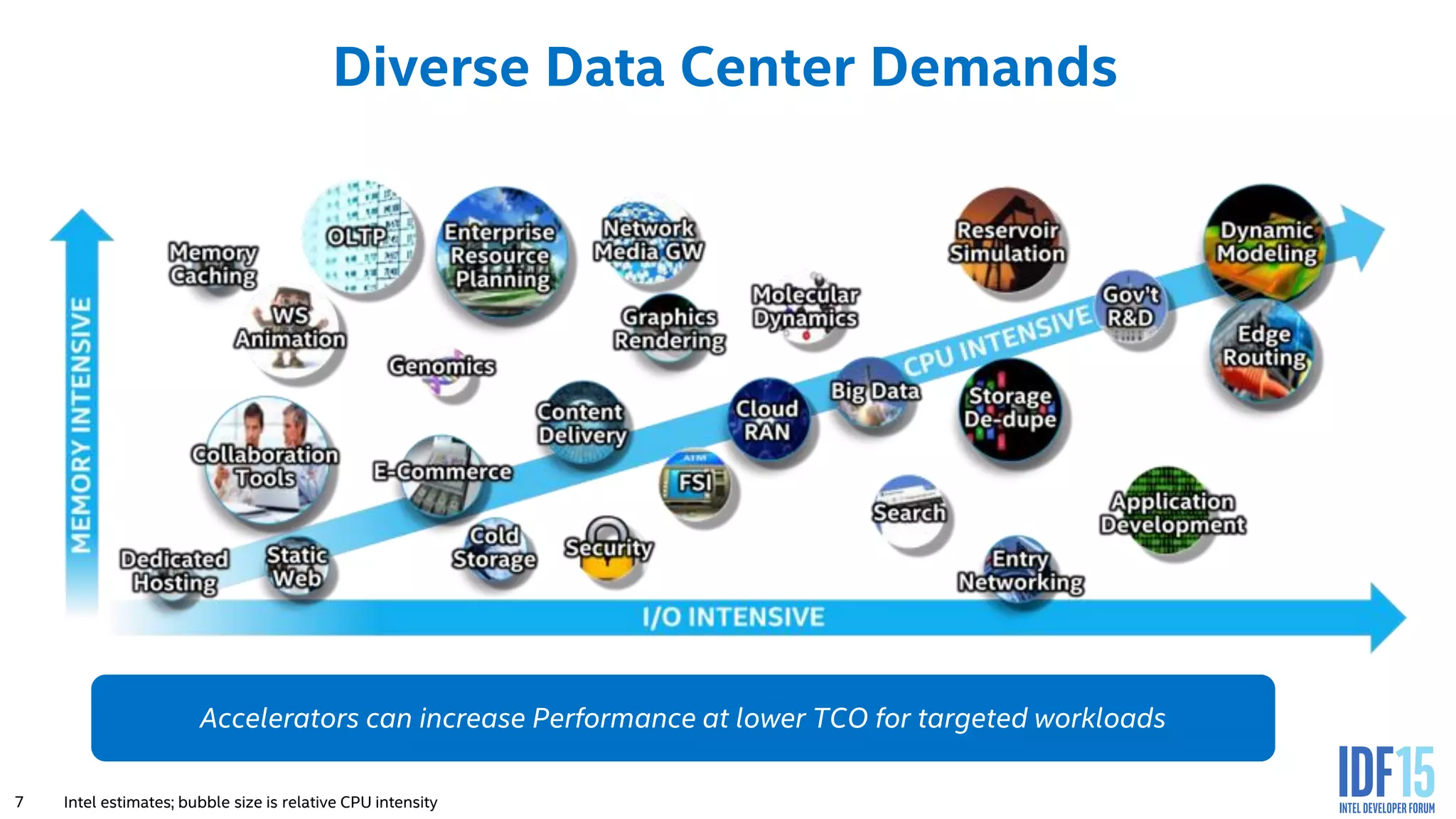

7 Diverse Data Center Demands Intel estimates; bubble size is relative CPU intensity Accelerators can increase Performance at lower TCO for targeted workloads

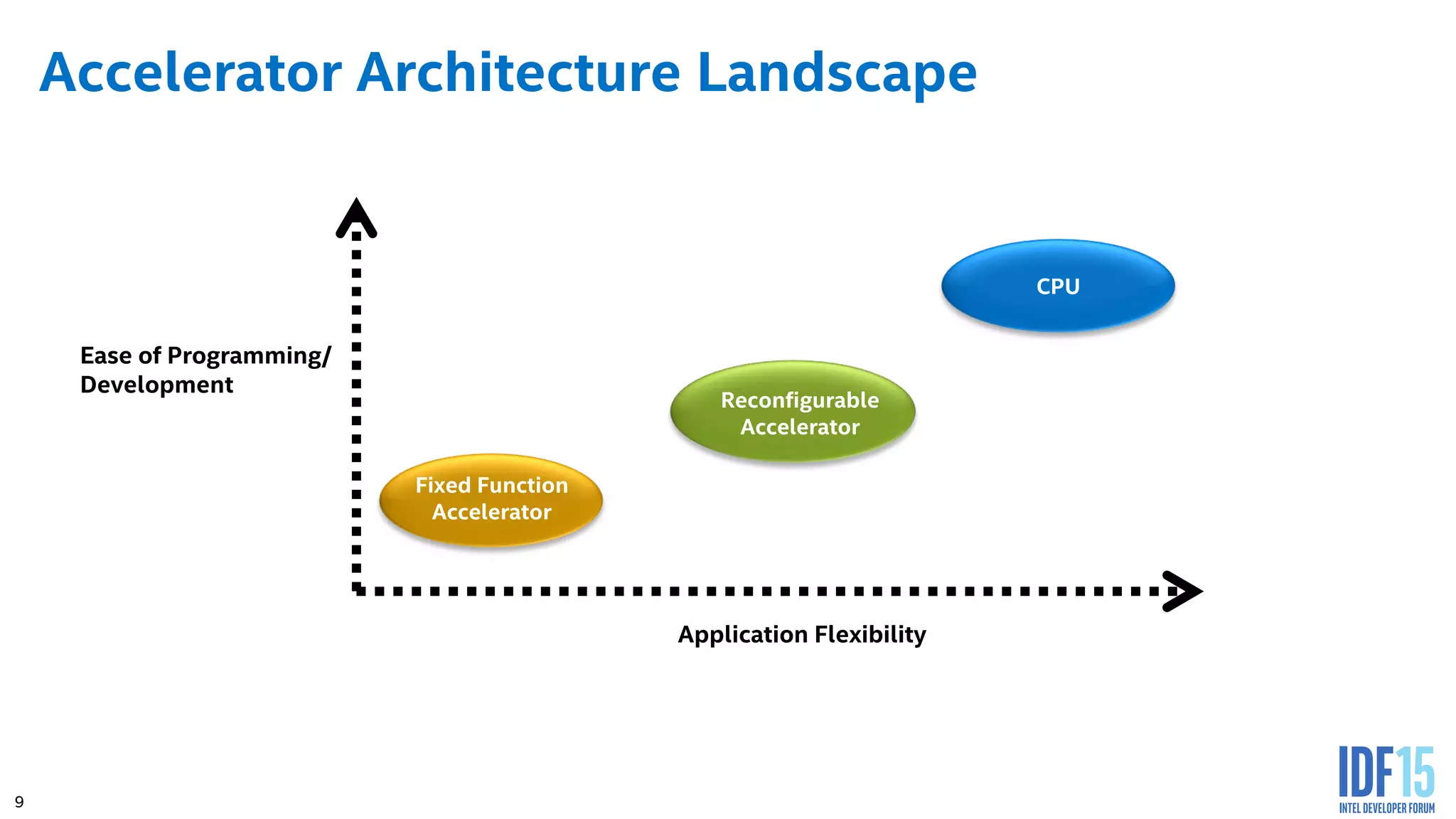

9 Accelerator Architecture Landscape Application Flexibility Ease of Programming/ Development Fixed Function Accelerator Reconfigurable Accelerator CPU

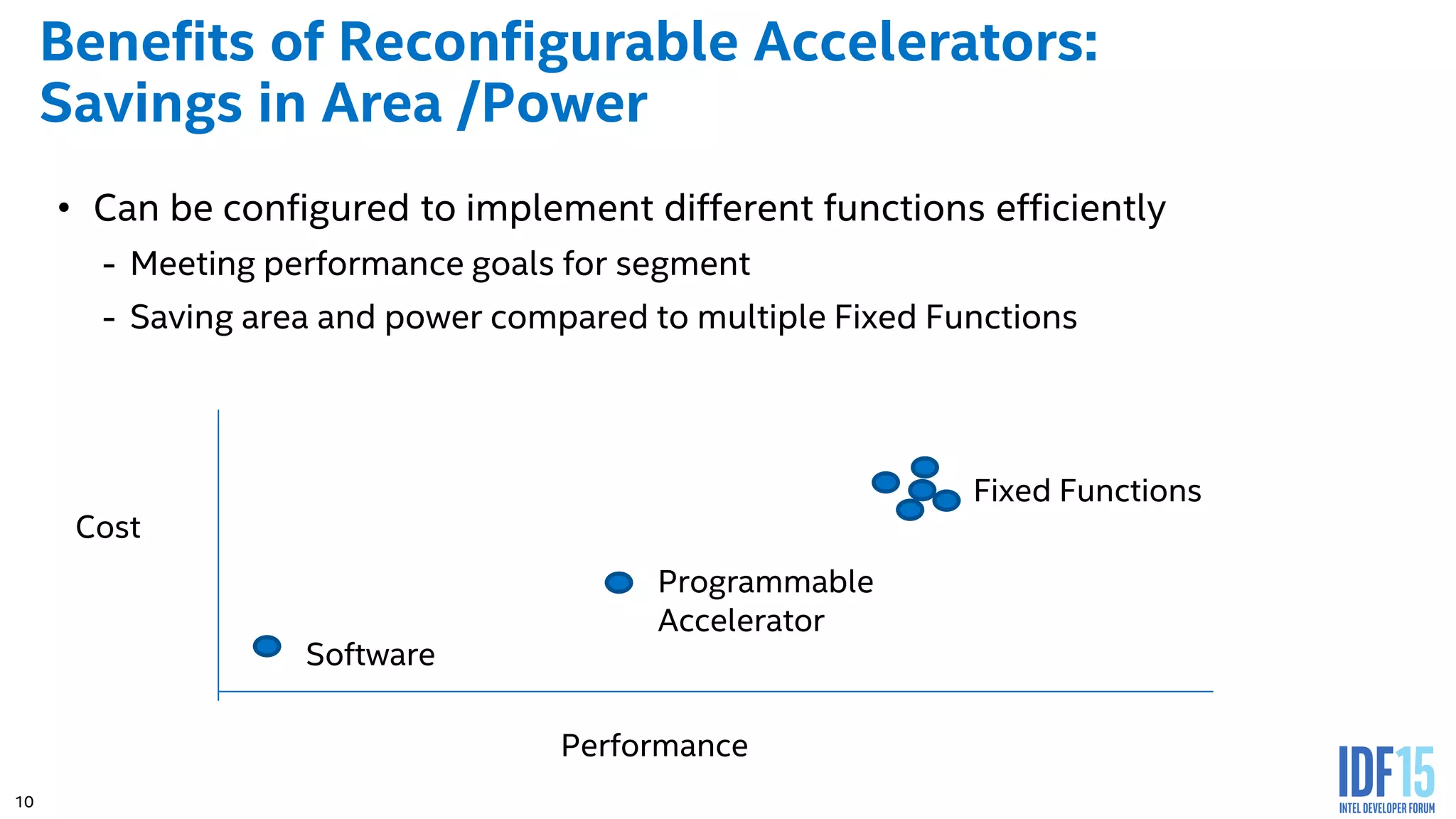

10 Benefits of Reconfigurable Accelerators: Savings in Area /Power • Can be configured to implement different functions efficiently - Meeting performance goals for segment - Saving area and power compared to multiple Fixed Functions Performance Cost Software Fixed Functions Programmable Accelerator

11 Benefits of Reconfigurable Accelerators: Meeting Customer Needs for Differentiation Workload Optimized Silicon Pervasive Analytics & Insights Intelligent Resource Orchestration Dynamic Resource Pooling Driving the Digital Service Economy

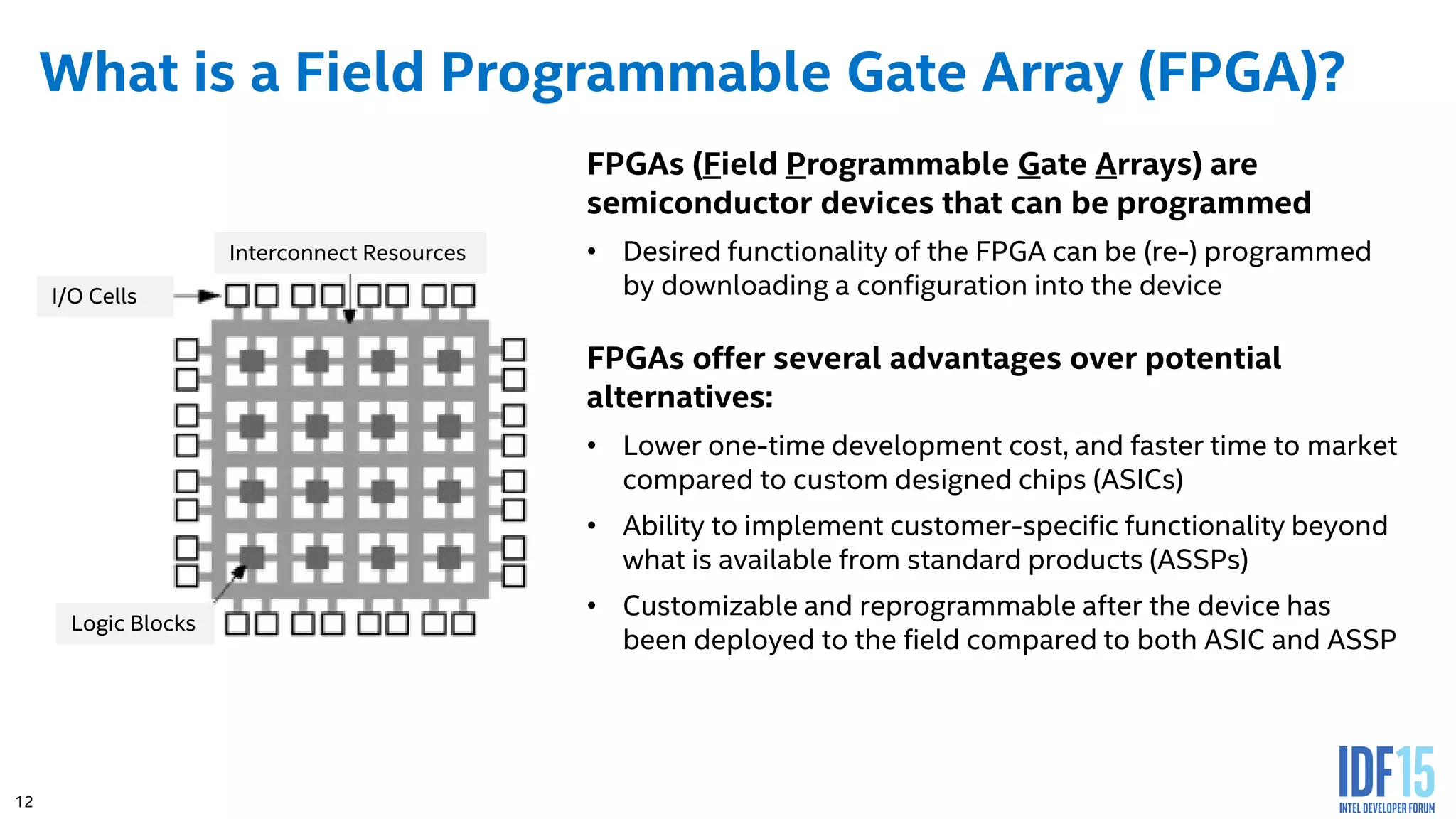

12 What is a Field Programmable Gate Array (FPGA)? FPGAs (Field Programmable Gate Arrays) are semiconductor devices that can be programmed • Desired functionality of the FPGA can be (re-) programmed by downloading a configuration into the device FPGAs offer several advantages over potential alternatives: • Lower one-time development cost, and faster time to market compared to custom designed chips (ASICs) • Ability to implement customer-specific functionality beyond what is available from standard products (ASSPs) • Customizable and reprogrammable after the device has been deployed to the field compared to both ASIC and ASSP Logic Blocks Interconnect Resources I/O Cells

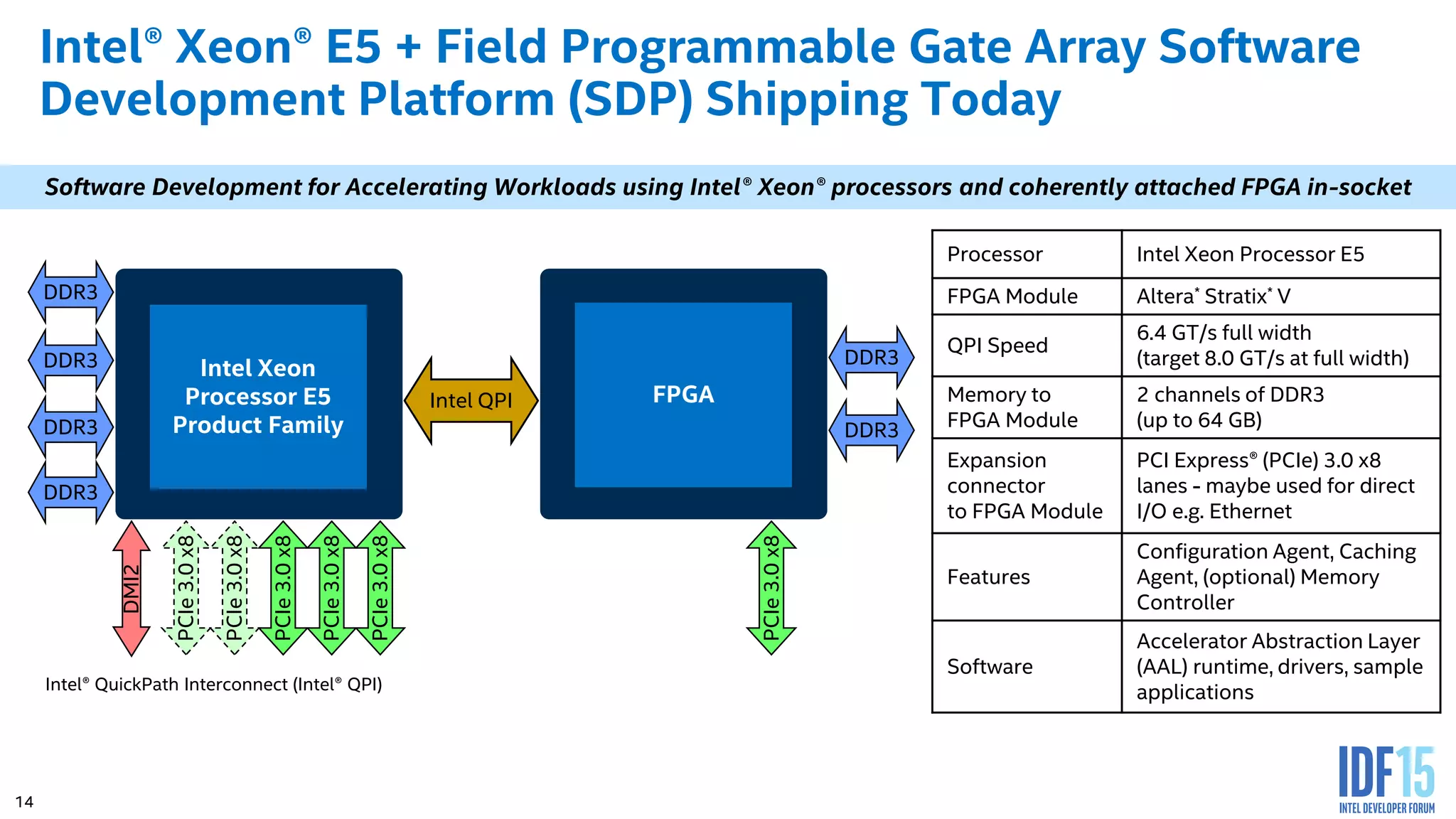

14 Intel® Xeon® E5 + Field Programmable Gate Array Software Development Platform (SDP) Shipping Today Intel QPI DDR3 DDR3 DDR3 DDR3 DDR3 PCIe3.0x8 DMI2 PCIe3.0x8 PCIe3.0x8 PCIe3.0x8 PCIe3.0x8 PCIe3.0x8 DDR3 Intel Xeon Processor E5 Product Family FPGA Processor Intel Xeon Processor E5 FPGA Module Altera* Stratix* V QPI Speed 6.4 GT/s full width (target 8.0 GT/s at full width) Memory to FPGA Module 2 channels of DDR3 (up to 64 GB) Expansion connector to FPGA Module PCI Express® (PCIe) 3.0 x8 lanes - maybe used for direct I/O e.g. Ethernet Features Configuration Agent, Caching Agent, (optional) Memory Controller Software Accelerator Abstraction Layer (AAL) runtime, drivers, sample applications Software Development for Accelerating Workloads using Intel® Xeon® processors and coherently attached FPGA in-socket Intel® QuickPath Interconnect (Intel® QPI)

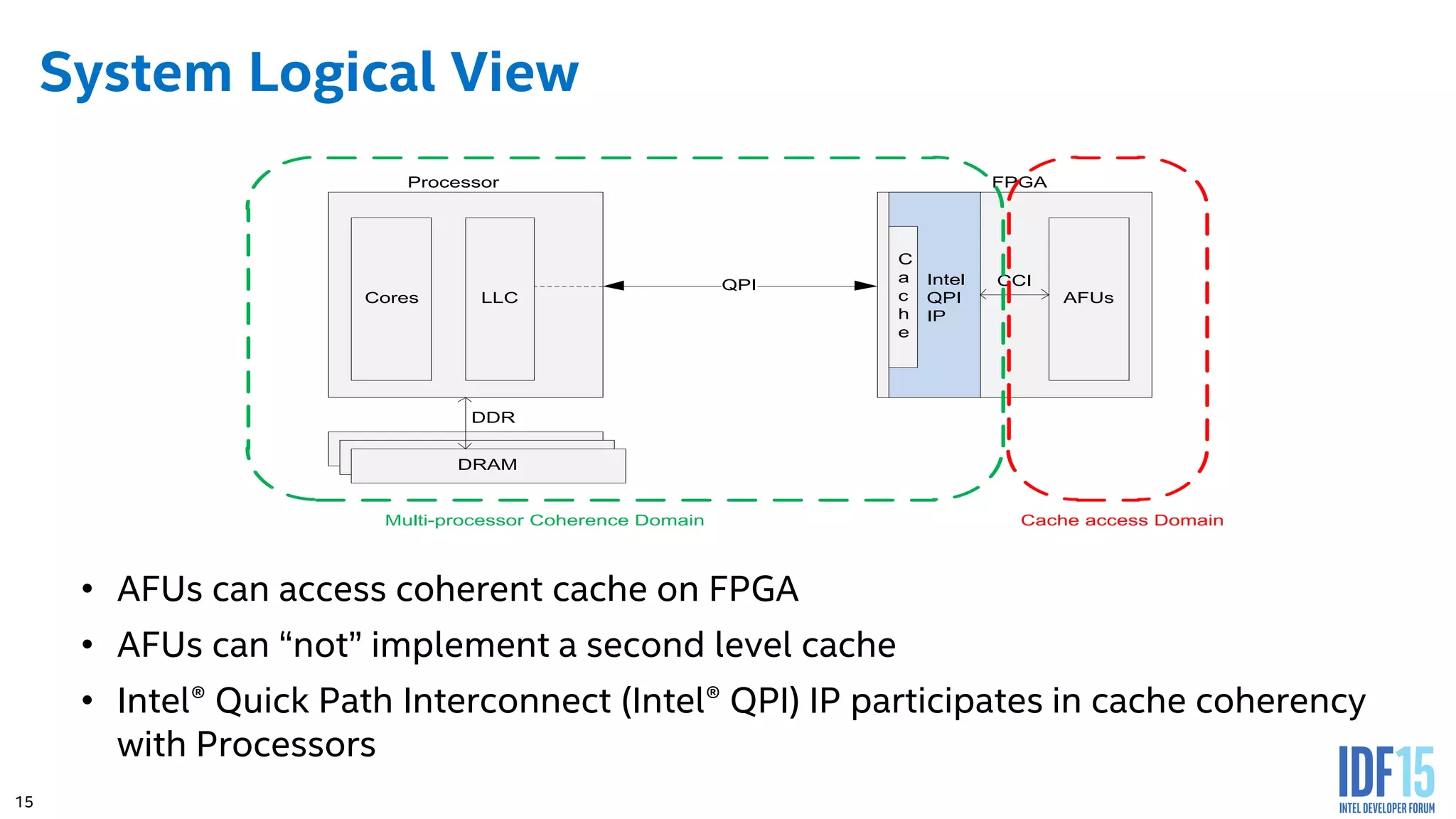

15 System Logical View • AFUs can access coherent cache on FPGA • AFUs can “not” implement a second level cache • Intel® Quick Path Interconnect (Intel® QPI) IP participates in cache coherency with Processors Cores LLC AFUs QPI DRAM DDR DRAM DRAM Processor FPGA CCI Multi-processor Coherence Domain Cache access Domain C a c h e Intel QPI IP

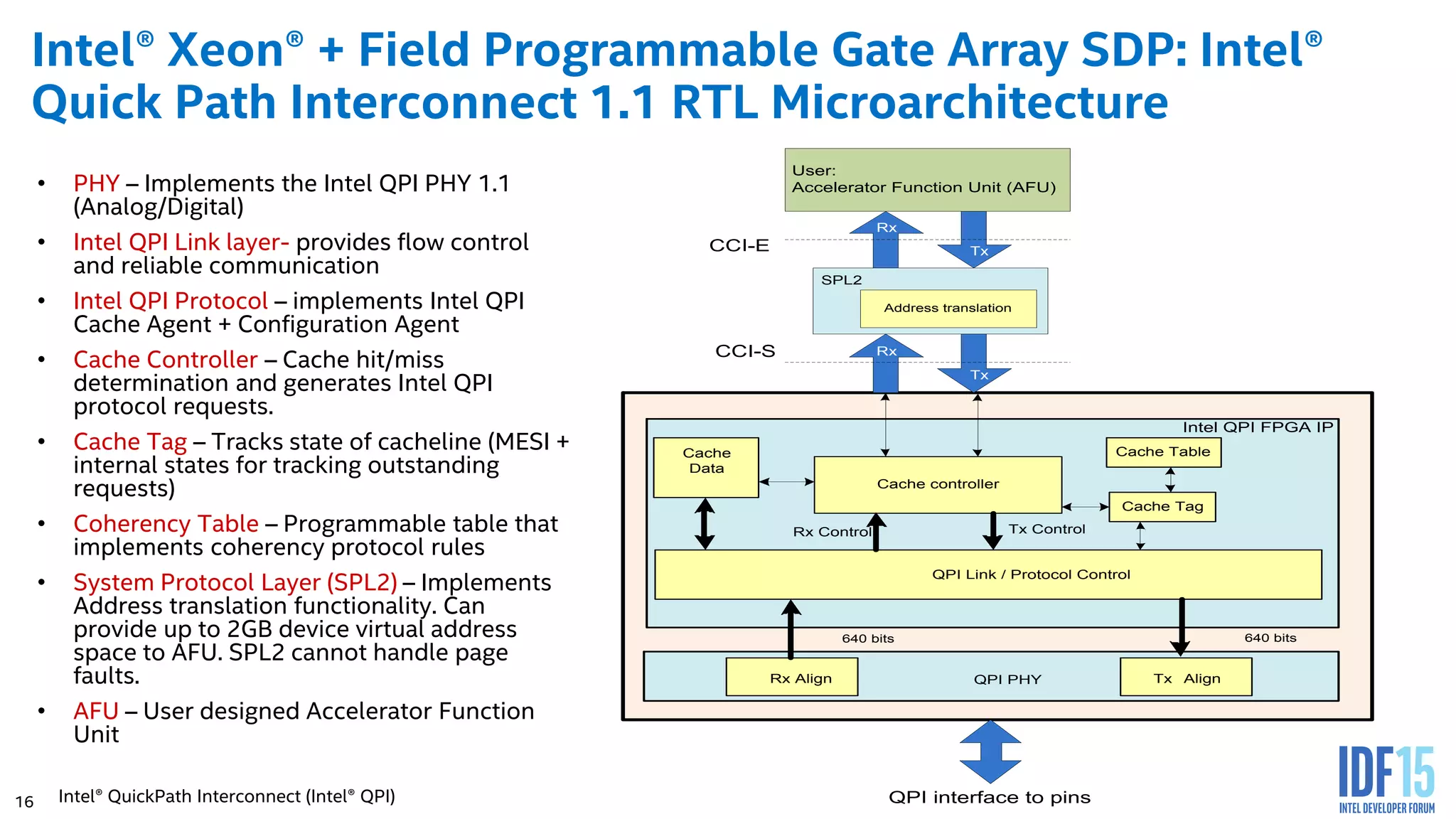

16 Intel® Xeon® + Field Programmable Gate Array SDP: Intel® Quick Path Interconnect 1.1 RTL Microarchitecture • PHY – Implements the Intel QPI PHY 1.1 (Analog/Digital) • Intel QPI Link layer- provides flow control and reliable communication • Intel QPI Protocol – implements Intel QPI Cache Agent + Configuration Agent • Cache Controller – Cache hit/miss determination and generates Intel QPI protocol requests. • Cache Tag – Tracks state of cacheline (MESI + internal states for tracking outstanding requests) • Coherency Table – Programmable table that implements coherency protocol rules • System Protocol Layer (SPL2) – Implements Address translation functionality. Can provide up to 2GB device virtual address space to AFU. SPL2 cannot handle page faults. • AFU – User designed Accelerator Function Unit QPI interface to pins QPI Link / Protocol Control QPI PHYRx Align Tx Align Rx Control Tx Control Cache controller Cache Data Cache Tag Cache Table Rx Tx SPL2 CCI-E Rx Tx CCI-S Intel QPI FPGA IP 640 bits640 bits Address translation User: Accelerator Function Unit (AFU) Intel® QuickPath Interconnect (Intel® QPI)

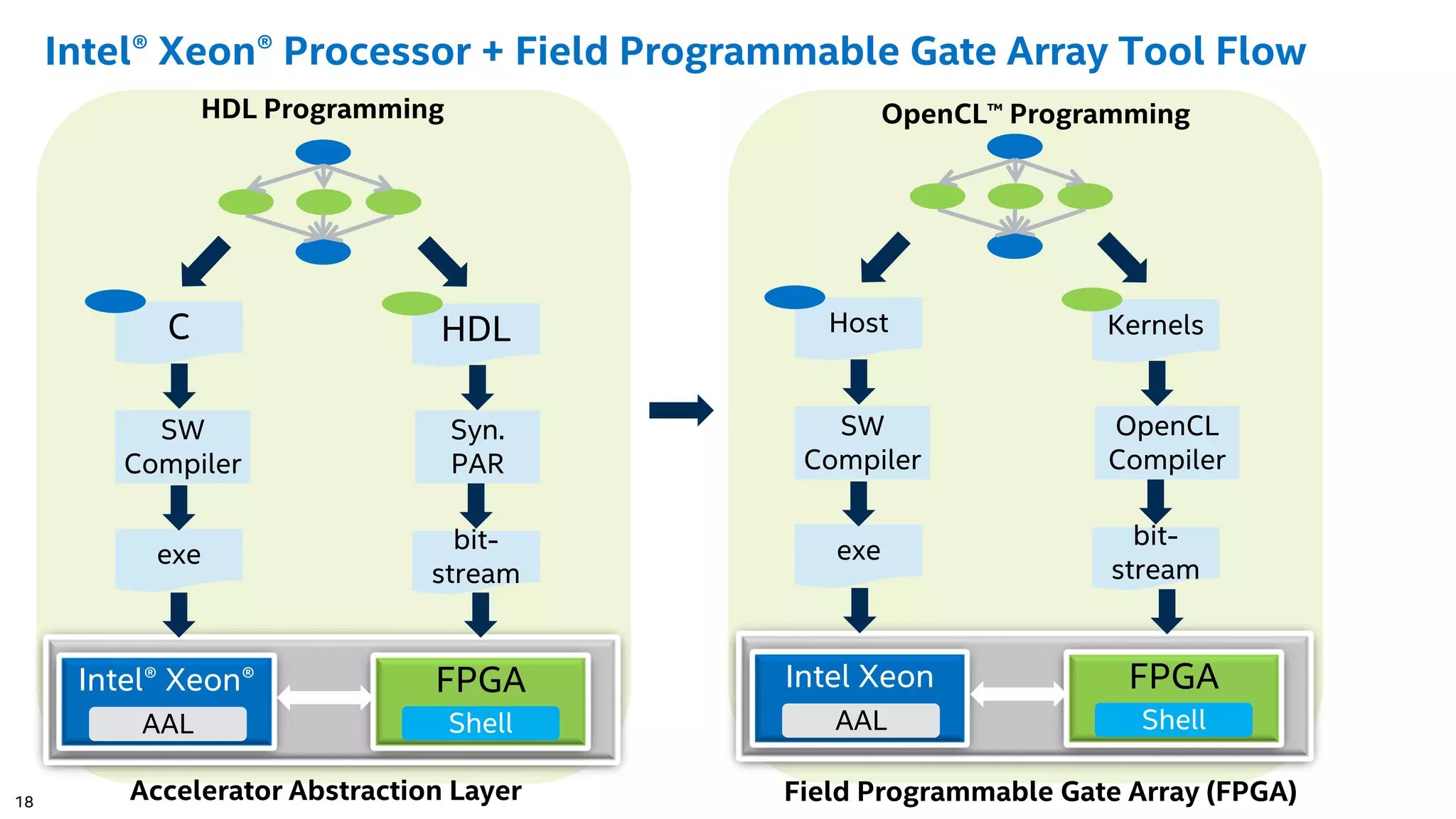

18 Intel® Xeon® Processor + Field Programmable Gate Array Tool Flow C HDL SW Compiler Syn. PAR exe bit- stream Intel® Xeon® FPGA AAL Shell Host Kernels SW Compiler OpenCL Compiler exe bit- stream HDL Programming OpenCL™ Programming Intel Xeon FPGA AAL Shell Field Programmable Gate Array (FPGA)Accelerator Abstraction Layer

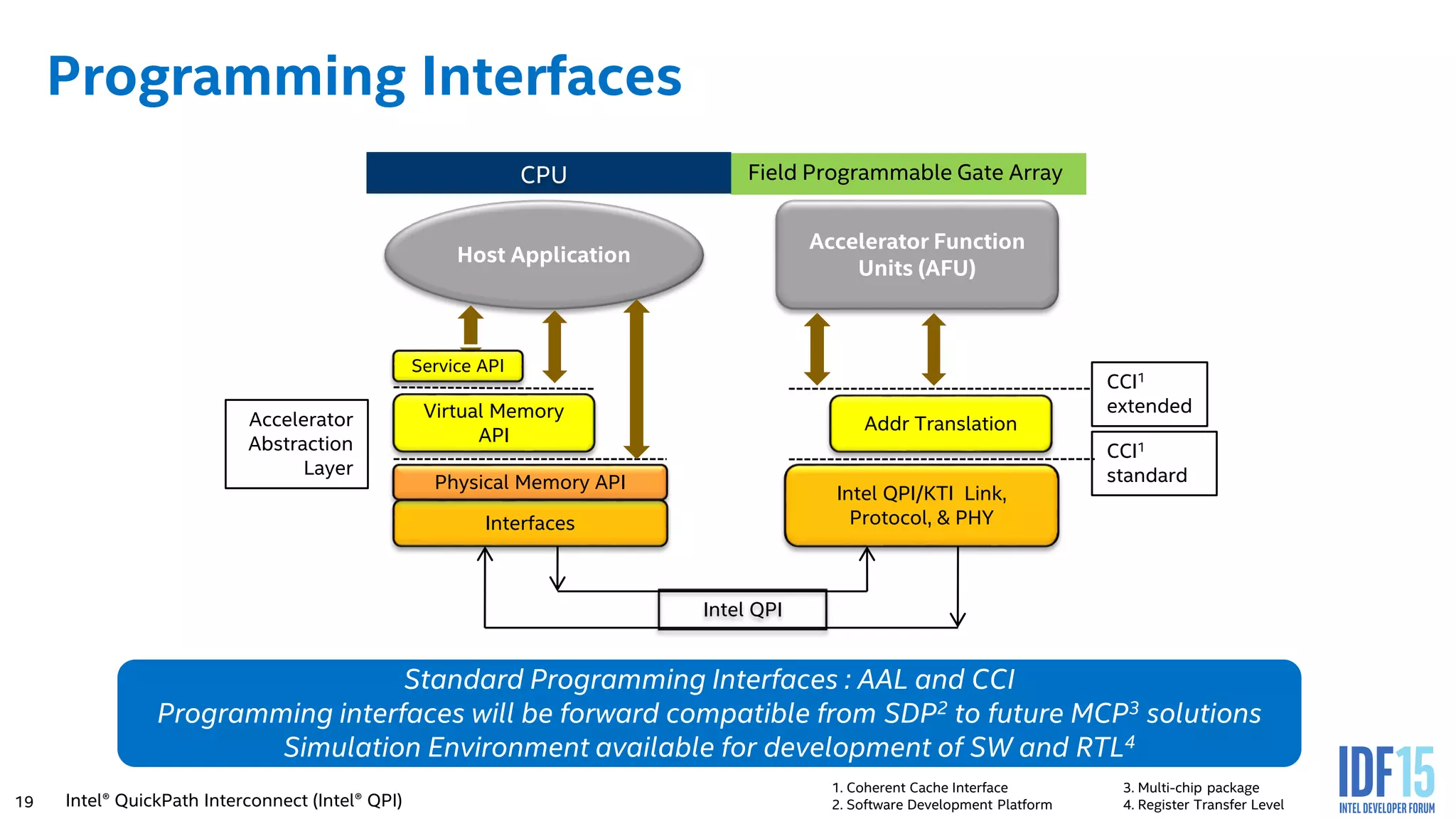

19 Programming Interfaces Host Application Virtual Memory API Addr Translation Interfaces Intel QPI/KTI Link, Protocol, & PHY CPU Intel QPI CCI1 standard Accelerator Function Units (AFU) CCI1 extended Service API Physical Memory API Accelerator Abstraction Layer Standard Programming Interfaces : AAL and CCI Programming interfaces will be forward compatible from SDP2 to future MCP3 solutions Simulation Environment available for development of SW and RTL4 Field Programmable Gate Array Intel® QuickPath Interconnect (Intel® QPI) 1. Coherent Cache Interface 3. Multi-chip package 2. Software Development Platform 4. Register Transfer Level

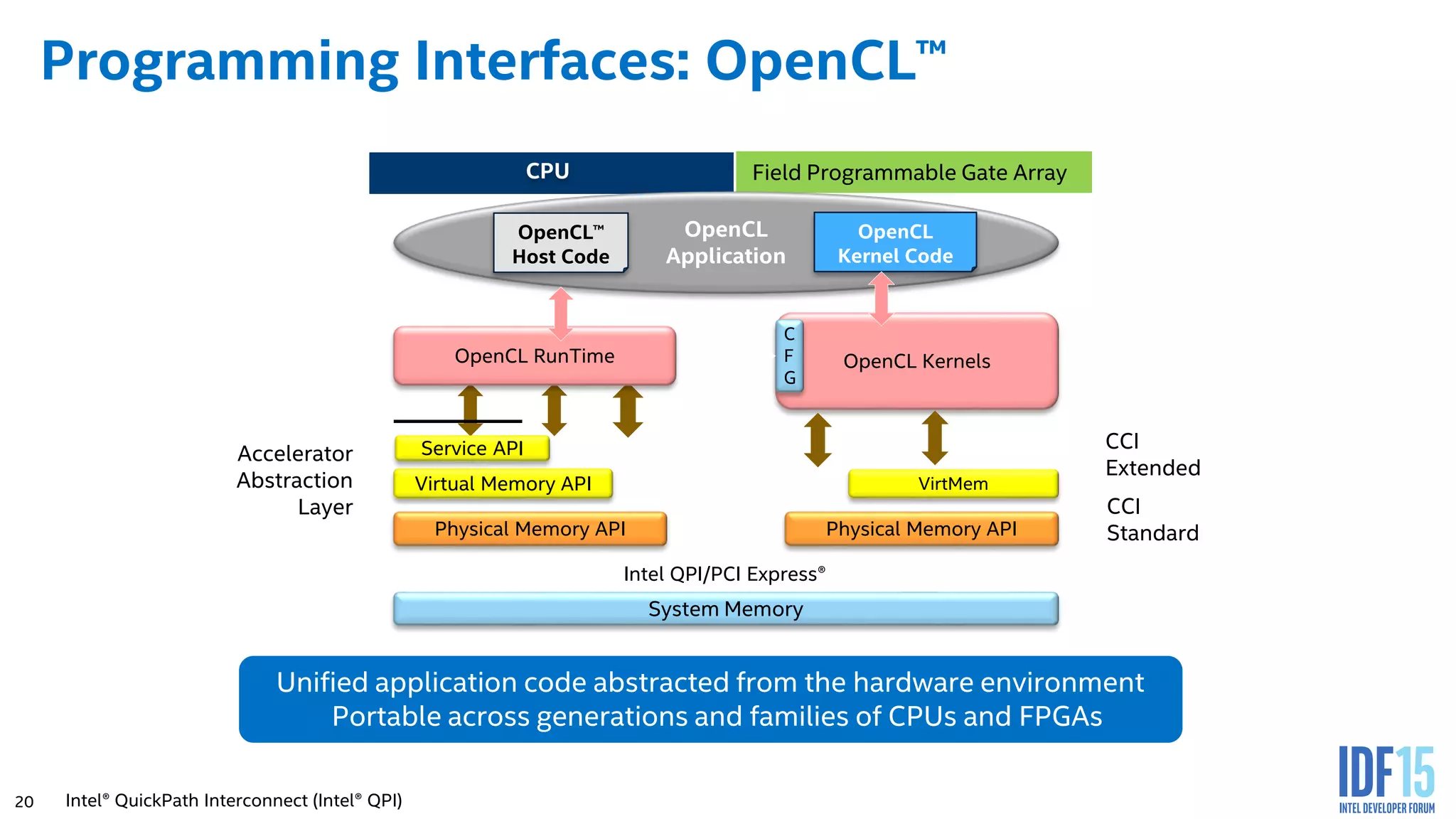

20 Programming Interfaces: OpenCL™ 20 OpenCL Application Virtual Memory API VirtMem CPU CCI Standard OpenCL Kernels CCI Extended Service API Physical Memory API Accelerator Abstraction Layer System Memory C F G Physical Memory API OpenCL RunTime OpenCL™ Host Code OpenCL Kernel Code Field Programmable Gate Array Intel® QuickPath Interconnect (Intel® QPI) Unified application code abstracted from the hardware environment Portable across generations and families of CPUs and FPGAs Intel QPI/PCI Express®

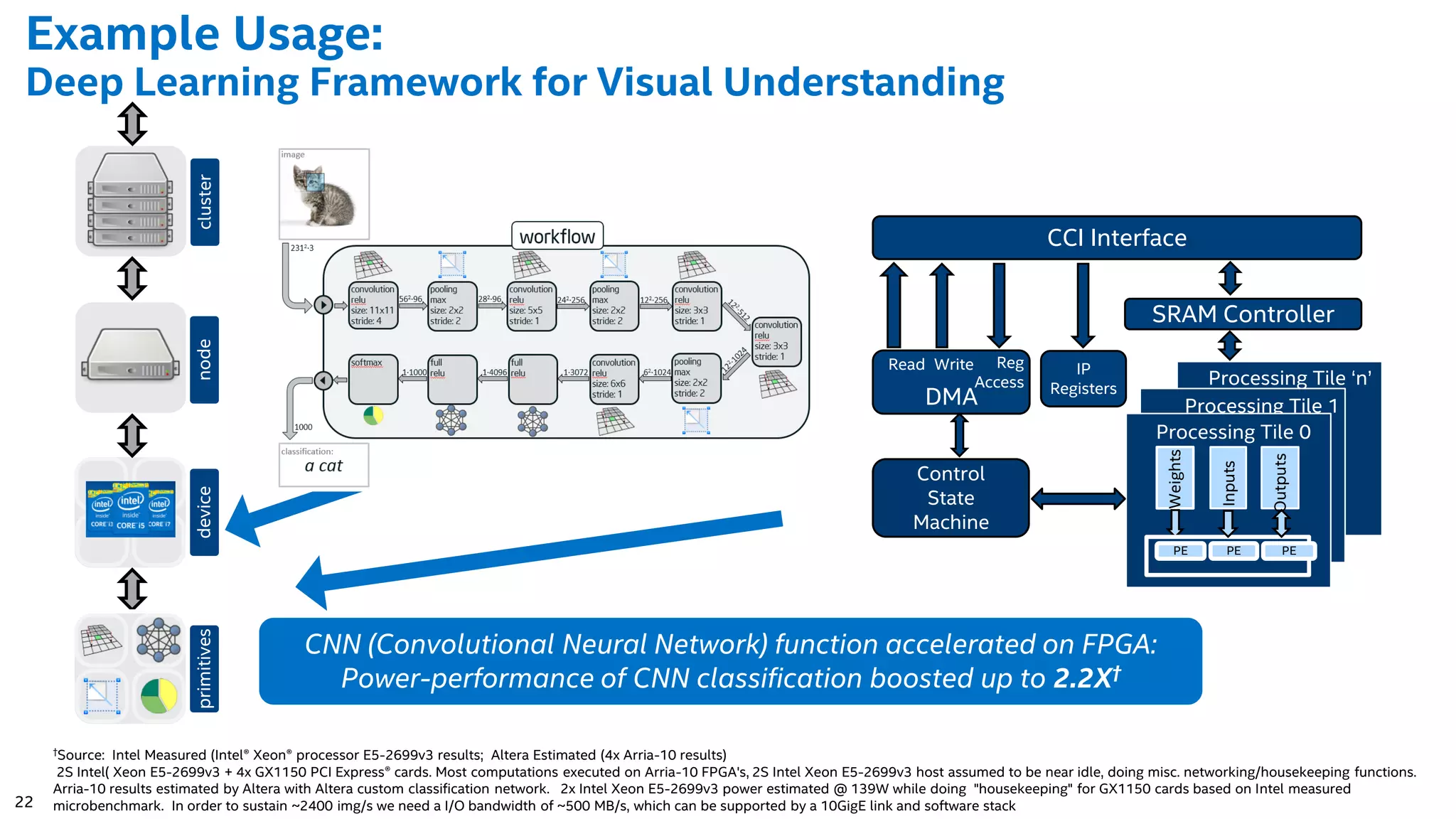

22 Example Usage: Deep Learning Framework for Visual Understanding clusternodedeviceprimitives Processing Tile ‘n’ Processing Tile 1DMA PE Weights Inputs Outputs Processing Tile 0 PE PE Read Write Reg Access SRAM Controller Control State Machine IP Registers CCI Interface CNN (Convolutional Neural Network) function accelerated on FPGA: Power-performance of CNN classification boosted up to 2.2X† †Source: Intel Measured (Intel® Xeon® processor E5-2699v3 results; Altera Estimated (4x Arria-10 results) 2S Intel( Xeon E5-2699v3 + 4x GX1150 PCI Express® cards. Most computations executed on Arria-10 FPGA's, 2S Intel Xeon E5-2699v3 host assumed to be near idle, doing misc. networking/housekeeping functions. Arria-10 results estimated by Altera with Altera custom classification network. 2x Intel Xeon E5-2699v3 power estimated @ 139W while doing "housekeeping" for GX1150 cards based on Intel measured microbenchmark. In order to sustain ~2400 img/s we need a I/O bandwidth of ~500 MB/s, which can be supported by a 10GigE link and software stack

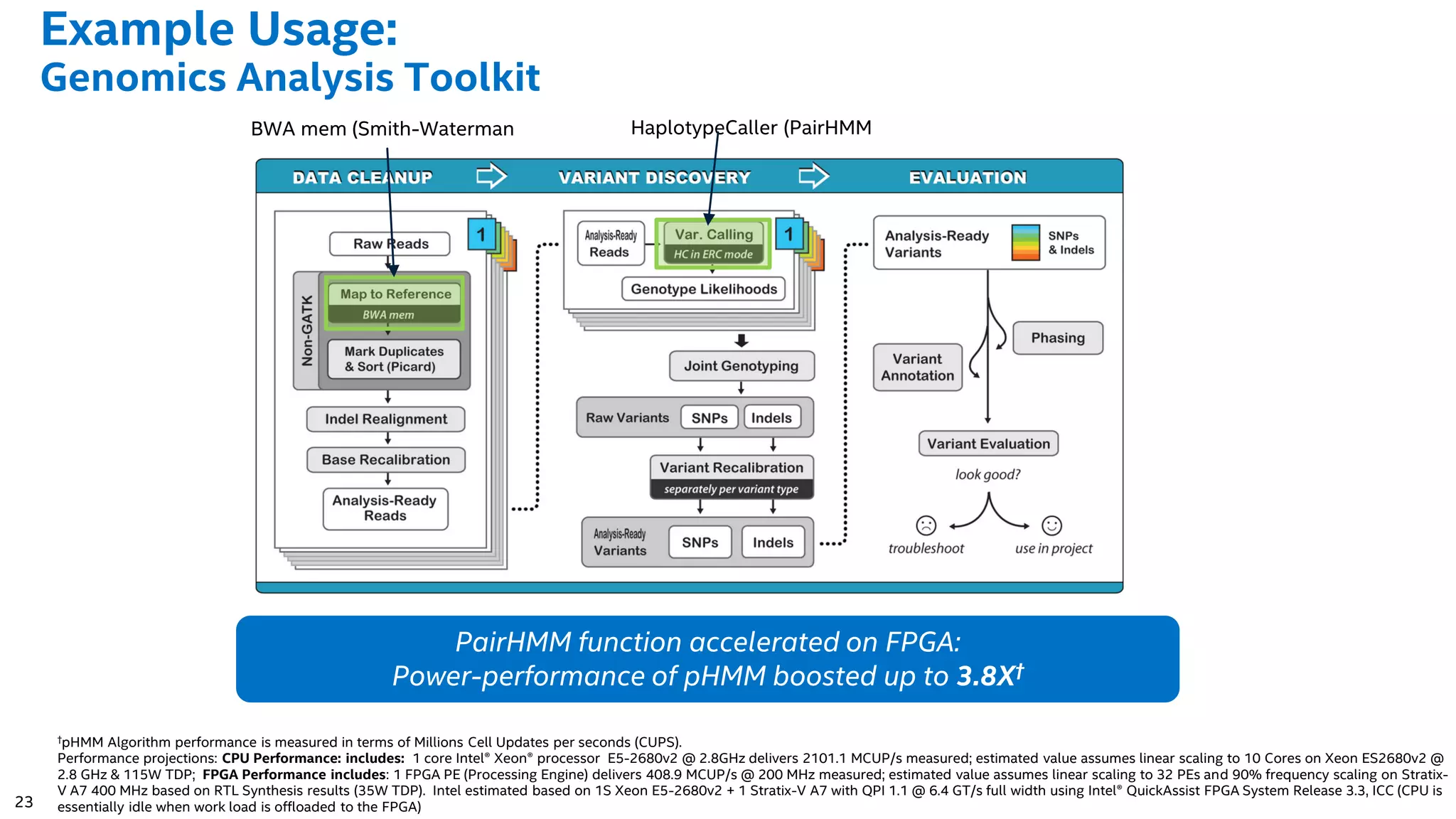

23 Example Usage: Genomics Analysis Toolkit HaplotypeCaller (PairHMM)BWA mem (Smith-Waterman) PairHMM function accelerated on FPGA: Power-performance of pHMM boosted up to 3.8X† †pHMM Algorithm performance is measured in terms of Millions Cell Updates per seconds (CUPS). Performance projections: CPU Performance: includes: 1 core Intel® Xeon® processor E5-2680v2 @ 2.8GHz delivers 2101.1 MCUP/s measured; estimated value assumes linear scaling to 10 Cores on Xeon ES2680v2 @ 2.8 GHz & 115W TDP; FPGA Performance includes: 1 FPGA PE (Processing Engine) delivers 408.9 MCUP/s @ 200 MHz measured; estimated value assumes linear scaling to 32 PEs and 90% frequency scaling on Stratix- V A7 400 MHz based on RTL Synthesis results (35W TDP). Intel estimated based on 1S Xeon E5-2680v2 + 1 Stratix-V A7 with QPI 1.1 @ 6.4 GT/s full width using Intel® QuickAssist FPGA System Release 3.3, ICC (CPU is essentially idle when work load is offloaded to the FPGA)

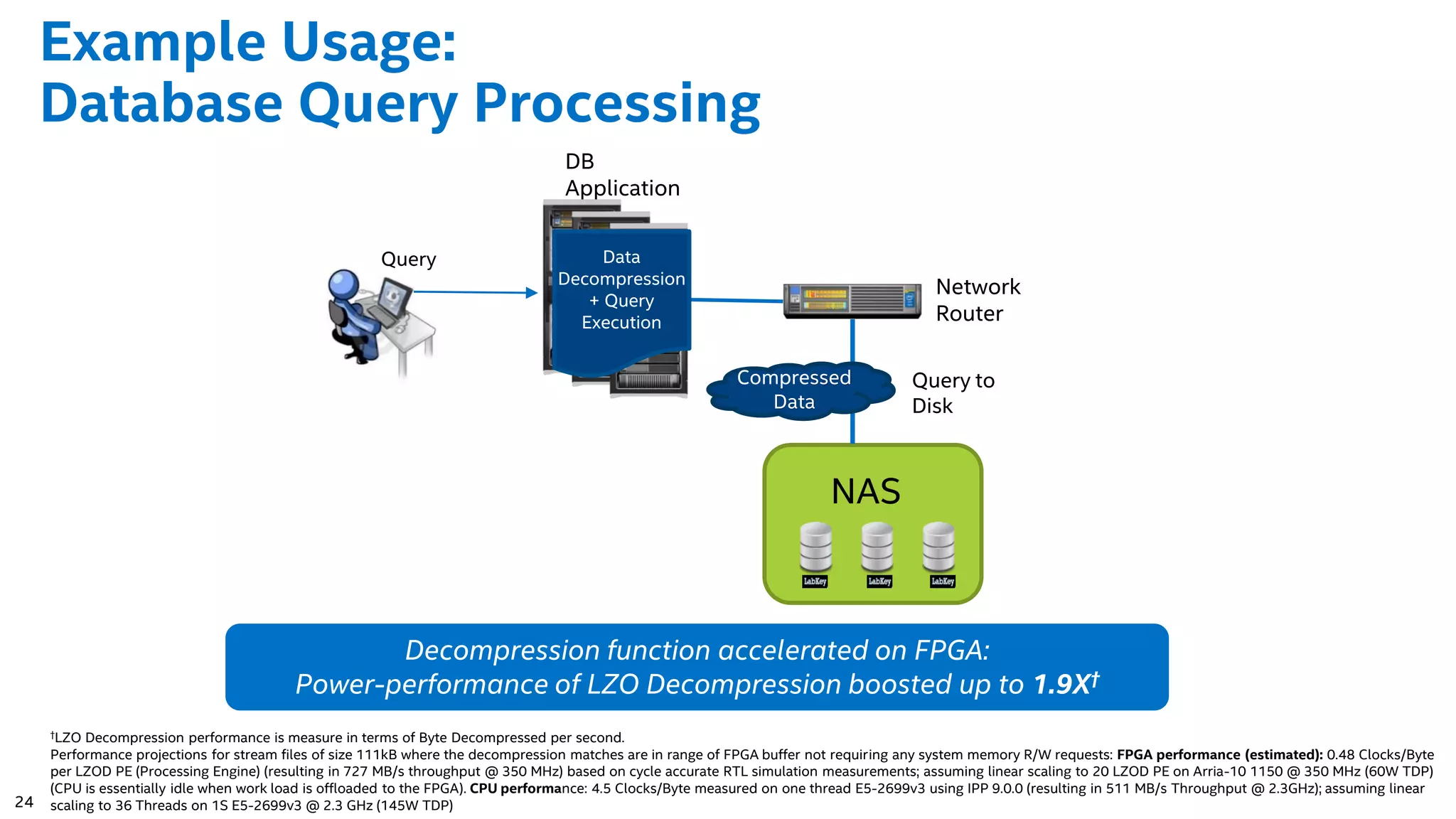

24 Example Usage: Database Query Processing DB Application Query NAS Select * from table where a<100 Network Router Query to Disk Query to Disk Compressed Data Data Decompression + Query Execution Decompression function accelerated on FPGA: Power-performance of LZO Decompression boosted up to 1.9X† †LZO Decompression performance is measure in terms of Byte Decompressed per second. Performance projections for stream files of size 111kB where the decompression matches are in range of FPGA buffer not requiring any system memory R/W requests: FPGA performance (estimated): 0.48 Clocks/Byte per LZOD PE (Processing Engine) (resulting in 727 MB/s throughput @ 350 MHz) based on cycle accurate RTL simulation measurements; assuming linear scaling to 20 LZOD PE on Arria-10 1150 @ 350 MHz (60W TDP) (CPU is essentially idle when work load is offloaded to the FPGA). CPU performance: 4.5 Clocks/Byte measured on one thread E5-2699v3 using IPP 9.0.0 (resulting in 511 MB/s Throughput @ 2.3GHz); assuming linear scaling to 36 Threads on 1S E5-2699v3 @ 2.3 GHz (145W TDP)

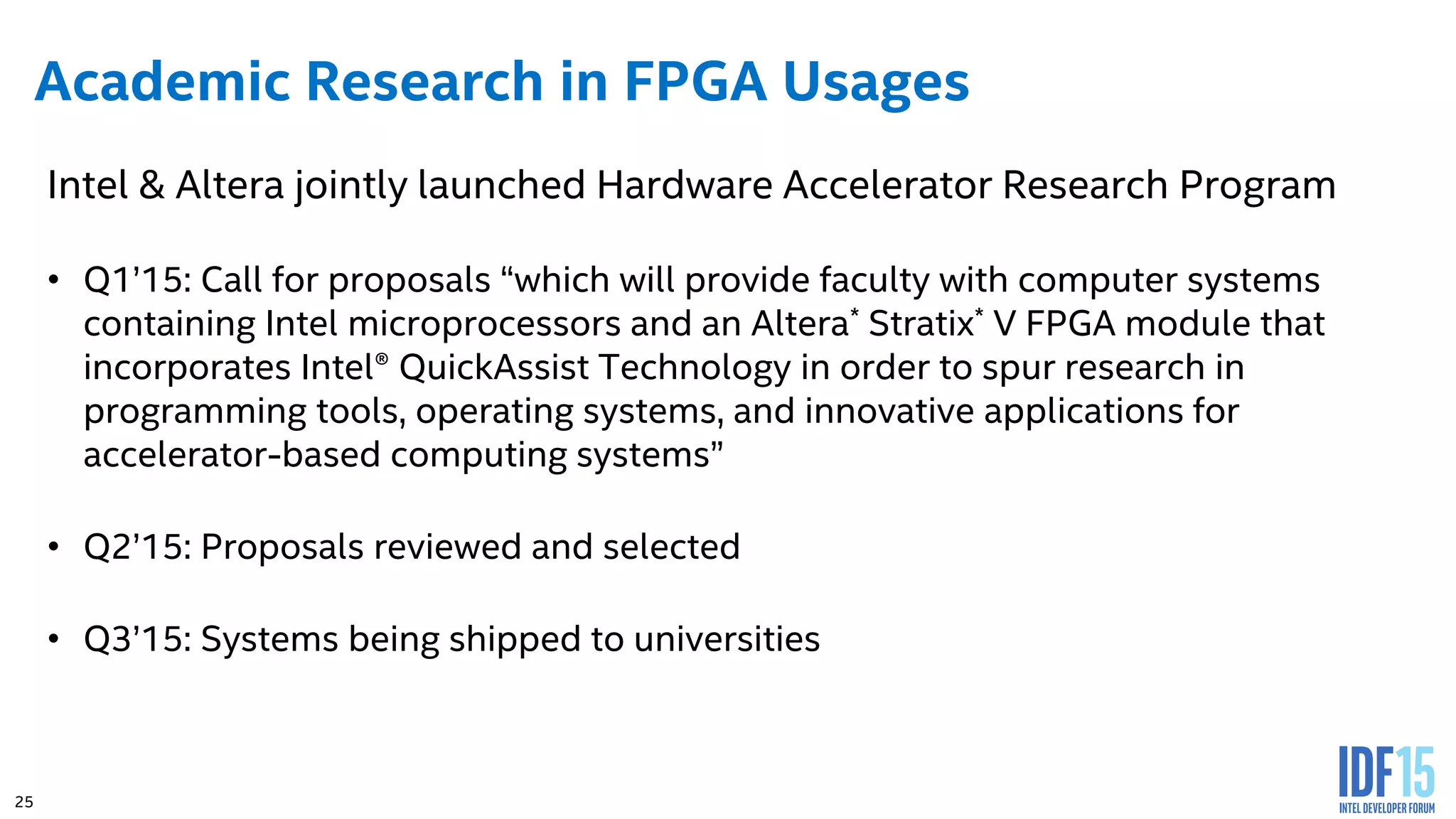

25 Academic Research in FPGA Usages Intel & Altera jointly launched Hardware Accelerator Research Program • Q1’15: Call for proposals “which will provide faculty with computer systems containing Intel microprocessors and an Altera* Stratix* V FPGA module that incorporates Intel® QuickAssist Technology in order to spur research in programming tools, operating systems, and innovative applications for accelerator-based computing systems” • Q2’15: Proposals reviewed and selected • Q3’15: Systems being shipped to universities

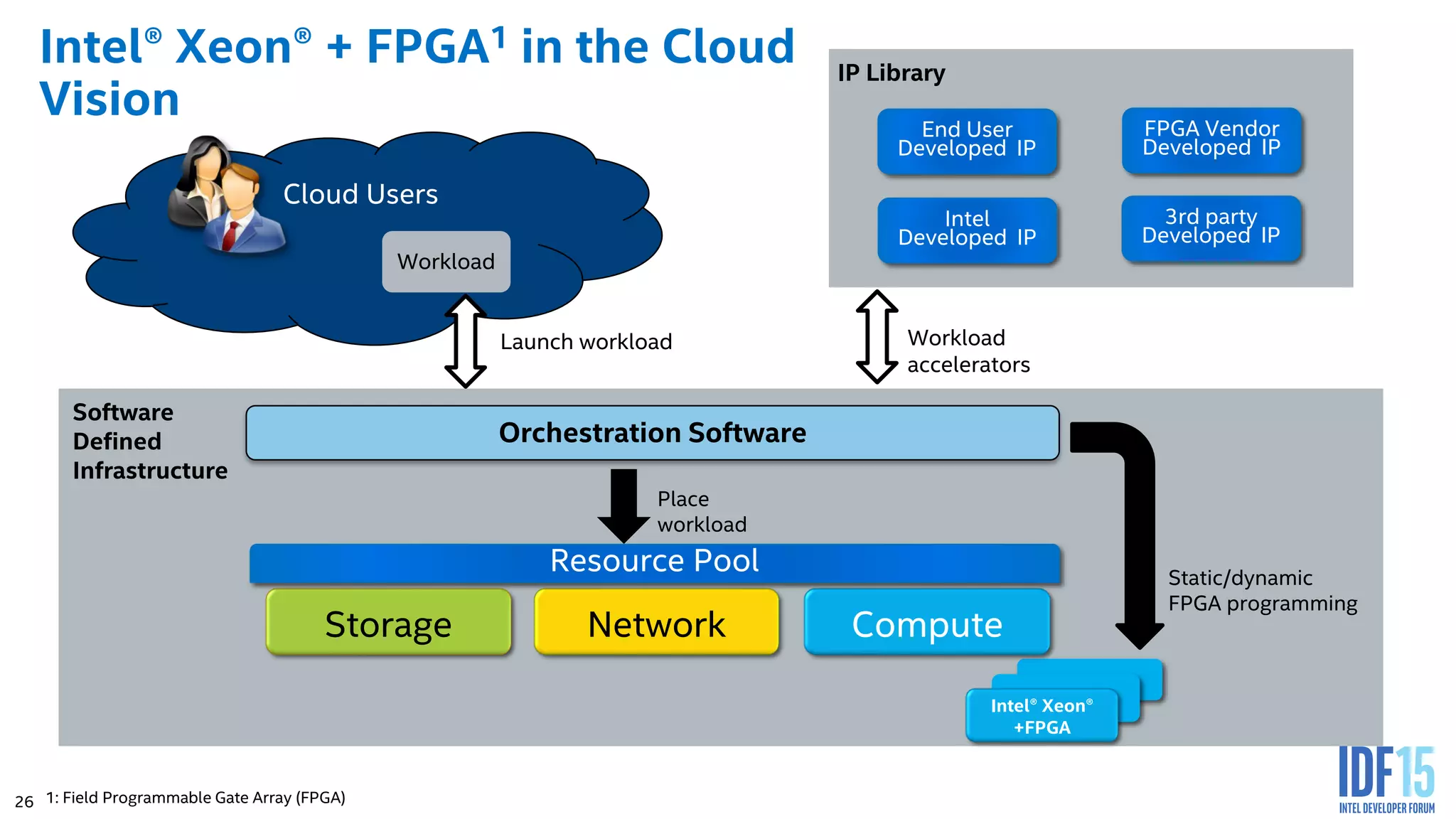

26 Intel® Xeon® + FPGA1 in the Cloud Vision Workload Static/dynamic FPGA programming Place workload Intel® Xeon® +FPGA 26 Storage Network Orchestration Software Intel Developed IP 3rd party Developed IP FPGA Vendor Developed IP End User Developed IP Compute Resource Pool Software Defined Infrastructure Cloud Users IP Library Launch workload Workload accelerators 1: Field Programmable Gate Array (FPGA)

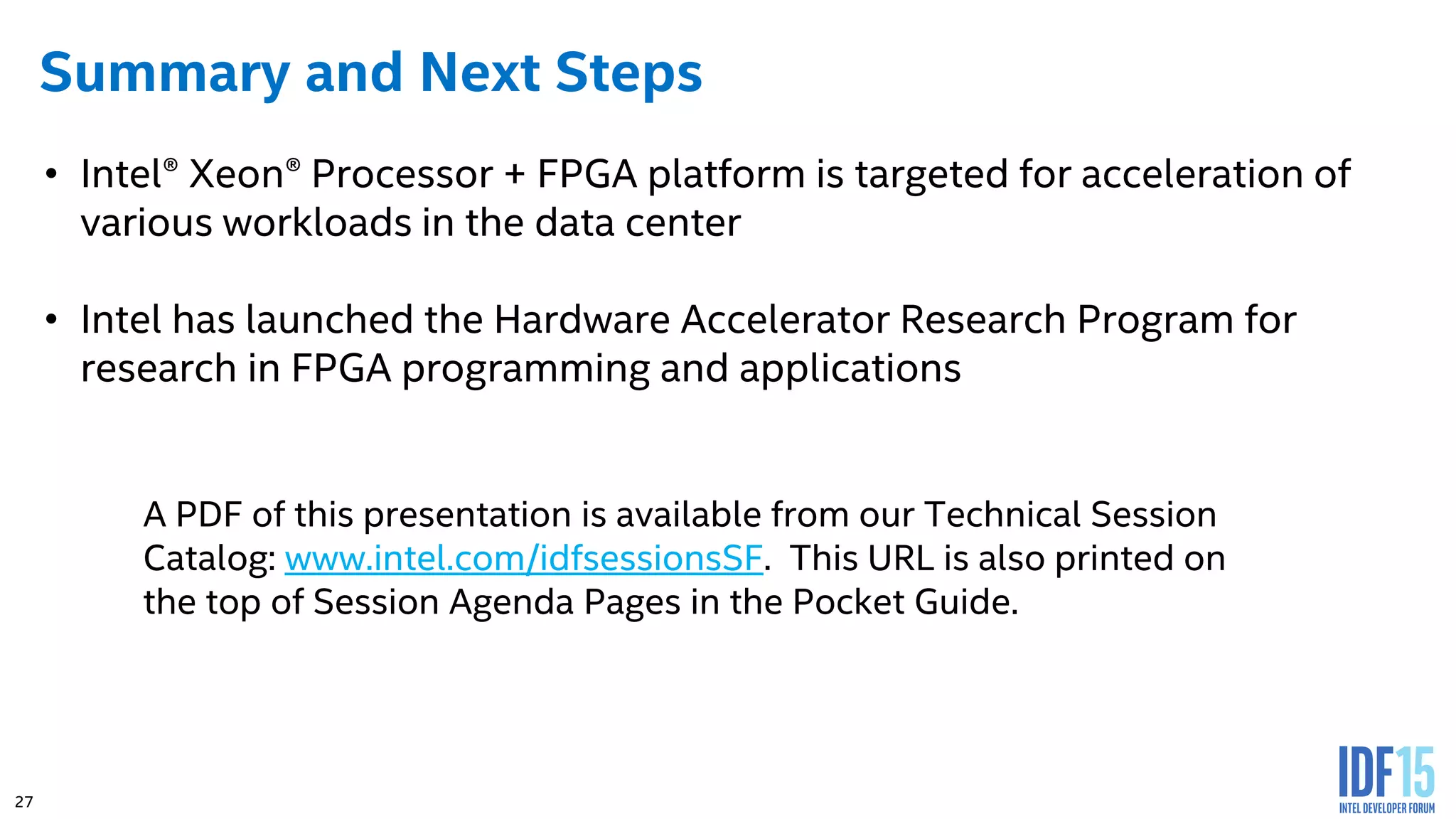

27 Summary and Next Steps • Intel® Xeon® Processor + FPGA platform is targeted for acceleration of various workloads in the data center • Intel has launched the Hardware Accelerator Research Program for research in FPGA programming and applications A PDF of this presentation is available from our Technical Session Catalog: www.intel.com/idfsessionsSF. This URL is also printed on the top of Session Agenda Pages in the Pocket Guide.

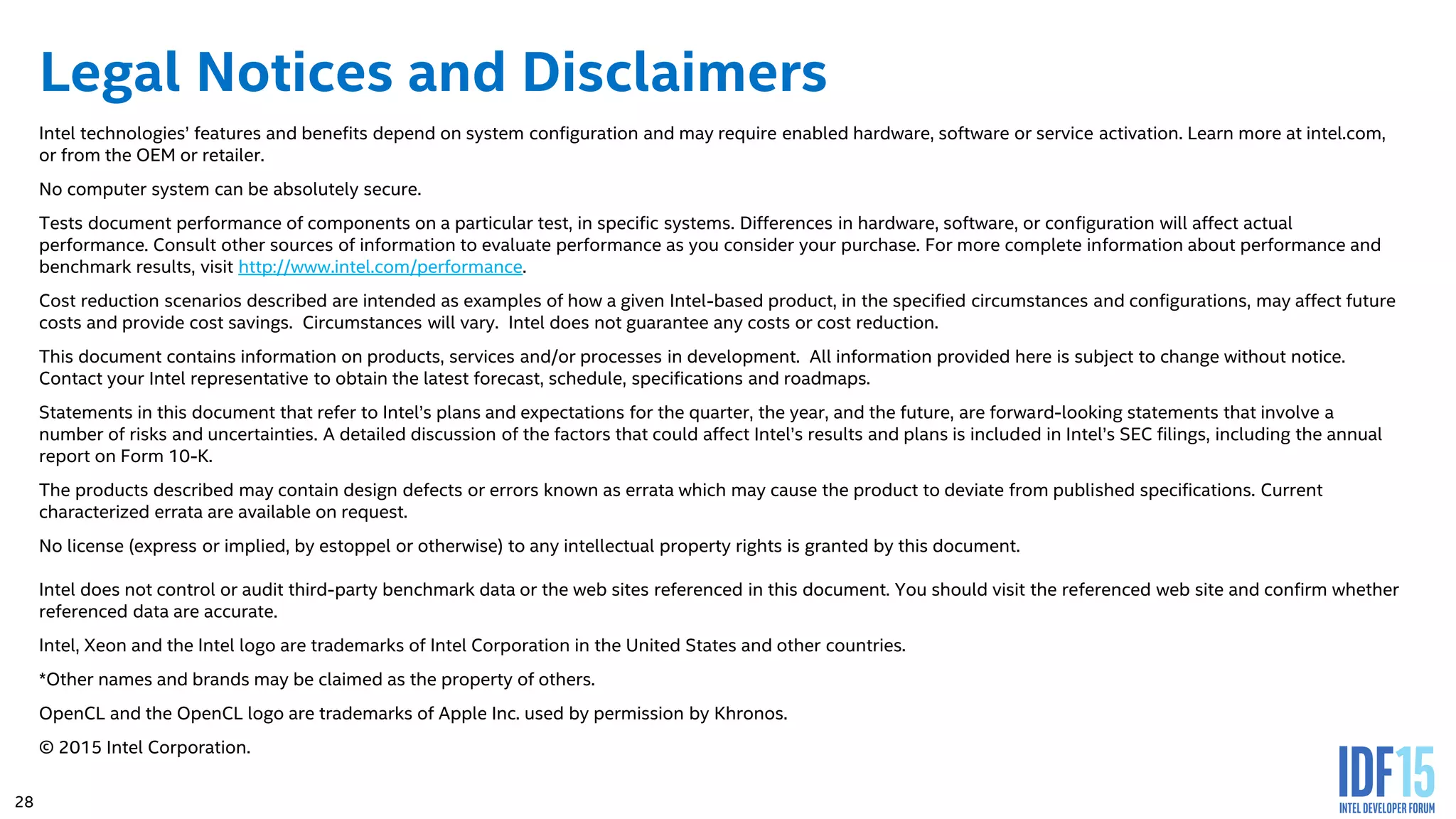

28 Legal Notices and Disclaimers Intel technologies’ features and benefits depend on system configuration and may require enabled hardware, software or service activation. Learn more at intel.com, or from the OEM or retailer. No computer system can be absolutely secure. Tests document performance of components on a particular test, in specific systems. Differences in hardware, software, or configuration will affect actual performance. Consult other sources of information to evaluate performance as you consider your purchase. For more complete information about performance and benchmark results, visit http://www.intel.com/performance. Cost reduction scenarios described are intended as examples of how a given Intel-based product, in the specified circumstances and configurations, may affect future costs and provide cost savings. Circumstances will vary. Intel does not guarantee any costs or cost reduction. This document contains information on products, services and/or processes in development. All information provided here is subject to change without notice. Contact your Intel representative to obtain the latest forecast, schedule, specifications and roadmaps. Statements in this document that refer to Intel’s plans and expectations for the quarter, the year, and the future, are forward-looking statements that involve a number of risks and uncertainties. A detailed discussion of the factors that could affect Intel’s results and plans is included in Intel’s SEC filings, including the annual report on Form 10-K. The products described may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current characterized errata are available on request. No license (express or implied, by estoppel or otherwise) to any intellectual property rights is granted by this document. Intel does not control or audit third-party benchmark data or the web sites referenced in this document. You should visit the referenced web site and confirm whether referenced data are accurate. Intel, Xeon and the Intel logo are trademarks of Intel Corporation in the United States and other countries. *Other names and brands may be claimed as the property of others. OpenCL and the OpenCL logo are trademarks of Apple Inc. used by permission by Khronos. © 2015 Intel Corporation.

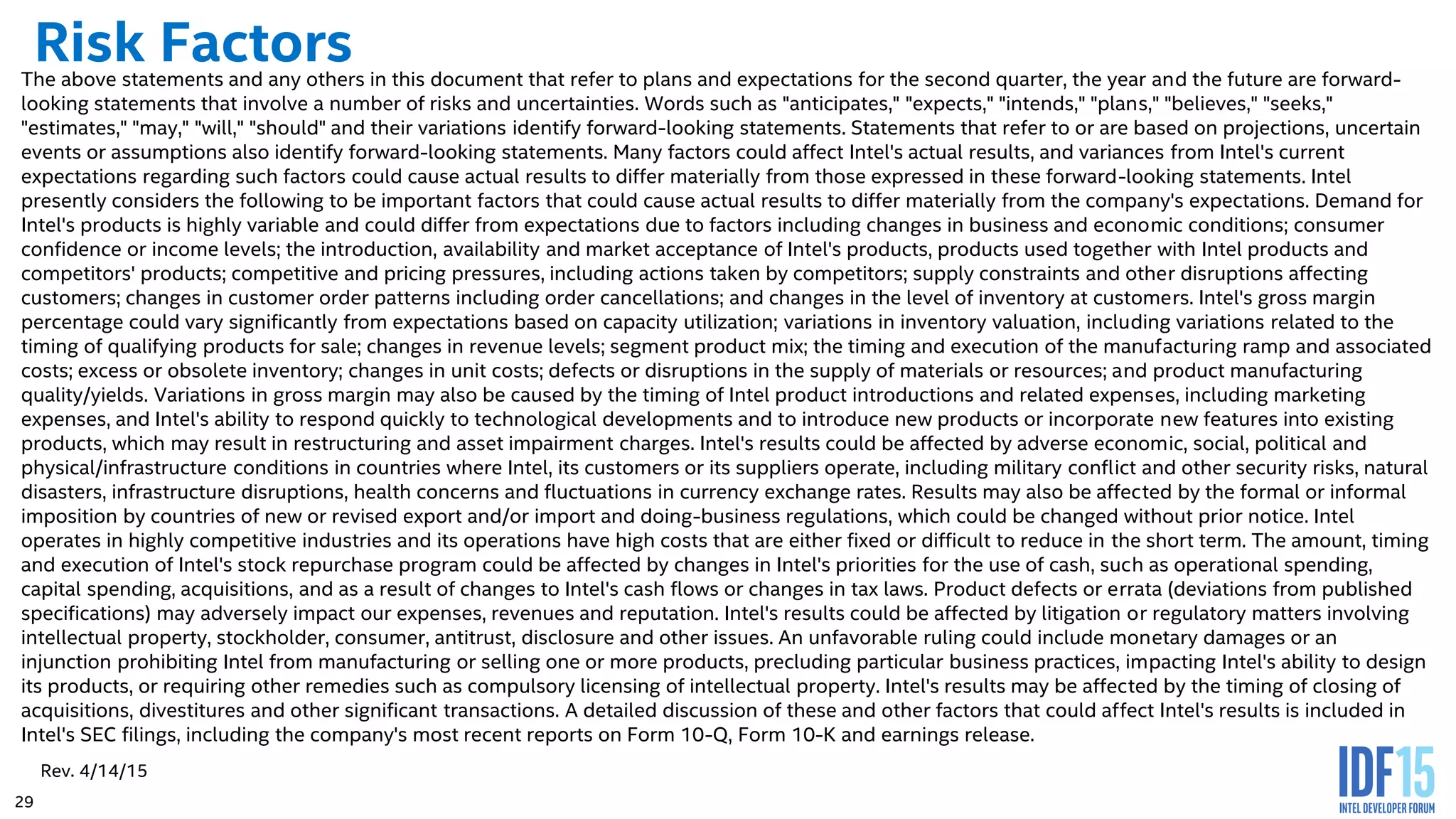

29 Risk FactorsThe above statements and any others in this document that refer to plans and expectations for the second quarter, the year and the future are forward- looking statements that involve a number of risks and uncertainties. Words such as "anticipates," "expects," "intends," "plans," "believes," "seeks," "estimates," "may," "will," "should" and their variations identify forward-looking statements. Statements that refer to or are based on projections, uncertain events or assumptions also identify forward-looking statements. Many factors could affect Intel's actual results, and variances from Intel's current expectations regarding such factors could cause actual results to differ materially from those expressed in these forward-looking statements. Intel presently considers the following to be important factors that could cause actual results to differ materially from the company's expectations. Demand for Intel's products is highly variable and could differ from expectations due to factors including changes in business and economic conditions; consumer confidence or income levels; the introduction, availability and market acceptance of Intel's products, products used together with Intel products and competitors' products; competitive and pricing pressures, including actions taken by competitors; supply constraints and other disruptions affecting customers; changes in customer order patterns including order cancellations; and changes in the level of inventory at customers. Intel's gross margin percentage could vary significantly from expectations based on capacity utilization; variations in inventory valuation, including variations related to the timing of qualifying products for sale; changes in revenue levels; segment product mix; the timing and execution of the manufacturing ramp and associated costs; excess or obsolete inventory; changes in unit costs; defects or disruptions in the supply of materials or resources; and product manufacturing quality/yields. Variations in gross margin may also be caused by the timing of Intel product introductions and related expenses, including marketing expenses, and Intel's ability to respond quickly to technological developments and to introduce new products or incorporate new features into existing products, which may result in restructuring and asset impairment charges. Intel's results could be affected by adverse economic, social, political and physical/infrastructure conditions in countries where Intel, its customers or its suppliers operate, including military conflict and other security risks, natural disasters, infrastructure disruptions, health concerns and fluctuations in currency exchange rates. Results may also be affected by the formal or informal imposition by countries of new or revised export and/or import and doing-business regulations, which could be changed without prior notice. Intel operates in highly competitive industries and its operations have high costs that are either fixed or difficult to reduce in the short term. The amount, timing and execution of Intel's stock repurchase program could be affected by changes in Intel's priorities for the use of cash, such as operational spending, capital spending, acquisitions, and as a result of changes to Intel's cash flows or changes in tax laws. Product defects or errata (deviations from published specifications) may adversely impact our expenses, revenues and reputation. Intel's results could be affected by litigation or regulatory matters involving intellectual property, stockholder, consumer, antitrust, disclosure and other issues. An unfavorable ruling could include monetary damages or an injunction prohibiting Intel from manufacturing or selling one or more products, precluding particular business practices, impacting Intel's ability to design its products, or requiring other remedies such as compulsory licensing of intellectual property. Intel's results may be affected by the timing of closing of acquisitions, divestitures and other significant transactions. A detailed discussion of these and other factors that could affect Intel's results is included in Intel's SEC filings, including the company's most recent reports on Form 10-Q, Form 10-K and earnings release. Rev. 4/14/15
