Outline I CIC ! FPGA Express V3.x Overview ! Xilinx HDL Synthesis Flow ! Architecture ! Introduce to FPGA Design ! HDL Coding ! LAB I Y.T.Chang/2001.02/XLNX_HDL Intro-2

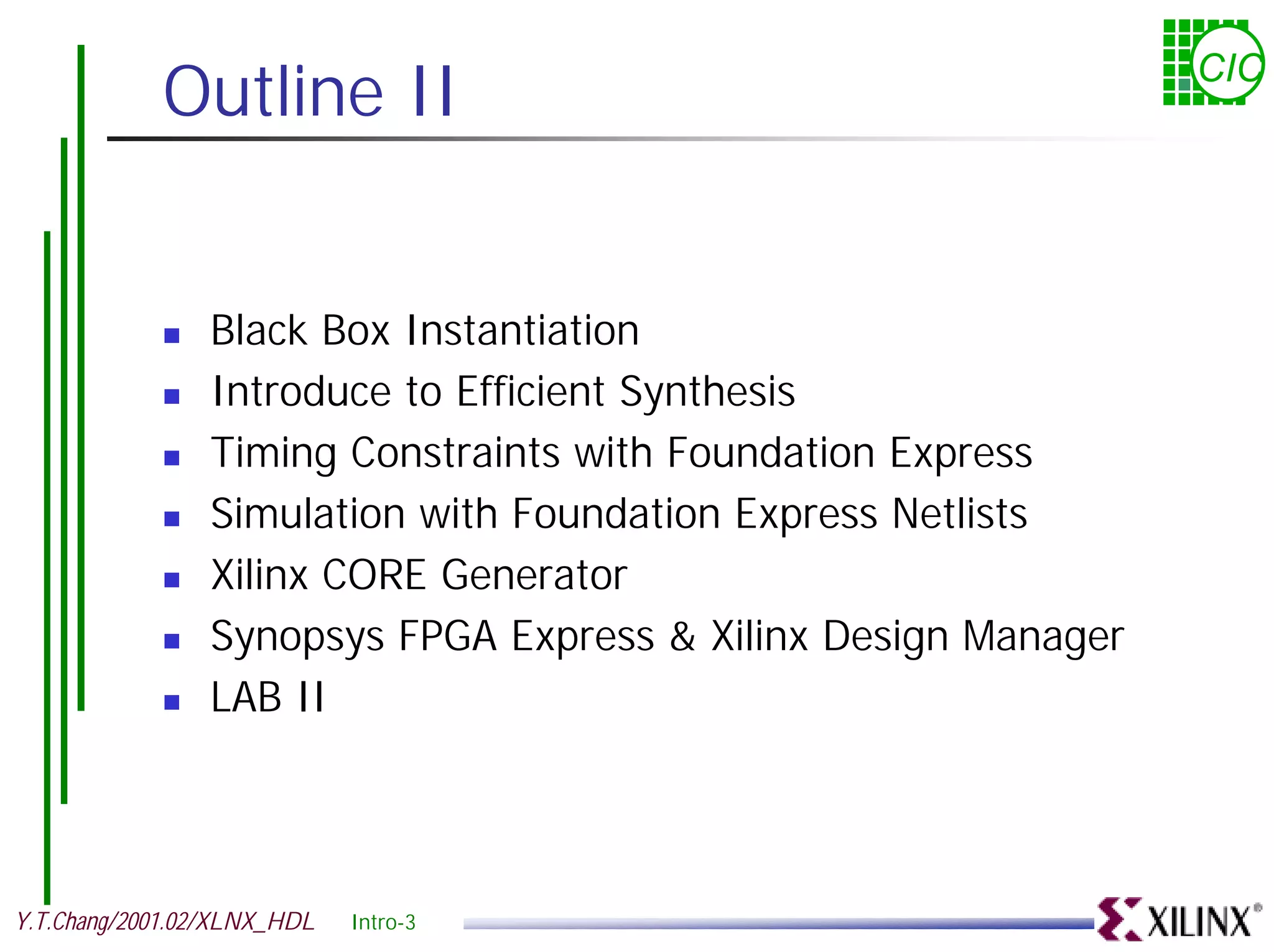

Outline II CIC ! Black Box Instantiation ! Introduce to Efficient Synthesis ! Timing Constraints with Foundation Express ! Simulation with Foundation Express Netlists ! Xilinx CORE Generator ! Synopsys FPGA Express & Xilinx Design Manager ! LAB II Y.T.Chang/2001.02/XLNX_HDL Intro-3

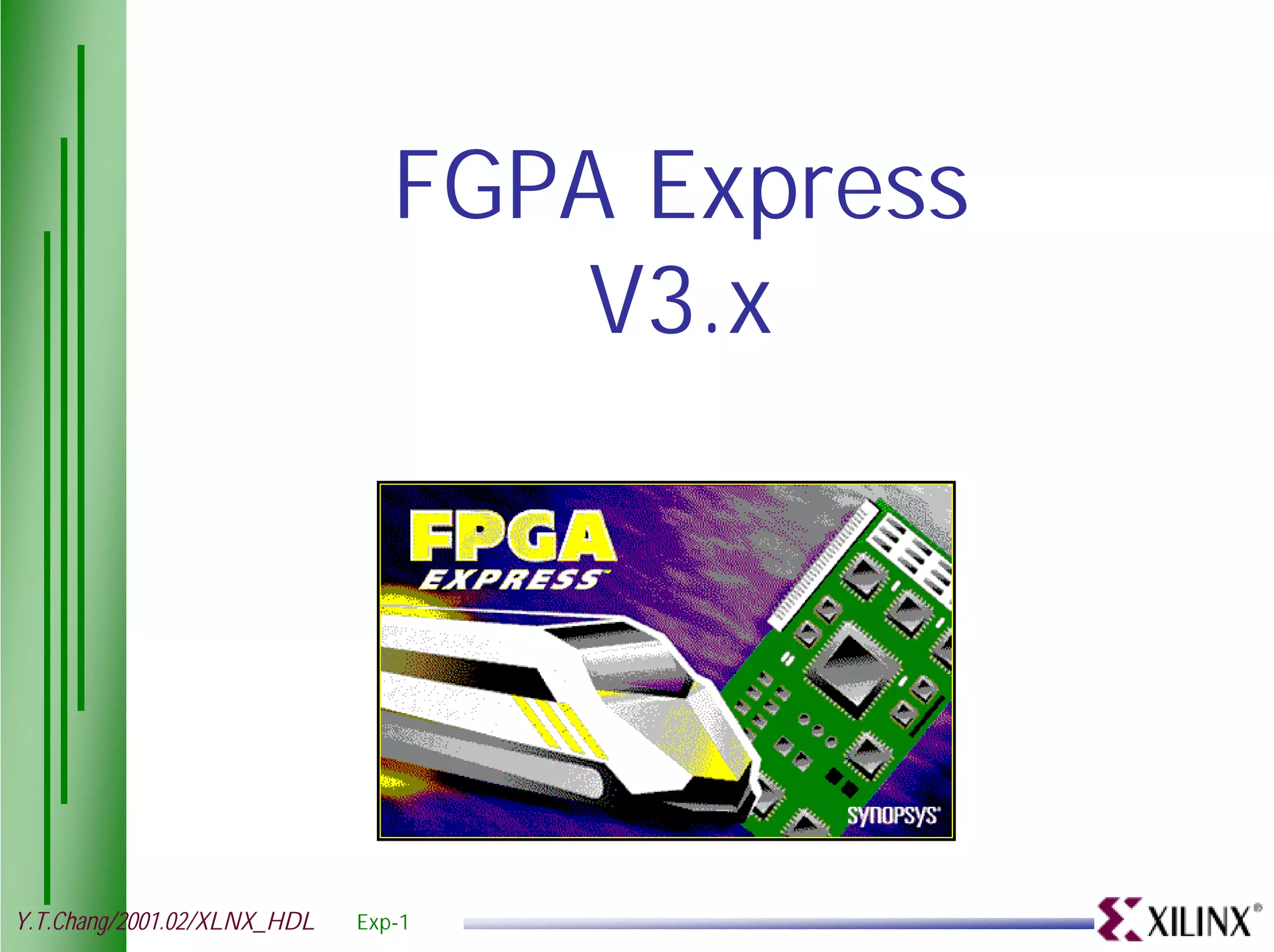

FGPA Express V3.x Y.T.Chang/2001.02/XLNX_HDL Exp-1

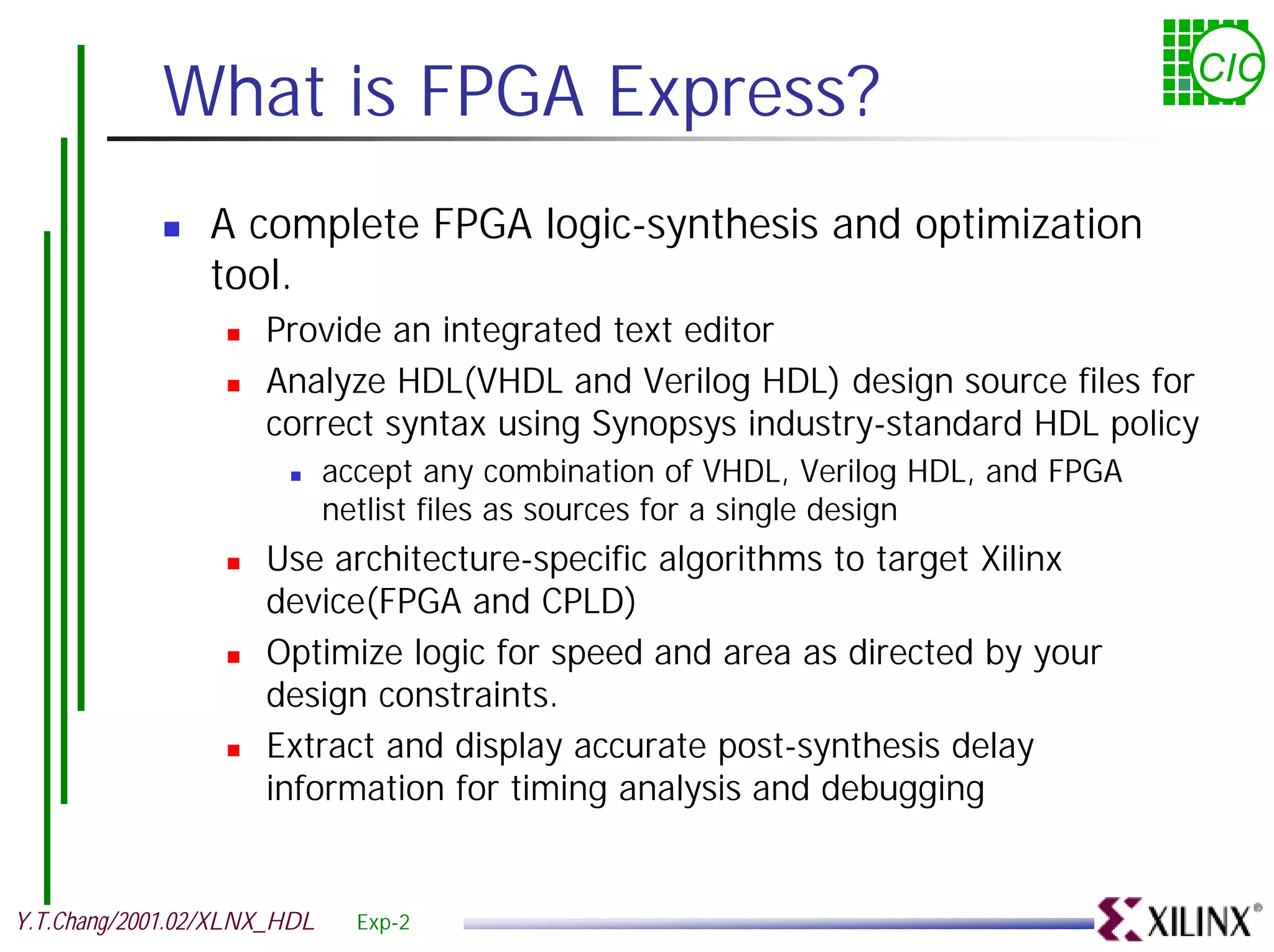

What is FPGA Express? CIC ! A complete FPGA logic-synthesis and optimization tool. ! Provide an integrated text editor ! Analyze HDL(VHDL and Verilog HDL) design source files for correct syntax using Synopsys industry-standard HDL policy ! accept any combination of VHDL, Verilog HDL, and FPGA netlist files as sources for a single design ! Use architecture-specific algorithms to target Xilinx device(FPGA and CPLD) ! Optimize logic for speed and area as directed by your design constraints. ! Extract and display accurate post-synthesis delay information for timing analysis and debugging Y.T.Chang/2001.02/XLNX_HDL Exp-2

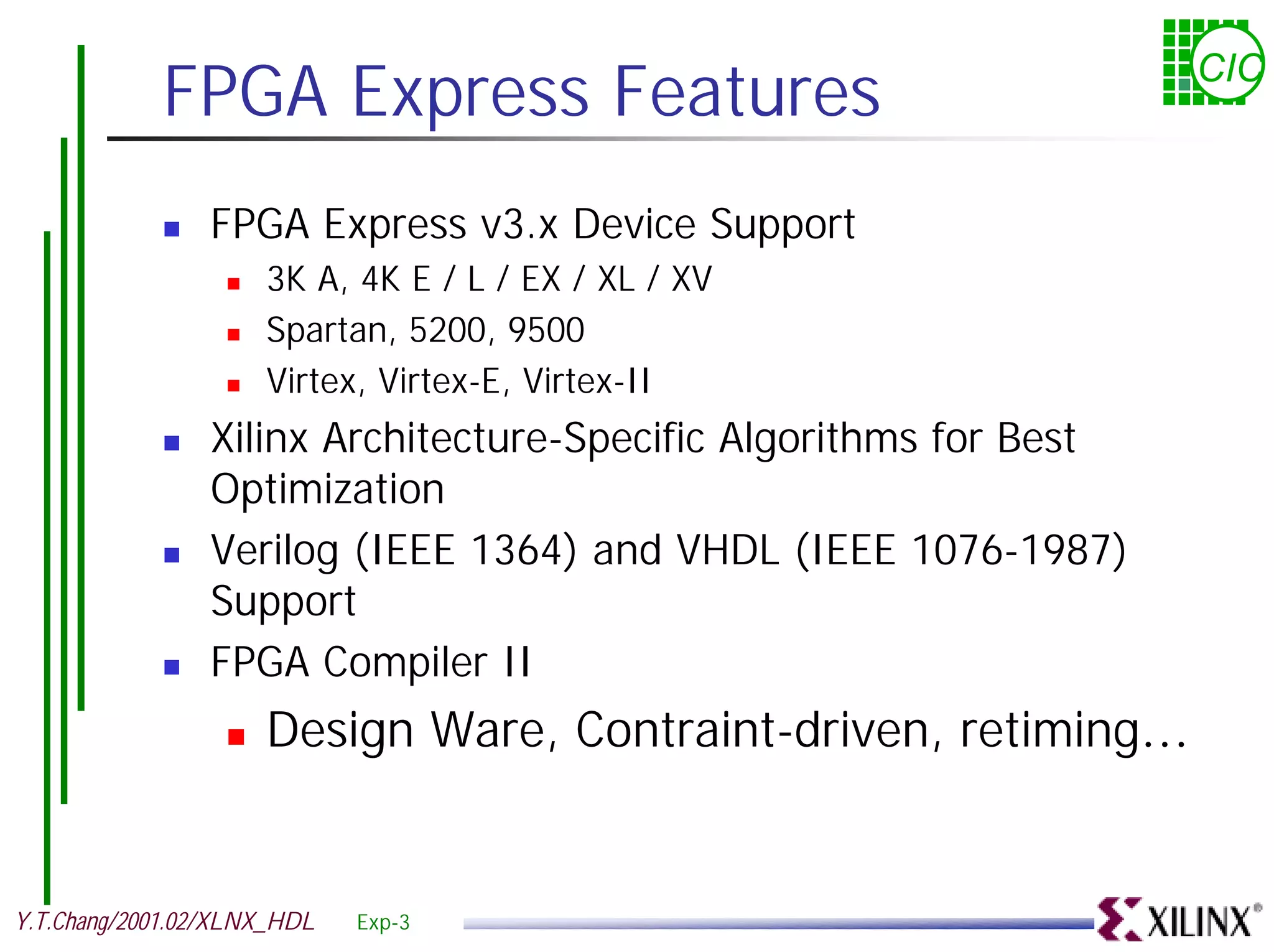

FPGA Express Features CIC ! FPGA Express v3.x Device Support ! 3K A, 4K E / L / EX / XL / XV ! Spartan, 5200, 9500 ! Virtex, Virtex-E, Virtex-II ! Xilinx Architecture-Specific Algorithms for Best Optimization ! Verilog (IEEE 1364) and VHDL (IEEE 1076-1987) Support ! FPGA Compiler II ! Design Ware, Contraint-driven, retiming… Y.T.Chang/2001.02/XLNX_HDL Exp-3

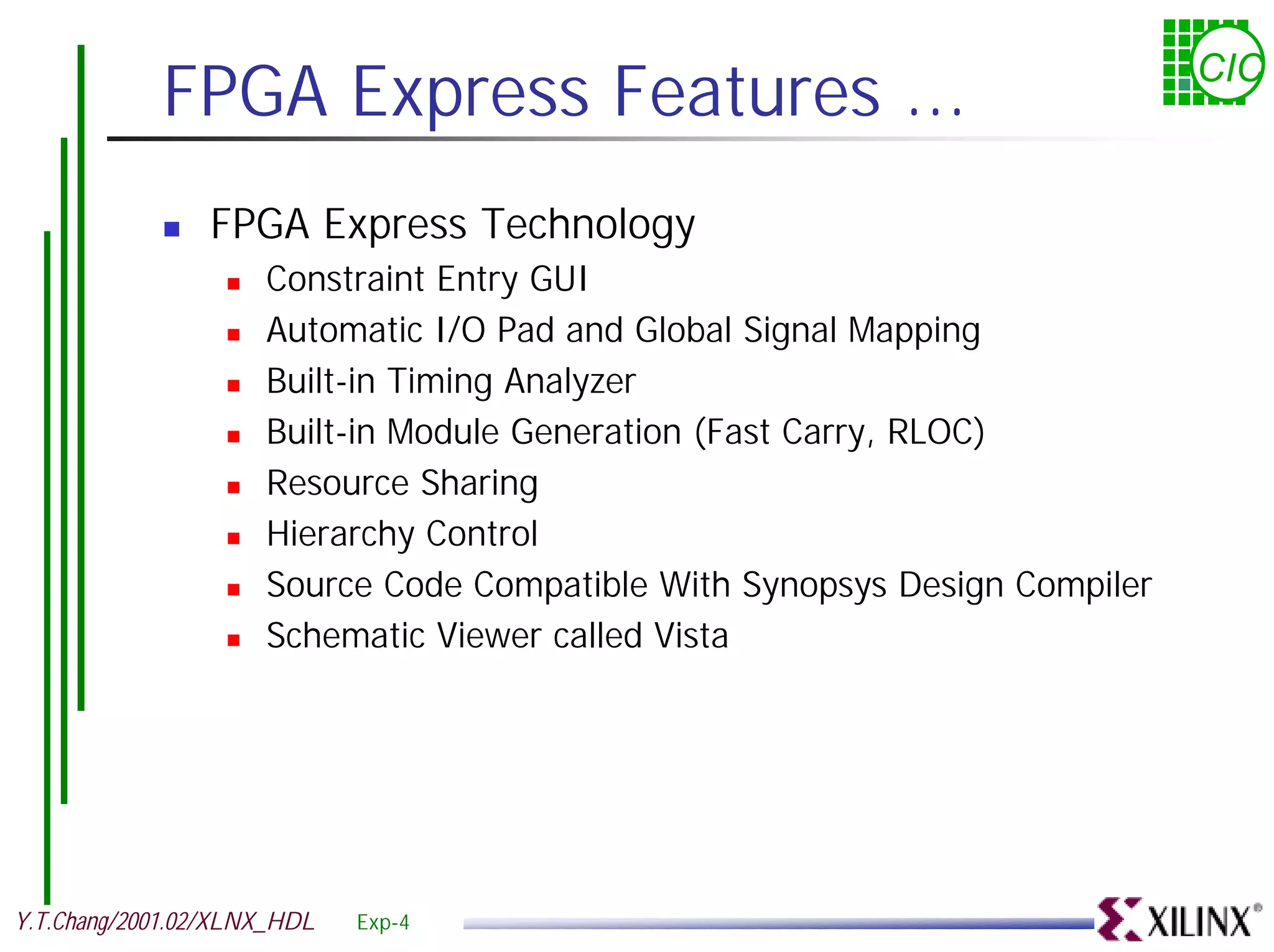

FPGA Express Features ... CIC ! FPGA Express Technology ! Constraint Entry GUI ! Automatic I/O Pad and Global Signal Mapping ! Built-in Timing Analyzer ! Built-in Module Generation (Fast Carry, RLOC) ! Resource Sharing ! Hierarchy Control ! Source Code Compatible With Synopsys Design Compiler ! Schematic Viewer called Vista Y.T.Chang/2001.02/XLNX_HDL Exp-4

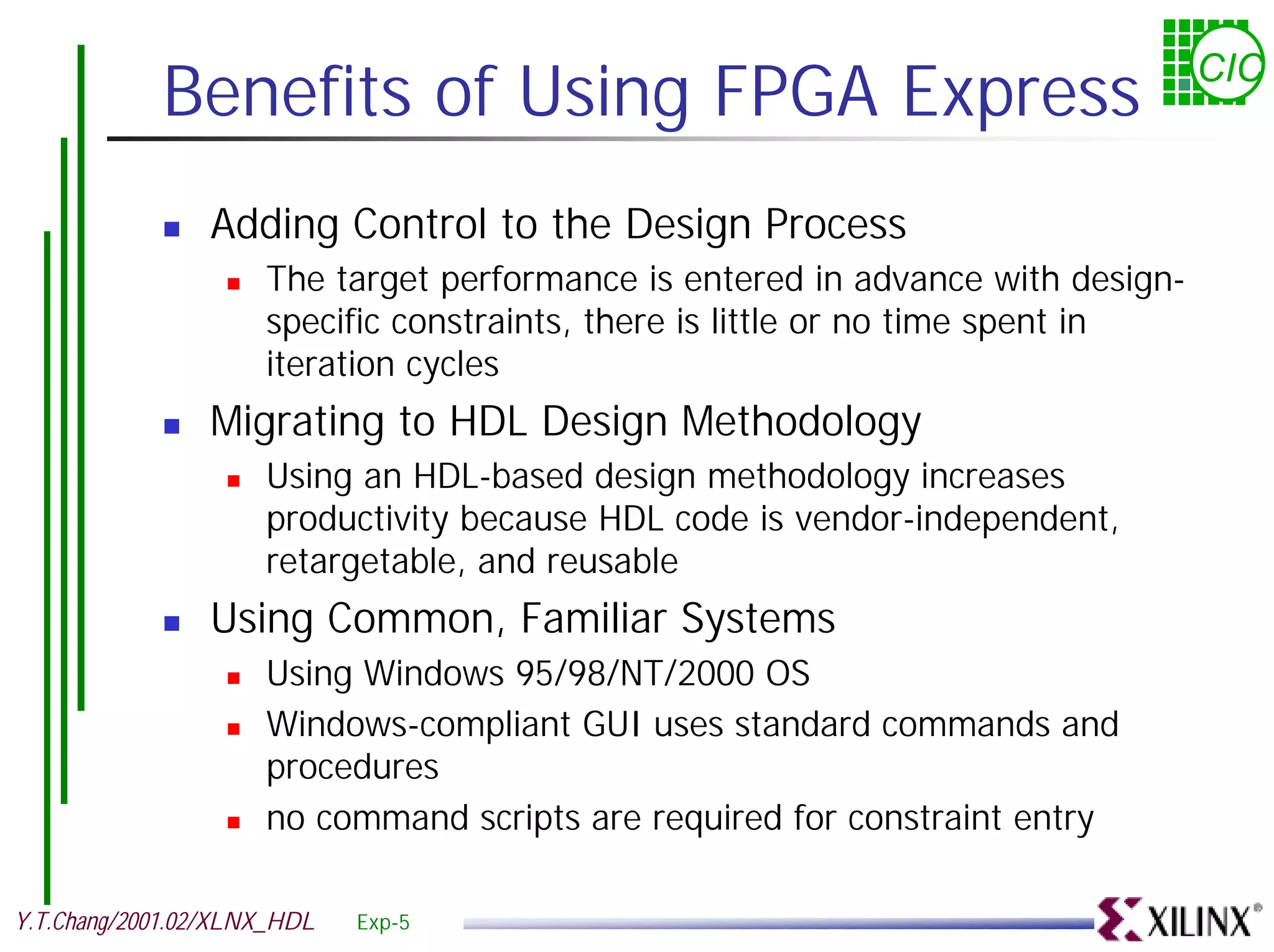

Benefits of Using FPGA Express CIC ! Adding Control to the Design Process ! The target performance is entered in advance with design- specific constraints, there is little or no time spent in iteration cycles ! Migrating to HDL Design Methodology ! Using an HDL-based design methodology increases productivity because HDL code is vendor-independent, retargetable, and reusable ! Using Common, Familiar Systems ! Using Windows 95/98/NT/2000 OS ! Windows-compliant GUI uses standard commands and procedures ! no command scripts are required for constraint entry Y.T.Chang/2001.02/XLNX_HDL Exp-5

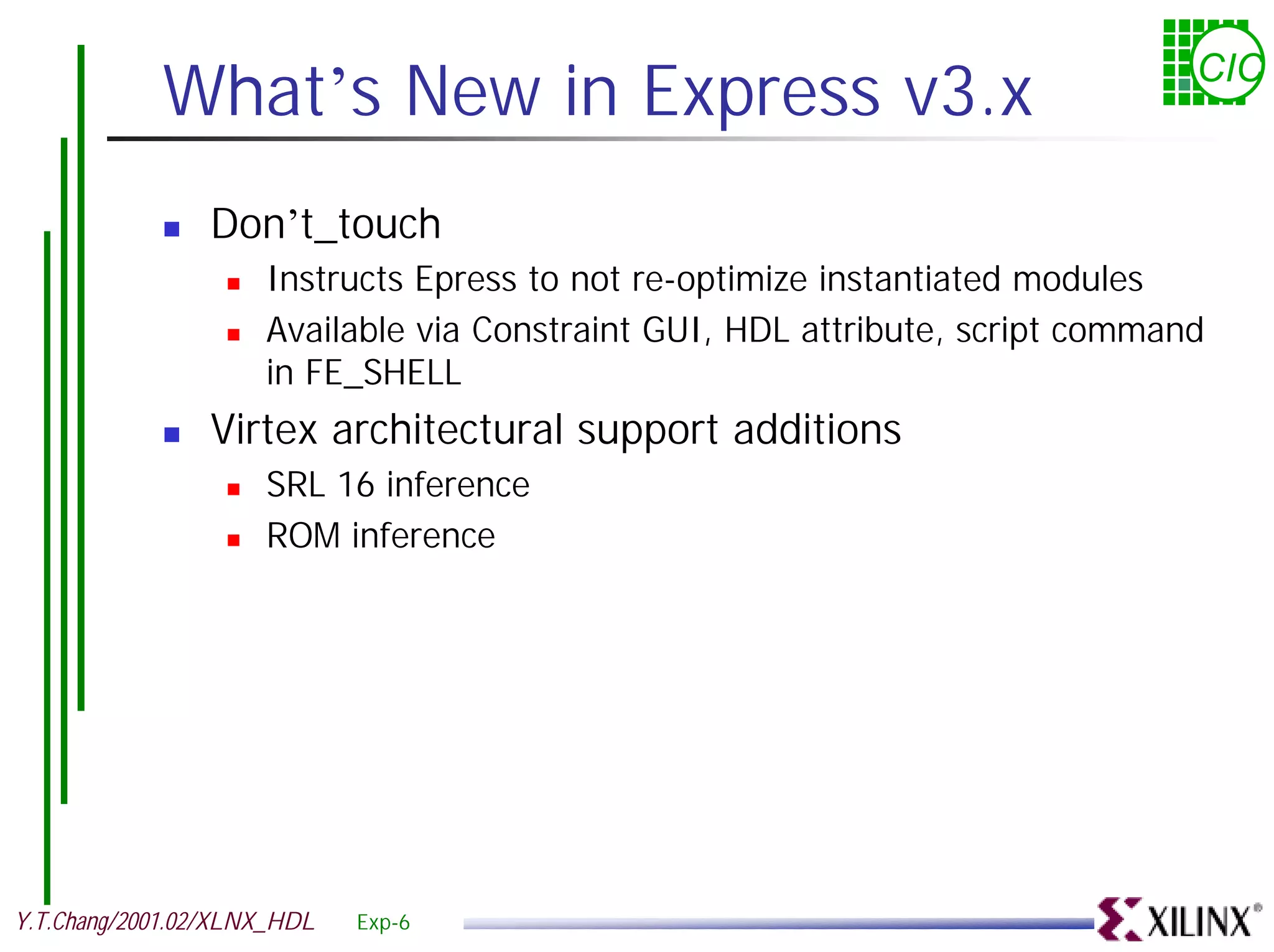

What’s New in Express v3.x CIC ! Don’t_touch ! Instructs Epress to not re-optimize instantiated modules ! Available via Constraint GUI, HDL attribute, script command in FE_SHELL ! Virtex architectural support additions ! SRL 16 inference ! ROM inference Y.T.Chang/2001.02/XLNX_HDL Exp-6

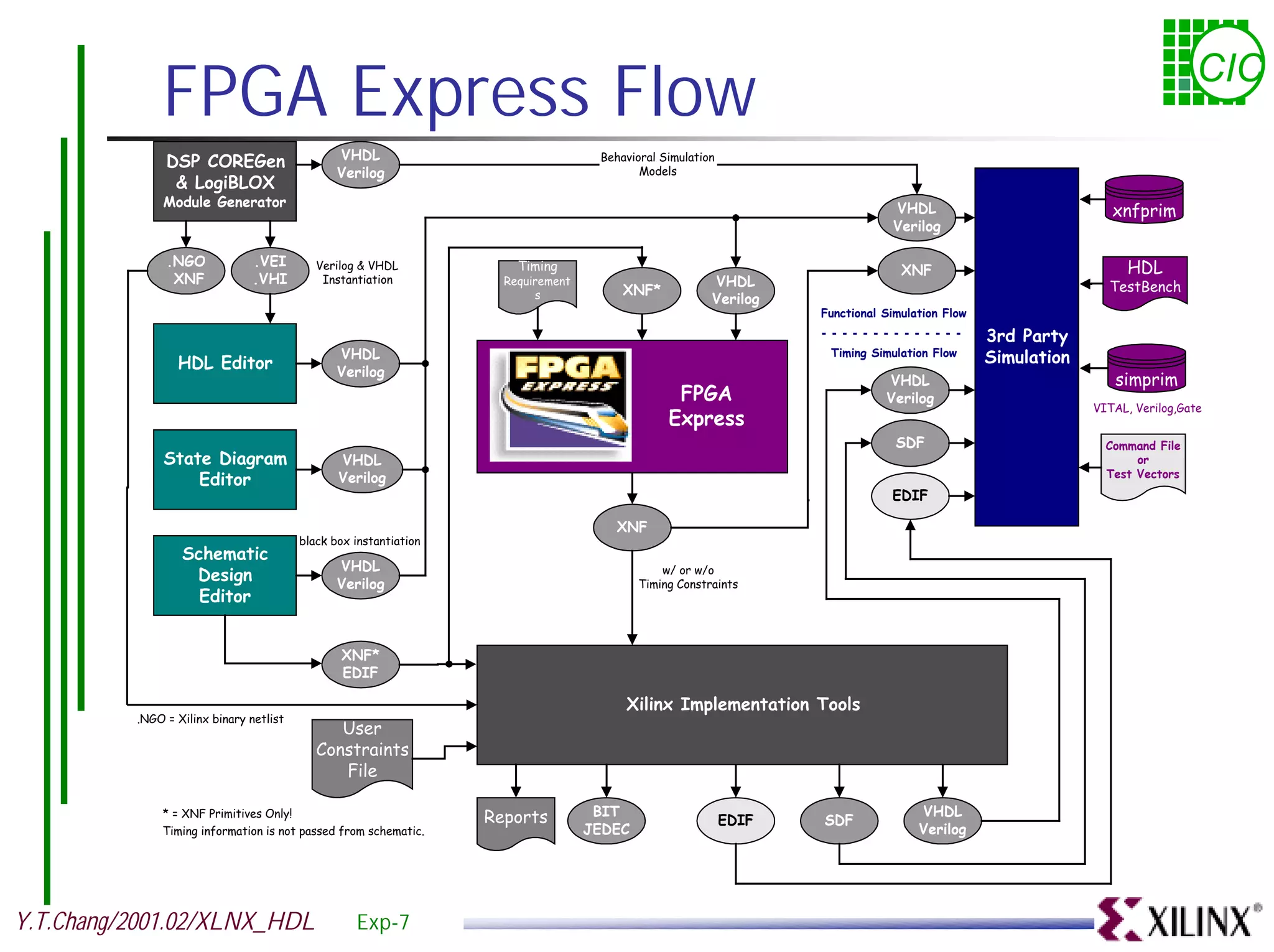

FPGA Express Flow CIC DSP COREGen VHDL Behavioral Simulation Verilog Models & LogiBLOX Module Generator VHDL xnfprim Verilog .NGO .VEI Verilog & VHDL Timing HDL XNF XNF .VHI Instantiation Requirement VHDL XNF* TestBench s Verilog Functional Simulation Flow 3rd Party VHDL Timing Simulation Flow Simulation HDL Editor Verilog VHDL simprim FPGA Verilog VITAL, Verilog,Gate Express SDF Command File State Diagram VHDL or Test Vectors Editor Verilog EDIF XNF black box instantiation Schematic VHDL w/ or w/o Design Verilog Timing Constraints Editor XNF* EDIF Xilinx Implementation Tools .NGO = Xilinx binary netlist User Constraints File * = XNF Primitives Only! Reports BIT VHDL EDIF SDF Timing information is not passed from schematic. JEDEC Verilog Y.T.Chang/2001.02/XLNX_HDL Exp-7

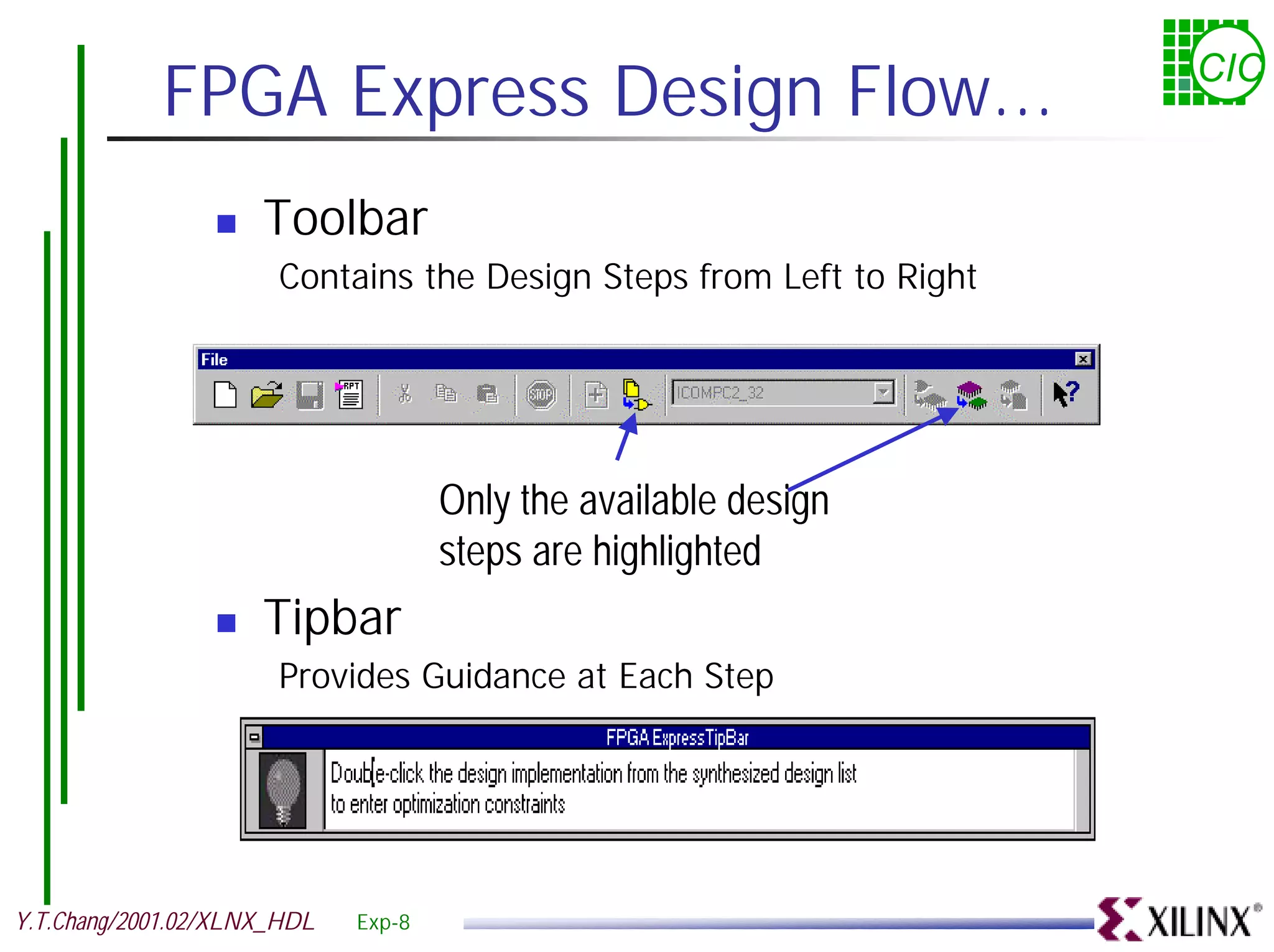

FPGA Express Design Flow... CIC ! Toolbar Contains the Design Steps from Left to Right Only the available design steps are highlighted ! Tipbar Provides Guidance at Each Step Y.T.Chang/2001.02/XLNX_HDL Exp-8

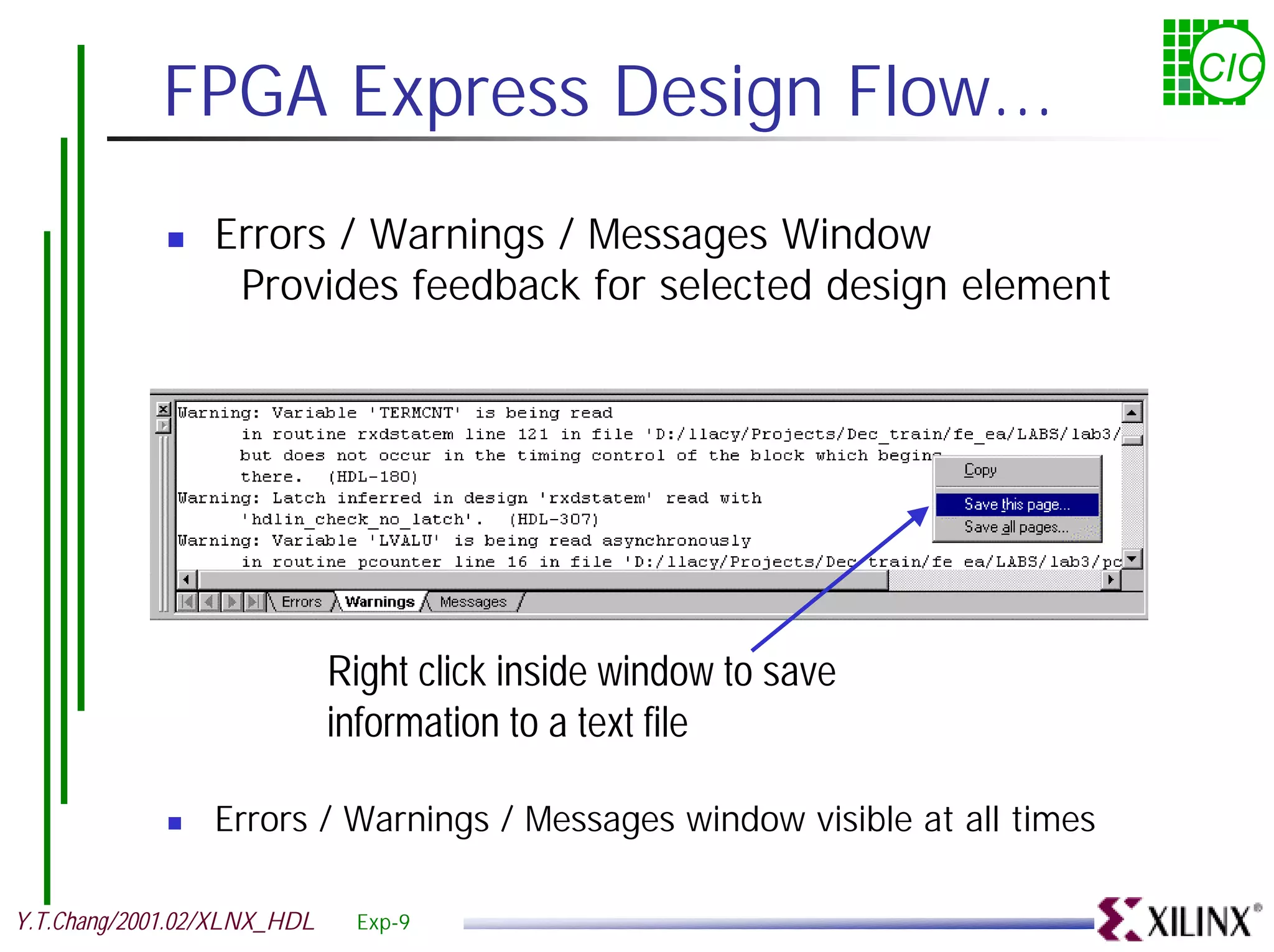

FPGA Express Design Flow... CIC ! Errors / Warnings / Messages Window Provides feedback for selected design element Right click inside window to save information to a text file ! Errors / Warnings / Messages window visible at all times Y.T.Chang/2001.02/XLNX_HDL Exp-9

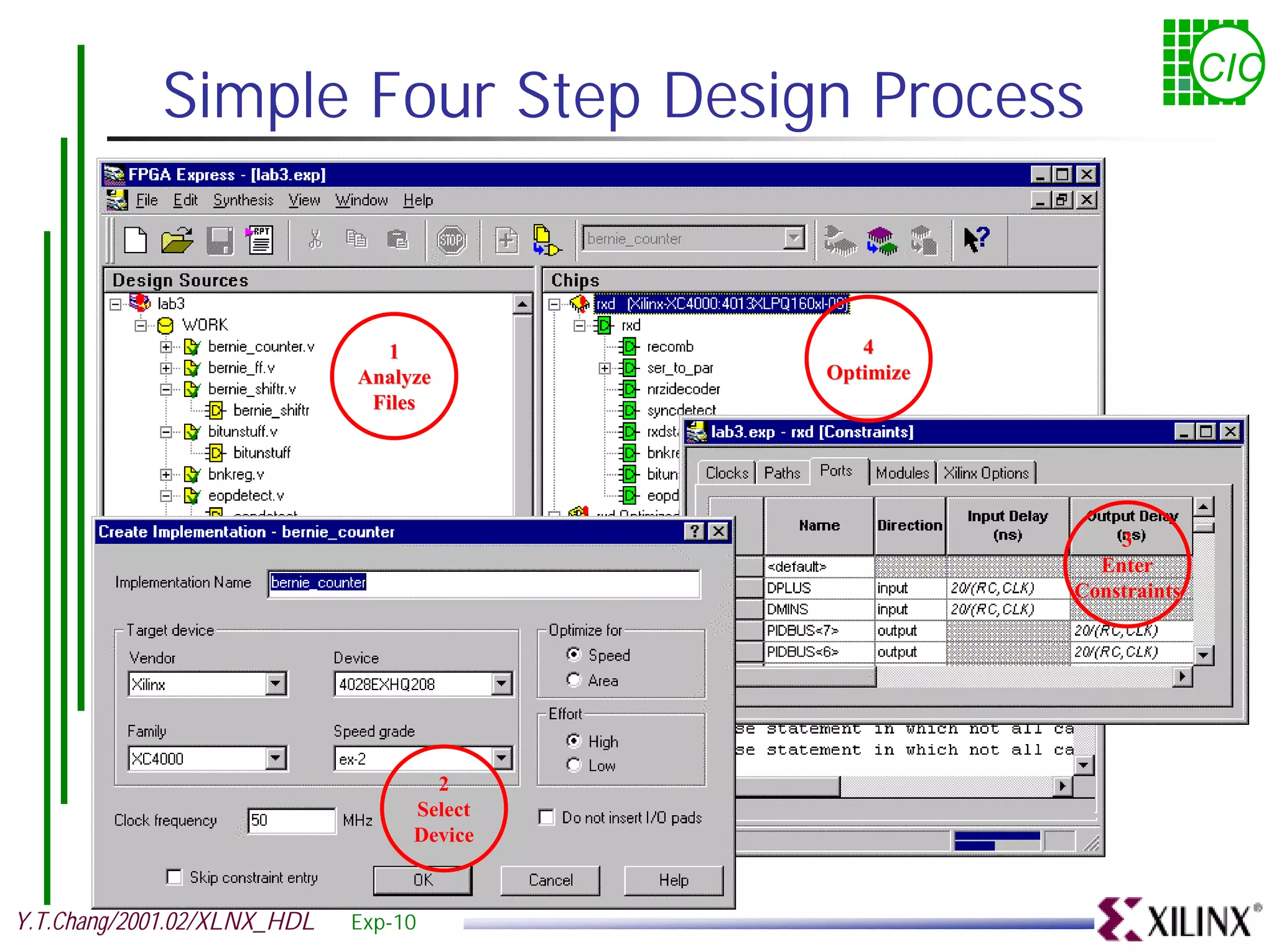

CIC Simple Four Step Design Process 1 4 Analyze Optimize Files 3 Enter Constraints 2 Select Device Y.T.Chang/2001.02/XLNX_HDL Exp-10

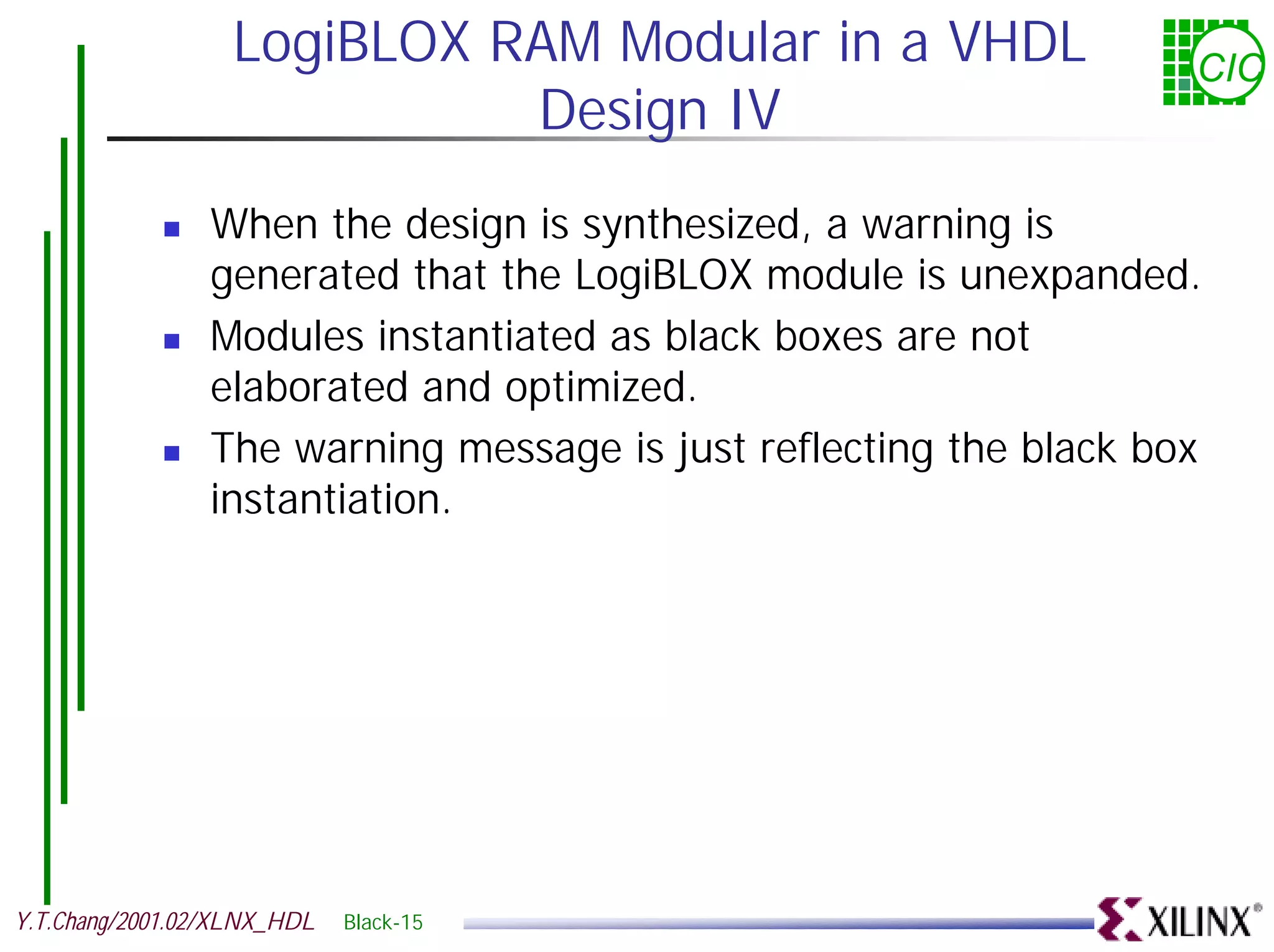

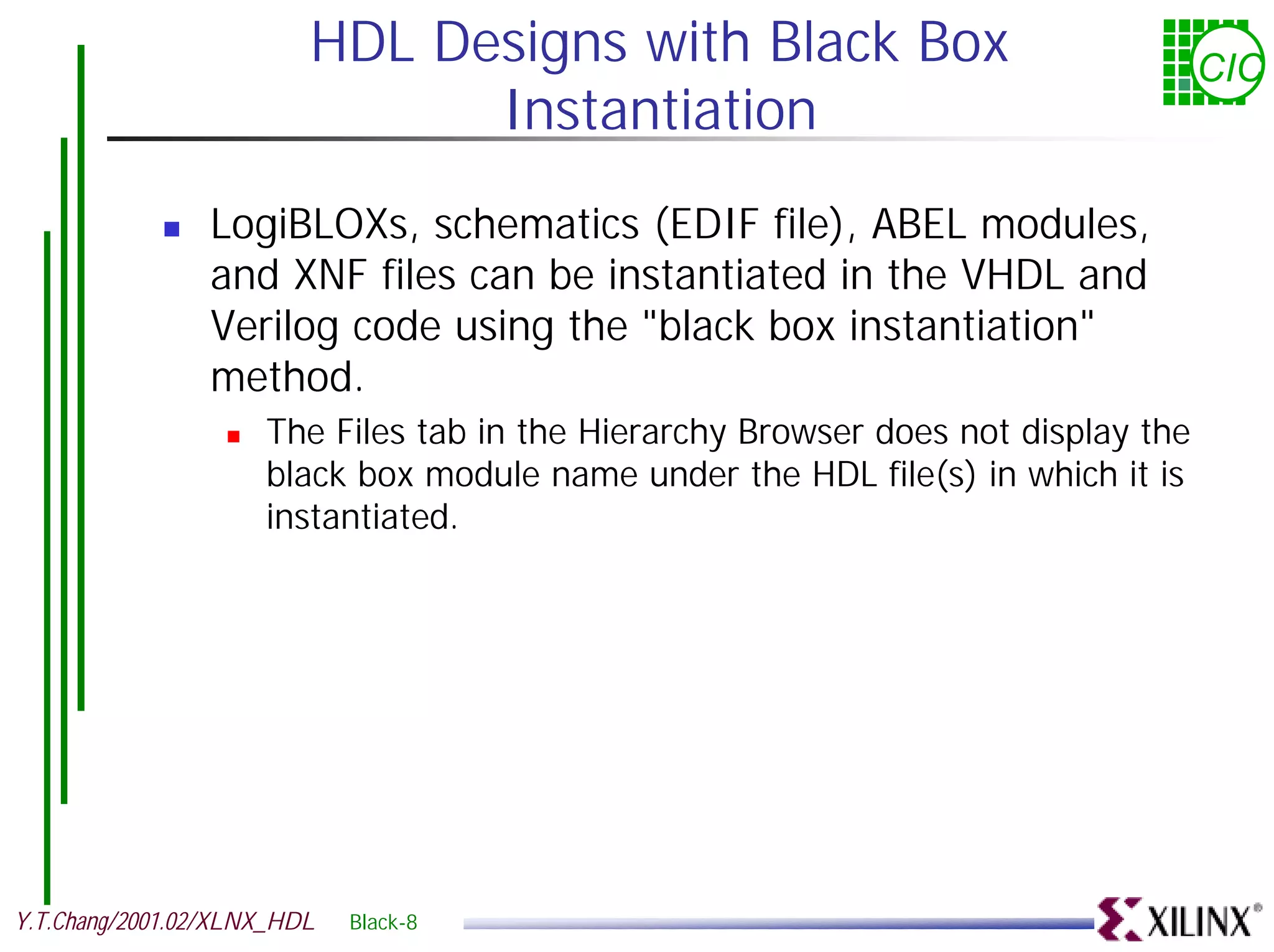

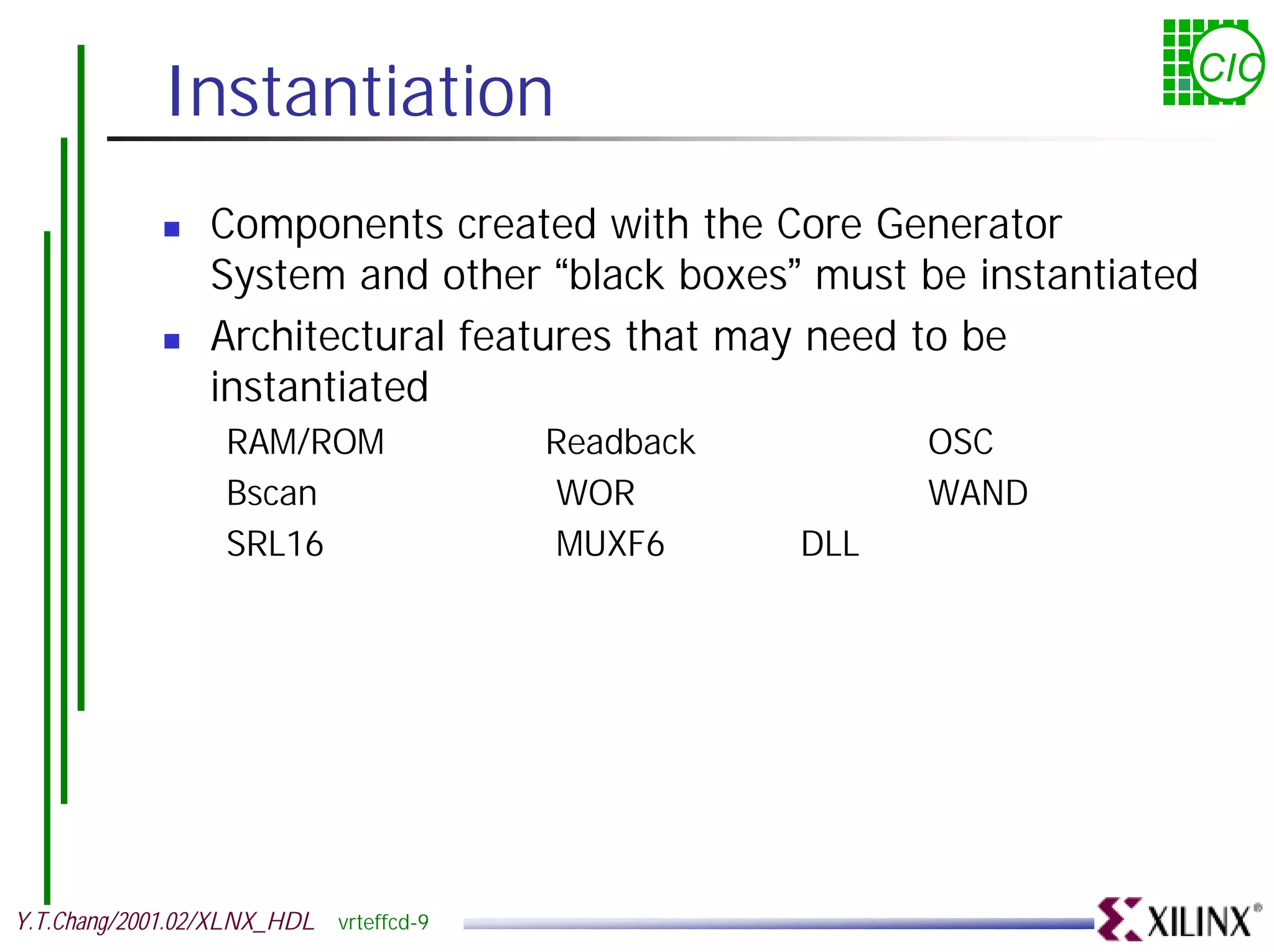

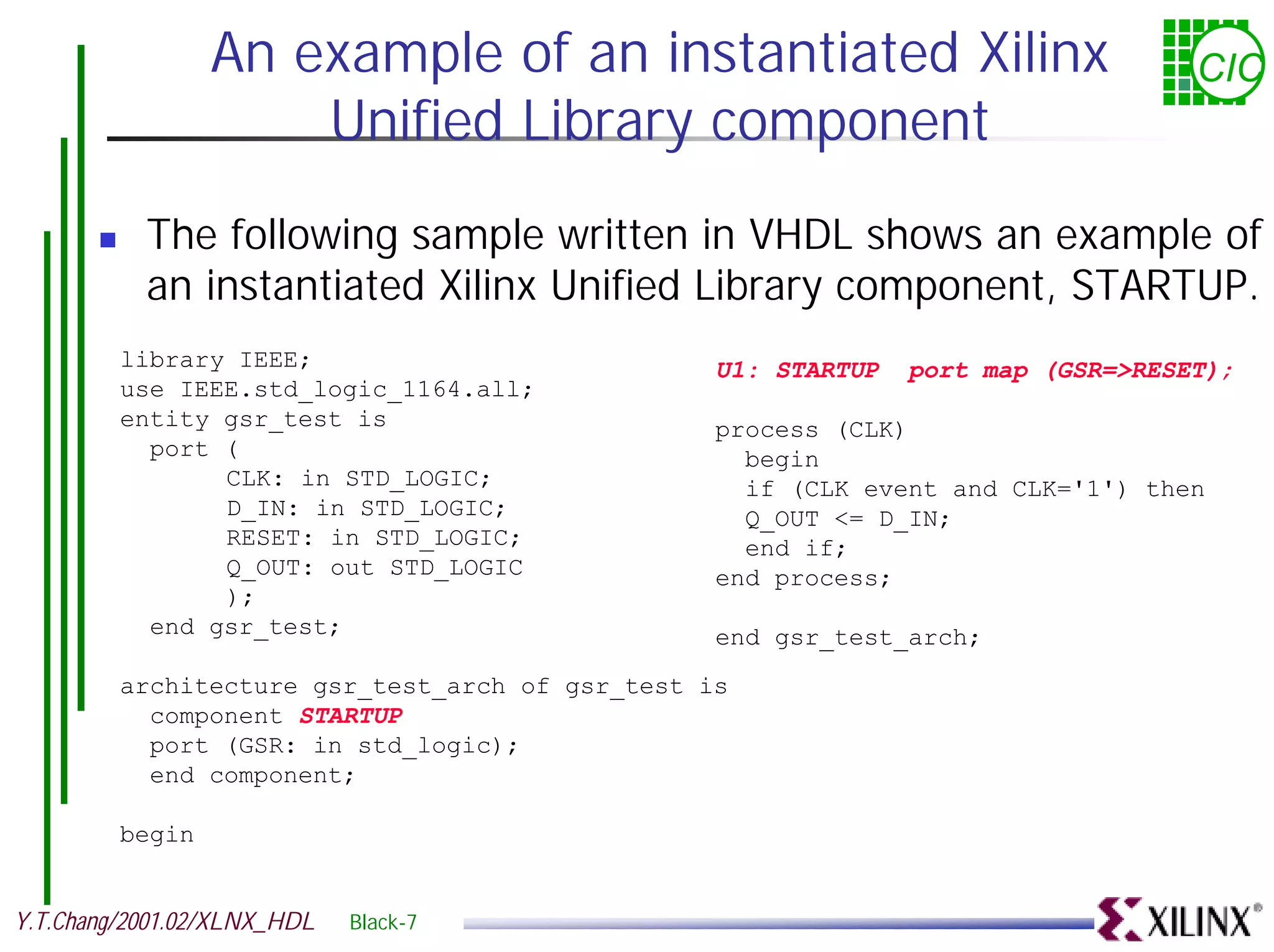

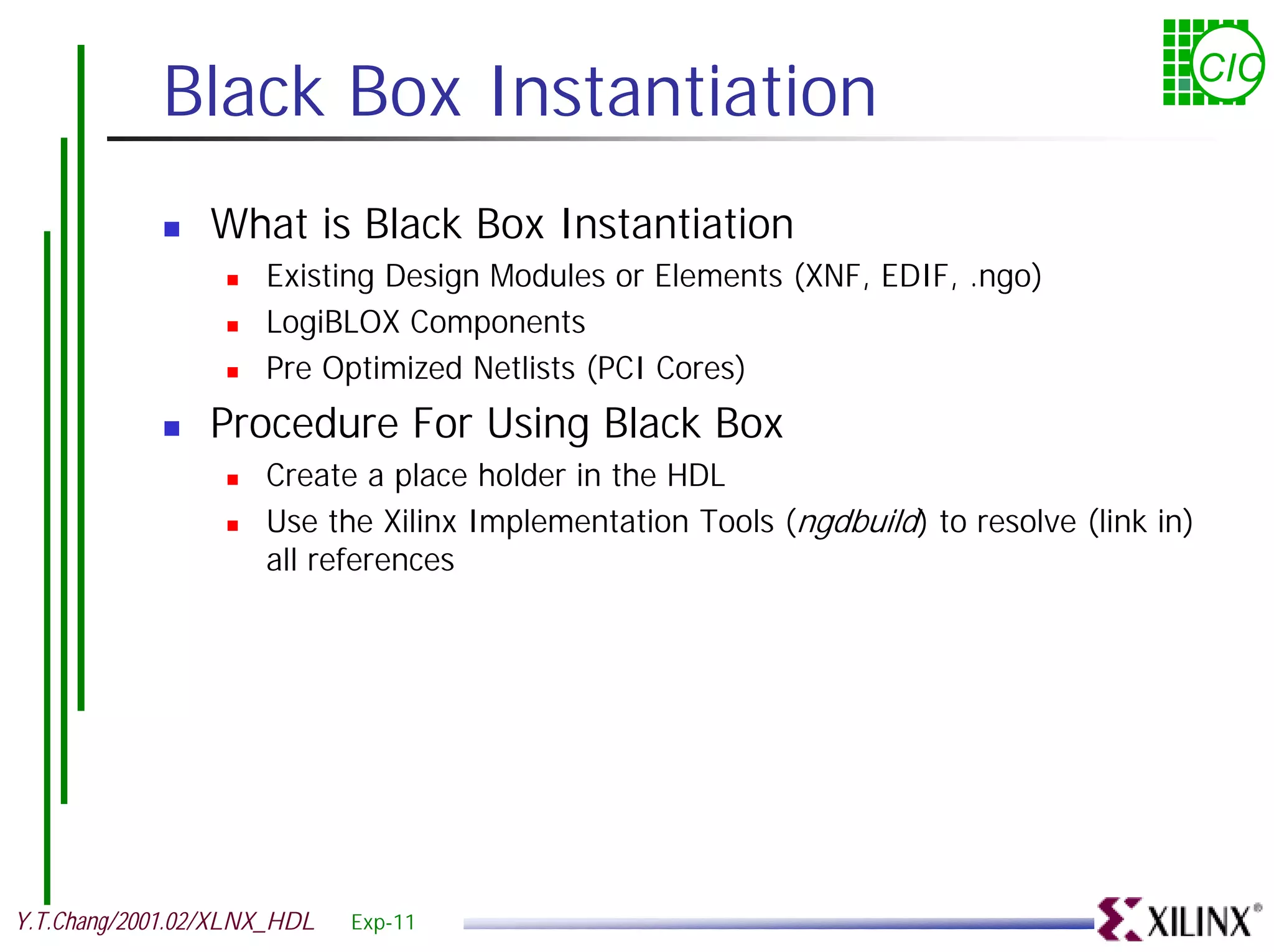

Black Box Instantiation CIC ! What is Black Box Instantiation ! Existing Design Modules or Elements (XNF, EDIF, .ngo) ! LogiBLOX Components ! Pre Optimized Netlists (PCI Cores) ! Procedure For Using Black Box ! Create a place holder in the HDL ! Use the Xilinx Implementation Tools (ngdbuild) to resolve (link in) all references Y.T.Chang/2001.02/XLNX_HDL Exp-11

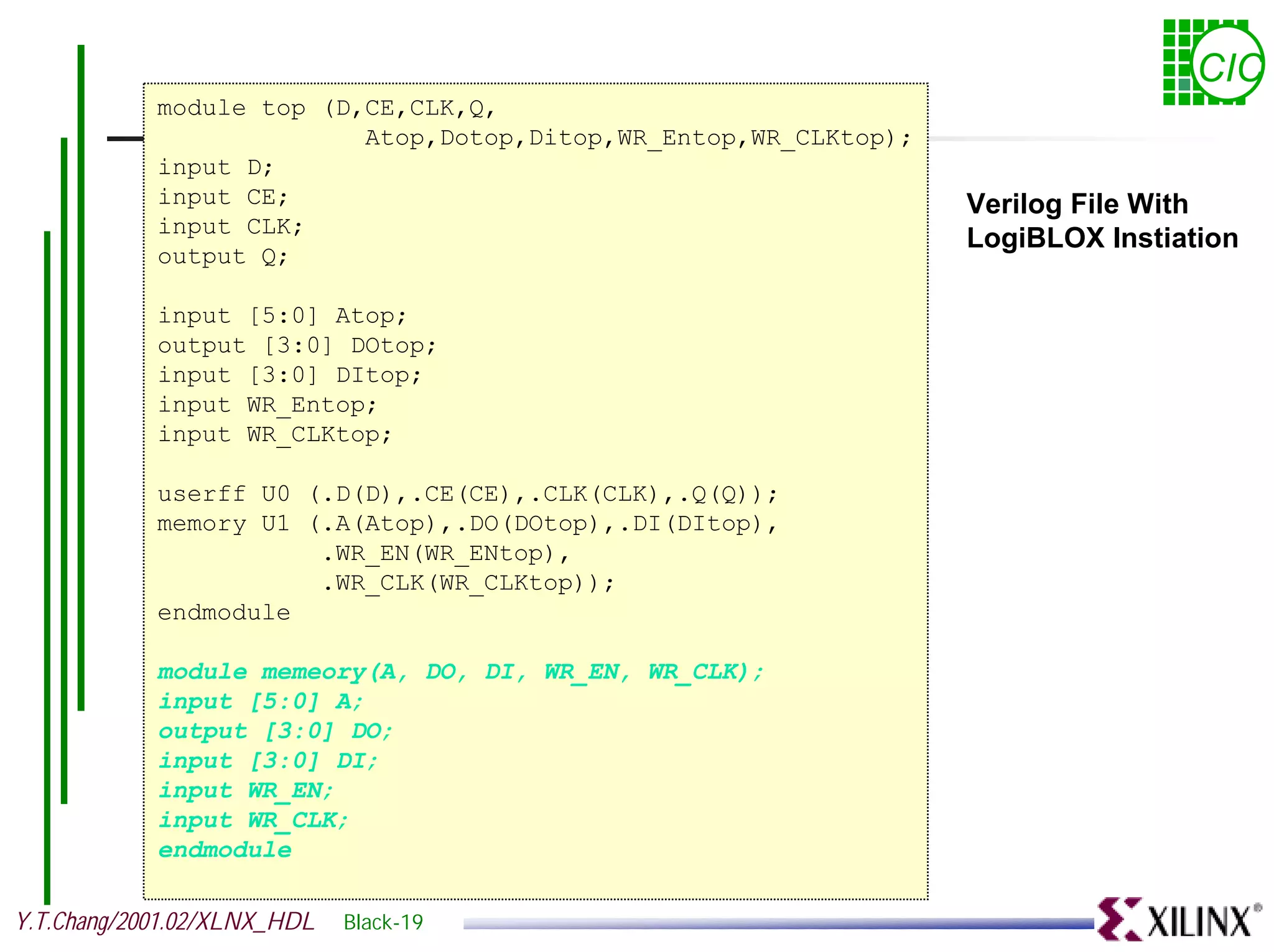

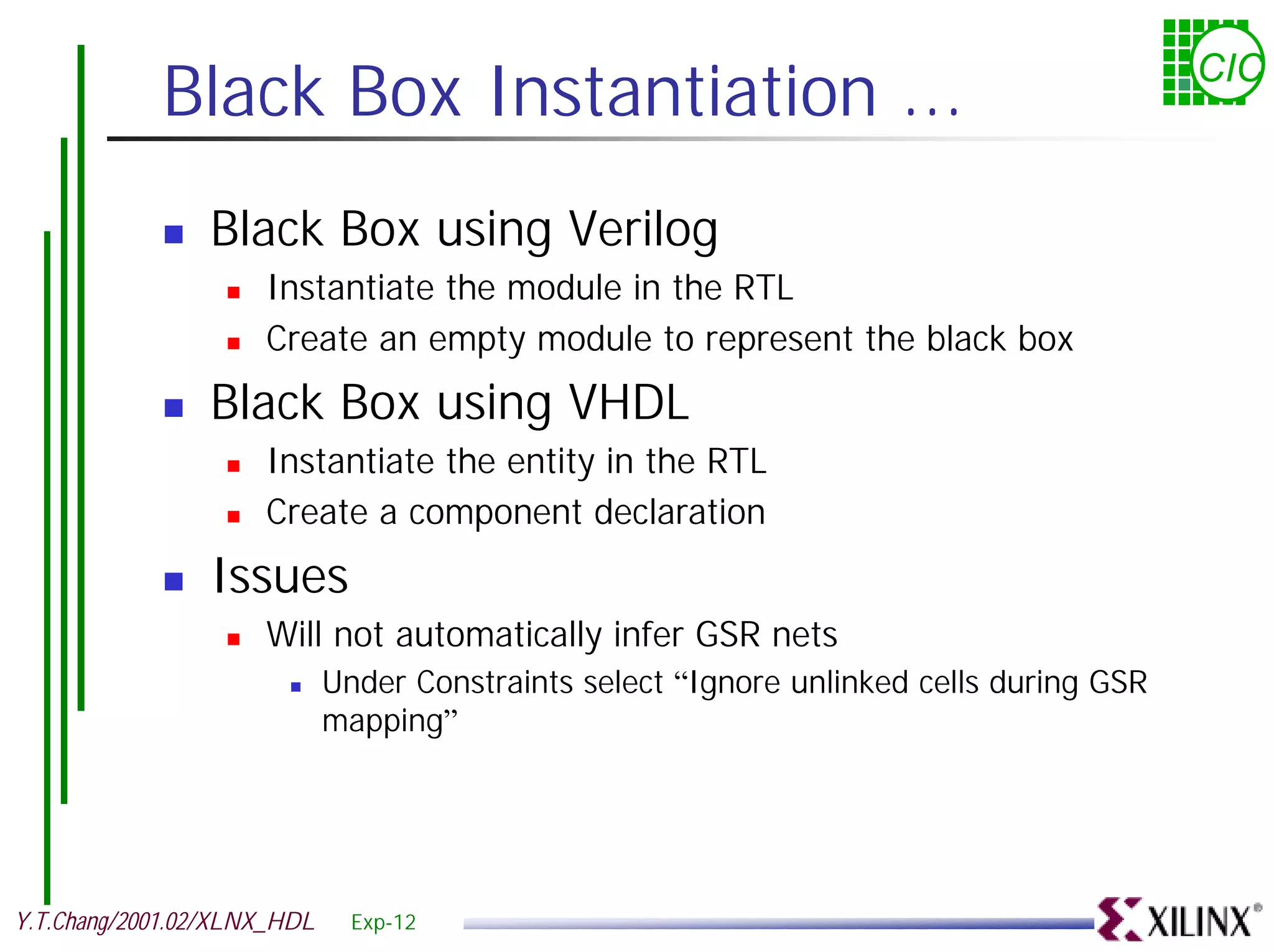

Black Box Instantiation ... CIC ! Black Box using Verilog ! Instantiate the module in the RTL ! Create an empty module to represent the black box ! Black Box using VHDL ! Instantiate the entity in the RTL ! Create a component declaration ! Issues ! Will not automatically infer GSR nets ! Under Constraints select “Ignore unlinked cells during GSR mapping” Y.T.Chang/2001.02/XLNX_HDL Exp-12

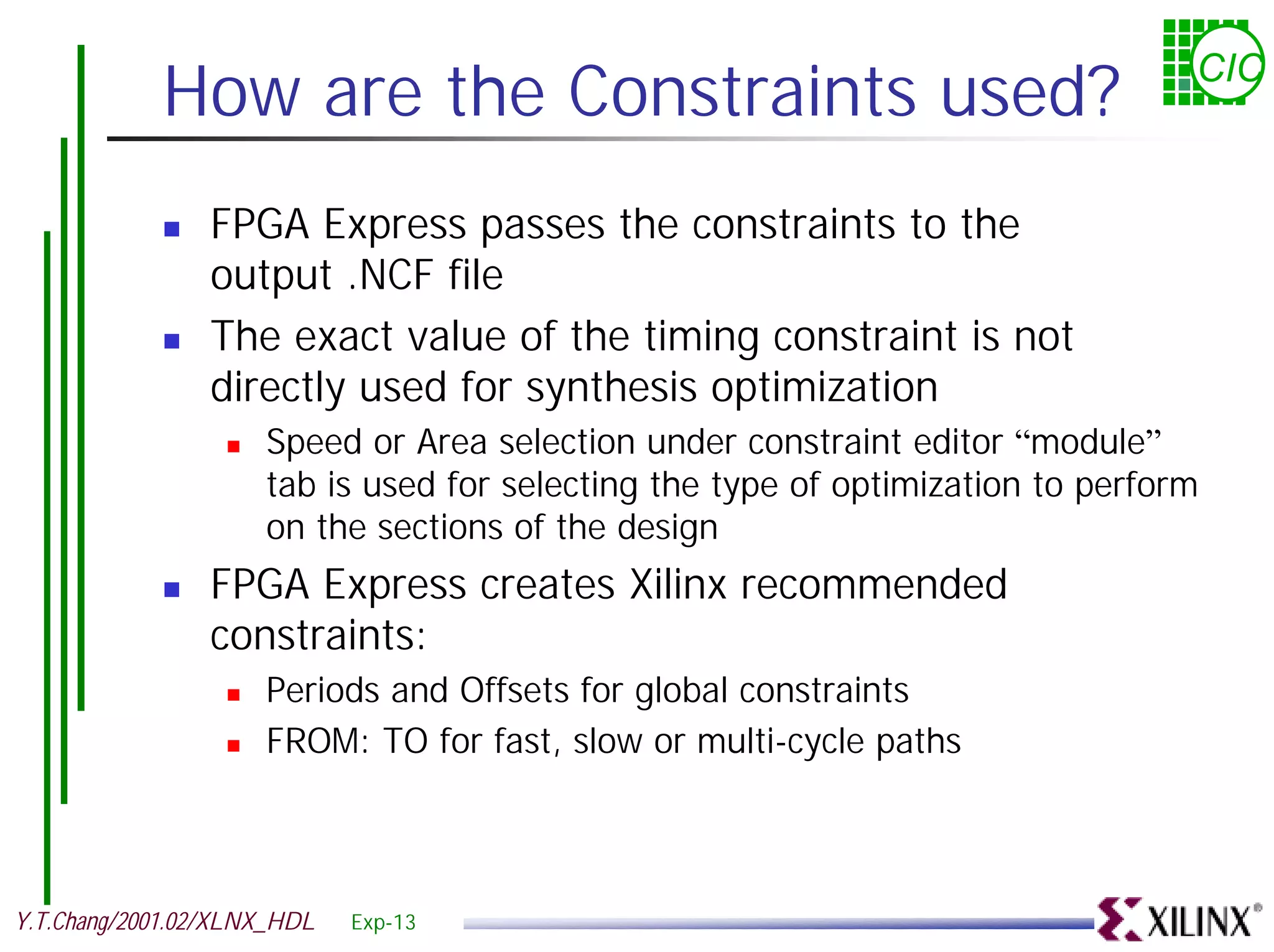

How are the Constraints used? CIC ! FPGA Express passes the constraints to the output .NCF file ! The exact value of the timing constraint is not directly used for synthesis optimization ! Speed or Area selection under constraint editor “module” tab is used for selecting the type of optimization to perform on the sections of the design ! FPGA Express creates Xilinx recommended constraints: ! Periods and Offsets for global constraints ! FROM: TO for fast, slow or multi-cycle paths Y.T.Chang/2001.02/XLNX_HDL Exp-13

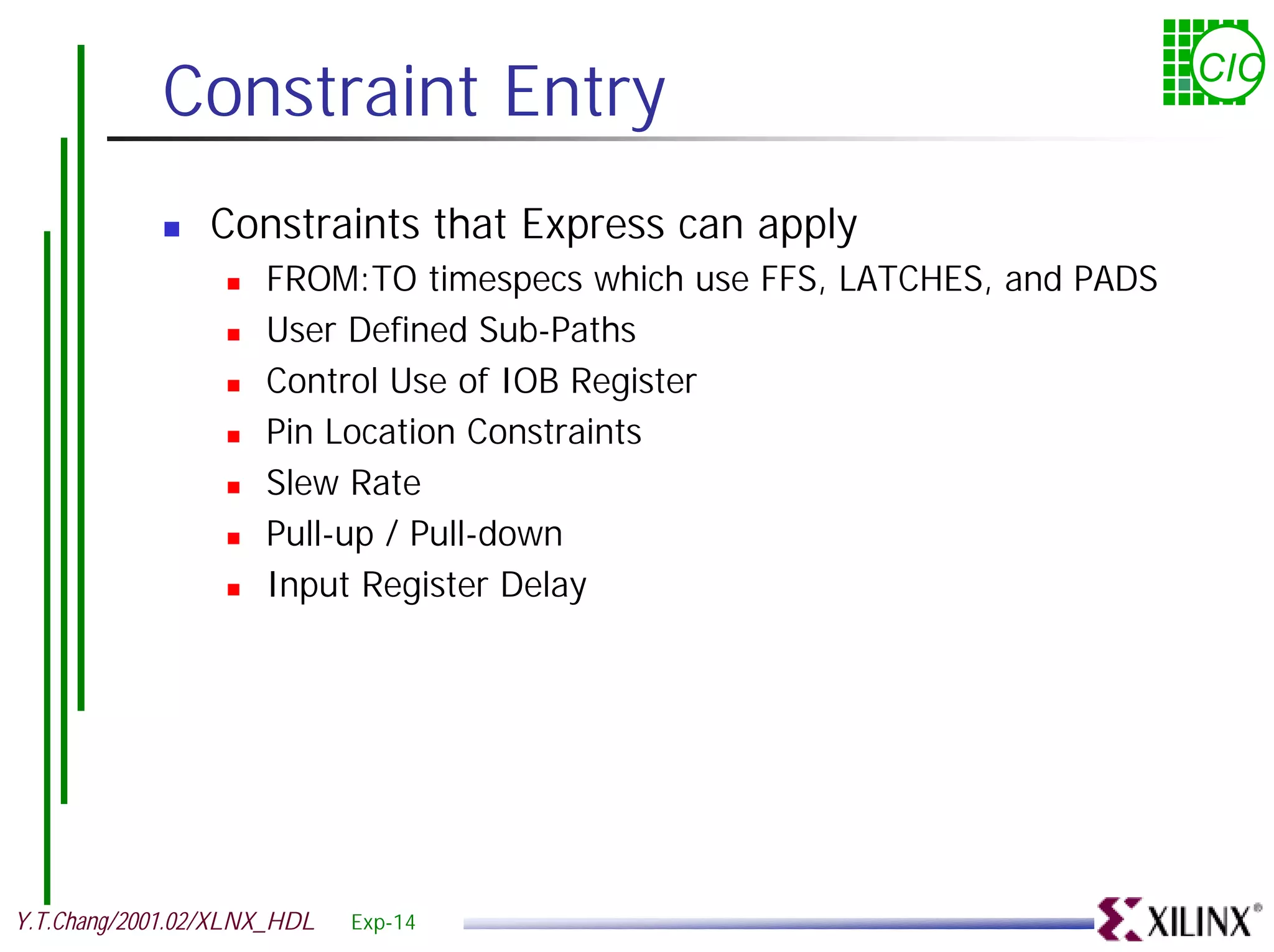

Constraint Entry CIC ! Constraints that Express can apply ! FROM:TO timespecs which use FFS, LATCHES, and PADS ! User Defined Sub-Paths ! Control Use of IOB Register ! Pin Location Constraints ! Slew Rate ! Pull-up / Pull-down ! Input Register Delay Y.T.Chang/2001.02/XLNX_HDL Exp-14

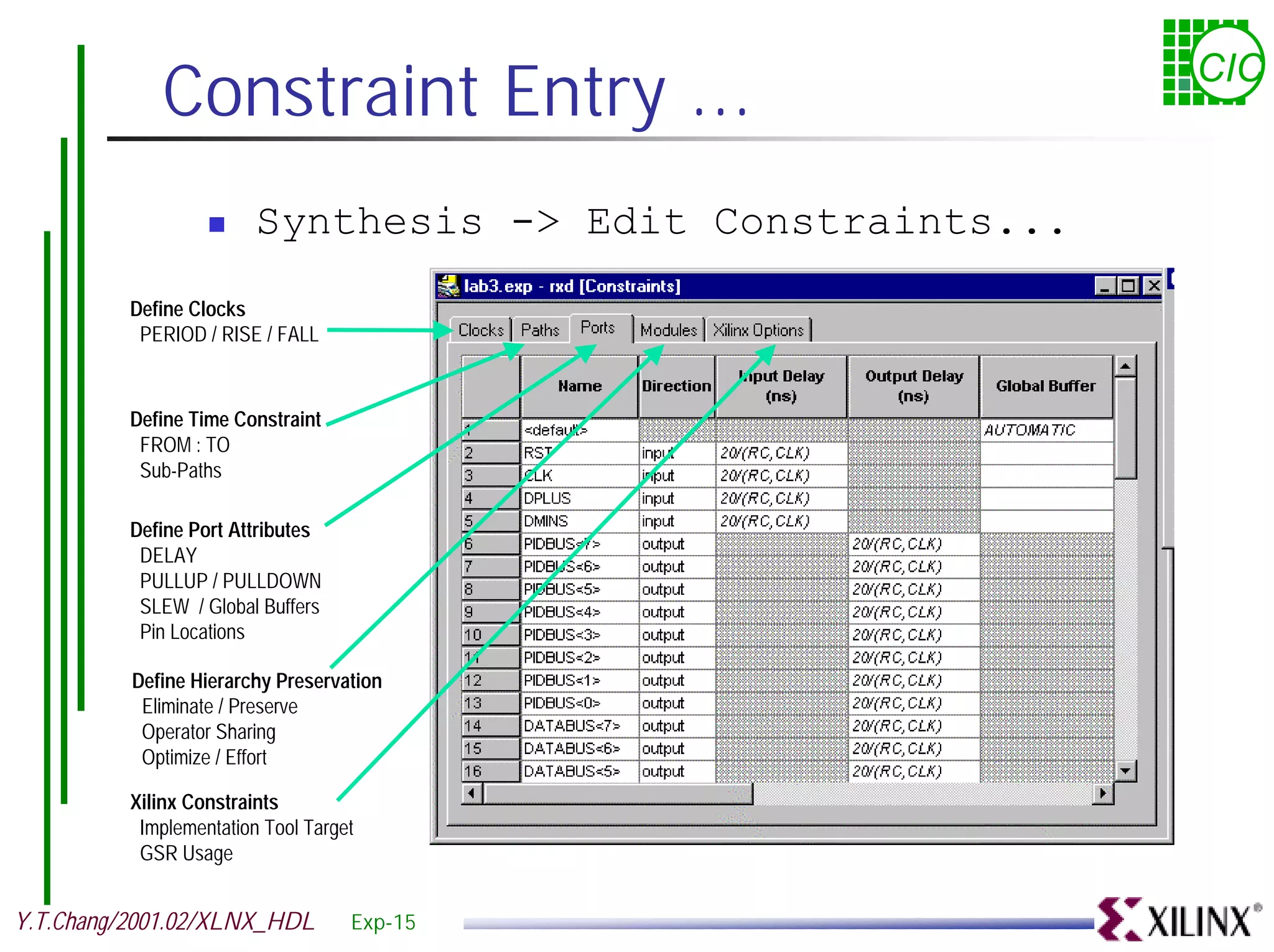

Constraint Entry ... CIC ! Synthesis -> Edit Constraints... Define Clocks PERIOD / RISE / FALL Define Time Constraint FROM : TO Sub-Paths Define Port Attributes DELAY PULLUP / PULLDOWN SLEW / Global Buffers Pin Locations Define Hierarchy Preservation Eliminate / Preserve Operator Sharing Optimize / Effort Xilinx Constraints Implementation Tool Target GSR Usage Y.T.Chang/2001.02/XLNX_HDL Exp-15

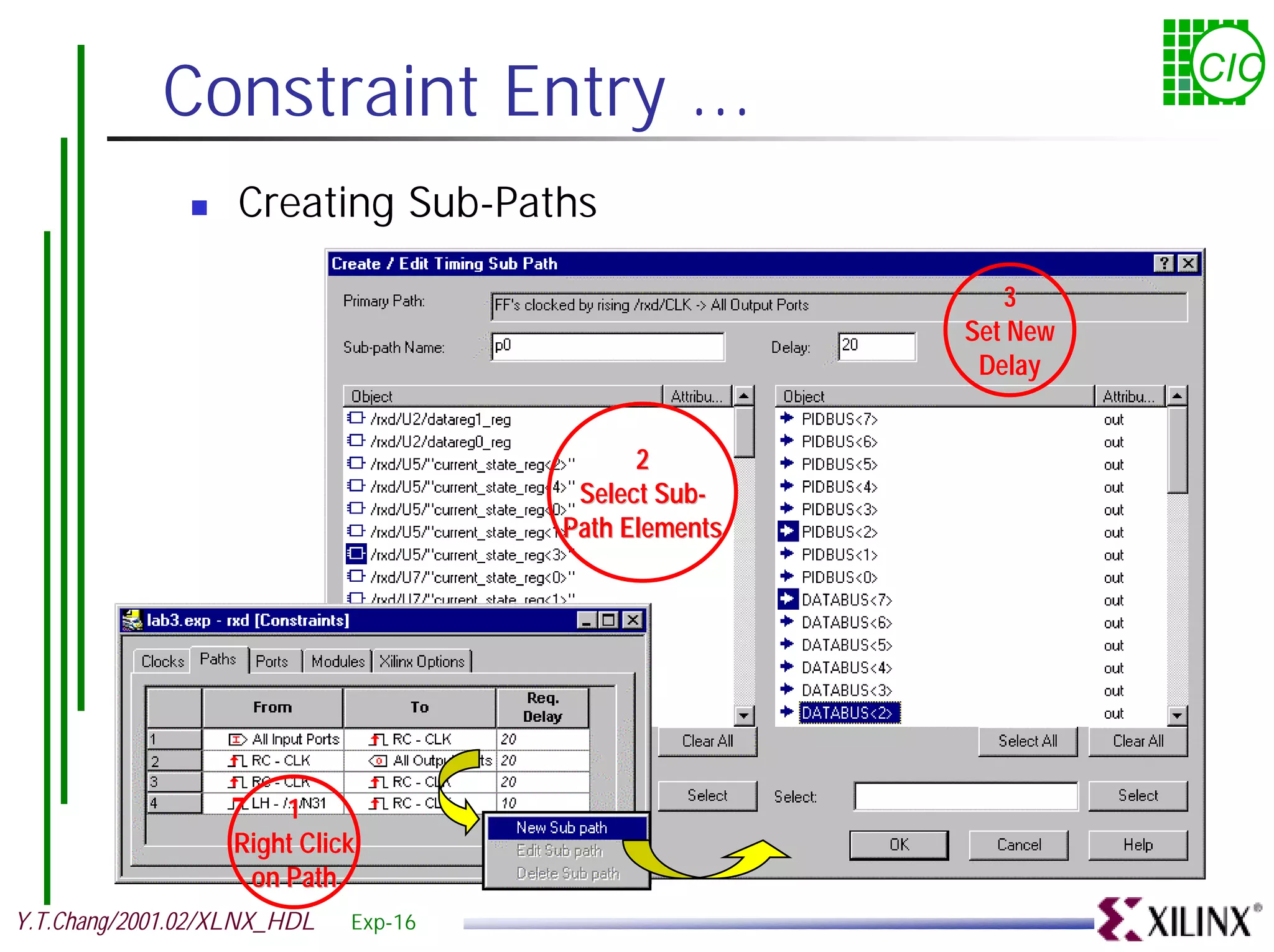

Constraint Entry ... CIC ! Creating Sub-Paths 3 Set New Delay 2 Select Sub- Path Elements 1 Right Click on Path Y.T.Chang/2001.02/XLNX_HDL Exp-16

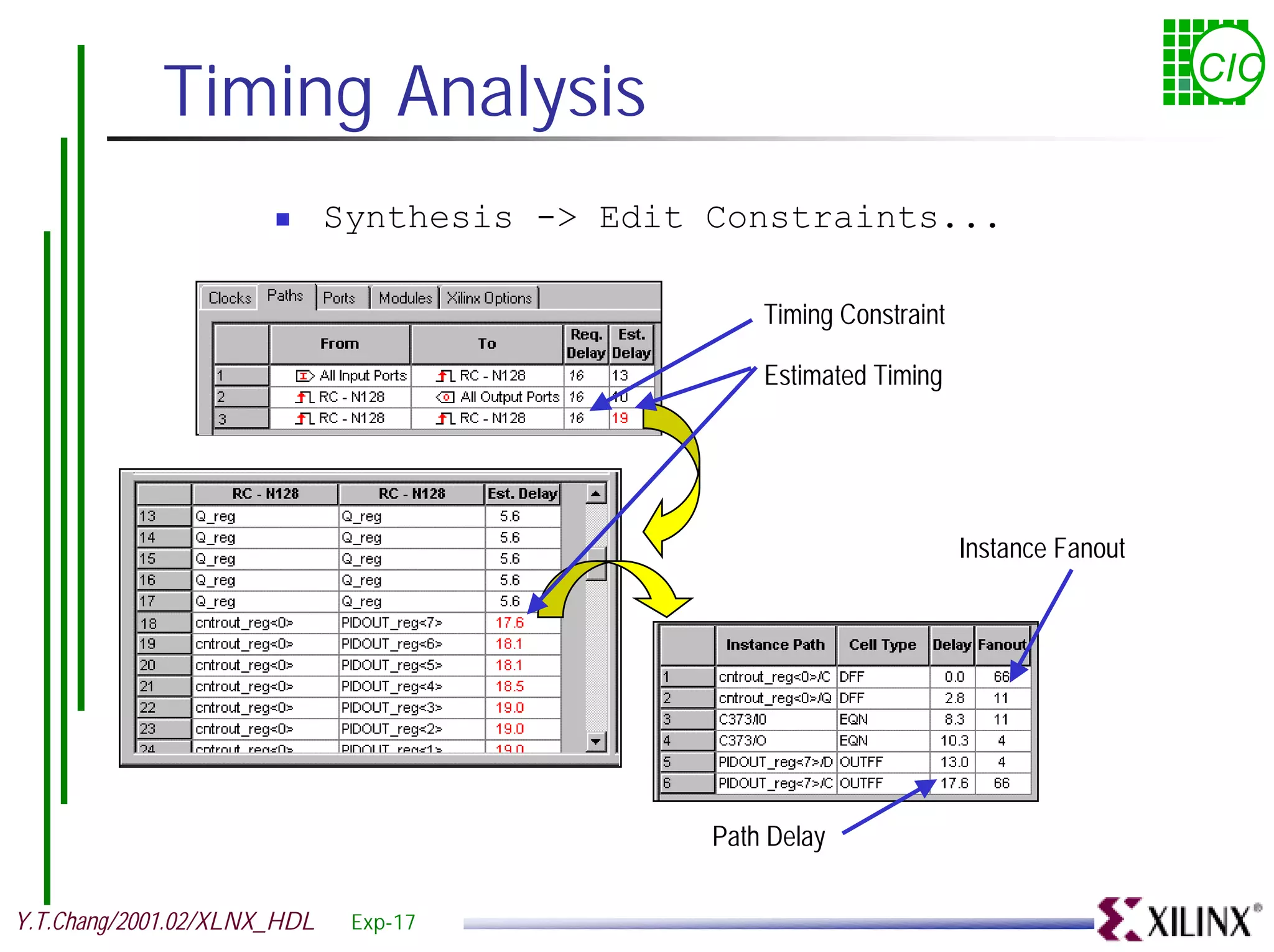

Timing Analysis CIC ! Synthesis -> Edit Constraints... Timing Constraint Estimated Timing Instance Fanout Path Delay Y.T.Chang/2001.02/XLNX_HDL Exp-17

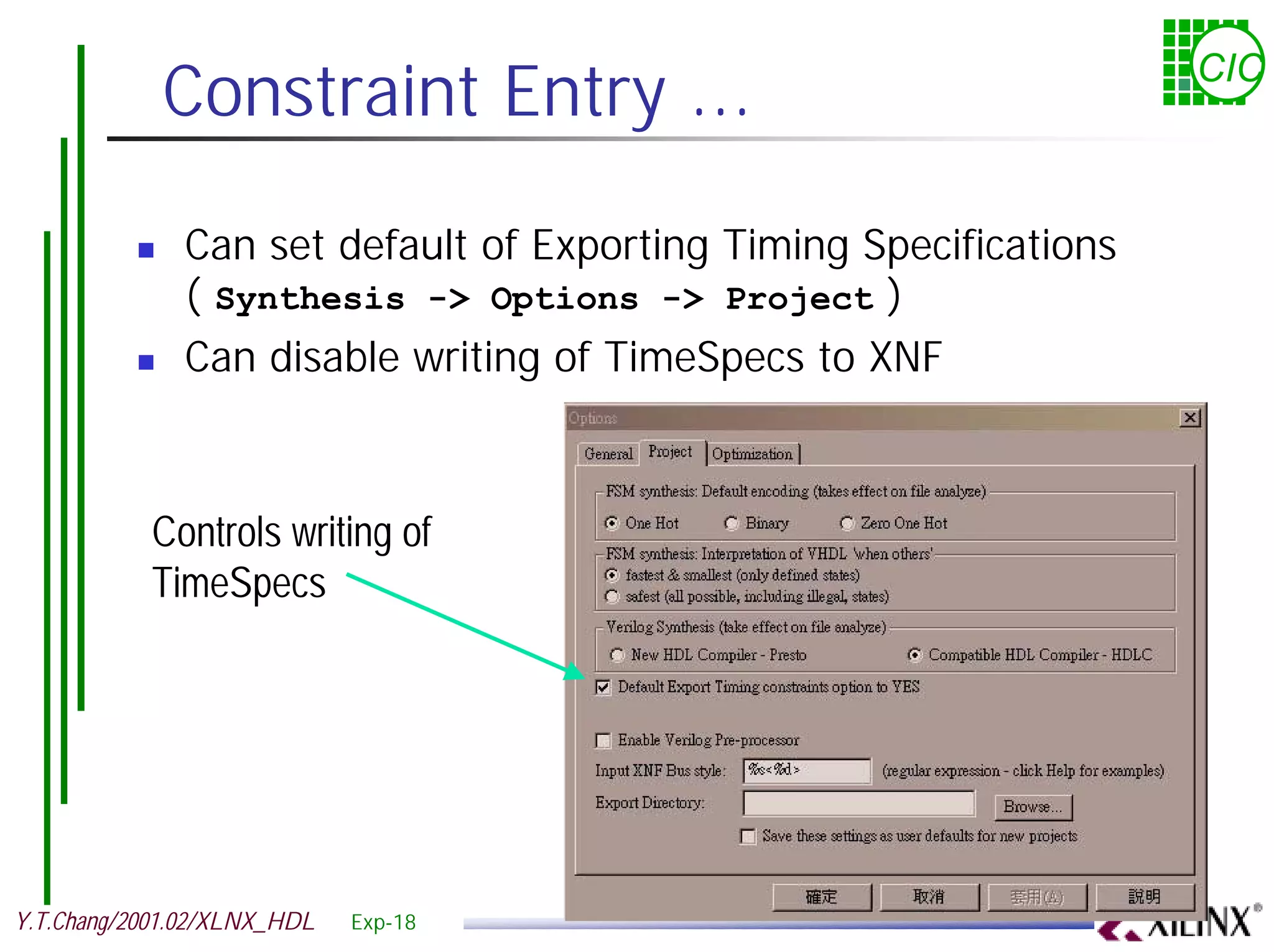

Constraint Entry ... CIC ! Can set default of Exporting Timing Specifications ( Synthesis -> Options -> Project ) ! Can disable writing of TimeSpecs to XNF Controls writing of TimeSpecs Y.T.Chang/2001.02/XLNX_HDL Exp-18

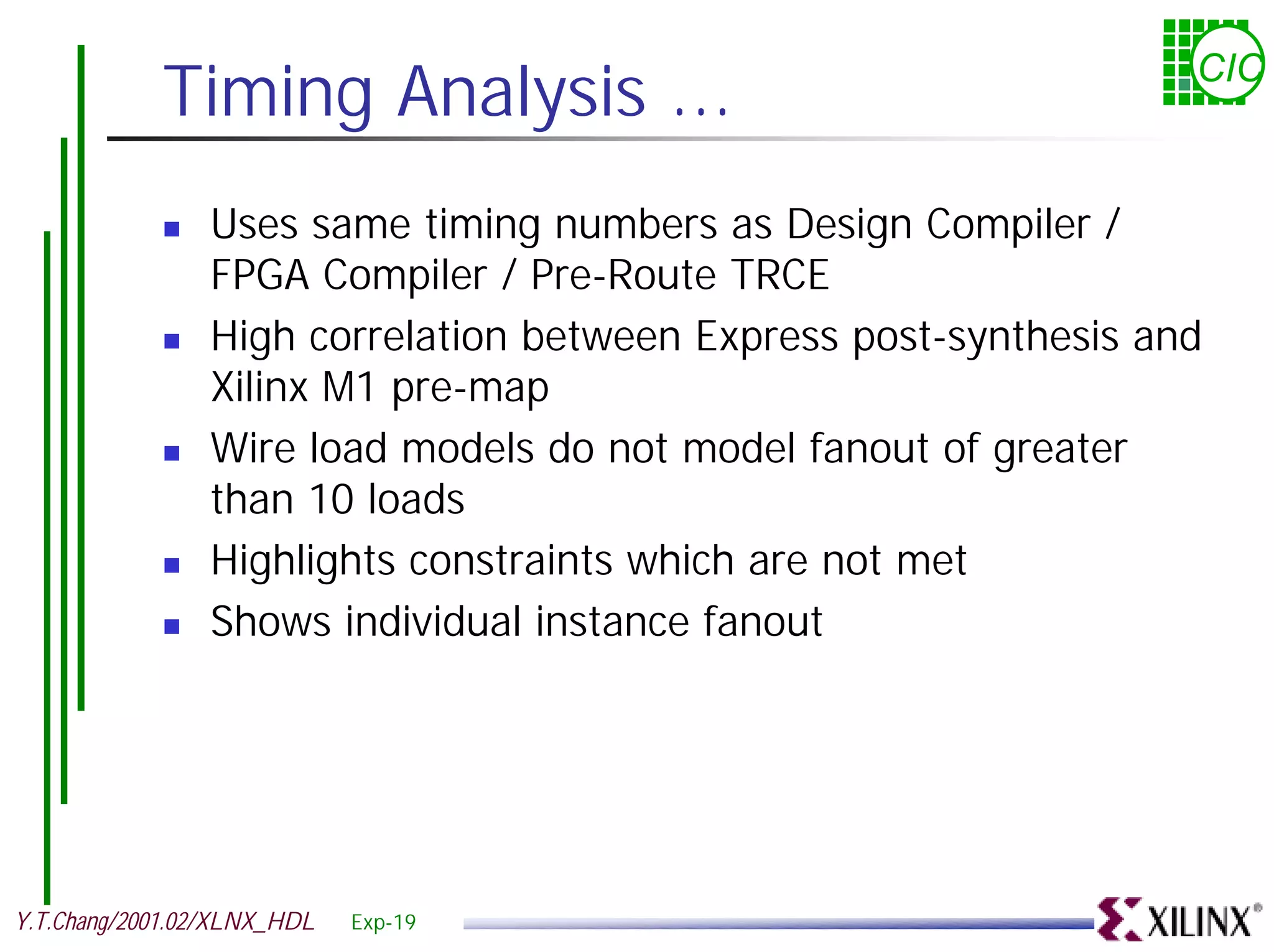

Timing Analysis ... CIC ! Uses same timing numbers as Design Compiler / FPGA Compiler / Pre-Route TRCE ! High correlation between Express post-synthesis and Xilinx M1 pre-map ! Wire load models do not model fanout of greater than 10 loads ! Highlights constraints which are not met ! Shows individual instance fanout Y.T.Chang/2001.02/XLNX_HDL Exp-19

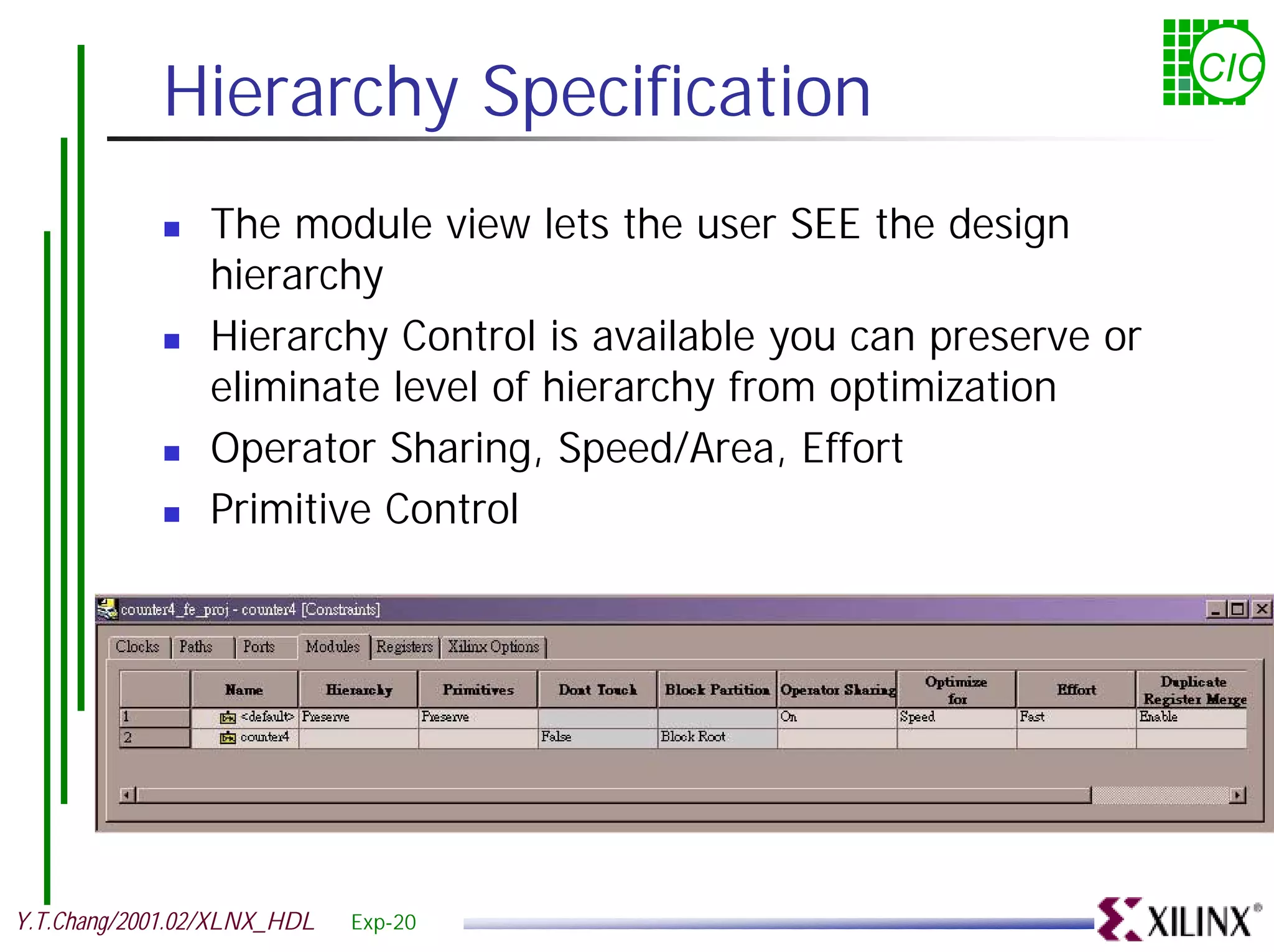

Hierarchy Specification CIC ! The module view lets the user SEE the design hierarchy ! Hierarchy Control is available you can preserve or eliminate level of hierarchy from optimization ! Operator Sharing, Speed/Area, Effort ! Primitive Control Y.T.Chang/2001.02/XLNX_HDL Exp-20

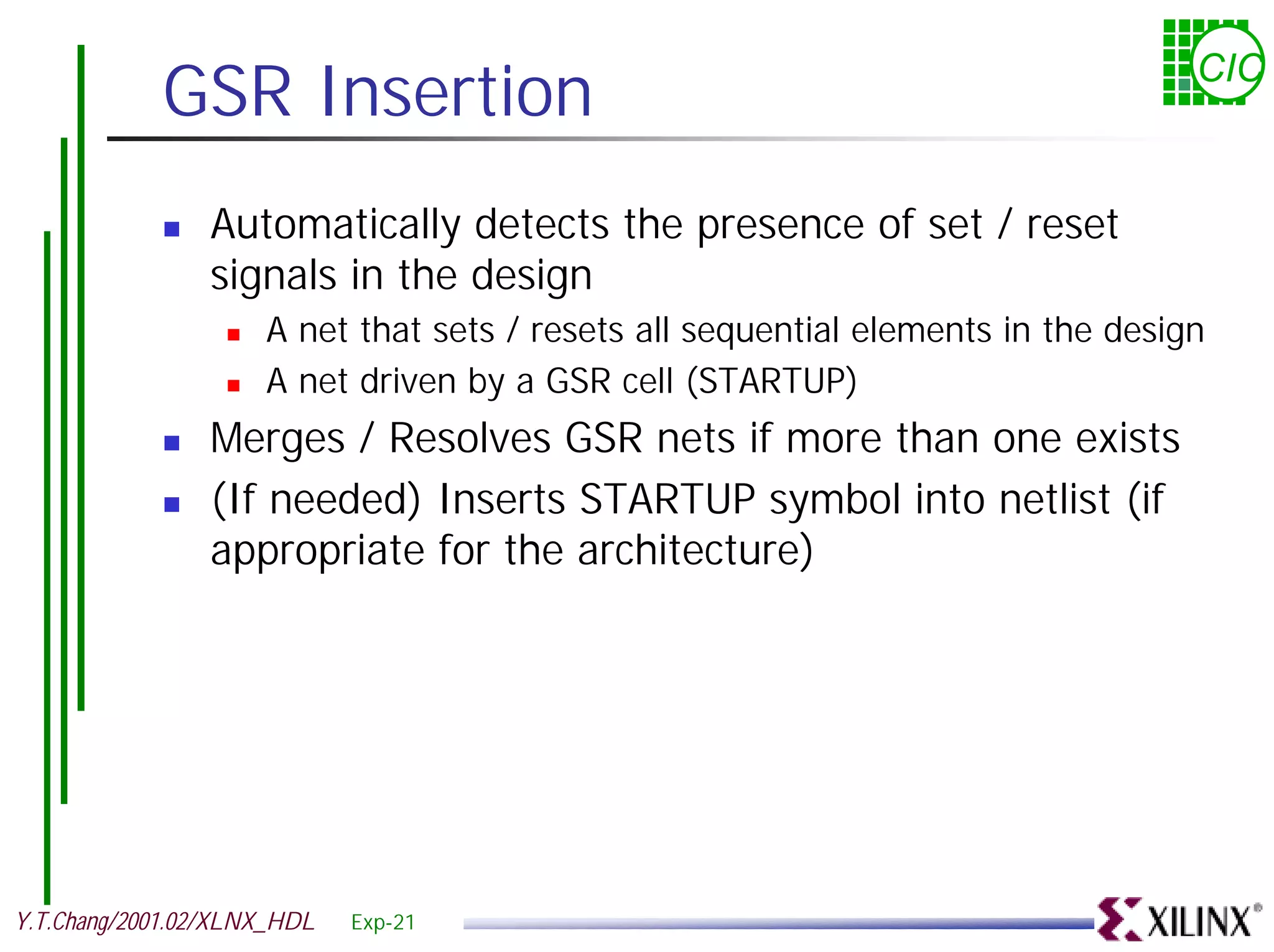

GSR Insertion CIC ! Automatically detects the presence of set / reset signals in the design ! A net that sets / resets all sequential elements in the design ! A net driven by a GSR cell (STARTUP) ! Merges / Resolves GSR nets if more than one exists ! (If needed) Inserts STARTUP symbol into netlist (if appropriate for the architecture) Y.T.Chang/2001.02/XLNX_HDL Exp-21

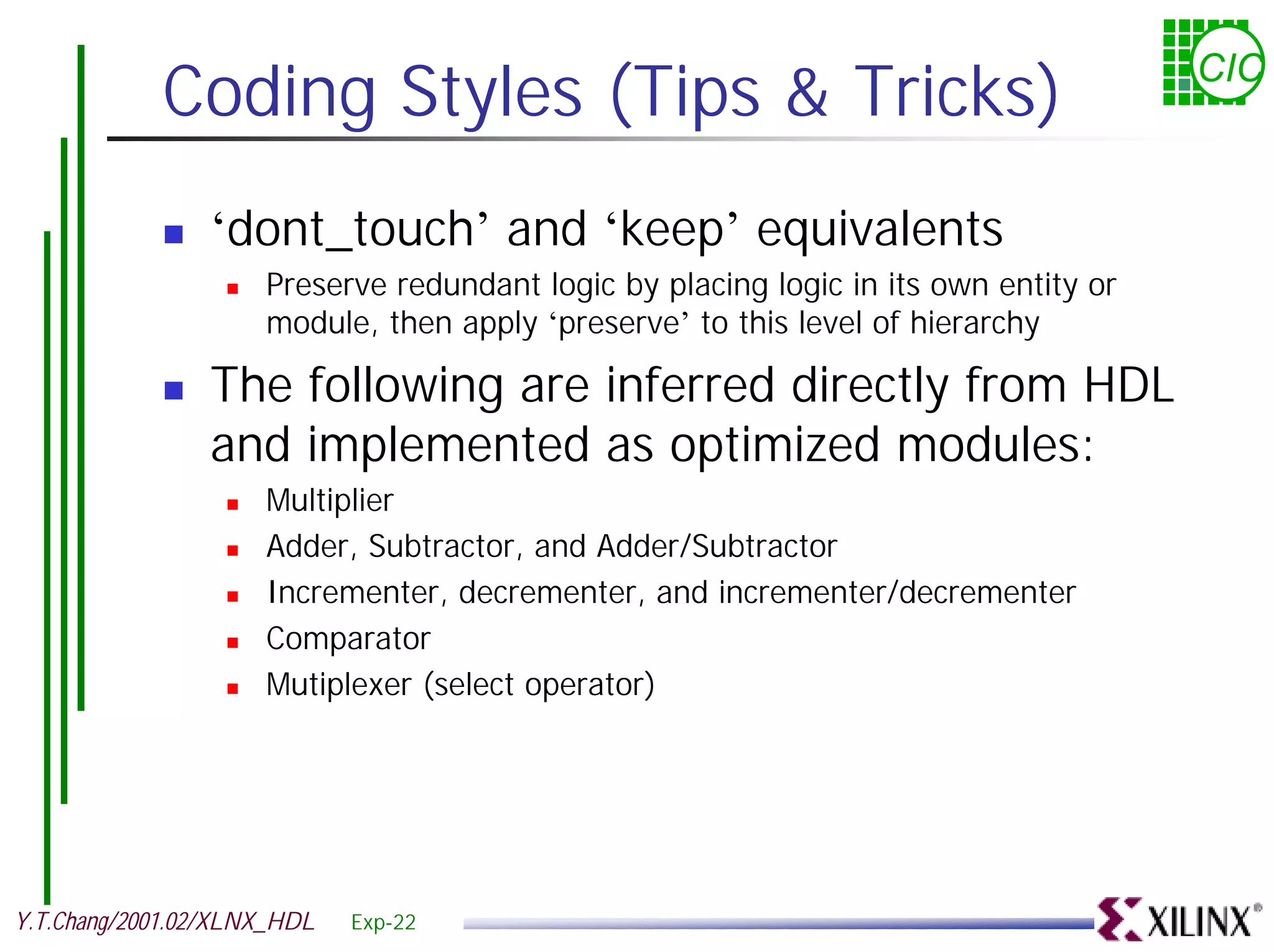

Coding Styles (Tips & Tricks) CIC ! ‘dont_touch’ and ‘keep’ equivalents ! Preserve redundant logic by placing logic in its own entity or module, then apply ‘preserve’ to this level of hierarchy ! The following are inferred directly from HDL and implemented as optimized modules: ! Multiplier ! Adder, Subtractor, and Adder/Subtractor ! Incrementer, decrementer, and incrementer/decrementer ! Comparator ! Mutiplexer (select operator) Y.T.Chang/2001.02/XLNX_HDL Exp-22

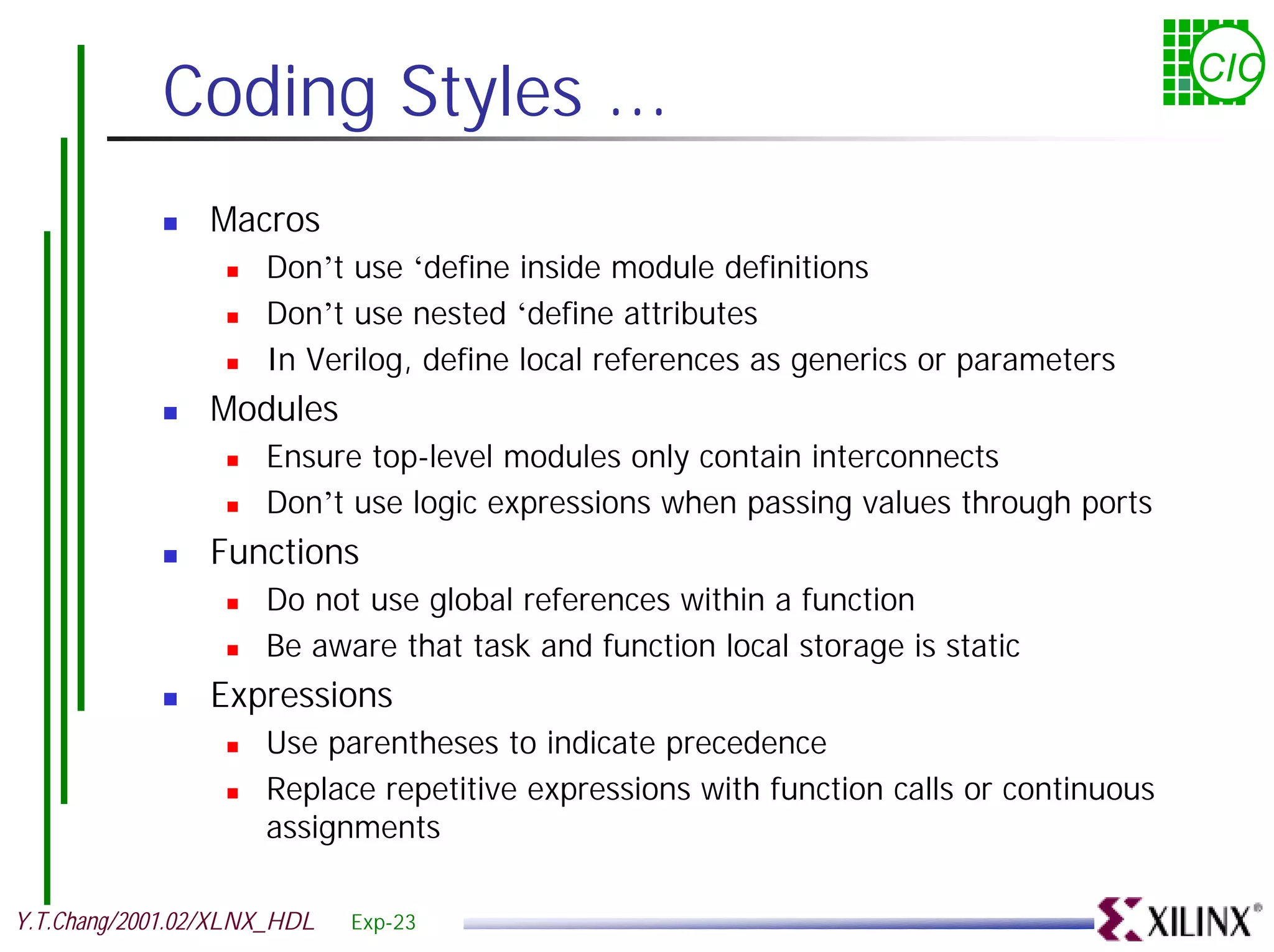

Coding Styles ... CIC ! Macros ! Don’t use ‘define inside module definitions ! Don’t use nested ‘define attributes ! In Verilog, define local references as generics or parameters ! Modules ! Ensure top-level modules only contain interconnects ! Don’t use logic expressions when passing values through ports ! Functions ! Do not use global references within a function ! Be aware that task and function local storage is static ! Expressions ! Use parentheses to indicate precedence ! Replace repetitive expressions with function calls or continuous assignments Y.T.Chang/2001.02/XLNX_HDL Exp-23

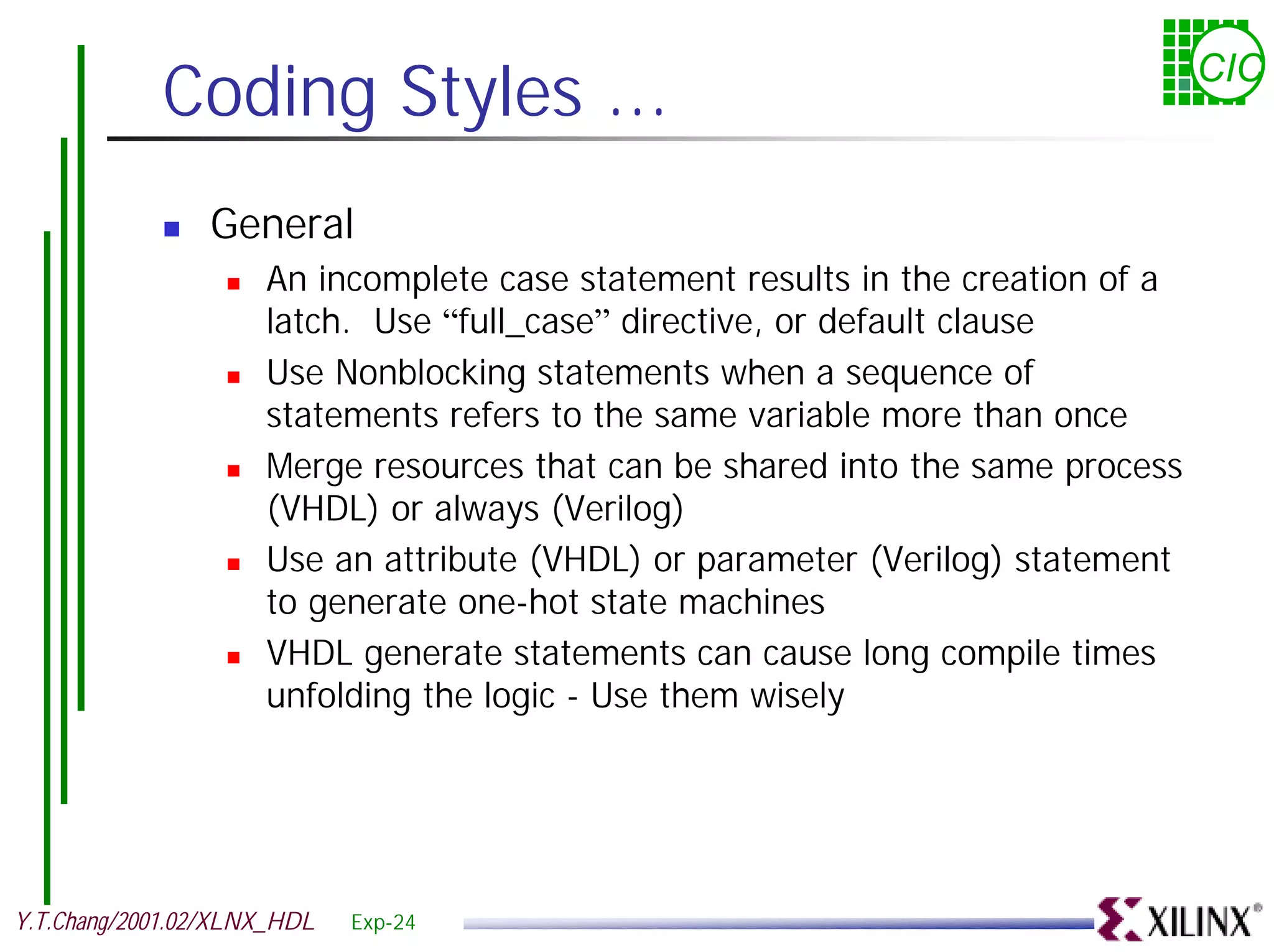

Coding Styles ... CIC ! General ! An incomplete case statement results in the creation of a latch. Use “full_case” directive, or default clause ! Use Nonblocking statements when a sequence of statements refers to the same variable more than once ! Merge resources that can be shared into the same process (VHDL) or always (Verilog) ! Use an attribute (VHDL) or parameter (Verilog) statement to generate one-hot state machines ! VHDL generate statements can cause long compile times unfolding the logic - Use them wisely Y.T.Chang/2001.02/XLNX_HDL Exp-24

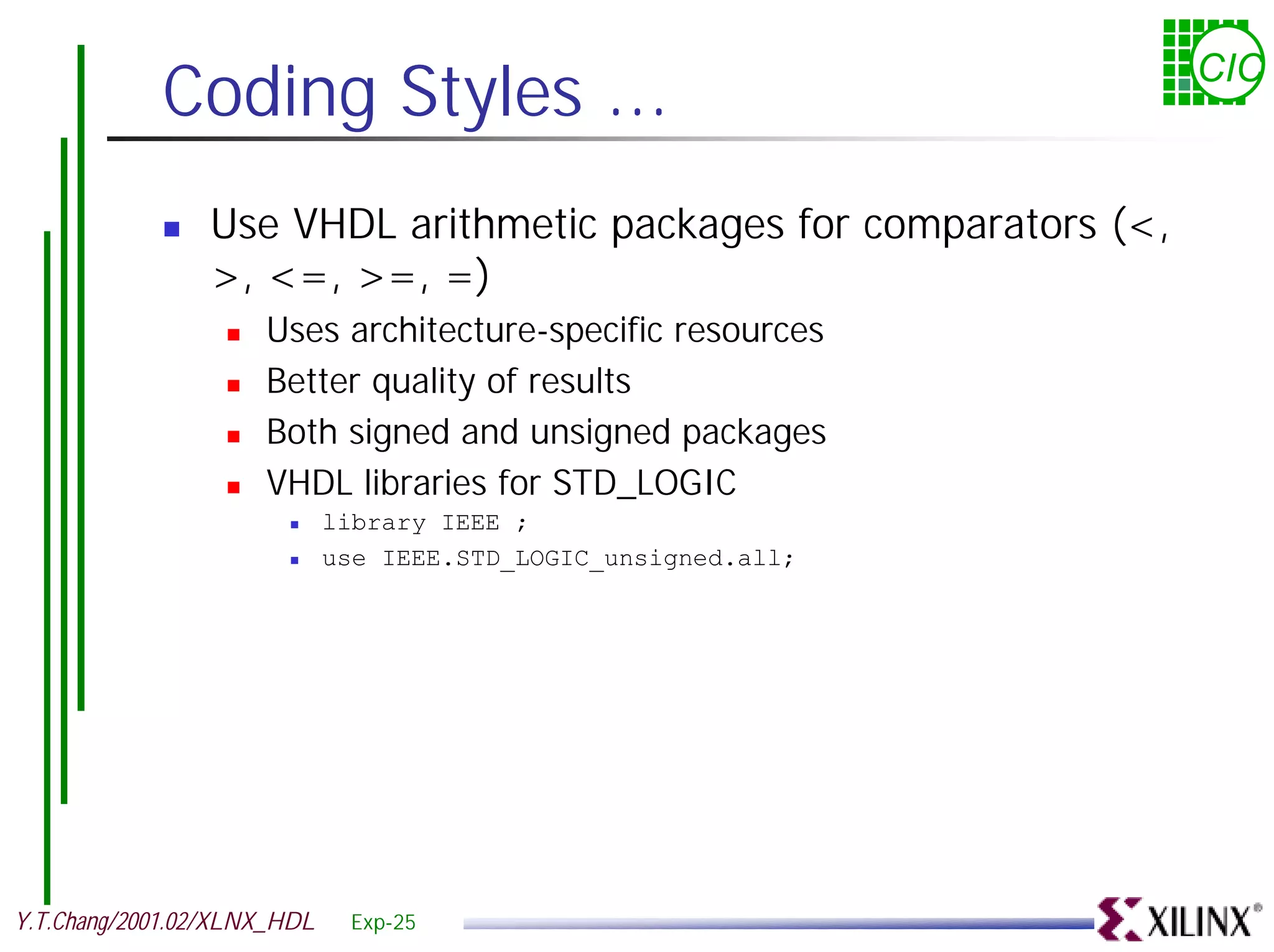

Coding Styles ... CIC ! Use VHDL arithmetic packages for comparators (<, >, <=, >=, =) ! Uses architecture-specific resources ! Better quality of results ! Both signed and unsigned packages ! VHDL libraries for STD_LOGIC ! library IEEE ; ! use IEEE.STD_LOGIC_unsigned.all; Y.T.Chang/2001.02/XLNX_HDL Exp-25

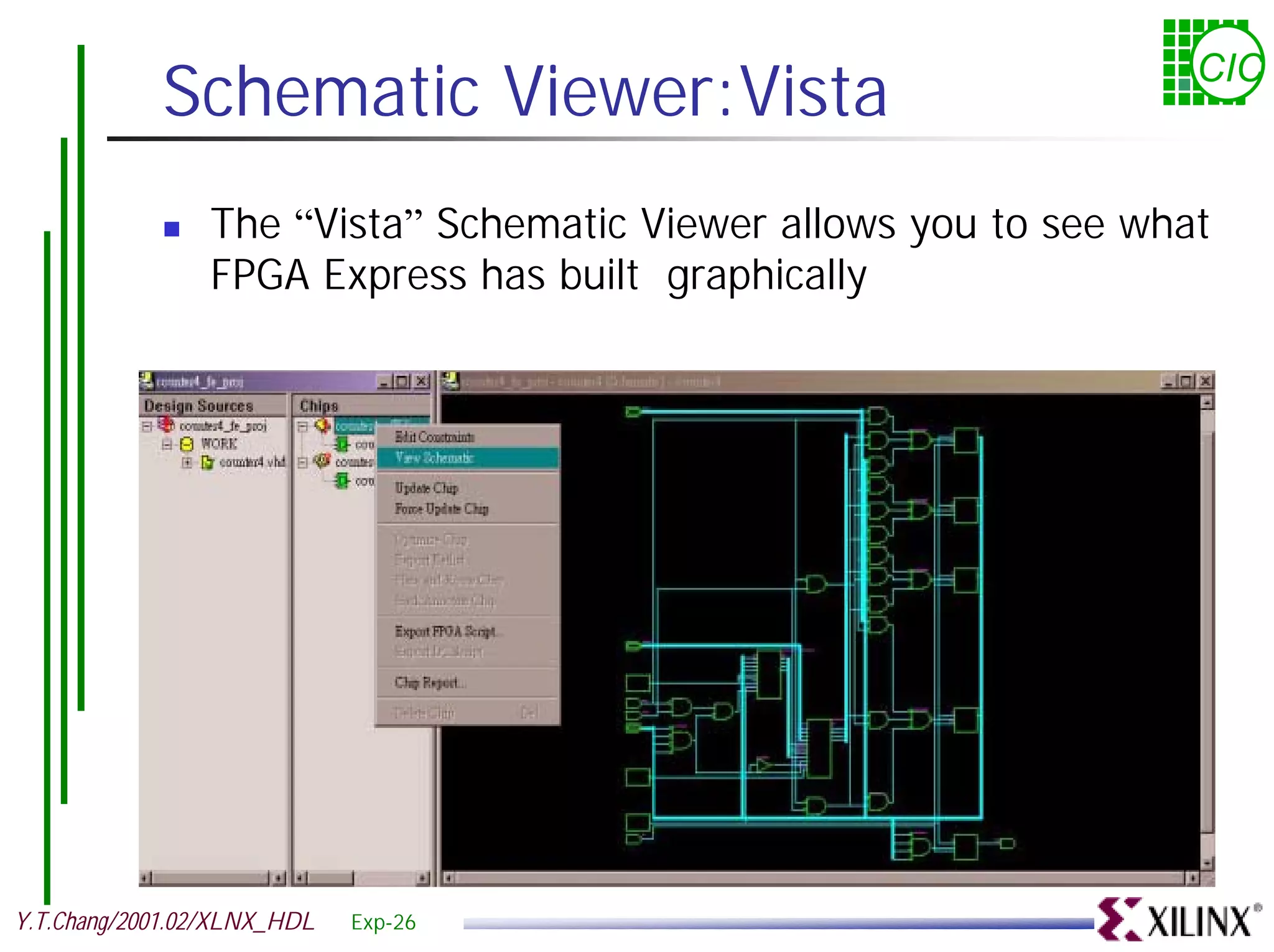

Schematic Viewer:Vista CIC ! The “Vista” Schematic Viewer allows you to see what FPGA Express has built graphically Y.T.Chang/2001.02/XLNX_HDL Exp-26

Xilinx HDL Synthesis Flow Y.T.Chang/2001.02/XLNX_HDL flow-1

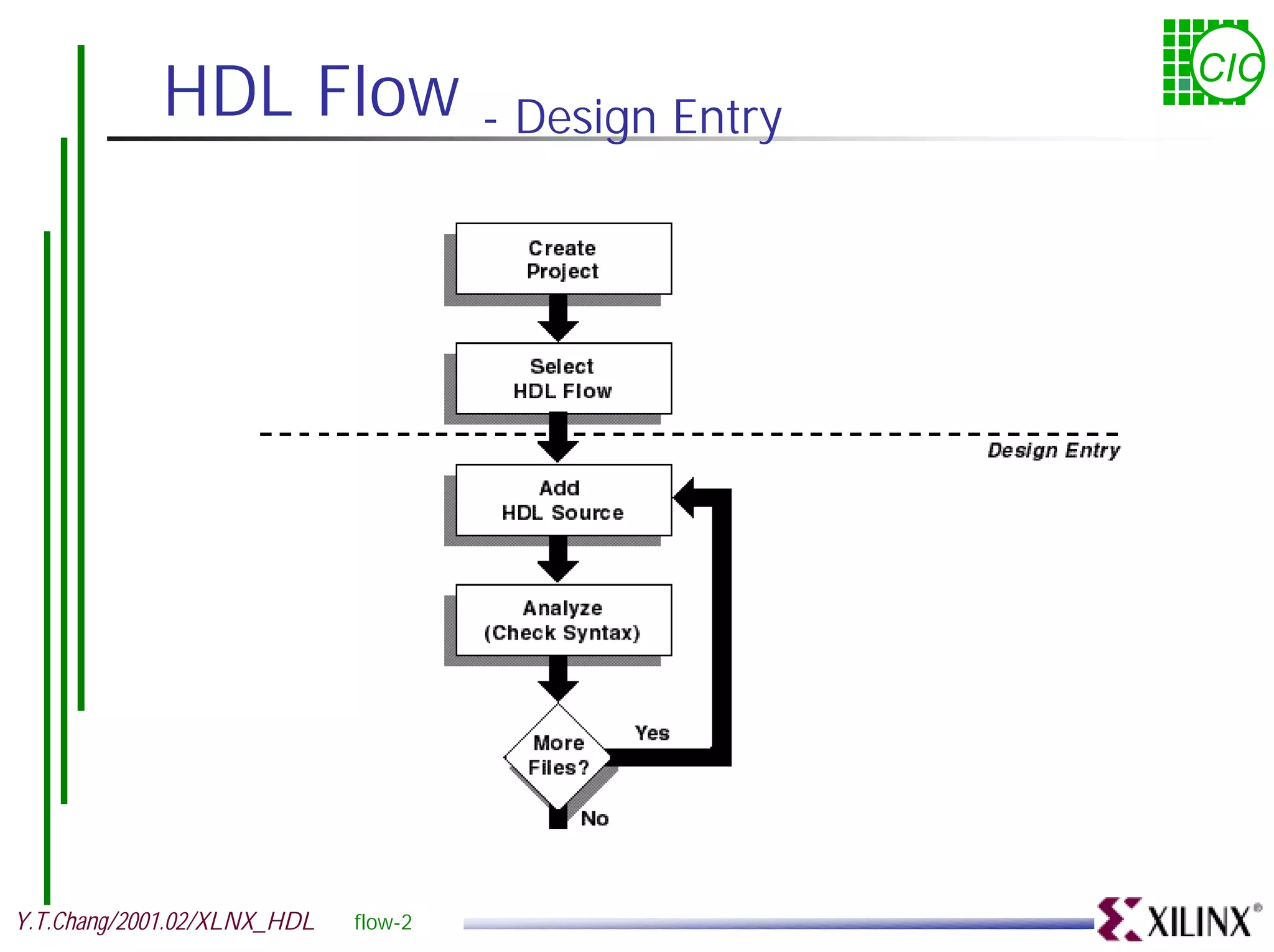

HDL Flow - Design Entry CIC Y.T.Chang/2001.02/XLNX_HDL flow-2

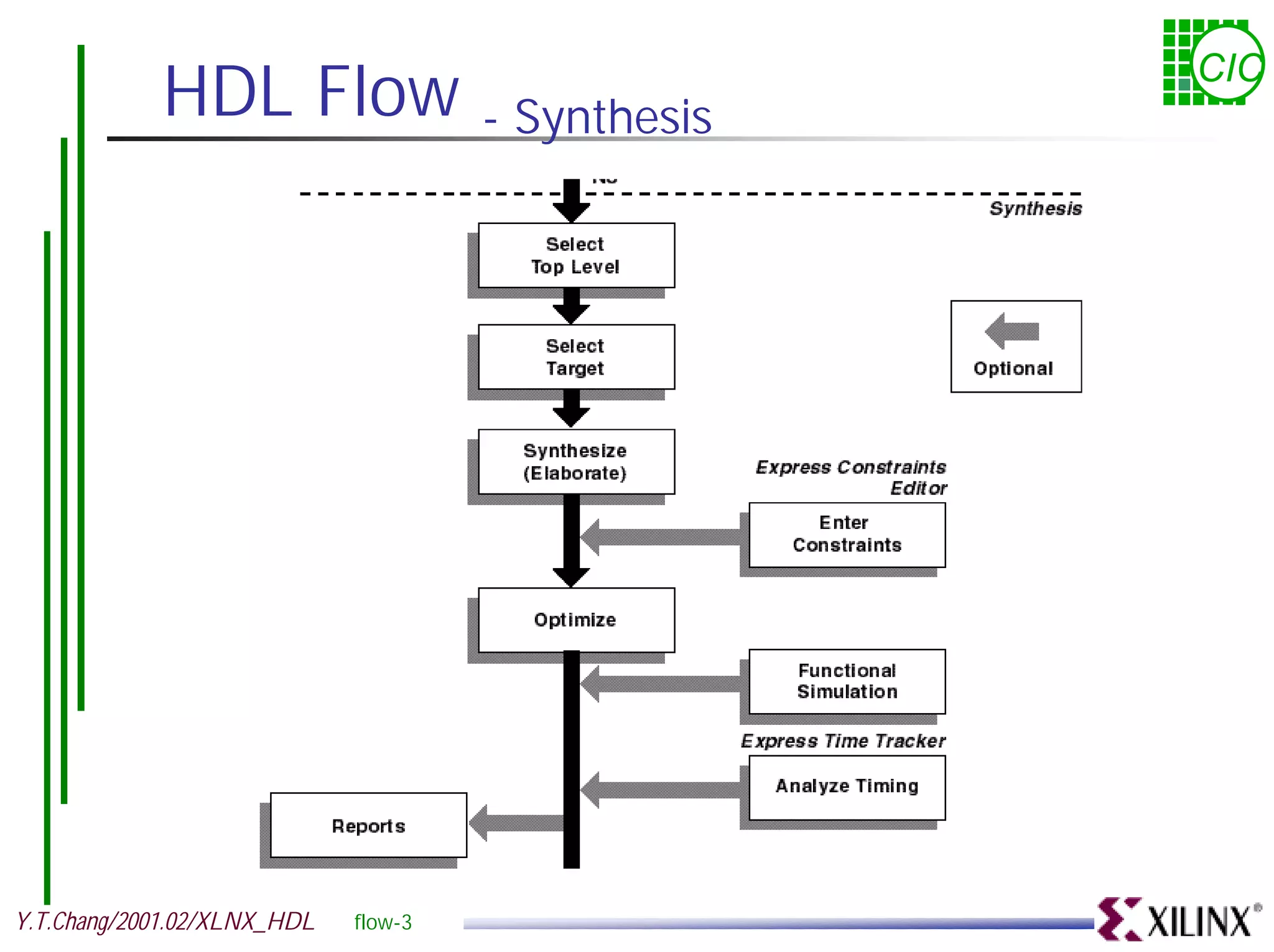

HDL Flow - Synthesis CIC Y.T.Chang/2001.02/XLNX_HDL flow-3

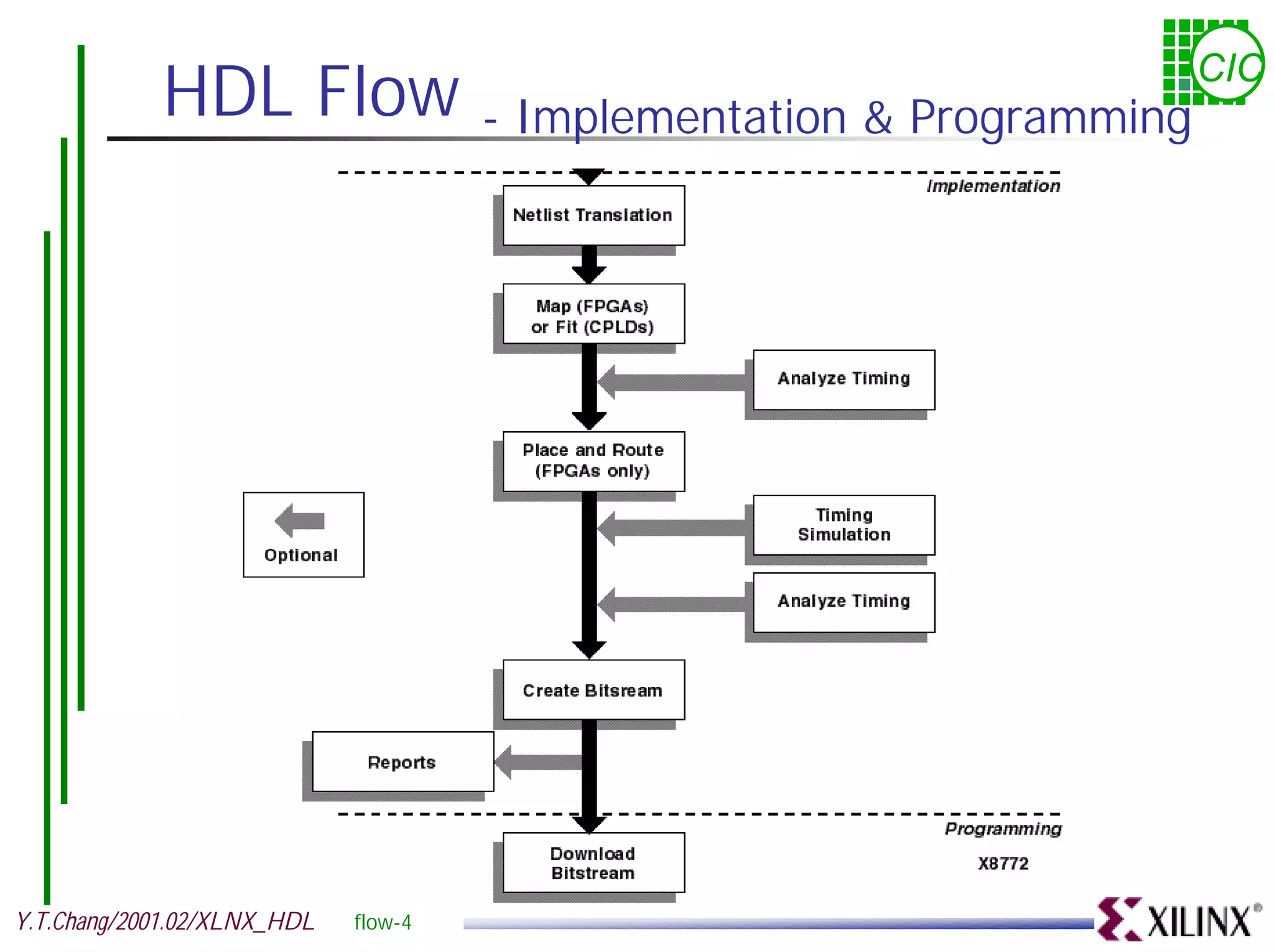

HDL Flow - Implementation & Programming CIC Y.T.Chang/2001.02/XLNX_HDL flow-4

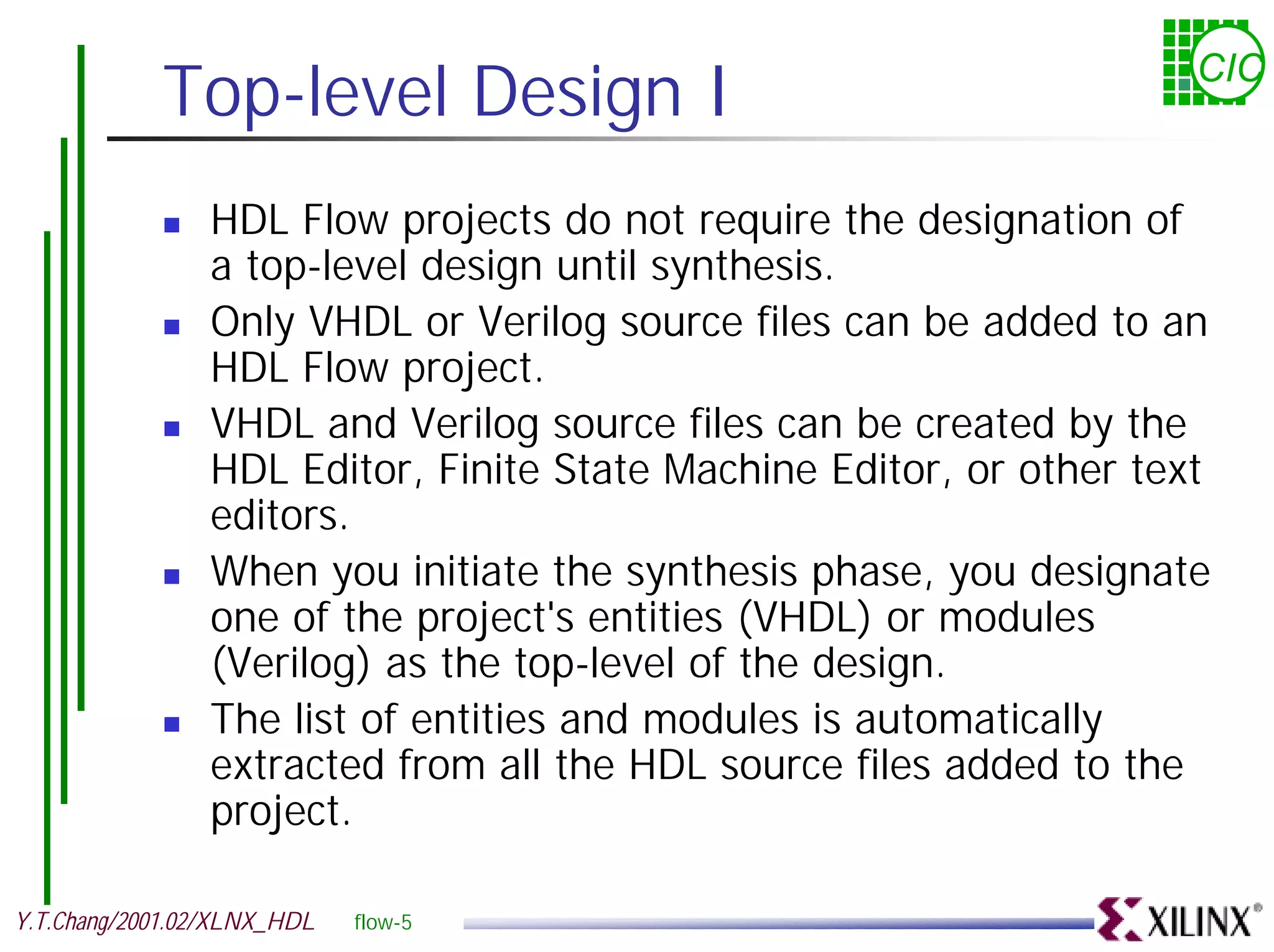

Top-level Design I CIC ! HDL Flow projects do not require the designation of a top-level design until synthesis. ! Only VHDL or Verilog source files can be added to an HDL Flow project. ! VHDL and Verilog source files can be created by the HDL Editor, Finite State Machine Editor, or other text editors. ! When you initiate the synthesis phase, you designate one of the project's entities (VHDL) or modules (Verilog) as the top-level of the design. ! The list of entities and modules is automatically extracted from all the HDL source files added to the project. Y.T.Chang/2001.02/XLNX_HDL flow-5

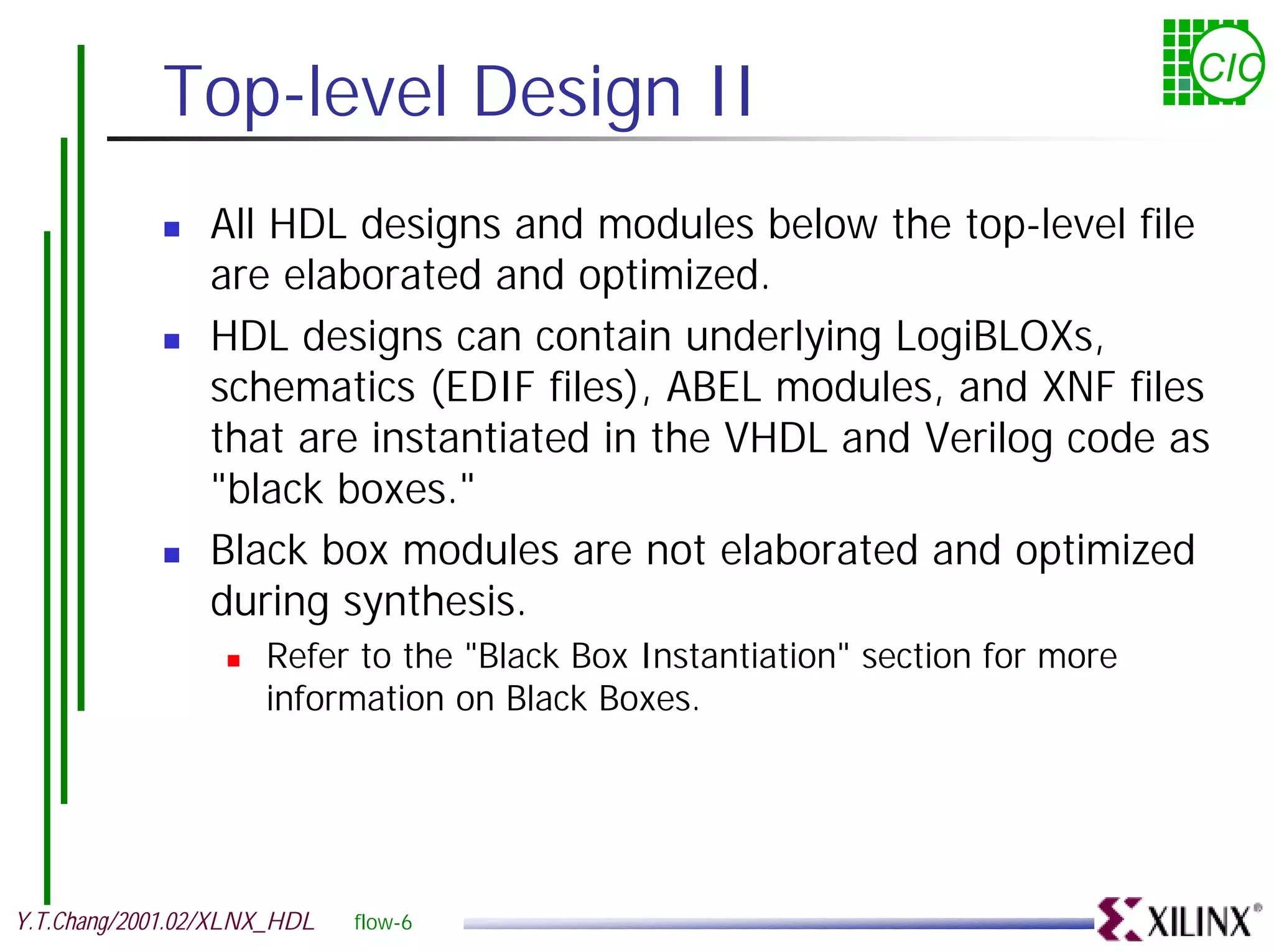

Top-level Design II CIC ! All HDL designs and modules below the top-level file are elaborated and optimized. ! HDL designs can contain underlying LogiBLOXs, schematics (EDIF files), ABEL modules, and XNF files that are instantiated in the VHDL and Verilog code as "black boxes." ! Black box modules are not elaborated and optimized during synthesis. ! Refer to the "Black Box Instantiation" section for more information on Black Boxes. Y.T.Chang/2001.02/XLNX_HDL flow-6

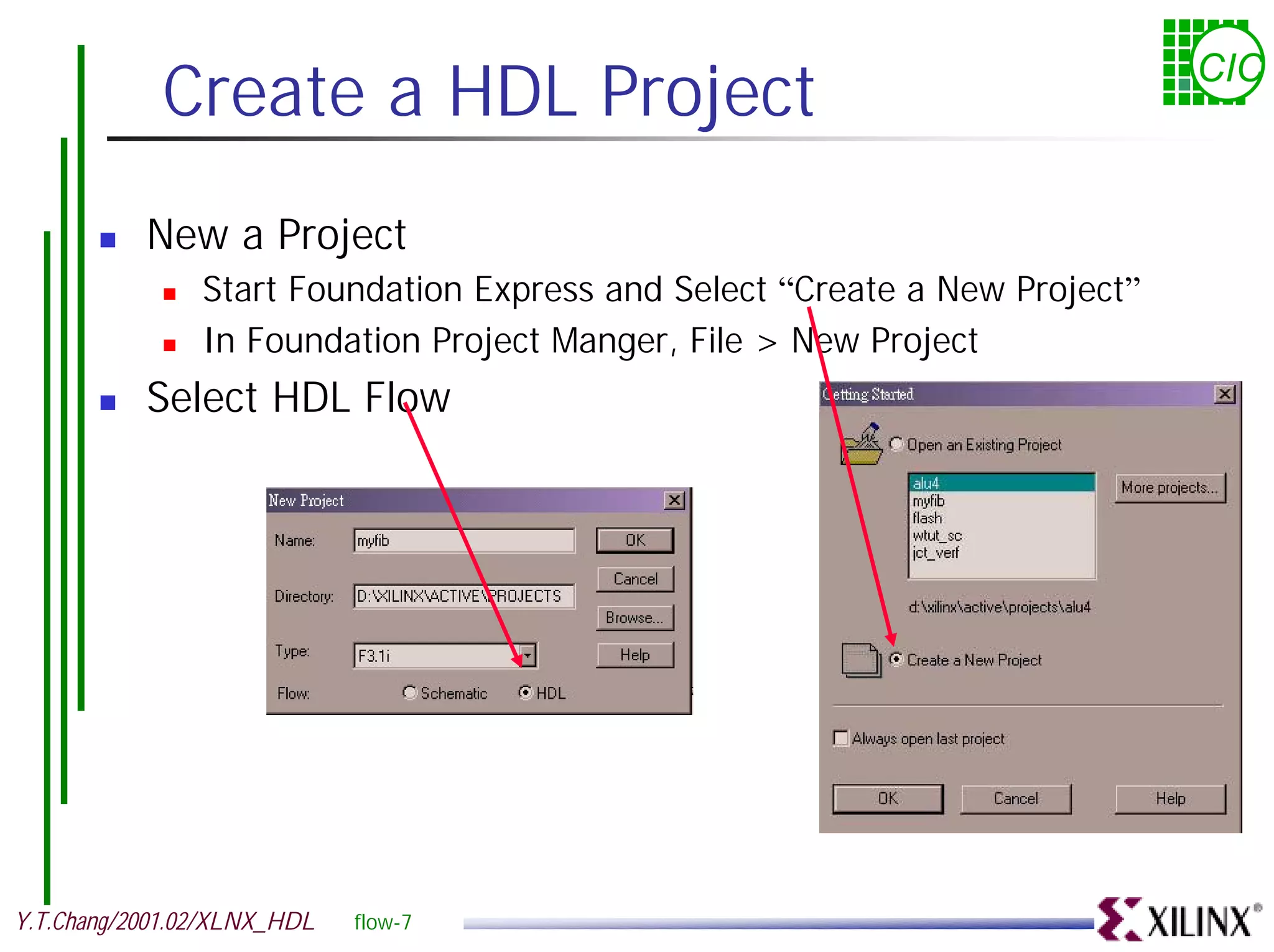

Create a HDL Project CIC ! New a Project ! Start Foundation Express and Select “Create a New Project” ! In Foundation Project Manger, File > New Project ! Select HDL Flow Y.T.Chang/2001.02/XLNX_HDL flow-7

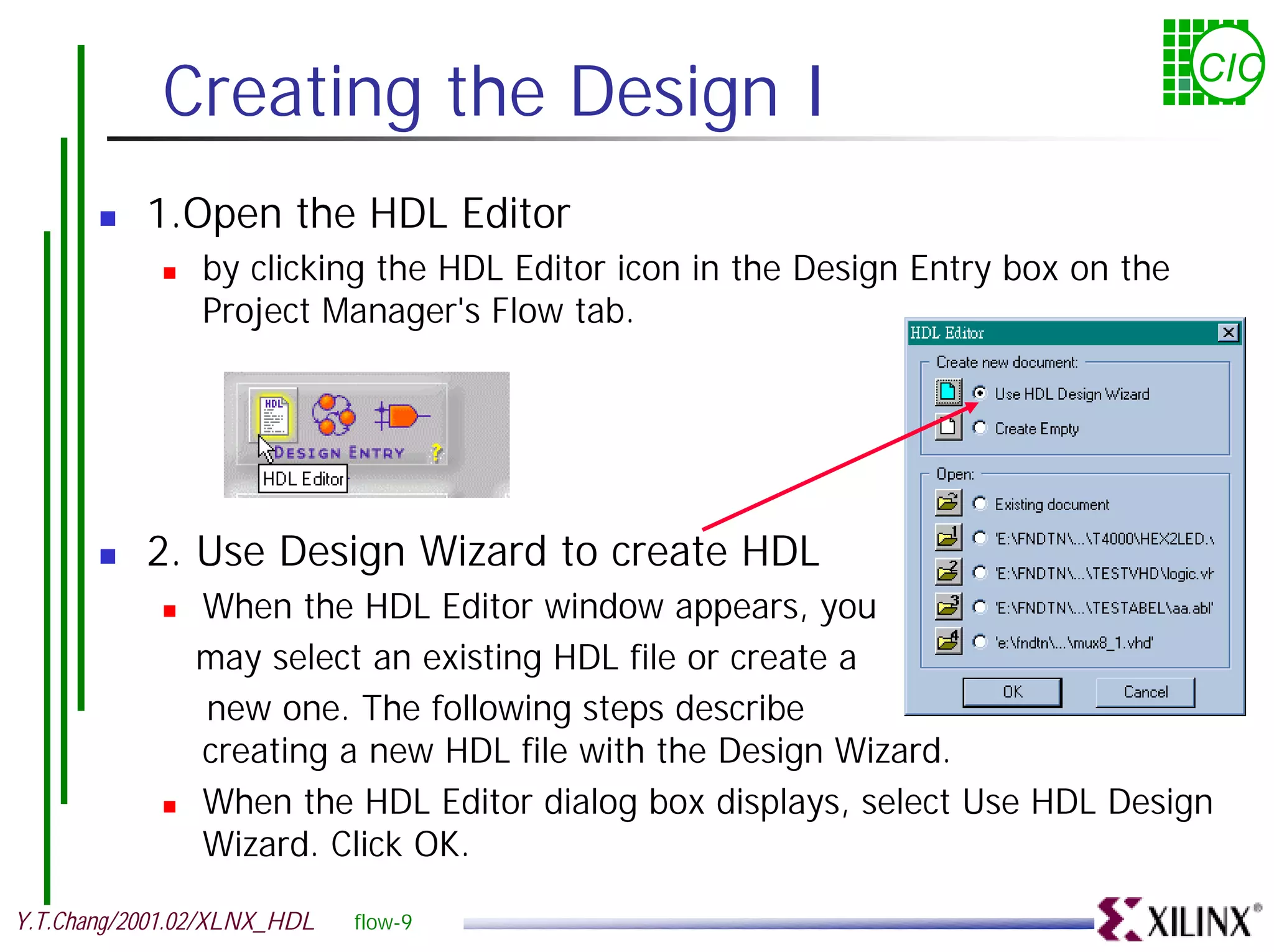

Creating the Design I CIC ! 1.Open the HDL Editor ! by clicking the HDL Editor icon in the Design Entry box on the Project Manager's Flow tab. ! 2. Use Design Wizard to create HDL ! When the HDL Editor window appears, you may select an existing HDL file or create a new one. The following steps describe creating a new HDL file with the Design Wizard. ! When the HDL Editor dialog box displays, select Use HDL Design Wizard. Click OK. Y.T.Chang/2001.02/XLNX_HDL flow-9

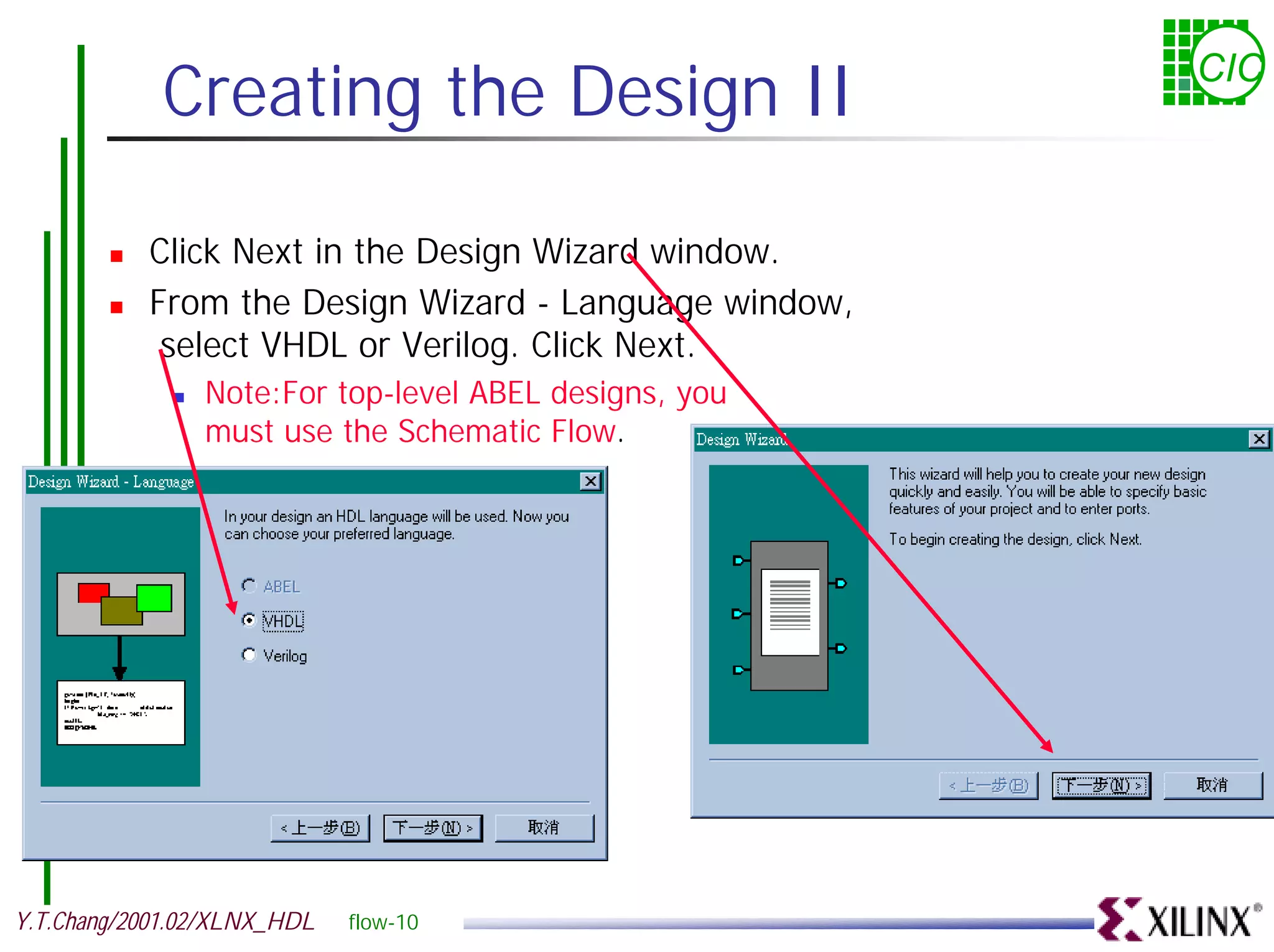

Creating the Design II CIC ! Click Next in the Design Wizard window. ! From the Design Wizard - Language window, select VHDL or Verilog. Click Next. ! Note:For top-level ABEL designs, you must use the Schematic Flow. Y.T.Chang/2001.02/XLNX_HDL flow-10

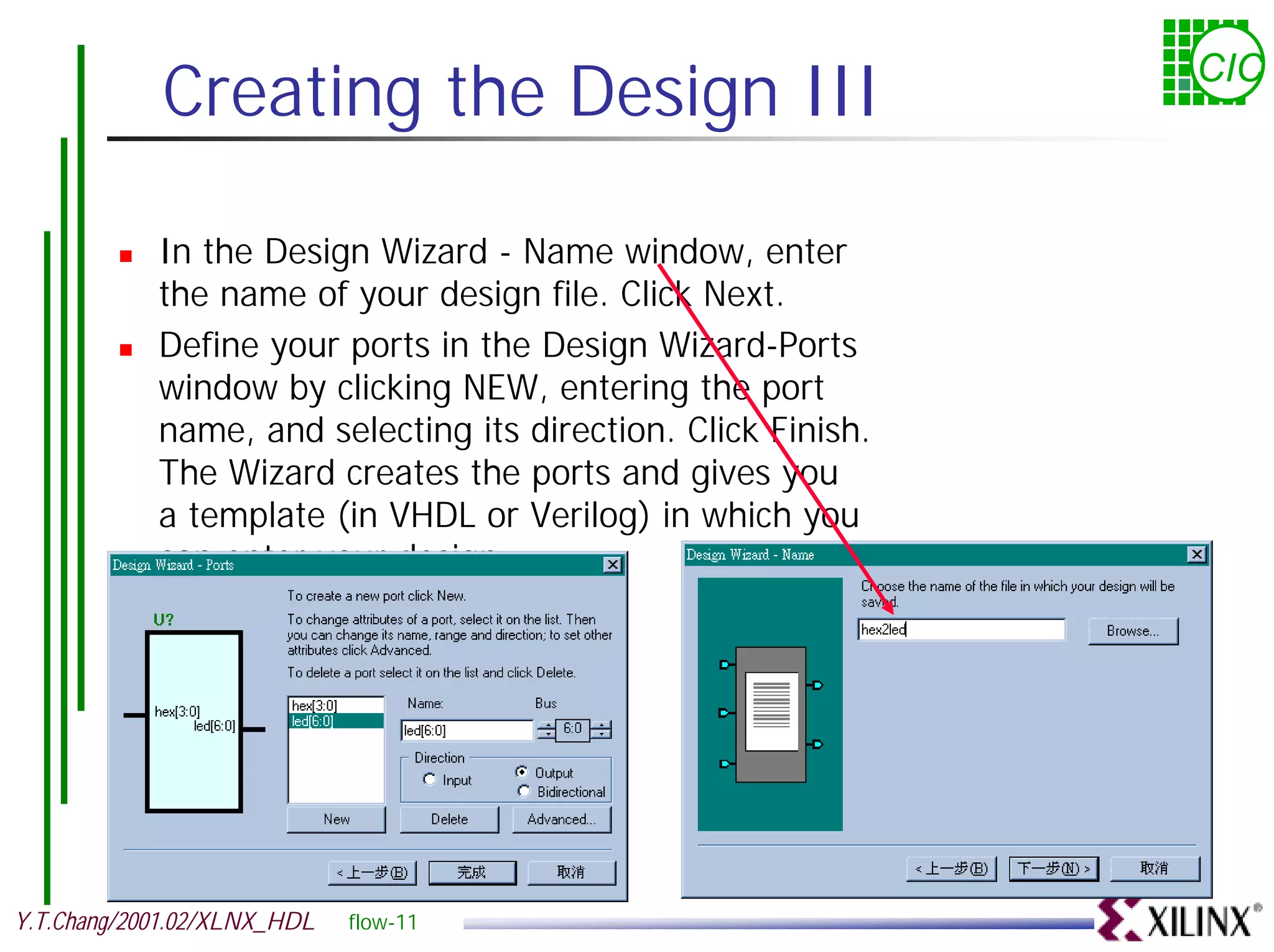

Creating the Design III CIC ! In the Design Wizard - Name window, enter the name of your design file. Click Next. ! Define your ports in the Design Wizard-Ports window by clicking NEW, entering the port name, and selecting its direction. Click Finish. The Wizard creates the ports and gives you a template (in VHDL or Verilog) in which you can enter your design. Y.T.Chang/2001.02/XLNX_HDL flow-11

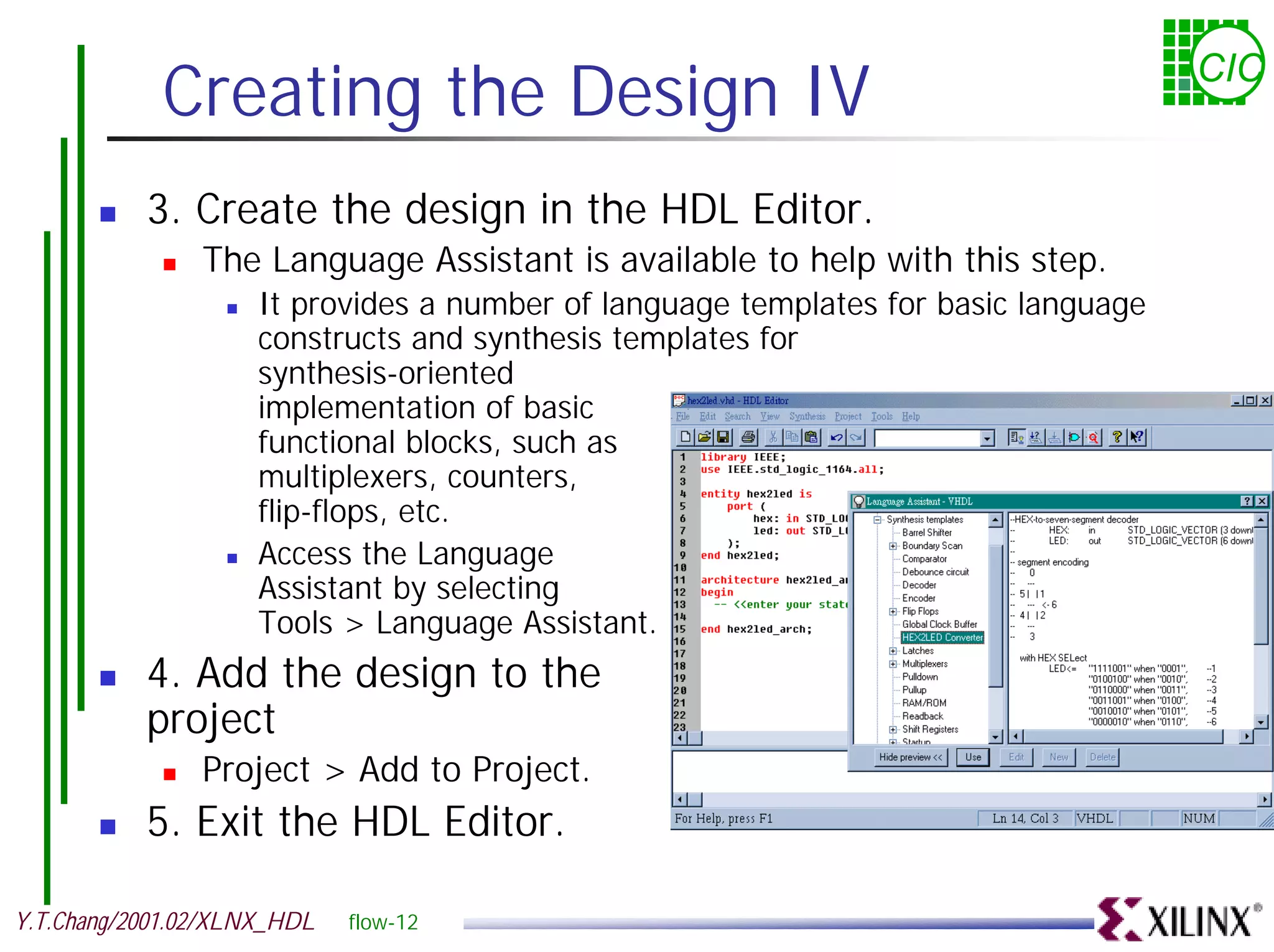

Creating the Design IV CIC ! 3. Create the design in the HDL Editor. ! The Language Assistant is available to help with this step. ! It provides a number of language templates for basic language constructs and synthesis templates for synthesis-oriented implementation of basic functional blocks, such as multiplexers, counters, flip-flops, etc. ! Access the Language Assistant by selecting Tools > Language Assistant. ! 4. Add the design to the project ! Project > Add to Project. ! 5. Exit the HDL Editor. Y.T.Chang/2001.02/XLNX_HDL flow-12

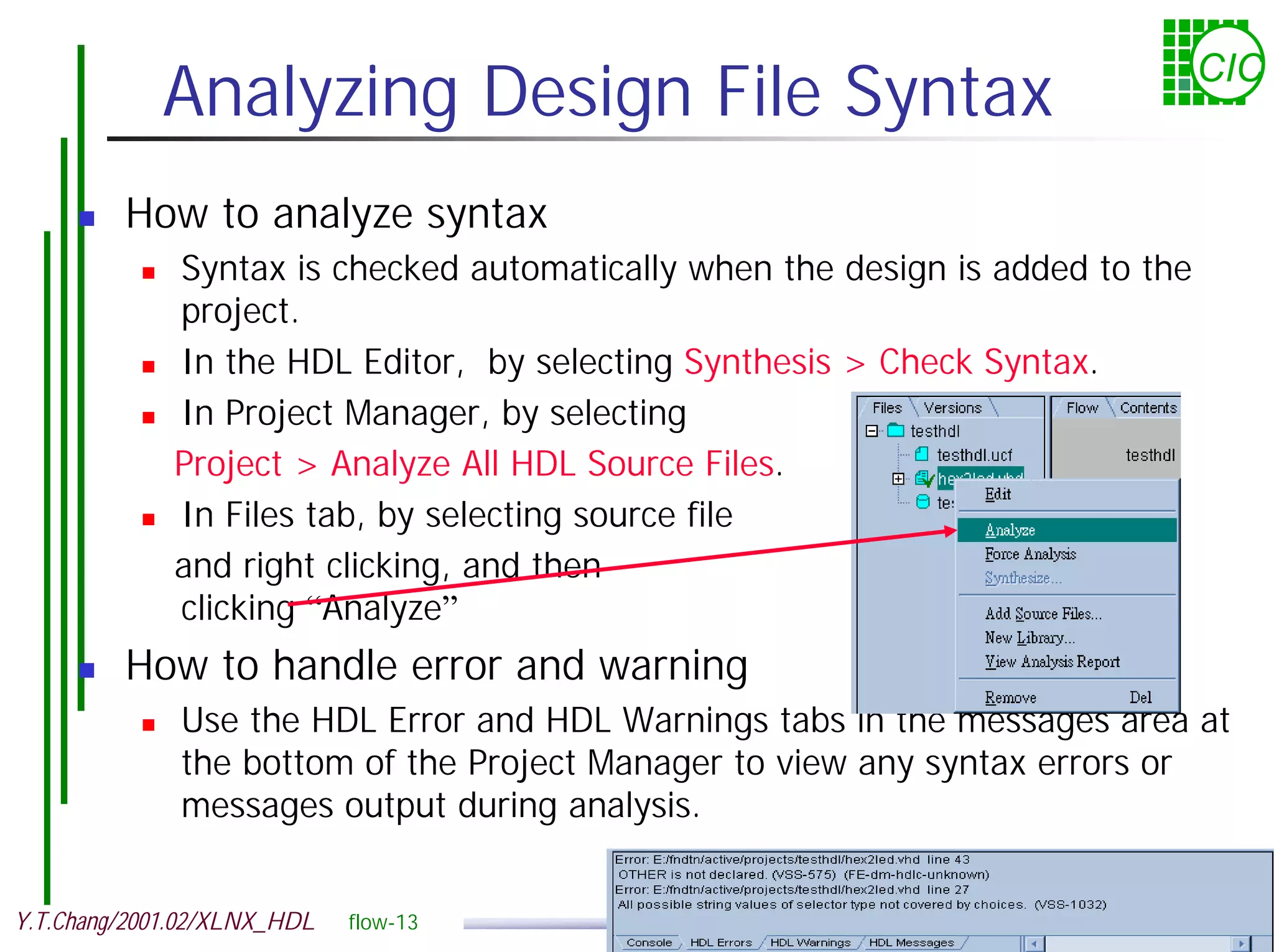

Analyzing Design File Syntax CIC ! How to analyze syntax ! Syntax is checked automatically when the design is added to the project. ! In the HDL Editor, by selecting Synthesis > Check Syntax. ! In Project Manager, by selecting Project > Analyze All HDL Source Files. ! In Files tab, by selecting source file and right clicking, and then clicking “Analyze” ! How to handle error and warning ! Use the HDL Error and HDL Warnings tabs in the messages area at the bottom of the Project Manager to view any syntax errors or messages output during analysis. Y.T.Chang/2001.02/XLNX_HDL flow-13

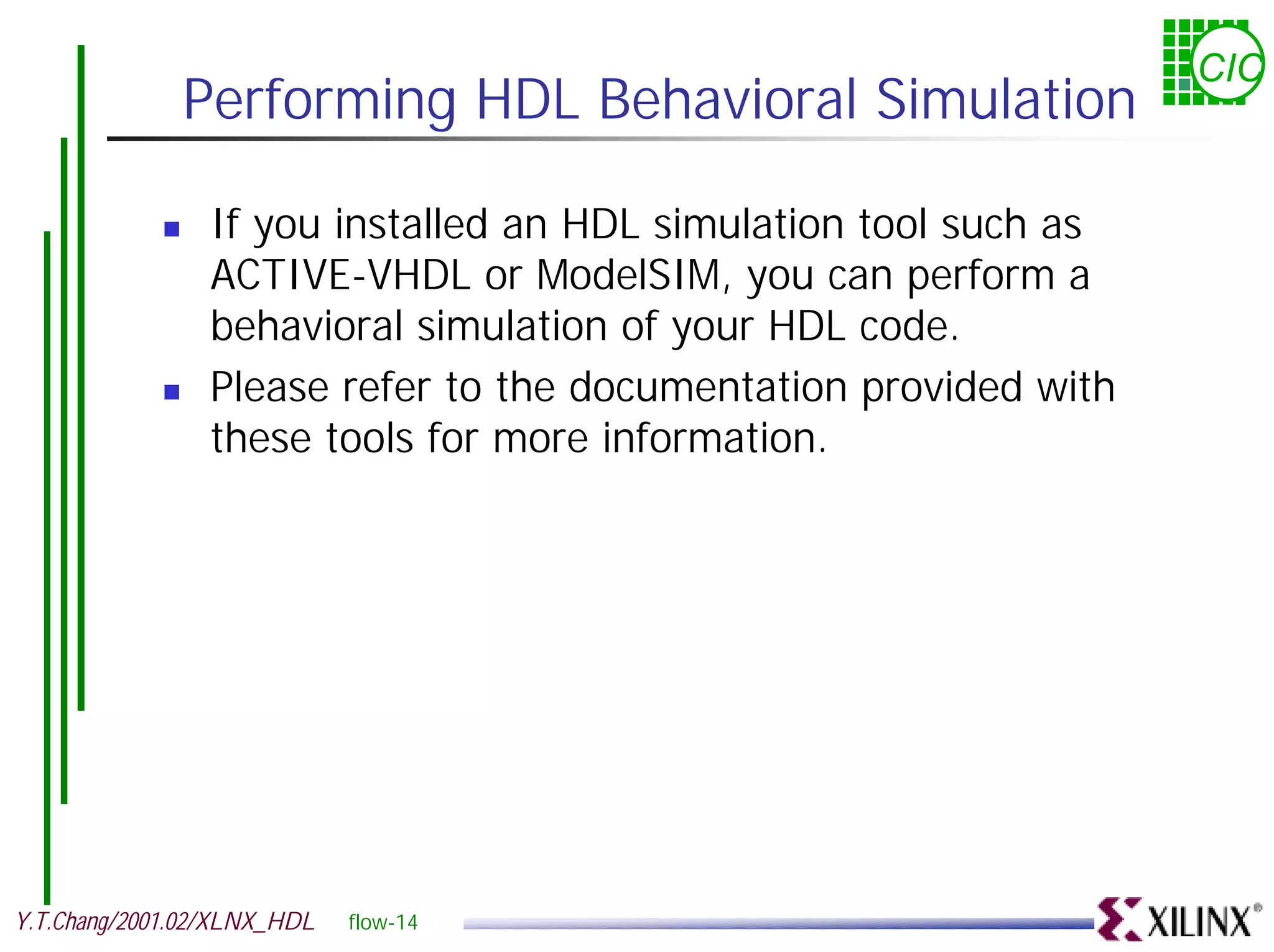

CIC Performing HDL Behavioral Simulation ! If you installed an HDL simulation tool such as ACTIVE-VHDL or ModelSIM, you can perform a behavioral simulation of your HDL code. ! Please refer to the documentation provided with these tools for more information. Y.T.Chang/2001.02/XLNX_HDL flow-14

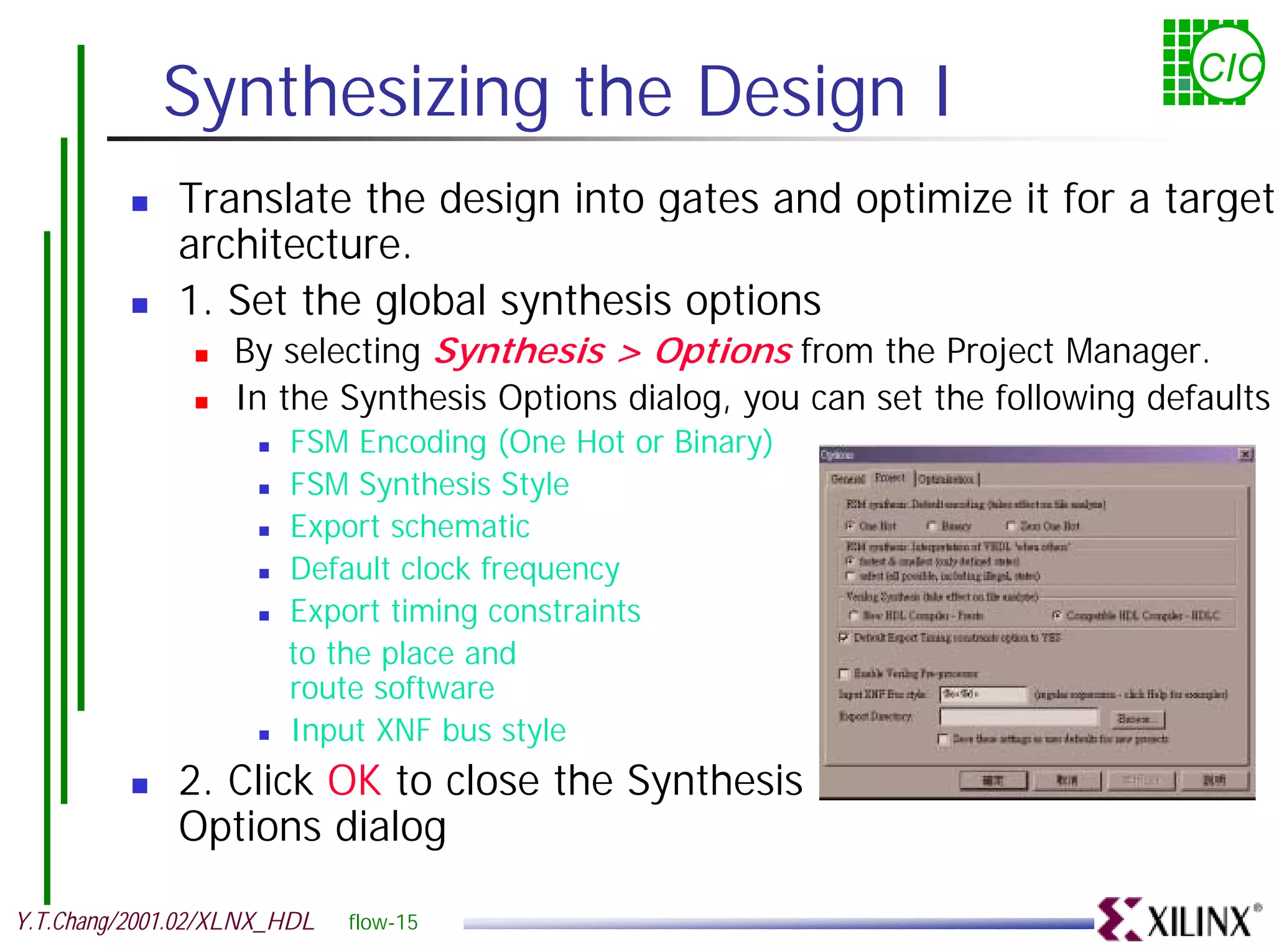

Synthesizing the Design I CIC ! Translate the design into gates and optimize it for a target architecture. ! 1. Set the global synthesis options ! By selecting Synthesis > Options from the Project Manager. ! In the Synthesis Options dialog, you can set the following defaults: ! FSM Encoding (One Hot or Binary) ! FSM Synthesis Style ! Export schematic ! Default clock frequency ! Export timing constraints to the place and route software ! Input XNF bus style ! 2. Click OK to close the Synthesis Options dialog Y.T.Chang/2001.02/XLNX_HDL flow-15

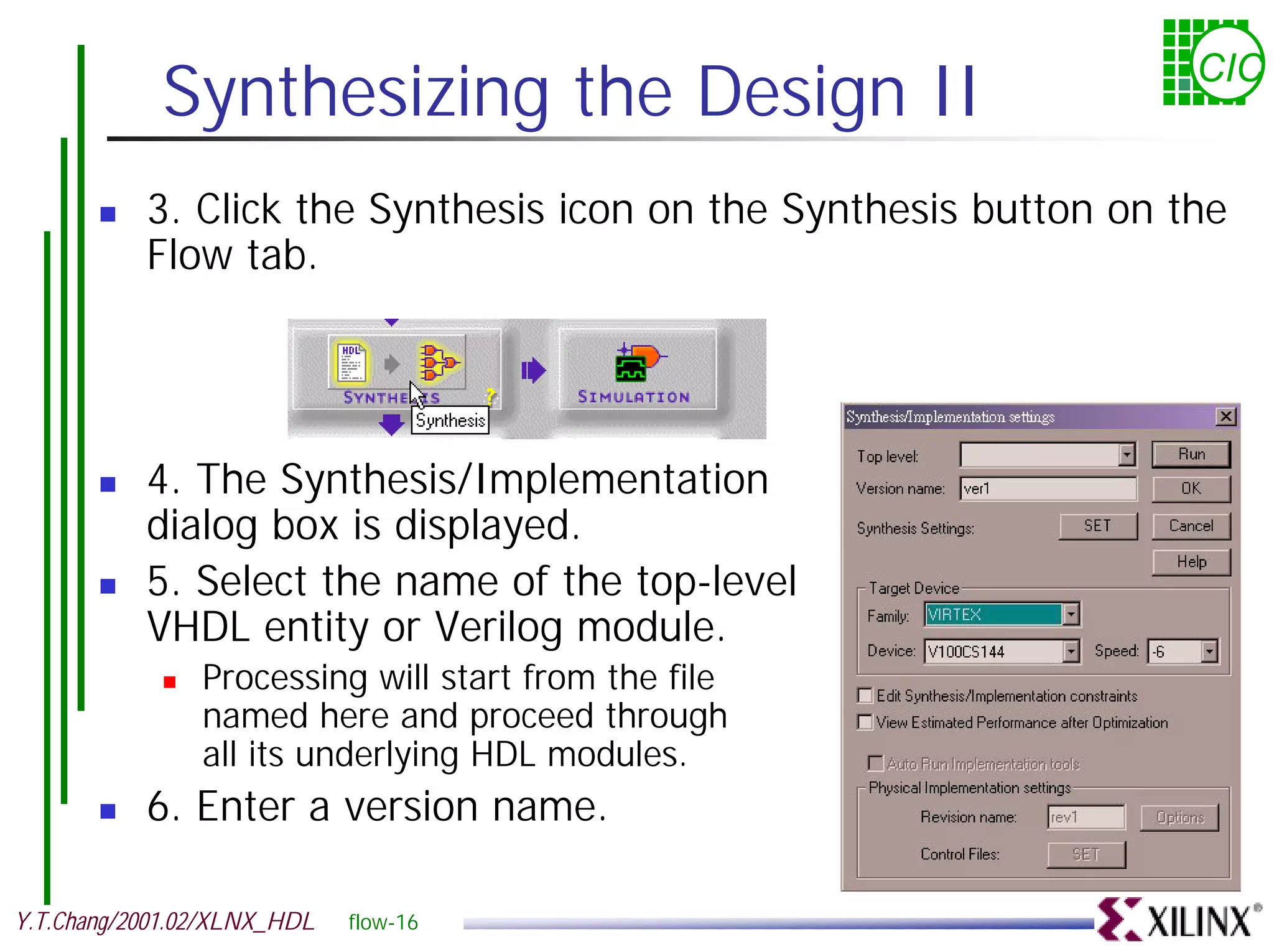

Synthesizing the Design II CIC ! 3. Click the Synthesis icon on the Synthesis button on the Flow tab. ! 4. The Synthesis/Implementation dialog box is displayed. ! 5. Select the name of the top-level VHDL entity or Verilog module. ! Processing will start from the file named here and proceed through all its underlying HDL modules. ! 6. Enter a version name. Y.T.Chang/2001.02/XLNX_HDL flow-16

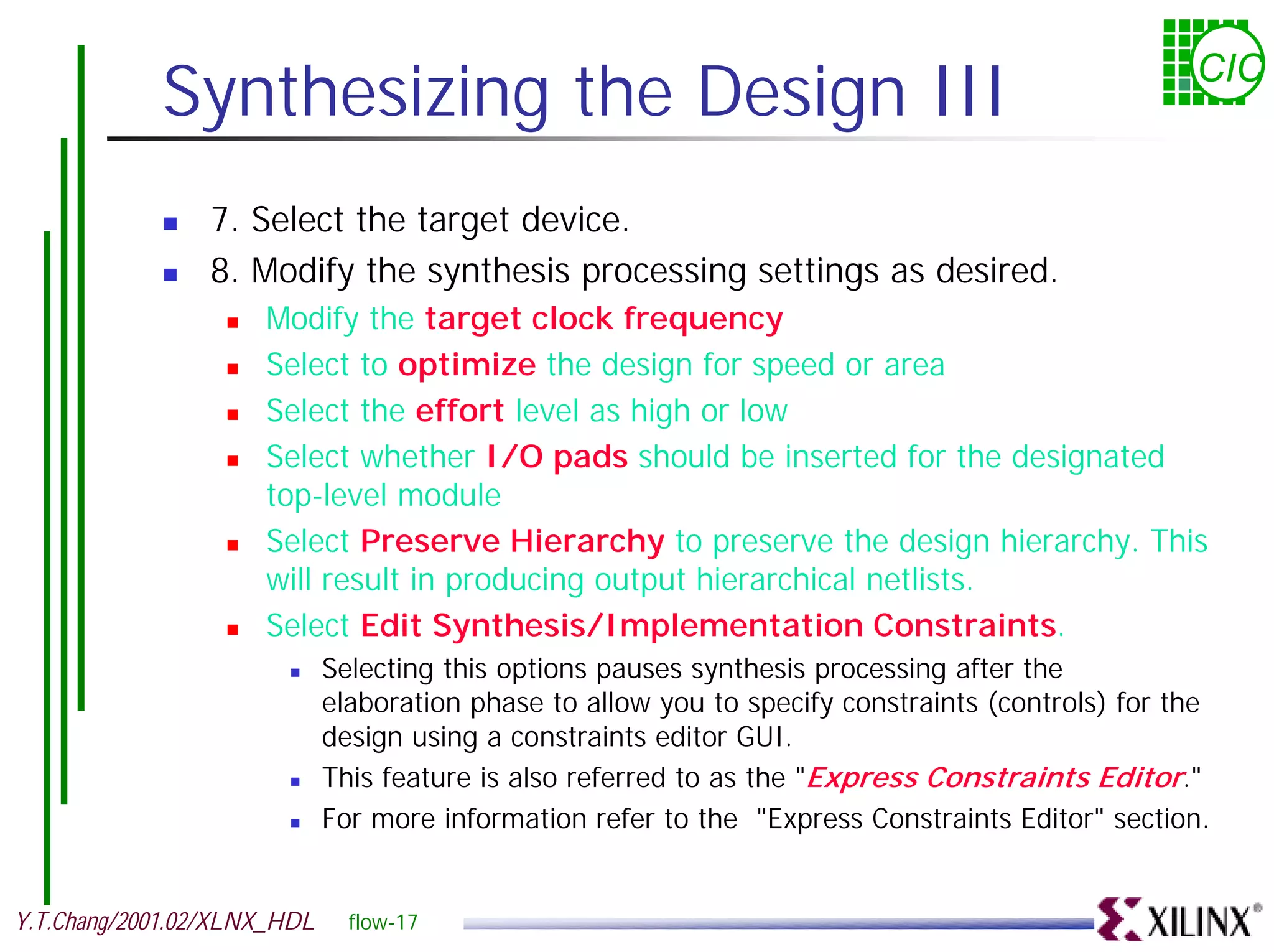

Synthesizing the Design III CIC ! 7. Select the target device. ! 8. Modify the synthesis processing settings as desired. ! Modify the target clock frequency ! Select to optimize the design for speed or area ! Select the effort level as high or low ! Select whether I/O pads should be inserted for the designated top-level module ! Select Preserve Hierarchy to preserve the design hierarchy. This will result in producing output hierarchical netlists. ! Select Edit Synthesis/Implementation Constraints. ! Selecting this options pauses synthesis processing after the elaboration phase to allow you to specify constraints (controls) for the design using a constraints editor GUI. ! This feature is also referred to as the "Express Constraints Editor." ! For more information refer to the "Express Constraints Editor" section. Y.T.Chang/2001.02/XLNX_HDL flow-17

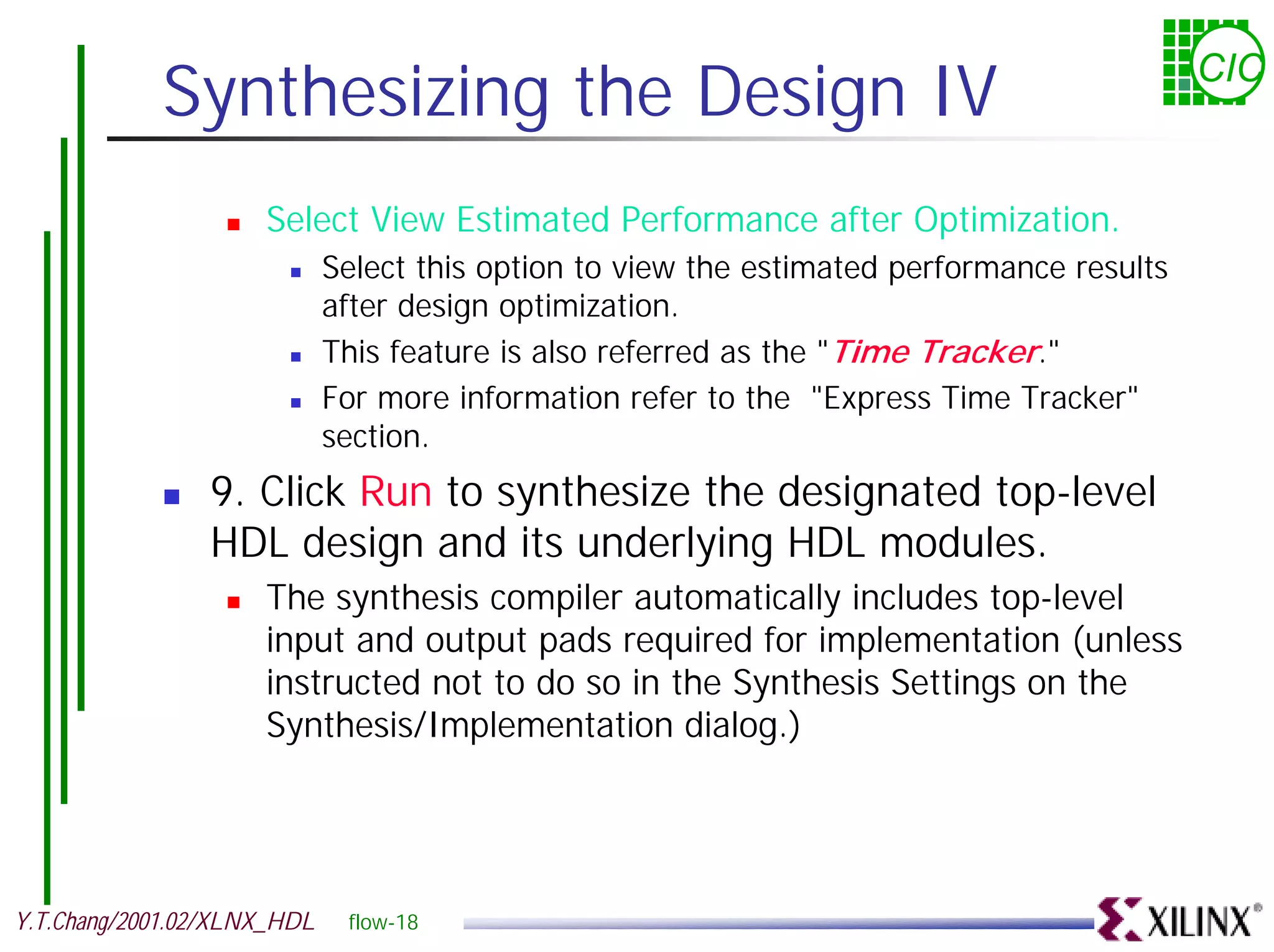

Synthesizing the Design IV CIC ! Select View Estimated Performance after Optimization. ! Select this option to view the estimated performance results after design optimization. ! This feature is also referred as the "Time Tracker." ! For more information refer to the "Express Time Tracker" section. ! 9. Click Run to synthesize the designated top-level HDL design and its underlying HDL modules. ! The synthesis compiler automatically includes top-level input and output pads required for implementation (unless instructed not to do so in the Synthesis Settings on the Synthesis/Implementation dialog.) Y.T.Chang/2001.02/XLNX_HDL flow-18

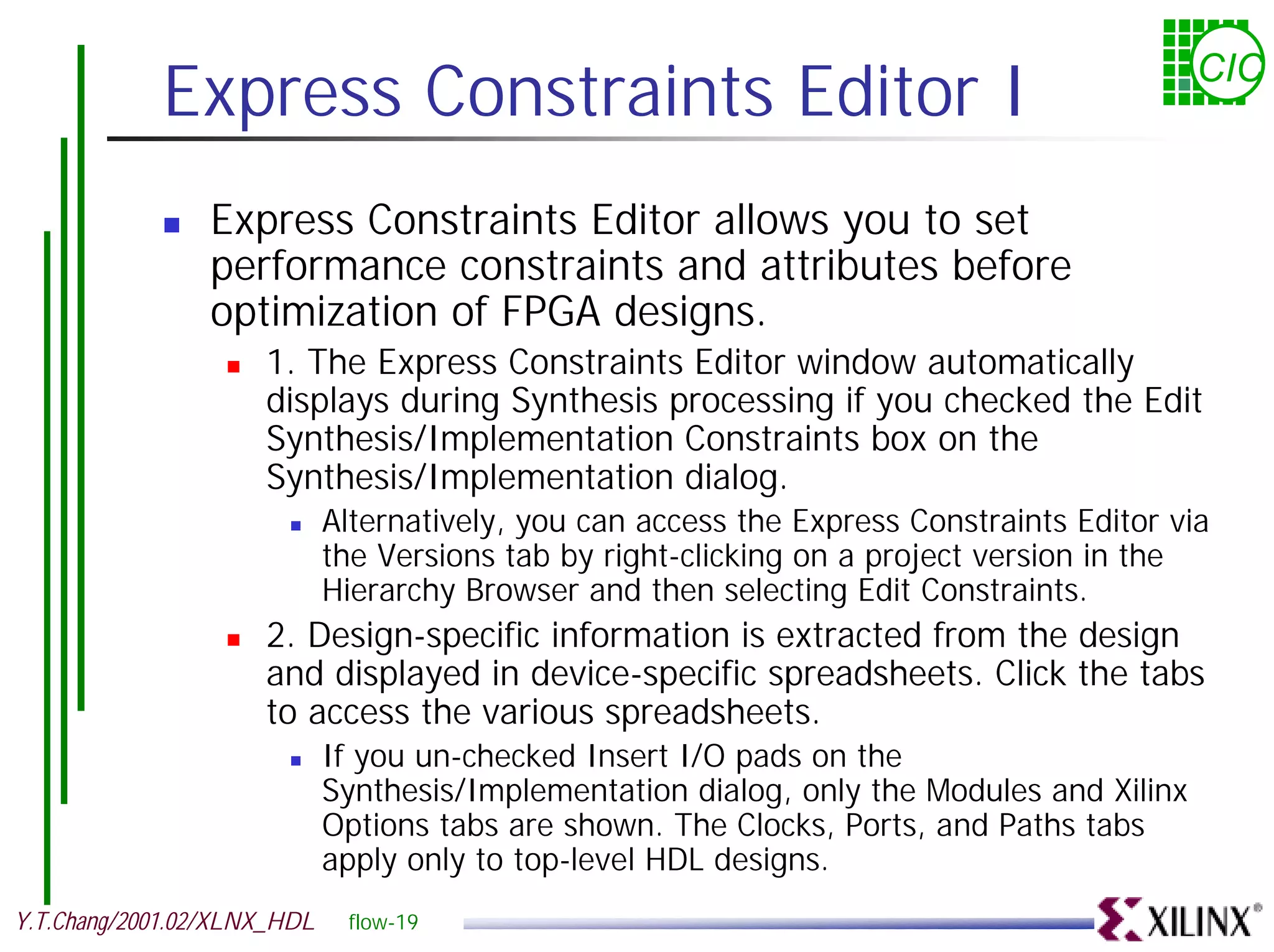

Express Constraints Editor I CIC ! Express Constraints Editor allows you to set performance constraints and attributes before optimization of FPGA designs. ! 1. The Express Constraints Editor window automatically displays during Synthesis processing if you checked the Edit Synthesis/Implementation Constraints box on the Synthesis/Implementation dialog. ! Alternatively, you can access the Express Constraints Editor via the Versions tab by right-clicking on a project version in the Hierarchy Browser and then selecting Edit Constraints. ! 2. Design-specific information is extracted from the design and displayed in device-specific spreadsheets. Click the tabs to access the various spreadsheets. ! If you un-checked Insert I/O pads on the Synthesis/Implementation dialog, only the Modules and Xilinx Options tabs are shown. The Clocks, Ports, and Paths tabs apply only to top-level HDL designs. Y.T.Chang/2001.02/XLNX_HDL flow-19

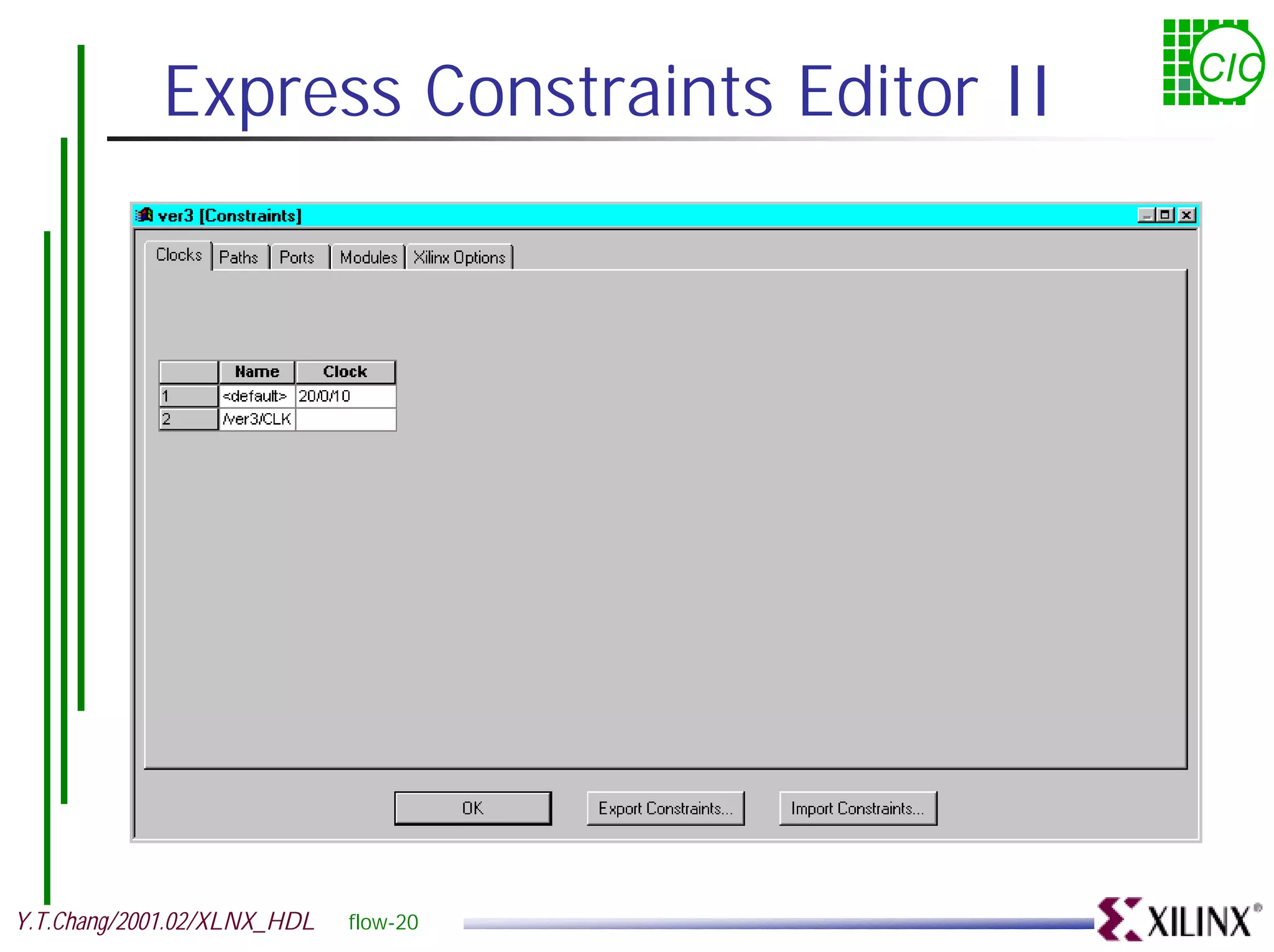

Express Constraints Editor II CIC Y.T.Chang/2001.02/XLNX_HDL flow-20

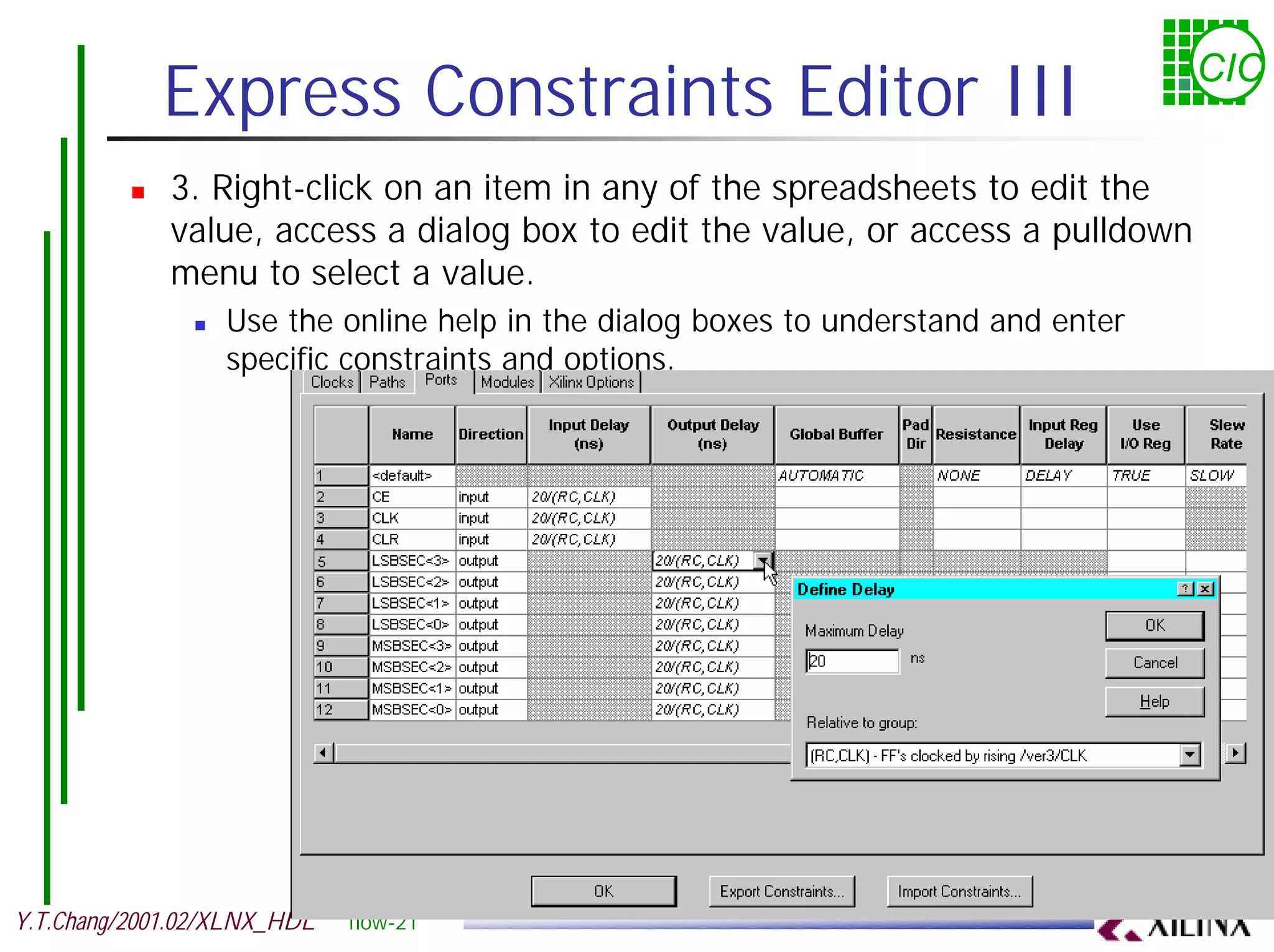

Express Constraints Editor III CIC ! 3. Right-click on an item in any of the spreadsheets to edit the value, access a dialog box to edit the value, or access a pulldown menu to select a value. ! Use the online help in the dialog boxes to understand and enter specific constraints and options. Y.T.Chang/2001.02/XLNX_HDL flow-21

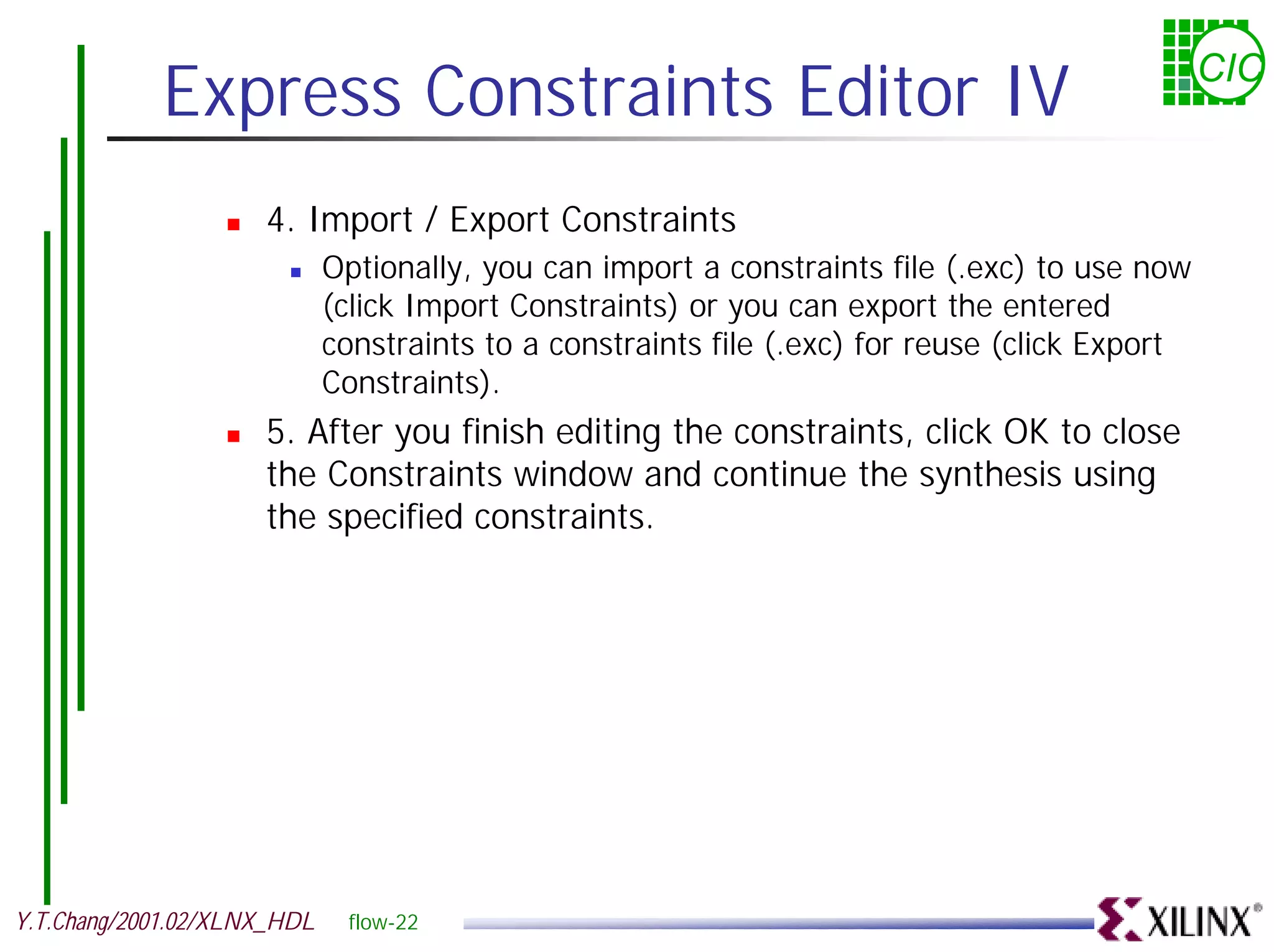

Express Constraints Editor IV CIC ! 4. Import / Export Constraints ! Optionally, you can import a constraints file (.exc) to use now (click Import Constraints) or you can export the entered constraints to a constraints file (.exc) for reuse (click Export Constraints). ! 5. After you finish editing the constraints, click OK to close the Constraints window and continue the synthesis using the specified constraints. Y.T.Chang/2001.02/XLNX_HDL flow-22

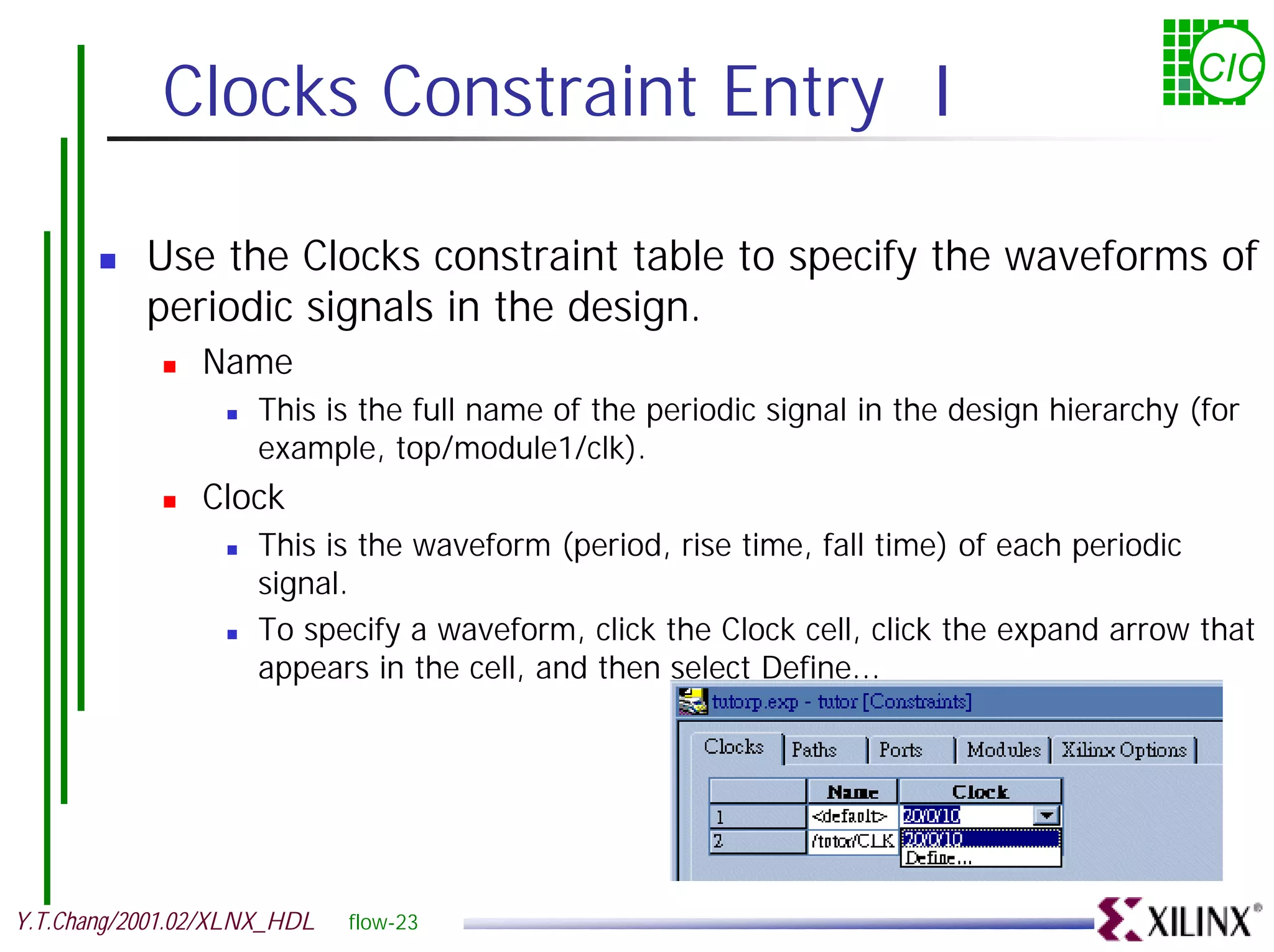

Clocks Constraint Entry I CIC ! Use the Clocks constraint table to specify the waveforms of periodic signals in the design. ! Name ! This is the full name of the periodic signal in the design hierarchy (for example, top/module1/clk). ! Clock ! This is the waveform (period, rise time, fall time) of each periodic signal. ! To specify a waveform, click the Clock cell, click the expand arrow that appears in the cell, and then select Define... Y.T.Chang/2001.02/XLNX_HDL flow-23

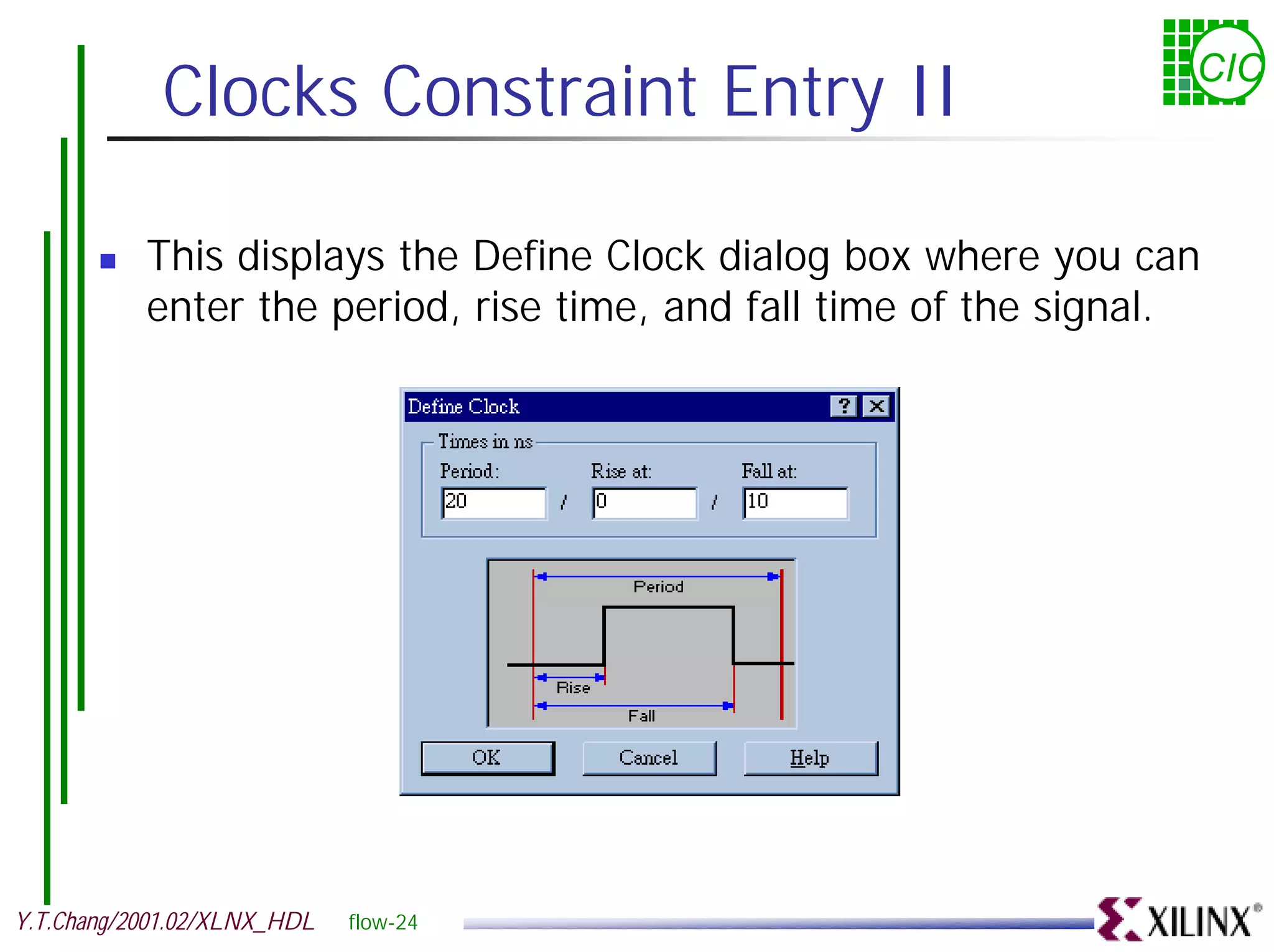

Clocks Constraint Entry II CIC ! This displays the Define Clock dialog box where you can enter the period, rise time, and fall time of the signal. Y.T.Chang/2001.02/XLNX_HDL flow-24

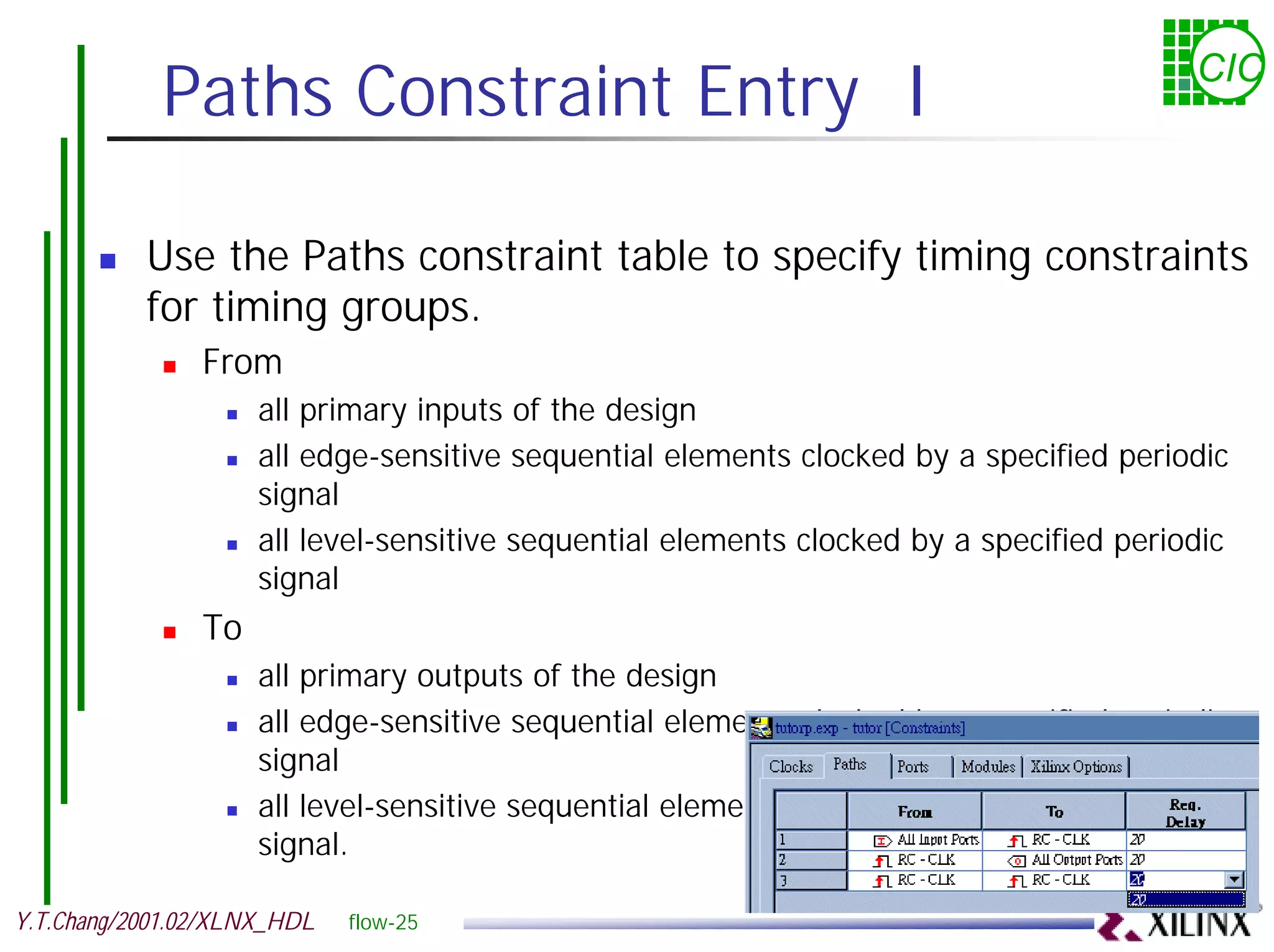

Paths Constraint Entry I CIC ! Use the Paths constraint table to specify timing constraints for timing groups. ! From ! all primary inputs of the design ! all edge-sensitive sequential elements clocked by a specified periodic signal ! all level-sensitive sequential elements clocked by a specified periodic signal ! To ! all primary outputs of the design ! all edge-sensitive sequential elements clocked by a specified periodic signal ! all level-sensitive sequential elements clocked by a specified periodic signal. Y.T.Chang/2001.02/XLNX_HDL flow-25

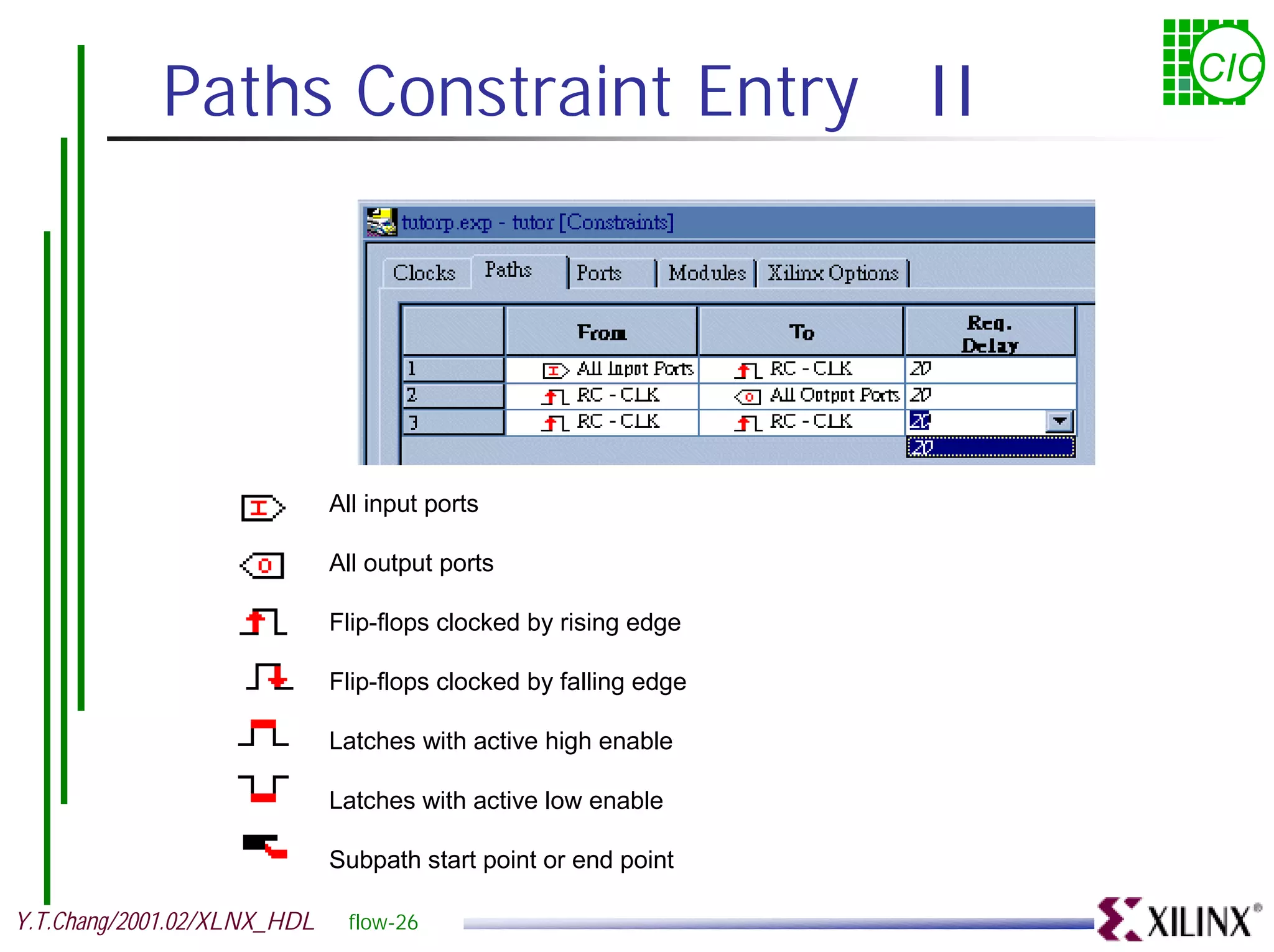

Paths Constraint Entry II CIC All input ports All output ports Flip-flops clocked by rising edge Flip-flops clocked by falling edge Latches with active high enable Latches with active low enable Subpath start point or end point Y.T.Chang/2001.02/XLNX_HDL flow-26

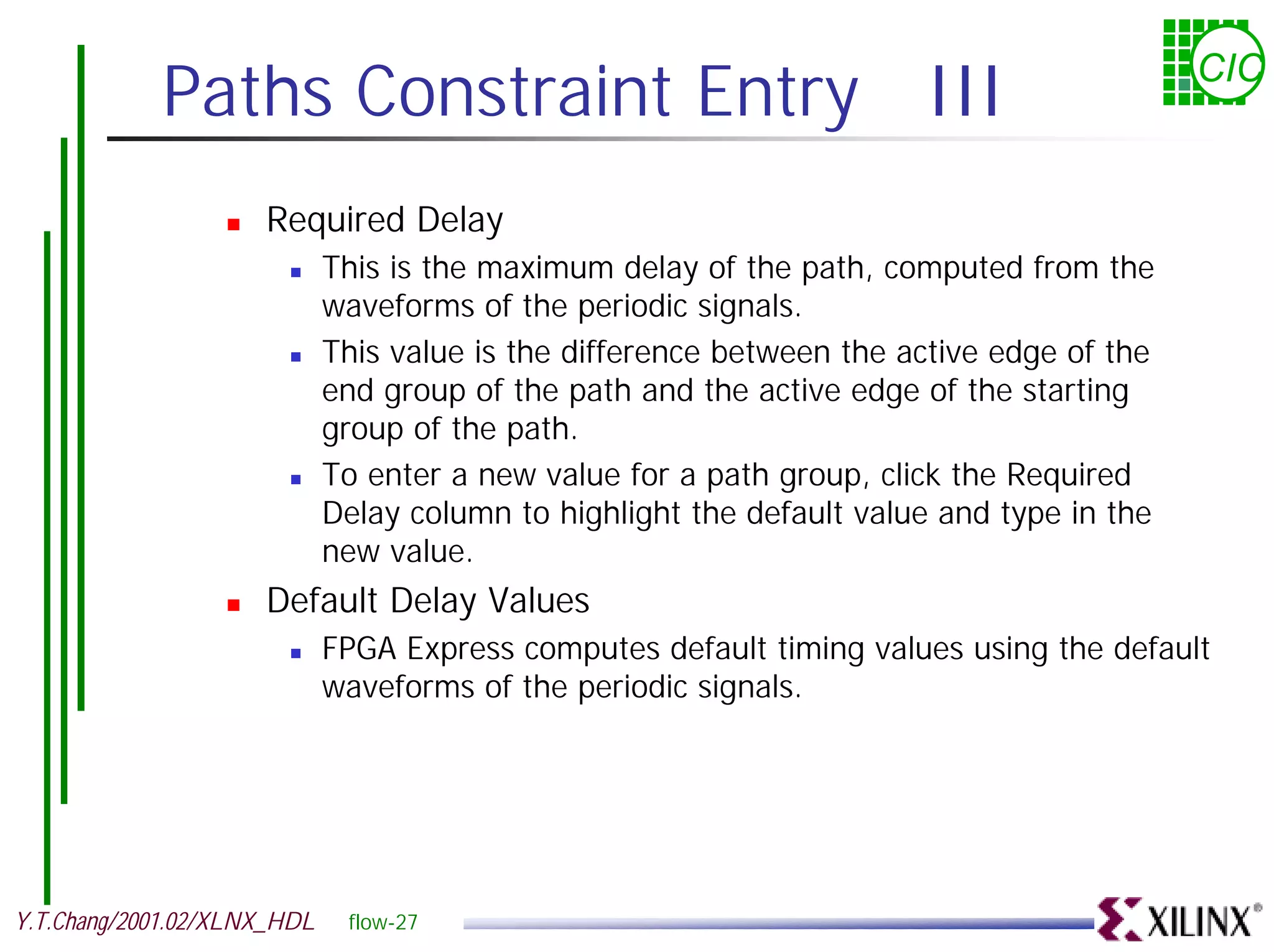

Paths Constraint Entry III CIC ! Required Delay ! This is the maximum delay of the path, computed from the waveforms of the periodic signals. ! This value is the difference between the active edge of the end group of the path and the active edge of the starting group of the path. ! To enter a new value for a path group, click the Required Delay column to highlight the default value and type in the new value. ! Default Delay Values ! FPGA Express computes default timing values using the default waveforms of the periodic signals. Y.T.Chang/2001.02/XLNX_HDL flow-27

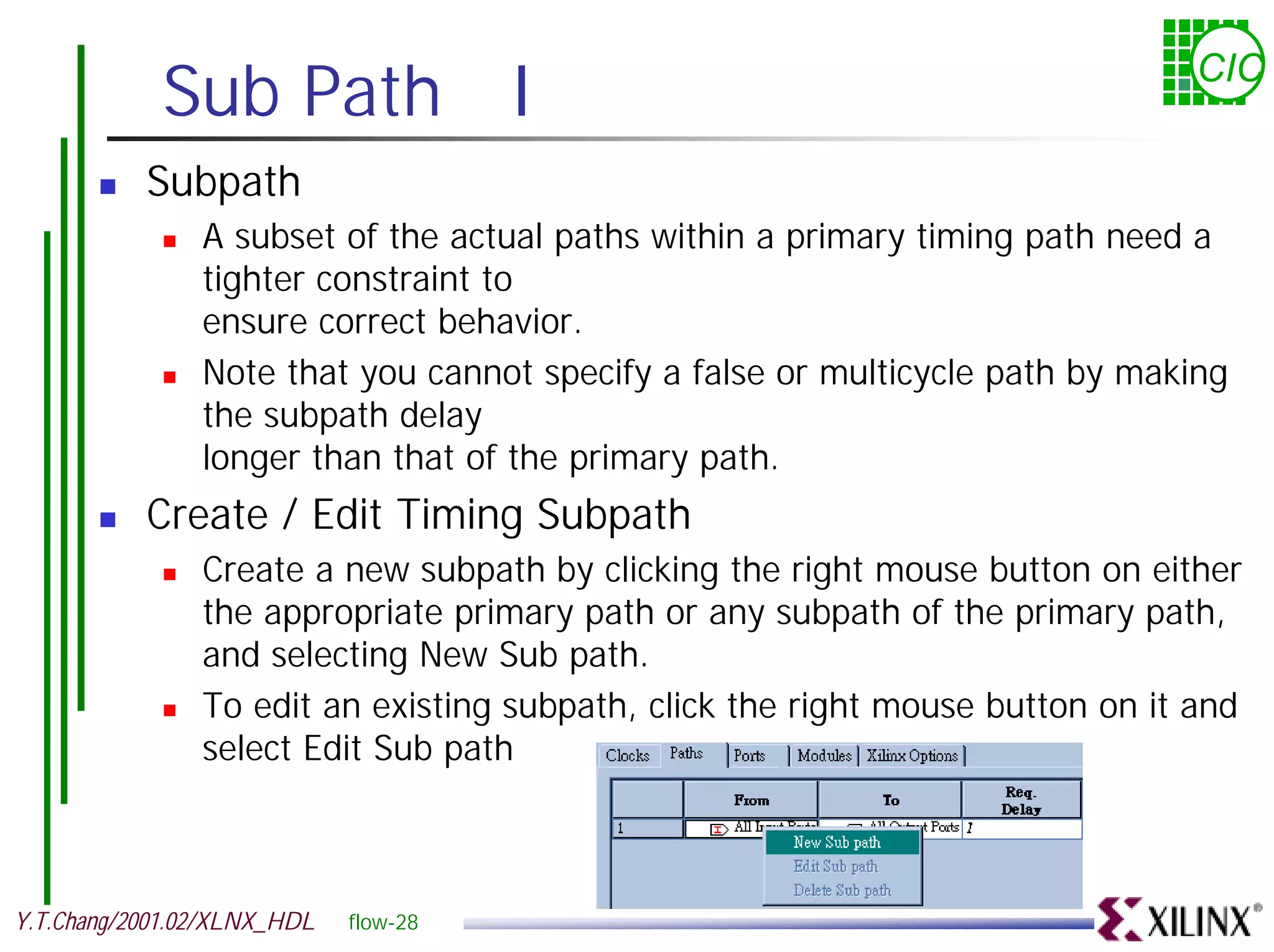

Sub Path I CIC ! Subpath ! A subset of the actual paths within a primary timing path need a tighter constraint to ensure correct behavior. ! Note that you cannot specify a false or multicycle path by making the subpath delay longer than that of the primary path. ! Create / Edit Timing Subpath ! Create a new subpath by clicking the right mouse button on either the appropriate primary path or any subpath of the primary path, and selecting New Sub path. ! To edit an existing subpath, click the right mouse button on it and select Edit Sub path Y.T.Chang/2001.02/XLNX_HDL flow-28

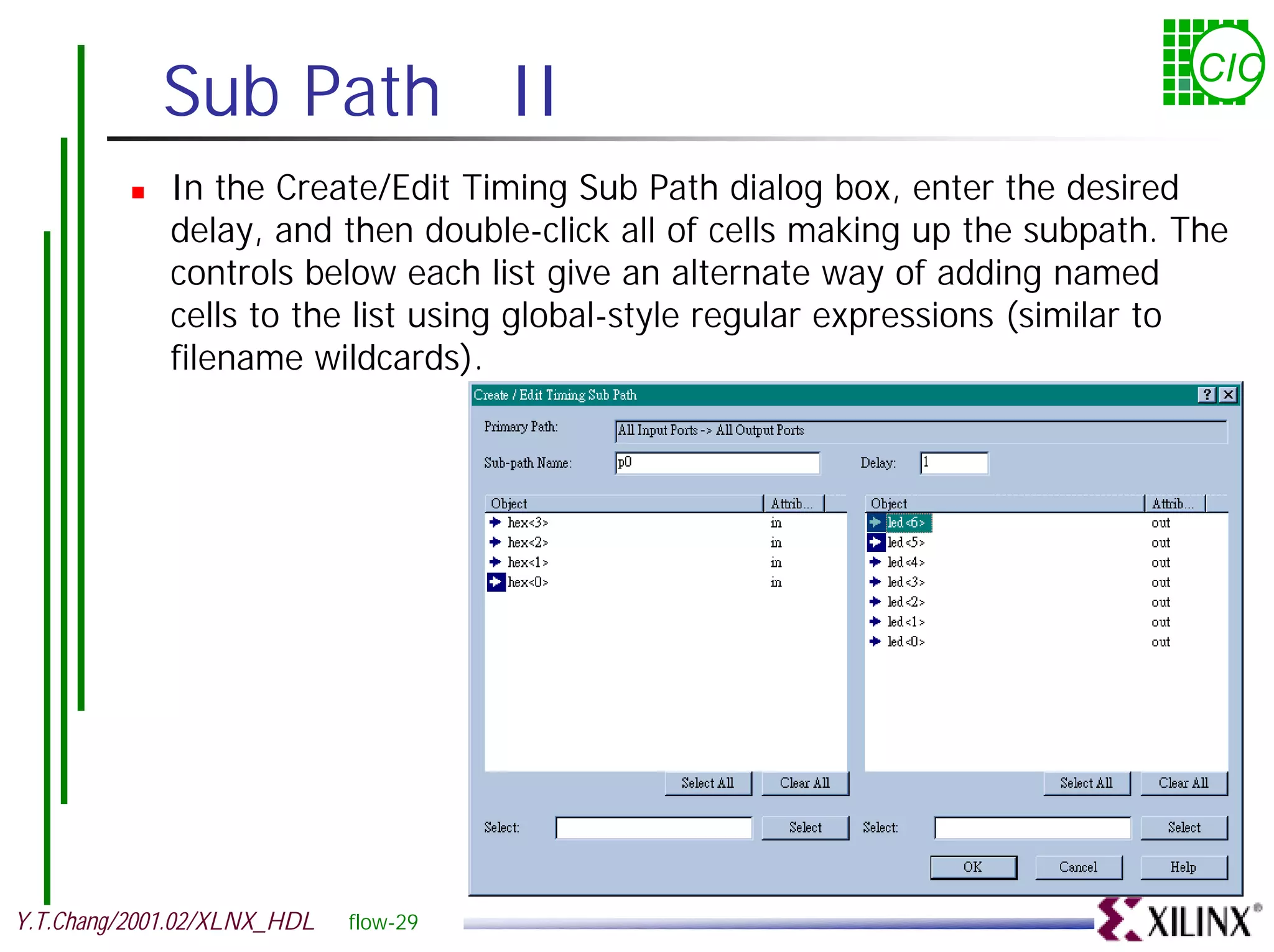

Sub Path II CIC ! In the Create/Edit Timing Sub Path dialog box, enter the desired delay, and then double-click all of cells making up the subpath. The controls below each list give an alternate way of adding named cells to the list using global-style regular expressions (similar to filename wildcards). Y.T.Chang/2001.02/XLNX_HDL flow-29

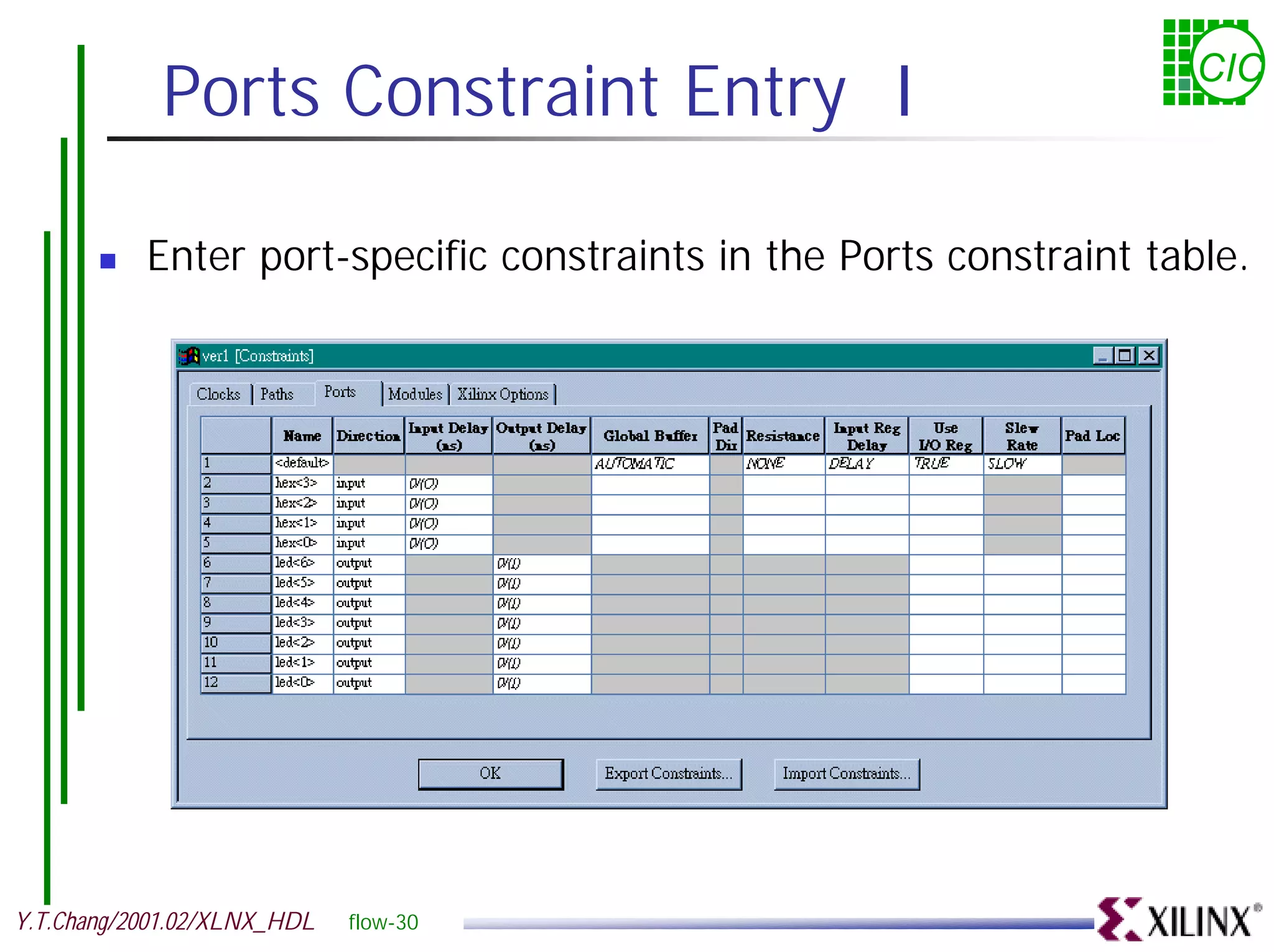

Ports Constraint Entry I CIC ! Enter port-specific constraints in the Ports constraint table. Y.T.Chang/2001.02/XLNX_HDL flow-30

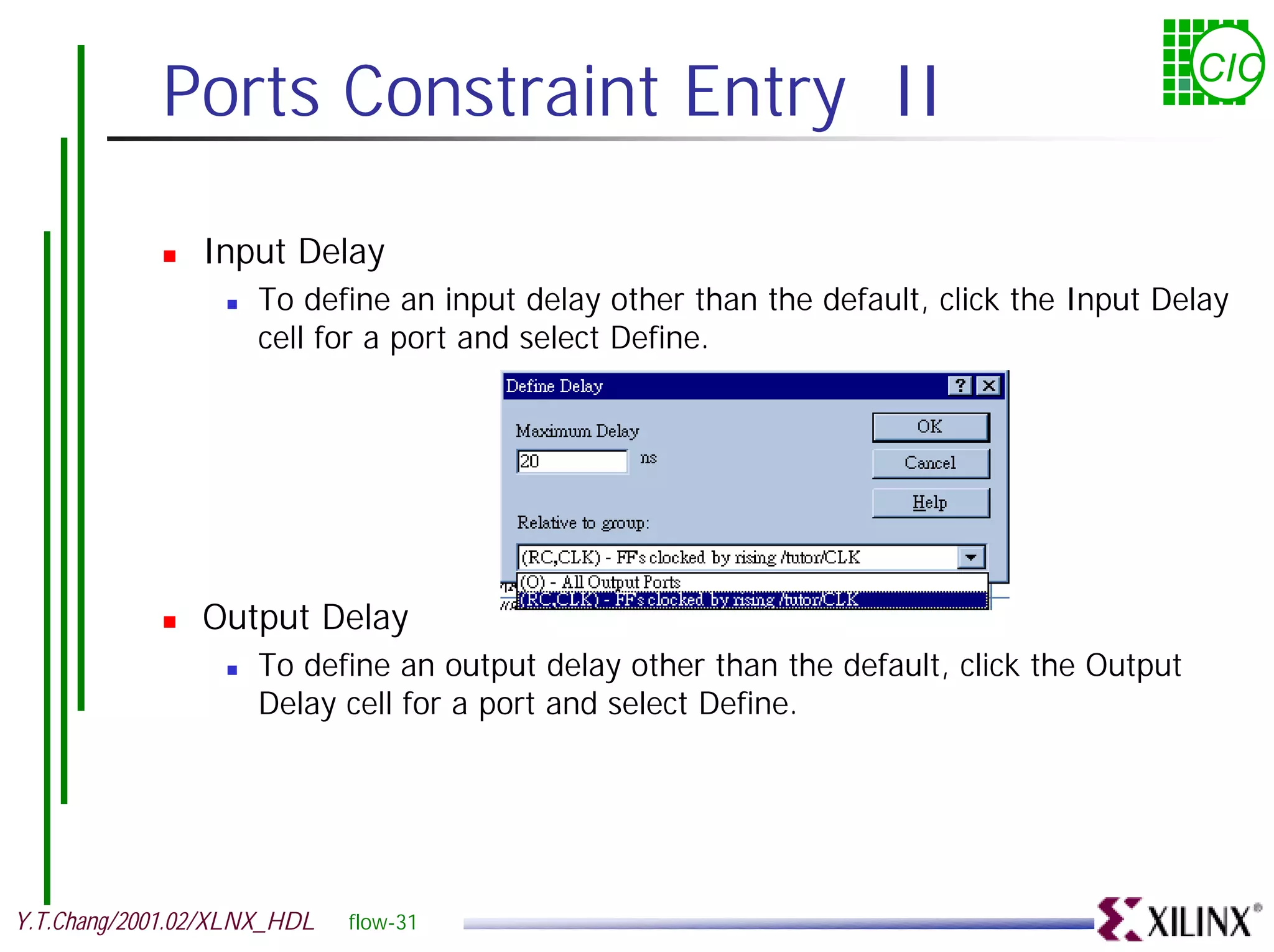

Ports Constraint Entry II CIC ! Input Delay ! To define an input delay other than the default, click the Input Delay cell for a port and select Define. ! Output Delay ! To define an output delay other than the default, click the Output Delay cell for a port and select Define. Y.T.Chang/2001.02/XLNX_HDL flow-31

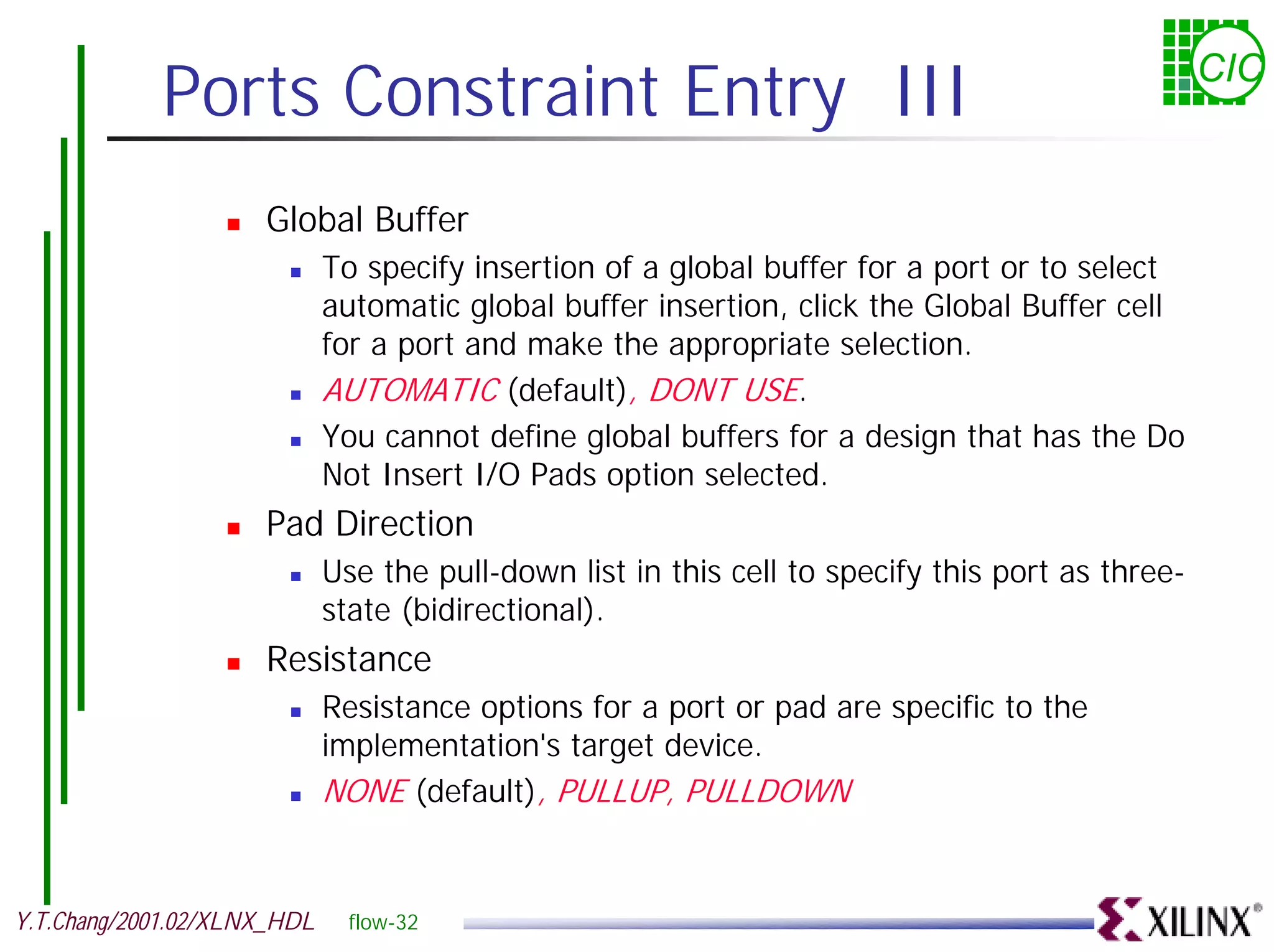

Ports Constraint Entry III CIC ! Global Buffer ! To specify insertion of a global buffer for a port or to select automatic global buffer insertion, click the Global Buffer cell for a port and make the appropriate selection. ! AUTOMATIC (default), DONT USE. ! You cannot define global buffers for a design that has the Do Not Insert I/O Pads option selected. ! Pad Direction ! Use the pull-down list in this cell to specify this port as three- state (bidirectional). ! Resistance ! Resistance options for a port or pad are specific to the implementation's target device. ! NONE (default), PULLUP, PULLDOWN Y.T.Chang/2001.02/XLNX_HDL flow-32

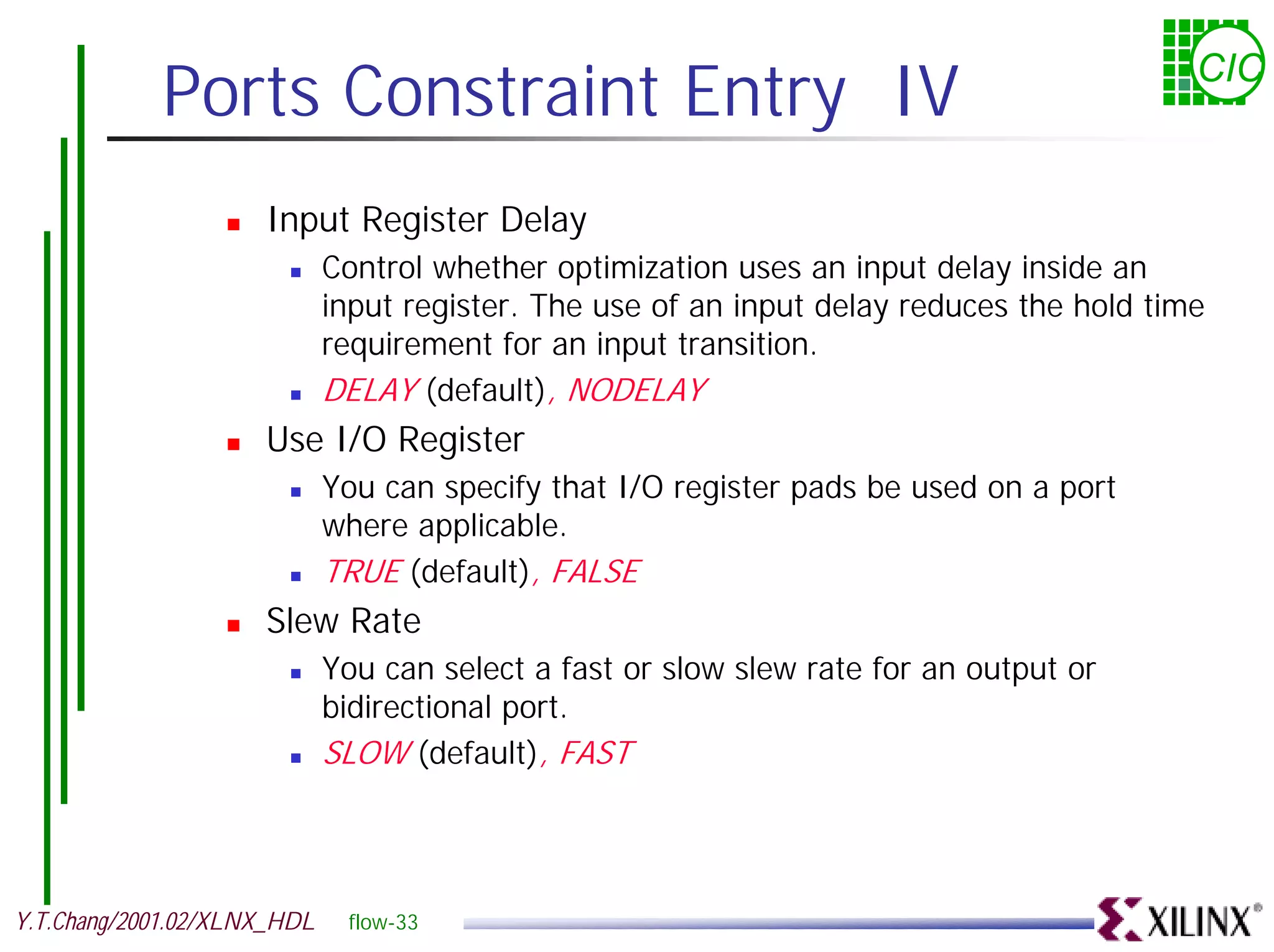

Ports Constraint Entry IV CIC ! Input Register Delay ! Control whether optimization uses an input delay inside an input register. The use of an input delay reduces the hold time requirement for an input transition. ! DELAY (default), NODELAY ! Use I/O Register ! You can specify that I/O register pads be used on a port where applicable. ! TRUE (default), FALSE ! Slew Rate ! You can select a fast or slow slew rate for an output or bidirectional port. ! SLOW (default), FAST Y.T.Chang/2001.02/XLNX_HDL flow-33

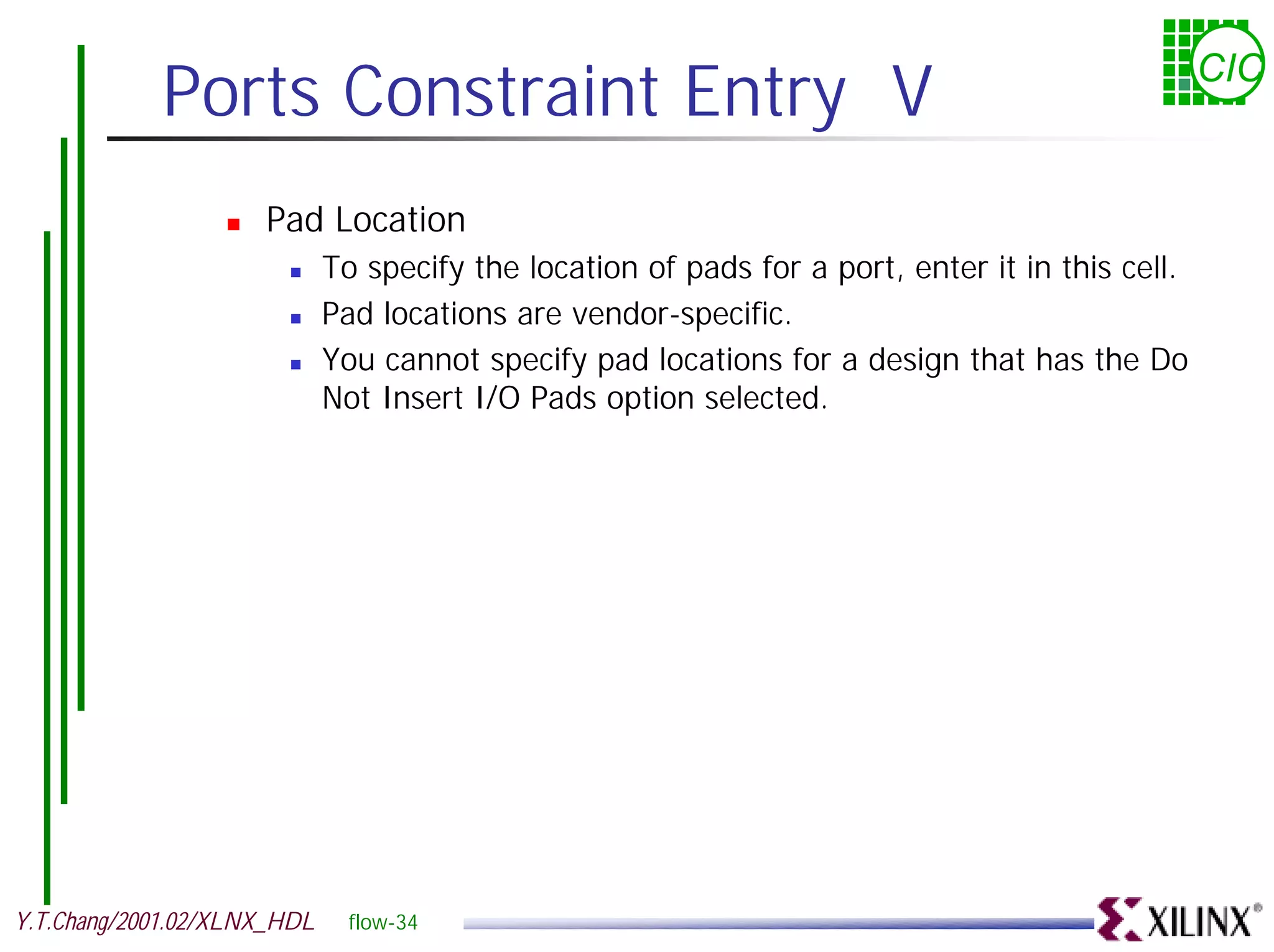

Ports Constraint Entry V CIC ! Pad Location ! To specify the location of pads for a port, enter it in this cell. ! Pad locations are vendor-specific. ! You cannot specify pad locations for a design that has the Do Not Insert I/O Pads option selected. Y.T.Chang/2001.02/XLNX_HDL flow-34

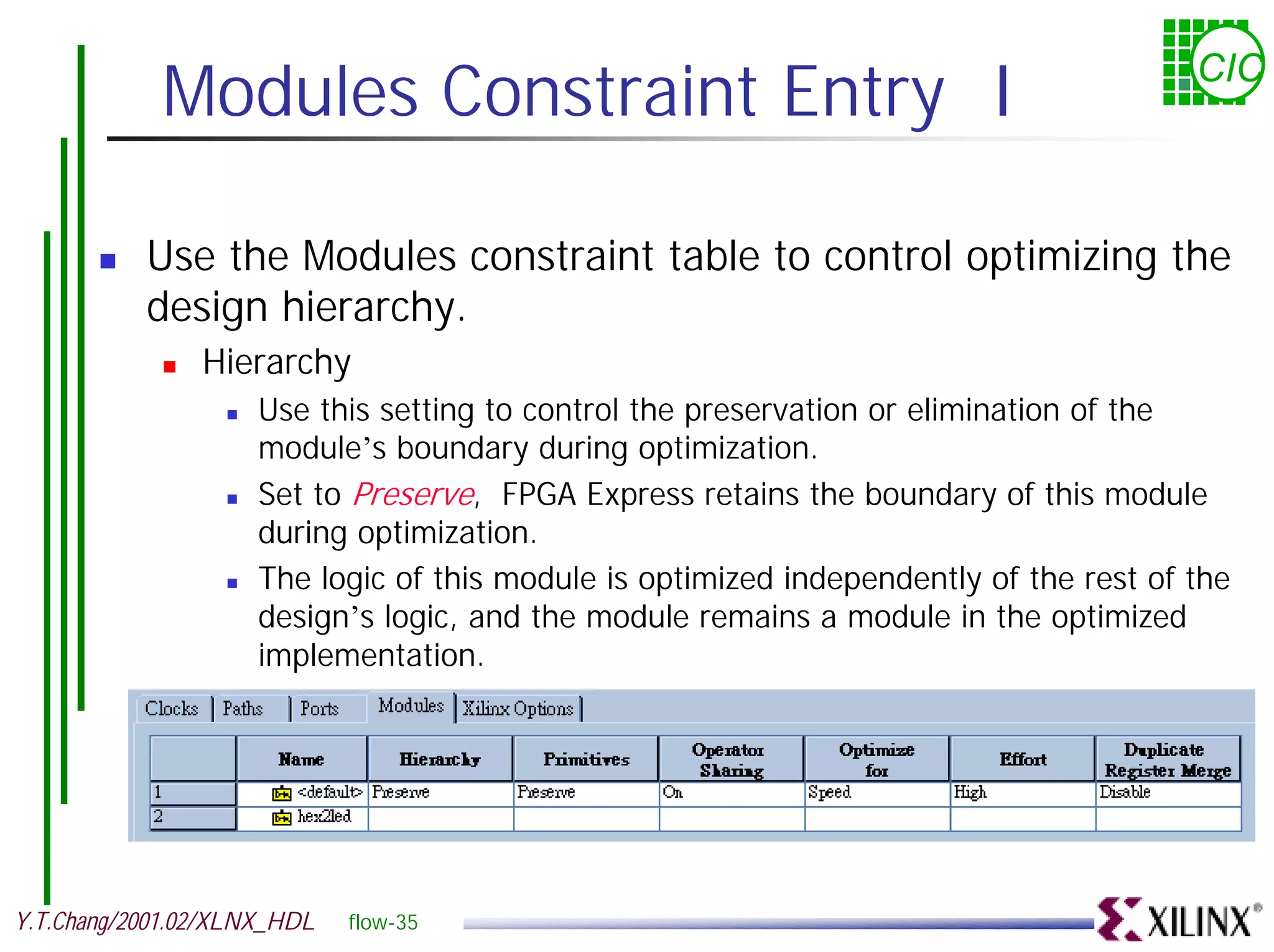

Modules Constraint Entry I CIC ! Use the Modules constraint table to control optimizing the design hierarchy. ! Hierarchy ! Use this setting to control the preservation or elimination of the module’s boundary during optimization. ! Set to Preserve, FPGA Express retains the boundary of this module during optimization. ! The logic of this module is optimized independently of the rest of the design’s logic, and the module remains a module in the optimized implementation. Y.T.Chang/2001.02/XLNX_HDL flow-35

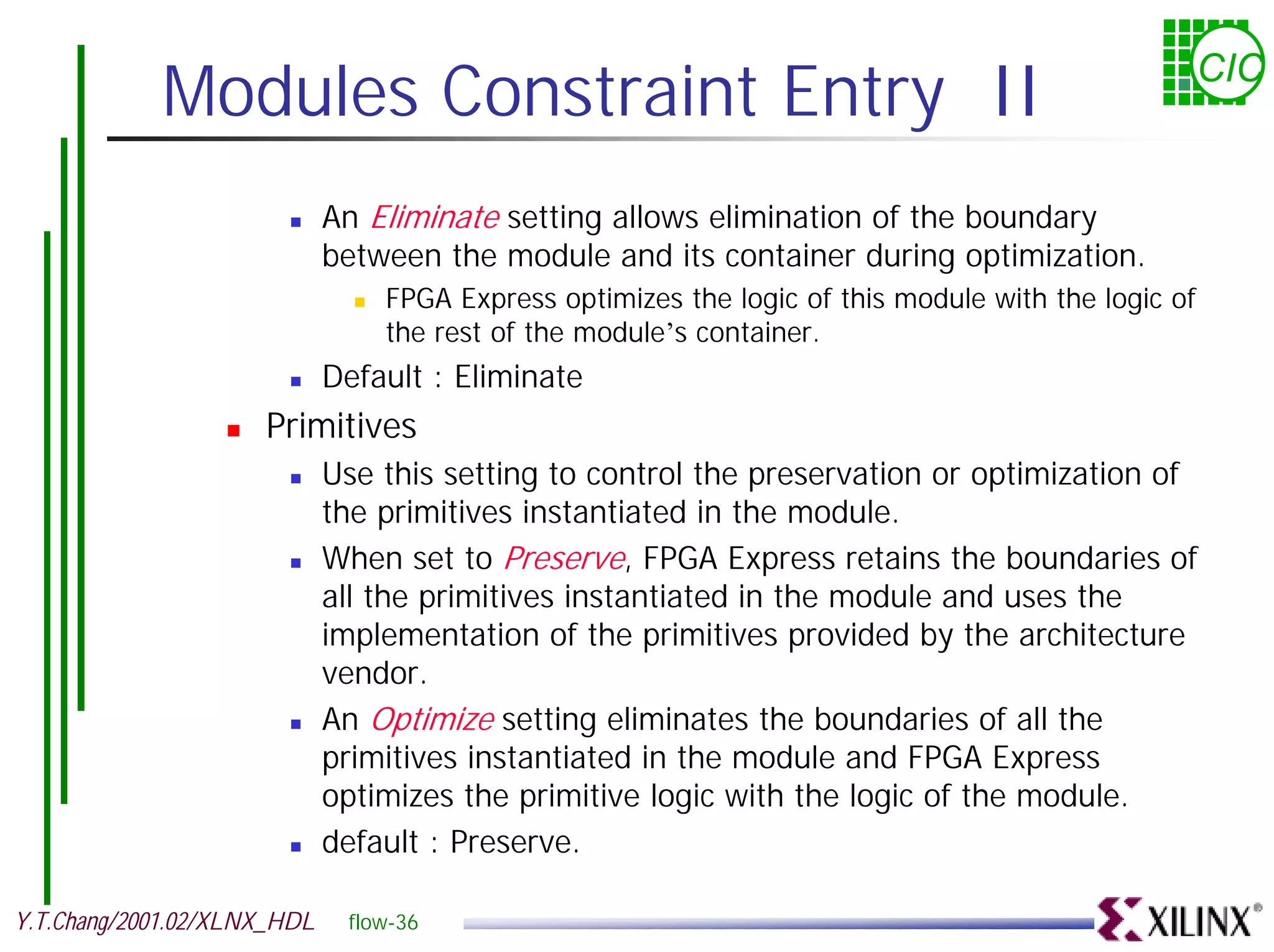

Modules Constraint Entry II CIC ! An Eliminate setting allows elimination of the boundary between the module and its container during optimization. ! FPGA Express optimizes the logic of this module with the logic of the rest of the module’s container. ! Default : Eliminate ! Primitives ! Use this setting to control the preservation or optimization of the primitives instantiated in the module. ! When set to Preserve, FPGA Express retains the boundaries of all the primitives instantiated in the module and uses the implementation of the primitives provided by the architecture vendor. ! An Optimize setting eliminates the boundaries of all the primitives instantiated in the module and FPGA Express optimizes the primitive logic with the logic of the module. ! default : Preserve. Y.T.Chang/2001.02/XLNX_HDL flow-36

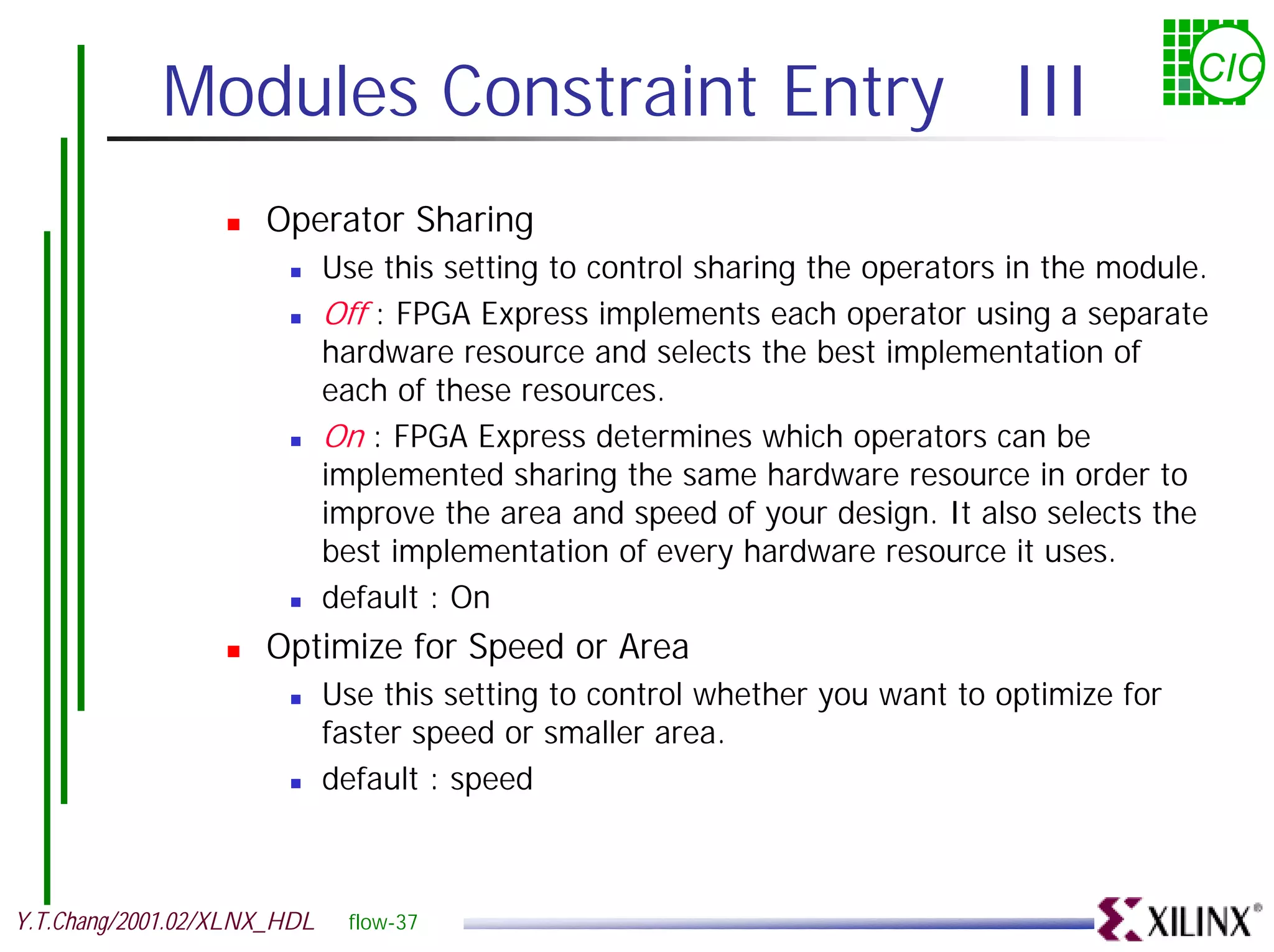

Modules Constraint Entry III CIC ! Operator Sharing ! Use this setting to control sharing the operators in the module. ! Off : FPGA Express implements each operator using a separate hardware resource and selects the best implementation of each of these resources. ! On : FPGA Express determines which operators can be implemented sharing the same hardware resource in order to improve the area and speed of your design. It also selects the best implementation of every hardware resource it uses. ! default : On ! Optimize for Speed or Area ! Use this setting to control whether you want to optimize for faster speed or smaller area. ! default : speed Y.T.Chang/2001.02/XLNX_HDL flow-37

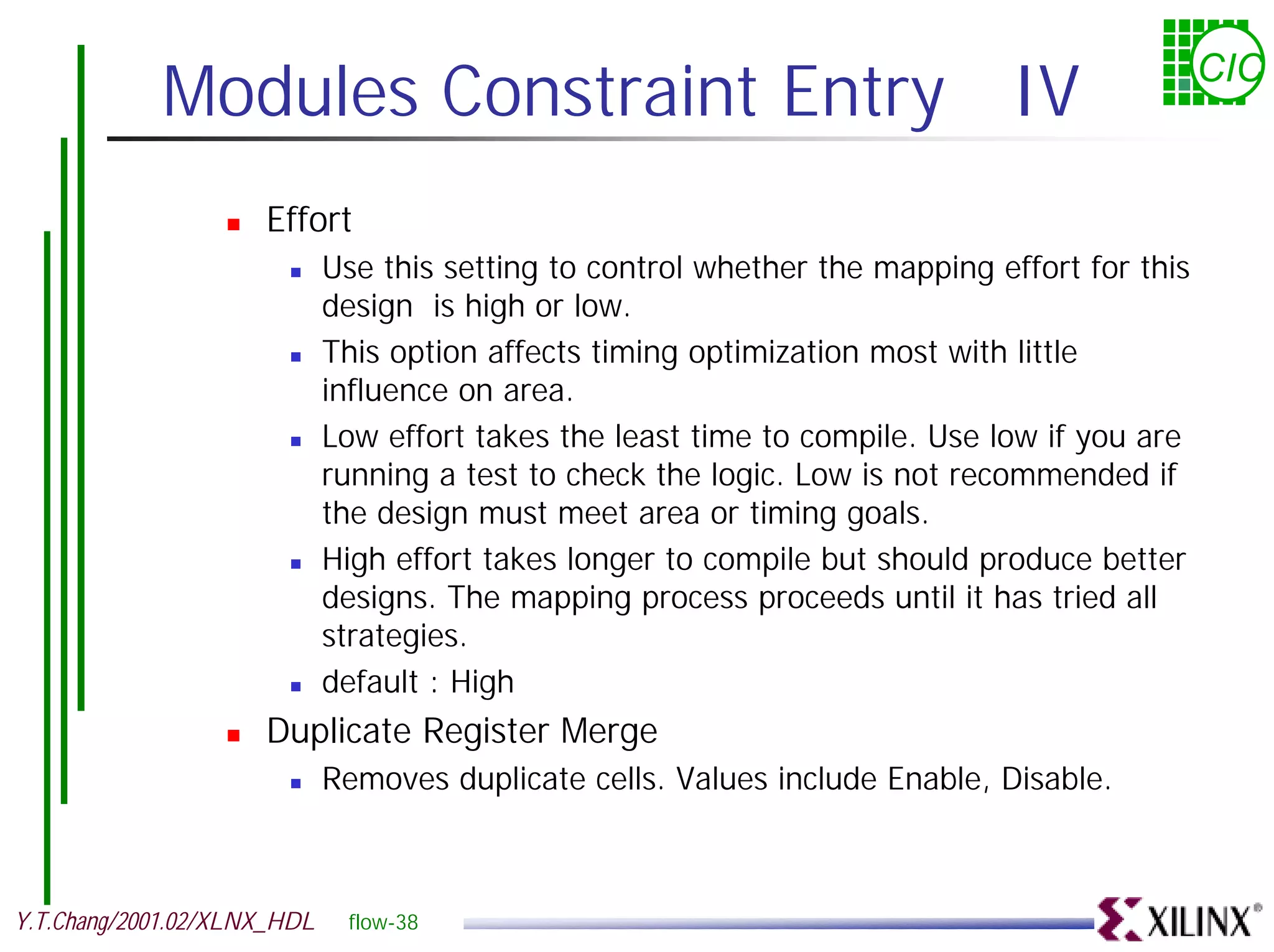

Modules Constraint Entry IV CIC ! Effort ! Use this setting to control whether the mapping effort for this design is high or low. ! This option affects timing optimization most with little influence on area. ! Low effort takes the least time to compile. Use low if you are running a test to check the logic. Low is not recommended if the design must meet area or timing goals. ! High effort takes longer to compile but should produce better designs. The mapping process proceeds until it has tried all strategies. ! default : High ! Duplicate Register Merge ! Removes duplicate cells. Values include Enable, Disable. Y.T.Chang/2001.02/XLNX_HDL flow-38

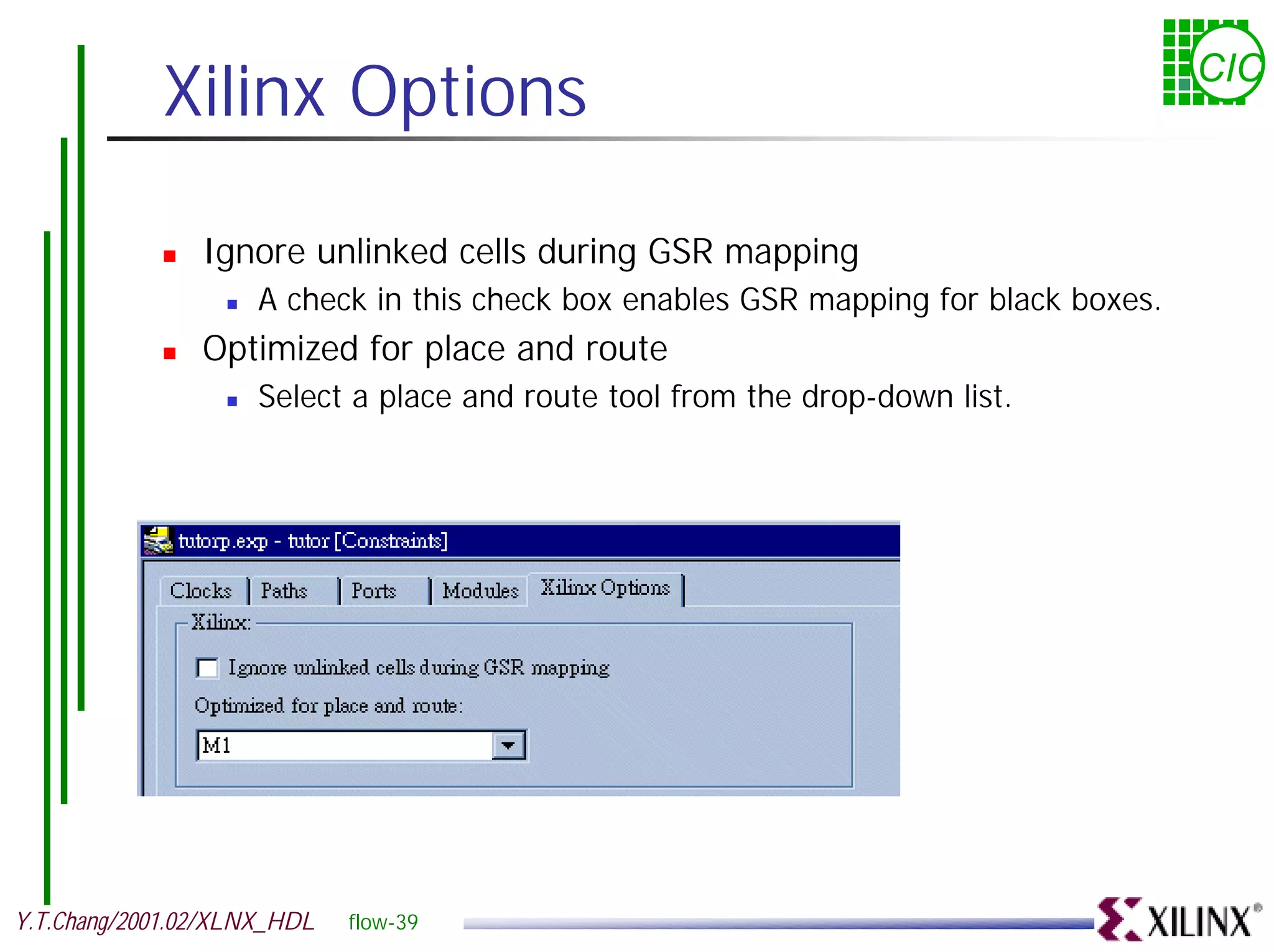

Xilinx Options CIC ! Ignore unlinked cells during GSR mapping ! A check in this check box enables GSR mapping for black boxes. ! Optimized for place and route ! Select a place and route tool from the drop-down list. Y.T.Chang/2001.02/XLNX_HDL flow-39

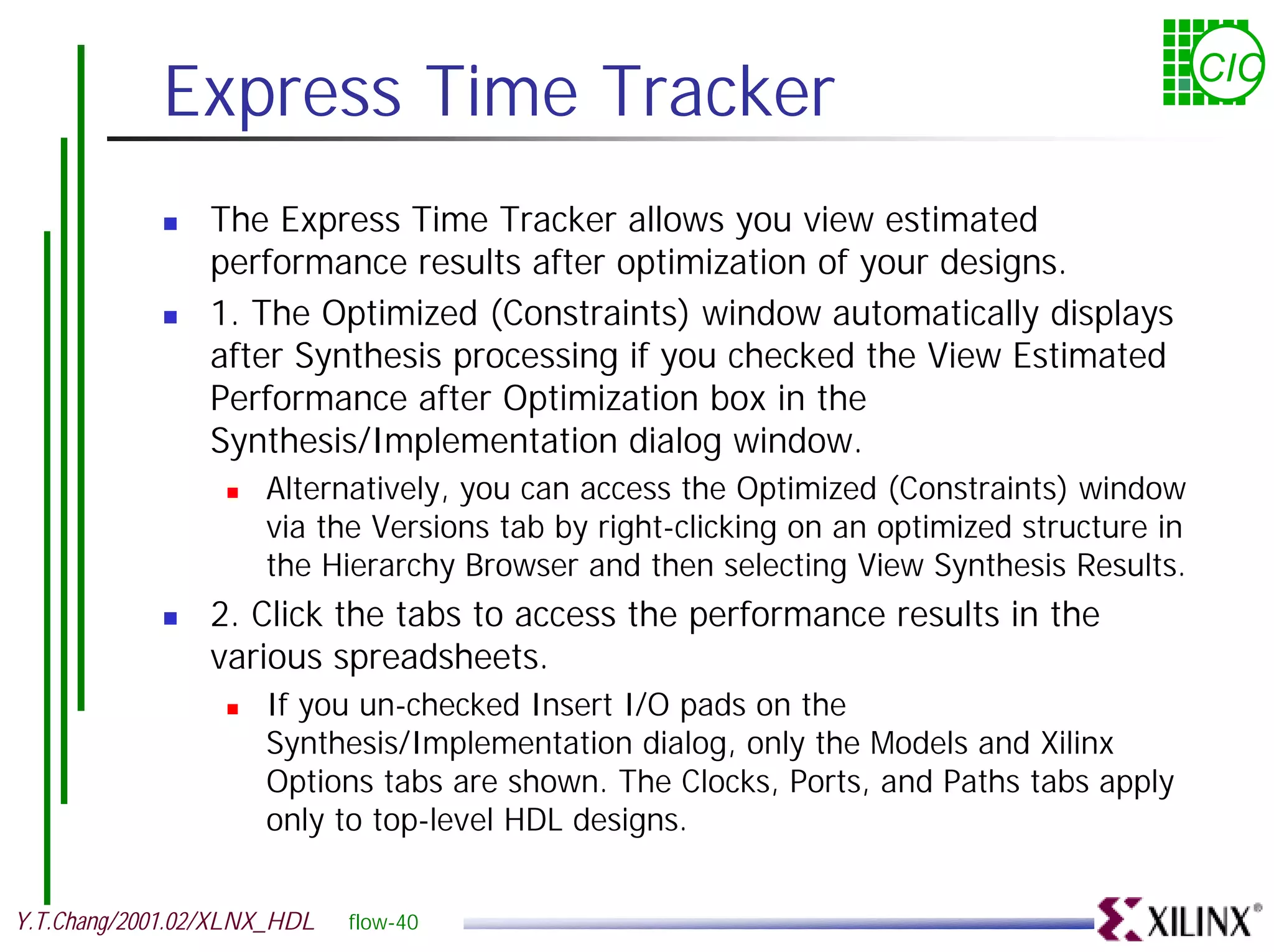

Express Time Tracker CIC ! The Express Time Tracker allows you view estimated performance results after optimization of your designs. ! 1. The Optimized (Constraints) window automatically displays after Synthesis processing if you checked the View Estimated Performance after Optimization box in the Synthesis/Implementation dialog window. ! Alternatively, you can access the Optimized (Constraints) window via the Versions tab by right-clicking on an optimized structure in the Hierarchy Browser and then selecting View Synthesis Results. ! 2. Click the tabs to access the performance results in the various spreadsheets. ! If you un-checked Insert I/O pads on the Synthesis/Implementation dialog, only the Models and Xilinx Options tabs are shown. The Clocks, Ports, and Paths tabs apply only to top-level HDL designs. Y.T.Chang/2001.02/XLNX_HDL flow-40

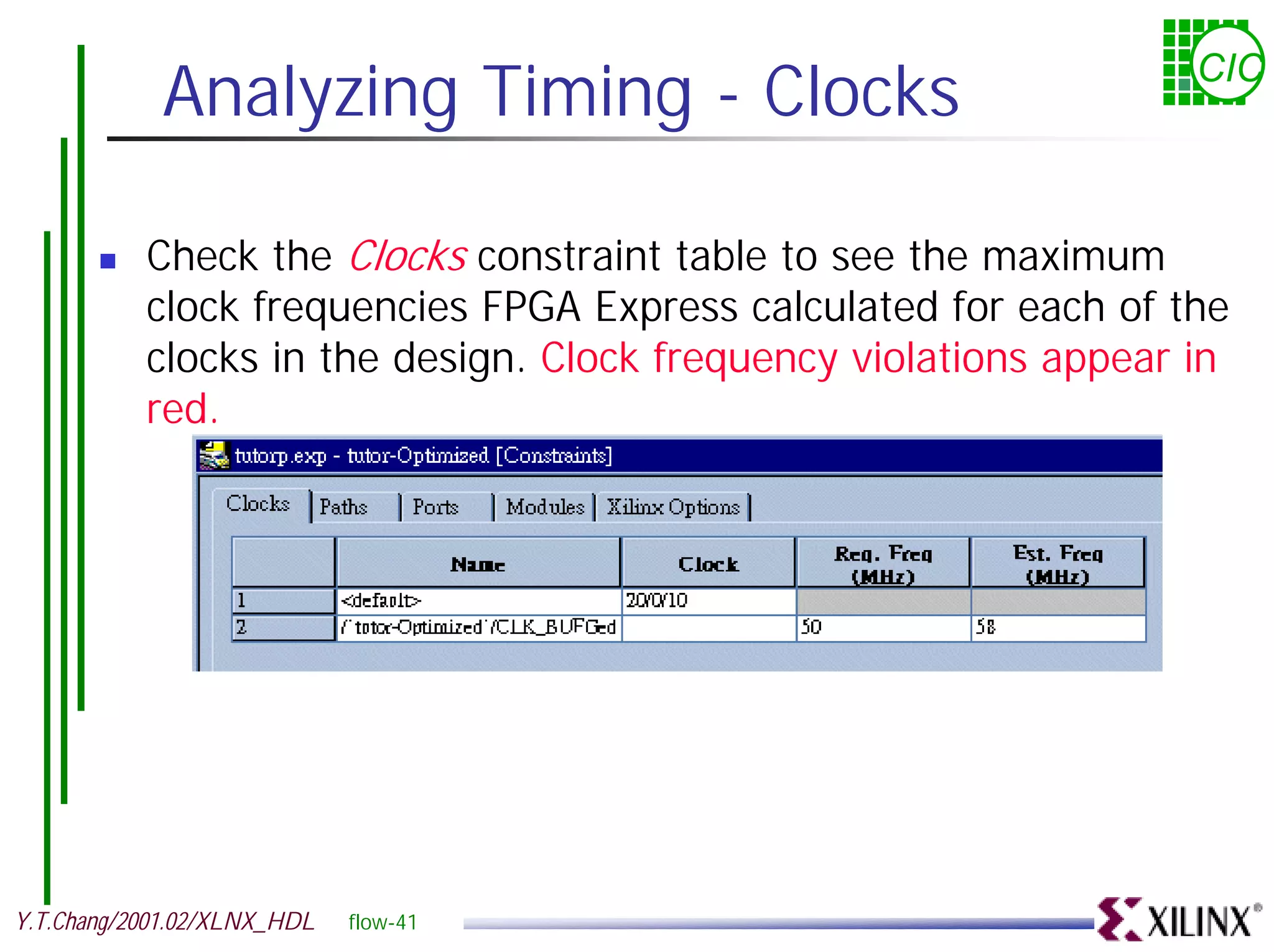

Analyzing Timing - Clocks CIC ! Check the Clocks constraint table to see the maximum clock frequencies FPGA Express calculated for each of the clocks in the design. Clock frequency violations appear in red. Y.T.Chang/2001.02/XLNX_HDL flow-41

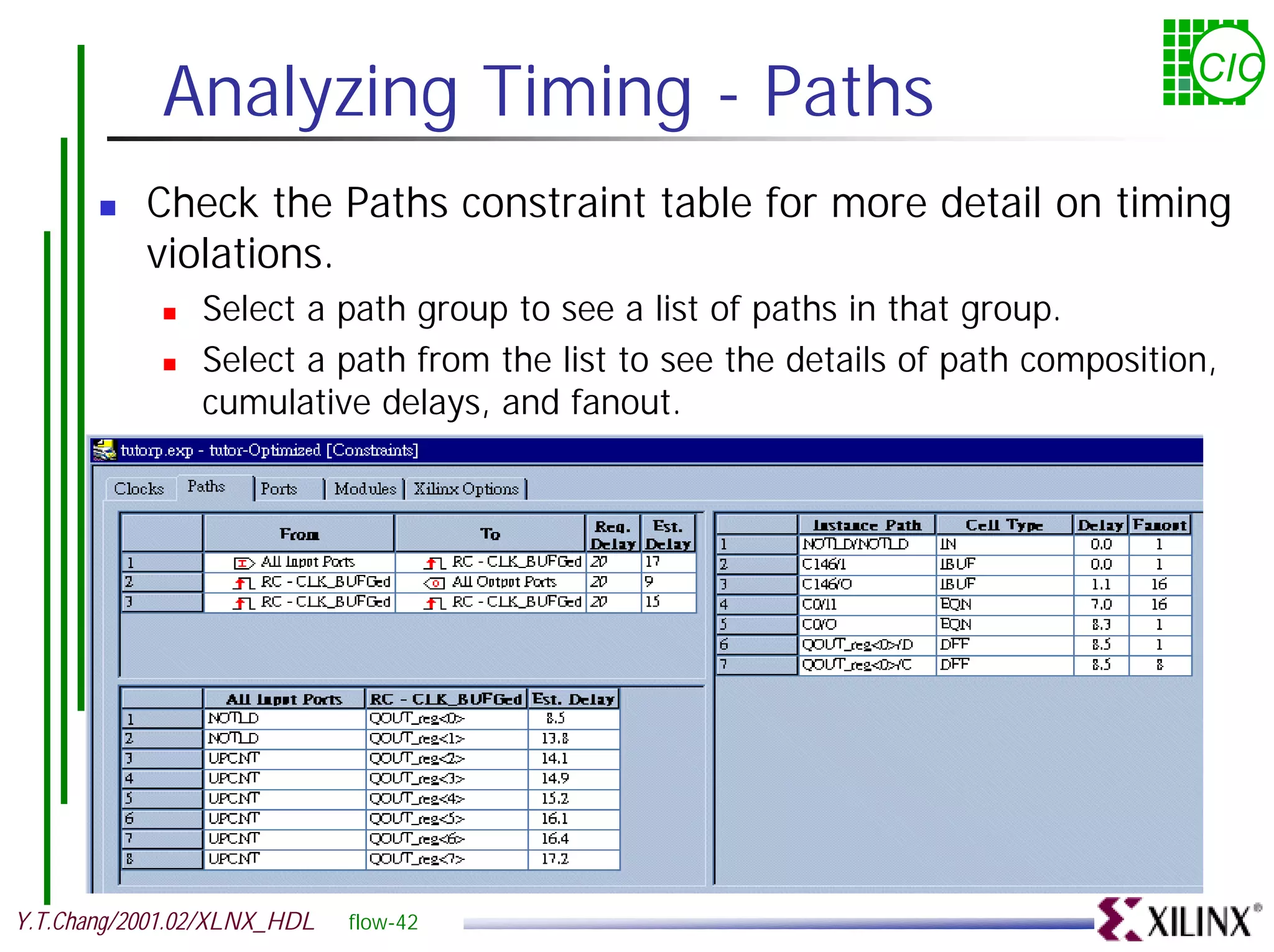

Analyzing Timing - Paths CIC ! Check the Paths constraint table for more detail on timing violations. ! Select a path group to see a list of paths in that group. ! Select a path from the list to see the details of path composition, cumulative delays, and fanout. Y.T.Chang/2001.02/XLNX_HDL flow-42

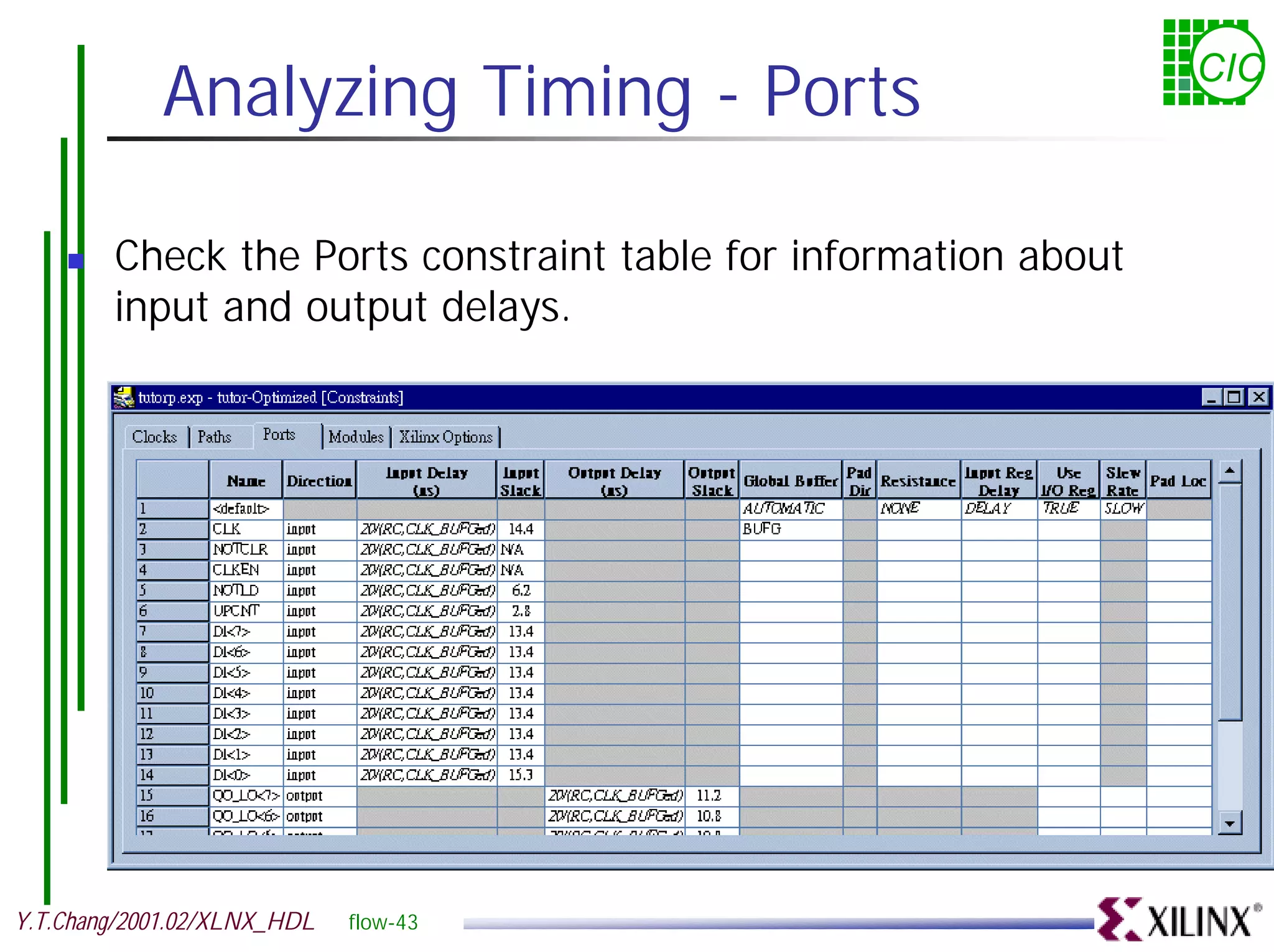

Analyzing Timing - Ports CIC ! Check the Ports constraint table for information about input and output delays. Y.T.Chang/2001.02/XLNX_HDL flow-43

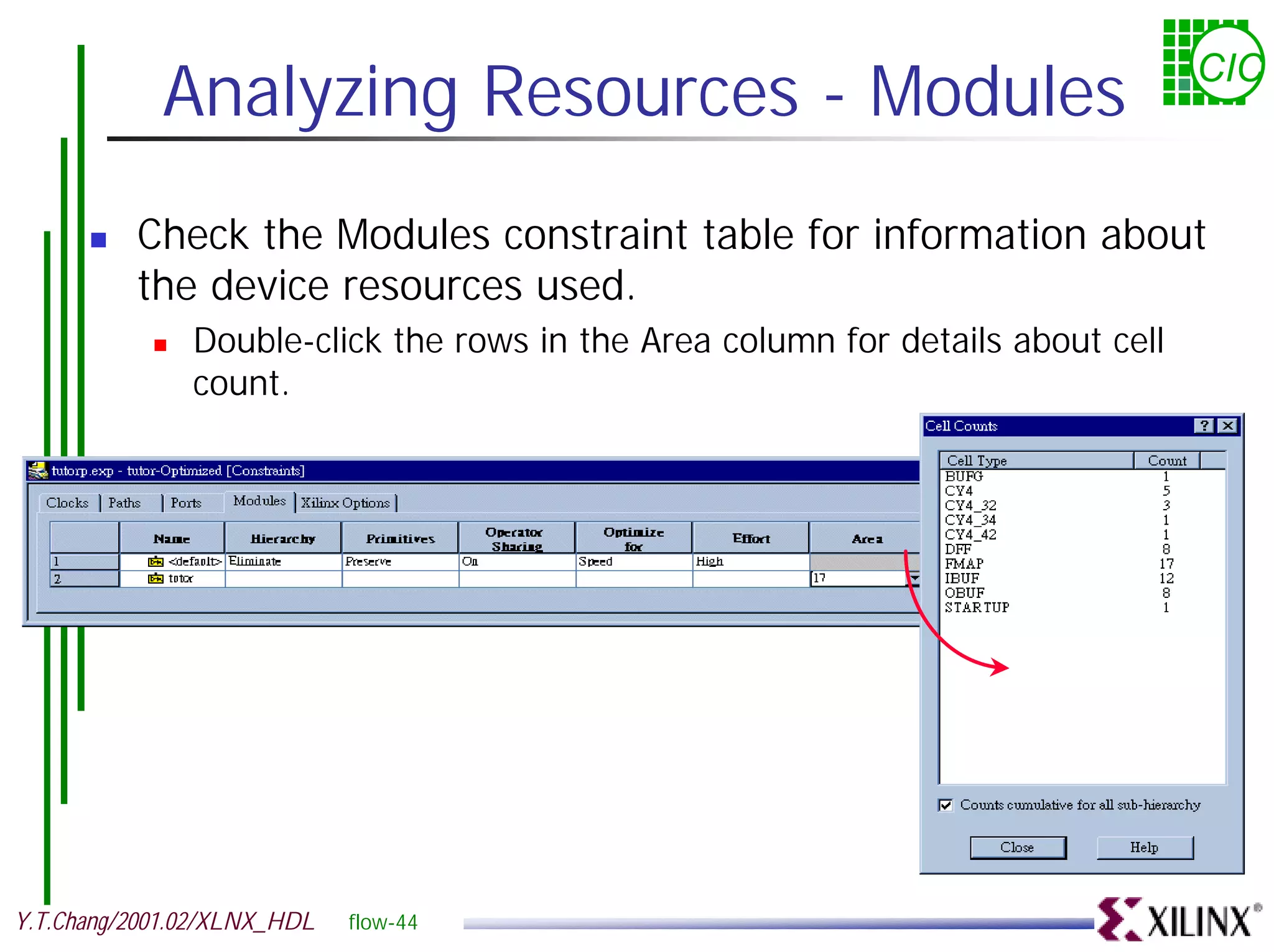

Analyzing Resources - Modules CIC ! Check the Modules constraint table for information about the device resources used. ! Double-click the rows in the Area column for details about cell count. Y.T.Chang/2001.02/XLNX_HDL flow-44

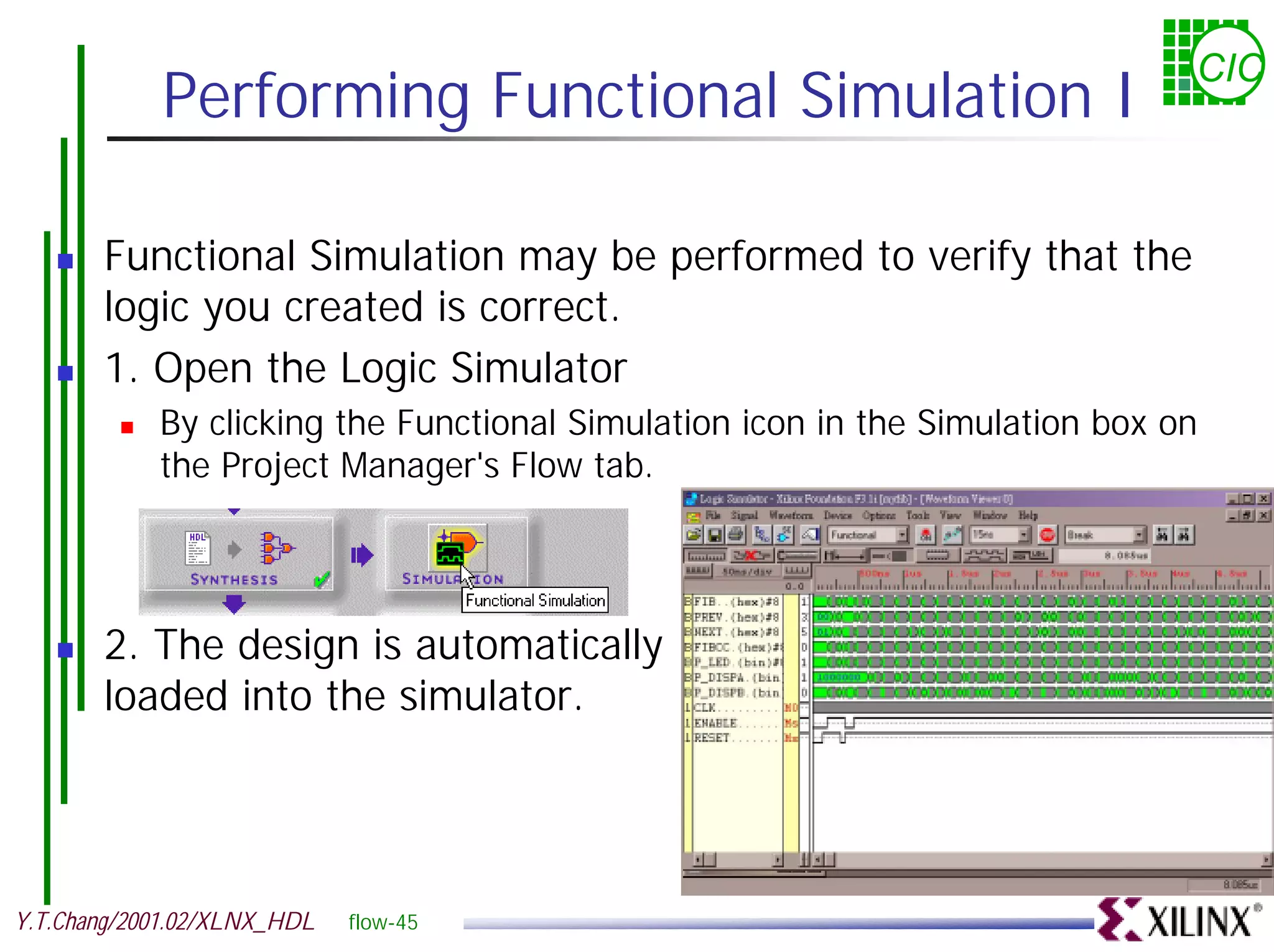

CIC Performing Functional Simulation I ! Functional Simulation may be performed to verify that the logic you created is correct. ! 1. Open the Logic Simulator ! By clicking the Functional Simulation icon in the Simulation box on the Project Manager's Flow tab. ! 2. The design is automatically loaded into the simulator. Y.T.Chang/2001.02/XLNX_HDL flow-45

CIC Performing Functional Simulation II ! 3. Add signals ! By selecting Signal > Add Signals. ! From the Signals Selection portion of the Components Selection for Waveform Viewer window, select the signals that you want to see in the simulator. ! Use CTRL-click to select multiple signals. Make sure you add output signals as well as input signals. ! Click Add and then Close. The signals are added to the Waveform Viewer in the Logic Simulator screen. ! 4. Attach Stimulus ! Invoke Stimulator Selection window ! Select Signal > Add Stimulators from the Logic Simulator menu. ! Create the waveform stimulus by attaching stimulus to the inputs. ! For more details on how to use the Stimulus Selection window, click Help. Y.T.Chang/2001.02/XLNX_HDL flow-46

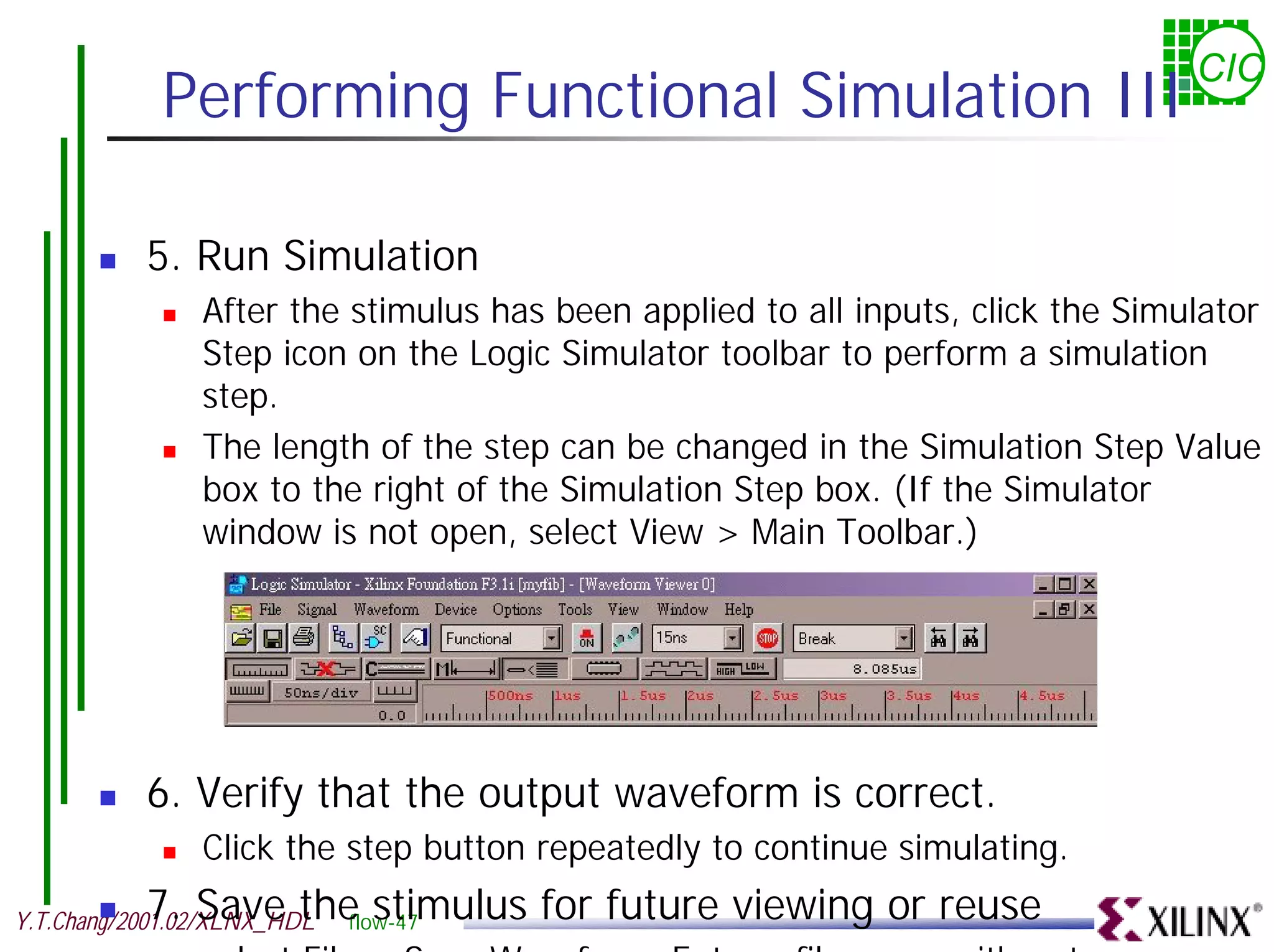

CIC Performing Functional Simulation III ! 5. Run Simulation ! After the stimulus has been applied to all inputs, click the Simulator Step icon on the Logic Simulator toolbar to perform a simulation step. ! The length of the step can be changed in the Simulation Step Value box to the right of the Simulation Step box. (If the Simulator window is not open, select View > Main Toolbar.) ! 6. Verify that the output waveform is correct. ! Click the step button repeatedly to continue simulating. ! 7. Save the stimulus for future viewing or reuse flow-47 Y.T.Chang/2001.02/XLNX_HDL select File > Save Waveform Enter a file name with a tve

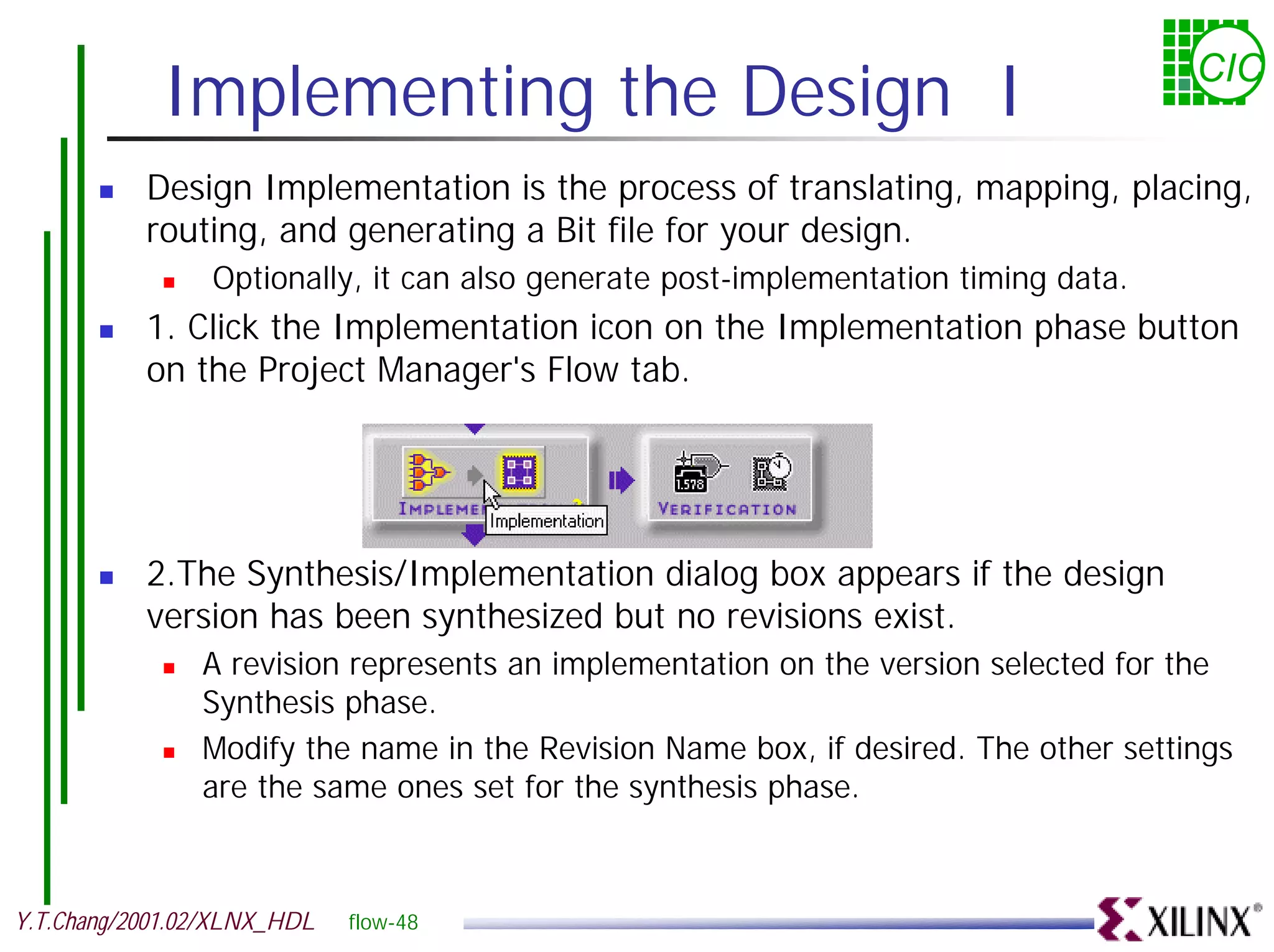

Implementing the Design I CIC ! Design Implementation is the process of translating, mapping, placing, routing, and generating a Bit file for your design. ! Optionally, it can also generate post-implementation timing data. ! 1. Click the Implementation icon on the Implementation phase button on the Project Manager's Flow tab. ! 2.The Synthesis/Implementation dialog box appears if the design version has been synthesized but no revisions exist. ! A revision represents an implementation on the version selected for the Synthesis phase. ! Modify the name in the Revision Name box, if desired. The other settings are the same ones set for the synthesis phase. Y.T.Chang/2001.02/XLNX_HDL flow-48

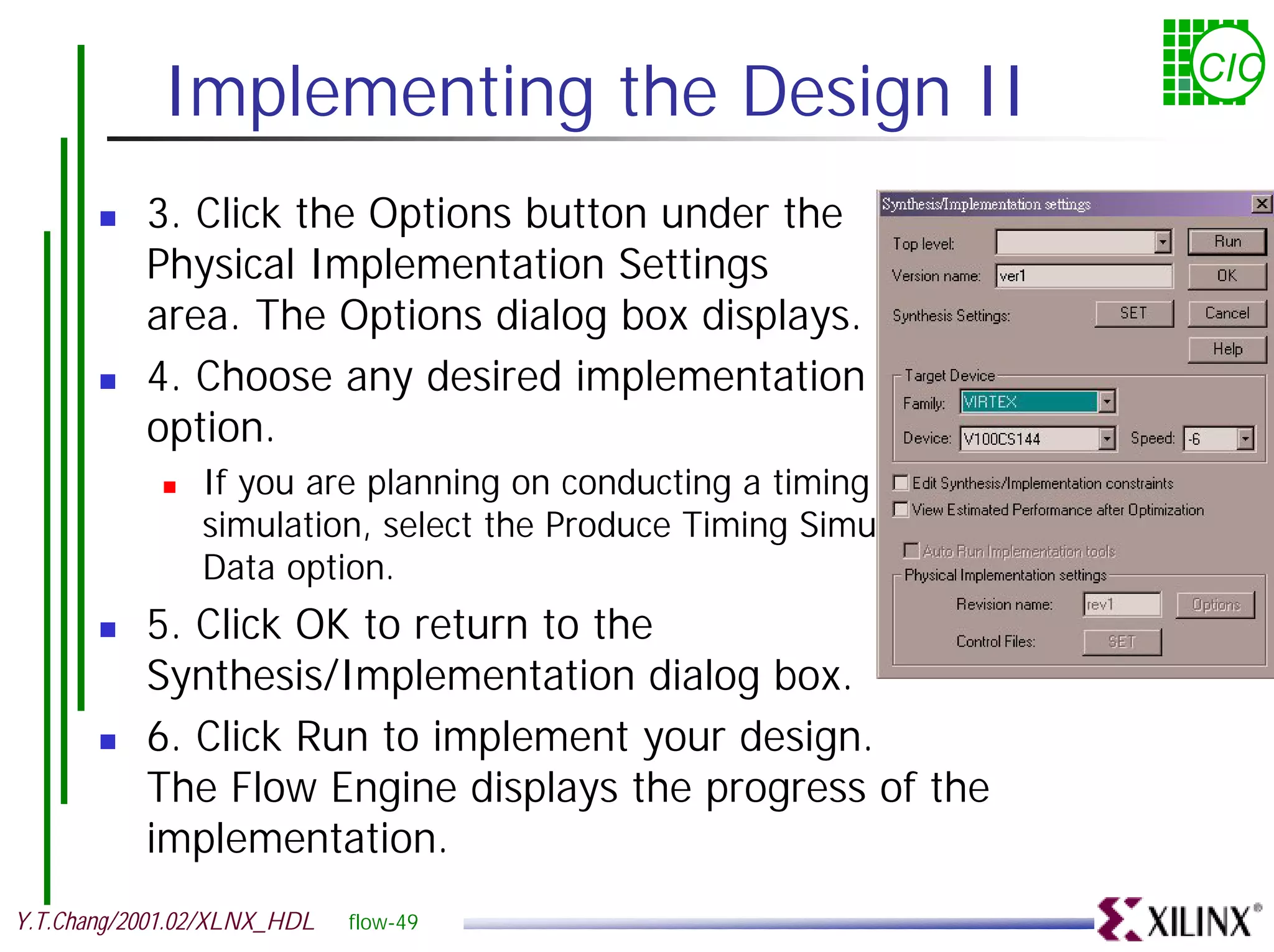

Implementing the Design II CIC ! 3. Click the Options button under the Physical Implementation Settings area. The Options dialog box displays. ! 4. Choose any desired implementation option. ! If you are planning on conducting a timing simulation, select the Produce Timing Simulation Data option. ! 5. Click OK to return to the Synthesis/Implementation dialog box. ! 6. Click Run to implement your design. The Flow Engine displays the progress of the implementation. Y.T.Chang/2001.02/XLNX_HDL flow-49

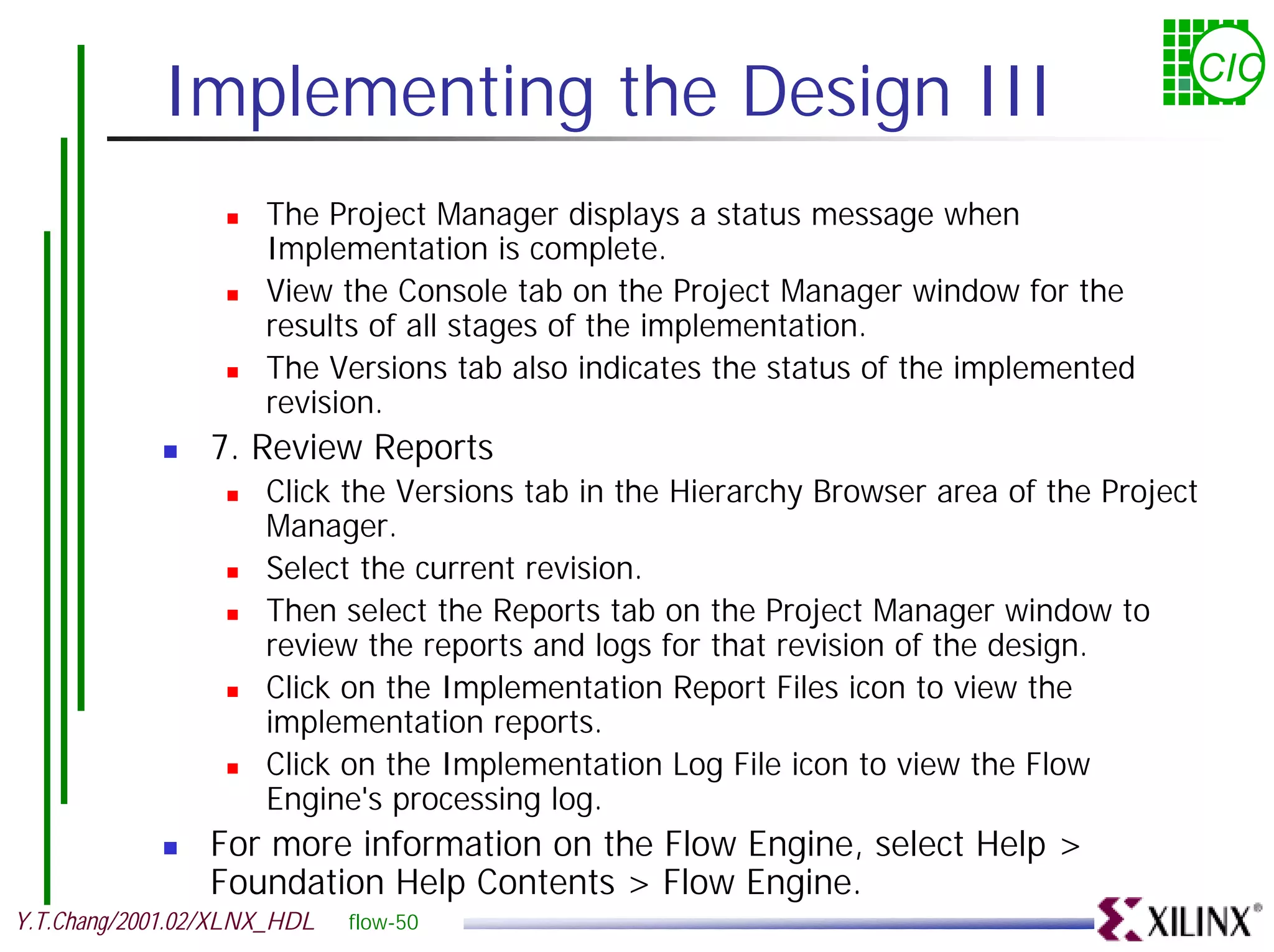

Implementing the Design III CIC ! The Project Manager displays a status message when Implementation is complete. ! View the Console tab on the Project Manager window for the results of all stages of the implementation. ! The Versions tab also indicates the status of the implemented revision. ! 7. Review Reports ! Click the Versions tab in the Hierarchy Browser area of the Project Manager. ! Select the current revision. ! Then select the Reports tab on the Project Manager window to review the reports and logs for that revision of the design. ! Click on the Implementation Report Files icon to view the implementation reports. ! Click on the Implementation Log File icon to view the Flow Engine's processing log. ! For more information on the Flow Engine, select Help > Foundation Help Contents > Flow Engine. Y.T.Chang/2001.02/XLNX_HDL flow-50

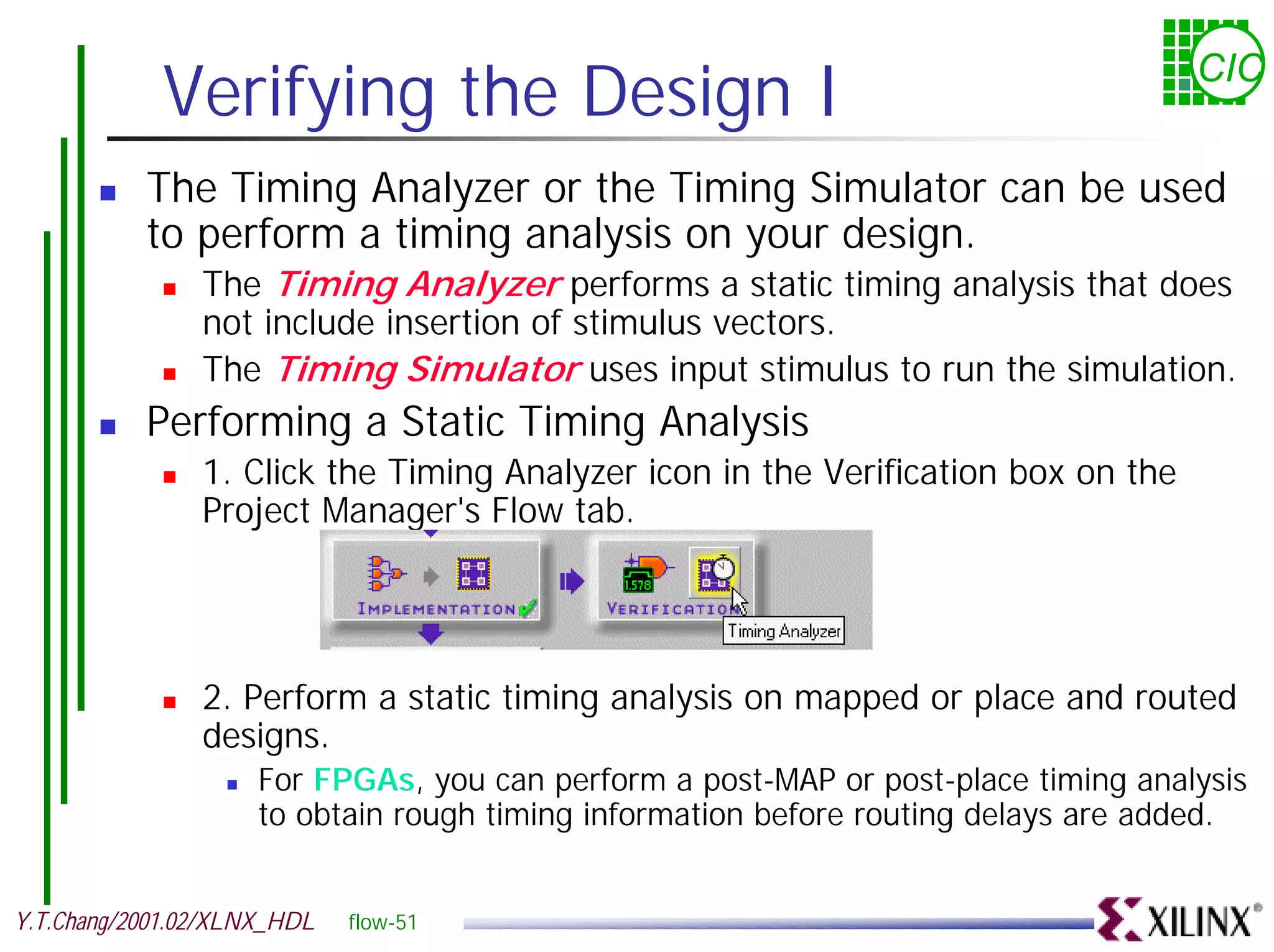

Verifying the Design I CIC ! The Timing Analyzer or the Timing Simulator can be used to perform a timing analysis on your design. ! The Timing Analyzer performs a static timing analysis that does not include insertion of stimulus vectors. ! The Timing Simulator uses input stimulus to run the simulation. ! Performing a Static Timing Analysis ! 1. Click the Timing Analyzer icon in the Verification box on the Project Manager's Flow tab. ! 2. Perform a static timing analysis on mapped or place and routed designs. ! For FPGAs, you can perform a post-MAP or post-place timing analysis to obtain rough timing information before routing delays are added. Y.T.Chang/2001.02/XLNX_HDL flow-51

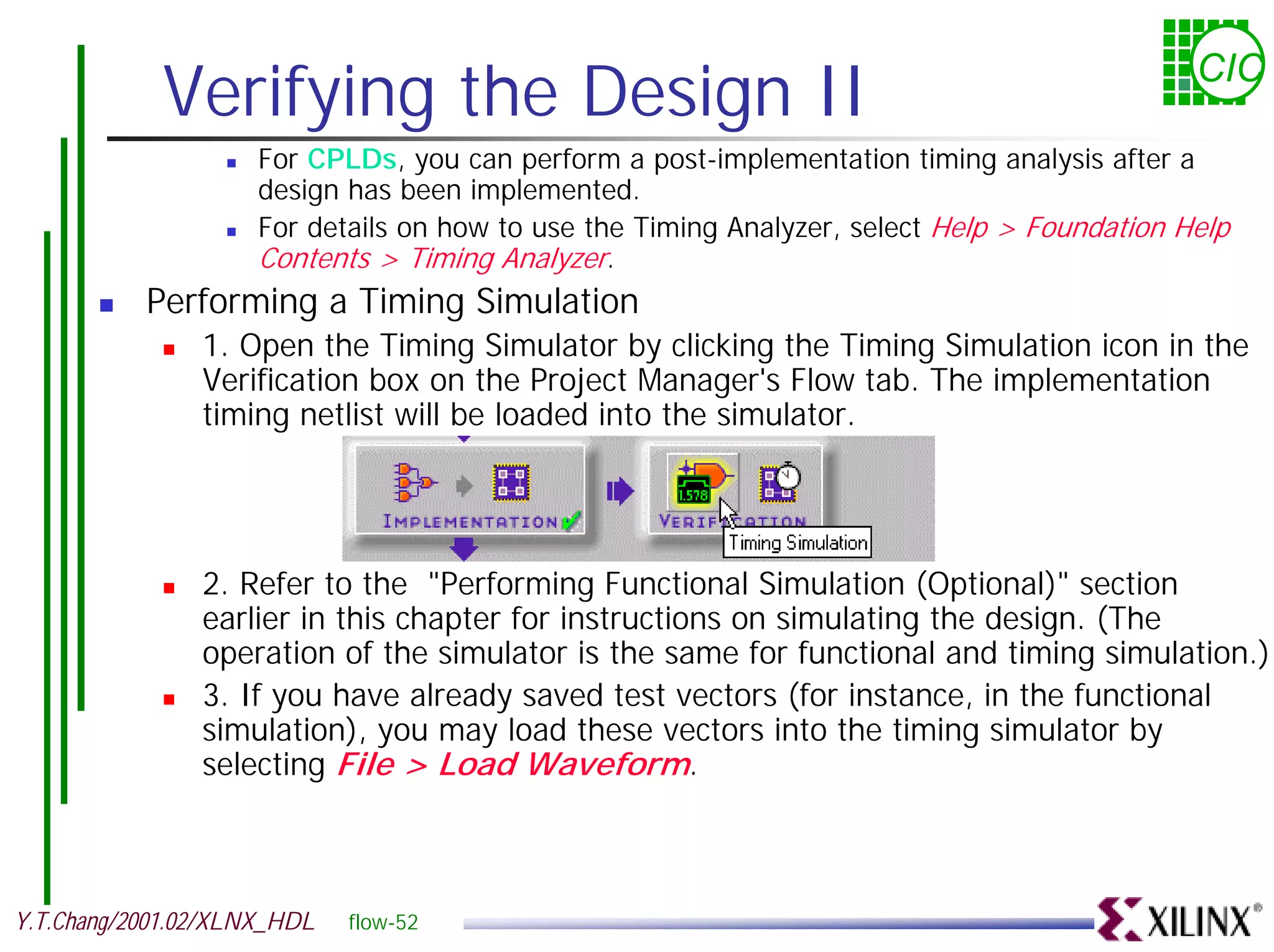

Verifying the Design II CIC ! For CPLDs, you can perform a post-implementation timing analysis after a design has been implemented. ! For details on how to use the Timing Analyzer, select Help > Foundation Help Contents > Timing Analyzer. ! Performing a Timing Simulation ! 1. Open the Timing Simulator by clicking the Timing Simulation icon in the Verification box on the Project Manager's Flow tab. The implementation timing netlist will be loaded into the simulator. ! 2. Refer to the "Performing Functional Simulation (Optional)" section earlier in this chapter for instructions on simulating the design. (The operation of the simulator is the same for functional and timing simulation.) ! 3. If you have already saved test vectors (for instance, in the functional simulation), you may load these vectors into the timing simulator by selecting File > Load Waveform. Y.T.Chang/2001.02/XLNX_HDL flow-52

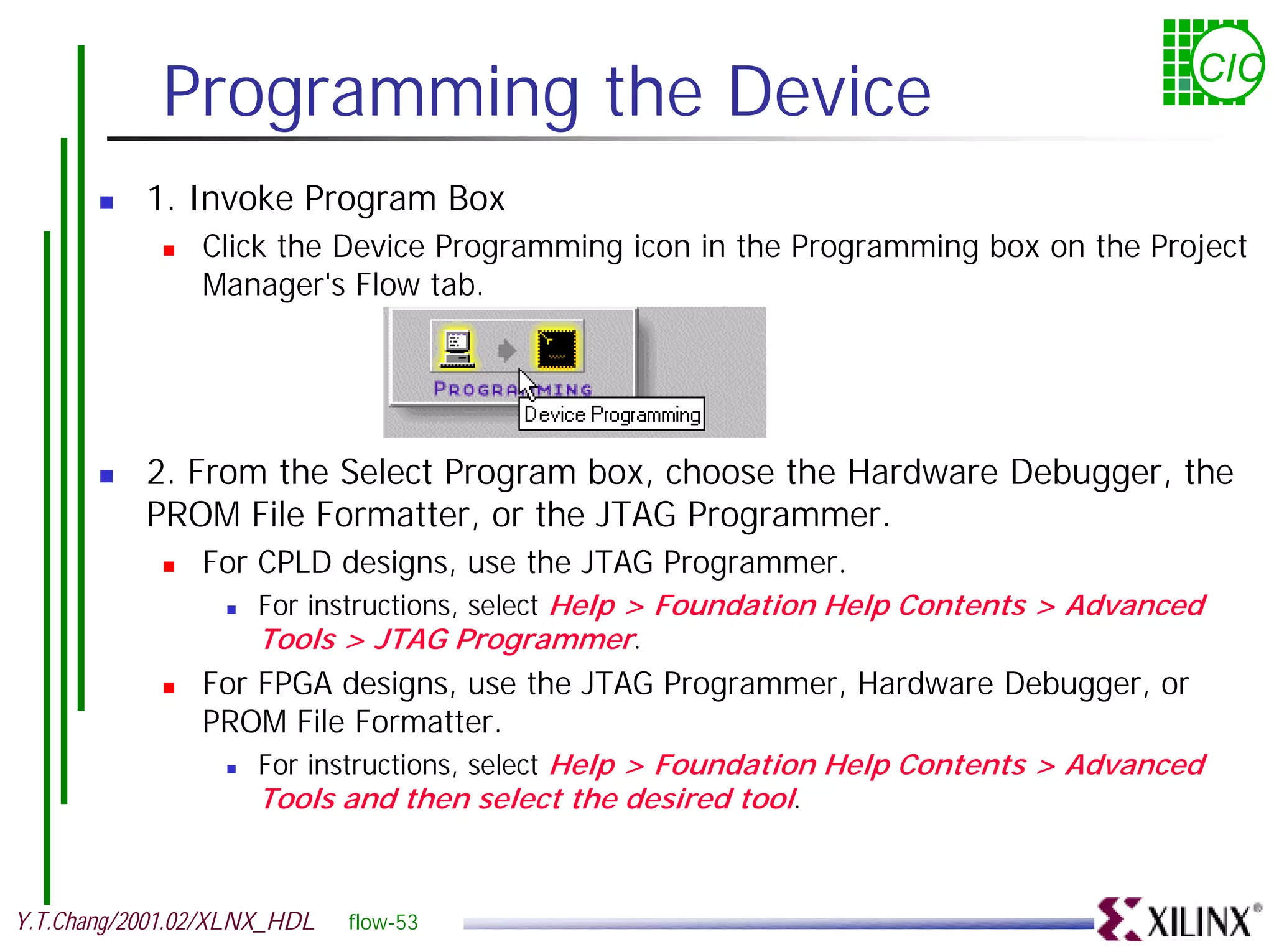

Programming the Device CIC ! 1. Invoke Program Box ! Click the Device Programming icon in the Programming box on the Project Manager's Flow tab. ! 2. From the Select Program box, choose the Hardware Debugger, the PROM File Formatter, or the JTAG Programmer. ! For CPLD designs, use the JTAG Programmer. ! For instructions, select Help > Foundation Help Contents > Advanced Tools > JTAG Programmer. ! For FPGA designs, use the JTAG Programmer, Hardware Debugger, or PROM File Formatter. ! For instructions, select Help > Foundation Help Contents > Advanced Tools and then select the desired tool. Y.T.Chang/2001.02/XLNX_HDL flow-53

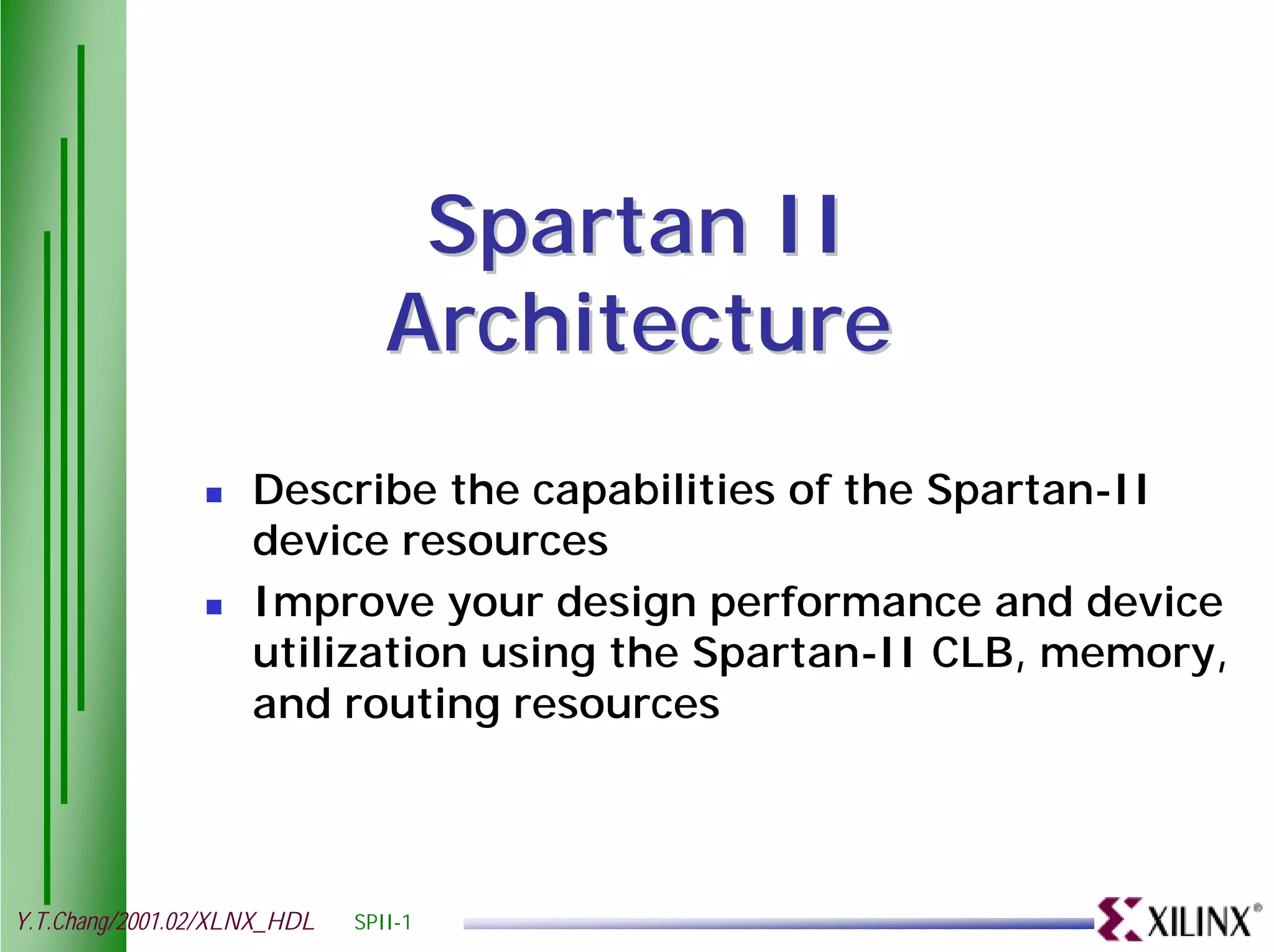

Spartan II Architecture ! Describe the capabilities of the Spartan-II device resources ! Improve your design performance and device utilization using the Spartan-II CLB, memory, and routing resources Y.T.Chang/2001.02/XLNX_HDL SPII-1

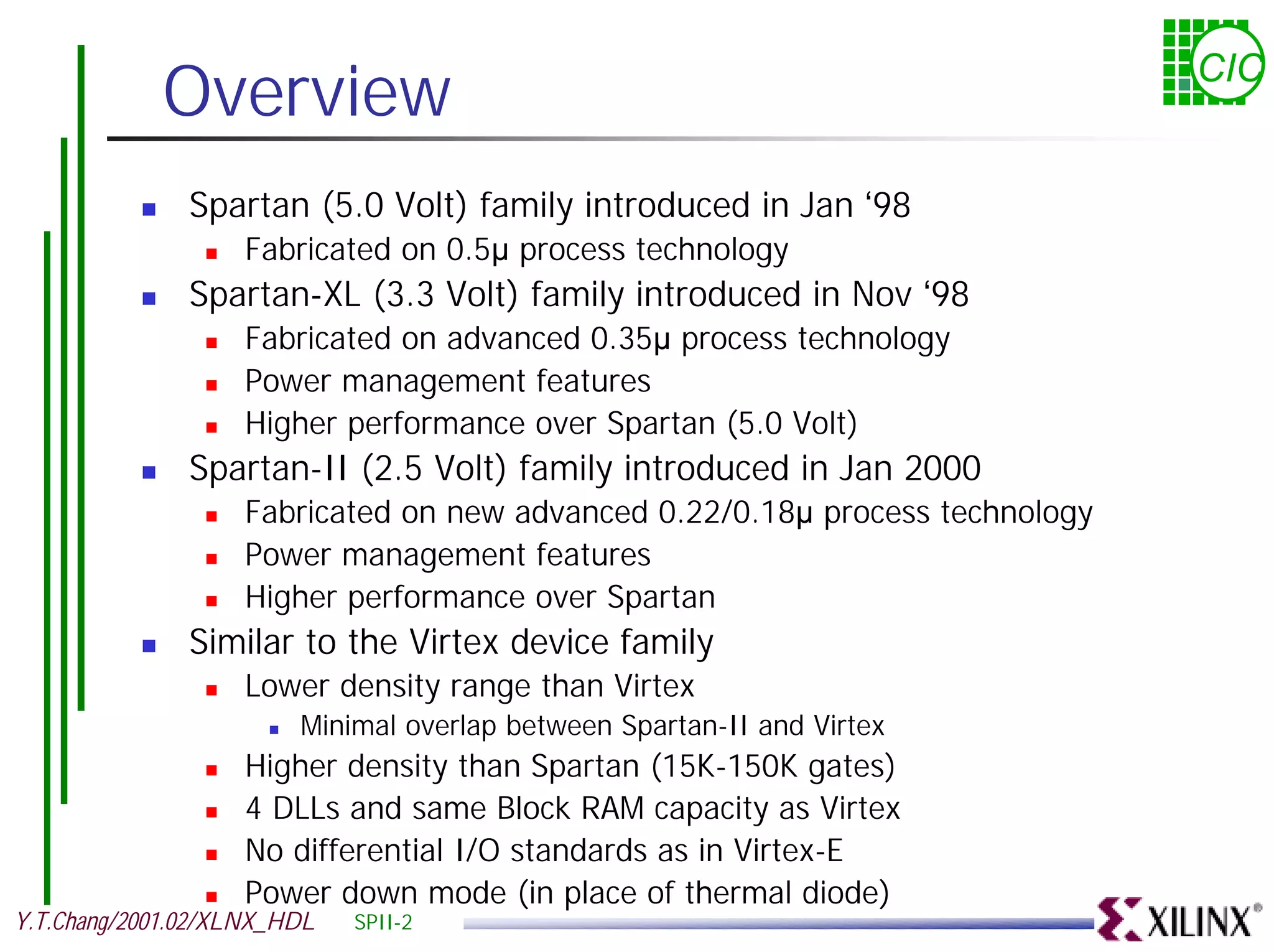

Overview CIC ! Spartan (5.0 Volt) family introduced in Jan ‘98 ! Fabricated on 0.5µ process technology ! Spartan-XL (3.3 Volt) family introduced in Nov ‘98 ! Fabricated on advanced 0.35µ process technology ! Power management features ! Higher performance over Spartan (5.0 Volt) ! Spartan-II (2.5 Volt) family introduced in Jan 2000 ! Fabricated on new advanced 0.22/0.18µ process technology ! Power management features ! Higher performance over Spartan ! Similar to the Virtex device family ! Lower density range than Virtex ! Minimal overlap between Spartan-II and Virtex ! Higher density than Spartan (15K-150K gates) ! 4 DLLs and same Block RAM capacity as Virtex ! No differential I/O standards as in Virtex-E ! Power down mode (in place of thermal diode) Y.T.Chang/2001.02/XLNX_HDL SPII-2

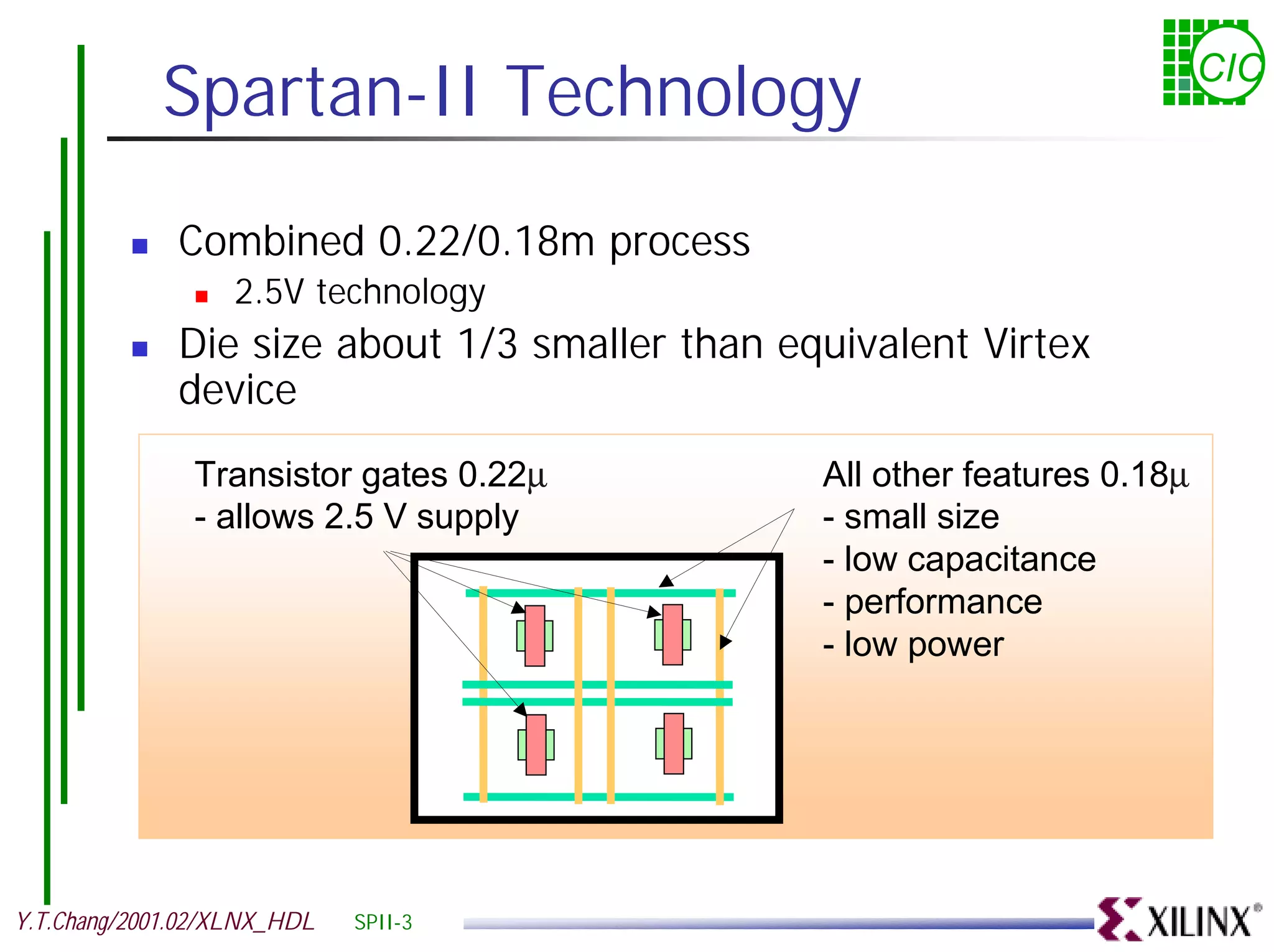

Spartan-II Technology CIC ! Combined 0.22/0.18m process ! 2.5V technology ! Die size about 1/3 smaller than equivalent Virtex device Transistor gates 0.22µ All other features 0.18µ - allows 2.5 V supply - small size - low capacitance - performance - low power Y.T.Chang/2001.02/XLNX_HDL SPII-3

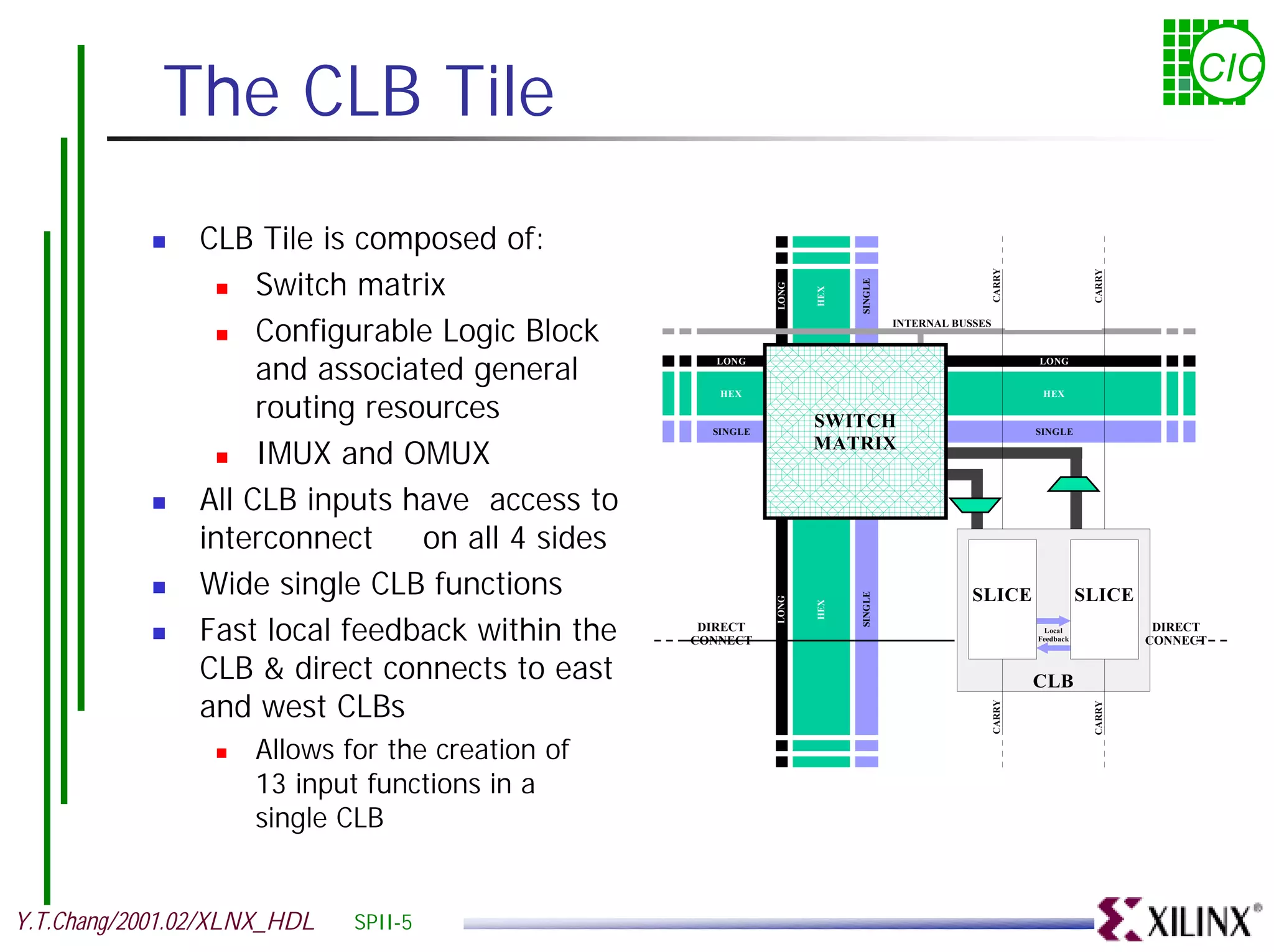

The CLB Tile CIC ! CLB Tile is composed of: Switch matrix CARRY CARRY SINGLE ! LONG HEX ! Configurable Logic Block INTERNAL BUSSES TRISTATE BUSSES and associated general LONG LONG routing resources HEX HEX SINGLE SWITCH SINGLE ! IMUX and OMUX MATRIX ! All CLB inputs have access to interconnect on all 4 sides ! Wide single CLB functions SLICE SLICE SINGLE LONG HEX ! Fast local feedback within the DIRECT CONNECT Local Feedback DIRECT CONNECT CLB & direct connects to east CLB and west CLBs CARRY CARRY ! Allows for the creation of 13 input functions in a single CLB Y.T.Chang/2001.02/XLNX_HDL SPII-5

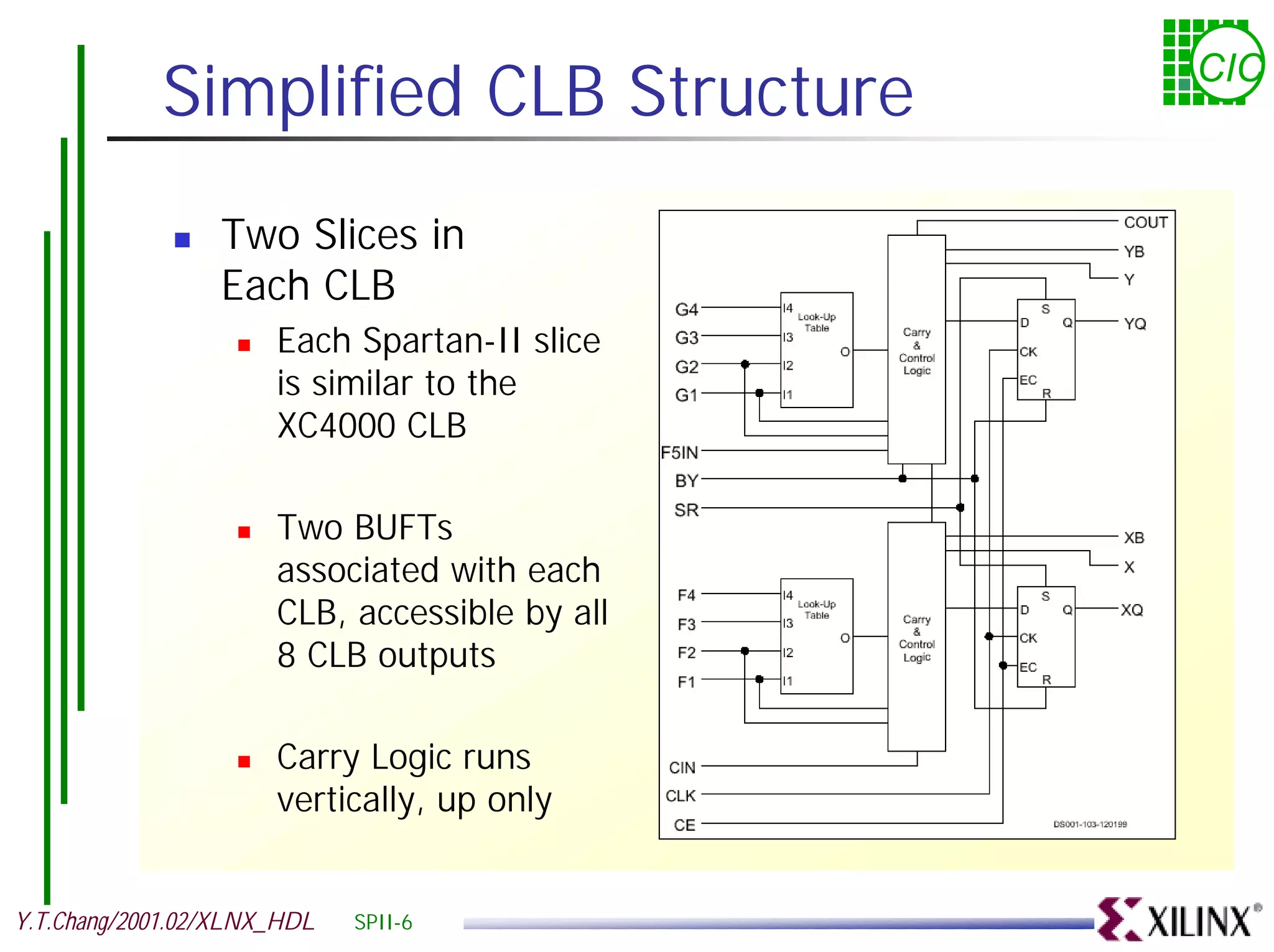

Simplified CLB Structure CIC ! Two Slices in Each CLB ! Each Spartan-II slice is similar to the XC4000 CLB ! Two BUFTs associated with each CLB, accessible by all 8 CLB outputs ! Carry Logic runs vertically, up only Y.T.Chang/2001.02/XLNX_HDL SPII-6

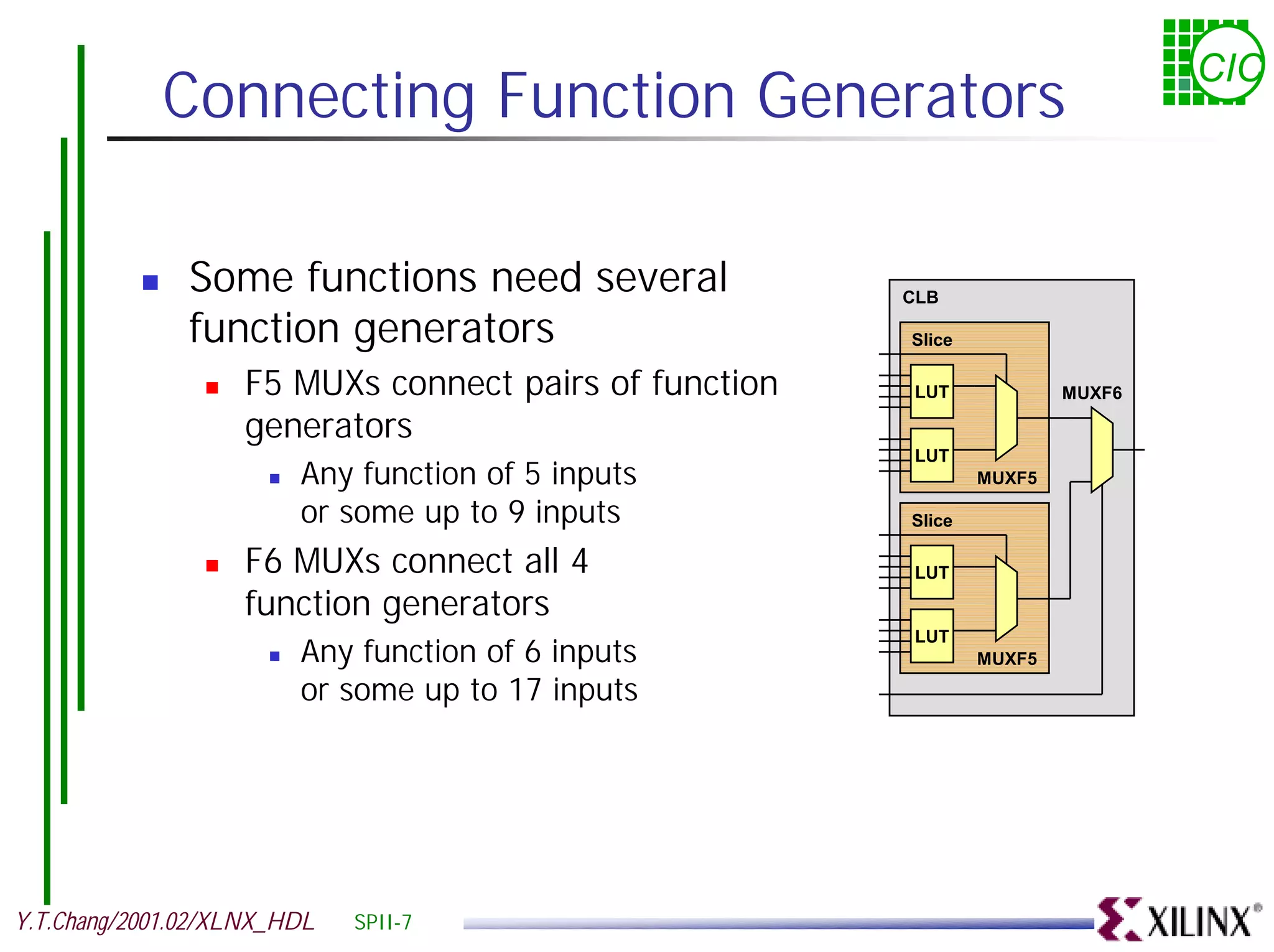

CIC Connecting Function Generators ! Some functions need several CLB function generators Slice ! F5 MUXs connect pairs of function LUT MUXF6 generators LUT ! Any function of 5 inputs MUXF5 or some up to 9 inputs Slice ! F6 MUXs connect all 4 LUT function generators LUT ! Any function of 6 inputs MUXF5 or some up to 17 inputs Y.T.Chang/2001.02/XLNX_HDL SPII-7

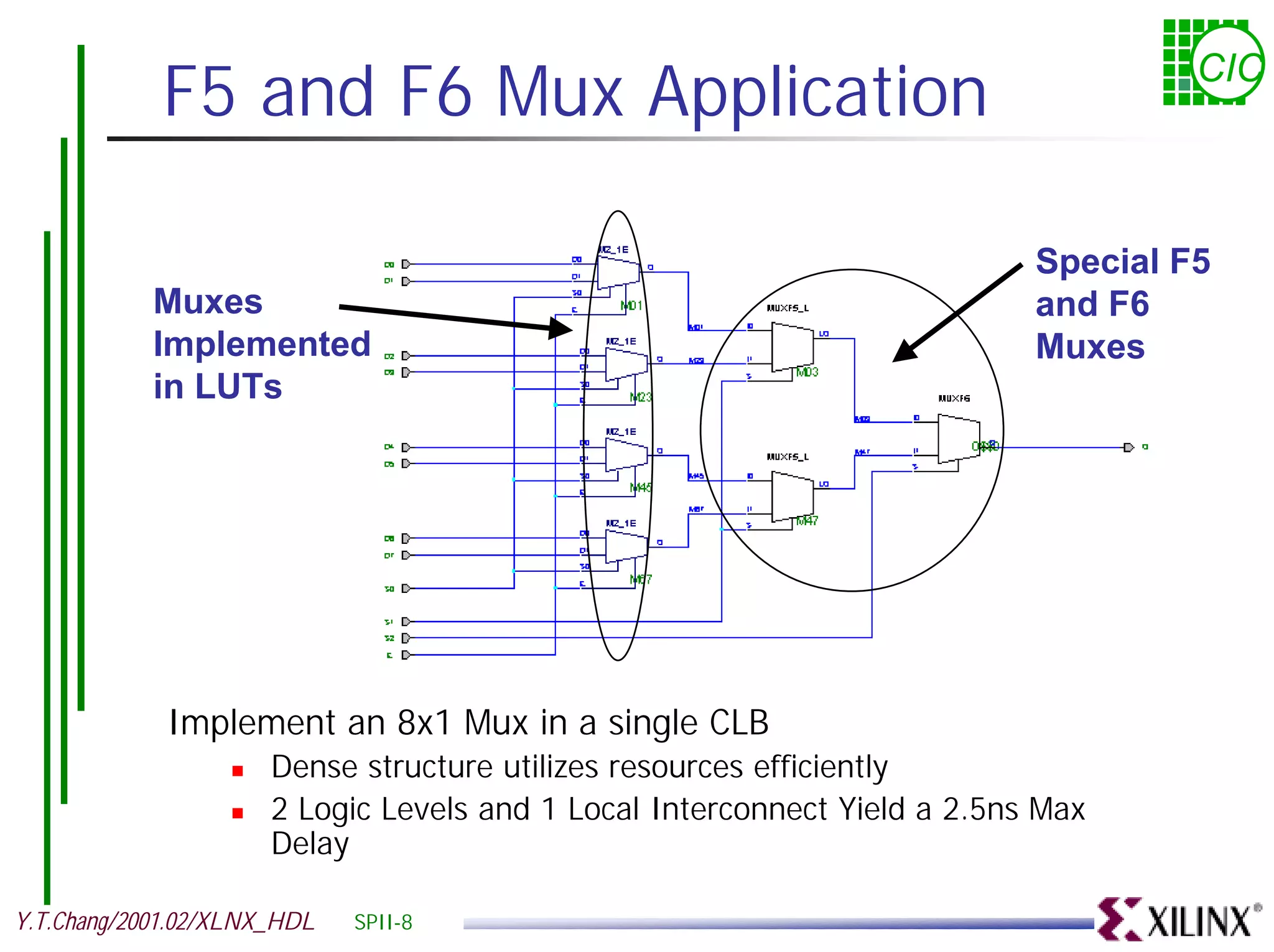

F5 and F6 Mux Application CIC Special F5 Muxes and F6 Implemented Muxes in LUTs Implement an 8x1 Mux in a single CLB ! Dense structure utilizes resources efficiently ! 2 Logic Levels and 1 Local Interconnect Yield a 2.5ns Max Delay Y.T.Chang/2001.02/XLNX_HDL SPII-8

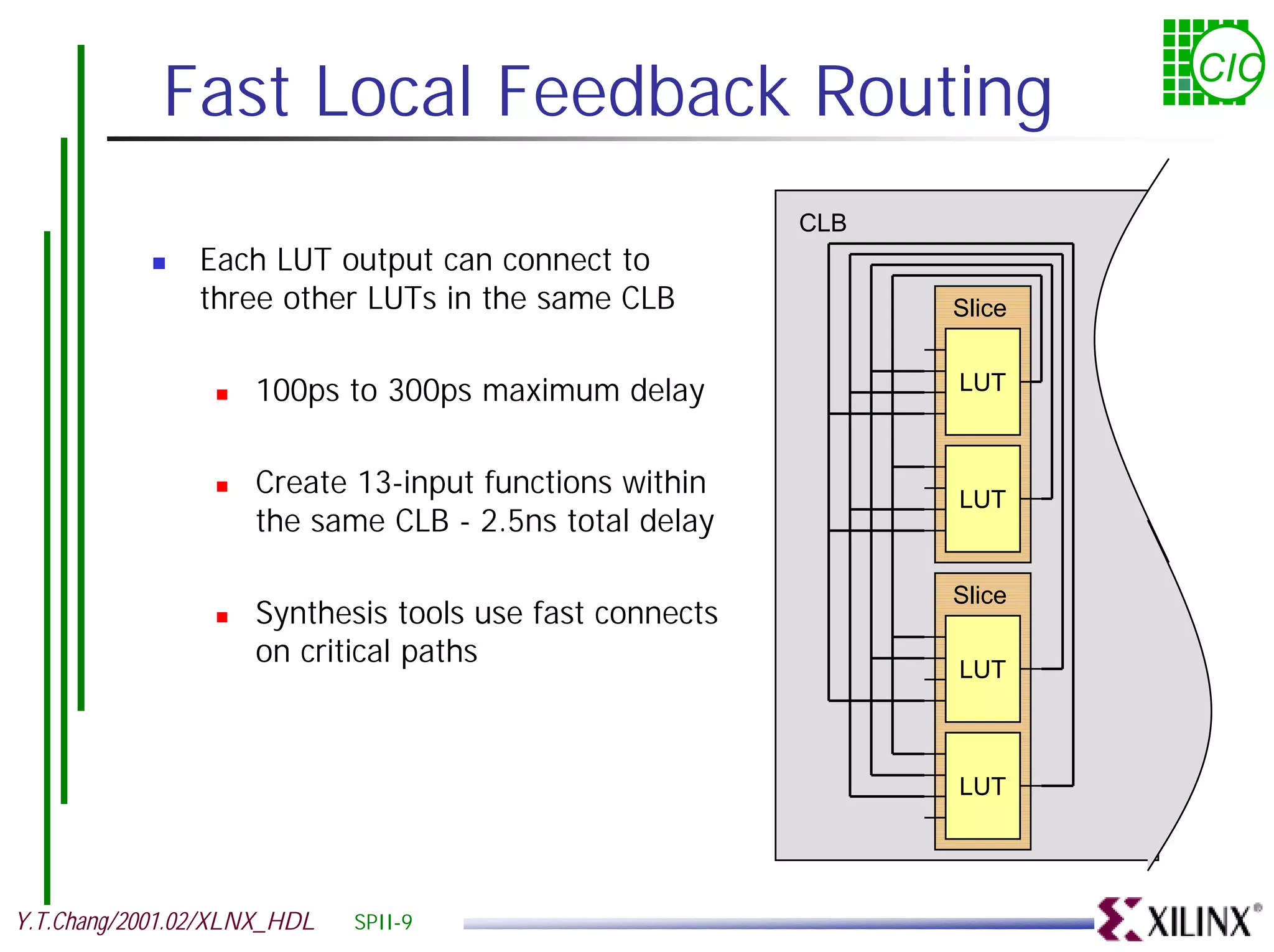

Fast Local Feedback Routing CIC CLB ! Each LUT output can connect to three other LUTs in the same CLB Slice ! 100ps to 300ps maximum delay LUT ! Create 13-input functions within LUT the same CLB - 2.5ns total delay Slice ! Synthesis tools use fast connects on critical paths LUT LUT Y.T.Chang/2001.02/XLNX_HDL SPII-9

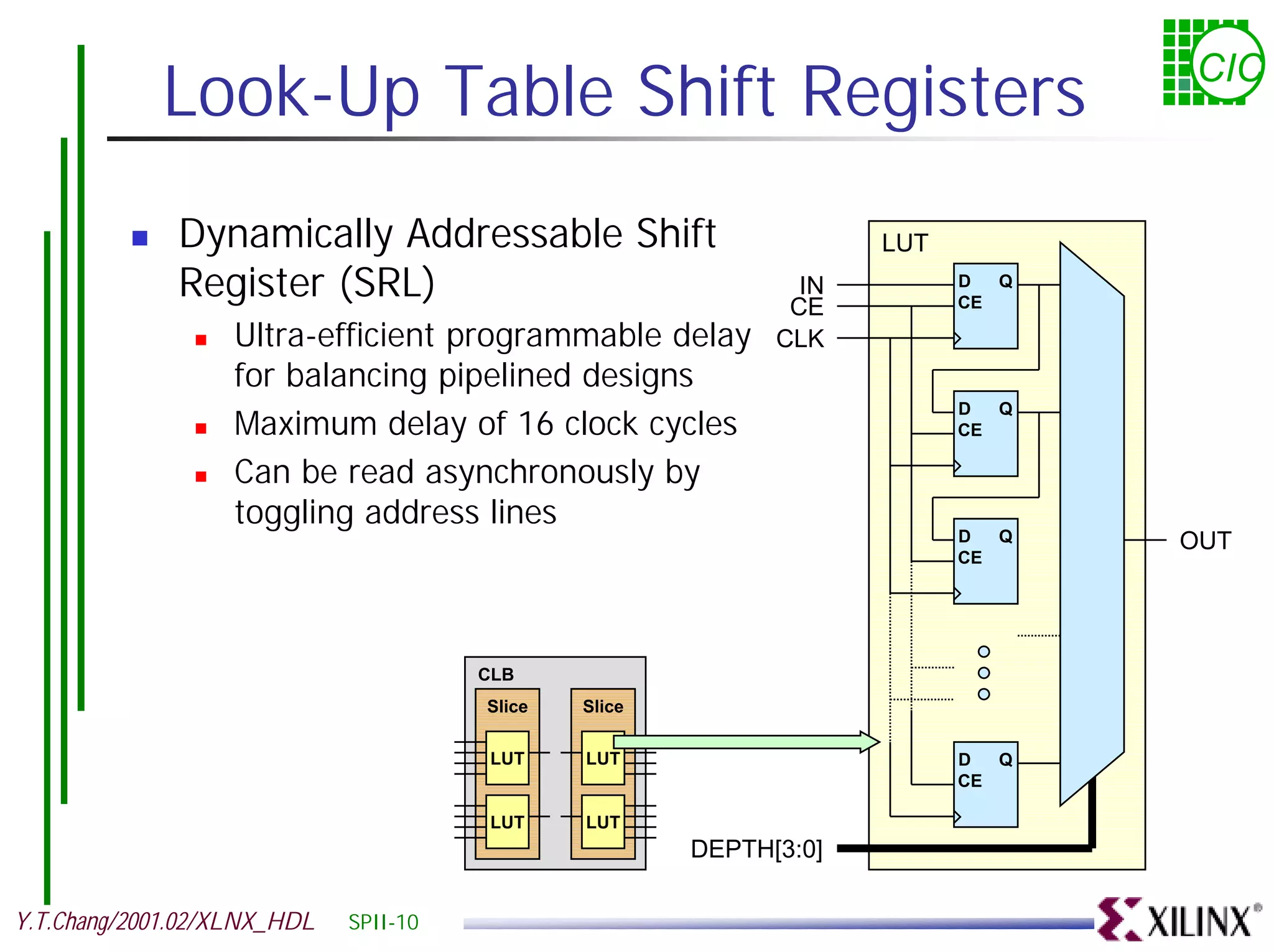

Look-Up Table Shift Registers CIC ! Dynamically Addressable Shift LUT Register (SRL) IN CE D CE Q ! Ultra-efficient programmable delay CLK for balancing pipelined designs Maximum delay of 16 clock cycles D Q ! CE ! Can be read asynchronously by toggling address lines D Q OUT CE CLB Slice Slice LUT LUT D Q CE LUT LUT DEPTH[3:0] Y.T.Chang/2001.02/XLNX_HDL SPII-10

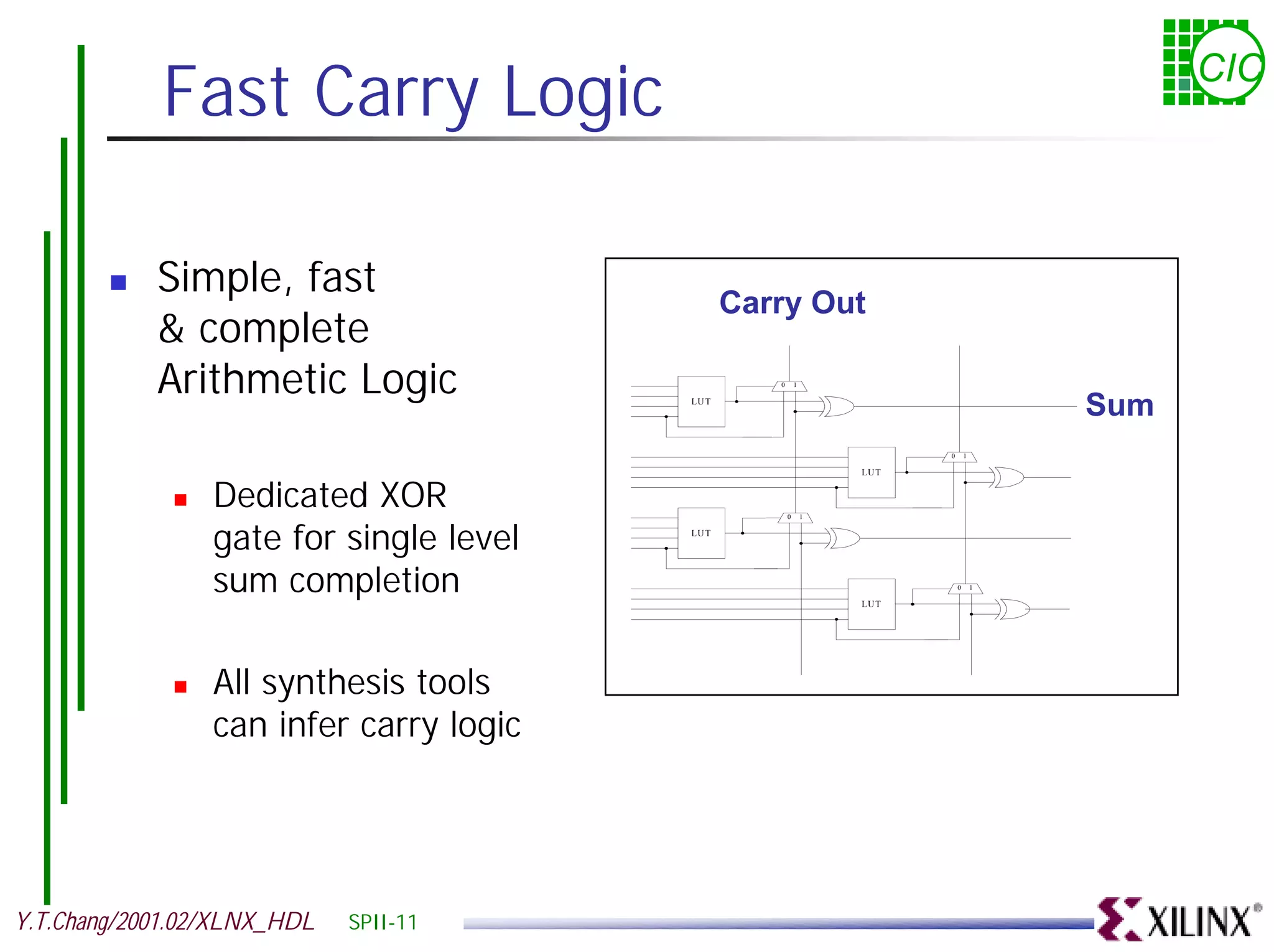

Fast Carry Logic CIC ! Simple, fast Carry Out & complete Arithmetic Logic 0 1 LU T Sum 0 1 LU T ! Dedicated XOR gate for single level 0 1 LU T sum completion LU T 0 1 ! All synthesis tools can infer carry logic Y.T.Chang/2001.02/XLNX_HDL SPII-11

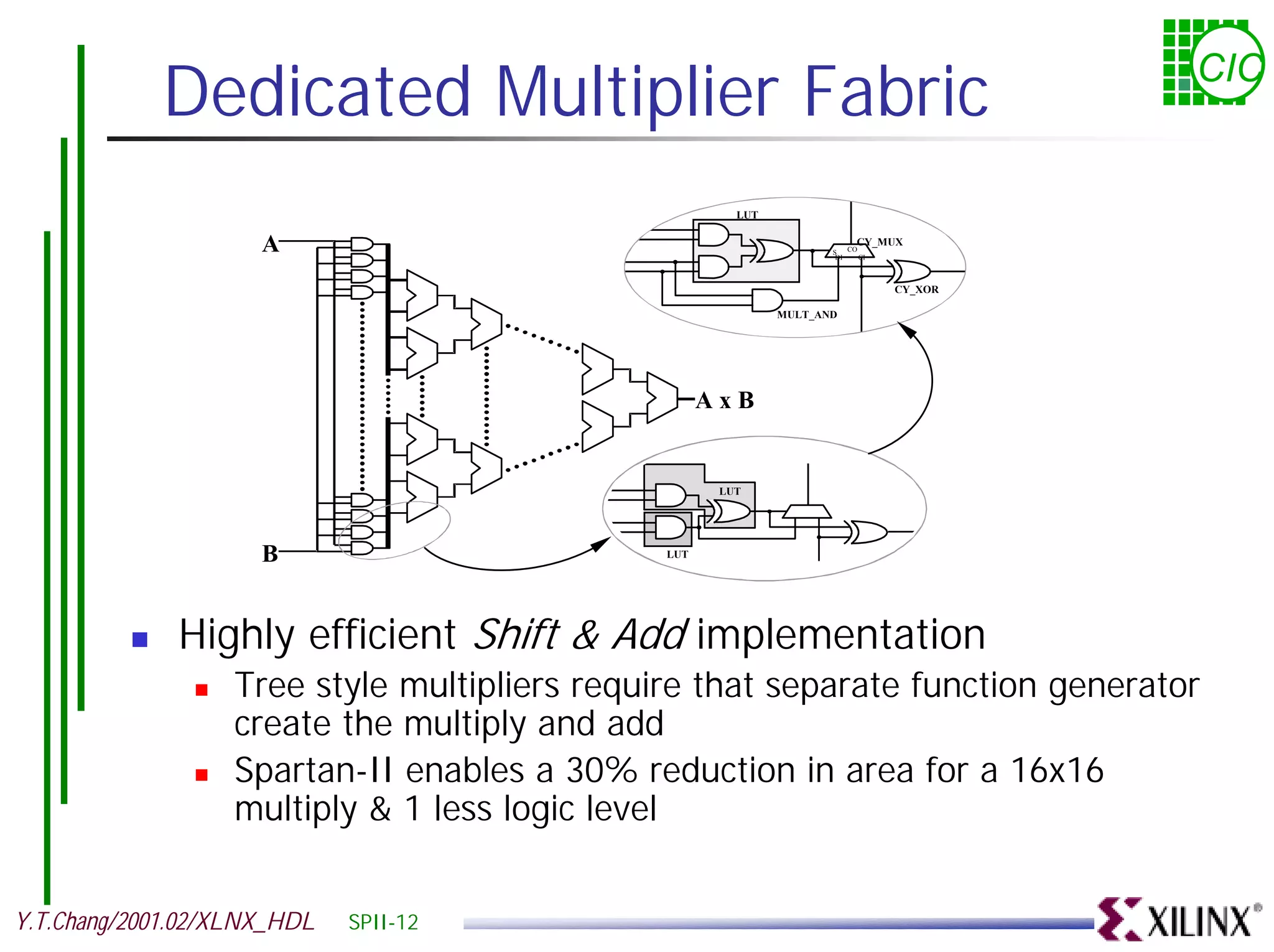

Dedicated Multiplier Fabric CIC LUT A S DI CO CY_MUX CI CY_XOR MULT_AND AxB LUT B LUT ! Highly efficient Shift & Add implementation ! Tree style multipliers require that separate function generator create the multiply and add ! Spartan-II enables a 30% reduction in area for a 16x16 multiply & 1 less logic level Y.T.Chang/2001.02/XLNX_HDL SPII-12

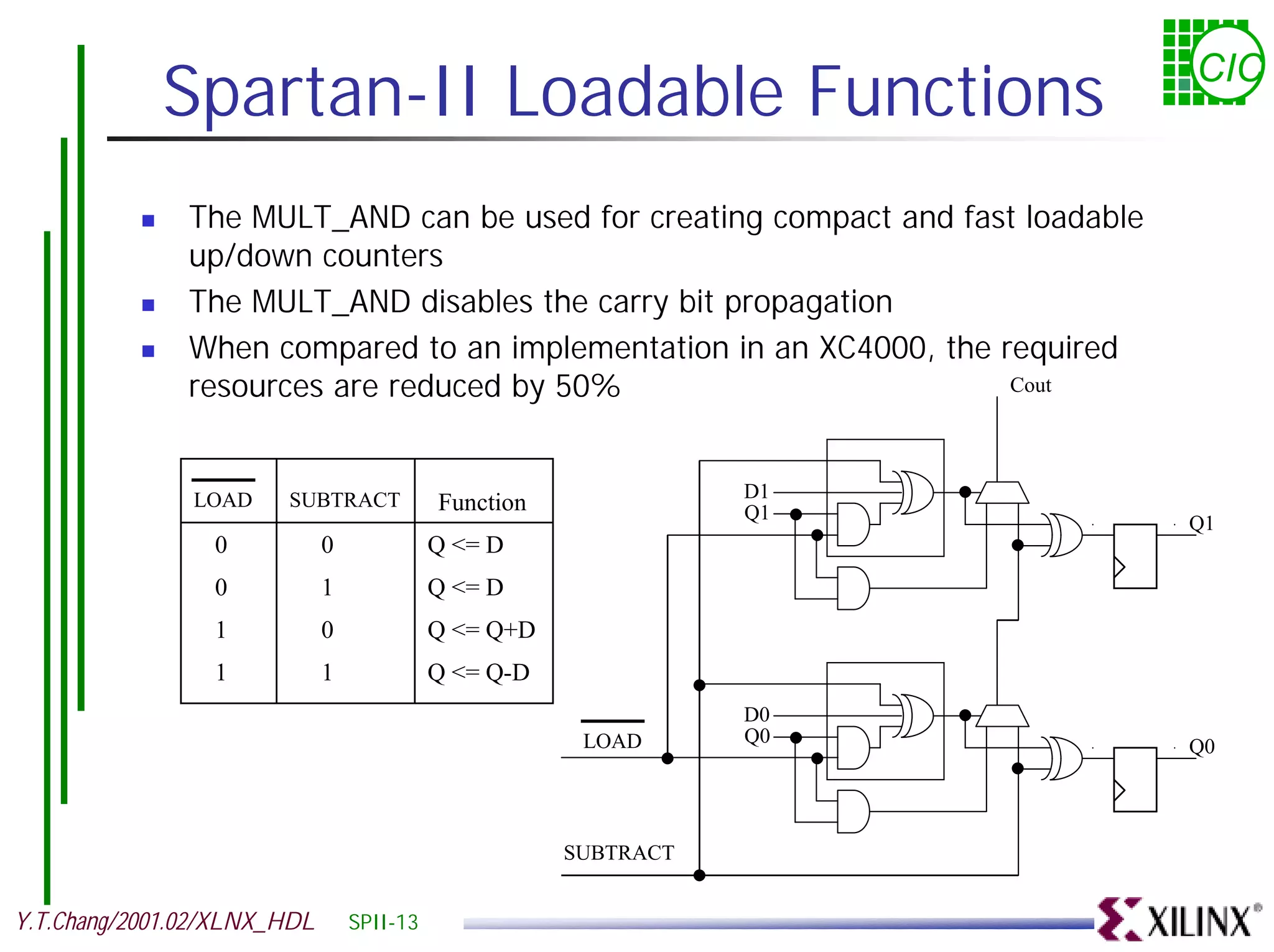

Spartan-II Loadable Functions CIC ! The MULT_AND can be used for creating compact and fast loadable up/down counters ! The MULT_AND disables the carry bit propagation ! When compared to an implementation in an XC4000, the required resources are reduced by 50% Cout LOAD SUBTRACT D1 Function Q1 Q1 0 0 Q <= D 0 1 Q <= D 1 0 Q <= Q+D 1 1 Q <= Q-D D0 LOAD Q0 Q0 SUBTRACT Y.T.Chang/2001.02/XLNX_HDL SPII-13

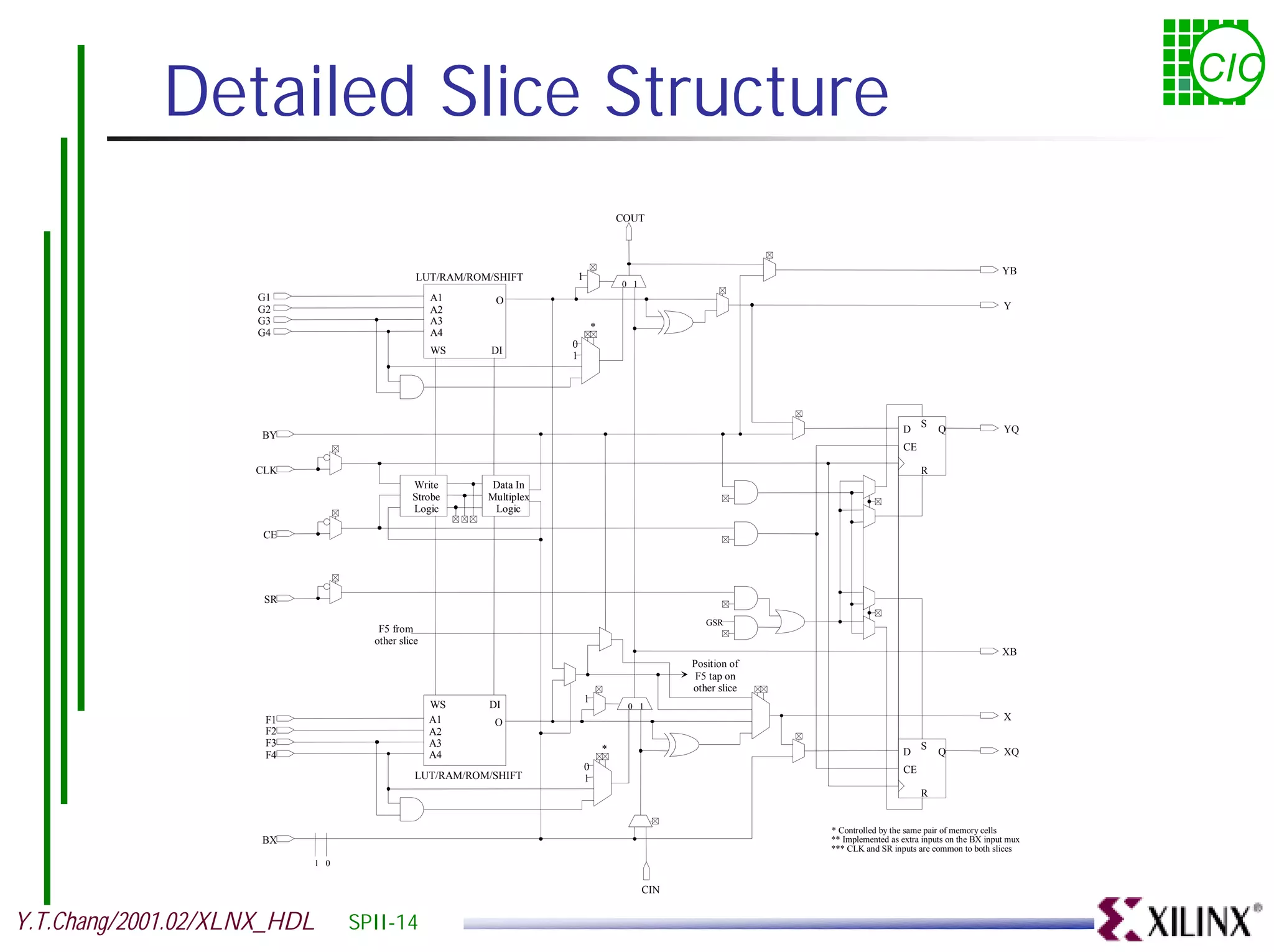

Detailed Slice Structure CIC COUT YB LUT/RAM/ROM/SHIFT 1 0 1 G1 A1 O G2 A2 Y G3 A3 * G4 A4 0 WS DI 1 S D Q YQ BY CE CLK R Write Data In Strobe Multiplex Logic Logic CE SR GSR F5 from other slice XB Position of F5 tap on other slice 1 WS DI 0 1 F1 A1 X O F2 A2 F3 A3 S * D Q XQ F4 A4 0 CE LUT/RAM/ROM/SHIFT 1 R * Controlled by the same pair of memory cells BX ** Implemented as extra inputs on the BX input mux *** CLK and SR inputs are common to both slices 1 0 CIN Y.T.Chang/2001.02/XLNX_HDL SPII-14

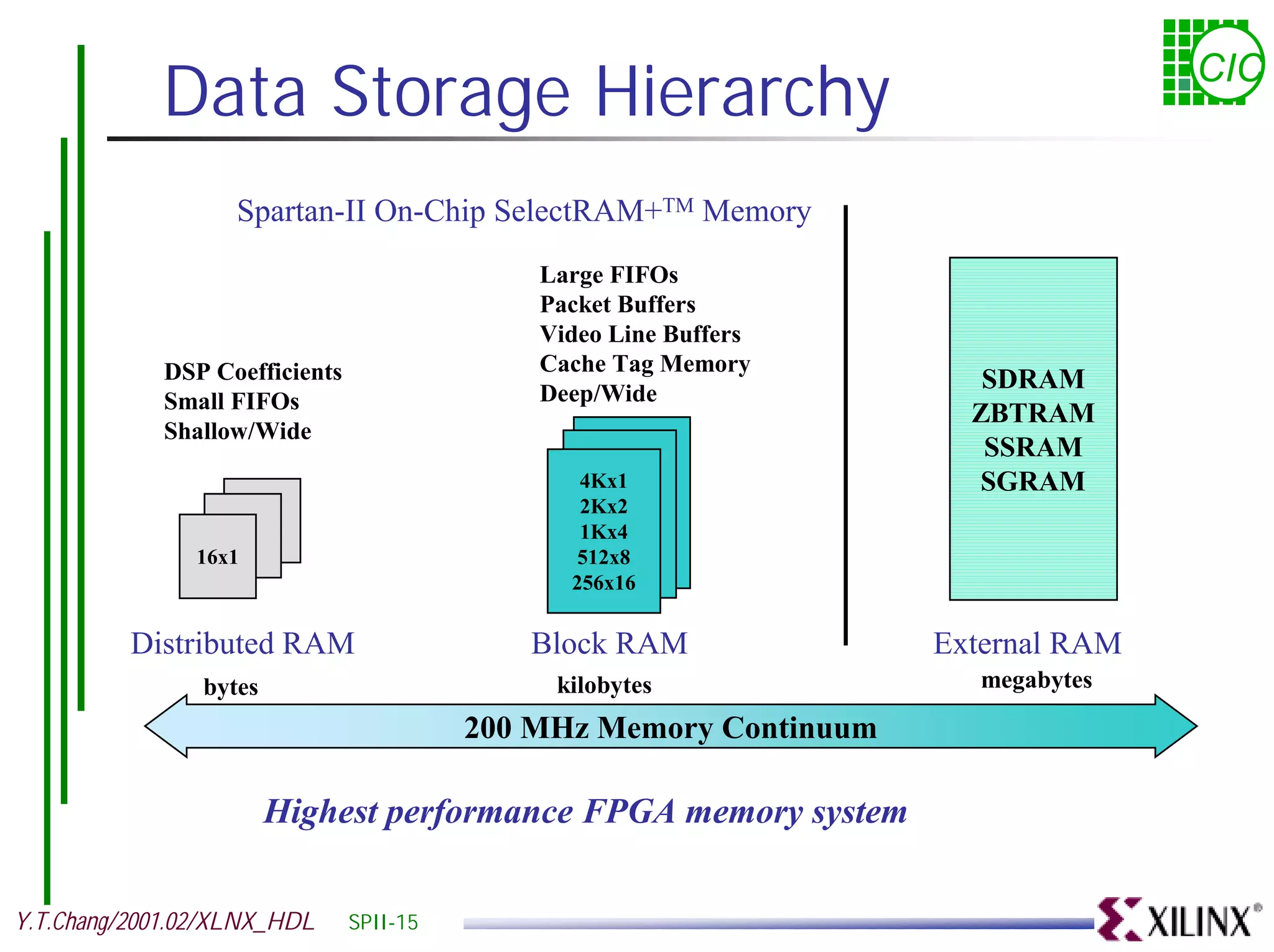

Data Storage Hierarchy CIC Spartan-II On-Chip SelectRAM+TM Memory Large FIFOs Packet Buffers Video Line Buffers DSP Coefficients Cache Tag Memory Deep/Wide SDRAM Small FIFOs ZBTRAM Shallow/Wide SSRAM 4Kx1 SGRAM 2Kx2 1Kx4 16x1 512x8 256x16 Distributed RAM Block RAM External RAM bytes kilobytes megabytes 200 MHz Memory Continuum Highest performance FPGA memory system Y.T.Chang/2001.02/XLNX_HDL SPII-15

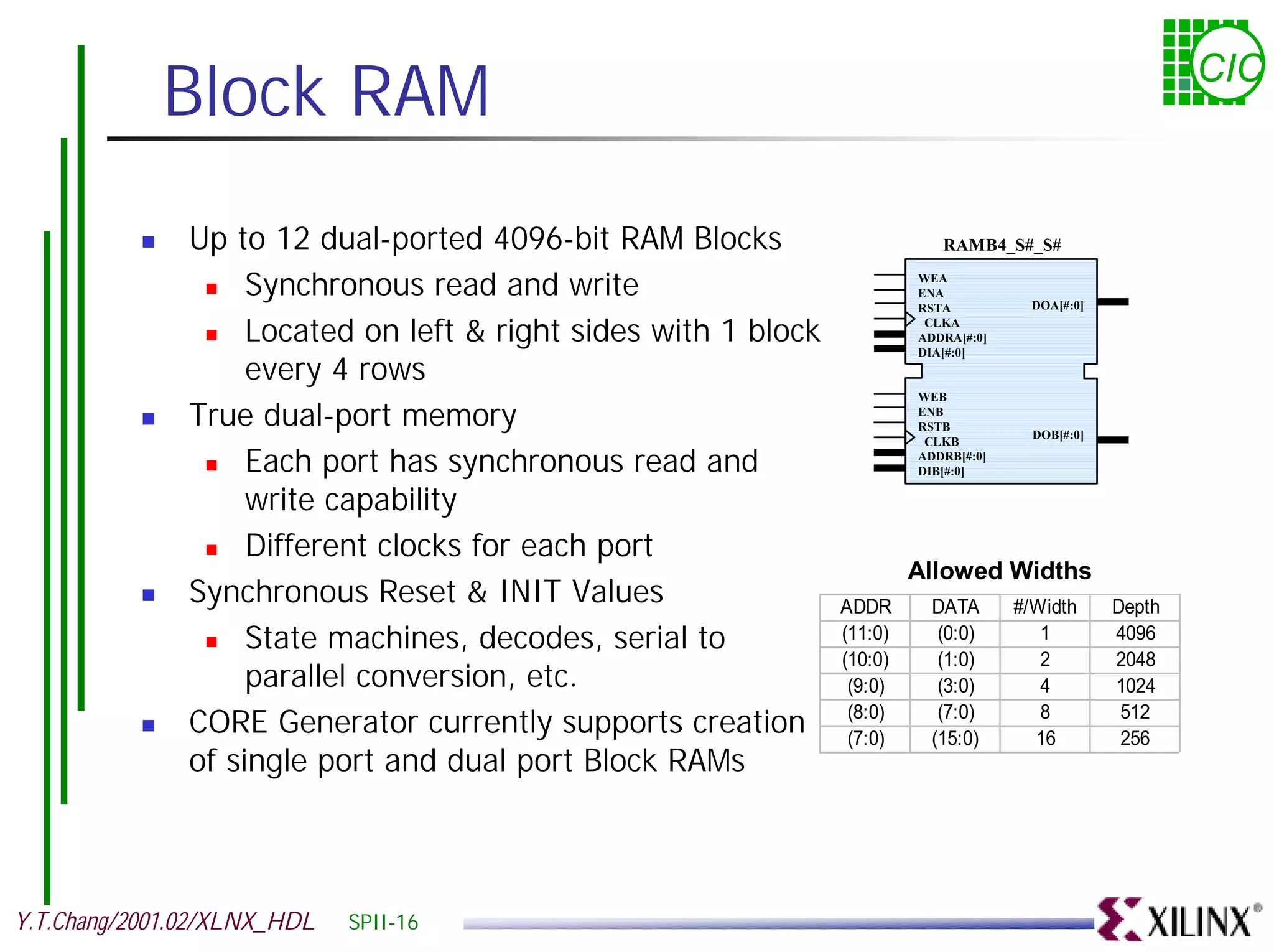

Block RAM CIC ! Up to 12 dual-ported 4096-bit RAM Blocks RAMB4_S#_S# ! Synchronous read and write WEA ENA DOA[#:0] RSTA ! Located on left & right sides with 1 block CLKA ADDRA[#:0] every 4 rows DIA[#:0] WEB ! True dual-port memory ENB RSTB DOB[#:0] CLKB ! Each port has synchronous read and ADDRB[#:0] DIB[#:0] write capability ! Different clocks for each port Allowed Widths ! Synchronous Reset & INIT Values ADDR DATA #/Width Depth ! State machines, decodes, serial to (11:0) (0:0) 1 4096 (10:0) (1:0) 2 2048 parallel conversion, etc. (9:0) (3:0) 4 1024 ! CORE Generator currently supports creation (8:0) (7:0) (7:0) (15:0) 8 16 512 256 of single port and dual port Block RAMs Y.T.Chang/2001.02/XLNX_HDL SPII-16

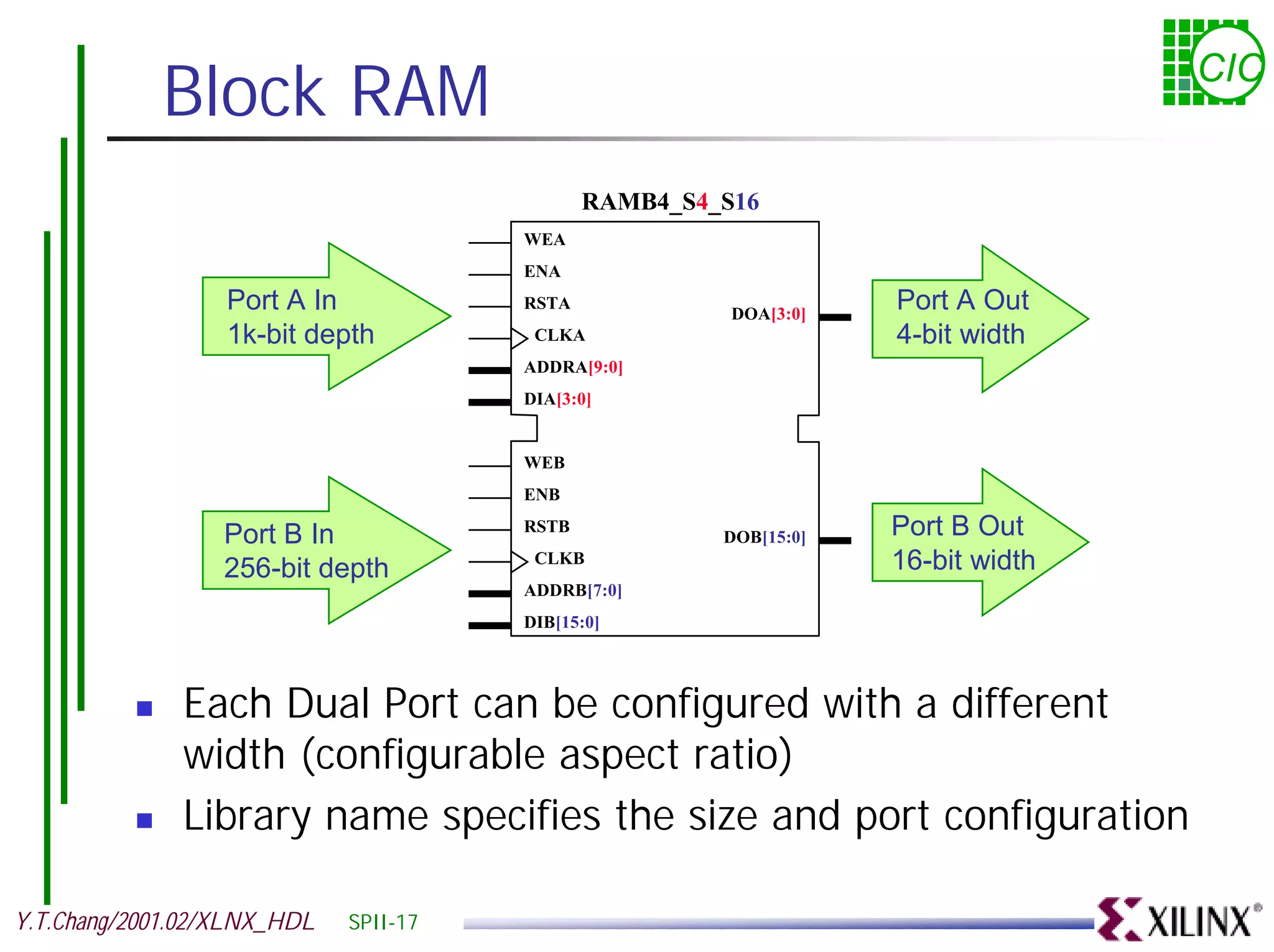

Block RAM CIC RAMB4_S4_S16 WEA ENA Port A In RSTA DOA[3:0] Port A Out 1k-bit depth CLKA 4-bit width ADDRA[9:0] DIA[3:0] WEB ENB Port B In RSTB DOB[15:0] Port B Out 256-bit depth CLKB 16-bit width ADDRB[7:0] DIB[15:0] ! Each Dual Port can be configured with a different width (configurable aspect ratio) ! Library name specifies the size and port configuration Y.T.Chang/2001.02/XLNX_HDL SPII-17

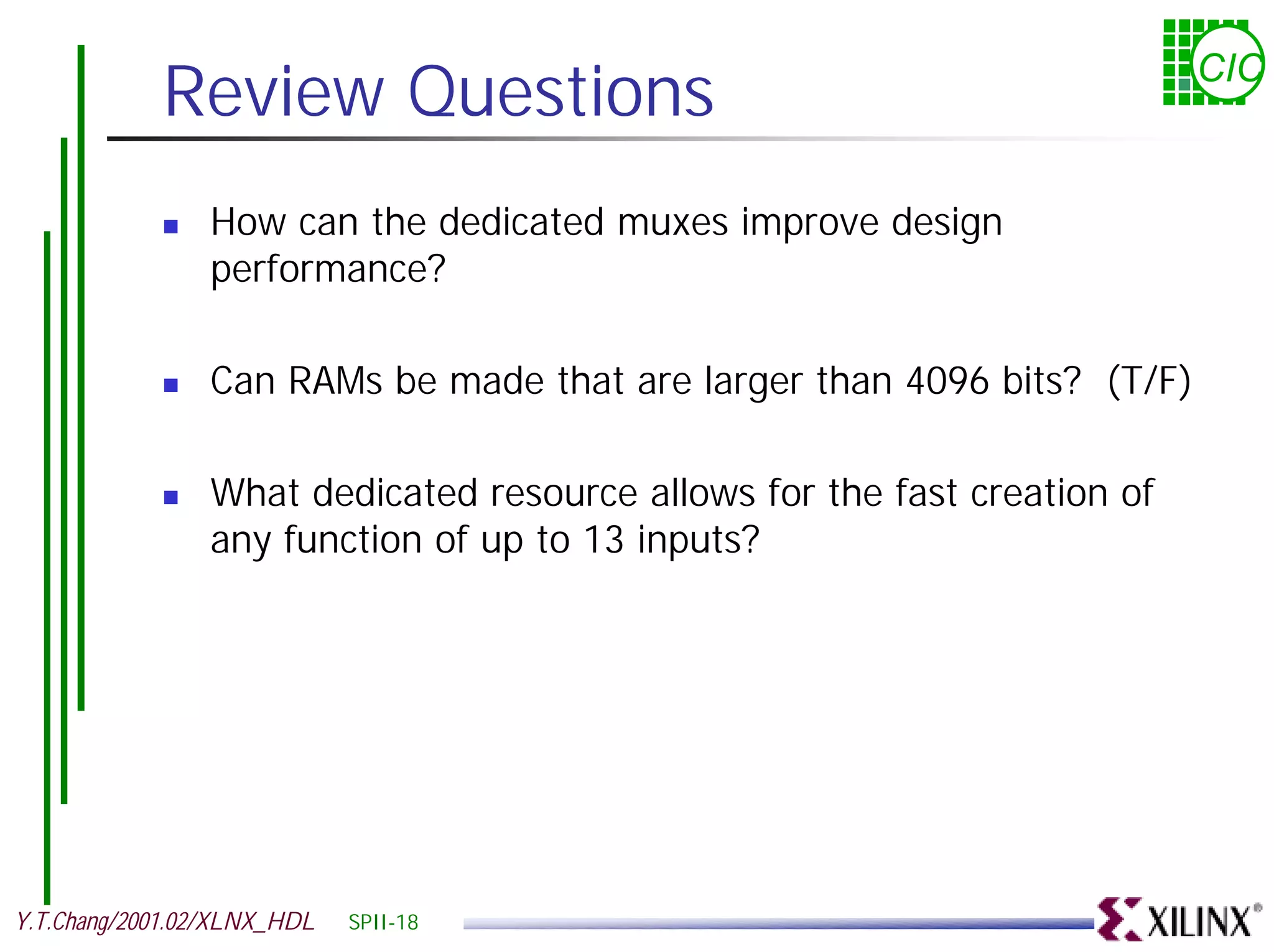

Review Questions CIC ! How can the dedicated muxes improve design performance? ! Can RAMs be made that are larger than 4096 bits? (T/F) ! What dedicated resource allows for the fast creation of any function of up to 13 inputs? Y.T.Chang/2001.02/XLNX_HDL SPII-18

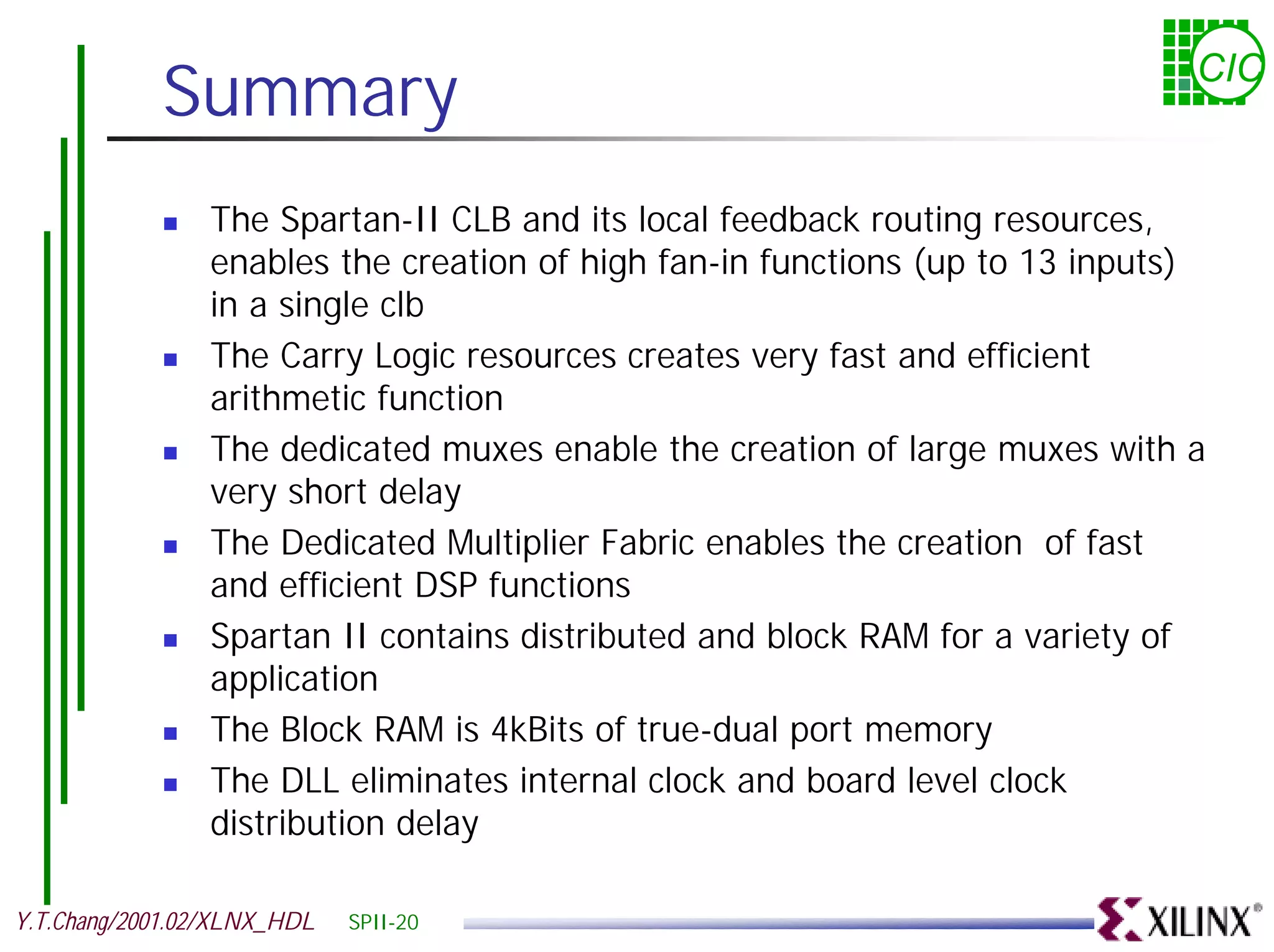

Summary CIC ! The Spartan-II CLB and its local feedback routing resources, enables the creation of high fan-in functions (up to 13 inputs) in a single clb ! The Carry Logic resources creates very fast and efficient arithmetic function ! The dedicated muxes enable the creation of large muxes with a very short delay ! The Dedicated Multiplier Fabric enables the creation of fast and efficient DSP functions ! Spartan II contains distributed and block RAM for a variety of application ! The Block RAM is 4kBits of true-dual port memory ! The DLL eliminates internal clock and board level clock distribution delay Y.T.Chang/2001.02/XLNX_HDL SPII-20

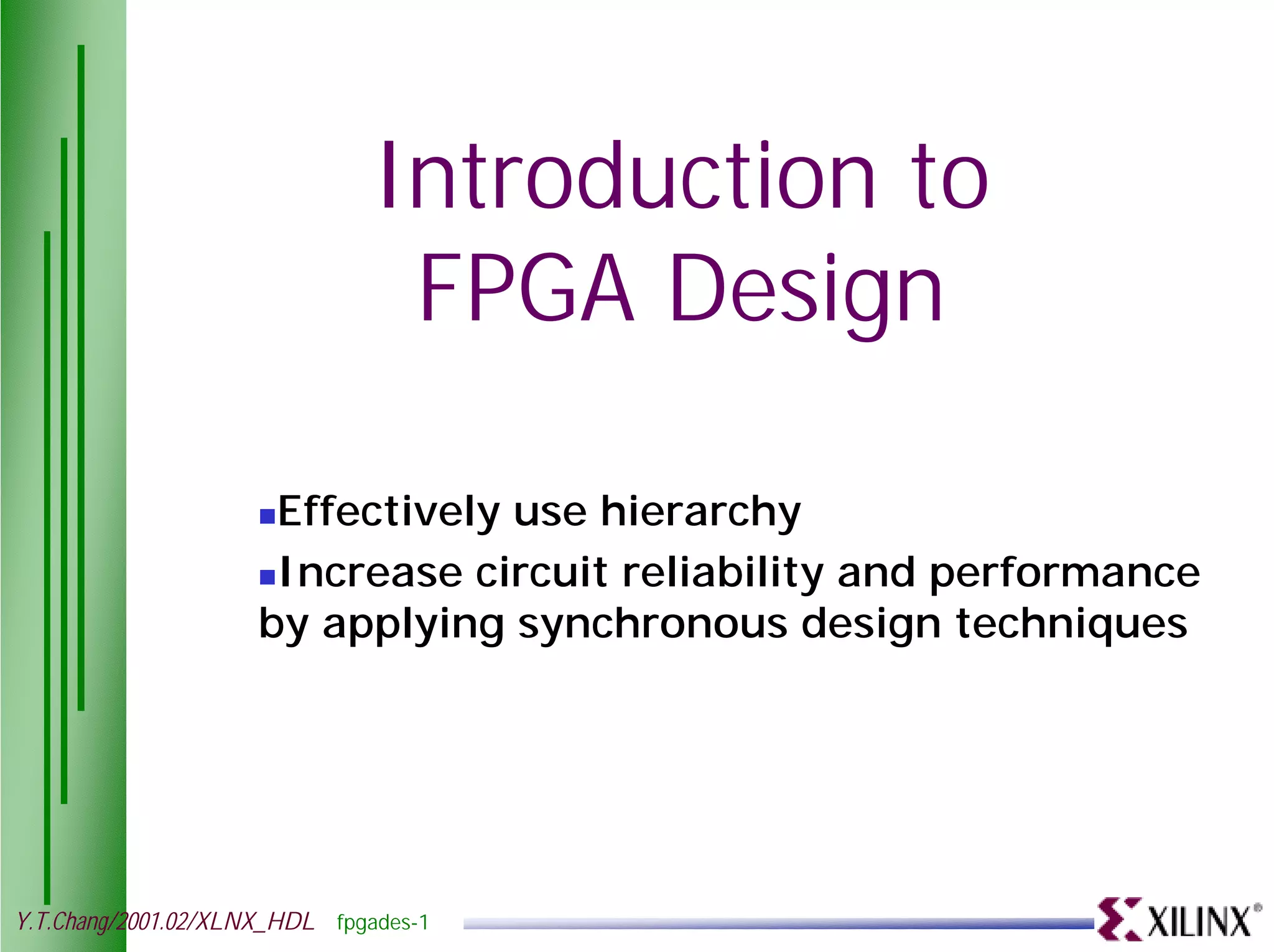

Introduction to FPGA Design !Effectively use hierarchy !Increase circuit reliability and performance by applying synchronous design techniques Y.T.Chang/2001.02/XLNX_HDL fpgades-1

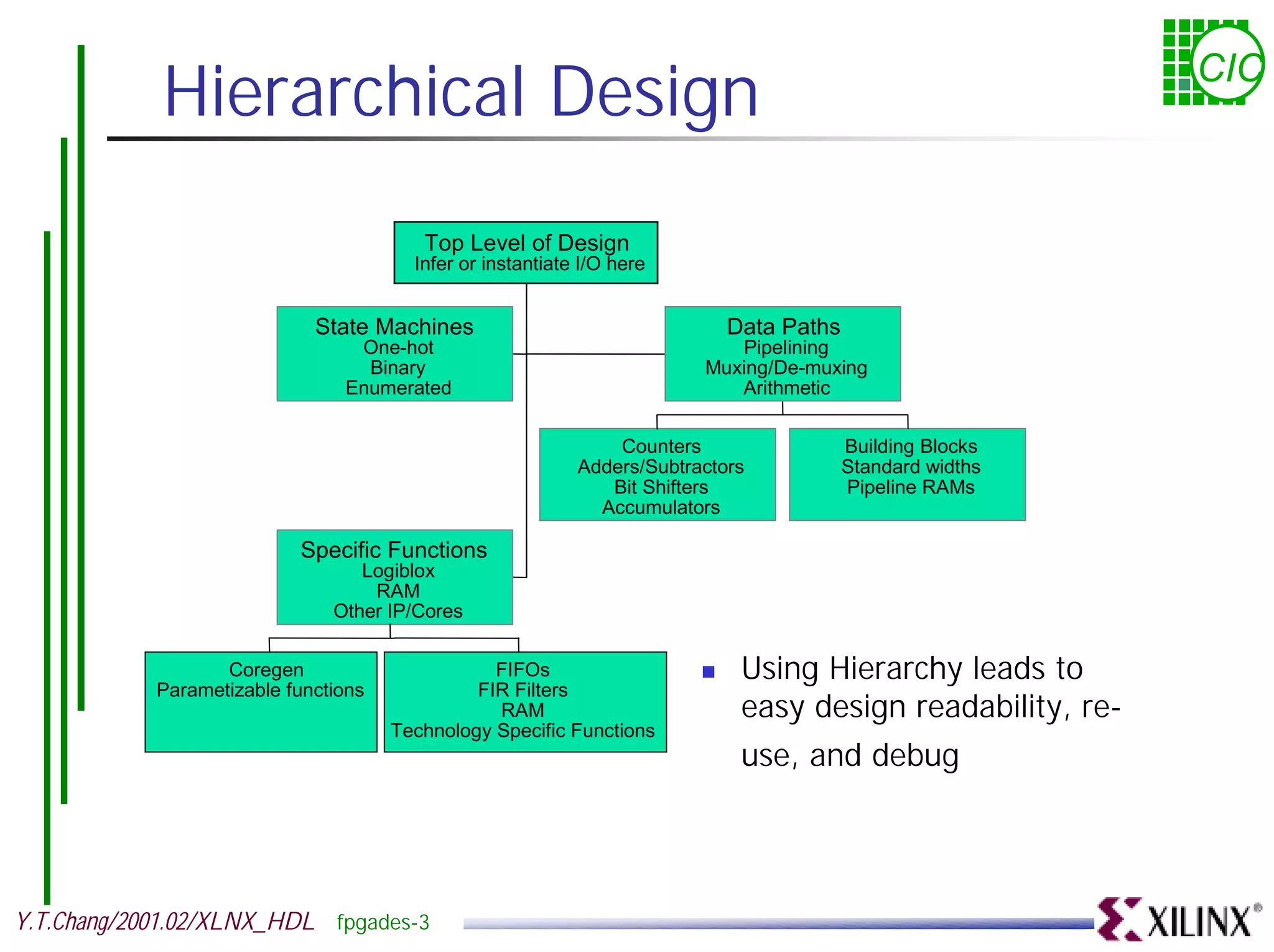

Hierarchical Design CIC Top Level of Design Infer or instantiate I/O here State Machines Data Paths One-hot Pipelining Binary Muxing/De-muxing Enumerated Arithmetic Counters Building Blocks Adders/Subtractors Standard widths Bit Shifters Pipeline RAMs Accumulators Specific Functions Logiblox RAM Other IP/Cores Coregen FIFOs ! Using Hierarchy leads to Parametizable functions FIR Filters RAM easy design readability, re- Technology Specific Functions use, and debug Y.T.Chang/2001.02/XLNX_HDL fpgades-3

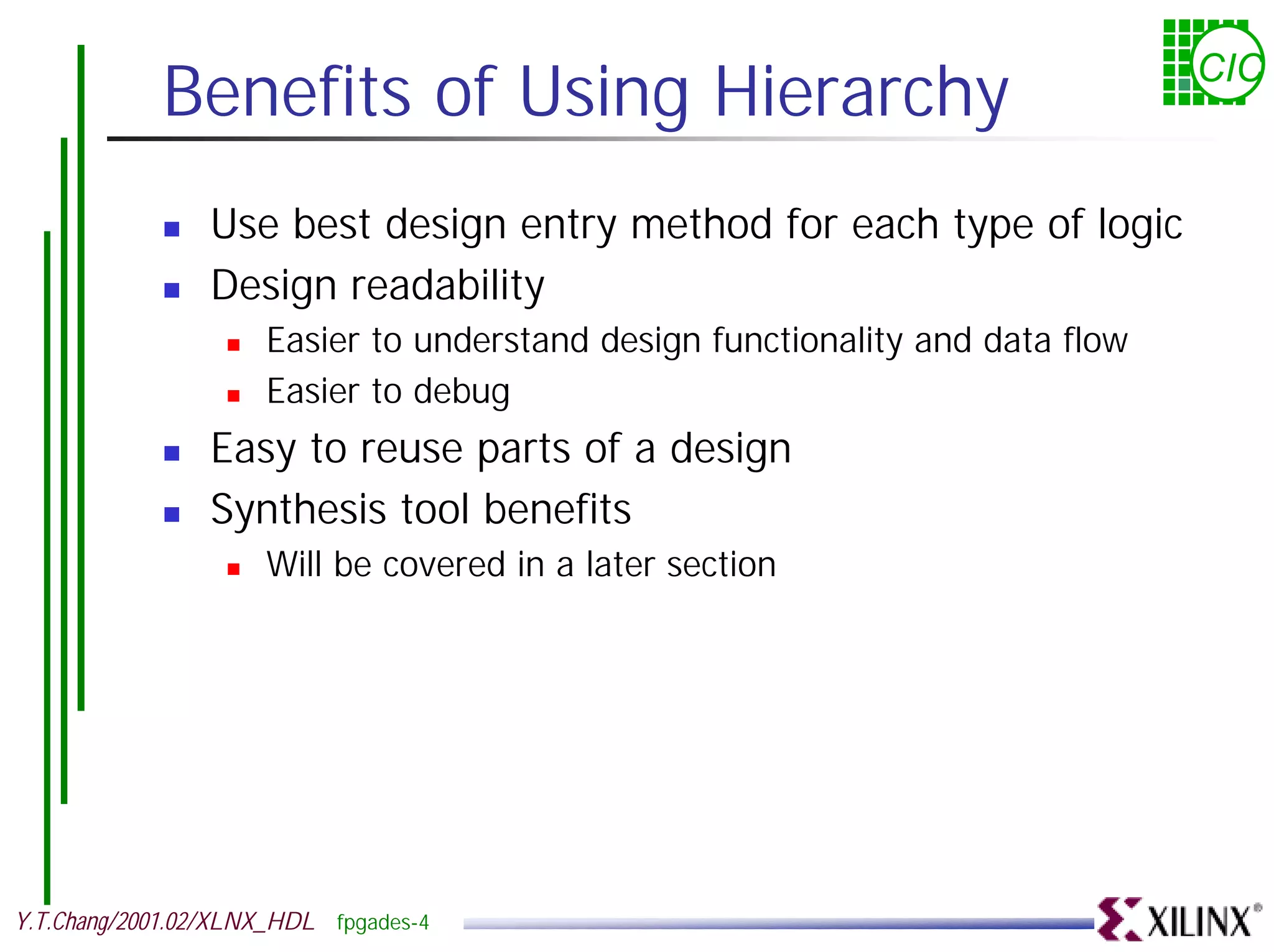

Benefits of Using Hierarchy CIC ! Use best design entry method for each type of logic ! Design readability ! Easier to understand design functionality and data flow ! Easier to debug ! Easy to reuse parts of a design ! Synthesis tool benefits ! Will be covered in a later section Y.T.Chang/2001.02/XLNX_HDL fpgades-4

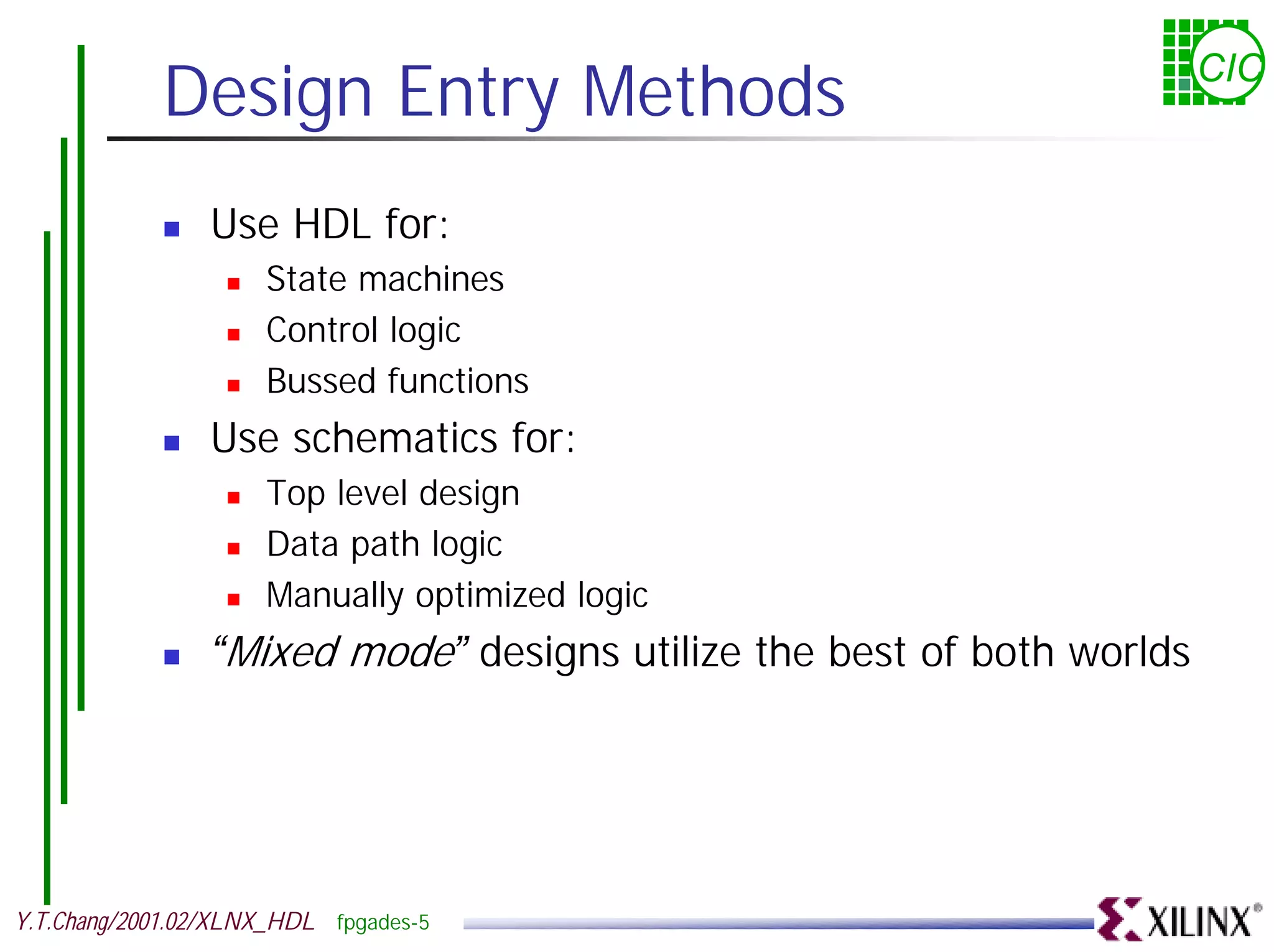

Design Entry Methods CIC ! Use HDL for: ! State machines ! Control logic ! Bussed functions ! Use schematics for: ! Top level design ! Data path logic ! Manually optimized logic ! “Mixed mode” designs utilize the best of both worlds Y.T.Chang/2001.02/XLNX_HDL fpgades-5

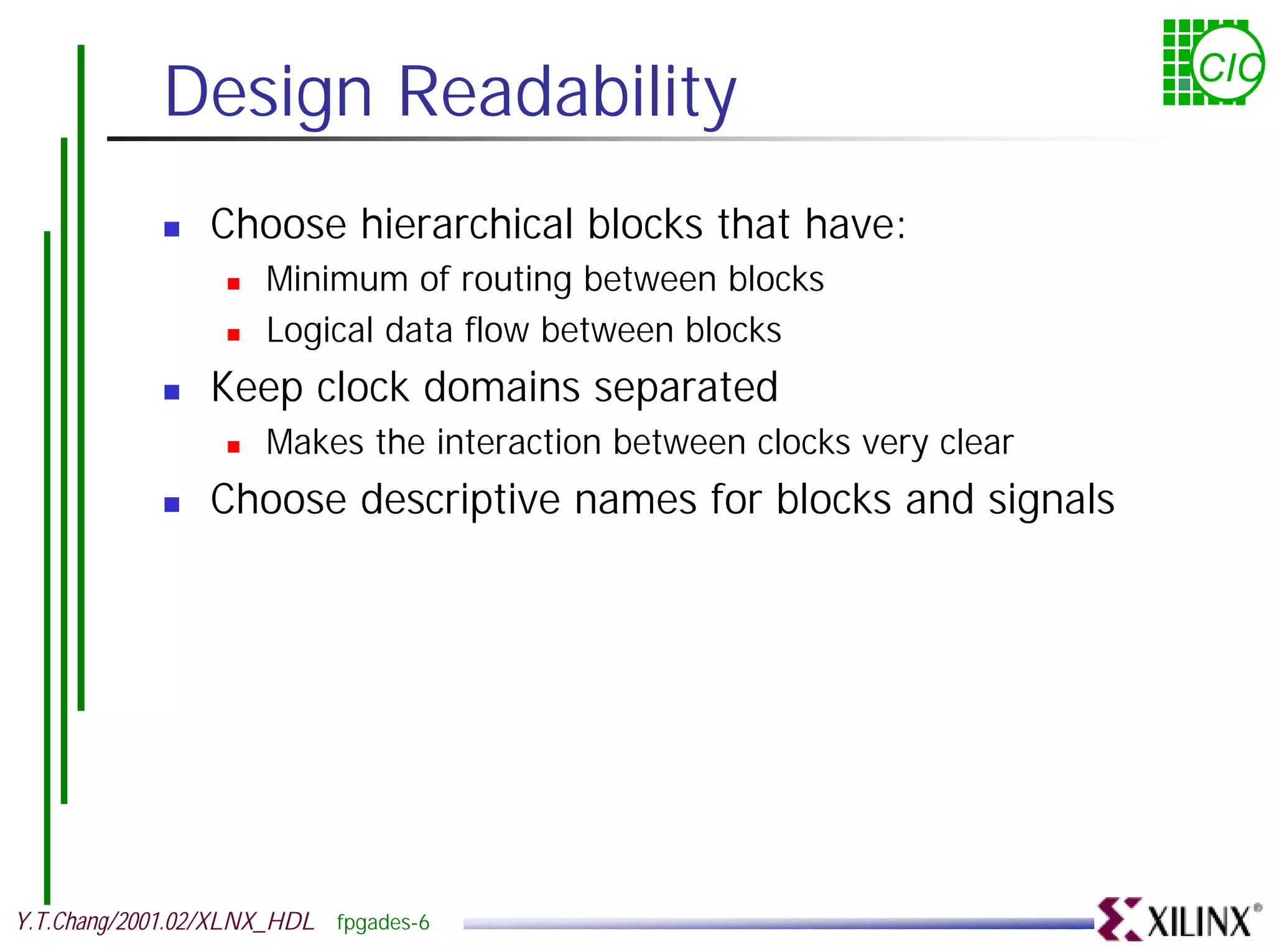

Design Readability CIC ! Choose hierarchical blocks that have: ! Minimum of routing between blocks ! Logical data flow between blocks ! Keep clock domains separated ! Makes the interaction between clocks very clear ! Choose descriptive names for blocks and signals Y.T.Chang/2001.02/XLNX_HDL fpgades-6

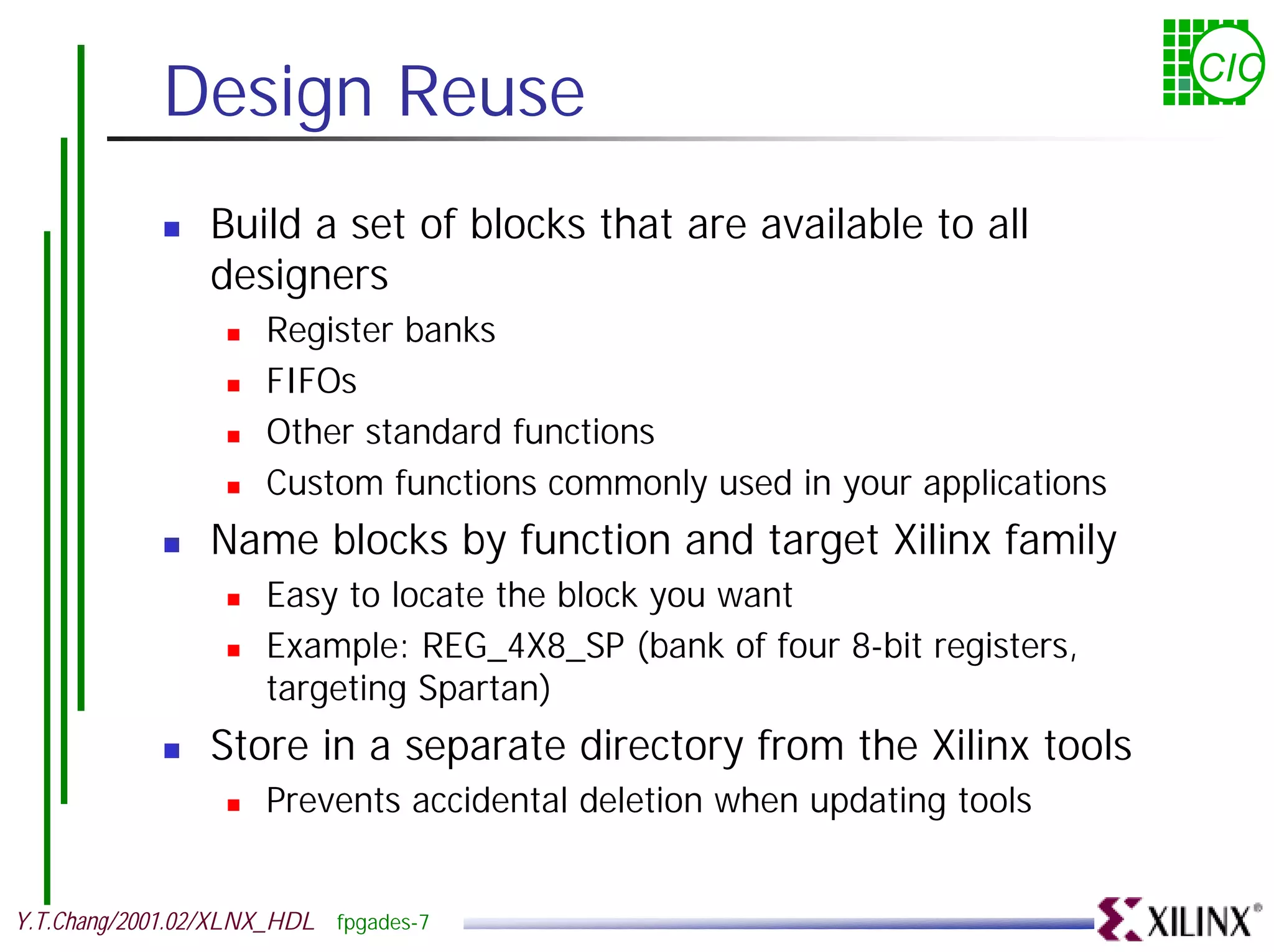

Design Reuse CIC ! Build a set of blocks that are available to all designers ! Register banks ! FIFOs ! Other standard functions ! Custom functions commonly used in your applications ! Name blocks by function and target Xilinx family ! Easy to locate the block you want ! Example: REG_4X8_SP (bank of four 8-bit registers, targeting Spartan) ! Store in a separate directory from the Xilinx tools ! Prevents accidental deletion when updating tools Y.T.Chang/2001.02/XLNX_HDL fpgades-7

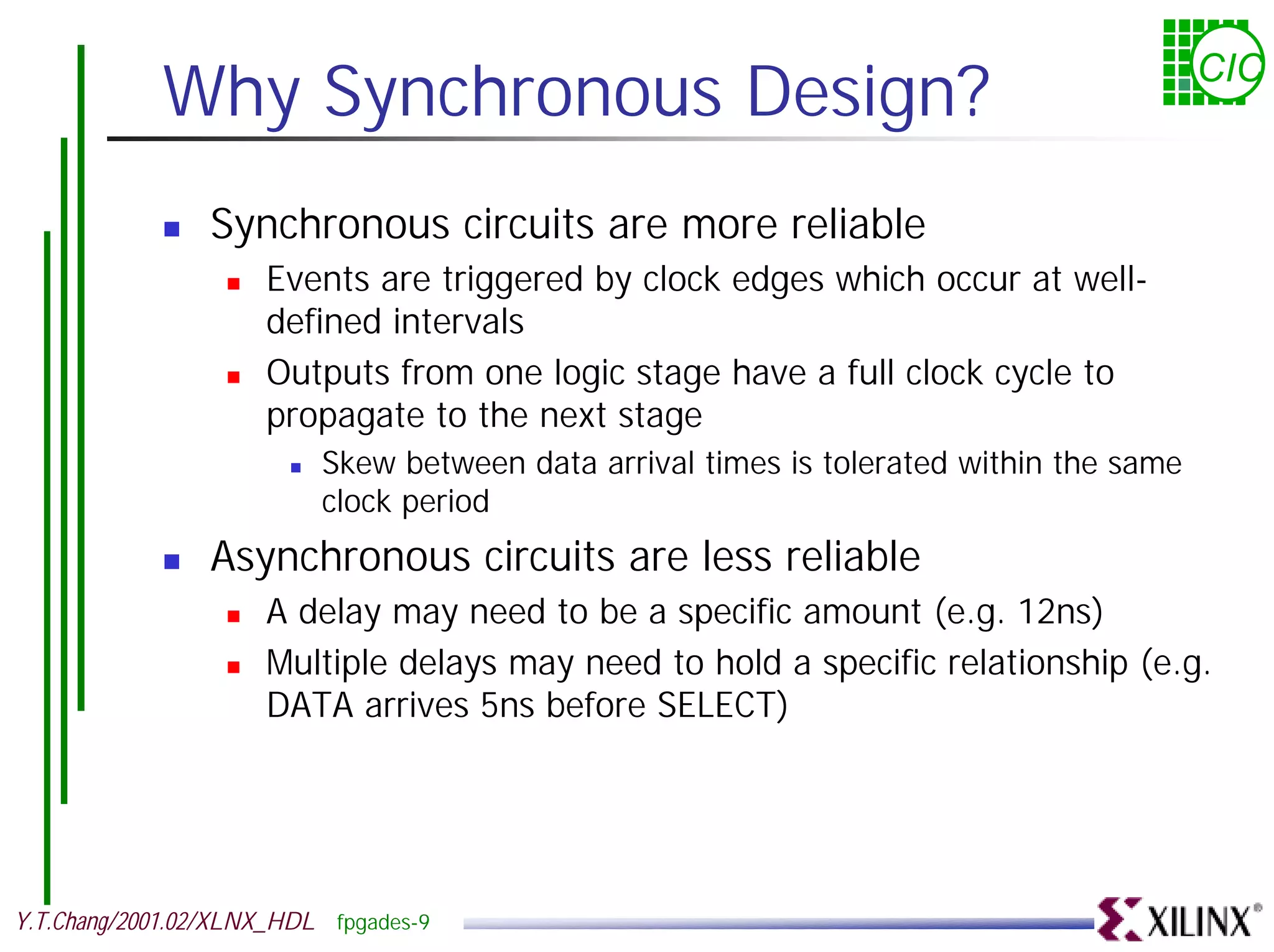

Why Synchronous Design? CIC ! Synchronous circuits are more reliable ! Events are triggered by clock edges which occur at well- defined intervals ! Outputs from one logic stage have a full clock cycle to propagate to the next stage ! Skew between data arrival times is tolerated within the same clock period ! Asynchronous circuits are less reliable ! A delay may need to be a specific amount (e.g. 12ns) ! Multiple delays may need to hold a specific relationship (e.g. DATA arrives 5ns before SELECT) Y.T.Chang/2001.02/XLNX_HDL fpgades-9

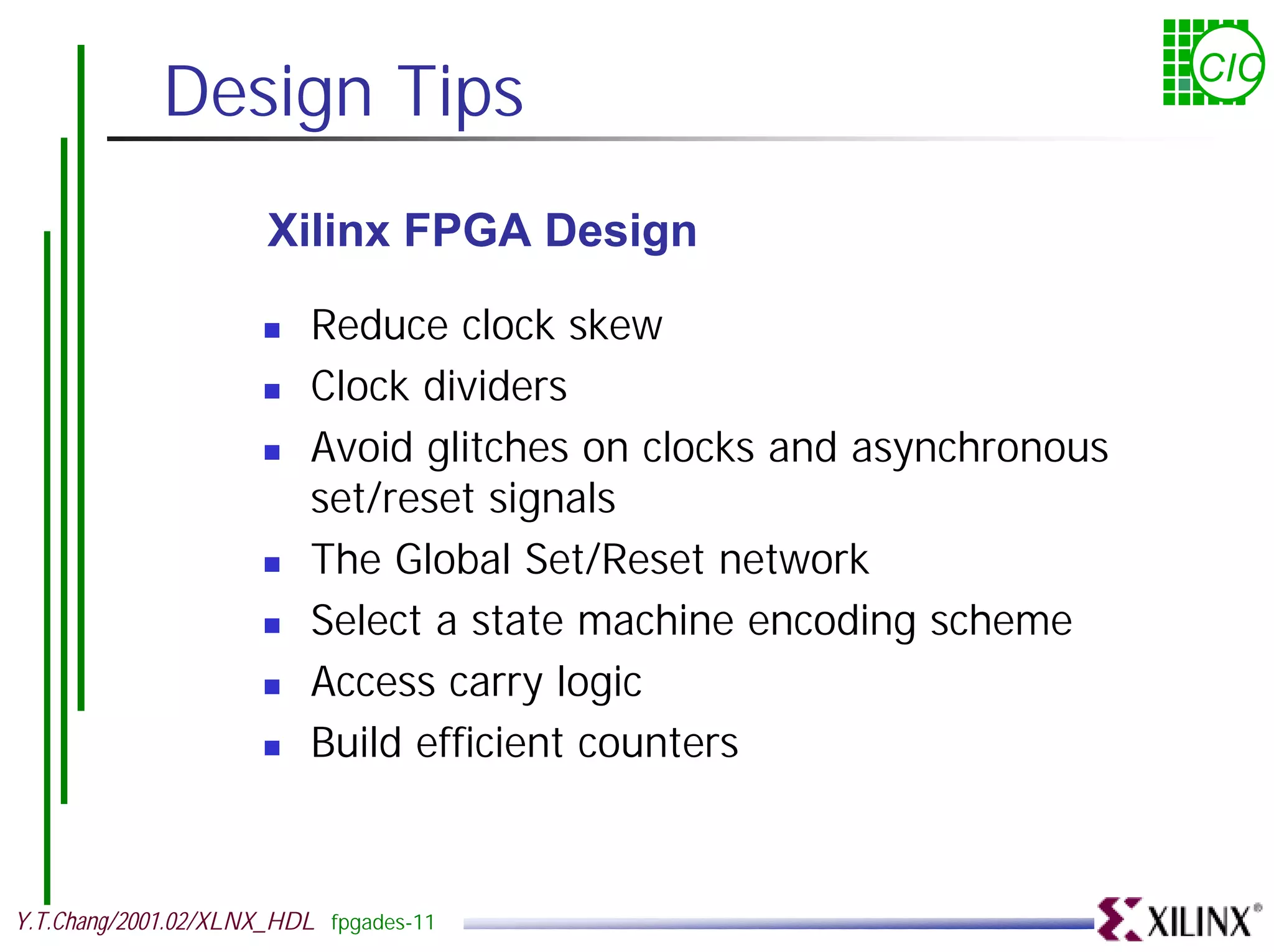

Design Tips CIC Xilinx FPGA Design ! Reduce clock skew ! Clock dividers ! Avoid glitches on clocks and asynchronous set/reset signals ! The Global Set/Reset network ! Select a state machine encoding scheme ! Access carry logic ! Build efficient counters Y.T.Chang/2001.02/XLNX_HDL fpgades-11

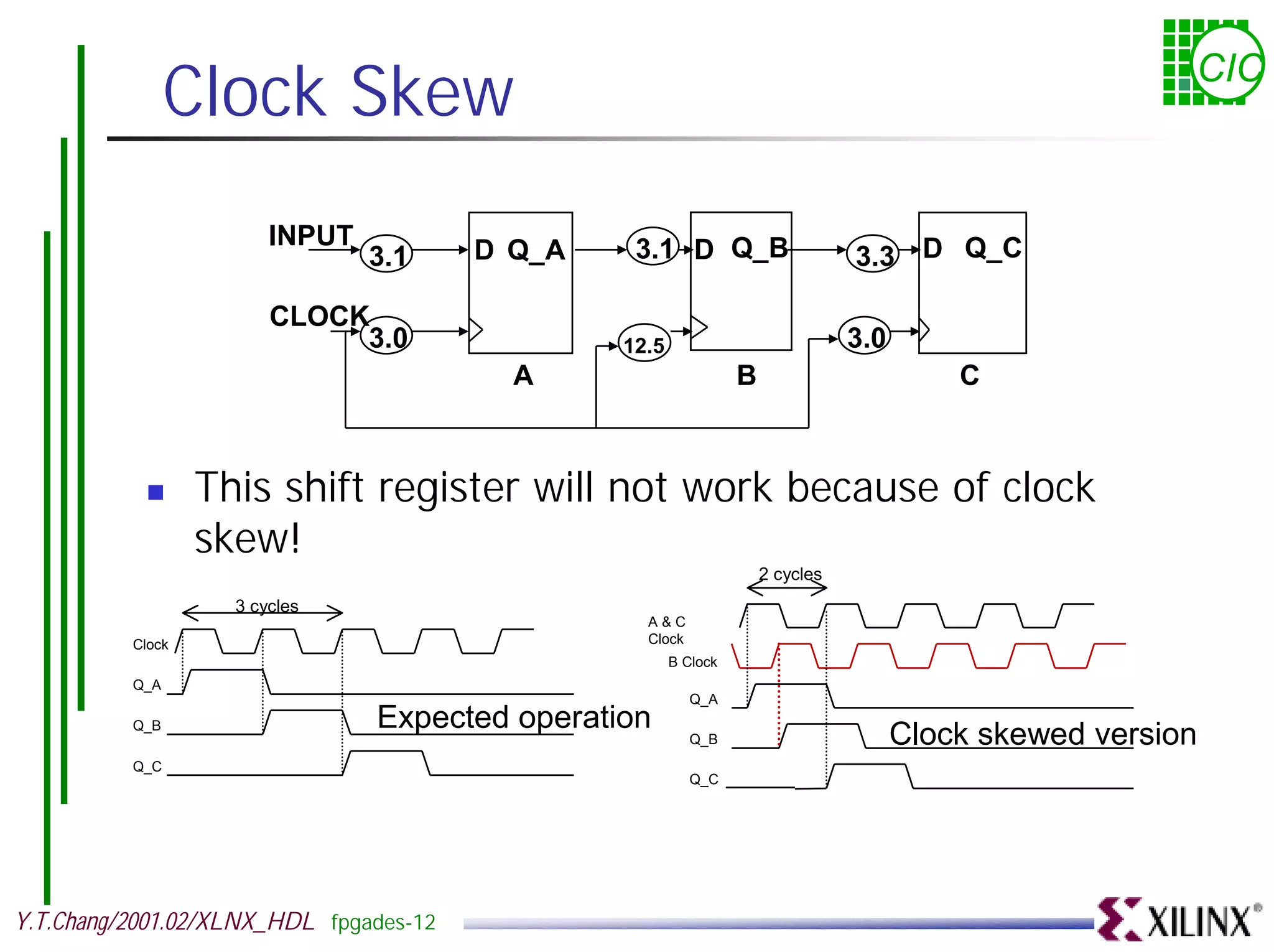

Clock Skew CIC INPUT 3.1 D Q_B 3.1 D Q_A 3.3 D Q_C CLOCK 3.0 12.5 3.0 A B C ! This shift register will not work because of clock skew! 2 cycles 3 cycles A&C Clock Clock B Clock Q_A Q_A Q_B Expected operation Q_B Clock skewed version Q_C Q_C Y.T.Chang/2001.02/XLNX_HDL fpgades-12

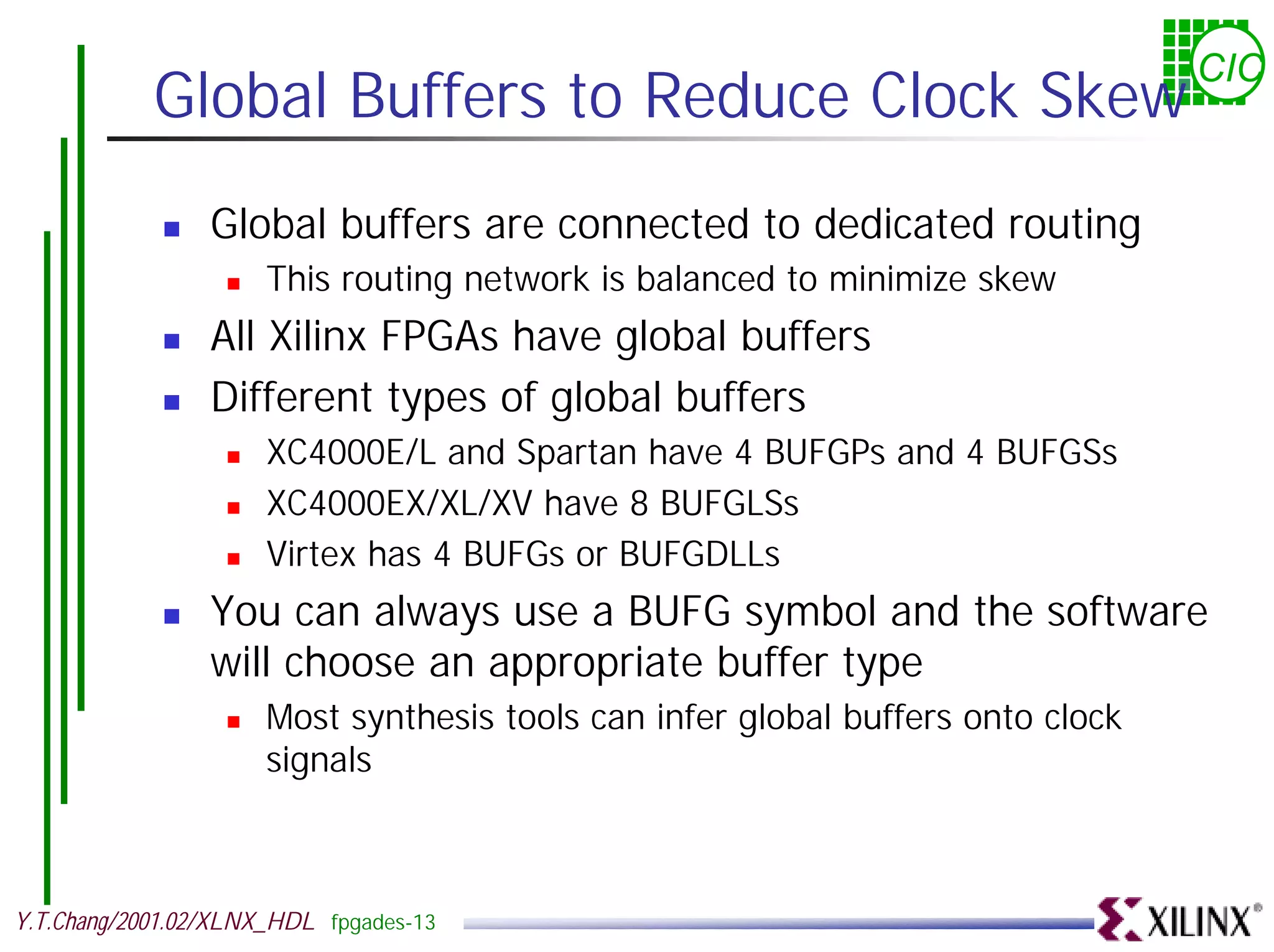

CIC Global Buffers to Reduce Clock Skew ! Global buffers are connected to dedicated routing ! This routing network is balanced to minimize skew ! All Xilinx FPGAs have global buffers ! Different types of global buffers ! XC4000E/L and Spartan have 4 BUFGPs and 4 BUFGSs ! XC4000EX/XL/XV have 8 BUFGLSs ! Virtex has 4 BUFGs or BUFGDLLs ! You can always use a BUFG symbol and the software will choose an appropriate buffer type ! Most synthesis tools can infer global buffers onto clock signals Y.T.Chang/2001.02/XLNX_HDL fpgades-13

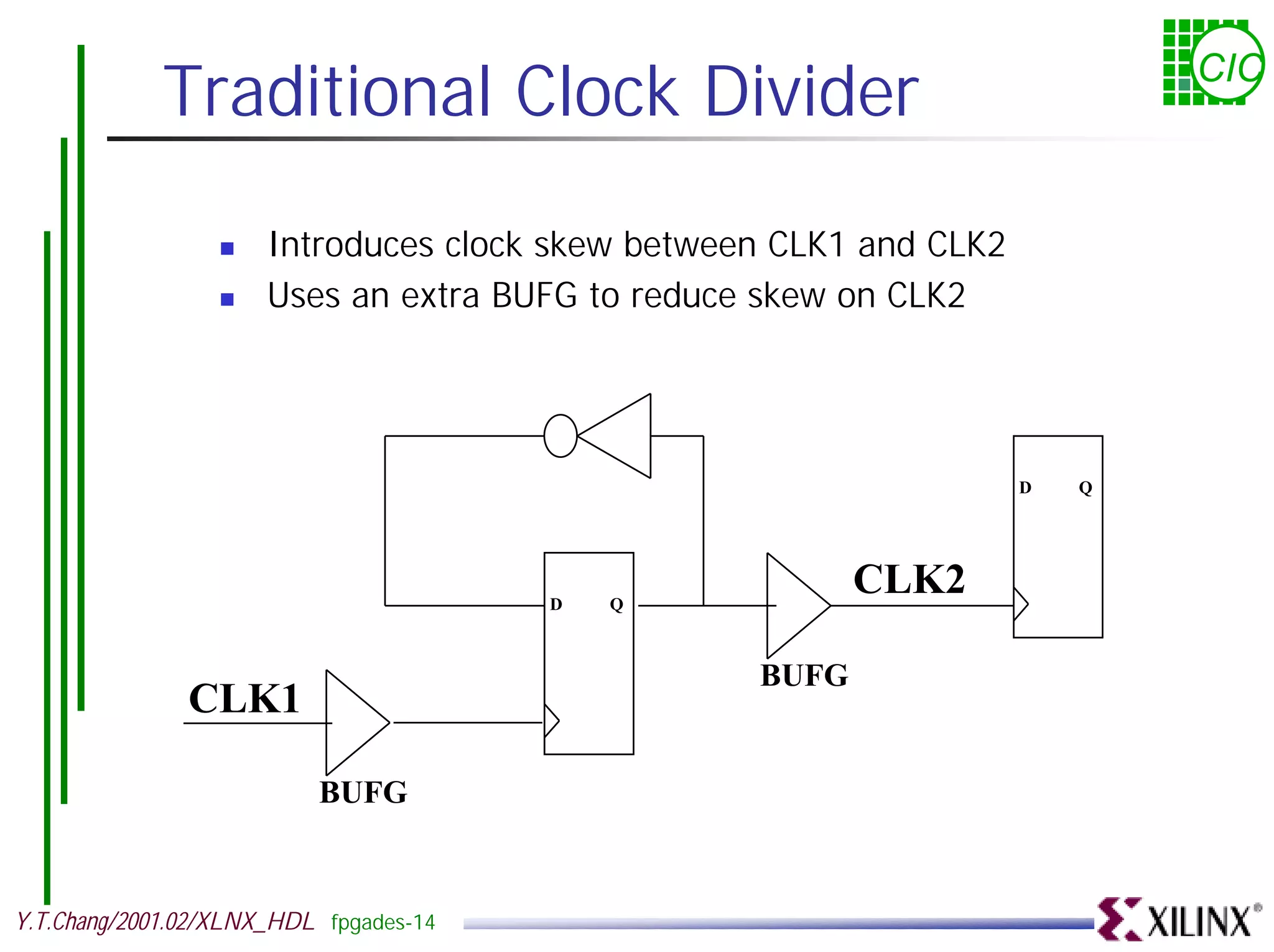

Traditional Clock Divider CIC ! Introduces clock skew between CLK1 and CLK2 ! Uses an extra BUFG to reduce skew on CLK2 D Q D Q CLK2 BUFG CLK1 BUFG Y.T.Chang/2001.02/XLNX_HDL fpgades-14

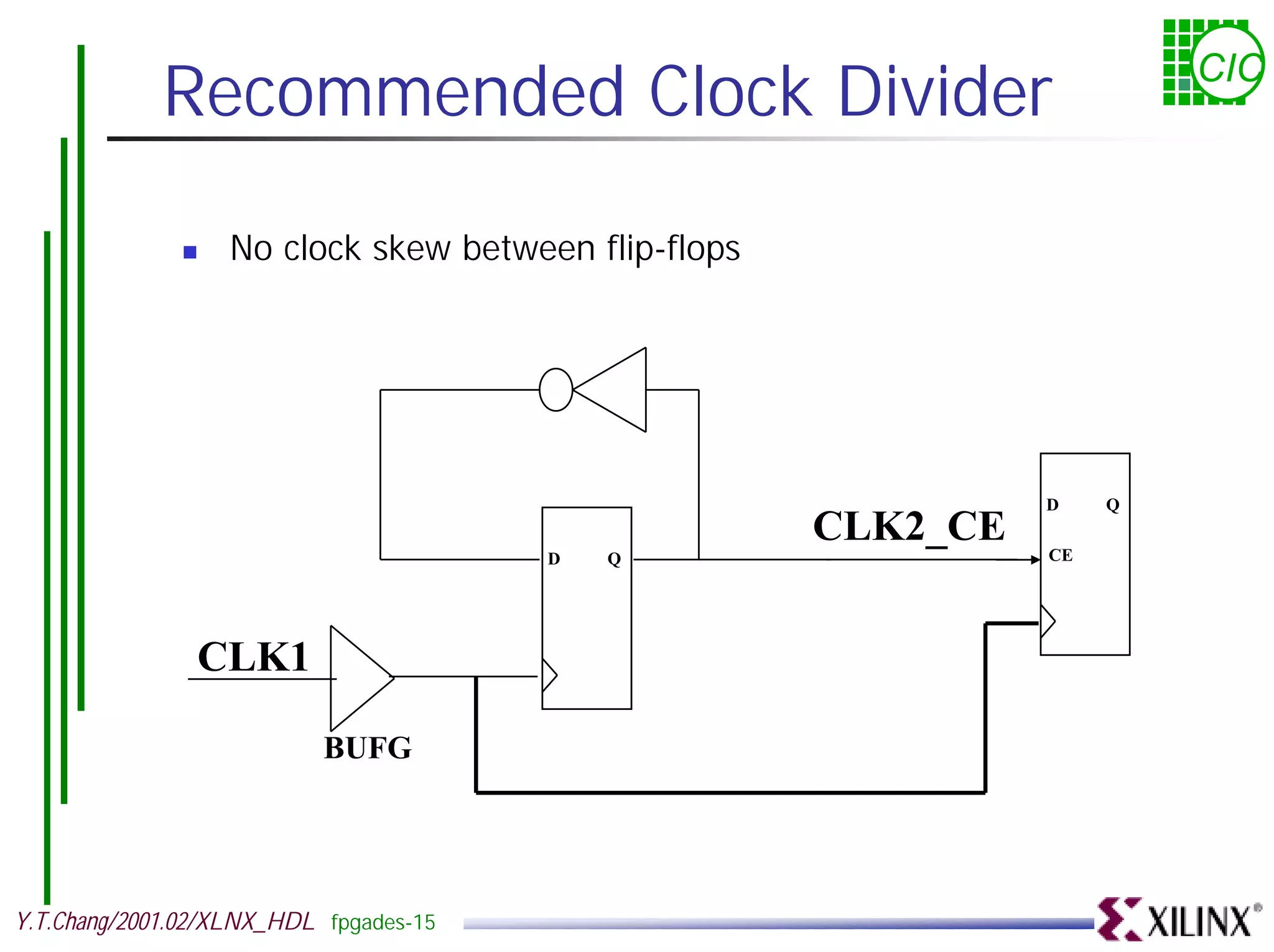

Recommended Clock Divider CIC ! No clock skew between flip-flops D Q CLK2_CE CE D Q CLK1 BUFG Y.T.Chang/2001.02/XLNX_HDL fpgades-15

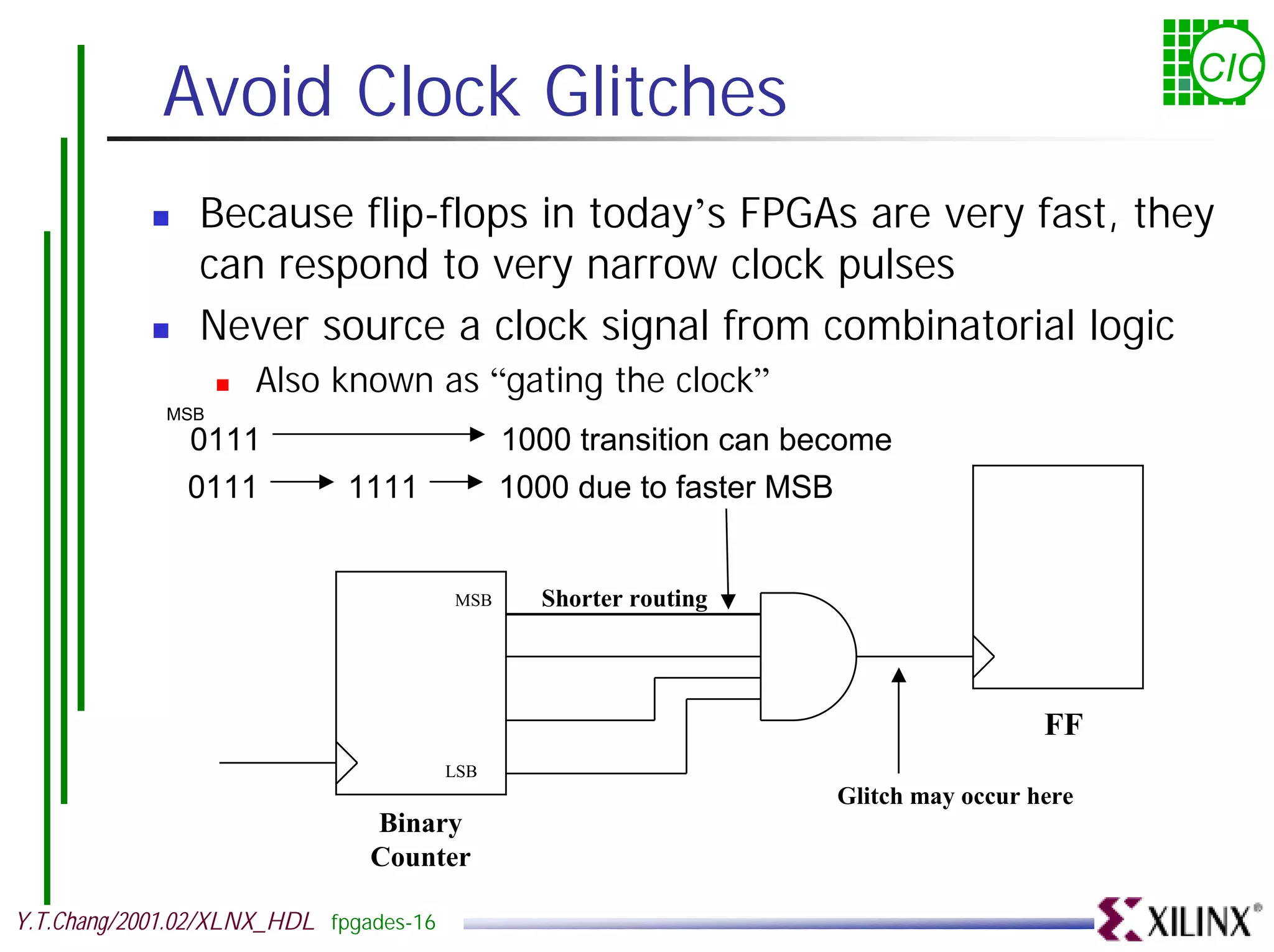

Avoid Clock Glitches CIC ! Because flip-flops in today’s FPGAs are very fast, they can respond to very narrow clock pulses ! Never source a clock signal from combinatorial logic ! Also known as “gating the clock” MSB 0111 1000 transition can become 0111 1111 1000 due to faster MSB MSB Shorter routing FF LSB Glitch may occur here Binary Counter Y.T.Chang/2001.02/XLNX_HDL fpgades-16

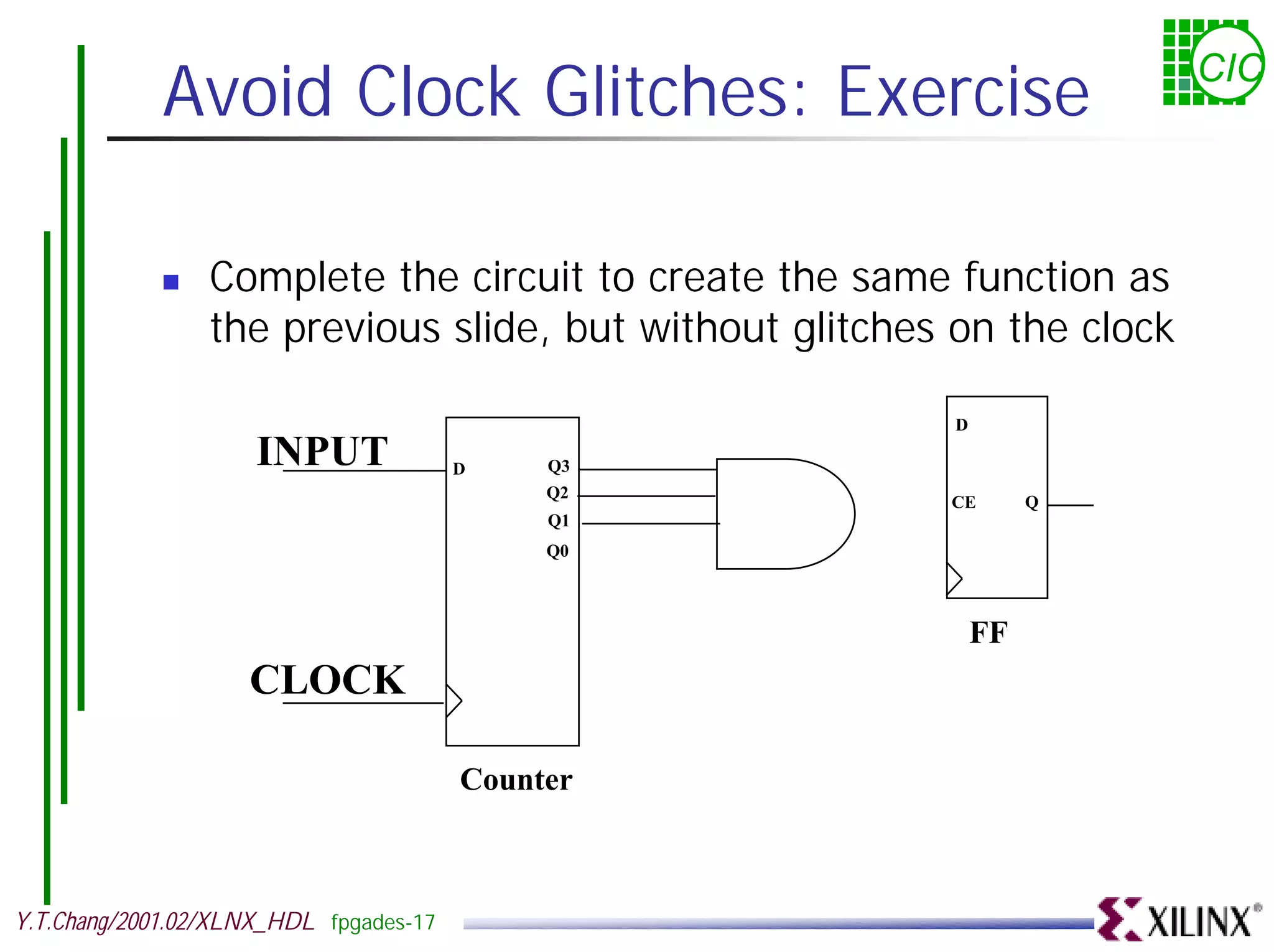

Avoid Clock Glitches: Exercise CIC ! Complete the circuit to create the same function as the previous slide, but without glitches on the clock D INPUT D Q3 Q2 CE Q Q1 Q0 FF CLOCK Counter Y.T.Chang/2001.02/XLNX_HDL fpgades-17

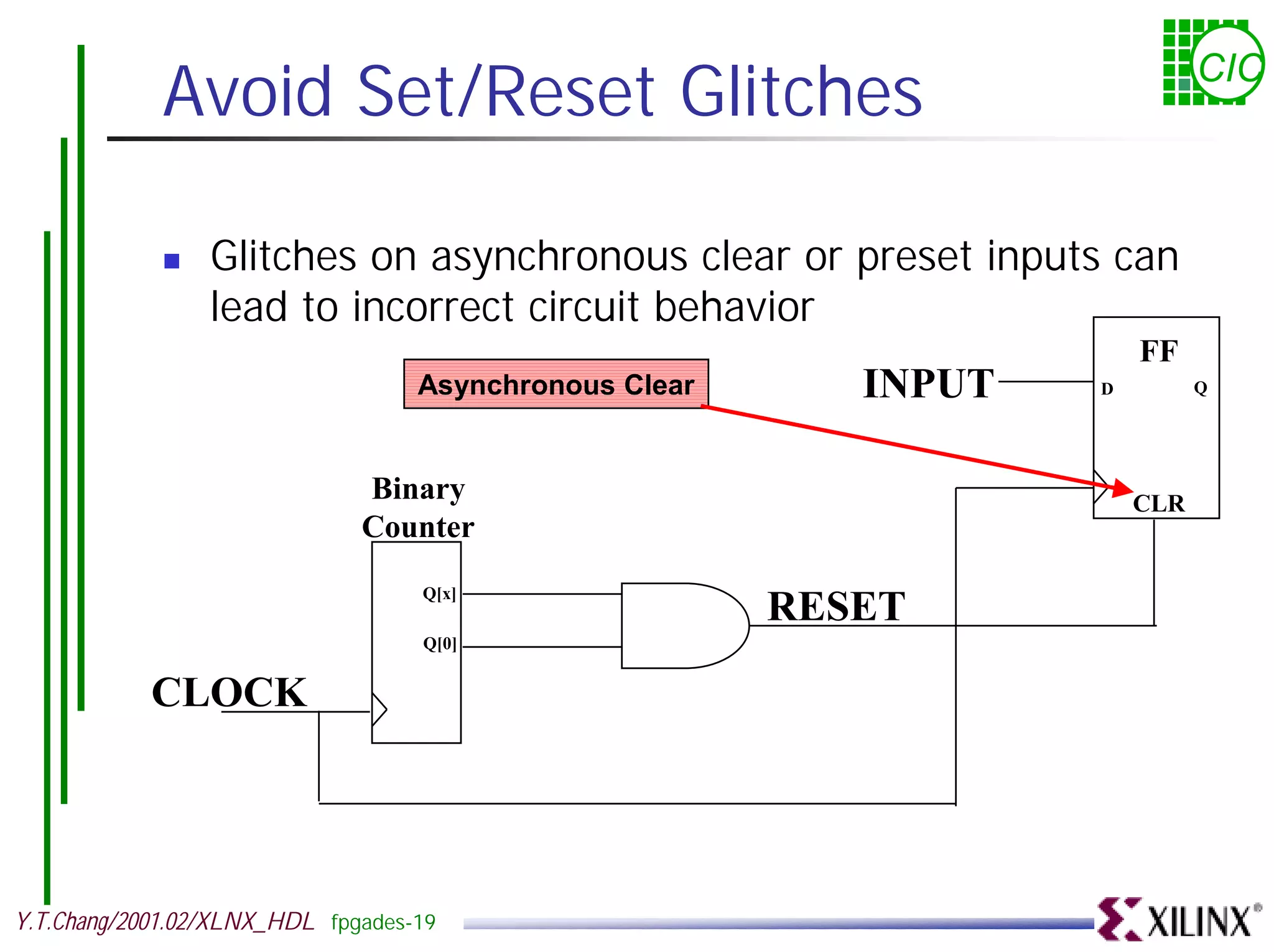

Avoid Set/Reset Glitches CIC ! Glitches on asynchronous clear or preset inputs can lead to incorrect circuit behavior FF Asynchronous Clear INPUT D Q Binary CLR Counter Q[x] RESET Q[0] CLOCK Y.T.Chang/2001.02/XLNX_HDL fpgades-19

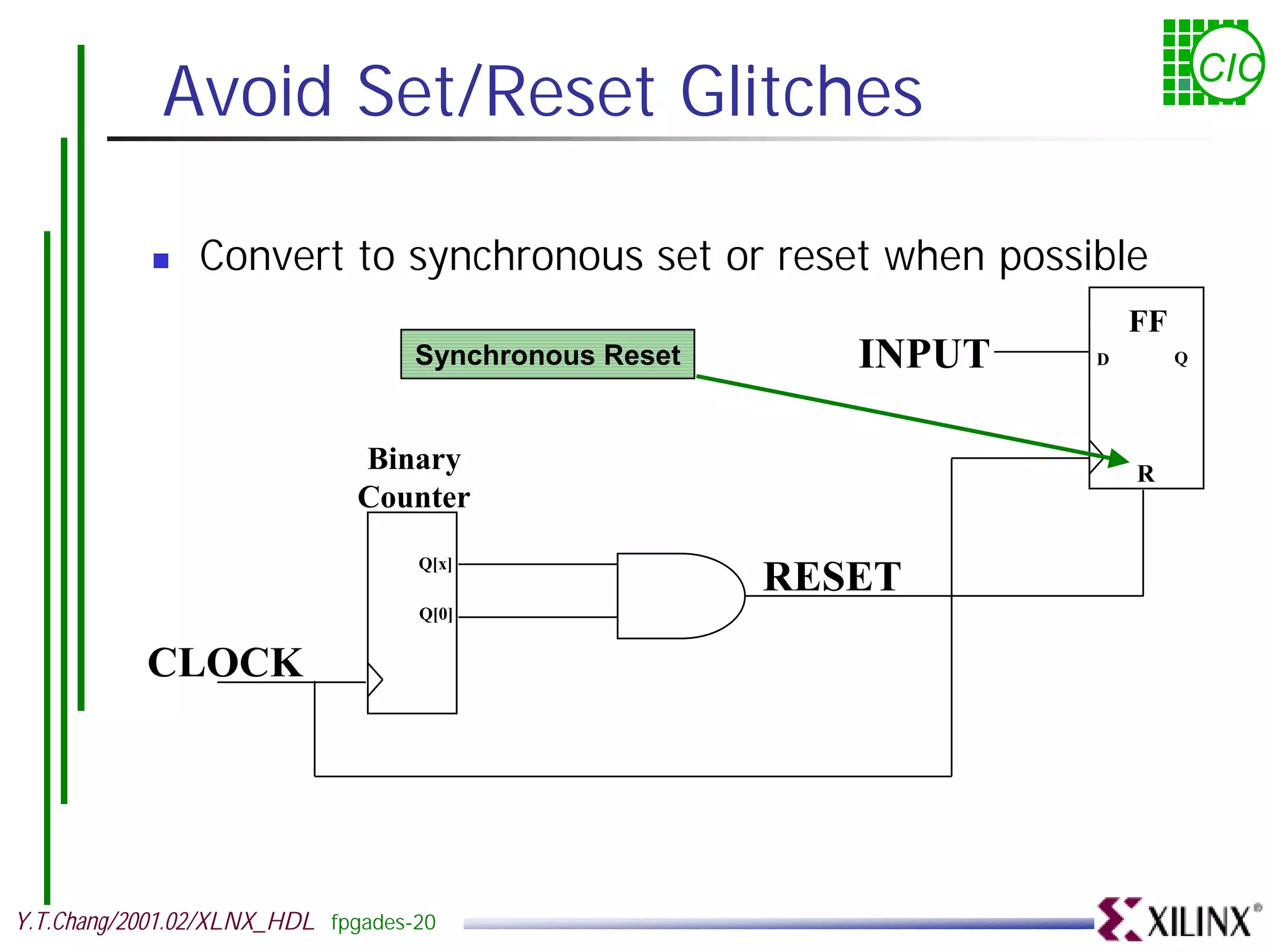

Avoid Set/Reset Glitches CIC ! Convert to synchronous set or reset when possible FF Synchronous Reset INPUT D Q Binary R Counter Q[x] RESET Q[0] CLOCK Y.T.Chang/2001.02/XLNX_HDL fpgades-20

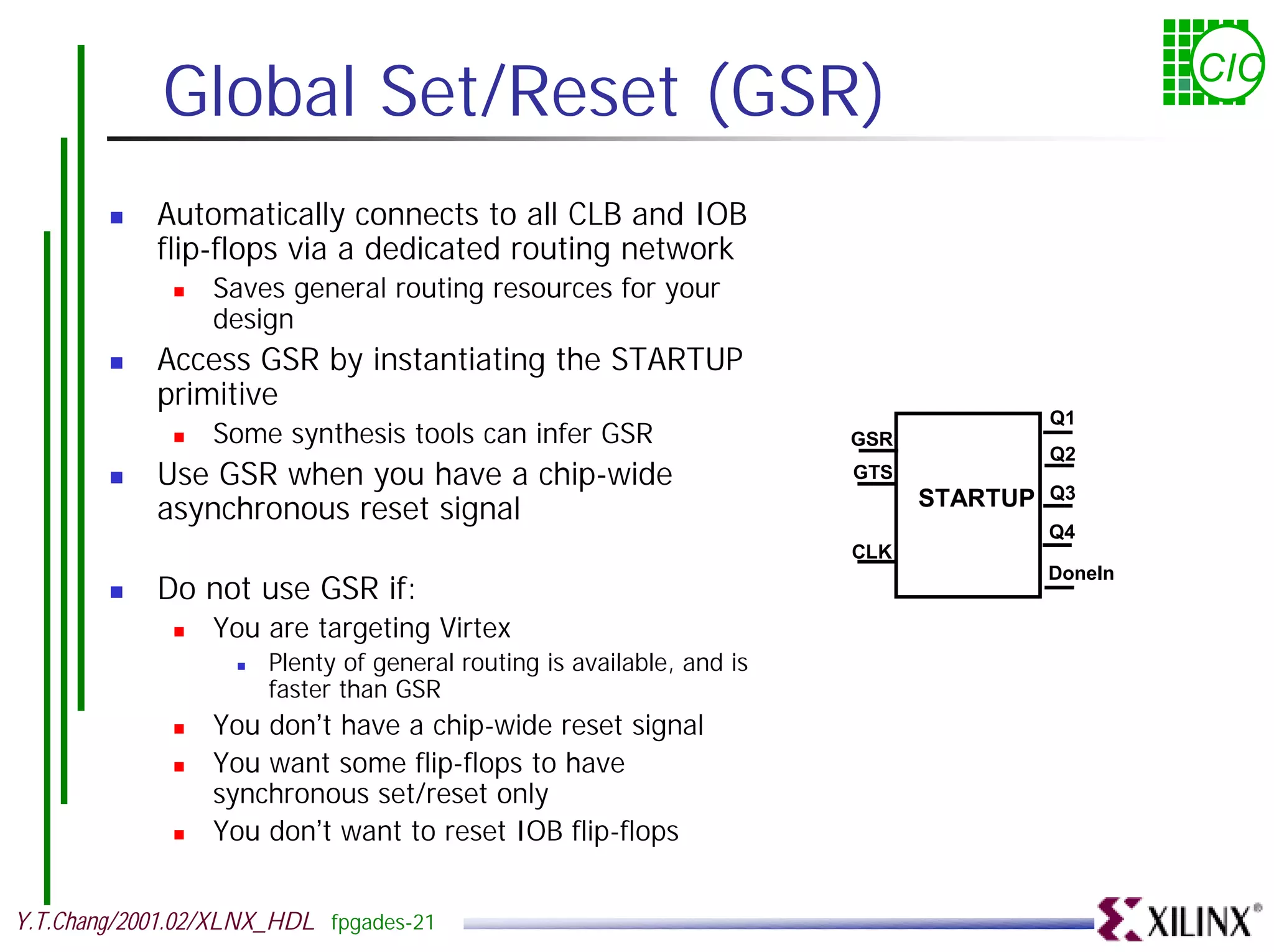

Global Set/Reset (GSR) CIC ! Automatically connects to all CLB and IOB flip-flops via a dedicated routing network ! Saves general routing resources for your design ! Access GSR by instantiating the STARTUP primitive Q1 ! Some synthesis tools can infer GSR GSR Q2 ! Use GSR when you have a chip-wide GTS Q3 asynchronous reset signal STARTUP Q4 CLK DoneIn ! Do not use GSR if: ! You are targeting Virtex ! Plenty of general routing is available, and is faster than GSR ! You don’t have a chip-wide reset signal ! You want some flip-flops to have synchronous set/reset only ! You don’t want to reset IOB flip-flops Y.T.Chang/2001.02/XLNX_HDL fpgades-21

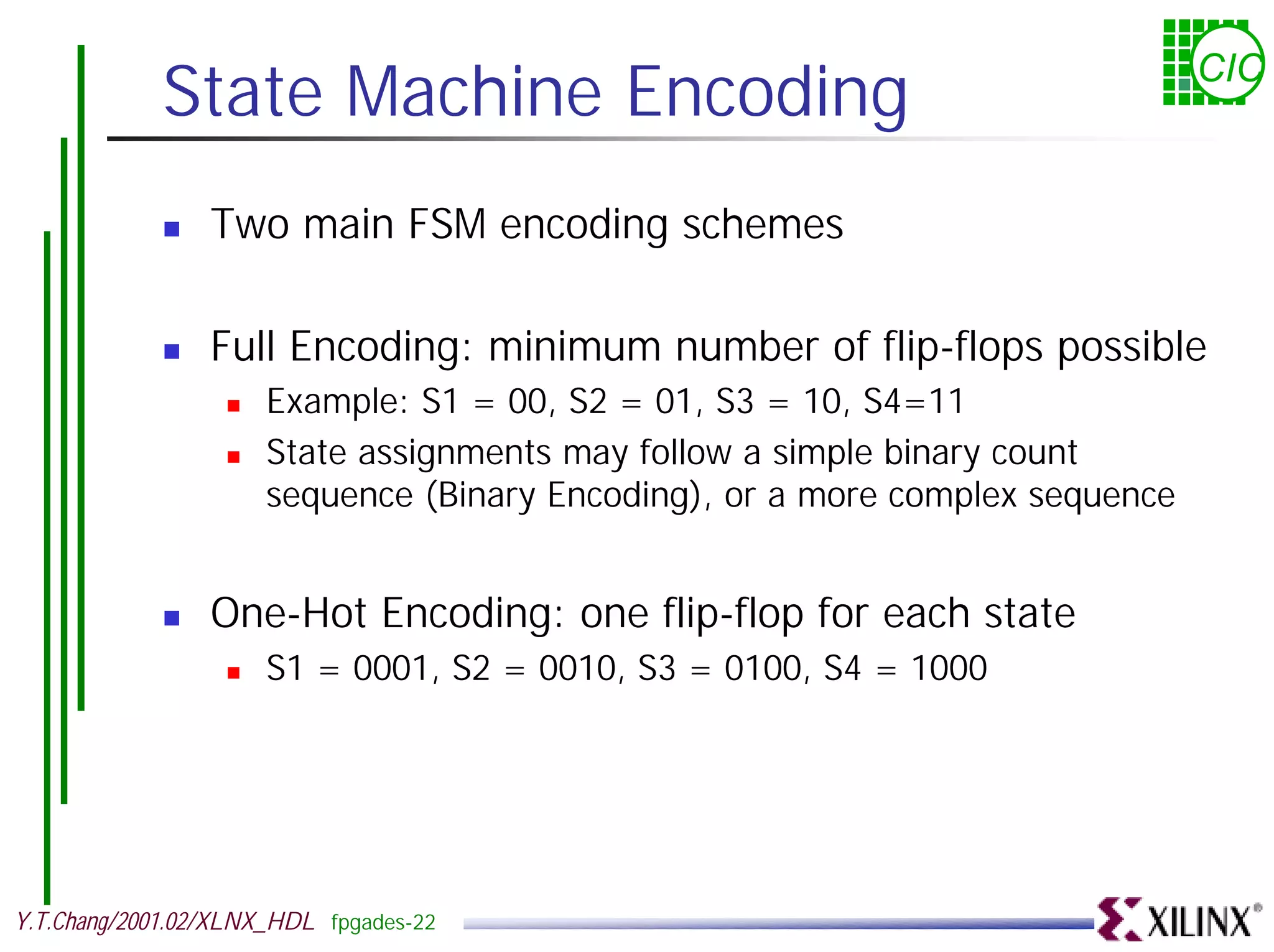

State Machine Encoding CIC ! Two main FSM encoding schemes ! Full Encoding: minimum number of flip-flops possible ! Example: S1 = 00, S2 = 01, S3 = 10, S4=11 ! State assignments may follow a simple binary count sequence (Binary Encoding), or a more complex sequence ! One-Hot Encoding: one flip-flop for each state ! S1 = 0001, S2 = 0010, S3 = 0100, S4 = 1000 Y.T.Chang/2001.02/XLNX_HDL fpgades-22

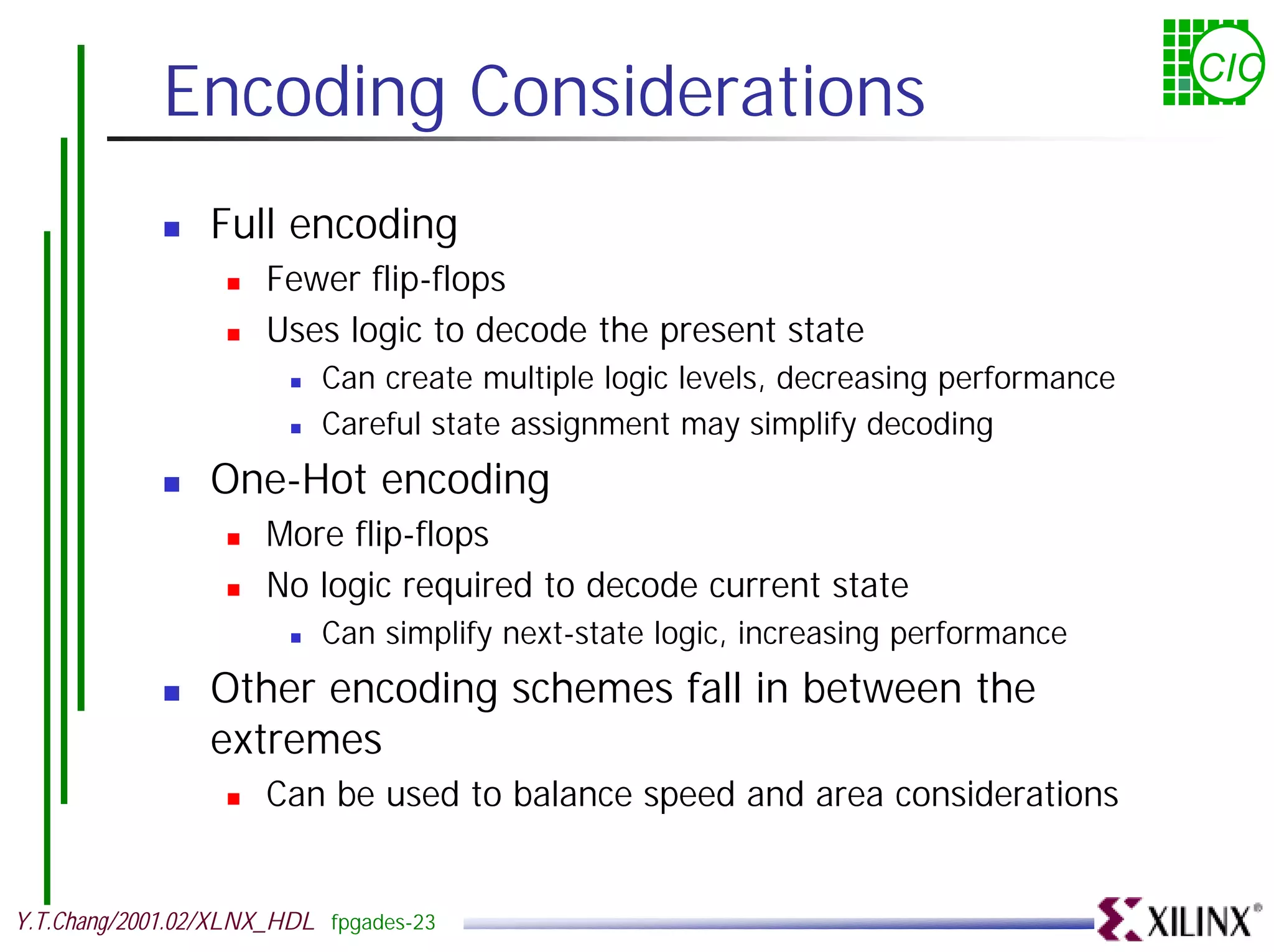

Encoding Considerations CIC ! Full encoding ! Fewer flip-flops ! Uses logic to decode the present state ! Can create multiple logic levels, decreasing performance ! Careful state assignment may simplify decoding ! One-Hot encoding ! More flip-flops ! No logic required to decode current state ! Can simplify next-state logic, increasing performance ! Other encoding schemes fall in between the extremes ! Can be used to balance speed and area considerations Y.T.Chang/2001.02/XLNX_HDL fpgades-23

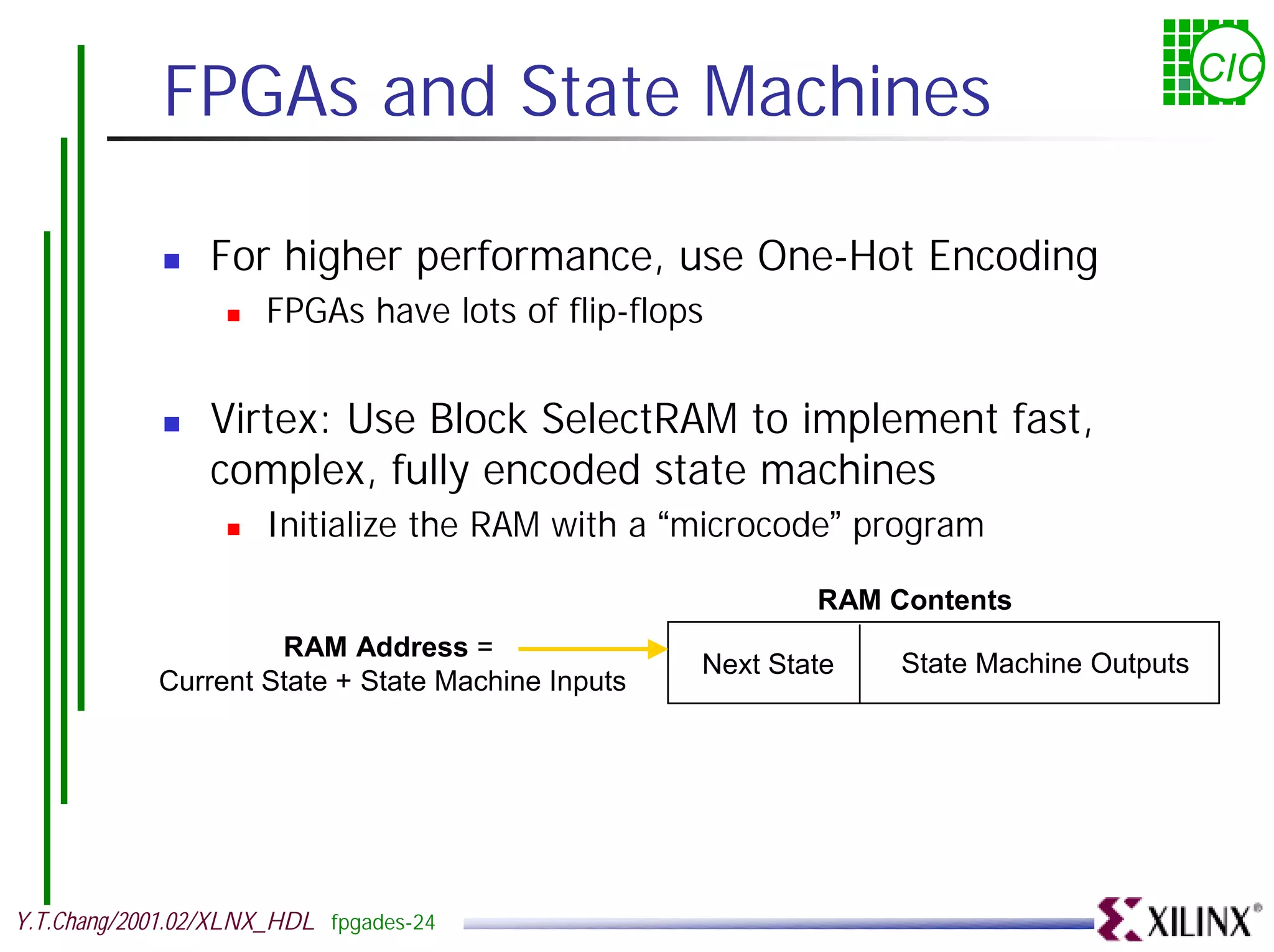

FPGAs and State Machines CIC ! For higher performance, use One-Hot Encoding ! FPGAs have lots of flip-flops ! Virtex: Use Block SelectRAM to implement fast, complex, fully encoded state machines ! Initialize the RAM with a “microcode” program RAM Contents RAM Address = Next State State Machine Outputs Current State + State Machine Inputs Y.T.Chang/2001.02/XLNX_HDL fpgades-24

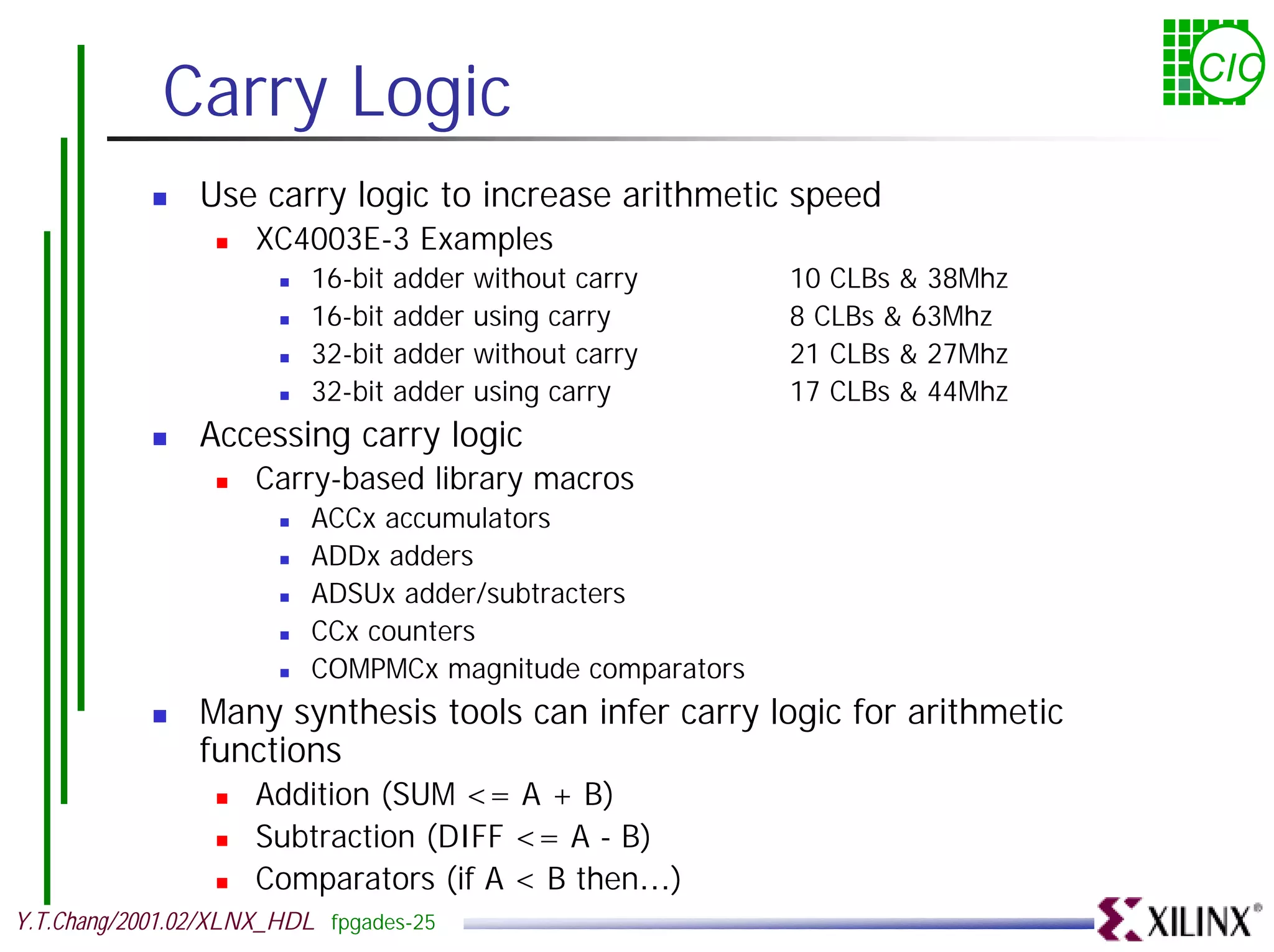

Carry Logic CIC ! Use carry logic to increase arithmetic speed ! XC4003E-3 Examples ! 16-bit adder without carry 10 CLBs & 38Mhz ! 16-bit adder using carry 8 CLBs & 63Mhz ! 32-bit adder without carry 21 CLBs & 27Mhz ! 32-bit adder using carry 17 CLBs & 44Mhz ! Accessing carry logic ! Carry-based library macros ! ACCx accumulators ! ADDx adders ! ADSUx adder/subtracters ! CCx counters ! COMPMCx magnitude comparators ! Many synthesis tools can infer carry logic for arithmetic functions ! Addition (SUM <= A + B) ! Subtraction (DIFF <= A - B) ! Comparators (if A < B then…) Y.T.Chang/2001.02/XLNX_HDL fpgades-25

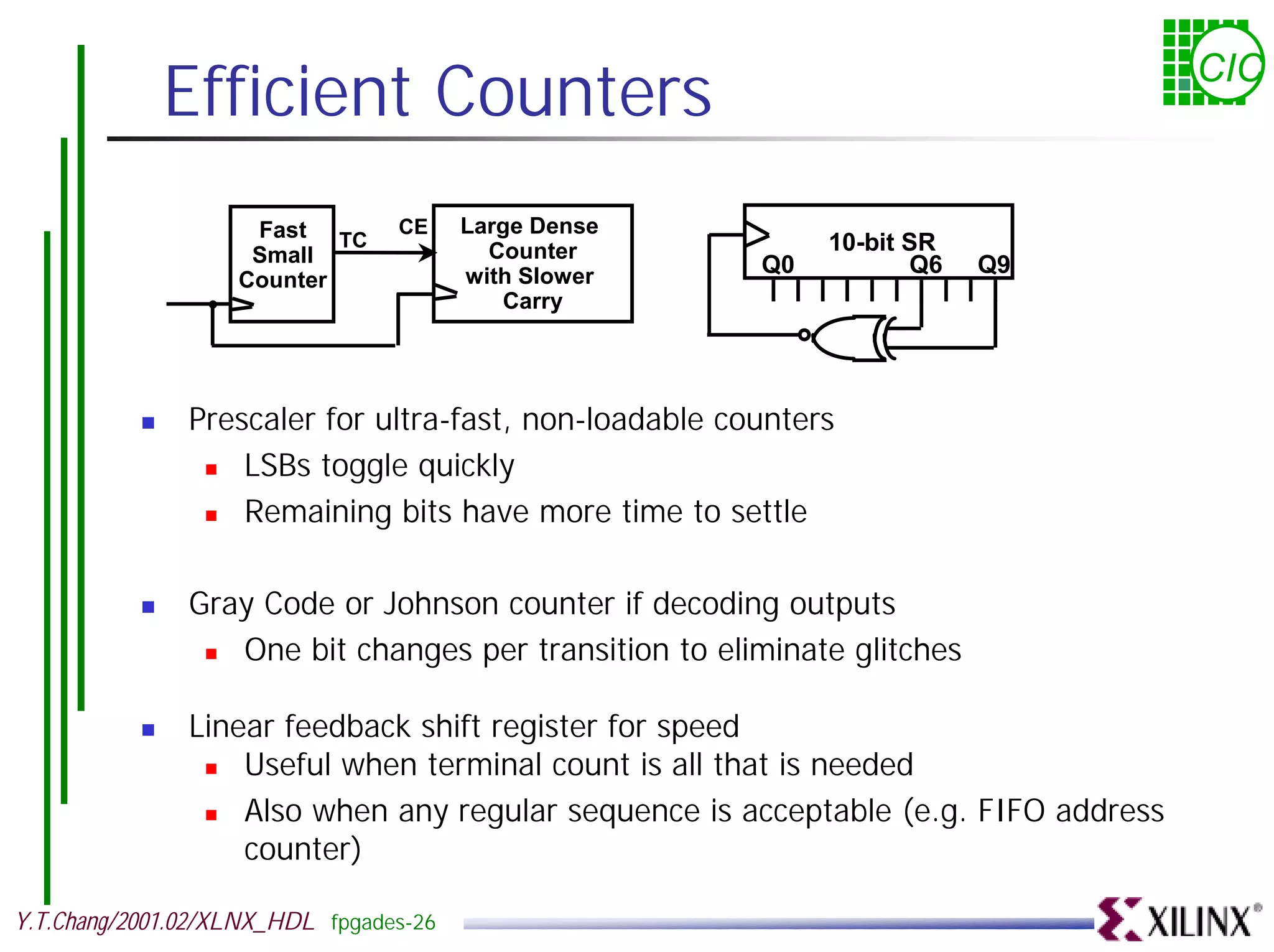

Efficient Counters CIC Fast TC CE Large Dense Small Counter 10-bit SR with Slower Q0 Q6 Q9 Counter Carry ! Prescaler for ultra-fast, non-loadable counters ! LSBs toggle quickly ! Remaining bits have more time to settle ! Gray Code or Johnson counter if decoding outputs ! One bit changes per transition to eliminate glitches ! Linear feedback shift register for speed ! Useful when terminal count is all that is needed ! Also when any regular sequence is acceptable (e.g. FIFO address counter) Y.T.Chang/2001.02/XLNX_HDL fpgades-26

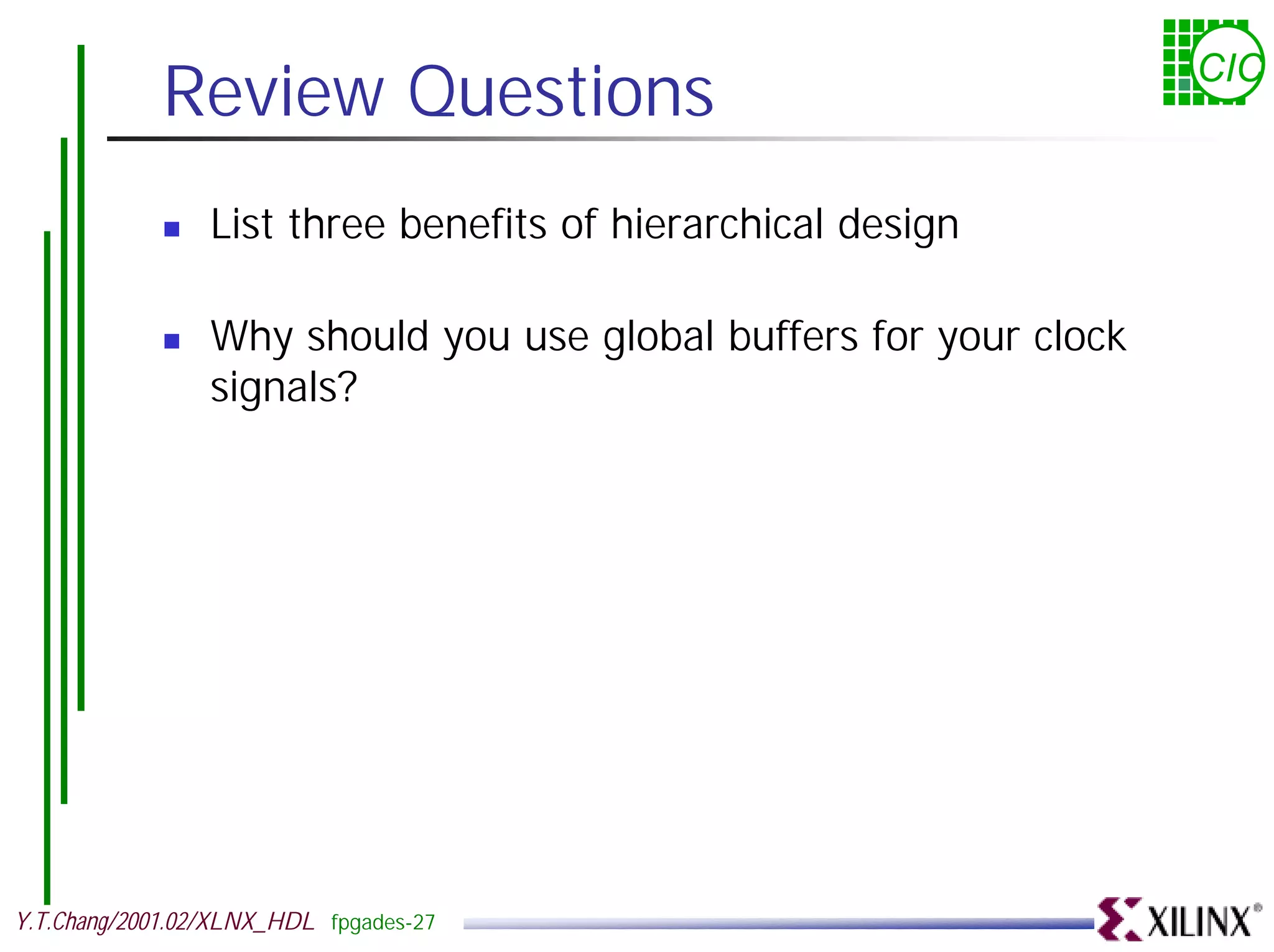

Review Questions CIC ! List three benefits of hierarchical design ! Why should you use global buffers for your clock signals? Y.T.Chang/2001.02/XLNX_HDL fpgades-27

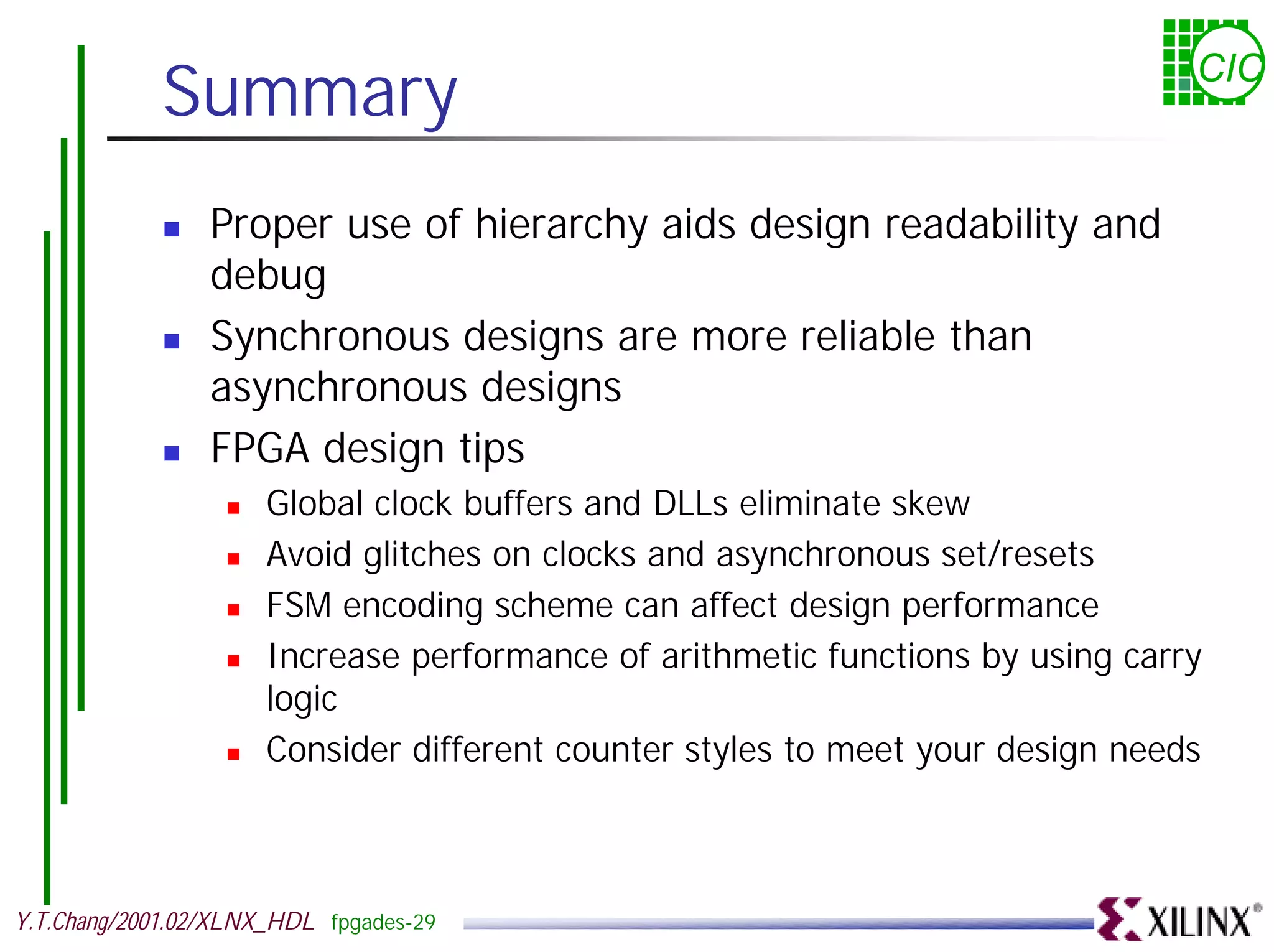

Summary CIC ! Proper use of hierarchy aids design readability and debug ! Synchronous designs are more reliable than asynchronous designs ! FPGA design tips ! Global clock buffers and DLLs eliminate skew ! Avoid glitches on clocks and asynchronous set/resets ! FSM encoding scheme can affect design performance ! Increase performance of arithmetic functions by using carry logic ! Consider different counter styles to meet your design needs Y.T.Chang/2001.02/XLNX_HDL fpgades-29

HDL Coding Generic Coding Techniques & Considerations HDL Synthesis Subset HDL Coding Techniques & Examples Considerations for Synthesis Y.T.Chang/2001.02/XLNX_HDL Coding-1

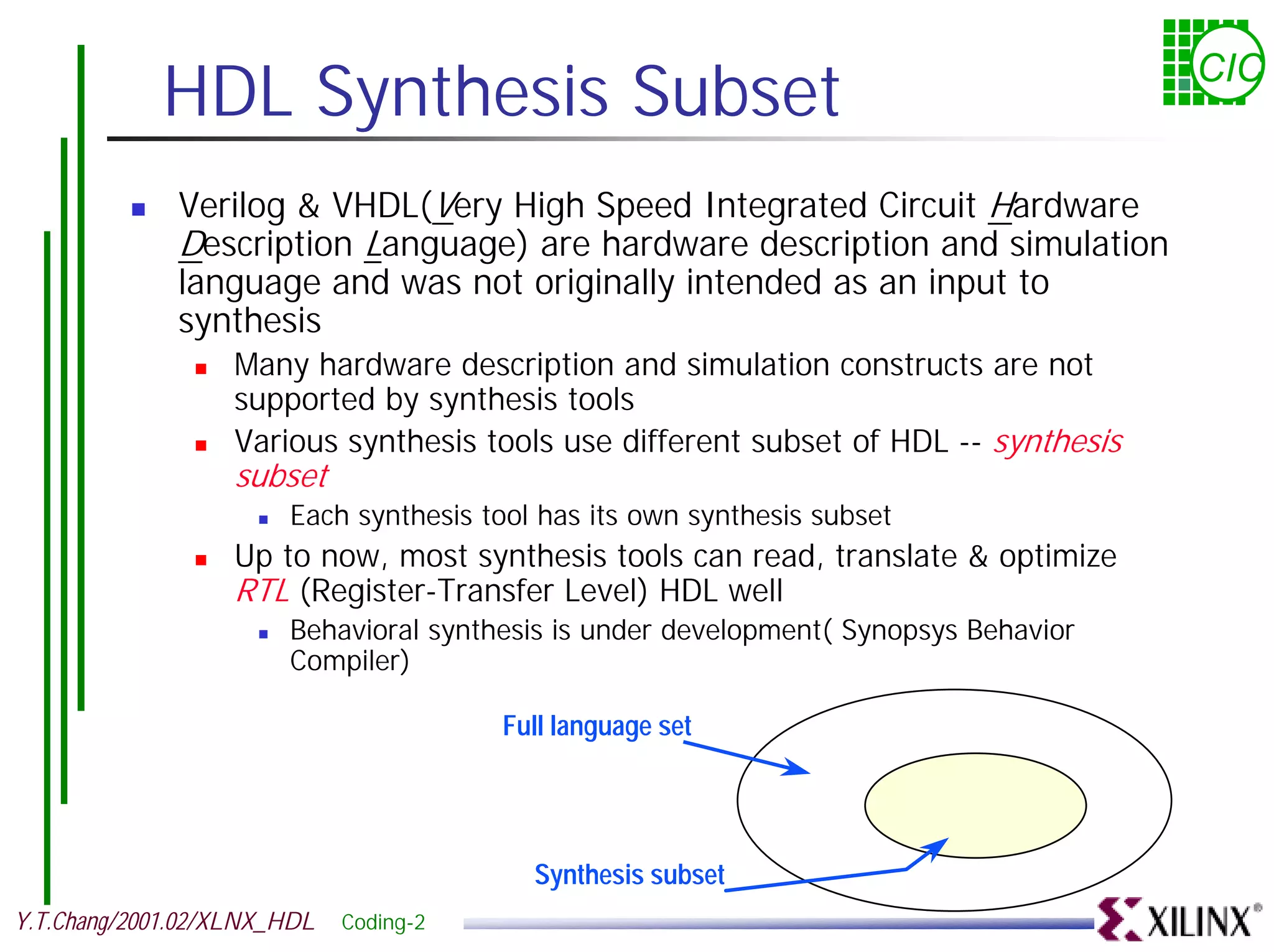

HDL Synthesis Subset CIC ! Verilog & VHDL(Very High Speed Integrated Circuit Hardware Description Language) are hardware description and simulation language and was not originally intended as an input to synthesis ! Many hardware description and simulation constructs are not supported by synthesis tools ! Various synthesis tools use different subset of HDL -- synthesis subset ! Each synthesis tool has its own synthesis subset ! Up to now, most synthesis tools can read, translate & optimize RTL (Register-Transfer Level) HDL well ! Behavioral synthesis is under development( Synopsys Behavior Compiler) Full language set Synthesis subset Y.T.Chang/2001.02/XLNX_HDL Coding-2

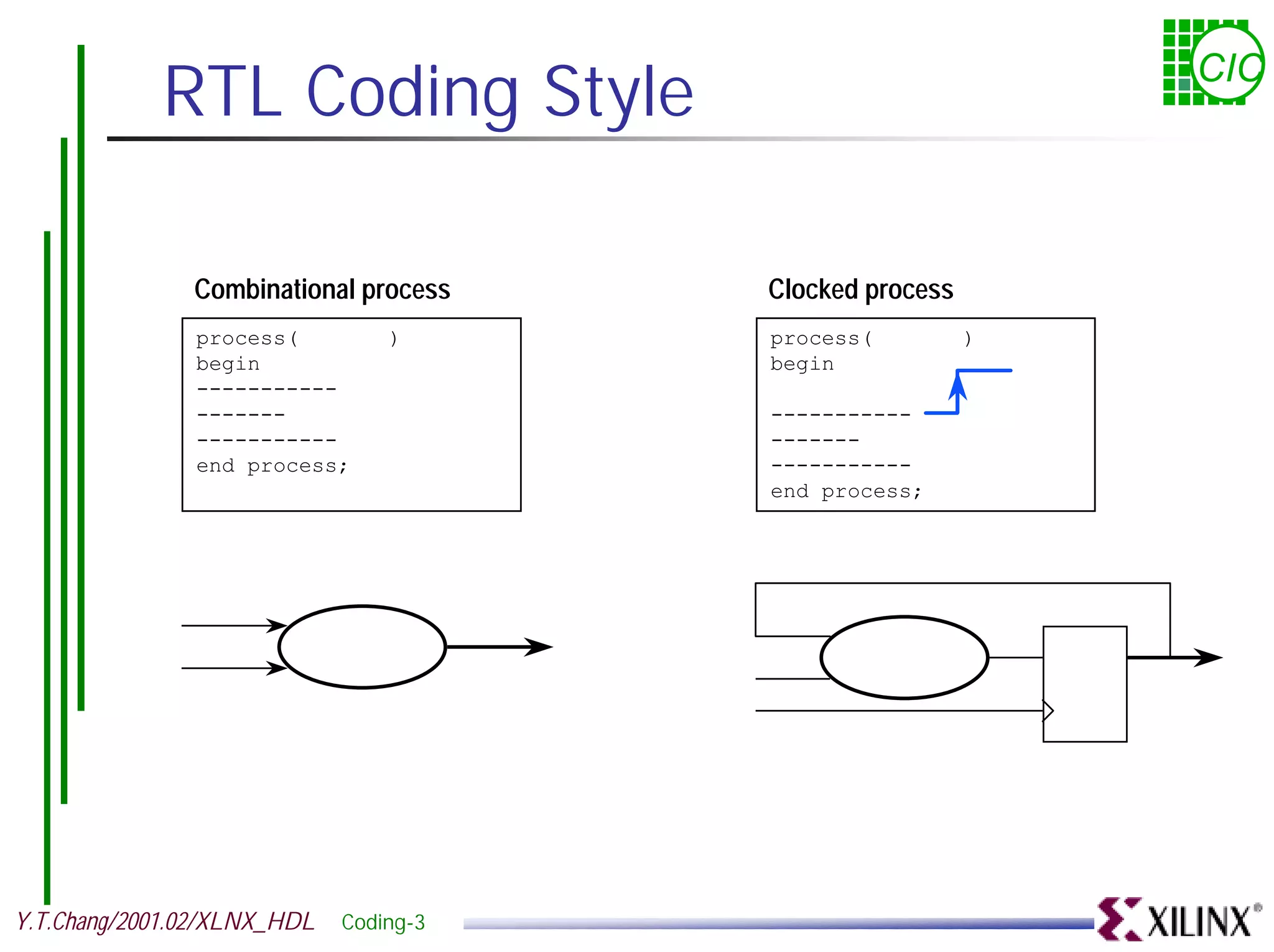

RTL Coding Style CIC Combinational process Clocked process process( ) process( ) begin begin ----------- ------- ----------- ----------- ------- end process; ----------- end process; Y.T.Chang/2001.02/XLNX_HDL Coding-3

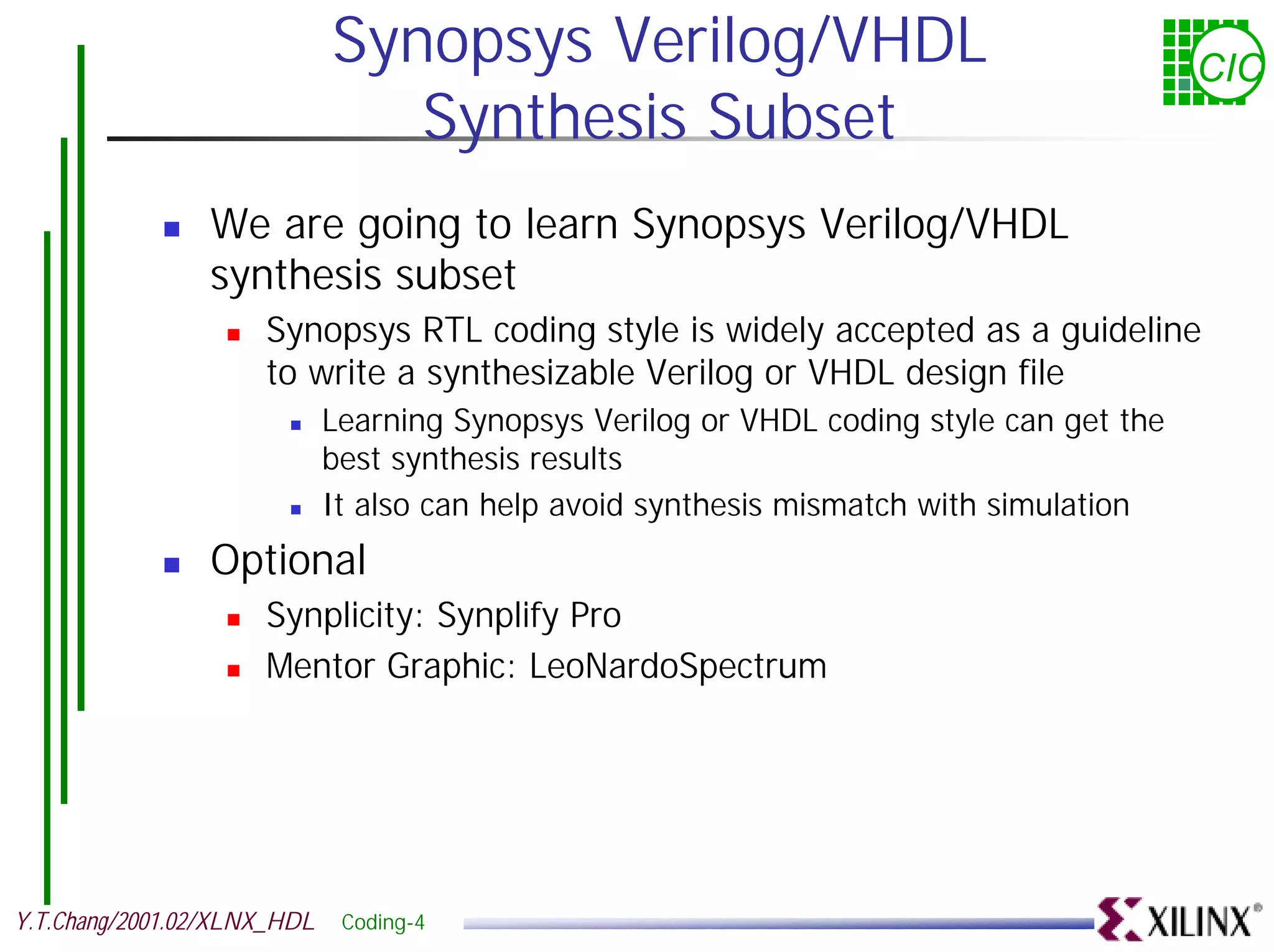

Synopsys Verilog/VHDL CIC Synthesis Subset ! We are going to learn Synopsys Verilog/VHDL synthesis subset ! Synopsys RTL coding style is widely accepted as a guideline to write a synthesizable Verilog or VHDL design file ! Learning Synopsys Verilog or VHDL coding style can get the best synthesis results ! It also can help avoid synthesis mismatch with simulation ! Optional ! Synplicity: Synplify Pro ! Mentor Graphic: LeoNardoSpectrum Y.T.Chang/2001.02/XLNX_HDL Coding-4

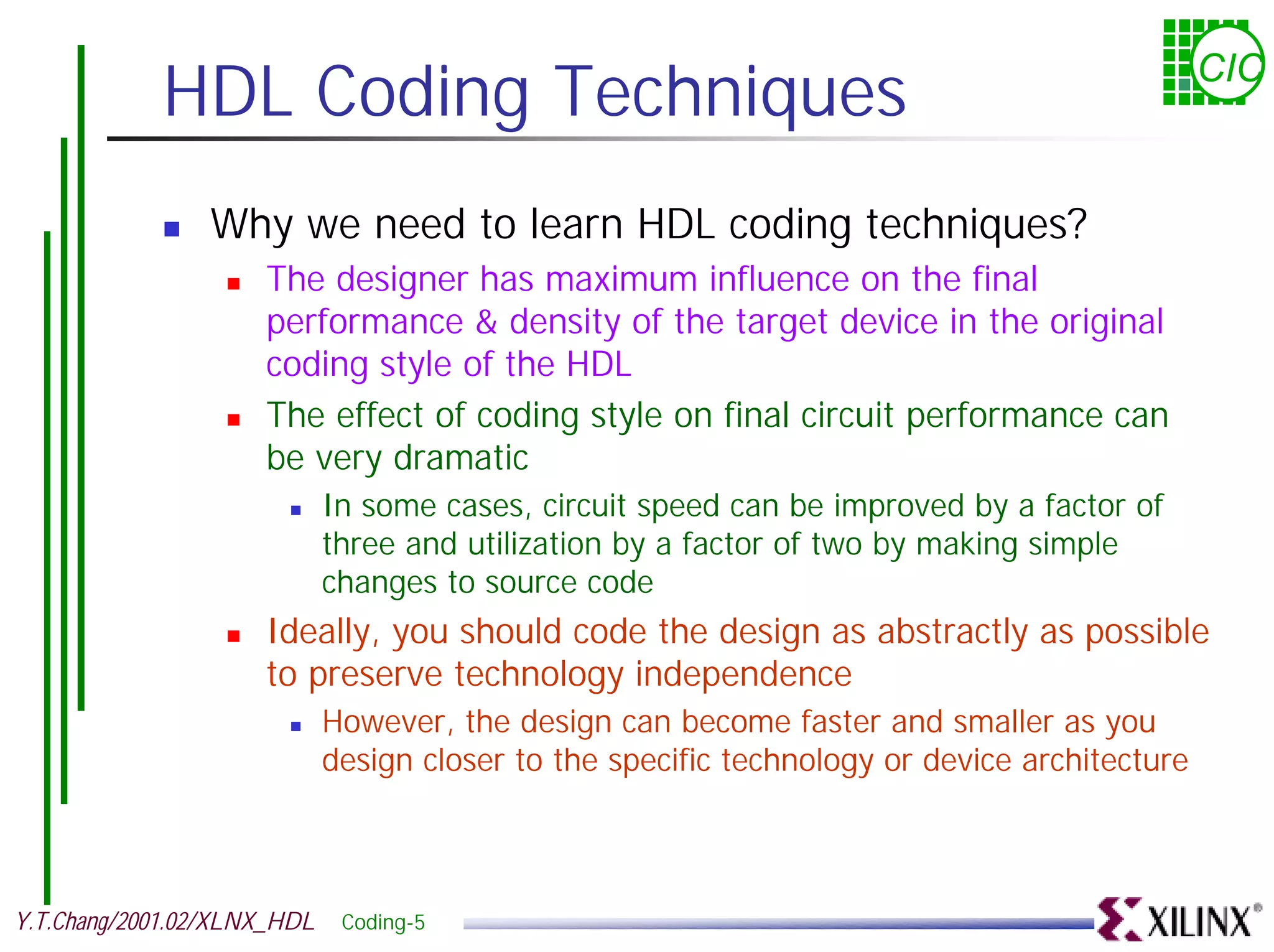

HDL Coding Techniques CIC ! Why we need to learn HDL coding techniques? ! The designer has maximum influence on the final performance & density of the target device in the original coding style of the HDL ! The effect of coding style on final circuit performance can be very dramatic ! In some cases, circuit speed can be improved by a factor of three and utilization by a factor of two by making simple changes to source code ! Ideally, you should code the design as abstractly as possible to preserve technology independence ! However, the design can become faster and smaller as you design closer to the specific technology or device architecture Y.T.Chang/2001.02/XLNX_HDL Coding-5

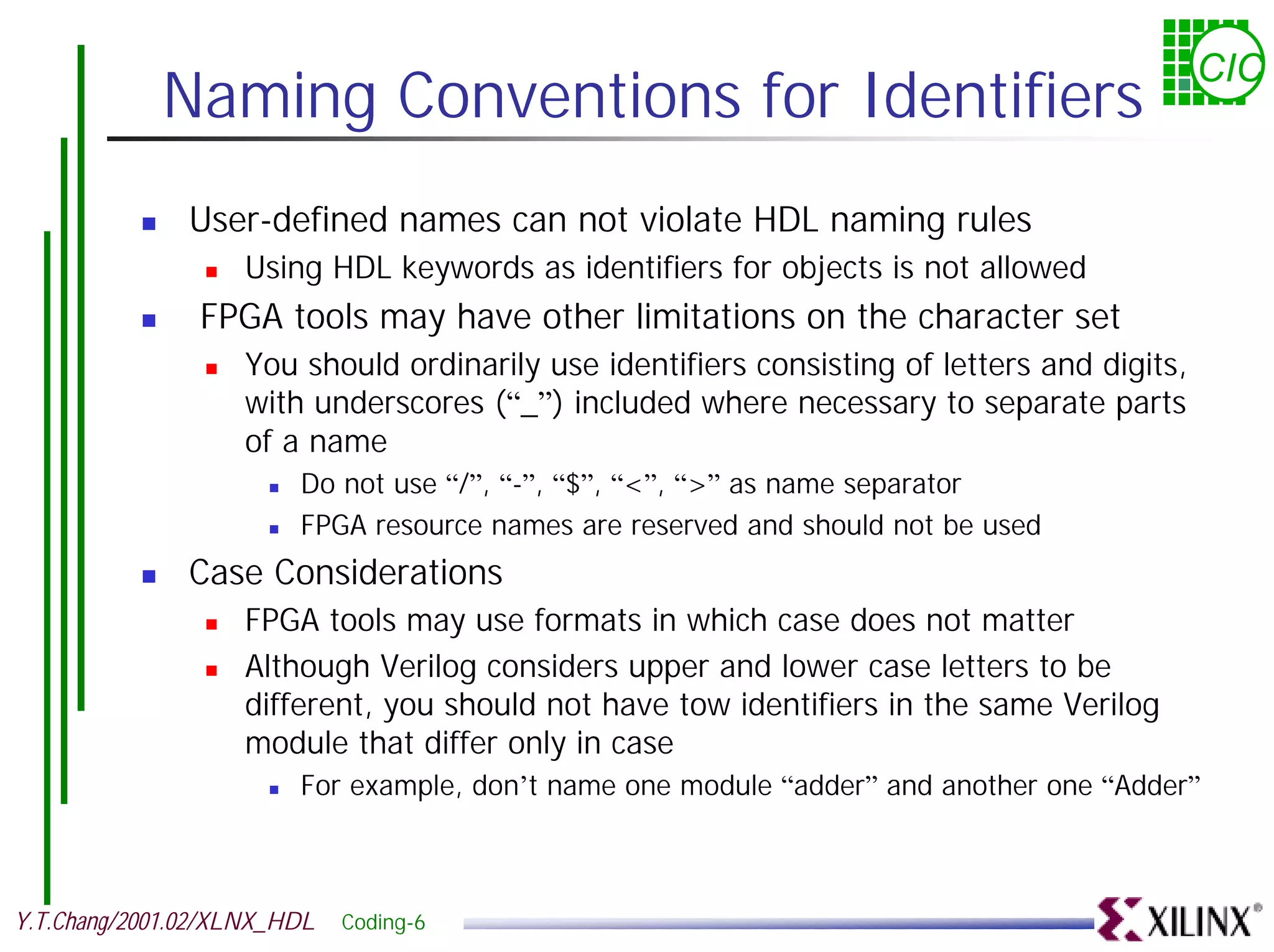

CIC Naming Conventions for Identifiers ! User-defined names can not violate HDL naming rules ! Using HDL keywords as identifiers for objects is not allowed ! FPGA tools may have other limitations on the character set ! You should ordinarily use identifiers consisting of letters and digits, with underscores (“_”) included where necessary to separate parts of a name ! Do not use “/”, “-”, “$”, “<”, “>” as name separator ! FPGA resource names are reserved and should not be used ! Case Considerations ! FPGA tools may use formats in which case does not matter ! Although Verilog considers upper and lower case letters to be different, you should not have tow identifiers in the same Verilog module that differ only in case ! For example, don’t name one module “adder” and another one “Adder” Y.T.Chang/2001.02/XLNX_HDL Coding-6

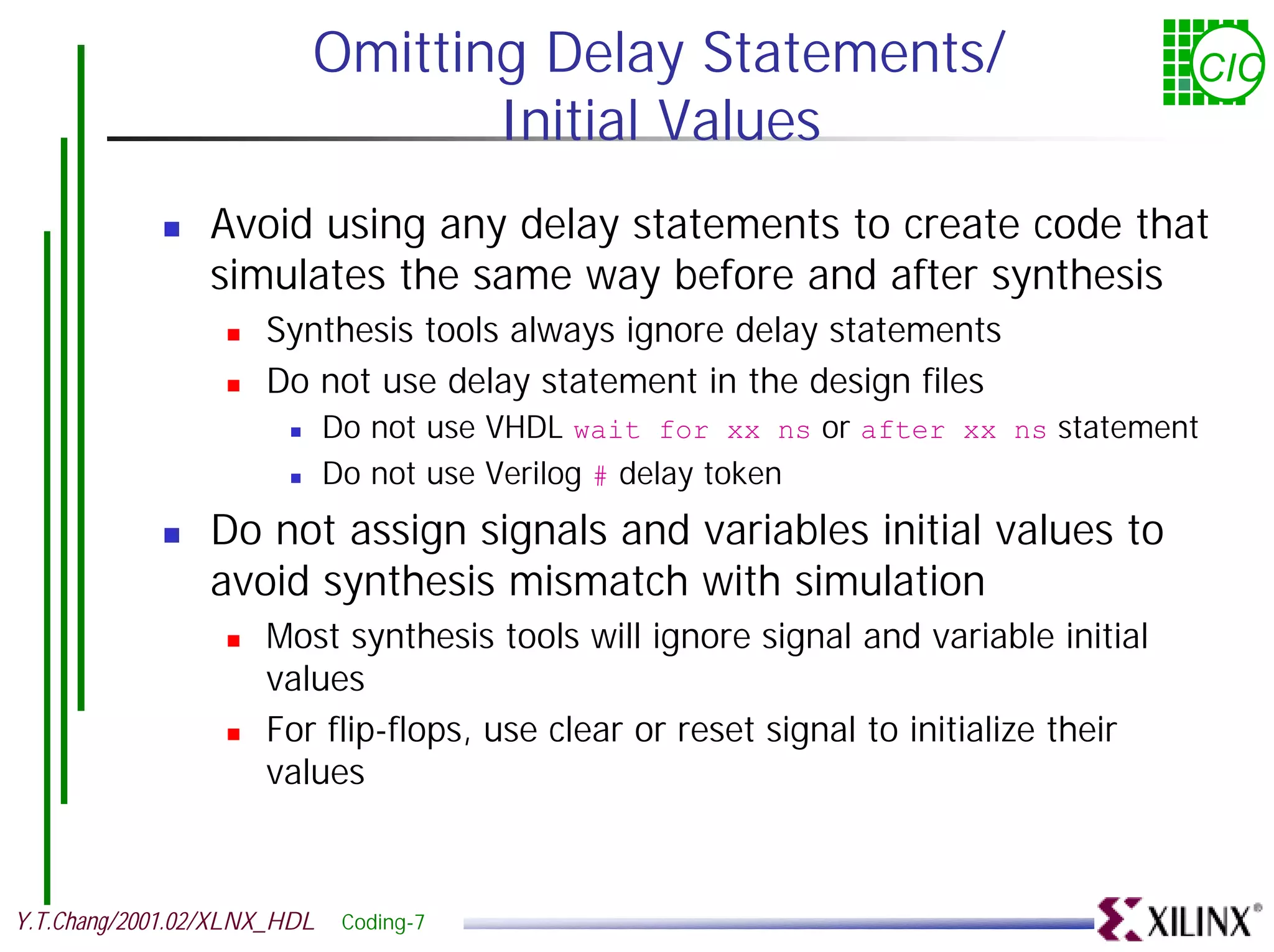

Omitting Delay Statements/ CIC Initial Values ! Avoid using any delay statements to create code that simulates the same way before and after synthesis ! Synthesis tools always ignore delay statements ! Do not use delay statement in the design files ! Do not use VHDL wait for xx ns or after xx ns statement ! Do not use Verilog # delay token ! Do not assign signals and variables initial values to avoid synthesis mismatch with simulation ! Most synthesis tools will ignore signal and variable initial values ! For flip-flops, use clear or reset signal to initialize their values Y.T.Chang/2001.02/XLNX_HDL Coding-7

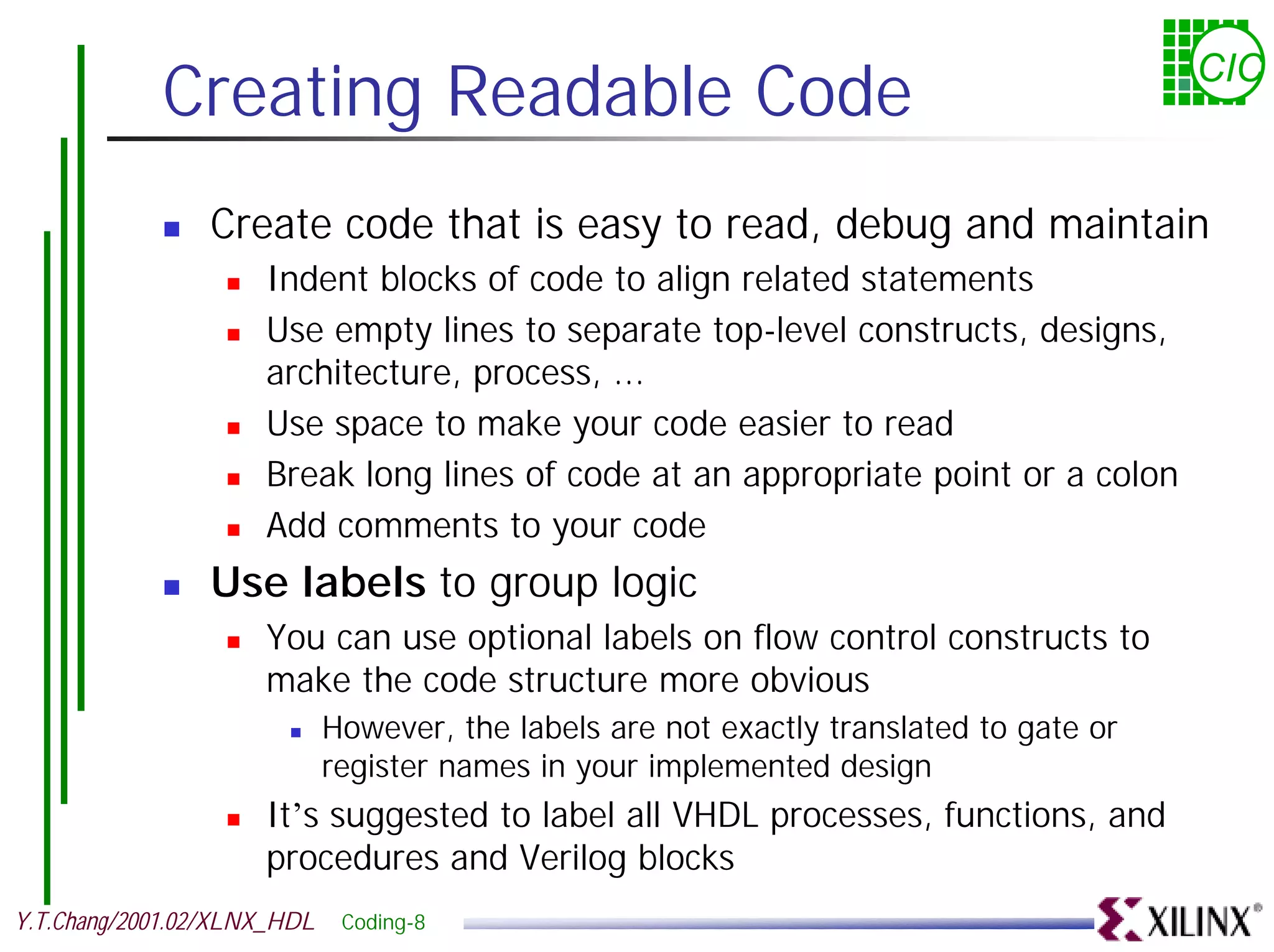

Creating Readable Code CIC ! Create code that is easy to read, debug and maintain ! Indent blocks of code to align related statements ! Use empty lines to separate top-level constructs, designs, architecture, process, ... ! Use space to make your code easier to read ! Break long lines of code at an appropriate point or a colon ! Add comments to your code ! Use labels to group logic ! You can use optional labels on flow control constructs to make the code structure more obvious ! However, the labels are not exactly translated to gate or register names in your implemented design ! It’s suggested to label all VHDL processes, functions, and procedures and Verilog blocks Y.T.Chang/2001.02/XLNX_HDL Coding-8

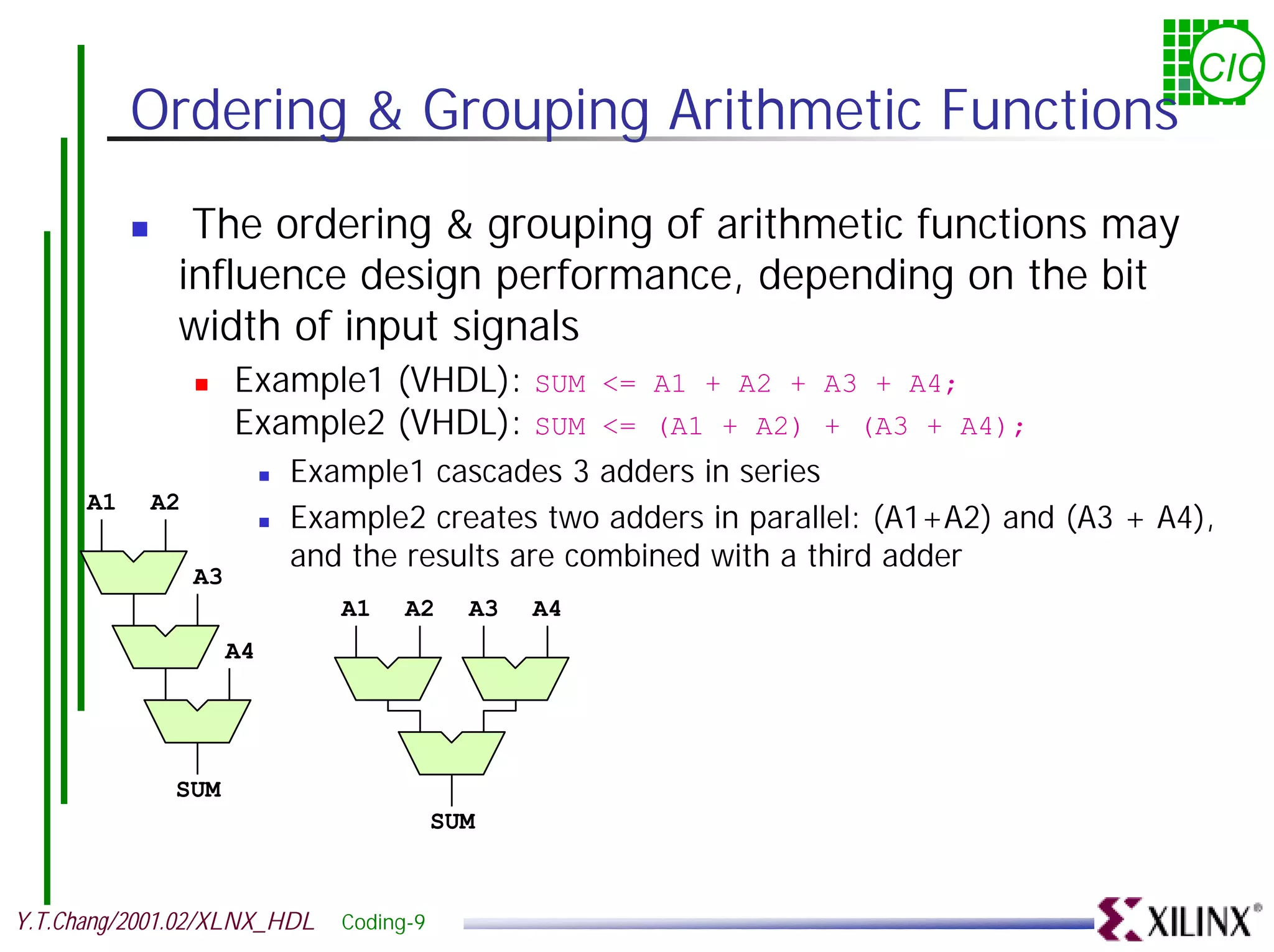

CIC Ordering & Grouping Arithmetic Functions ! The ordering & grouping of arithmetic functions may influence design performance, depending on the bit width of input signals ! Example1 (VHDL): SUM <= A1 + A2 + A3 + A4; Example2 (VHDL): SUM <= (A1 + A2) + (A3 + A4); ! Example1 cascades 3 adders in series A1 A2 ! Example2 creates two adders in parallel: (A1+A2) and (A3 + A4), and the results are combined with a third adder A3 A1 A2 A3 A4 A4 SUM SUM Y.T.Chang/2001.02/XLNX_HDL Coding-9

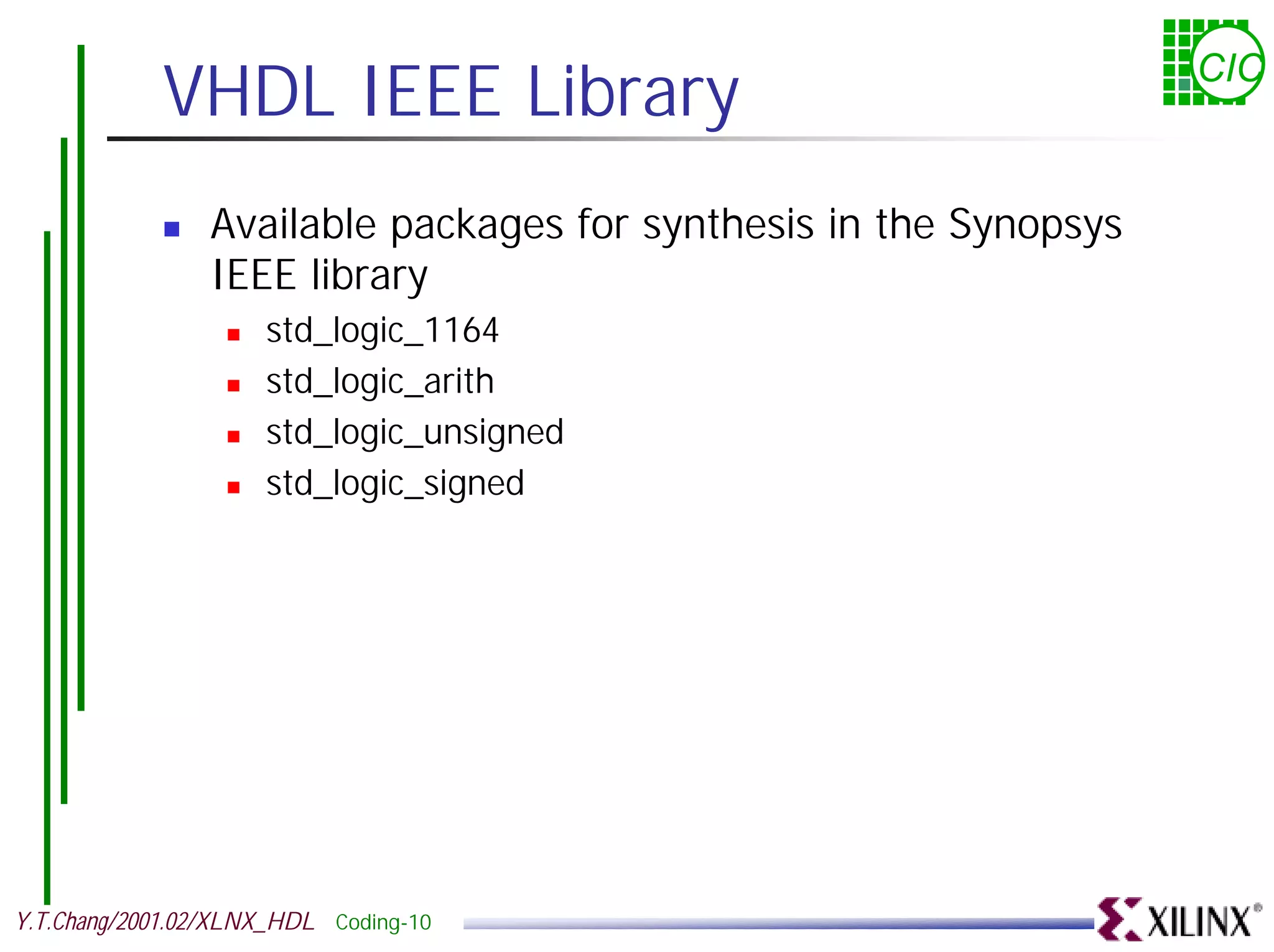

VHDL IEEE Library CIC ! Available packages for synthesis in the Synopsys IEEE library ! std_logic_1164 ! std_logic_arith ! std_logic_unsigned ! std_logic_signed Y.T.Chang/2001.02/XLNX_HDL Coding-10

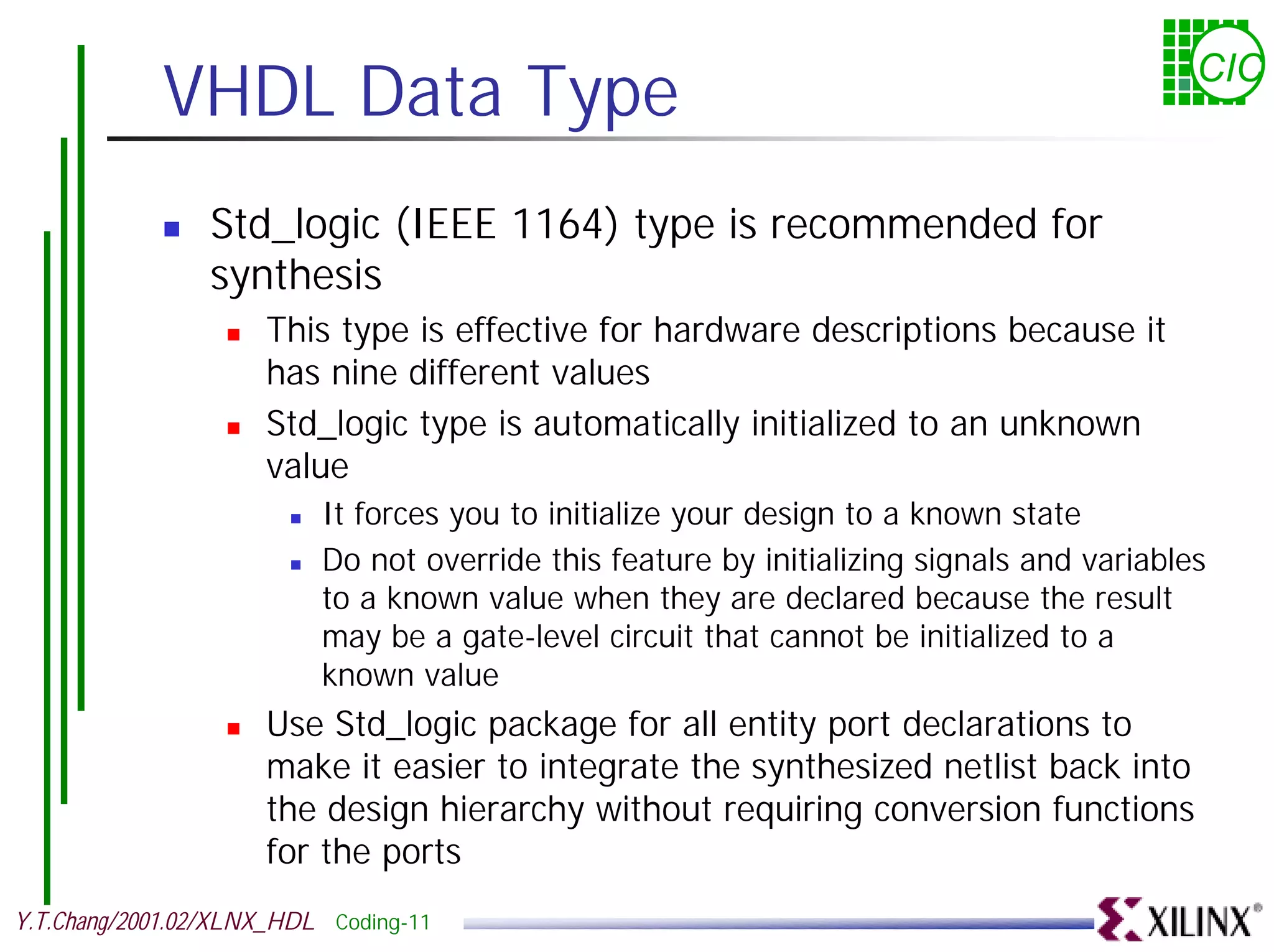

VHDL Data Type CIC ! Std_logic (IEEE 1164) type is recommended for synthesis ! This type is effective for hardware descriptions because it has nine different values ! Std_logic type is automatically initialized to an unknown value ! It forces you to initialize your design to a known state ! Do not override this feature by initializing signals and variables to a known value when they are declared because the result may be a gate-level circuit that cannot be initialized to a known value ! Use Std_logic package for all entity port declarations to make it easier to integrate the synthesized netlist back into the design hierarchy without requiring conversion functions for the ports Y.T.Chang/2001.02/XLNX_HDL Coding-11

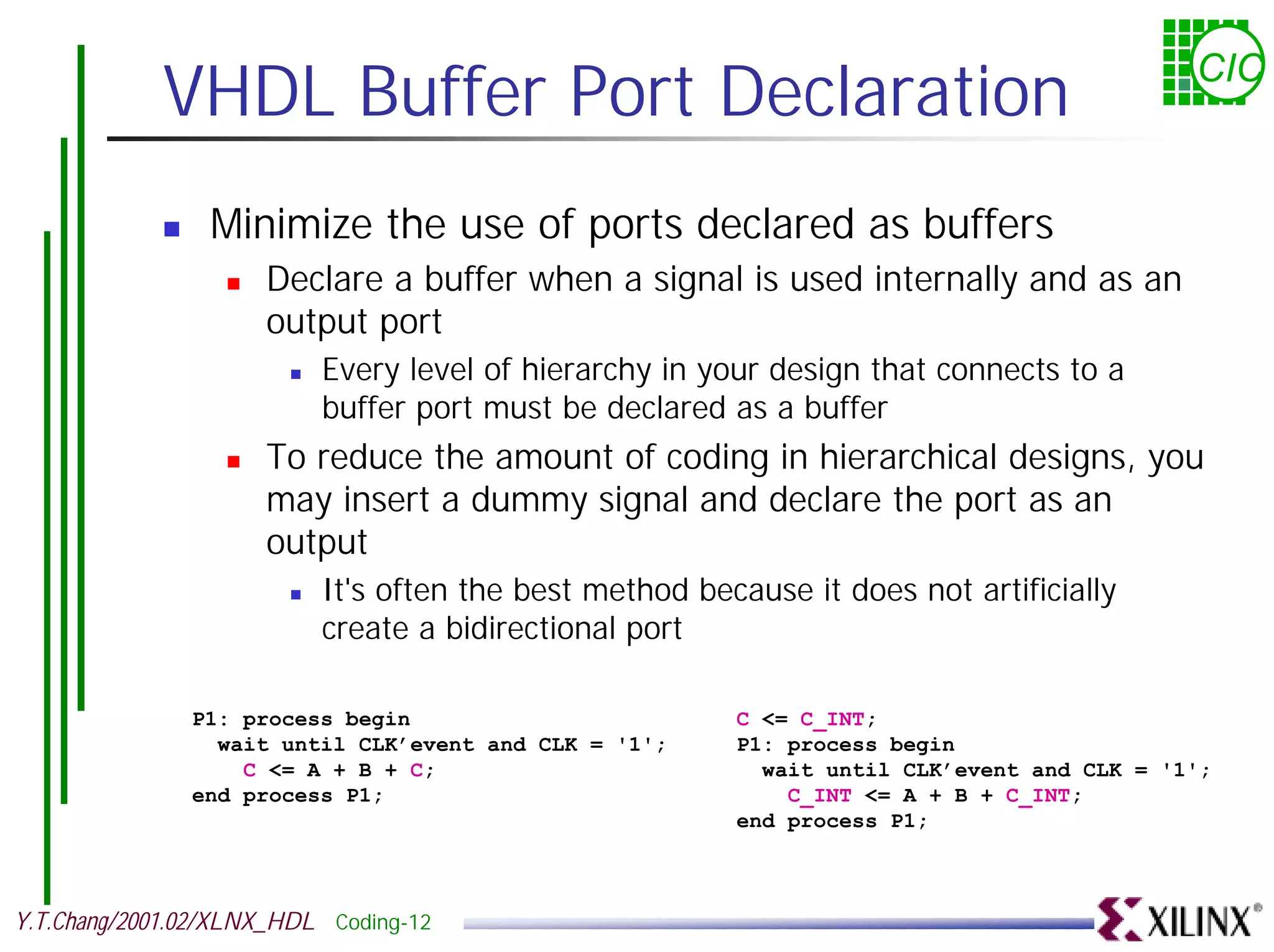

VHDL Buffer Port Declaration CIC ! Minimize the use of ports declared as buffers ! Declare a buffer when a signal is used internally and as an output port ! Every level of hierarchy in your design that connects to a buffer port must be declared as a buffer ! To reduce the amount of coding in hierarchical designs, you may insert a dummy signal and declare the port as an output ! It's often the best method because it does not artificially create a bidirectional port P1: process begin C <= C_INT; wait until CLK’event and CLK = '1'; P1: process begin C <= A + B + C; wait until CLK’event and CLK = '1'; end process P1; C_INT <= A + B + C_INT; end process P1; Y.T.Chang/2001.02/XLNX_HDL Coding-12

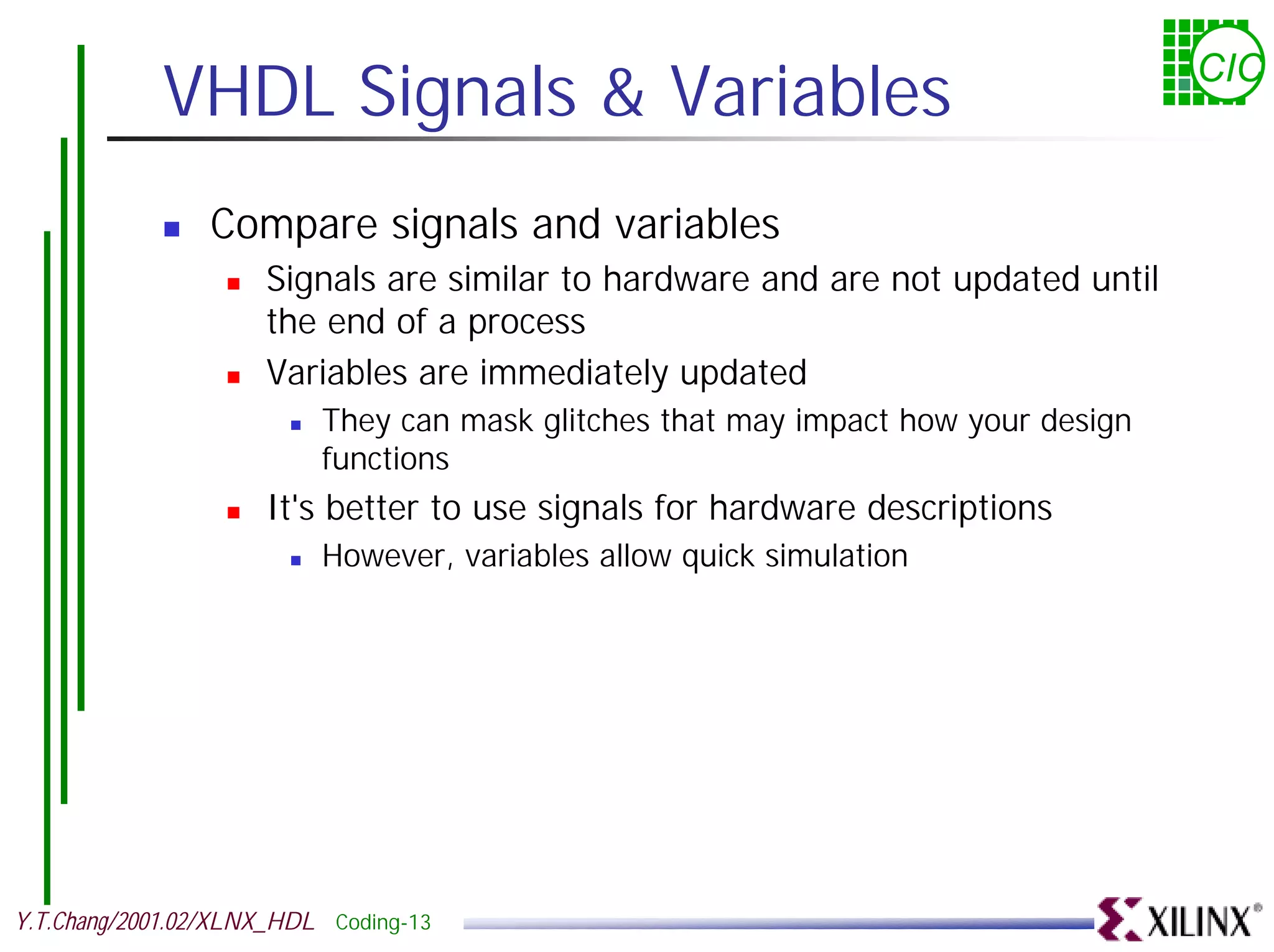

VHDL Signals & Variables CIC ! Compare signals and variables ! Signals are similar to hardware and are not updated until the end of a process ! Variables are immediately updated ! They can mask glitches that may impact how your design functions ! It's better to use signals for hardware descriptions ! However, variables allow quick simulation Y.T.Chang/2001.02/XLNX_HDL Coding-13

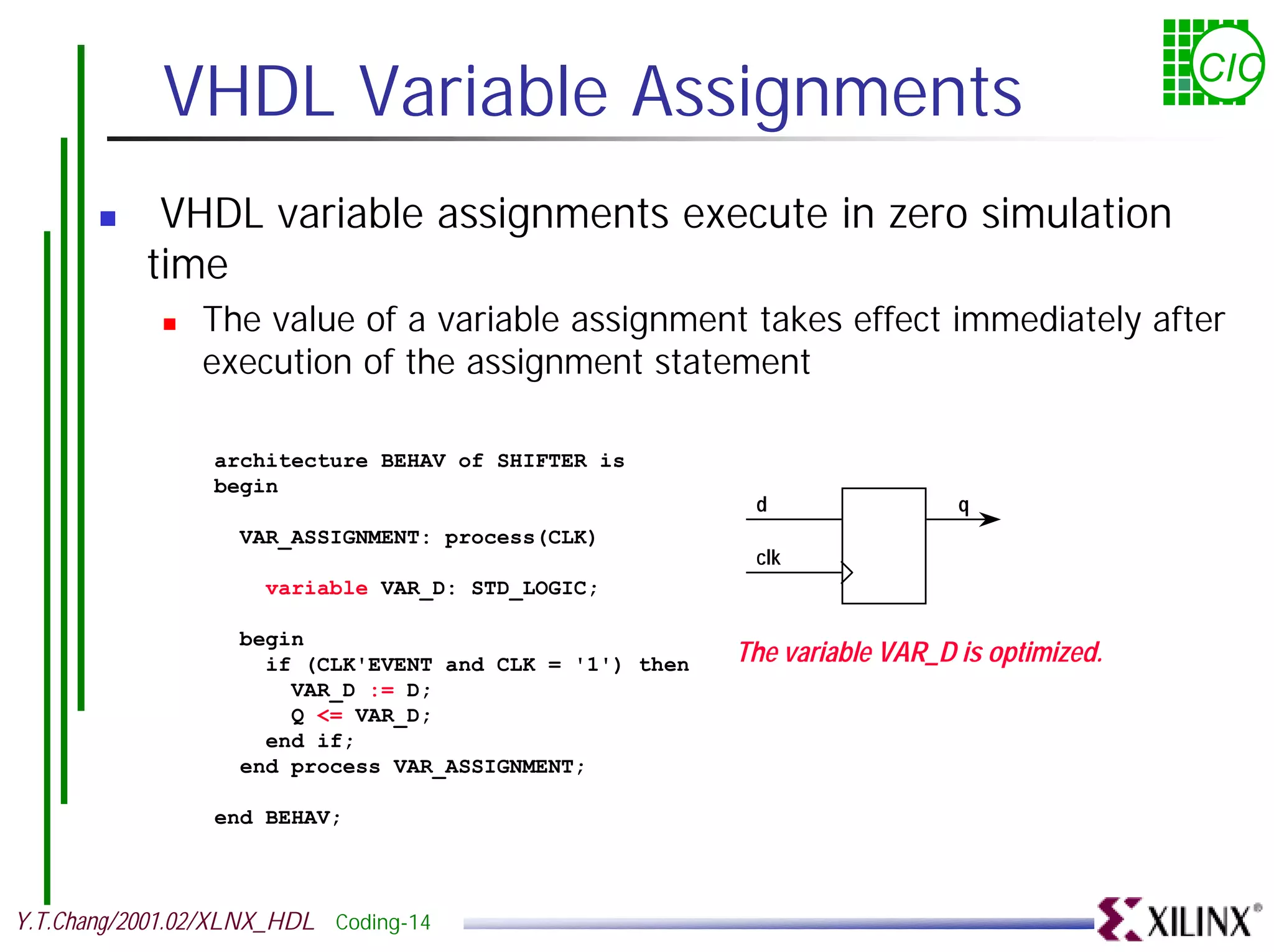

VHDL Variable Assignments CIC ! VHDL variable assignments execute in zero simulation time ! The value of a variable assignment takes effect immediately after execution of the assignment statement architecture BEHAV of SHIFTER is begin d q VAR_ASSIGNMENT: process(CLK) clk variable VAR_D: STD_LOGIC; begin if (CLK'EVENT and CLK = '1') then The variable VAR_D is optimized. VAR_D := D; Q <= VAR_D; end if; end process VAR_ASSIGNMENT; end BEHAV; Y.T.Chang/2001.02/XLNX_HDL Coding-14

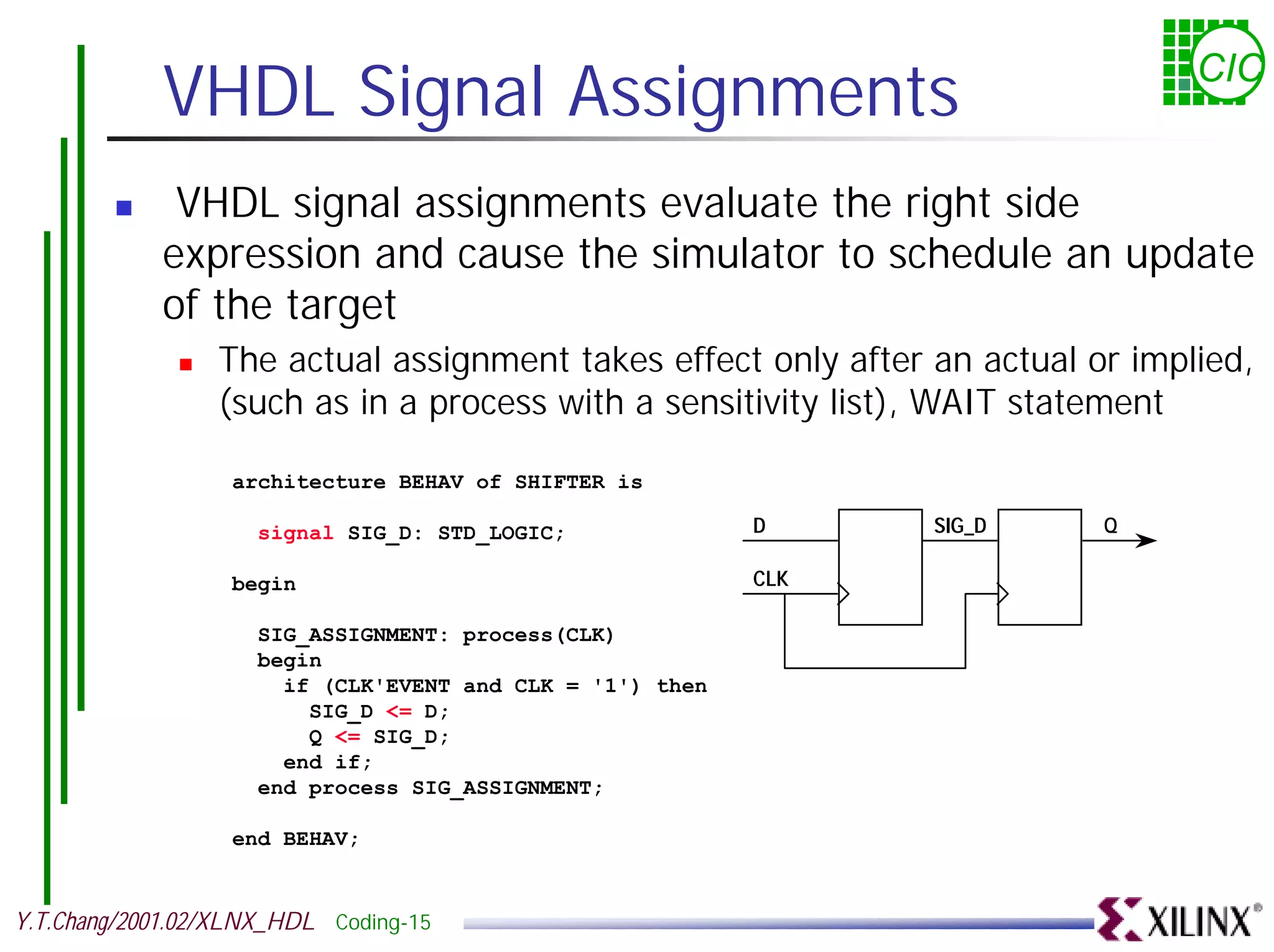

VHDL Signal Assignments CIC ! VHDL signal assignments evaluate the right side expression and cause the simulator to schedule an update of the target ! The actual assignment takes effect only after an actual or implied, (such as in a process with a sensitivity list), WAIT statement architecture BEHAV of SHIFTER is signal SIG_D: STD_LOGIC; D SIG_D Q begin CLK SIG_ASSIGNMENT: process(CLK) begin if (CLK'EVENT and CLK = '1') then SIG_D <= D; Q <= SIG_D; end if; end process SIG_ASSIGNMENT; end BEHAV; Y.T.Chang/2001.02/XLNX_HDL Coding-15

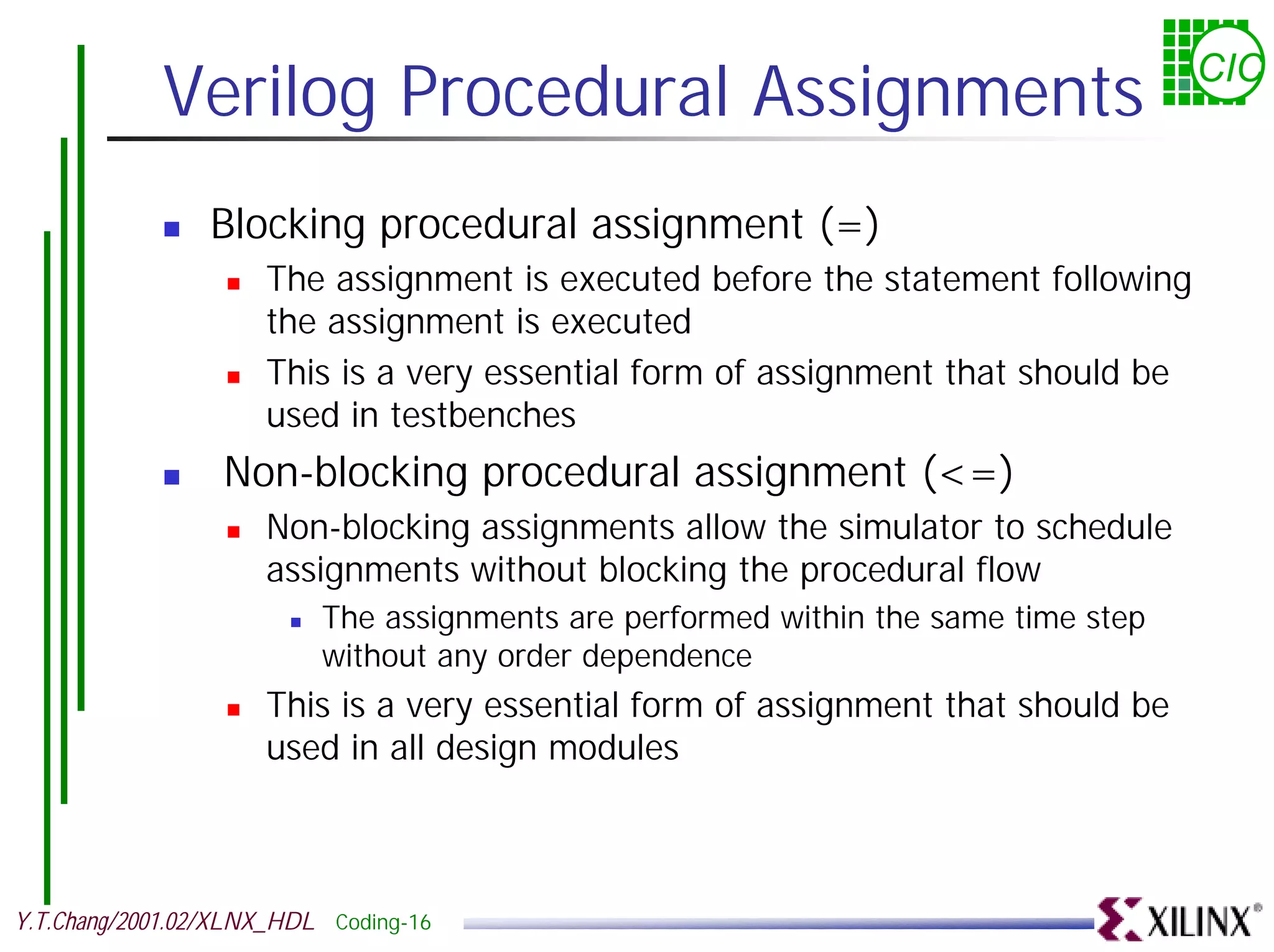

Verilog Procedural Assignments CIC ! Blocking procedural assignment (=) ! The assignment is executed before the statement following the assignment is executed ! This is a very essential form of assignment that should be used in testbenches ! Non-blocking procedural assignment (<=) ! Non-blocking assignments allow the simulator to schedule assignments without blocking the procedural flow ! The assignments are performed within the same time step without any order dependence ! This is a very essential form of assignment that should be used in all design modules Y.T.Chang/2001.02/XLNX_HDL Coding-16

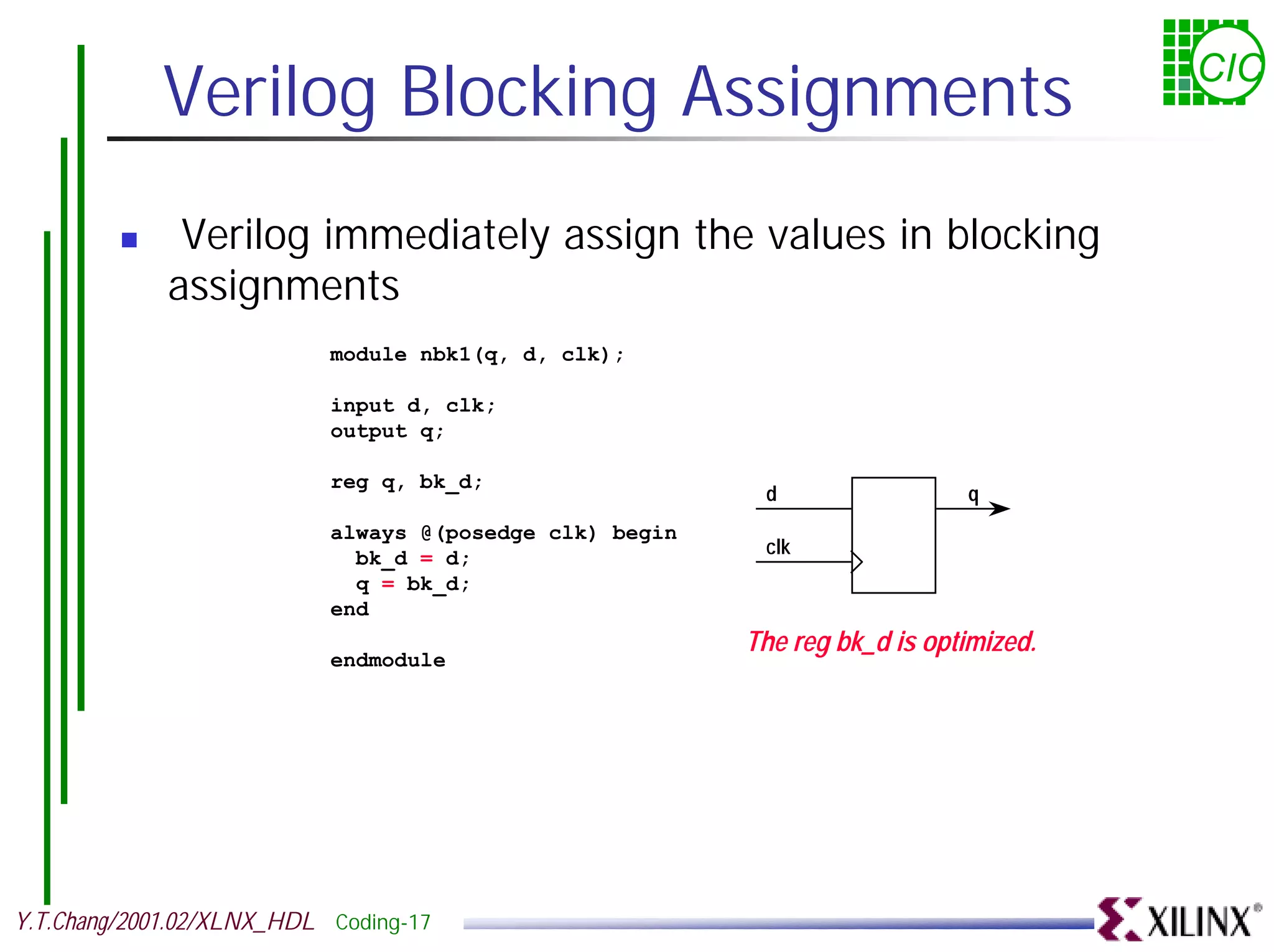

Verilog Blocking Assignments CIC ! Verilog immediately assign the values in blocking assignments module nbk1(q, d, clk); input d, clk; output q; reg q, bk_d; d q always @(posedge clk) begin bk_d = d; clk q = bk_d; end The reg bk_d is optimized. endmodule Y.T.Chang/2001.02/XLNX_HDL Coding-17

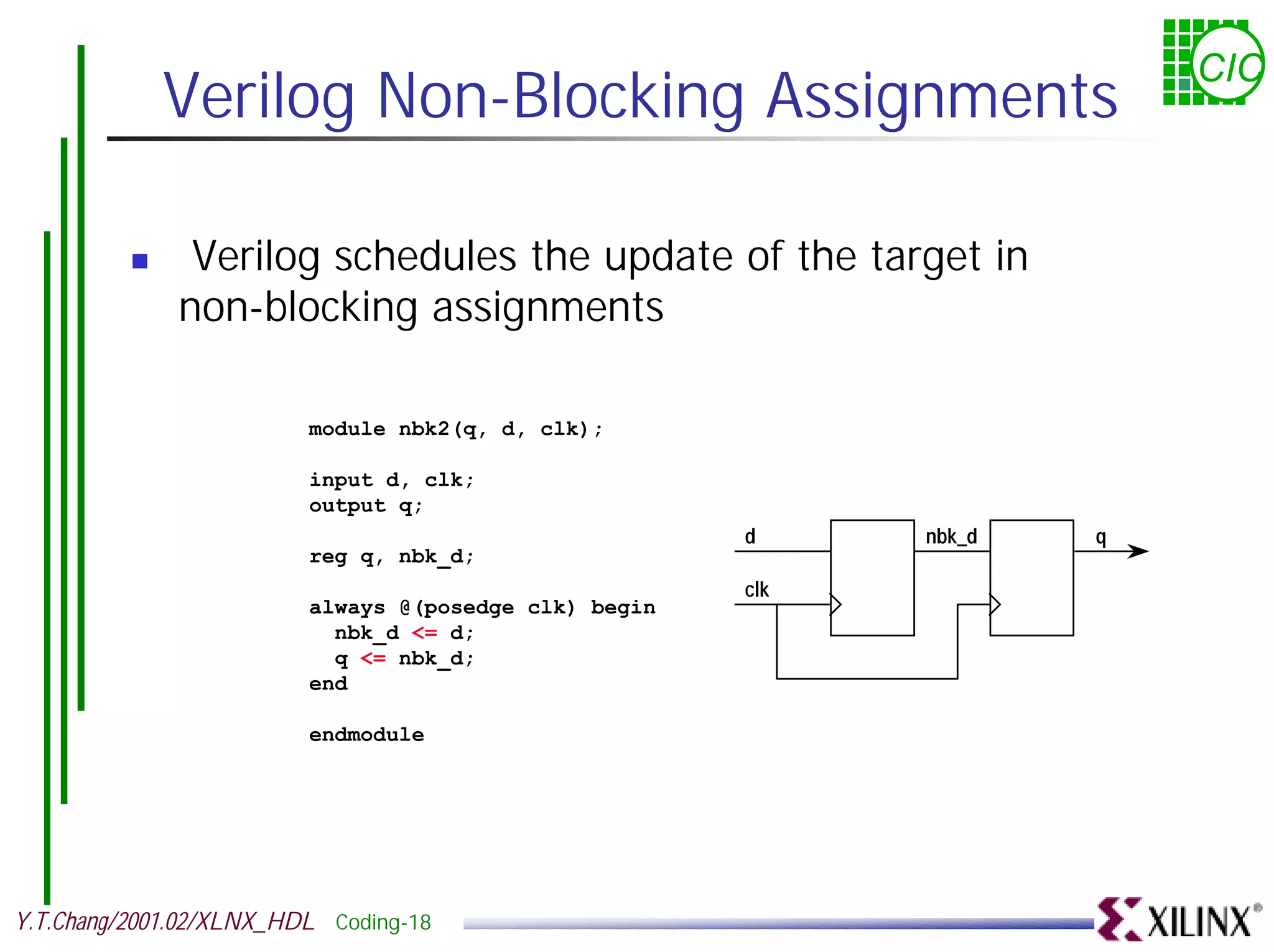

CIC Verilog Non-Blocking Assignments ! Verilog schedules the update of the target in non-blocking assignments module nbk2(q, d, clk); input d, clk; output q; d nbk_d q reg q, nbk_d; clk always @(posedge clk) begin nbk_d <= d; q <= nbk_d; end endmodule Y.T.Chang/2001.02/XLNX_HDL Coding-18

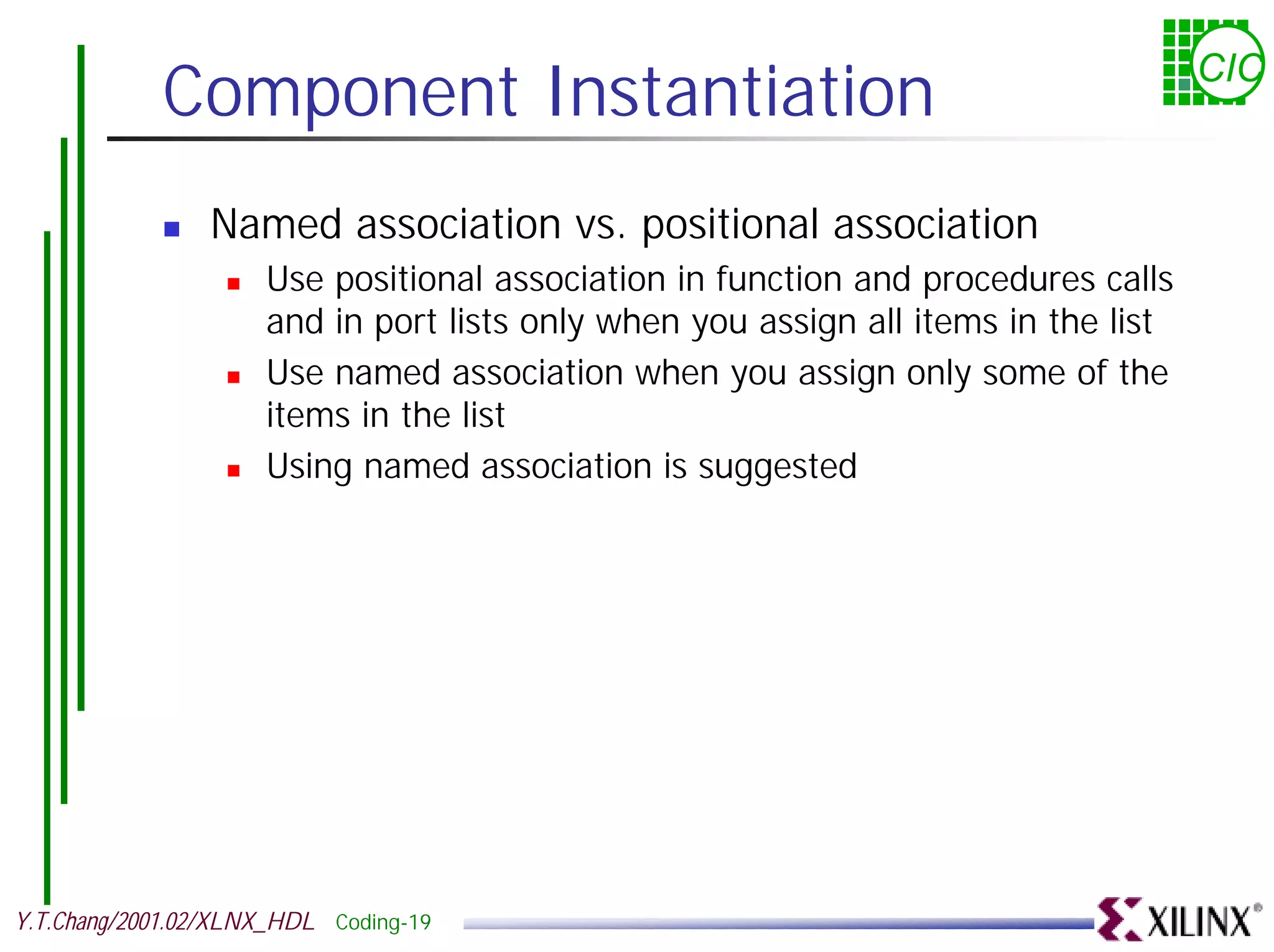

Component Instantiation CIC ! Named association vs. positional association ! Use positional association in function and procedures calls and in port lists only when you assign all items in the list ! Use named association when you assign only some of the items in the list ! Using named association is suggested Y.T.Chang/2001.02/XLNX_HDL Coding-19

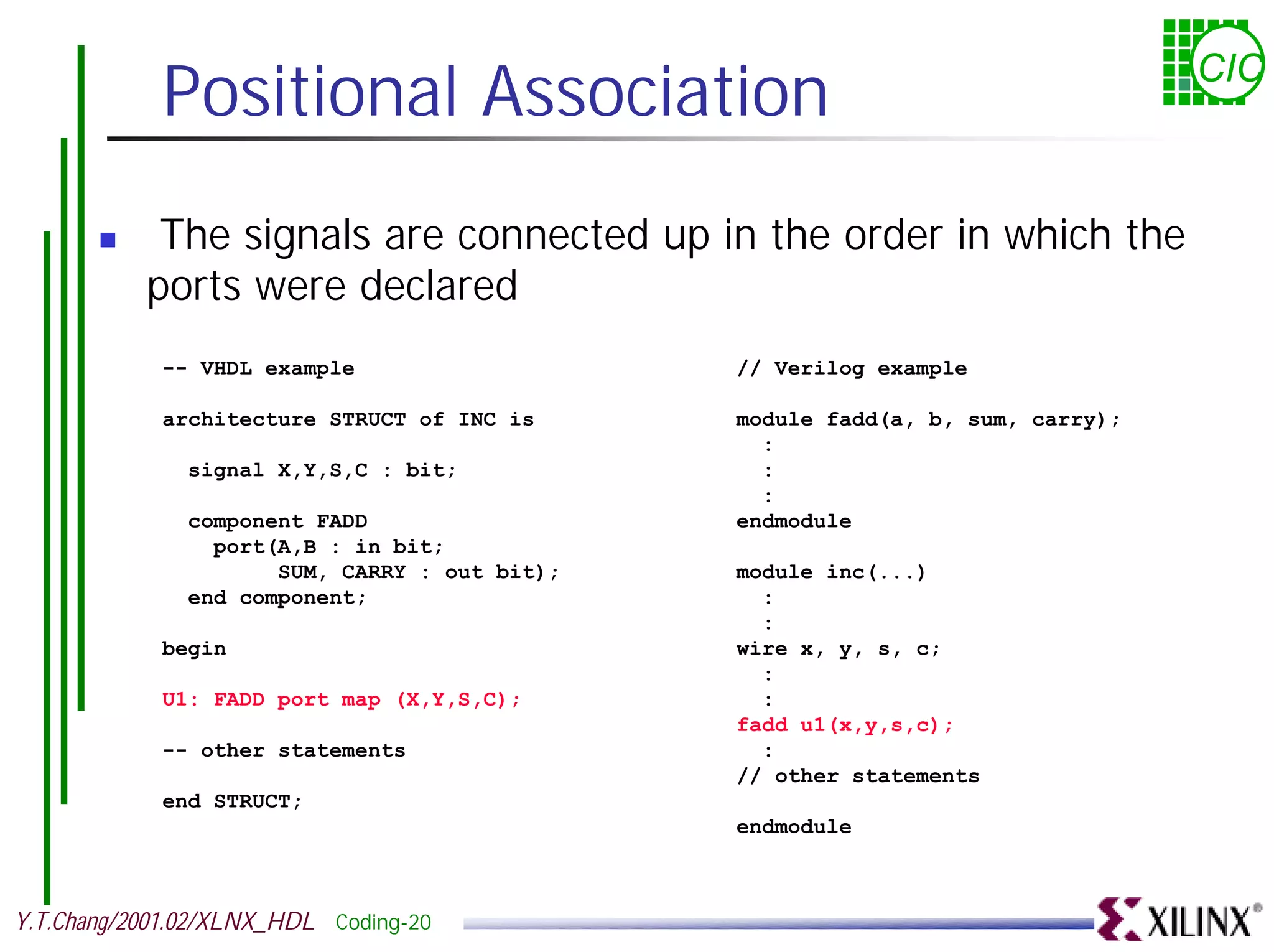

Positional Association CIC ! The signals are connected up in the order in which the ports were declared -- VHDL example // Verilog example architecture STRUCT of INC is module fadd(a, b, sum, carry); : signal X,Y,S,C : bit; : : component FADD endmodule port(A,B : in bit; SUM, CARRY : out bit); module inc(...) end component; : : begin wire x, y, s, c; : U1: FADD port map (X,Y,S,C); : fadd u1(x,y,s,c); -- other statements : // other statements end STRUCT; endmodule Y.T.Chang/2001.02/XLNX_HDL Coding-20

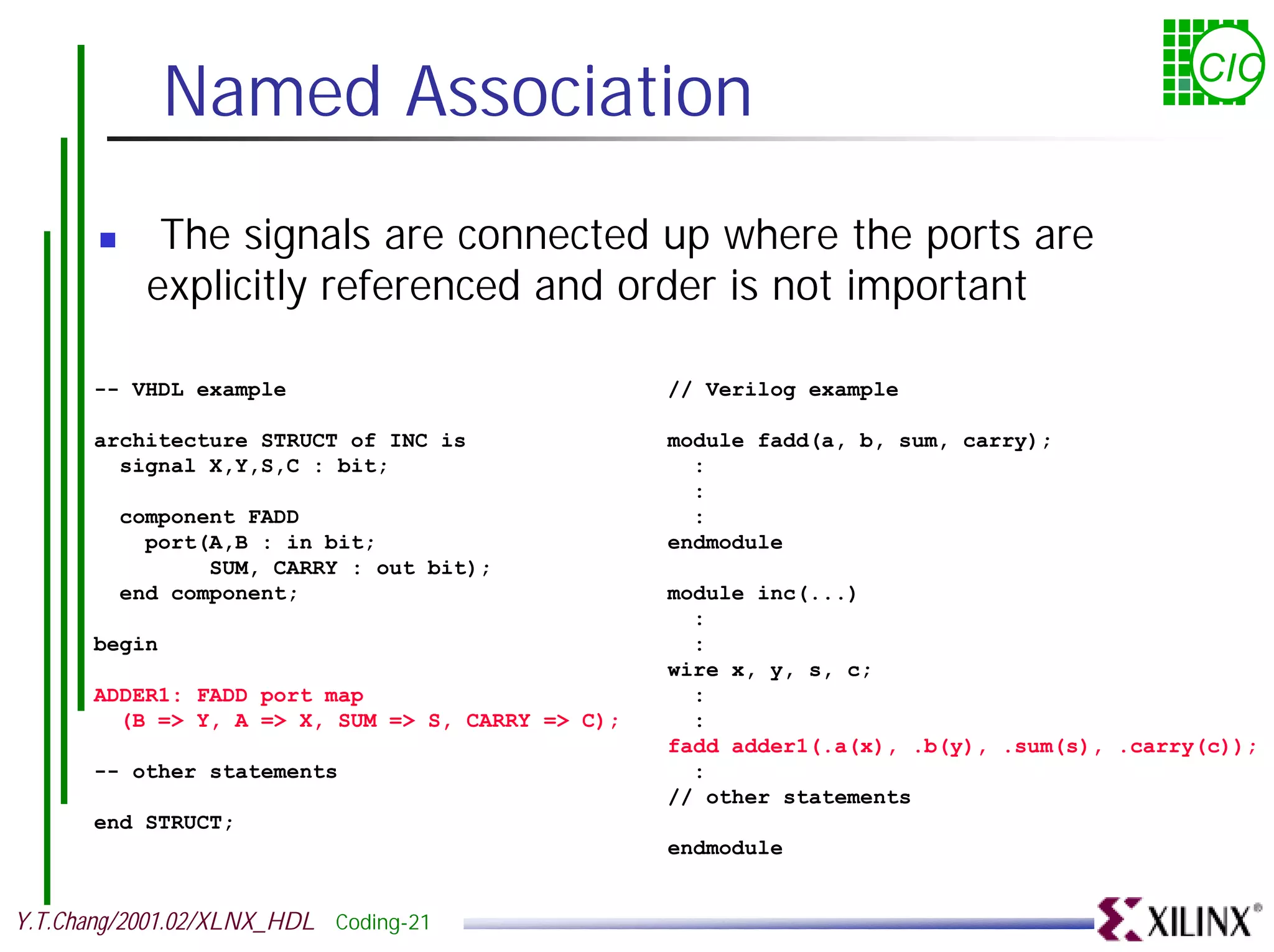

Named Association CIC ! The signals are connected up where the ports are explicitly referenced and order is not important -- VHDL example // Verilog example architecture STRUCT of INC is module fadd(a, b, sum, carry); signal X,Y,S,C : bit; : : component FADD : port(A,B : in bit; endmodule SUM, CARRY : out bit); end component; module inc(...) : begin : wire x, y, s, c; ADDER1: FADD port map : (B => Y, A => X, SUM => S, CARRY => C); : fadd adder1(.a(x), .b(y), .sum(s), .carry(c)); -- other statements : // other statements end STRUCT; endmodule Y.T.Chang/2001.02/XLNX_HDL Coding-21

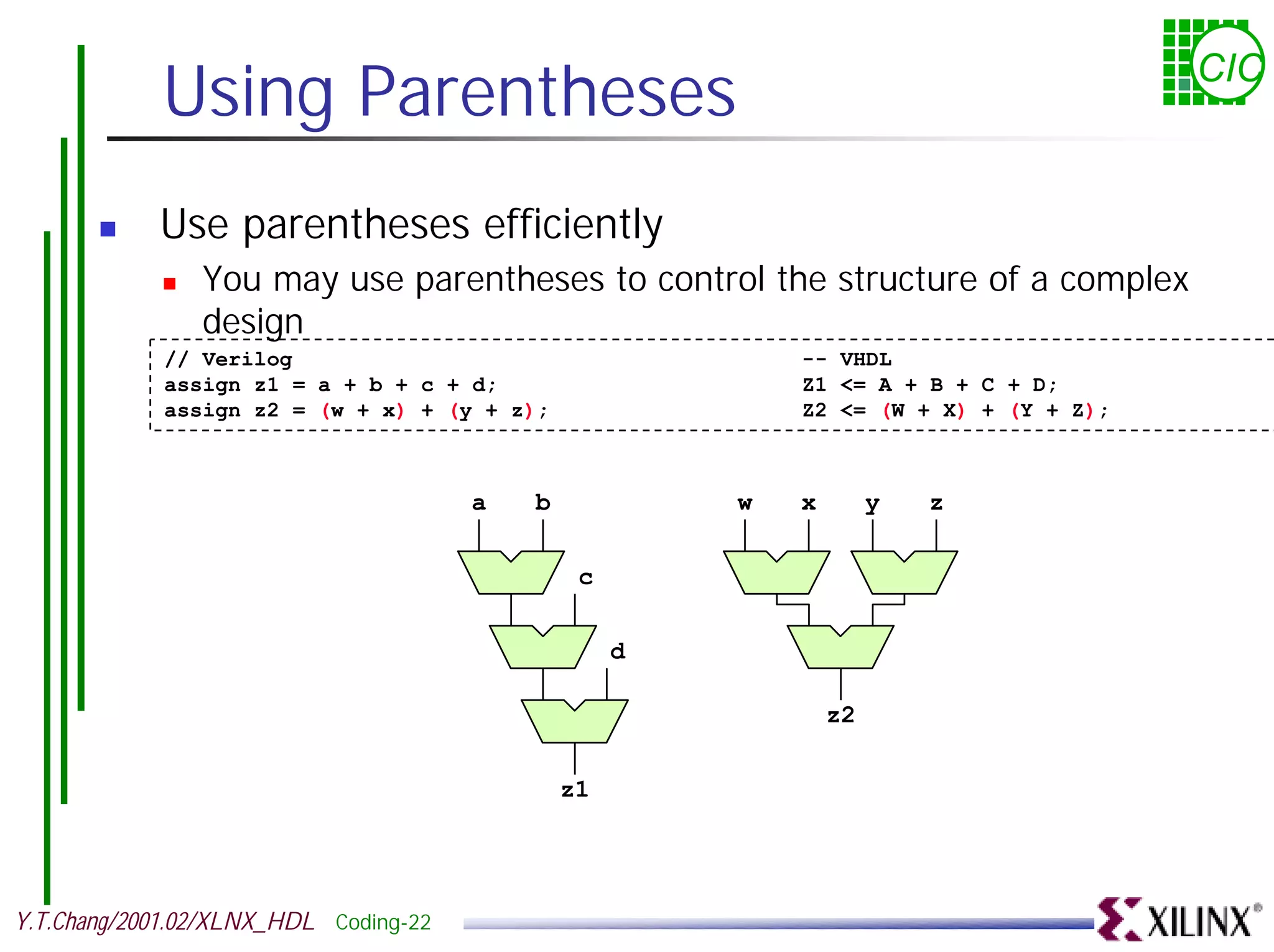

Using Parentheses CIC ! Use parentheses efficiently ! You may use parentheses to control the structure of a complex design // Verilog -- VHDL assign z1 = a + b + c + d; Z1 <= A + B + C + D; assign z2 = (w + x) + (y + z); Z2 <= (W + X) + (Y + Z); a b w x y z c d z2 z1 Y.T.Chang/2001.02/XLNX_HDL Coding-22

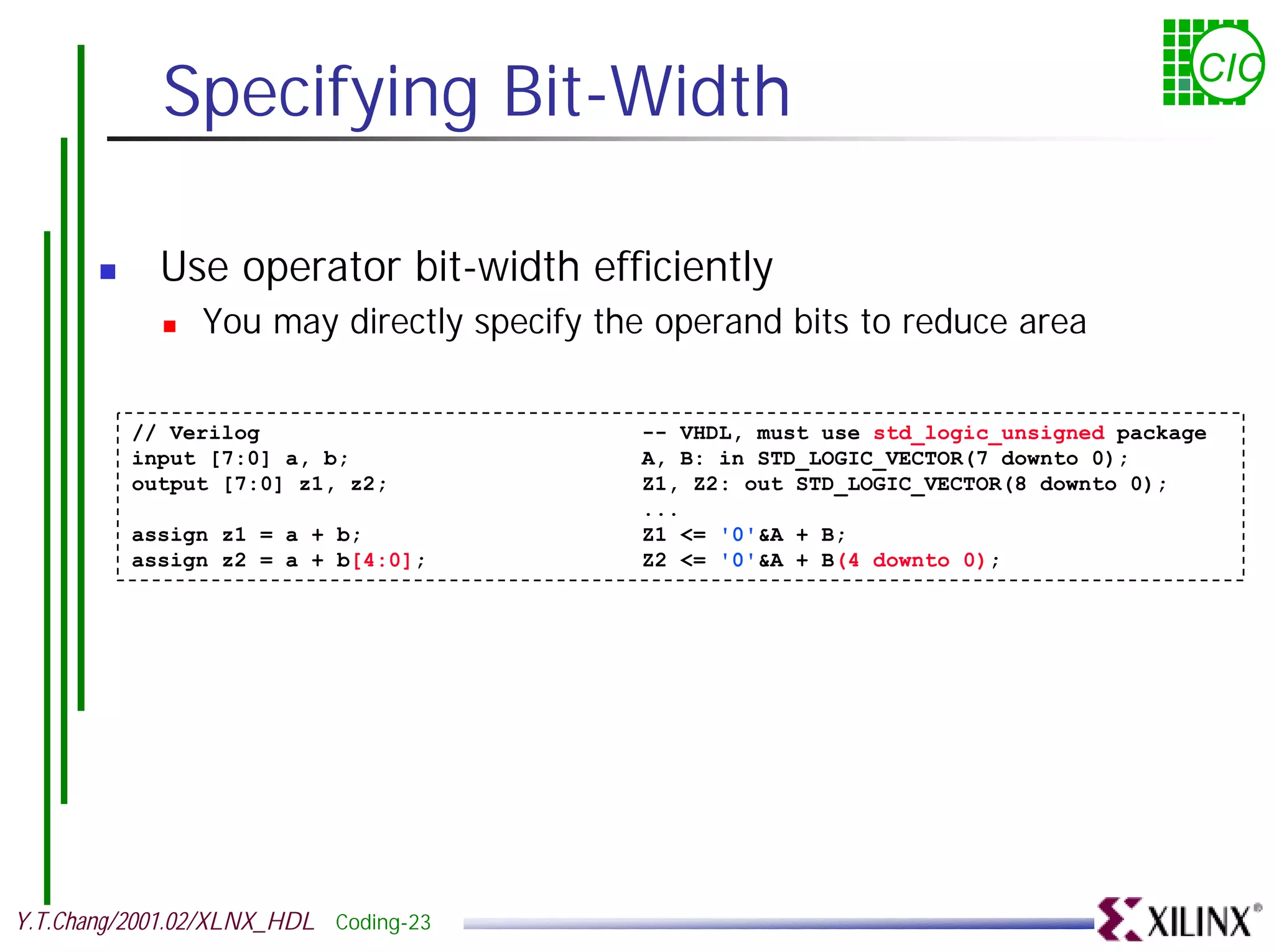

Specifying Bit-Width CIC ! Use operator bit-width efficiently ! You may directly specify the operand bits to reduce area // Verilog -- VHDL, must use std_logic_unsigned package input [7:0] a, b; A, B: in STD_LOGIC_VECTOR(7 downto 0); output [7:0] z1, z2; Z1, Z2: out STD_LOGIC_VECTOR(8 downto 0); ... assign z1 = a + b; Z1 <= '0'&A + B; assign z2 = a + b[4:0]; Z2 <= '0'&A + B(4 downto 0); Y.T.Chang/2001.02/XLNX_HDL Coding-23

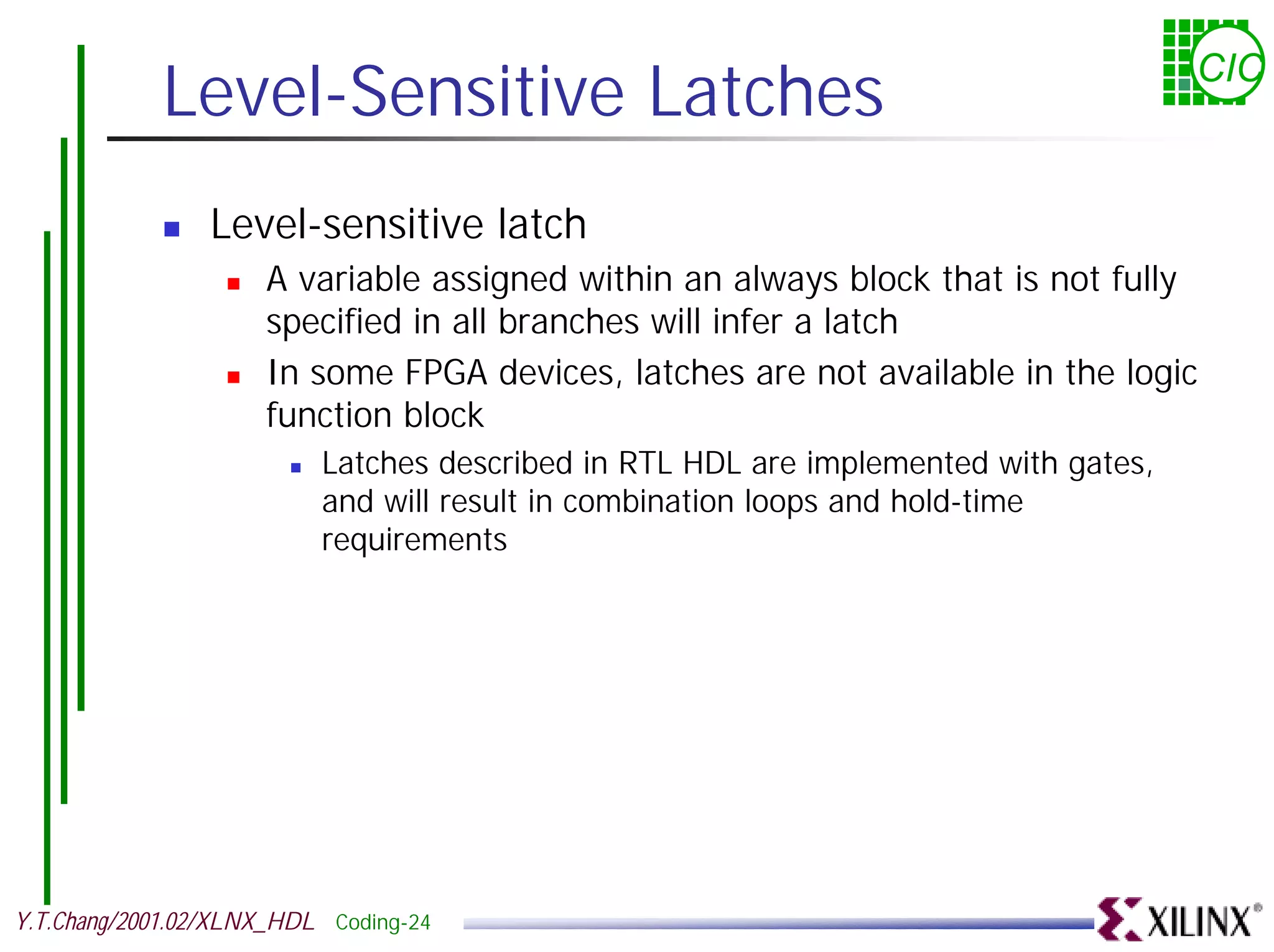

Level-Sensitive Latches CIC ! Level-sensitive latch ! A variable assigned within an always block that is not fully specified in all branches will infer a latch ! In some FPGA devices, latches are not available in the logic function block ! Latches described in RTL HDL are implemented with gates, and will result in combination loops and hold-time requirements Y.T.Chang/2001.02/XLNX_HDL Coding-24

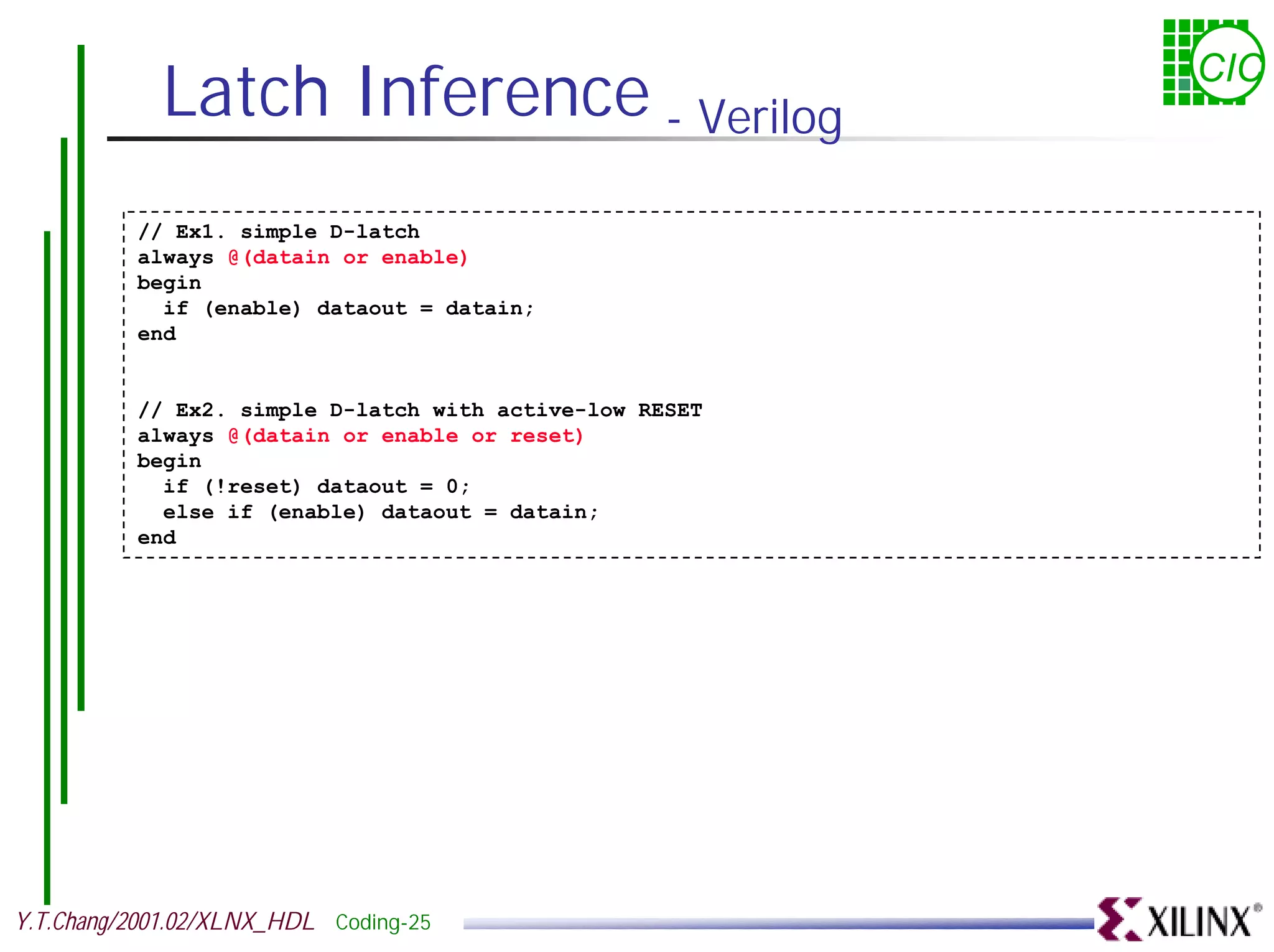

Latch Inference - Verilog CIC // Ex1. simple D-latch always @(datain or enable) begin if (enable) dataout = datain; end // Ex2. simple D-latch with active-low RESET always @(datain or enable or reset) begin if (!reset) dataout = 0; else if (enable) dataout = datain; end Y.T.Chang/2001.02/XLNX_HDL Coding-25

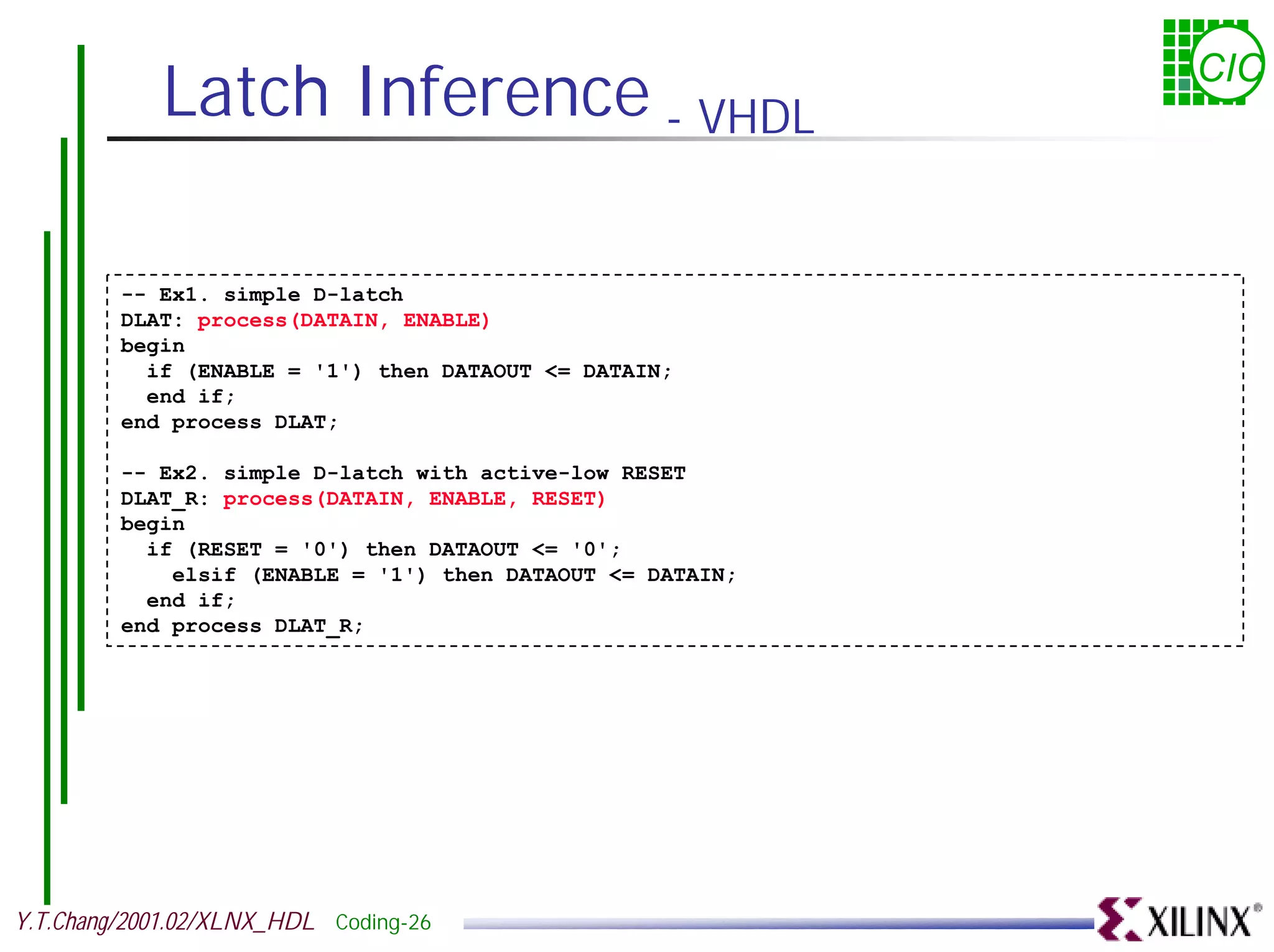

Latch Inference - VHDL CIC -- Ex1. simple D-latch DLAT: process(DATAIN, ENABLE) begin if (ENABLE = '1') then DATAOUT <= DATAIN; end if; end process DLAT; -- Ex2. simple D-latch with active-low RESET DLAT_R: process(DATAIN, ENABLE, RESET) begin if (RESET = '0') then DATAOUT <= '0'; elsif (ENABLE = '1') then DATAOUT <= DATAIN; end if; end process DLAT_R; Y.T.Chang/2001.02/XLNX_HDL Coding-26

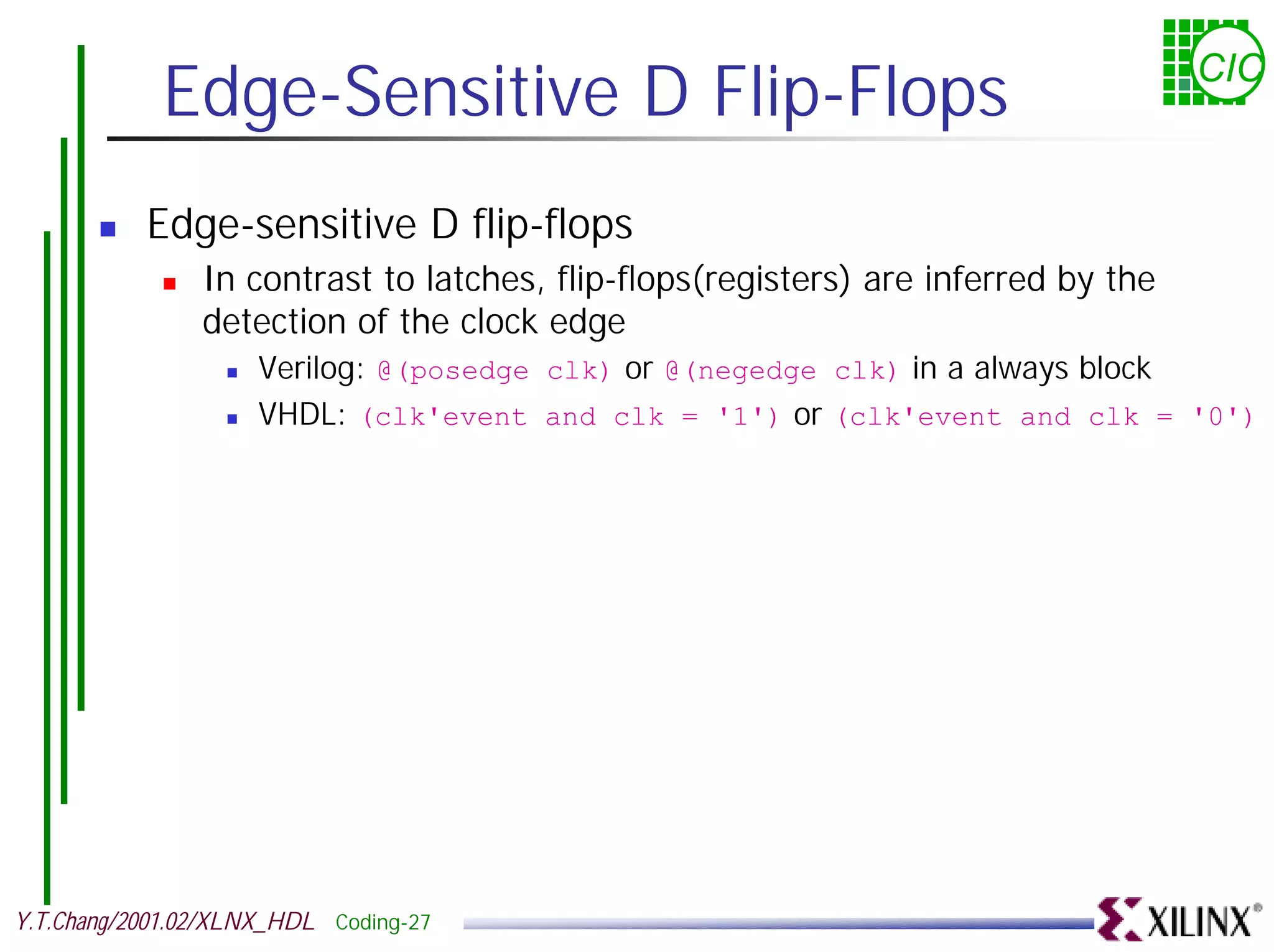

Edge-Sensitive D Flip-Flops CIC ! Edge-sensitive D flip-flops ! In contrast to latches, flip-flops(registers) are inferred by the detection of the clock edge ! Verilog: @(posedge clk) or @(negedge clk) in a always block ! VHDL: (clk'event and clk = '1') or (clk'event and clk = '0') Y.T.Chang/2001.02/XLNX_HDL Coding-27

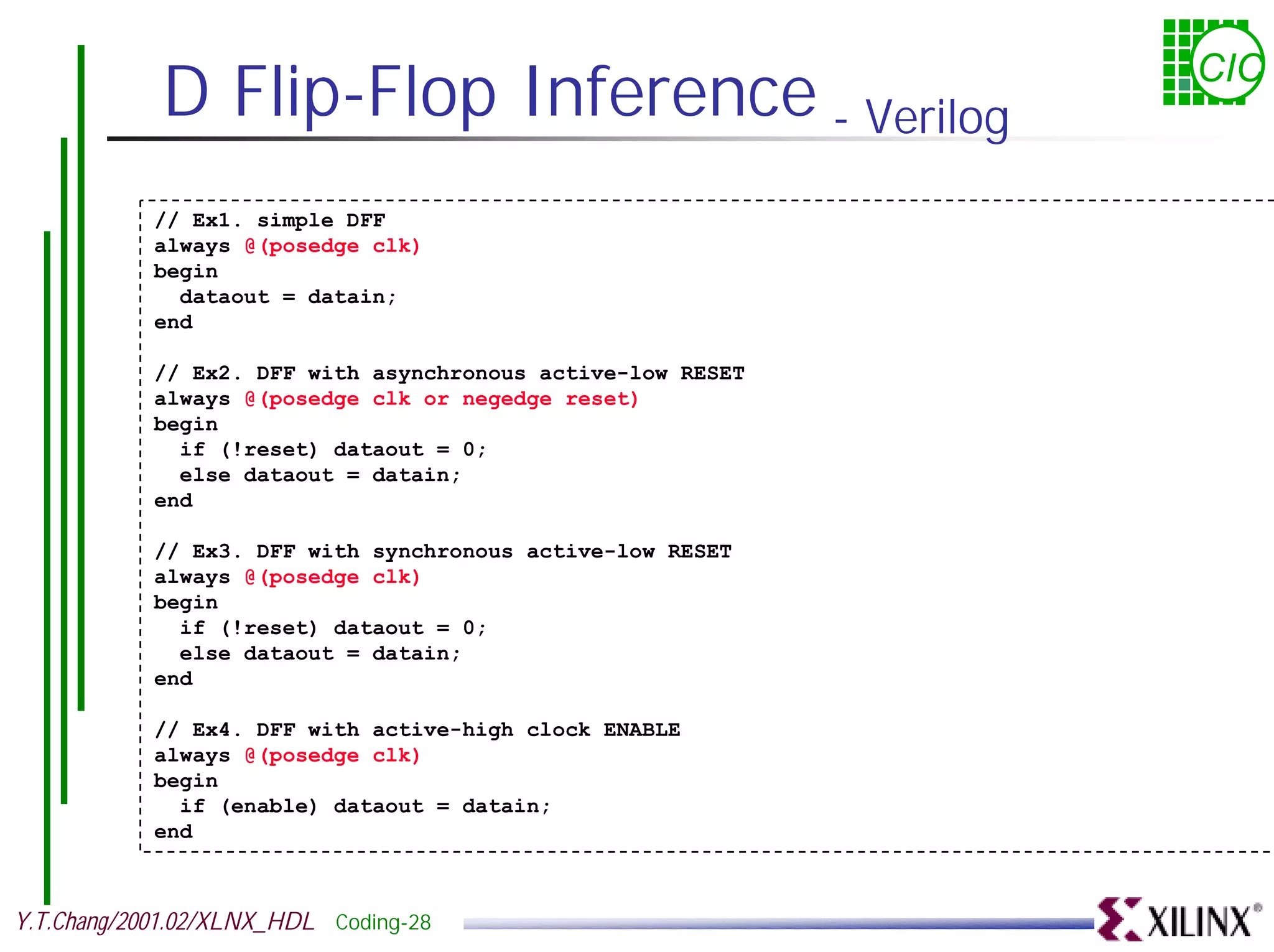

D Flip-Flop Inference - Verilog CIC // Ex1. simple DFF always @(posedge clk) begin dataout = datain; end // Ex2. DFF with asynchronous active-low RESET always @(posedge clk or negedge reset) begin if (!reset) dataout = 0; else dataout = datain; end // Ex3. DFF with synchronous active-low RESET always @(posedge clk) begin if (!reset) dataout = 0; else dataout = datain; end // Ex4. DFF with active-high clock ENABLE always @(posedge clk) begin if (enable) dataout = datain; end Y.T.Chang/2001.02/XLNX_HDL Coding-28

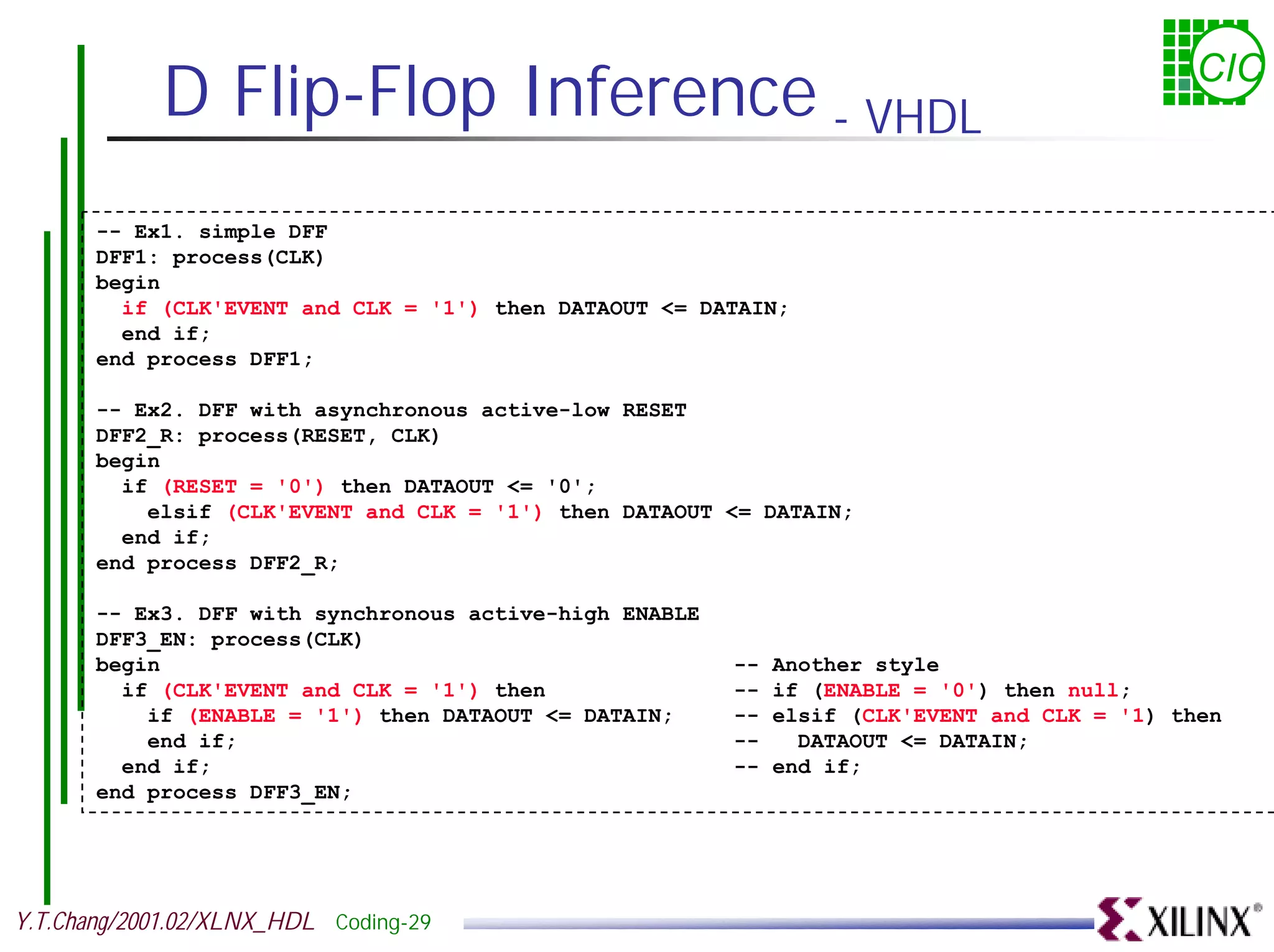

D Flip-Flop Inference - VHDL CIC -- Ex1. simple DFF DFF1: process(CLK) begin if (CLK'EVENT and CLK = '1') then DATAOUT <= DATAIN; end if; end process DFF1; -- Ex2. DFF with asynchronous active-low RESET DFF2_R: process(RESET, CLK) begin if (RESET = '0') then DATAOUT <= '0'; elsif (CLK'EVENT and CLK = '1') then DATAOUT <= DATAIN; end if; end process DFF2_R; -- Ex3. DFF with synchronous active-high ENABLE DFF3_EN: process(CLK) begin -- Another style if (CLK'EVENT and CLK = '1') then -- if (ENABLE = '0') then null; if (ENABLE = '1') then DATAOUT <= DATAIN; -- elsif (CLK'EVENT and CLK = '1) then end if; -- DATAOUT <= DATAIN; end if; -- end if; end process DFF3_EN; Y.T.Chang/2001.02/XLNX_HDL Coding-29

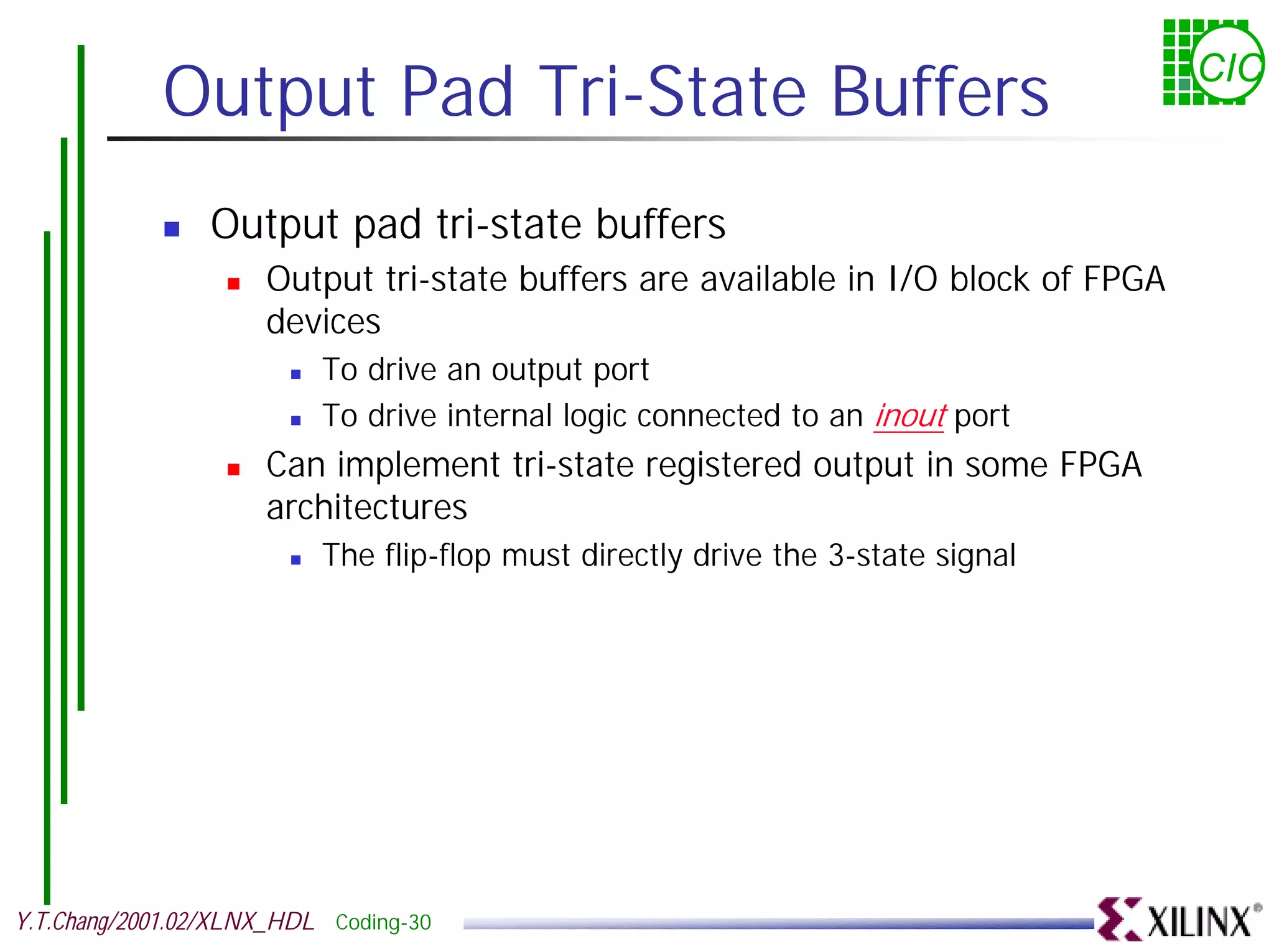

Output Pad Tri-State Buffers CIC ! Output pad tri-state buffers ! Output tri-state buffers are available in I/O block of FPGA devices ! To drive an output port ! To drive internal logic connected to an inout port ! Can implement tri-state registered output in some FPGA architectures ! The flip-flop must directly drive the 3-state signal Y.T.Chang/2001.02/XLNX_HDL Coding-30

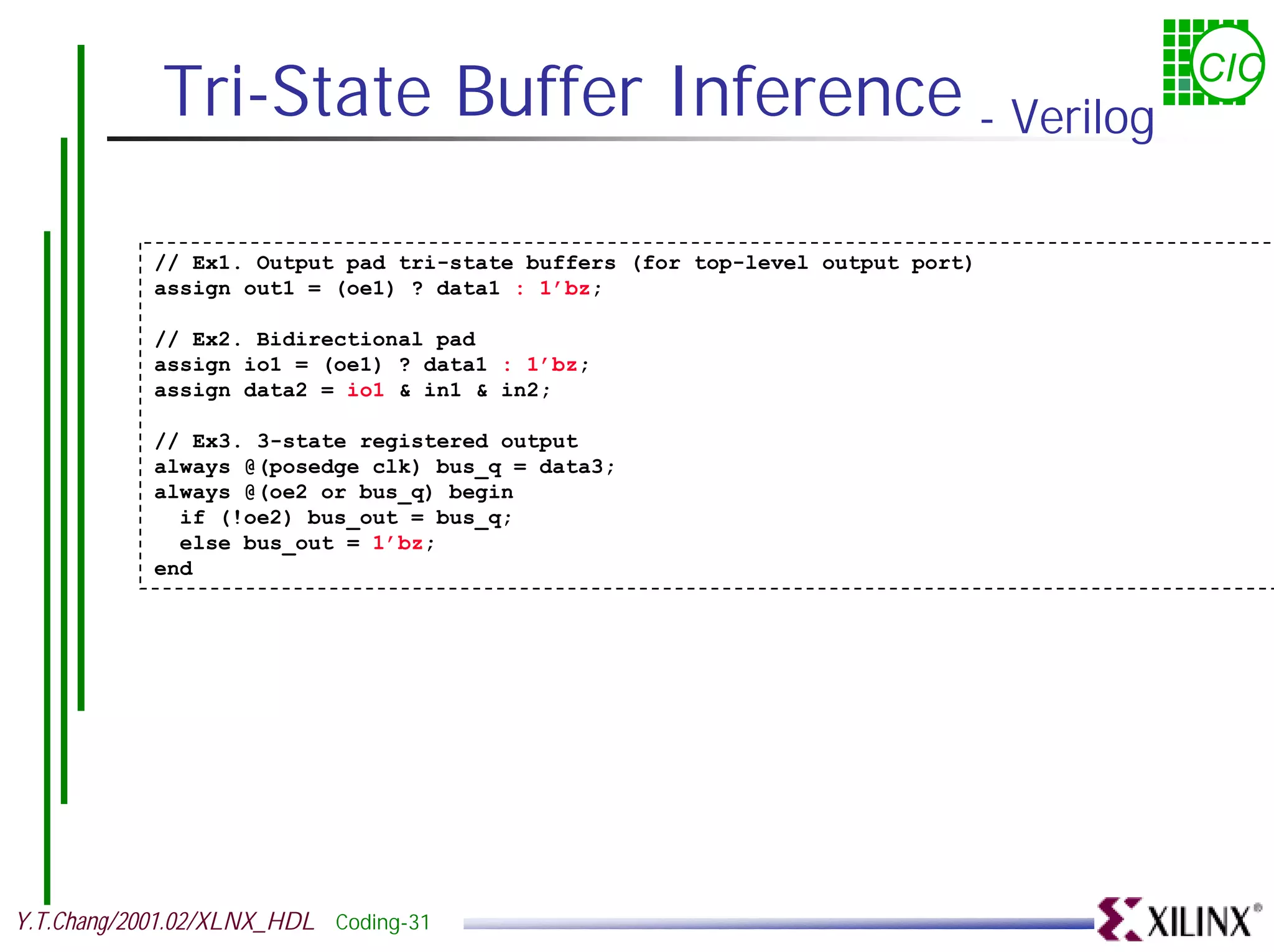

Tri-State Buffer Inference - Verilog CIC // Ex1. Output pad tri-state buffers (for top-level output port) assign out1 = (oe1) ? data1 : 1’bz; // Ex2. Bidirectional pad assign io1 = (oe1) ? data1 : 1’bz; assign data2 = io1 & in1 & in2; // Ex3. 3-state registered output always @(posedge clk) bus_q = data3; always @(oe2 or bus_q) begin if (!oe2) bus_out = bus_q; else bus_out = 1’bz; end Y.T.Chang/2001.02/XLNX_HDL Coding-31

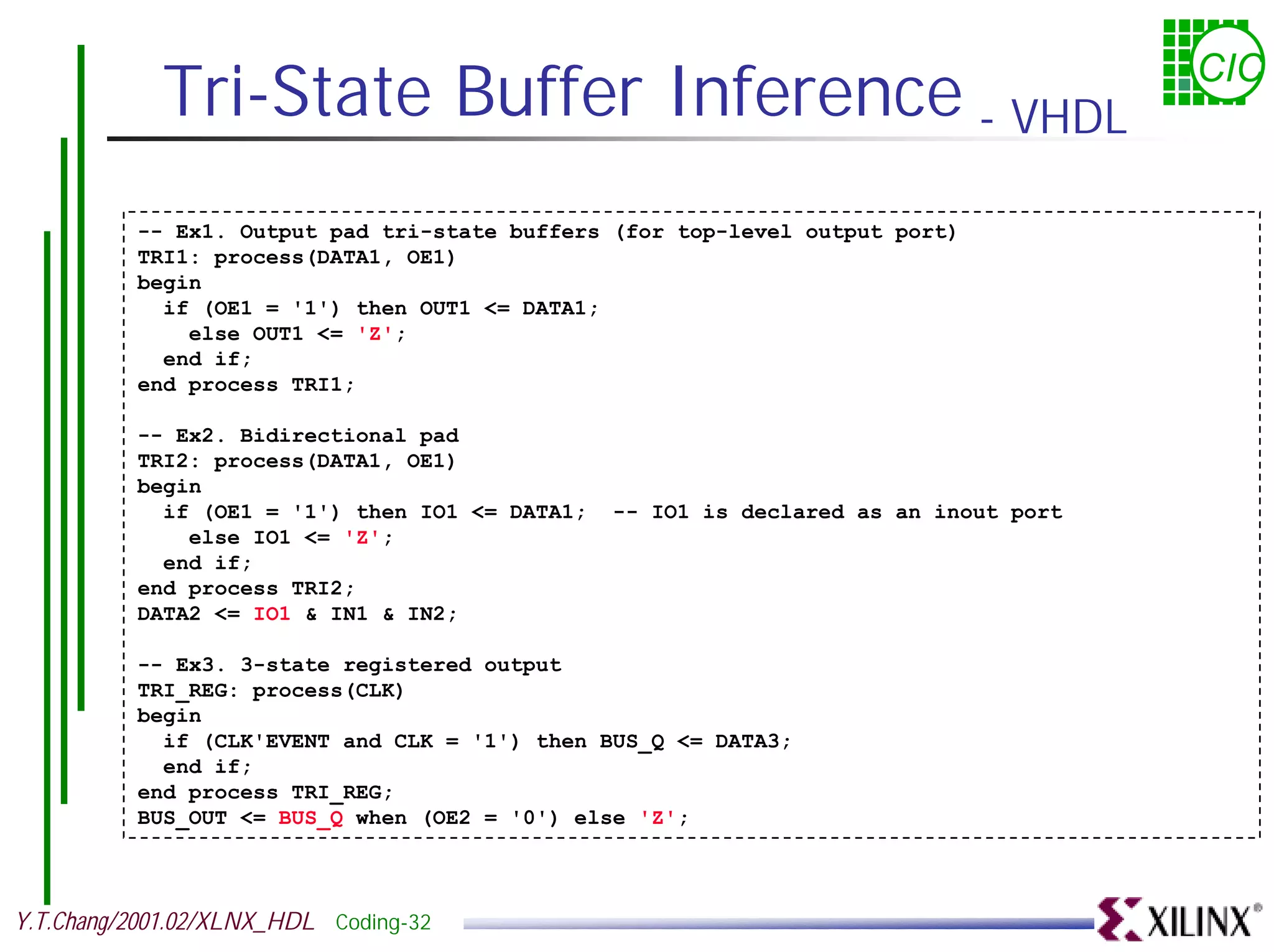

Tri-State Buffer Inference - VHDL CIC -- Ex1. Output pad tri-state buffers (for top-level output port) TRI1: process(DATA1, OE1) begin if (OE1 = '1') then OUT1 <= DATA1; else OUT1 <= 'Z'; end if; end process TRI1; -- Ex2. Bidirectional pad TRI2: process(DATA1, OE1) begin if (OE1 = '1') then IO1 <= DATA1; -- IO1 is declared as an inout port else IO1 <= 'Z'; end if; end process TRI2; DATA2 <= IO1 & IN1 & IN2; -- Ex3. 3-state registered output TRI_REG: process(CLK) begin if (CLK'EVENT and CLK = '1') then BUS_Q <= DATA3; end if; end process TRI_REG; BUS_OUT <= BUS_Q when (OE2 = '0') else 'Z'; Y.T.Chang/2001.02/XLNX_HDL Coding-32

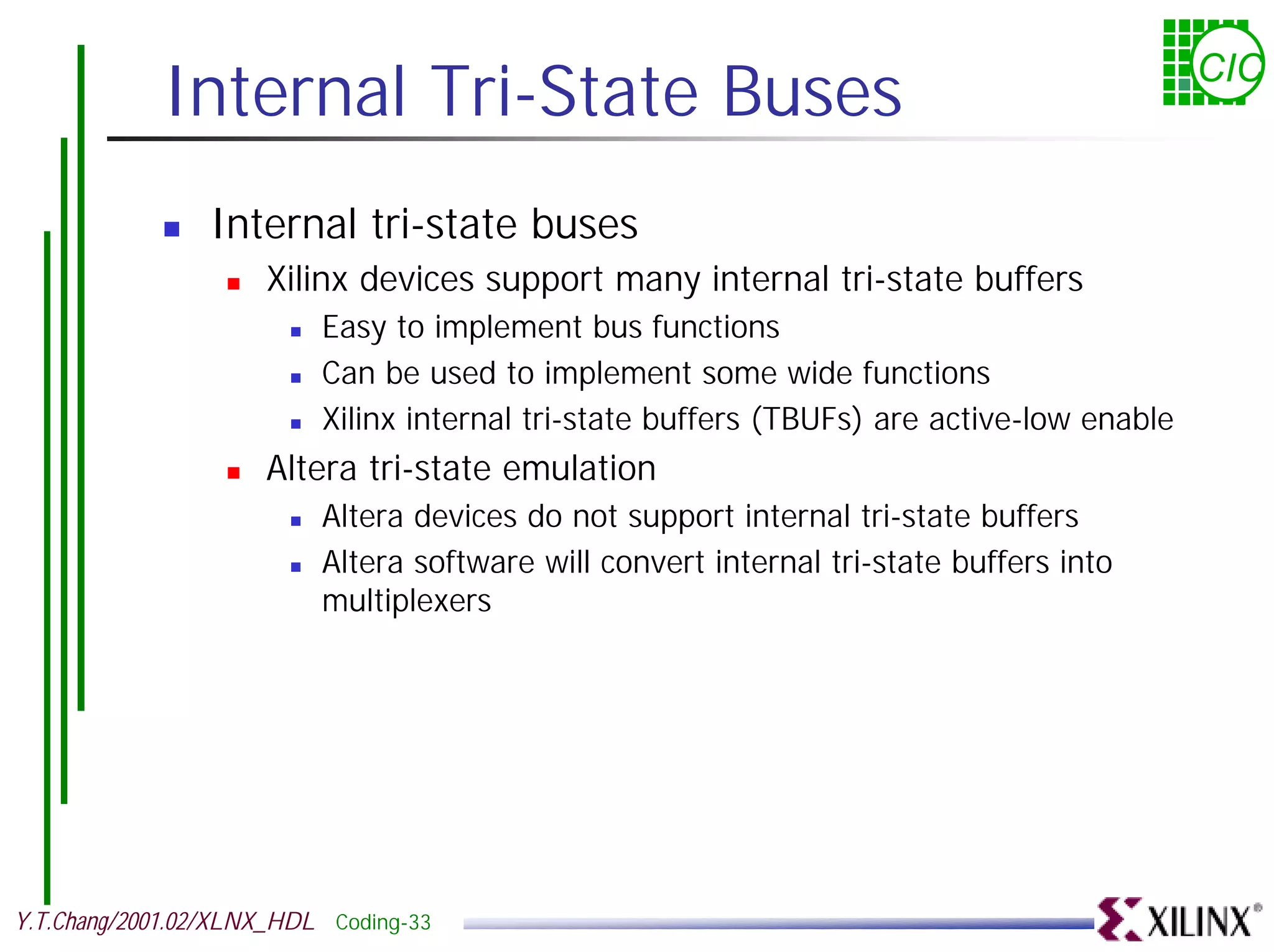

Internal Tri-State Buses CIC ! Internal tri-state buses ! Xilinx devices support many internal tri-state buffers ! Easy to implement bus functions ! Can be used to implement some wide functions ! Xilinx internal tri-state buffers (TBUFs) are active-low enable ! Altera tri-state emulation ! Altera devices do not support internal tri-state buffers ! Altera software will convert internal tri-state buffers into multiplexers Y.T.Chang/2001.02/XLNX_HDL Coding-33

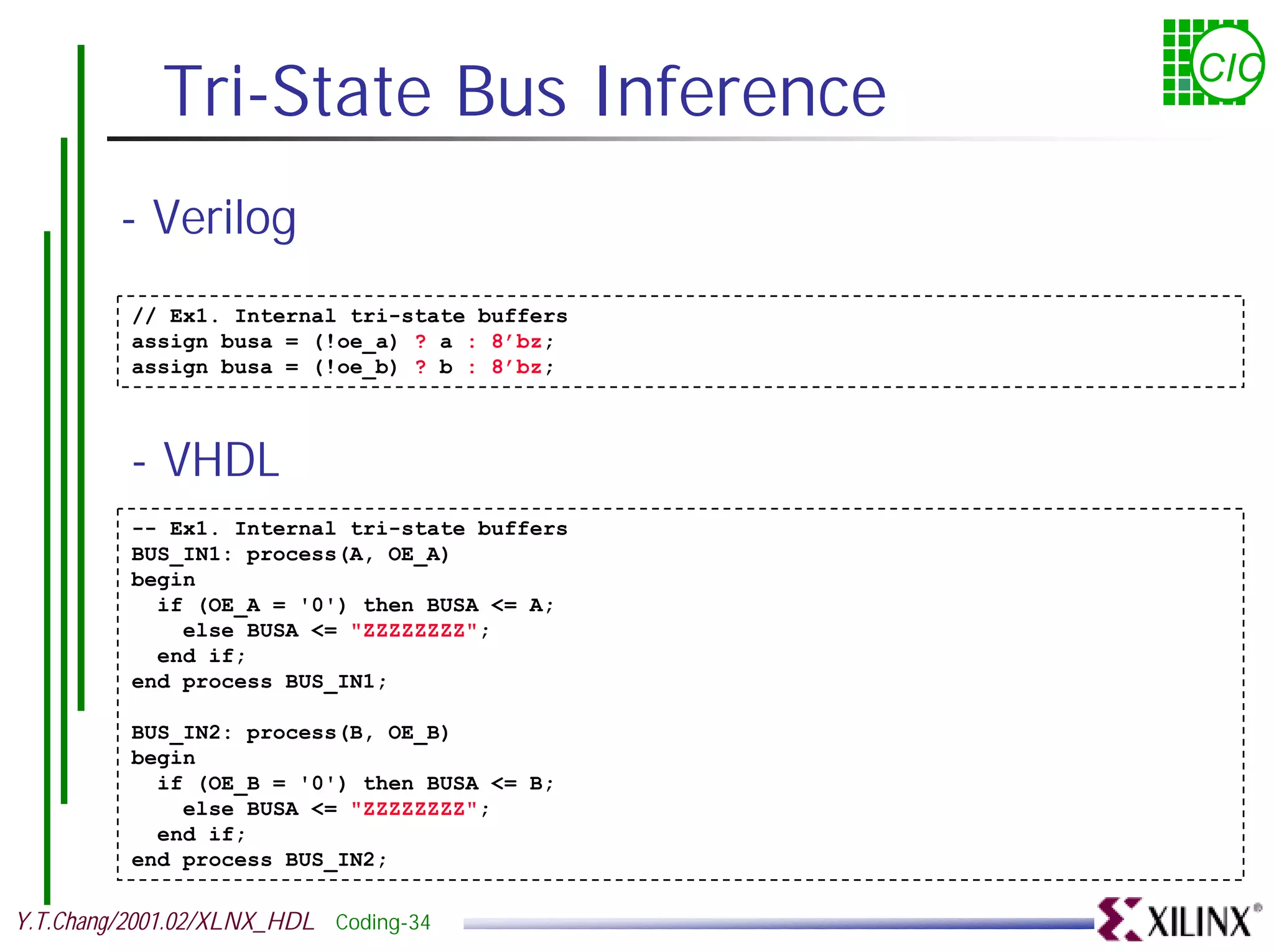

Tri-State Bus Inference CIC - Verilog // Ex1. Internal tri-state buffers assign busa = (!oe_a) ? a : 8’bz; assign busa = (!oe_b) ? b : 8’bz; - VHDL -- Ex1. Internal tri-state buffers BUS_IN1: process(A, OE_A) begin if (OE_A = '0') then BUSA <= A; else BUSA <= "ZZZZZZZZ"; end if; end process BUS_IN1; BUS_IN2: process(B, OE_B) begin if (OE_B = '0') then BUSA <= B; else BUSA <= "ZZZZZZZZ"; end if; end process BUS_IN2; Y.T.Chang/2001.02/XLNX_HDL Coding-34

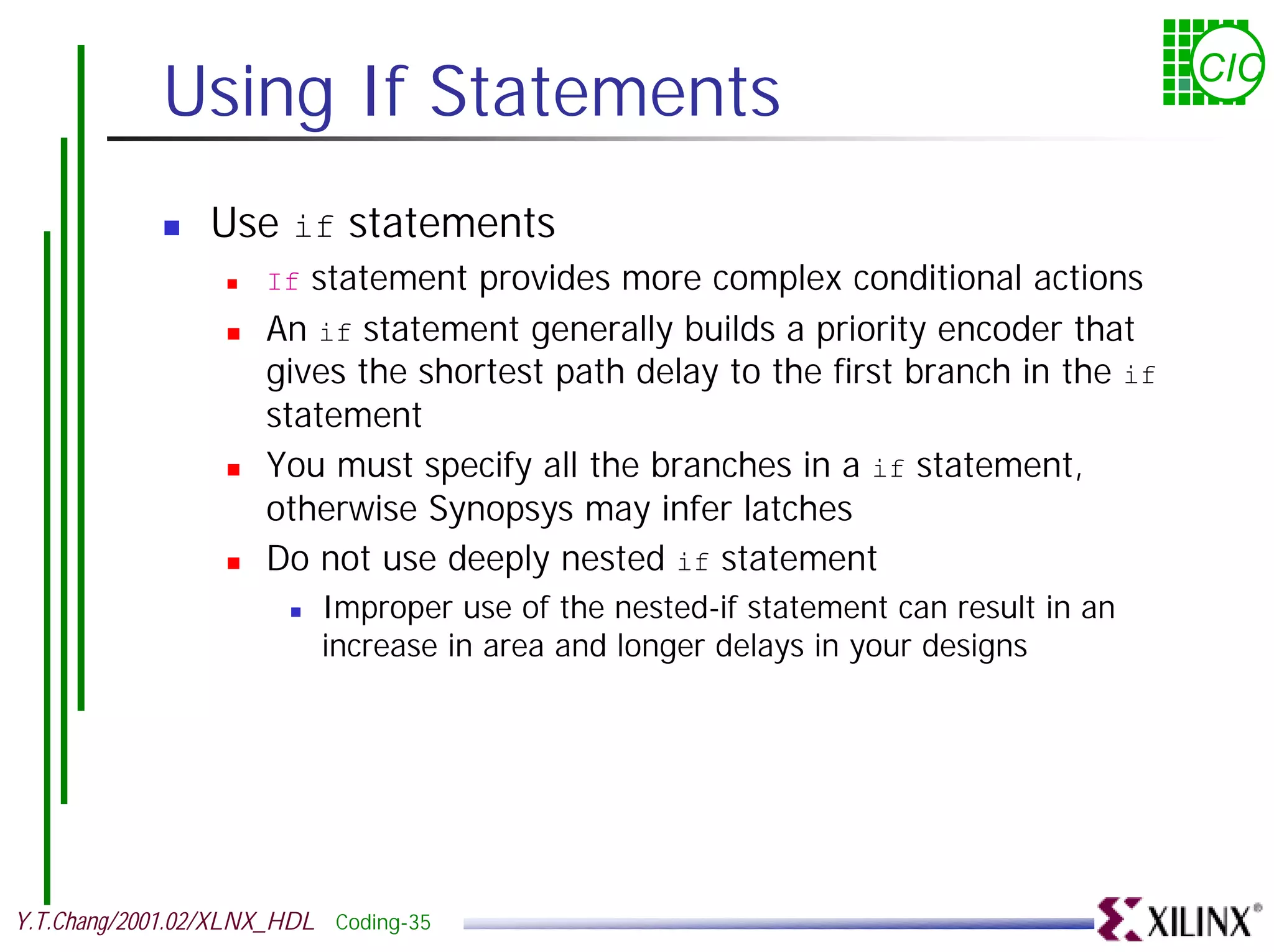

Using If Statements CIC ! Use if statements ! If statement provides more complex conditional actions ! An if statement generally builds a priority encoder that gives the shortest path delay to the first branch in the if statement ! You must specify all the branches in a if statement, otherwise Synopsys may infer latches ! Do not use deeply nested if statement ! Improper use of the nested-if statement can result in an increase in area and longer delays in your designs Y.T.Chang/2001.02/XLNX_HDL Coding-35

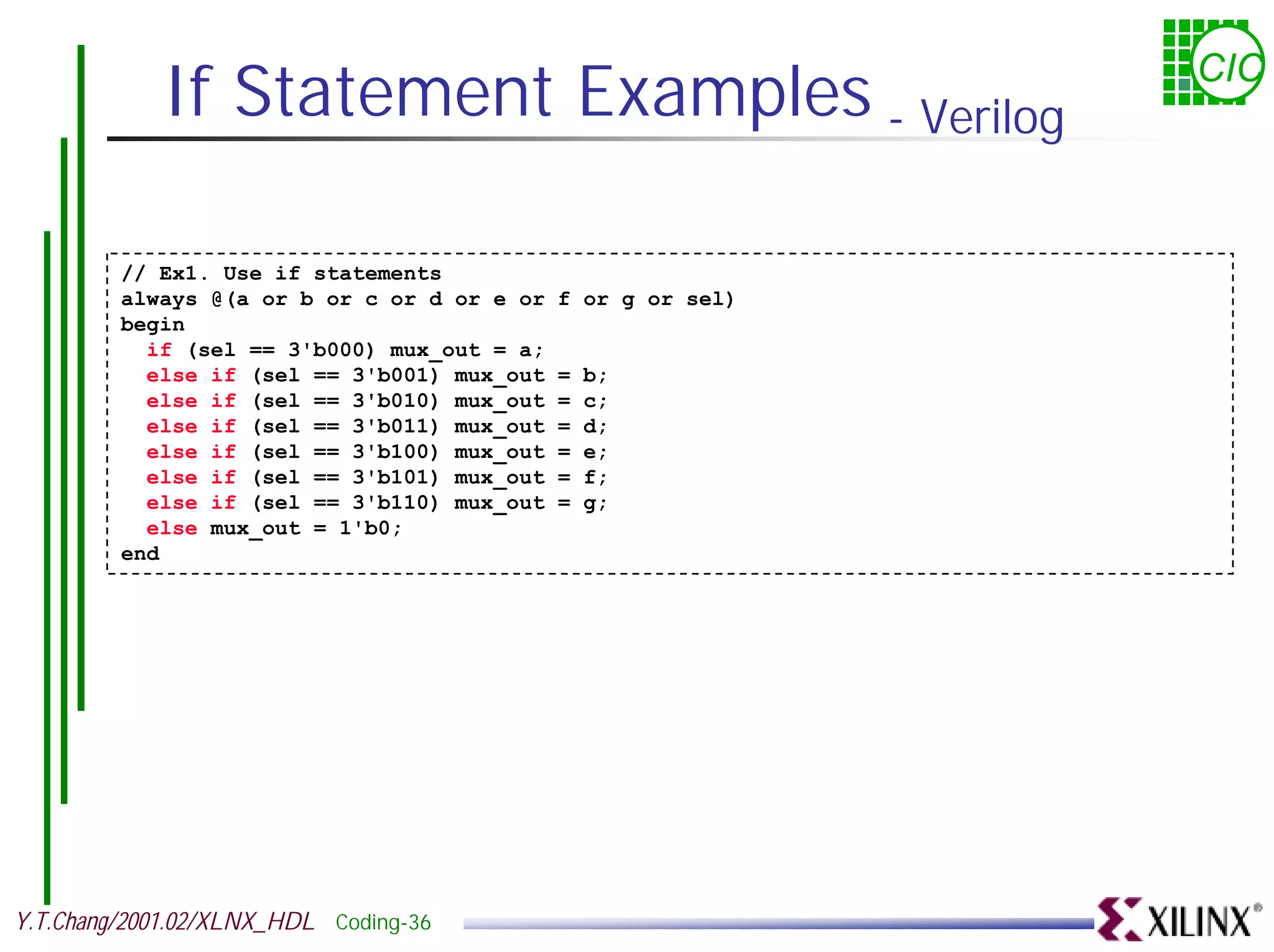

If Statement Examples - Verilog CIC // Ex1. Use if statements always @(a or b or c or d or e or f or g or sel) begin if (sel == 3'b000) mux_out = a; else if (sel == 3'b001) mux_out = b; else if (sel == 3'b010) mux_out = c; else if (sel == 3'b011) mux_out = d; else if (sel == 3'b100) mux_out = e; else if (sel == 3'b101) mux_out = f; else if (sel == 3'b110) mux_out = g; else mux_out = 1'b0; end Y.T.Chang/2001.02/XLNX_HDL Coding-36

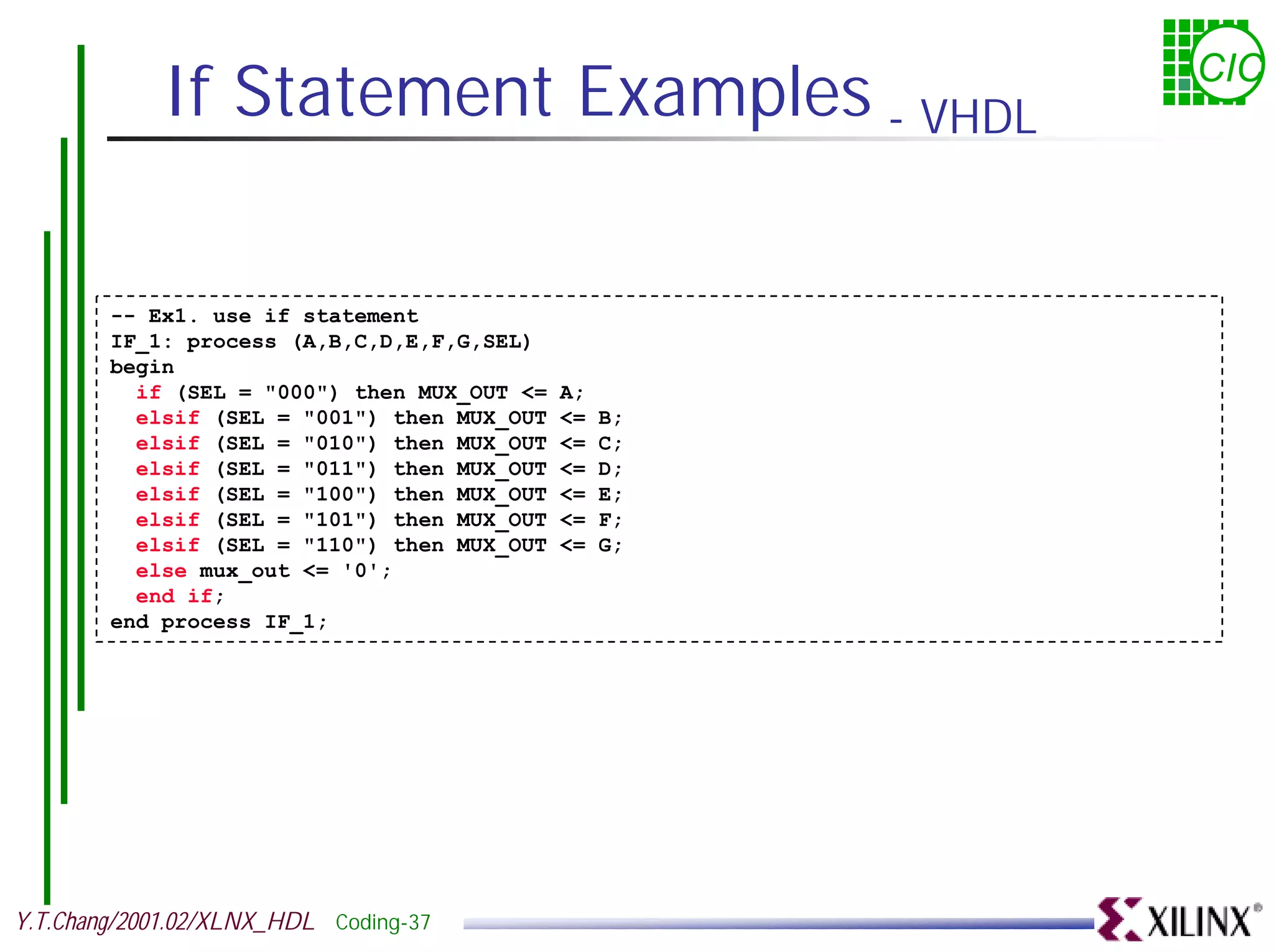

If Statement Examples - VHDL CIC -- Ex1. use if statement IF_1: process (A,B,C,D,E,F,G,SEL) begin if (SEL = "000") then MUX_OUT <= A; elsif (SEL = "001") then MUX_OUT <= B; elsif (SEL = "010") then MUX_OUT <= C; elsif (SEL = "011") then MUX_OUT <= D; elsif (SEL = "100") then MUX_OUT <= E; elsif (SEL = "101") then MUX_OUT <= F; elsif (SEL = "110") then MUX_OUT <= G; else mux_out <= '0'; end if; end process IF_1; Y.T.Chang/2001.02/XLNX_HDL Coding-37

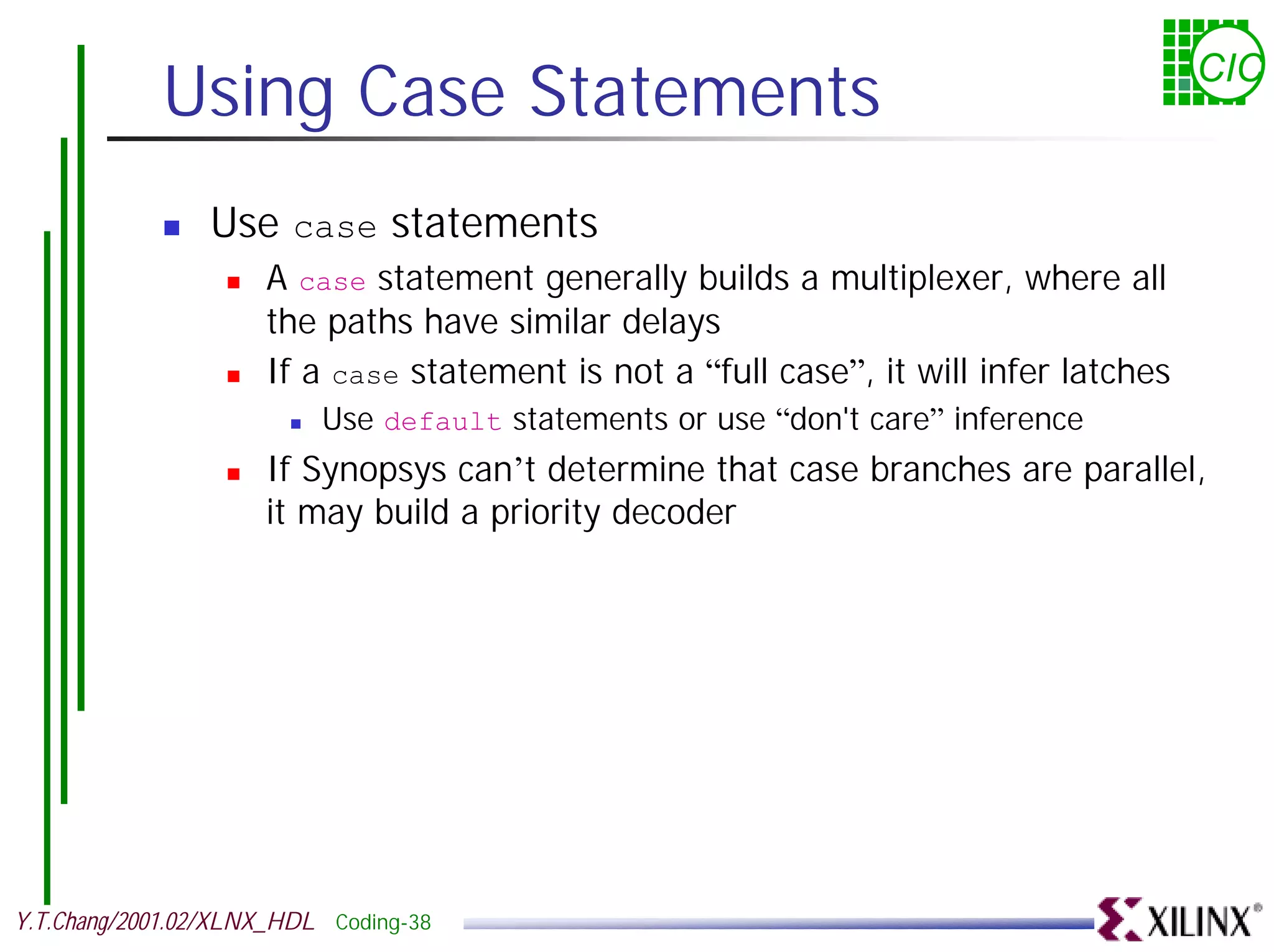

Using Case Statements CIC ! Use case statements ! A case statement generally builds a multiplexer, where all the paths have similar delays ! If a case statement is not a “full case”, it will infer latches ! Use default statements or use “don't care” inference ! If Synopsys can’t determine that case branches are parallel, it may build a priority decoder Y.T.Chang/2001.02/XLNX_HDL Coding-38

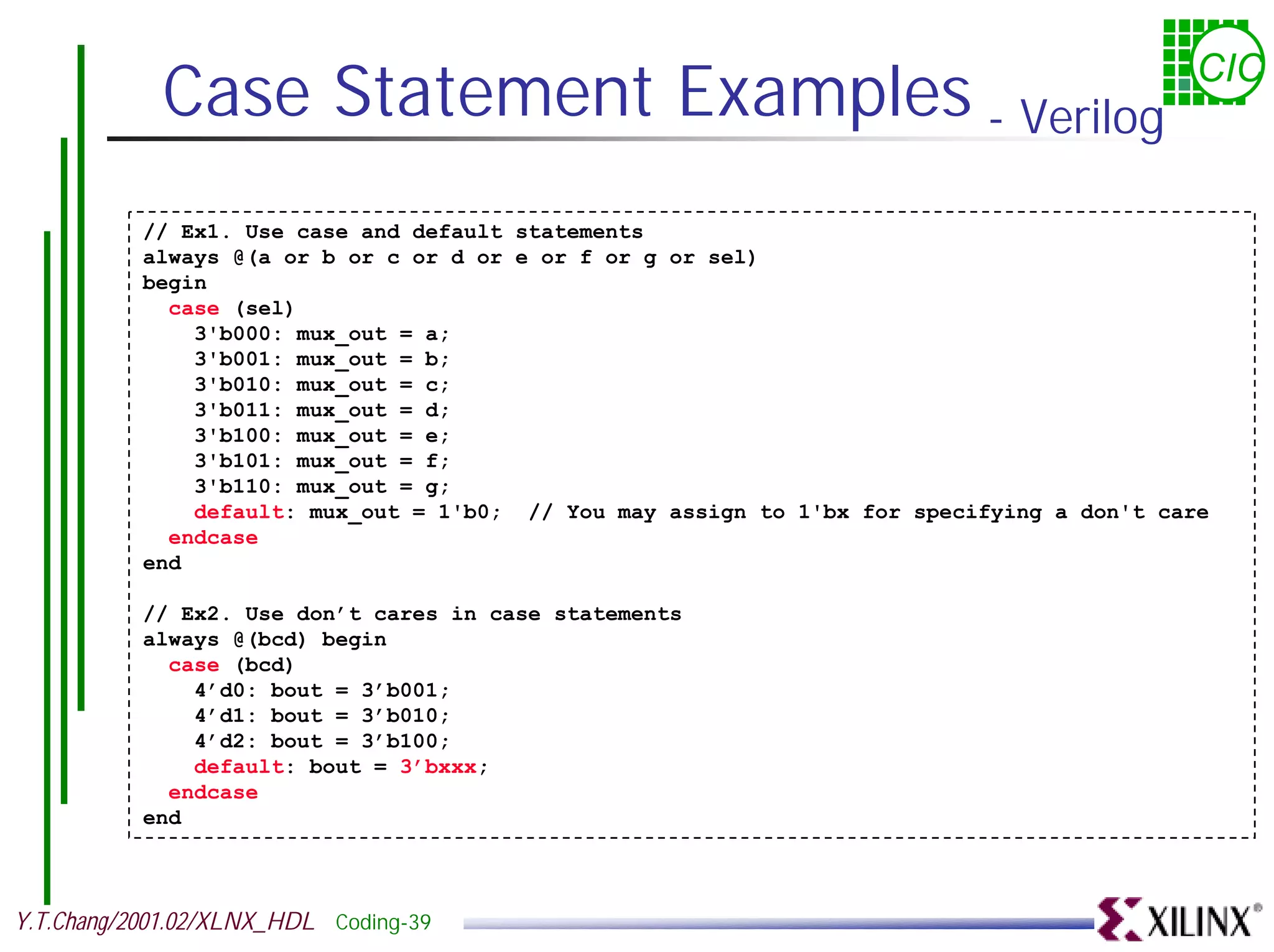

Case Statement Examples - Verilog CIC // Ex1. Use case and default statements always @(a or b or c or d or e or f or g or sel) begin case (sel) 3'b000: mux_out = a; 3'b001: mux_out = b; 3'b010: mux_out = c; 3'b011: mux_out = d; 3'b100: mux_out = e; 3'b101: mux_out = f; 3'b110: mux_out = g; default: mux_out = 1'b0; // You may assign to 1'bx for specifying a don't care endcase end // Ex2. Use don’t cares in case statements always @(bcd) begin case (bcd) 4’d0: bout = 3’b001; 4’d1: bout = 3’b010; 4’d2: bout = 3’b100; default: bout = 3’bxxx; endcase end Y.T.Chang/2001.02/XLNX_HDL Coding-39

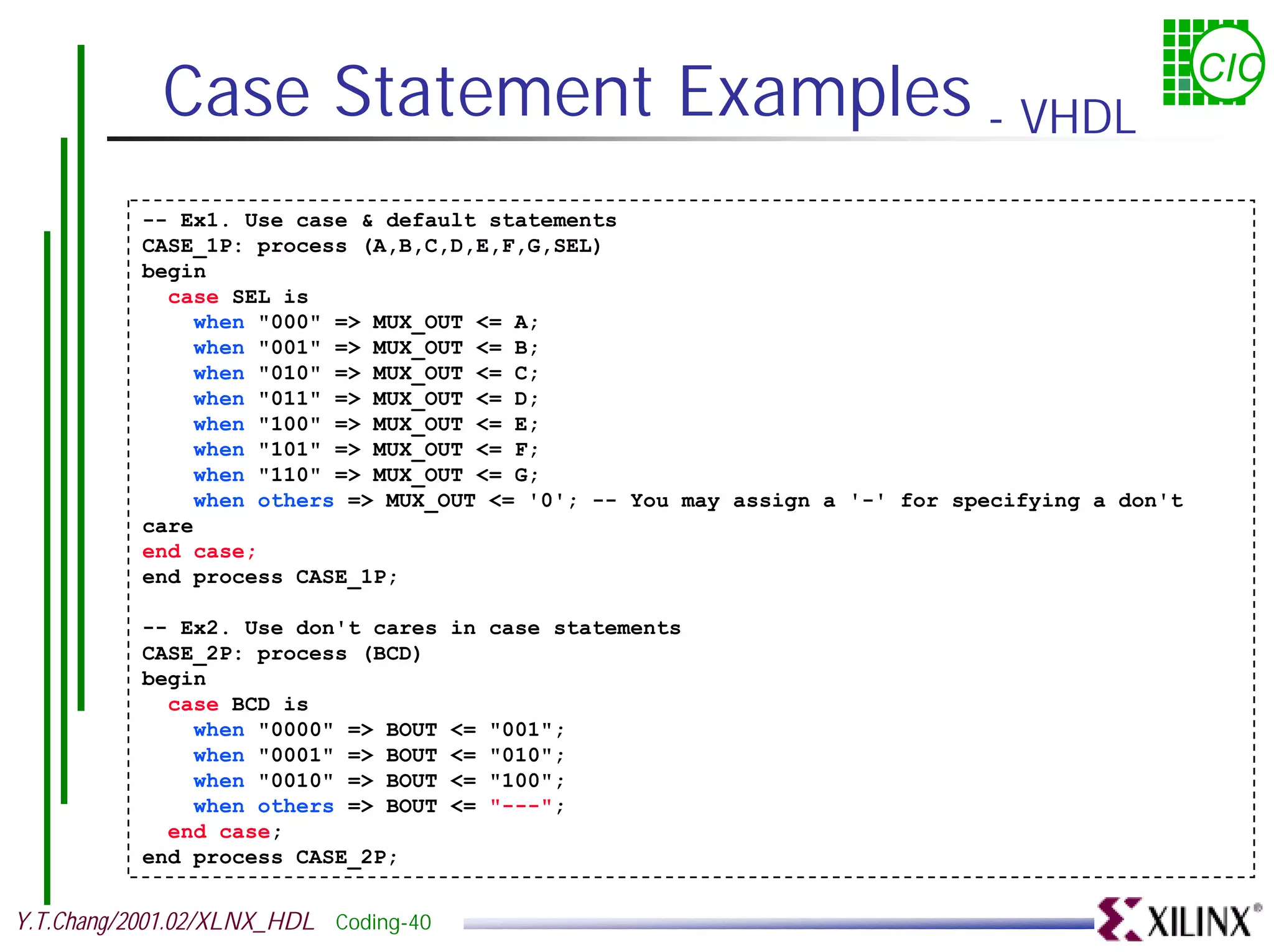

Case Statement Examples - VHDL CIC -- Ex1. Use case & default statements CASE_1P: process (A,B,C,D,E,F,G,SEL) begin case SEL is when "000" => MUX_OUT <= A; when "001" => MUX_OUT <= B; when "010" => MUX_OUT <= C; when "011" => MUX_OUT <= D; when "100" => MUX_OUT <= E; when "101" => MUX_OUT <= F; when "110" => MUX_OUT <= G; when others => MUX_OUT <= '0'; -- You may assign a '-' for specifying a don't care end case; end process CASE_1P; -- Ex2. Use don't cares in case statements CASE_2P: process (BCD) begin case BCD is when "0000" => BOUT <= "001"; when "0001" => BOUT <= "010"; when "0010" => BOUT <= "100"; when others => BOUT <= "---"; end case; end process CASE_2P; Y.T.Chang/2001.02/XLNX_HDL Coding-40

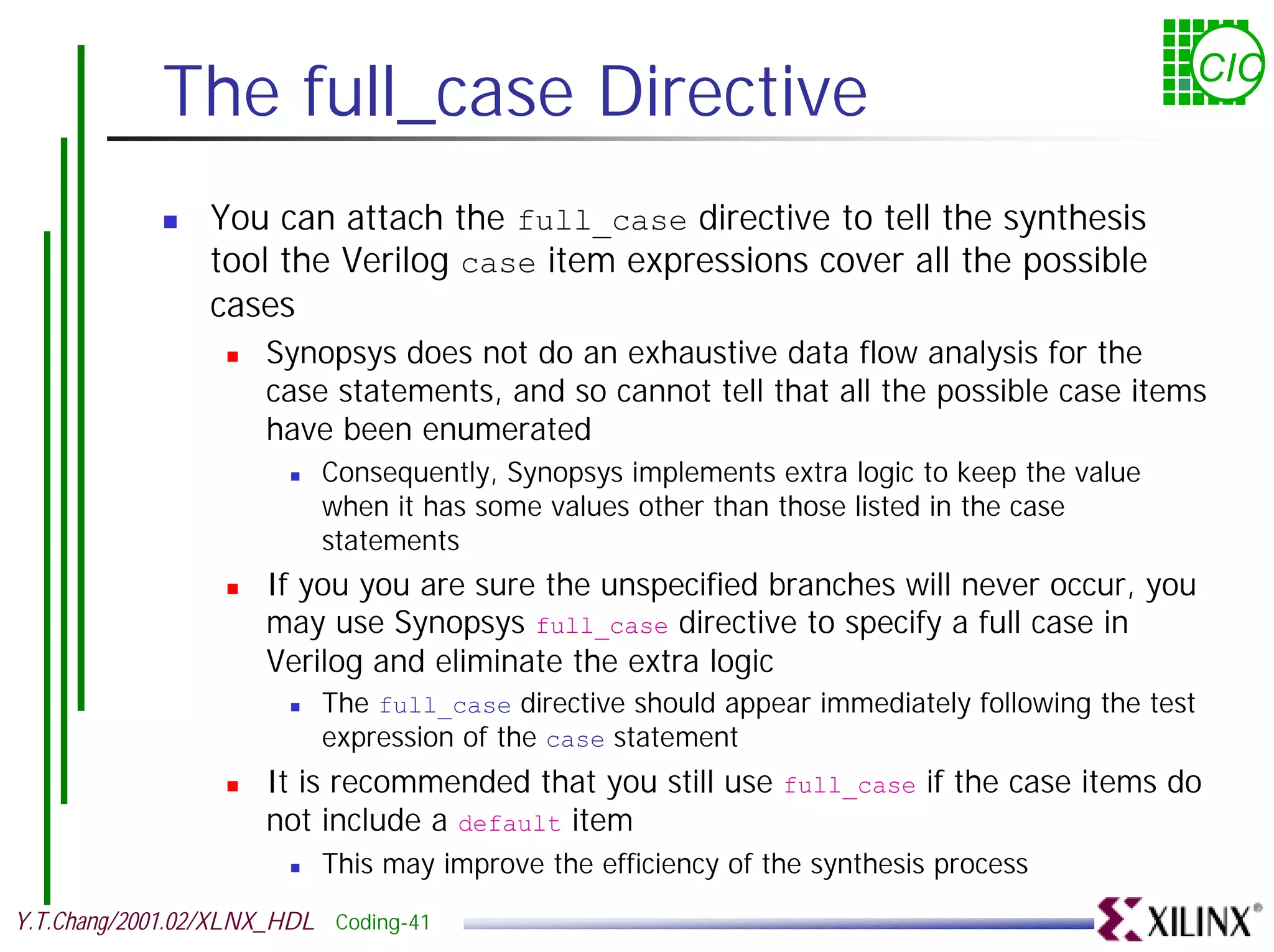

The full_case Directive CIC ! You can attach the full_case directive to tell the synthesis tool the Verilog case item expressions cover all the possible cases ! Synopsys does not do an exhaustive data flow analysis for the case statements, and so cannot tell that all the possible case items have been enumerated ! Consequently, Synopsys implements extra logic to keep the value when it has some values other than those listed in the case statements ! If you you are sure the unspecified branches will never occur, you may use Synopsys full_case directive to specify a full case in Verilog and eliminate the extra logic ! The full_case directive should appear immediately following the test expression of the case statement ! It is recommended that you still use full_case if the case items do not include a default item ! This may improve the efficiency of the synthesis process Y.T.Chang/2001.02/XLNX_HDL Coding-41

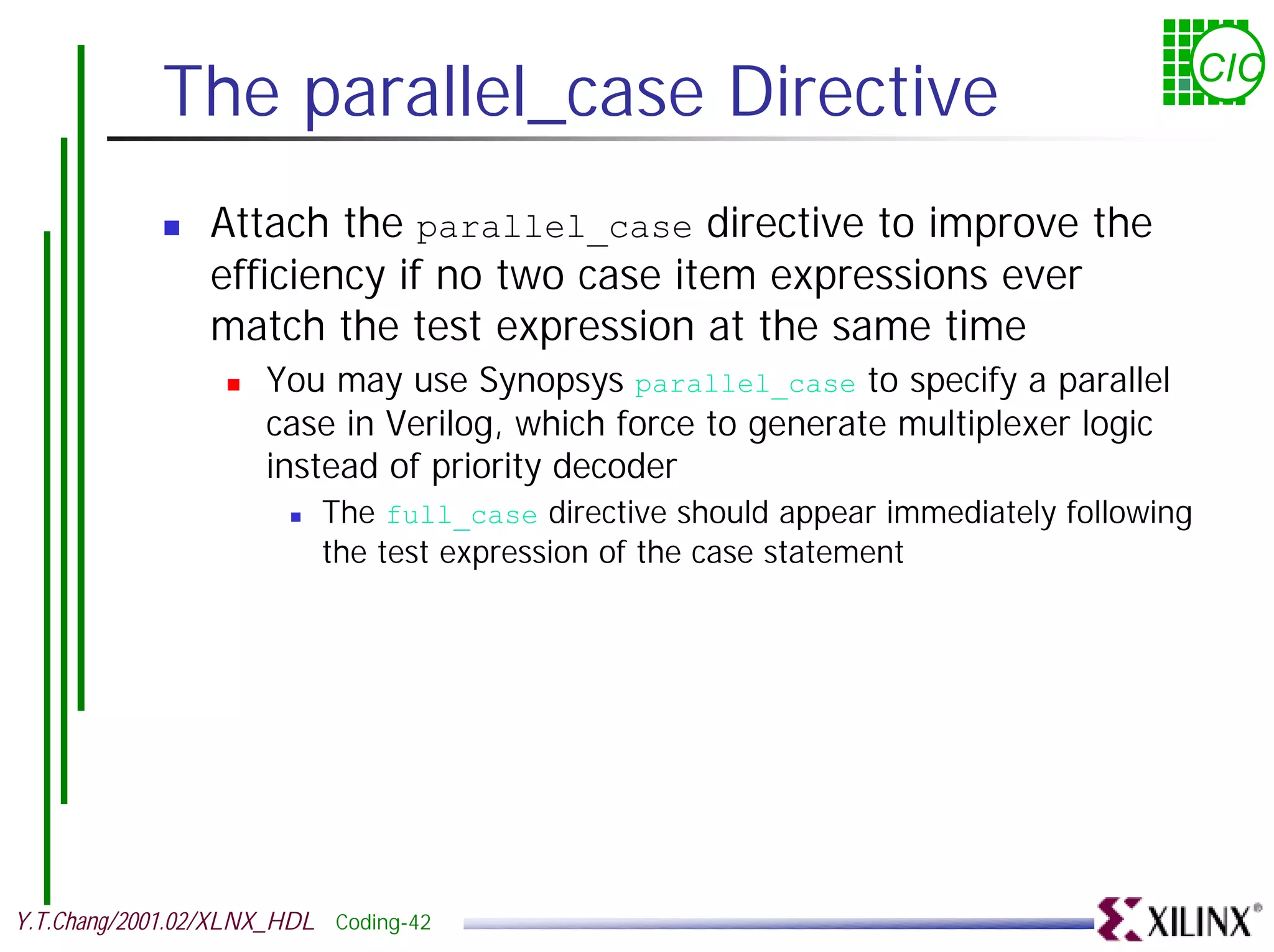

The parallel_case Directive CIC ! Attach the parallel_case directive to improve the efficiency if no two case item expressions ever match the test expression at the same time ! You may use Synopsys parallel_case to specify a parallel case in Verilog, which force to generate multiplexer logic instead of priority decoder ! The full_case directive should appear immediately following the test expression of the case statement Y.T.Chang/2001.02/XLNX_HDL Coding-42

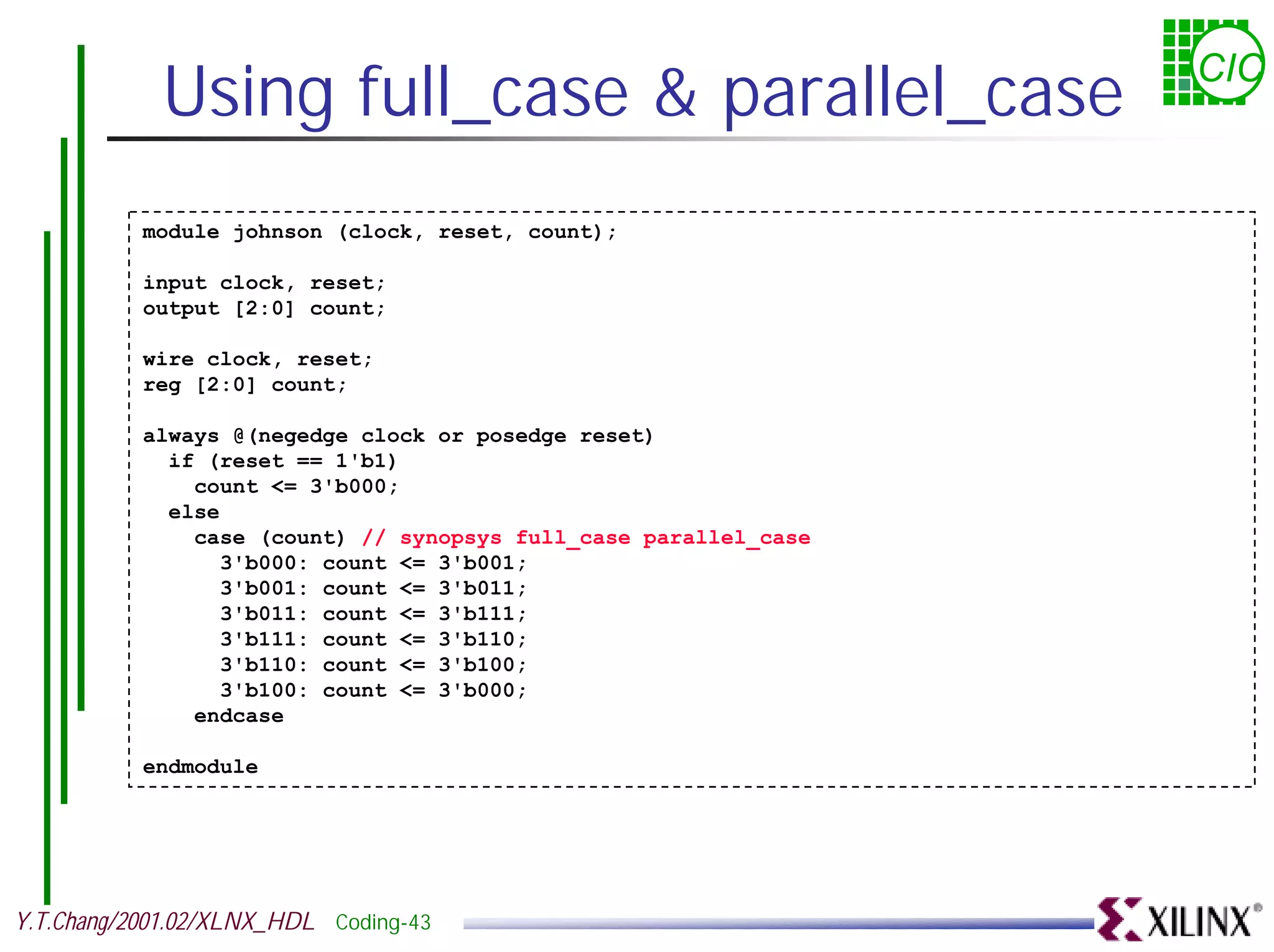

Using full_case & parallel_case CIC module johnson (clock, reset, count); input clock, reset; output [2:0] count; wire clock, reset; reg [2:0] count; always @(negedge clock or posedge reset) if (reset == 1'b1) count <= 3'b000; else case (count) // synopsys full_case parallel_case 3'b000: count <= 3'b001; 3'b001: count <= 3'b011; 3'b011: count <= 3'b111; 3'b111: count <= 3'b110; 3'b110: count <= 3'b100; 3'b100: count <= 3'b000; endcase endmodule Y.T.Chang/2001.02/XLNX_HDL Coding-43

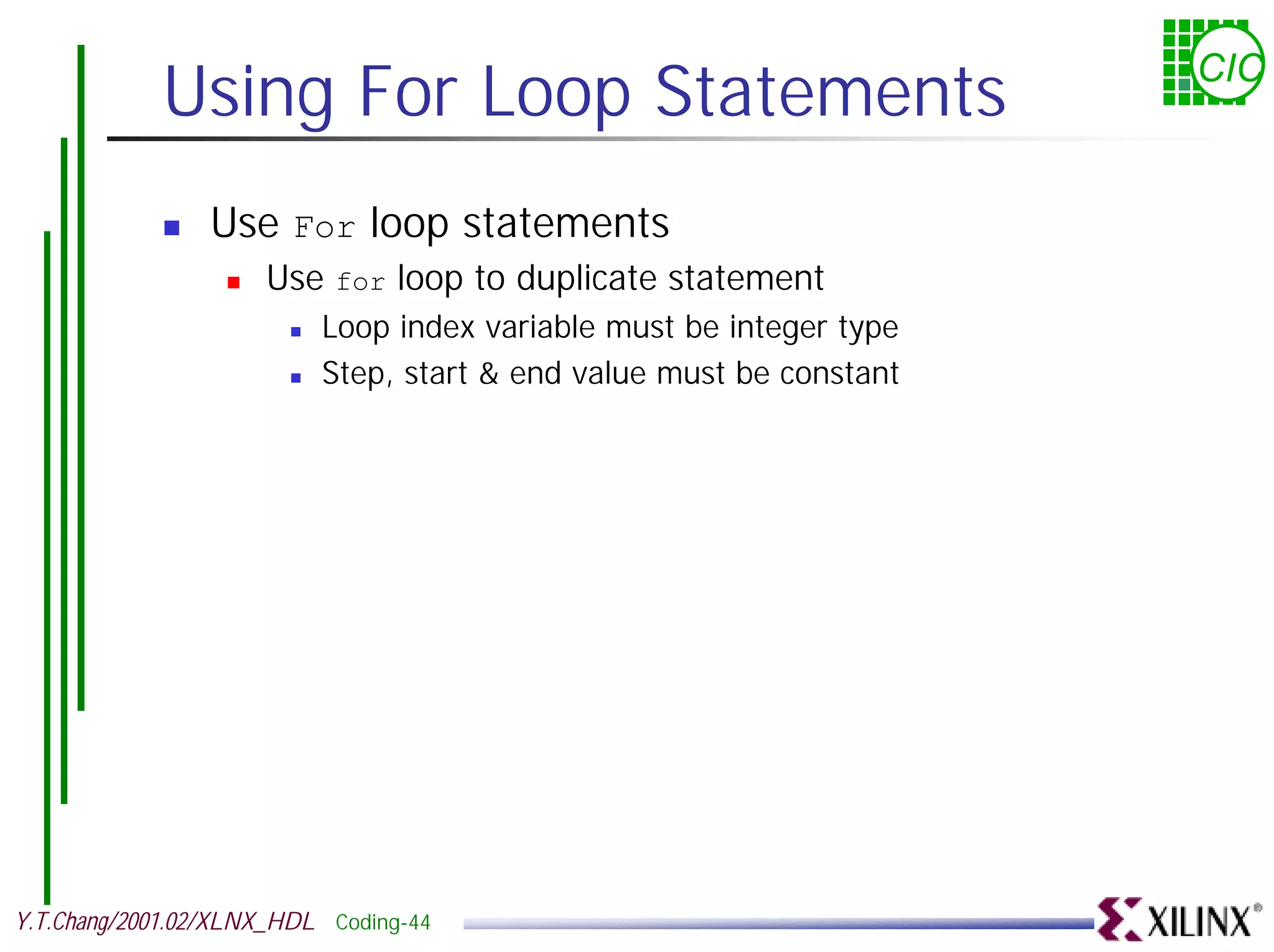

Using For Loop Statements CIC ! Use For loop statements ! Use for loop to duplicate statement ! Loop index variable must be integer type ! Step, start & end value must be constant Y.T.Chang/2001.02/XLNX_HDL Coding-44

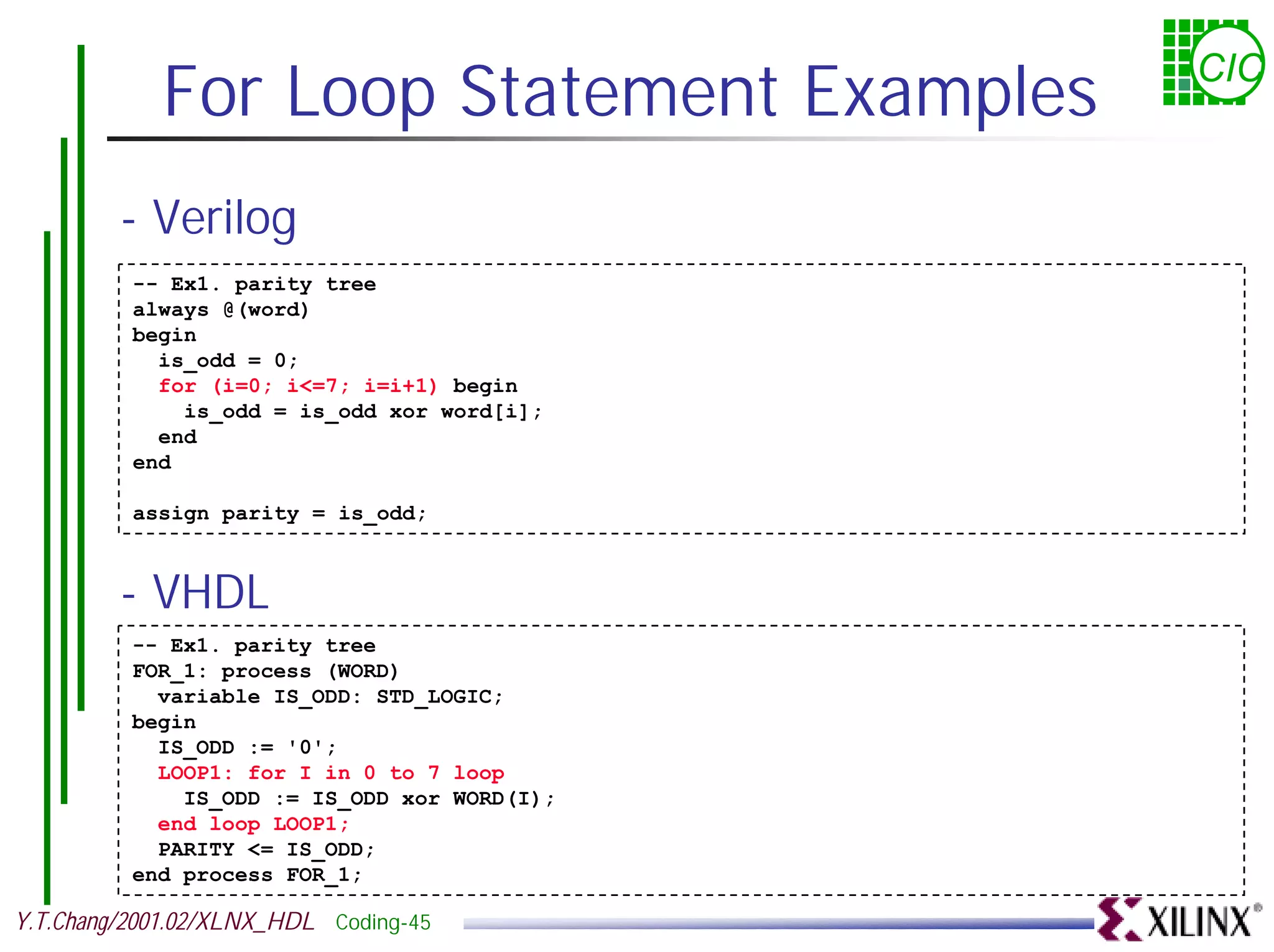

For Loop Statement Examples CIC - Verilog -- Ex1. parity tree always @(word) begin is_odd = 0; for (i=0; i<=7; i=i+1) begin is_odd = is_odd xor word[i]; end end assign parity = is_odd; - VHDL -- Ex1. parity tree FOR_1: process (WORD) variable IS_ODD: STD_LOGIC; begin IS_ODD := '0'; LOOP1: for I in 0 to 7 loop IS_ODD := IS_ODD xor WORD(I); end loop LOOP1; PARITY <= IS_ODD; end process FOR_1; Y.T.Chang/2001.02/XLNX_HDL Coding-45

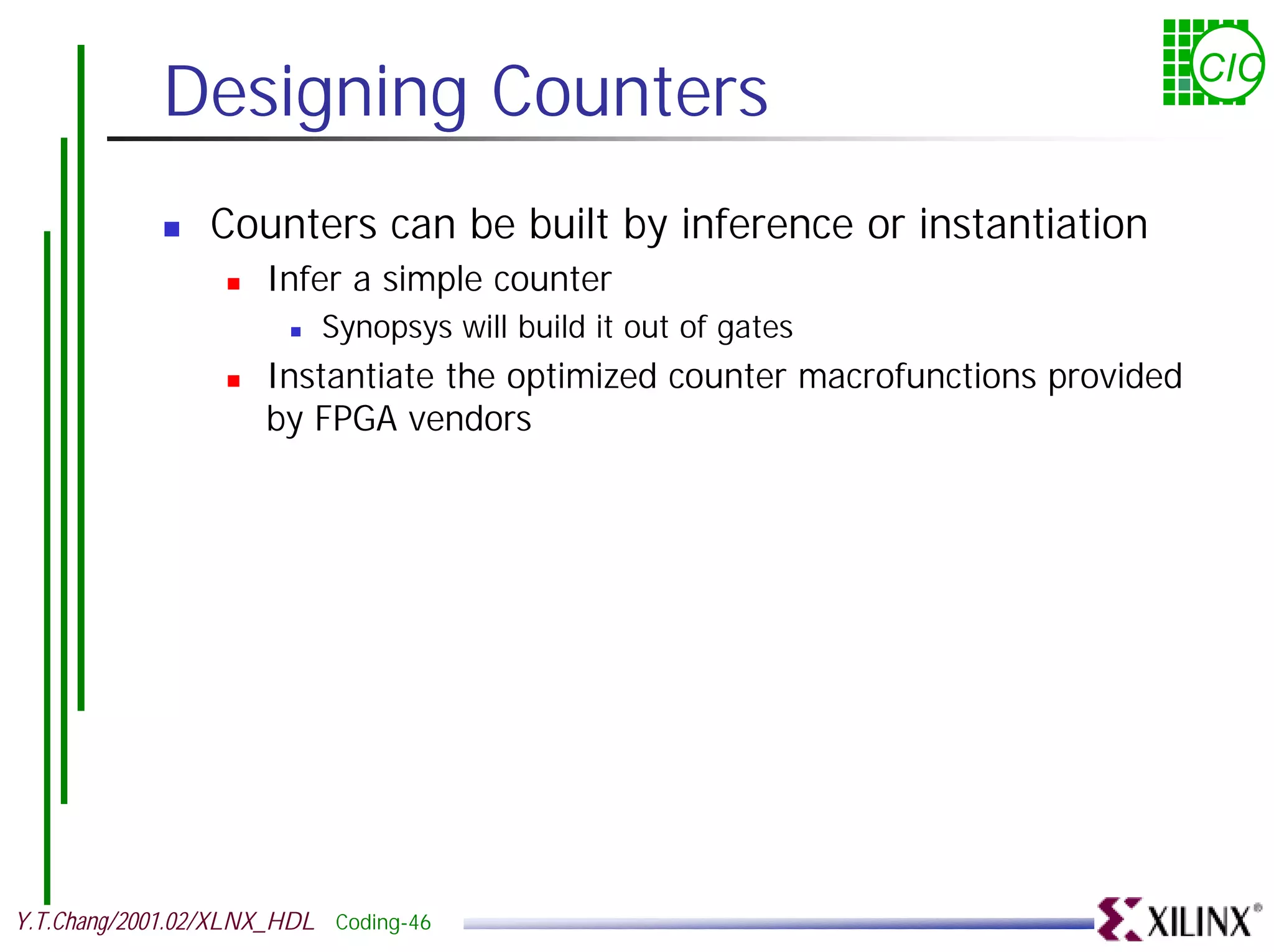

Designing Counters CIC ! Counters can be built by inference or instantiation ! Infer a simple counter ! Synopsys will build it out of gates ! Instantiate the optimized counter macrofunctions provided by FPGA vendors Y.T.Chang/2001.02/XLNX_HDL Coding-46

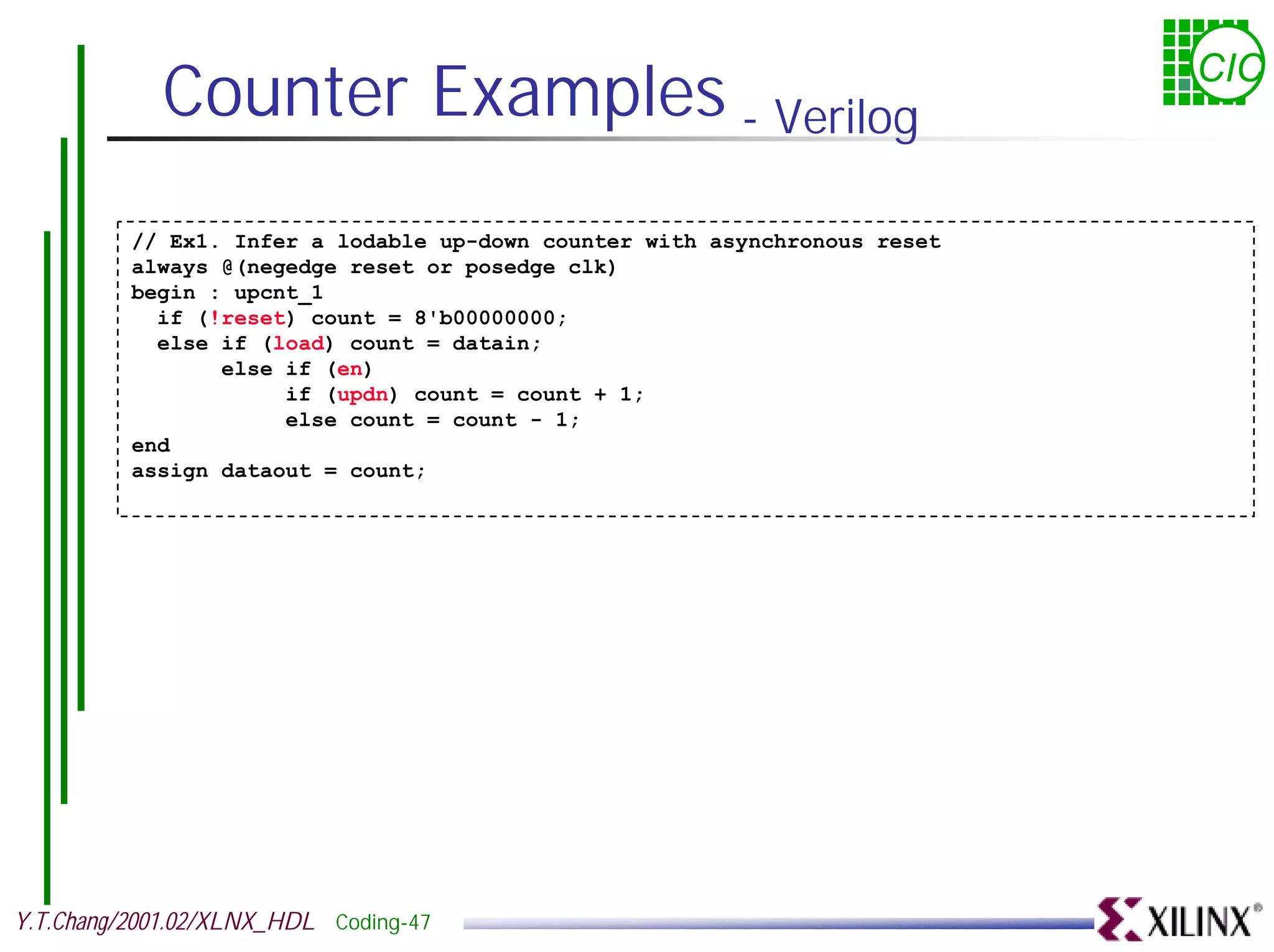

Counter Examples - Verilog CIC // Ex1. Infer a lodable up-down counter with asynchronous reset always @(negedge reset or posedge clk) begin : upcnt_1 if (!reset) count = 8'b00000000; else if (load) count = datain; else if (en) if (updn) count = count + 1; else count = count - 1; end assign dataout = count; Y.T.Chang/2001.02/XLNX_HDL Coding-47

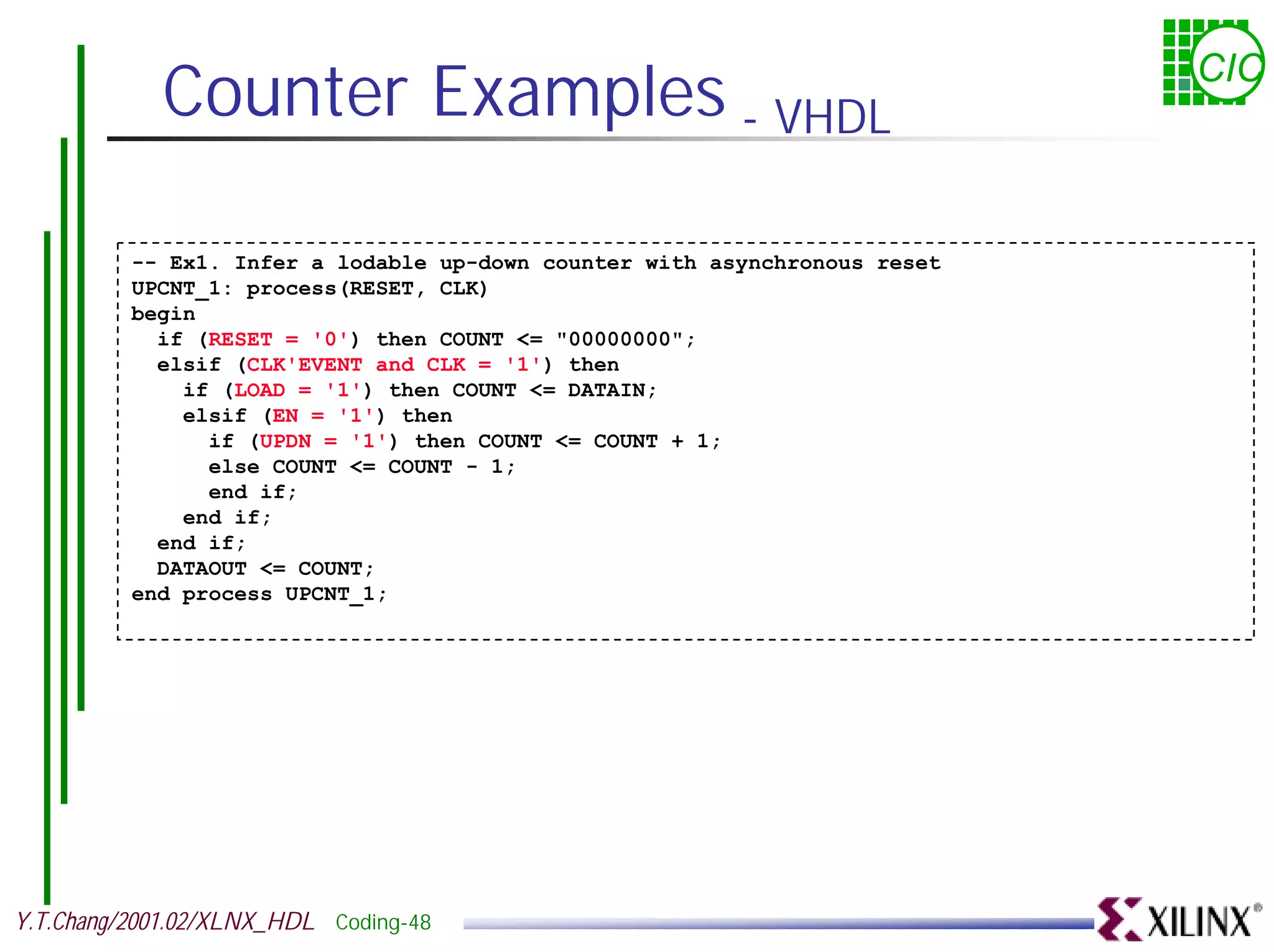

Counter Examples - VHDL CIC -- Ex1. Infer a lodable up-down counter with asynchronous reset UPCNT_1: process(RESET, CLK) begin if (RESET = '0') then COUNT <= "00000000"; elsif (CLK'EVENT and CLK = '1') then if (LOAD = '1') then COUNT <= DATAIN; elsif (EN = '1') then if (UPDN = '1') then COUNT <= COUNT + 1; else COUNT <= COUNT - 1; end if; end if; end if; DATAOUT <= COUNT; end process UPCNT_1; Y.T.Chang/2001.02/XLNX_HDL Coding-48

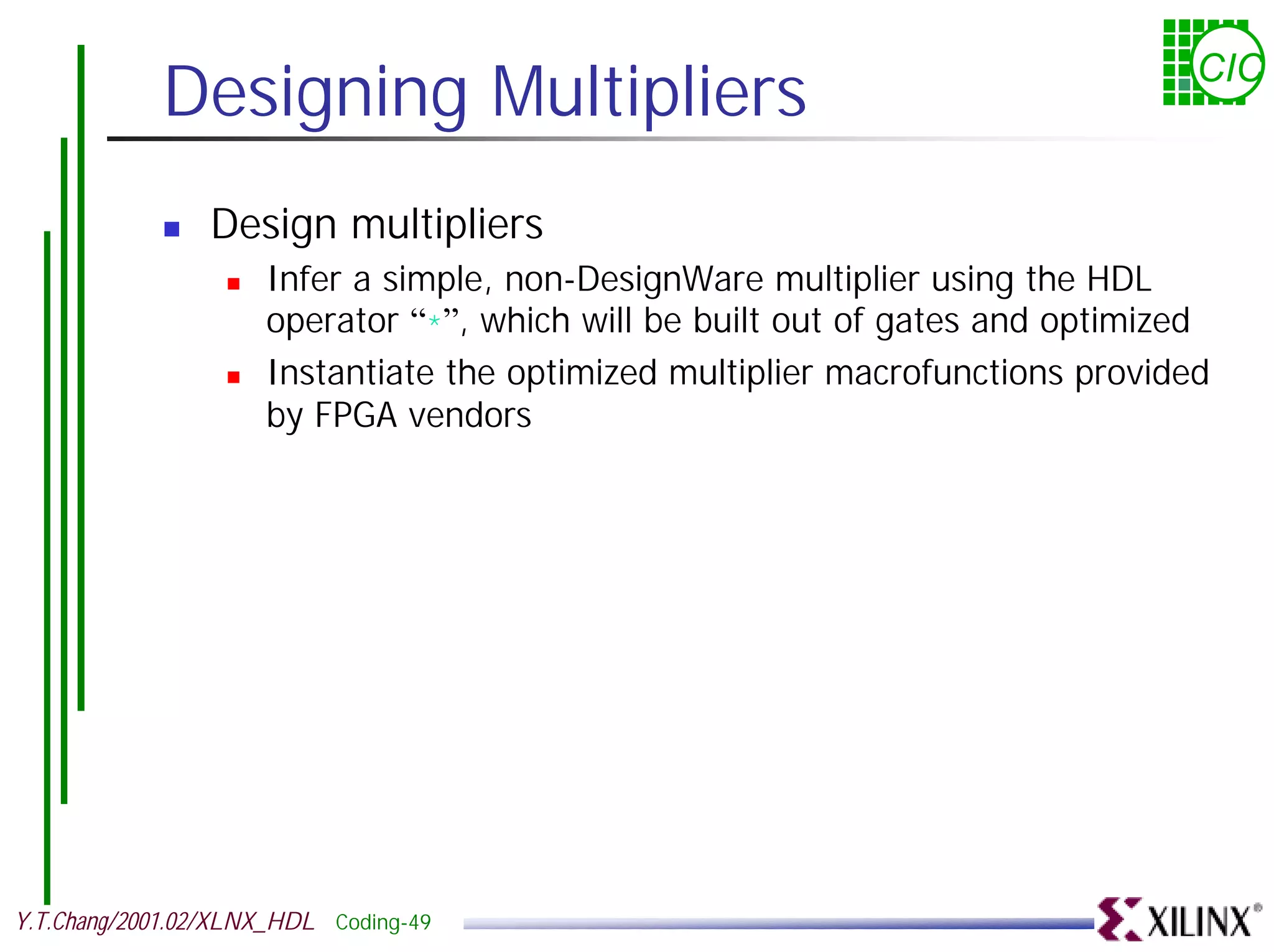

Designing Multipliers CIC ! Design multipliers ! Infer a simple, non-DesignWare multiplier using the HDL operator “*”, which will be built out of gates and optimized ! Instantiate the optimized multiplier macrofunctions provided by FPGA vendors Y.T.Chang/2001.02/XLNX_HDL Coding-49

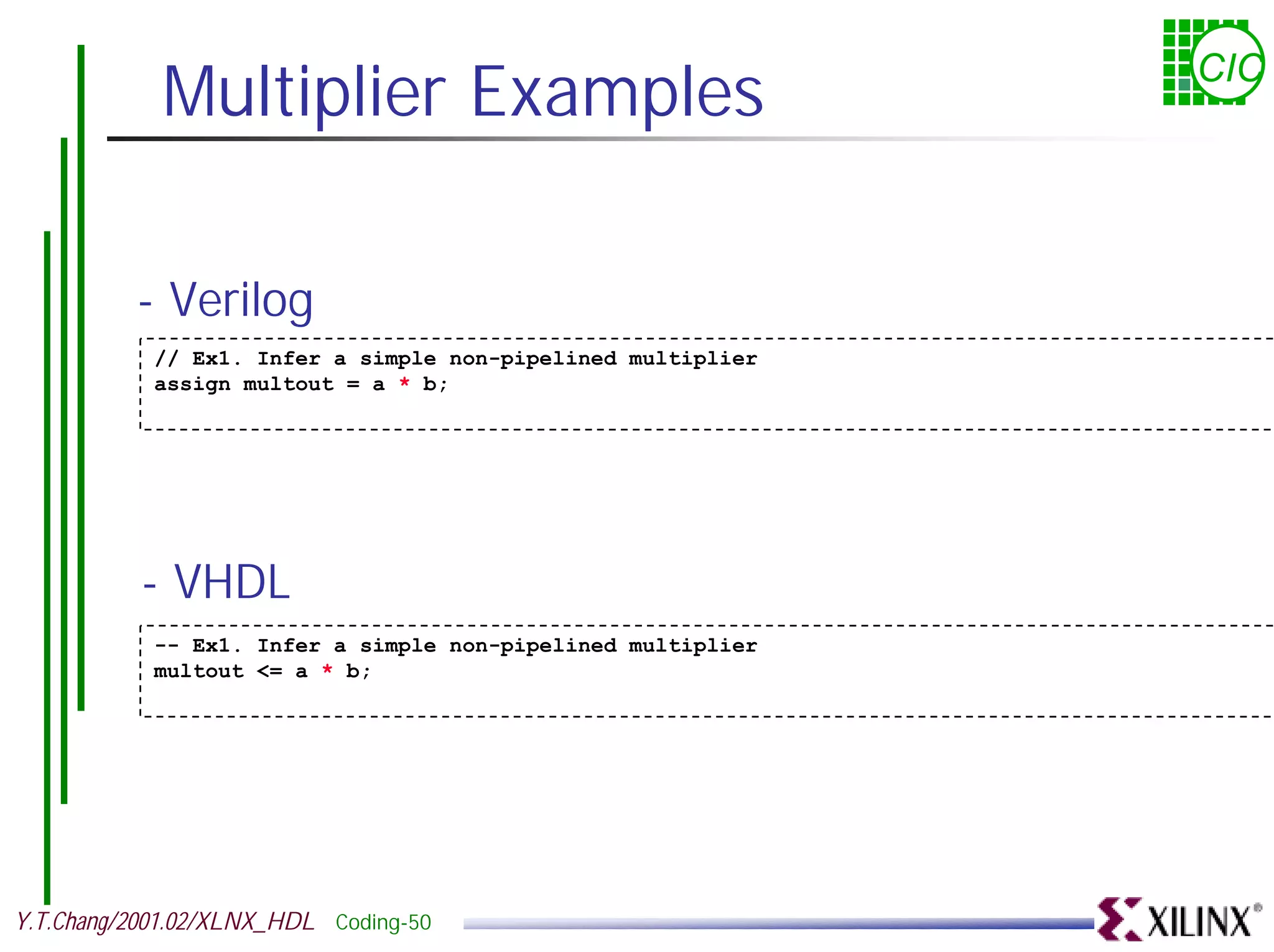

Multiplier Examples CIC - Verilog // Ex1. Infer a simple non-pipelined multiplier assign multout = a * b; - VHDL -- Ex1. Infer a simple non-pipelined multiplier multout <= a * b; Y.T.Chang/2001.02/XLNX_HDL Coding-50

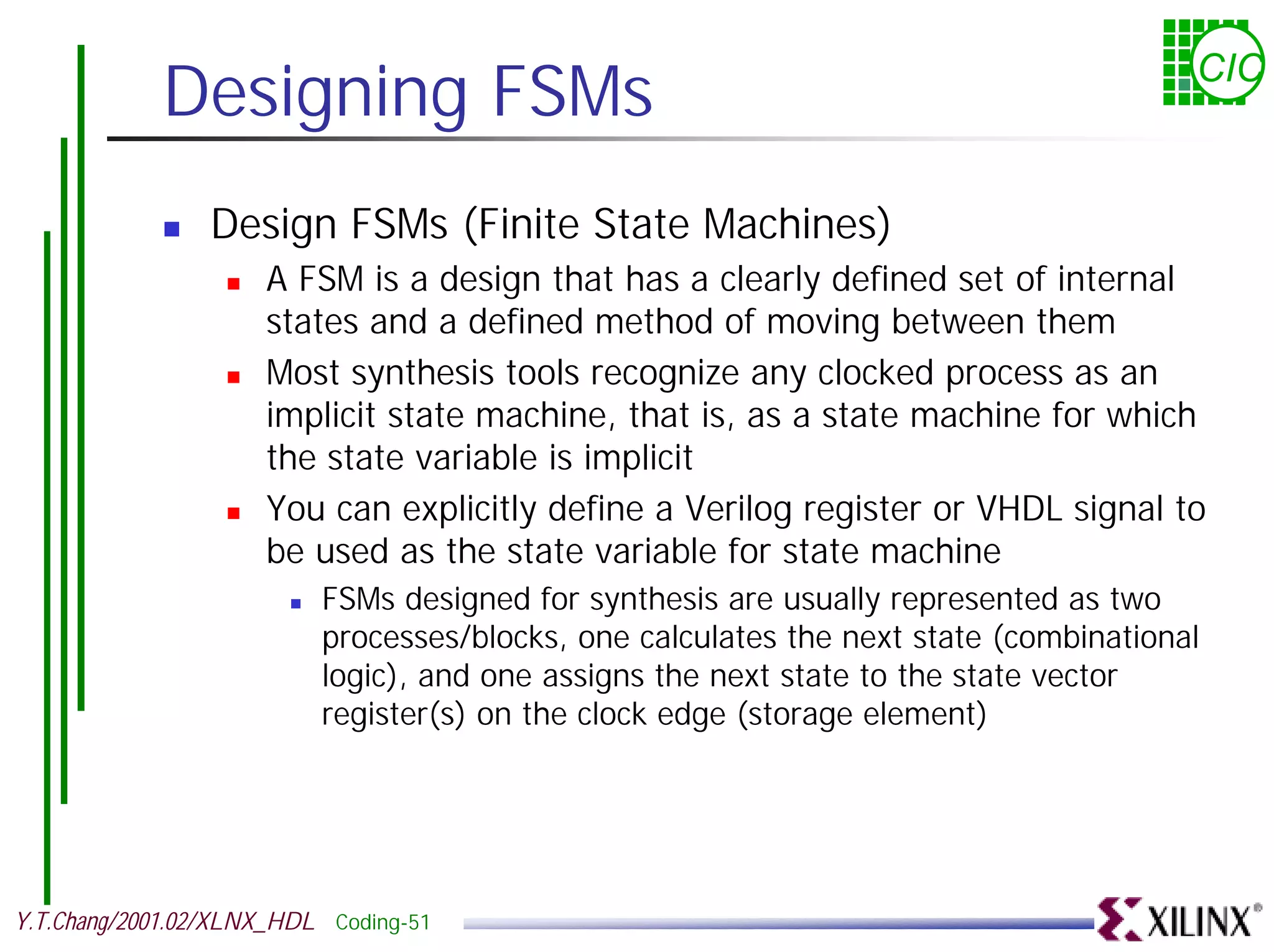

Designing FSMs CIC ! Design FSMs (Finite State Machines) ! A FSM is a design that has a clearly defined set of internal states and a defined method of moving between them ! Most synthesis tools recognize any clocked process as an implicit state machine, that is, as a state machine for which the state variable is implicit ! You can explicitly define a Verilog register or VHDL signal to be used as the state variable for state machine ! FSMs designed for synthesis are usually represented as two processes/blocks, one calculates the next state (combinational logic), and one assigns the next state to the state vector register(s) on the clock edge (storage element) Y.T.Chang/2001.02/XLNX_HDL Coding-51

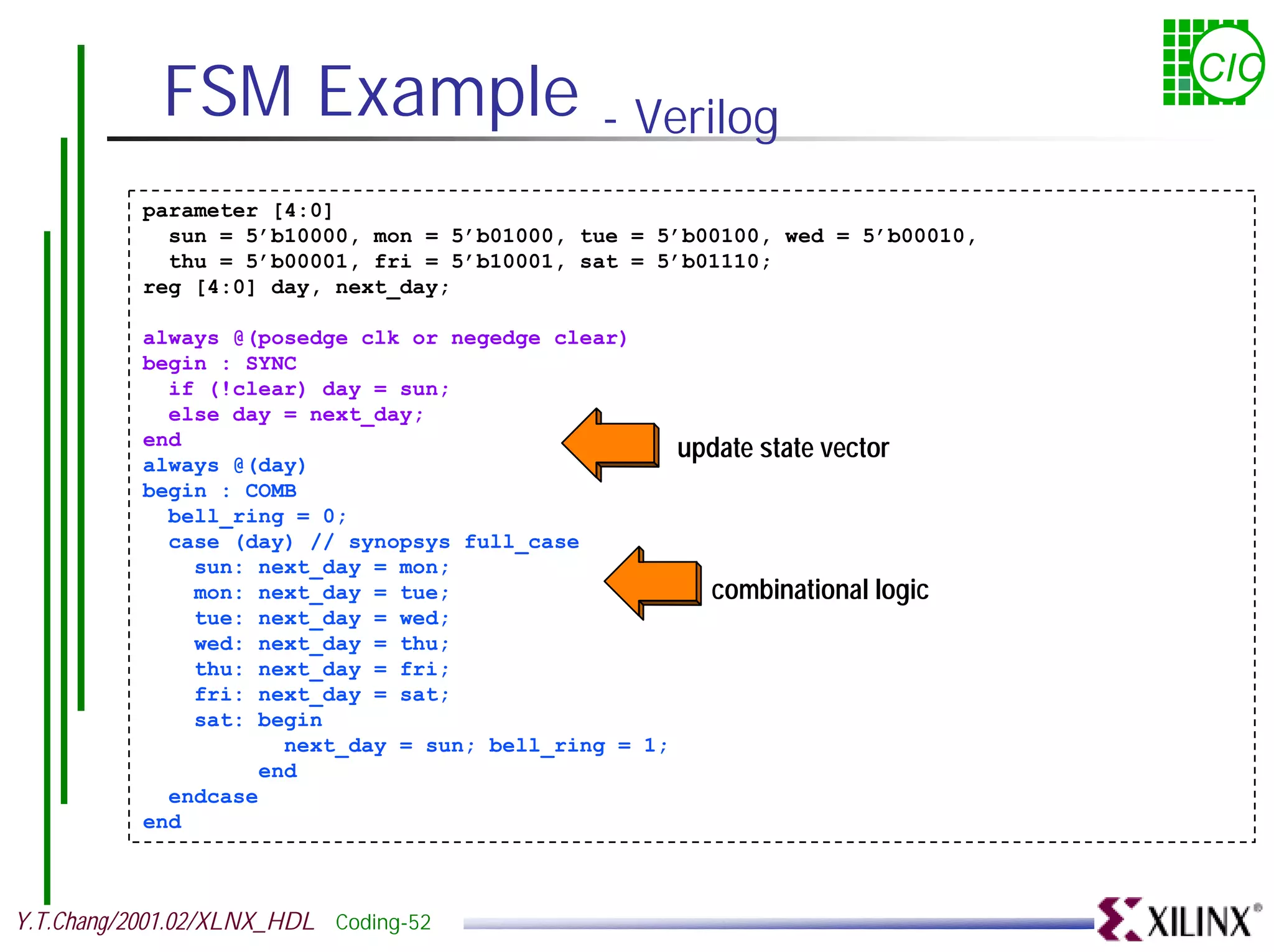

FSM Example - Verilog CIC parameter [4:0] sun = 5’b10000, mon = 5’b01000, tue = 5’b00100, wed = 5’b00010, thu = 5’b00001, fri = 5’b10001, sat = 5’b01110; reg [4:0] day, next_day; always @(posedge clk or negedge clear) begin : SYNC if (!clear) day = sun; else day = next_day; end update state vector always @(day) begin : COMB bell_ring = 0; case (day) // synopsys full_case sun: next_day = mon; mon: next_day = tue; combinational logic tue: next_day = wed; wed: next_day = thu; thu: next_day = fri; fri: next_day = sat; sat: begin next_day = sun; bell_ring = 1; end endcase end Y.T.Chang/2001.02/XLNX_HDL Coding-52

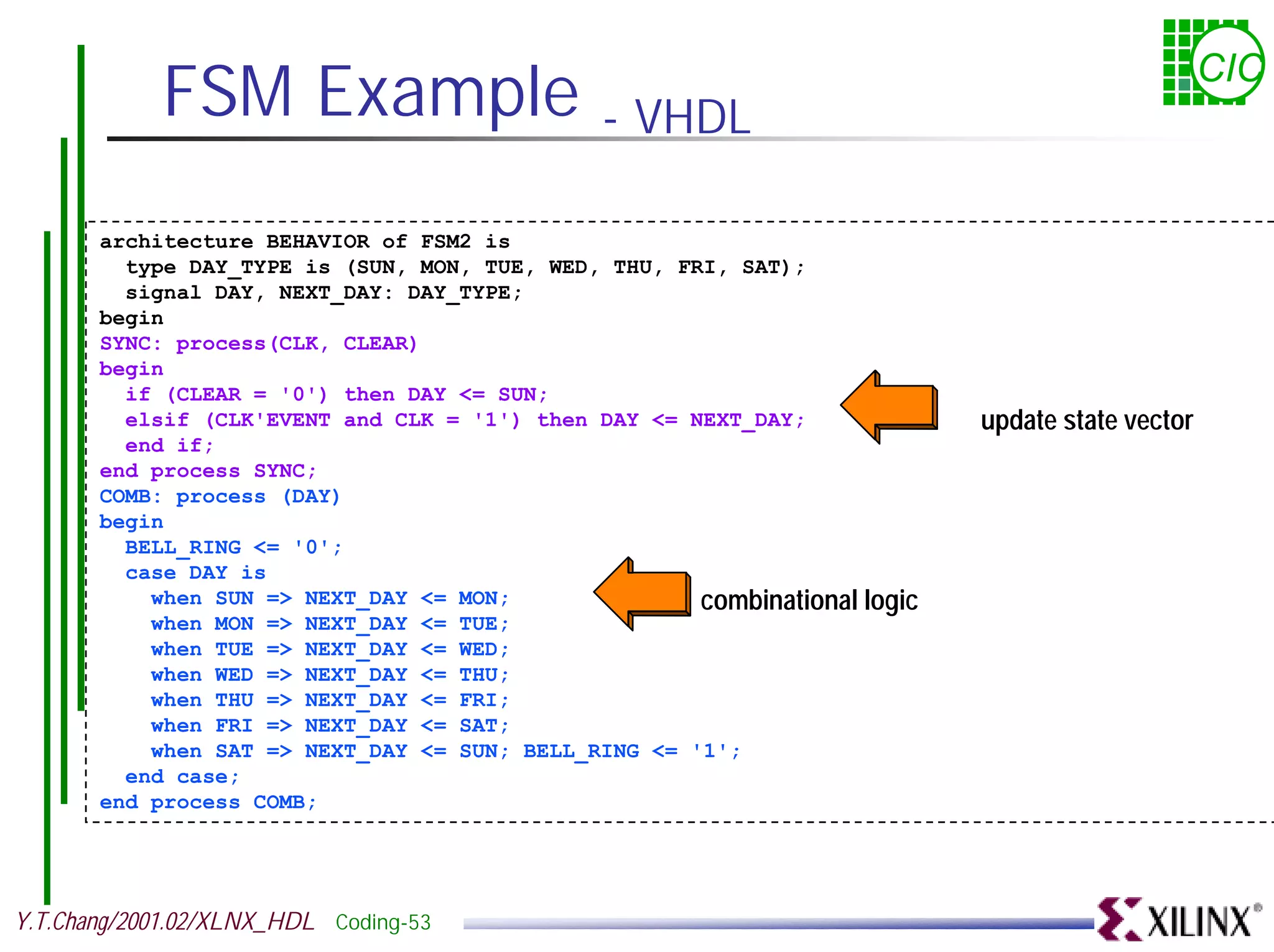

FSM Example - VHDL CIC architecture BEHAVIOR of FSM2 is type DAY_TYPE is (SUN, MON, TUE, WED, THU, FRI, SAT); signal DAY, NEXT_DAY: DAY_TYPE; begin SYNC: process(CLK, CLEAR) begin if (CLEAR = '0') then DAY <= SUN; elsif (CLK'EVENT and CLK = '1') then DAY <= NEXT_DAY; update state vector end if; end process SYNC; COMB: process (DAY) begin BELL_RING <= '0'; case DAY is when SUN => NEXT_DAY <= MON; combinational logic when MON => NEXT_DAY <= TUE; when TUE => NEXT_DAY <= WED; when WED => NEXT_DAY <= THU; when THU => NEXT_DAY <= FRI; when FRI => NEXT_DAY <= SAT; when SAT => NEXT_DAY <= SUN; BELL_RING <= '1'; end case; end process COMB; Y.T.Chang/2001.02/XLNX_HDL Coding-53

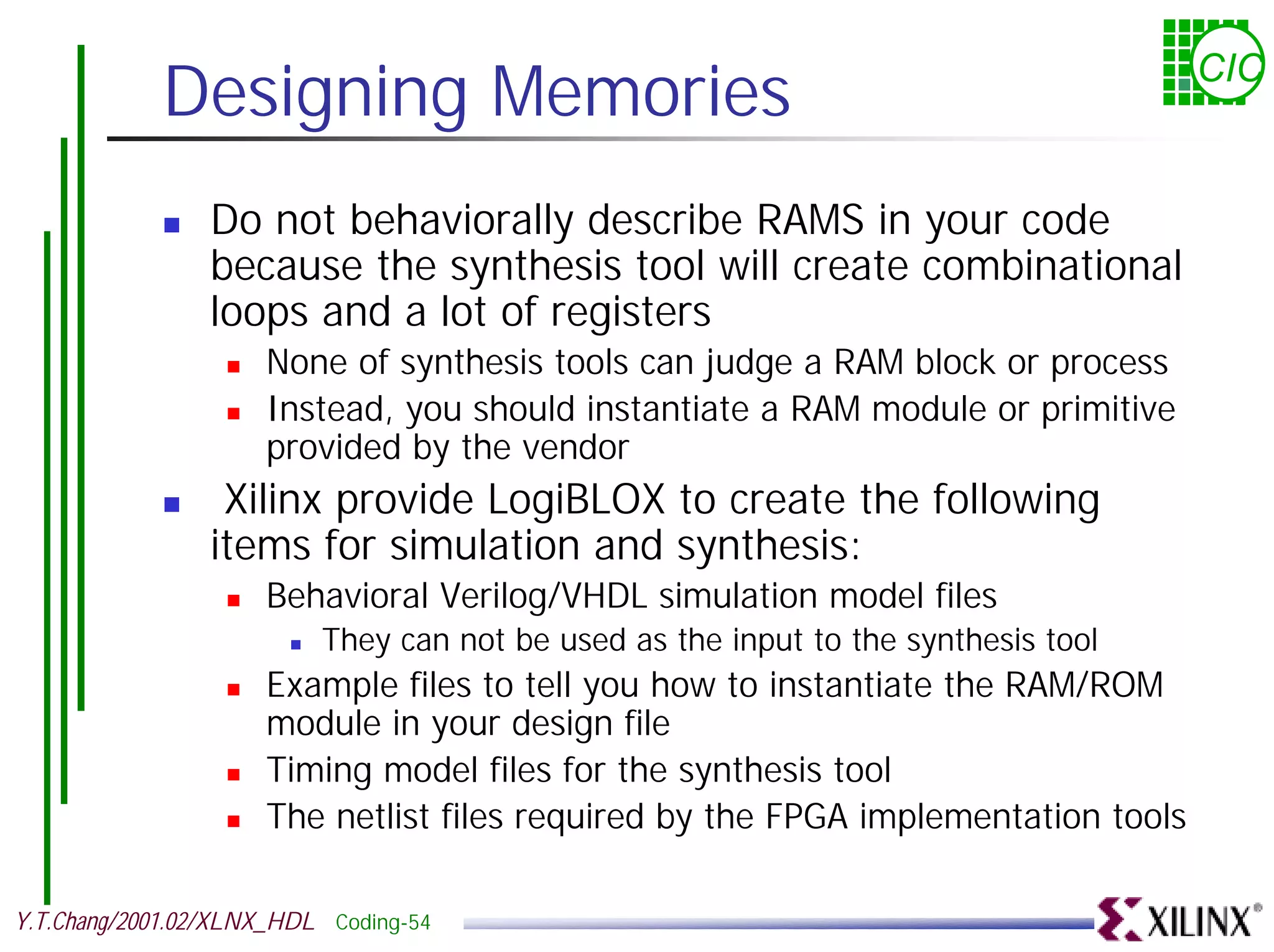

Designing Memories CIC ! Do not behaviorally describe RAMS in your code because the synthesis tool will create combinational loops and a lot of registers ! None of synthesis tools can judge a RAM block or process ! Instead, you should instantiate a RAM module or primitive provided by the vendor ! Xilinx provide LogiBLOX to create the following items for simulation and synthesis: ! Behavioral Verilog/VHDL simulation model files ! They can not be used as the input to the synthesis tool ! Example files to tell you how to instantiate the RAM/ROM module in your design file ! Timing model files for the synthesis tool ! The netlist files required by the FPGA implementation tools Y.T.Chang/2001.02/XLNX_HDL Coding-54

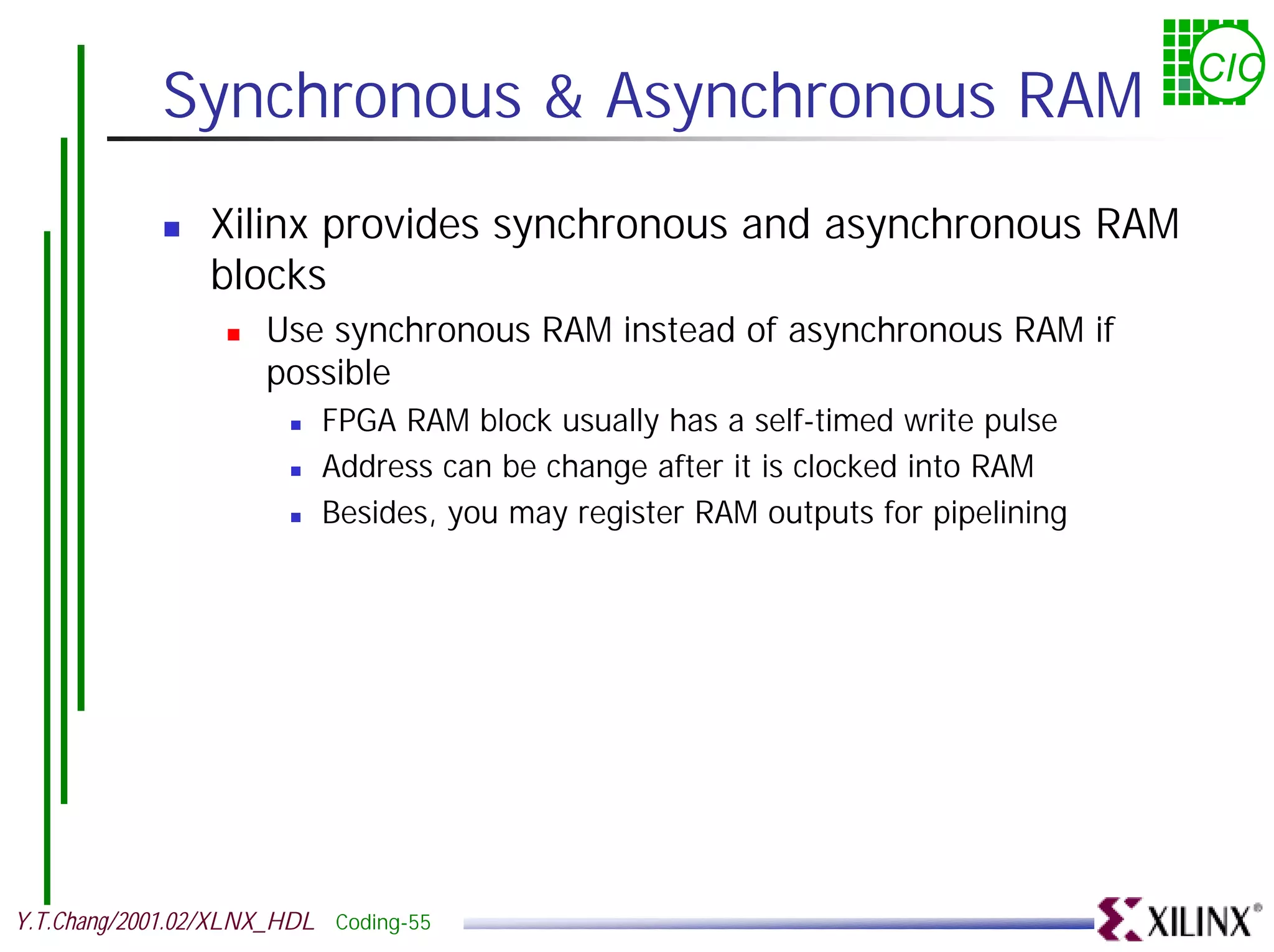

CIC Synchronous & Asynchronous RAM ! Xilinx provides synchronous and asynchronous RAM blocks ! Use synchronous RAM instead of asynchronous RAM if possible ! FPGA RAM block usually has a self-timed write pulse ! Address can be change after it is clocked into RAM ! Besides, you may register RAM outputs for pipelining Y.T.Chang/2001.02/XLNX_HDL Coding-55

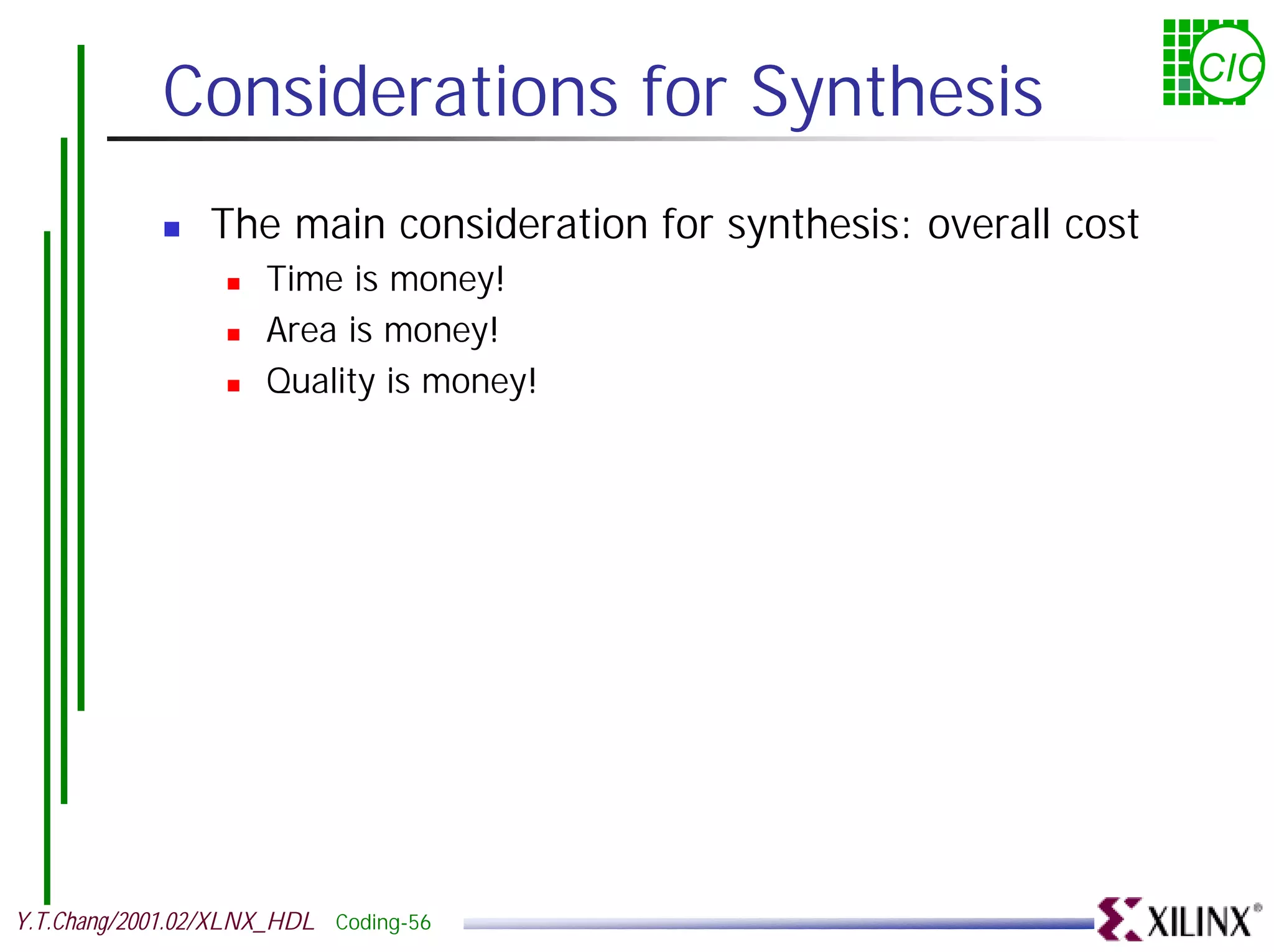

Considerations for Synthesis CIC ! The main consideration for synthesis: overall cost ! Time is money! ! Area is money! ! Quality is money! Y.T.Chang/2001.02/XLNX_HDL Coding-56

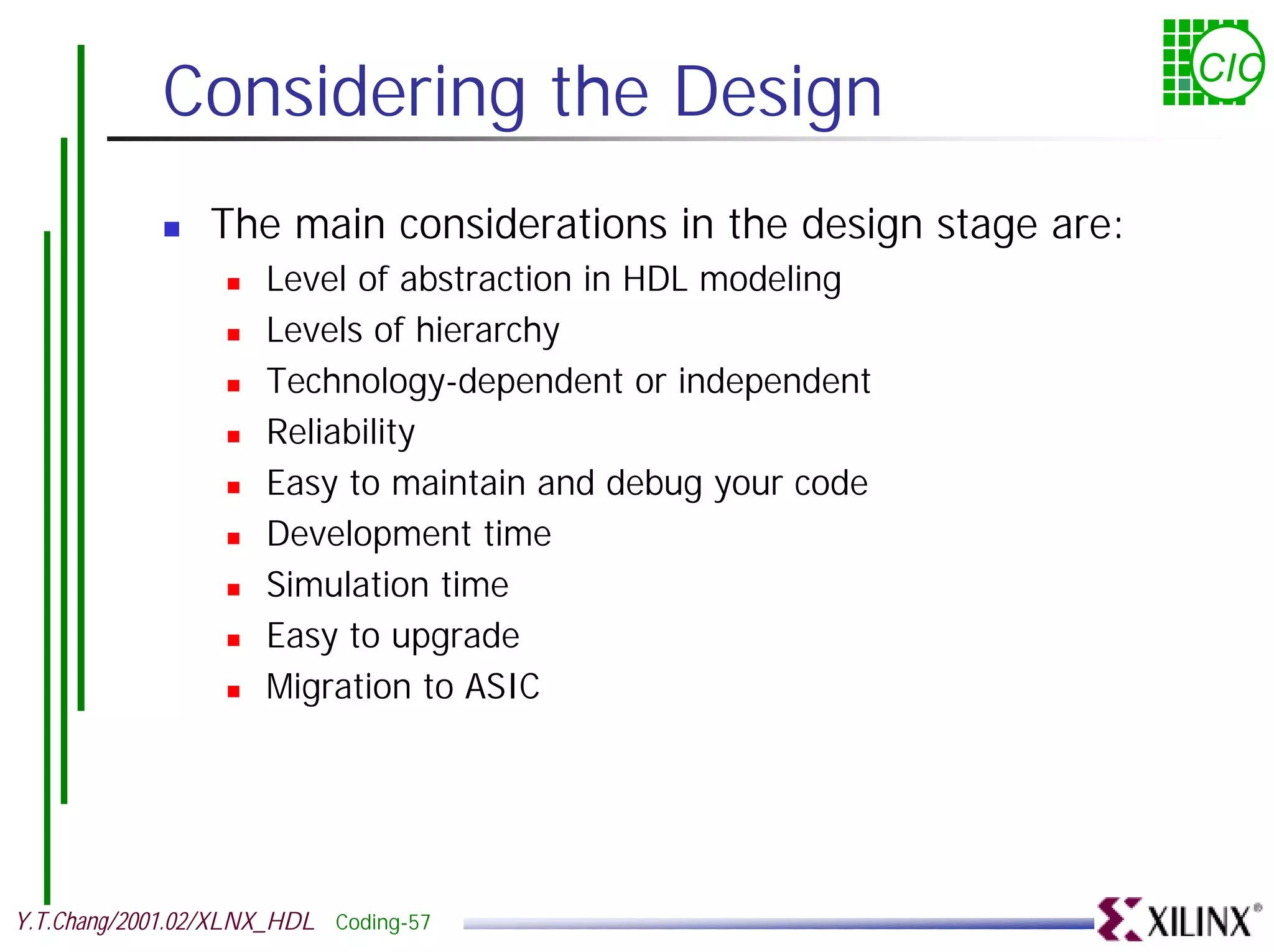

Considering the Design CIC ! The main considerations in the design stage are: ! Level of abstraction in HDL modeling ! Levels of hierarchy ! Technology-dependent or independent ! Reliability ! Easy to maintain and debug your code ! Development time ! Simulation time ! Easy to upgrade ! Migration to ASIC Y.T.Chang/2001.02/XLNX_HDL Coding-57

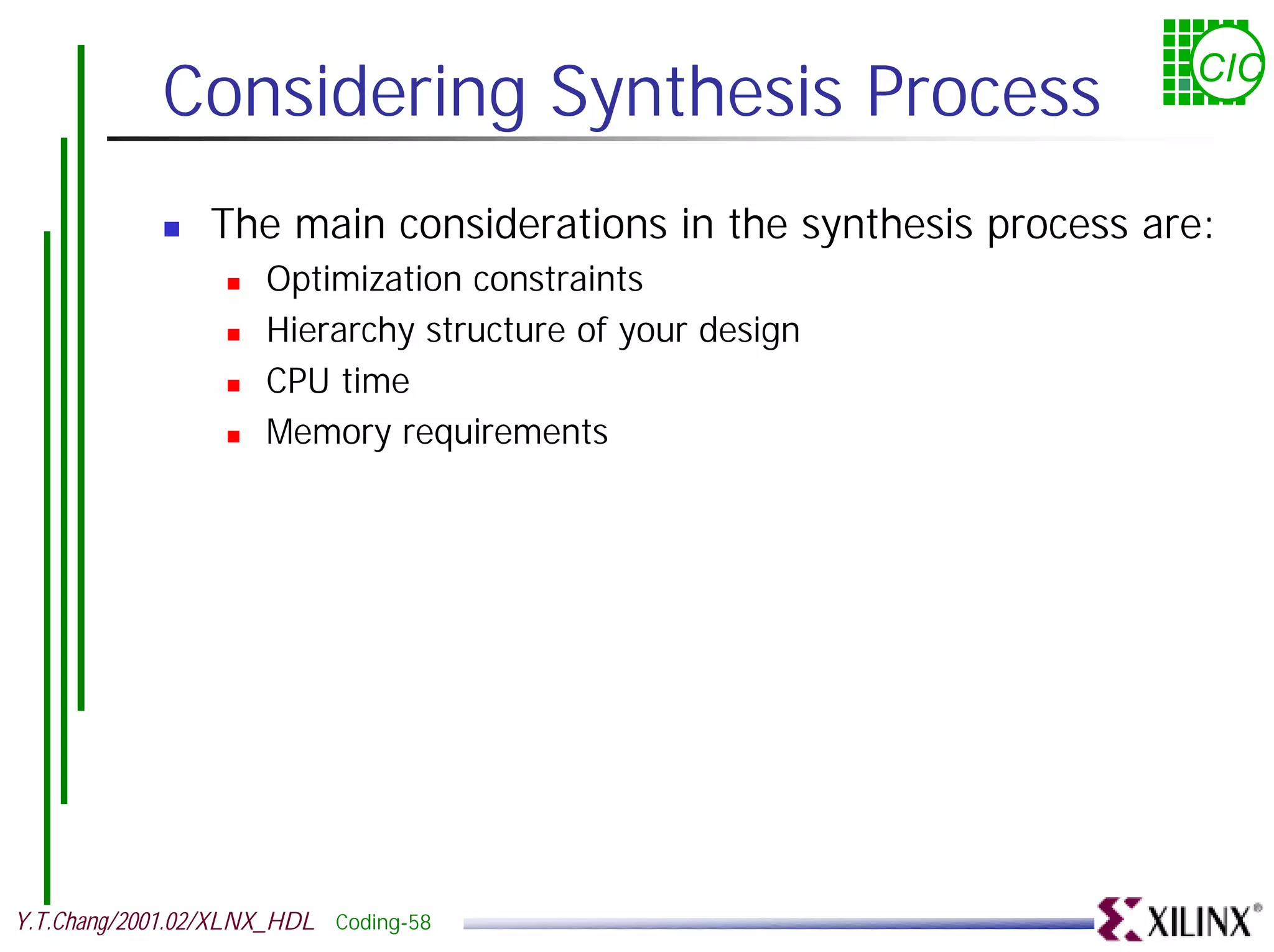

Considering Synthesis Process CIC ! The main considerations in the synthesis process are: ! Optimization constraints ! Hierarchy structure of your design ! CPU time ! Memory requirements Y.T.Chang/2001.02/XLNX_HDL Coding-58

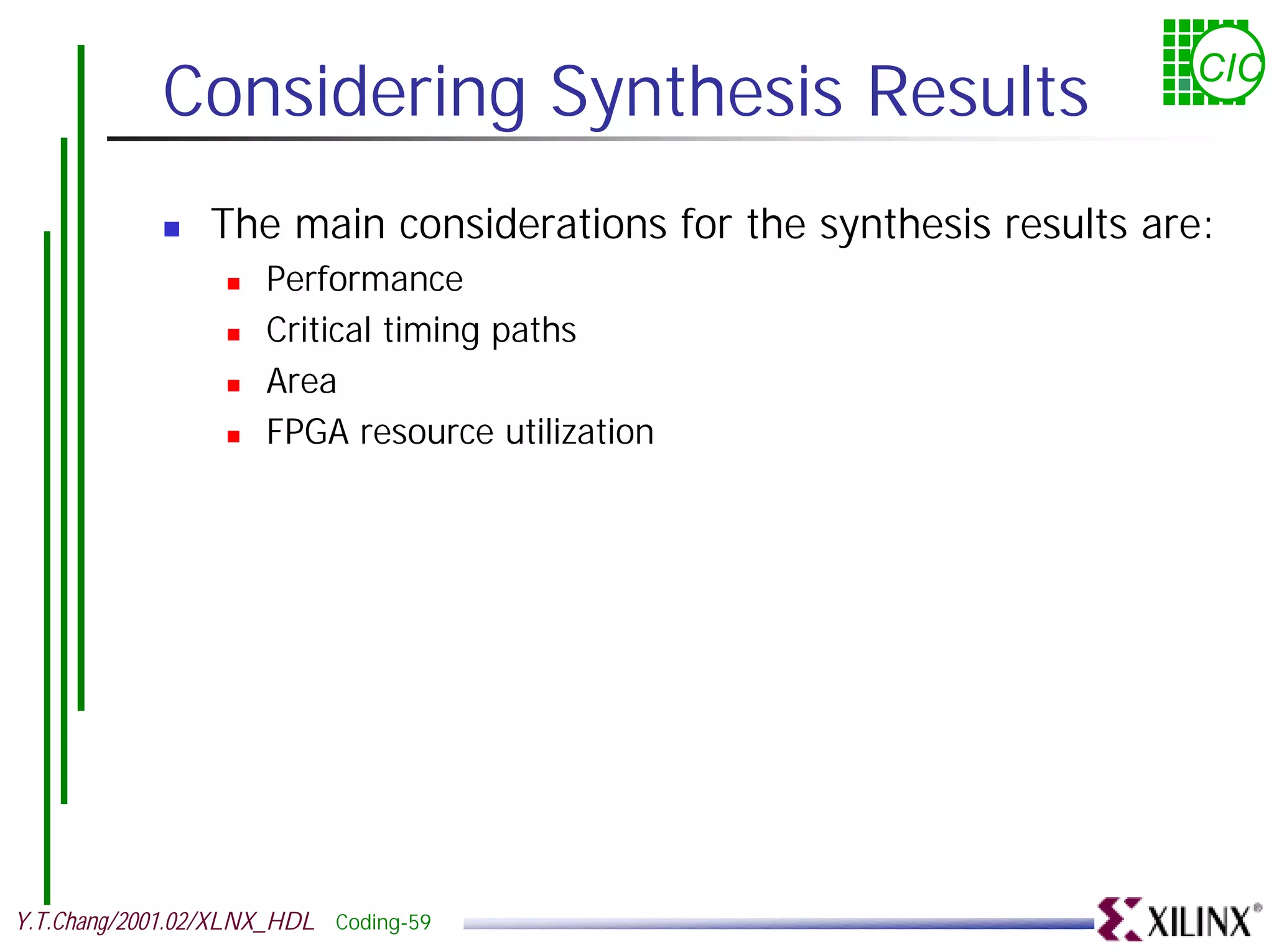

Considering Synthesis Results CIC ! The main considerations for the synthesis results are: ! Performance ! Critical timing paths ! Area ! FPGA resource utilization Y.T.Chang/2001.02/XLNX_HDL Coding-59

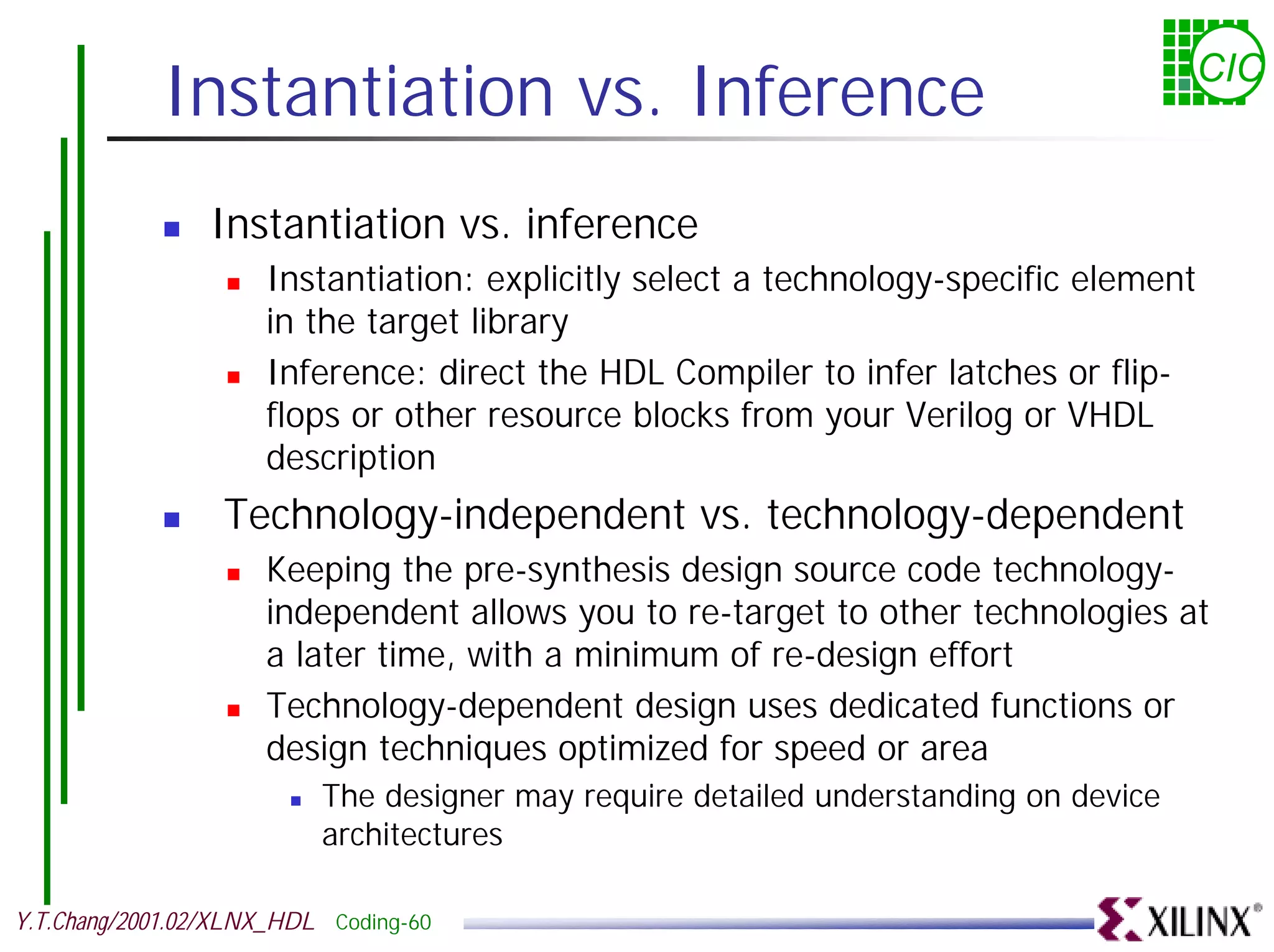

Instantiation vs. Inference CIC ! Instantiation vs. inference ! Instantiation: explicitly select a technology-specific element in the target library ! Inference: direct the HDL Compiler to infer latches or flip- flops or other resource blocks from your Verilog or VHDL description ! Technology-independent vs. technology-dependent ! Keeping the pre-synthesis design source code technology- independent allows you to re-target to other technologies at a later time, with a minimum of re-design effort ! Technology-dependent design uses dedicated functions or design techniques optimized for speed or area ! The designer may require detailed understanding on device architectures Y.T.Chang/2001.02/XLNX_HDL Coding-60

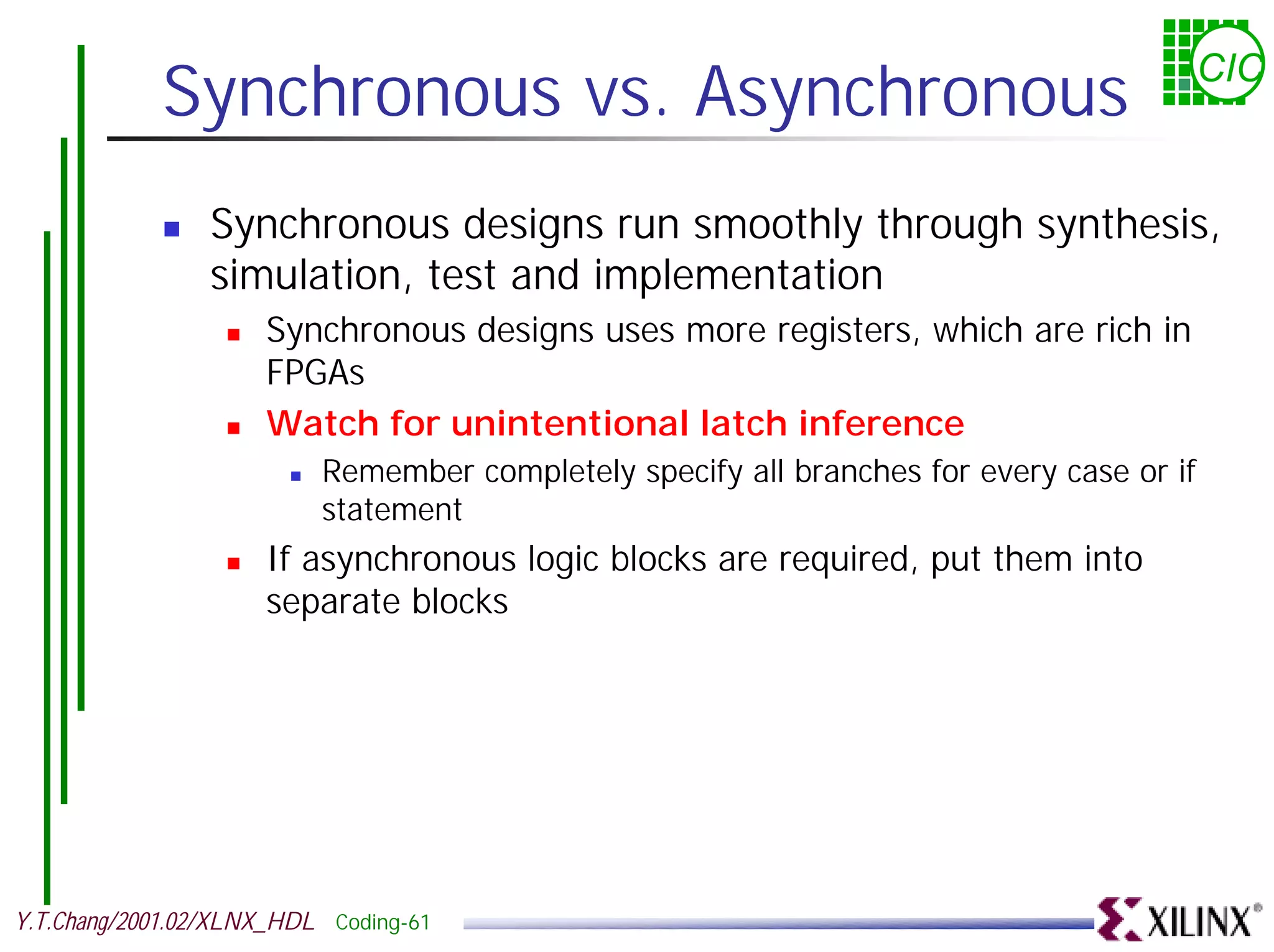

Synchronous vs. Asynchronous CIC ! Synchronous designs run smoothly through synthesis, simulation, test and implementation ! Synchronous designs uses more registers, which are rich in FPGAs ! Watch for unintentional latch inference ! Remember completely specify all branches for every case or if statement ! If asynchronous logic blocks are required, put them into separate blocks Y.T.Chang/2001.02/XLNX_HDL Coding-61

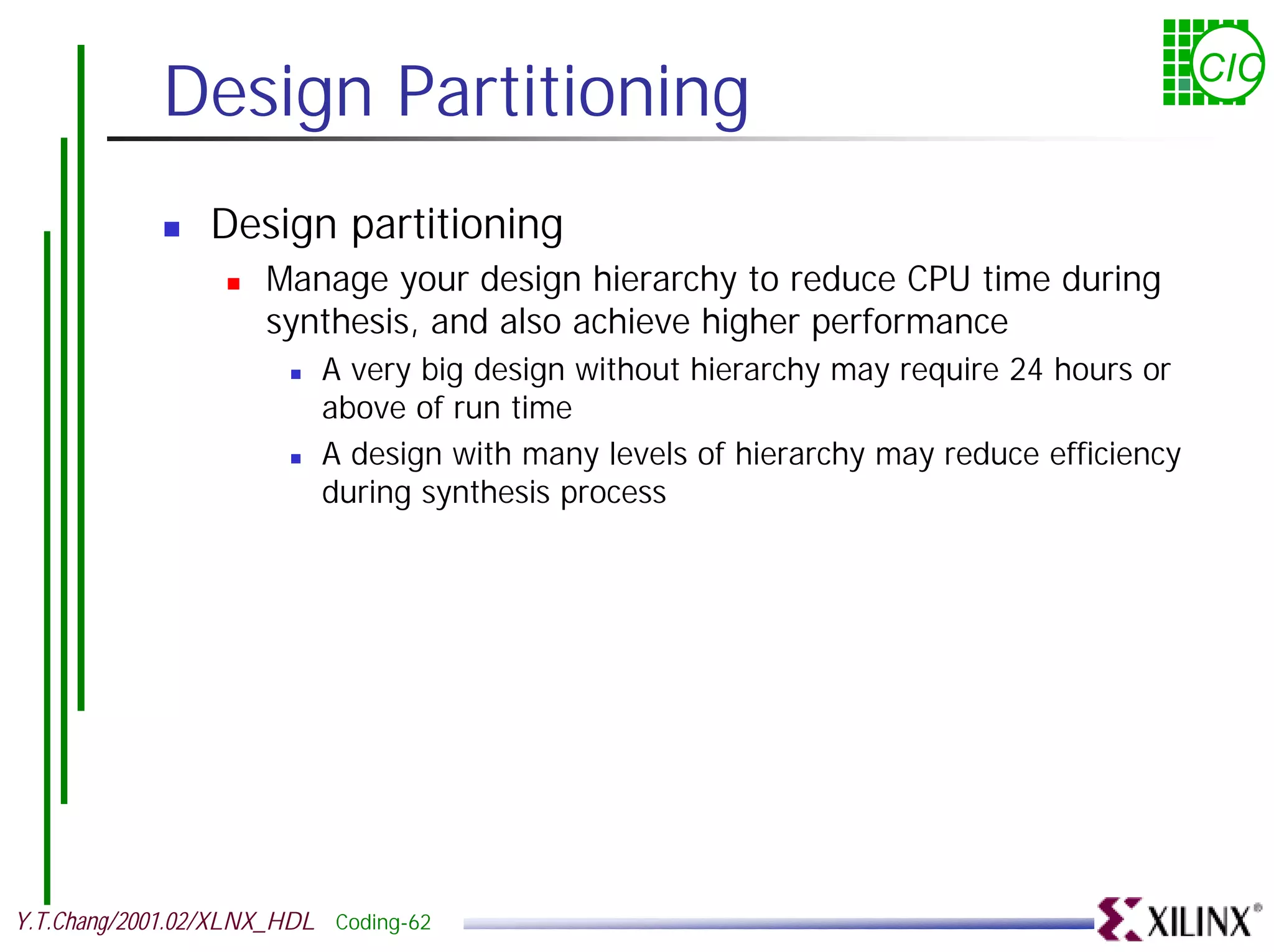

Design Partitioning CIC ! Design partitioning ! Manage your design hierarchy to reduce CPU time during synthesis, and also achieve higher performance ! A very big design without hierarchy may require 24 hours or above of run time ! A design with many levels of hierarchy may reduce efficiency during synthesis process Y.T.Chang/2001.02/XLNX_HDL Coding-62

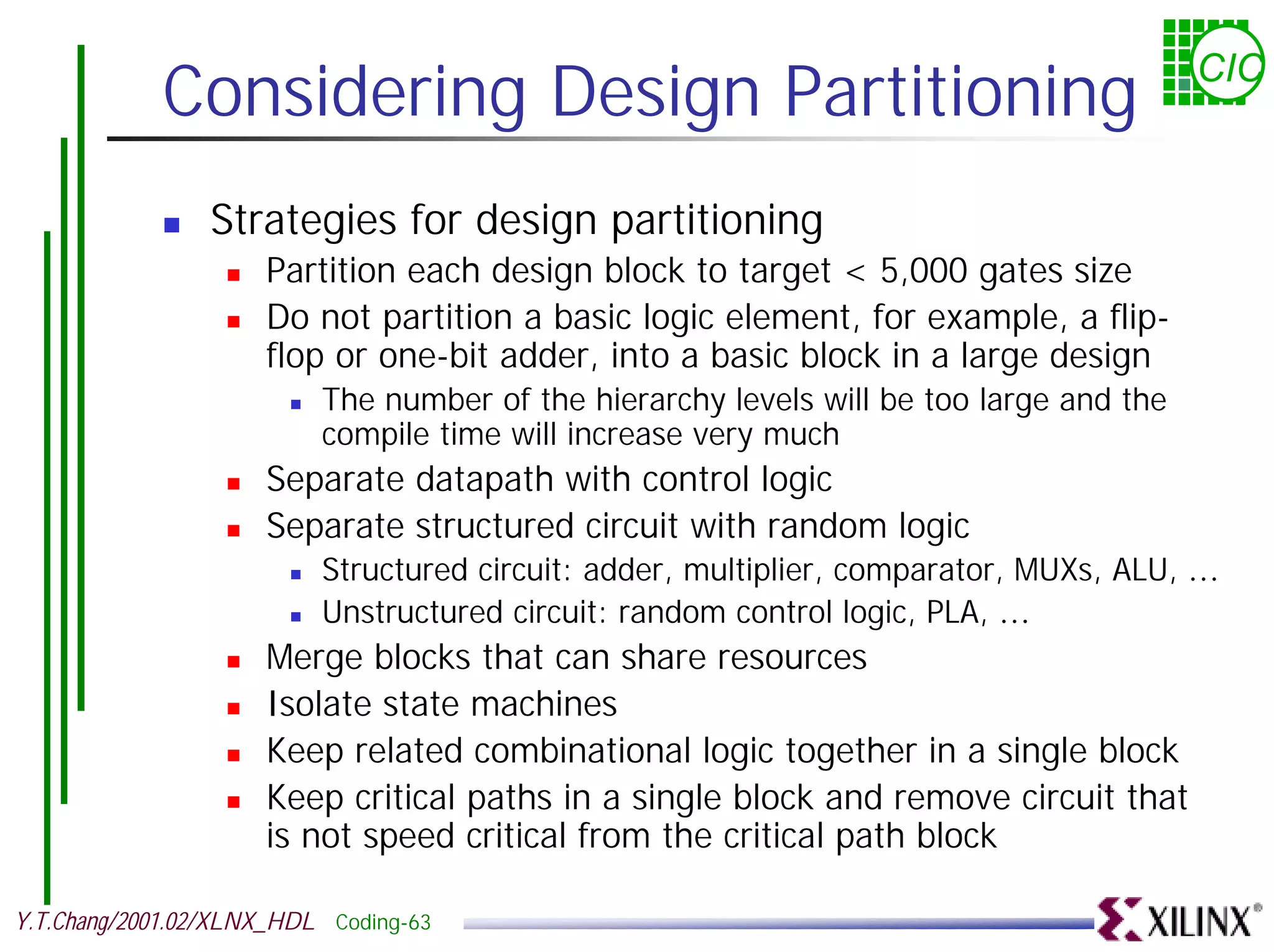

Considering Design Partitioning CIC ! Strategies for design partitioning ! Partition each design block to target < 5,000 gates size ! Do not partition a basic logic element, for example, a flip- flop or one-bit adder, into a basic block in a large design ! The number of the hierarchy levels will be too large and the compile time will increase very much ! Separate datapath with control logic ! Separate structured circuit with random logic ! Structured circuit: adder, multiplier, comparator, MUXs, ALU, … ! Unstructured circuit: random control logic, PLA, … ! Merge blocks that can share resources ! Isolate state machines ! Keep related combinational logic together in a single block ! Keep critical paths in a single block and remove circuit that is not speed critical from the critical path block Y.T.Chang/2001.02/XLNX_HDL Coding-63

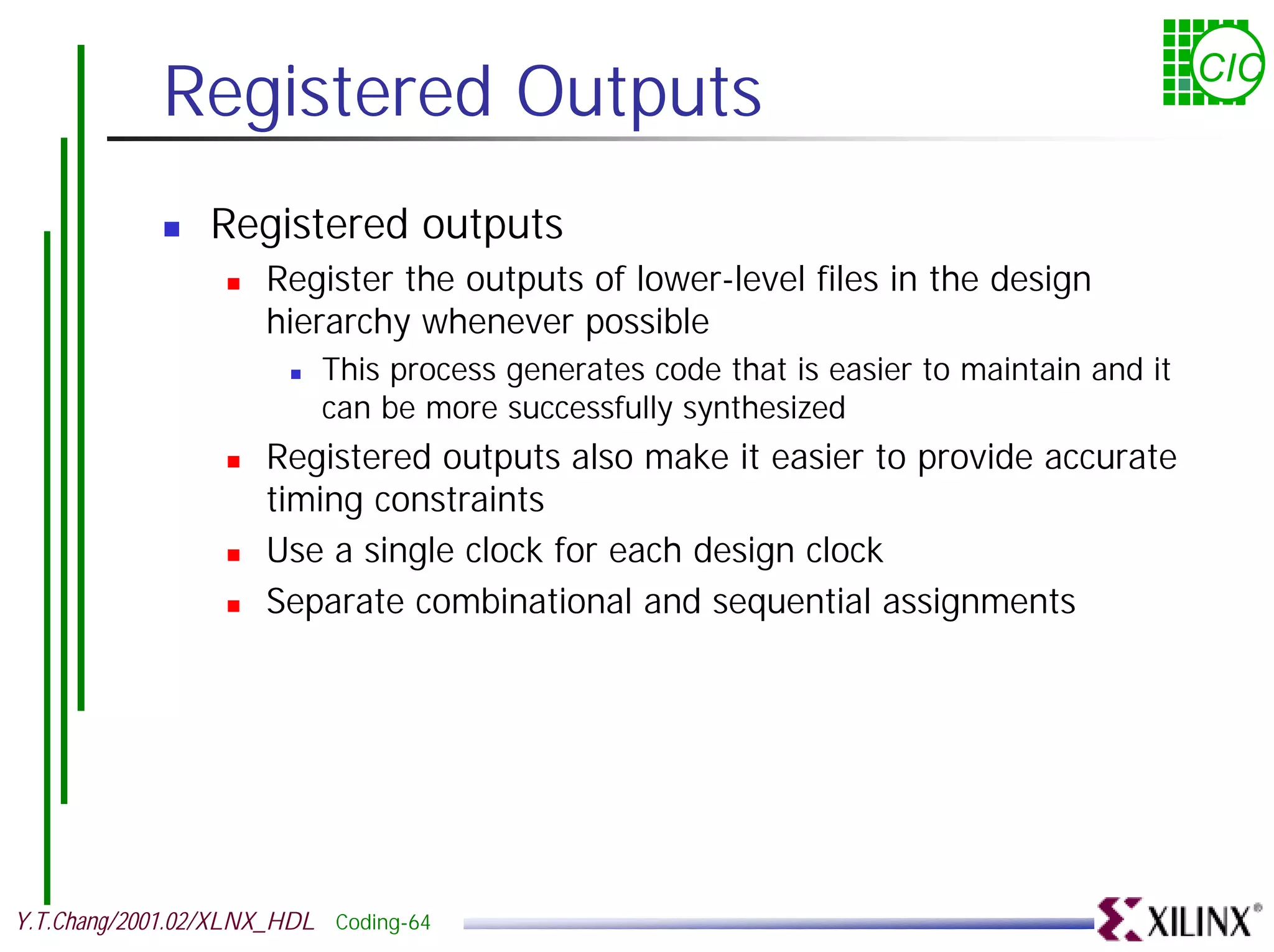

Registered Outputs CIC ! Registered outputs ! Register the outputs of lower-level files in the design hierarchy whenever possible ! This process generates code that is easier to maintain and it can be more successfully synthesized ! Registered outputs also make it easier to provide accurate timing constraints ! Use a single clock for each design clock ! Separate combinational and sequential assignments Y.T.Chang/2001.02/XLNX_HDL Coding-64

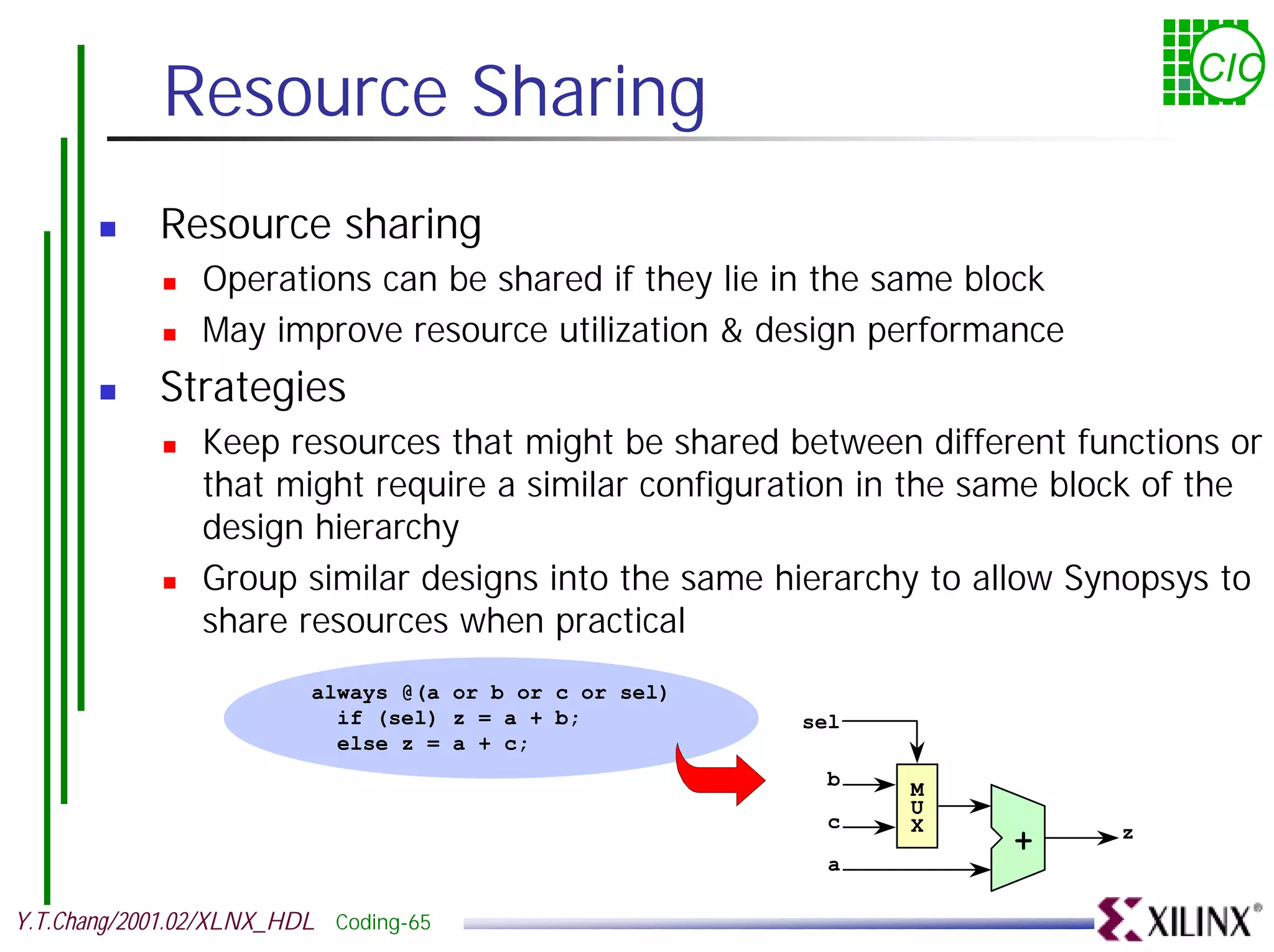

Resource Sharing CIC ! Resource sharing ! Operations can be shared if they lie in the same block ! May improve resource utilization & design performance ! Strategies ! Keep resources that might be shared between different functions or that might require a similar configuration in the same block of the design hierarchy ! Group similar designs into the same hierarchy to allow Synopsys to share resources when practical always @(a or b or c or sel) if (sel) z = a + b; sel else z = a + c; b M U c X z + a Y.T.Chang/2001.02/XLNX_HDL Coding-65

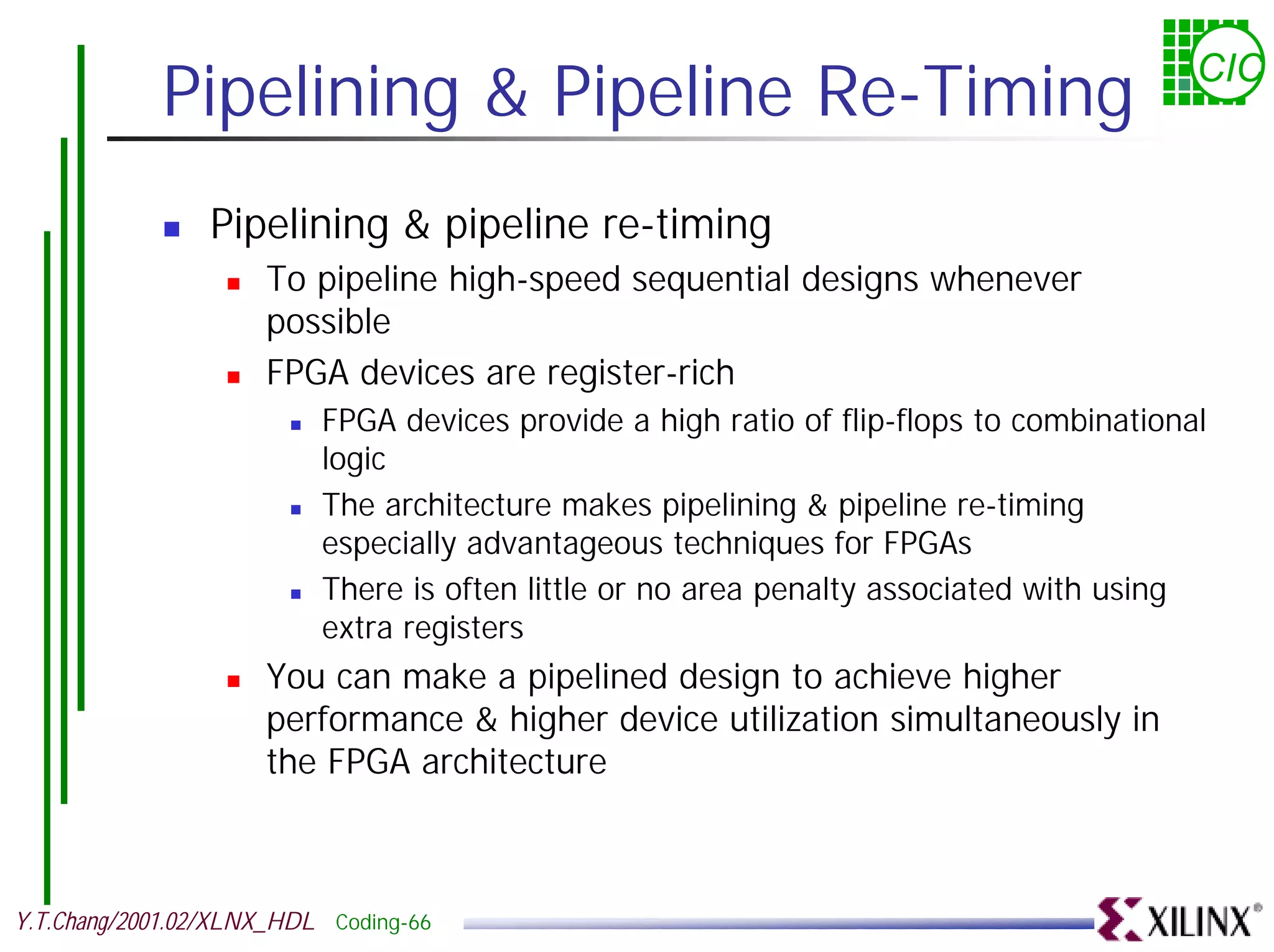

Pipelining & Pipeline Re-Timing CIC ! Pipelining & pipeline re-timing ! To pipeline high-speed sequential designs whenever possible ! FPGA devices are register-rich ! FPGA devices provide a high ratio of flip-flops to combinational logic ! The architecture makes pipelining & pipeline re-timing especially advantageous techniques for FPGAs ! There is often little or no area penalty associated with using extra registers ! You can make a pipelined design to achieve higher performance & higher device utilization simultaneously in the FPGA architecture Y.T.Chang/2001.02/XLNX_HDL Coding-66

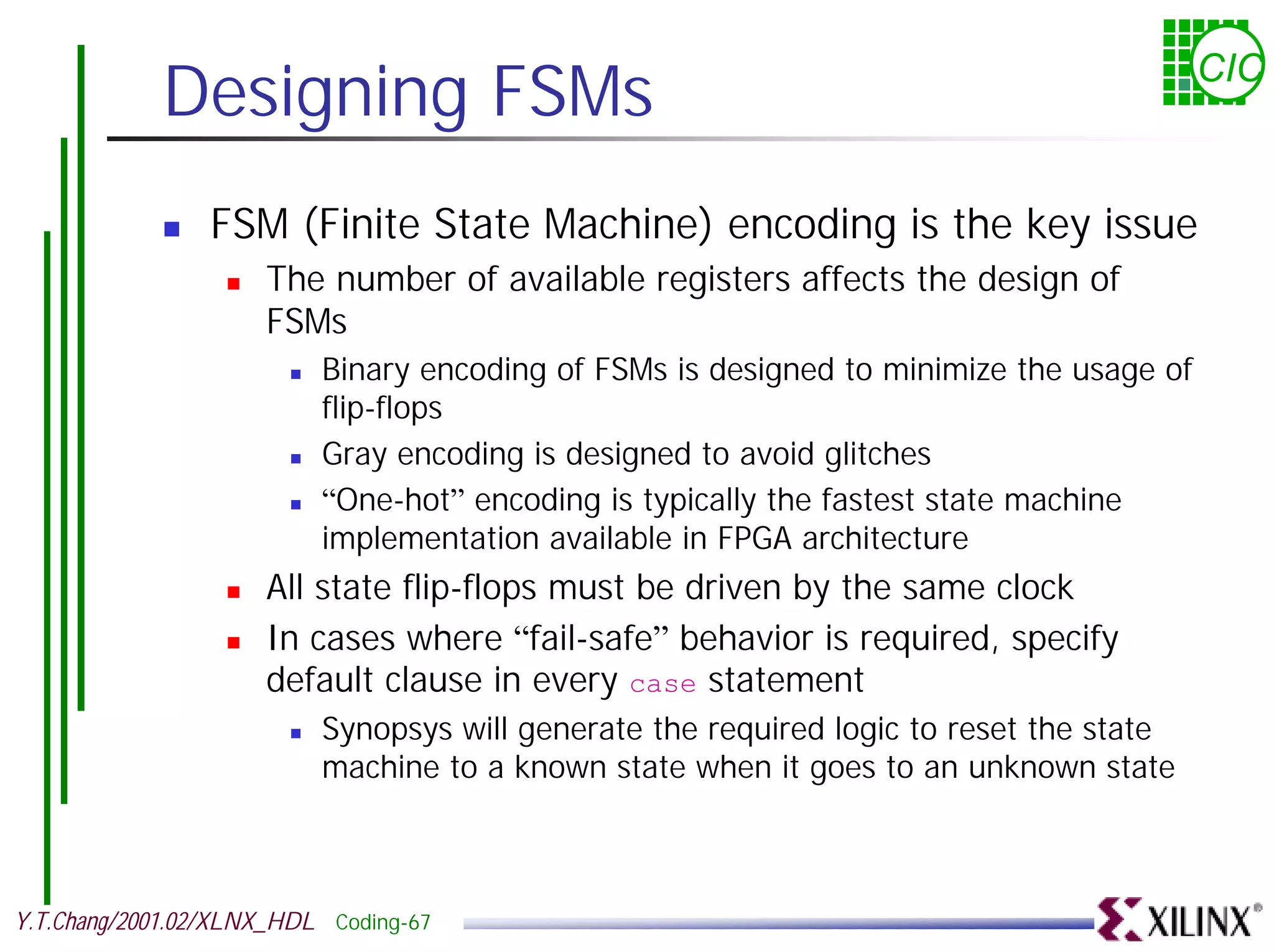

Designing FSMs CIC ! FSM (Finite State Machine) encoding is the key issue ! The number of available registers affects the design of FSMs ! Binary encoding of FSMs is designed to minimize the usage of flip-flops ! Gray encoding is designed to avoid glitches ! “One-hot” encoding is typically the fastest state machine implementation available in FPGA architecture ! All state flip-flops must be driven by the same clock ! In cases where “fail-safe” behavior is required, specify default clause in every case statement ! Synopsys will generate the required logic to reset the state machine to a known state when it goes to an unknown state Y.T.Chang/2001.02/XLNX_HDL Coding-67

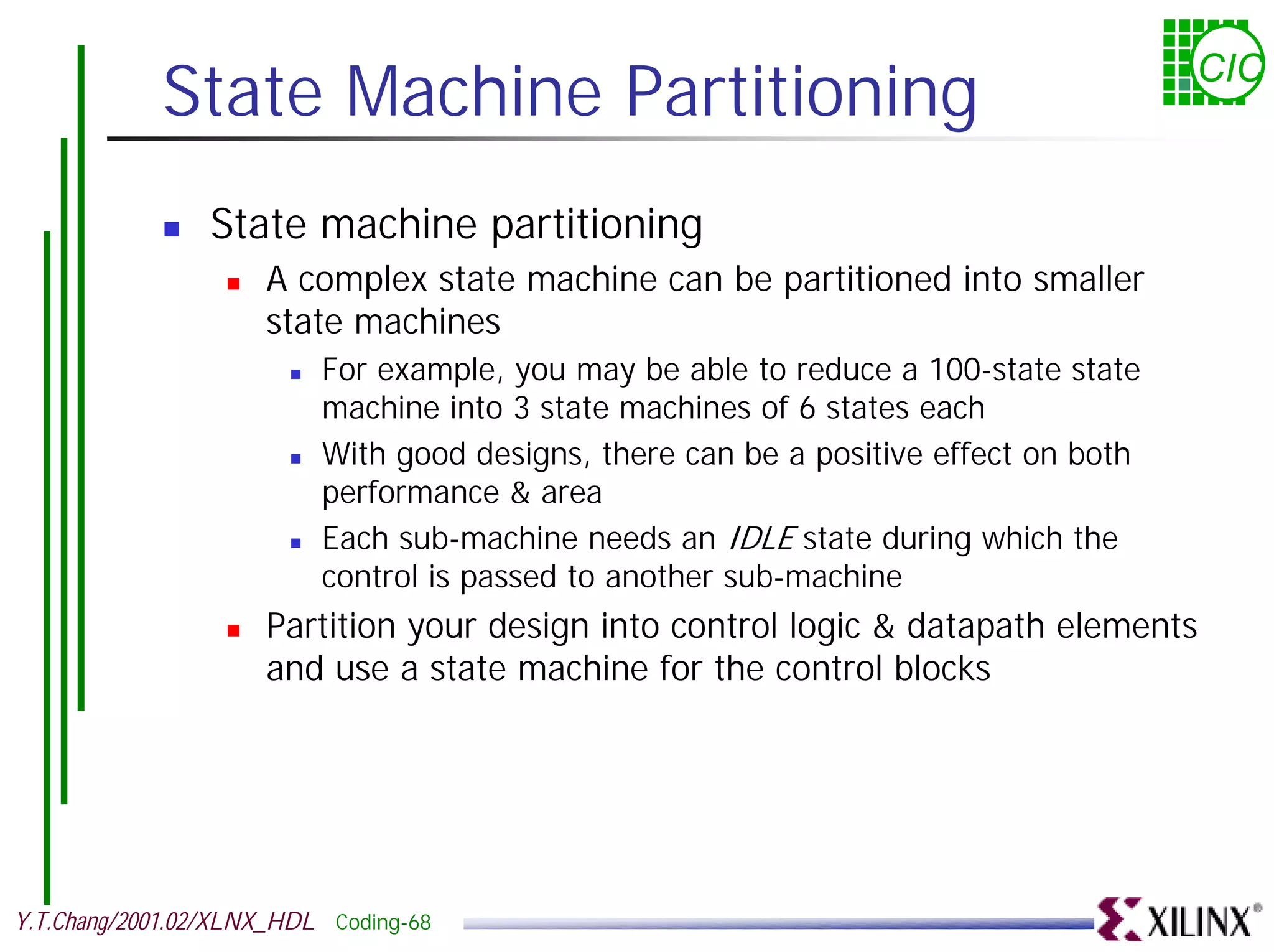

State Machine Partitioning CIC ! State machine partitioning ! A complex state machine can be partitioned into smaller state machines ! For example, you may be able to reduce a 100-state state machine into 3 state machines of 6 states each ! With good designs, there can be a positive effect on both performance & area ! Each sub-machine needs an IDLE state during which the control is passed to another sub-machine ! Partition your design into control logic & datapath elements and use a state machine for the control blocks Y.T.Chang/2001.02/XLNX_HDL Coding-68

Appendix A Instantiation Examples Y.T.Chang/2001.02/XLNX_HDL Coding-69

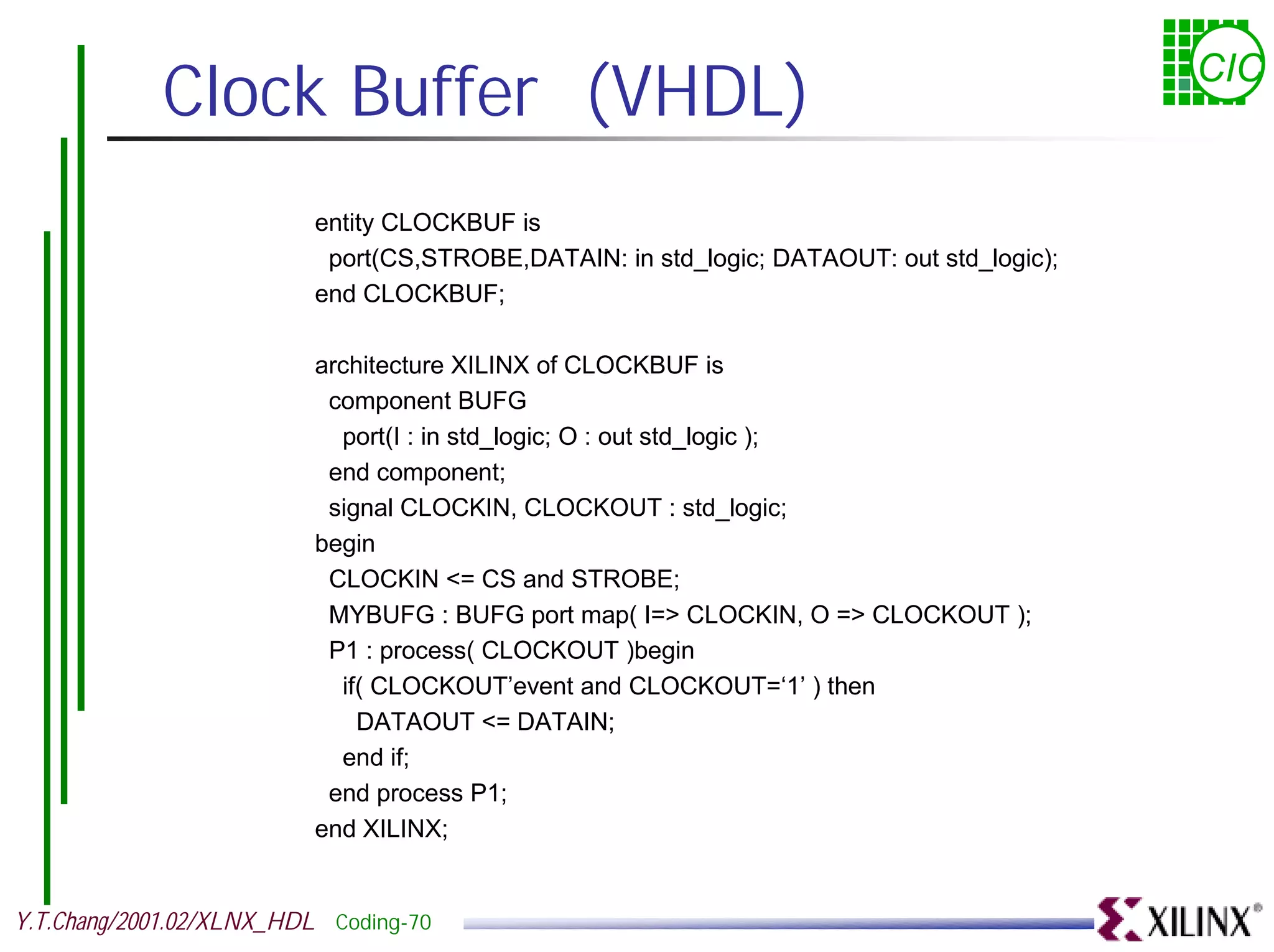

Clock Buffer (VHDL) CIC entity CLOCKBUF is port(CS,STROBE,DATAIN: in std_logic; DATAOUT: out std_logic); end CLOCKBUF; architecture XILINX of CLOCKBUF is component BUFG port(I : in std_logic; O : out std_logic ); end component; signal CLOCKIN, CLOCKOUT : std_logic; begin CLOCKIN <= CS and STROBE; MYBUFG : BUFG port map( I=> CLOCKIN, O => CLOCKOUT ); P1 : process( CLOCKOUT )begin if( CLOCKOUT’event and CLOCKOUT=‘1’ ) then DATAOUT <= DATAIN; end if; end process P1; end XILINX; Y.T.Chang/2001.02/XLNX_HDL Coding-70

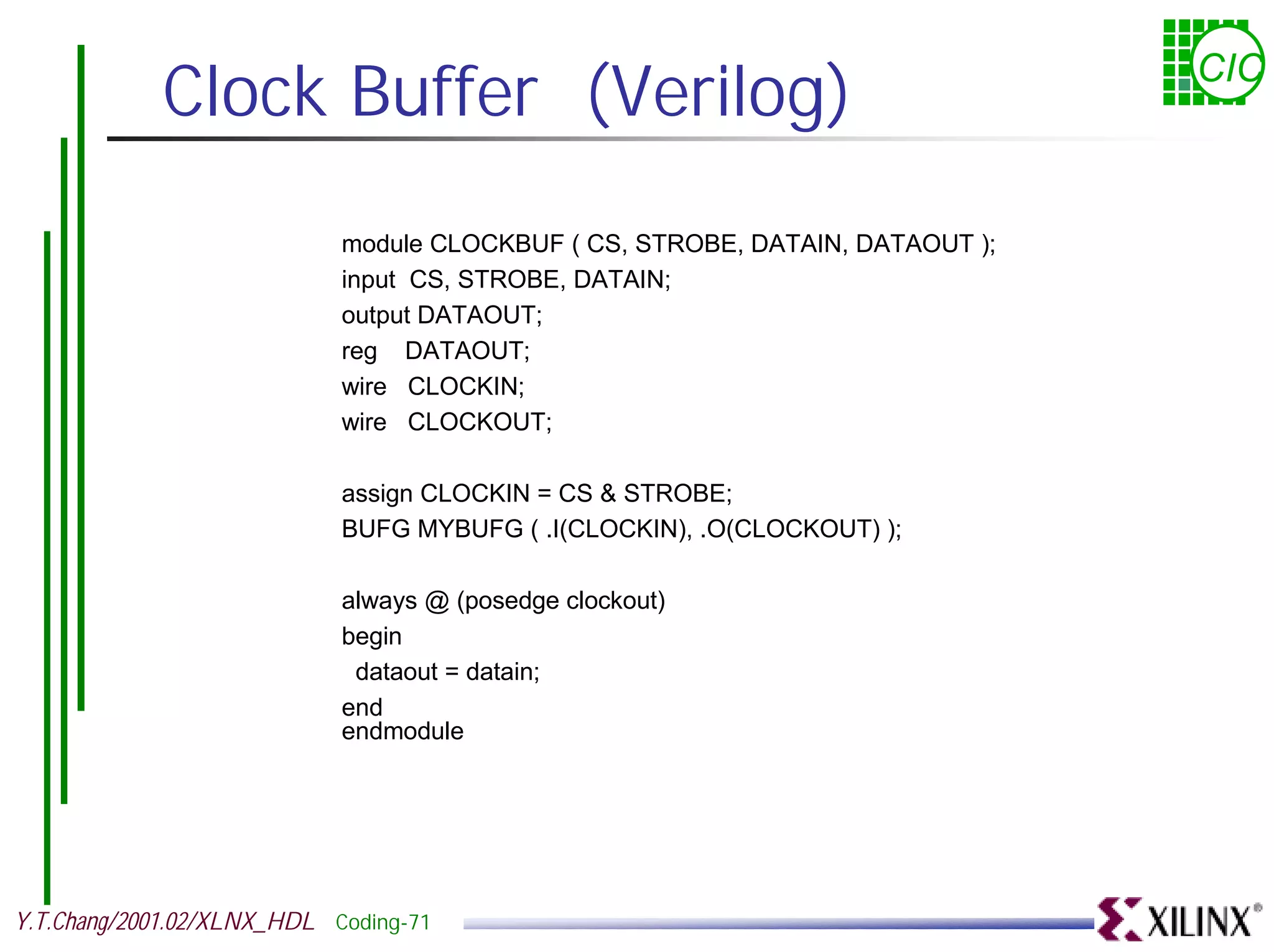

Clock Buffer (Verilog) CIC module CLOCKBUF ( CS, STROBE, DATAIN, DATAOUT ); input CS, STROBE, DATAIN; output DATAOUT; reg DATAOUT; wire CLOCKIN; wire CLOCKOUT; assign CLOCKIN = CS & STROBE; BUFG MYBUFG ( .I(CLOCKIN), .O(CLOCKOUT) ); always @ (posedge clockout) begin dataout = datain; end endmodule Y.T.Chang/2001.02/XLNX_HDL Coding-71

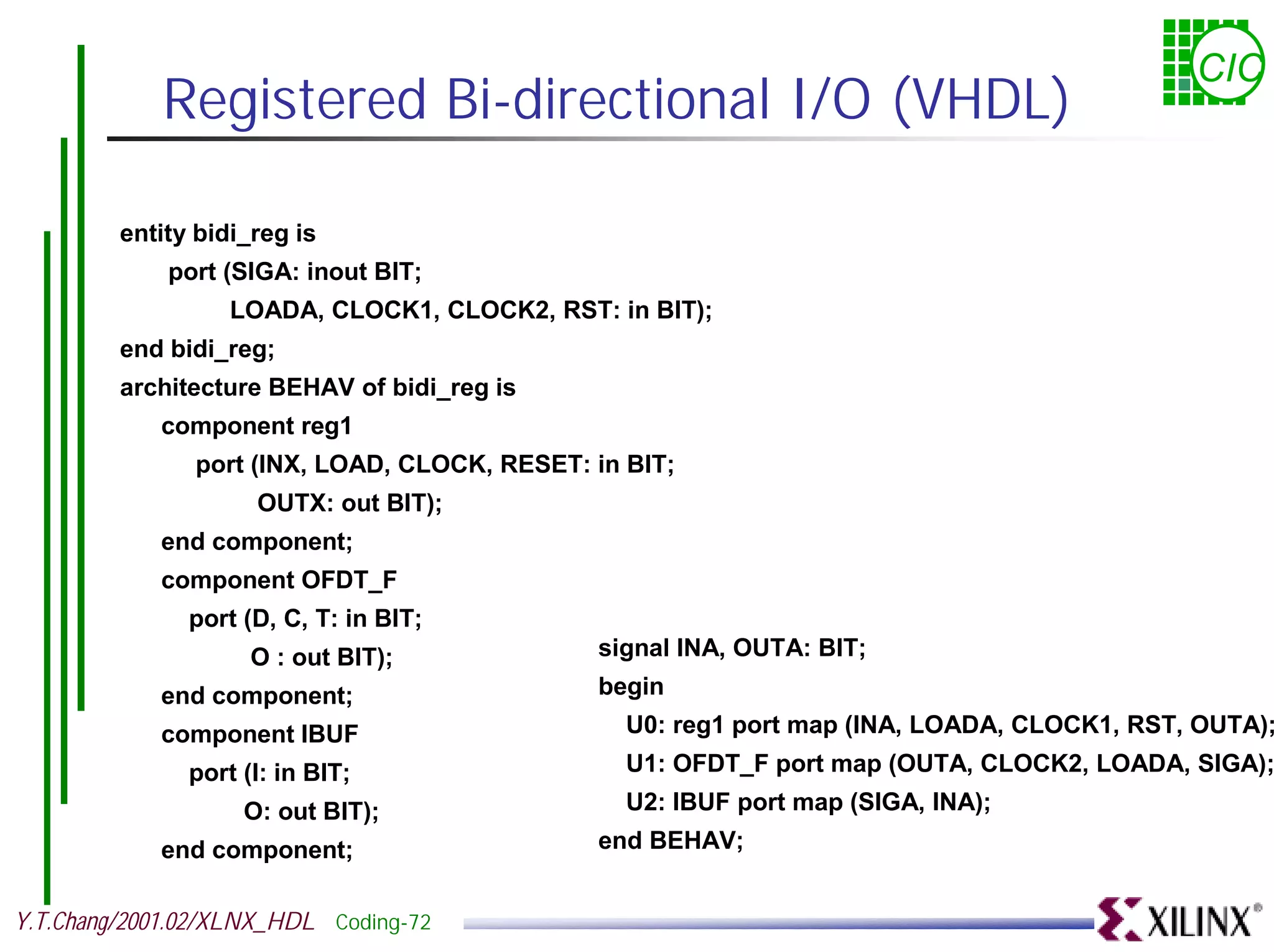

CIC Registered Bi-directional I/O (VHDL) entity bidi_reg is port (SIGA: inout BIT; LOADA, CLOCK1, CLOCK2, RST: in BIT); end bidi_reg; architecture BEHAV of bidi_reg is component reg1 port (INX, LOAD, CLOCK, RESET: in BIT; OUTX: out BIT); end component; component OFDT_F port (D, C, T: in BIT; O : out BIT); signal INA, OUTA: BIT; end component; begin component IBUF U0: reg1 port map (INA, LOADA, CLOCK1, RST, OUTA); port (I: in BIT; U1: OFDT_F port map (OUTA, CLOCK2, LOADA, SIGA); O: out BIT); U2: IBUF port map (SIGA, INA); end component; end BEHAV; Y.T.Chang/2001.02/XLNX_HDL Coding-72

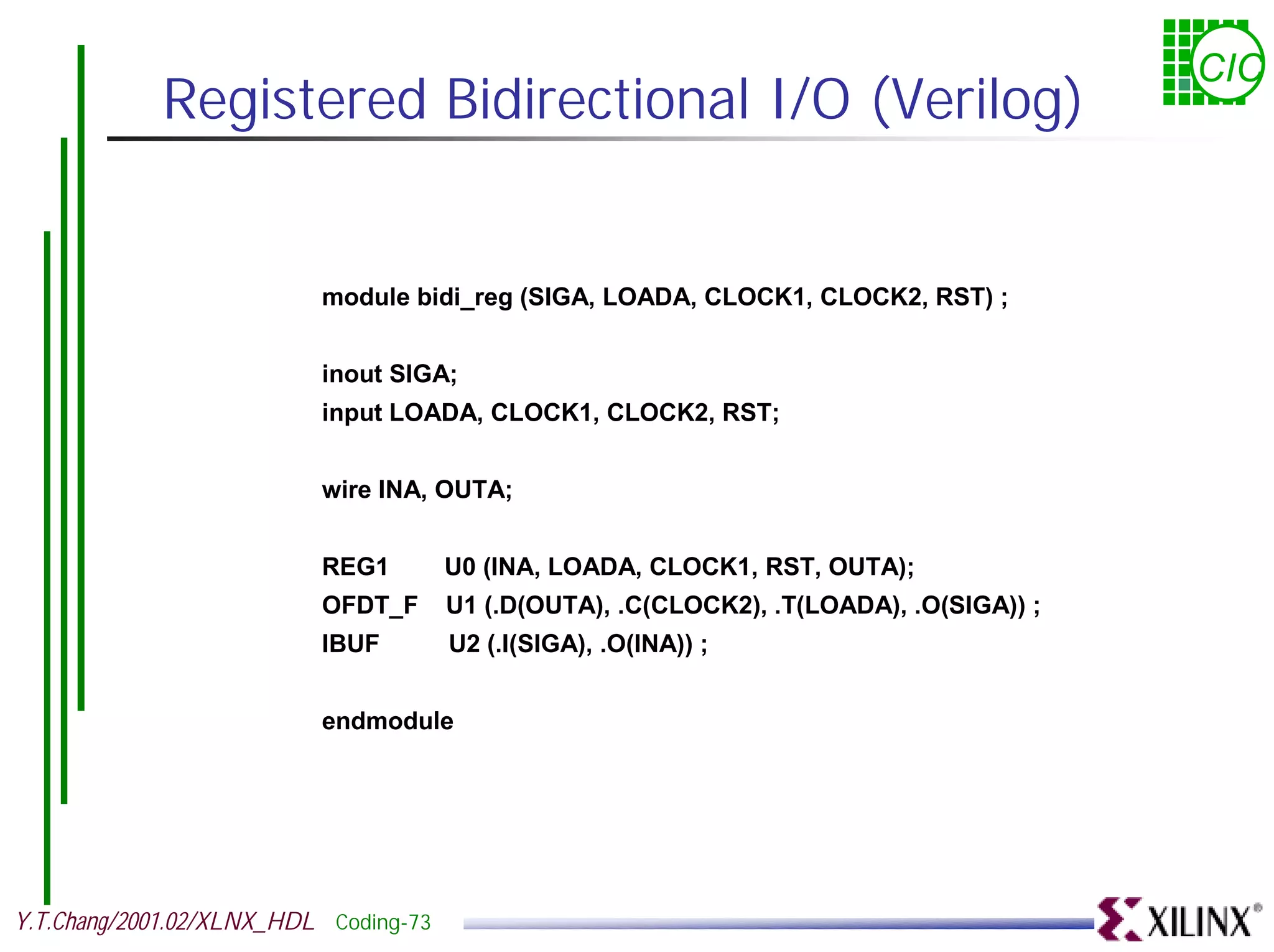

CIC Registered Bidirectional I/O (Verilog) module bidi_reg (SIGA, LOADA, CLOCK1, CLOCK2, RST) ; inout SIGA; input LOADA, CLOCK1, CLOCK2, RST; wire INA, OUTA; REG1 U0 (INA, LOADA, CLOCK1, RST, OUTA); OFDT_F U1 (.D(OUTA), .C(CLOCK2), .T(LOADA), .O(SIGA)) ; IBUF U2 (.I(SIGA), .O(INA)) ; endmodule Y.T.Chang/2001.02/XLNX_HDL Coding-73

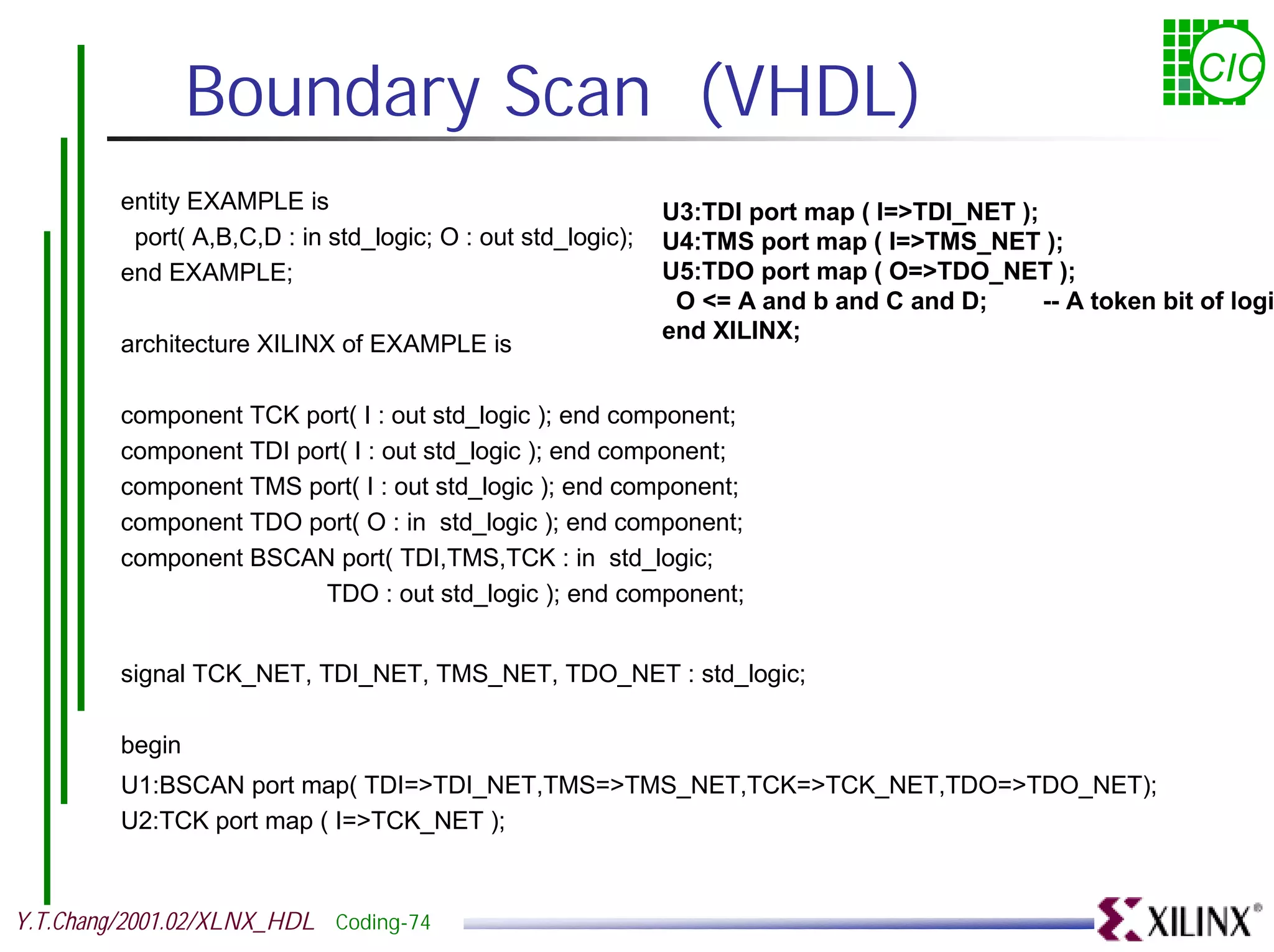

Boundary Scan (VHDL) CIC entity EXAMPLE is U3:TDI port map ( I=>TDI_NET ); port( A,B,C,D : in std_logic; O : out std_logic); U4:TMS port map ( I=>TMS_NET ); end EXAMPLE; U5:TDO port map ( O=>TDO_NET ); O <= A and b and C and D; -- A token bit of logic end XILINX; architecture XILINX of EXAMPLE is component TCK port( I : out std_logic ); end component; component TDI port( I : out std_logic ); end component; component TMS port( I : out std_logic ); end component; component TDO port( O : in std_logic ); end component; component BSCAN port( TDI,TMS,TCK : in std_logic; TDO : out std_logic ); end component; signal TCK_NET, TDI_NET, TMS_NET, TDO_NET : std_logic; begin U1:BSCAN port map( TDI=>TDI_NET,TMS=>TMS_NET,TCK=>TCK_NET,TDO=>TDO_NET); U2:TCK port map ( I=>TCK_NET ); Y.T.Chang/2001.02/XLNX_HDL Coding-74

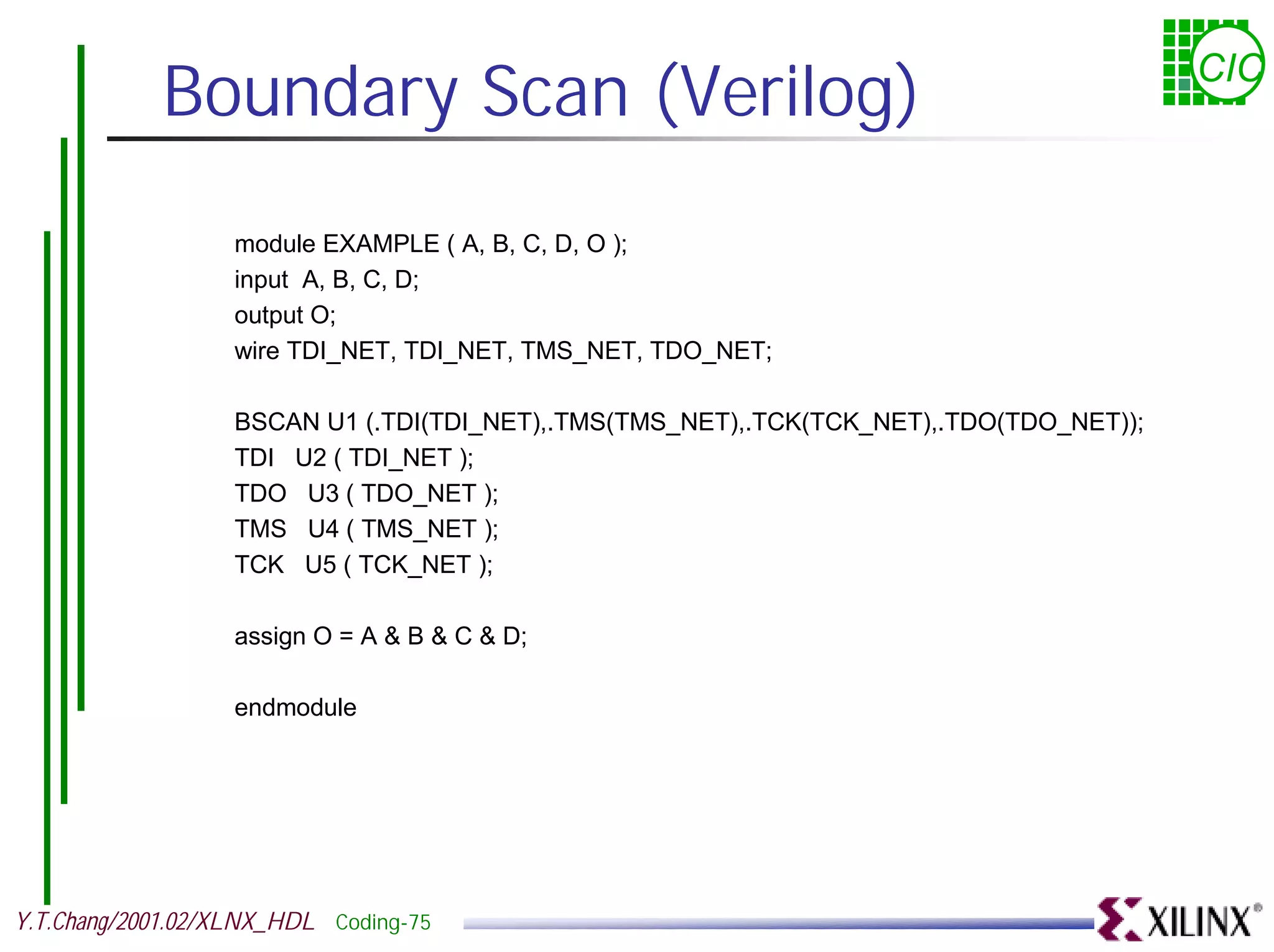

Boundary Scan (Verilog) CIC module EXAMPLE ( A, B, C, D, O ); input A, B, C, D; output O; wire TDI_NET, TDI_NET, TMS_NET, TDO_NET; BSCAN U1 (.TDI(TDI_NET),.TMS(TMS_NET),.TCK(TCK_NET),.TDO(TDO_NET)); TDI U2 ( TDI_NET ); TDO U3 ( TDO_NET ); TMS U4 ( TMS_NET ); TCK U5 ( TCK_NET ); assign O = A & B & C & D; endmodule Y.T.Chang/2001.02/XLNX_HDL Coding-75

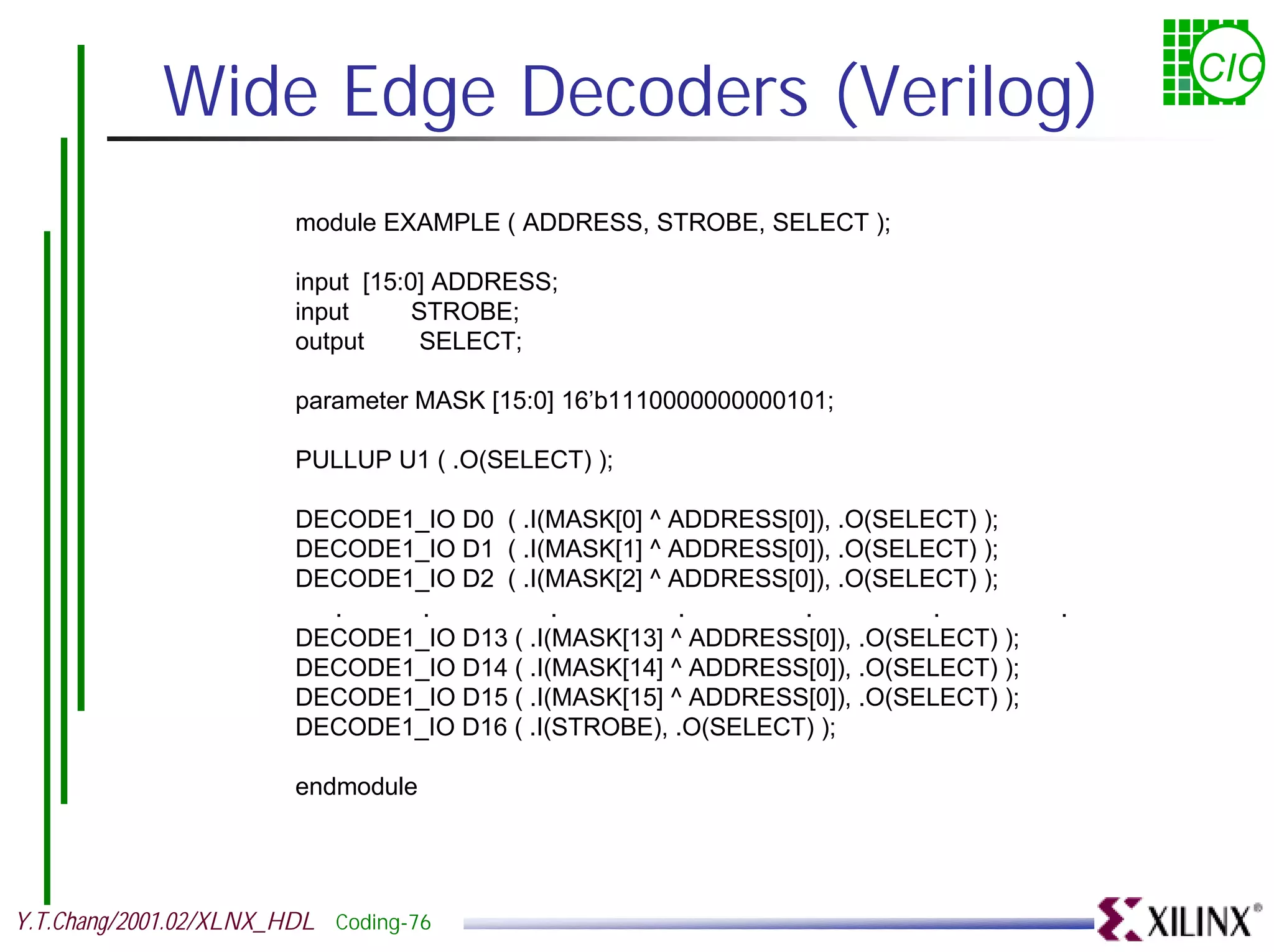

Wide Edge Decoders (Verilog) CIC module EXAMPLE ( ADDRESS, STROBE, SELECT ); input [15:0] ADDRESS; input STROBE; output SELECT; parameter MASK [15:0] 16’b1110000000000101; PULLUP U1 ( .O(SELECT) ); DECODE1_IO D0 ( .I(MASK[0] ^ ADDRESS[0]), .O(SELECT) ); DECODE1_IO D1 ( .I(MASK[1] ^ ADDRESS[0]), .O(SELECT) ); DECODE1_IO D2 ( .I(MASK[2] ^ ADDRESS[0]), .O(SELECT) ); . . . . . . . DECODE1_IO D13 ( .I(MASK[13] ^ ADDRESS[0]), .O(SELECT) ); DECODE1_IO D14 ( .I(MASK[14] ^ ADDRESS[0]), .O(SELECT) ); DECODE1_IO D15 ( .I(MASK[15] ^ ADDRESS[0]), .O(SELECT) ); DECODE1_IO D16 ( .I(STROBE), .O(SELECT) ); endmodule Y.T.Chang/2001.02/XLNX_HDL Coding-76

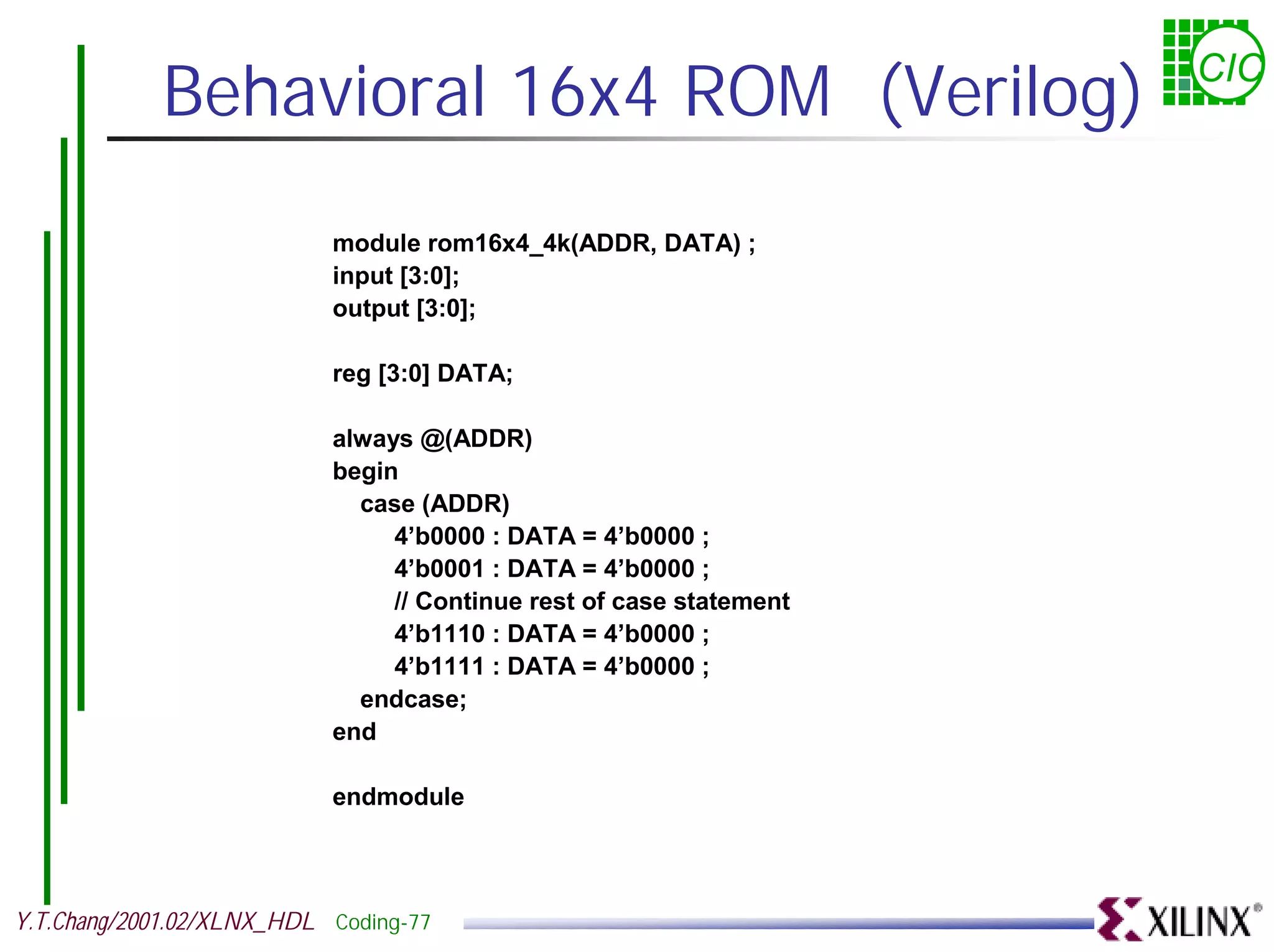

Behavioral 16x4 ROM (Verilog) CIC module rom16x4_4k(ADDR, DATA) ; input [3:0]; output [3:0]; reg [3:0] DATA; always @(ADDR) begin case (ADDR) 4’b0000 : DATA = 4’b0000 ; 4’b0001 : DATA = 4’b0000 ; // Continue rest of case statement 4’b1110 : DATA = 4’b0000 ; 4’b1111 : DATA = 4’b0000 ; endcase; end endmodule Y.T.Chang/2001.02/XLNX_HDL Coding-77

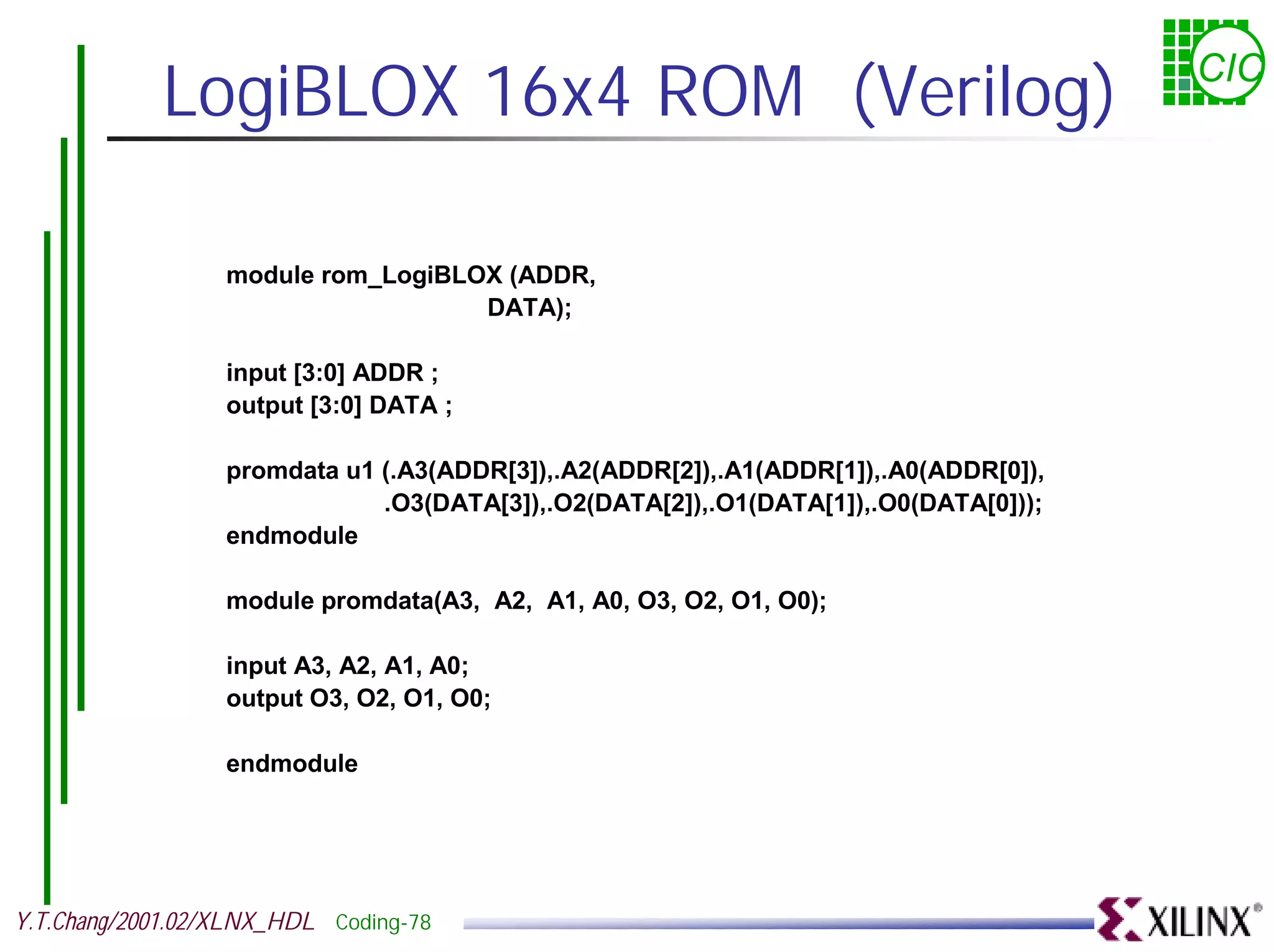

LogiBLOX 16x4 ROM (Verilog) CIC module rom_LogiBLOX (ADDR, DATA); input [3:0] ADDR ; output [3:0] DATA ; promdata u1 (.A3(ADDR[3]),.A2(ADDR[2]),.A1(ADDR[1]),.A0(ADDR[0]), .O3(DATA[3]),.O2(DATA[2]),.O1(DATA[1]),.O0(DATA[0])); endmodule module promdata(A3, A2, A1, A0, O3, O2, O1, O0); input A3, A2, A1, A0; output O3, O2, O1, O0; endmodule Y.T.Chang/2001.02/XLNX_HDL Coding-78

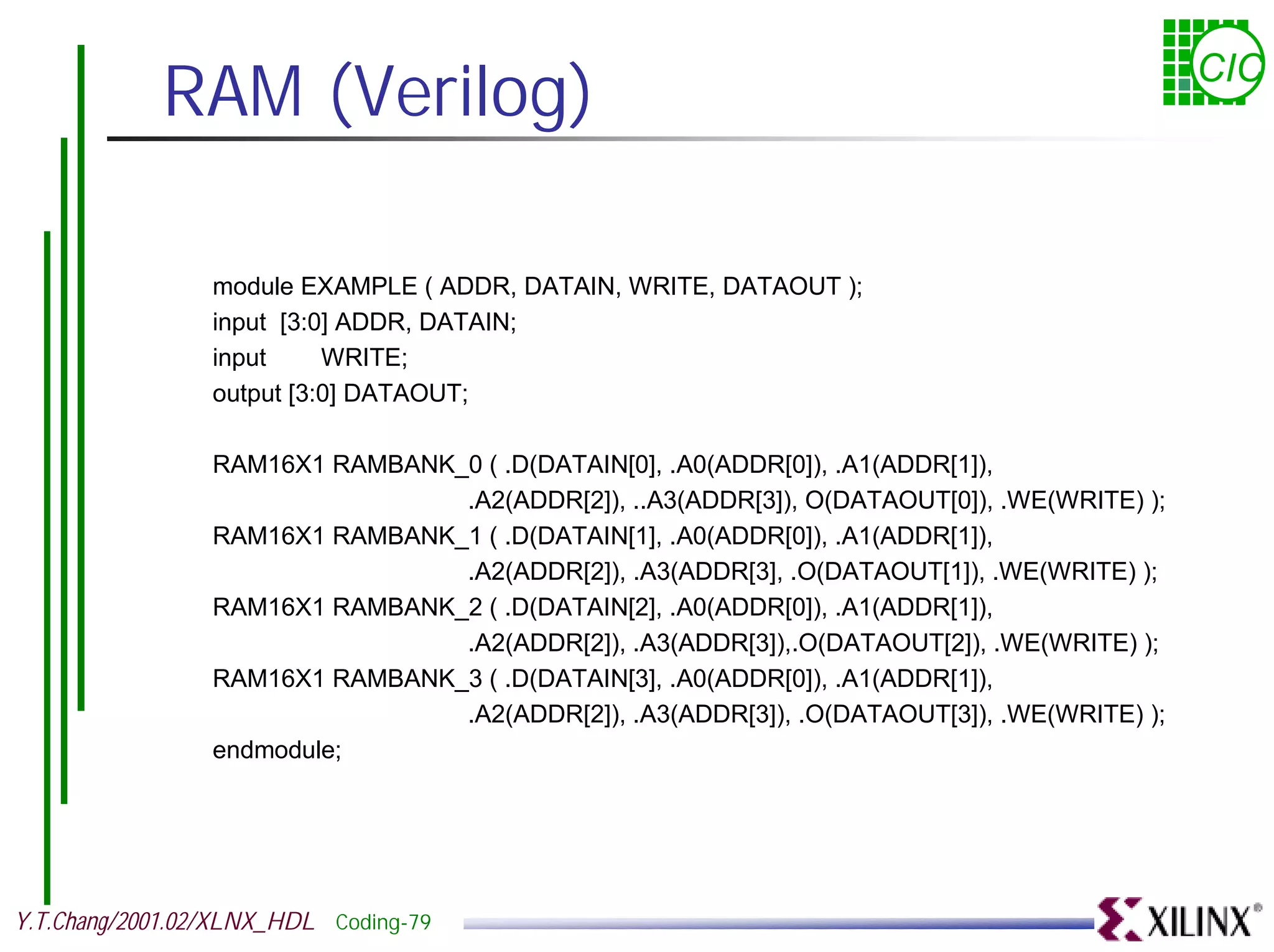

RAM (Verilog) CIC module EXAMPLE ( ADDR, DATAIN, WRITE, DATAOUT ); input [3:0] ADDR, DATAIN; input WRITE; output [3:0] DATAOUT; RAM16X1 RAMBANK_0 ( .D(DATAIN[0], .A0(ADDR[0]), .A1(ADDR[1]), .A2(ADDR[2]), ..A3(ADDR[3]), O(DATAOUT[0]), .WE(WRITE) ); RAM16X1 RAMBANK_1 ( .D(DATAIN[1], .A0(ADDR[0]), .A1(ADDR[1]), .A2(ADDR[2]), .A3(ADDR[3], .O(DATAOUT[1]), .WE(WRITE) ); RAM16X1 RAMBANK_2 ( .D(DATAIN[2], .A0(ADDR[0]), .A1(ADDR[1]), .A2(ADDR[2]), .A3(ADDR[3]),.O(DATAOUT[2]), .WE(WRITE) ); RAM16X1 RAMBANK_3 ( .D(DATAIN[3], .A0(ADDR[0]), .A1(ADDR[1]), .A2(ADDR[2]), .A3(ADDR[3]), .O(DATAOUT[3]), .WE(WRITE) ); endmodule; Y.T.Chang/2001.02/XLNX_HDL Coding-79

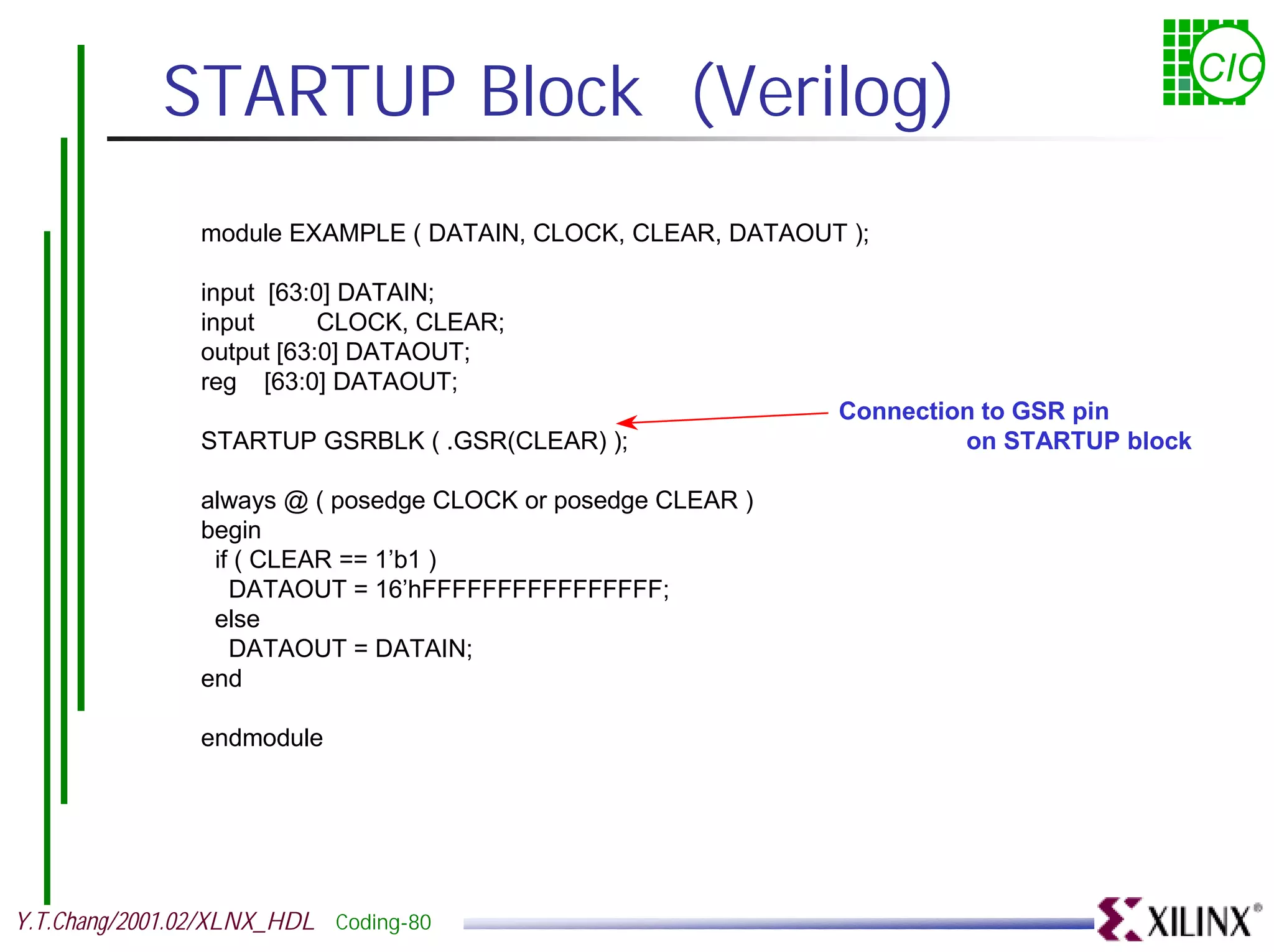

STARTUP Block (Verilog) CIC module EXAMPLE ( DATAIN, CLOCK, CLEAR, DATAOUT ); input [63:0] DATAIN; input CLOCK, CLEAR; output [63:0] DATAOUT; reg [63:0] DATAOUT; Connection to GSR pin STARTUP GSRBLK ( .GSR(CLEAR) ); on STARTUP block always @ ( posedge CLOCK or posedge CLEAR ) begin if ( CLEAR == 1’b1 ) DATAOUT = 16’hFFFFFFFFFFFFFFFF; else DATAOUT = DATAIN; end endmodule Y.T.Chang/2001.02/XLNX_HDL Coding-80

Appendix B State Machines Examples Y.T.Chang/2001.02/XLNX_HDL Coding-81

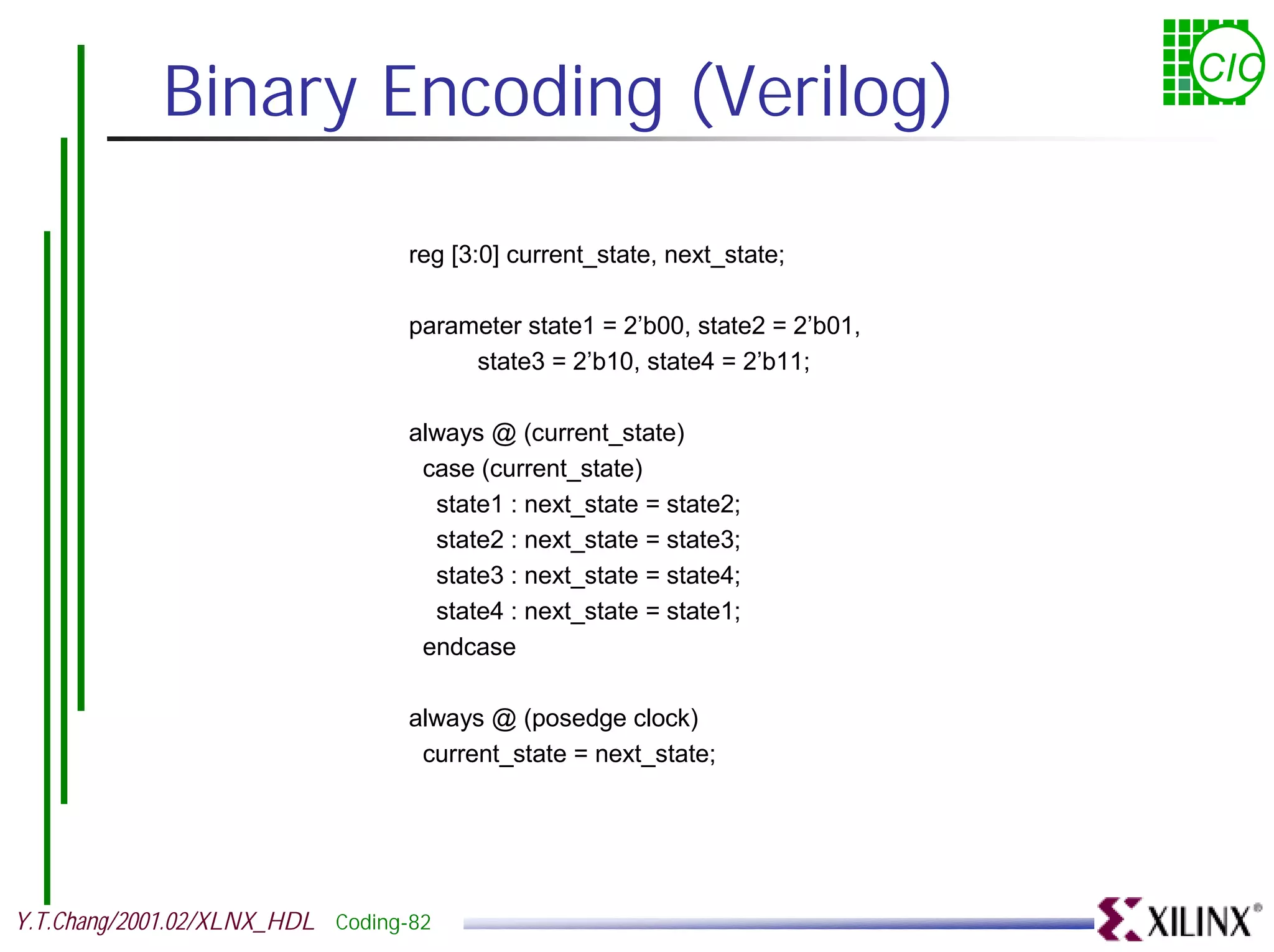

Binary Encoding (Verilog) CIC reg [3:0] current_state, next_state; parameter state1 = 2’b00, state2 = 2’b01, state3 = 2’b10, state4 = 2’b11; always @ (current_state) case (current_state) state1 : next_state = state2; state2 : next_state = state3; state3 : next_state = state4; state4 : next_state = state1; endcase always @ (posedge clock) current_state = next_state; Y.T.Chang/2001.02/XLNX_HDL Coding-82

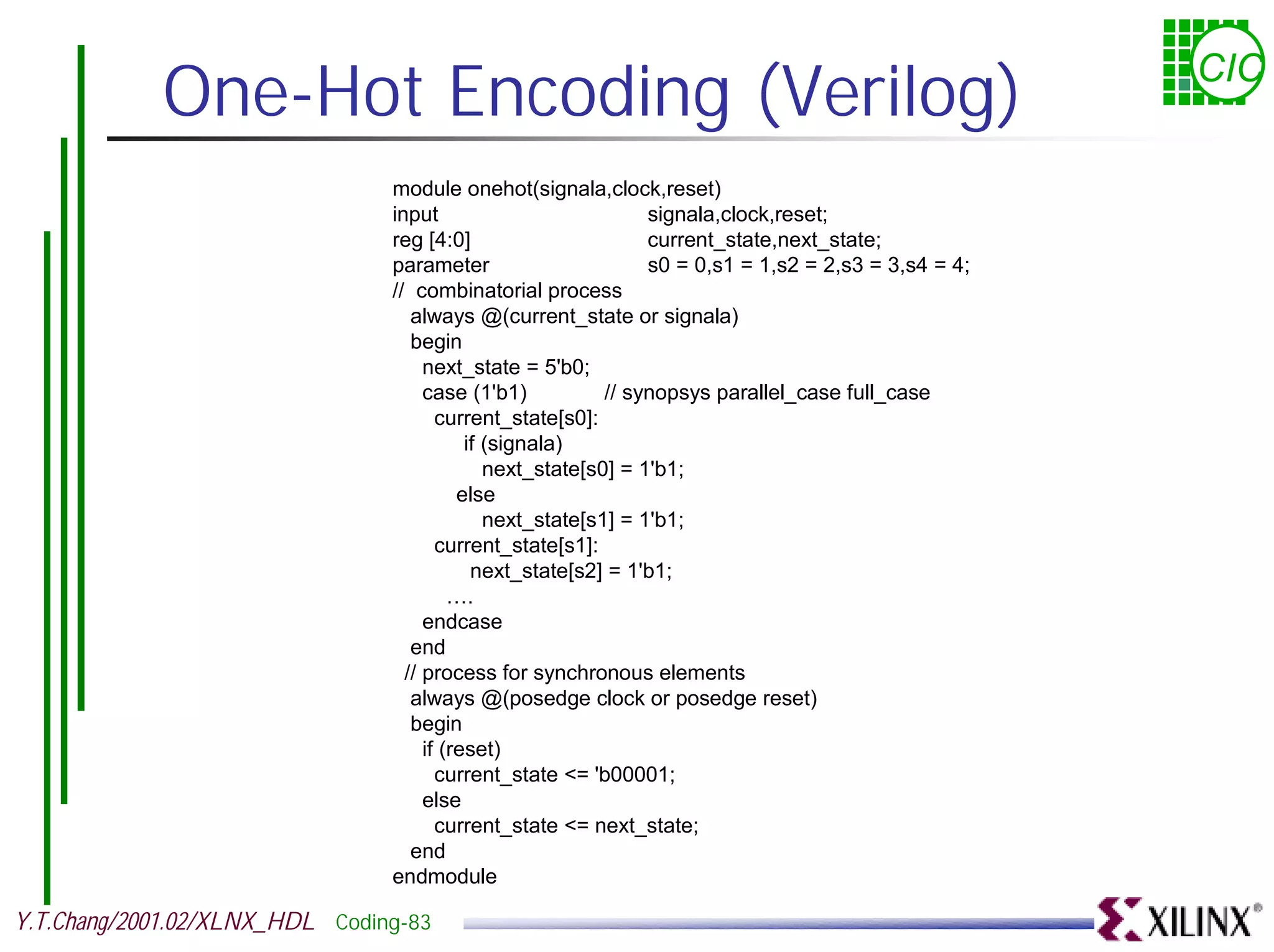

One-Hot Encoding (Verilog) CIC module onehot(signala,clock,reset) input signala,clock,reset; reg [4:0] current_state,next_state; parameter s0 = 0,s1 = 1,s2 = 2,s3 = 3,s4 = 4; // combinatorial process always @(current_state or signala) begin next_state = 5'b0; case (1'b1) // synopsys parallel_case full_case current_state[s0]: if (signala) next_state[s0] = 1'b1; else next_state[s1] = 1'b1; current_state[s1]: next_state[s2] = 1'b1; …. endcase end // process for synchronous elements always @(posedge clock or posedge reset) begin if (reset) current_state <= 'b00001; else current_state <= next_state; end endmodule Y.T.Chang/2001.02/XLNX_HDL Coding-83

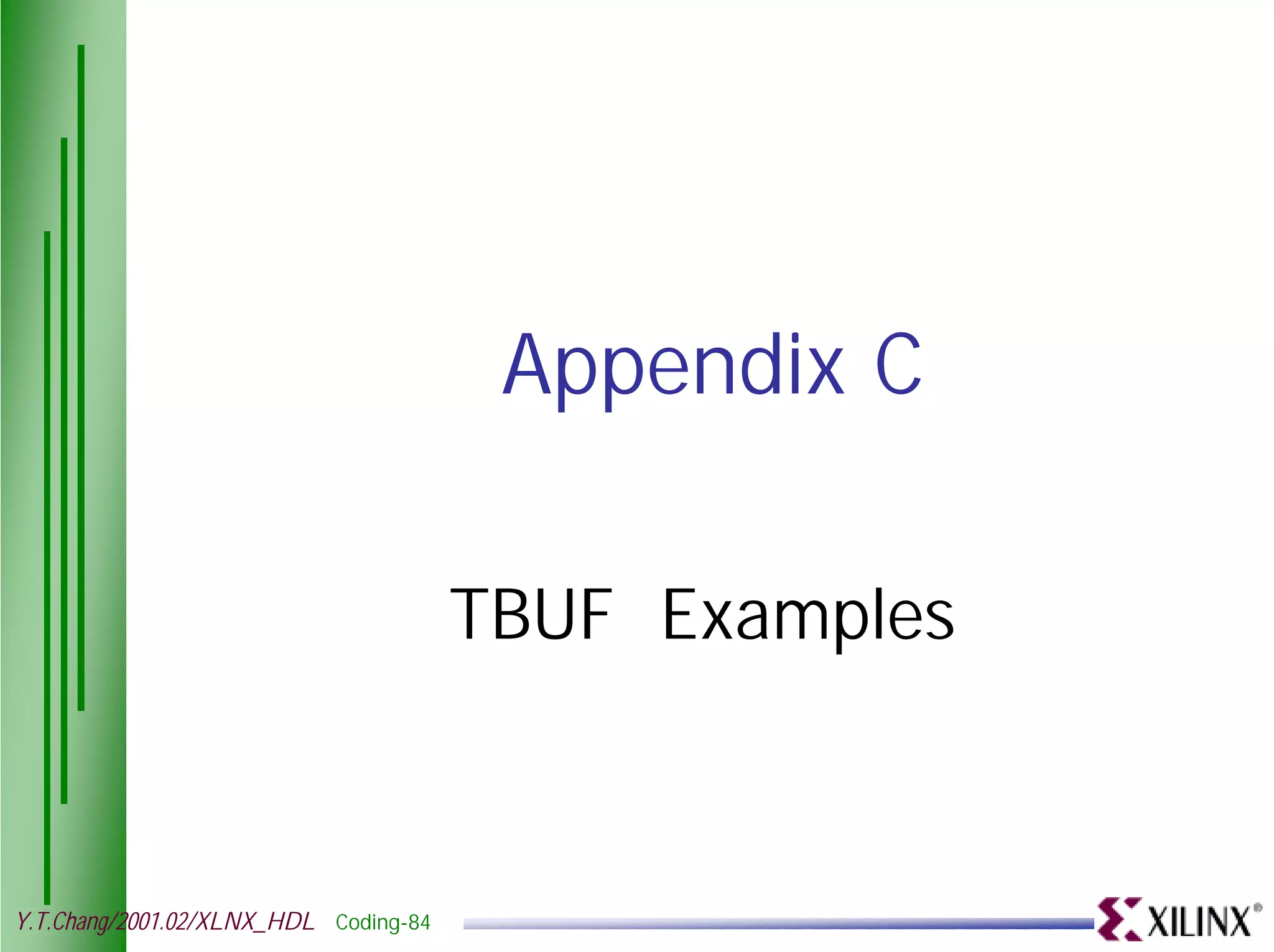

Appendix C TBUF Examples Y.T.Chang/2001.02/XLNX_HDL Coding-84

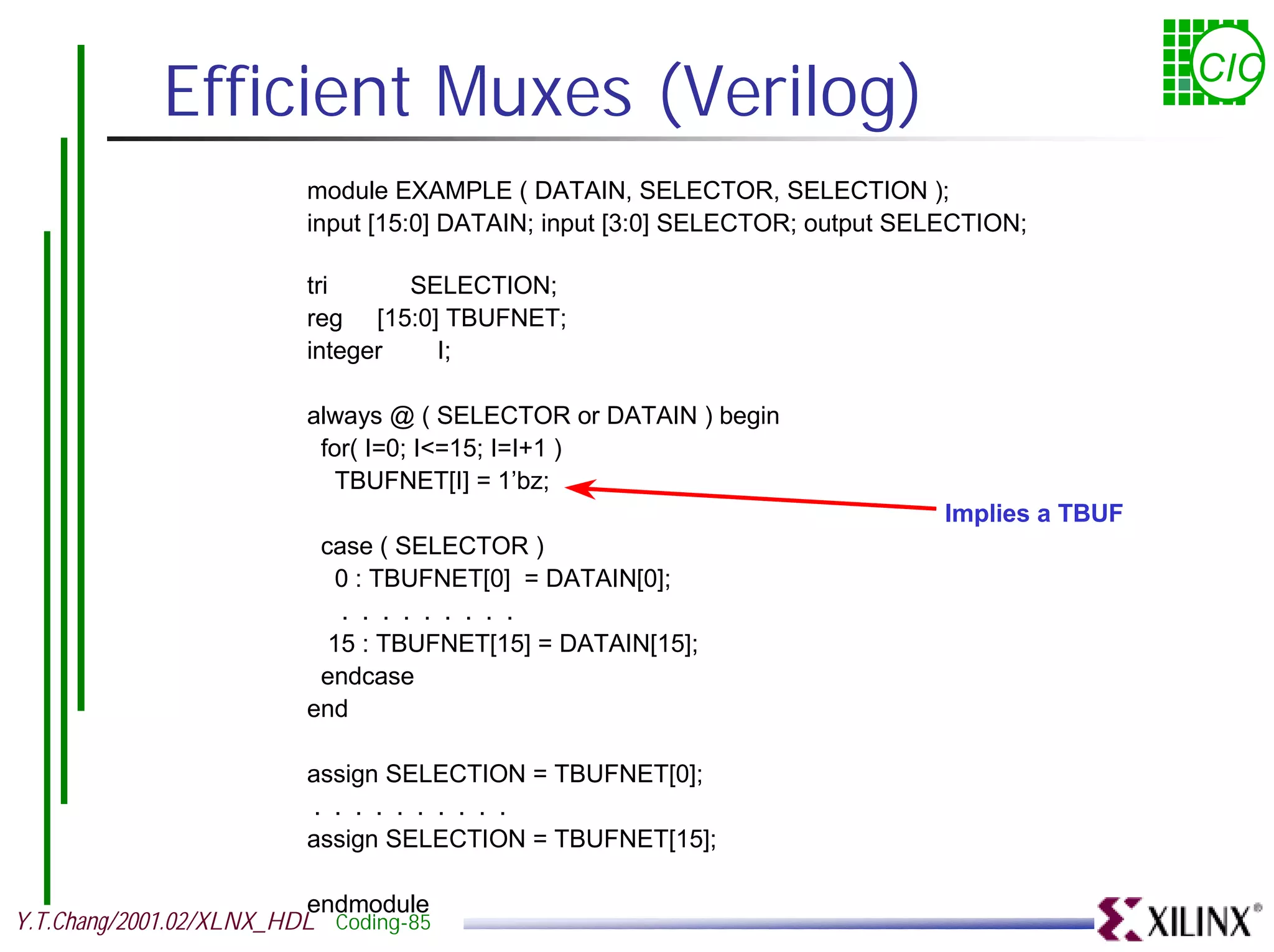

Efficient Muxes (Verilog) CIC module EXAMPLE ( DATAIN, SELECTOR, SELECTION ); input [15:0] DATAIN; input [3:0] SELECTOR; output SELECTION; tri SELECTION; reg [15:0] TBUFNET; integer I; always @ ( SELECTOR or DATAIN ) begin for( I=0; I<=15; I=I+1 ) TBUFNET[I] = 1’bz; Implies a TBUF case ( SELECTOR ) 0 : TBUFNET[0] = DATAIN[0]; . . . . . . . . . 15 : TBUFNET[15] = DATAIN[15]; endcase end assign SELECTION = TBUFNET[0]; . . . . . . . . . . assign SELECTION = TBUFNET[15]; endmodule Y.T.Chang/2001.02/XLNX_HDL Coding-85

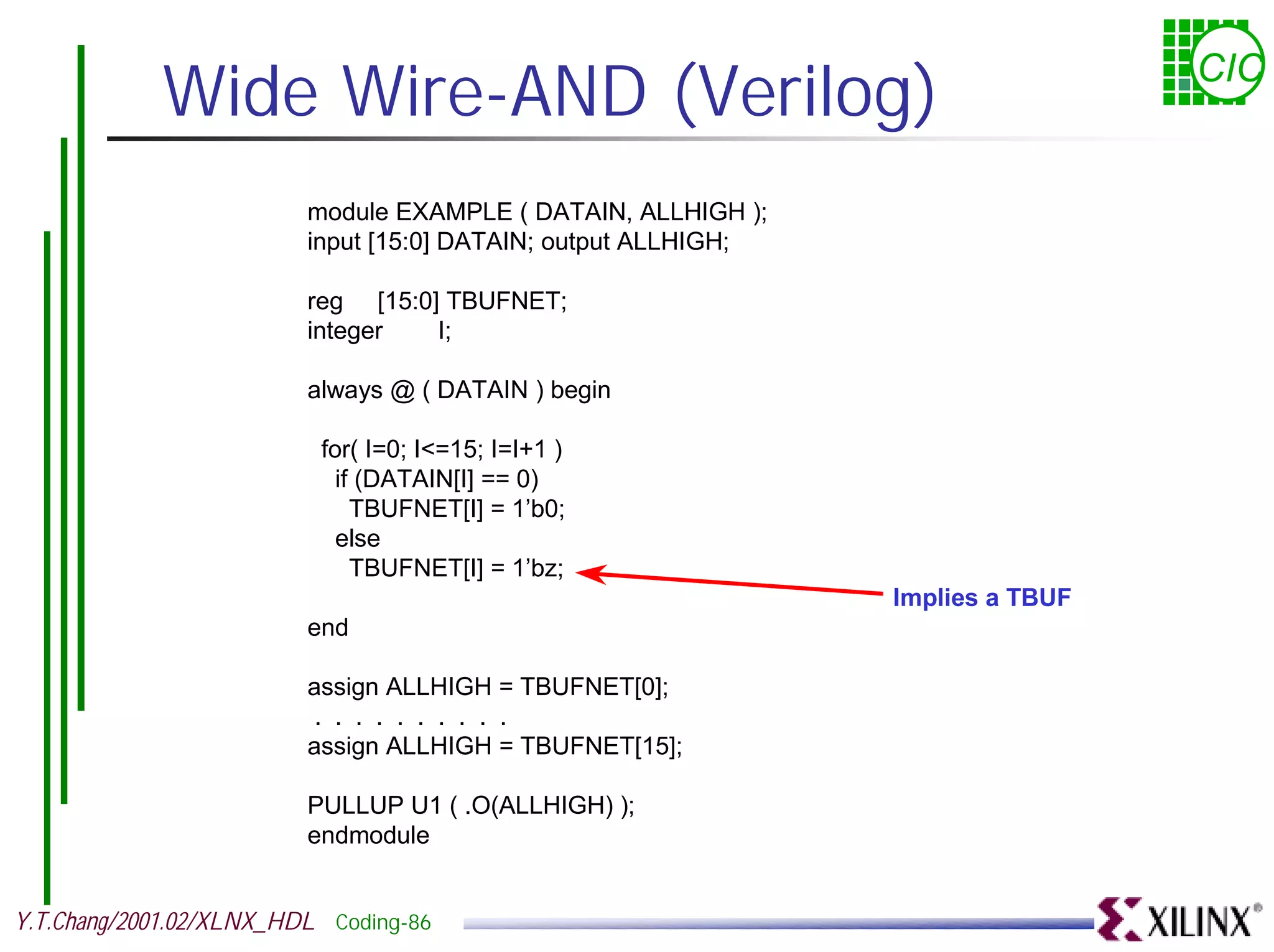

Wide Wire-AND (Verilog) CIC module EXAMPLE ( DATAIN, ALLHIGH ); input [15:0] DATAIN; output ALLHIGH; reg [15:0] TBUFNET; integer I; always @ ( DATAIN ) begin for( I=0; I<=15; I=I+1 ) if (DATAIN[I] == 0) TBUFNET[I] = 1’b0; else TBUFNET[I] = 1’bz; Implies a TBUF end assign ALLHIGH = TBUFNET[0]; . . . . . . . . . . assign ALLHIGH = TBUFNET[15]; PULLUP U1 ( .O(ALLHIGH) ); endmodule Y.T.Chang/2001.02/XLNX_HDL Coding-86

State Editor & Black Box Instantiation Y.T.Chang/2001.02/XLNX_HDL Black-1

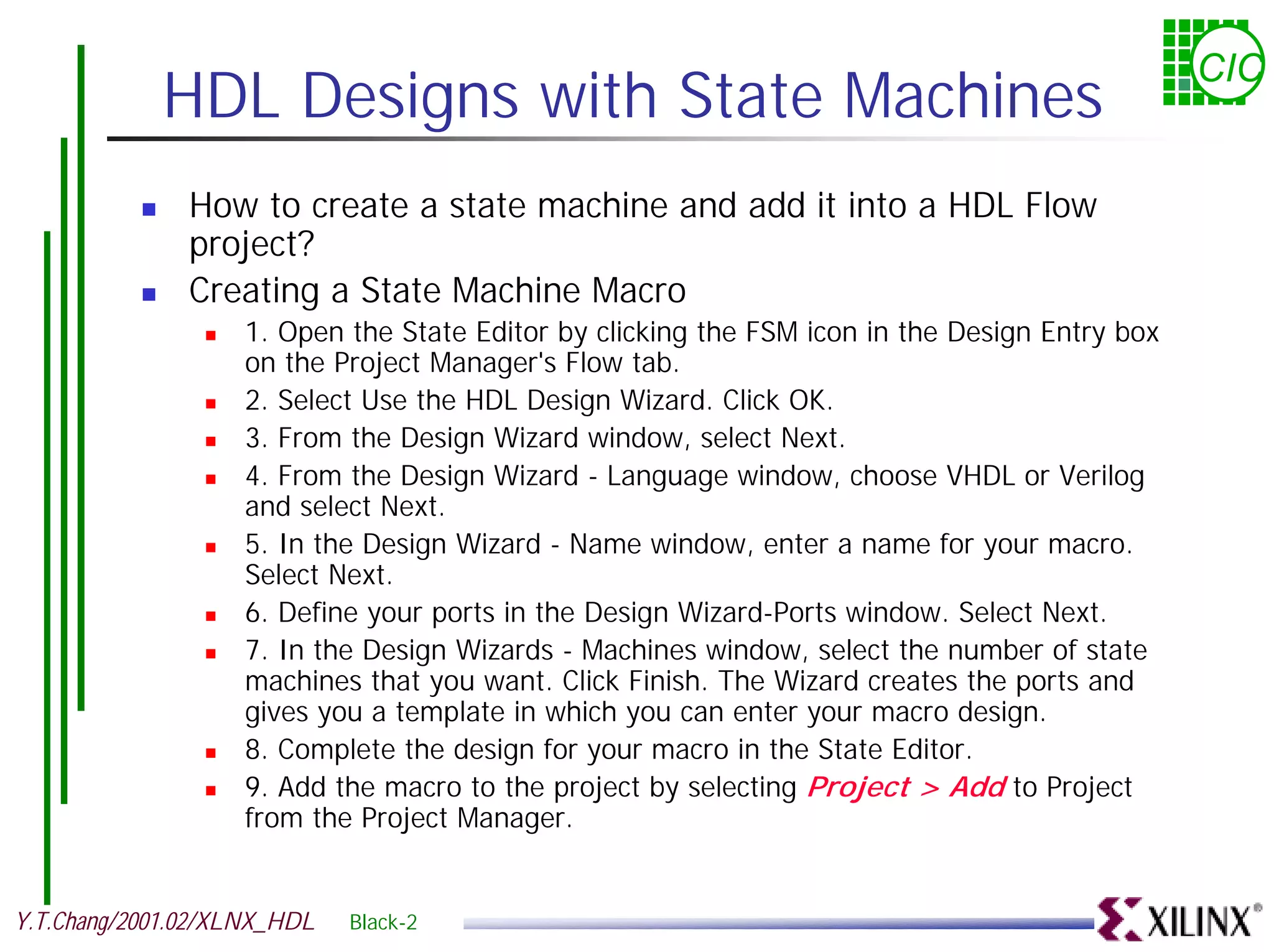

CIC HDL Designs with State Machines ! How to create a state machine and add it into a HDL Flow project? ! Creating a State Machine Macro ! 1. Open the State Editor by clicking the FSM icon in the Design Entry box on the Project Manager's Flow tab. ! 2. Select Use the HDL Design Wizard. Click OK. ! 3. From the Design Wizard window, select Next. ! 4. From the Design Wizard - Language window, choose VHDL or Verilog and select Next. ! 5. In the Design Wizard - Name window, enter a name for your macro. Select Next. ! 6. Define your ports in the Design Wizard-Ports window. Select Next. ! 7. In the Design Wizards - Machines window, select the number of state machines that you want. Click Finish. The Wizard creates the ports and gives you a template in which you can enter your macro design. ! 8. Complete the design for your macro in the State Editor. ! 9. Add the macro to the project by selecting Project > Add to Project from the Project Manager. Y.T.Chang/2001.02/XLNX_HDL Black-2

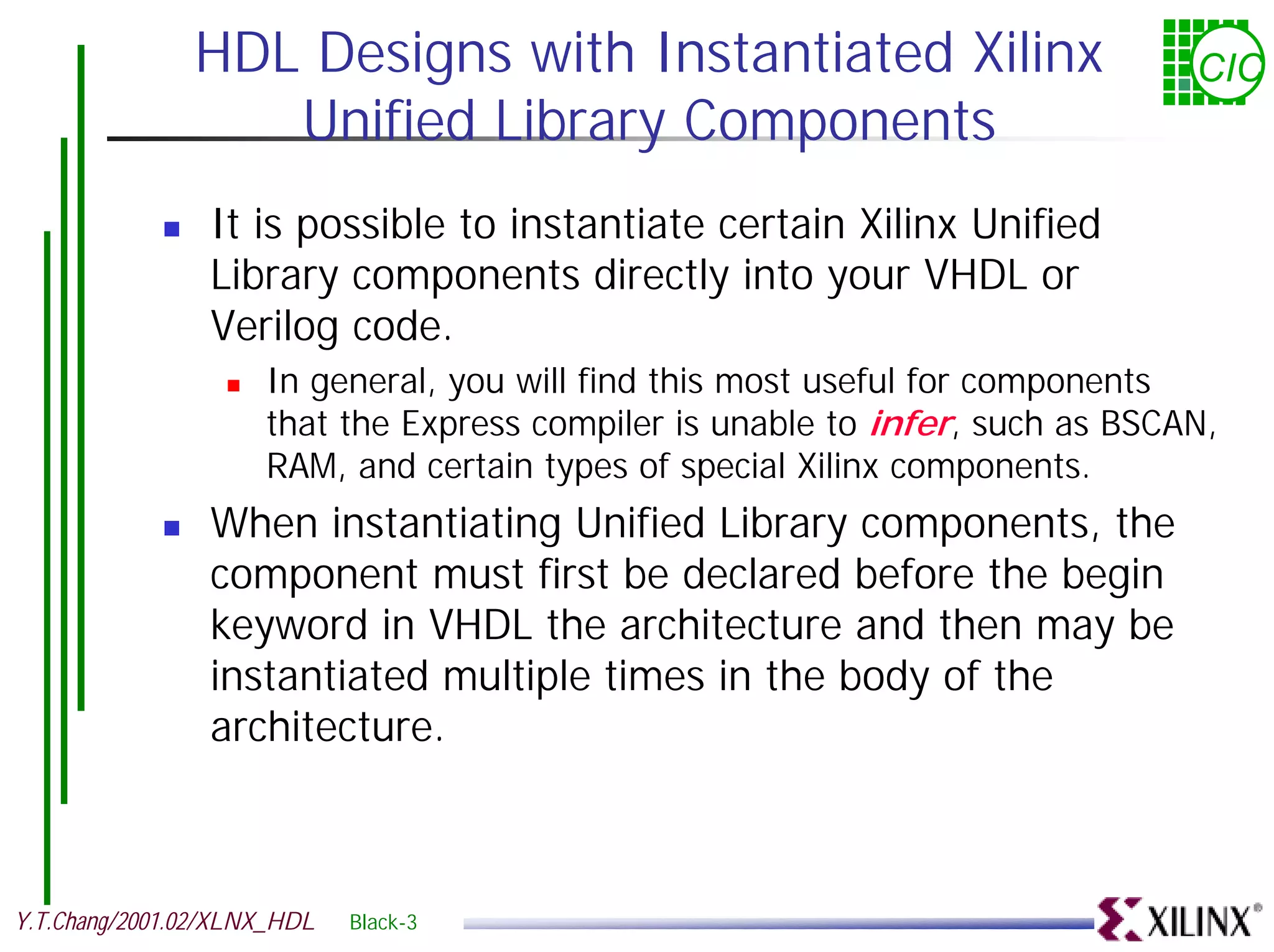

HDL Designs with Instantiated Xilinx CIC Unified Library Components ! It is possible to instantiate certain Xilinx Unified Library components directly into your VHDL or Verilog code. ! In general, you will find this most useful for components that the Express compiler is unable to infer, such as BSCAN, RAM, and certain types of special Xilinx components. ! When instantiating Unified Library components, the component must first be declared before the begin keyword in VHDL the architecture and then may be instantiated multiple times in the body of the architecture. Y.T.Chang/2001.02/XLNX_HDL Black-3

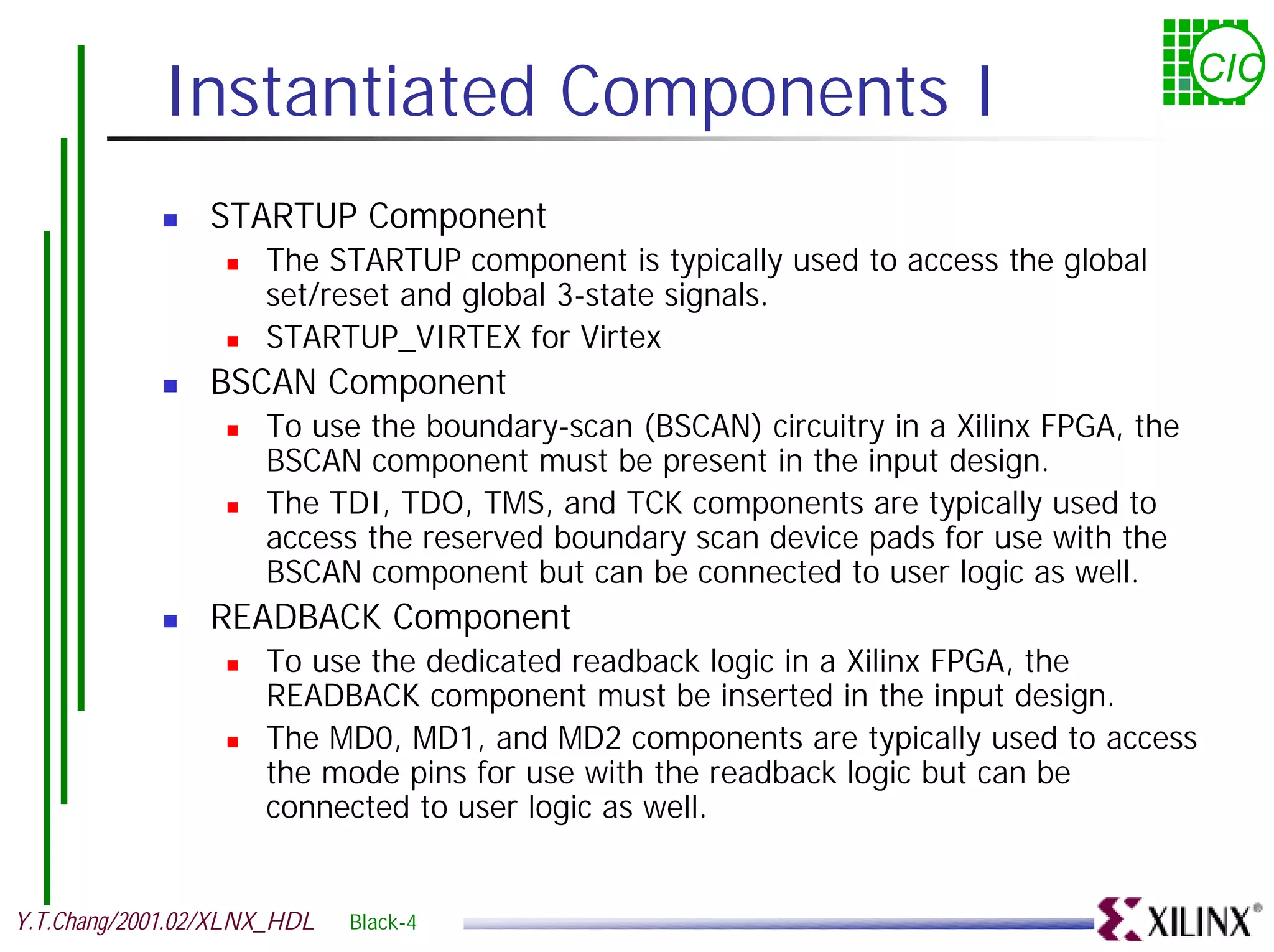

Instantiated Components I CIC ! STARTUP Component ! The STARTUP component is typically used to access the global set/reset and global 3-state signals. ! STARTUP_VIRTEX for Virtex ! BSCAN Component ! To use the boundary-scan (BSCAN) circuitry in a Xilinx FPGA, the BSCAN component must be present in the input design. ! The TDI, TDO, TMS, and TCK components are typically used to access the reserved boundary scan device pads for use with the BSCAN component but can be connected to user logic as well. ! READBACK Component ! To use the dedicated readback logic in a Xilinx FPGA, the READBACK component must be inserted in the input design. ! The MD0, MD1, and MD2 components are typically used to access the mode pins for use with the readback logic but can be connected to user logic as well. Y.T.Chang/2001.02/XLNX_HDL Black-4

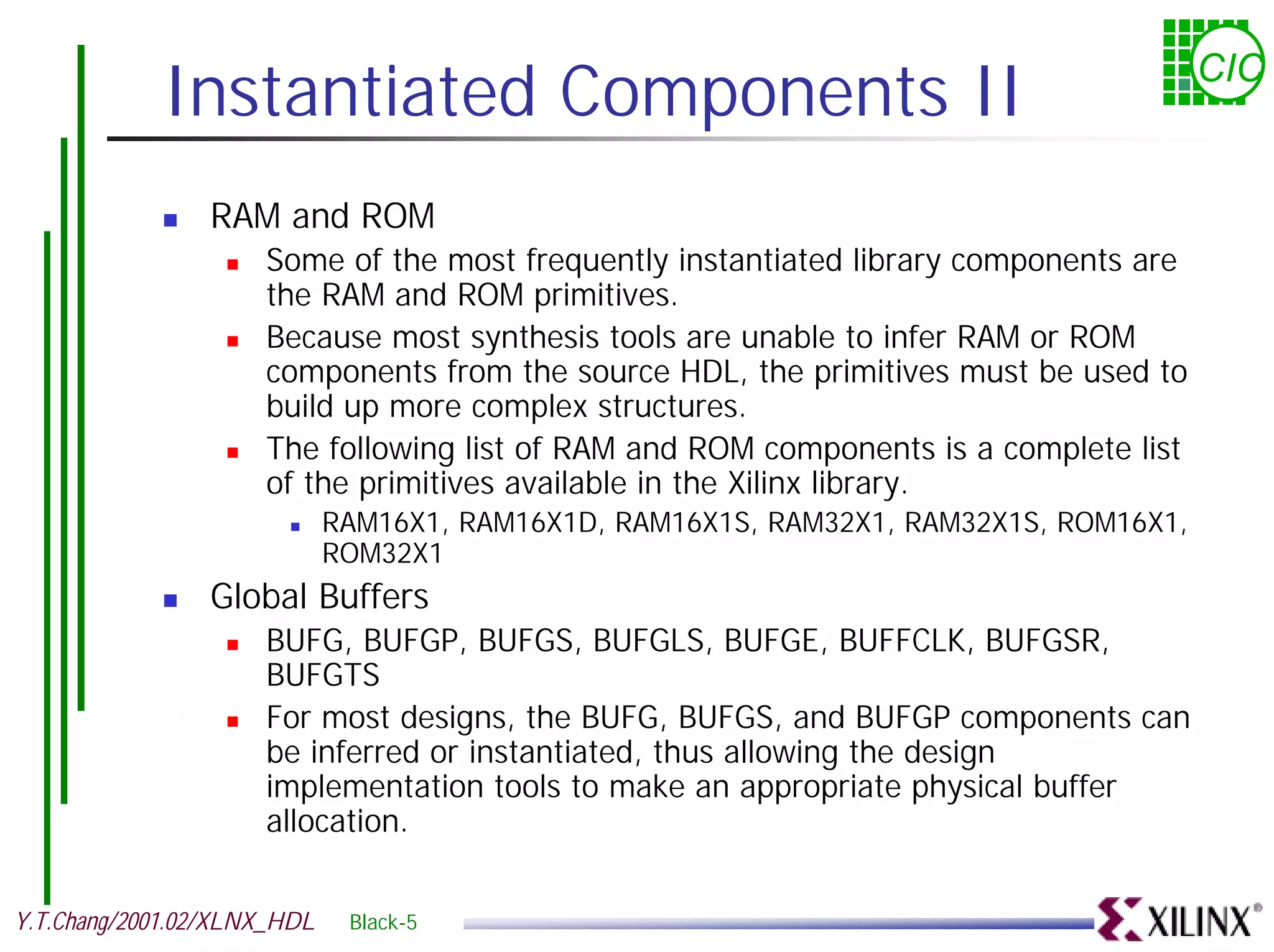

Instantiated Components II CIC ! RAM and ROM ! Some of the most frequently instantiated library components are the RAM and ROM primitives. ! Because most synthesis tools are unable to infer RAM or ROM components from the source HDL, the primitives must be used to build up more complex structures. ! The following list of RAM and ROM components is a complete list of the primitives available in the Xilinx library. ! RAM16X1, RAM16X1D, RAM16X1S, RAM32X1, RAM32X1S, ROM16X1, ROM32X1 ! Global Buffers ! BUFG, BUFGP, BUFGS, BUFGLS, BUFGE, BUFFCLK, BUFGSR, BUFGTS ! For most designs, the BUFG, BUFGS, and BUFGP components can be inferred or instantiated, thus allowing the design implementation tools to make an appropriate physical buffer allocation. Y.T.Chang/2001.02/XLNX_HDL Black-5

An example of an instantiated Xilinx CIC Unified Library component ! The following sample written in VHDL shows an example of an instantiated Xilinx Unified Library component, STARTUP. library IEEE; U1: STARTUP port map (GSR=>RESET); use IEEE.std_logic_1164.all; entity gsr_test is process (CLK) port ( begin CLK: in STD_LOGIC; if (CLK event and CLK='1') then D_IN: in STD_LOGIC; Q_OUT <= D_IN; RESET: in STD_LOGIC; end if; Q_OUT: out STD_LOGIC end process; ); end gsr_test; end gsr_test_arch; architecture gsr_test_arch of gsr_test is component STARTUP port (GSR: in std_logic); end component; begin Y.T.Chang/2001.02/XLNX_HDL Black-7

HDL Designs with Black Box CIC Instantiation ! LogiBLOXs, schematics (EDIF file), ABEL modules, and XNF files can be instantiated in the VHDL and Verilog code using the "black box instantiation" method. ! The Files tab in the Hierarchy Browser does not display the black box module name under the HDL file(s) in which it is instantiated. Y.T.Chang/2001.02/XLNX_HDL Black-8

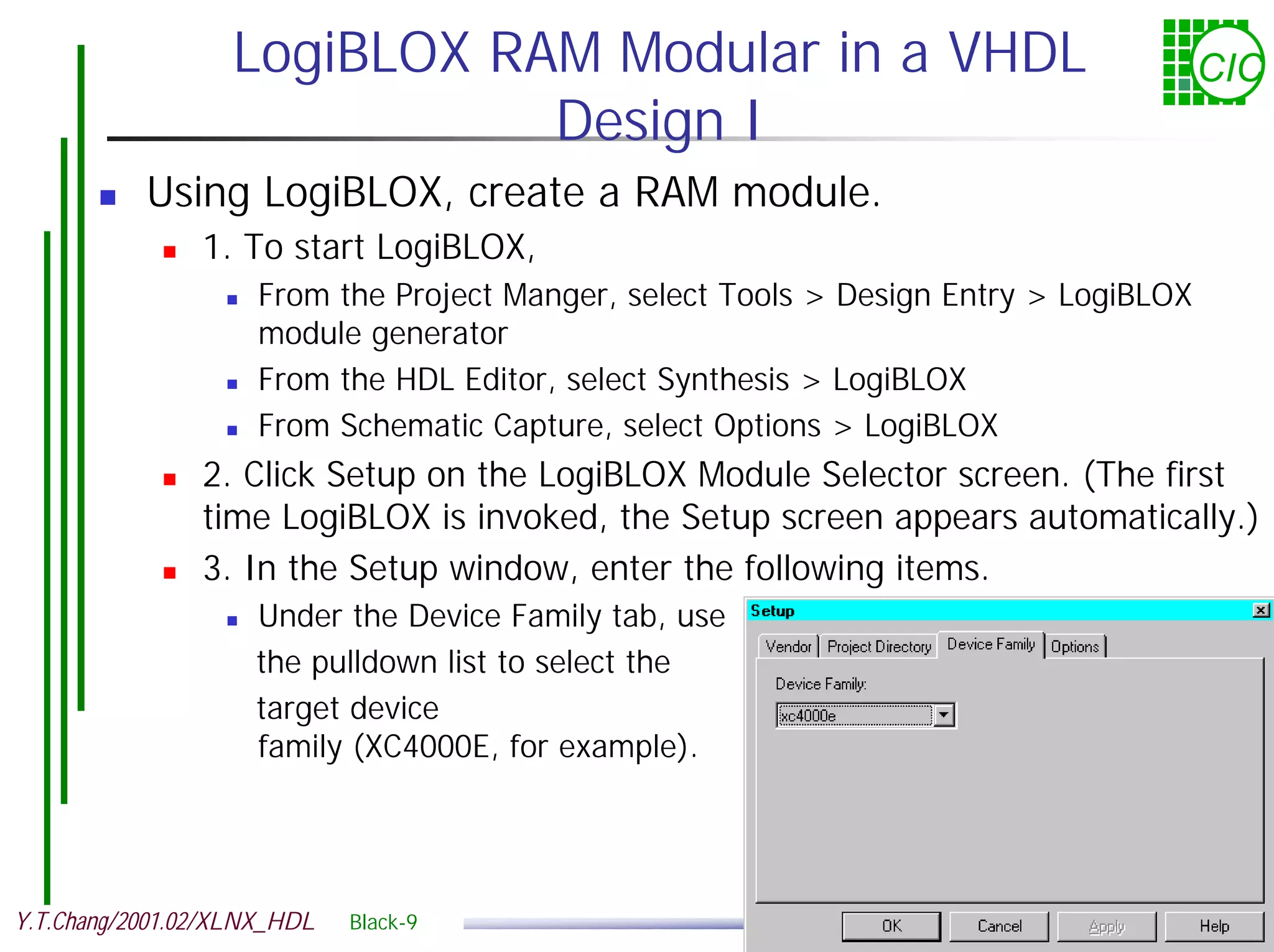

LogiBLOX RAM Modular in a VHDL CIC Design I ! Using LogiBLOX, create a RAM module. ! 1. To start LogiBLOX, ! From the Project Manger, select Tools > Design Entry > LogiBLOX module generator ! From the HDL Editor, select Synthesis > LogiBLOX ! From Schematic Capture, select Options > LogiBLOX ! 2. Click Setup on the LogiBLOX Module Selector screen. (The first time LogiBLOX is invoked, the Setup screen appears automatically.) ! 3. In the Setup window, enter the following items. ! Under the Device Family tab, use the pulldown list to select the target device family (XC4000E, for example). Y.T.Chang/2001.02/XLNX_HDL Black-9

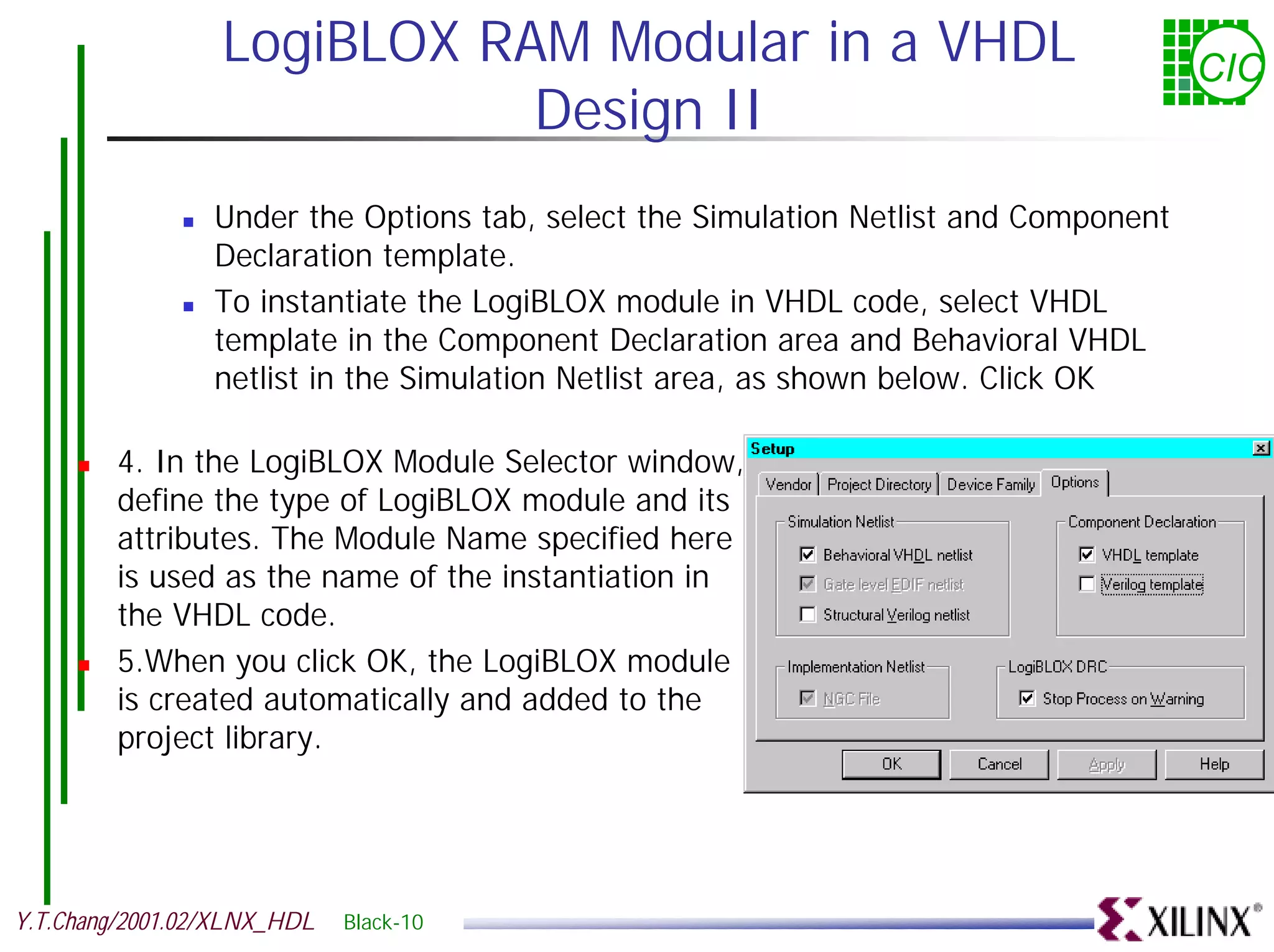

LogiBLOX RAM Modular in a VHDL CIC Design II ! Under the Options tab, select the Simulation Netlist and Component Declaration template. ! To instantiate the LogiBLOX module in VHDL code, select VHDL template in the Component Declaration area and Behavioral VHDL netlist in the Simulation Netlist area, as shown below. Click OK ! 4. In the LogiBLOX Module Selector window, define the type of LogiBLOX module and its attributes. The Module Name specified here is used as the name of the instantiation in the VHDL code. ! 5.When you click OK, the LogiBLOX module is created automatically and added to the project library. Y.T.Chang/2001.02/XLNX_HDL Black-10

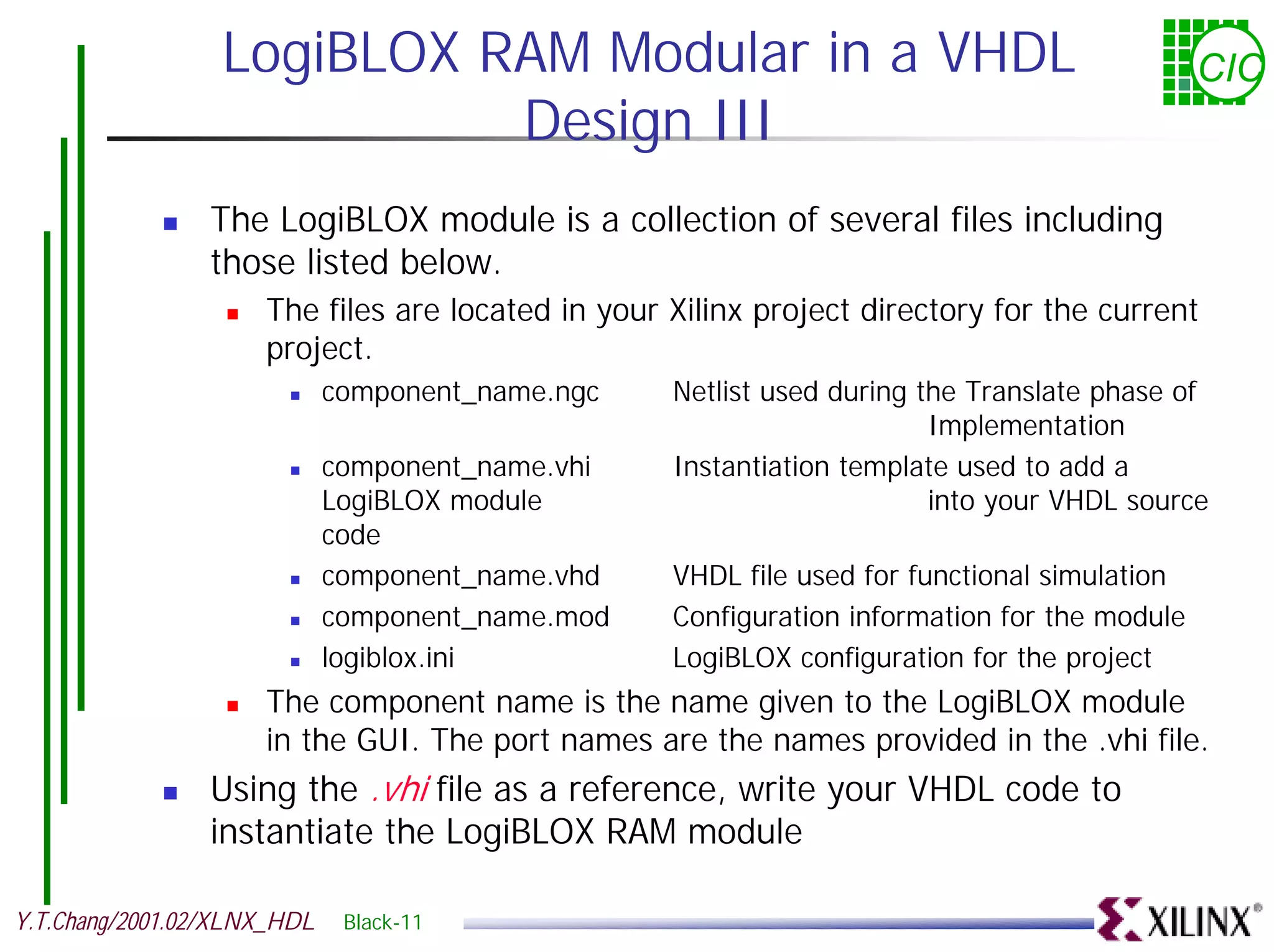

LogiBLOX RAM Modular in a VHDL CIC Design III ! The LogiBLOX module is a collection of several files including those listed below. ! The files are located in your Xilinx project directory for the current project. ! component_name.ngc Netlist used during the Translate phase of Implementation ! component_name.vhi Instantiation template used to add a LogiBLOX module into your VHDL source code ! component_name.vhd VHDL file used for functional simulation ! component_name.mod Configuration information for the module ! logiblox.ini LogiBLOX configuration for the project ! The component name is the name given to the LogiBLOX module in the GUI. The port names are the names provided in the .vhi file. ! Using the .vhi file as a reference, write your VHDL code to instantiate the LogiBLOX RAM module Y.T.Chang/2001.02/XLNX_HDL Black-11

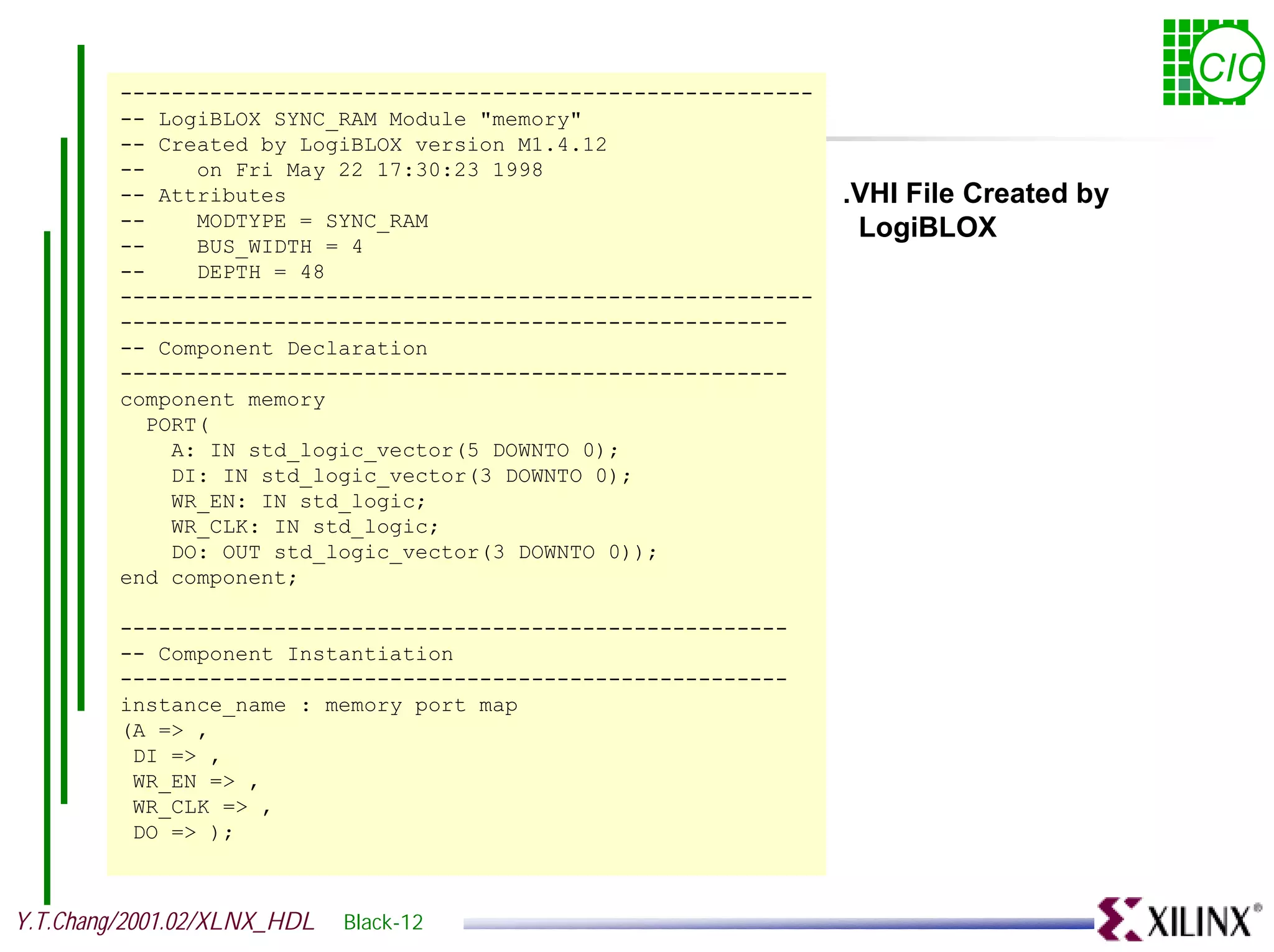

------------------------------------------------------ CIC -- LogiBLOX SYNC_RAM Module "memory" -- Created by LogiBLOX version M1.4.12 -- on Fri May 22 17:30:23 1998 -- Attributes .VHI File Created by -- MODTYPE = SYNC_RAM LogiBLOX -- BUS_WIDTH = 4 -- DEPTH = 48 ------------------------------------------------------ ---------------------------------------------------- -- Component Declaration ---------------------------------------------------- component memory PORT( A: IN std_logic_vector(5 DOWNTO 0); DI: IN std_logic_vector(3 DOWNTO 0); WR_EN: IN std_logic; WR_CLK: IN std_logic; DO: OUT std_logic_vector(3 DOWNTO 0)); end component; ---------------------------------------------------- -- Component Instantiation ---------------------------------------------------- instance_name : memory port map (A => , DI => , WR_EN => , WR_CLK => , DO => ); Y.T.Chang/2001.02/XLNX_HDL Black-12

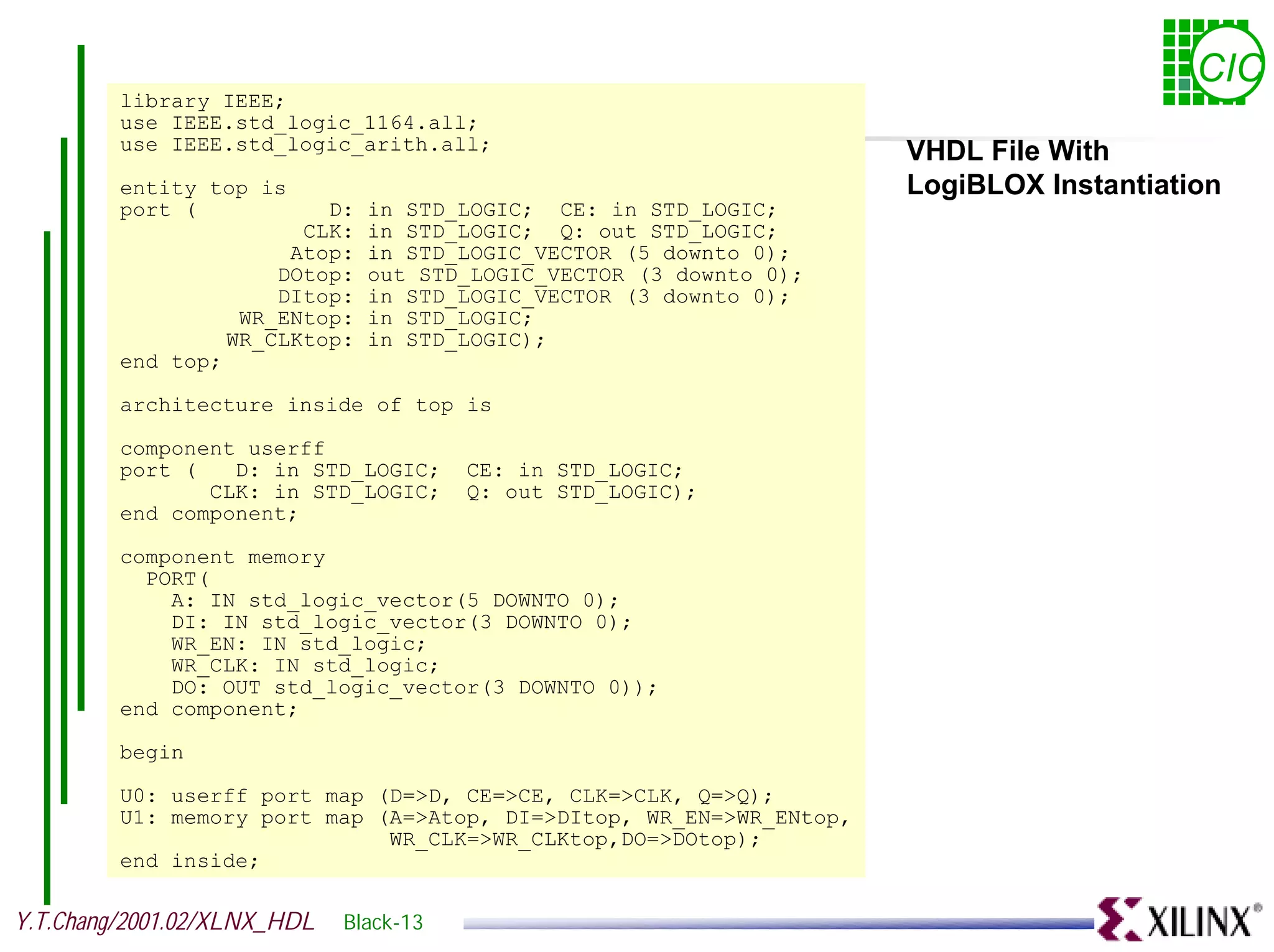

CIC library IEEE; use IEEE.std_logic_1164.all; use IEEE.std_logic_arith.all; VHDL File With entity top is LogiBLOX Instantiation port ( D: in STD_LOGIC; CE: in STD_LOGIC; CLK: in STD_LOGIC; Q: out STD_LOGIC; Atop: in STD_LOGIC_VECTOR (5 downto 0); DOtop: out STD_LOGIC_VECTOR (3 downto 0); DItop: in STD_LOGIC_VECTOR (3 downto 0); WR_ENtop: in STD_LOGIC; WR_CLKtop: in STD_LOGIC); end top; architecture inside of top is component userff port ( D: in STD_LOGIC; CE: in STD_LOGIC; CLK: in STD_LOGIC; Q: out STD_LOGIC); end component; component memory PORT( A: IN std_logic_vector(5 DOWNTO 0); DI: IN std_logic_vector(3 DOWNTO 0); WR_EN: IN std_logic; WR_CLK: IN std_logic; DO: OUT std_logic_vector(3 DOWNTO 0)); end component; begin U0: userff port map (D=>D, CE=>CE, CLK=>CLK, Q=>Q); U1: memory port map (A=>Atop, DI=>DItop, WR_EN=>WR_ENtop, WR_CLK=>WR_CLKtop,DO=>DOtop); end inside; Y.T.Chang/2001.02/XLNX_HDL Black-13

LogiBLOX RAM Modular in a VHDL CIC Design IV ! When the design is synthesized, a warning is generated that the LogiBLOX module is unexpanded. ! Modules instantiated as black boxes are not elaborated and optimized. ! The warning message is just reflecting the black box instantiation. Y.T.Chang/2001.02/XLNX_HDL Black-15

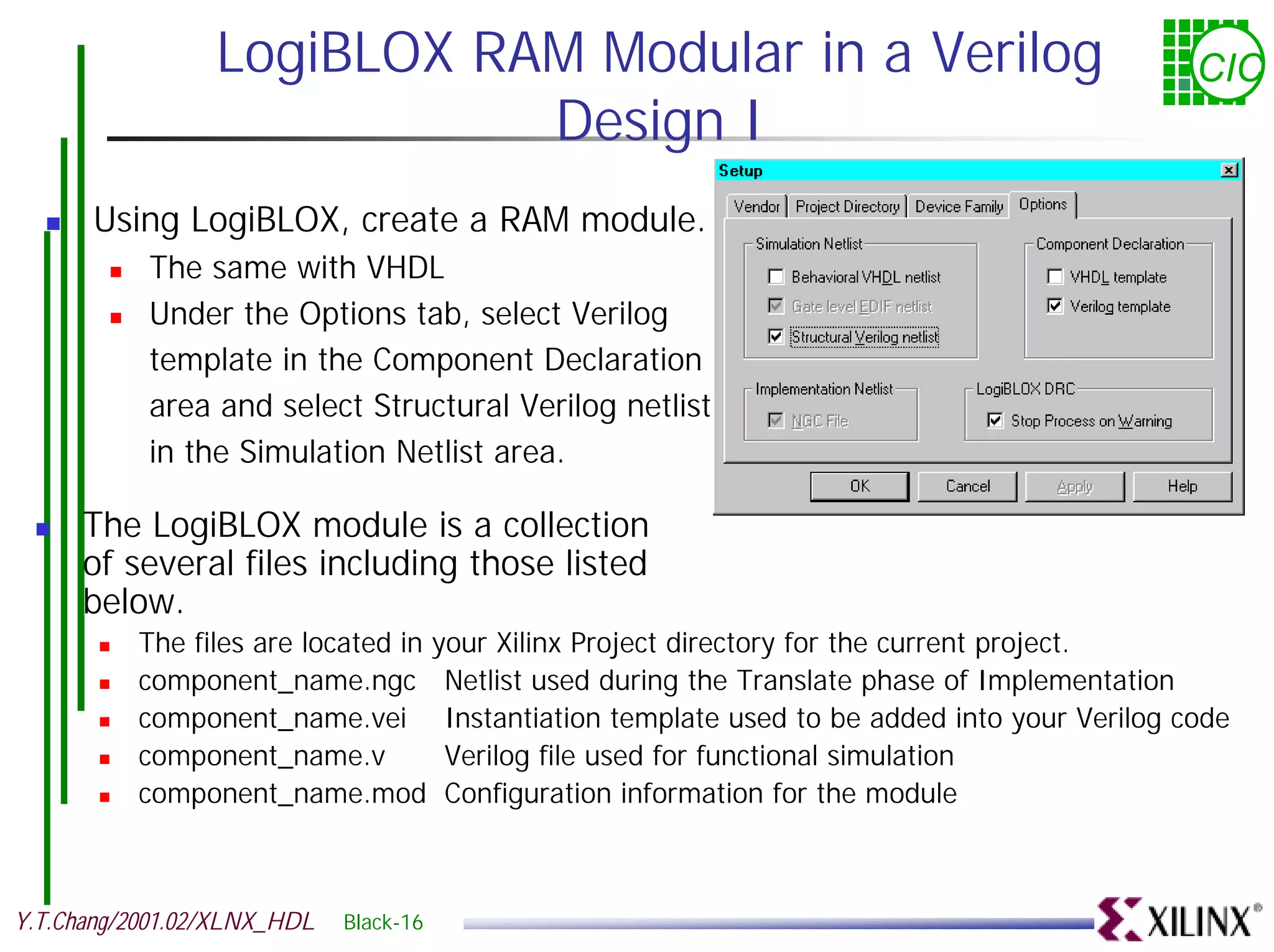

LogiBLOX RAM Modular in a Verilog CIC Design I ! Using LogiBLOX, create a RAM module. ! The same with VHDL ! Under the Options tab, select Verilog template in the Component Declaration area and select Structural Verilog netlist in the Simulation Netlist area. ! The LogiBLOX module is a collection of several files including those listed below. ! The files are located in your Xilinx Project directory for the current project. ! component_name.ngc Netlist used during the Translate phase of Implementation ! component_name.vei Instantiation template used to be added into your Verilog code ! component_name.v Verilog file used for functional simulation ! component_name.mod Configuration information for the module Y.T.Chang/2001.02/XLNX_HDL Black-16

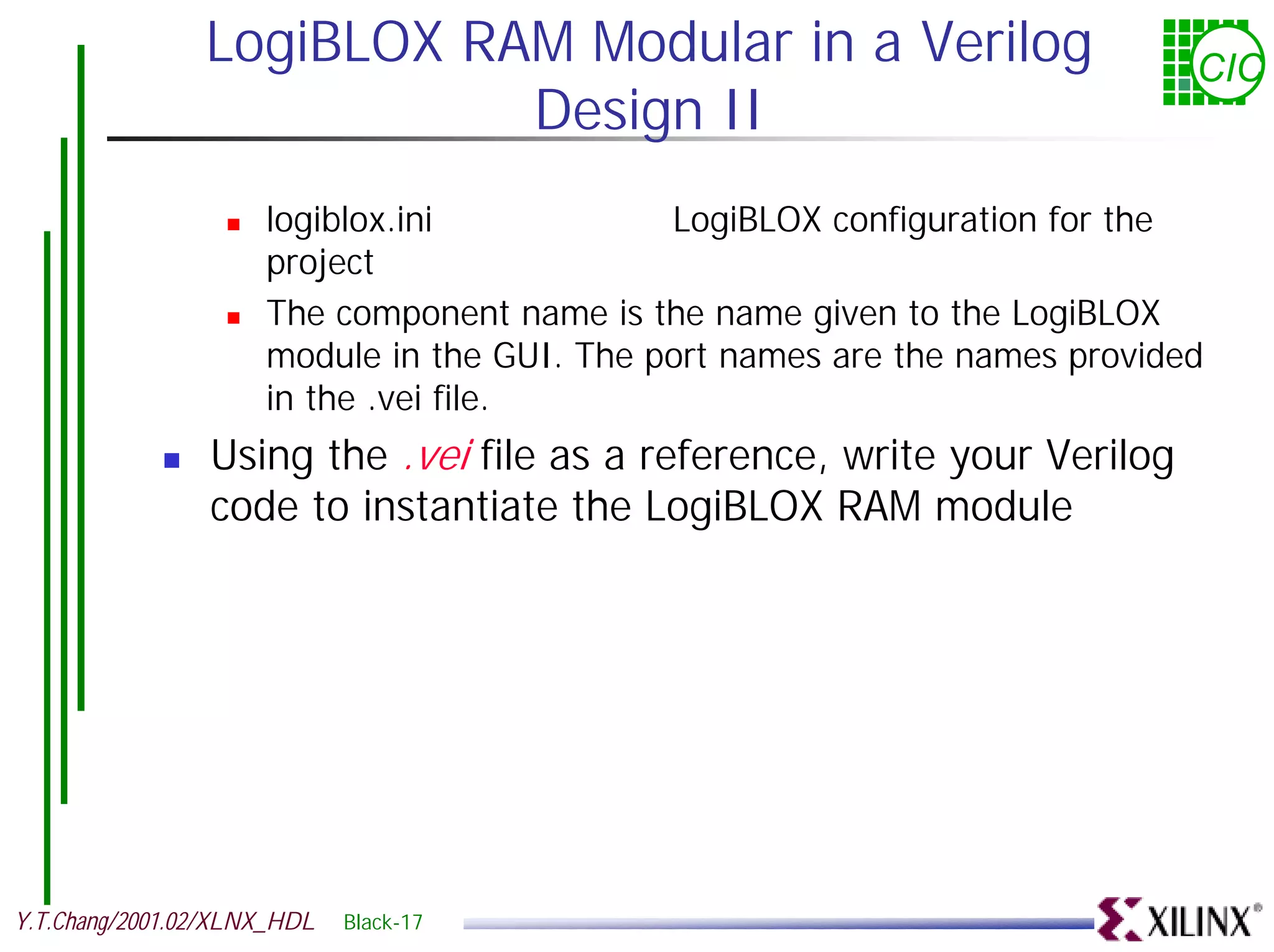

LogiBLOX RAM Modular in a Verilog CIC Design II ! logiblox.ini LogiBLOX configuration for the project ! The component name is the name given to the LogiBLOX module in the GUI. The port names are the names provided in the .vei file. ! Using the .vei file as a reference, write your Verilog code to instantiate the LogiBLOX RAM module Y.T.Chang/2001.02/XLNX_HDL Black-17

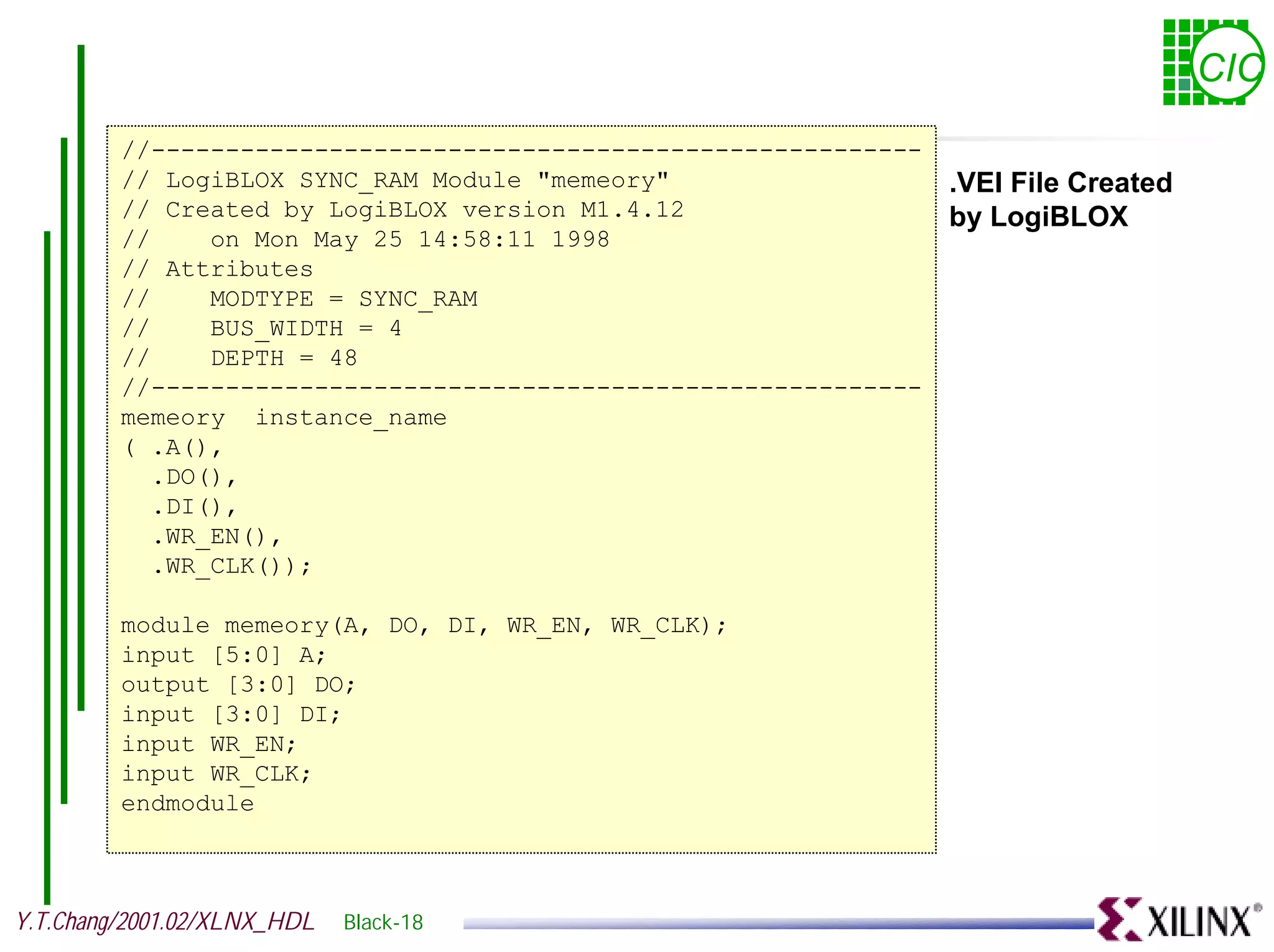

CIC //---------------------------------------------------- // LogiBLOX SYNC_RAM Module "memeory" .VEI File Created // Created by LogiBLOX version M1.4.12 by LogiBLOX // on Mon May 25 14:58:11 1998 // Attributes // MODTYPE = SYNC_RAM // BUS_WIDTH = 4 // DEPTH = 48 //---------------------------------------------------- memeory instance_name ( .A(), .DO(), .DI(), .WR_EN(), .WR_CLK()); module memeory(A, DO, DI, WR_EN, WR_CLK); input [5:0] A; output [3:0] DO; input [3:0] DI; input WR_EN; input WR_CLK; endmodule Y.T.Chang/2001.02/XLNX_HDL Black-18

CIC module top (D,CE,CLK,Q, Atop,Dotop,Ditop,WR_Entop,WR_CLKtop); input D; input CE; Verilog File With input CLK; LogiBLOX Instiation output Q; input [5:0] Atop; output [3:0] DOtop; input [3:0] DItop; input WR_Entop; input WR_CLKtop; userff U0 (.D(D),.CE(CE),.CLK(CLK),.Q(Q)); memory U1 (.A(Atop),.DO(DOtop),.DI(DItop), .WR_EN(WR_ENtop), .WR_CLK(WR_CLKtop)); endmodule module memeory(A, DO, DI, WR_EN, WR_CLK); input [5:0] A; output [3:0] DO; input [3:0] DI; input WR_EN; input WR_CLK; endmodule Y.T.Chang/2001.02/XLNX_HDL Black-19

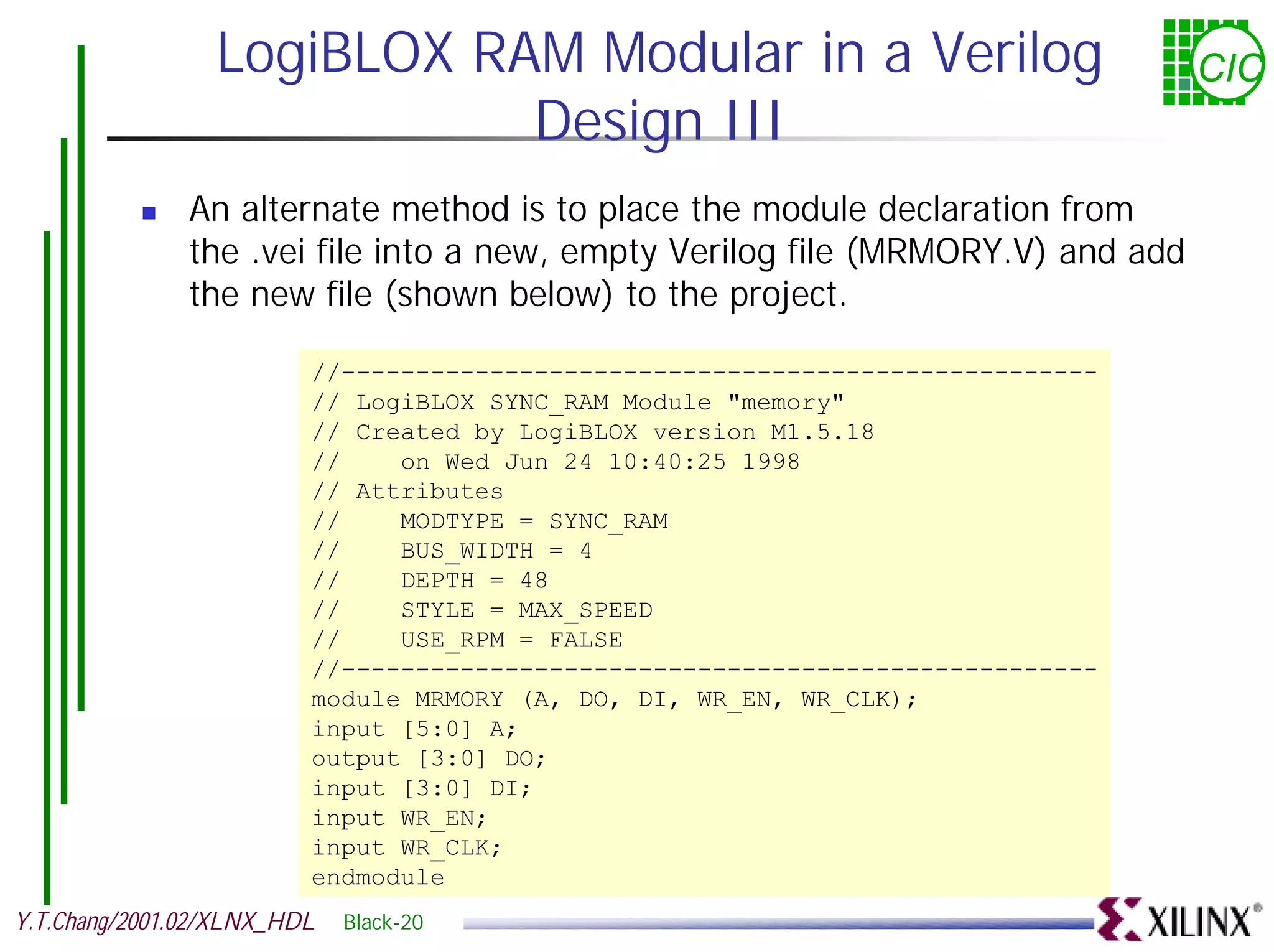

LogiBLOX RAM Modular in a Verilog CIC Design III ! An alternate method is to place the module declaration from the .vei file into a new, empty Verilog file (MRMORY.V) and add the new file (shown below) to the project. //--------------------------------------------------- // LogiBLOX SYNC_RAM Module "memory" // Created by LogiBLOX version M1.5.18 // on Wed Jun 24 10:40:25 1998 // Attributes // MODTYPE = SYNC_RAM // BUS_WIDTH = 4 // DEPTH = 48 // STYLE = MAX_SPEED // USE_RPM = FALSE //--------------------------------------------------- module MRMORY (A, DO, DI, WR_EN, WR_CLK); input [5:0] A; output [3:0] DO; input [3:0] DI; input WR_EN; input WR_CLK; endmodule Y.T.Chang/2001.02/XLNX_HDL Black-20

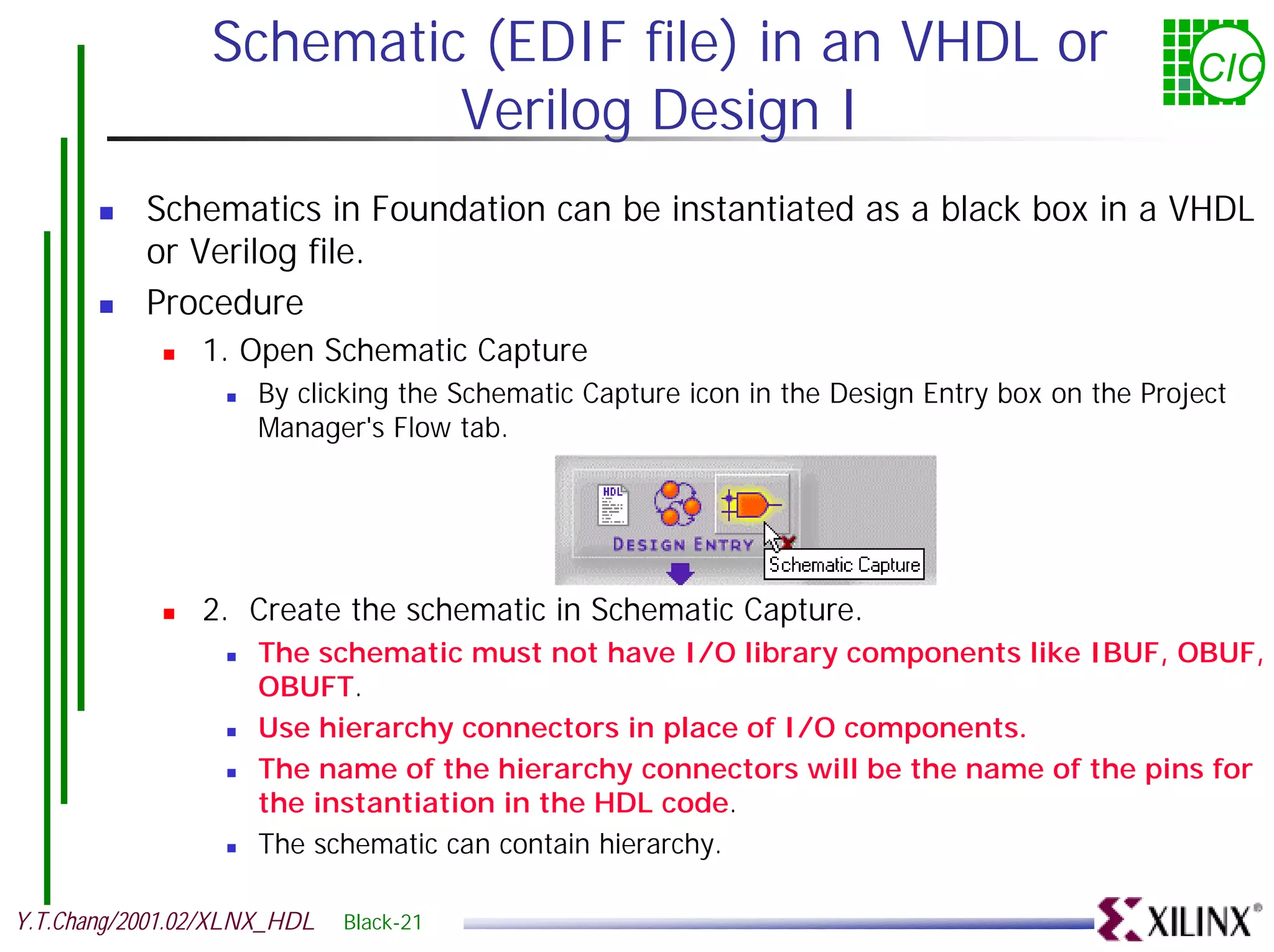

Schematic (EDIF file) in an VHDL or CIC Verilog Design I ! Schematics in Foundation can be instantiated as a black box in a VHDL or Verilog file. ! Procedure ! 1. Open Schematic Capture ! By clicking the Schematic Capture icon in the Design Entry box on the Project Manager's Flow tab. ! 2. Create the schematic in Schematic Capture. ! The schematic must not have I/O library components like IBUF, OBUF, OBUFT. ! Use hierarchy connectors in place of I/O components. ! The name of the hierarchy connectors will be the name of the pins for the instantiation in the HDL code. ! The schematic can contain hierarchy. Y.T.Chang/2001.02/XLNX_HDL Black-21

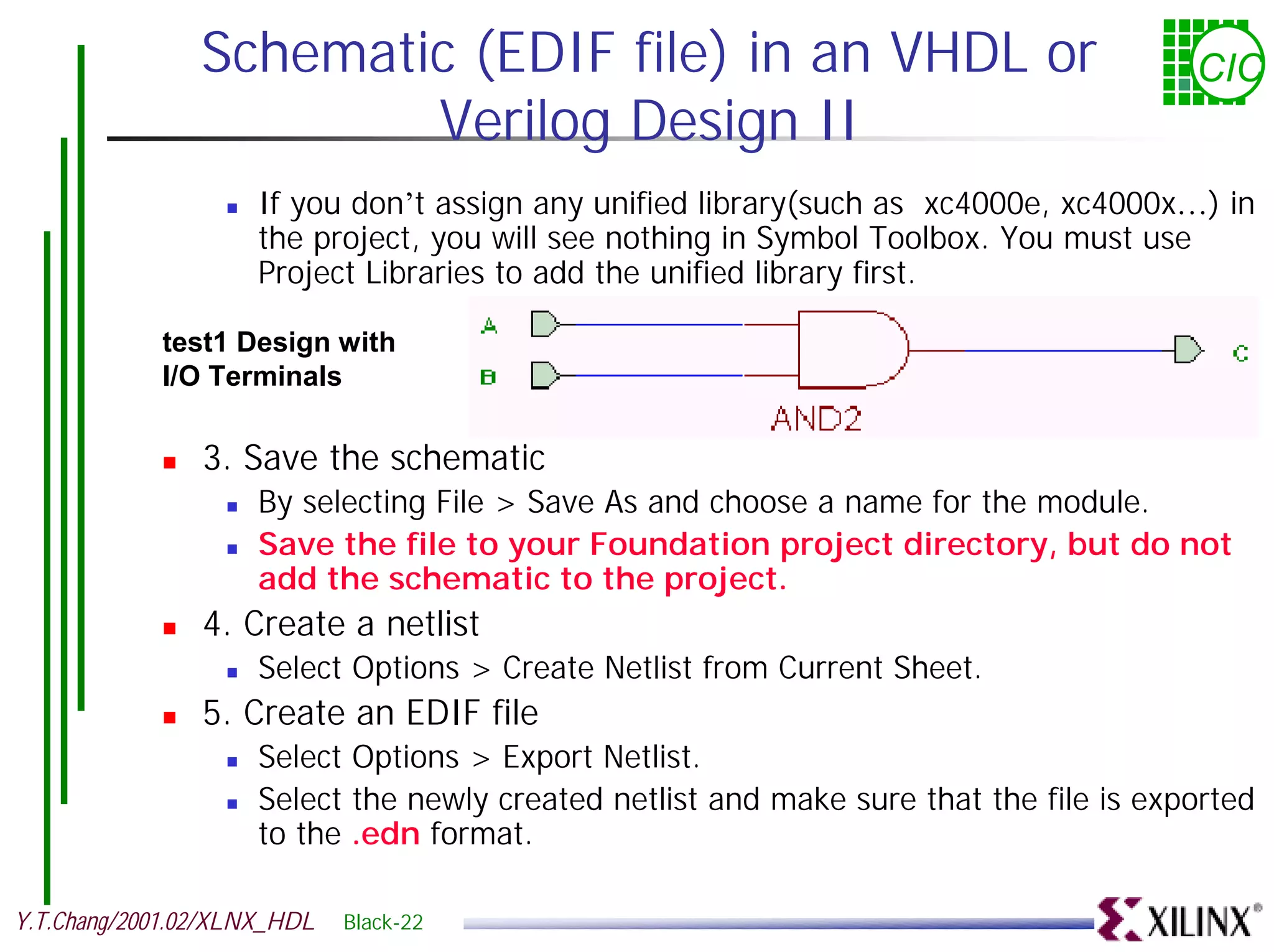

Schematic (EDIF file) in an VHDL or CIC Verilog Design II ! If you don’t assign any unified library(such as xc4000e, xc4000x…) in the project, you will see nothing in Symbol Toolbox. You must use Project Libraries to add the unified library first. test1 Design with I/O Terminals ! 3. Save the schematic ! By selecting File > Save As and choose a name for the module. ! Save the file to your Foundation project directory, but do not add the schematic to the project. ! 4. Create a netlist ! Select Options > Create Netlist from Current Sheet. ! 5. Create an EDIF file ! Select Options > Export Netlist. ! Select the newly created netlist and make sure that the file is exported to the .edn format. Y.T.Chang/2001.02/XLNX_HDL Black-22

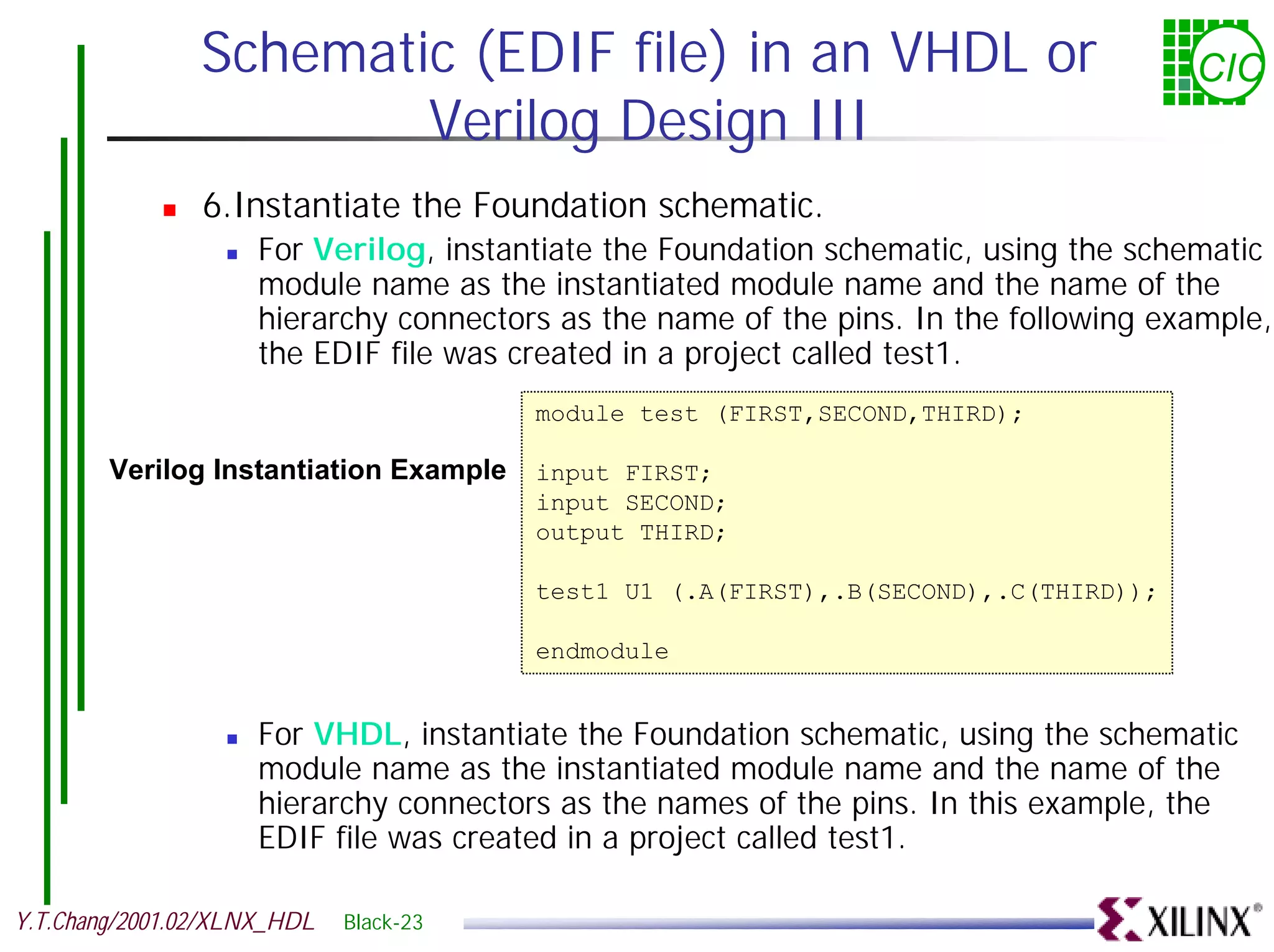

Schematic (EDIF file) in an VHDL or CIC Verilog Design III ! 6.Instantiate the Foundation schematic. ! For Verilog, instantiate the Foundation schematic, using the schematic module name as the instantiated module name and the name of the hierarchy connectors as the name of the pins. In the following example, the EDIF file was created in a project called test1. module test (FIRST,SECOND,THIRD); Verilog Instantiation Example input FIRST; input SECOND; output THIRD; test1 U1 (.A(FIRST),.B(SECOND),.C(THIRD)); endmodule ! For VHDL, instantiate the Foundation schematic, using the schematic module name as the instantiated module name and the name of the hierarchy connectors as the names of the pins. In this example, the EDIF file was created in a project called test1. Y.T.Chang/2001.02/XLNX_HDL Black-23

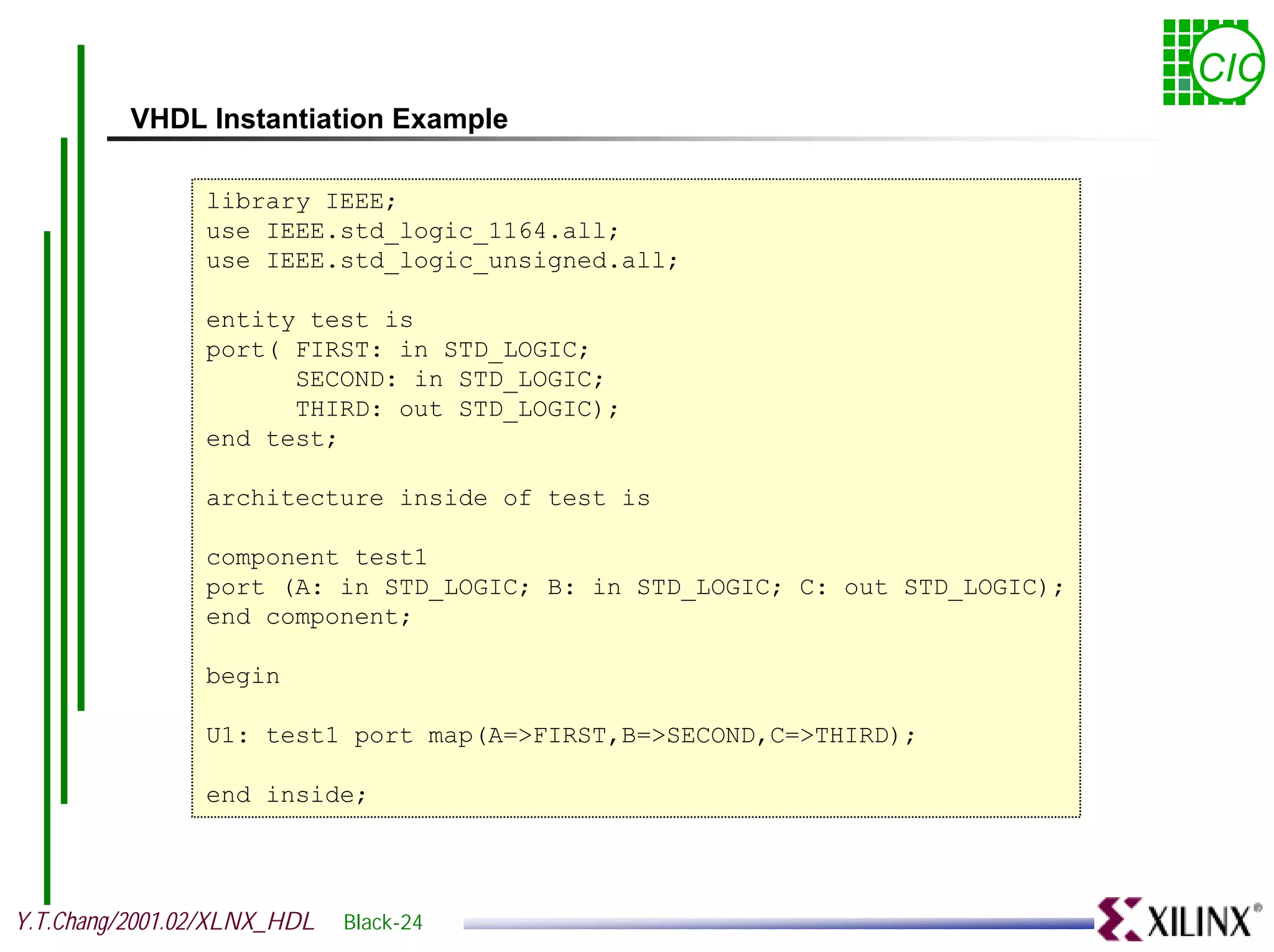

CIC VHDL Instantiation Example library IEEE; use IEEE.std_logic_1164.all; use IEEE.std_logic_unsigned.all; entity test is port( FIRST: in STD_LOGIC; SECOND: in STD_LOGIC; THIRD: out STD_LOGIC); end test; architecture inside of test is component test1 port (A: in STD_LOGIC; B: in STD_LOGIC; C: out STD_LOGIC); end component; begin U1: test1 port map(A=>FIRST,B=>SECOND,C=>THIRD); end inside; Y.T.Chang/2001.02/XLNX_HDL Black-24

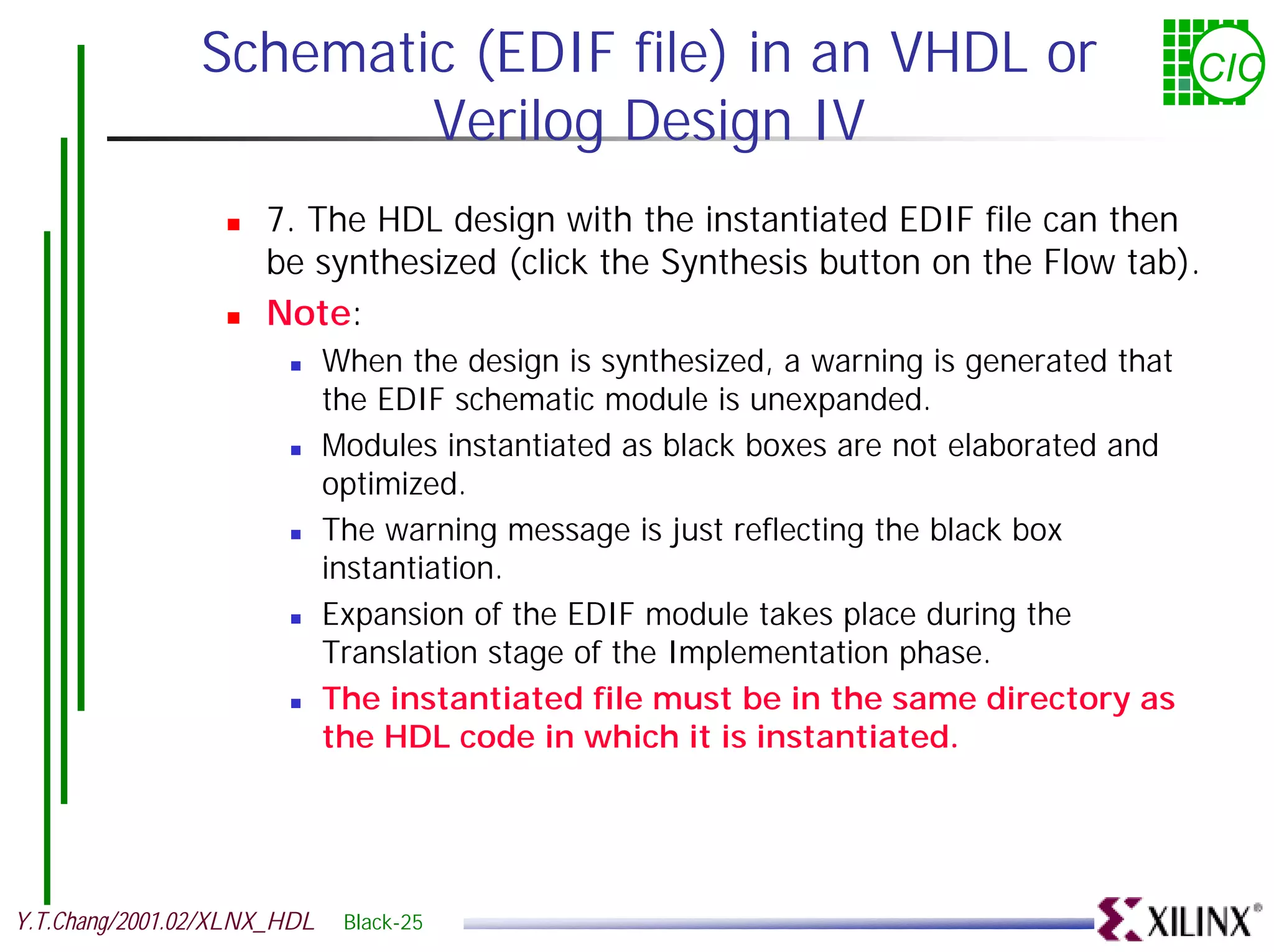

Schematic (EDIF file) in an VHDL or CIC Verilog Design IV ! 7. The HDL design with the instantiated EDIF file can then be synthesized (click the Synthesis button on the Flow tab). ! Note: ! When the design is synthesized, a warning is generated that the EDIF schematic module is unexpanded. ! Modules instantiated as black boxes are not elaborated and optimized. ! The warning message is just reflecting the black box instantiation. ! Expansion of the EDIF module takes place during the Translation stage of the Implementation phase. ! The instantiated file must be in the same directory as the HDL code in which it is instantiated. Y.T.Chang/2001.02/XLNX_HDL Black-25

Timing Constraints with Foundation Express Y.T.Chang/2001.02/XLNX_HDL timing-1

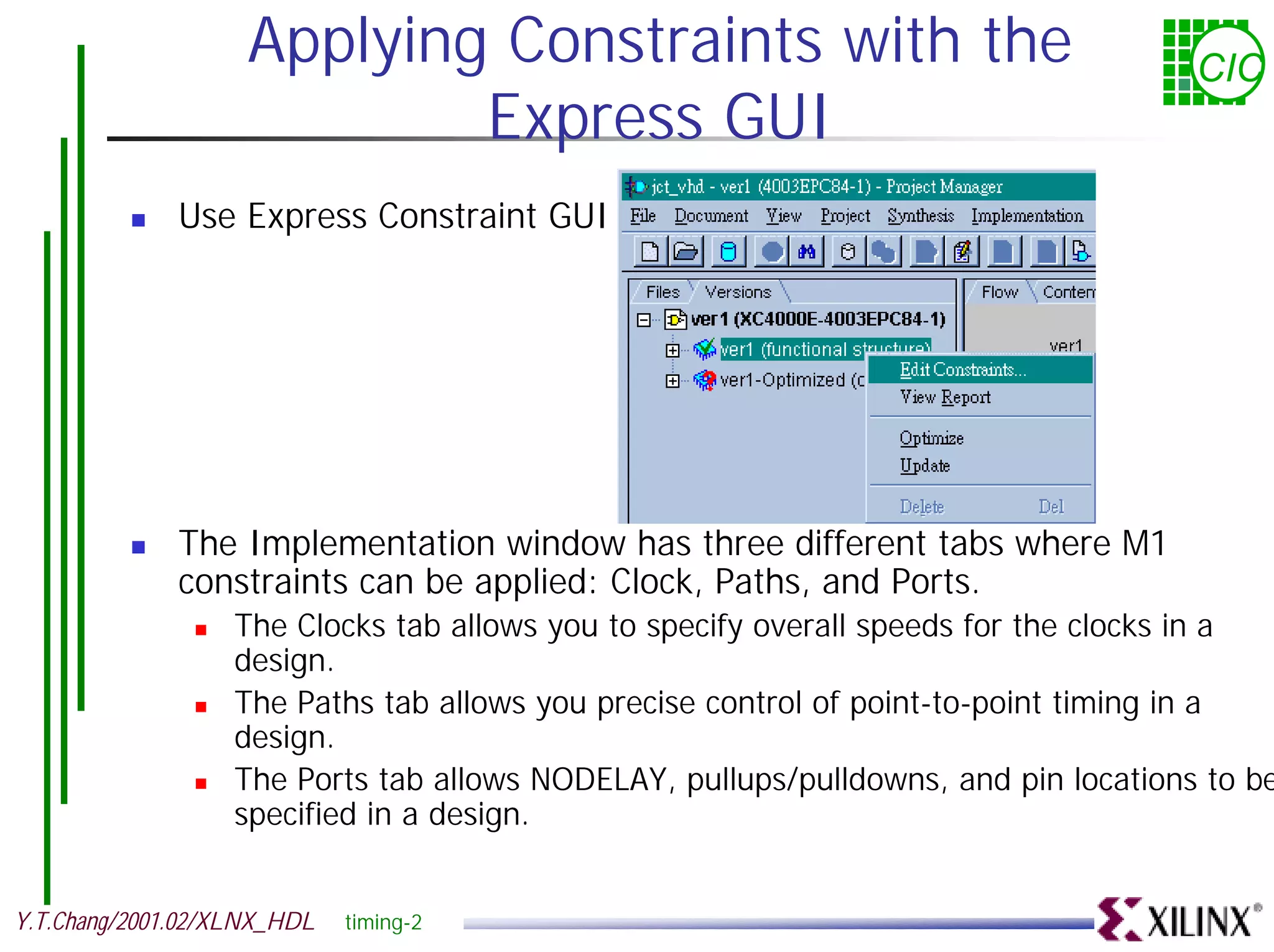

Applying Constraints with the CIC Express GUI ! Use Express Constraint GUI ! The Implementation window has three different tabs where M1 constraints can be applied: Clock, Paths, and Ports. ! The Clocks tab allows you to specify overall speeds for the clocks in a design. ! The Paths tab allows you precise control of point-to-point timing in a design. ! The Ports tab allows NODELAY, pullups/pulldowns, and pin locations to be specified in a design. Y.T.Chang/2001.02/XLNX_HDL timing-2

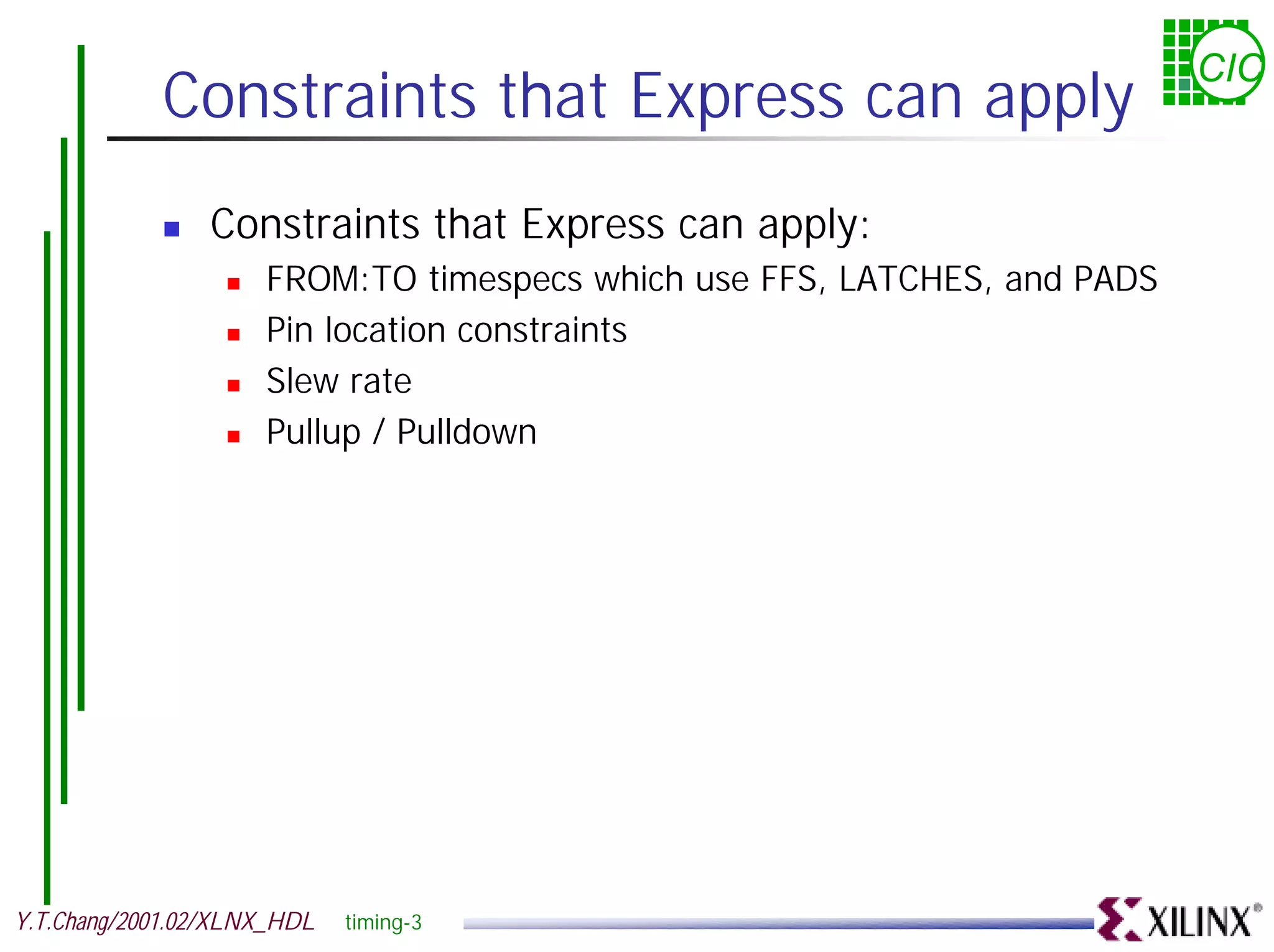

CIC Constraints that Express can apply ! Constraints that Express can apply: ! FROM:TO timespecs which use FFS, LATCHES, and PADS ! Pin location constraints ! Slew rate ! Pullup / Pulldown Y.T.Chang/2001.02/XLNX_HDL timing-3

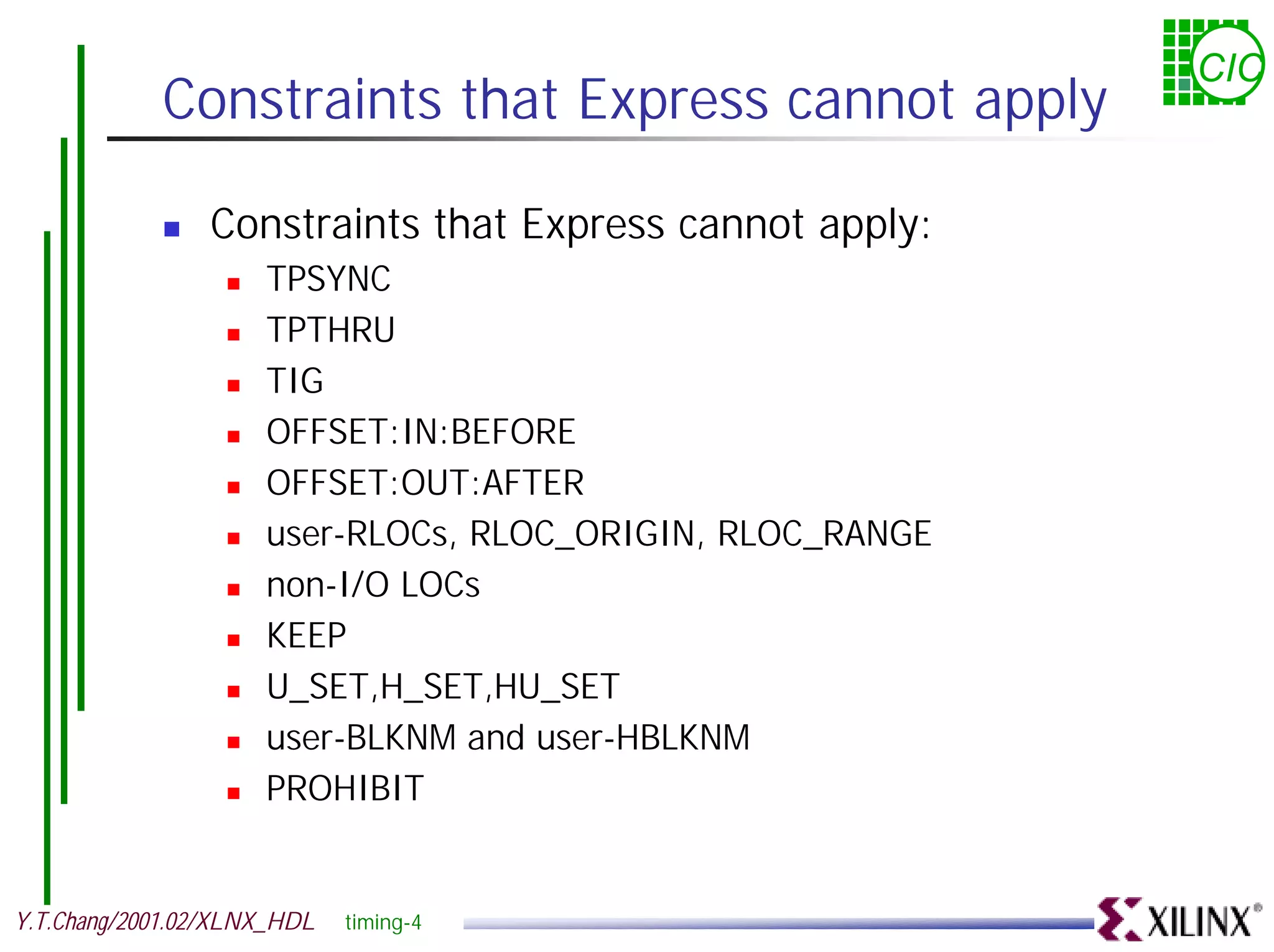

CIC Constraints that Express cannot apply ! Constraints that Express cannot apply: ! TPSYNC ! TPTHRU ! TIG ! OFFSET:IN:BEFORE ! OFFSET:OUT:AFTER ! user-RLOCs, RLOC_ORIGIN, RLOC_RANGE ! non-I/O LOCs ! KEEP ! U_SET,H_SET,HU_SET ! user-BLKNM and user-HBLKNM ! PROHIBIT Y.T.Chang/2001.02/XLNX_HDL timing-4

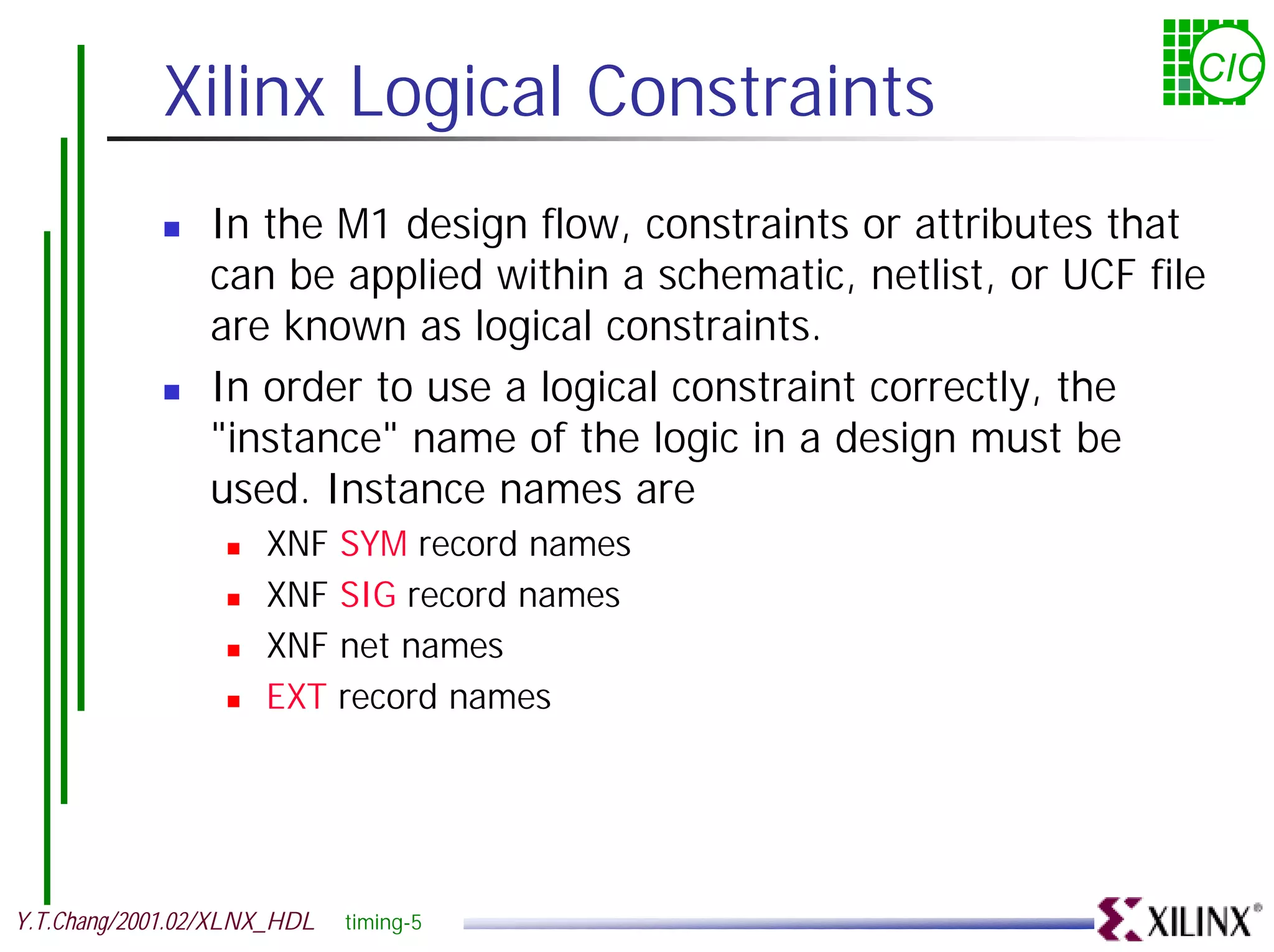

Xilinx Logical Constraints CIC ! In the M1 design flow, constraints or attributes that can be applied within a schematic, netlist, or UCF file are known as logical constraints. ! In order to use a logical constraint correctly, the "instance" name of the logic in a design must be used. Instance names are ! XNF SYM record names ! XNF SIG record names ! XNF net names ! EXT record names Y.T.Chang/2001.02/XLNX_HDL timing-5

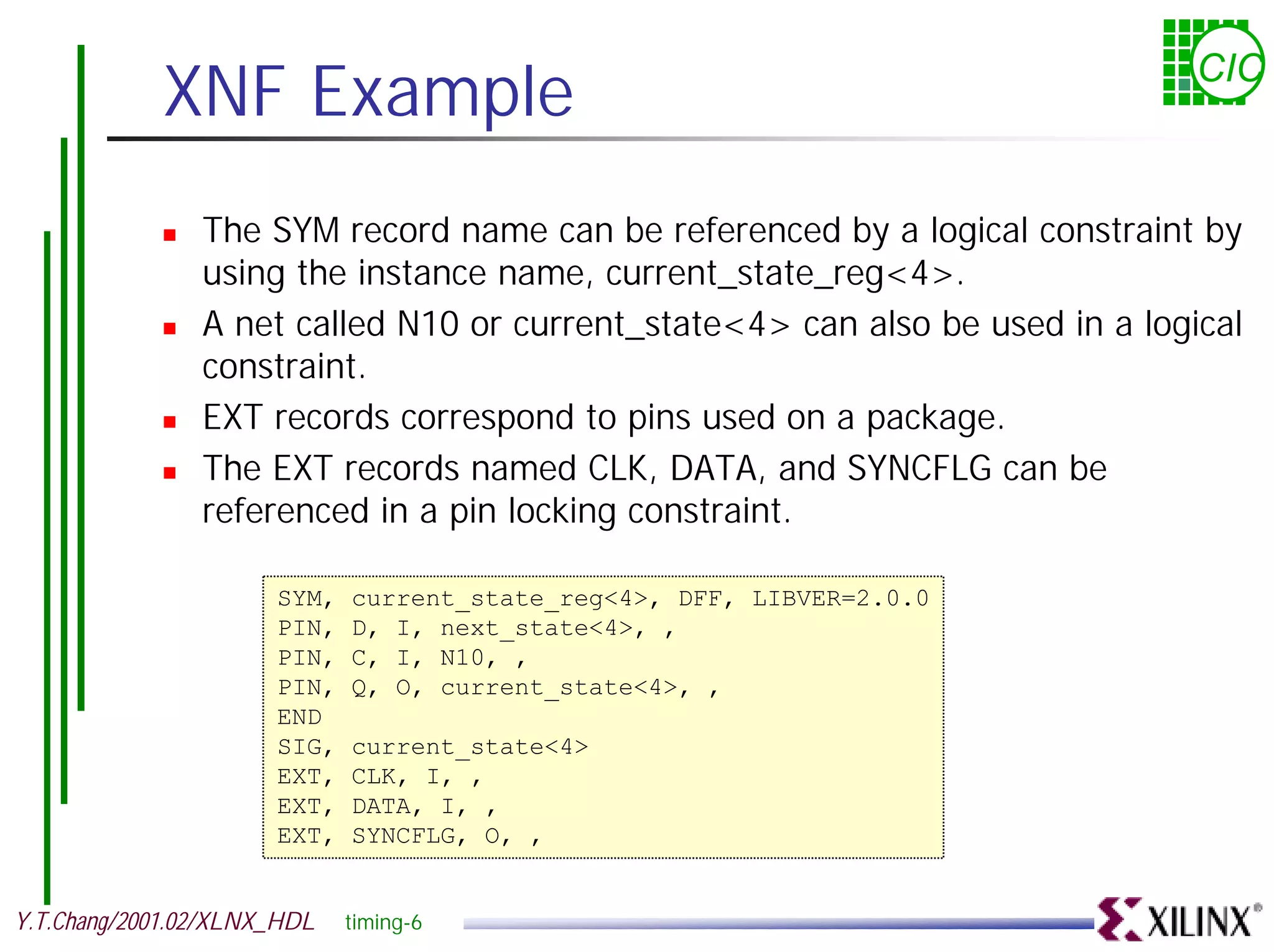

XNF Example CIC ! The SYM record name can be referenced by a logical constraint by using the instance name, current_state_reg<4>. ! A net called N10 or current_state<4> can also be used in a logical constraint. ! EXT records correspond to pins used on a package. ! The EXT records named CLK, DATA, and SYNCFLG can be referenced in a pin locking constraint. SYM, current_state_reg<4>, DFF, LIBVER=2.0.0 PIN, D, I, next_state<4>, , PIN, C, I, N10, , PIN, Q, O, current_state<4>, , END SIG, current_state<4> EXT, CLK, I, , EXT, DATA, I, , EXT, SYNCFLG, O, , Y.T.Chang/2001.02/XLNX_HDL timing-6

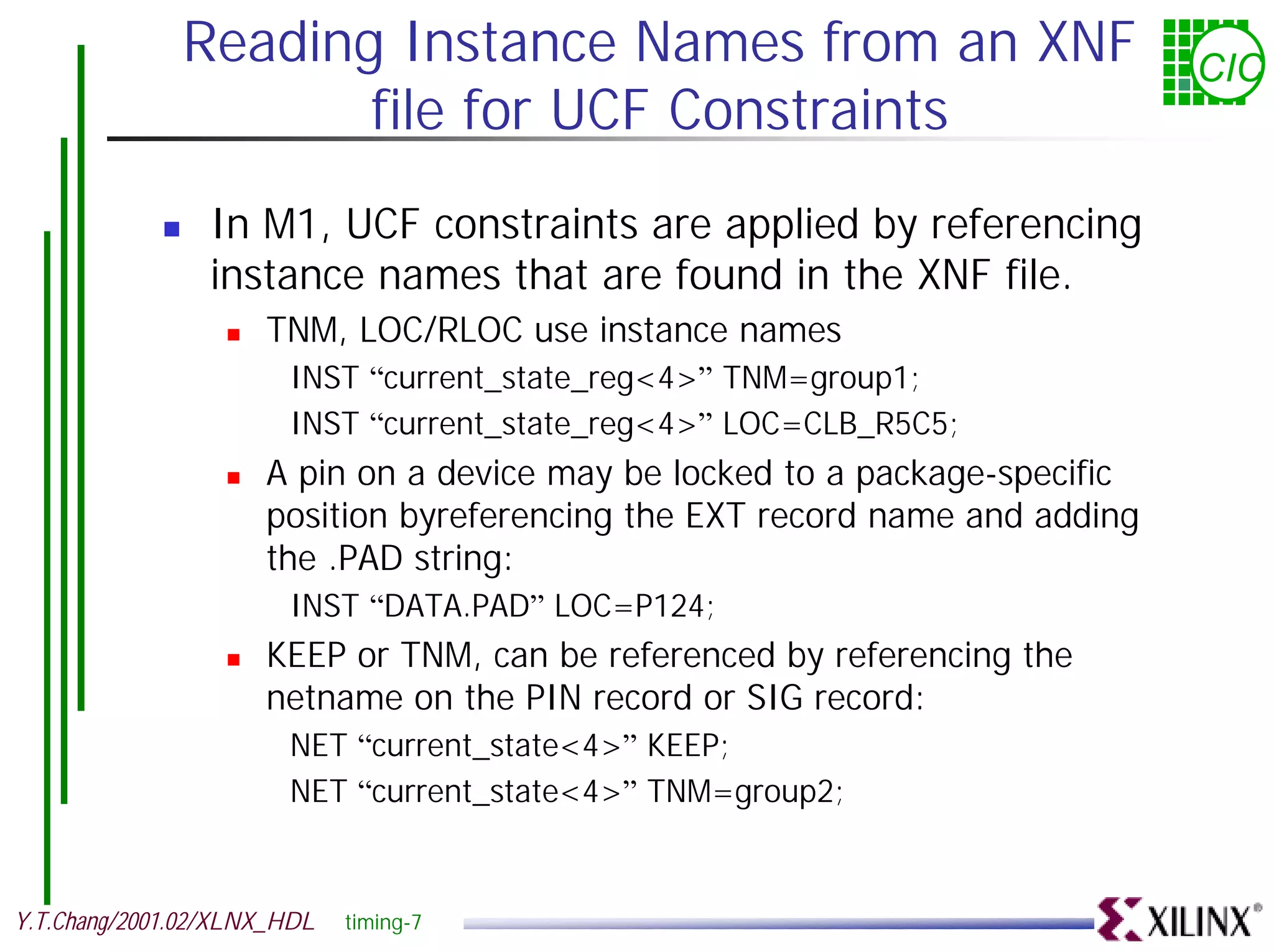

Reading Instance Names from an XNF CIC file for UCF Constraints ! In M1, UCF constraints are applied by referencing instance names that are found in the XNF file. ! TNM, LOC/RLOC use instance names INST “current_state_reg<4>” TNM=group1; INST “current_state_reg<4>” LOC=CLB_R5C5; ! A pin on a device may be locked to a package-specific position byreferencing the EXT record name and adding the .PAD string: INST “DATA.PAD” LOC=P124; ! KEEP or TNM, can be referenced by referencing the netname on the PIN record or SIG record: NET “current_state<4>” KEEP; NET “current_state<4>” TNM=group2; Y.T.Chang/2001.02/XLNX_HDL timing-7

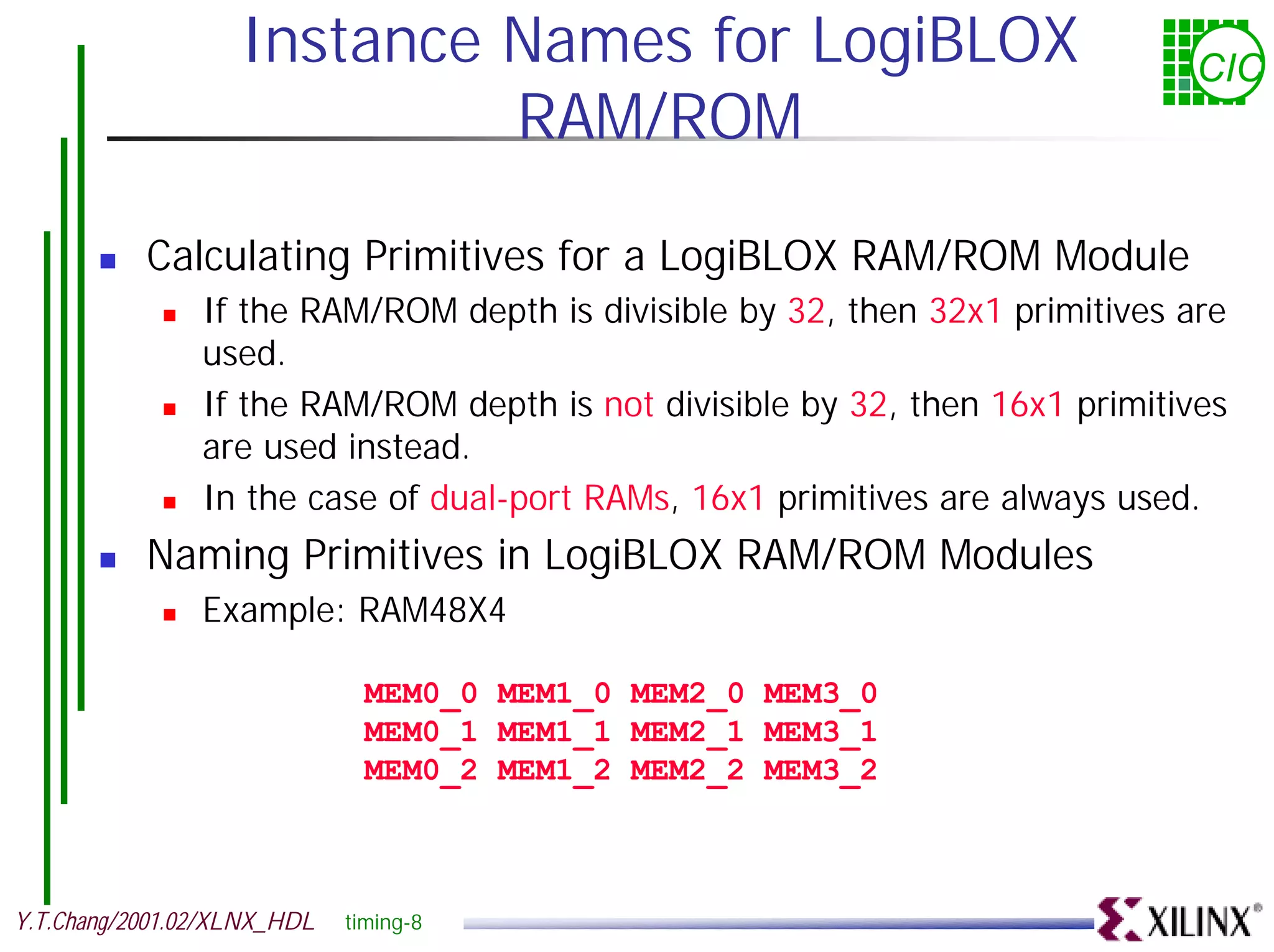

Instance Names for LogiBLOX CIC RAM/ROM ! Calculating Primitives for a LogiBLOX RAM/ROM Module ! If the RAM/ROM depth is divisible by 32, then 32x1 primitives are used. ! If the RAM/ROM depth is not divisible by 32, then 16x1 primitives are used instead. ! In the case of dual-port RAMs, 16x1 primitives are always used. ! Naming Primitives in LogiBLOX RAM/ROM Modules ! Example: RAM48X4 MEM0_0 MEM1_0 MEM2_0 MEM3_0 MEM0_1 MEM1_1 MEM2_1 MEM3_1 MEM0_2 MEM1_2 MEM2_2 MEM3_2 Y.T.Chang/2001.02/XLNX_HDL timing-8

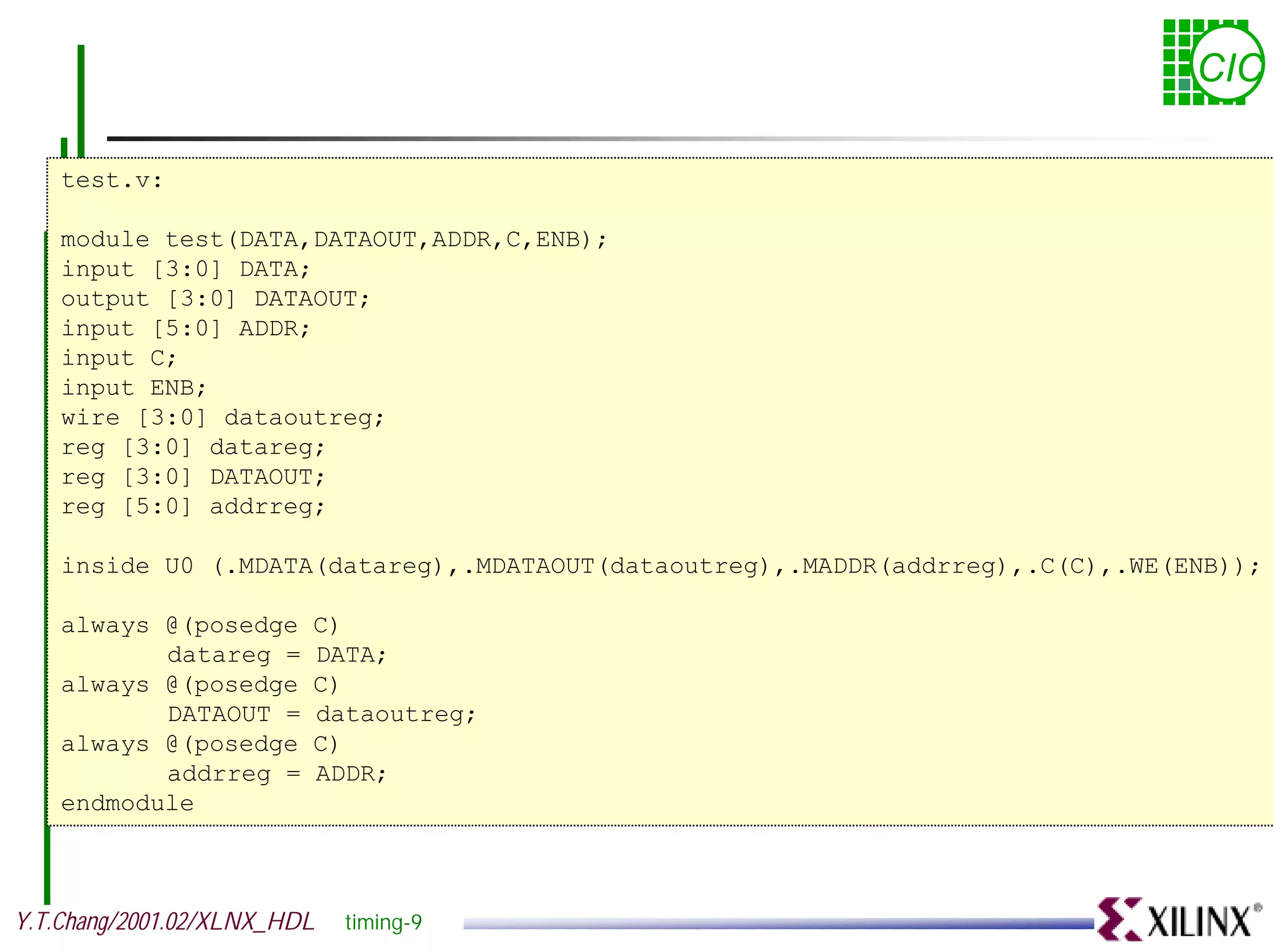

CIC test.v: module test(DATA,DATAOUT,ADDR,C,ENB); input [3:0] DATA; output [3:0] DATAOUT; input [5:0] ADDR; input C; input ENB; wire [3:0] dataoutreg; reg [3:0] datareg; reg [3:0] DATAOUT; reg [5:0] addrreg; inside U0 (.MDATA(datareg),.MDATAOUT(dataoutreg),.MADDR(addrreg),.C(C),.WE(ENB)); always @(posedge C) datareg = DATA; always @(posedge C) DATAOUT = dataoutreg; always @(posedge C) addrreg = ADDR; endmodule Y.T.Chang/2001.02/XLNX_HDL timing-9

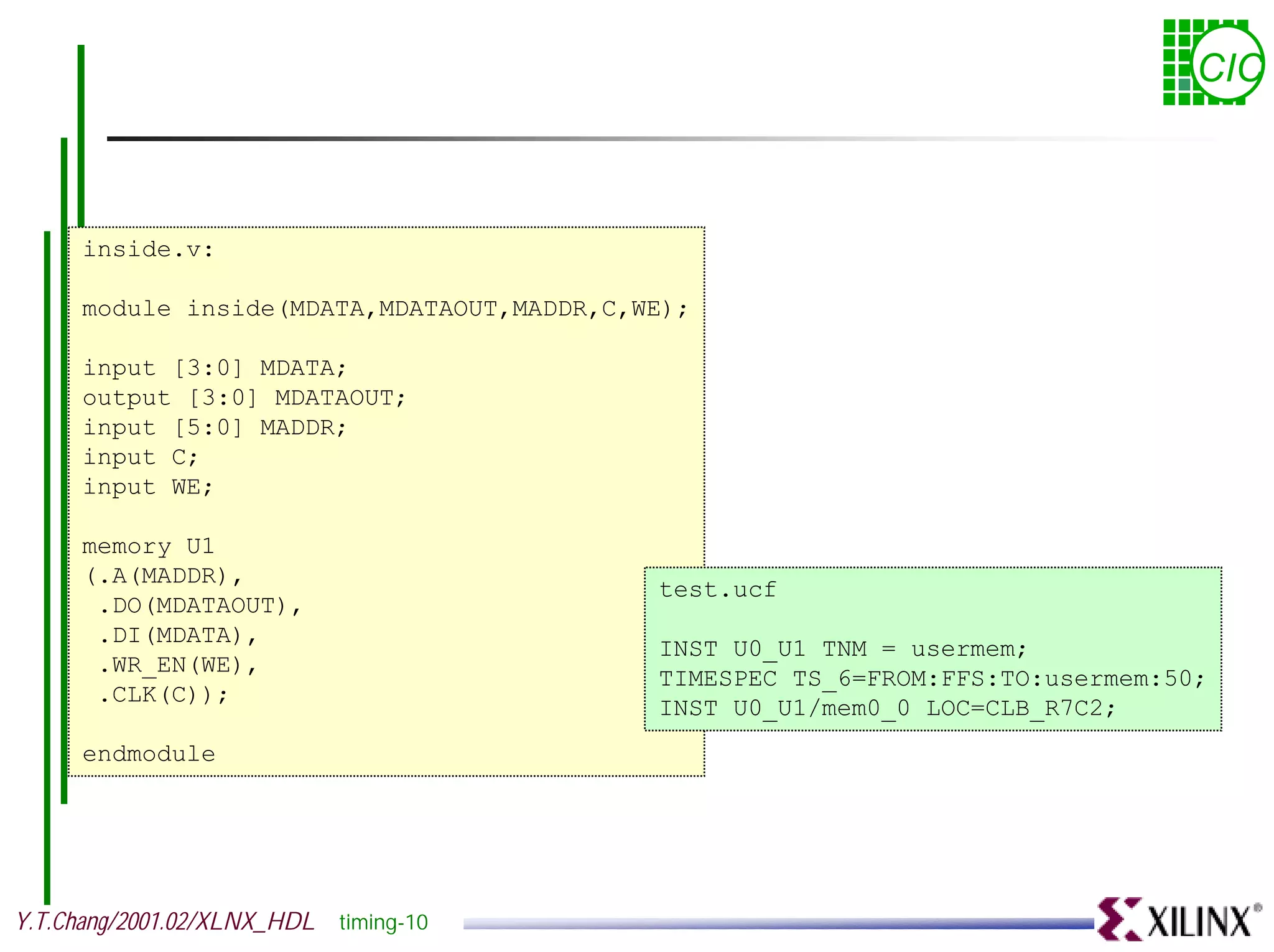

CIC inside.v: module inside(MDATA,MDATAOUT,MADDR,C,WE); input [3:0] MDATA; output [3:0] MDATAOUT; input [5:0] MADDR; input C; input WE; memory U1 (.A(MADDR), test.ucf .DO(MDATAOUT), .DI(MDATA), INST U0_U1 TNM = usermem; .WR_EN(WE), TIMESPEC TS_6=FROM:FFS:TO:usermem:50; .CLK(C)); INST U0_U1/mem0_0 LOC=CLB_R7C2; endmodule Y.T.Chang/2001.02/XLNX_HDL timing-10

Introduction to Efficient Synthesis Y.T.Chang/2001.02/XLNX_HDL vrteffcd-1

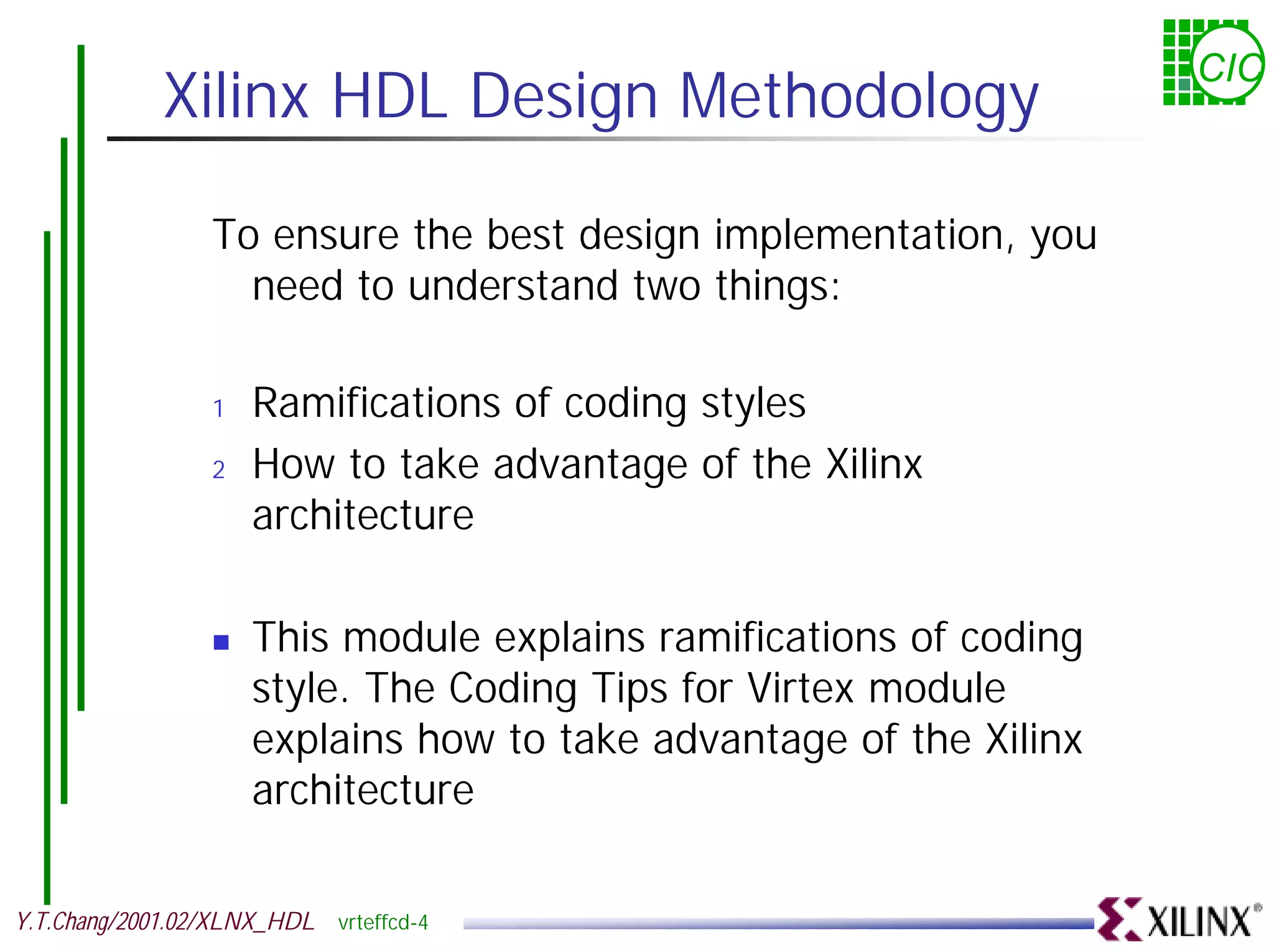

CIC Xilinx HDL Design Methodology To ensure the best design implementation, you need to understand two things: 1 Ramifications of coding styles 2 How to take advantage of the Xilinx architecture ! This module explains ramifications of coding style. The Coding Tips for Virtex module explains how to take advantage of the Xilinx architecture Y.T.Chang/2001.02/XLNX_HDL vrteffcd-4

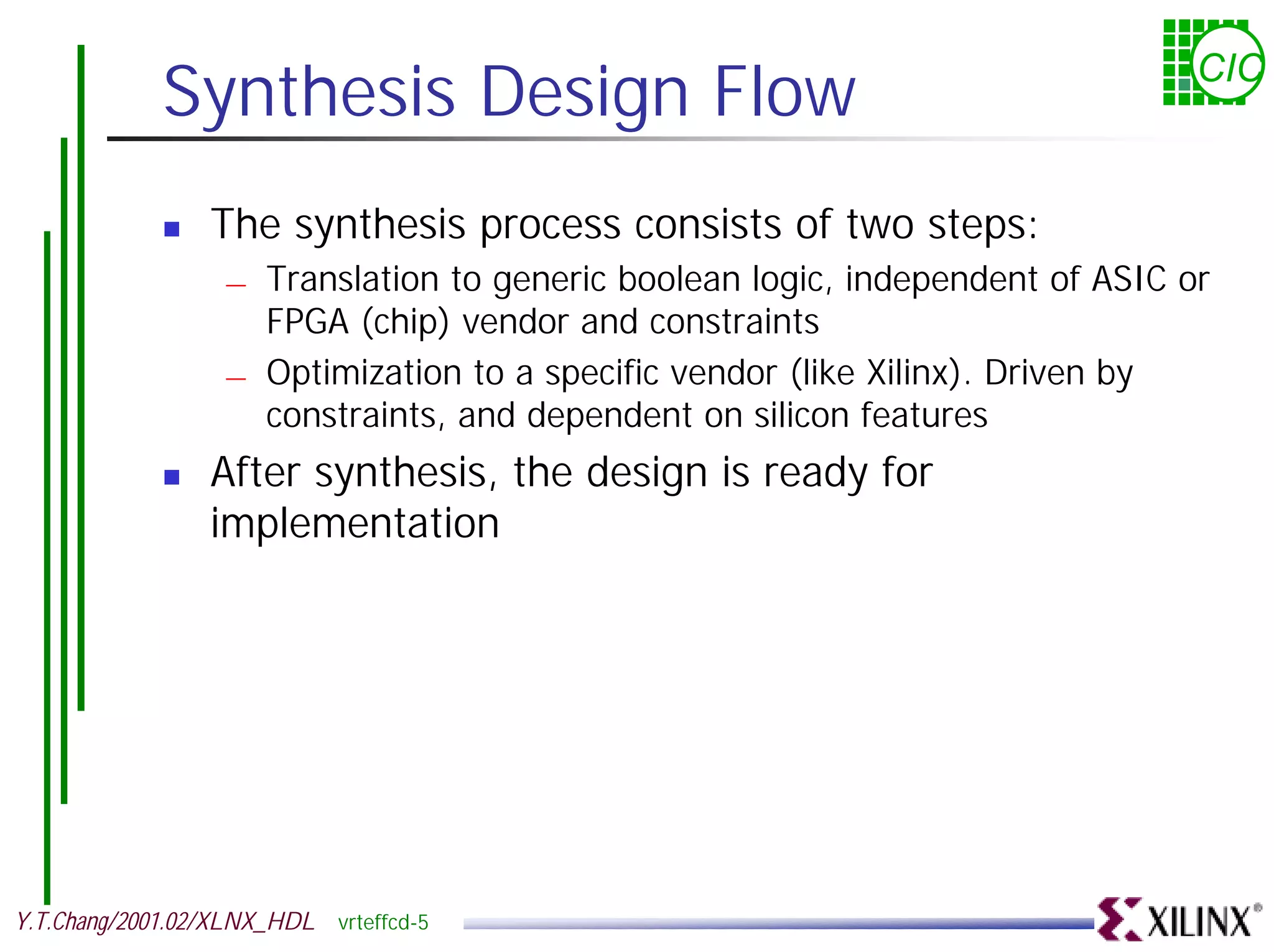

Synthesis Design Flow CIC ! The synthesis process consists of two steps: — Translation to generic boolean logic, independent of ASIC or FPGA (chip) vendor and constraints — Optimization to a specific vendor (like Xilinx). Driven by constraints, and dependent on silicon features ! After synthesis, the design is ready for implementation Y.T.Chang/2001.02/XLNX_HDL vrteffcd-5

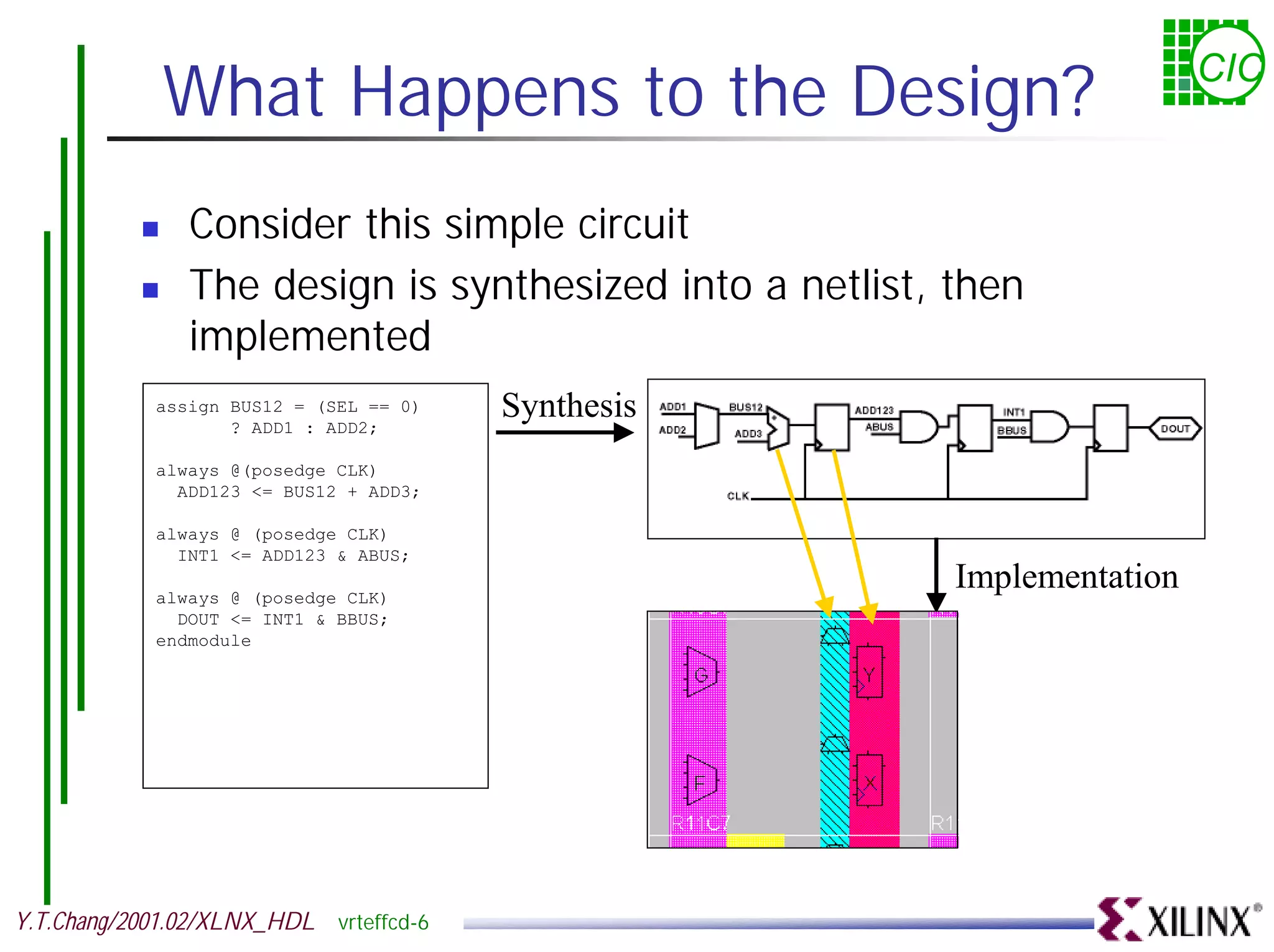

What Happens to the Design? CIC ! Consider this simple circuit ! The design is synthesized into a netlist, then implemented assign BUS12 = (SEL == 0) ? ADD1 : ADD2; Synthesis always @(posedge CLK) ADD123 <= BUS12 + ADD3; always @ (posedge CLK) INT1 <= ADD123 & ABUS; always @ (posedge CLK) Implementation DOUT <= INT1 & BBUS; endmodule Y.T.Chang/2001.02/XLNX_HDL vrteffcd-6

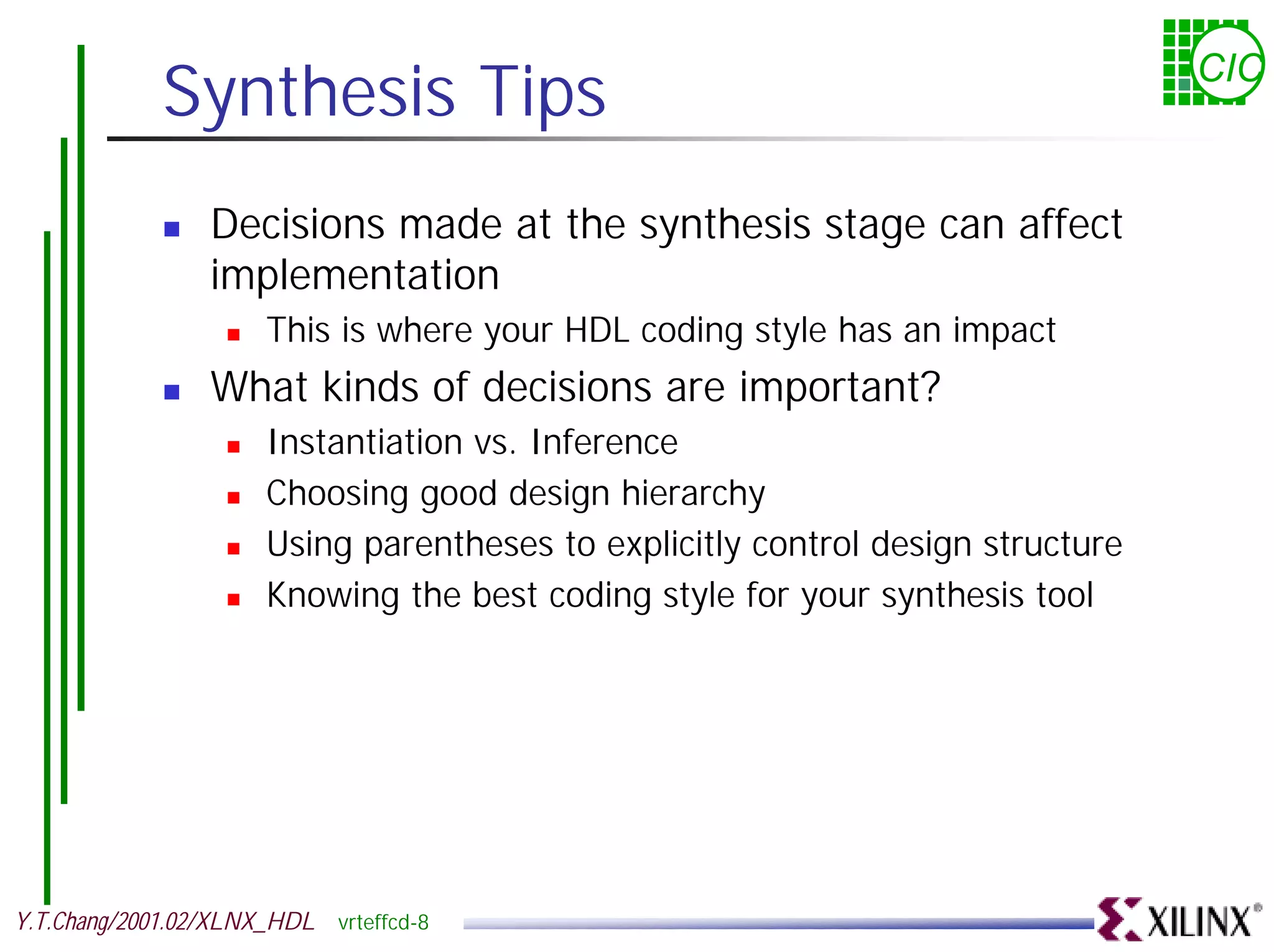

Synthesis Tips CIC ! Decisions made at the synthesis stage can affect implementation ! This is where your HDL coding style has an impact ! What kinds of decisions are important? ! Instantiation vs. Inference ! Choosing good design hierarchy ! Using parentheses to explicitly control design structure ! Knowing the best coding style for your synthesis tool Y.T.Chang/2001.02/XLNX_HDL vrteffcd-8

Instantiation CIC ! Components created with the Core Generator System and other “black boxes” must be instantiated ! Architectural features that may need to be instantiated RAM/ROM Readback OSC Bscan WOR WAND SRL16 MUXF6 DLL Y.T.Chang/2001.02/XLNX_HDL vrteffcd-9

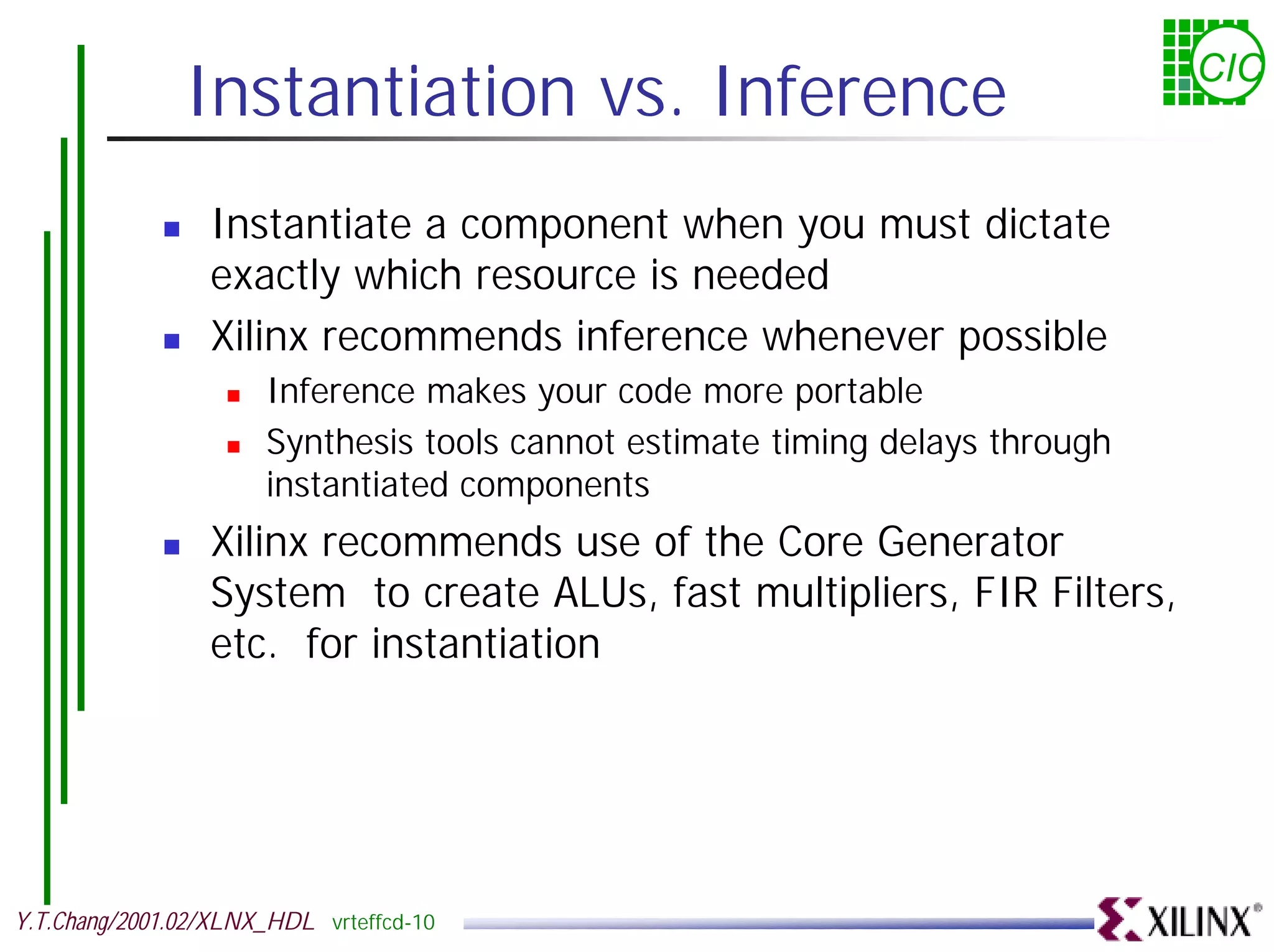

Instantiation vs. Inference CIC ! Instantiate a component when you must dictate exactly which resource is needed ! Xilinx recommends inference whenever possible ! Inference makes your code more portable ! Synthesis tools cannot estimate timing delays through instantiated components ! Xilinx recommends use of the Core Generator System to create ALUs, fast multipliers, FIR Filters, etc. for instantiation Y.T.Chang/2001.02/XLNX_HDL vrteffcd-10

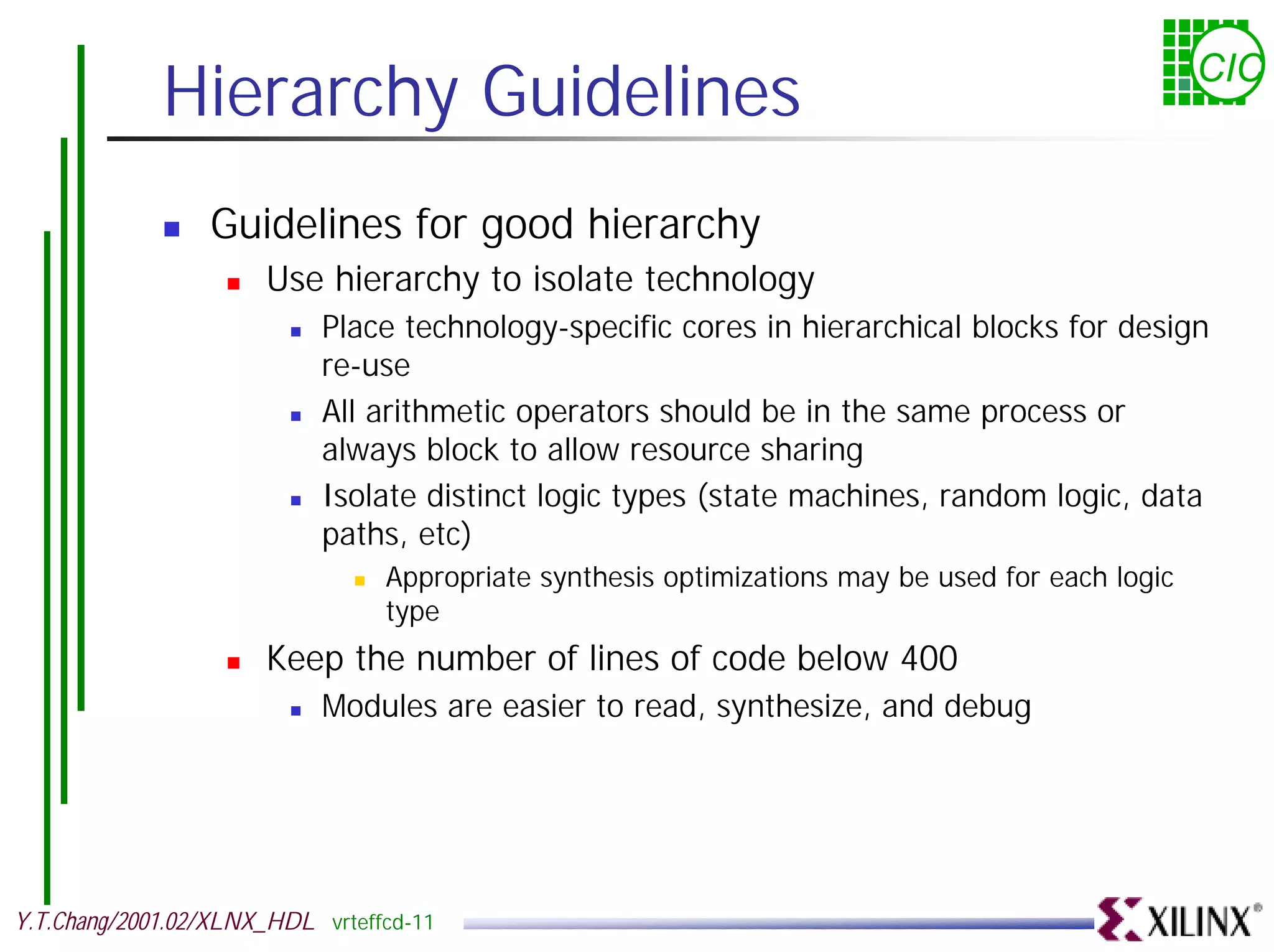

Hierarchy Guidelines CIC ! Guidelines for good hierarchy ! Use hierarchy to isolate technology ! Place technology-specific cores in hierarchical blocks for design re-use ! All arithmetic operators should be in the same process or always block to allow resource sharing ! Isolate distinct logic types (state machines, random logic, data paths, etc) ! Appropriate synthesis optimizations may be used for each logic type ! Keep the number of lines of code below 400 ! Modules are easier to read, synthesize, and debug Y.T.Chang/2001.02/XLNX_HDL vrteffcd-11

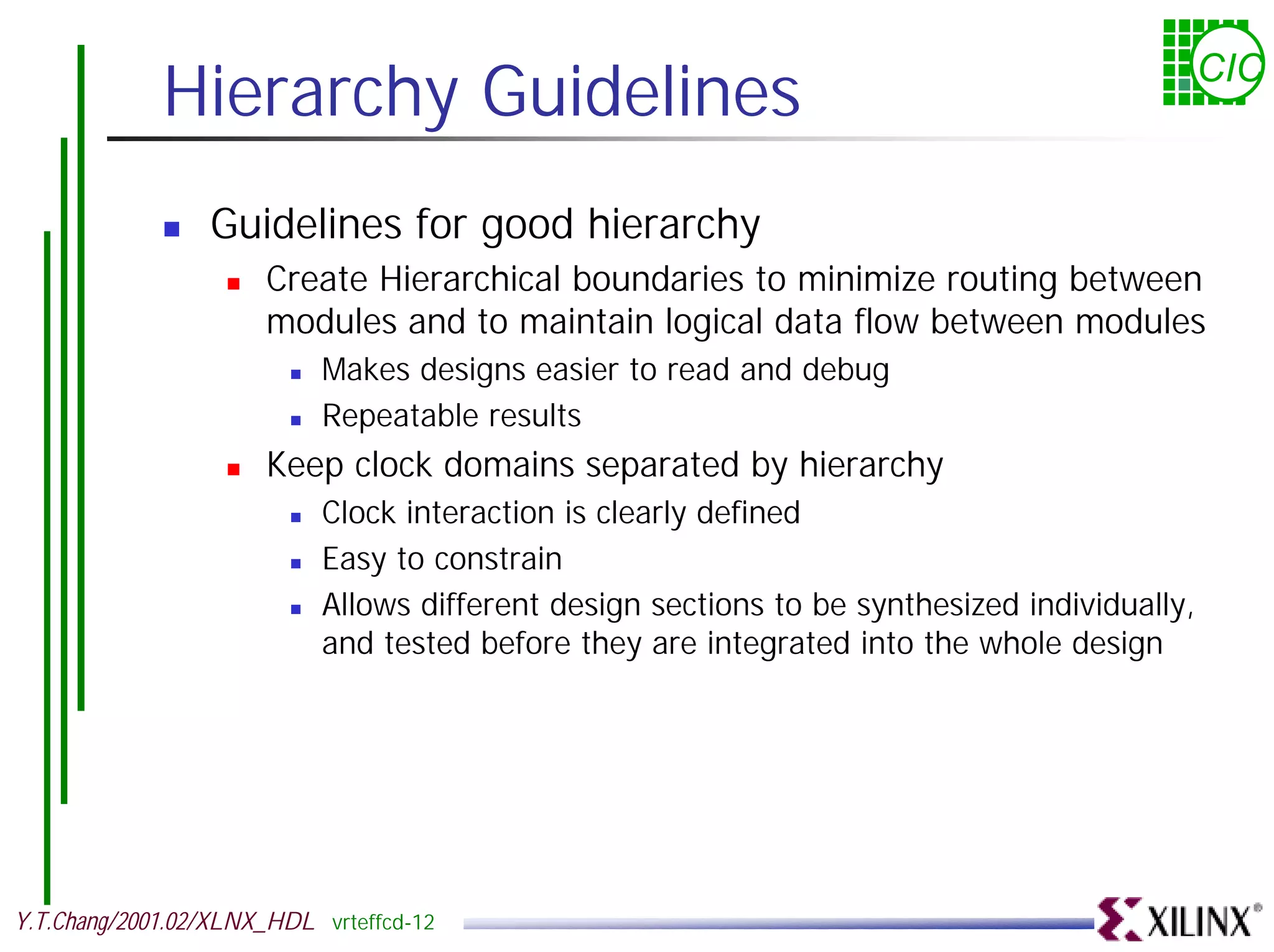

Hierarchy Guidelines CIC ! Guidelines for good hierarchy ! Create Hierarchical boundaries to minimize routing between modules and to maintain logical data flow between modules ! Makes designs easier to read and debug ! Repeatable results ! Keep clock domains separated by hierarchy ! Clock interaction is clearly defined ! Easy to constrain ! Allows different design sections to be synthesized individually, and tested before they are integrated into the whole design Y.T.Chang/2001.02/XLNX_HDL vrteffcd-12

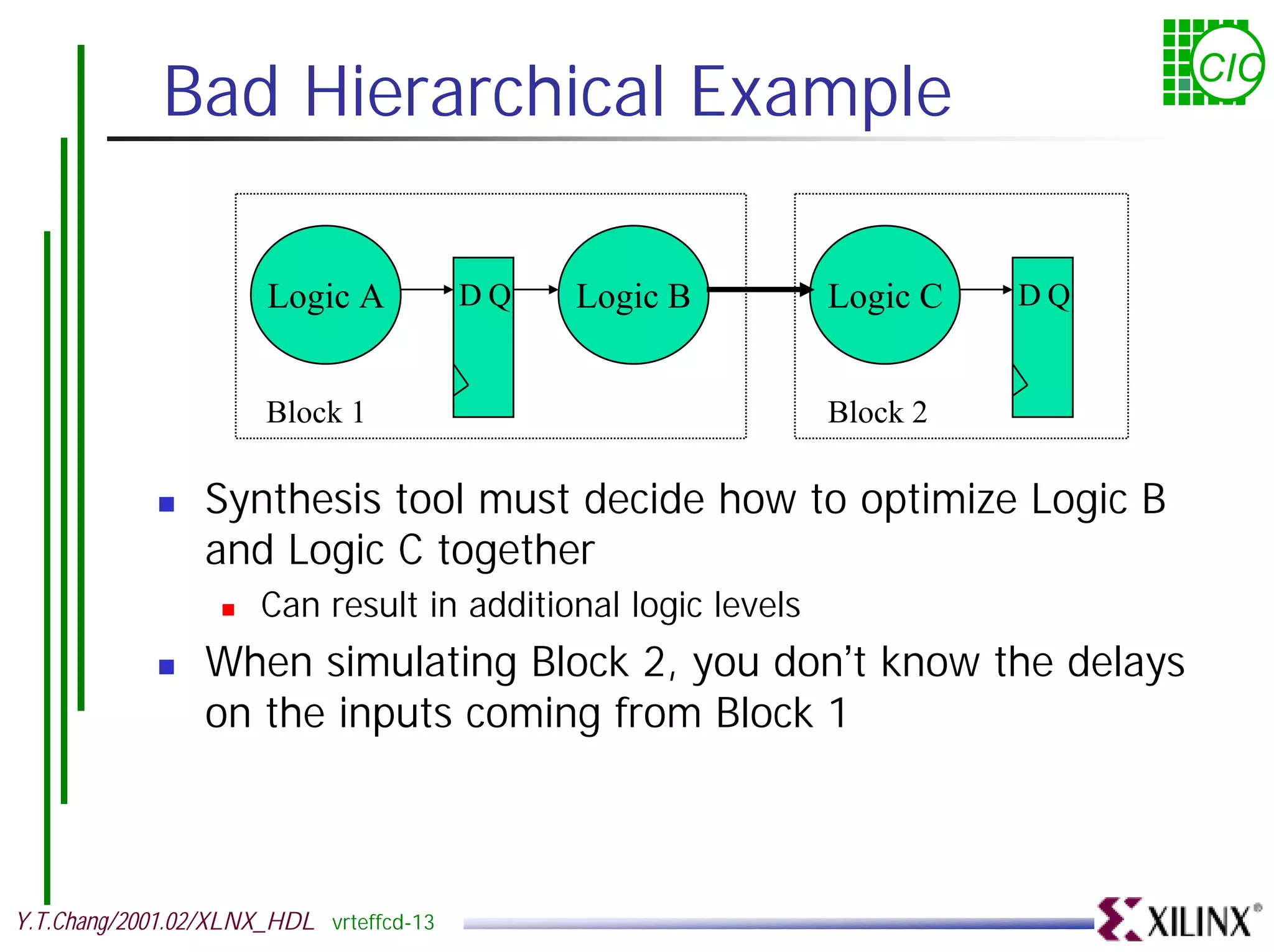

Bad Hierarchical Example CIC Logic A DQ Logic B Logic C DQ Block 1 Block 2 ! Synthesis tool must decide how to optimize Logic B and Logic C together ! Can result in additional logic levels ! When simulating Block 2, you don’t know the delays on the inputs coming from Block 1 Y.T.Chang/2001.02/XLNX_HDL vrteffcd-13

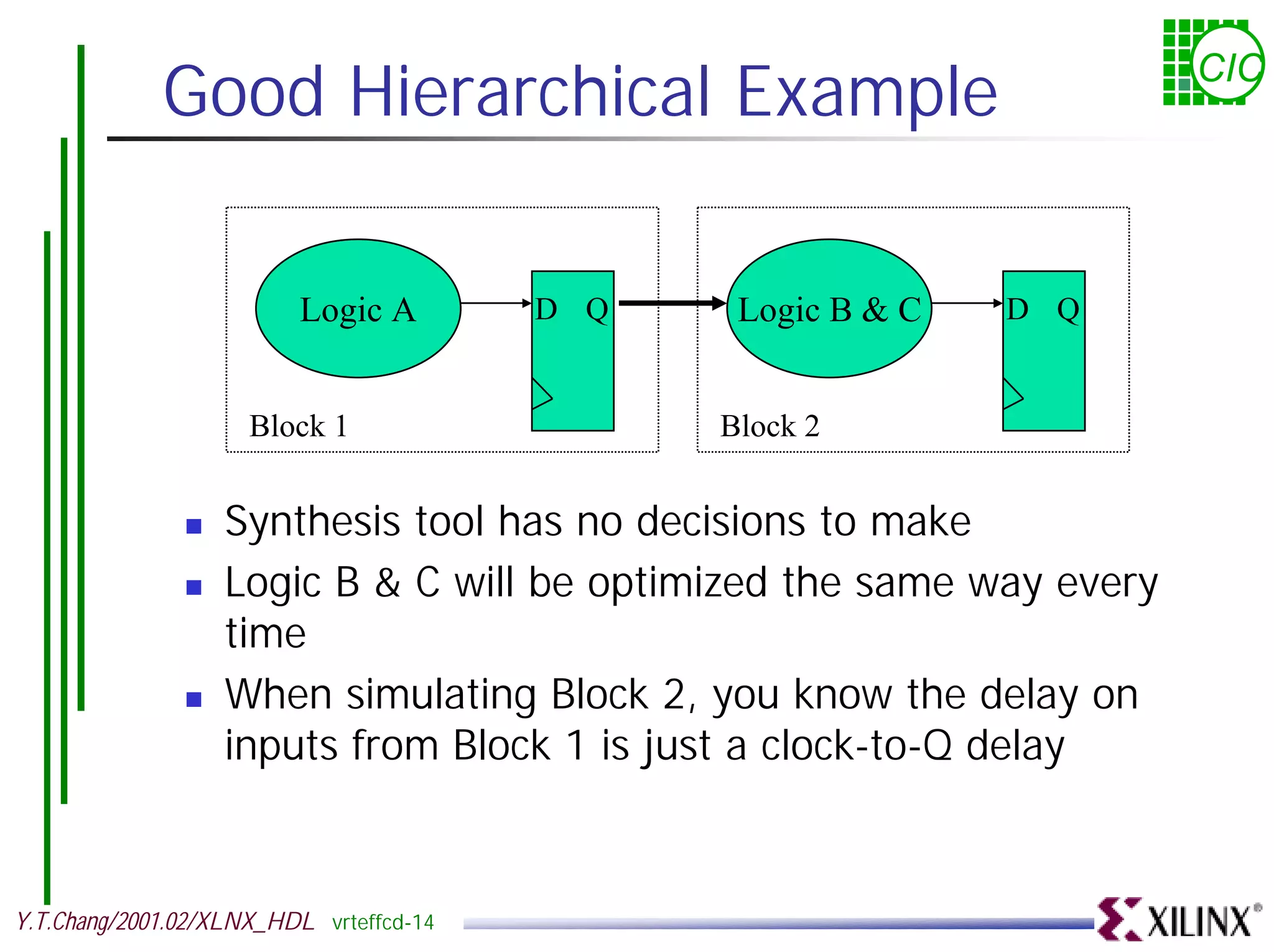

Good Hierarchical Example CIC Logic A D Q Logic B & C D Q Block 1 Block 2 ! Synthesis tool has no decisions to make ! Logic B & C will be optimized the same way every time ! When simulating Block 2, you know the delay on inputs from Block 1 is just a clock-to-Q delay Y.T.Chang/2001.02/XLNX_HDL vrteffcd-14

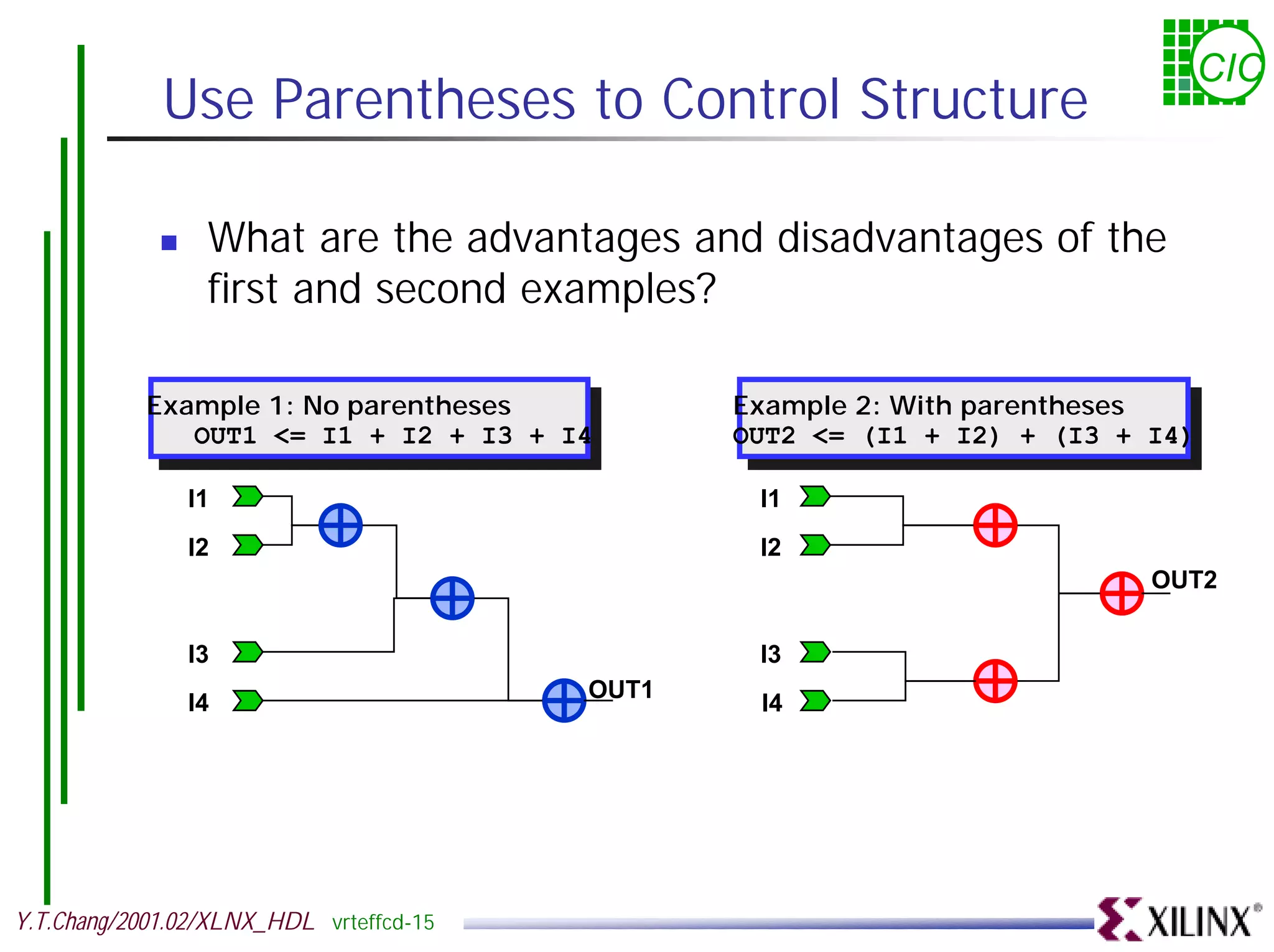

CIC Use Parentheses to Control Structure ! What are the advantages and disadvantages of the first and second examples? Example 1: No parentheses Example 1: No parentheses Example 2: With parentheses Example 2: With parentheses OUT1 <= I1 ++ I2 ++ I3 ++ I4 OUT1 <= I1 I2 I3 I4 OUT2 <= (I1 + I2) + (I3 + I4) OUT2 <= (I1 + I2) + (I3 + I4) I1 I1 I2 I2 OUT2 I3 I3 OUT1 I4 I4 Y.T.Chang/2001.02/XLNX_HDL vrteffcd-15

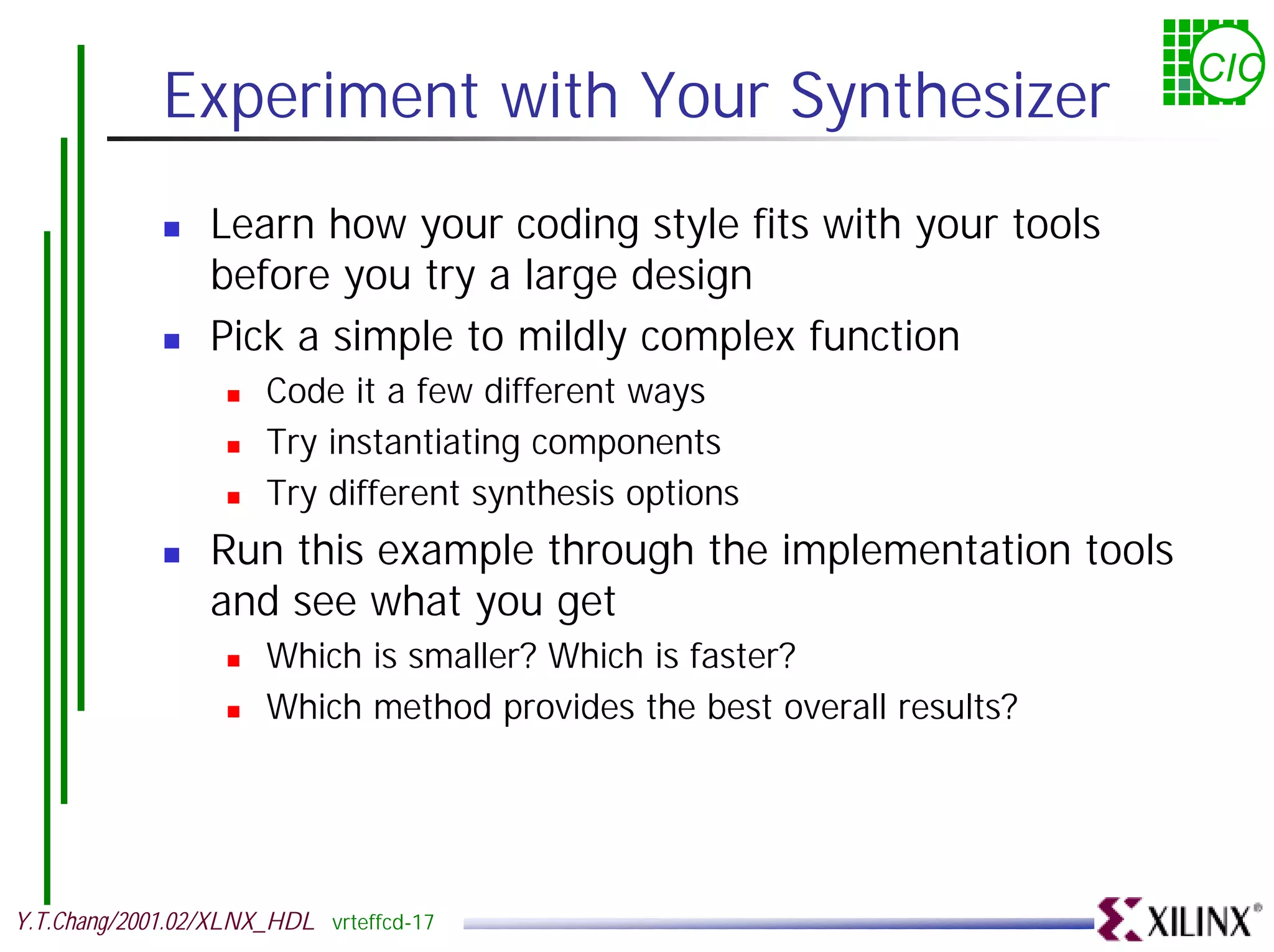

CIC Experiment with Your Synthesizer ! Learn how your coding style fits with your tools before you try a large design ! Pick a simple to mildly complex function ! Code it a few different ways ! Try instantiating components ! Try different synthesis options ! Run this example through the implementation tools and see what you get ! Which is smaller? Which is faster? ! Which method provides the best overall results? Y.T.Chang/2001.02/XLNX_HDL vrteffcd-17

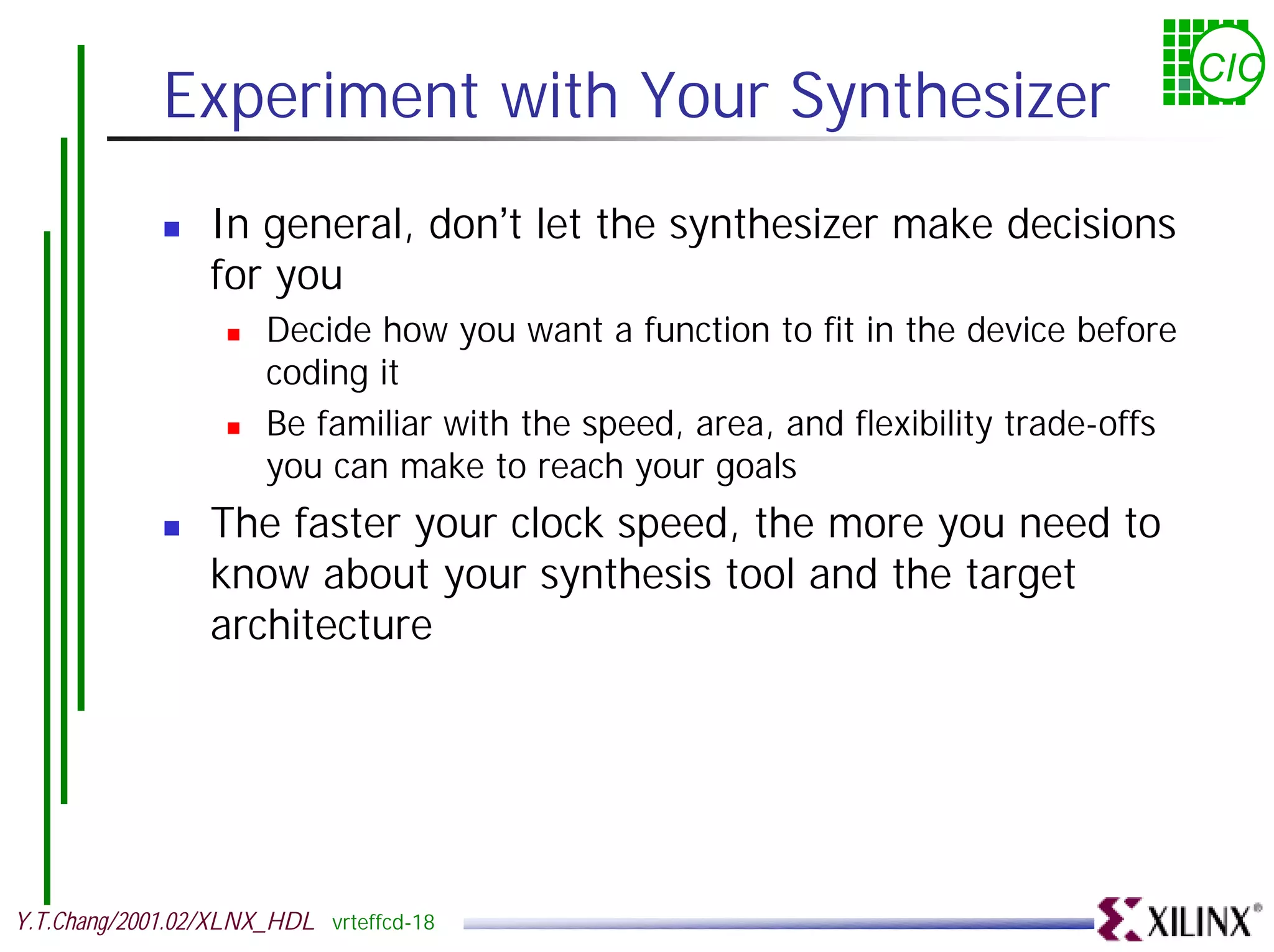

CIC Experiment with Your Synthesizer ! In general, don’t let the synthesizer make decisions for you ! Decide how you want a function to fit in the device before coding it ! Be familiar with the speed, area, and flexibility trade-offs you can make to reach your goals ! The faster your clock speed, the more you need to know about your synthesis tool and the target architecture Y.T.Chang/2001.02/XLNX_HDL vrteffcd-18

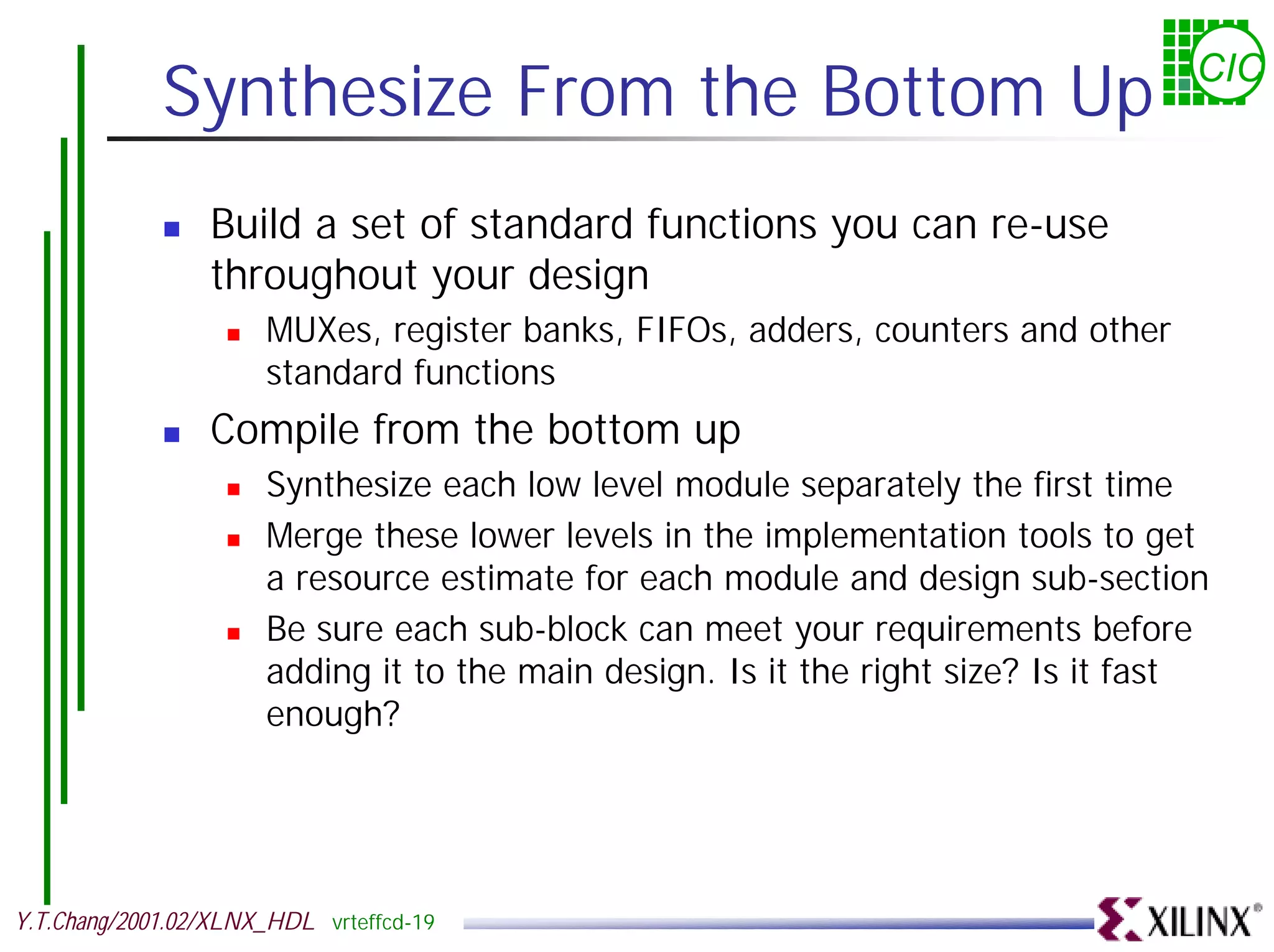

Synthesize From the Bottom Up CIC ! Build a set of standard functions you can re-use throughout your design ! MUXes, register banks, FIFOs, adders, counters and other standard functions ! Compile from the bottom up ! Synthesize each low level module separately the first time ! Merge these lower levels in the implementation tools to get a resource estimate for each module and design sub-section ! Be sure each sub-block can meet your requirements before adding it to the main design. Is it the right size? Is it fast enough? Y.T.Chang/2001.02/XLNX_HDL vrteffcd-19

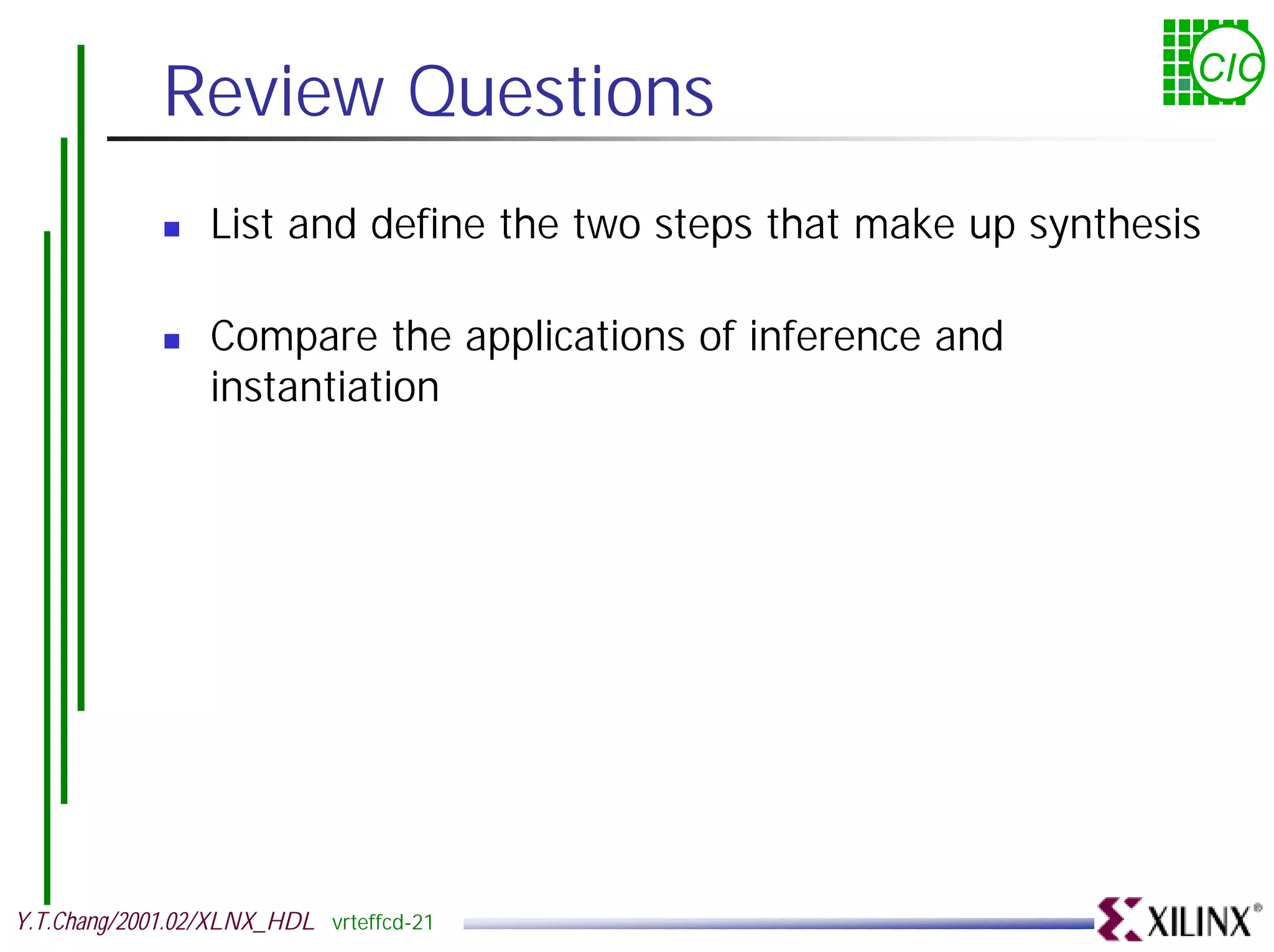

Review Questions CIC ! List and define the two steps that make up synthesis ! Compare the applications of inference and instantiation Y.T.Chang/2001.02/XLNX_HDL vrteffcd-21

Simulation With Foundation Express Netlists Y.T.Chang/2001.02/XLNX_HDL Sim-1

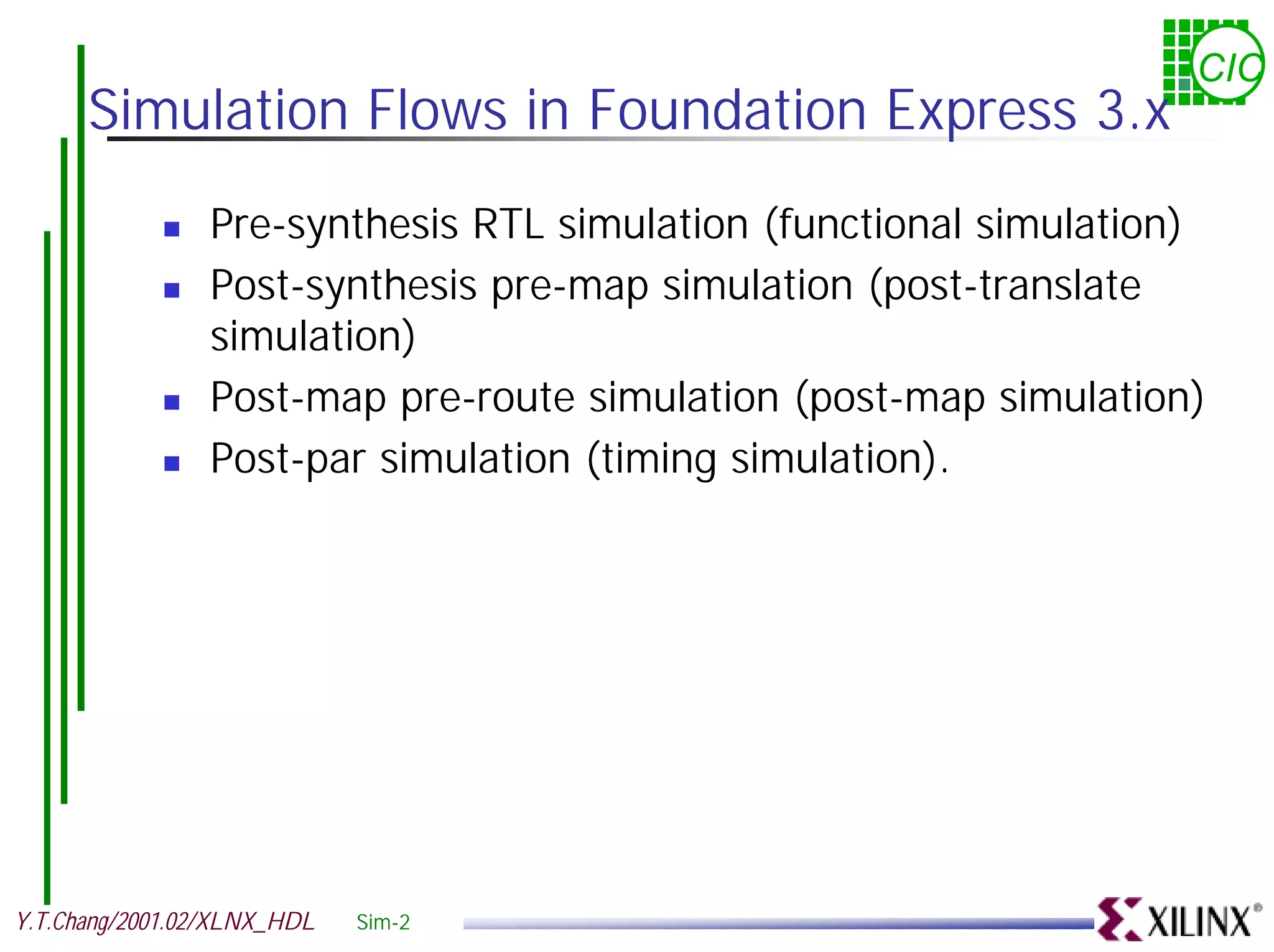

CIC Simulation Flows in Foundation Express 3.x ! Pre-synthesis RTL simulation (functional simulation) ! Post-synthesis pre-map simulation (post-translate simulation) ! Post-map pre-route simulation (post-map simulation) ! Post-par simulation (timing simulation). Y.T.Chang/2001.02/XLNX_HDL Sim-2

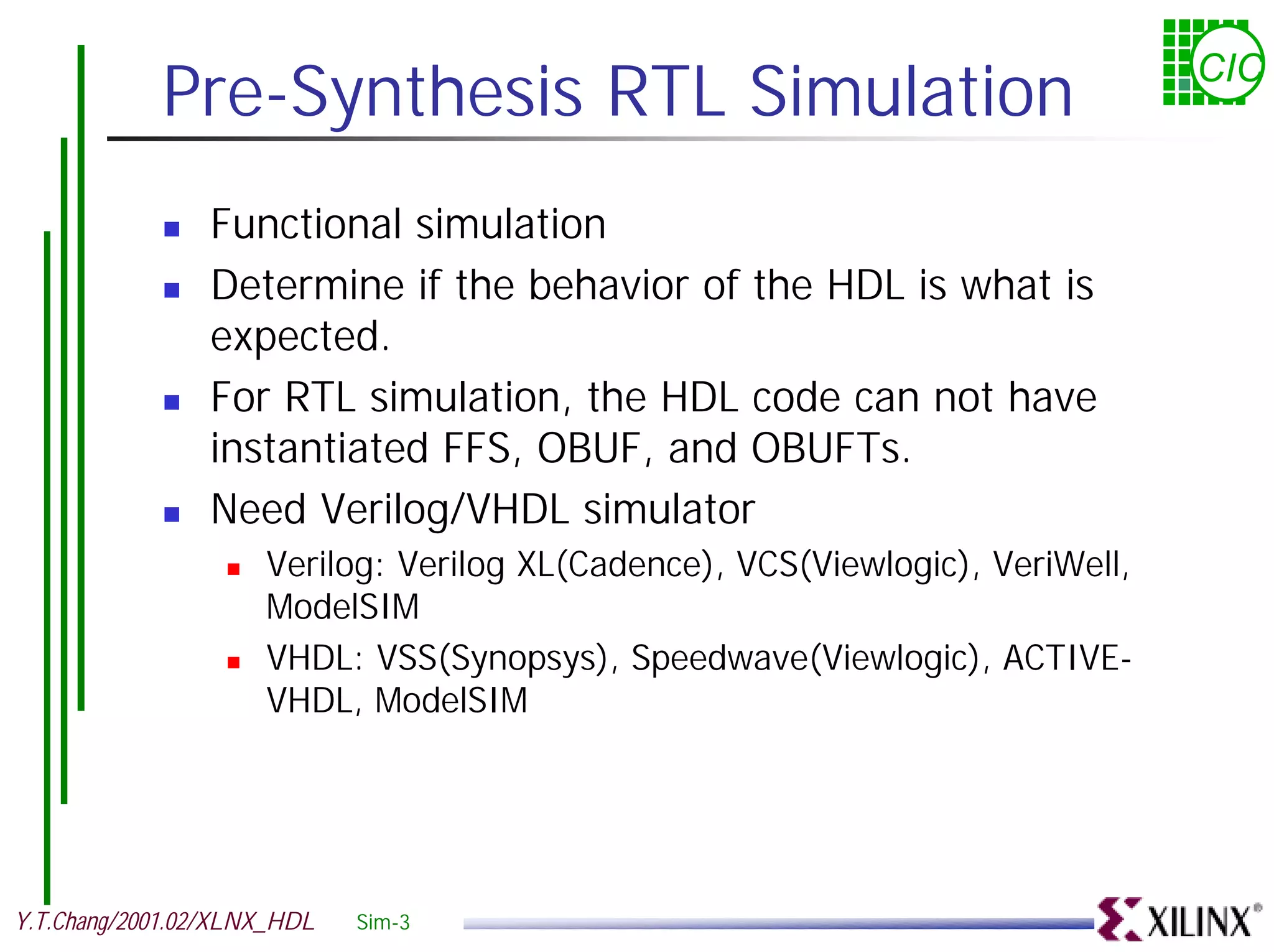

Pre-Synthesis RTL Simulation CIC ! Functional simulation ! Determine if the behavior of the HDL is what is expected. ! For RTL simulation, the HDL code can not have instantiated FFS, OBUF, and OBUFTs. ! Need Verilog/VHDL simulator ! Verilog: Verilog XL(Cadence), VCS(Viewlogic), VeriWell, ModelSIM ! VHDL: VSS(Synopsys), Speedwave(Viewlogic), ACTIVE- VHDL, ModelSIM Y.T.Chang/2001.02/XLNX_HDL Sim-3

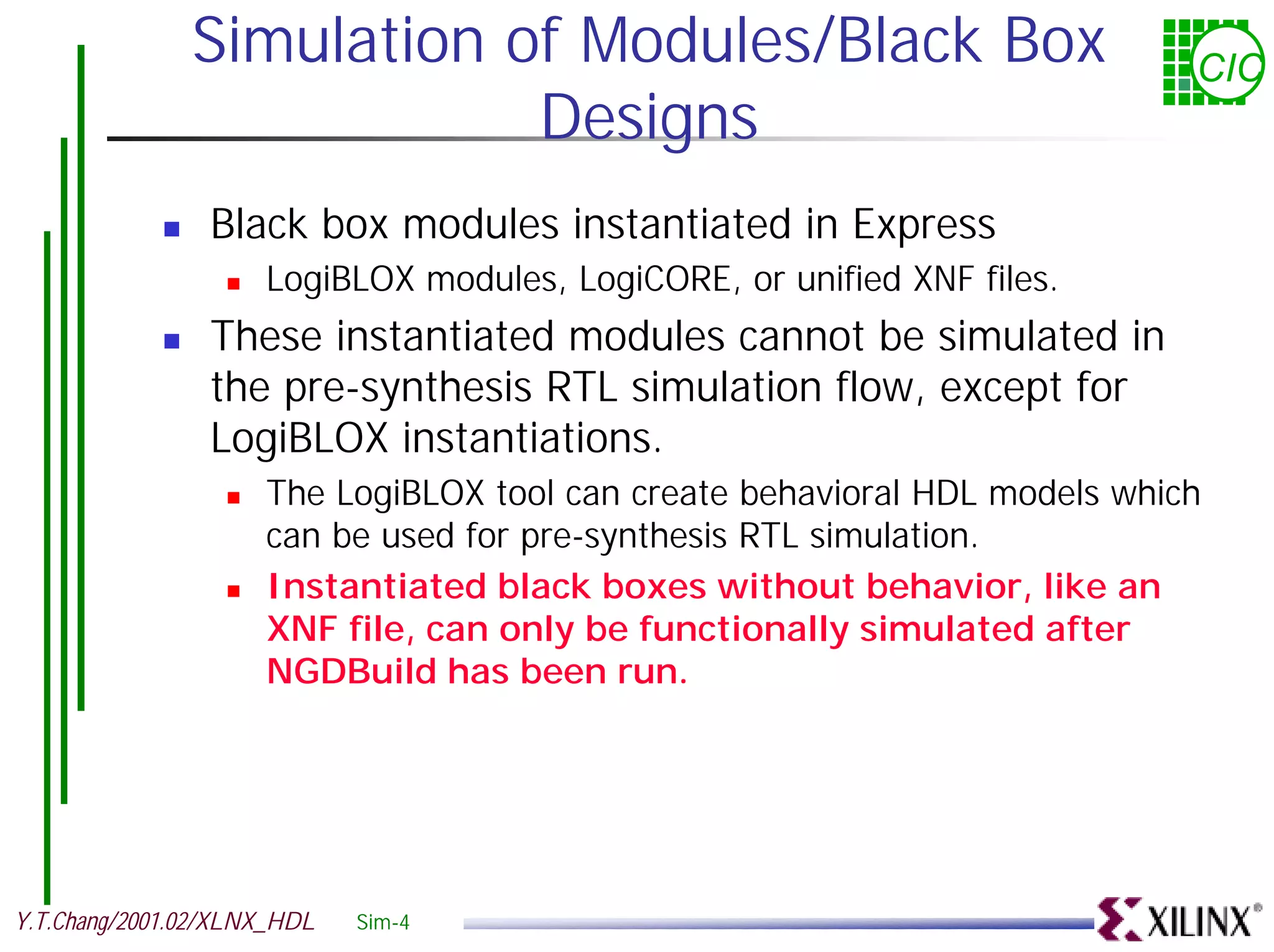

Simulation of Modules/Black Box CIC Designs ! Black box modules instantiated in Express ! LogiBLOX modules, LogiCORE, or unified XNF files. ! These instantiated modules cannot be simulated in the pre-synthesis RTL simulation flow, except for LogiBLOX instantiations. ! The LogiBLOX tool can create behavioral HDL models which can be used for pre-synthesis RTL simulation. ! Instantiated black boxes without behavior, like an XNF file, can only be functionally simulated after NGDBuild has been run. Y.T.Chang/2001.02/XLNX_HDL Sim-4

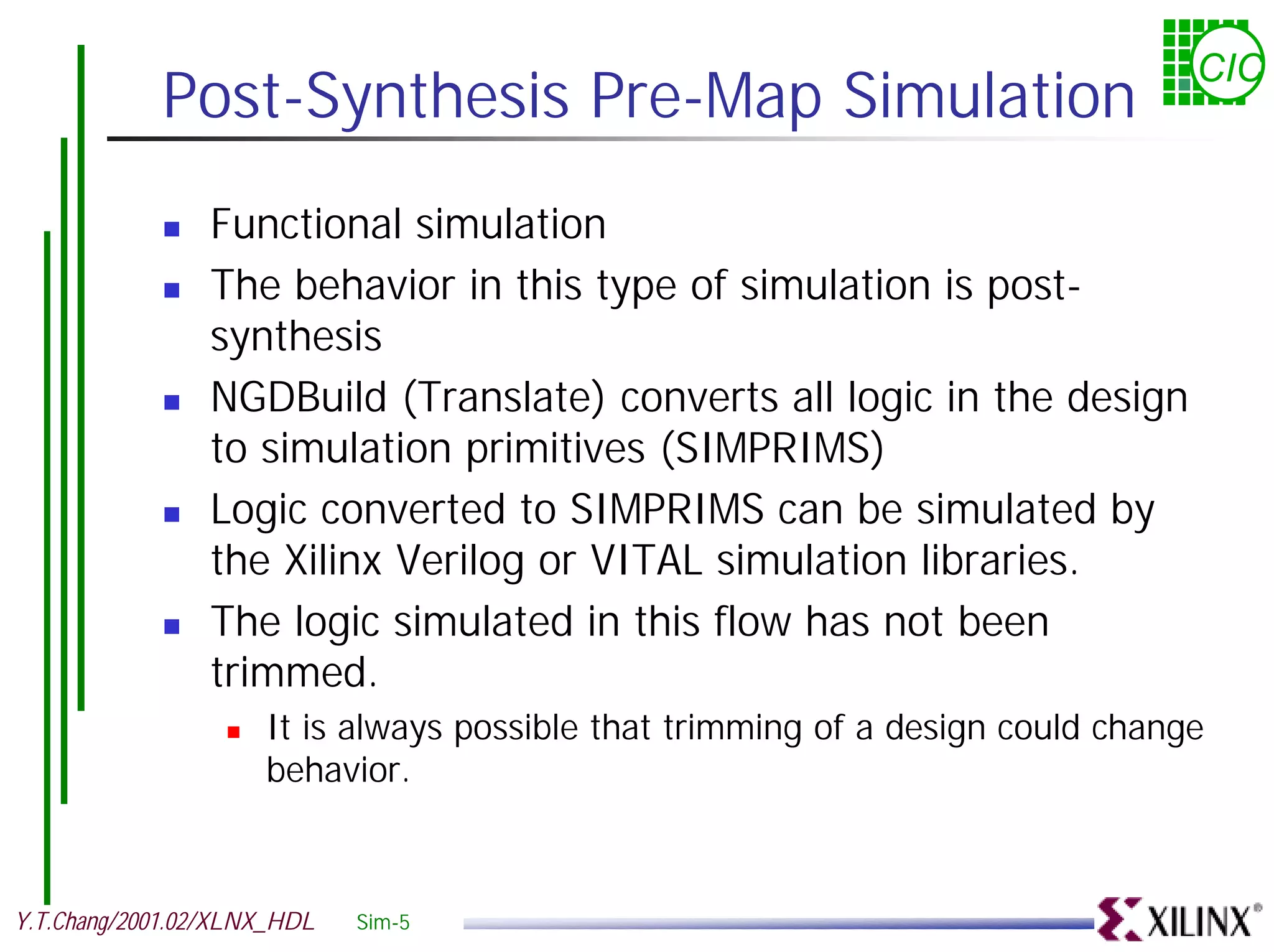

CIC Post-Synthesis Pre-Map Simulation ! Functional simulation ! The behavior in this type of simulation is post- synthesis ! NGDBuild (Translate) converts all logic in the design to simulation primitives (SIMPRIMS) ! Logic converted to SIMPRIMS can be simulated by the Xilinx Verilog or VITAL simulation libraries. ! The logic simulated in this flow has not been trimmed. ! It is always possible that trimming of a design could change behavior. Y.T.Chang/2001.02/XLNX_HDL Sim-5

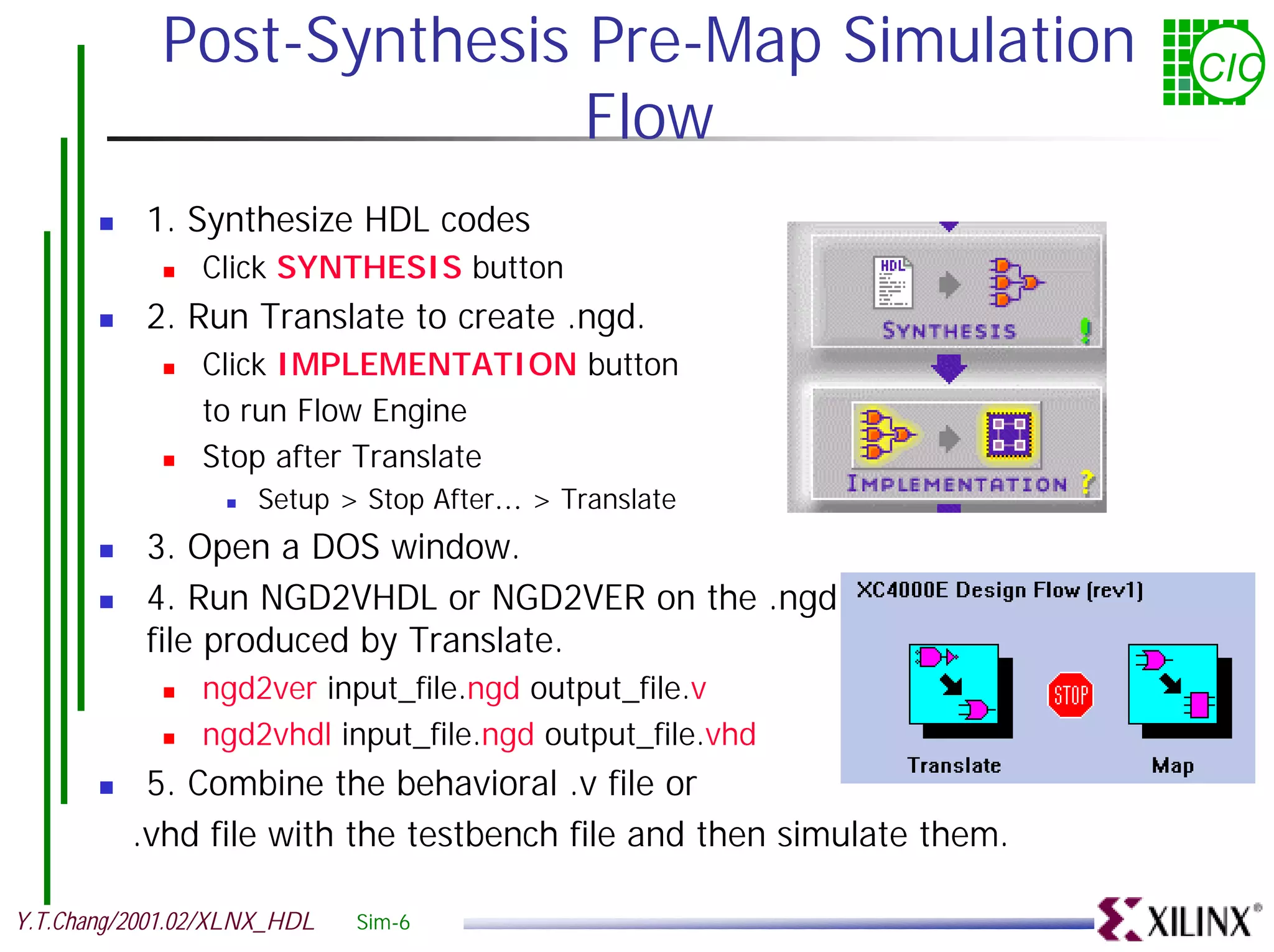

Post-Synthesis Pre-Map Simulation CIC Flow ! 1. Synthesize HDL codes ! Click SYNTHESIS button ! 2. Run Translate to create .ngd. ! Click IMPLEMENTATION button to run Flow Engine ! Stop after Translate ! Setup > Stop After… > Translate ! 3. Open a DOS window. ! 4. Run NGD2VHDL or NGD2VER on the .ngd file produced by Translate. ! ngd2ver input_file.ngd output_file.v ! ngd2vhdl input_file.ngd output_file.vhd ! 5. Combine the behavioral .v file or .vhd file with the testbench file and then simulate them. Y.T.Chang/2001.02/XLNX_HDL Sim-6

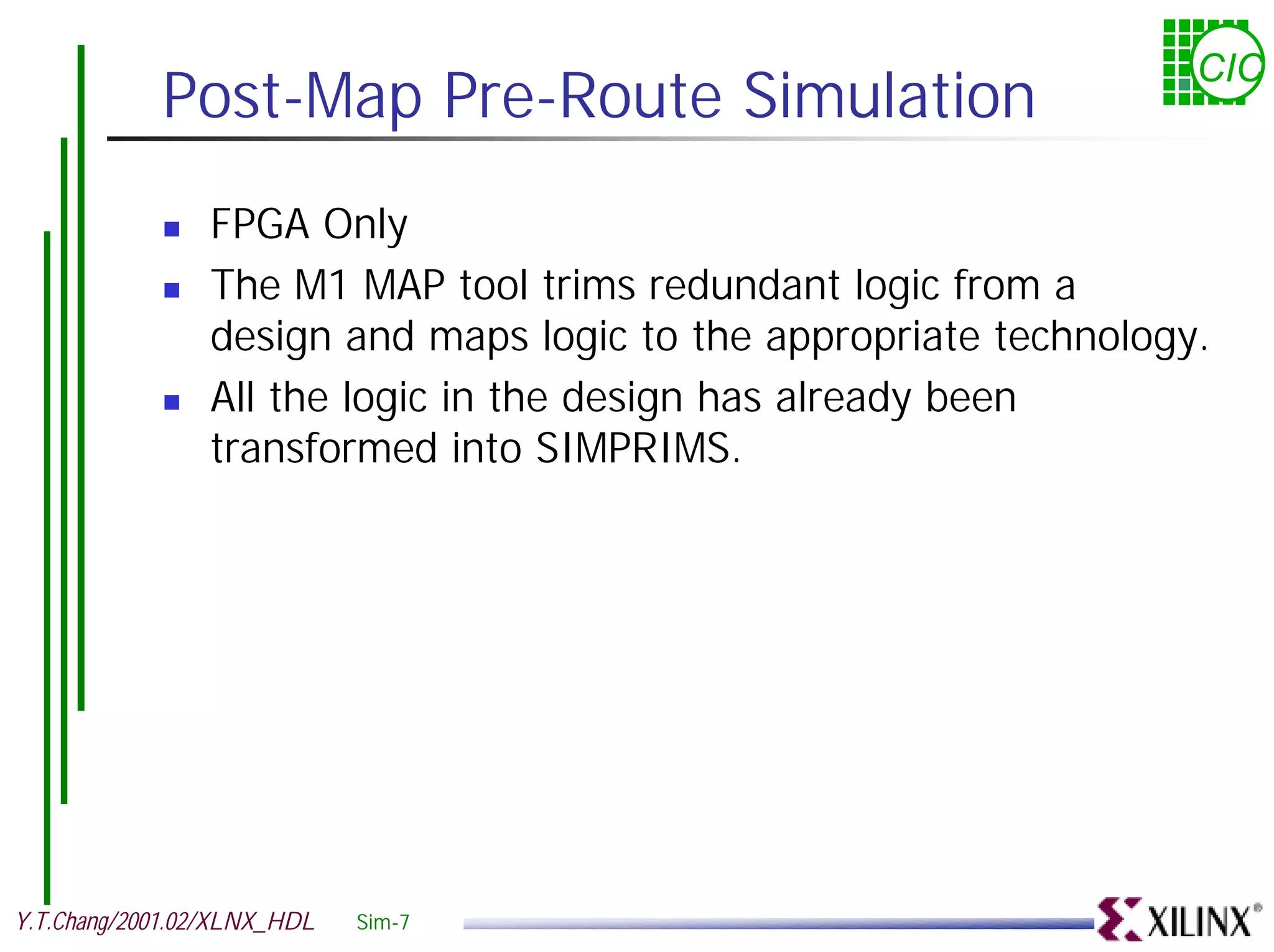

CIC Post-Map Pre-Route Simulation ! FPGA Only ! The M1 MAP tool trims redundant logic from a design and maps logic to the appropriate technology. ! All the logic in the design has already been transformed into SIMPRIMS. Y.T.Chang/2001.02/XLNX_HDL Sim-7

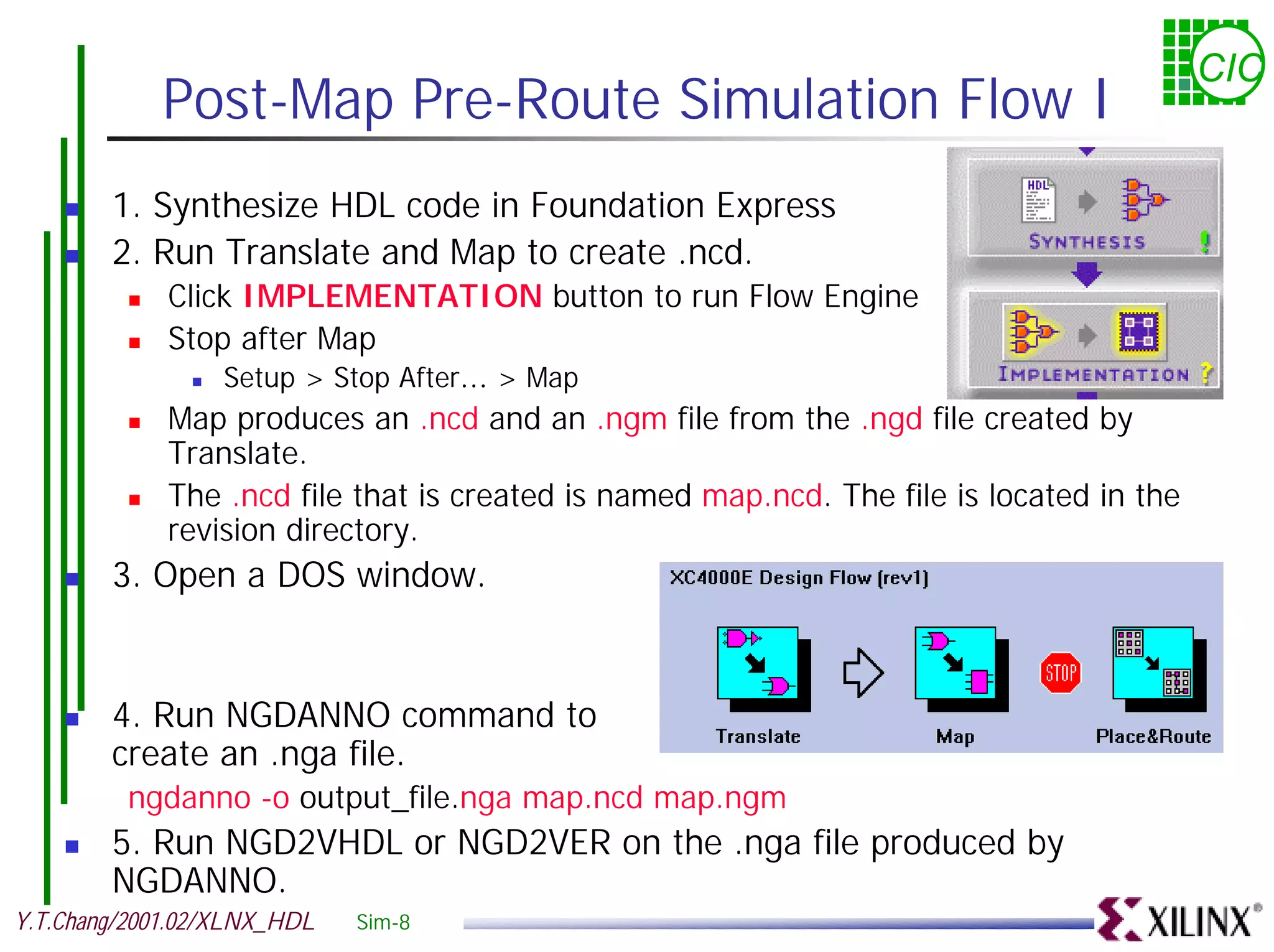

CIC Post-Map Pre-Route Simulation Flow I ! 1. Synthesize HDL code in Foundation Express ! 2. Run Translate and Map to create .ncd. ! Click IMPLEMENTATION button to run Flow Engine ! Stop after Map ! Setup > Stop After… > Map ! Map produces an .ncd and an .ngm file from the .ngd file created by Translate. ! The .ncd file that is created is named map.ncd. The file is located in the revision directory. ! 3. Open a DOS window. ! 4. Run NGDANNO command to create an .nga file. ngdanno -o output_file.nga map.ncd map.ngm ! 5. Run NGD2VHDL or NGD2VER on the .nga file produced by NGDANNO. Y.T.Chang/2001.02/XLNX_HDL Sim-8

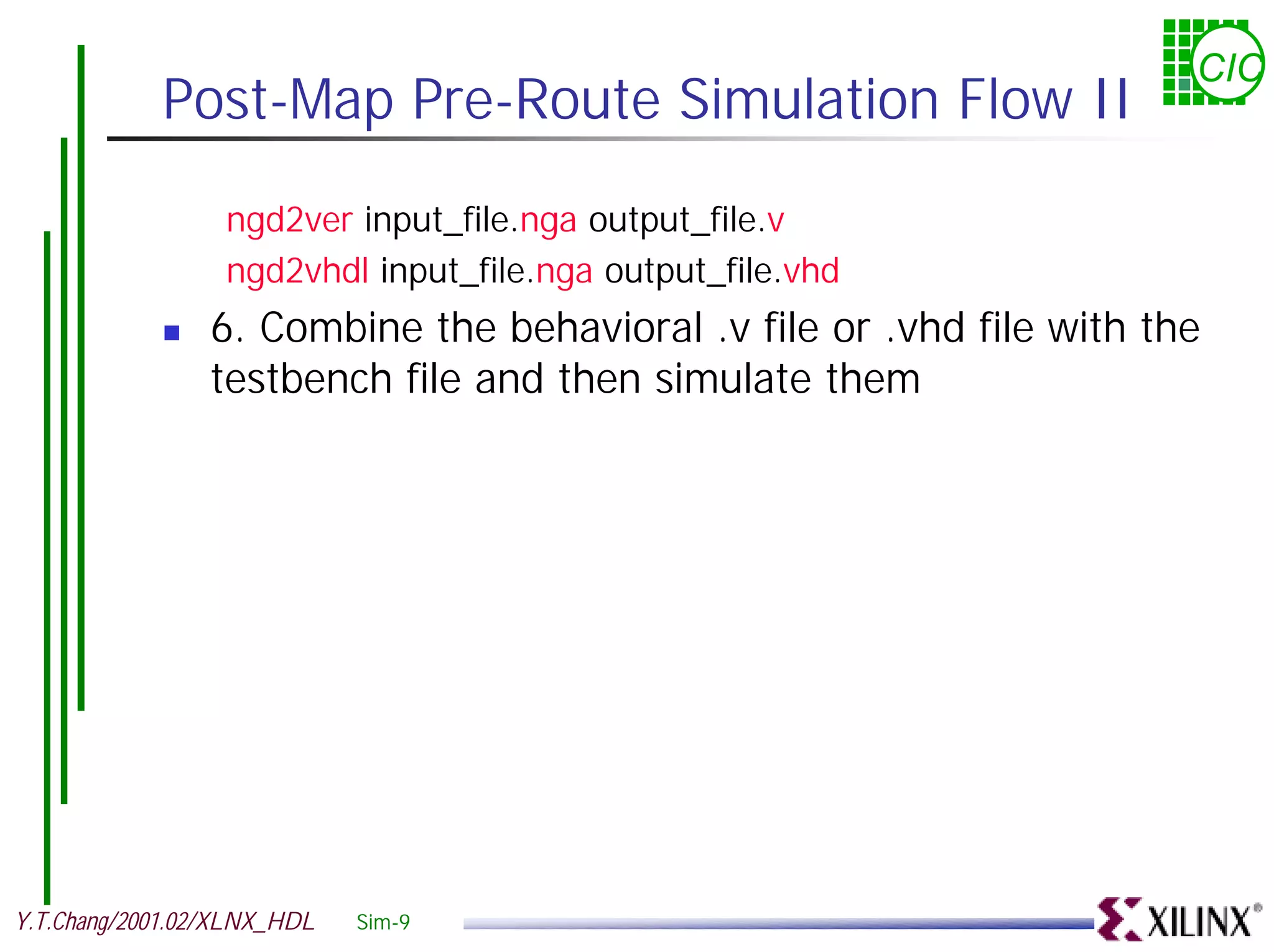

CIC Post-Map Pre-Route Simulation Flow II ngd2ver input_file.nga output_file.v ngd2vhdl input_file.nga output_file.vhd ! 6. Combine the behavioral .v file or .vhd file with the testbench file and then simulate them Y.T.Chang/2001.02/XLNX_HDL Sim-9

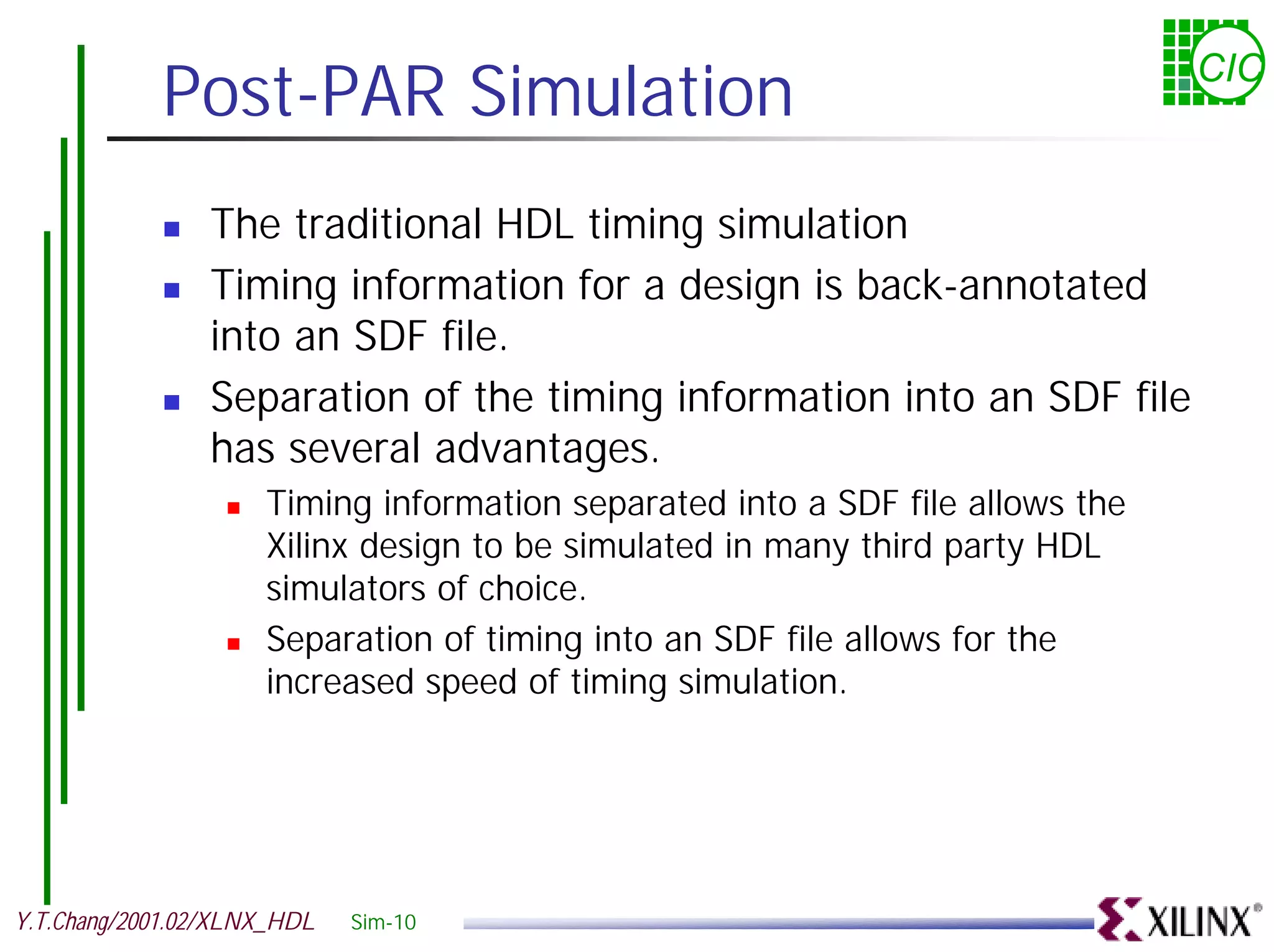

Post-PAR Simulation CIC ! The traditional HDL timing simulation ! Timing information for a design is back-annotated into an SDF file. ! Separation of the timing information into an SDF file has several advantages. ! Timing information separated into a SDF file allows the Xilinx design to be simulated in many third party HDL simulators of choice. ! Separation of timing into an SDF file allows for the increased speed of timing simulation. Y.T.Chang/2001.02/XLNX_HDL Sim-10

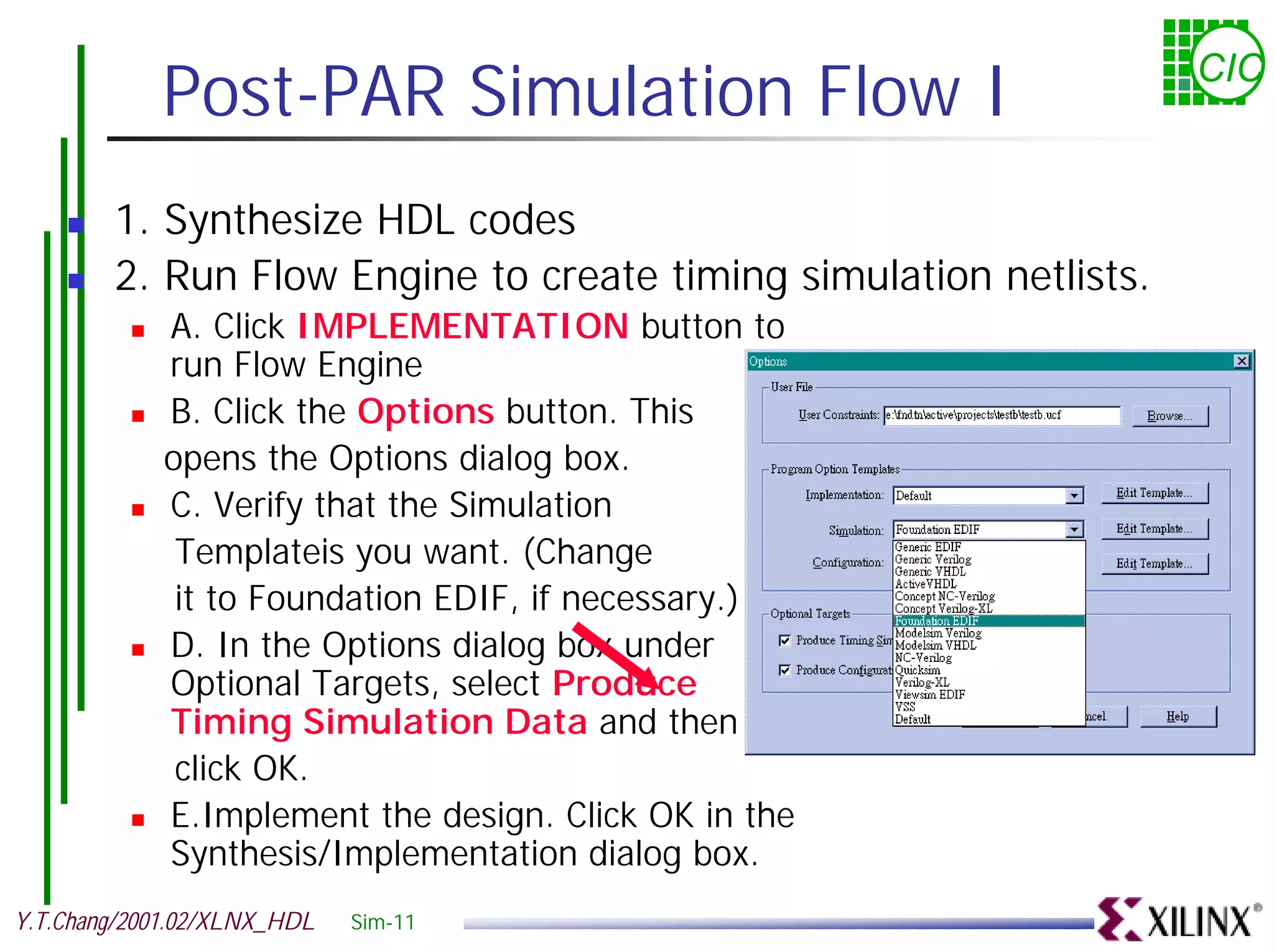

Post-PAR Simulation Flow I CIC ! 1. Synthesize HDL codes ! 2. Run Flow Engine to create timing simulation netlists. ! A. Click IMPLEMENTATION button to run Flow Engine ! B. Click the Options button. This opens the Options dialog box. ! C. Verify that the Simulation Templateis you want. (Change it to Foundation EDIF, if necessary.) ! D. In the Options dialog box under Optional Targets, select Produce Timing Simulation Data and then click OK. ! E.Implement the design. Click OK in the Synthesis/Implementation dialog box. Y.T.Chang/2001.02/XLNX_HDL Sim-11

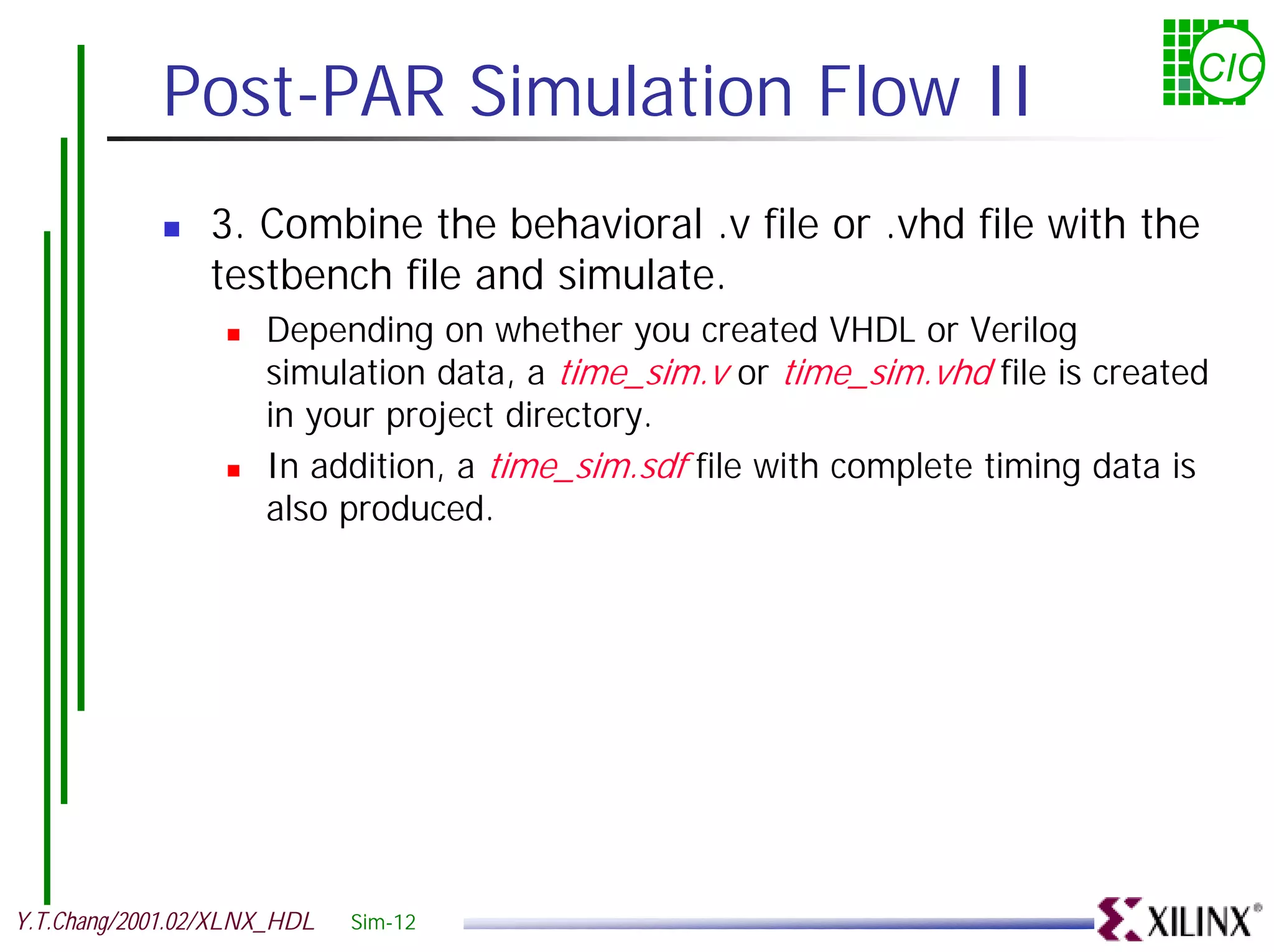

Post-PAR Simulation Flow II CIC ! 3. Combine the behavioral .v file or .vhd file with the testbench file and simulate. ! Depending on whether you created VHDL or Verilog simulation data, a time_sim.v or time_sim.vhd file is created in your project directory. ! In addition, a time_sim.sdf file with complete timing data is also produced. Y.T.Chang/2001.02/XLNX_HDL Sim-12

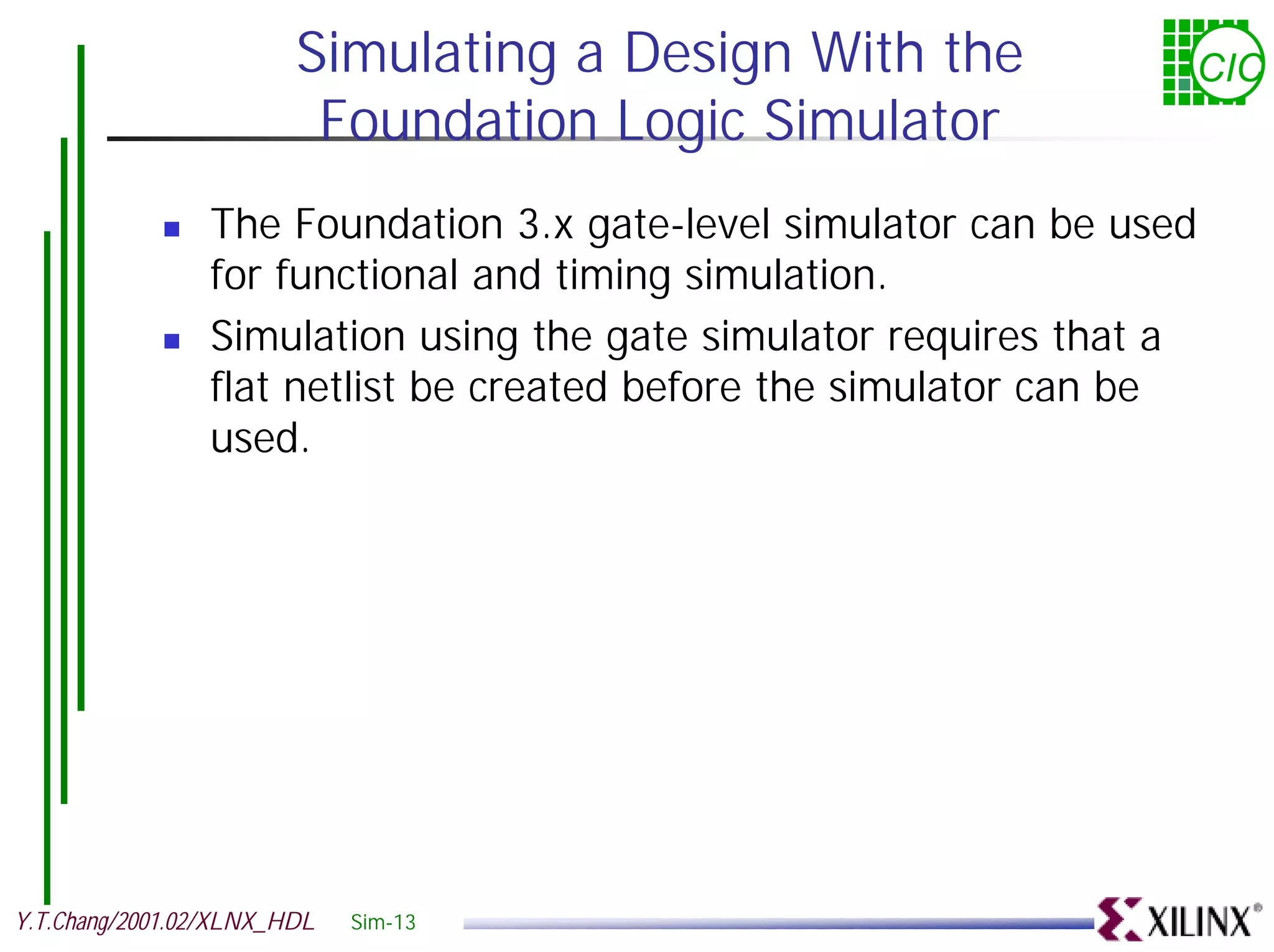

Simulating a Design With the CIC Foundation Logic Simulator ! The Foundation 3.x gate-level simulator can be used for functional and timing simulation. ! Simulation using the gate simulator requires that a flat netlist be created before the simulator can be used. Y.T.Chang/2001.02/XLNX_HDL Sim-13

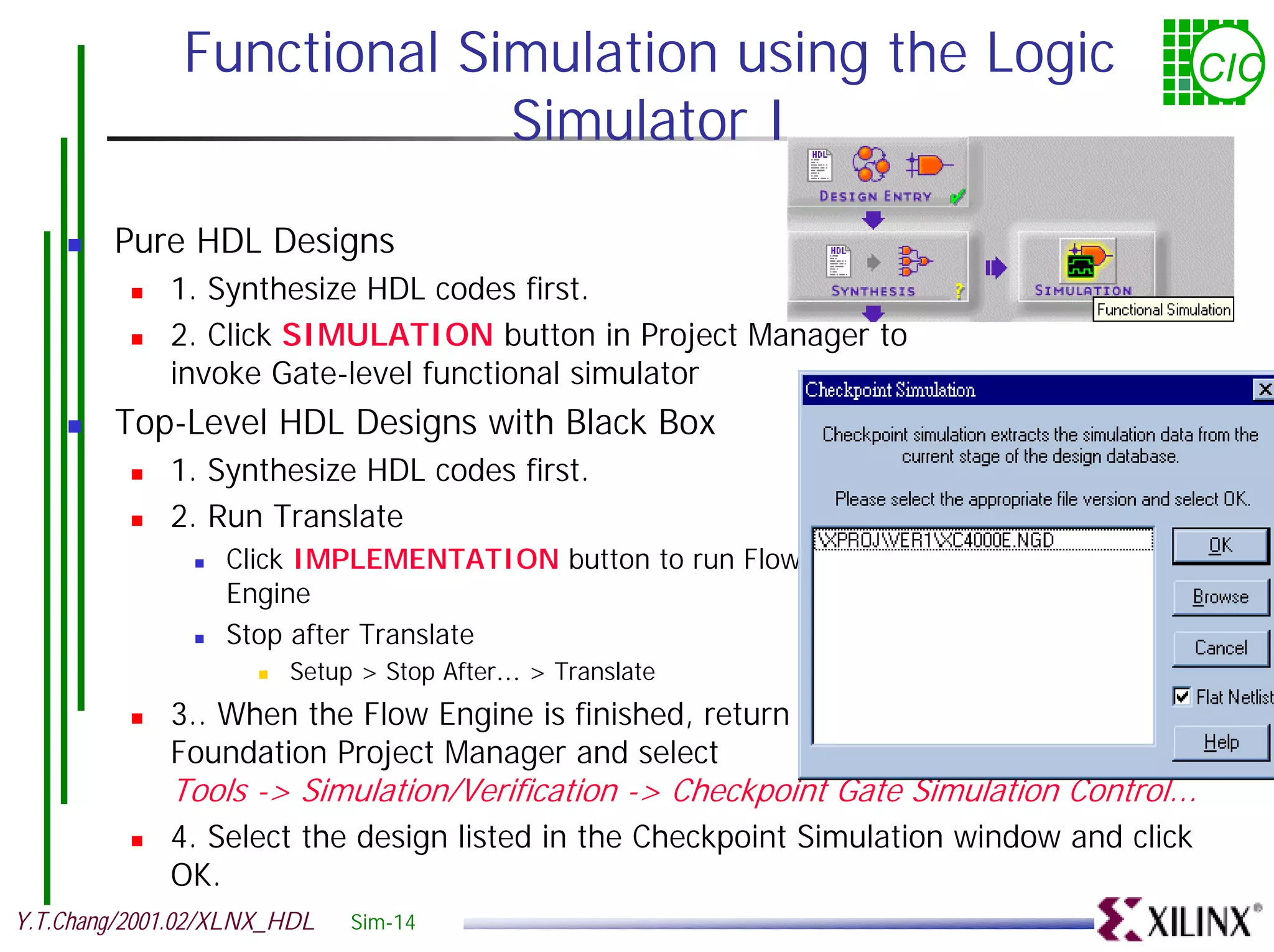

Functional Simulation using the Logic CIC Simulator I ! Pure HDL Designs ! 1. Synthesize HDL codes first. ! 2. Click SIMULATION button in Project Manager to invoke Gate-level functional simulator ! Top-Level HDL Designs with Black Box ! 1. Synthesize HDL codes first. ! 2. Run Translate ! Click IMPLEMENTATION button to run Flow Engine ! Stop after Translate ! Setup > Stop After… > Translate ! 3.. When the Flow Engine is finished, return to the Foundation Project Manager and select Tools -> Simulation/Verification -> Checkpoint Gate Simulation Control... ! 4. Select the design listed in the Checkpoint Simulation window and click OK. Y.T.Chang/2001.02/XLNX_HDL Sim-14

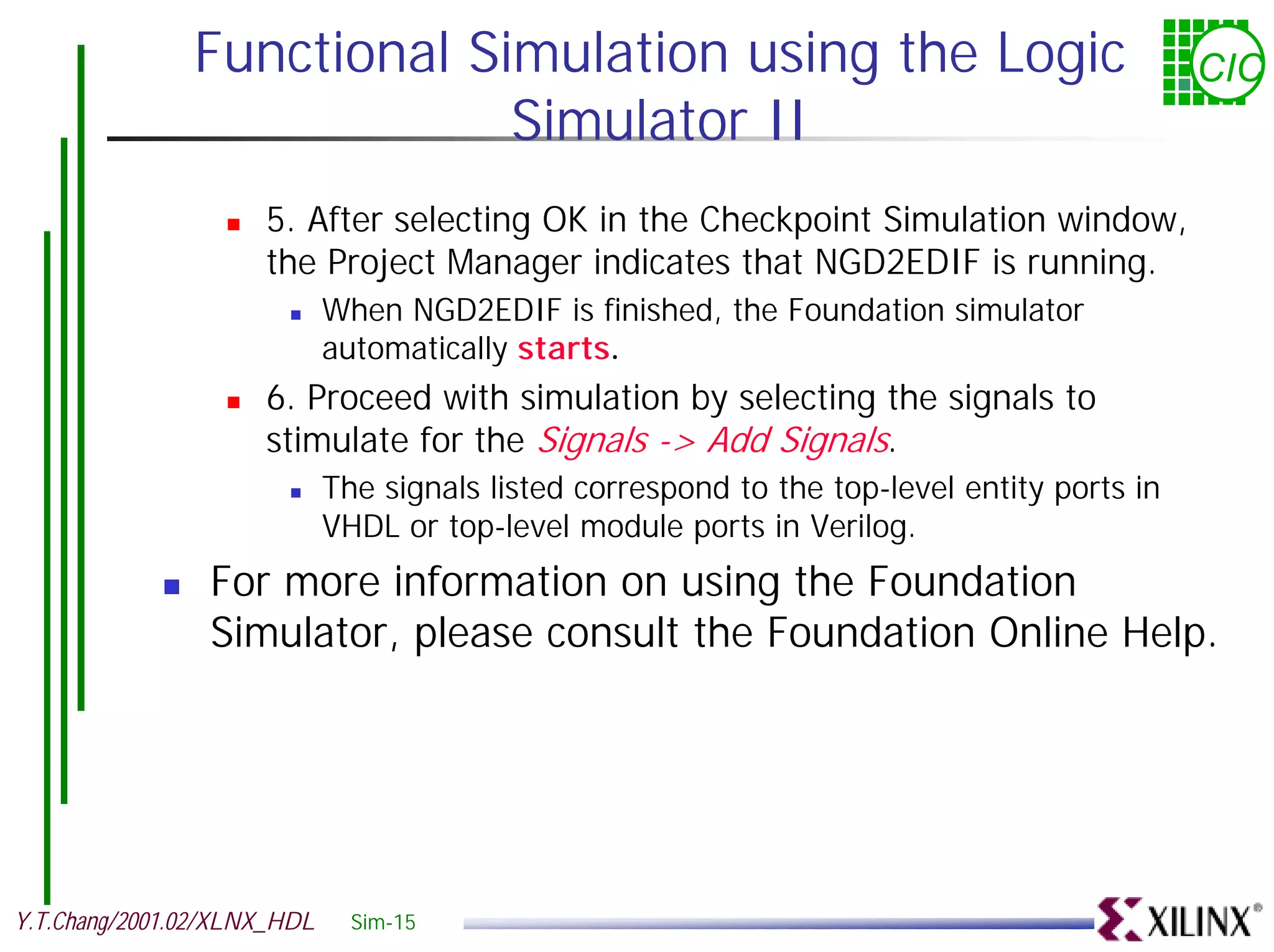

Functional Simulation using the Logic CIC Simulator II ! 5. After selecting OK in the Checkpoint Simulation window, the Project Manager indicates that NGD2EDIF is running. ! When NGD2EDIF is finished, the Foundation simulator automatically starts. ! 6. Proceed with simulation by selecting the signals to stimulate for the Signals -> Add Signals. ! The signals listed correspond to the top-level entity ports in VHDL or top-level module ports in Verilog. ! For more information on using the Foundation Simulator, please consult the Foundation Online Help. Y.T.Chang/2001.02/XLNX_HDL Sim-15

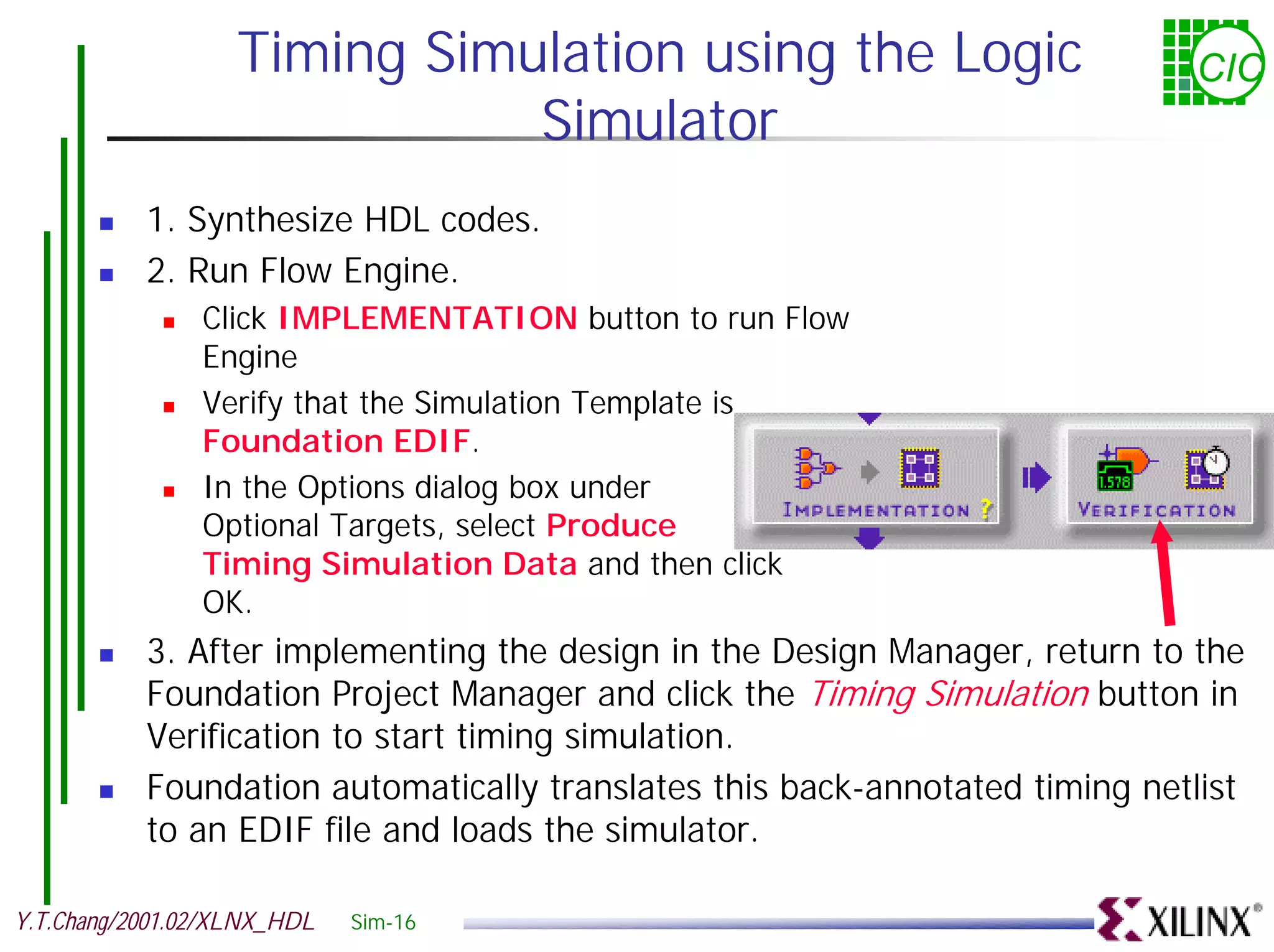

Timing Simulation using the Logic CIC Simulator ! 1. Synthesize HDL codes. ! 2. Run Flow Engine. ! Click IMPLEMENTATION button to run Flow Engine ! Verify that the Simulation Template is Foundation EDIF. ! In the Options dialog box under Optional Targets, select Produce Timing Simulation Data and then click OK. ! 3. After implementing the design in the Design Manager, return to the Foundation Project Manager and click the Timing Simulation button in Verification to start timing simulation. ! Foundation automatically translates this back-annotated timing netlist to an EDIF file and loads the simulator. Y.T.Chang/2001.02/XLNX_HDL Sim-16

Xilinx CORE Generator Y.T.Chang/2001.02/XLNX_HDL core-1

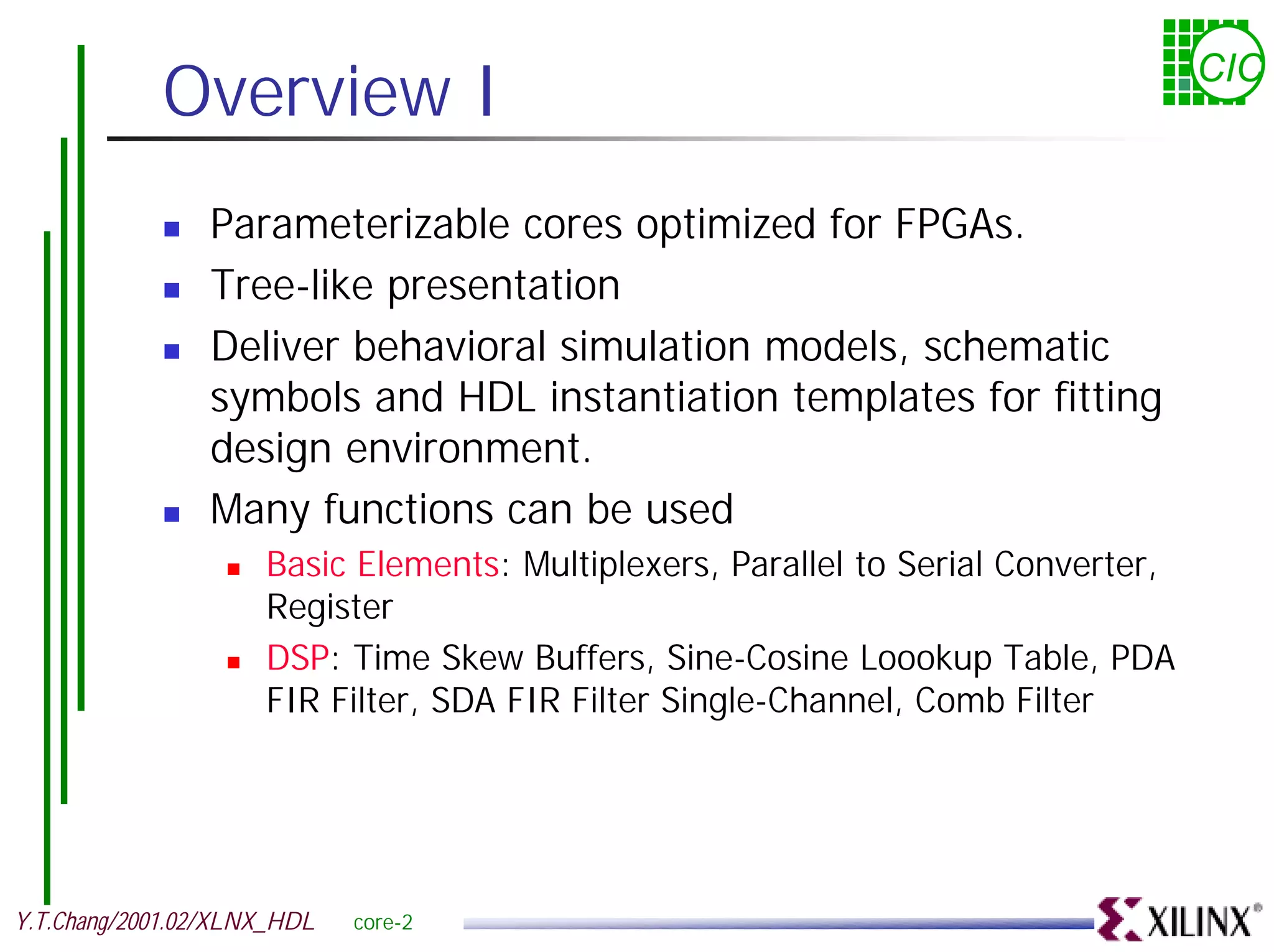

Overview I CIC ! Parameterizable cores optimized for FPGAs. ! Tree-like presentation ! Deliver behavioral simulation models, schematic symbols and HDL instantiation templates for fitting design environment. ! Many functions can be used ! Basic Elements: Multiplexers, Parallel to Serial Converter, Register ! DSP: Time Skew Buffers, Sine-Cosine Loookup Table, PDA FIR Filter, SDA FIR Filter Single-Channel, Comb Filter Y.T.Chang/2001.02/XLNX_HDL core-2

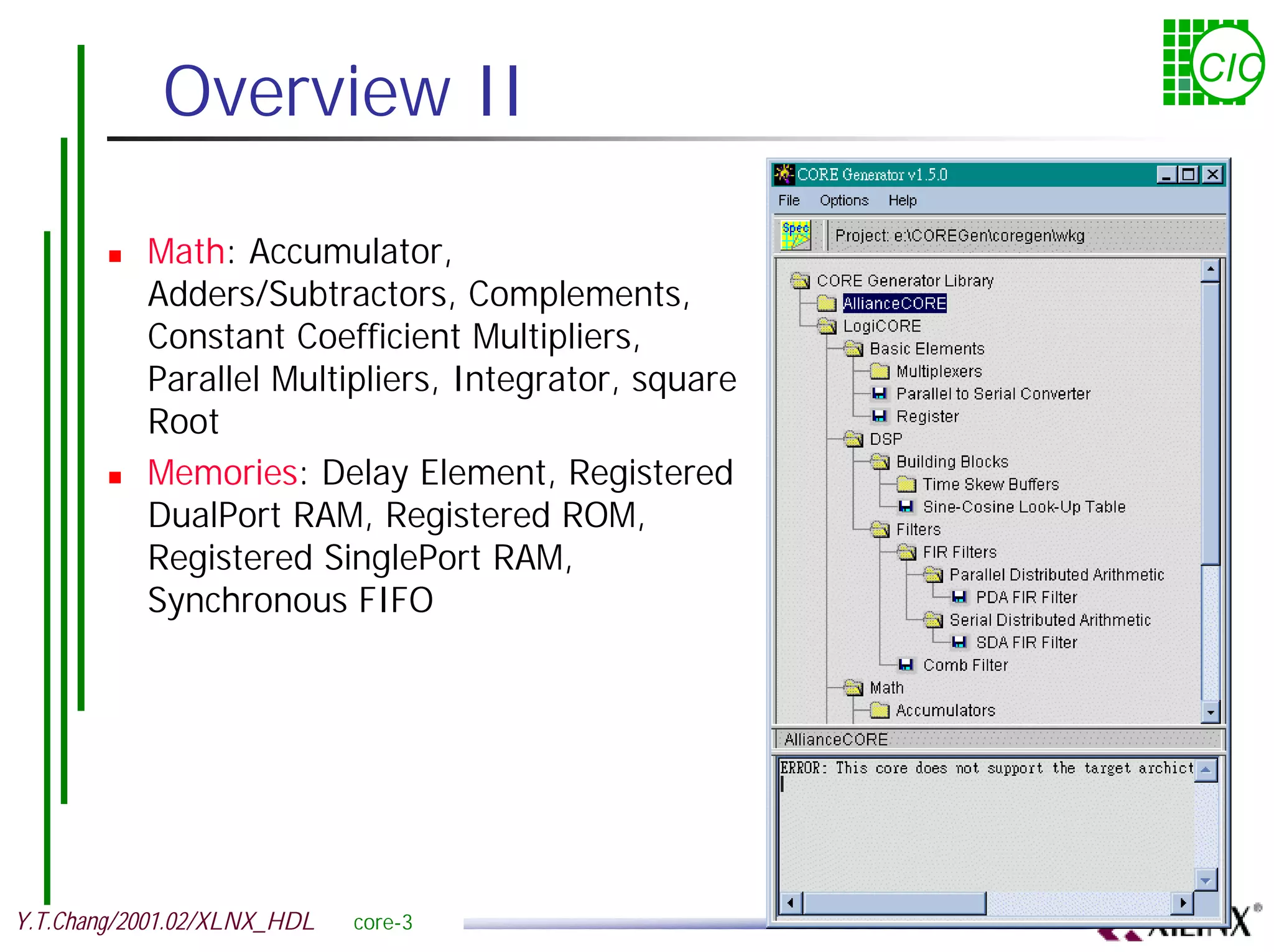

Overview II CIC ! Math: Accumulator, Adders/Subtractors, Complements, Constant Coefficient Multipliers, Parallel Multipliers, Integrator, square Root ! Memories: Delay Element, Registered DualPort RAM, Registered ROM, Registered SinglePort RAM, Synchronous FIFO Y.T.Chang/2001.02/XLNX_HDL core-3

CIC How to Obtain New Cores and Updates ! New cores can be downloaded from the Xilinx web site and easily added to the CORE Generator. ! Bookmark http://www.xilinx.com/products/logicore/coregen and keep in touch regularly for updates. Y.T.Chang/2001.02/XLNX_HDL core-4

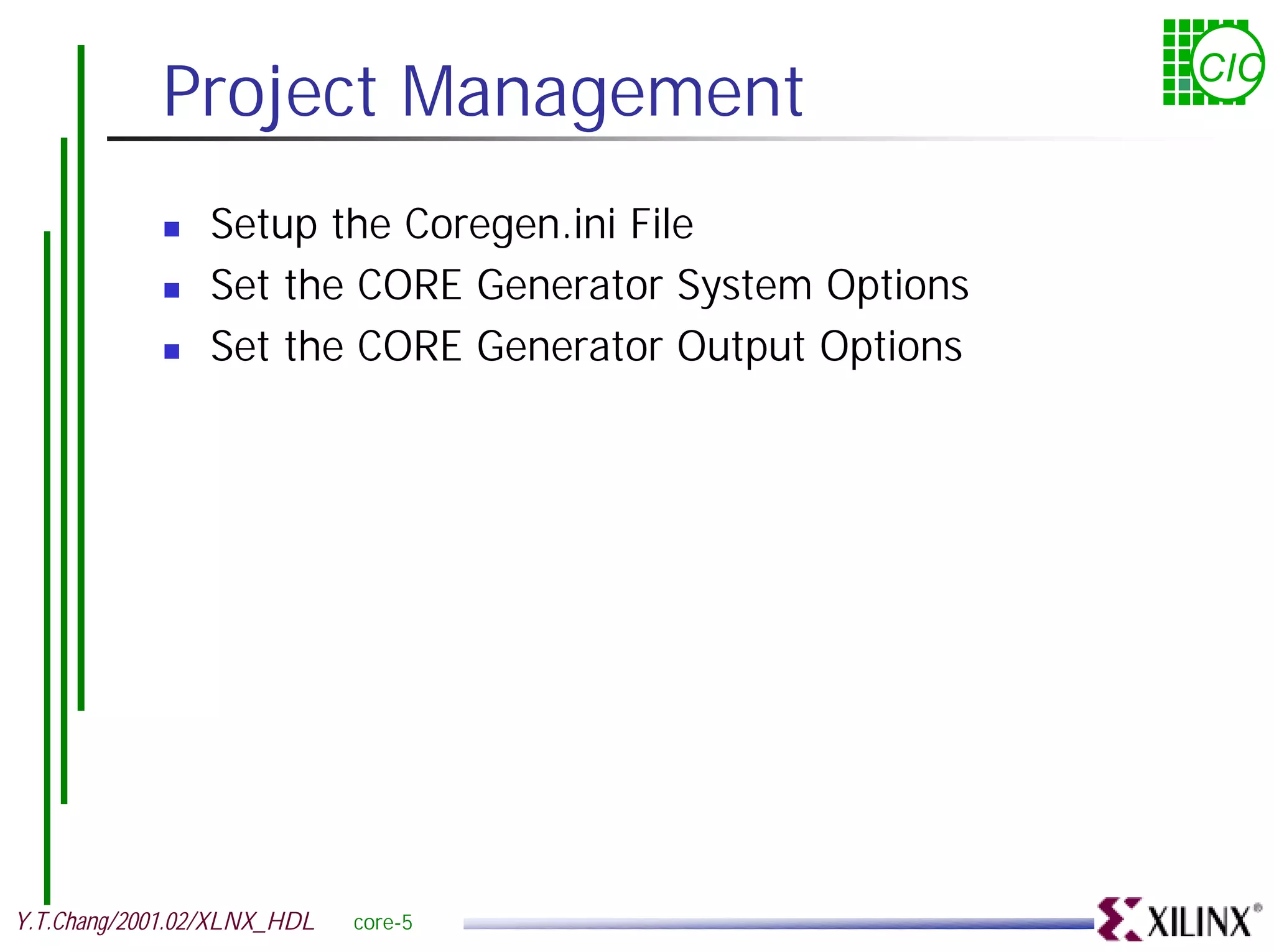

Project Management CIC ! Setup the Coregen.ini File ! Set the CORE Generator System Options ! Set the CORE Generator Output Options Y.T.Chang/2001.02/XLNX_HDL core-5

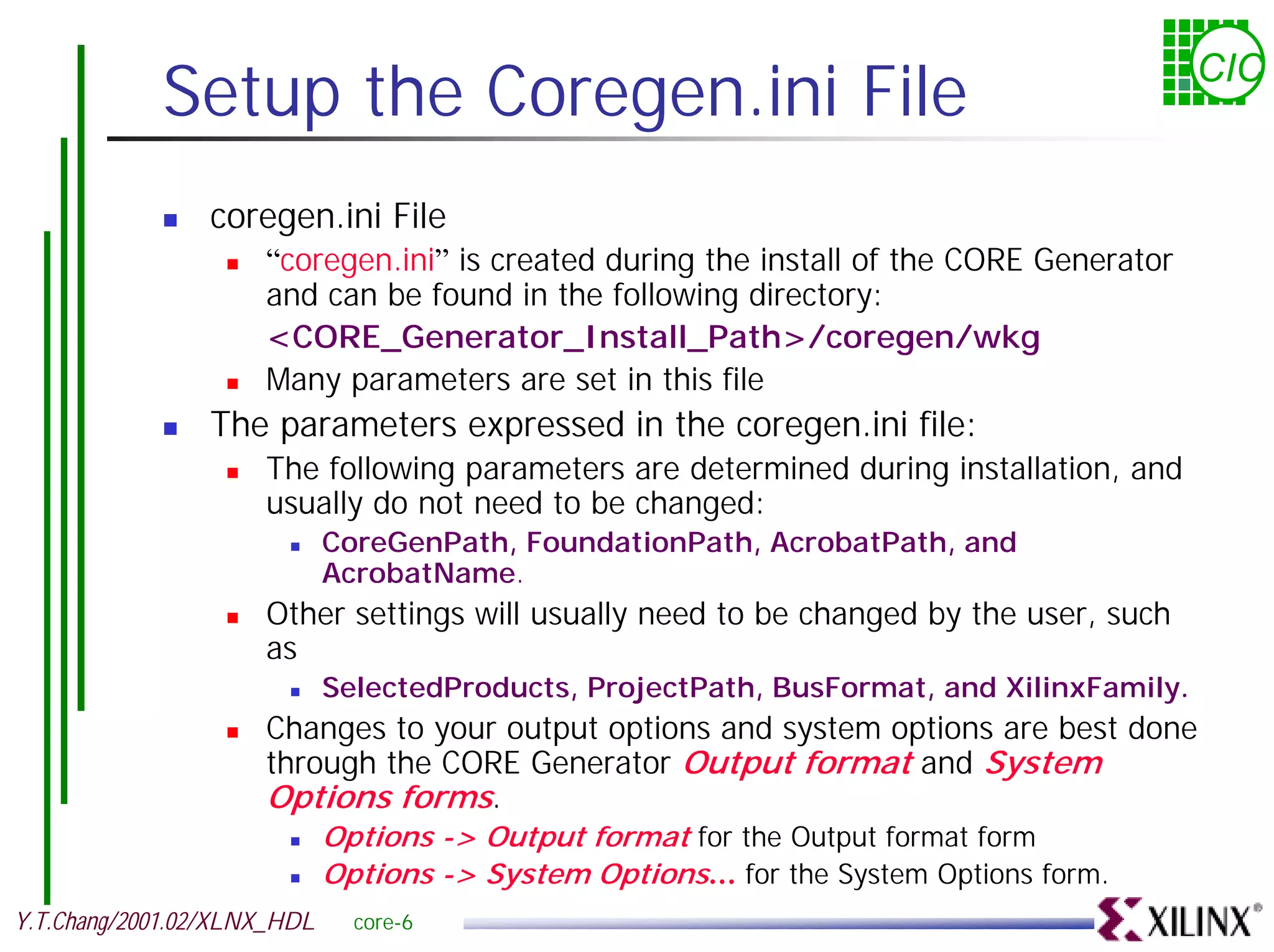

Setup the Coregen.ini File CIC ! coregen.ini File ! “coregen.ini” is created during the install of the CORE Generator and can be found in the following directory: <CORE_Generator_Install_Path>/coregen/wkg ! Many parameters are set in this file ! The parameters expressed in the coregen.ini file: ! The following parameters are determined during installation, and usually do not need to be changed: ! CoreGenPath, FoundationPath, AcrobatPath, and AcrobatName. ! Other settings will usually need to be changed by the user, such as ! SelectedProducts, ProjectPath, BusFormat, and XilinxFamily. ! Changes to your output options and system options are best done through the CORE Generator Output format and System Options forms. ! Options -> Output format for the Output format form ! Options -> System Options… for the System Options form. Y.T.Chang/2001.02/XLNX_HDL core-6

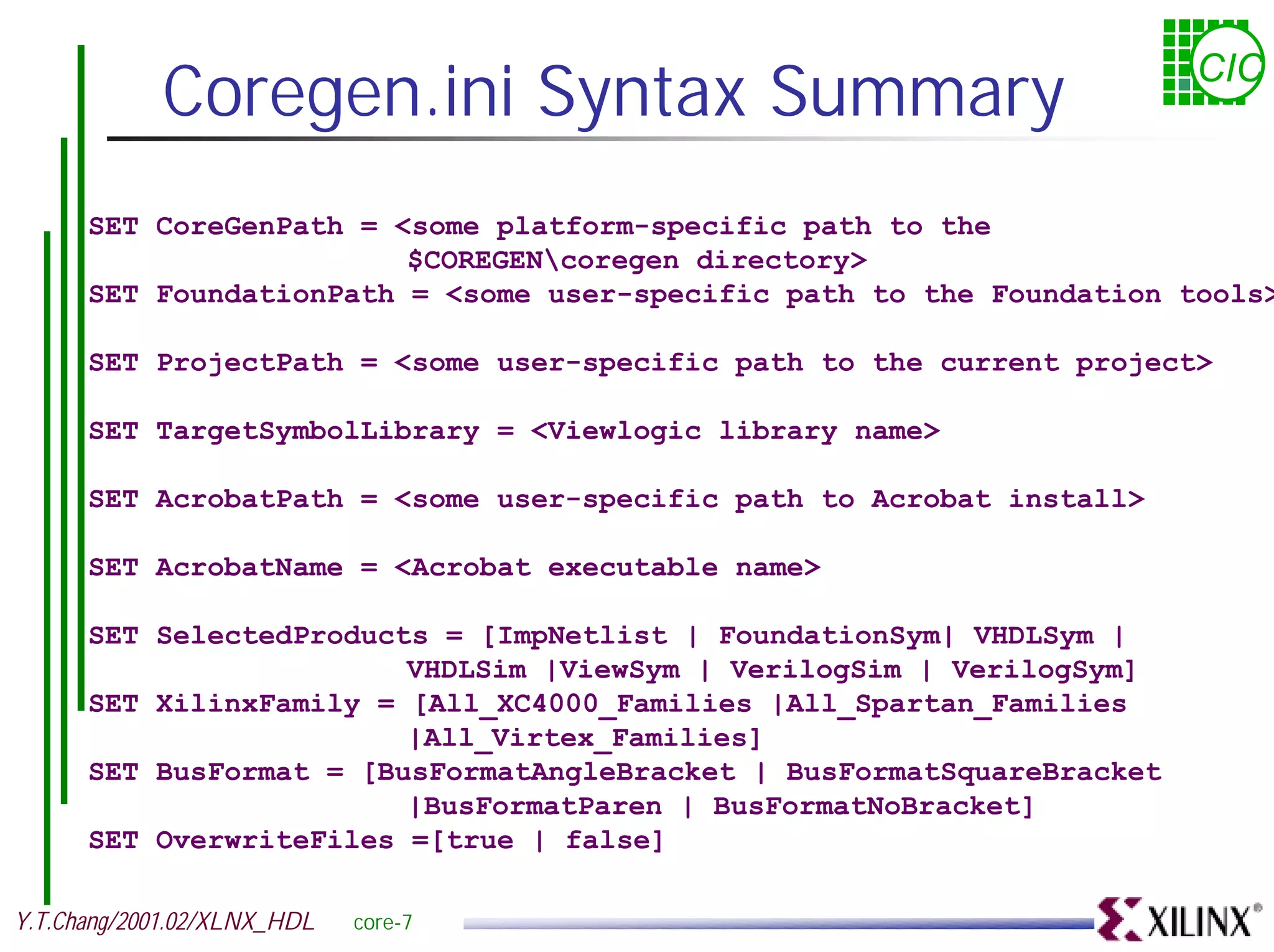

Coregen.ini Syntax Summary CIC SET CoreGenPath = <some platform-specific path to the $COREGENcoregen directory> SET FoundationPath = <some user-specific path to the Foundation tools> SET ProjectPath = <some user-specific path to the current project> SET TargetSymbolLibrary = <Viewlogic library name> SET AcrobatPath = <some user-specific path to Acrobat install> SET AcrobatName = <Acrobat executable name> SET SelectedProducts = [ImpNetlist | FoundationSym| VHDLSym | VHDLSim |ViewSym | VerilogSim | VerilogSym] SET XilinxFamily = [All_XC4000_Families |All_Spartan_Families |All_Virtex_Families] SET BusFormat = [BusFormatAngleBracket | BusFormatSquareBracket |BusFormatParen | BusFormatNoBracket] SET OverwriteFiles =[true | false] Y.T.Chang/2001.02/XLNX_HDL core-7

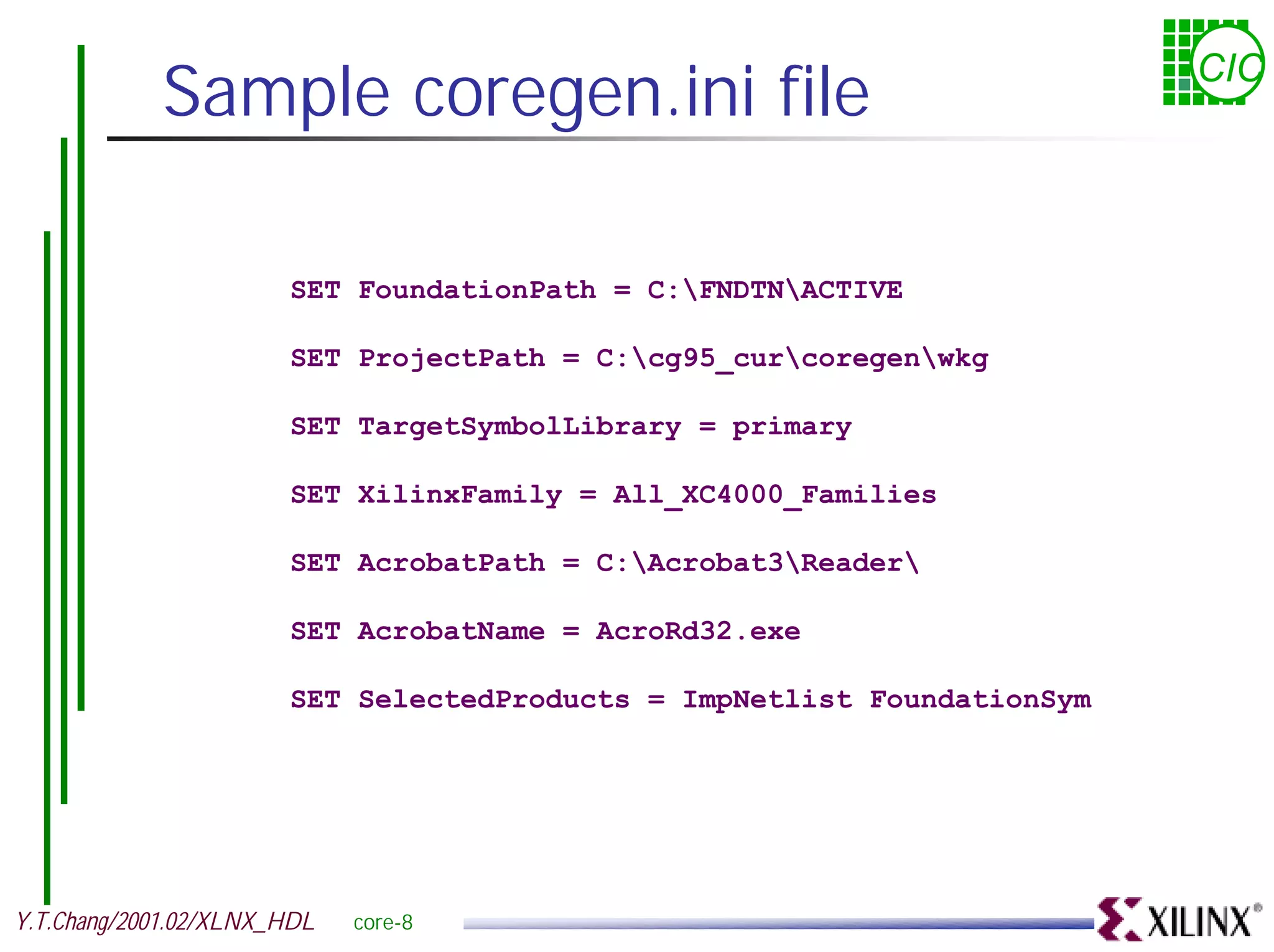

Sample coregen.ini file CIC SET FoundationPath = C:FNDTNACTIVE SET ProjectPath = C:cg95_curcoregenwkg SET TargetSymbolLibrary = primary SET XilinxFamily = All_XC4000_Families SET AcrobatPath = C:Acrobat3Reader SET AcrobatName = AcroRd32.exe SET SelectedProducts = ImpNetlist FoundationSym Y.T.Chang/2001.02/XLNX_HDL core-8

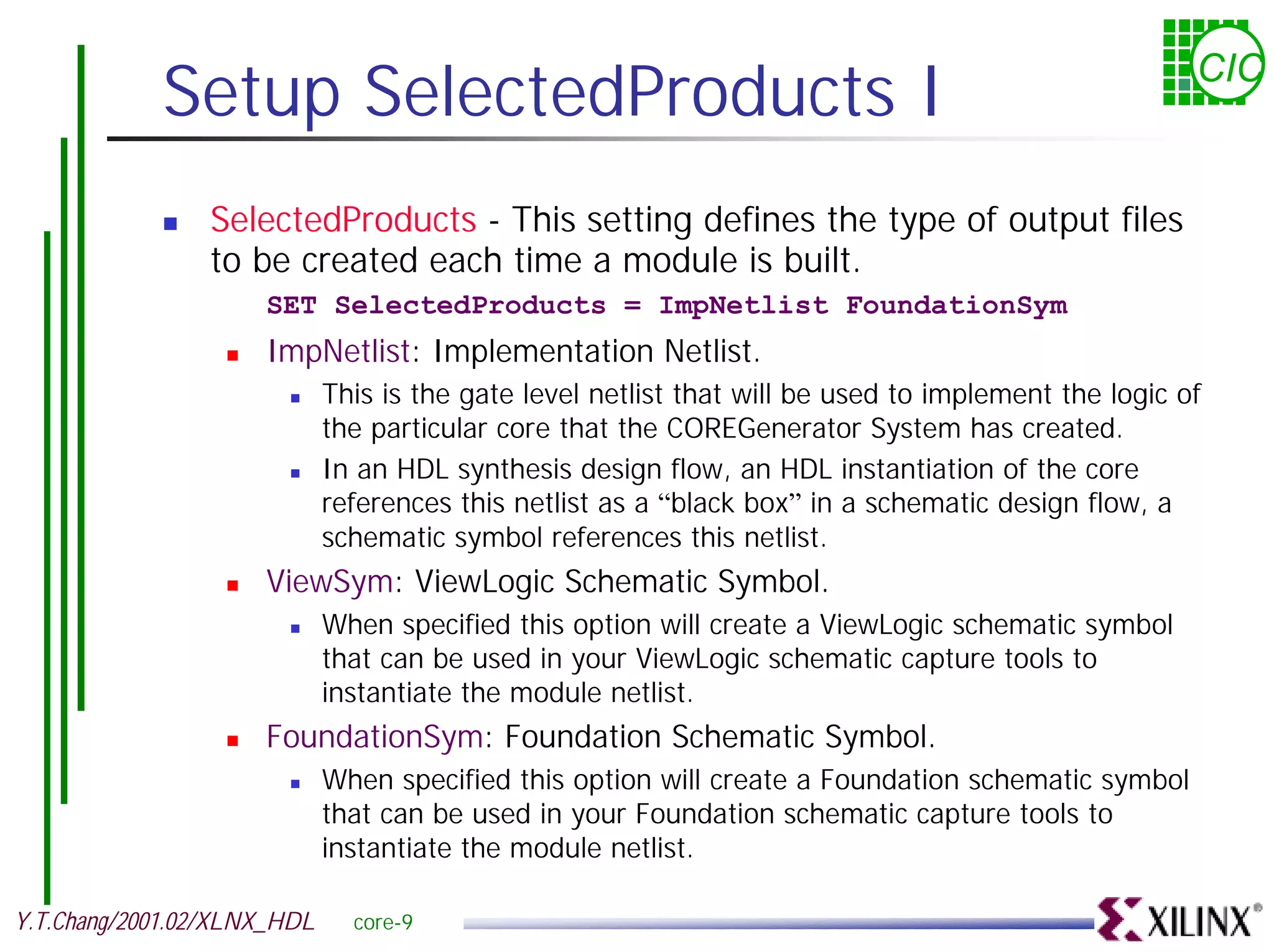

Setup SelectedProducts I CIC ! SelectedProducts - This setting defines the type of output files to be created each time a module is built. SET SelectedProducts = ImpNetlist FoundationSym ! ImpNetlist: Implementation Netlist. ! This is the gate level netlist that will be used to implement the logic of the particular core that the COREGenerator System has created. ! In an HDL synthesis design flow, an HDL instantiation of the core references this netlist as a “black box” in a schematic design flow, a schematic symbol references this netlist. ! ViewSym: ViewLogic Schematic Symbol. ! When specified this option will create a ViewLogic schematic symbol that can be used in your ViewLogic schematic capture tools to instantiate the module netlist. ! FoundationSym: Foundation Schematic Symbol. ! When specified this option will create a Foundation schematic symbol that can be used in your Foundation schematic capture tools to instantiate the module netlist. Y.T.Chang/2001.02/XLNX_HDL core-9

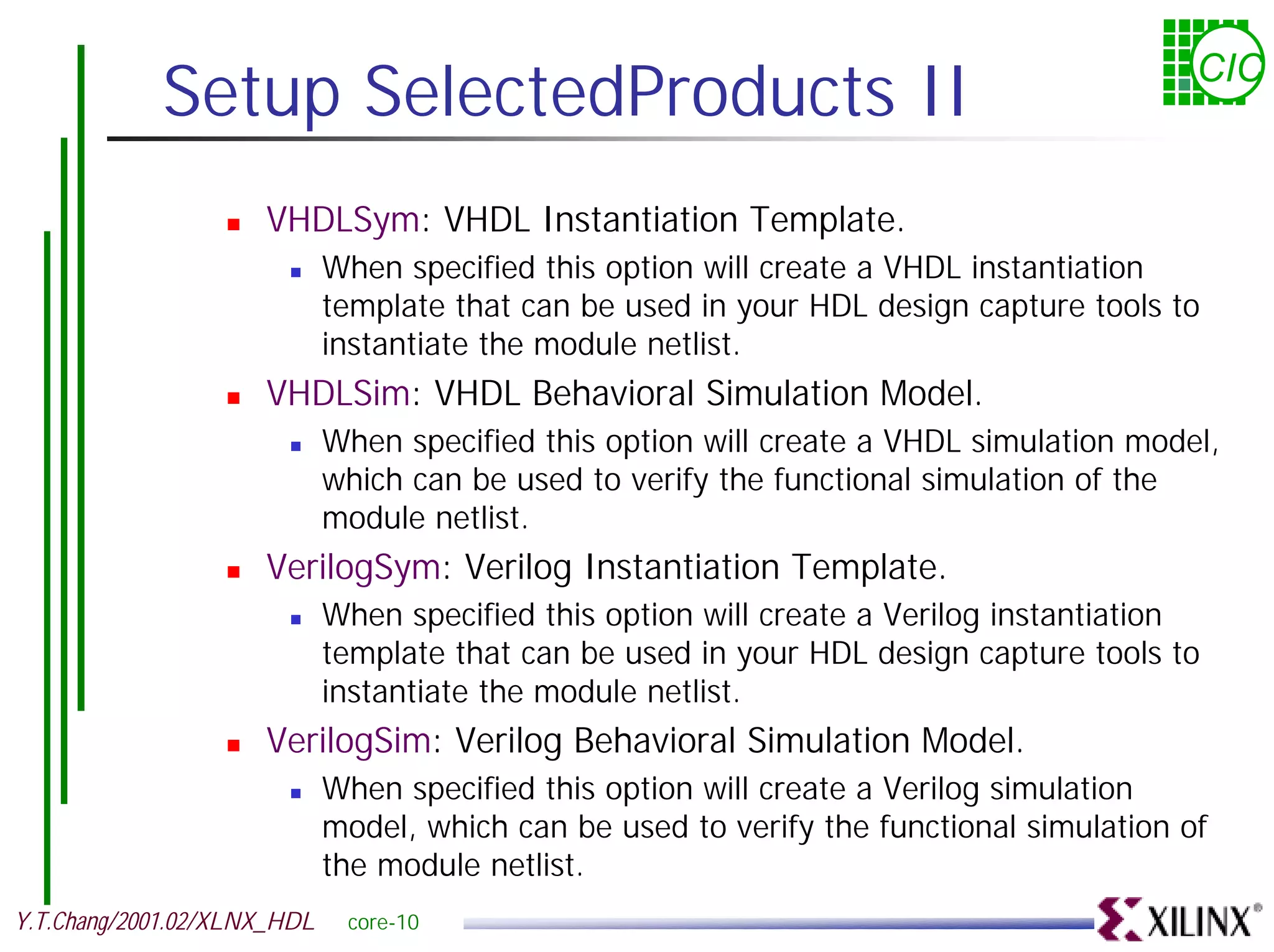

Setup SelectedProducts II CIC ! VHDLSym: VHDL Instantiation Template. ! When specified this option will create a VHDL instantiation template that can be used in your HDL design capture tools to instantiate the module netlist. ! VHDLSim: VHDL Behavioral Simulation Model. ! When specified this option will create a VHDL simulation model, which can be used to verify the functional simulation of the module netlist. ! VerilogSym: Verilog Instantiation Template. ! When specified this option will create a Verilog instantiation template that can be used in your HDL design capture tools to instantiate the module netlist. ! VerilogSim: Verilog Behavioral Simulation Model. ! When specified this option will create a Verilog simulation model, which can be used to verify the functional simulation of the module netlist. Y.T.Chang/2001.02/XLNX_HDL core-10

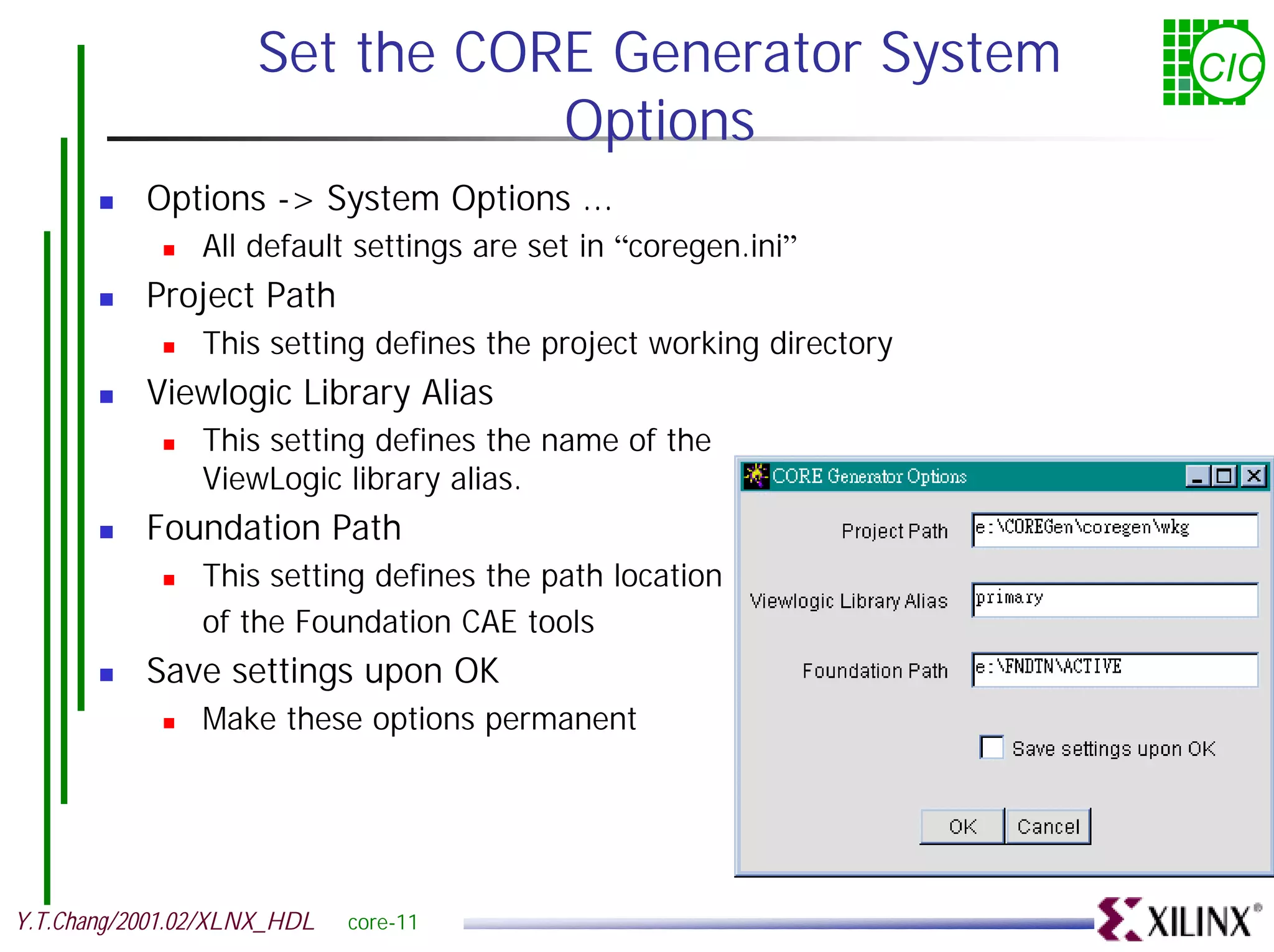

Set the CORE Generator System CIC Options ! Options -> System Options ... ! All default settings are set in “coregen.ini” ! Project Path ! This setting defines the project working directory ! Viewlogic Library Alias ! This setting defines the name of the ViewLogic library alias. ! Foundation Path ! This setting defines the path location of the Foundation CAE tools ! Save settings upon OK ! Make these options permanent Y.T.Chang/2001.02/XLNX_HDL core-11

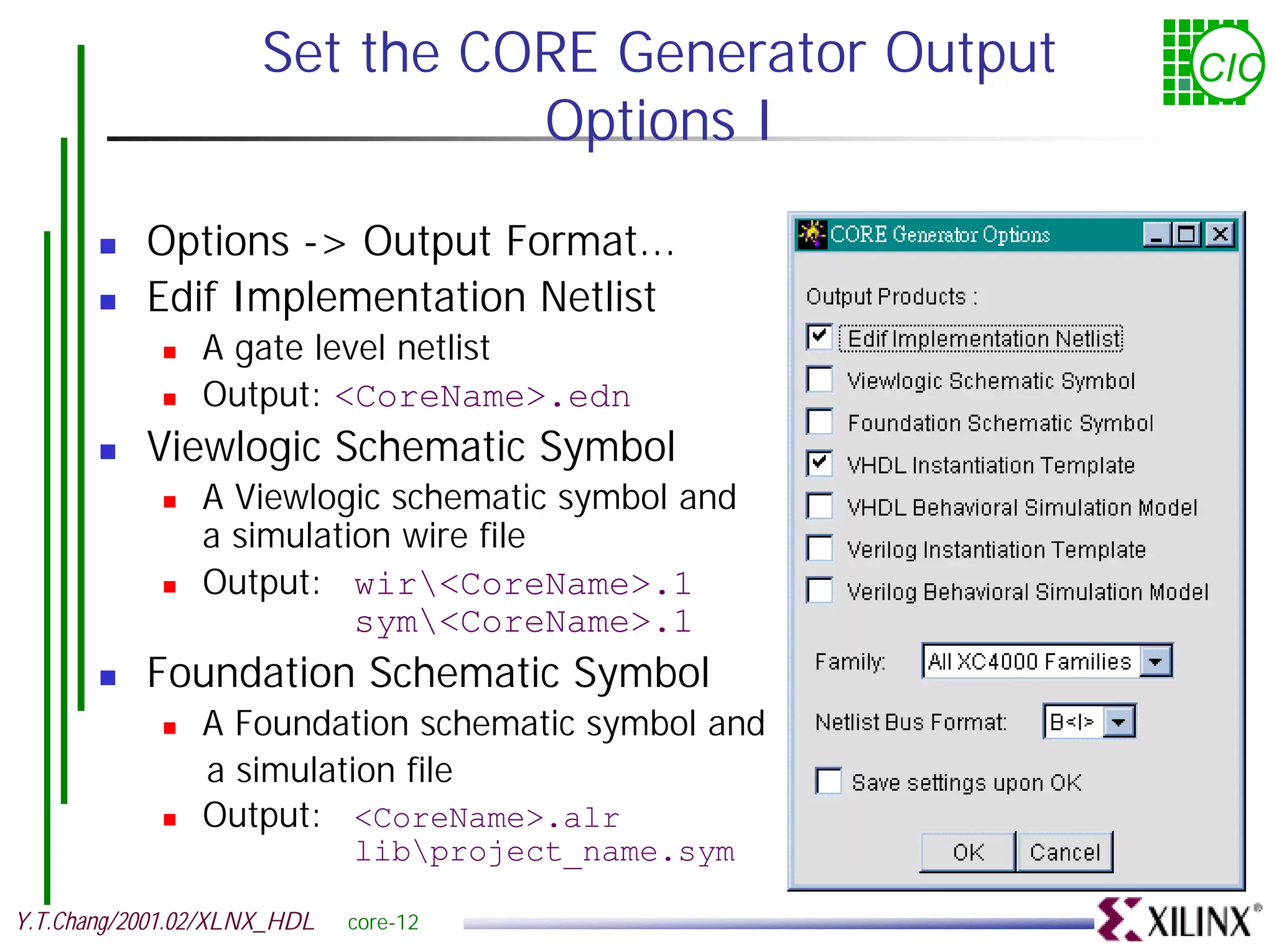

Set the CORE Generator Output CIC Options I ! Options -> Output Format... ! Edif Implementation Netlist ! A gate level netlist ! Output: <CoreName>.edn ! Viewlogic Schematic Symbol ! A Viewlogic schematic symbol and a simulation wire file ! Output: wir<CoreName>.1 sym<CoreName>.1 ! Foundation Schematic Symbol ! A Foundation schematic symbol and a simulation file ! Output: <CoreName>.alr libproject_name.sym Y.T.Chang/2001.02/XLNX_HDL core-12

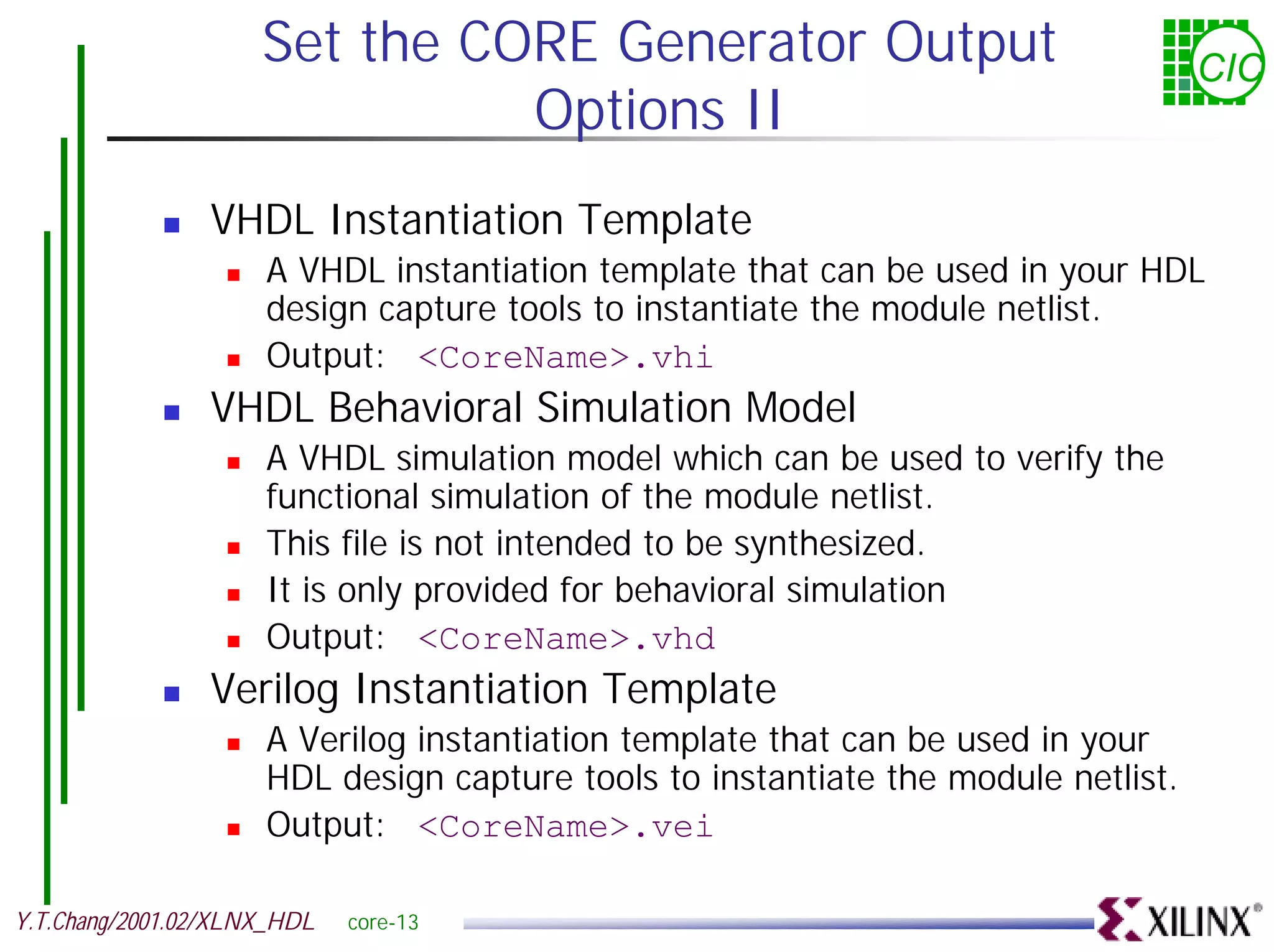

Set the CORE Generator Output CIC Options II ! VHDL Instantiation Template ! A VHDL instantiation template that can be used in your HDL design capture tools to instantiate the module netlist. ! Output: <CoreName>.vhi ! VHDL Behavioral Simulation Model ! A VHDL simulation model which can be used to verify the functional simulation of the module netlist. ! This file is not intended to be synthesized. ! It is only provided for behavioral simulation ! Output: <CoreName>.vhd ! Verilog Instantiation Template ! A Verilog instantiation template that can be used in your HDL design capture tools to instantiate the module netlist. ! Output: <CoreName>.vei Y.T.Chang/2001.02/XLNX_HDL core-13

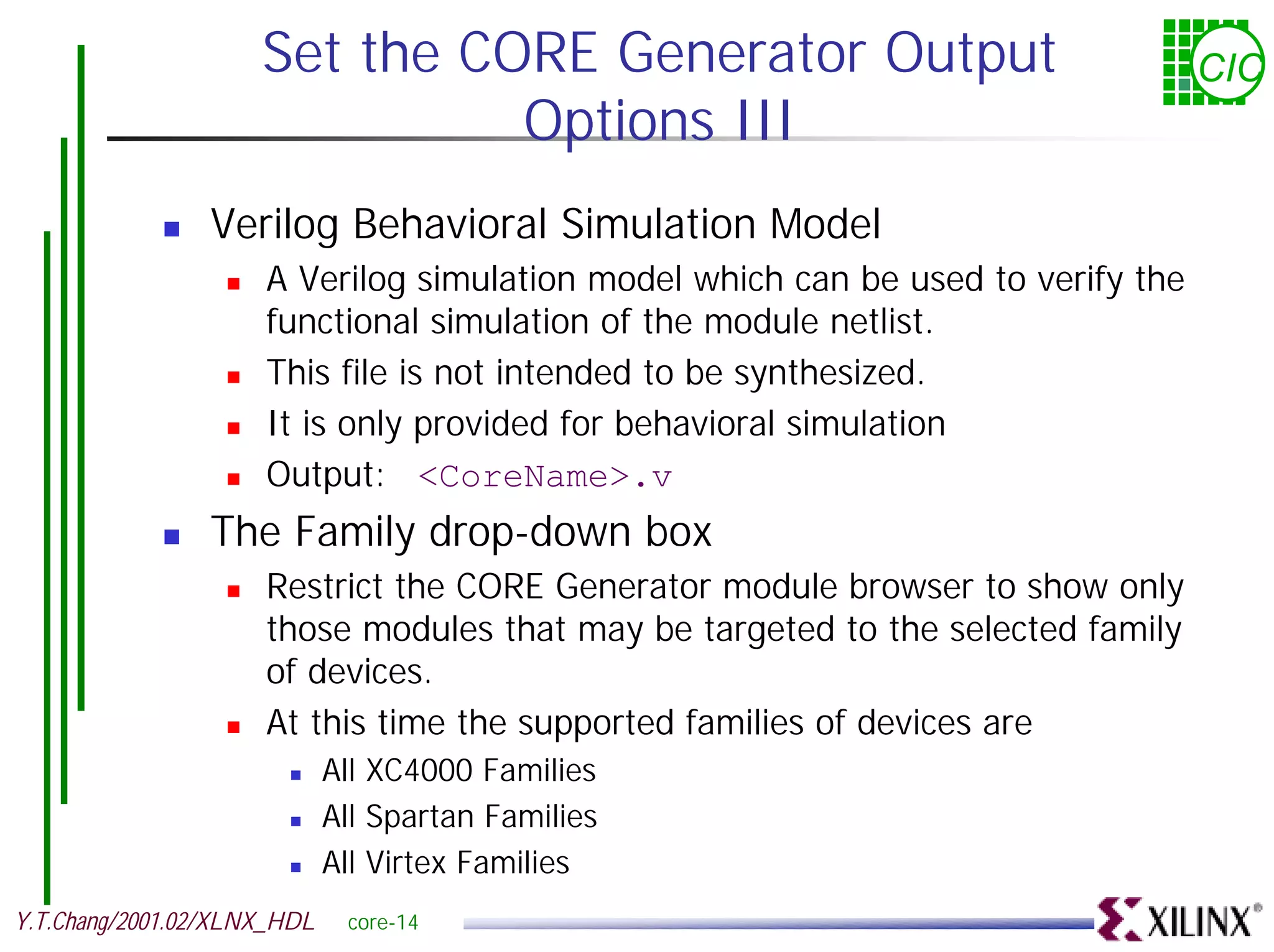

Set the CORE Generator Output CIC Options III ! Verilog Behavioral Simulation Model ! A Verilog simulation model which can be used to verify the functional simulation of the module netlist. ! This file is not intended to be synthesized. ! It is only provided for behavioral simulation ! Output: <CoreName>.v ! The Family drop-down box ! Restrict the CORE Generator module browser to show only those modules that may be targeted to the selected family of devices. ! At this time the supported families of devices are ! All XC4000 Families ! All Spartan Families ! All Virtex Families Y.T.Chang/2001.02/XLNX_HDL core-14

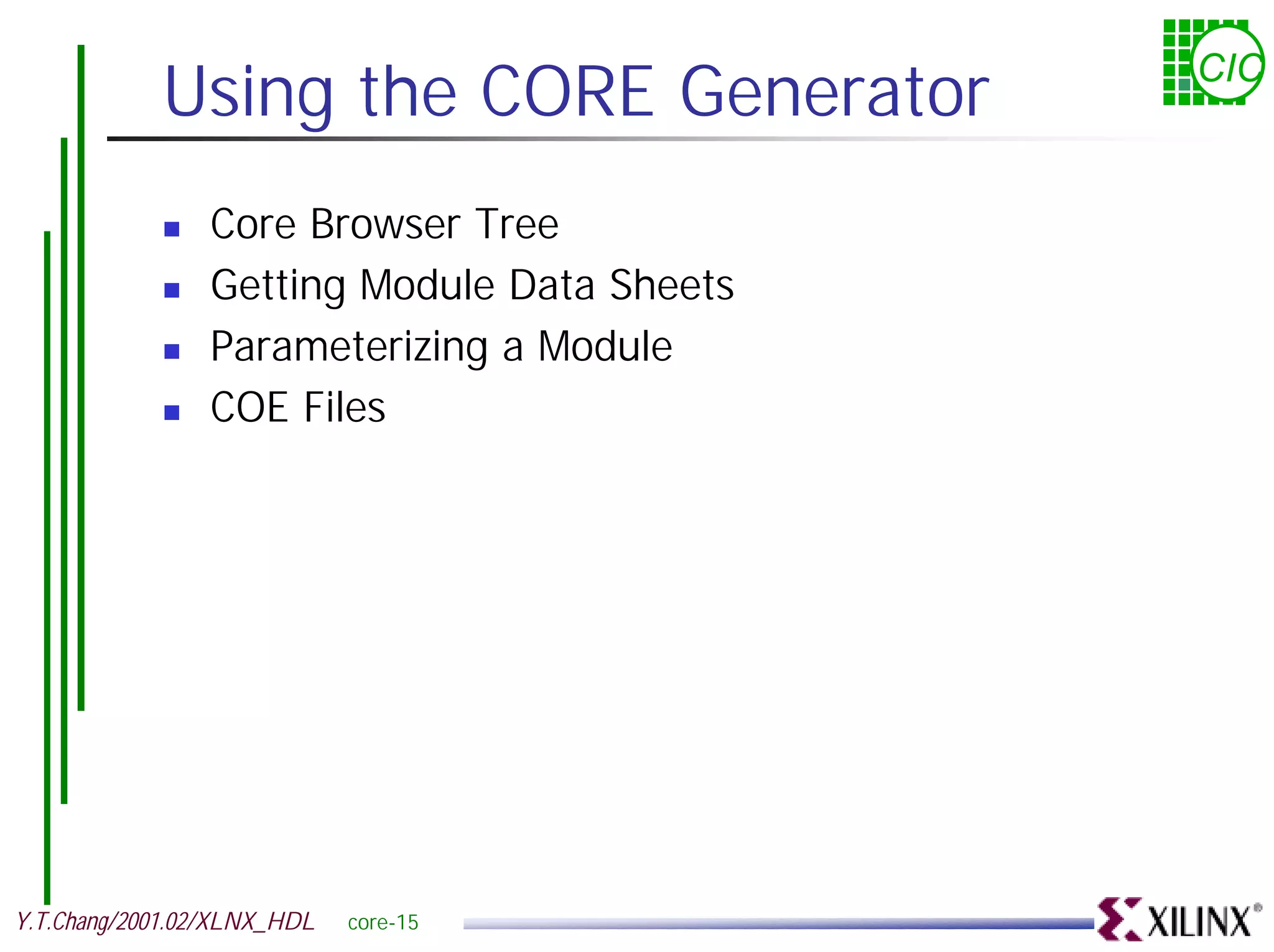

Using the CORE Generator CIC ! Core Browser Tree ! Getting Module Data Sheets ! Parameterizing a Module ! COE Files Y.T.Chang/2001.02/XLNX_HDL core-15

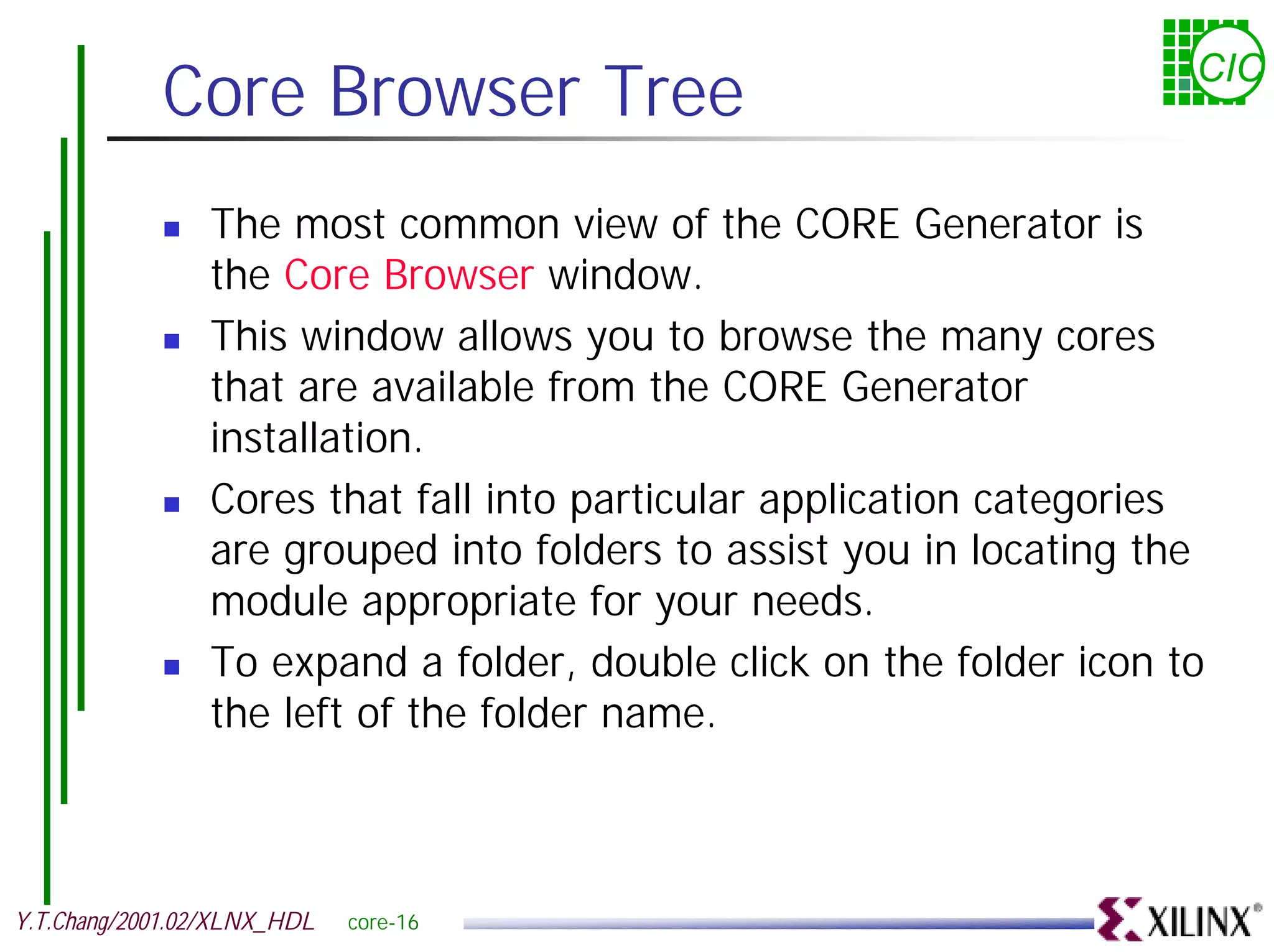

Core Browser Tree CIC ! The most common view of the CORE Generator is the Core Browser window. ! This window allows you to browse the many cores that are available from the CORE Generator installation. ! Cores that fall into particular application categories are grouped into folders to assist you in locating the module appropriate for your needs. ! To expand a folder, double click on the folder icon to the left of the folder name. Y.T.Chang/2001.02/XLNX_HDL core-16

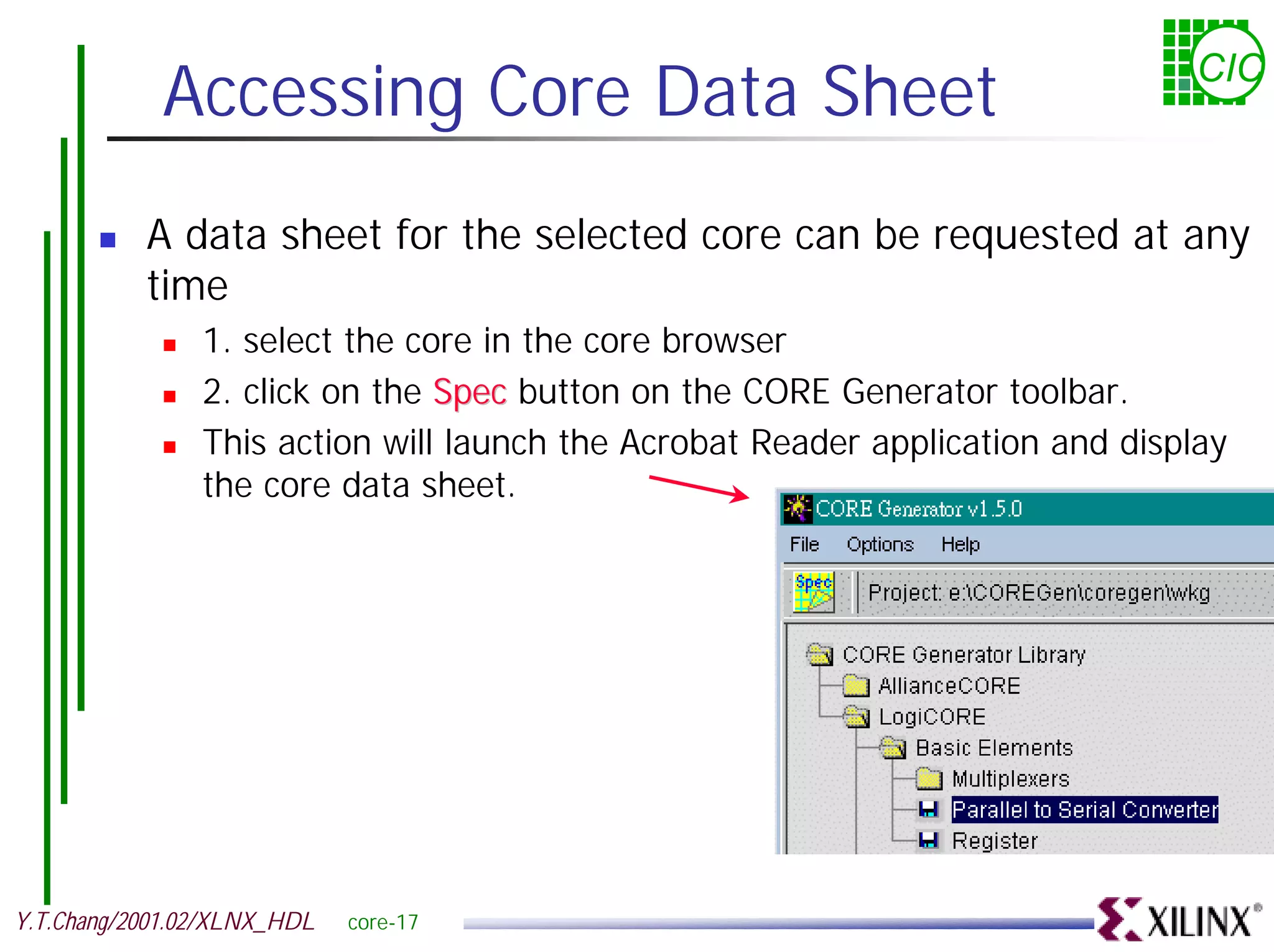

Accessing Core Data Sheet CIC ! A data sheet for the selected core can be requested at any time ! 1. select the core in the core browser ! 2. click on the Spec button on the CORE Generator toolbar. ! This action will launch the Acrobat Reader application and display the core data sheet. Y.T.Chang/2001.02/XLNX_HDL core-17

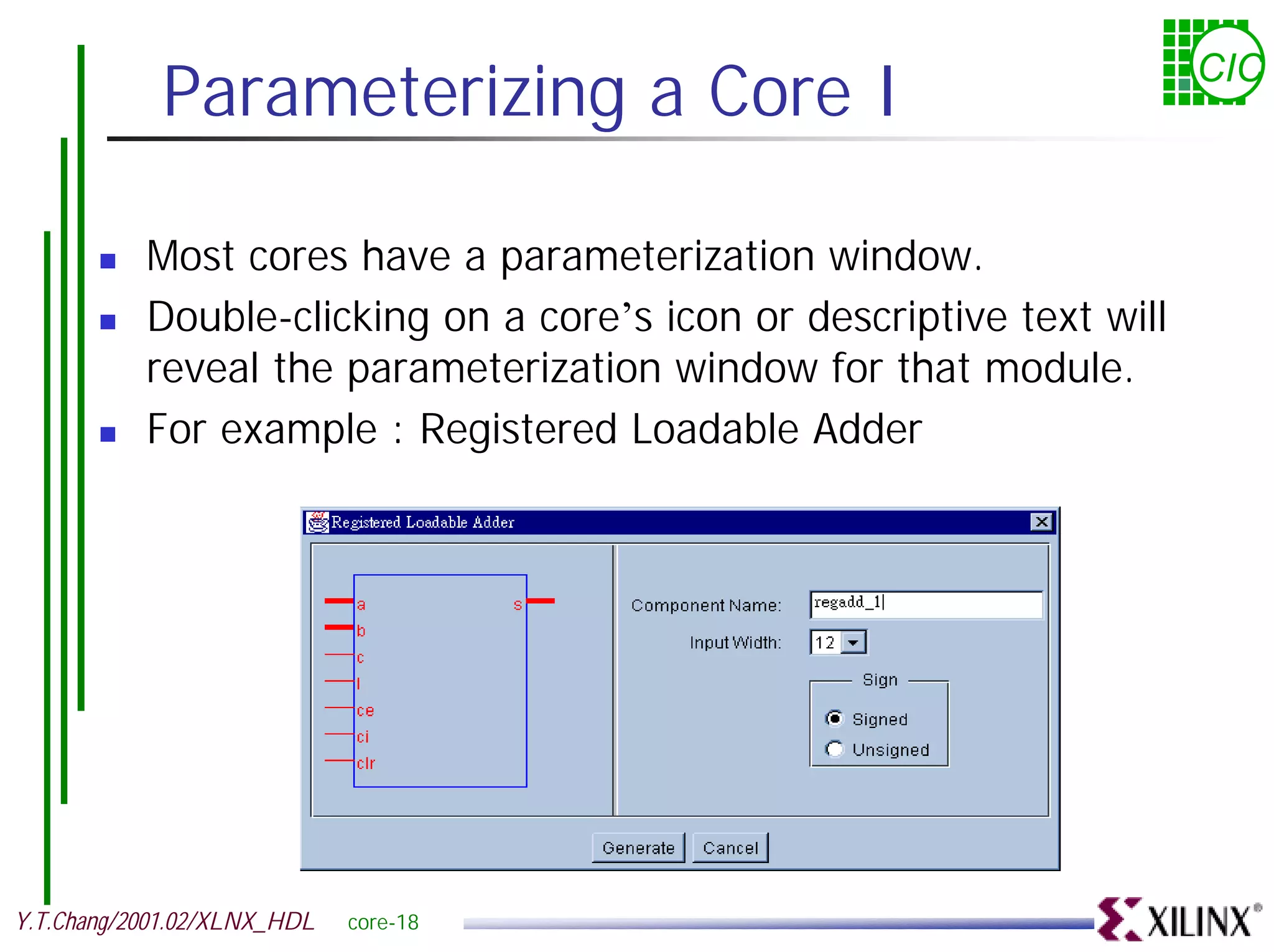

Parameterizing a Core I CIC ! Most cores have a parameterization window. ! Double-clicking on a core’s icon or descriptive text will reveal the parameterization window for that module. ! For example : Registered Loadable Adder Y.T.Chang/2001.02/XLNX_HDL core-18

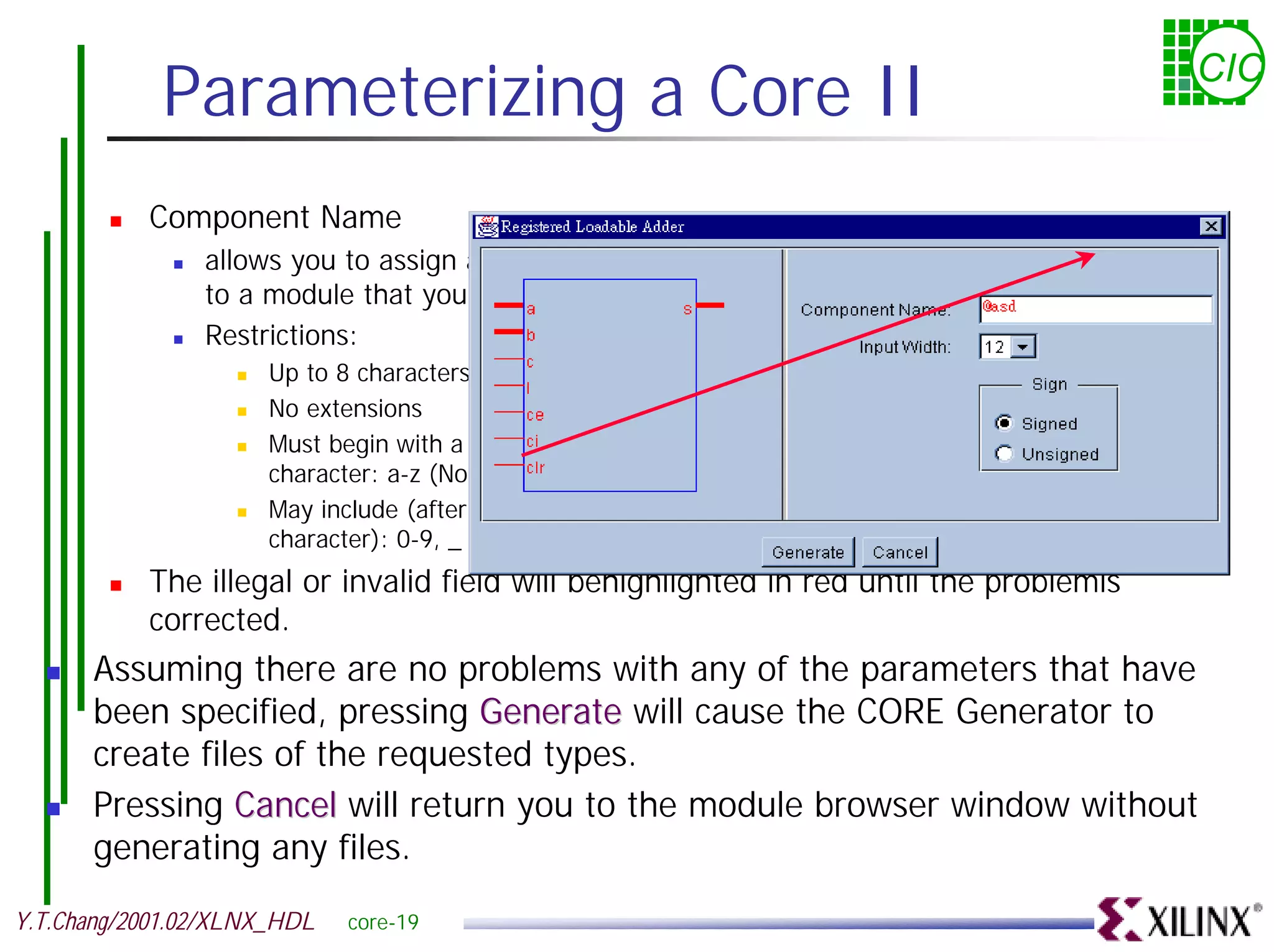

Parameterizing a Core II CIC ! Component Name ! allows you to assign a name to a module that you create. ! Restrictions: ! Up to 8 characters ! No extensions ! Must begin with a alpha character: a-z (No Capital letters) ! May include (after the first character): 0-9, _ ! The illegal or invalid field will behighlighted in red until the problemis corrected. ! Assuming there are no problems with any of the parameters that have been specified, pressing Generate will cause the CORE Generator to create files of the requested types. ! Pressing Cancel will return you to the module browser window without generating any files. Y.T.Chang/2001.02/XLNX_HDL core-19

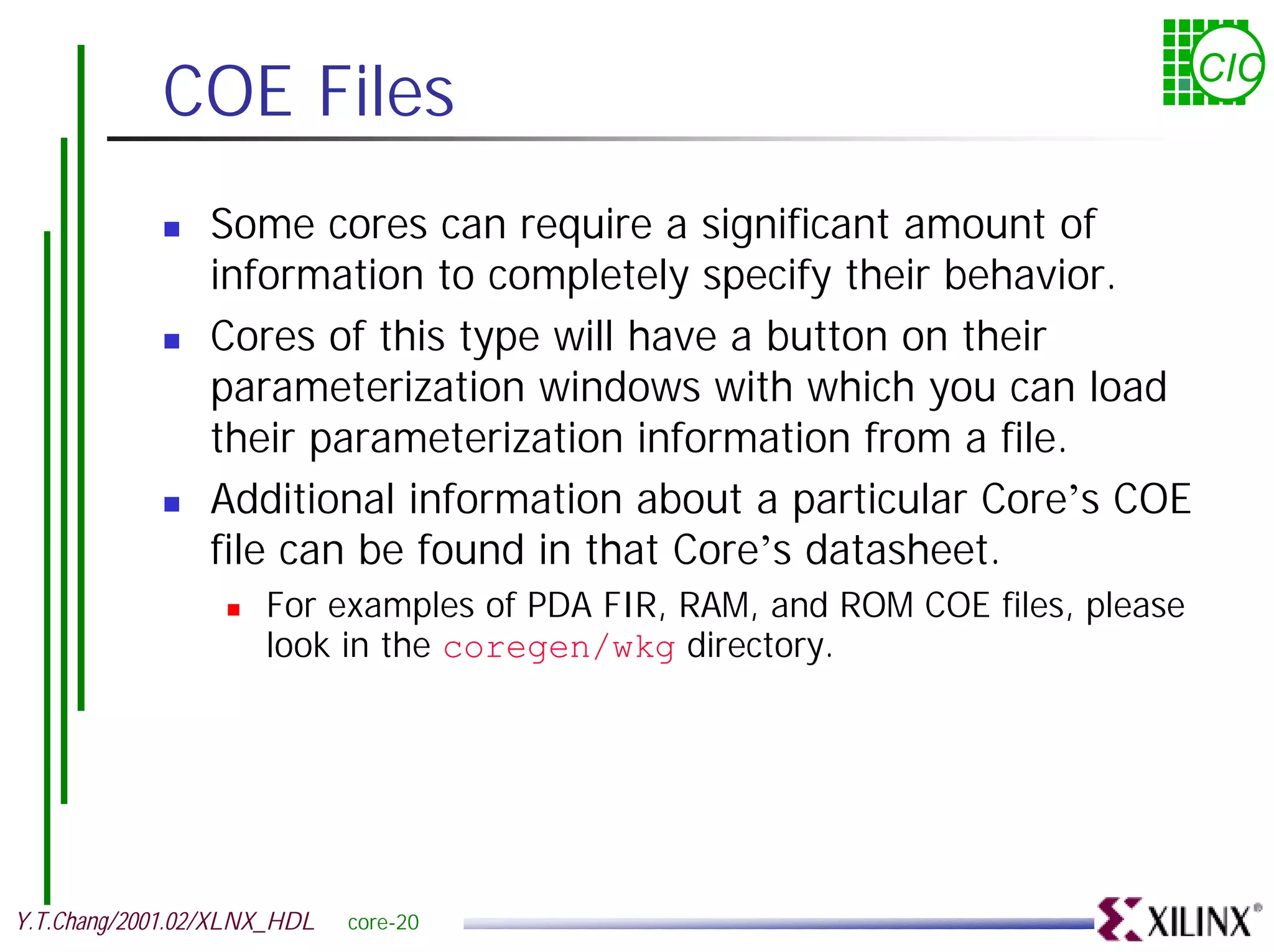

COE Files CIC ! Some cores can require a significant amount of information to completely specify their behavior. ! Cores of this type will have a button on their parameterization windows with which you can load their parameterization information from a file. ! Additional information about a particular Core’s COE file can be found in that Core’s datasheet. ! For examples of PDA FIR, RAM, and ROM COE files, please look in the coregen/wkg directory. Y.T.Chang/2001.02/XLNX_HDL core-20

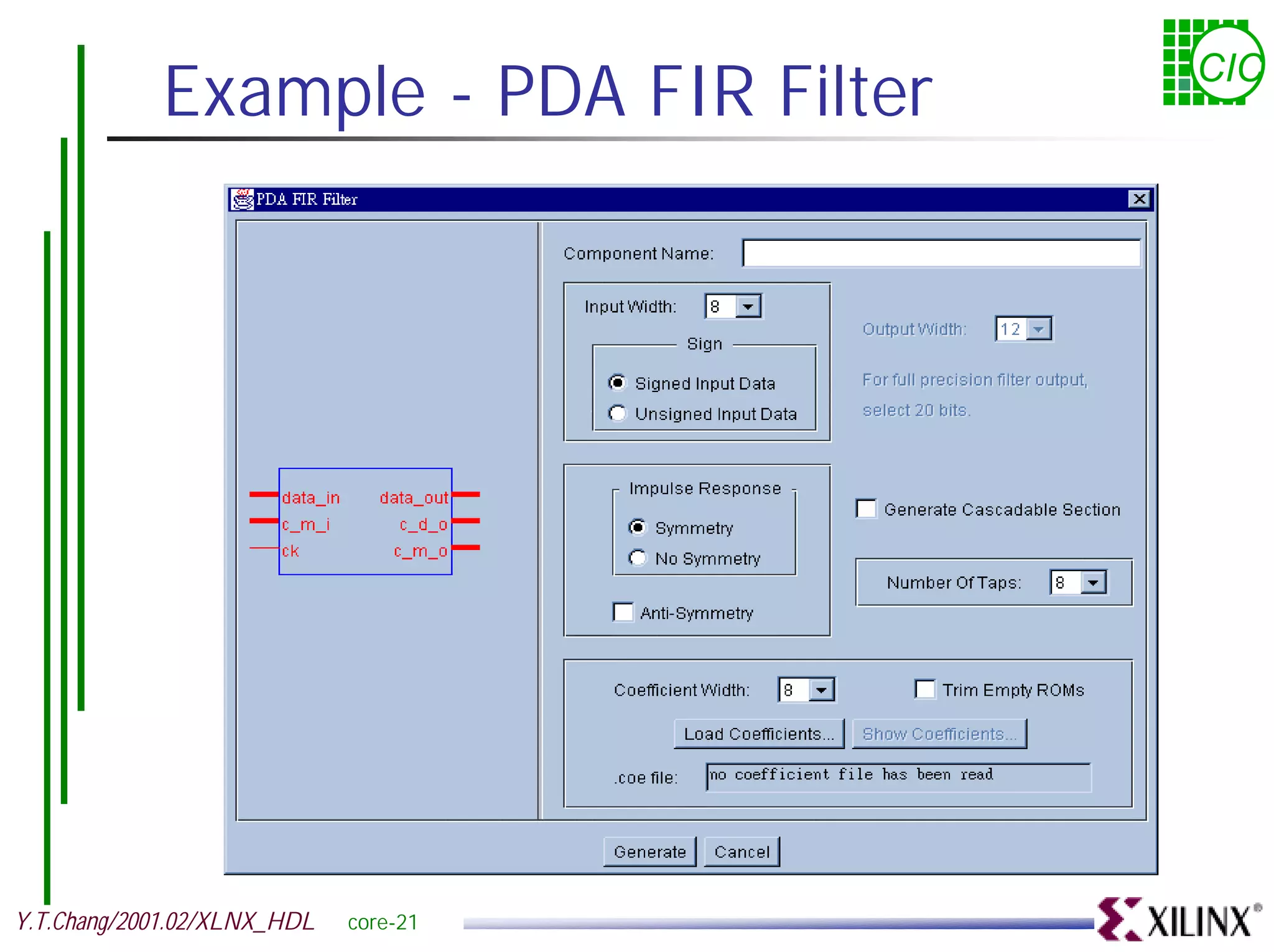

Example - PDA FIR Filter CIC Y.T.Chang/2001.02/XLNX_HDL core-21

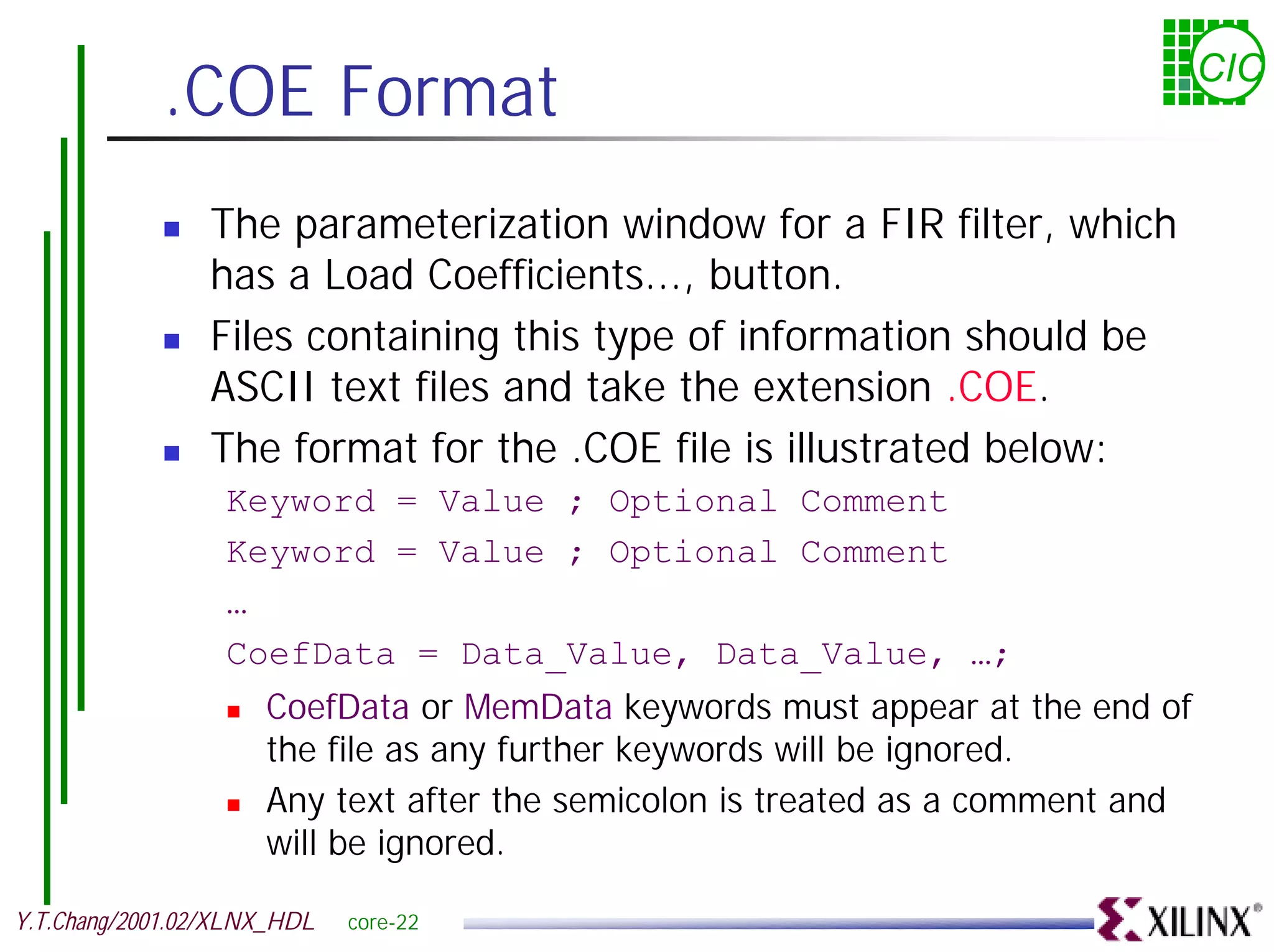

.COE Format CIC ! The parameterization window for a FIR filter, which has a Load Coefficients..., button. ! Files containing this type of information should be ASCII text files and take the extension .COE. ! The format for the .COE file is illustrated below: Keyword = Value ; Optional Comment Keyword = Value ; Optional Comment … CoefData = Data_Value, Data_Value, …; ! CoefData or MemData keywords must appear at the end of the file as any further keywords will be ignored. ! Any text after the semicolon is treated as a comment and will be ignored. Y.T.Chang/2001.02/XLNX_HDL core-22

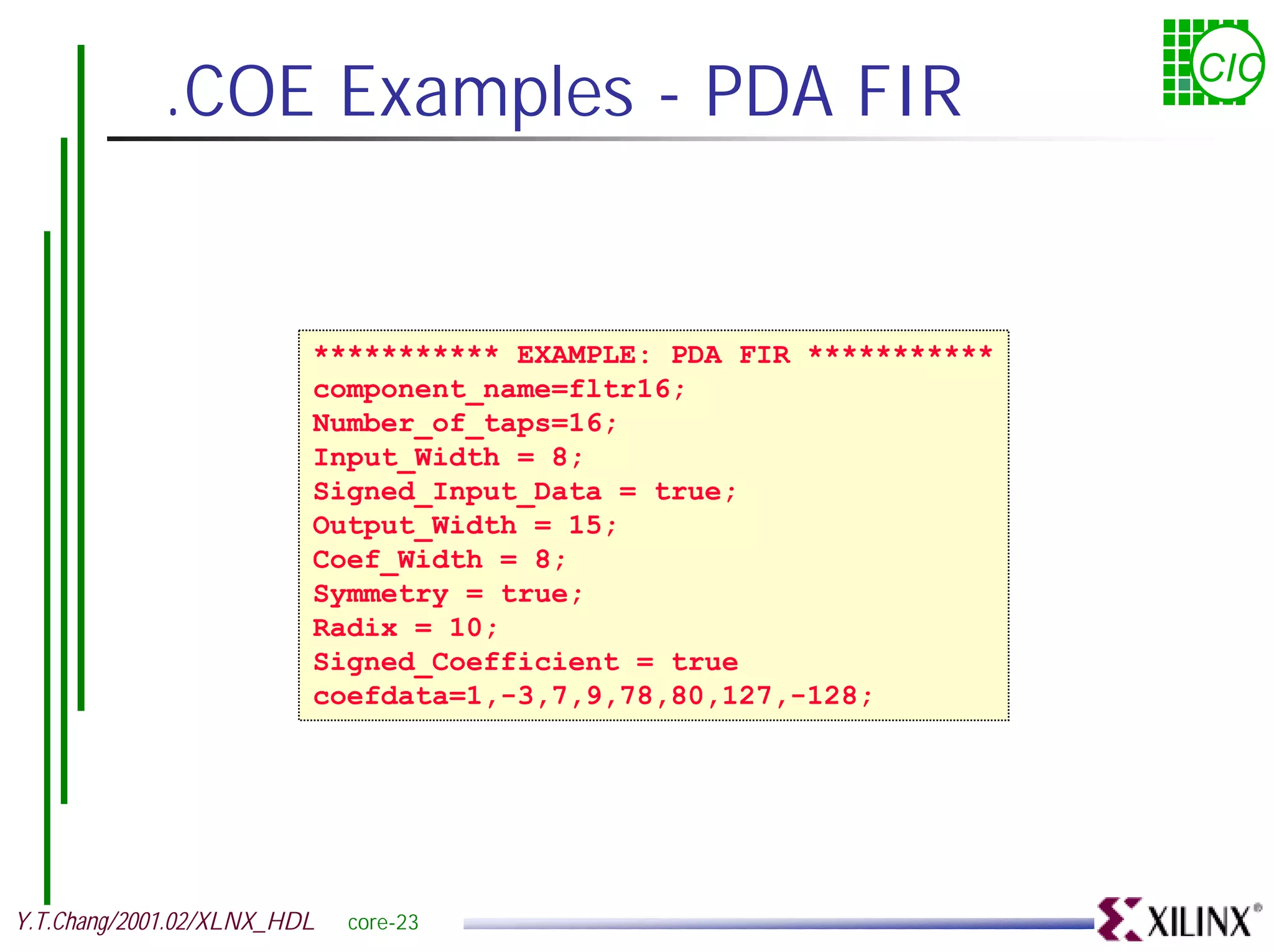

.COE Examples - PDA FIR CIC *********** EXAMPLE: PDA FIR *********** component_name=fltr16; Number_of_taps=16; Input_Width = 8; Signed_Input_Data = true; Output_Width = 15; Coef_Width = 8; Symmetry = true; Radix = 10; Signed_Coefficient = true coefdata=1,-3,7,9,78,80,127,-128; Y.T.Chang/2001.02/XLNX_HDL core-23

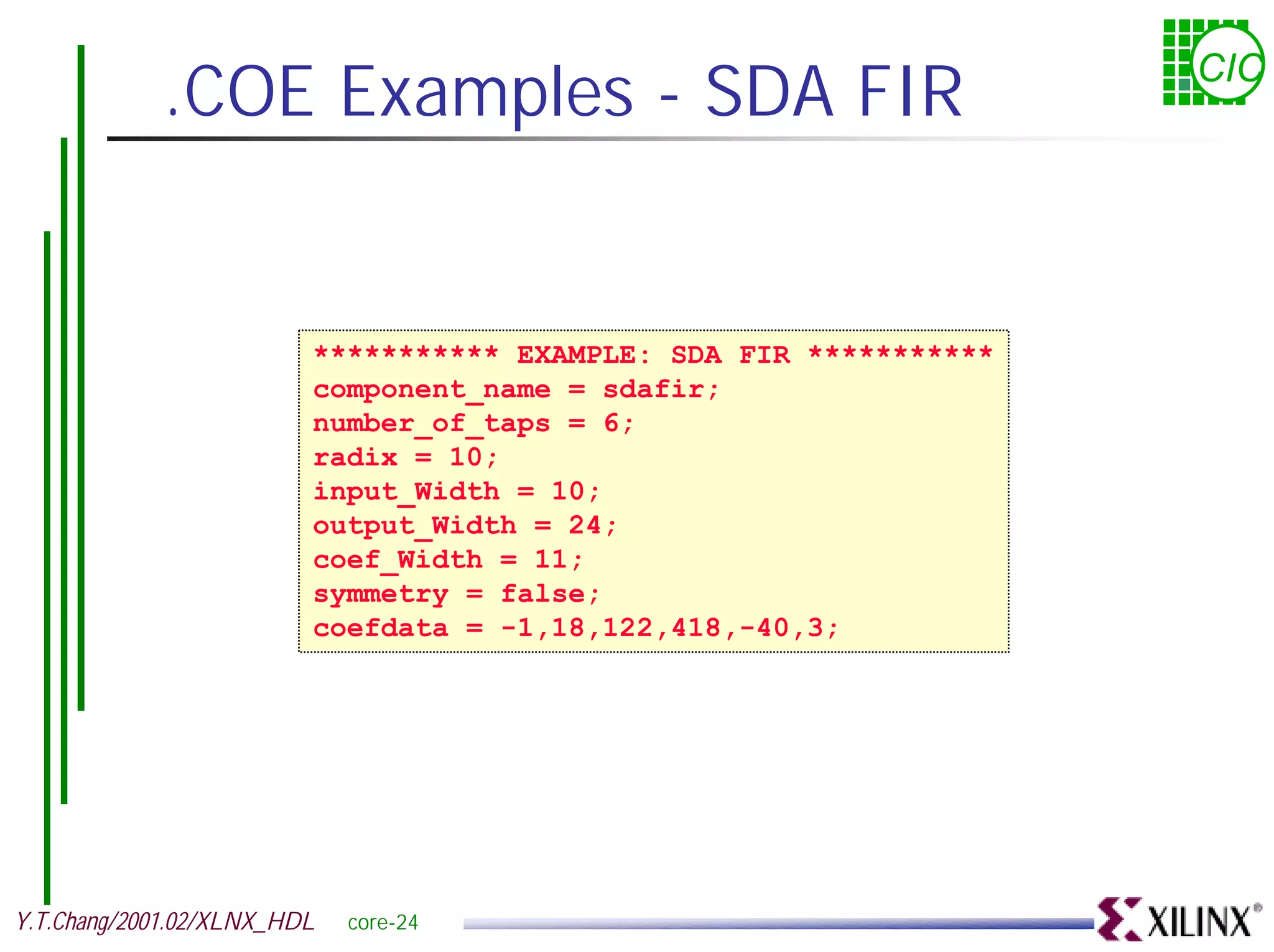

.COE Examples - SDA FIR CIC *********** EXAMPLE: SDA FIR *********** component_name = sdafir; number_of_taps = 6; radix = 10; input_Width = 10; output_Width = 24; coef_Width = 11; symmetry = false; coefdata = -1,18,122,418,-40,3; Y.T.Chang/2001.02/XLNX_HDL core-24

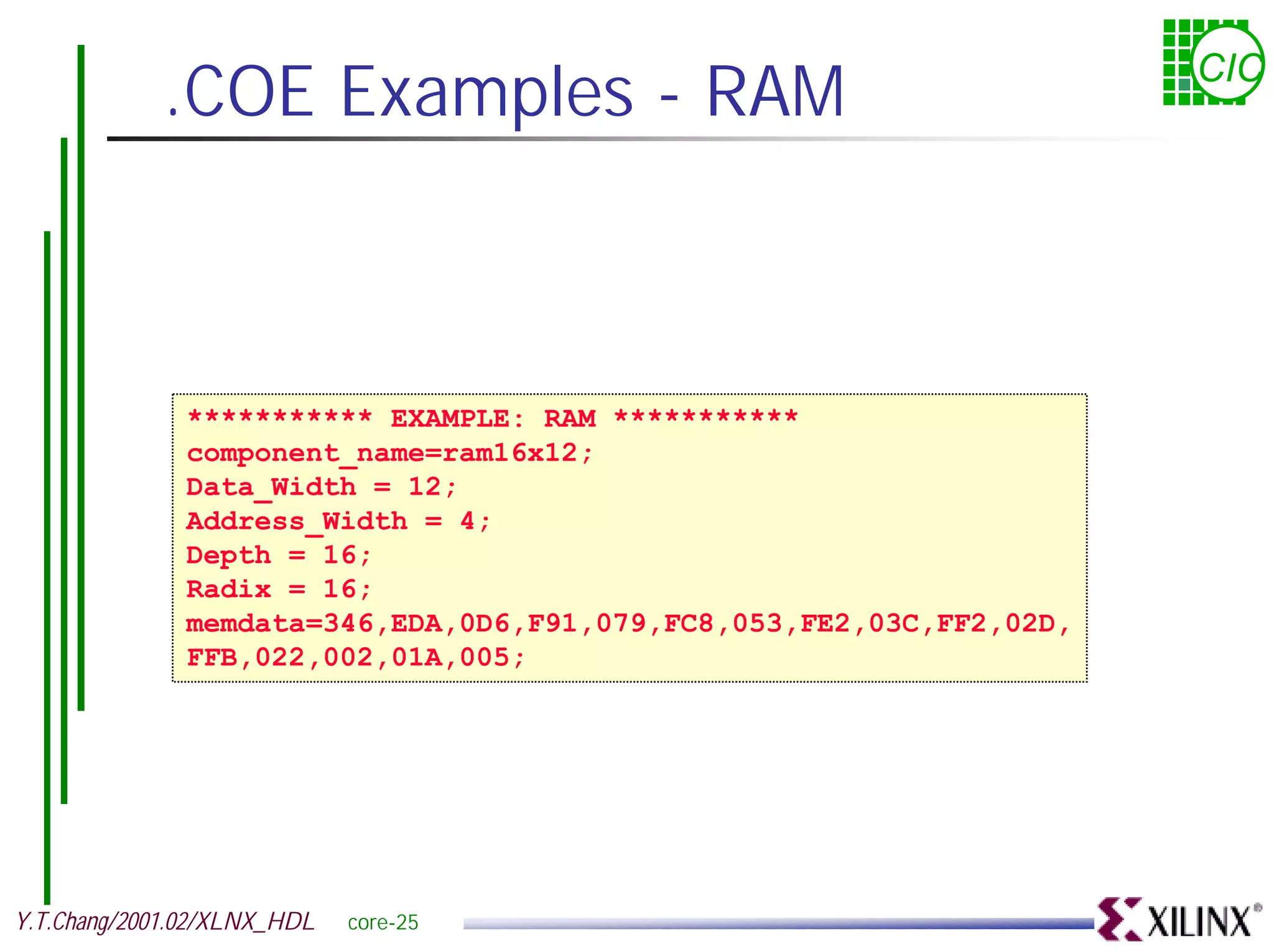

.COE Examples - RAM CIC *********** EXAMPLE: RAM *********** component_name=ram16x12; Data_Width = 12; Address_Width = 4; Depth = 16; Radix = 16; memdata=346,EDA,0D6,F91,079,FC8,053,FE2,03C,FF2,02D, FFB,022,002,01A,005; Y.T.Chang/2001.02/XLNX_HDL core-25

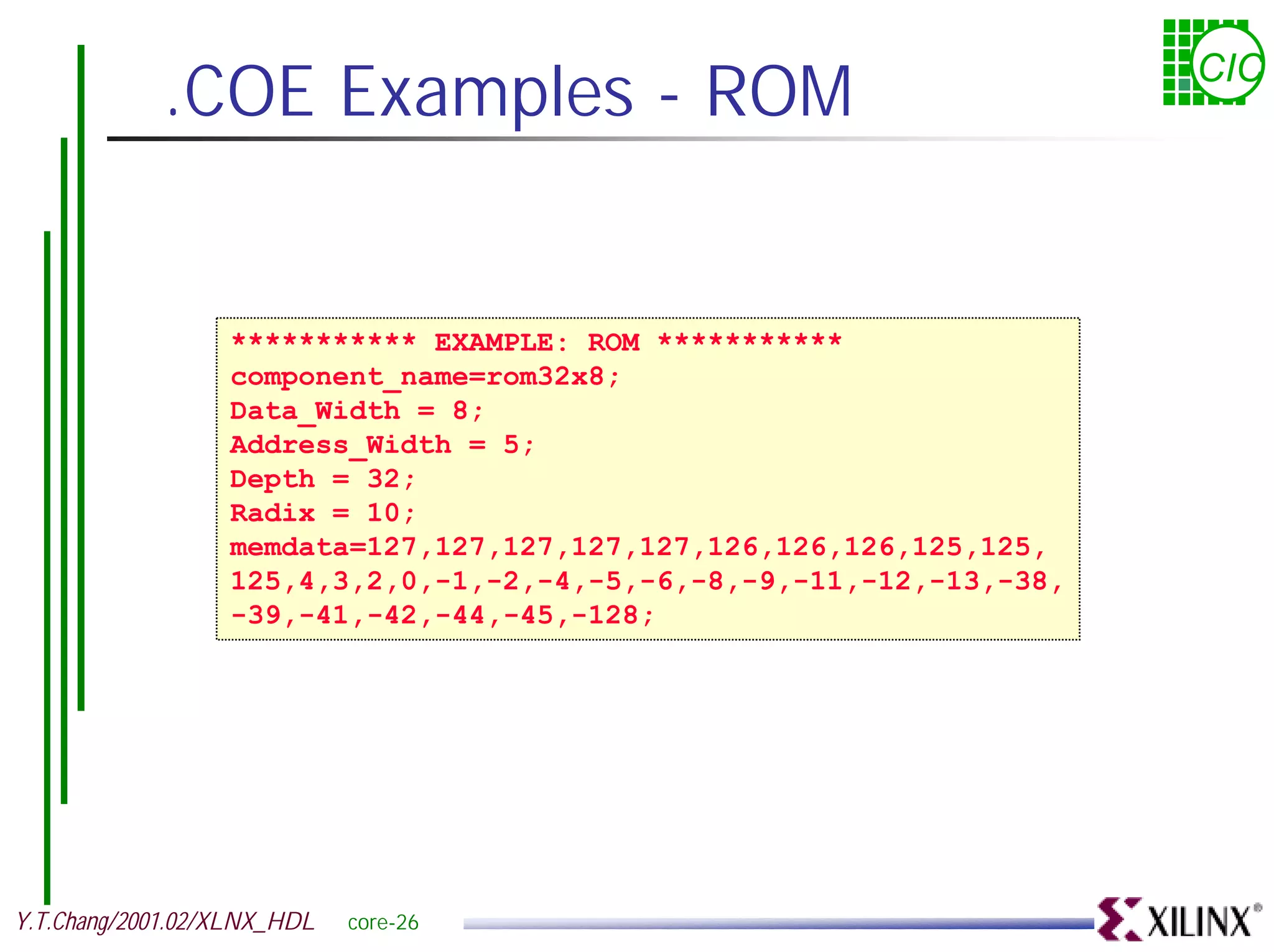

.COE Examples - ROM CIC *********** EXAMPLE: ROM *********** component_name=rom32x8; Data_Width = 8; Address_Width = 5; Depth = 32; Radix = 10; memdata=127,127,127,127,127,126,126,126,125,125, 125,4,3,2,0,-1,-2,-4,-5,-6,-8,-9,-11,-12,-13,-38, -39,-41,-42,-44,-45,-128; Y.T.Chang/2001.02/XLNX_HDL core-26

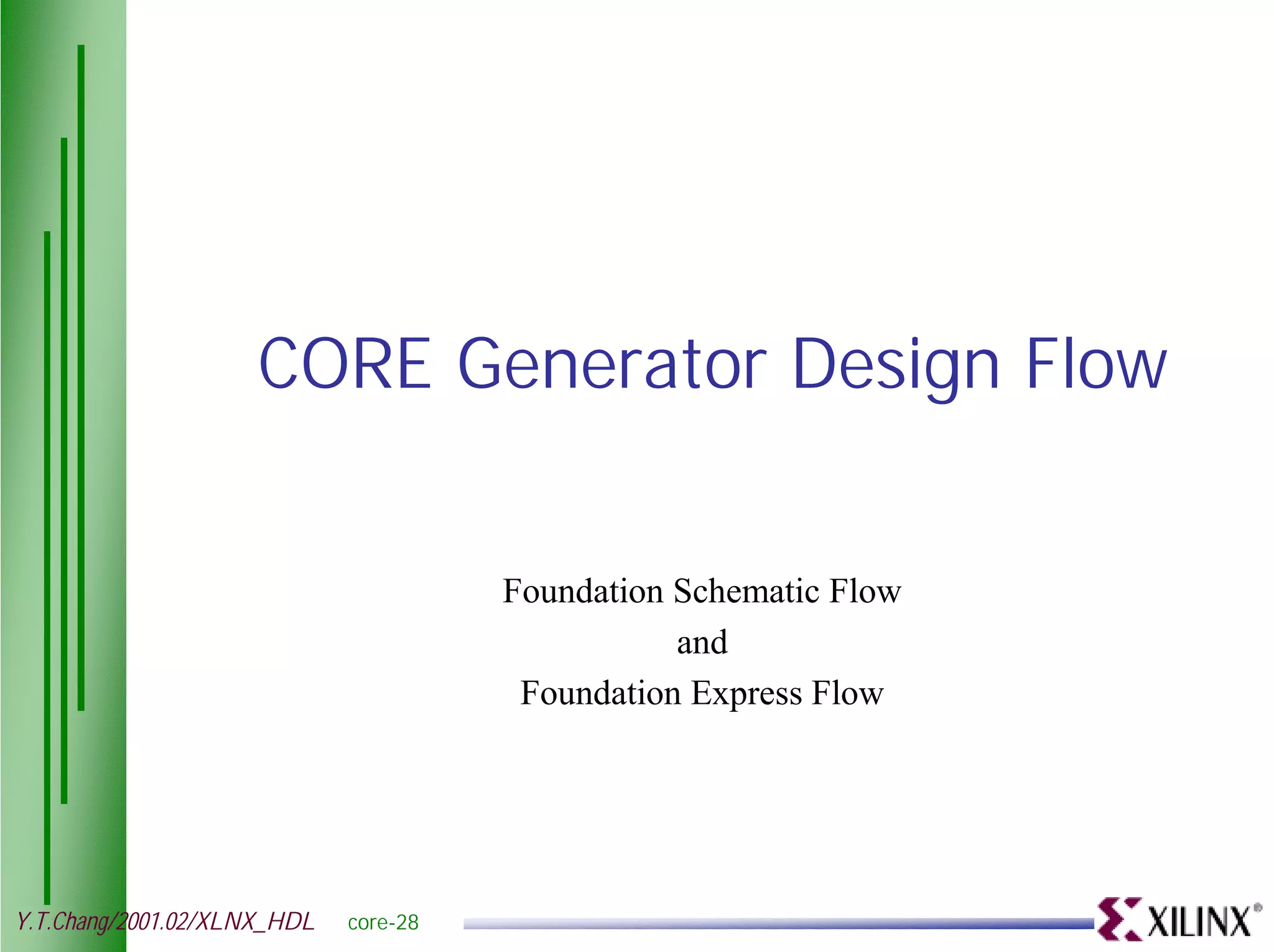

CORE Generator Design Flow Foundation Schematic Flow and Foundation Express Flow Y.T.Chang/2001.02/XLNX_HDL core-28

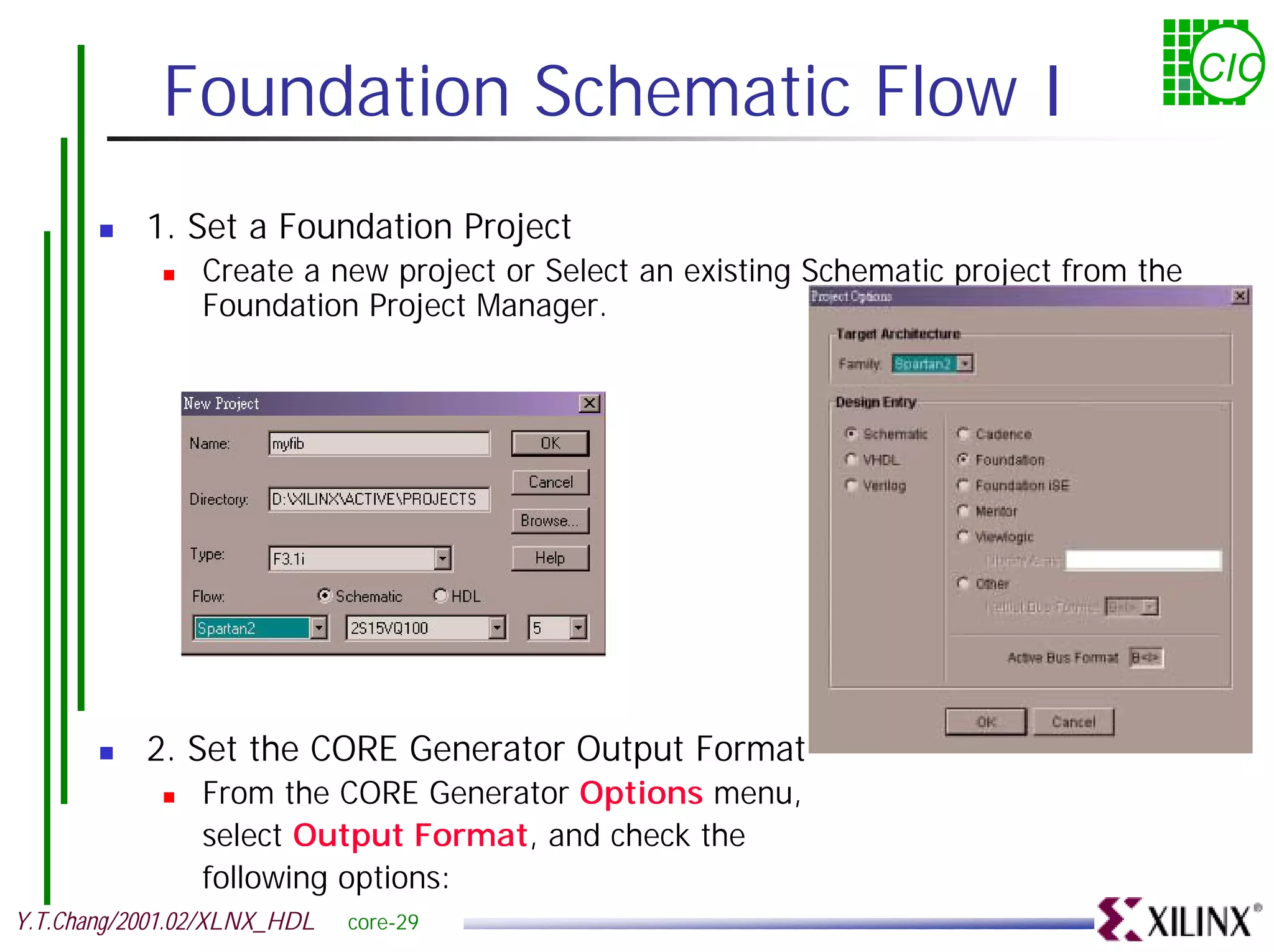

Foundation Schematic Flow I CIC ! 1. Set a Foundation Project ! Create a new project or Select an existing Schematic project from the Foundation Project Manager. ! 2. Set the CORE Generator Output Format ! From the CORE Generator Options menu, select Output Format, and check the following options: Y.T.Chang/2001.02/XLNX_HDL core-29

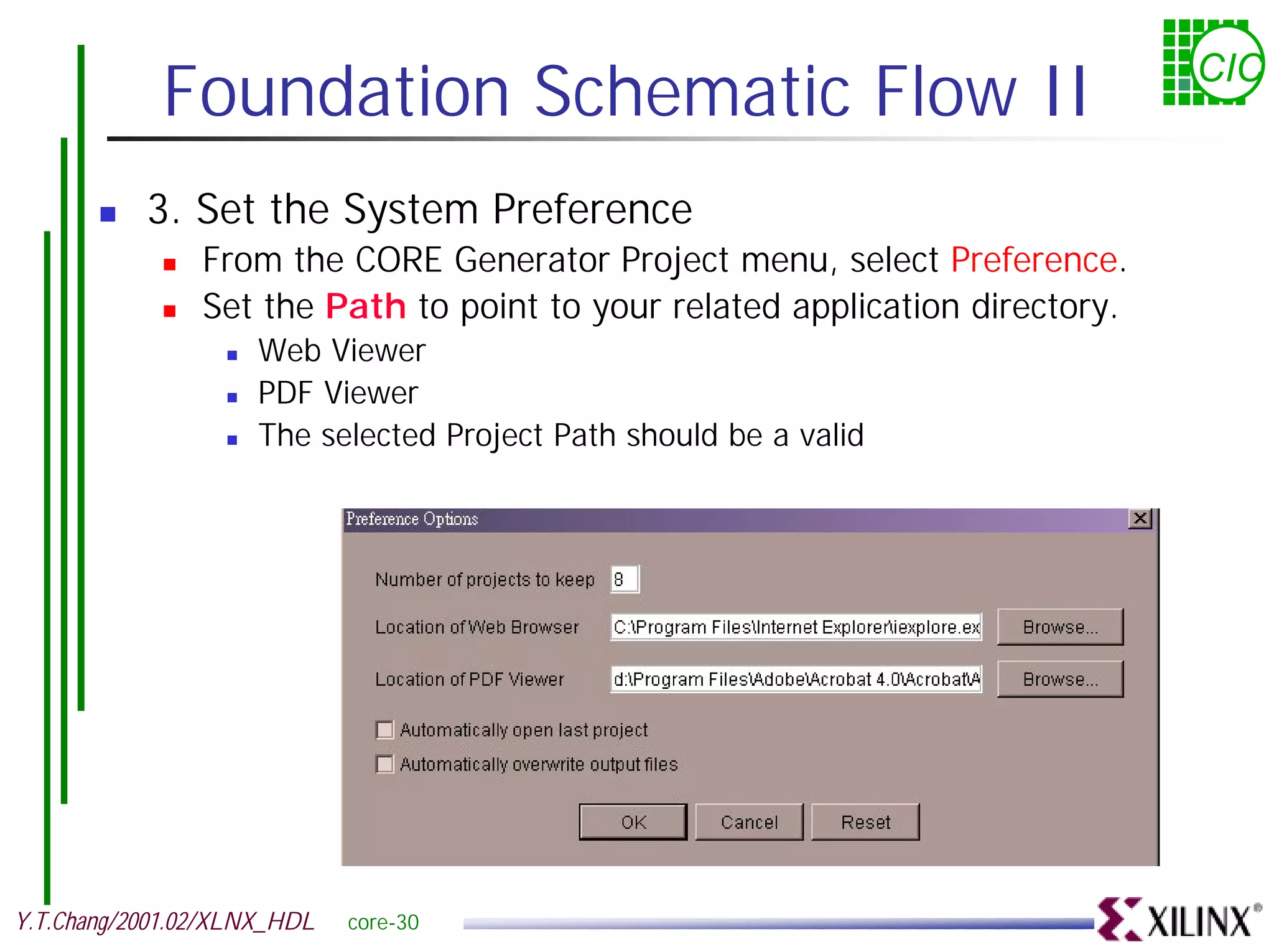

Foundation Schematic Flow II CIC ! 3. Set the System Preference ! From the CORE Generator Project menu, select Preference. ! Set the Path to point to your related application directory. ! Web Viewer ! PDF Viewer ! The selected Project Path should be a valid Y.T.Chang/2001.02/XLNX_HDL core-30

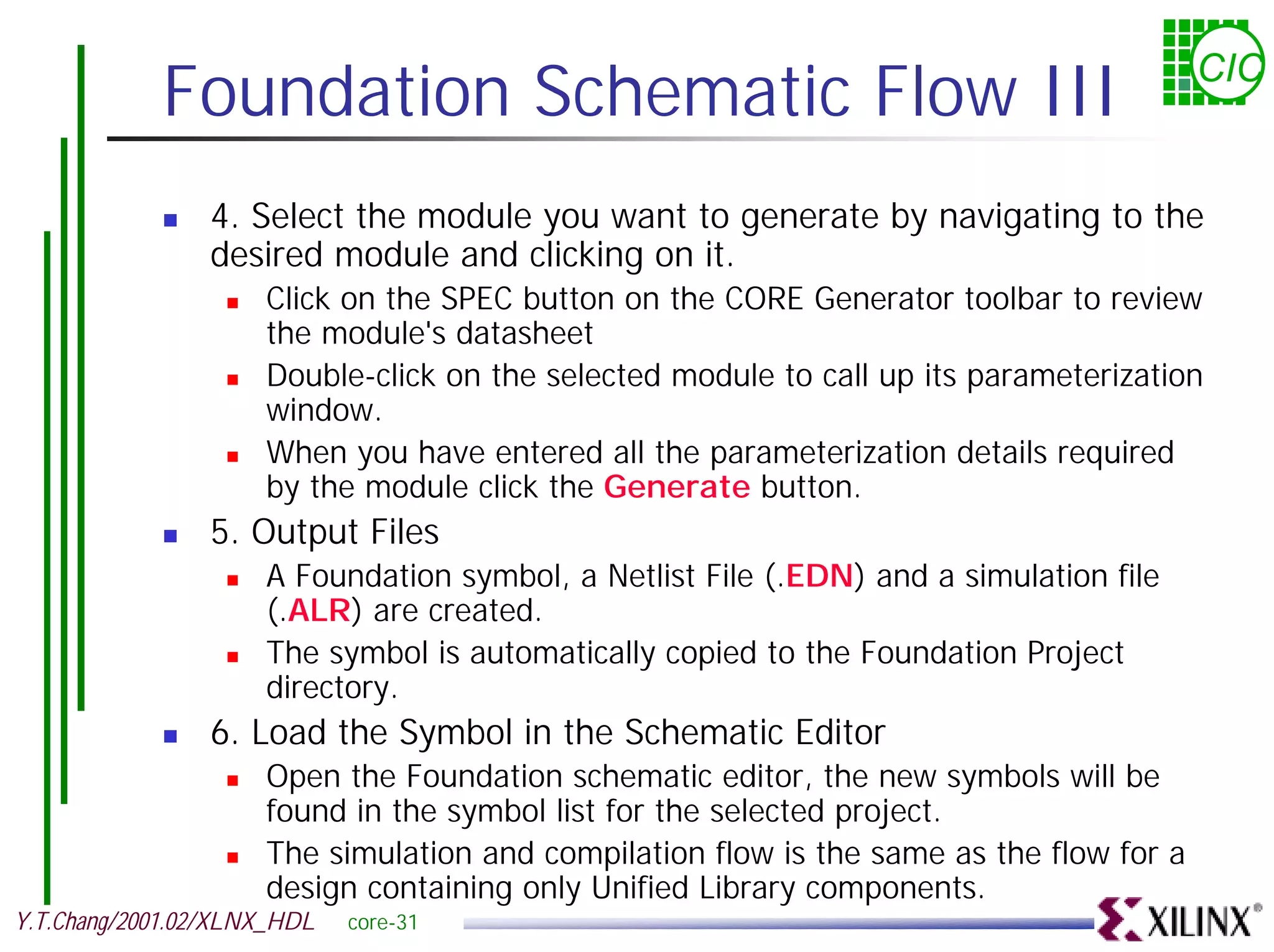

Foundation Schematic Flow III CIC ! 4. Select the module you want to generate by navigating to the desired module and clicking on it. ! Click on the SPEC button on the CORE Generator toolbar to review the module's datasheet ! Double-click on the selected module to call up its parameterization window. ! When you have entered all the parameterization details required by the module click the Generate button. ! 5. Output Files ! A Foundation symbol, a Netlist File (.EDN) and a simulation file (.ALR) are created. ! The symbol is automatically copied to the Foundation Project directory. ! 6. Load the Symbol in the Schematic Editor ! Open the Foundation schematic editor, the new symbols will be found in the symbol list for the selected project. ! The simulation and compilation flow is the same as the flow for a design containing only Unified Library components. Y.T.Chang/2001.02/XLNX_HDL core-31

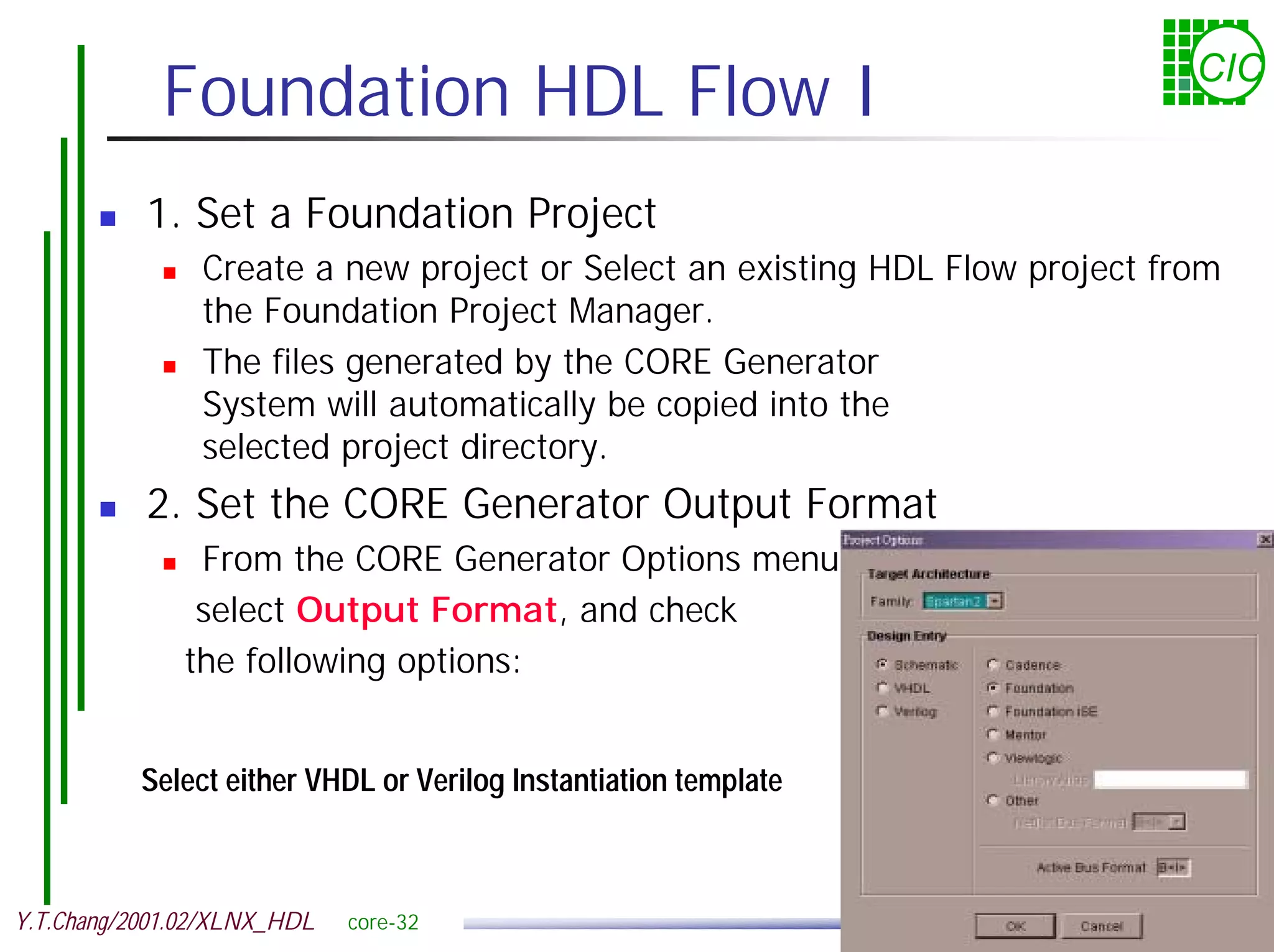

Foundation HDL Flow I CIC ! 1. Set a Foundation Project ! Create a new project or Select an existing HDL Flow project from the Foundation Project Manager. ! The files generated by the CORE Generator System will automatically be copied into the selected project directory. ! 2. Set the CORE Generator Output Format ! From the CORE Generator Options menu, select Output Format, and check the following options: Select either VHDL or Verilog Instantiation template Y.T.Chang/2001.02/XLNX_HDL core-32

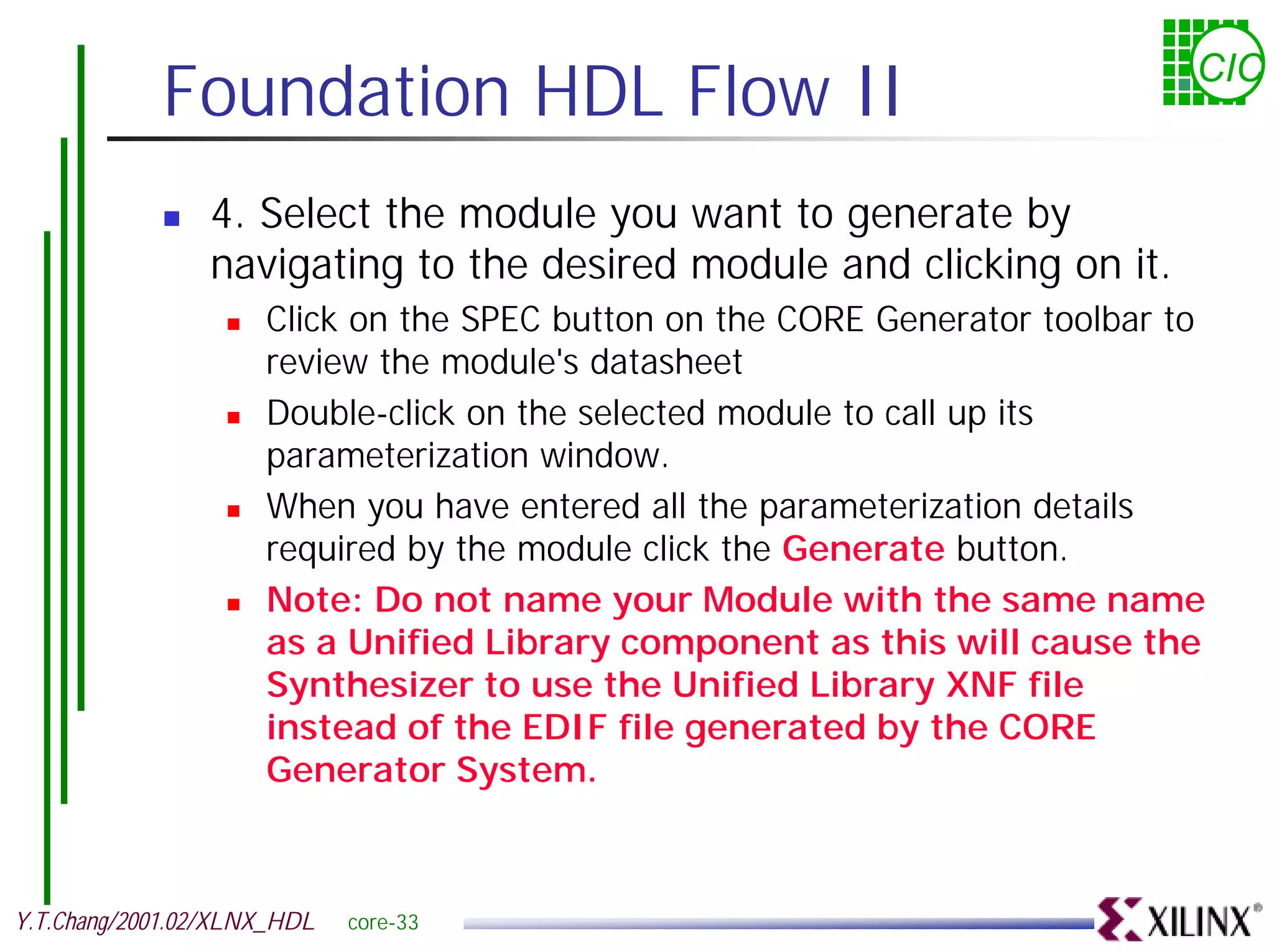

Foundation HDL Flow II CIC ! 4. Select the module you want to generate by navigating to the desired module and clicking on it. ! Click on the SPEC button on the CORE Generator toolbar to review the module's datasheet ! Double-click on the selected module to call up its parameterization window. ! When you have entered all the parameterization details required by the module click the Generate button. ! Note: Do not name your Module with the same name as a Unified Library component as this will cause the Synthesizer to use the Unified Library XNF file instead of the EDIF file generated by the CORE Generator System. Y.T.Chang/2001.02/XLNX_HDL core-33

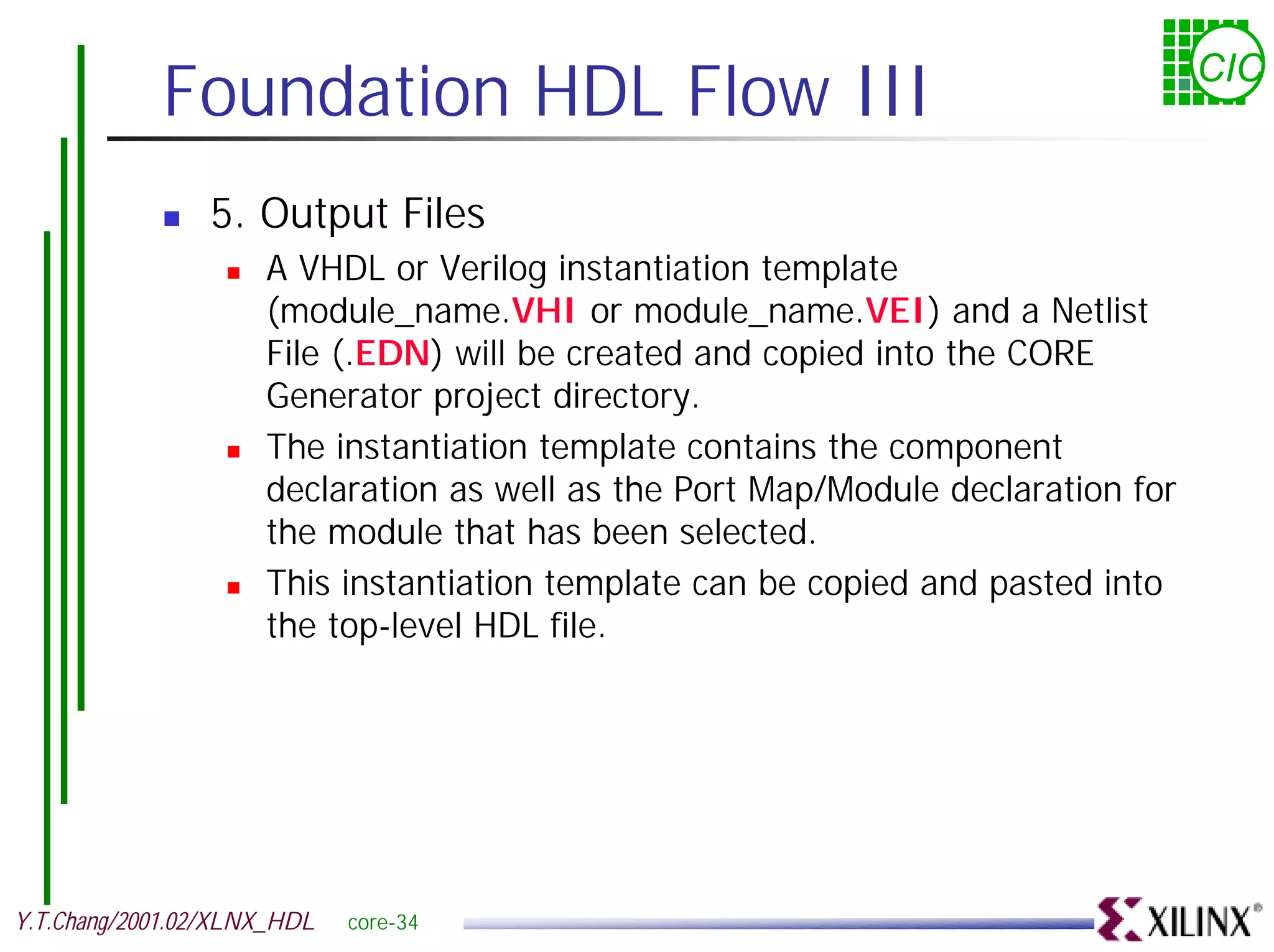

Foundation HDL Flow III CIC ! 5. Output Files ! A VHDL or Verilog instantiation template (module_name.VHI or module_name.VEI) and a Netlist File (.EDN) will be created and copied into the CORE Generator project directory. ! The instantiation template contains the component declaration as well as the Port Map/Module declaration for the module that has been selected. ! This instantiation template can be copied and pasted into the top-level HDL file. Y.T.Chang/2001.02/XLNX_HDL core-34

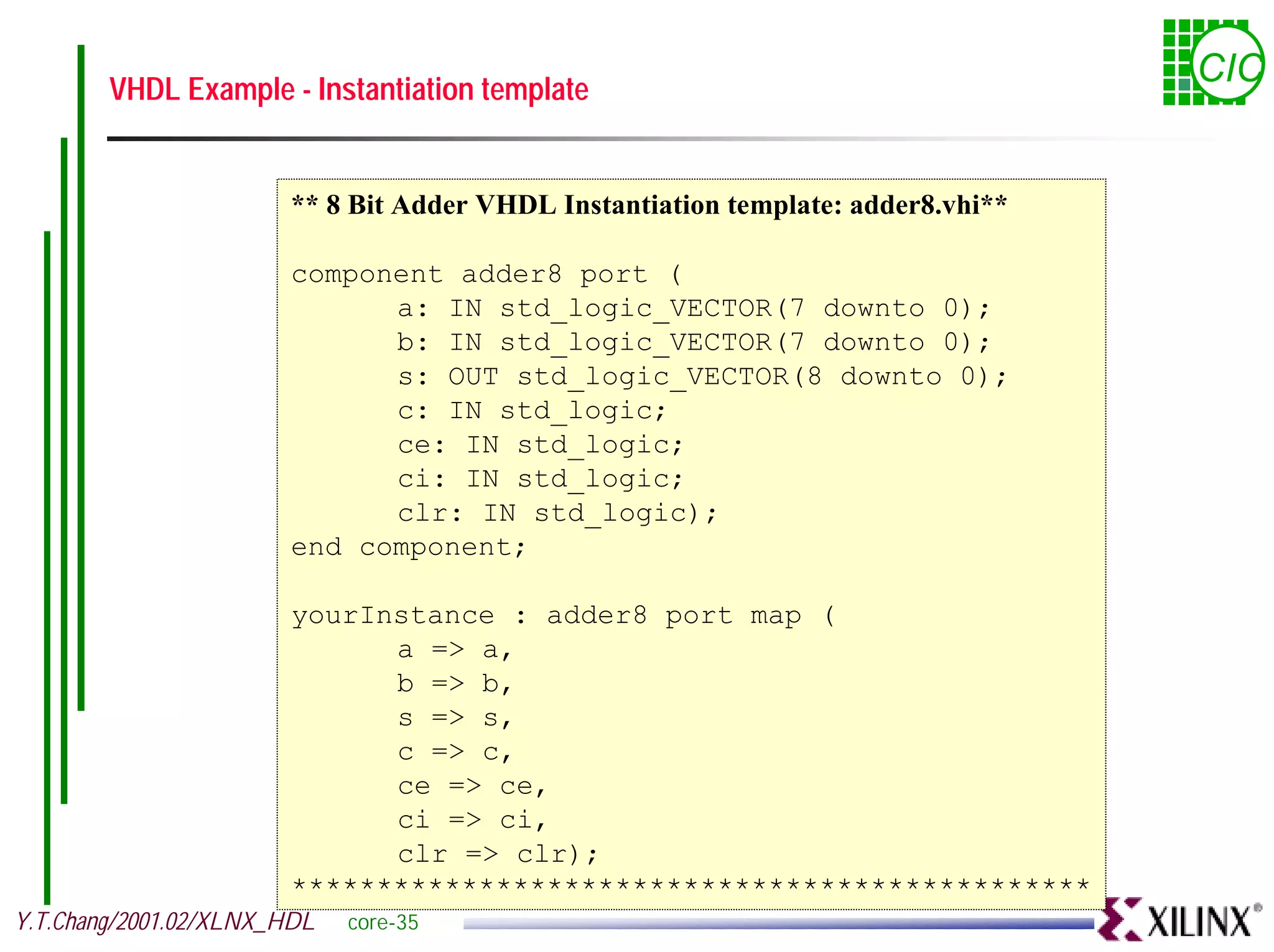

VHDL Example - Instantiation template CIC ** 8 Bit Adder VHDL Instantiation template: adder8.vhi** component adder8 port ( a: IN std_logic_VECTOR(7 downto 0); b: IN std_logic_VECTOR(7 downto 0); s: OUT std_logic_VECTOR(8 downto 0); c: IN std_logic; ce: IN std_logic; ci: IN std_logic; clr: IN std_logic); end component; yourInstance : adder8 port map ( a => a, b => b, s => s, c => c, ce => ce, ci => ci, clr => clr); *********************************************** Y.T.Chang/2001.02/XLNX_HDL core-35

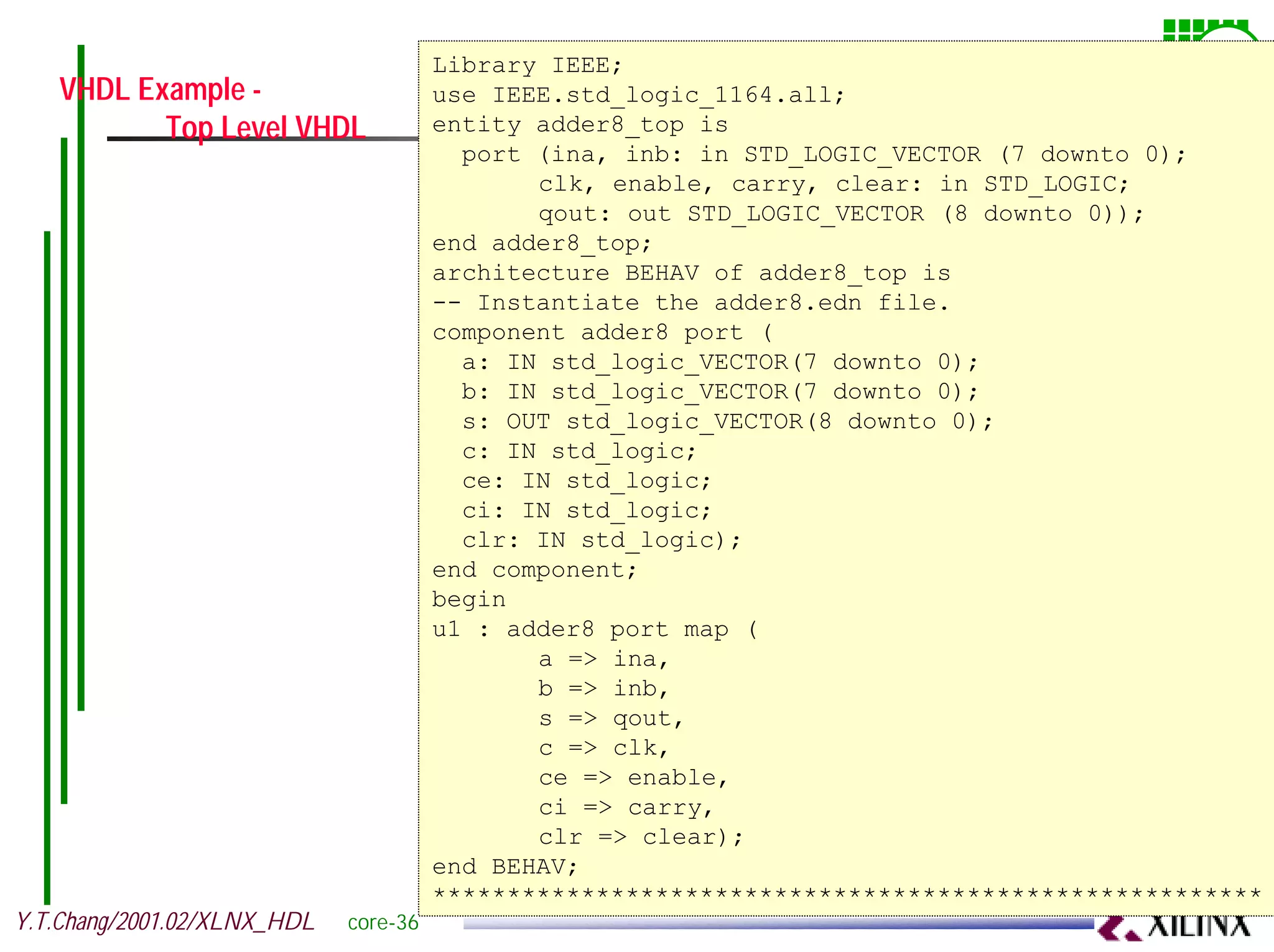

VHDL Example - Library IEEE; CIC use IEEE.std_logic_1164.all; Top Level VHDL entity adder8_top is port (ina, inb: in STD_LOGIC_VECTOR (7 downto 0); clk, enable, carry, clear: in STD_LOGIC; qout: out STD_LOGIC_VECTOR (8 downto 0)); end adder8_top; architecture BEHAV of adder8_top is -- Instantiate the adder8.edn file. component adder8 port ( a: IN std_logic_VECTOR(7 downto 0); b: IN std_logic_VECTOR(7 downto 0); s: OUT std_logic_VECTOR(8 downto 0); c: IN std_logic; ce: IN std_logic; ci: IN std_logic; clr: IN std_logic); end component; begin u1 : adder8 port map ( a => ina, b => inb, s => qout, c => clk, ce => enable, ci => carry, clr => clear); end BEHAV; ******************************************************** Y.T.Chang/2001.02/XLNX_HDL core-36

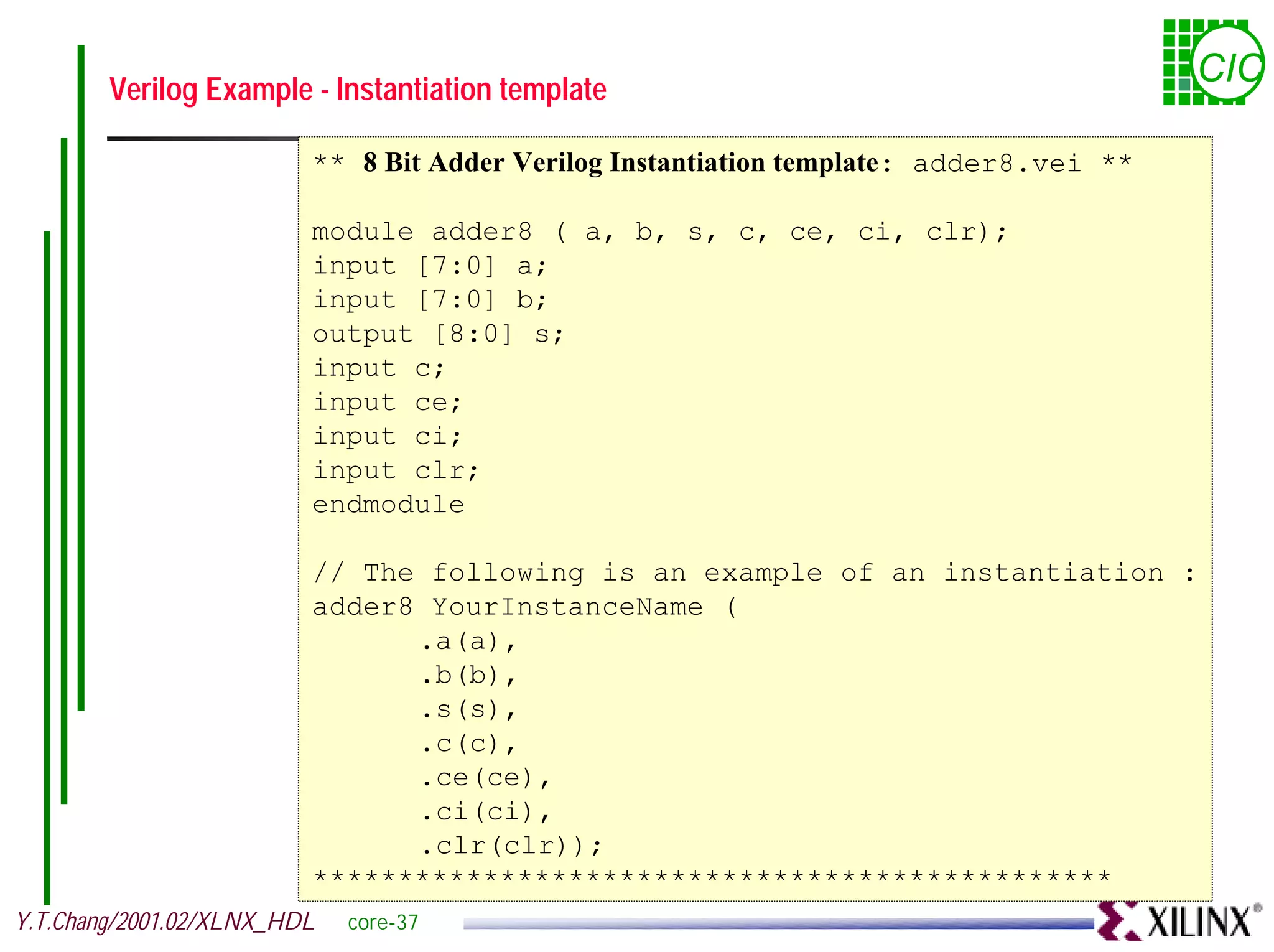

Verilog Example - Instantiation template CIC ** 8 Bit Adder Verilog Instantiation template: adder8.vei ** module adder8 ( a, b, s, c, ce, ci, clr); input [7:0] a; input [7:0] b; output [8:0] s; input c; input ce; input ci; input clr; endmodule // The following is an example of an instantiation : adder8 YourInstanceName ( .a(a), .b(b), .s(s), .c(c), .ce(ce), .ci(ci), .clr(clr)); *********************************************** Y.T.Chang/2001.02/XLNX_HDL core-37

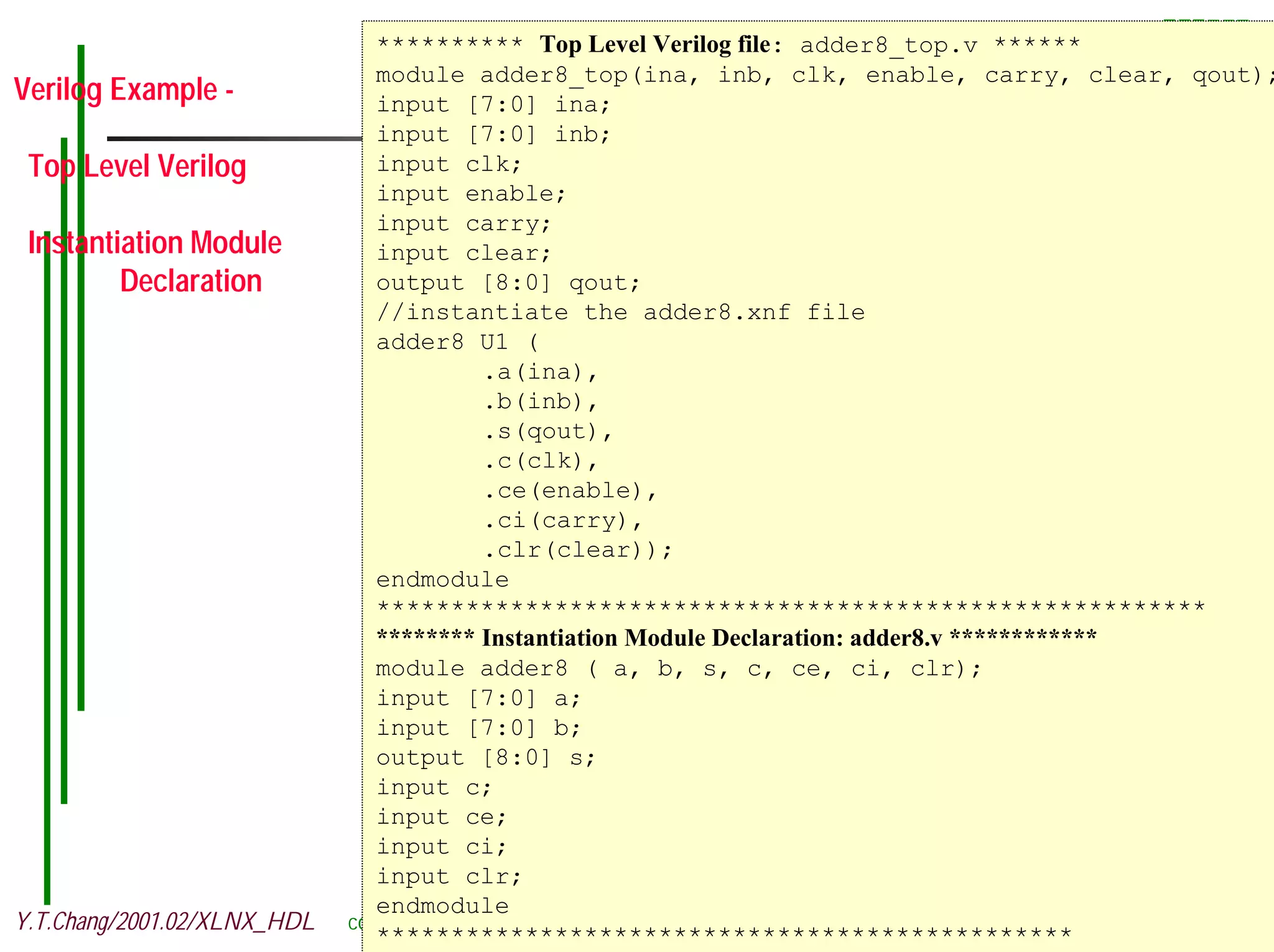

********** Top Level Verilog file: adder8_top.v ****** Verilog Example - module adder8_top(ina, inb, clk, enable, carry, clear, qout); CIC input [7:0] ina; input [7:0] inb; Top Level Verilog input clk; input enable; input carry; Instantiation Module input clear; Declaration output [8:0] qout; //instantiate the adder8.xnf file adder8 U1 ( .a(ina), .b(inb), .s(qout), .c(clk), .ce(enable), .ci(carry), .clr(clear)); endmodule ******************************************************** ******** Instantiation Module Declaration: adder8.v ************ module adder8 ( a, b, s, c, ce, ci, clr); input [7:0] a; input [7:0] b; output [8:0] s; input c; input ce; input ci; input clr; endmodule Y.T.Chang/2001.02/XLNX_HDL core-38 ***********************************************

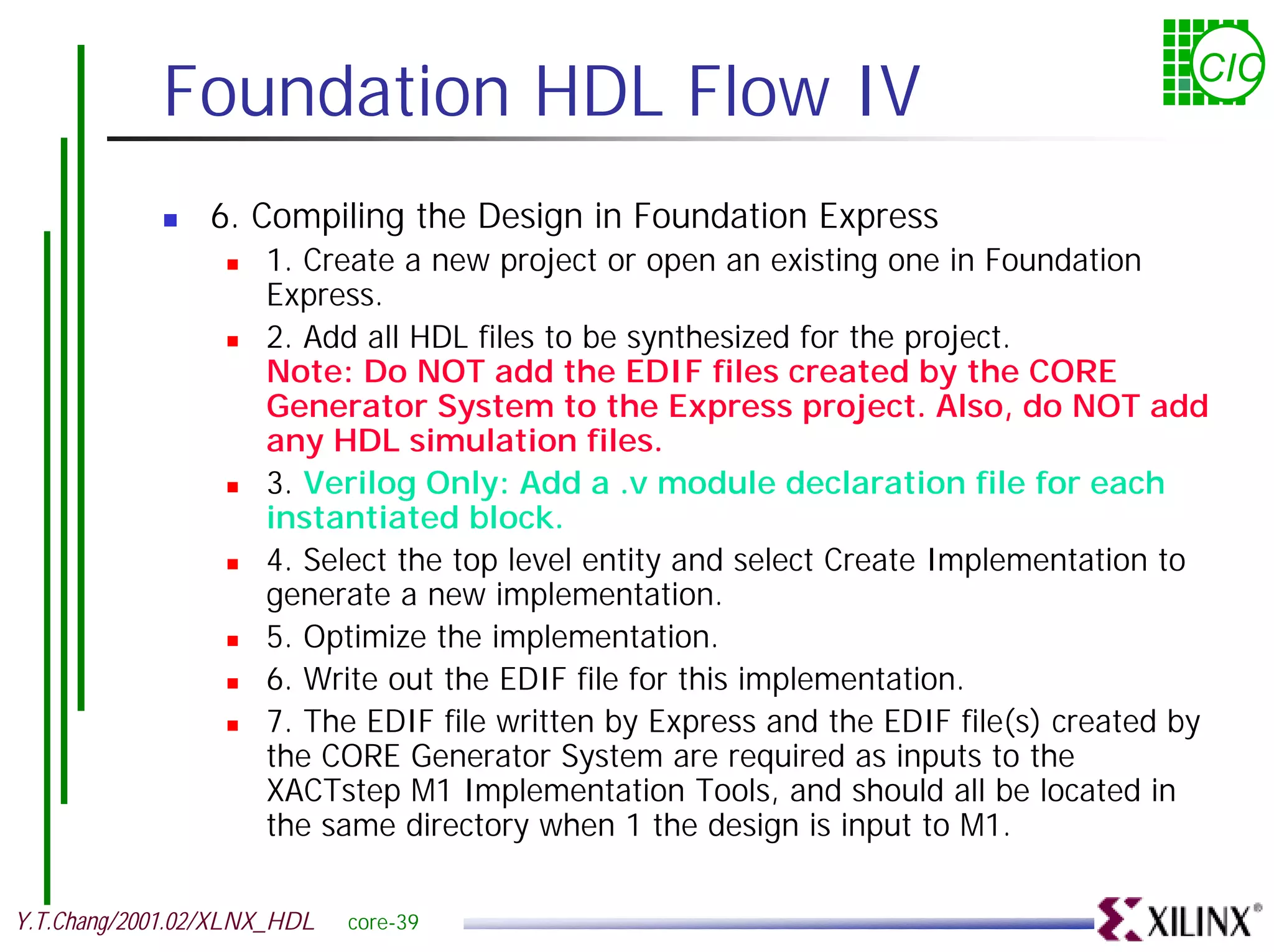

Foundation HDL Flow IV CIC ! 6. Compiling the Design in Foundation Express ! 1. Create a new project or open an existing one in Foundation Express. ! 2. Add all HDL files to be synthesized for the project. Note: Do NOT add the EDIF files created by the CORE Generator System to the Express project. Also, do NOT add any HDL simulation files. ! 3. Verilog Only: Add a .v module declaration file for each instantiated block. ! 4. Select the top level entity and select Create Implementation to generate a new implementation. ! 5. Optimize the implementation. ! 6. Write out the EDIF file for this implementation. ! 7. The EDIF file written by Express and the EDIF file(s) created by the CORE Generator System are required as inputs to the XACTstep M1 Implementation Tools, and should all be located in the same directory when 1 the design is input to M1. Y.T.Chang/2001.02/XLNX_HDL core-39

Alliance: FPGA Express & Design Manager Y.T.Chang/2001.02/XLNX_HDL Ali-1

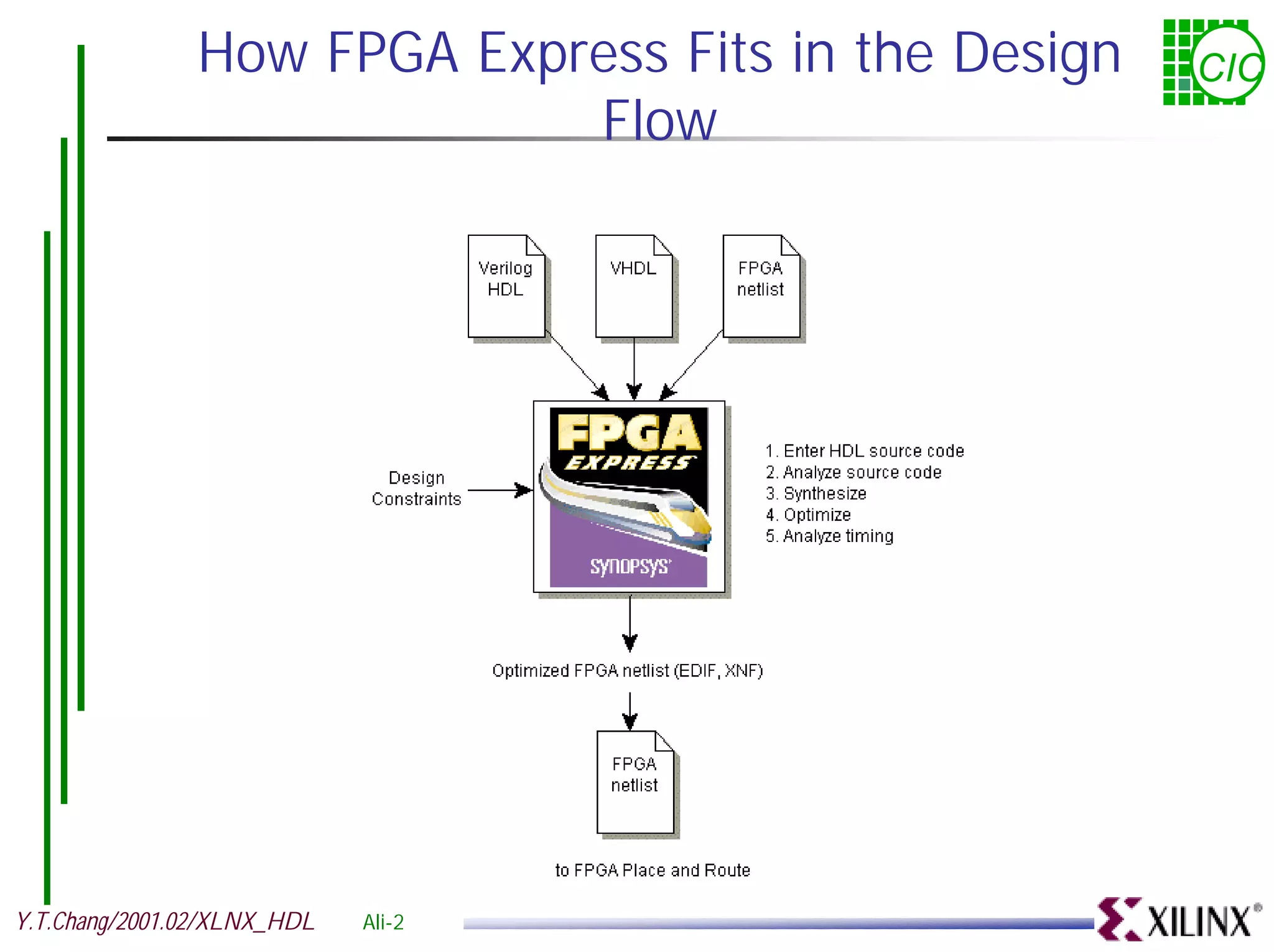

How FPGA Express Fits in the Design CIC Flow Y.T.Chang/2001.02/XLNX_HDL Ali-2

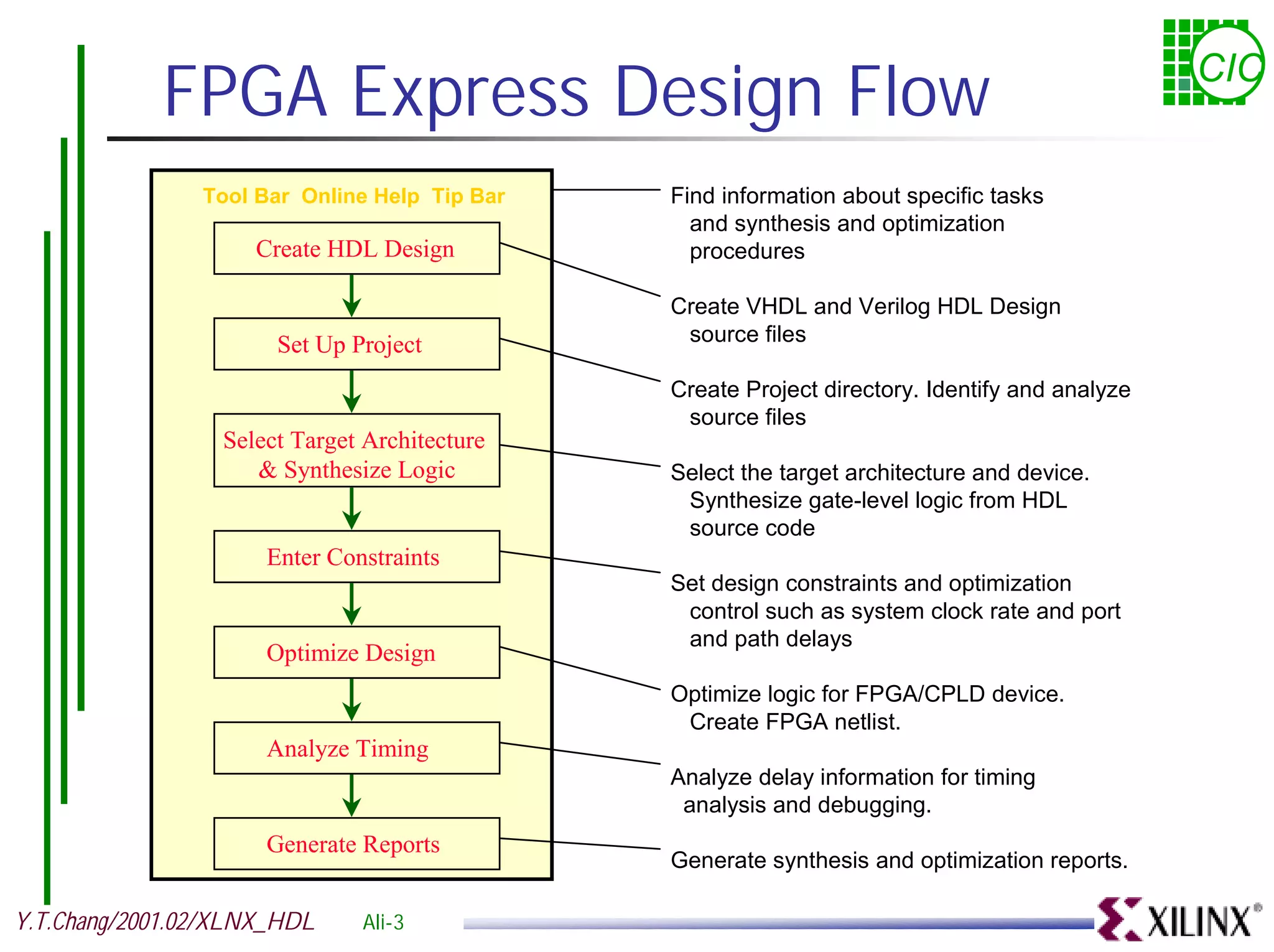

FPGA Express Design Flow CIC Tool Bar Online Help Tip Bar Find information about specific tasks and synthesis and optimization Create HDL Design procedures Create VHDL and Verilog HDL Design Set Up Project source files Create Project directory. Identify and analyze source files Select Target Architecture & Synthesize Logic Select the target architecture and device. Synthesize gate-level logic from HDL source code Enter Constraints Set design constraints and optimization control such as system clock rate and port and path delays Optimize Design Optimize logic for FPGA/CPLD device. Create FPGA netlist. Analyze Timing Analyze delay information for timing analysis and debugging. Generate Reports Generate synthesis and optimization reports. Y.T.Chang/2001.02/XLNX_HDL Ali-3

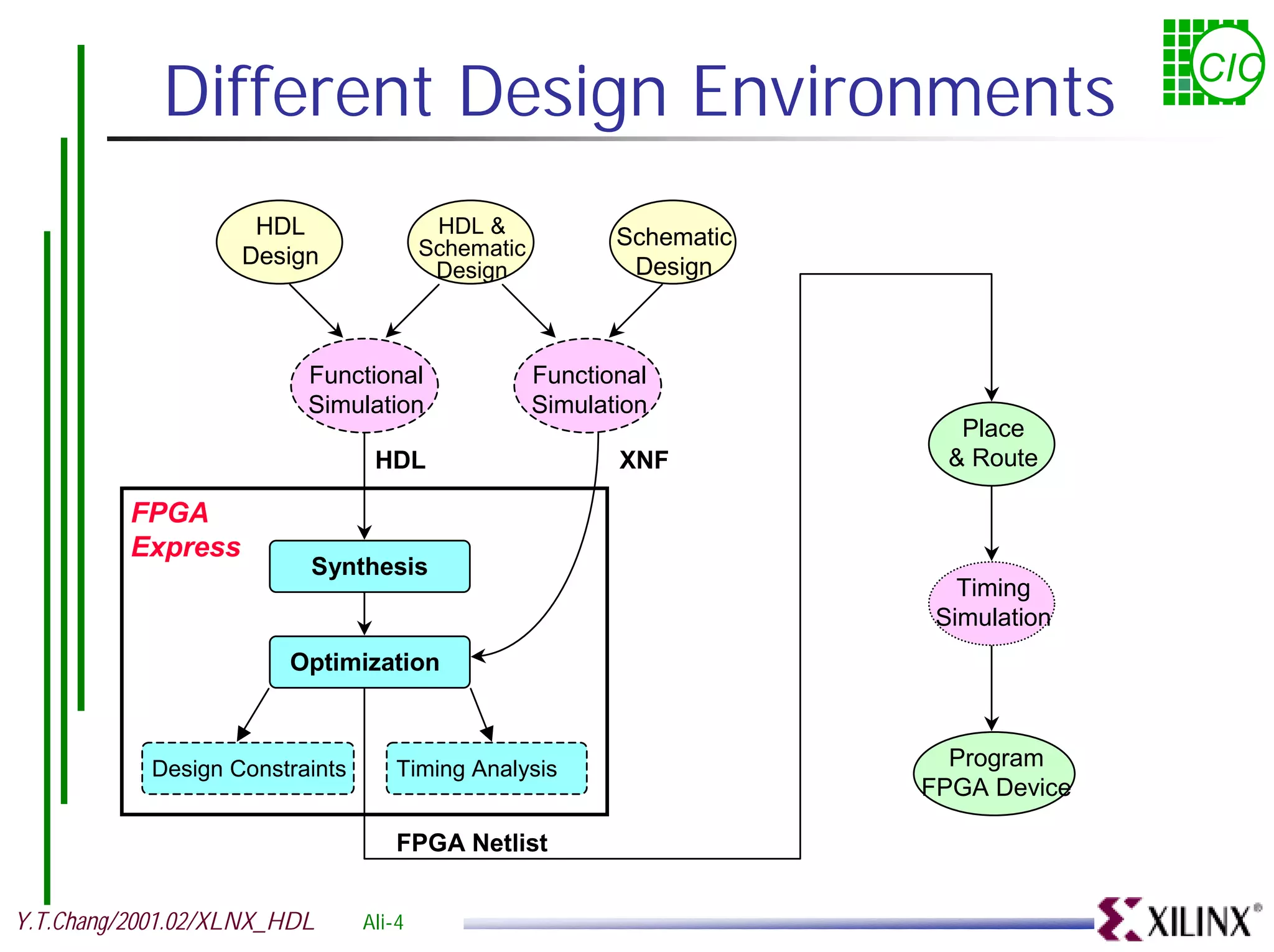

Different Design Environments CIC HDL HDL & Schematic Design Schematic Design Design Functional Functional Simulation Simulation Place HDL XNF & Route FPGA Express Synthesis Timing Simulation Optimization Design Constraints Timing Analysis Program FPGA Device FPGA Netlist Y.T.Chang/2001.02/XLNX_HDL Ali-4

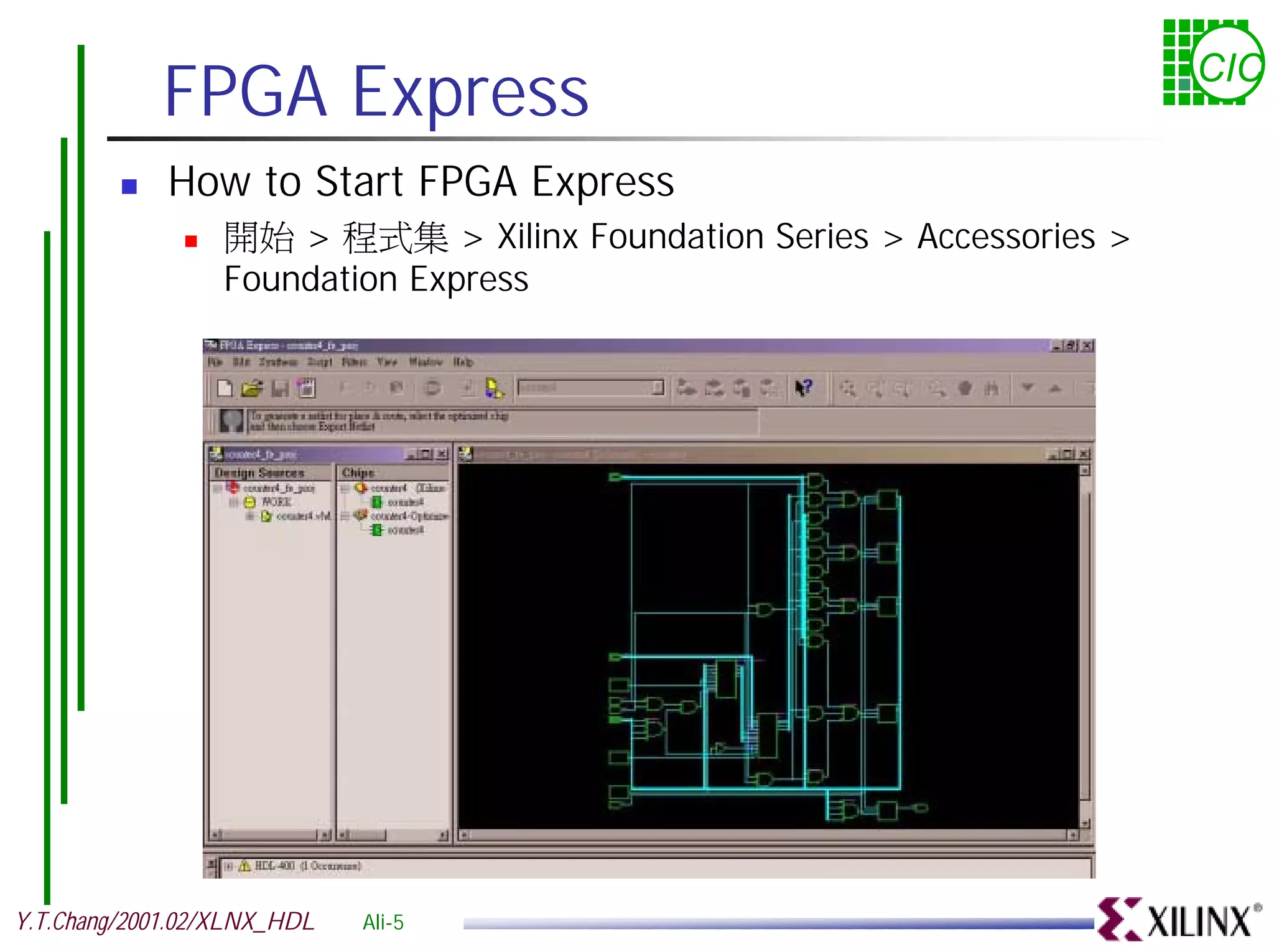

FPGA Express CIC ! How to Start FPGA Express ! 開始 > 程式集 > Xilinx Foundation Series > Accessories > Foundation Express Y.T.Chang/2001.02/XLNX_HDL Ali-5

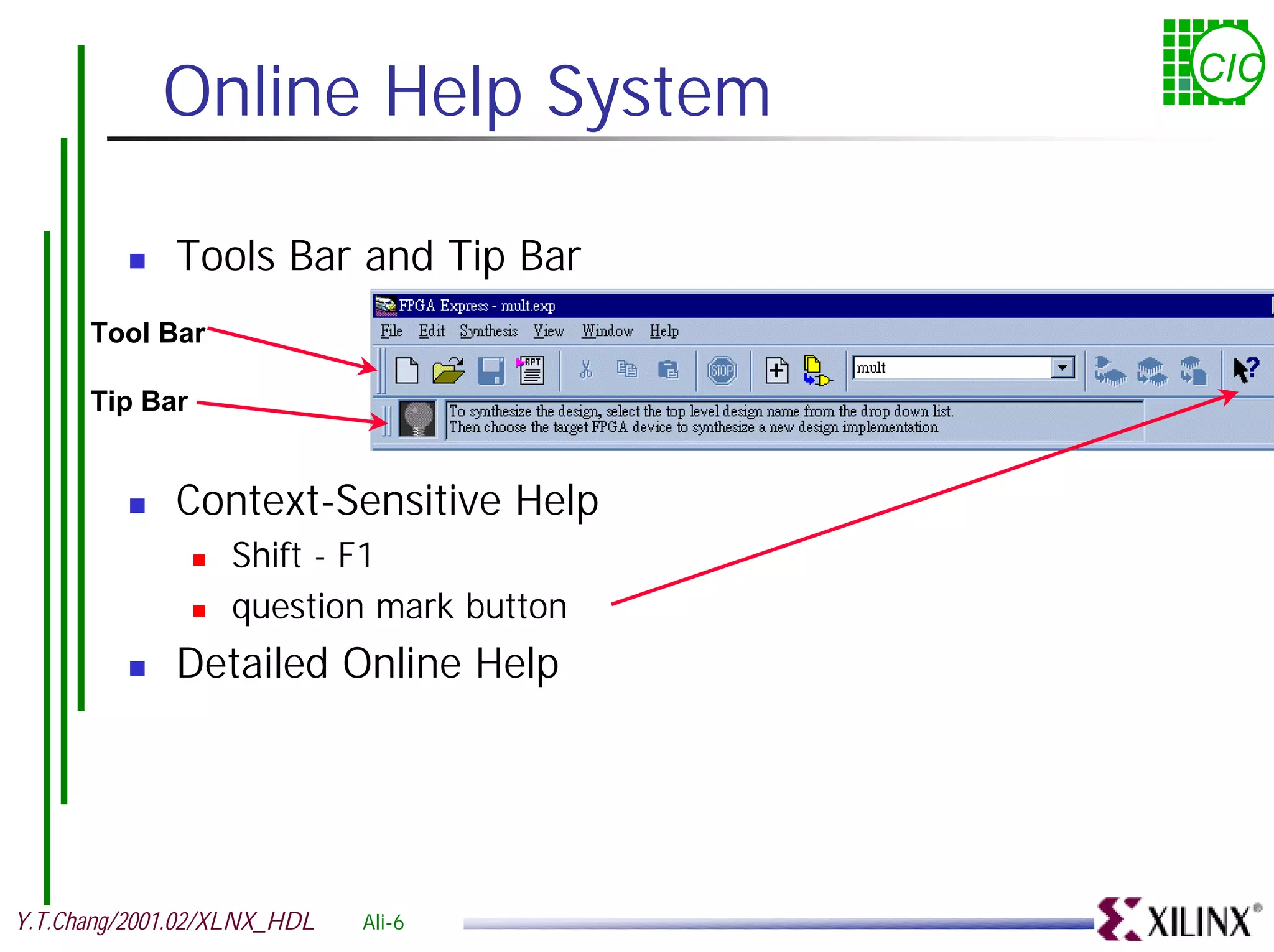

Online Help System CIC ! Tools Bar and Tip Bar Tool Bar Tip Bar ! Context-Sensitive Help ! Shift - F1 ! question mark button ! Detailed Online Help Y.T.Chang/2001.02/XLNX_HDL Ali-6

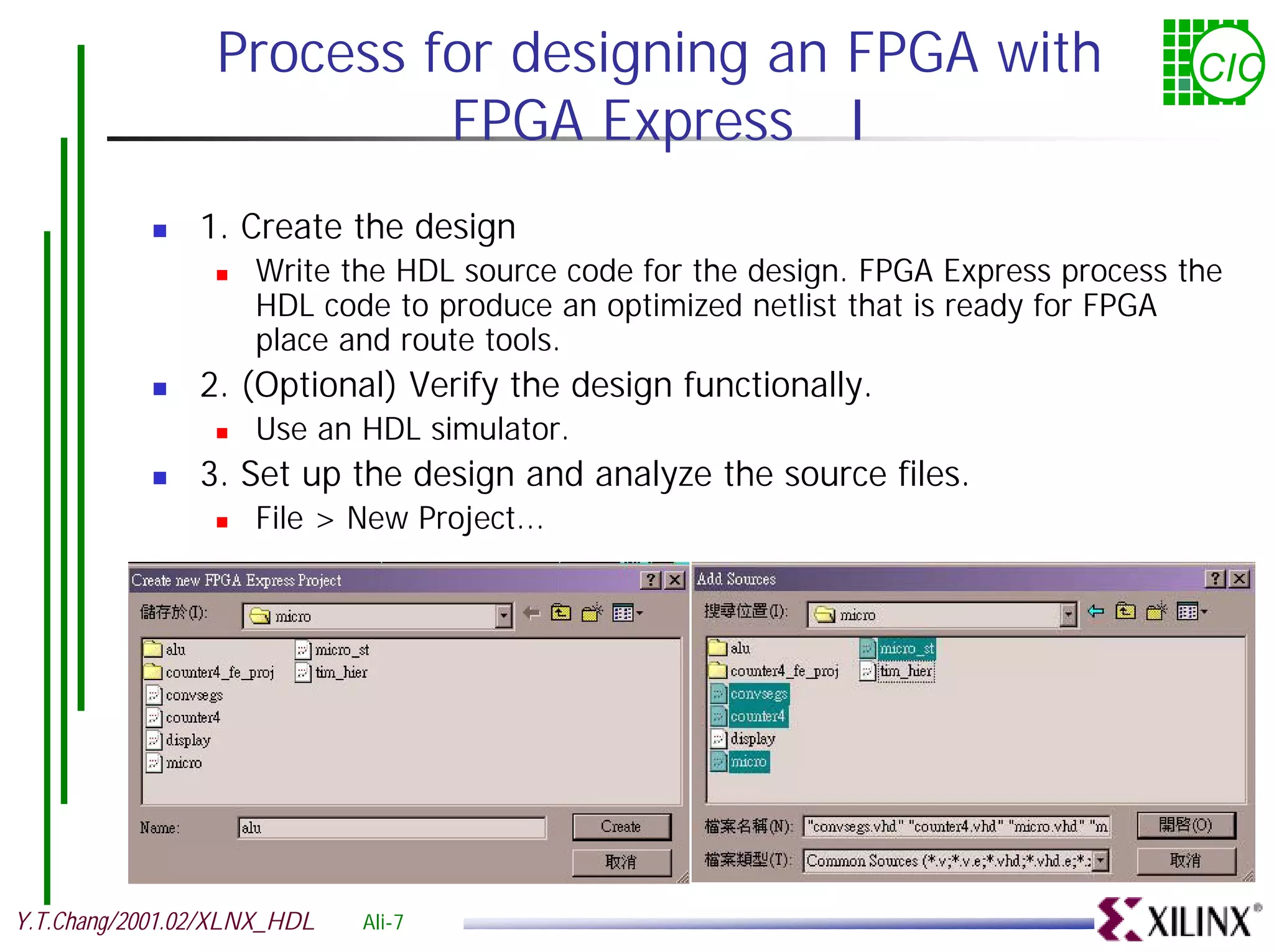

Process for designing an FPGA with CIC FPGA Express I ! 1. Create the design ! Write the HDL source code for the design. FPGA Express process the HDL code to produce an optimized netlist that is ready for FPGA place and route tools. ! 2. (Optional) Verify the design functionally. ! Use an HDL simulator. ! 3. Set up the design and analyze the source files. ! File > New Project... Y.T.Chang/2001.02/XLNX_HDL Ali-7

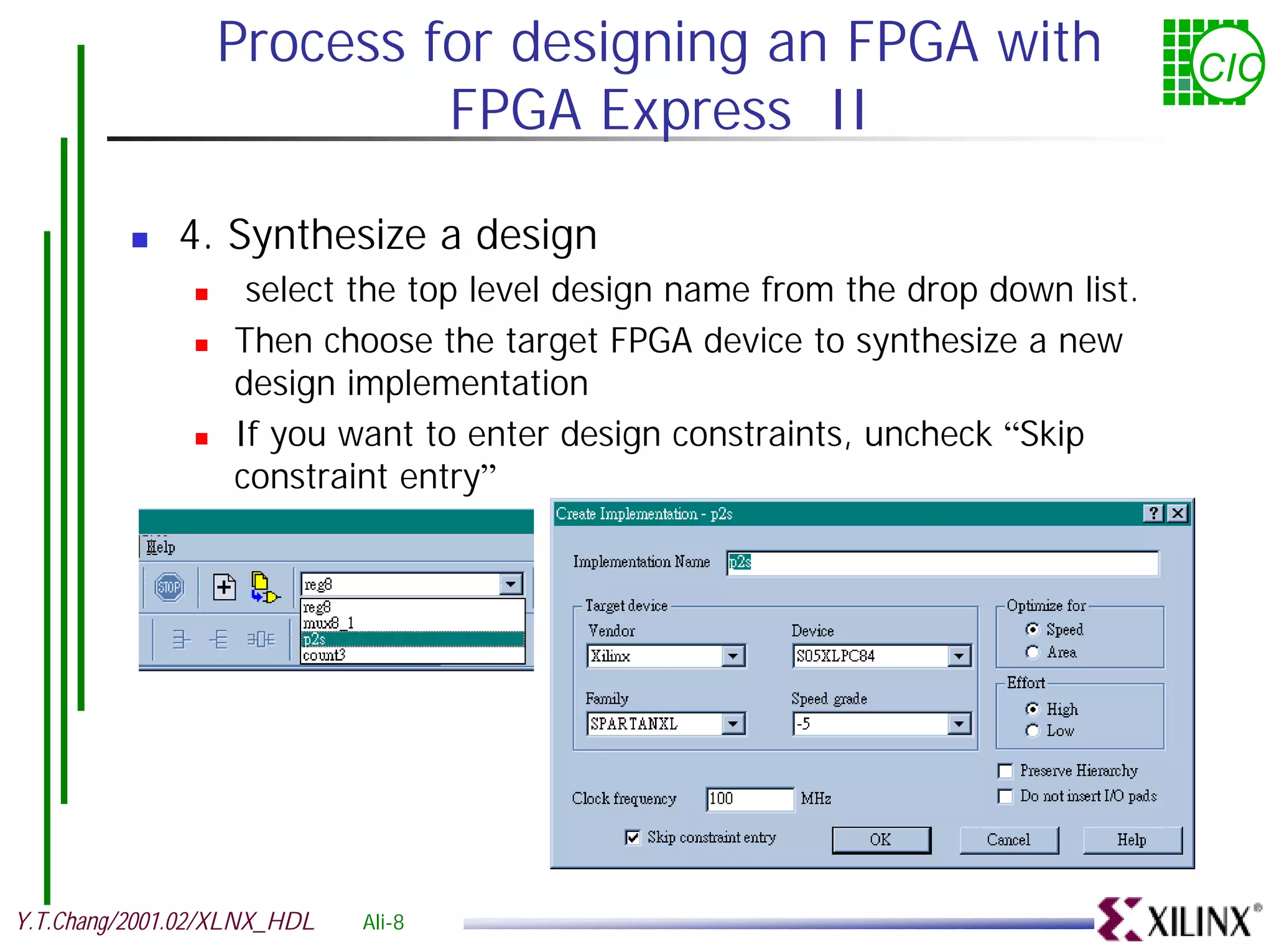

Process for designing an FPGA with CIC FPGA Express II ! 4. Synthesize a design ! select the top level design name from the drop down list. ! Then choose the target FPGA device to synthesize a new design implementation ! If you want to enter design constraints, uncheck “Skip constraint entry” Y.T.Chang/2001.02/XLNX_HDL Ali-8

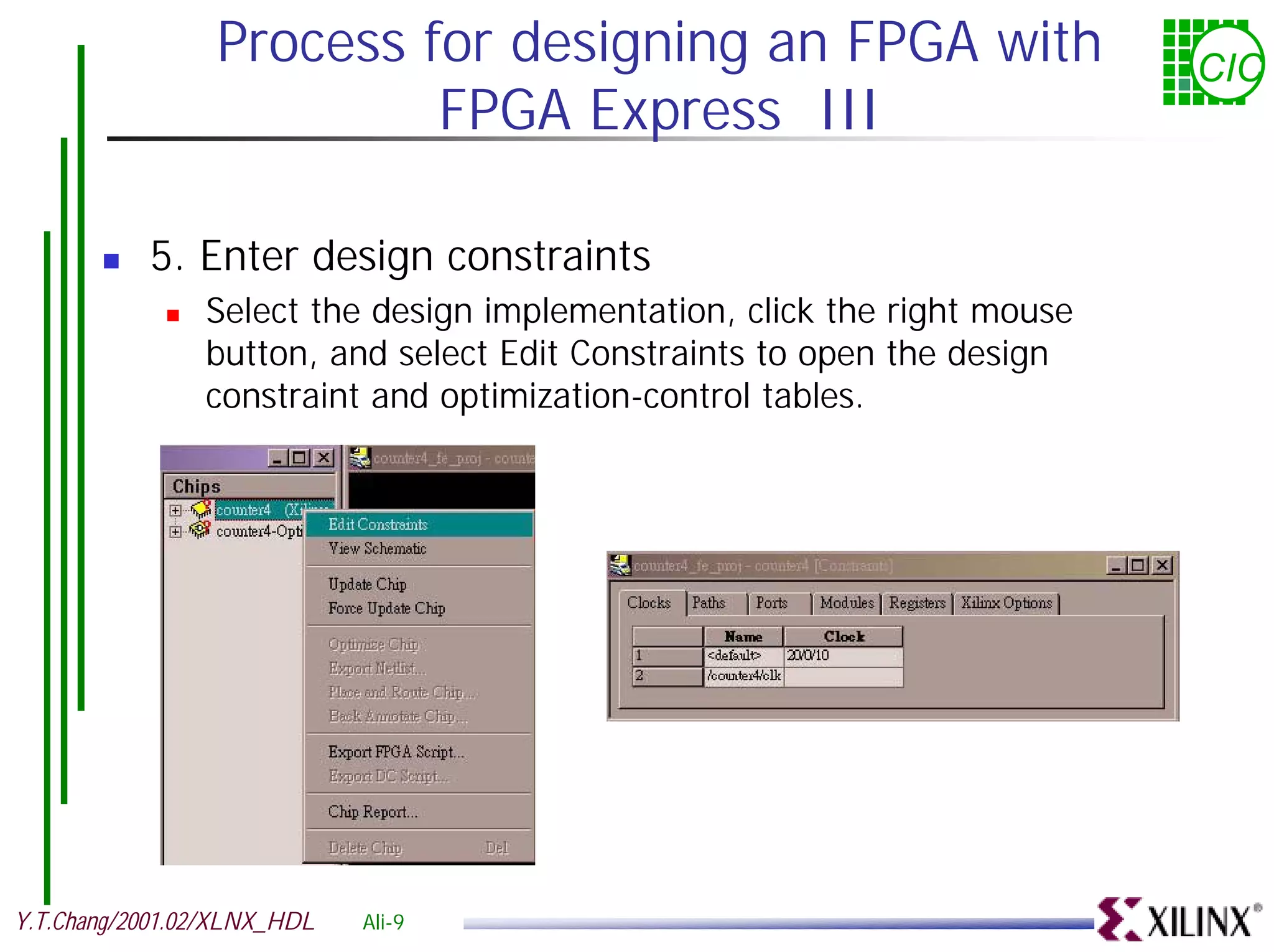

Process for designing an FPGA with CIC FPGA Express III ! 5. Enter design constraints ! Select the design implementation, click the right mouse button, and select Edit Constraints to open the design constraint and optimization-control tables. Y.T.Chang/2001.02/XLNX_HDL Ali-9

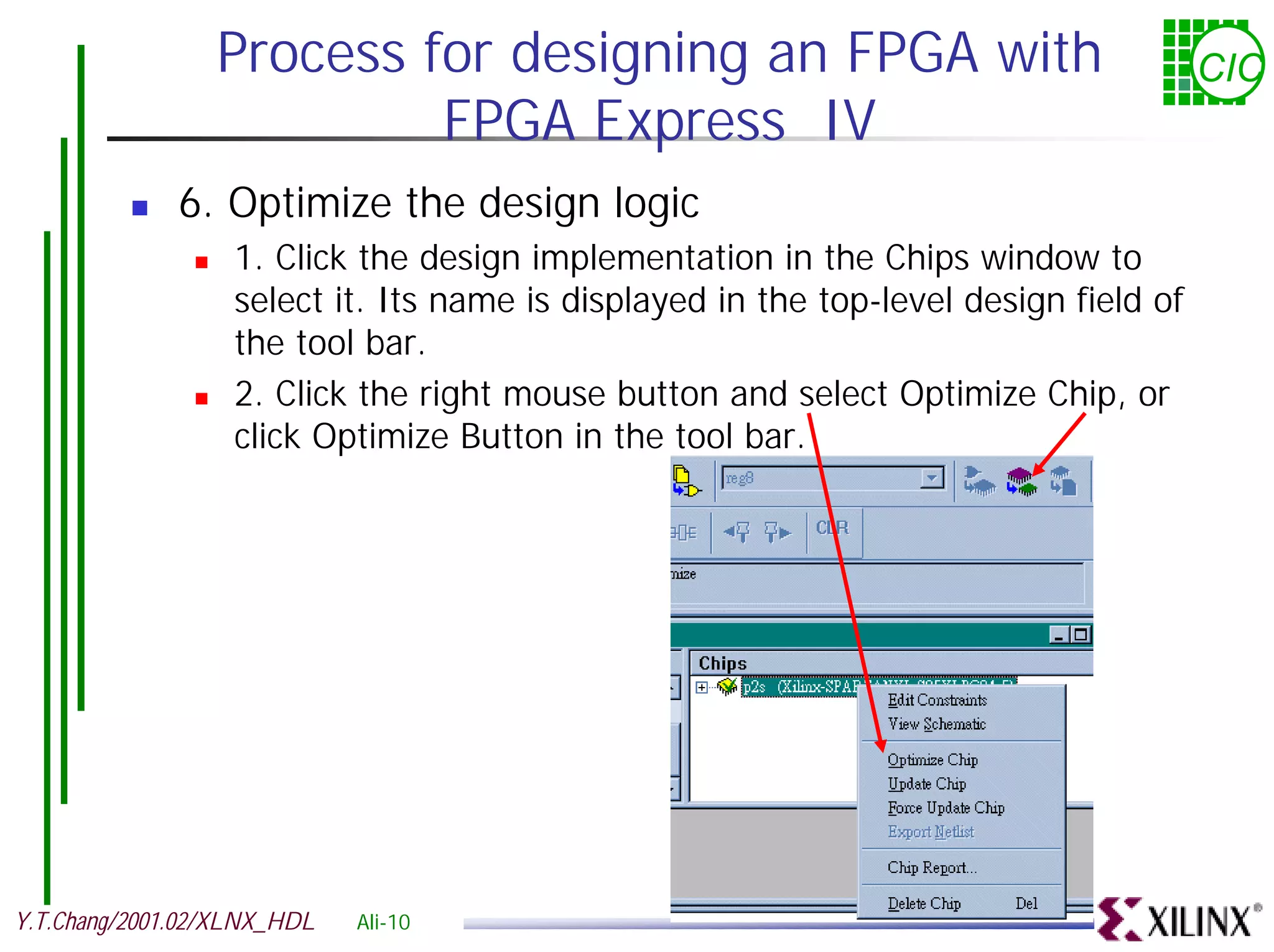

Process for designing an FPGA with CIC FPGA Express IV ! 6. Optimize the design logic ! 1. Click the design implementation in the Chips window to select it. Its name is displayed in the top-level design field of the tool bar. ! 2. Click the right mouse button and select Optimize Chip, or click Optimize Button in the tool bar. Y.T.Chang/2001.02/XLNX_HDL Ali-10

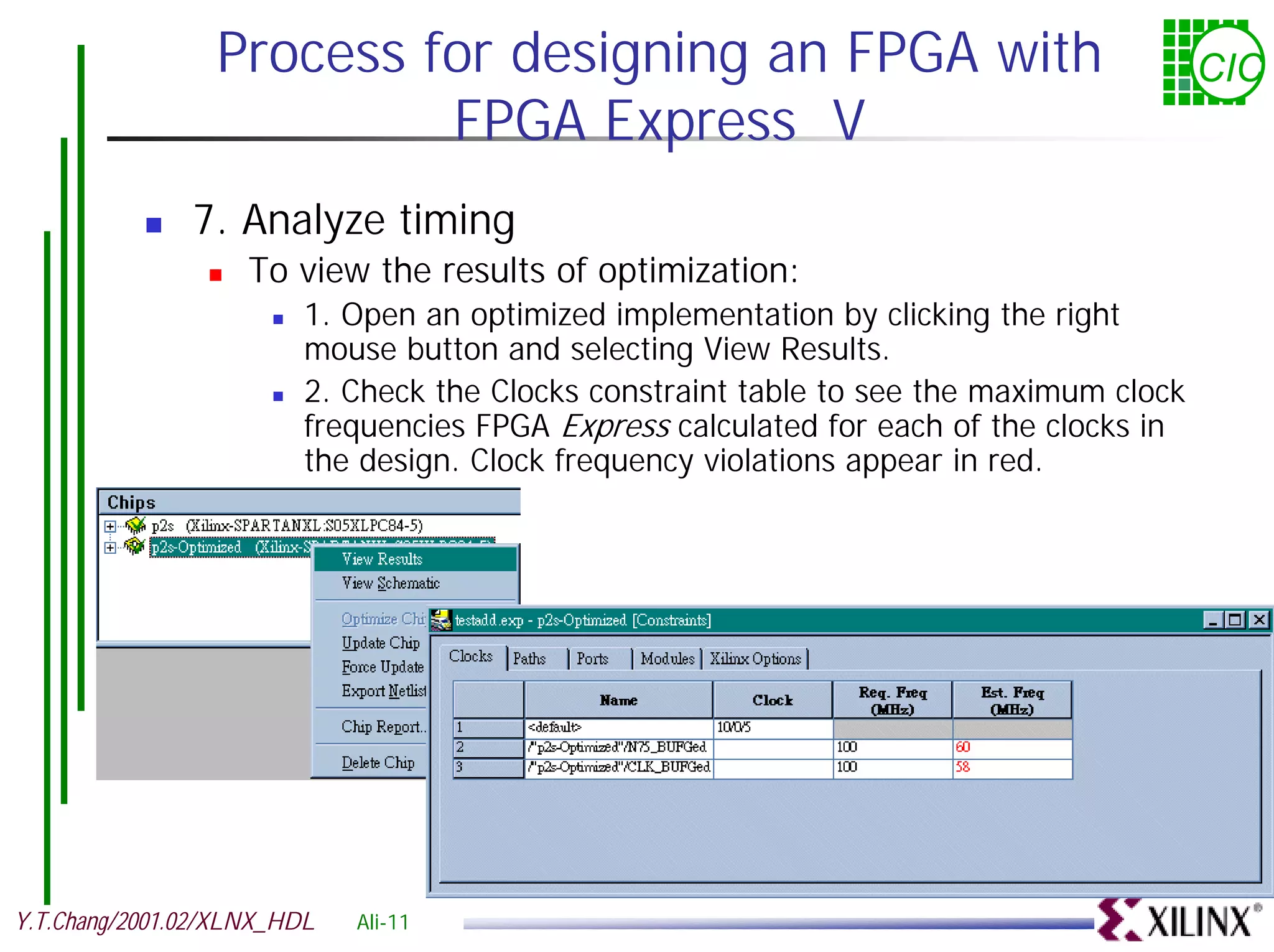

Process for designing an FPGA with CIC FPGA Express V ! 7. Analyze timing ! To view the results of optimization: ! 1. Open an optimized implementation by clicking the right mouse button and selecting View Results. ! 2. Check the Clocks constraint table to see the maximum clock frequencies FPGA Express calculated for each of the clocks in the design. Clock frequency violations appear in red. Y.T.Chang/2001.02/XLNX_HDL Ali-11

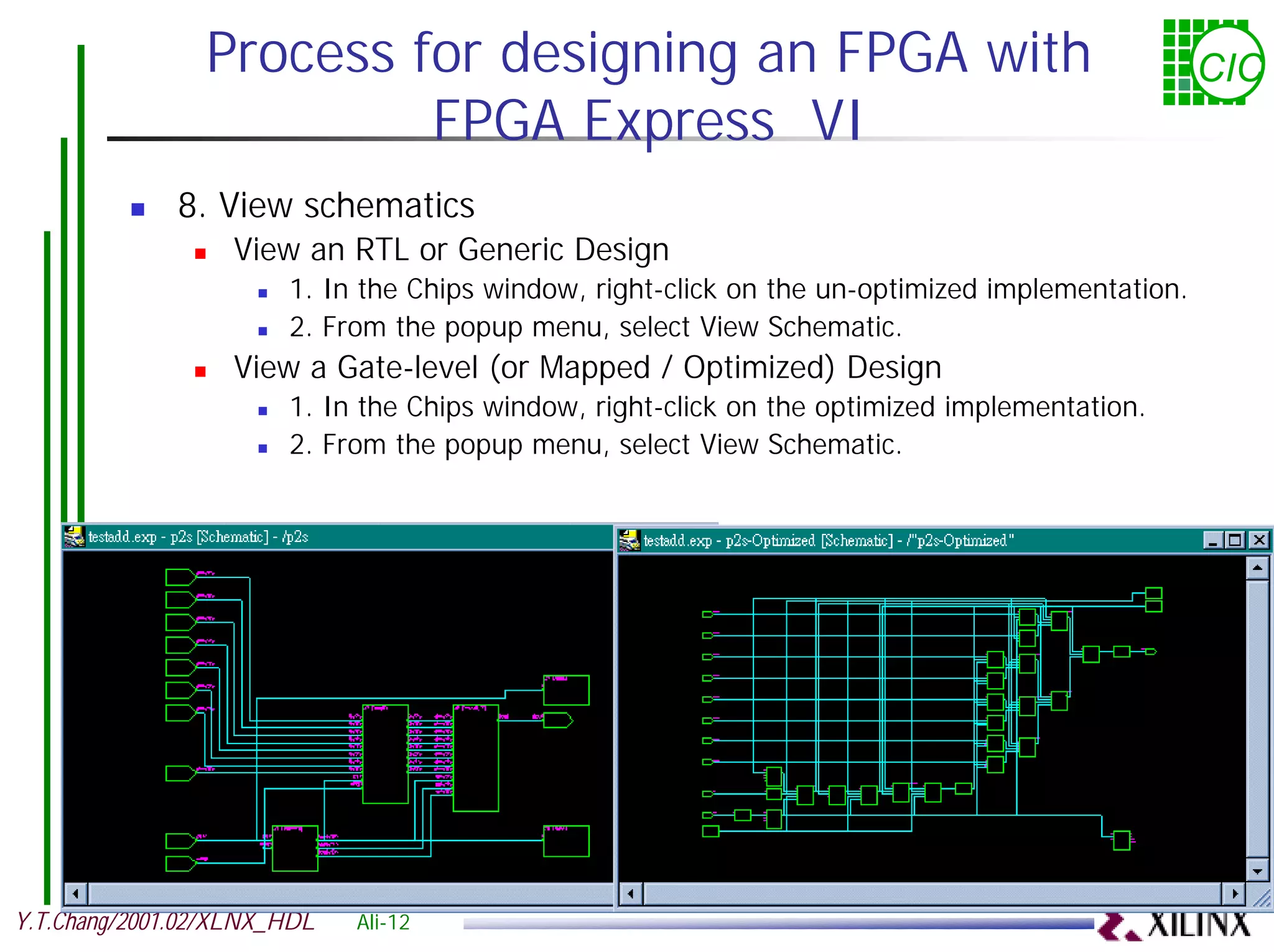

Process for designing an FPGA with CIC FPGA Express VI ! 8. View schematics ! View an RTL or Generic Design ! 1. In the Chips window, right-click on the un-optimized implementation. ! 2. From the popup menu, select View Schematic. ! View a Gate-level (or Mapped / Optimized) Design ! 1. In the Chips window, right-click on the optimized implementation. ! 2. From the popup menu, select View Schematic. Y.T.Chang/2001.02/XLNX_HDL Ali-12

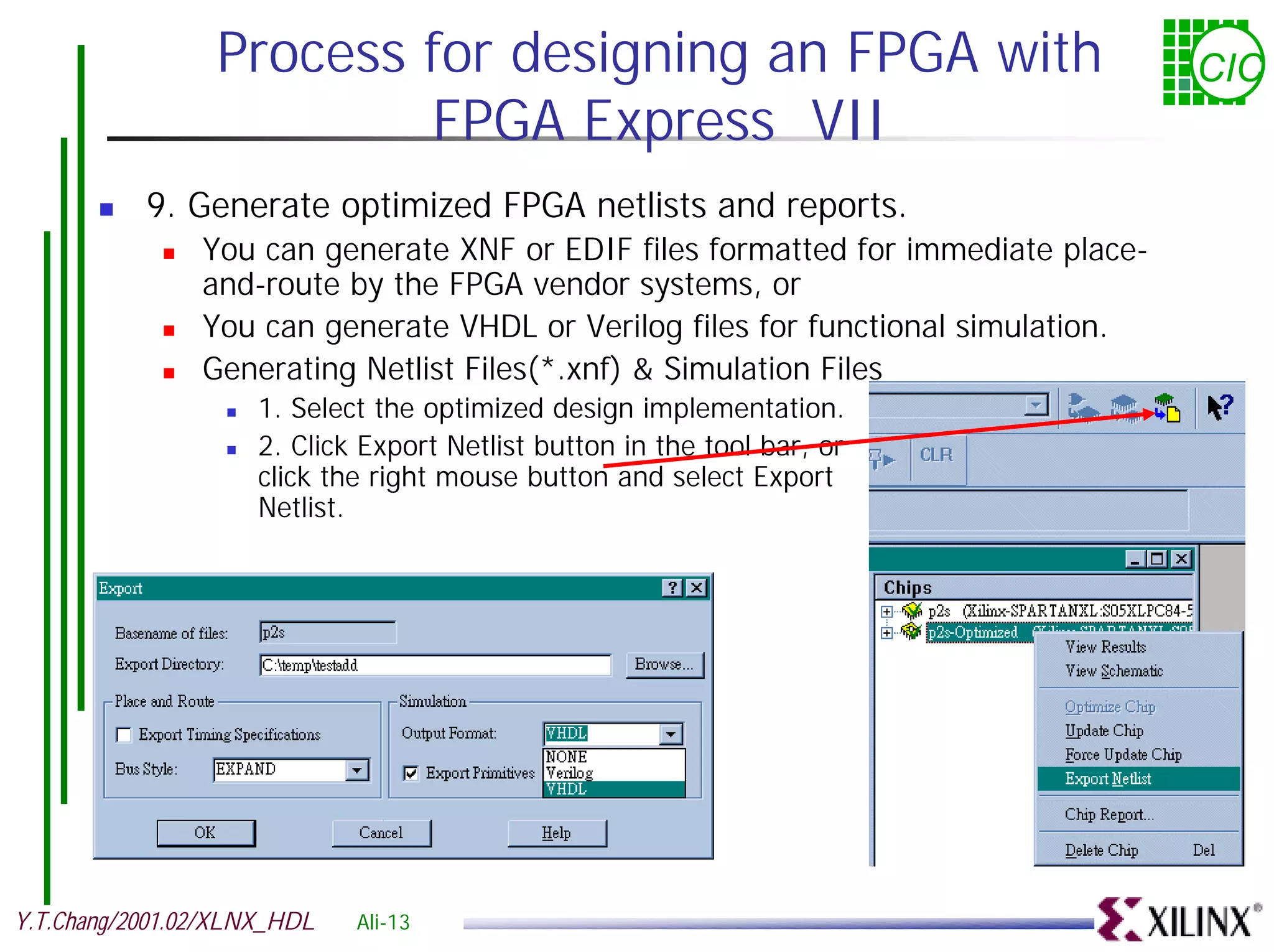

Process for designing an FPGA with CIC FPGA Express VII ! 9. Generate optimized FPGA netlists and reports. ! You can generate XNF or EDIF files formatted for immediate place- and-route by the FPGA vendor systems, or ! You can generate VHDL or Verilog files for functional simulation. ! Generating Netlist Files(*.xnf) & Simulation Files ! 1. Select the optimized design implementation. ! 2. Click Export Netlist button in the tool bar, or click the right mouse button and select Export Netlist. Y.T.Chang/2001.02/XLNX_HDL Ali-13

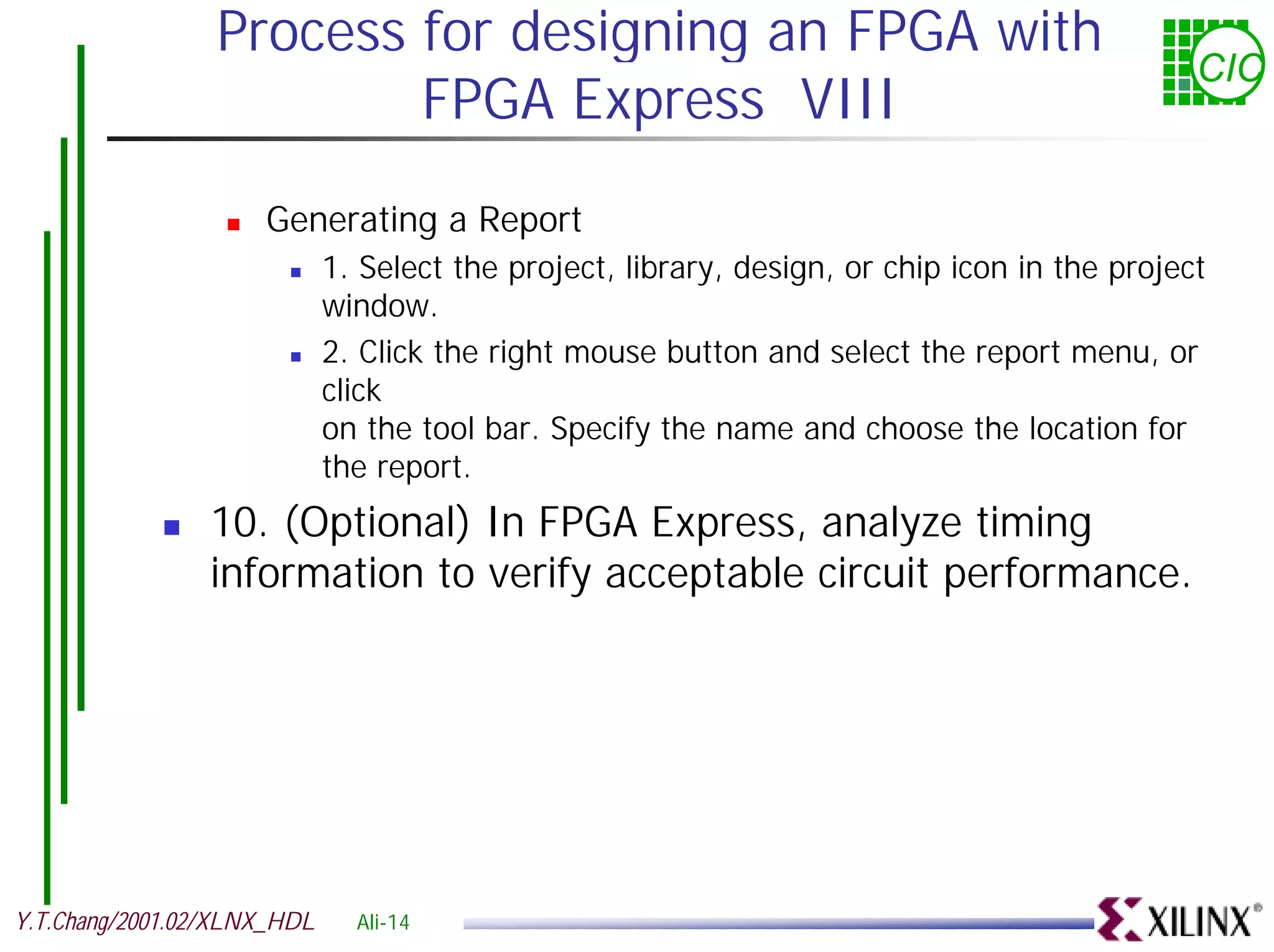

Process for designing an FPGA with CIC FPGA Express VIII ! Generating a Report ! 1. Select the project, library, design, or chip icon in the project window. ! 2. Click the right mouse button and select the report menu, or click on the tool bar. Specify the name and choose the location for the report. ! 10. (Optional) In FPGA Express, analyze timing information to verify acceptable circuit performance. Y.T.Chang/2001.02/XLNX_HDL Ali-14

Design Manager Y.T.Chang/2001.02/XLNX_HDL Ali-15

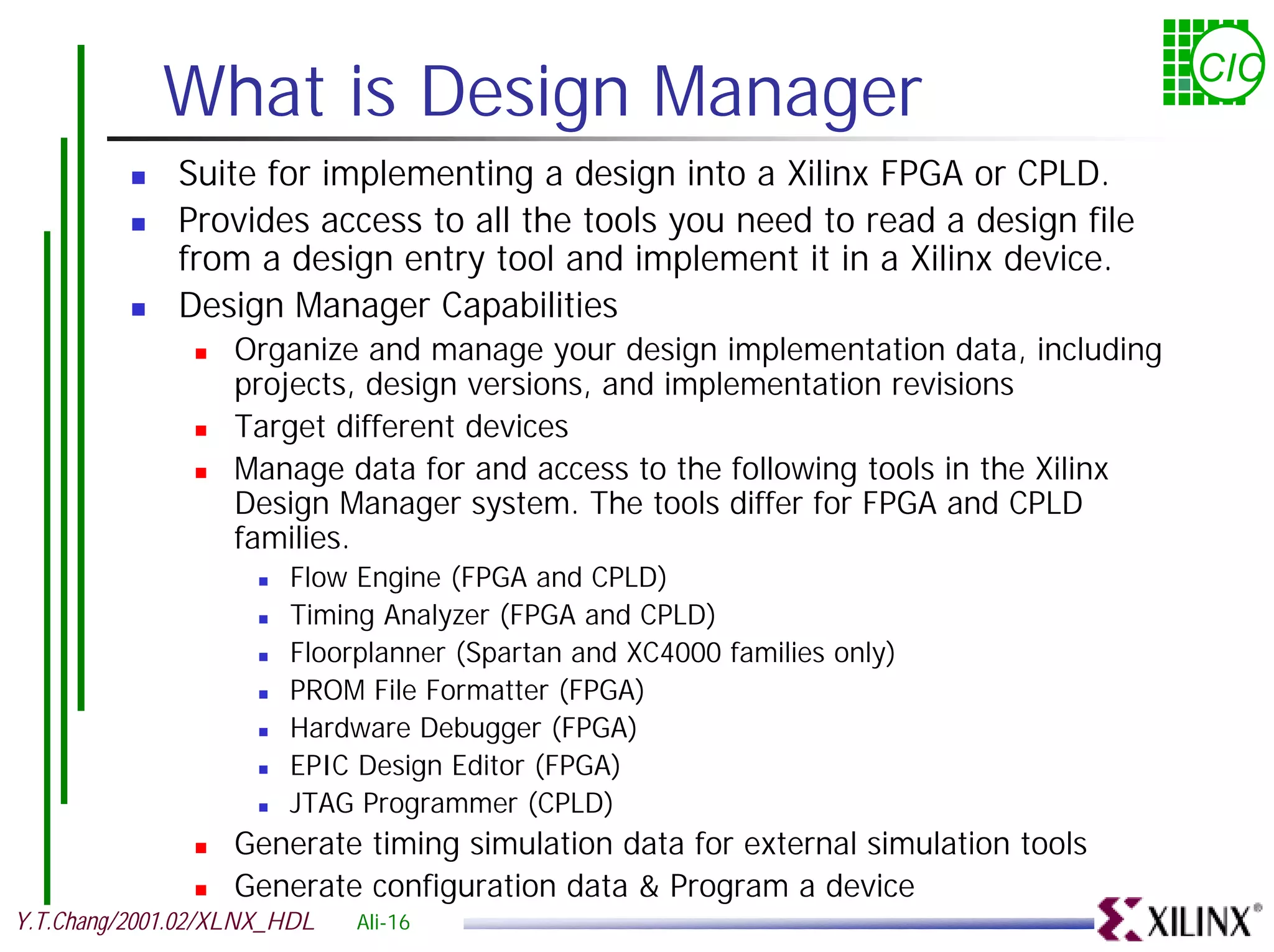

What is Design Manager CIC ! Suite for implementing a design into a Xilinx FPGA or CPLD. ! Provides access to all the tools you need to read a design file from a design entry tool and implement it in a Xilinx device. ! Design Manager Capabilities ! Organize and manage your design implementation data, including projects, design versions, and implementation revisions ! Target different devices ! Manage data for and access to the following tools in the Xilinx Design Manager system. The tools differ for FPGA and CPLD families. ! Flow Engine (FPGA and CPLD) ! Timing Analyzer (FPGA and CPLD) ! Floorplanner (Spartan and XC4000 families only) ! PROM File Formatter (FPGA) ! Hardware Debugger (FPGA) ! EPIC Design Editor (FPGA) ! JTAG Programmer (CPLD) ! Generate timing simulation data for external simulation tools ! Generate configuration data & Program a device Y.T.Chang/2001.02/XLNX_HDL Ali-16

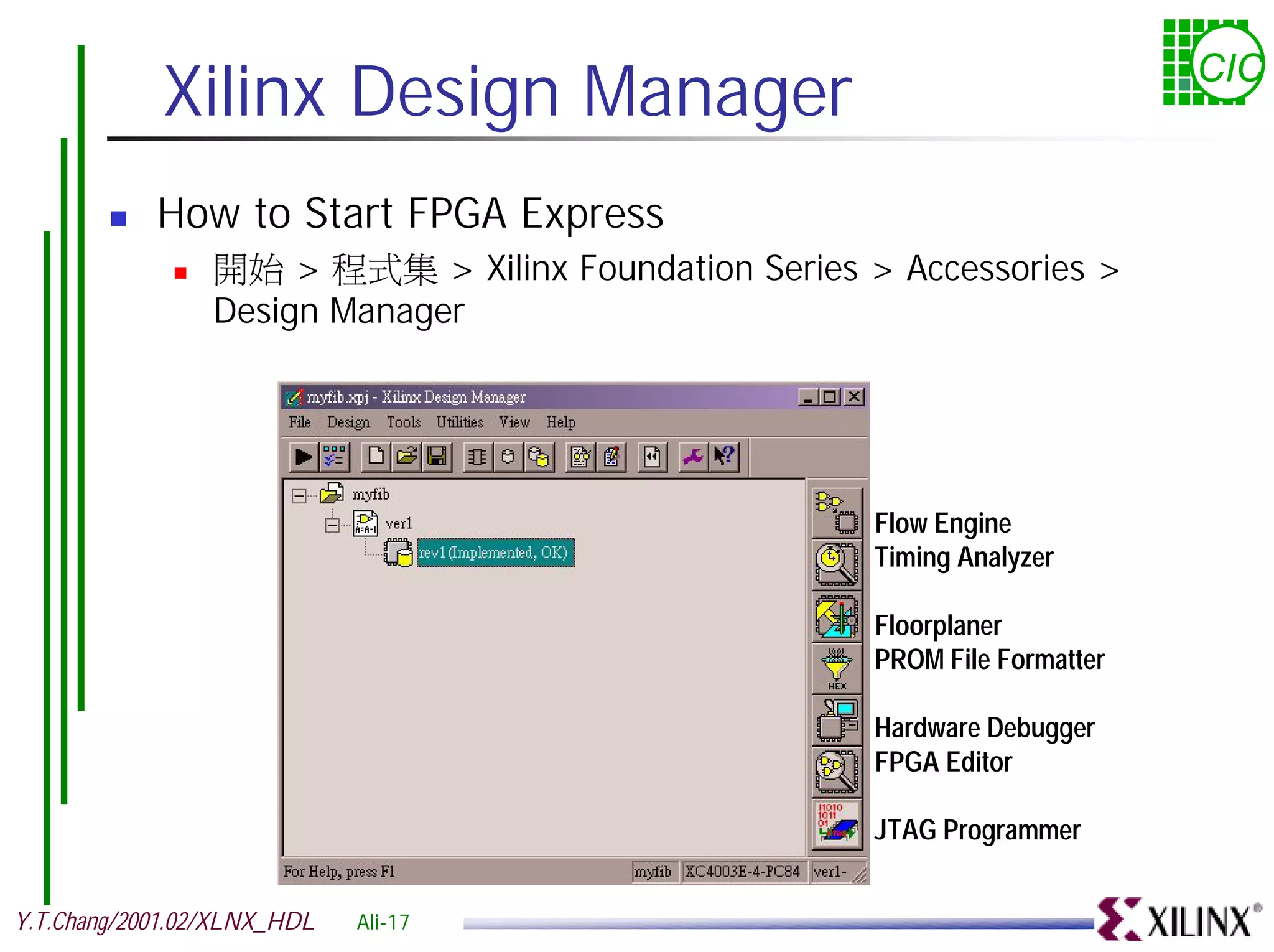

Xilinx Design Manager CIC ! How to Start FPGA Express ! 開始 > 程式集 > Xilinx Foundation Series > Accessories > Design Manager Flow Engine Timing Analyzer Floorplaner PROM File Formatter Hardware Debugger FPGA Editor JTAG Programmer Y.T.Chang/2001.02/XLNX_HDL Ali-17

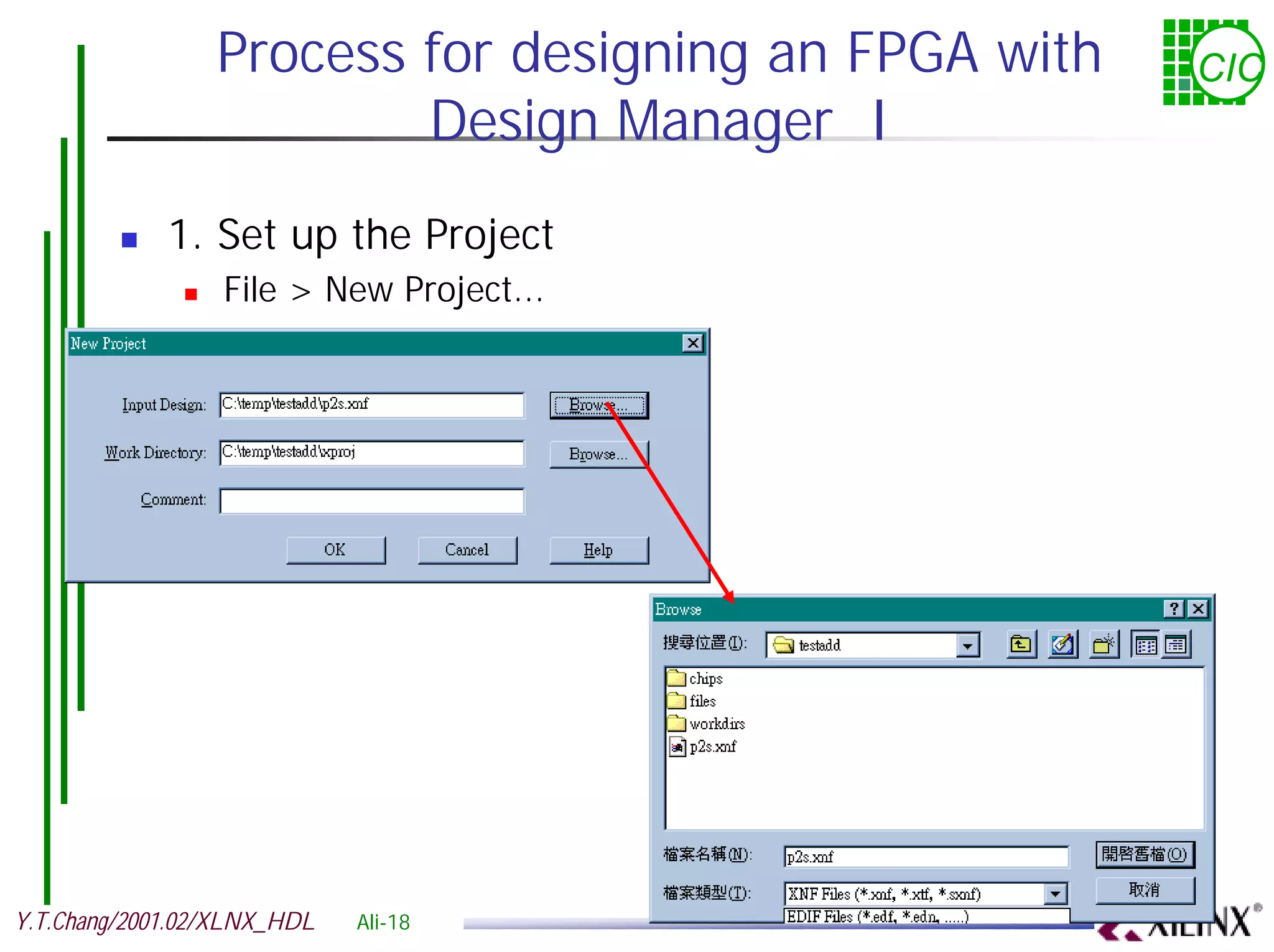

Process for designing an FPGA with CIC Design Manager I ! 1. Set up the Project ! File > New Project... Y.T.Chang/2001.02/XLNX_HDL Ali-18

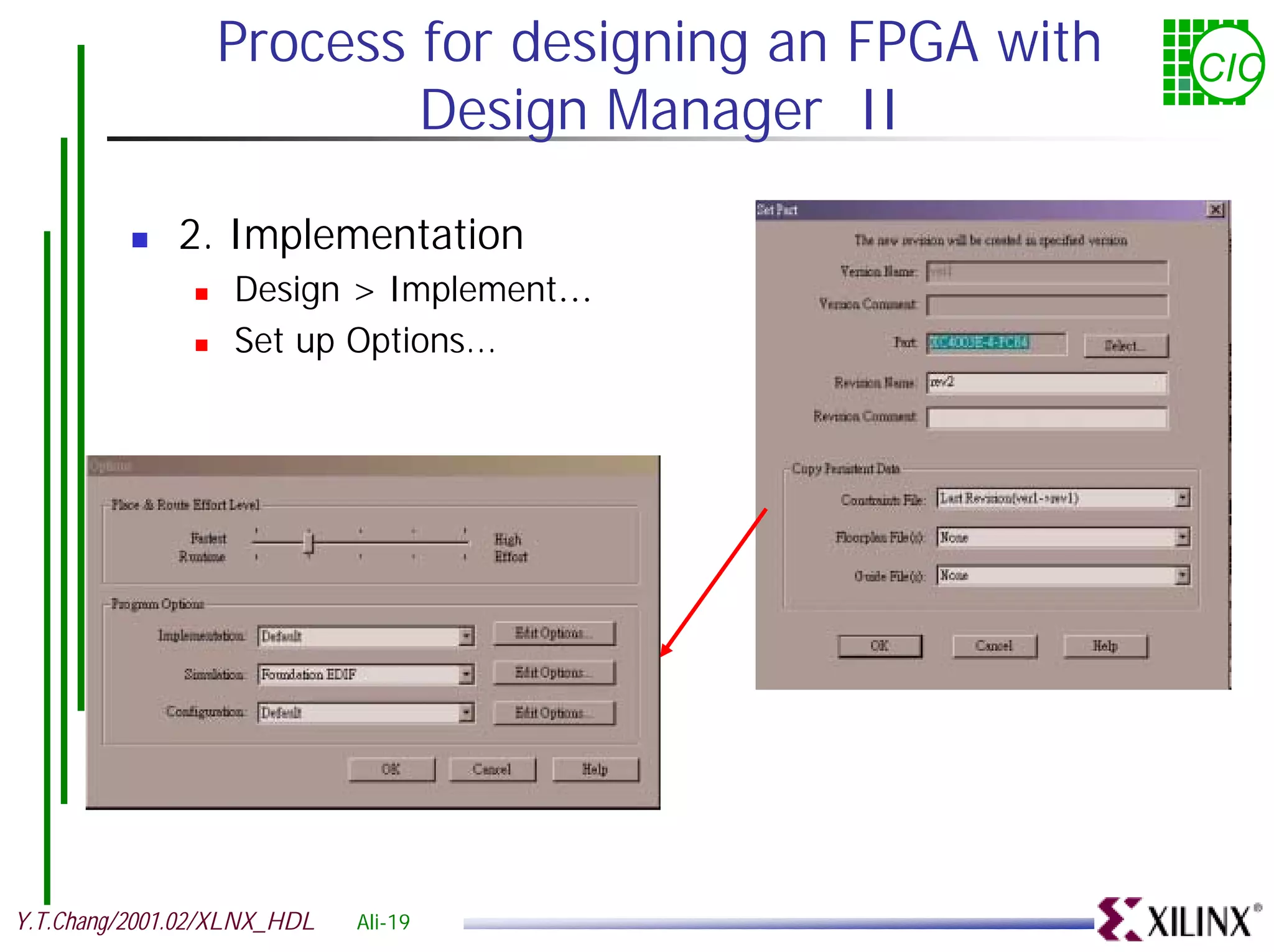

Process for designing an FPGA with CIC Design Manager II ! 2. Implementation ! Design > Implement… ! Set up Options... Y.T.Chang/2001.02/XLNX_HDL Ali-19

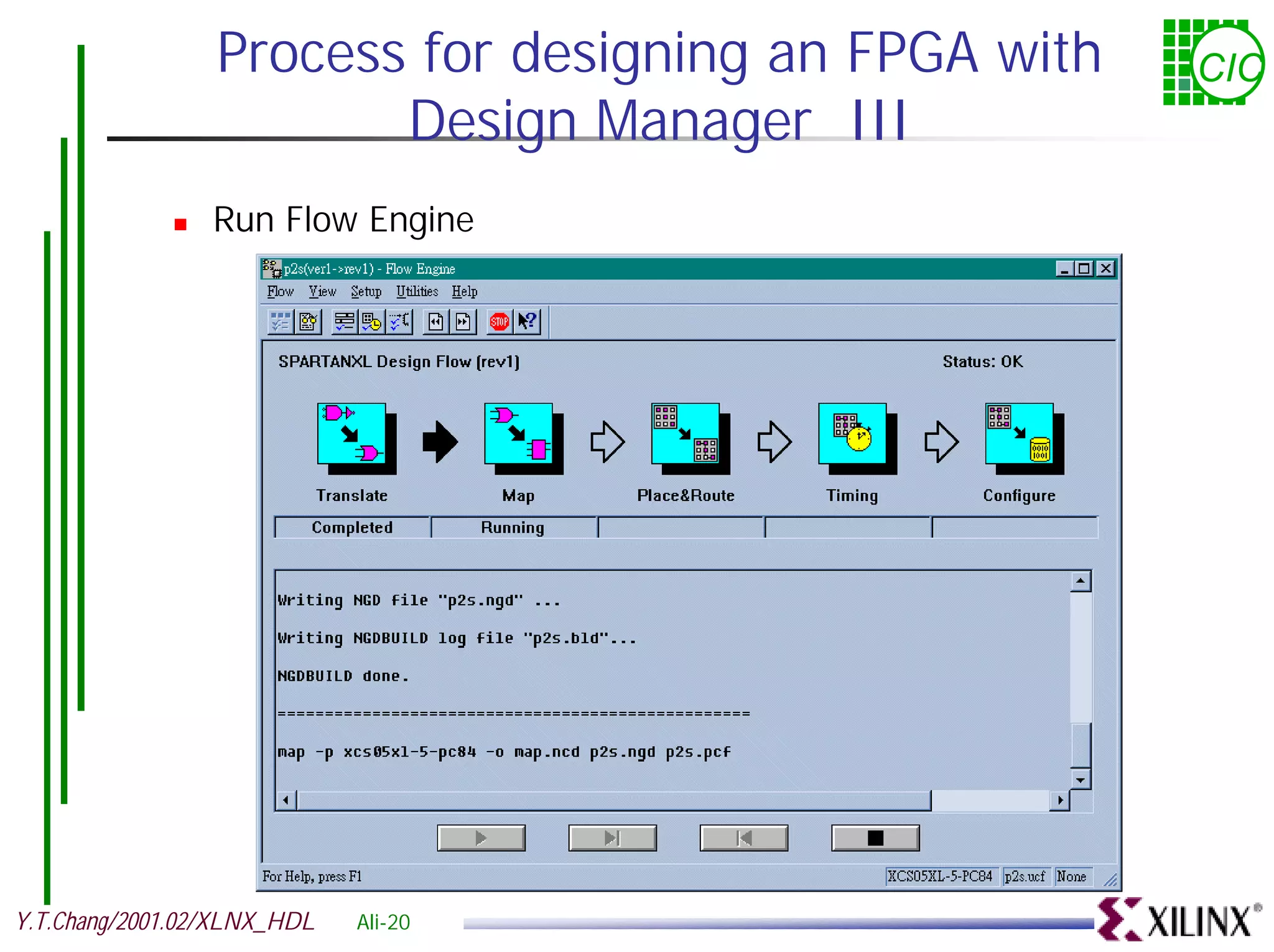

Process for designing an FPGA with CIC Design Manager III ! Run Flow Engine Y.T.Chang/2001.02/XLNX_HDL Ali-20

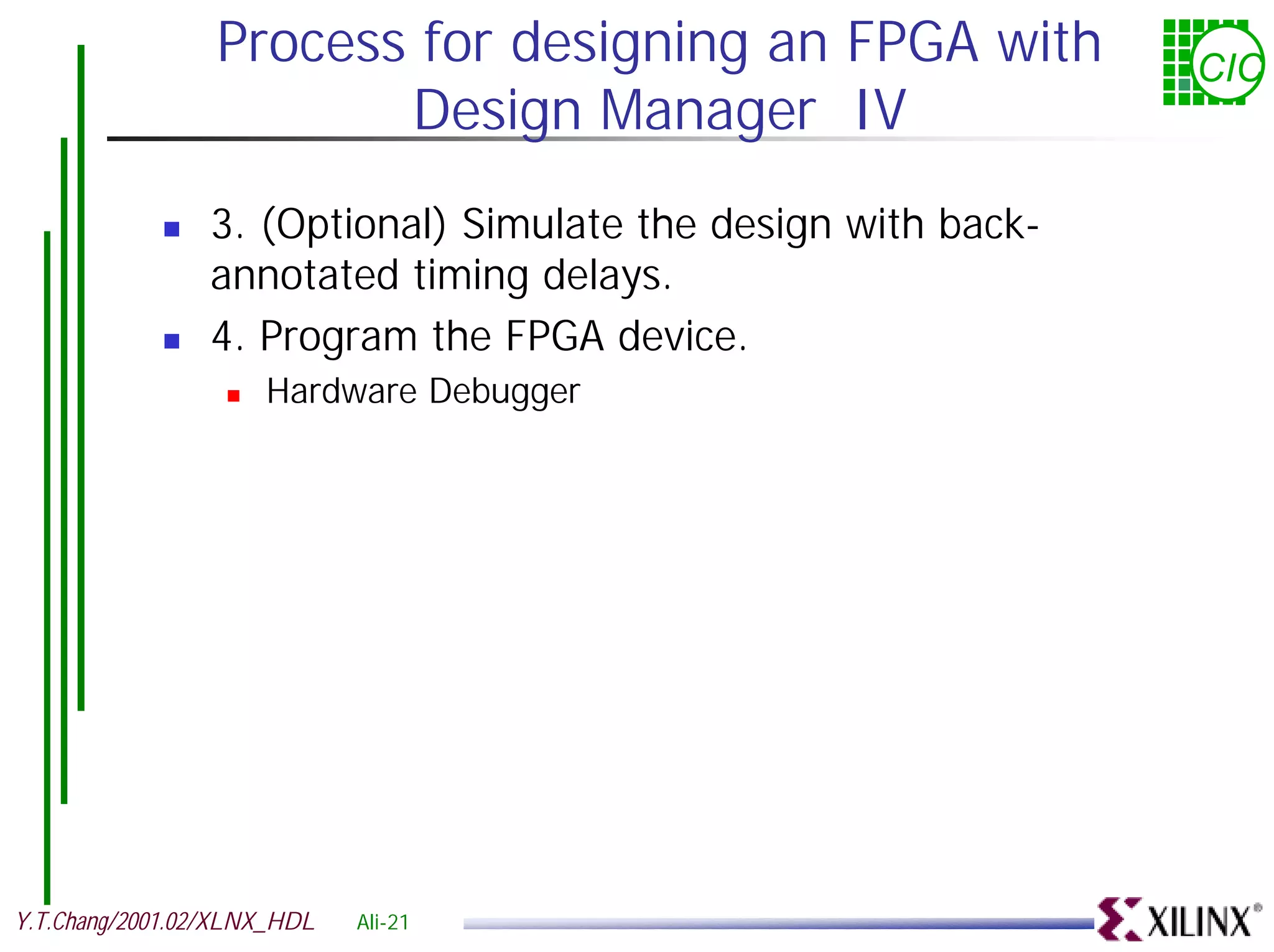

Process for designing an FPGA with CIC Design Manager IV ! 3. (Optional) Simulate the design with back- annotated timing delays. ! 4. Program the FPGA device. ! Hardware Debugger Y.T.Chang/2001.02/XLNX_HDL Ali-21

Advance hdl design training on xilinx fpga

More Related Content

What's hot

Similar to Advance hdl design training on xilinx fpga

Recently uploaded

Advance hdl design training on xilinx fpga
