• 1.
    RELATIONAL CALCULUS  www.powerpointpresentationon.blogspot.com TUSHAR GUPTA
• 2.
  INTRODUCTION TO RELATIONALMODEL Invented by E.F. (Ted) Codd Based on first-order predicate logic Its core idea is to describe a database as a collection of predicates over a finite set of predicate variables, describing constraints on the possible values and combinations of values. TUSHAR GUPTA
• 3.
  THE MODEL Data is represented as mathematical n -ary relations, an n -ary relation being a subset of the Cartesian product of n domains. two-valued predicate logic , meaning there are two possible evaluations for each proposition : either true or false. Data are operated upon by means of a relational calculus (procedural) or relational algebra (descriptive), these being equivalent in expressive power . TUSHAR GUPTA
• 4.
  THE MODEL Thebasic relational building block is the domain or data type (or relvar). A tuple is an set of attribute values. An attribute is an ordered pair of attribute name and type name . TUSHAR GUPTA
• 5.
  SQL AND THERELATIONAL MODEL Duplicate rows Anonymous columns Duplicate column names Column order significance NULL TUSHAR GUPTA
• 6.
  RELATIONAL OPERATIONS JoinProject - process of eliminating some of the columns Restrict - process of eliminating some of the rows Union - a way of combining two tables with similar structures TUSHAR GUPTA
• 7.
  RELATIONAL OPERATIONS Difference-lists the rows in one table that are not found in the other Intersect - lists the rows found in both tables Product - combines each row of one table with each row of the other TUSHAR GUPTA

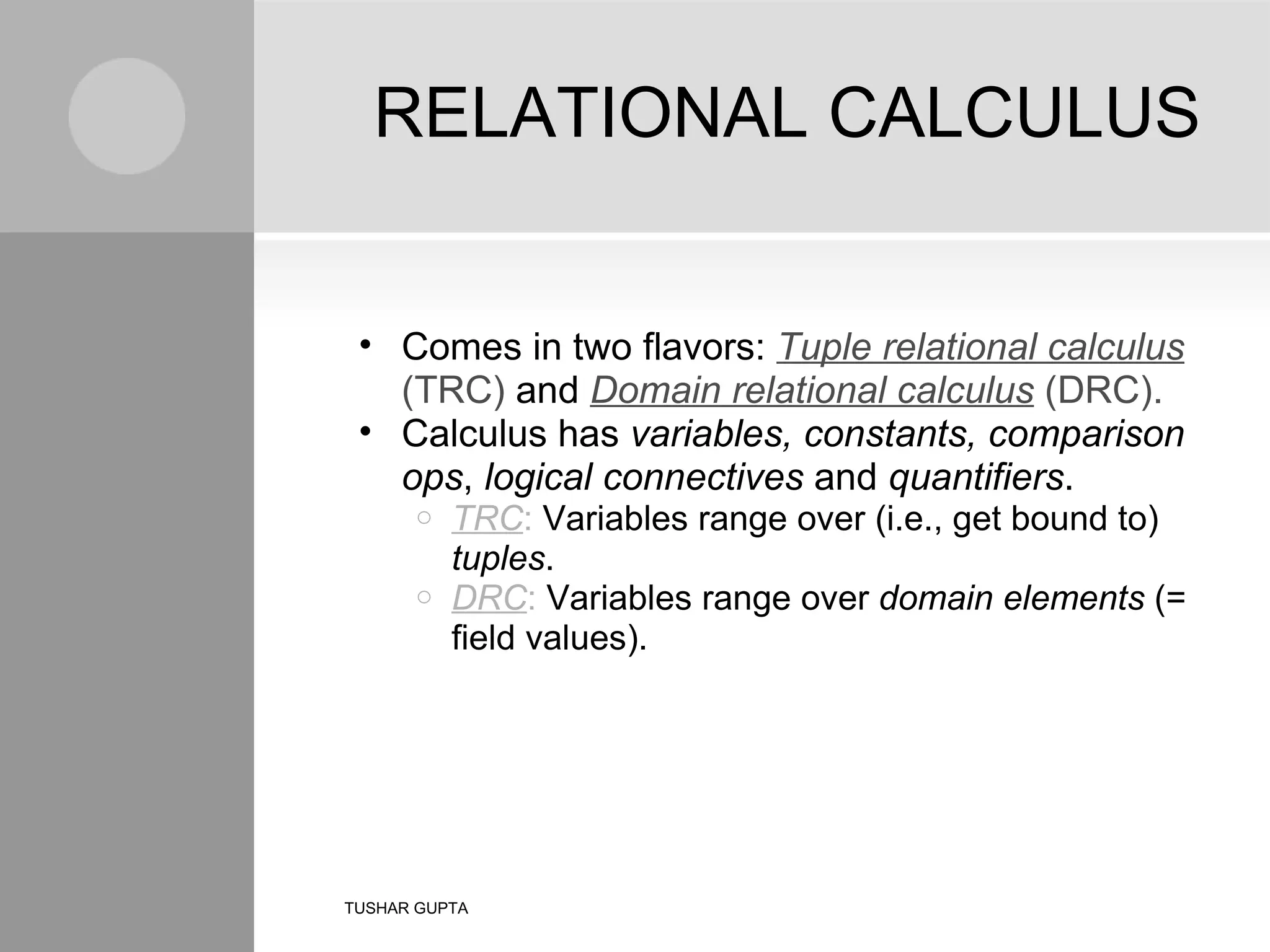

• 8.
  RELATIONAL CALCULUS Comesin two flavors: Tuple relational calculus (TRC) and Domain relational calculus (DRC). Calculus has variables, constants, comparison ops , logical connectives and quantifiers . TRC : Variables range over (i.e., get bound to) tuples . DRC : Variables range over domain elements (= field values). TUSHAR GUPTA

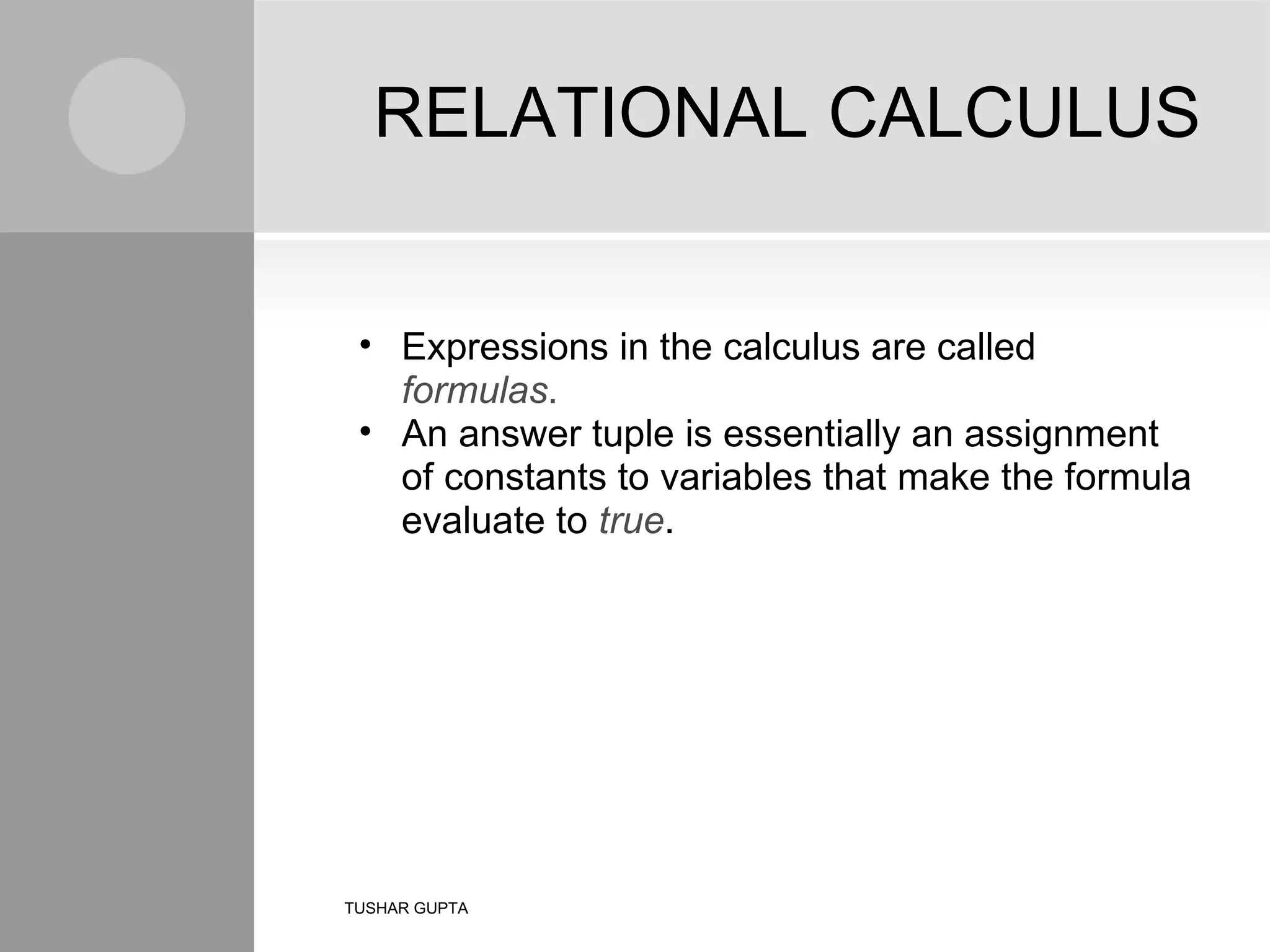

• 9.
  RELATIONAL CALCULUS Expressionsin the calculus are called formulas . An answer tuple is essentially an assignment of constants to variables that make the formula evaluate to true . TUSHAR GUPTA
• 10.
  TUPLE RELATIONAL CALCULUSQuery: {T|P(T)} T is tuple variable P(T) is a formula that describes T Result: the set of all tuples t for which P(t) evaluates True. Find all sailors with a rating above 7. TUSHAR GUPTA
• 11.
  TRC Atomic formulaR.a op S.b , op is one of R.a op constant Formula Any atomic formula combined: TUSHAR GUPTA
• 12.
  TRC Example Findthe names and ages of sailors with a rating above 7 Find the names of sailors who have reserved all boats TUSHAR GUPTA
• 13.
  DOMAIN RELATIONAL CALCULUSQuery has the form: Answer includes all tuples that make the formula be true . Atomic formula: , Where Rname is relation specified or could be as X op Y, or X op constant op is one of TUSHAR GUPTA
• 14.
  DRC Formula: anatomic formula, or ,               where p and q are formulas, or ,                 where variable X is free in p(X) TUSHAR GUPTA
• 15.
  DRC Examples Findall sailors with a rating above 7 Find sailors rated > 7 who’ve reserved boat #103 TUSHAR GUPTA
• 16.
  UNSAFE QUERIES, EXPRESSIVEPOWER It is possible to write syntactically correct calculus queries that have an infinite number of answers! Such queries are called unsafe . Eg: It is known that every query that can be expressed in relational algebra can be expressed as a safe query in DRC / TRC; the converse is also true. TUSHAR GUPTA
• 17.
  LIMITATIONS OF THE RELATIONAL ALGEBRA / CALCULUS Can not do: Aggregate operations Recursive queries Complex (non-tabular) structures Most of these are expressible in SQL, OQL, XQuery – using other special operators TUSHAR GUPTA
