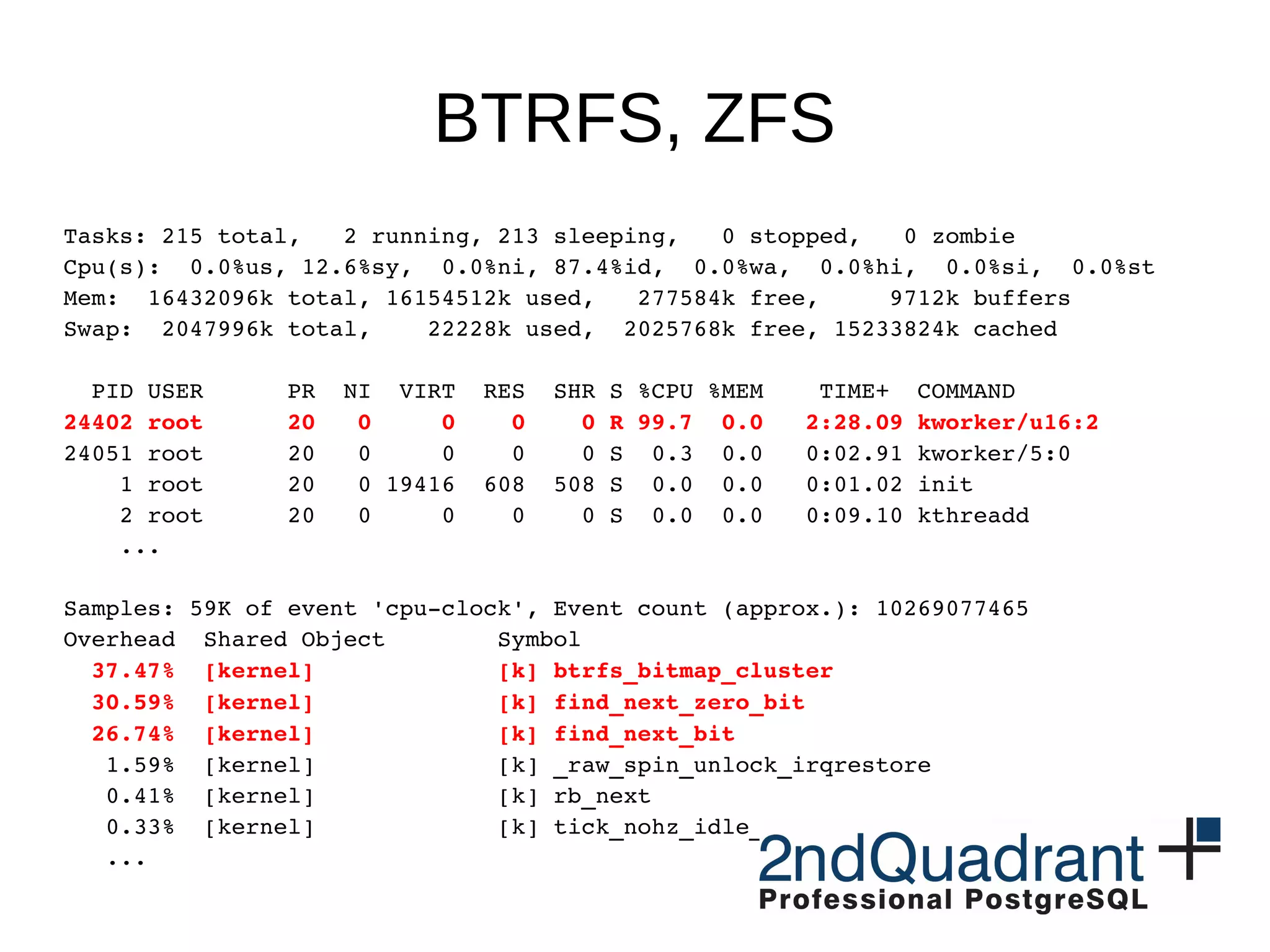

![BTRFS, ZFS Tasks: 215 total, 2 running, 213 sleeping, 0 stopped, 0 zombie Cpu(s): 0.0%us, 12.6%sy, 0.0%ni, 87.4%id, 0.0%wa, 0.0%hi, 0.0%si, 0.0%st Mem: 16432096k total, 16154512k used, 277584k free, 9712k buffers Swap: 2047996k total, 22228k used, 2025768k free, 15233824k cached PID USER PR NI VIRT RES SHR S %CPU %MEM TIME+ COMMAND 24402 root 20 0 0 0 0 R 99.7 0.0 2:28.09 kworker/u16:2 24051 root 20 0 0 0 0 S 0.3 0.0 0:02.91 kworker/5:0 1 root 20 0 19416 608 508 S 0.0 0.0 0:01.02 init 2 root 20 0 0 0 0 S 0.0 0.0 0:09.10 kthreadd ... Samples: 59K of event 'cpuclock', Event count (approx.): 10269077465 Overhead Shared Object Symbol 37.47% [kernel] [k] btrfs_bitmap_cluster 30.59% [kernel] [k] find_next_zero_bit 26.74% [kernel] [k] find_next_bit 1.59% [kernel] [k] _raw_spin_unlock_irqrestore 0.41% [kernel] [k] rb_next 0.33% [kernel] [k] tick_nohz_idle_exit ...](https://image.slidesharecdn.com/filesystem-benchmark-cs-160208184624/75/PostgreSQL-na-EXT4-XFS-BTRFS-a-ZFS-FOSDEM-PgDay-2016-46-2048.jpg)
PostgreSQL na EXT4, XFS, BTRFS a ZFS / FOSDEM PgDay 2016

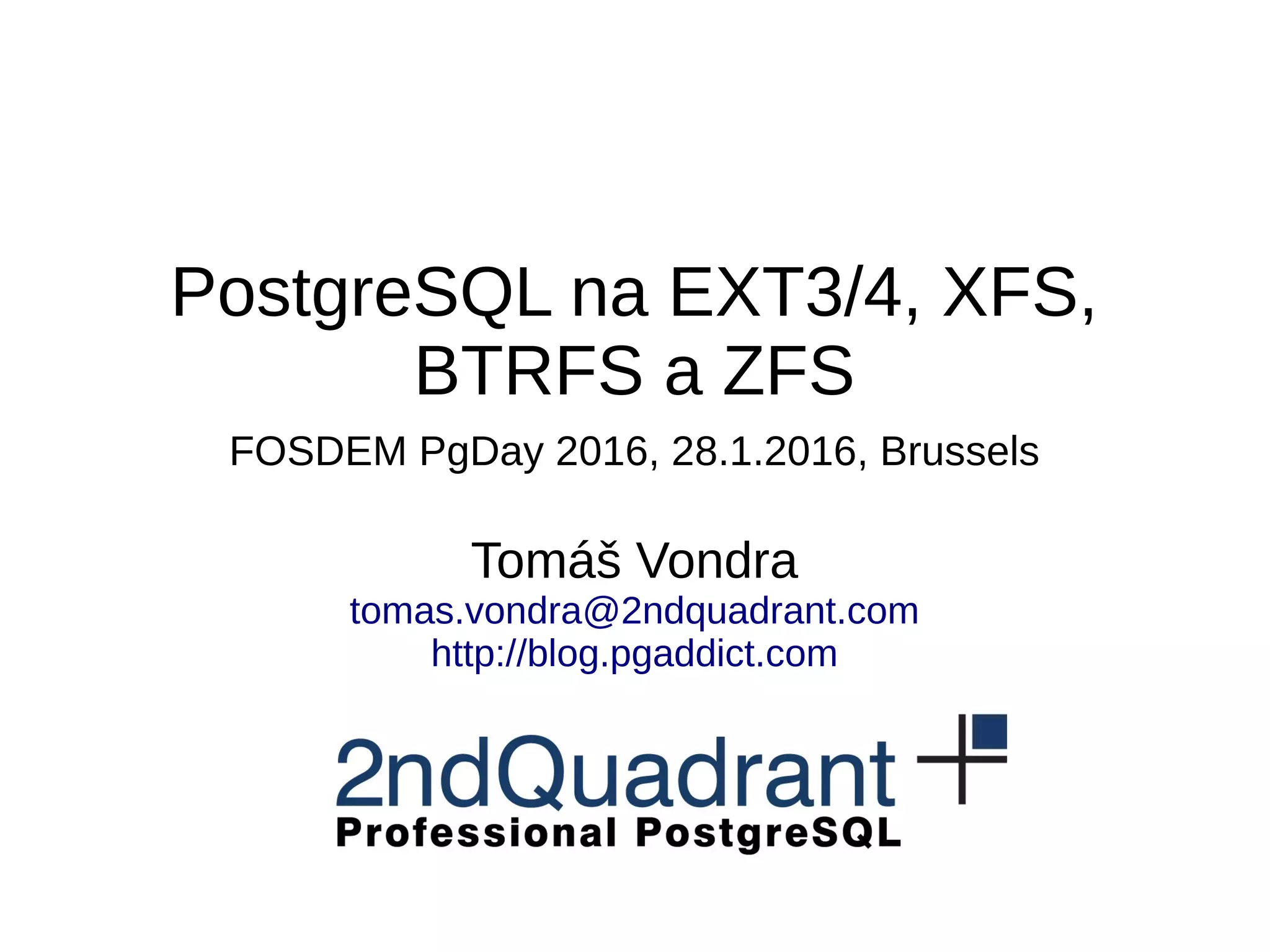

- 1. PostgreSQL na EXT3/4,XFS, BTRFS a ZFS FOSDEM PgDay 2016, 28.1.2016, Brussels Tomáš Vondra tomas.vondra@2ndquadrant.com http://blog.pgaddict.com
- 2. not a filesystemengineer database engineer

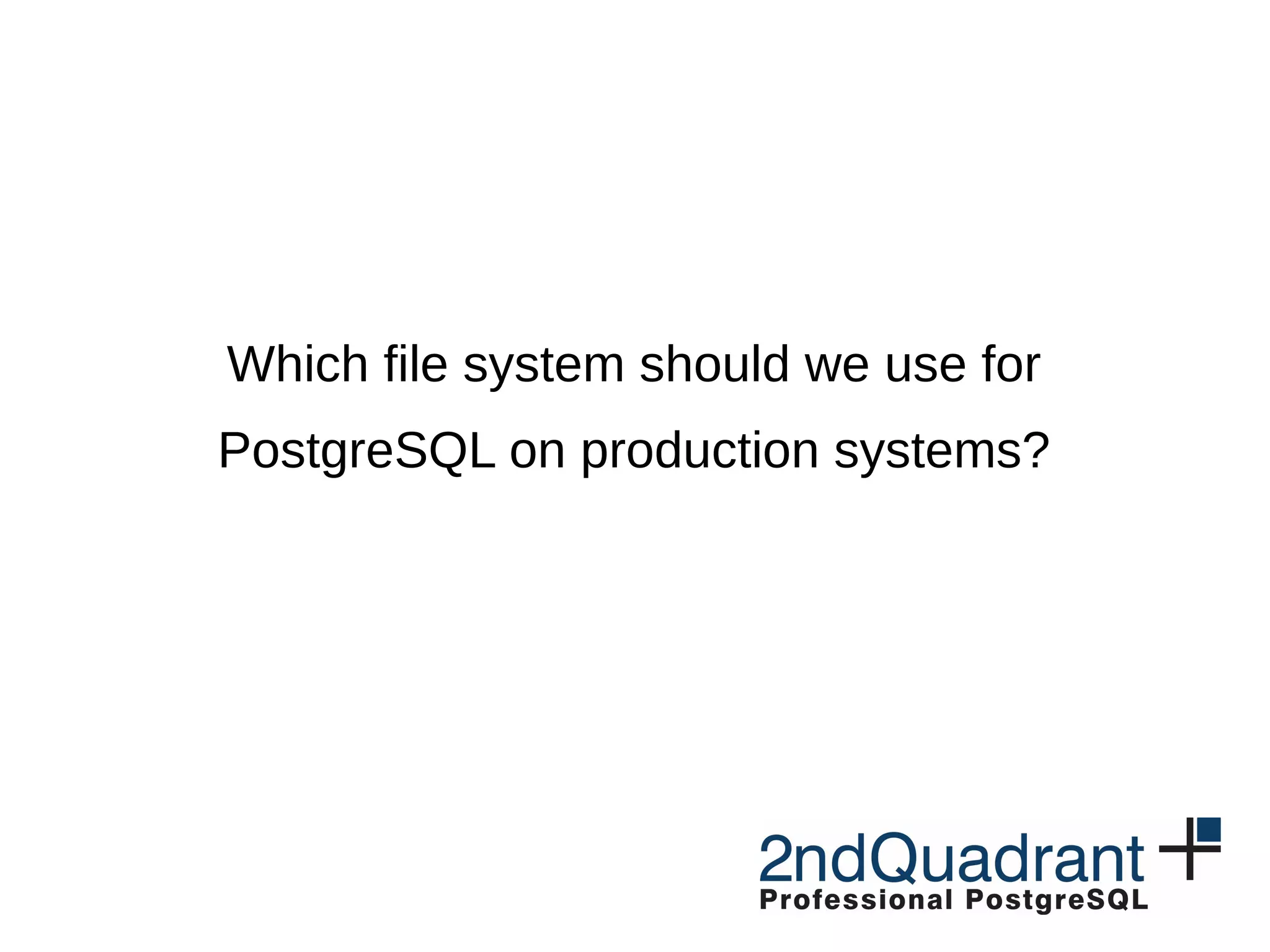

- 3. Which file systemshould we use for PostgreSQL on production systems?
- 4. According to ourbenchmarks from 2003, the best file system is ...

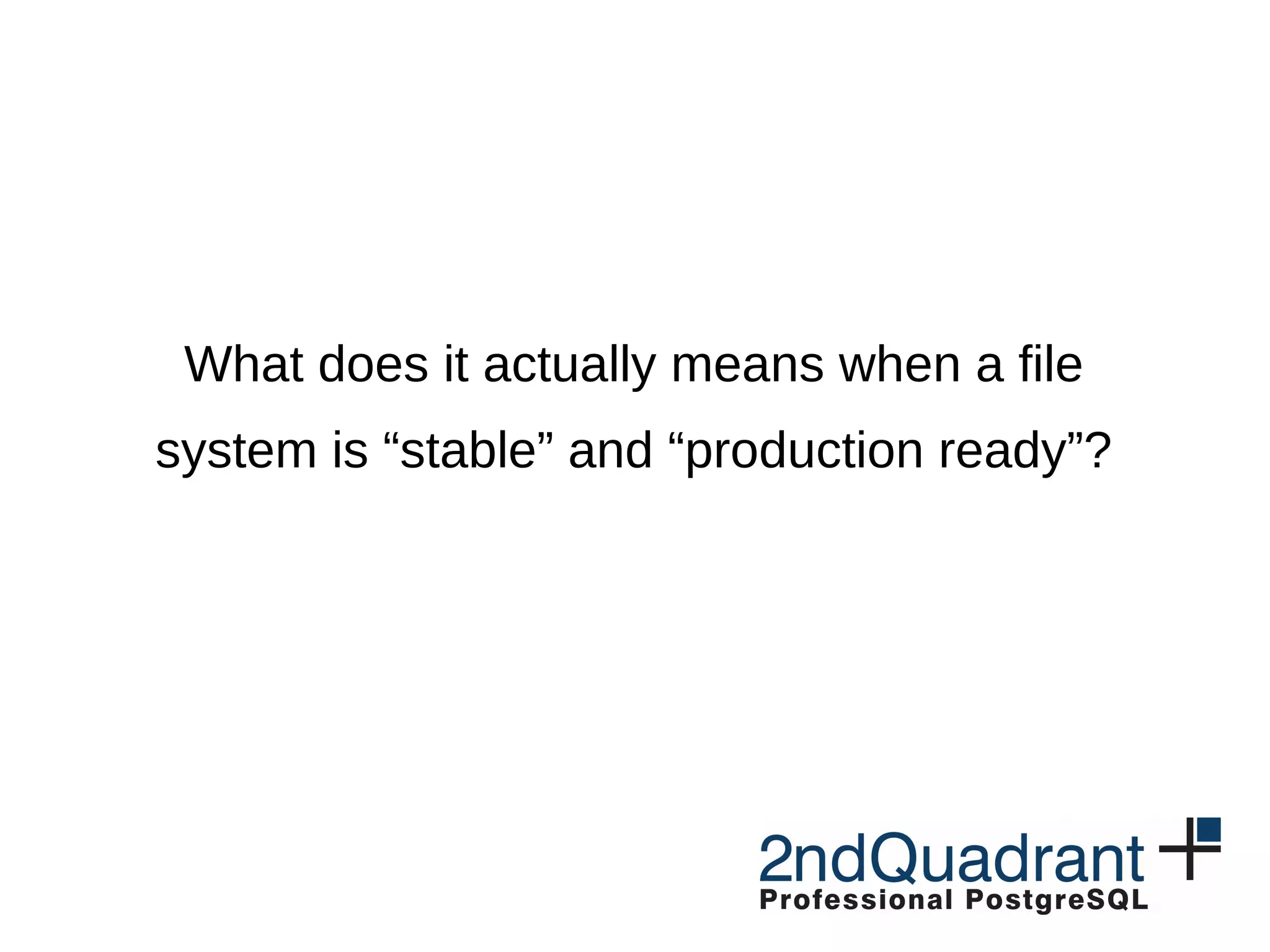

- 5. What does itactually means when a file system is “stable” and “production ready”?

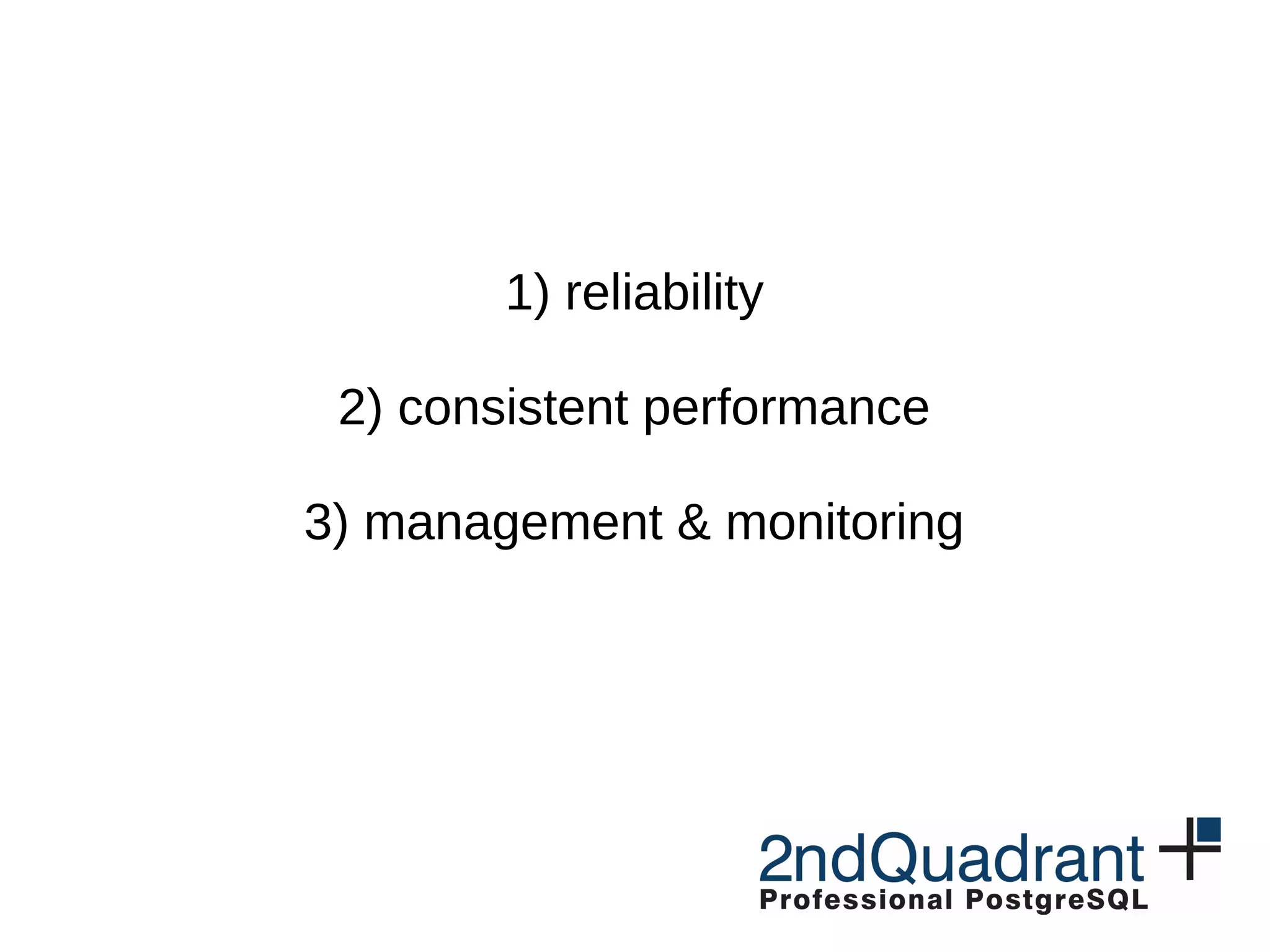

- 6. 1) reliability 2) consistentperformance 3) management & monitoring

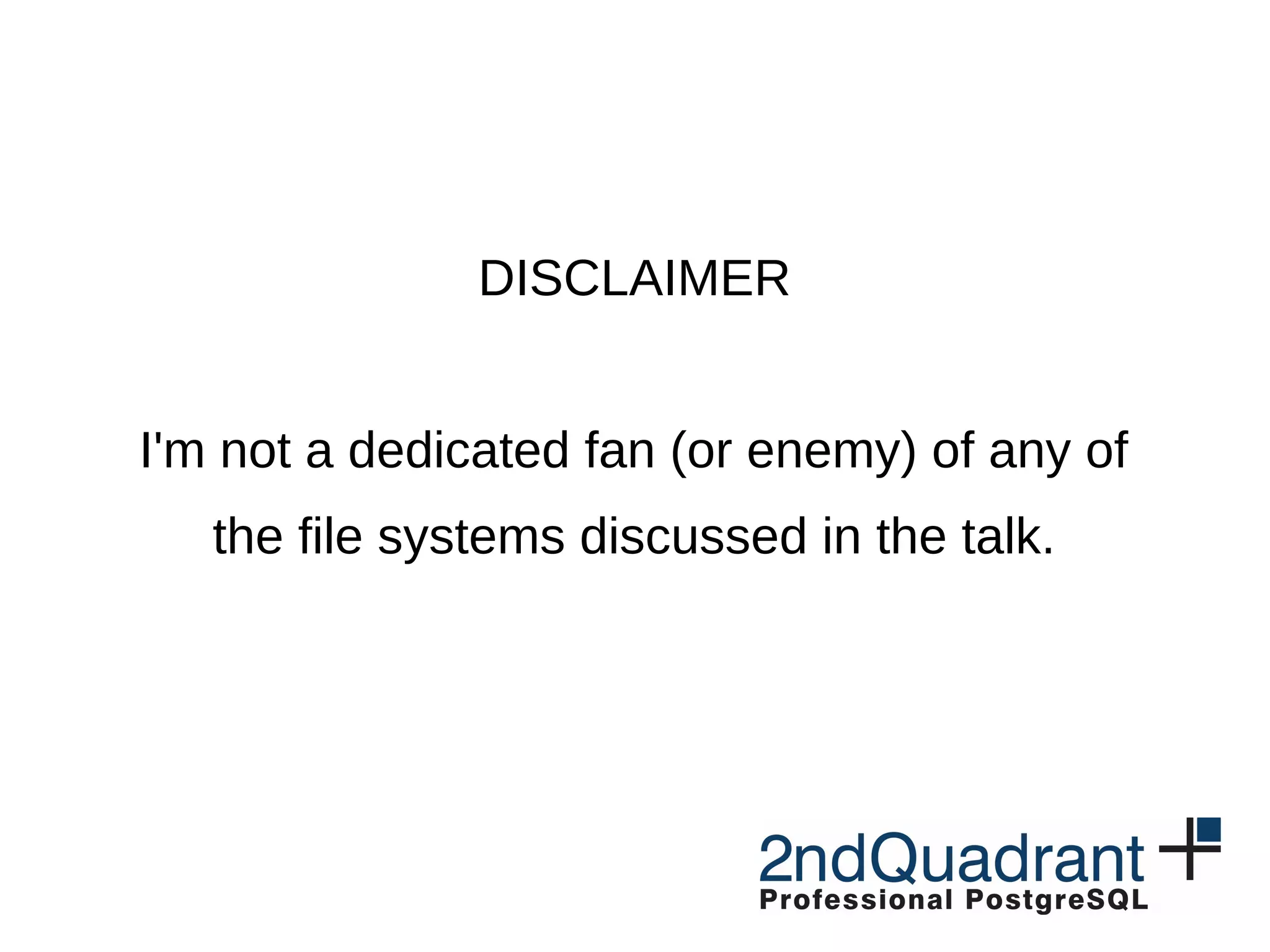

- 7. DISCLAIMER I'm not adedicated fan (or enemy) of any of the file systems discussed in the talk.
- 8.
- 9.

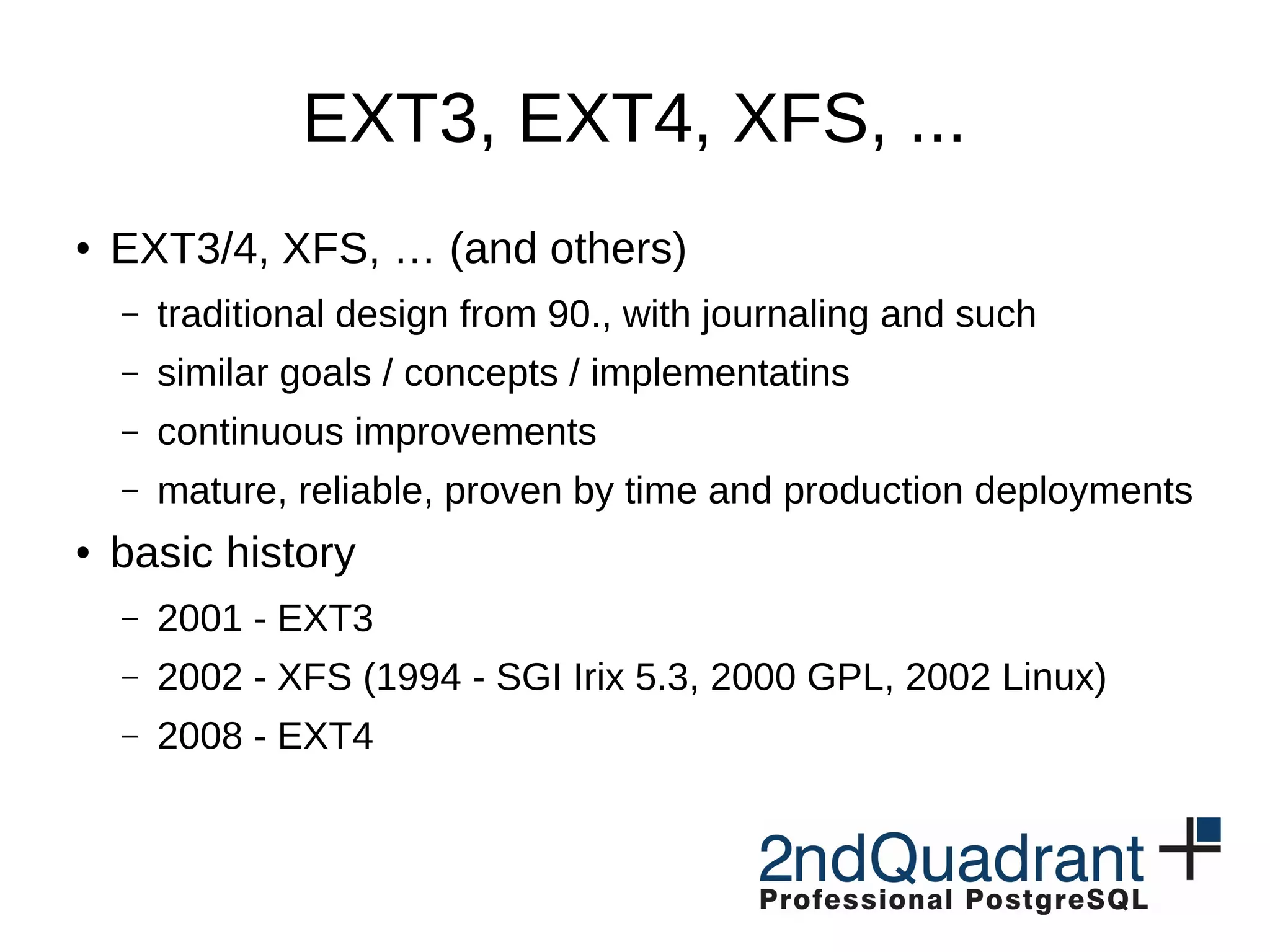

- 10. EXT3, EXT4, XFS,... ● EXT3/4, XFS, … (and others) – traditional design from 90., with journaling and such – similar goals / concepts / implementatins – continuous improvements – mature, reliable, proven by time and production deployments ● basic history – 2001 - EXT3 – 2002 - XFS (1994 - SGI Irix 5.3, 2000 GPL, 2002 Linux) – 2008 - EXT4

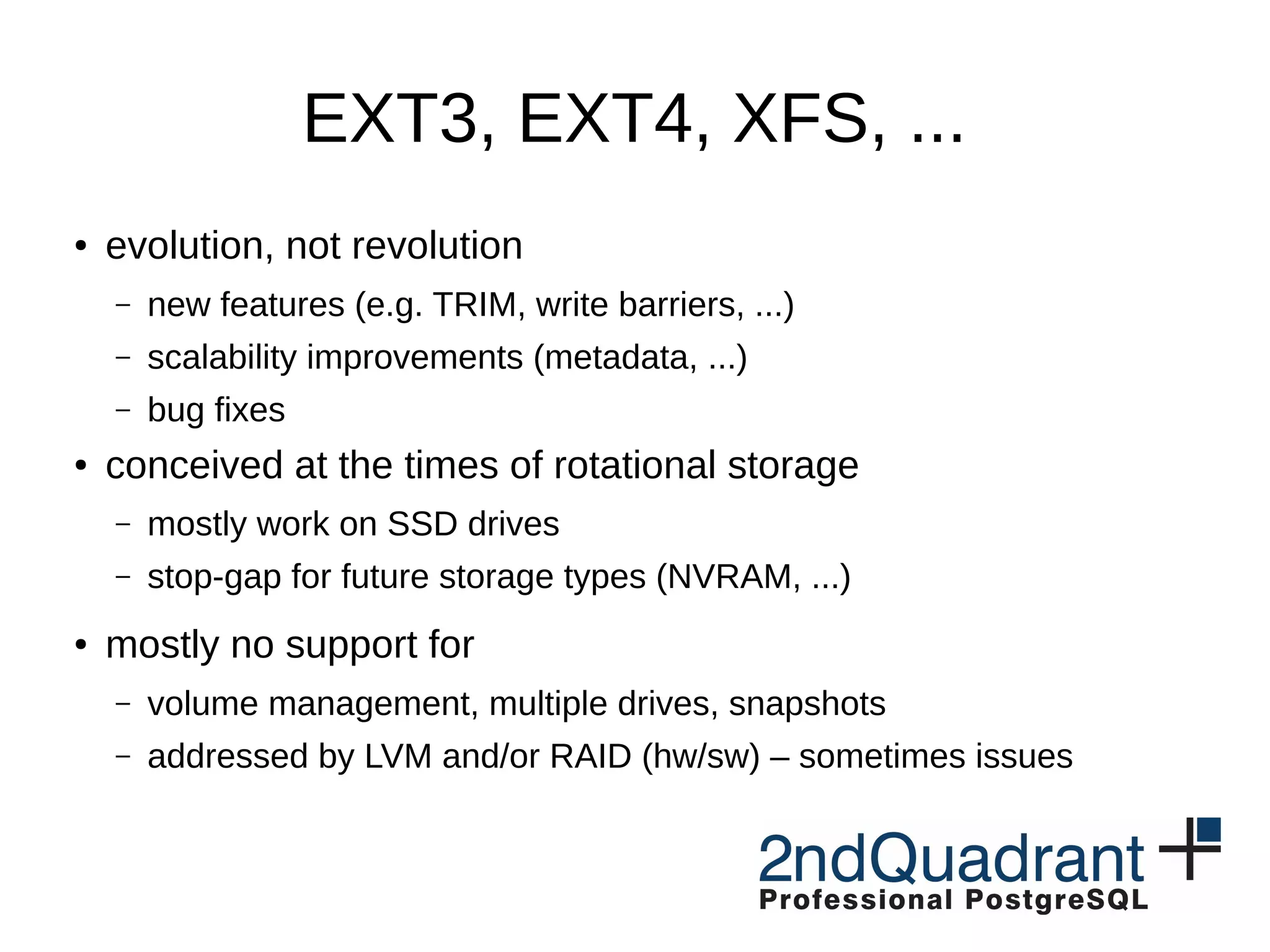

- 11. EXT3, EXT4, XFS,... ● evolution, not revolution – new features (e.g. TRIM, write barriers, ...) – scalability improvements (metadata, ...) – bug fixes ● conceived at the times of rotational storage – mostly work on SSD drives – stop-gap for future storage types (NVRAM, ...) ● mostly no support for – volume management, multiple drives, snapshots – addressed by LVM and/or RAID (hw/sw) – sometimes issues

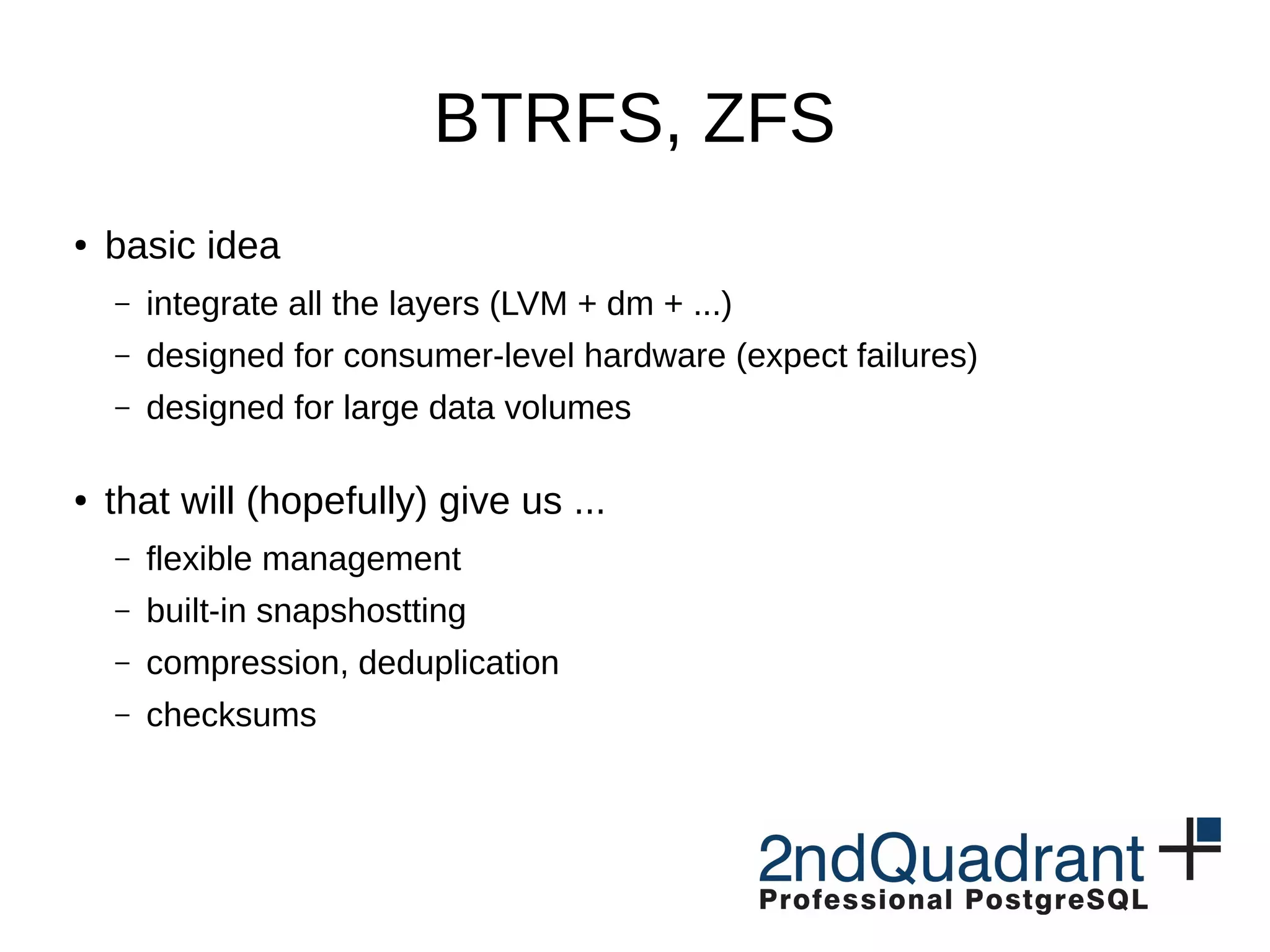

- 12. BTRFS, ZFS ● basicidea – integrate all the layers (LVM + dm + ...) – designed for consumer-level hardware (expect failures) – designed for large data volumes ● that will (hopefully) give us ... – flexible management – built-in snapshostting – compression, deduplication – checksums

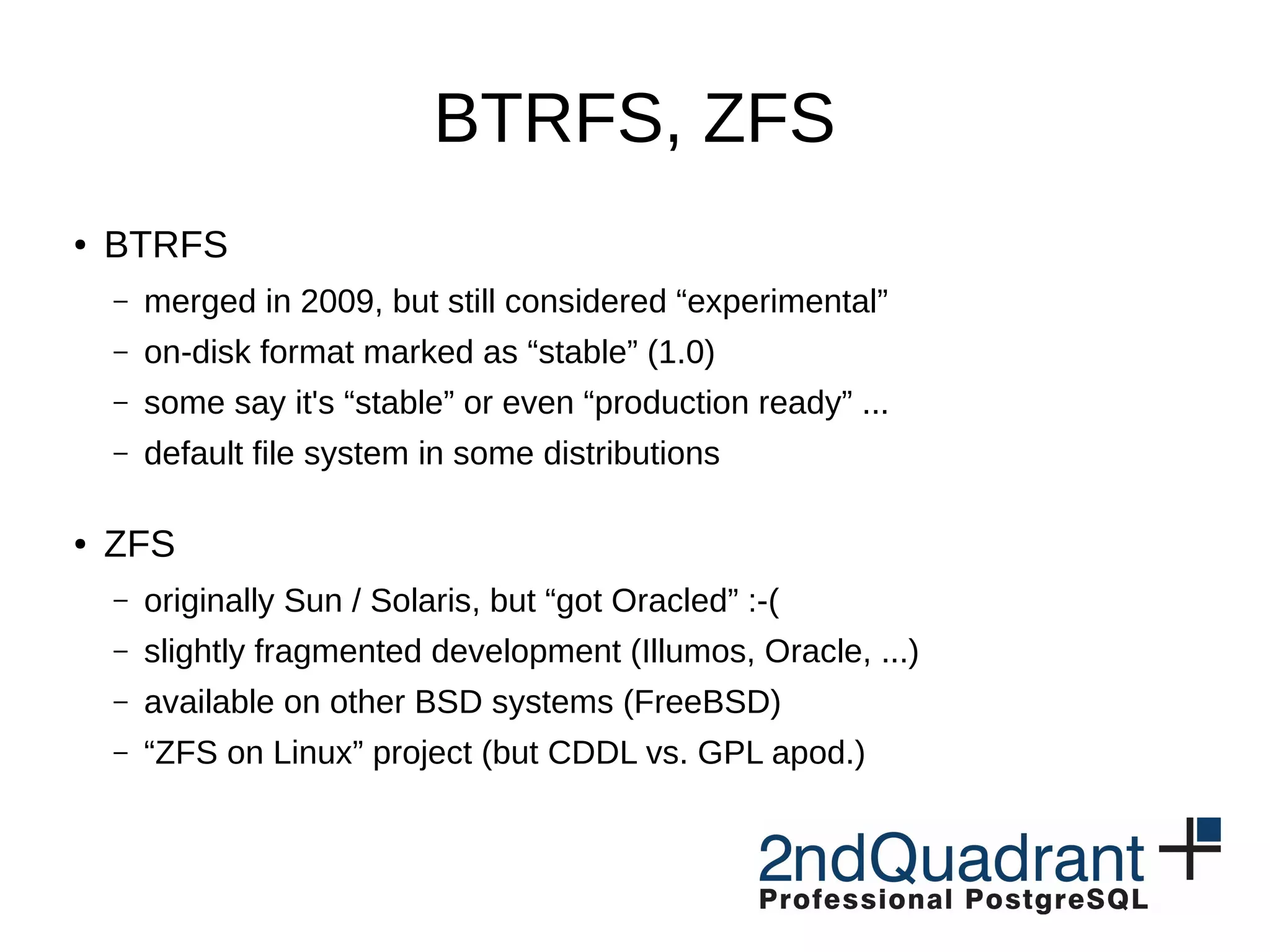

- 13. BTRFS, ZFS ● BTRFS –merged in 2009, but still considered “experimental” – on-disk format marked as “stable” (1.0) – some say it's “stable” or even “production ready” ... – default file system in some distributions ● ZFS – originally Sun / Solaris, but “got Oracled” :-( – slightly fragmented development (Illumos, Oracle, ...) – available on other BSD systems (FreeBSD) – “ZFS on Linux” project (but CDDL vs. GPL apod.)
- 14.

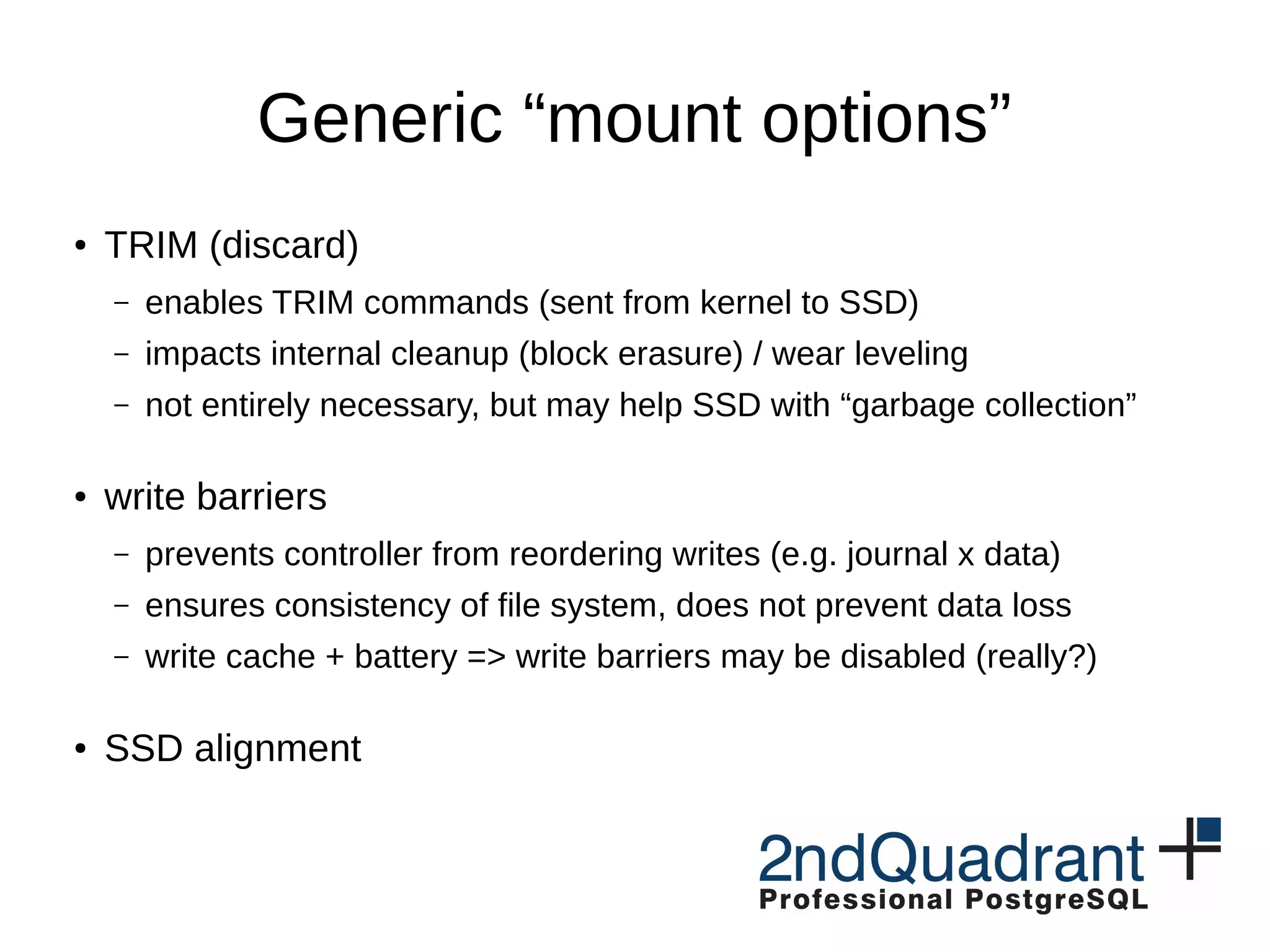

- 15. Generic “mount options” ●TRIM (discard) – enables TRIM commands (sent from kernel to SSD) – impacts internal cleanup (block erasure) / wear leveling – not entirely necessary, but may help SSD with “garbage collection” ● write barriers – prevents controller from reordering writes (e.g. journal x data) – ensures consistency of file system, does not prevent data loss – write cache + battery => write barriers may be disabled (really?) ● SSD alignment
- 16.

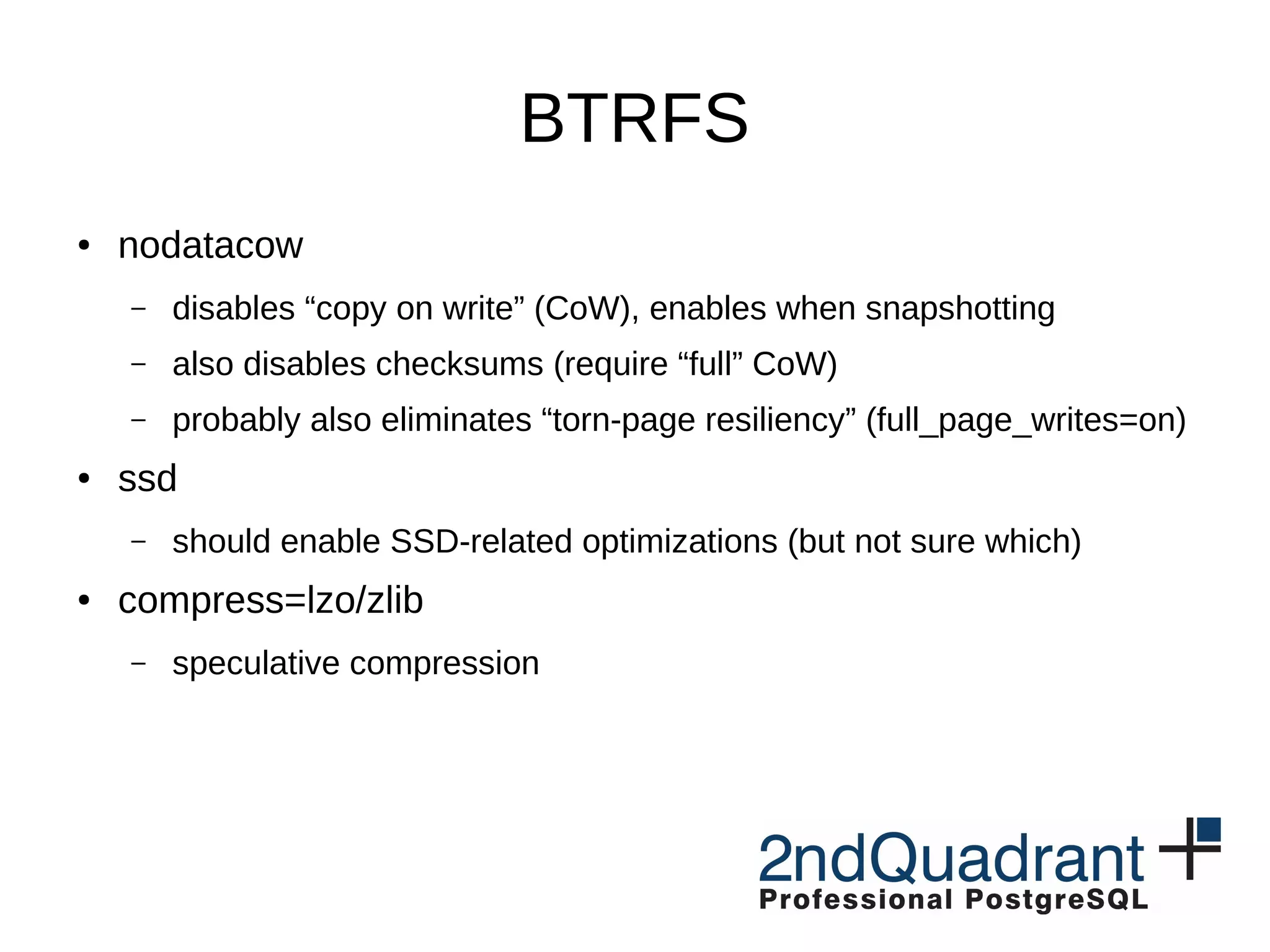

- 17. BTRFS ● nodatacow – disables“copy on write” (CoW), enables when snapshotting – also disables checksums (require “full” CoW) – probably also eliminates “torn-page resiliency” (full_page_writes=on) ● ssd – should enable SSD-related optimizations (but not sure which) ● compress=lzo/zlib – speculative compression

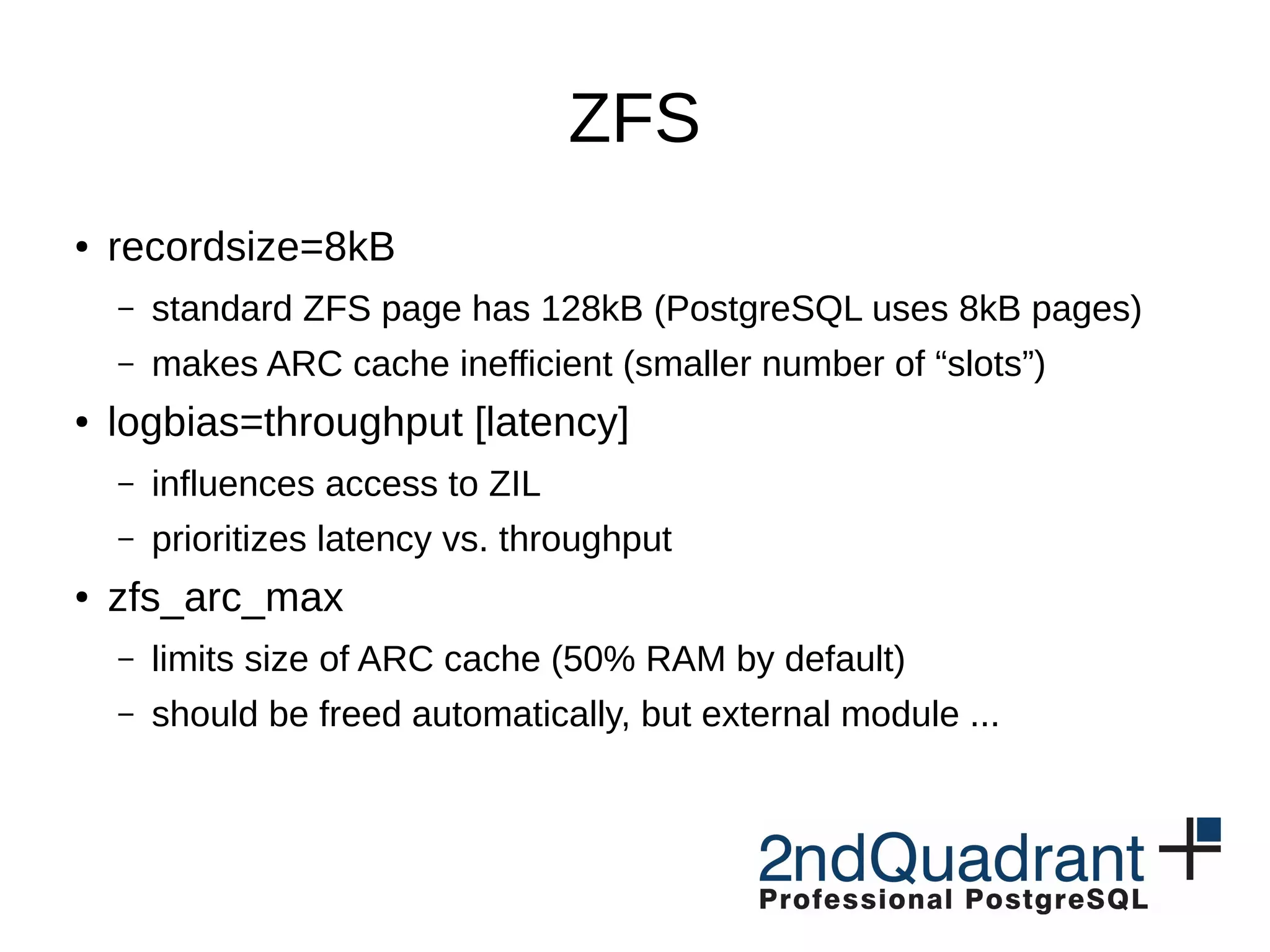

- 18. ZFS ● recordsize=8kB – standardZFS page has 128kB (PostgreSQL uses 8kB pages) – makes ARC cache inefficient (smaller number of “slots”) ● logbias=throughput [latency] – influences access to ZIL – prioritizes latency vs. throughput ● zfs_arc_max – limits size of ARC cache (50% RAM by default) – should be freed automatically, but external module ...
- 19.

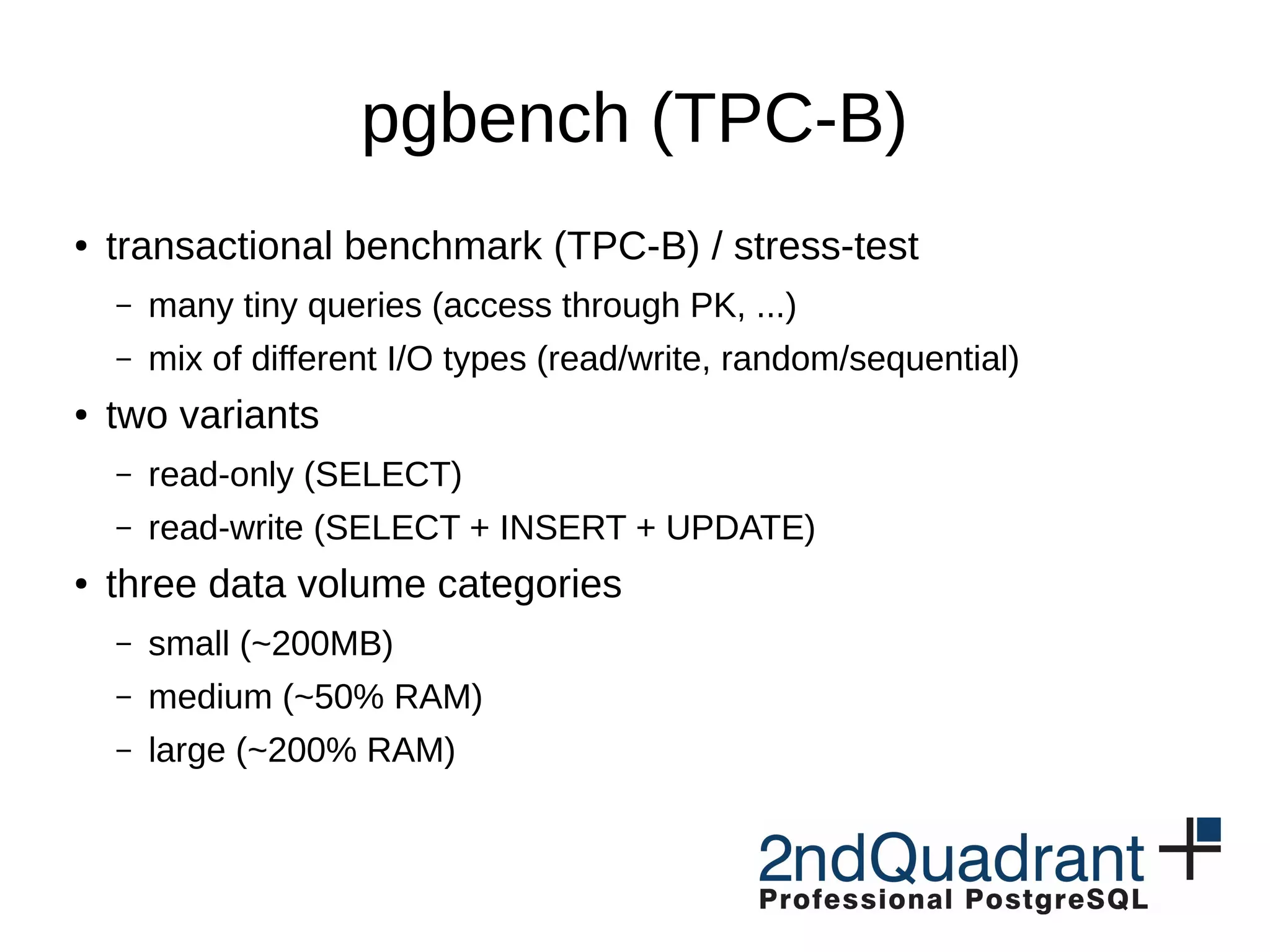

- 20. pgbench (TPC-B) ● transactionalbenchmark (TPC-B) / stress-test – many tiny queries (access through PK, ...) – mix of different I/O types (read/write, random/sequential) ● two variants – read-only (SELECT) – read-write (SELECT + INSERT + UPDATE) ● three data volume categories – small (~200MB) – medium (~50% RAM) – large (~200% RAM)

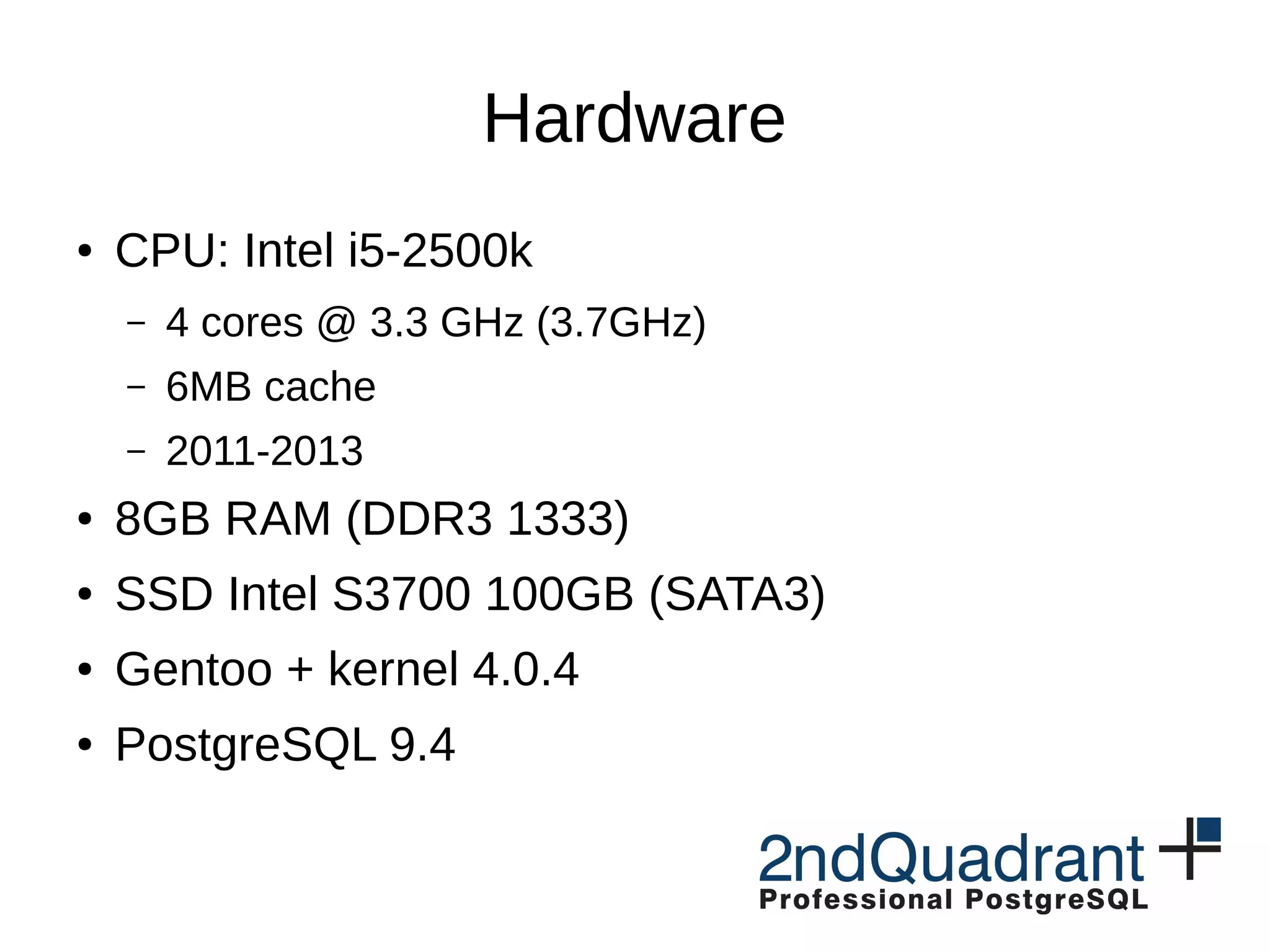

- 21. Hardware ● CPU: Inteli5-2500k – 4 cores @ 3.3 GHz (3.7GHz) – 6MB cache – 2011-2013 ● 8GB RAM (DDR3 1333) ● SSD Intel S3700 100GB (SATA3) ● Gentoo + kernel 4.0.4 ● PostgreSQL 9.4

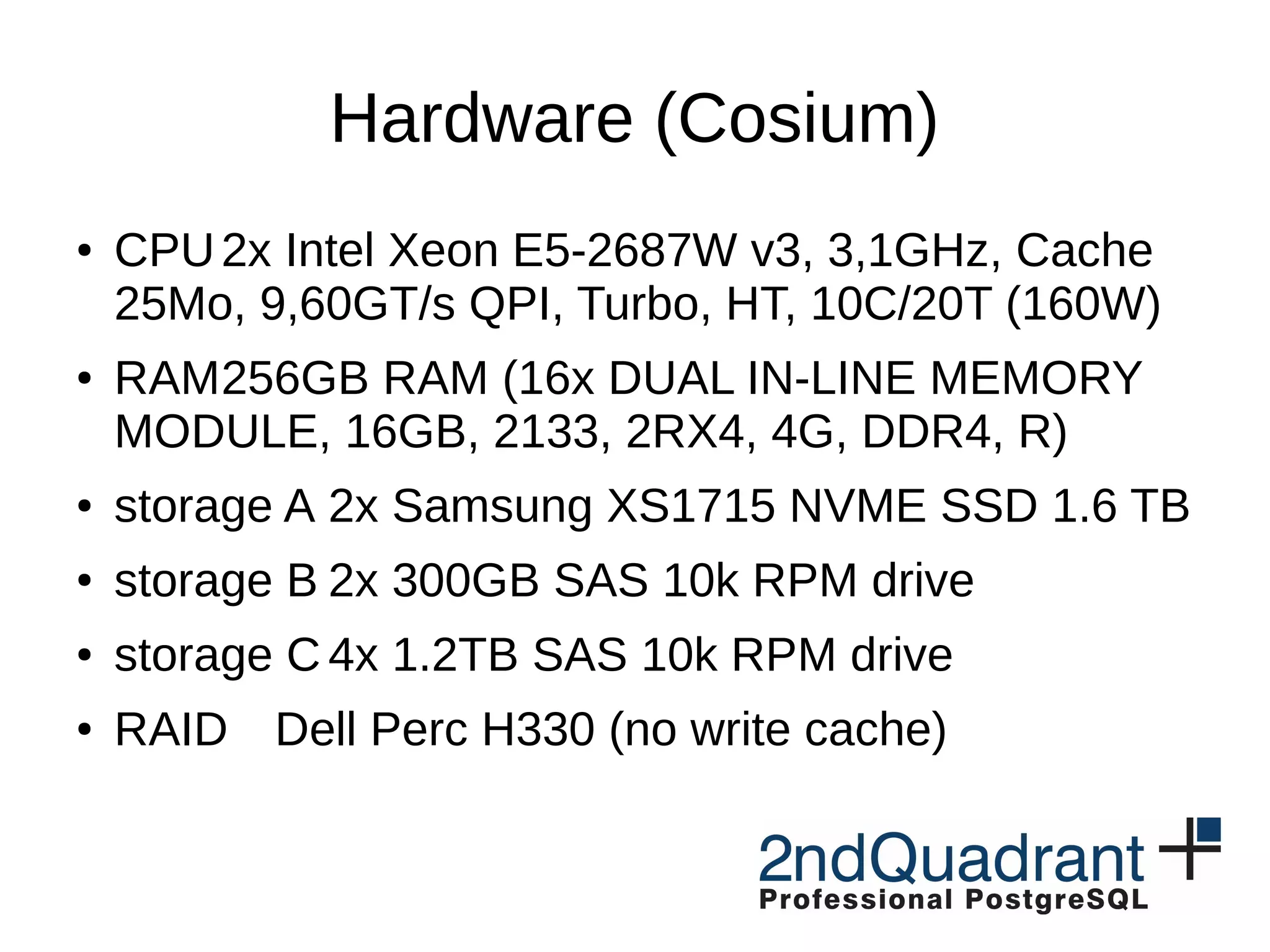

- 22. Hardware (Cosium) ● CPU2xIntel Xeon E5-2687W v3, 3,1GHz, Cache 25Mo, 9,60GT/s QPI, Turbo, HT, 10C/20T (160W) ● RAM256GB RAM (16x DUAL IN-LINE MEMORY MODULE, 16GB, 2133, 2RX4, 4G, DDR4, R) ● storage A 2x Samsung XS1715 NVME SSD 1.6 TB ● storage B 2x 300GB SAS 10k RPM drive ● storage C 4x 1.2TB SAS 10k RPM drive ● RAID Dell Perc H330 (no write cache)

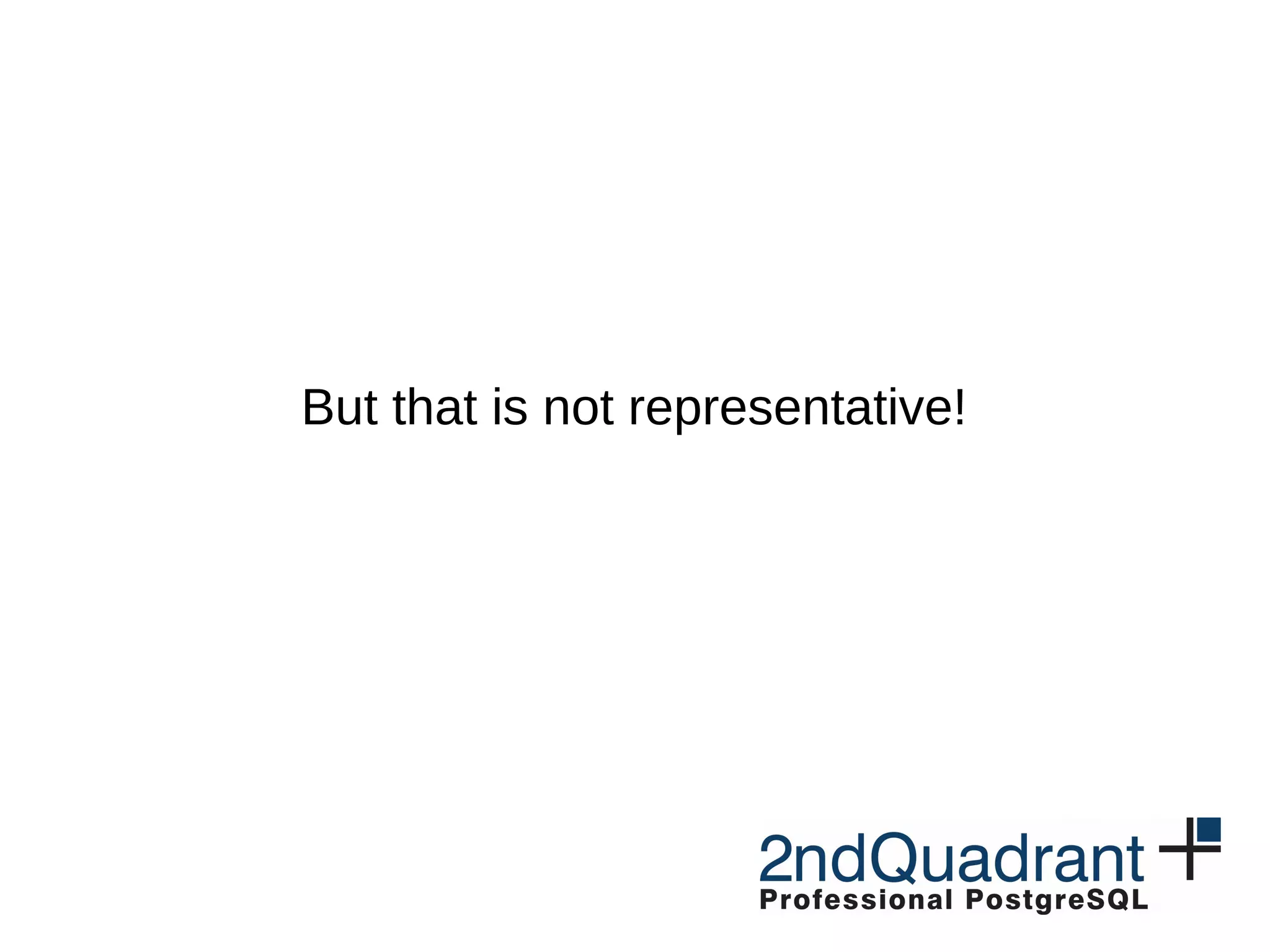

- 23. But that isnot representative!
- 24.

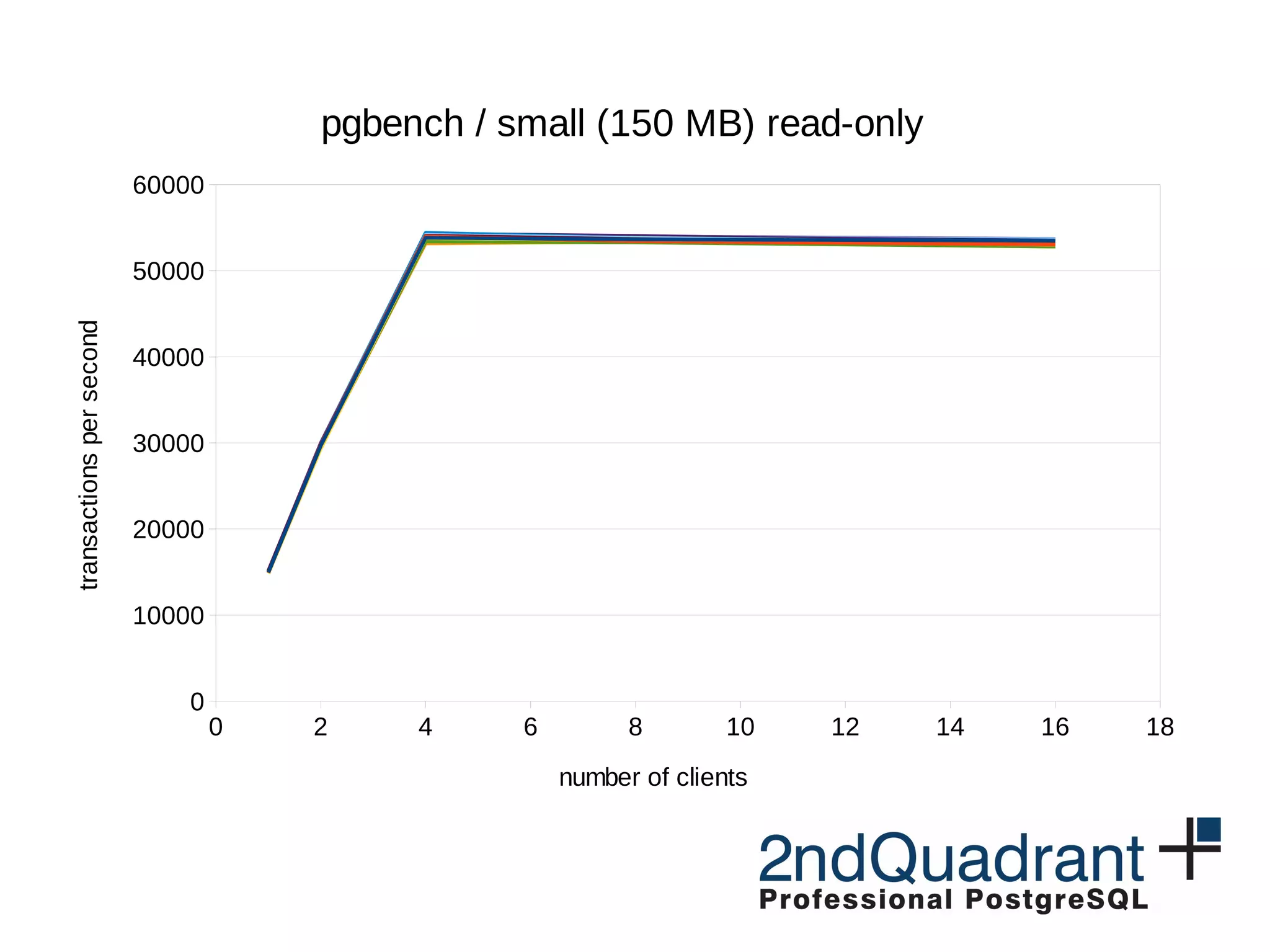

- 25. 0 2 46 8 10 12 14 16 18 0 10000 20000 30000 40000 50000 60000 pgbench / small (150 MB) read-only number of clients transactionspersecond

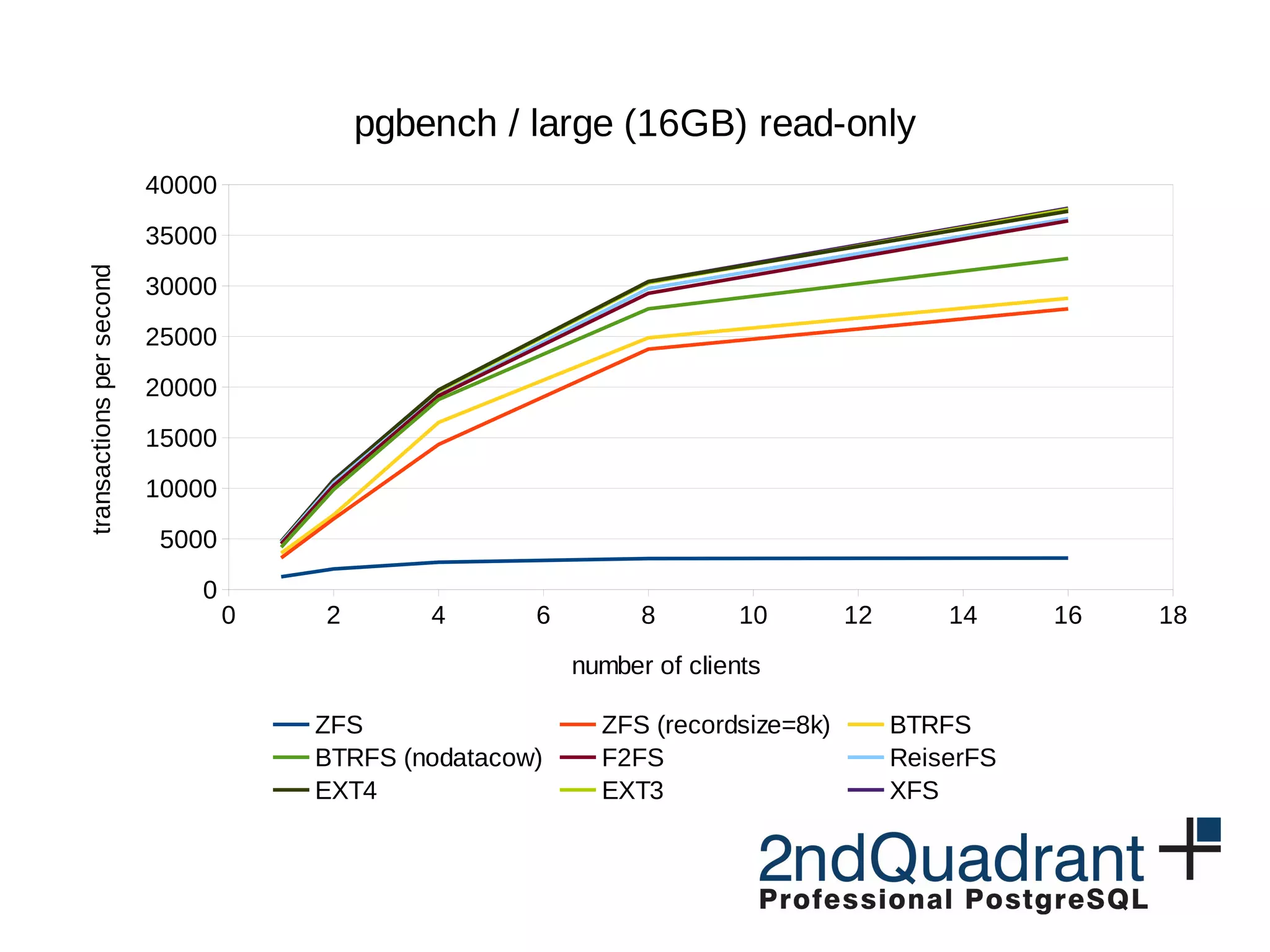

- 26. 0 2 46 8 10 12 14 16 18 0 5000 10000 15000 20000 25000 30000 35000 40000 pgbench / large (16GB) read-only ZFS ZFS (recordsize=8k) BTRFS BTRFS (nodatacow) F2FS ReiserFS EXT4 EXT3 XFS number of clients transactionspersecond
- 27.

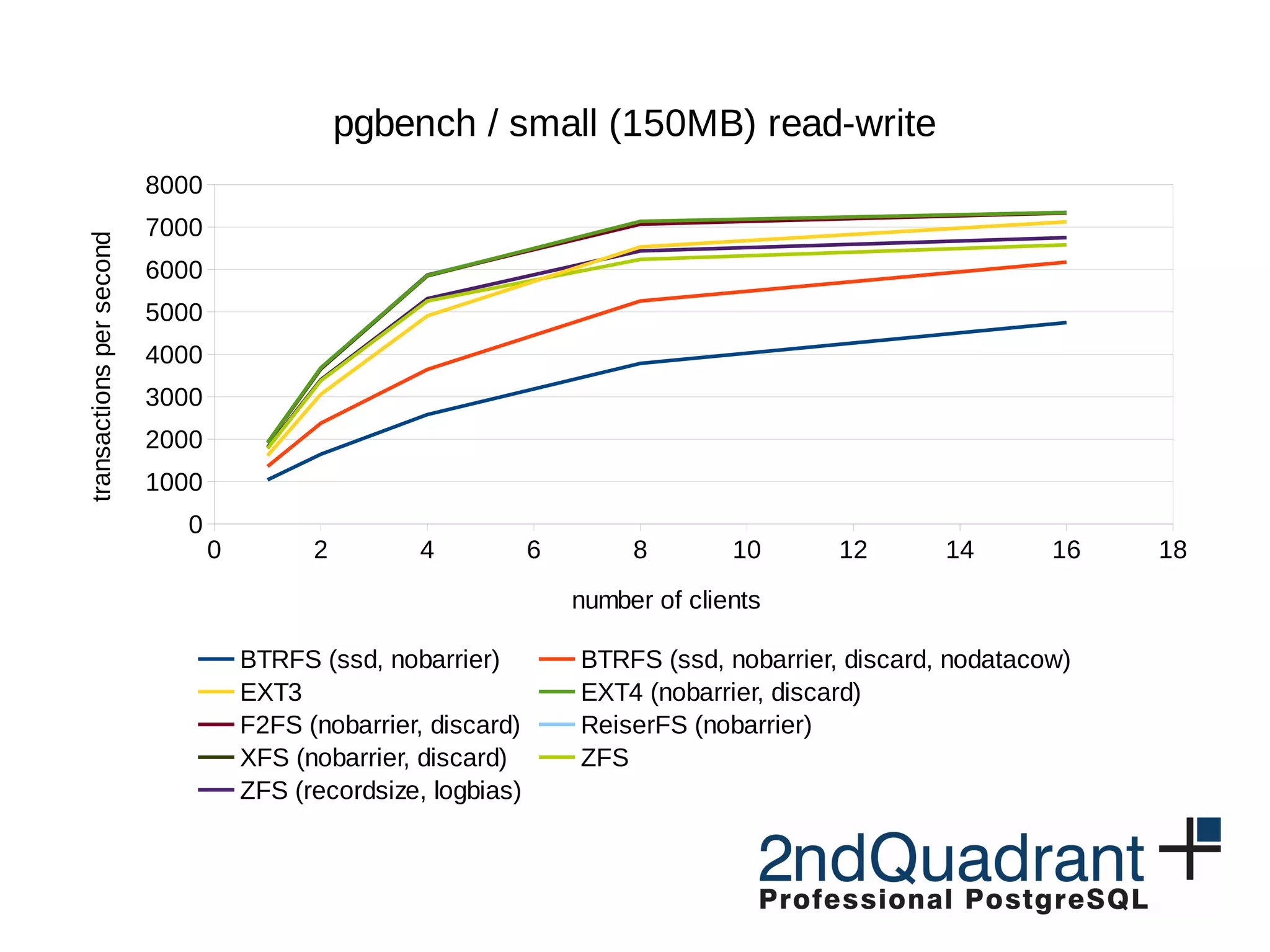

- 28. 0 2 46 8 10 12 14 16 18 0 1000 2000 3000 4000 5000 6000 7000 8000 pgbench / small (150MB) read-write BTRFS (ssd, nobarrier) BTRFS (ssd, nobarrier, discard, nodatacow) EXT3 EXT4 (nobarrier, discard) F2FS (nobarrier, discard) ReiserFS (nobarrier) XFS (nobarrier, discard) ZFS ZFS (recordsize, logbias) number of clients transactionspersecond

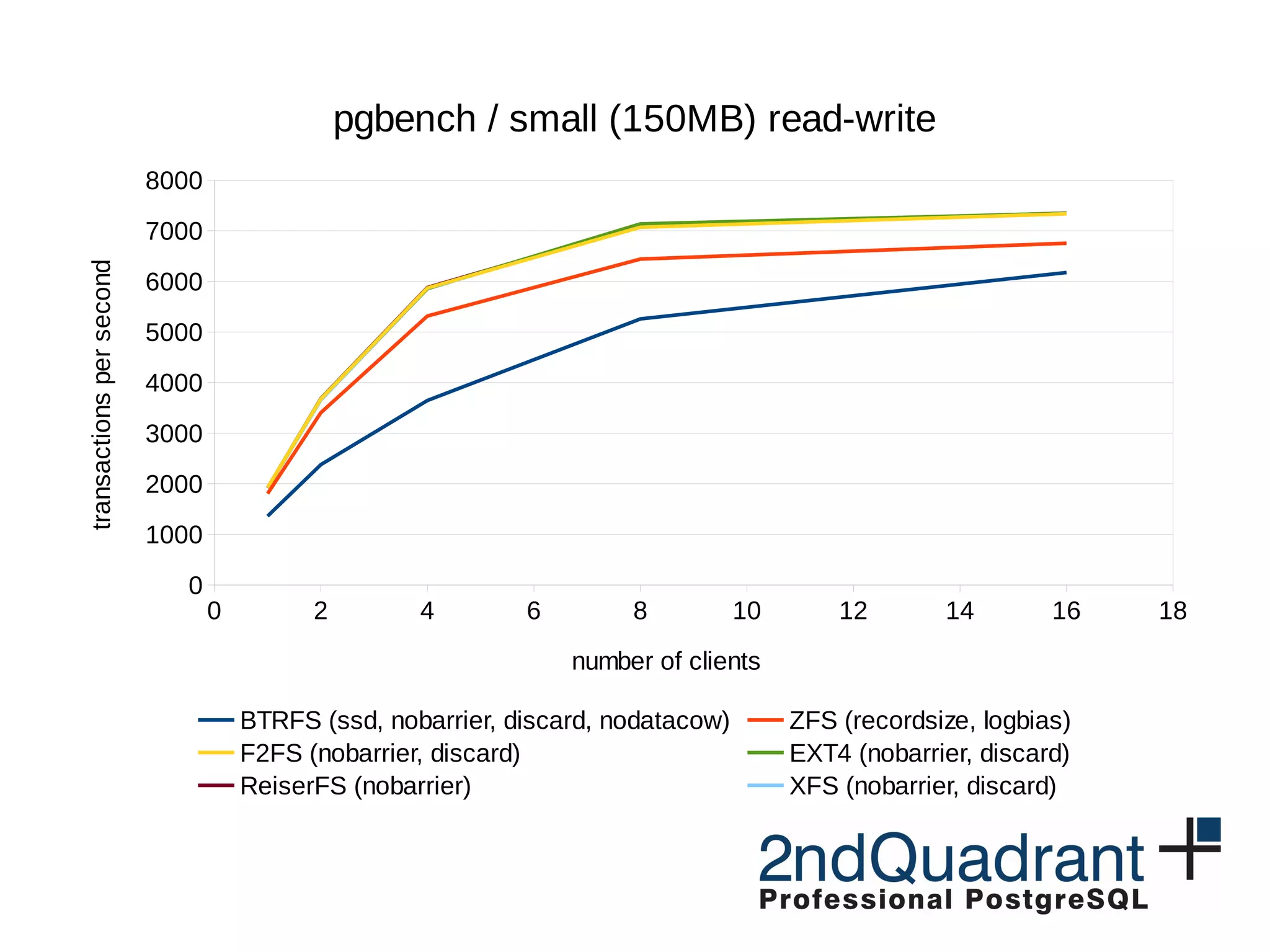

- 29. 0 2 46 8 10 12 14 16 18 0 1000 2000 3000 4000 5000 6000 7000 8000 pgbench / small (150MB) read-write BTRFS (ssd, nobarrier, discard, nodatacow) ZFS (recordsize, logbias) F2FS (nobarrier, discard) EXT4 (nobarrier, discard) ReiserFS (nobarrier) XFS (nobarrier, discard) number of clients transactionspersecond

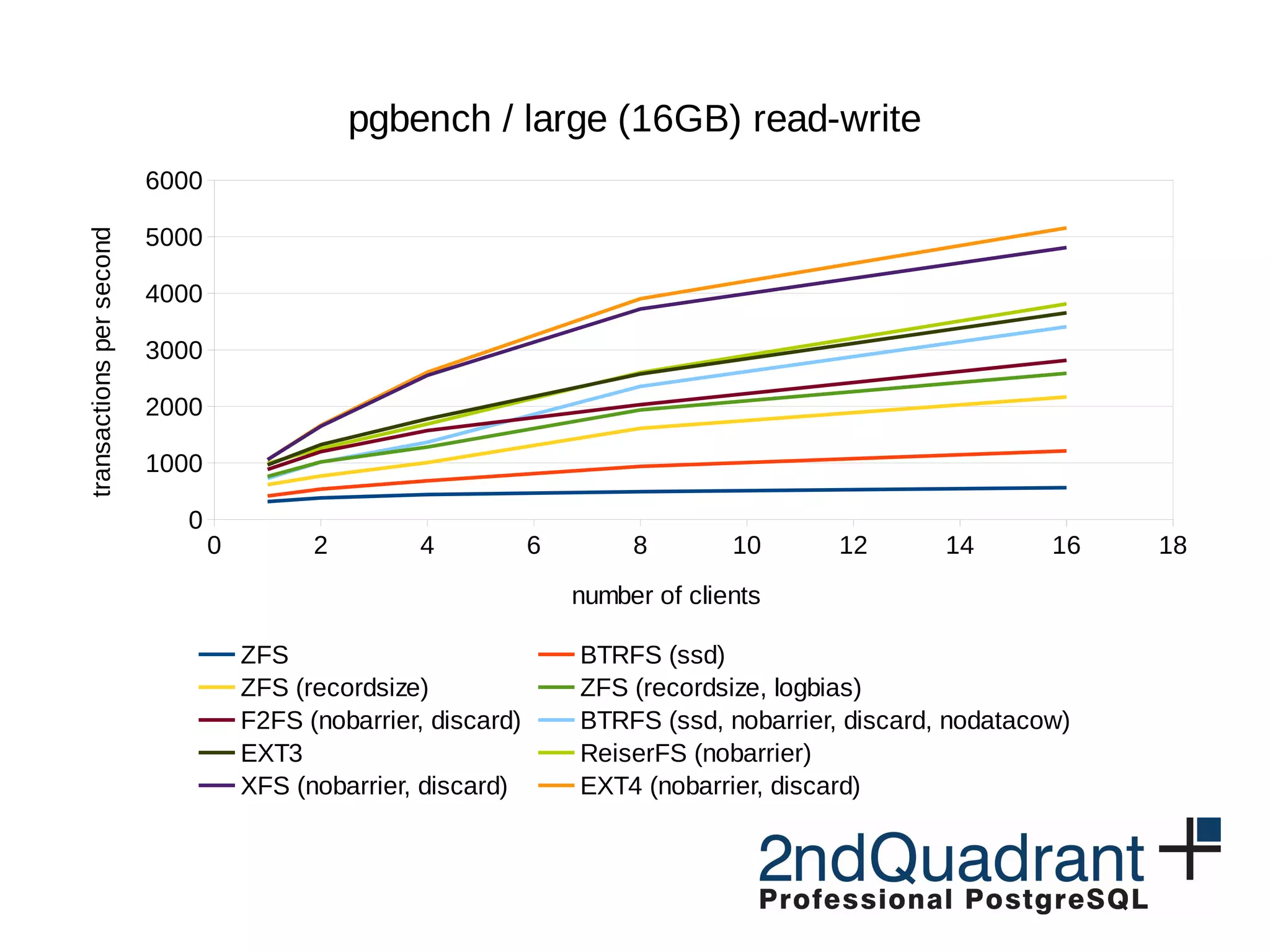

- 30. 0 2 46 8 10 12 14 16 18 0 1000 2000 3000 4000 5000 6000 pgbench / large (16GB) read-write ZFS BTRFS (ssd) ZFS (recordsize) ZFS (recordsize, logbias) F2FS (nobarrier, discard) BTRFS (ssd, nobarrier, discard, nodatacow) EXT3 ReiserFS (nobarrier) XFS (nobarrier, discard) EXT4 (nobarrier, discard) number of clients transactionspersecond

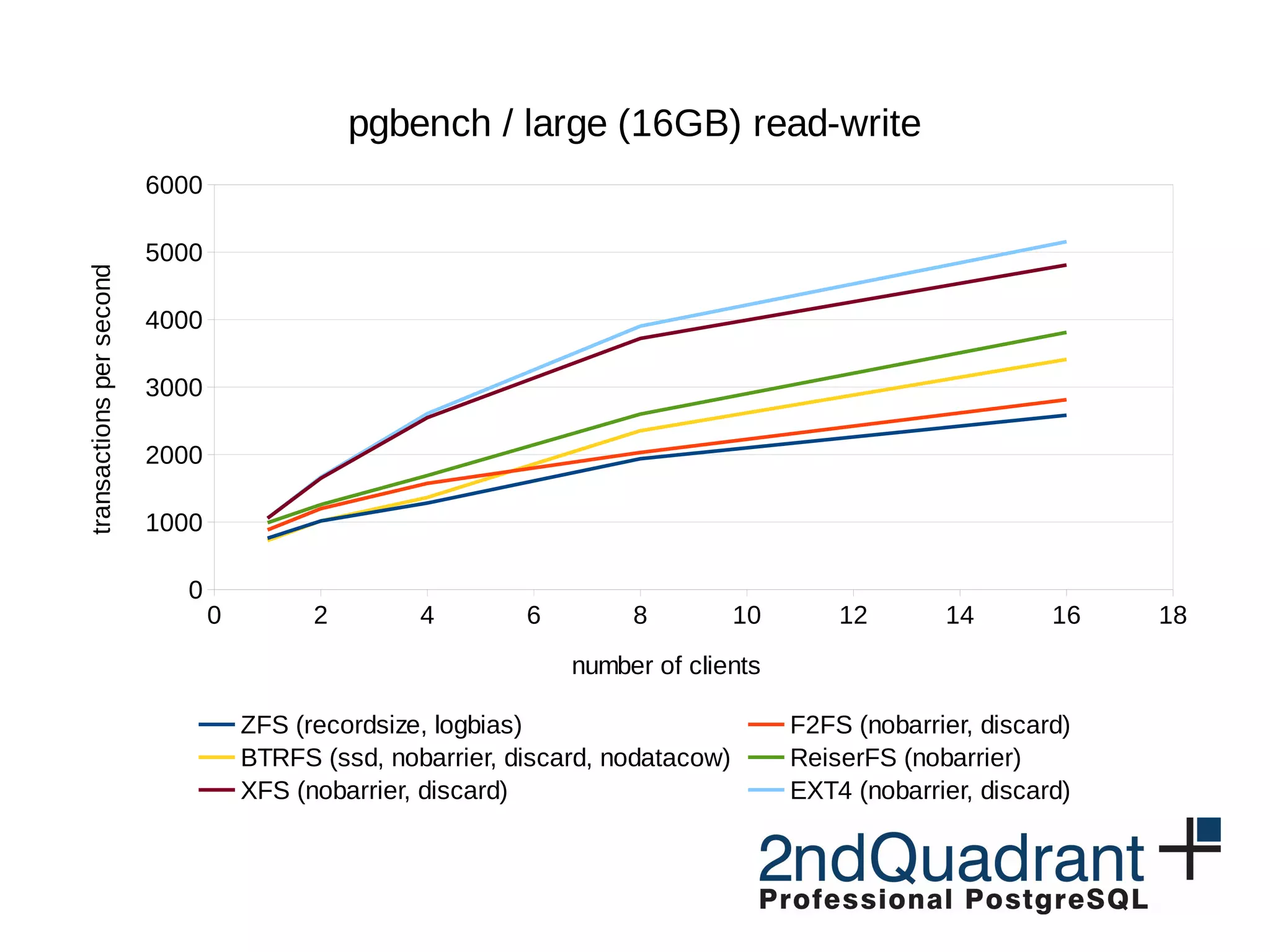

- 31. 0 2 46 8 10 12 14 16 18 0 1000 2000 3000 4000 5000 6000 pgbench / large (16GB) read-write ZFS (recordsize, logbias) F2FS (nobarrier, discard) BTRFS (ssd, nobarrier, discard, nodatacow) ReiserFS (nobarrier) XFS (nobarrier, discard) EXT4 (nobarrier, discard) number of clients transactionspersecond

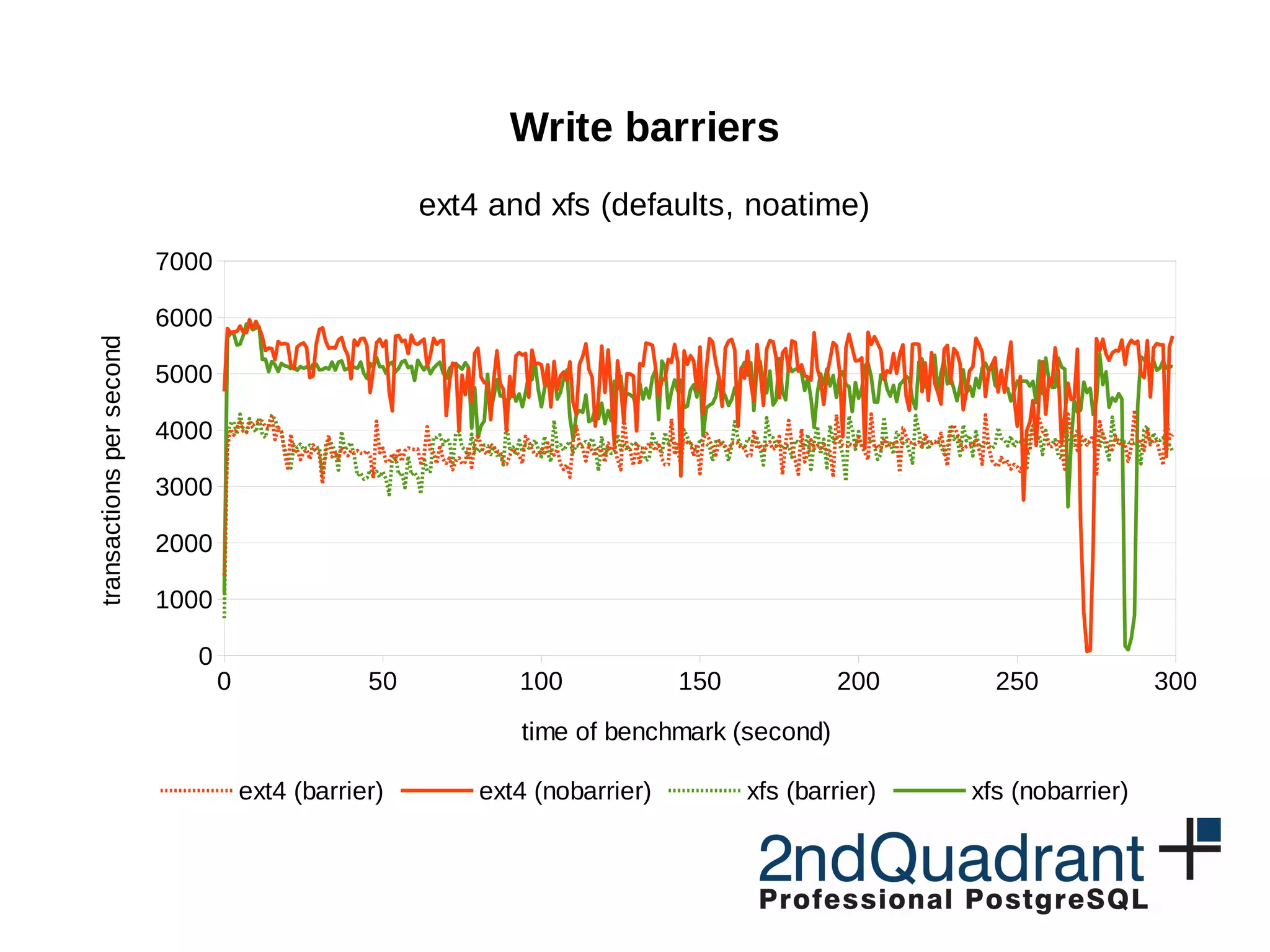

- 32. 0 50 100150 200 250 300 0 1000 2000 3000 4000 5000 6000 7000 Write barriers ext4 and xfs (defaults, noatime) ext4 (barrier) ext4 (nobarrier) xfs (barrier) xfs (nobarrier) time of benchmark (second) transactionspersecond
- 33.

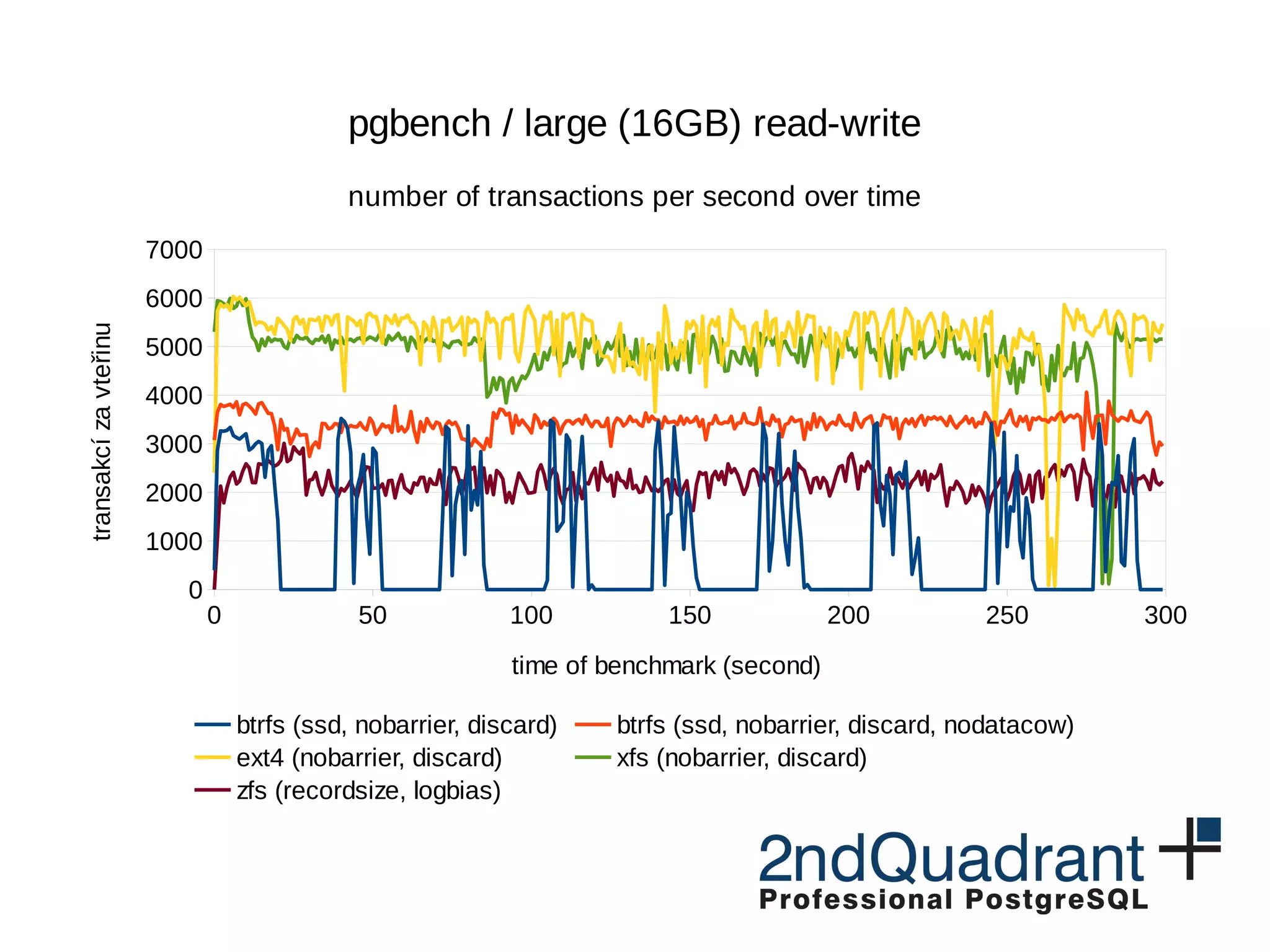

- 34. 0 50 100150 200 250 300 0 1000 2000 3000 4000 5000 6000 7000 pgbench / large (16GB) read-write number of transactions per second over time btrfs (ssd, nobarrier, discard) btrfs (ssd, nobarrier, discard, nodatacow) ext4 (nobarrier, discard) xfs (nobarrier, discard) zfs (recordsize, logbias) time of benchmark (second) transakcízavteřinu
- 35.

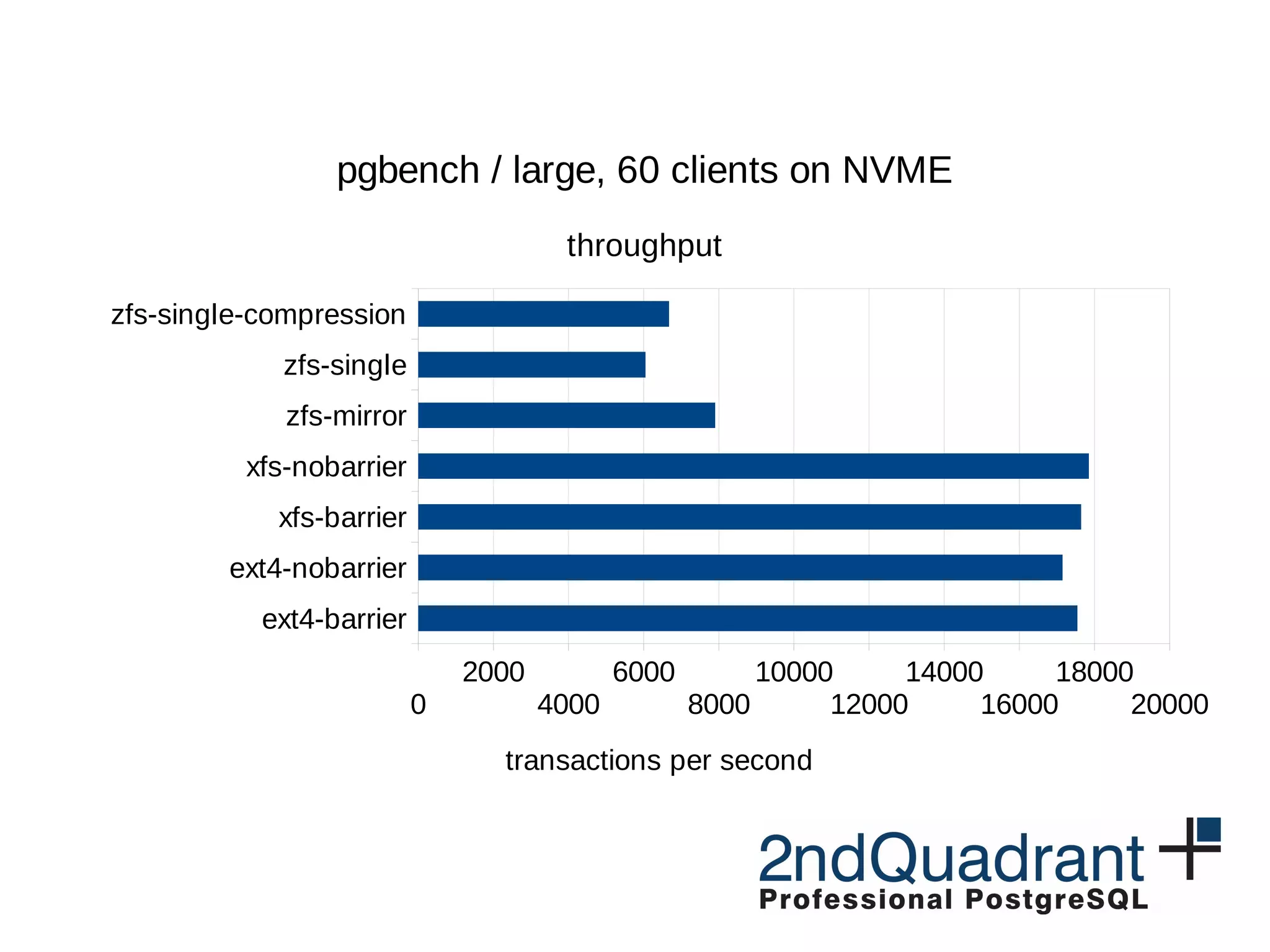

- 36. ext4-barrier ext4-nobarrier xfs-barrier xfs-nobarrier zfs-mirror zfs-single zfs-single-compression 0 2000 4000 6000 8000 10000 12000 14000 16000 18000 20000 pgbench / large,60 clients on NVME throughput transactions per second
- 37.

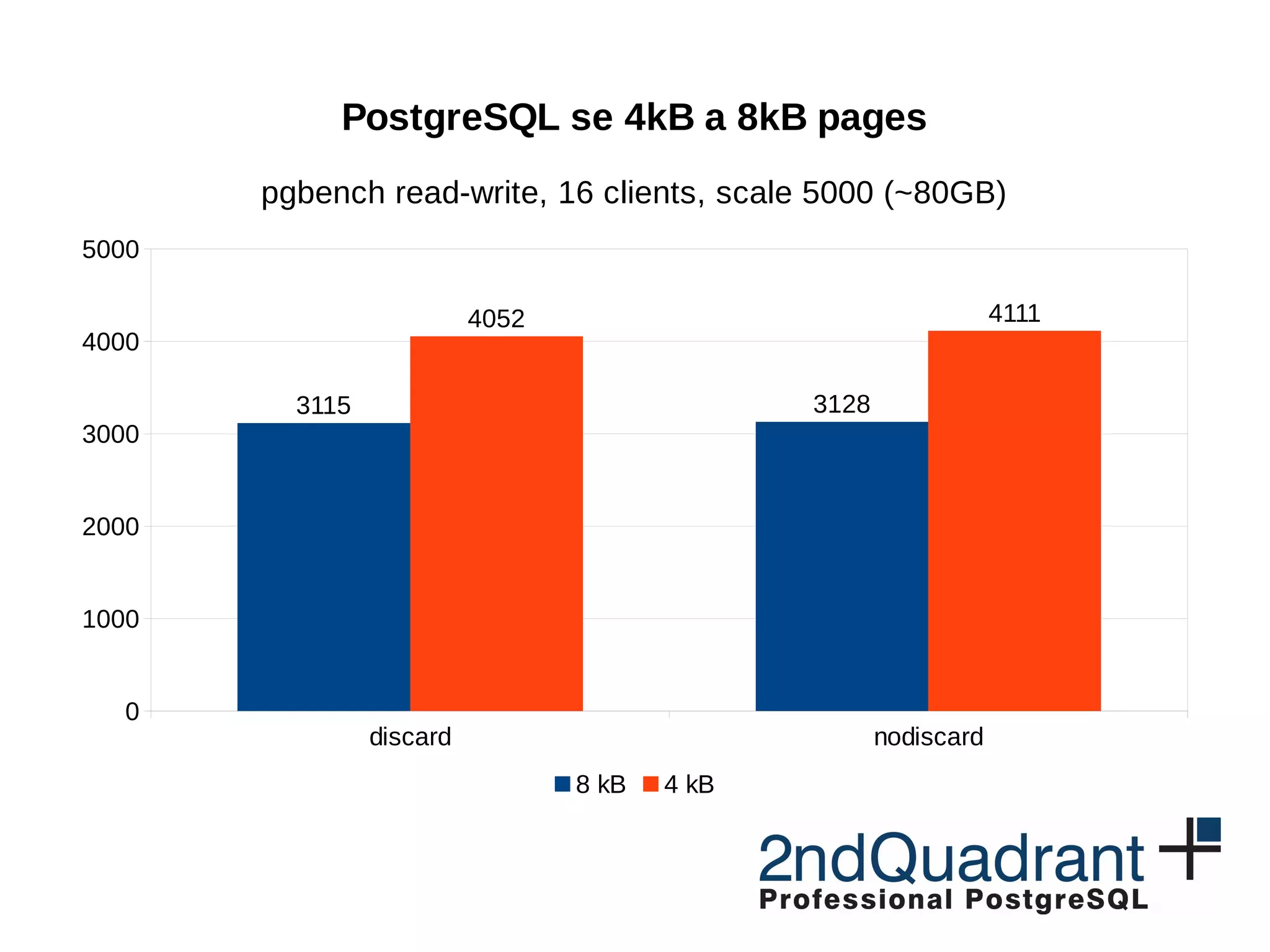

- 38. discard nodiscard 0 1000 2000 3000 4000 5000 3115 3128 40524111 PostgreSQL se 4kB a 8kB pages pgbench read-write, 16 clients, scale 5000 (~80GB) 8 kB 4 kB

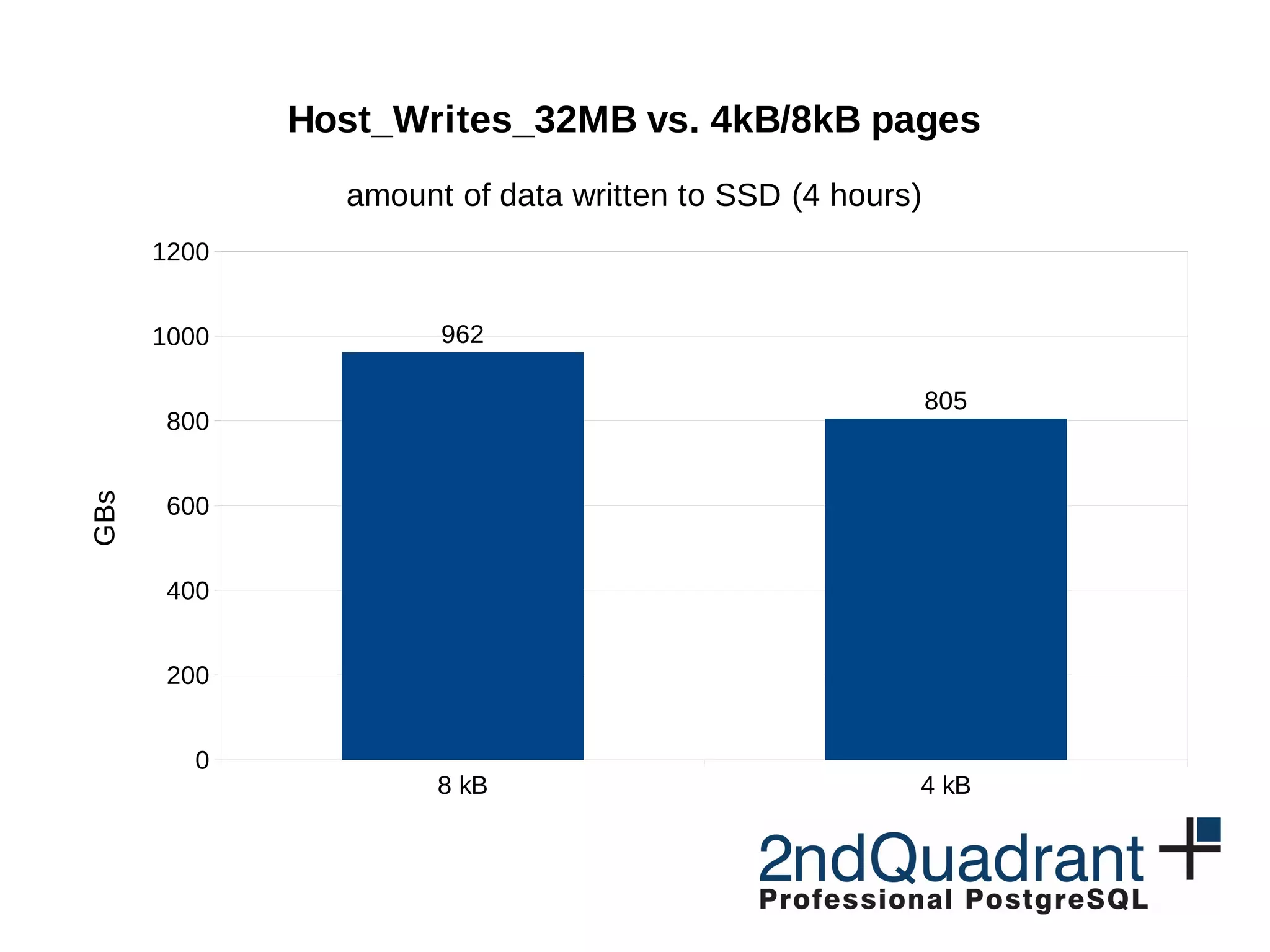

- 39. 8 kB 4kB 0 200 400 600 800 1000 1200 962 805 Host_Writes_32MB vs. 4kB/8kB pages amount of data written to SSD (4 hours) GBs

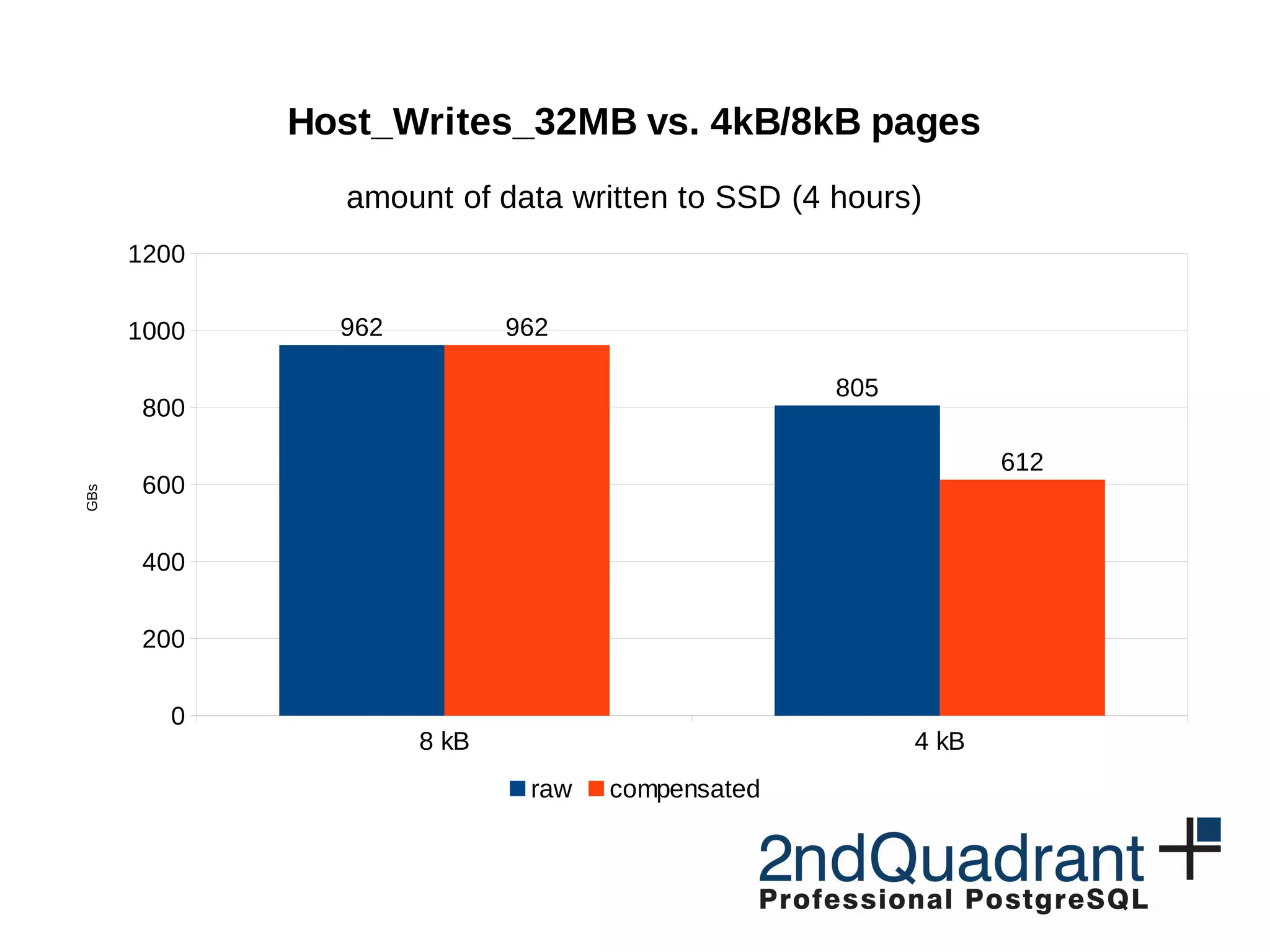

- 40. 8 kB 4kB 0 200 400 600 800 1000 1200 962 805 962 612 Host_Writes_32MB vs. 4kB/8kB pages amount of data written to SSD (4 hours) raw compensated GBs

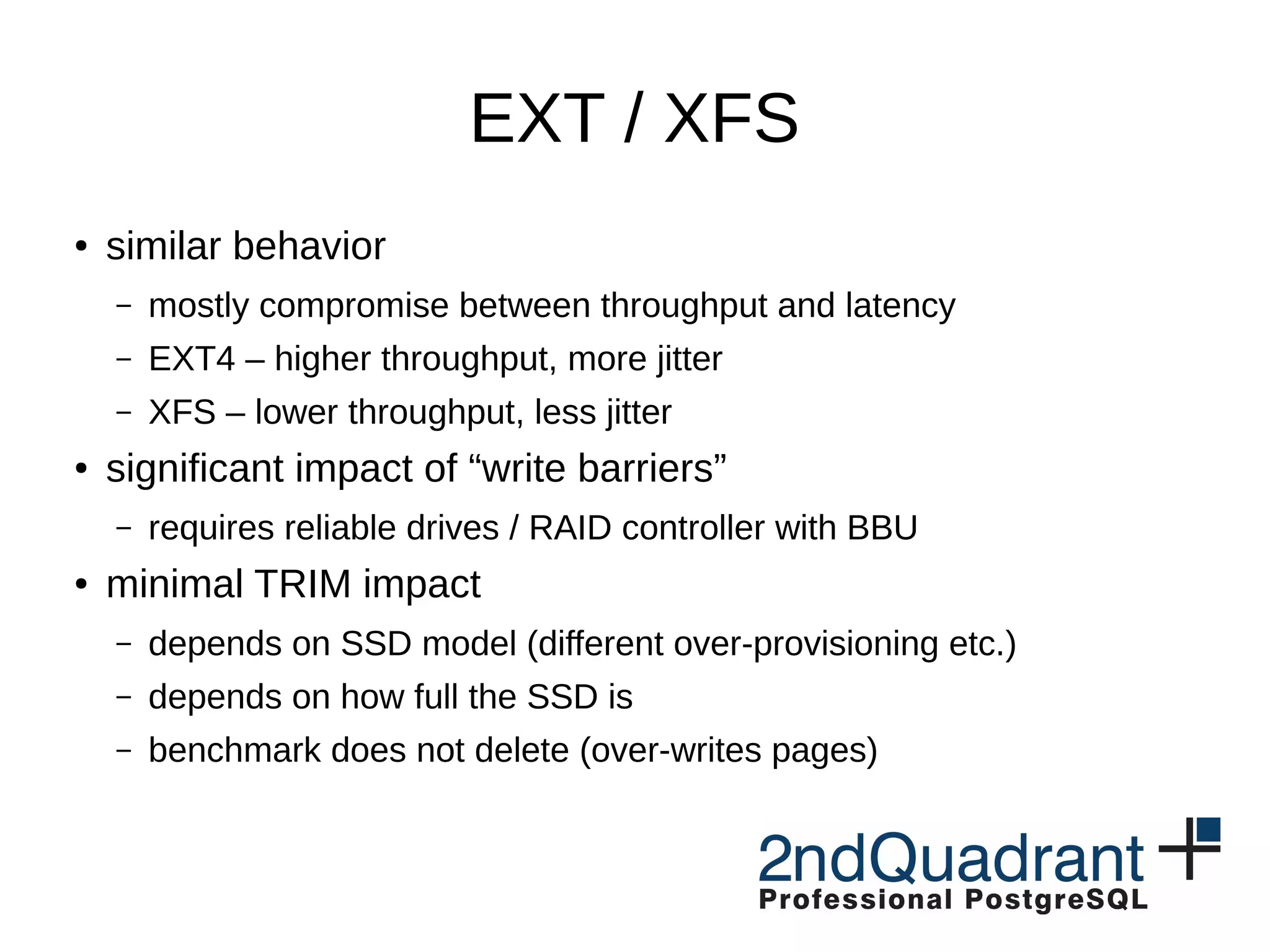

- 41. EXT / XFS ●similar behavior – mostly compromise between throughput and latency – EXT4 – higher throughput, more jitter – XFS – lower throughput, less jitter ● significant impact of “write barriers” – requires reliable drives / RAID controller with BBU ● minimal TRIM impact – depends on SSD model (different over-provisioning etc.) – depends on how full the SSD is – benchmark does not delete (over-writes pages)

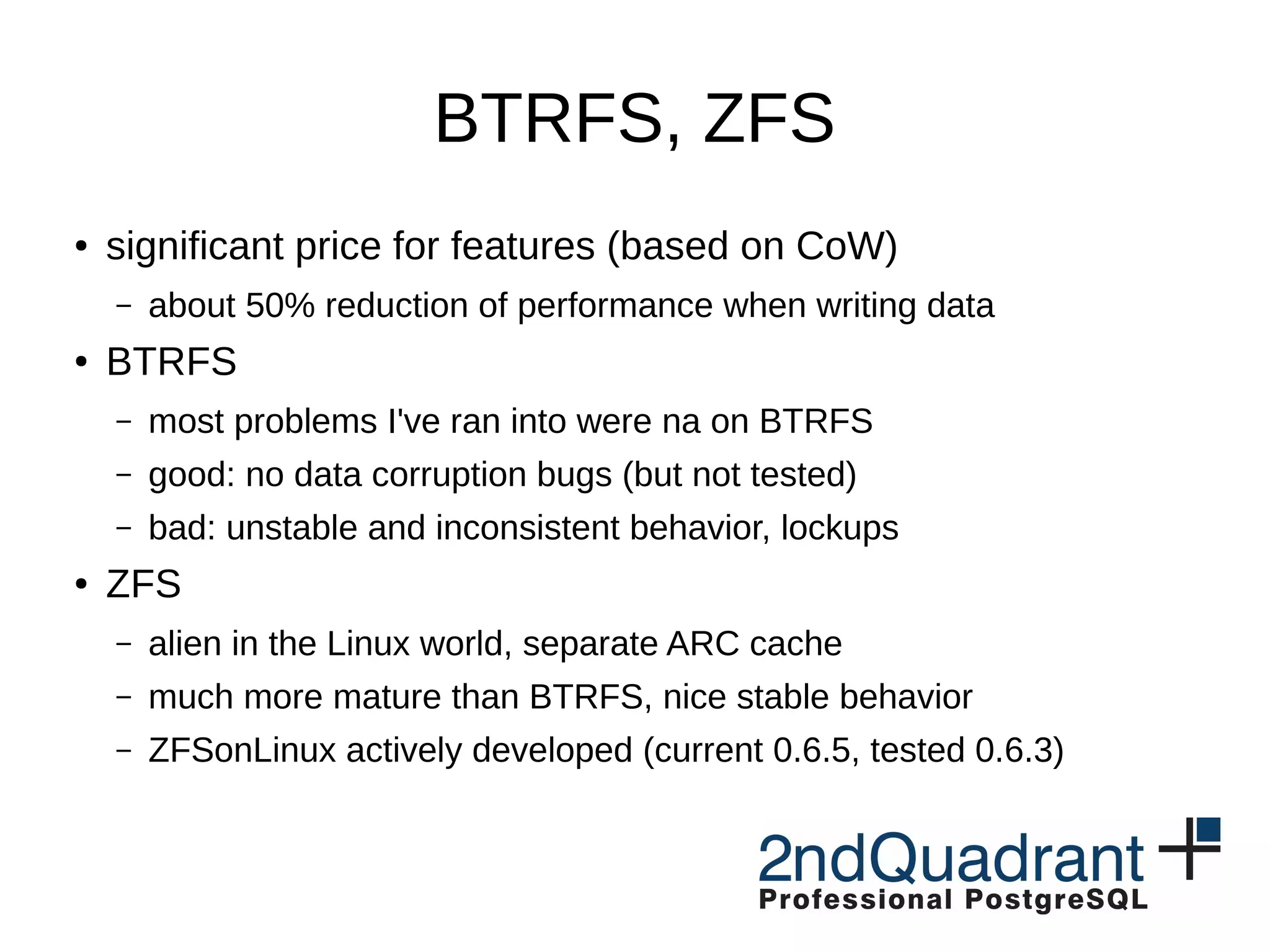

- 42. BTRFS, ZFS ● significantprice for features (based on CoW) – about 50% reduction of performance when writing data ● BTRFS – most problems I've ran into were na on BTRFS – good: no data corruption bugs (but not tested) – bad: unstable and inconsistent behavior, lockups ● ZFS – alien in the Linux world, separate ARC cache – much more mature than BTRFS, nice stable behavior – ZFSonLinux actively developed (current 0.6.5, tested 0.6.3)
- 43.

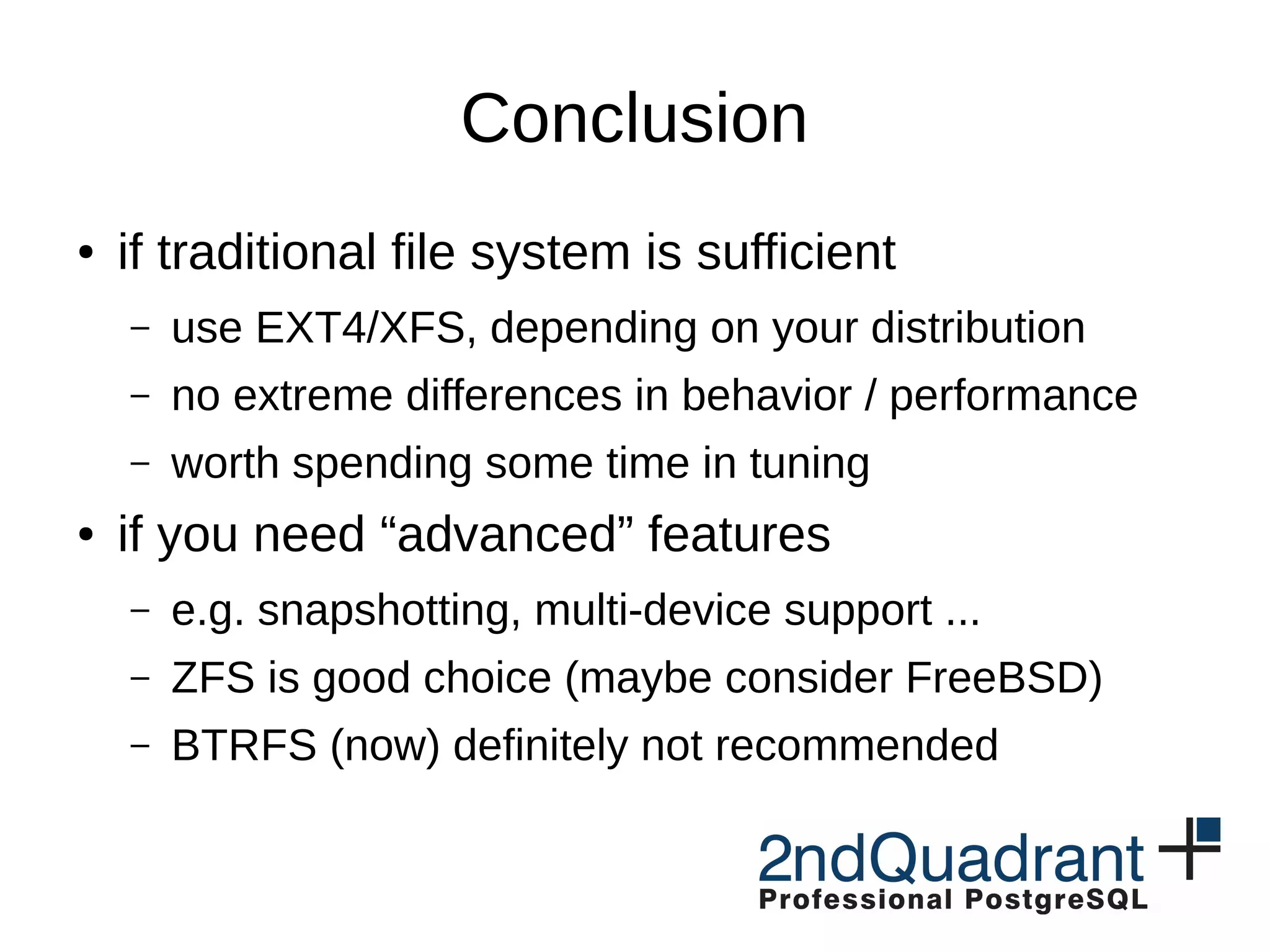

- 44. Conclusion ● if traditionalfile system is sufficient – use EXT4/XFS, depending on your distribution – no extreme differences in behavior / performance – worth spending some time in tuning ● if you need “advanced” features – e.g. snapshotting, multi-device support ... – ZFS is good choice (maybe consider FreeBSD) – BTRFS (now) definitely not recommended
- 45.
- 46.
- 47.

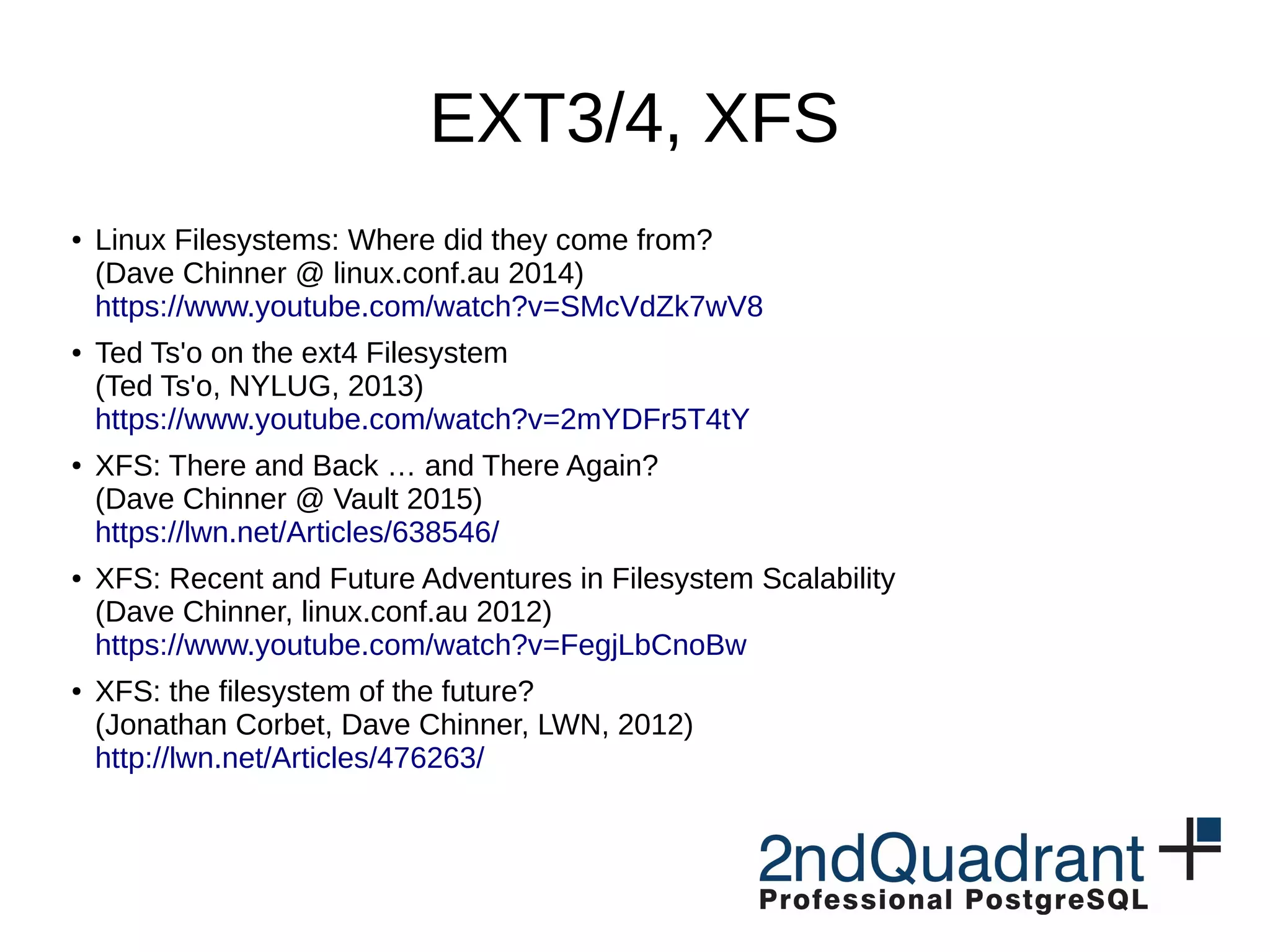

- 48. EXT3/4, XFS ● LinuxFilesystems: Where did they come from? (Dave Chinner @ linux.conf.au 2014) https://www.youtube.com/watch?v=SMcVdZk7wV8 ● Ted Ts'o on the ext4 Filesystem (Ted Ts'o, NYLUG, 2013) https://www.youtube.com/watch?v=2mYDFr5T4tY ● XFS: There and Back … and There Again? (Dave Chinner @ Vault 2015) https://lwn.net/Articles/638546/ ● XFS: Recent and Future Adventures in Filesystem Scalability (Dave Chinner, linux.conf.au 2012) https://www.youtube.com/watch?v=FegjLbCnoBw ● XFS: the filesystem of the future? (Jonathan Corbet, Dave Chinner, LWN, 2012) http://lwn.net/Articles/476263/
