Polyglot Messaging with Apache ActiveMQ
The document presents an overview of polyglot messaging using Apache ActiveMQ, highlighting its significance in integrating various programming languages and improving system communication. It discusses the benefits of using messaging protocols like STOMP and MQTT for asynchronous architectures and real-time data exchange across different platforms. Additionally, it introduces management tools like Hawtio for overseeing integration infrastructures, emphasizing the community and support available around ActiveMQ.
Polyglot Messaging with Apache ActiveMQ
- 1. Polyglot messaging with ApacheActiveMQ Christian Posta Principal Consultant and Architect 11/09/13 1

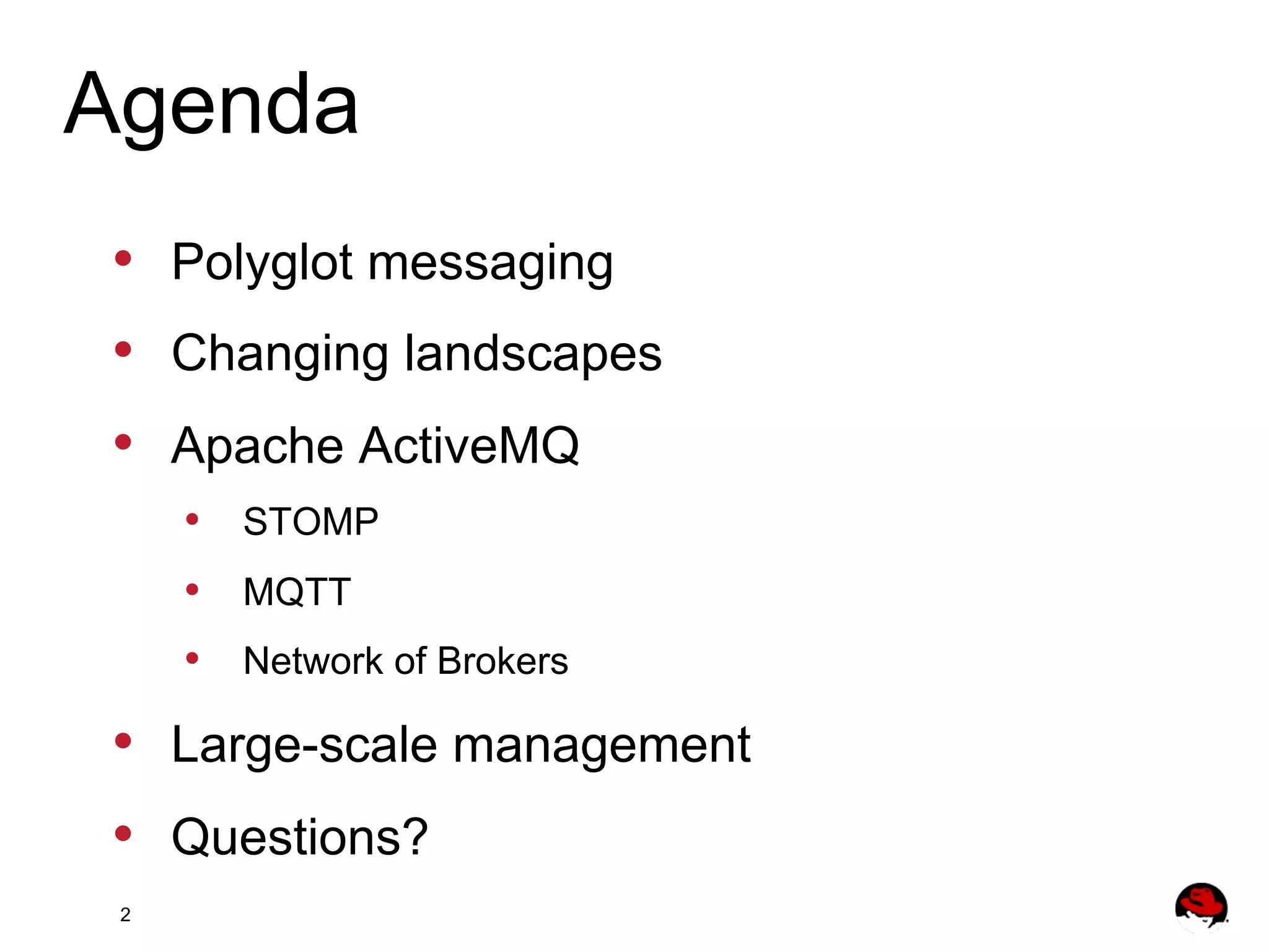

- 2. Agenda • Polyglot messaging • Changing landscapes • Apache ActiveMQ • • • STOMP MQTT Network of Brokers • Large-scale management • Questions? 2
- 3. Your speaker Christian Posta Blog:http://christianposta.com/blog Twitter: @christianposta Email: christian@redhat.com ceposta@apache.org • Principal Consultant and Architect at Red Hat (FuseSource) • Based in Phoenix, AZ • Committer on Apache Camel, ActiveMQ, Apollo • PMC on ActiveMQ • Author: Essential Camel Components DZone Refcard 3
- 4.
- 5. Polyglot Messaging?! adjective: “knowingor using several languages” 5

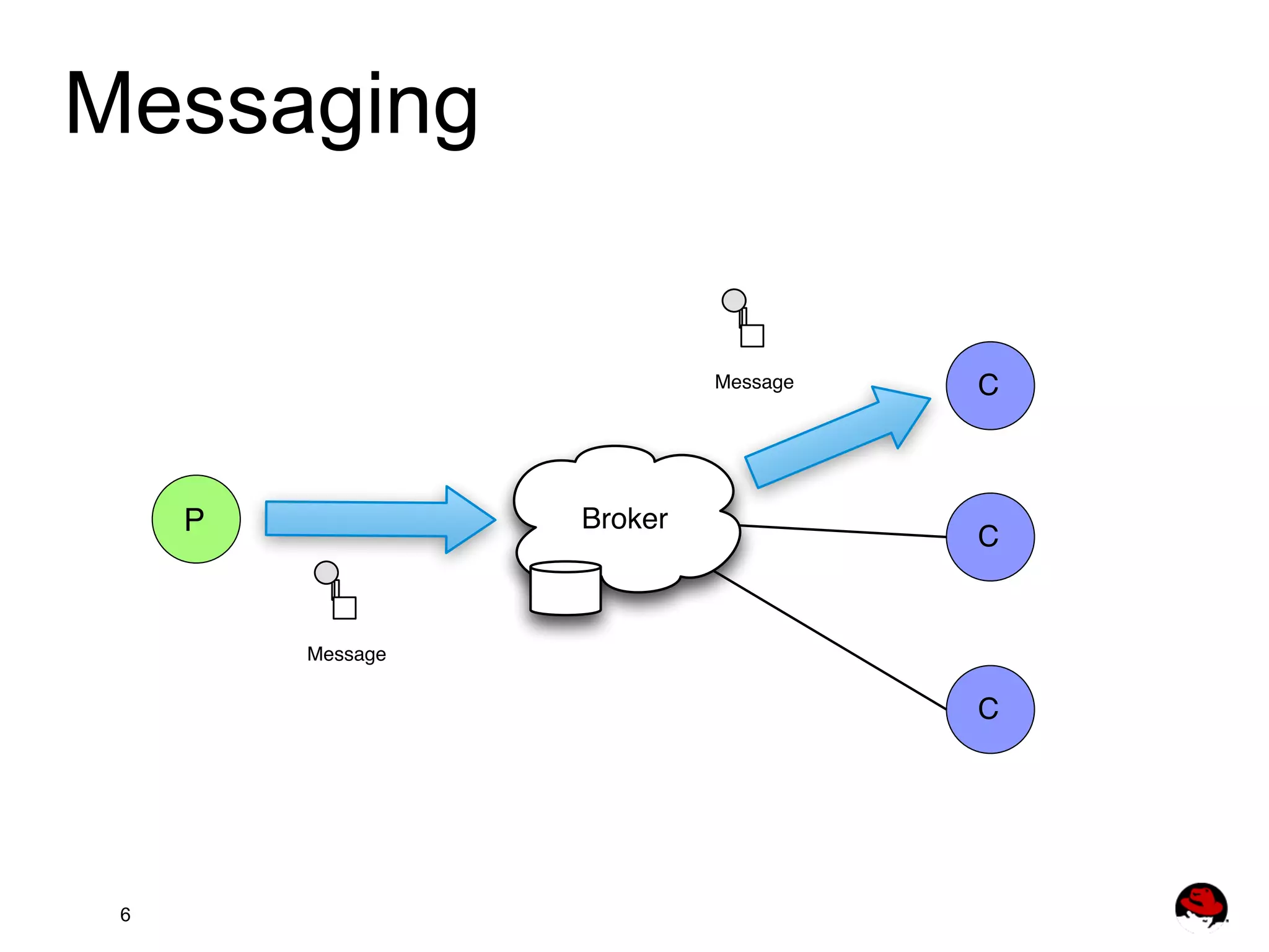

- 6.
- 7.

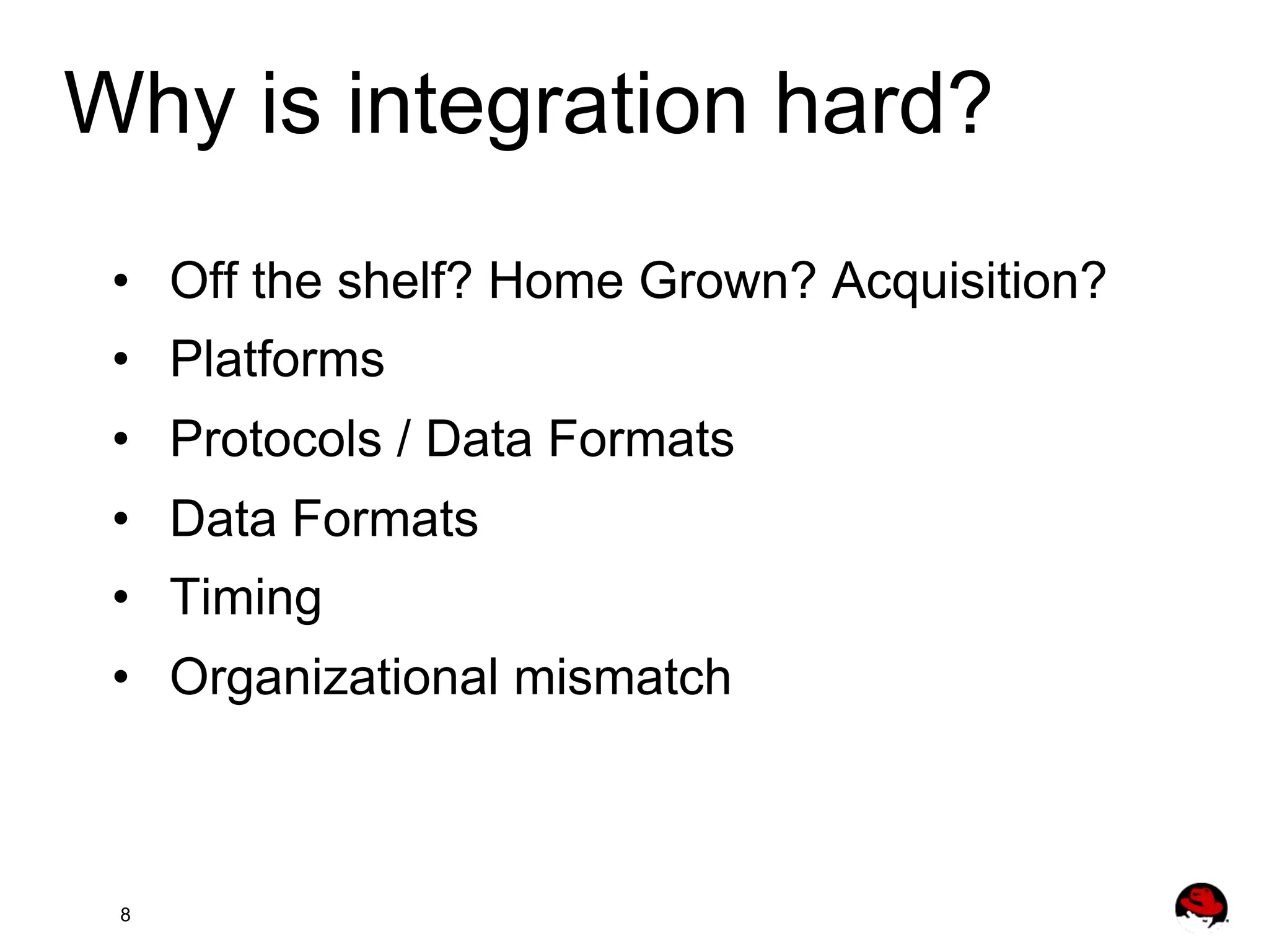

- 8. Why is integrationhard? • Off the shelf? Home Grown? Acquisition? • Platforms • Protocols / Data Formats • Data Formats • Timing • Organizational mismatch 8

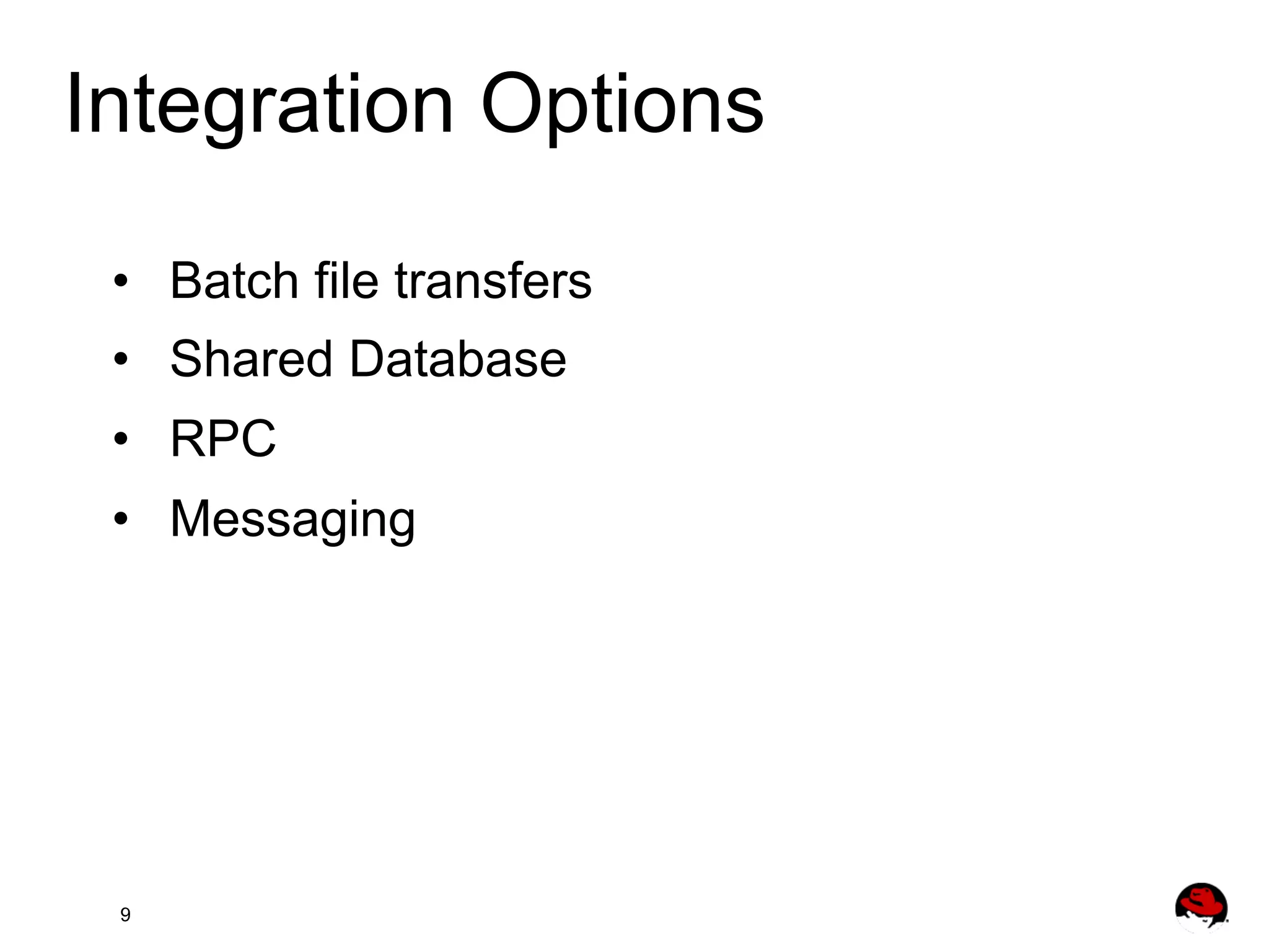

- 9. Integration Options • Batchfile transfers • Shared Database • RPC • Messaging 9

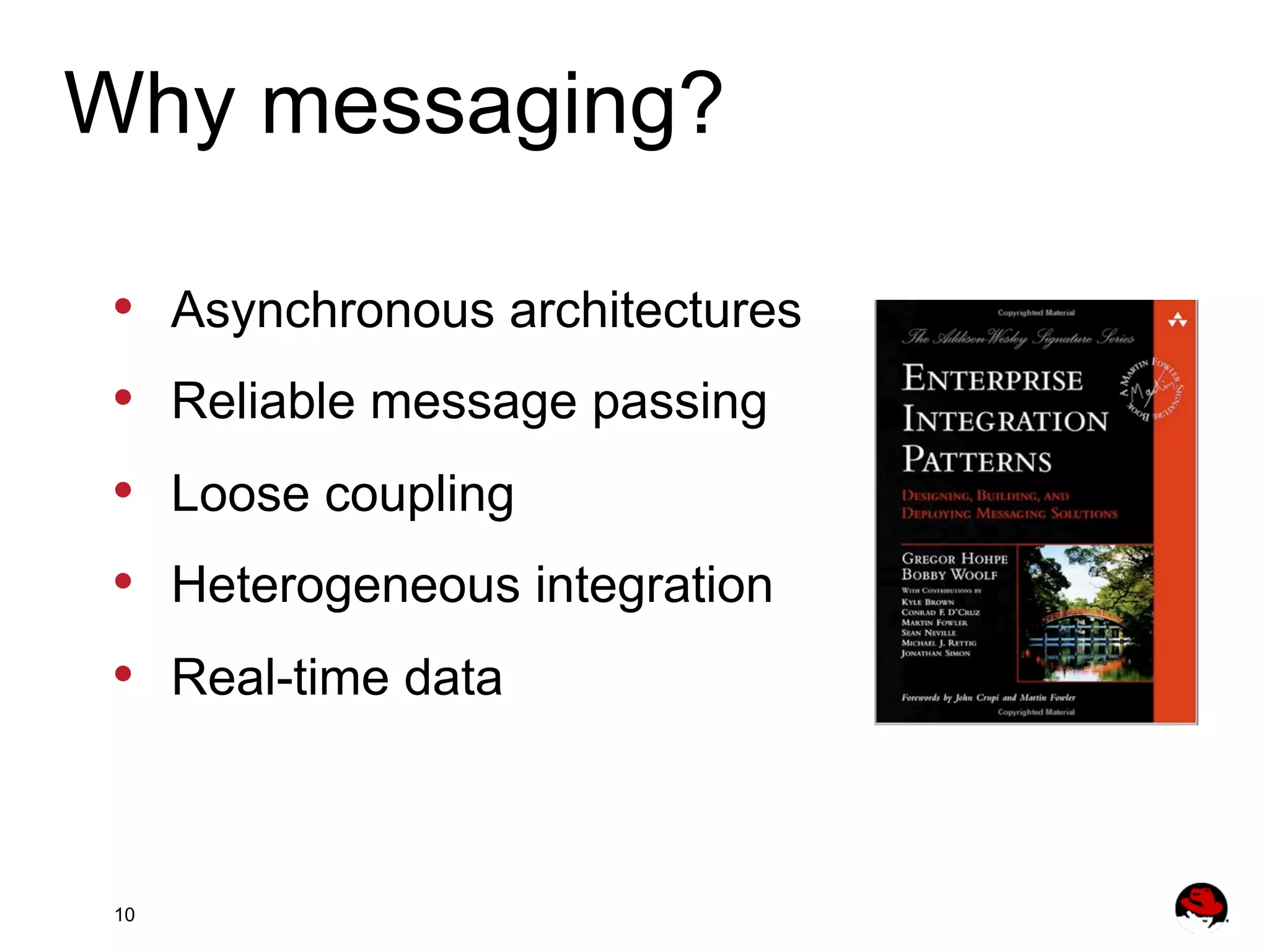

- 10. Why messaging? • • • • • 10 Asynchronous architectures Reliablemessage passing Loose coupling Heterogeneous integration Real-time data
- 11.

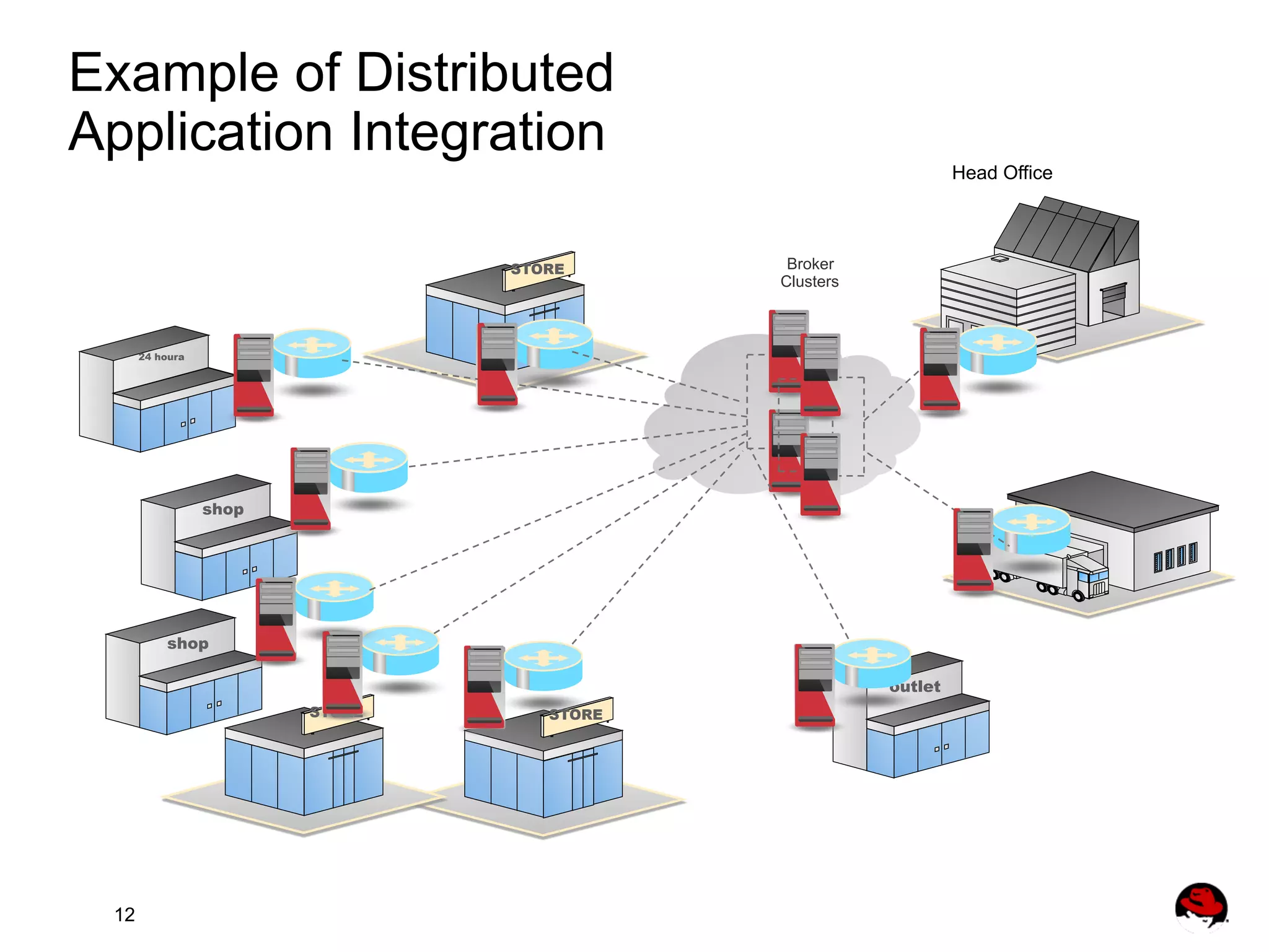

- 12. Example of Distributed ApplicationIntegration Head Office STORE Broker Clusters 24 houra shop shop outlet STORE 12 STORE

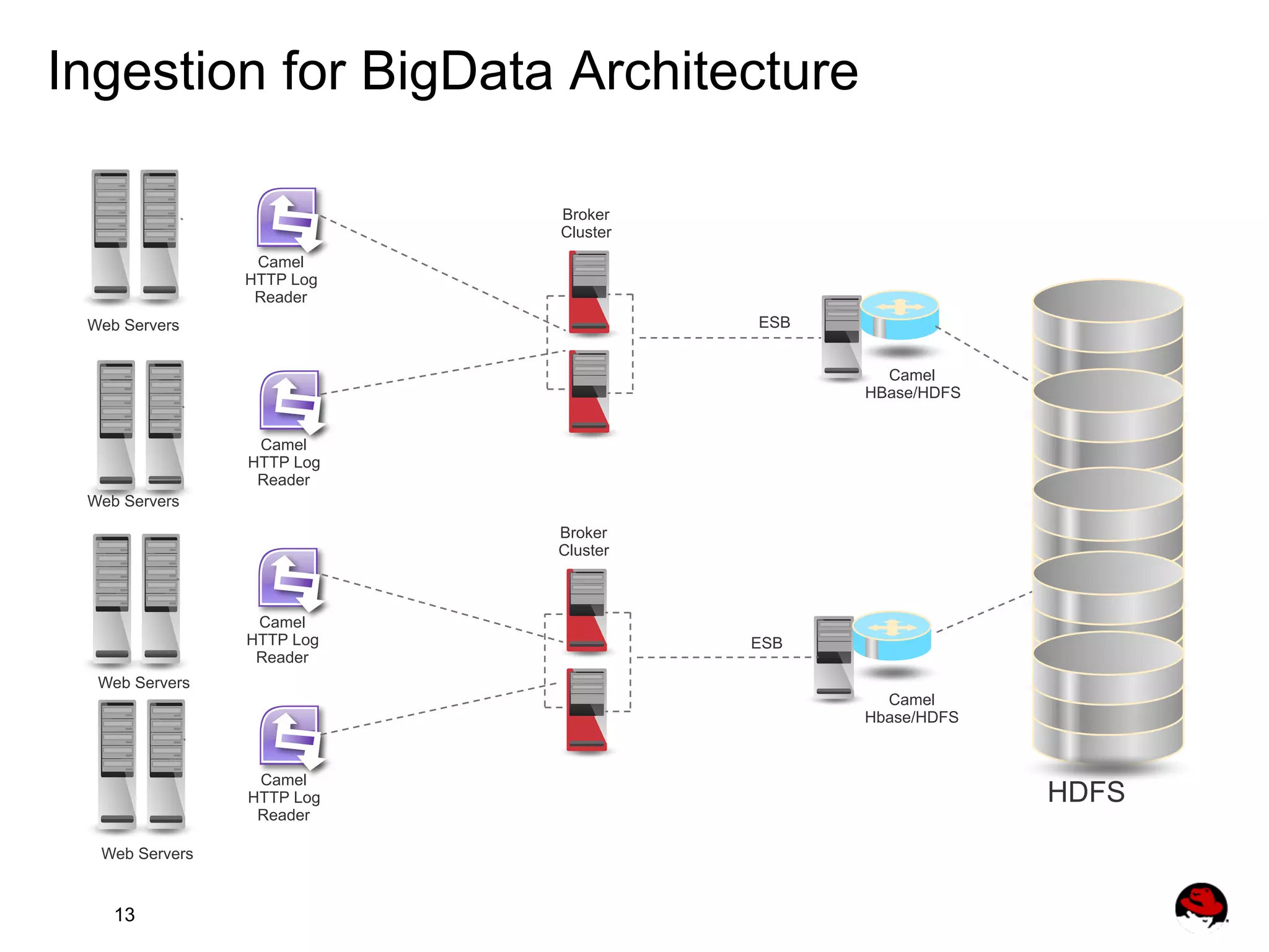

- 13. Ingestion for BigDataArchitecture Broker Cluster Camel HTTP Log Reader ESB Web Servers Camel HBase/HDFS Camel HTTP Log Reader Web Servers Broker Cluster Camel HTTP Log Reader Web Servers Camel Hbase/HDFS Camel HTTP Log Reader Web Servers 13 ESB HDFS

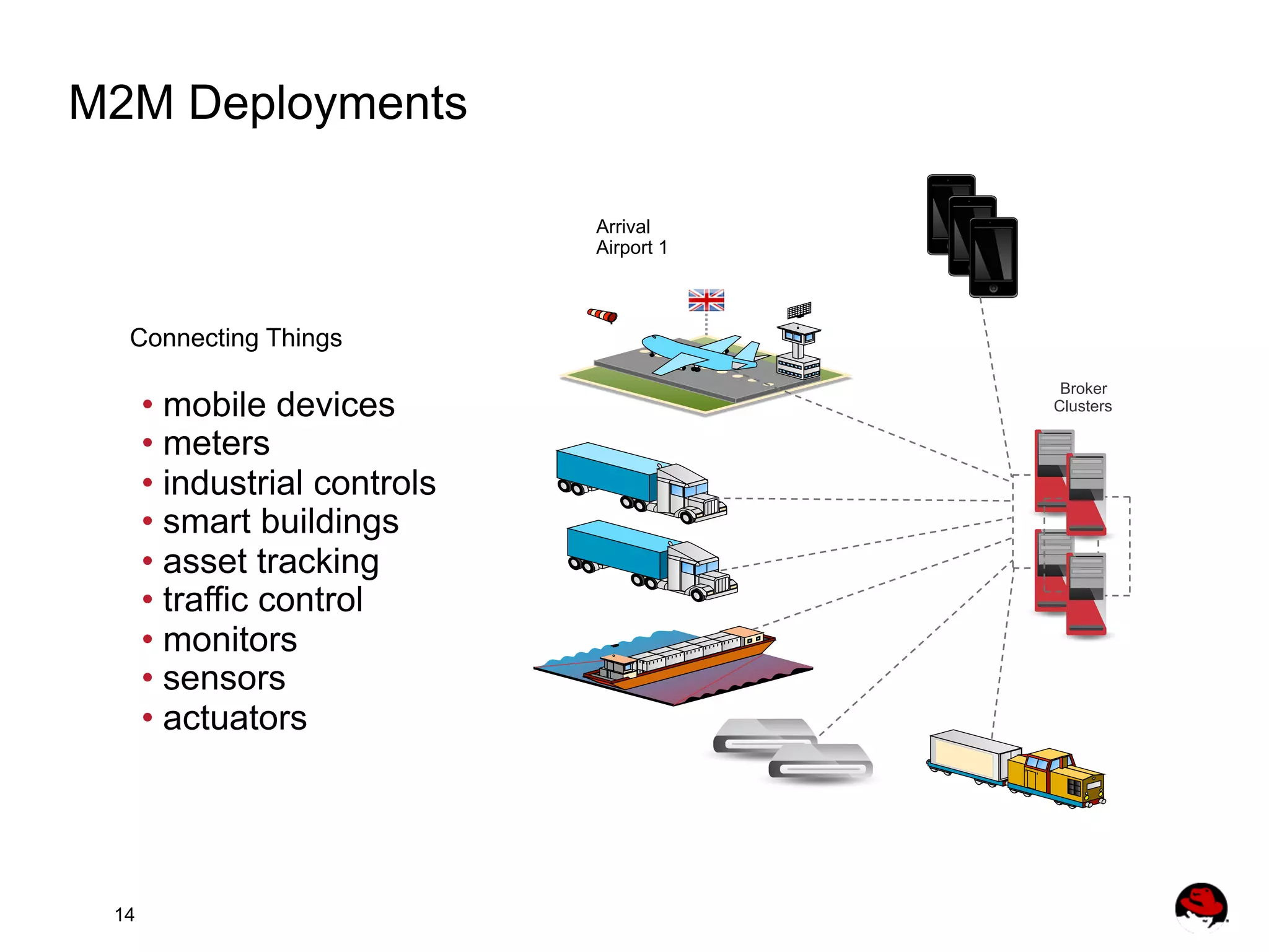

- 14. M2M Deployments Arrival Airport 1 ConnectingThings • mobile devices • meters • industrial controls • smart buildings • asset tracking • traffic control • monitors • sensors • actuators 14 Broker Clusters
- 15.

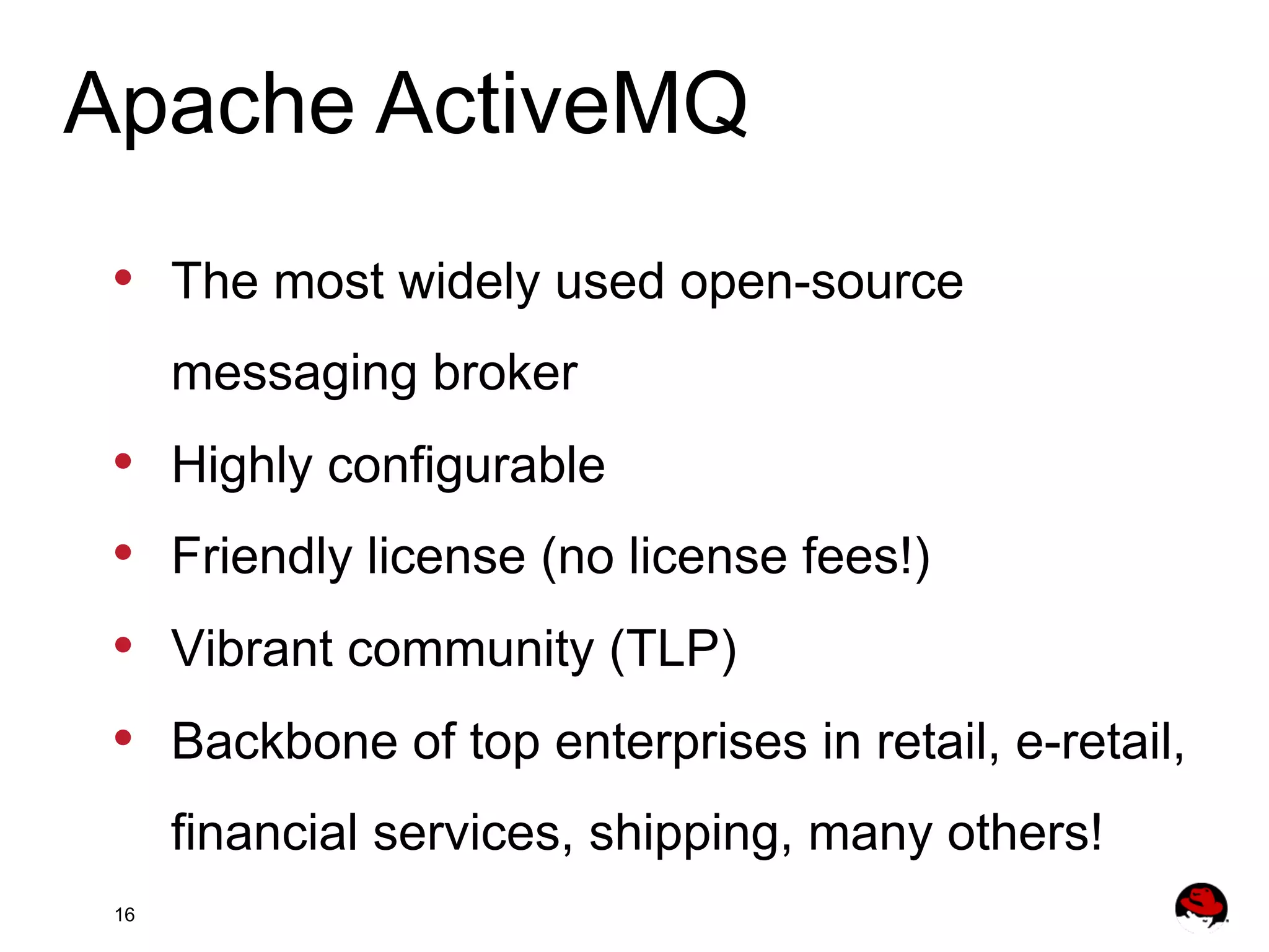

- 16. Apache ActiveMQ • Themost widely used open-source messaging broker • • • • Highly configurable Friendly license (no license fees!) Vibrant community (TLP) Backbone of top enterprises in retail, e-retail, financial services, shipping, many others! 16

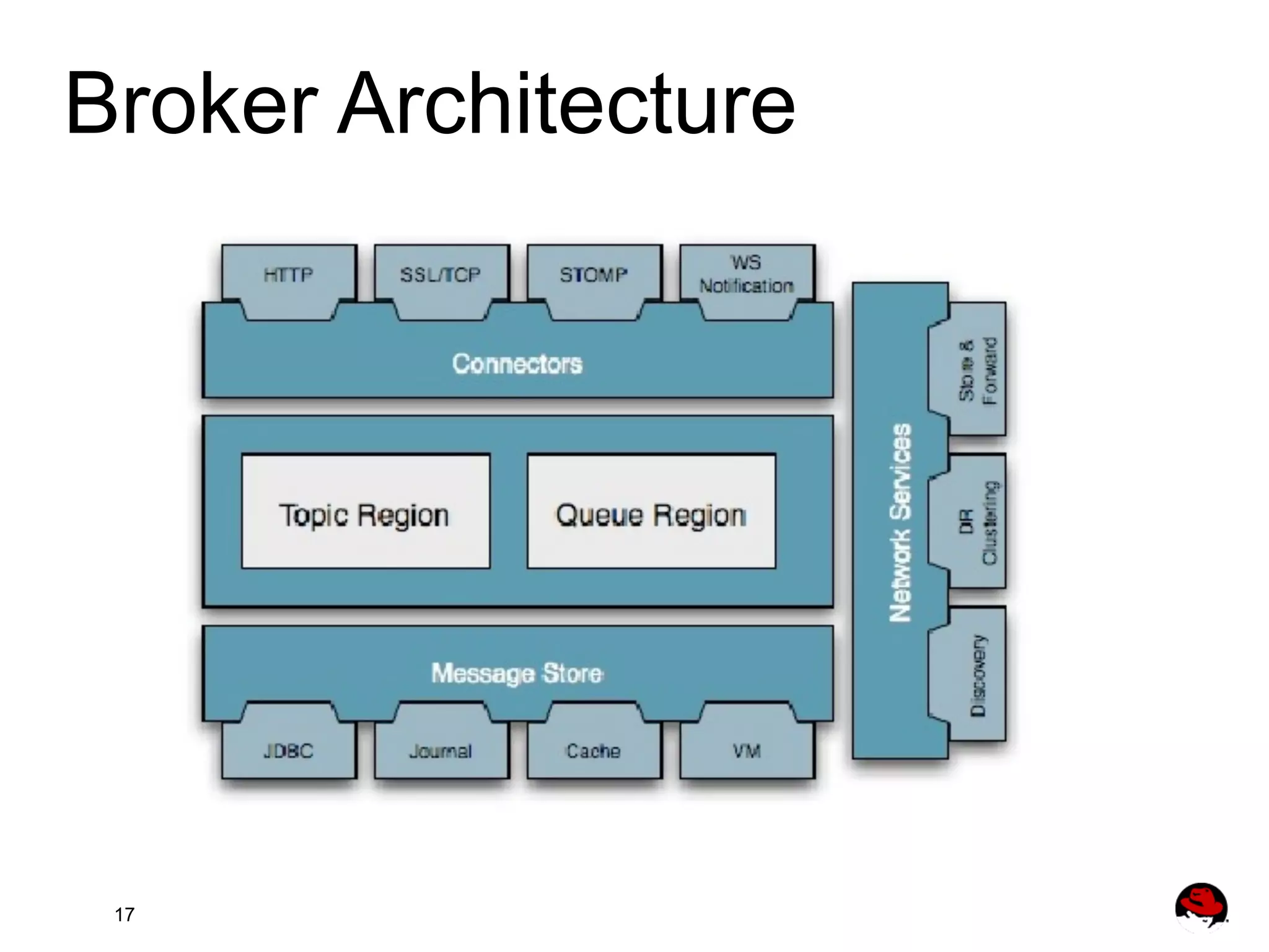

- 17.
- 18.

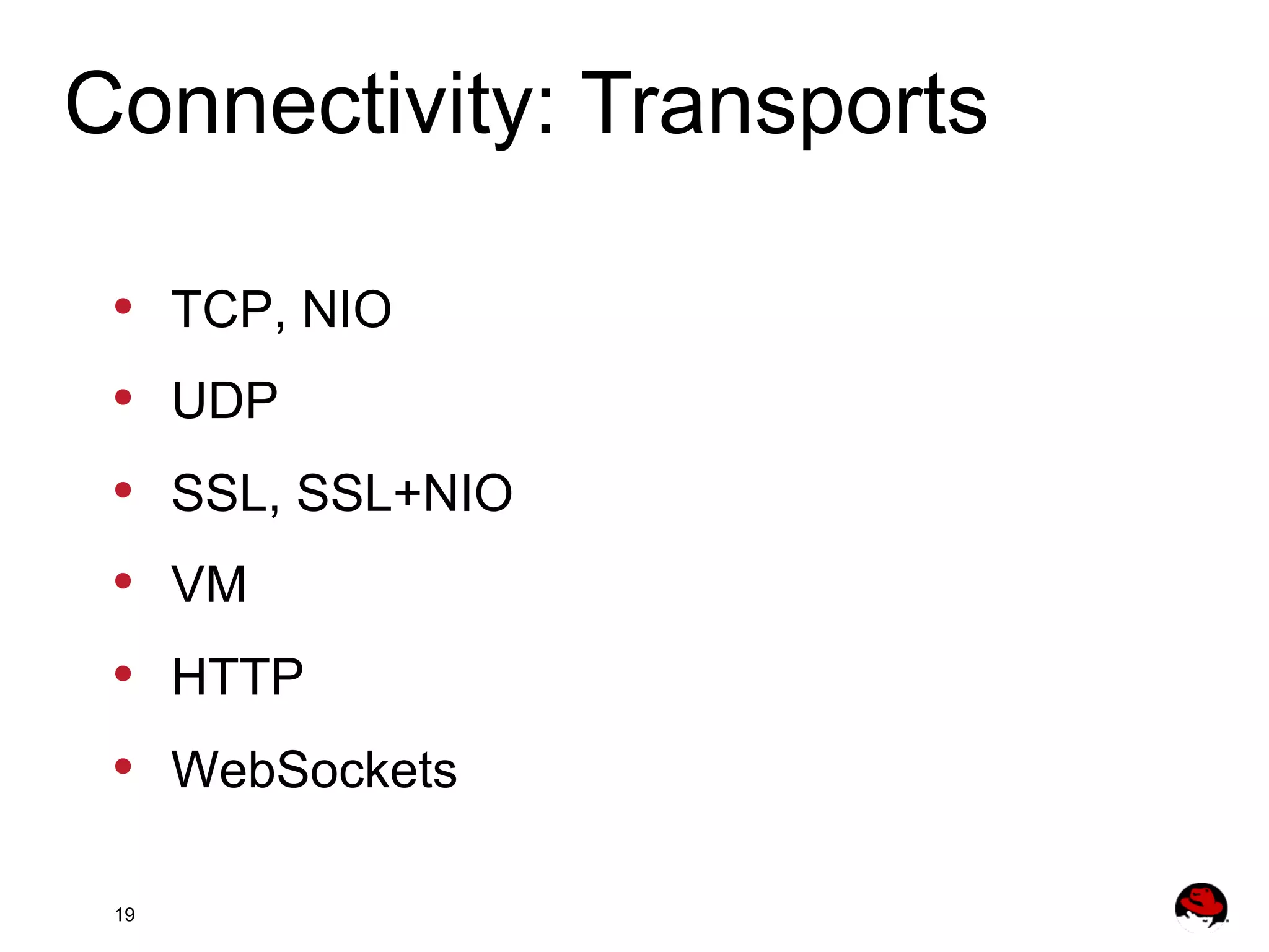

- 19. Connectivity: Transports • • • • • • 19 TCP, NIO UDP SSL,SSL+NIO VM HTTP WebSockets

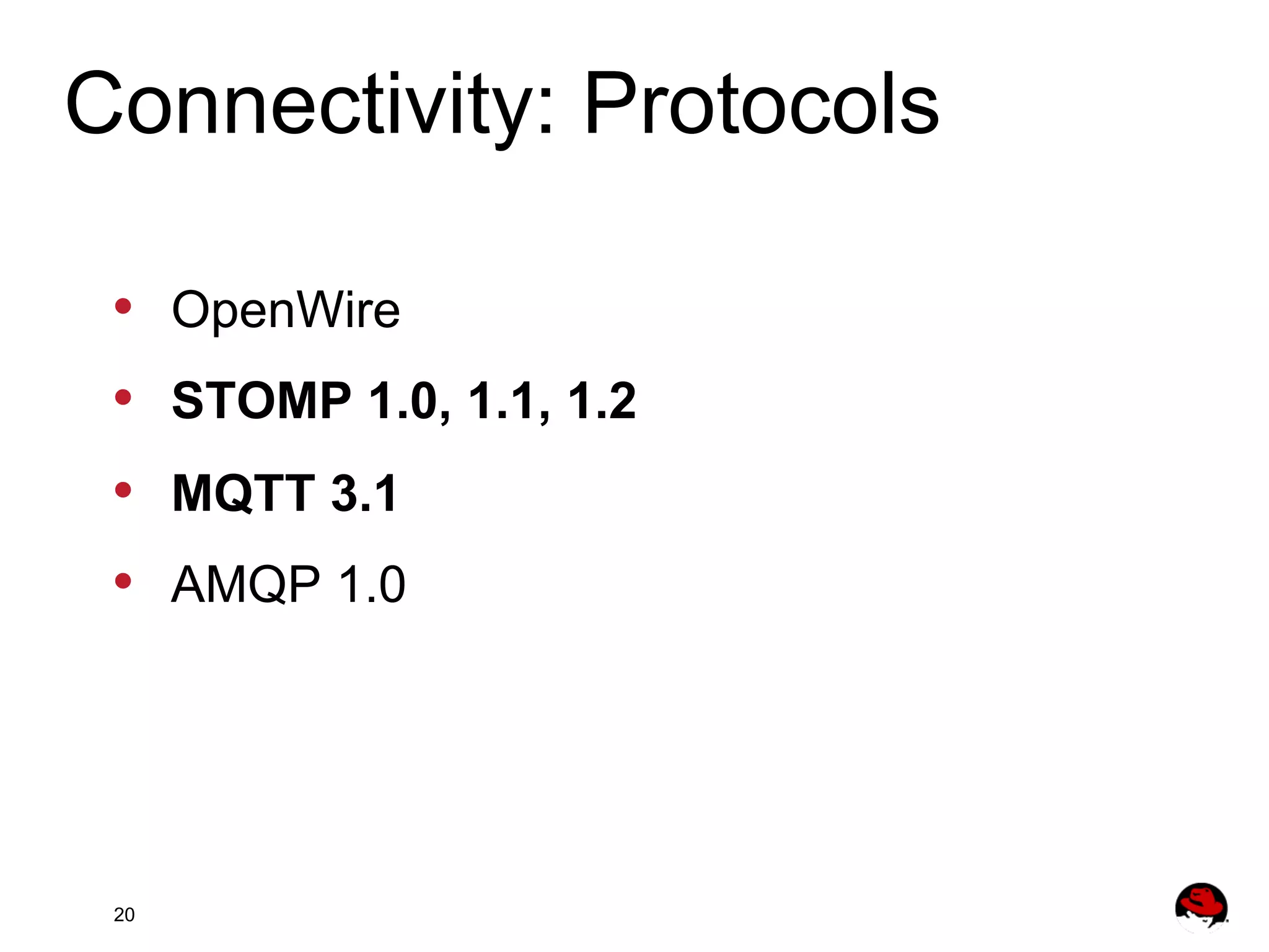

- 20. Connectivity: Protocols • • • • 20 OpenWire STOMP 1.0,1.1, 1.2 MQTT 3.1 AMQP 1.0
- 21.

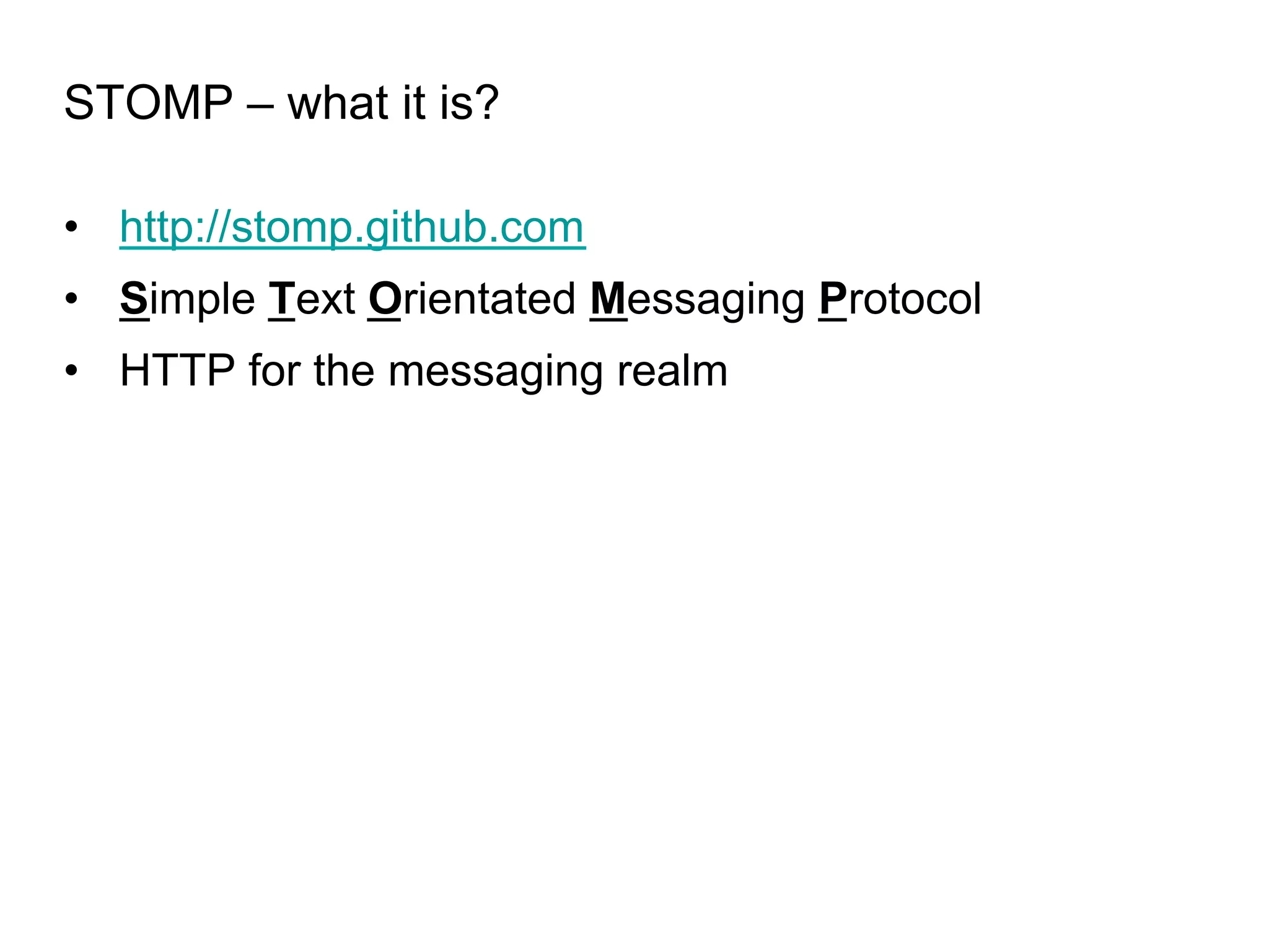

- 22. STOMP – whatit is? • http://stomp.github.com • Simple Text Orientated Messaging Protocol • HTTP for the messaging realm

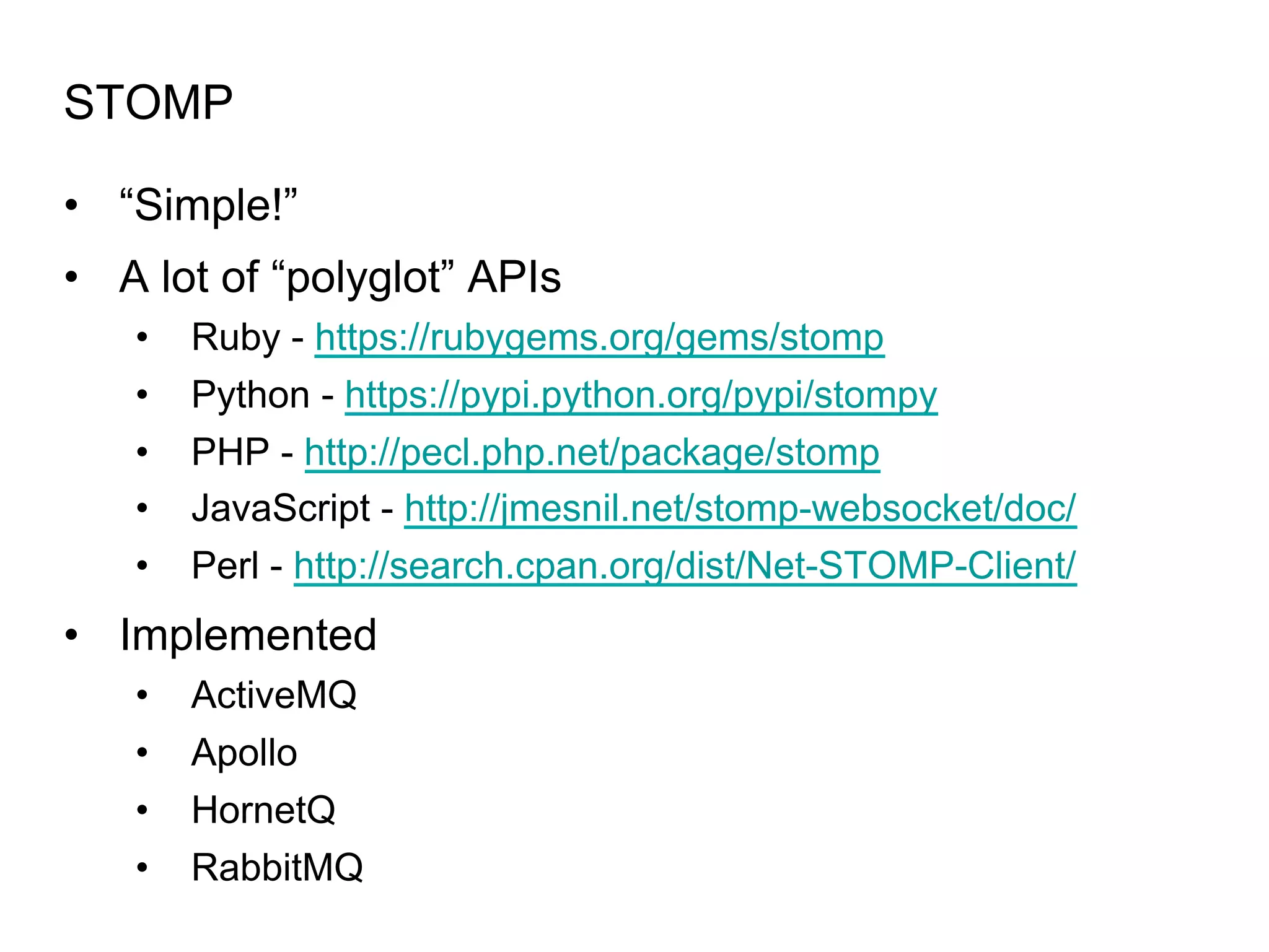

- 23. STOMP • “Simple!” • Alot of “polyglot” APIs • • • • • Ruby - https://rubygems.org/gems/stomp Python - https://pypi.python.org/pypi/stompy PHP - http://pecl.php.net/package/stomp JavaScript - http://jmesnil.net/stomp-websocket/doc/ Perl - http://search.cpan.org/dist/Net-STOMP-Client/ • Implemented • ActiveMQ • Apollo • HornetQ • RabbitMQ

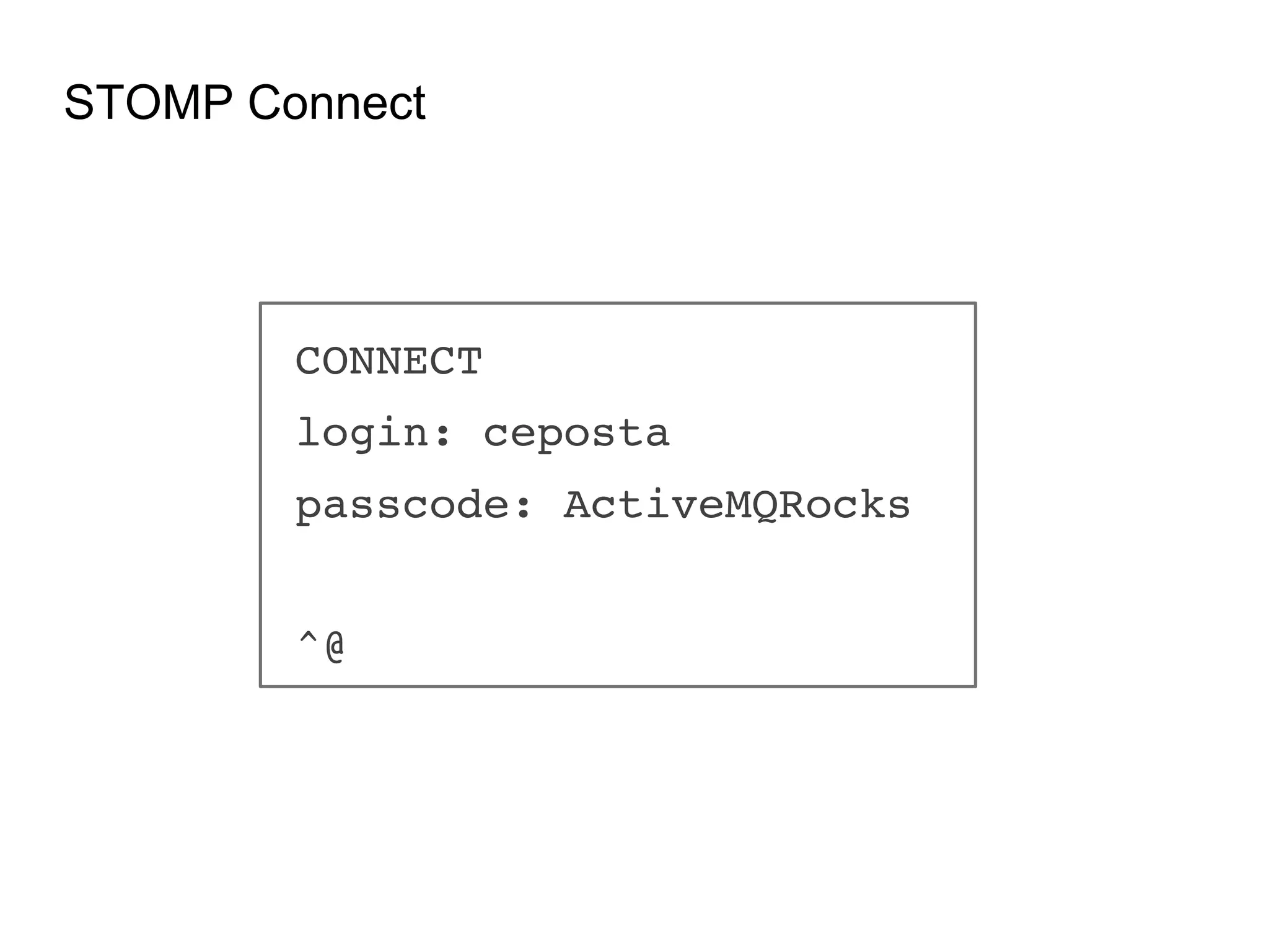

- 24. STOMP Connect CONNECT! login: ceposta! passcode:ActiveMQRocks! ! ^@!

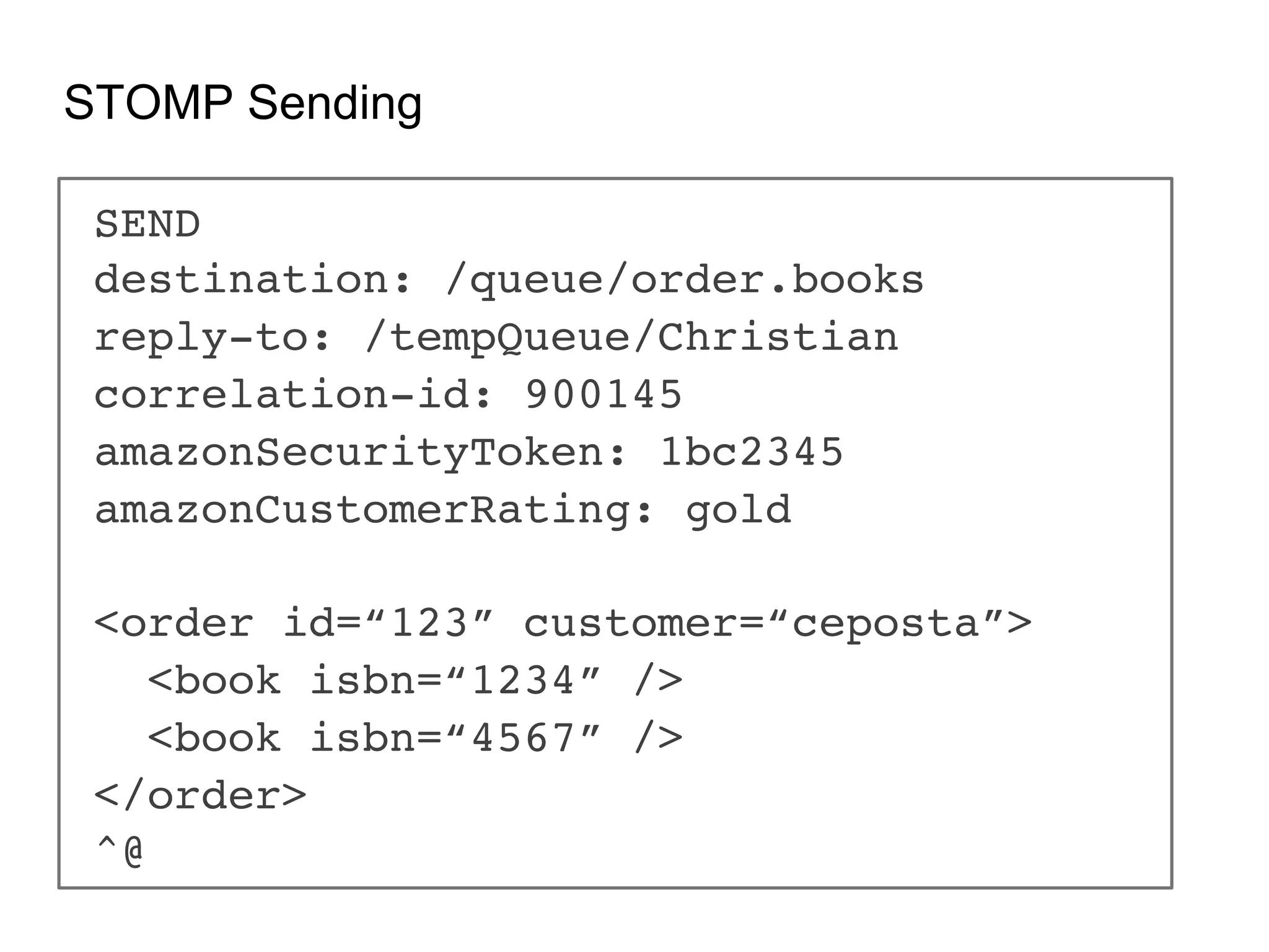

- 25. STOMP Sending SEND! destination: /queue/order.books! reply-to:/tempQueue/Christian! correlation-id: 900145! amazonSecurityToken: 1bc2345! amazonCustomerRating: gold! ! <order id=“123” customer=“ceposta”>! <book isbn=“1234” />! <book isbn=“4567” />! </order>! ^@!

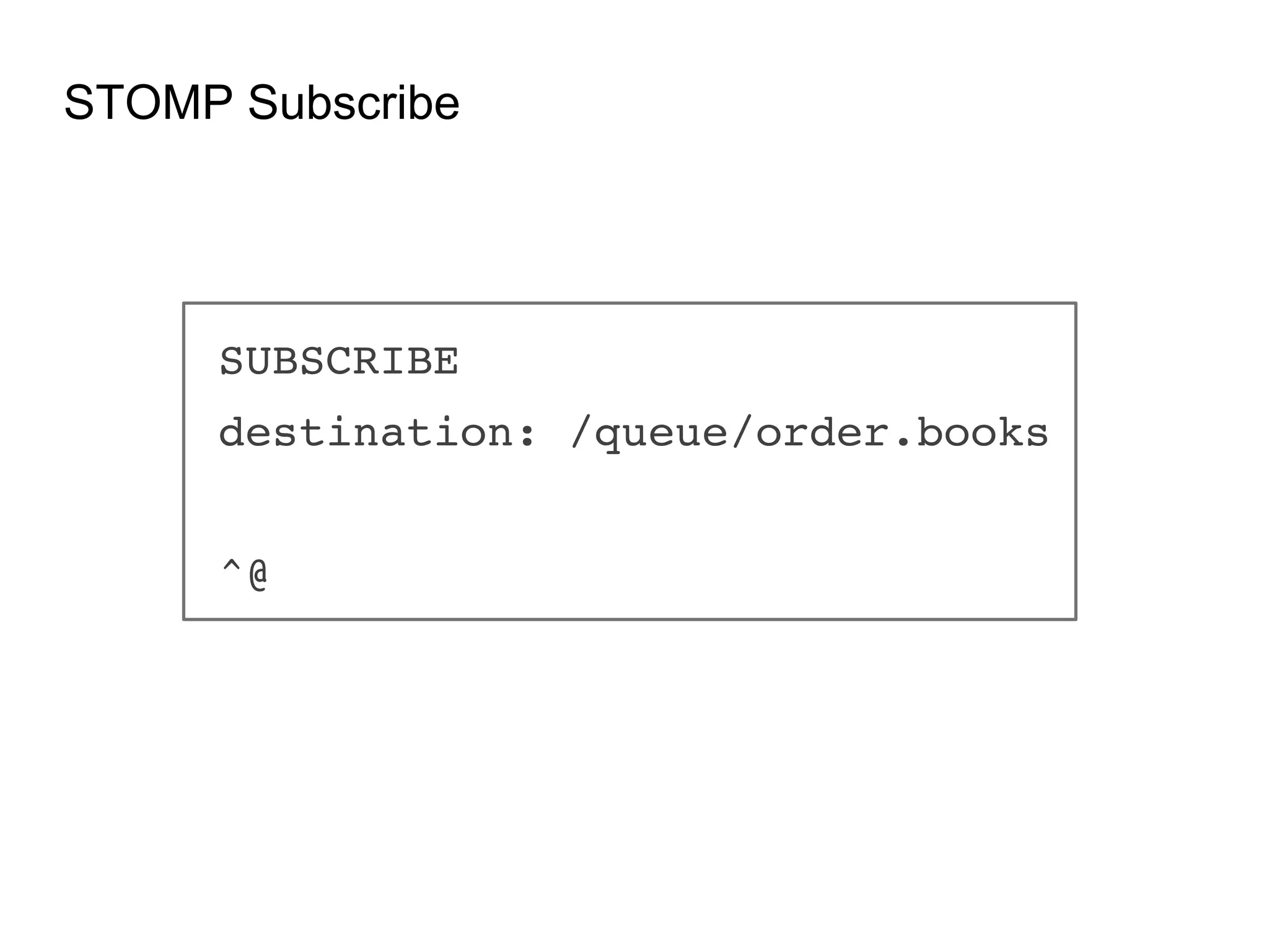

- 26.

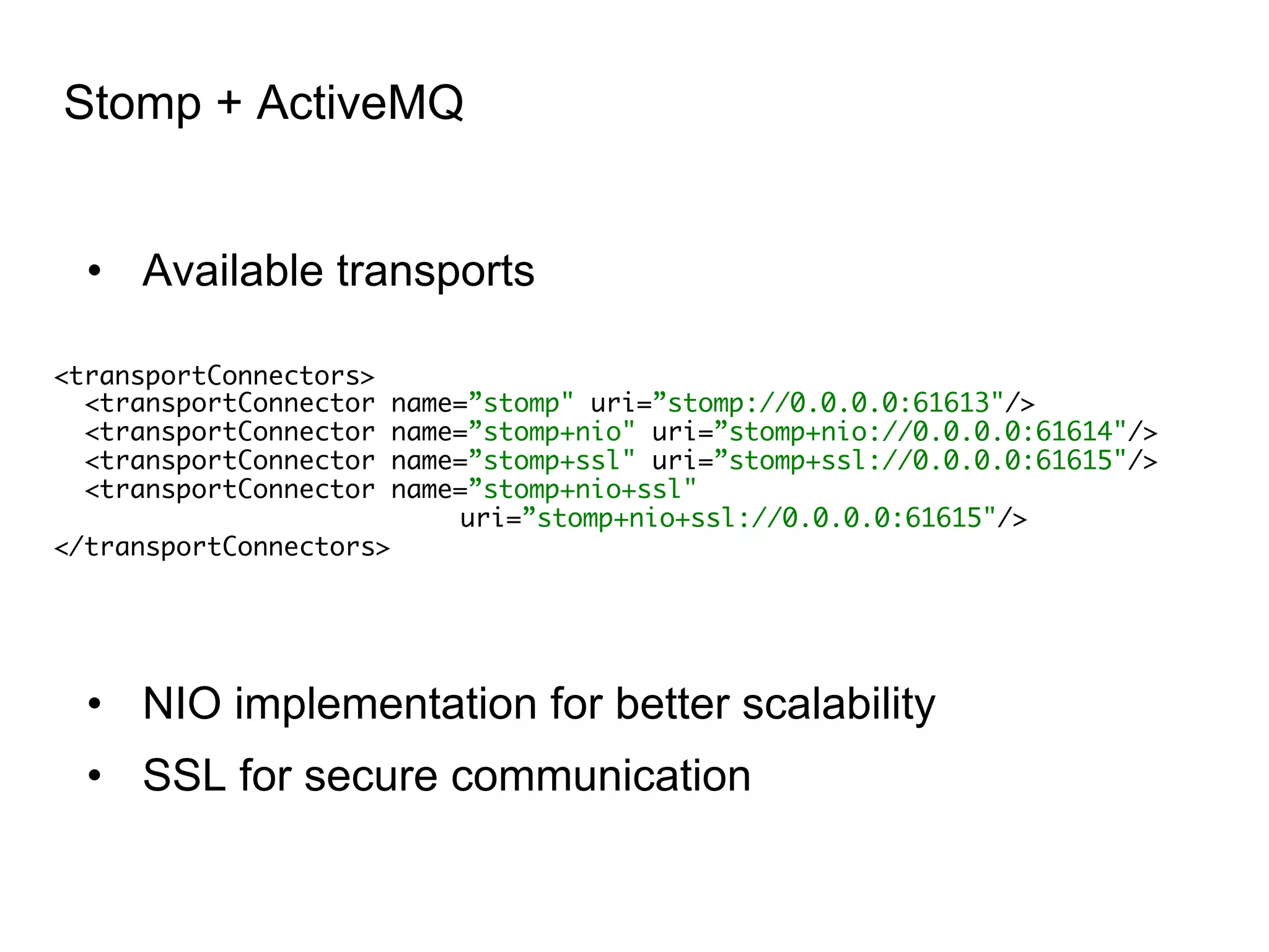

- 27. Stomp + ActiveMQ • Available transports <transportConnectors> <transportConnector name=”stomp" uri=”stomp://0.0.0.0:61613"/> <transportConnector name=”stomp+nio" uri=”stomp+nio://0.0.0.0:61614"/> <transportConnector name=”stomp+ssl" uri=”stomp+ssl://0.0.0.0:61615"/> <transportConnector name=”stomp+nio+ssl" uri=”stomp+nio+ssl://0.0.0.0:61615"/> </transportConnectors> • NIO implementation for better scalability • SSL for secure communication
- 28.

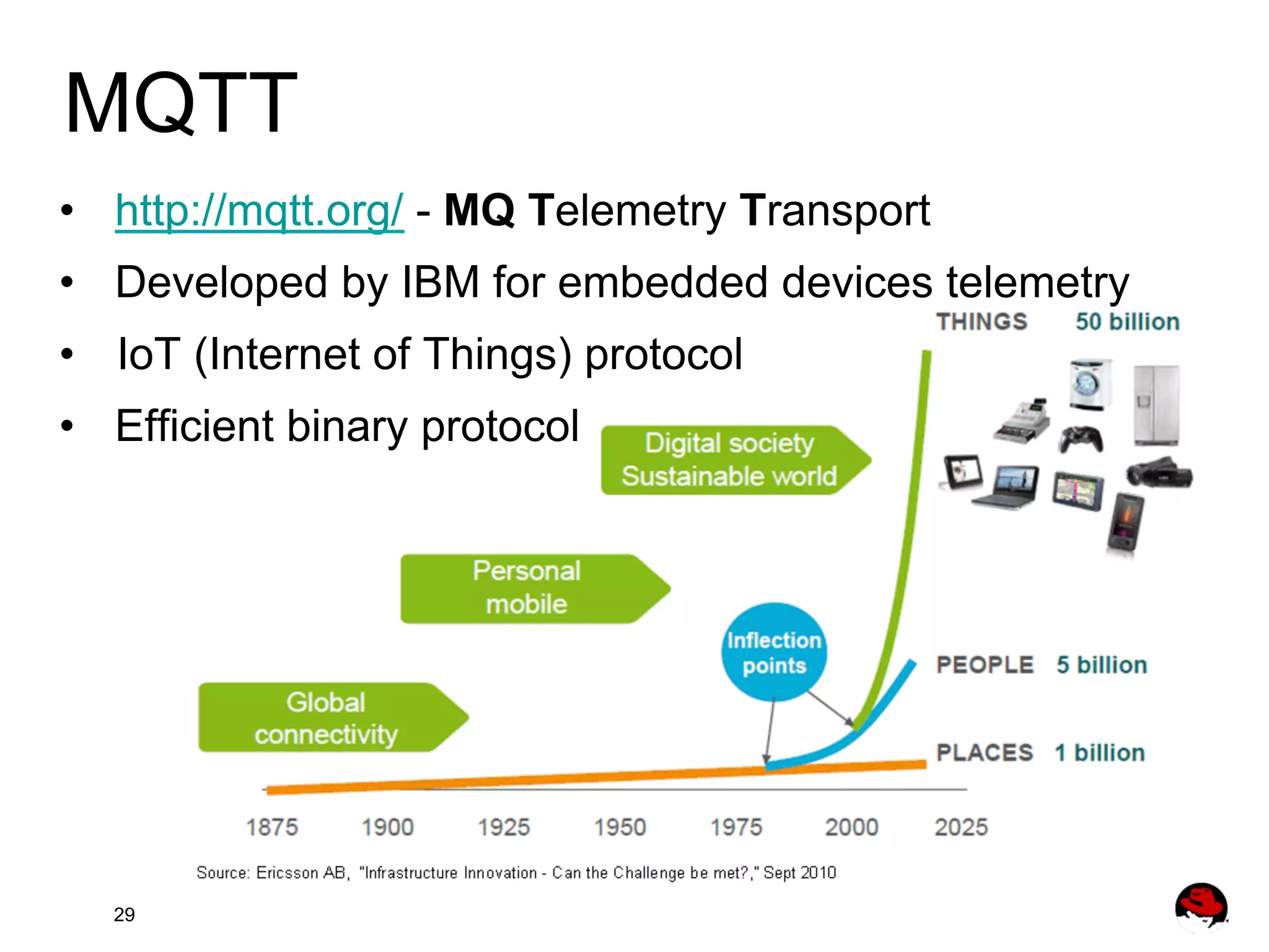

- 29. MQTT • http://mqtt.org/ -MQ Telemetry Transport • Developed by IBM for embedded devices telemetry • IoT (Internet of Things) protocol • Efficient binary protocol 29

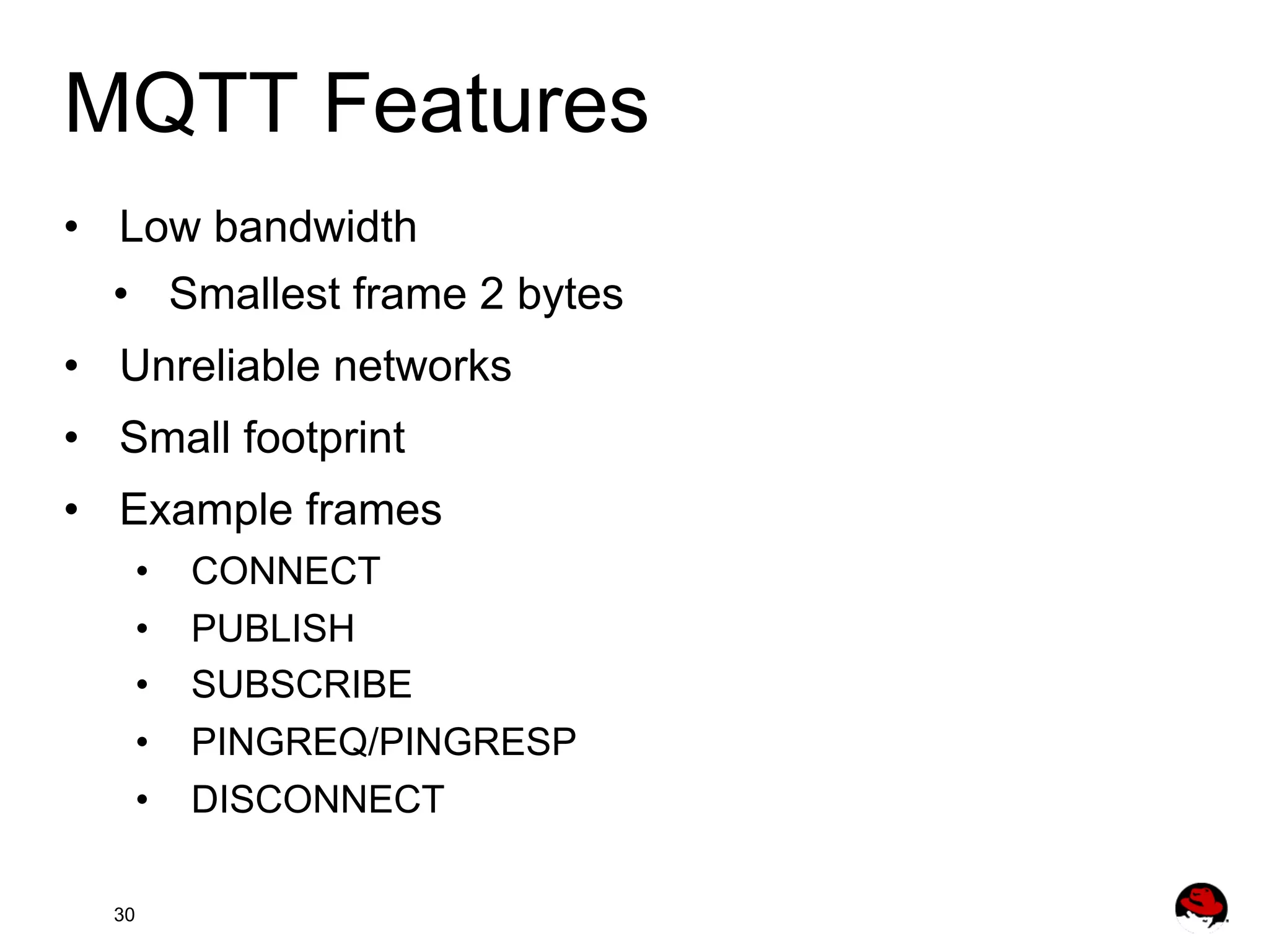

- 30. MQTT Features • Lowbandwidth • Smallest frame 2 bytes • Unreliable networks • Small footprint • Example frames • • • • CONNECT PUBLISH SUBSCRIBE PINGREQ/PINGRESP • DISCONNECT 30

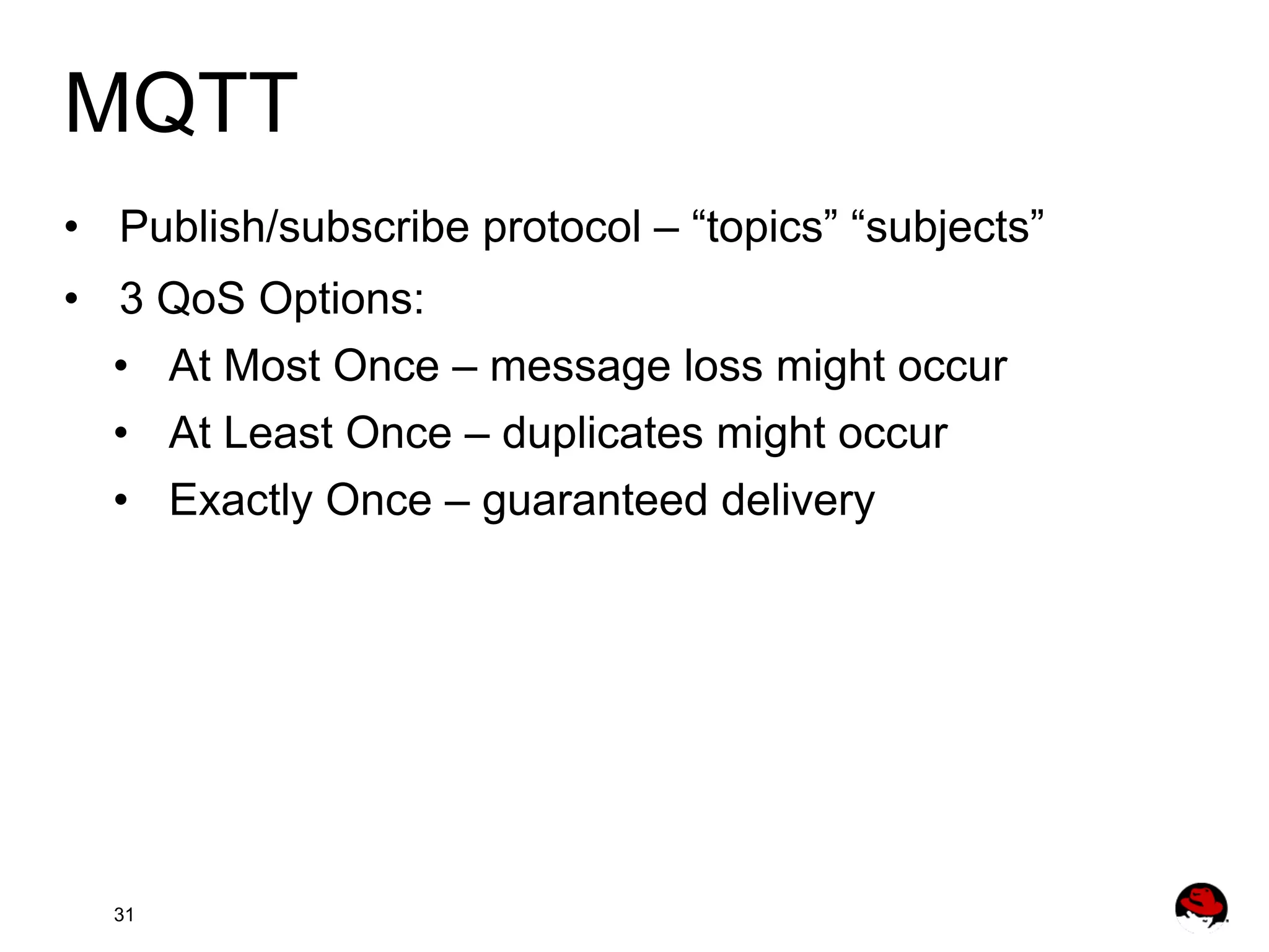

- 31. MQTT • Publish/subscribe protocol– “topics” “subjects” • 3 QoS Options: • At Most Once – message loss might occur • At Least Once – duplicates might occur • Exactly Once – guaranteed delivery 31

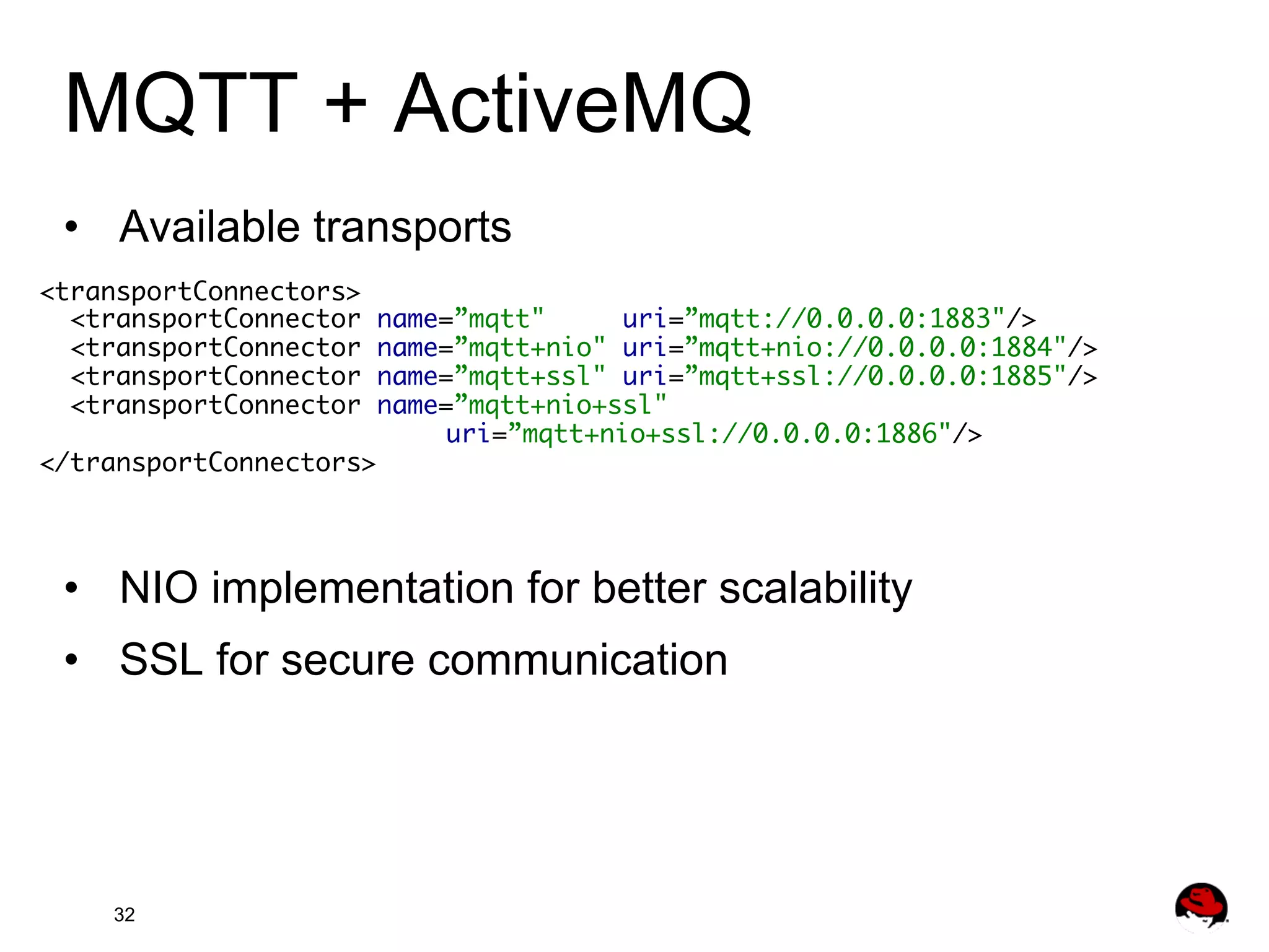

- 32. MQTT + ActiveMQ • Available transports <transportConnectors> <transportConnector name=”mqtt" uri=”mqtt://0.0.0.0:1883"/> <transportConnector name=”mqtt+nio" uri=”mqtt+nio://0.0.0.0:1884"/> <transportConnector name=”mqtt+ssl" uri=”mqtt+ssl://0.0.0.0:1885"/> <transportConnector name=”mqtt+nio+ssl" uri=”mqtt+nio+ssl://0.0.0.0:1886"/> </transportConnectors> • NIO implementation for better scalability • SSL for secure communication 32
- 33.

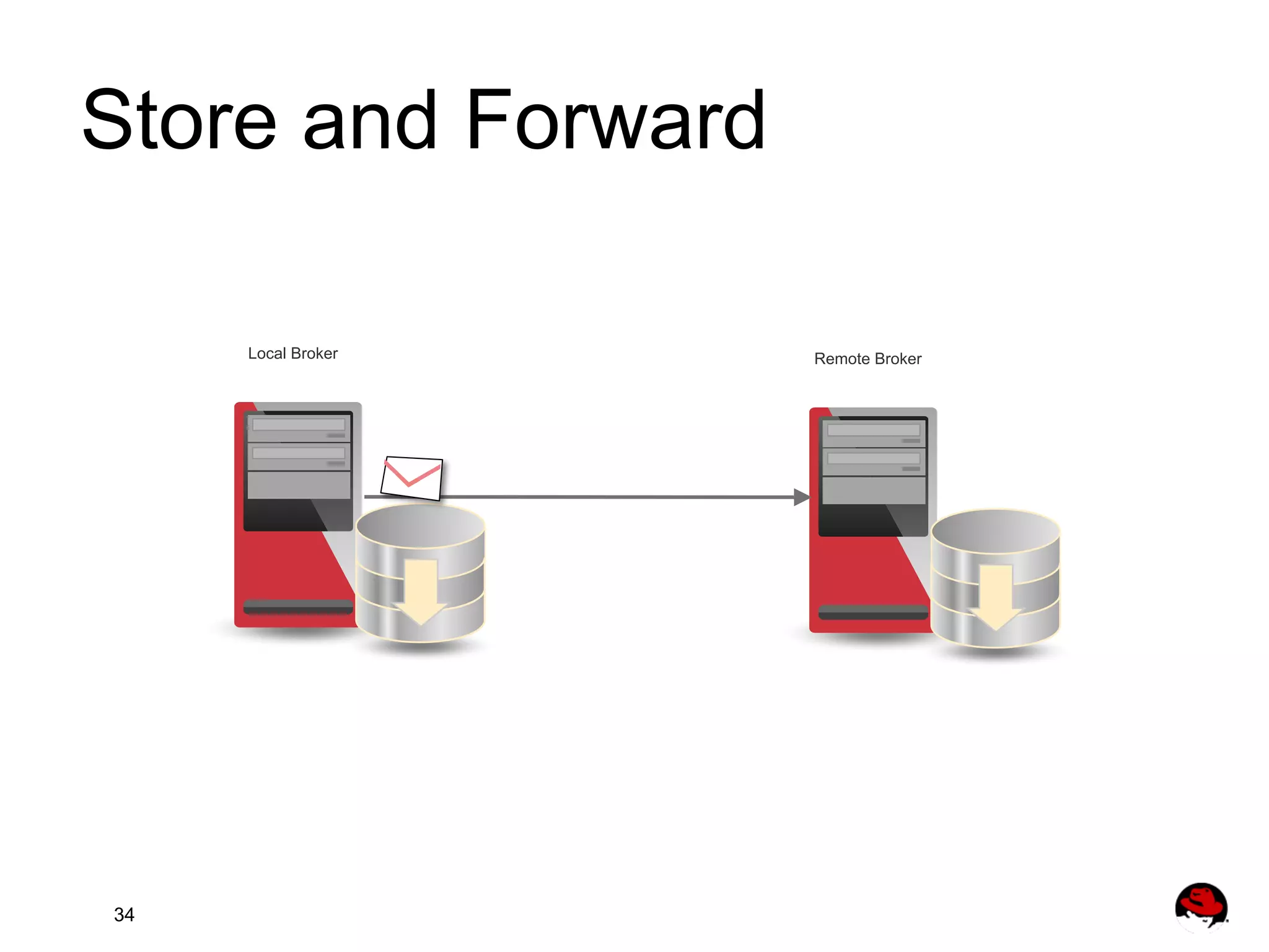

- 34. Store and Forward LocalBroker 34 Remote Broker

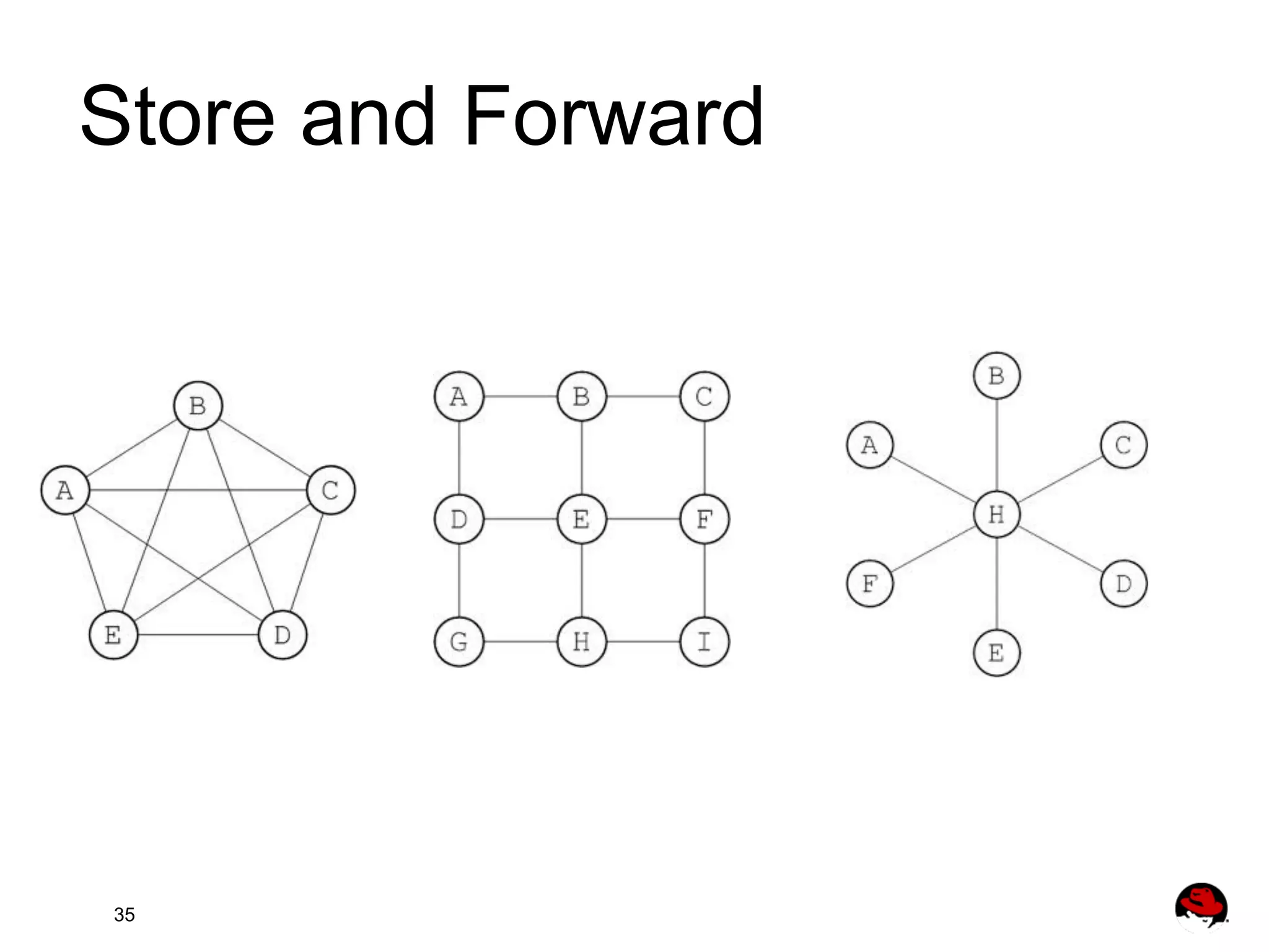

- 35.

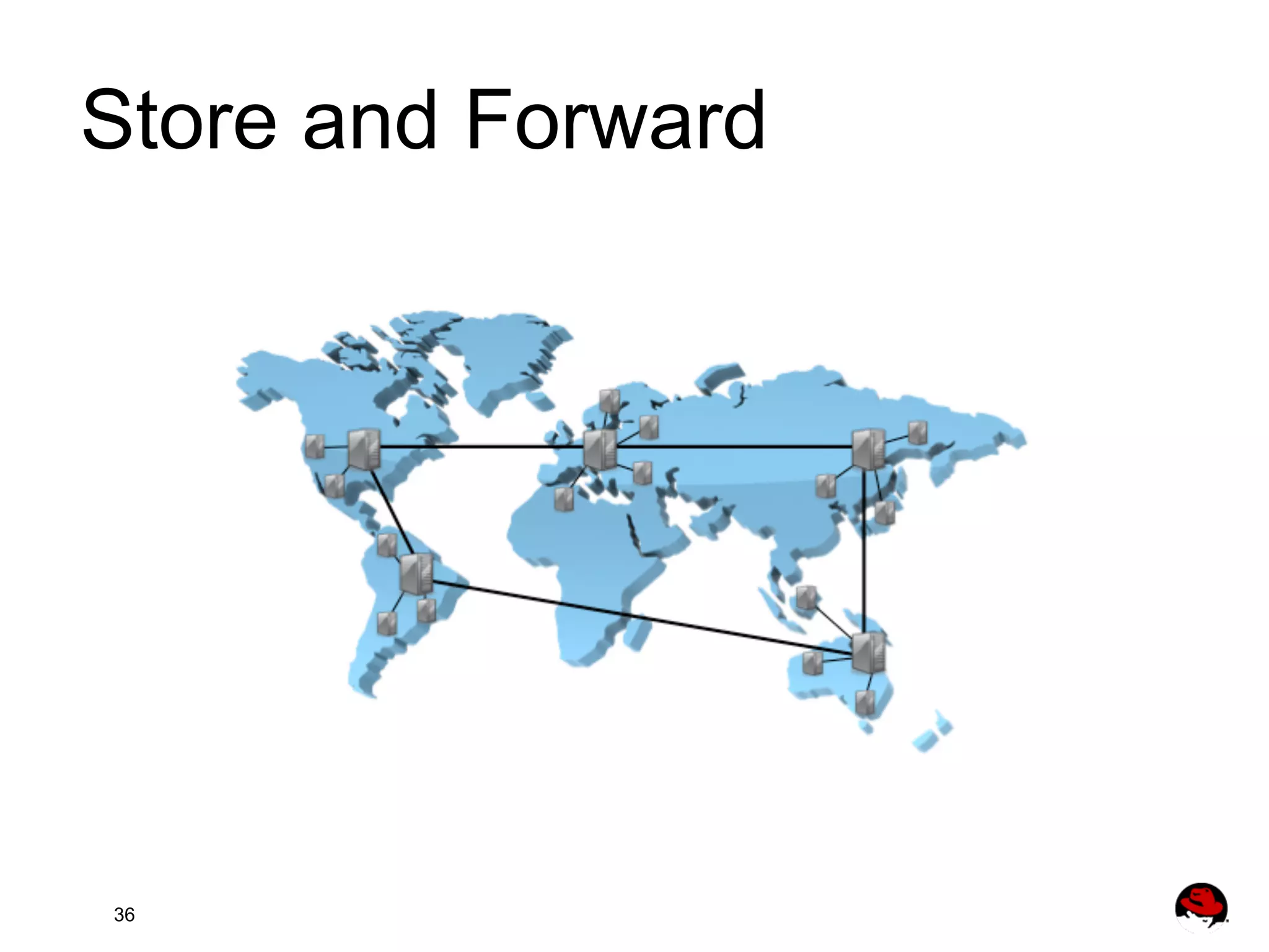

- 36.

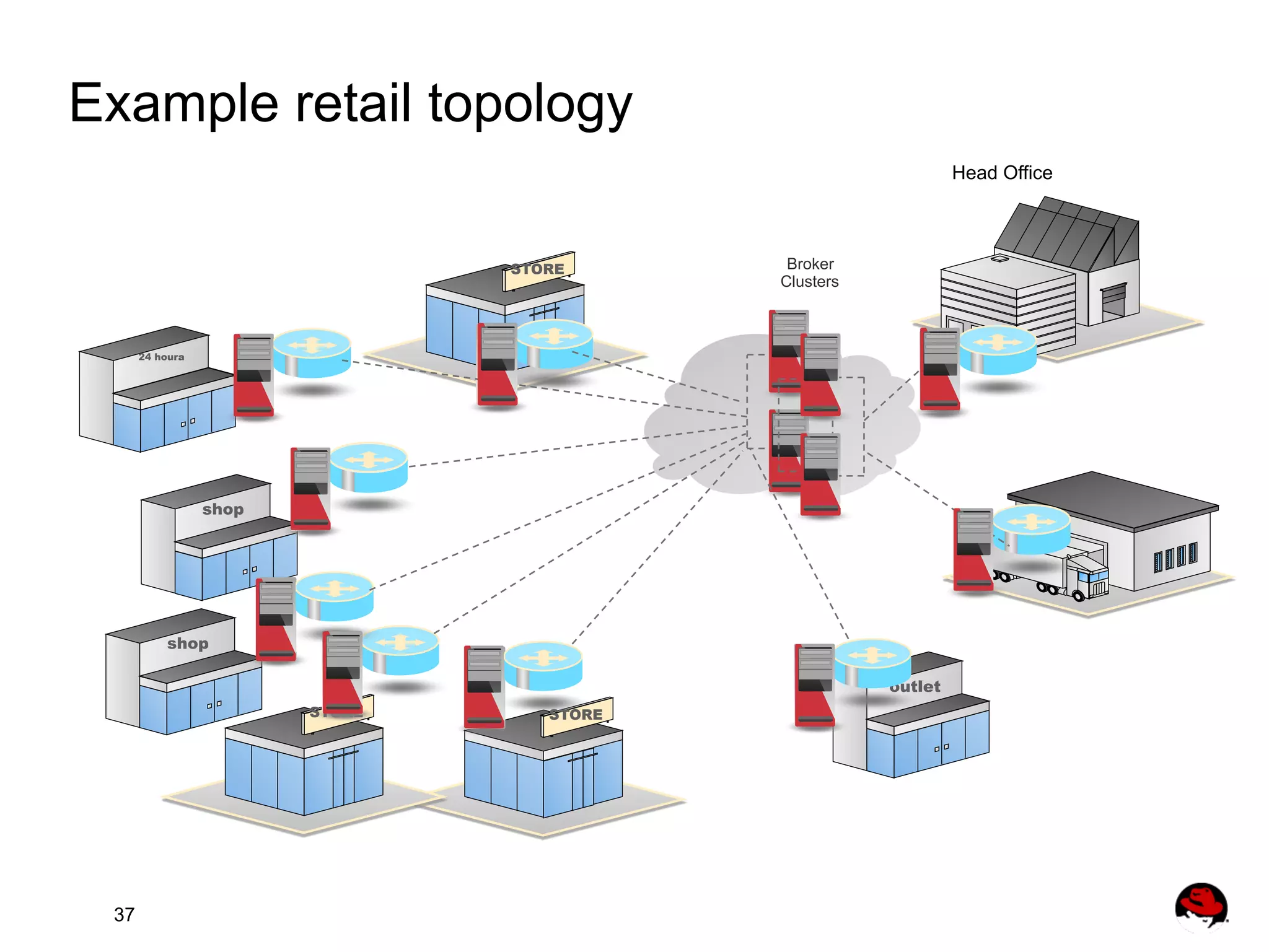

- 37. Example retail topology HeadOffice STORE Broker Clusters 24 houra shop shop outlet STORE 37 STORE
- 38.
- 39.
- 40.
- 41.
- 42.
- 43.

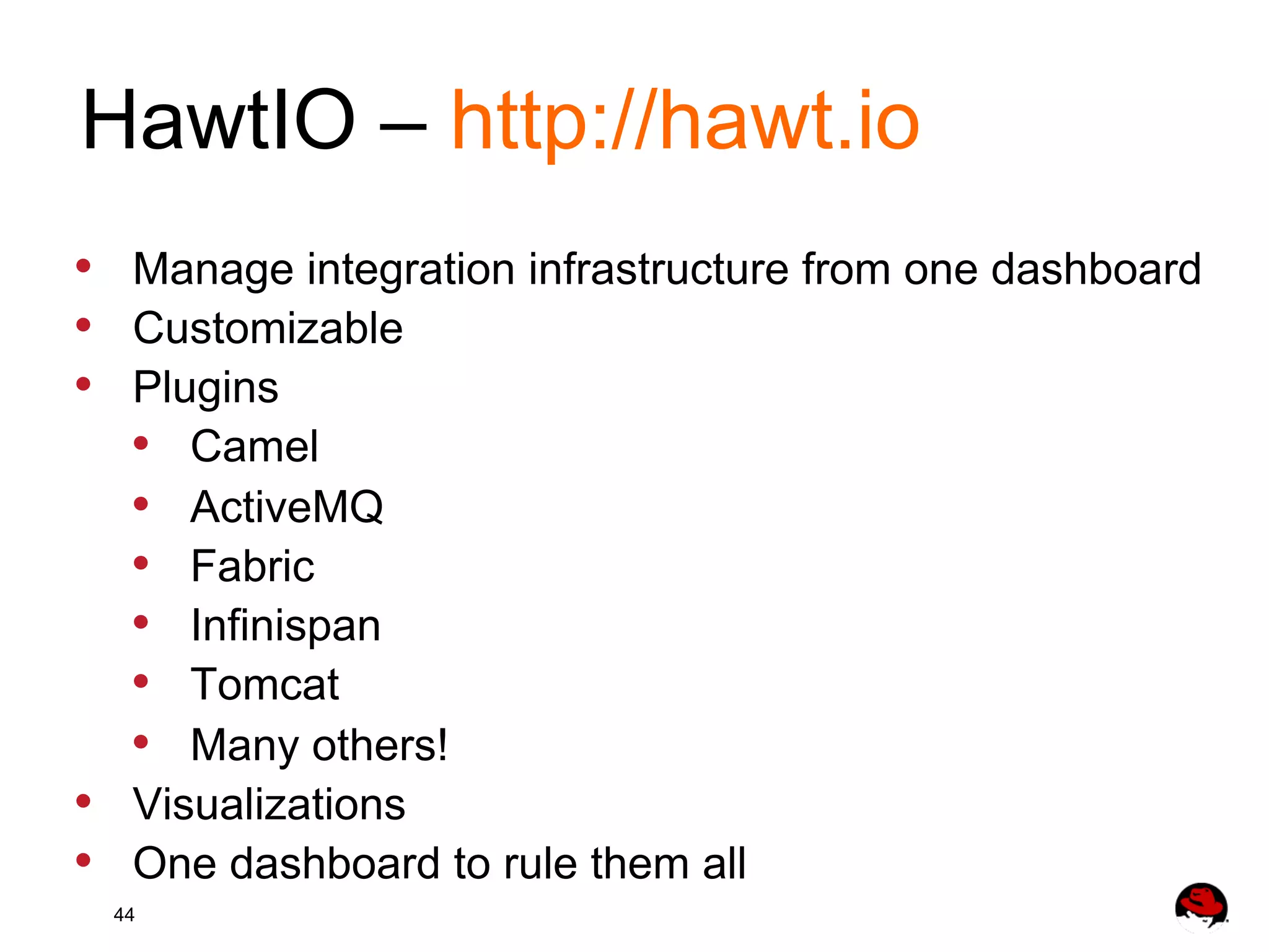

- 44. HawtIO – http://hawt.io • • • • • Manageintegration infrastructure from one dashboard Customizable Plugins • Camel • ActiveMQ • Fabric • Infinispan • Tomcat • Many others! Visualizations One dashboard to rule them all 44

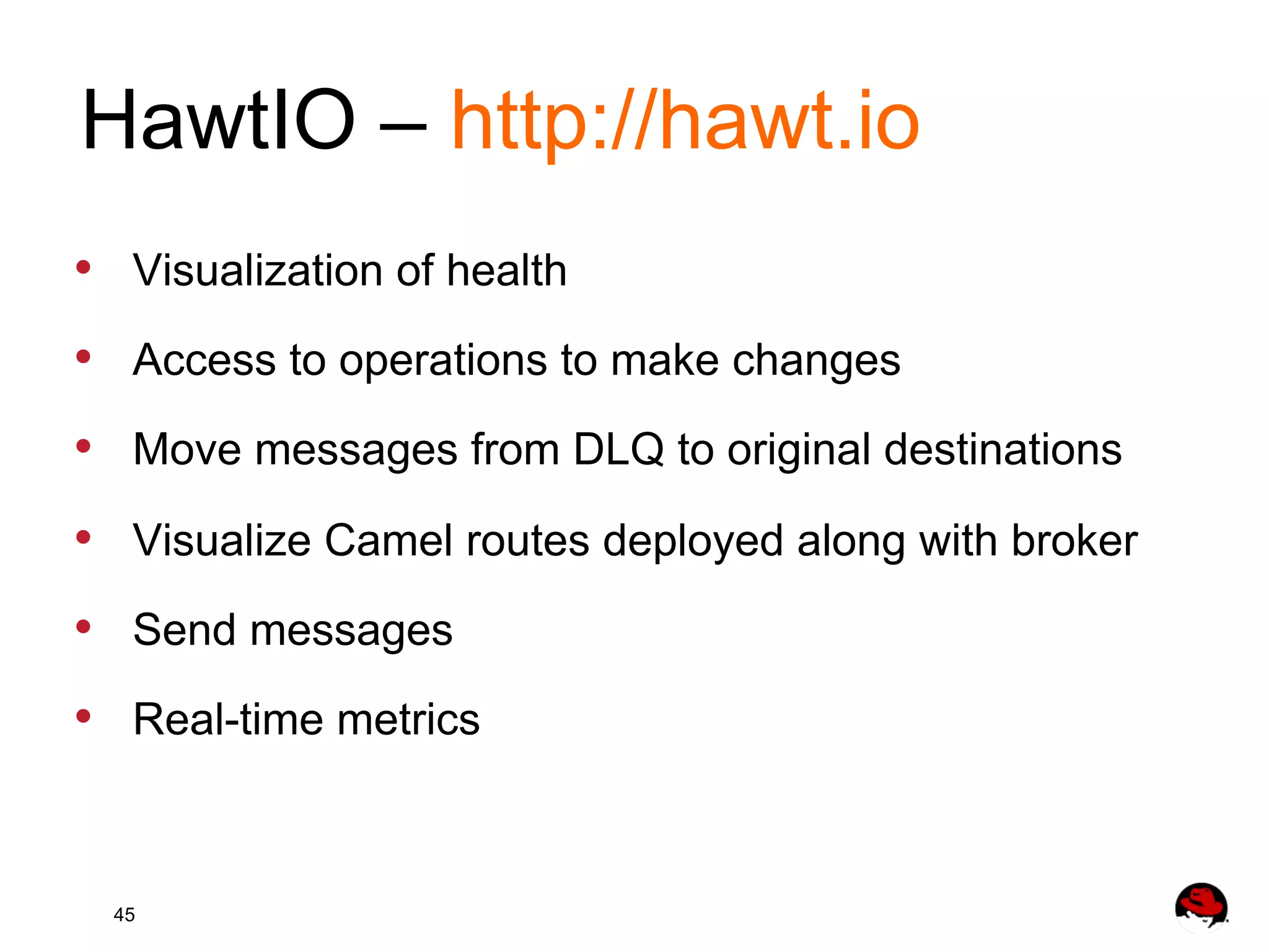

- 45. HawtIO – http://hawt.io • Visualizationof health • Access to operations to make changes • Move messages from DLQ to original destinations • Visualize Camel routes deployed along with broker • Send messages • Real-time metrics 45

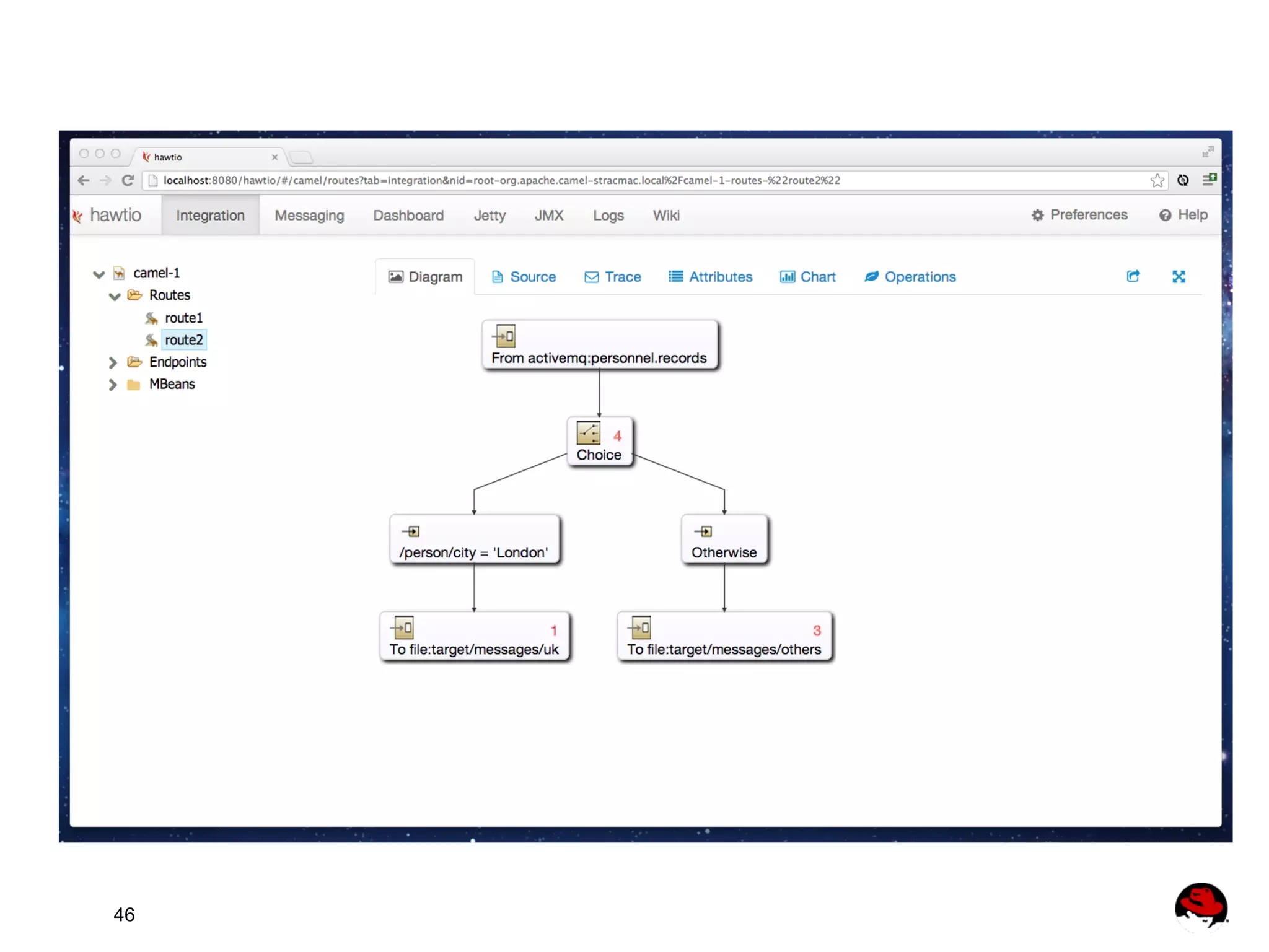

- 46.
- 47.

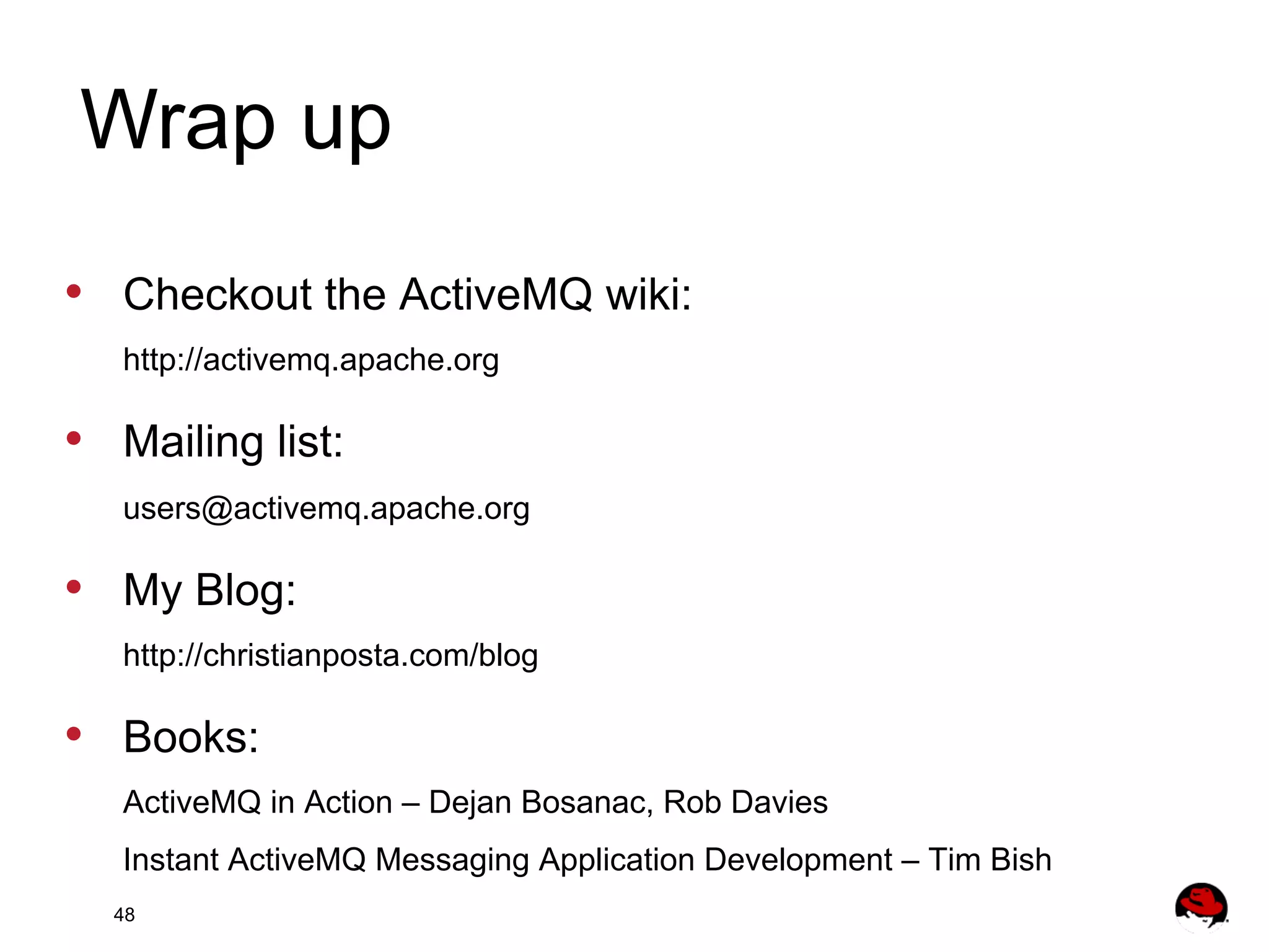

- 48. Wrap up • Checkout theActiveMQ wiki: http://activemq.apache.org • Mailing list: users@activemq.apache.org • My Blog: http://christianposta.com/blog • Books: ActiveMQ in Action – Dejan Bosanac, Rob Davies Instant ActiveMQ Messaging Application Development – Tim Bish 48
- 49.

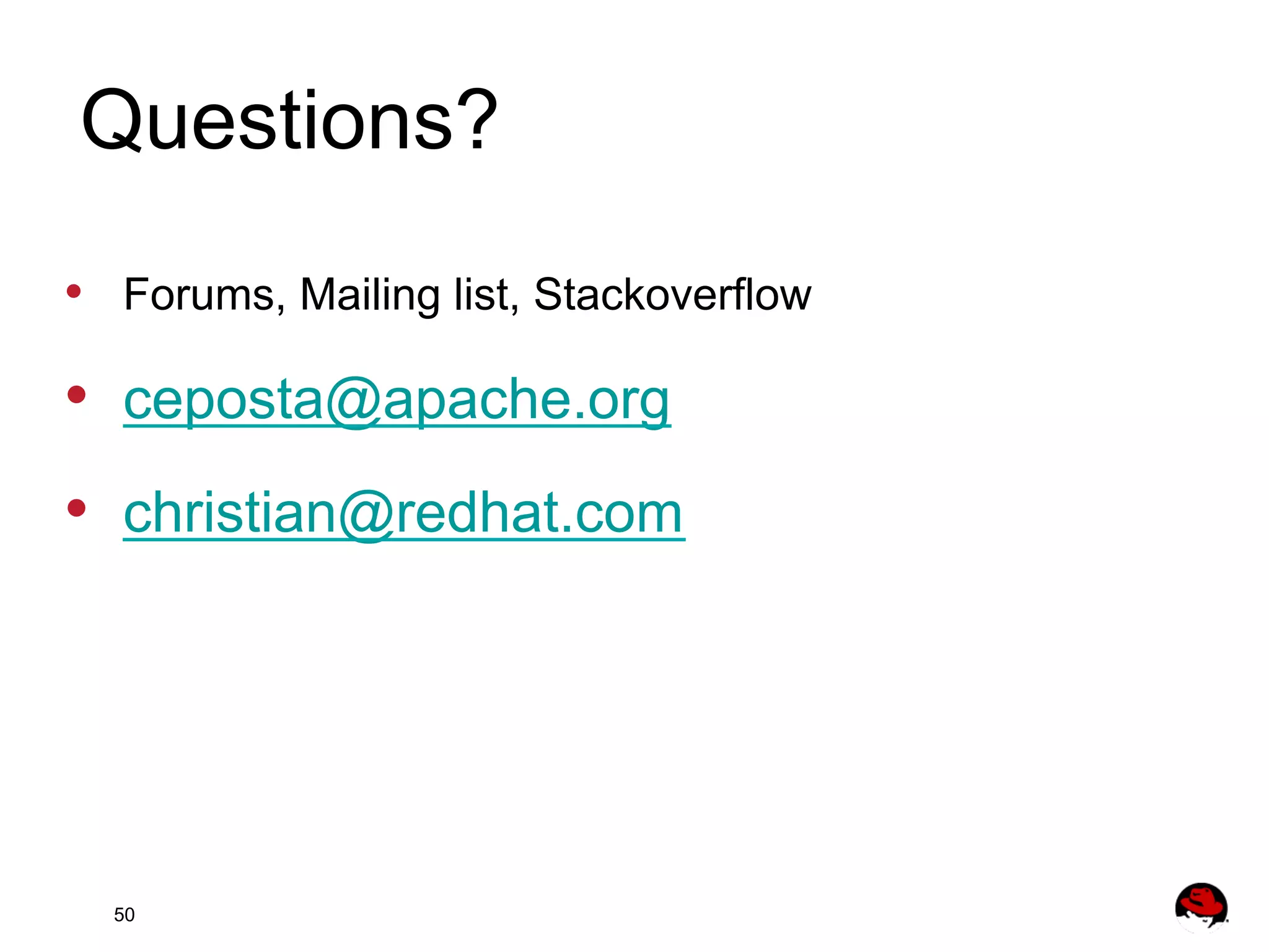

- 50. Questions? • Forums, Mailing list,Stackoverflow • ceposta@apache.org • christian@redhat.com 50
