v Networking in Docker EE 2.0 with Kubernetes and Swarm

SW Engineer, Docker Flavio Crisciani SW Engineer, Docker Abhinandan Prativadi

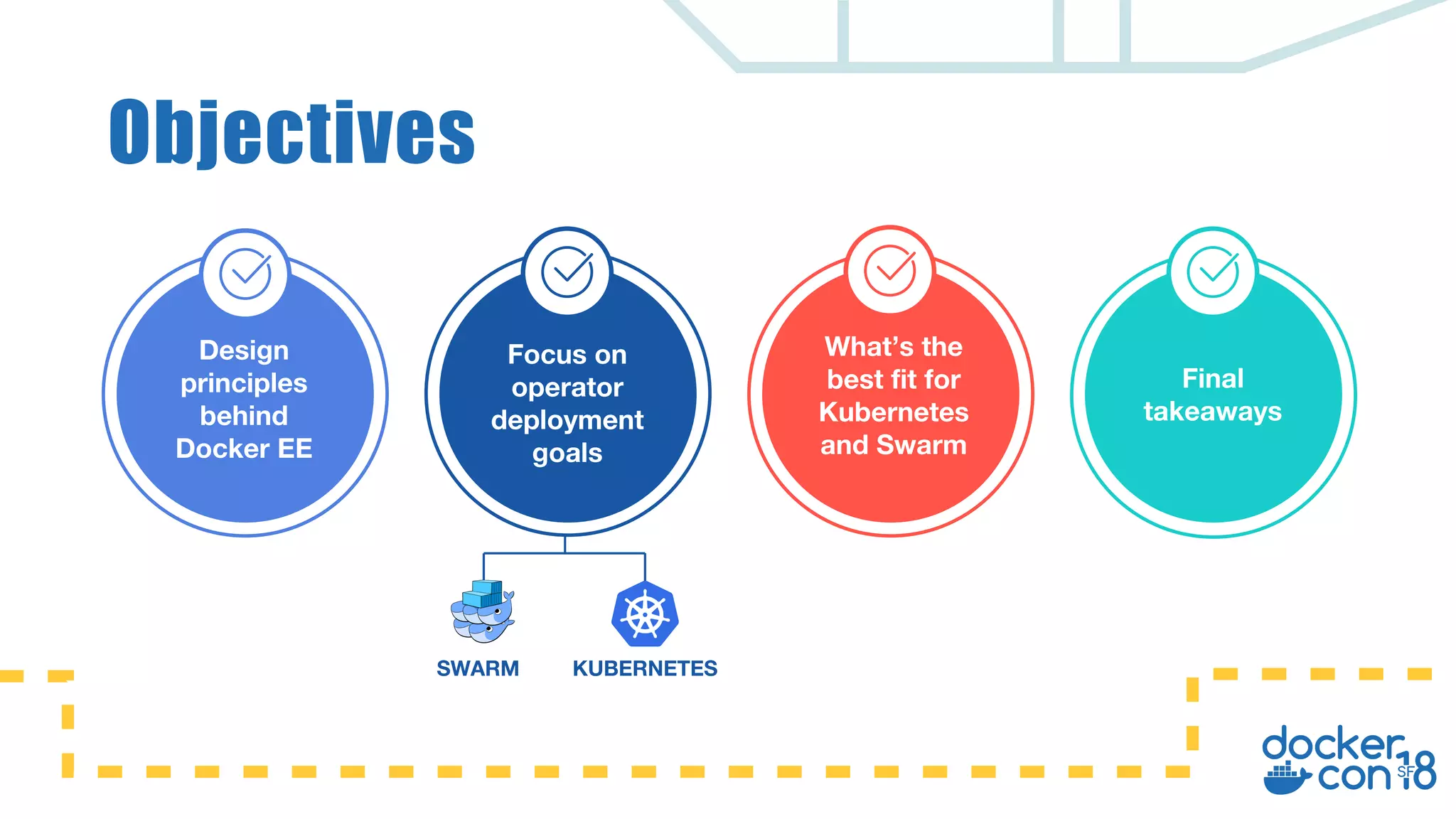

Objectives Design principles behind Docker EE Focus on operator deployment goals What’s the best fit for Kubernetes and Swarm Final takeaways SWARM KUBERNETES

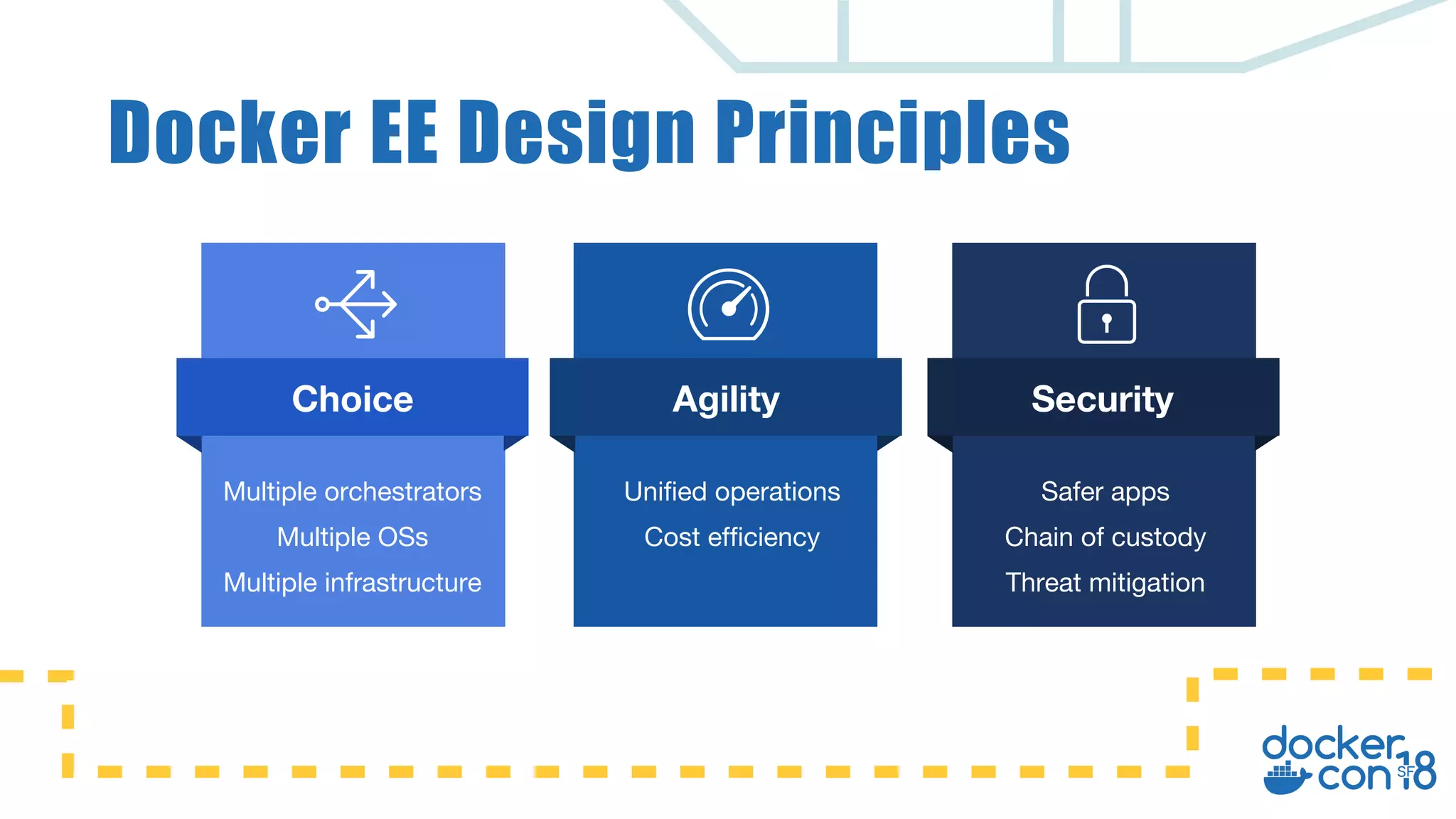

Docker EE Design Principles Multiple orchestrators Multiple OSs Multiple infrastructure Choice SecurityAgility Safer apps Chain of custody Threat mitigation Unified operations Cost efficiency

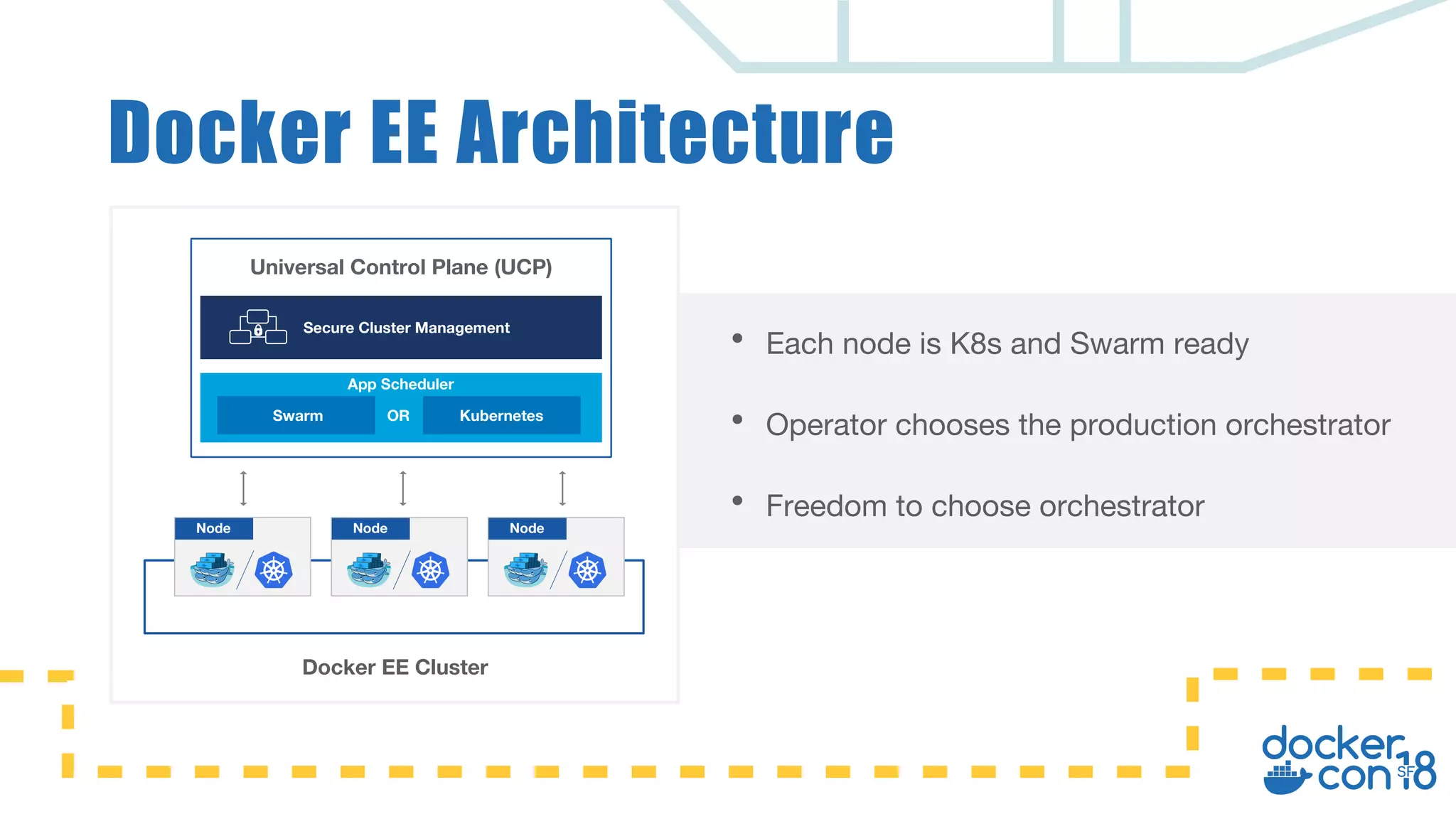

Docker EE Architecture Secure Cluster Management App Scheduler Swarm KubernetesOR Docker EE Cluster Universal Control Plane (UCP) Node • Each node is K8s and Swarm ready • Operator chooses the production orchestrator • Freedom to choose orchestrator Node Node

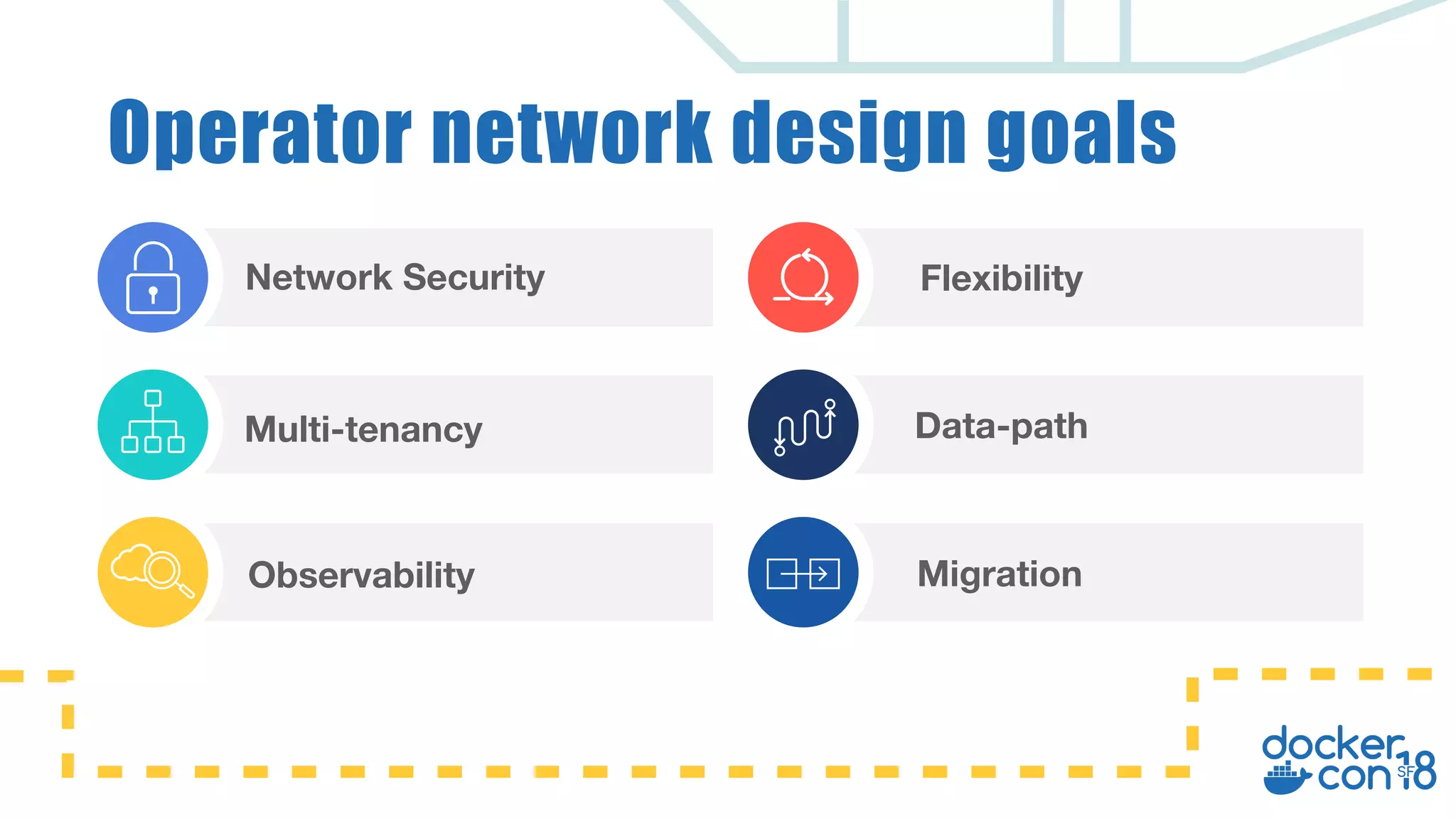

Operator network design goals Network Security Multi-tenancy Observability Flexibility Data-path Migration

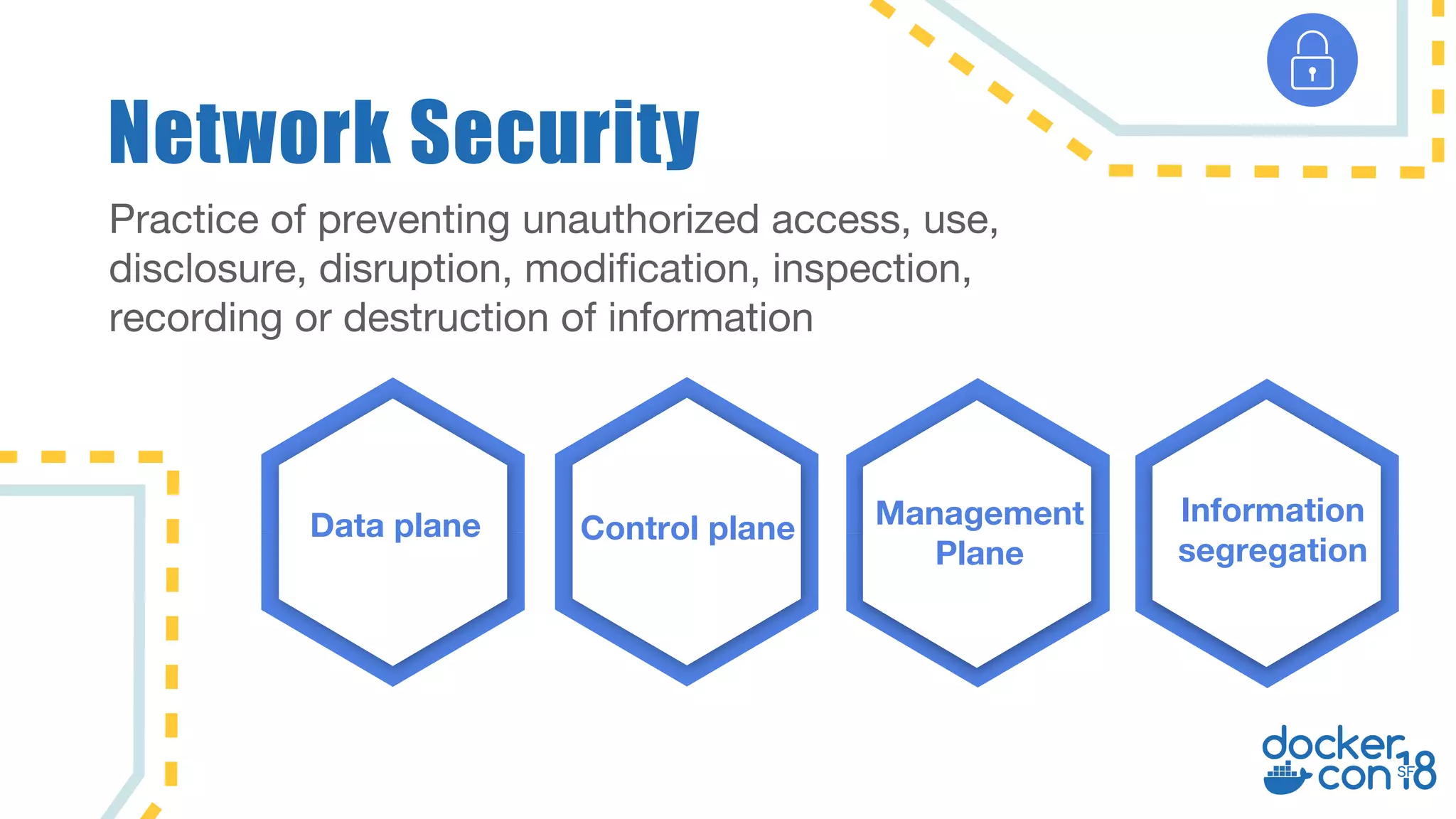

Network Security Practice of preventing unauthorized access, use, disclosure, disruption, modification, inspection, recording or destruction of information Control planeData plane Management Plane Information segregation

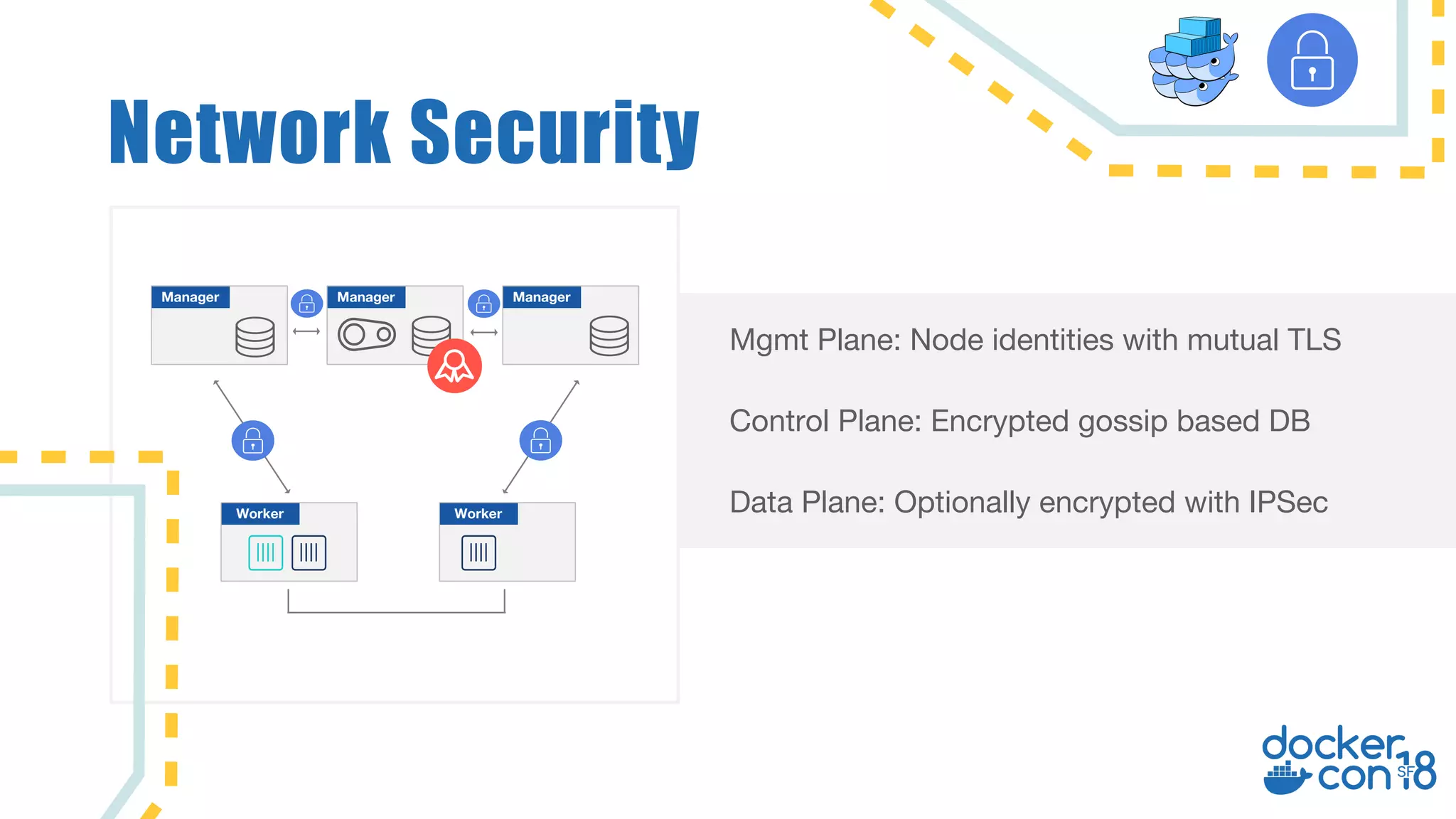

Manager Mgmt Plane: Node identities with mutual TLS Control Plane: Encrypted gossip based DB Data Plane: Optionally encrypted with IPSec Manager Manager Network Security WorkerWorker

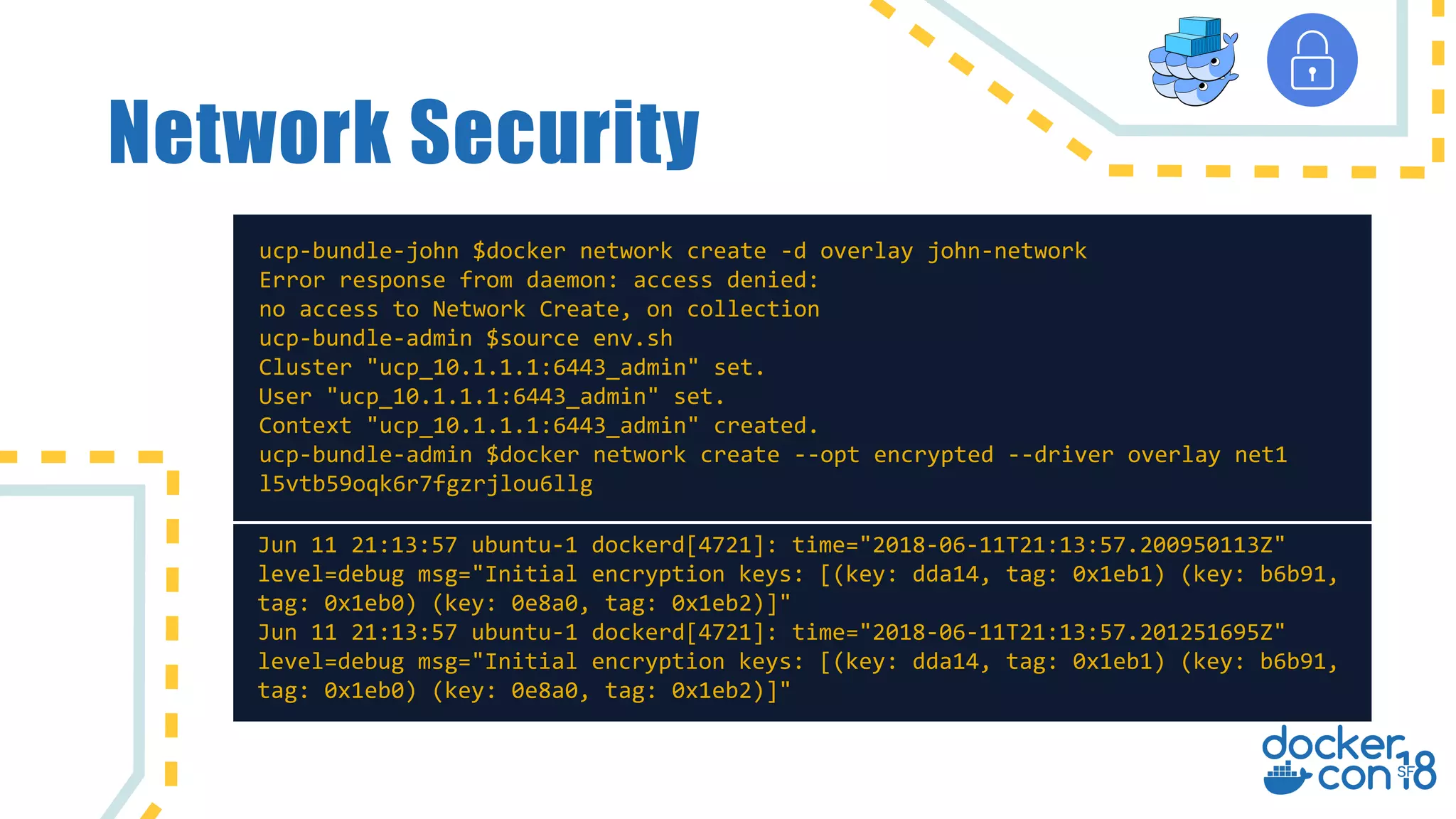

Network Security ucp-bundle-john $docker network create -d overlay john-network Error response from daemon: access denied: no access to Network Create, on collection ucp-bundle-admin $source env.sh Cluster "ucp_10.1.1.1:6443_admin" set. User "ucp_10.1.1.1:6443_admin" set. Context "ucp_10.1.1.1:6443_admin" created. ucp-bundle-admin $docker network create --opt encrypted --driver overlay net1 l5vtb59oqk6r7fgzrjlou6llg Jun 11 21:13:57 ubuntu-1 dockerd[4721]: time="2018-06-11T21:13:57.200950113Z" level=debug msg="Initial encryption keys: [(key: dda14, tag: 0x1eb1) (key: b6b91, tag: 0x1eb0) (key: 0e8a0, tag: 0x1eb2)]" Jun 11 21:13:57 ubuntu-1 dockerd[4721]: time="2018-06-11T21:13:57.201251695Z" level=debug msg="Initial encryption keys: [(key: dda14, tag: 0x1eb1) (key: b6b91, tag: 0x1eb0) (key: 0e8a0, tag: 0x1eb2)]"

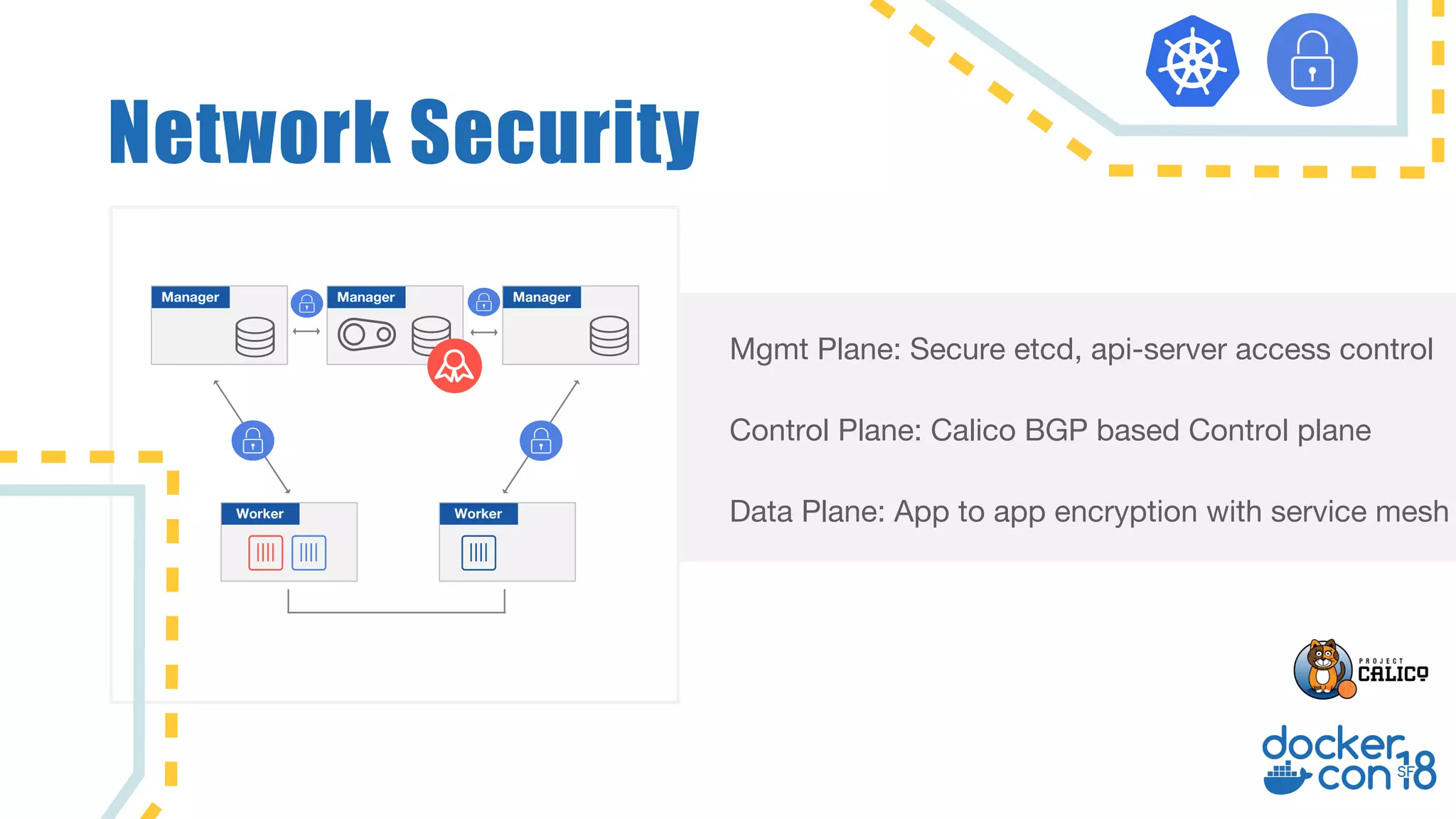

Manager Mgmt Plane: Secure etcd, api-server access control Control Plane: Calico BGP based Control plane Data Plane: App to app encryption with service mesh Manager Manager Network Security WorkerWorker

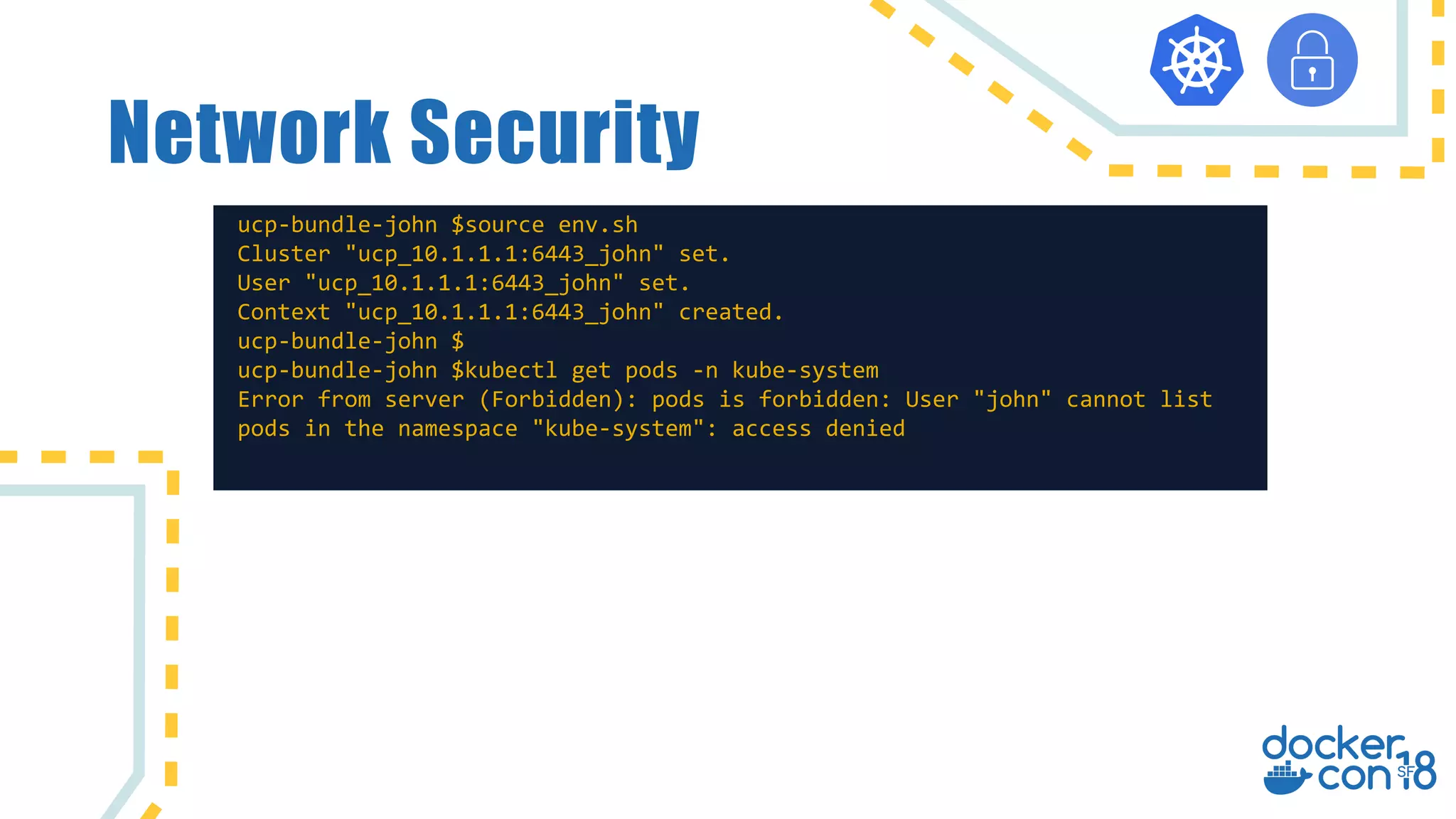

Network Security ucp-bundle-john $source env.sh Cluster "ucp_10.1.1.1:6443_john" set. User "ucp_10.1.1.1:6443_john" set. Context "ucp_10.1.1.1:6443_john" created. ucp-bundle-john $ ucp-bundle-john $kubectl get pods -n kube-system Error from server (Forbidden): pods is forbidden: User "john" cannot list pods in the namespace "kube-system": access denied

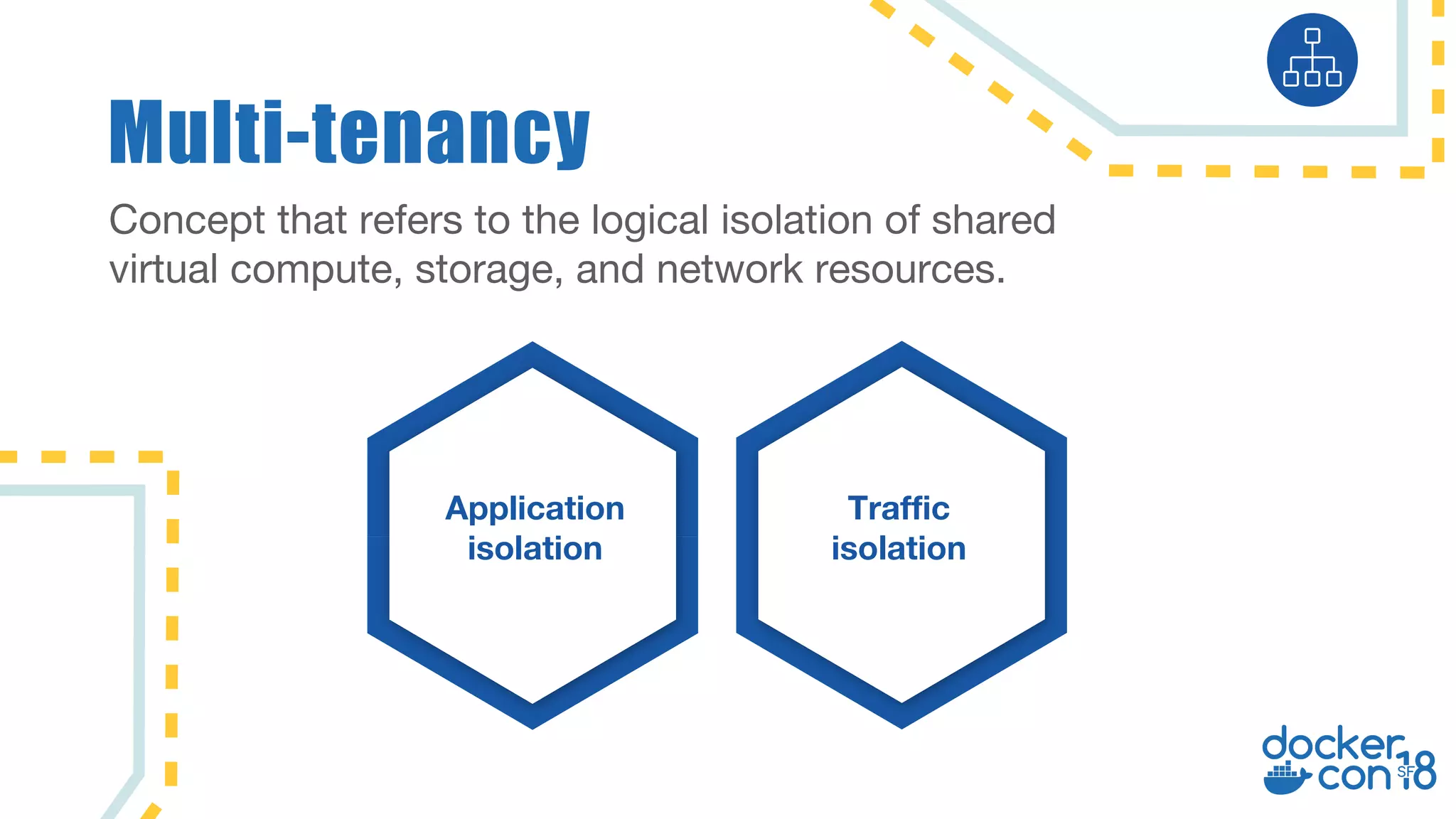

Multi-tenancy Concept that refers to the logical isolation of shared virtual compute, storage, and network resources. Application isolation Traffic isolation

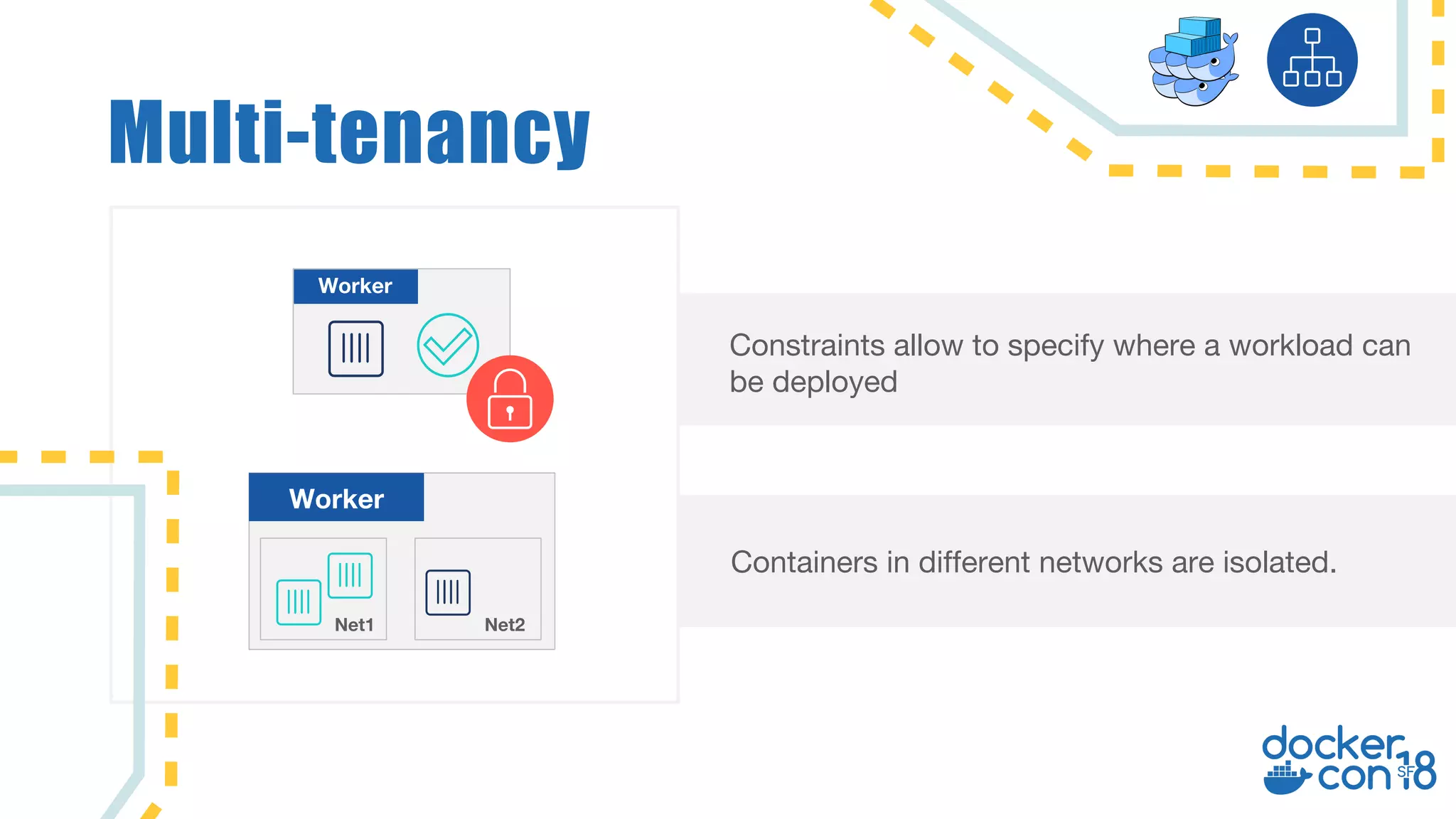

Multi-tenancy Constraints allow to specify where a workload can be deployed Containers in different networks are isolated. Worker Worker Net1 Net2

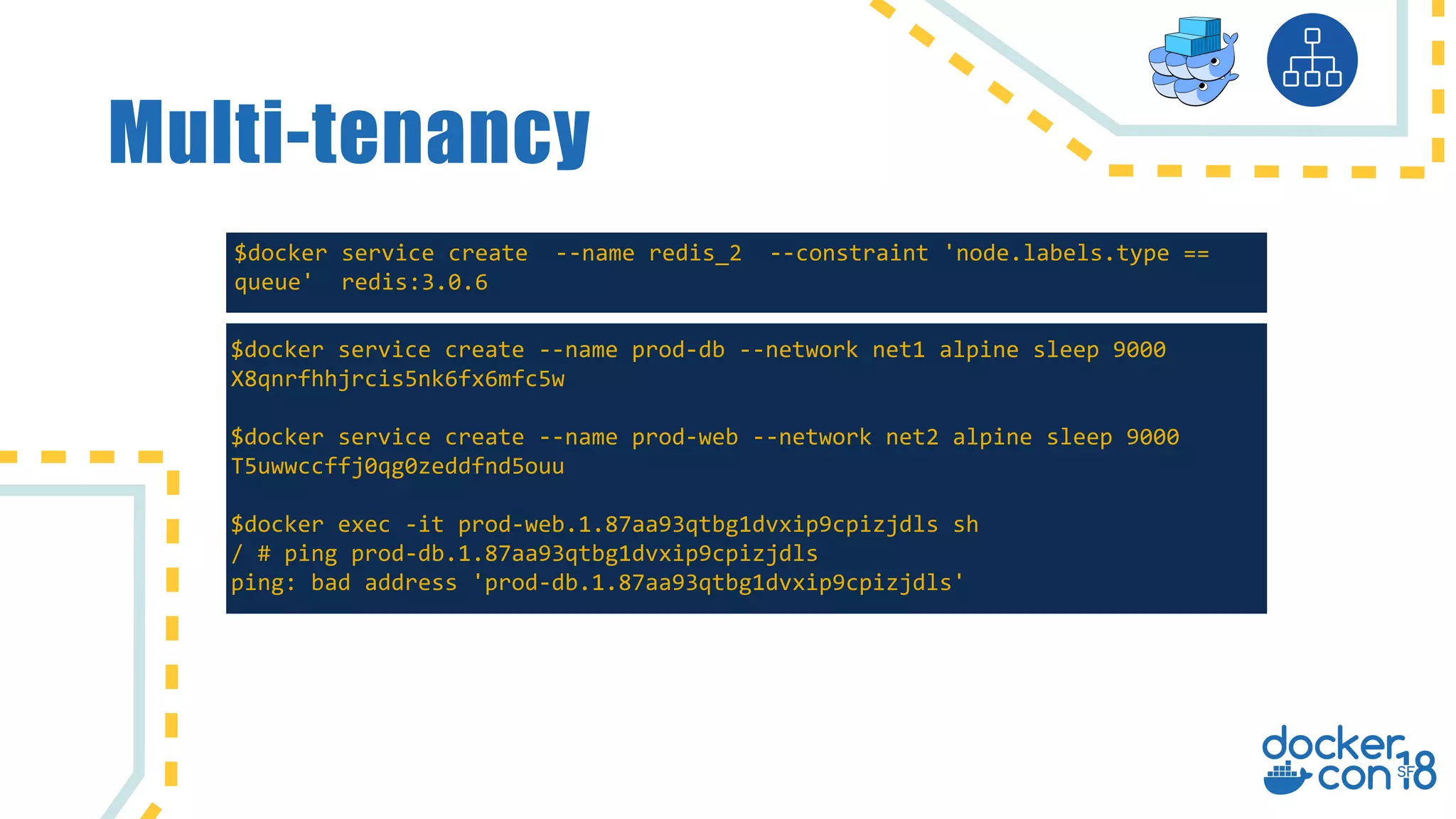

Multi-tenancy $docker service create --name redis_2 --constraint 'node.labels.type == queue' redis:3.0.6 $docker service create --name prod-db --network net1 alpine sleep 9000 X8qnrfhhjrcis5nk6fx6mfc5w $docker service create --name prod-web --network net2 alpine sleep 9000 T5uwwccffj0qg0zeddfnd5ouu $docker exec -it prod-web.1.87aa93qtbg1dvxip9cpizjdls sh / # ping prod-db.1.87aa93qtbg1dvxip9cpizjdls ping: bad address 'prod-db.1.87aa93qtbg1dvxip9cpizjdls'

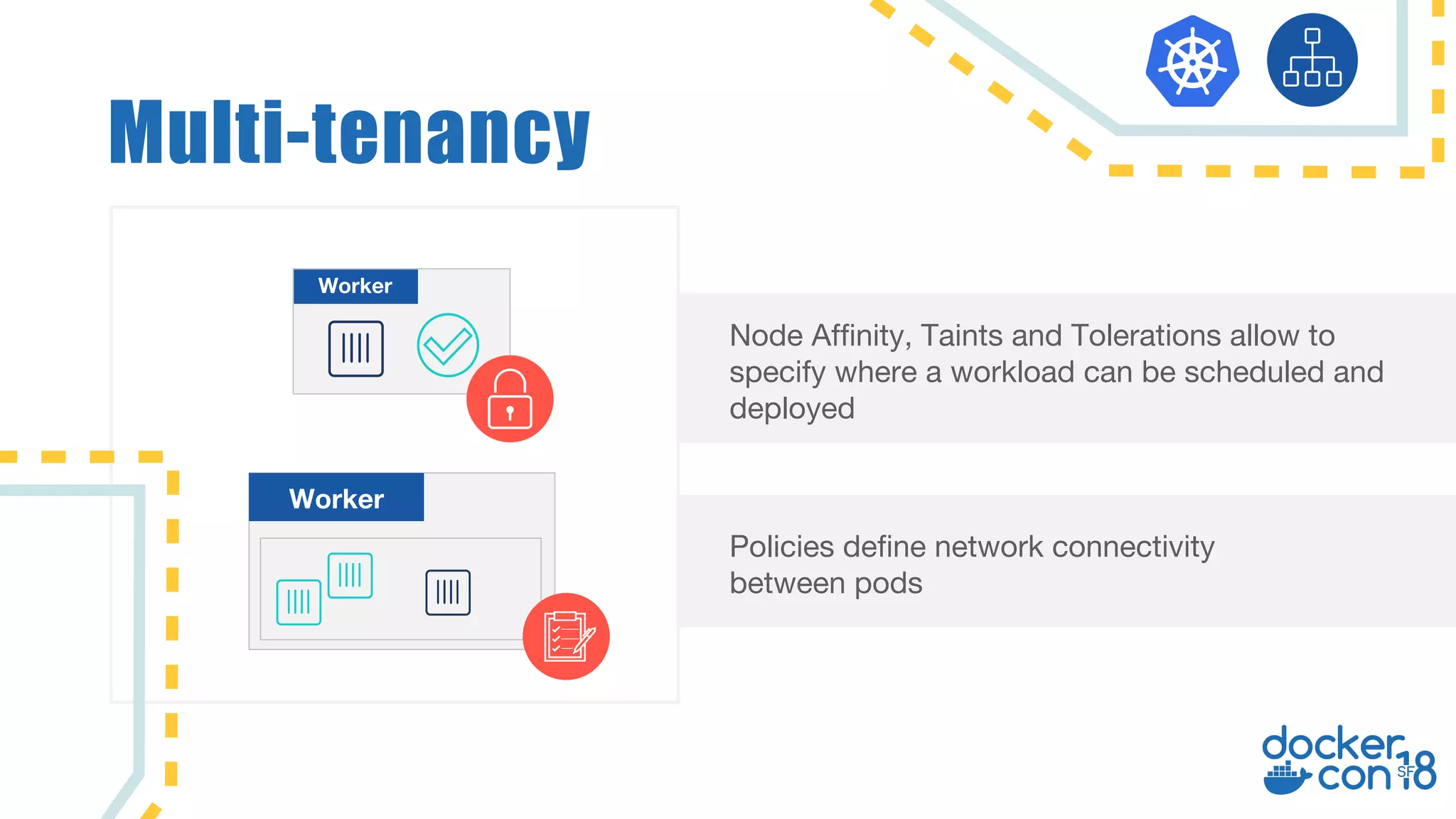

Multi-tenancy Node Affinity, Taints and Tolerations allow to specify where a workload can be scheduled and deployed Policies define network connectivity between pods Worker Worker

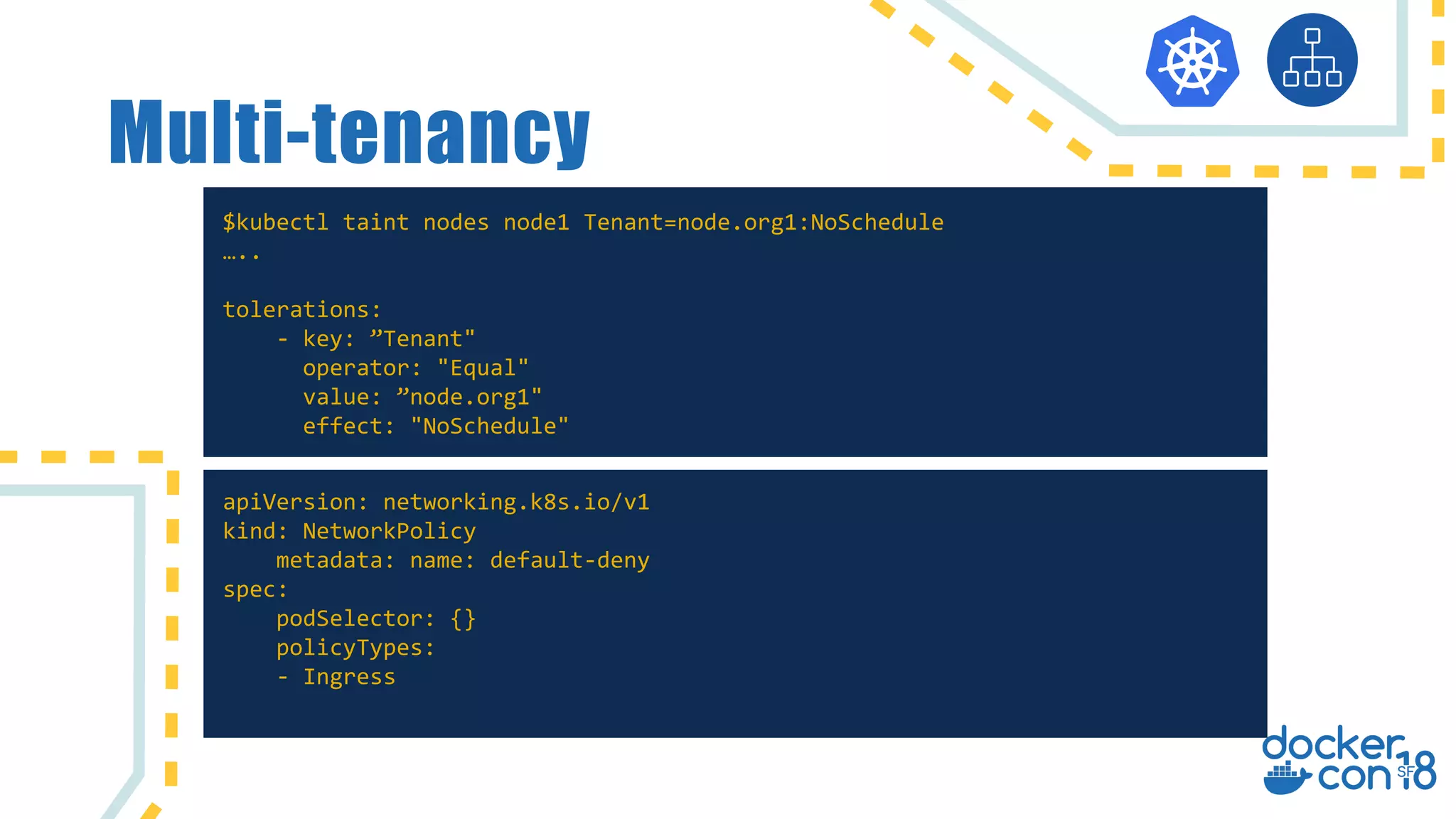

Multi-tenancy $kubectl taint nodes node1 Tenant=node.org1:NoSchedule ….. tolerations: - key: ”Tenant" operator: "Equal" value: ”node.org1" effect: "NoSchedule" apiVersion: networking.k8s.io/v1 kind: NetworkPolicy metadata: name: default-deny spec: podSelector: {} policyTypes: - Ingress

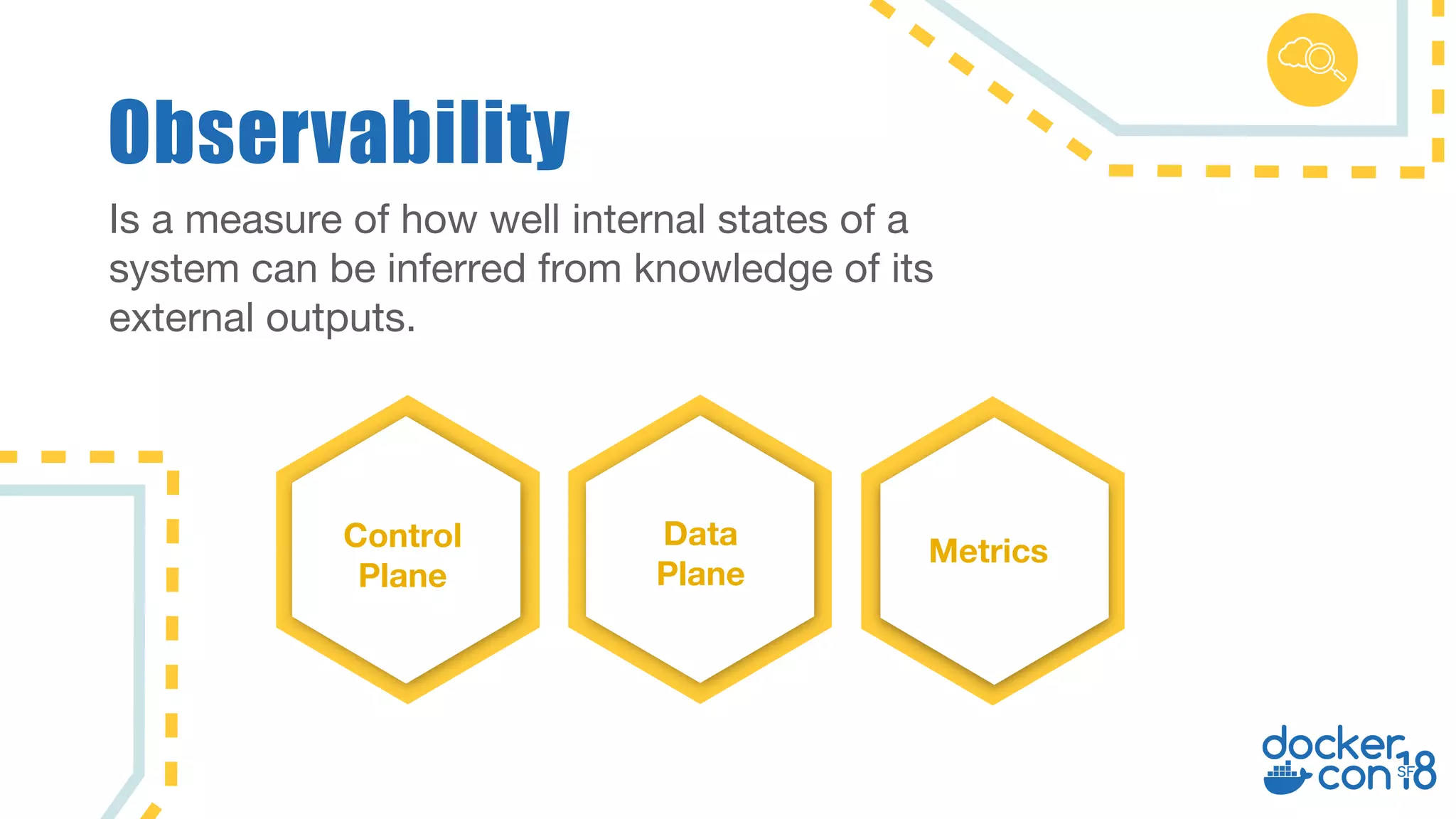

Observability Is a measure of how well internal states of a system can be inferred from knowledge of its external outputs. Control Plane Data Plane Metrics

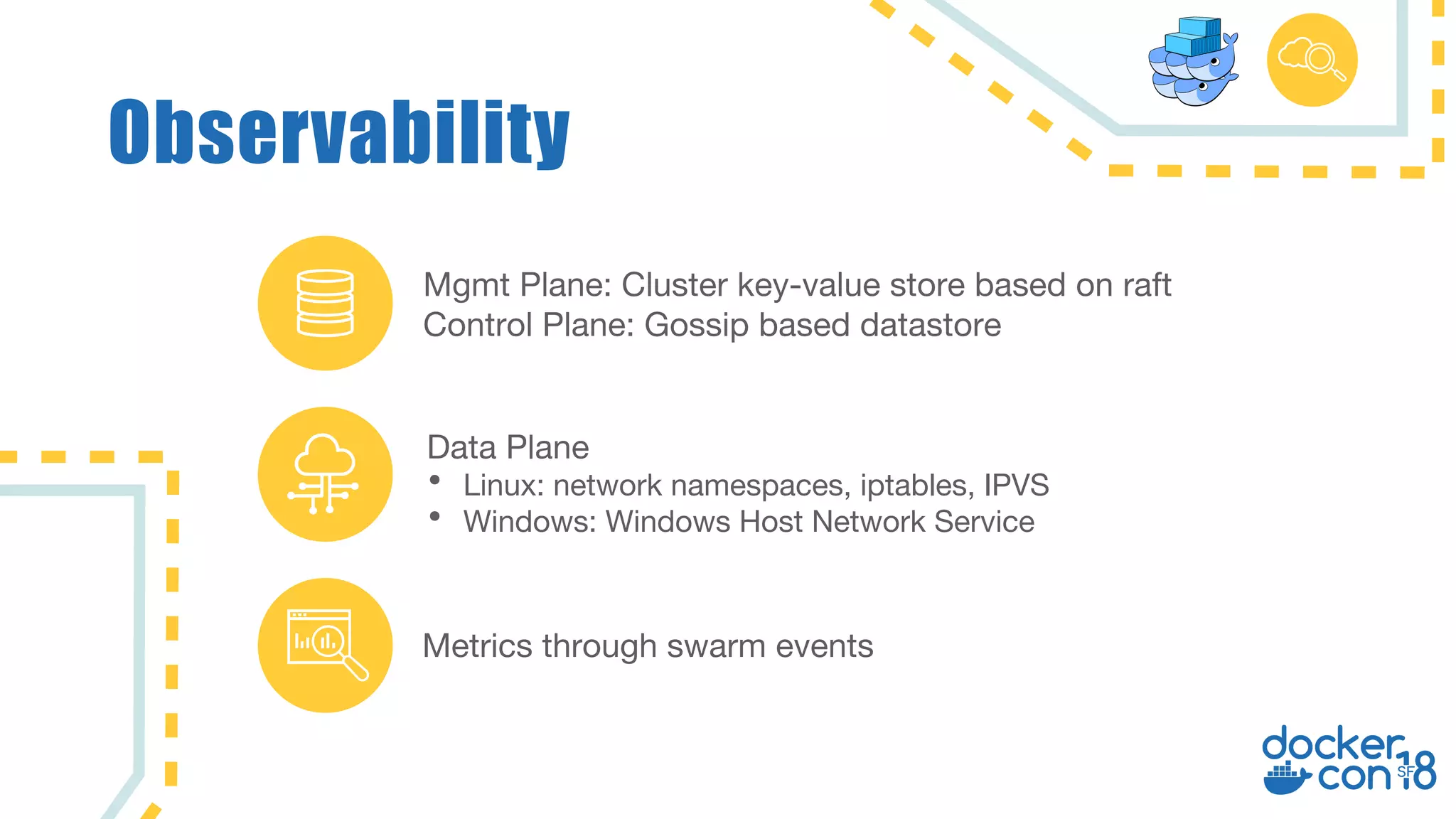

Observability Mgmt Plane: Cluster key-value store based on raft Control Plane: Gossip based datastore Metrics through swarm events Data Plane • Linux: network namespaces, iptables, IPVS • Windows: Windows Host Network Service

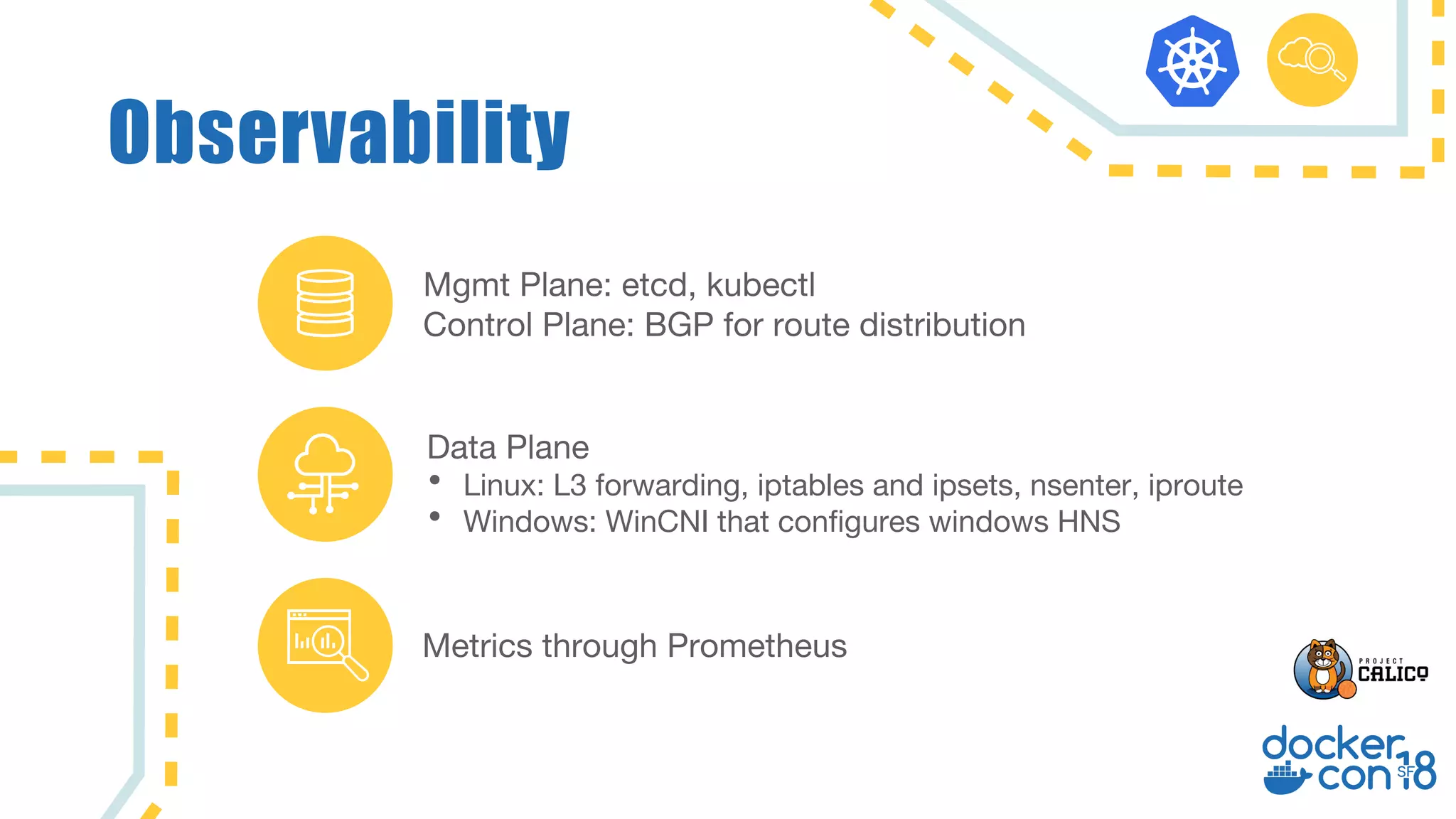

Observability Mgmt Plane: etcd, kubectl Control Plane: BGP for route distribution Metrics through Prometheus Data Plane • Linux: L3 forwarding, iptables and ipsets, nsenter, iproute • Windows: WinCNI that configures windows HNS

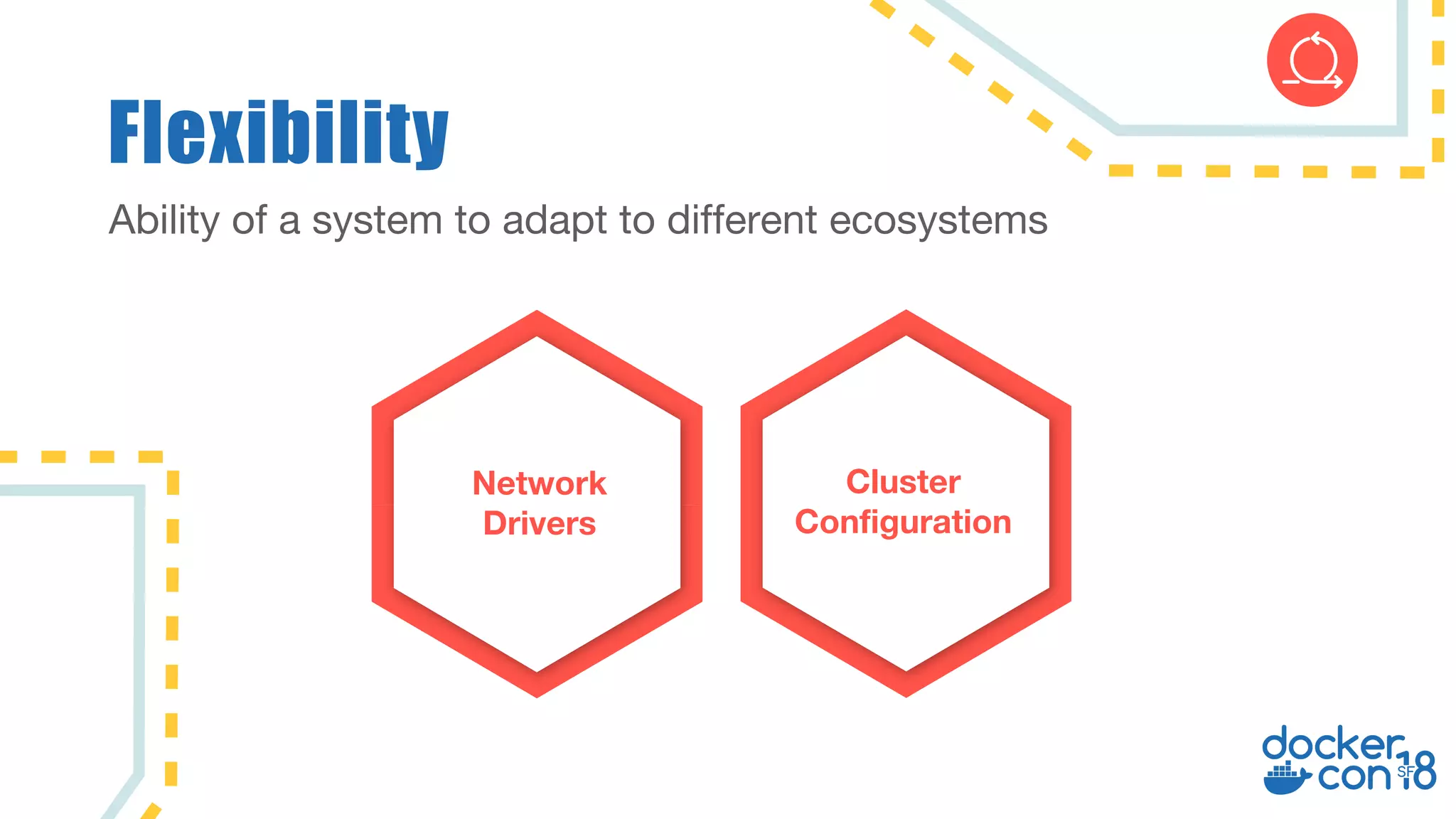

Flexibility Ability of a system to adapt to different ecosystems Network Drivers Cluster Configuration

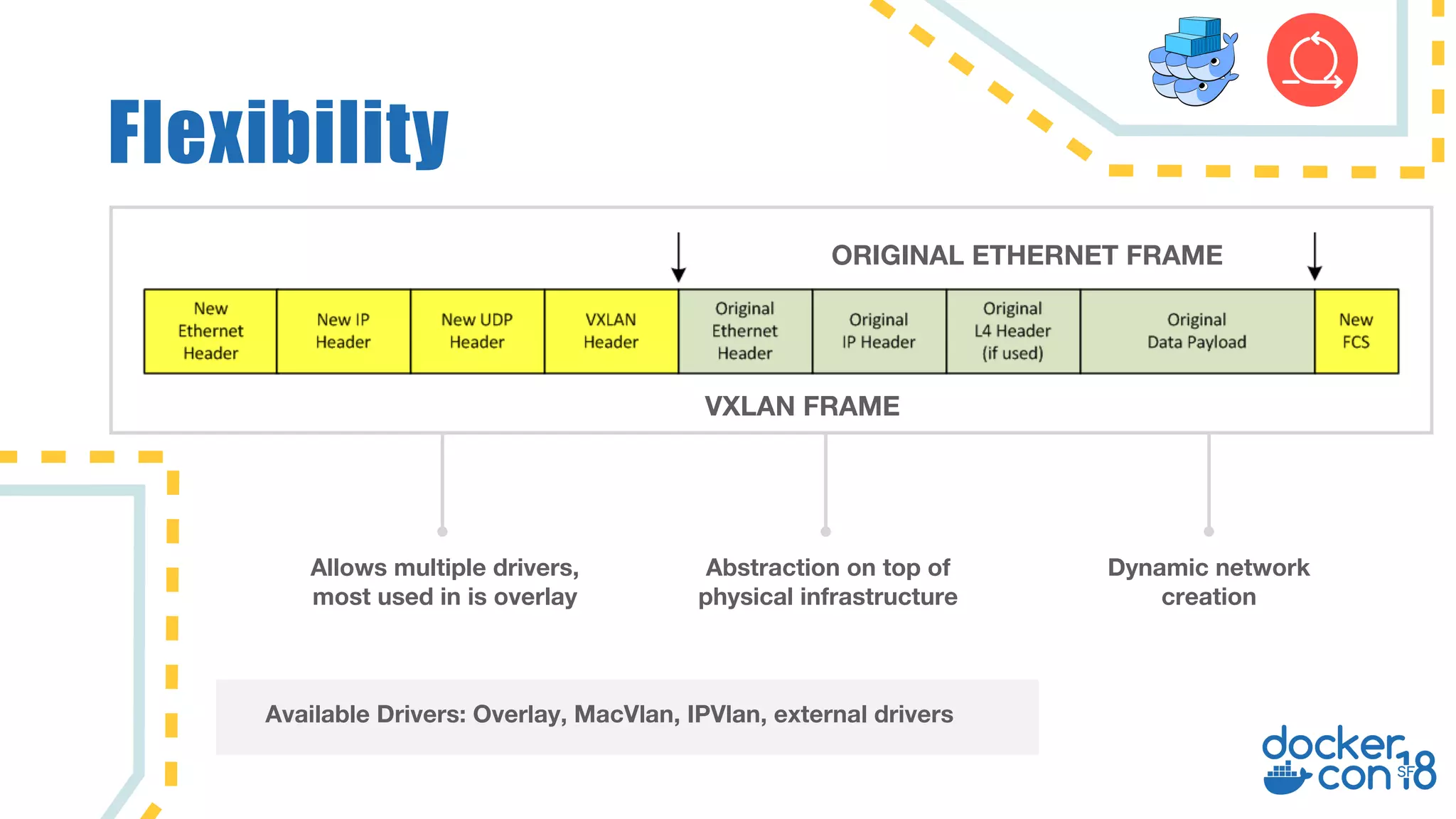

Flexibility Allows multiple drivers, most used in is overlay Abstraction on top of physical infrastructure Dynamic network creation ORIGINAL ETHERNET FRAME VXLAN FRAME Available Drivers: Overlay, MacVlan, IPVlan, external drivers

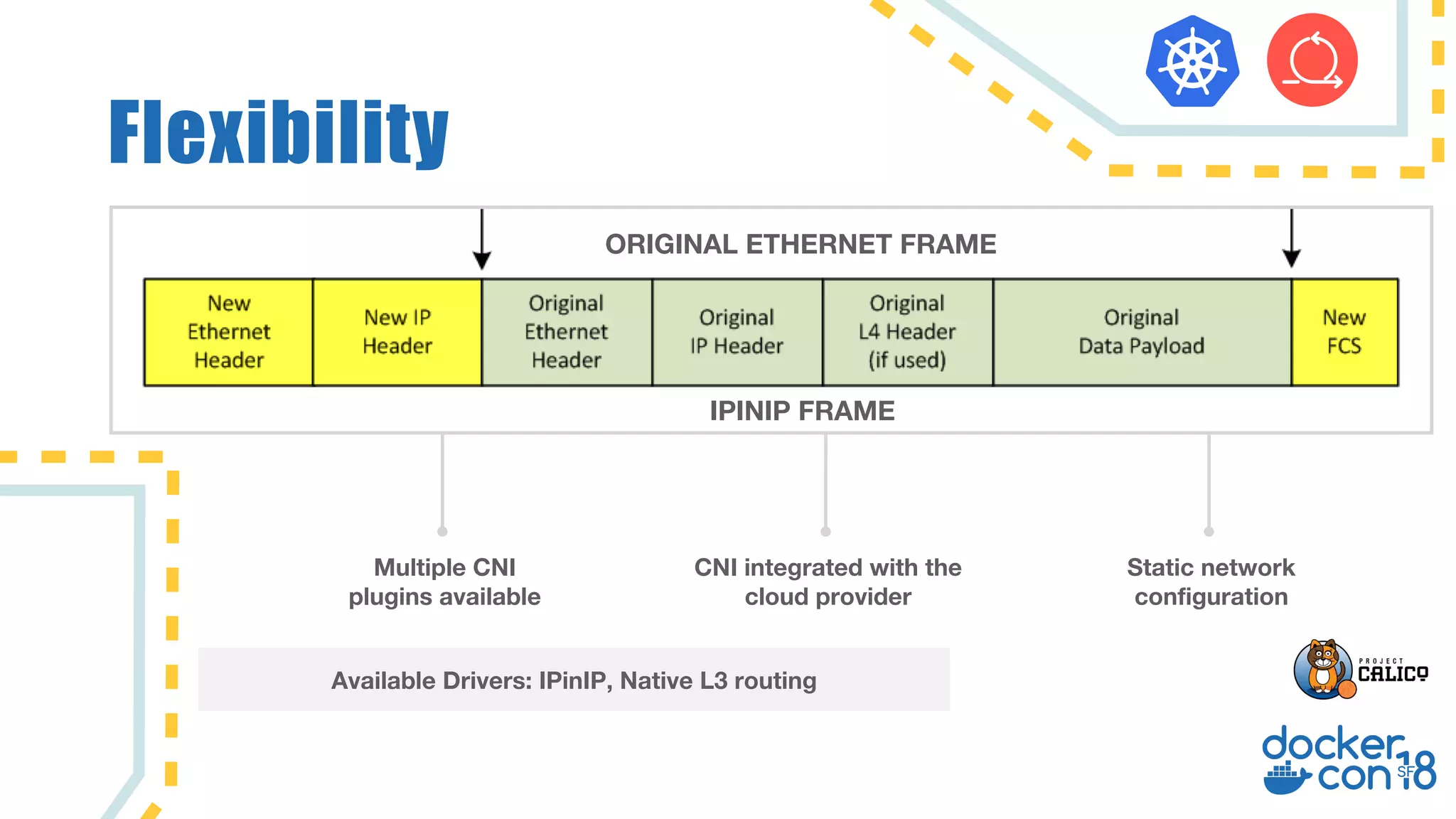

Flexibility Multiple CNI plugins available CNI integrated with the cloud provider Static network configuration ORIGINAL ETHERNET FRAME IPINIP FRAME Available Drivers: IPinIP, Native L3 routing

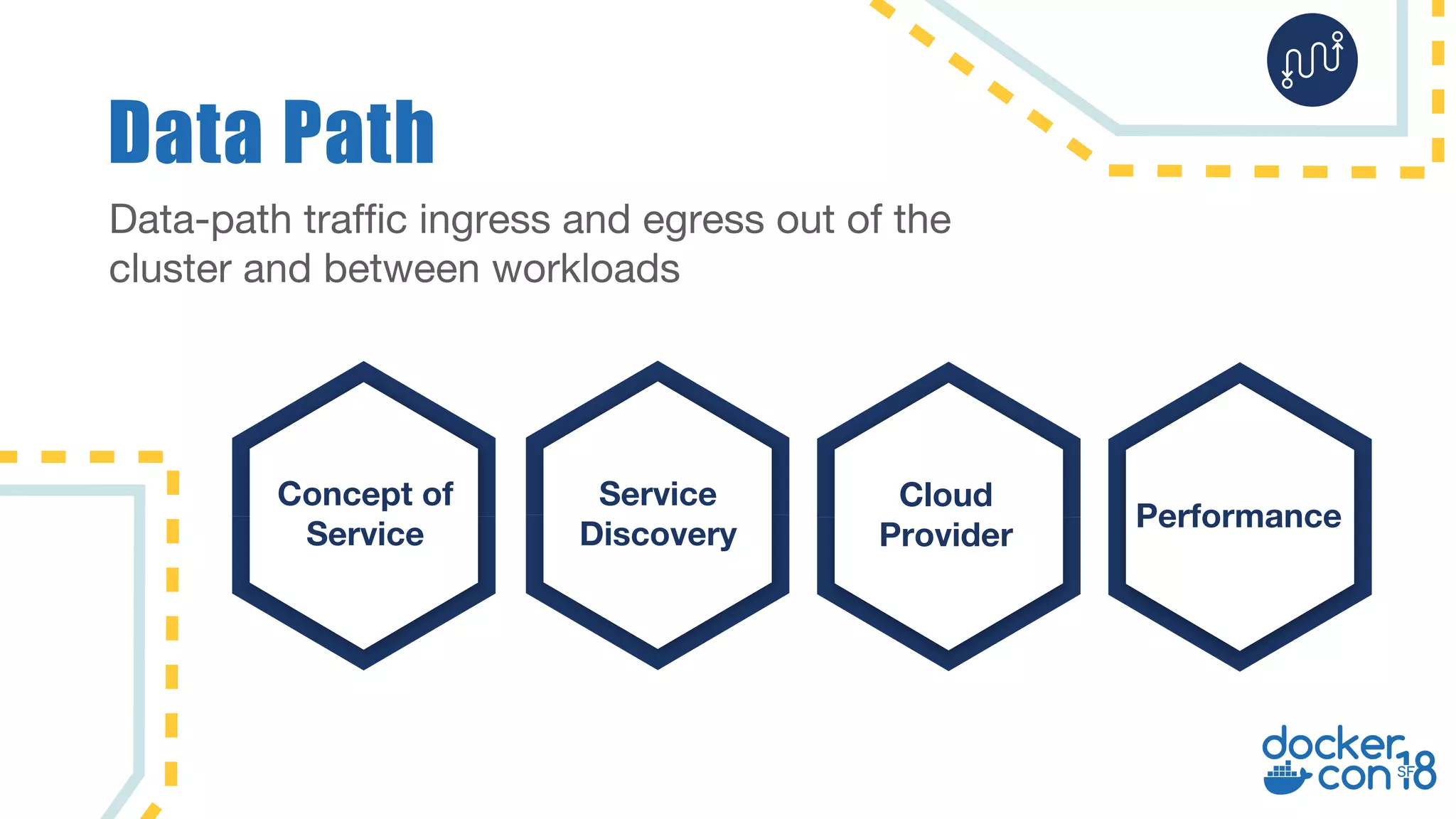

Data Path Data-path traffic ingress and egress out of the cluster and between workloads Concept of Service Service Discovery Cloud Provider Performance

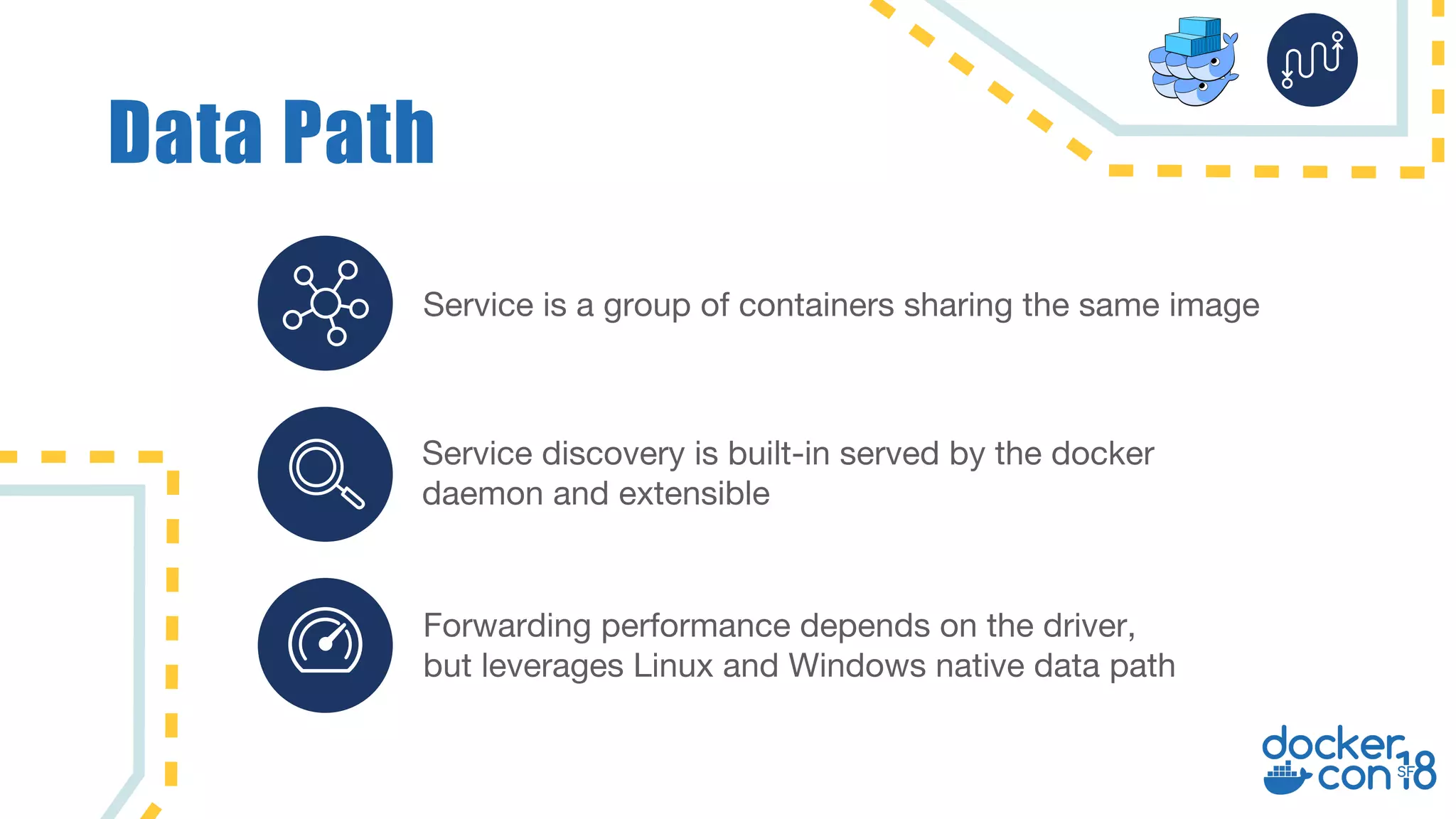

Data Path Service is a group of containers sharing the same image Forwarding performance depends on the driver, but leverages Linux and Windows native data path Service discovery is built-in served by the docker daemon and extensible

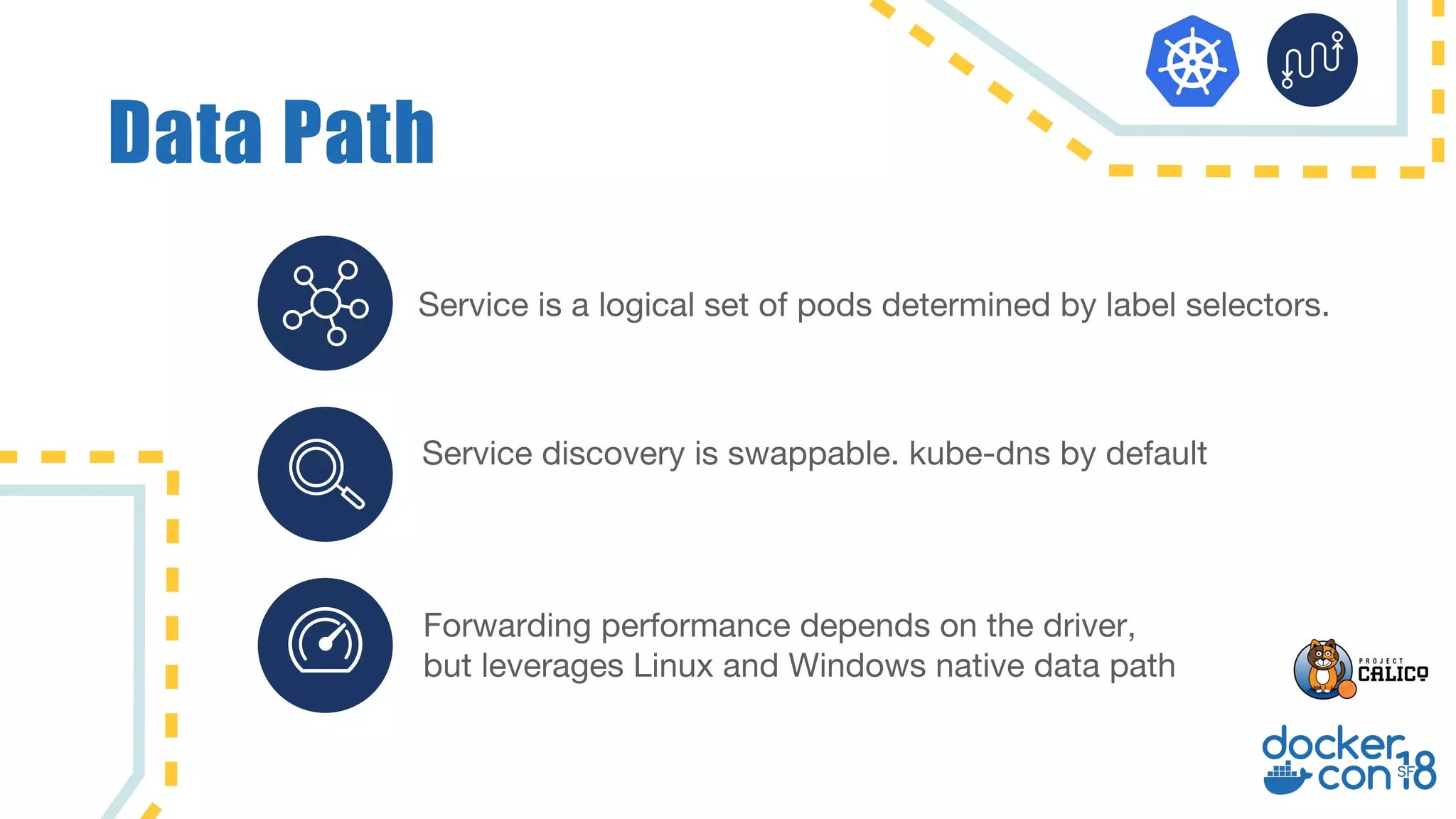

Data Path Service is a logical set of pods determined by label selectors. Forwarding performance depends on the driver, but leverages Linux and Windows native data path Service discovery is swappable. kube-dns by default

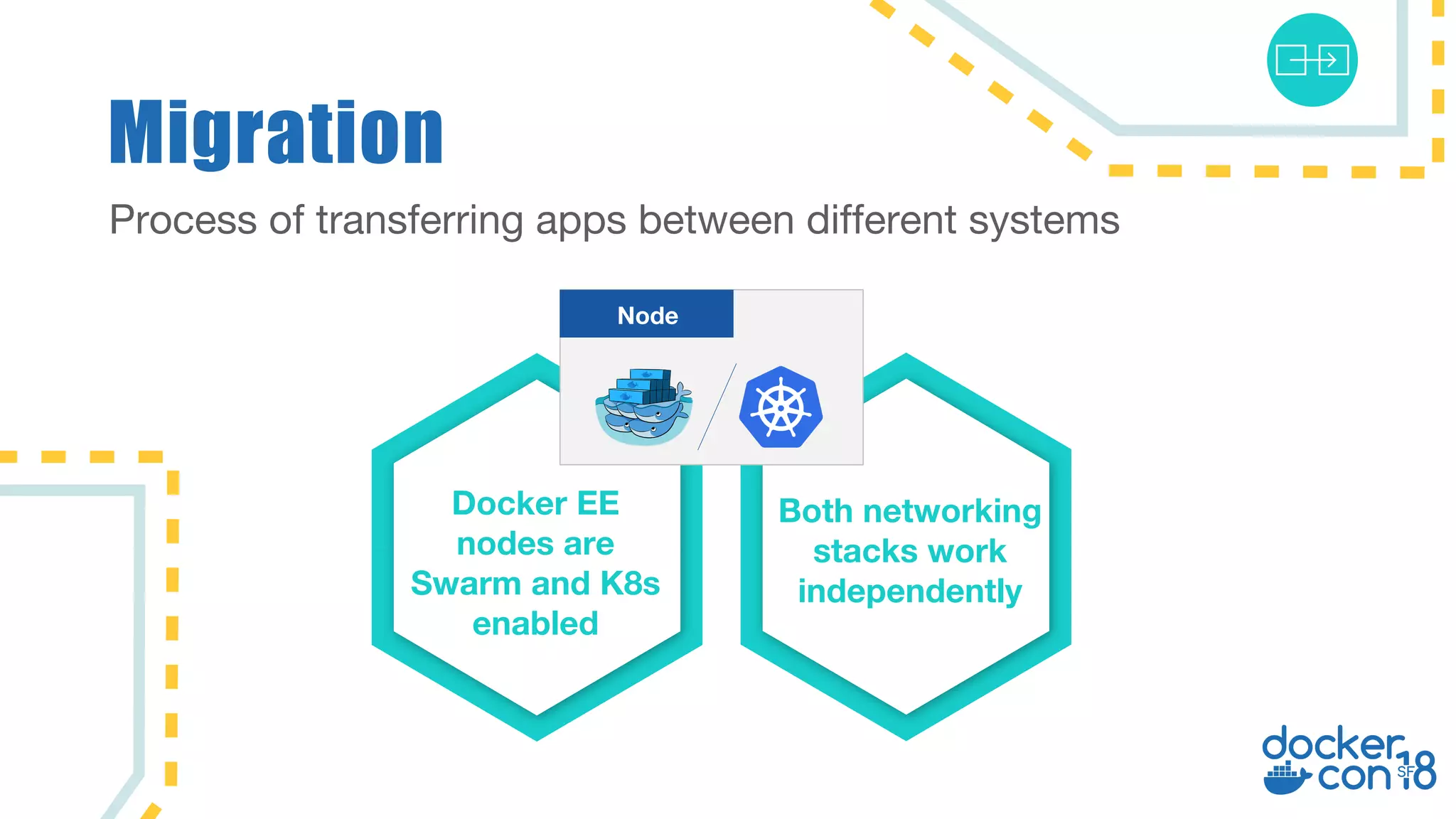

Migration Process of transferring apps between different systems Docker EE nodes are Swarm and K8s enabled Both networking stacks work independently Node

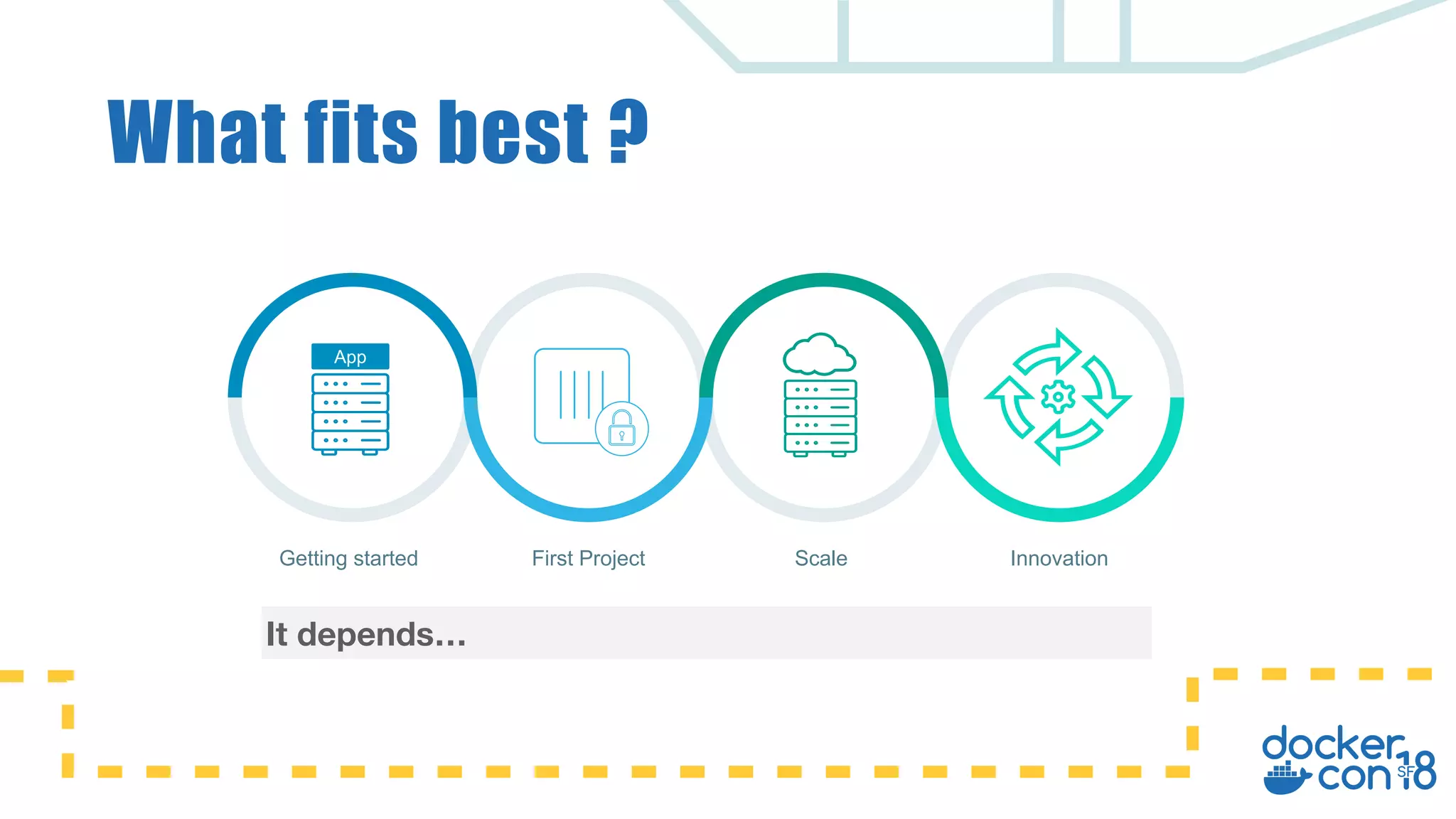

What fits best ? App Getting started InnovationFirst Project Scale It depends…

Docker EE allows you to choose what fits best for your purpose. Leverage your current expertise or investment. Swarm is simpler with native Docker experience. Kubernetes brings the flexibility and native integration with cloud providers. Final Takeaways
