Practical Design Patterns in Docker Networking
The document discusses practical design patterns in Docker networking, including the evolution of application networking, the use of Docker networking features, and design patterns for modernizing traditional applications. It highlights various networking models like bridge, overlay, and macvlan, along with their advantages for containerization and scaling in cloud-native environments. The document also emphasizes the importance of simplifying network architectures while preserving existing integrations and addressing specific network requirements.
Practical Design Patterns in Docker Networking
- 1. Practical Design Patterns in Docker Networking DanFinneran EMEA Solutions Architect, Docker
- 2.
- 3. Agenda ● The evolvingarchitecture of application networking ● Docker networking ● Infrastructure design patterns ● Design Patterns when modernizing a traditional application ● [REDACTED] ● Summary and Q/A
- 4. The evolving architectureof application networking

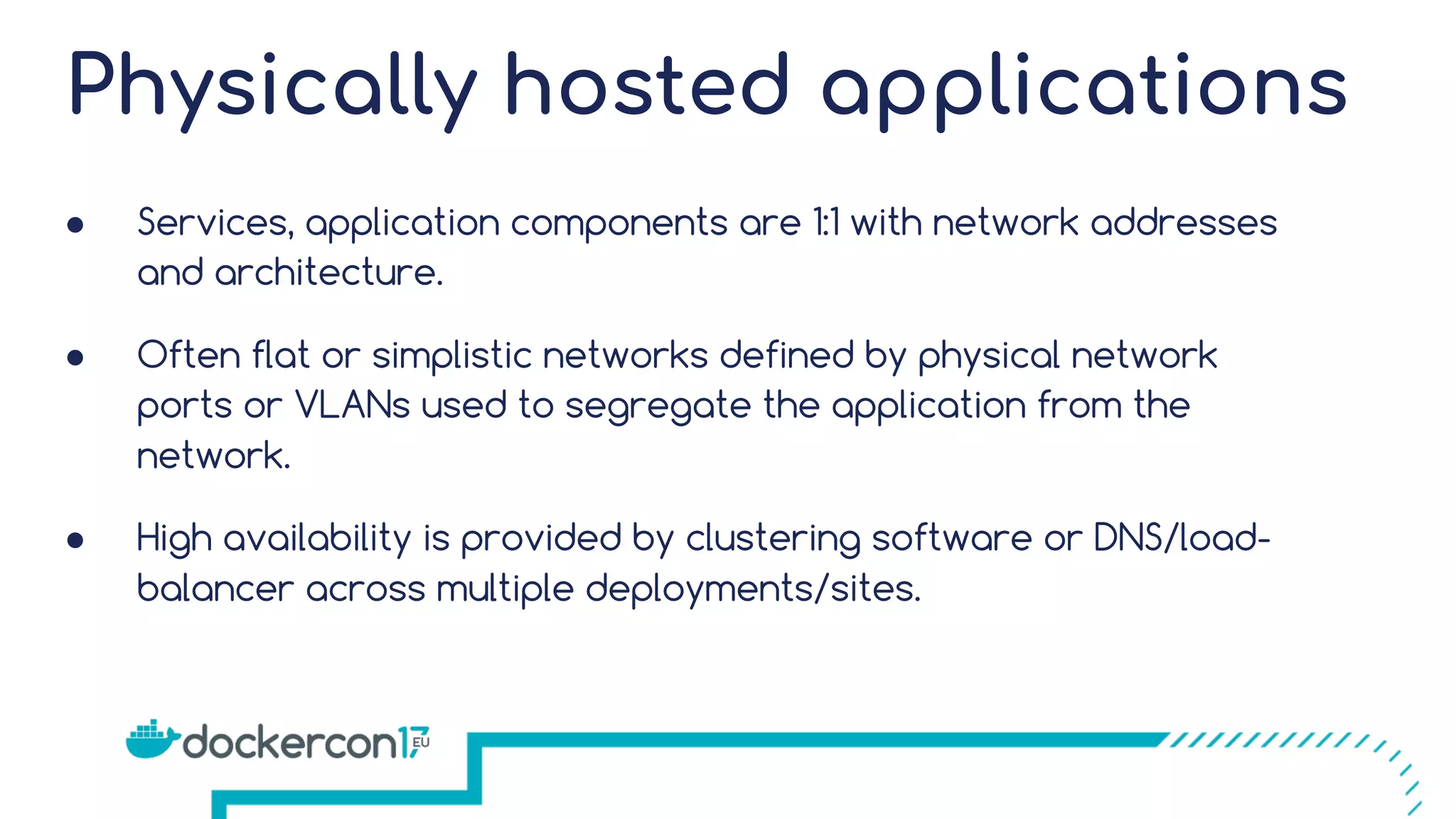

- 5. Physically hosted applications ●Services, application components are 1:1 with network addresses and architecture. ● Often flat or simplistic networks defined by physical network ports or VLANs used to segregate the application from the network. ● High availability is provided by clustering software or DNS/load- balancer across multiple deployments/sites.

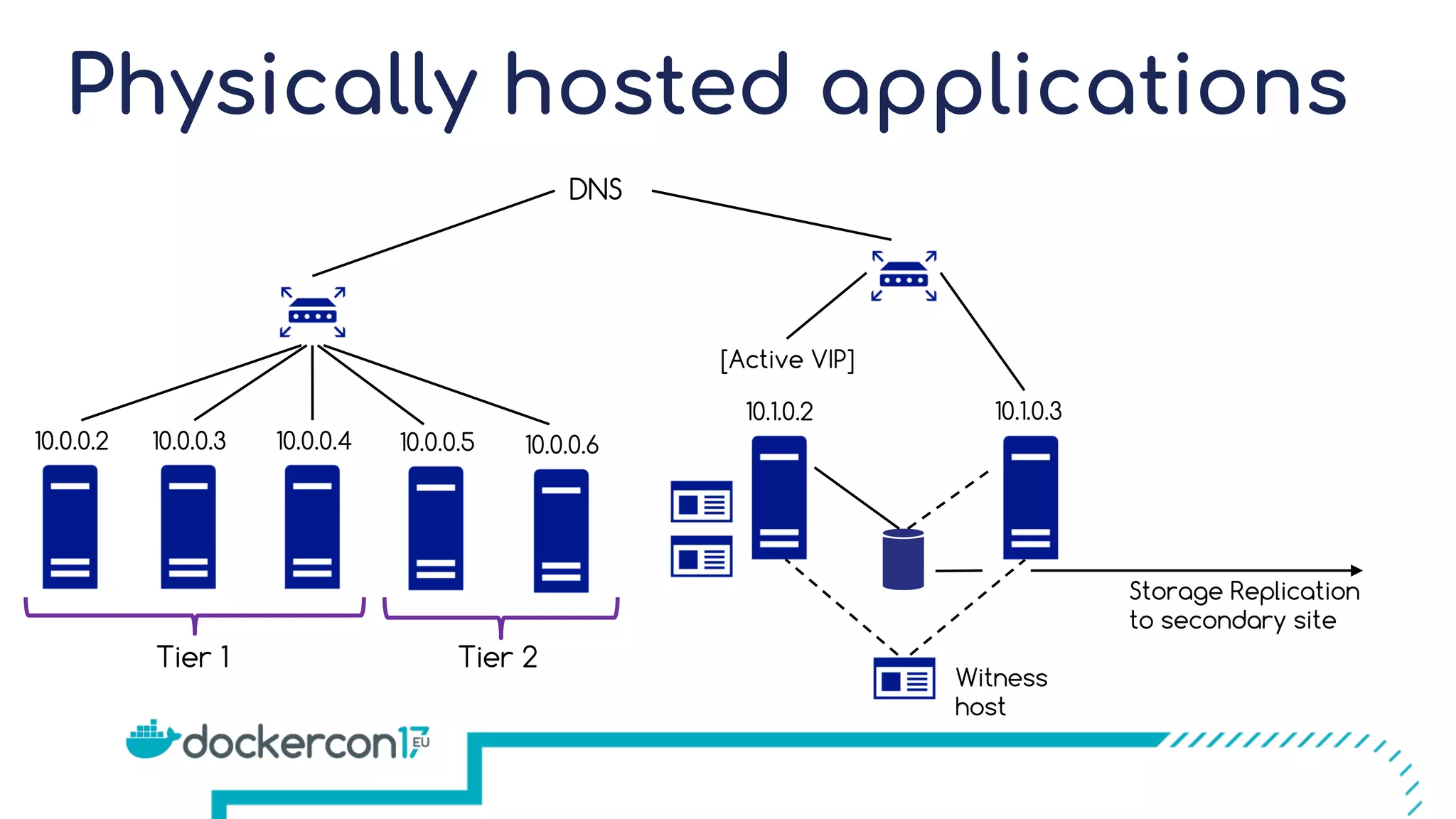

- 6. [Active VIP] 10.1.0.310.1.0.2 Witness host Physically hostedapplications DNS 10.0.0.310.0.0.2 10.0.0.4 10.0.0.5 10.0.0.6 Tier 1 Storage Replication to secondary site Tier 2

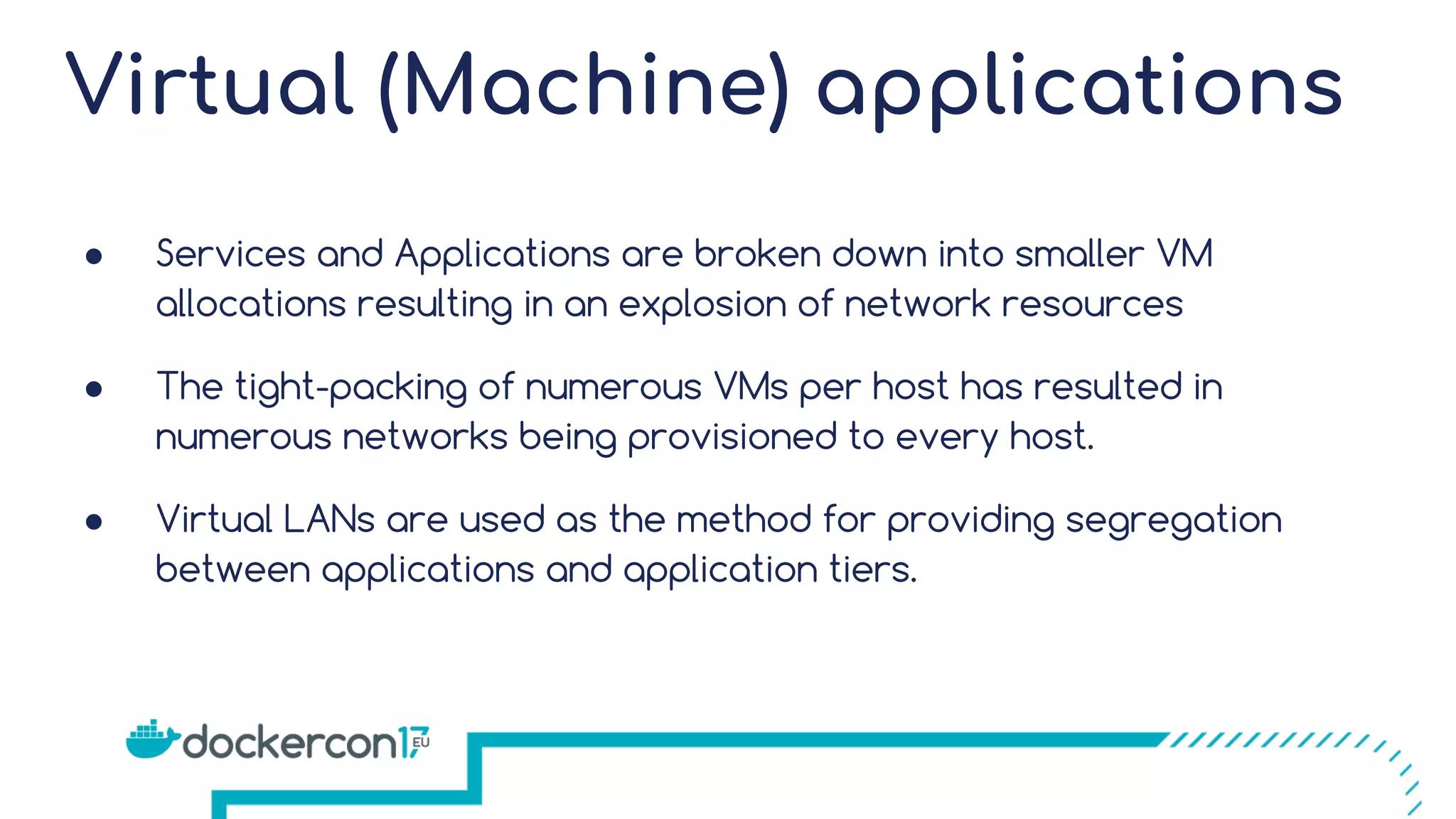

- 7. Virtual (Machine) applications ●Services and Applications are broken down into smaller VM allocations resulting in an explosion of network resources ● The tight-packing of numerous VMs per host has resulted in numerous networks being provisioned to every host. ● Virtual LANs are used as the method for providing segregation between applications and application tiers.

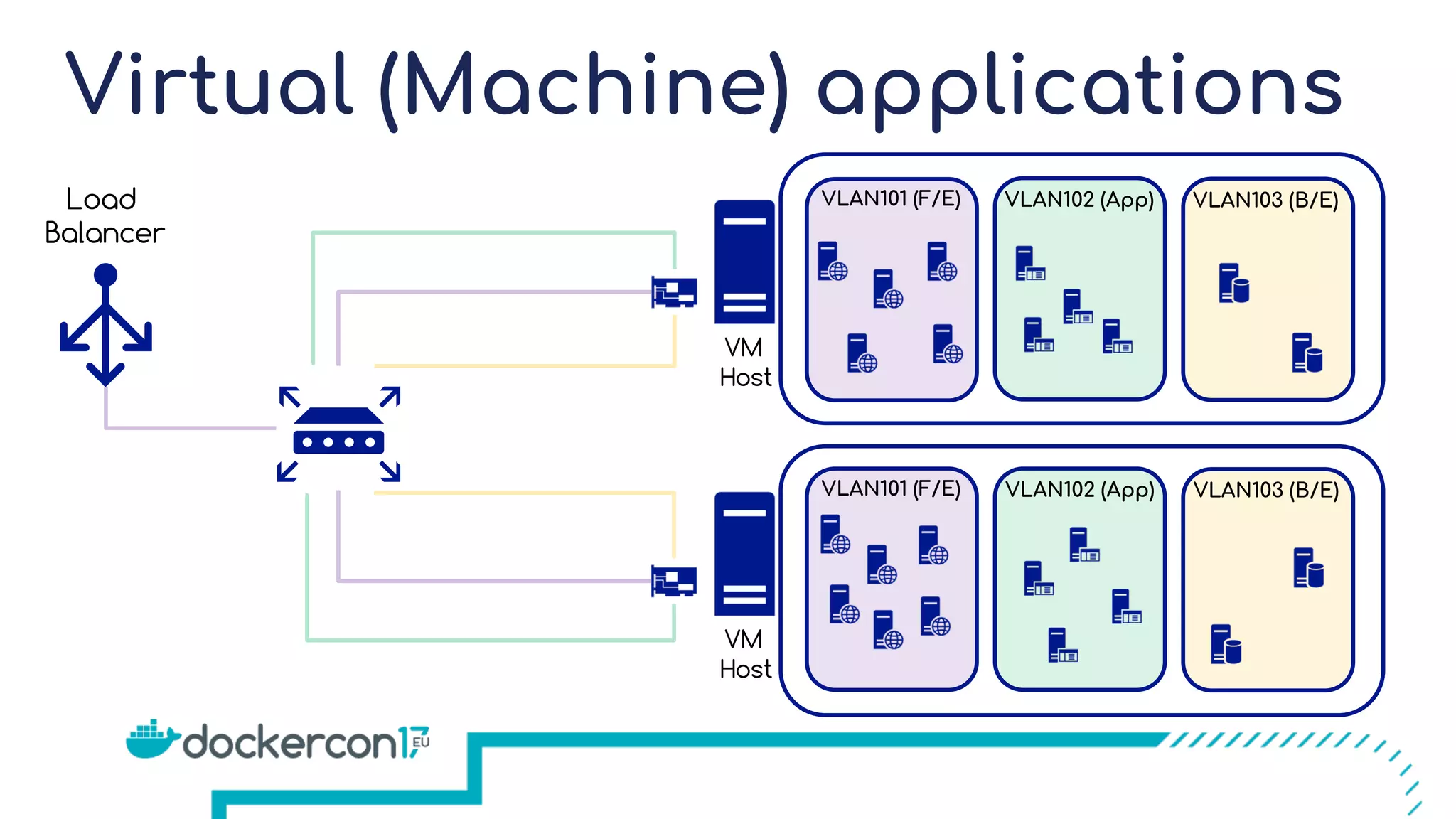

- 8. Virtual (Machine) applications VM Host VM Host VLAN101(F/E) VLAN101 (F/E) VLAN102 (App) VLAN102 (App) VLAN103 (B/E) VLAN103 (B/E) Load Balancer
- 9.

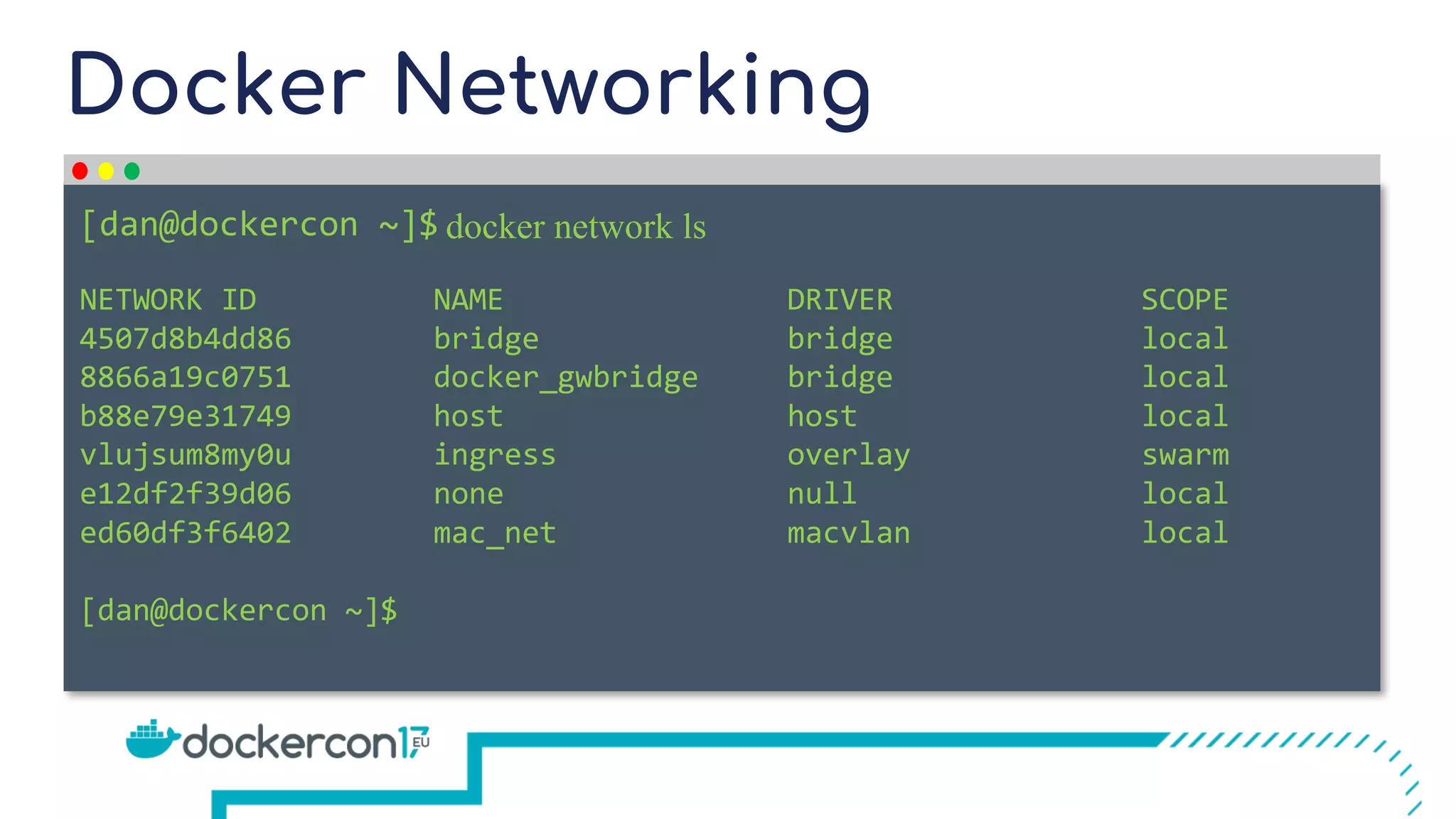

- 10. Docker Networking docker networkls NETWORK ID NAME DRIVER SCOPE 4507d8b4dd86 bridge bridge local 8866a19c0751 docker_gwbridge bridge local b88e79e31749 host host local vlujsum8my0u ingress overlay swarm e12df2f39d06 none null local ed60df3f6402 mac_net macvlan local [dan@dockercon ~]$ [dan@dockercon ~]$

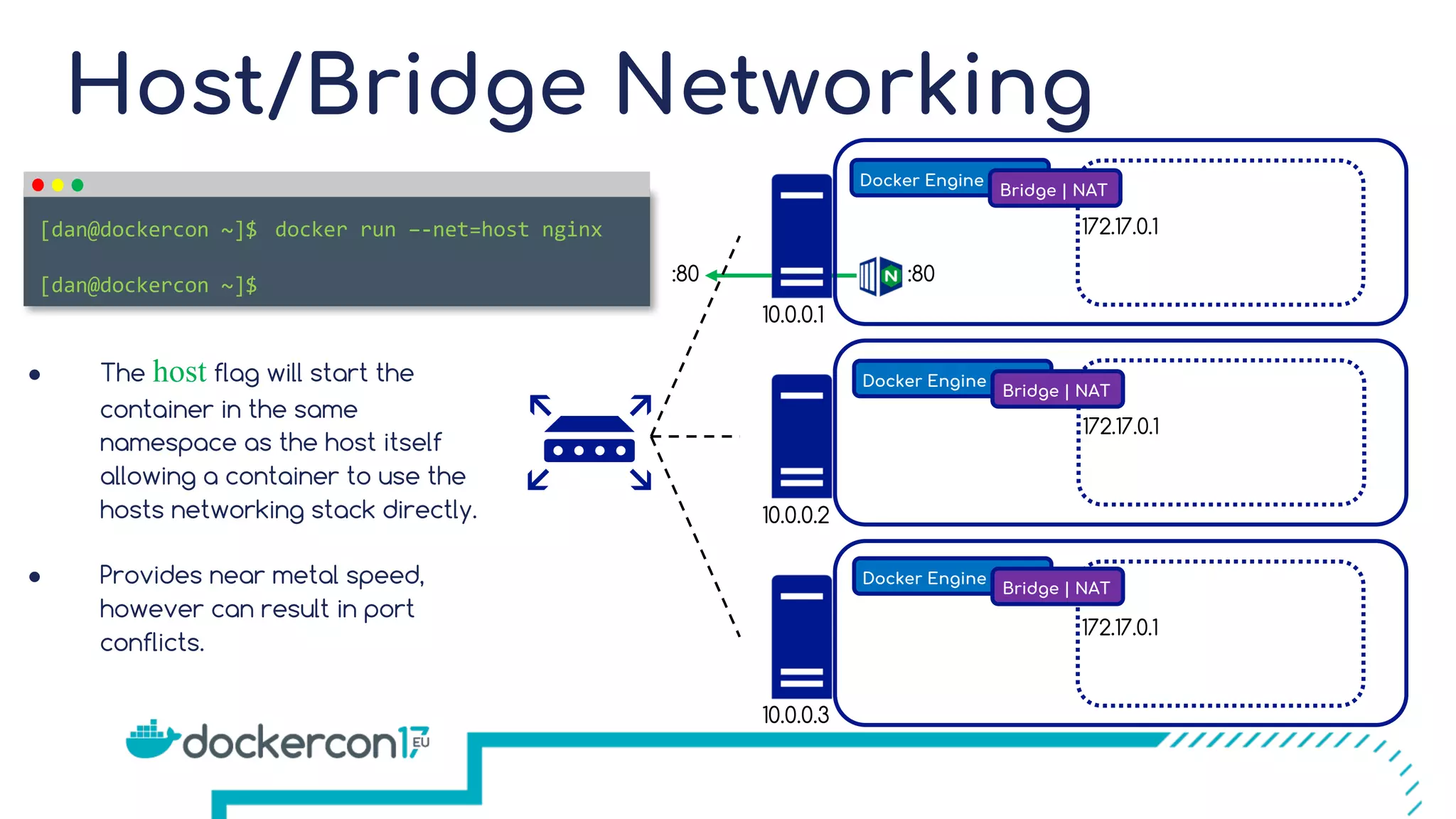

- 11. 172.17.0.1 172.17.0.1 Host/Bridge Networking Docker Engine Bridge| NAT Docker Engine Bridge | NAT Docker Engine Bridge | NAT 172.17.0.1 10.0.0.1 10.0.0.2 10.0.0.3 :80 docker run –-net=host nginx [dan@dockercon ~]$ [dan@dockercon ~]$ ● The host flag will start the container in the same namespace as the host itself allowing a container to use the hosts networking stack directly. ● Provides near metal speed, however can result in port conflicts. :80

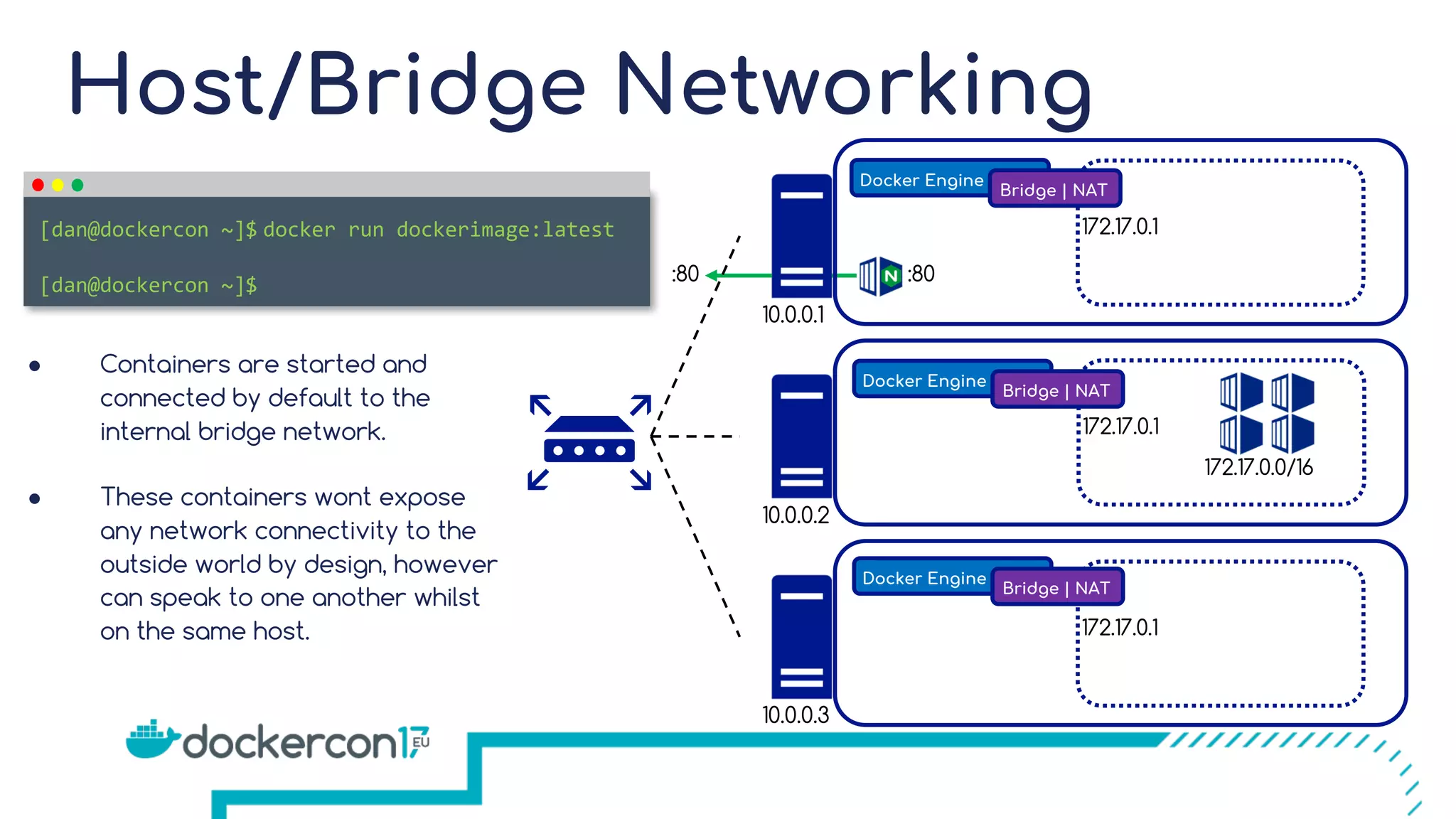

- 12. 172.17.0.1 172.17.0.1 Host/Bridge Networking Docker Engine Bridge| NAT Docker Engine Bridge | NAT Docker Engine Bridge | NAT 172.17.0.0/16 172.17.0.1 10.0.0.1 10.0.0.2 10.0.0.3 docker run dockerimage:latest [dan@dockercon ~]$ [dan@dockercon ~]$ ● Containers are started and connected by default to the internal bridge network. ● These containers wont expose any network connectivity to the outside world by design, however can speak to one another whilst on the same host. :80:80

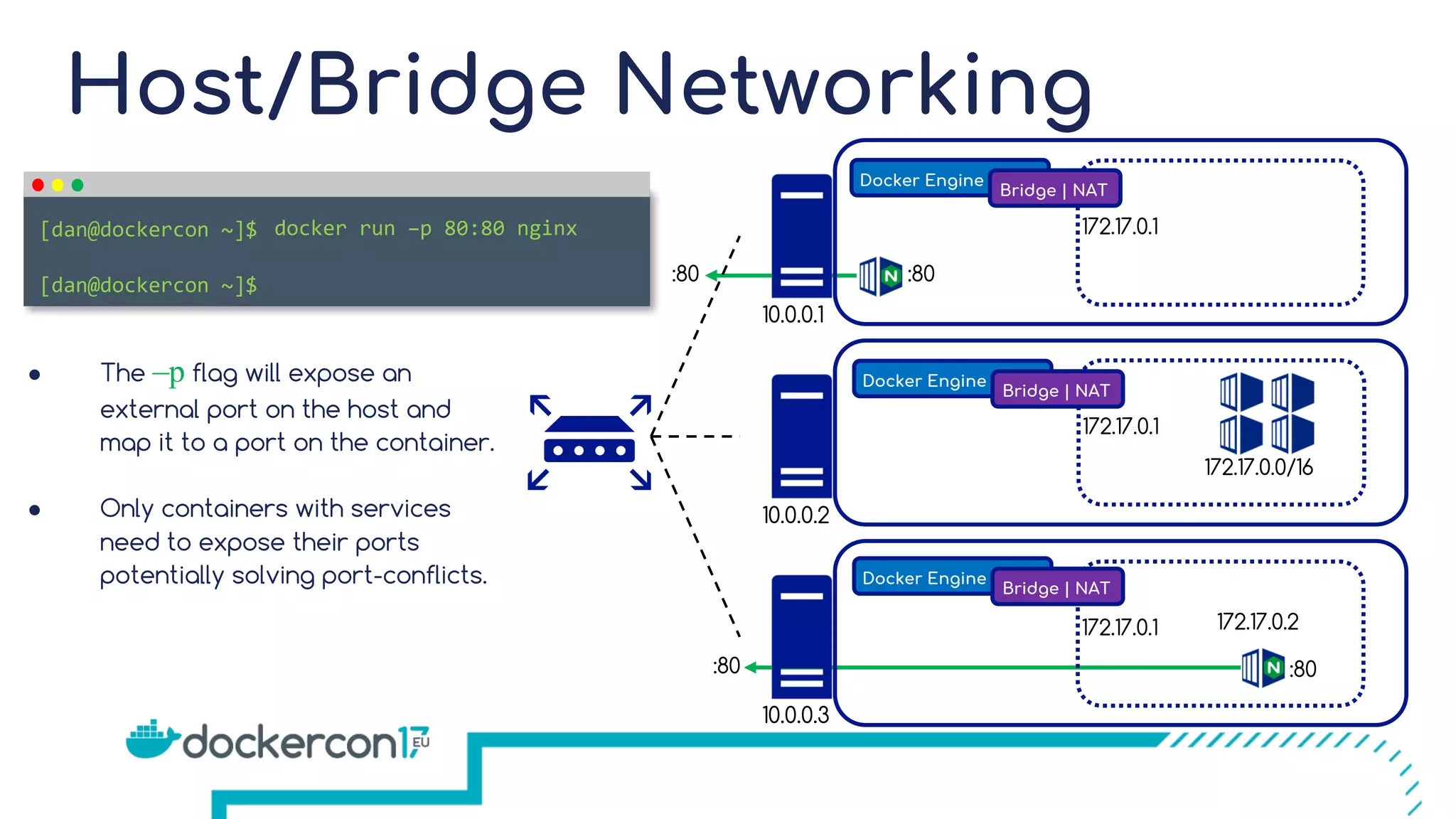

- 13. 172.17.0.1 172.17.0.1 Host/Bridge Networking Docker Engine Bridge| NAT Docker Engine Bridge | NAT Docker Engine Bridge | NAT 172.17.0.1 172.17.0.2 :80 10.0.0.1 10.0.0.2 10.0.0.3 docker run –p 80:80 nginx [dan@dockercon ~]$ [dan@dockercon ~]$ ● The –p flag will expose an external port on the host and map it to a port on the container. ● Only containers with services need to expose their ports potentially solving port-conflicts. :80 :80:80 172.17.0.0/16

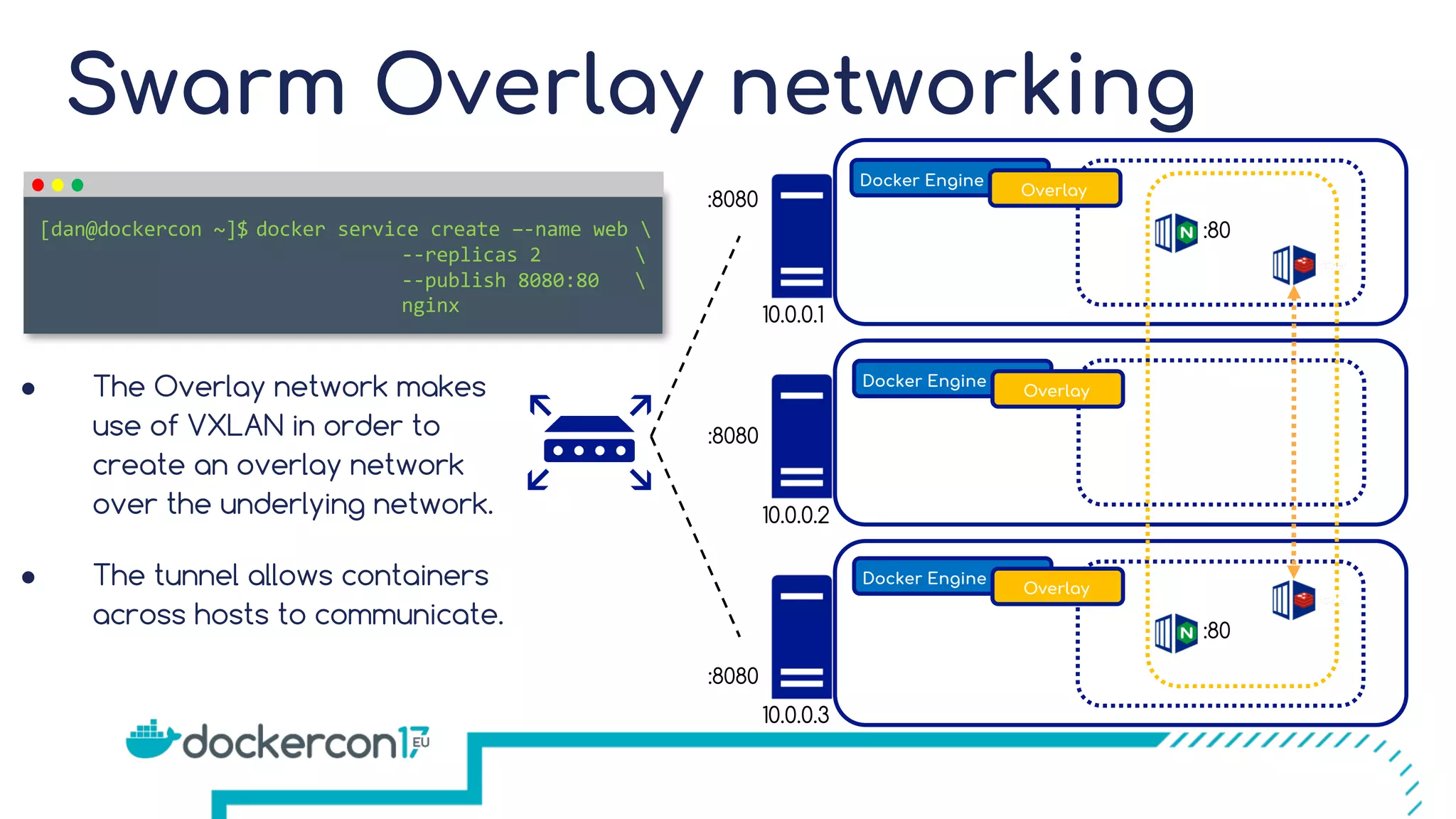

- 14. Swarm Overlay networking DockerEngine Overlay Docker Engine Overlay Docker Engine Overlay 10.0.0.1 10.0.0.2 10.0.0.3 docker service create –-name web --replicas 2 --publish 8080:80 nginx [dan@dockercon ~]$ :8080 :8080 :8080 :80 :80 ● The Overlay network makes use of VXLAN in order to create an overlay network over the underlying network. ● The tunnel allows containers across hosts to communicate.

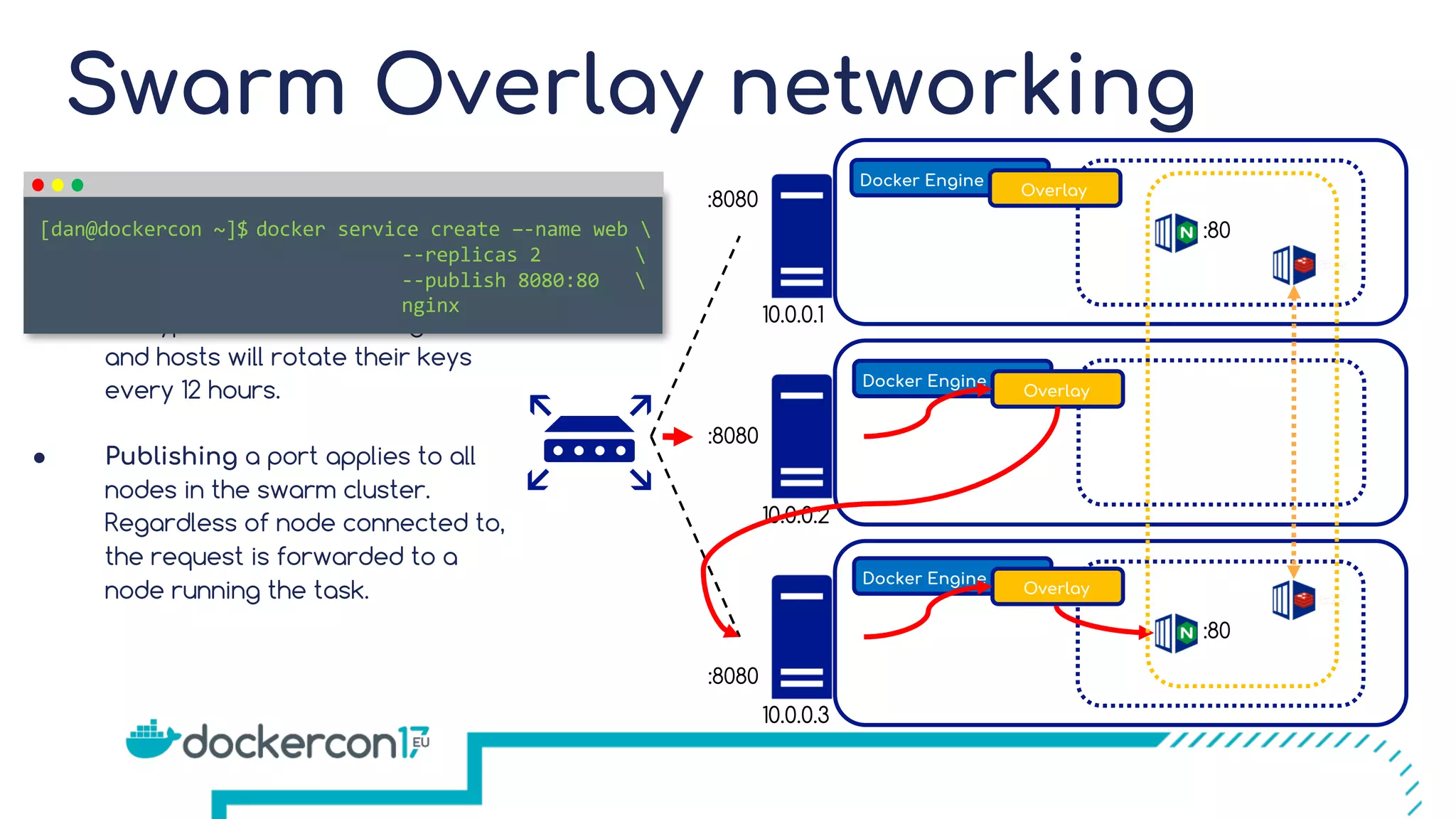

- 15. Swarm Overlay networking DockerEngine Overlay Docker Engine Overlay Docker Engine Overlay 10.0.0.1 10.0.0.2 10.0.0.3 :80 :80 :8080 :8080 :8080 ● By default the overlay is encrypted with the AES algorithm and hosts will rotate their keys every 12 hours. ● Publishing a port applies to all nodes in the swarm cluster. Regardless of node connected to, the request is forwarded to a node running the task. docker service create –-name web --replicas 2 --publish 8080:80 nginx [dan@dockercon ~]$

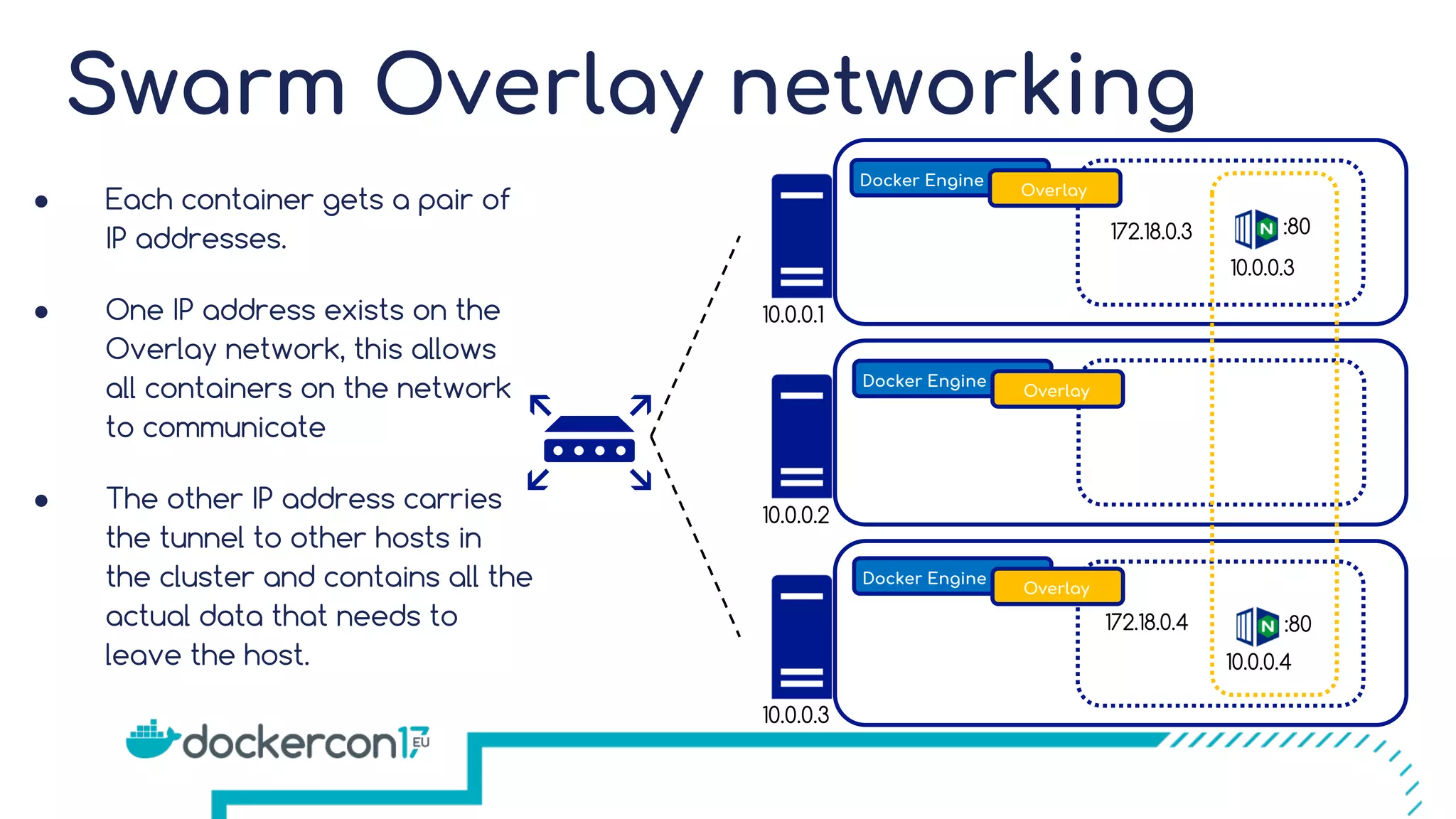

- 16. Swarm Overlay networking DockerEngine Overlay Docker Engine Overlay Docker Engine Overlay 10.0.0.1 10.0.0.2 10.0.0.3 :80 :80 ● Each container gets a pair of IP addresses. ● One IP address exists on the Overlay network, this allows all containers on the network to communicate ● The other IP address carries the tunnel to other hosts in the cluster and contains all the actual data that needs to leave the host. 10.0.0.3 10.0.0.4 172.18.0.3 172.18.0.4

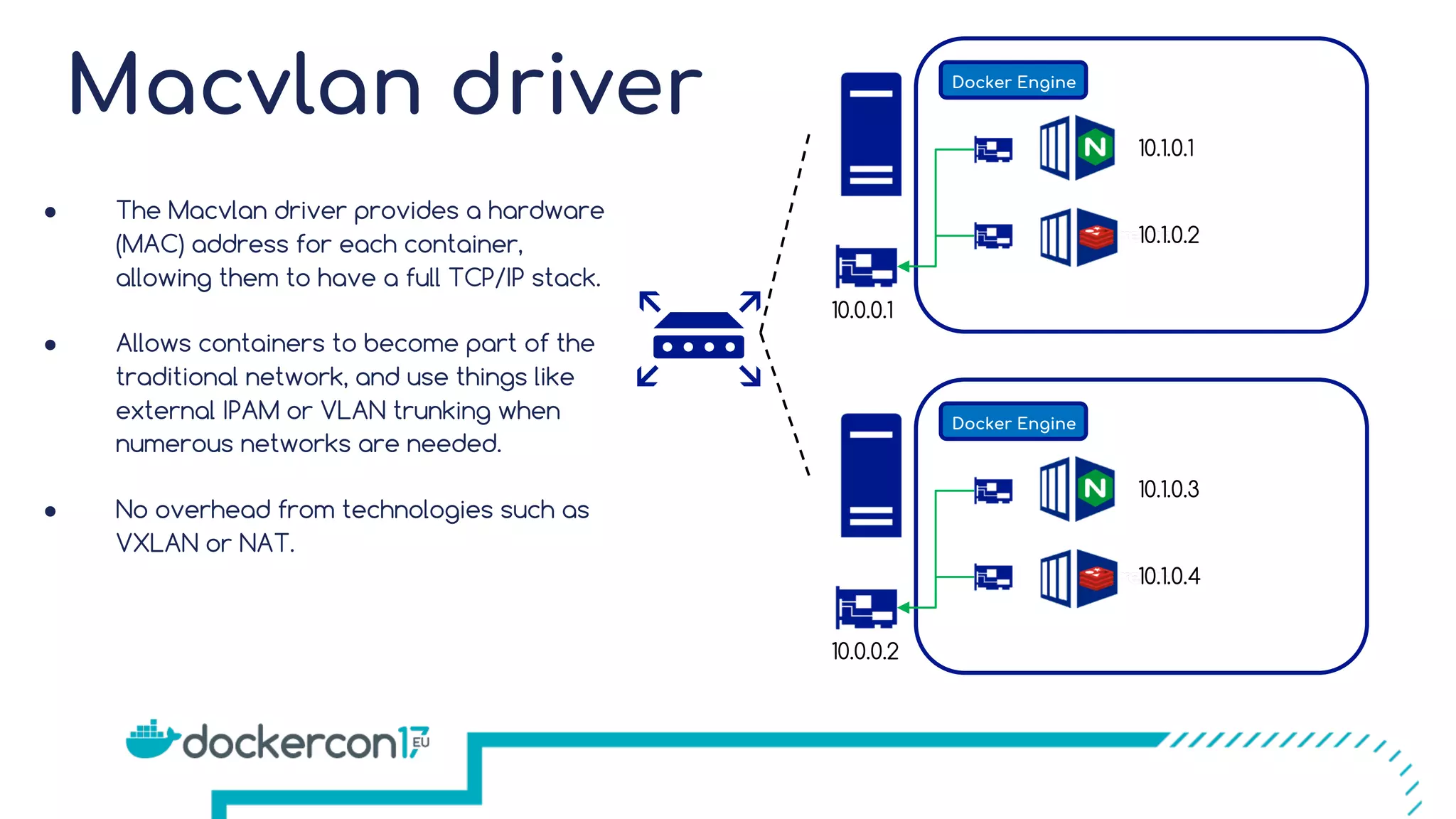

- 17. Macvlan driver DockerEngine 10.0.0.1 10.1.0.1 10.1.0.2 Docker Engine 10.0.0.2 10.1.0.3 10.1.0.4 ● The Macvlan driver provides a hardware (MAC) address for each container, allowing them to have a full TCP/IP stack. ● Allows containers to become part of the traditional network, and use things like external IPAM or VLAN trunking when numerous networks are needed. ● No overhead from technologies such as VXLAN or NAT.

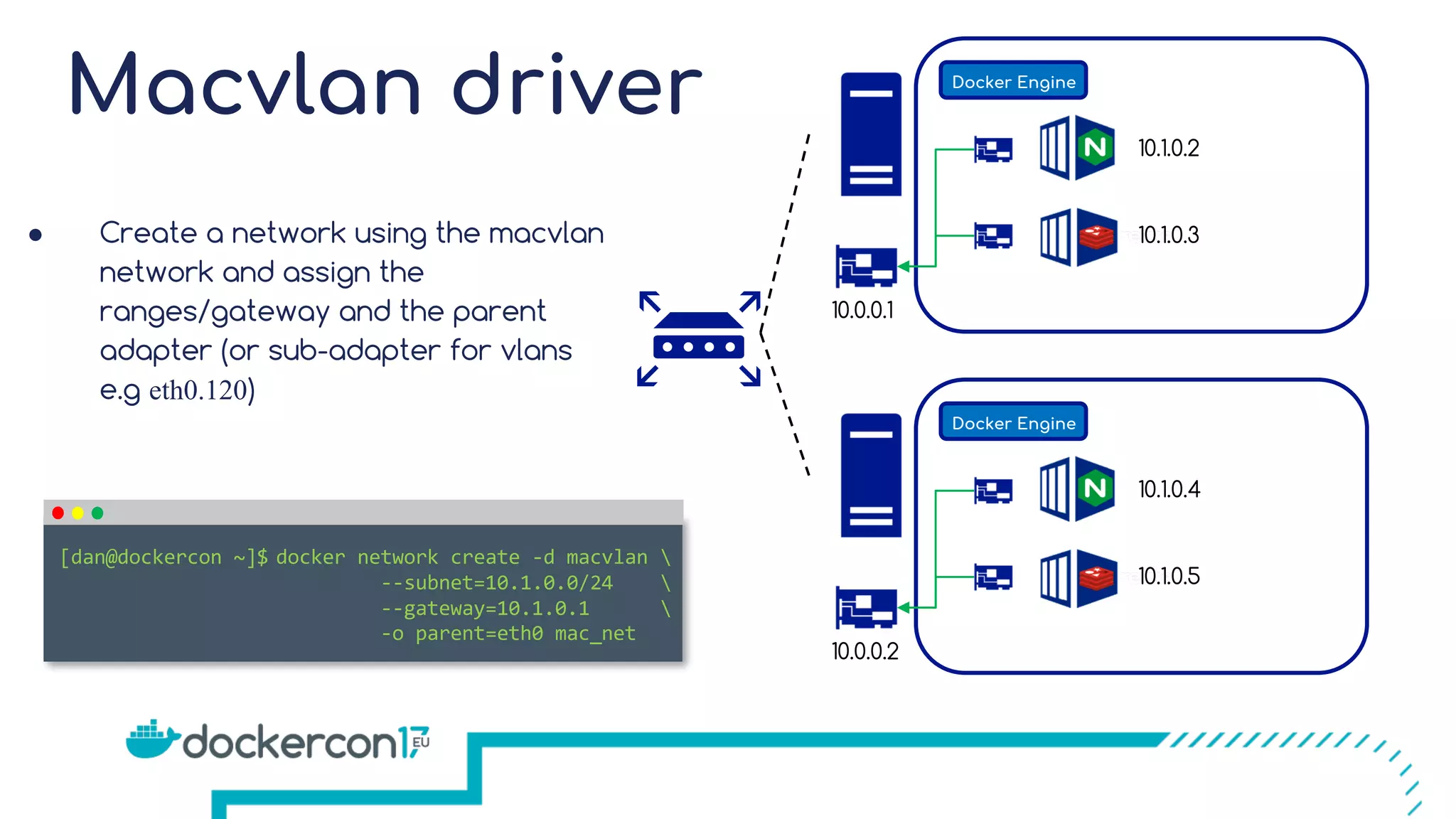

- 18. Macvlan driver DockerEngine 10.0.0.1 10.1.0.2 10.1.0.3 Docker Engine 10.0.0.2 10.1.0.4 10.1.0.5 docker network create -d macvlan --subnet=10.1.0.0/24 --gateway=10.1.0.1 -o parent=eth0 mac_net [dan@dockercon ~]$ ● Create a network using the macvlan network and assign the ranges/gateway and the parent adapter (or sub-adapter for vlans e.g eth0.120)

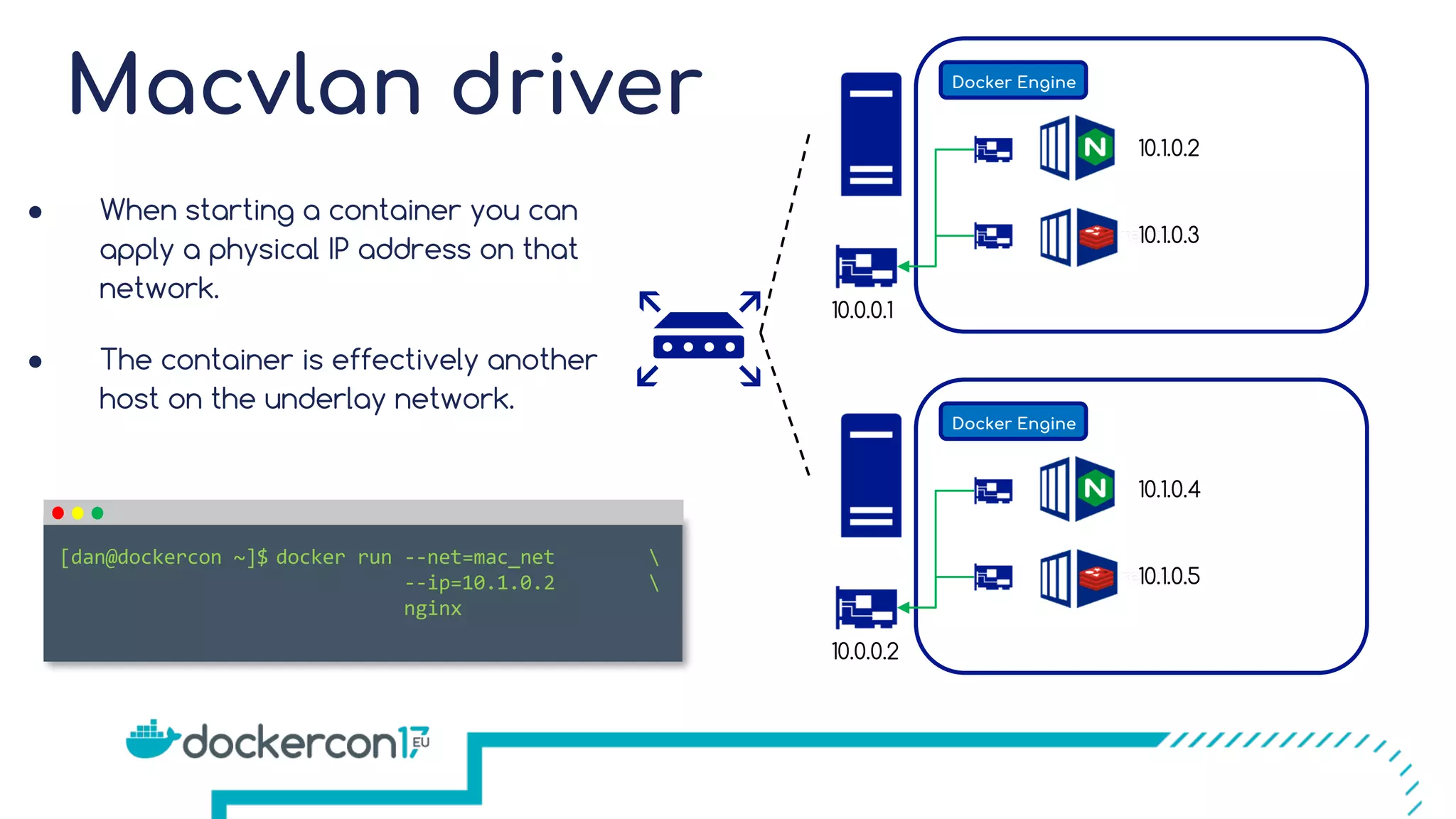

- 19. Macvlan driver DockerEngine 10.0.0.1 10.1.0.2 10.1.0.3 Docker Engine 10.0.0.2 10.1.0.4 10.1.0.5 docker run --net=mac_net --ip=10.1.0.2 nginx [dan@dockercon ~]$ ● When starting a container you can apply a physical IP address on that network. ● The container is effectively another host on the underlay network.

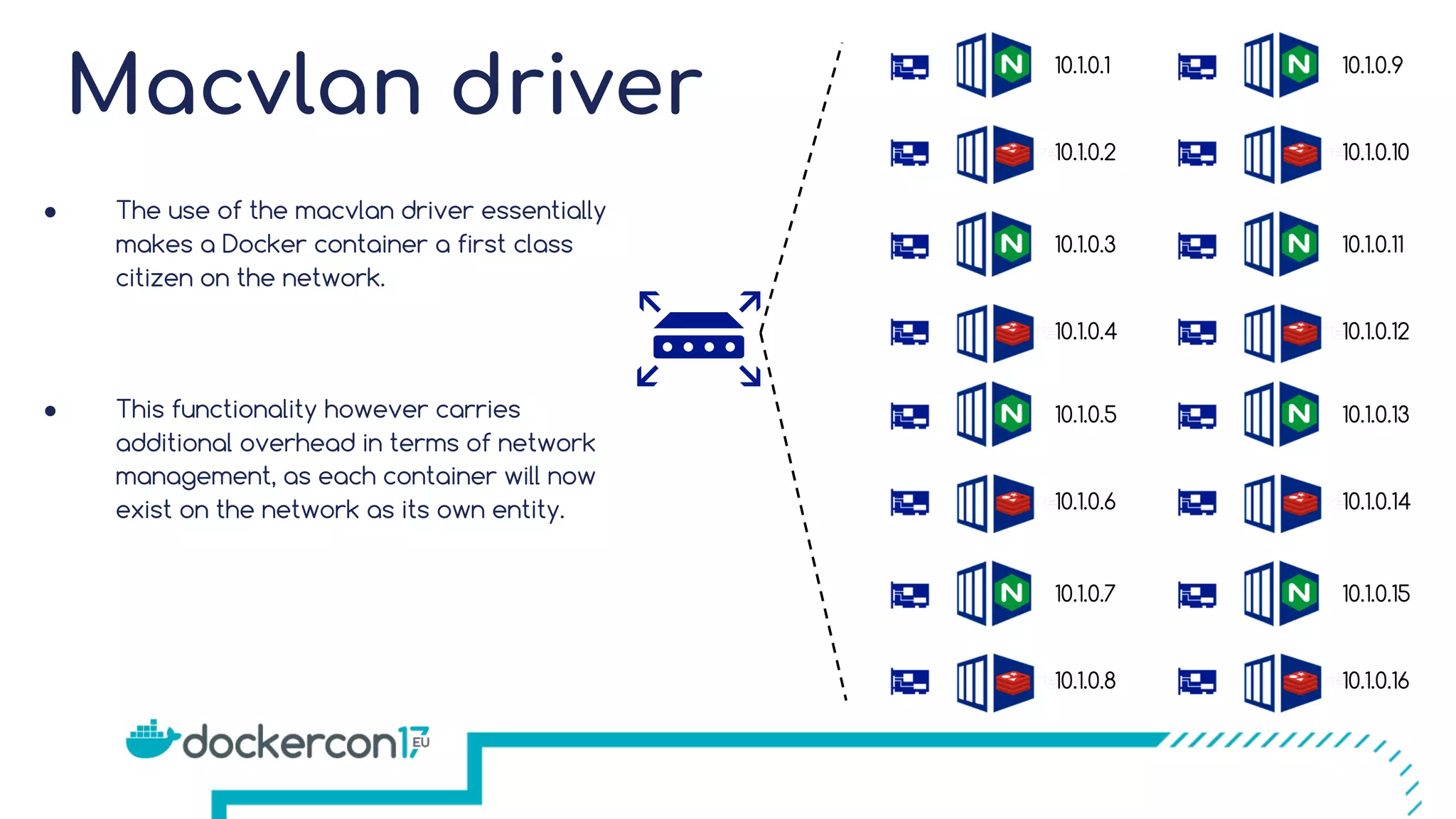

- 20. Macvlan driver 10.1.0.1 10.1.0.2 10.1.0.3 10.1.0.4 ● Theuse of the macvlan driver essentially makes a Docker container a first class citizen on the network. ● This functionality however carries additional overhead in terms of network management, as each container will now exist on the network as its own entity. 10.1.0.5 10.1.0.6 10.1.0.7 10.1.0.8 10.1.0.9 10.1.0.10 10.1.0.11 10.1.0.12 10.1.0.13 10.1.0.14 10.1.0.15 10.1.0.16

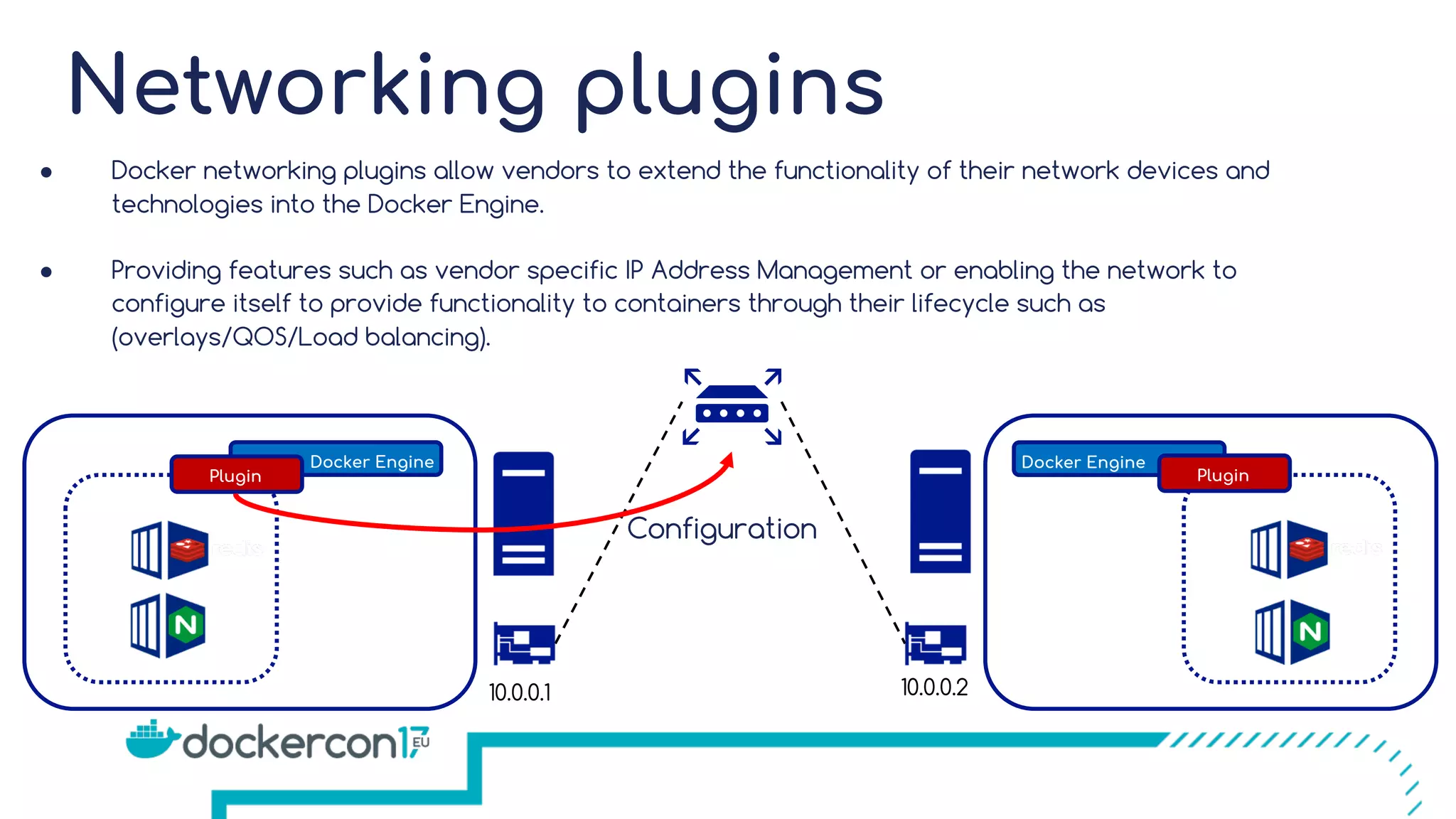

- 21. Networking plugins Docker Engine 10.0.0.2 Plugin DockerEngine 10.0.0.1 Plugin ● Docker networking plugins allow vendors to extend the functionality of their network devices and technologies into the Docker Engine. ● Providing features such as vendor specific IP Address Management or enabling the network to configure itself to provide functionality to containers through their lifecycle such as (overlays/QOS/Load balancing). Configuration
- 22.

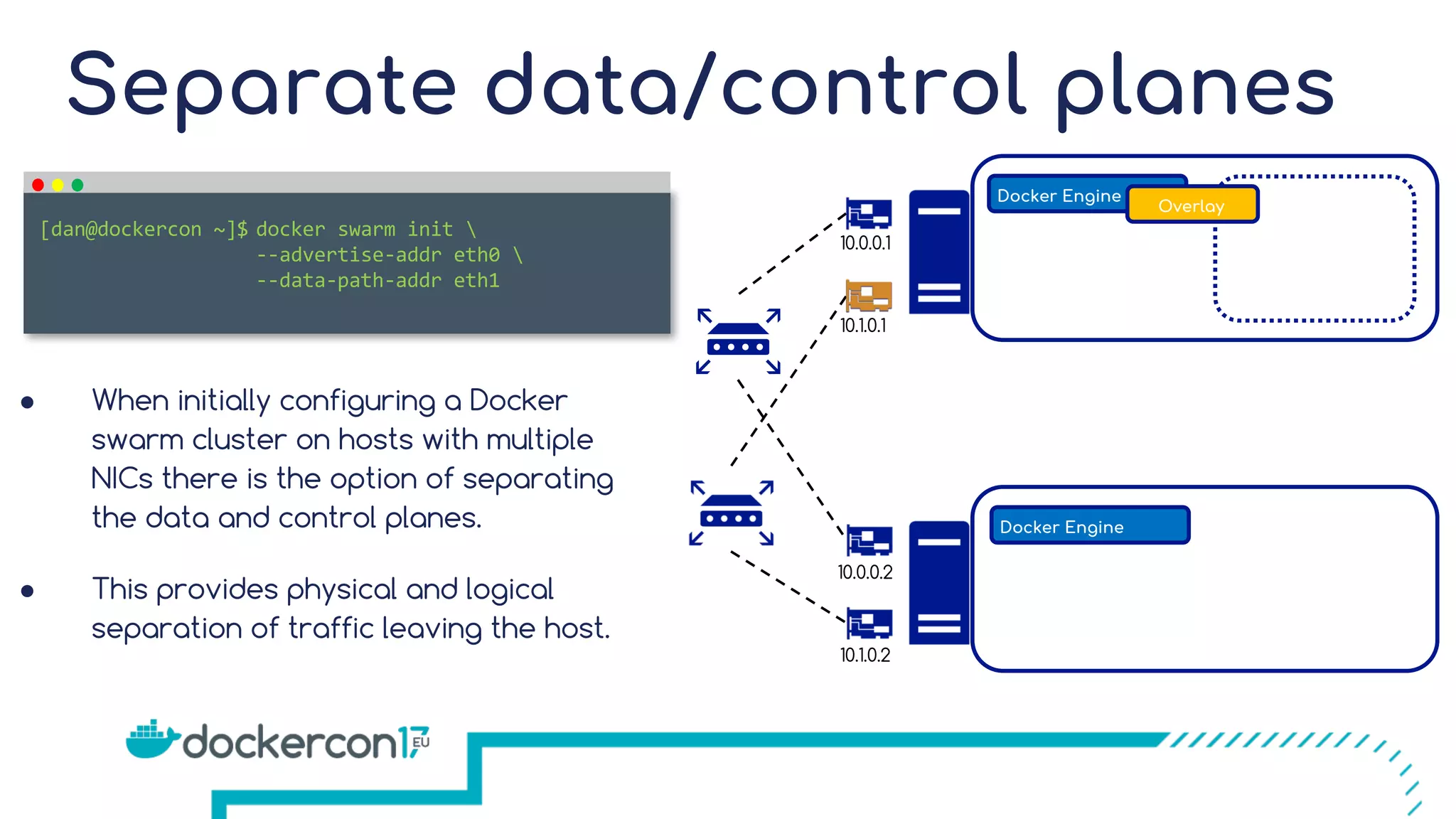

- 23. Separate data/control planes DockerEngine Docker Engine 10.0.0.1 10.0.0.2 docker swarm init --advertise-addr eth0 --data-path-addr eth1 [dan@dockercon ~]$ Overlay 10.1.0.1 10.1.0.2 ● When initially configuring a Docker swarm cluster on hosts with multiple NICs there is the option of separating the data and control planes. ● This provides physical and logical separation of traffic leaving the host.

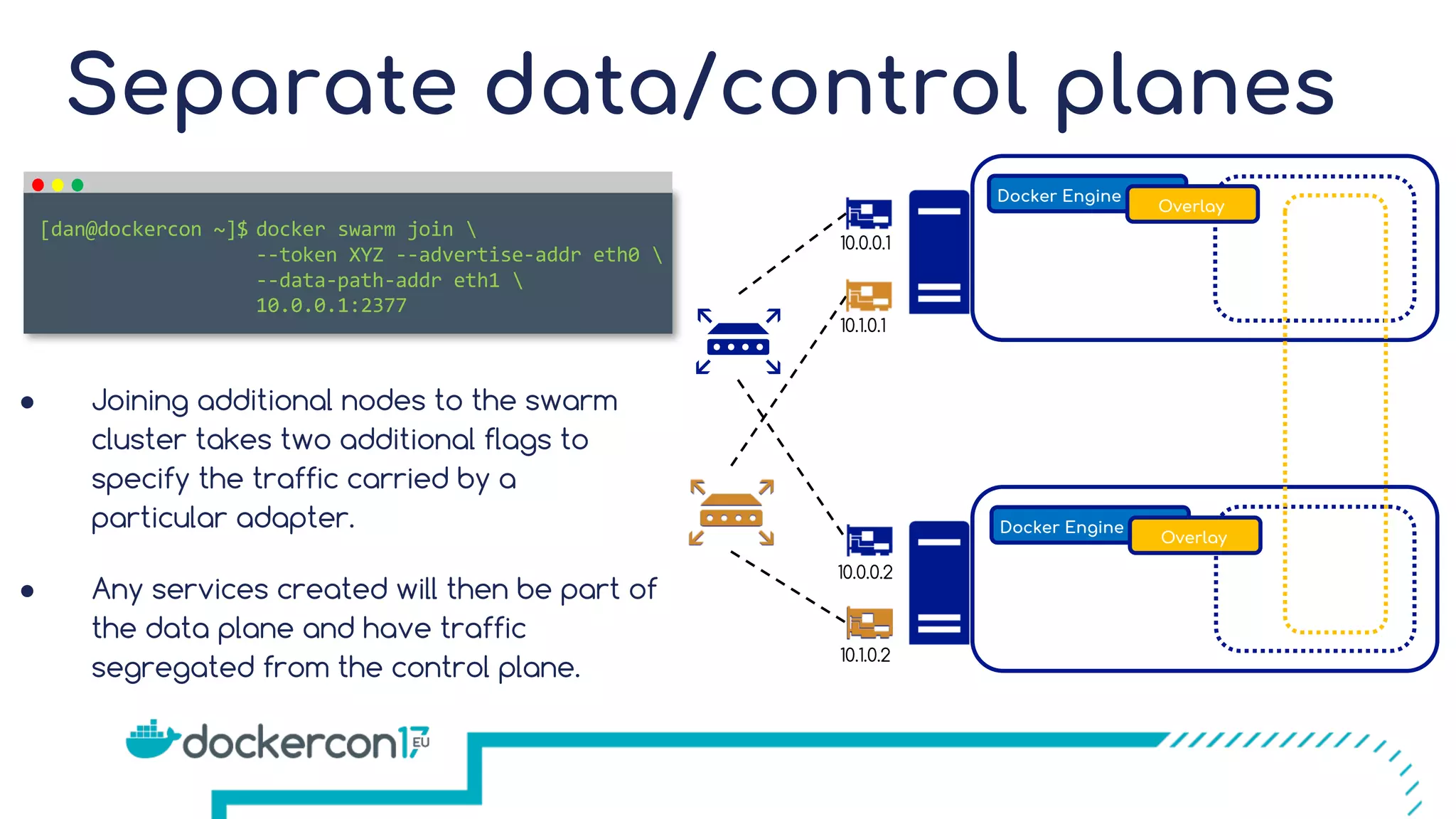

- 24. Separate data/control planes DockerEngine Docker Engine 10.0.0.1 10.0.0.2 docker swarm join --token XYZ --advertise-addr eth0 --data-path-addr eth1 10.0.0.1:2377 [dan@dockercon ~]$ Overlay Overlay 10.1.0.1 10.1.0.2 ● Joining additional nodes to the swarm cluster takes two additional flags to specify the traffic carried by a particular adapter. ● Any services created will then be part of the data plane and have traffic segregated from the control plane.
- 25. Design Patterns when modernizinga traditional application
- 26. Docker Enterprise Edition ●Docker Enterprise Edition provides a full CaaS platform (Containers as a Service). ● Comes with Integrated Container Orchestration, management platform and increased security (RBAC, images scanning etc.) ● Enterprise supported platform for production deployments.

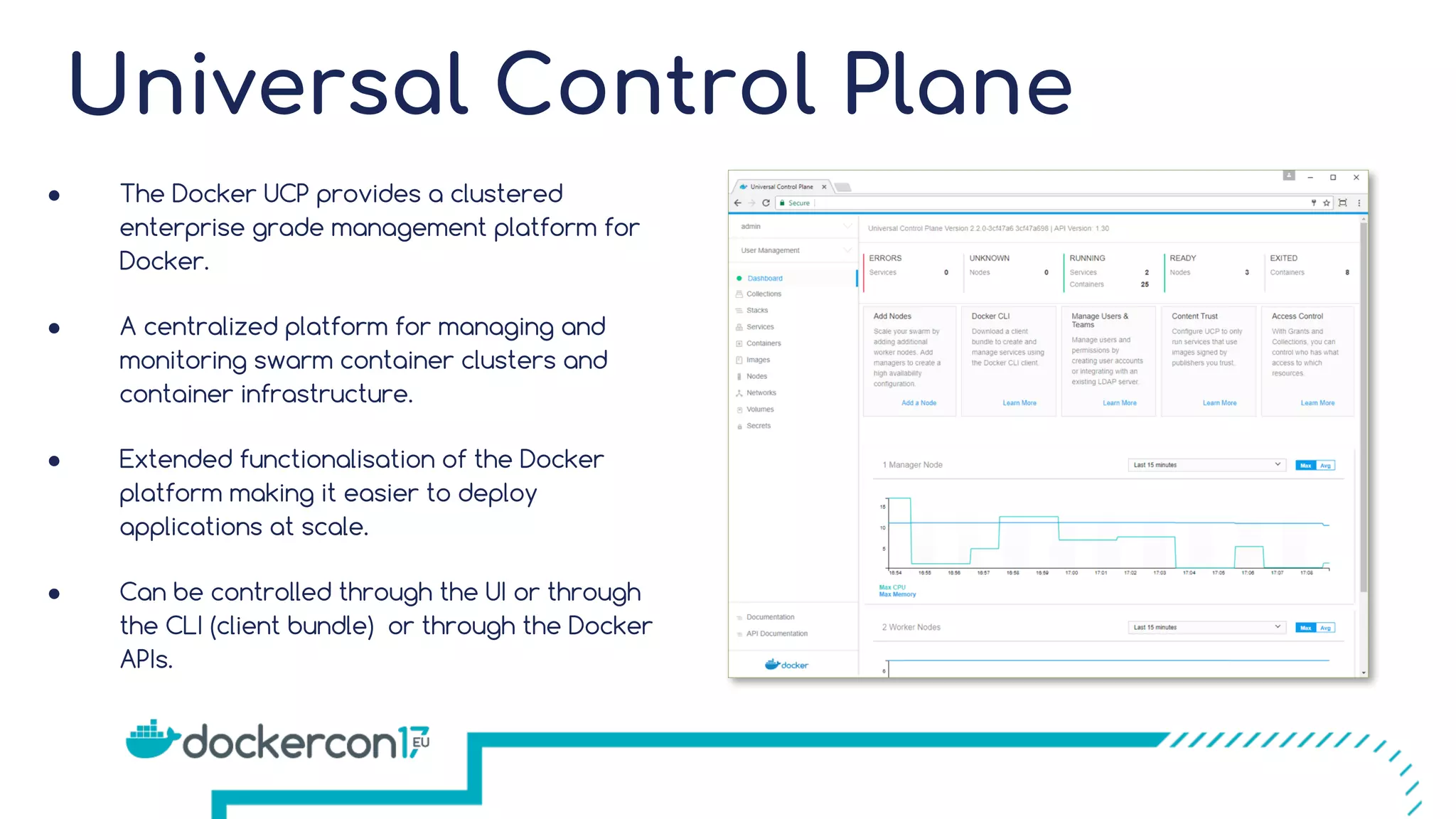

- 27. Universal Control Plane ●The Docker UCP provides a clustered enterprise grade management platform for Docker. ● A centralized platform for managing and monitoring swarm container clusters and container infrastructure. ● Extended functionalisation of the Docker platform making it easier to deploy applications at scale. ● Can be controlled through the UI or through the CLI (client bundle) or through the Docker APIs.

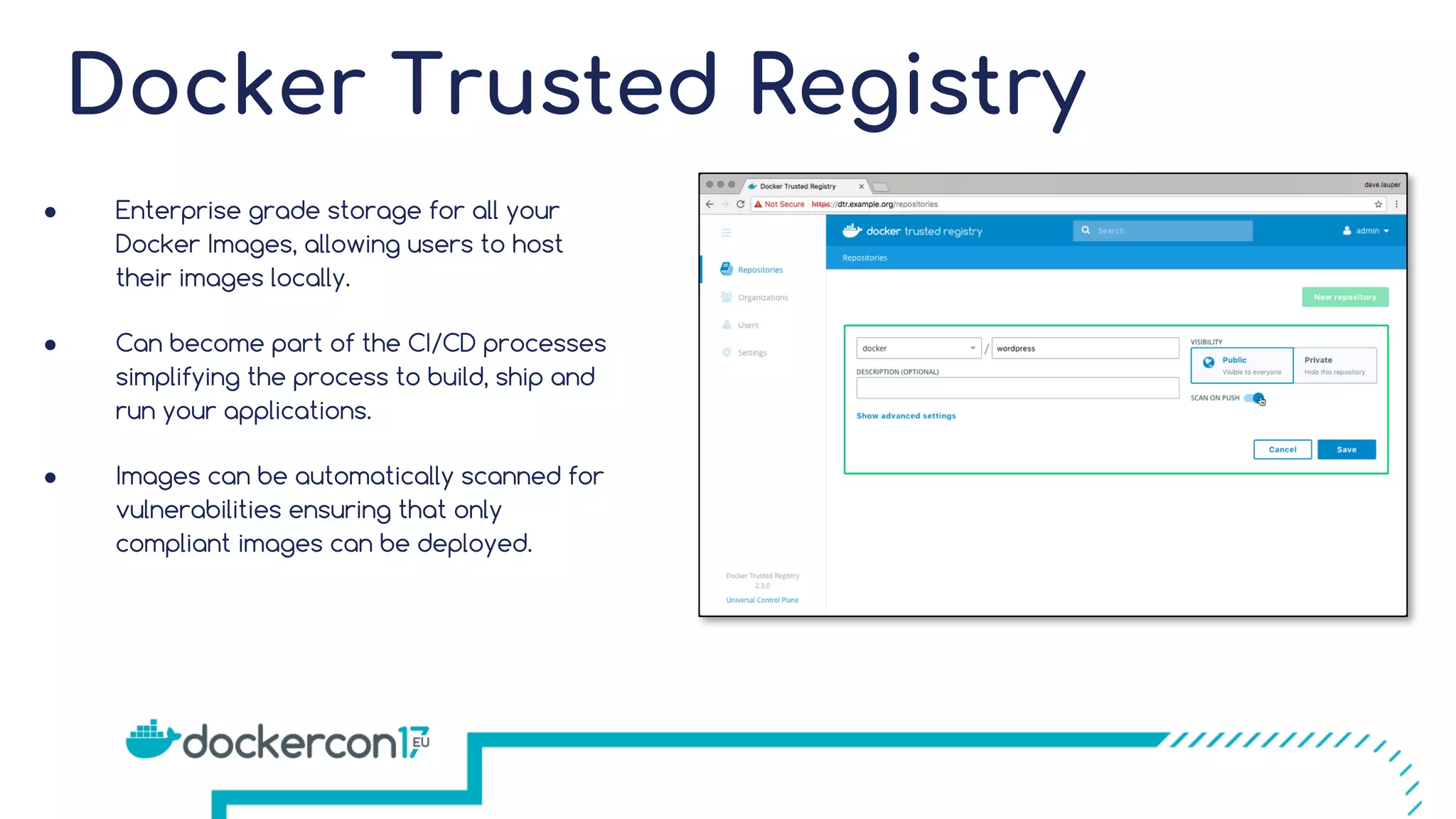

- 28. Docker Trusted Registry ●Enterprise grade storage for all your Docker Images, allowing users to host their images locally. ● Can become part of the CI/CD processes simplifying the process to build, ship and run your applications. ● Images can be automatically scanned for vulnerabilities ensuring that only compliant images can be deployed.

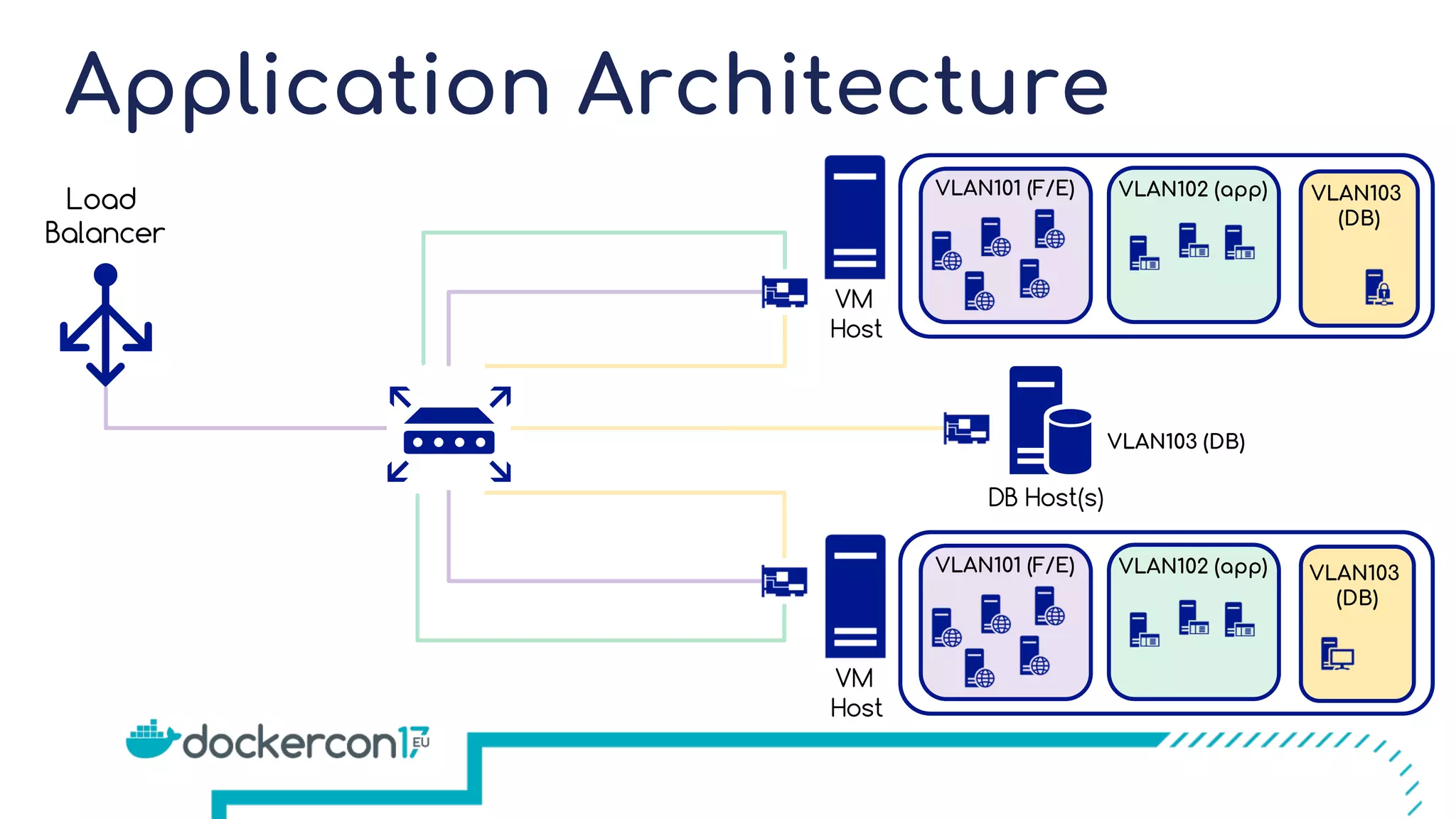

- 29. Application Architecture VLAN101 (F/E)VLAN102 (app) VLAN101 (F/E) VLAN102 (app) VM Host VM Host Load Balancer VLAN103 (DB) DB Host(s) VLAN103 (DB) VLAN103 (DB)
- 30. “Behind the scenesthe developers and application maintainers have repackaged our applications into containers”

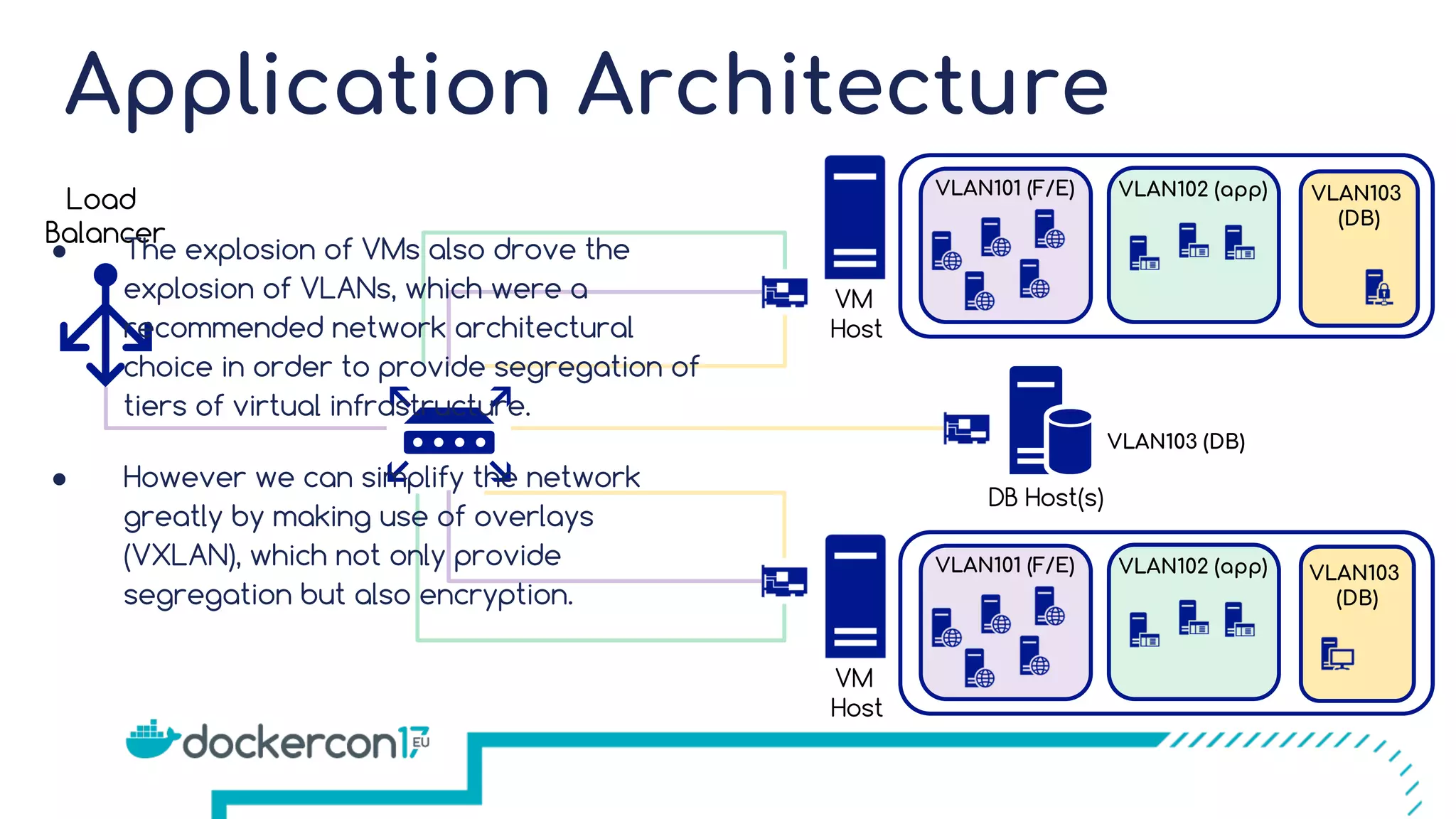

- 31. Application Architecture VLAN101 (F/E)VLAN102 (app) VLAN101 (F/E) VLAN102 (app) VM Host VM Host Load Balancer VLAN103 (DB) DB Host(s) VLAN103 (DB) VLAN103 (DB) ● The explosion of VMs also drove the explosion of VLANs, which were a recommended network architectural choice in order to provide segregation of tiers of virtual infrastructure. ● However we can simplify the network greatly by making use of overlays (VXLAN), which not only provide segregation but also encryption.

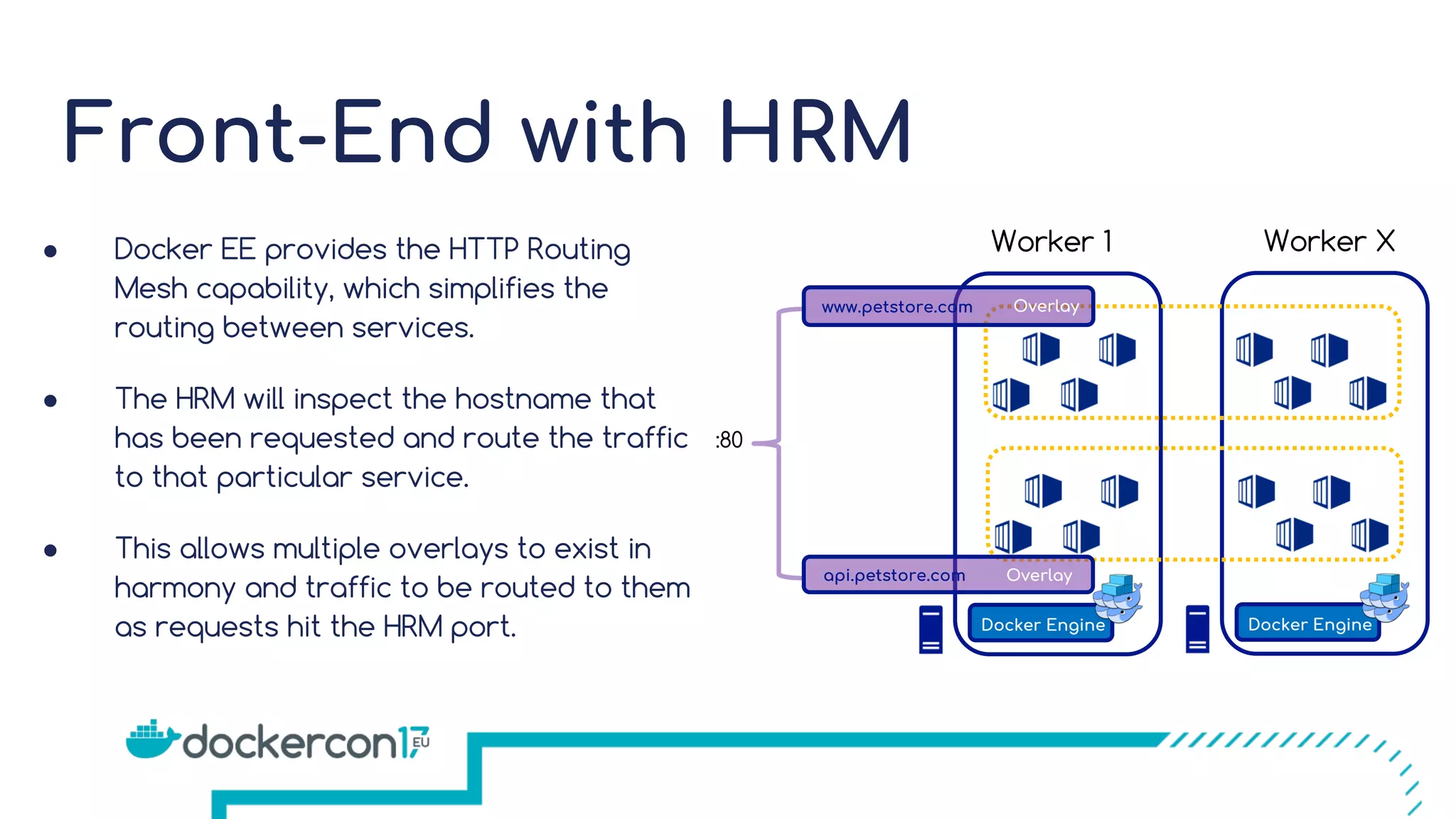

- 32. Front-End with HRM Worker1 Worker X Docker Engine Docker Engine Overlay ● Docker EE provides the HTTP Routing Mesh capability, which simplifies the routing between services. ● The HRM will inspect the hostname that has been requested and route the traffic to that particular service. ● This allows multiple overlays to exist in harmony and traffic to be routed to them as requests hit the HRM port. Overlaywww.petstore.com api.petstore.com :80

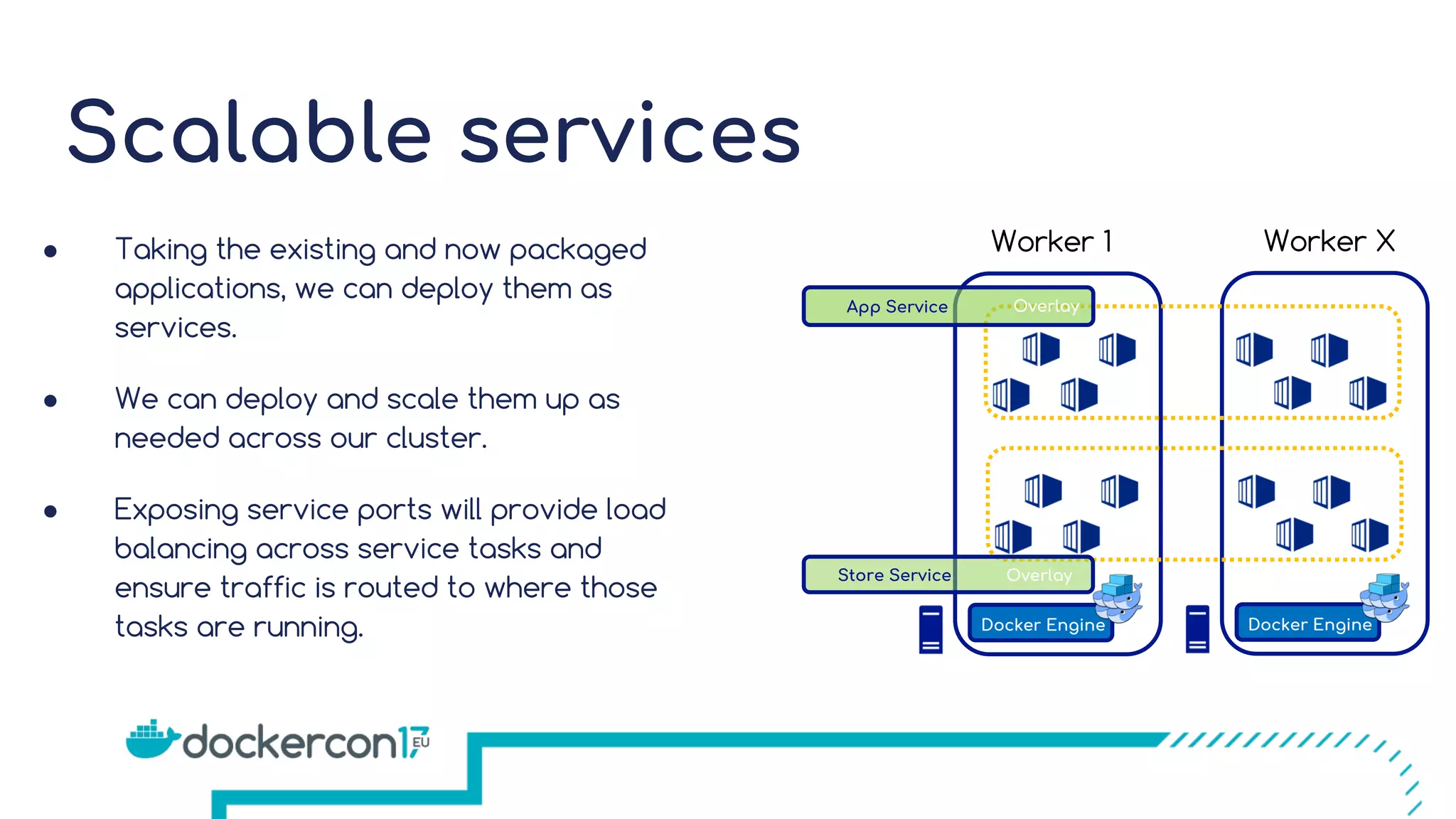

- 33. Scalable services Worker 1Worker X Docker Engine Docker Engine Overlay ● Taking the existing and now packaged applications, we can deploy them as services. ● We can deploy and scale them up as needed across our cluster. ● Exposing service ports will provide load balancing across service tasks and ensure traffic is routed to where those tasks are running. OverlayApp Service Store Service

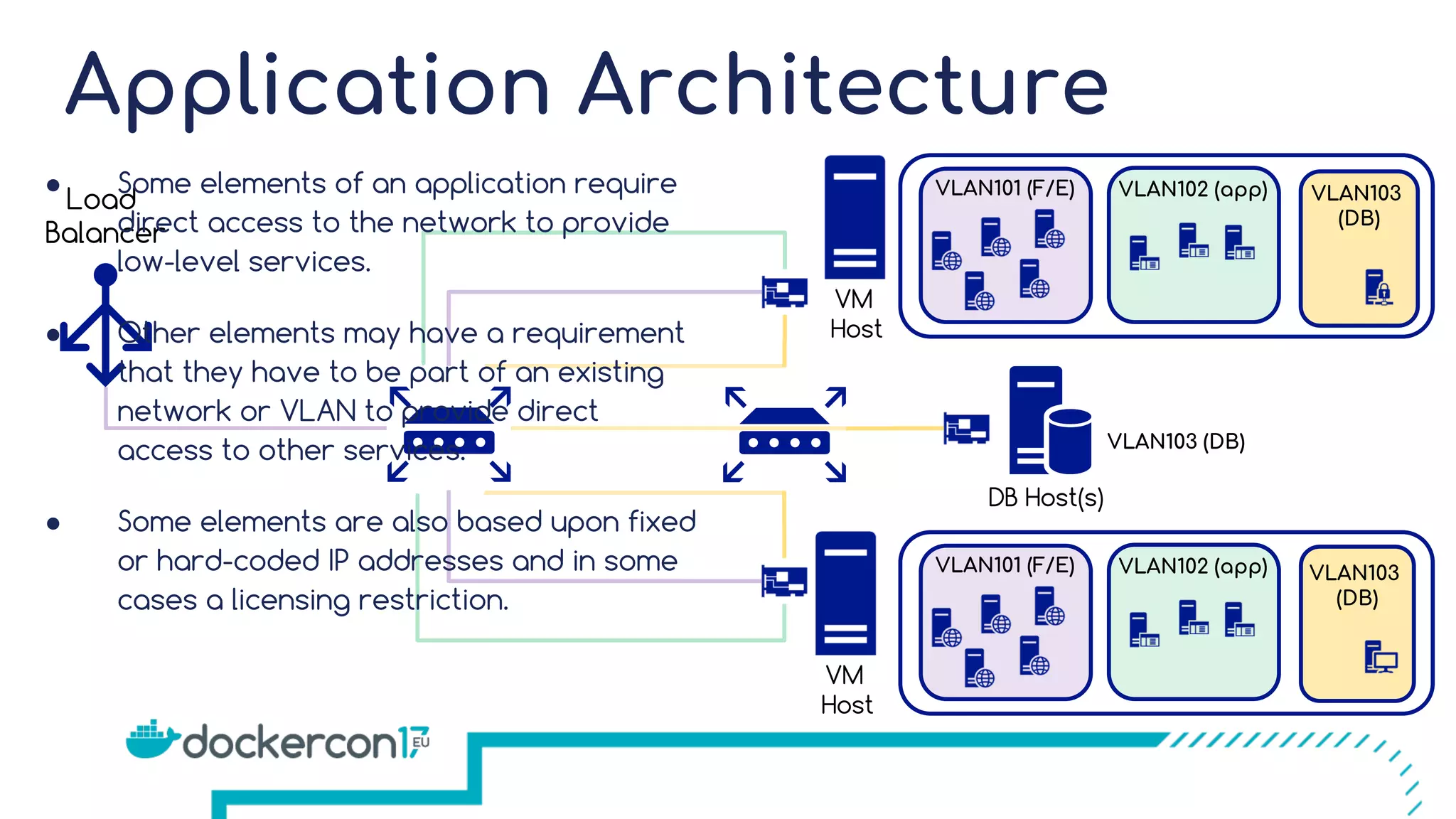

- 34. Application Architecture VM Host VLAN103 (DB) Load Balancer VM Host DBHost(s) VLAN101 (F/E) VLAN102 (app) VLAN103 (DB) VLAN101 (F/E) VLAN102 (app) VLAN103 (DB) ● Some elements of an application require direct access to the network to provide low-level services. ● Other elements may have a requirement that they have to be part of an existing network or VLAN to provide direct access to other services. ● Some elements are also based upon fixed or hard-coded IP addresses and in some cases a licensing restriction.

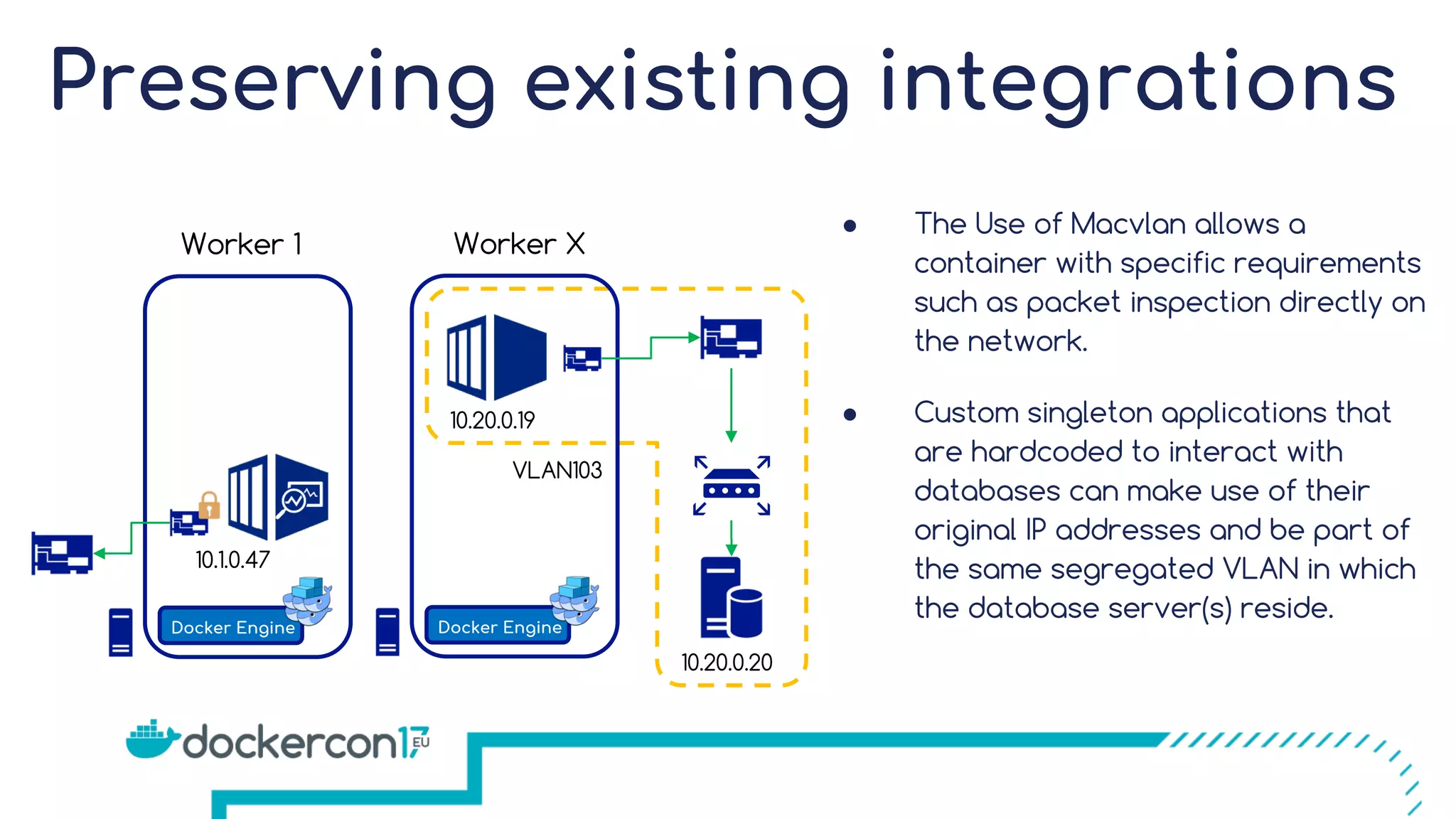

- 35. Preserving existing integrations Worker1 Worker X Docker Engine Docker Engine ● The Use of Macvlan allows a container with specific requirements such as packet inspection directly on the network. ● Custom singleton applications that are hardcoded to interact with databases can make use of their original IP addresses and be part of the same segregated VLAN in which the database server(s) reside. 10.1.0.47 10.20.0.19 10.20.0.20 VLAN103

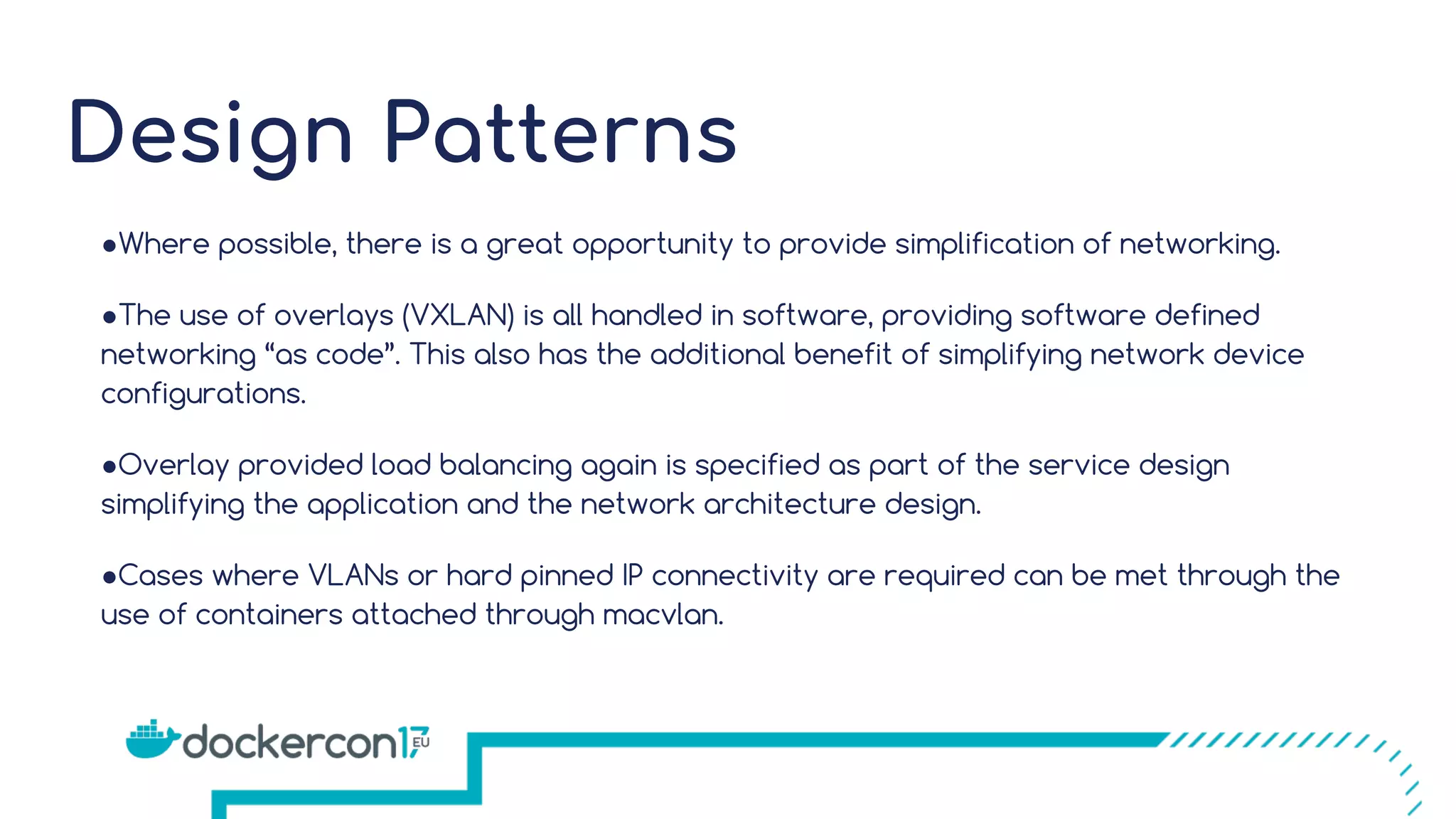

- 36. Design Patterns ●Where possible,there is a great opportunity to provide simplification of networking. ●The use of overlays (VXLAN) is all handled in software, providing software defined networking “as code”. This also has the additional benefit of simplifying network device configurations. ●Overlay provided load balancing again is specified as part of the service design simplifying the application and the network architecture design. ●Cases where VLANs or hard pinned IP connectivity are required can be met through the use of containers attached through macvlan.
- 37. Explore the handson labs in the experience centre for some real experience. !
- 38. Upcoming networking with theUniversal Control Plane
- 39.

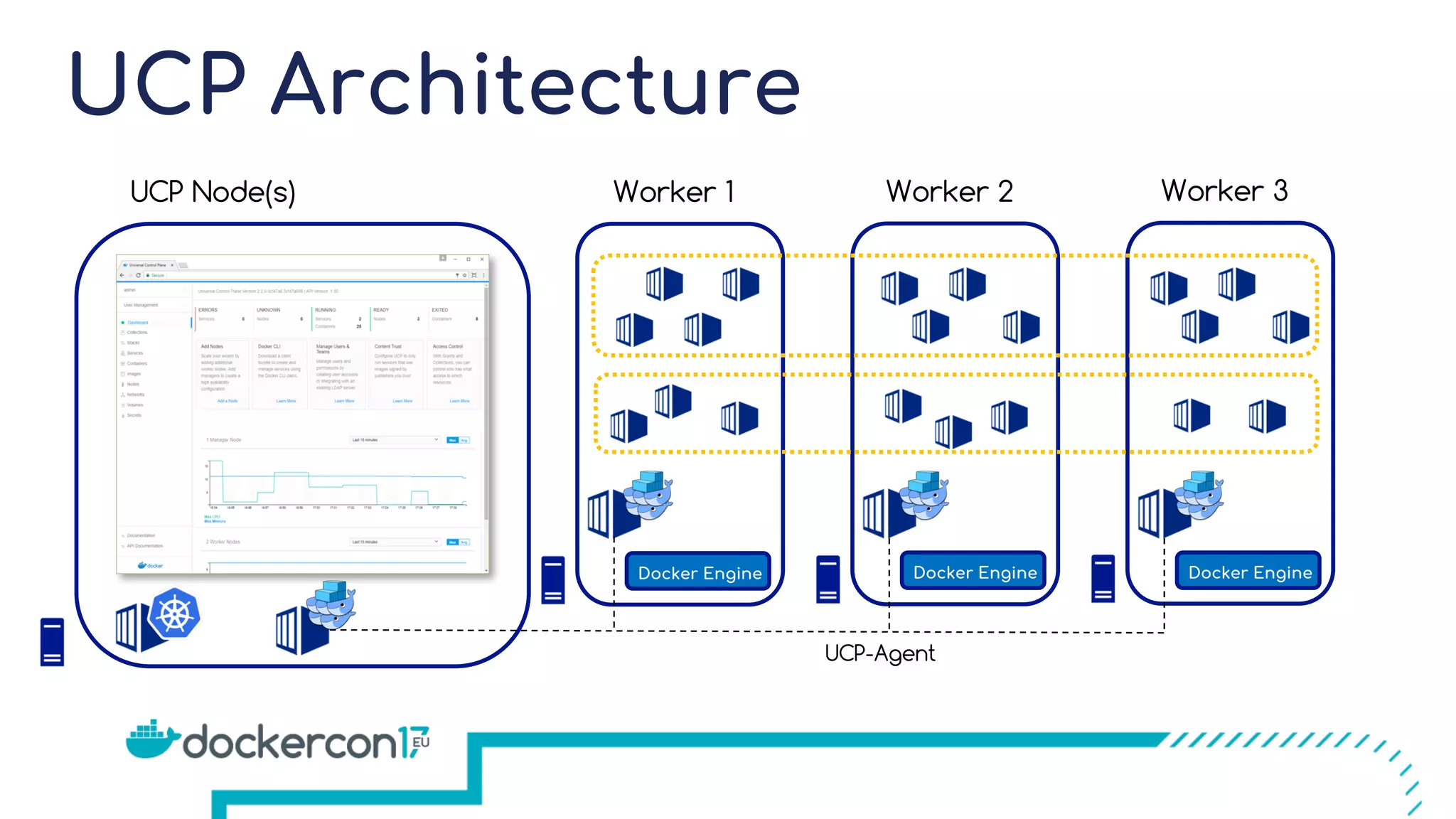

- 40. UCP Architecture UCP Node(s)Worker 1 Worker 2 Worker 3 Docker EngineDocker EngineDocker Engine UCP-Agent

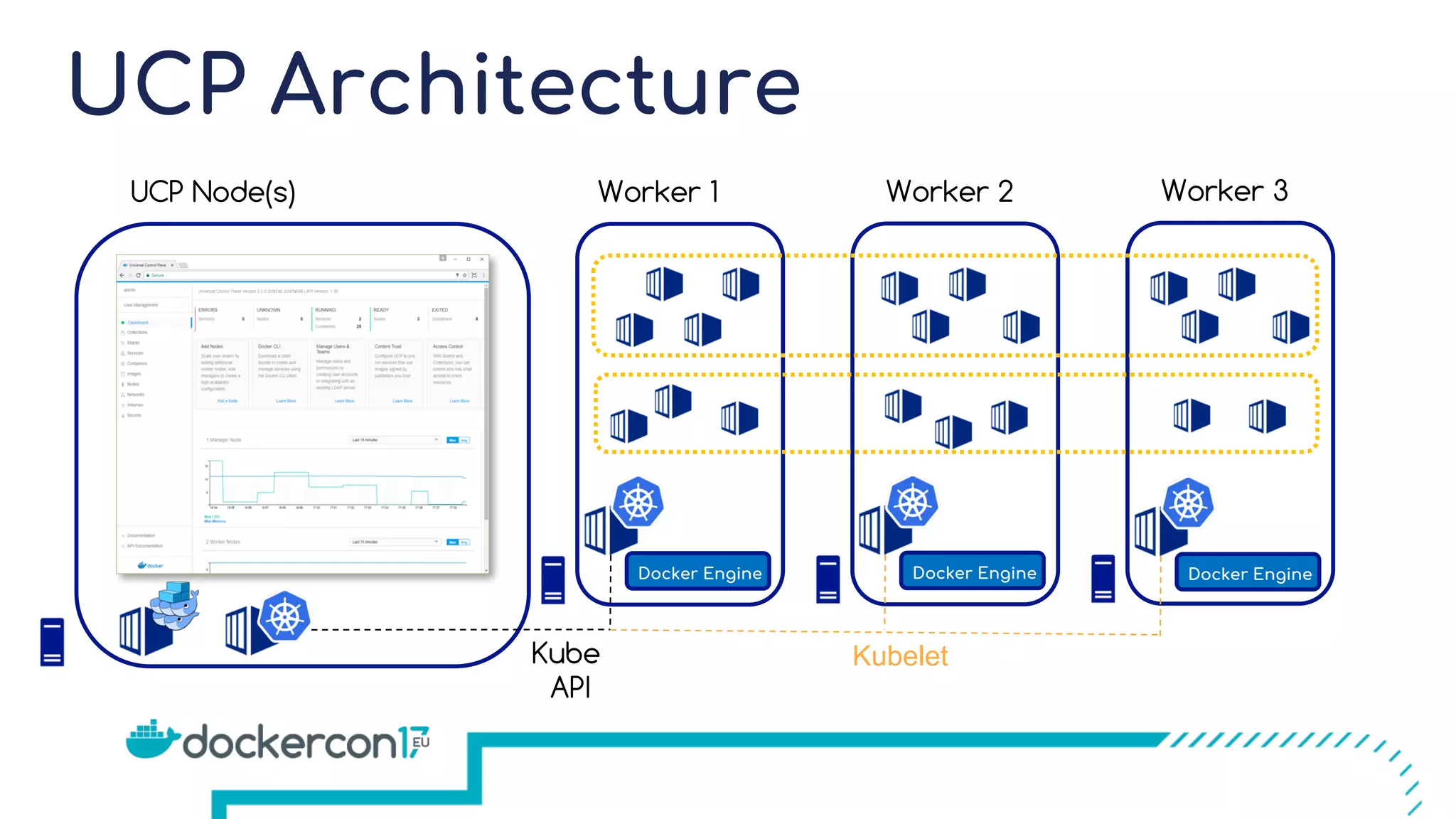

- 41. UCP Architecture UCP Node(s)Worker 1 Worker 2 Worker 3 Kube API Kubelet Docker Engine Docker Engine Docker Engine

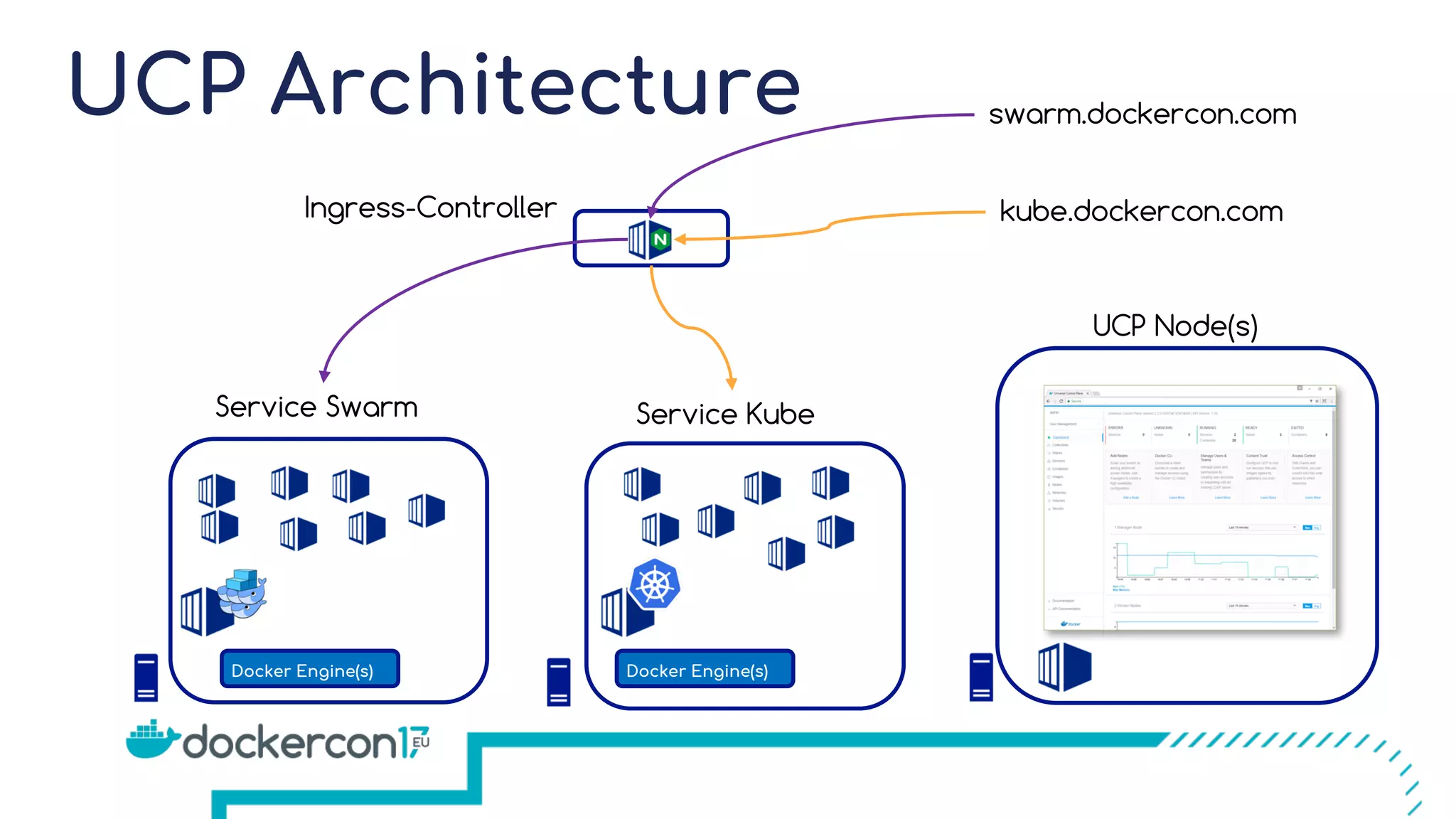

- 42. UCP Architecture UCP Node(s) ServiceSwarm Docker Engine(s) Service Kube Docker Engine(s) Ingress-Controller swarm.dockercon.com kube.dockercon.com

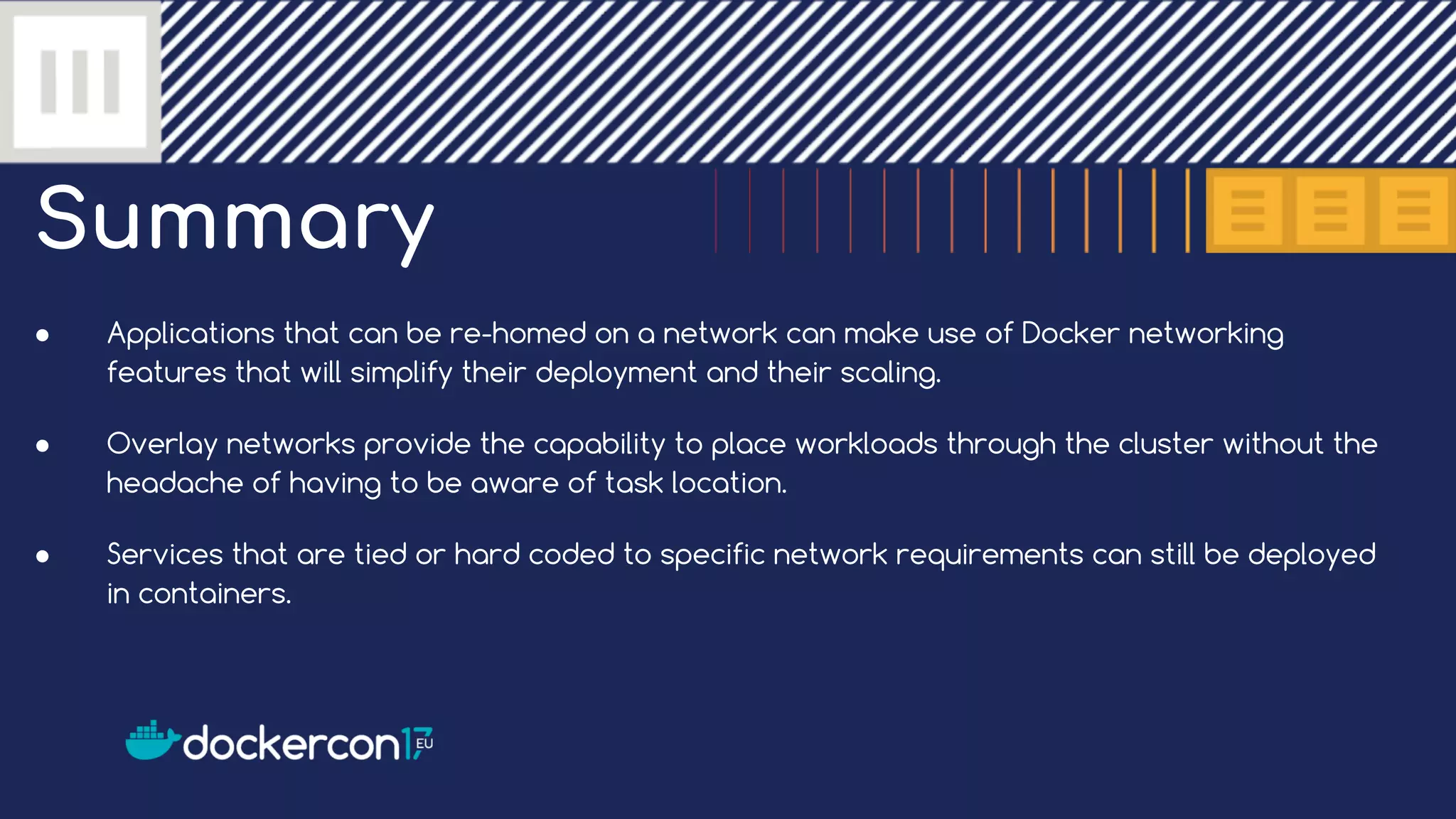

- 43. Summary ● Applications thatcan be re-homed on a network can make use of Docker networking features that will simplify their deployment and their scaling. ● Overlay networks provide the capability to place workloads through the cluster without the headache of having to be aware of task location. ● Services that are tied or hard coded to specific network requirements can still be deployed in containers.
- 44. Interested in MTA ●Stopby the booth (MTA pod) ●Download the kit www.docker.com/mta ●Look for a MTA Roadshow near you ●Contact your Account Team
- 45. Docker EE Hosted Demo Addpicture here docker.com/trial ● Free 4 Hour Demo ● No Servers Required ● Full Docker EE Cluster Access
- 46. Practical Design Patternsin Docker Networking Dan Finneran @thebsdbox
- 47.

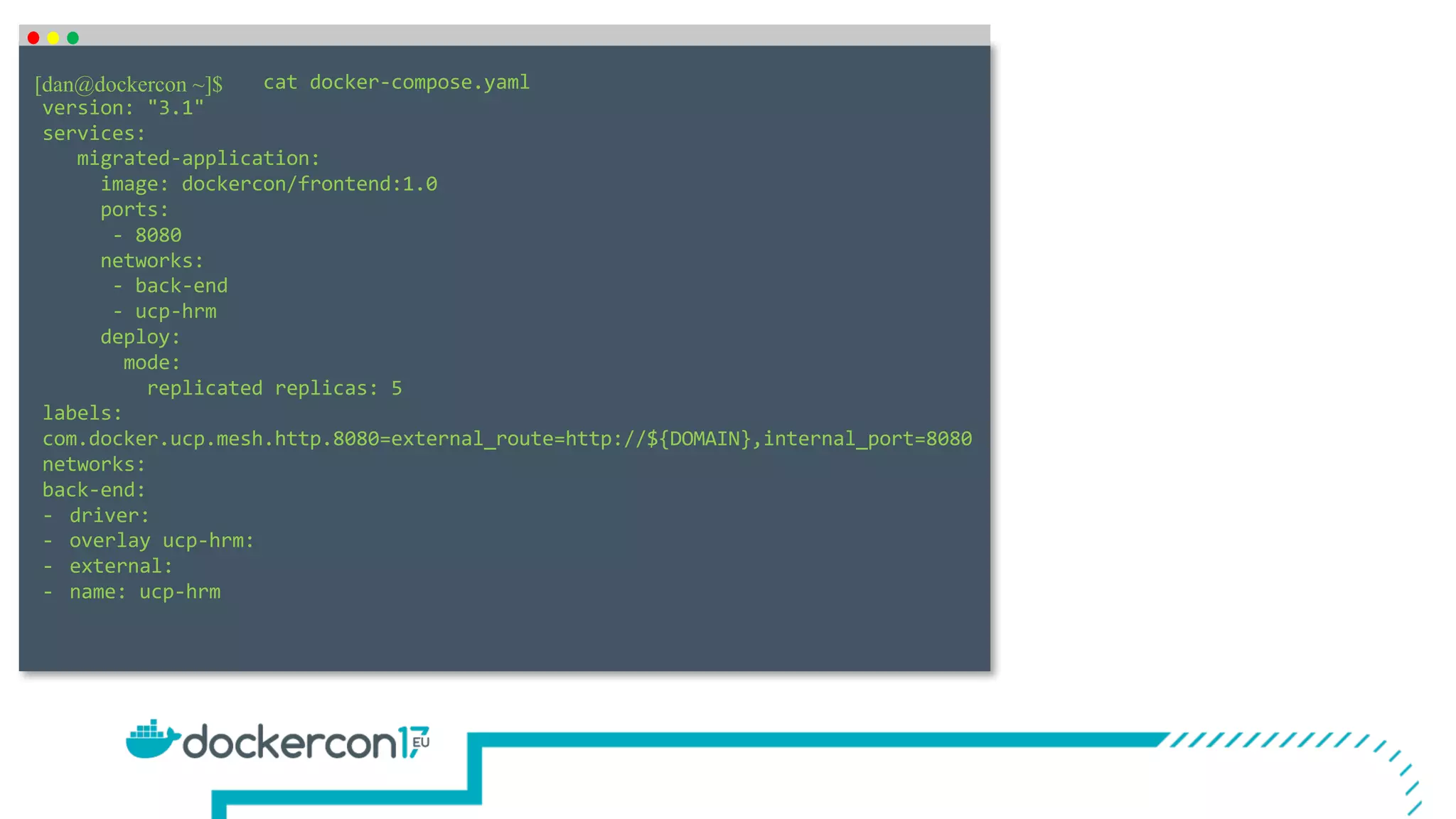

- 48. cat docker-compose.yaml version: "3.1" services: migrated-application: image:dockercon/frontend:1.0 ports: - 8080 networks: - back-end - ucp-hrm deploy: mode: replicated replicas: 5 labels: com.docker.ucp.mesh.http.8080=external_route=http://${DOMAIN},internal_port=8080 networks: back-end: - driver: - overlay ucp-hrm: - external: - name: ucp-hrm [dan@dockercon ~]$
