MongoDB and DynamoDB
This document provides an overview of MongoDB and DynamoDB. It defines NoSQL and describes MongoDB and DynamoDB as document-based and key-value based NoSQL databases respectively. It discusses why to use MongoDB over RDBMS and provides examples of setting up, querying, and replicating MongoDB. It also briefly describes features of DynamoDB like auto-scaling and pricing. Overall, the document serves as an introduction to MongoDB and DynamoDB.
MongoDB and DynamoDB
- 1. MongoDB and DynamoDB September8, 2020 Md Minhazul Haque hello@mdminhazulhaque.io

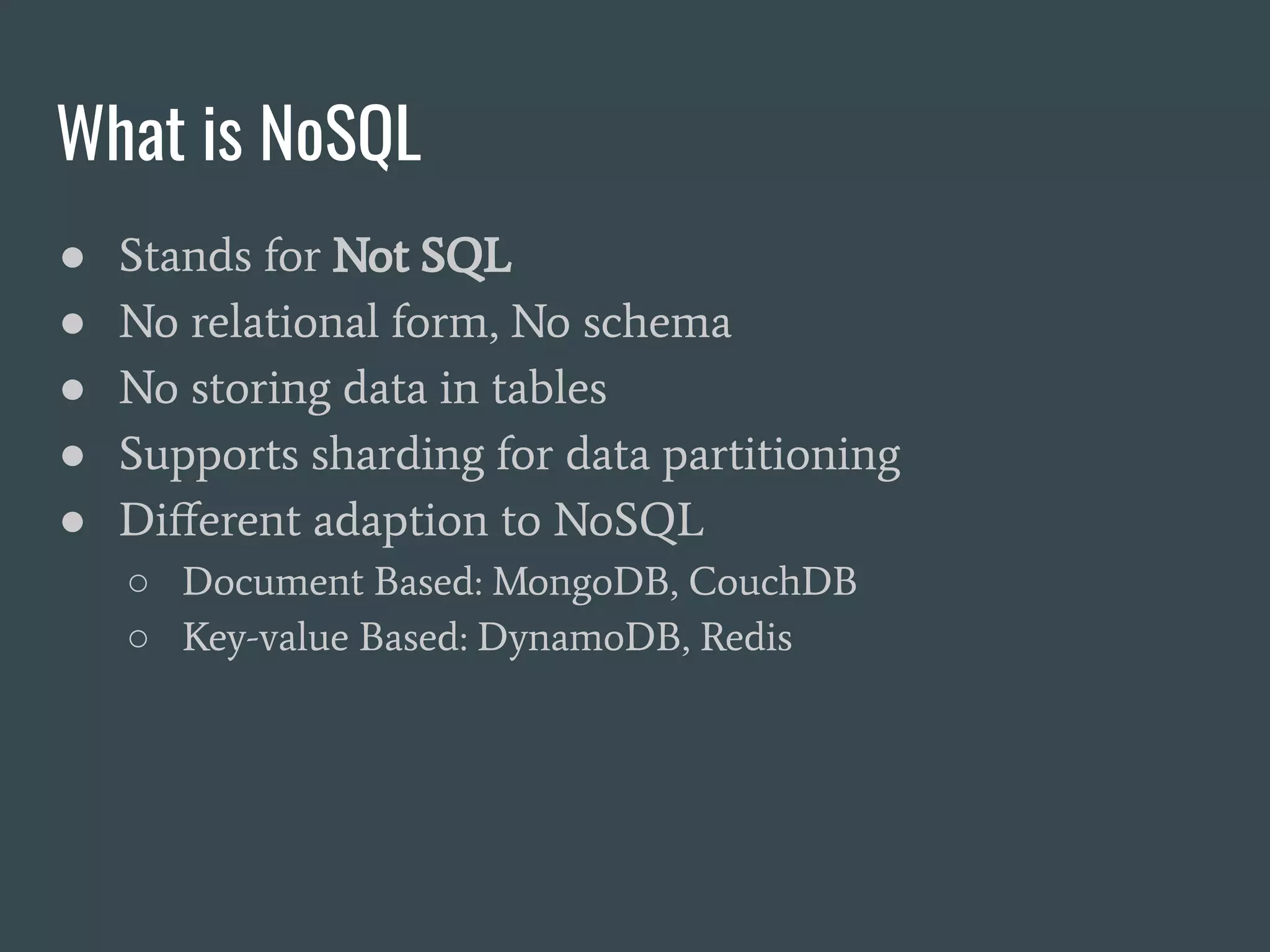

- 2. What is NoSQL ●Stands for Not SQL ● No relational form, No schema ● No storing data in tables ● Supports sharding for data partitioning ● Different adaption to NoSQL ○ Document Based: MongoDB, CouchDB ○ Key-value Based: DynamoDB, Redis

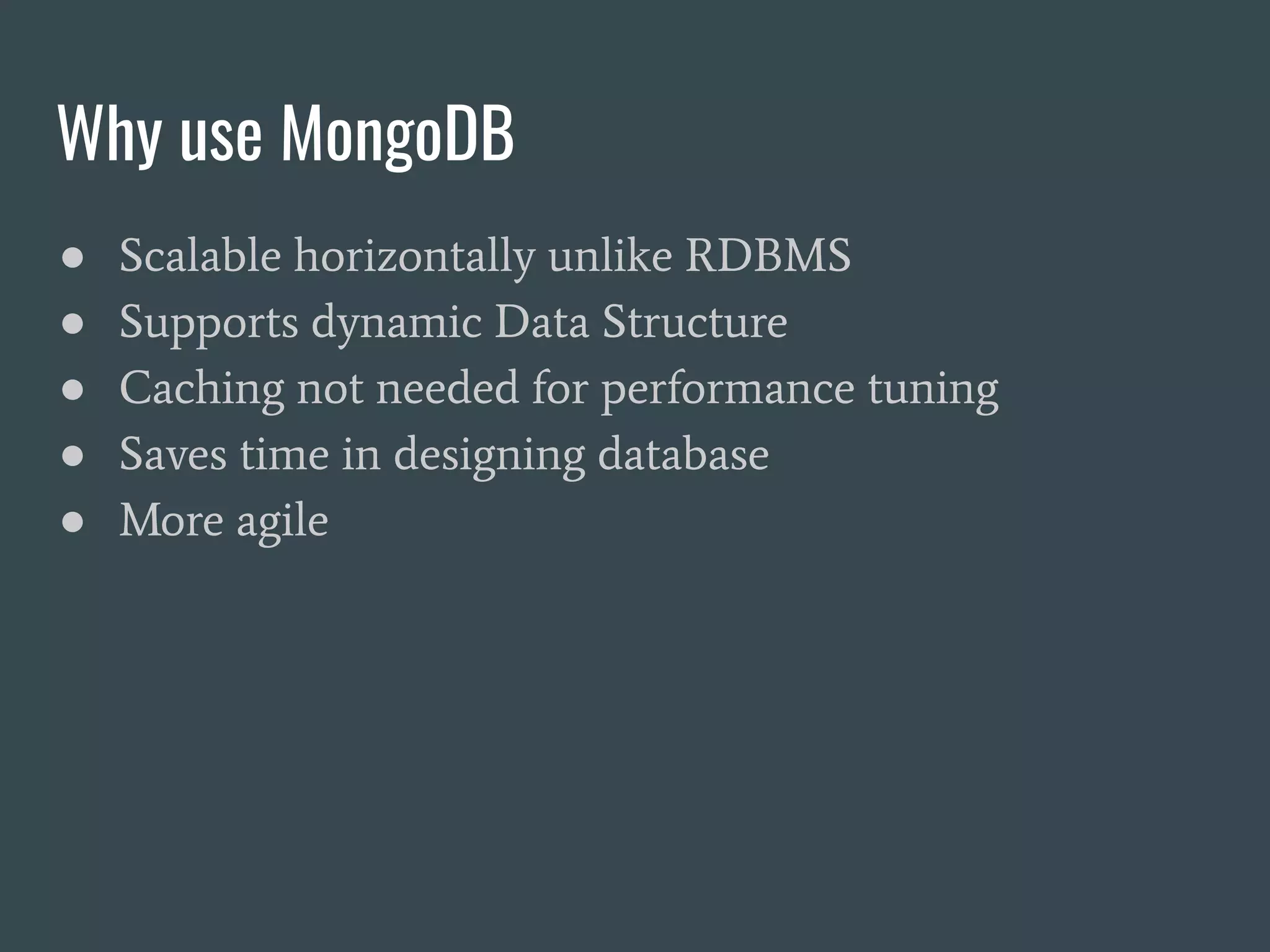

- 3. Why use MongoDB ●Scalable horizontally unlike RDBMS ● Supports dynamic Data Structure ● Caching not needed for performance tuning ● Saves time in designing database ● More agile

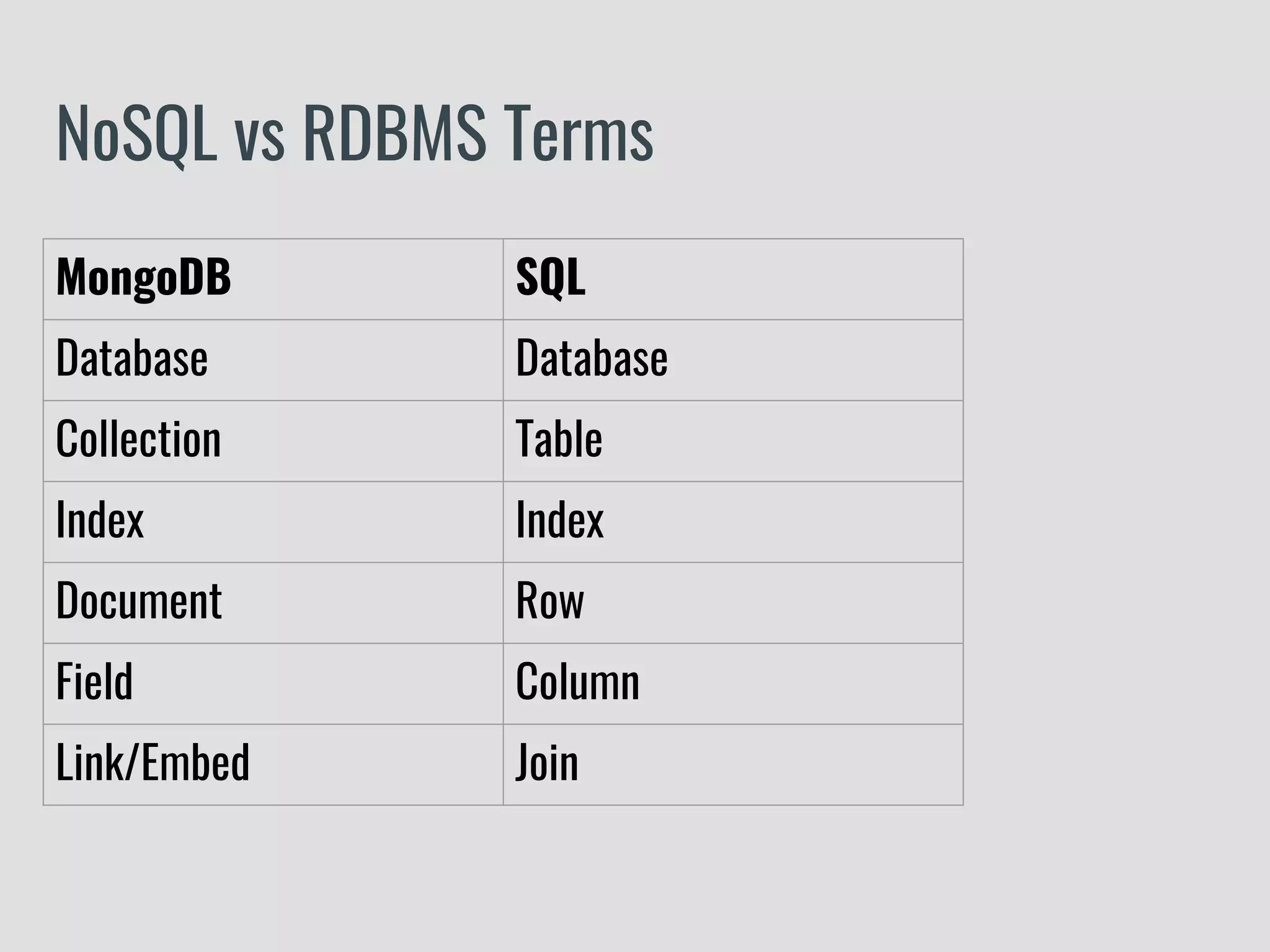

- 4. NoSQL vs RDBMSTerms MongoDB SQL Database Database Collection Table Index Index Document Row Field Column Link/Embed Join
- 5.
- 6.
- 7.

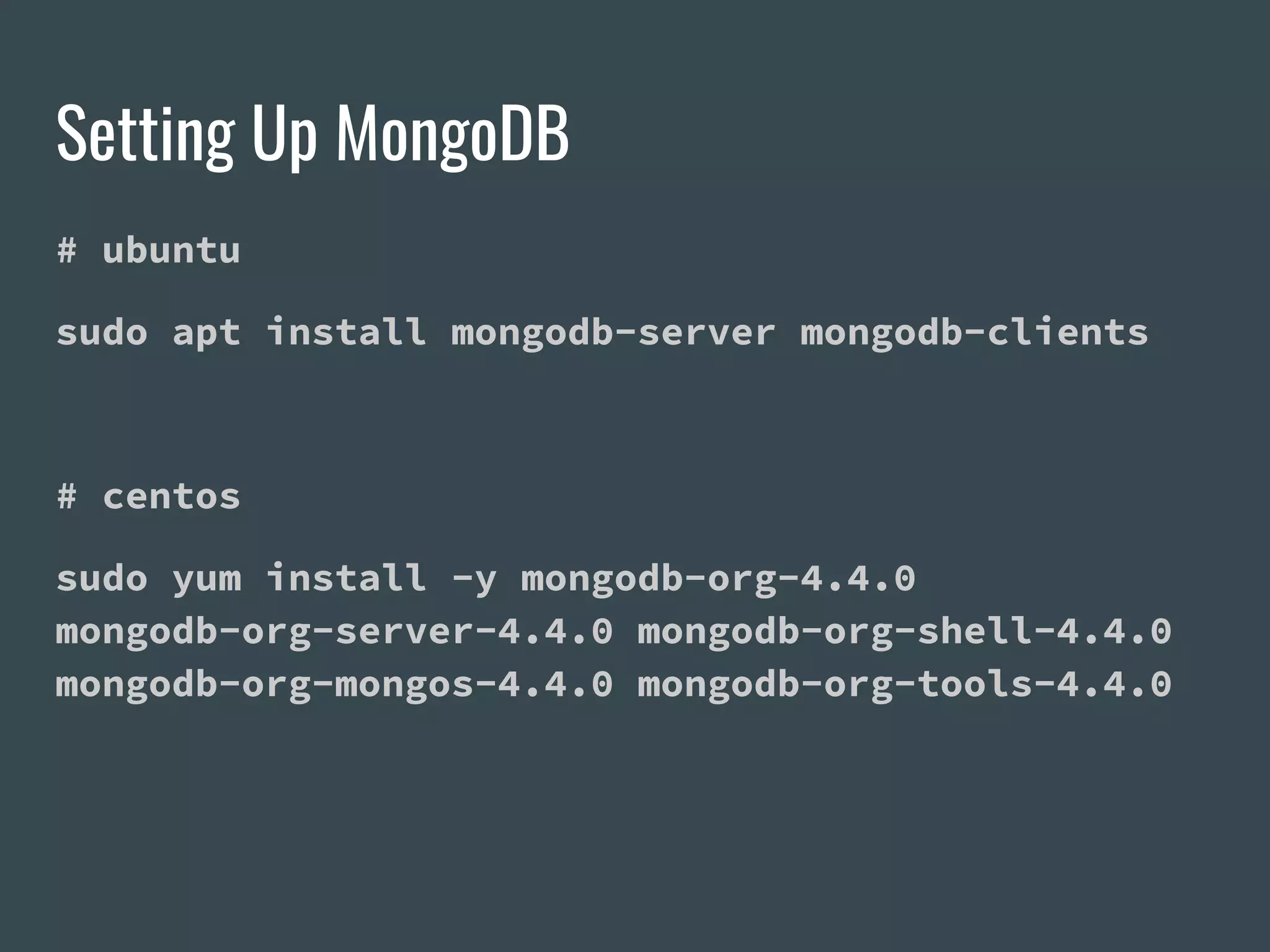

- 8. Setting Up MongoDB #ubuntu sudo apt install mongodb-server mongodb-clients # centos sudo yum install -y mongodb-org-4.4.0 mongodb-org-server-4.4.0 mongodb-org-shell-4.4.0 mongodb-org-mongos-4.4.0 mongodb-org-tools-4.4.0

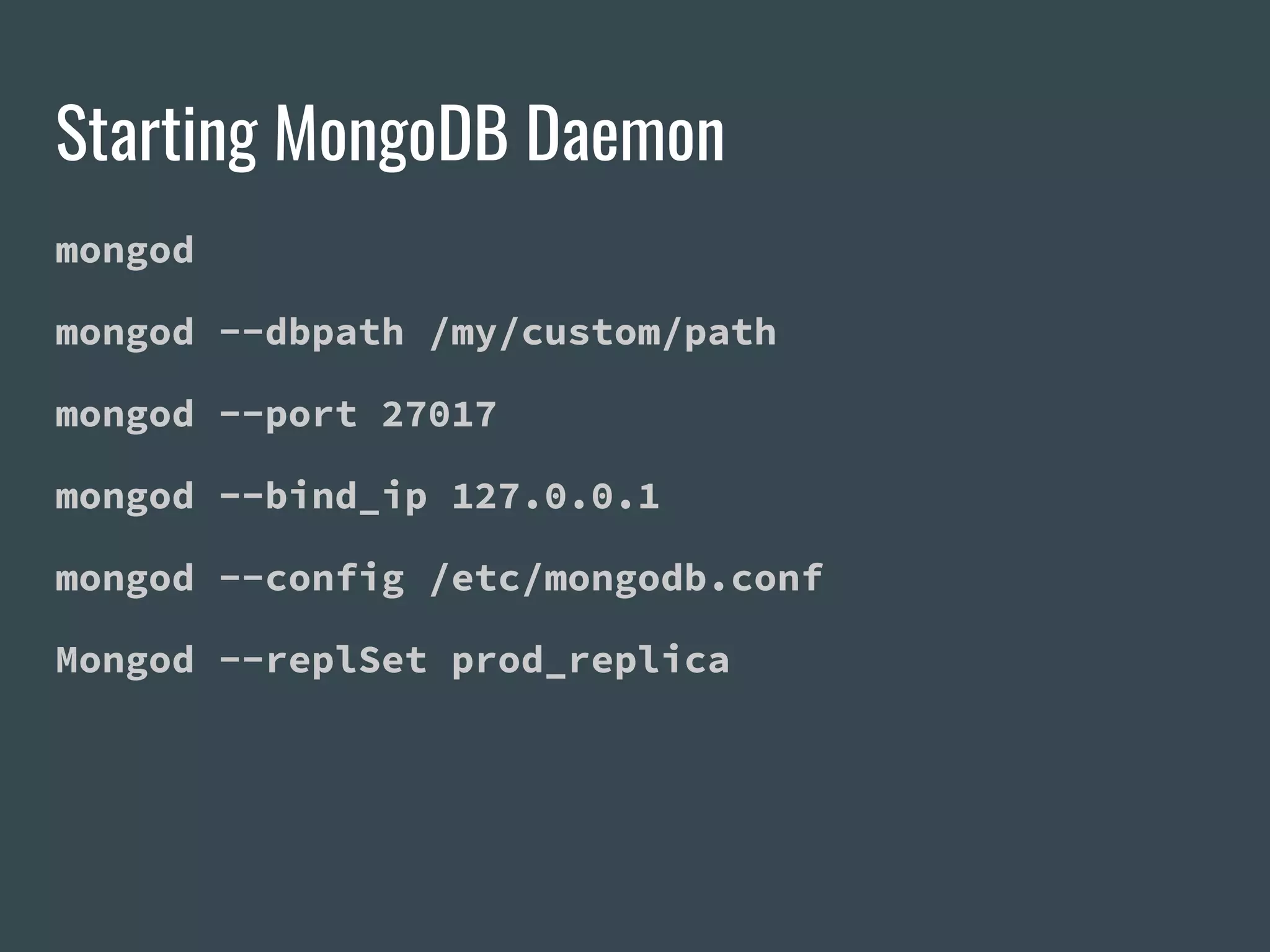

- 9. Starting MongoDB Daemon mongod mongod--dbpath /my/custom/path mongod --port 27017 mongod --bind_ip 127.0.0.1 mongod --config /etc/mongodb.conf Mongod --replSet prod_replica

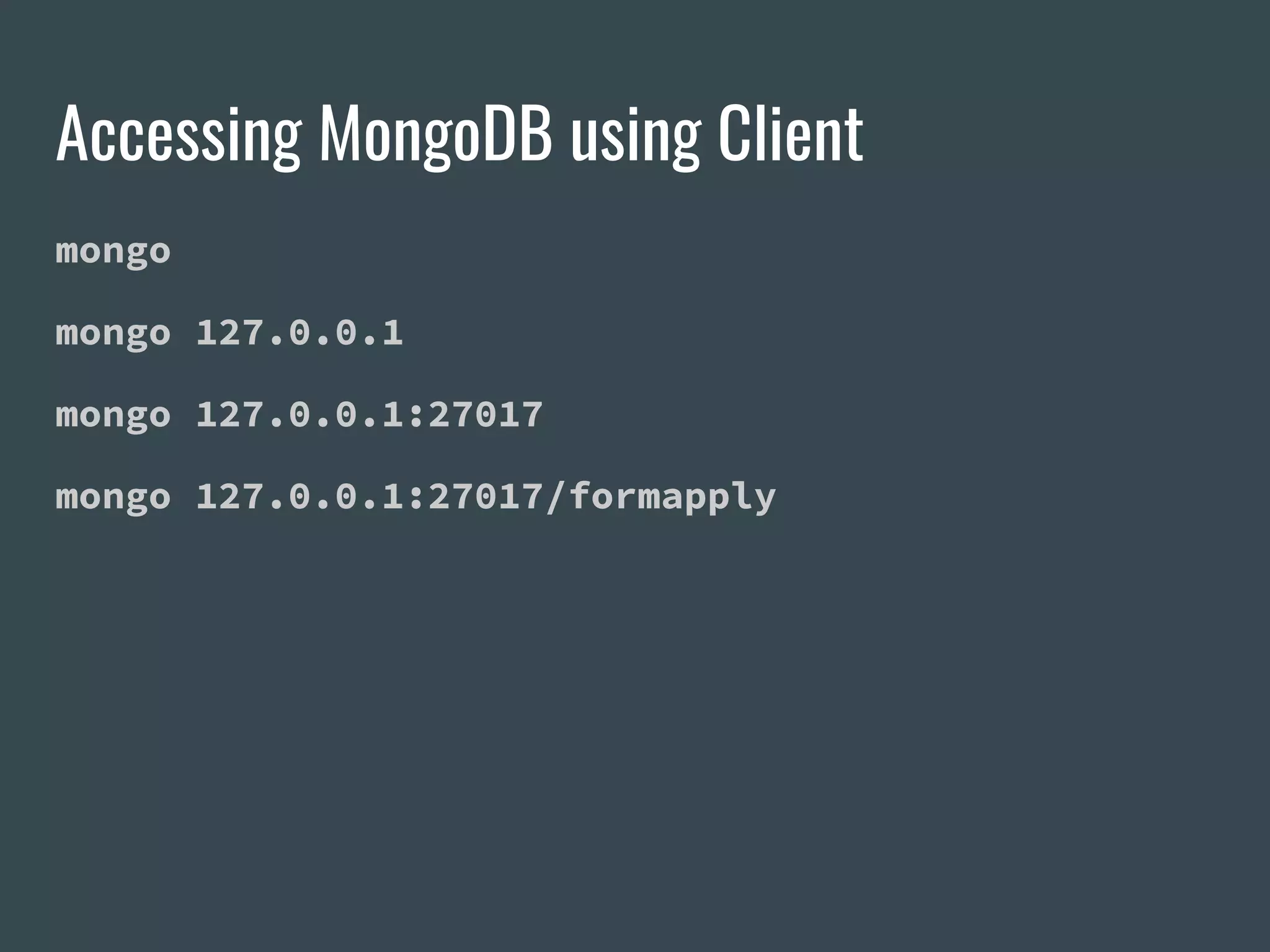

- 10. Accessing MongoDB usingClient mongo mongo 127.0.0.1 mongo 127.0.0.1:27017 mongo 127.0.0.1:27017/formapply

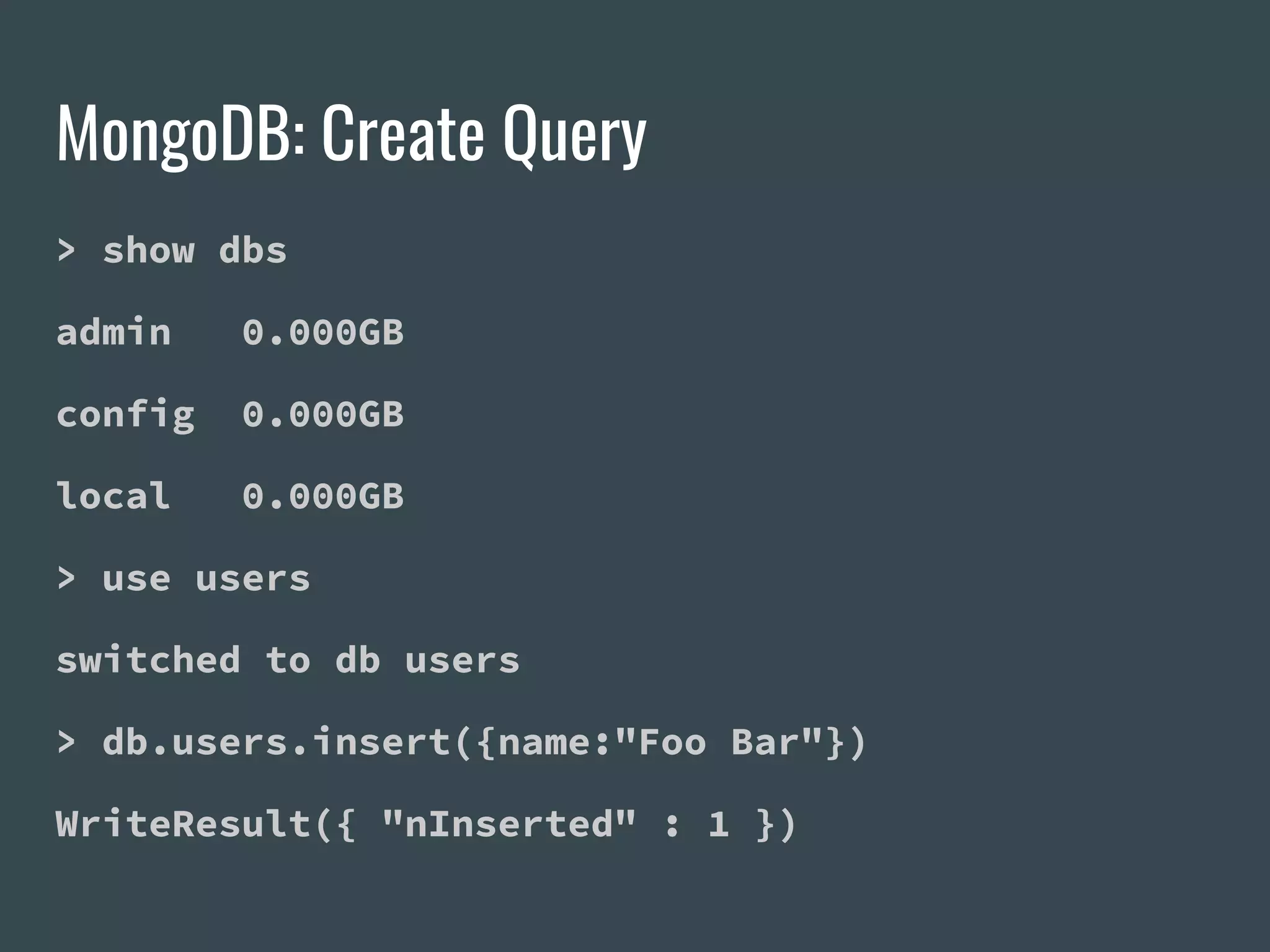

- 11. MongoDB: Create Query >show dbs admin 0.000GB config 0.000GB local 0.000GB > use users switched to db users > db.users.insert({name:"Foo Bar"}) WriteResult({ "nInserted" : 1 })

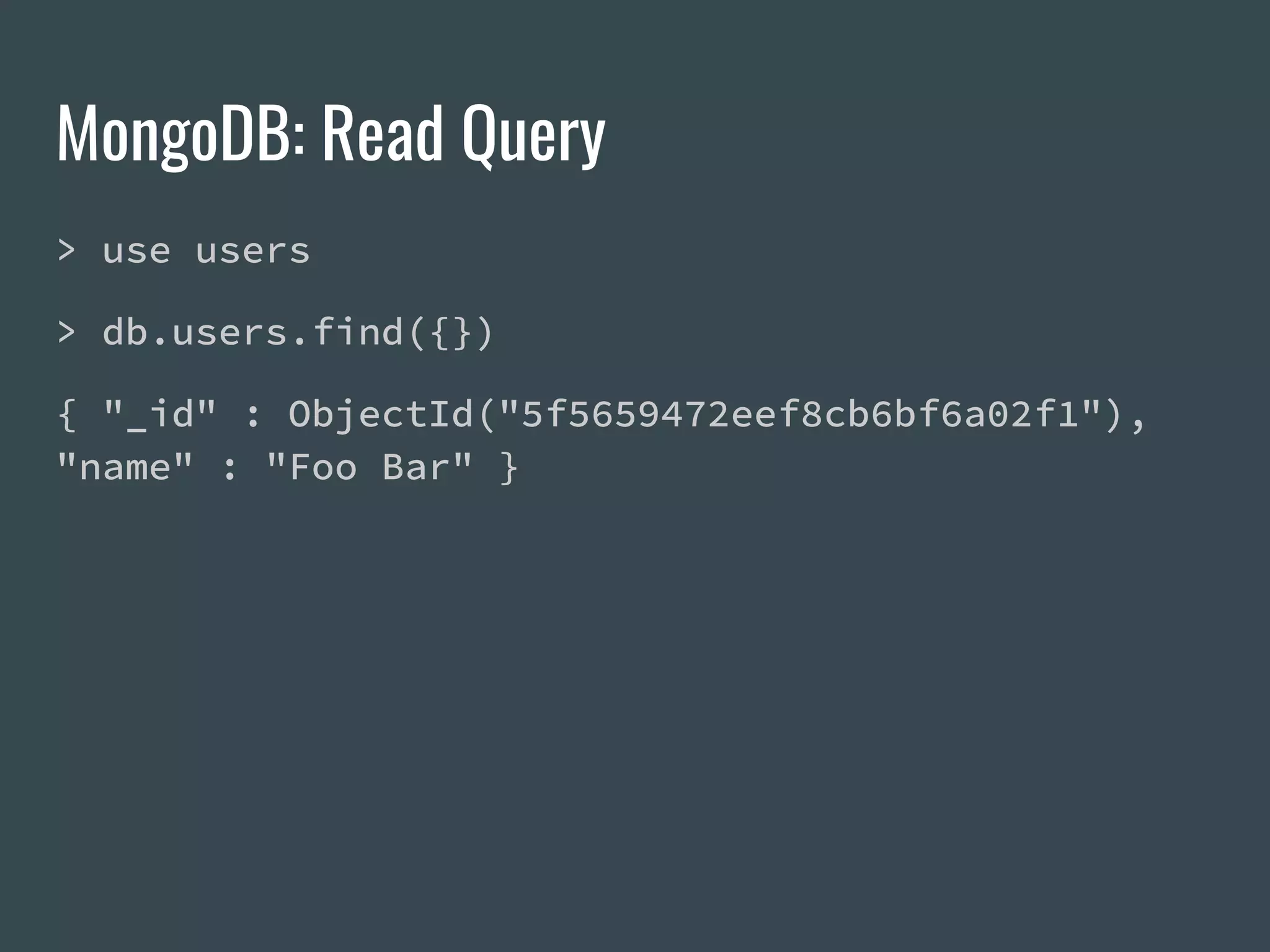

- 12. MongoDB: Read Query >use users > db.users.find({}) { "_id" : ObjectId("5f5659472eef8cb6bf6a02f1"), "name" : "Foo Bar" }

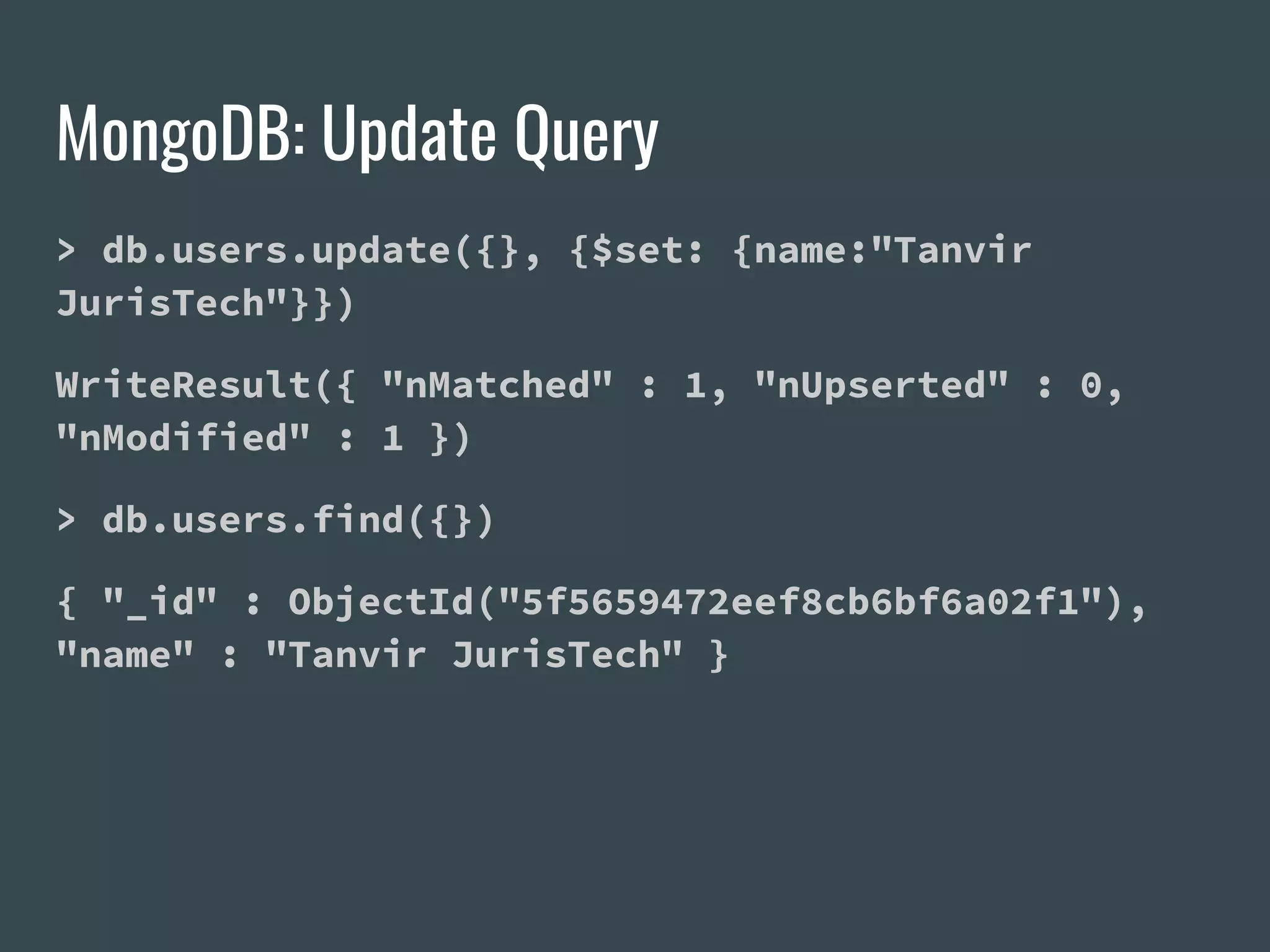

- 13. MongoDB: Update Query >db.users.update({}, {$set: {name:"Tanvir JurisTech"}}) WriteResult({ "nMatched" : 1, "nUpserted" : 0, "nModified" : 1 }) > db.users.find({}) { "_id" : ObjectId("5f5659472eef8cb6bf6a02f1"), "name" : "Tanvir JurisTech" }

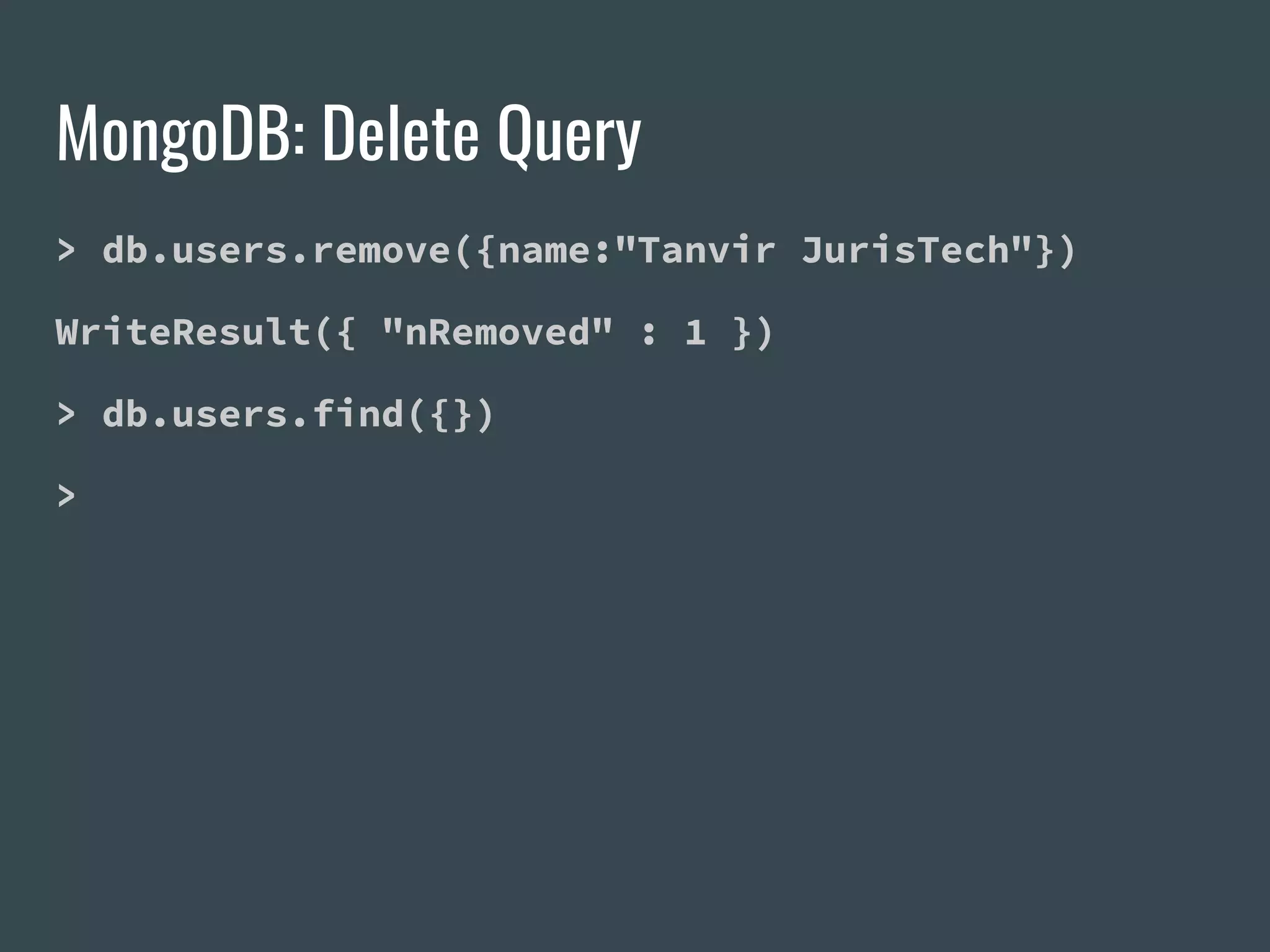

- 14. MongoDB: Delete Query >db.users.remove({name:"Tanvir JurisTech"}) WriteResult({ "nRemoved" : 1 }) > db.users.find({}) >

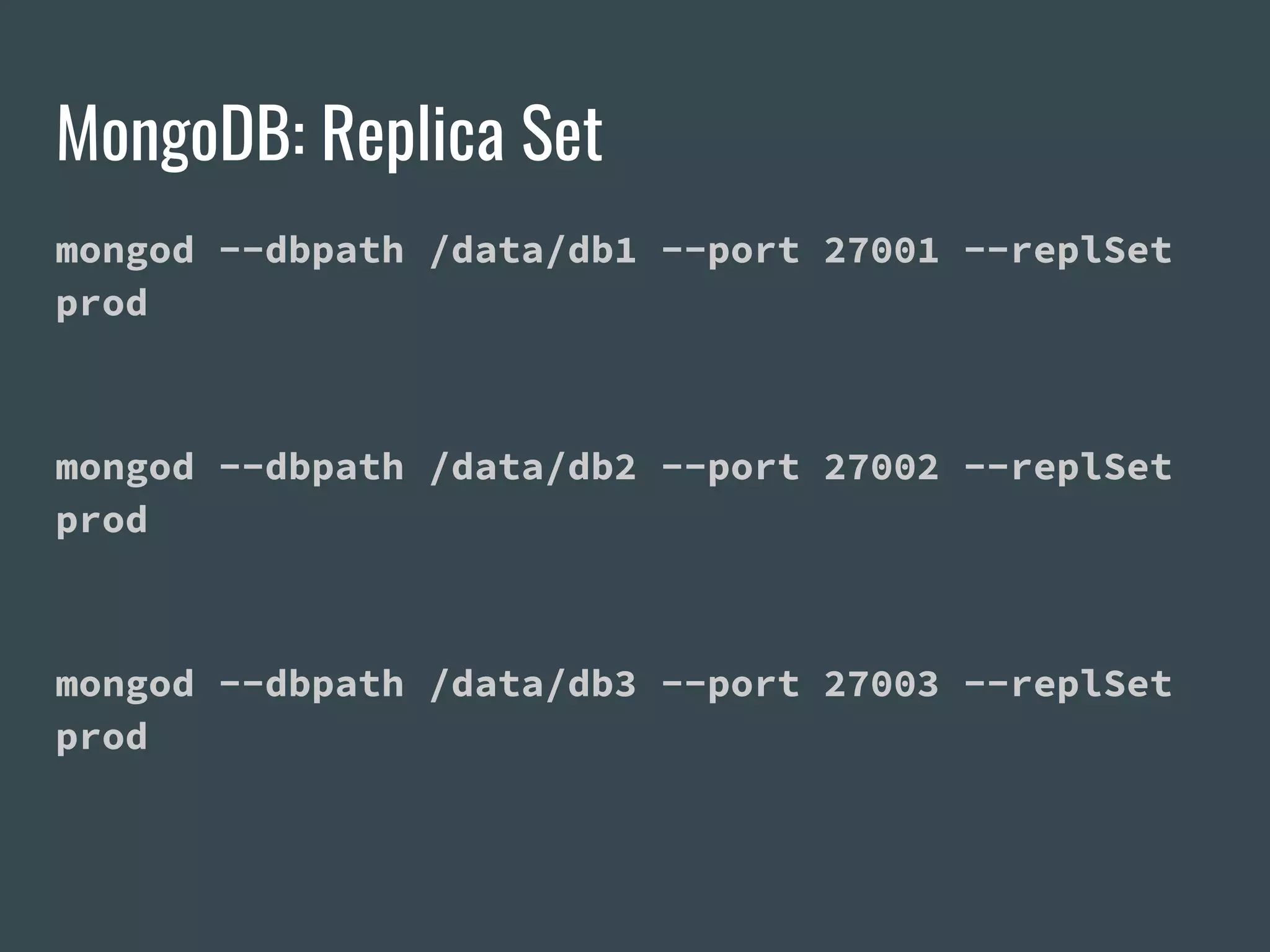

- 15. MongoDB: Replica Set mongod--dbpath /data/db1 --port 27001 --replSet prod mongod --dbpath /data/db2 --port 27002 --replSet prod mongod --dbpath /data/db3 --port 27003 --replSet prod

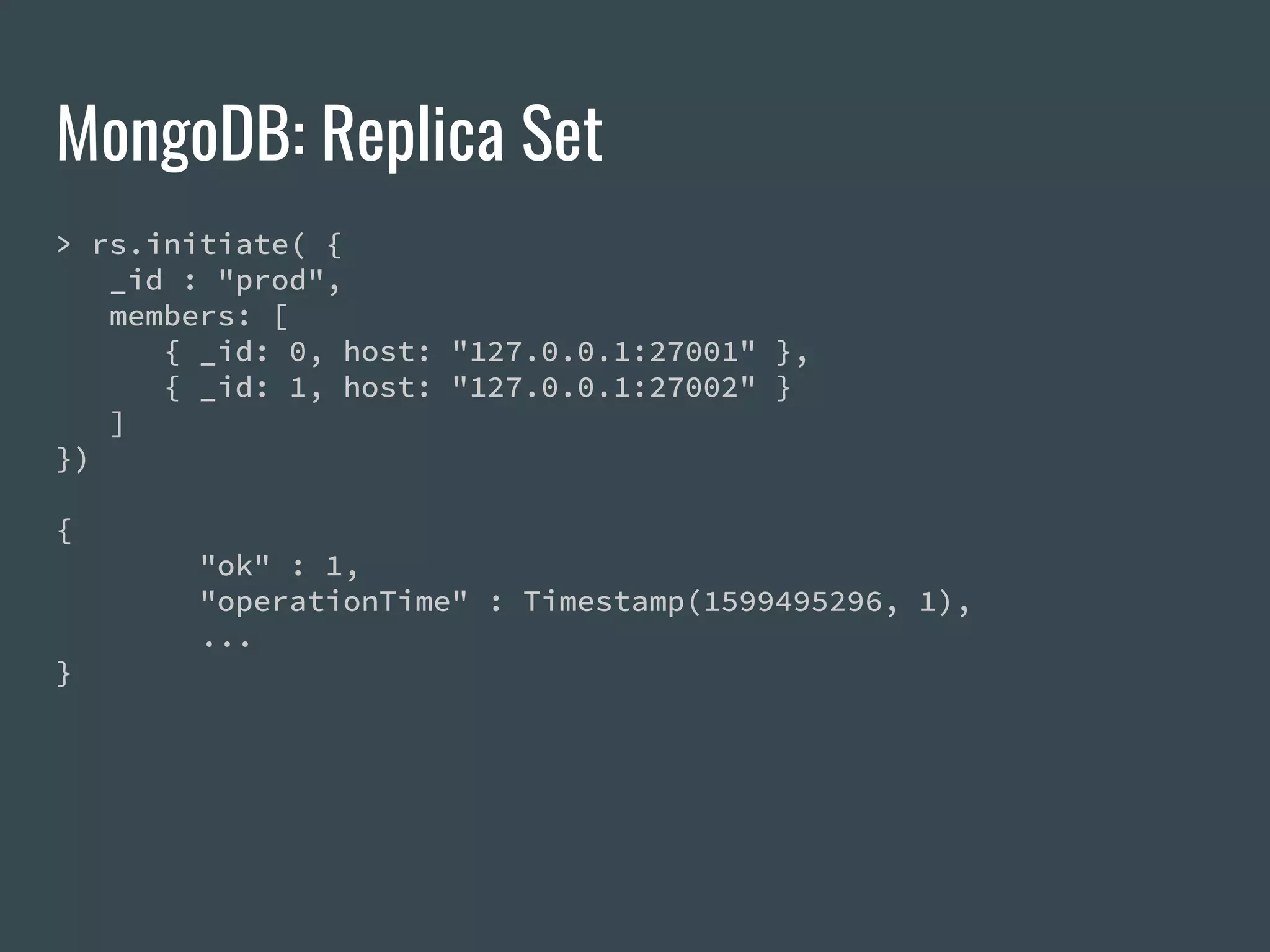

- 16. MongoDB: Replica Set >rs.initiate( { _id : "prod", members: [ { _id: 0, host: "127.0.0.1:27001" }, { _id: 1, host: "127.0.0.1:27002" } ] }) { "ok" : 1, "operationTime" : Timestamp(1599495296, 1), ... }

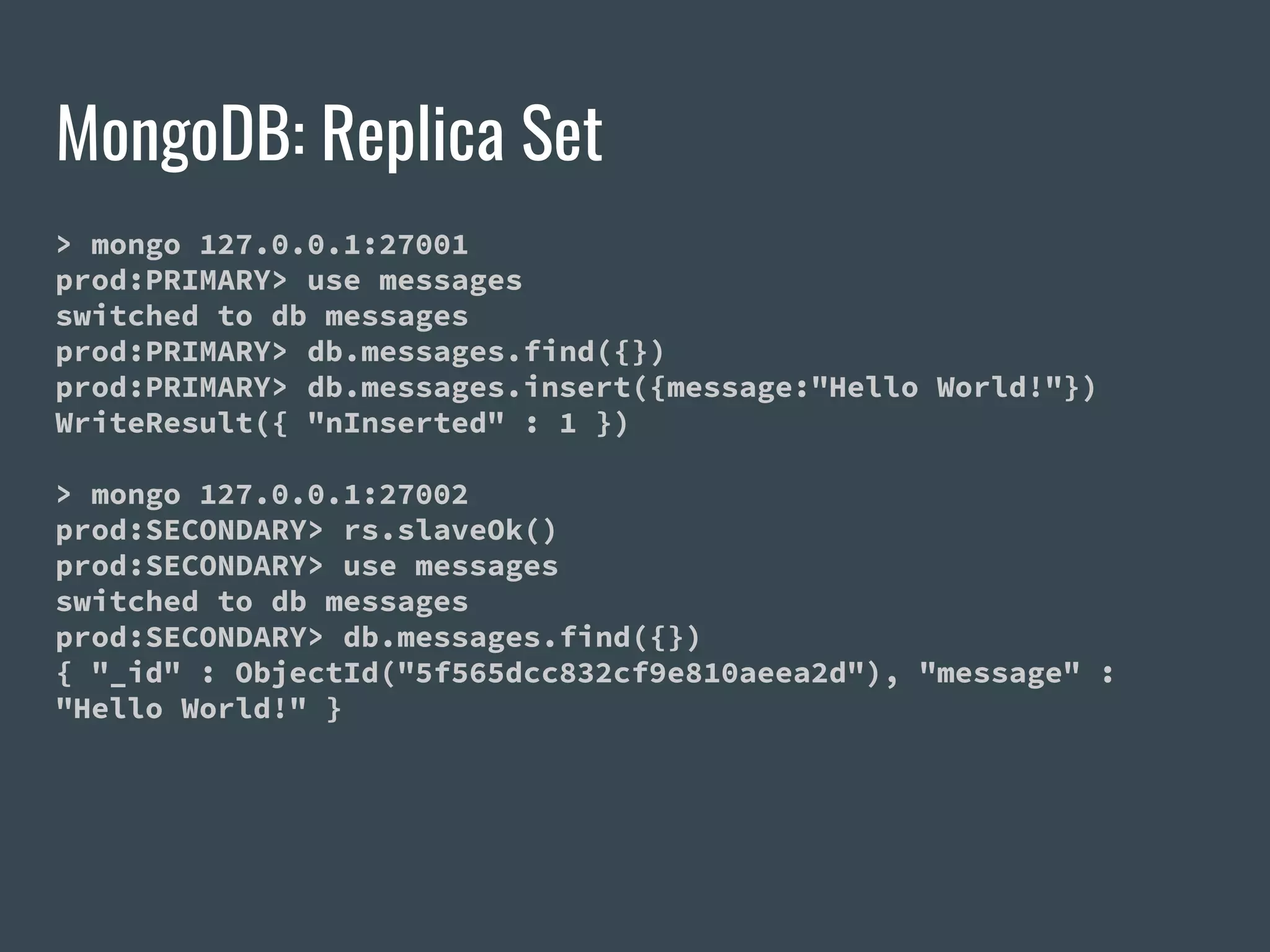

- 17. MongoDB: Replica Set >mongo 127.0.0.1:27001 prod:PRIMARY> use messages switched to db messages prod:PRIMARY> db.messages.find({}) prod:PRIMARY> db.messages.insert({message:"Hello World!"}) WriteResult({ "nInserted" : 1 }) > mongo 127.0.0.1:27002 prod:SECONDARY> rs.slaveOk() prod:SECONDARY> use messages switched to db messages prod:SECONDARY> db.messages.find({}) { "_id" : ObjectId("5f565dcc832cf9e810aeea2d"), "message" : "Hello World!" }

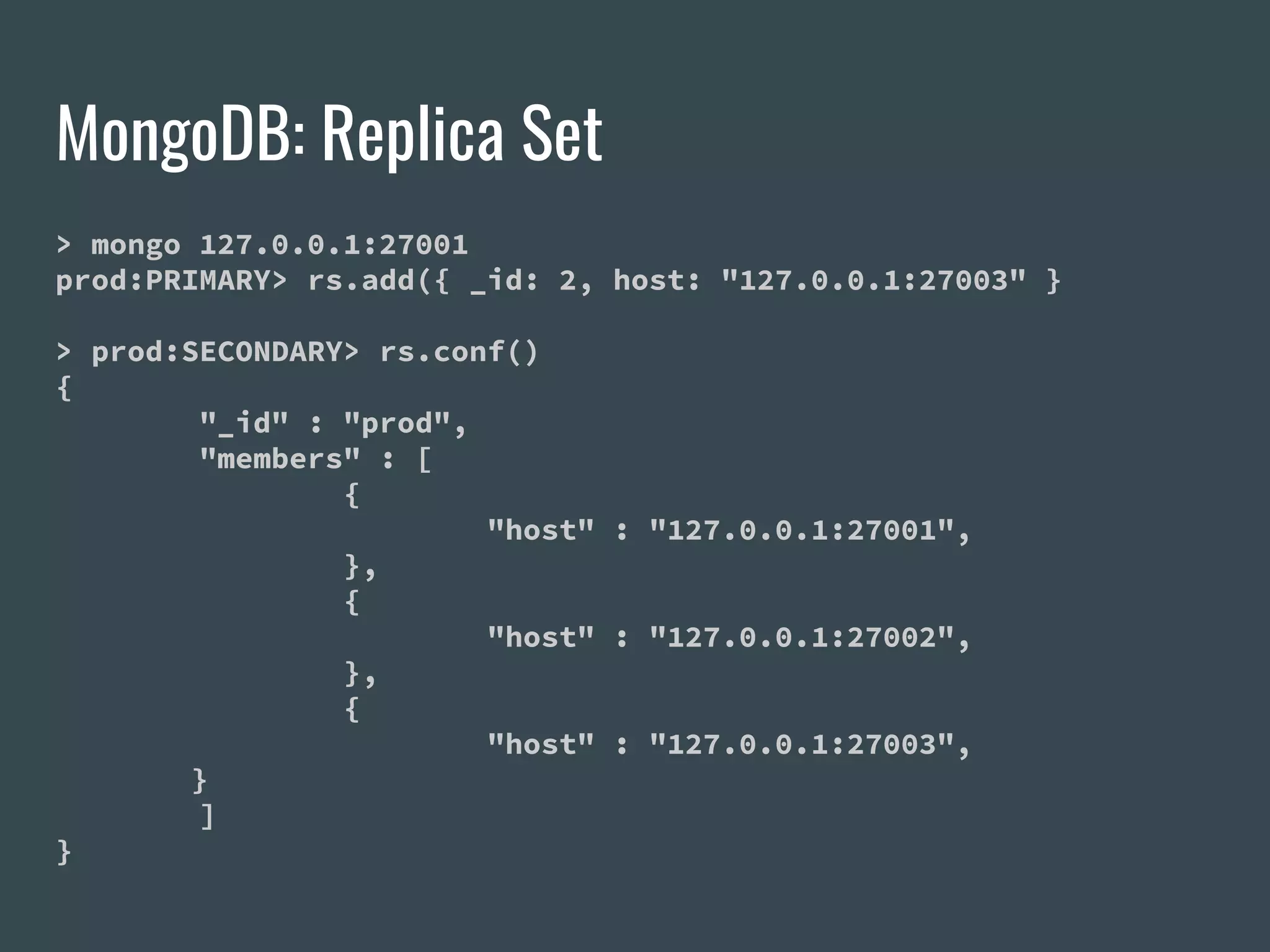

- 18. MongoDB: Replica Set >mongo 127.0.0.1:27001 prod:PRIMARY> rs.add({ _id: 2, host: "127.0.0.1:27003" } > prod:SECONDARY> rs.conf() { "_id" : "prod", "members" : [ { "host" : "127.0.0.1:27001", }, { "host" : "127.0.0.1:27002", }, { "host" : "127.0.0.1:27003", } ] }

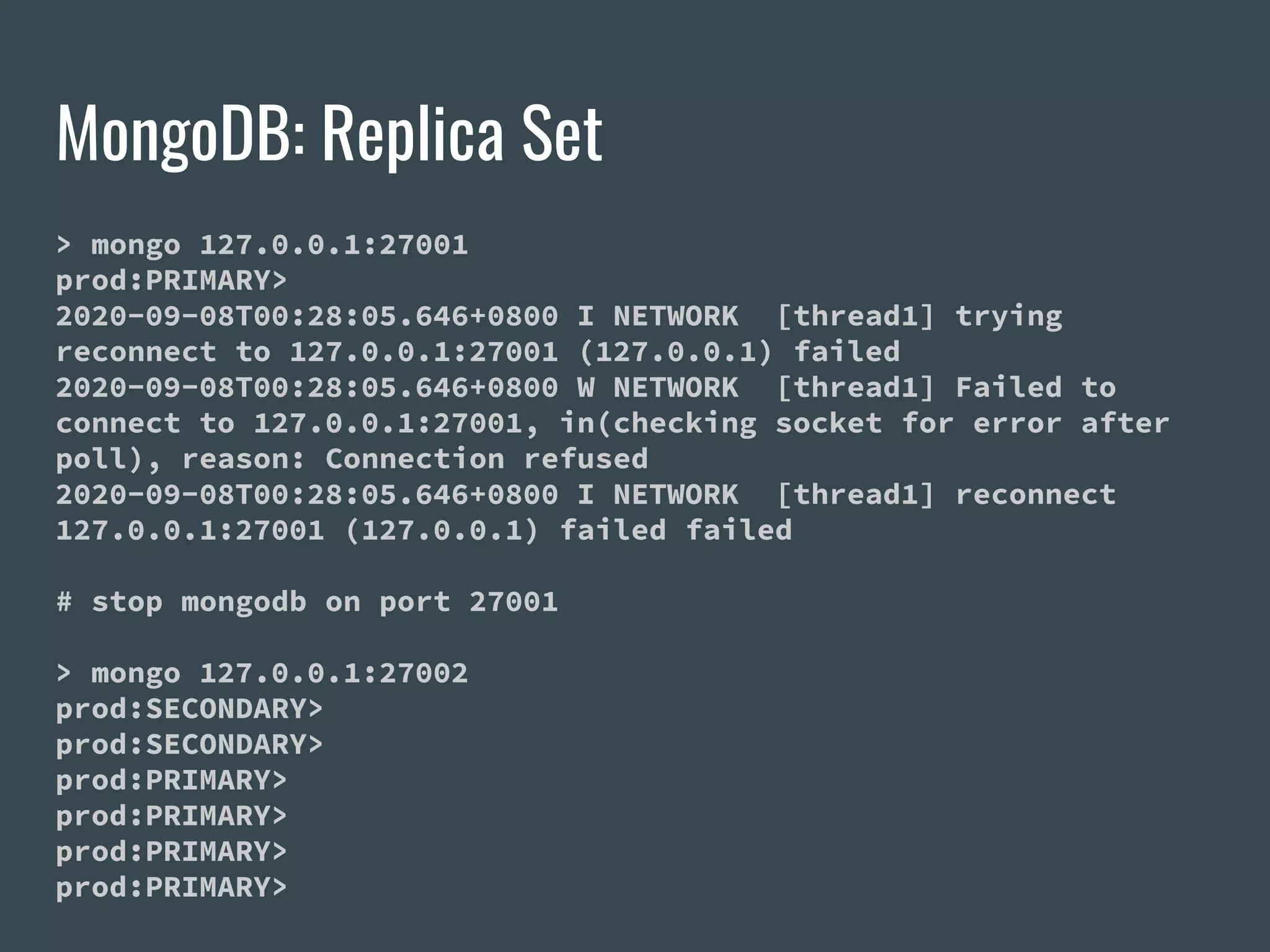

- 19. MongoDB: Replica Set >mongo 127.0.0.1:27001 prod:PRIMARY> 2020-09-08T00:28:05.646+0800 I NETWORK [thread1] trying reconnect to 127.0.0.1:27001 (127.0.0.1) failed 2020-09-08T00:28:05.646+0800 W NETWORK [thread1] Failed to connect to 127.0.0.1:27001, in(checking socket for error after poll), reason: Connection refused 2020-09-08T00:28:05.646+0800 I NETWORK [thread1] reconnect 127.0.0.1:27001 (127.0.0.1) failed failed # stop mongodb on port 27001 > mongo 127.0.0.1:27002 prod:SECONDARY> prod:SECONDARY> prod:PRIMARY> prod:PRIMARY> prod:PRIMARY> prod:PRIMARY>
- 20.

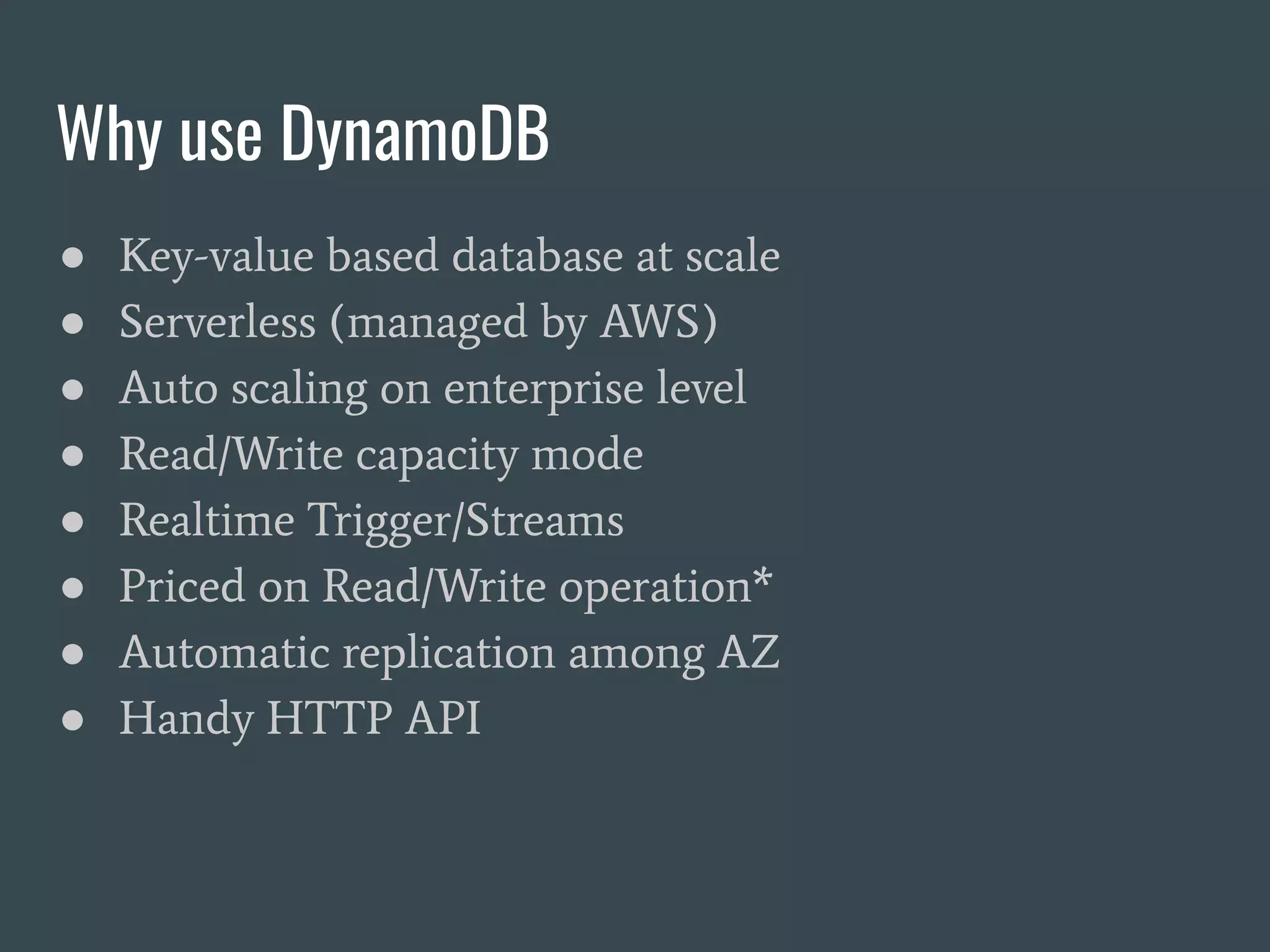

- 21. Why use DynamoDB ●Key-value based database at scale ● Serverless (managed by AWS) ● Auto scaling on enterprise level ● Read/Write capacity mode ● Realtime Trigger/Streams ● Priced on Read/Write operation* ● Automatic replication among AZ ● Handy HTTP API
- 22.
- 23.
- 24.
- 25.
- 26.
- 27.
- 28.
- 29.
- 30.

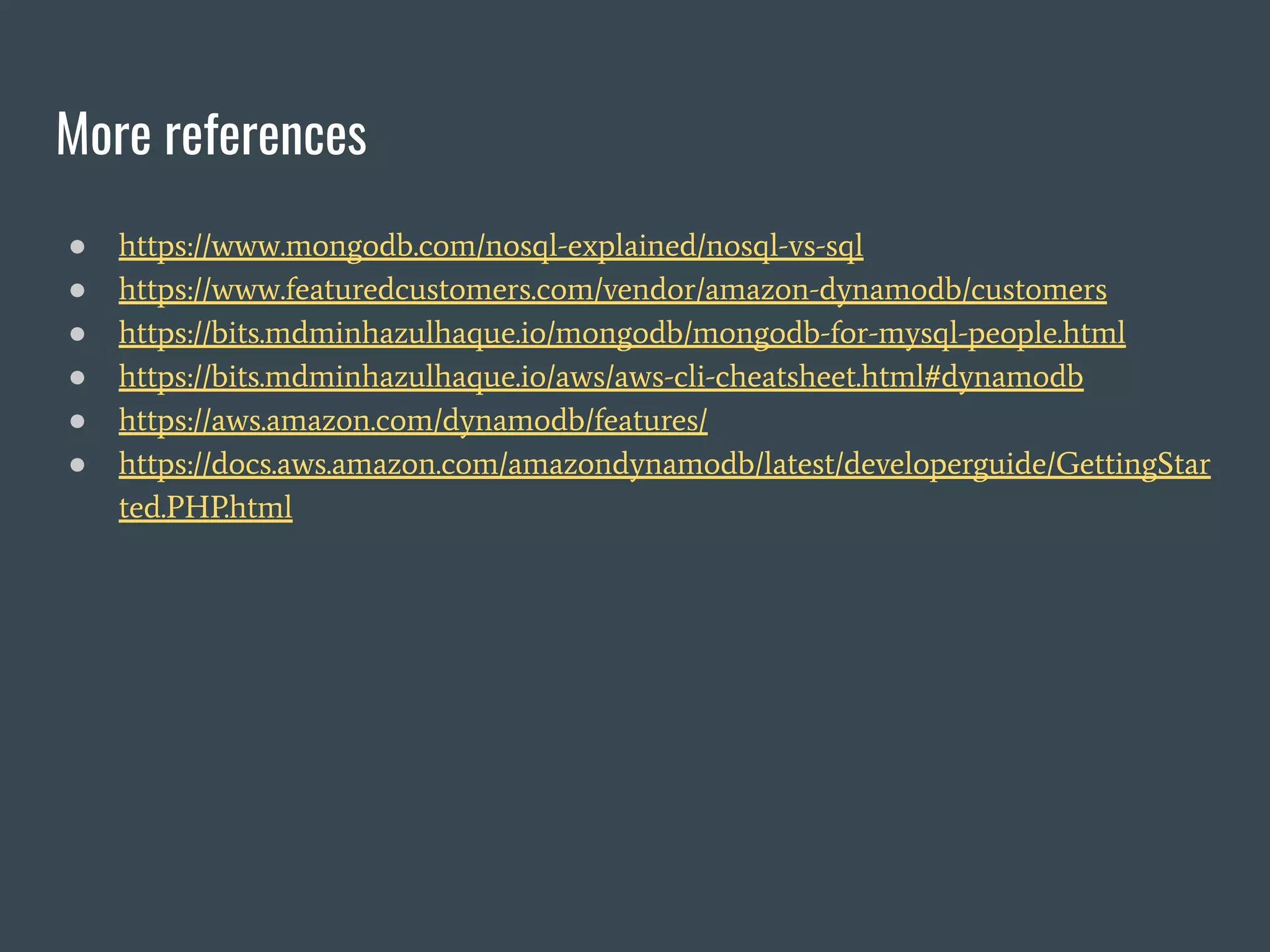

- 31. More references ● https://www.mongodb.com/nosql-explained/nosql-vs-sql ●https://www.featuredcustomers.com/vendor/amazon-dynamodb/customers ● https://bits.mdminhazulhaque.io/mongodb/mongodb-for-mysql-people.html ● https://bits.mdminhazulhaque.io/aws/aws-cli-cheatsheet.html#dynamodb ● https://aws.amazon.com/dynamodb/features/ ● https://docs.aws.amazon.com/amazondynamodb/latest/developerguide/GettingStar ted.PHP.html
