Module 05 Preprocessor and Macros in C
The document discusses the C preprocessor, detailing its role in code compilation, macro definitions, and file inclusions using directives like #include and #define. It explains how macros function, including parameterized macros, and contrasts their behavior with functions, particularly in terms of argument evaluation. Additionally, it covers header files, typedefs, and conditional compilation to manage multiple inclusions and debugging output.
In this document
Powered by AI
Introduction to the C Preprocessor and the module topic on macros and preprocessors.
Describes the C preprocessor functions including handling file inclusion, macro expansion, whitespace, and comments.
Explains #include directive usage for including files, recursion, and creating custom header files.
Defines macros and their syntax, examples of simple macros, and correct usage.
Functions of macros versus functions, including parameterized macros and performance considerations.
Illustrates how macro arguments are evaluated compared to function arguments, emphasizing behavioral differences.
Describes properties of macros including nesting and recursive expansion.
Defines header files' purpose and contents like typedefs, macros, and function prototypes.
Explains typedefs for type aliasing with examples, emphasizing the importance of aliases in programming.
Strategies for preventing multiple inclusions of header files with #ifndef directives.
Discusses the use of #ifdef and #ifndef for controlling code inclusion based on macro definitions.
Introduction to predefined macros like __LINE__, __FILE__, and __TIME__ in C programming.
Acknowledgment of sources referenced in the presentation and creator's information.
Module 05 Preprocessor and Macros in C
- 1. See through C Module5 Macros and preprocessors Tushar B Kute http://tusharkute.com

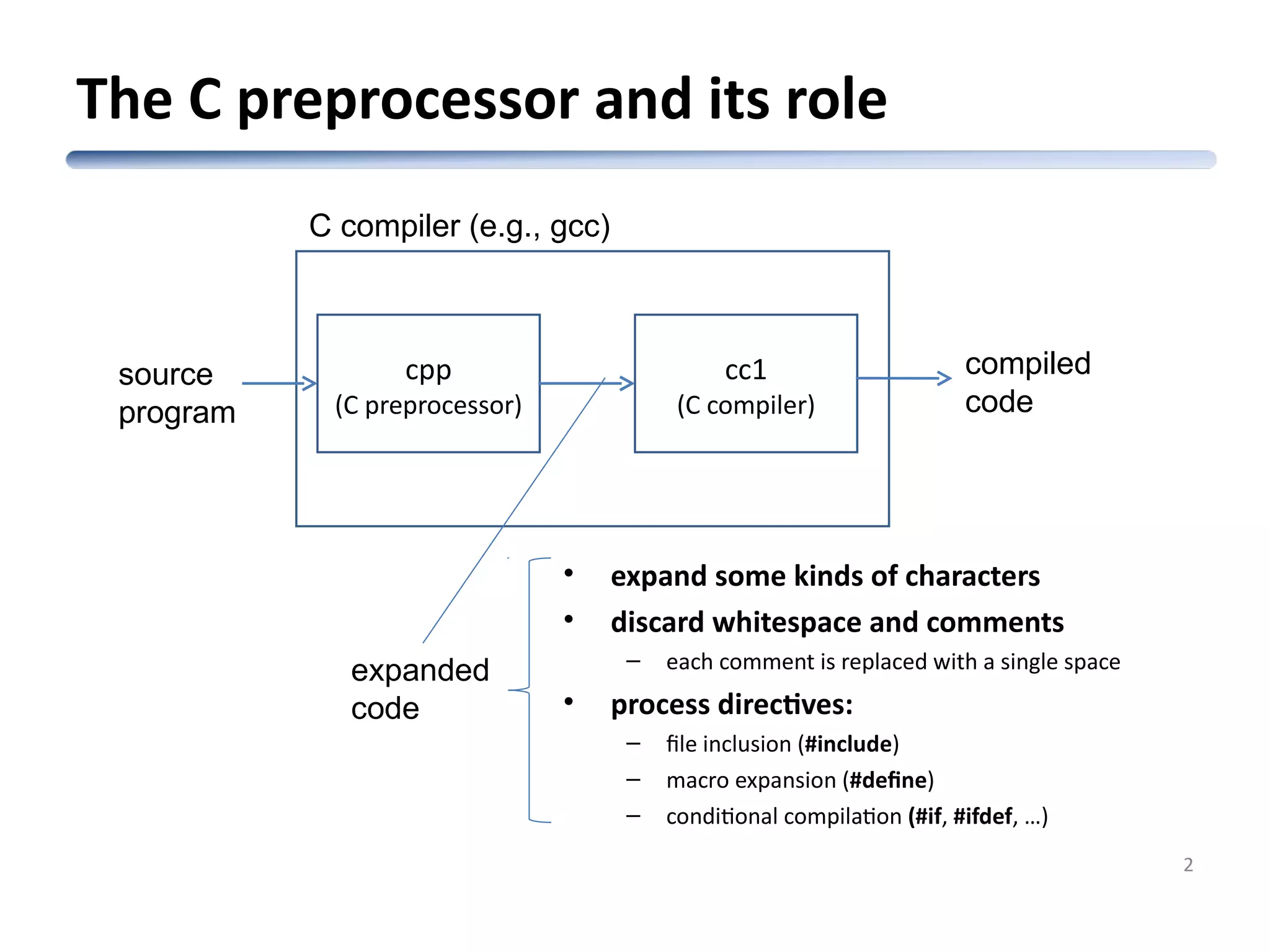

- 2. The C preprocessorand its role 2 cpp (C preprocessor) cc1 (C compiler) source program compiled code C compiler (e.g., gcc) expanded code • expand some kinds of characters • discard whitespace and comments – each comment is replaced with a single space • process directives: – file inclusion (#include) – macro expansion (#define) – conditional compilation (#if, #ifdef, …)

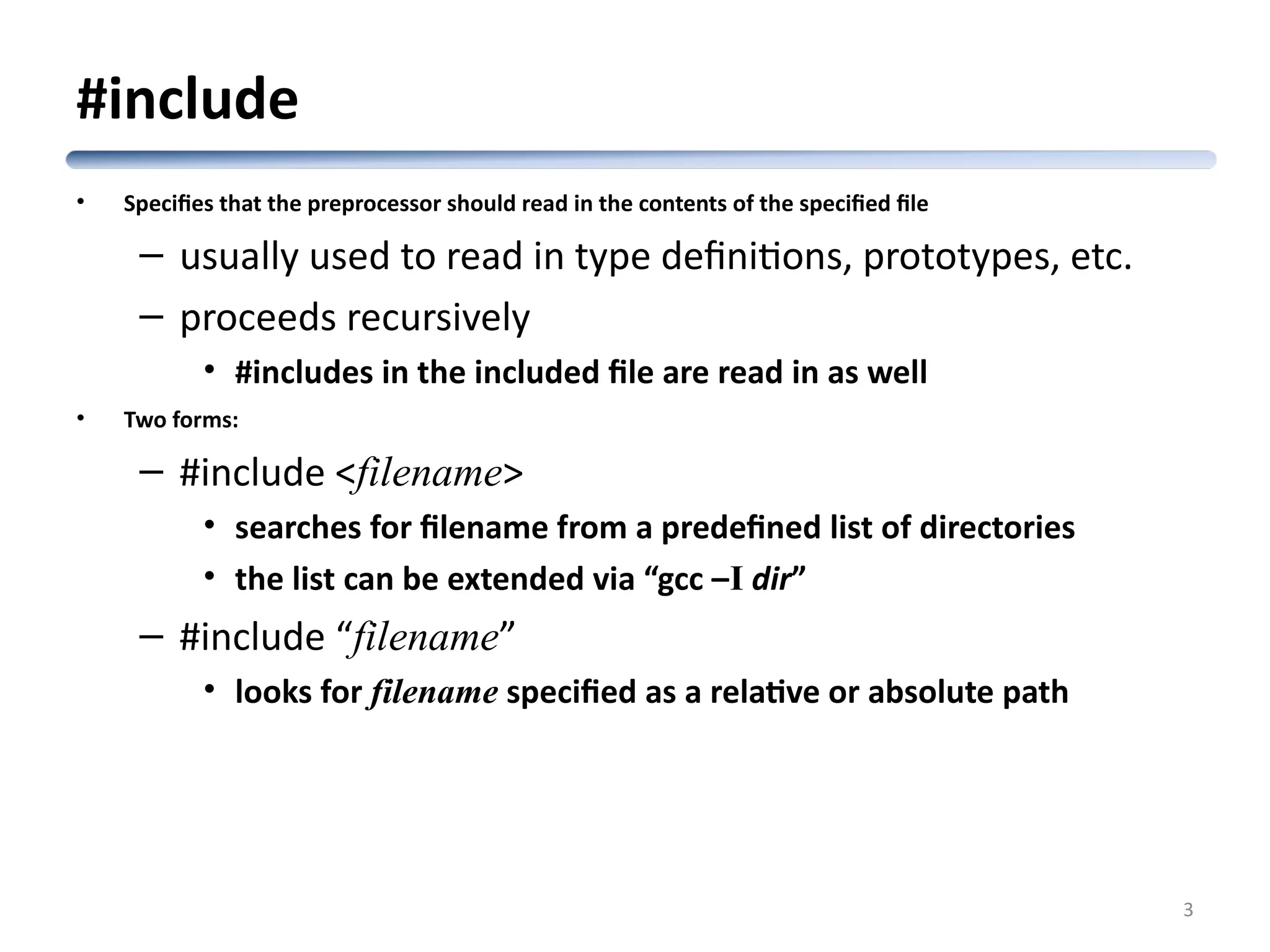

- 3. #include • Specifies thatthe preprocessor should read in the contents of the specified file – usually used to read in type definitions, prototypes, etc. – proceeds recursively • #includes in the included file are read in as well • Two forms: – #include <filename> • searches for filename from a predefined list of directories • the list can be extended via “gcc –I dir” – #include “filename” • looks for filename specified as a relative or absolute path 3

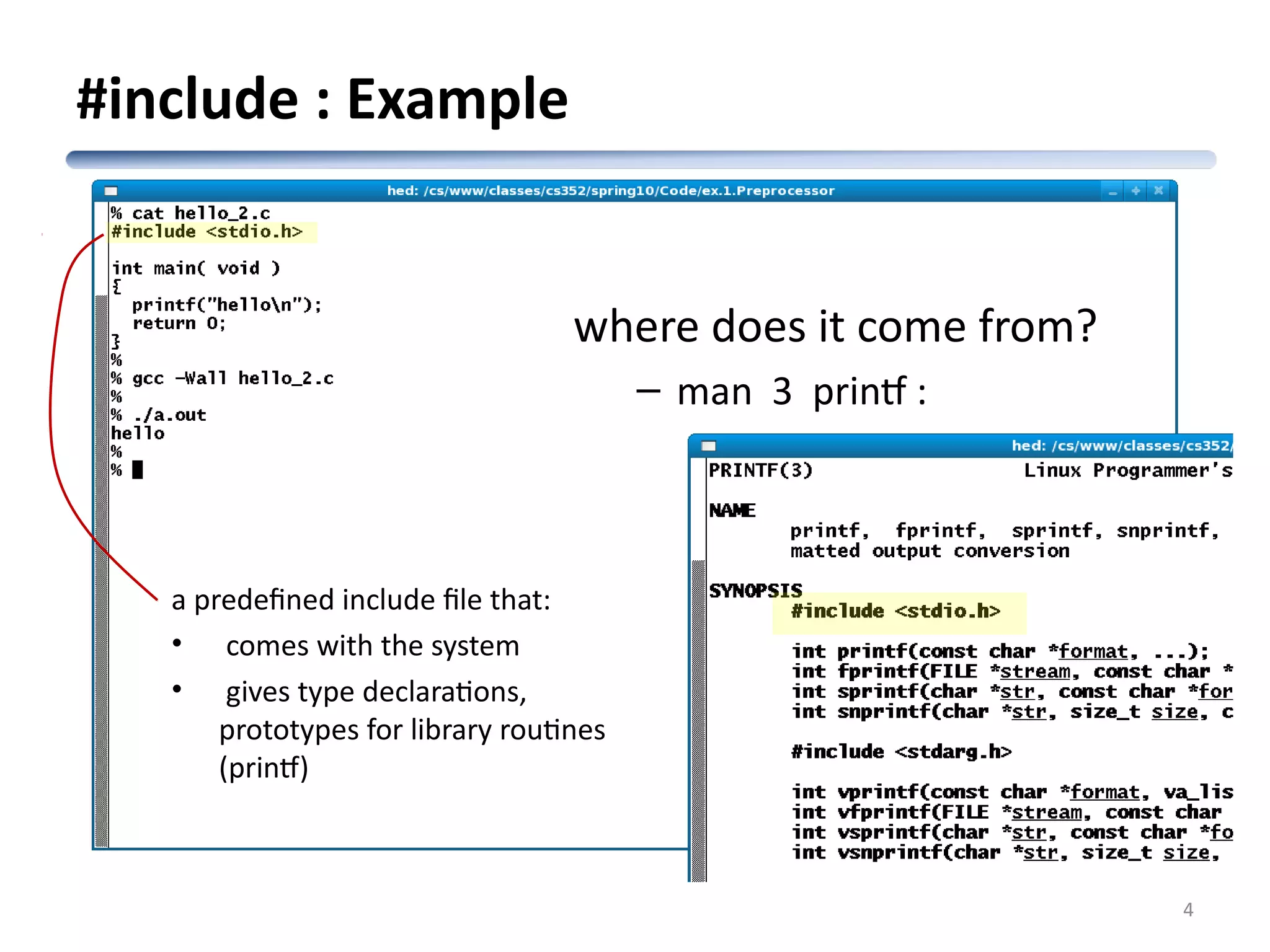

- 4. #include : Example 4 apredefined include file that: • comes with the system • gives type declarations, prototypes for library routines (printf) where does it come from? – man 3 printf :
- 5. #include: cont’d • Wecan also define our own header files: – a header file has file-extension ‘.h’ – these header files typically contain “public” information • type declarations • macros and other definitions • function prototypes – often, the public information associated with a code file foo.c will be placed in a header file foo.h – these header files are included by files that need that public information #include “myheaderfile.h” 5
- 6. Macros • A macrois a symbol that is recognized by the preprocessor and replaced by the macro body – Structure of simple macros: #define identifier replacement_list – Examples: #define BUFFERSZ 1024 #define WORDLEN 64 6

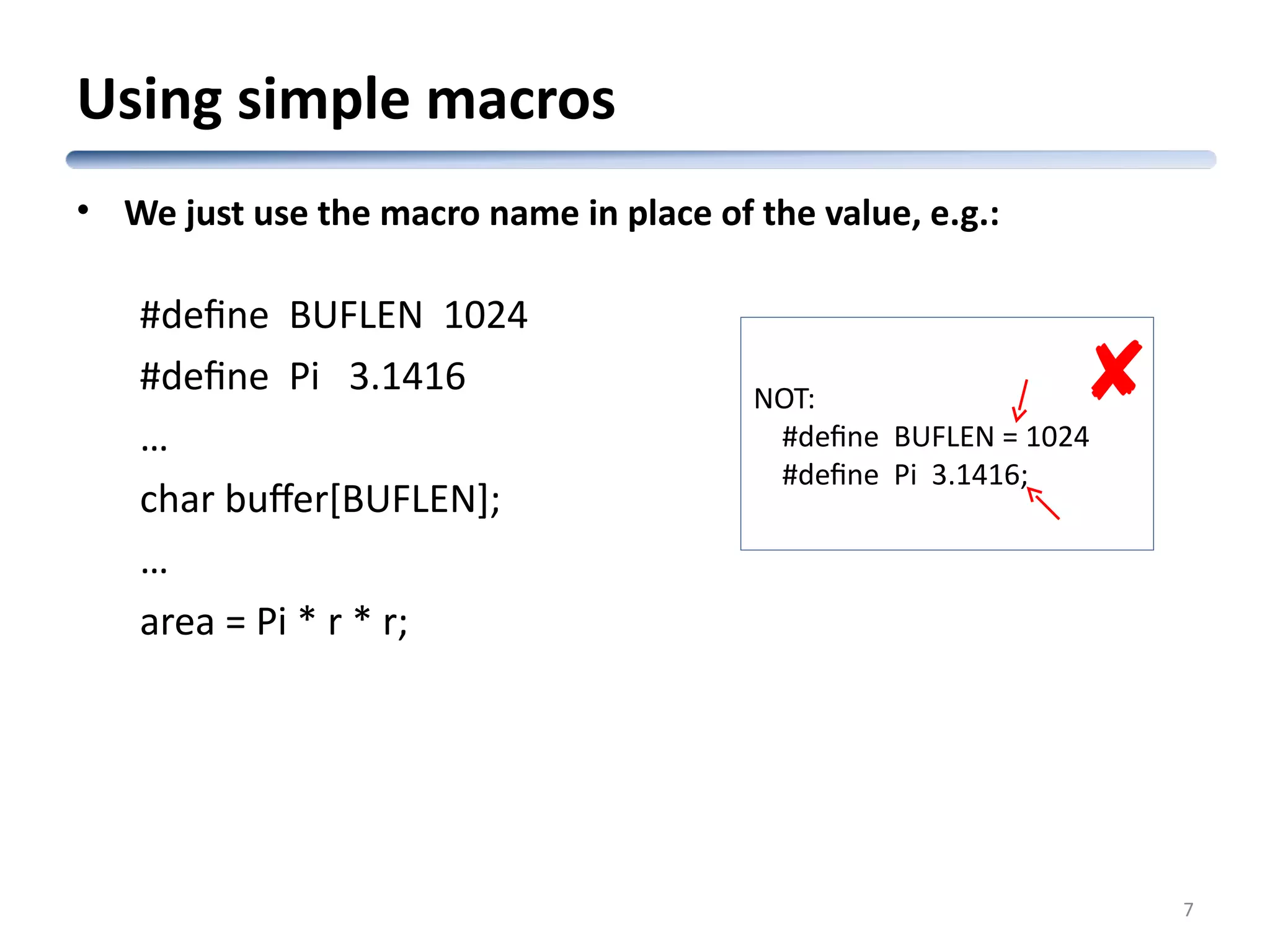

- 7. Using simple macros •We just use the macro name in place of the value, e.g.: #define BUFLEN 1024 #define Pi 3.1416 … char buffer[BUFLEN]; … area = Pi * r * r; 7 NOT: #define BUFLEN = 1024 #define Pi 3.1416;

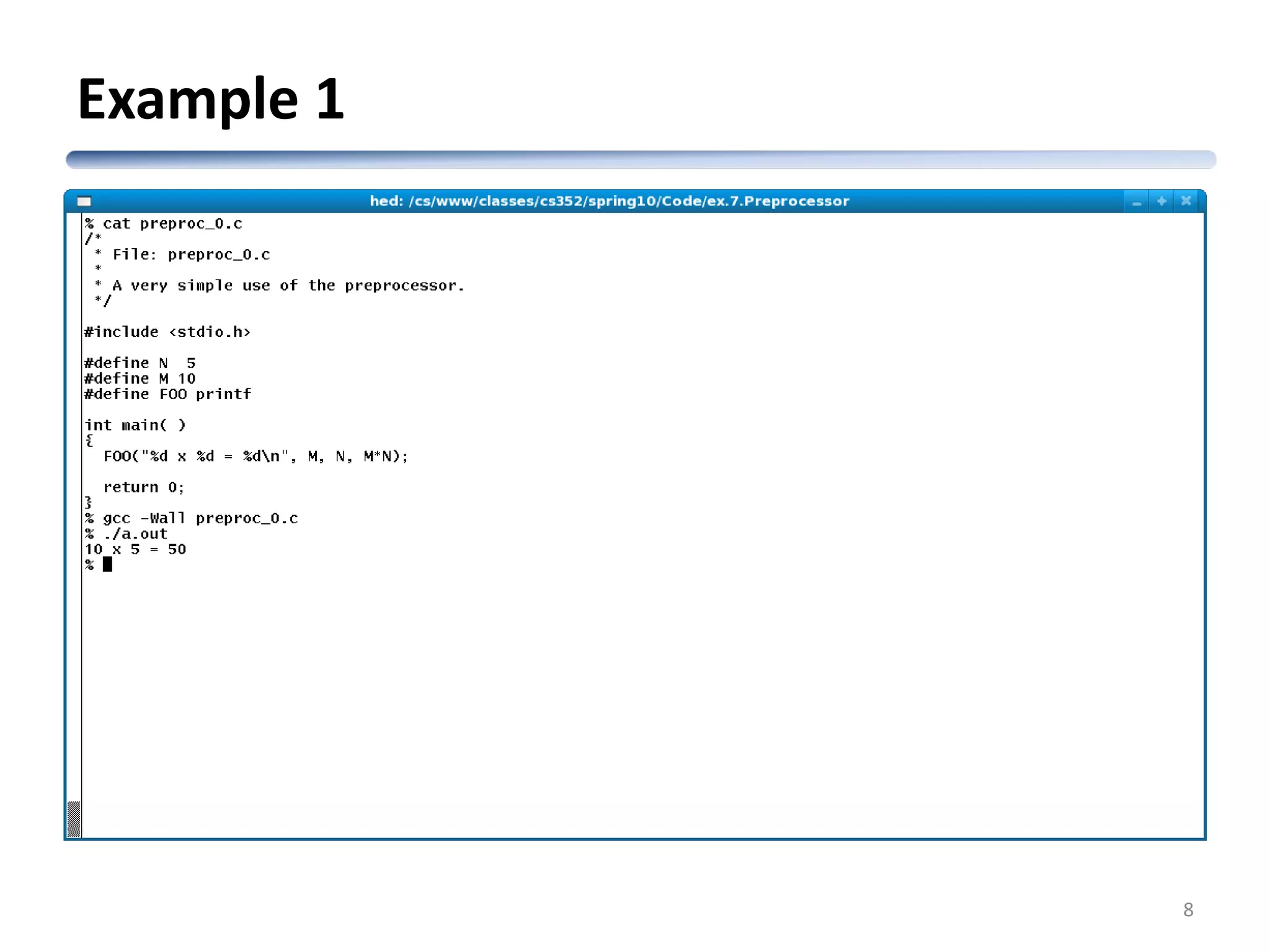

- 8.

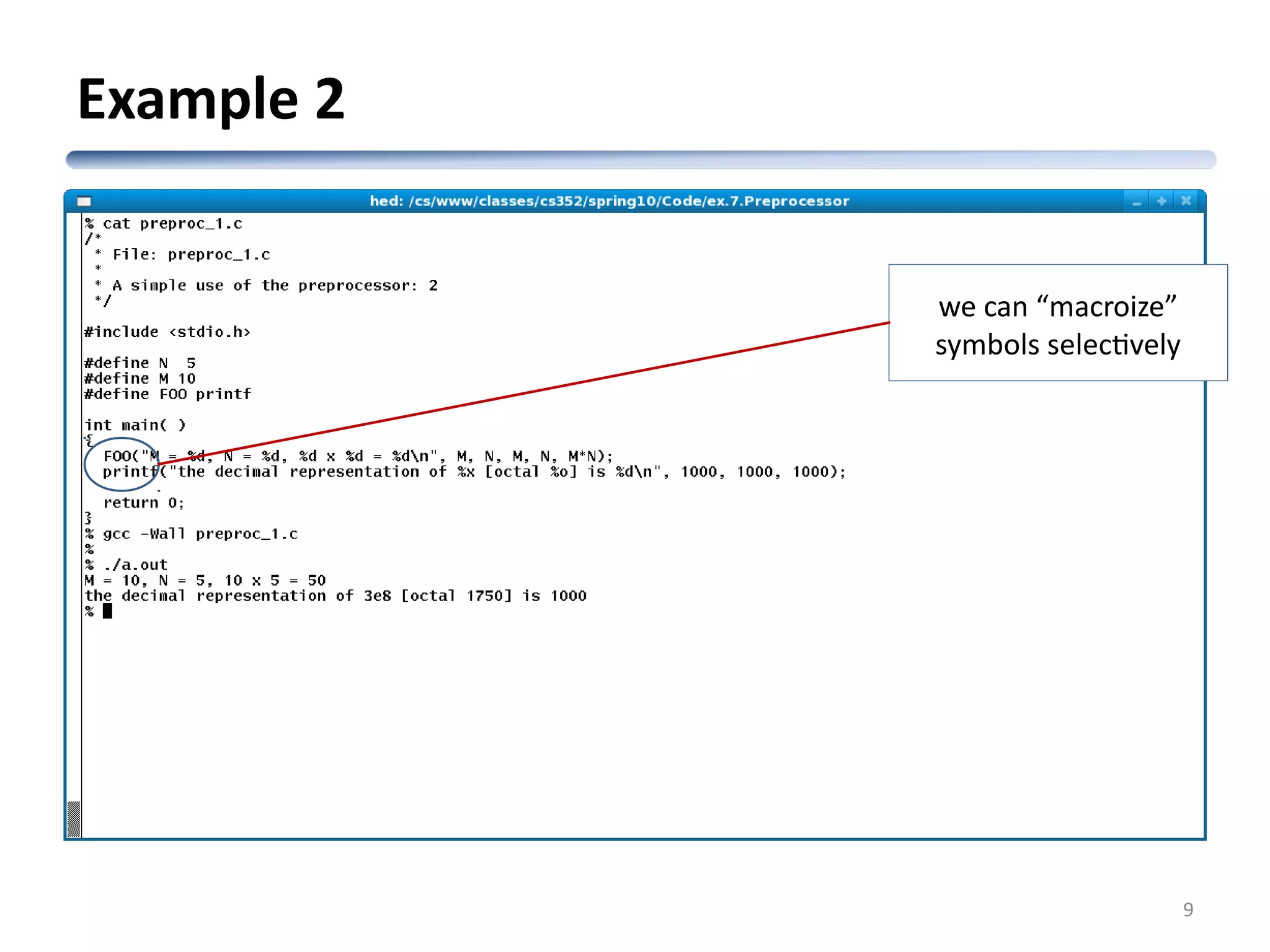

- 9. Example 2 9 we can“macroize” symbols selectively

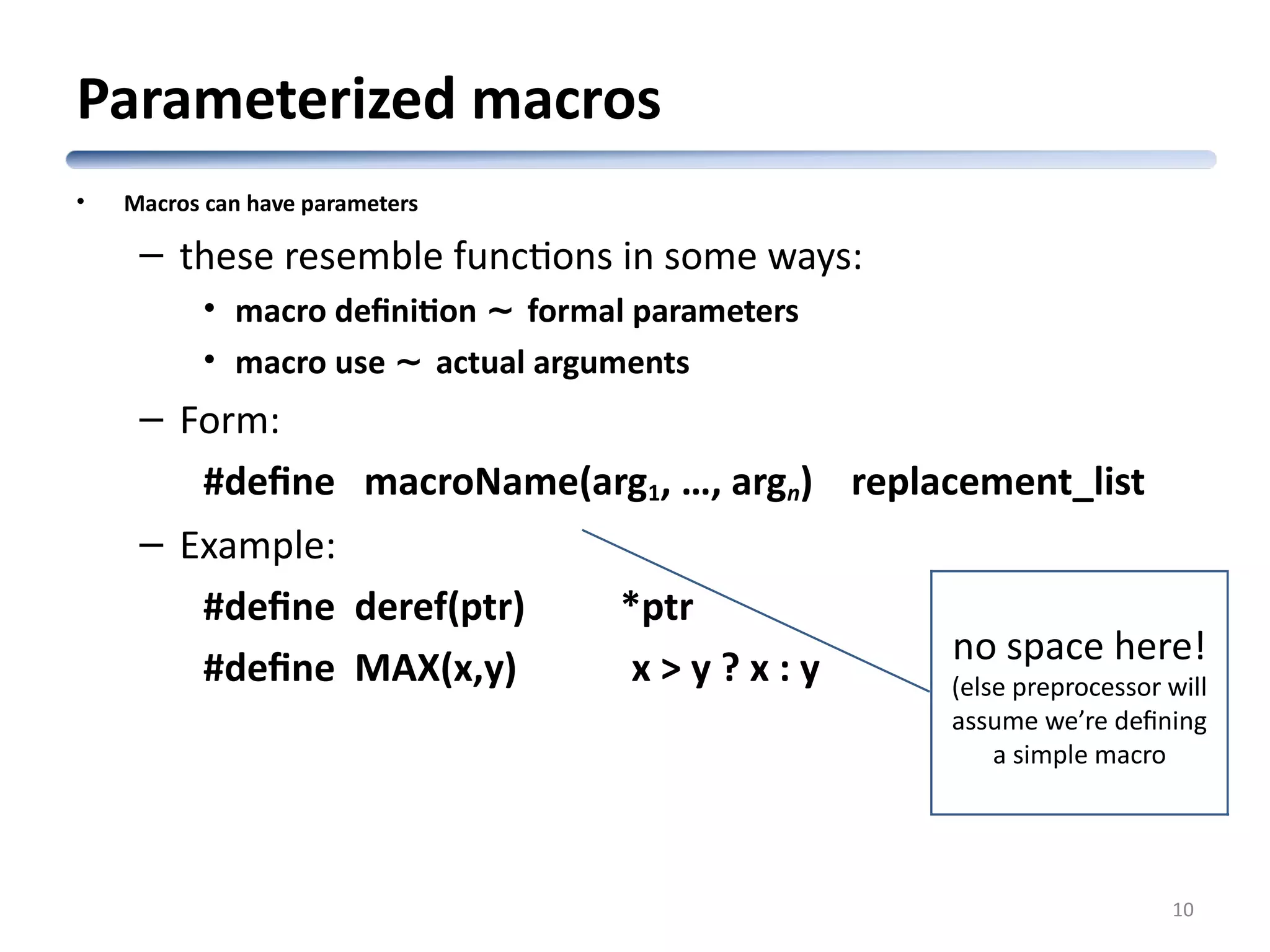

- 10. Parameterized macros • Macroscan have parameters – these resemble functions in some ways: • macro definition ~ formal parameters • macro use ~ actual arguments – Form: #define macroName(arg1, …, argn) replacement_list – Example: #define deref(ptr) *ptr #define MAX(x,y) x > y ? x : y 10 no space here! (else preprocessor will assume we’re defining a simple macro

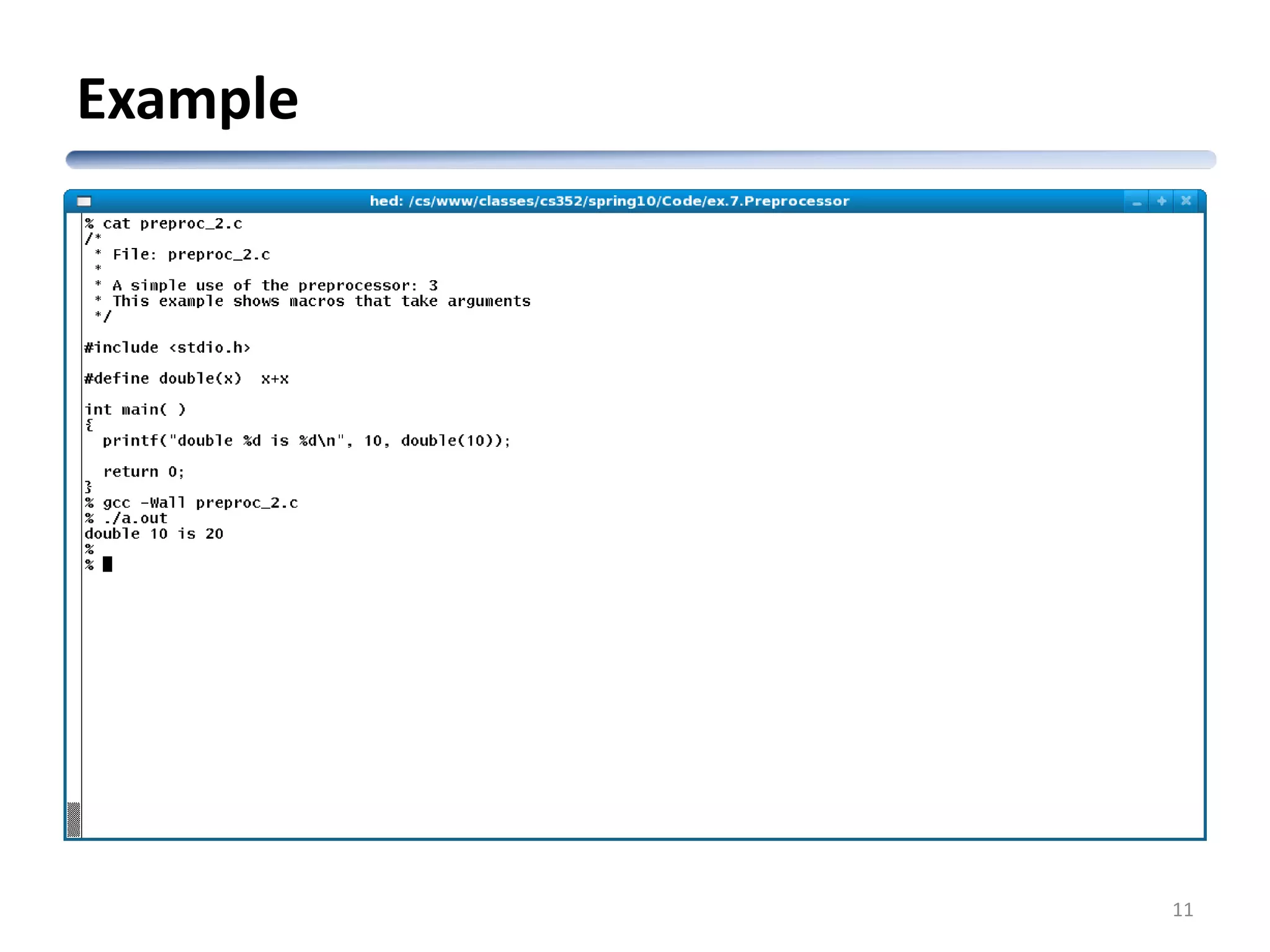

- 11.
- 12. Macros vs. functions •Macros may be (slightly) faster – don’t incur the overhead of function call/return – however, the resulting code size is usually larger • this can lead to loss of speed • Macros are “generic” – parameters don’t have any associated type – arguments are not type-checked • Macros may evaluate their arguments more than once – a function argument is only evaluated once per call 12

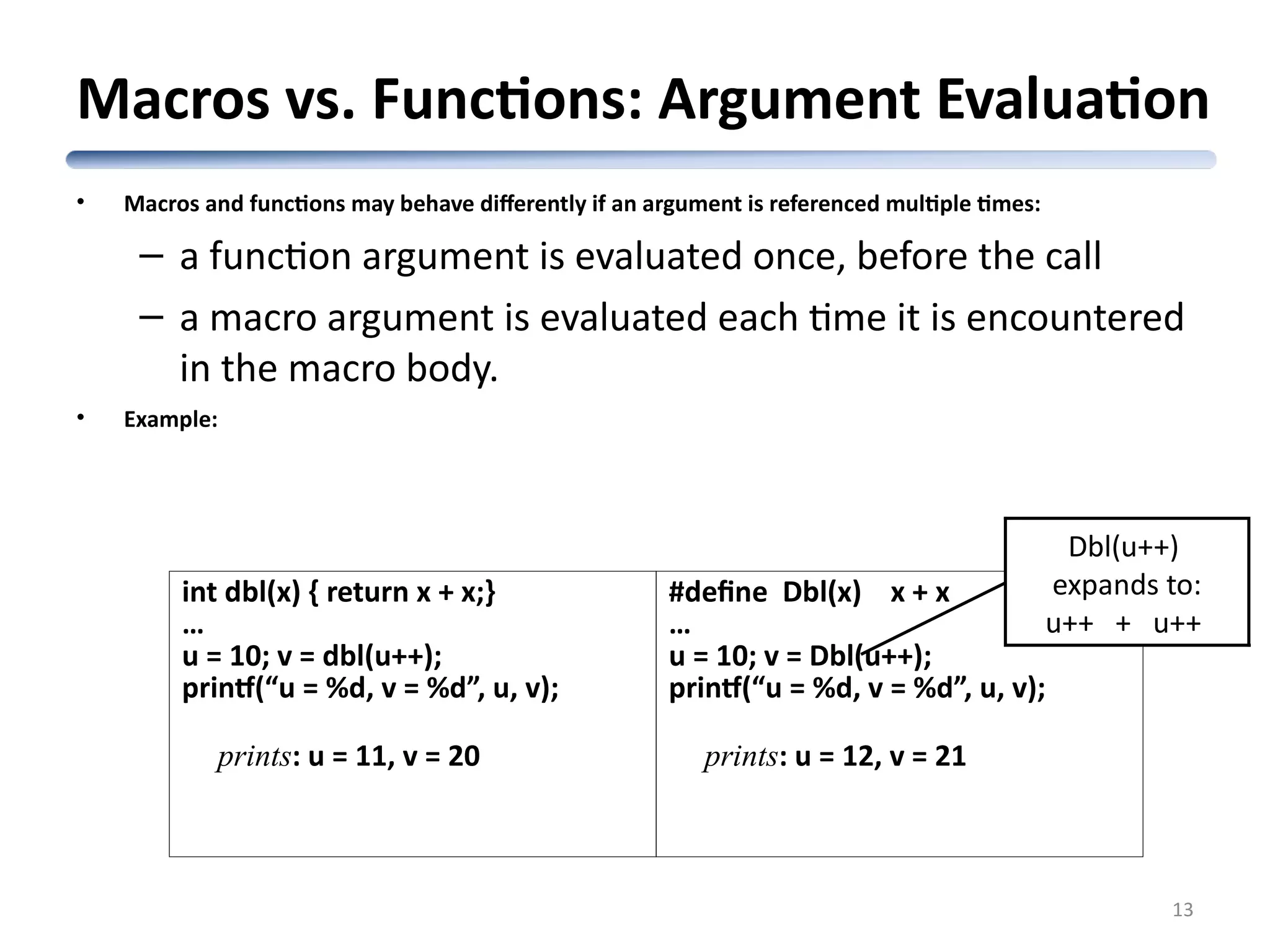

- 13. Macros vs. Functions:Argument Evaluation • Macros and functions may behave differently if an argument is referenced multiple times: – a function argument is evaluated once, before the call – a macro argument is evaluated each time it is encountered in the macro body. • Example: 13 int dbl(x) { return x + x;} … u = 10; v = dbl(u++); printf(“u = %d, v = %d”, u, v); prints: u = 11, v = 20 #define Dbl(x) x + x … u = 10; v = Dbl(u++); printf(“u = %d, v = %d”, u, v); prints: u = 12, v = 21 Dbl(u++) expands to: u++ + u++

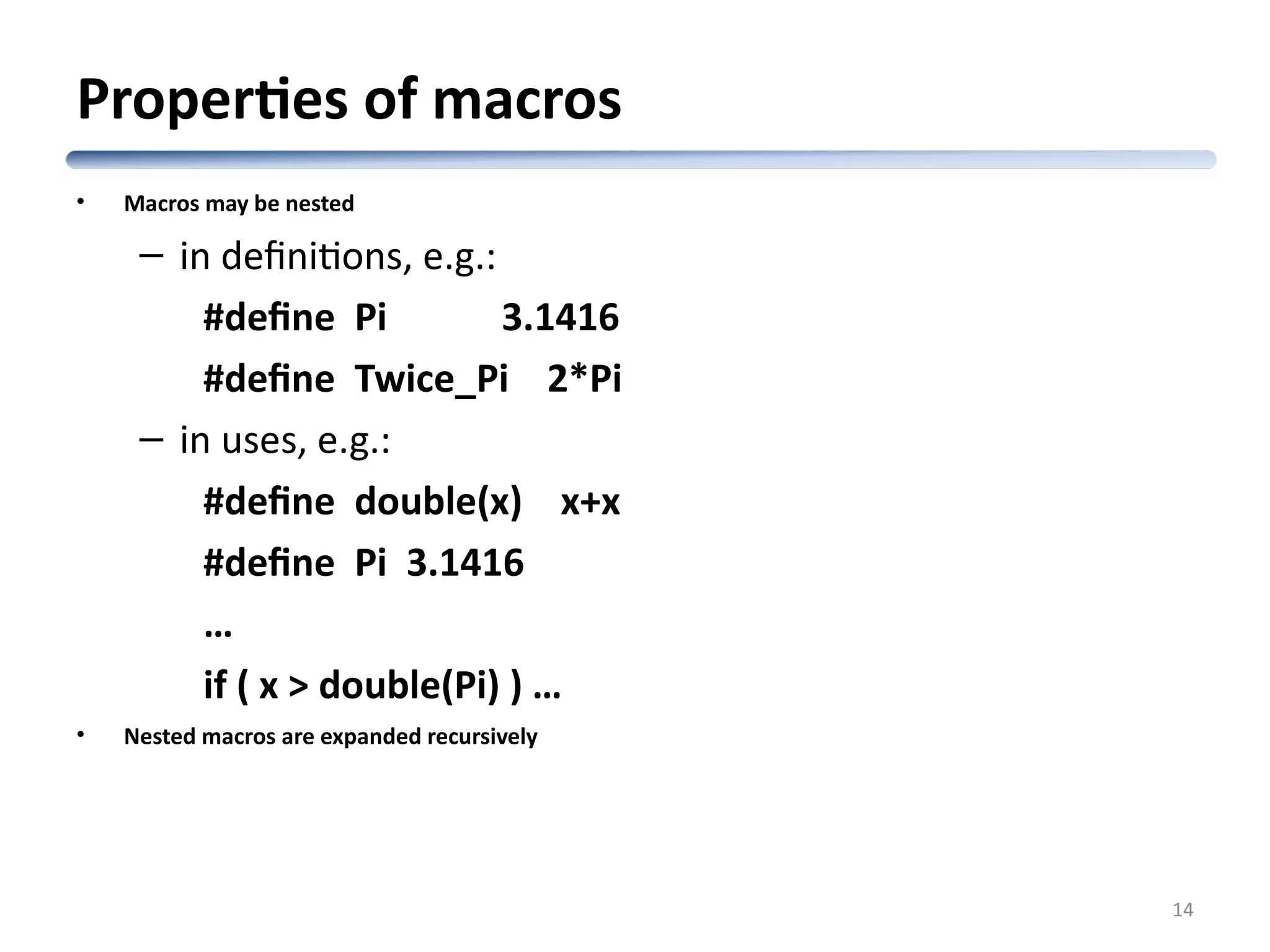

- 14. Properties of macros •Macros may be nested – in definitions, e.g.: #define Pi 3.1416 #define Twice_Pi 2*Pi – in uses, e.g.: #define double(x) x+x #define Pi 3.1416 … if ( x > double(Pi) ) … • Nested macros are expanded recursively 14
- 15. Header Files • Havea file extension “.h” • Contain shared definitions – typedefs – macros – function prototypes • referenced via “#include” directives 15
- 16.

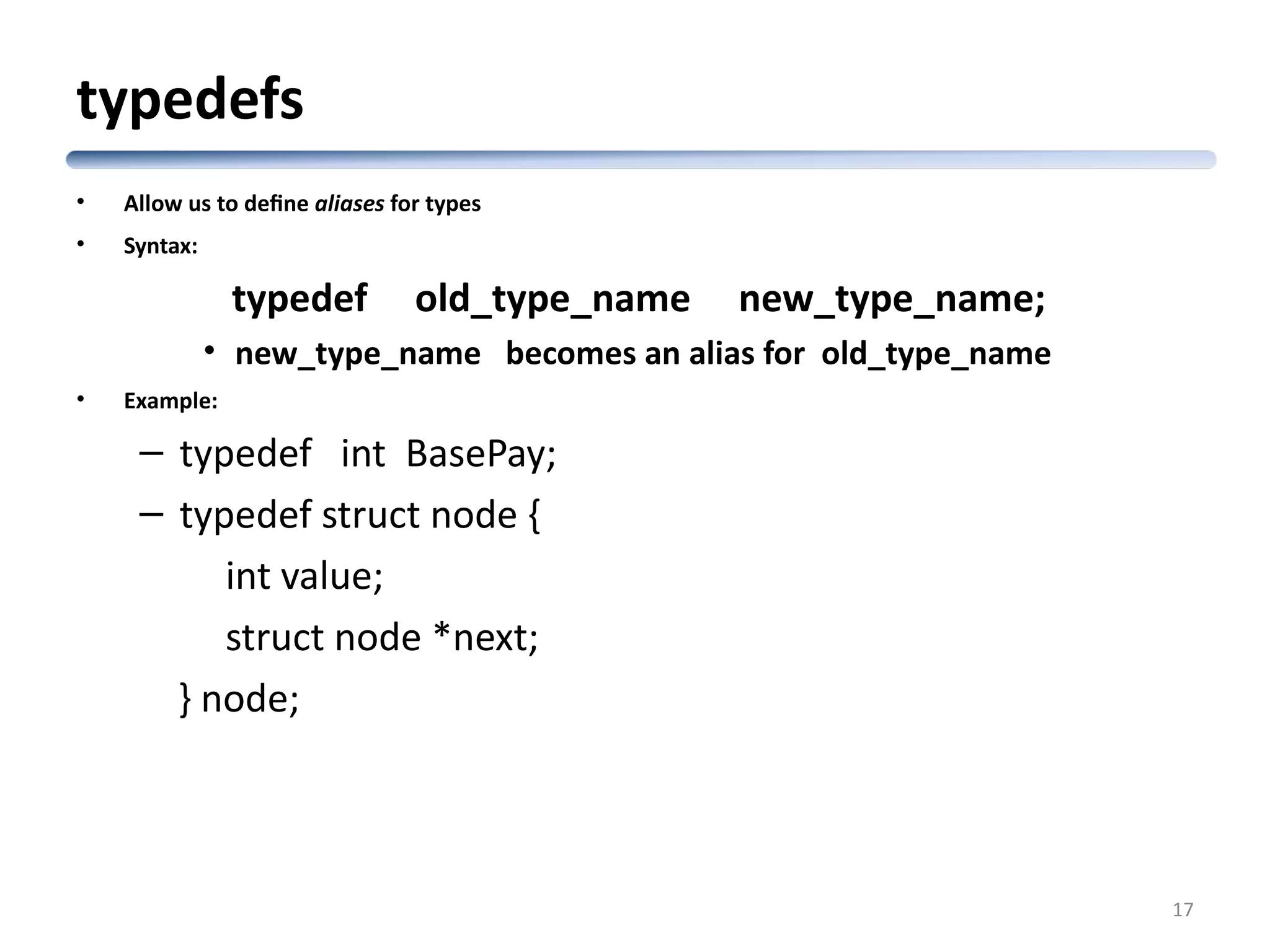

- 17. typedefs • Allow usto define aliases for types • Syntax: typedef old_type_name new_type_name; • new_type_name becomes an alias for old_type_name • Example: – typedef int BasePay; – typedef struct node { int value; struct node *next; } node; 17

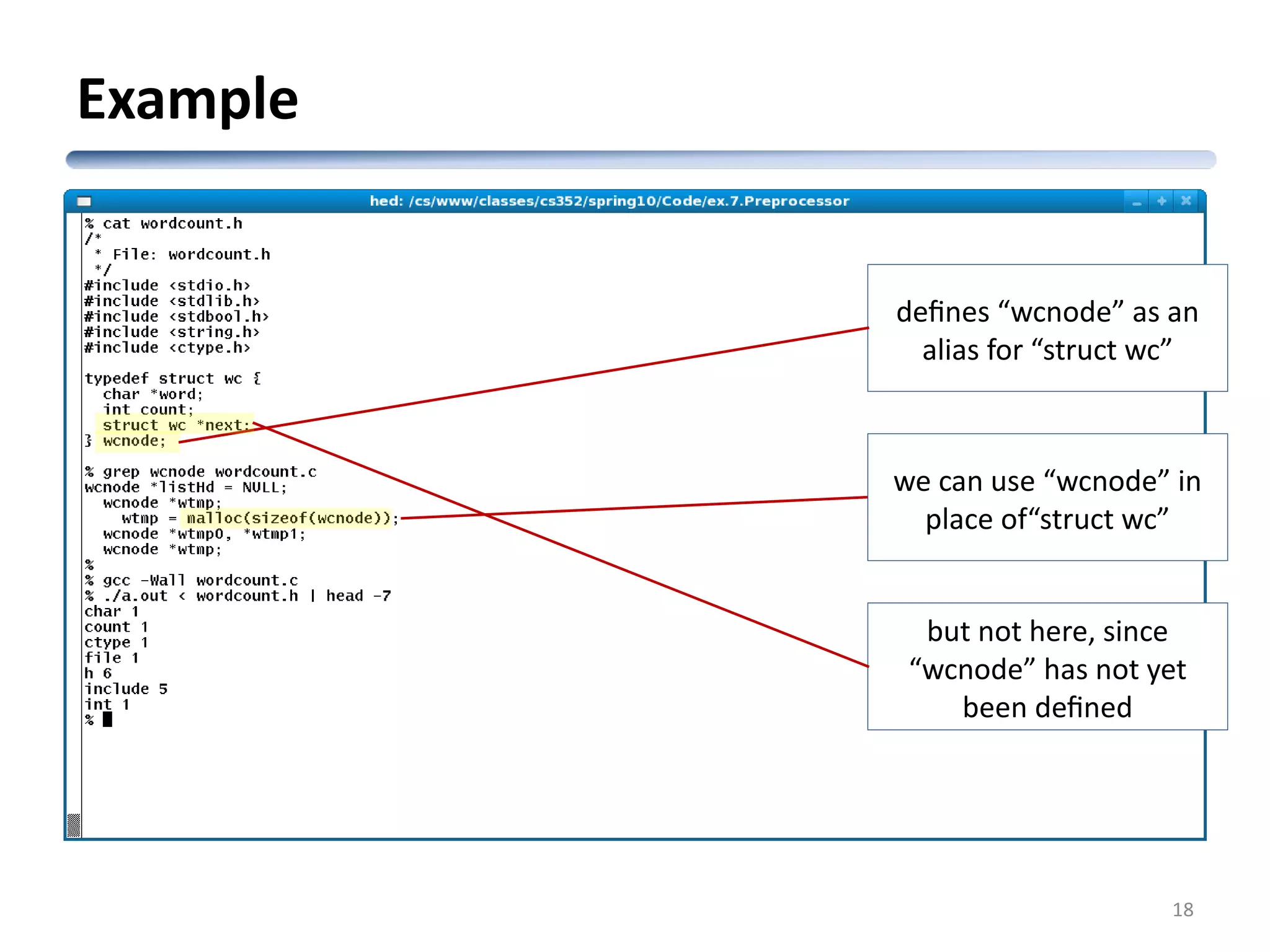

- 18. Example 18 defines “wcnode” asan alias for “struct wc” we can use “wcnode” in place of“struct wc” but not here, since “wcnode” has not yet been defined

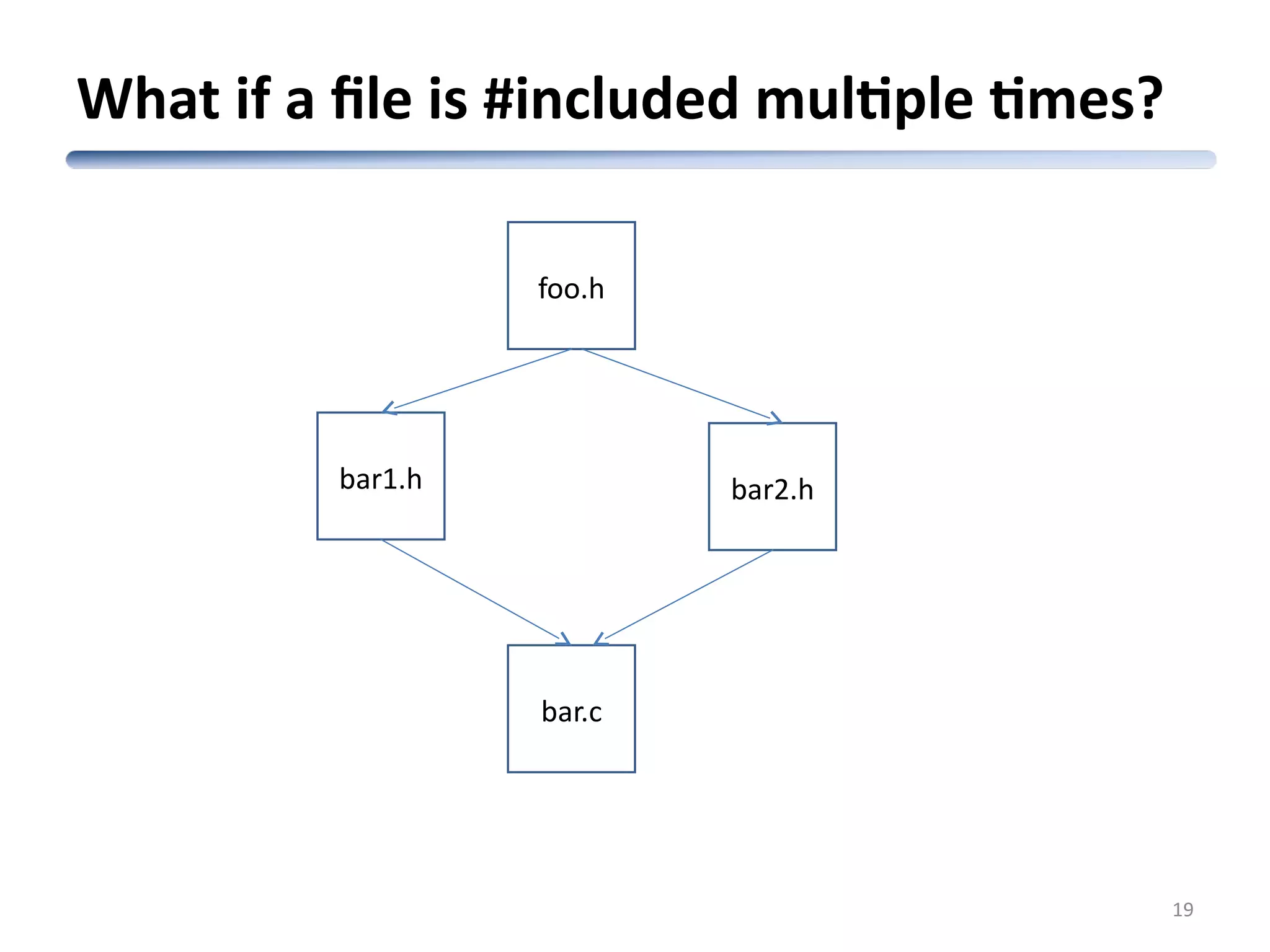

- 19. What if afile is #included multiple times? 19 foo.h bar1.h bar2.h bar.c

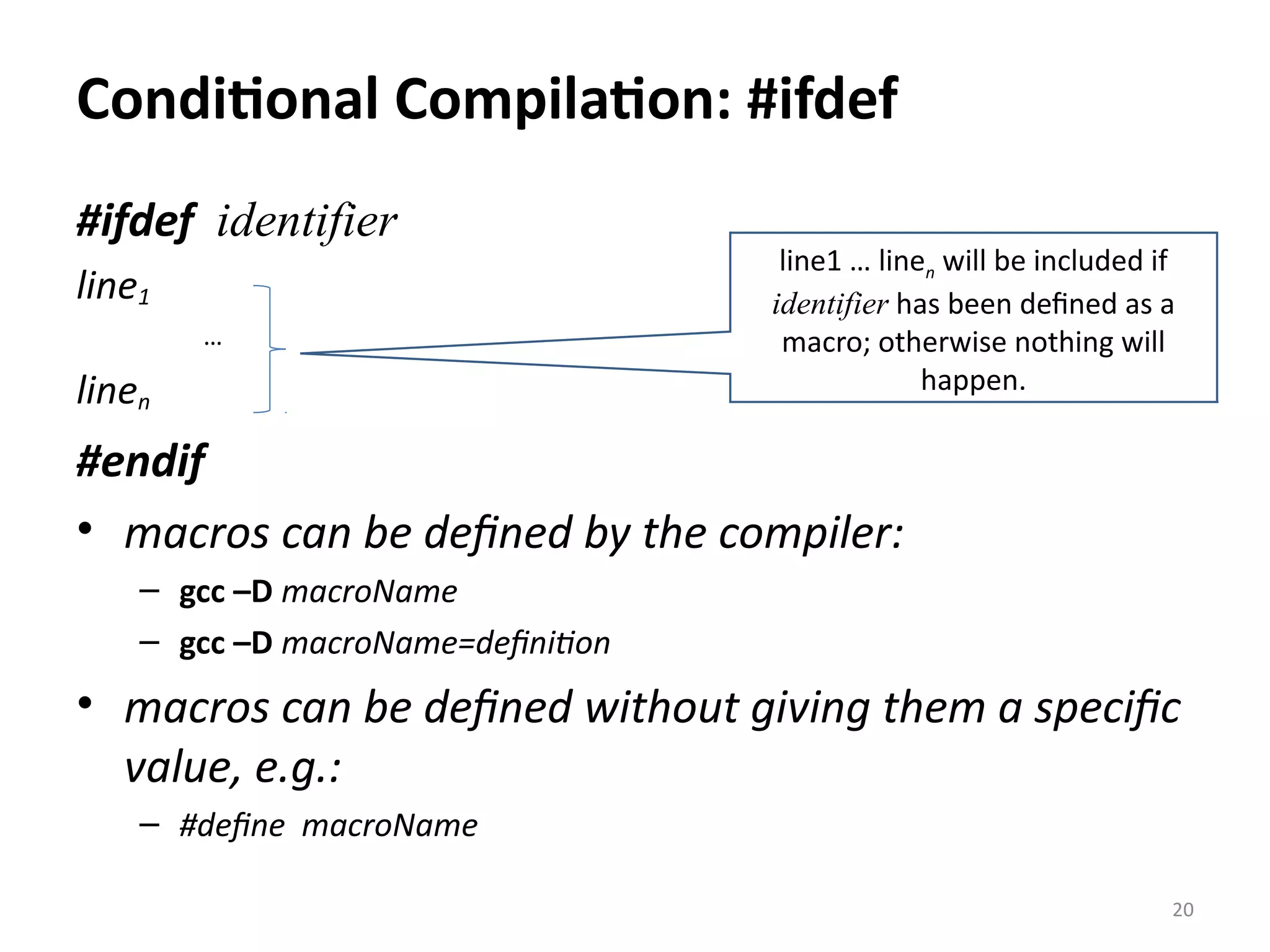

- 20. Conditional Compilation: #ifdef #ifdefidentifier line1 … linen #endif • macros can be defined by the compiler: – gcc –D macroName – gcc –D macroName=definition • macros can be defined without giving them a specific value, e.g.: – #define macroName 20 line1 … linen will be included if identifier has been defined as a macro; otherwise nothing will happen.

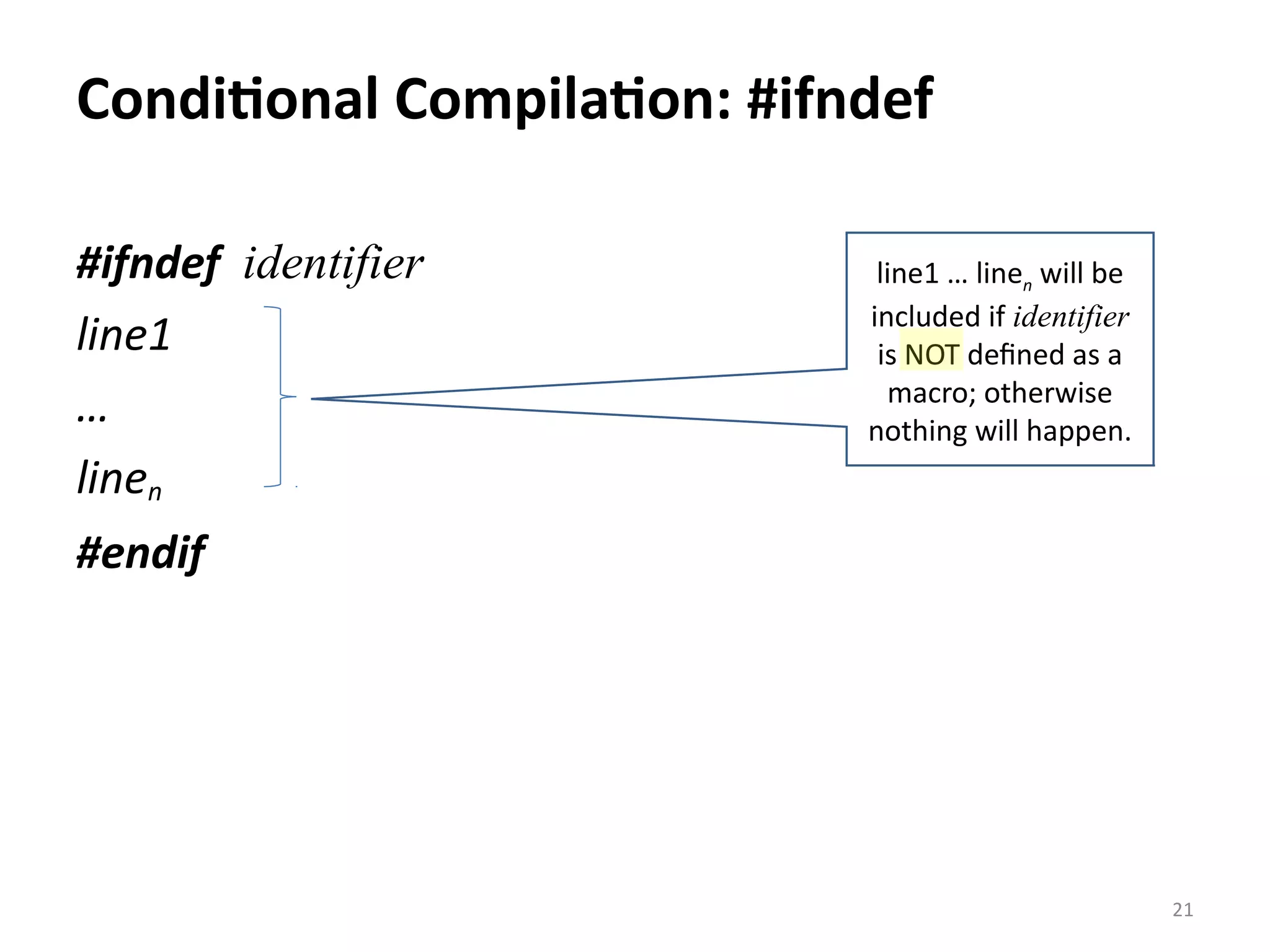

- 21. Conditional Compilation: #ifndef #ifndefidentifier line1 … linen #endif 21 line1 … linen will be included if identifier is NOT defined as a macro; otherwise nothing will happen.
- 22. Solution to multipleinclusion problem The header file is written as follows: #ifndef file_specific_flag #define file_specific_flag …contents of file… #endif • file_specific_flag usually constructed from the name of the header file: E.g.: file = foo.h ⇒ flag = _FOO_H_ – try to avoid macro names starting with ‘_’ 22 indicates whether or not this file has been included already

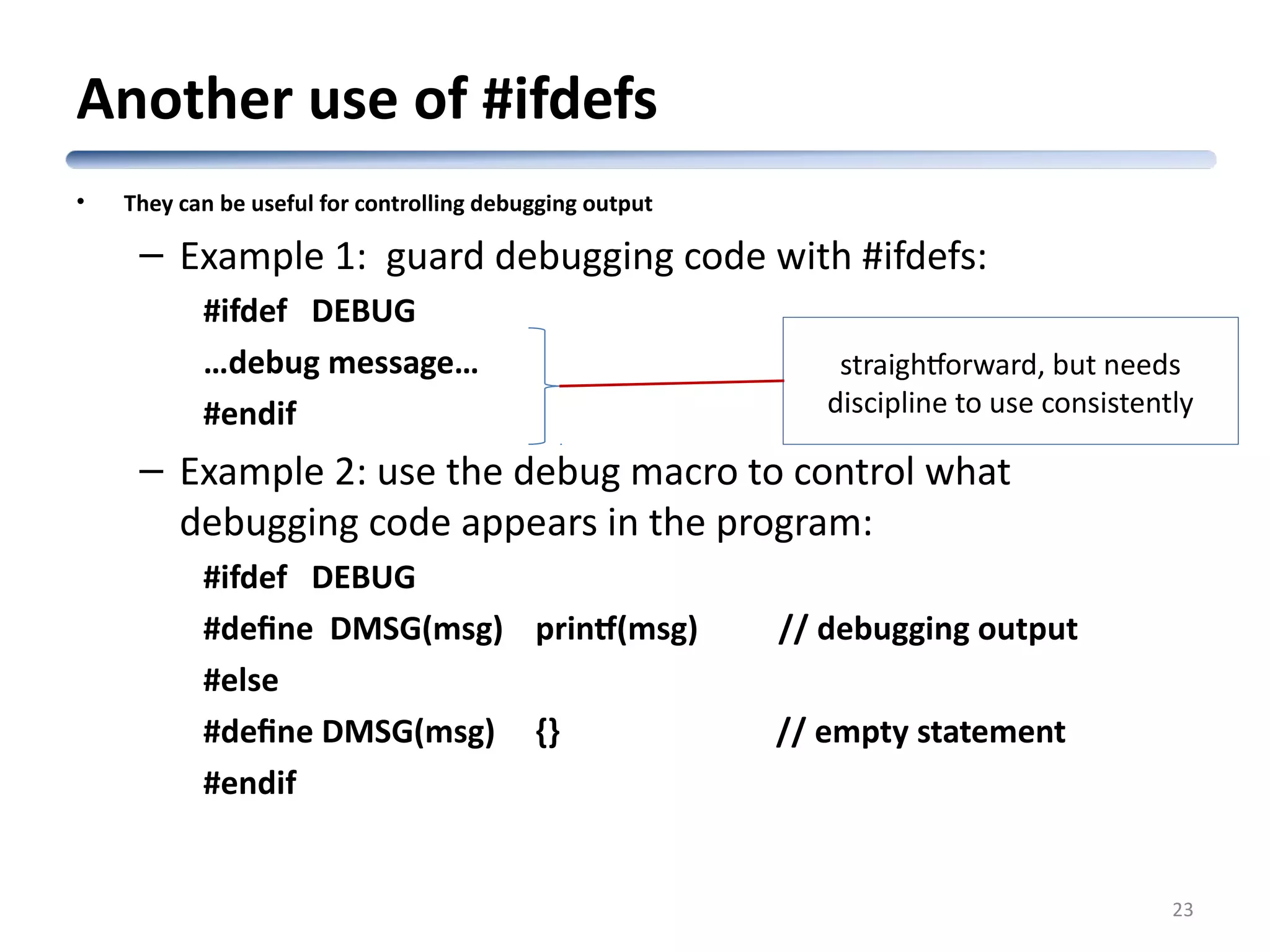

- 23. Another use of#ifdefs • They can be useful for controlling debugging output – Example 1: guard debugging code with #ifdefs: #ifdef DEBUG …debug message… #endif – Example 2: use the debug macro to control what debugging code appears in the program: #ifdef DEBUG #define DMSG(msg) printf(msg) // debugging output #else #define DMSG(msg) {} // empty statement #endif 23 straightforward, but needs discipline to use consistently

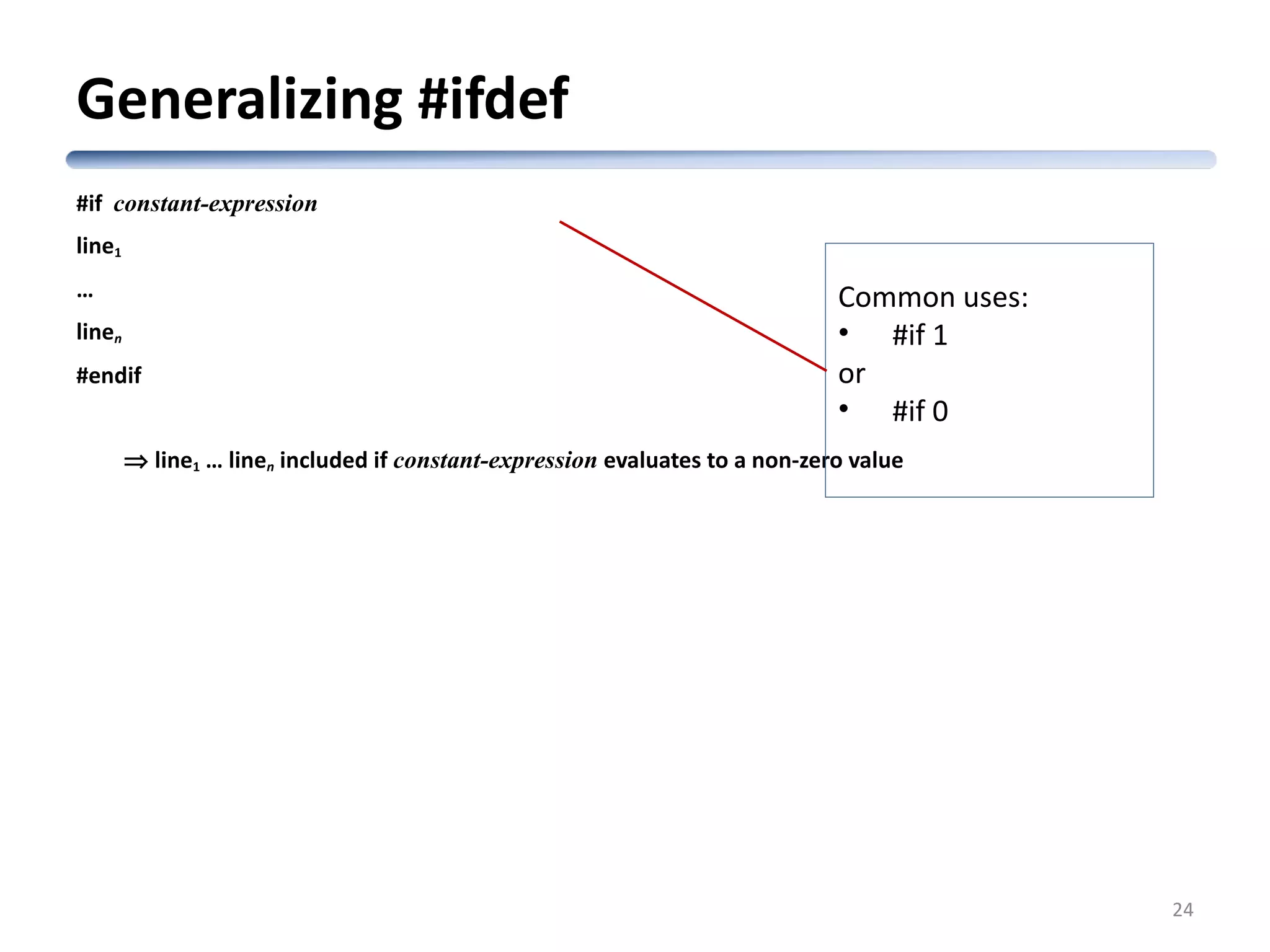

- 24. Generalizing #ifdef #if constant-expression line1 … linen #endif ⇒line1 … linen included if constant-expression evaluates to a non-zero value 24 Common uses: • #if 1 or • #if 0

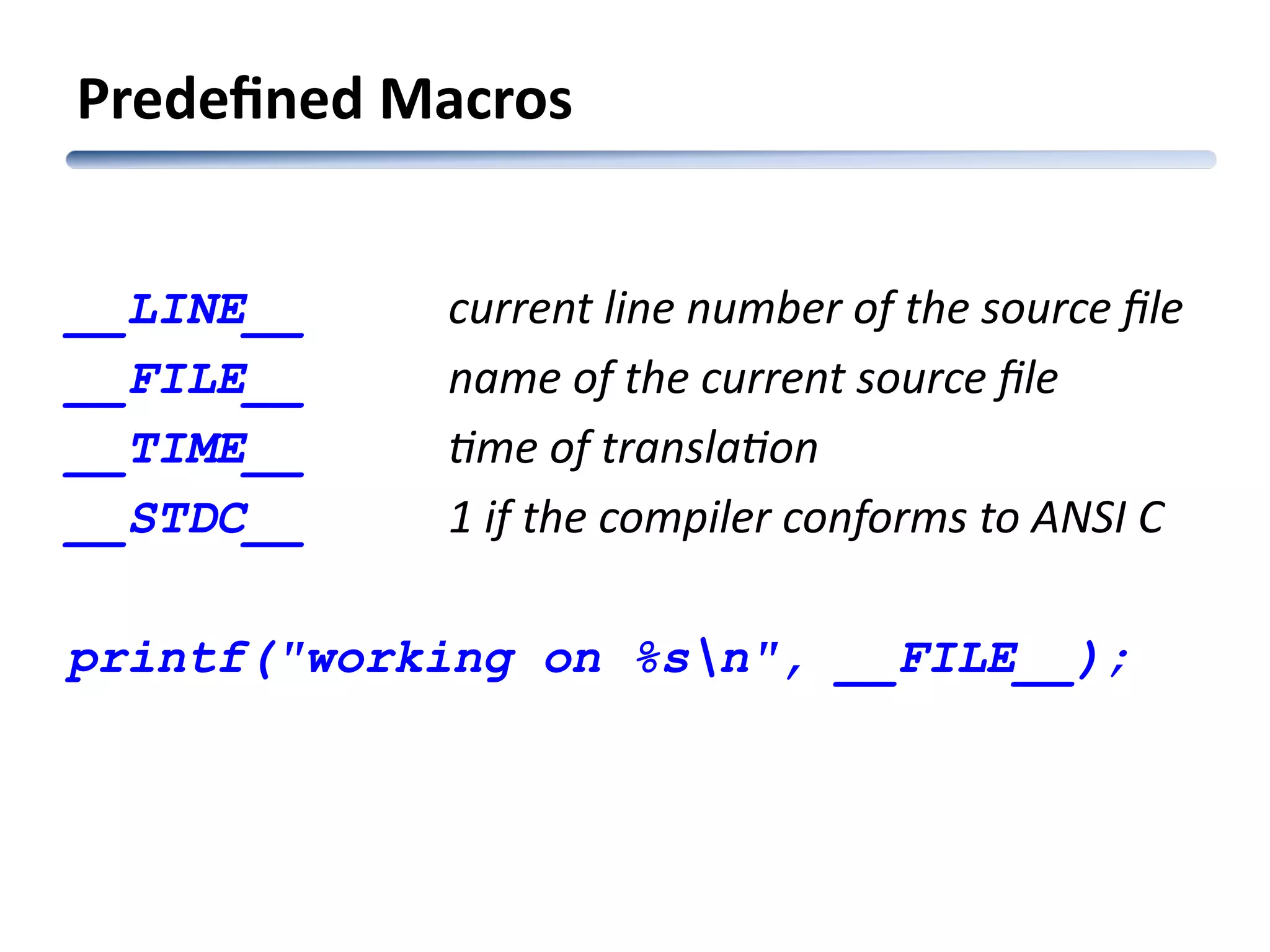

- 25. __LINE__ current linenumber of the source file __FILE__ name of the current source file __TIME__ time of translation __STDC__ 1 if the compiler conforms to ANSI C printf("working on %sn", __FILE__); Predefined Macros
- 26. Adapted originally from: CSc352 An Introduction to the C Preprocessor Saumya Debray Dept. of Computer Science The University of Arizona, Tucson debray@cs.arizona.edu Thank you This presentation is created using LibreOffice Impress 3.6.2.2
