Programming for Evolutionary Biology March 17th - April 1st 2012 Leipzig, Germany Introduction to Unix systems Part 4 – awk & make Giovanni Marco Dall'Olio Universitat Pompeu Fabra Barcelona (Spain)

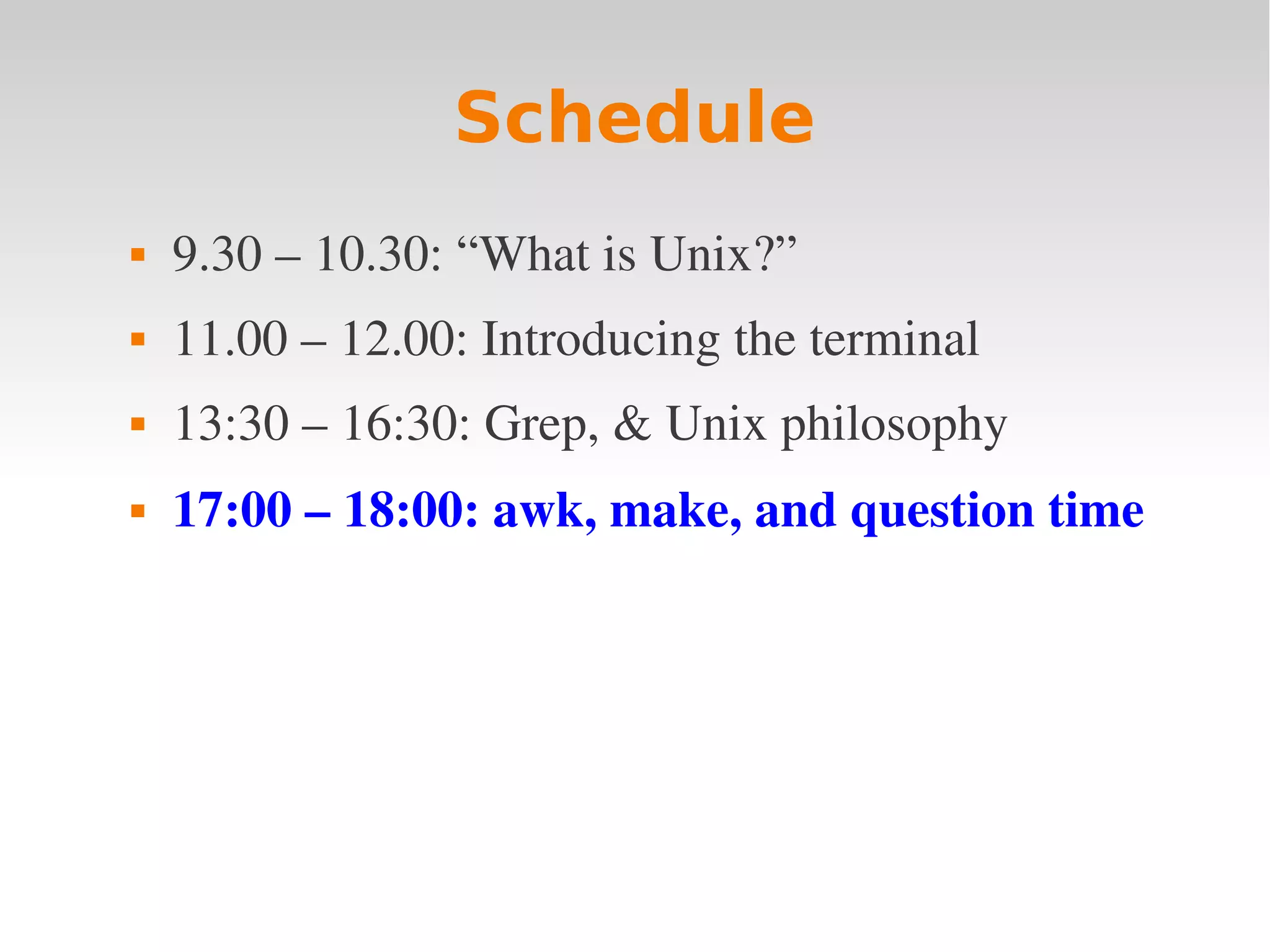

Schedule  9.30 – 10.30: “What is Unix?”  11.00 – 12.00: Introducing the terminal  13:30 – 16:30: Grep, & Unix philosophy  17:00 – 18:00: awk, make, and question time

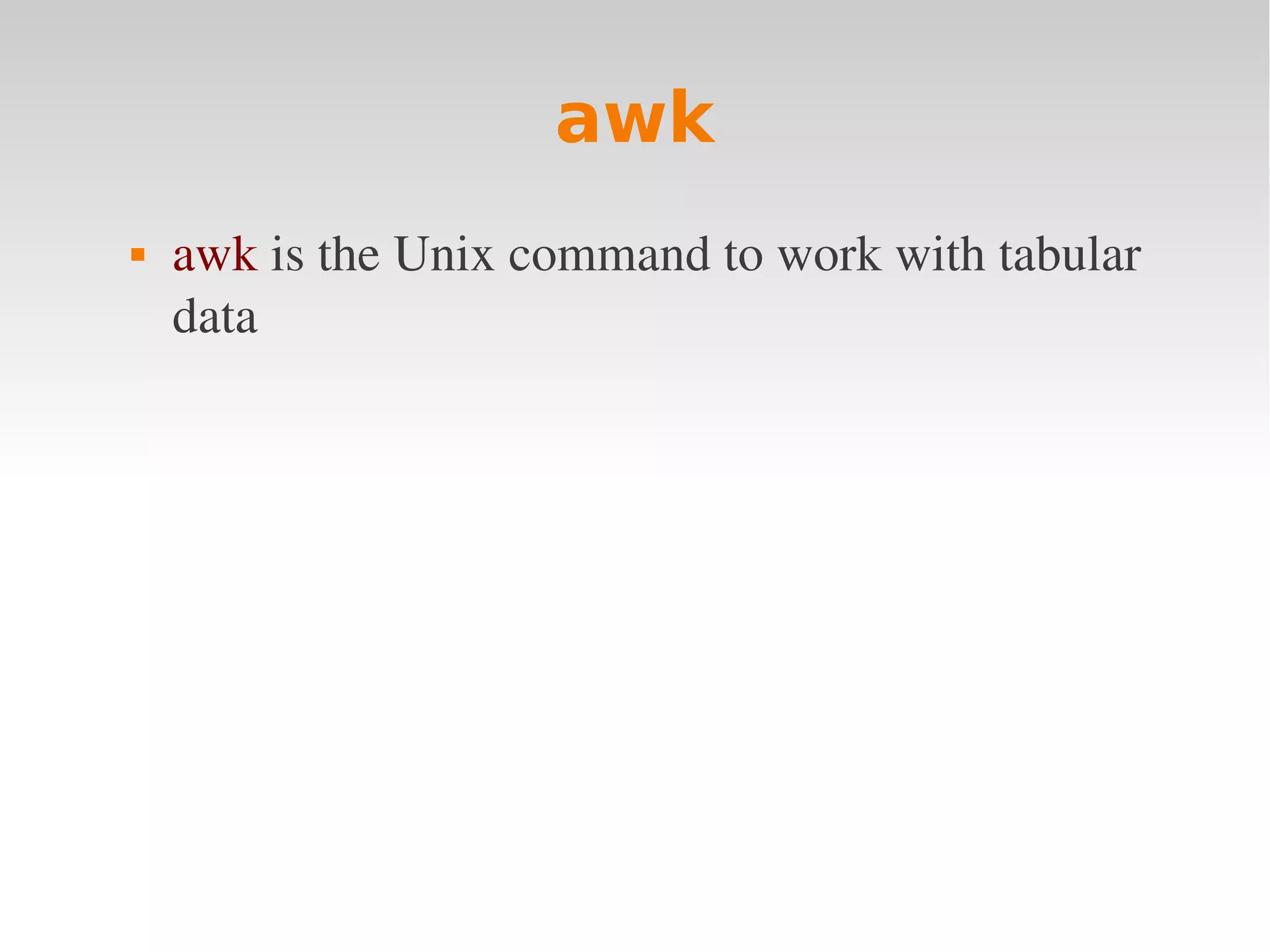

awk  awk is the Unix command to work with tabular data

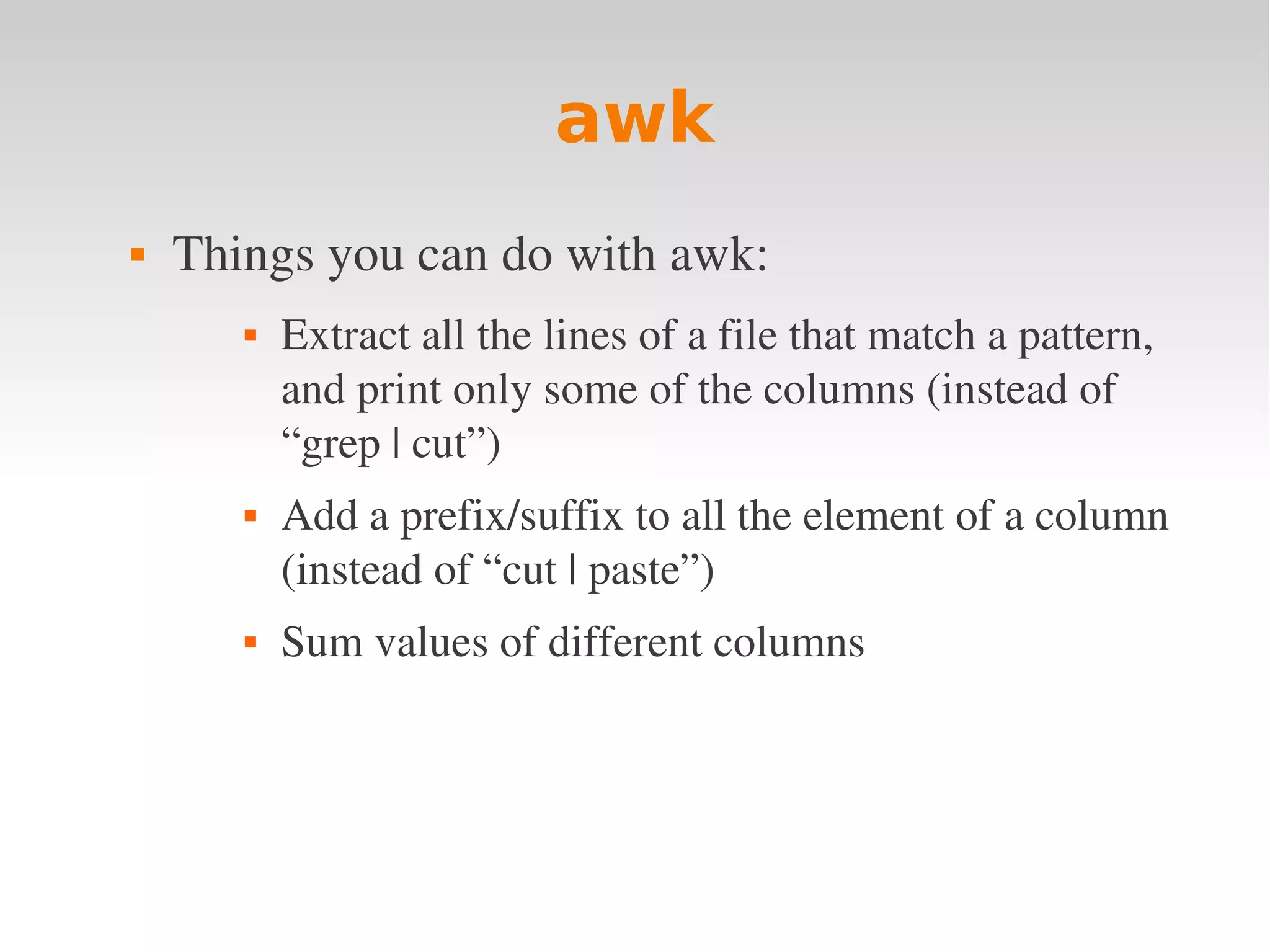

awk  Things you can do with awk:  Extract all the lines of a file that match a pattern, and print only some of the columns (instead of “grep | cut”)  Add a prefix/suffix to all the element of a column (instead of “cut | paste”)  Sum values of different columns

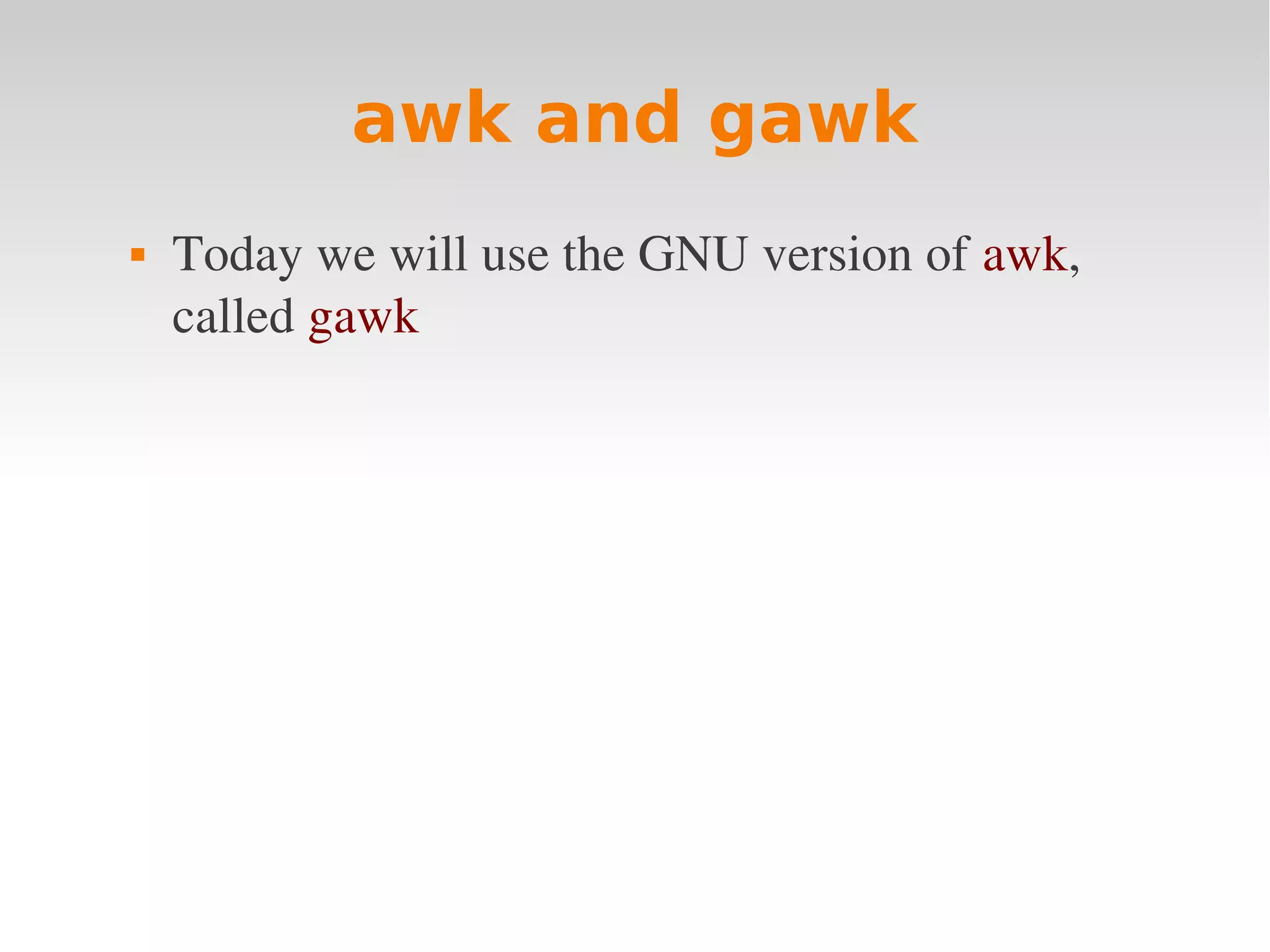

awk and gawk  Today we will use the GNU version of awk, called gawk

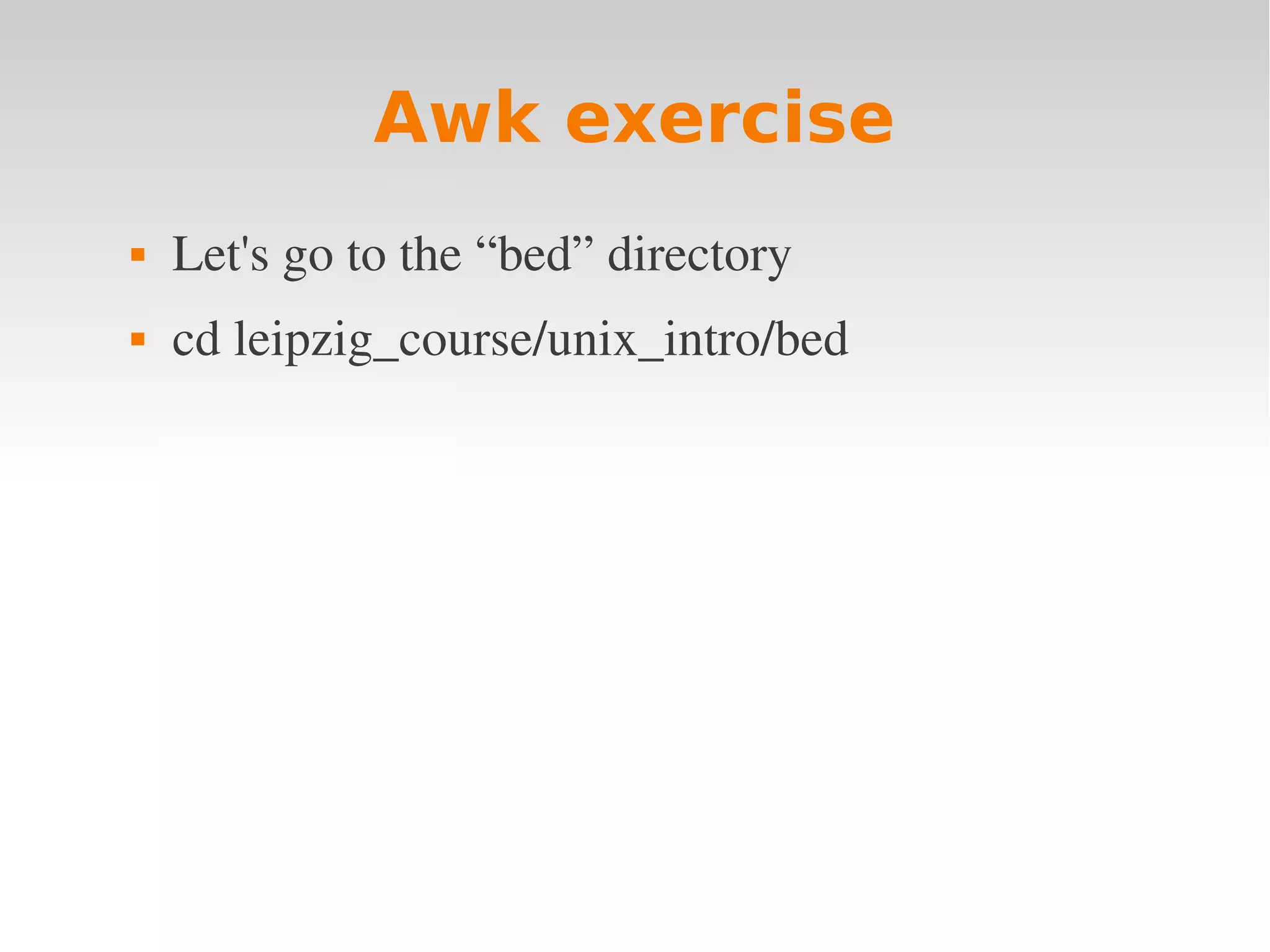

Awk exercise  Let's go to the “bed” directory  cd leipzig_course/unix_intro/bed

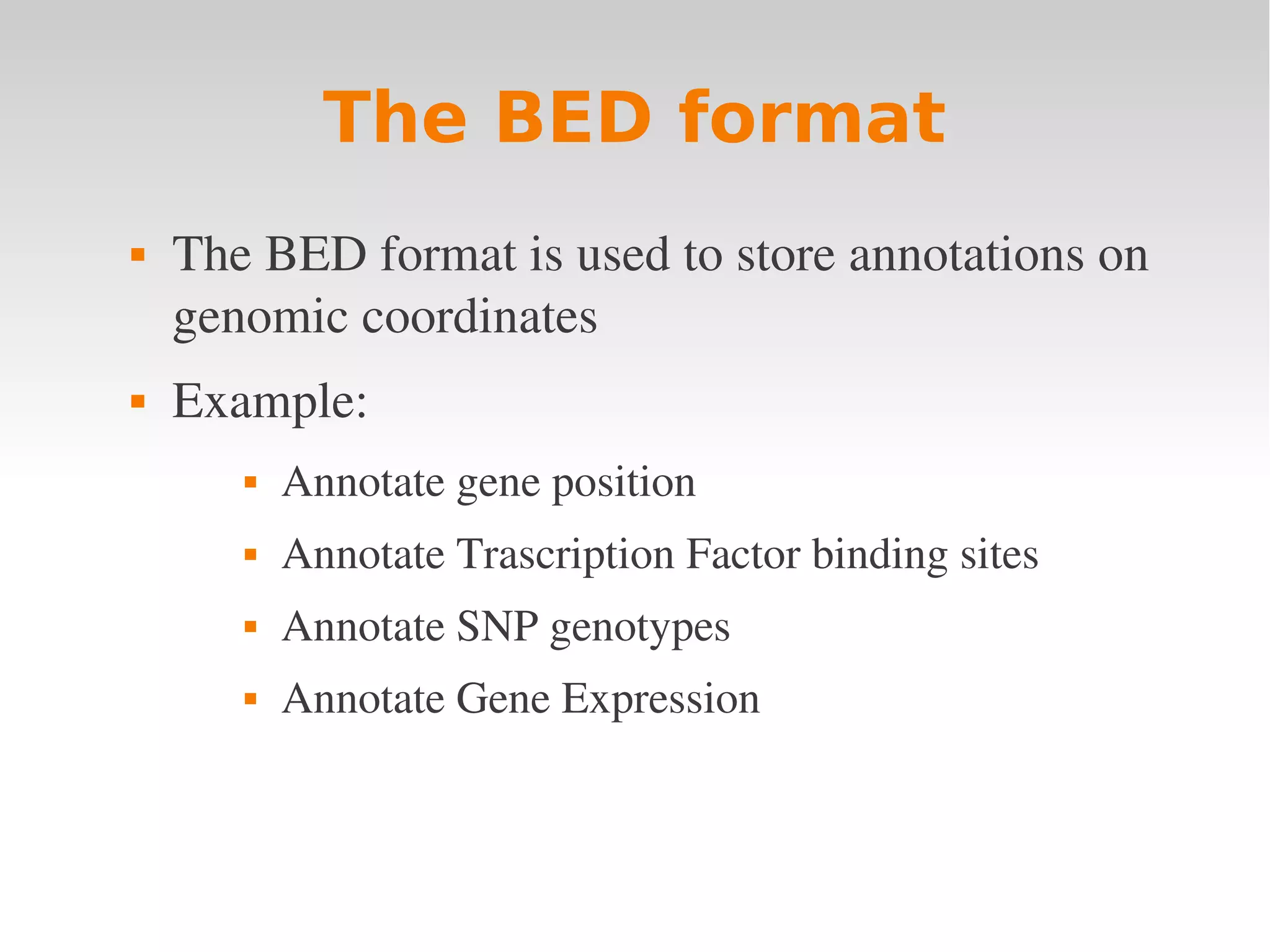

The BED format  The BED format is used to store annotations on genomic coordinates  Example:  Annotate gene position  Annotate Trascription Factor binding sites  Annotate SNP genotypes  Annotate Gene Expression

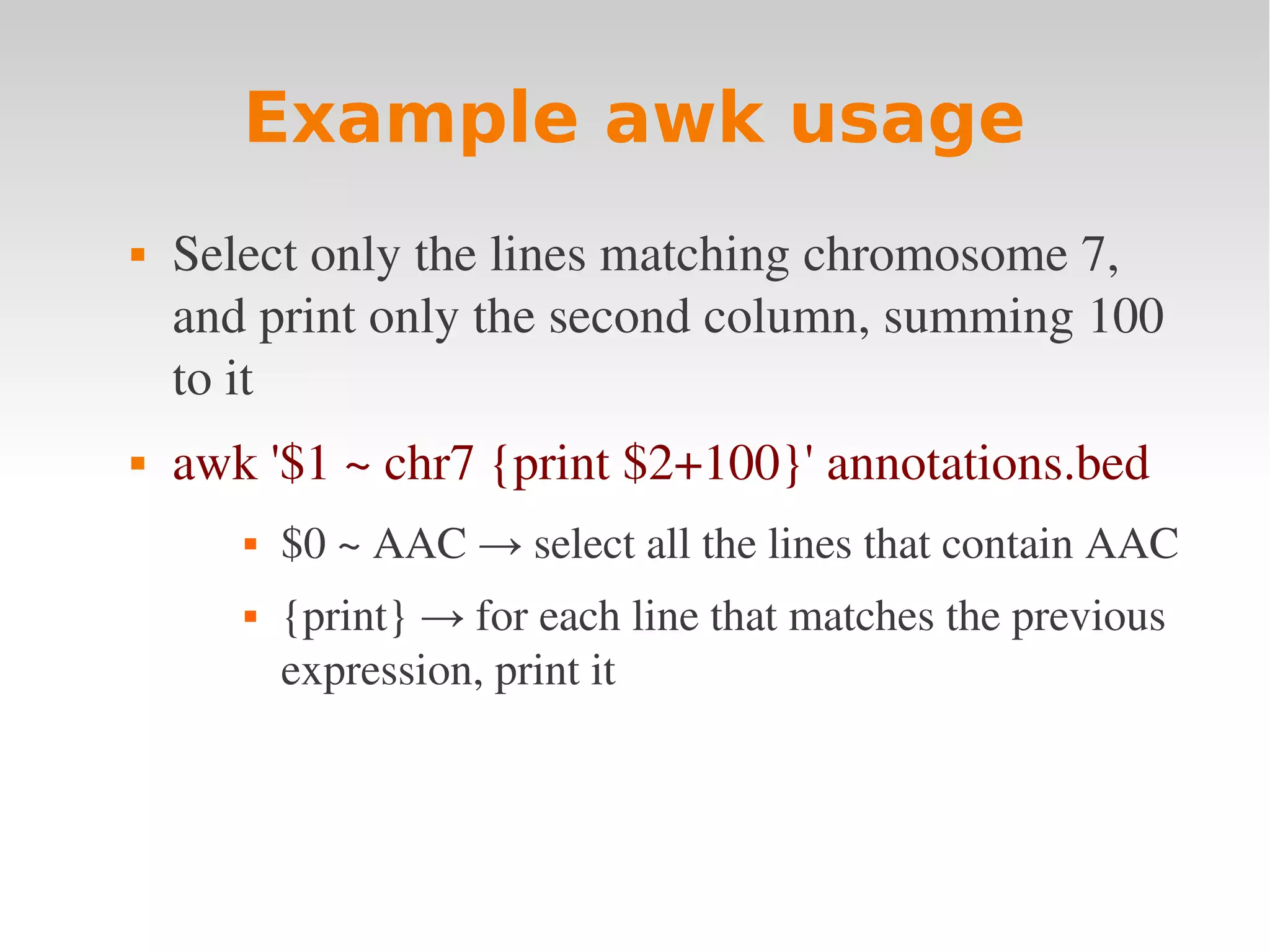

Example awk usage  Select only the lines matching chromosome 7, and print only the second column, summing 100 to it  awk '$1 ~ chr7 {print $2+100}' annotations.bed  $0 ~ AAC → select all the lines that contain AAC  {print} → for each line that matches the previous expression, print it

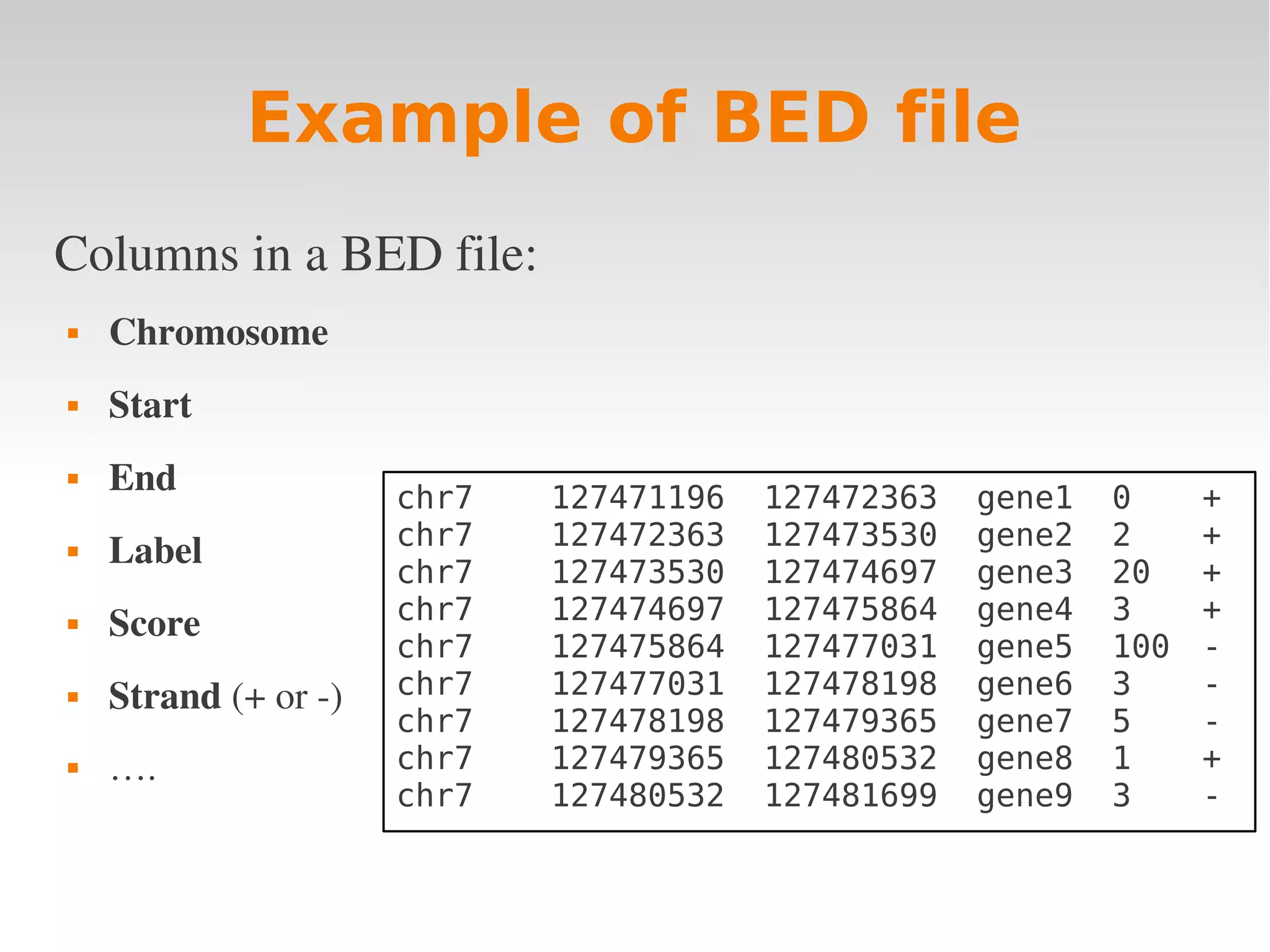

Example of BED file Columns in a BED file:  Chromosome  Start  End chr7 127471196 127472363 gene1 0 + chr7 127472363 127473530 gene2 2 +  Label chr7 127473530 127474697 gene3 20 +  Score chr7 127474697 127475864 gene4 3 + chr7 127475864 127477031 gene5 100 -  Strand (+ or ) chr7 127477031 127478198 gene6 3 - chr7 127478198 127479365 gene7 5 -  …. chr7 127479365 127480532 gene8 1 + chr7 127480532 127481699 gene9 3 -

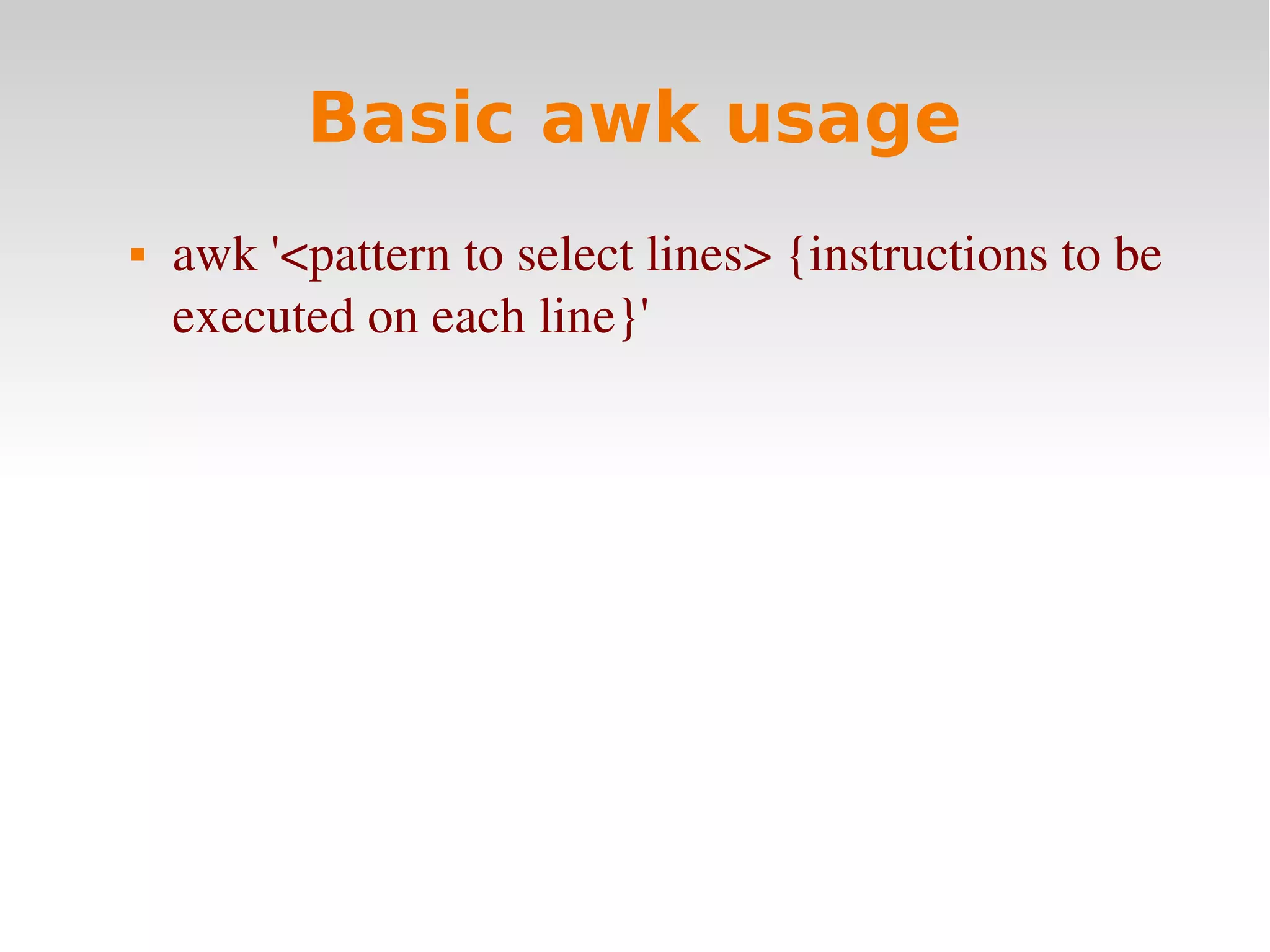

Basic awk usage  awk '<pattern to select lines> {instructions to be executed on each line}'

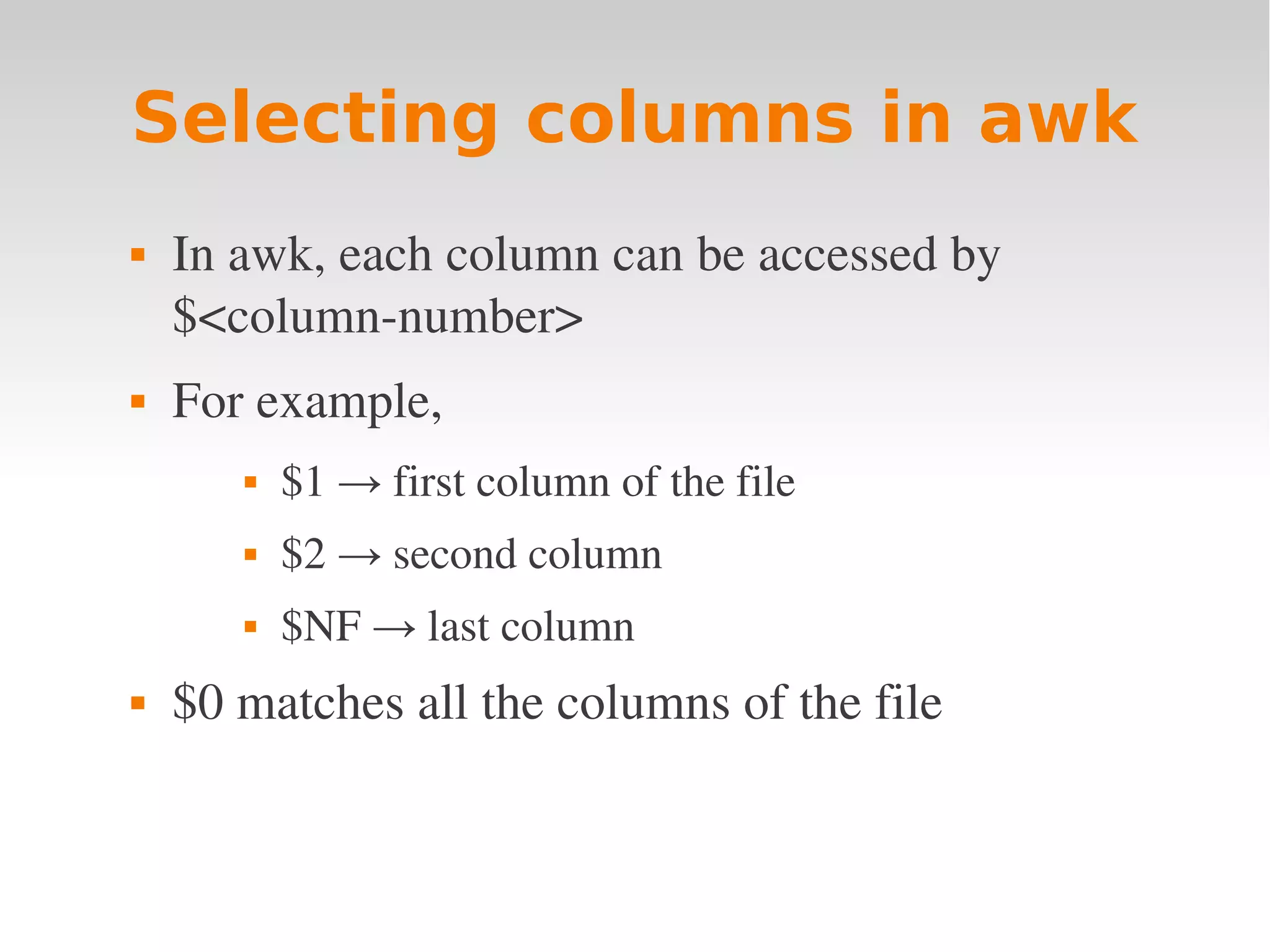

Selecting columns in awk  In awk, each column can be accessed by $<columnnumber>  For example,  $1 → first column of the file  $2 → second column  $NF → last column  $0 matches all the columns of the file

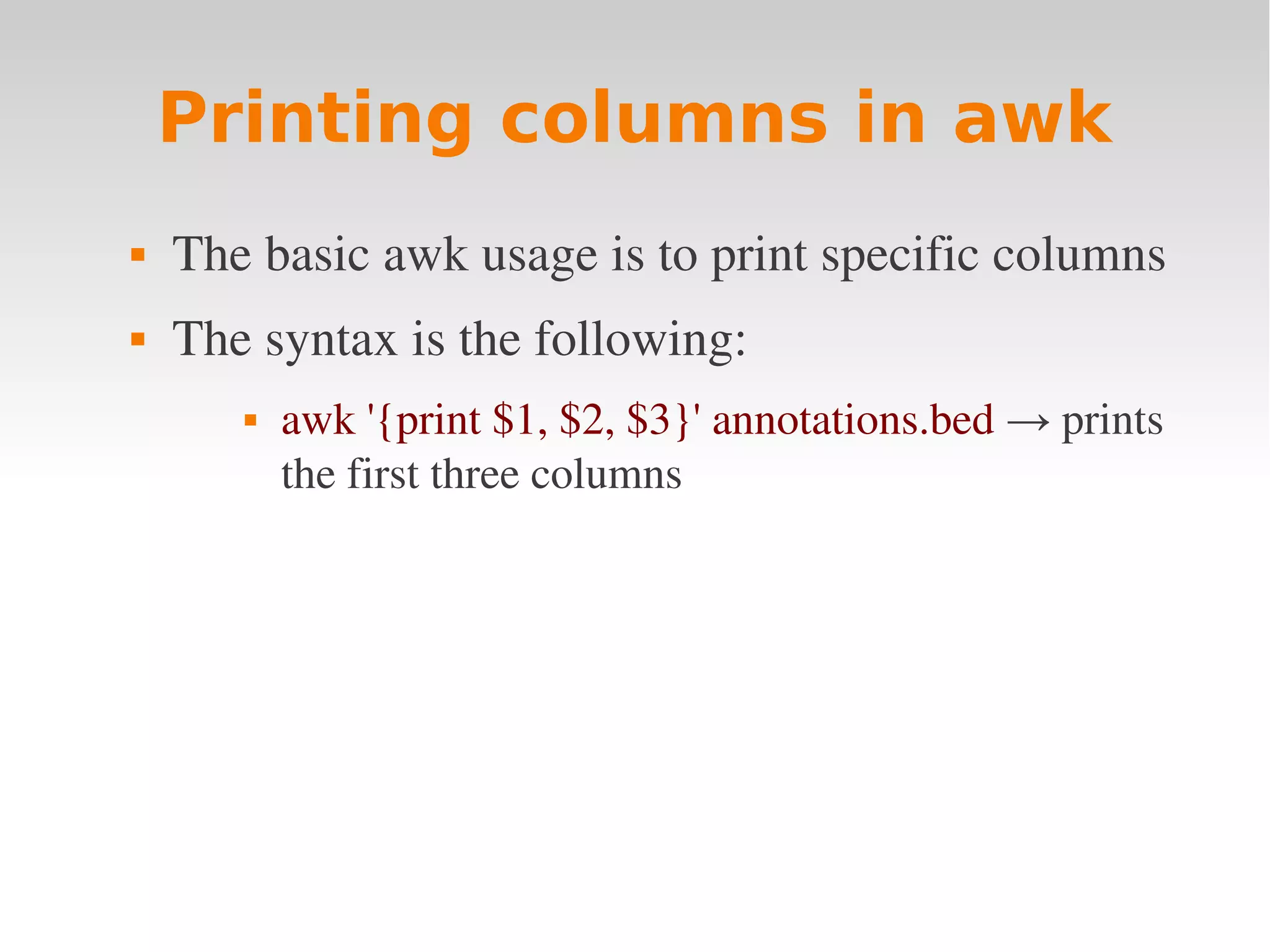

Printing columns in awk  The basic awk usage is to print specific columns  The syntax is the following:  awk '{print $1, $2, $3}' annotations.bed → prints the first three columns

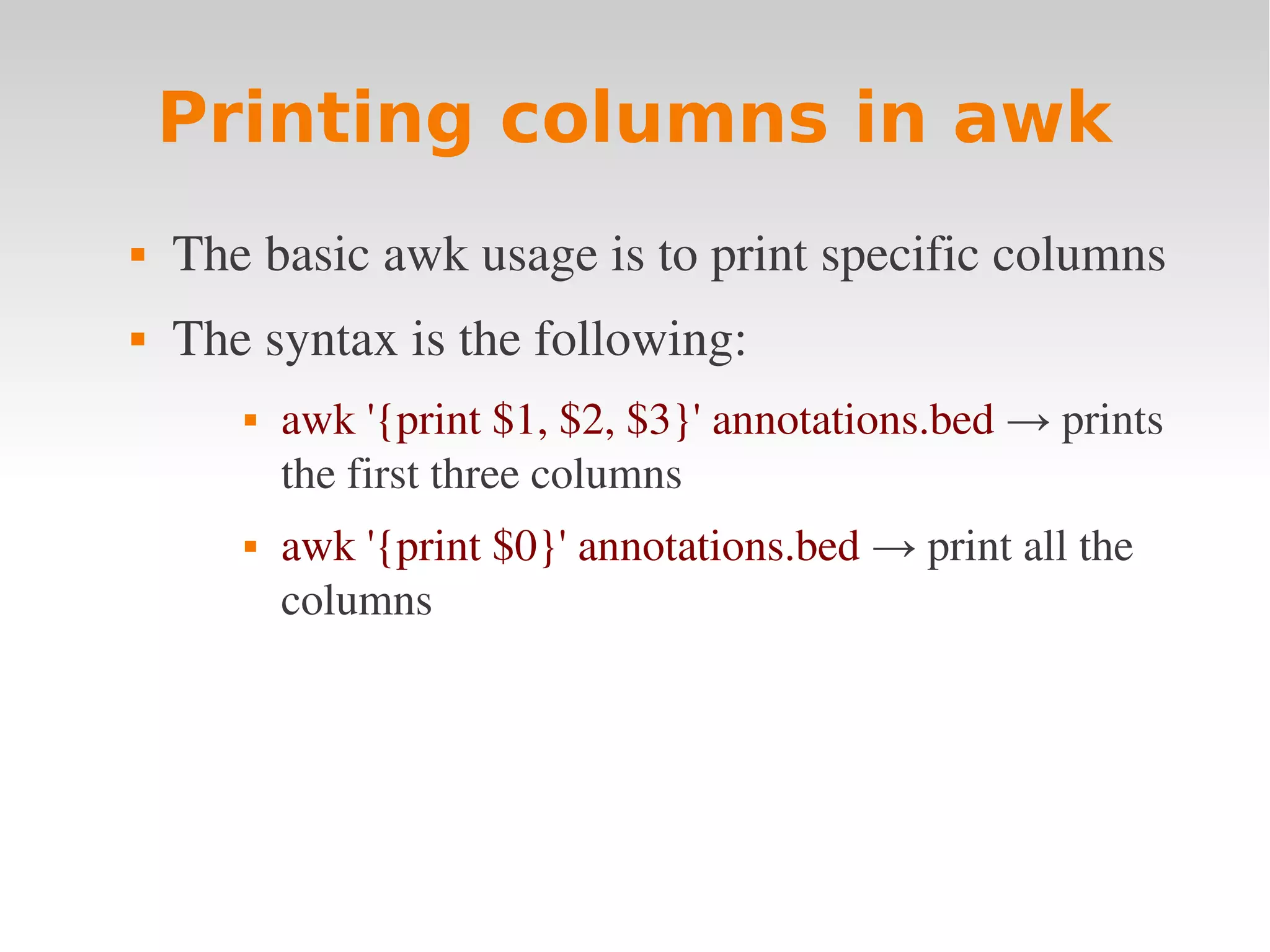

Printing columns in awk  The basic awk usage is to print specific columns  The syntax is the following:  awk '{print $1, $2, $3}' annotations.bed → prints the first three columns  awk '{print $0}' annotations.bed → print all the columns

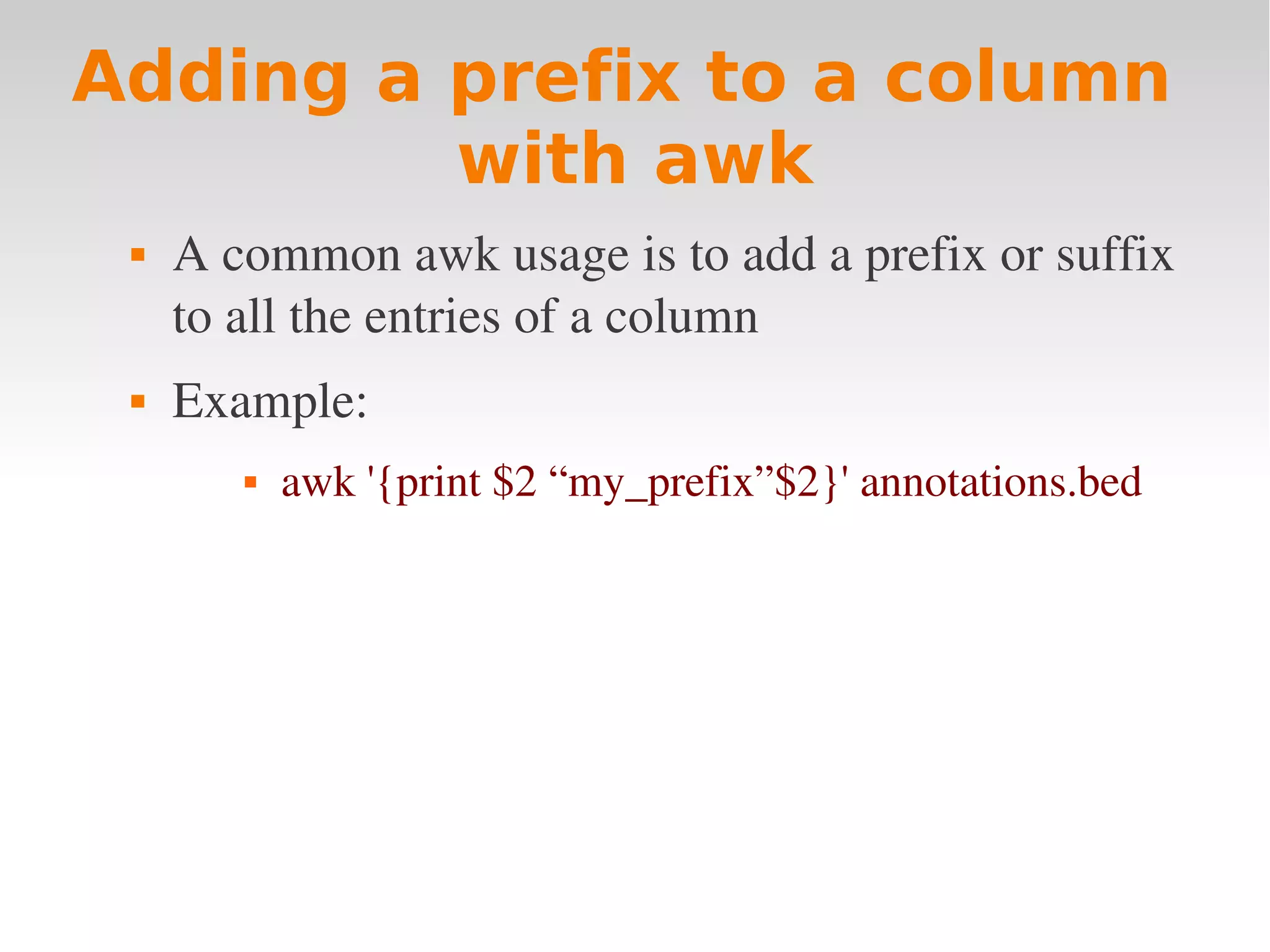

Adding a prefix to a column with awk  A common awk usage is to add a prefix or suffix to all the entries of a column  Example:  awk '{print $2 “my_prefix”$2}' annotations.bed

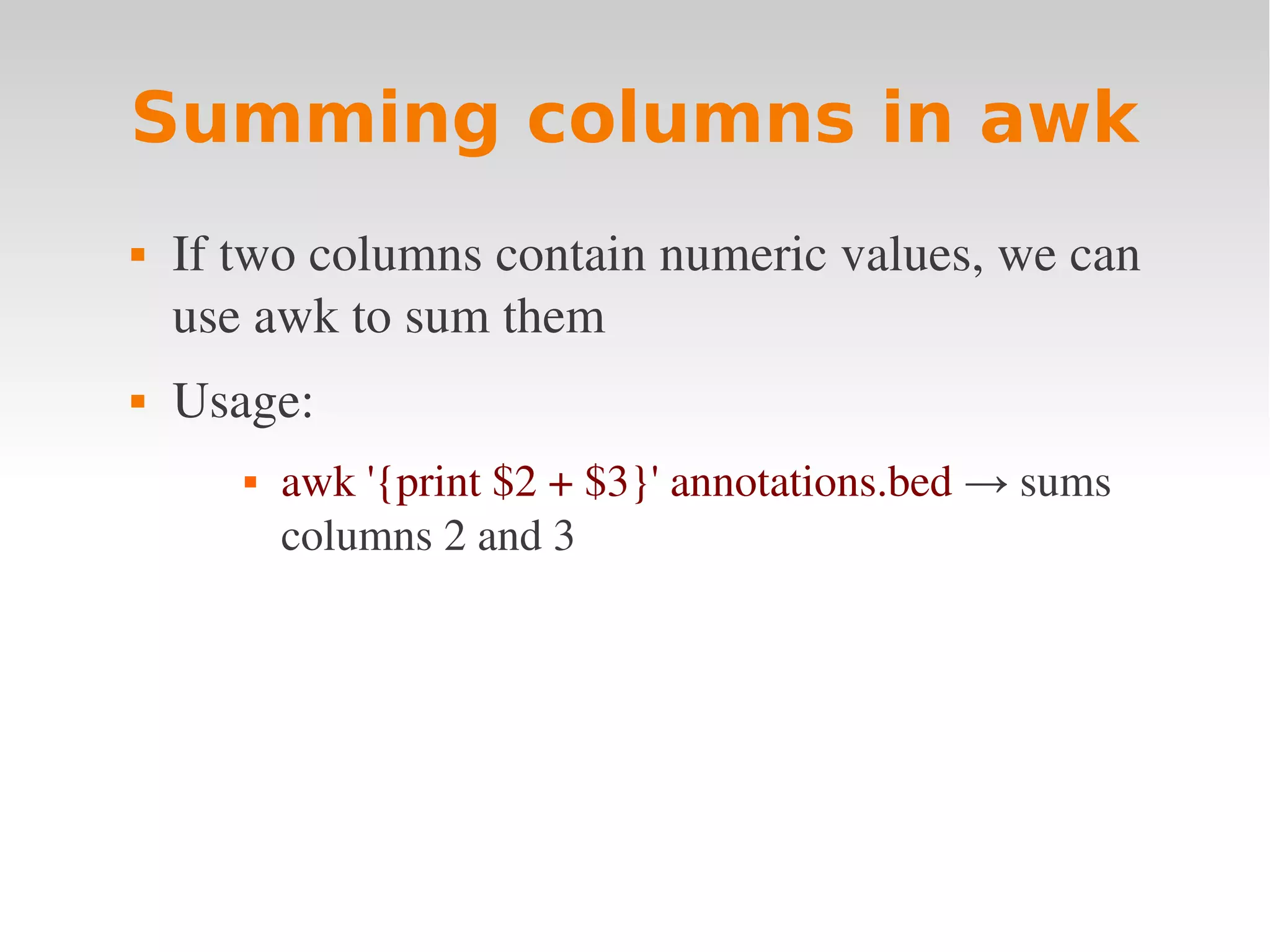

Summing columns in awk  If two columns contain numeric values, we can use awk to sum them  Usage:  awk '{print $2 + $3}' annotations.bed → sums columns 2 and 3

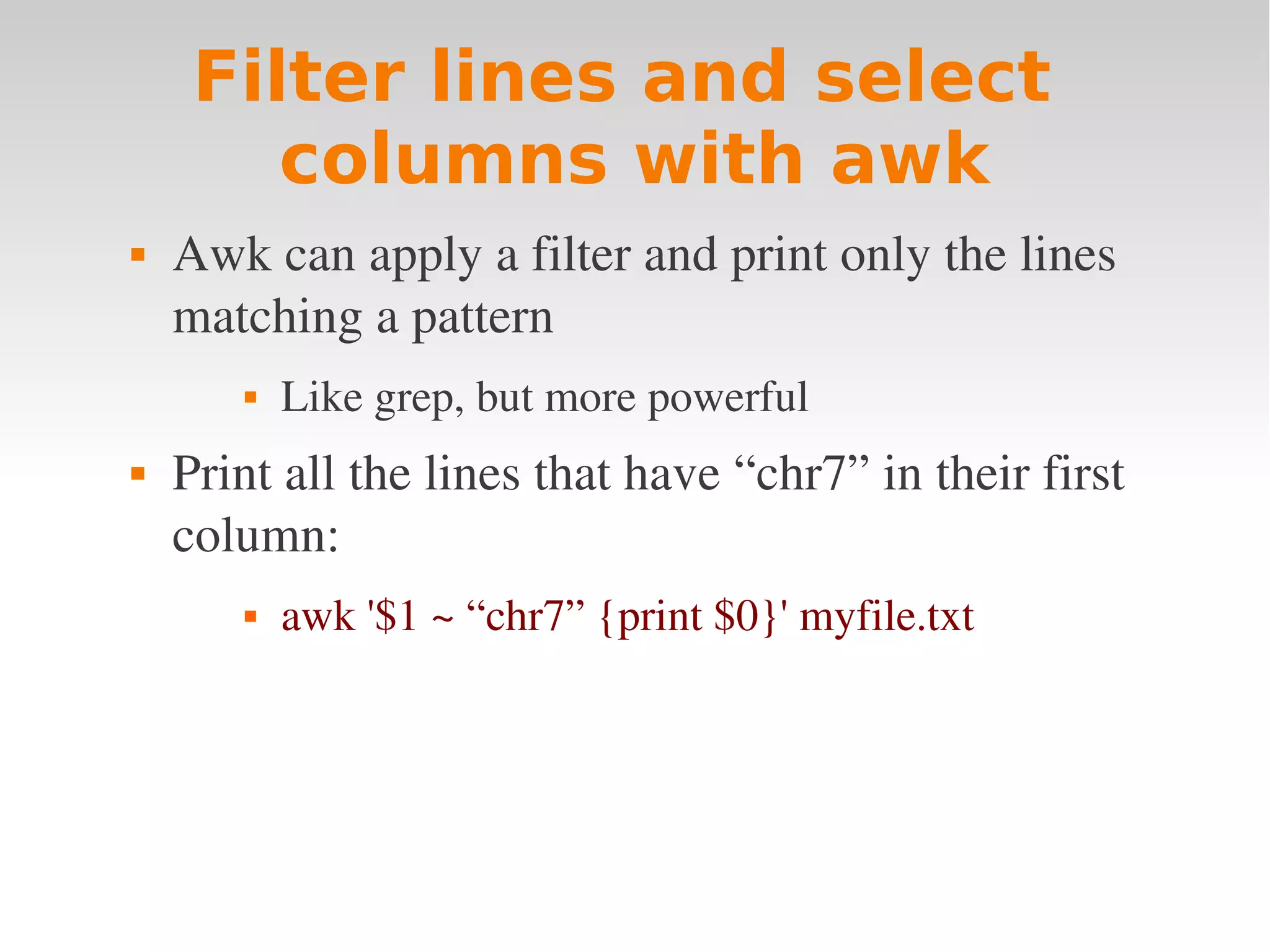

Filter lines and select columns with awk  Awk can apply a filter and print only the lines matching a pattern  Like grep, but more powerful  Print all the lines that have “chr7” in their first column:  awk '$1 ~ “chr7” {print $0}' myfile.txt

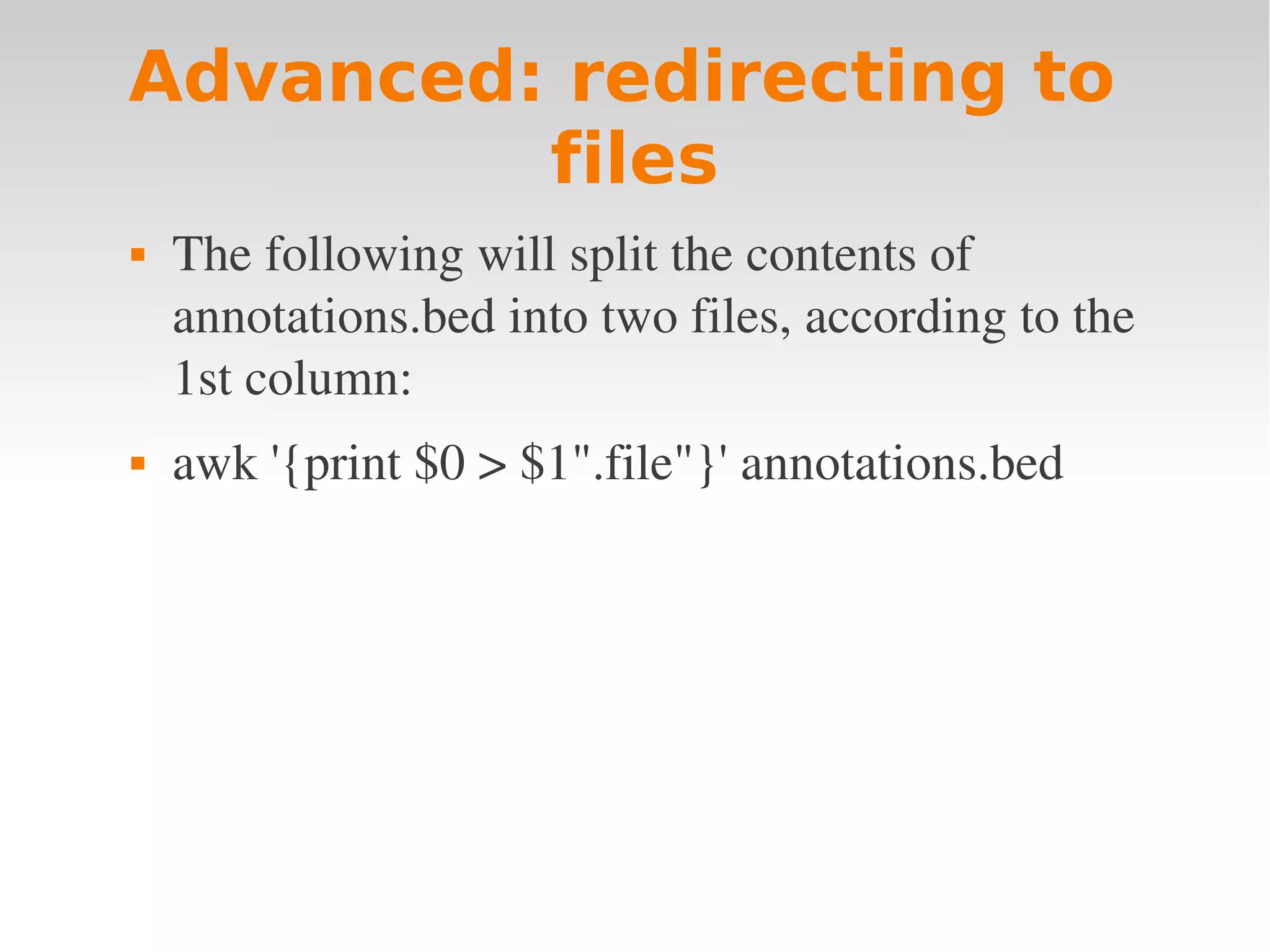

Advanced: redirecting to files  The following will split the contents of annotations.bed into two files, according to the 1st column:  awk '{print $0 > $1".file"}' annotations.bed

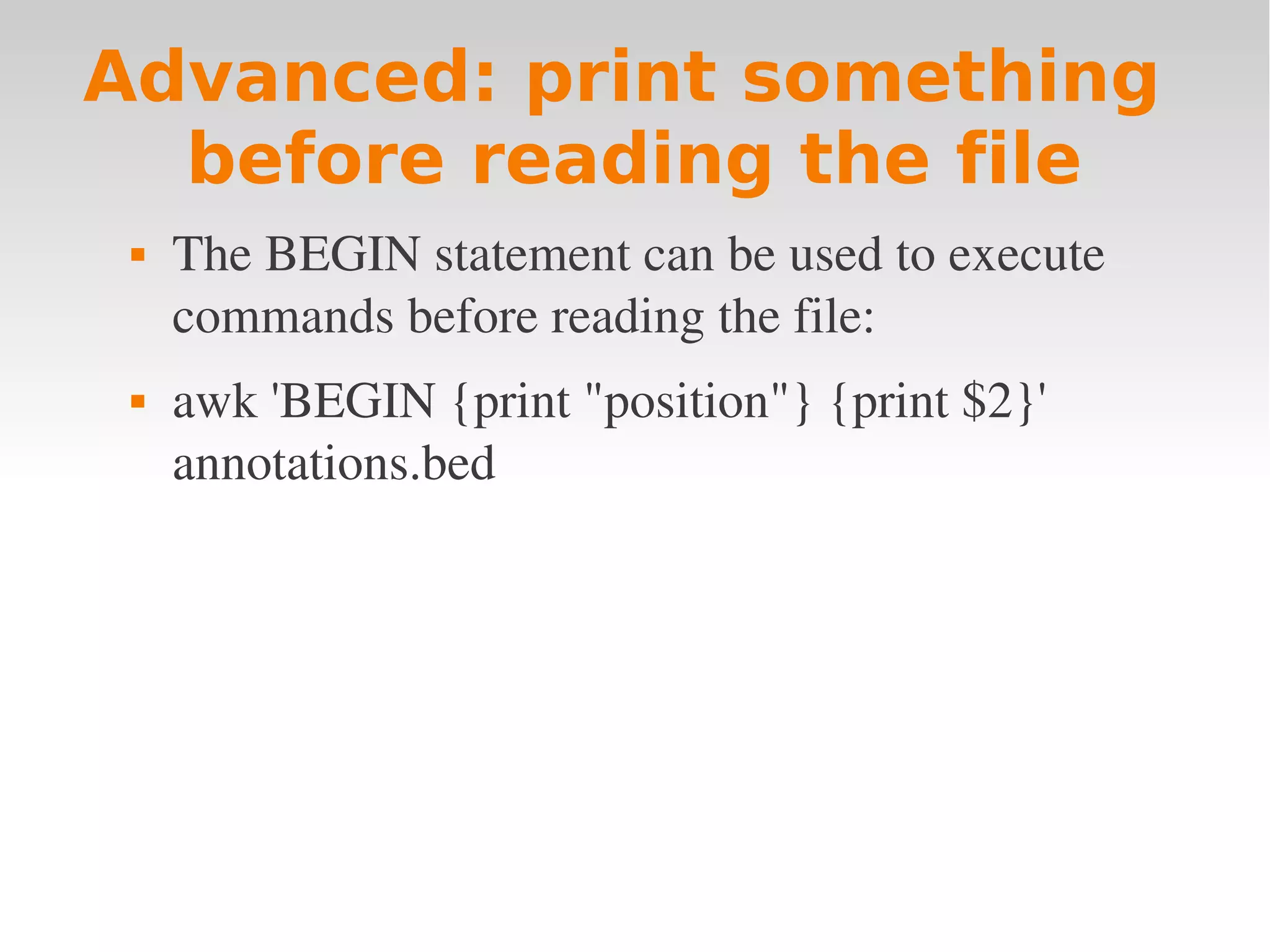

Advanced: print something before reading the file  The BEGIN statement can be used to execute commands before reading the file:  awk 'BEGIN {print "position"} {print $2}' annotations.bed

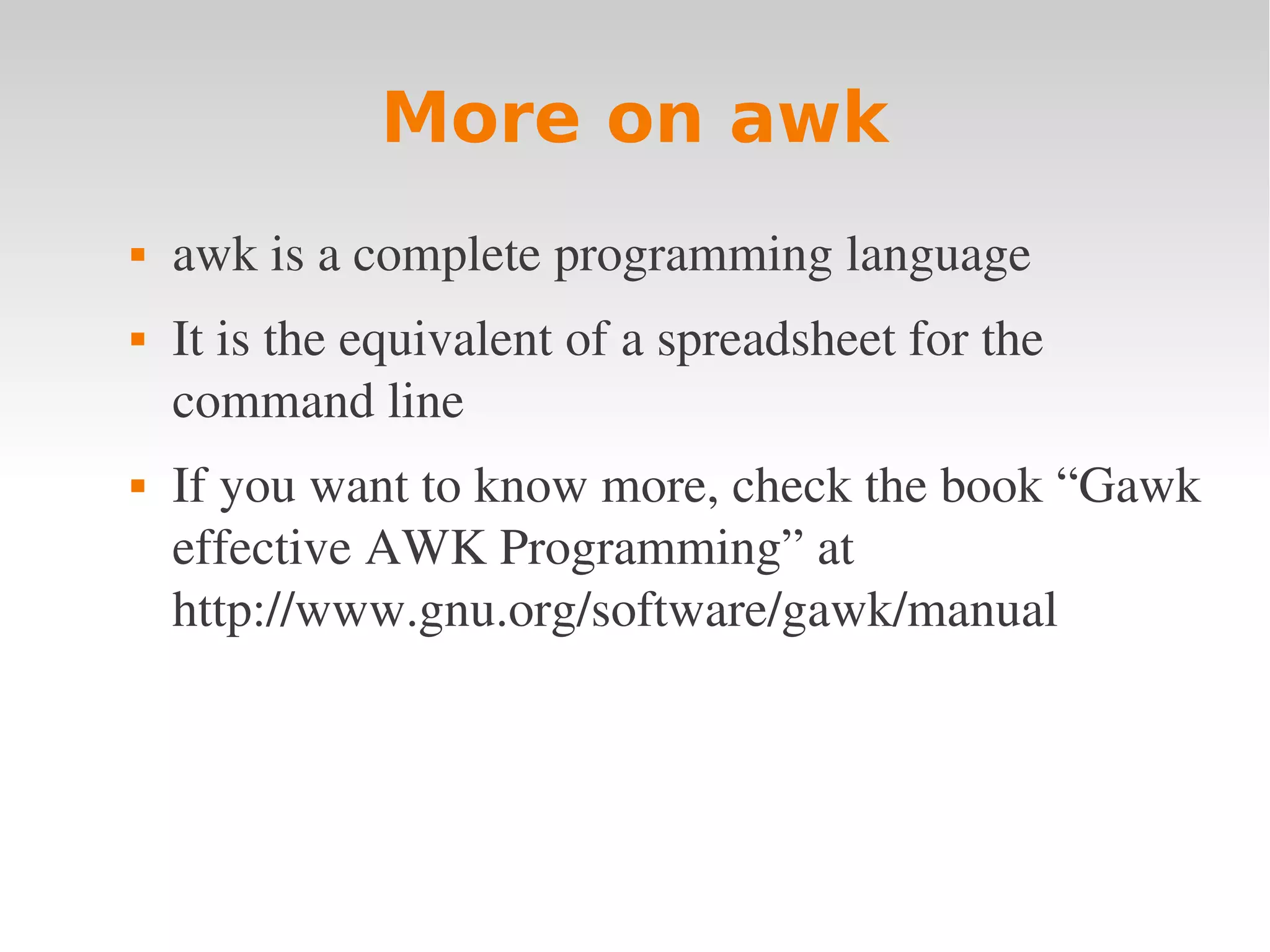

More on awk  awk is a complete programming language  It is the equivalent of a spreadsheet for the command line  If you want to know more, check the book “Gawk effective AWK Programming” at http://www.gnu.org/software/gawk/manual

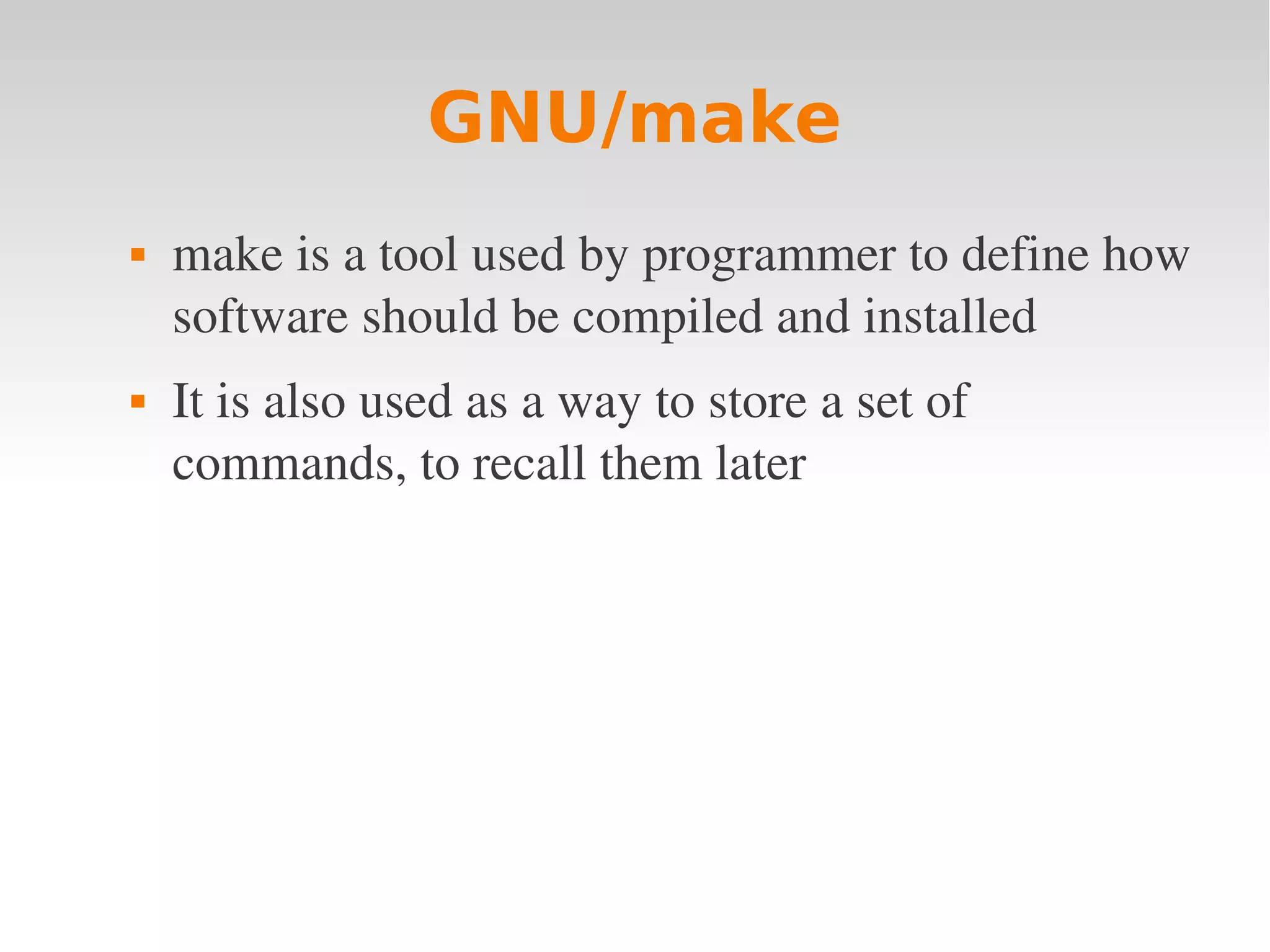

GNU/make  make is a tool used by programmer to define how software should be compiled and installed  It is also used as a way to store a set of commands, to recall them later

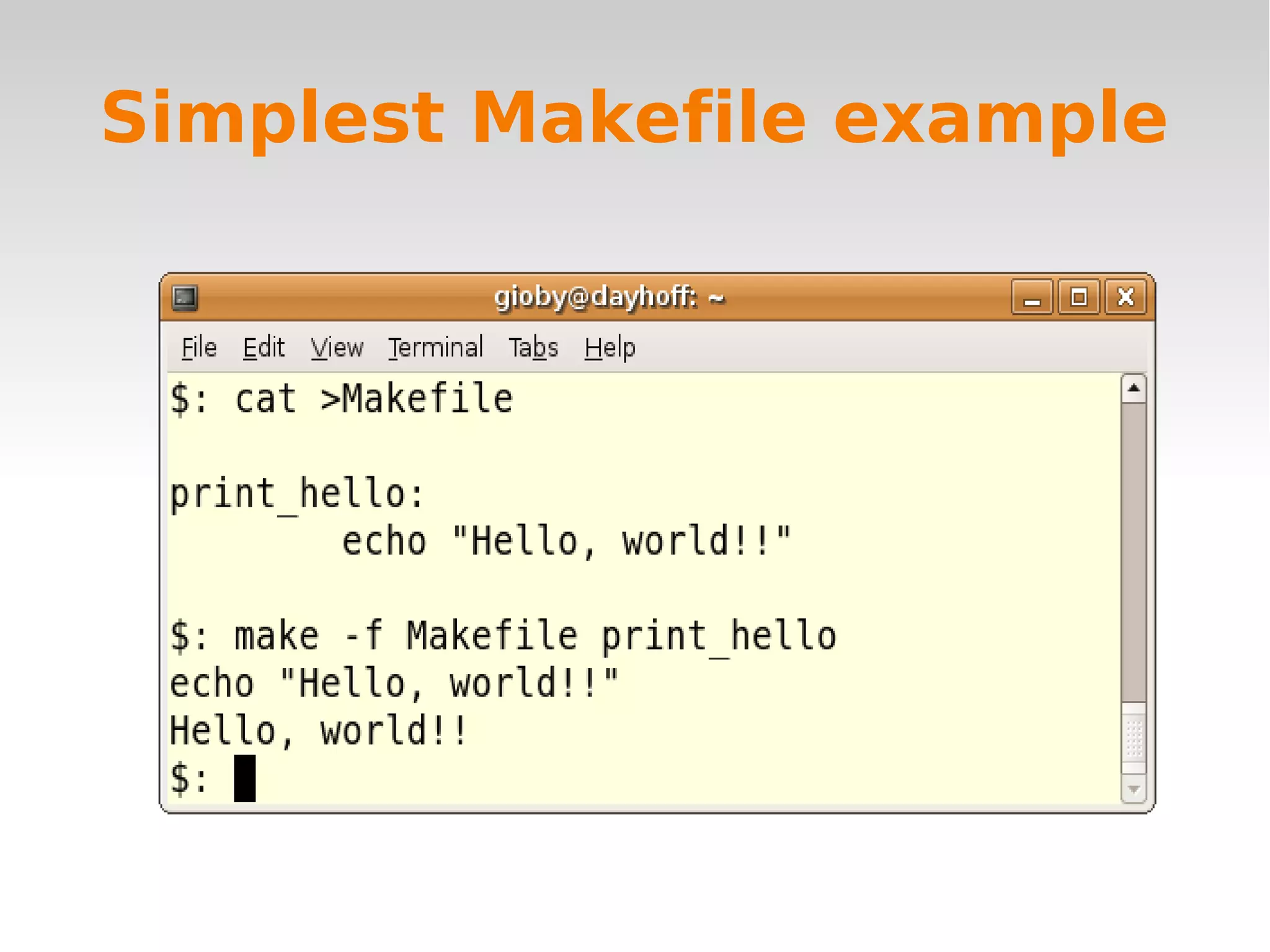

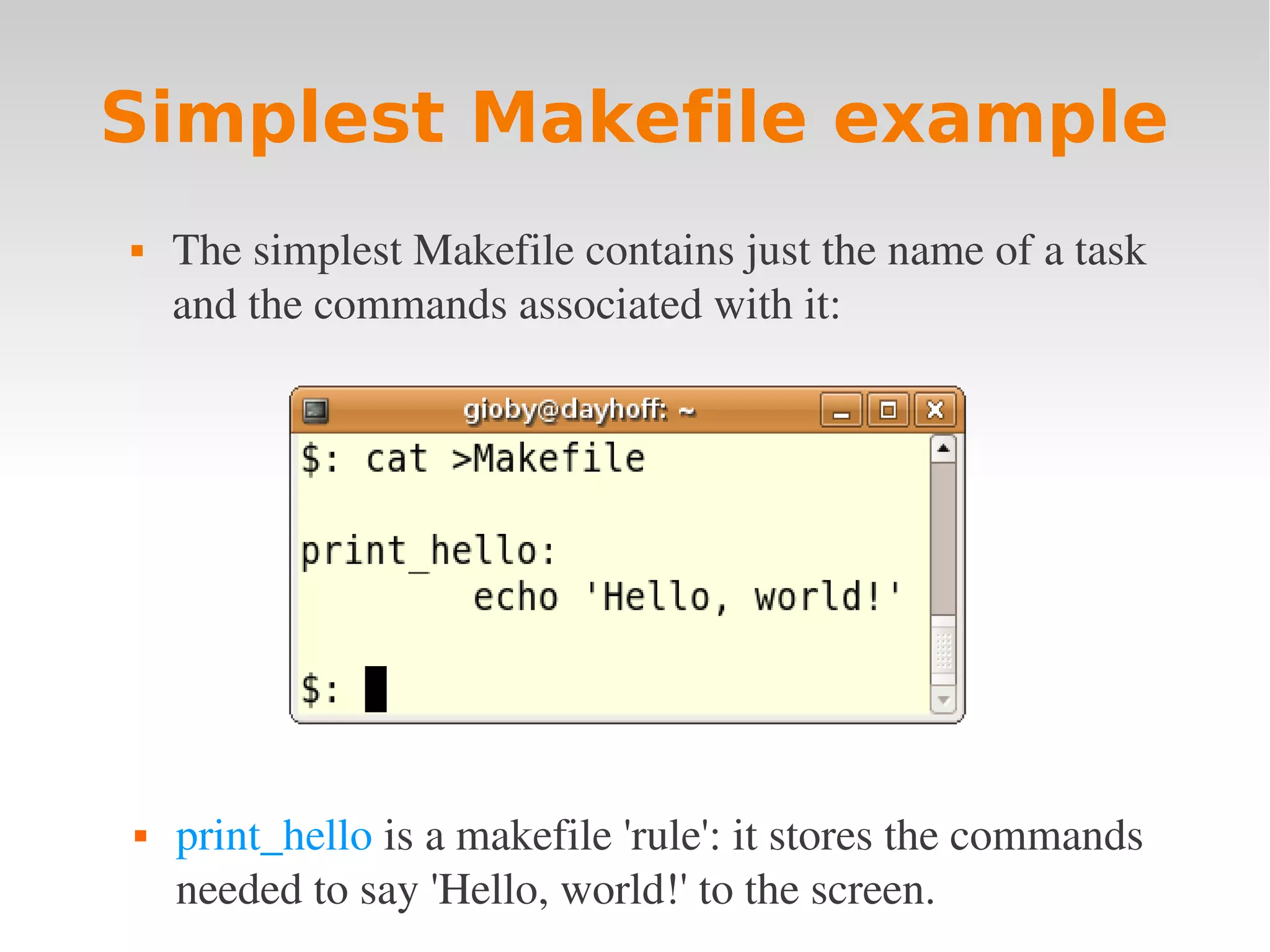

Simplest Makefile example  The simplest Makefile contains just the name of a task and the commands associated with it:  print_hello is a makefile 'rule': it stores the commands needed to say 'Hello, world!' to the screen.

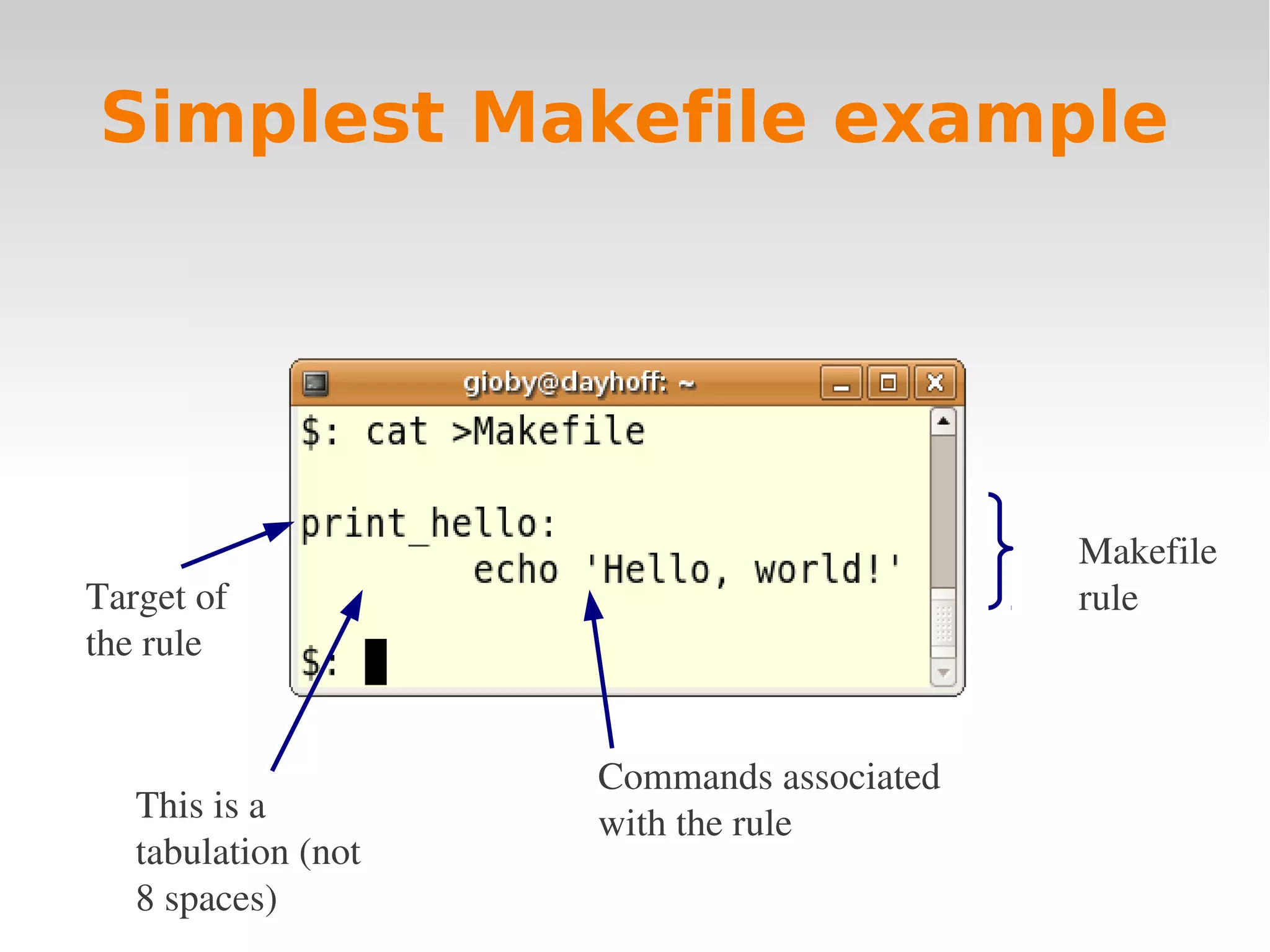

Simplest Makefile example Makefile Target of rule the rule Commands associated This is a with the rule tabulation (not 8 spaces)

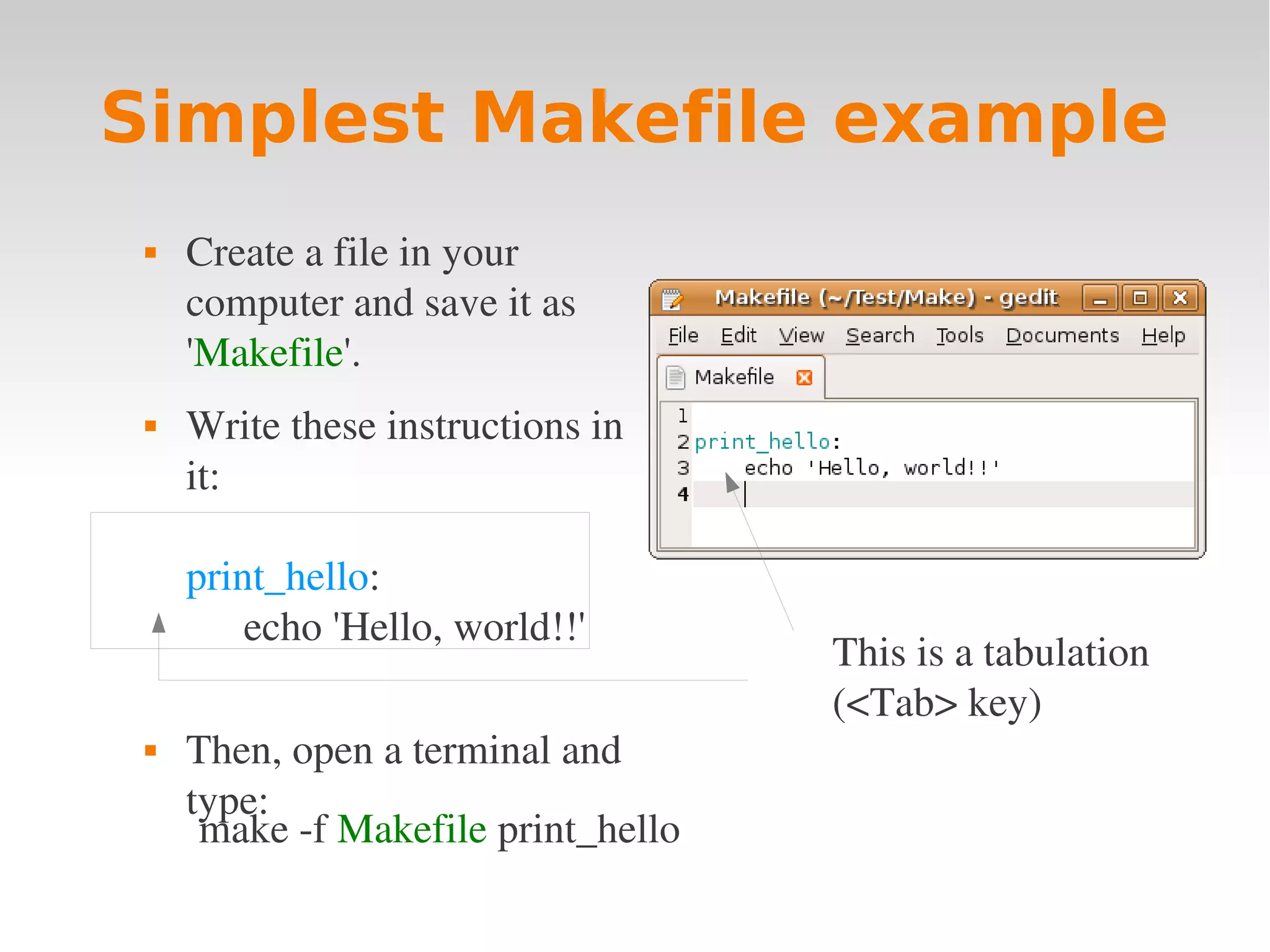

Simplest Makefile example  Create a file in your computer and save it as 'Makefile'.  Write these instructions in it: print_hello: echo 'Hello, world!!' This is a tabulation (<Tab> key)  Then, open a terminal and type: make f Makefile print_hello

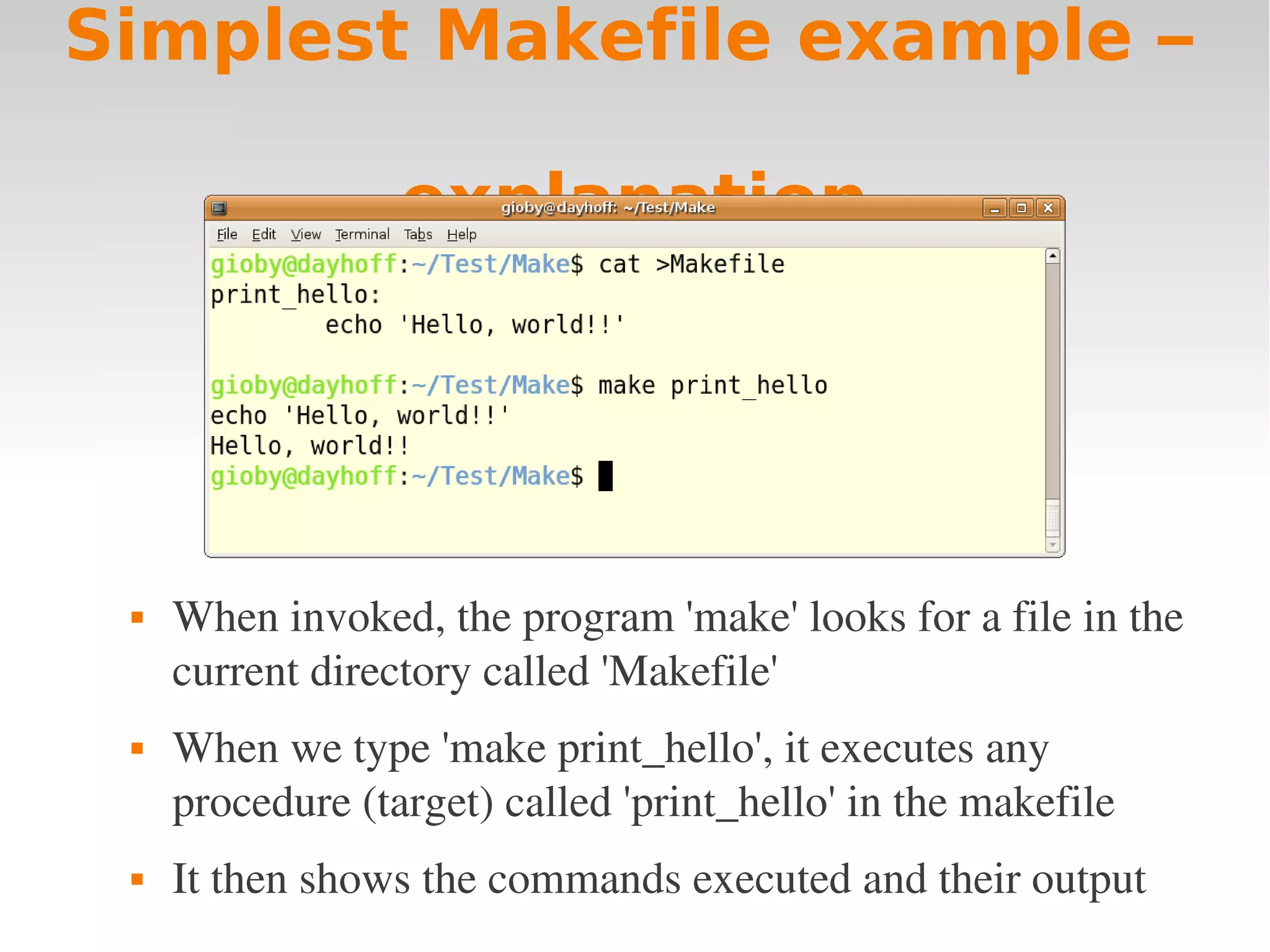

Simplest Makefile example – explanation  When invoked, the program 'make' looks for a file in the current directory called 'Makefile'  When we type 'make print_hello', it executes any procedure (target) called 'print_hello' in the makefile  It then shows the commands executed and their output

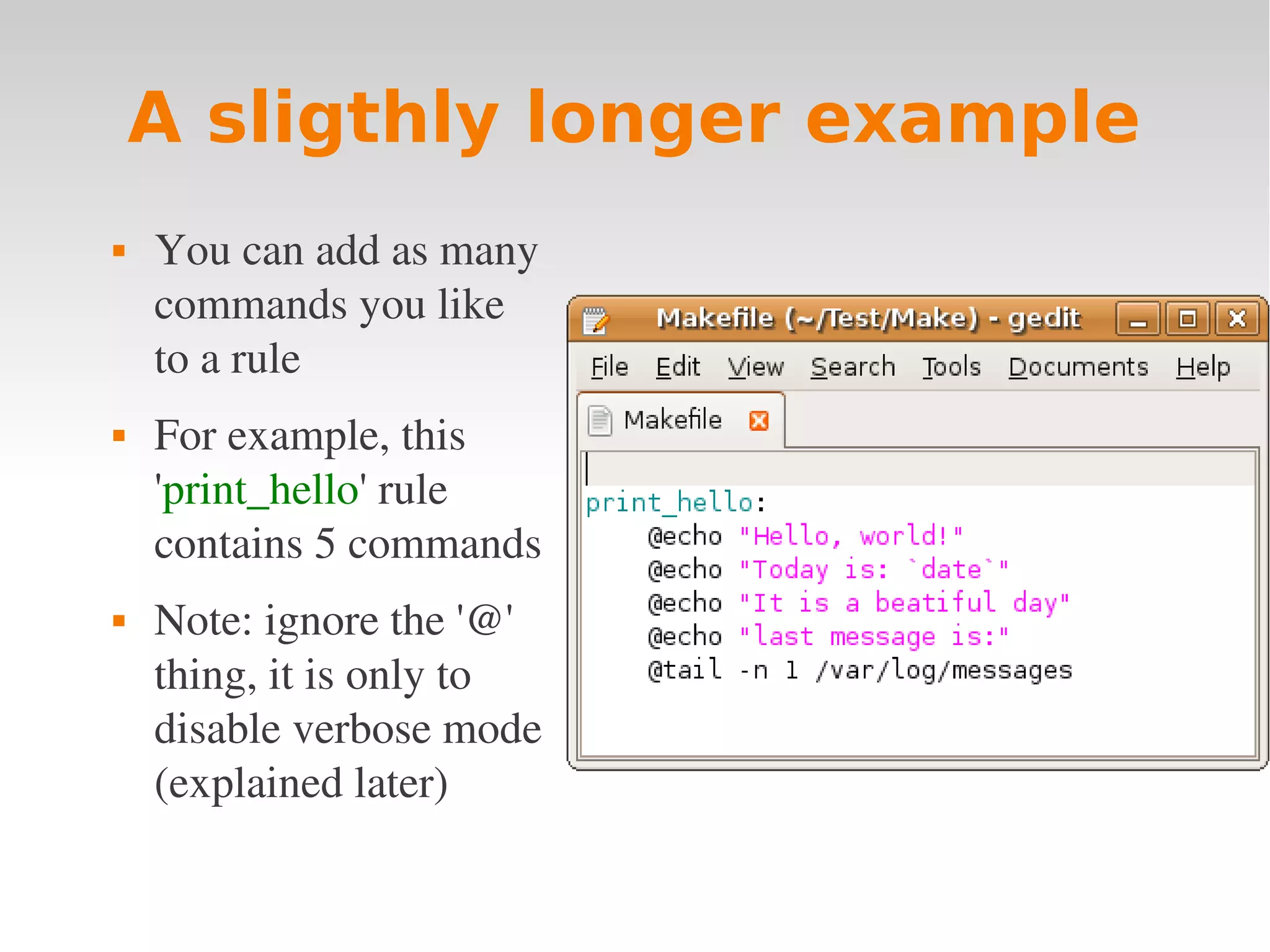

A sligthly longer example  You can add as many commands you like to a rule  For example, this 'print_hello' rule contains 5 commands  Note: ignore the '@' thing, it is only to disable verbose mode (explained later)

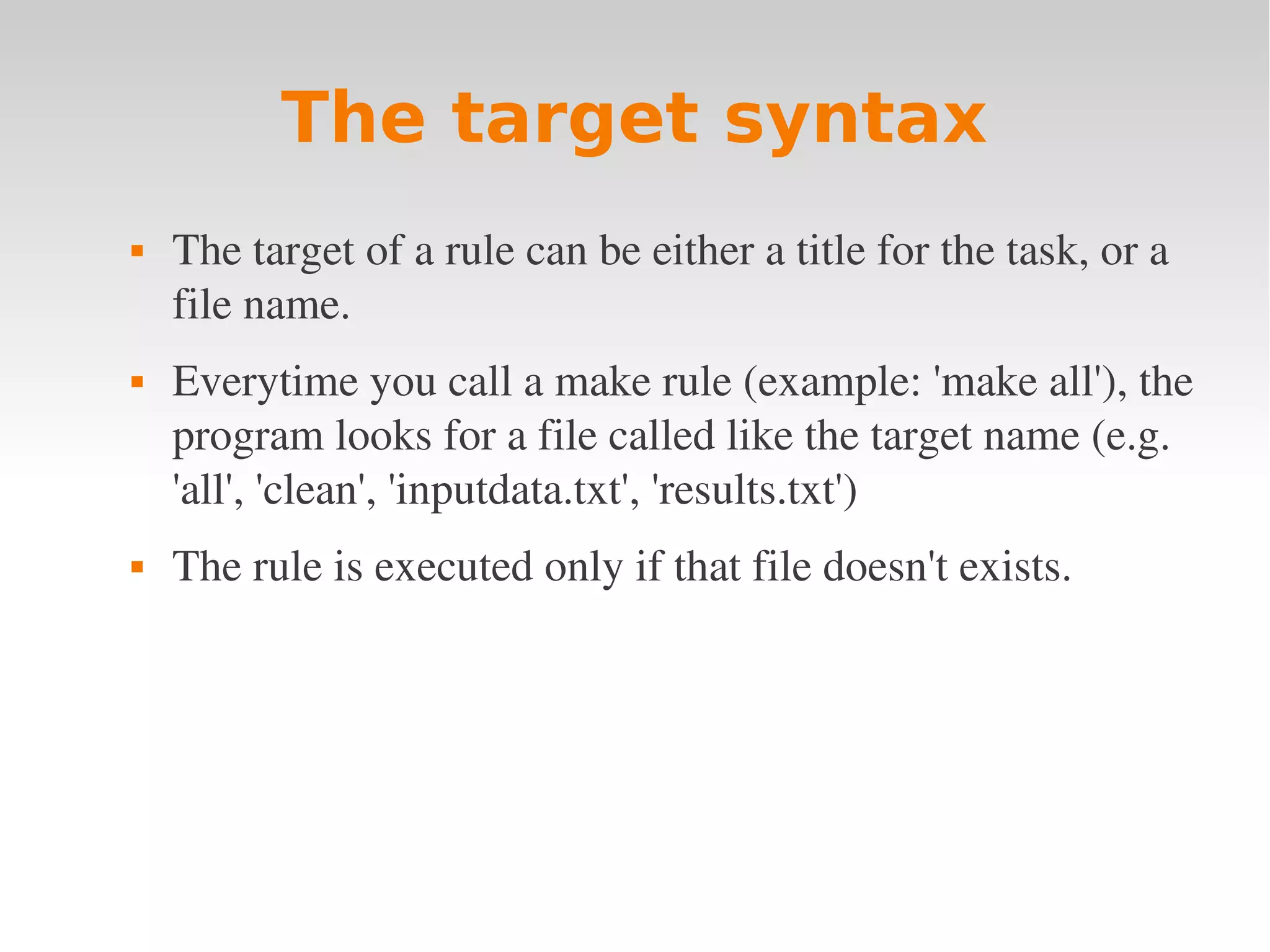

The target syntax  The target of a rule can be either a title for the task, or a file name.  Everytime you call a make rule (example: 'make all'), the program looks for a file called like the target name (e.g. 'all', 'clean', 'inputdata.txt', 'results.txt')  The rule is executed only if that file doesn't exists.

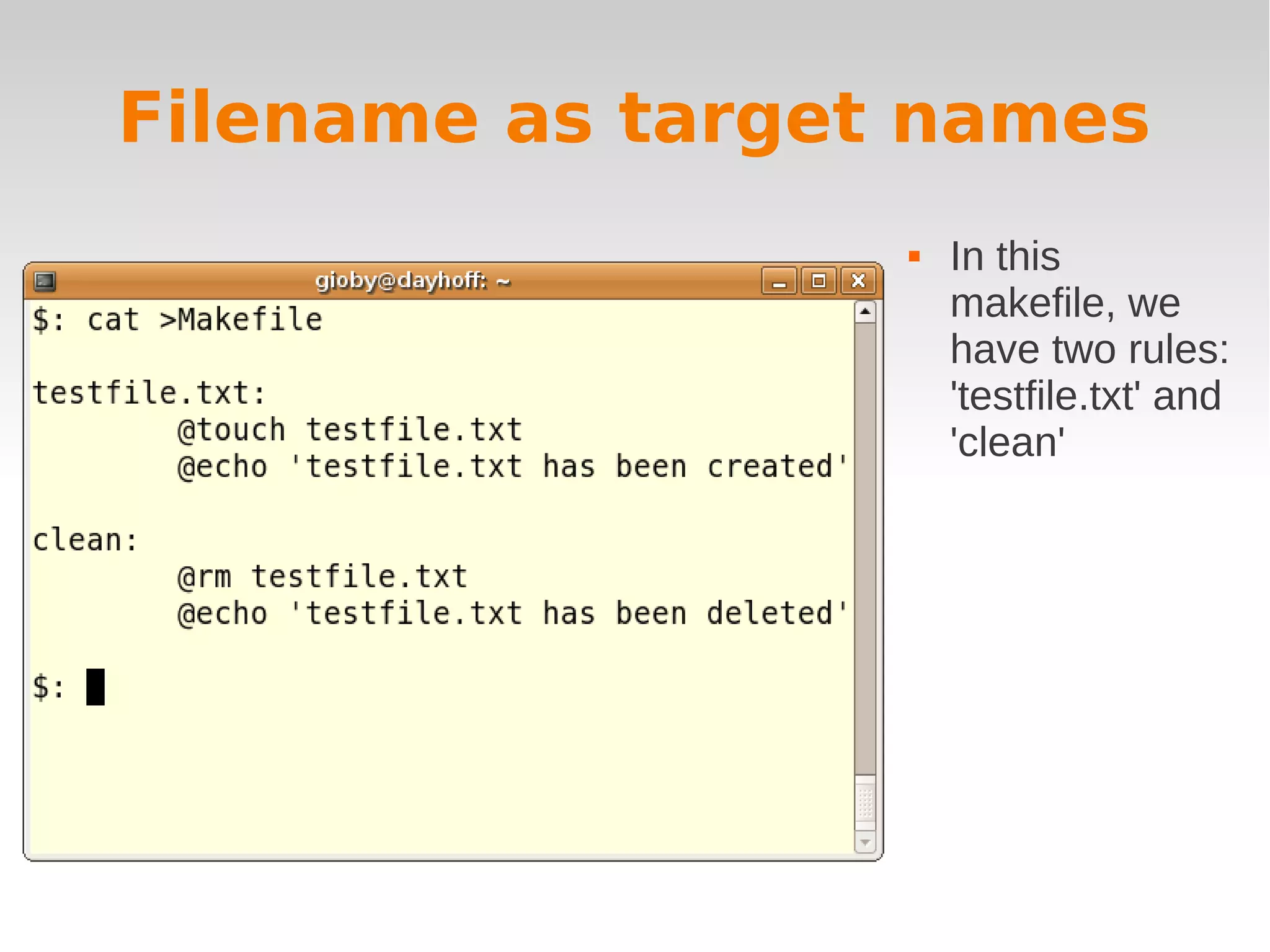

Filename as target names  In this makefile, we have two rules: 'testfile.txt' and 'clean'

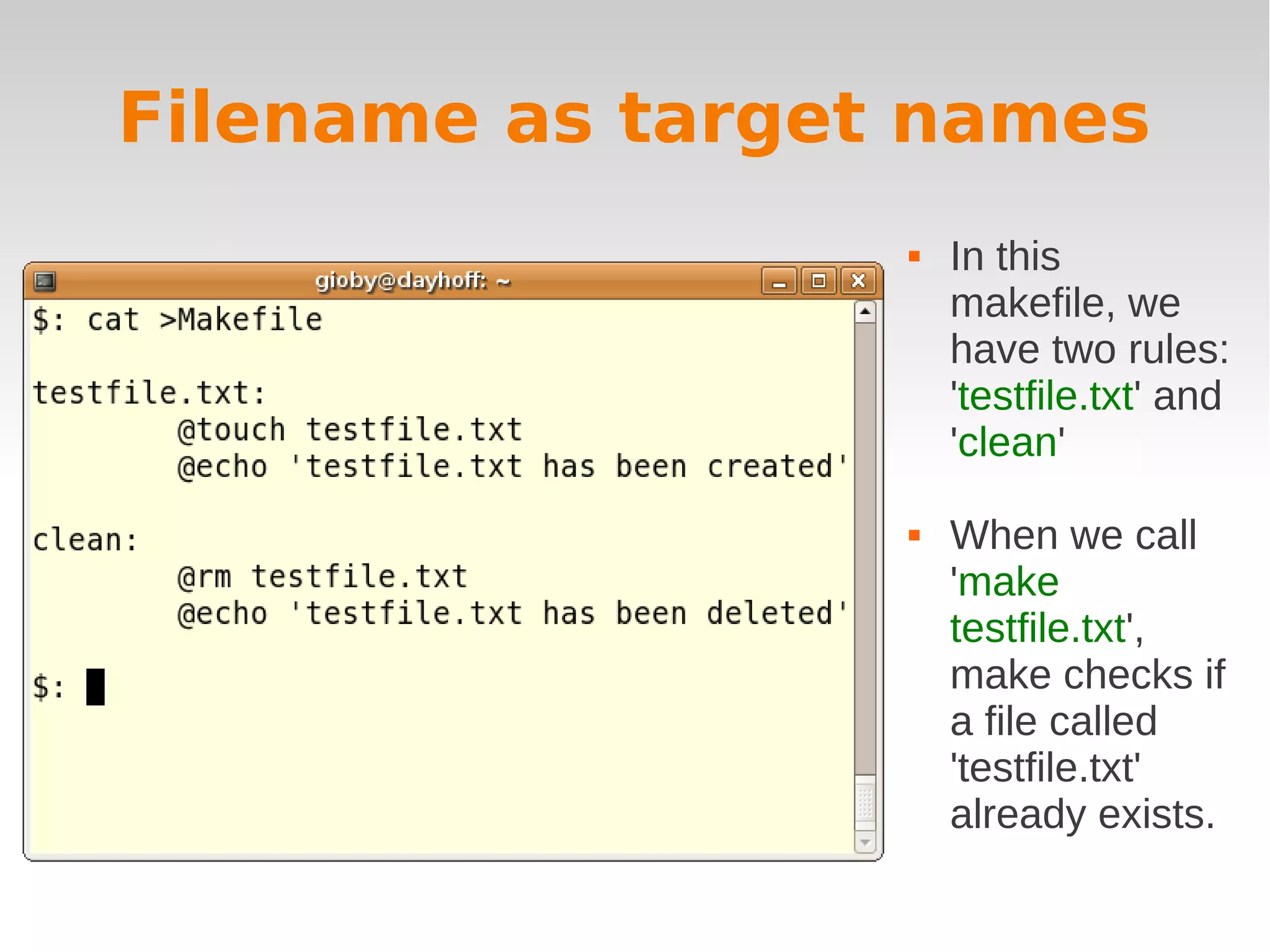

Filename as target names  In this makefile, we have two rules: 'testfile.txt' and 'clean'  When we call 'make testfile.txt', make checks if a file called 'testfile.txt' already exists.

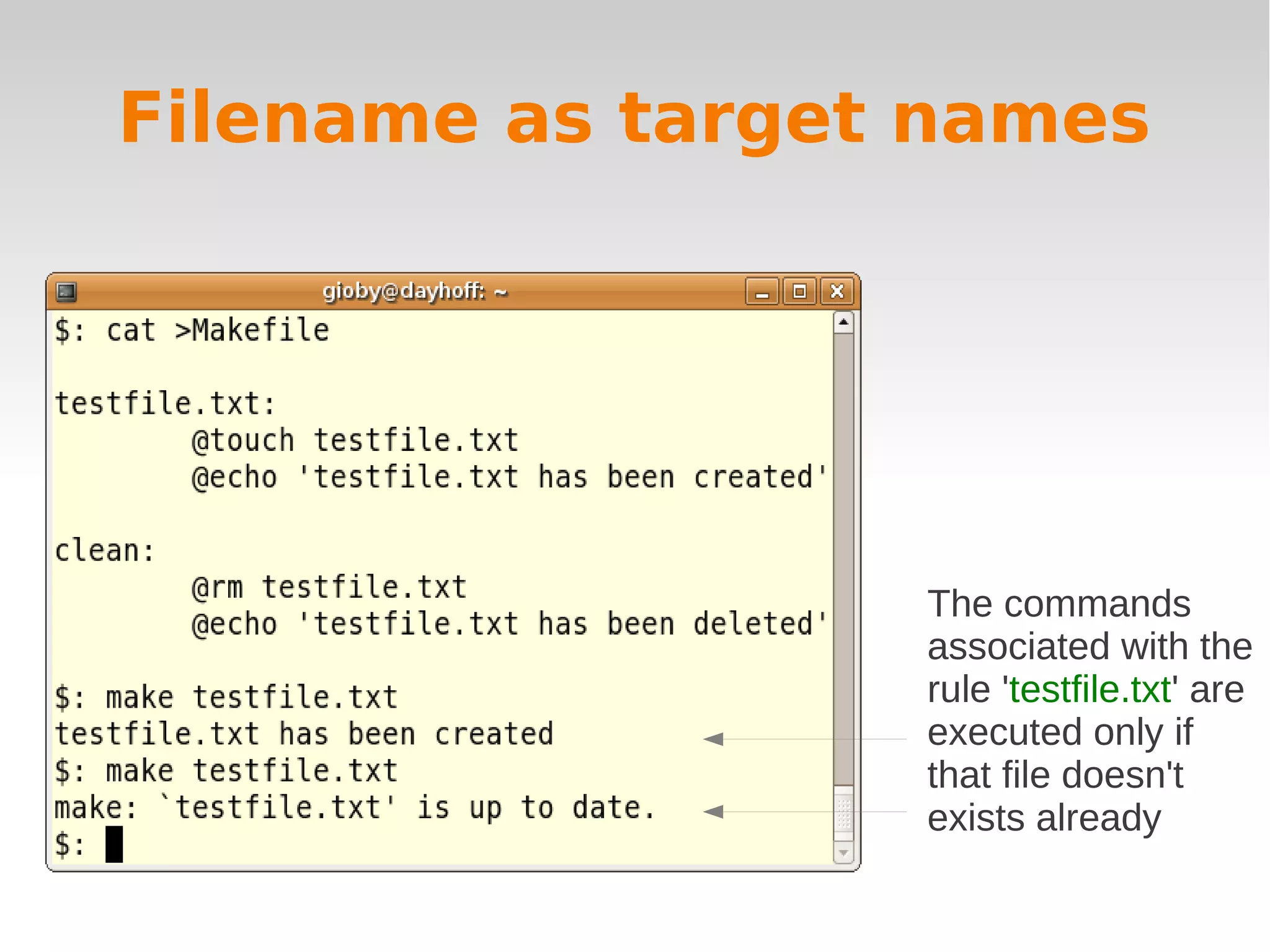

Filename as target names The commands associated with the rule 'testfile.txt' are executed only if that file doesn't exists already

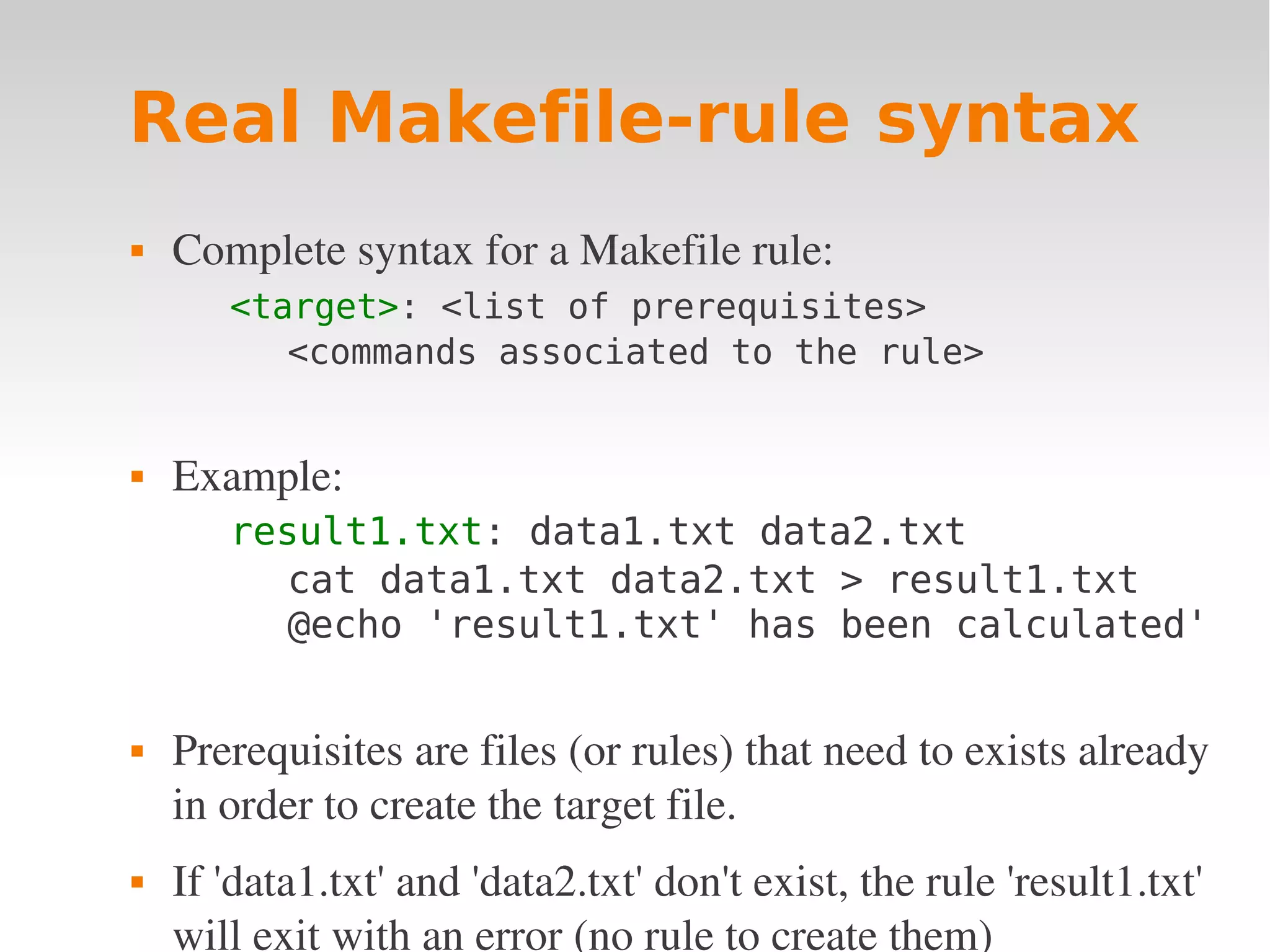

Real Makefile-rule syntax  Complete syntax for a Makefile rule: <target>: <list of prerequisites> <commands associated to the rule>  Example: result1.txt: data1.txt data2.txt cat data1.txt data2.txt > result1.txt @echo 'result1.txt' has been calculated'  Prerequisites are files (or rules) that need to exists already in order to create the target file.  If 'data1.txt' and 'data2.txt' don't exist, the rule 'result1.txt' will exit with an error (no rule to create them)

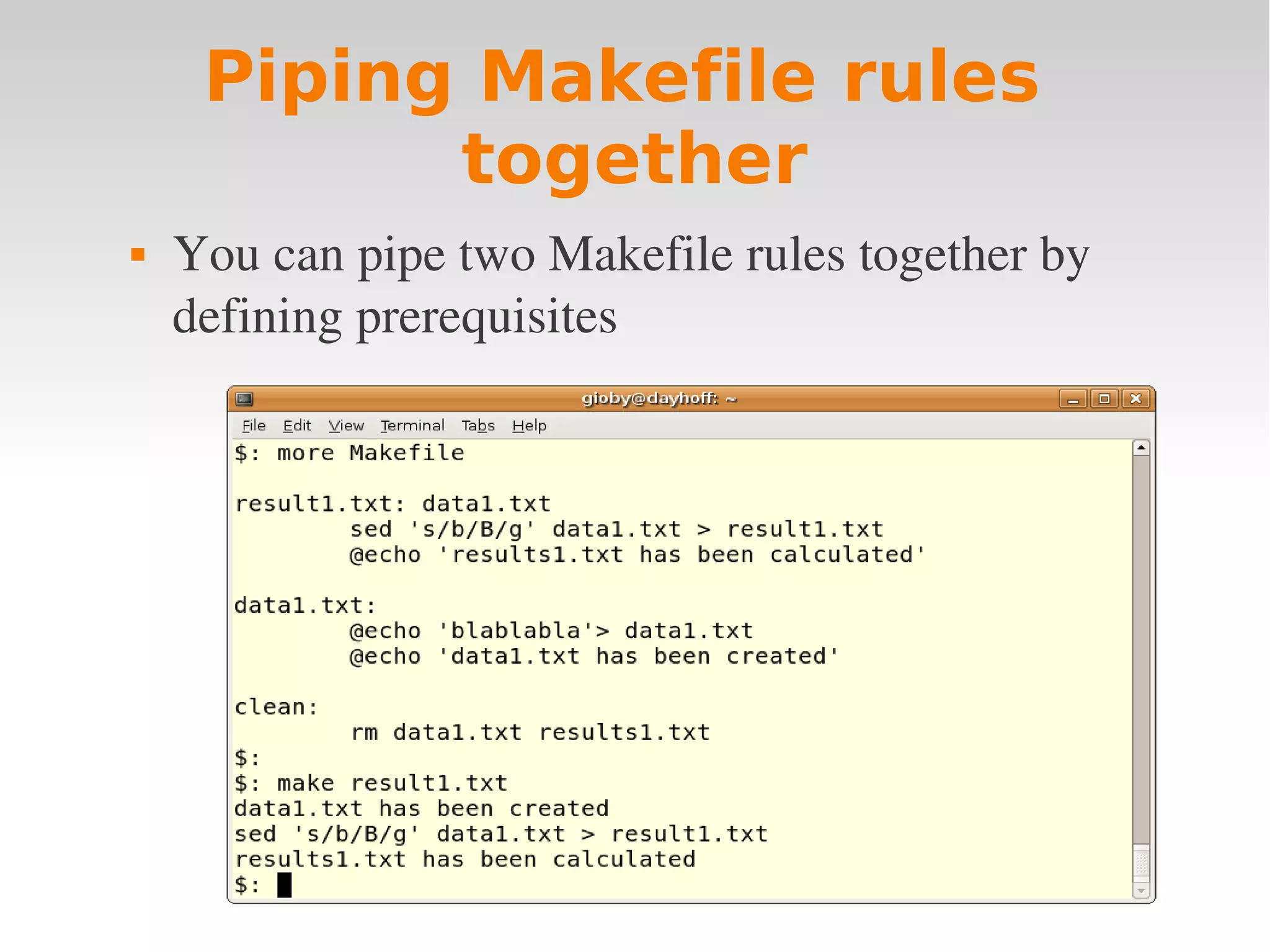

Piping Makefile rules together  You can pipe two Makefile rules together by defining prerequisites

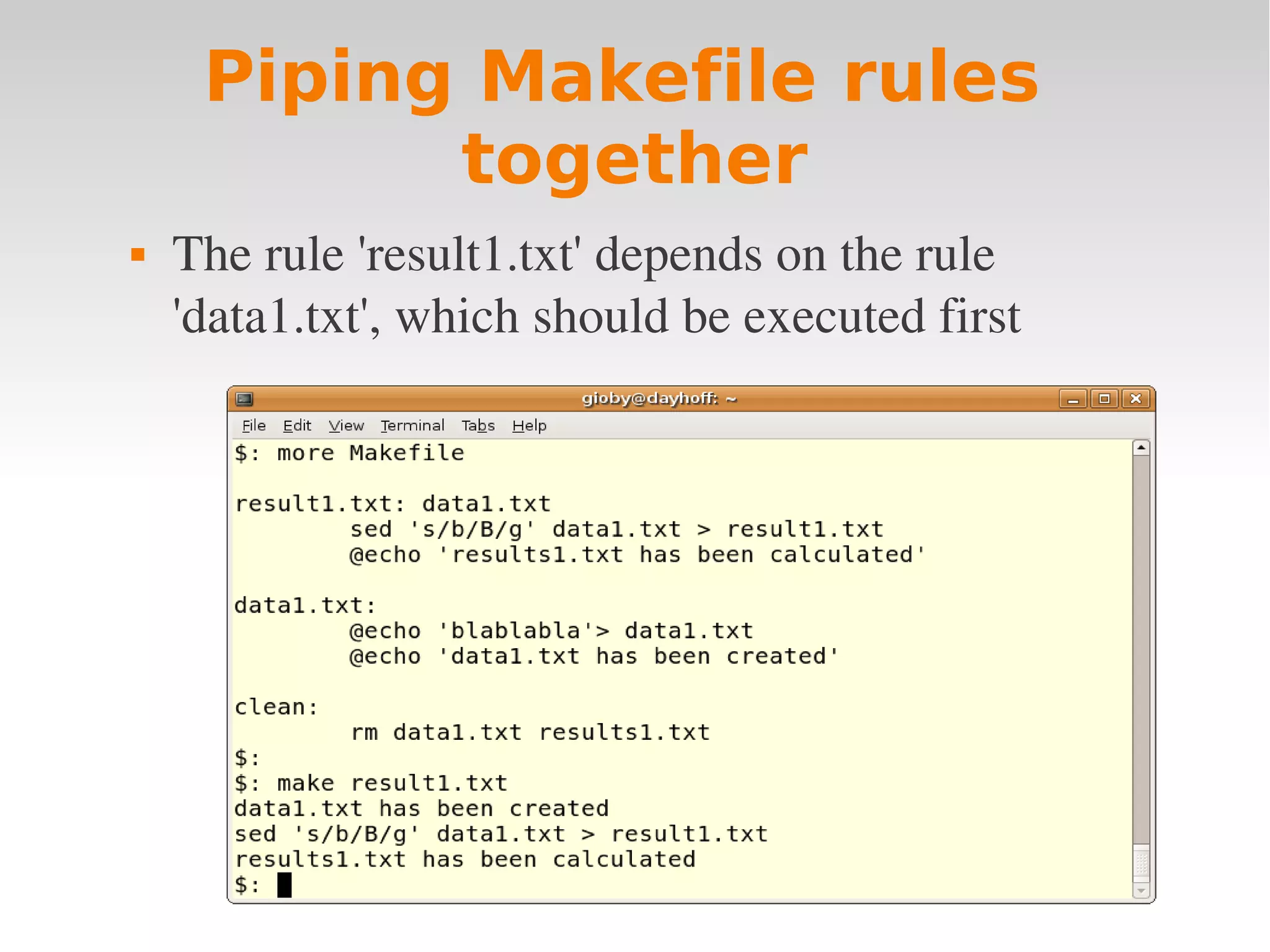

Piping Makefile rules together  The rule 'result1.txt' depends on the rule 'data1.txt', which should be executed first

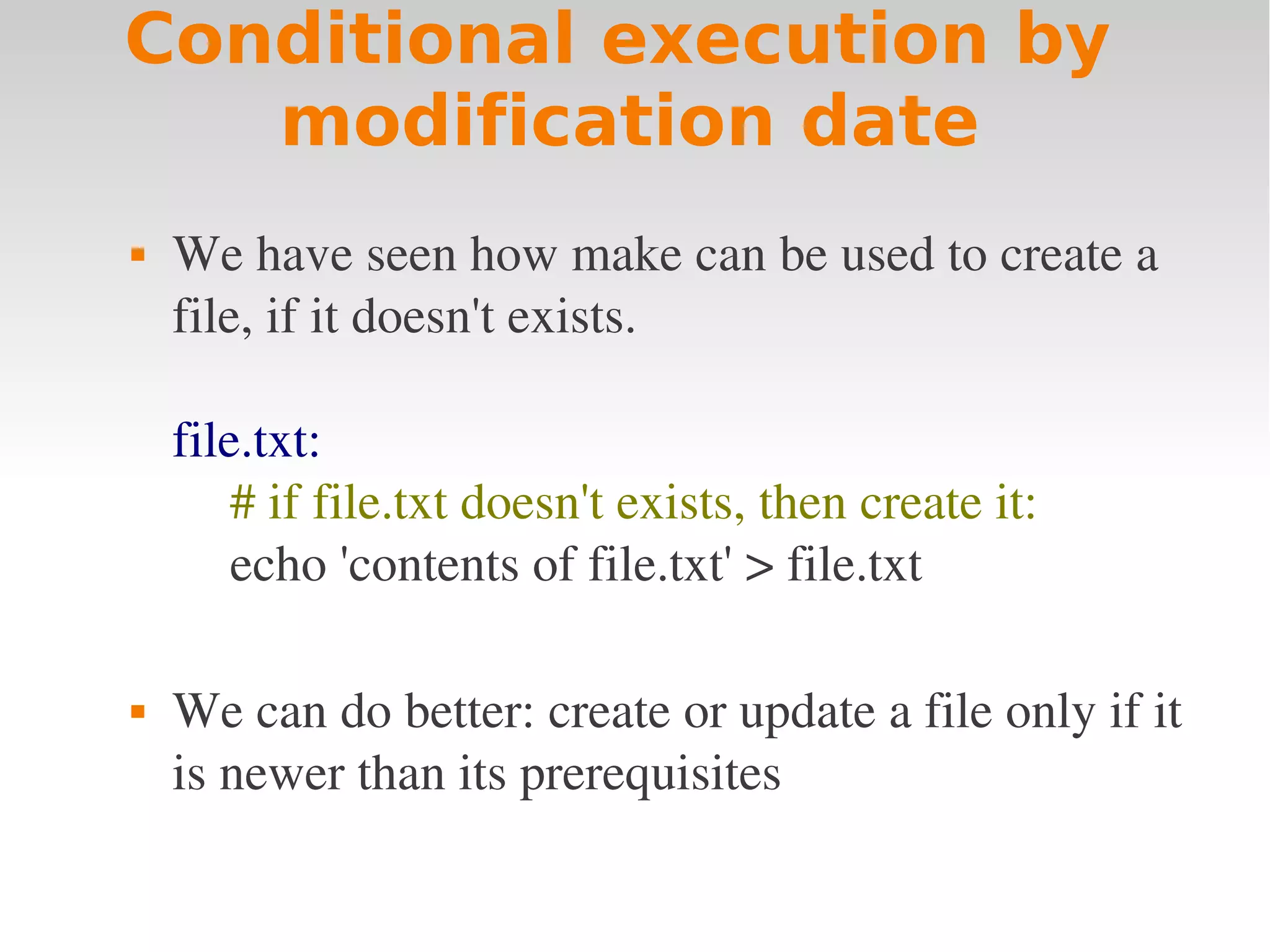

Conditional execution by modification date  We have seen how make can be used to create a file, if it doesn't exists. file.txt: # if file.txt doesn't exists, then create it: echo 'contents of file.txt' > file.txt  We can do better: create or update a file only if it is newer than its prerequisites

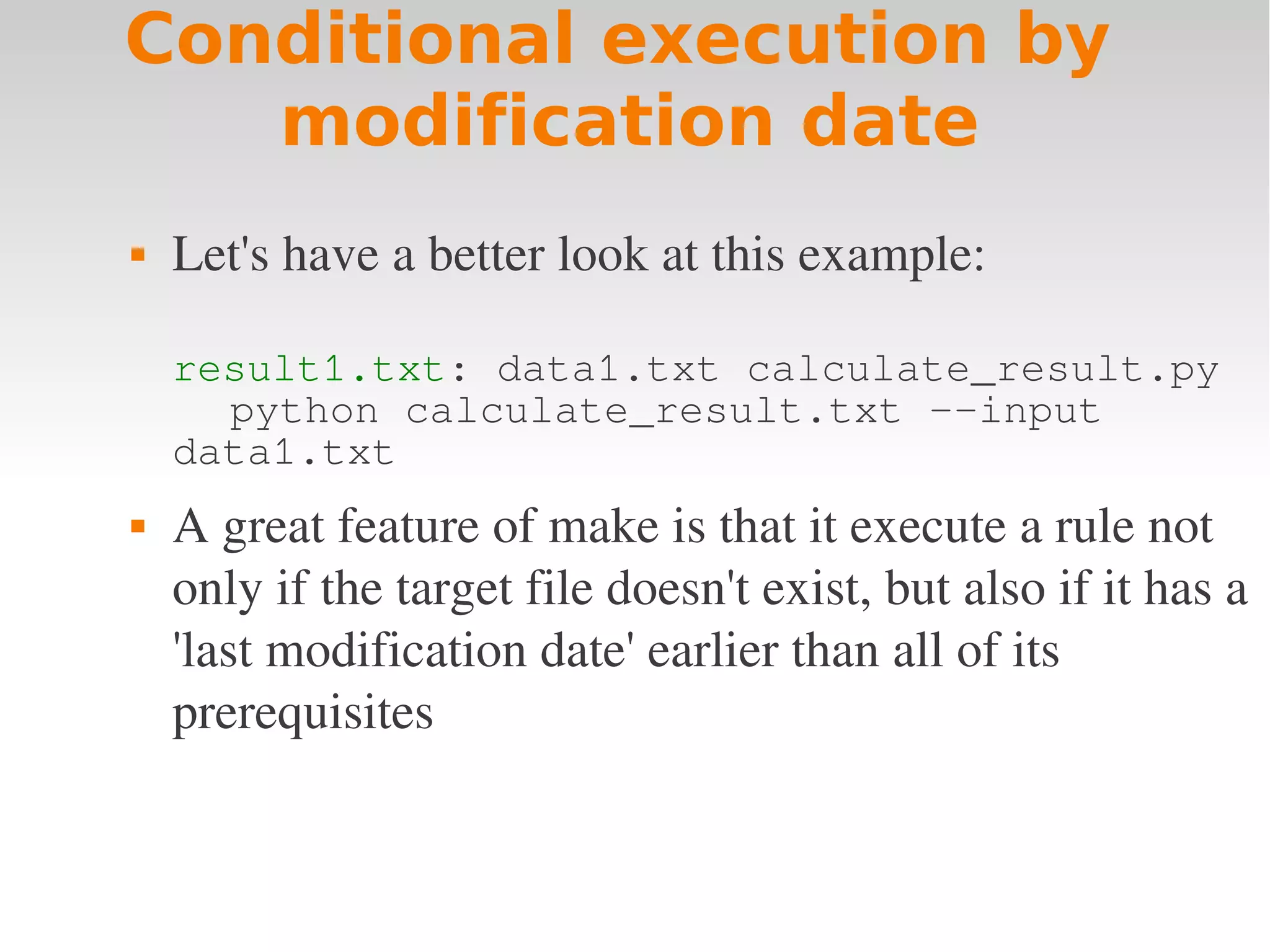

Conditional execution by modification date  Let's have a better look at this example: result1.txt: data1.txt calculate_result.py python calculate_result.txt --input data1.txt  A great feature of make is that it execute a rule not only if the target file doesn't exist, but also if it has a 'last modification date' earlier than all of its prerequisites

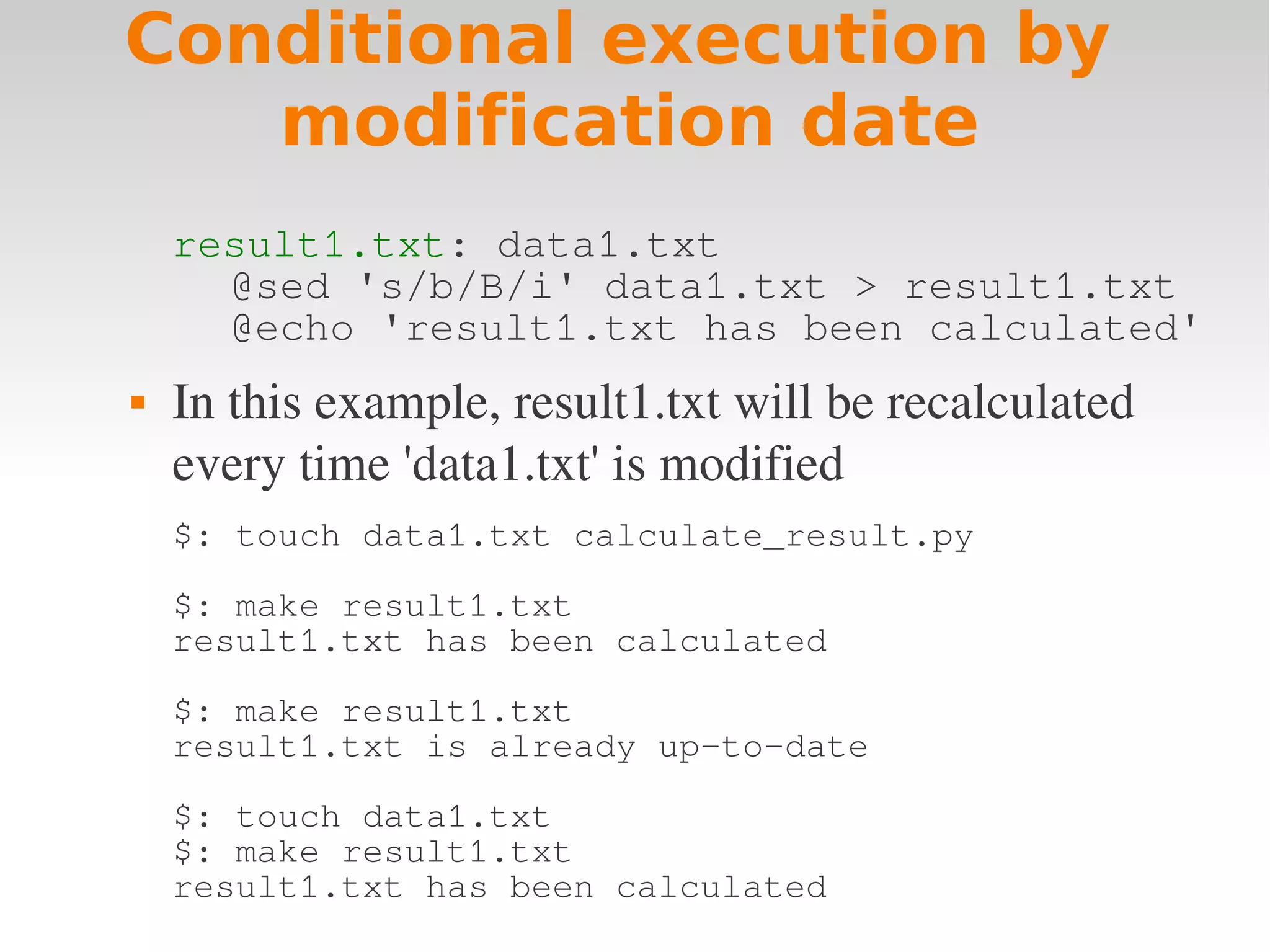

Conditional execution by modification date result1.txt: data1.txt @sed 's/b/B/i' data1.txt > result1.txt @echo 'result1.txt has been calculated'  In this example, result1.txt will be recalculated every time 'data1.txt' is modified $: touch data1.txt calculate_result.py $: make result1.txt result1.txt has been calculated $: make result1.txt result1.txt is already up-to-date $: touch data1.txt $: make result1.txt result1.txt has been calculated

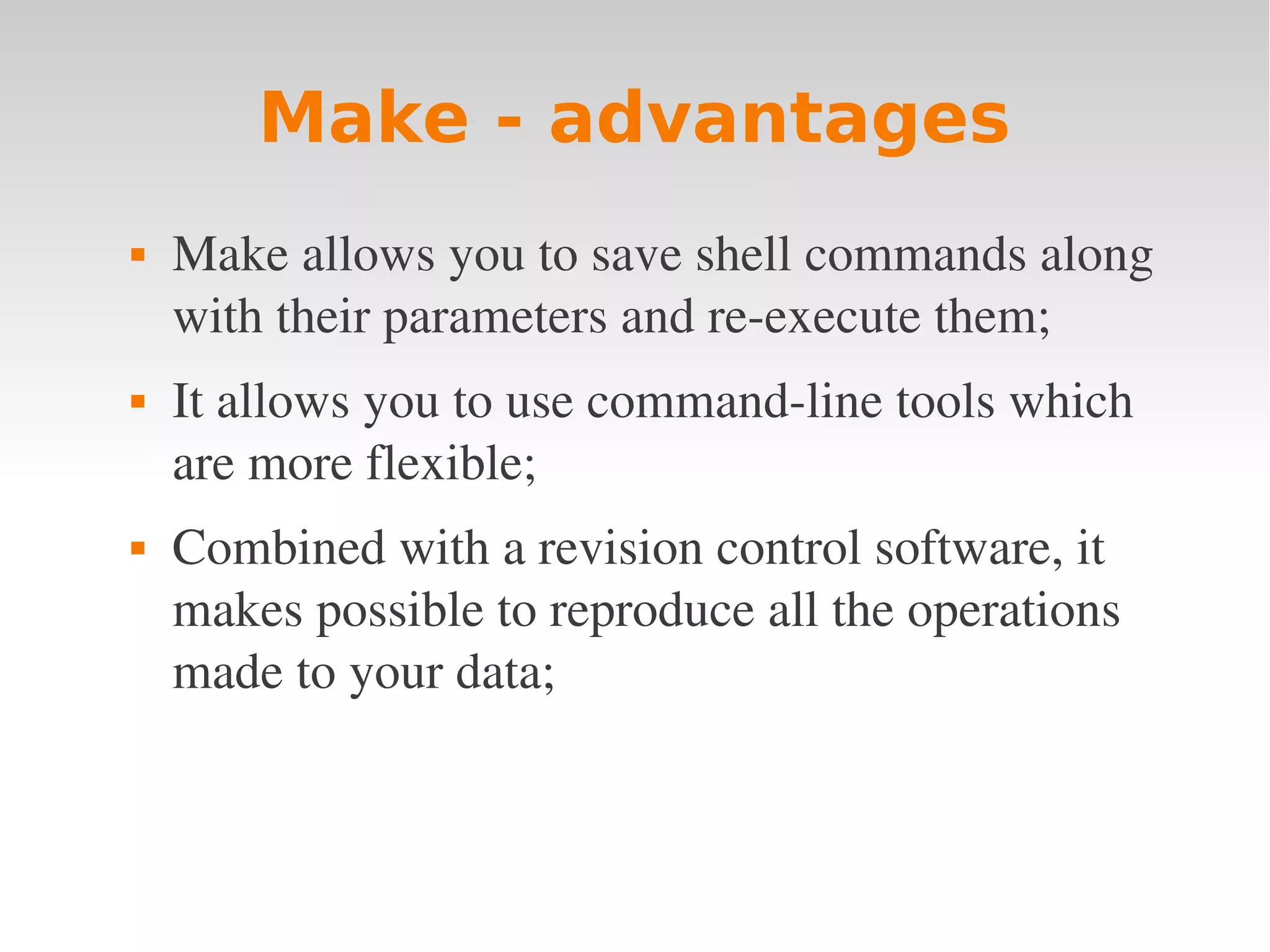

Make - advantages  Make allows you to save shell commands along with their parameters and reexecute them;  It allows you to use commandline tools which are more flexible;  Combined with a revision control software, it makes possible to reproduce all the operations made to your data;

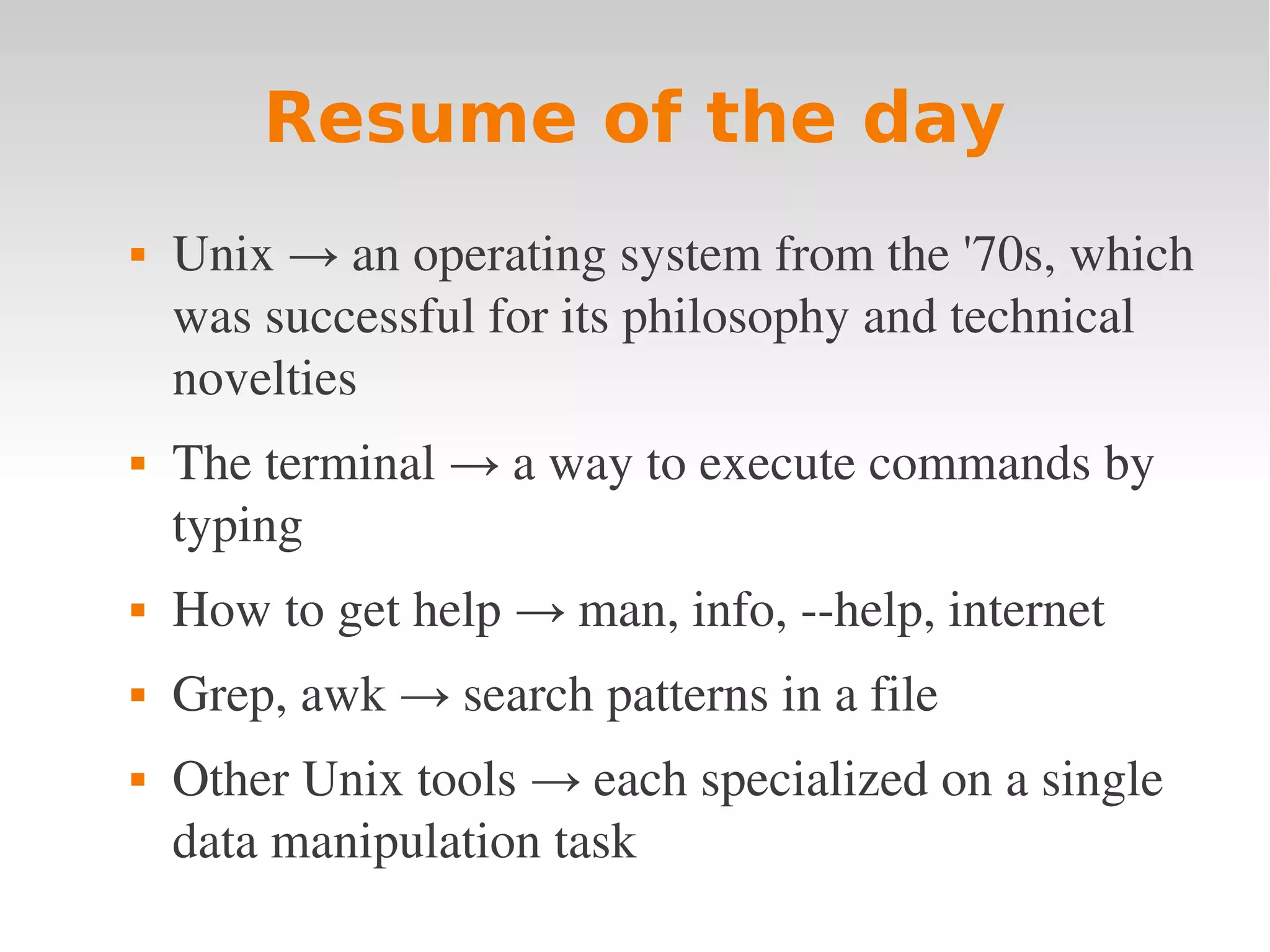

Resume of the day  Unix → an operating system from the '70s, which was successful for its philosophy and technical novelties  The terminal → a way to execute commands by typing  How to get help → man, info, help, internet  Grep, awk → search patterns in a file  Other Unix tools → each specialized on a single data manipulation task
