  ESP8266 NodeMCU Course Getting Startedwith ESP8266
• 2.
  What we learnin this Lesson • About the ESP8266. • ESP8266 Versions. • ESP8266 Pinout.
• 3.
  Getting Started withESP8266 • The ESP8266 is a Wi-Fi module great for IoT and Home Automation projects. Eng. Elaf A.Saeed
• 4.
  About the ESP8266 •The ESP8266 is a $4 (up to $10) Wi-Fi module. It allows you to control inputs and outputs as you would do with an Arduino, but it comes with Wi-Fi. • So, it is great for home automation/internet of things applications. • So what can you do with this low cost module?  create a web server  send HTTP requests  control outputs  read inputs and interrupts  send emails  post tweets Eng. Elaf A.Saeed
• 5.
  About the ESP8266 •The ESP8266 peripherals include:  17 GPIOs (some versions)  SPI  I2C (implemented on software)  I2S interfaces with DMA  UART  10-bit ADC Eng. Elaf A.Saeed
• 6.

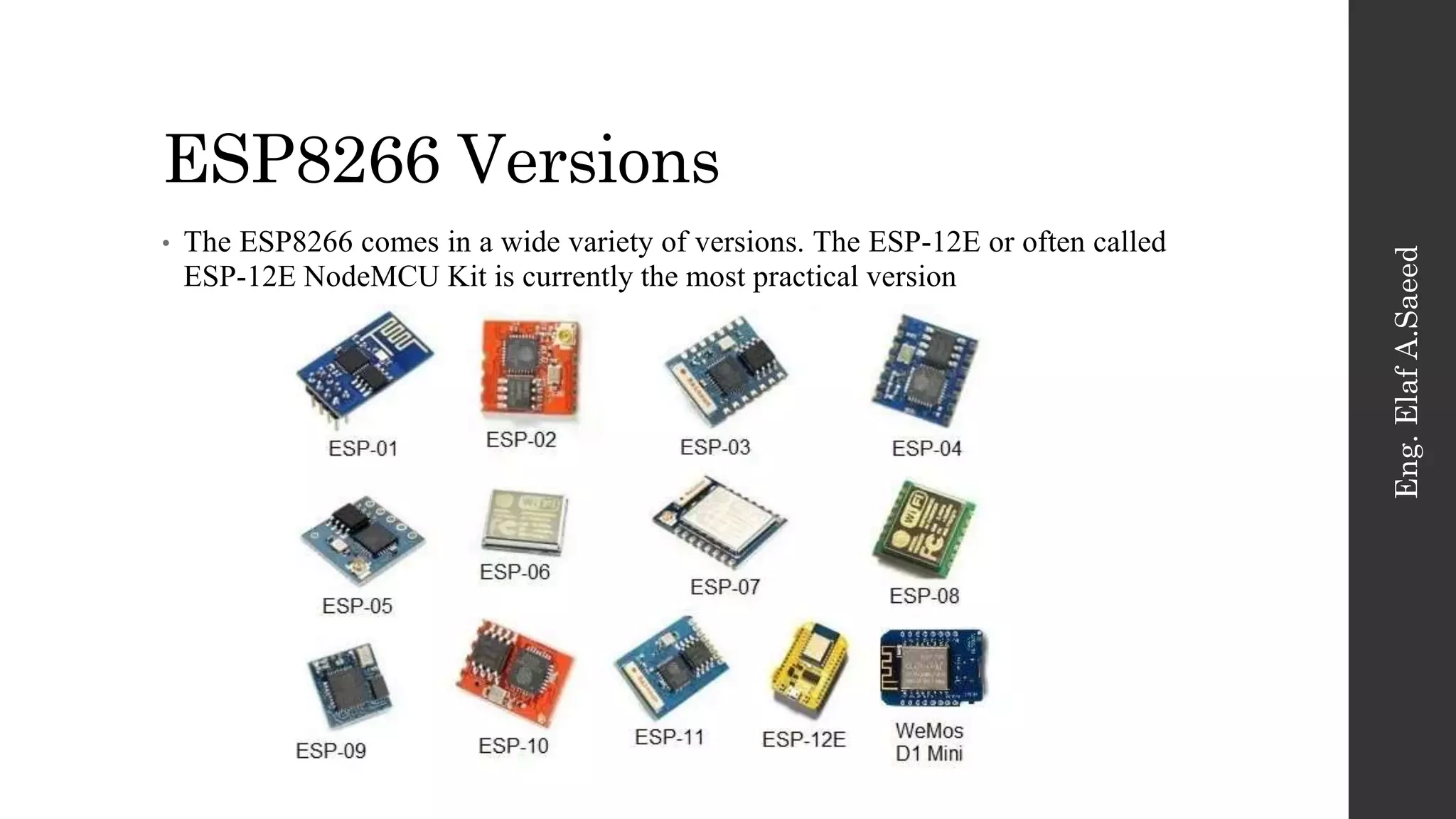

  ESP8266 Versions • TheESP8266 comes in a wide variety of versions. The ESP-12E or often called ESP-12E NodeMCU Kit is currently the most practical version Eng. Elaf A.Saeed
• 7.

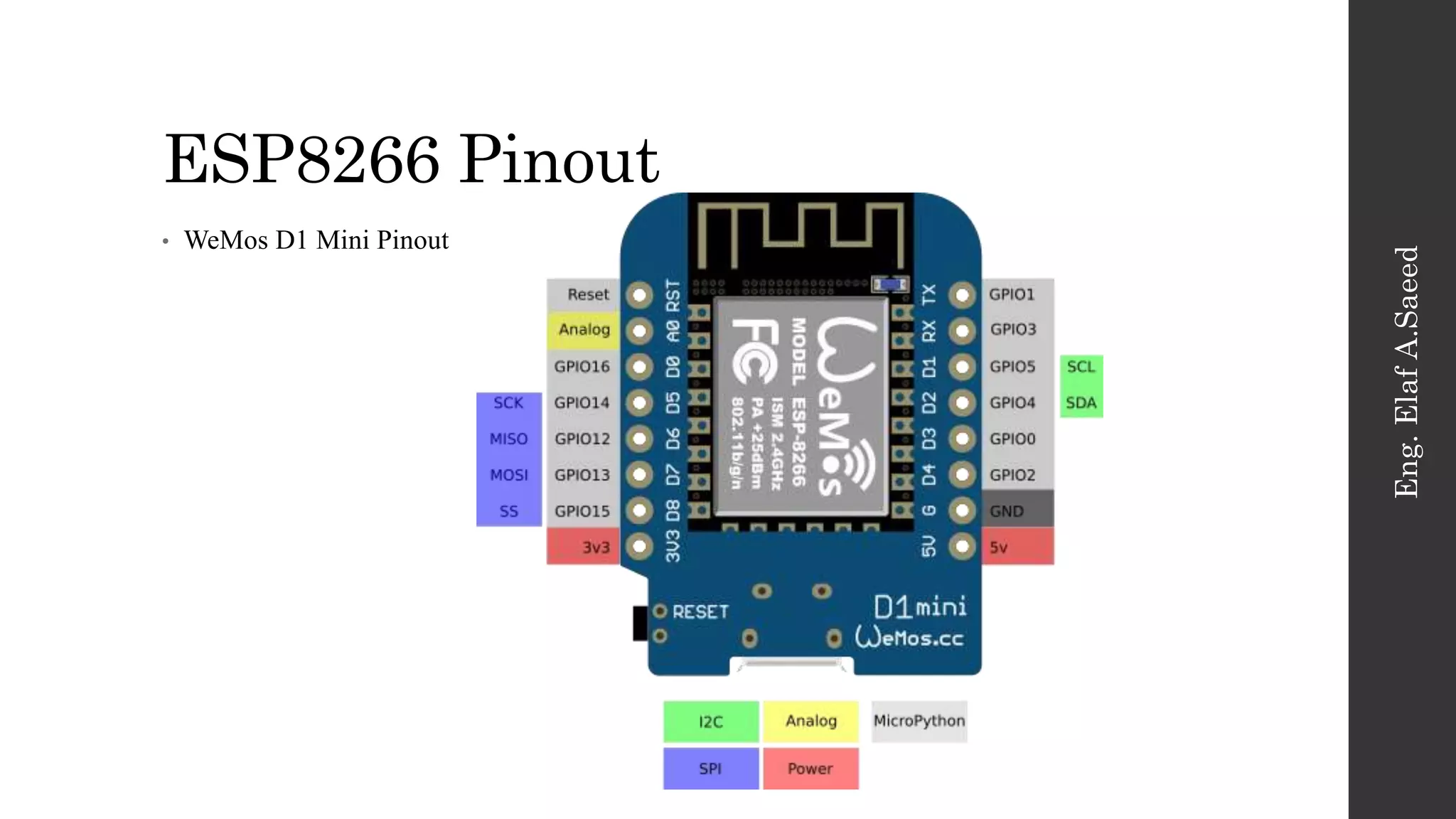

  ESP8266 Pinout • WeMosD1 Mini Pinout Eng. Elaf A.Saeed
• 8.
  ESP8266 Pinout • ESP8266-01Pinout Eng. Elaf A.Saeed
• 9.
  ESP8266 Pinout • ESP826612-E Chip Pinout Eng. Elaf A.Saeed
• 10.
  ESP8266 Pinout • ESP-12ENodeMCU Kit Pinout Eng. Elaf A.Saeed
