Introduction to  computational thinking Module 10 : User defined functions  and modules Asst Prof Michael Lees Office: N4‐02c‐76 email: mhlees[at]ntu.edu.sg Module 10 : User defined functions and  modules

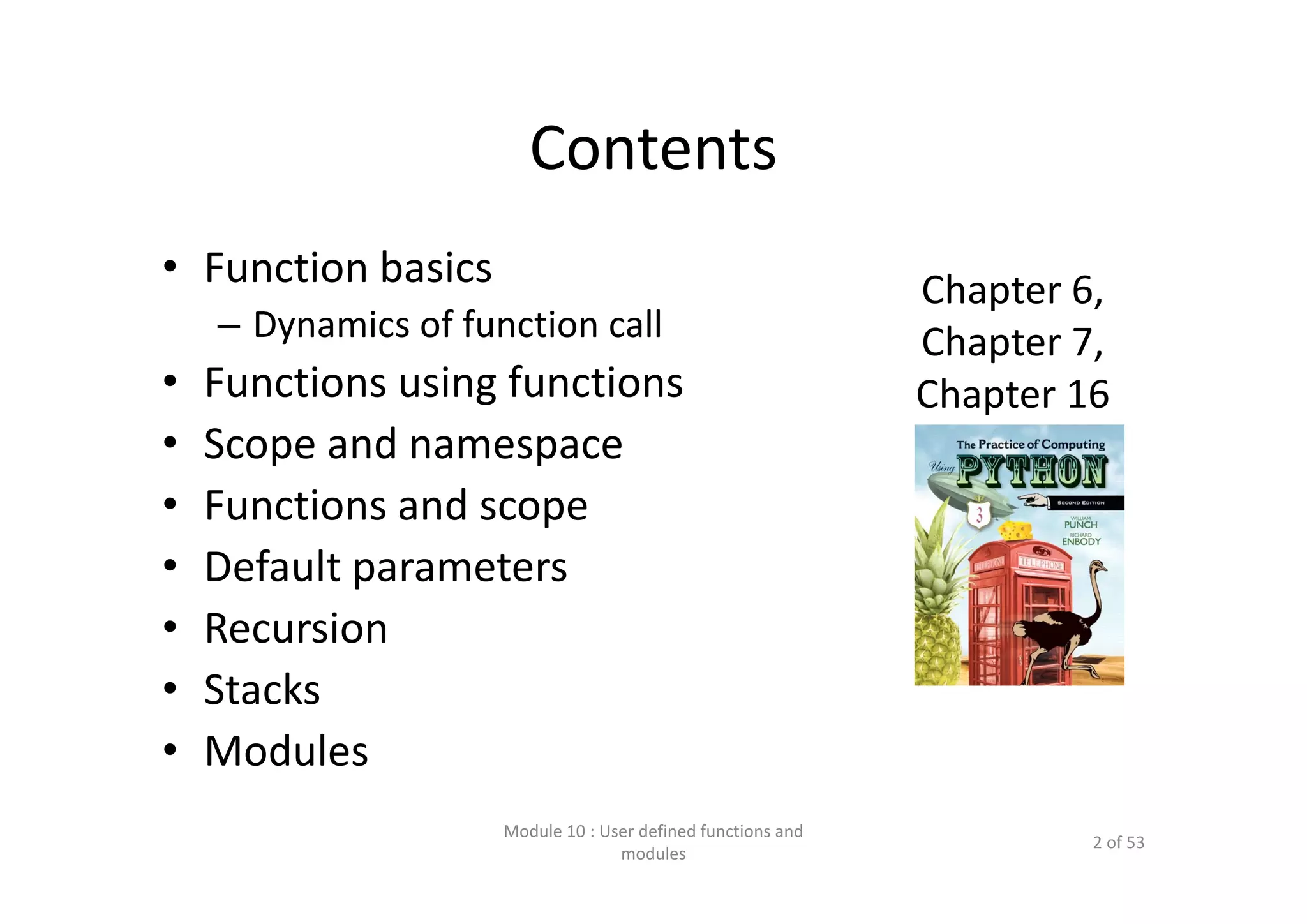

Contents • Function basics – Dynamics of function call • Functions using functions • Scope and namespace • Functions and scope • Default parameters • Recursion • Stacks • Modules Module 10 : User defined functions and  modules 2 of 53 Chapter 6, Chapter 7, Chapter 16

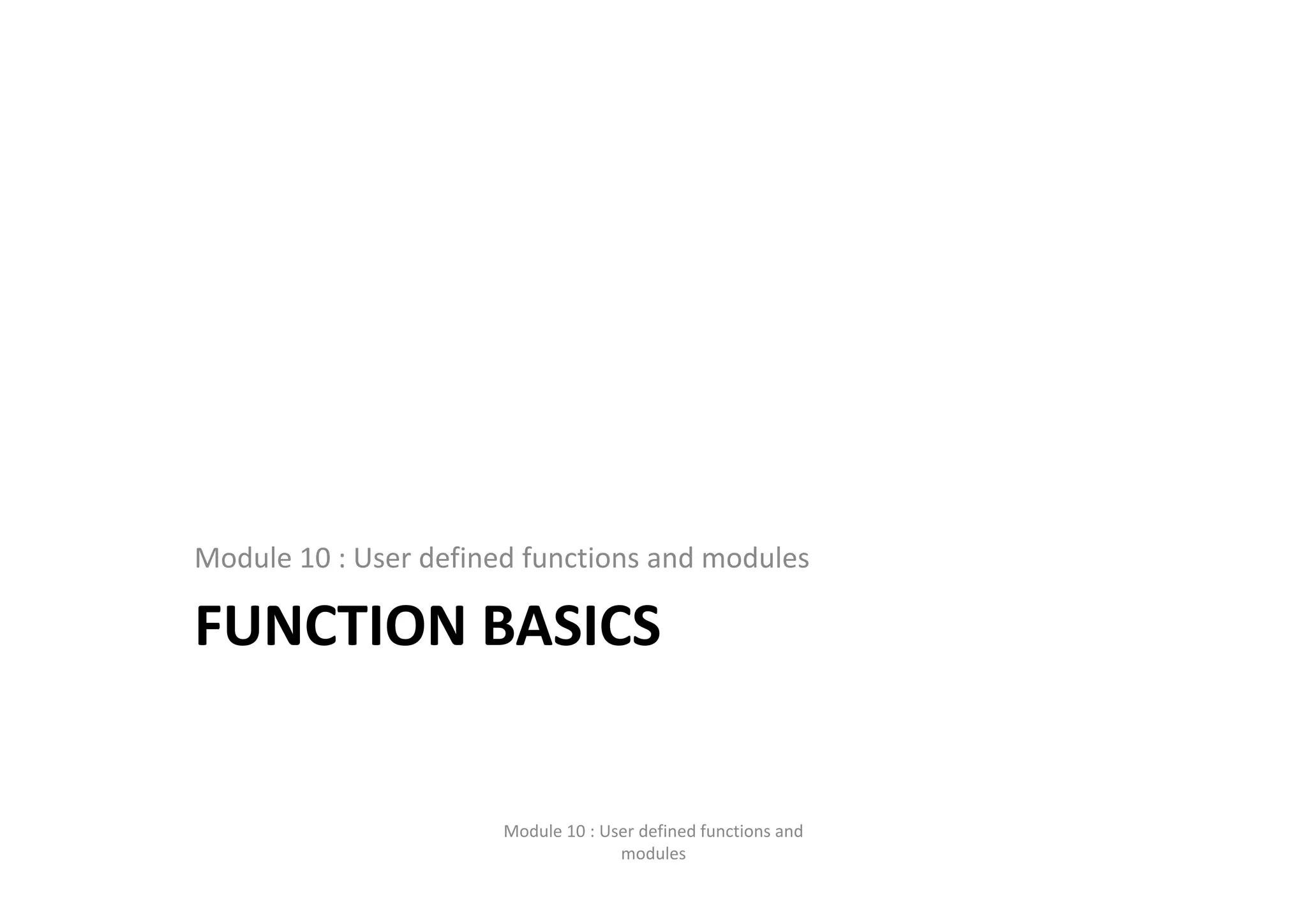

FUNCTION BASICS Module 10 : User defined functions and modules Module 10 : User defined functions and  modules

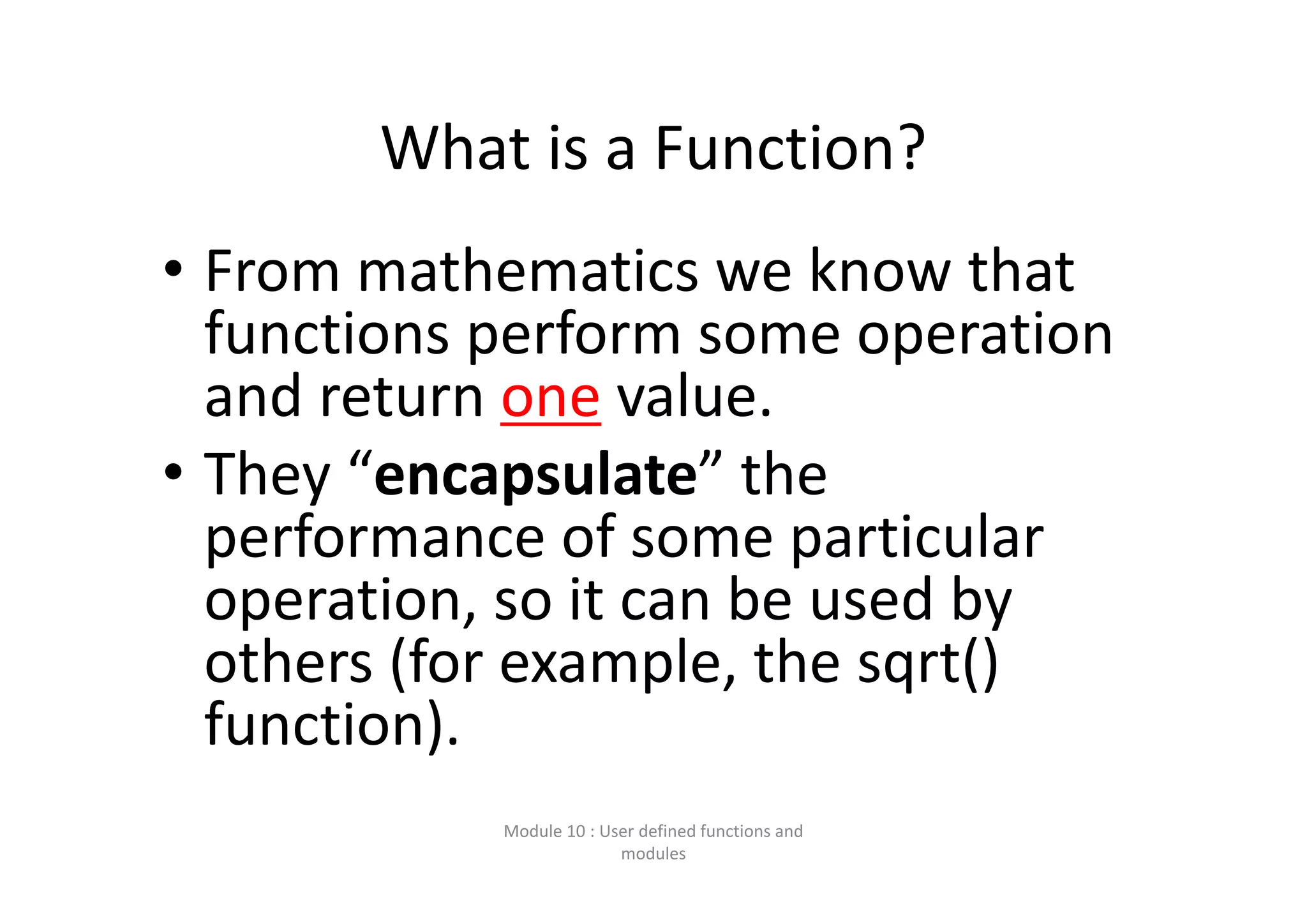

What is a Function? • From mathematics we know that  functions perform some operation  and return one value. • They “encapsulate” the  performance of some particular  operation, so it can be used by  others (for example, the sqrt()  function). Module 10 : User defined functions and  modules

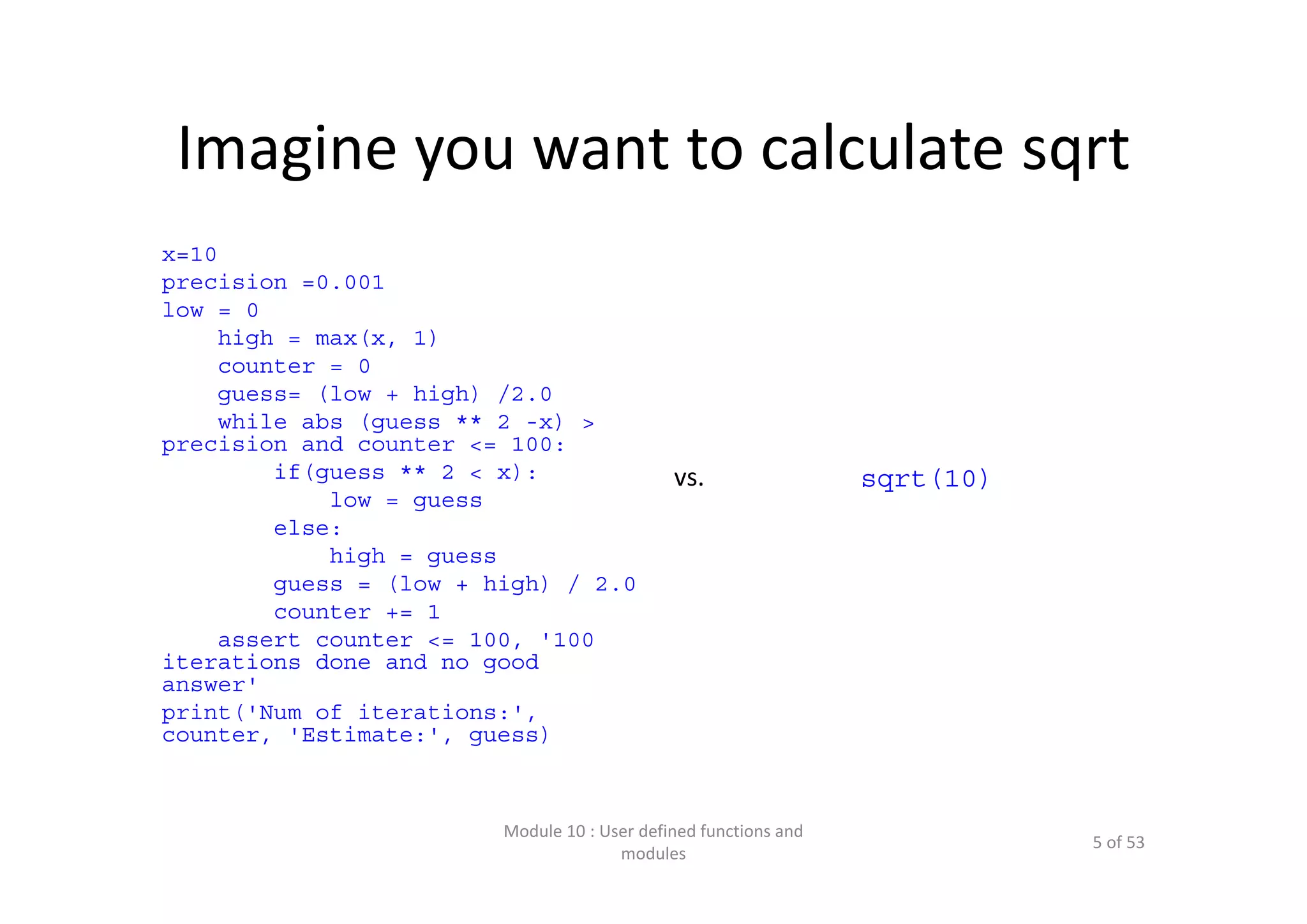

Imagine you want to calculate sqrt x=10 precision =0.001 low = 0 high = max(x, 1) counter = 0 guess= (low + high) /2.0 while abs (guess ** 2 -x) > precision and counter <= 100: if(guess ** 2 < x): low = guess else: high = guess guess = (low + high) / 2.0 counter += 1 assert counter <= 100, '100 iterations done and no good answer' print('Num of iterations:', counter, 'Estimate:', guess) Module 10 : User defined functions and  modules 5 of 53 vs. sqrt(10)

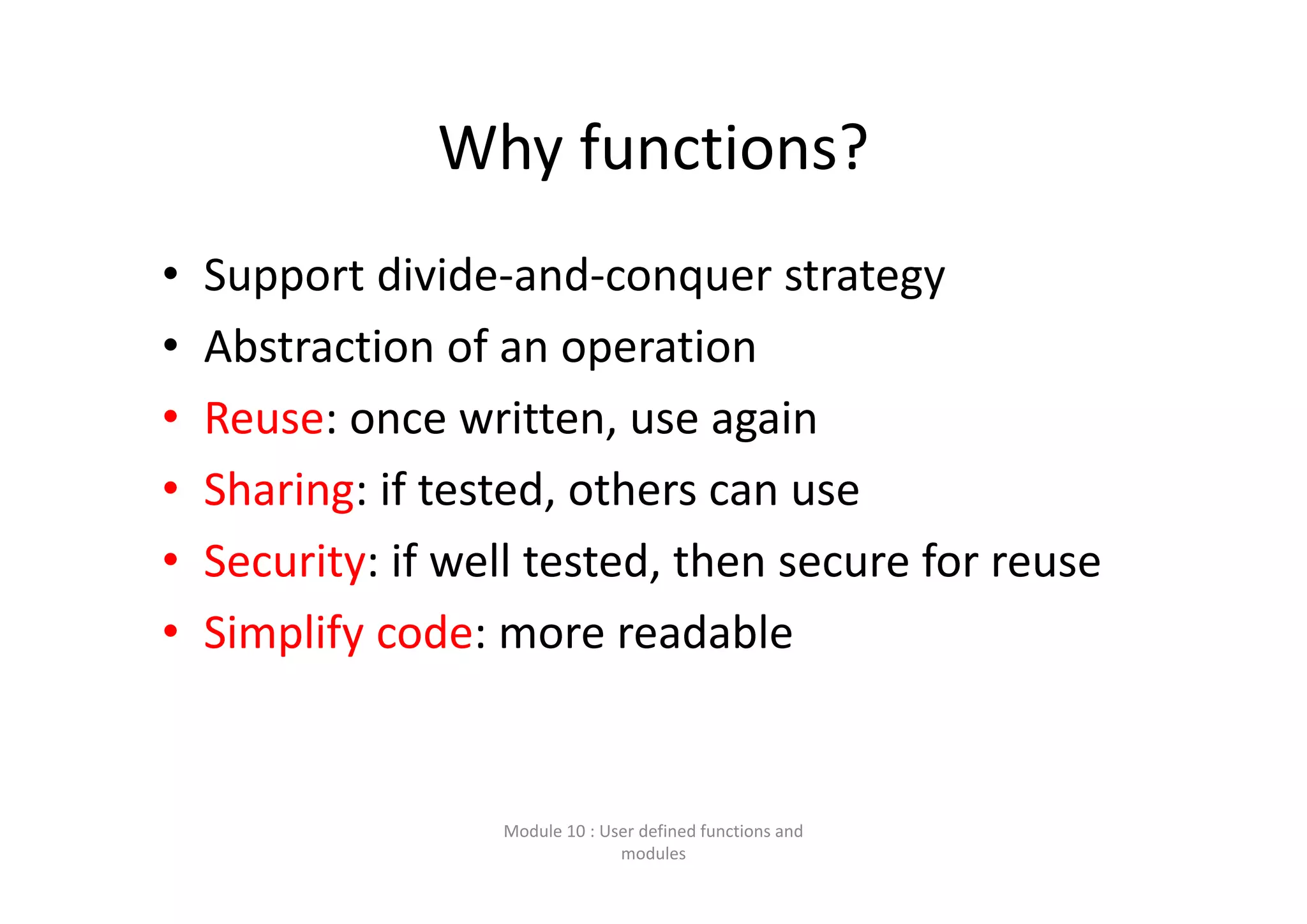

Why functions? • Support divide‐and‐conquer strategy • Abstraction of an operation • Reuse: once written, use again • Sharing: if tested, others can use • Security: if well tested, then secure for reuse • Simplify code: more readable Module 10 : User defined functions and  modules

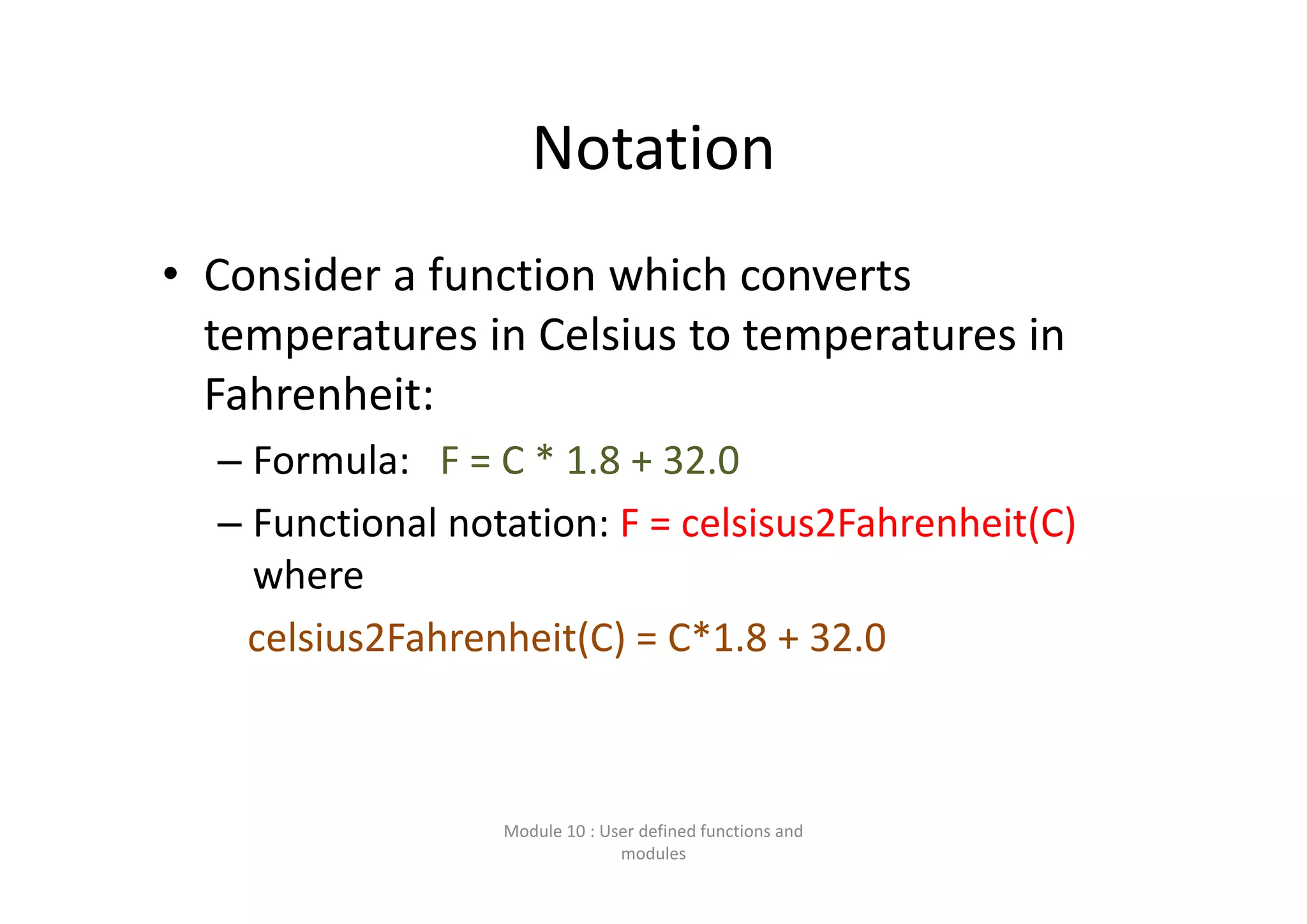

Notation • Consider a function which converts  temperatures in Celsius to temperatures in  Fahrenheit: – Formula:   F = C * 1.8 + 32.0 – Functional notation: F = celsisus2Fahrenheit(C) where  celsius2Fahrenheit(C) = C*1.8 + 32.0 Module 10 : User defined functions and  modules
Python invocation • Math: F = celsius2Fahrenheit(C)  • Python, the invocation is much the same F = celsius2Fahrenheit(C) Terminology: argument “C” Module 10 : User defined functions and  modules

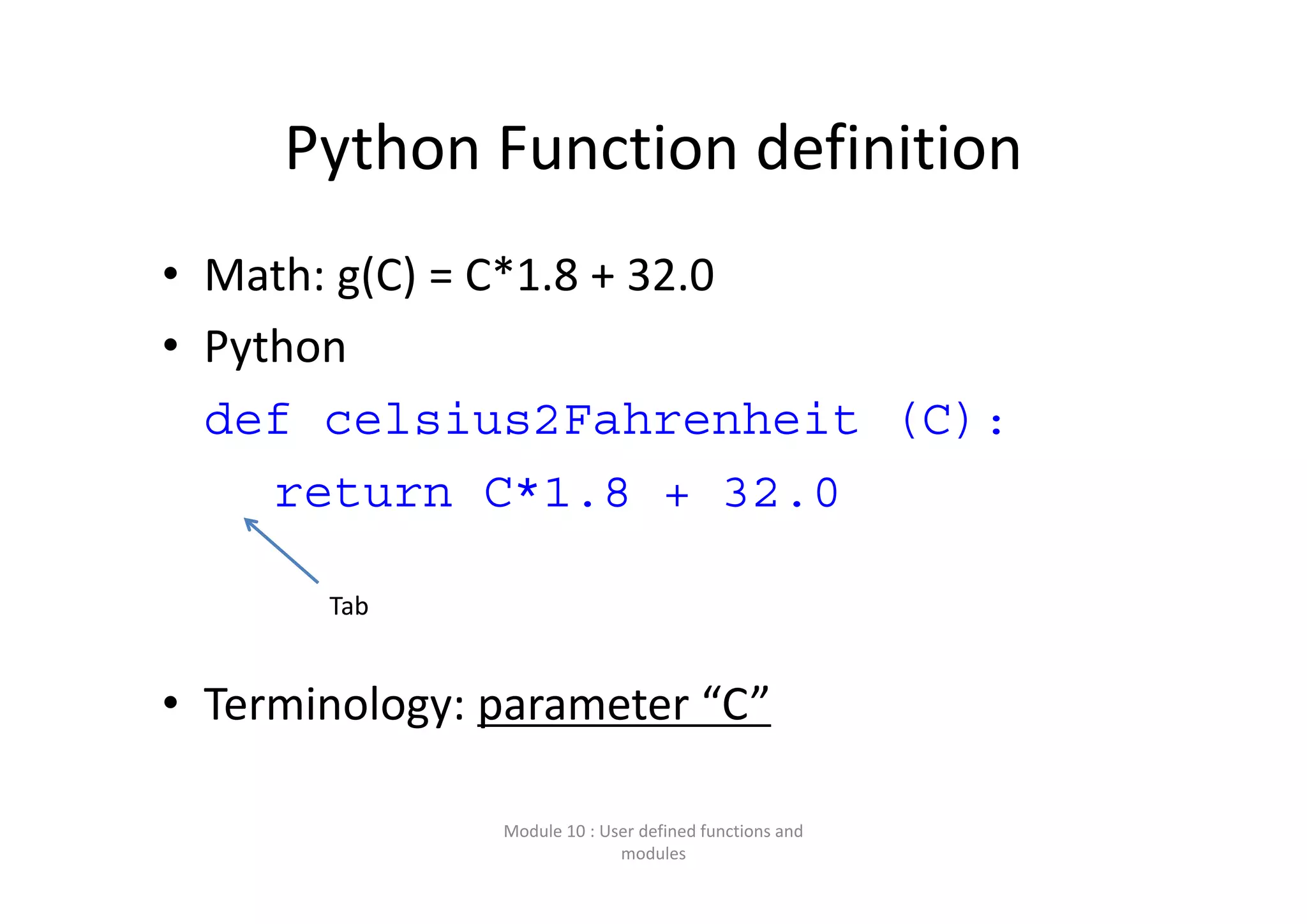

Python Function definition • Math: g(C) = C*1.8 + 32.0 • Python                                                def celsius2Fahrenheit (C): return C*1.8 + 32.0 • Terminology: parameter “C” Module 10 : User defined functions and  modules Tab
Module 10 : User defined functions and  modules

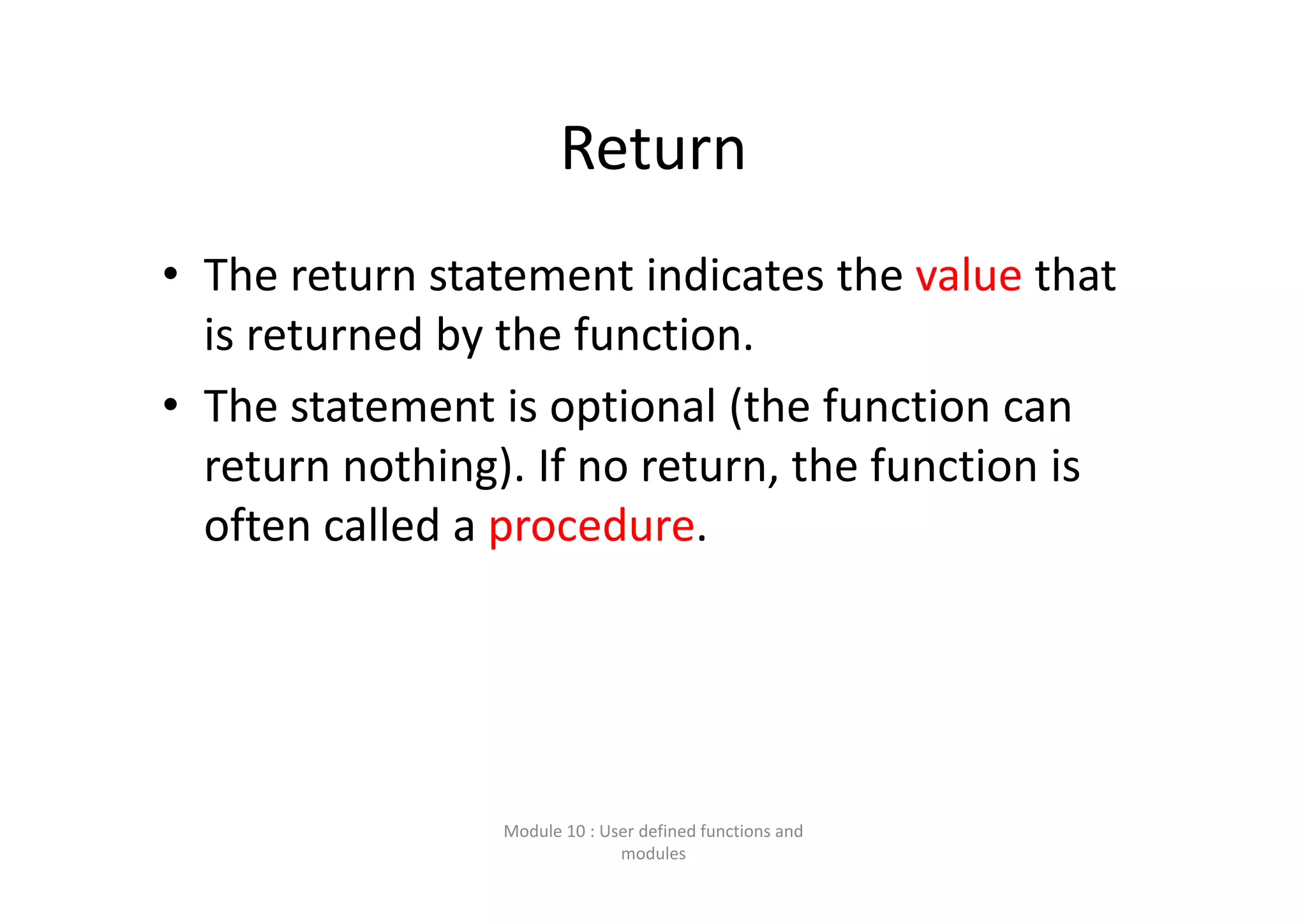

Return • The return statement indicates the value that  is returned by the function. • The statement is optional (the function can  return nothing). If no return, the function is  often called a procedure. Module 10 : User defined functions and  modules
Challenge 10.1 – Convert £ to S$ Write a simple function that converts currencies Module 10 : User defined functions and  modules
Thought process • Functions are to be re‐usable • What might change?  – Input amount. – Exchange rate. • Function might be used by a more complete  program. • 2 parameters : input amount, exchange rate. • Return converted amount. Module 10 : User defined functions and  modules

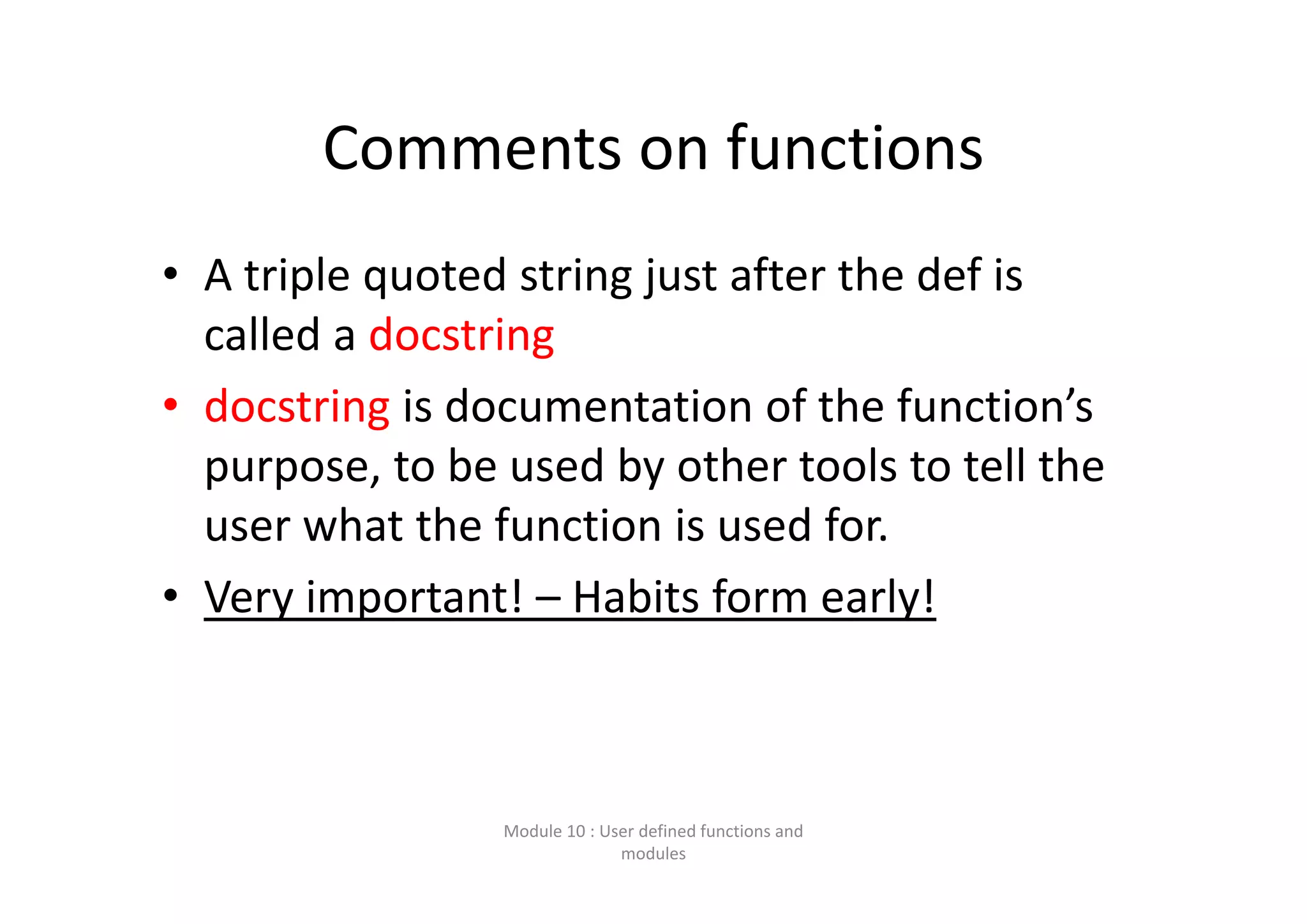

Comments on functions • A triple quoted string just after the def is  called a docstring • docstring is documentation of the function’s  purpose, to be used by other tools to tell the  user what the function is used for. • Very important! – Habits form early! Module 10 : User defined functions and  modules

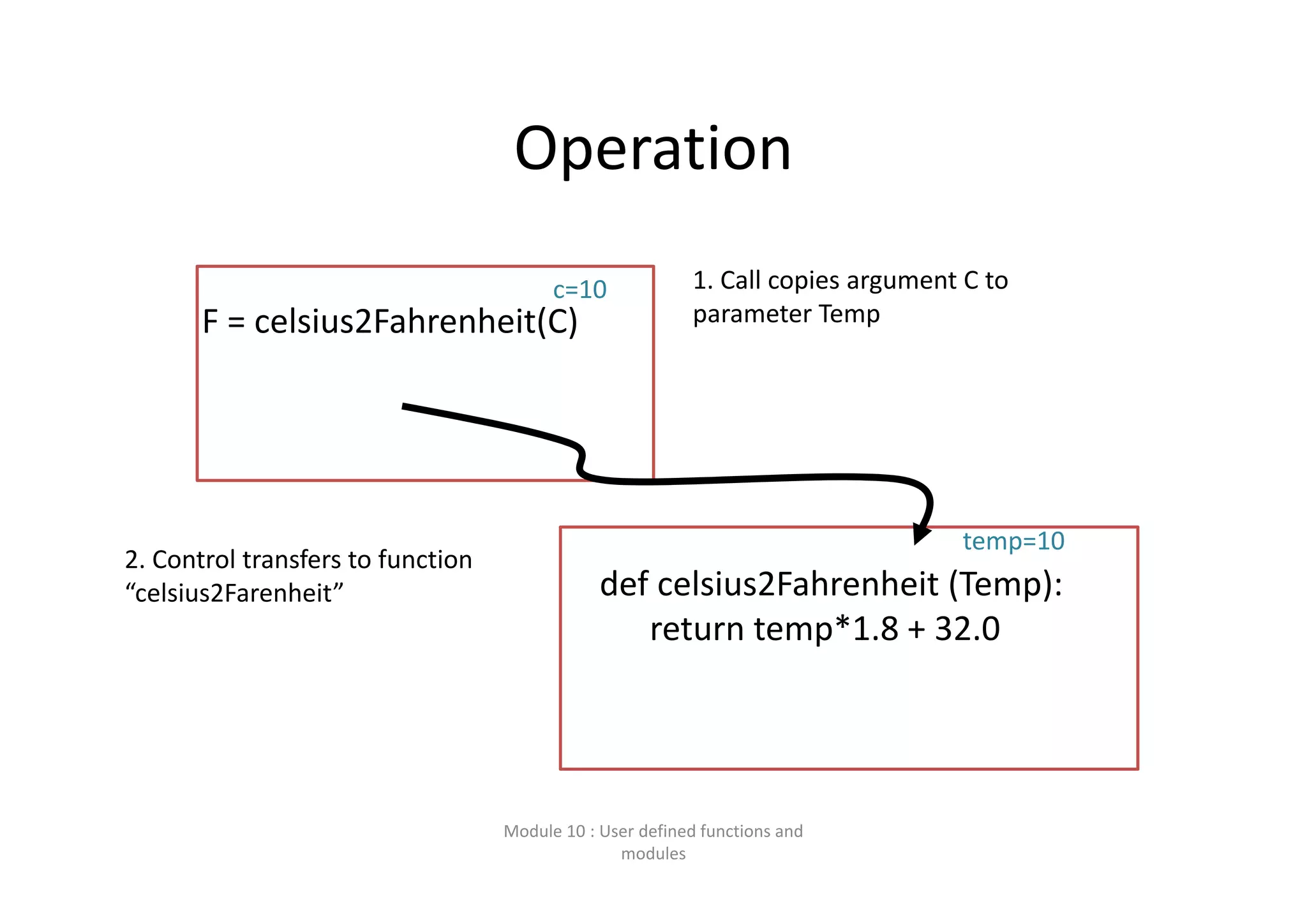

Operation Module 10 : User defined functions and  modules def celsius2Fahrenheit (Temp): return temp*1.8 + 32.0 F = celsius2Fahrenheit(C)  1. Call copies argument C to  parameter Temp  2. Control transfers to function  “celsius2Farenheit” c=10 temp=10

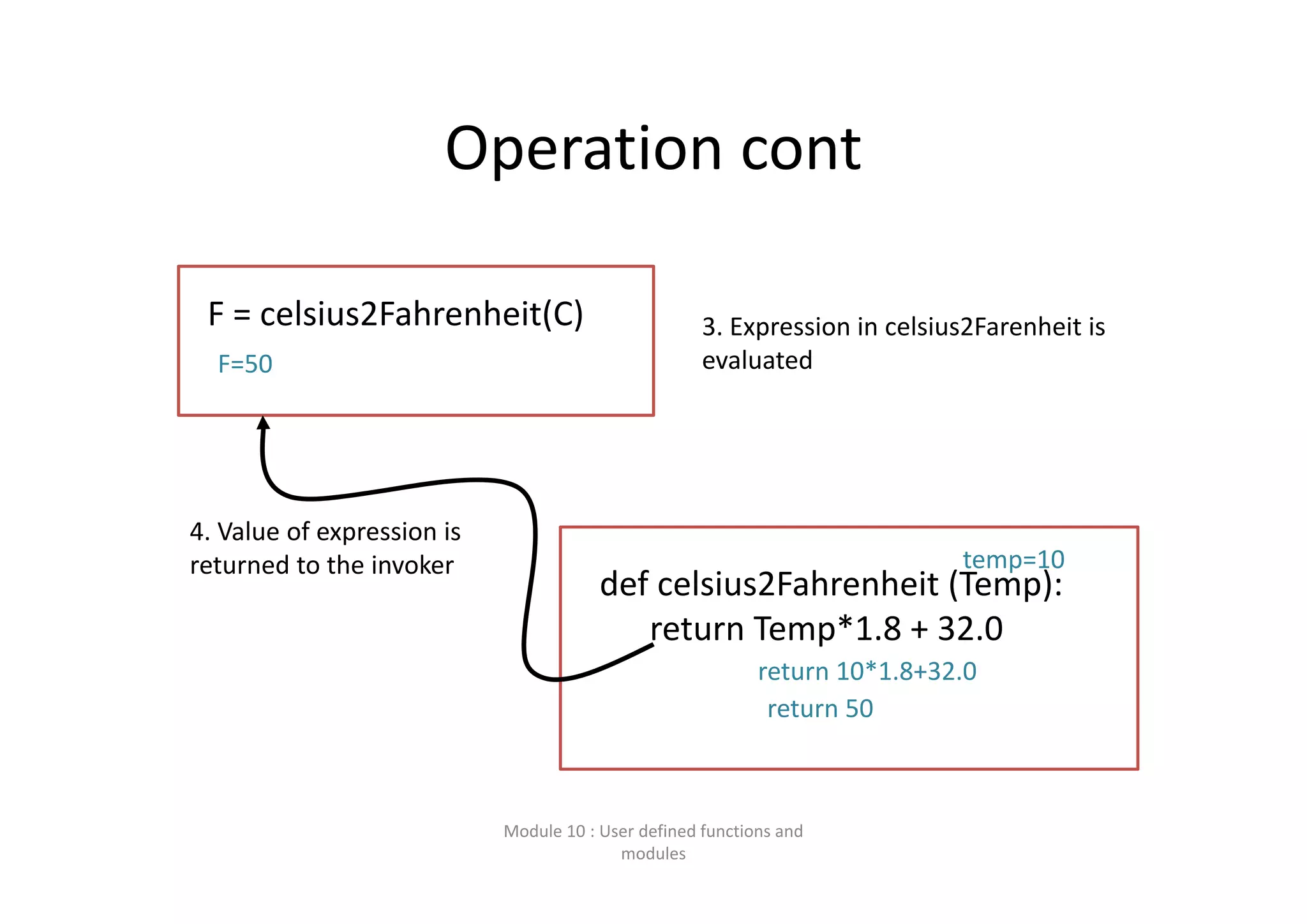

Operation cont Module 10 : User defined functions and  modules 3. Expression in celsius2Farenheit is  evaluated 4. Value of expression is  returned to the invoker F = celsius2Fahrenheit(C)  def celsius2Fahrenheit (Temp): return Temp*1.8 + 32.0 temp=10 return 10*1.8+32.0 return 50 F=50
Module 10 : User defined functions and  modules
Challenge 10.2 – Create encryption function Modify the code from module 8, to use a function for encrypting a string Module 10 : User defined functions and  modules

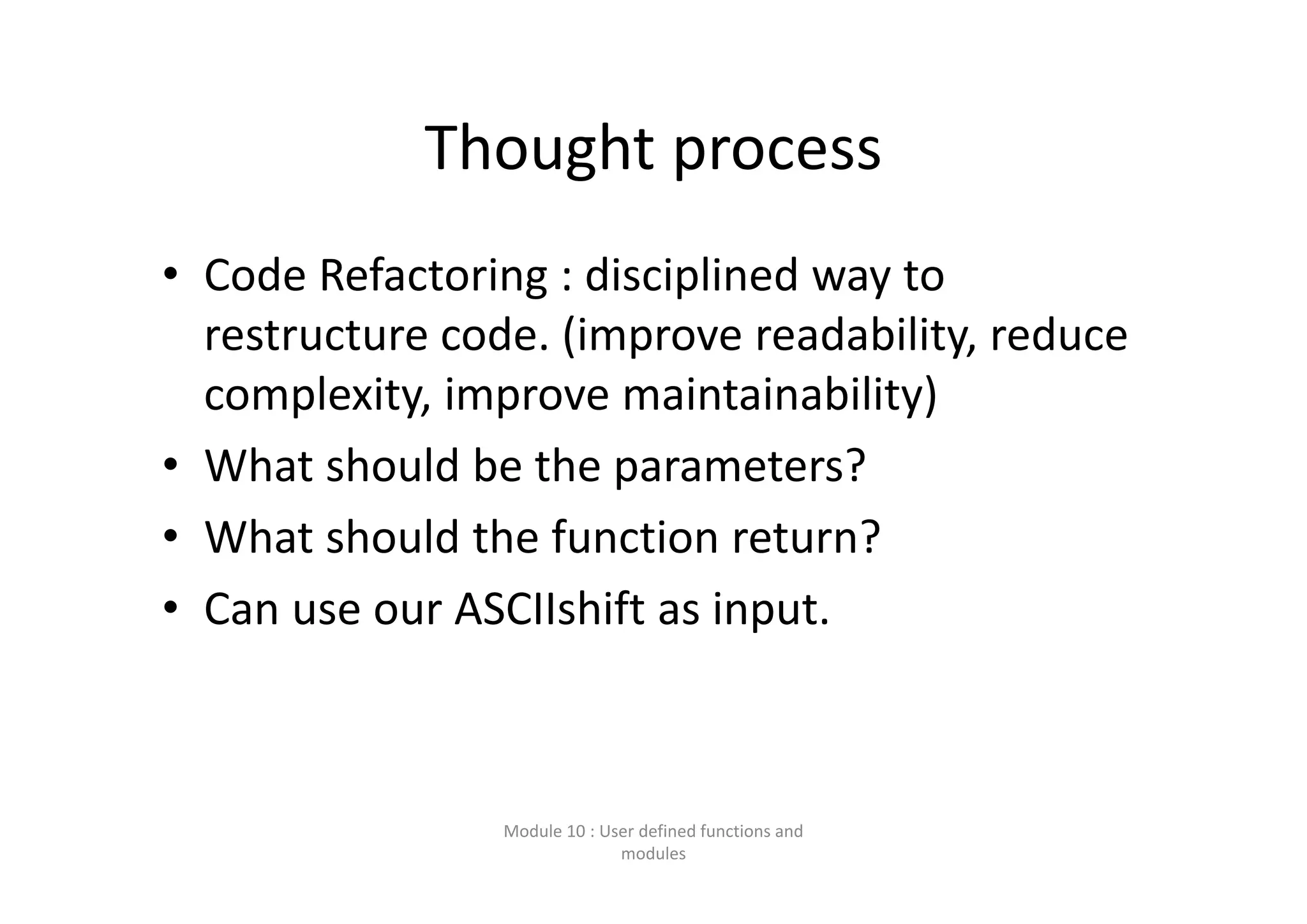

Thought process • Code Refactoring : disciplined way to  restructure code. (improve readability, reduce  complexity, improve maintainability) • What should be the parameters? • What should the function return? • Can use our ASCIIshift as input. Module 10 : User defined functions and  modules
How to write a function • Does one thing. If it does too many things, it  should be broken down into multiple  functions (refactored). • Readable.  How often should we say this? If  you write it, it should be readable. • Reusable. If it does one thing well, then when  a similar situation (in another program)  occurs, use it there as well. Module 10 : User defined functions and  modules

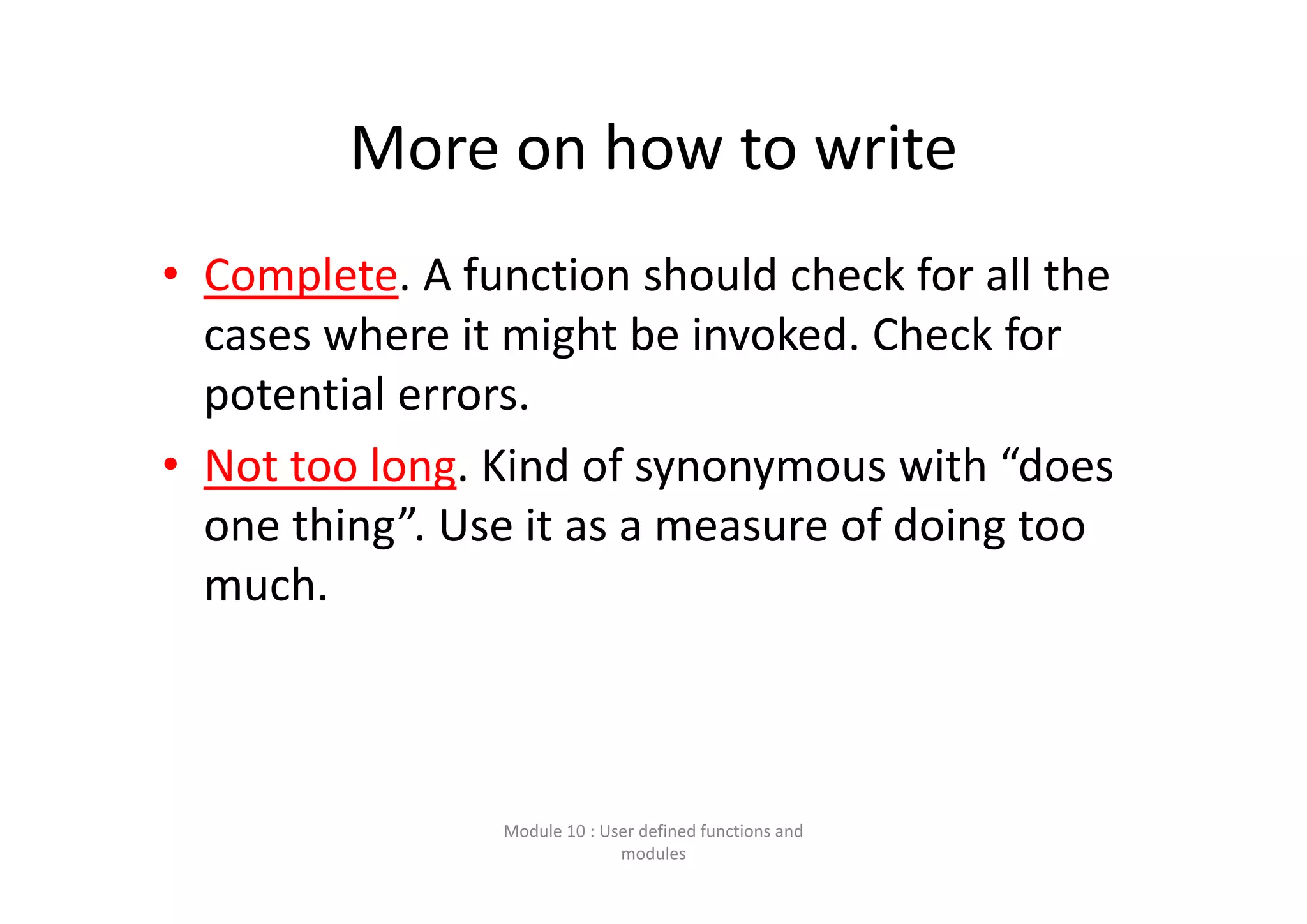

More on how to write • Complete. A function should check for all the  cases where it might be invoked. Check for  potential errors. • Not too long. Kind of synonymous with “does  one thing”. Use it as a measure of doing too  much. Module 10 : User defined functions and  modules
Procedures • Functions that have no return statements are  often called procedures. • Procedures are used to perform some duty  (print output, store a file, etc.) • Remember, return is not required. Module 10 : User defined functions and  modules
Multiple returns • A function can have multiple return  statements. • Remember, the first return statement  executed ends the function. • Multiple returns can be confusing to the  reader and should be used carefully. Module 10 : User defined functions and  modules

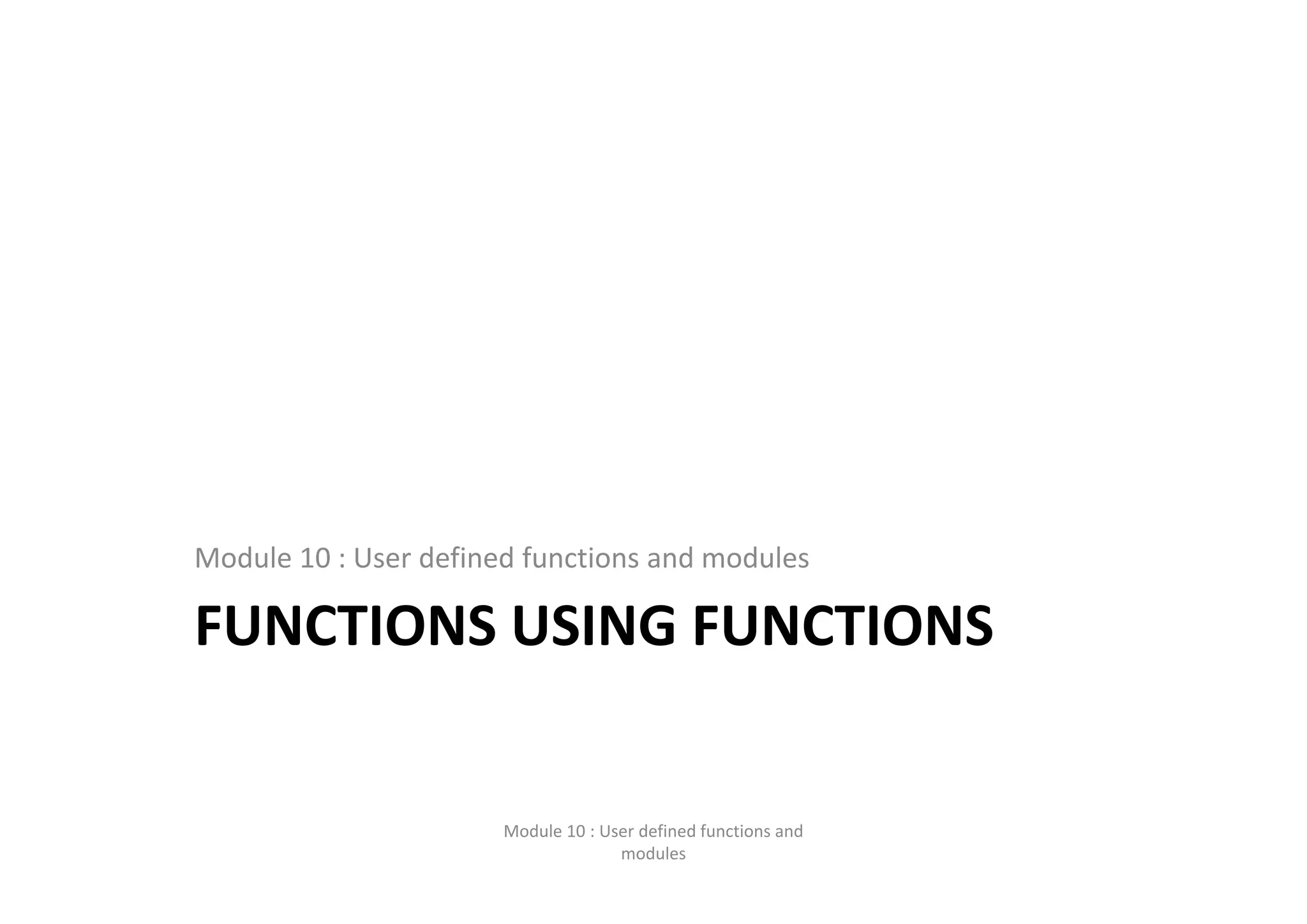

FUNCTIONS USING FUNCTIONS Module 10 : User defined functions and modules Module 10 : User defined functions and  modules

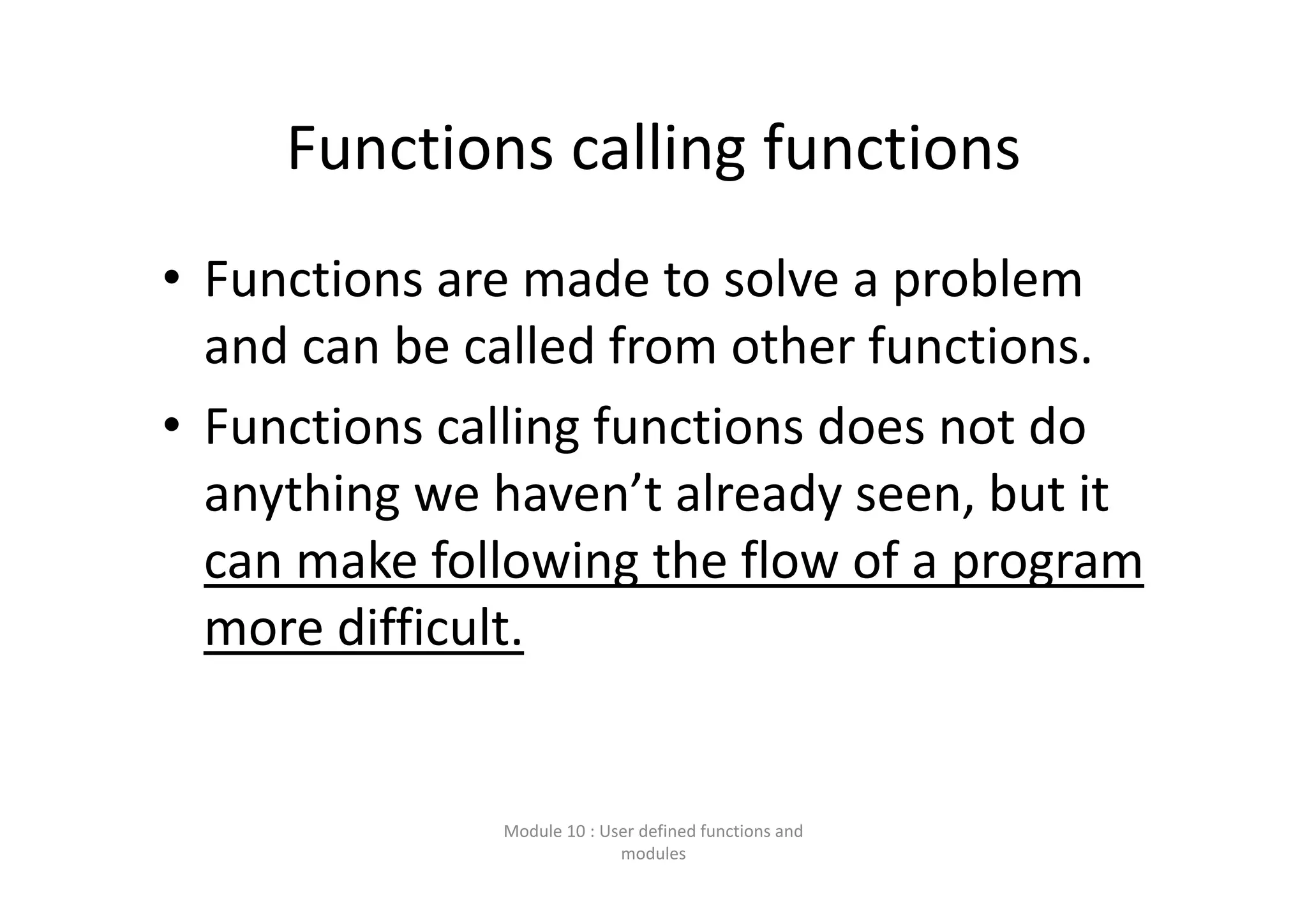

Functions calling functions • Functions are made to solve a problem  and can be called from other functions. • Functions calling functions does not do  anything we haven’t already seen, but it  can make following the flow of a program  more difficult. Module 10 : User defined functions and  modules

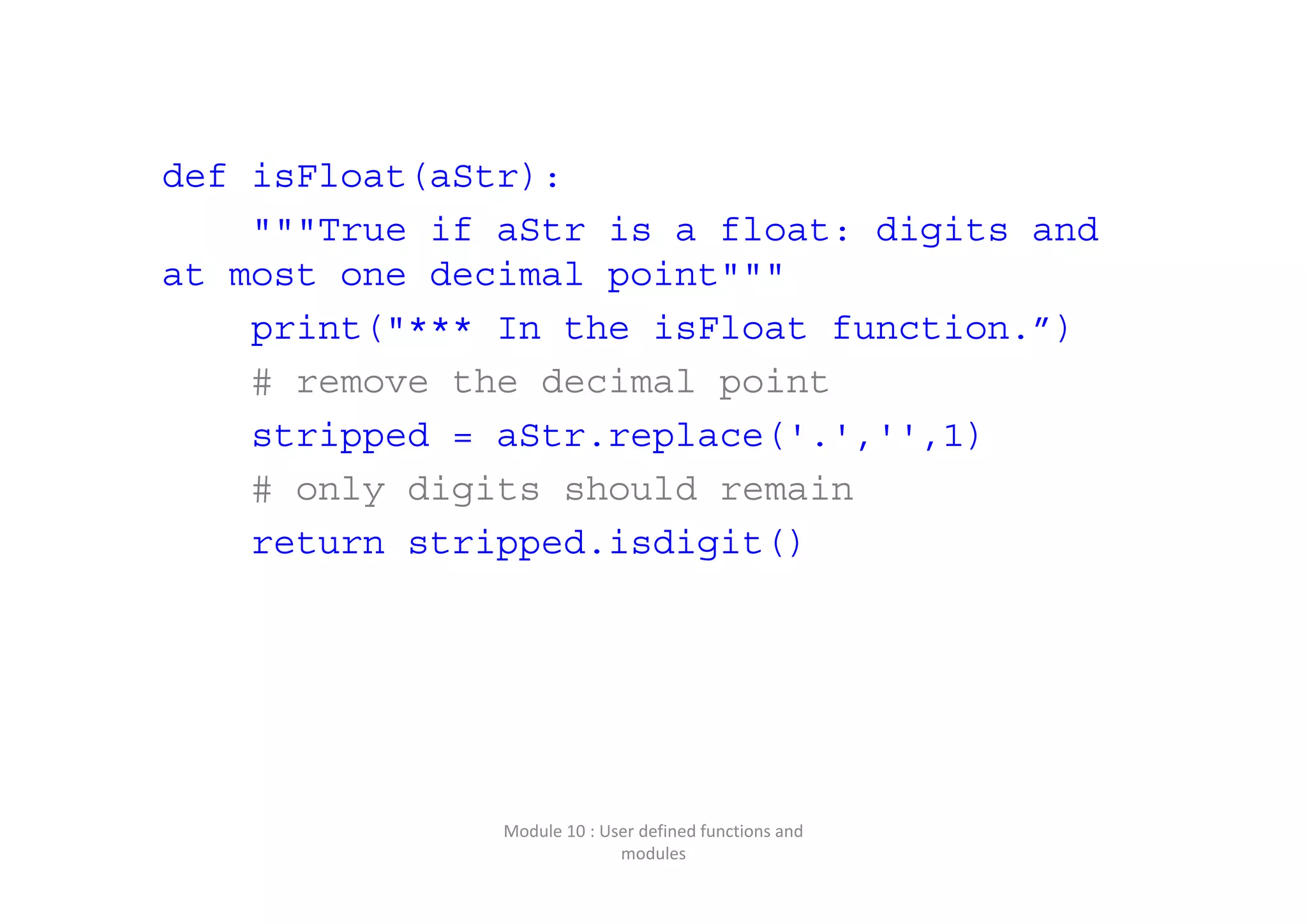

def isFloat(aStr): """True if aStr is a float: digits and at most one decimal point""" print("*** In the isFloat function.”) # remove the decimal point stripped = aStr.replace('.','',1) # only digits should remain return stripped.isdigit() Module 10 : User defined functions and  modules

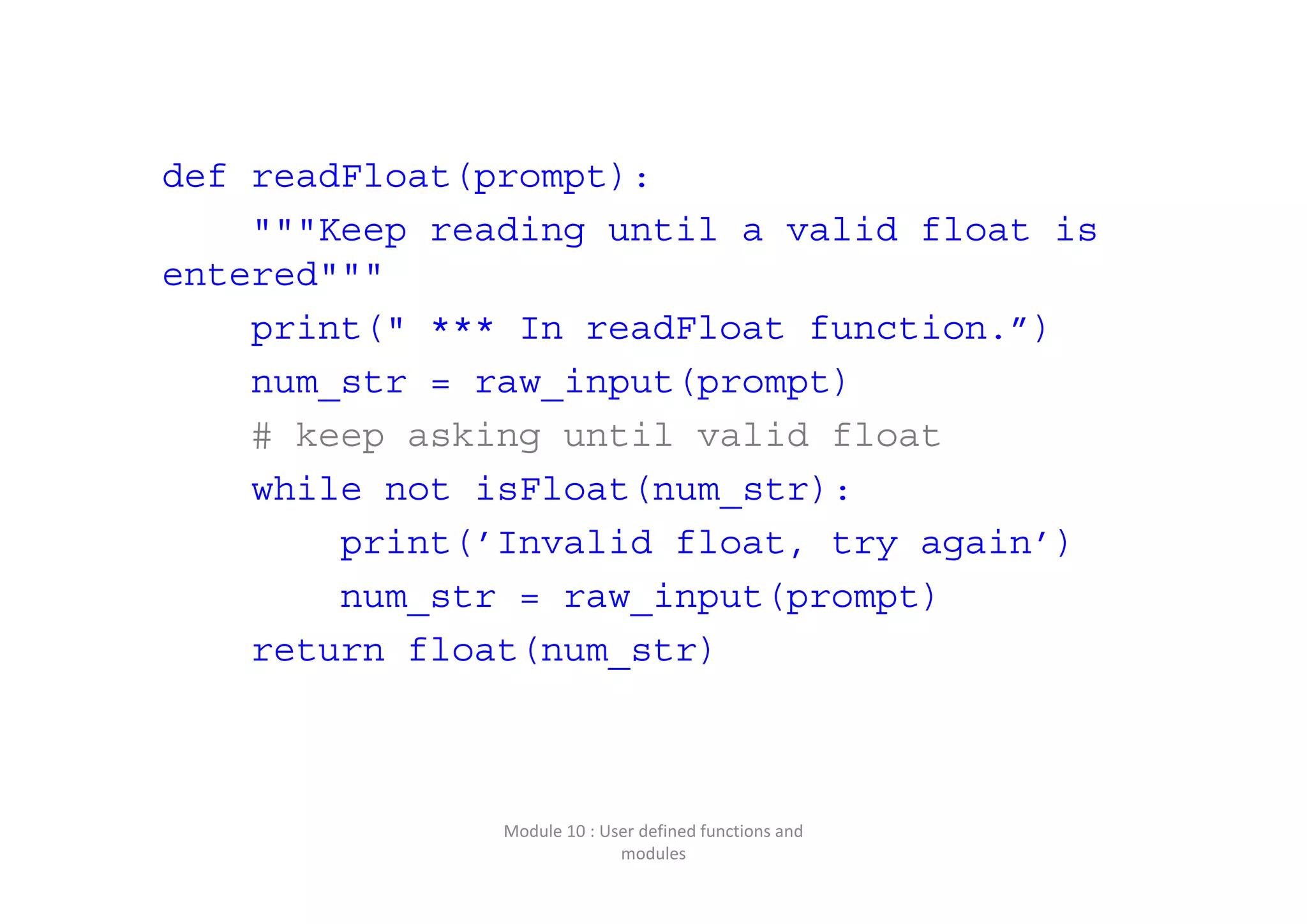

def readFloat(prompt): """Keep reading until a valid float is entered""" print(" *** In readFloat function.”) num_str = raw_input(prompt) # keep asking until valid float while not isFloat(num_str): print(’Invalid float, try again’) num_str = raw_input(prompt) return float(num_str) Module 10 : User defined functions and  modules
Chaining functions • isFloat checks to see if a string can be  converted to a float number. • readFloat uses isFloat as part of the  process of prompting until a float is returned  by the user. • There is no limit to the “depth” of multiple  function calls. Module 10 : User defined functions and  modules
SCOPE AND NAMESPACE Module 10 : User defined functions and modules Module 10 : User defined functions and  modules
Defining scope “The set of program statements over which a  variable exists, i.e. can be referred to.” • It is about understanding, for any variable,  what its associated value is. Module 10 : User defined functions and  modules
Namespace • Namespace is an association of name and objects • William of Orange vs. William of Ockham • GoogleMaps library vs YahooMaps library – getAddress(), getDirections() Module 10 : User defined functions and  modules

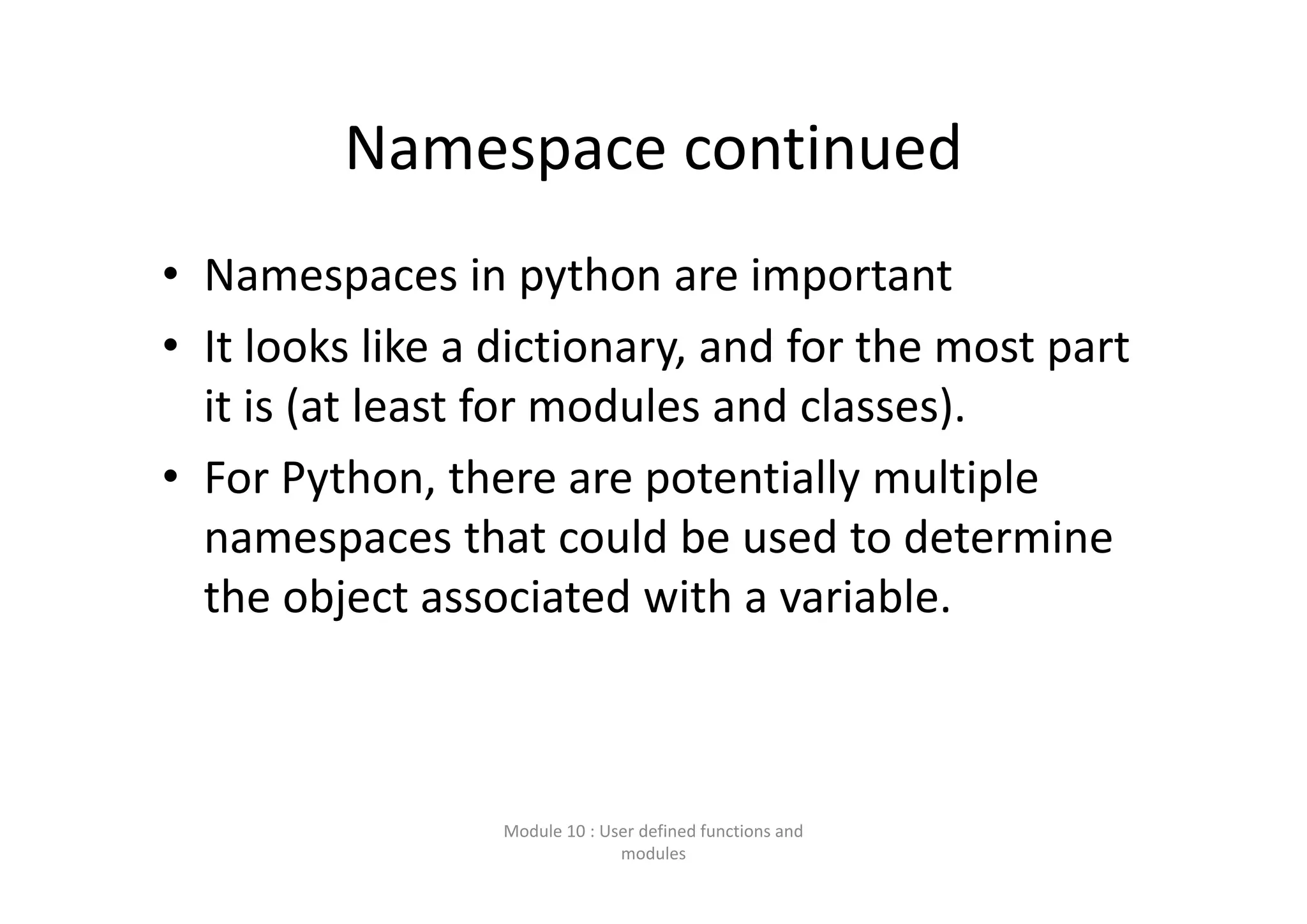

Namespace continued • Namespaces in python are important • It looks like a dictionary, and for the most part  it is (at least for modules and classes). • For Python, there are potentially multiple  namespaces that could be used to determine  the object associated with a variable.  Module 10 : User defined functions and  modules

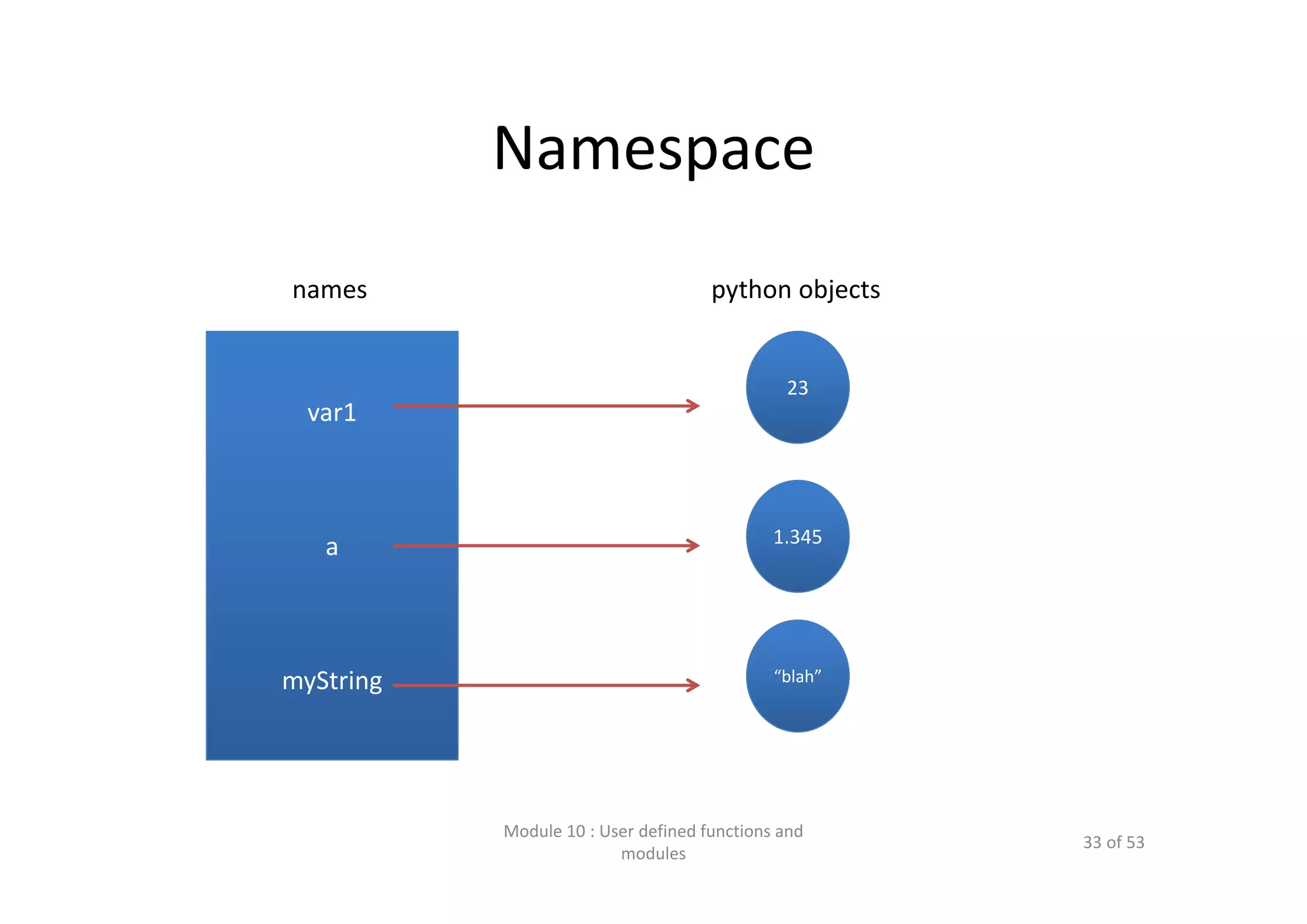

Namespace Module 10 : User defined functions and  modules 33 of 53 var1 a myString 23 1.345 “blah” names python objects

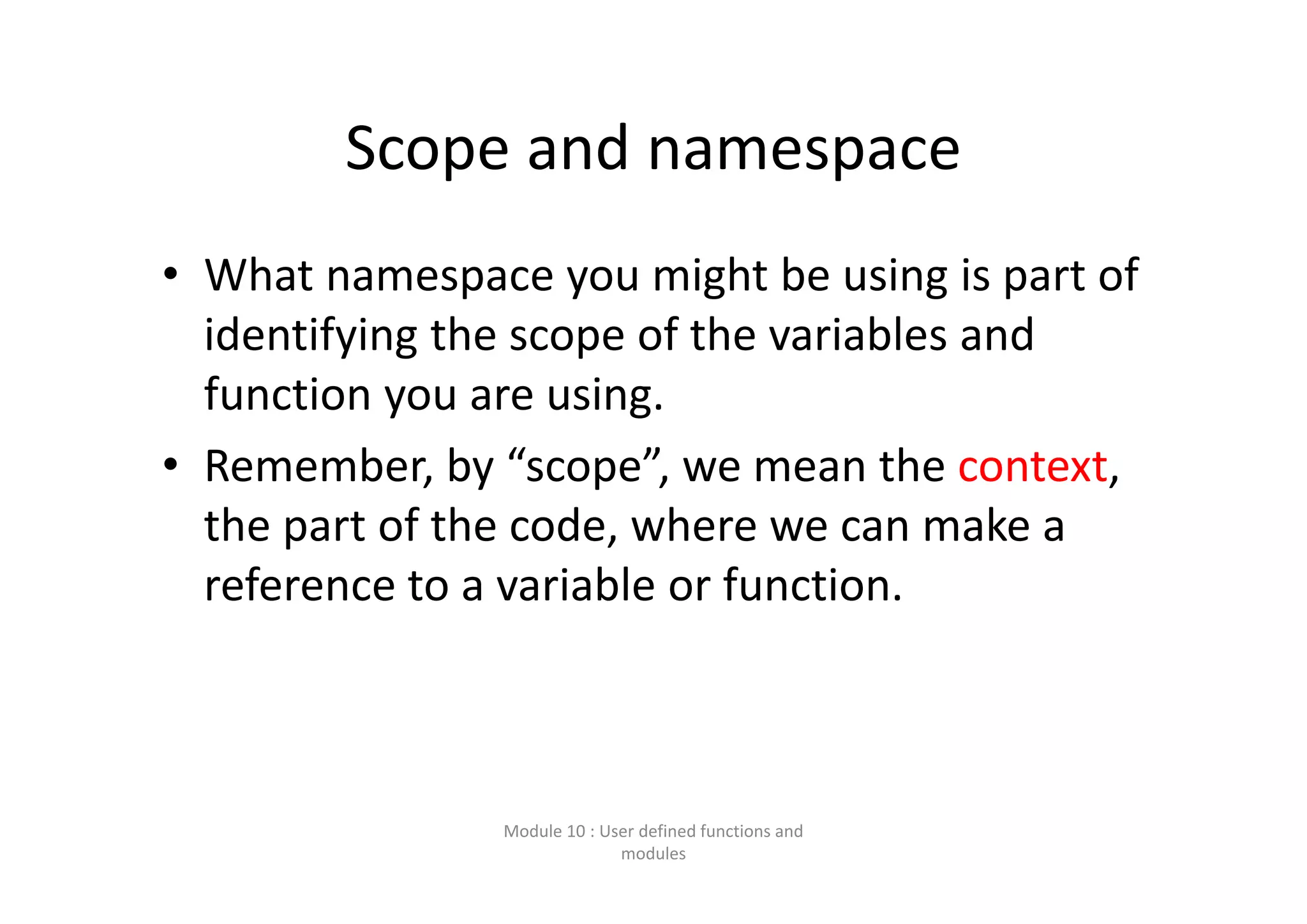

Scope and namespace • What namespace you might be using is part of  identifying the scope of the variables and  function you are using. • Remember, by “scope”, we mean the context,  the part of the code, where we can make a  reference to a variable or function. Module 10 : User defined functions and  modules

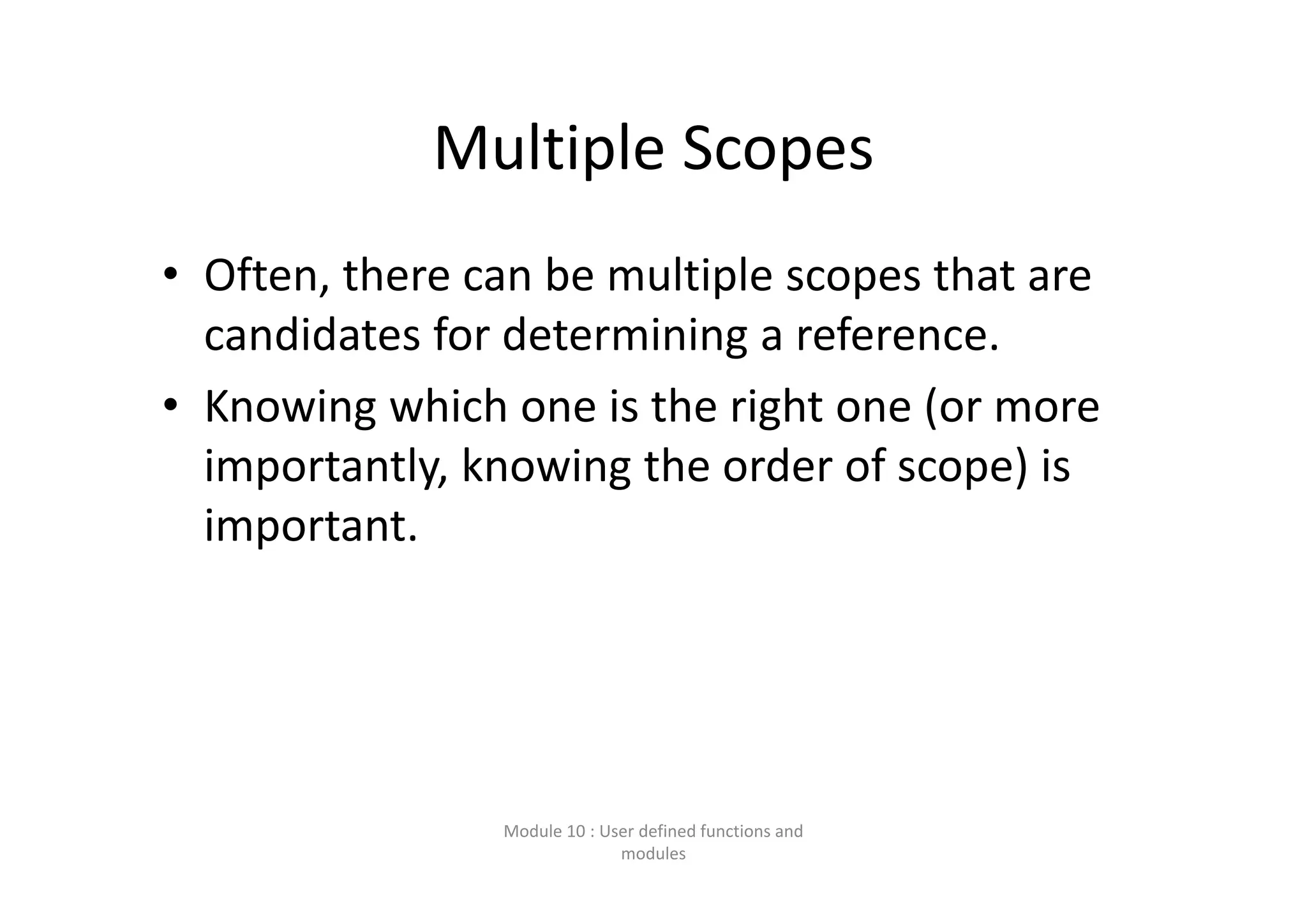

Multiple Scopes • Often, there can be multiple scopes that are  candidates for determining a reference. • Knowing which one is the right one (or more  importantly, knowing the order of scope) is  important. Module 10 : User defined functions and  modules

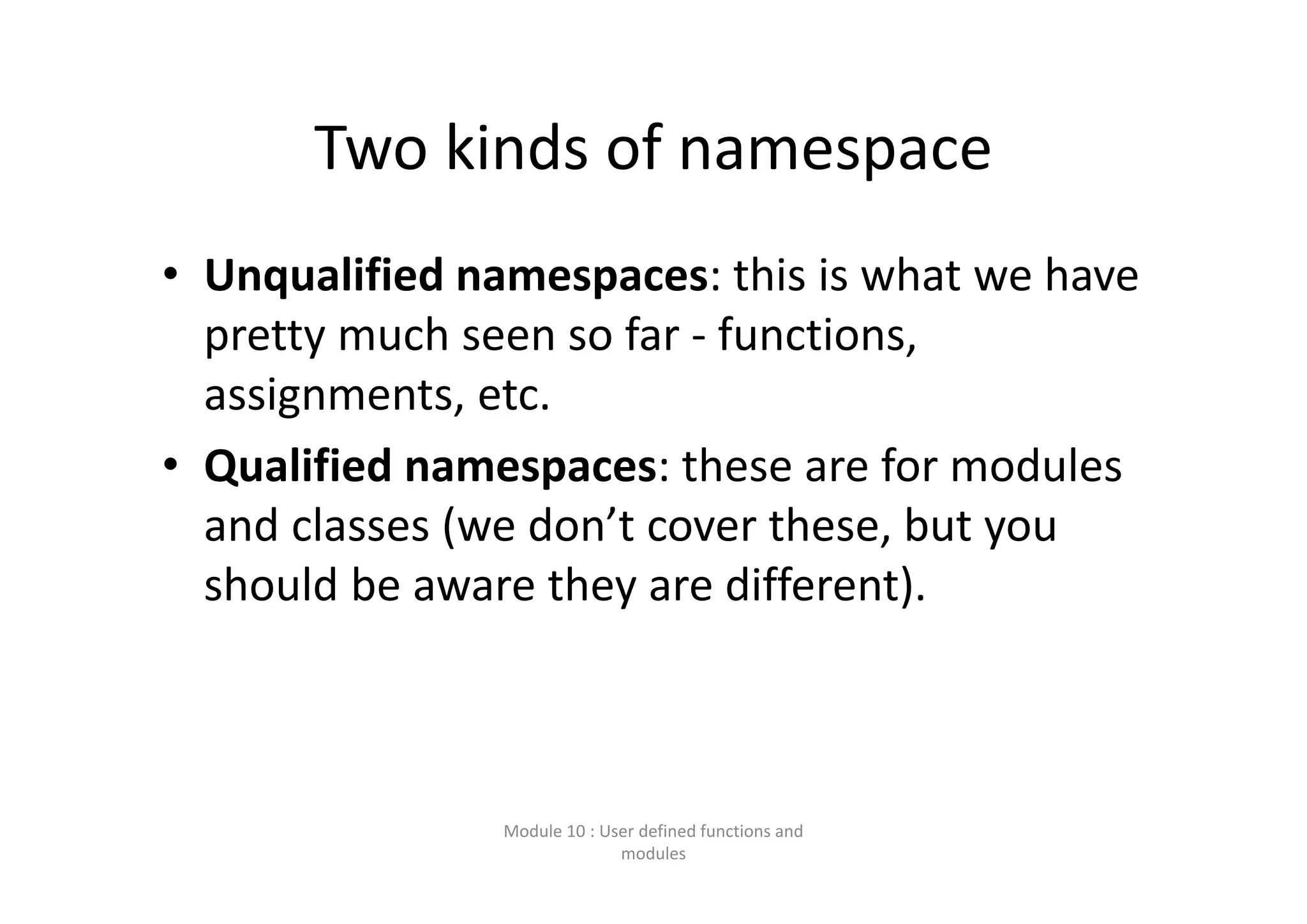

Two kinds of namespace • Unqualified namespaces: this is what we have  pretty much seen so far ‐ functions,  assignments, etc. • Qualified namespaces: these are for modules  and classes (we don’t cover these, but you  should be aware they are different). Module 10 : User defined functions and  modules

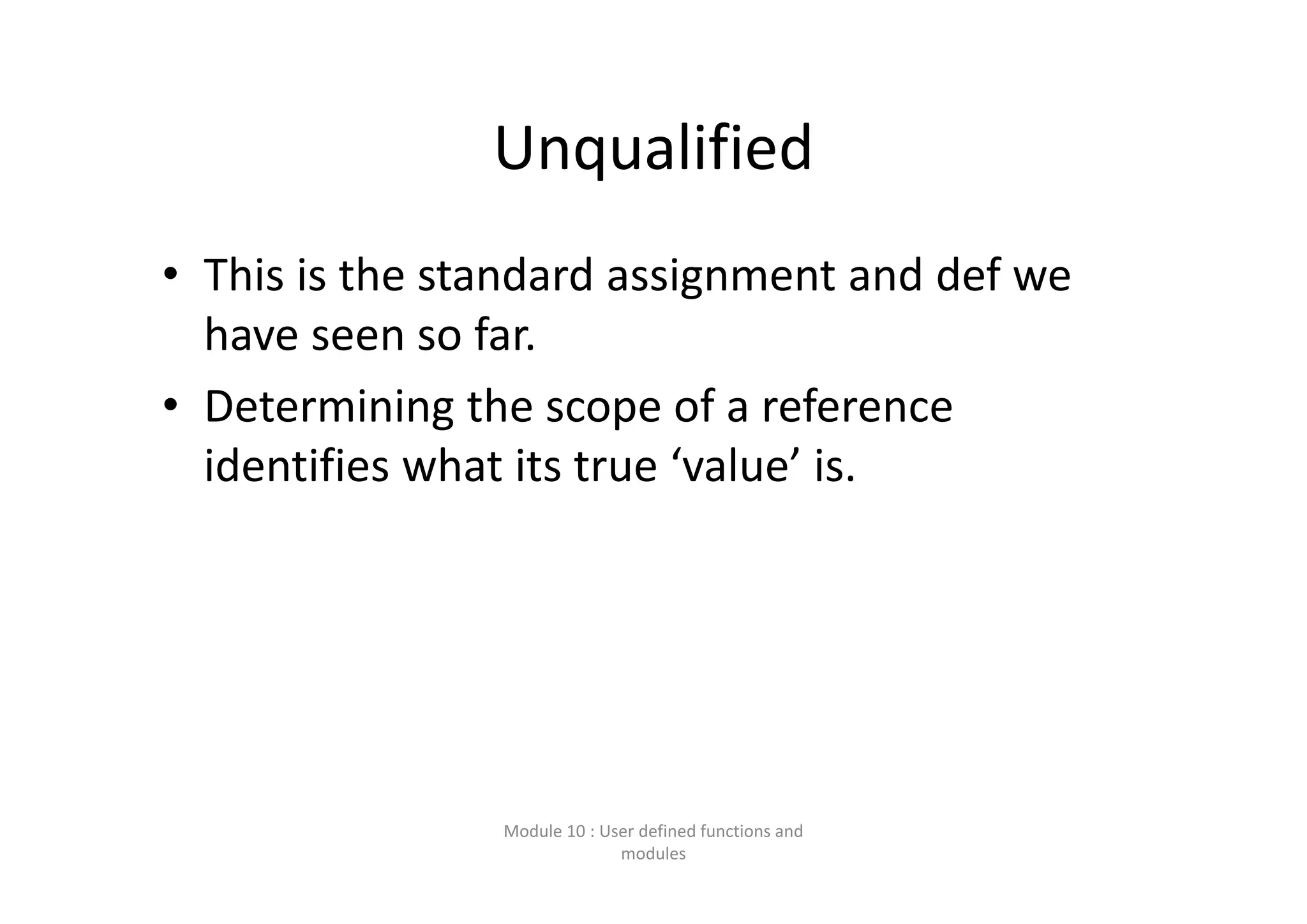

Unqualified • This is the standard assignment and def we  have seen so far. • Determining the scope of a reference  identifies what its true ‘value’ is. Module 10 : User defined functions and  modules
Unqualified follow LEGB rule • Local : inside the function in which it was defined. • Enclosing : If not there, enclosing/encompassing.  Is it defined in an enclosing function? • Global : If not there, is it defined in the global  namespace? • Built‐in : Finally, check the built‐in, defined as  part of the special builtin scope. • Else, ERROR. Module 10 : User defined functions and  modules

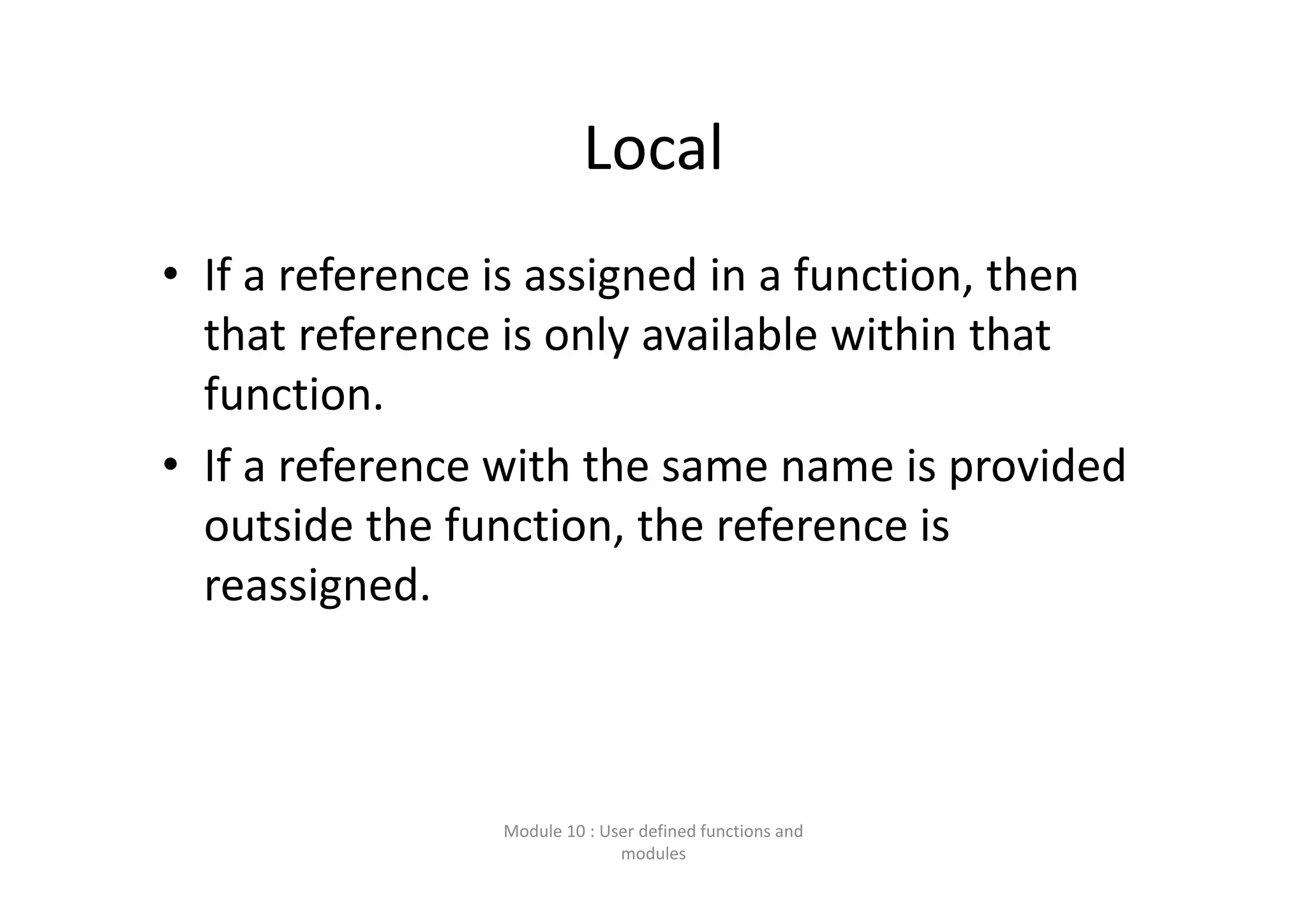

Local • If a reference is assigned in a function, then  that reference is only available within that  function. • If a reference with the same name is provided  outside the function, the reference is  reassigned. Module 10 : User defined functions and  modules
Local and Global myVar = 123 # global def myFn(myVar=456): # parameter is local yourVar = -10 # assignment local print(myVar, yourVar) myFn() # prints 456 -10 myFn(500) # prints 500 -10 myVar # prints 123 yourVar # ERROR Module 10 : User defined functions and  modules

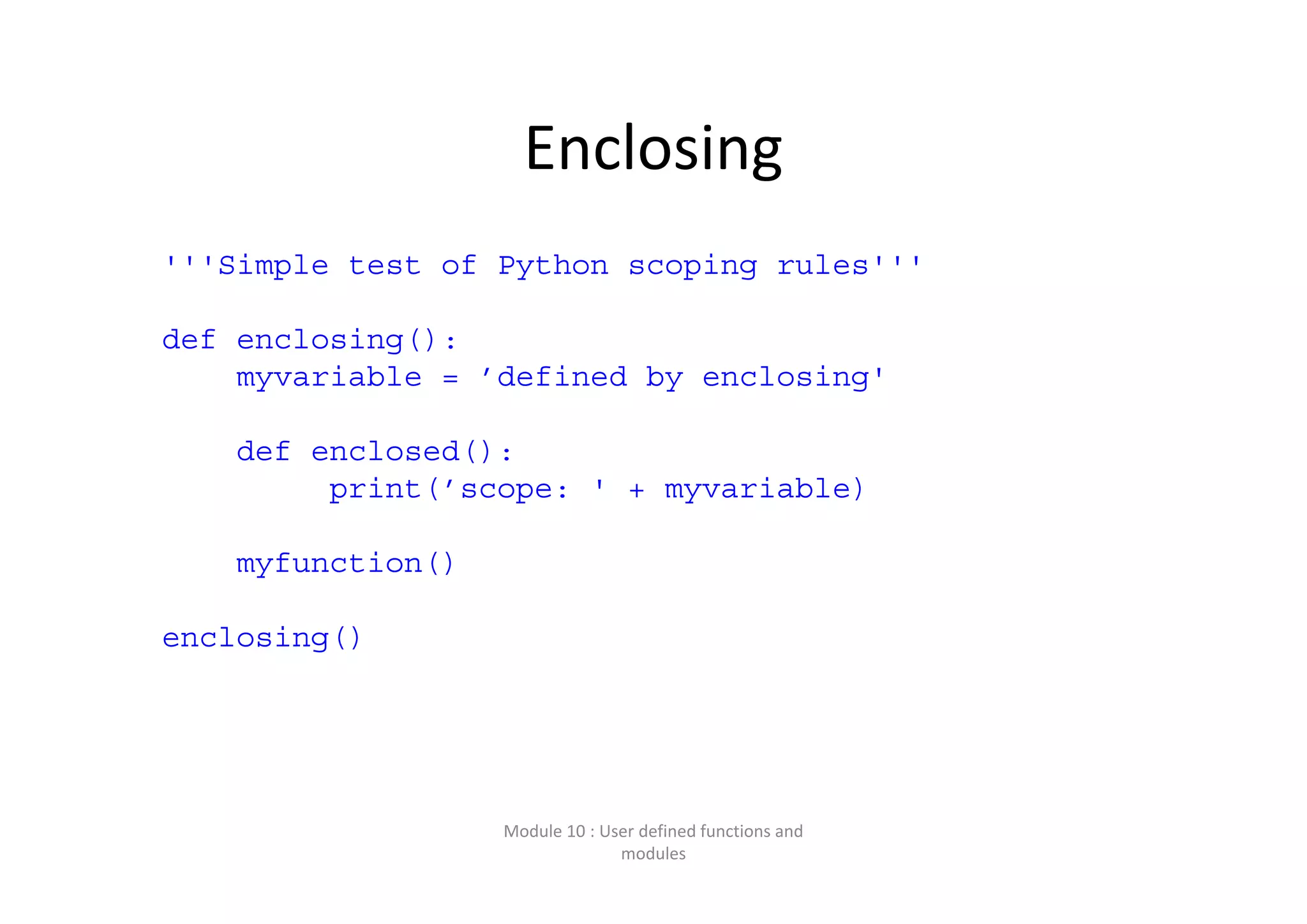

Enclosing '''Simple test of Python scoping rules''' def enclosing(): myvariable = ’defined by enclosing' def enclosed(): print(’scope: ' + myvariable) myfunction() enclosing() Module 10 : User defined functions and  modules

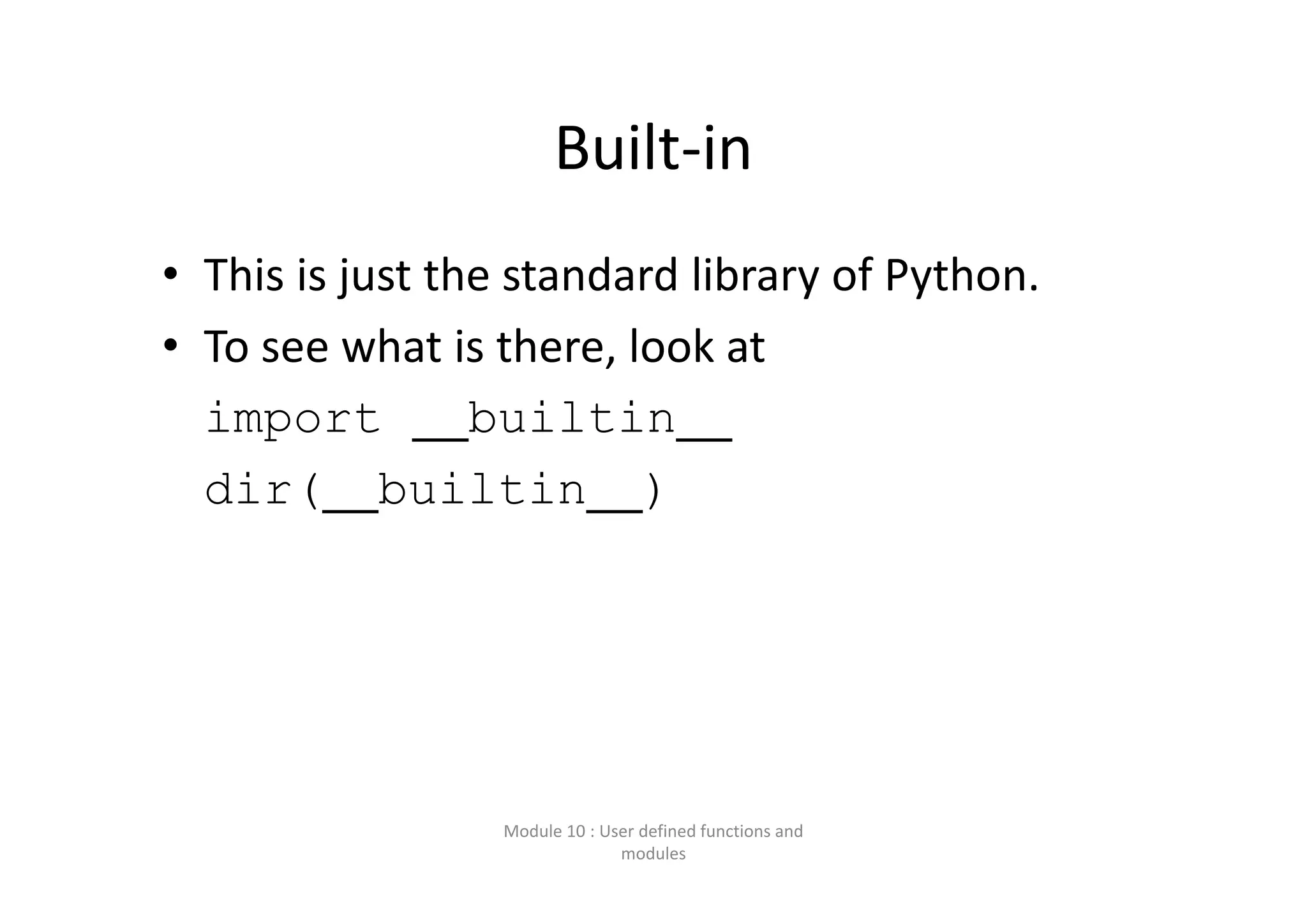

Built‐in • This is just the standard library of Python.  • To see what is there, look at import __builtin__ dir(__builtin__) Module 10 : User defined functions and  modules
Global Statement • You can “cheat” by using the global keyword in  a function: myVar = 100 def myFn(): global myVar myVar = -1 myFn() print(myVar) # prints ‐1 Module 10 : User defined functions and  modules

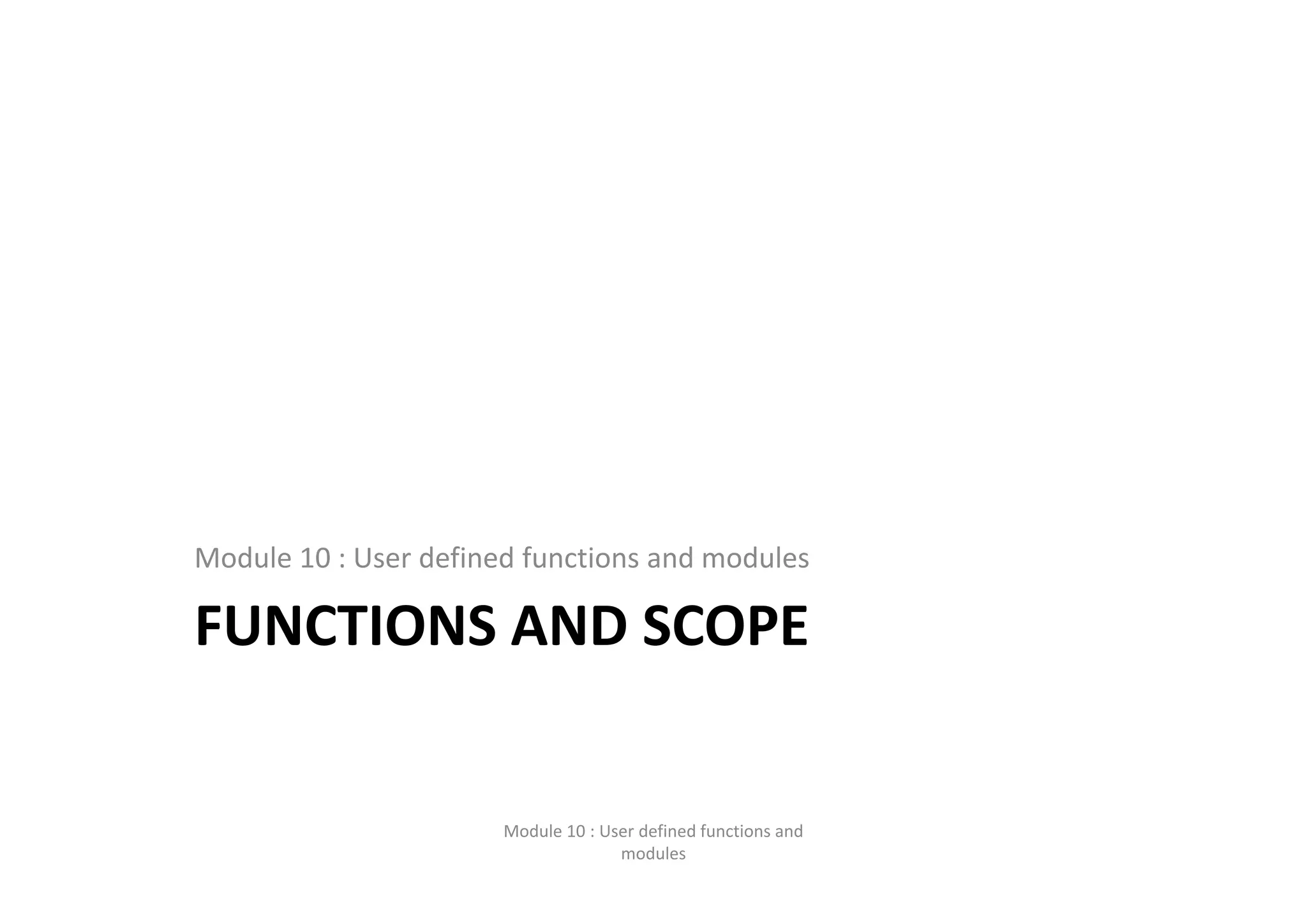

FUNCTIONS AND SCOPE Module 10 : User defined functions and modules Module 10 : User defined functions and  modules

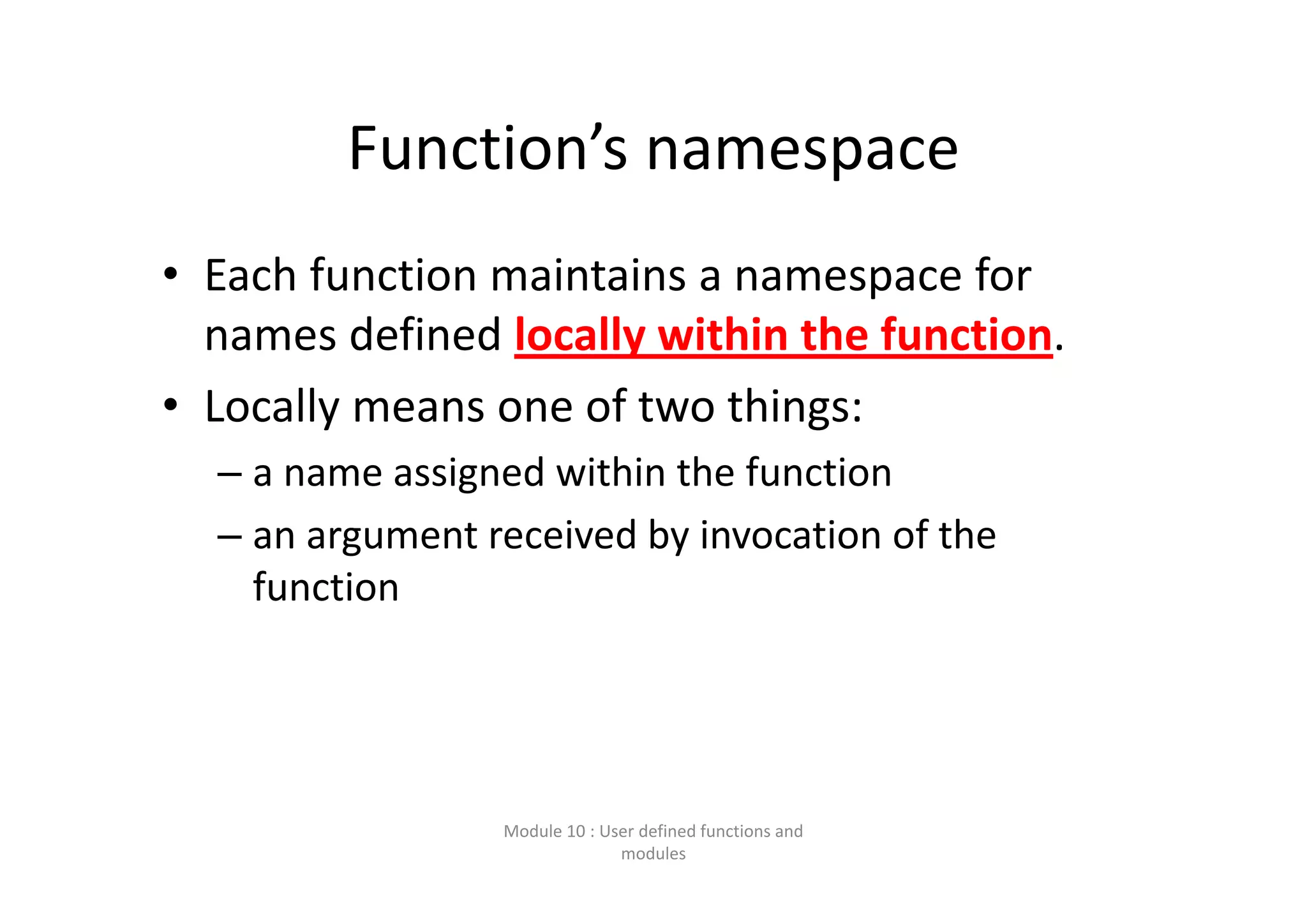

Function’s namespace • Each function maintains a namespace for  names defined locally within the function.  • Locally means one of two things: – a name assigned within the function – an argument received by invocation of the  function Module 10 : User defined functions and  modules

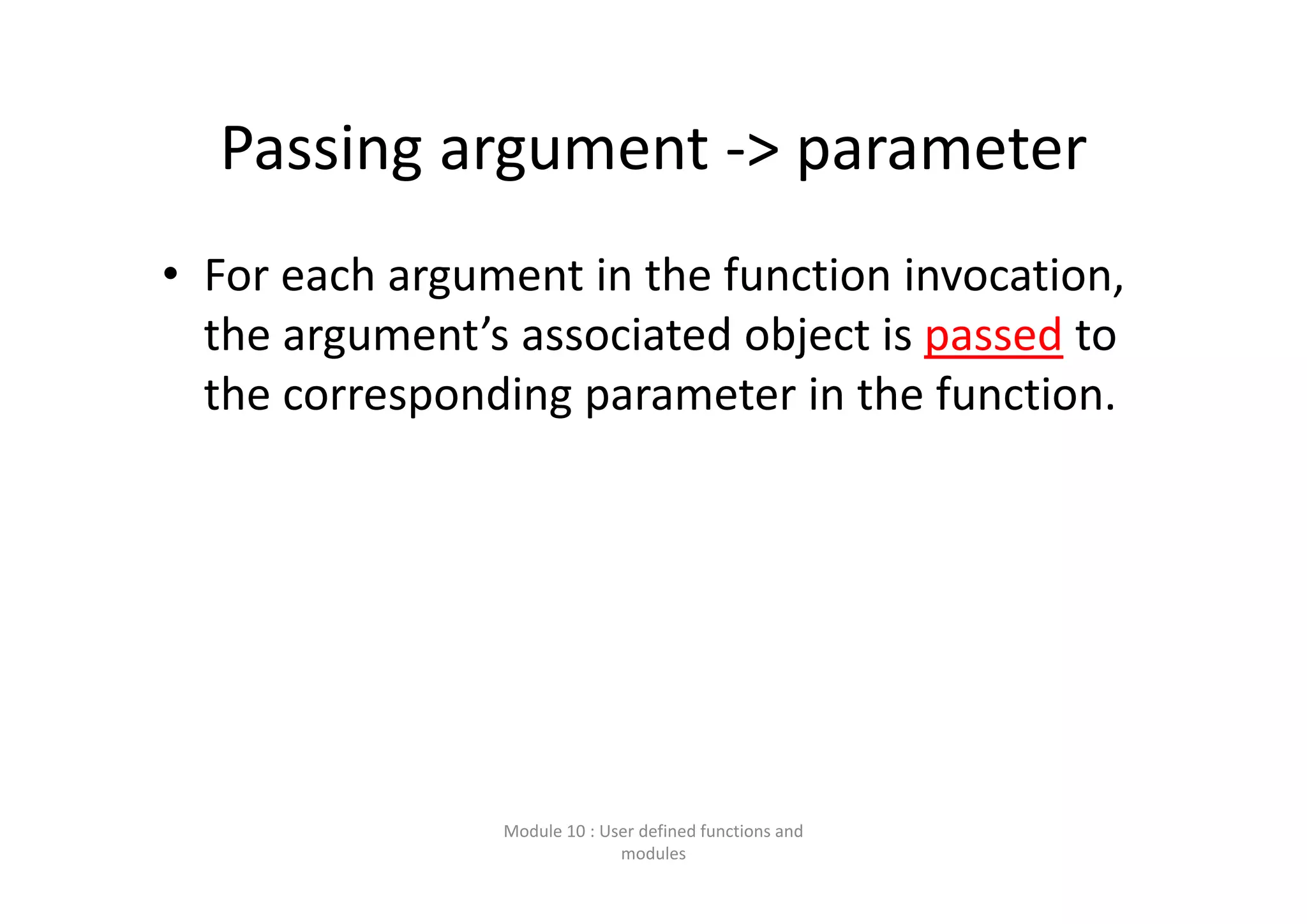

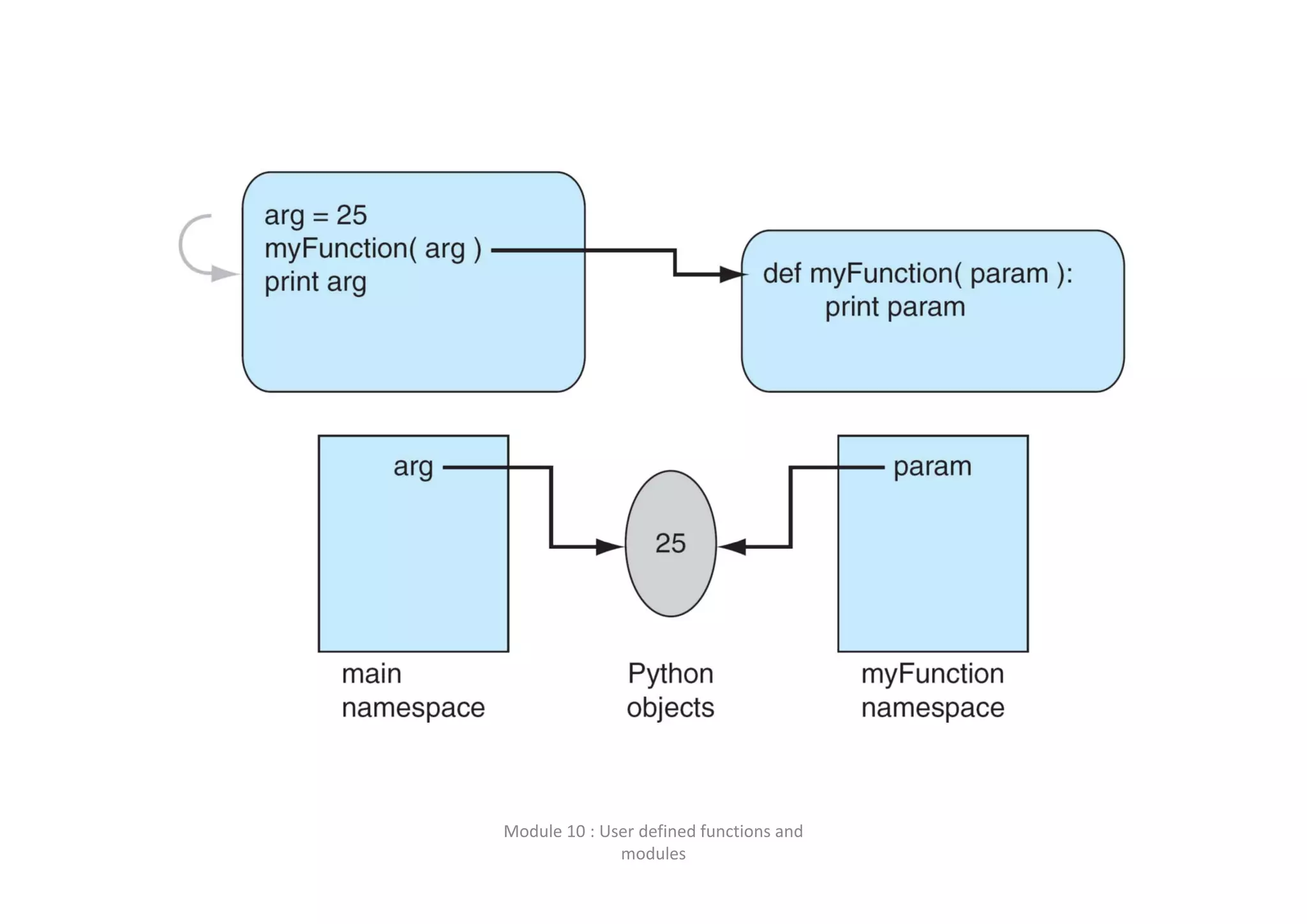

Passing argument ‐> parameter • For each argument in the function invocation,  the argument’s associated object is passed to  the corresponding parameter in the function. Module 10 : User defined functions and  modules
Module 10 : User defined functions and  modules
What is pass? • The diagram should make it clear that the  parameter name is local to the function  namespace. • Passing means that the argument and the  parameter, named in two different  namespaces, share an association with the  same object. • So “passing” means “sharing” in Python. Module 10 : User defined functions and  modules

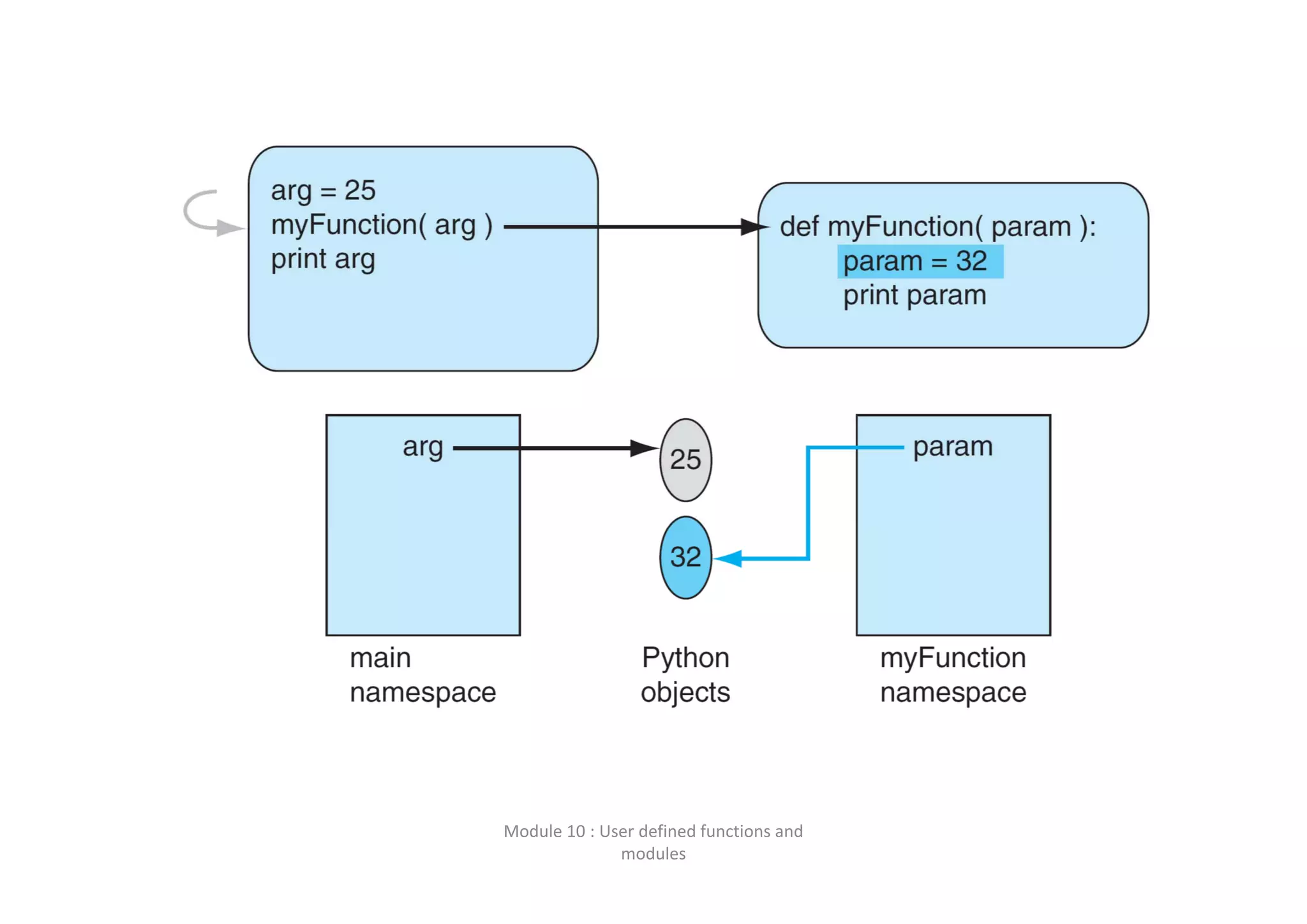

Assignment changes association • If a parameter is assigned to a new value, then  just like any other assignment, a new  association is created. • This assignment does not affect the object  associated with the argument, as a new  association was made with the parameter. Module 10 : User defined functions and  modules
Module 10 : User defined functions and  modules

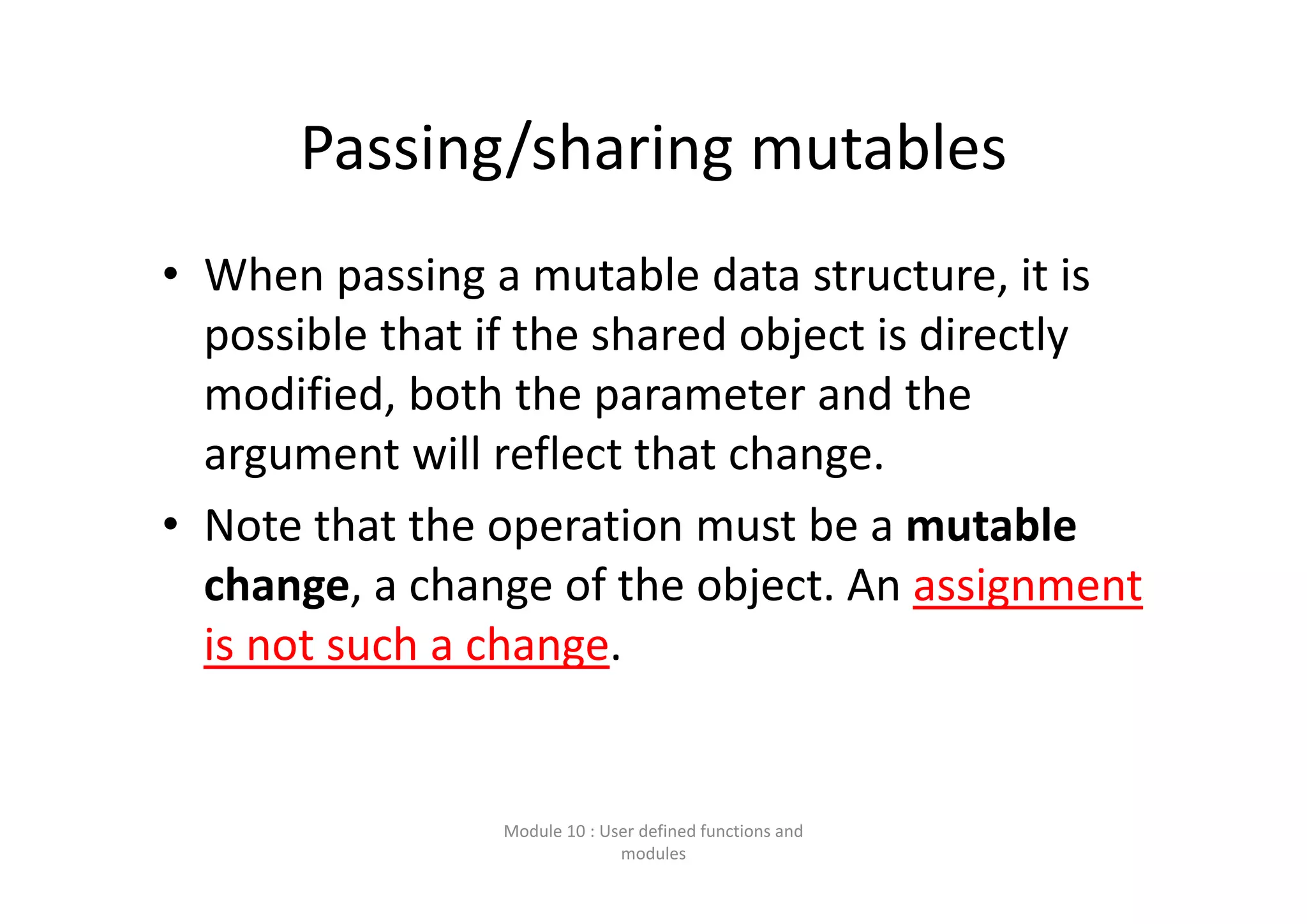

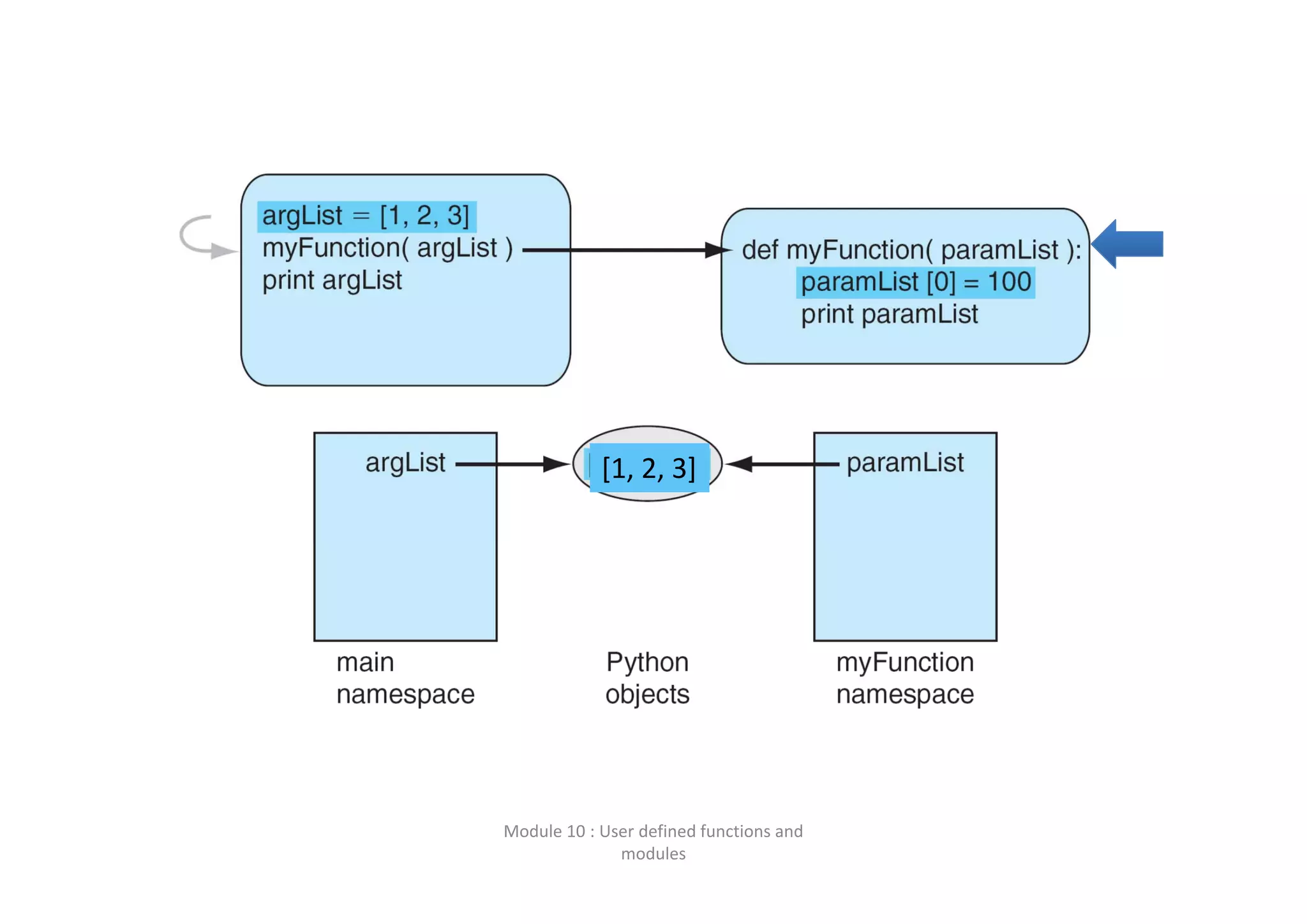

Passing/sharing mutables • When passing a mutable data structure, it is  possible that if the shared object is directly  modified, both the parameter and the  argument will reflect that change. • Note that the operation must be a mutable  change, a change of the object. An assignment  is not such a change. Module 10 : User defined functions and  modules
Module 10 : User defined functions and  modules [1, 2, 3]
MORE ON FUNCTIONS Module 10 : User defined functions and modules Module 10 : User defined functions and  modules

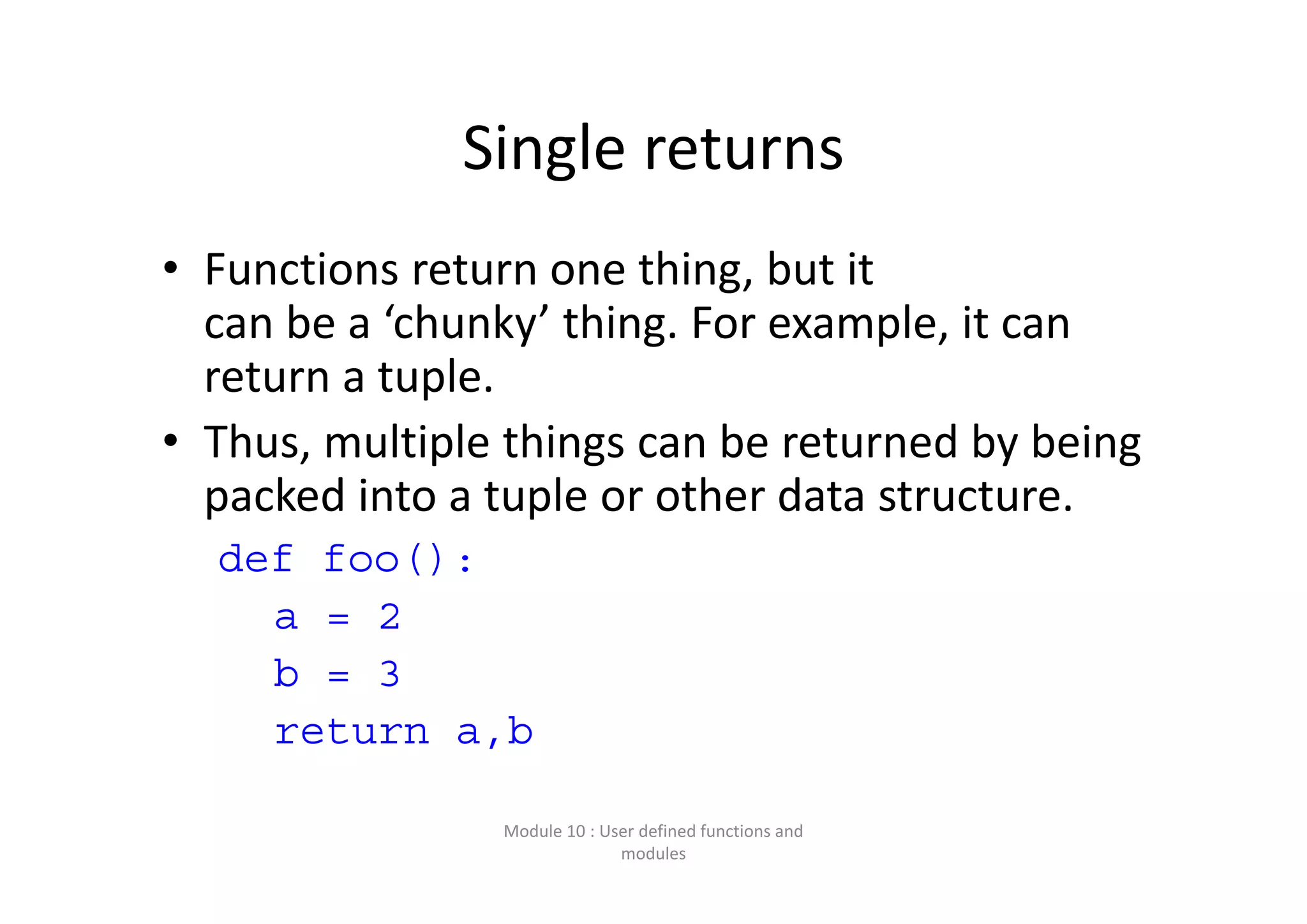

Single returns • Functions return one thing, but it  can be a ‘chunky’ thing. For example, it can  return a tuple. • Thus, multiple things can be returned by being  packed into a tuple or other data structure. def foo(): a = 2 b = 3 return a,b Module 10 : User defined functions and  modules

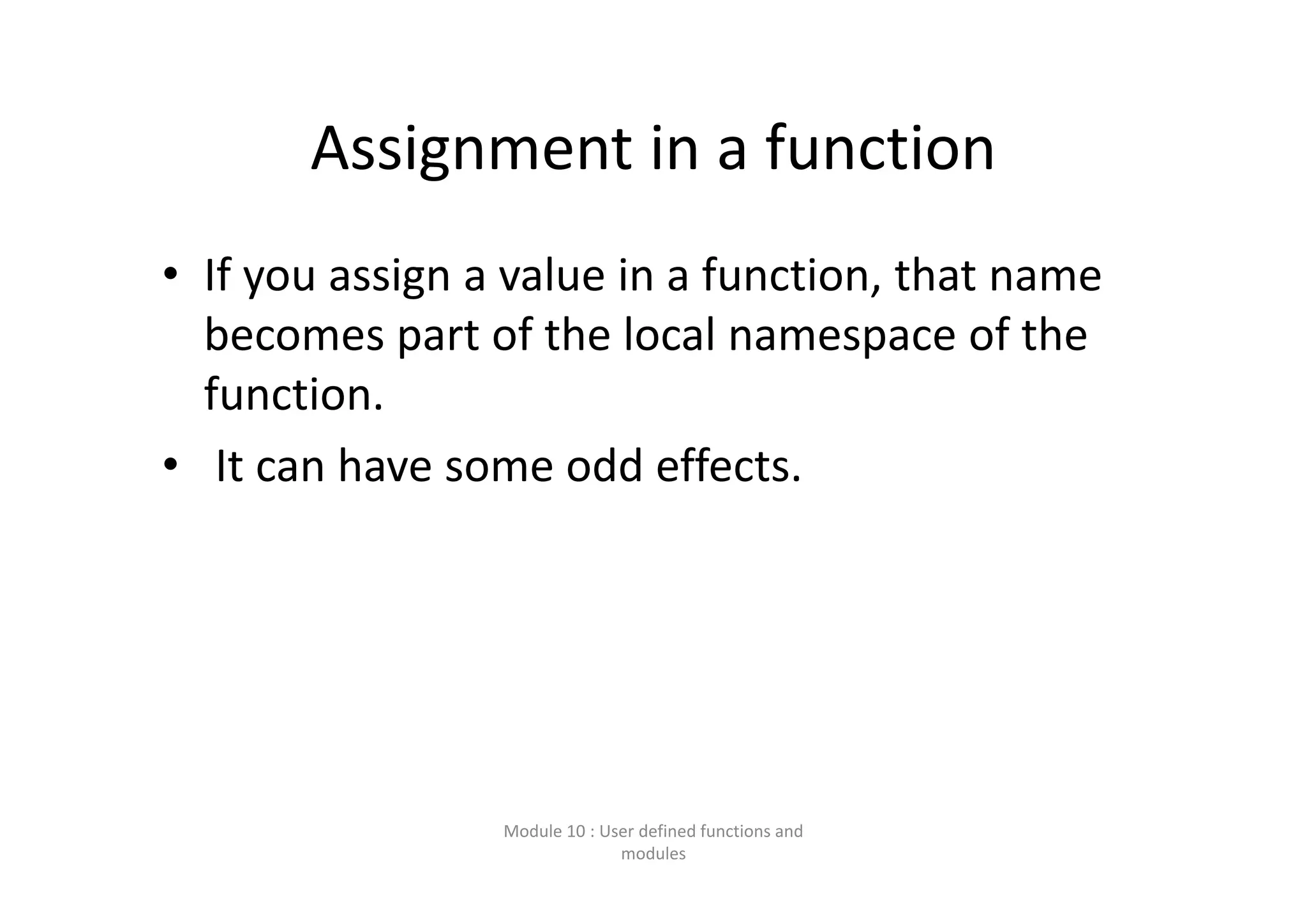

Assignment in a function • If you assign a value in a function, that name  becomes part of the local namespace of the  function. • It can have some odd effects. Module 10 : User defined functions and  modules
Example a vs b def myFun (param): param.append(4) return param myList = [1,2,3] newList = myFun(myList) print(myList,newList) Module 10 : User defined functions and  modules def myFun (param): param=[1,2,3] param.append(4) return param myList = [1,2,3] newList = myFun(myList) print(myList,newList) a b

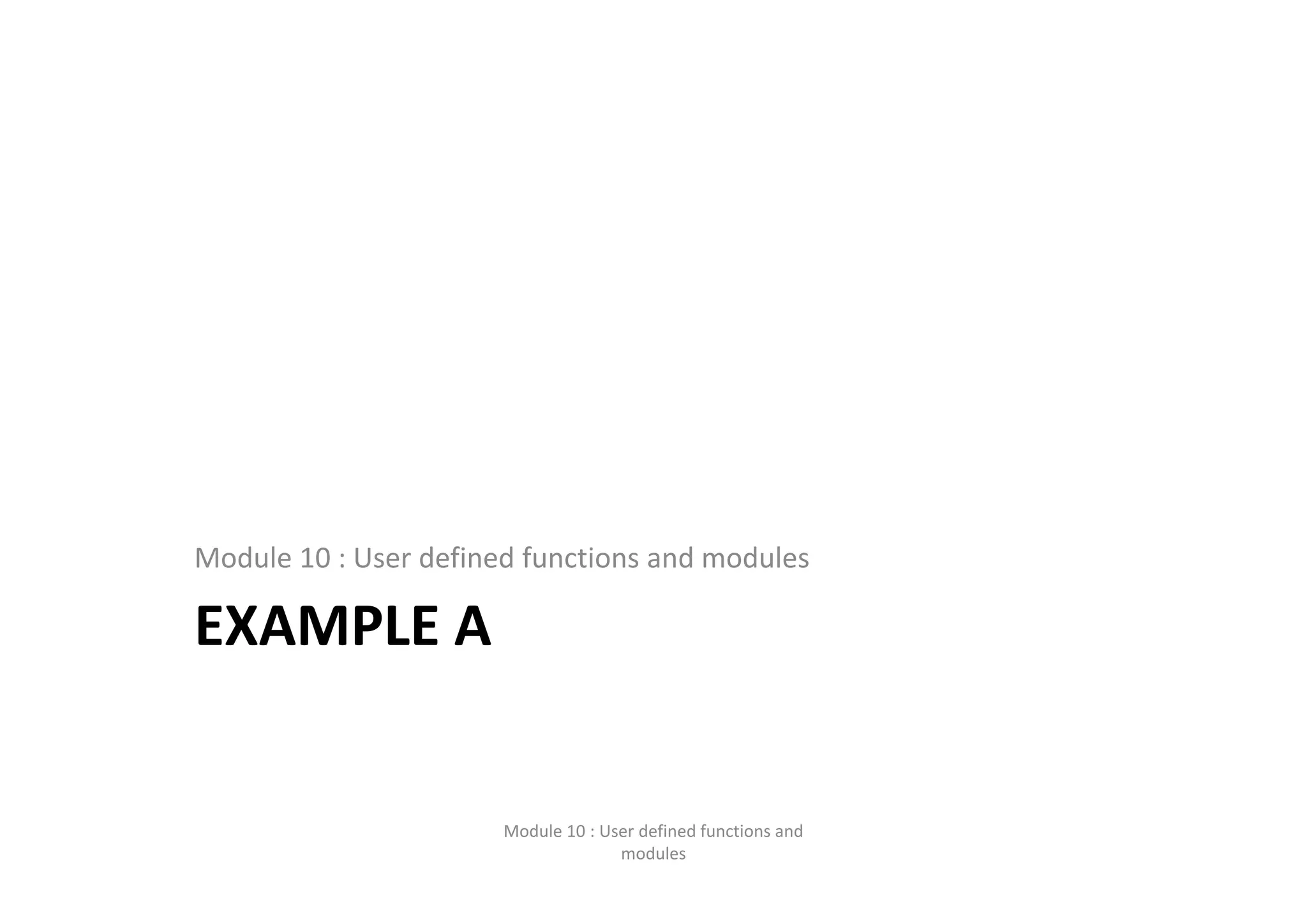

EXAMPLE A Module 10 : User defined functions and modules Module 10 : User defined functions and  modules

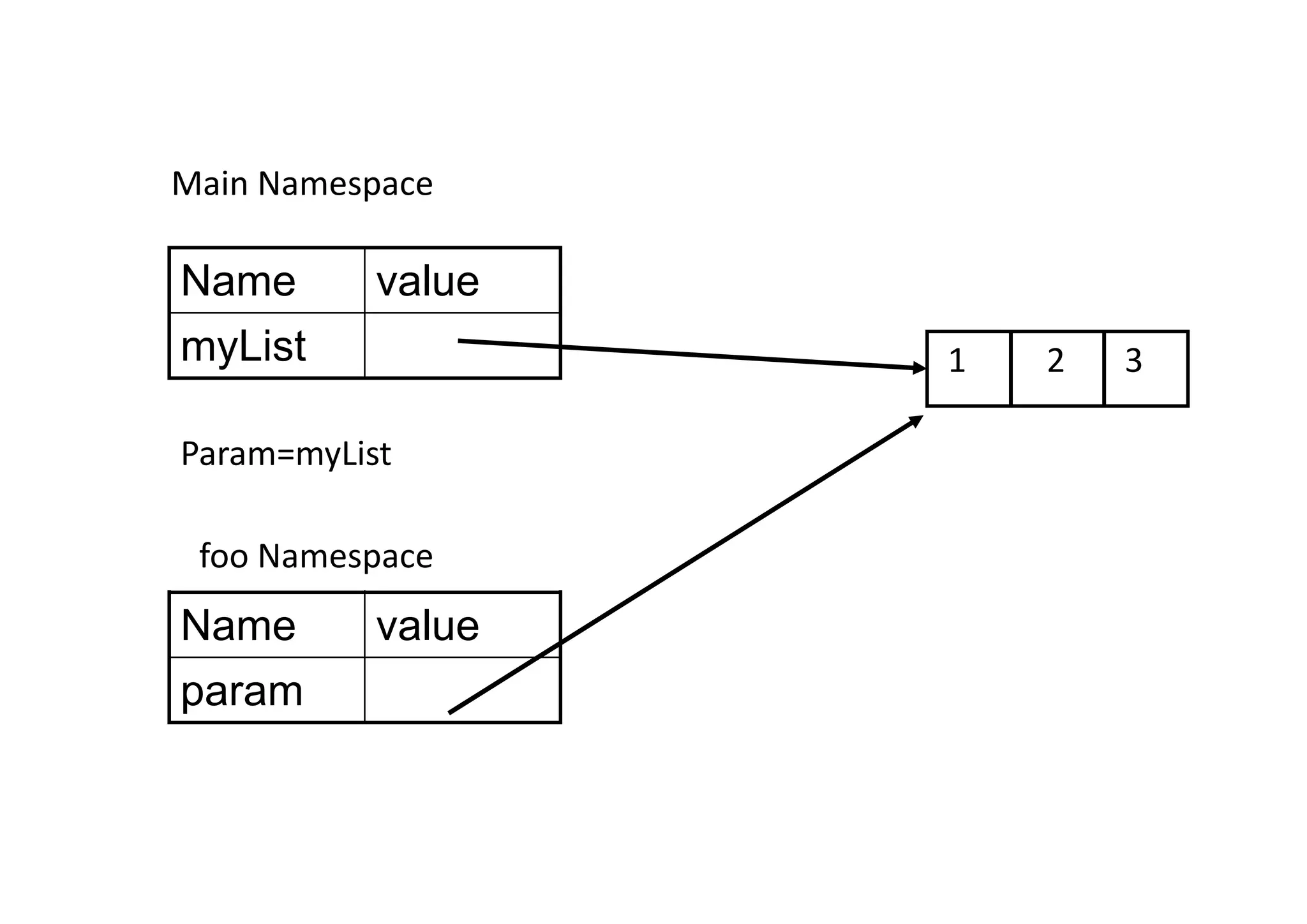

1 2 3 Name value myList Main Namespace Name value param foo Namespace Param=myList

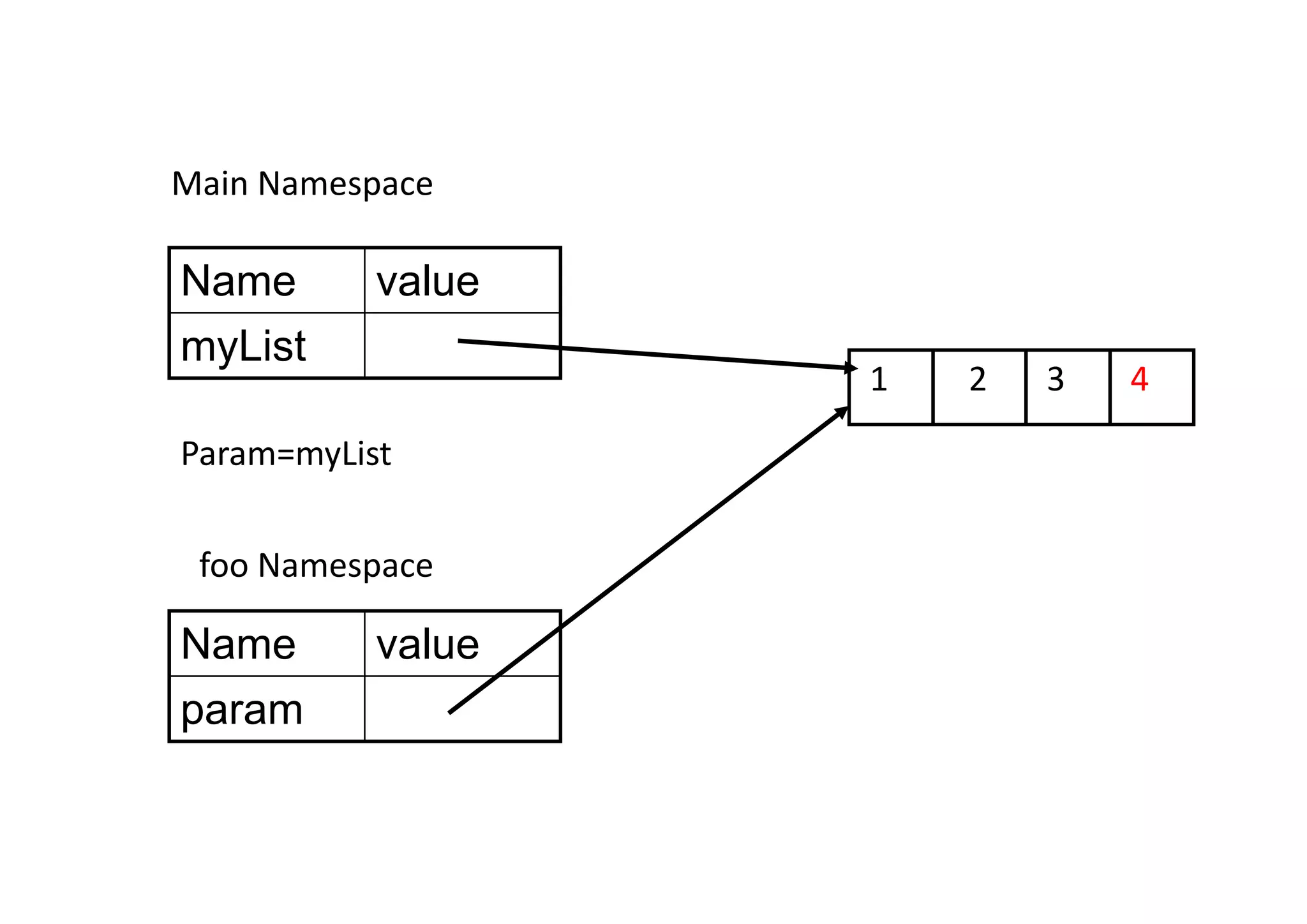

1 2 3 Name value myList Main Namespace Name value param foo Namespace Param=myList 4

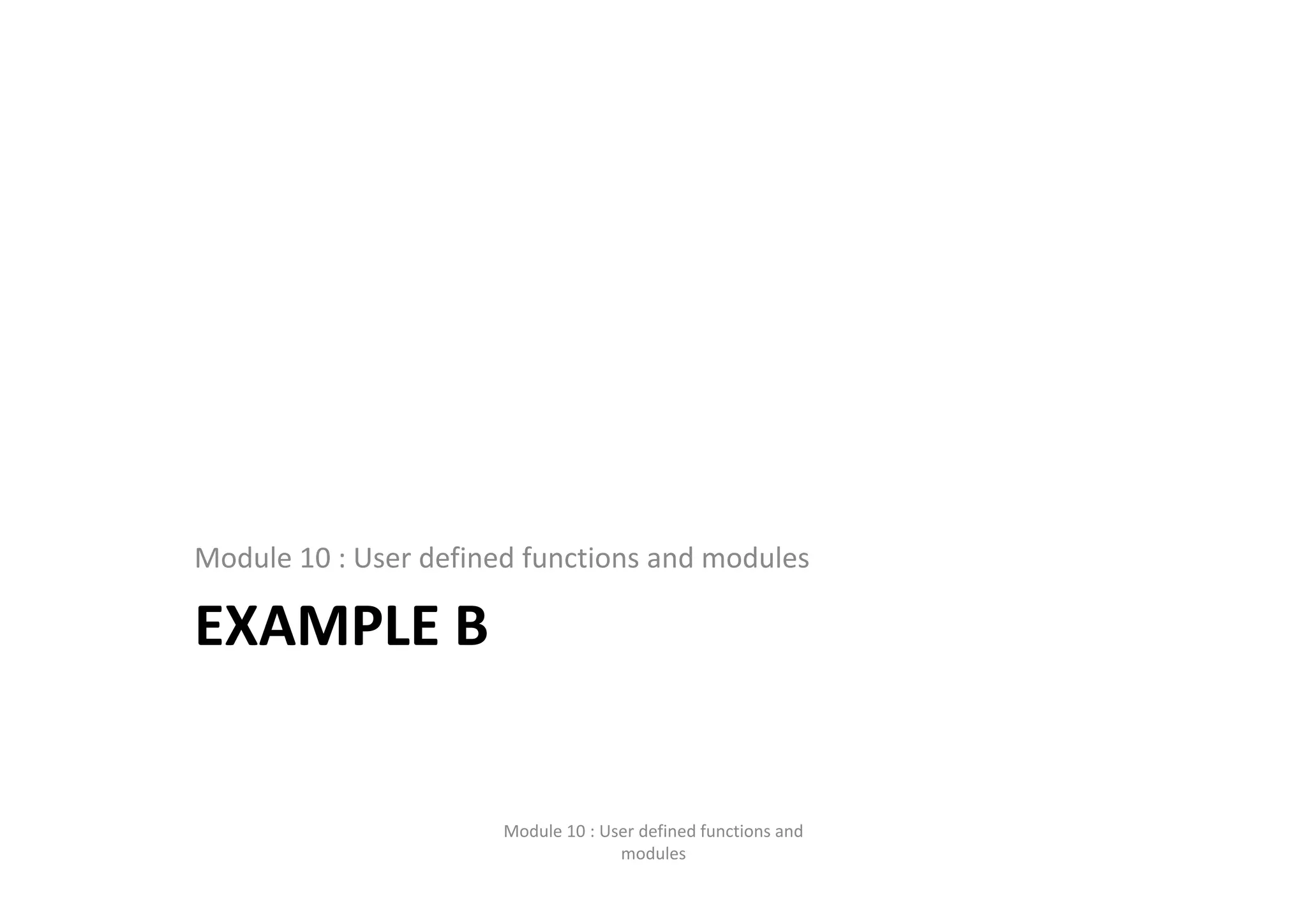

EXAMPLE B Module 10 : User defined functions and modules Module 10 : User defined functions and  modules

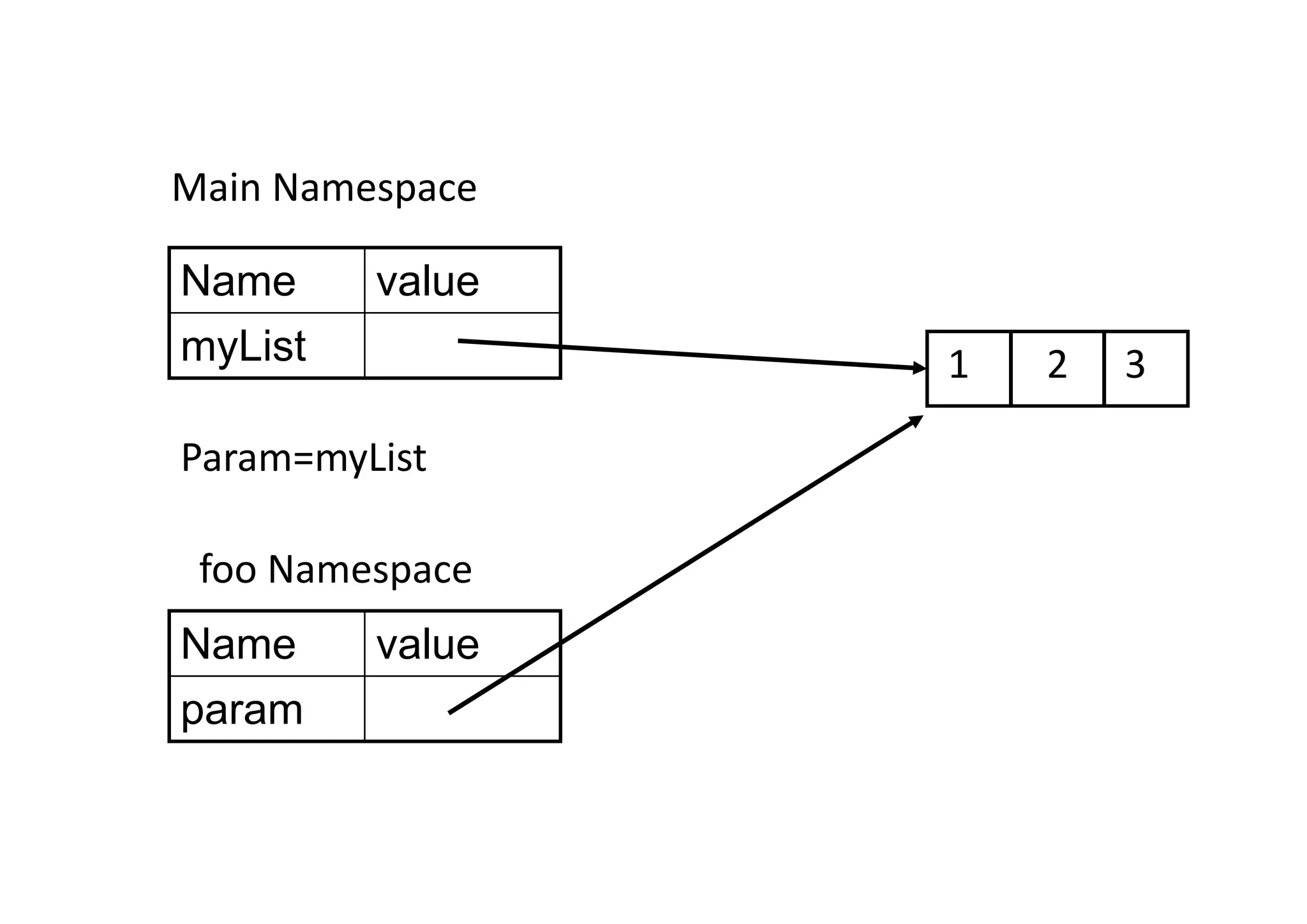

1 2 3 Name value myList Main Namespace Name value param foo Namespace Param=myList

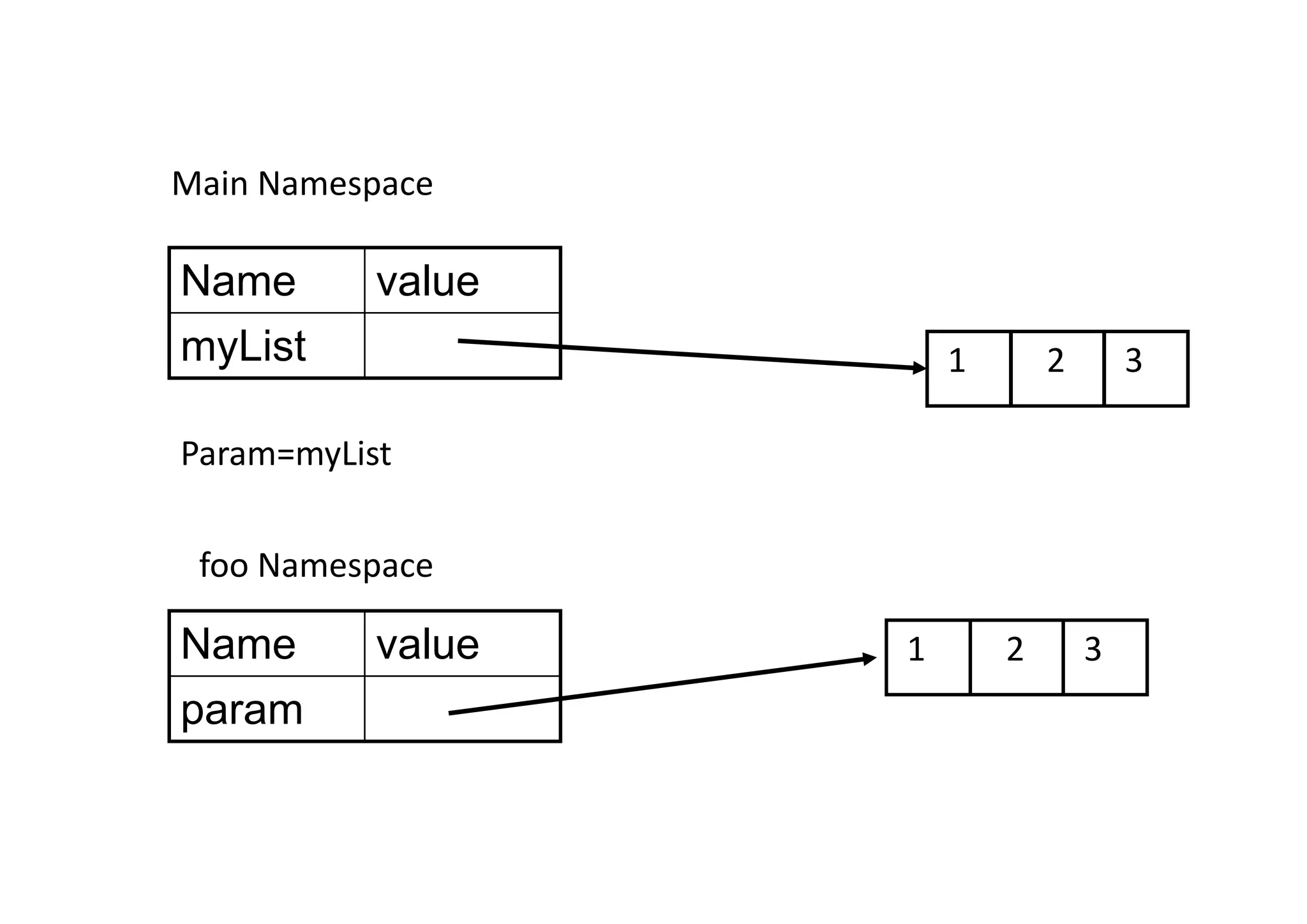

1 2 3 Name value myList Main Namespace Name value param foo Namespace Param=myList 1 2 3

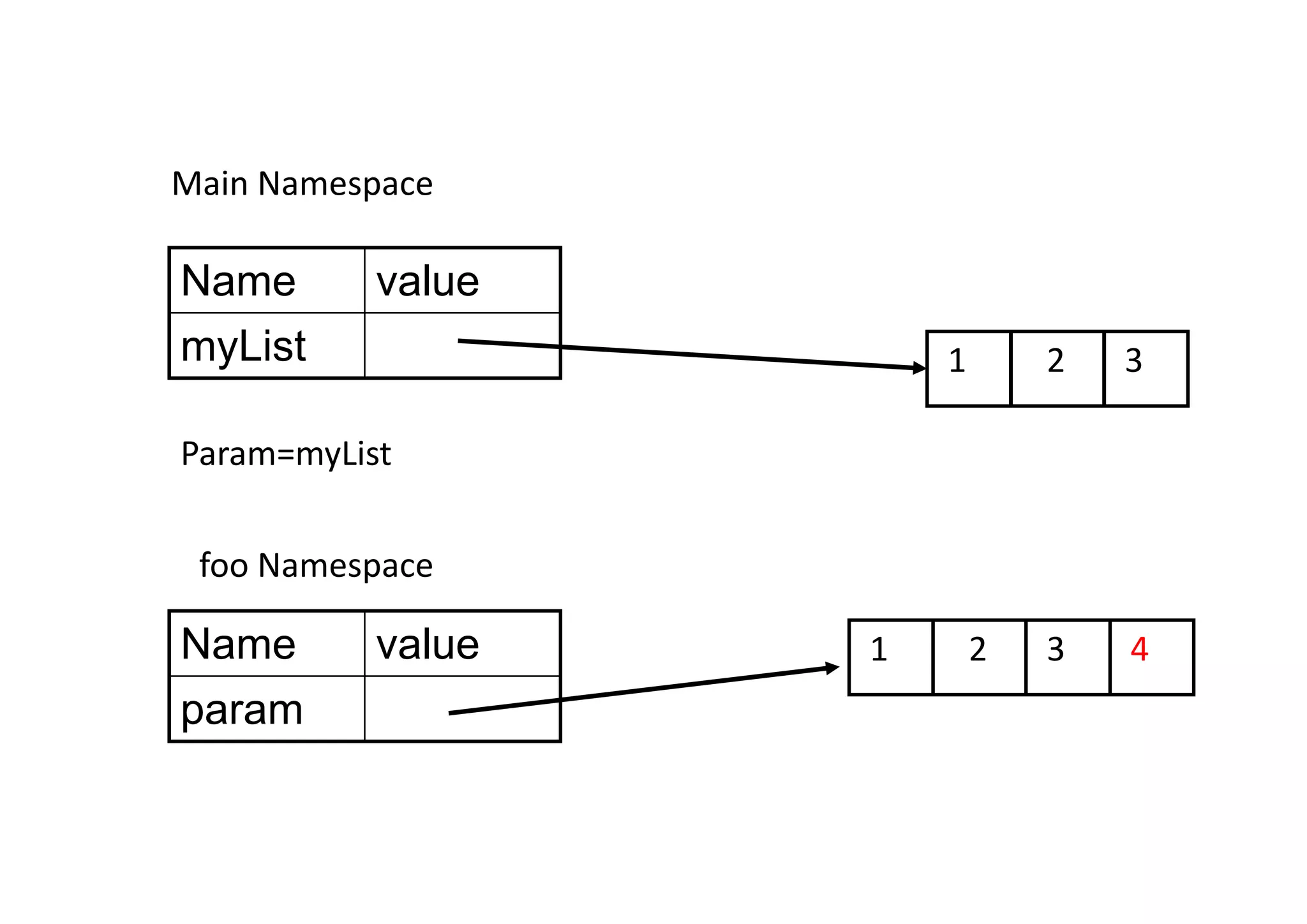

1 2 3 Name value myList Main Namespace Name value param foo Namespace Param=myList 1 2 3 4

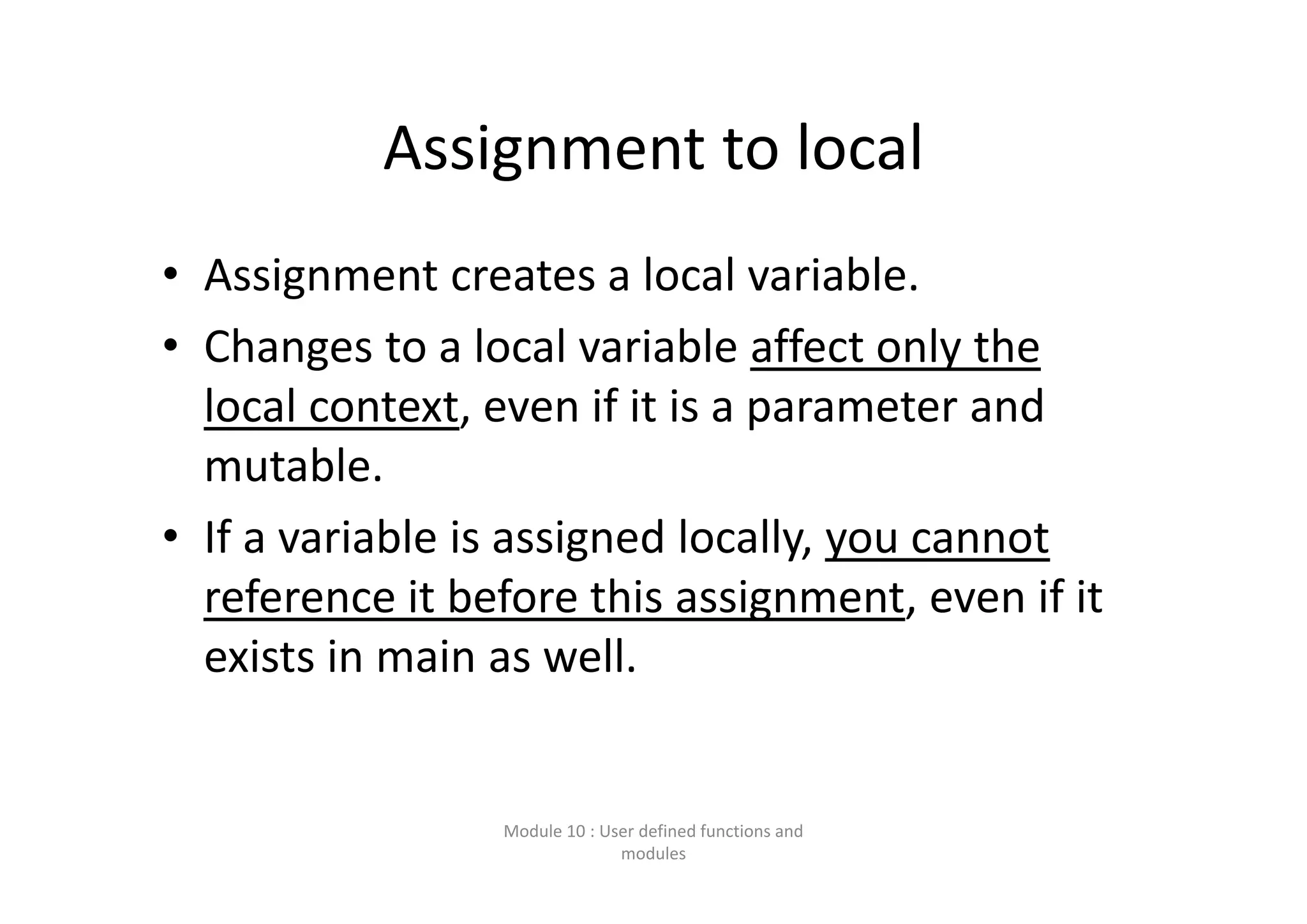

Assignment to local • Assignment creates a local variable. • Changes to a local variable affect only the  local context, even if it is a parameter and  mutable. • If a variable is assigned locally, you cannot  reference it before this assignment, even if it  exists in main as well. Module 10 : User defined functions and  modules

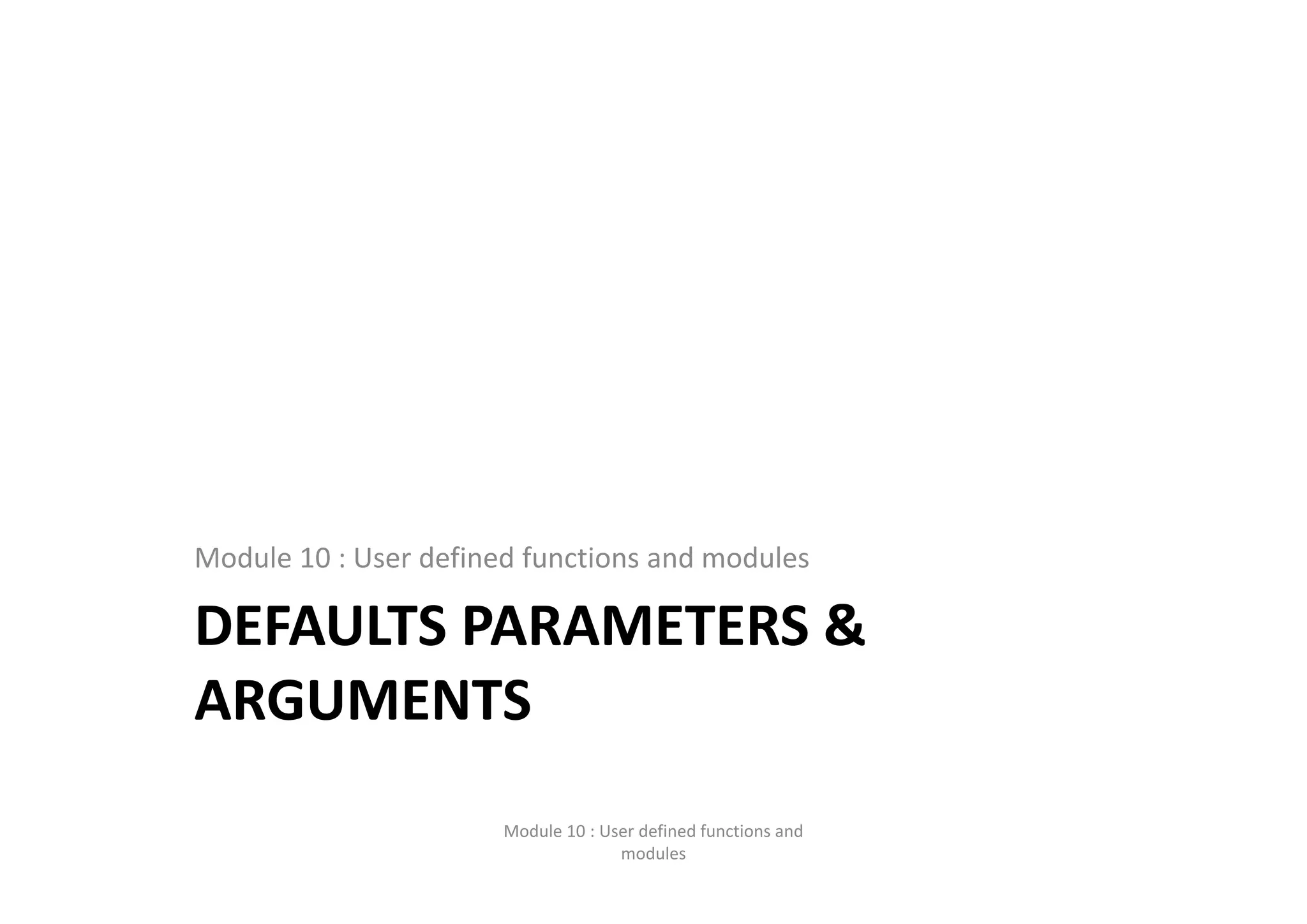

DEFAULTS PARAMETERS &  ARGUMENTS Module 10 : User defined functions and modules Module 10 : User defined functions and  modules

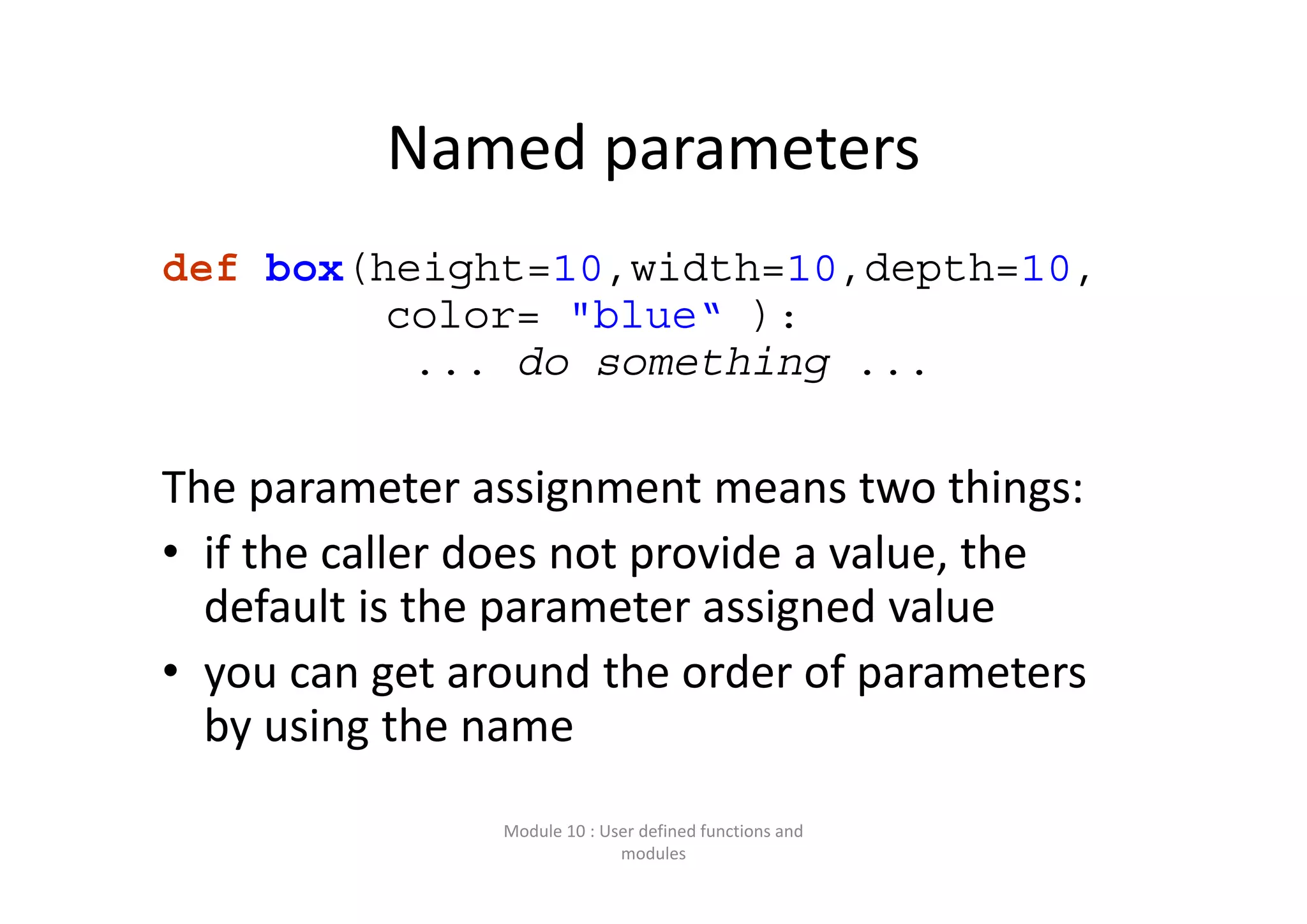

Named parameters def box(height=10,width=10,depth=10, color= "blue“ ): ... do something ... The parameter assignment means two things: • if the caller does not provide a value, the  default is the parameter assigned value • you can get around the order of parameters  by using the name  Module 10 : User defined functions and  modules

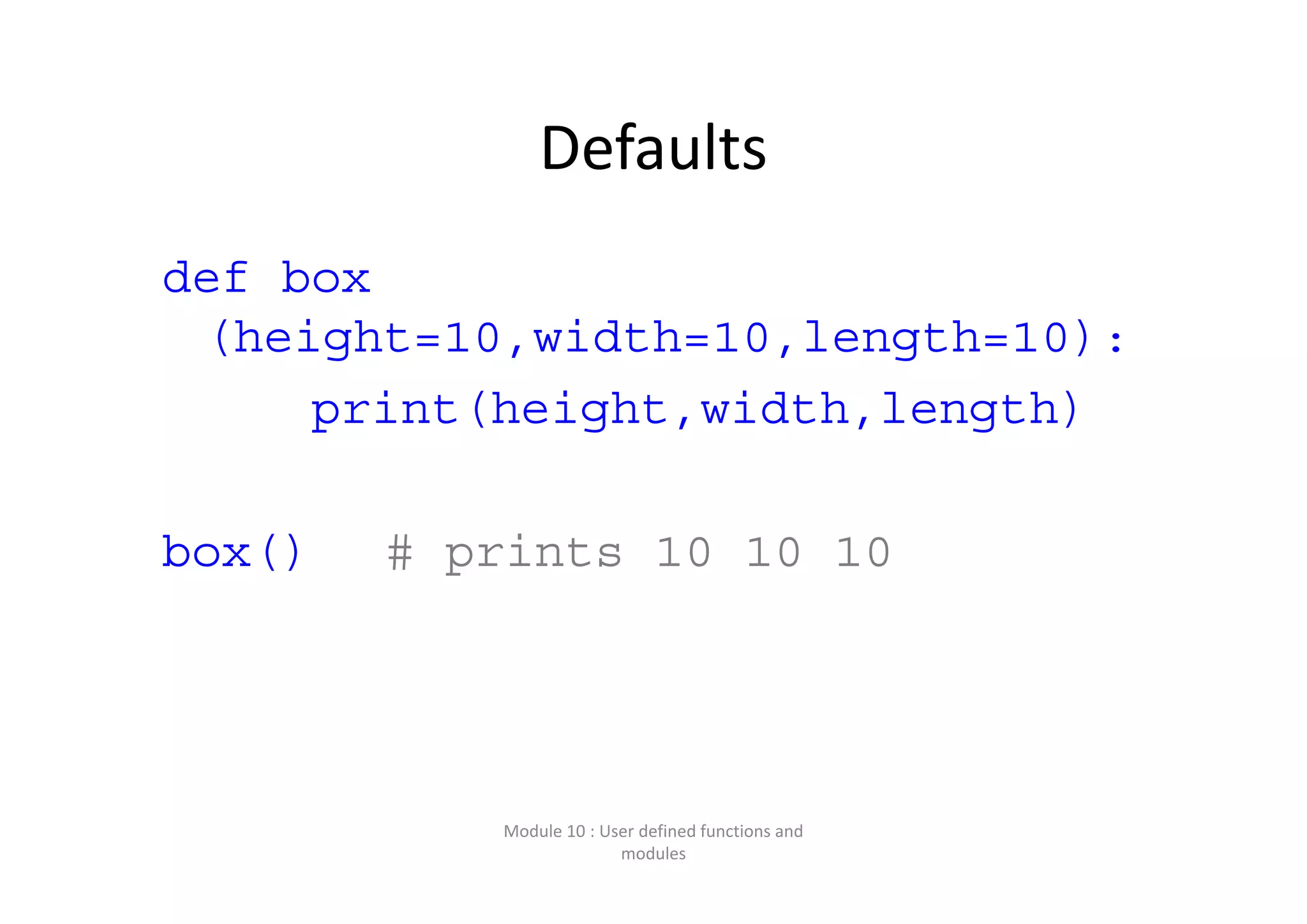

Defaults def box (height=10,width=10,length=10): print(height,width,length) box() # prints 10 10 10 Module 10 : User defined functions and  modules

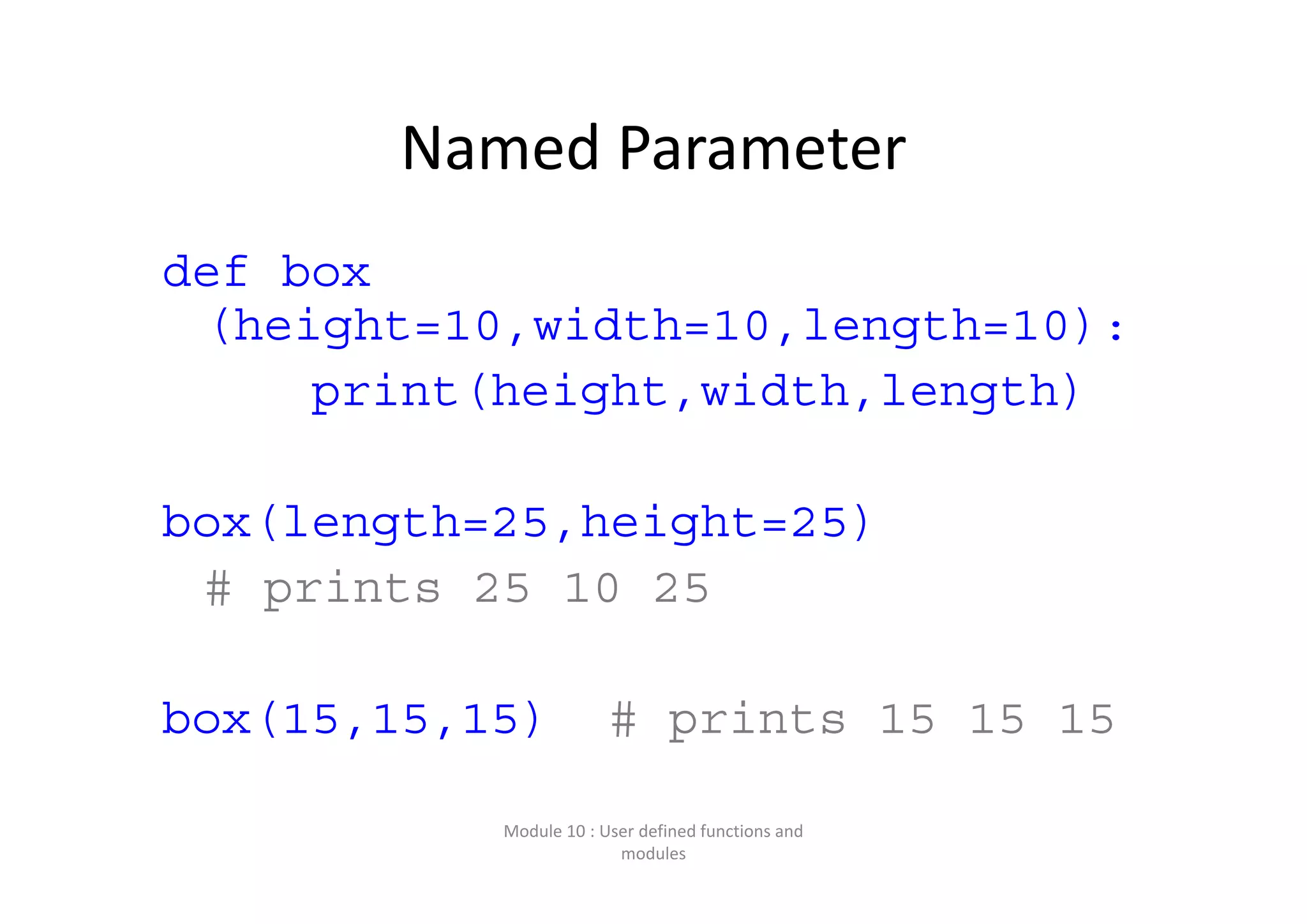

Named Parameter def box (height=10,width=10,length=10): print(height,width,length) box(length=25,height=25) # prints 25 10 25 box(15,15,15) # prints 15 15 15 Module 10 : User defined functions and  modules

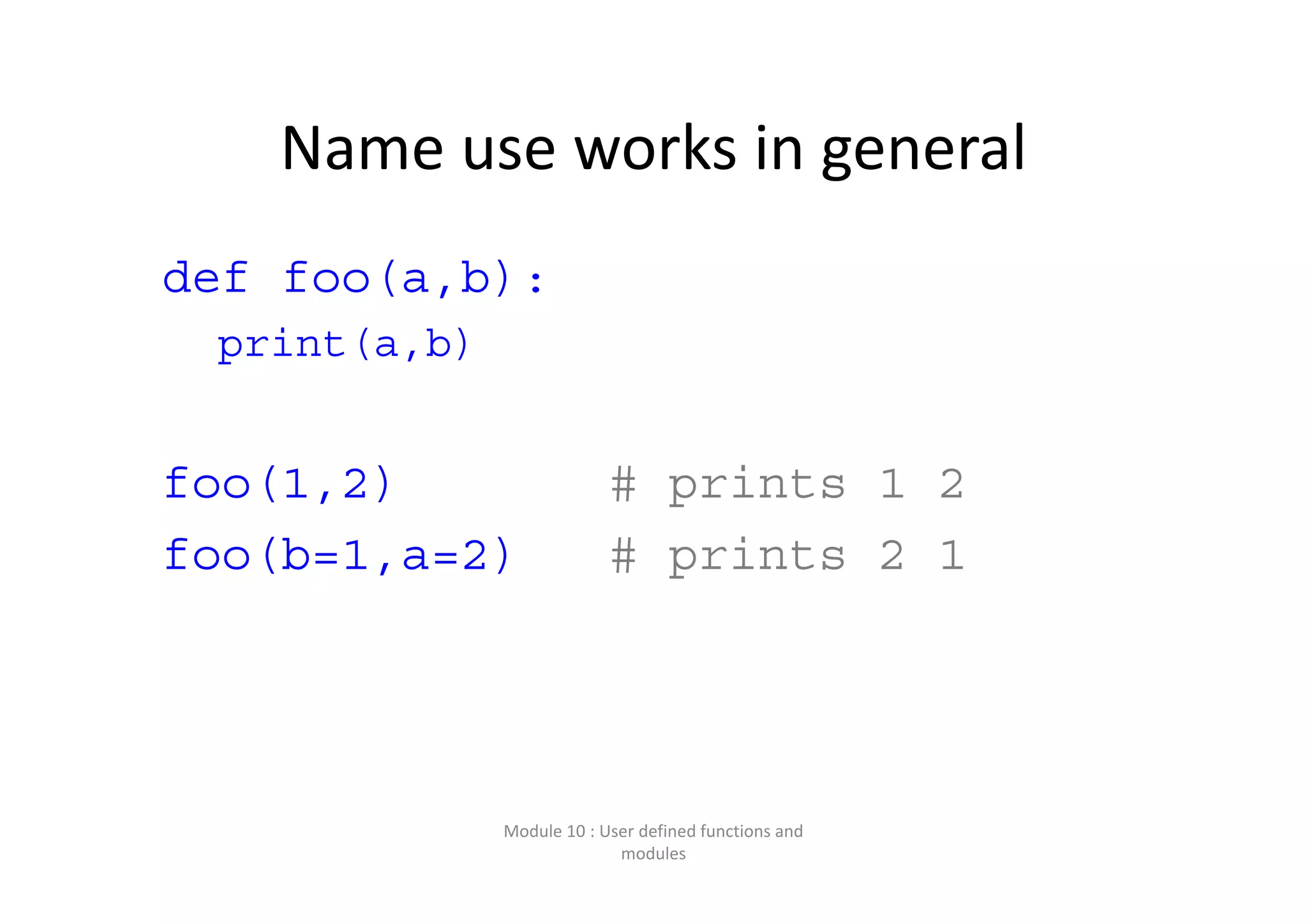

Name use works in general def foo(a,b): print(a,b) foo(1,2) # prints 1 2 foo(b=1,a=2) # prints 2 1 Module 10 : User defined functions and  modules

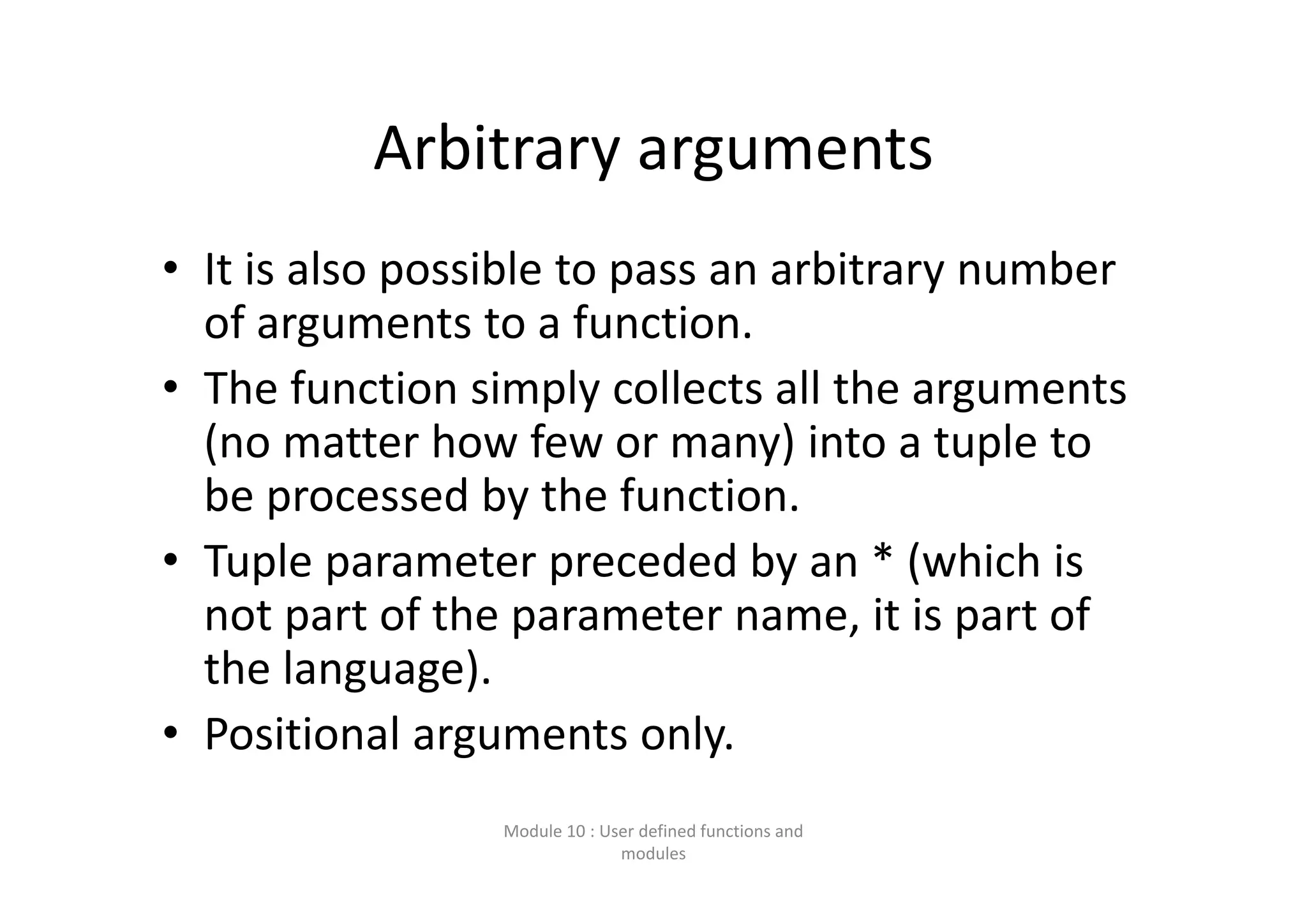

Arbitrary arguments • It is also possible to pass an arbitrary number  of arguments to a function. • The function simply collects all the arguments  (no matter how few or many) into a tuple to  be processed by the function. • Tuple parameter preceded by an * (which is  not part of the parameter name, it is part of  the language). • Positional arguments only. Module 10 : User defined functions and  modules

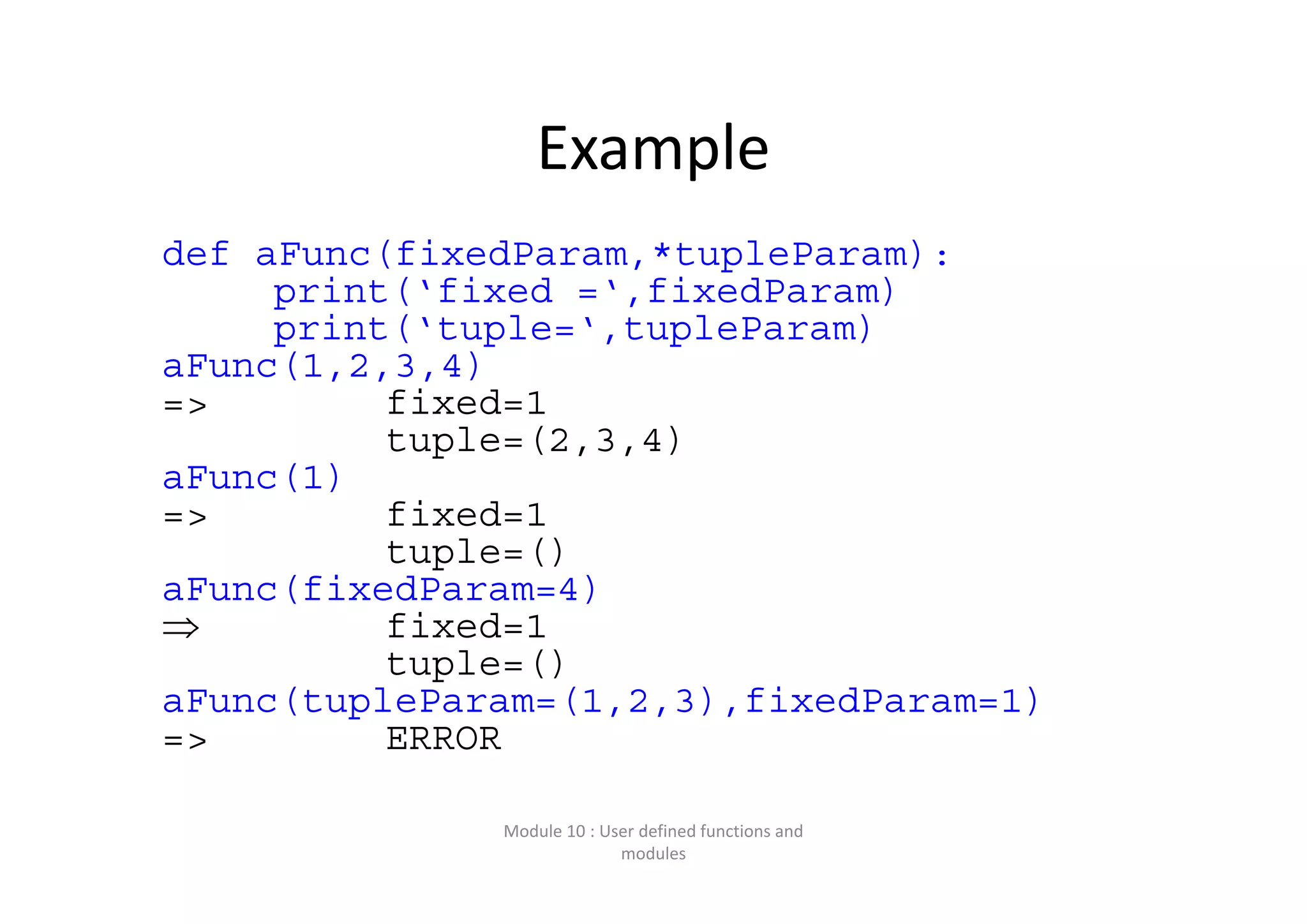

Example def aFunc(fixedParam,*tupleParam): print(‘fixed =‘,fixedParam) print(‘tuple=‘,tupleParam) aFunc(1,2,3,4) => fixed=1 tuple=(2,3,4) aFunc(1) => fixed=1 tuple=() aFunc(fixedParam=4)  fixed=1 tuple=() aFunc(tupleParam=(1,2,3),fixedParam=1) => ERROR Module 10 : User defined functions and  modules

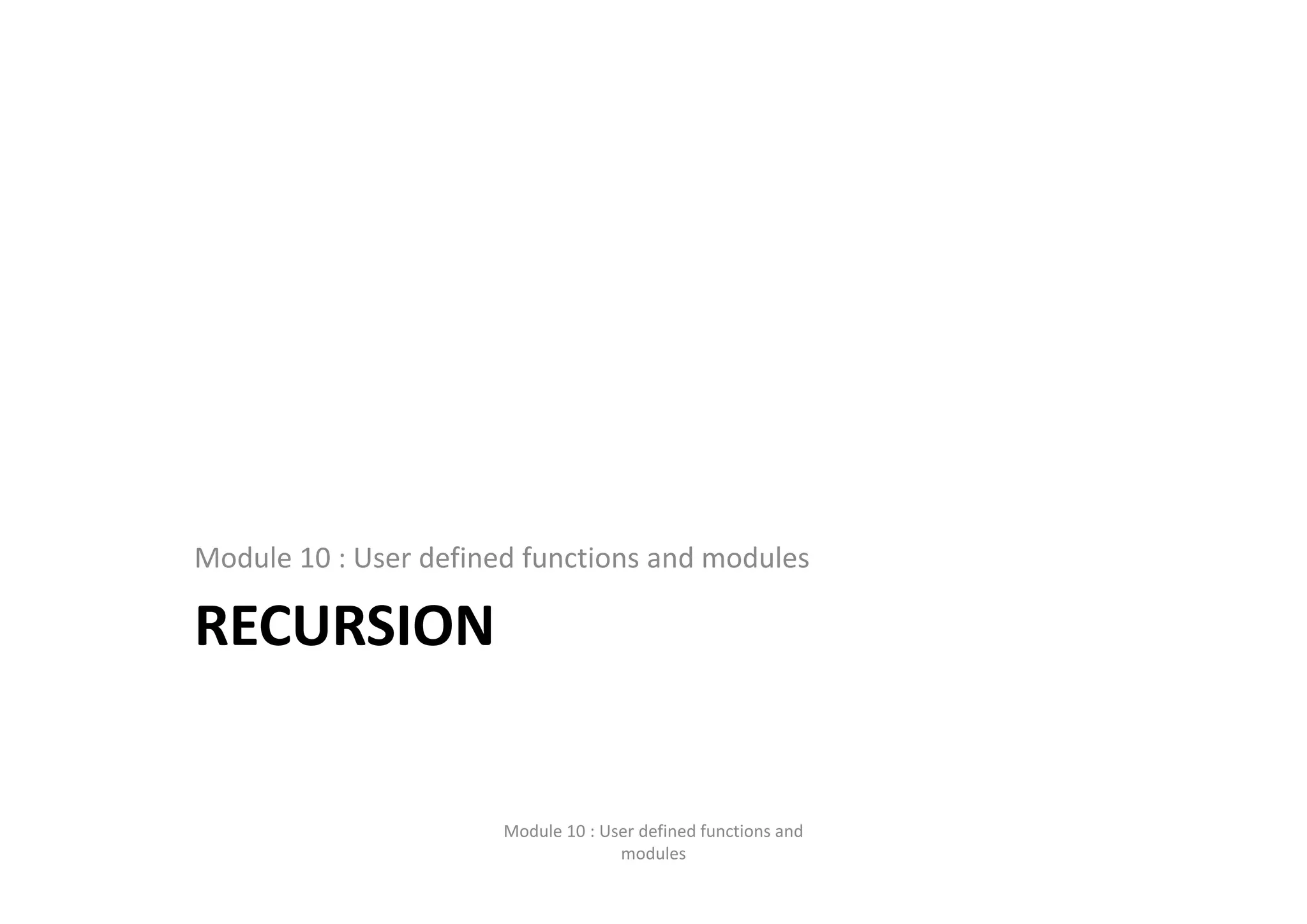

RECURSION Module 10 : User defined functions and modules Module 10 : User defined functions and  modules

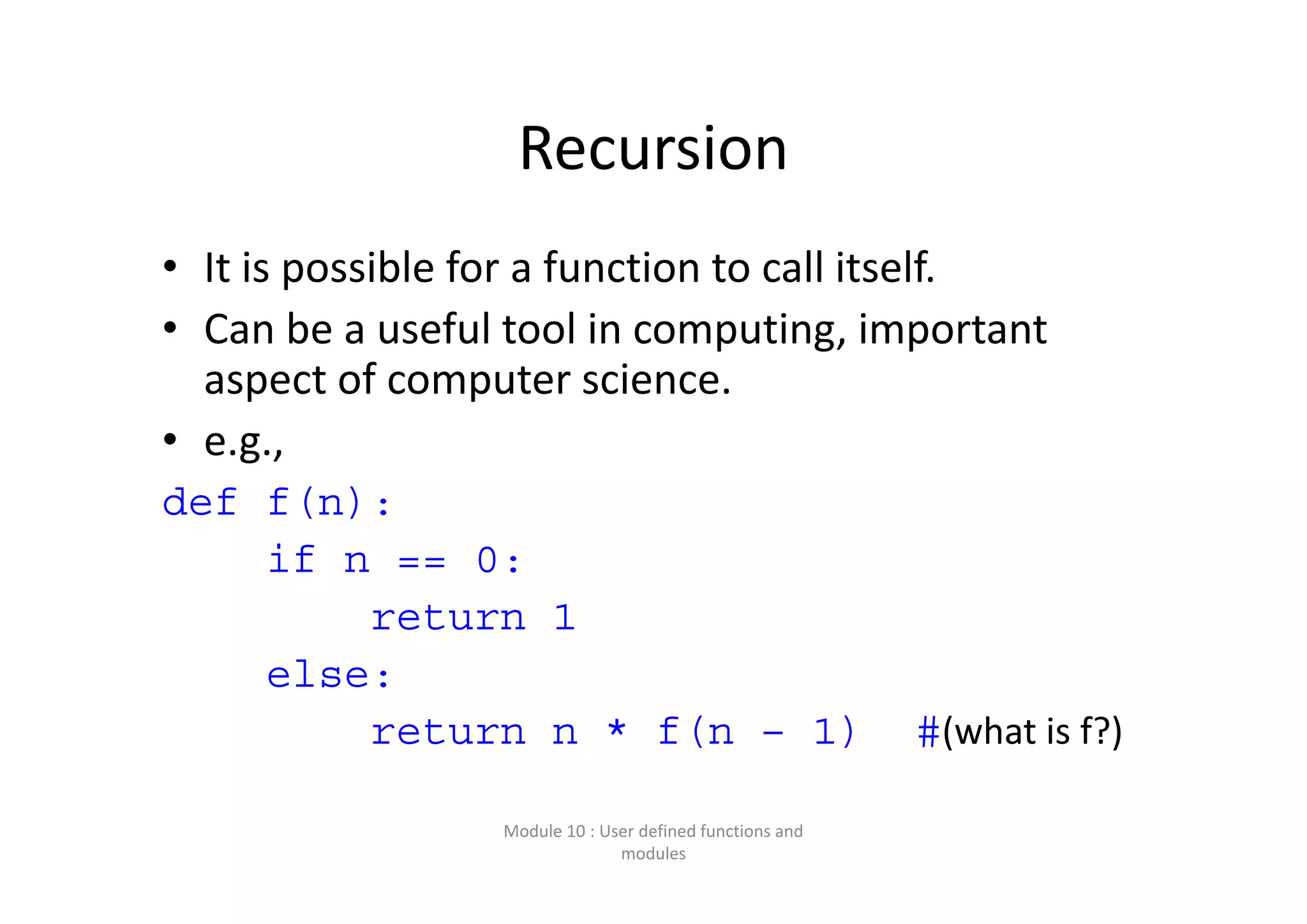

Recursion • It is possible for a function to call itself. • Can be a useful tool in computing, important  aspect of computer science. • e.g.,  def f(n): if n == 0: return 1 else: return n * f(n – 1) #(what is f?) Module 10 : User defined functions and  modules

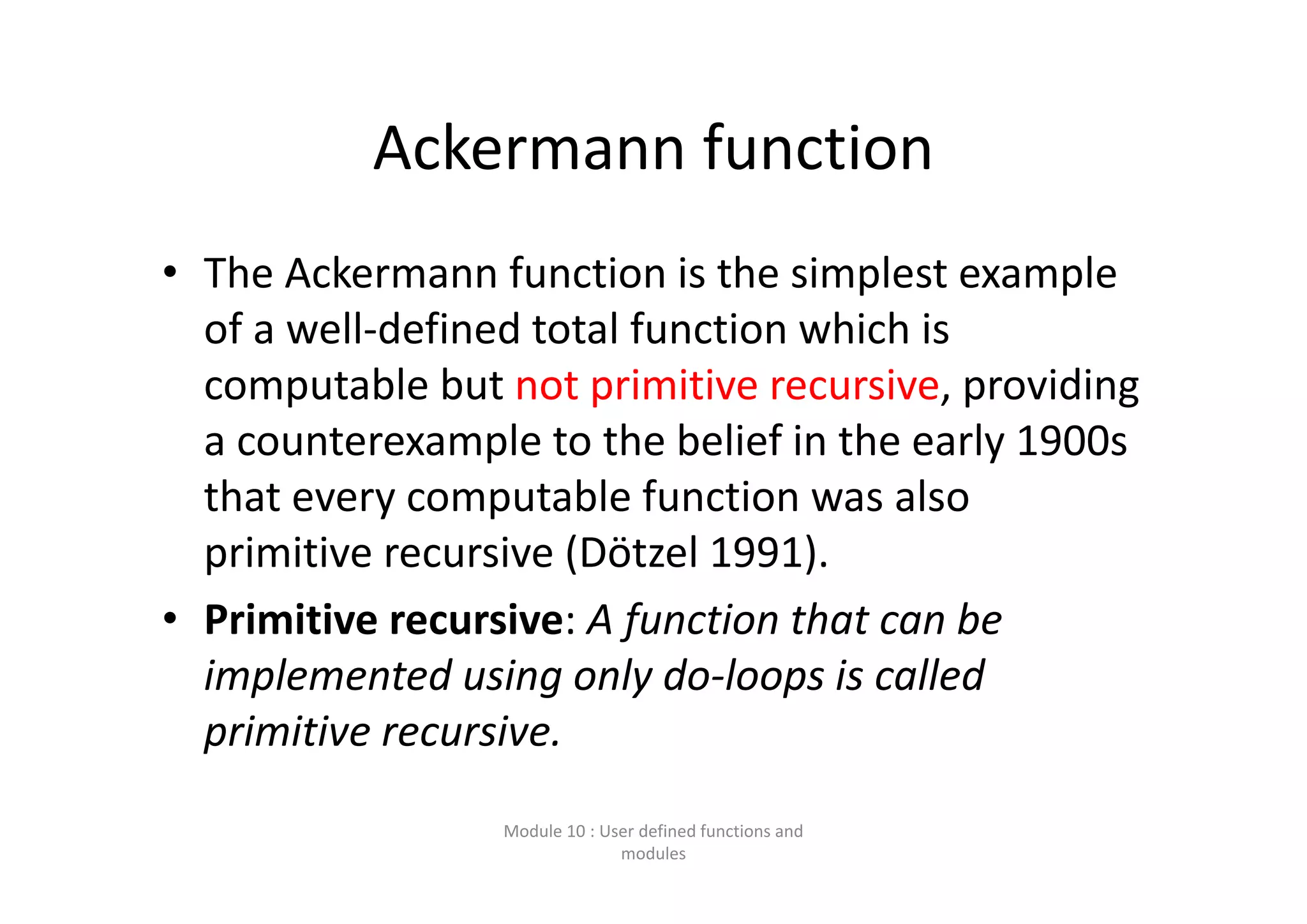

Ackermann function • The Ackermann function is the simplest example  of a well‐defined total function which is  computable but not primitive recursive, providing  a counterexample to the belief in the early 1900s  that every computable function was also  primitive recursive (Dötzel 1991). • Primitive recursive: A function that can be  implemented using only do‐loops is called  primitive recursive. Module 10 : User defined functions and  modules

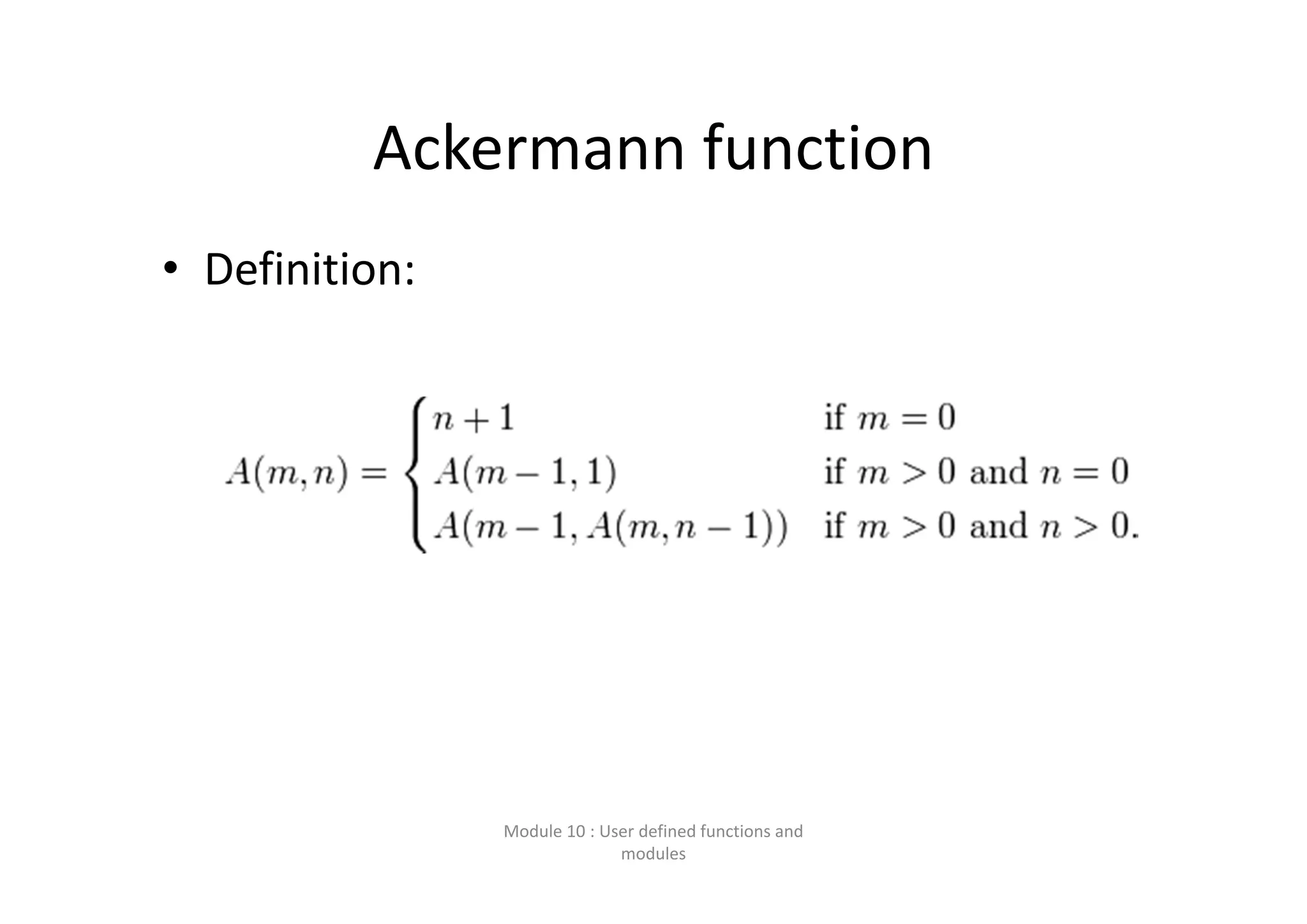

Ackermann function Module 10 : User defined functions and  modules • Definition:

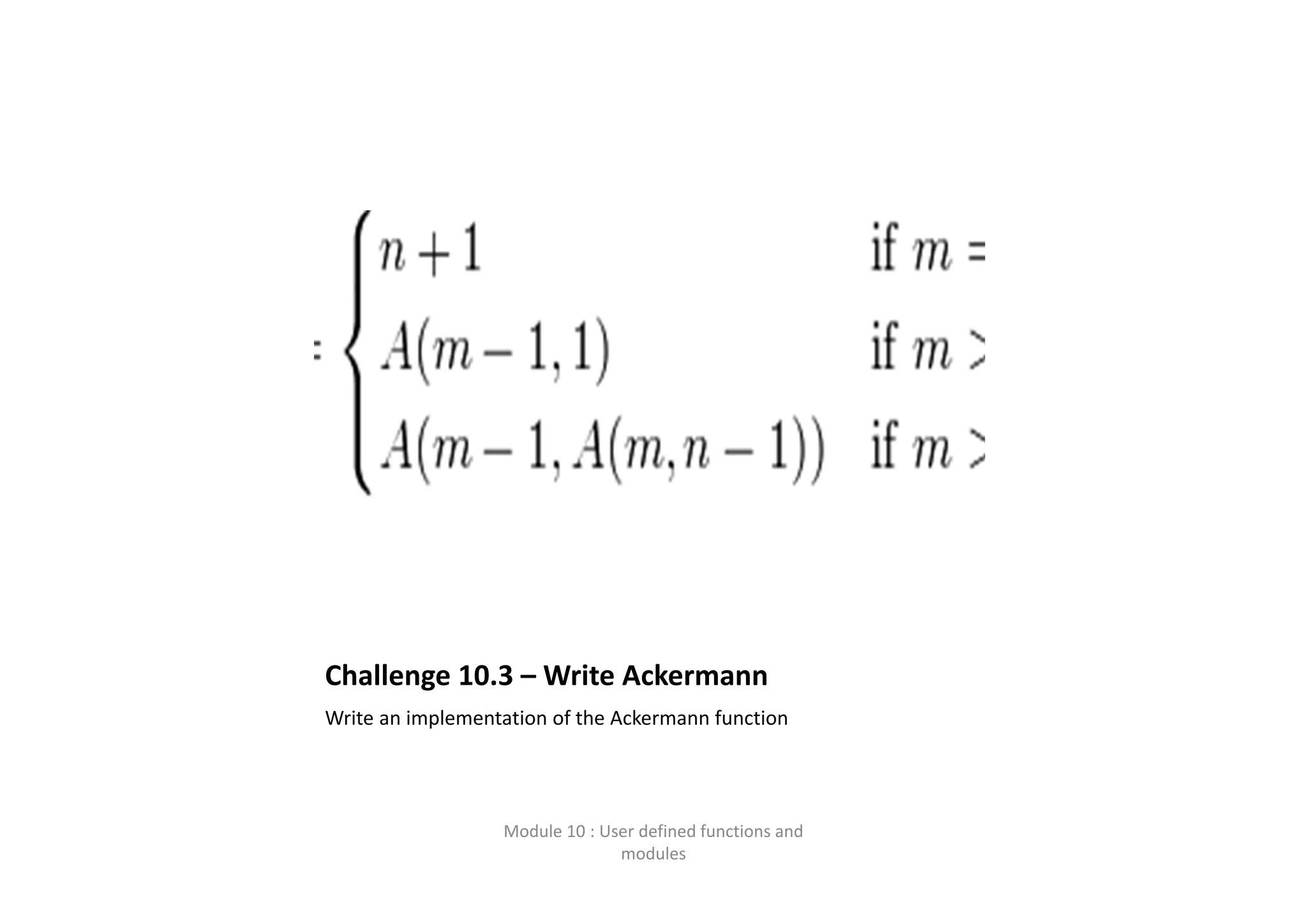

Challenge 10.3 – Write Ackermann Write an implementation of the Ackermann function Module 10 : User defined functions and  modules

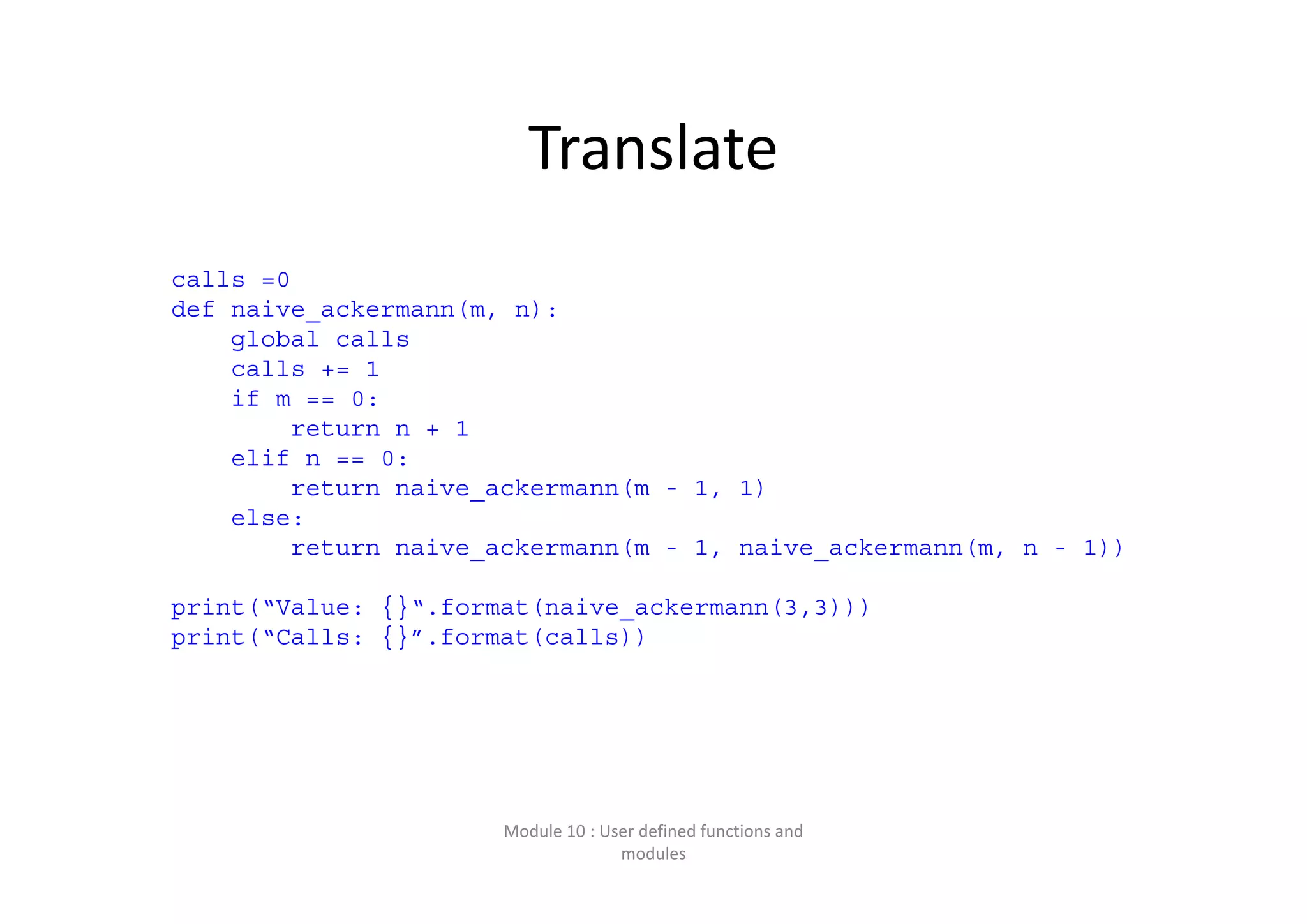

Translate Module 10 : User defined functions and  modules calls =0 def naive_ackermann(m, n): global calls calls += 1 if m == 0: return n + 1 elif n == 0: return naive_ackermann(m - 1, 1) else: return naive_ackermann(m - 1, naive_ackermann(m, n - 1)) print(“Value: {}“.format(naive_ackermann(3,3))) print(“Calls: {}”.format(calls))

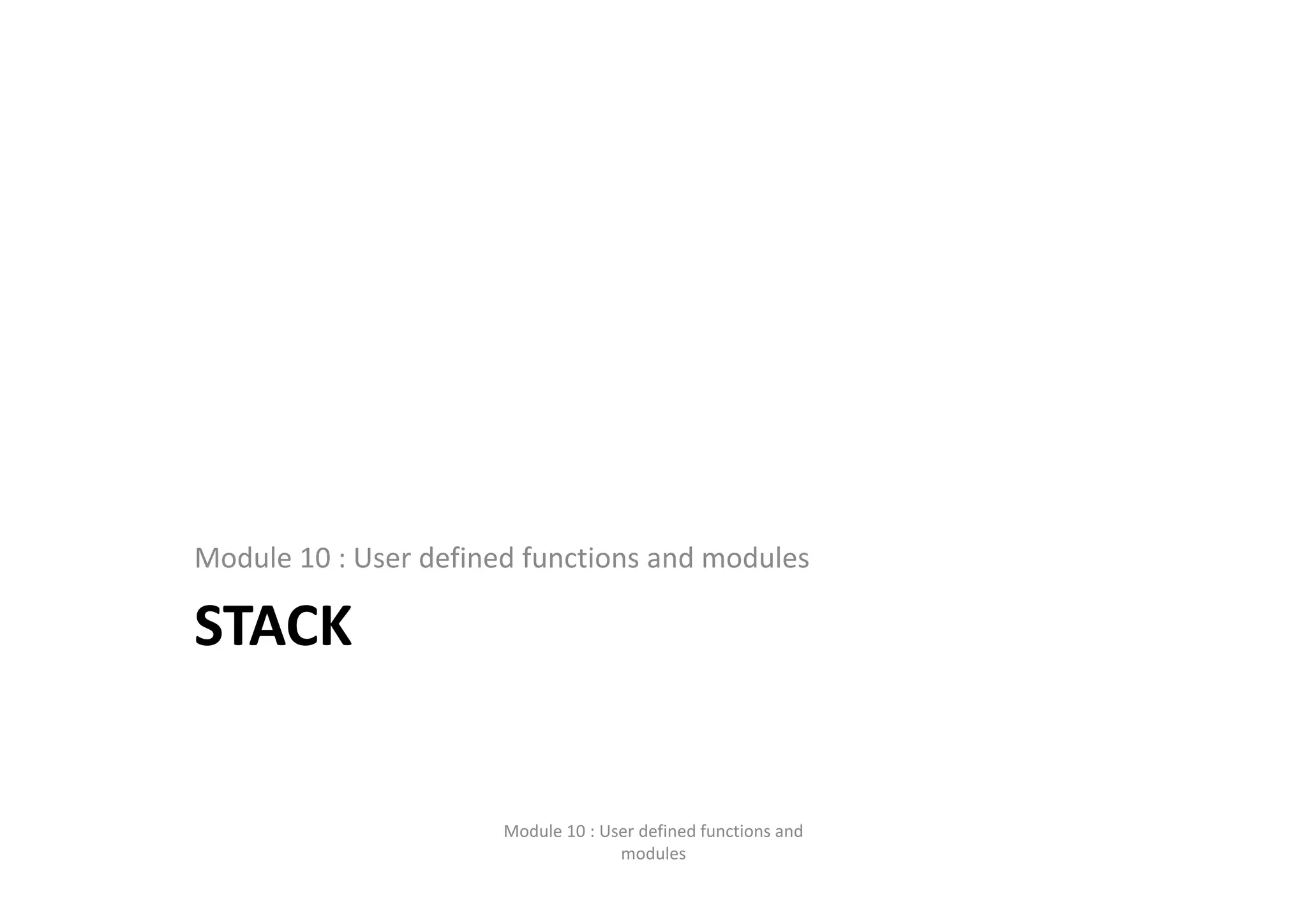

STACK Module 10 : User defined functions and modules Module 10 : User defined functions and  modules

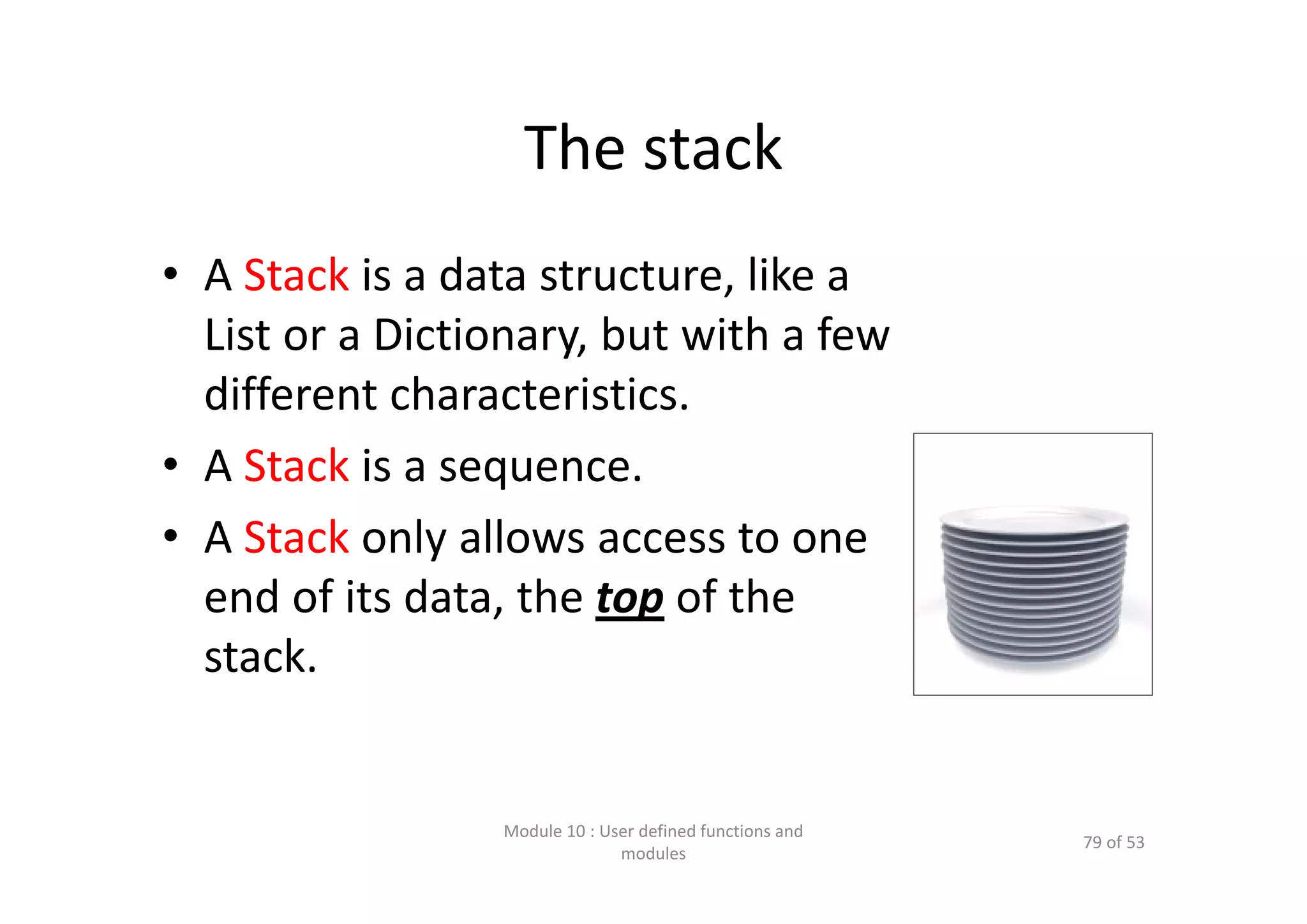

The stack • A Stack is a data structure, like a  List or a Dictionary, but with a few  different characteristics. • A Stack is a sequence. • A Stack only allows access to one  end of its data, the top of the  stack. Module 10 : User defined functions and  modules 79 of 53

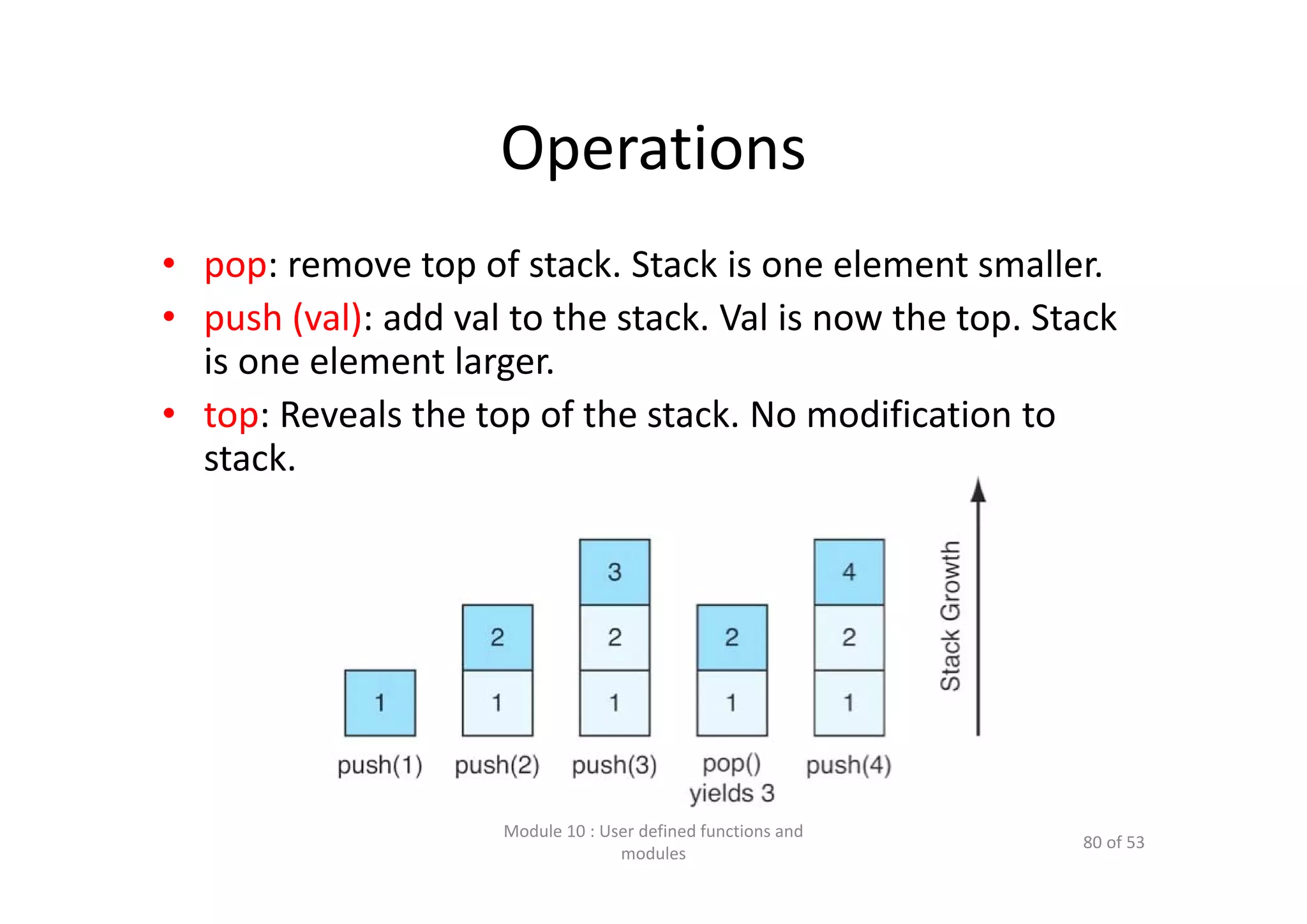

Operations Module 10 : User defined functions and  modules 80 of 53 • pop: remove top of stack. Stack is one element smaller. • push (val): add val to the stack. Val is now the top. Stack  is one element larger. • top: Reveals the top of the stack. No modification to  stack.

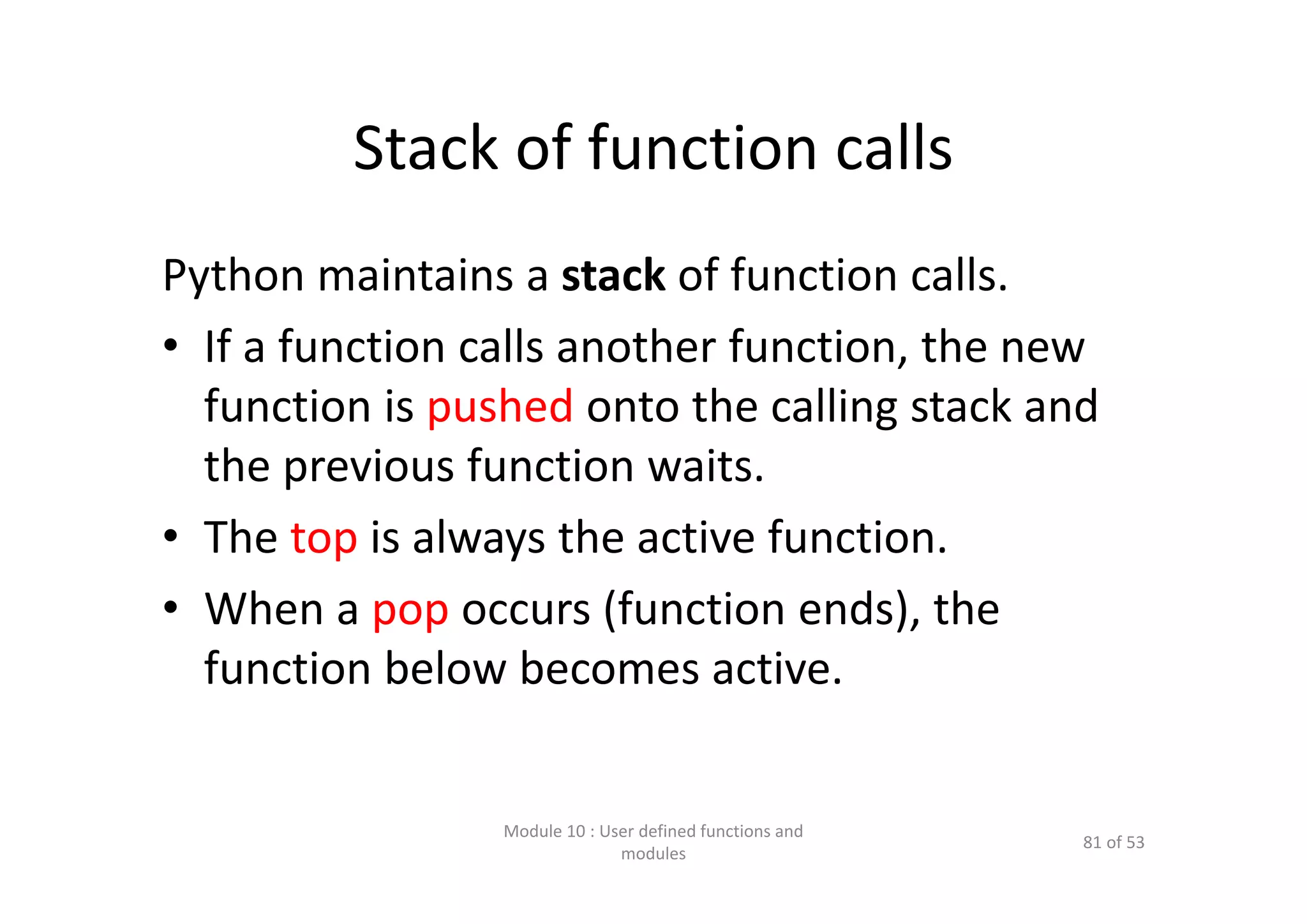

Stack of function calls Python maintains a stack of function calls. • If a function calls another function, the new  function is pushed onto the calling stack and  the previous function waits. • The top is always the active function. • When a pop occurs (function ends), the  function below becomes active. Module 10 : User defined functions and  modules 81 of 53

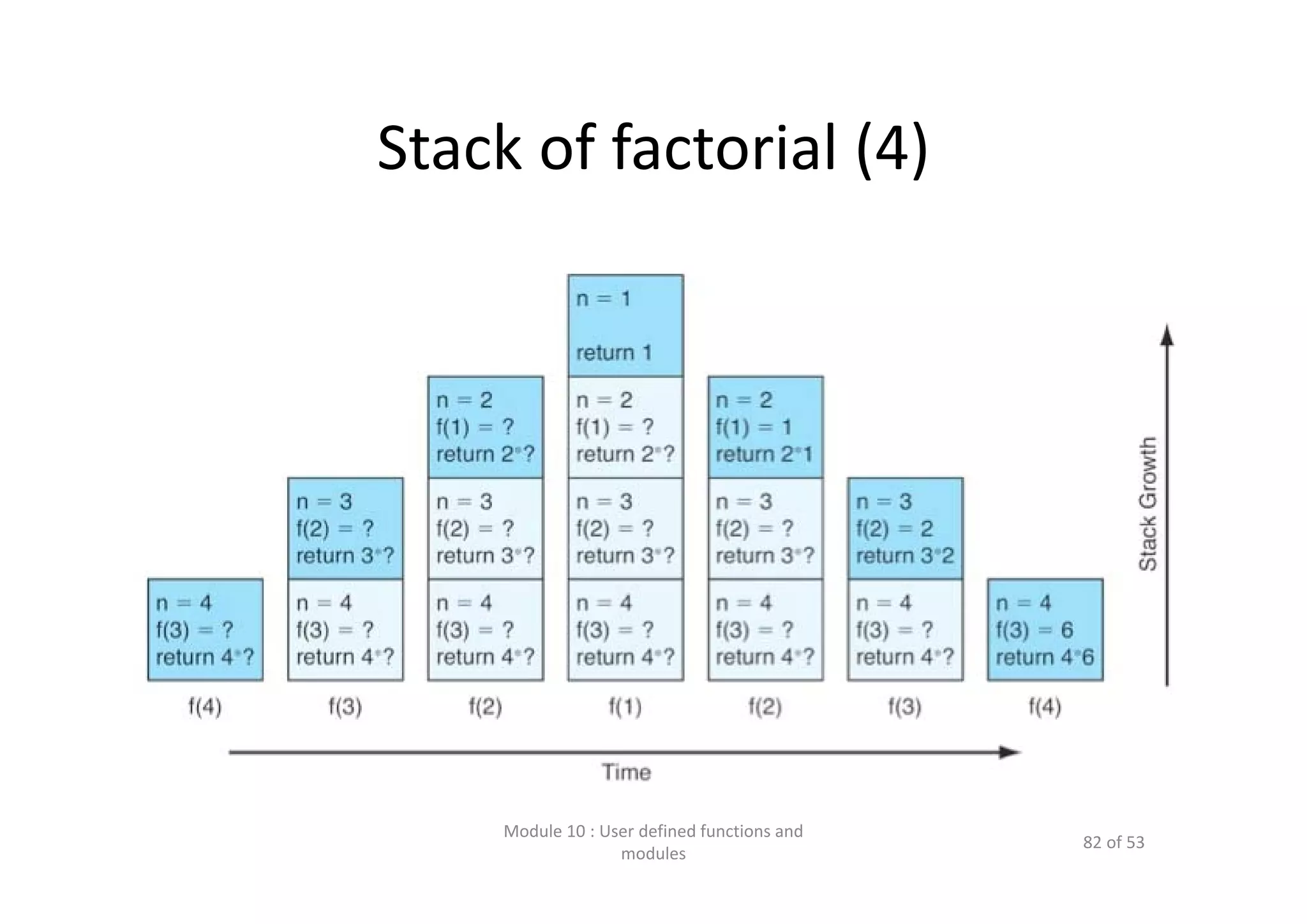

Stack of factorial (4) Module 10 : User defined functions and  modules 82 of 53
USER DEFINED MODULES Module 10 : User defined functions and modules Module 10 : User defined functions and  modules

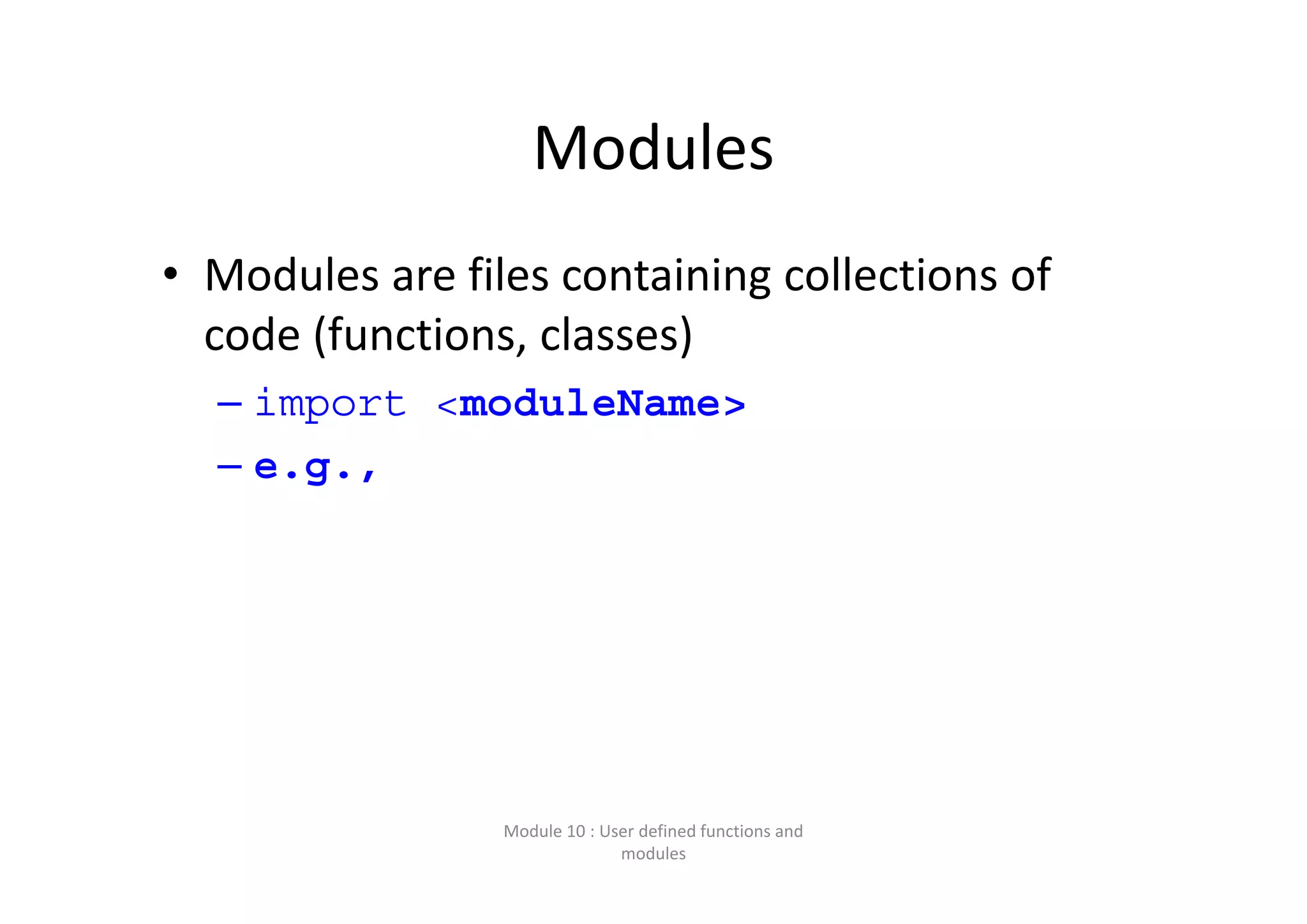

Modules • Modules are files containing collections of  code (functions, classes) – import <moduleName> – e.g., Module 10 : User defined functions and  modules

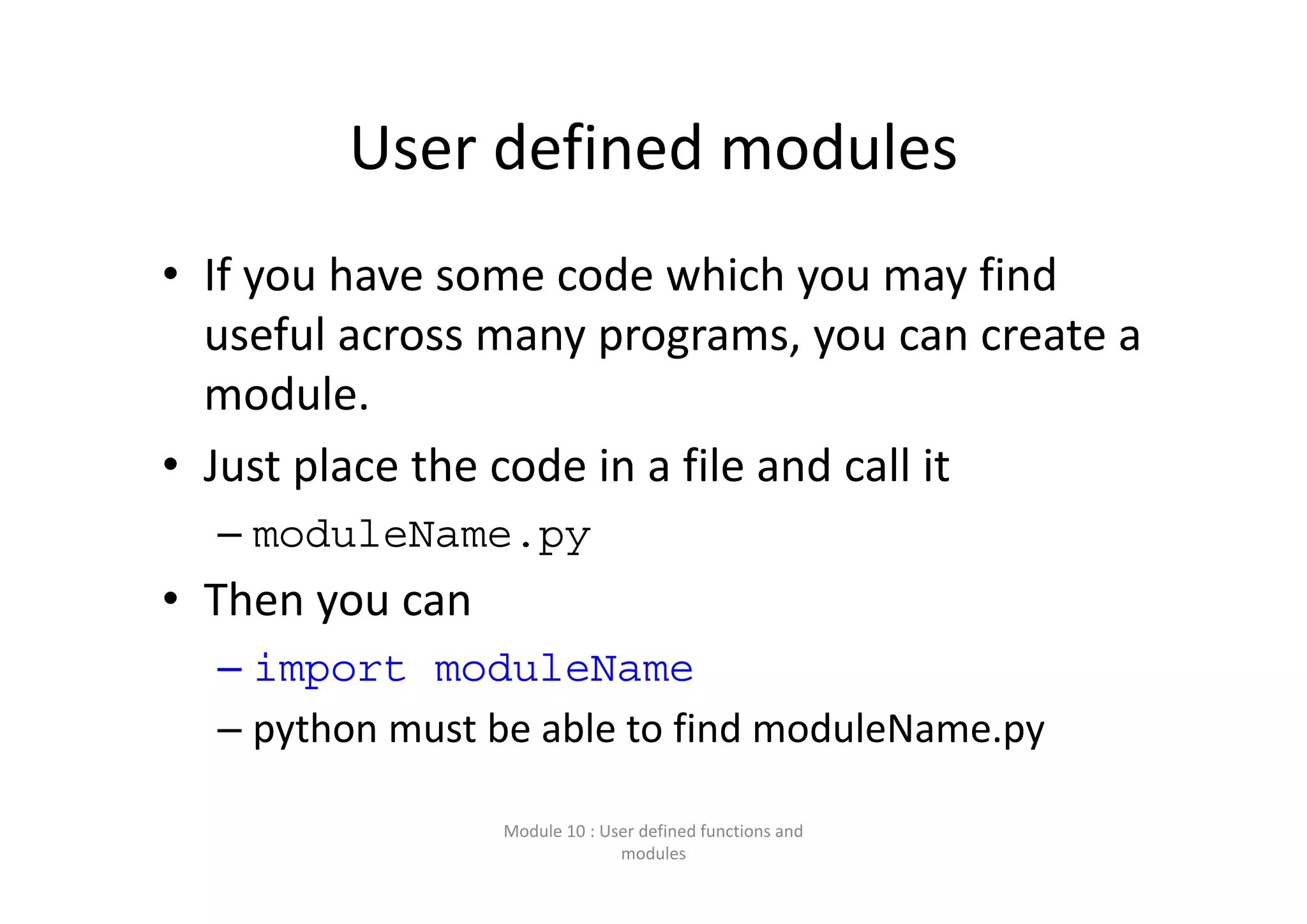

User defined modules • If you have some code which you may find  useful across many programs, you can create a  module. • Just place the code in a file and call it – moduleName.py • Then you can  – import moduleName – python must be able to find moduleName.py Module 10 : User defined functions and  modules

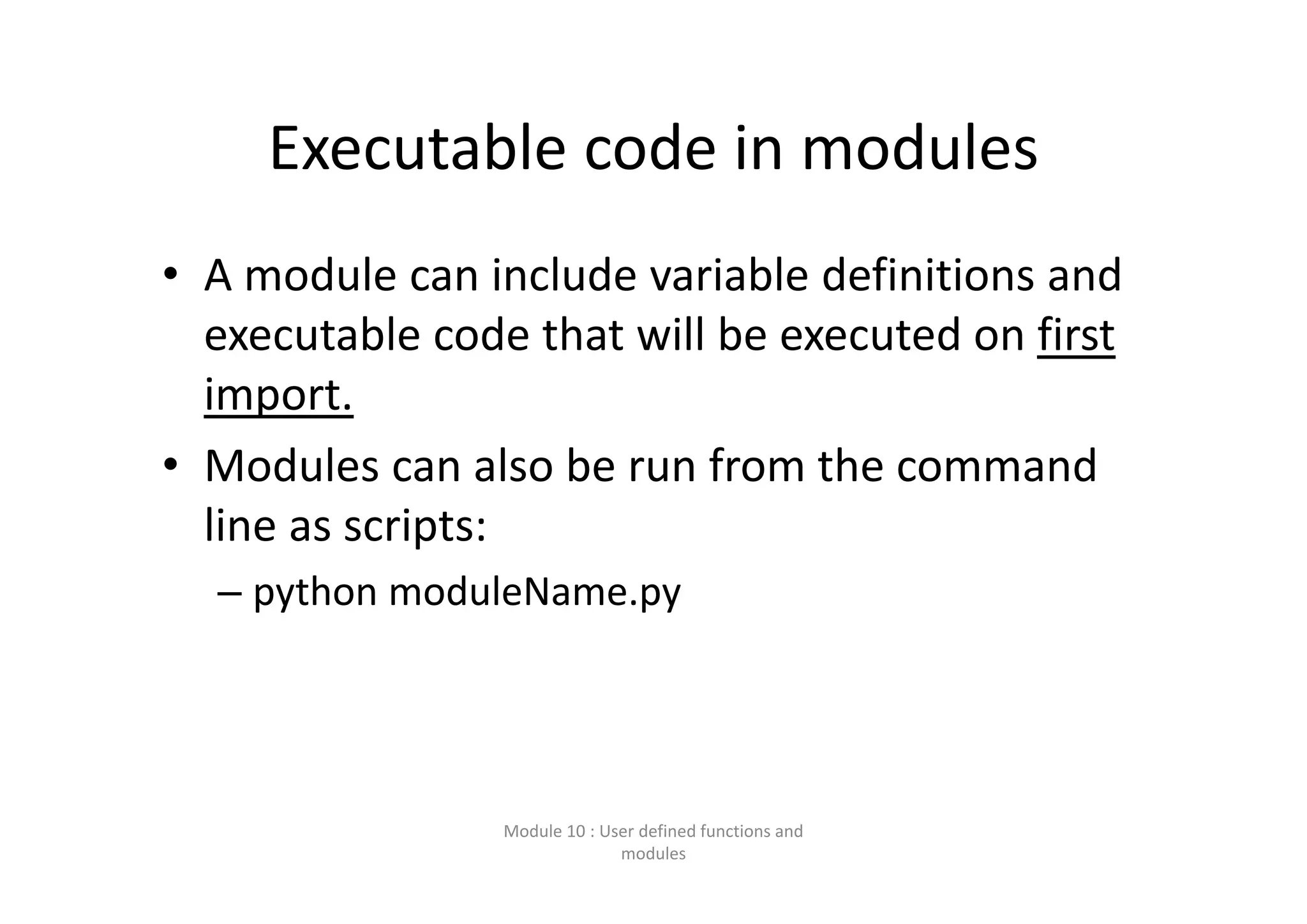

Executable code in modules • A module can include variable definitions and  executable code that will be executed on first  import. • Modules can also be run from the command  line as scripts: – python moduleName.py Module 10 : User defined functions and  modules

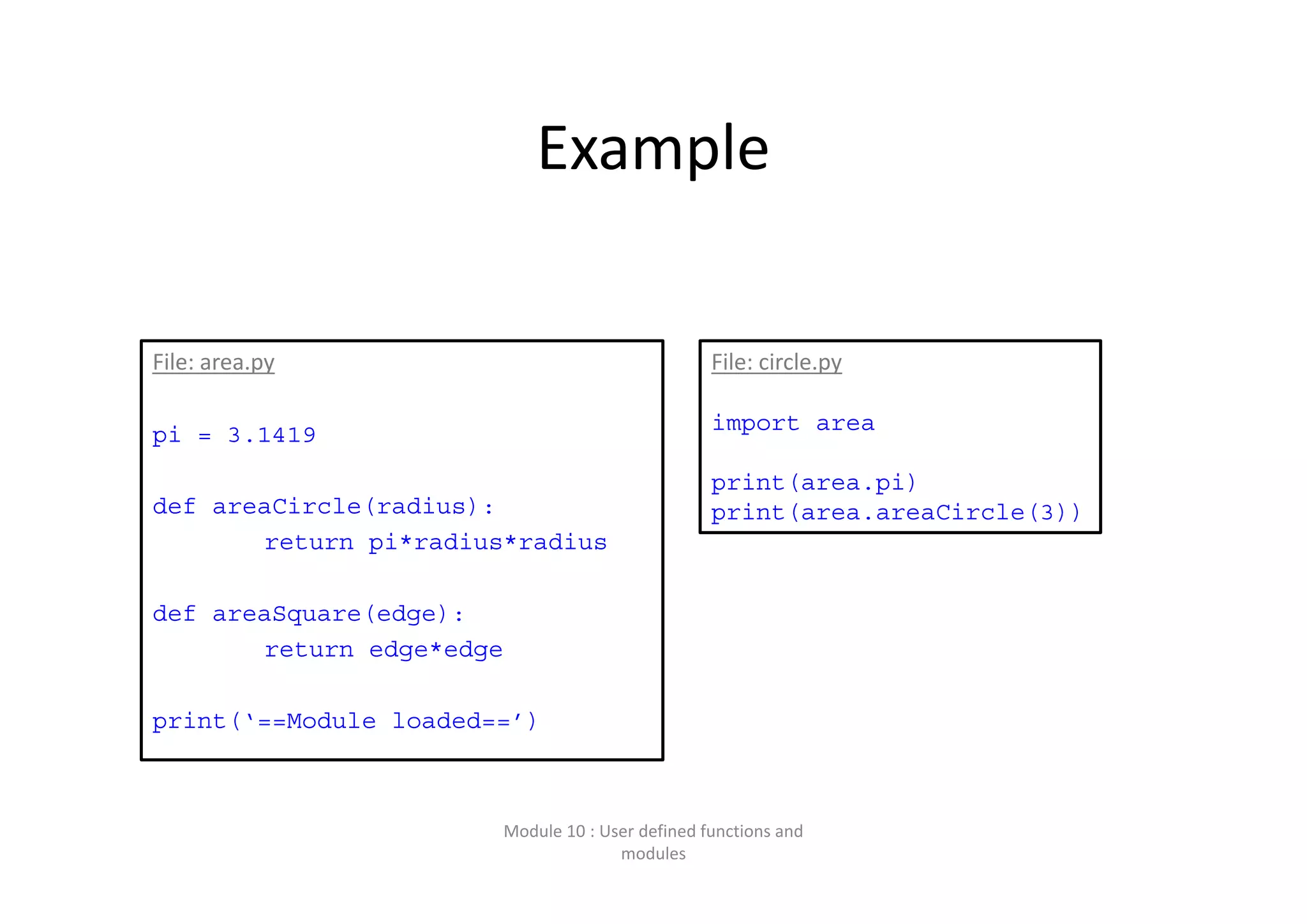

Example File: area.py pi = 3.1419 def areaCircle(radius): return pi*radius*radius def areaSquare(edge): return edge*edge print(‘==Module loaded==’) Module 10 : User defined functions and  modules File: circle.py import area print(area.pi) print(area.areaCircle(3))

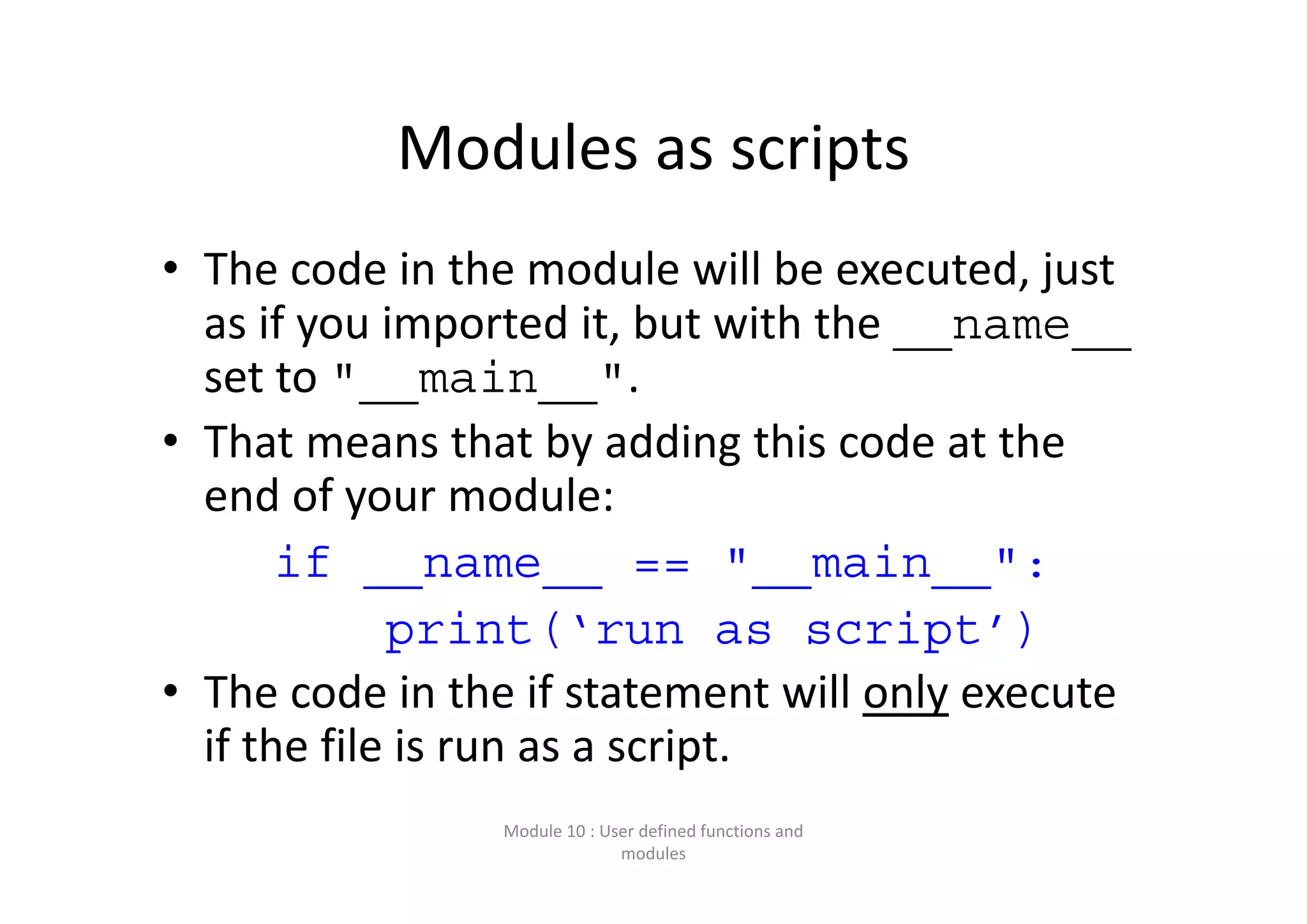

Modules as scripts • The code in the module will be executed, just  as if you imported it, but with the __name__ set to "__main__".  • That means that by adding this code at the  end of your module: if __name__ == "__main__": print(‘run as script’) • The code in the if statement will only execute  if the file is run as a script. Module 10 : User defined functions and  modules

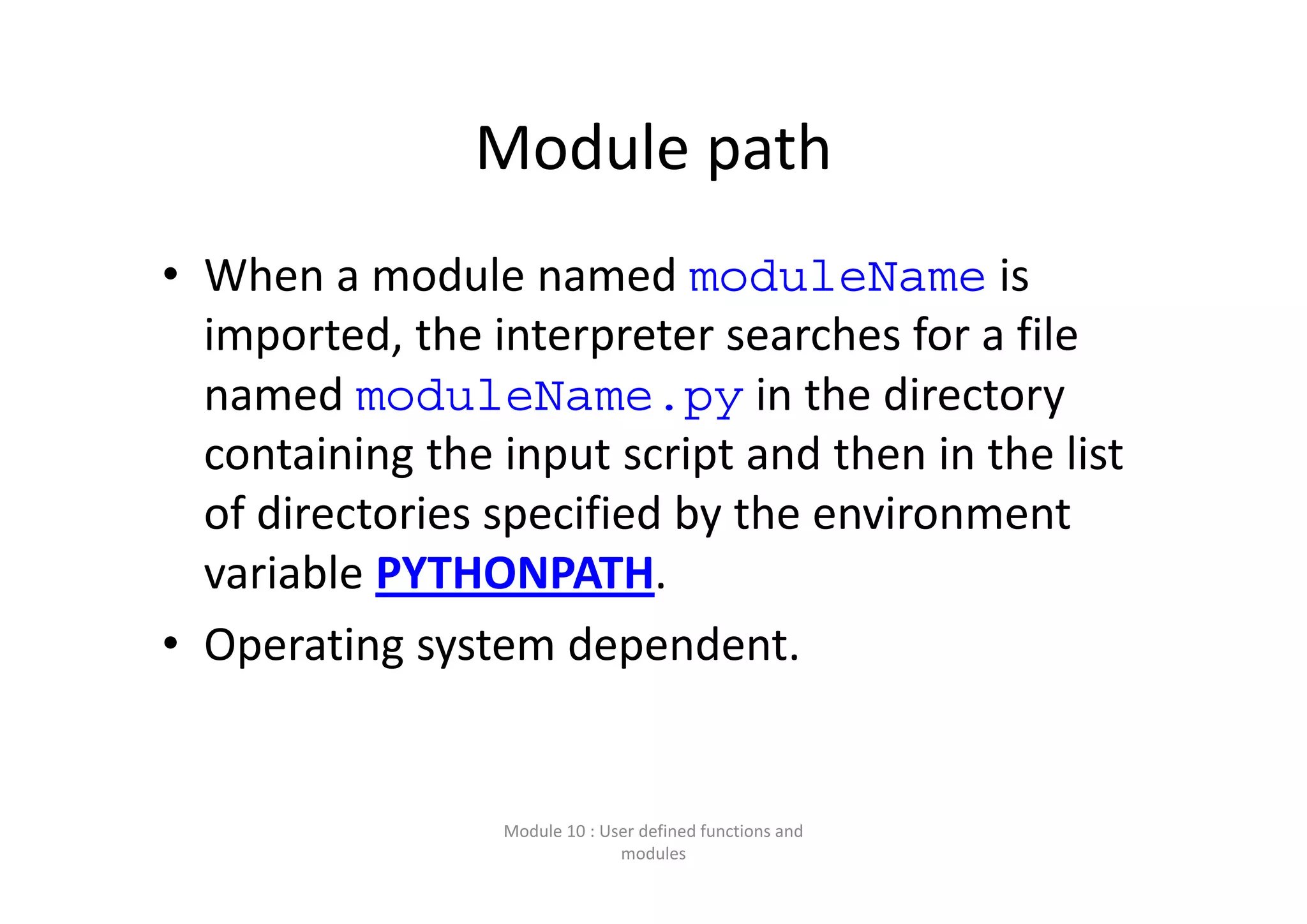

Module path • When a module named moduleName is  imported, the interpreter searches for a file  named moduleName.py in the directory  containing the input script and then in the list  of directories specified by the environment  variable PYTHONPATH.  • Operating system dependent. Module 10 : User defined functions and  modules

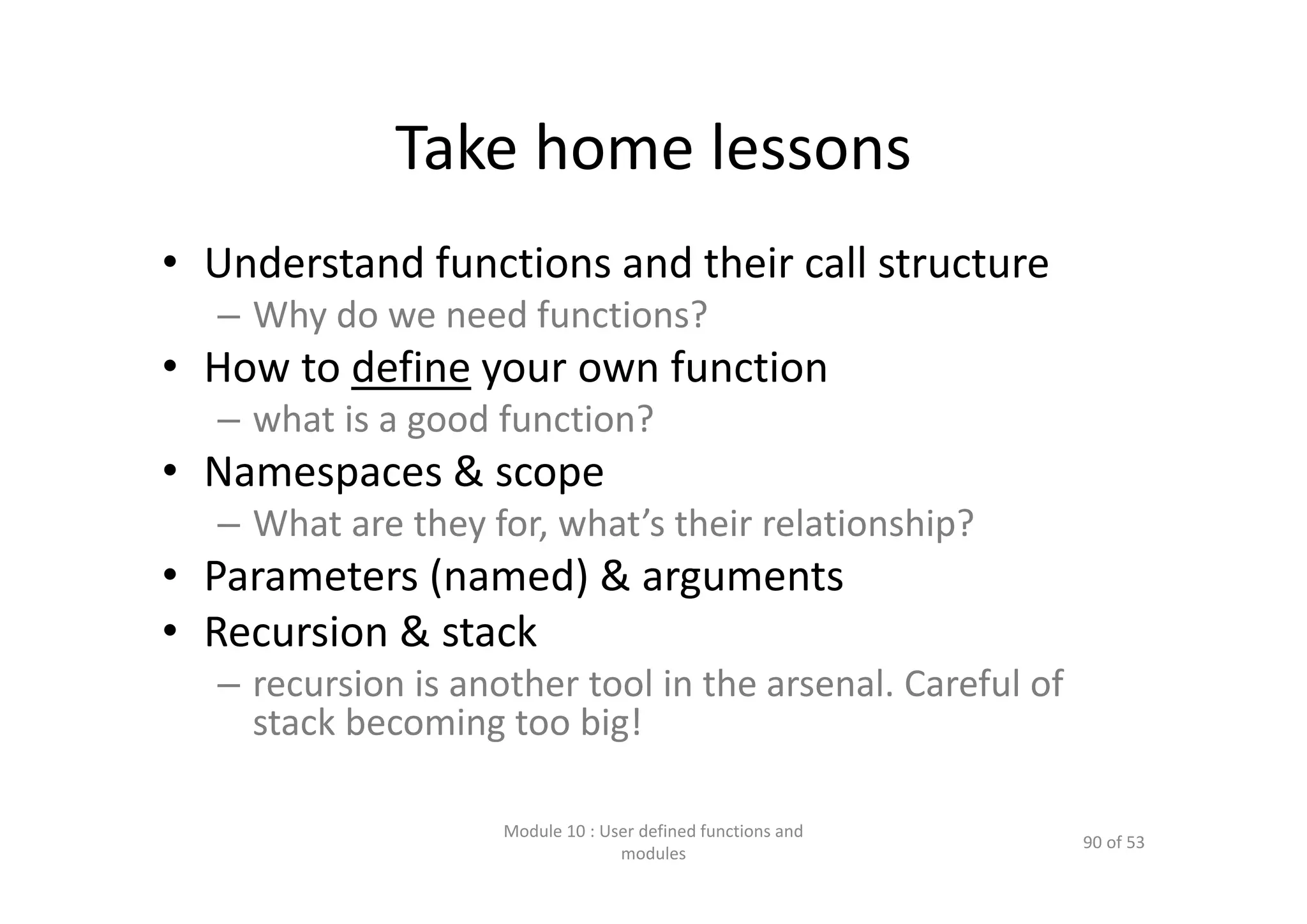

Take home lessons • Understand functions and their call structure – Why do we need functions? • How to define your own function – what is a good function? • Namespaces & scope  – What are they for, what’s their relationship? • Parameters (named) & arguments • Recursion & stack – recursion is another tool in the arsenal. Careful of  stack becoming too big! Module 10 : User defined functions and  modules 90 of 53

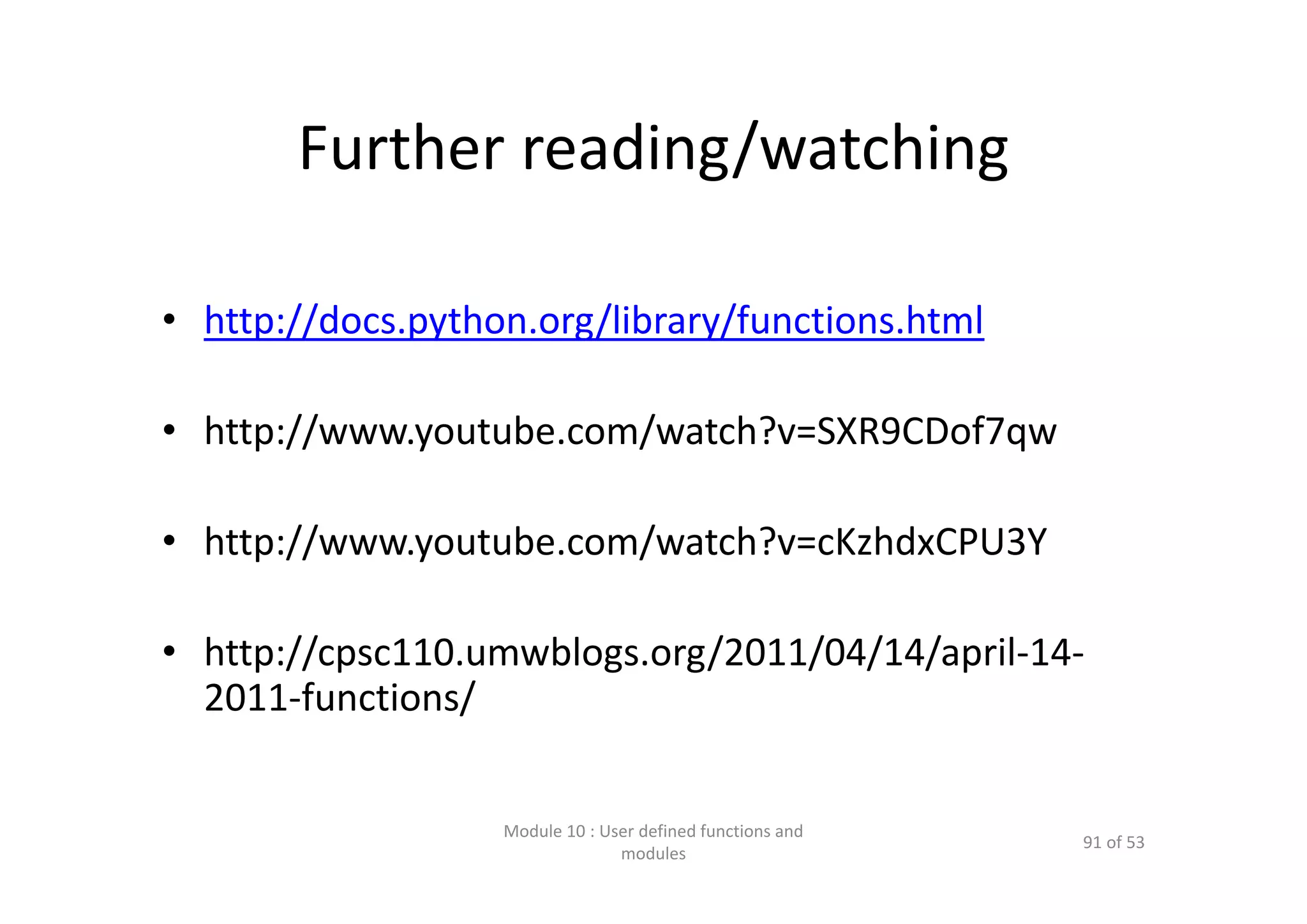

Further reading/watching • http://docs.python.org/library/functions.html • http://www.youtube.com/watch?v=SXR9CDof7qw • http://www.youtube.com/watch?v=cKzhdxCPU3Y • http://cpsc110.umwblogs.org/2011/04/14/april‐14‐ 2011‐functions/ Module 10 : User defined functions and  modules 91 of 53
