Jsf On Rails Ejb Jpa Jsf Adf11g Demo1
This document provides an overview and step-by-step instructions for developing a rapid Java EE web application using Oracle JDeveloper 11g with Application Development Framework (ADF) 11g. It describes creating entities from database tables, session beans, an ADF data control, and a JavaServer Faces (JSF) page with master-detail functionality using tables, a popup, and accordion with a chart. The result is a working demonstration application that synchronizes tables and charts using ADF and JSF components.
Jsf On Rails Ejb Jpa Jsf Adf11g Demo1
- 1. JSF On RailsJDeveloper 11g/ADF 11g Rapid EJB/JPA + Rich JSF Development 8th of December 2008 AMIS

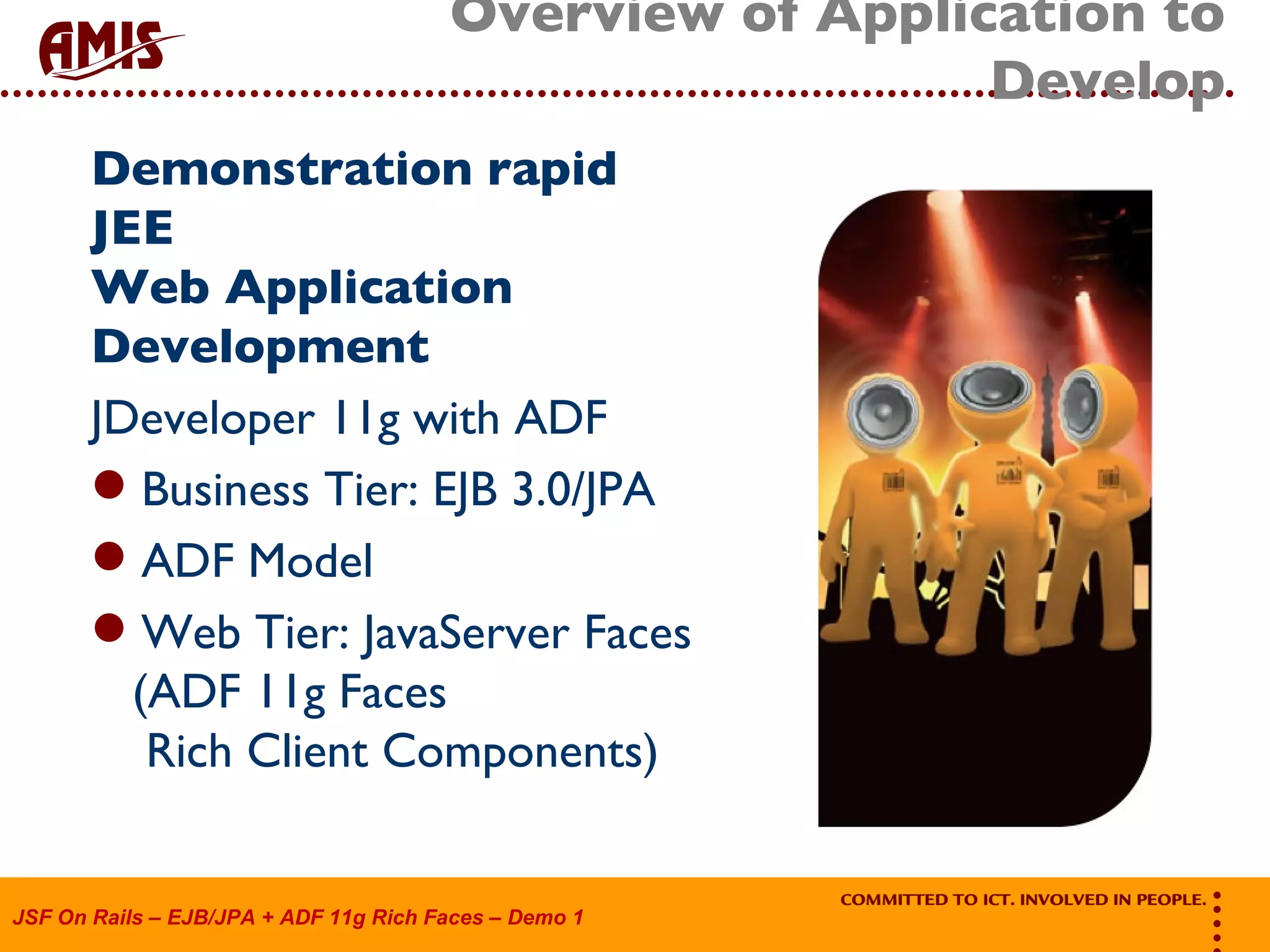

- 2. Overview of Applicationto Develop Demonstration rapid JEE Web Application Development JDeveloper 11g with ADF Business Tier: EJB 3.0/JPA ADF Model Web Tier: JavaServer Faces (ADF 11g Faces Rich Client Components)

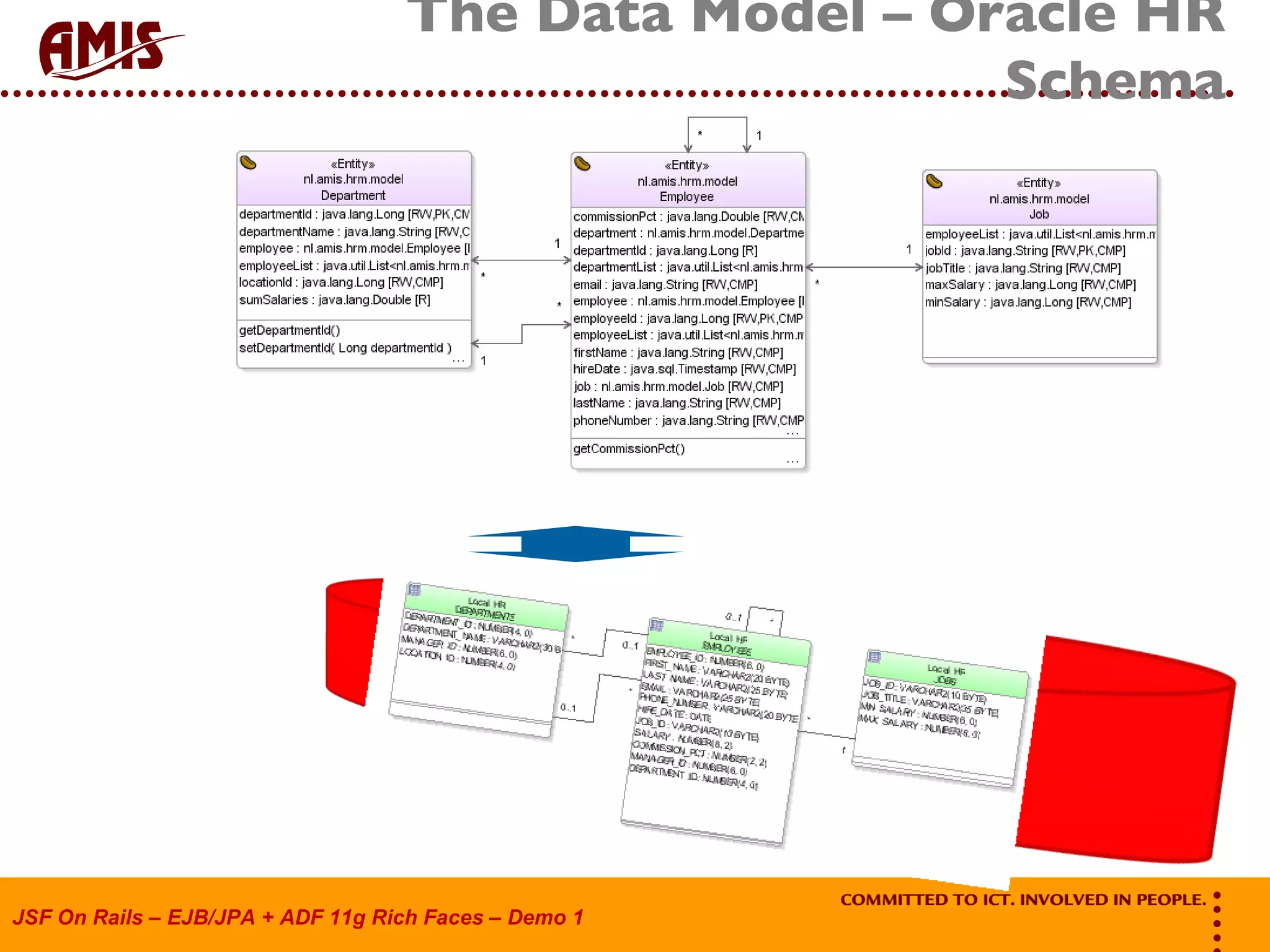

- 3. The Data Model– Oracle HR Schema

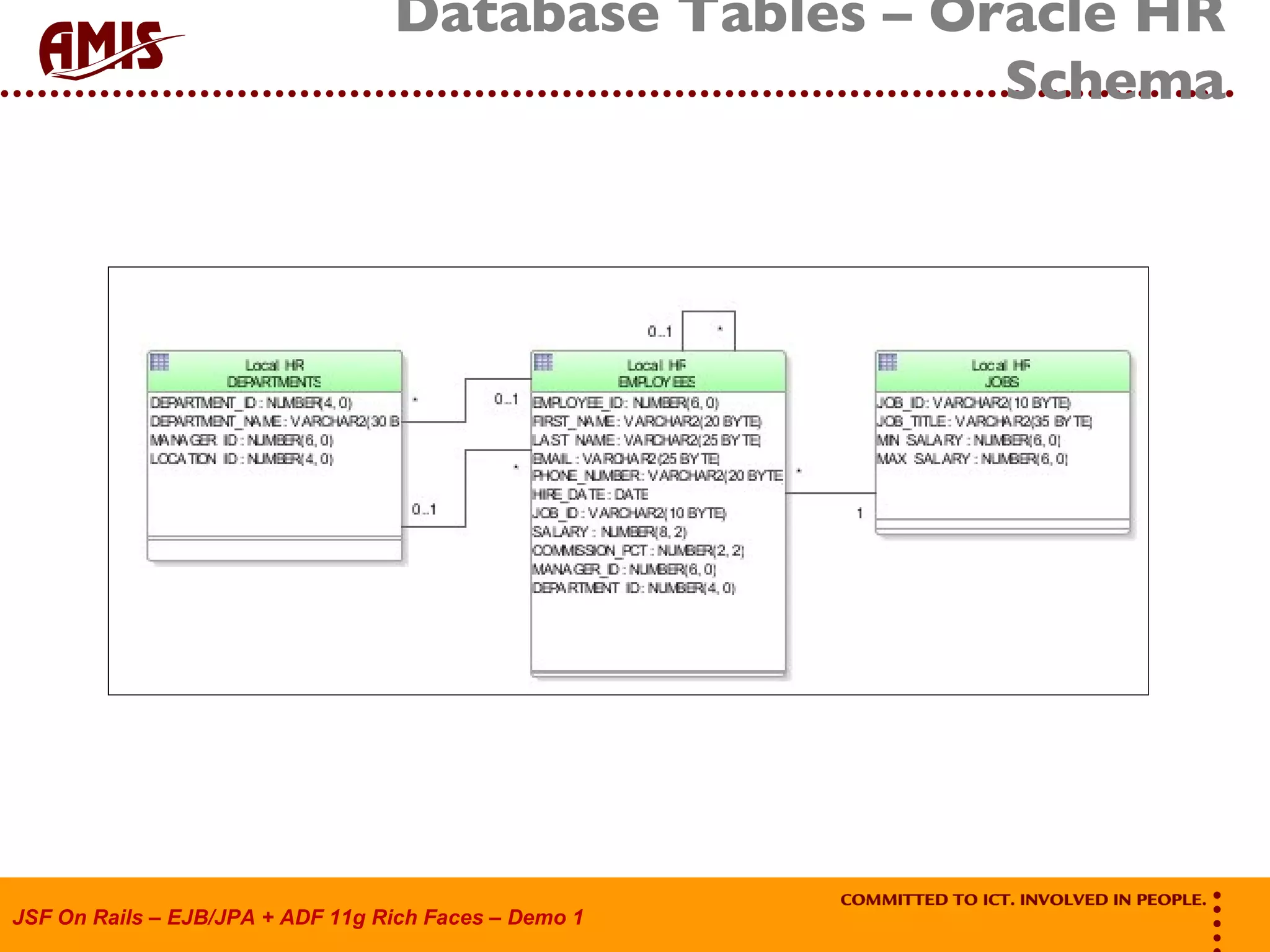

- 4. Database Tables –Oracle HR Schema

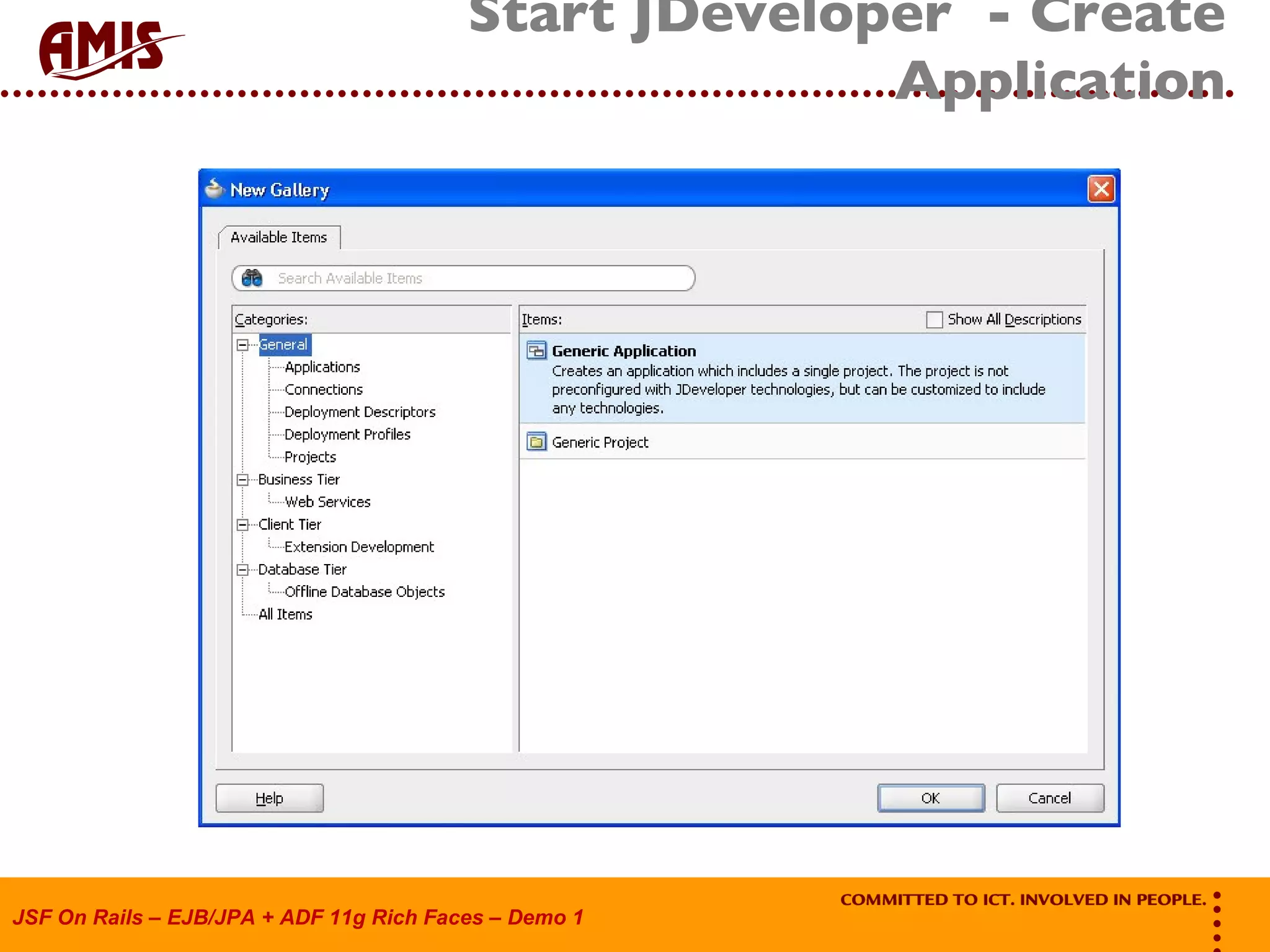

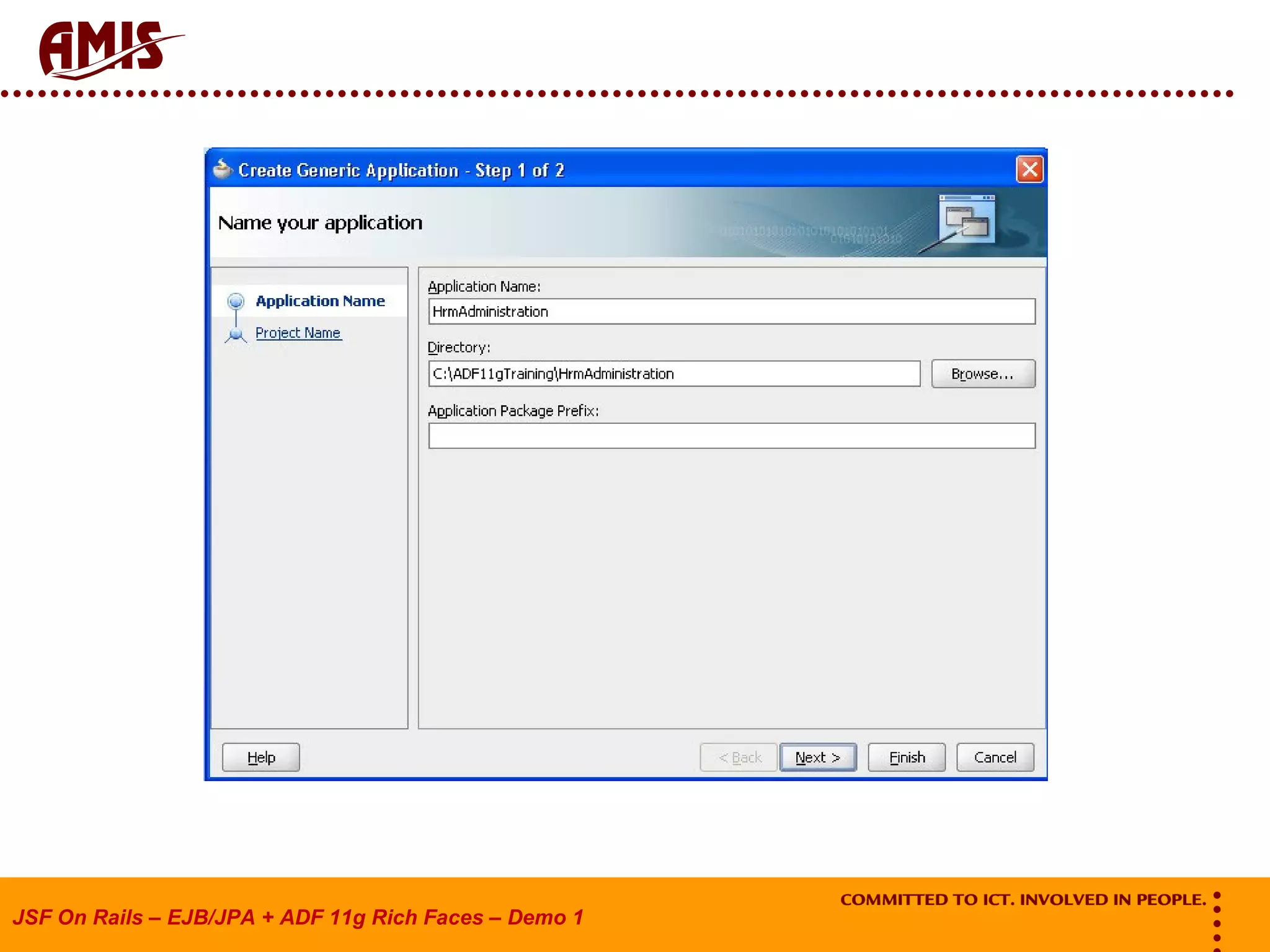

- 5. Start JDeveloper - Create Application
- 6.

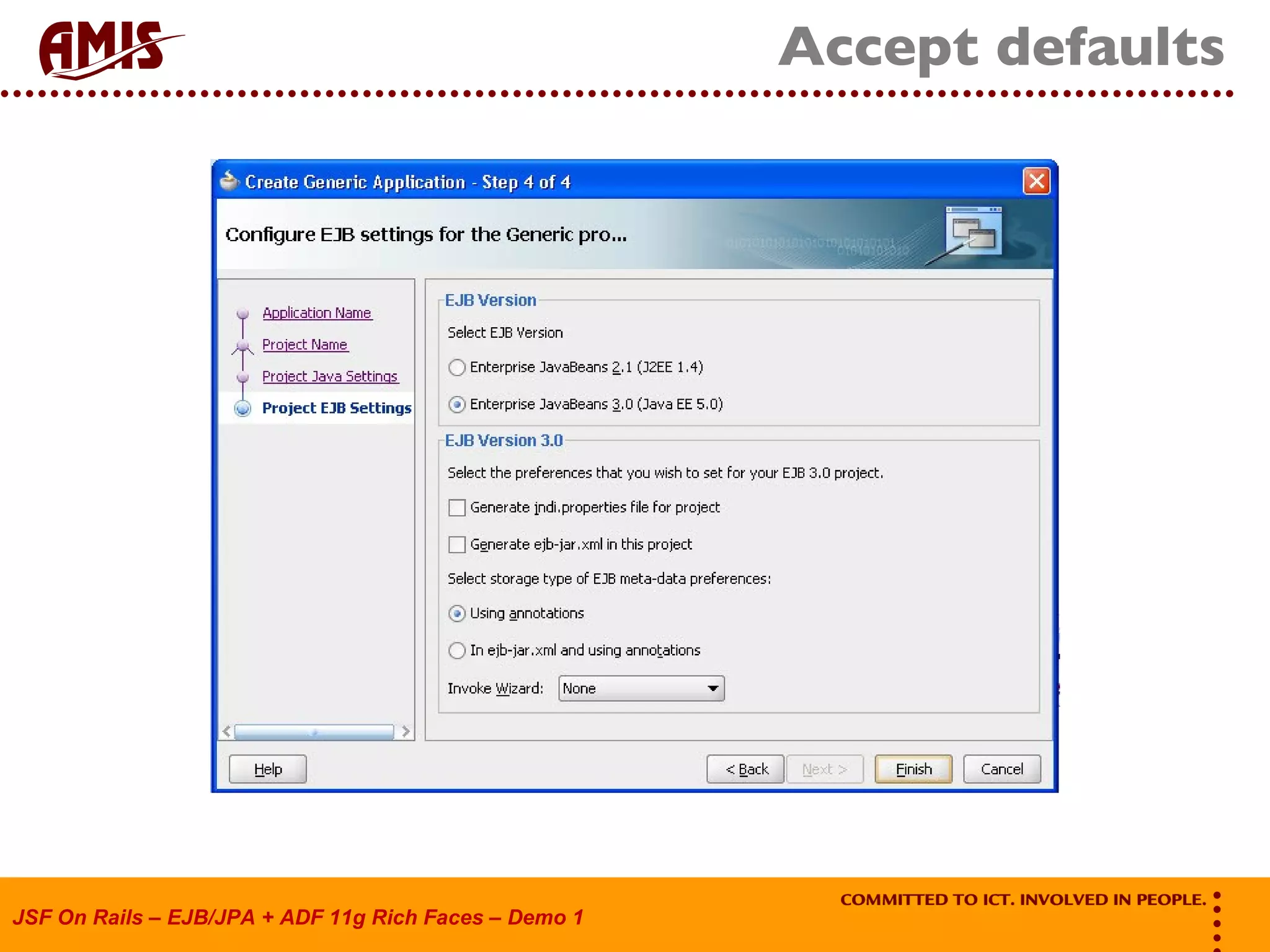

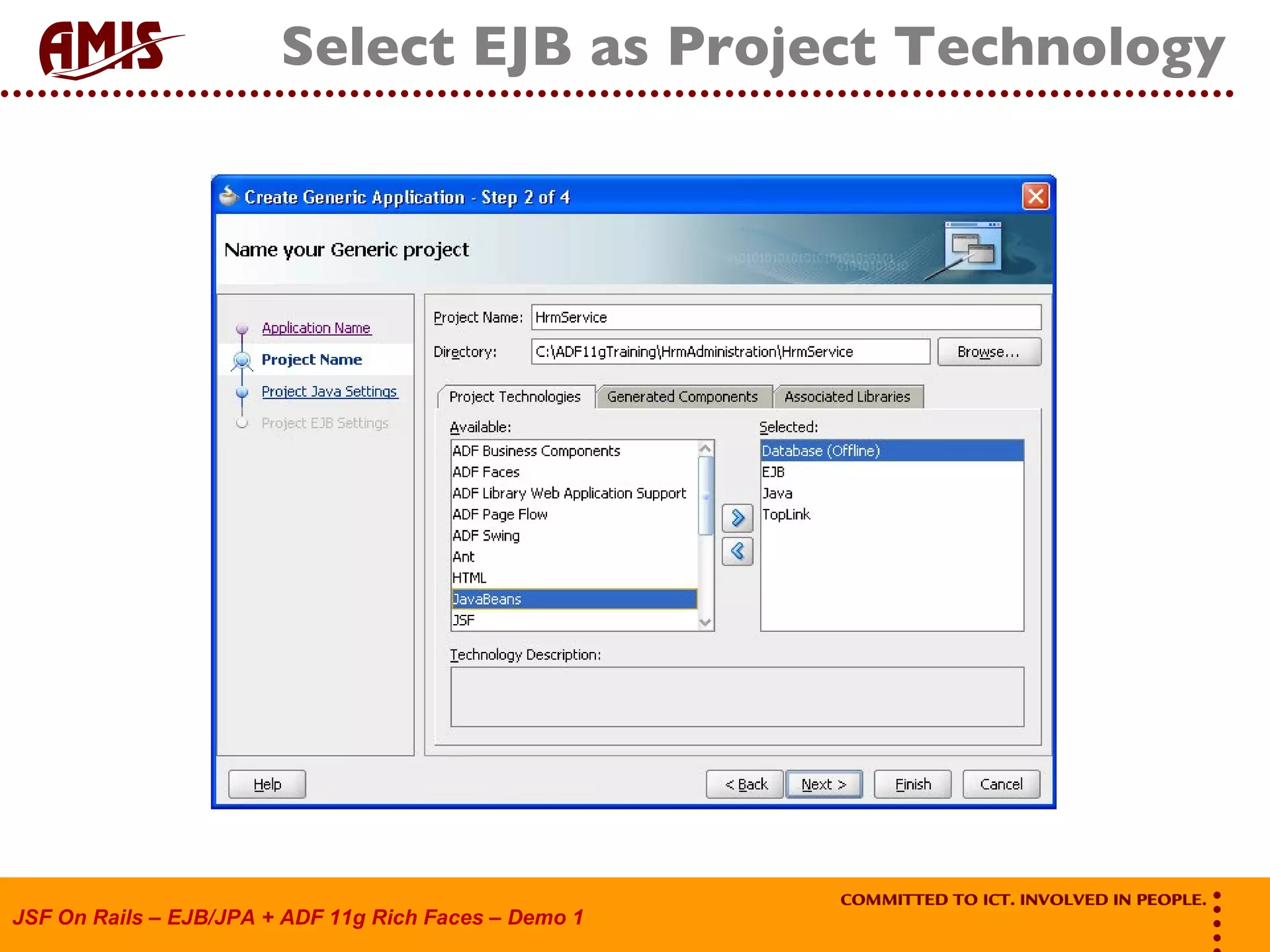

- 7. Select EJB asProject Technology
- 8.

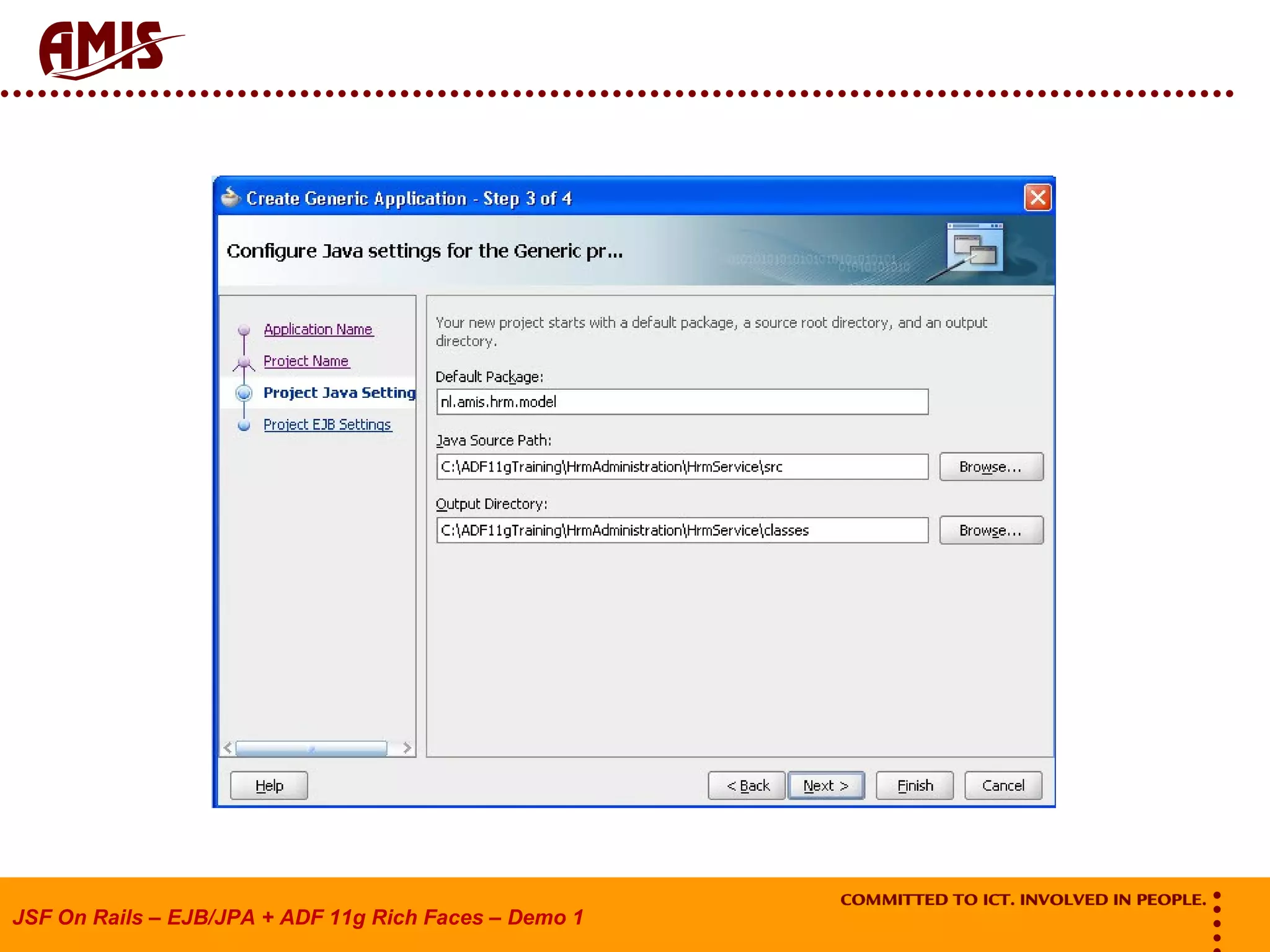

- 9.

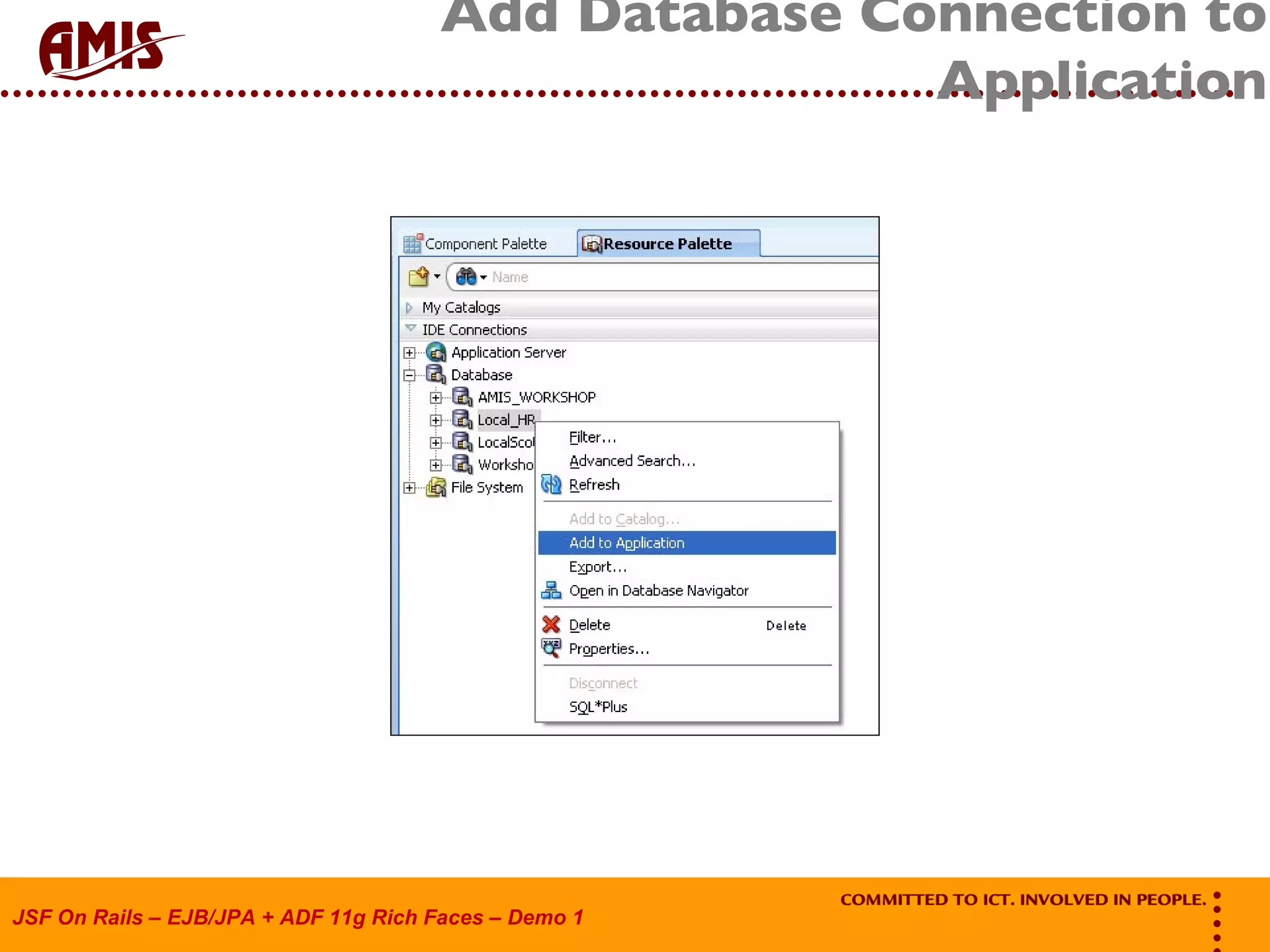

- 10. Add Database Connectionto Application

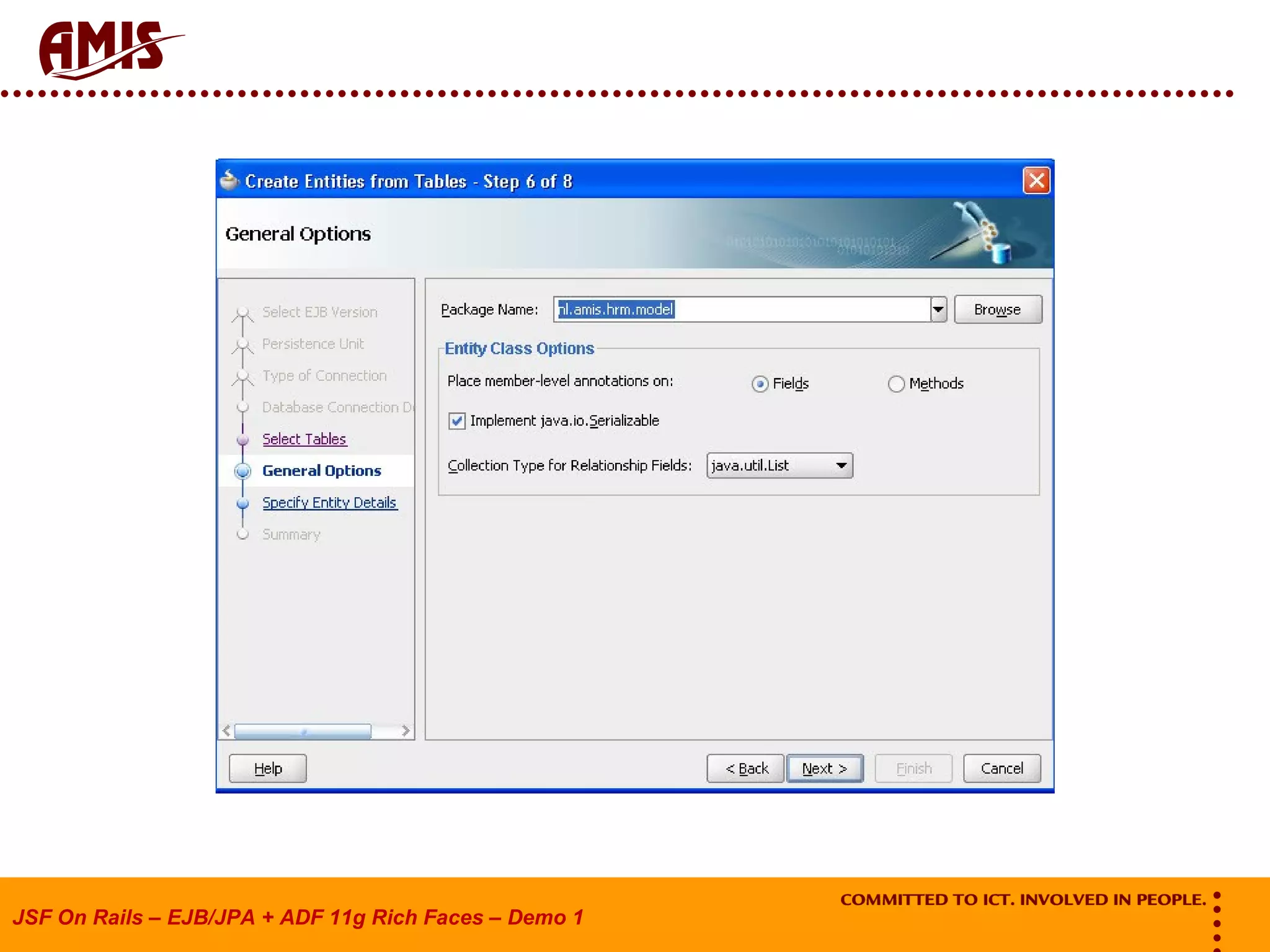

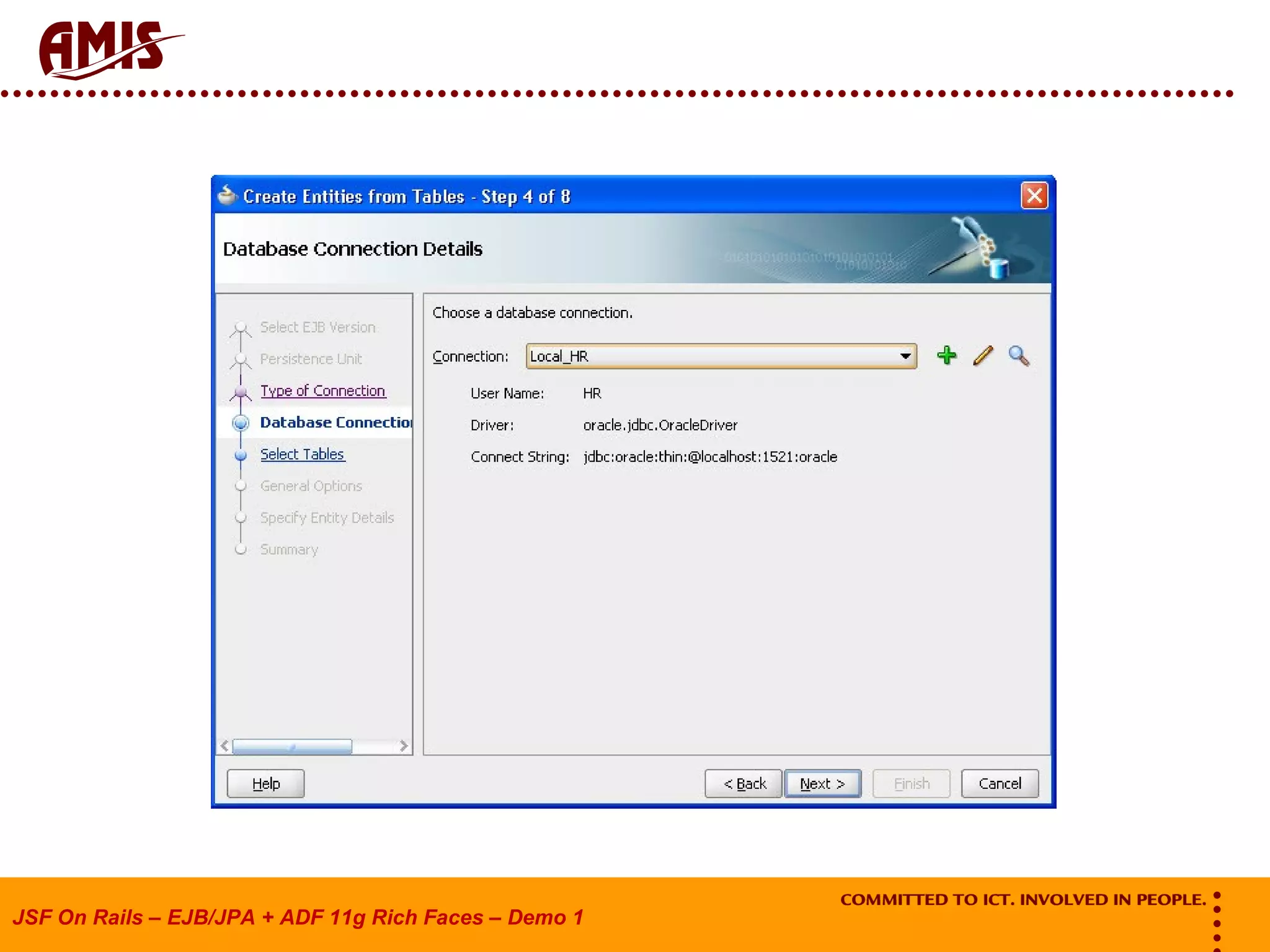

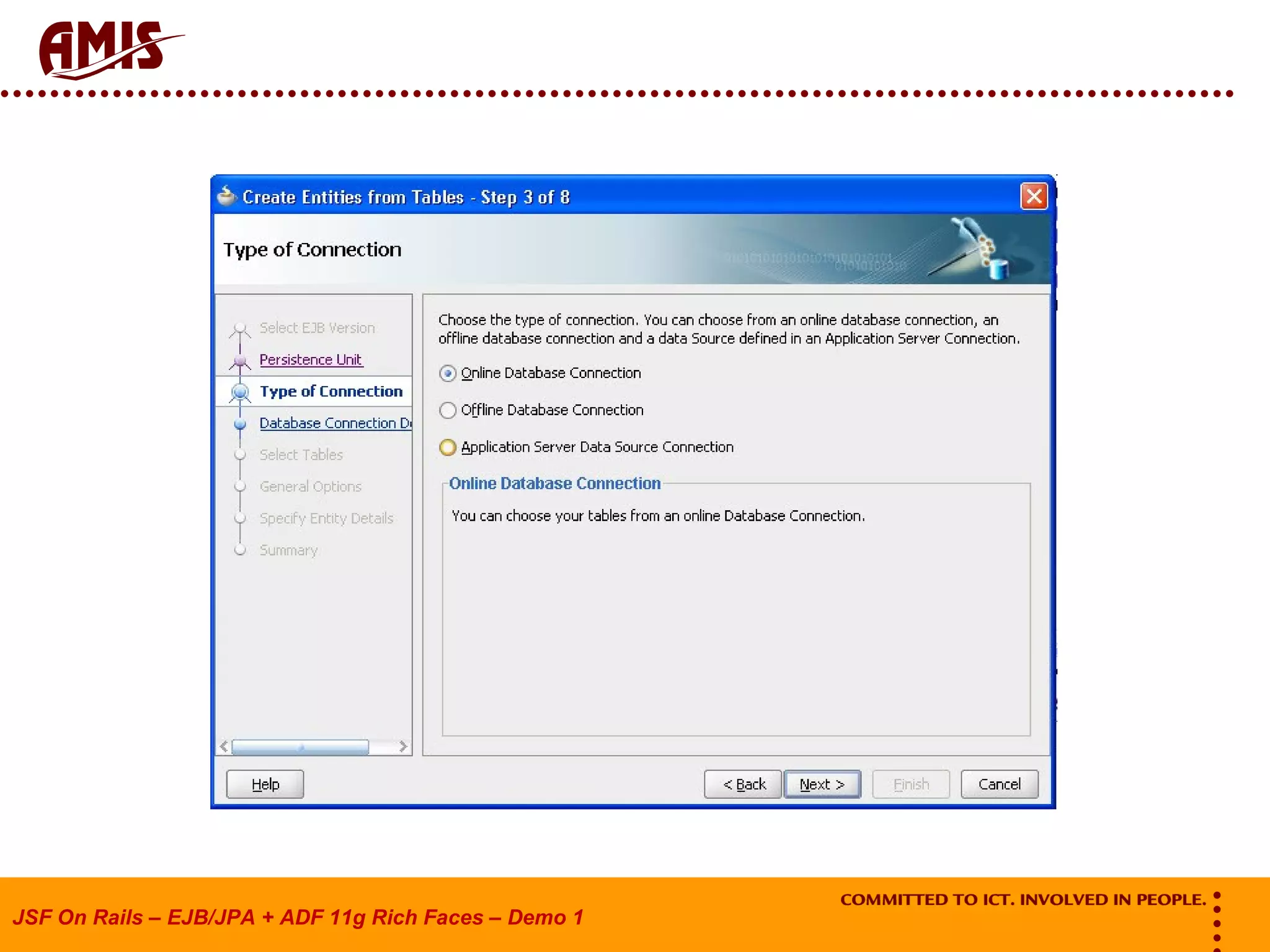

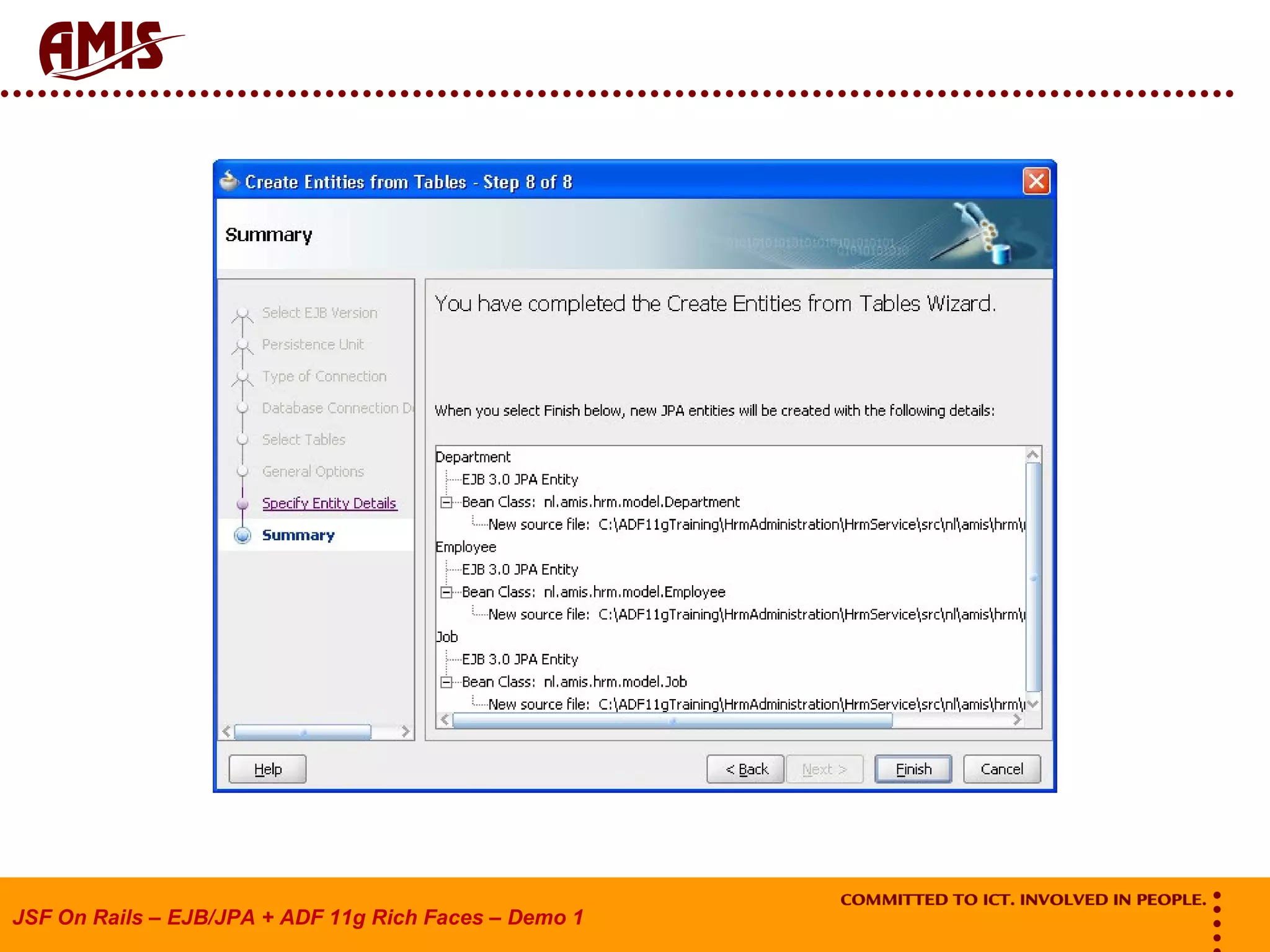

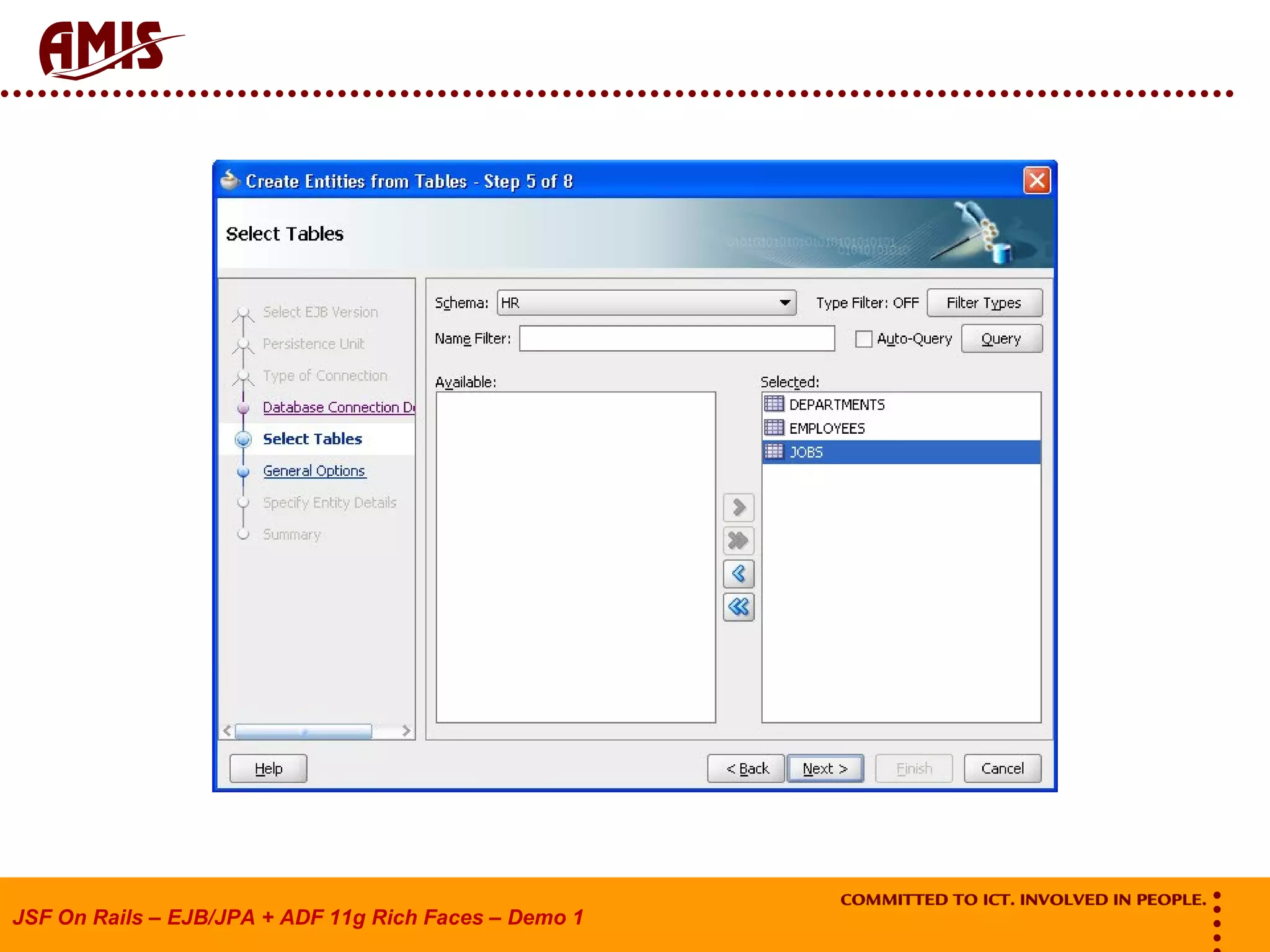

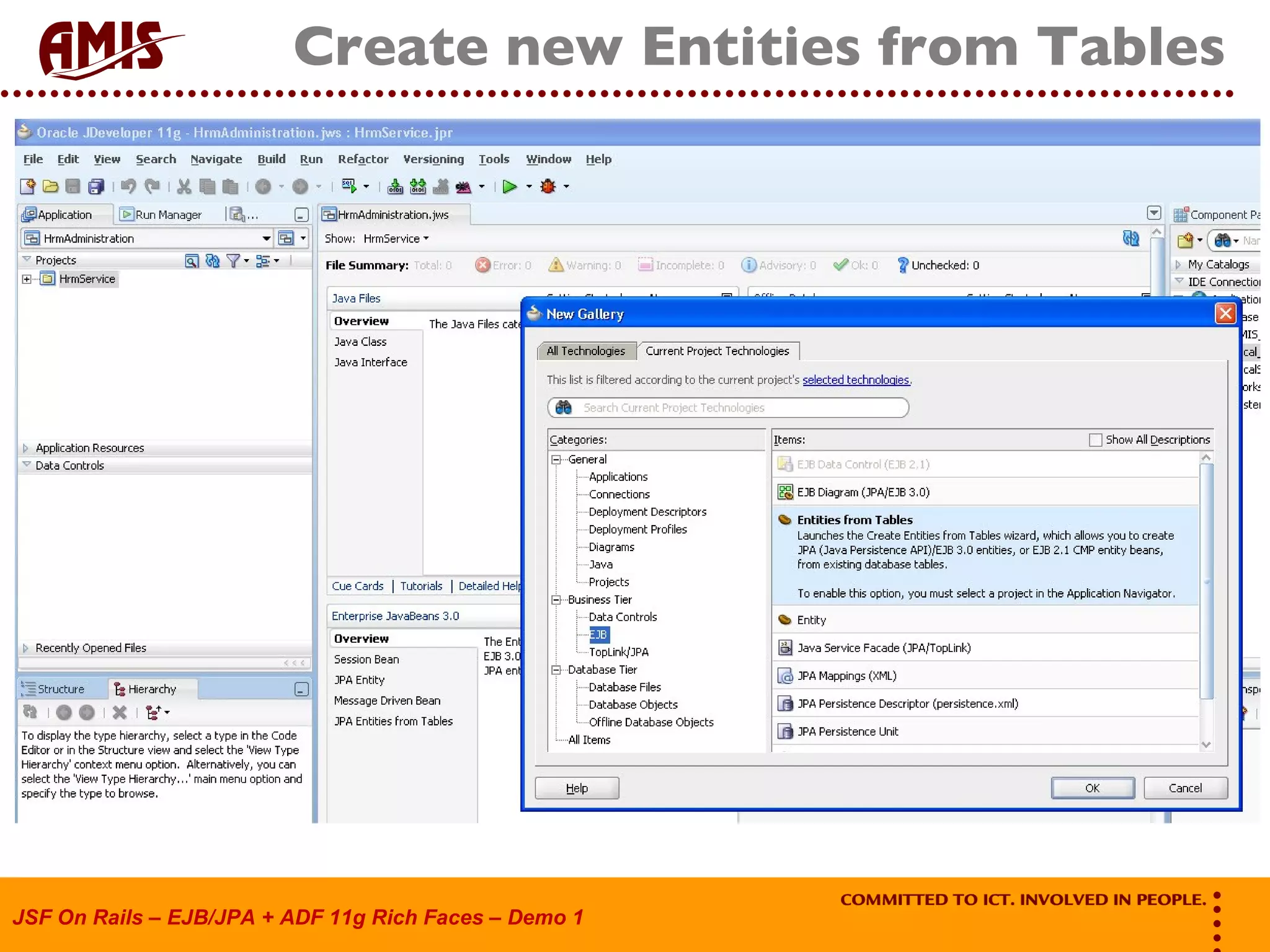

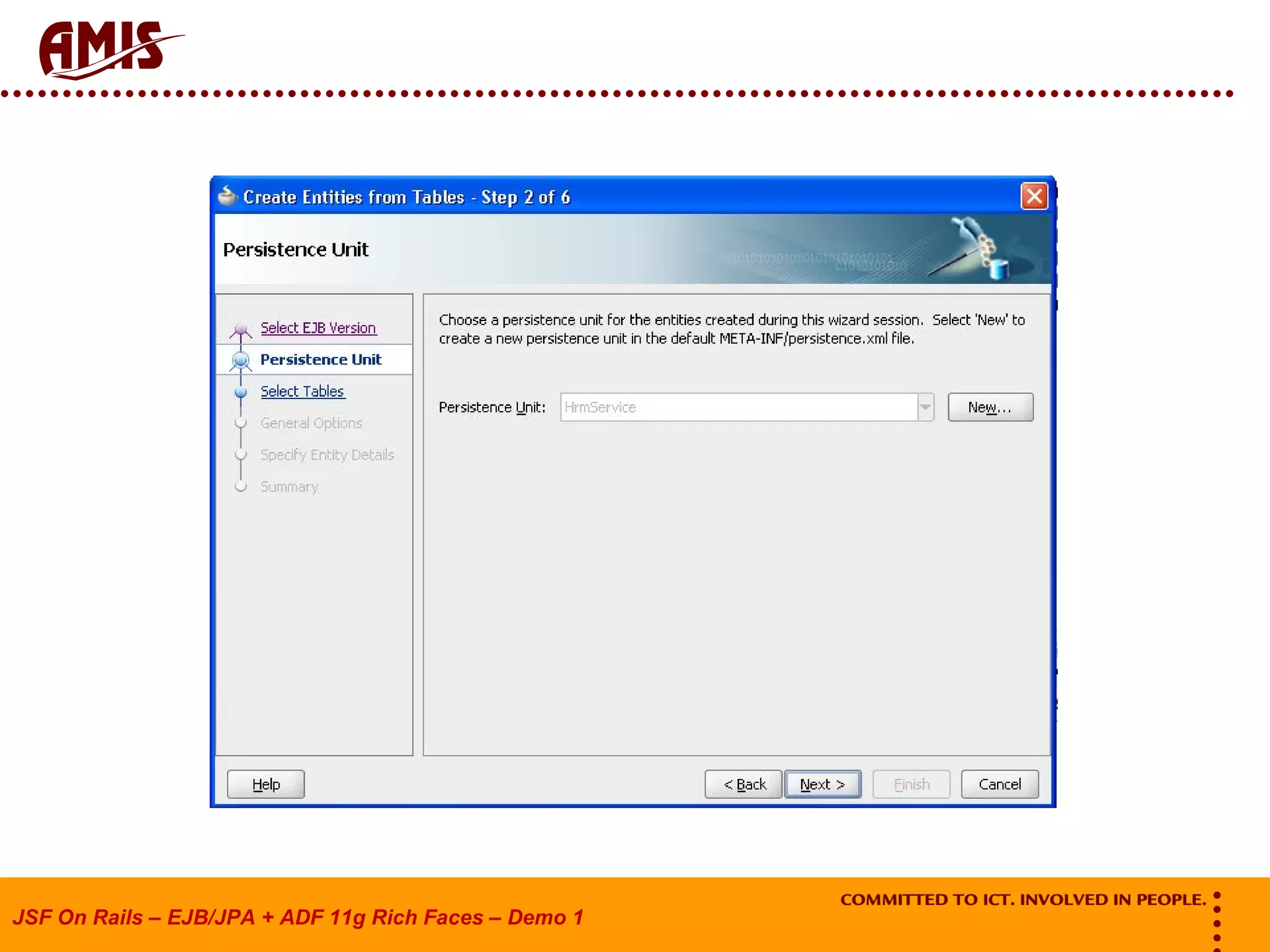

- 11. Create new Entitiesfrom Tables
- 12.
- 13.
- 14.
- 15.
- 16.

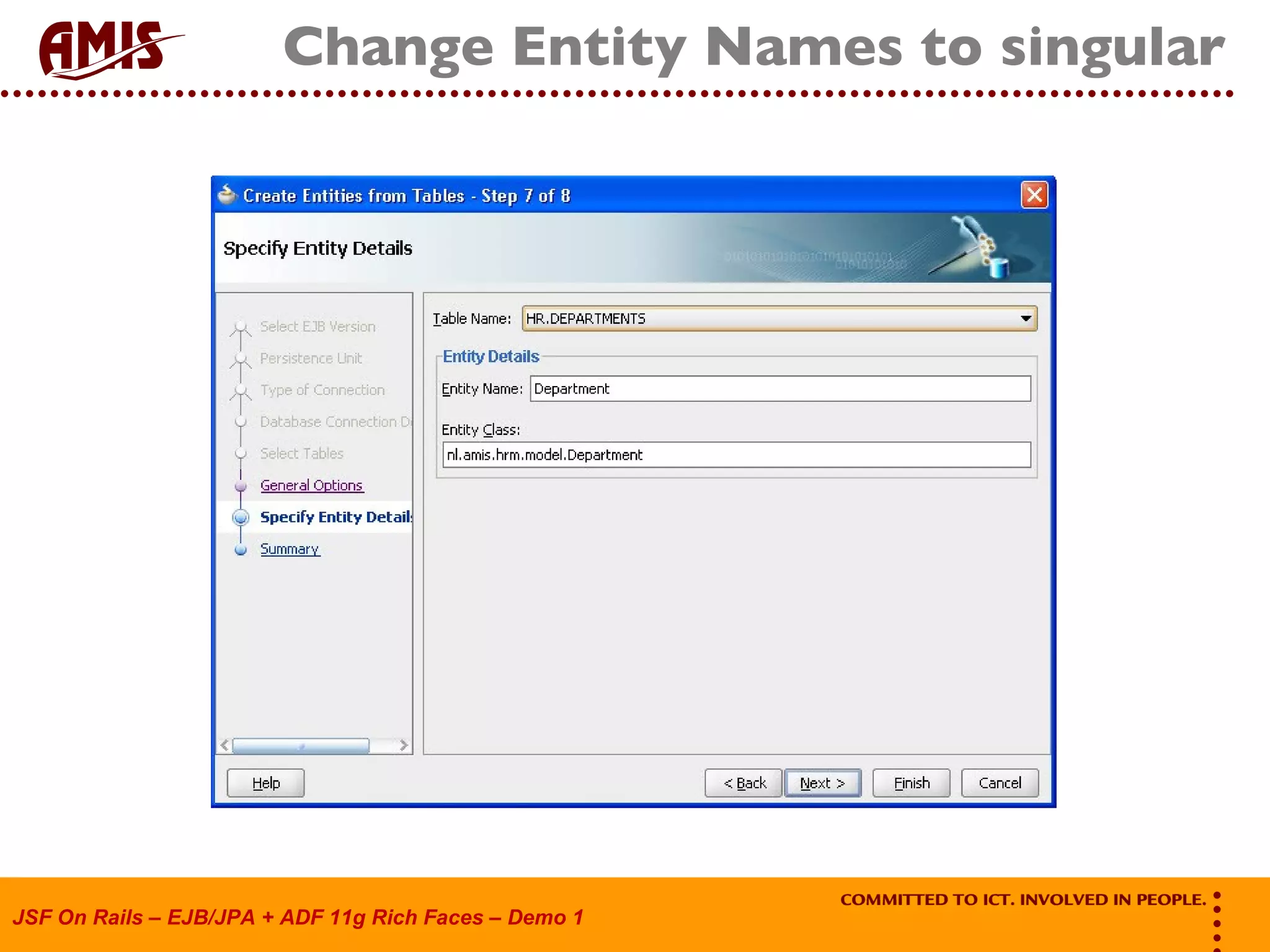

- 17. Change Entity Namesto singular
- 18.

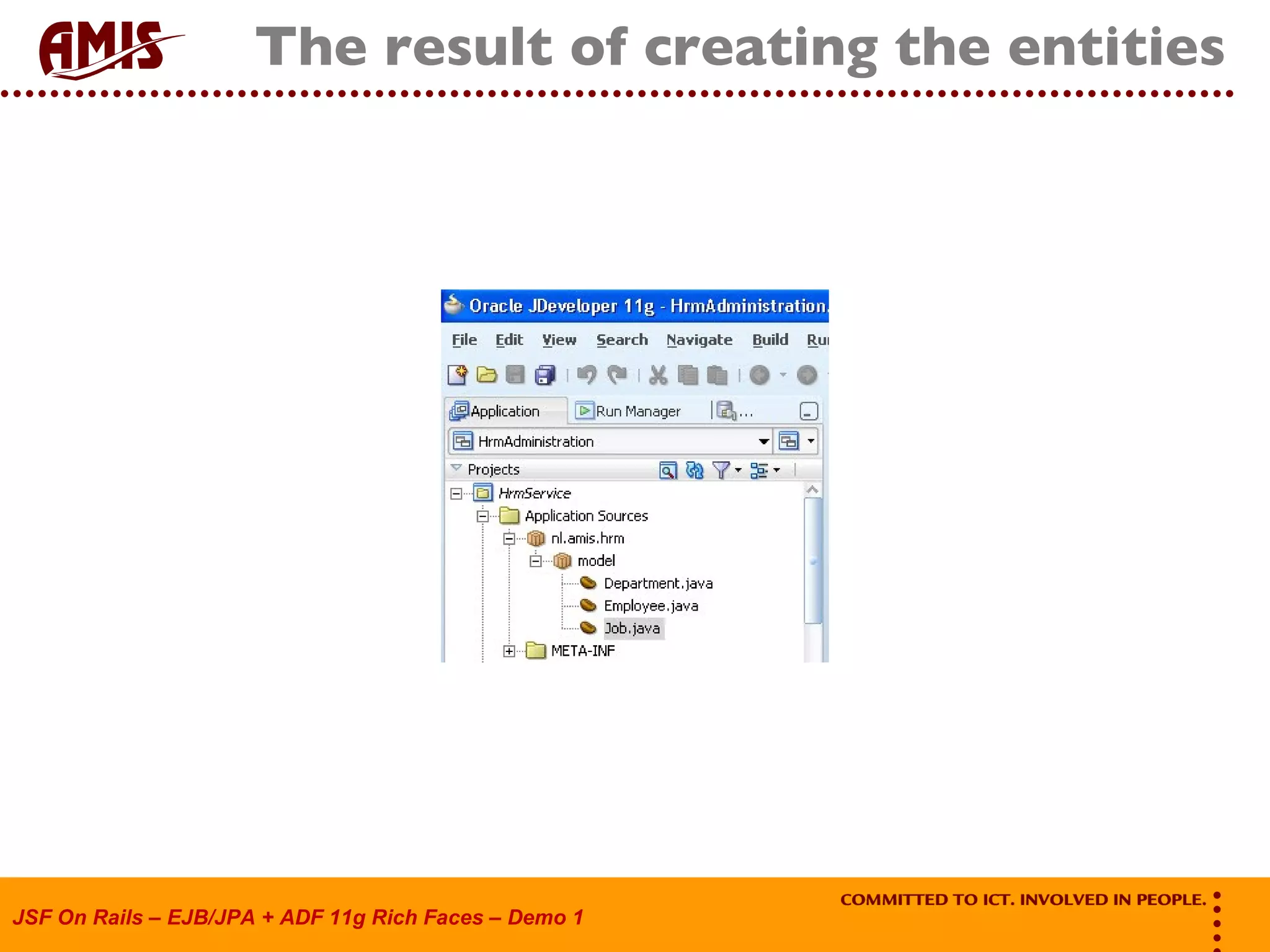

- 19. The result ofcreating the entities

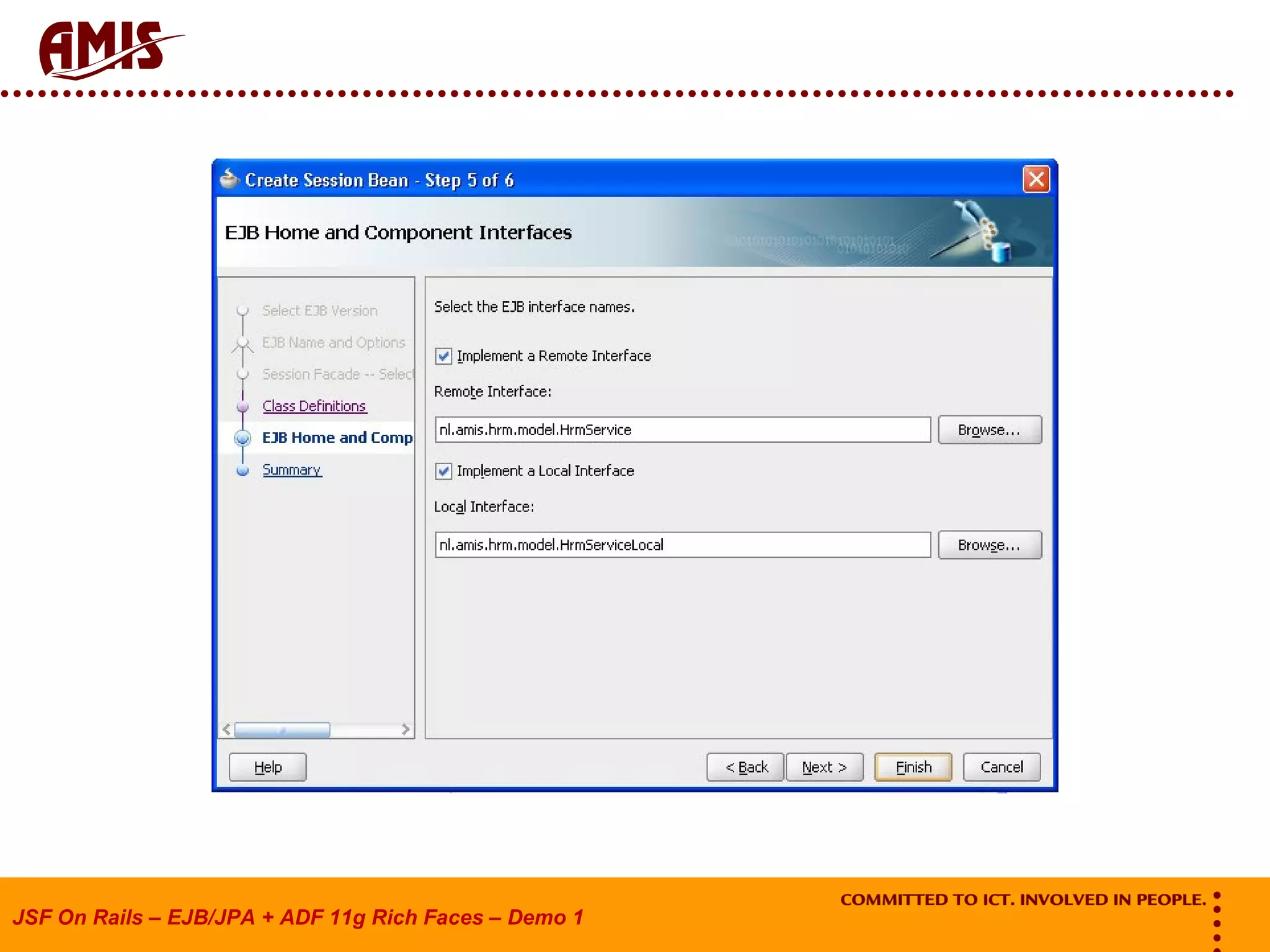

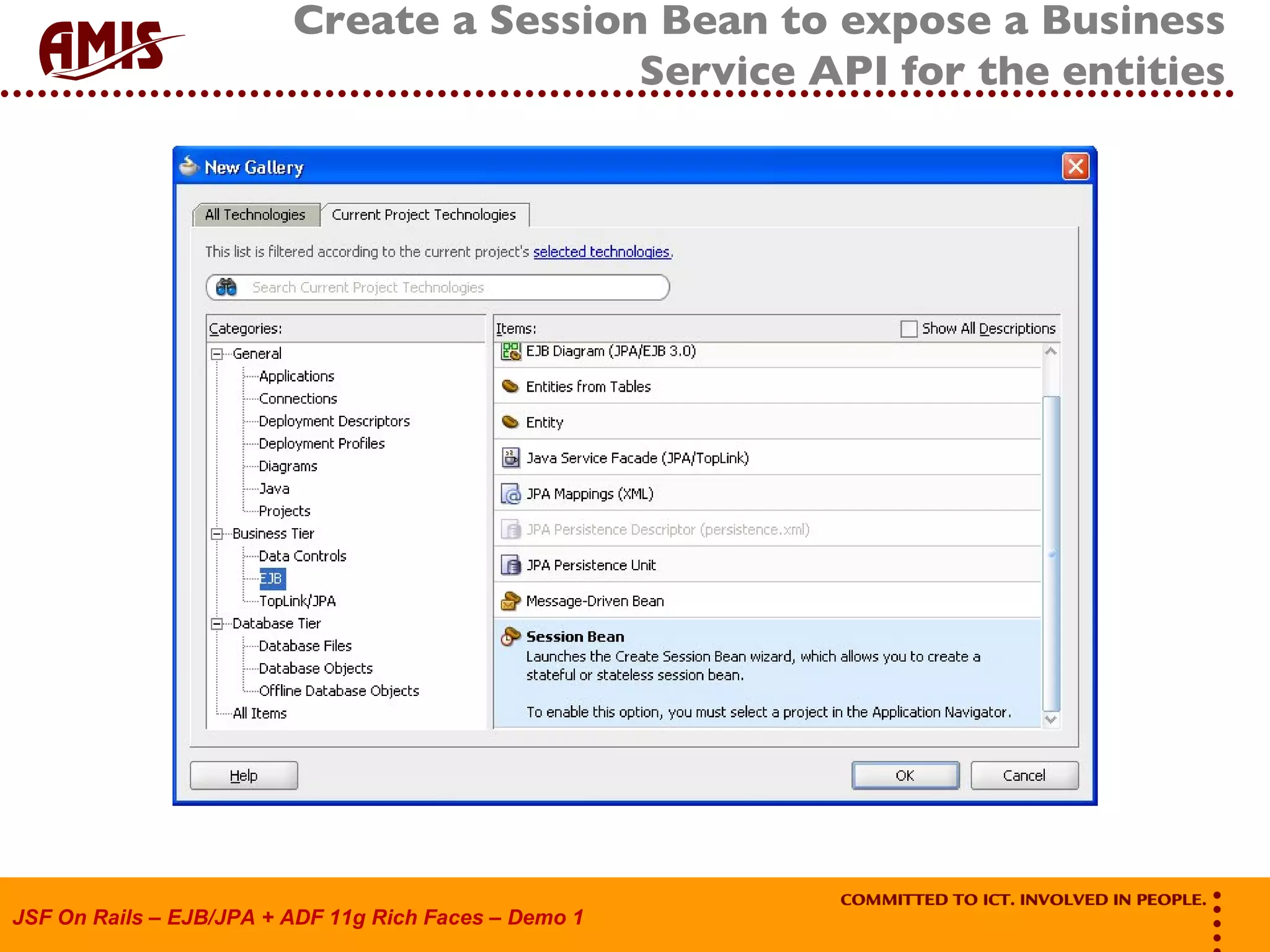

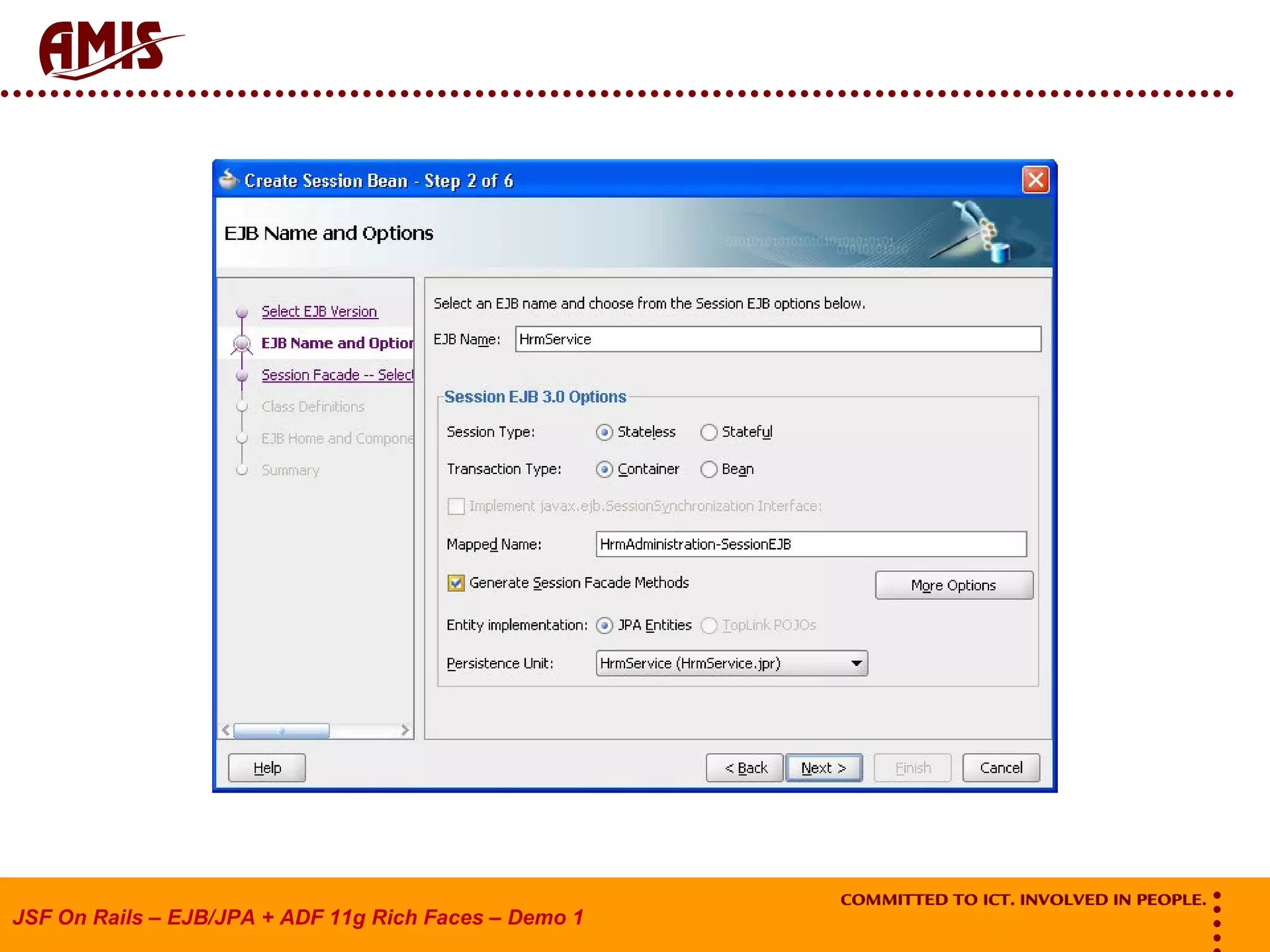

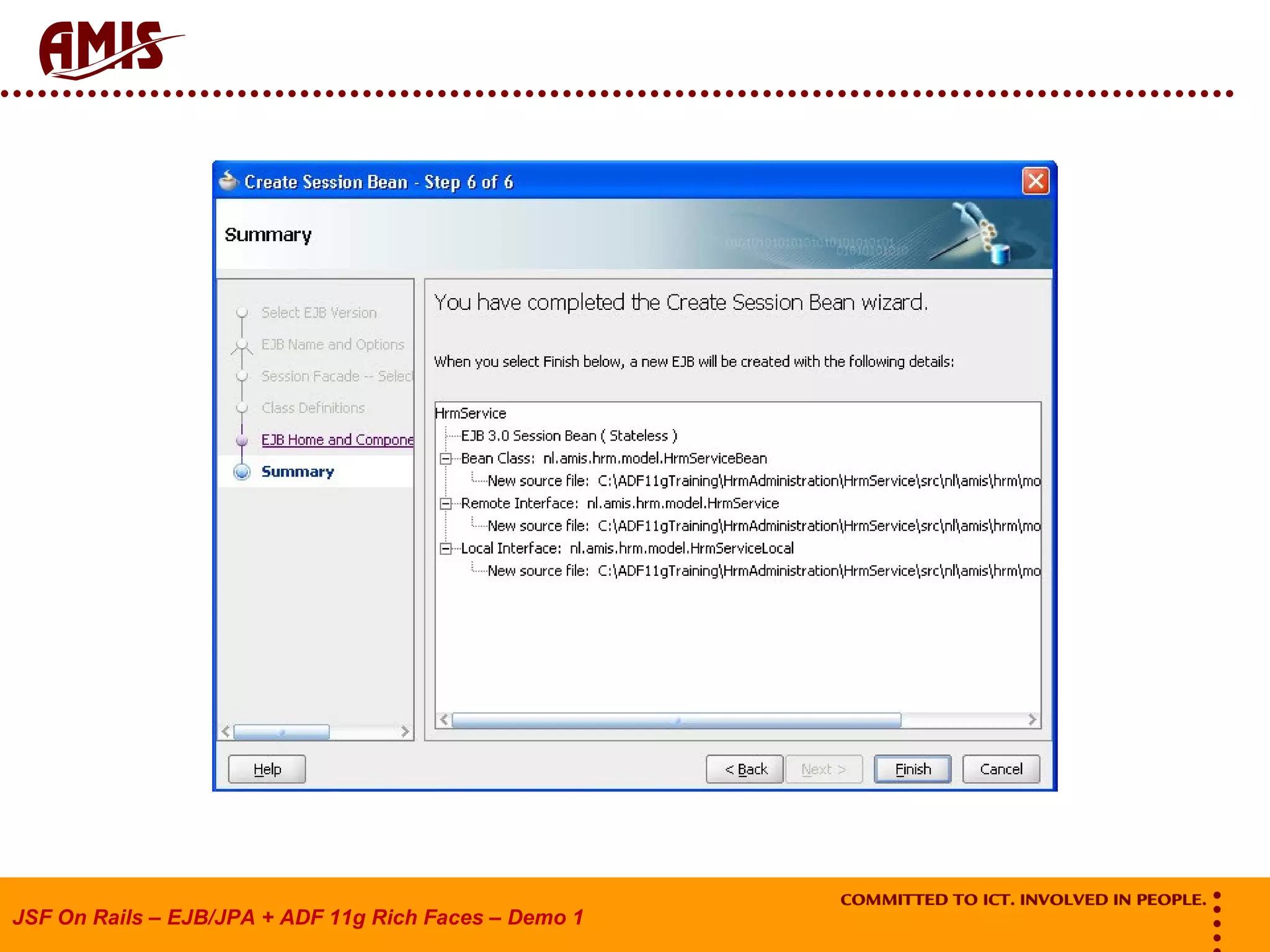

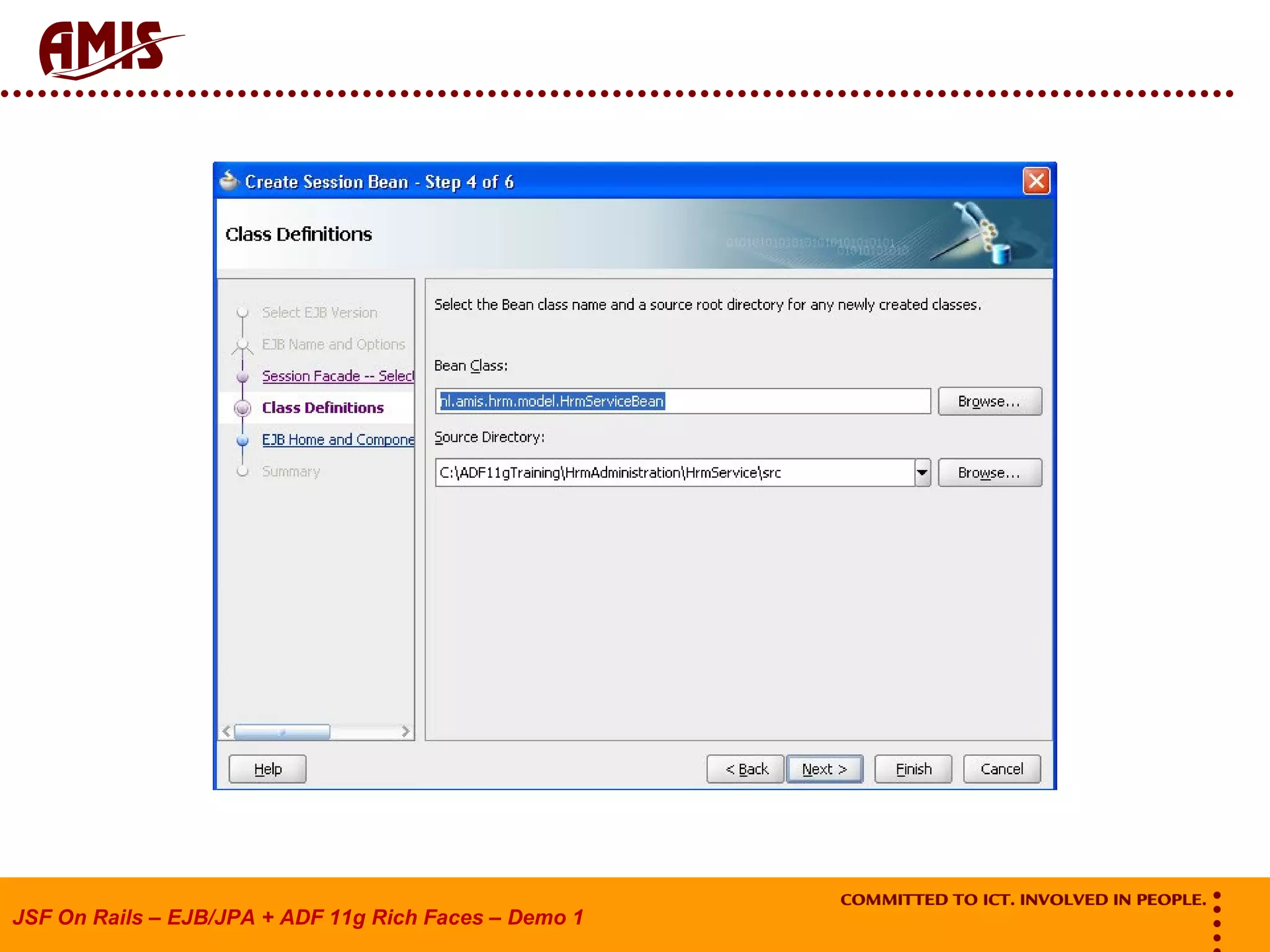

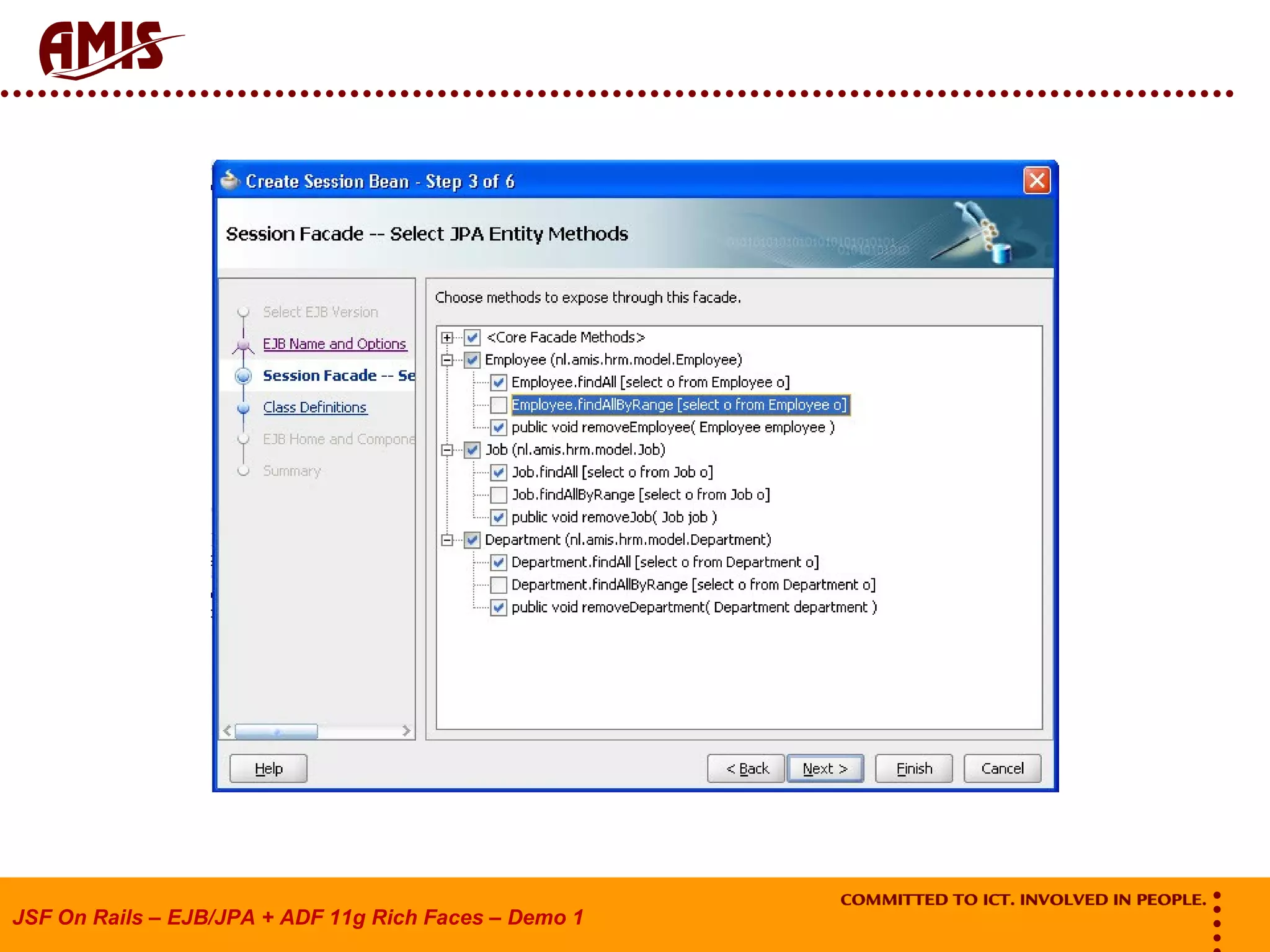

- 20. Create a SessionBean to expose a Business Service API for the entities
- 21.
- 22.
- 23.
- 24.
- 25.

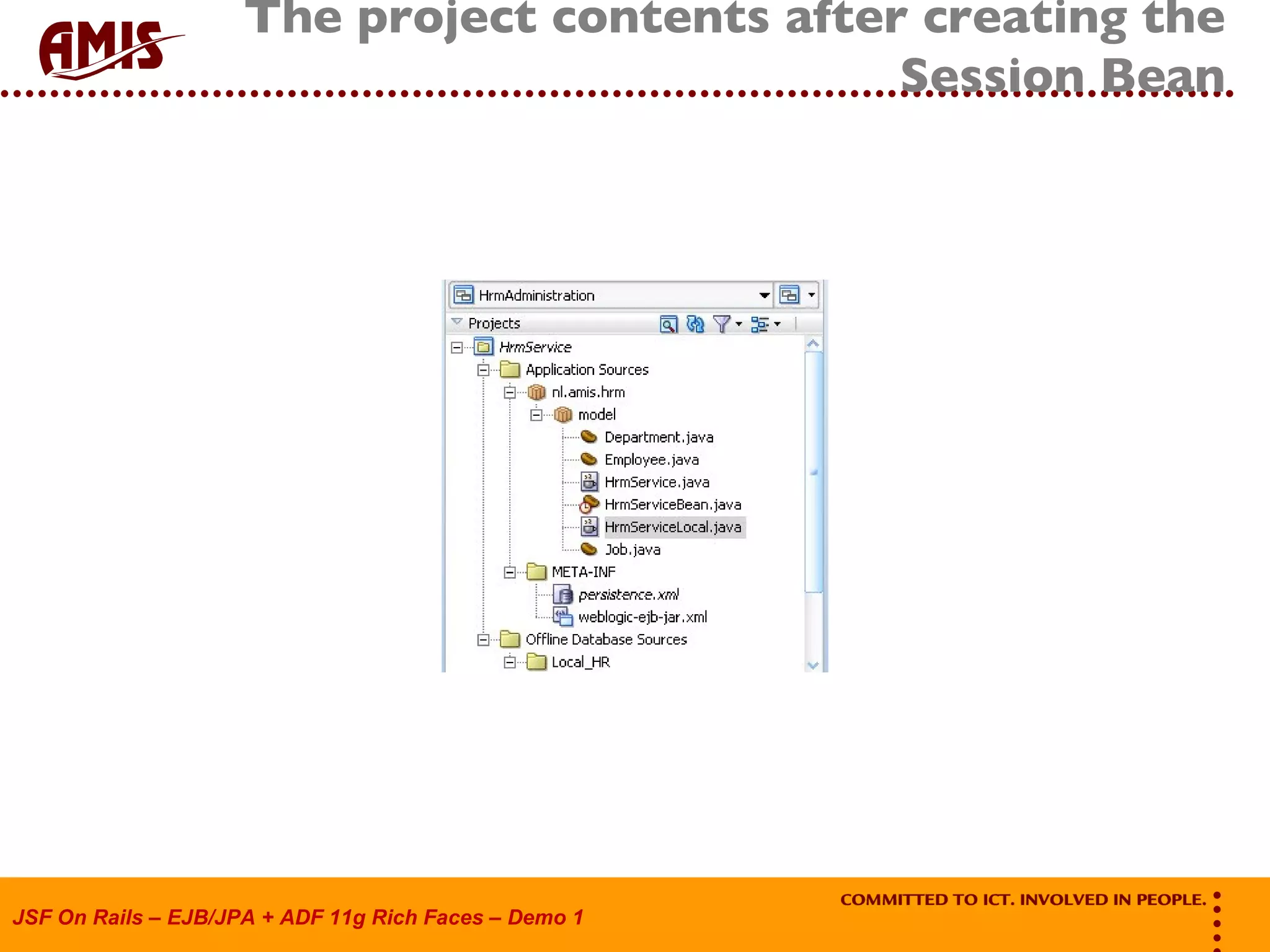

- 26. The project contentsafter creating the Session Bean

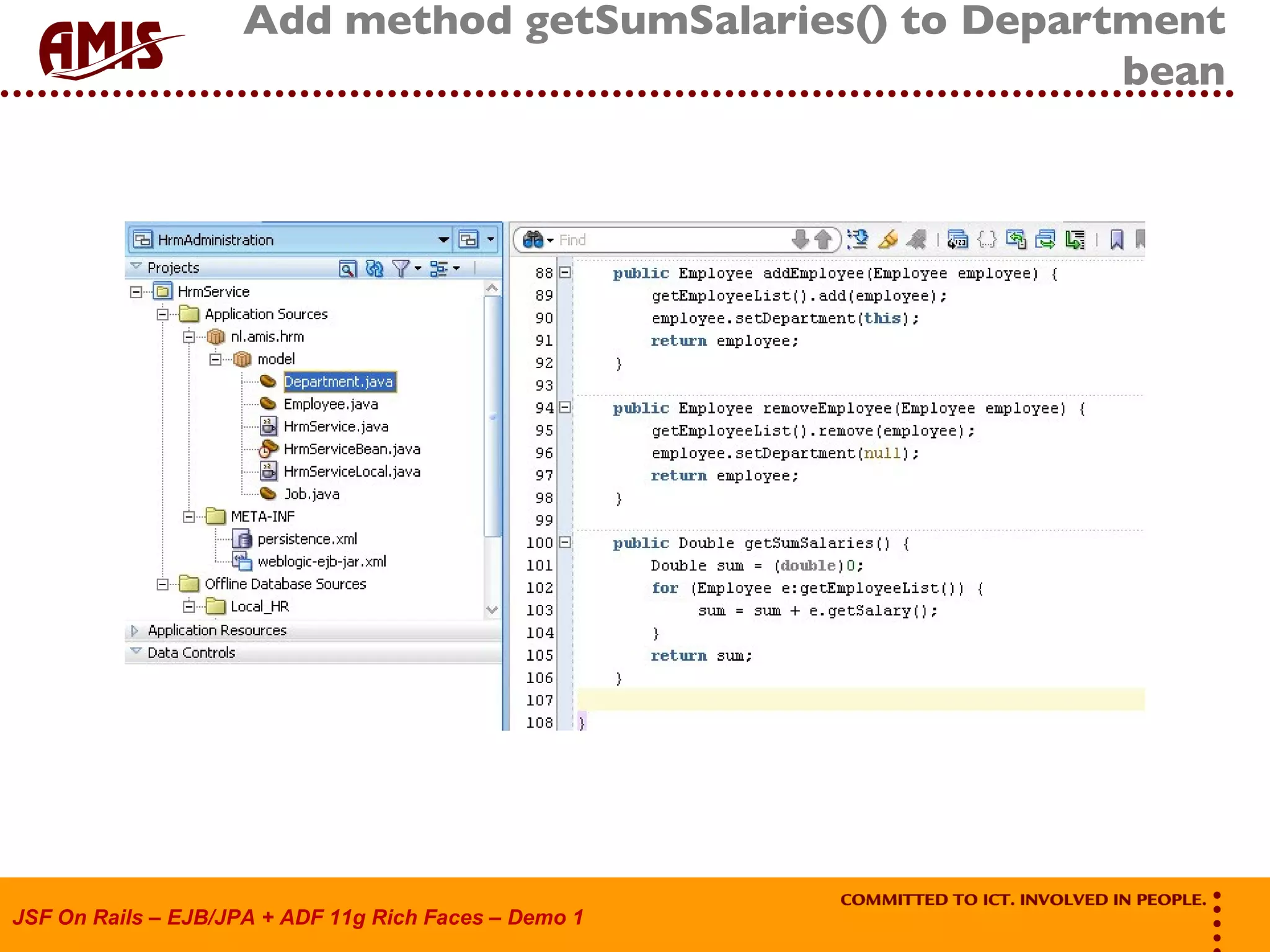

- 27. Add method getSumSalaries()to Department bean

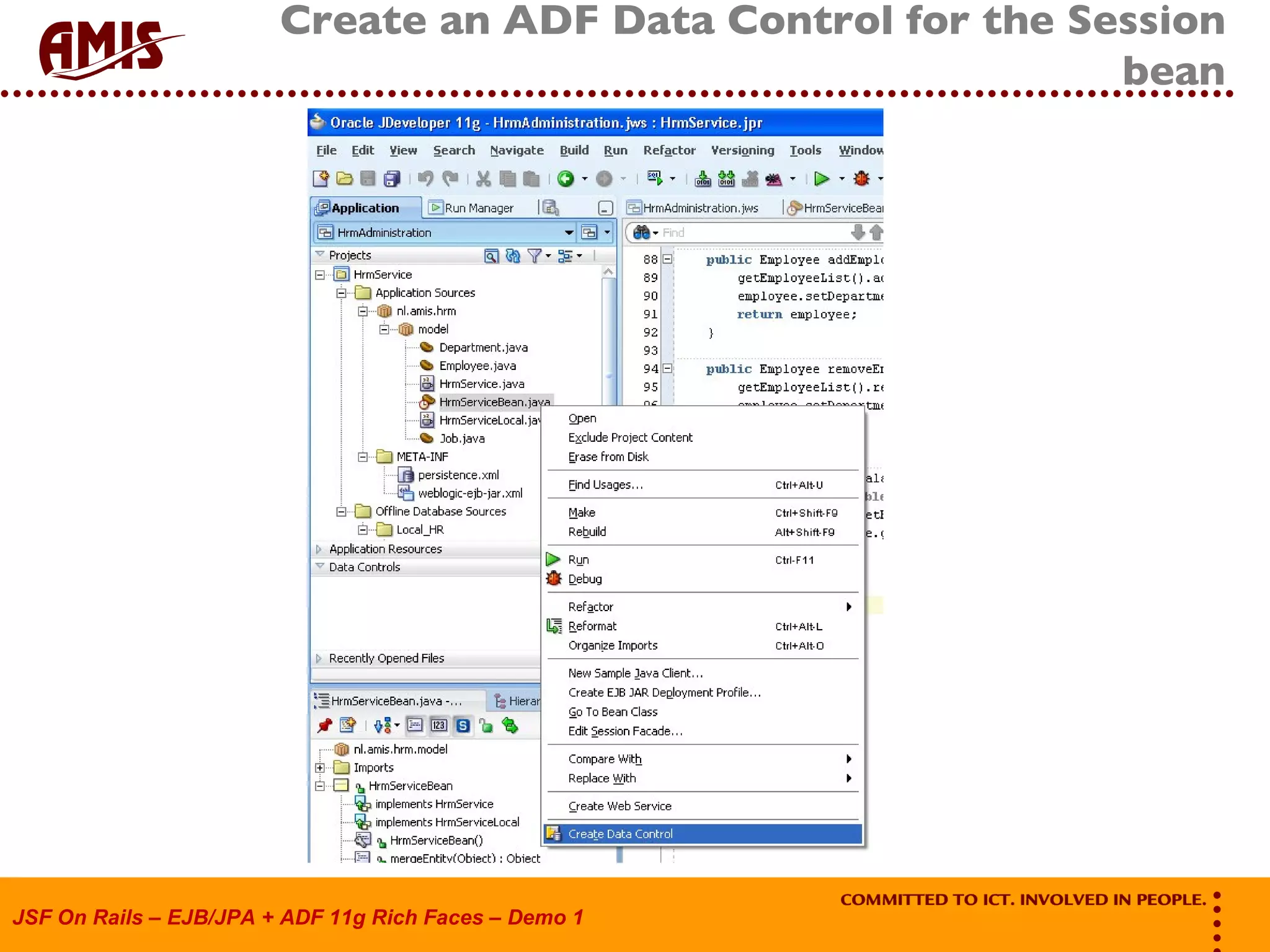

- 28. Create an ADFData Control for the Session bean

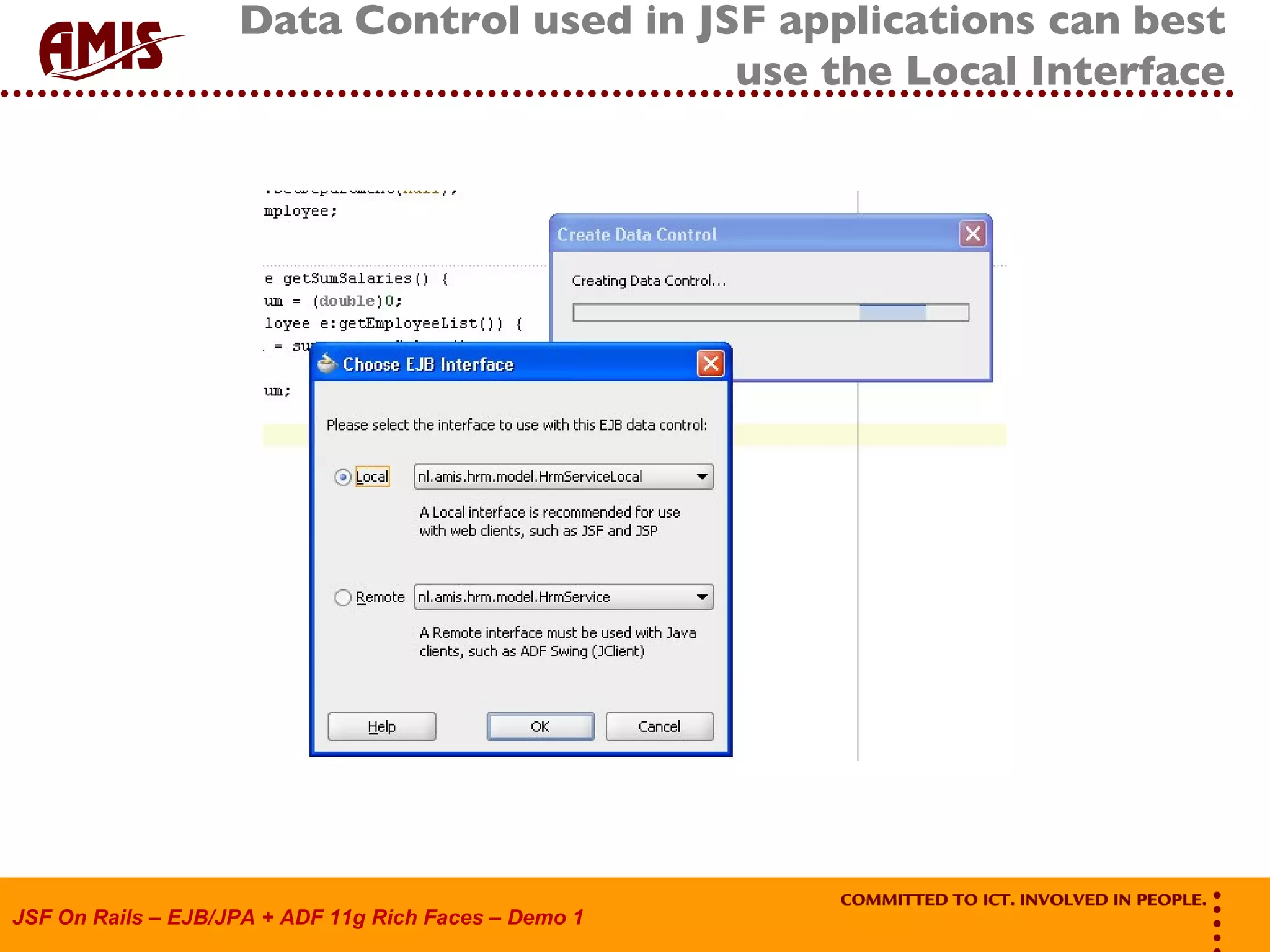

- 29. Data Control usedin JSF applications can best use the Local Interface

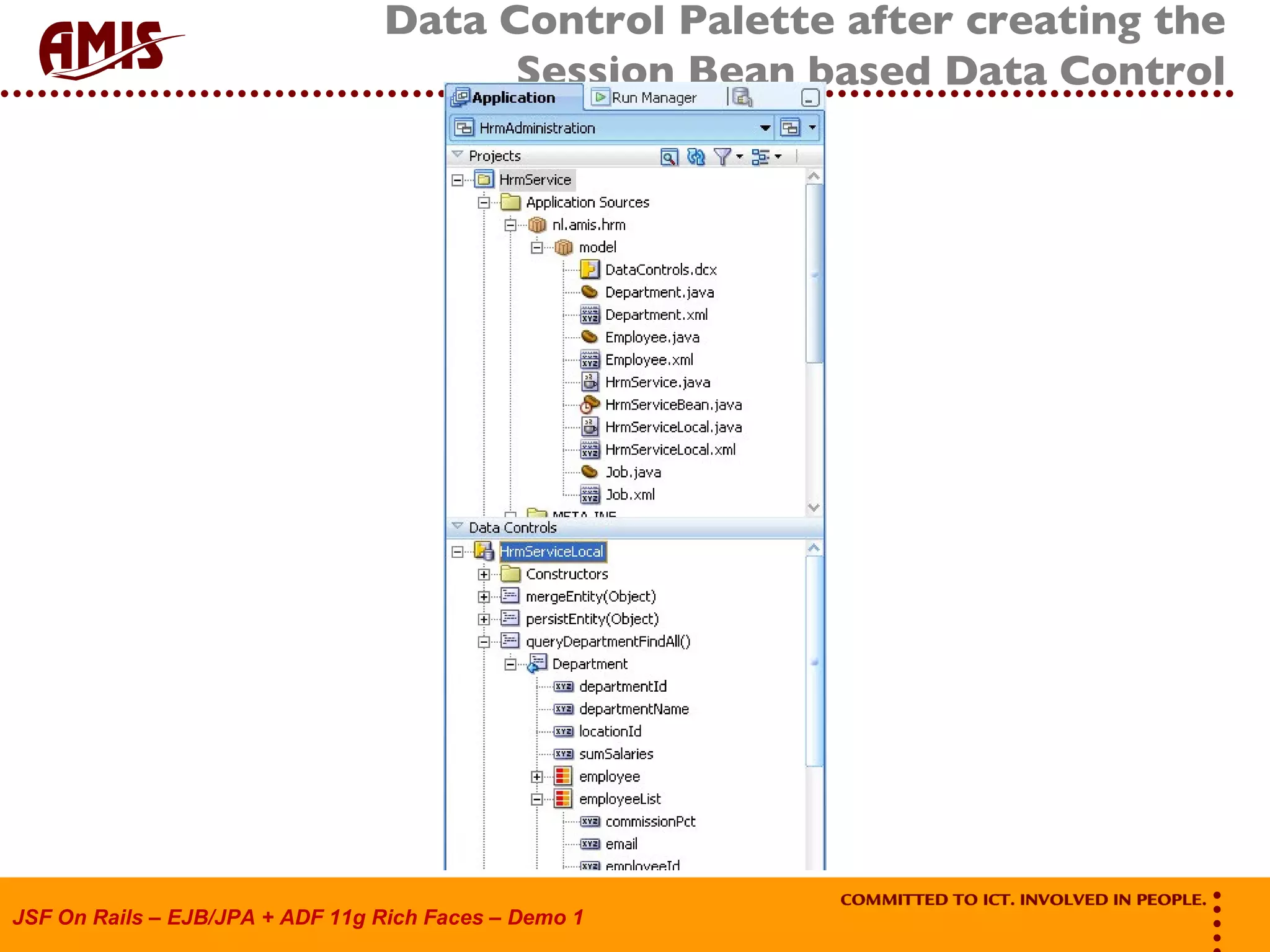

- 30. Data Control Paletteafter creating the Session Bean based Data Control

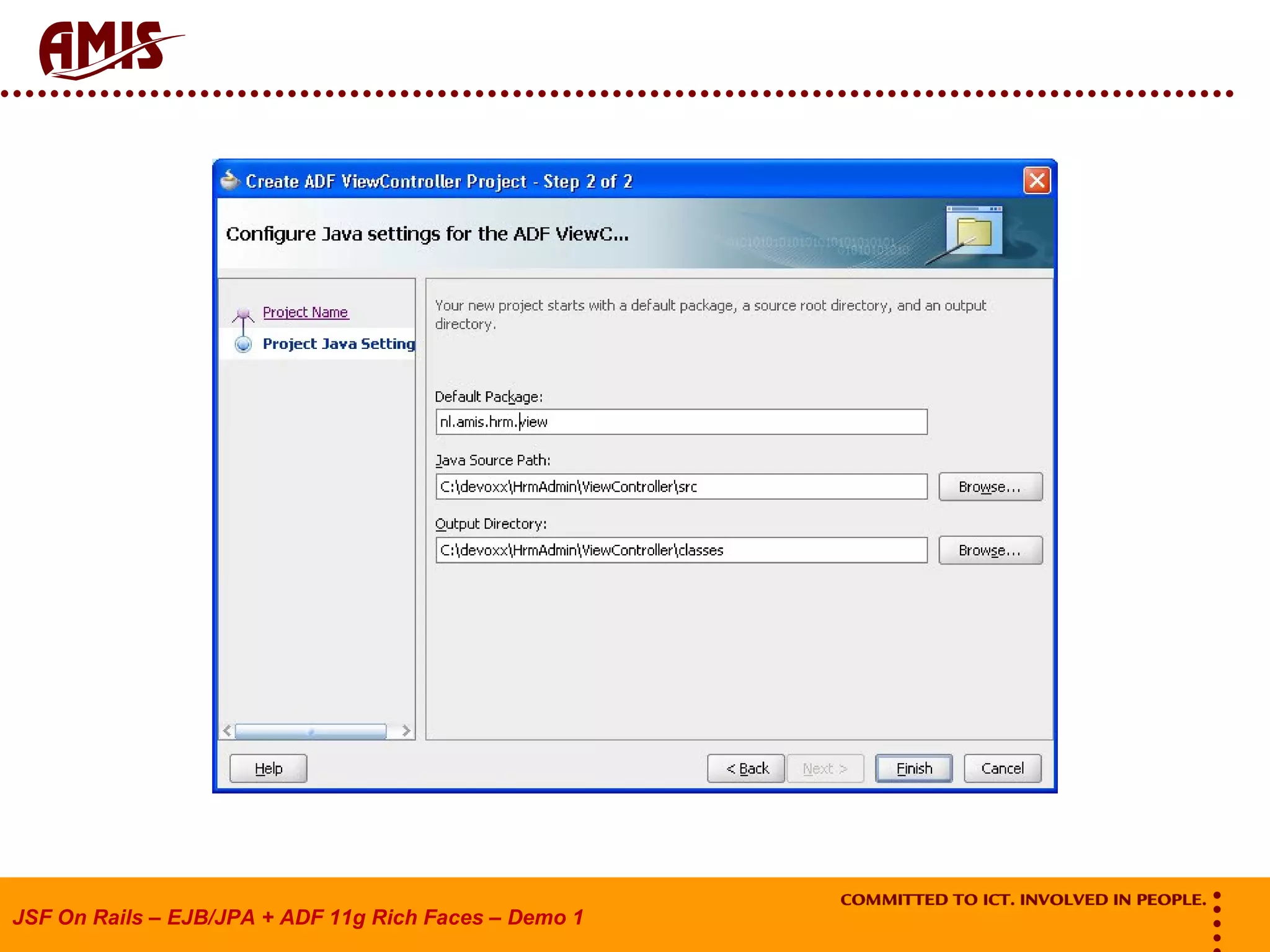

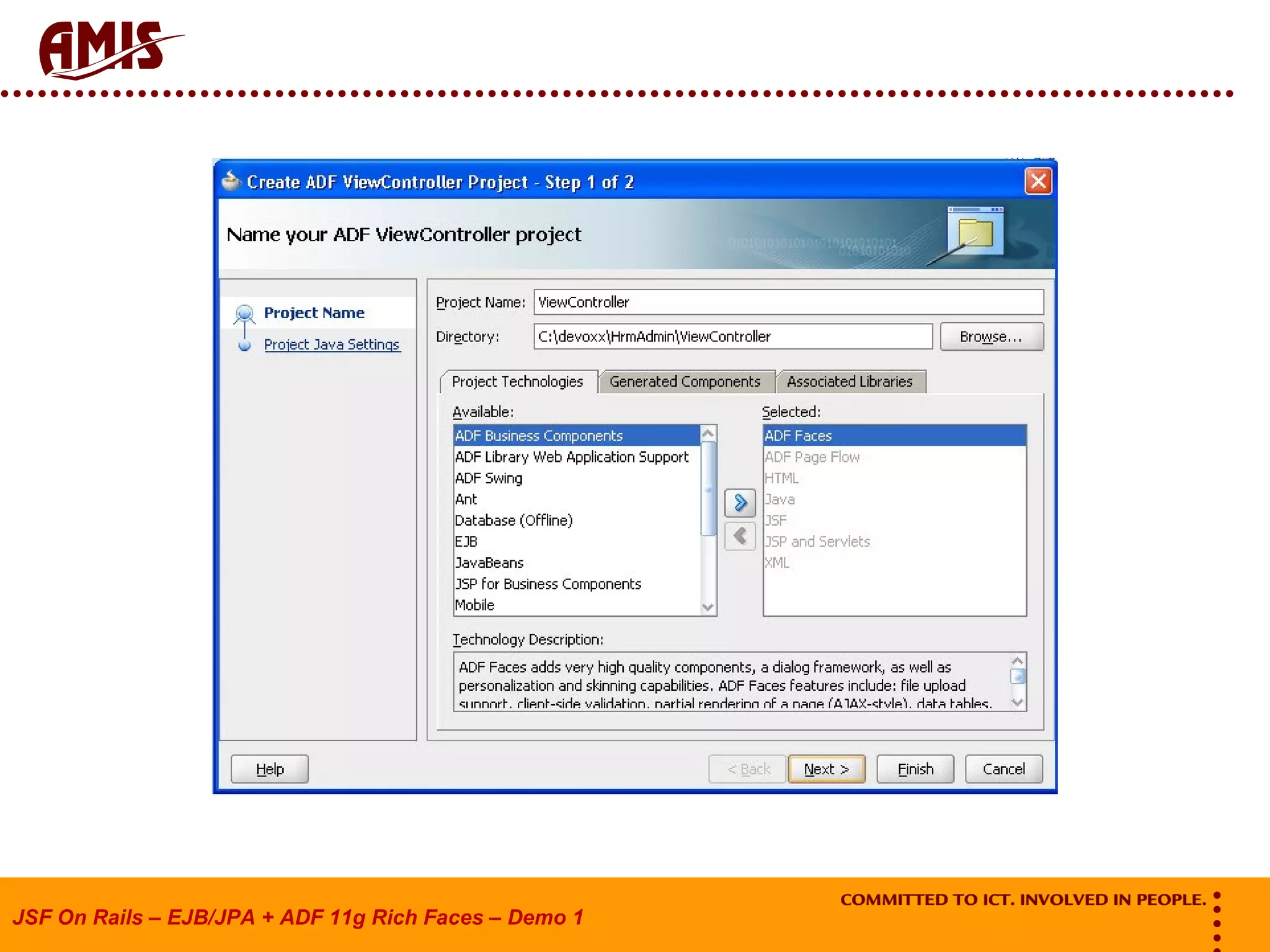

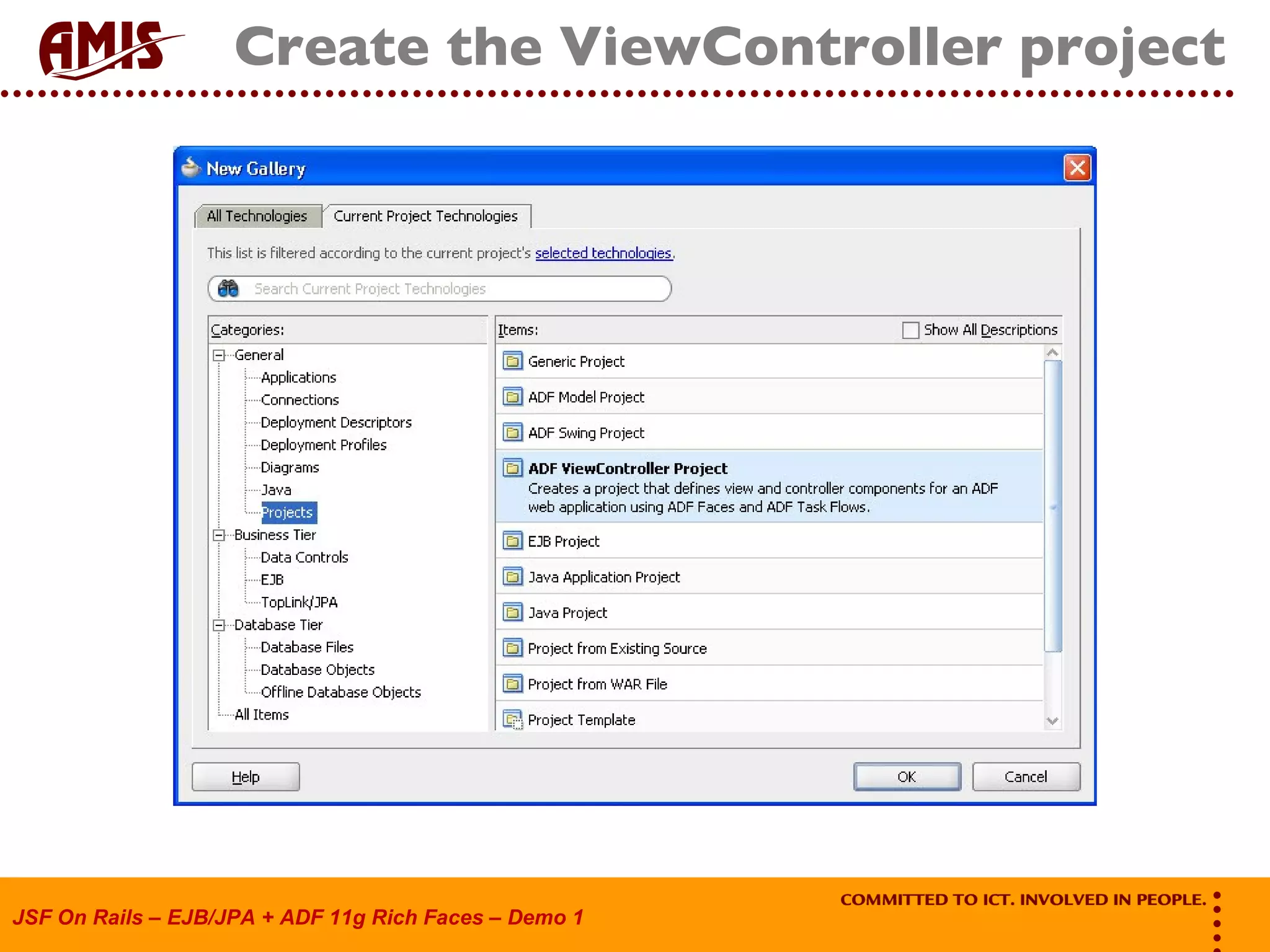

- 31. Create the ViewControllerproject
- 32.
- 33.

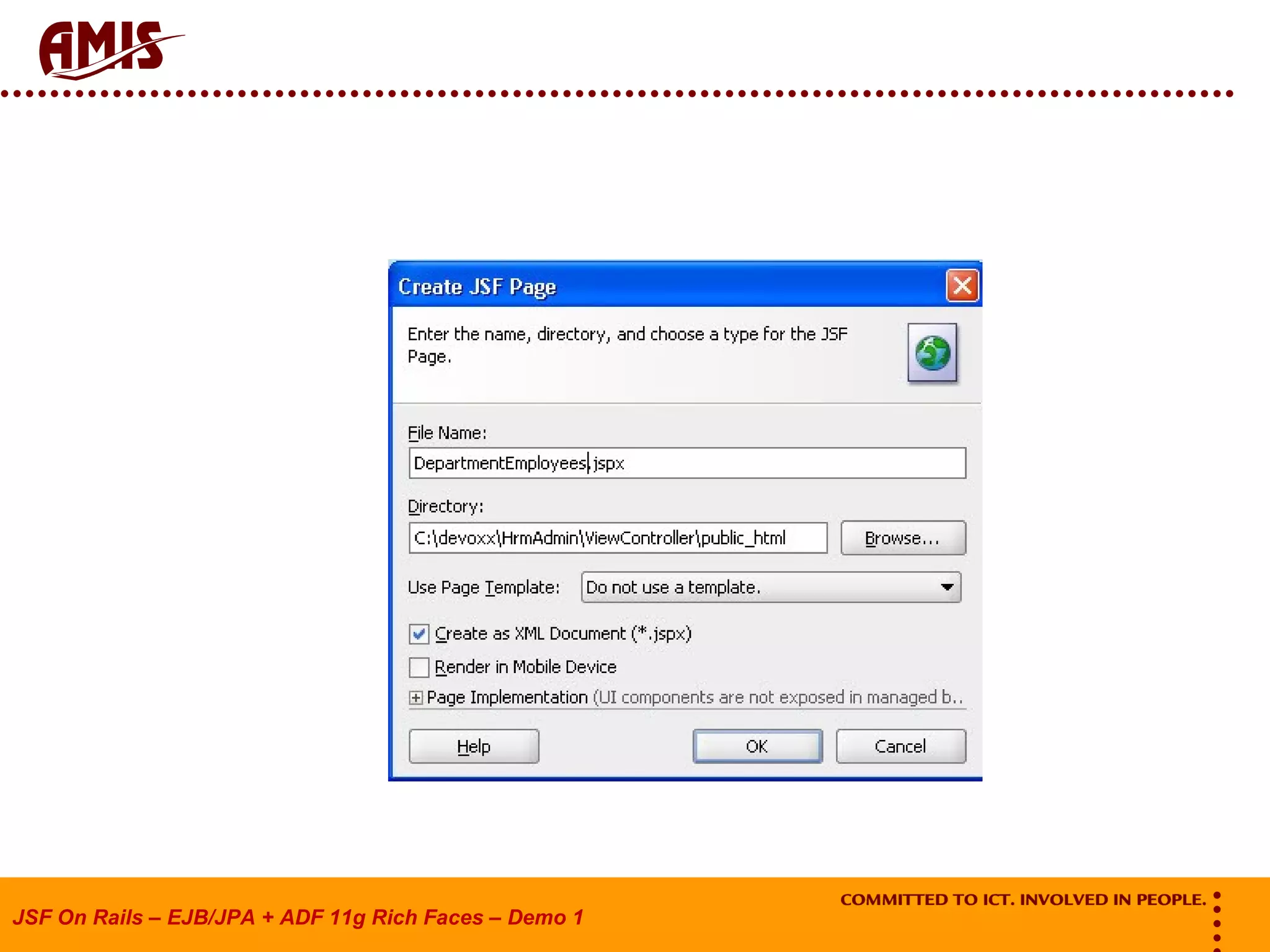

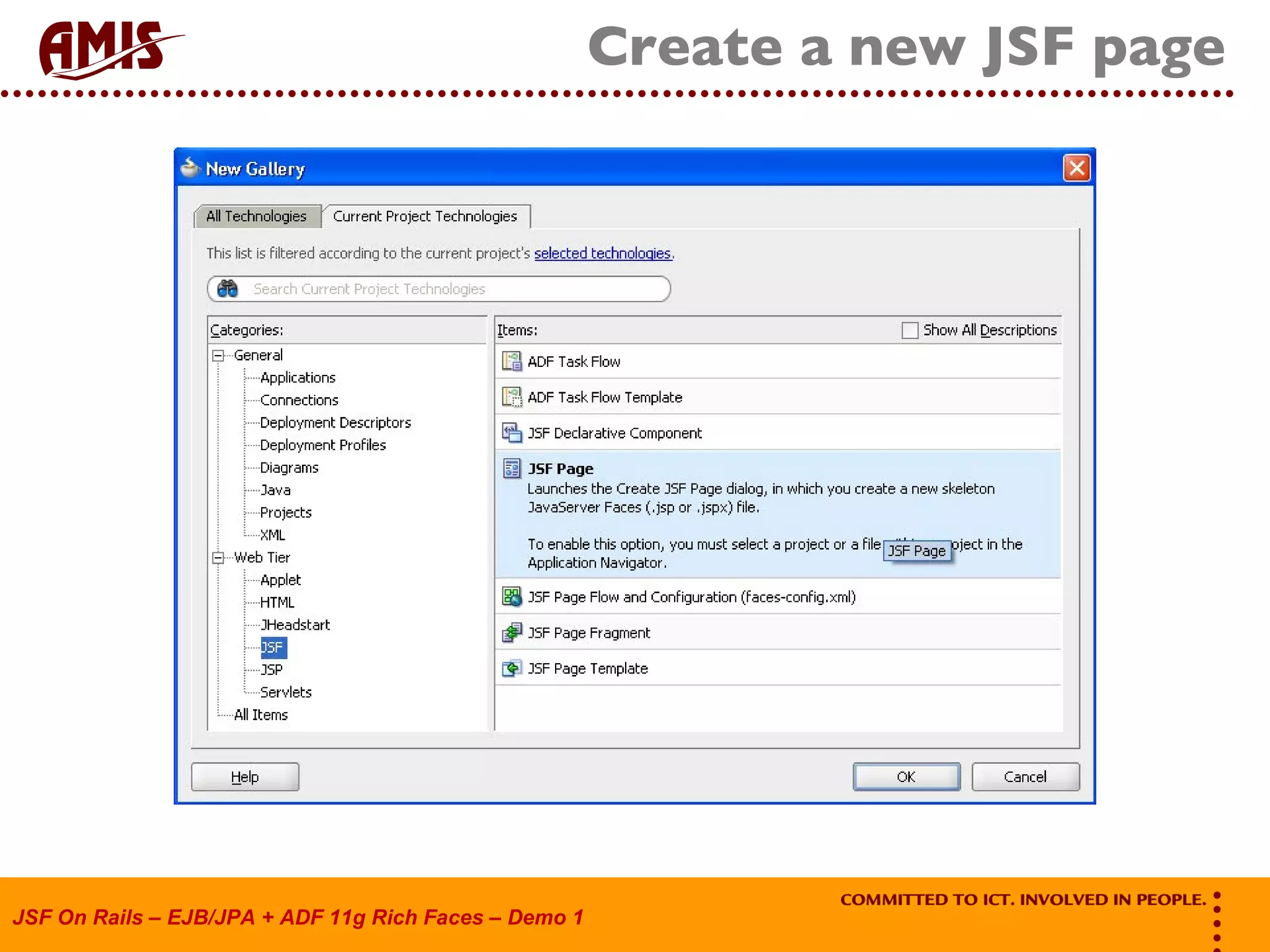

- 34. Create a newJSF page
- 35.

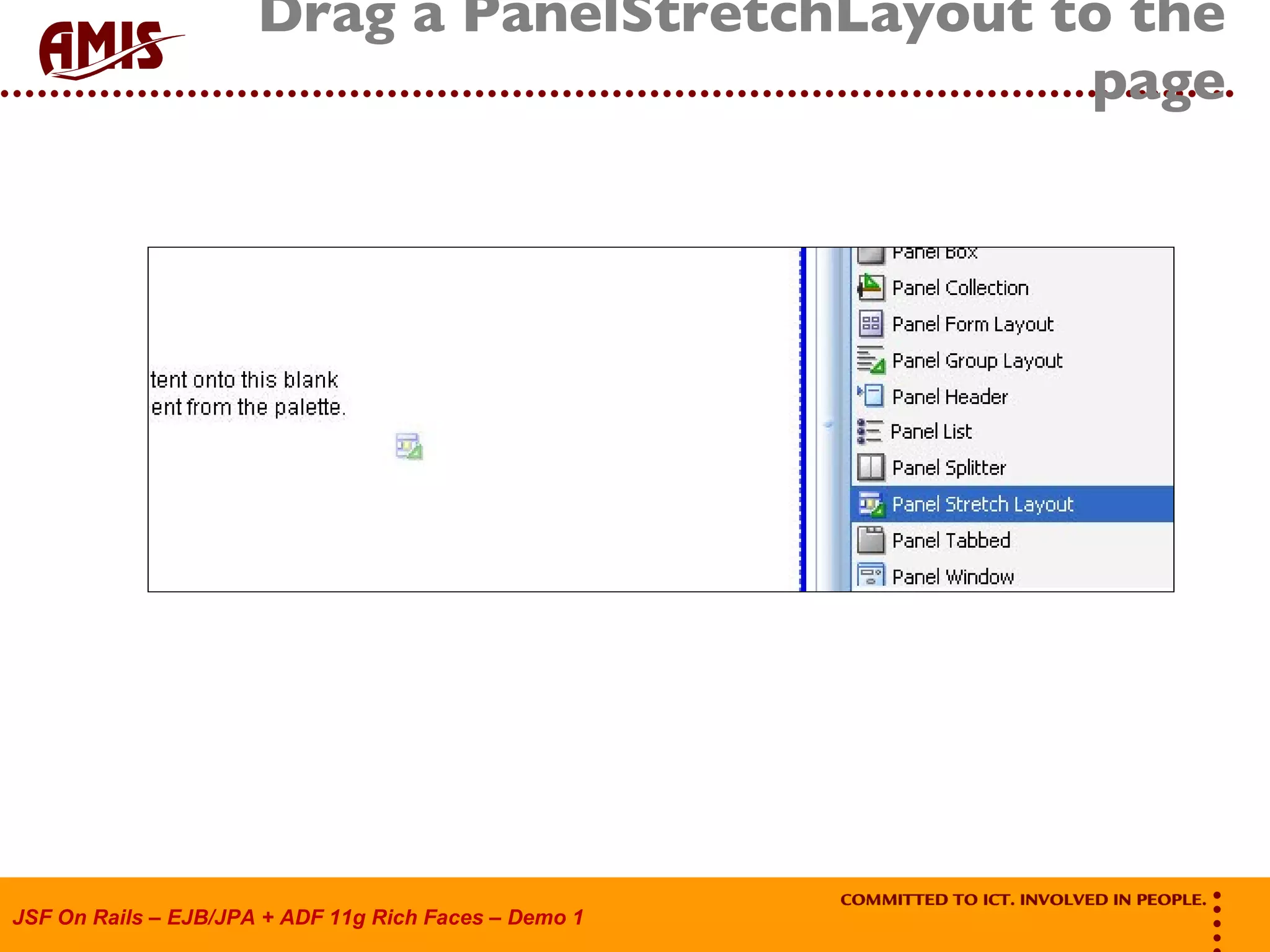

- 36. Drag a PanelStretchLayoutto the page

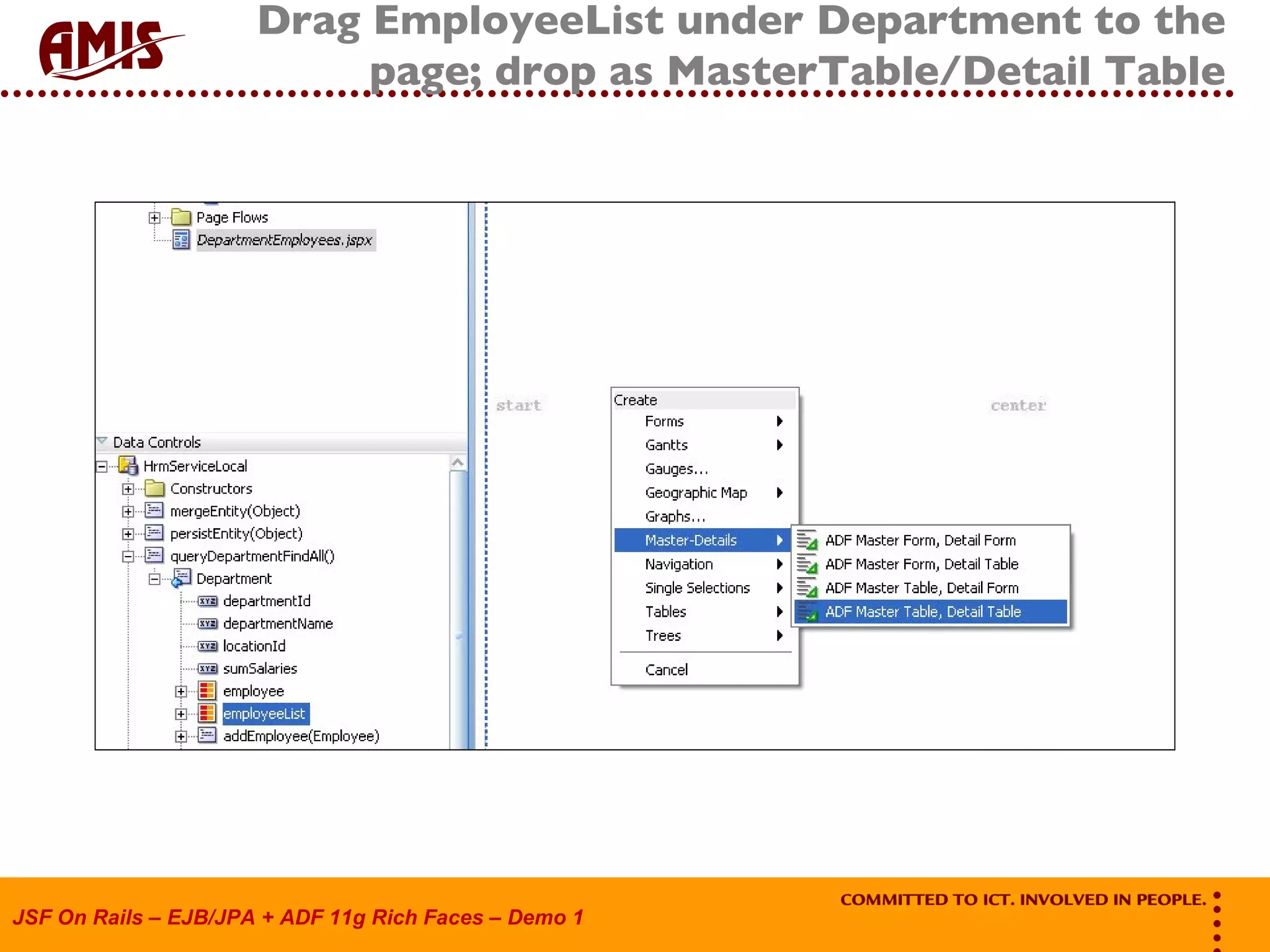

- 37. Drag EmployeeList underDepartment to the page; drop as MasterTable/Detail Table

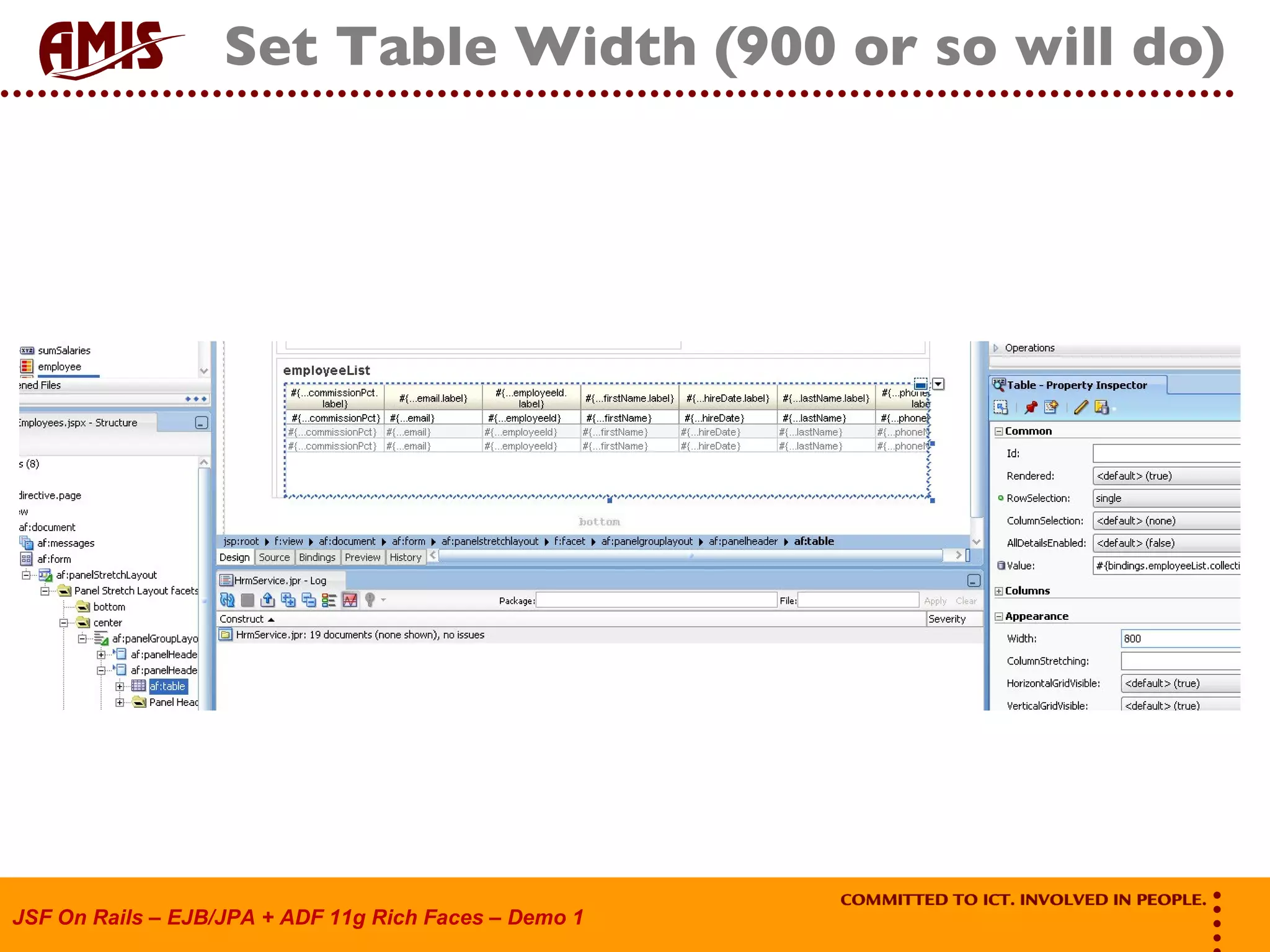

- 38. Set Table Width(900 or so will do)

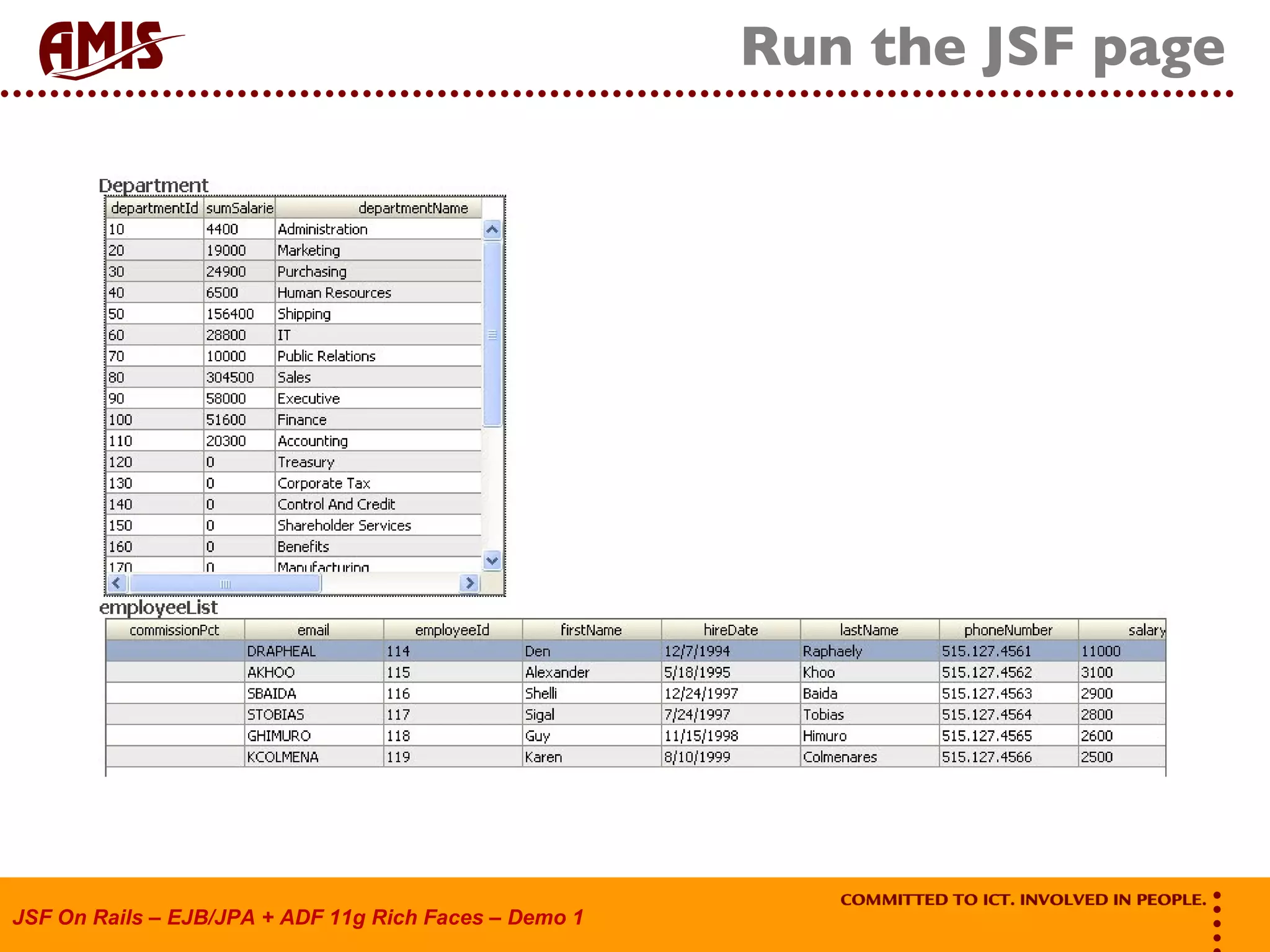

- 39. Run the JSFpage

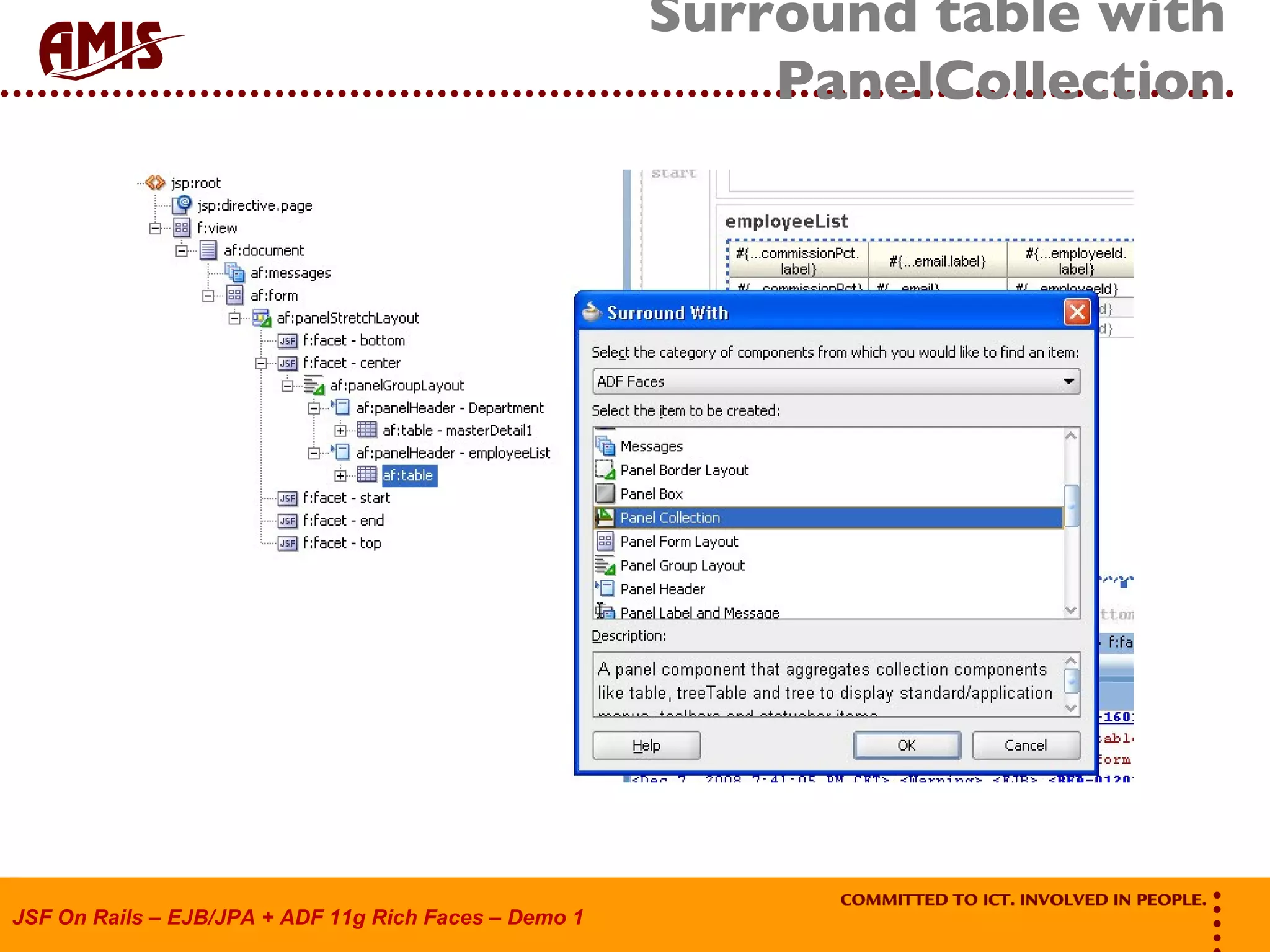

- 40. Surround table withPanelCollection

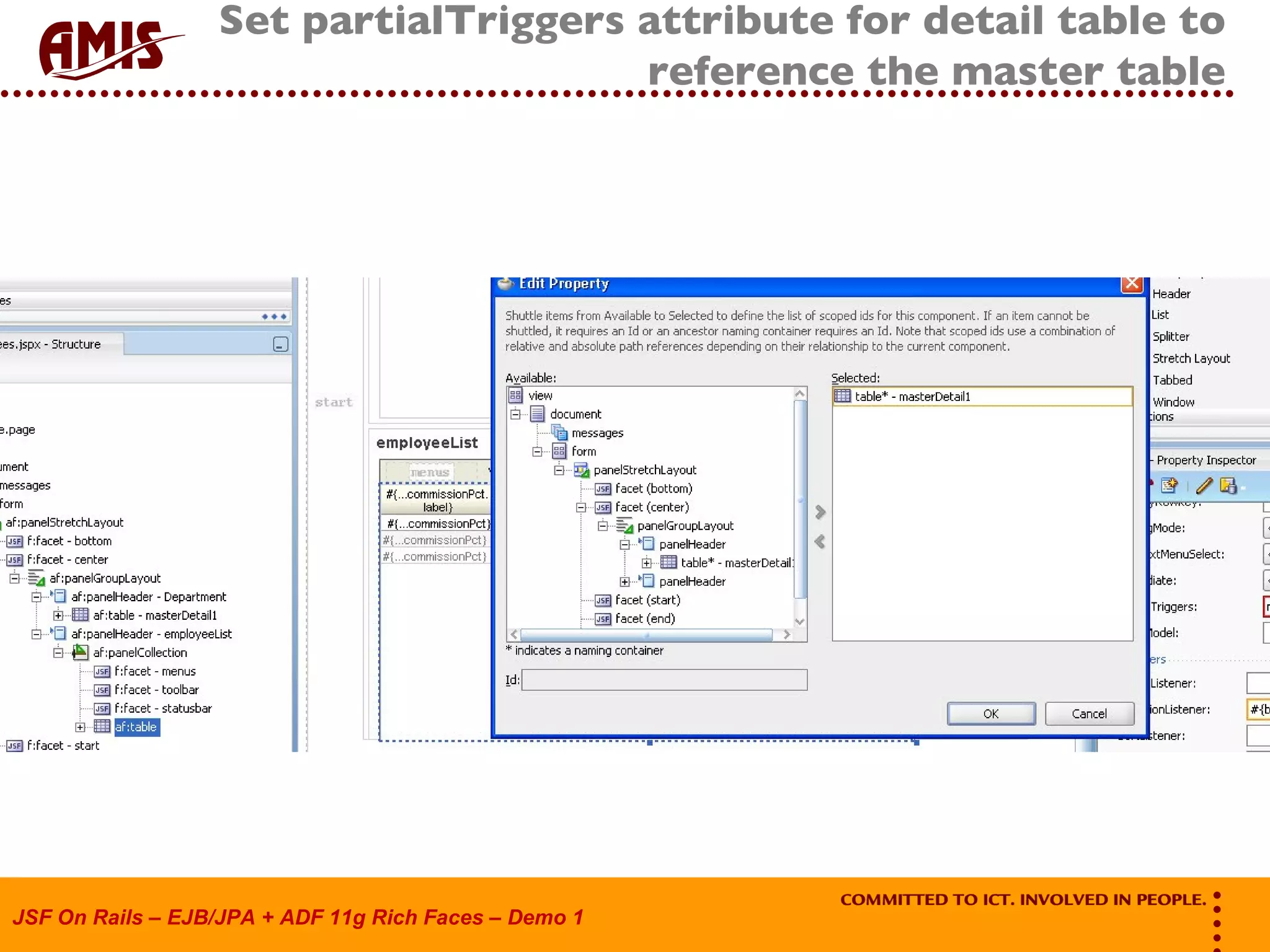

- 41. Set partialTriggers attributefor detail table to reference the master table

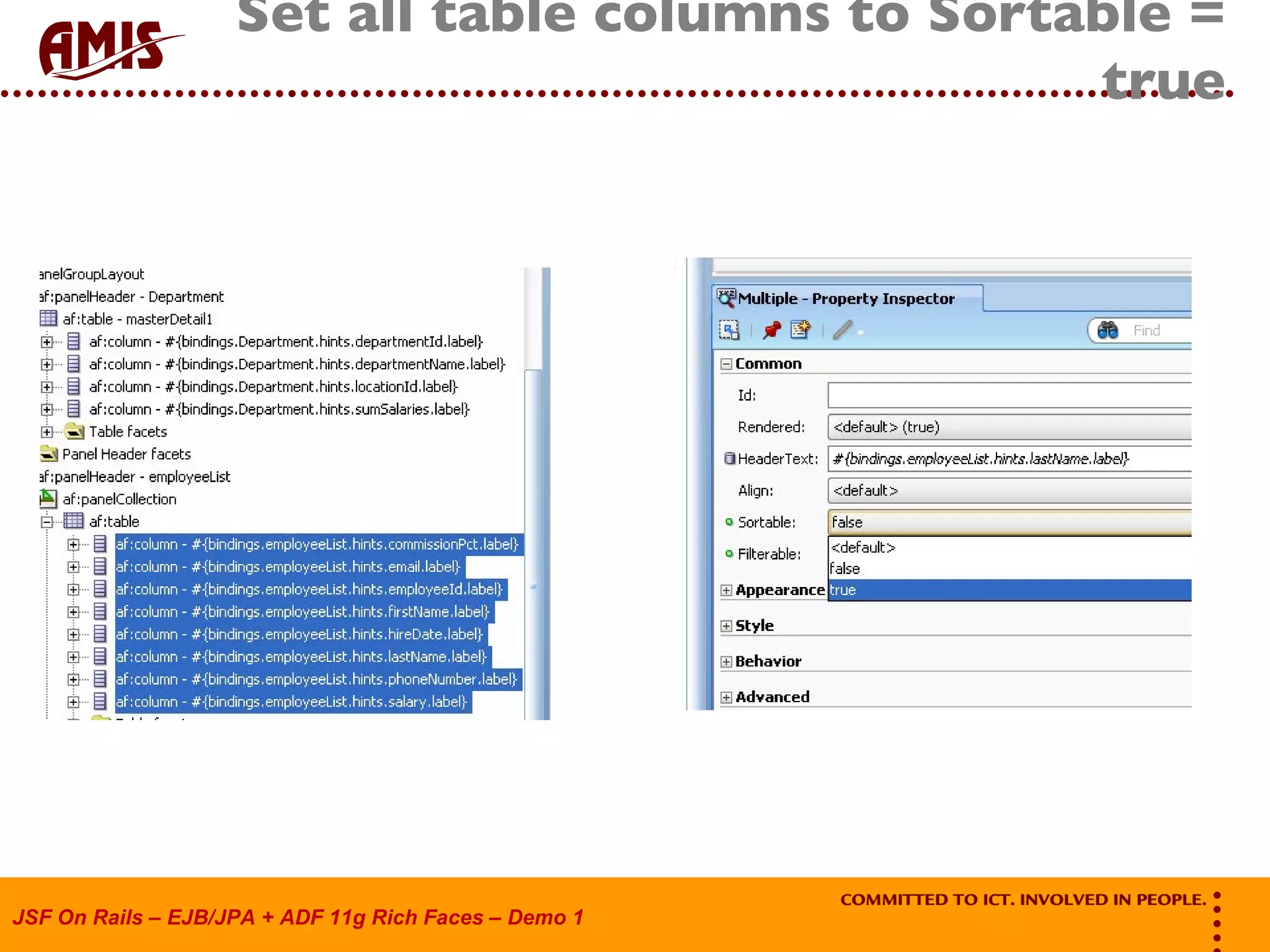

- 42. Set all tablecolumns to Sortable = true

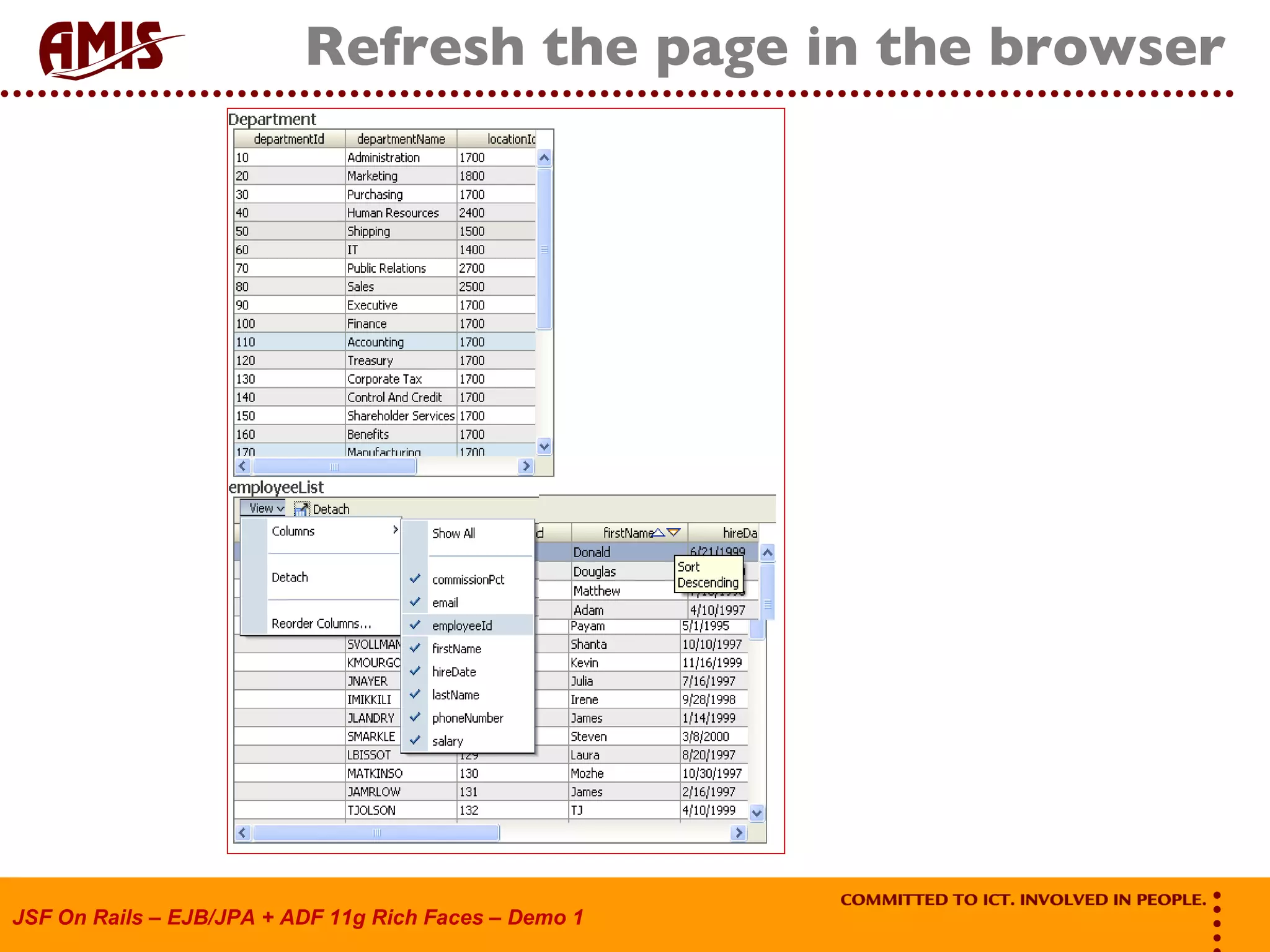

- 43. Refresh the pagein the browser

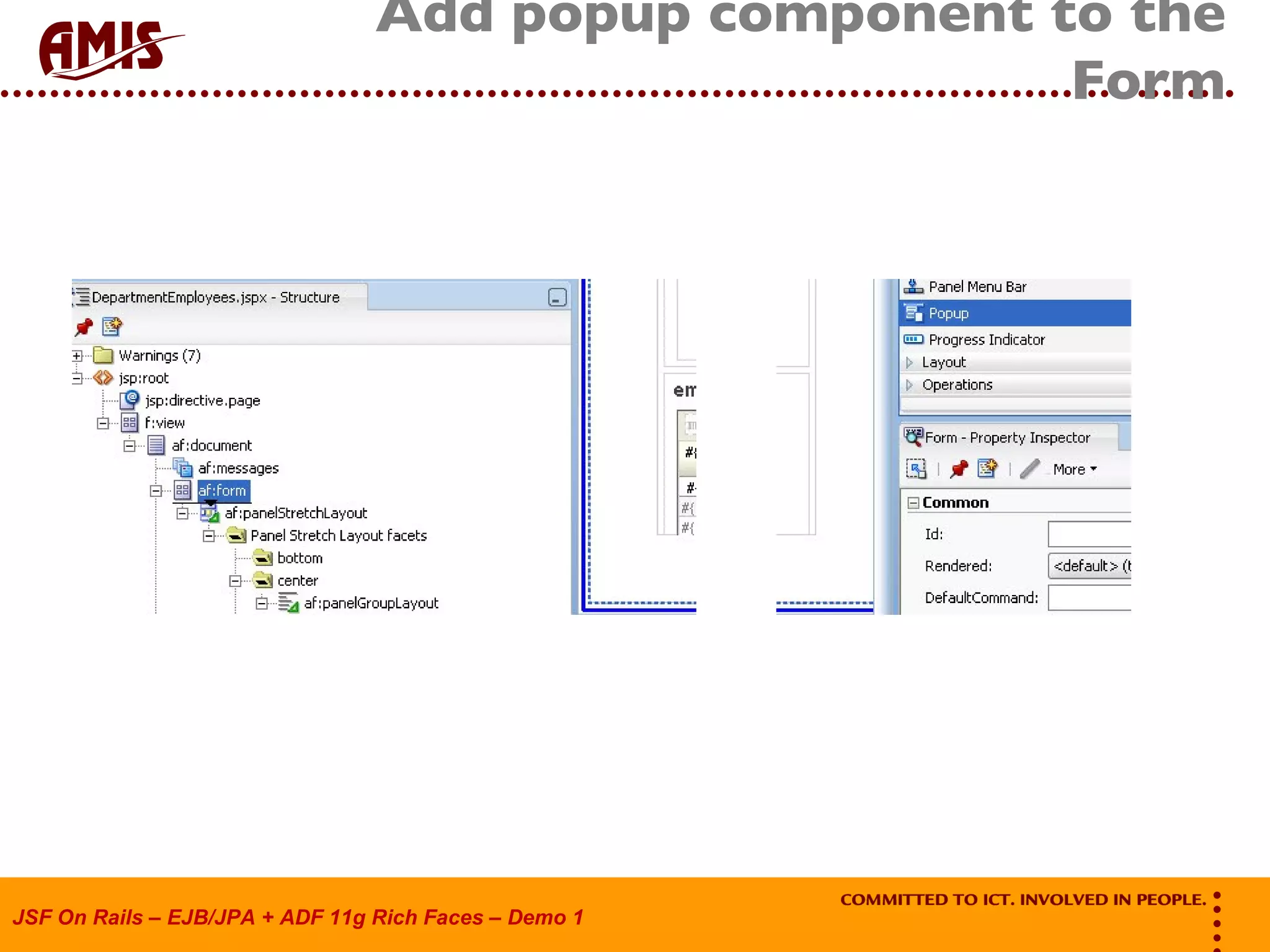

- 44. Add popup componentto the Form

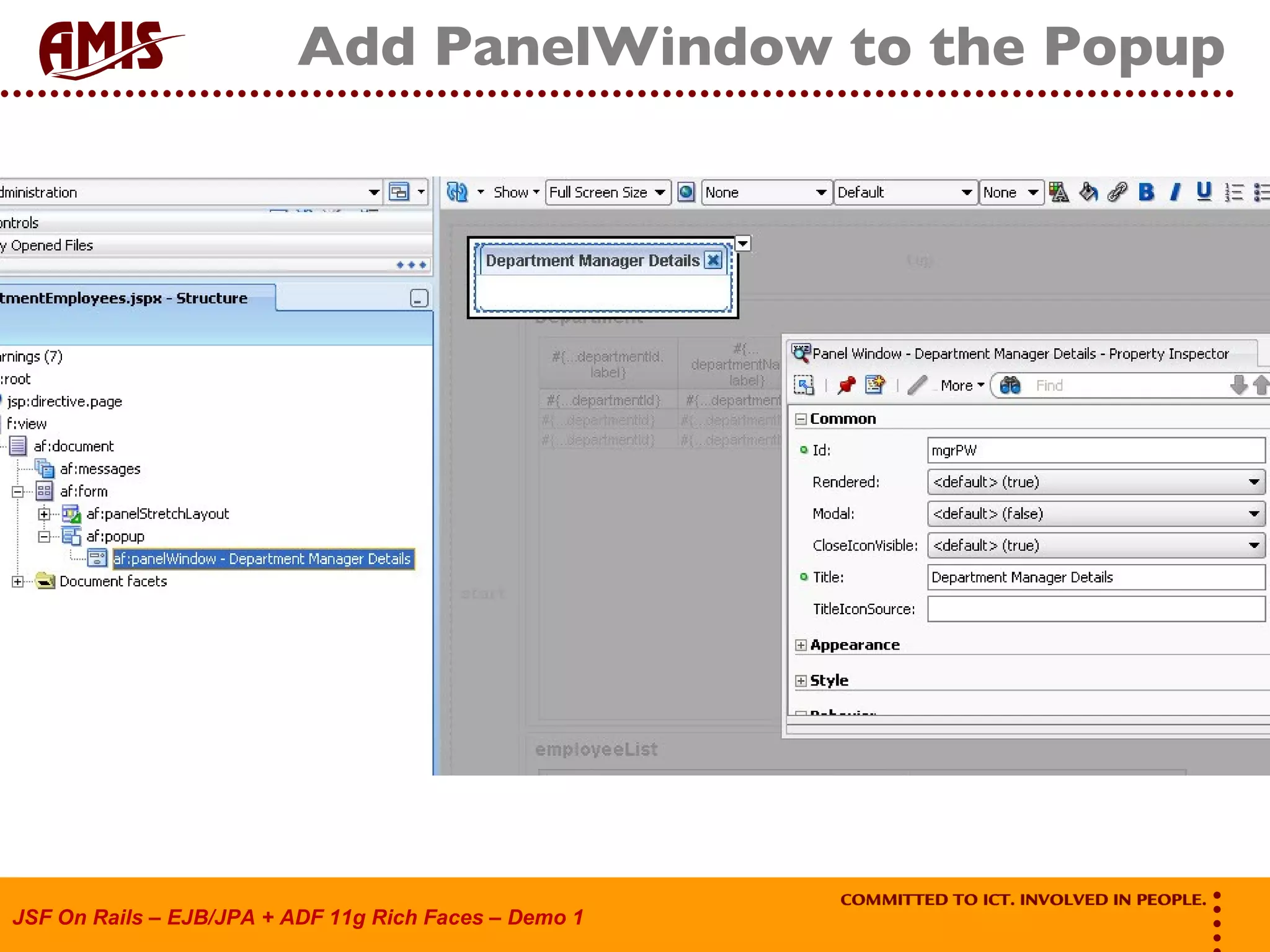

- 45. Add PanelWindow tothe Popup

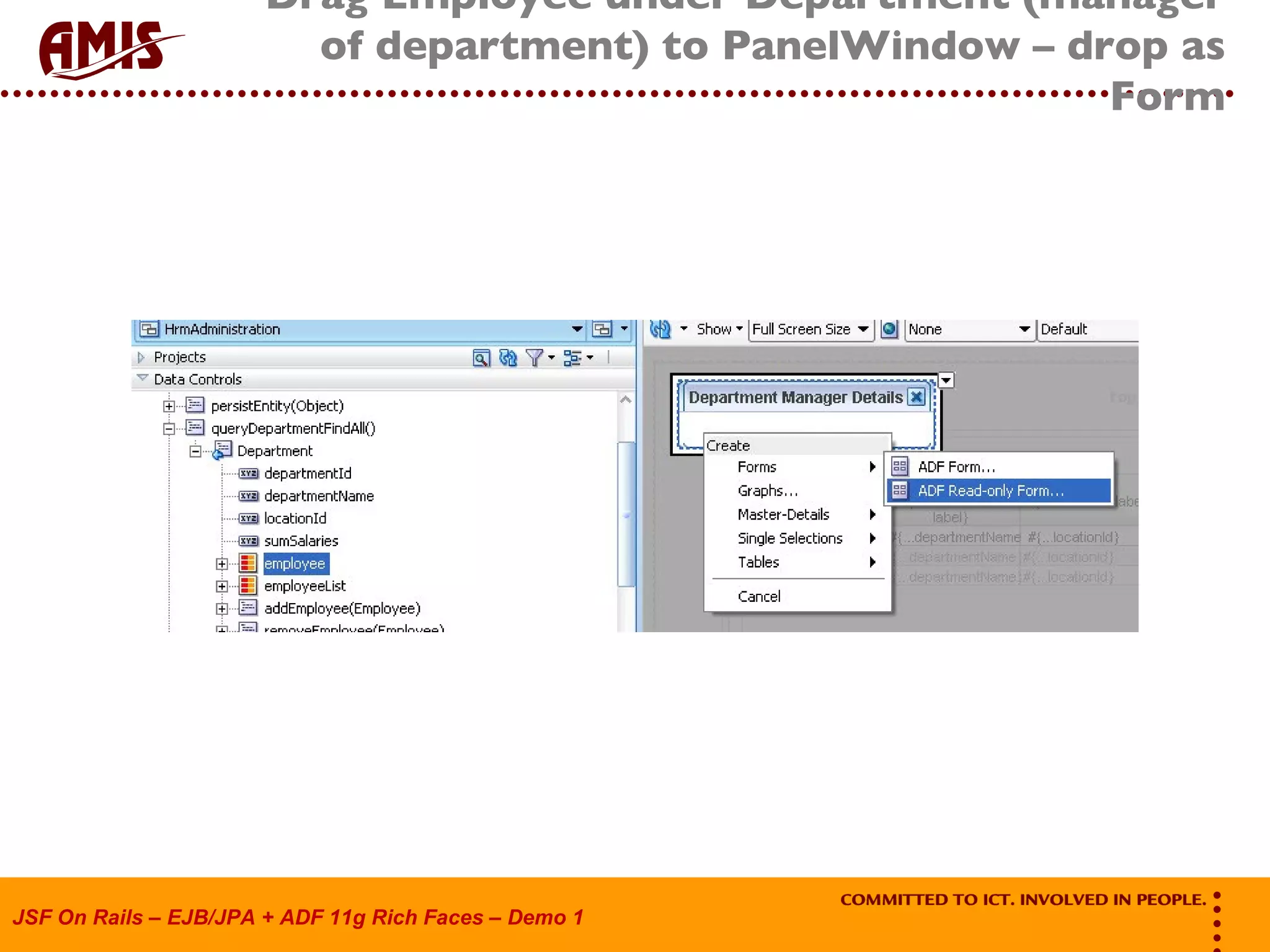

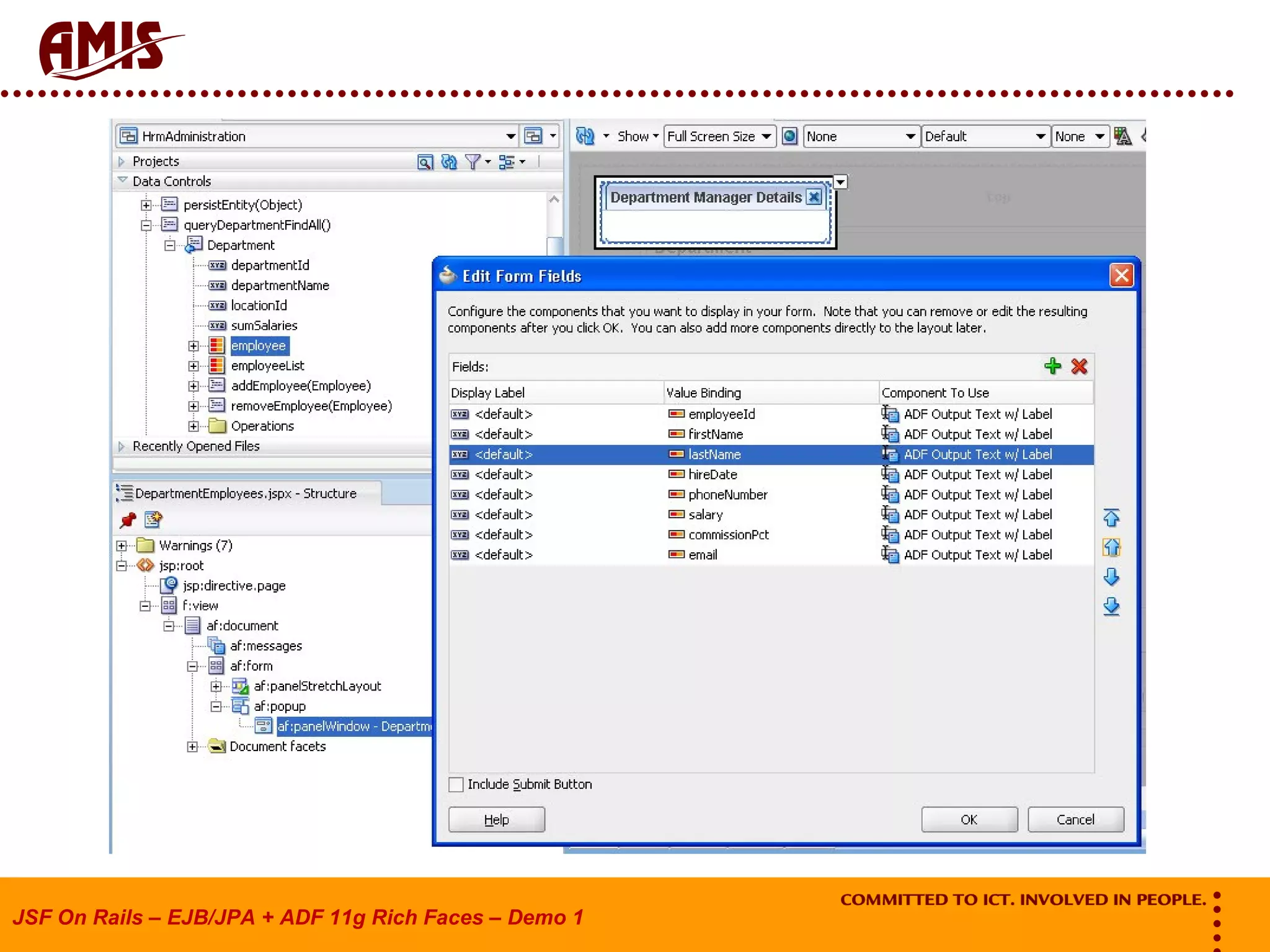

- 46. Drag Employee underDepartment (manager of department) to PanelWindow – drop as Form
- 47.

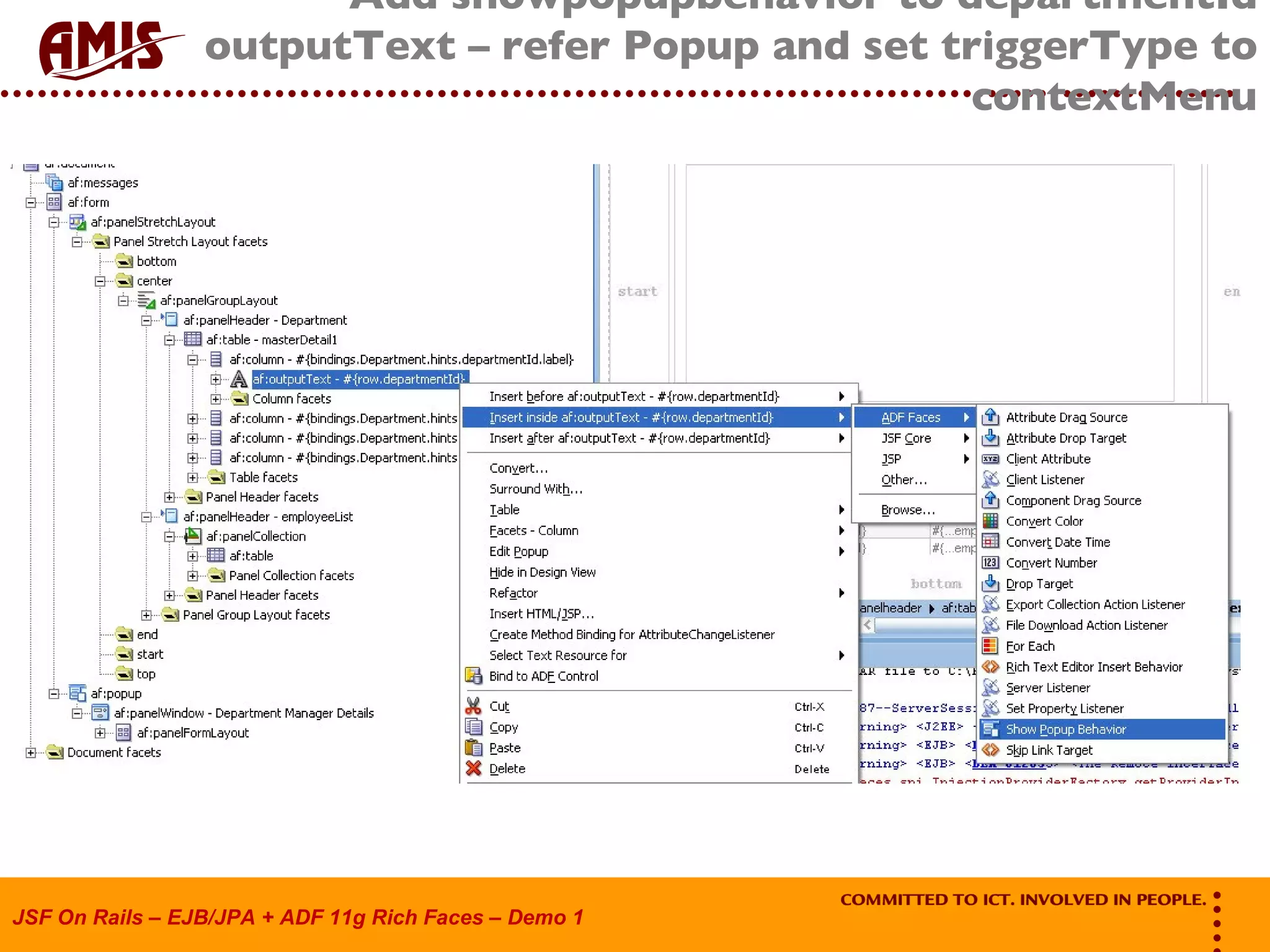

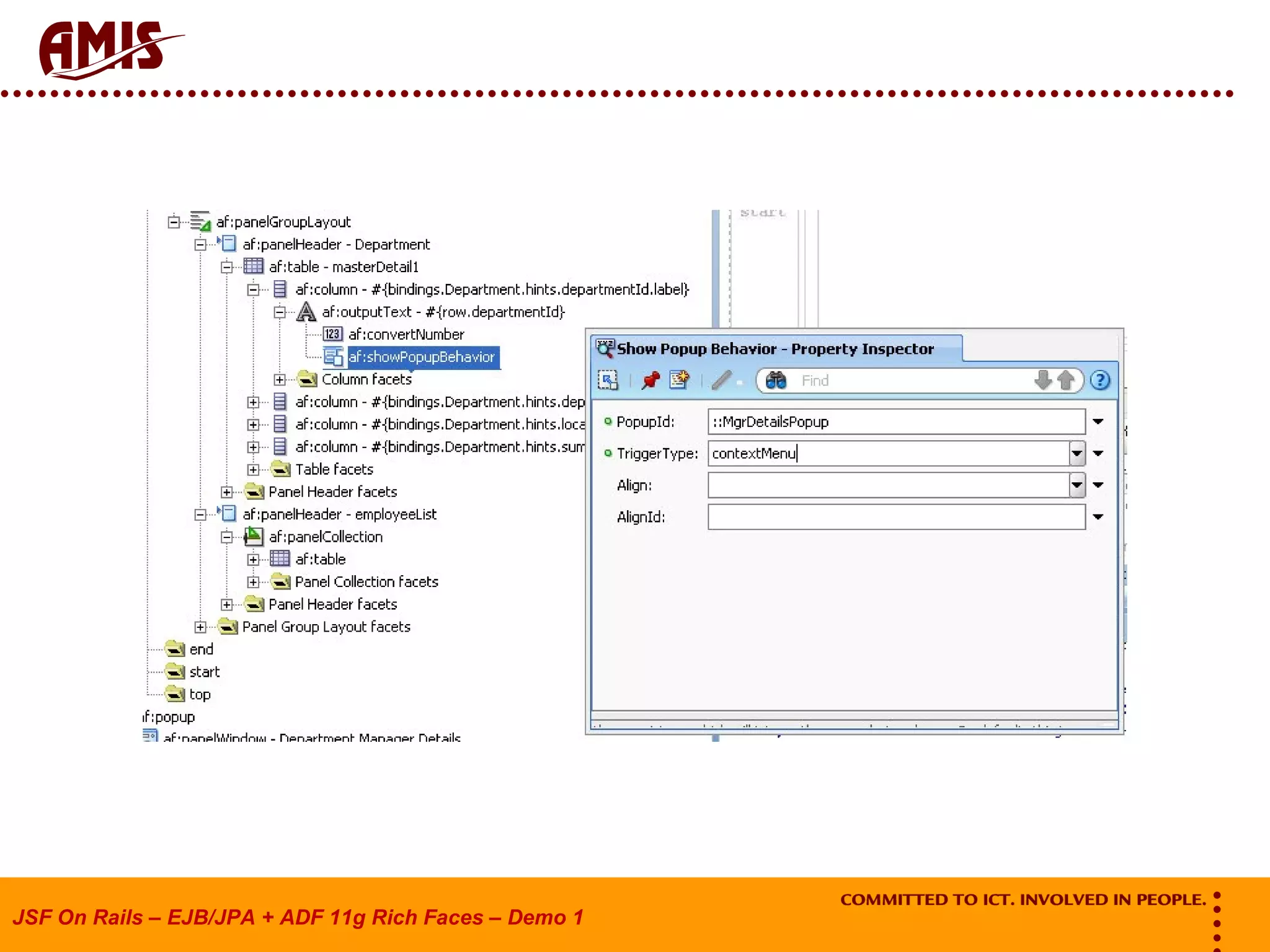

- 48. Add showpopupbehavior todepartmentId outputText – refer Popup and set triggerType to contextMenu
- 49.

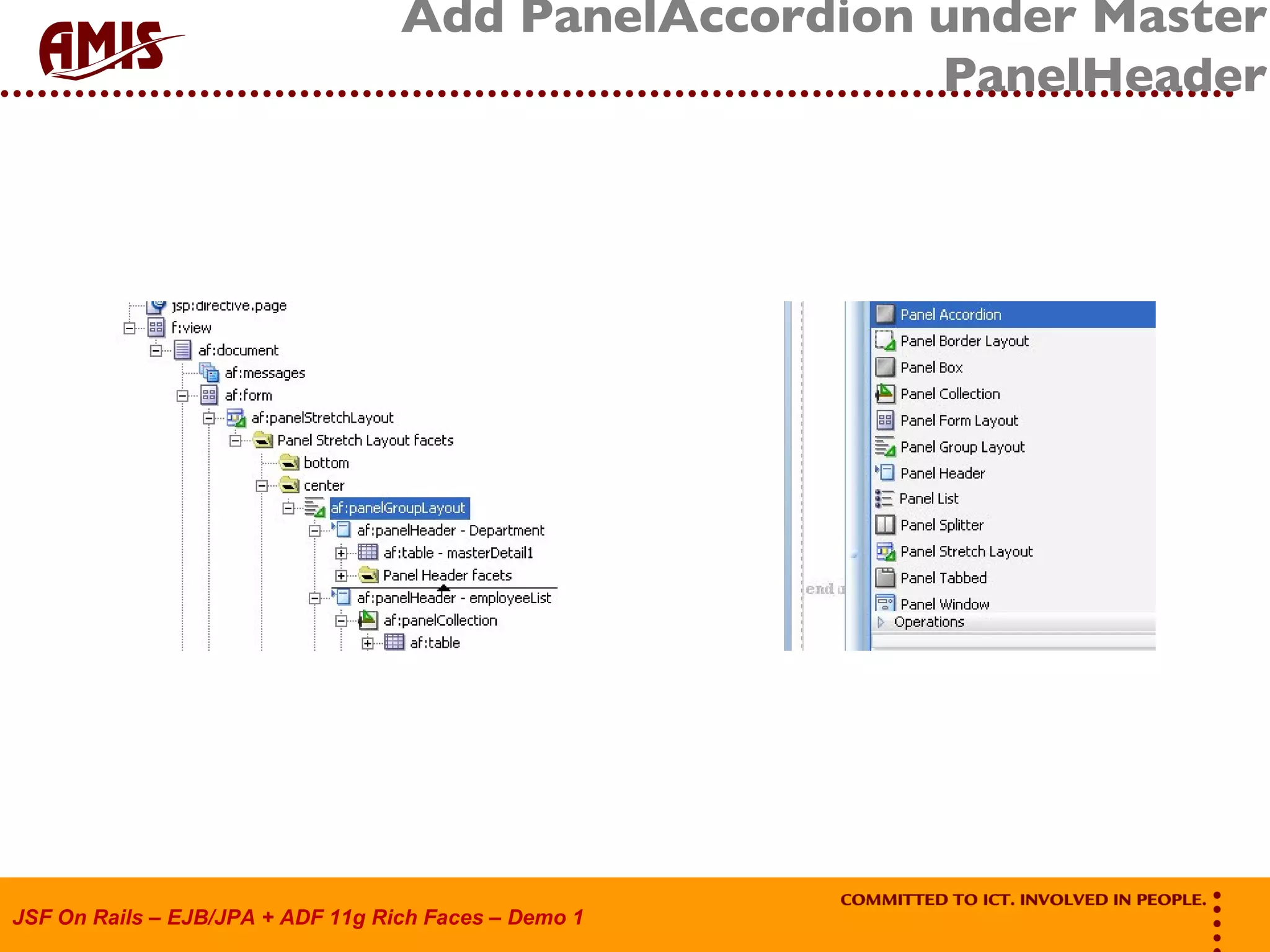

- 50. Add PanelAccordion underMaster PanelHeader

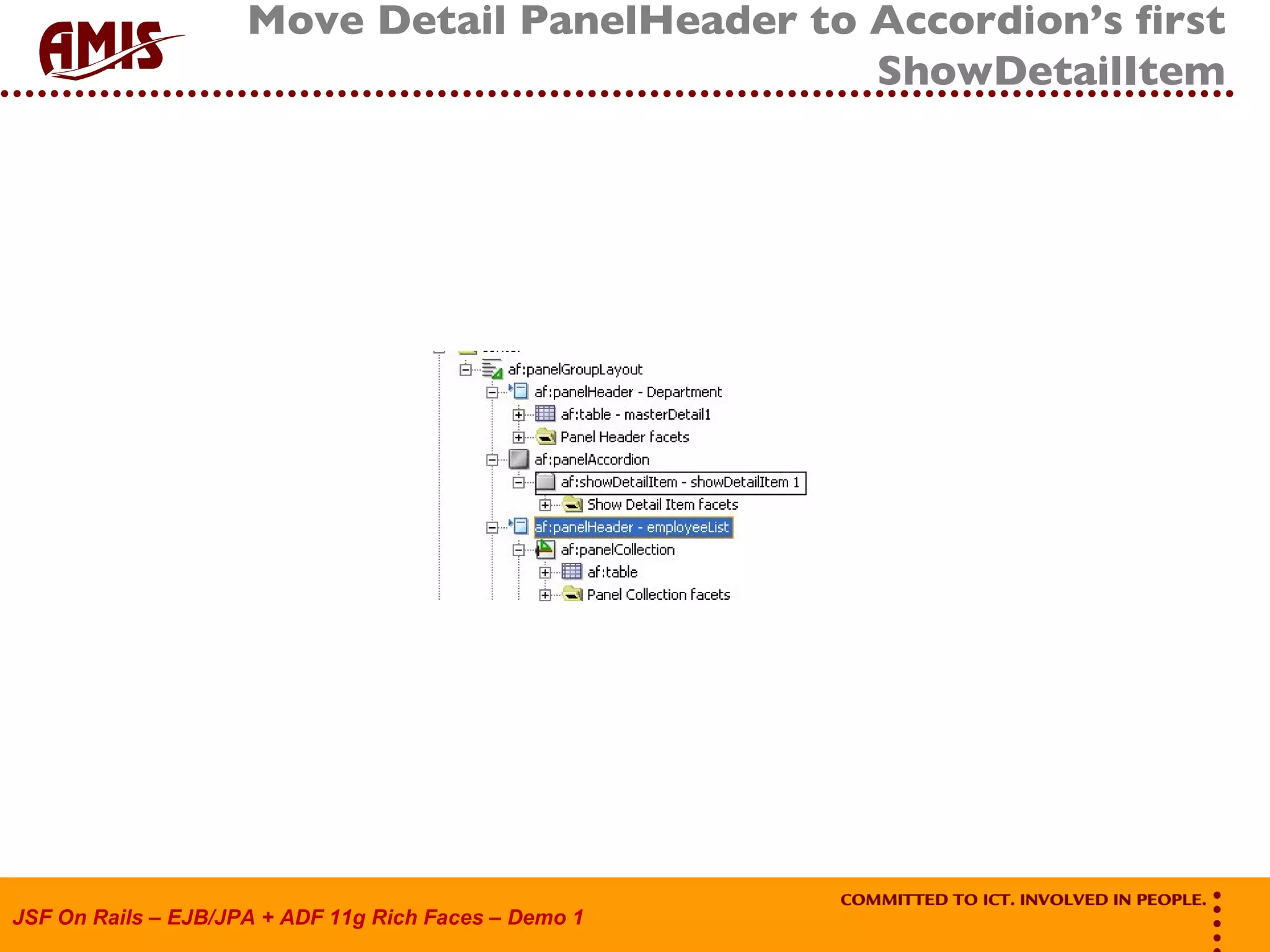

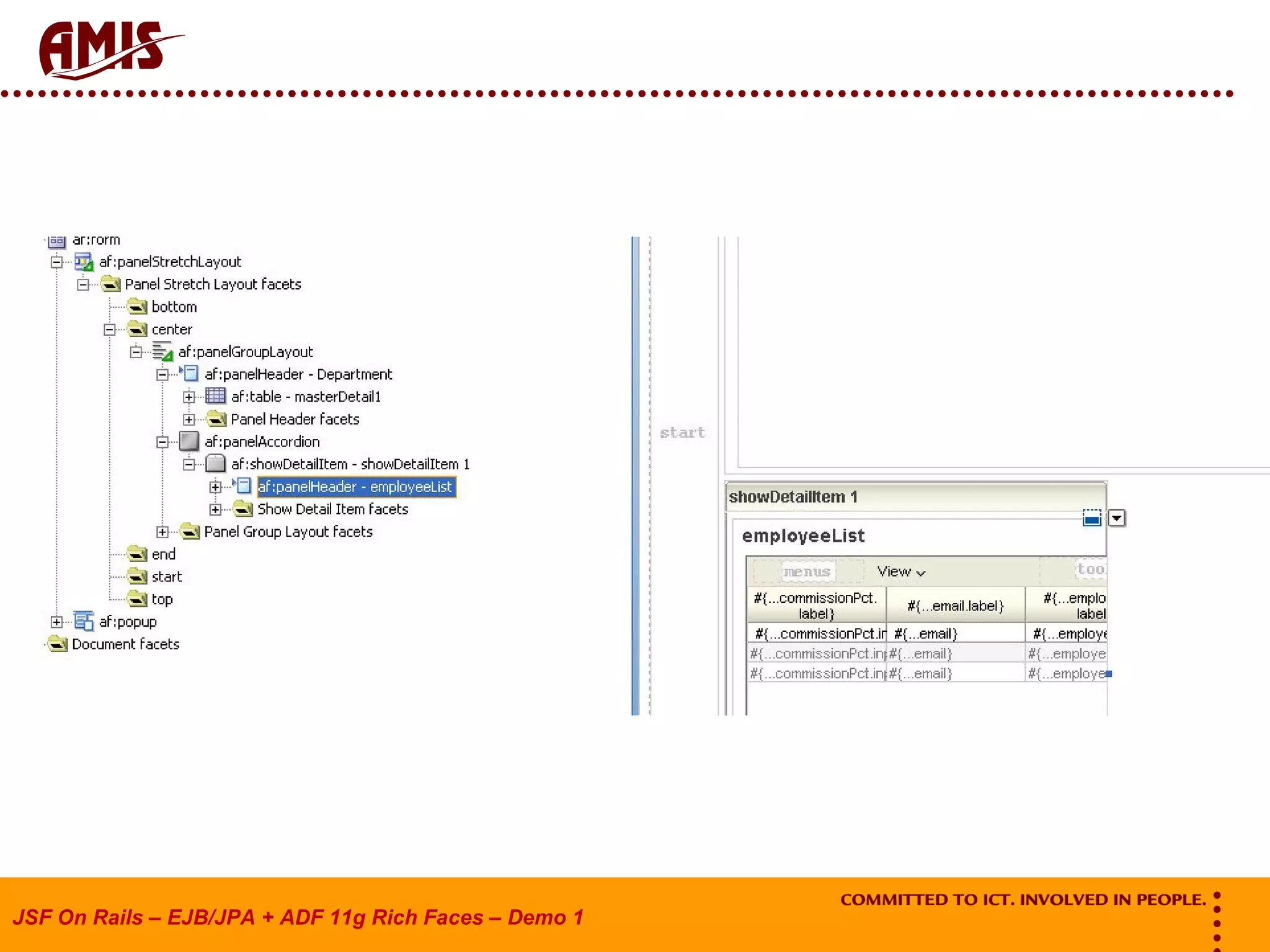

- 51. Move Detail PanelHeaderto Accordion’s first ShowDetailItem

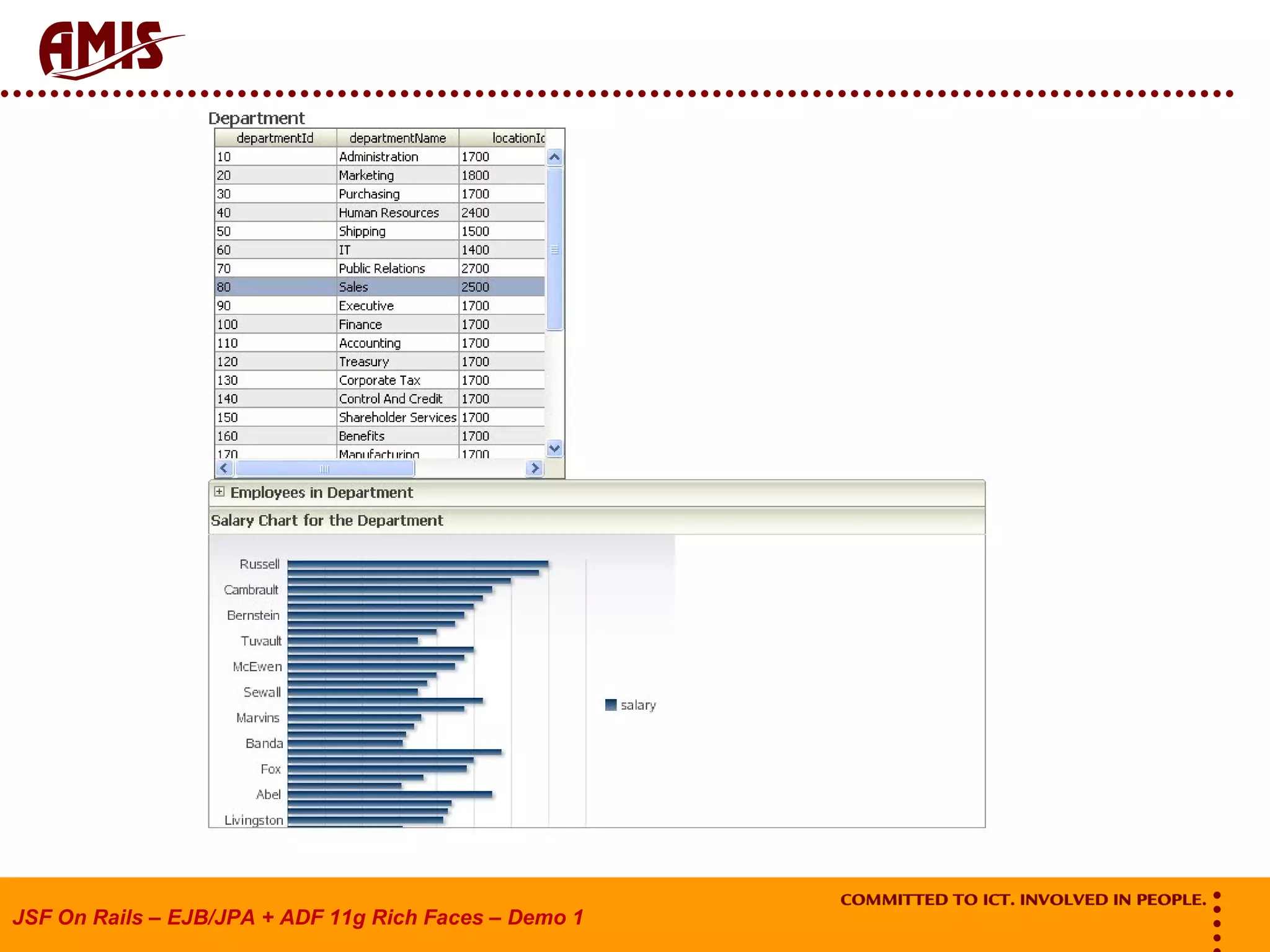

- 52.
- 53.

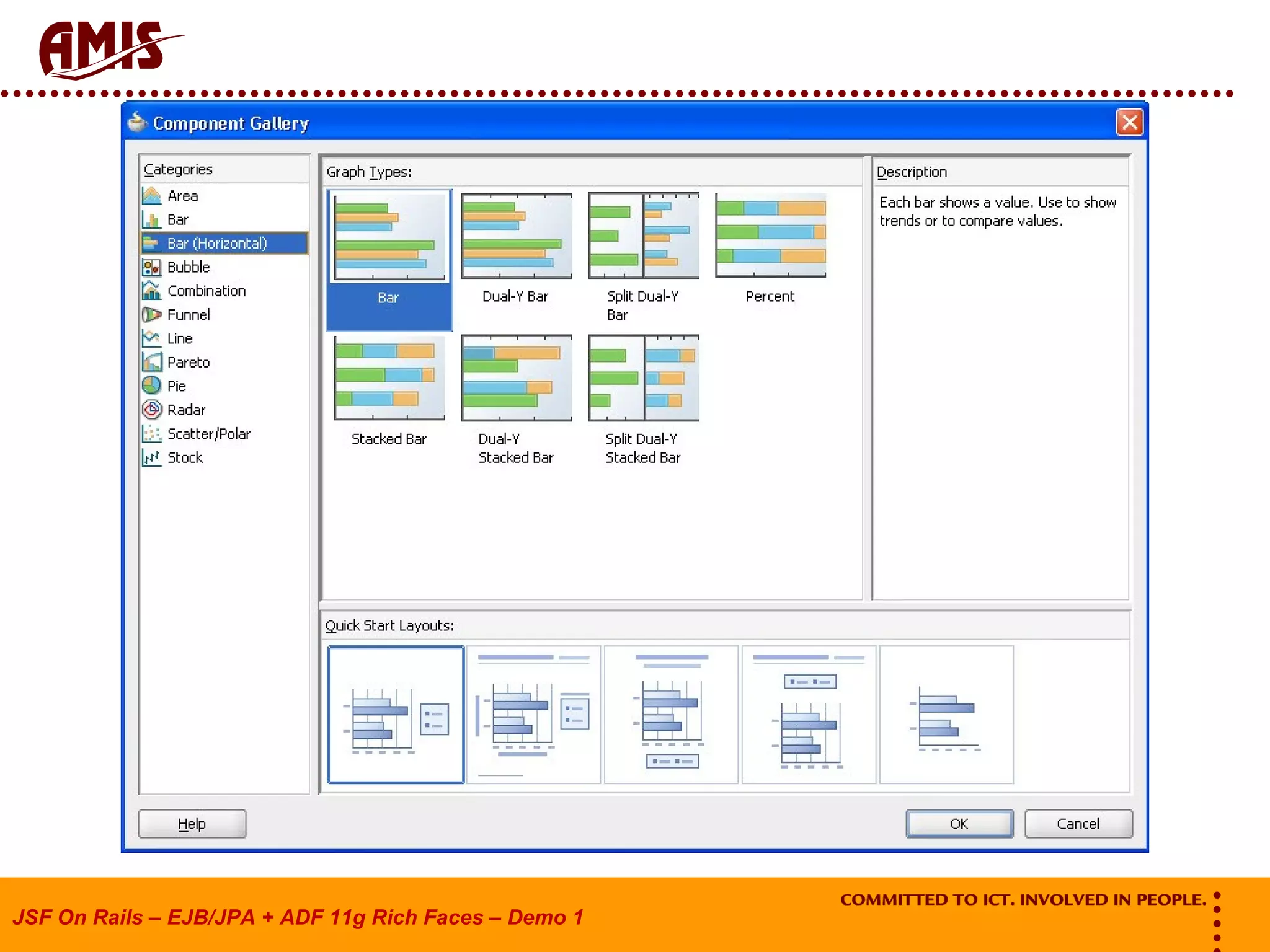

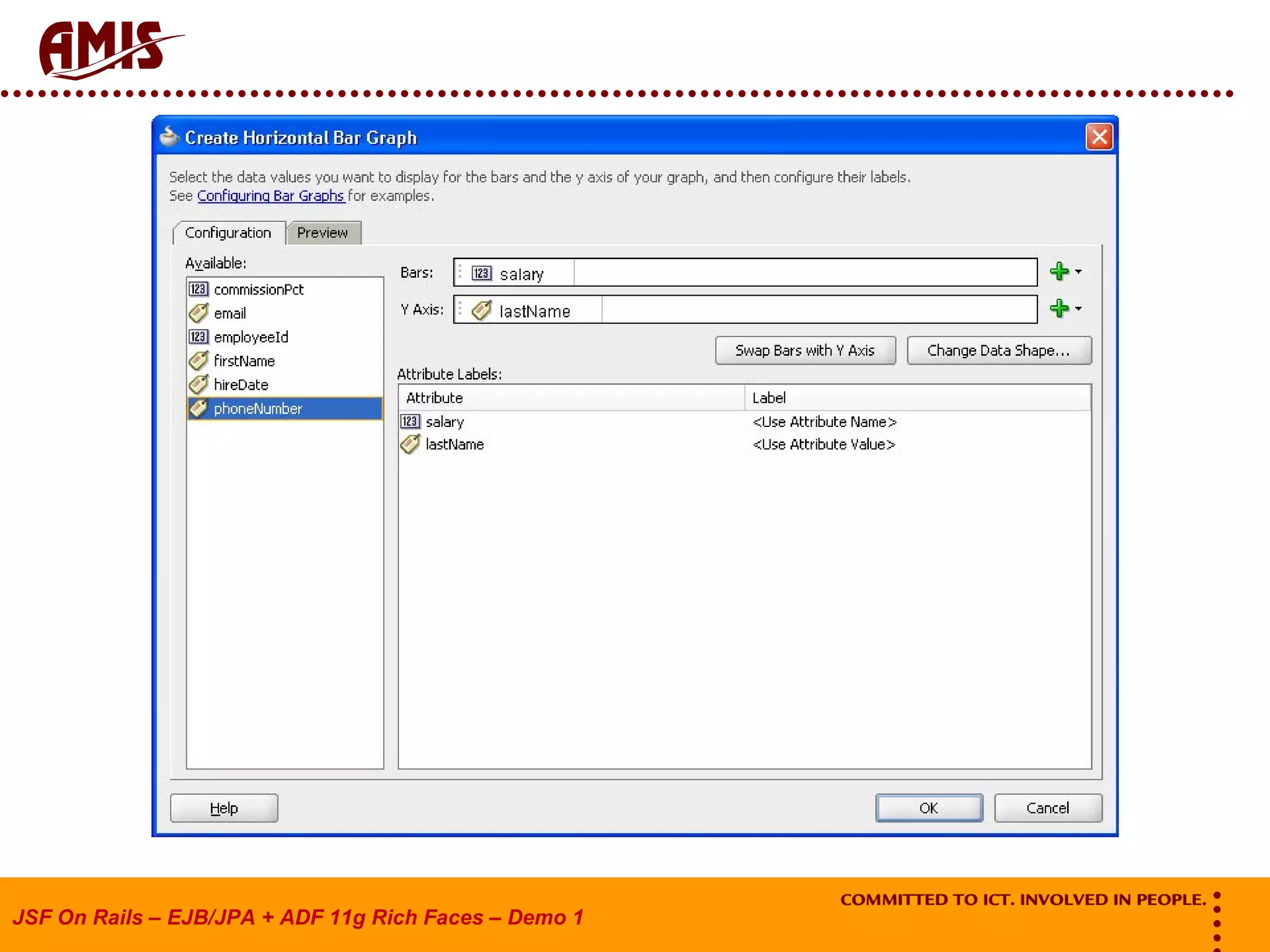

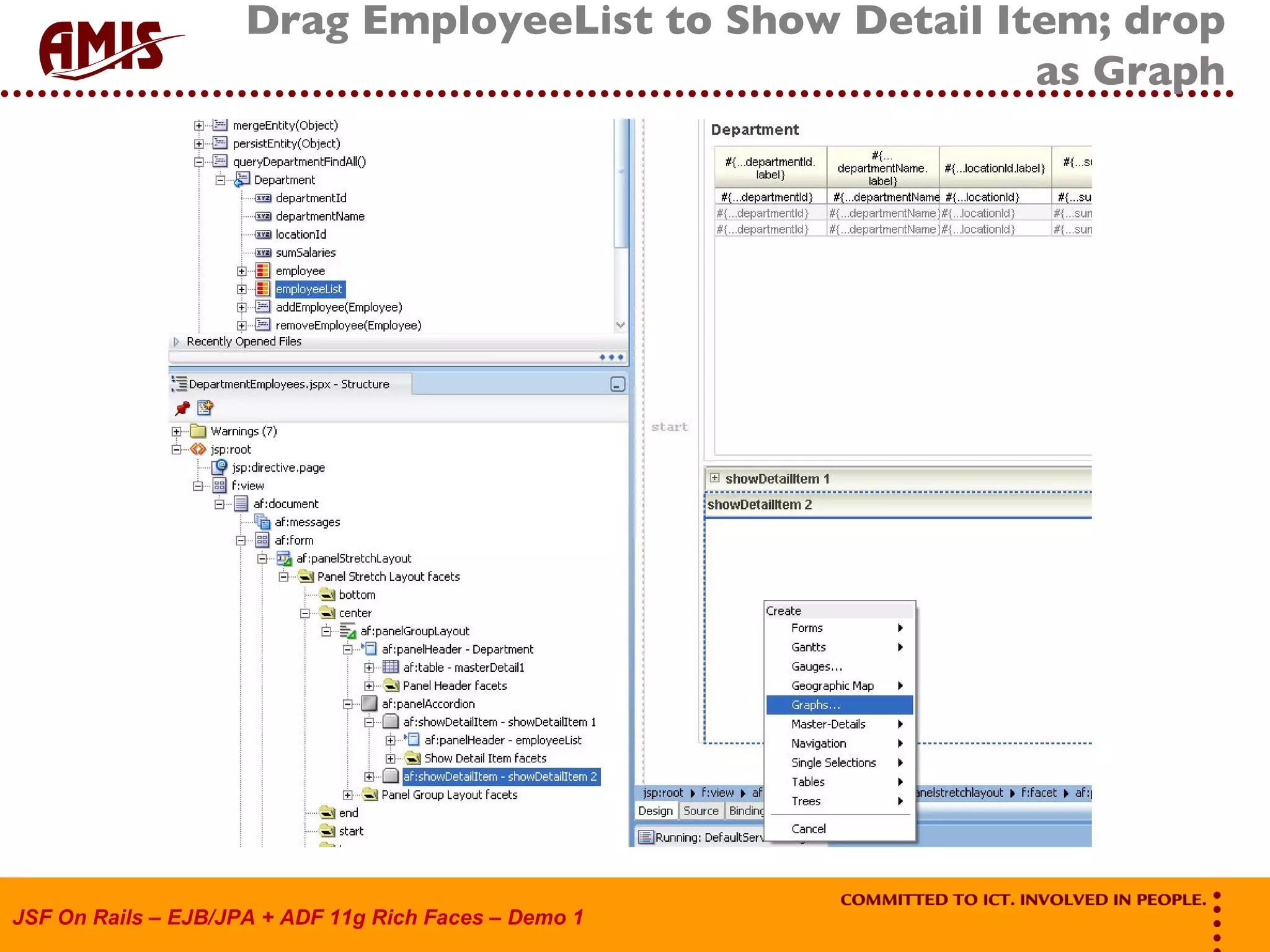

- 54. Drag EmployeeList toShow Detail Item; drop as Graph
- 55.
- 56.

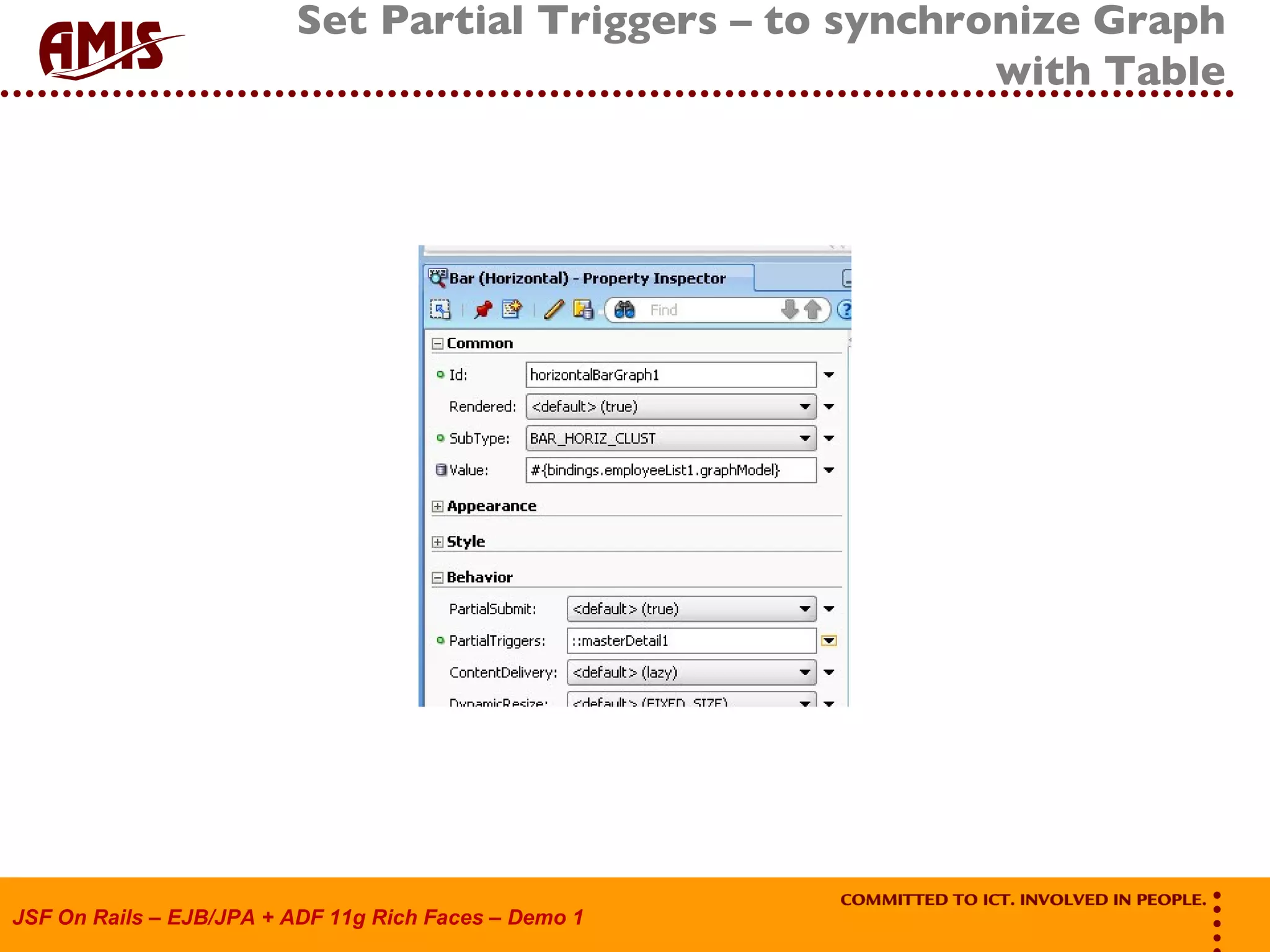

- 57. Set Partial Triggers– to synchronize Graph with Table
- 58.
- 59.

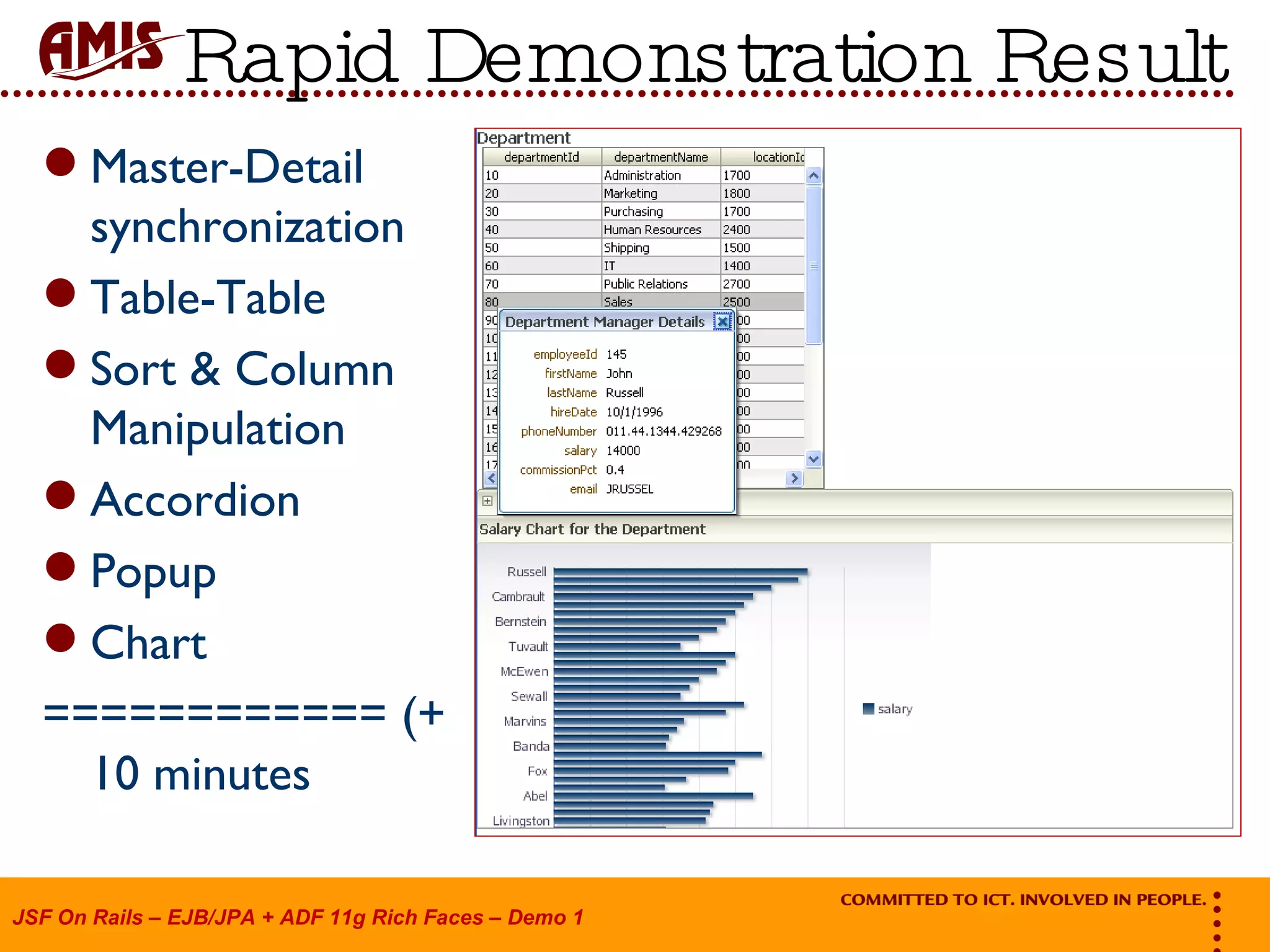

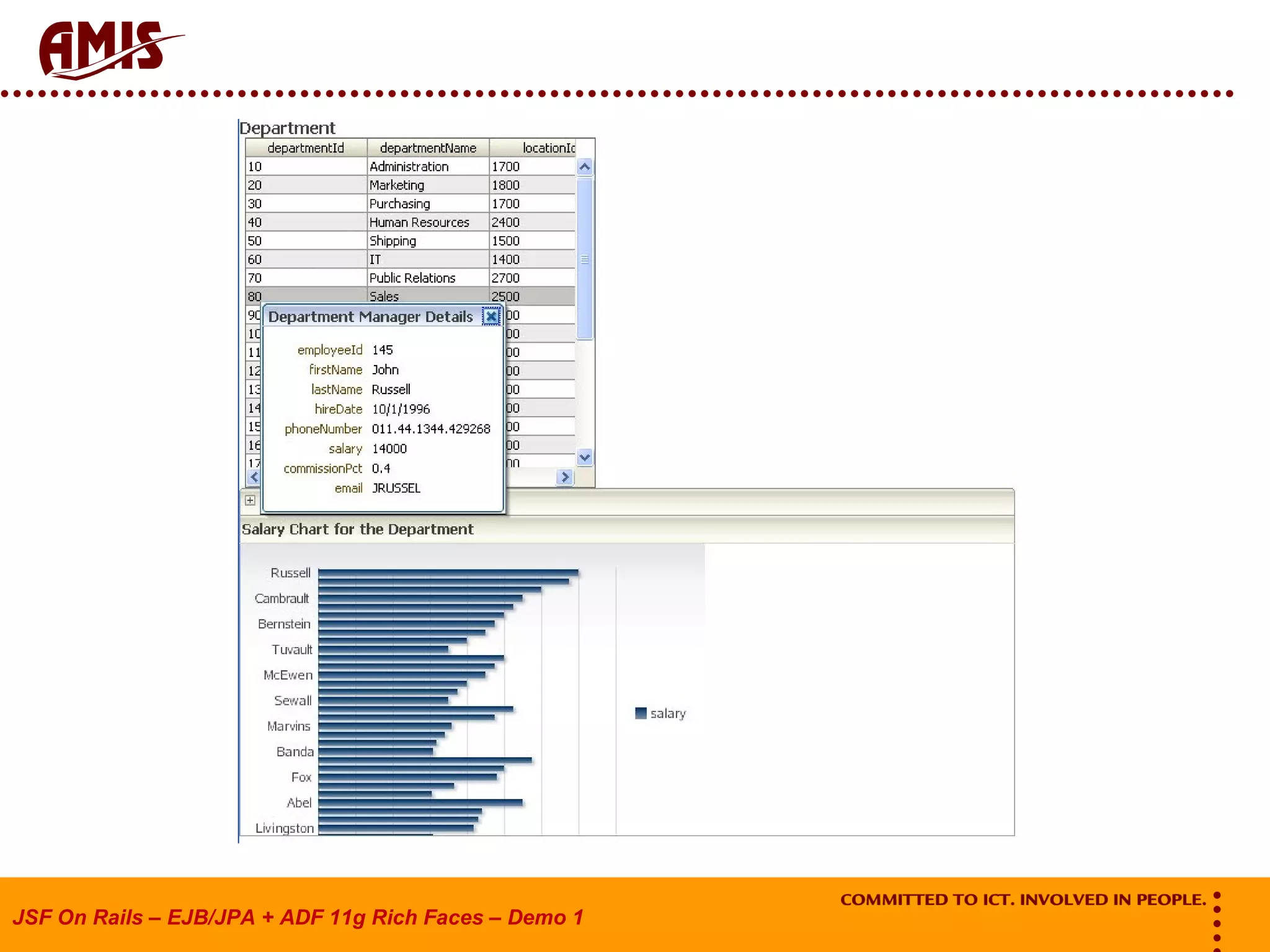

- 60. Master-Detail synchronizationTable-Table Sort & Column Manipulation Accordion Popup Chart ============ (+ 10 minutes Rapid Demonstration Result
