1 Overview of Fusion Middleware and ADF

Lesson Agenda Fusion Middleware (FMW) architecture MVC architecture ADF MVC and application architecture ADF technology stack Functionalities of ADF Challenges Faced when Building J2EE Applications Overview, Features and Key Benefits of ADF Advantages of ADF over J2EE Business Benefits of ADF Over Other Frameworks

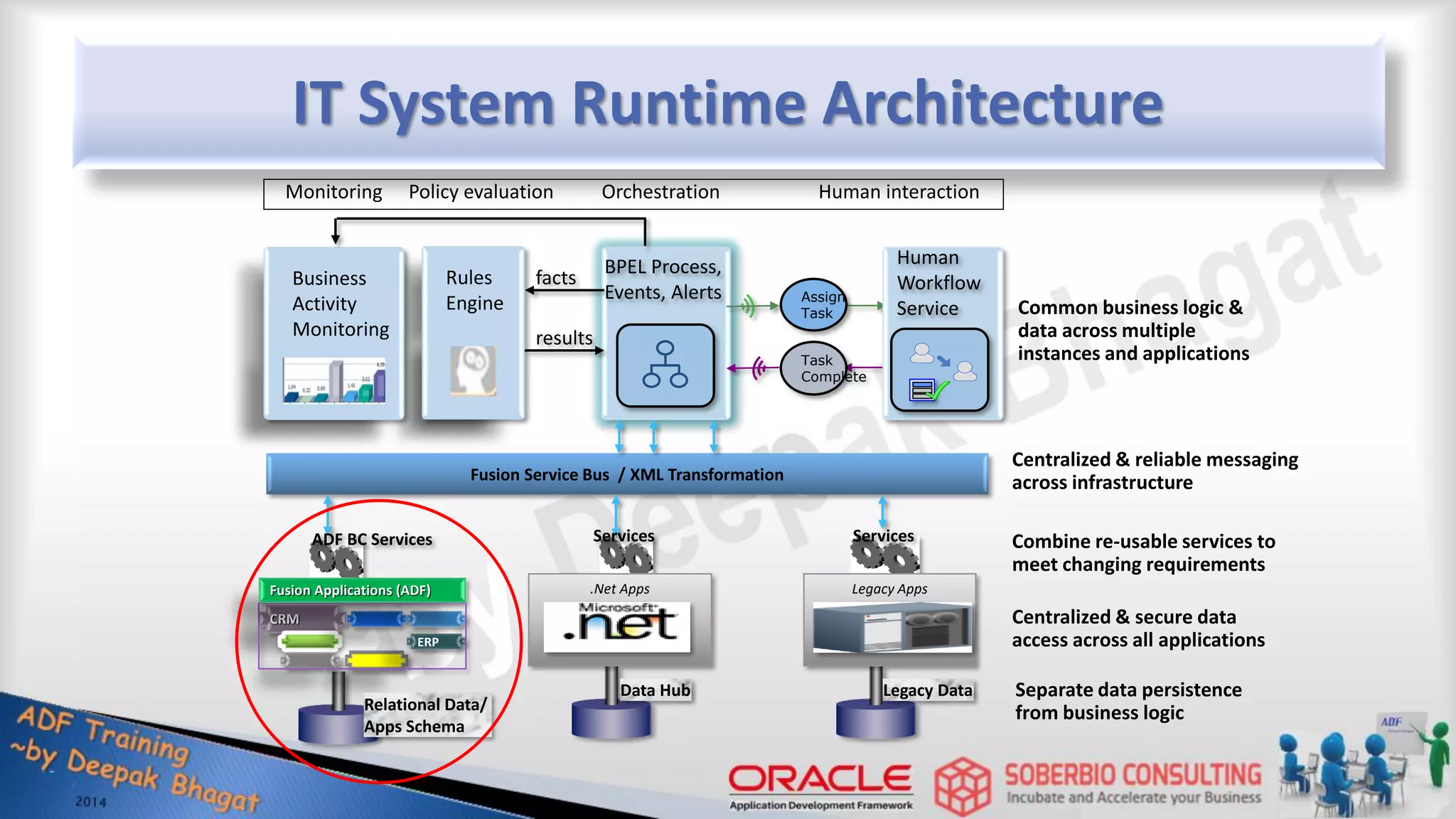

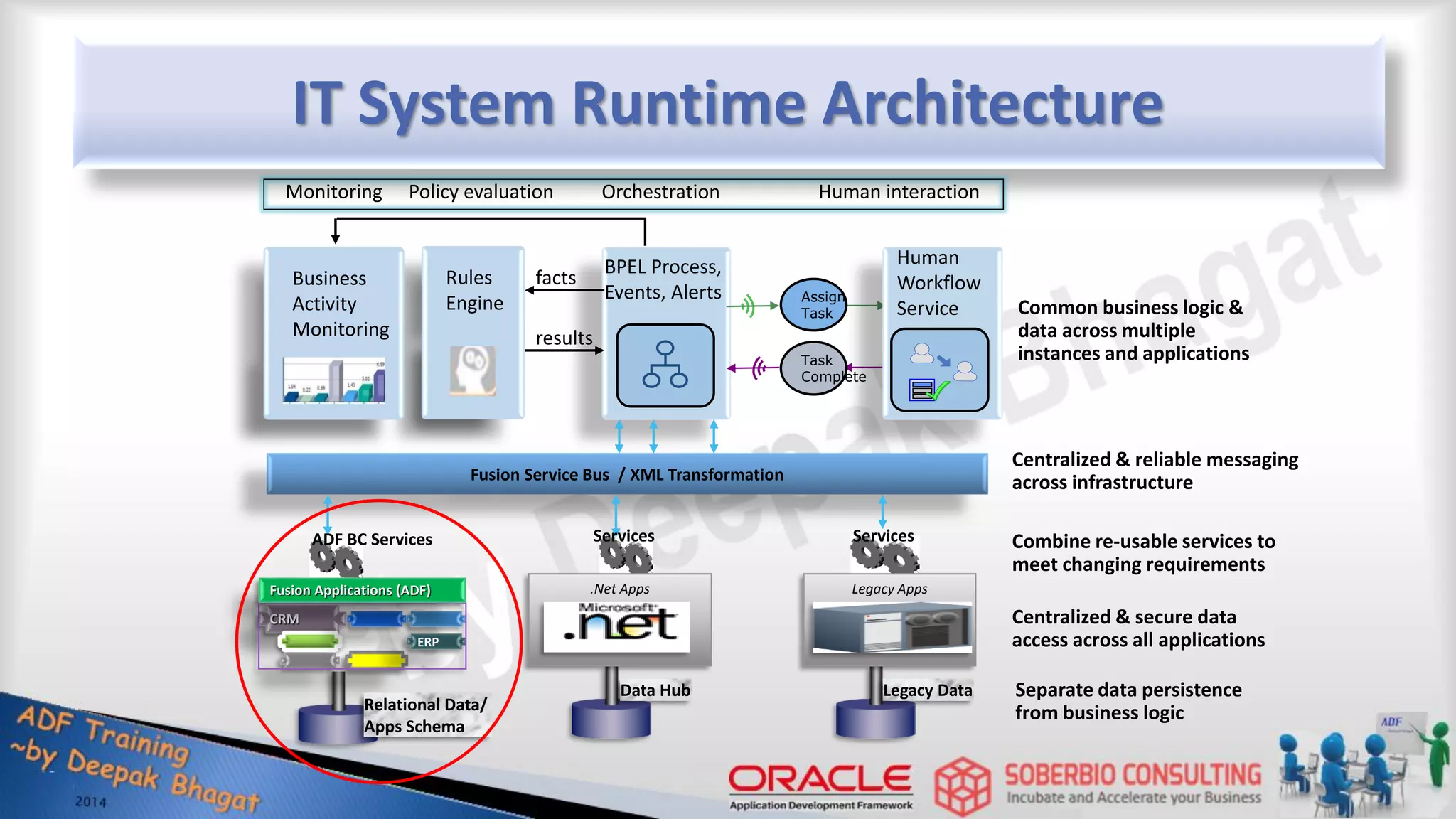

IT System Runtime Architecture Orchestration Human interaction Policy evaluation Monitoring Rules Engine Assign Task Task Complete Human Workflow Service BPEL Process, Events, Alerts results facts Business Activity Monitoring Fusion Service Bus / XML Transformation .Net Apps Legacy Apps CRM ERP Fusion Applications (ADF) Relational Data/ Apps Schema Data Hub Legacy Data ADF BC Services Services Services Common business logic & data across multiple instances and applications Centralized & reliable messaging across infrastructure Combine re-usable services to meet changing requirements Centralized & secure data access across all applications Separate data persistence from business logic

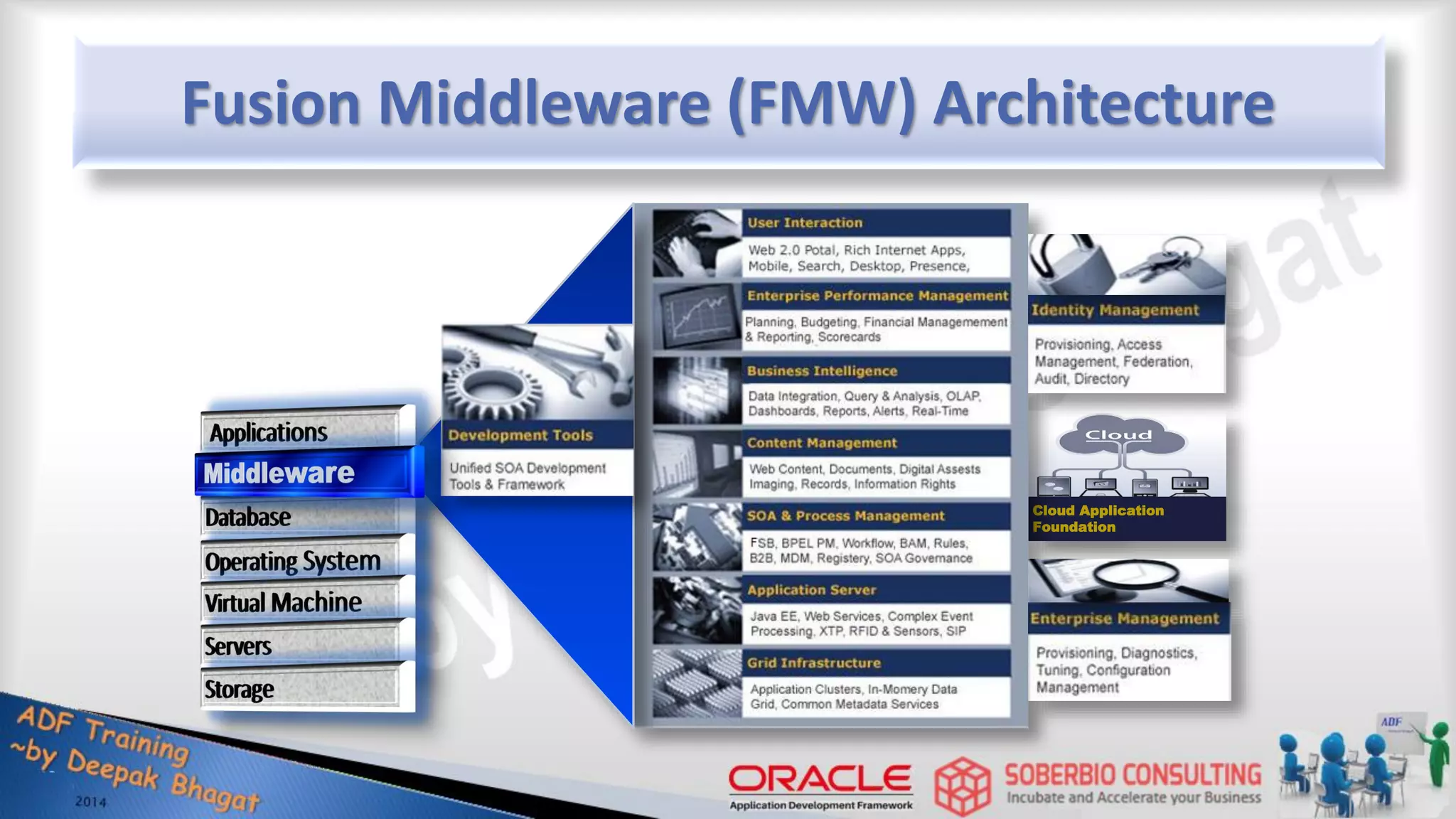

Fusion Middleware (FMW) Architecture Cloud Application Foundation

Client-Server Architecture Server Relational Data Legacy Data Data Services Oracle Forms Swing Office EJB POJO Toplink Hibernate Tuxedo Client PowerBuilder Visual Basic

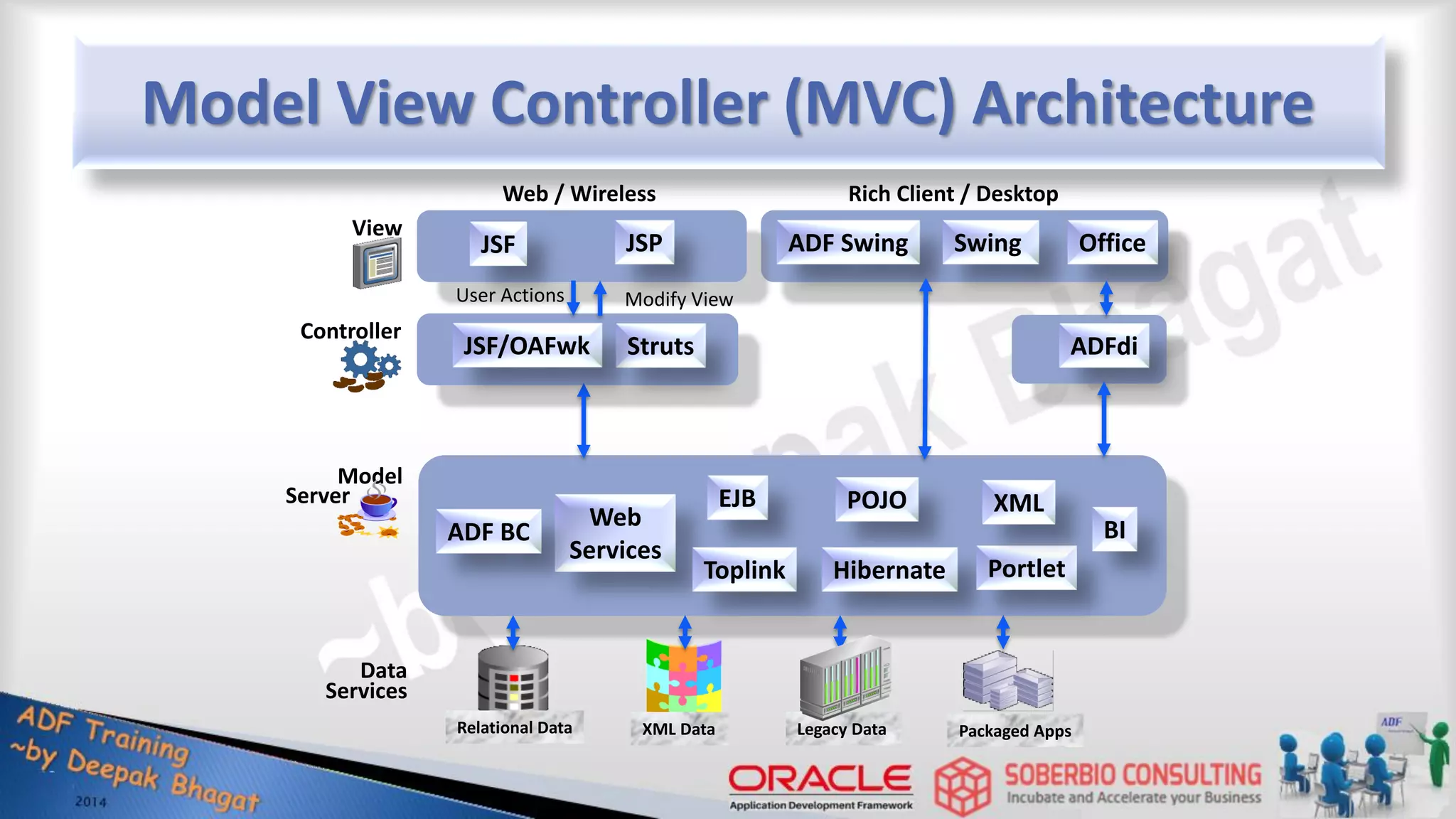

Model View Controller (MVC) Architecture Model View Controller Relational Data XML Data Packaged Apps Legacy Data Data Services JSF JSP Struts ADF Swing Swing Office ADFdi EJB Web Services POJO Toplink Hibernate Portlet BI XML Web / Wireless Rich Client / Desktop User Actions Modify View JSF/OAFwk ADF BC Server

MVC & Application Architecture Metadata Services JDeveloper Model (JSR227) View Controller Business Services Relational Data XML Data Packaged Apps Legacy Data Data Services ADF Faces JSF/ADFc/Taskflow ADF Model ADF BC JSP Struts ADF Swing Swing Office ADFdi EJB Web Services POJO Toplink Hibernate Portlet BI XML Web / Wireless Rich Client / Desktop User Actions Modify View ViewController/ User Interface Project Model/ Service Project Model Presentation Layer v m bc BAM BPL JSF

ADF Training Breakup Application Development Framework (ADF) Fusion Middleware and It’s Architecture (Lesson 1) ADF Integrated Development Environment –JDeveloper (Lesson 2) ADF Business Component functionalities (Lesson 4 to 9 & 22) ADF Faces functionalities (Lesson 10 to 21) ADF Advance Topics (Lesson 3 and 23 to 34)

Functionalities of ADF Business Components  Building Business Services with ADF Business Components (L4)  Persisting Data using Entity Objects (Lesson 5)  Querying Data using View Objects (Lesson 6)  Exposing Business Services and managing transaction through Application Module (Lesson 7) Master – Detail Data Model  Declaratively Customizing Business Services (Lesson 8) Custom Fields  Validating Business Services (Lesson 9)  Programmatically Customizing Business Services (Lesson 22)

Functionalities of ADF Faces  200+ featured Rich UI Components  Internationalization (Lesson 11)  Skinning (Lesson 11)  Active Geometry Management (L 12)  Advance Page Flow and Task Flow (Lesson 13)  Navigation (Lesson 14)  Accessibility (Lesson 14)  Reusability using Templating and Declarative Component (Lesson 15)  Memory Scopes (Lesson 16)  Parameter Passing (Lesson 16)  Partial Page Rendering (Ajax support) (Lesson 16)  Event and Listener Handling (L 17)  Managed and Backing Beans (L 17)  Enhanced Lifecycle (Lesson 17)  Drag and Drop Data Binding (L 18)  Advance Databound Search Capability (Lesson 19)  Transaction Management (Lesson 20)  ADF Model support (Lesson 21)

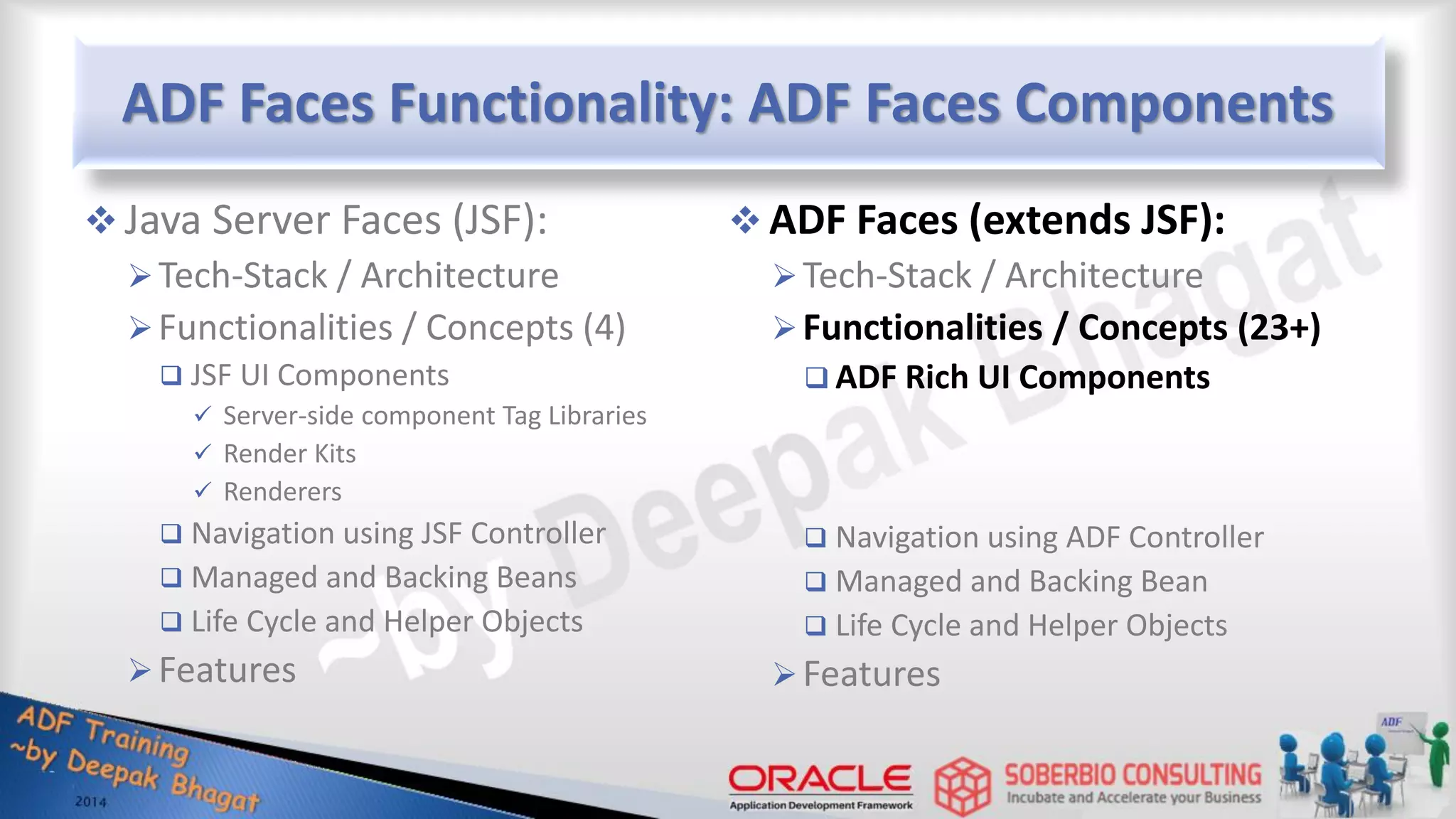

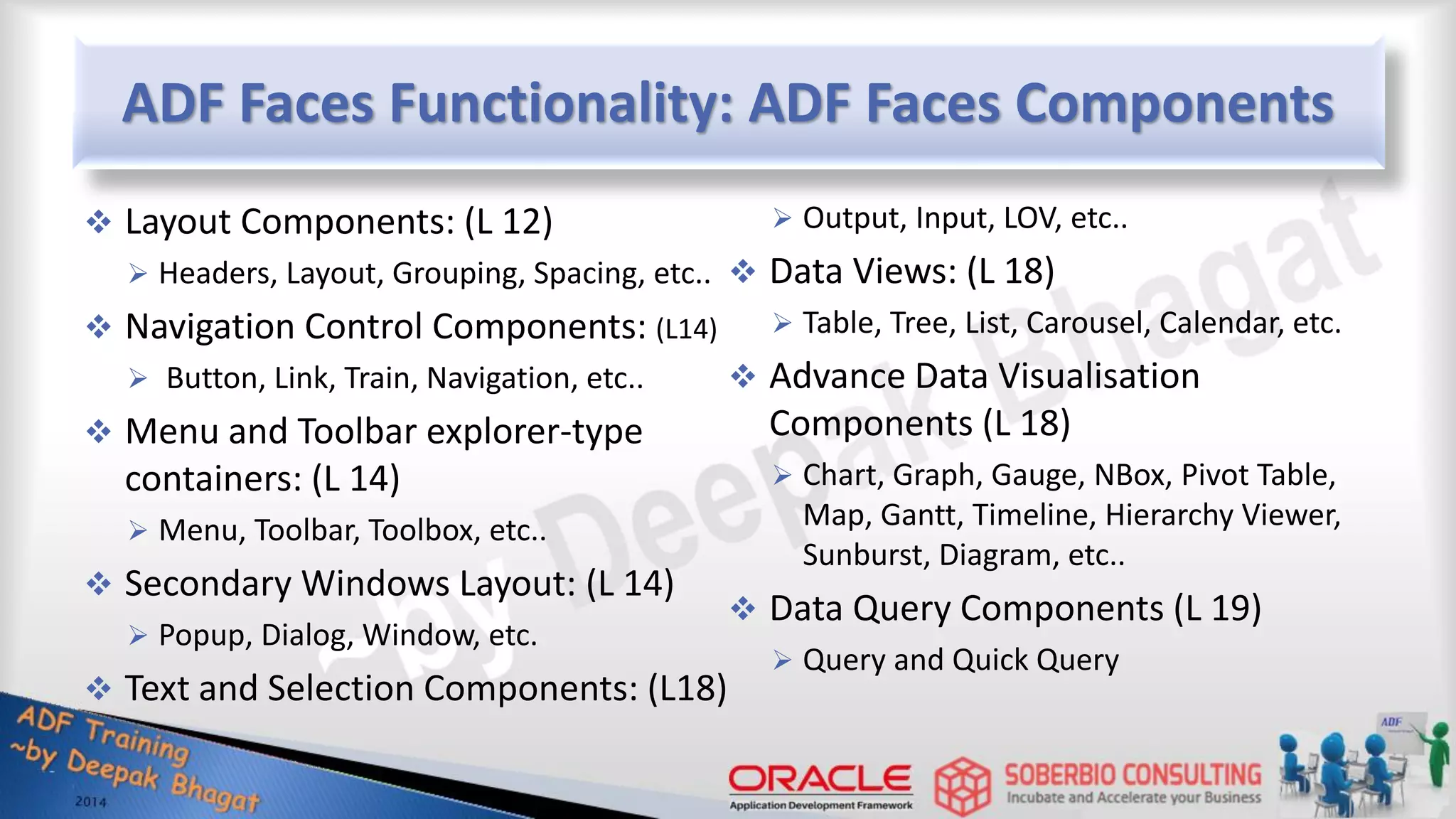

ADF Faces Functionality: ADF Faces Components  Layout Components: (L 12)  Headers, Layout, Grouping, Spacing, etc..  Navigation Control Components: (L14)  Button, Link, Train, Navigation, etc..  Menu and Toolbar explorer-type containers: (L 14)  Menu, Toolbar, Toolbox, etc..  Secondary Windows Layout: (L 14)  Popup, Dialog, Window, etc.  Text and Selection Components: (L18)  Output, Input, LOV, etc..  Data Views: (L 18)  Table, Tree, List, Carousel, Calendar, etc.  Advance Data Visualisation Components (L 18)  Chart, Graph, Gauge, NBox, Pivot Table, Map, Gantt, Timeline, Hierarchy Viewer, Sunburst, Diagram, etc..  Data Query Components (L 19)  Query and Quick Query

Definition Examples Component Type UI Page Service / Operation Business Rule Business Event Business Object Organized data made visible to a user. May be part of a task flow or accessed as a standalone Lesson Summary of data. Implemented using JSF, Portlets, AJAX etc.. Functions, procedures, and legacy transactions which represent the operations of the business. Implemented using ADF BC EO/VO and SDO/WS. Policies that represent the key decisions of a business. Rules are centralized using metadata services as part of data validation or processing. Event of significance to an organization that is used to communicate information to other systems. Implemented using ESB. Logical data model of the information stored in a business. Defines the enterprise service object definition used for integration and services. Enter Company Information page; Opportunity Lesson Summary page Calculate Tax Service; Invoice Service “Offer 10% discount if Status = Gold” “Purchase Order Created”; “Inventory Threshold Reached” Customer; Opportunity; Order entity; Invoice Business Process A series of steps in a directed graph that represent the workings of an enterprise. Implemented using BPEL and Human Workflow components. Quote-to-Order Process; Defect Management Process Task Flow A series of pages organized in a directed graph that represent steps to be performed by a single individual in one sitting. Implemented using ADF. Enter Opportunity Task Flow; Create New Contact Task Flow Fusion Middleware Concepts

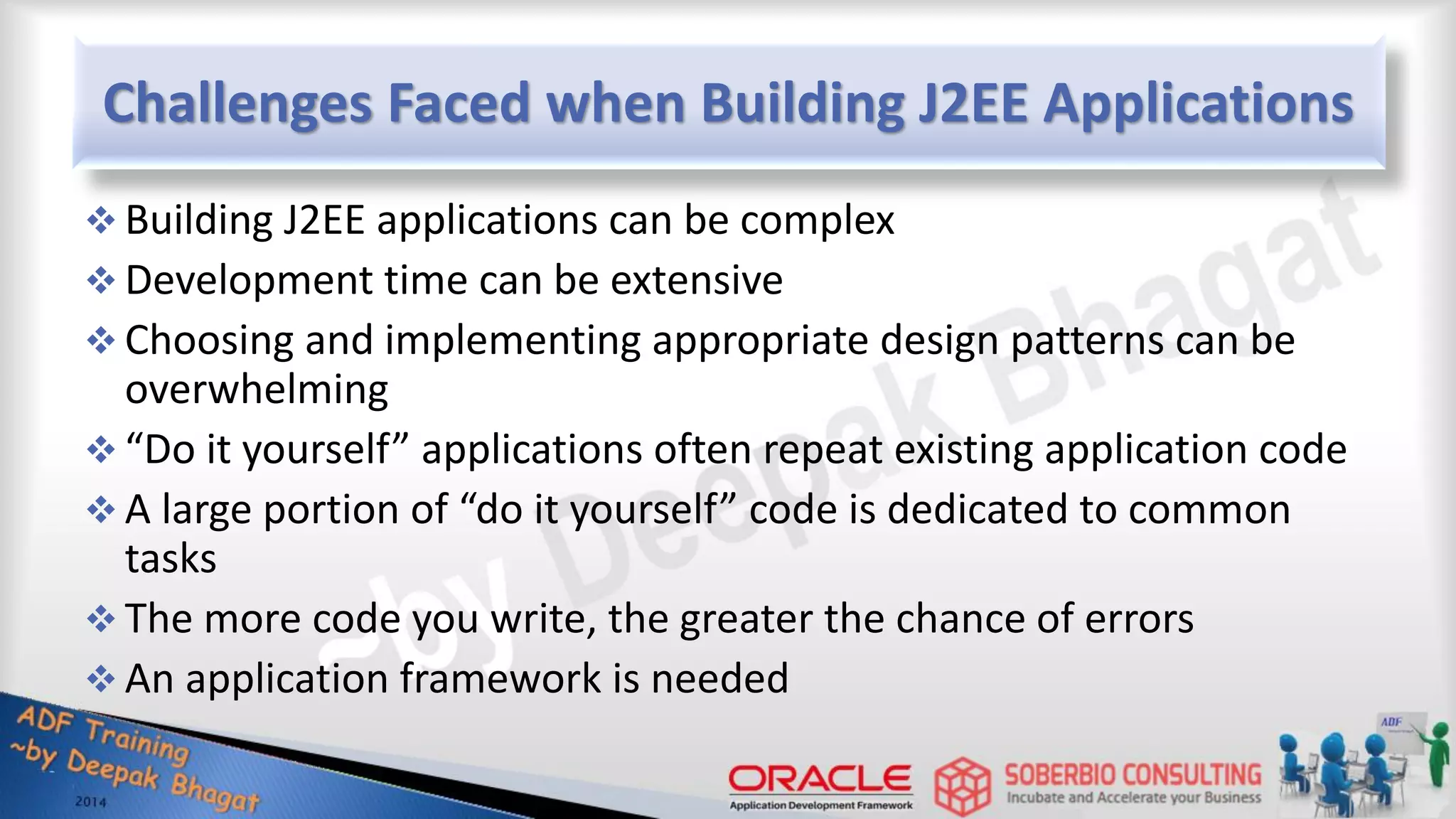

Challenges Faced when Building J2EE Applications  Building J2EE applications can be complex  Development time can be extensive  Choosing and implementing appropriate design patterns can be overwhelming  “Do it yourself” applications often repeat existing application code  A large portion of “do it yourself” code is dedicated to common tasks  The more code you write, the greater the chance of errors  An application framework is needed

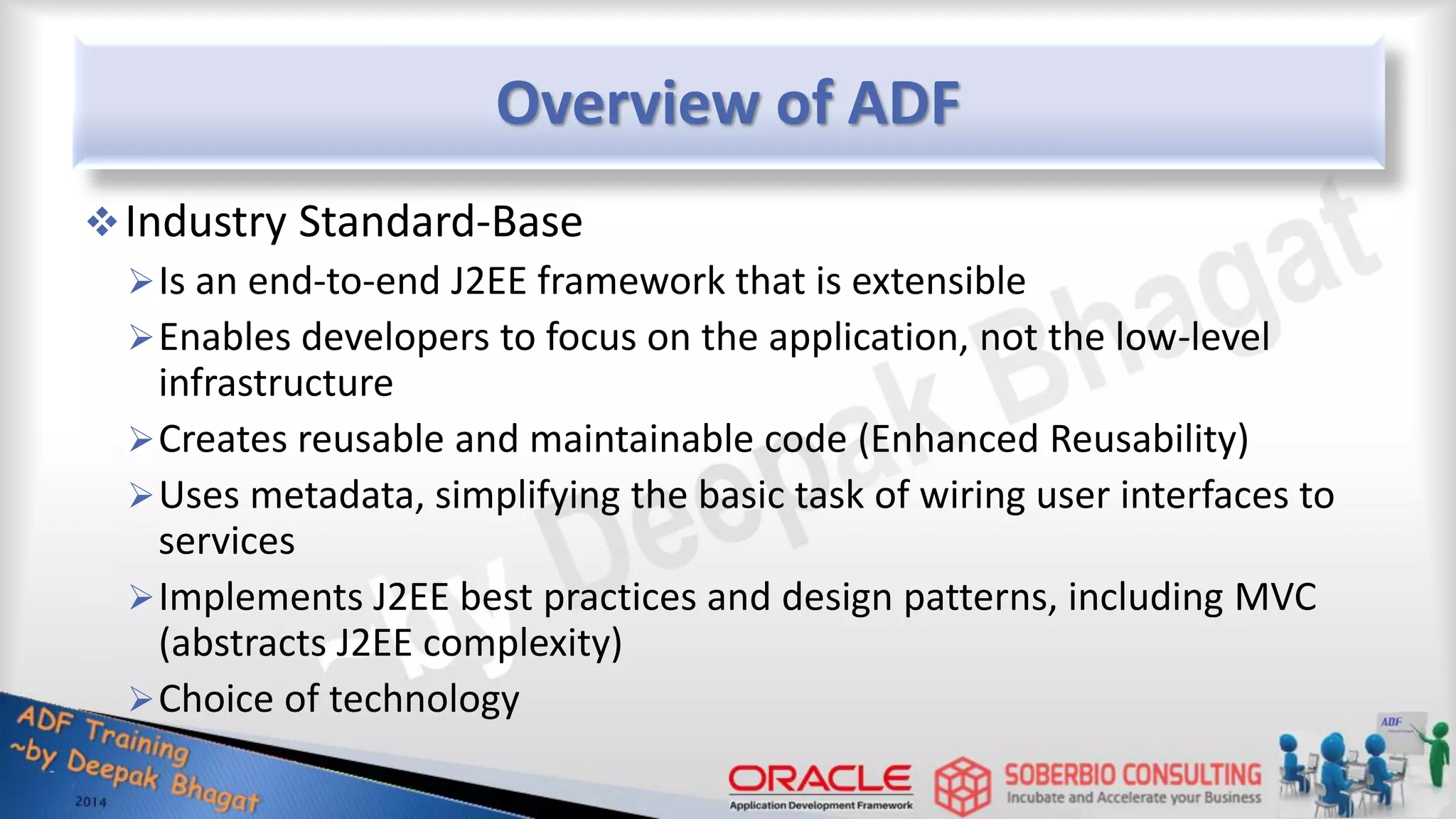

Overview of ADF Industry Standard-Base Is an end-to-end J2EE framework that is extensible Enables developers to focus on the application, not the low-level infrastructure Creates reusable and maintainable code (Enhanced Reusability) Uses metadata, simplifying the basic task of wiring user interfaces to services Implements J2EE best practices and design patterns, including MVC (abstracts J2EE complexity) Choice of technology

Overview of ADF cont. … Increase Productivity & Ease-of-use Provides declarative and visual development with JDeveloper Less coding, more reuse Reduce learning curve & resource issues XML Metadata

Difference between Features and Functionality The meanings are similar, but with different nuances. "function" is used to describe a capability something has. "feature" is used to refer to a particular function that's special or notable in some way. For example: "A car uses a motor to function." "One of the functions of a car is the ignition.“ "This car has many safety features." "This car features anti-lock brakes and air bags."

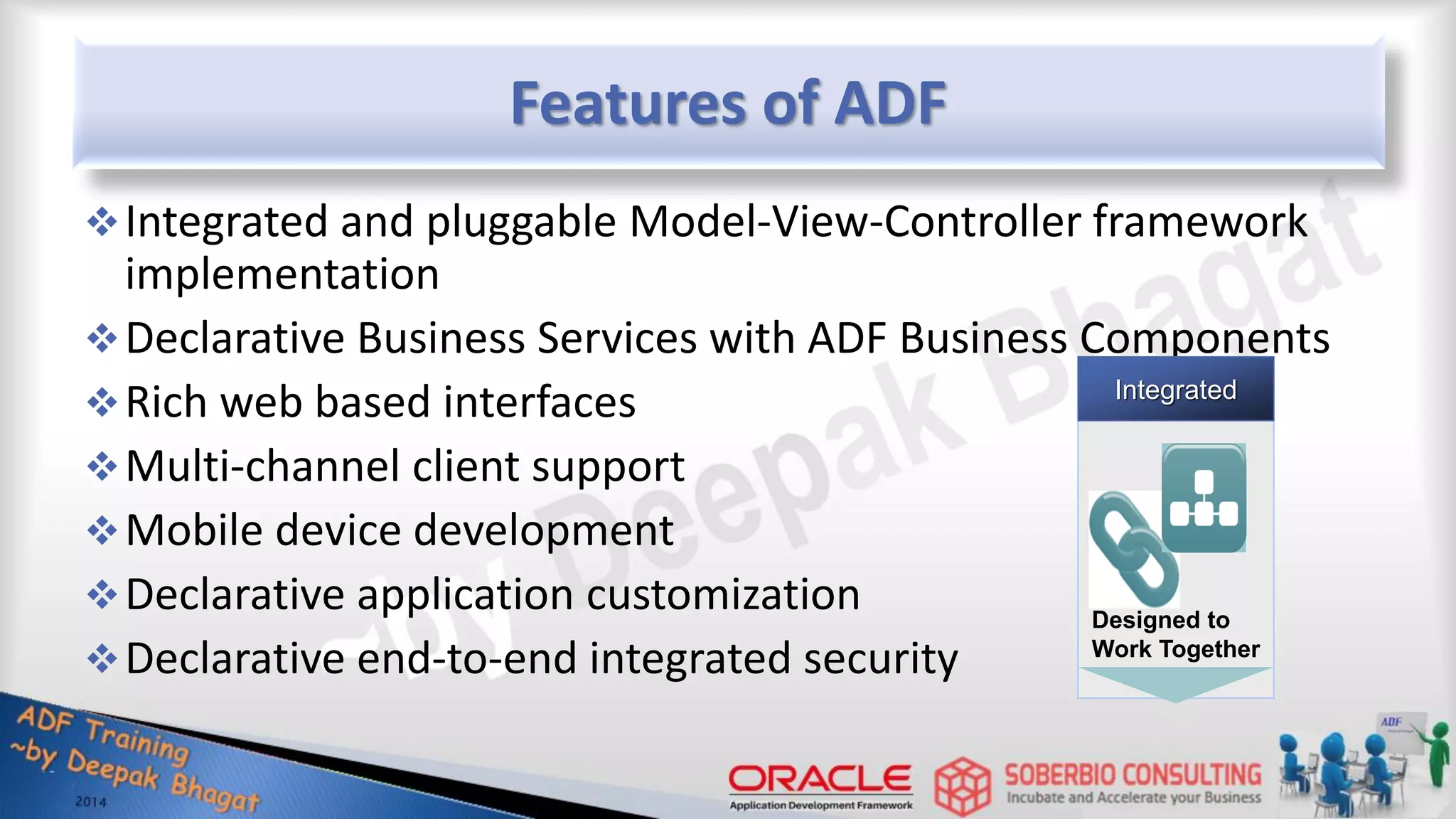

Features of ADF Integrated and pluggable Model-View-Controller framework implementation Declarative Business Services with ADF Business Components Rich web based interfaces Multi-channel client support Mobile device development Declarative application customization Declarative end-to-end integrated security Designed to Work Together Integrated

Features of ADF cont.… Caching Integration with other Oracle ADF technologies, such as Web Services, WebCenter, EJB, SOA, BI, Cloud, PLSQL, etc.. Widely available documentation and support Platform independent Excellent development environment (JDeveloper tool) Extensive IDEs Support (Eclipse, etc.) Free Option – Oracle ADF Essentials

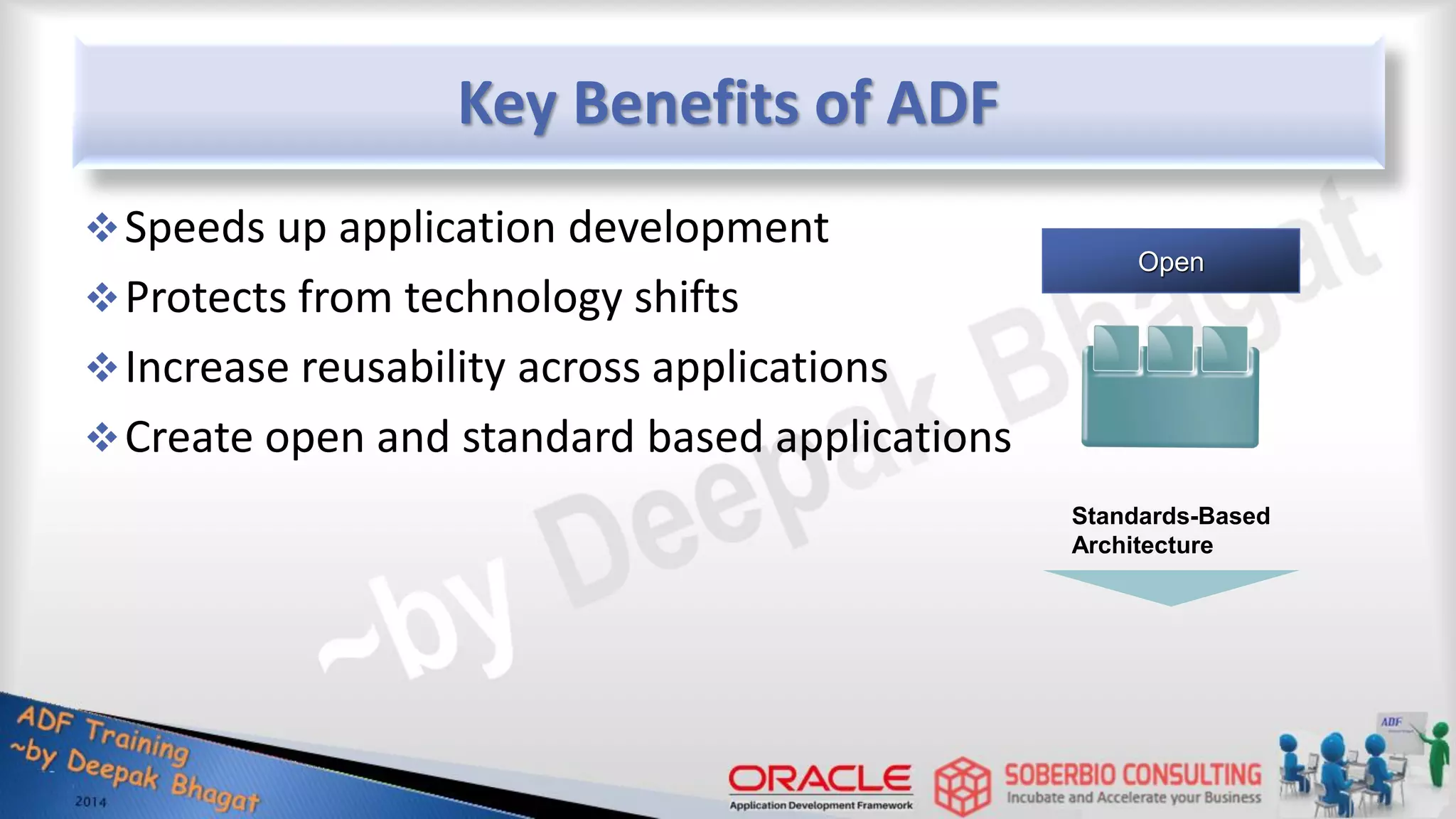

Key Benefits of ADF Speeds up application development Protects from technology shifts Increase reusability across applications Create open and standard based applications Standards-Based Architecture Open

Advantages of ADF over J2EE Category Struts / Spring Framework Oracle ADF Framework Framework Action-based Component-based Source code Developer has to write source code for all the UI components Built-in UI components and Rich look & feel Database connection Developer has to explicitly write Data base connectivity code to retrieve connection Built-in configuration of database connectivity, no explicit retrieval required SQL Statements Developer has to write SQL statements and execute them Declarative approach builds the required SQL statements Transactions Developer has to take care of Transaction management Transactions are managed by the framework

Advantages of ADF over J2EE cont.… Page navigation Page navigations are based on the config XML files which should be taken care of by the Developer Controller takes care of page navigations when declaratively given Validations Each validation should be written in validation logic specific methods and each validation error should be managed separately and navigated to respective error pages Sophisticated validation hookups provided by ADF at various levels: UI level, AM Level, and Entity Level; developer can decide the right place of validation for a scenario Security User has to design and develop a user login UI page Declarative approach to security enables the developers to provide security at various levels: to pages, regions, tabs, sections, components Development time To build a normal CRUD operation module, developers take 3 days on an average To build a normal CRUD operation module, developers need 10 minutes on an average, having proper AM, EO, VO configured

Advantages of ADF over J2EE cont.… Category Struts / Spring Framework Oracle ADF Framework Authentication Developer has to verify username and password against the data source provided Though it is not a direct feature of ADF, WebLogic provides various ways to authentication to which an ADF application can easily couple with SQL Authentication, SAML Authentication, LDAP Authentication, etc.. Wizard Developers find hardly any wizards to help in building framework features ADF is all about wizards and when users make proper use of these wizards they make the application work for the business requirements—and ADF provides all the source code Servers Framework can make use of web application servers like Apache tomcat, WebSphere, JBoss etc.. Built-in WebLogic server configurations make deployment much easier

Competition Microsoft ADF allows us to compete head-to-head on the development productivity with MSFT IBM Different tools, not integrated No common framework Spring and other OSS frameworks No productive tooling

Benefits of ADF Over Other Frameworks  End-to-End solution: an integrated solution for every J2EE layer  Development Environment: visual and declarative approach  Platform Independence: any J2EE compliant server and SQL-92 DB  Technology Choice: supports multiple technologies for each layer  Technology Commitment: develop rich we and cloud application  Metadata-Driven:  Declarative Customization:  Enhanced Reusability: task flow, template, libraries, fragment, etc.

Lesson Summary IT system runtime architecture FMW, MVC, ADF MVCS and application architecture ADF technology stack Challenges Faced when Building J2EE Applications Overview, Features, Functionalities and Key Benefits Advantages of ADF over J2EE Business Benefits of ADF

2 Understanding Development Tool: JDeveloper

Lesson Agenda Overview of JDeveloper Confusing Terminologies and Abbreviations Create an ADF Application, Projects and DB Connections Explore JDeveloper and examine Application Artifacts Explore and Work with Windows of JDeveloper Use Help Centre and Refactor JDeveloper Artifacts Setup Integrated Development Environment (IDE) preferences Advantages of JDeveloper

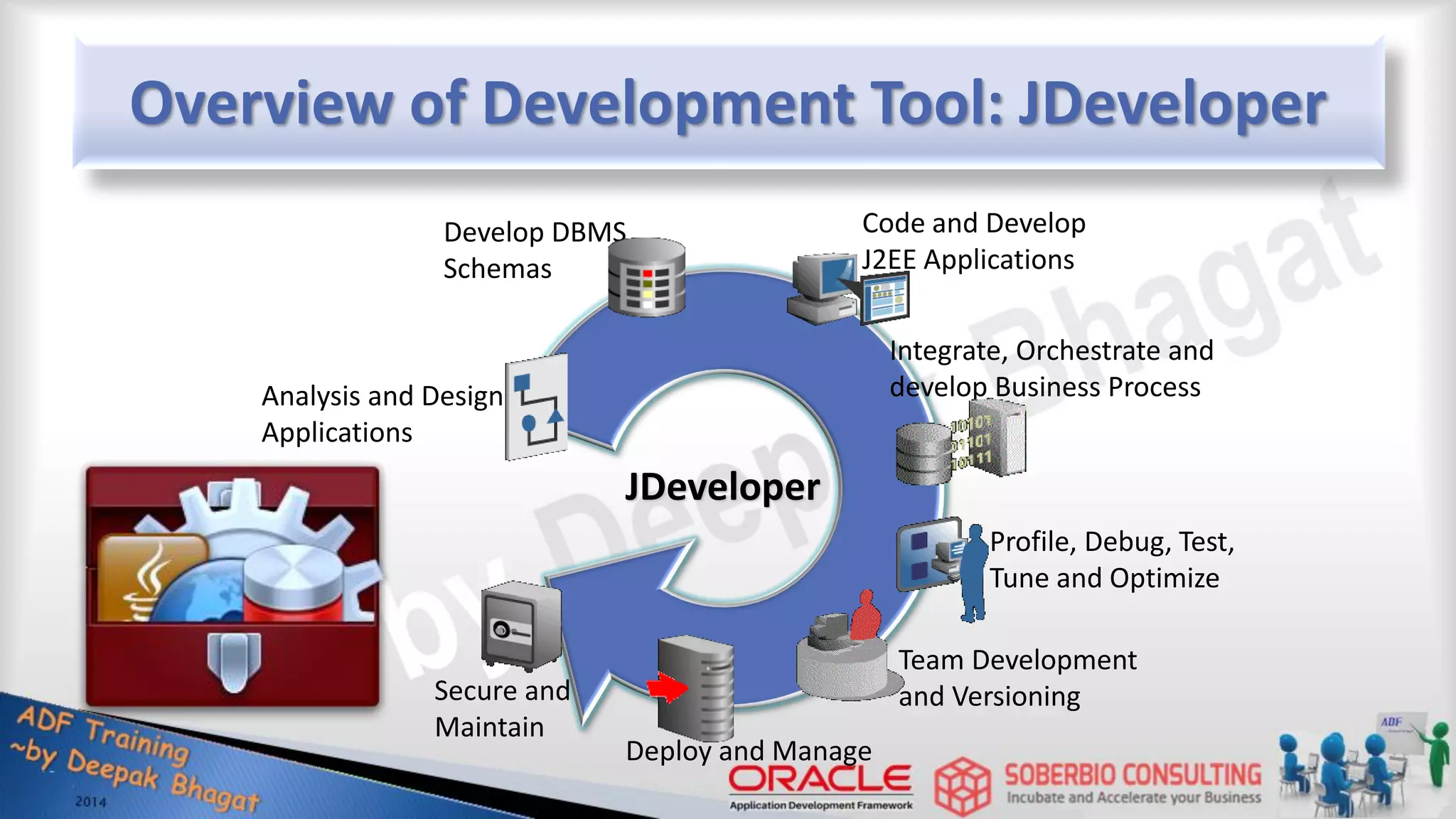

Overview of Development Tool: JDeveloper Code and Develop J2EE Applications Analysis and Design Applications Deploy and Manage Secure and Maintain Develop DBMS Schemas Integrate, Orchestrate and develop Business Process Team Development and Versioning Profile, Debug, Test, Tune and Optimize JDeveloper

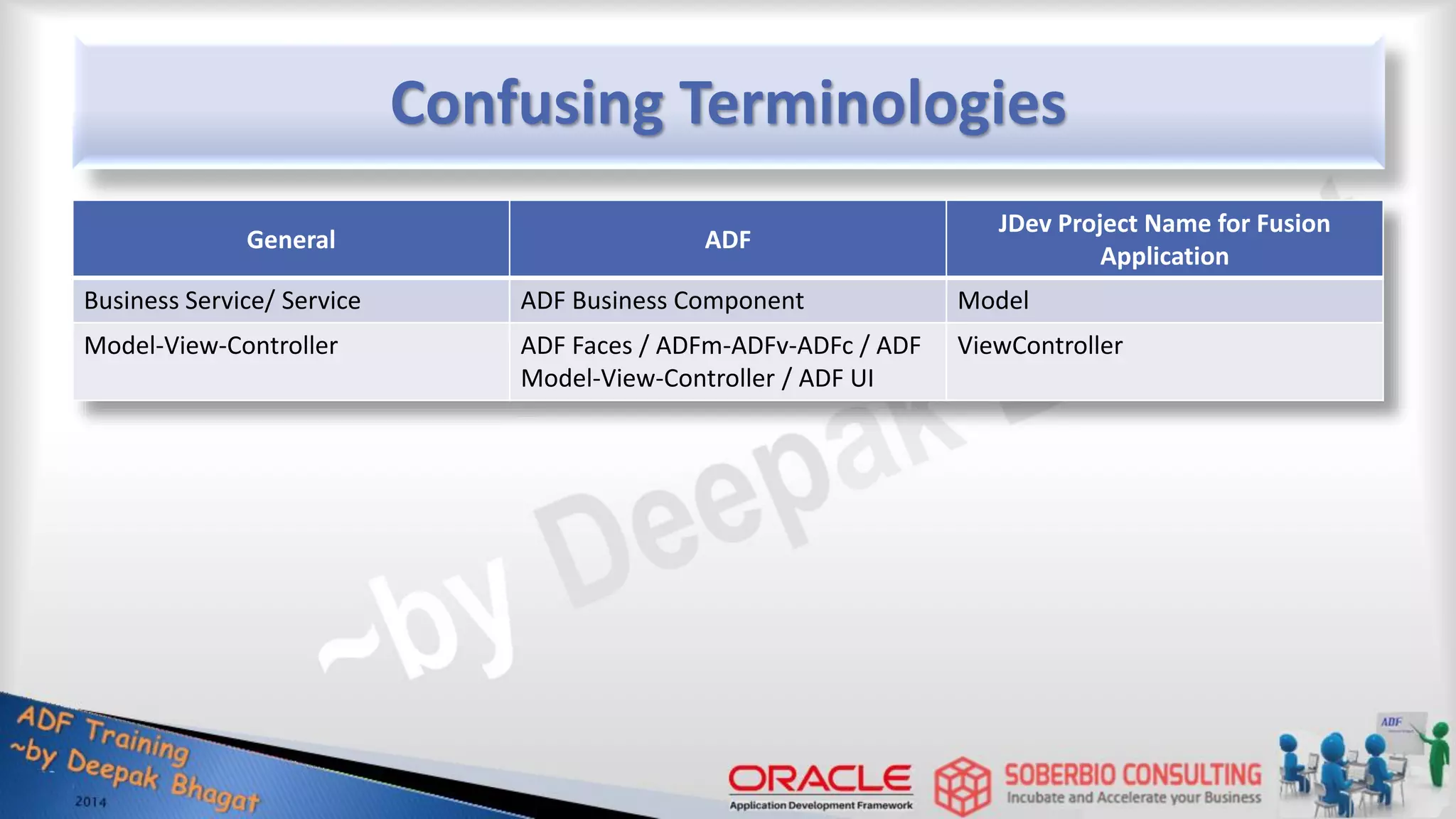

General ADF JDev Project Name for Fusion Application Business Service/ Service ADF Business Component Model Model-View-Controller ADF Faces / ADFm-ADFv-ADFc / ADF Model-View-Controller / ADF UI ViewController Confusing Terminologies

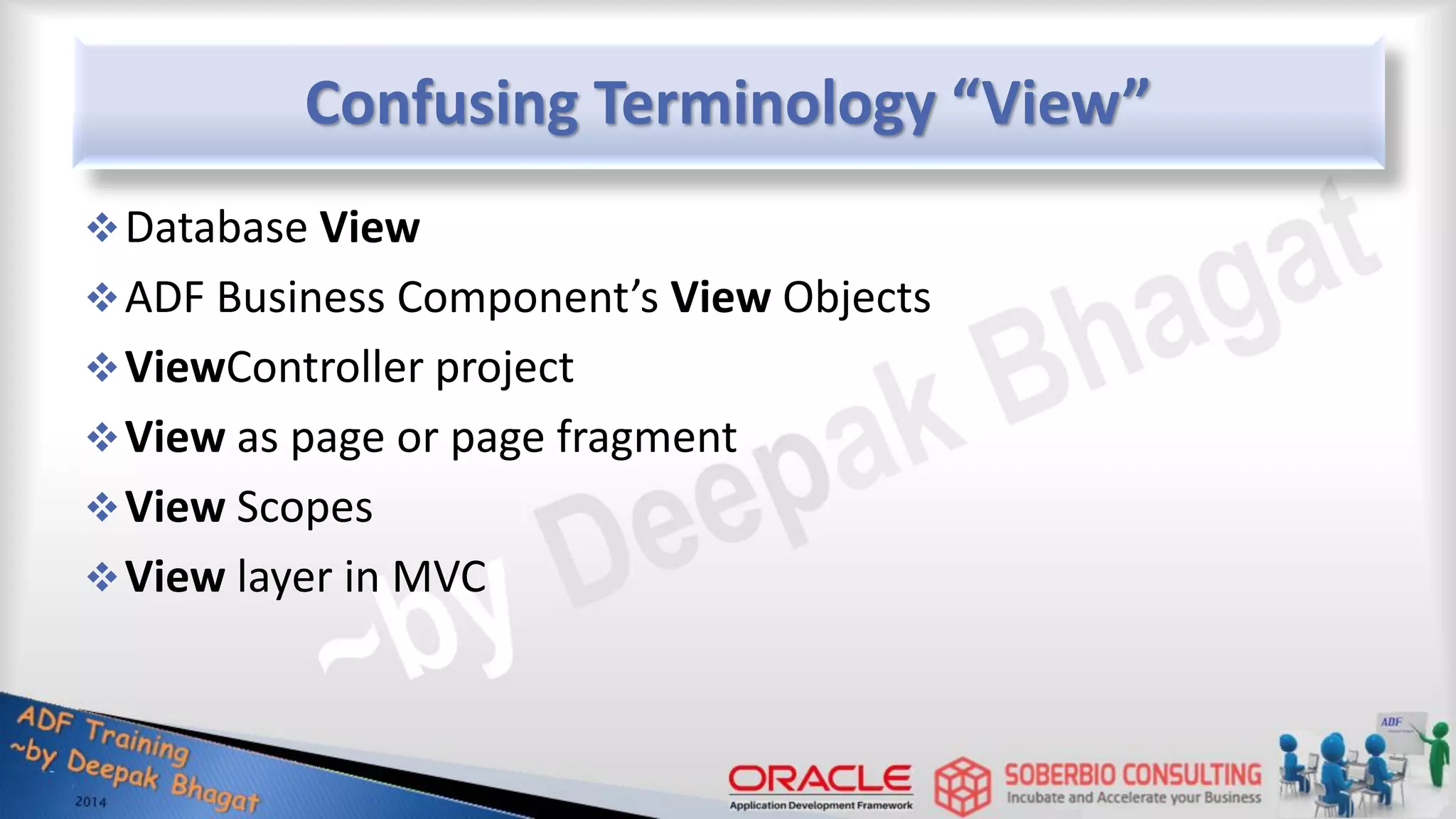

Confusing Terminology “View” Database View ADF Business Component’s View Objects ViewController project View as page or page fragment View Scopes View layer in MVC

Abbreviations AM- Appln Module AS- Association BC- Business Component BS-Business Service DB- Database DO- Domain Object Dept- Department EO- Entity Object Emp- Employee Loc- Location MAF- Mobile Appln Framework MVC- Model view Controller VC- View Controller VL- View Link VO- View Object WC- WebCenter WS- Web Service

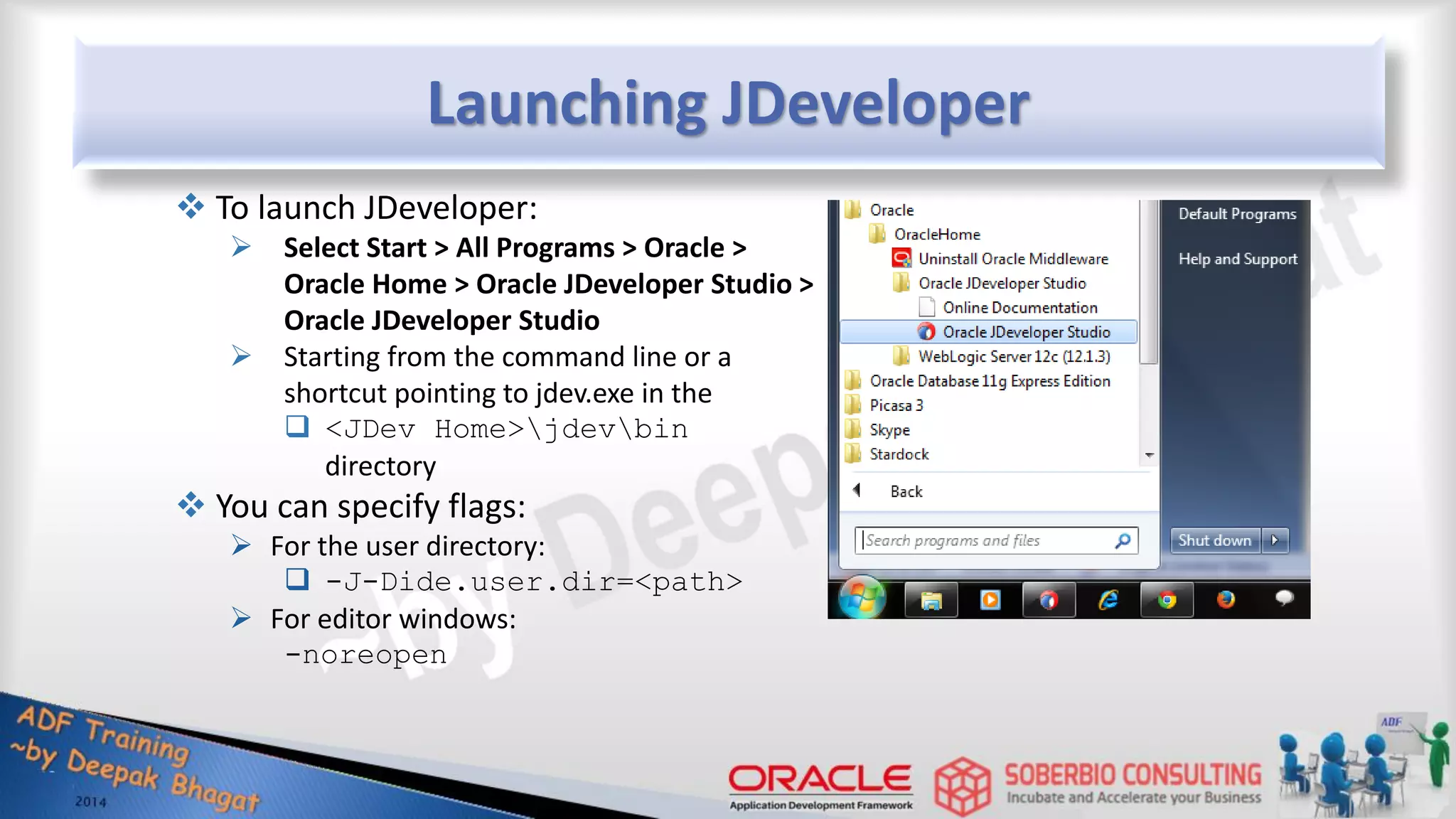

Launching JDeveloper  To launch JDeveloper:  Select Start > All Programs > Oracle > Oracle Home > Oracle JDeveloper Studio > Oracle JDeveloper Studio  Starting from the command line or a shortcut pointing to jdev.exe in the  <JDev Home>jdevbin directory  You can specify flags:  For the user directory:  -J-Dide.user.dir=<path>  For editor windows: -noreopen

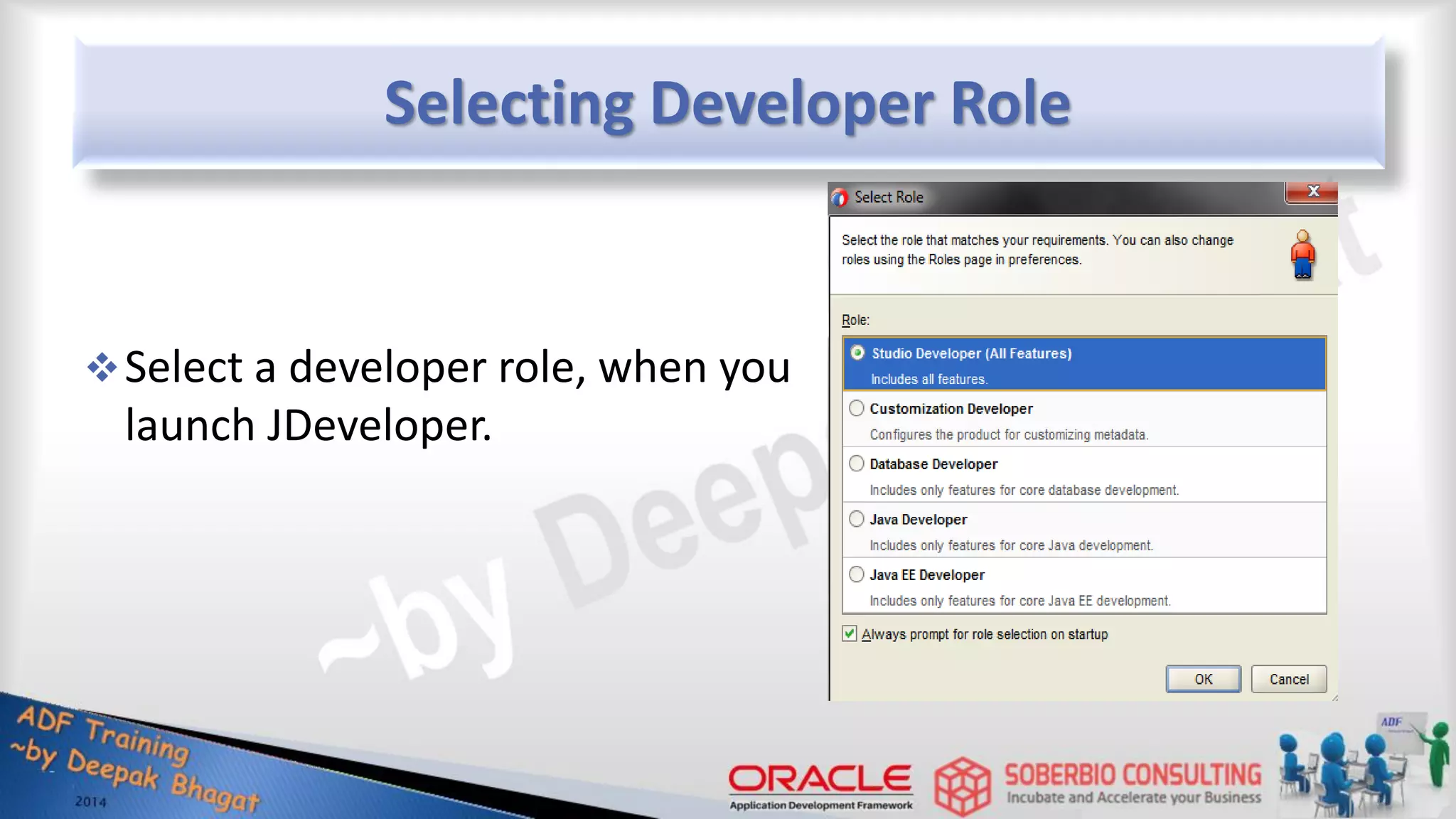

Selecting Developer Role Select a developer role, when you launch JDeveloper.

Development Environment (IDE) Preferences Access the Preferences window by selecting Tools > Preferences

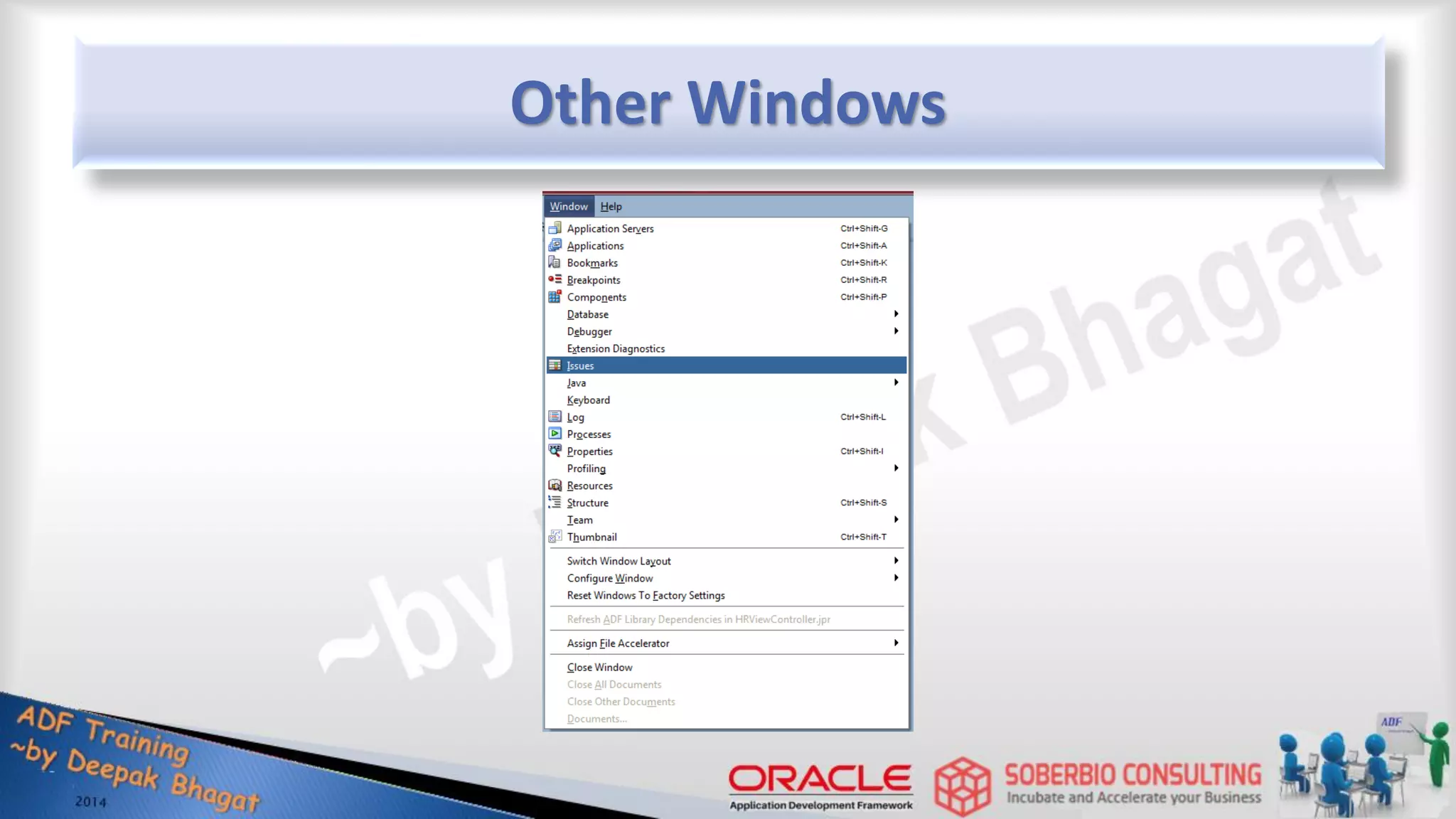

Windows in JDeveloper JDeveloper features that facilitate ease of application development include following windows:  Applications  Data Control Panel  Database  Structure  Editors (code or visual)  Log and Debugger  Components  Resources (IDE and Application)  Properties  Other Windows

Applications Window Has expandable, minimizable panels to display: Projects Application resources Data controls Recently opened files

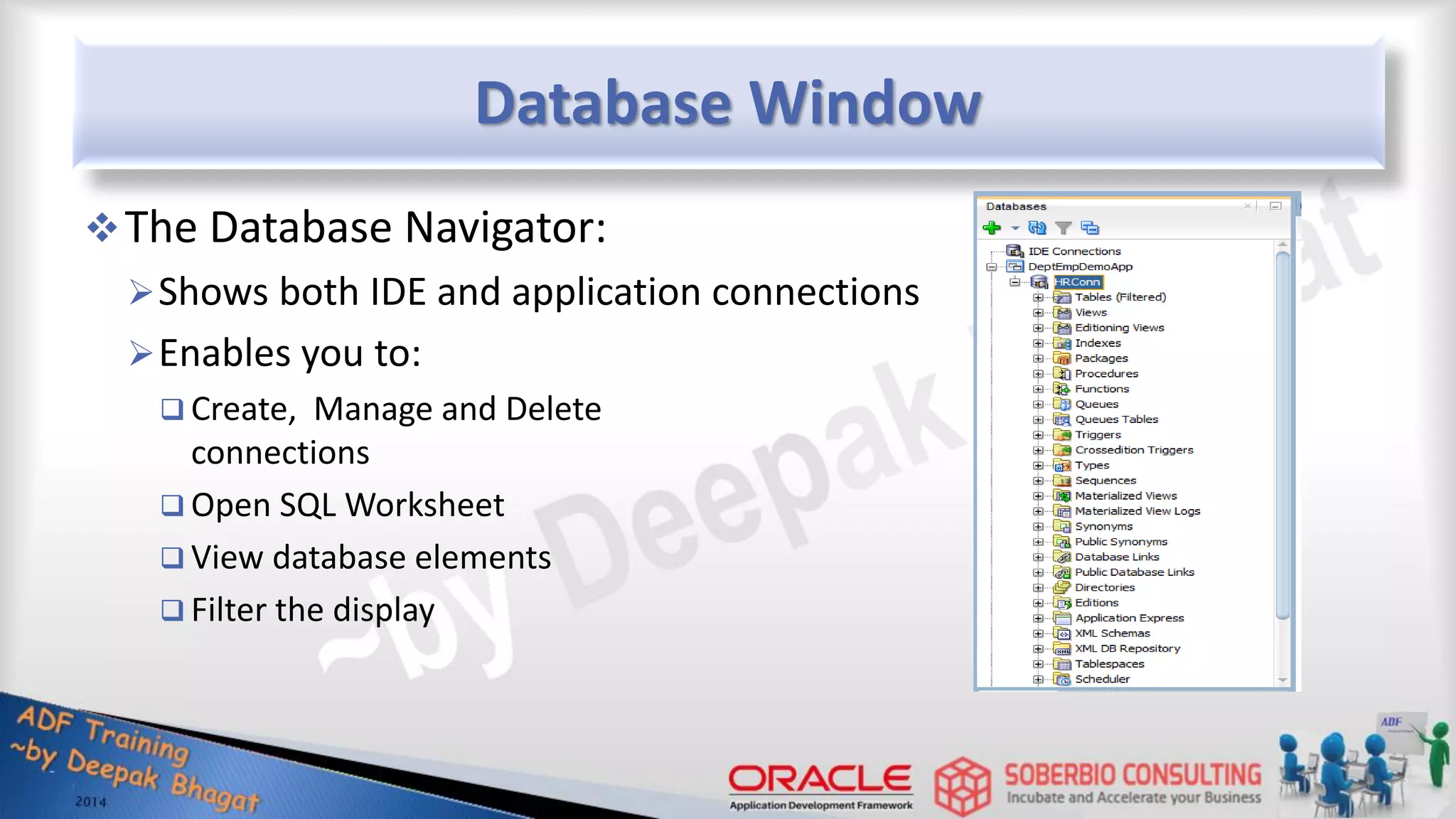

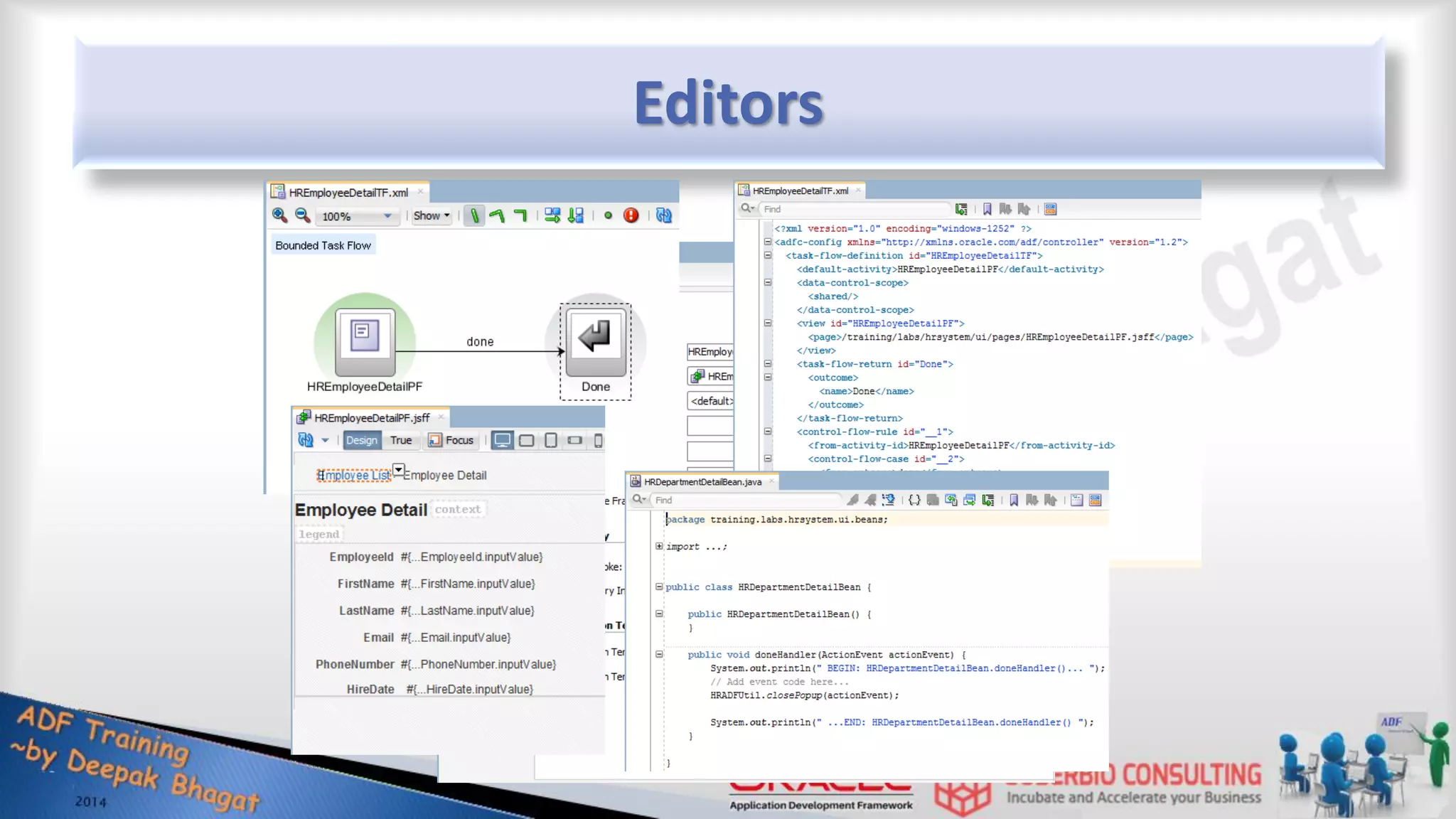

Database Window The Database Navigator: Shows both IDE and application connections Enables you to:  Create, Manage and Delete connections  Open SQL Worksheet  View database elements  Filter the display

Structure Window A hierarchical tree view of the selected document, object or source code The ability to:  View in different ways  Navigate (go to the source)

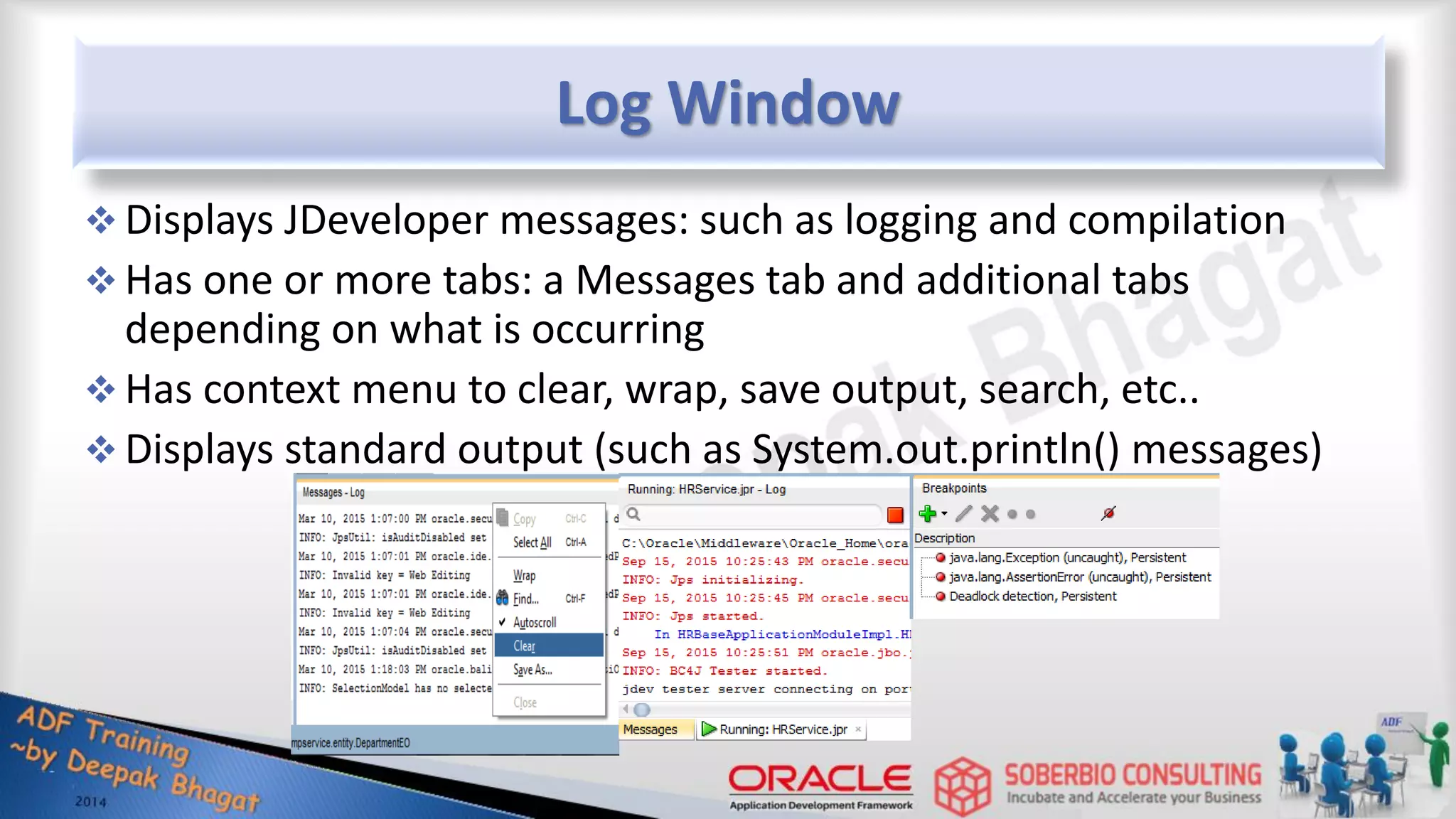

Log Window  Displays JDeveloper messages: such as logging and compilation  Has one or more tabs: a Messages tab and additional tabs depending on what is occurring  Has context menu to clear, wrap, save output, search, etc..  Displays standard output (such as System.out.println() messages)

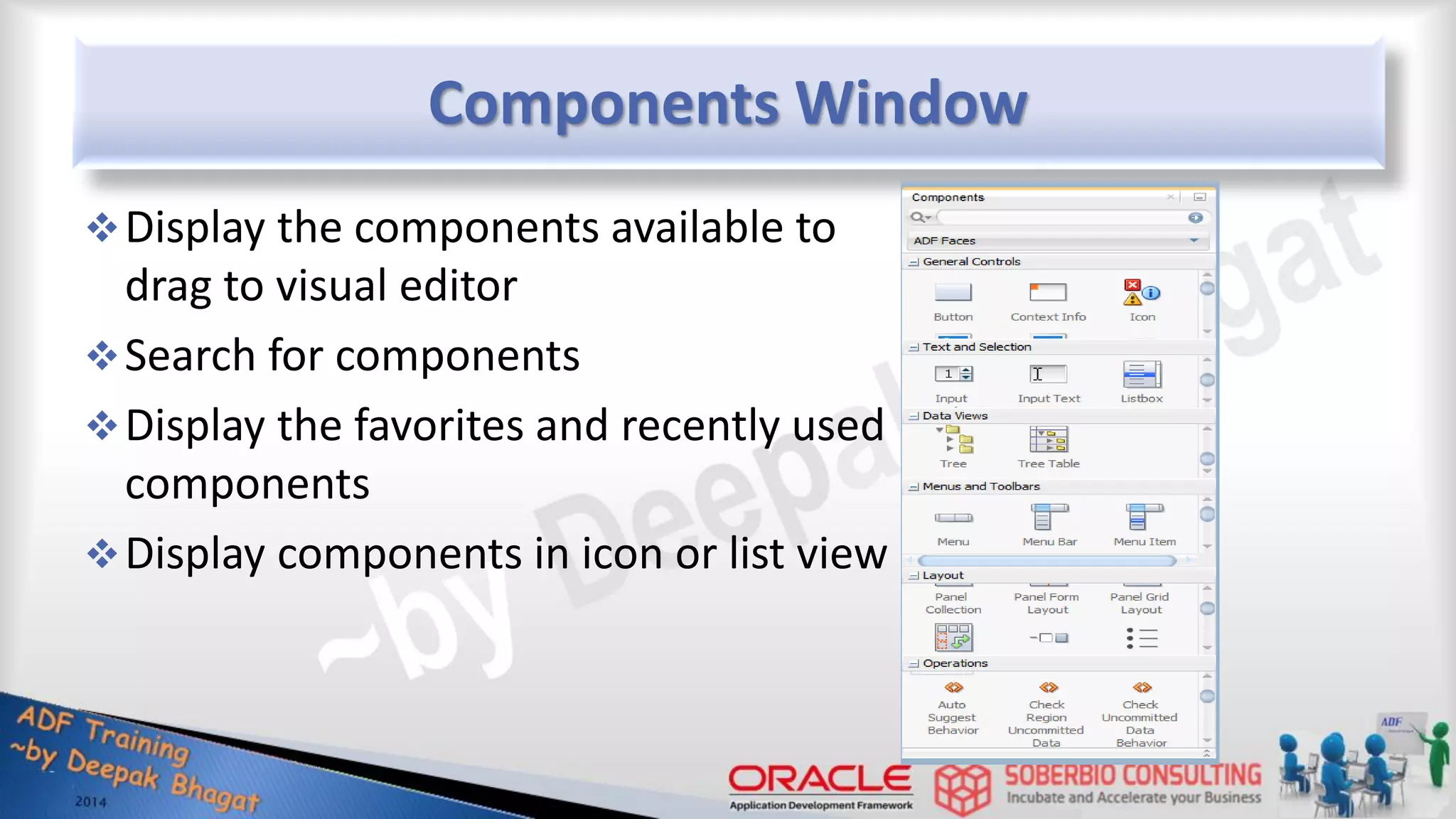

Components Window Display the components available to drag to visual editor Search for components Display the favorites and recently used components Display components in icon or list view

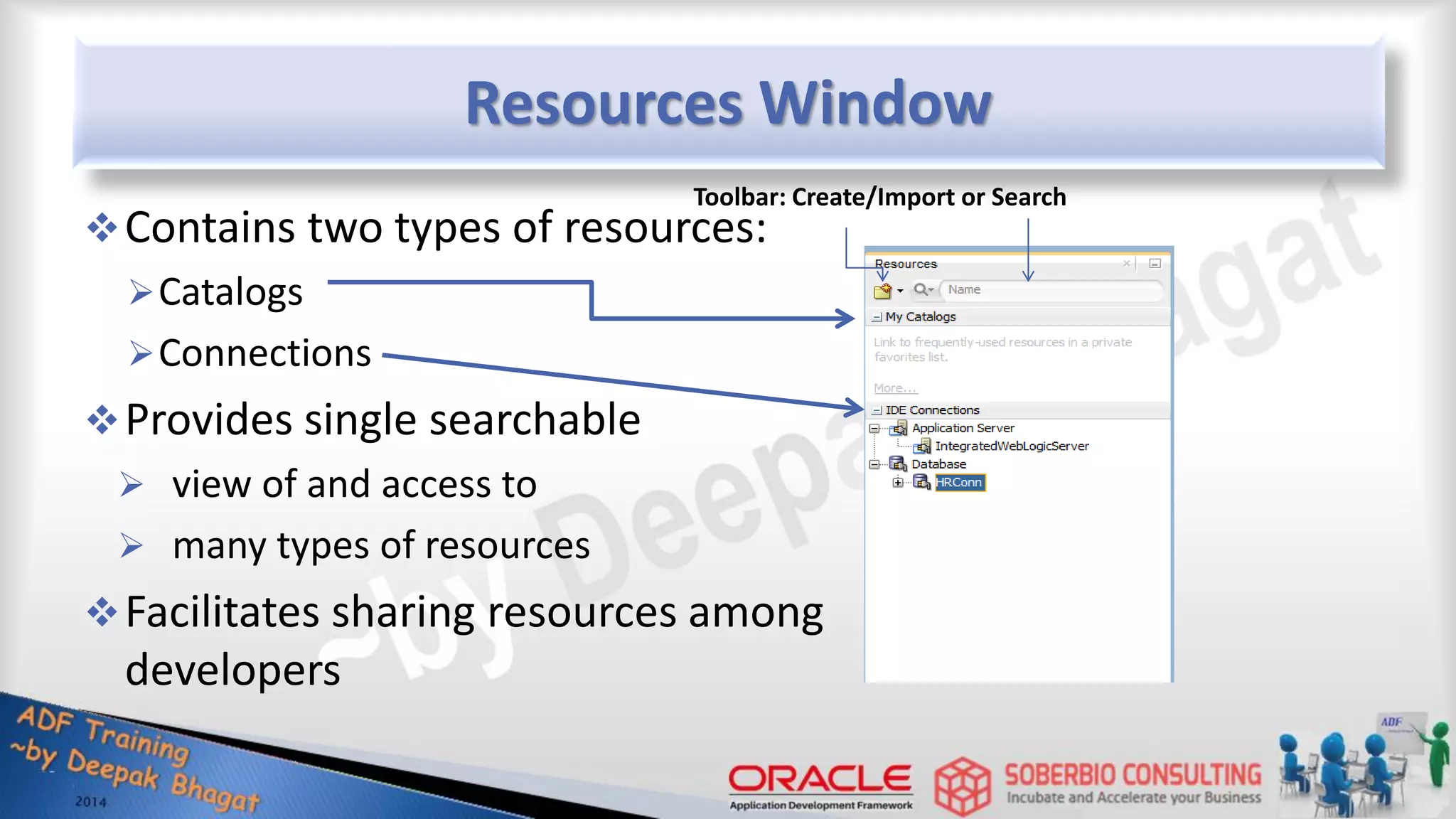

Resources Window Contains two types of resources: Catalogs Connections Provides single searchable  view of and access to  many types of resources Facilitates sharing resources among developers Toolbar: Create/Import or Search

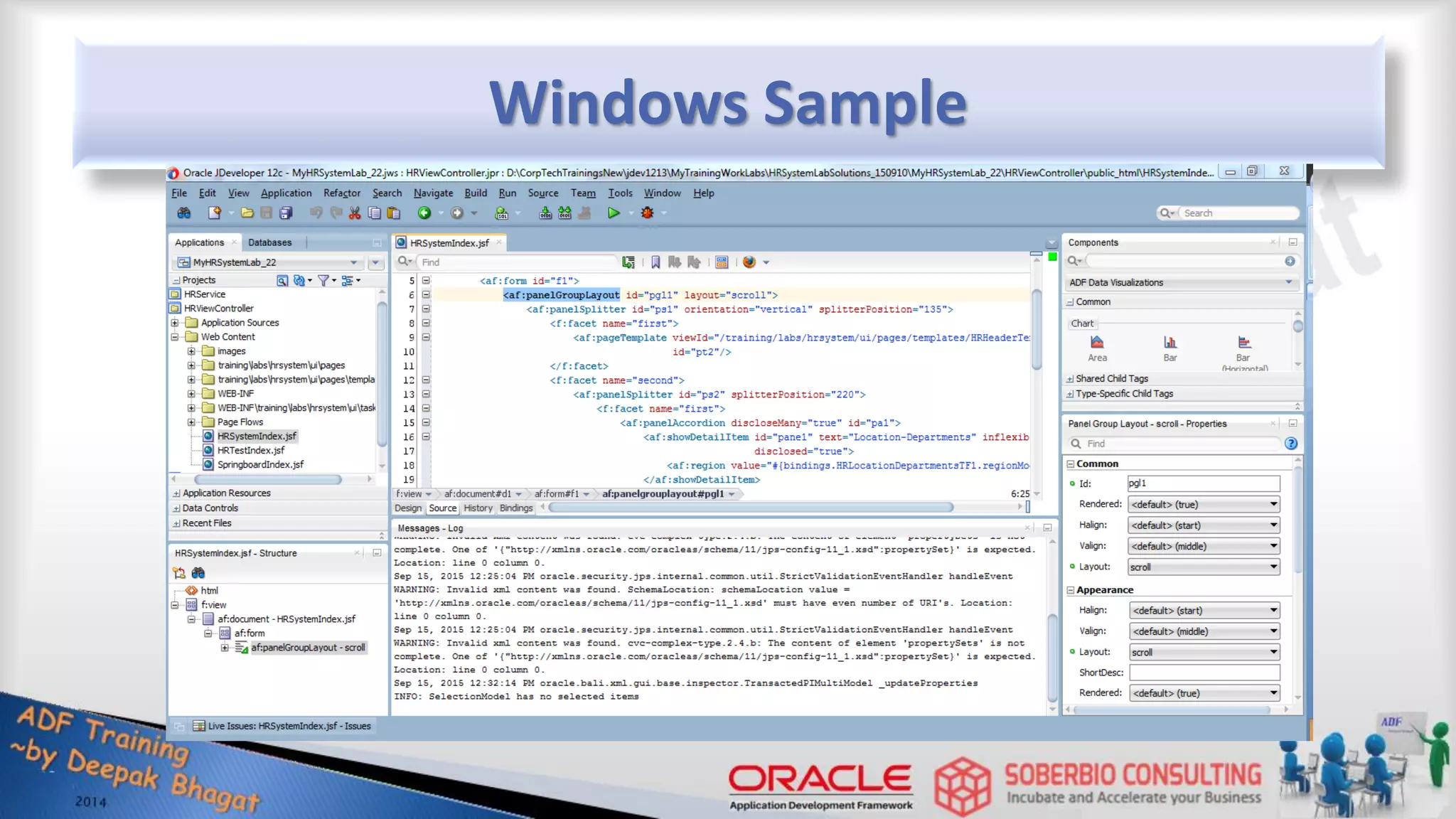

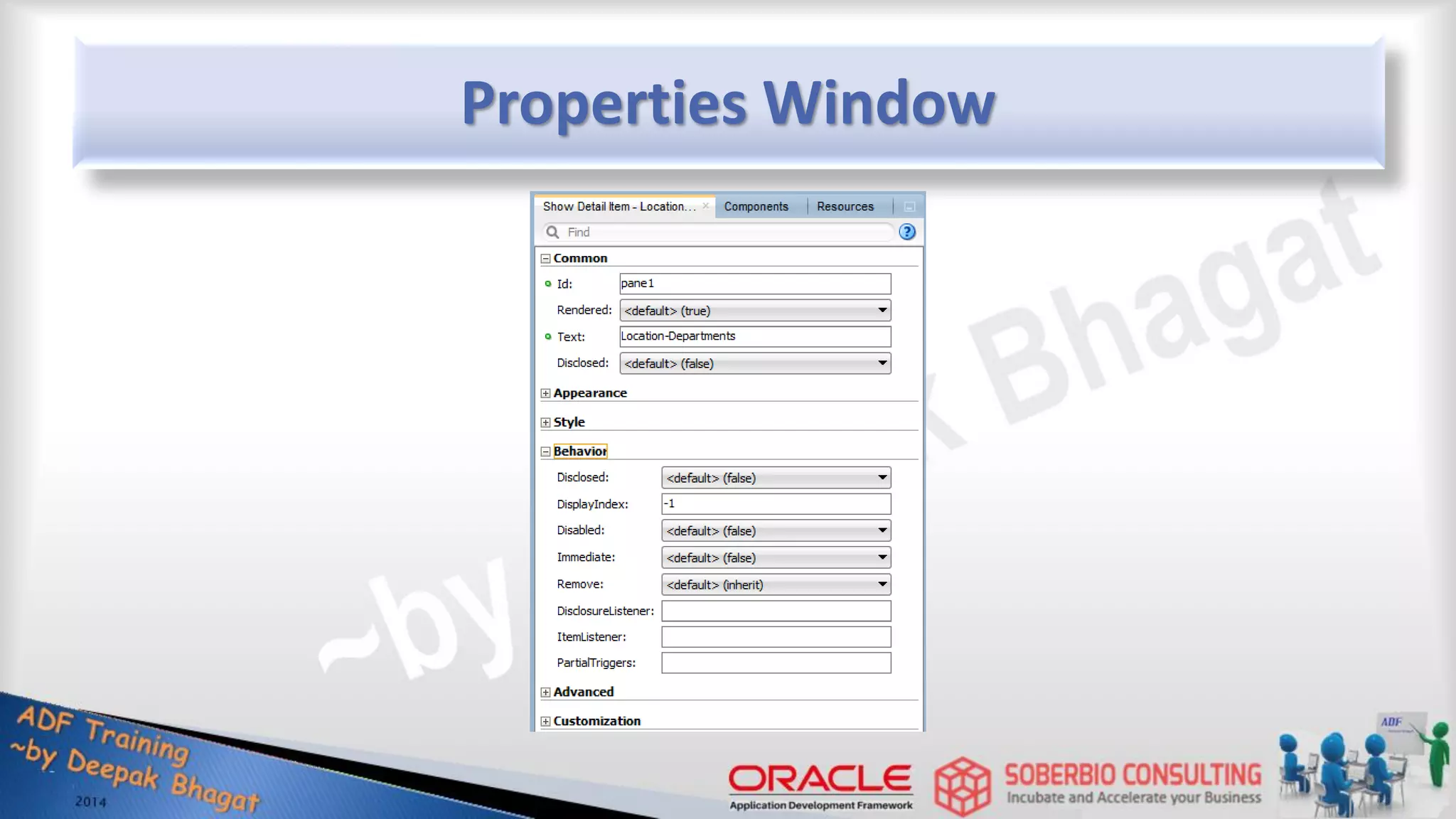

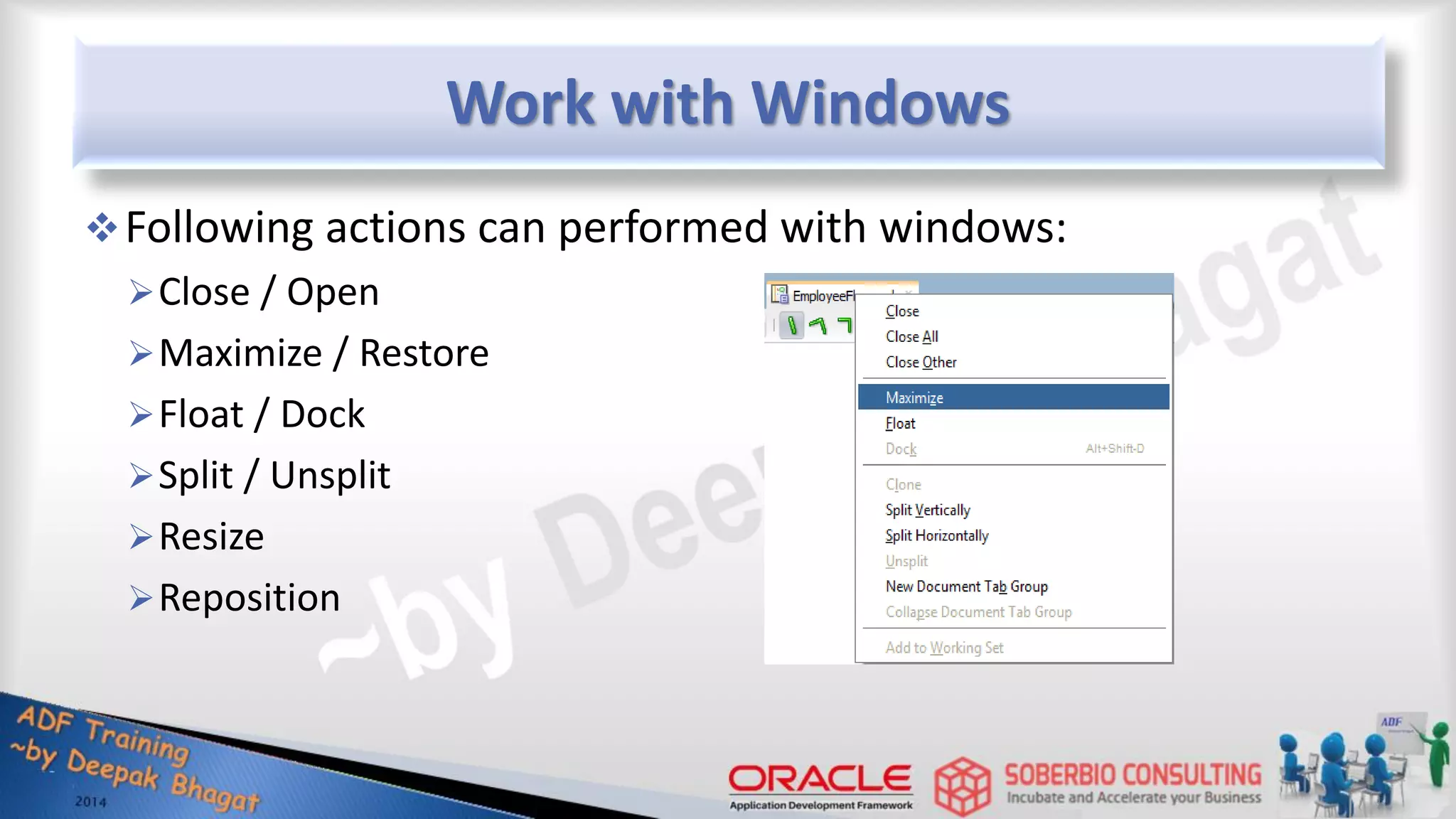

Work with Windows Following actions can performed with windows: Close / Open Maximize / Restore Float / Dock Split / Unsplit Resize Reposition

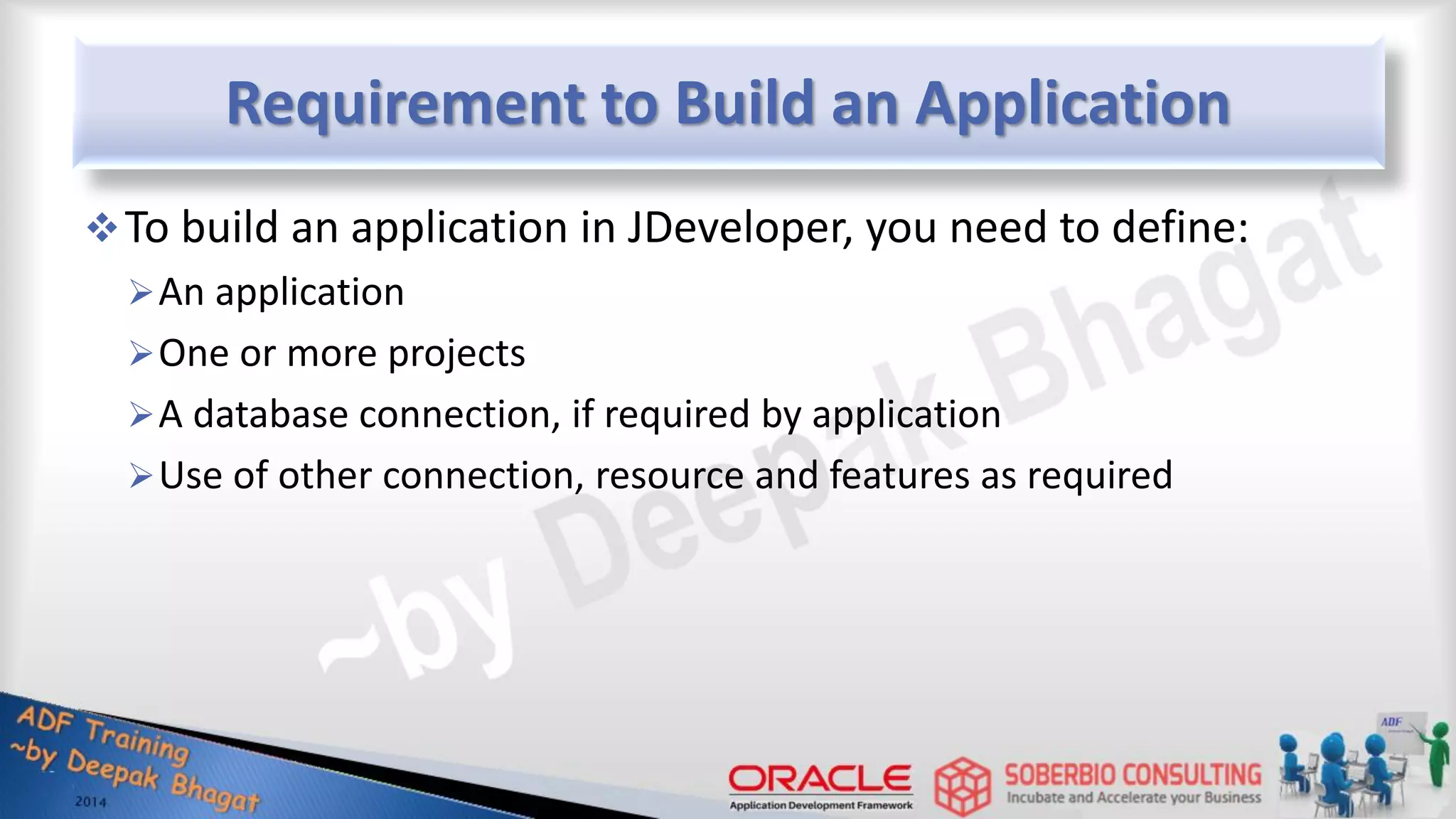

Requirement to Build an Application To build an application in JDeveloper, you need to define: An application One or more projects A database connection, if required by application Use of other connection, resource and features as required

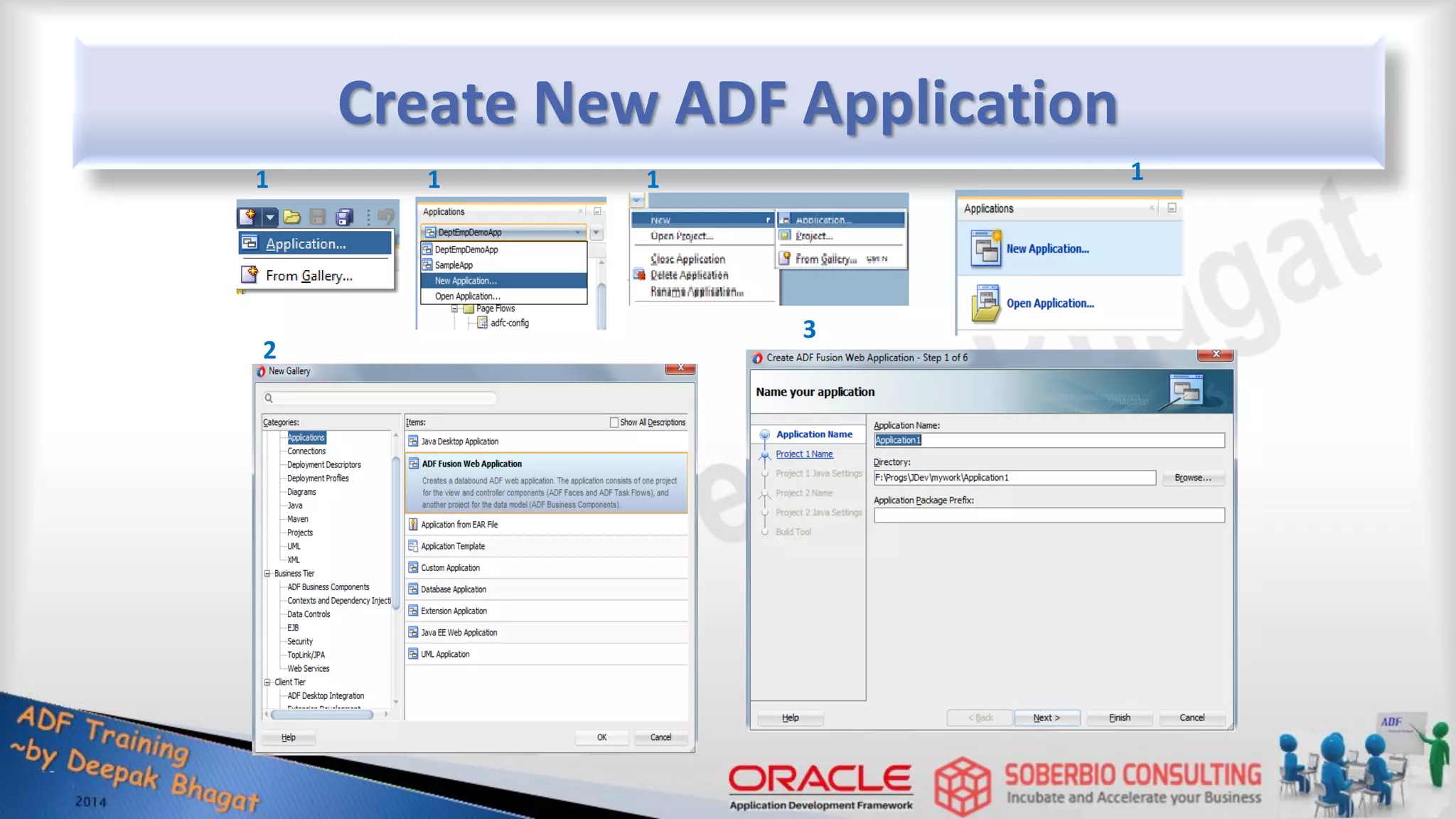

Create New ADF Application 2 3 1 1 1 1

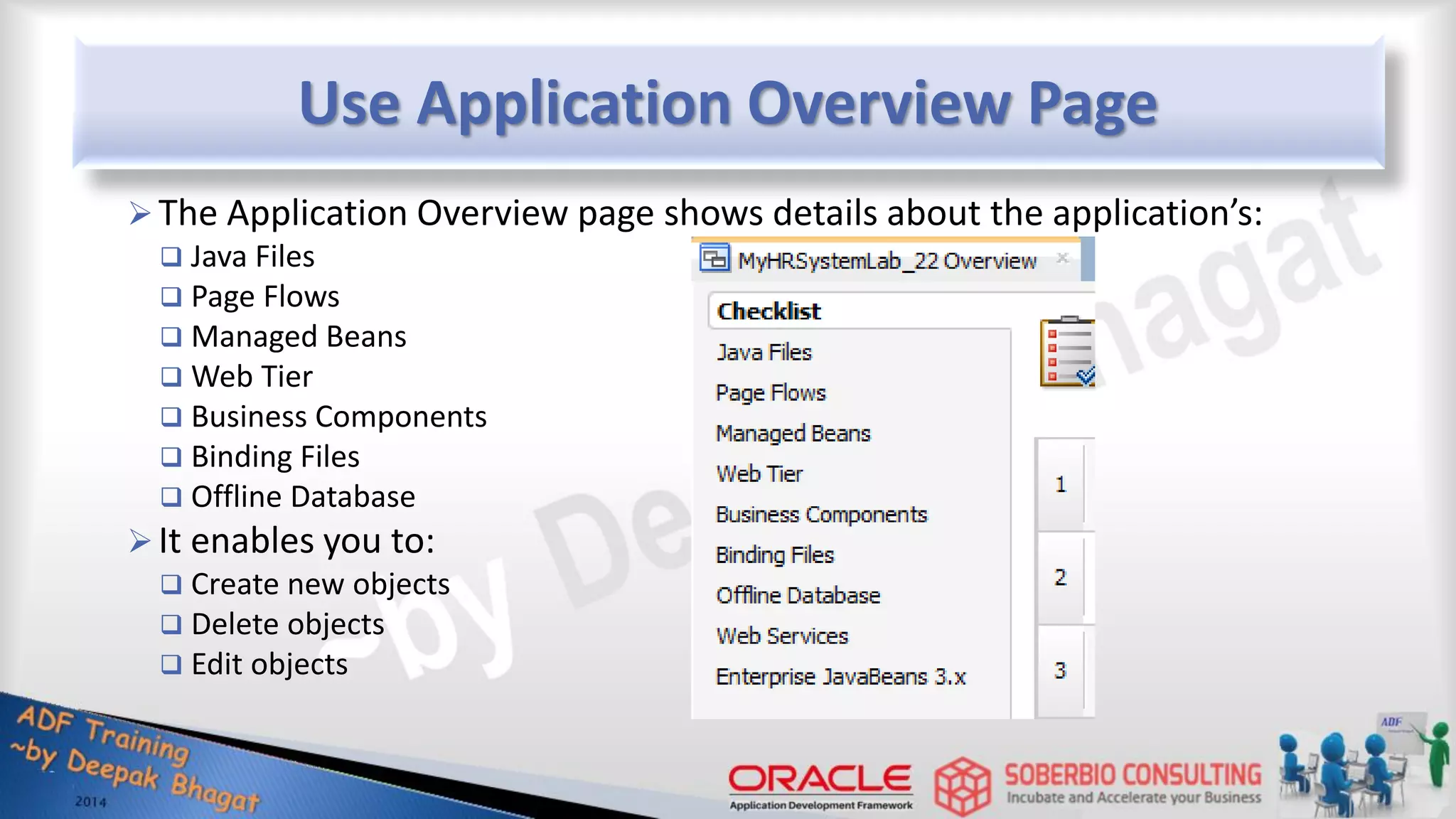

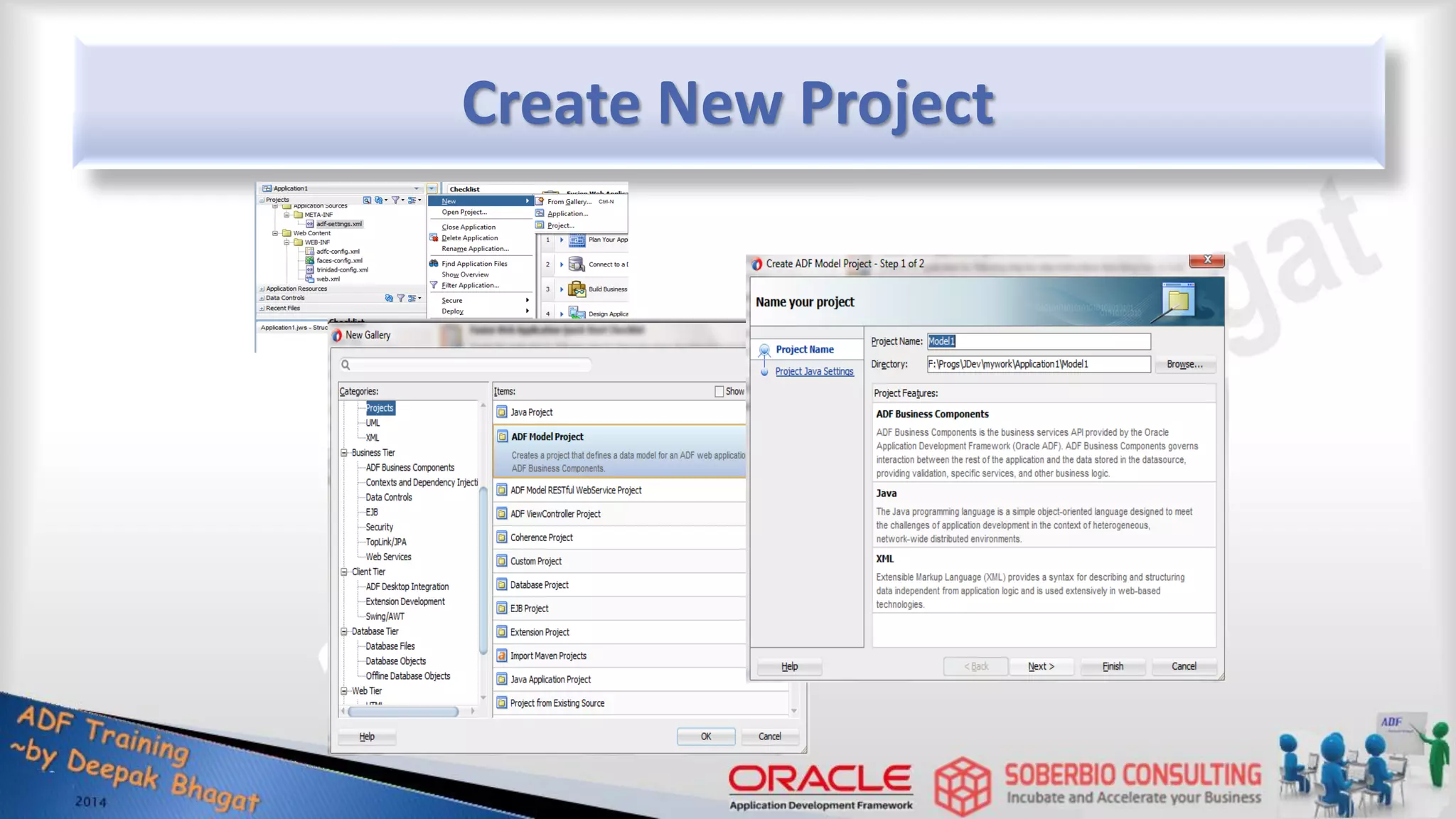

Use Application Overview Page The Application Overview page shows details about the application’s:  Java Files  Page Flows  Managed Beans  Web Tier  Business Components  Binding Files  Offline Database It enables you to:  Create new objects  Delete objects  Edit objects

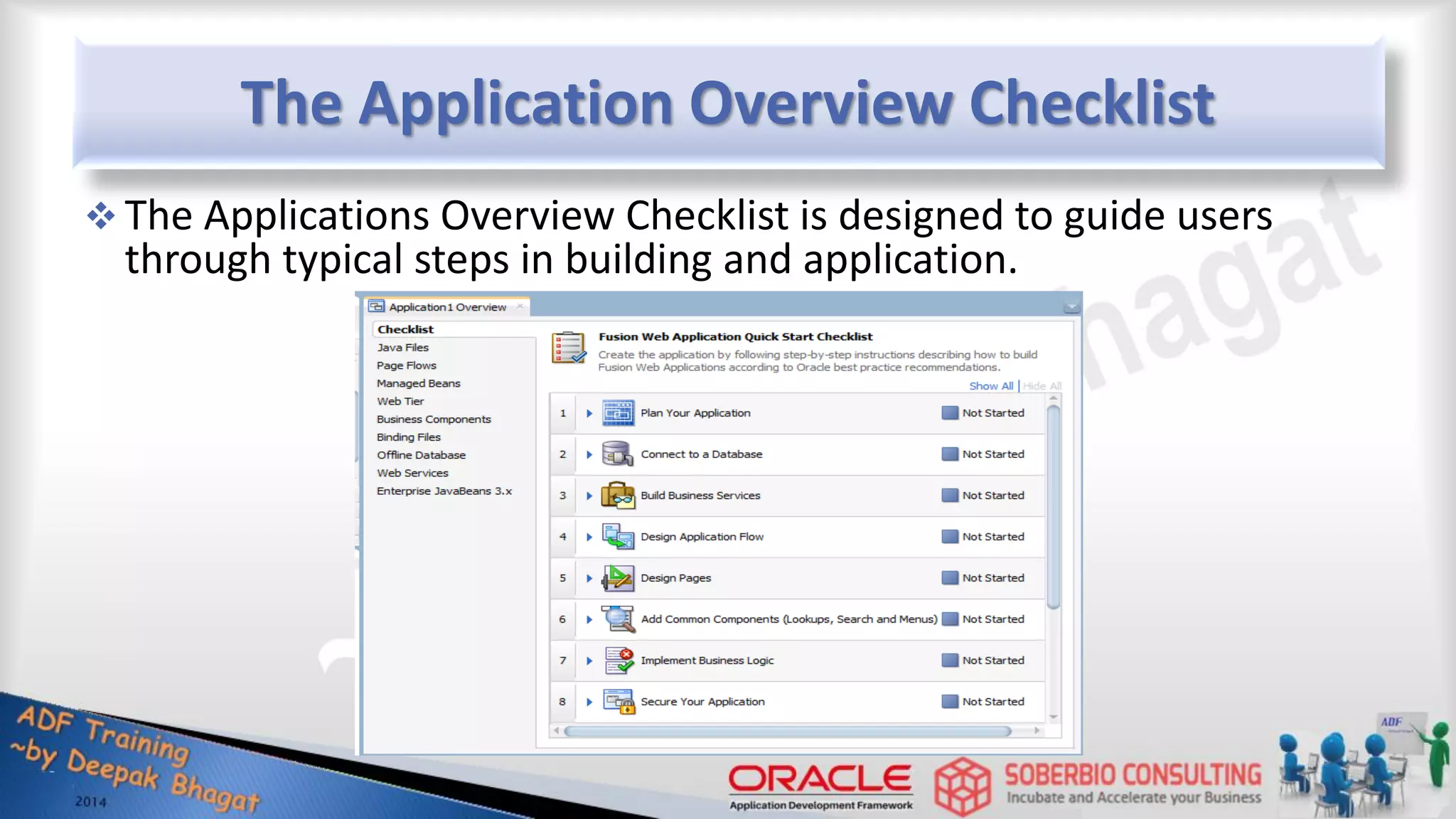

The Application Overview Checklist  The Applications Overview Checklist is designed to guide users through typical steps in building and application.

Create Database Connections  Two types:  IDE:  Available to be added to any application  Create in Database Navigator or Resource Palette  To add to an application, drag to Application Resources or to an application in Database Navigator  Application:  Owned by a specific application  Create in Database Navigator or Application Resources

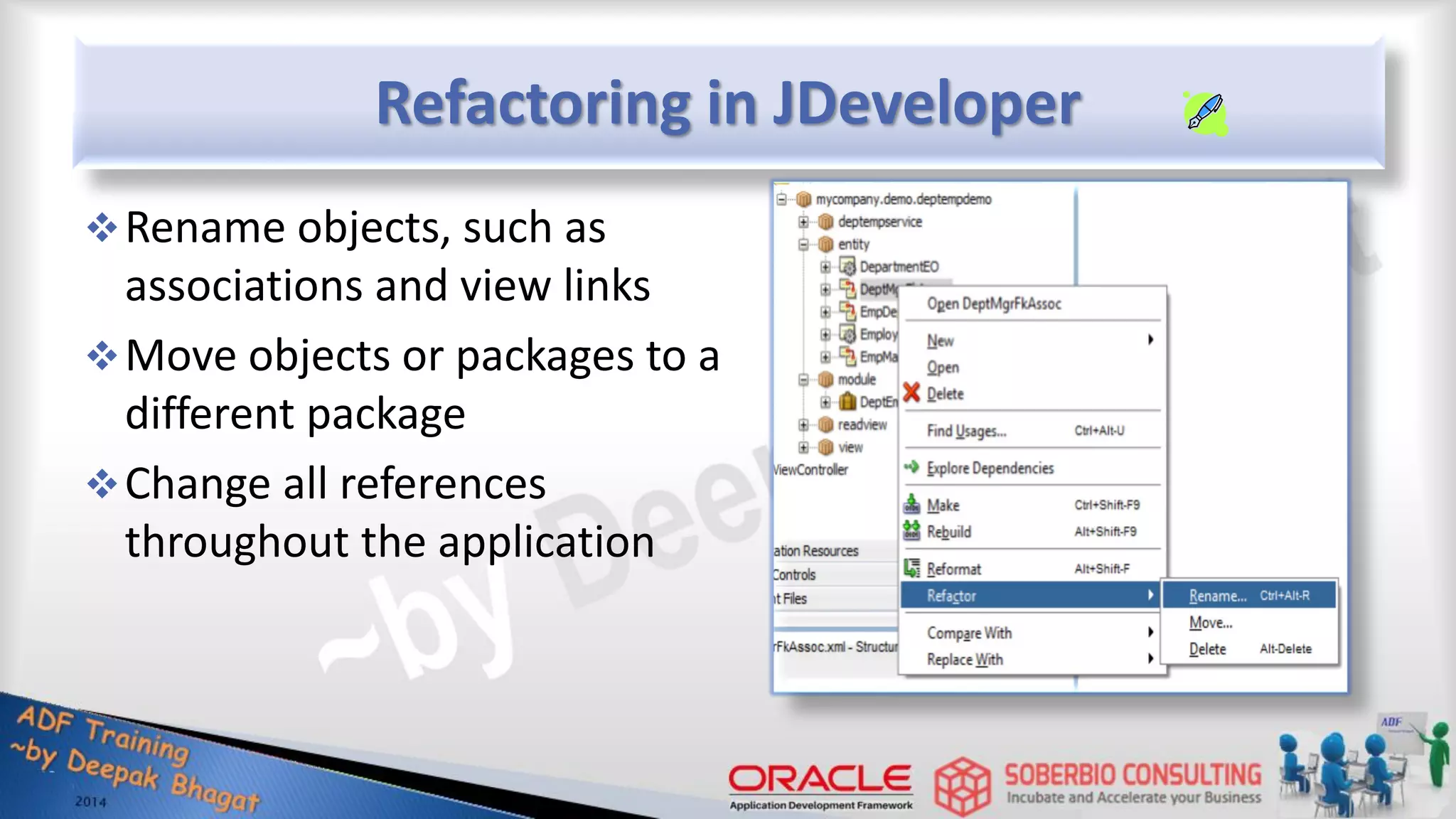

Refactoring in JDeveloper Rename objects, such as associations and view links Move objects or packages to a different package Change all references throughout the application

Advantages of JDeveloper  Single stack for all Apps development Portal (WC), BPEL, BI & Wireless Development Service-Oriented Development Event-Driven Development  Productivity With Choice - Supports choice of Development platforms (OS) Data sources Application servers Development approaches (MDA / declarative / hand-coding) Technology stacks

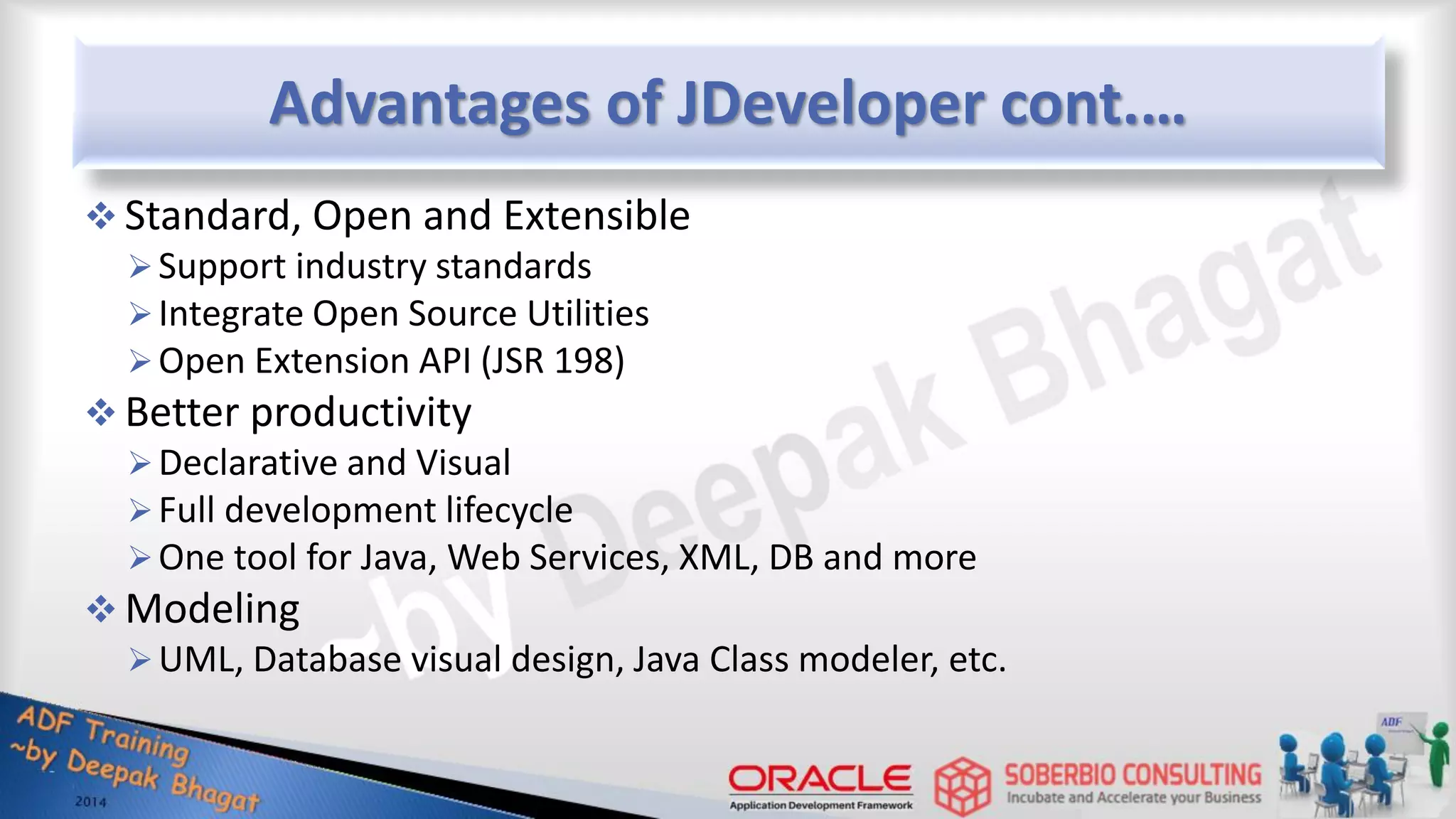

Advantages of JDeveloper cont.…  Standard, Open and Extensible Support industry standards Integrate Open Source Utilities Open Extension API (JSR 198)  Better productivity Declarative and Visual Full development lifecycle One tool for Java, Web Services, XML, DB and more  Modeling UML, Database visual design, Java Class modeler, etc.

DB Development Support for additional schema objects (create, update, visualize and generate…) Support for views (visualize with relationships to tables) Object types, PL/SQL packages, procedures, functions Sequences, synonyms, expression based indexes System Defined Types: SDO_Geometry, XMLTypes… Foreign database support for DB2, Informix, MySQL, SQL Server and Sybase Visual reconcile tool for the generation of scripts

Integrated Development Environment Design Business Processes Design Routing Rules Build & Assemble Service Components Set Up Facts & Dimensions for BAM Design Event Flows (CEP) Design Business Rules Design Page Flows Drag & Drop Page Regions Drag & Drop Portlets Drag & Drop DHTML Components Design Page Templates Configure Customization & Personalisation MEP Support Integration with ADE Activity Guide Control Flexfields & Save For Later Controls Seed Data UI and Extraction Database Schema Development UI Development SOA/EDA Development Apps Development JDeveloper 12c – Declarative Model Driven Development

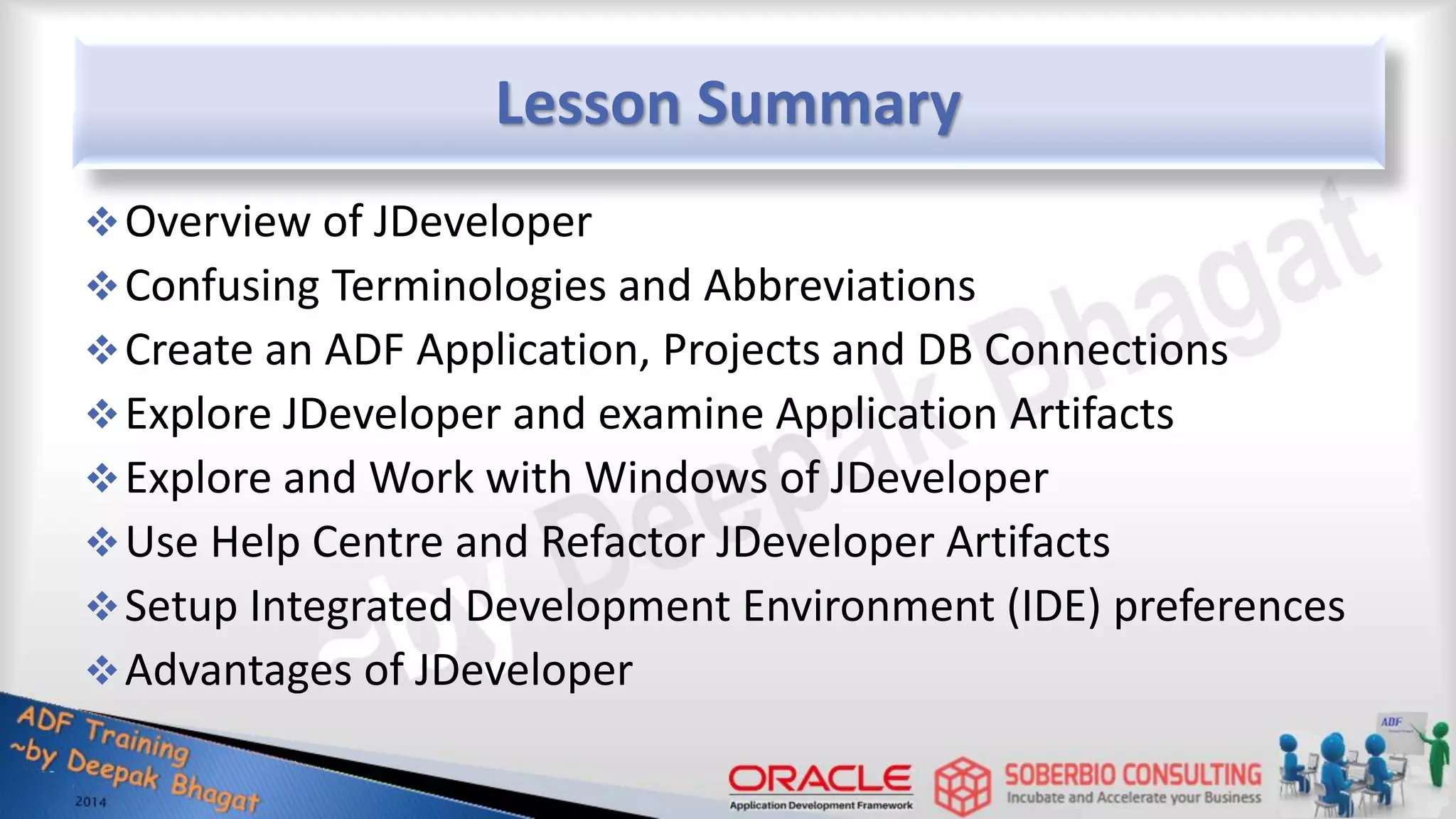

Lesson Summary Overview of JDeveloper Confusing Terminologies and Abbreviations Create an ADF Application, Projects and DB Connections Explore JDeveloper and examine Application Artifacts Explore and Work with Windows of JDeveloper Use Help Centre and Refactor JDeveloper Artifacts Setup Integrated Development Environment (IDE) preferences Advantages of JDeveloper

3 Modeling the Database Schema

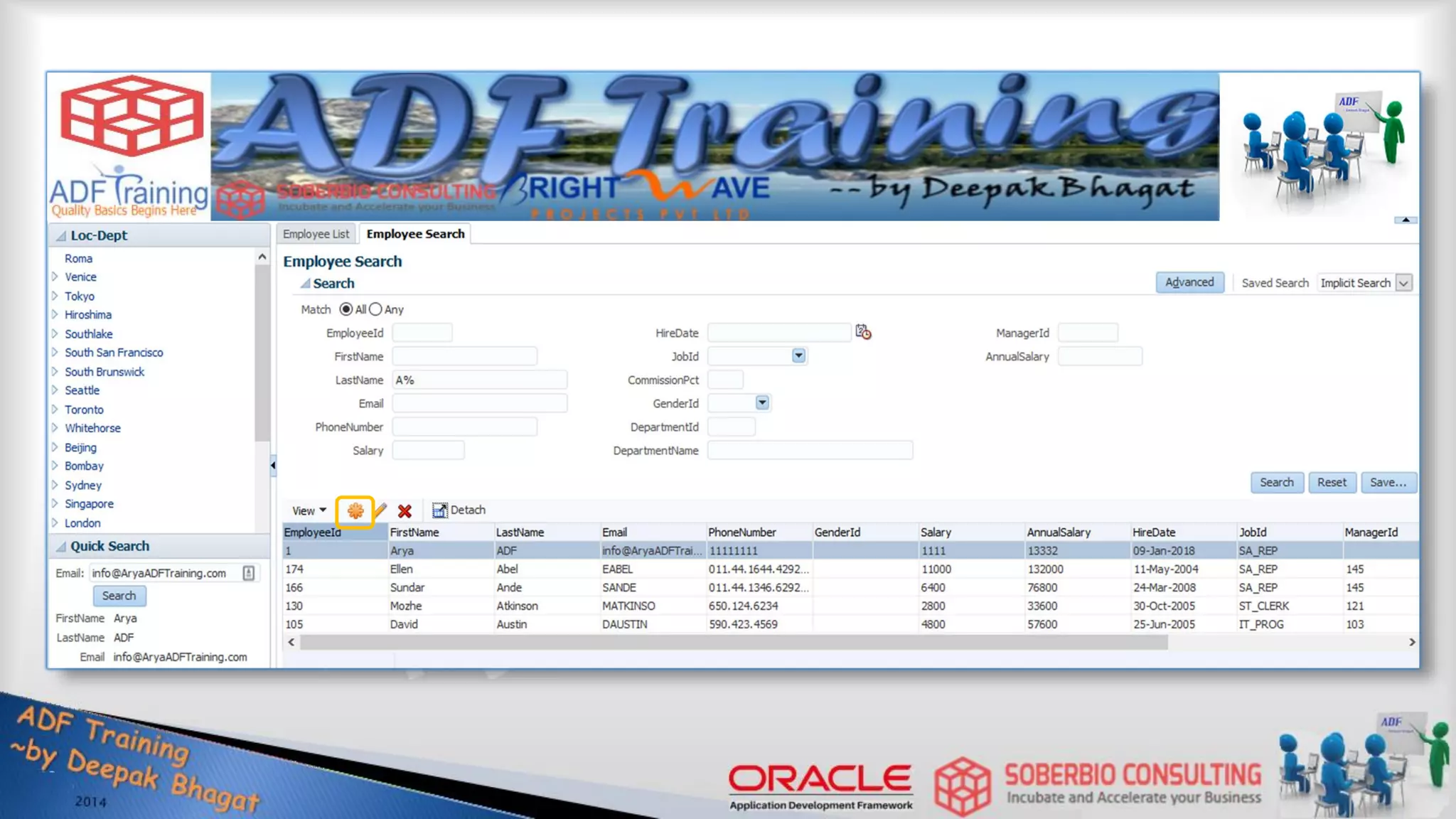

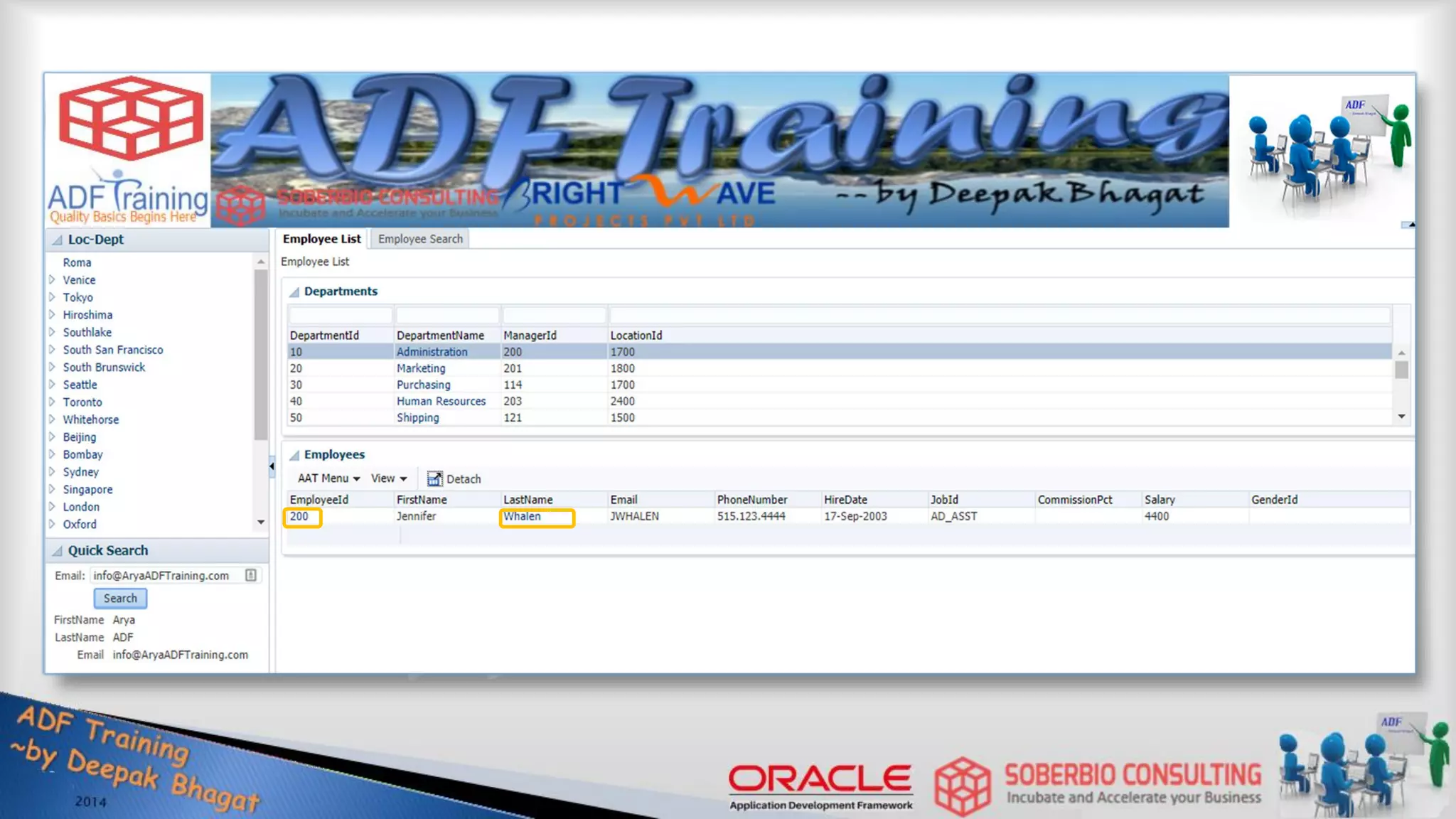

Lesson Agenda Exploring HR System ER Diagram Examining Training Lab Application Create an offline Database Diagram Add new offline DB Schema objects PLSQL Integration

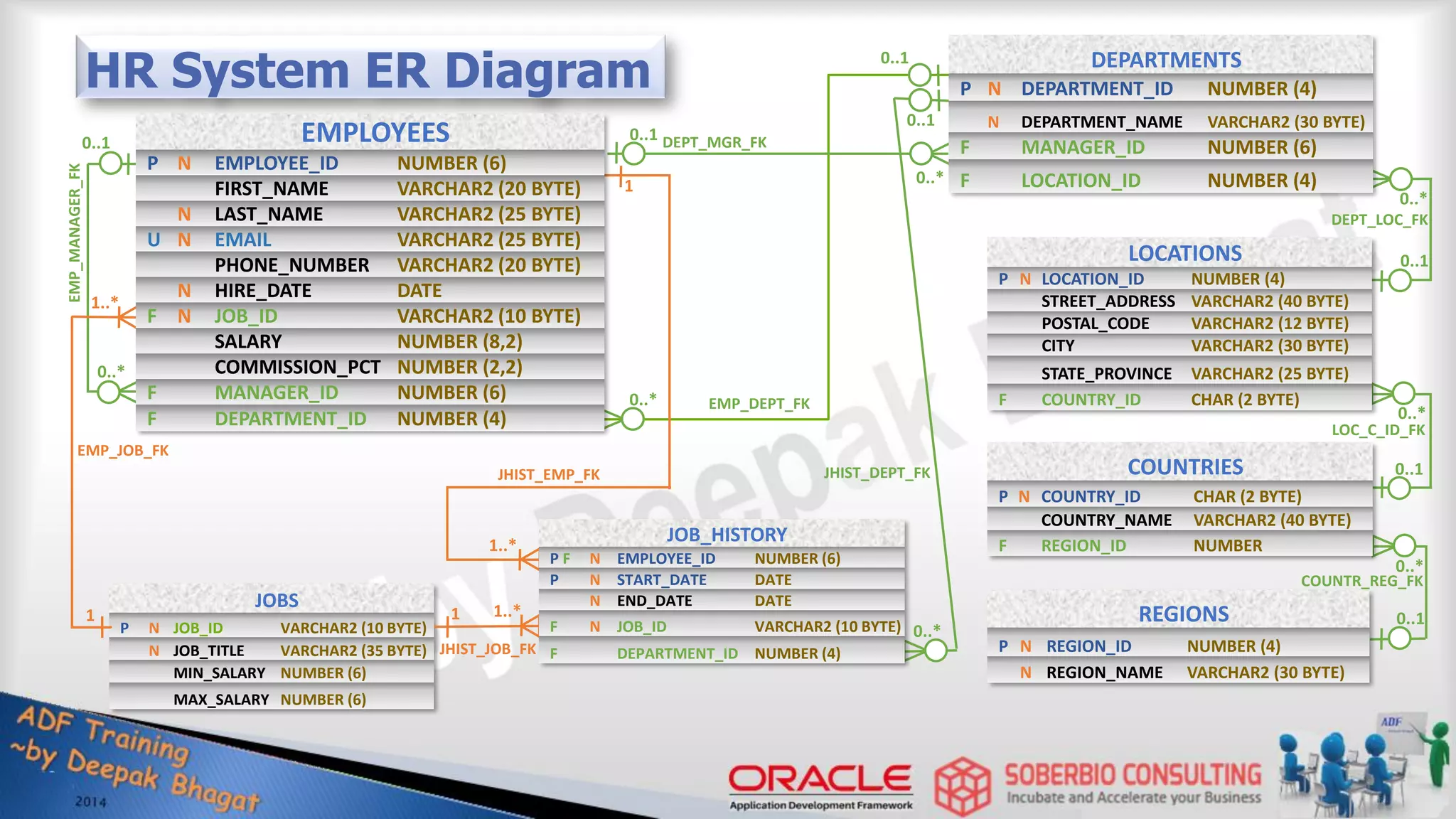

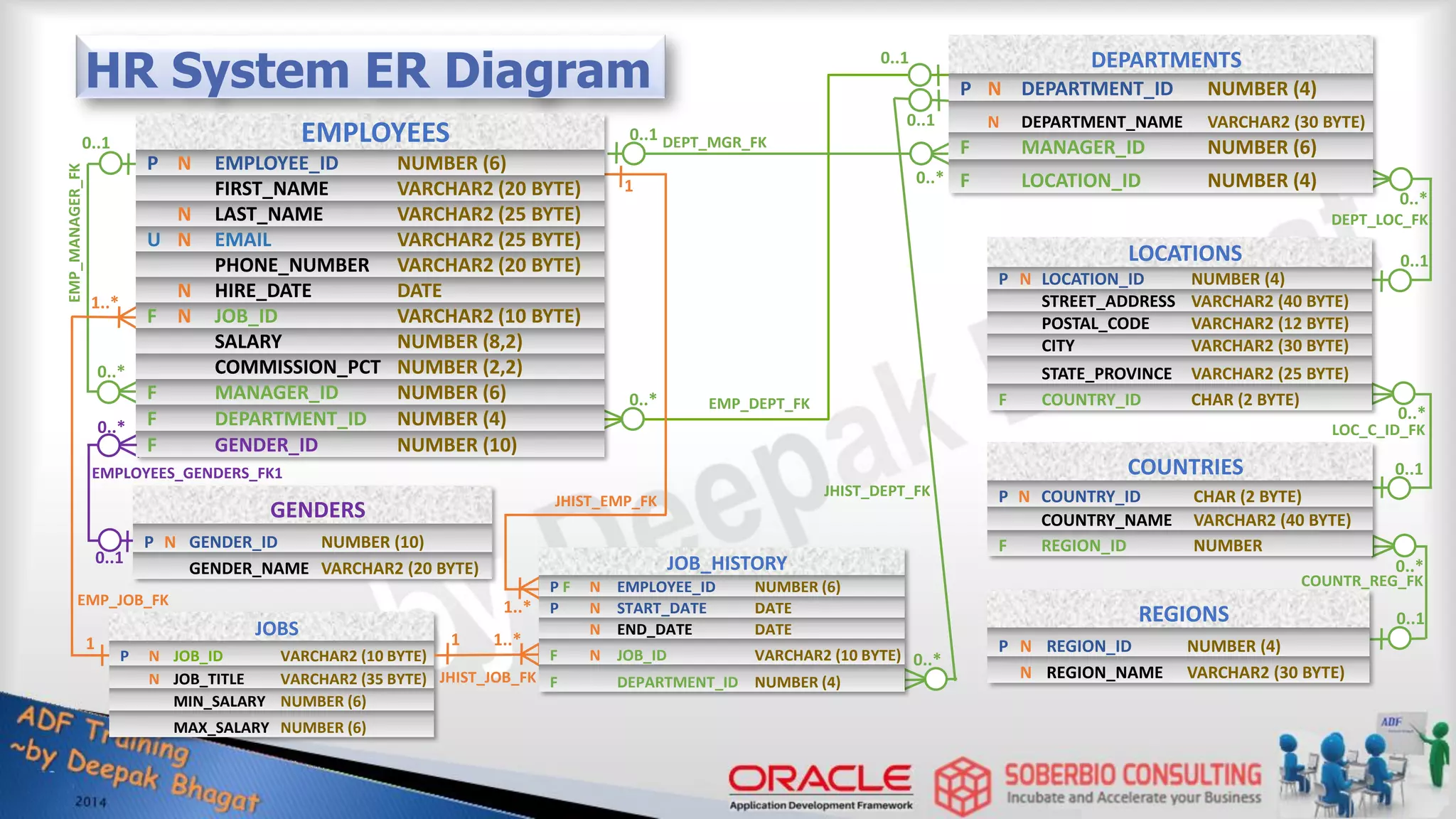

JOBS P N JOB_ID VARCHAR2 (10 BYTE) N JOB_TITLE VARCHAR2 (35 BYTE) MIN_SALARY NUMBER (6) MAX_SALARY NUMBER (6) REGIONS P N REGION_ID NUMBER (4) N REGION_NAME VARCHAR2 (30 BYTE) 0..1 0..* 1..* 0..1 0..* 0..1 0..* EMP_MANAGER_FK JHIST_JOB_FK DEPT_LOC_FK LOC_C_ID_FK COUNTR_REG_FK HR System ER Diagram COUNTRIES P N COUNTRY_ID CHAR (2 BYTE) COUNTRY_NAME VARCHAR2 (40 BYTE) F REGION_ID NUMBER 0..1 EMP_JOB_FK 1 1..* LOCATIONS P N LOCATION_ID NUMBER (4) STREET_ADDRESS VARCHAR2 (40 BYTE) POSTAL_CODE VARCHAR2 (12 BYTE) CITY VARCHAR2 (30 BYTE) STATE_PROVINCE VARCHAR2 (25 BYTE) F COUNTRY_ID CHAR (2 BYTE) 1 0..* 0..* 0..1 JHIST_DEPT_FK 0..1 0..* DEPARTMENTS P N DEPARTMENT_ID NUMBER (4) N DEPARTMENT_NAME VARCHAR2 (30 BYTE) F MANAGER_ID NUMBER (6) F LOCATION_ID NUMBER (4) DEPT_MGR_FK 0..1 0..* EMPLOYEES P N EMPLOYEE_ID NUMBER (6) FIRST_NAME VARCHAR2 (20 BYTE) N LAST_NAME VARCHAR2 (25 BYTE) U N EMAIL VARCHAR2 (25 BYTE) PHONE_NUMBER VARCHAR2 (20 BYTE) N HIRE_DATE DATE F N JOB_ID VARCHAR2 (10 BYTE) SALARY NUMBER (8,2) COMMISSION_PCT NUMBER (2,2) F MANAGER_ID NUMBER (6) F DEPARTMENT_ID NUMBER (4) F GENDER_ID NUMBER (10) EMP_DEPT_FK 1 JHIST_EMP_FK 1..* JOB_HISTORY P F N EMPLOYEE_ID NUMBER (6) P N START_DATE DATE N END_DATE DATE F N JOB_ID VARCHAR2 (10 BYTE) F DEPARTMENT_ID NUMBER (4) GENDERS P N GENDER_ID NUMBER (10) GENDER_NAME VARCHAR2 (20 BYTE) 0..1 0..* EMPLOYEES_GENDERS_FK1

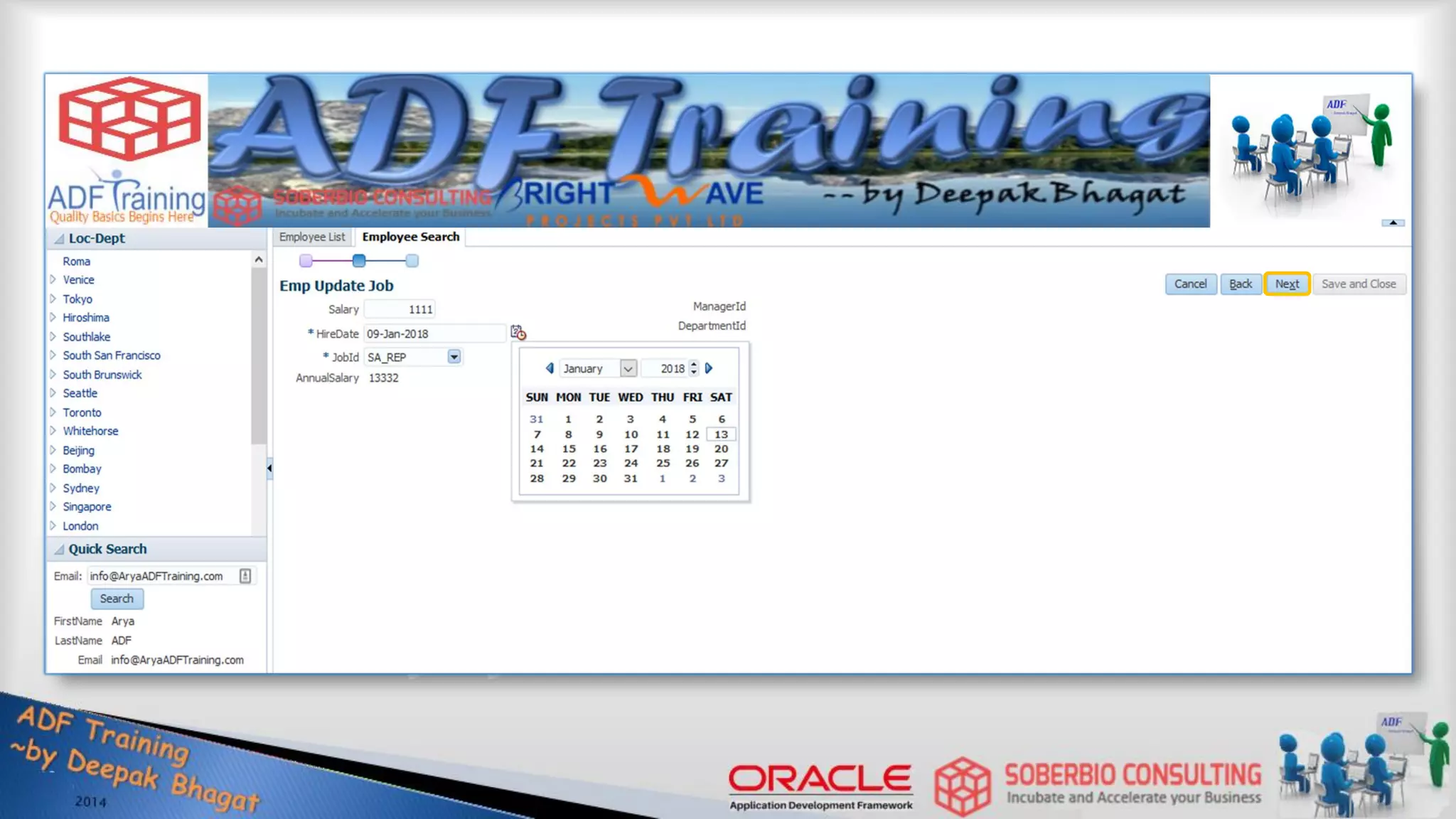

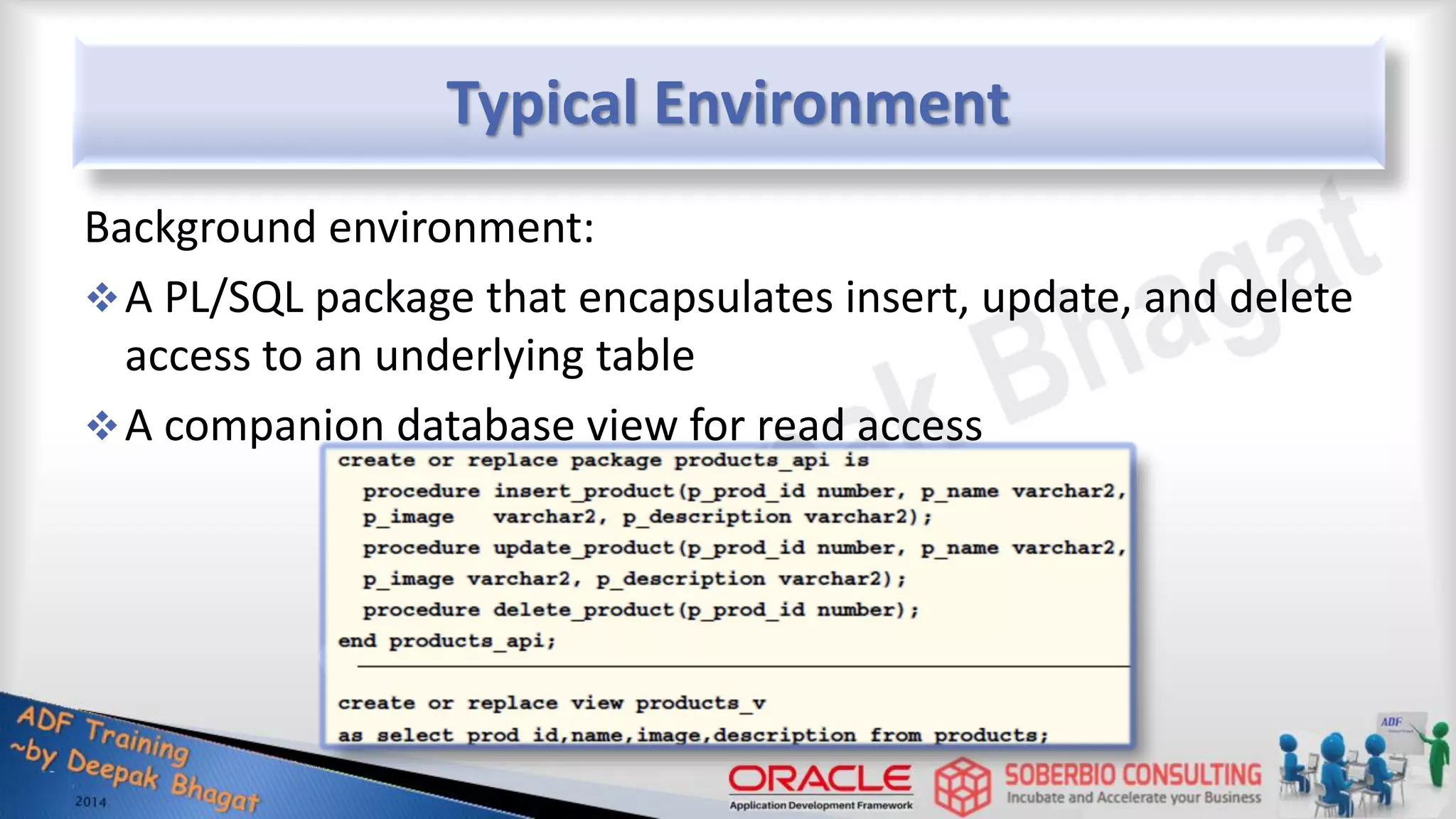

Typical Environment Background environment: A PL/SQL package that encapsulates insert, update, and delete access to an underlying table A companion database view for read access

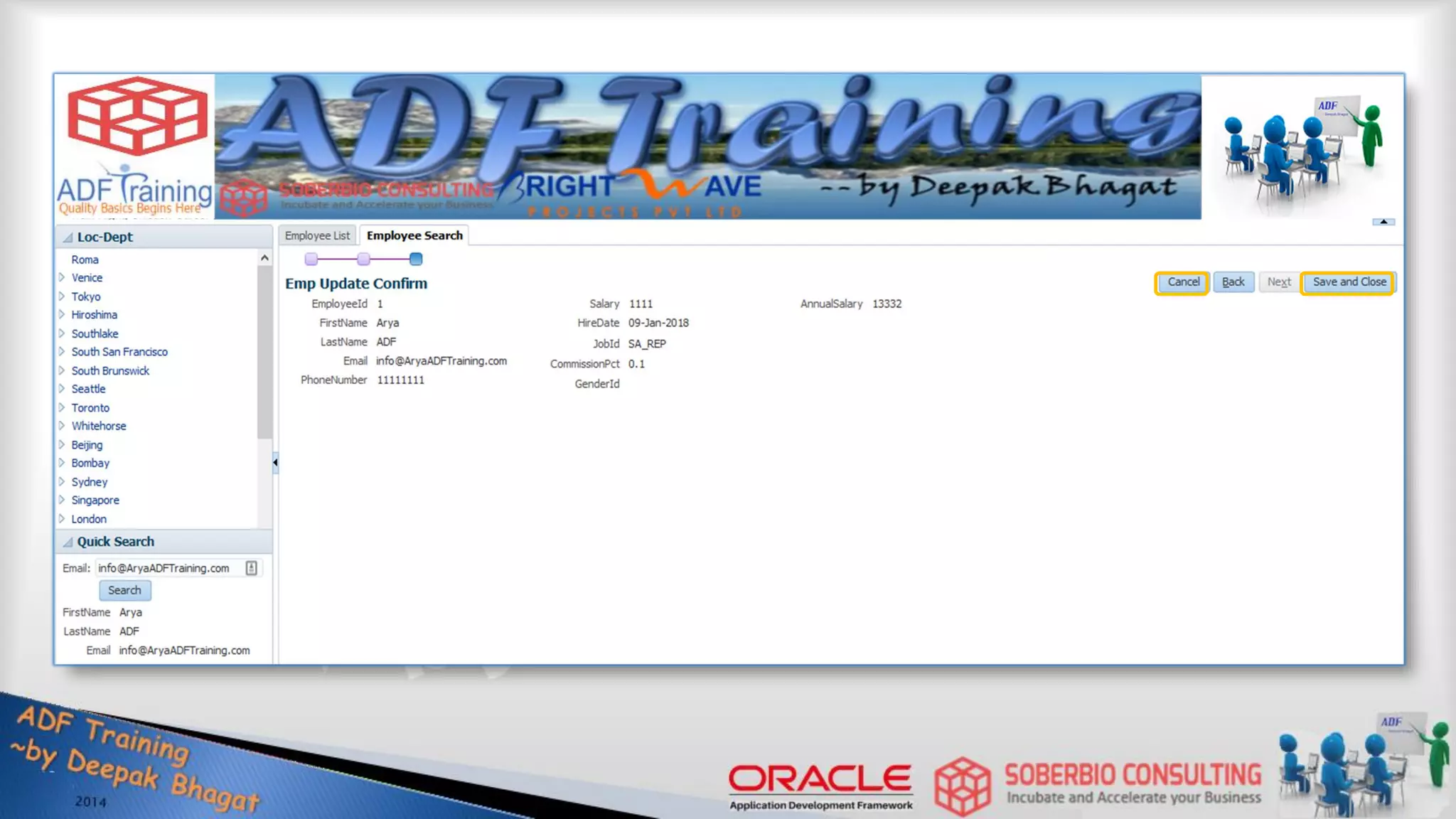

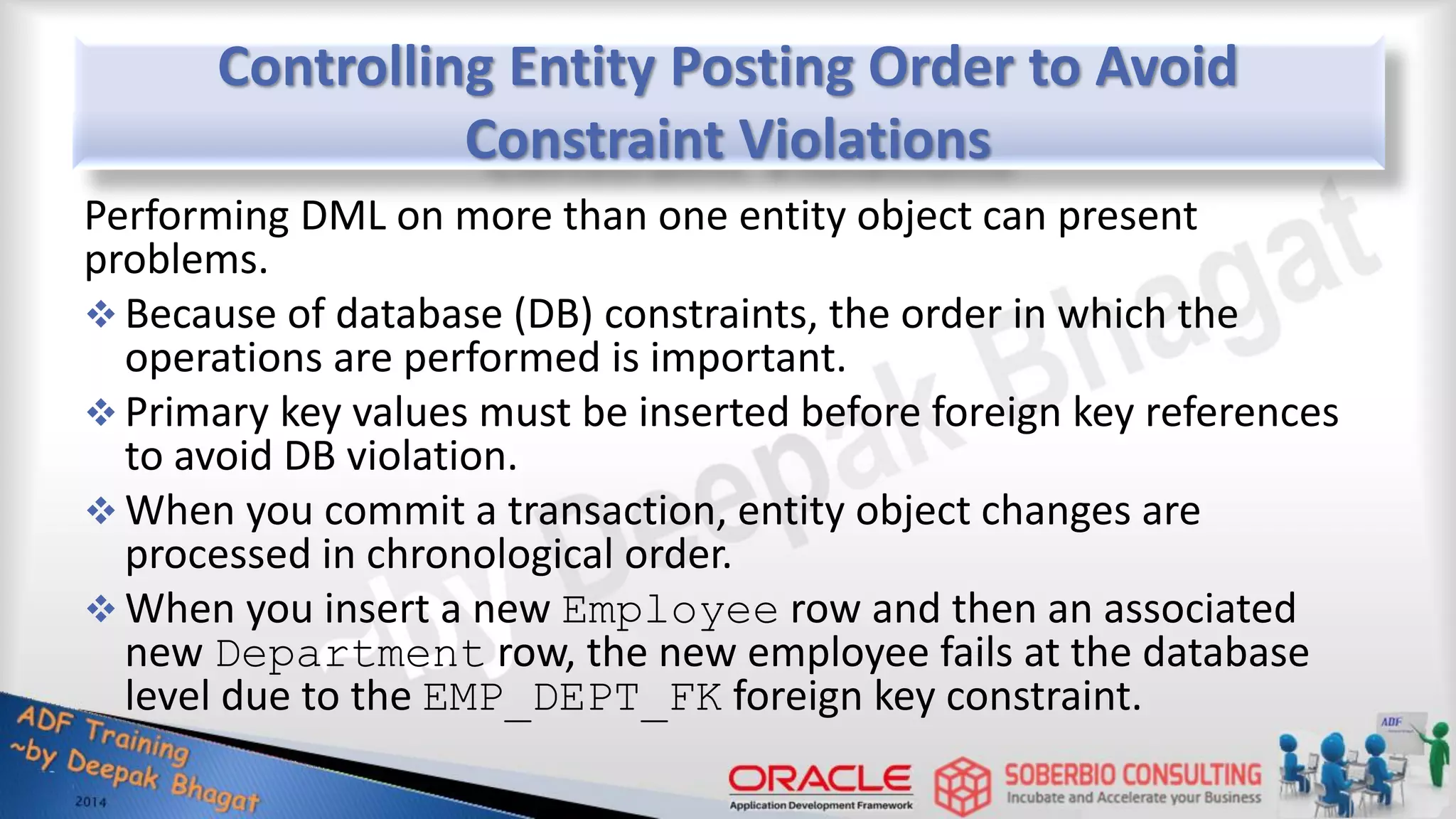

Controlling Entity Posting Order to Avoid Constraint Violations Performing DML on more than one entity object can present problems.  Because of database (DB) constraints, the order in which the operations are performed is important.  Primary key values must be inserted before foreign key references to avoid DB violation.  When you commit a transaction, entity object changes are processed in chronological order.  When you insert a new Employee row and then an associated new Department row, the new employee fails at the database level due to the EMP_DEPT_FK foreign key constraint.

Lesson Summary Exploring HR System ER Diagram Examining Training Lab Application Create an offline Database Diagram Add new offline DB Schema objects PLSQL Integration

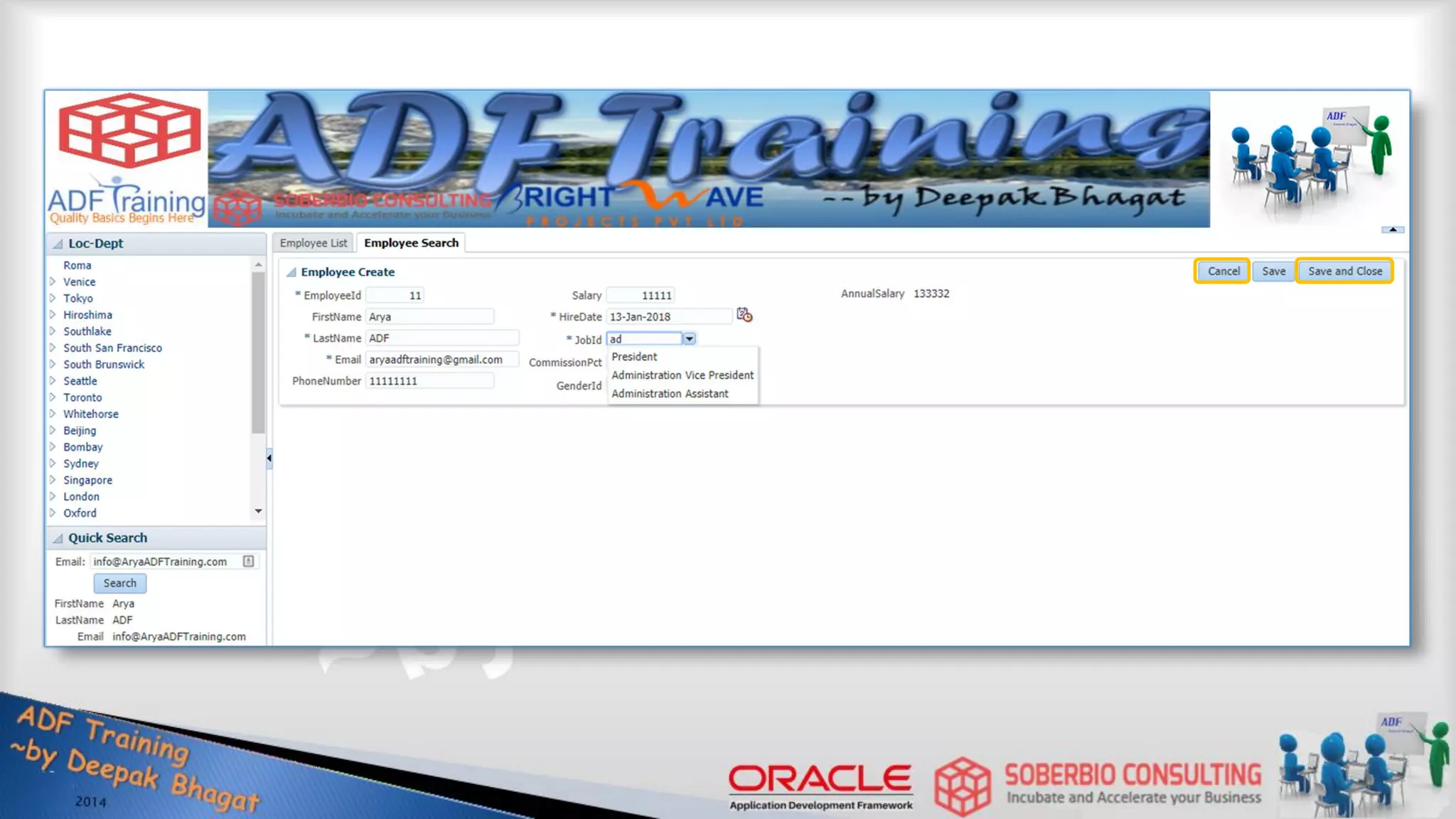

4 Building Business Service with Default ADF Business Components

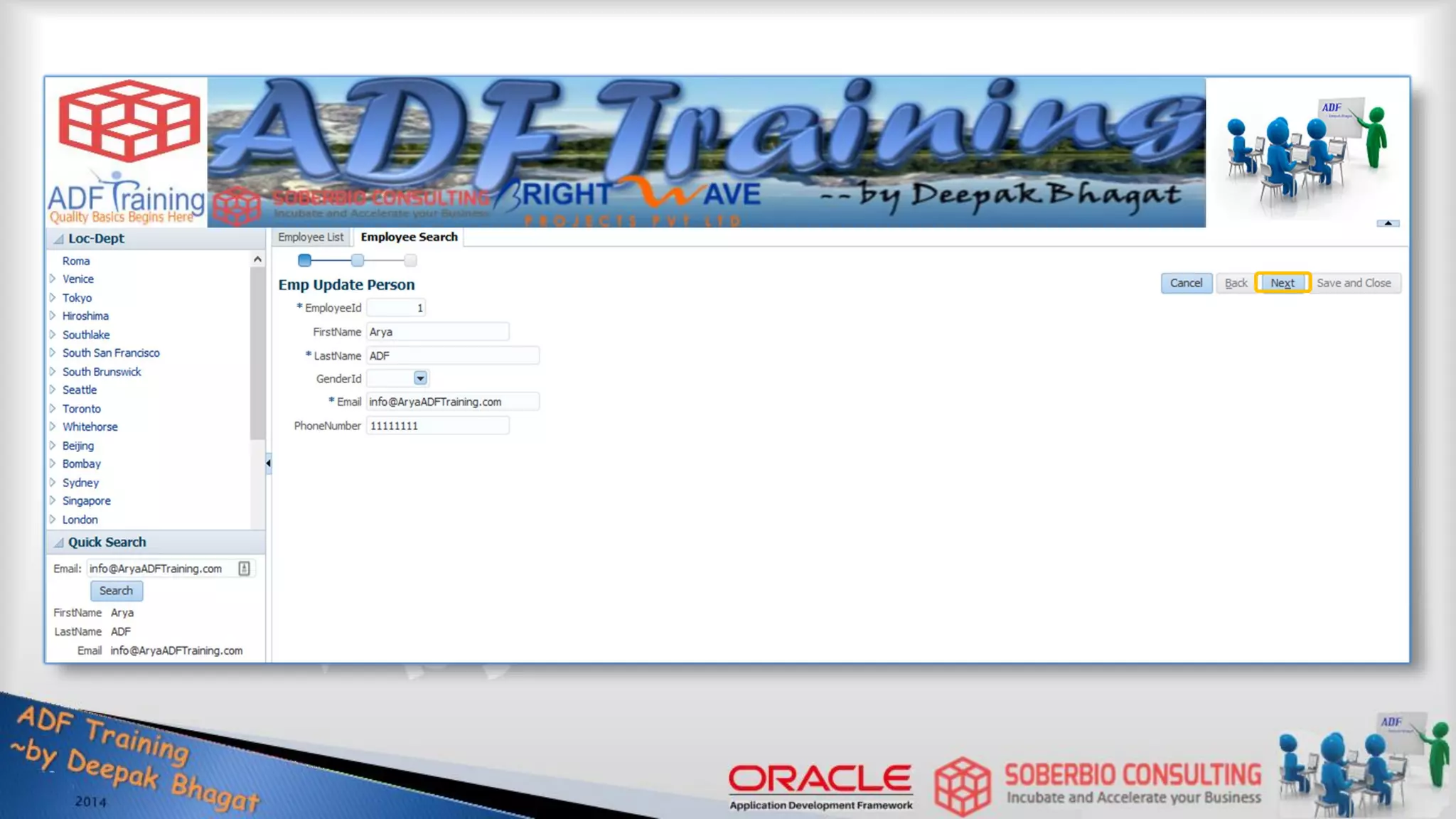

Lesson Agenda Describe tech-stack of ADF Business Components (BC) Understand types of Objects of ADF BC Functionality of ADF BC Creating and examining ADF BC Examining Configuration Files of ADF BC Test ADF BC using ADF Model Tester Overview of ADF BC Exposing ADF BC as Business Service

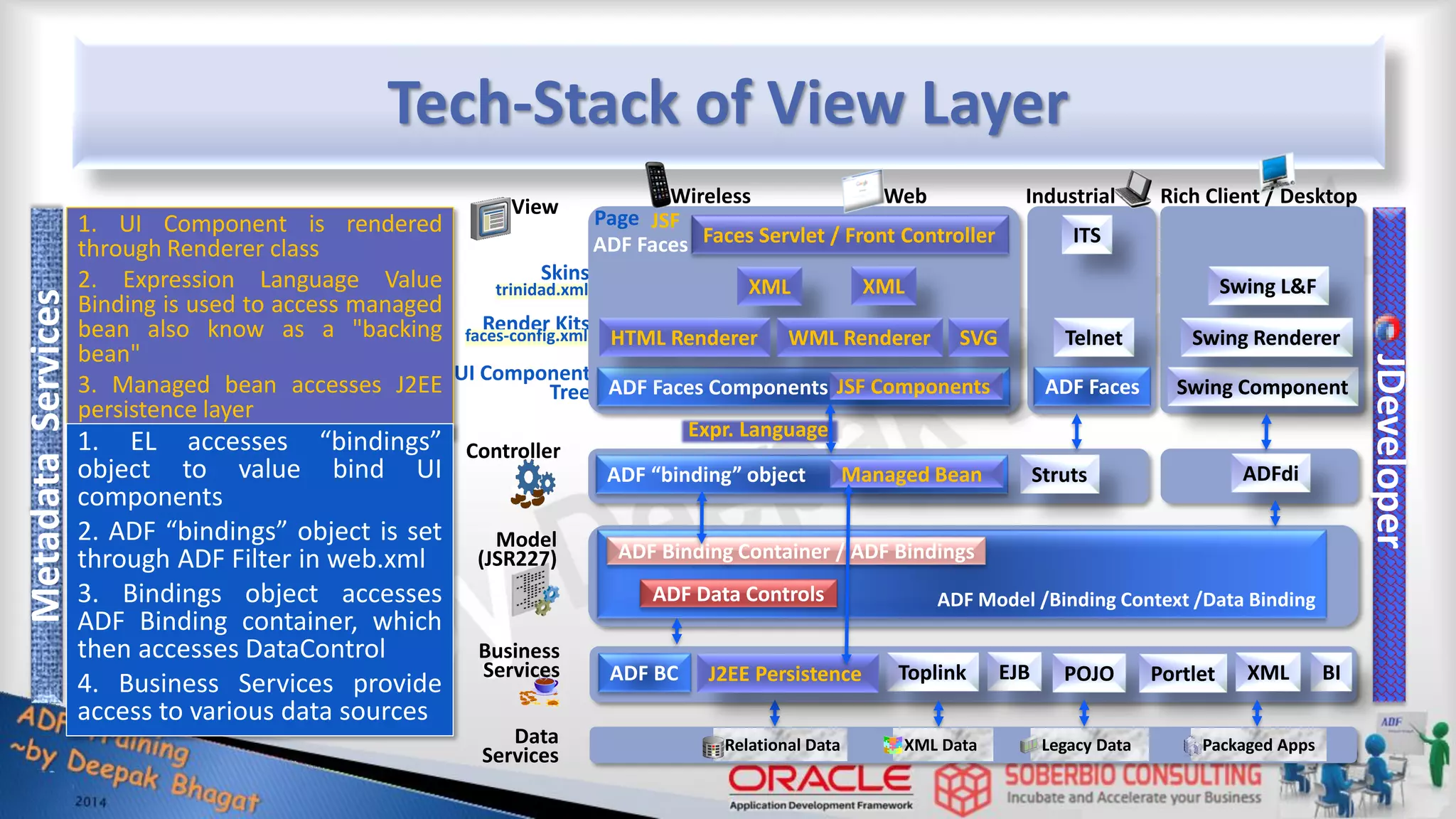

Tech-stack of ADF Metadata Services JDeveloper Model (JSR227) View Controller Business Services Relational Data XML Data Packaged Apps Legacy Data Data Services ADF Faces JSF/ADFc/Taskflow ADF Model ADF BC JSP Struts ADF Swing Swing Office ADFdi EJB Web Services POJO Toplink Hibernate Portlet BI XML Web / Wireless Rich Client / Desktop User Actions Modify View ViewController/ User Interface Project Model/ Service Project Presentation Layer v m bc BAM BPL JSF

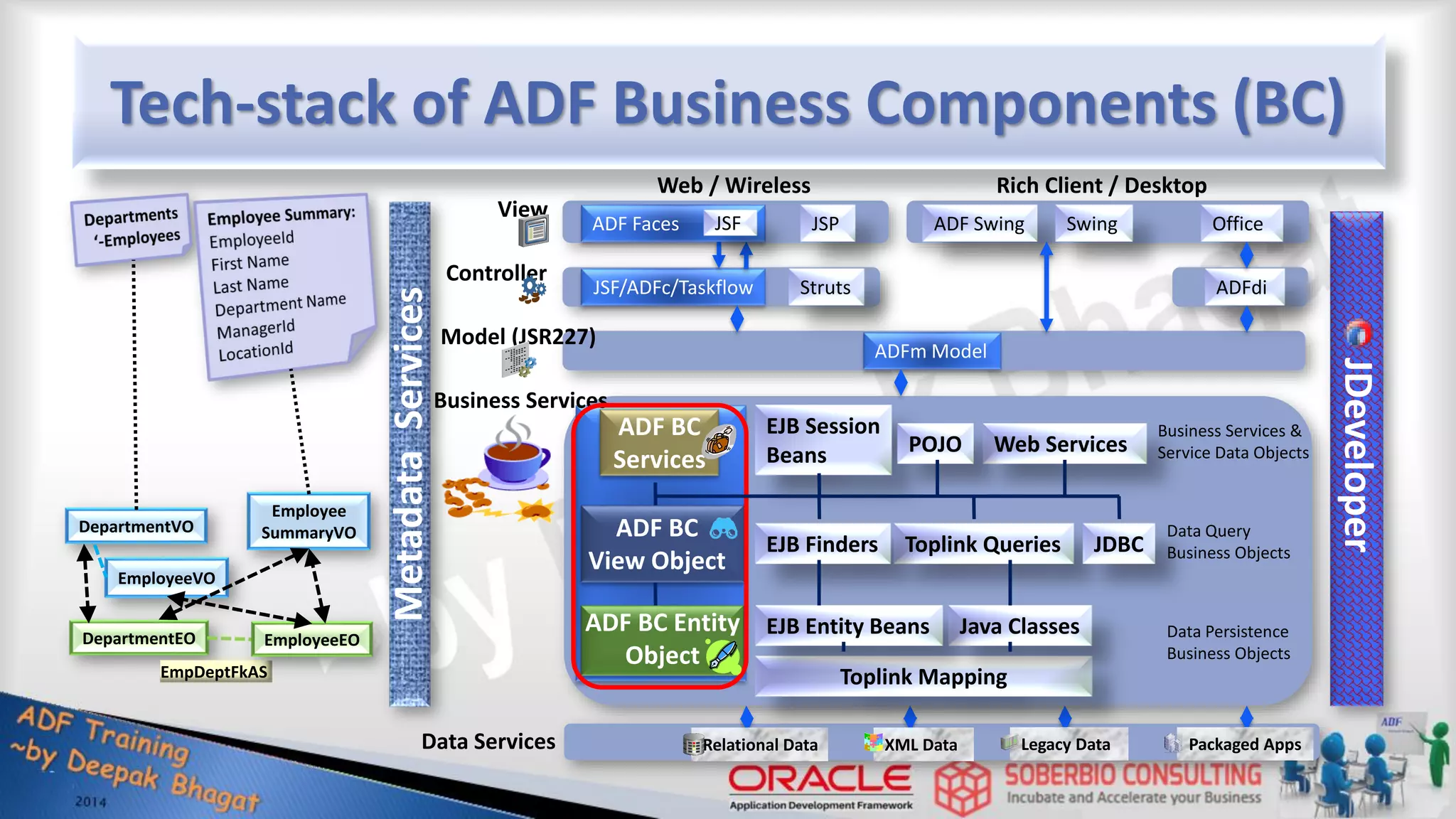

Tech-stack of ADF Business Components (BC) Model (JSR227) View Controller Business Services Data Services JSF/ADFc/Taskflow ADFm Model ADF BC Services JSP Struts ADF Swing Swing Office ADFdi EJB Session Beans Web Services POJO Toplink Queries Toplink Mapping EJB Finders Java Classes EJB Entity Beans Web / Wireless Rich Client / Desktop Relational Data XML Data Legacy Data Packaged Apps JDBC ADF BC View Object ADF BC Entity Object Business Services & Service Data Objects Data Query Business Objects Data Persistence Business Objects Metadata Services JDeveloper ADF Faces JSF DepartmentEO EmpDeptFkAS EmployeeEO DepartmentVO EmployeeVO Employee SummaryVO

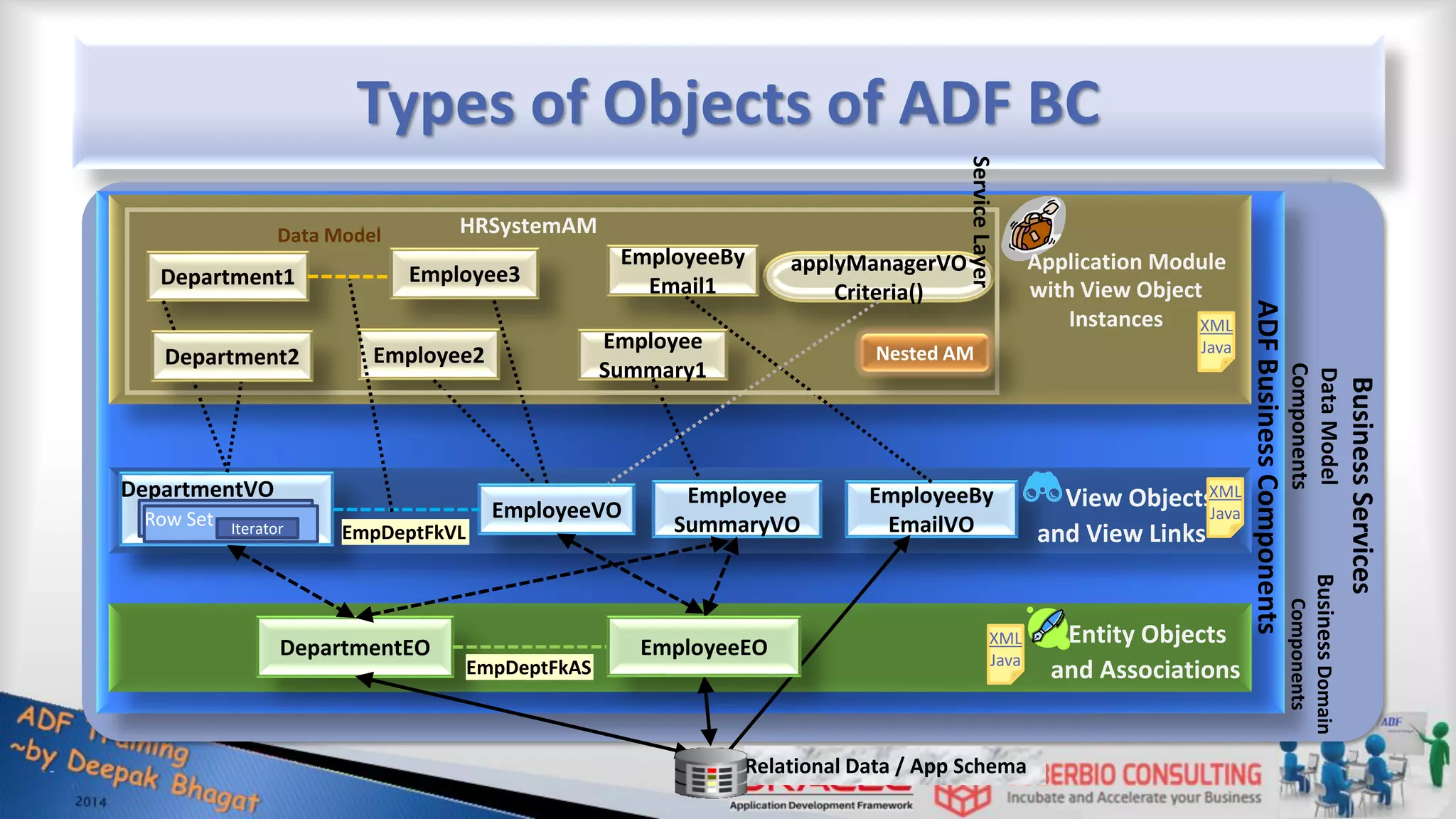

Types of Objects of ADF BC DepartmentEO DepartmentVO EmployeeVO Employee SummaryVO EmployeeBy EmailVO Department1 Employee3 Employee2 Employee Summary1 EmployeeBy Email1 applyManagerVO Criteria() Business Services Relational Data / App Schema Application Module HRSystemAM with View Object Instances EmpDeptFkAS EmpDeptFkVL View Objects and View Links Entity Objects and Associations EmployeeEO Department2 ADF Business Components Business Domain Components Data Model Components Data Model XML Java XML Java XML Java Nested AM Row Set Iterator Service Layer

Types of Objects of ADF BC cont.…  Types of Objects of ADF Business Components (BC)  Business Domain Components  Entity Object (Data Persistence Business Object)  Java  PL/SQL  Association  Data Model Components  View Object (Data Query Business Object)  Read only  Updateable  View Link  Application Module  Business Service  Service Data Object

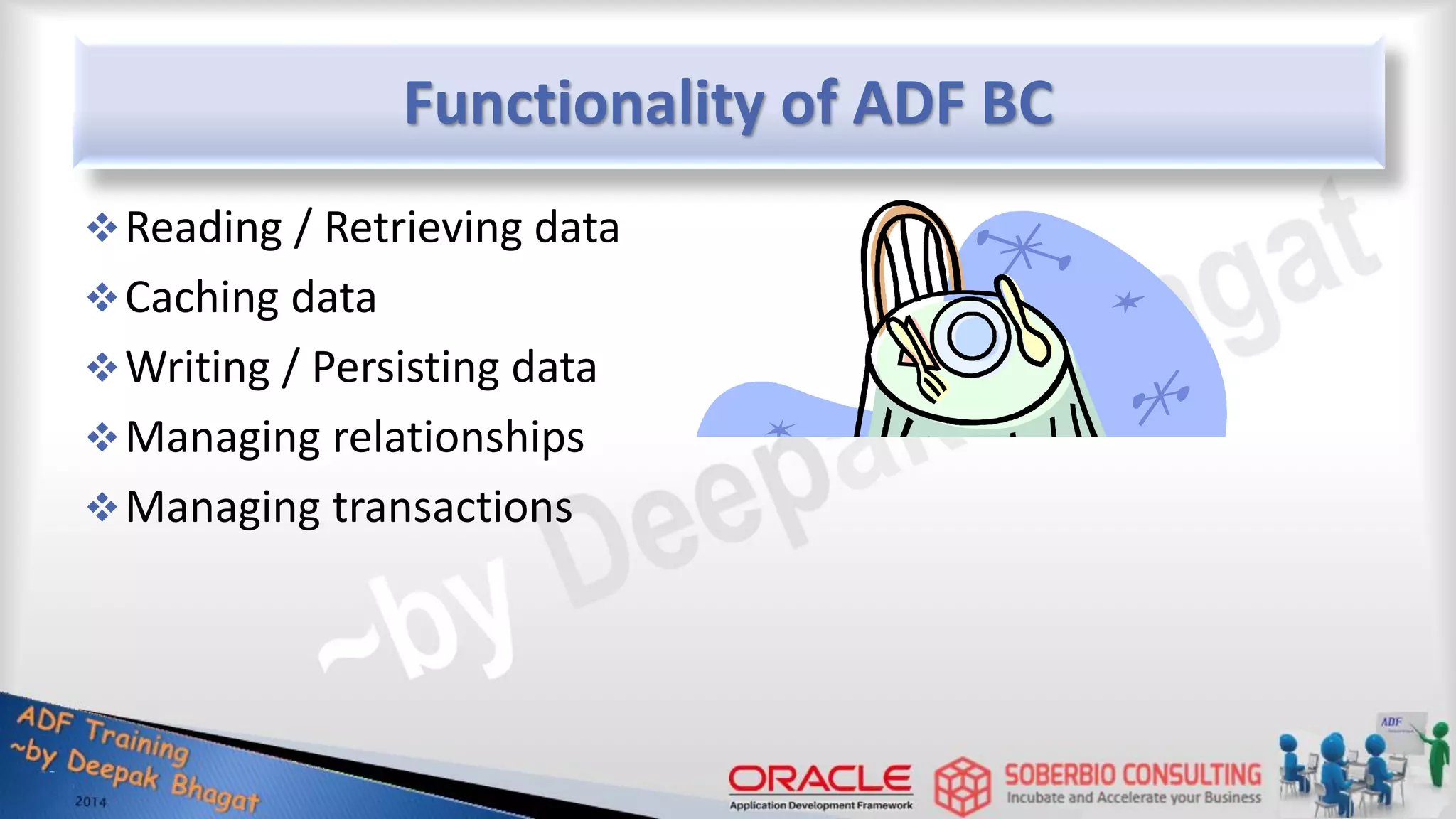

Functionality of ADF BC Reading / Retrieving data Caching data Writing / Persisting data Managing relationships Managing transactions

Building a ADF BC The basic steps to create a Business Components model are: Create a connection to a database Create an application workspace Create Entity objects based on database tables Create View objects to support a client application Create an Application module to publish data access methods Test the Business Components

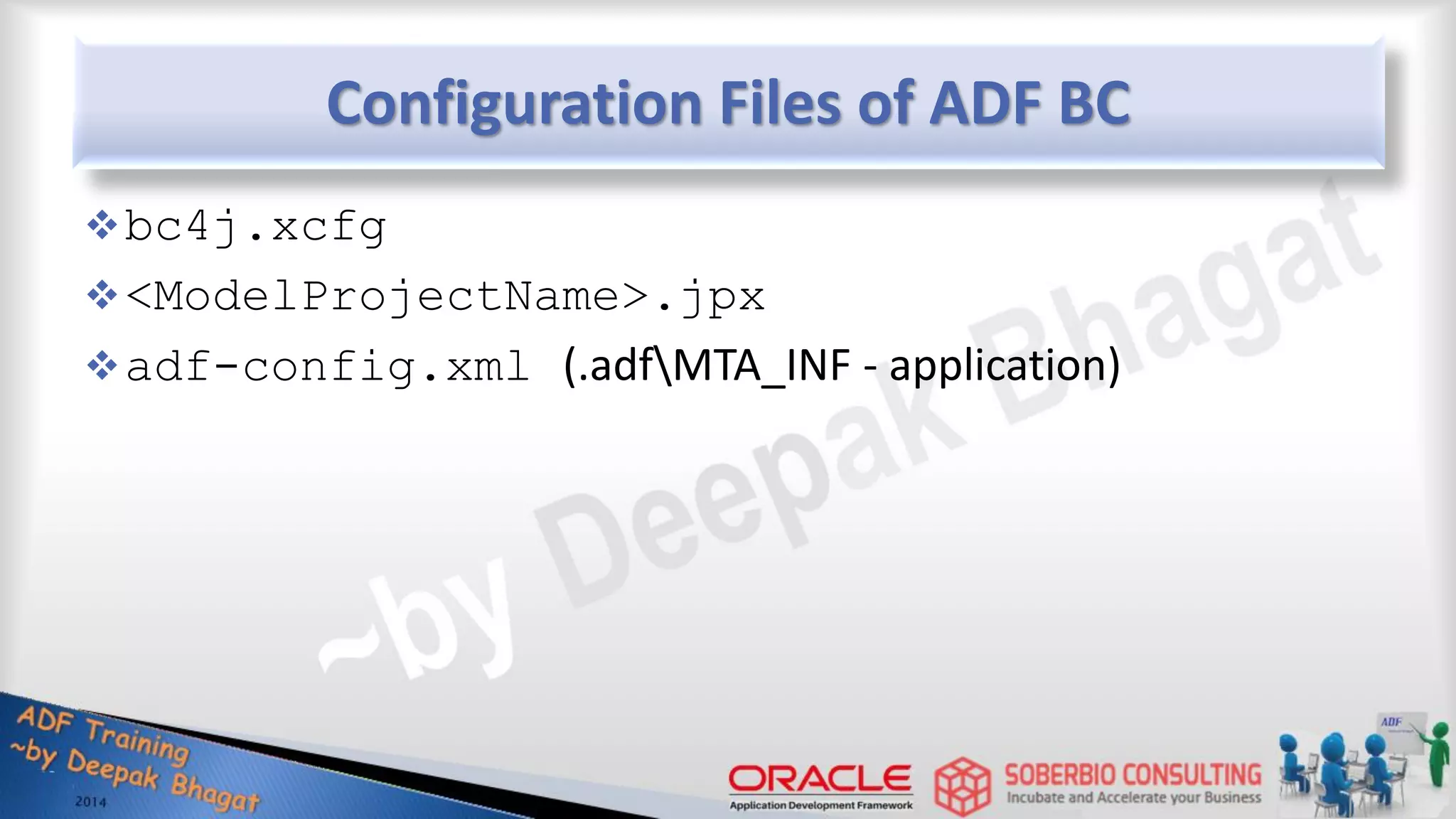

Configuration Files of ADF BC bc4j.xcfg <ModelProjectName>.jpx adf-config.xml (.adfMTA_INF - application)

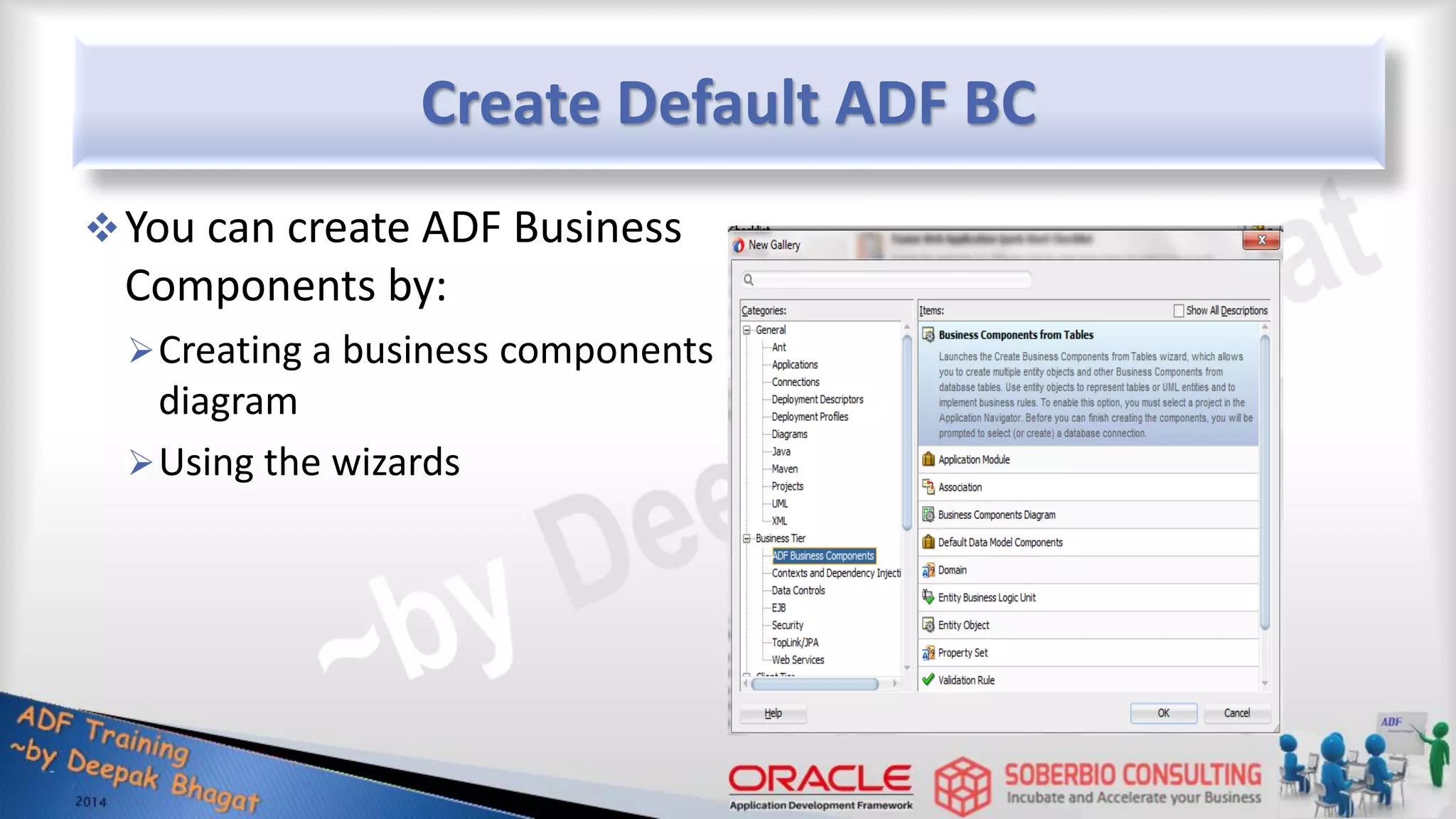

Create Default ADF BC You can create ADF Business Components by: Creating a business components diagram Using the wizards

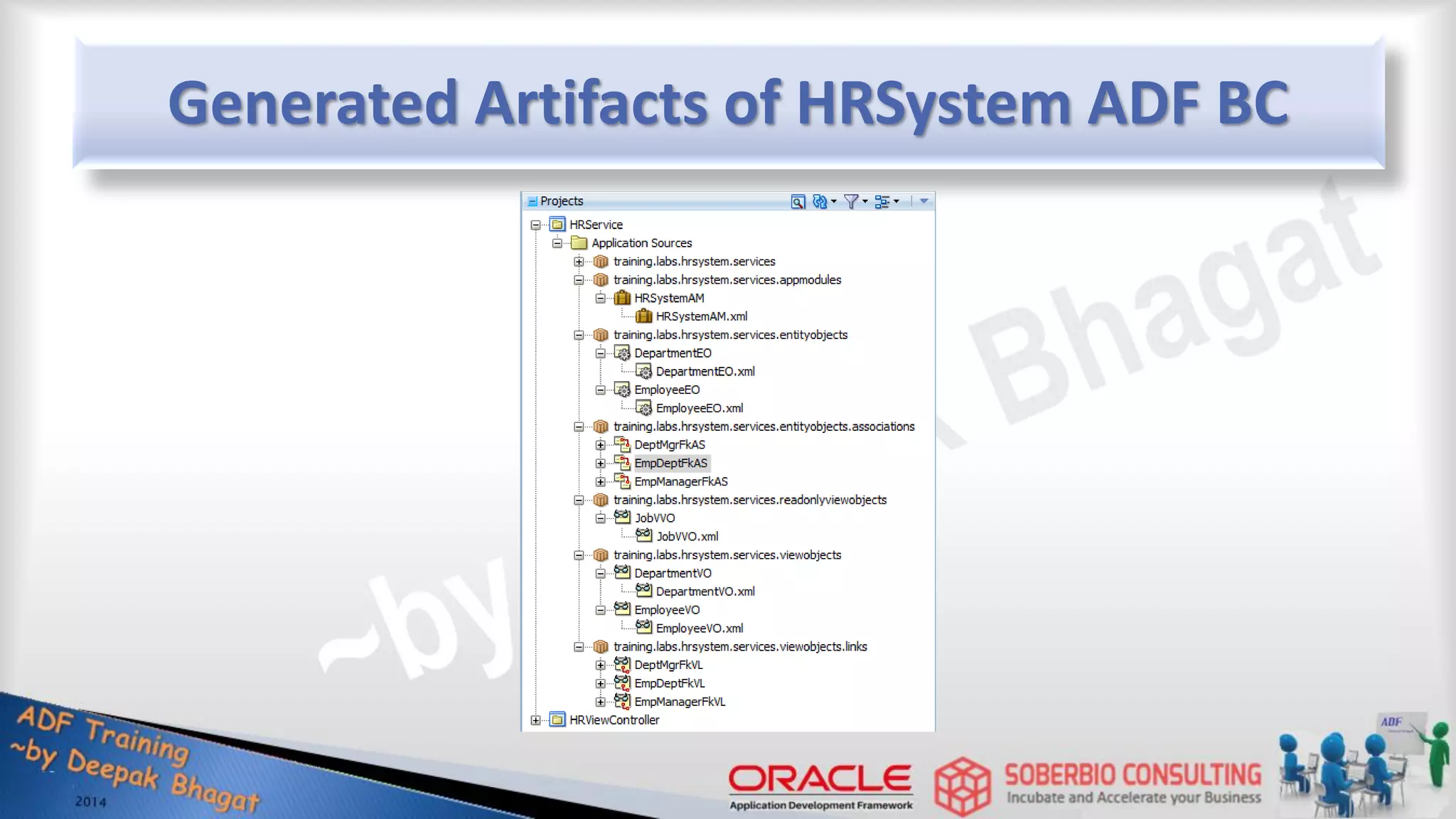

Generated Artifacts of HRSystem ADF BC

JOBS P N JOB_ID VARCHAR2 (10 BYTE) N JOB_TITLE VARCHAR2 (35 BYTE) MIN_SALARY NUMBER (6) MAX_SALARY NUMBER (6) REGIONS P N REGION_ID NUMBER (4) N REGION_NAME VARCHAR2 (30 BYTE) 0..1 0..* 1..* 0..1 0..* 0..1 0..* EMP_MANAGER_FK JHIST_JOB_FK DEPT_LOC_FK LOC_C_ID_FK COUNTR_REG_FK HR System ER Diagram COUNTRIES P N COUNTRY_ID CHAR (2 BYTE) COUNTRY_NAME VARCHAR2 (40 BYTE) F REGION_ID NUMBER 0..1 EMP_JOB_FK 1 1..* LOCATIONS P N LOCATION_ID NUMBER (4) STREET_ADDRESS VARCHAR2 (40 BYTE) POSTAL_CODE VARCHAR2 (12 BYTE) CITY VARCHAR2 (30 BYTE) STATE_PROVINCE VARCHAR2 (25 BYTE) F COUNTRY_ID CHAR (2 BYTE) 1 0..* 0..* 0..1 JHIST_DEPT_FK 0..1 0..* DEPARTMENTS P N DEPARTMENT_ID NUMBER (4) N DEPARTMENT_NAME VARCHAR2 (30 BYTE) F MANAGER_ID NUMBER (6) F LOCATION_ID NUMBER (4) DEPT_MGR_FK 0..1 0..* EMPLOYEES P N EMPLOYEE_ID NUMBER (6) FIRST_NAME VARCHAR2 (20 BYTE) N LAST_NAME VARCHAR2 (25 BYTE) U N EMAIL VARCHAR2 (25 BYTE) PHONE_NUMBER VARCHAR2 (20 BYTE) N HIRE_DATE DATE F N JOB_ID VARCHAR2 (10 BYTE) SALARY NUMBER (8,2) COMMISSION_PCT NUMBER (2,2) F MANAGER_ID NUMBER (6) F DEPARTMENT_ID NUMBER (4) EMP_DEPT_FK 1 JHIST_EMP_FK 1..* JOB_HISTORY P F N EMPLOYEE_ID NUMBER (6) P N START_DATE DATE N END_DATE DATE F N JOB_ID VARCHAR2 (10 BYTE) F DEPARTMENT_ID NUMBER (4)

Diagram of HRSystem Business Service

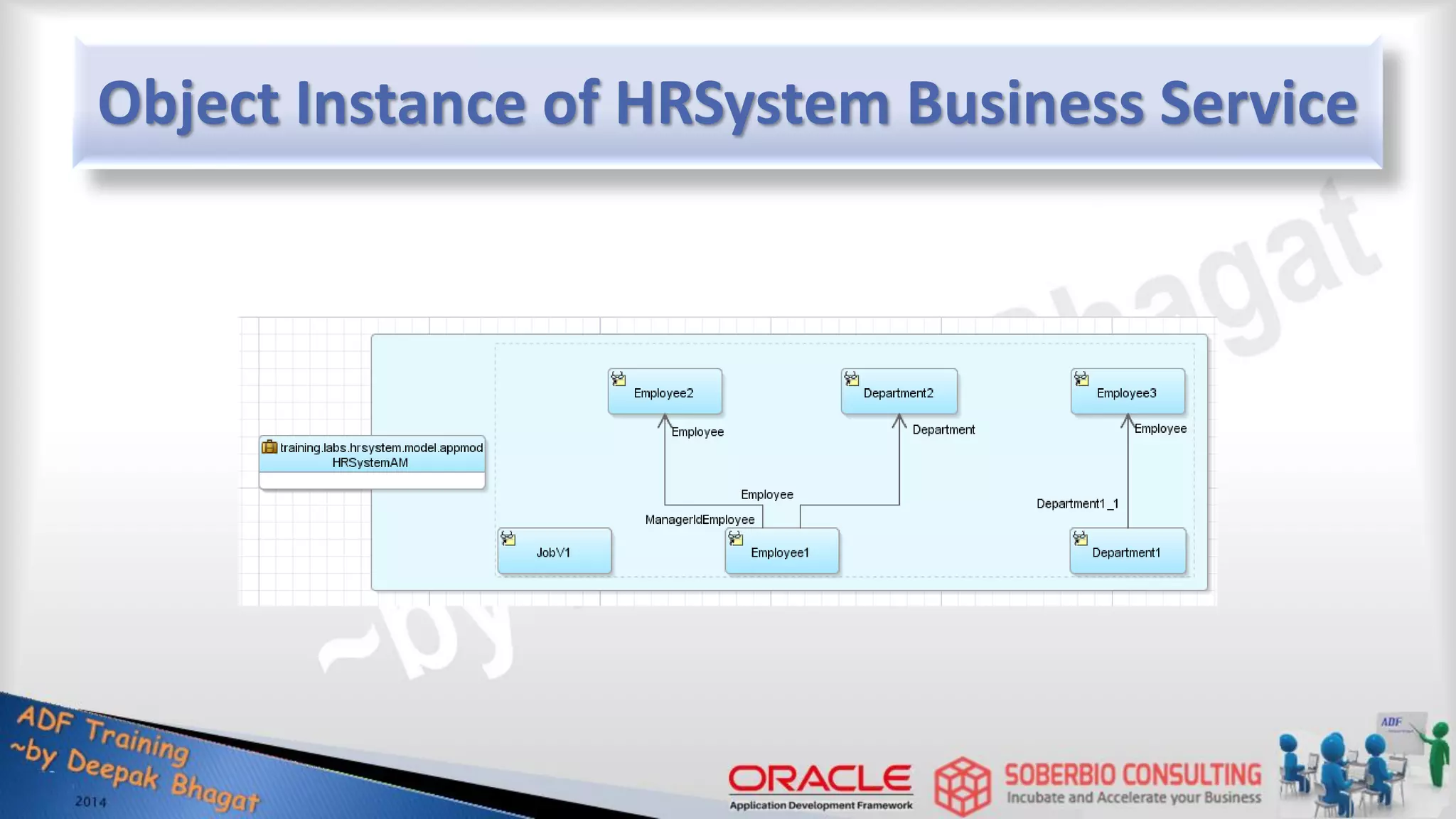

Object Instance of HRSystem Business Service

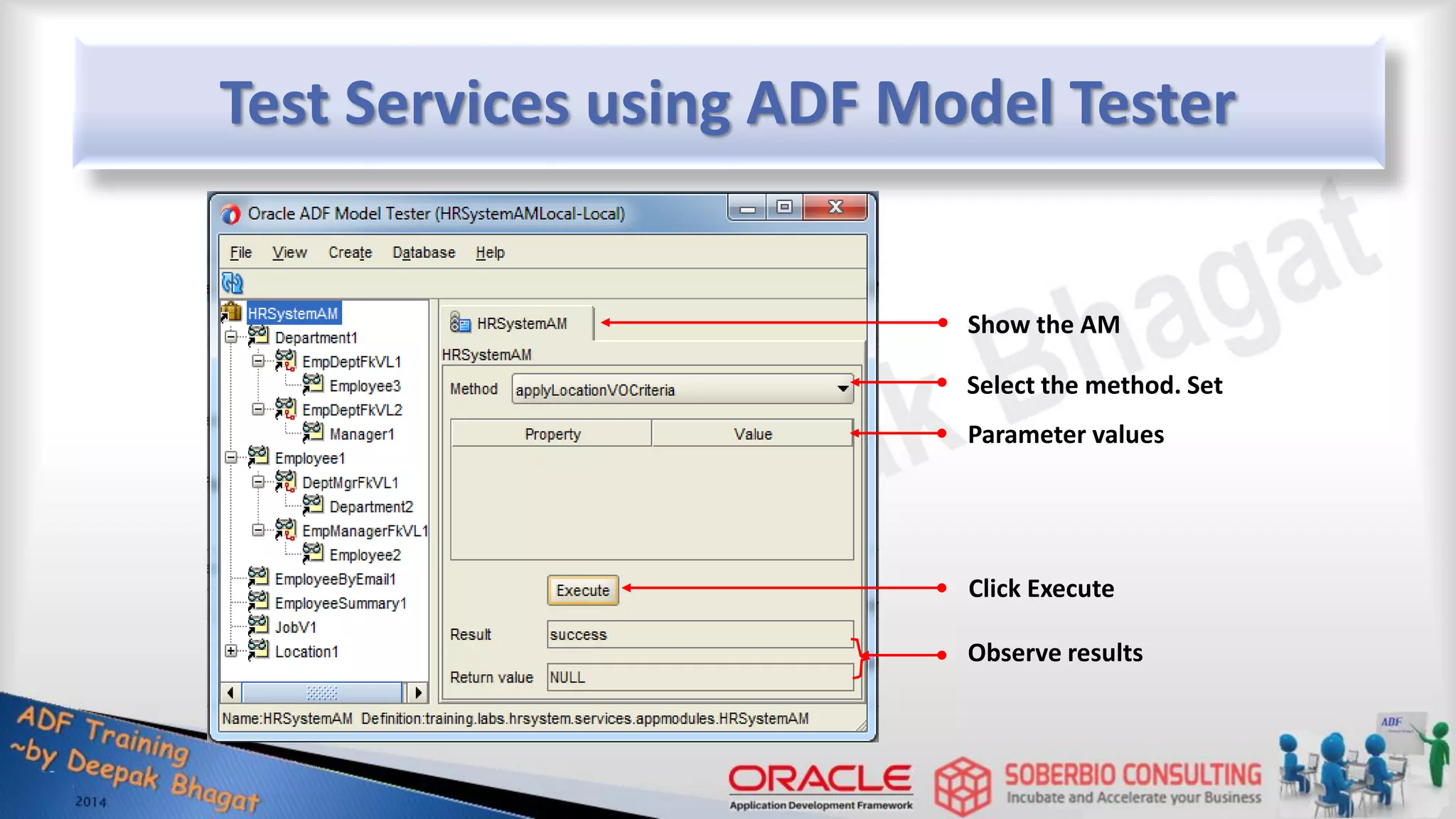

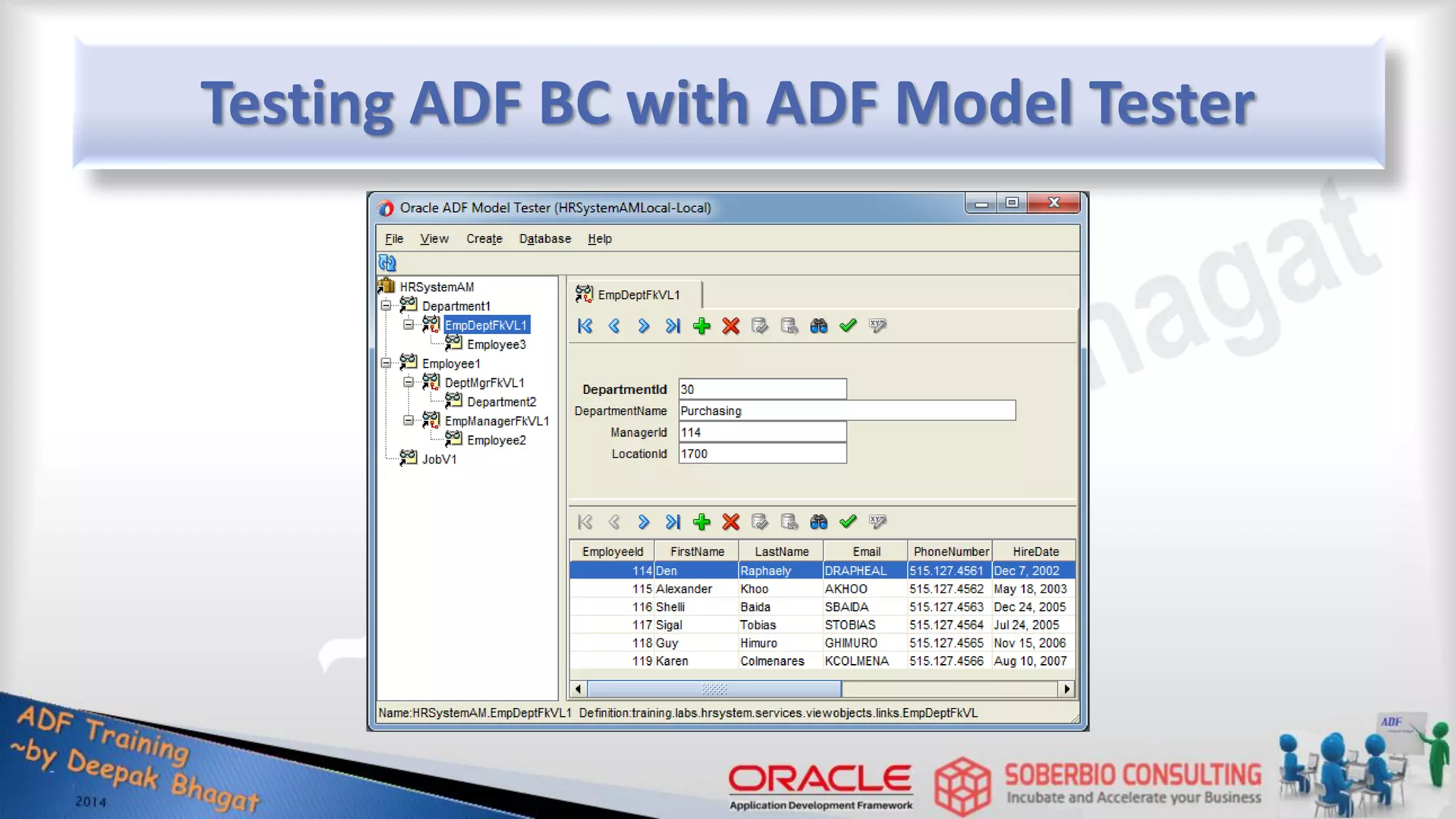

Testing ADF BC with ADF Model Tester

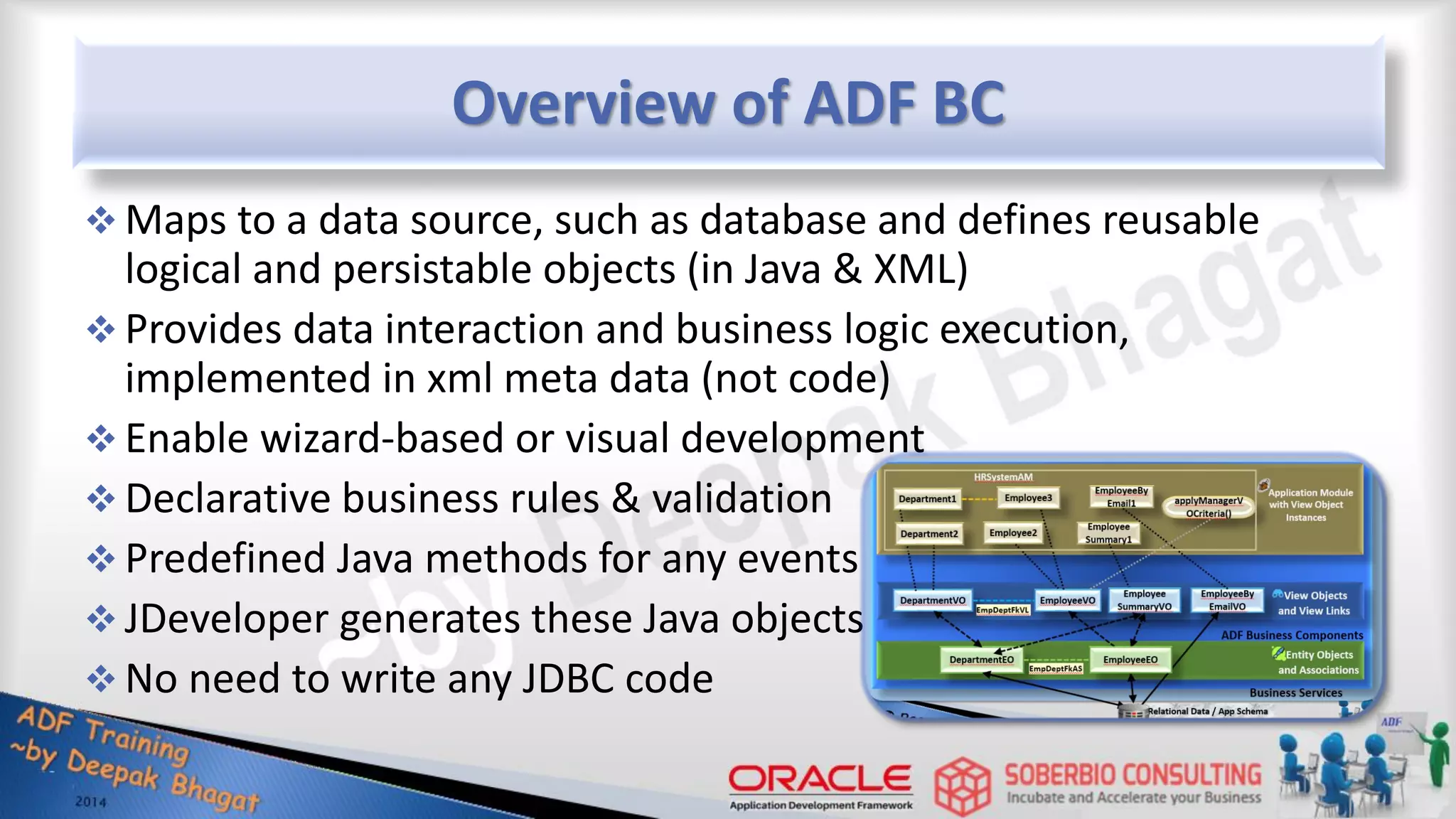

Overview of ADF BC  Maps to a data source, such as database and defines reusable logical and persistable objects (in Java & XML)  Provides data interaction and business logic execution, implemented in xml meta data (not code)  Enable wizard-based or visual development  Declarative business rules & validation  Predefined Java methods for any events  JDeveloper generates these Java objects  No need to write any JDBC code

Bridging the Gap by ADF BC SQL Tables, rows Primary keys Foreign keys Transactions GB, TB •Java •Classes, instances •Memory references •Associations & Links •Shared heap •100s of MB

Order of Execution of ADF BC DB Entity Object View Object Application Module Order of execution DB

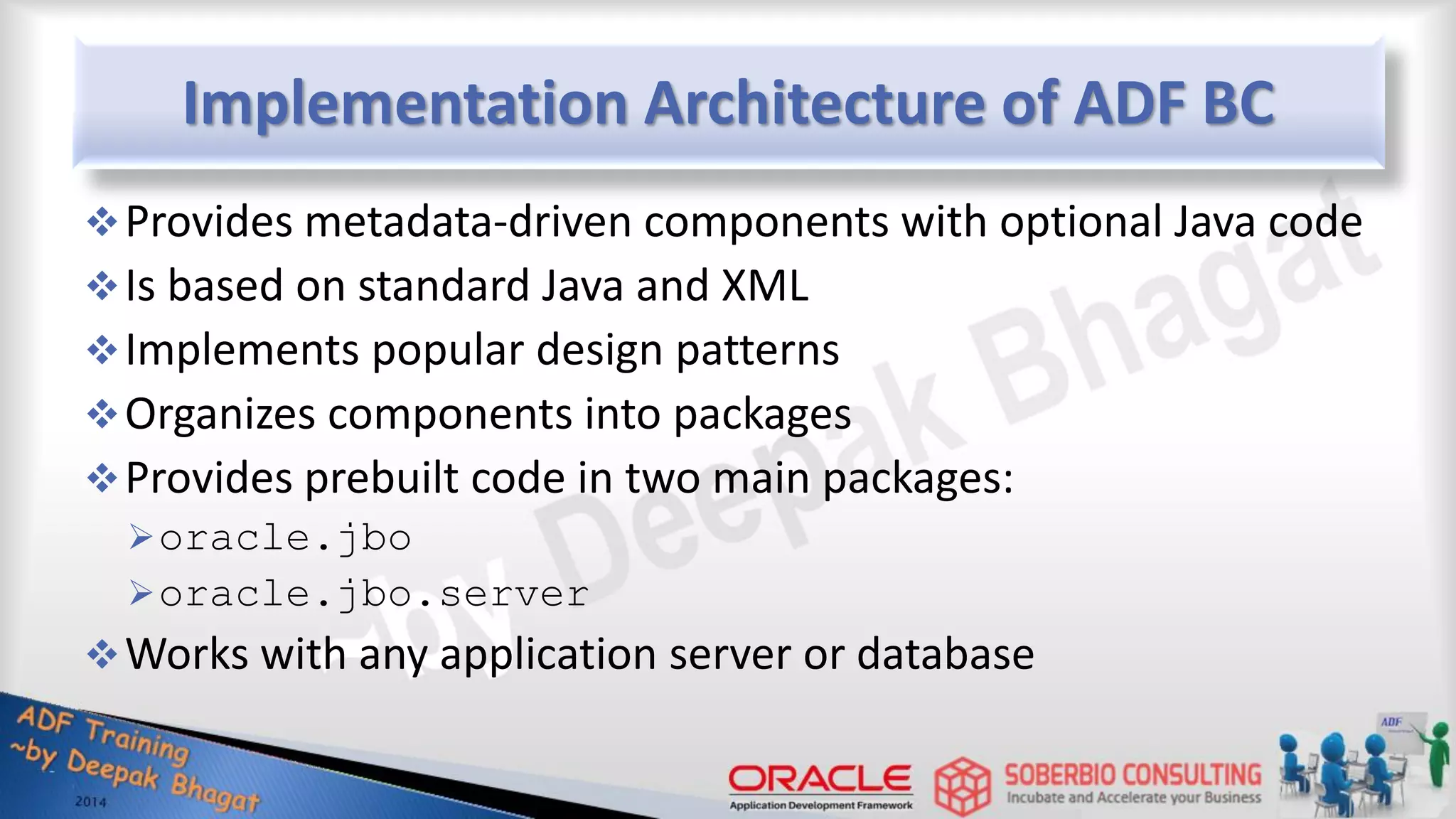

Implementation Architecture of ADF BC Provides metadata-driven components with optional Java code Is based on standard Java and XML Implements popular design patterns Organizes components into packages Provides prebuilt code in two main packages: oracle.jbo oracle.jbo.server Works with any application server or database

Exposing Business Service ADF Business Service: Abstracts service implementation from clients: ADF BC, EJB, Web services, TopLink, Java classes ADF Faces, JSP, mobile Provides declarative data binding: Implements JSR 227 Uses Expression Language (EL) Separates view from business service Creates data control from application module

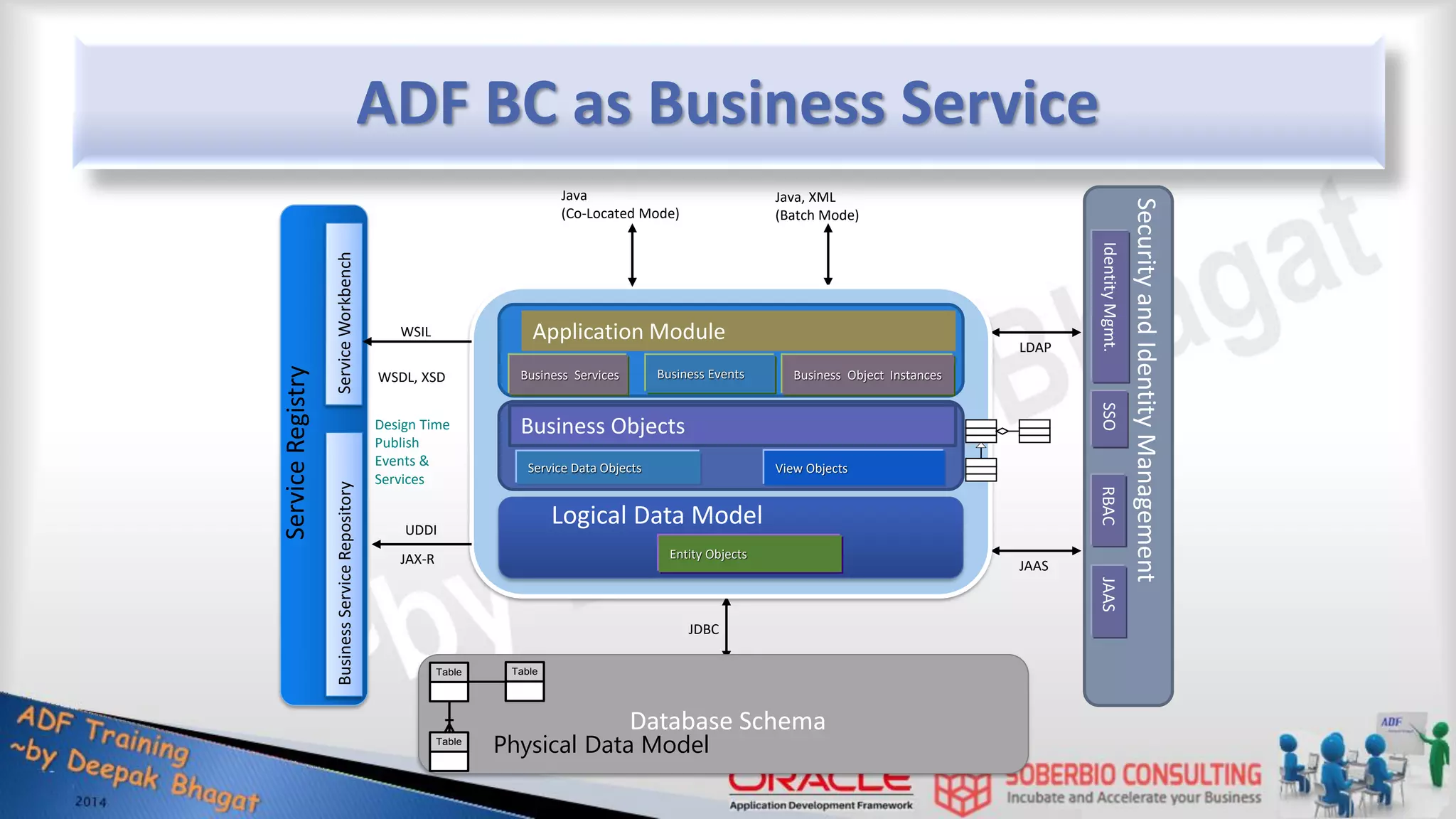

ADF BC as Business Service Java (Co-Located Mode) UDDI LDAP JAAS JDBC JAX-R Database Schema Business Objects Application Module Logical Data Model Entity Objects Business Object Instances View Objects Security and Identity Management Identity Mgmt. JAAS Business Service Repository WSIL WSDL, XSD Design Time Publish Events & Services Business Events Java, XML (Batch Mode) SSO RBAC Table Table Table Physical Data Model Business Services Service Data Objects

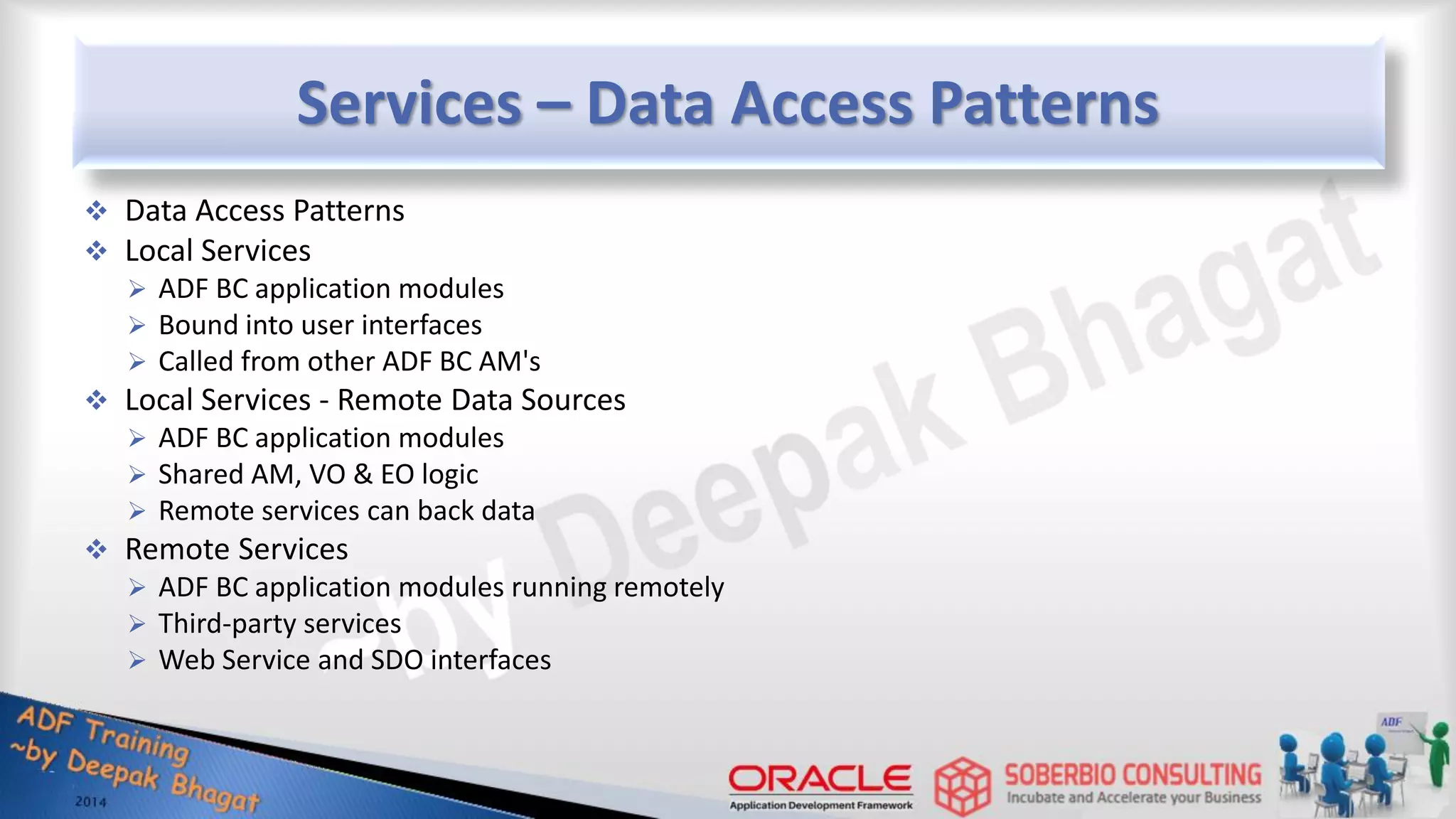

Services – Data Access Patterns  Data Access Patterns  Local Services  ADF BC application modules  Bound into user interfaces  Called from other ADF BC AM's  Local Services - Remote Data Sources  ADF BC application modules  Shared AM, VO & EO logic  Remote services can back data  Remote Services  ADF BC application modules running remotely  Third-party services  Web Service and SDO interfaces

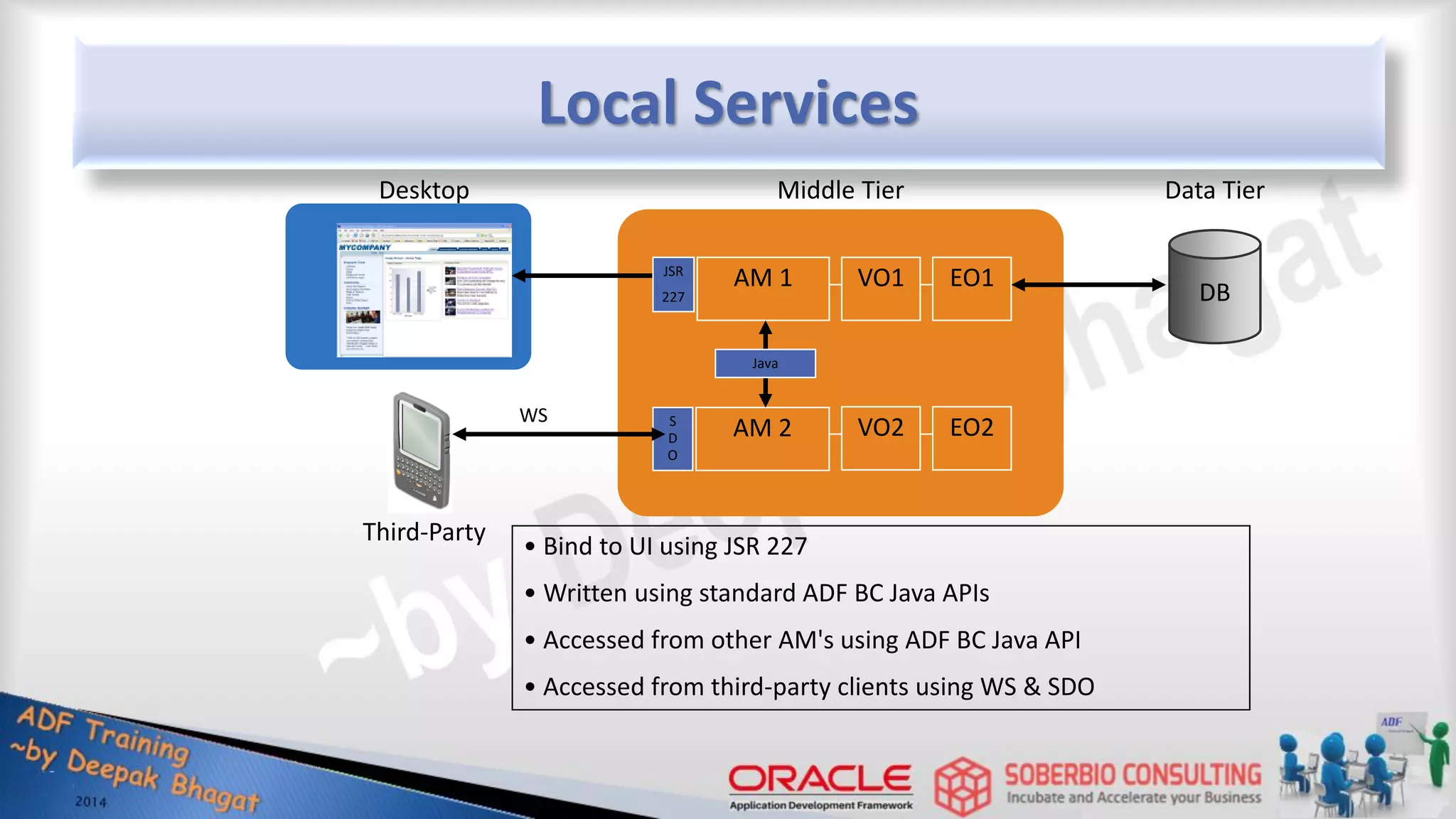

Local Services Desktop AM 1 JSR 227 AM 2 DB Middle Tier VO1 EO1 Java • Bind to UI using JSR 227 • Written using standard ADF BC Java APIs • Accessed from other AM's using ADF BC Java API • Accessed from third-party clients using WS & SDO Data Tier VO2 EO2 S D O Third-Party WS

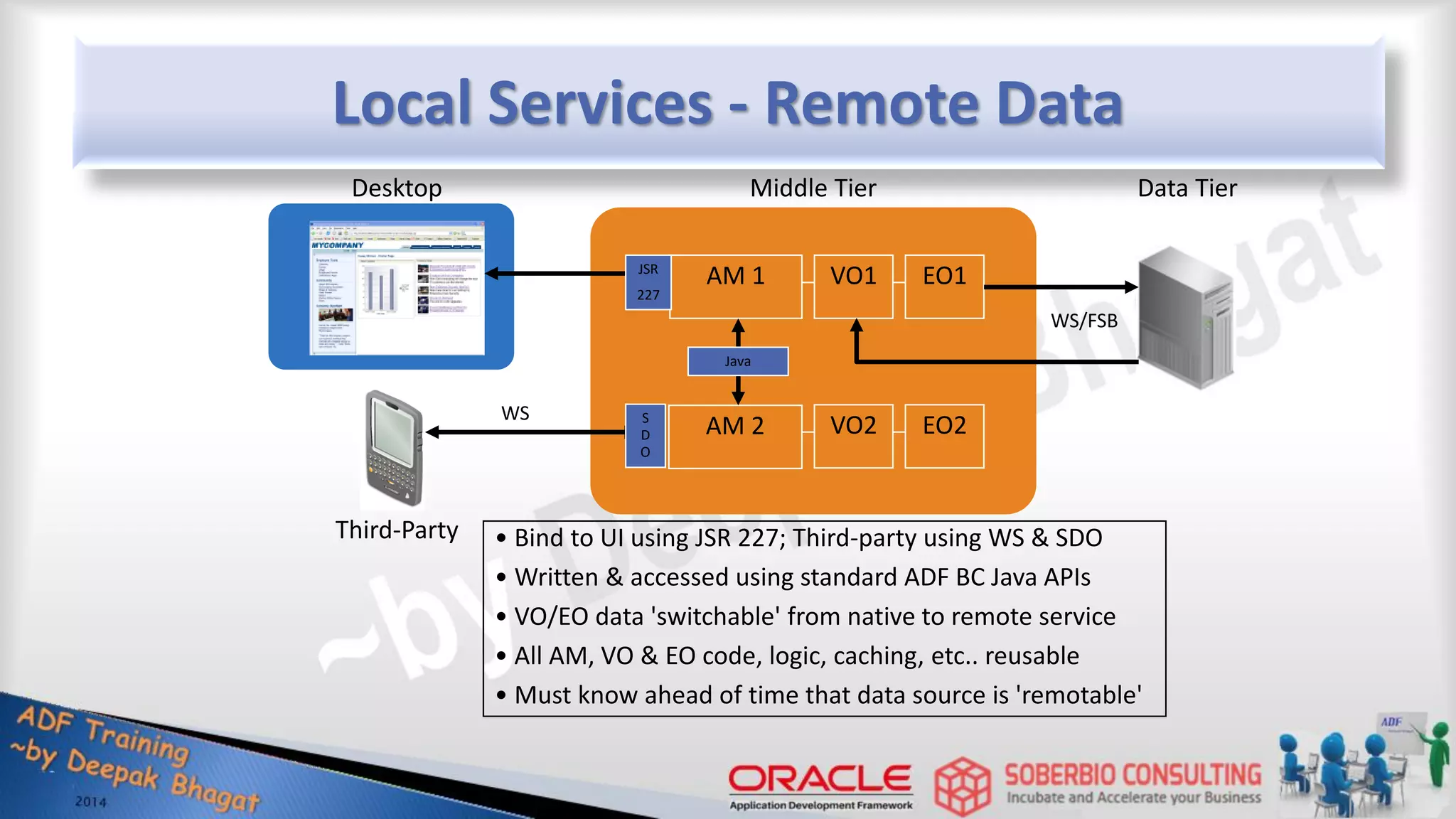

Local Services - Remote Data Desktop AM 1 AM 2 Middle Tier VO1 EO1 Java • Bind to UI using JSR 227; Third-party using WS & SDO • Written & accessed using standard ADF BC Java APIs • VO/EO data 'switchable' from native to remote service • All AM, VO & EO code, logic, caching, etc.. reusable • Must know ahead of time that data source is 'remotable' VO2 EO2 Third-Party Data Tier WS/FSB WS JSR 227 S D O

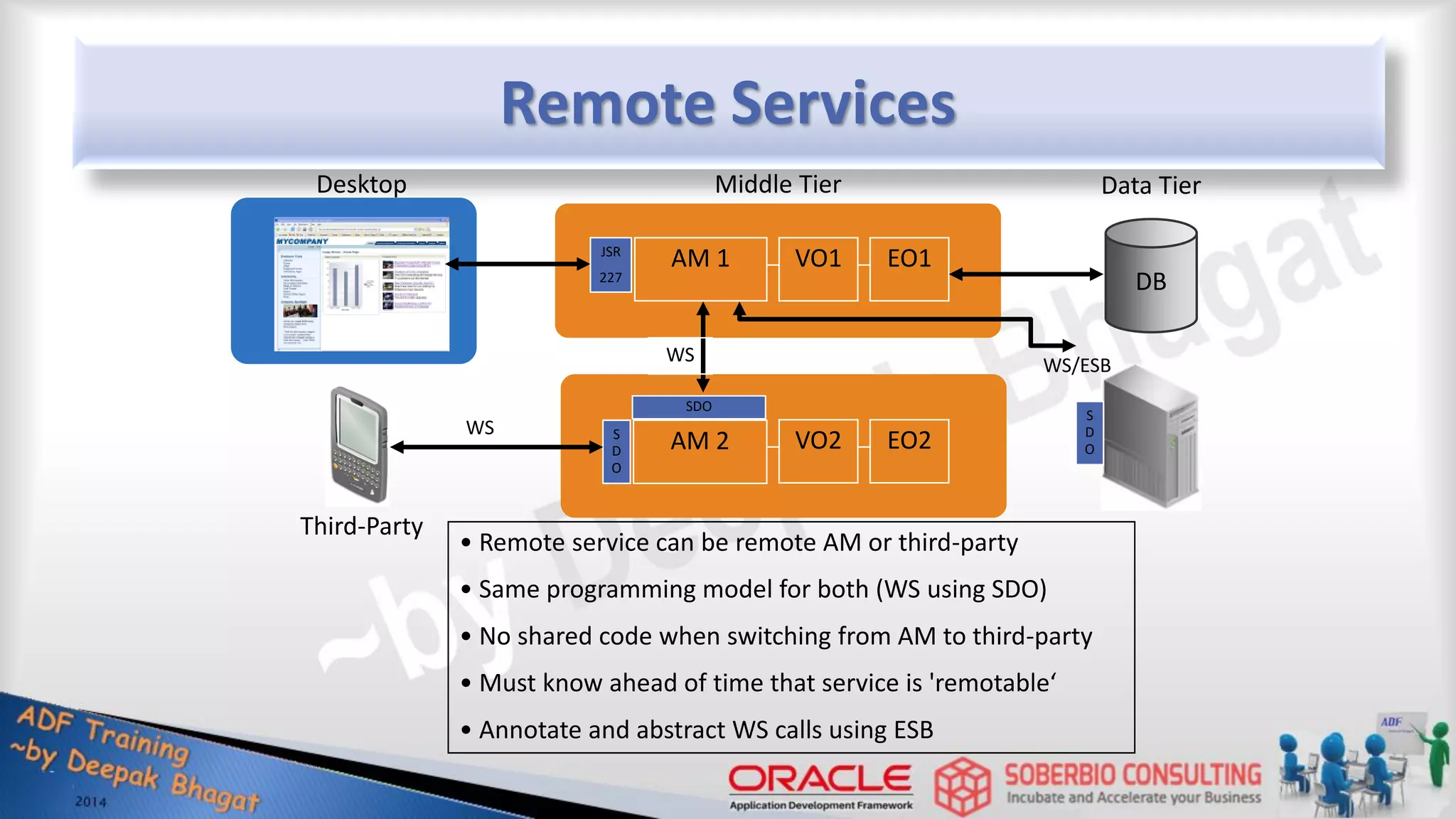

Remote Services Desktop AM 1 JSR 227 AM 2 Middle Tier VO1 EO1 • Remote service can be remote AM or third-party • Same programming model for both (WS using SDO) • No shared code when switching from AM to third-party • Must know ahead of time that service is 'remotable‘ • Annotate and abstract WS calls using ESB VO2 EO2 S D O Third-Party DB Data Tier SDO S D O WS/ESB WS WS

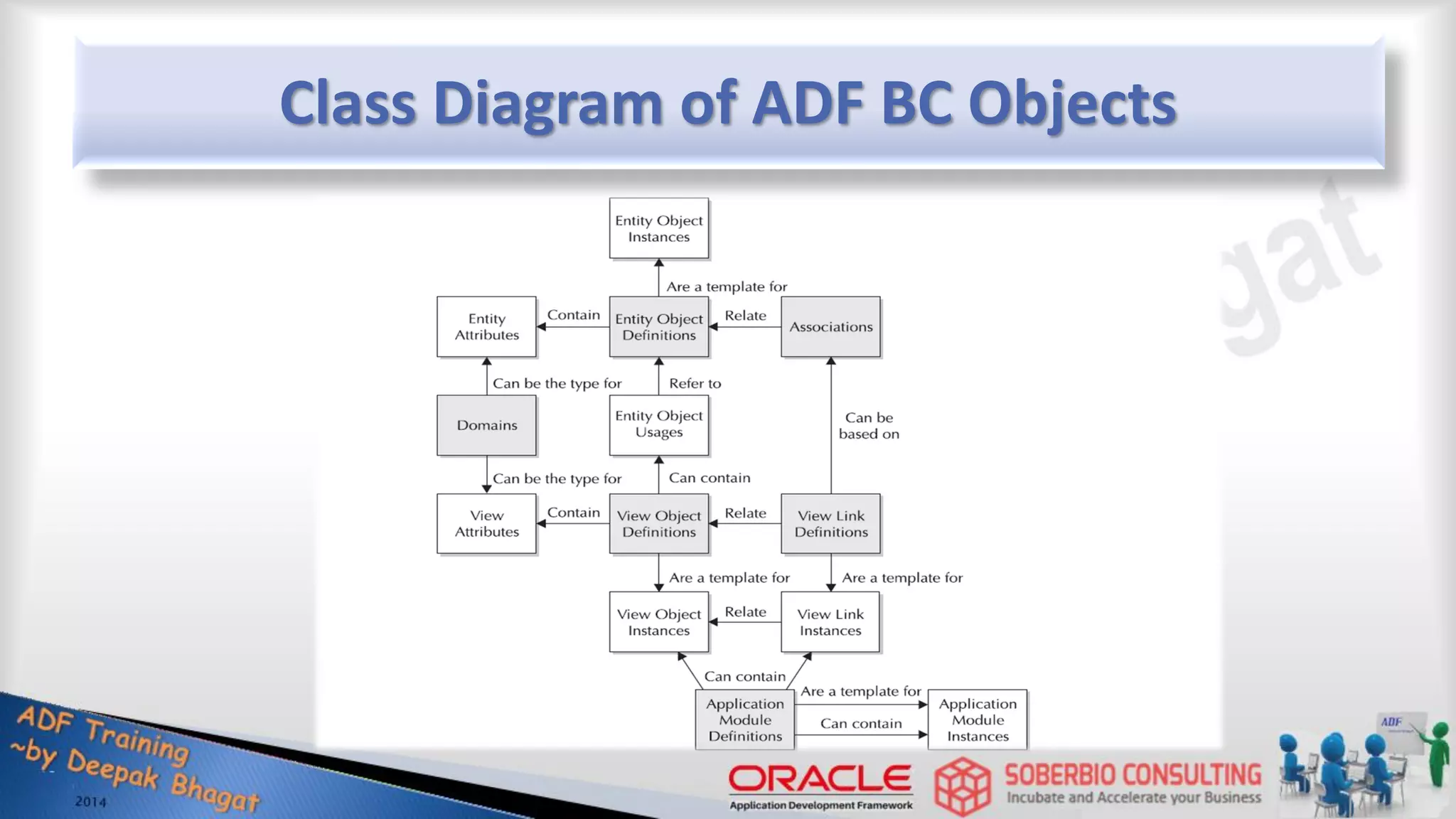

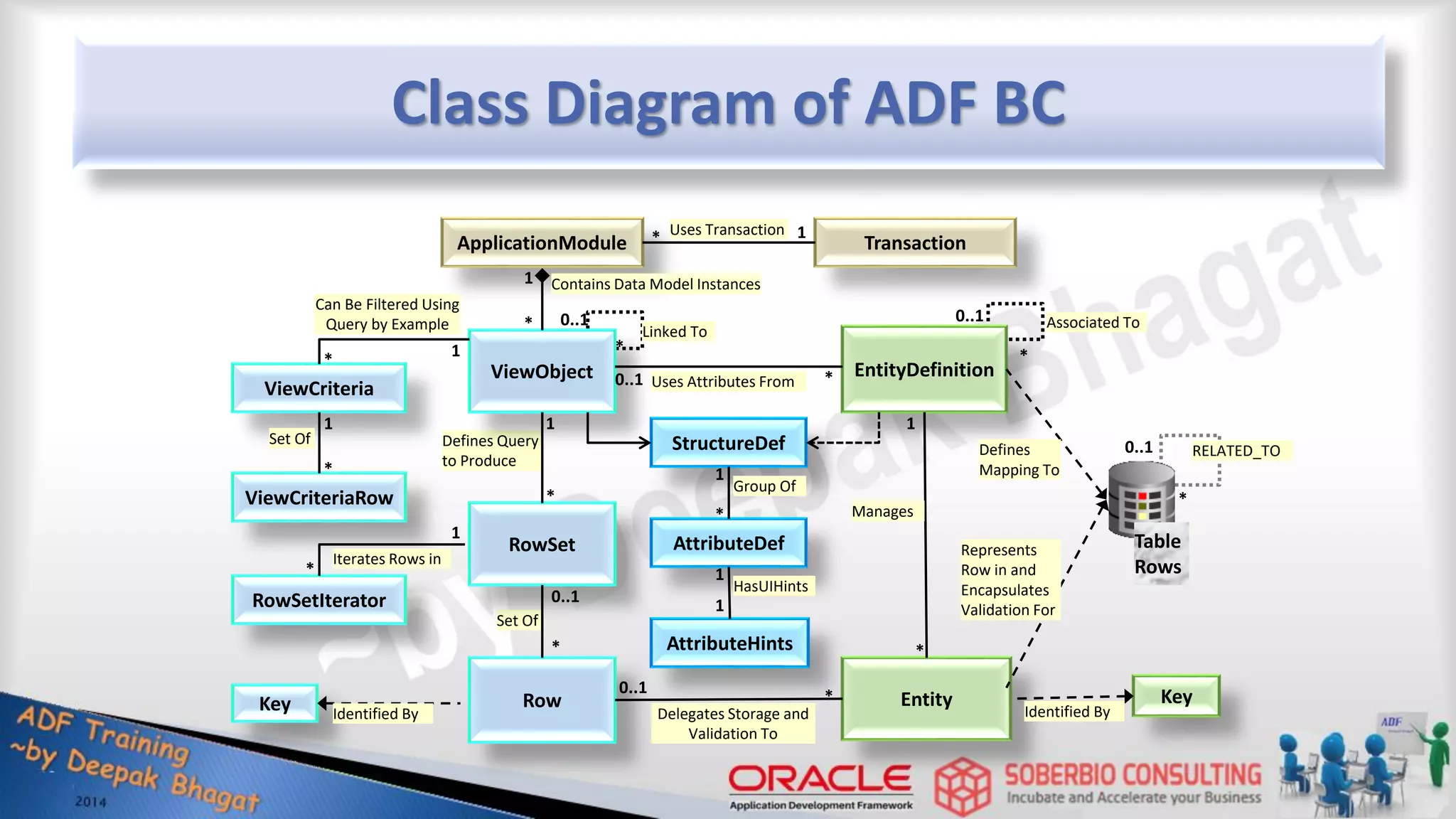

Class Diagram of ADF BC Objects

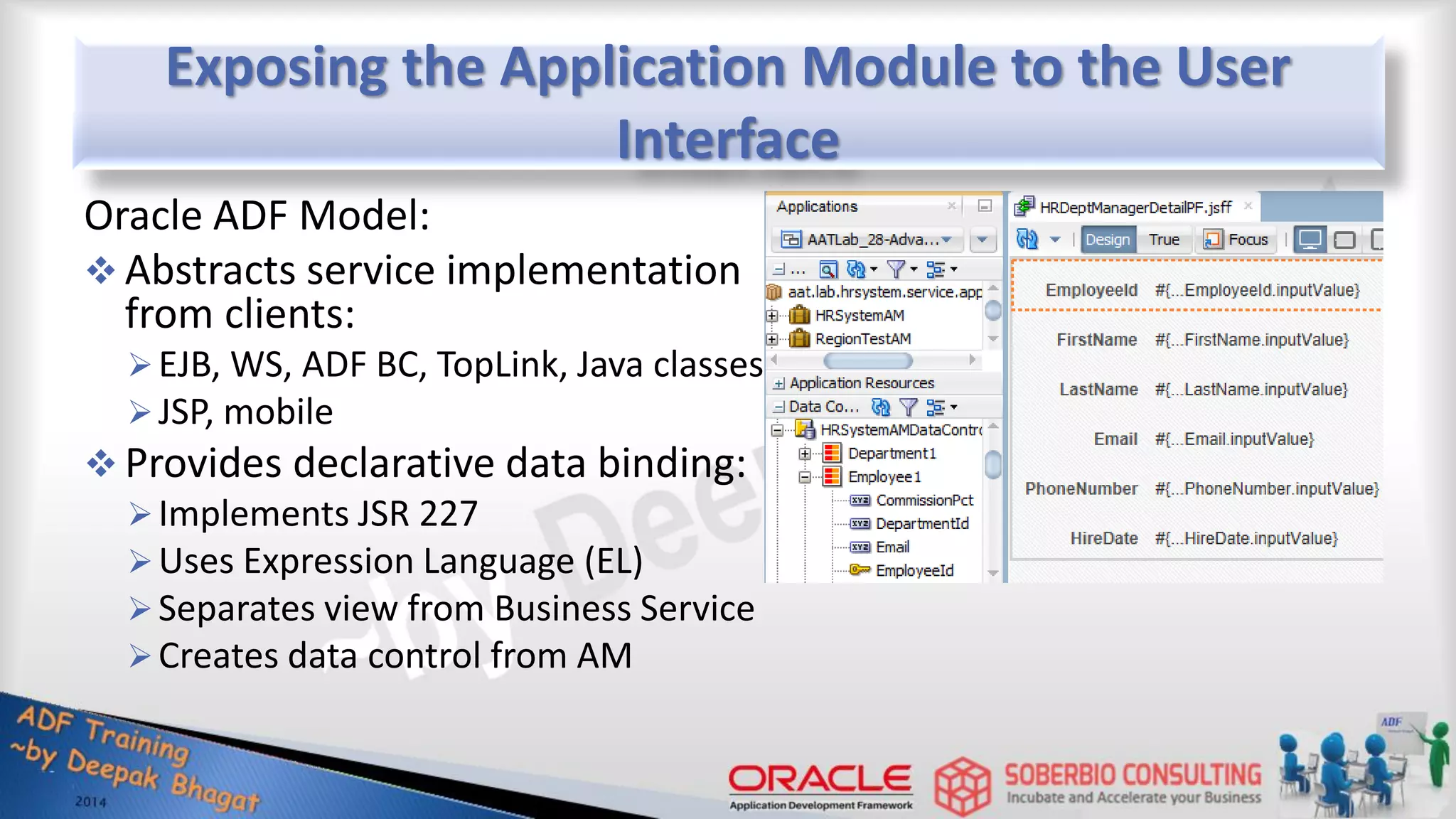

Exposing the Application Module to the User Interface Oracle ADF Model:  Abstracts service implementation from clients: EJB, WS, ADF BC, TopLink, Java classes JSP, mobile  Provides declarative data binding: Implements JSR 227 Uses Expression Language (EL) Separates view from Business Service Creates data control from AM

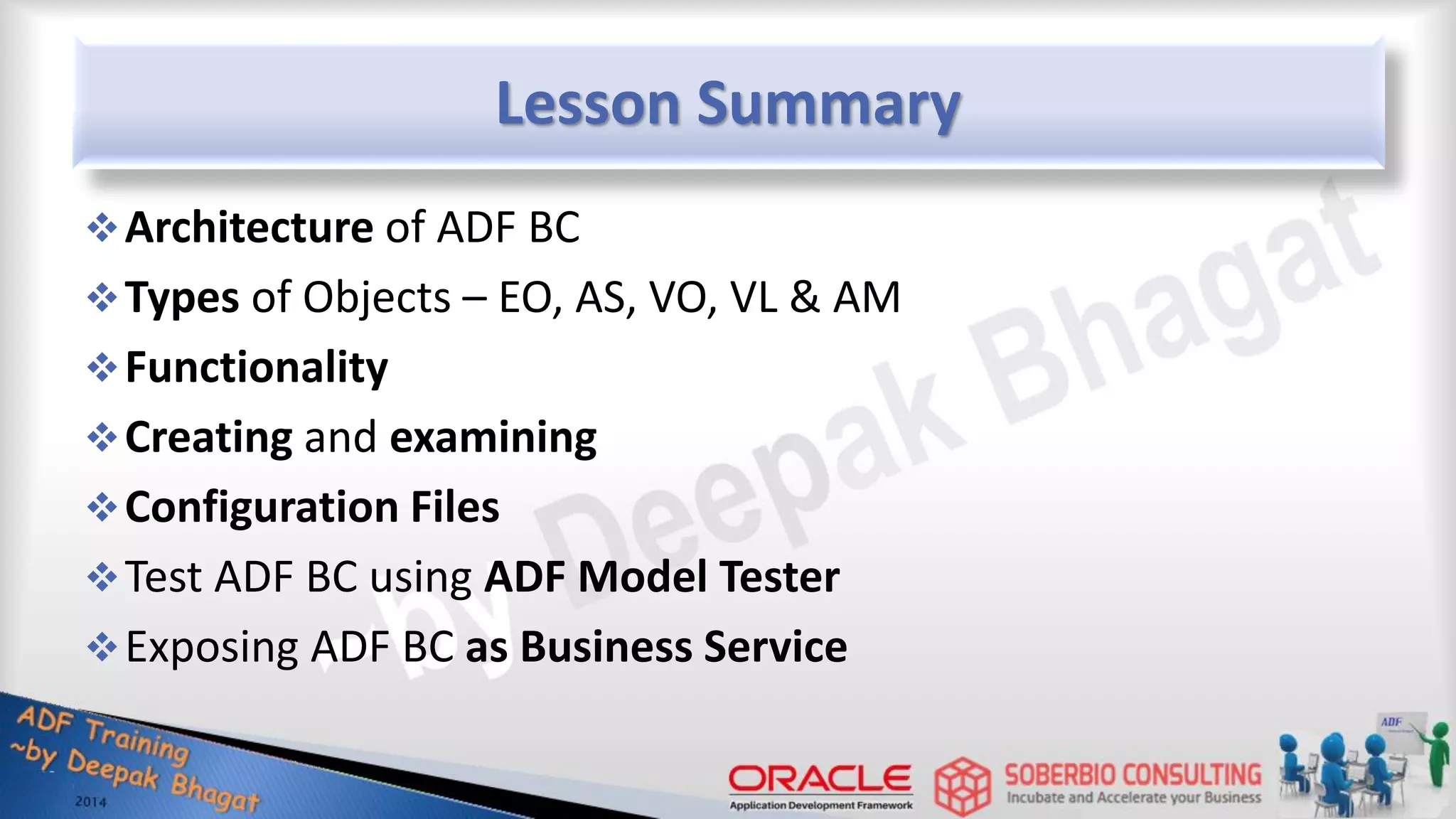

Lesson Summary Architecture of ADF BC Types of Objects – EO, AS, VO, VL & AM Functionality Creating and examining Configuration Files Test ADF BC using ADF Model Tester Exposing ADF BC as Business Service

5 Persisting Data using Entity Objects

Lesson Agenda Describe tech-stack of Entity Objects (EO) Explain data persistence mechanism of entity objects Describe entity object attribute mapping Overview and features of Entity Objects Create and Examine EO from DB tables, views or synonyms Examine Attribute Settings Synchronize an EO with table structure changes Entity associations and types

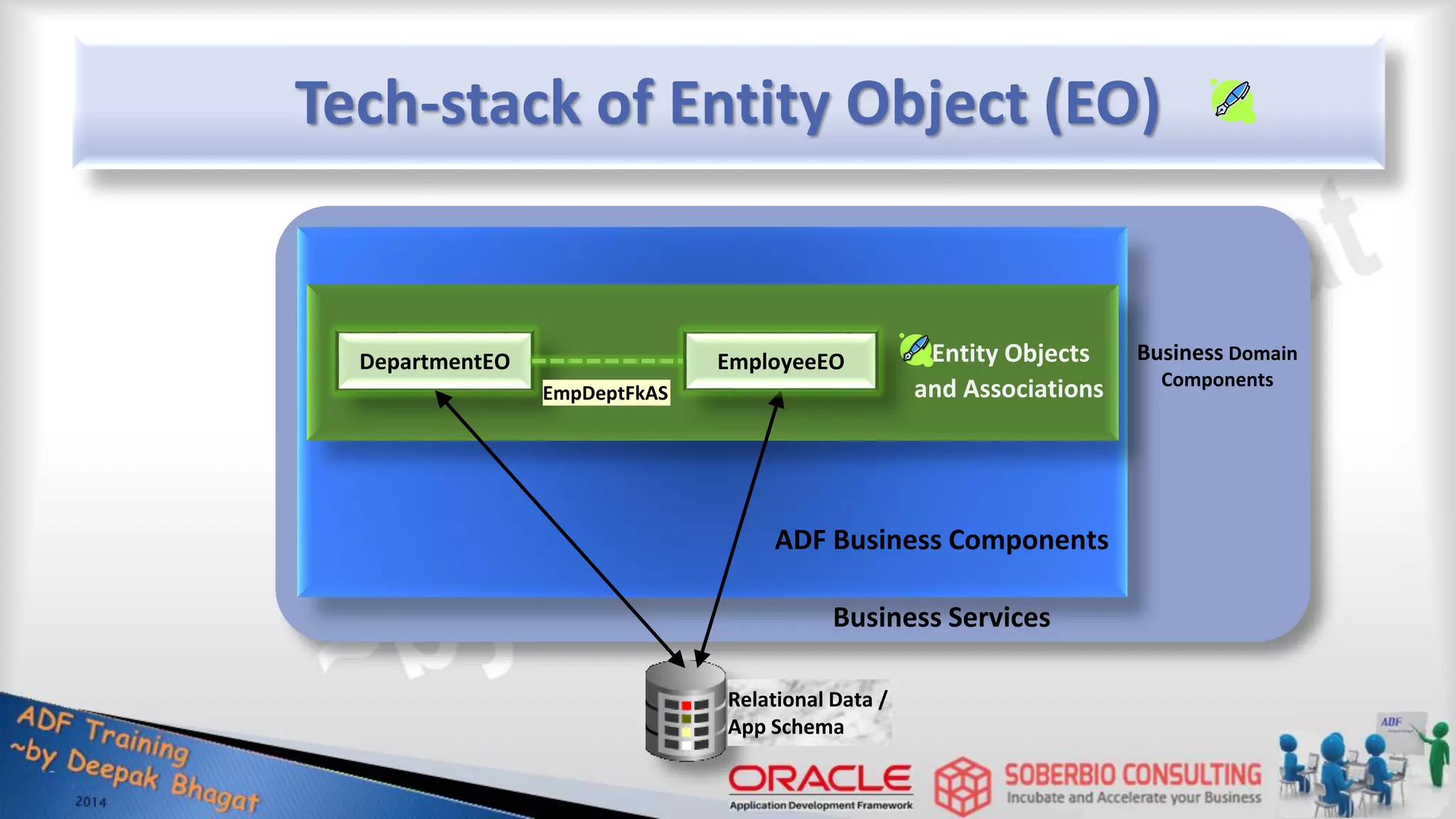

Tech-stack of Entity Object (EO) ADF Business Components DepartmentEO Business Services Relational Data / App Schema EmployeeEO EmpDeptFkAS Entity Objects and Associations Business Domain Components

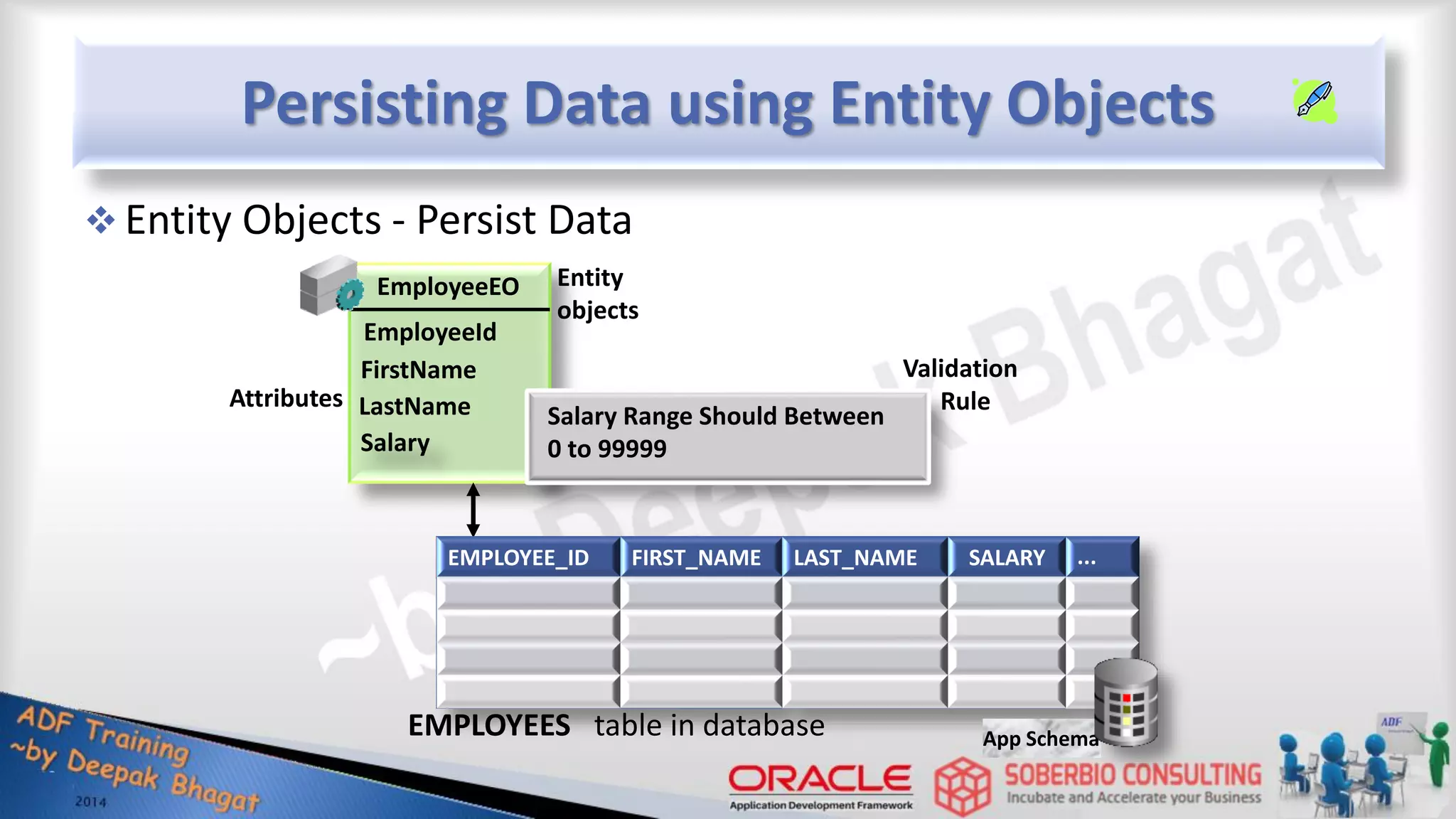

Persisting Data using Entity Objects  Entity Objects - Persist Data EmployeeEO Salary Range Should Between 0 to 99999 Entity objects Attributes Validation Rule EmployeeId FirstName LastName Salary EMPLOYEES table in database EMPLOYEE_ID FIRST_NAME LAST_NAME SALARY ... App Schema

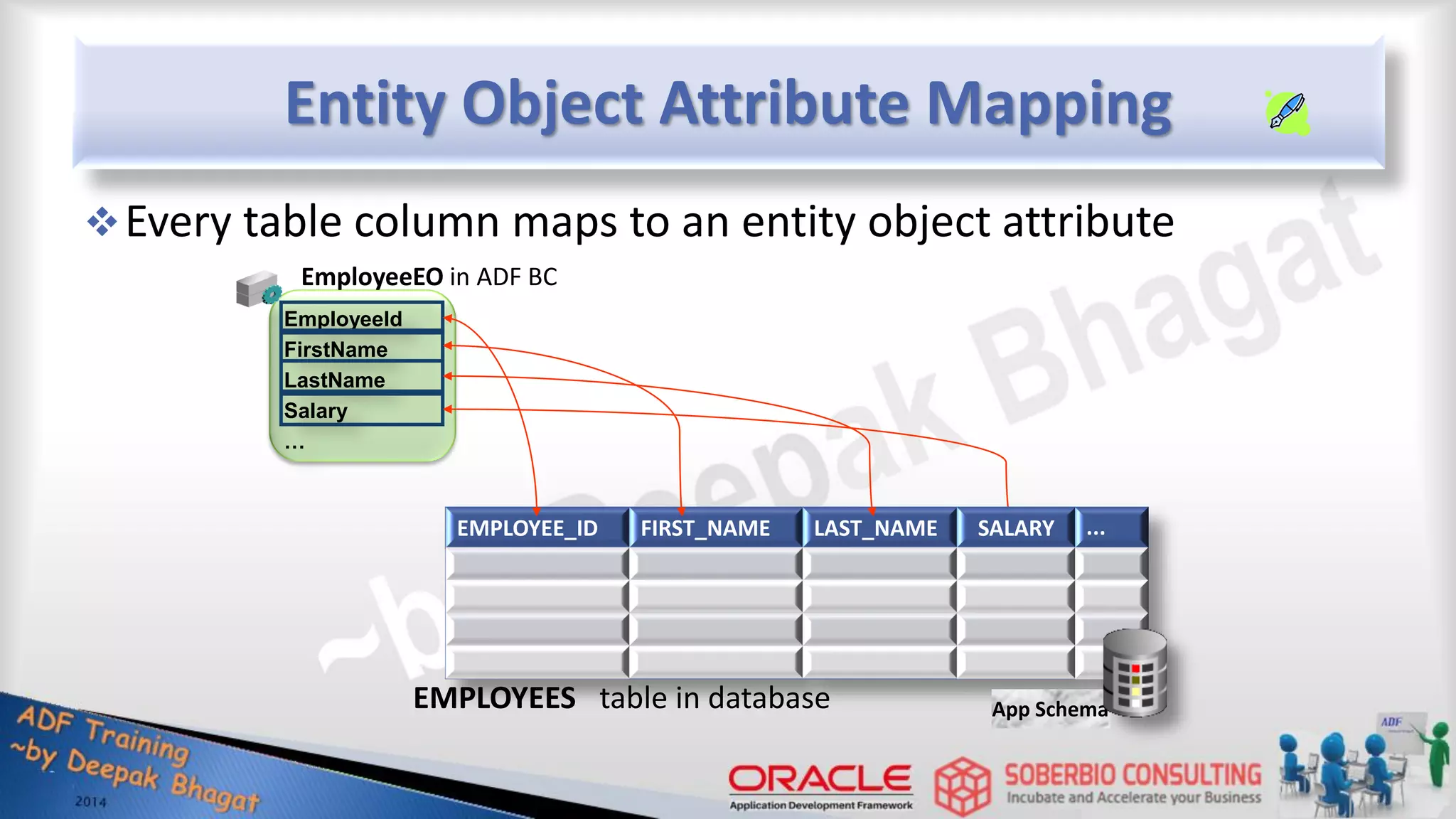

Entity Object Attribute Mapping Every table column maps to an entity object attribute EMPLOYEES table in database EmployeeId FirstName LastName Salary … EMPLOYEE_ID FIRST_NAME LAST_NAME SALARY ... EmployeeEO in ADF BC App Schema

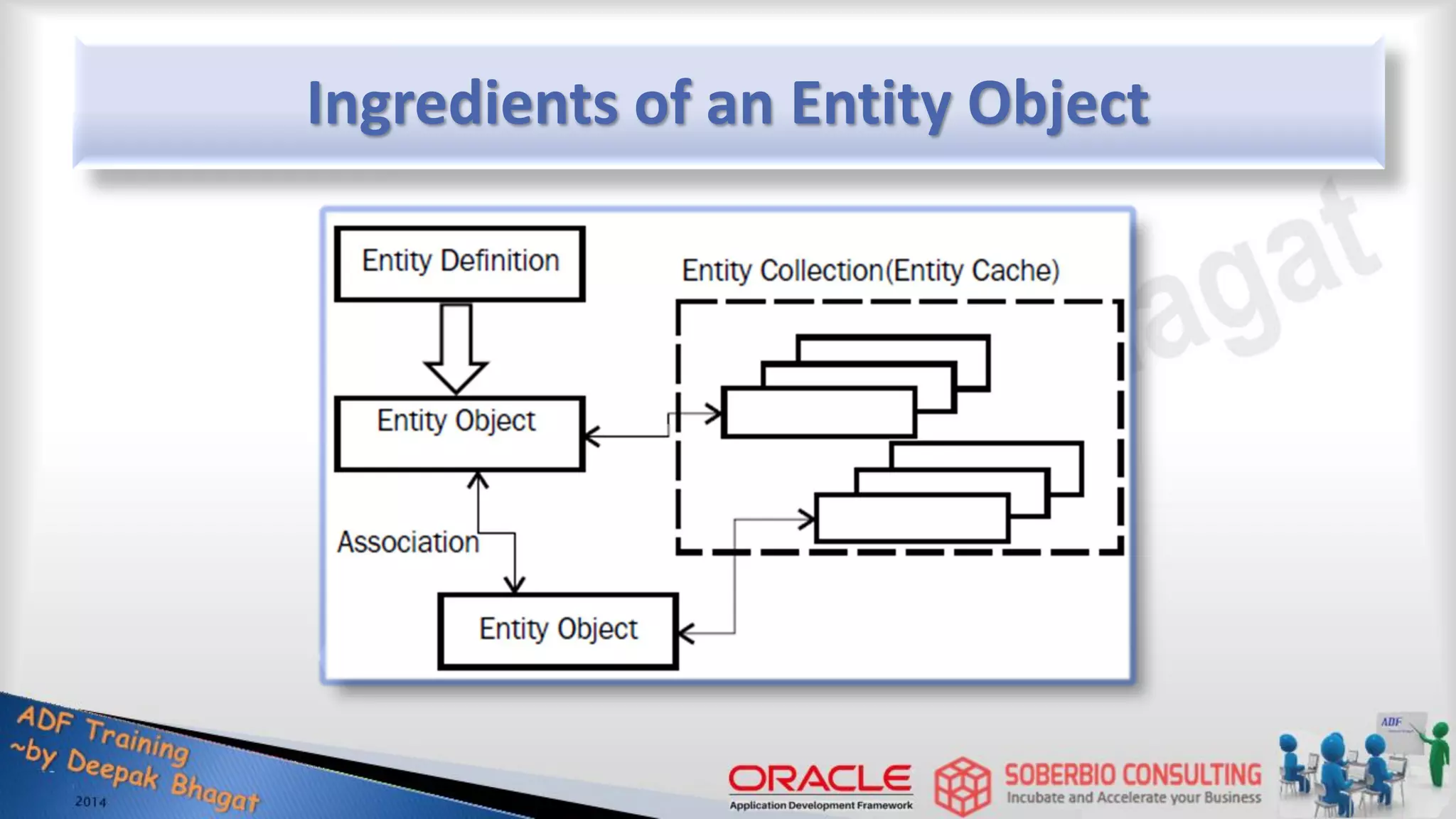

Ingredients of an Entity Object

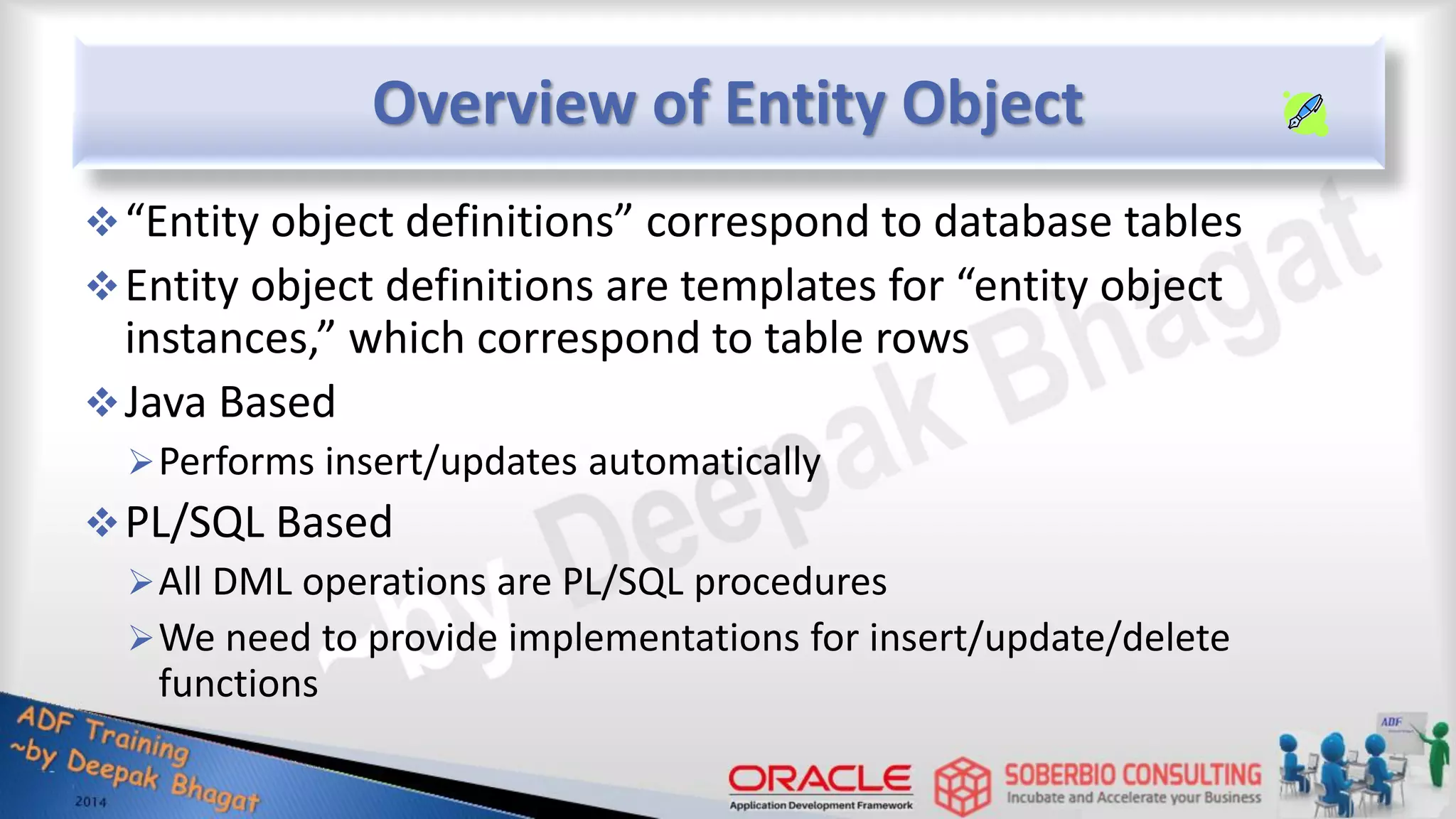

Overview of Entity Object “Entity object definitions” correspond to database tables Entity object definitions are templates for “entity object instances,” which correspond to table rows Java Based Performs insert/updates automatically PL/SQL Based All DML operations are PL/SQL procedures We need to provide implementations for insert/update/delete functions

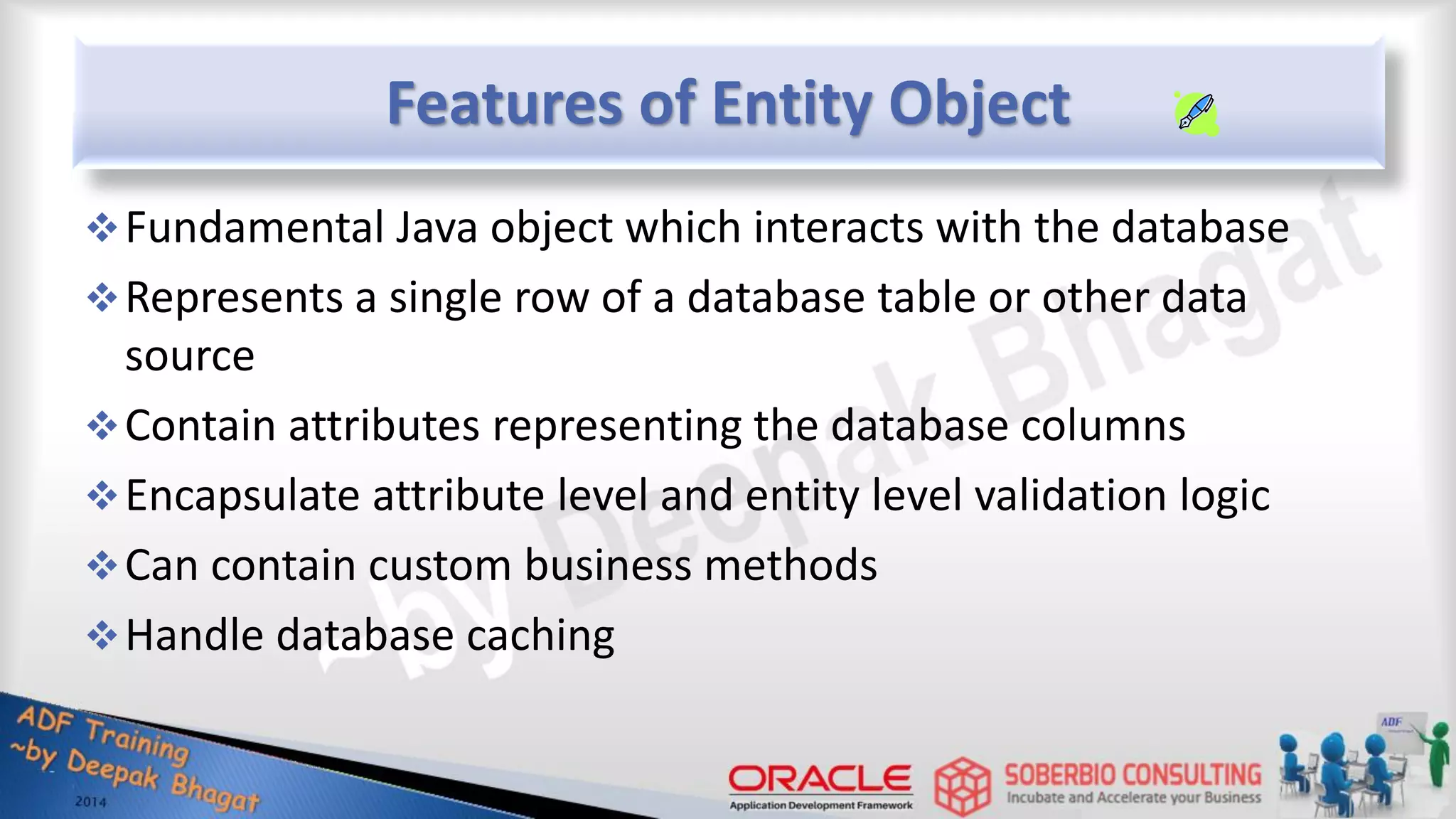

Features of Entity Object Fundamental Java object which interacts with the database Represents a single row of a database table or other data source Contain attributes representing the database columns Encapsulate attribute level and entity level validation logic Can contain custom business methods Handle database caching

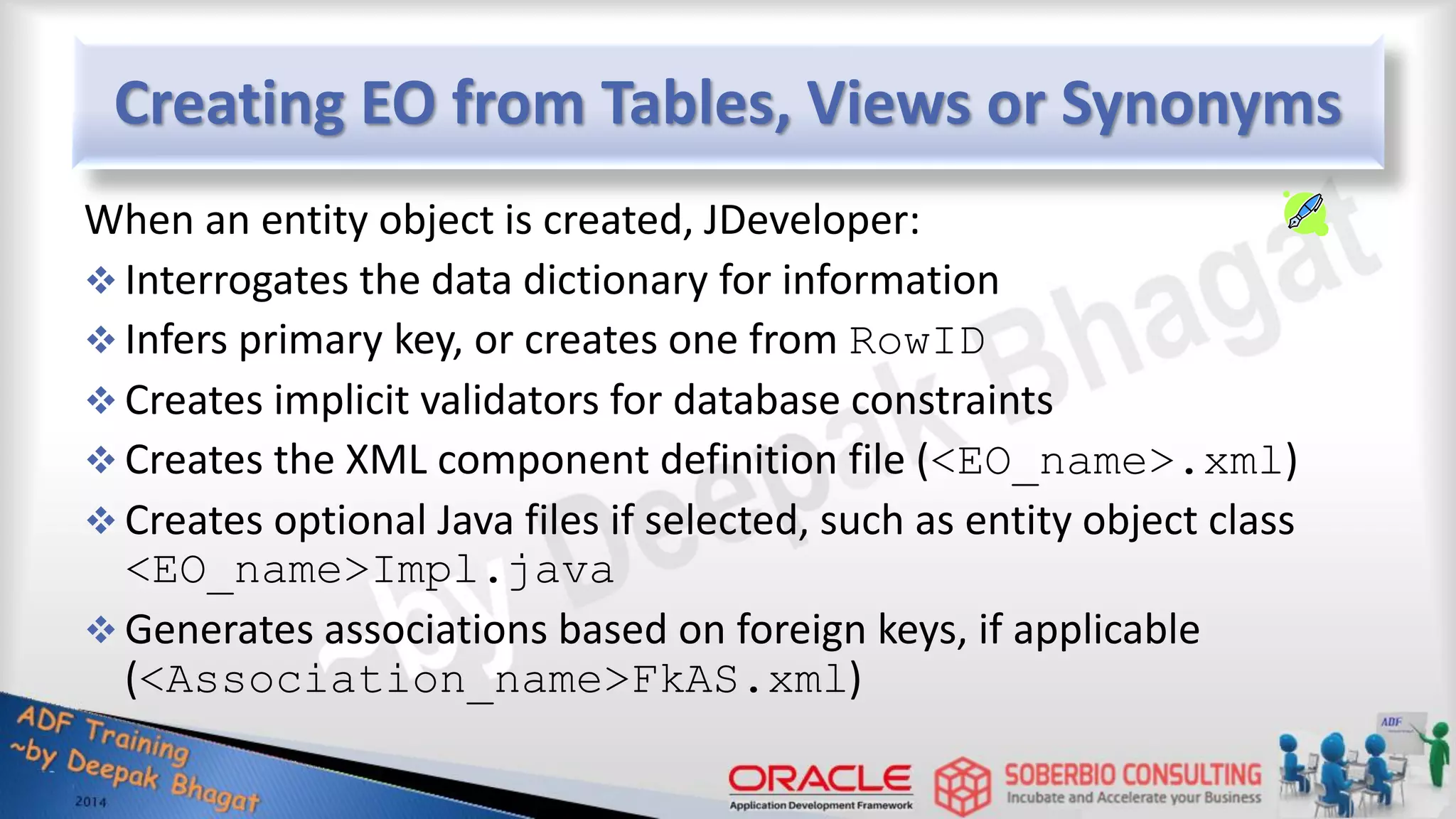

Creating EO from Tables, Views or Synonyms When an entity object is created, JDeveloper:  Interrogates the data dictionary for information  Infers primary key, or creates one from RowID  Creates implicit validators for database constraints  Creates the XML component definition file (<EO_name>.xml)  Creates optional Java files if selected, such as entity object class <EO_name>Impl.java  Generates associations based on foreign keys, if applicable (<Association_name>FkAS.xml)

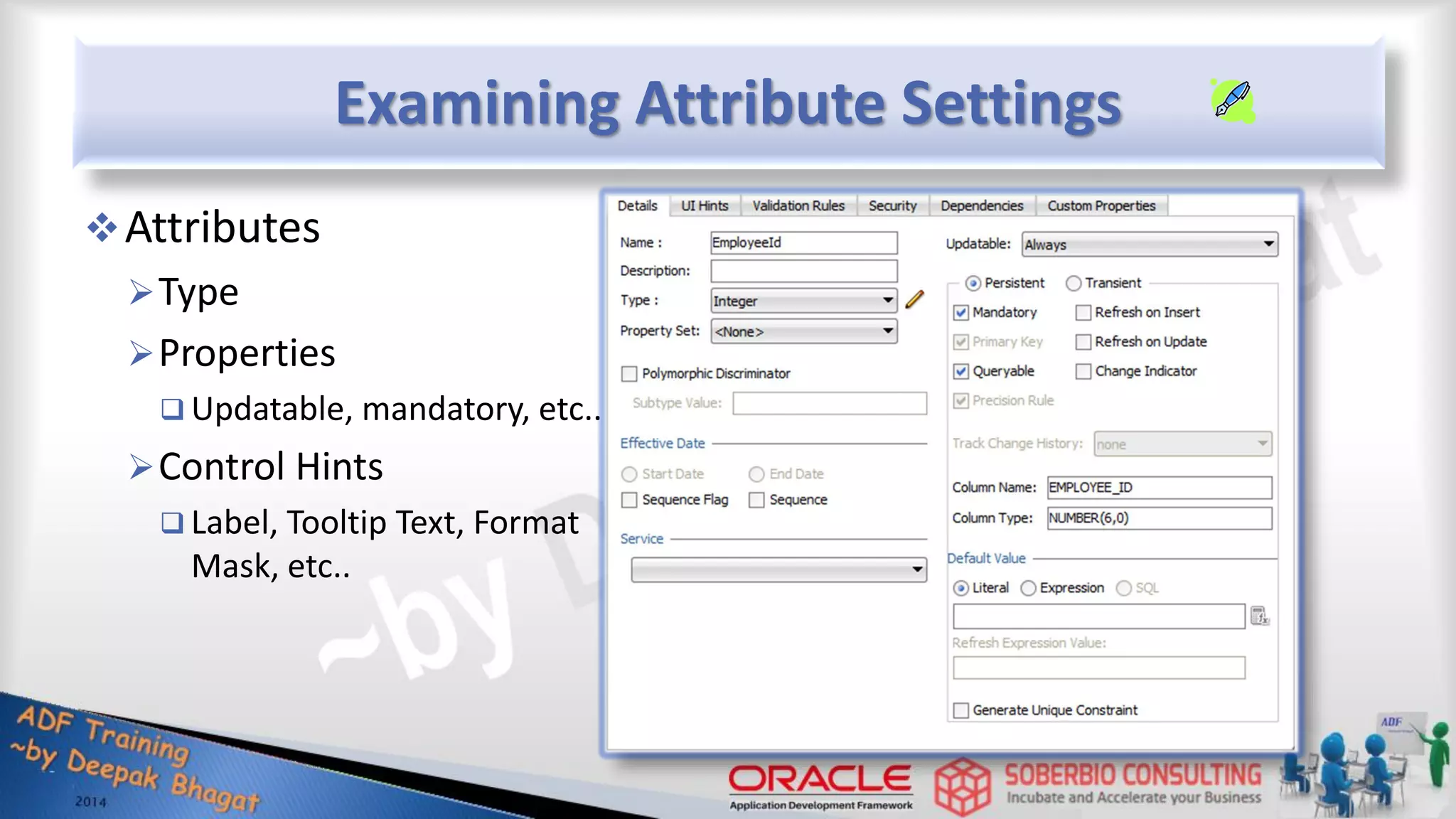

Examining Attribute Settings Attributes Type Properties  Updatable, mandatory, etc.. Control Hints  Label, Tooltip Text, Format Mask, etc..

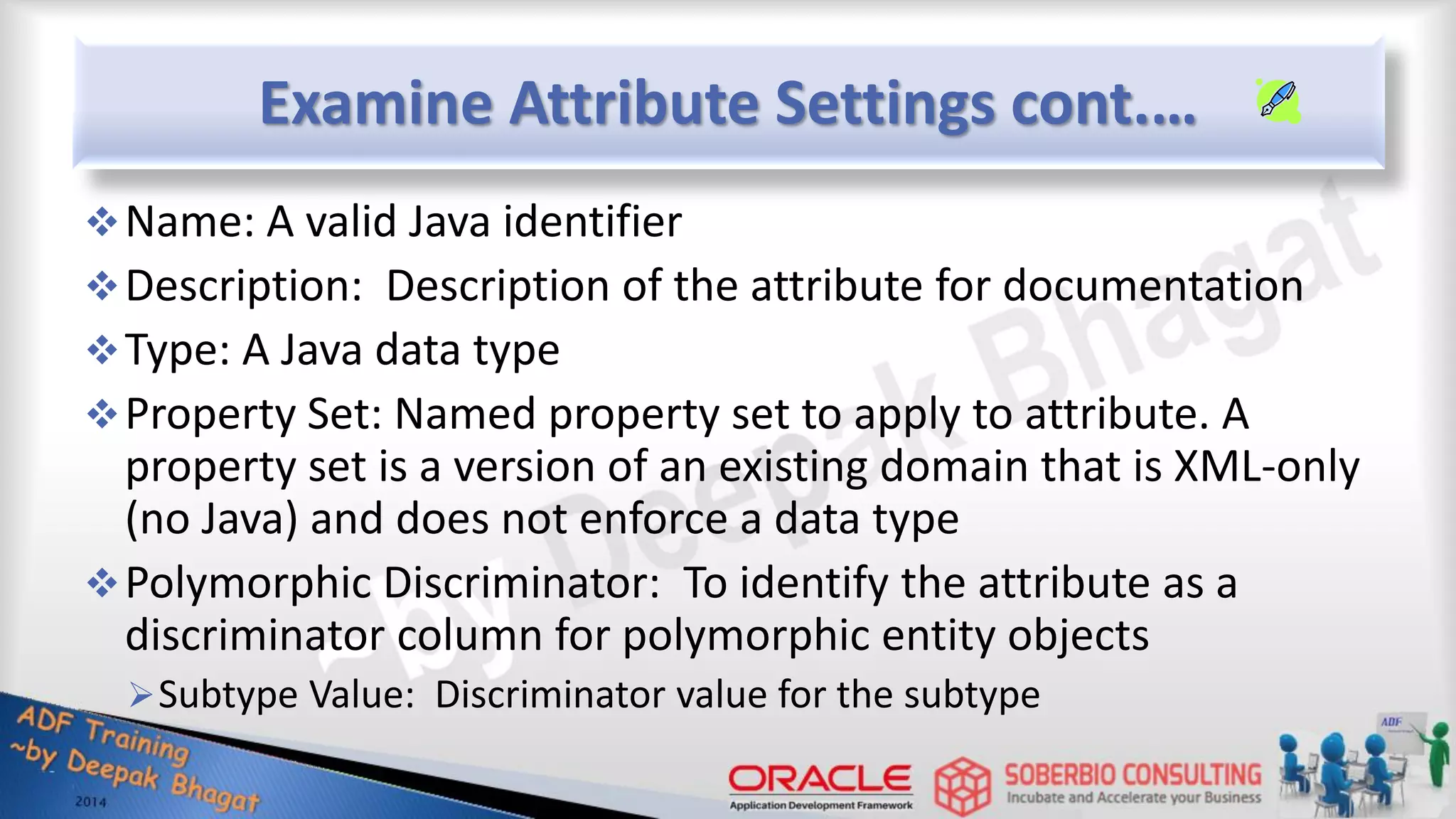

Examine Attribute Settings cont.… Name: A valid Java identifier Description: Description of the attribute for documentation Type: A Java data type Property Set: Named property set to apply to attribute. A property set is a version of an existing domain that is XML-only (no Java) and does not enforce a data type Polymorphic Discriminator: To identify the attribute as a discriminator column for polymorphic entity objects Subtype Value: Discriminator value for the subtype

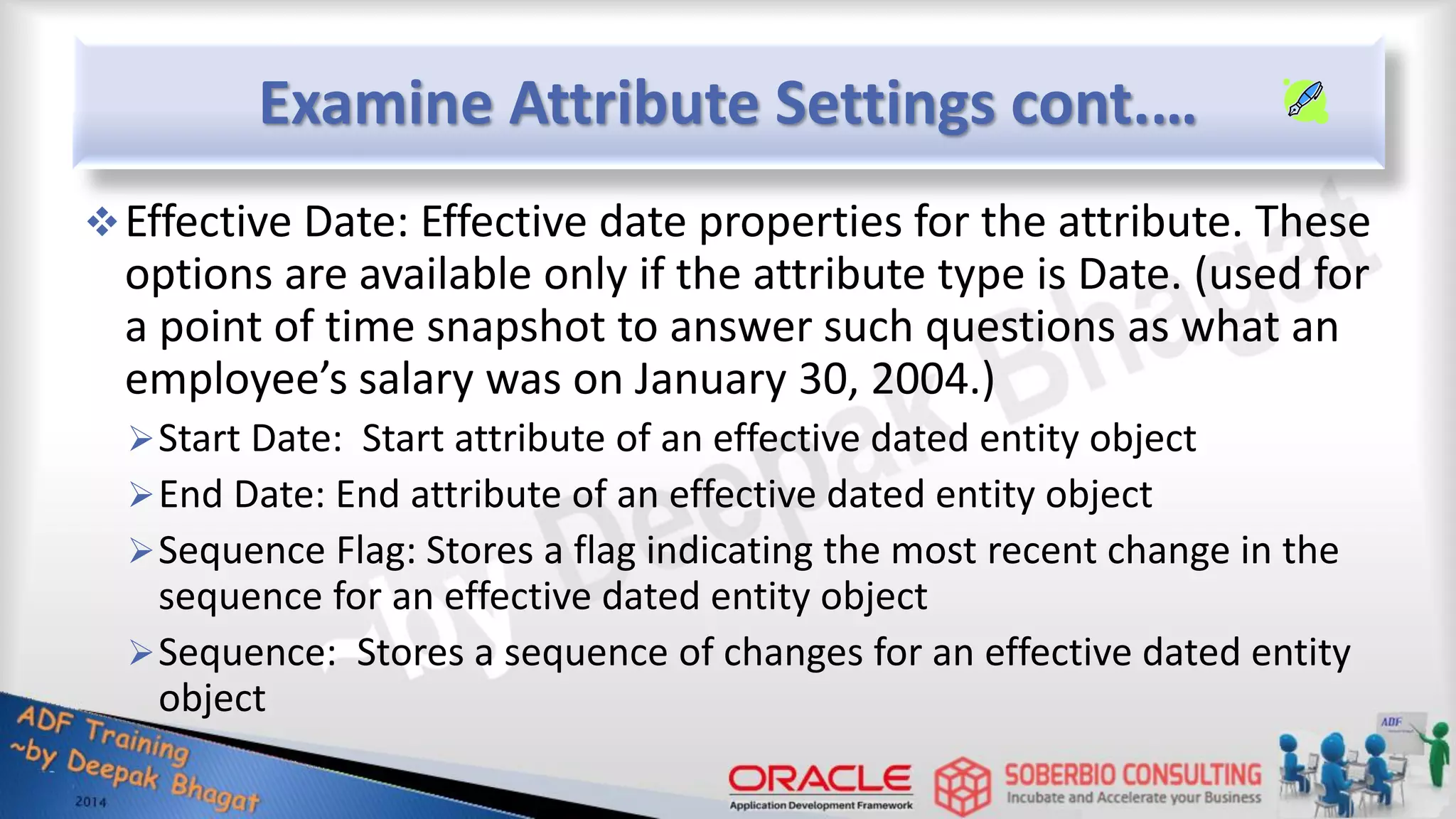

Examine Attribute Settings cont.… Effective Date: Effective date properties for the attribute. These options are available only if the attribute type is Date. (used for a point of time snapshot to answer such questions as what an employee’s salary was on January 30, 2004.) Start Date: Start attribute of an effective dated entity object End Date: End attribute of an effective dated entity object Sequence Flag: Stores a flag indicating the most recent change in the sequence for an effective dated entity object Sequence: Stores a sequence of changes for an effective dated entity object

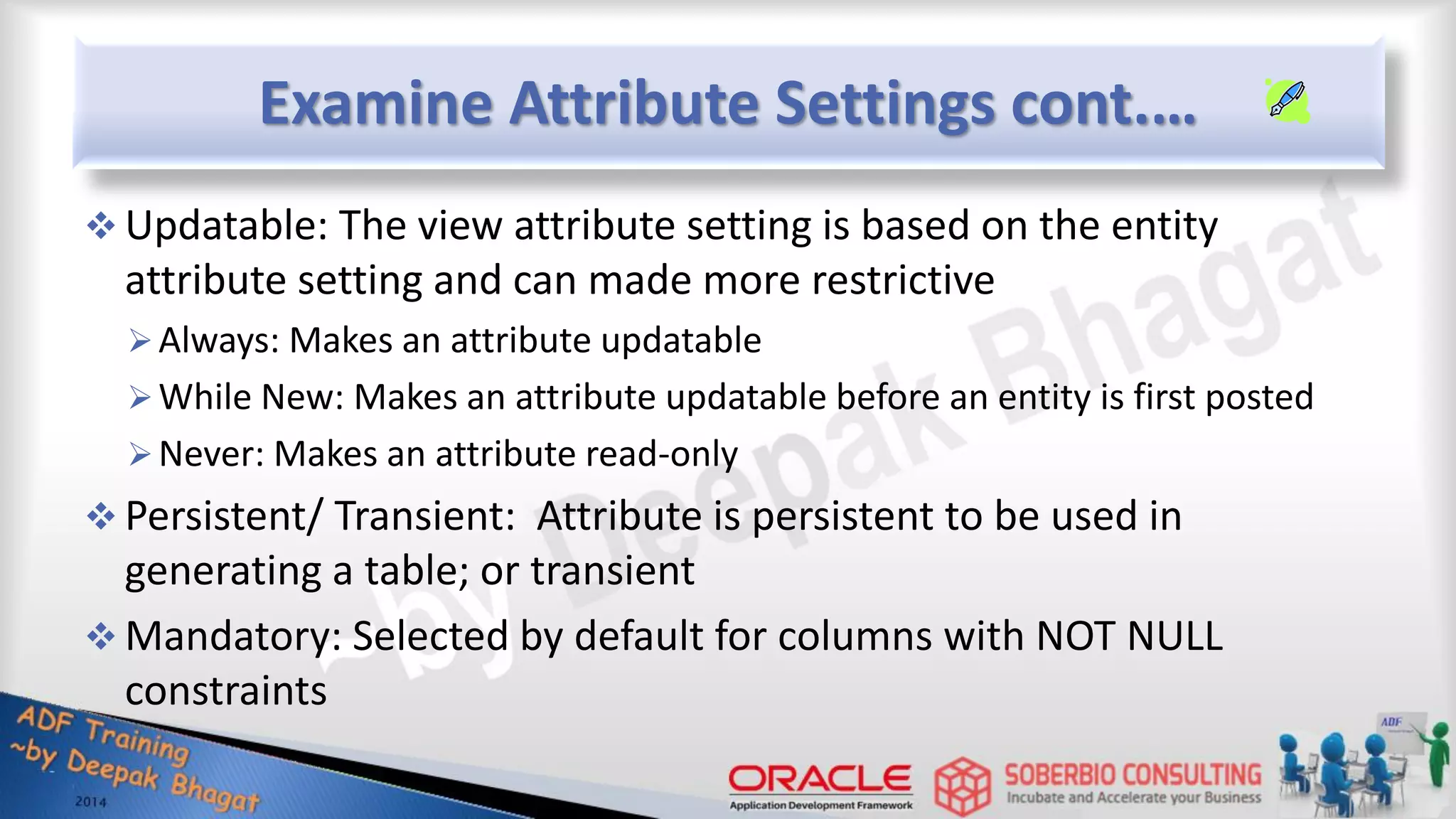

Examine Attribute Settings cont.…  Updatable: The view attribute setting is based on the entity attribute setting and can made more restrictive Always: Makes an attribute updatable While New: Makes an attribute updatable before an entity is first posted Never: Makes an attribute read-only  Persistent/ Transient: Attribute is persistent to be used in generating a table; or transient  Mandatory: Selected by default for columns with NOT NULL constraints

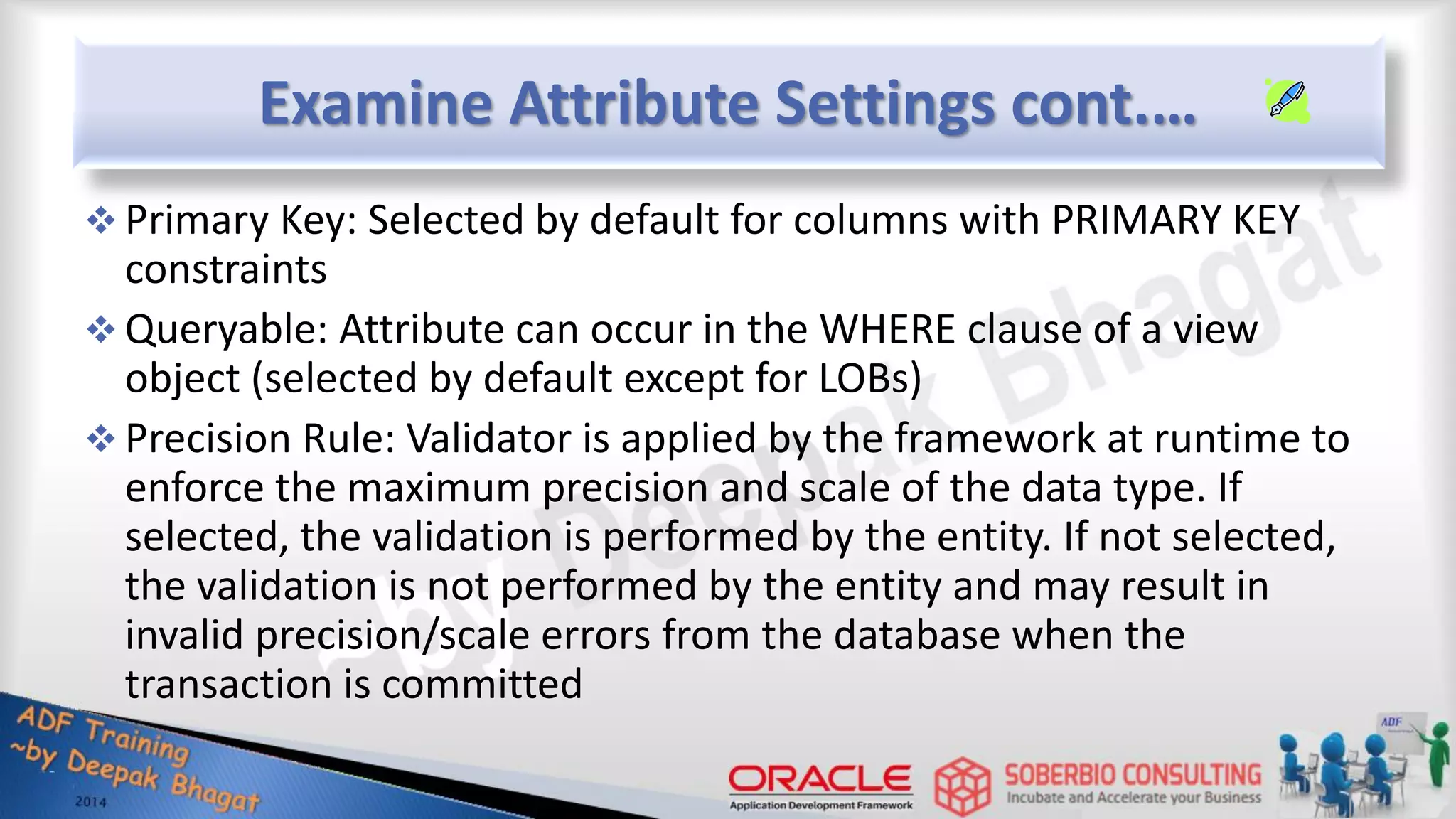

Examine Attribute Settings cont.…  Primary Key: Selected by default for columns with PRIMARY KEY constraints  Queryable: Attribute can occur in the WHERE clause of a view object (selected by default except for LOBs)  Precision Rule: Validator is applied by the framework at runtime to enforce the maximum precision and scale of the data type. If selected, the validation is performed by the entity. If not selected, the validation is not performed by the entity and may result in invalid precision/scale errors from the database when the transaction is committed

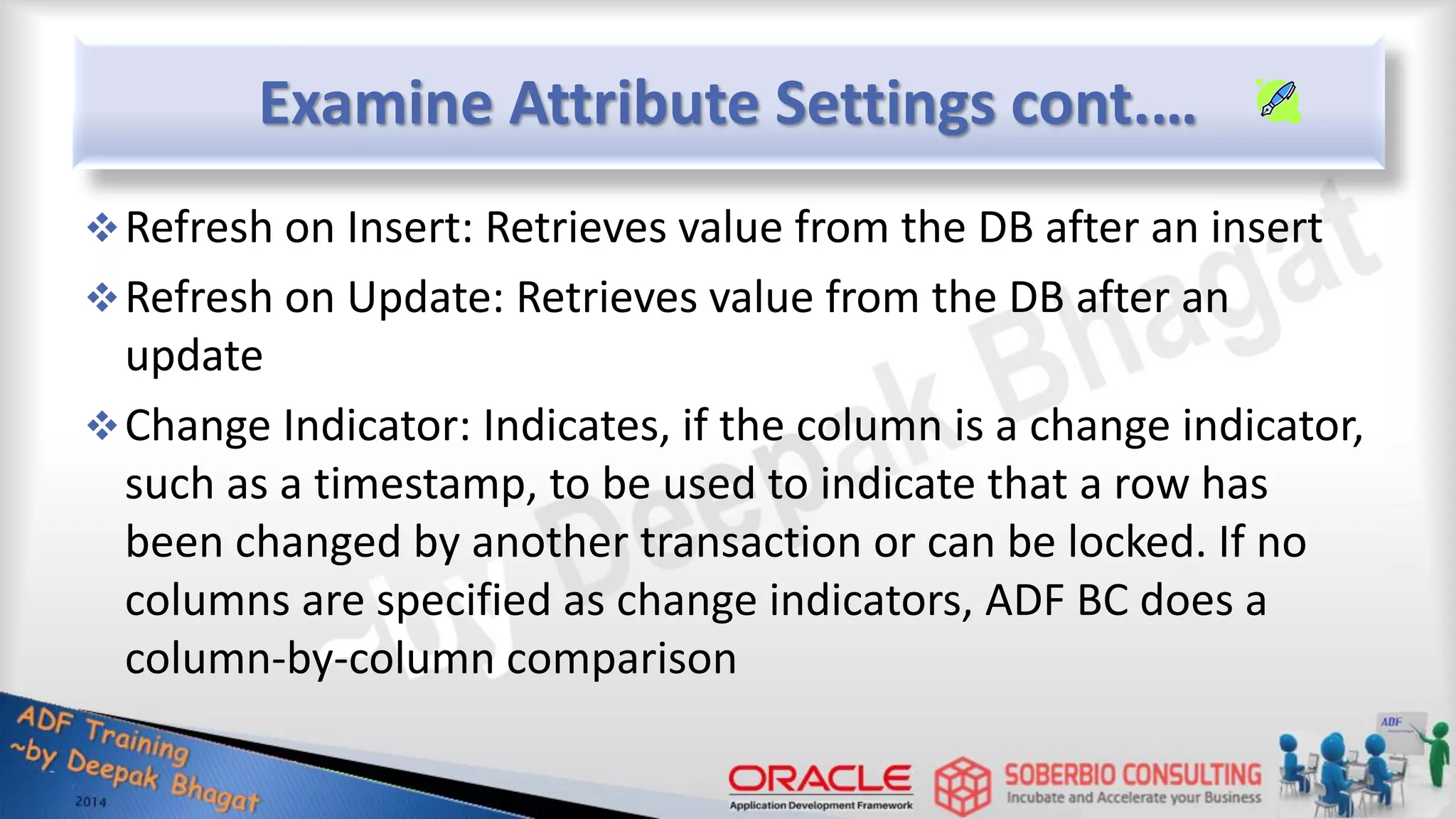

Examine Attribute Settings cont.… Refresh on Insert: Retrieves value from the DB after an insert Refresh on Update: Retrieves value from the DB after an update Change Indicator: Indicates, if the column is a change indicator, such as a timestamp, to be used to indicate that a row has been changed by another transaction or can be locked. If no columns are specified as change indicators, ADF BC does a column-by-column comparison

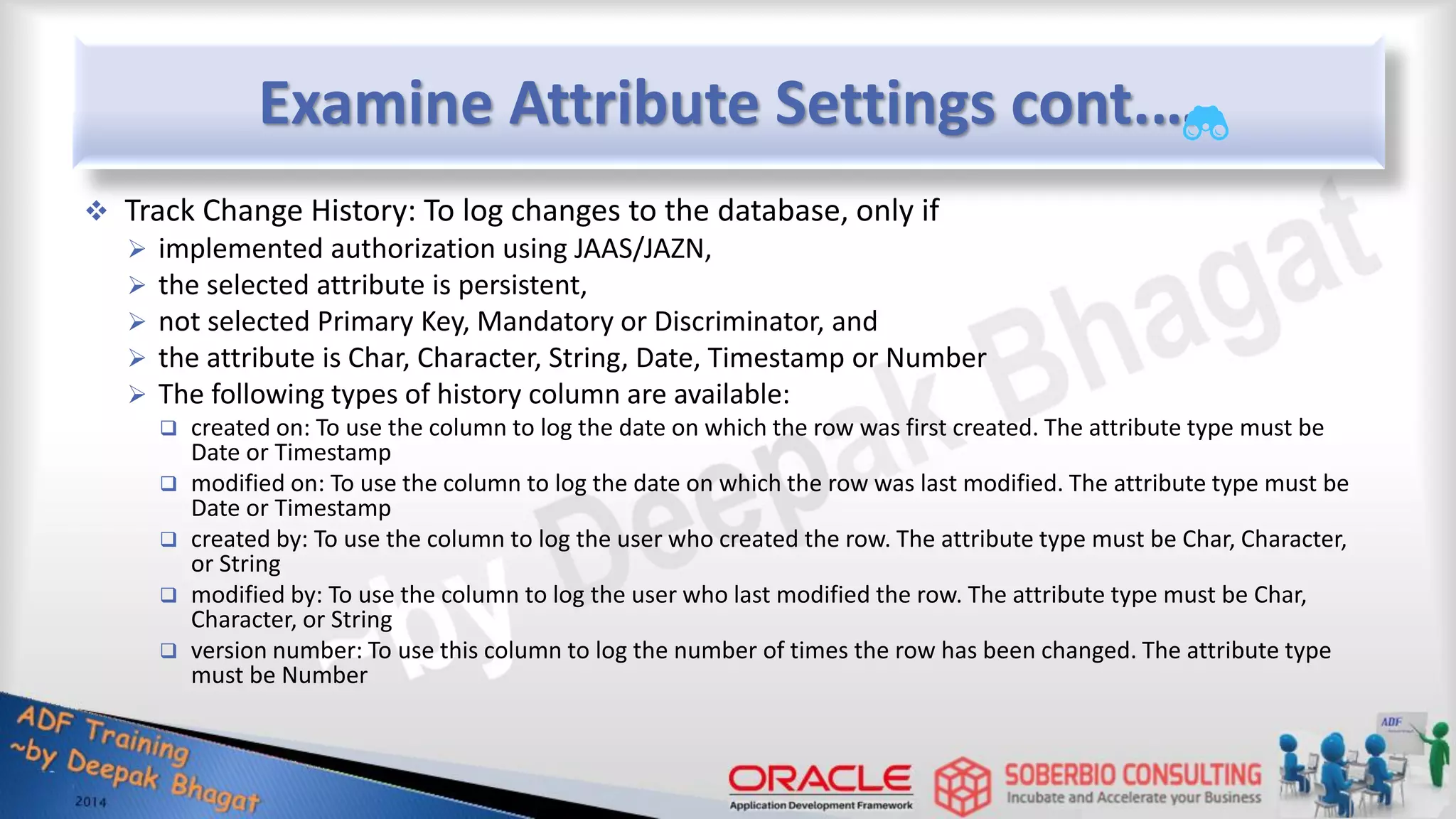

Examine Attribute Settings cont.…  Track Change History: To log changes to the database, only if  implemented authorization using JAAS/JAZN,  the selected attribute is persistent,  not selected Primary Key, Mandatory or Discriminator, and  the attribute is Char, Character, String, Date, Timestamp or Number  The following types of history column are available:  created on: To use the column to log the date on which the row was first created. The attribute type must be Date or Timestamp  modified on: To use the column to log the date on which the row was last modified. The attribute type must be Date or Timestamp  created by: To use the column to log the user who created the row. The attribute type must be Char, Character, or String  modified by: To use the column to log the user who last modified the row. The attribute type must be Char, Character, or String  version number: To use this column to log the number of times the row has been changed. The attribute type must be Number

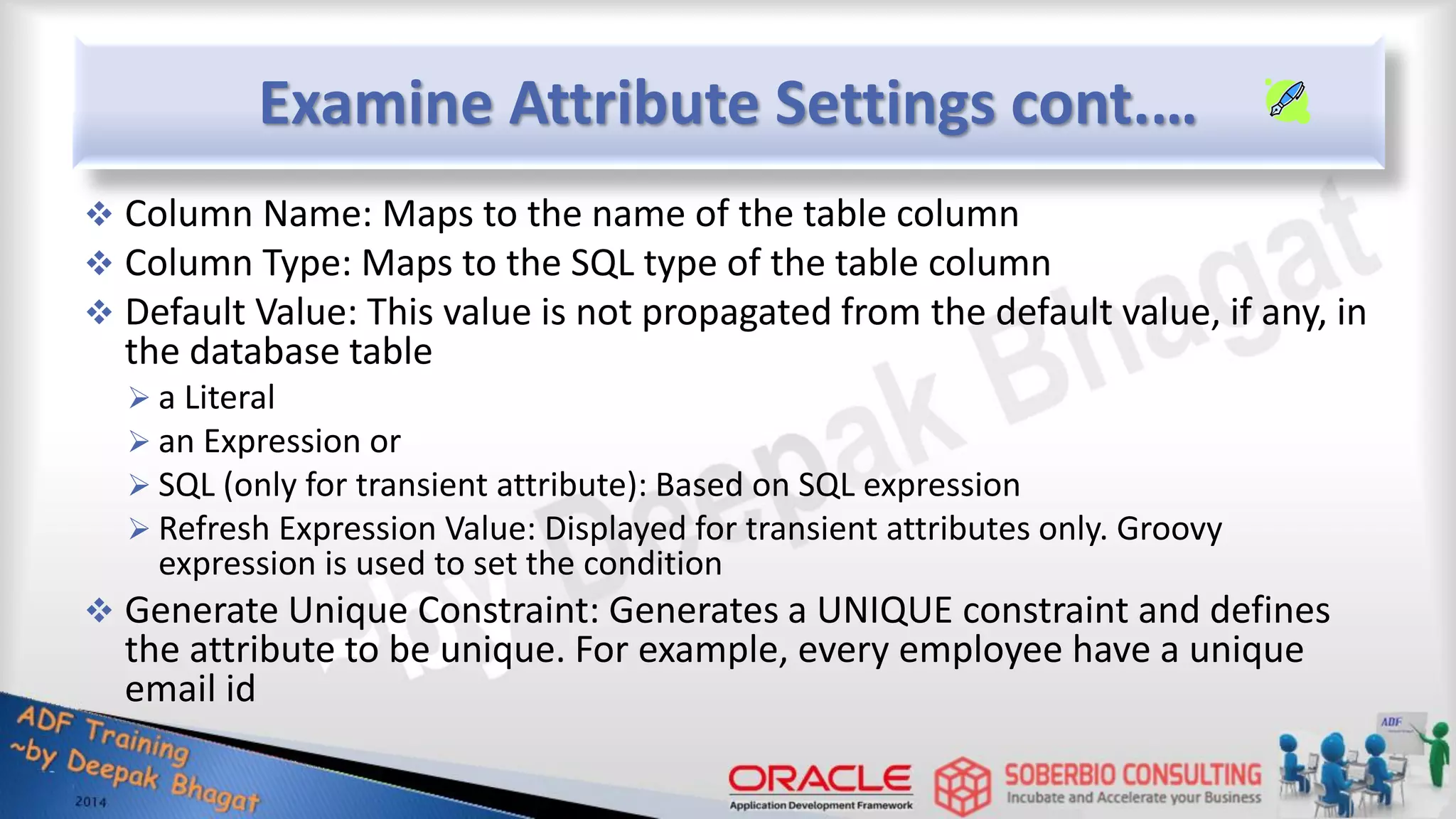

Examine Attribute Settings cont.…  Column Name: Maps to the name of the table column  Column Type: Maps to the SQL type of the table column  Default Value: This value is not propagated from the default value, if any, in the database table  a Literal  an Expression or  SQL (only for transient attribute): Based on SQL expression  Refresh Expression Value: Displayed for transient attributes only. Groovy expression is used to set the condition  Generate Unique Constraint: Generates a UNIQUE constraint and defines the attribute to be unique. For example, every employee have a unique email id

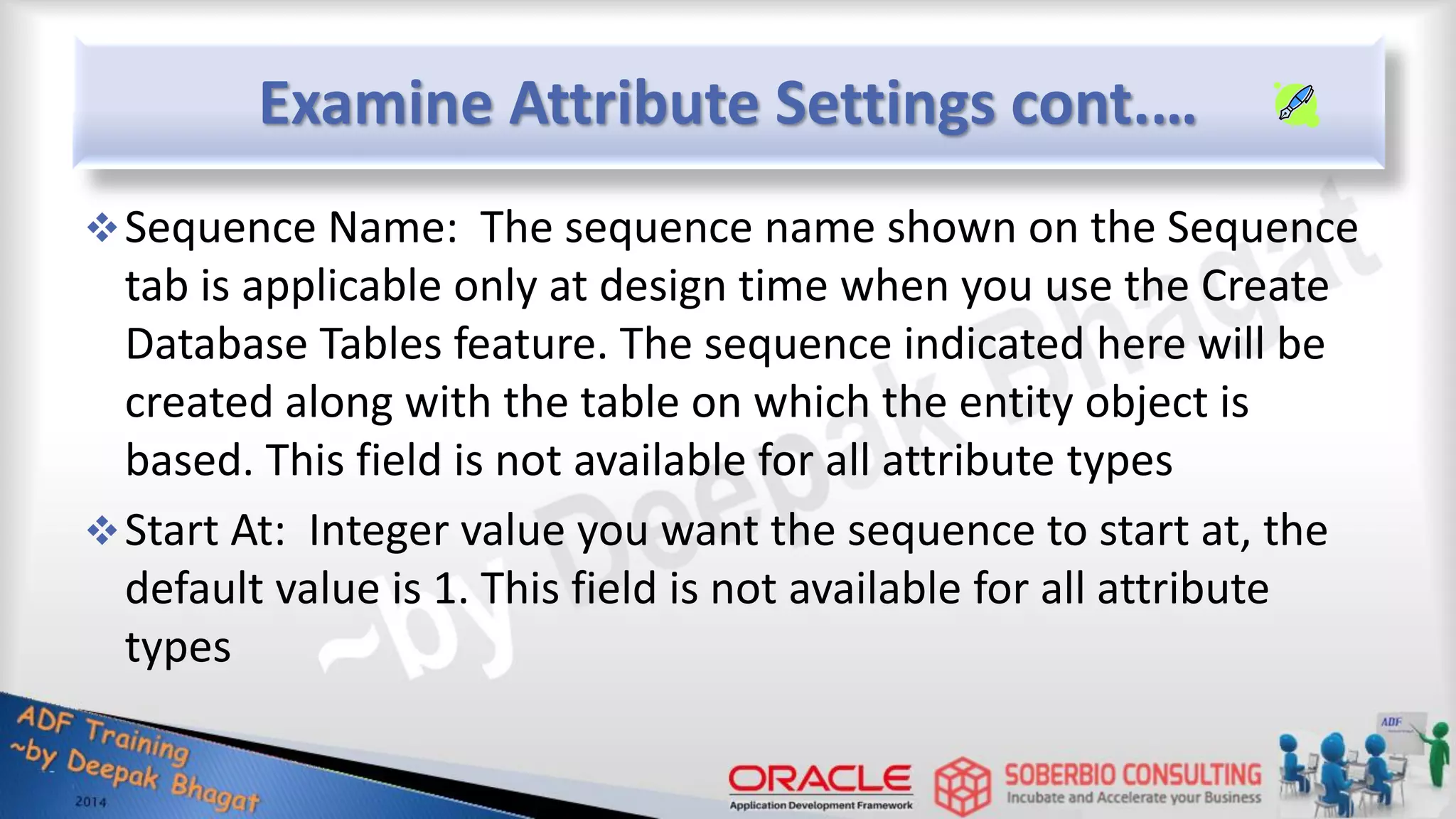

Examine Attribute Settings cont.… Sequence Name: The sequence name shown on the Sequence tab is applicable only at design time when you use the Create Database Tables feature. The sequence indicated here will be created along with the table on which the entity object is based. This field is not available for all attribute types Start At: Integer value you want the sequence to start at, the default value is 1. This field is not available for all attribute types

Synchronizing an EO with Table Structure Changes

Generate Database Tables from EO Right-click package and select Create Database Objects. In the Create Database Objects dialog box, select objects to create.

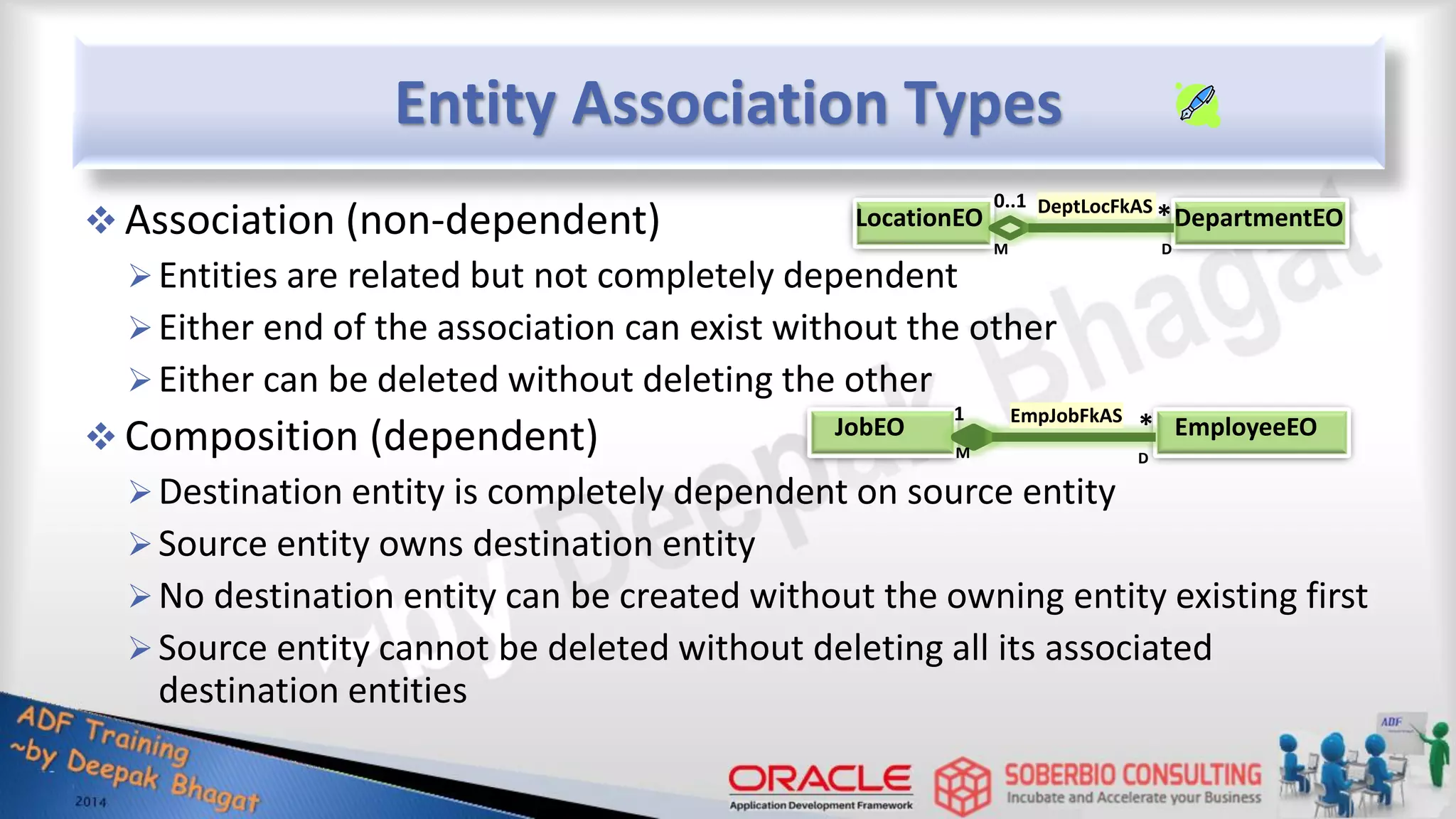

Entity Association Types  Association (non-dependent) Entities are related but not completely dependent Either end of the association can exist without the other Either can be deleted without deleting the other  Composition (dependent) Destination entity is completely dependent on source entity Source entity owns destination entity No destination entity can be created without the owning entity existing first Source entity cannot be deleted without deleting all its associated destination entities JobEO EmployeeEO DepartmentEO LocationEO 0..1 1 M * D M * D EmpJobFkAS DeptLocFkAS

Features of Entity Associations Consist of a master (source) and a detail (destination) entity Defines a relation between the two entities Enable access to data in related entity objects May be based on database constraints May be independent of database constraints Are used in defining validations and LOV metadata Source (Master) Destination (Details) Association DepartmentEO EmployeeEO * EmpDeptFkAS

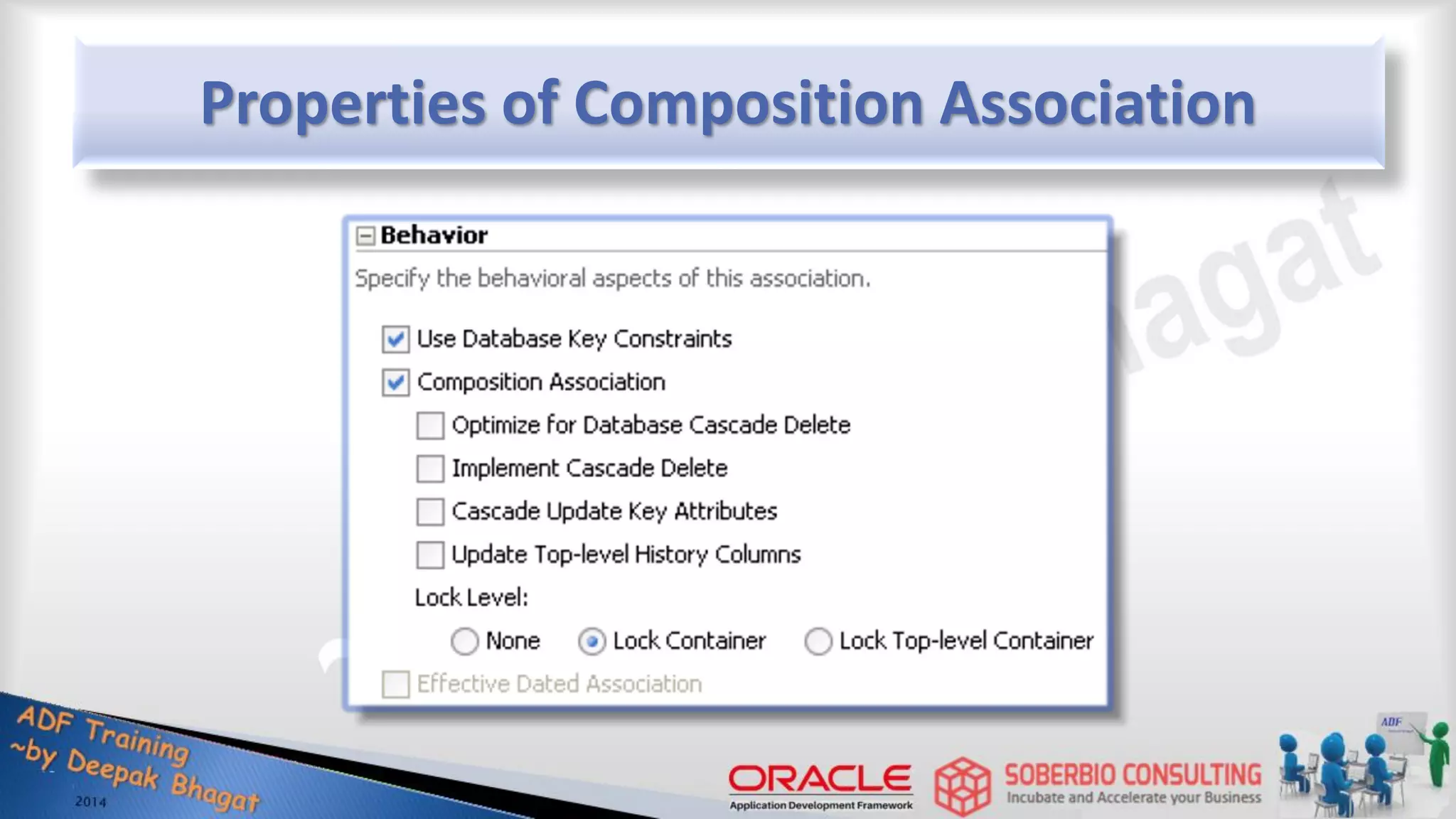

Properties of Composition Association

Lesson Summary Architecture of Entity Objects (EO) Describe EO Functionalities of EO Create and Examine EO from DB tables, views or synonyms Examine Attribute Settings Synchronize an EO with table structure changes Entity associations and types

6 Querying Data using View Objects

Lesson Agenda Describe Tech-stack of View Objects (VO) Understand types of VOs Overview of VO Explain the features of VO Link two VOs to create master-detail view objects Create various types of View Objects and Links

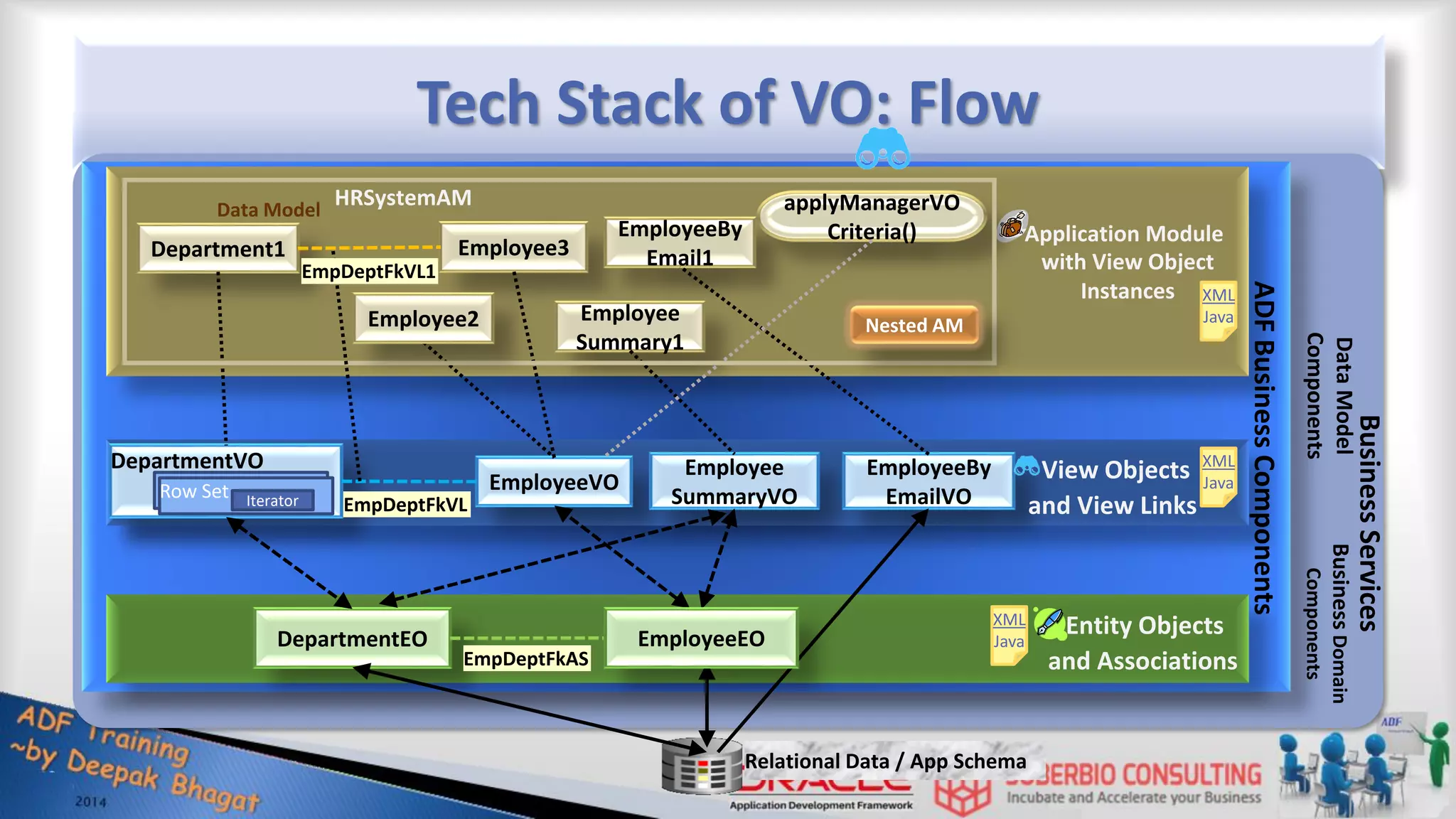

Tech Stack of VO: Flow ADF Business Components DepartmentEO DepartmentVO EmployeeVO Employee SummaryVO EmployeeBy EmailVO Department1 Employee3 Employee Summary1 EmployeeBy Email1 applyManagerVO Criteria() Business Services Relational Data / App Schema Application Module HRSystemAM with View Object Instances EmpDeptFkAS EmpDeptFkVL View Objects and View Links Entity Objects and Associations EmployeeEO Data Model Business Domain Components Data Model Components XML Java XML Java XML Java Nested AM Row Set Iterator Employee2 EmpDeptFkVL1

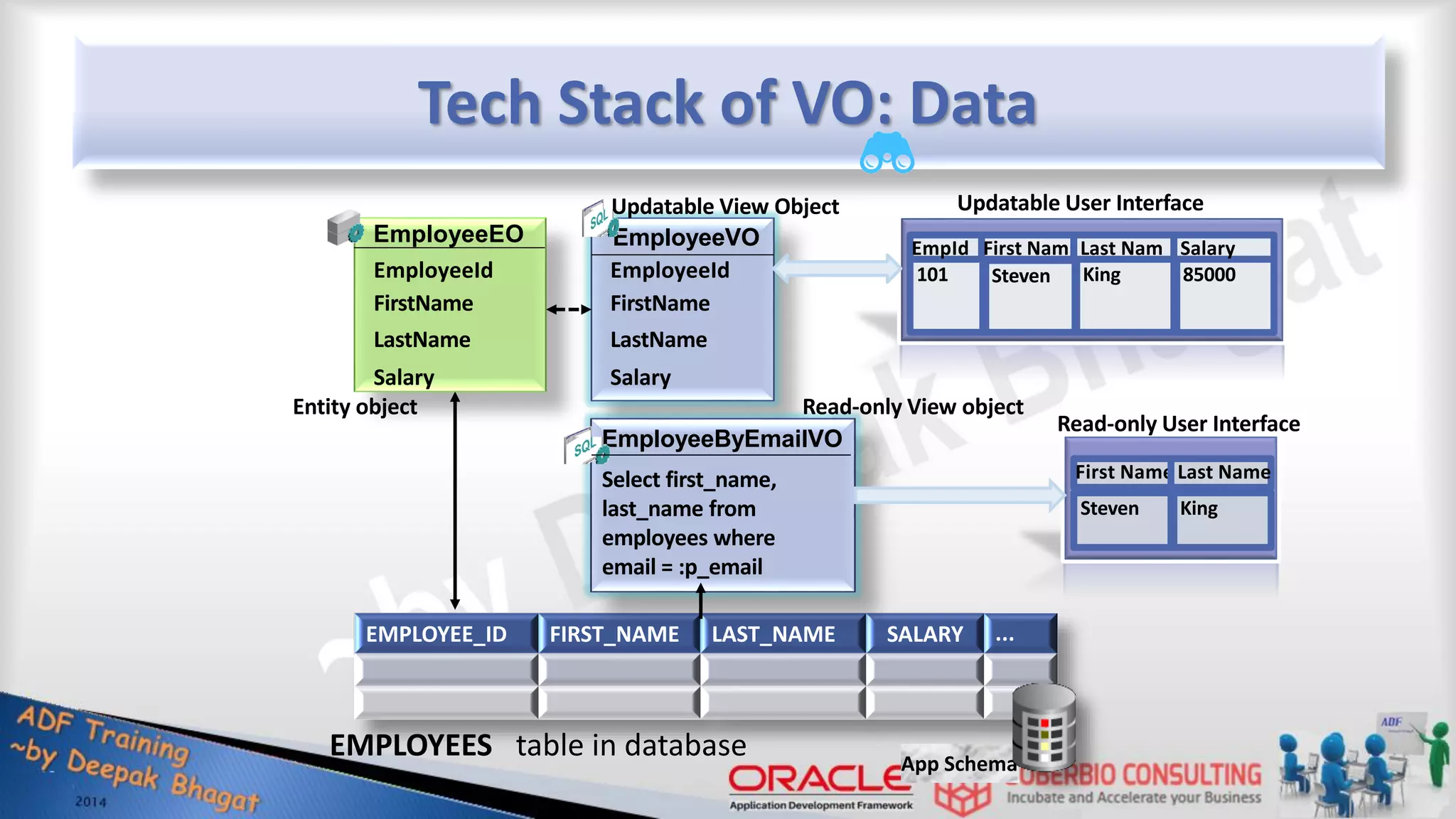

Tech Stack of VO: Data EmployeeVO EmployeeEO EmployeeId FirstName LastName Salary Entity object EmployeeId FirstName LastName Salary EMPLOYEES table in database EMPLOYEE_ID FIRST_NAME LAST_NAME SALARY ... App Schema 101 Steven EmpId First Nam King Last Nam 85000 Salary Steven King First Name Last Name Updatable View Object Select first_name, last_name from employees where email = :p_email EmployeeByEmailVO Read-only View object Read-only User Interface Updatable User Interface

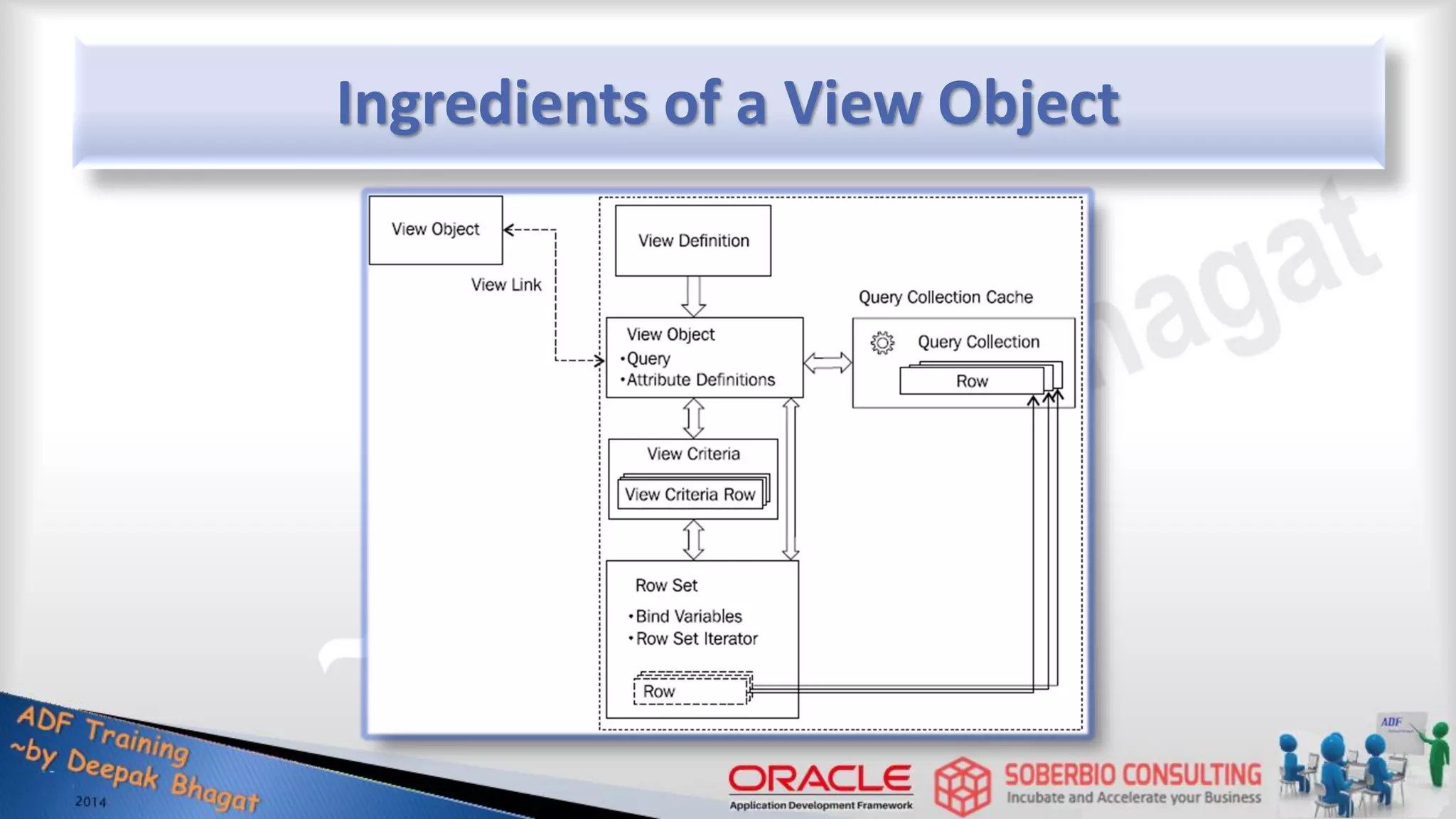

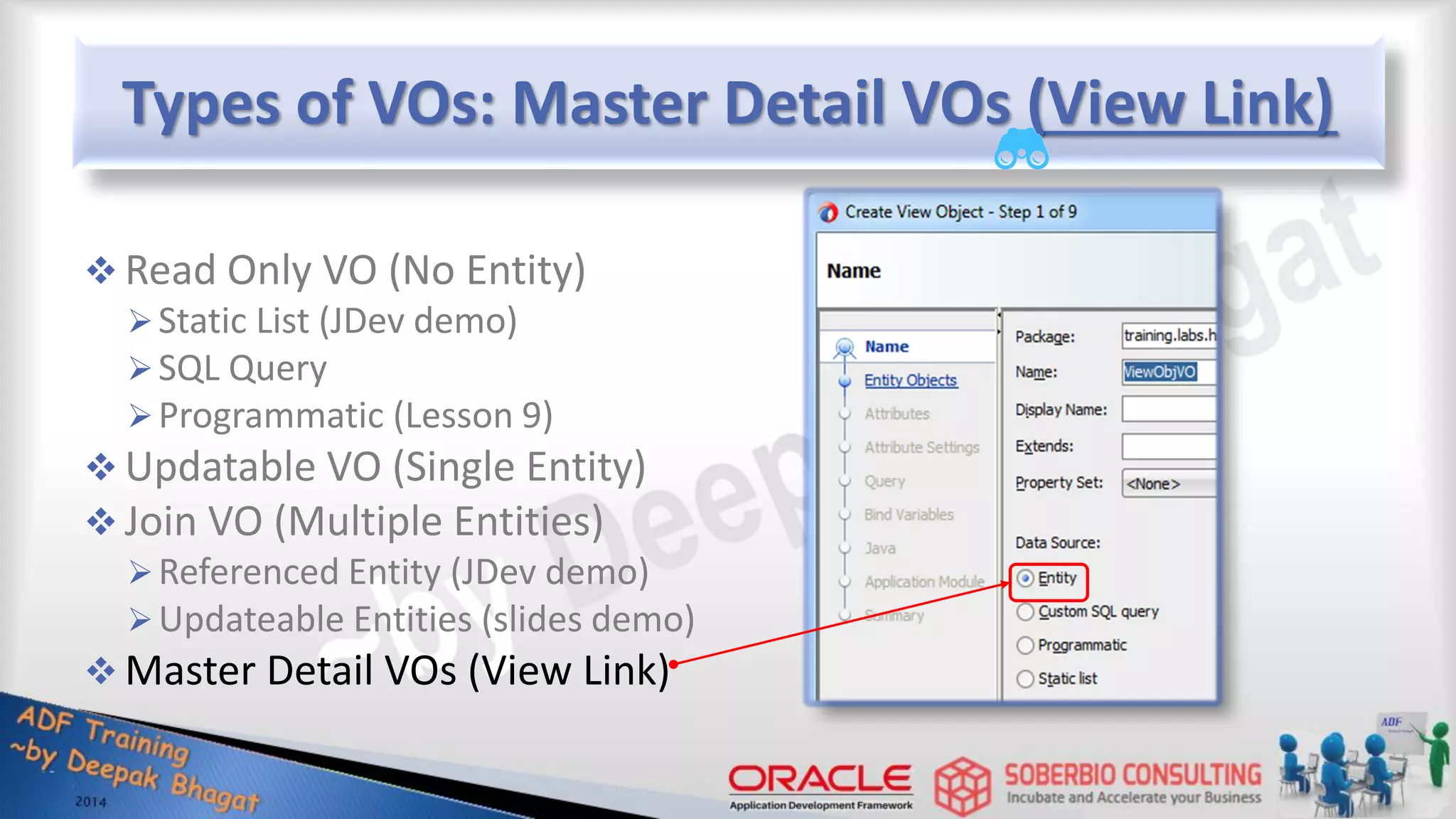

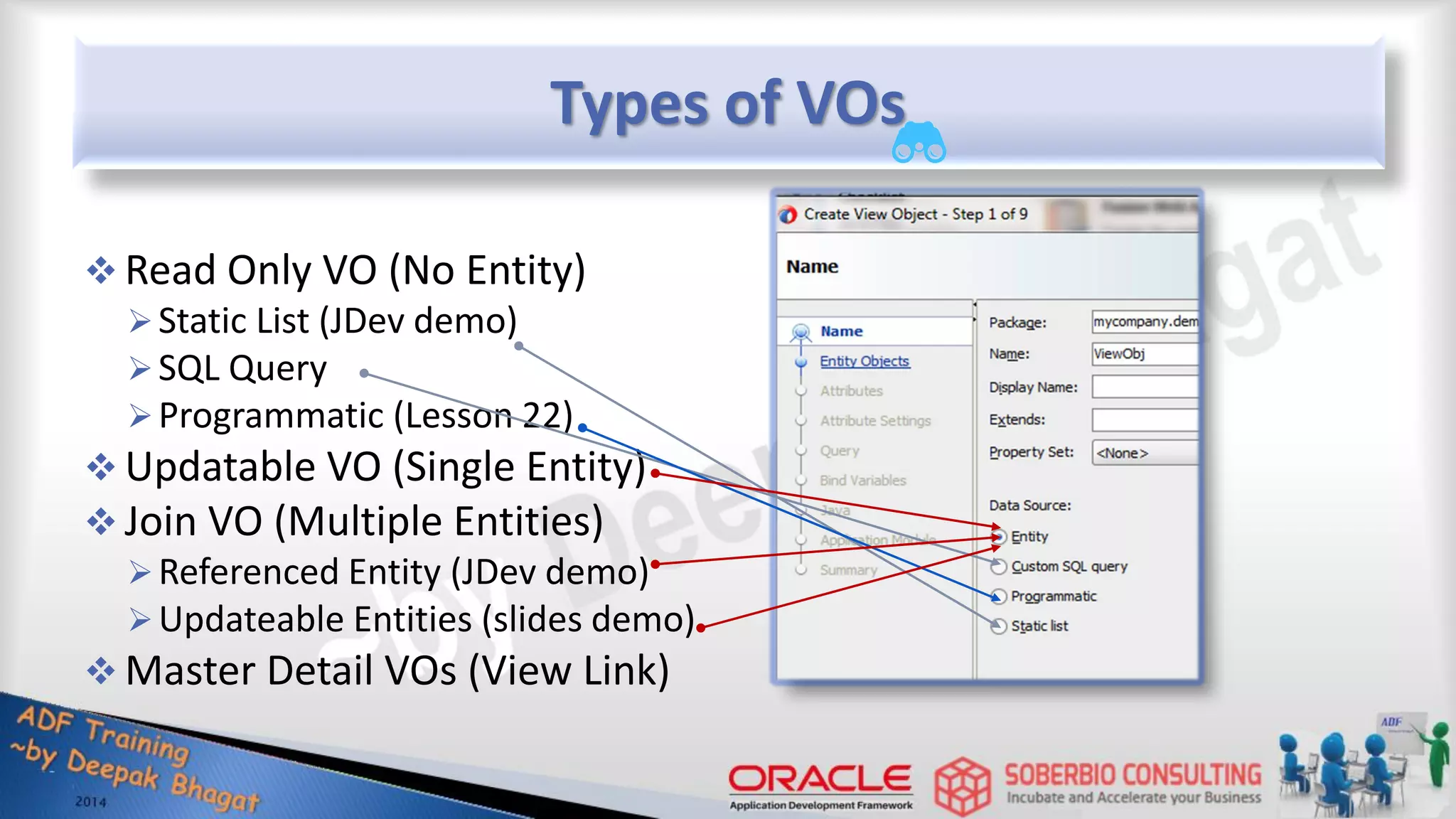

Types of VOs  Read Only VO (No Entity) Static List (JDev demo) SQL Query Programmatic (Lesson 22)  Updatable VO (Single Entity)  Join VO (Multiple Entities) Referenced Entity (JDev demo) Updateable Entities (slides demo)  Master Detail VOs (View Link)

Types of VOs: SQL Query  Read Only VO (No Entity) Static List (JDev demo) SQL Query Programmatic (Lesson 22)  Updatable VO (Single Entity)  Join VO (Multiple Entities) Referenced Entity (JDev demo) Updateable Entities (slides demo)  Master Detail VOs (View Link)

Read Only VO based on SQL Query: Overview ADF Business Components EmployeeByEmailVO EmployeeByEmail1 Business Services Relational Data / App Schema Application Module HRSystemAM with View Object Instances SQL Query Read Only View Object

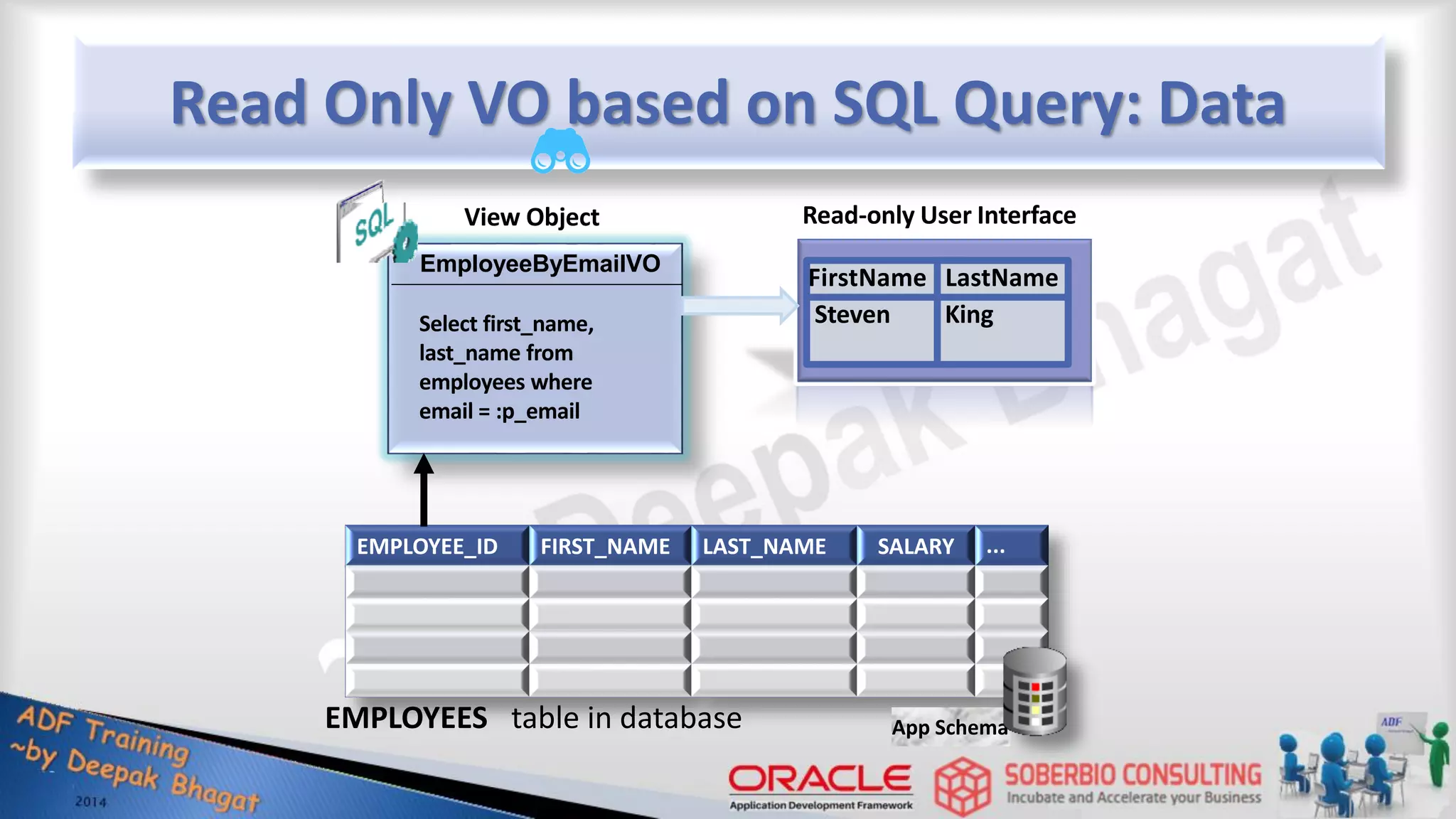

Read Only VO based on SQL Query: Data View Object Select first_name, last_name from employees where email = :p_email EmployeeByEmailVO Steven King FirstName LastName EMPLOYEES table in database EMPLOYEE_ID FIRST_NAME LAST_NAME SALARY ... App Schema Read-only User Interface

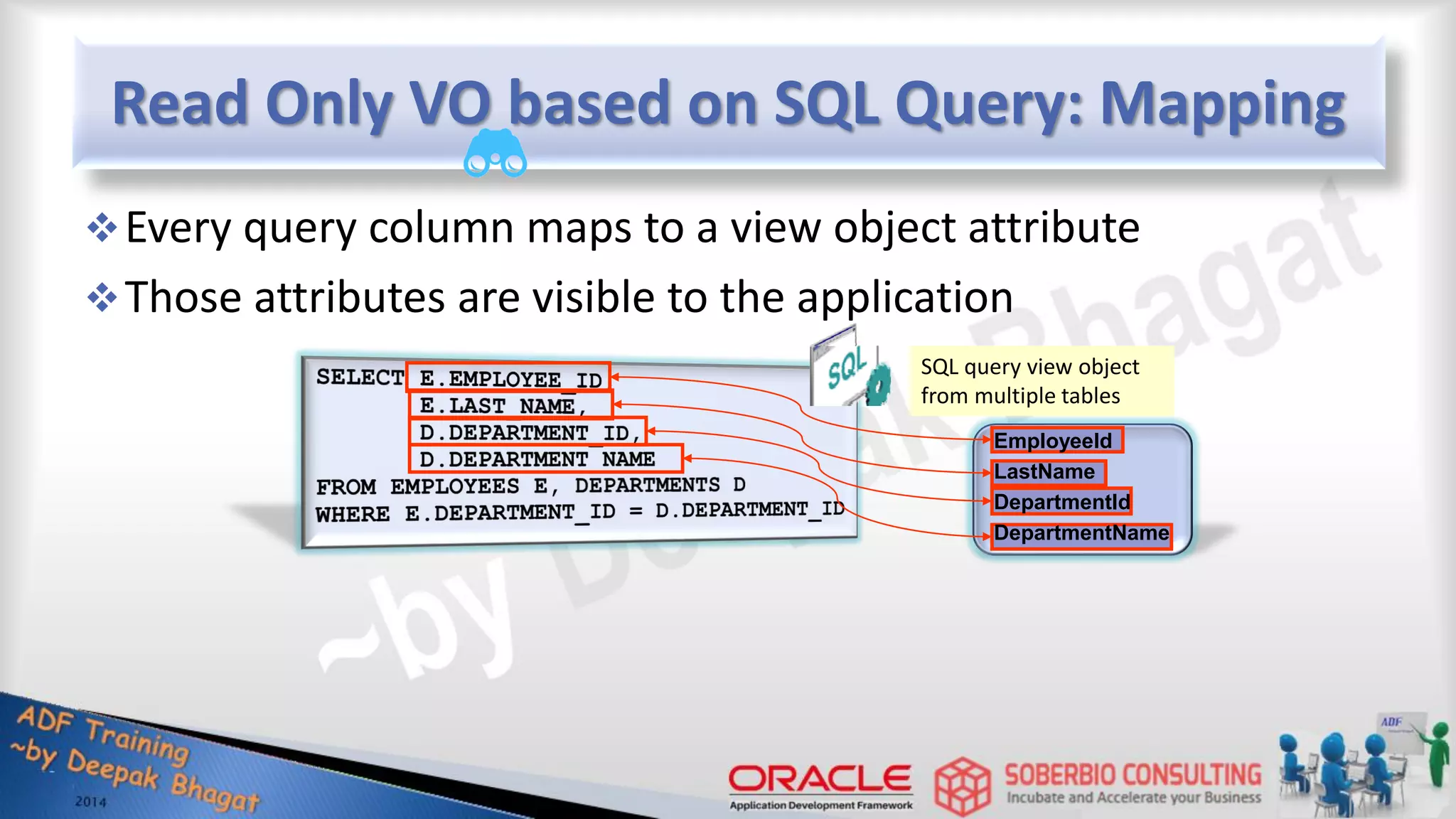

Read Only VO based on SQL Query: Mapping Every query column maps to a view object attribute Those attributes are visible to the application EmployeeId LastName DepartmentId DepartmentName SQL query view object from multiple tables

Read Only VO based on SQL Query: Features  Read-only access to data  Based on SQL query, one or more tables  Have only SQL-Only attributes  Can contain transient (calculated) attributes  Provides a row set Client can scroll through this rowset but cannot make any changes to it  Normally used to populate LOVs, pop lists etc.  Cannot perform insert/update operations on the data  Do not use entity objects at all  But much faster

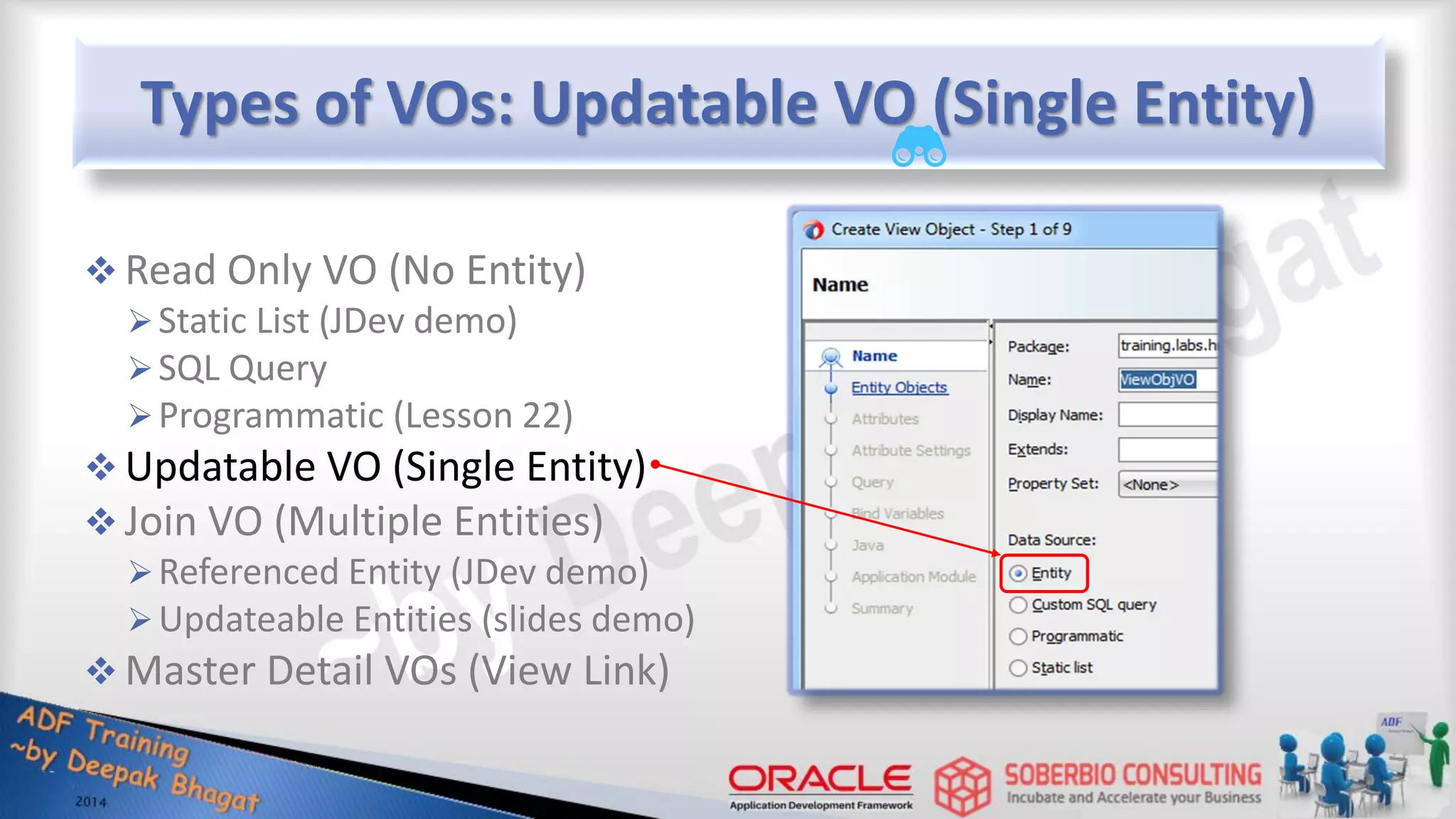

Types of VOs: Updatable VO (Single Entity)  Read Only VO (No Entity) Static List (JDev demo) SQL Query Programmatic (Lesson 22)  Updatable VO (Single Entity)  Join VO (Multiple Entities) Referenced Entity (JDev demo) Updateable Entities (slides demo)  Master Detail VOs (View Link)

Updatable VO based on Single EO: Overview ADF Business Components EmployeeVO Employee2 Business Services Relational Data / App Schema Application Module HRSystemAM with View Object Instances Entity Based Updatable View Object EmployeeEO Entity Object

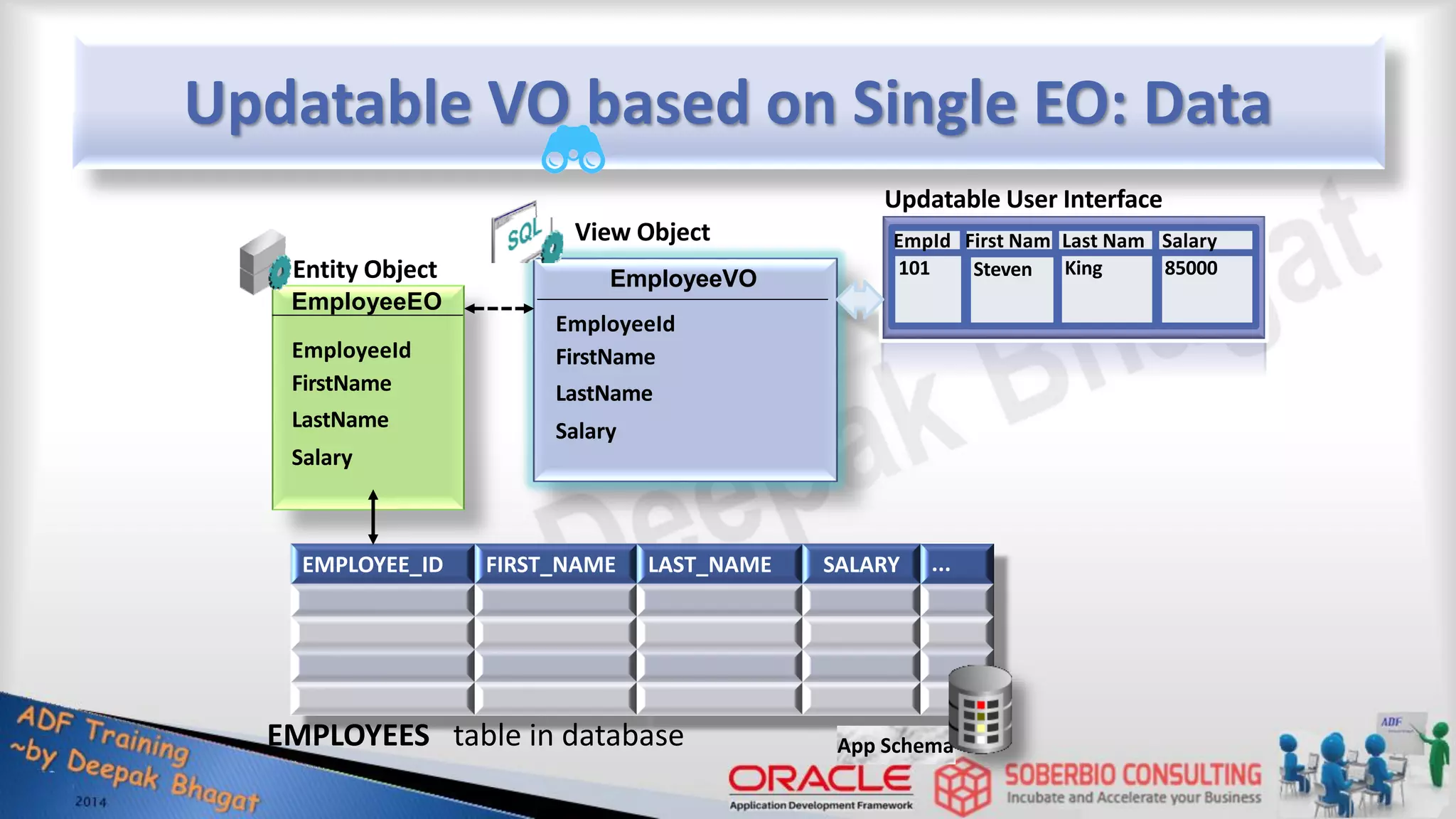

Updatable VO based on Single EO: Data View Object EmployeeVO EmployeeEO EmployeeId FirstName LastName Salary Entity Object EmployeeId FirstName LastName Salary EMPLOYEES table in database EMPLOYEE_ID FIRST_NAME LAST_NAME SALARY ... App Schema 101 Steven EmpId First Nam King Last Nam 85000 Salary Updatable User Interface

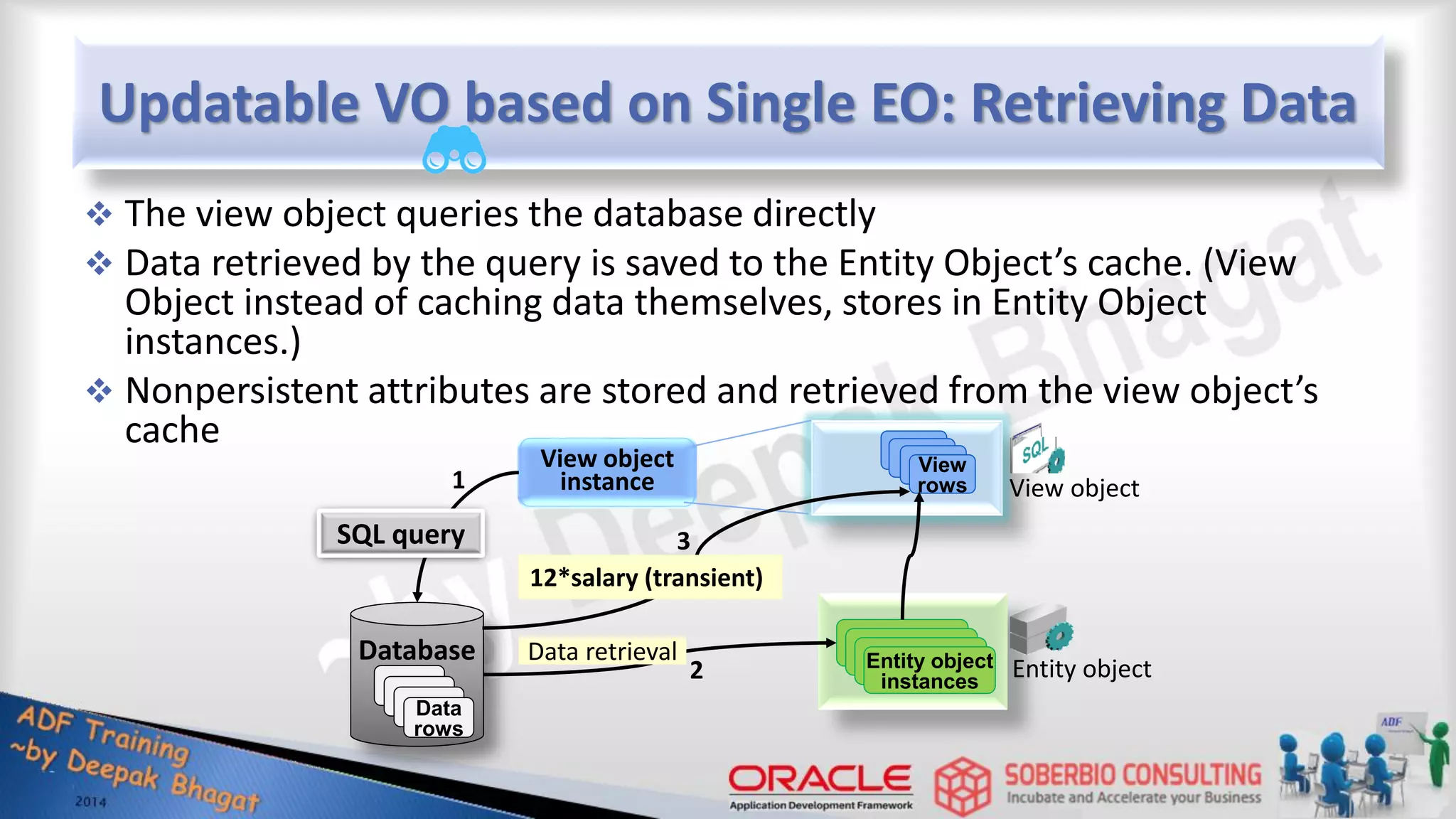

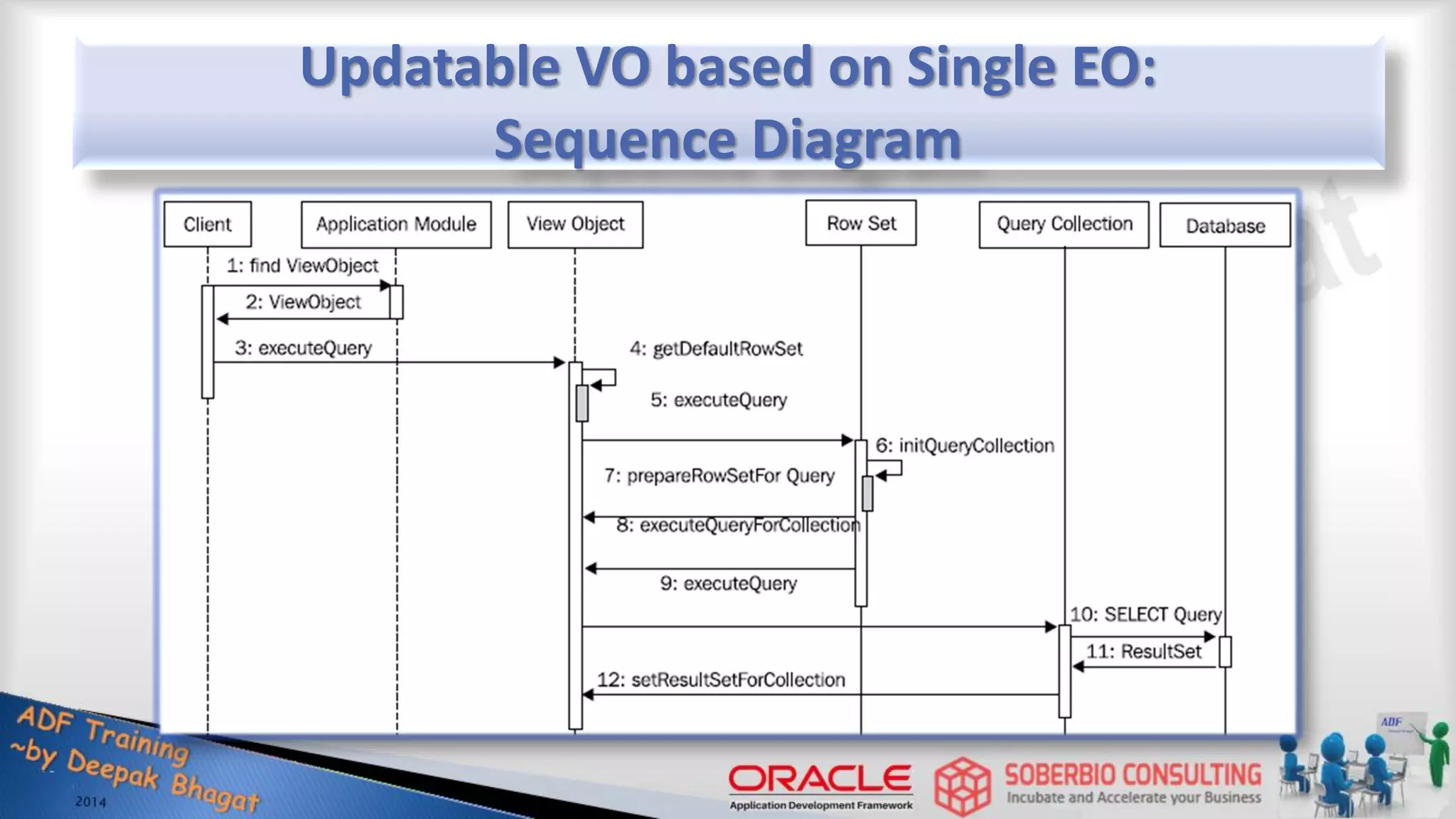

Updatable VO based on Single EO: Retrieving Data  The view object queries the database directly  Data retrieved by the query is saved to the Entity Object’s cache. (View Object instead of caching data themselves, stores in Entity Object instances.)  Nonpersistent attributes are stored and retrieved from the view object’s cache Database View object instance Data Data Data Data rows Data Data Data View rows SQL query Data Data Data Entity object instances Data retrieval Entity object View object 12*salary (transient) 1 2 3

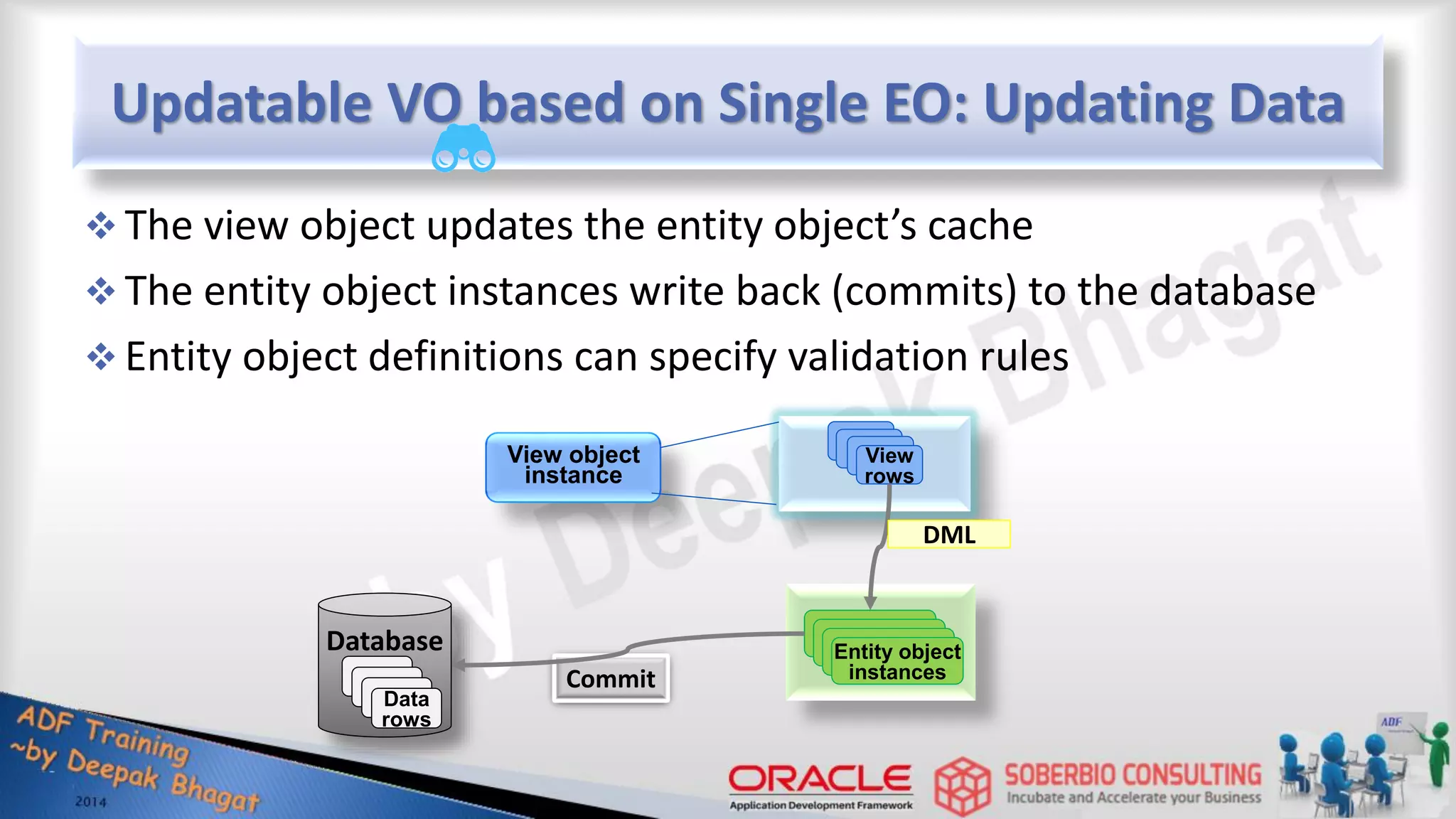

Updatable VO based on Single EO: Updating Data  The view object updates the entity object’s cache  The entity object instances write back (commits) to the database  Entity object definitions can specify validation rules Database View object instance Data Data Data Data rows Data Data Data View rows Data Data Data Entity object instances DML Commit

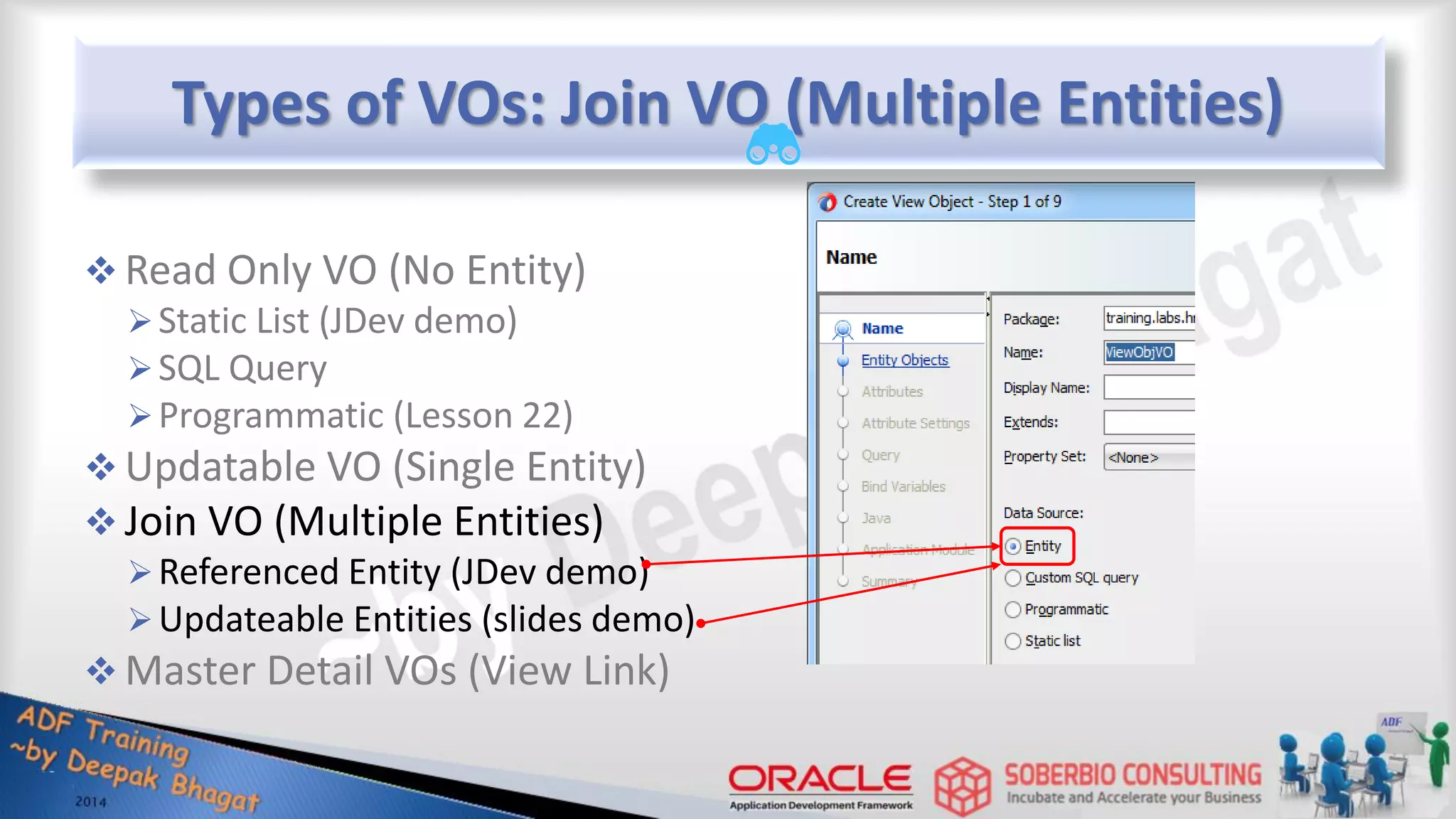

Types of VOs: Join VO (Multiple Entities)  Read Only VO (No Entity) Static List (JDev demo) SQL Query Programmatic (Lesson 22)  Updatable VO (Single Entity)  Join VO (Multiple Entities) Referenced Entity (JDev demo) Updateable Entities (slides demo)  Master Detail VOs (View Link)

Join VO based on Multiple EO: Overview EmployeeSummaryVO EmployeeSummary1 Business Services Relational Data / App Schema Application Module HRSystemAM with View Object Instances Multiple Entity Based Join View Object EmployeeEO Entity Objects Referenced or Updatable DepartmentEO ADF Business Components

Types of VOs: Referenced Entity  Read Only VO (No Entity) Static List (JDev demo) SQL Query Programmatic (Lesson 22)  Updatable VO (Single Entity)  Join VO (Multiple Entities) Referenced Entity (JDev demo) Updateable Entities (slides demo)  Master Detail VOs (View Link)

Referenced (Read-only) EmpDeptFkAS Join VO based on Referenced EO: Overview View object DepartmentEO EmployeeEO EmployeeId FirstName LastName Entity objects EMPLOYEES EMPLOYEE_ID FIRST_NAME LAST_NAME DEPARTMENTS DEPARTMENT_ID DEPARTMENT_NAME DepartmentId DepartmentName EmployeeSummaryVO EmployeeId FirstName DepartmentId DepartmentName Relational Data / App Schema LastName 101 Steven Emp Id First Nam King Last Nam 10 Dpt Id IT_PROG Dpt Name 1 M * D

Join VO based on Referenced EO: Setting

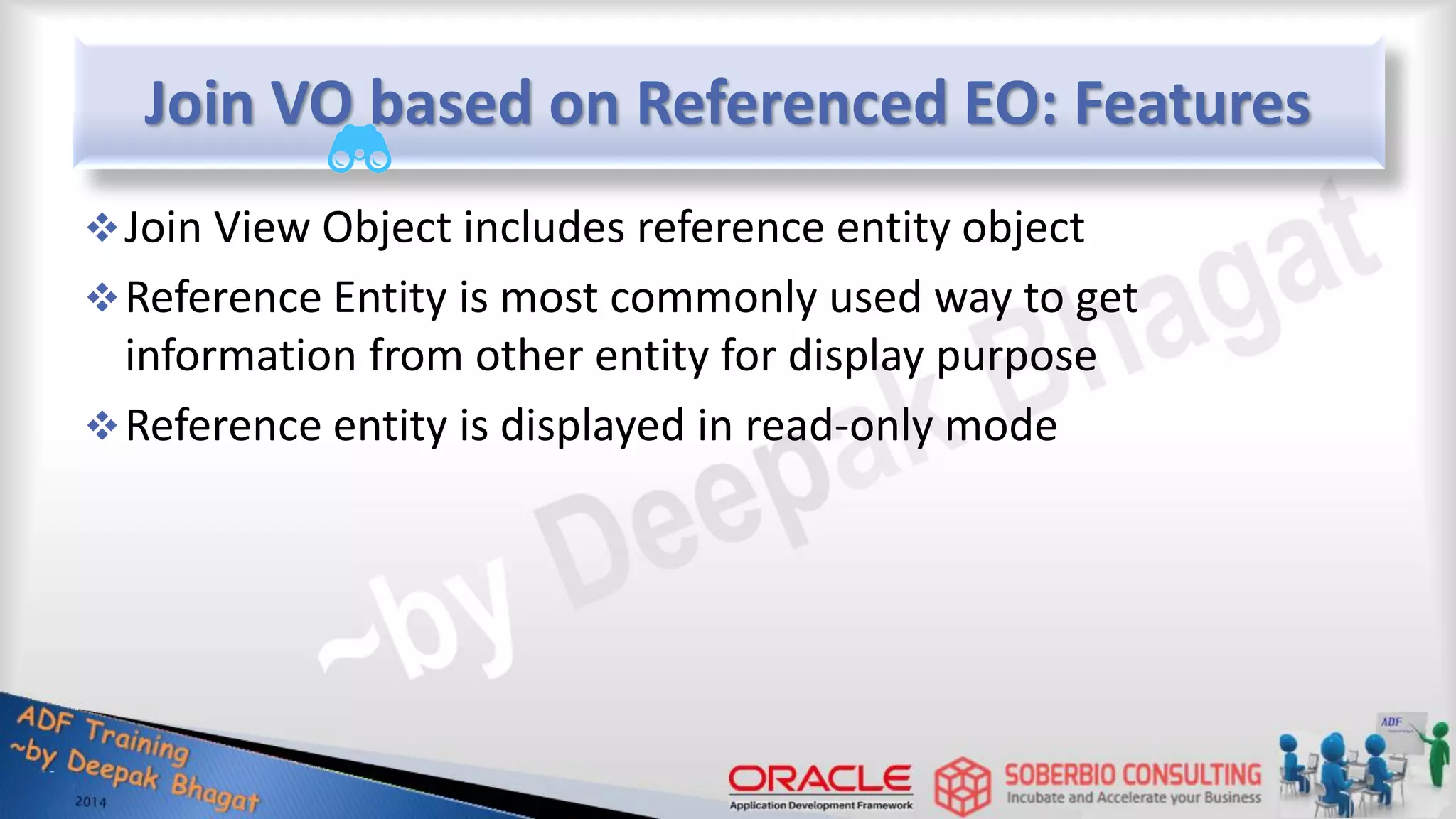

Join VO based on Referenced EO: Features Join View Object includes reference entity object Reference Entity is most commonly used way to get information from other entity for display purpose Reference entity is displayed in read-only mode

Types of VOs: Updatable Entities  Read Only VO (No Entity) Static List (JDev demo) SQL Query Programmatic (Lesson 22)  Updatable VO (Single Entity)  Join VO (Multiple Entities) Referenced Entity (JDev demo) Updateable Entities (slides demo)  Master Detail VOs (View Link)

Relational Data / App Schema Join VO based on Updatable EO: Overview View object DepartmentEO EmployeeEO EmployeeId FirstName LastName EMPLOYEES EMPLOYEE_ID FIRST_NAME LAST_NAME DEPARTMENTS DEPARTMENT_ID DEPARTMENT_NAME DepartmentId DepartmentName EmployeeListVO EmployeeId FirstName DepartmentId DepartmentName LastName 101 Steven King Last Nam 10 Dpt Id IT_PROG Dpt Name Updatable Updatable Emp Id Emp Nam Entity objects EmpDeptFkAS 1 M * D

Join VO based on Updatable EO: Settings

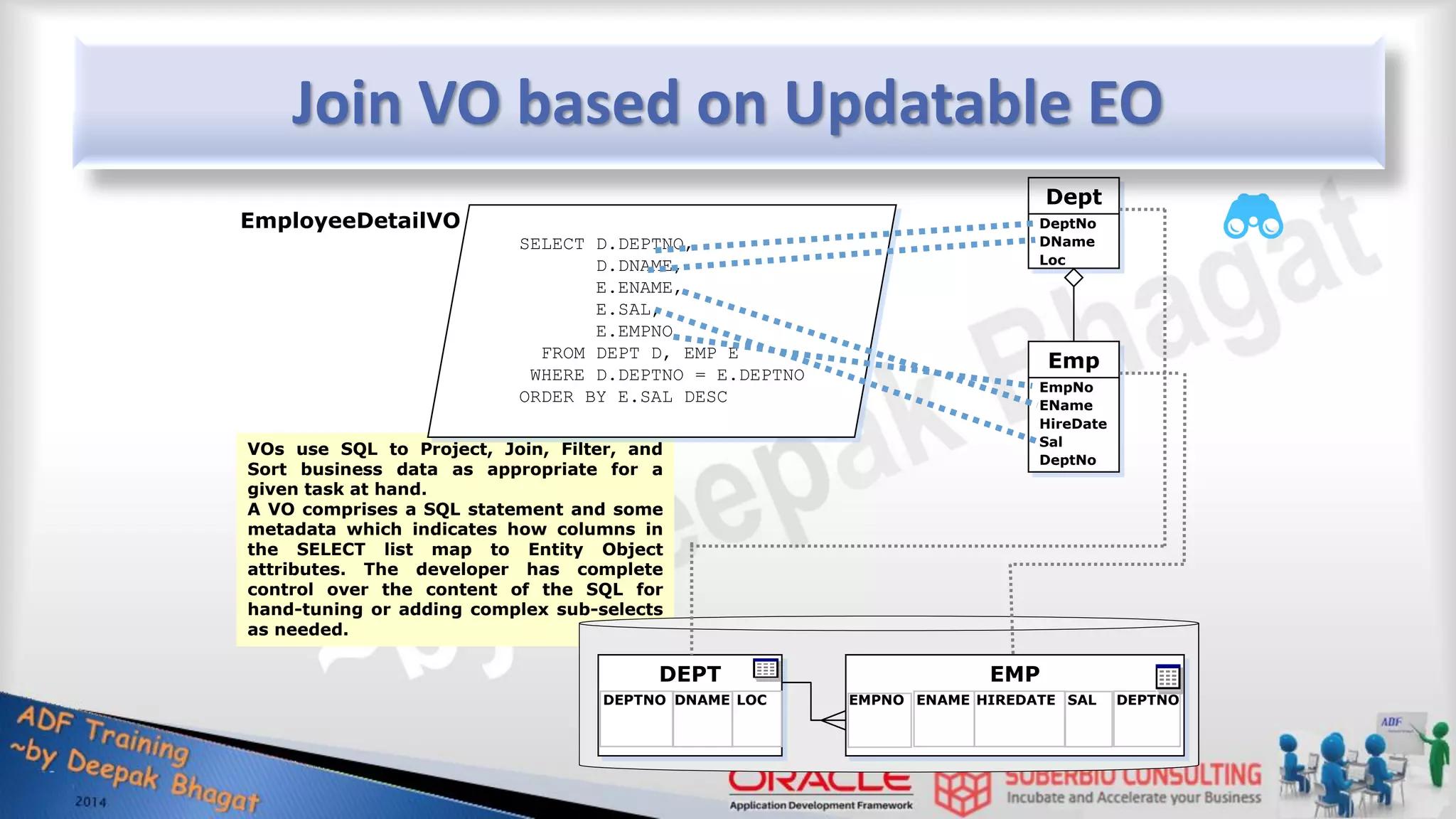

DEPT DEPTNO DNAME LOC EMP EMPNO ENAME HIREDATE SAL DEPTNO Dept Deptno Dname Loc Emp Empno Ename Hiredate Sal Deptno EmployeeDetailVO Entity Objects encapsulate business logic for related tables in the database. Join VO based on Updatable EO

VOs use SQL to Project, Join, Filter, and Sort business data as appropriate for a given task at hand. A VO comprises a SQL statement and some metadata which indicates how columns in the SELECT list map to Entity Object attributes. The developer has complete control over the content of the SQL for hand-tuning or adding complex sub-selects as needed. DEPT DEPTNO DNAME LOC SELECT D.DEPTNO, D.DNAME, E.ENAME, E.SAL, E.EMPNO FROM DEPT D, EMP E WHERE D.DEPTNO = E.DEPTNO ORDER BY E.SAL DESC EmployeeDetailVO Dept DeptNo DName Loc Emp EmpNo EName HireDate Sal DeptNo EMP EMPNO ENAME HIREDATE SAL DEPTNO Join VO based on Updatable EO

Unlike other “pure object” approaches, VOs know that the database is the best at efficiently processing queries. Rather than adding extra object layers between the query and the database, a VO sends its SQL statement directly to the database. SELECT D.DEPTNO, D.DNAME, E.ENAME, E.SAL, E.EMPNO FROM DEPT D, EMP E WHERE D.DEPTNO = E.DEPTNO ORDER BY E.SAL DESC Join VO based on Updatable EO DEPT DEPTNO DNAME LOC Dept DeptNo DName Loc Emp EmpNo EName HireDate Sal DeptNo EMP EMPNO ENAME HIREDATE SAL DEPTNO EmployeeDetailVO

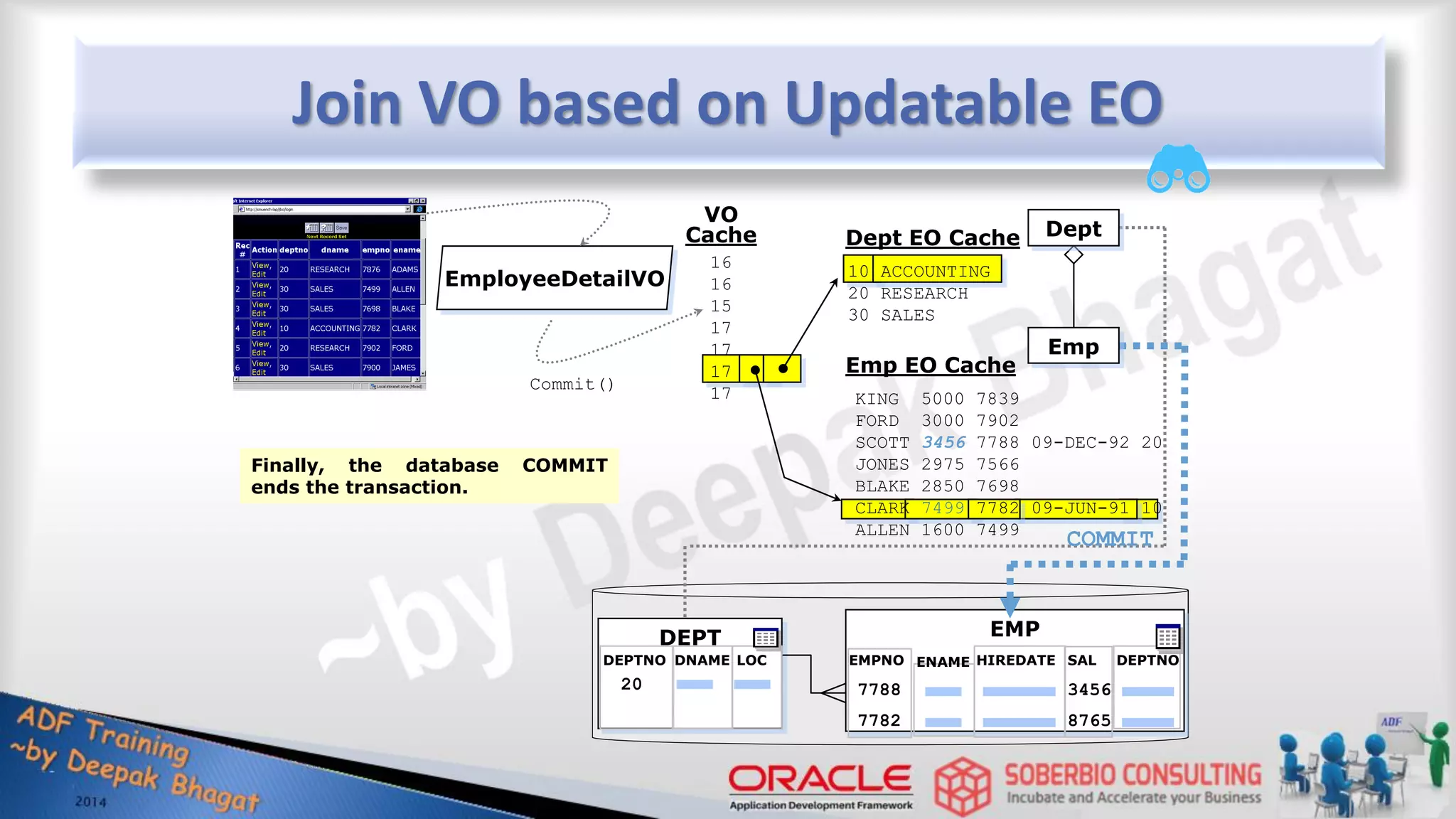

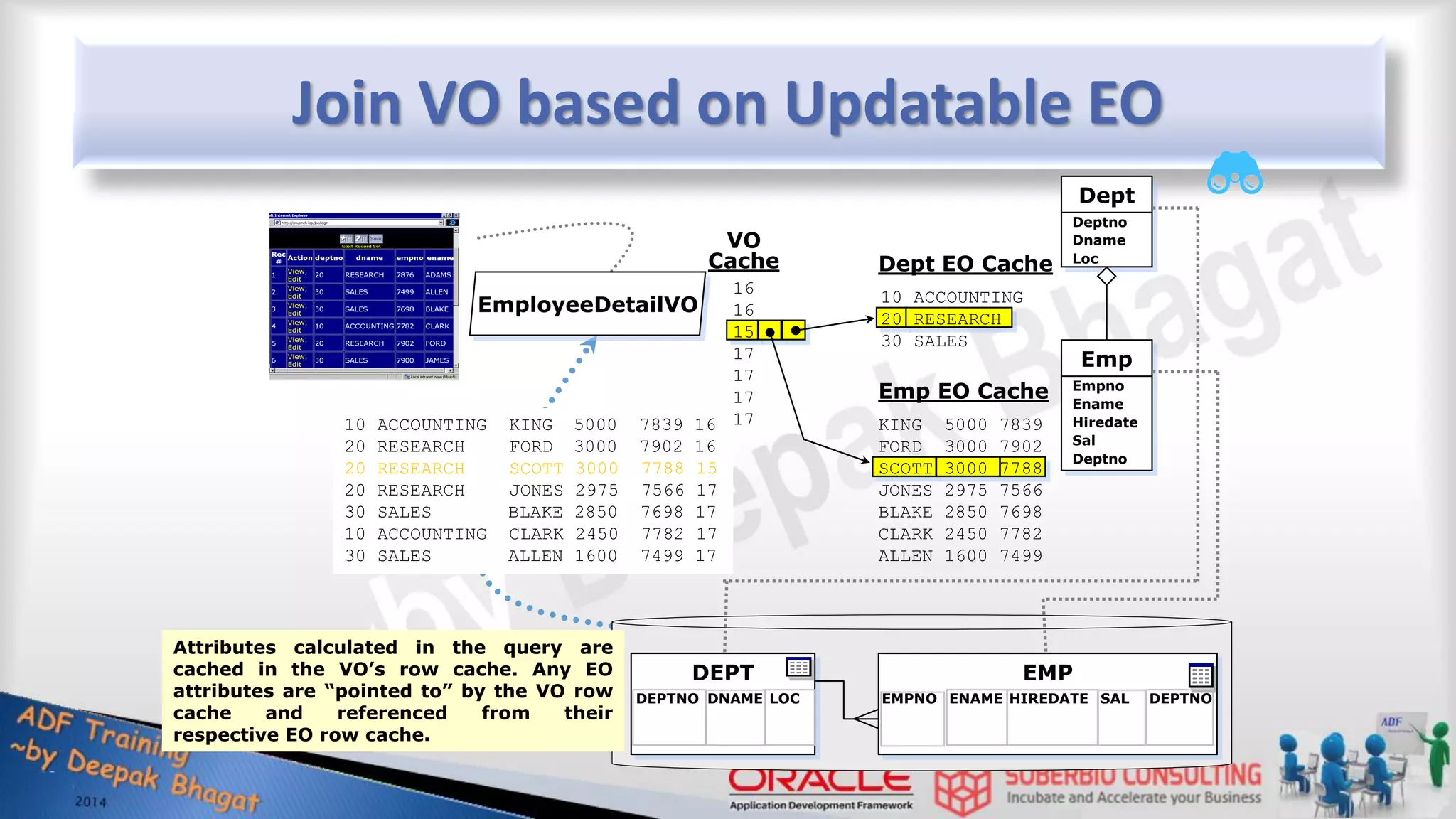

Join VO based on Updatable EO DEPT DEPTNO DNAME LOC Dept Deptno Dname Loc Emp Empno Ename Hiredate Sal Deptno EMP EMPNO ENAME HIREDATE SAL DEPTNO EmployeeDetailVO 10 ACCOUNTING KING 5000 7839 16 20 RESEARCH FORD 3000 7902 16 20 RESEARCH SCOTT 3000 7788 15 20 RESEARCH JONES 2975 7566 17 30 SALES BLAKE 2850 7698 17 10 ACCOUNTING CLARK 2450 7782 17 30 SALES ALLEN 1600 7499 17 10 ACCOUNTING 20 RESEARCH 30 SALES Dept EO Cache KING 5000 7839 FORD 3000 7902 SCOTT 3000 7788 JONES 2975 7566 BLAKE 2850 7698 CLARK 2450 7782 ALLEN 1600 7499 Emp EO Cache 16 16 15 17 17 17 17 VO Cache After the database has returned the query results, the View Object partitions the attributes in the database result set into Entity Object- specific row caches based on the View Object’s EO “wiring” metadata.

Join VO based on Updatable EO DEPT DEPTNO DNAME LOC Dept Deptno Dname Loc Emp Empno Ename Hiredate Sal Deptno EMP EMPNO ENAME HIREDATE SAL DEPTNO EmployeeDetailVO 10 ACCOUNTING KING 5000 7839 16 20 RESEARCH FORD 3000 7902 16 20 RESEARCH SCOTT 3000 7788 15 20 RESEARCH JONES 2975 7566 17 30 SALES BLAKE 2850 7698 17 10 ACCOUNTING CLARK 2450 7782 17 30 SALES ALLEN 1600 7499 17 10 ACCOUNTING 20 RESEARCH 30 SALES Dept EO Cache KING 5000 7839 FORD 3000 7902 SCOTT 3000 7788 JONES 2975 7566 BLAKE 2850 7698 CLARK 2450 7782 ALLEN 1600 7499 Emp EO Cache 16 16 15 17 17 17 17 VO Cache Attributes calculated in the query are cached in the VO’s row cache. Any EO attributes are “pointed to” by the VO row cache and referenced from their respective EO row cache.

Join VO based on Updatable EO DEPT DEPTNO DNAME LOC Dept Deptno Dname Loc Emp Empno Ename Hiredate Sal Deptno EMP EMPNO ENAME HIREDATE SAL DEPTNO EmployeeDetailVO 10 ACCOUNTING KING 5000 7839 16 20 RESEARCH FORD 3000 7902 16 20 RESEARCH SCOTT 3000 7788 15 20 RESEARCH JONES 2975 7566 17 30 SALES BLAKE 2850 7698 17 10 ACCOUNTING CLARK 2450 7782 17 30 SALES ALLEN 1600 7499 17 10 ACCOUNTING 20 RESEARCH 30 SALES Dept EO Cache KING 5000 7839 FORD 3000 7902 SCOTT 3000 7788 JONES 2975 7566 BLAKE 2850 7698 CLARK 2450 7782 ALLEN 1600 7499 Emp EO Cache 16 16 15 17 17 17 17 VO Cache Again, unlike “pure object” approaches, only the attributes retrieved in the query are cached.

Join VO based on Updatable EO DEPT DEPTNO DNAME LOC Dept Deptno Dname Loc Emp Empno Ename Hiredate Sal Deptno EMP EMPNO ENAME HIREDATE SAL DEPTNO EmployeeDetailVO 10 ACCOUNTING 20 RESEARCH 30 SALES Dept EO Cache KING 5000 7839 FORD 3000 7902 SCOTT 3000 7788 JONES 2975 7566 BLAKE 2850 7698 CLARK 2450 7782 ALLEN 1600 7499 Emp EO Cache 16 16 15 17 17 17 17 VO Cache When a client program, applet, or browser page attempts to change the value of the Sal attribute in the View Object... setSal(3456)

Join VO based on Updatable EO DEPT DEPTNO DNAME LOC Dept Deptno Dname Loc Emp Empno Ename Hiredate Sal Deptno EMP EMPNO ENAME HIREDATE SAL DEPTNO EmployeeDetailVO 10 ACCOUNTING 20 RESEARCH 30 SALES Dept EO Cache KING 5000 7839 FORD 3000 7902 SCOTT 3000 7788 JONES 2975 7566 BLAKE 2850 7698 CLARK 2450 7782 ALLEN 1600 7499 Emp EO Cache 16 16 15 17 17 17 17 VO Cache The View Object delegates the request to the appropriate Entity Object in the cache. setSal(3456) setSal(3456)?

Join VO based on Updatable EO DEPT DEPTNO DNAME LOC Dept Deptno Dname Loc Emp Empno Ename Hiredate Sal Deptno EMP EMPNO ENAME HIREDATE SAL DEPTNO EmployeeDetailVO 10 ACCOUNTING 20 RESEARCH 30 SALES Dept EO Cache KING 5000 7839 FORD 3000 7902 SCOTT 3000 7788 JONES 2975 7566 BLAKE 2850 7698 CLARK 2450 7782 ALLEN 1600 7499 Emp EO Cache 16 16 15 17 17 17 17 VO Cache Entity Object attribute-level validation logic on “Sal” is fired to see if this change in Salary is permitted. setSal(3456) setSal(3456)? ?

Join VO based on Updatable EO DEPT DEPTNO DNAME LOC EMP EMPNO ENAME HIREDATE SAL DEPTNO EmployeeDetailVO 10 ACCOUNTING 20 RESEARCH 30 SALES Dept EO Cache Emp EO Cache 16 16 15 17 17 17 17 VO Cache The validation logic on the Entity Object for its “Sal” attribute contains code which references the Emp EO’s HireDate attribute to calculate if the employee was hired after January 1st, 1990 to enforce a business rule. The “Sal” validation code does this with a call to getHiredate(). When an attempt is made to access an EO attribute which is not in the EO cache, the remainder of the EO’s attributes are “faulted” in from the database by PK or ROWID. setSal(3456) setSal(3456)? Dept Emp KING 5000 7839 FORD 3000 7902 SCOTT 3000 7788 09-DEC-92 20 JONES 2975 7566 BLAKE 2850 7698 CLARK 2450 7782 ALLEN 1600 7499

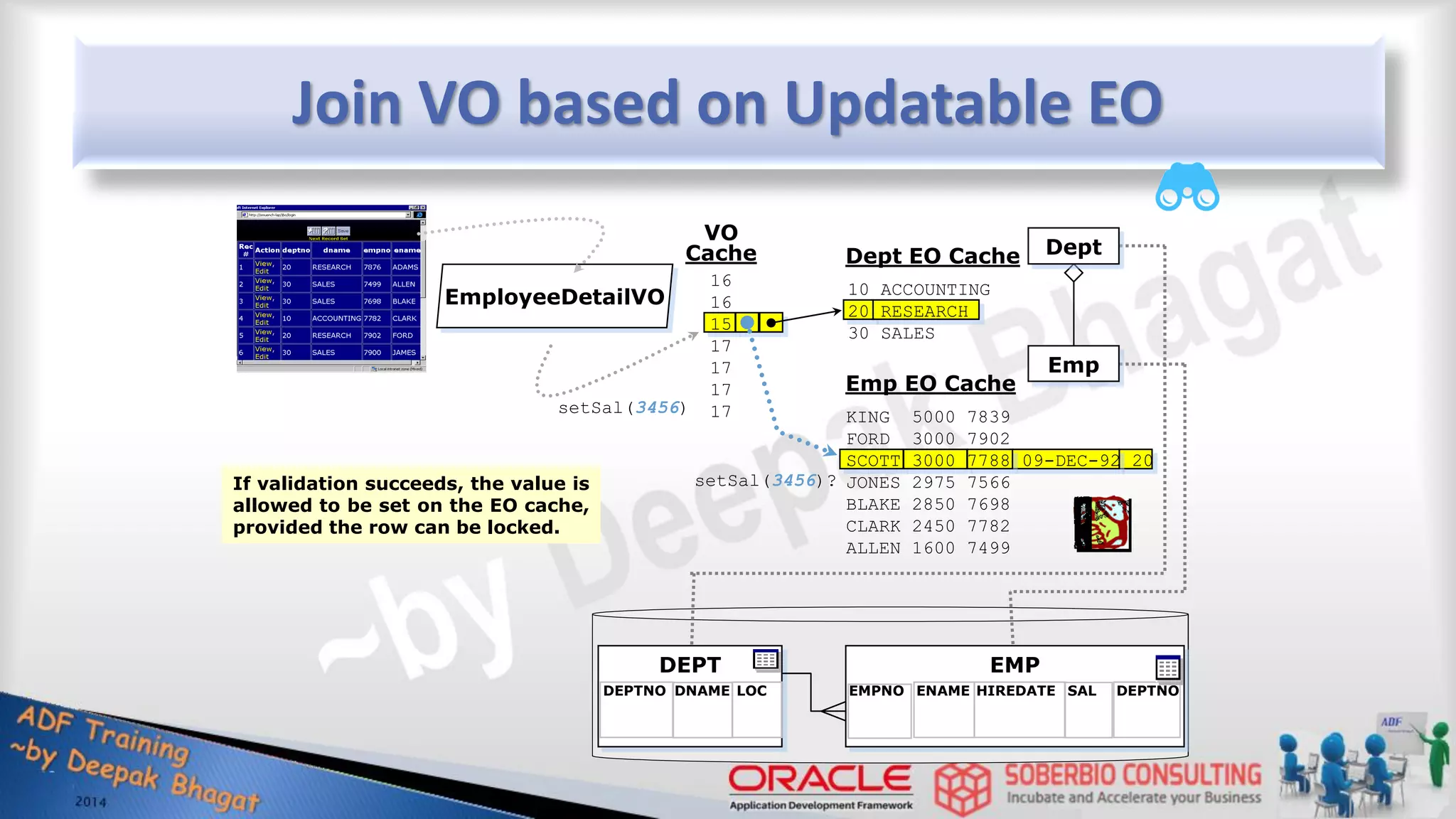

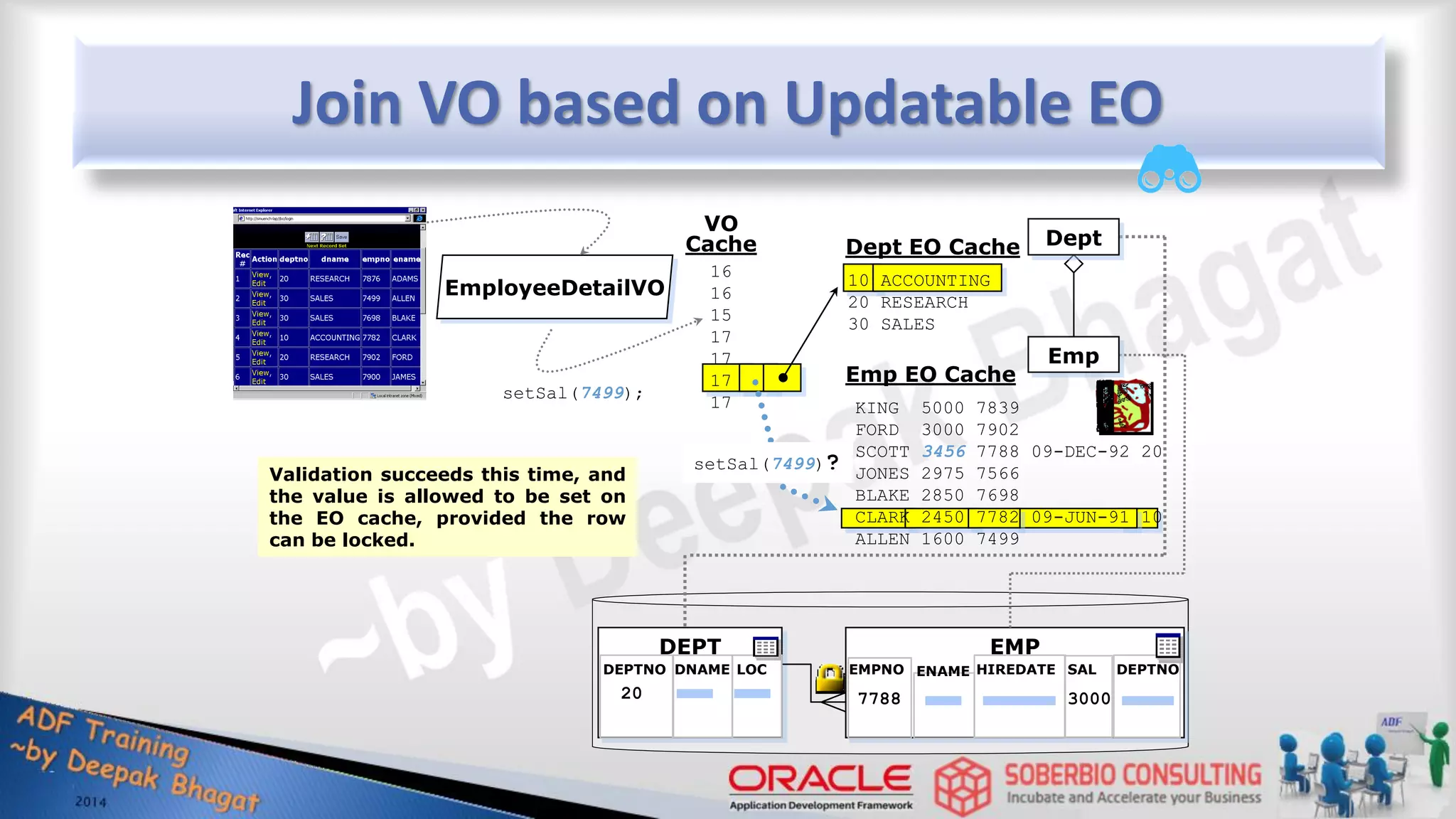

Join VO based on Updatable EO DEPT DEPTNO DNAME LOC EMP EMPNO ENAME HIREDATE SAL DEPTNO EmployeeDetailVO 10 ACCOUNTING 20 RESEARCH 30 SALES Dept EO Cache Emp EO Cache 16 16 15 17 17 17 17 VO Cache This “partial fetch” optimization means that if a user browses hundreds of rows, and only changes one, significant memory savings can be had for not caching all attributes for all rows. setSal(3456) setSal(3456)? Dept Emp KING 5000 7839 FORD 3000 7902 SCOTT 3000 7788 09-DEC-9220 JONES 2975 7566 BLAKE 2850 7698 CLARK 2450 7782 ALLEN 1600 7499

Join VO based on Updatable EO DEPT DEPTNO DNAME LOC EMP EMPNO ENAME HIREDATE SAL DEPTNO EmployeeDetailVO 10 ACCOUNTING 20 RESEARCH 30 SALES Dept EO Cache Emp EO Cache 16 16 15 17 17 17 17 VO Cache If validation succeeds, the value is allowed to be set on the EO cache, provided the row can be locked. setSal(3456) setSal(3456)? Dept Emp KING 5000 7839 FORD 3000 7902 SCOTT 3000 7788 09-DEC-92 20 JONES 2975 7566 BLAKE 2850 7698 CLARK 2450 7782 ALLEN 1600 7499

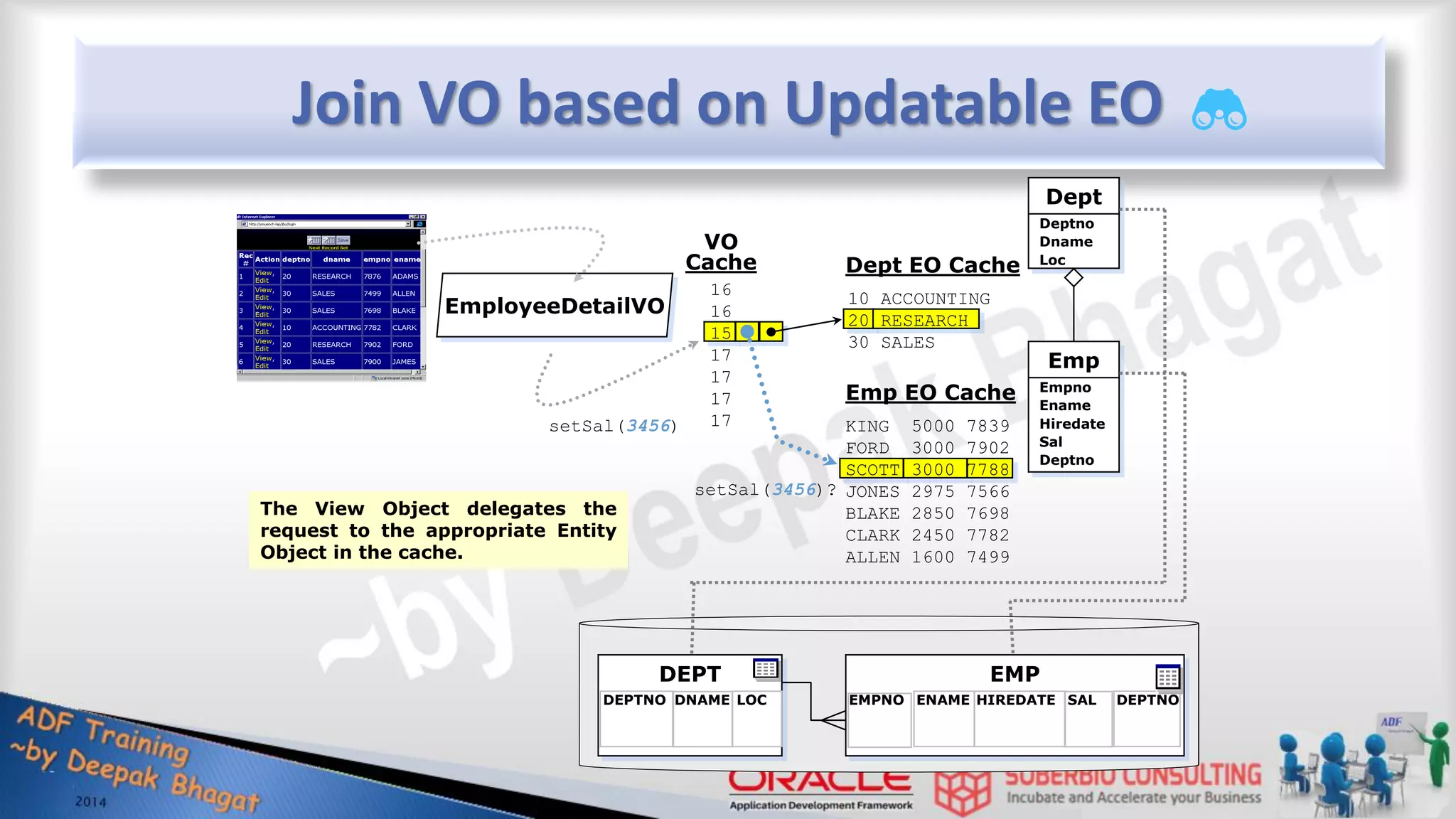

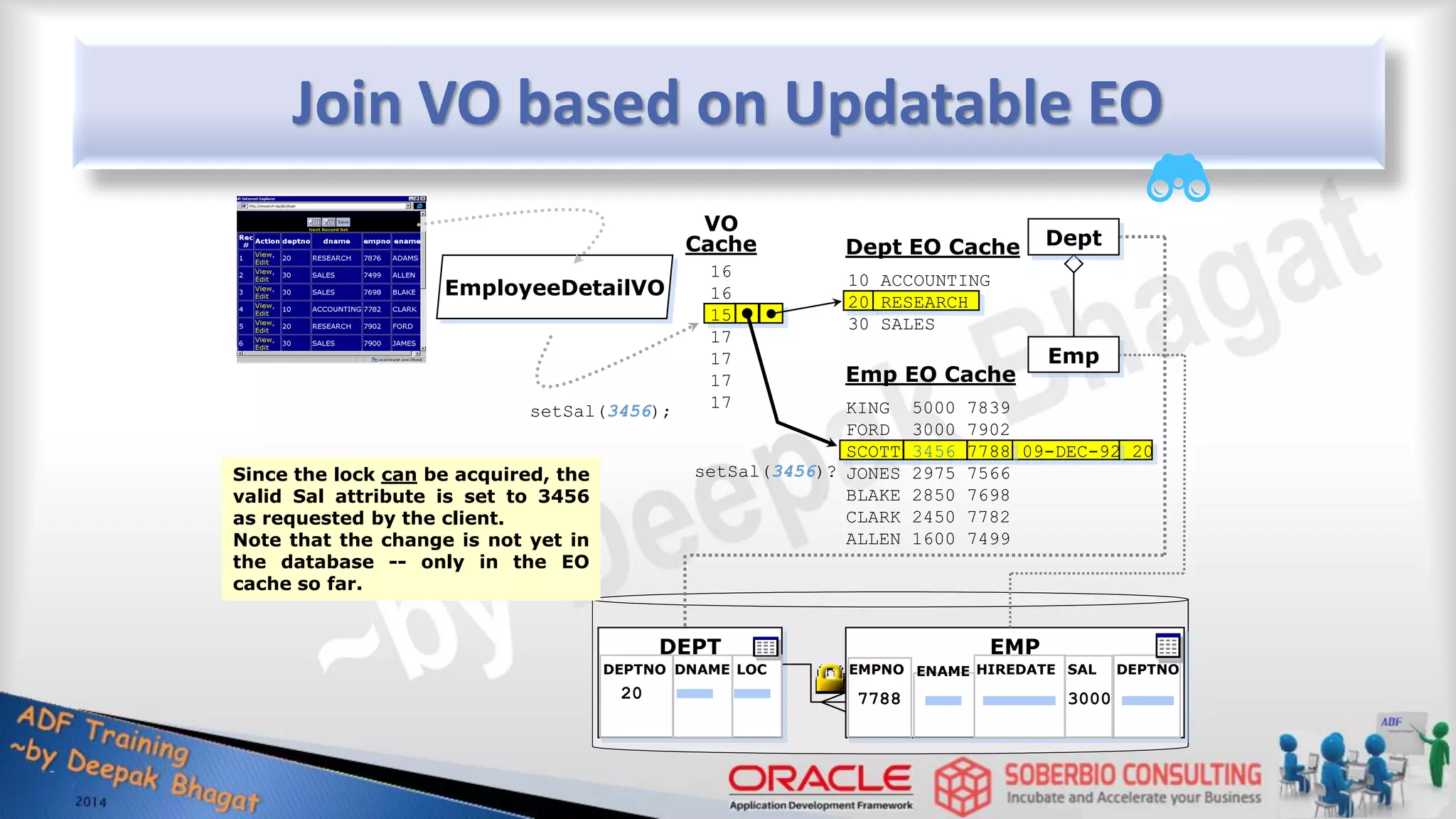

Join VO based on Updatable EO DEPT DEPTNO DNAME LOC EMP EMPNO ENAME HIREDATE SAL DEPTNO EmployeeDetailVO 10 ACCOUNTING 20 RESEARCH 30 SALES Dept EO Cache Emp EO Cache 16 16 15 17 17 17 17 VO Cache The Entity Object automatically locks its corresponding row in the database with appropriate DML. View Objects can support optimistic locking as well. setSal(3456)? Dept Emp KING 5000 7839 FORD 3000 7902 SCOTT 3000 7788 09-DEC-92 20 JONES 2975 7566 BLAKE 2850 7698 CLARK 2450 7782 ALLEN 1600 7499 setSal(3456); 20 7788 3000 SELECT FOR UPDATE

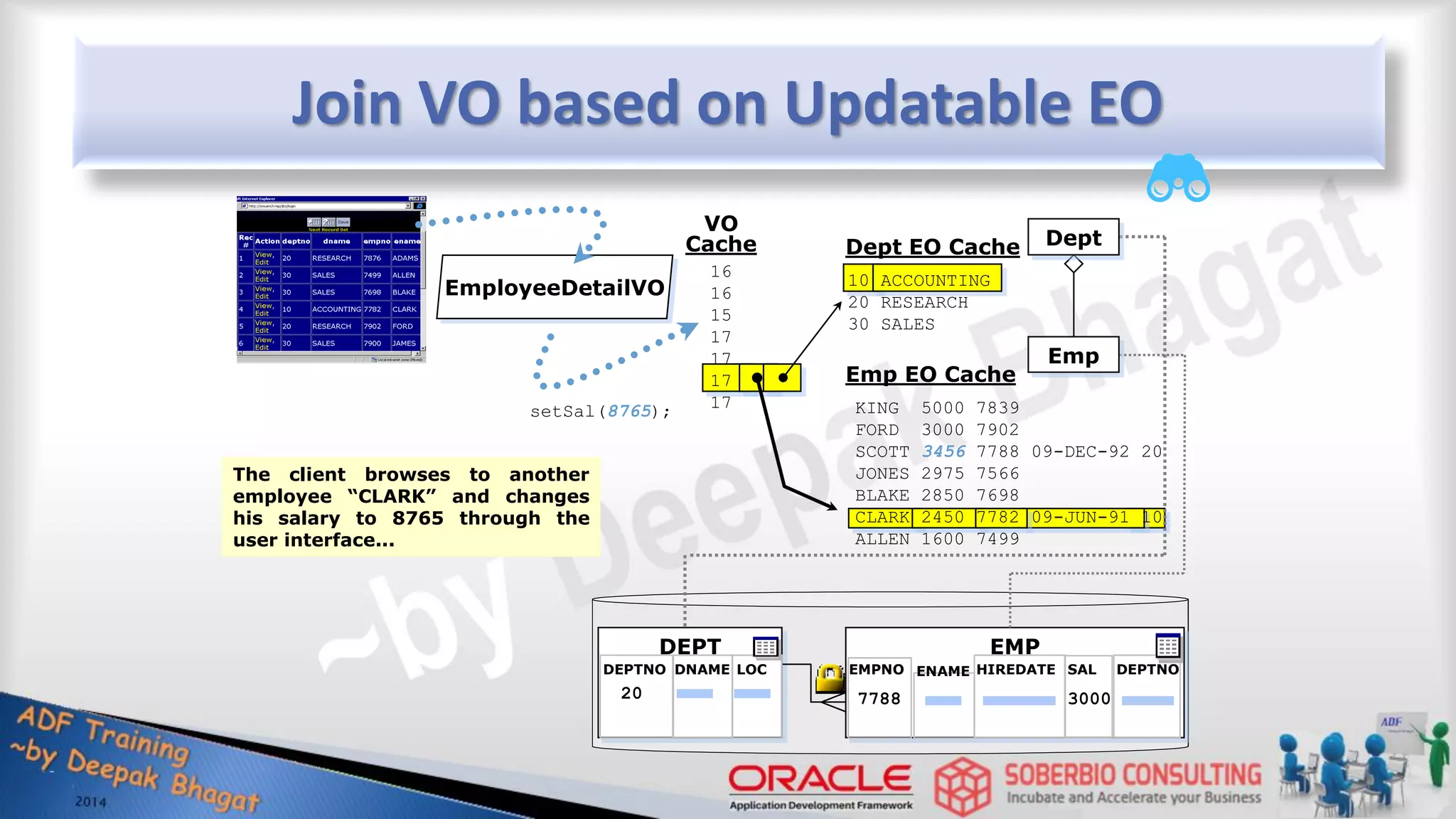

Join VO based on Updatable EO DEPT DEPTNO DNAME LOC EMP EMPNO ENAME HIREDATE SAL DEPTNO EmployeeDetailVO 10 ACCOUNTING 20 RESEARCH 30 SALES Dept EO Cache Emp EO Cache 16 16 15 17 17 17 17 VO Cache Since the lock can be acquired, the valid Sal attribute is set to 3456 as requested by the client. Note that the change is not yet in the database -- only in the EO cache so far. setSal(3456)? Dept Emp KING 5000 7839 FORD 3000 7902 SCOTT 3456 7788 09-DEC-92 20 JONES 2975 7566 BLAKE 2850 7698 CLARK 2450 7782 ALLEN 1600 7499 setSal(3456); 20 7788 3000

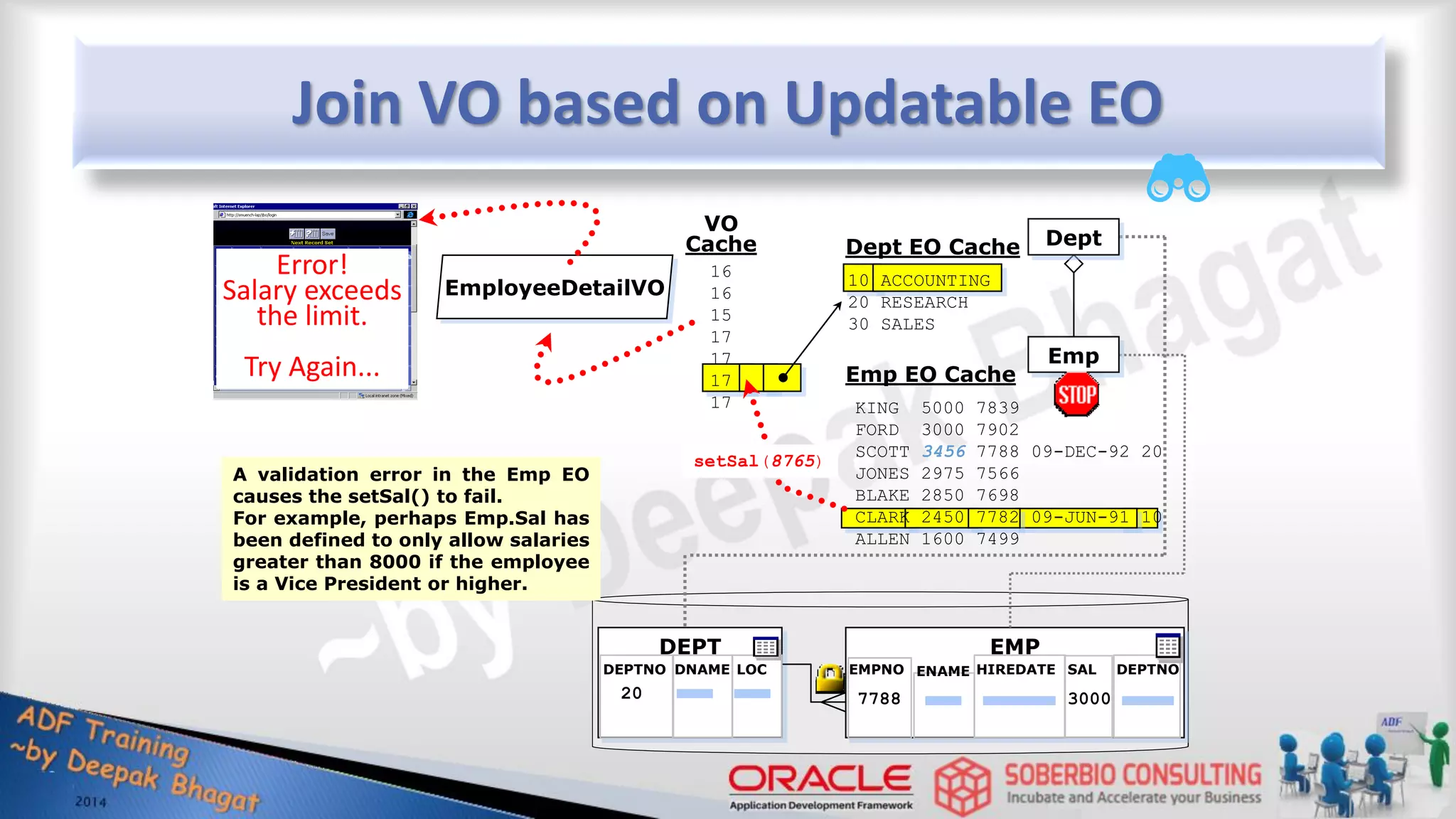

Join VO based on Updatable EO DEPT DEPTNO DNAME LOC EMP EMPNO ENAME HIREDATE SAL DEPTNO EmployeeDetailVO 10 ACCOUNTING 20 RESEARCH 30 SALES Dept EO Cache Emp EO Cache 16 16 15 17 17 17 17 VO Cache The client browses to another employee “CLARK” and changes his salary to 8765 through the user interface... Dept Emp setSal(8765); 20 7788 3000 KING 5000 7839 FORD 3000 7902 SCOTT 3456 7788 09-DEC-92 20 JONES 2975 7566 BLAKE 2850 7698 CLARK 2450 7782 09-JUN-91 10 ALLEN 1600 7499

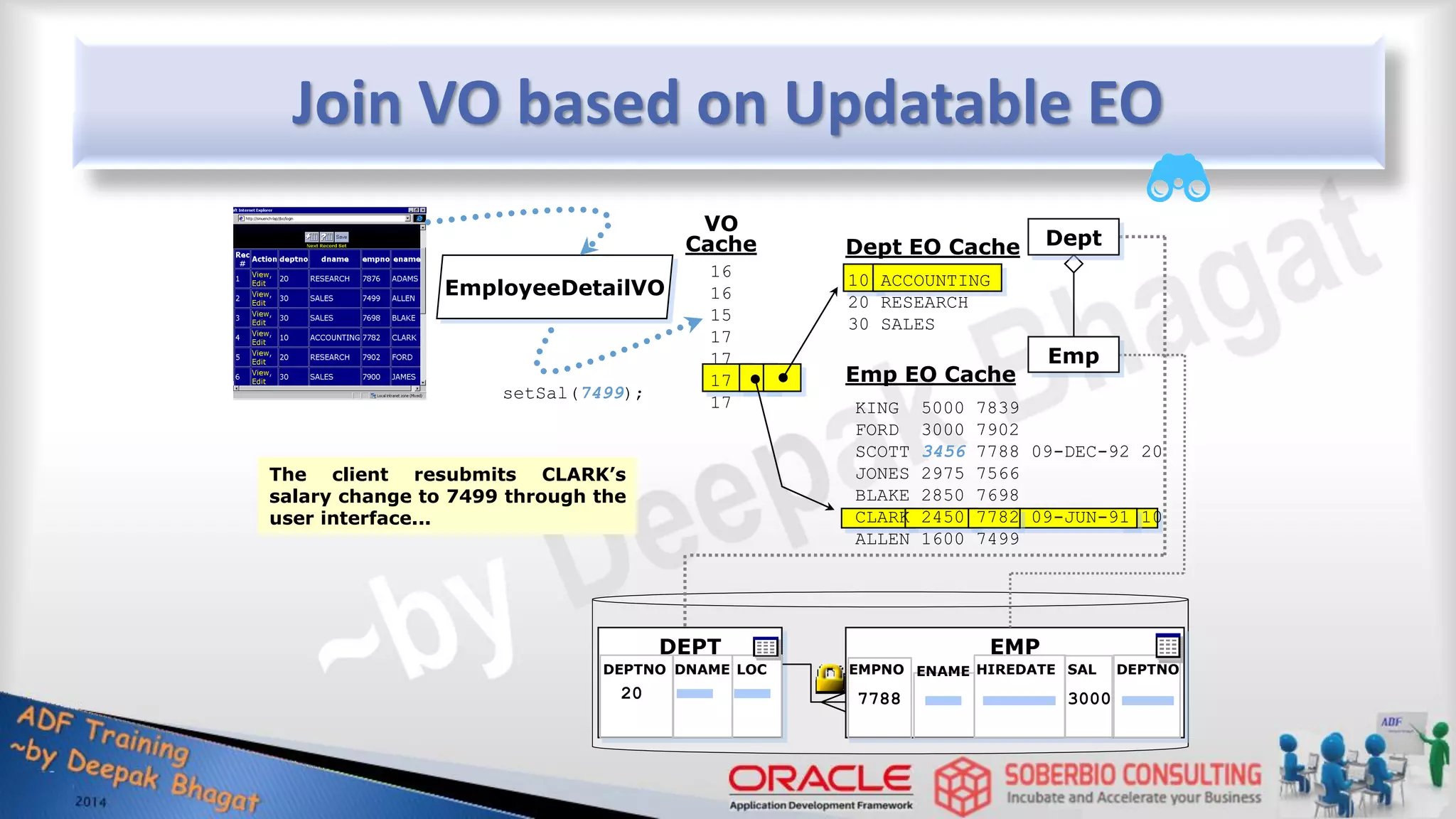

Join VO based on Updatable EO DEPT DEPTNO DNAME LOC EMP EMPNO ENAME HIREDATE SAL DEPTNO EmployeeDetailVO 10 ACCOUNTING 20 RESEARCH 30 SALES Dept EO Cache Emp EO Cache 16 16 15 17 17 17 17 VO Cache A validation error in the Emp EO causes the setSal() to fail. For example, perhaps Emp.Sal has been defined to only allow salaries greater than 8000 if the employee is a Vice President or higher. Dept Emp 20 7788 3000 KING 5000 7839 FORD 3000 7902 SCOTT 3456 7788 09-DEC-92 20 JONES 2975 7566 BLAKE 2850 7698 CLARK 2450 7782 09-JUN-91 10 ALLEN 1600 7499 Error! Salary exceeds the limit. Try Again... setSal(8765)

Join VO based on Updatable EO DEPT DEPTNO DNAME LOC EMP EMPNO ENAME HIREDATE SAL DEPTNO EmployeeDetailVO 10 ACCOUNTING 20 RESEARCH 30 SALES Dept EO Cache Emp EO Cache 16 16 15 17 17 17 17 VO Cache The client resubmits CLARK’s salary change to 7499 through the user interface... Dept Emp 20 7788 3000 KING 5000 7839 FORD 3000 7902 SCOTT 3456 7788 09-DEC-92 20 JONES 2975 7566 BLAKE 2850 7698 CLARK 2450 7782 09-JUN-91 10 ALLEN 1600 7499 setSal(7499);

Join VO based on Updatable EO DEPT DEPTNO DNAME LOC EMP EMPNO ENAME HIREDATE SAL DEPTNO EmployeeDetailVO 10 ACCOUNTING 20 RESEARCH 30 SALES Dept EO Cache Emp EO Cache 16 16 15 17 17 17 17 VO Cache Validation succeeds this time, and the value is allowed to be set on the EO cache, provided the row can be locked. Dept Emp 20 7788 3000 KING 5000 7839 FORD 3000 7902 SCOTT 3456 7788 09-DEC-92 20 JONES 2975 7566 BLAKE 2850 7698 CLARK 2450 7782 09-JUN-91 10 ALLEN 1600 7499 setSal(7499); setSal(7499)?

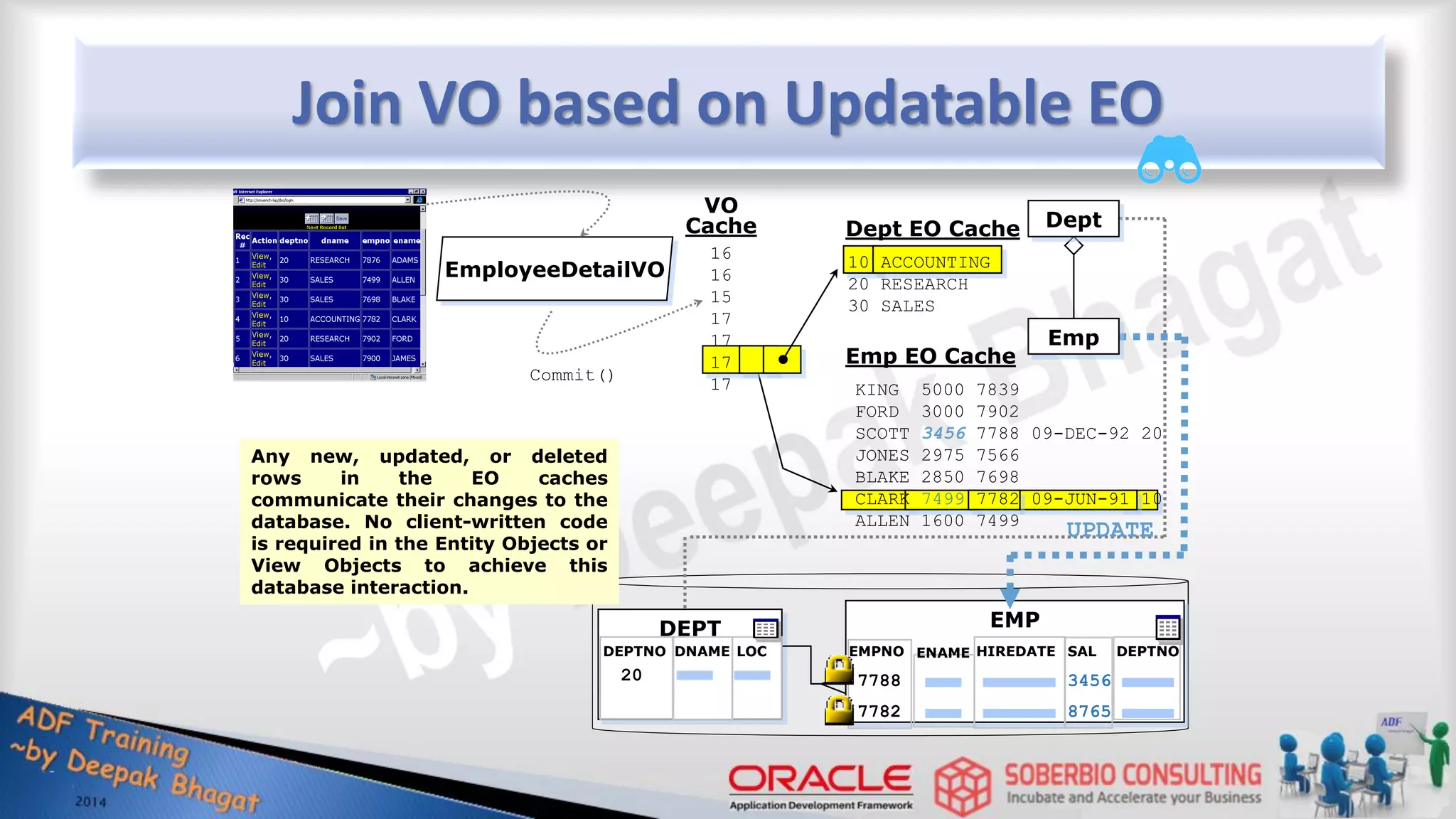

Join VO based on Updatable EO DEPT DEPTNO DNAME LOC EMP EMPNO ENAME HIREDATE SAL DEPTNO EmployeeDetailVO 10 ACCOUNTING 20 RESEARCH 30 SALES Dept EO Cache Emp EO Cache 16 16 15 17 17 17 17 VO Cache CLARK’s row in the EMP table is locked appropriately, and the Sal is set in the cache to 7499. Dept Emp 20 7788 3000 KING 5000 7839 FORD 3000 7902 SCOTT 3456 7788 09-DEC-92 20 JONES 2975 7566 BLAKE 2850 7698 CLARK 7499 7782 09-JUN-91 10 ALLEN 1600 7499 setSal(7499); setSal(7499)? SELECT FOR UPDATE 7782 2450

Join VO based on Updatable EO DEPT DEPTNO DNAME LOC EMP EMPNO ENAME HIREDATE SAL DEPTNO EmployeeDetailVO 10 ACCOUNTING 20 RESEARCH 30 SALES Dept EO Cache Emp EO Cache 16 16 15 17 17 17 17 VO Cache The end-user clicks on a button to Save her changes in the UI. The client program requests a Commit on the current JBO Session. Dept Emp 20 7788 3000 KING 5000 7839 FORD 3000 7902 SCOTT 3456 7788 09-DEC-92 20 JONES 2975 7566 BLAKE 2850 7698 CLARK 7499 7782 09-JUN-91 10 ALLEN 1600 7499 setSal(7499)? 7782 2450 Commit()

Join VO based on Updatable EO DEPT DEPTNO DNAME LOC EMP EMPNO ENAME HIREDATE SAL DEPTNO EmployeeDetailVO 10 ACCOUNTING 20 RESEARCH 30 SALES Dept EO Cache Emp EO Cache 16 16 15 17 17 17 17 VO Cache Any new, updated, or deleted rows in the EO caches communicate their changes to the database. No client-written code is required in the Entity Objects or View Objects to achieve this database interaction. Dept Emp 20 7788 3456 KING 5000 7839 FORD 3000 7902 SCOTT 3456 7788 09-DEC-92 20 JONES 2975 7566 BLAKE 2850 7698 CLARK 7499 7782 09-JUN-91 10 ALLEN 1600 7499 7782 8765 Commit() UPDATE

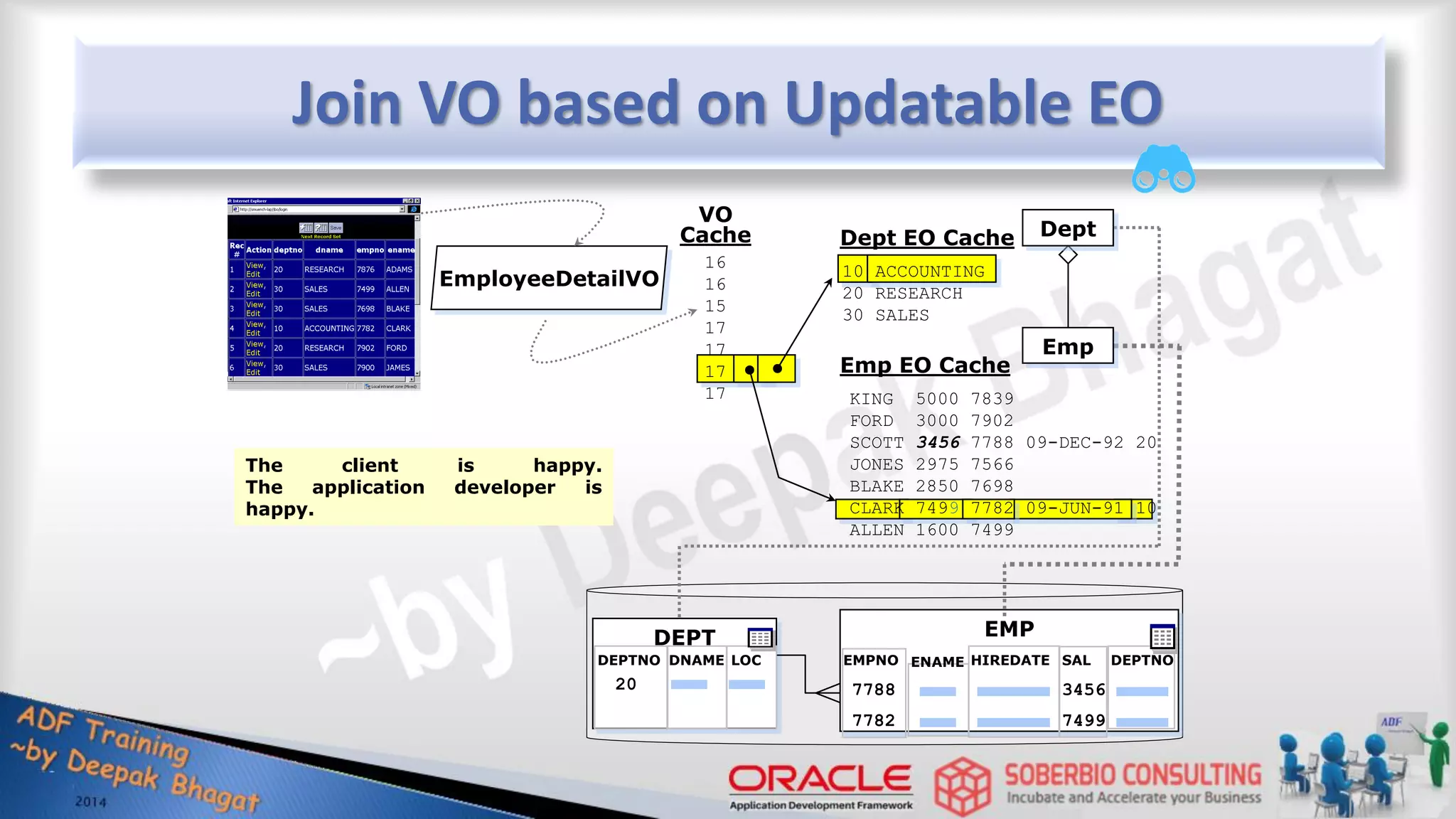

Join VO based on Updatable EO DEPT DEPTNO DNAME LOC EMP EMPNO ENAME HIREDATE SAL DEPTNO EmployeeDetailVO 10 ACCOUNTING 20 RESEARCH 30 SALES Dept EO Cache Emp EO Cache 16 16 15 17 17 17 17 VO Cache Finally, the database COMMIT ends the transaction. Dept Emp 20 7788 3456 KING 5000 7839 FORD 3000 7902 SCOTT 3456 7788 09-DEC-92 20 JONES 2975 7566 BLAKE 2850 7698 CLARK 7499 7782 09-JUN-91 10 ALLEN 1600 7499 7782 8765 Commit() COMMIT

Join VO based on Updatable EO DEPT DEPTNO DNAME LOC EMP EMPNO ENAME HIREDATE SAL DEPTNO EmployeeDetailVO 10 ACCOUNTING 20 RESEARCH 30 SALES Dept EO Cache Emp EO Cache 16 16 15 17 17 17 17 VO Cache The client is happy. The application developer is happy. Dept Emp 20 7788 3456 KING 5000 7839 FORD 3000 7902 SCOTT 3456 7788 09-DEC-92 20 JONES 2975 7566 BLAKE 2850 7698 CLARK 7499 7782 09-JUN-91 10 ALLEN 1600 7499 7782 7499

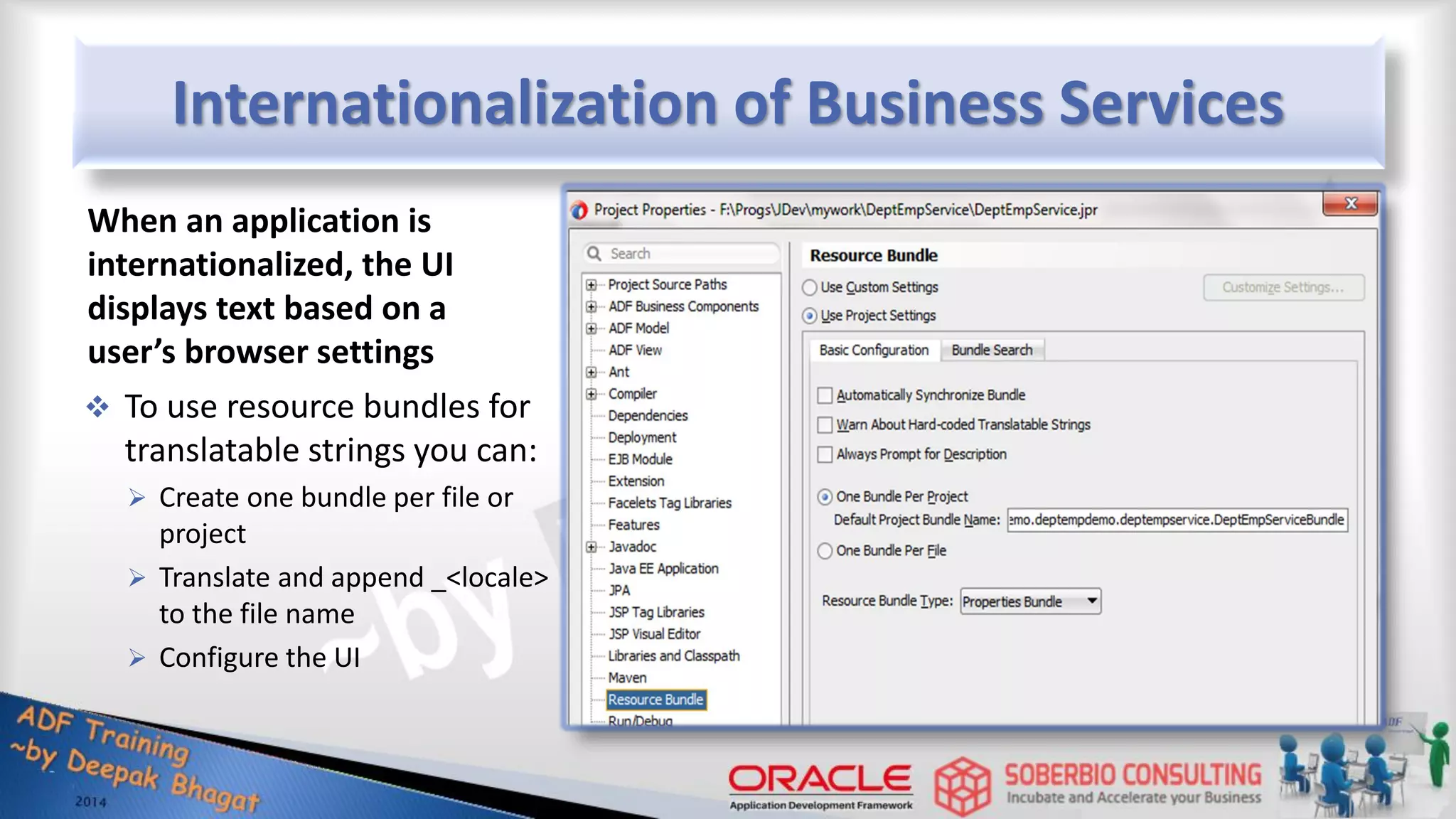

Internationalization of Business Services When an application is internationalized, the UI displays text based on a user’s browser settings  To use resource bundles for translatable strings you can:  Create one bundle per file or project  Translate and append _<locale> to the file name  Configure the UI

Types of VOs: Static List  Read Only VO (No Entity) Static List (JDev demo) SQL Query Programmatic (Lesson 22)  Updatable VO (Single Entity)  Join VO (Multiple Entities) Referenced Entity (JDev demo) Updateable Entities (slides demo)  Master Detail VOs (View Link)

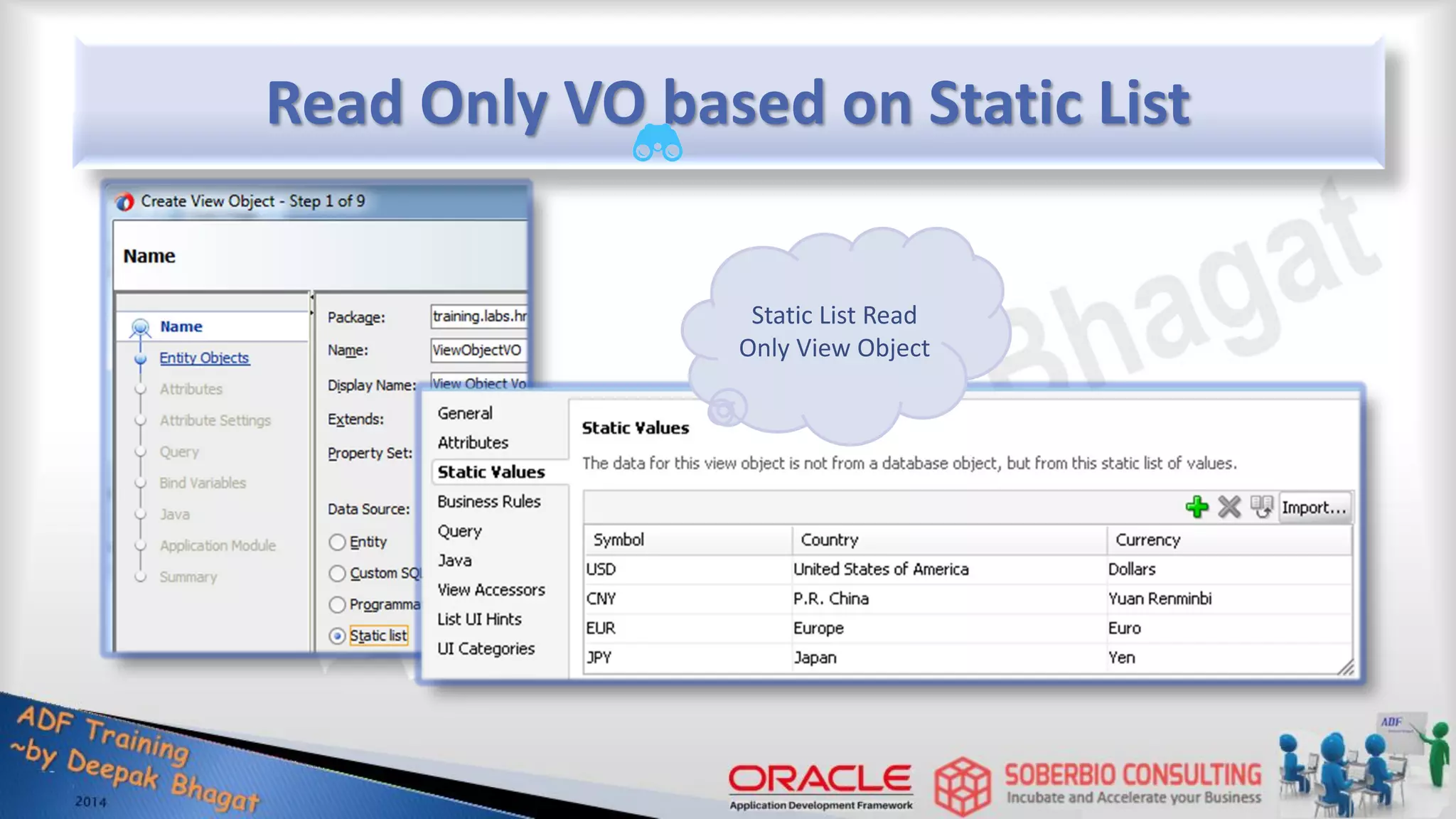

Read Only VO based on Static List Static List Read Only View Object

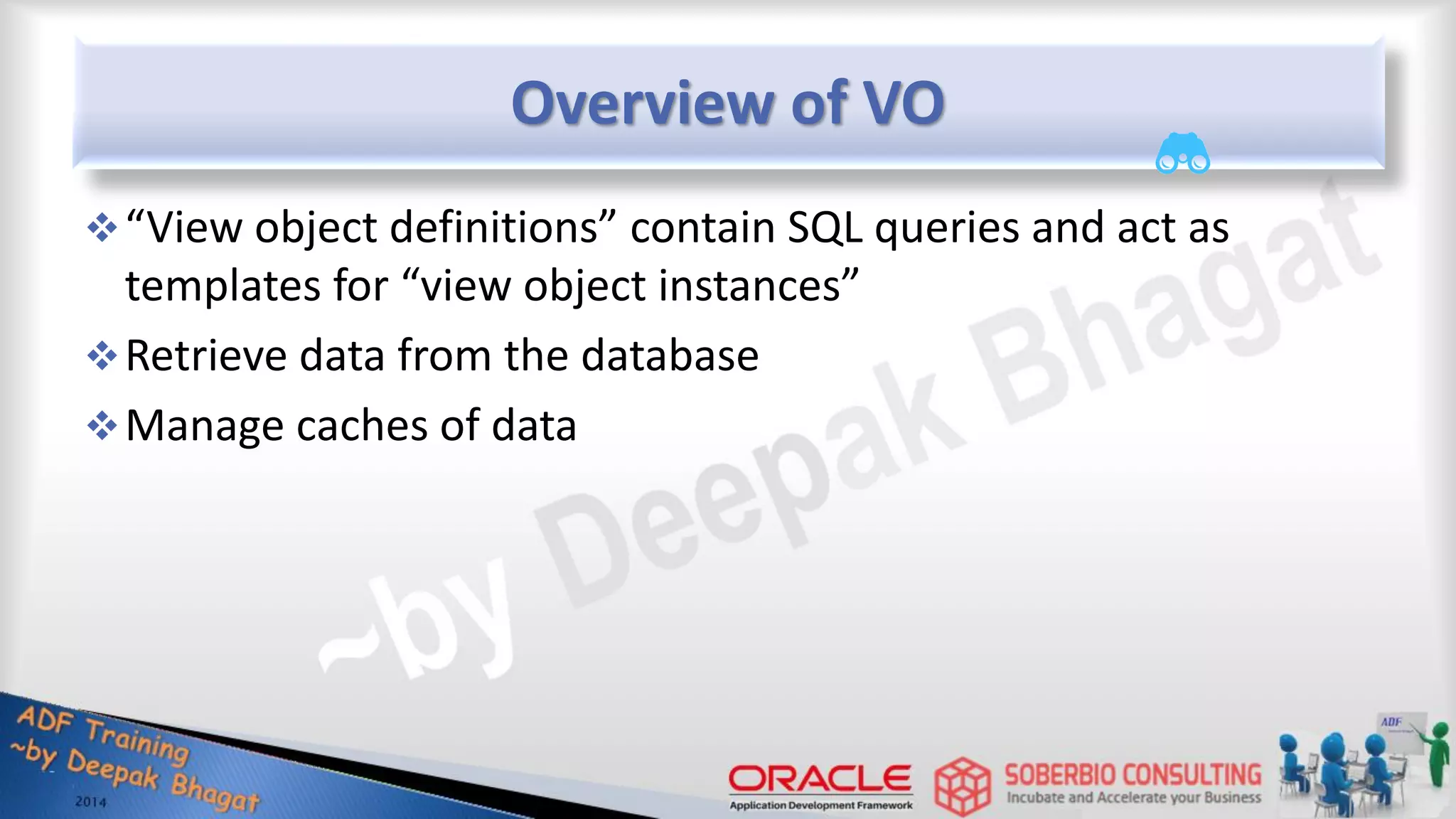

Overview of VO “View object definitions” contain SQL queries and act as templates for “view object instances” Retrieve data from the database Manage caches of data

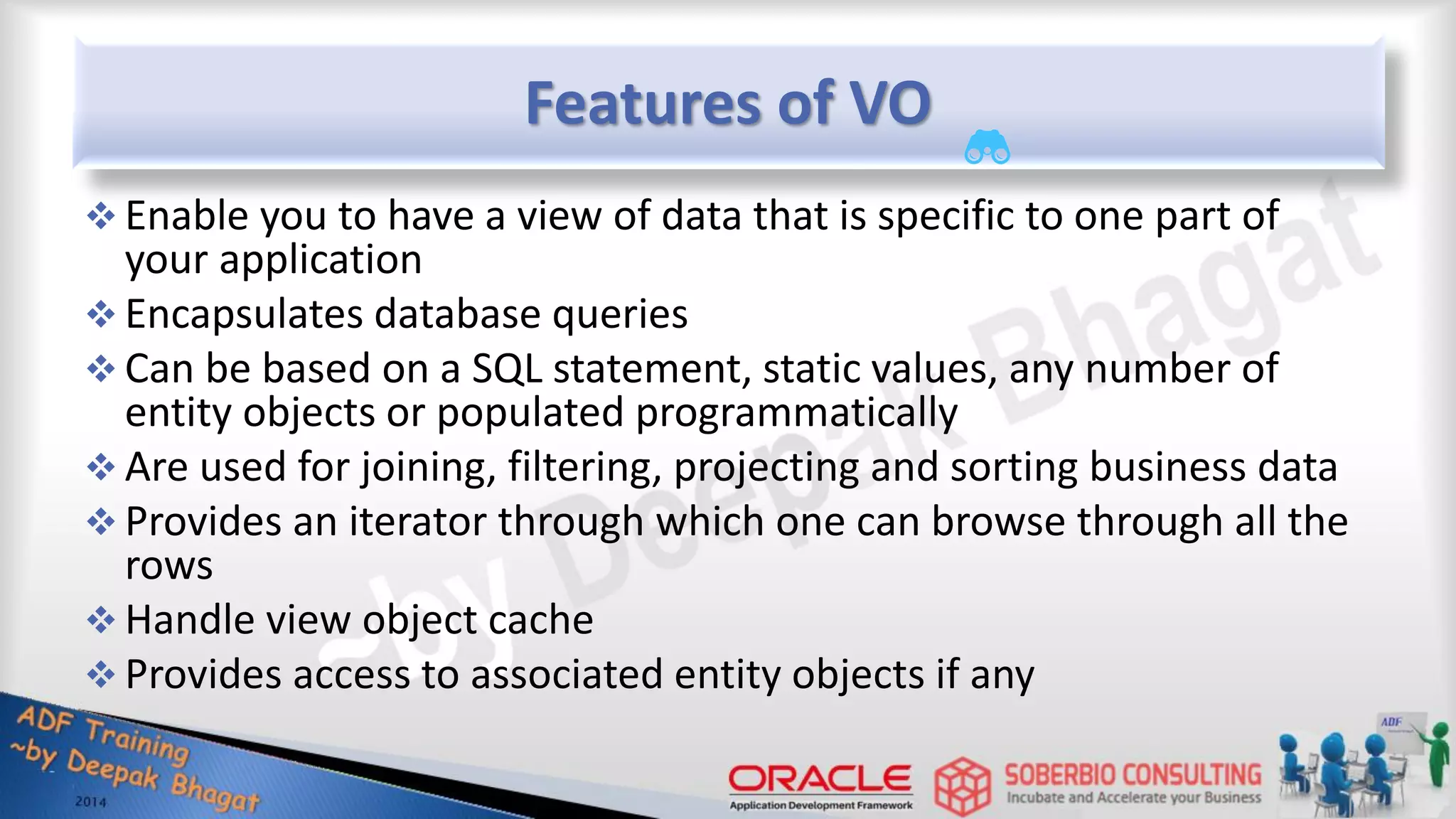

Features of VO  Enable you to have a view of data that is specific to one part of your application  Encapsulates database queries  Can be based on a SQL statement, static values, any number of entity objects or populated programmatically  Are used for joining, filtering, projecting and sorting business data  Provides an iterator through which one can browse through all the rows  Handle view object cache  Provides access to associated entity objects if any

Examining Attribute Settings Can be based on EO attribute Select statement Transient (e.g. calculations) Can define default values Based on literal values Expressions

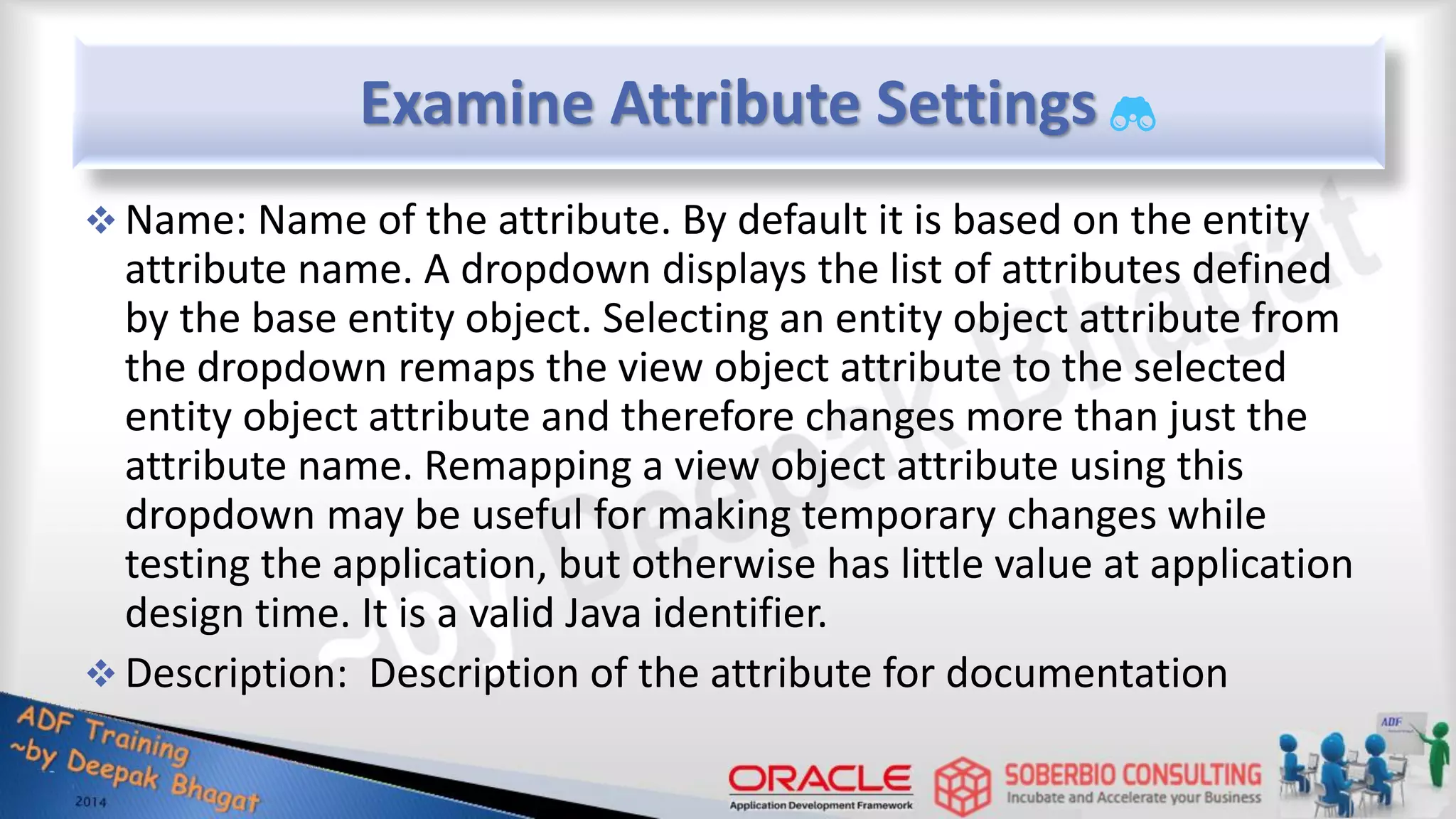

Examine Attribute Settings  Name: Name of the attribute. By default it is based on the entity attribute name. A dropdown displays the list of attributes defined by the base entity object. Selecting an entity object attribute from the dropdown remaps the view object attribute to the selected entity object attribute and therefore changes more than just the attribute name. Remapping a view object attribute using this dropdown may be useful for making temporary changes while testing the application, but otherwise has little value at application design time. It is a valid Java identifier.  Description: Description of the attribute for documentation

Examine Attribute Settings cont.…  Type: Attribute's data type. This is not modifiable here. If you want to change the type, you must do so in the entity object  Property Set: Property sets are named collections of properties or hints that can be used by attributes and bindings  Polymorphic Discriminator: Select if this is a discriminator column for a polymorphic view object. The attribute you select distinguishes which view row interface to use Subtype Value: a value that matches the attribute value for which you expect the base view object's view row interface to be used. For example, in a PersonList view object, you would mark the PersonTypeCode attribute as the discriminator attribute and supply a default subtype value of person

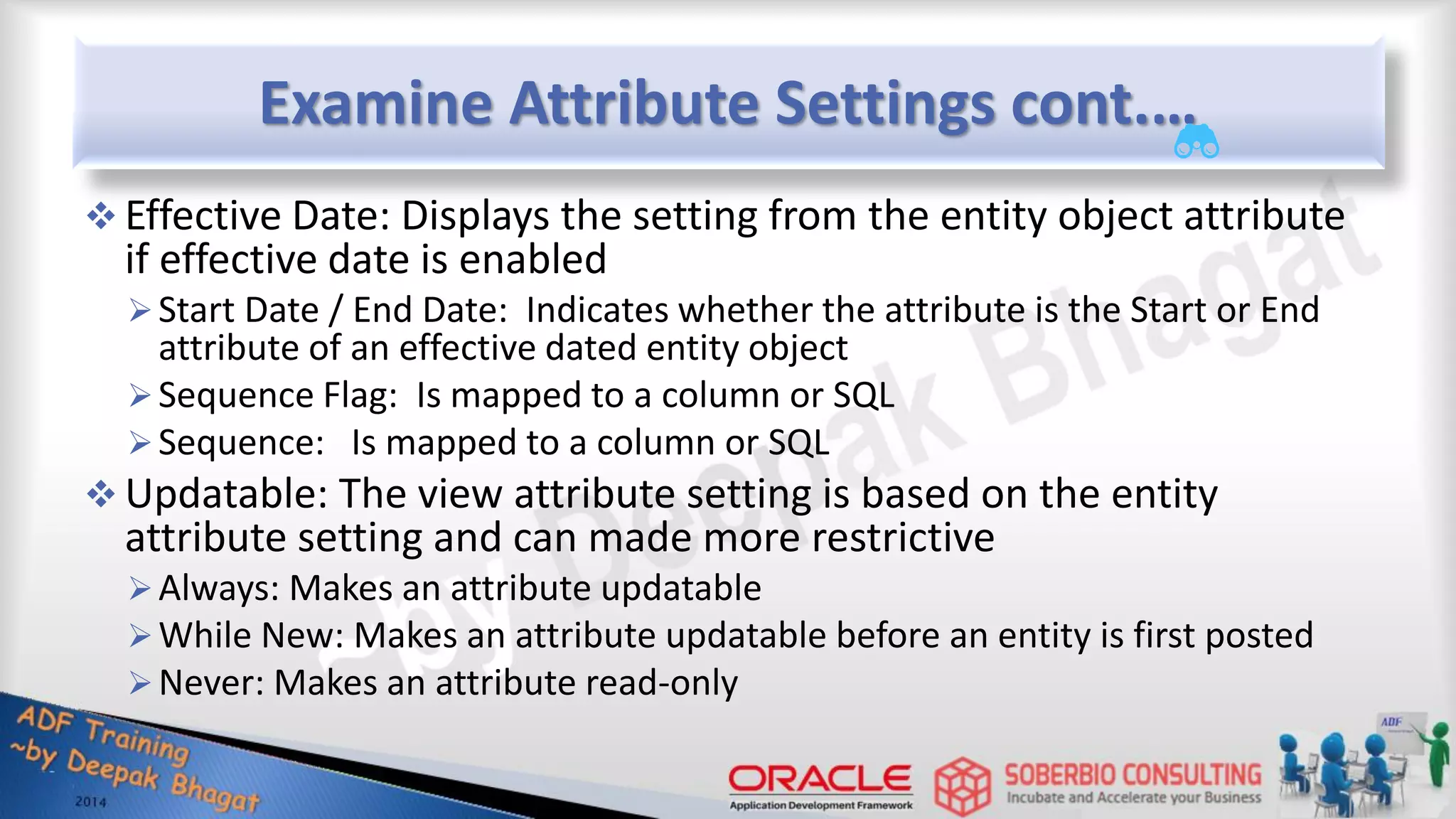

Examine Attribute Settings cont.…  Effective Date: Displays the setting from the entity object attribute if effective date is enabled Start Date / End Date: Indicates whether the attribute is the Start or End attribute of an effective dated entity object Sequence Flag: Is mapped to a column or SQL Sequence: Is mapped to a column or SQL  Updatable: The view attribute setting is based on the entity attribute setting and can made more restrictive Always: Makes an attribute updatable While New: Makes an attribute updatable before an entity is first posted Never: Makes an attribute read-only

Examine Attribute Settings cont.…  Persistent: Attribute is persistent to be used in generating a table  Transient: Attribute is persistent to be used in generating a table  Mandatory: Selected by default for columns with NOT NULL constraints  Primary Key: Selected by default for columns with PRIMARY KEY constraints  Queryable: Attribute can occur in the WHERE clause of a view object (selected by default except for LOBs)

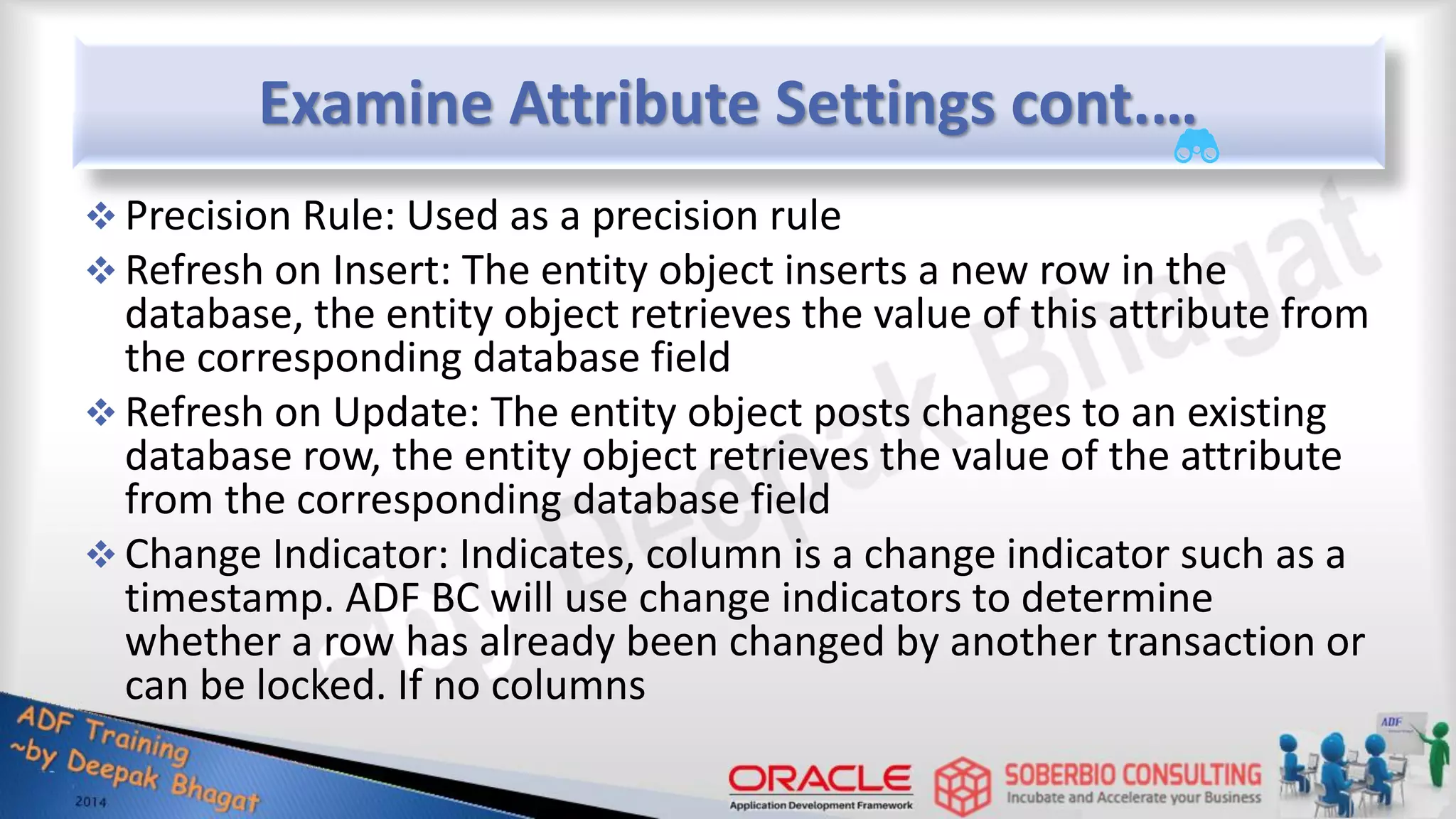

Examine Attribute Settings cont.…  Precision Rule: Used as a precision rule  Refresh on Insert: The entity object inserts a new row in the database, the entity object retrieves the value of this attribute from the corresponding database field  Refresh on Update: The entity object posts changes to an existing database row, the entity object retrieves the value of the attribute from the corresponding database field  Change Indicator: Indicates, column is a change indicator such as a timestamp. ADF BC will use change indicators to determine whether a row has already been changed by another transaction or can be locked. If no columns

Examine Attribute Settings cont.…  Column Name: Maps to the name of the table column  Column Type: Maps to the SQL type of the table column  Generate Unique Constraint: Generates a UNIQUE constraint and defines the attribute to be unique. For example, every employee have a unique email id  Sequence Name: The sequence name shown on the Sequence tab is applicable only at design time when you use the Create Database Tables feature. The sequence indicated here will be created along with the table on which the entity object is based. This field is not available for all attribute types  Start At: Integer value you want the sequence to start at, the default value is 1. This field is not available for all attribute types

Types of VOs: Master Detail VOs (View Link)  Read Only VO (No Entity) Static List (JDev demo) SQL Query Programmatic (Lesson 9)  Updatable VO (Single Entity)  Join VO (Multiple Entities) Referenced Entity (JDev demo) Updateable Entities (slides demo)  Master Detail VOs (View Link)

Master-Detail VO based on Link: Overview EmployeeVO Department1 Business Services Relational Data / App Schema Application Module HRSystemAM with View Object Instances EmployeeEO Entity Object DepartmentEO Employee3 DepartmentVO EmpDeptFkAS EmpDeptFkVL EmpDeptFkVL1 View Objects and View Links and Associations ADF Business Components Data Model

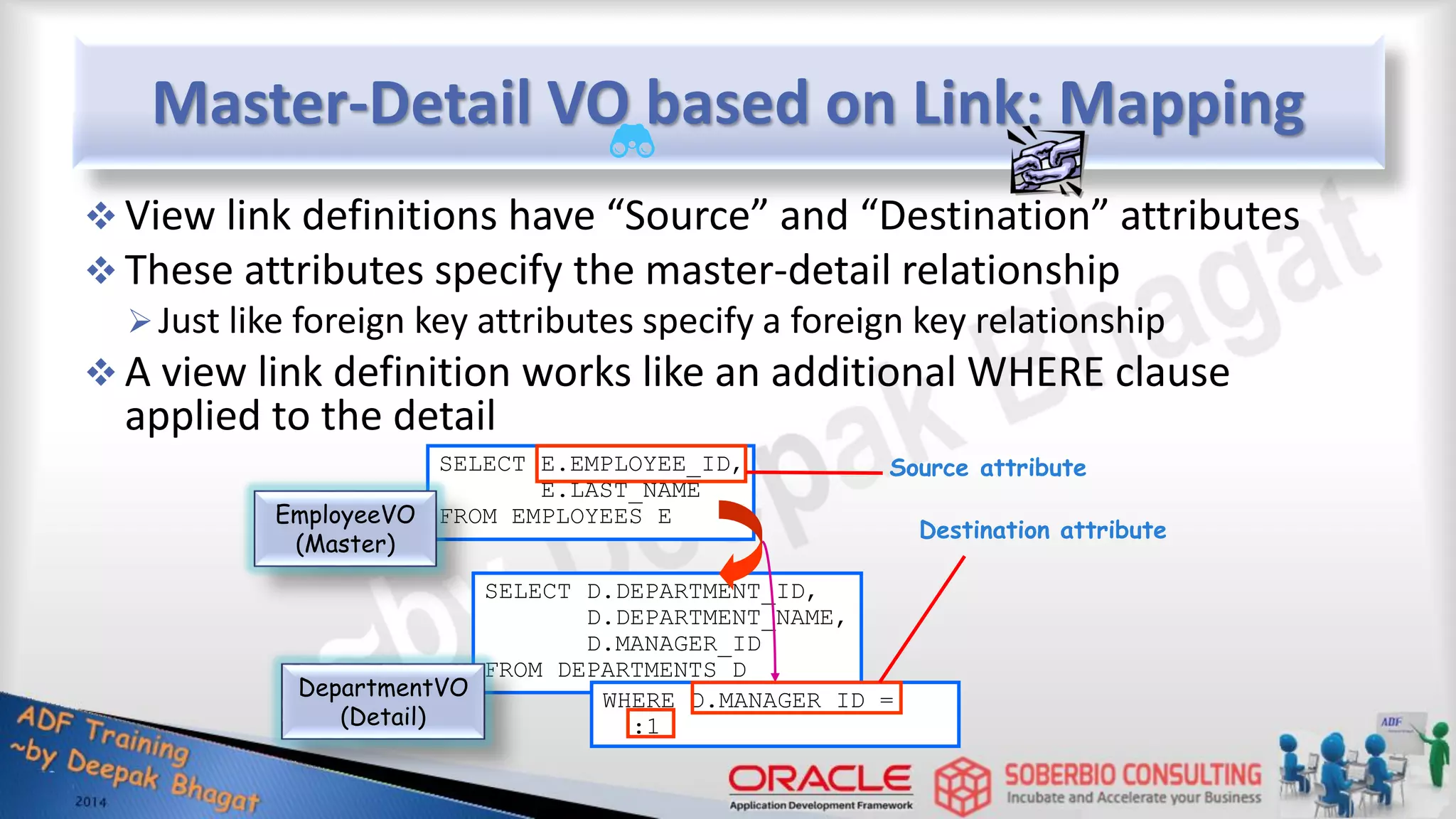

Master-Detail VO based on Link: Mapping  View link definitions have “Source” and “Destination” attributes  These attributes specify the master-detail relationship Just like foreign key attributes specify a foreign key relationship  A view link definition works like an additional WHERE clause applied to the detail SELECT E.EMPLOYEE_ID, E.LAST_NAME FROM EMPLOYEES E EmployeeVO (Master) SELECT D.DEPARTMENT_ID, D.DEPARTMENT_NAME, D.MANAGER_ID FROM DEPARTMENTS D DepartmentVO (Detail) WHERE D.MANAGER_ID = :1 Destination attribute Source attribute

Master-Detail VO based on Link: Example

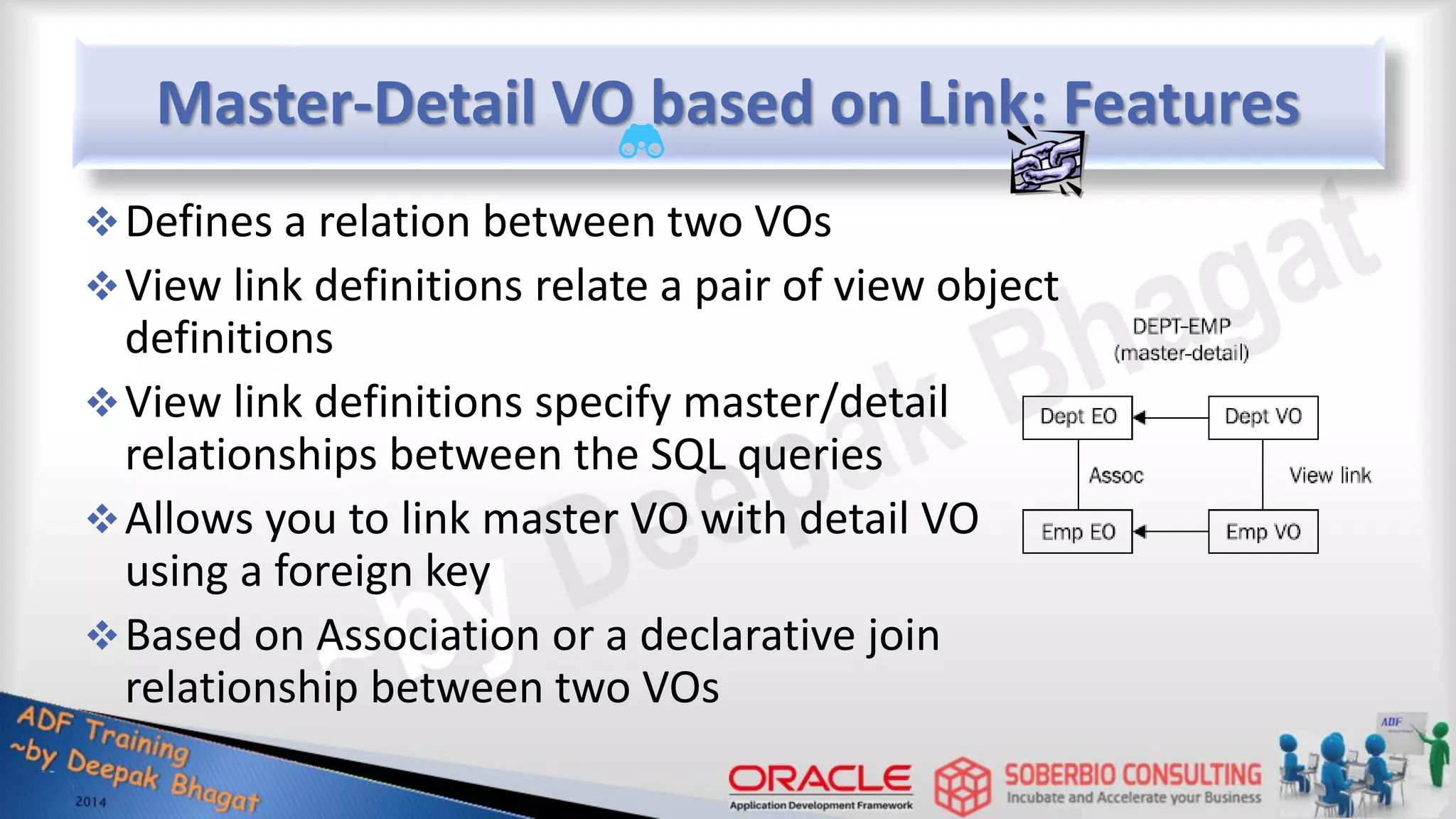

Master-Detail VO based on Link: Features Defines a relation between two VOs View link definitions relate a pair of view object definitions View link definitions specify master/detail relationships between the SQL queries Allows you to link master VO with detail VO using a foreign key Based on Association or a declarative join relationship between two VOs

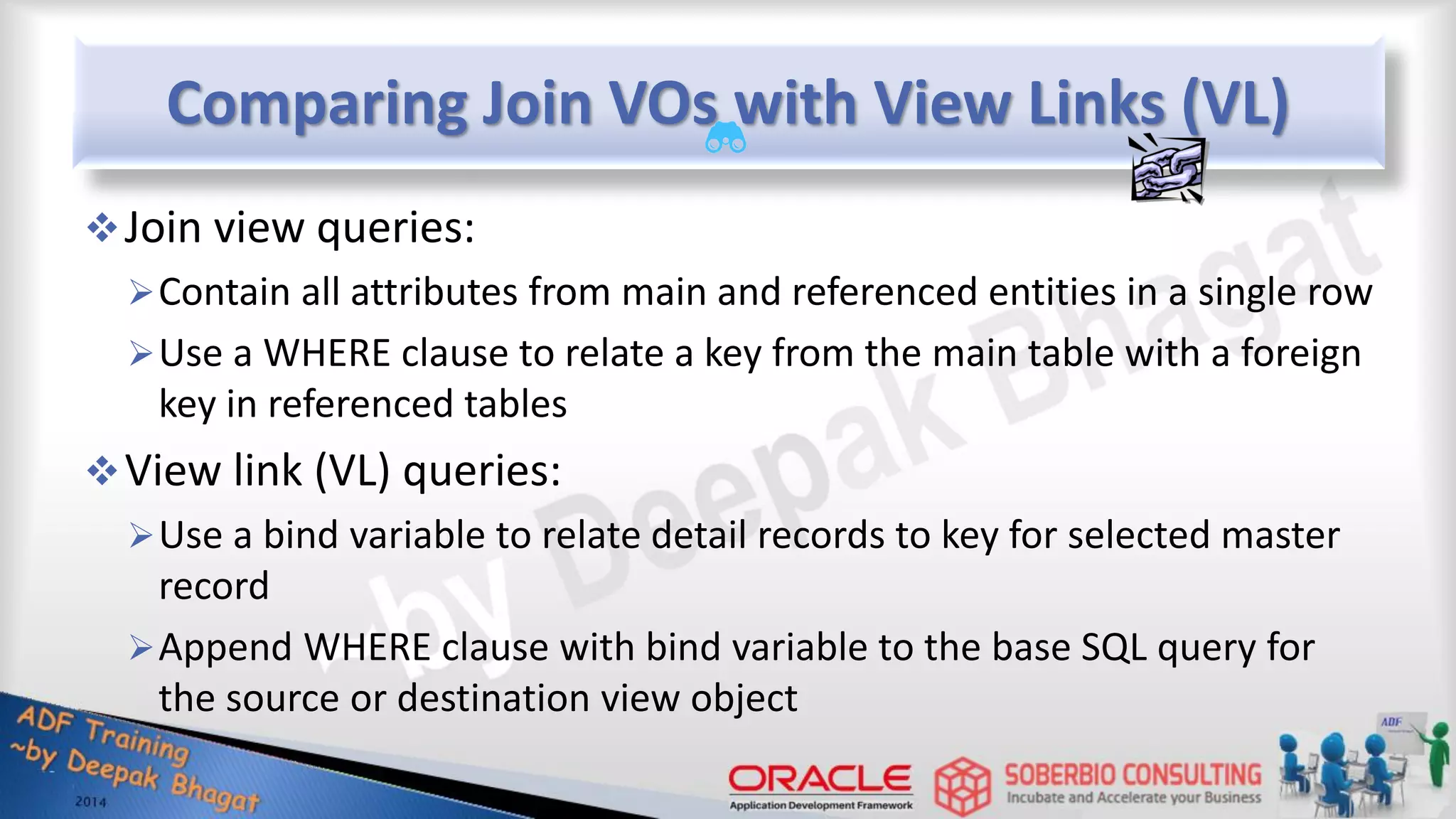

Comparing Join VOs with View Links (VL) Join view queries: Contain all attributes from main and referenced entities in a single row Use a WHERE clause to relate a key from the main table with a foreign key in referenced tables View link (VL) queries: Use a bind variable to relate detail records to key for selected master record Append WHERE clause with bind variable to the base SQL query for the source or destination view object

Test VOs with ADF Model Tester

Lesson Summary Architecture of VO Types of VOs Describe VO Functionalities of VO Link two VOs to create master-detail view objects Create various types of View Objects and Links as Hands-on Lab practices

7 Exposing Business Service through Application Module

Lesson Agenda Describe tech-stack Overview of AM Explain features of AM Explain Data Model Describe the role of the ADF Model Create a Nested AM Explain how AM can manage: ADF BC Transaction Nested Application Module Shared Application Module Application Module Pooling Handling Application State

Tech-stack of Application Module (AM) DepartmentEO DepartmentVO EmployeeVO Employee SummaryVO EmployeeBy EmailVO Department1 Employee3 Employee2 Employee Summary1 EmployeeBy Email1 applyManagerVO Criteria() Business Services Relational Data / App Schema Application Module HRSystemAM with View Object Instances EmpDeptFkAS EmpDeptFkVL View Objects and View Links Entity Objects and Associations EmployeeEO Department2 EmpDeptFkVL1 ADF Business Components Data Model Business Domain Components Data Model Components XML Java XML Java XML Java Nested AM

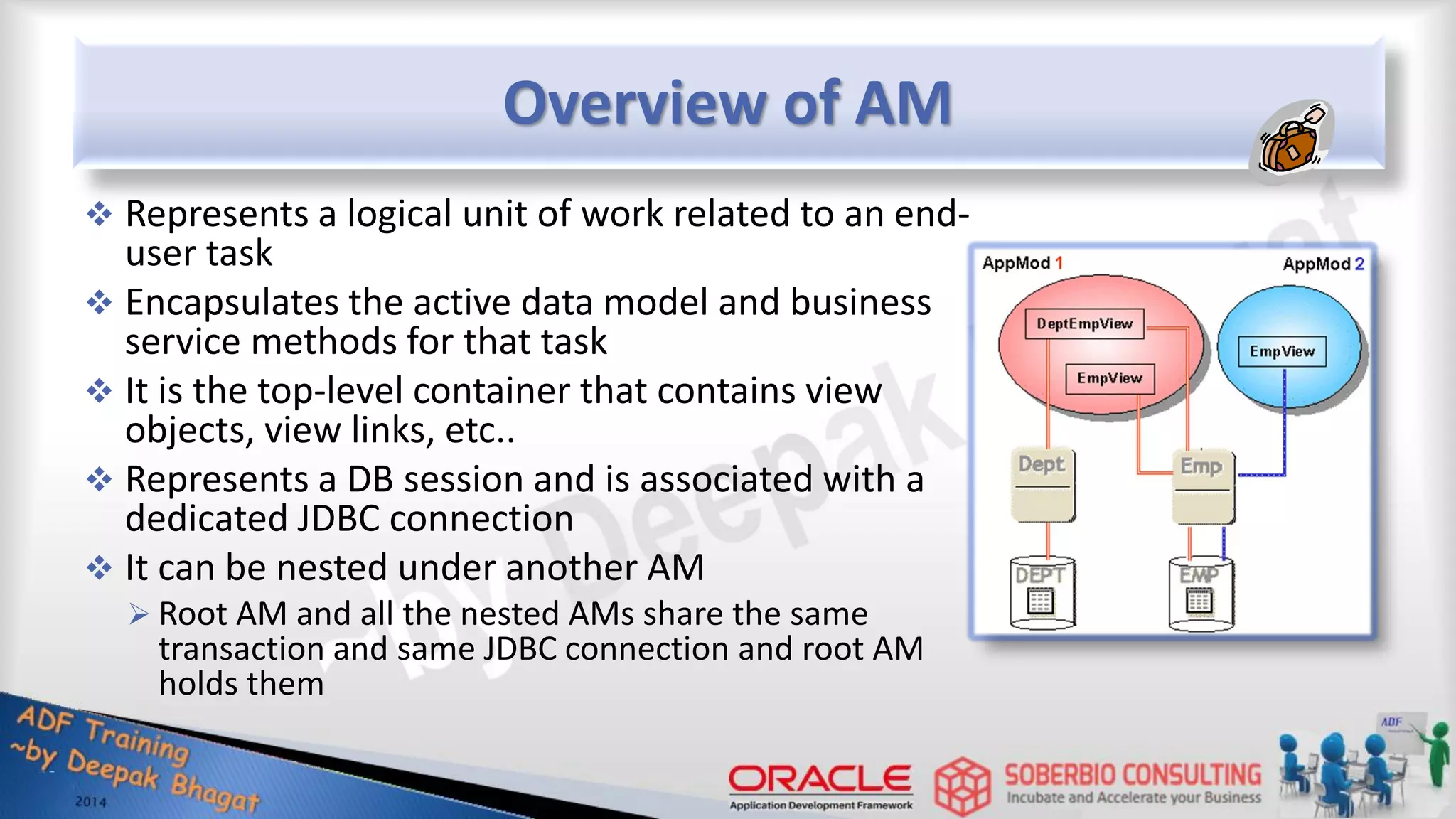

Overview of AM  Represents a logical unit of work related to an end- user task  Encapsulates the active data model and business service methods for that task  It is the top-level container that contains view objects, view links, etc..  Represents a DB session and is associated with a dedicated JDBC connection  It can be nested under another AM  Root AM and all the nested AMs share the same transaction and same JDBC connection and root AM holds them

Features of AM  Represents the data model that the client uses  Keeps track of all changes that affect data in the database  Provides transactional context for the application  Has one connection to the database  Enables you to gather data customized to a client interface so that data can be retrieved in one network round-trip  Can be easily reused in business logic tiers of other applications  Provides remotely accessible methods to implement application module behavior  Can contain other application modules, called nested application modules  Is deployable in multiple configurations / platforms without code changes

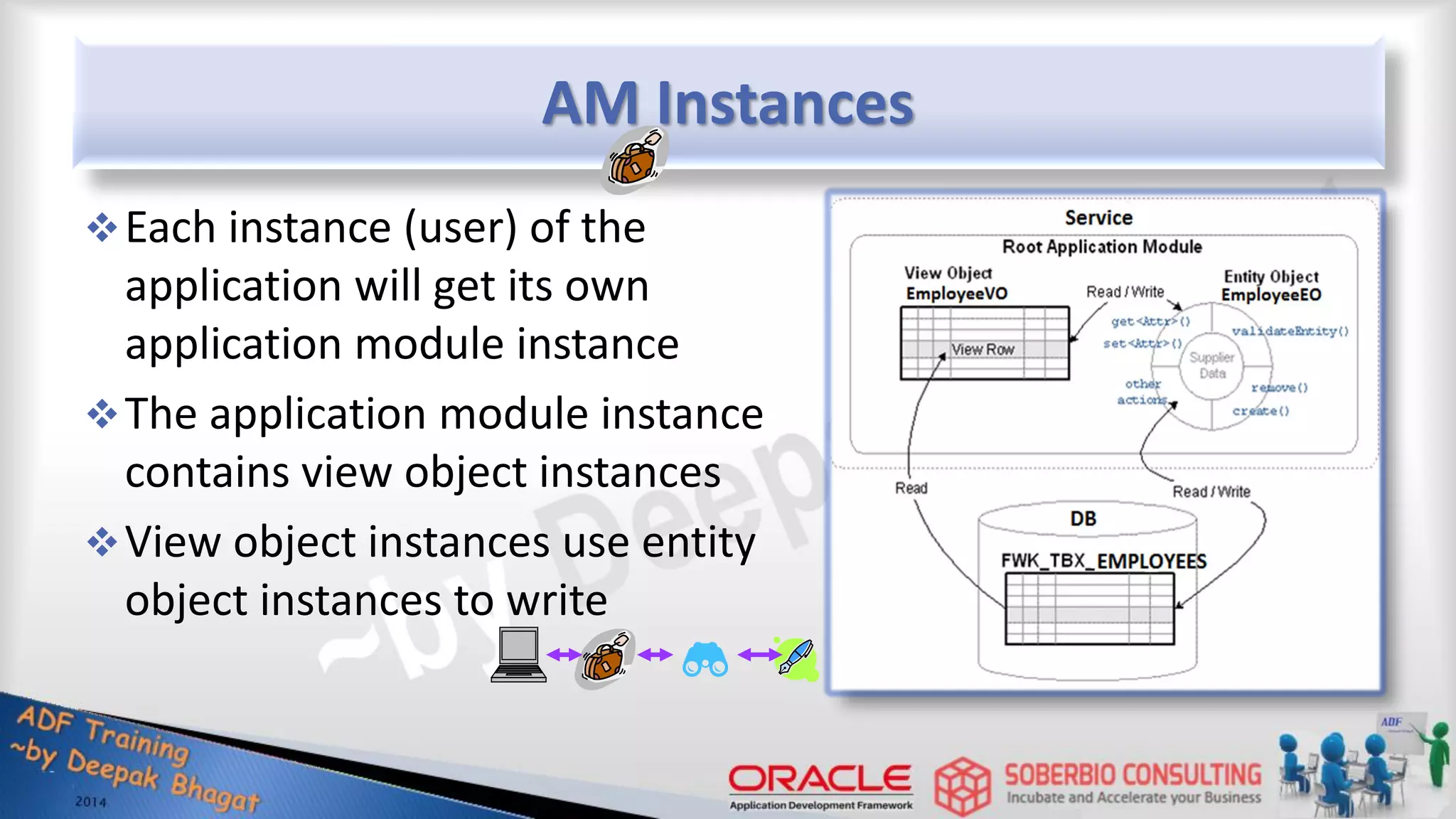

AM Instances Each instance (user) of the application will get its own application module instance The application module instance contains view object instances View object instances use entity object instances to write

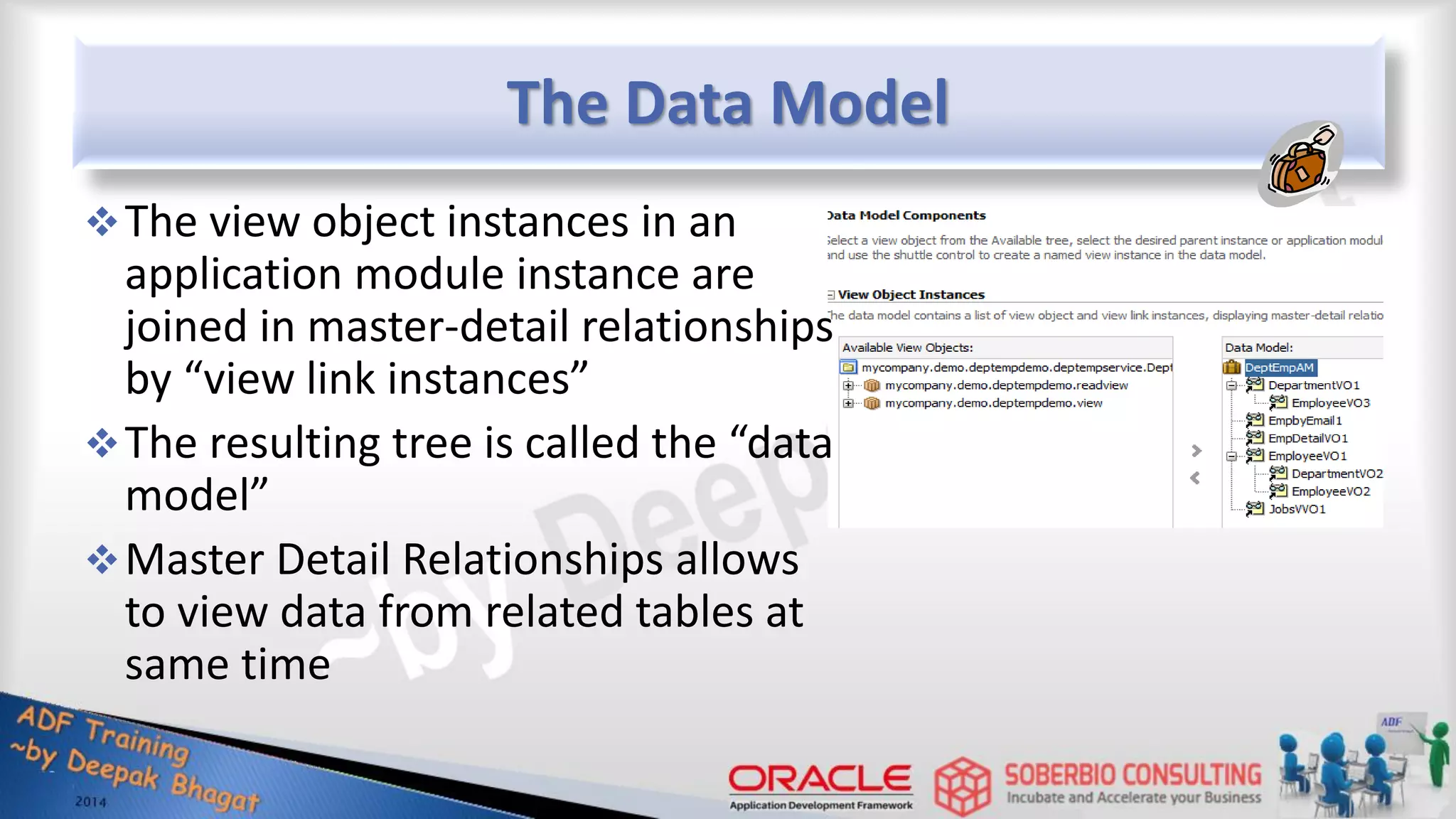

The Data Model The view object instances in an application module instance are joined in master-detail relationships by “view link instances” The resulting tree is called the “data model” Master Detail Relationships allows to view data from related tables at same time

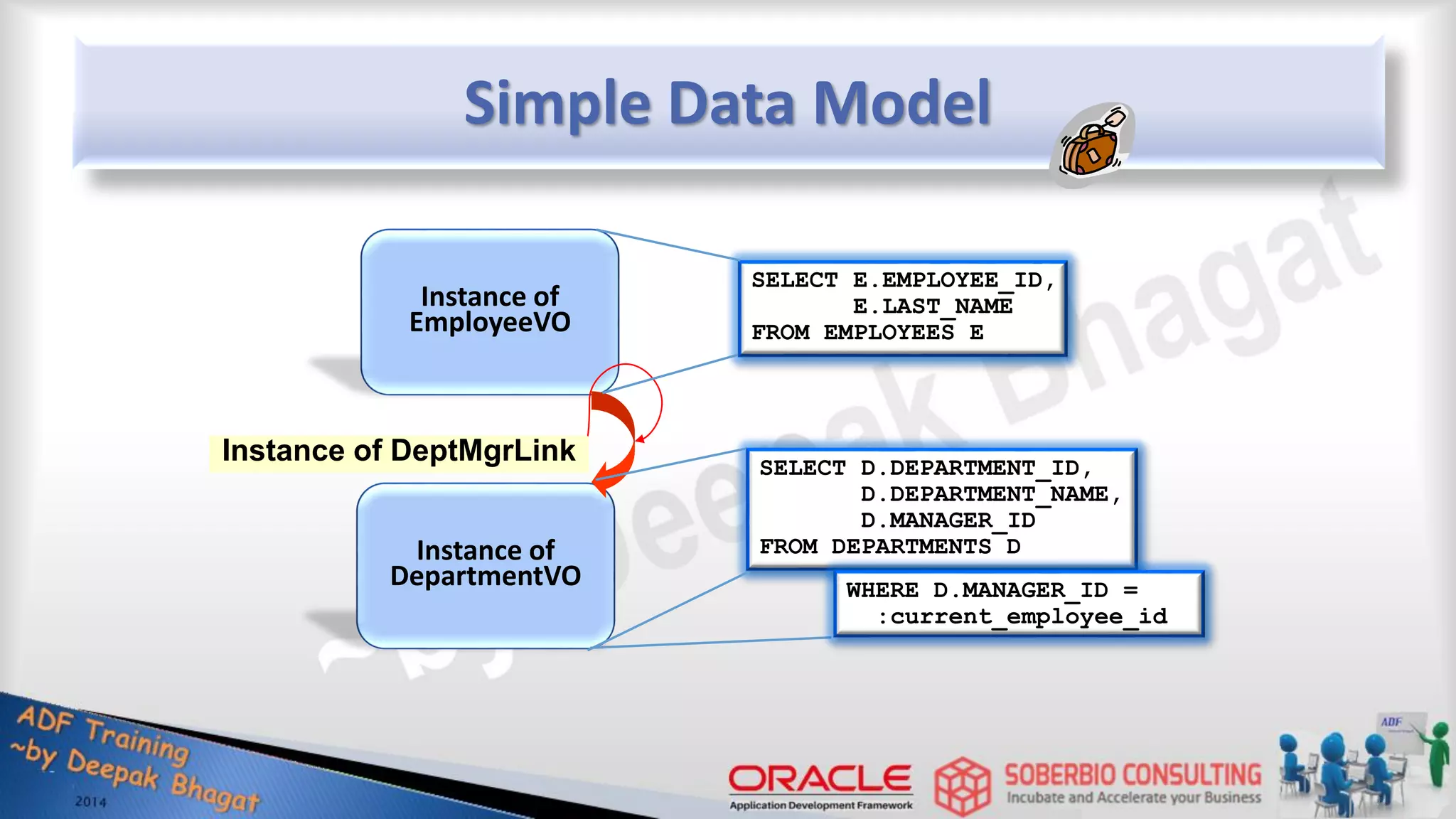

Simple Data Model Instance of EmployeeVO Instance of DepartmentVO Instance of DeptMgrLink SELECT E.EMPLOYEE_ID, E.LAST_NAME FROM EMPLOYEES E SELECT D.DEPARTMENT_ID, D.DEPARTMENT_NAME, D.MANAGER_ID FROM DEPARTMENTS D WHERE D.MANAGER_ID = :current_employee_id

Complex Data Model Master Instance of EmployeeVO Detail Instance of DepartmentVO Detail Instance of EmployeeVO Independent Instance of DepartmentVO

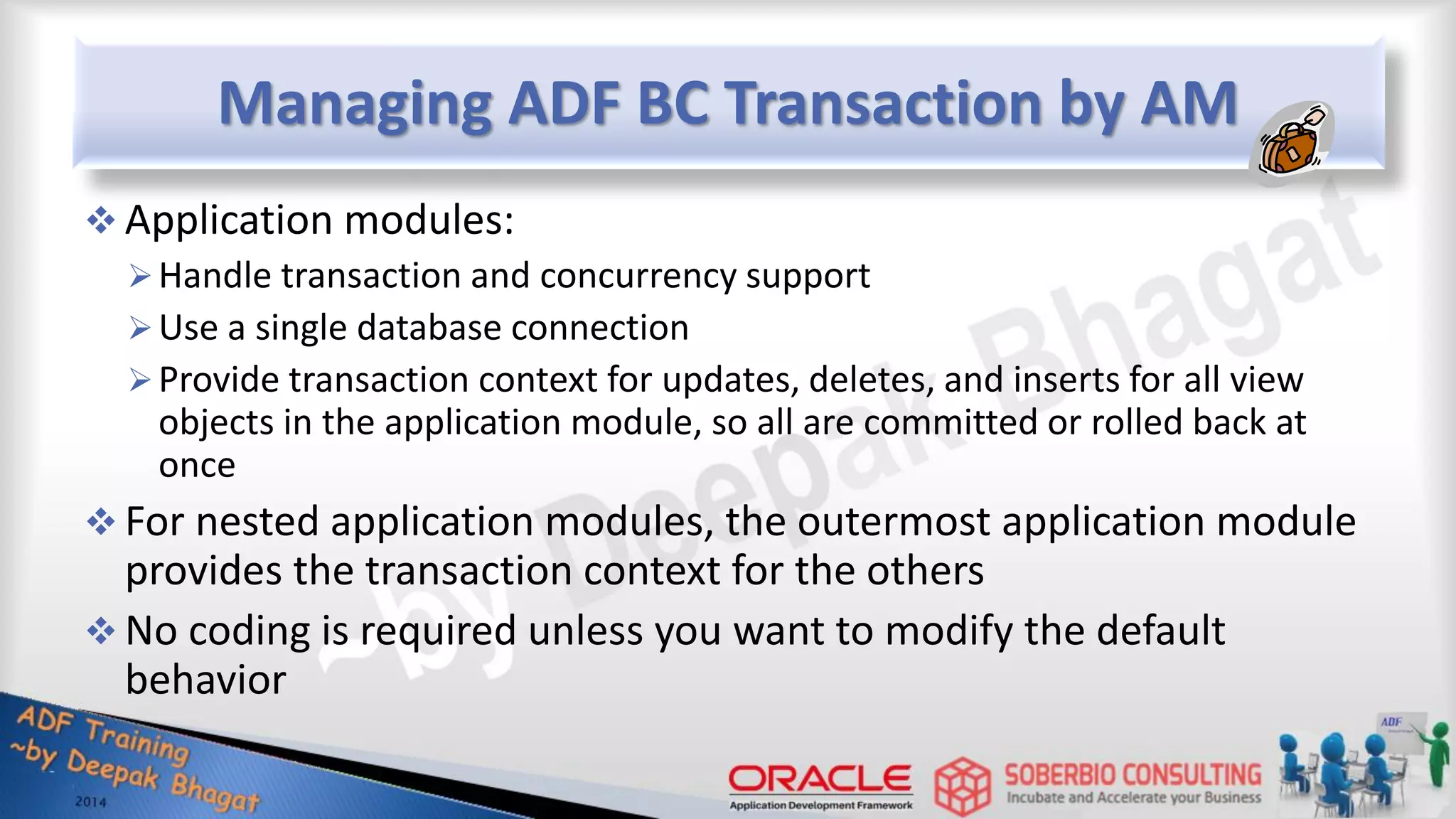

Managing ADF BC Transaction by AM  Application modules: Handle transaction and concurrency support Use a single database connection Provide transaction context for updates, deletes, and inserts for all view objects in the application module, so all are committed or rolled back at once  For nested application modules, the outermost application module provides the transaction context for the others  No coding is required unless you want to modify the default behavior

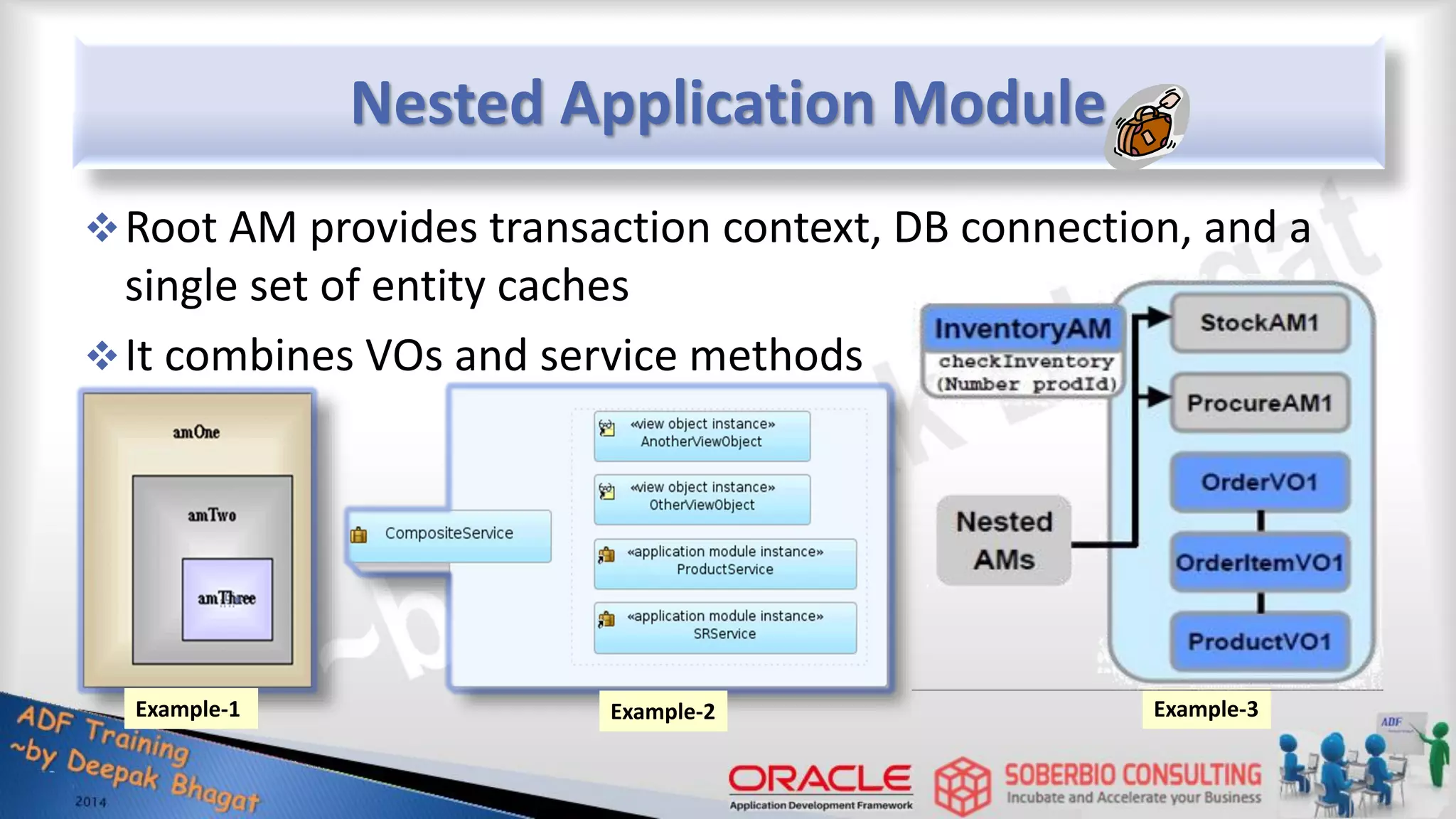

Nested Application Module Root AM provides transaction context, DB connection, and a single set of entity caches It combines VOs and service methods Example-2 Example-3 Example-1

Nested Application Module cont.… UI UI UI PG3 UI Root AM Controller Model View Business Service AM Instances Nested AM

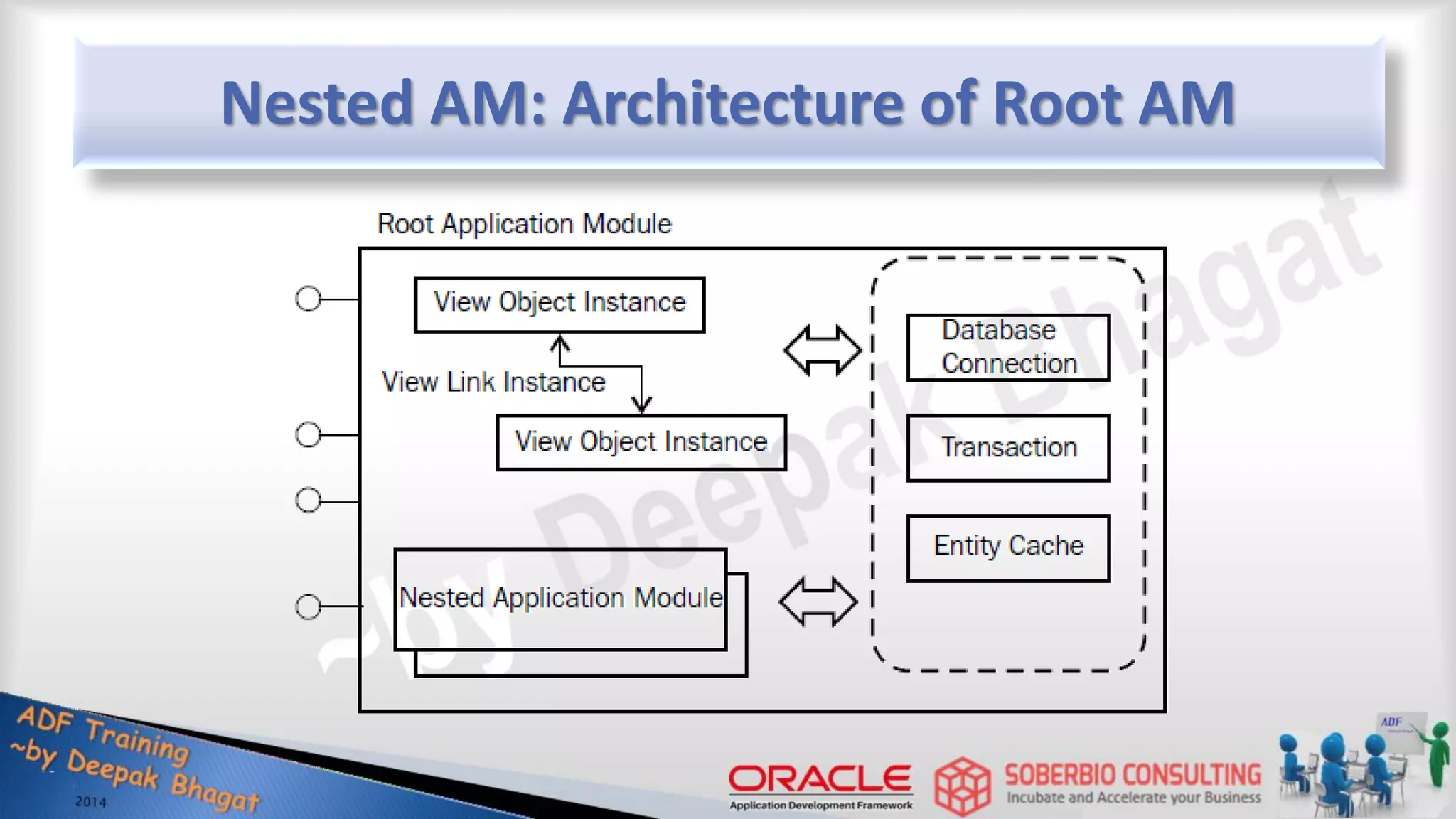

Nested AM: Architecture of Root AM

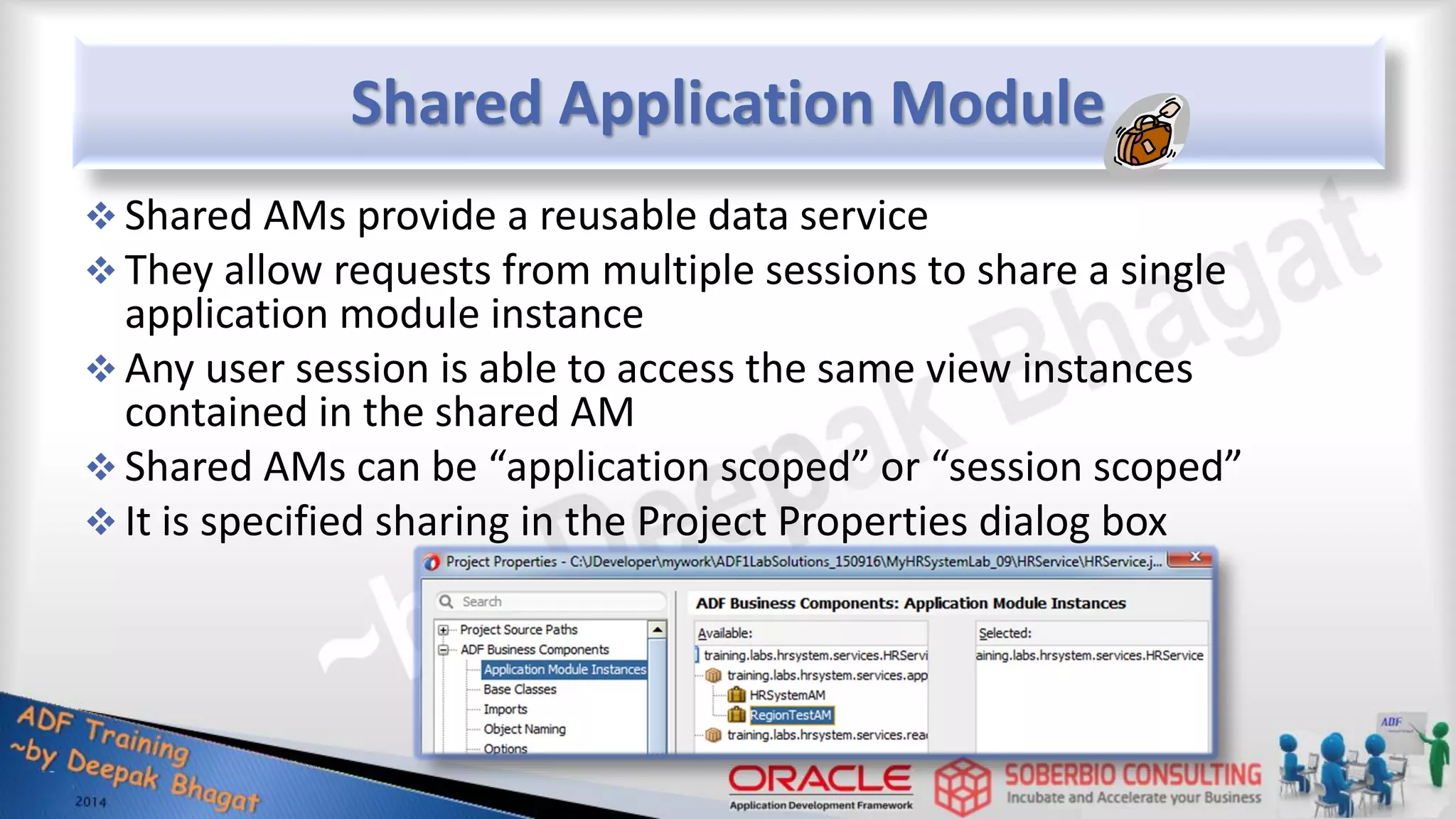

Shared Application Module  Shared AMs provide a reusable data service  They allow requests from multiple sessions to share a single application module instance  Any user session is able to access the same view instances contained in the shared AM  Shared AMs can be “application scoped” or “session scoped”  It is specified sharing in the Project Properties dialog box

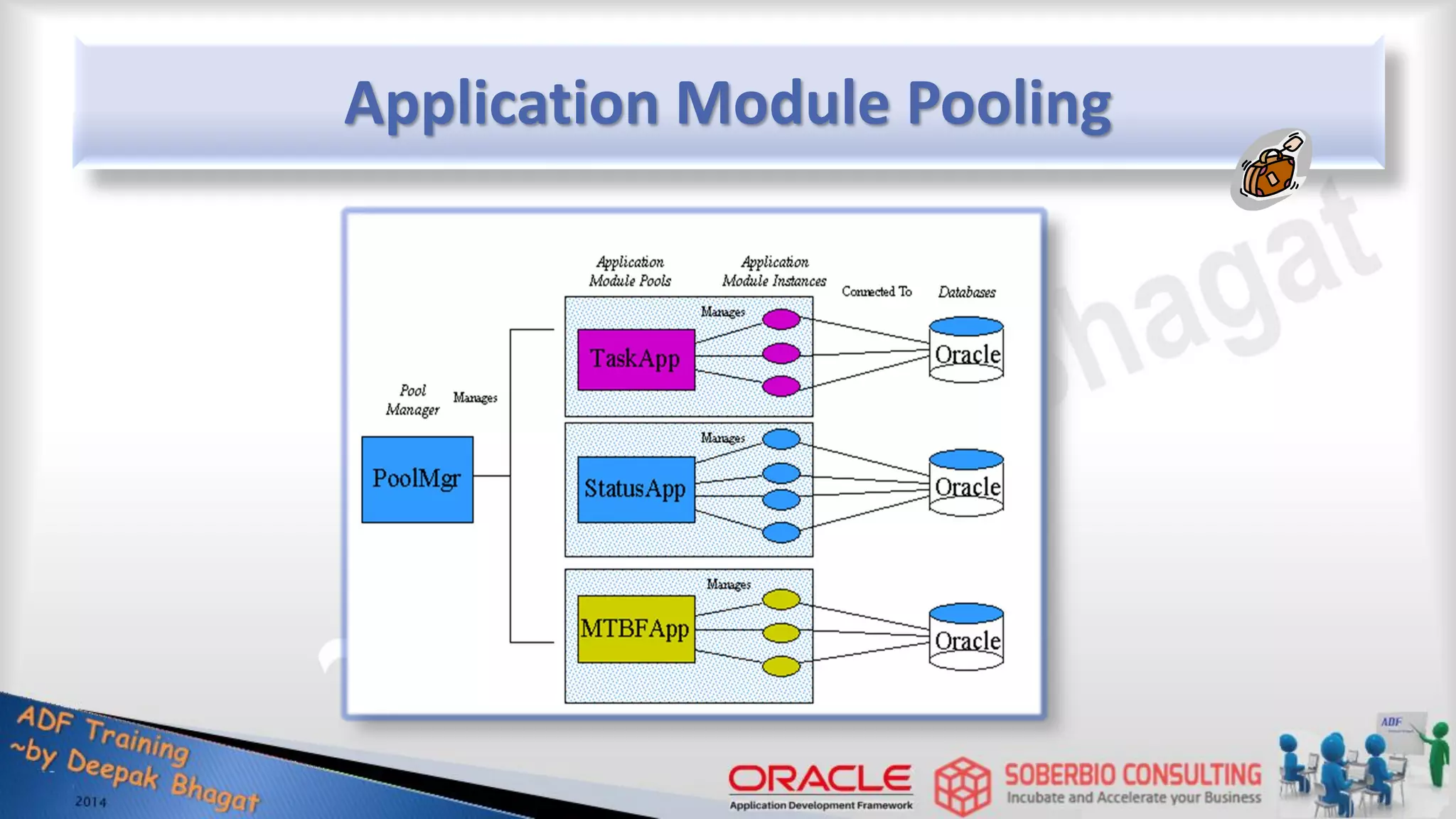

Application Module Pooling Enables users to share application modules Manages application state Provides the same instance or one with an identical state when requested by an application with managed state Available Referenced: I’d like to be used by User2 Unavailable: I’m busy right now! HRSystem Application Module Pool

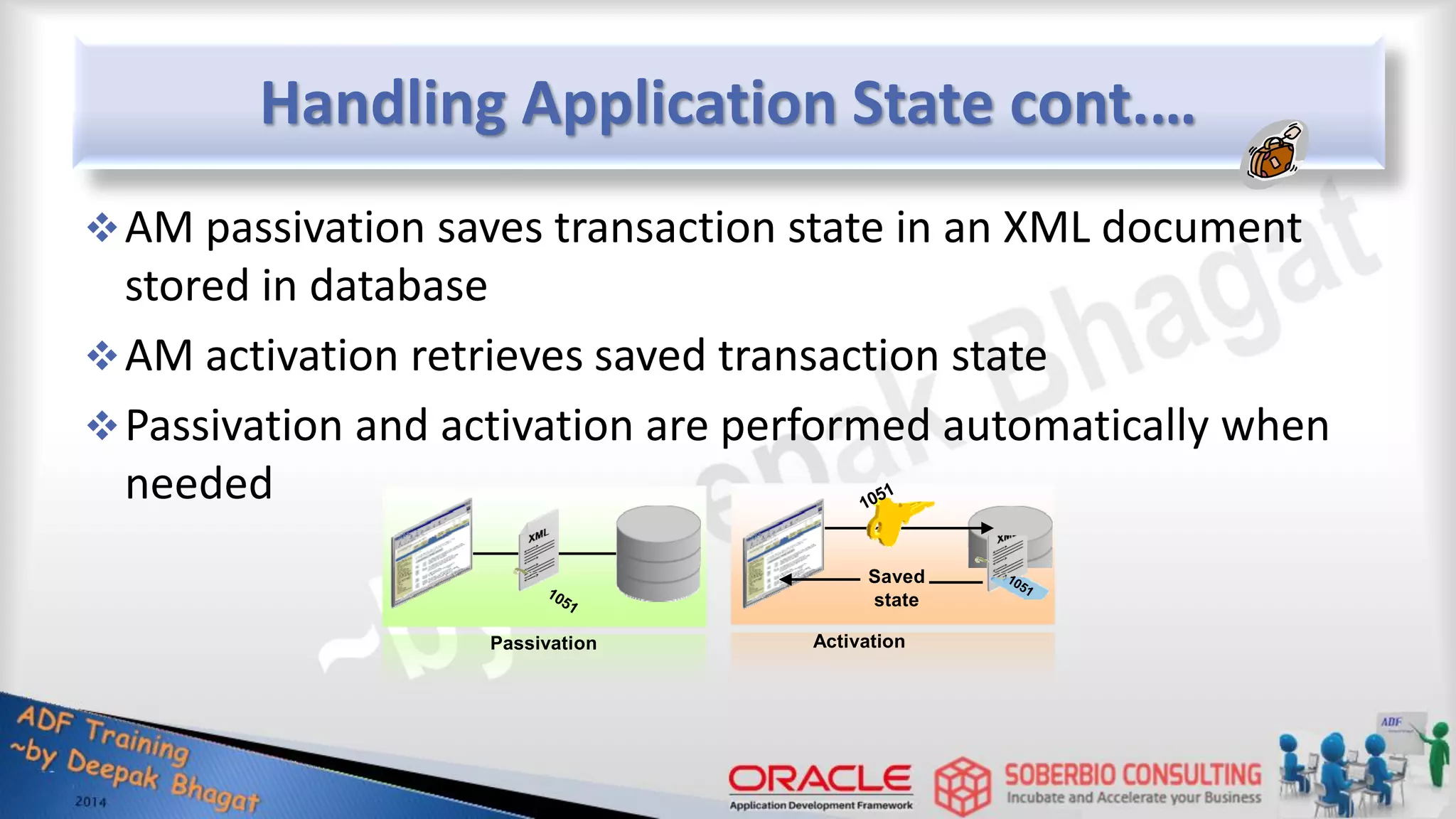

Handling Application State cont.… AM passivation saves transaction state in an XML document stored in database AM activation retrieves saved transaction state Passivation and activation are performed automatically when needed Saved state Passivation Activation

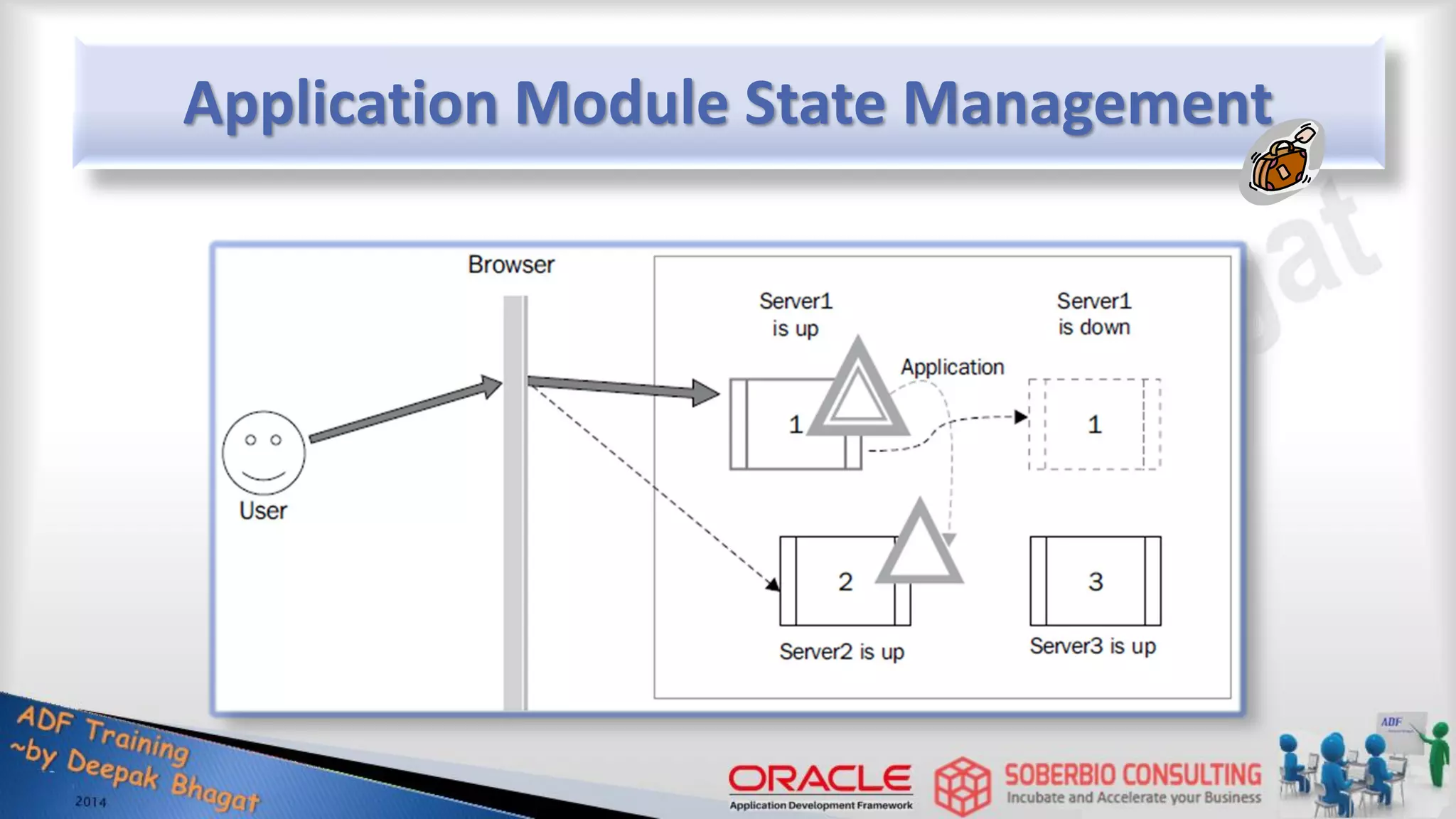

Application Module State Management

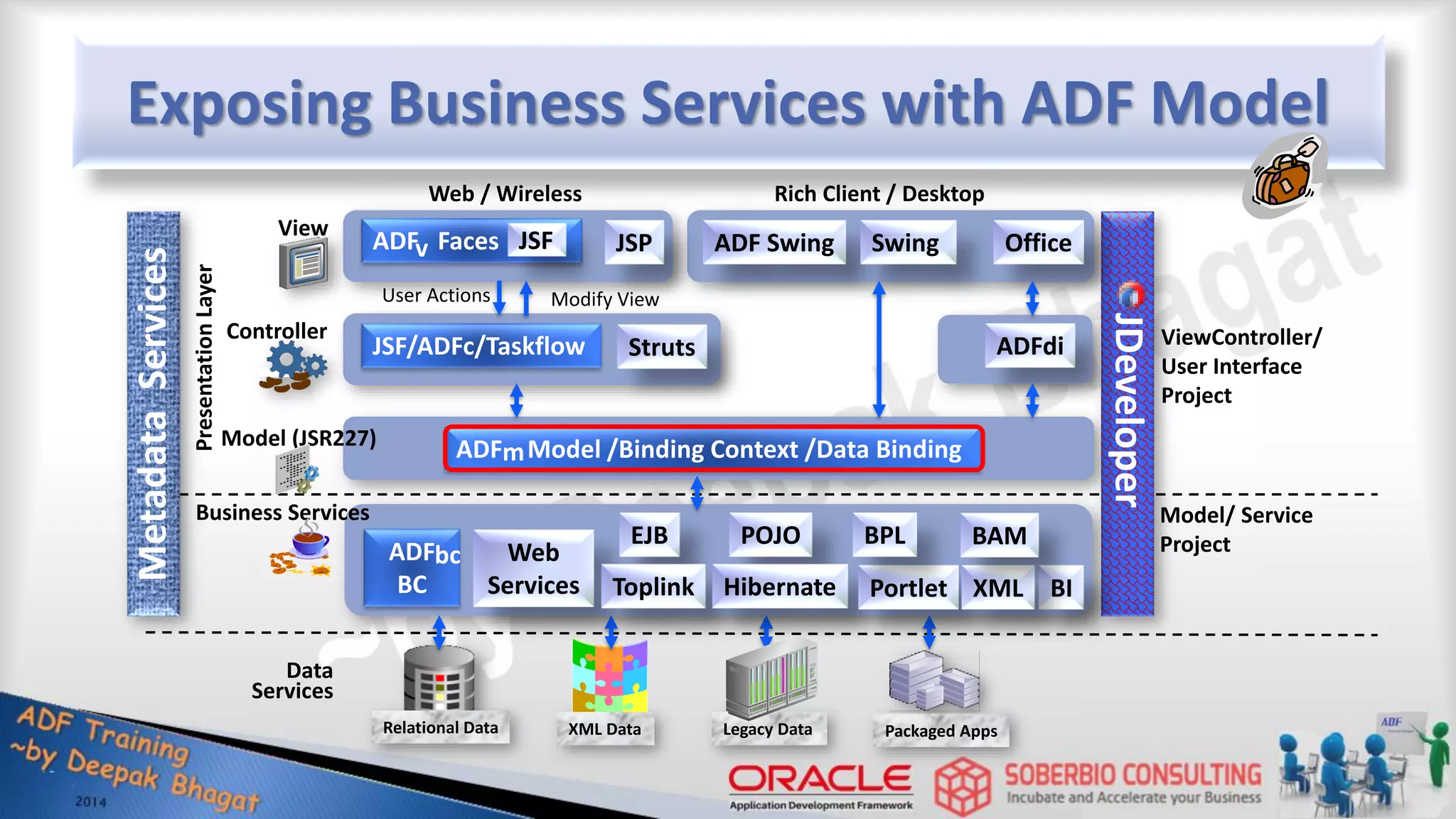

Exposing Business Services with ADF Model Metadata Services JDeveloper Model (JSR227) View Controller Business Services Relational Data XML Data Packaged Apps Legacy Data Data Services ADF Faces JSF/ADFc/Taskflow ADF Model /Binding Context /Data Binding ADF BC JSP Struts ADF Swing Swing Office ADFdi EJB Web Services POJO Toplink Hibernate Portlet BI XML Web / Wireless Rich Client / Desktop User Actions Modify View ViewController/ User Interface Project Model/ Service Project Presentation Layer v m bc BAM BPL JSF

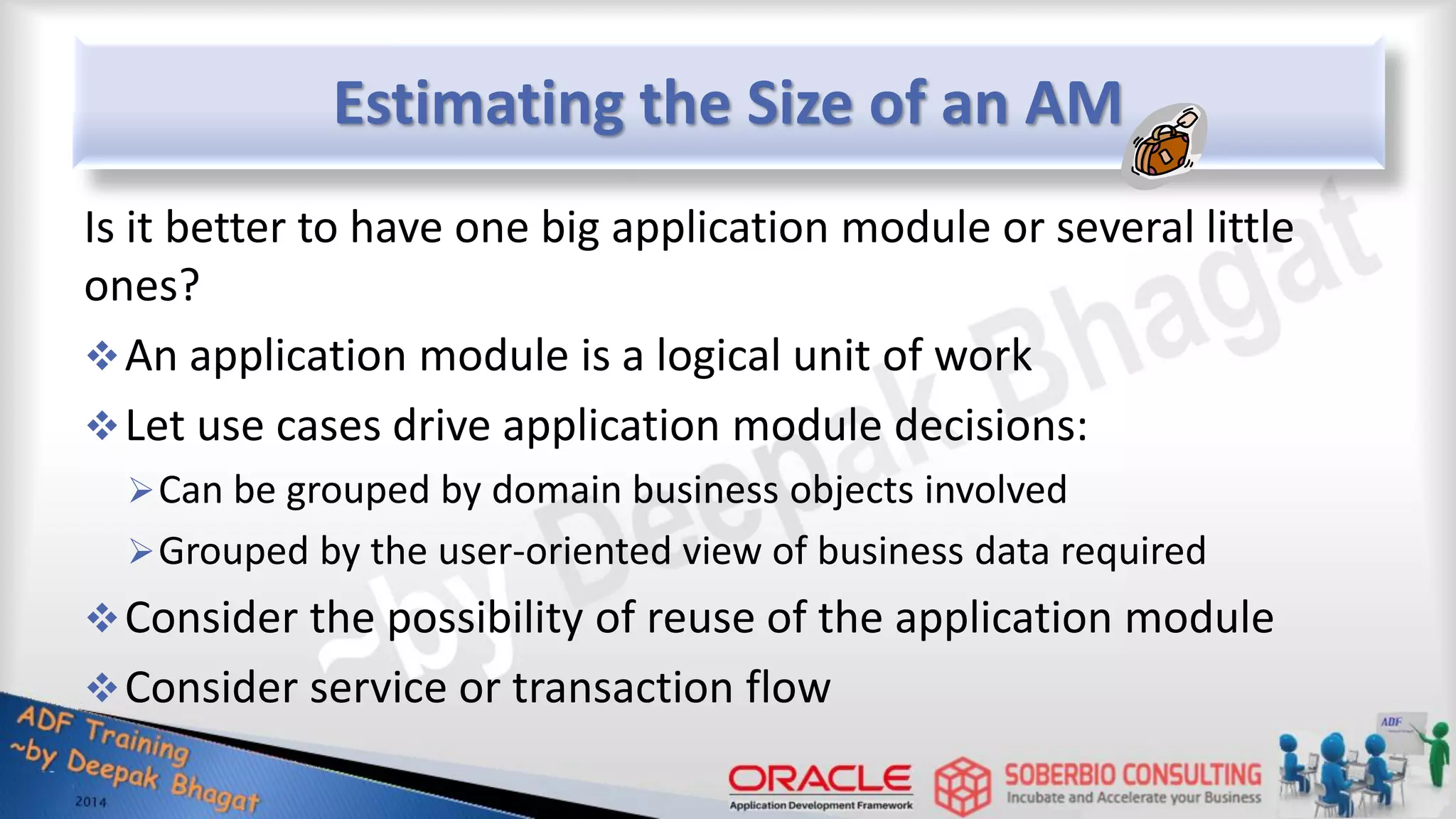

Estimating the Size of an AM Is it better to have one big application module or several little ones? An application module is a logical unit of work Let use cases drive application module decisions: Can be grouped by domain business objects involved Grouped by the user-oriented view of business data required Consider the possibility of reuse of the application module Consider service or transaction flow

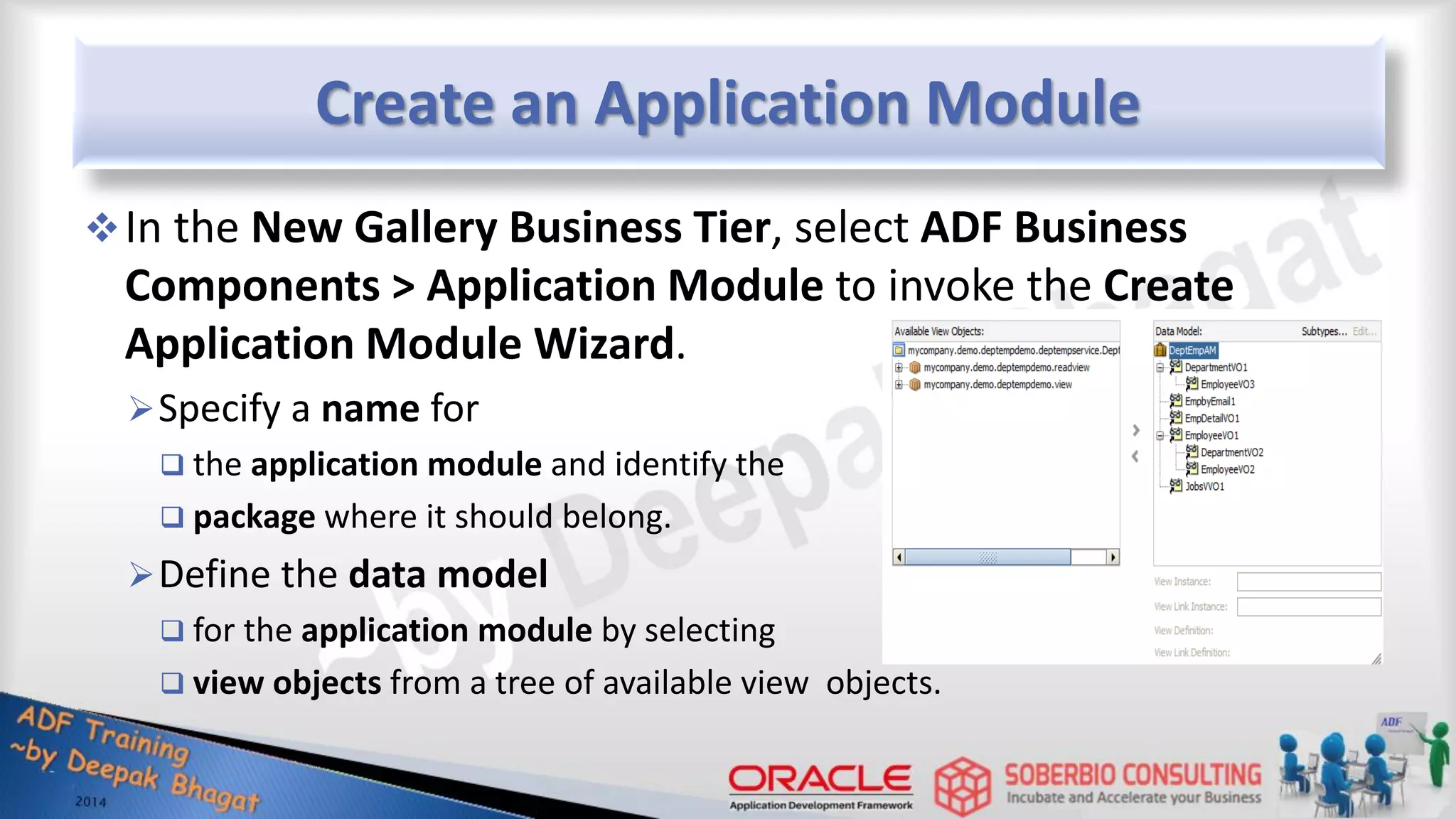

Create an Application Module In the New Gallery Business Tier, select ADF Business Components > Application Module to invoke the Create Application Module Wizard. Specify a name for  the application module and identify the  package where it should belong. Define the data model  for the application module by selecting  view objects from a tree of available view objects.

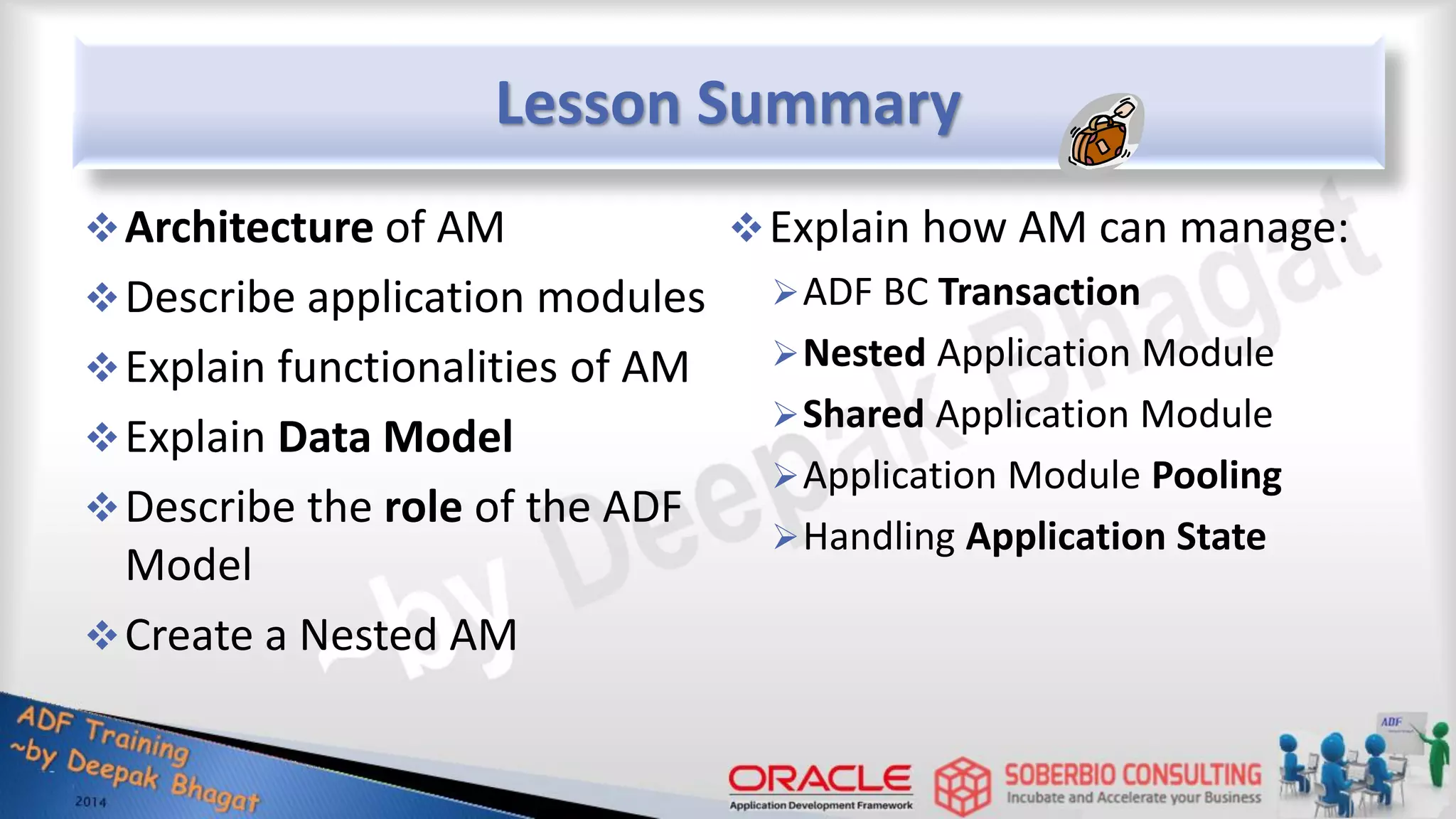

Lesson Summary Architecture of AM Describe application modules Explain functionalities of AM Explain Data Model Describe the role of the ADF Model Create a Nested AM Explain how AM can manage: ADF BC Transaction Nested Application Module Shared Application Module Application Module Pooling Handling Application State

8 Declaratively Customizing Business Services

Lesson Agenda How and where to use Groovy expressions Describe how to declaratively change data behavior Declaratively modifying entity objects, view objects and application modules Declaratively projecting, sorting and selecting data Restricting rows using where clause, parameterized where clause and structured where clause (ViewCriteria) Create view accessors and LOVs

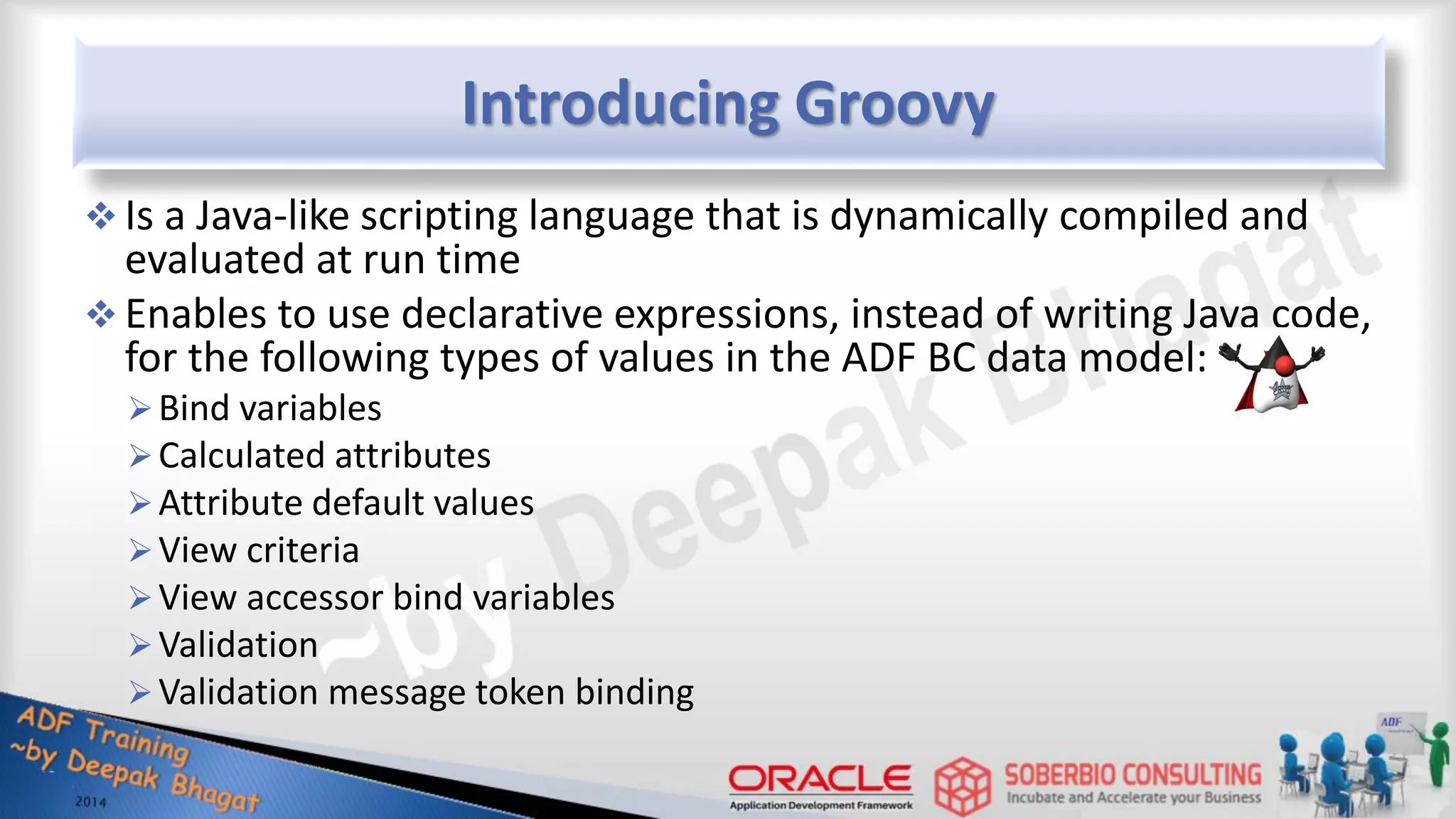

Introducing Groovy  Is a Java-like scripting language that is dynamically compiled and evaluated at run time  Enables to use declarative expressions, instead of writing Java code, for the following types of values in the ADF BC data model: Bind variables Calculated attributes Attribute default values View criteria View accessor bind variables Validation Validation message token binding

Using Groovy Syntax - Example Java Groovy Expression ((Number)getAttribute("Sal") .multiply(new Number(0.10)) Sal * 0.10 ((Date)getAttribute("PromotionDate")) .compareTo((Date)getAttribute("HireDate")) > 0 PromotionDate > HireDate isEmployee() employee getEmployee() employee getEmpNo(int n) source.emp(5) checkEmployeeName() source.checkEmployeeName() checkEmployeeNo(int n) source.checkEmployeeNo(5)

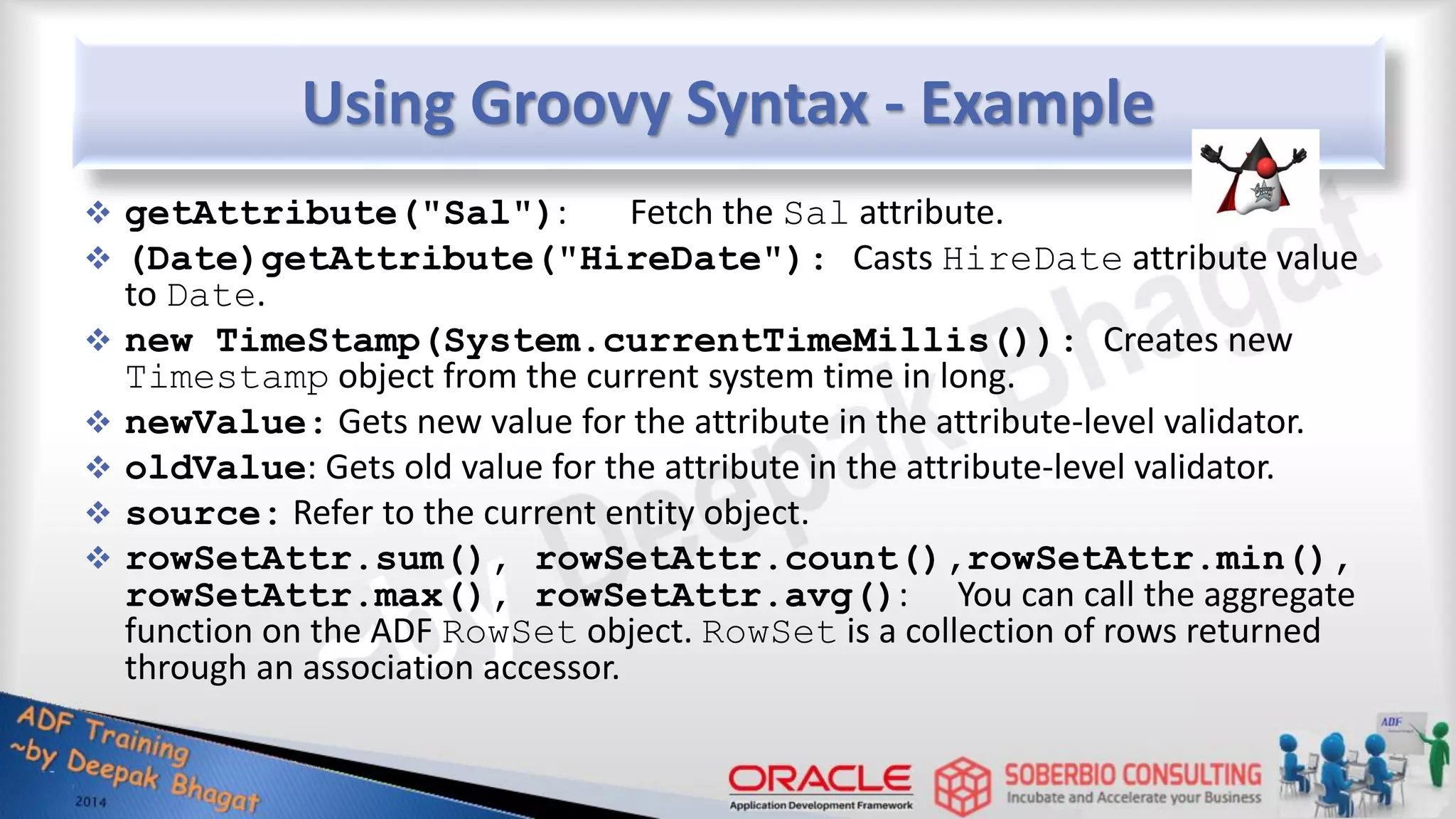

Using Groovy Syntax - Example  getAttribute("Sal"): Fetch the Sal attribute.  (Date)getAttribute("HireDate"): Casts HireDate attribute value to Date.  new TimeStamp(System.currentTimeMillis()): Creates new Timestamp object from the current system time in long.  newValue: Gets new value for the attribute in the attribute-level validator.  oldValue: Gets old value for the attribute in the attribute-level validator.  source: Refer to the current entity object.  rowSetAttr.sum(), rowSetAttr.count(),rowSetAttr.min(), rowSetAttr.max(), rowSetAttr.avg(): You can call the aggregate function on the ADF RowSet object. RowSet is a collection of rows returned through an association accessor.

Using Groovy Syntax in ADF Reserved name adf gets objects from the framework:  adf.context: To reference the ADFContext object  adf.object: To reference the object on which the expression is being applied  adf.error: In validation rules, to access the error handler that allows the validation expression to generate exceptions (adf.error.raise) or warnings (adf.error.warn)  adf.currentDate: To reference the current date with time truncated  adf.currentDateTime: To reference the current date and time

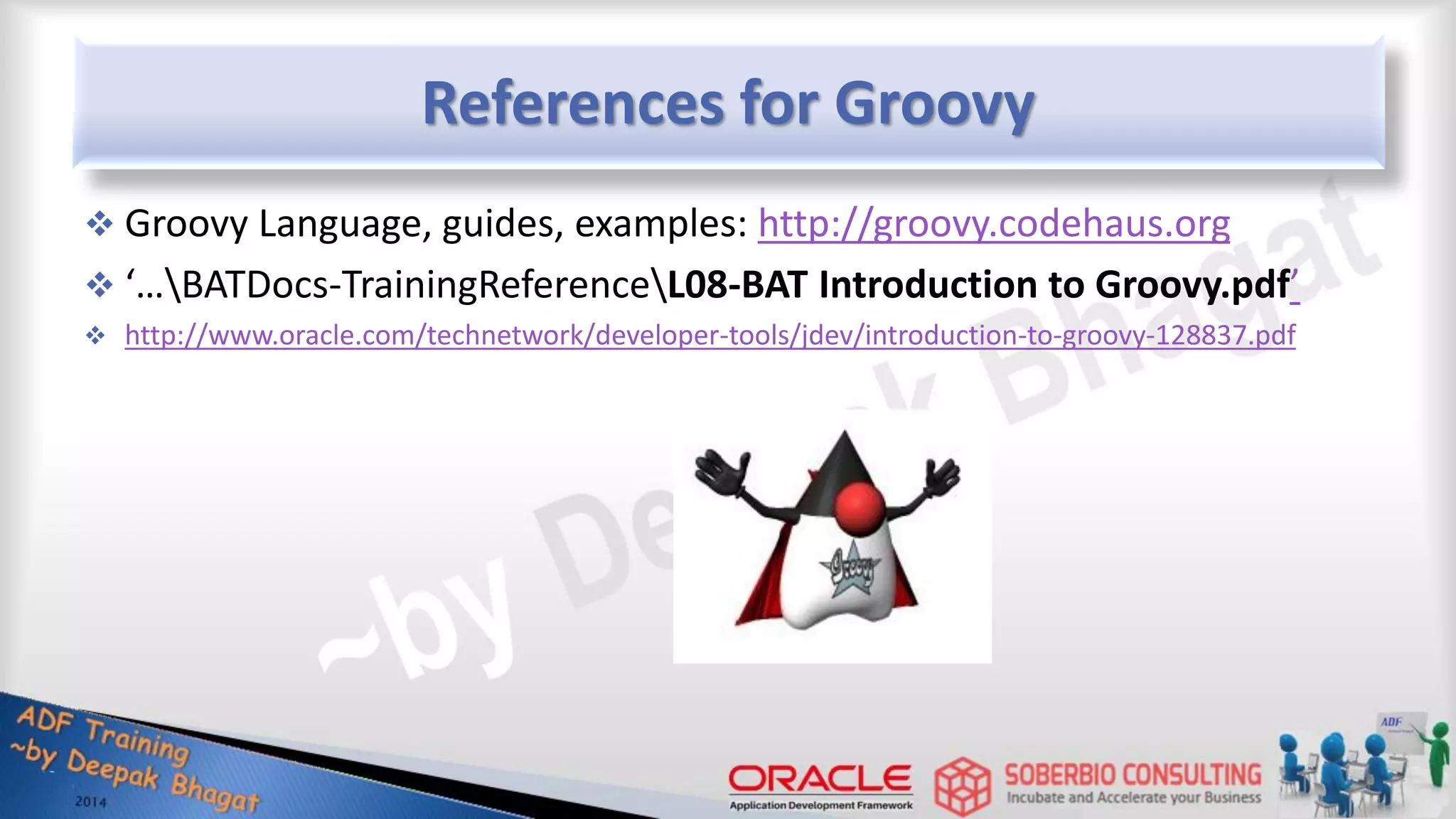

References for Groovy  Groovy Language, guides, examples: http://groovy.codehaus.org  ‘…BATDocs-TrainingReferenceL08-BAT Introduction to Groovy.pdf’  http://www.oracle.com/technetwork/developer-tools/jdev/introduction-to-groovy-128837.pdf

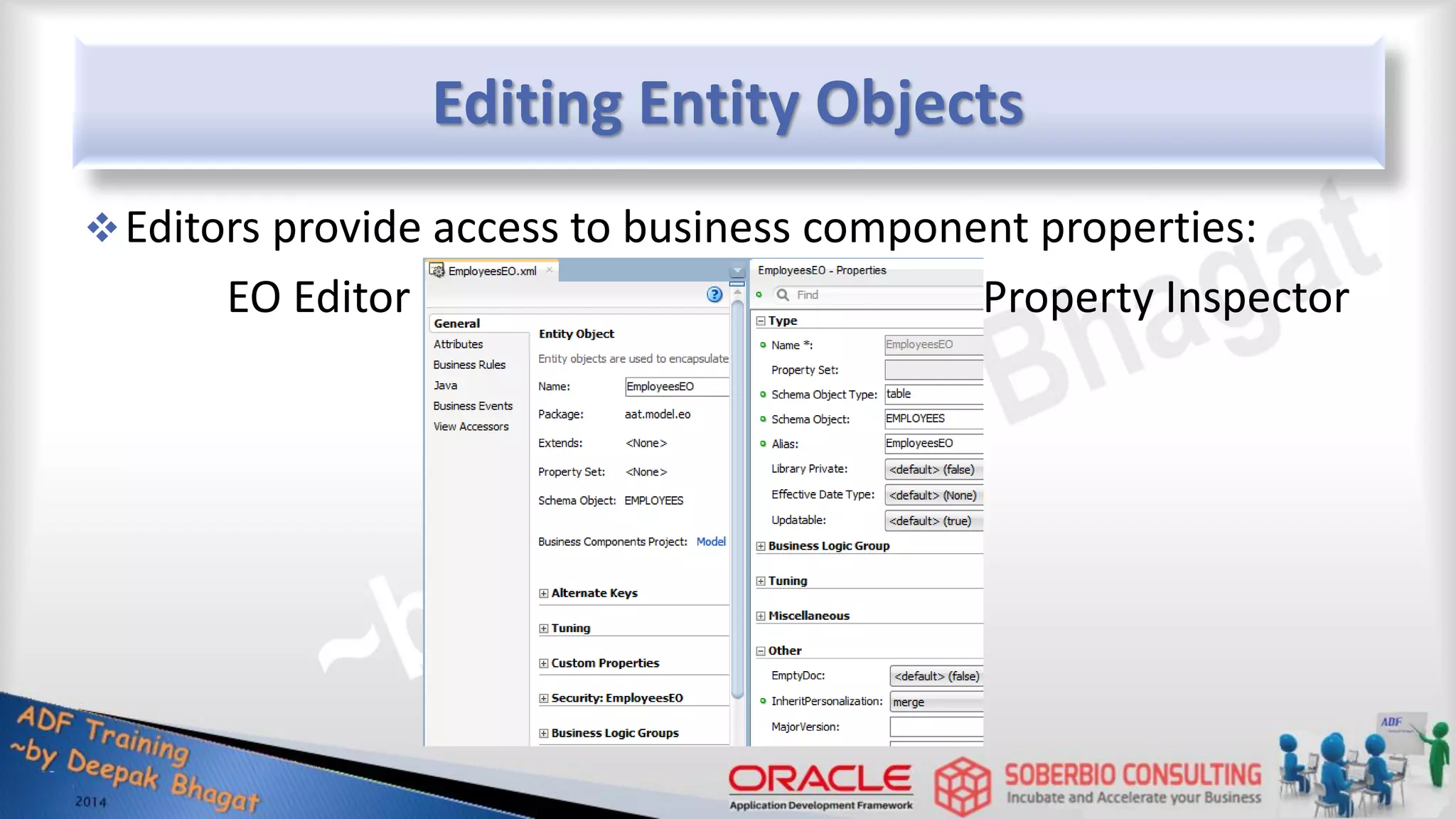

Editing Entity Objects Editors provide access to business component properties: EO Editor Property Inspector

Customizing EO’s Default Behavior Declaratively customize EO’s default behavior: Customize attribute control hints: Example: HireDate – Simple Date Alternate key entity constraints Synchronize columns with trigger-assigned values Validate user input (Lesson 8 - Validation)

Customizing EO’s Default Behavior Declaratively customize EO’s default behavior: Customize attribute control hints (JDev): Example: HireDate – Simple Date Alternate key entity constraints Synchronize columns with trigger-assigned values Validate user input (Lesson 8 - Validation)

Customize Attribute Control Hints

Alternate Key Entity Constraints  Used for efficient uniqueness checks  Used for direct row lookups with findByKey()  Different from primary keys or unique keys

Synchronizing Columns with Trigger-Assigned Values  To synchronize when a database trigger updates a column, use Refresh On Update or Refresh On Insert  To use a database sequence to generate a primary key: Set data type of attribute to DBSequence Updatable is While New Refresh On Insert is selected automatically Provide Sequence Name and Start at

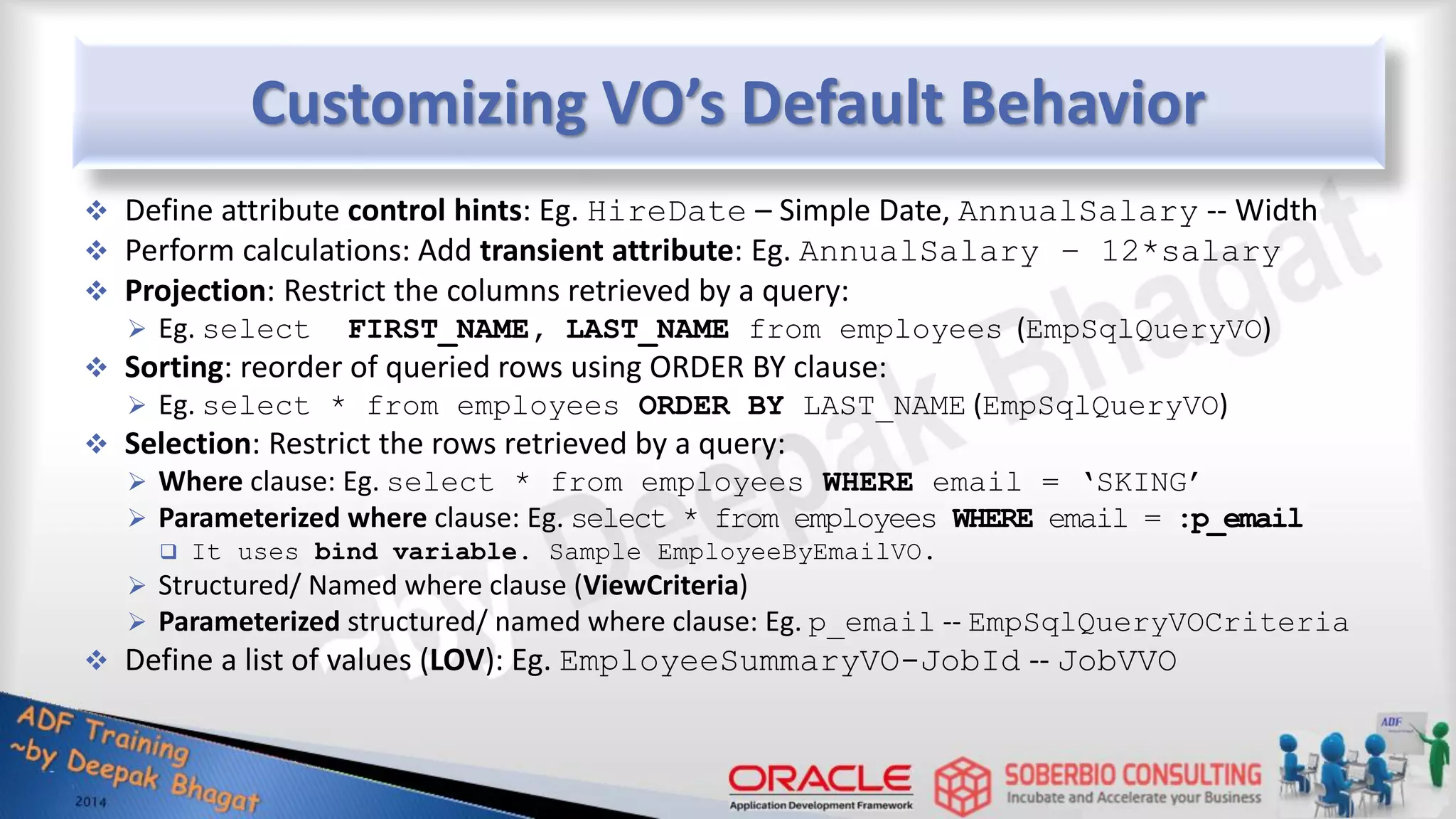

Customizing VO’s Default Behavior  Define attribute control hints: Eg. HireDate – Simple Date, AnnualSalary -- Width  Perform calculations: Add transient attribute: Eg. AnnualSalary – 12*salary  Projection: Restrict the columns retrieved by a query:  Eg. select FIRST_NAME, LAST_NAME from employees (EmpSqlQueryVO)  Sorting: reorder of queried rows using ORDER BY clause:  Eg. select * from employees ORDER BY LAST_NAME (EmpSqlQueryVO)  Selection: Restrict the rows retrieved by a query:  Where clause: Eg. select * from employees WHERE email = ‘SKING’  Parameterized where clause: Eg. select * from employees WHERE email = :p_email  It uses bind variable. Sample EmployeeByEmailVO.  Structured/ Named where clause (ViewCriteria)  Parameterized structured/ named where clause: Eg. p_email -- EmpSqlQueryVOCriteria  Define a list of values (LOV): Eg. EmployeeSummaryVO-JobId -- JobVVO

Defining View Object Control Hints Same as for entity objects Overrides EO control hint settings; use in cases such as: The same data must be displayed differently in different views OR The VO uses the same attribute twice as in a recursive relationship Can also be used for transient attributes defined at the VO level

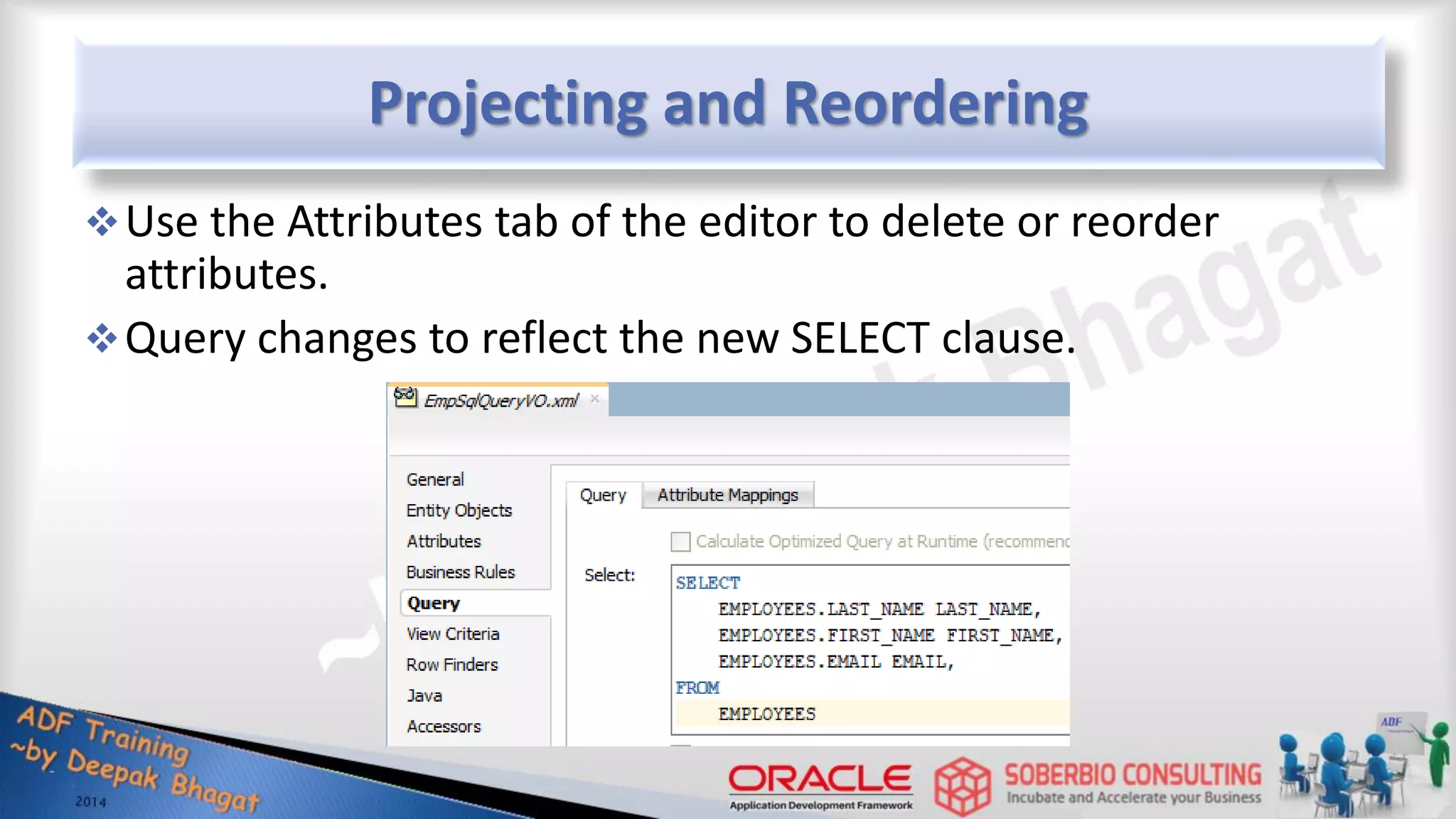

Projecting and Reordering Use the Attributes tab of the editor to delete or reorder attributes. Query changes to reflect the new SELECT clause.

Sorting the Order of Queried Rows To change the order, perform the following steps: 1. Click the Query tab of the view object editor. 2. Click Edit in the Query section of the panel. 3. Click Edit in the Edit Query dialog box. 4. In the Order By dialog box, select the columns for sorting the rows retrieved by the query.

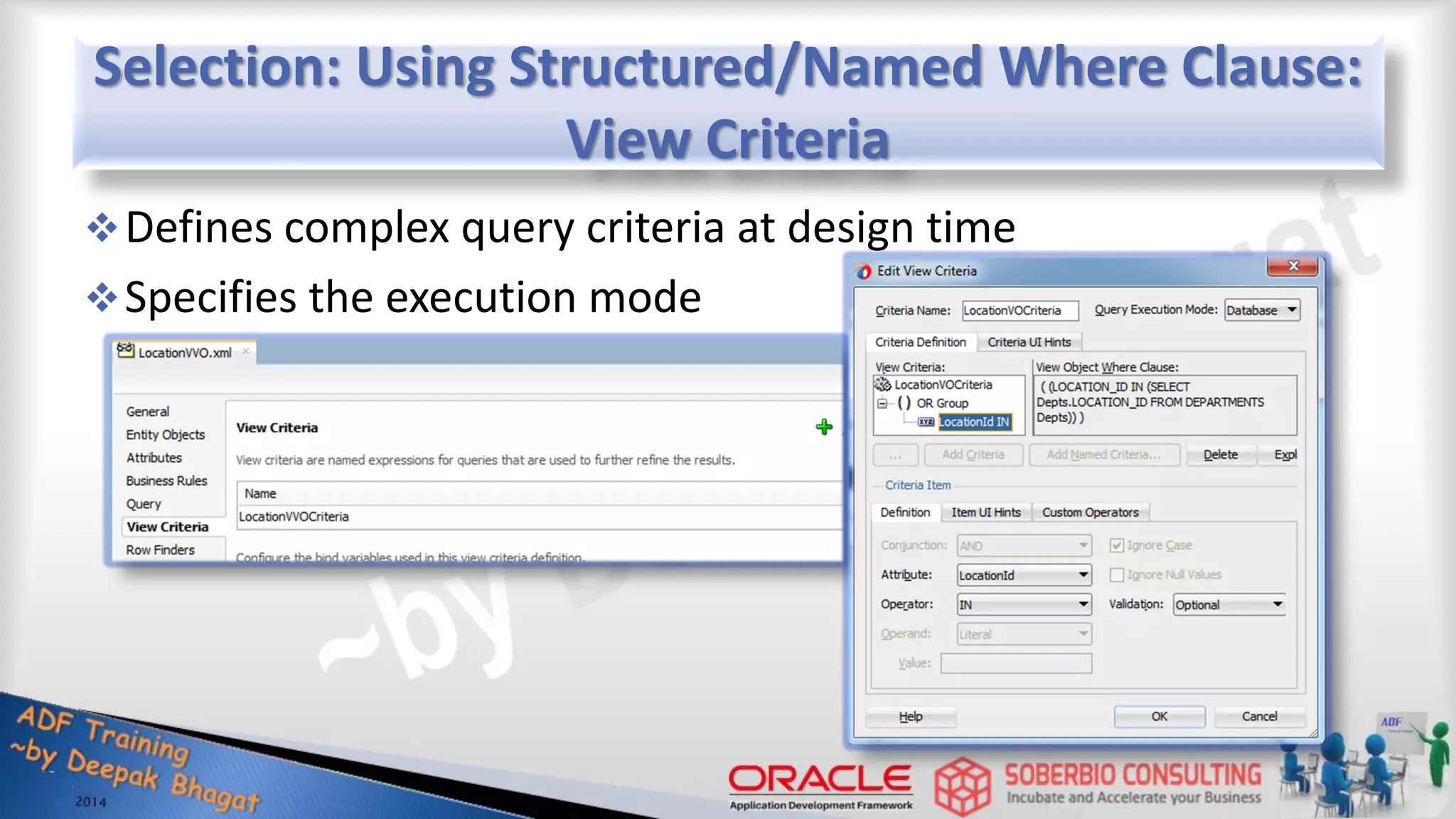

Selection: Using Structured/Named Where Clause: View Criteria Defines complex query criteria at design time Specifies the execution mode

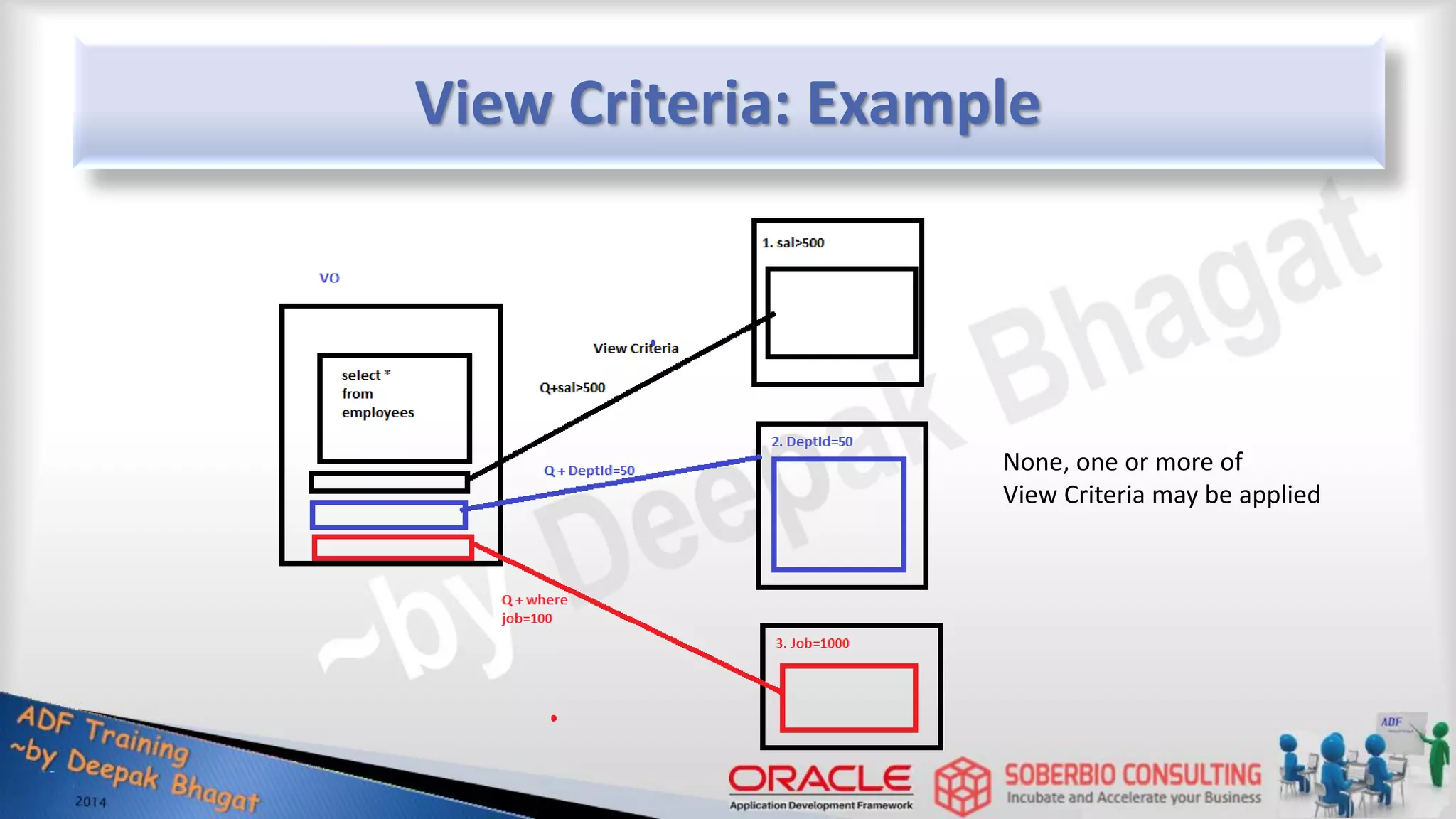

View Criteria: Example None, one or more of View Criteria may be applied

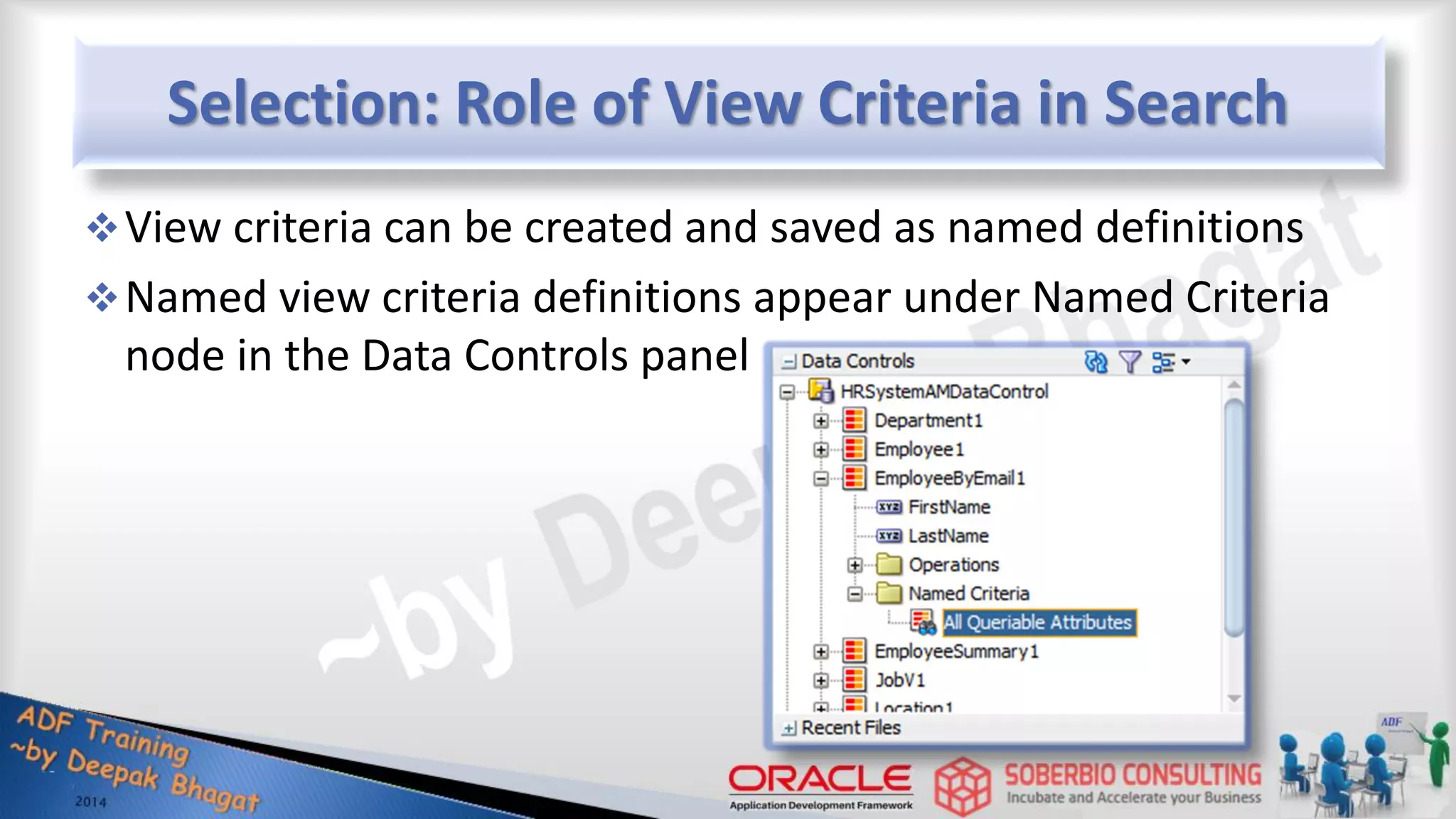

Selection: Role of View Criteria in Search View criteria can be created and saved as named definitions Named view criteria definitions appear under Named Criteria node in the Data Controls panel

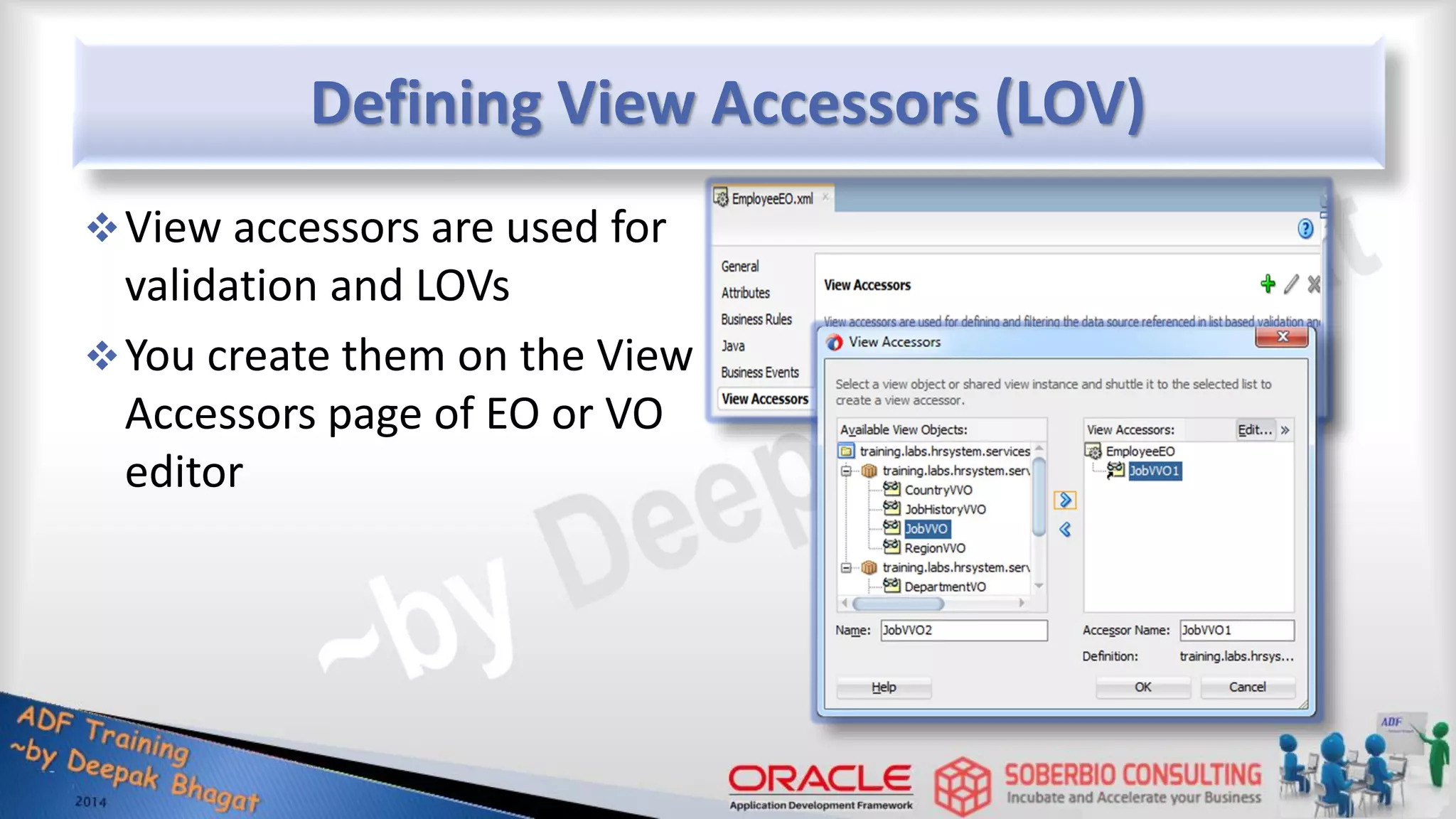

Defining View Accessors (LOV) View accessors are used for validation and LOVs You create them on the View Accessors page of EO or VO editor

Using List of Values Are defined on view object attributes (JobId) Use view accessors as a data source: For attributes mapped to an entity object attribute:  Use the view accessor that is used by the entity object attribute’s Key Exists validator  Extend the view accessor at the view object level for UI hints or bind expressions if required (JobVVO) For transient attributes, defined as a new view accessor

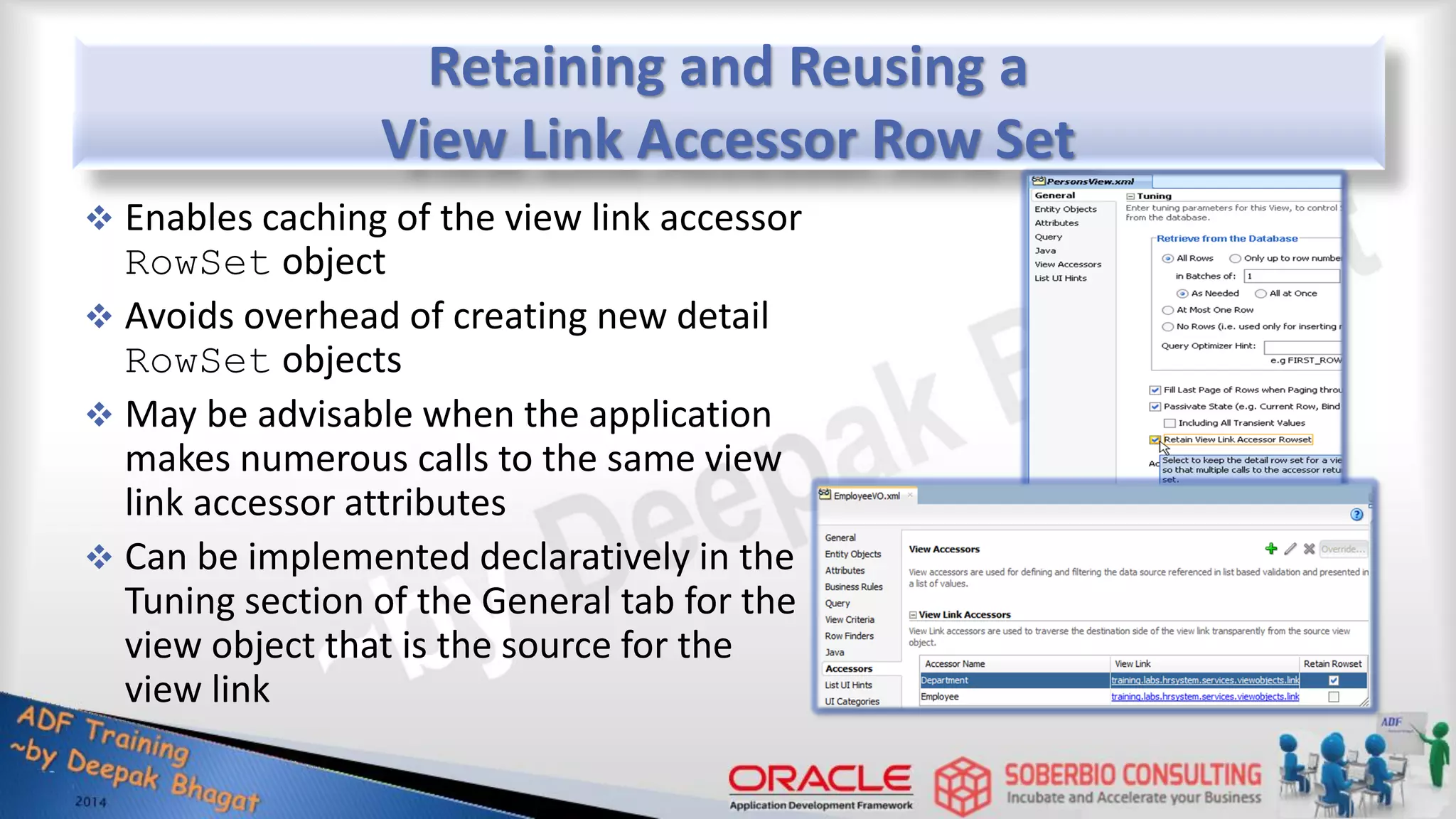

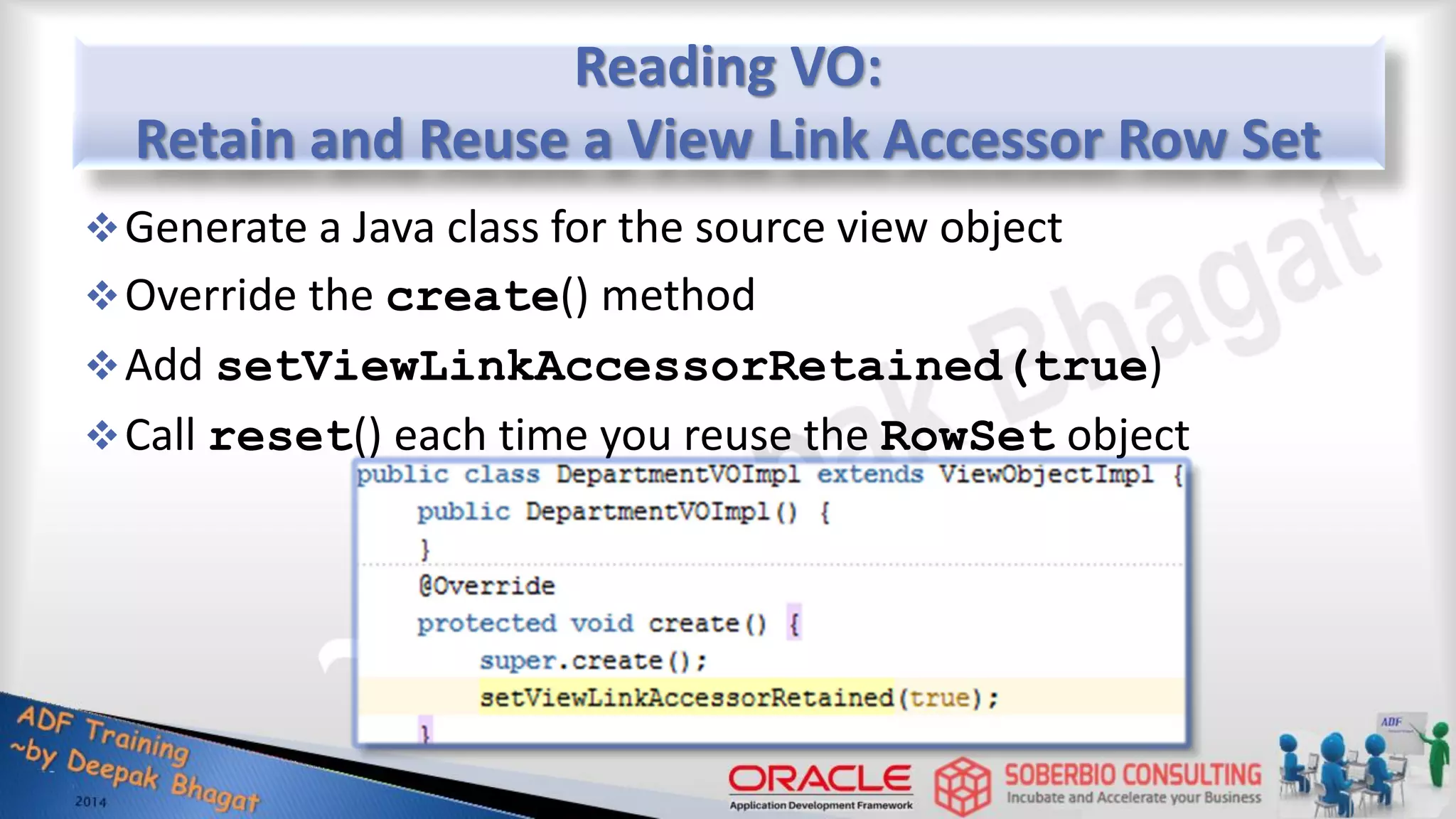

Retaining and Reusing a View Link Accessor Row Set  Enables caching of the view link accessor RowSet object  Avoids overhead of creating new detail RowSet objects  May be advisable when the application makes numerous calls to the same view link accessor attributes  Can be implemented declaratively in the Tuning section of the General tab for the view object that is the source for the view link

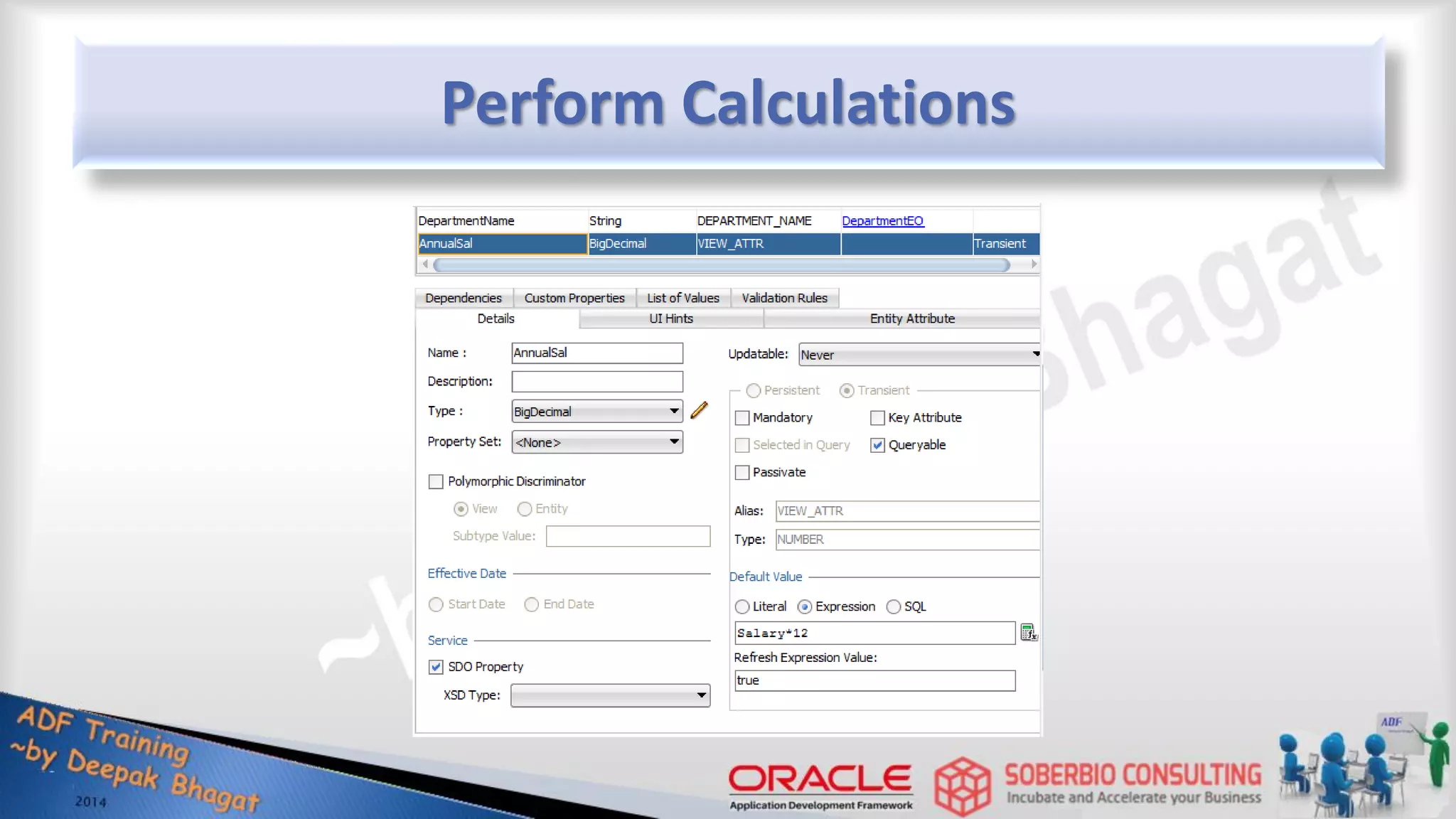

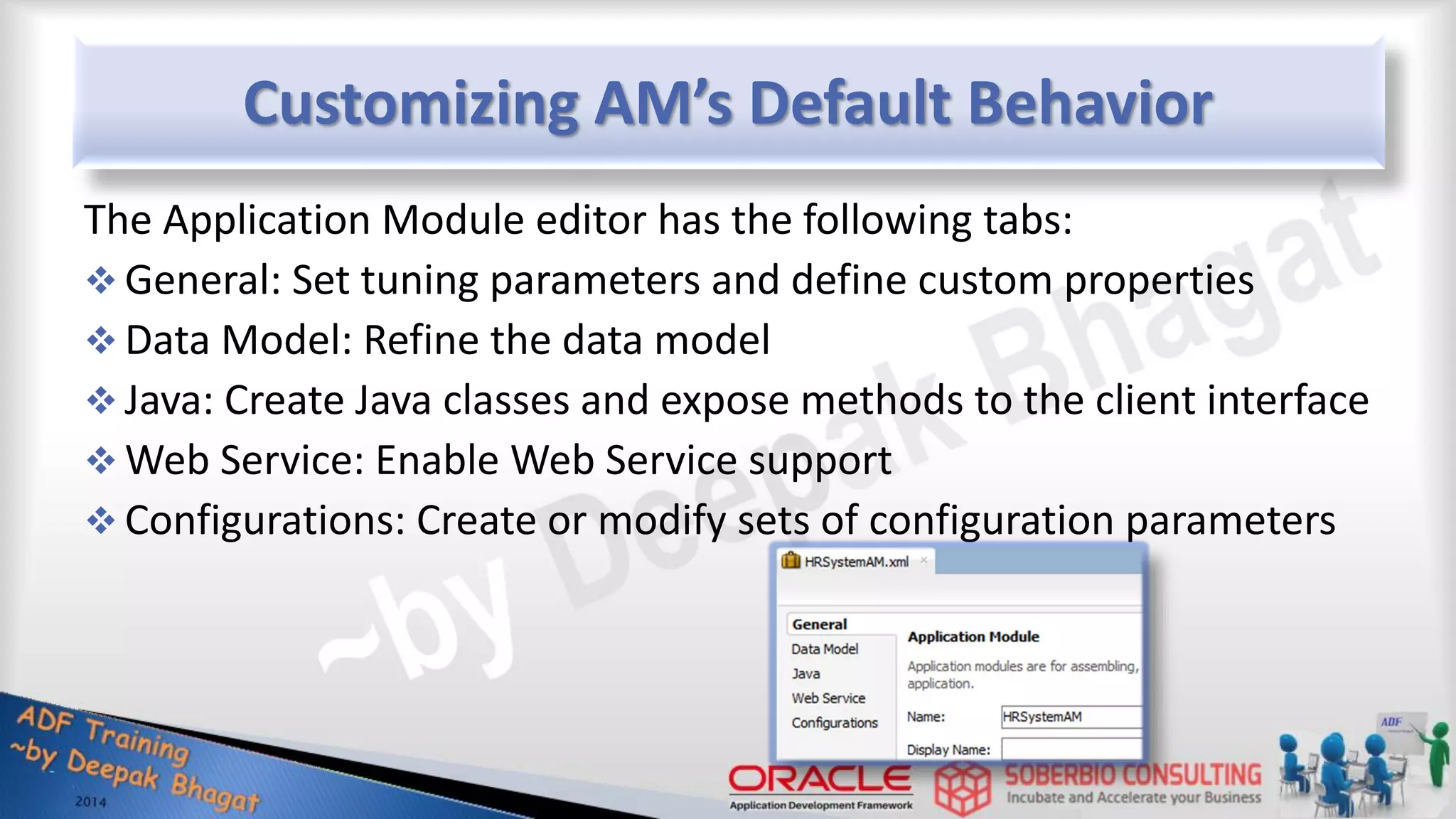

Customizing AM’s Default Behavior The Application Module editor has the following tabs:  General: Set tuning parameters and define custom properties  Data Model: Refine the data model  Java: Create Java classes and expose methods to the client interface  Web Service: Enable Web Service support  Configurations: Create or modify sets of configuration parameters

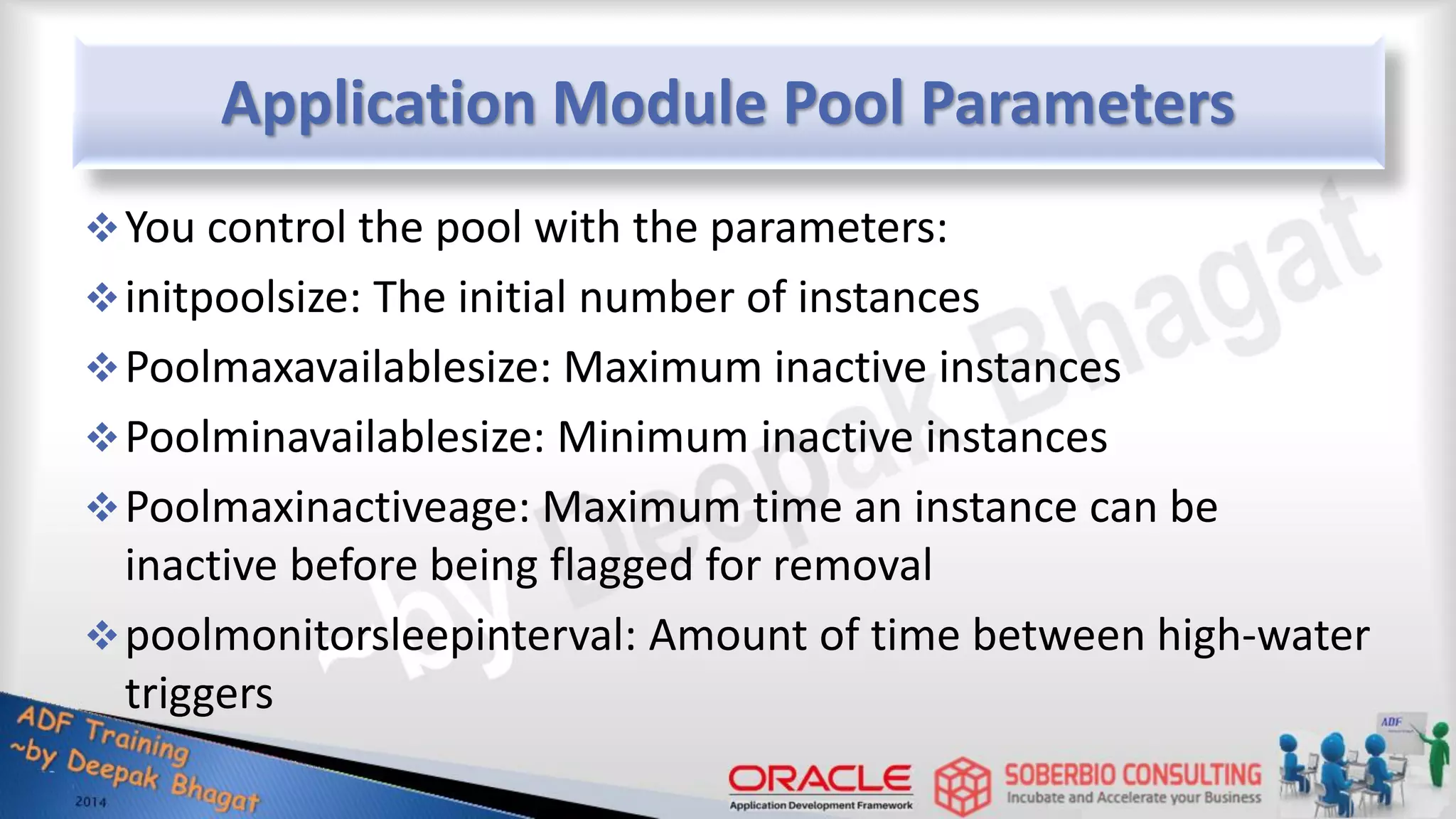

Application Module Pool Parameters You control the pool with the parameters: initpoolsize: The initial number of instances Poolmaxavailablesize: Maximum inactive instances Poolminavailablesize: Minimum inactive instances Poolmaxinactiveage: Maximum time an instance can be inactive before being flagged for removal poolmonitorsleepinterval: Amount of time between high-water triggers

Modifying the Locking Behavior of an AM Default locking behavior is optimistic optimistic locking is recommended for Web applications Change configuration: Set jbo.locking.mode to optimistic or pessimistic

Lesson Summary How and where to use Groovy expressions Explain how to declaratively change data behavior Declaratively modify entity objects, view objects and application modules Declaratively Projecting, Sorting and Selecting data Restricting rows using where clause, parameterized where clause and structured where clause (VC) Create view accessors and LOVs

9 Validating Business Services

Lesson Agenda Use the declarative validation options Categories & Subcategories of Validations in BC Triggering validation execution Failure handling Using Groovy expressions in validation

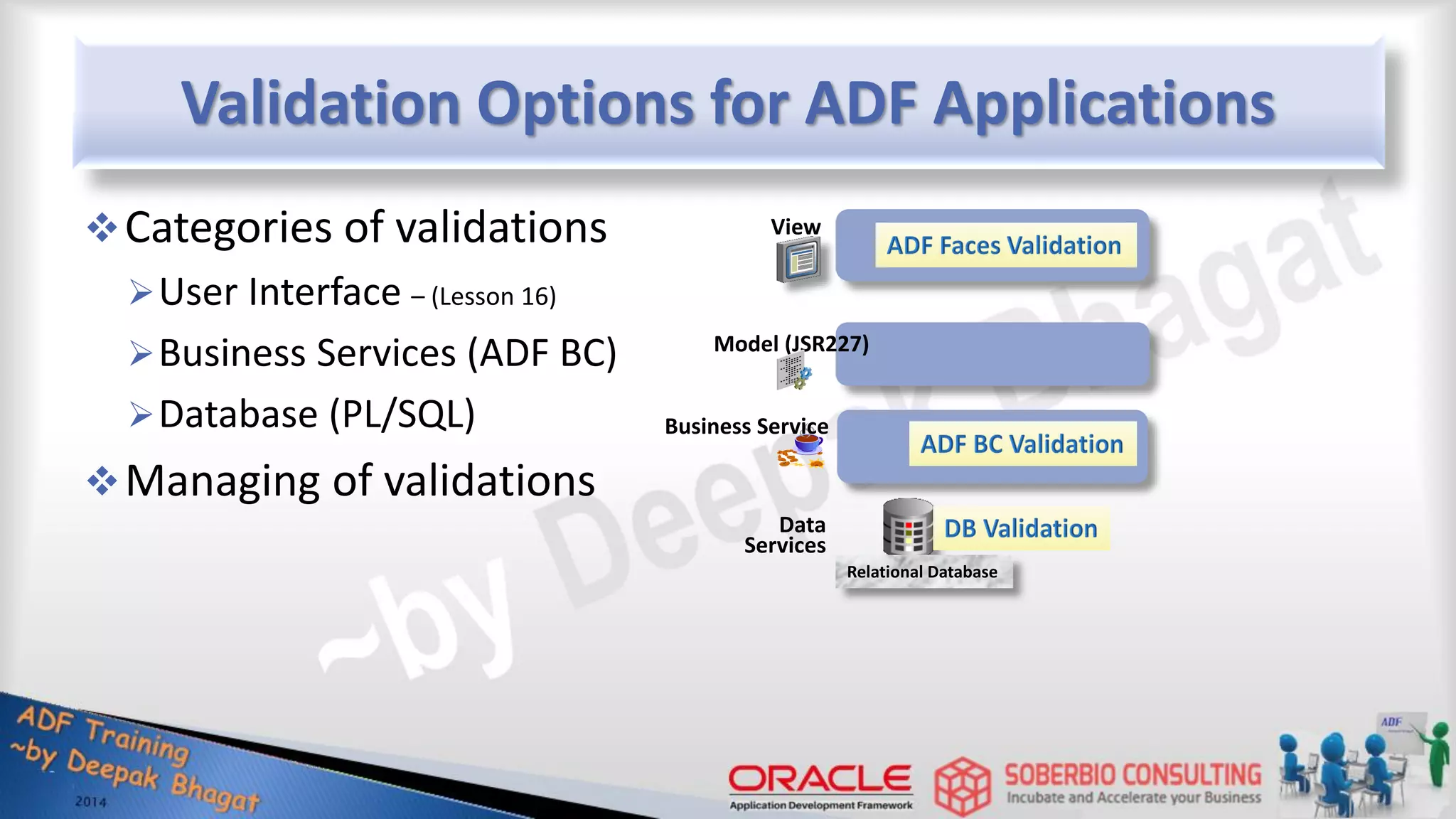

Validation Options for ADF Applications Categories of validations User Interface – (Lesson 16) Business Services (ADF BC) Database (PL/SQL) Managing of validations Model (JSR227) View Relational Database Data Services Business Service

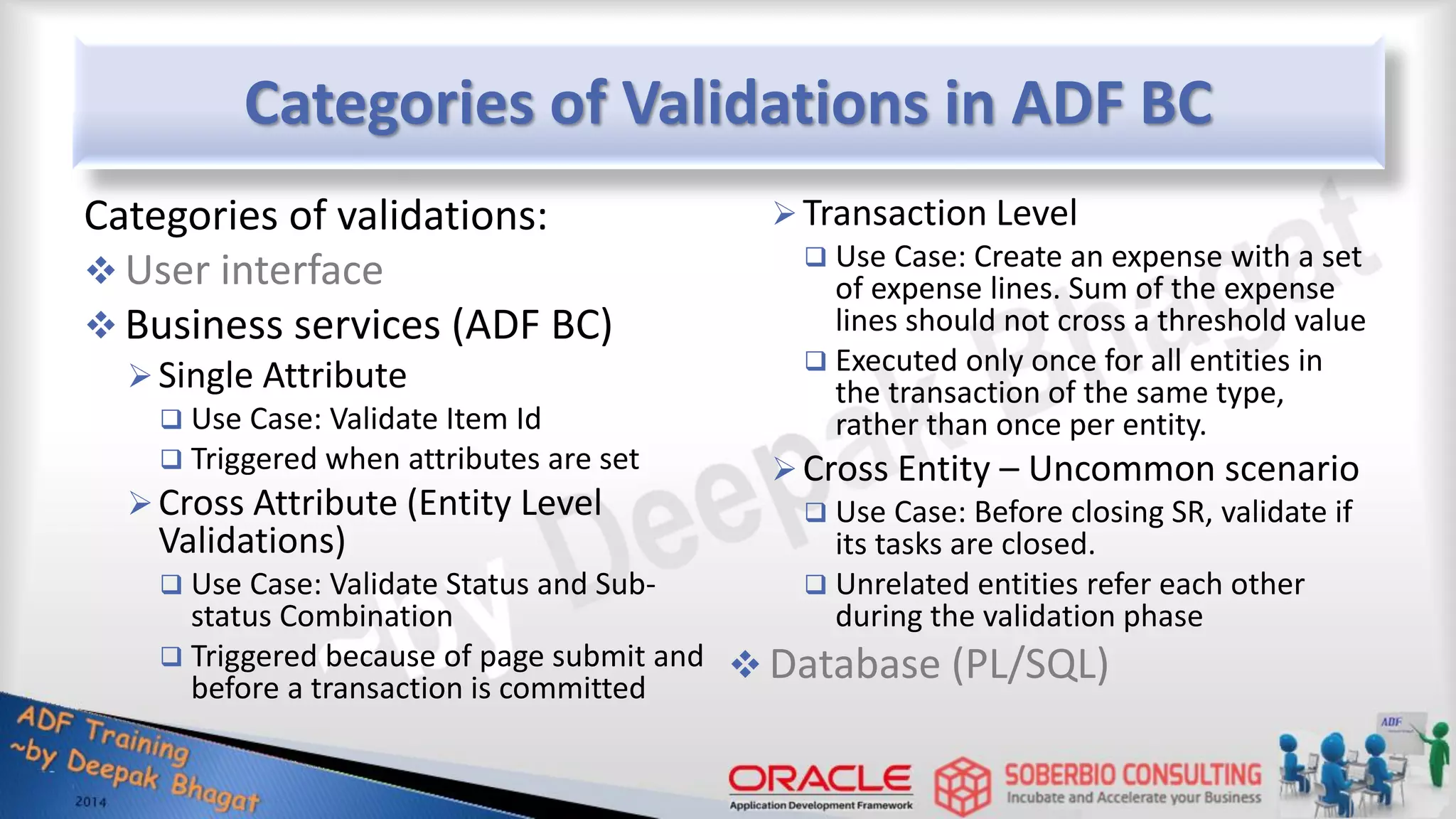

Categories of Validations in ADF BC Categories of validations:  User interface  Business services (ADF BC) Single Attribute  Use Case: Validate Item Id  Triggered when attributes are set Cross Attribute (Entity Level Validations)  Use Case: Validate Status and Sub- status Combination  Triggered because of page submit and before a transaction is committed Transaction Level  Use Case: Create an expense with a set of expense lines. Sum of the expense lines should not cross a threshold value  Executed only once for all entities in the transaction of the same type, rather than once per entity. Cross Entity – Uncommon scenario  Use Case: Before closing SR, validate if its tasks are closed.  Unrelated entities refer each other during the validation phase  Database (PL/SQL)

Categories of Validations in ADF BC Categories of validations: User interface Business services (ADF BC) Declarative Validation: Built-in Rules Declarative Validation: Custom Rules Programmatic Validation: Global Rules Domains: Prevalidated Custom Datatypes Database (PL/SQL)

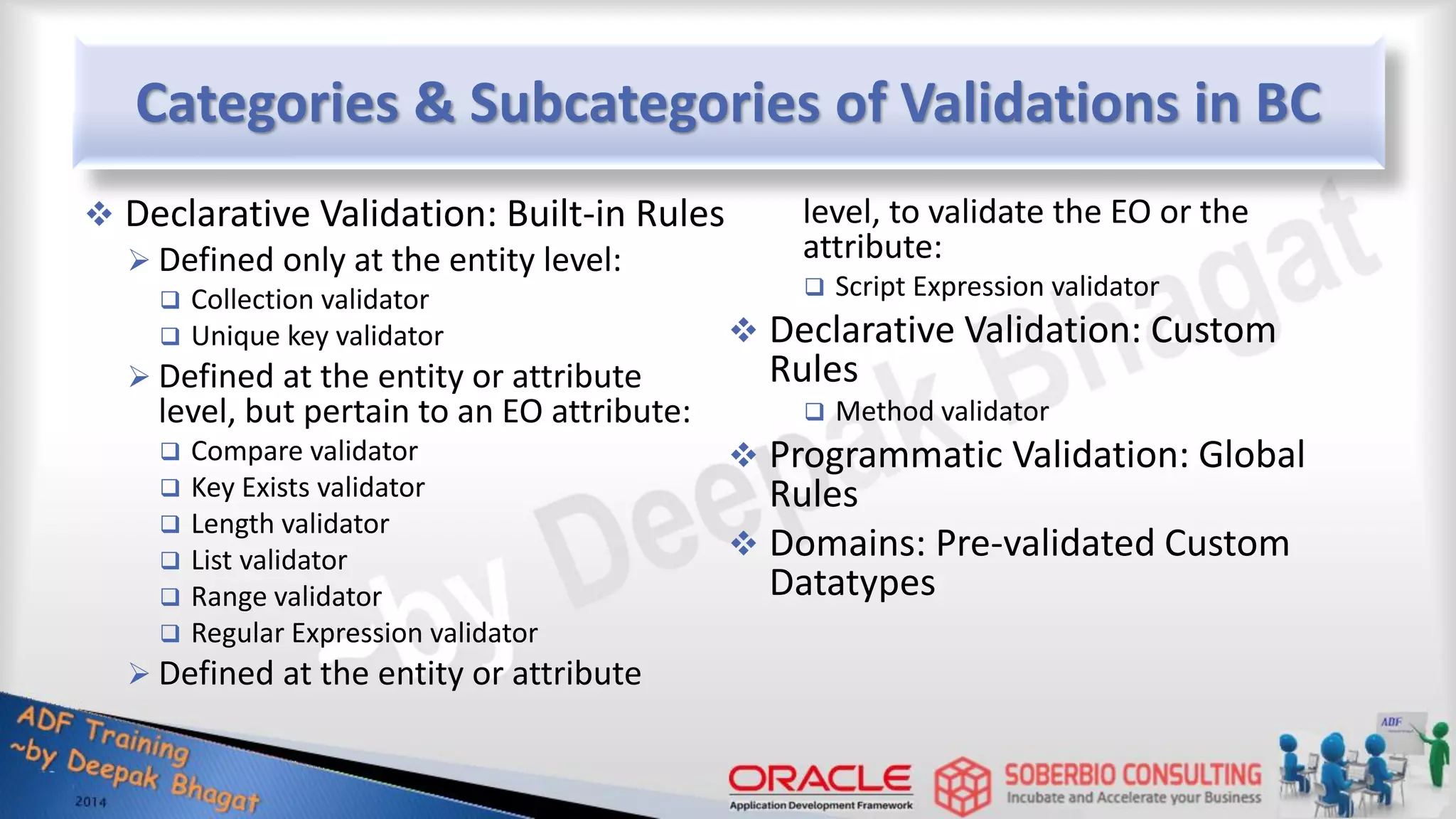

Categories & Subcategories of Validations in BC  Declarative Validation: Built-in Rules  Defined only at the entity level:  Collection validator  Unique key validator  Defined at the entity or attribute level, but pertain to an EO attribute:  Compare validator  Key Exists validator  Length validator  List validator  Range validator  Regular Expression validator  Defined at the entity or attribute level, to validate the EO or the attribute:  Script Expression validator  Declarative Validation: Custom Rules  Method validator  Programmatic Validation: Global Rules  Domains: Pre-validated Custom Datatypes

Declarative Validation: Built-in Rules  Declarative Validation: Built-in Rules  Defined only at the entity level:  Collection validator  Unique key validator  Defined at the entity or attribute level, but pertain to an EO attribute:  Compare validator  Key Exists validator  Length validator  List validator  Range validator  Regular Expression validator  Defined at the entity or attribute level, to validate the EO or the attribute:  Script Expression validator  Declarative Validation: Custom Rules  Method validator  Programmatic Validation: Global Rules  Domains: Pre-validated Custom Datatypes

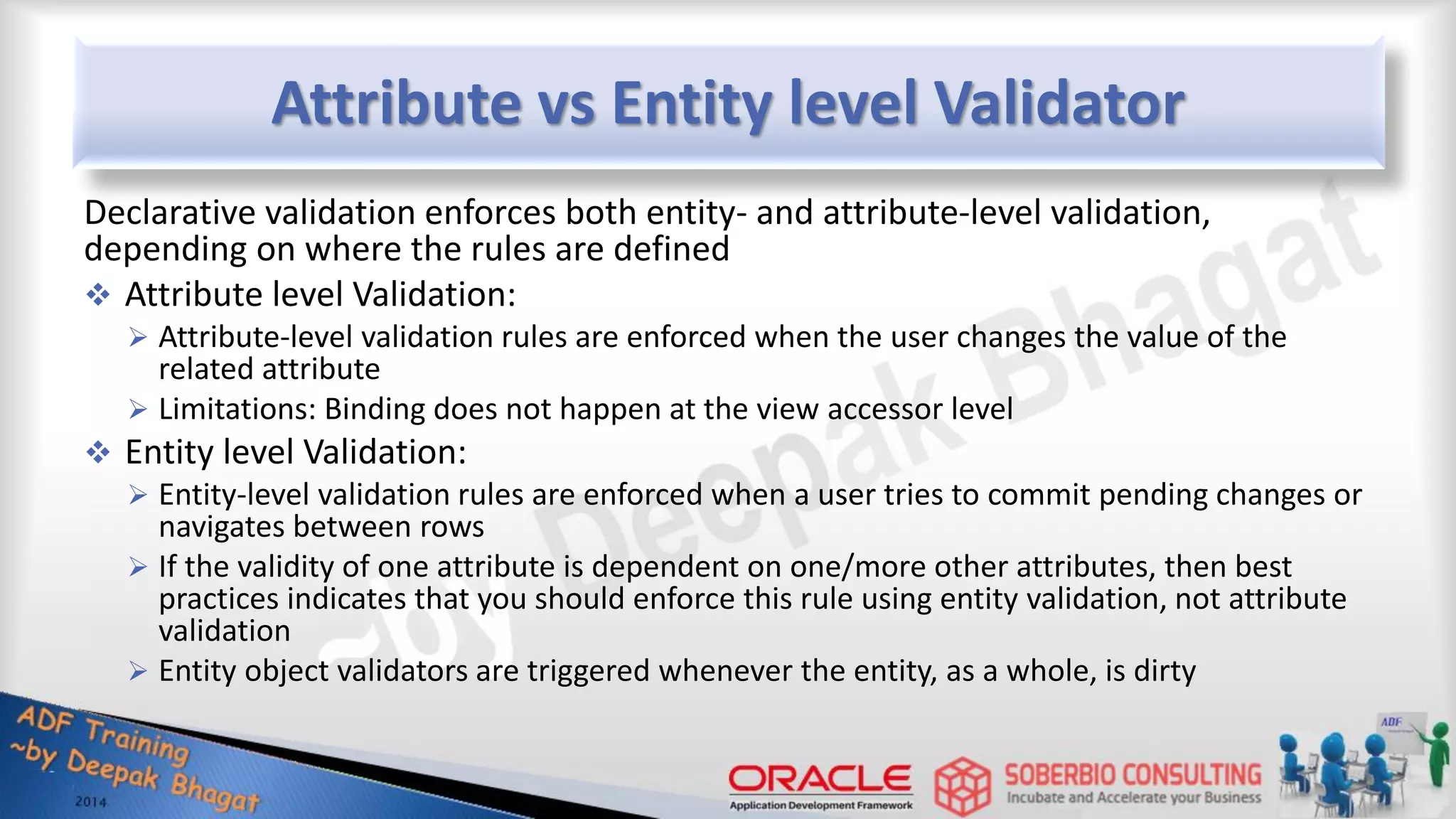

Attribute vs Entity level Validator Declarative validation enforces both entity- and attribute-level validation, depending on where the rules are defined  Attribute level Validation:  Attribute-level validation rules are enforced when the user changes the value of the related attribute  Limitations: Binding does not happen at the view accessor level  Entity level Validation:  Entity-level validation rules are enforced when a user tries to commit pending changes or navigates between rows  If the validity of one attribute is dependent on one/more other attributes, then best practices indicates that you should enforce this rule using entity validation, not attribute validation  Entity object validators are triggered whenever the entity, as a whole, is dirty

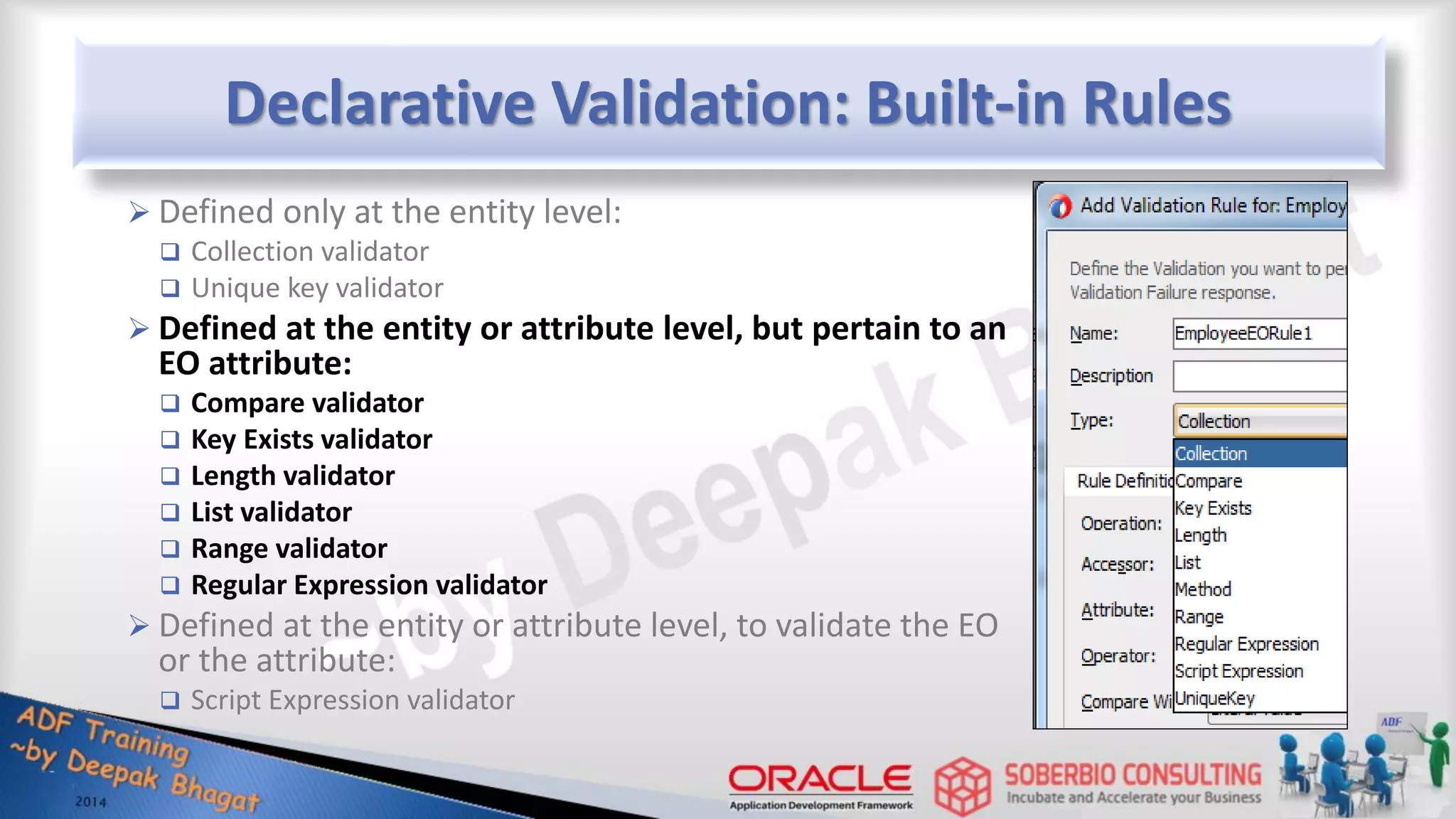

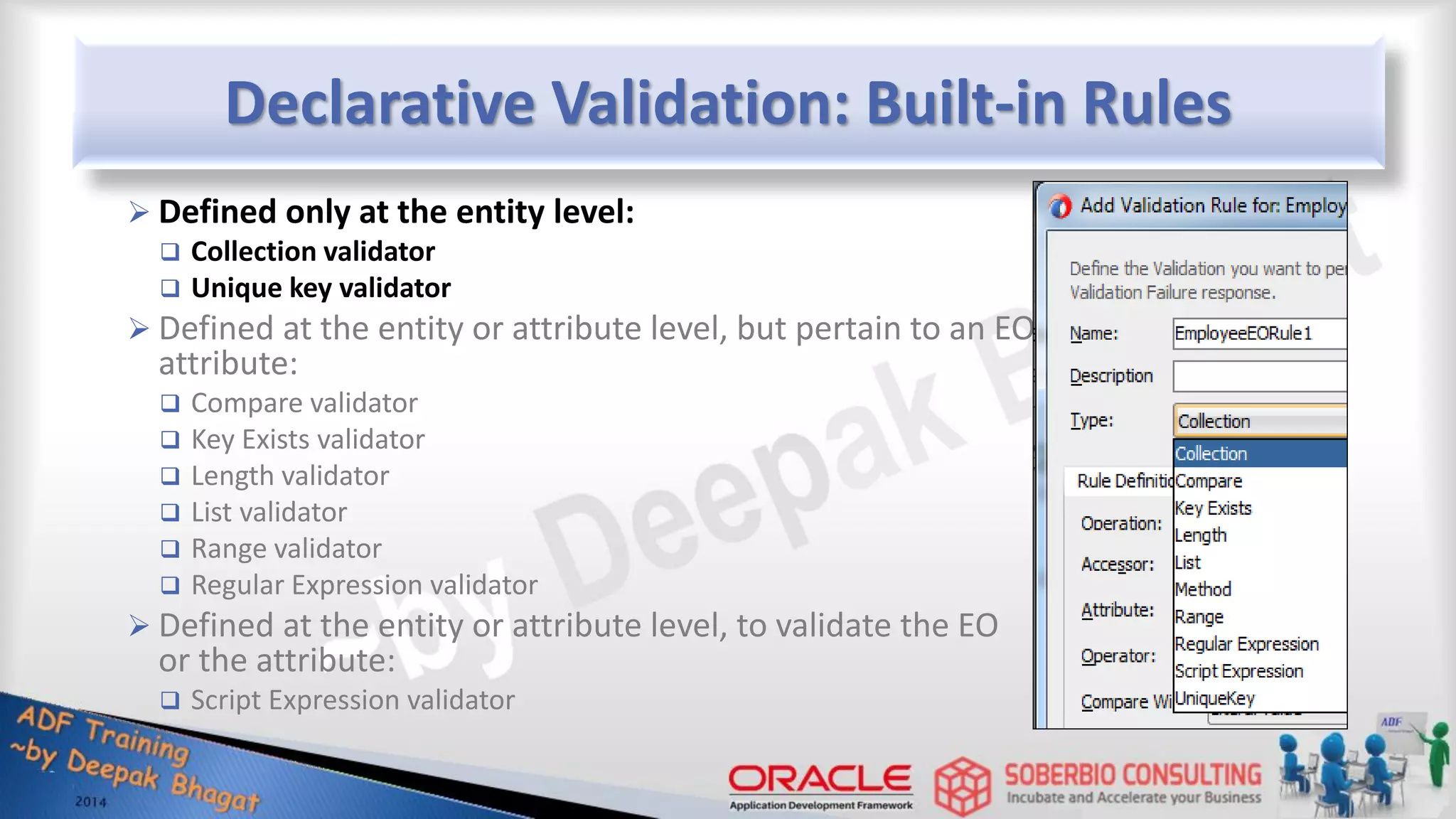

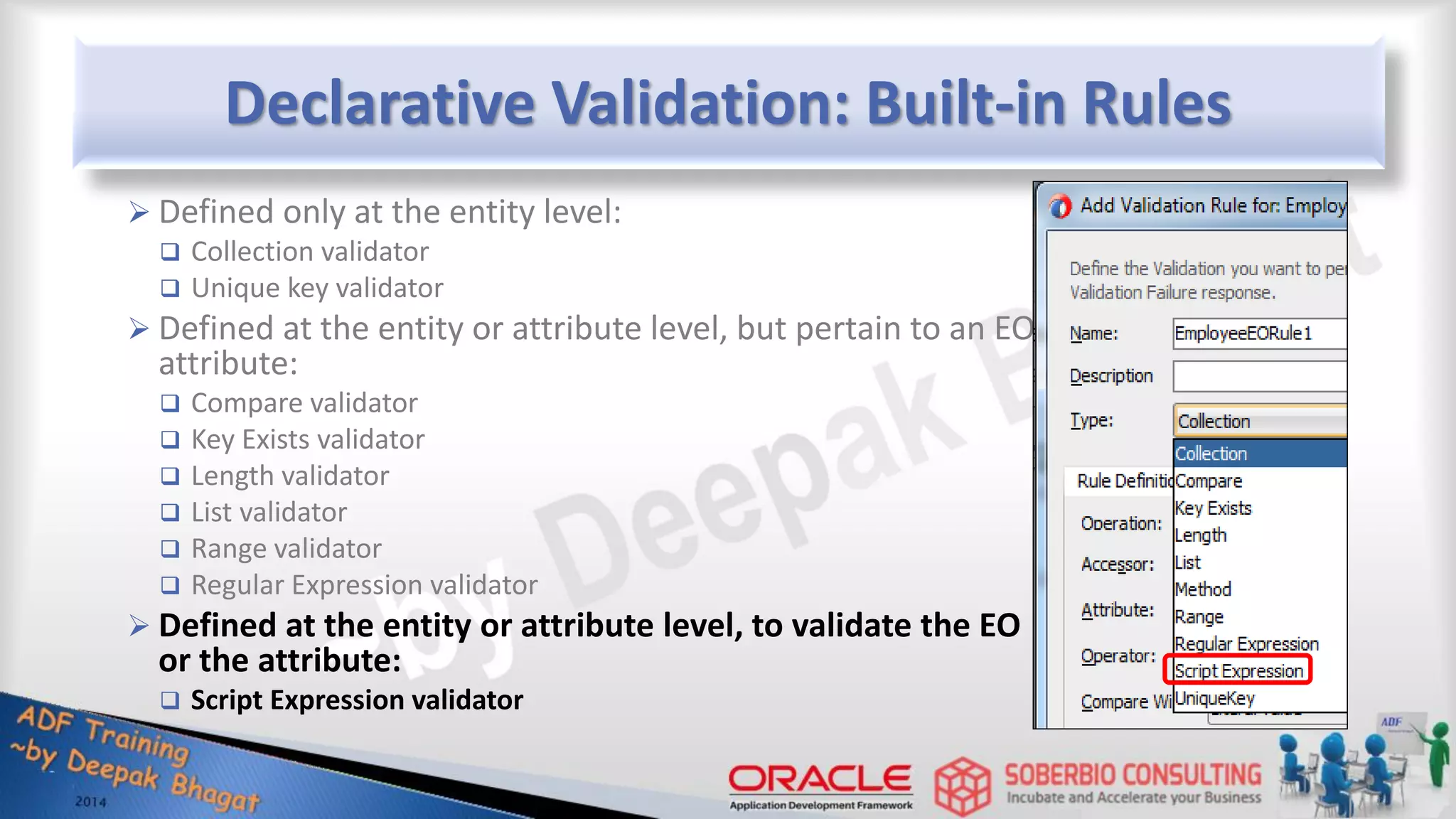

Declarative Validation: Built-in Rules  Defined only at the entity level:  Collection validator  Unique key validator  Defined at the entity or attribute level, but pertain to an EO attribute:  Compare validator  Key Exists validator  Length validator  List validator  Range validator  Regular Expression validator  Defined at the entity or attribute level, to validate the EO or the attribute:  Script Expression validator

Declarative Validation: Built-in Rules: Collection Validator  Use case: Total salary of all employees  Performs validation based on aggregate functions (sum, average or count of an attribute value) over all rows in a table  Is defined at the entity level  To define a Collection validator, specify:  Operation: sum, average, count, min, or max  Accessor: association defined for the entity  Attribute: on which operation performed  Operator: not equals, less than, greater than, etc..  Compare With: litral, query, attribute or expression  Enter Literal Value (if using a literal)

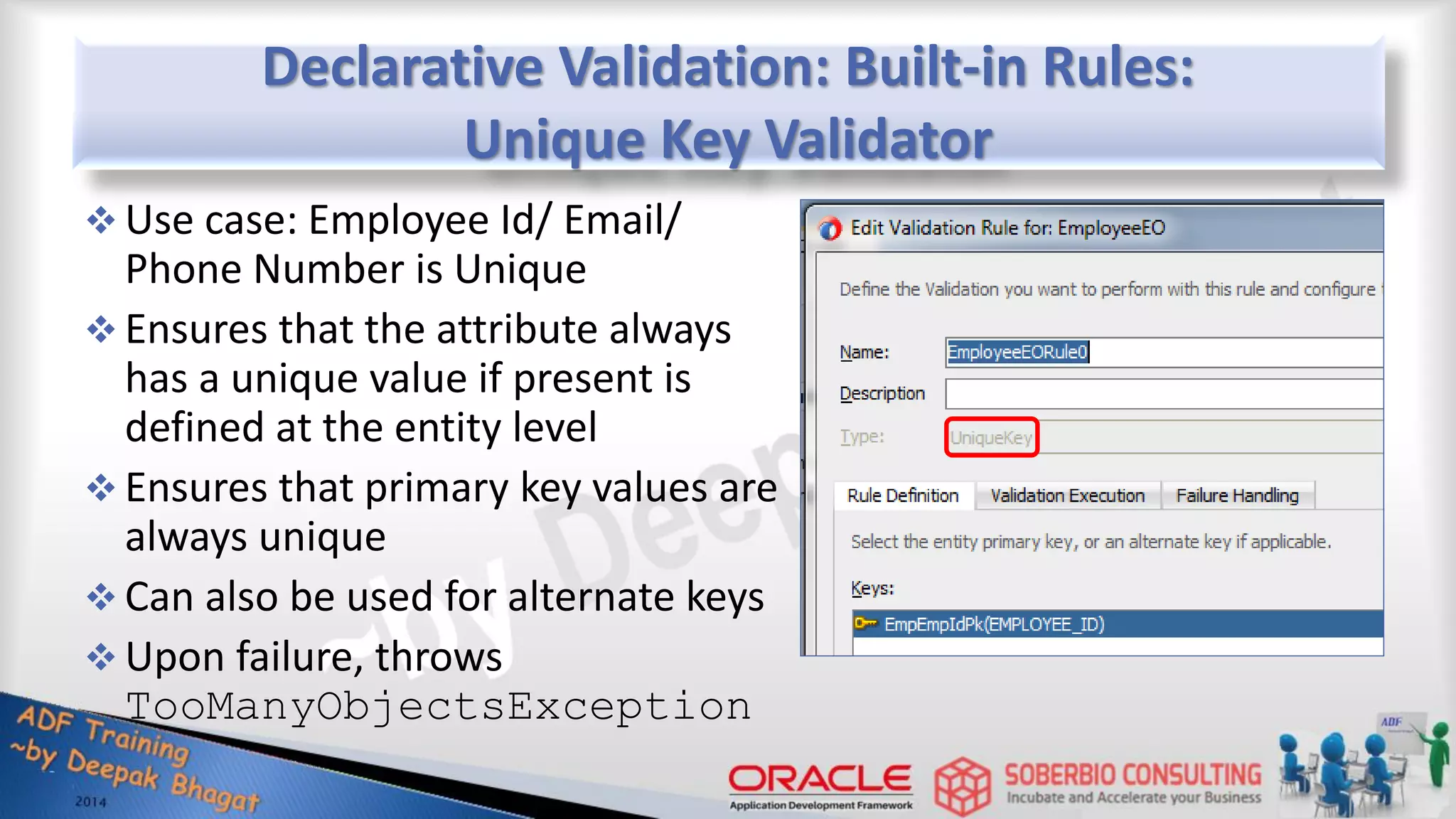

Declarative Validation: Built-in Rules: Unique Key Validator  Use case: Employee Id/ Email/ Phone Number is Unique  Ensures that the attribute always has a unique value if present is defined at the entity level  Ensures that primary key values are always unique  Can also be used for alternate keys  Upon failure, throws TooManyObjectsException

Declarative Validation: Built-in Rules: Compare Validator Use case: Hire Date to be less than or equal to Current Date Compares an attribute to a value To define a Compare validator, specify: Attribute (if entity level) Operator Compare With

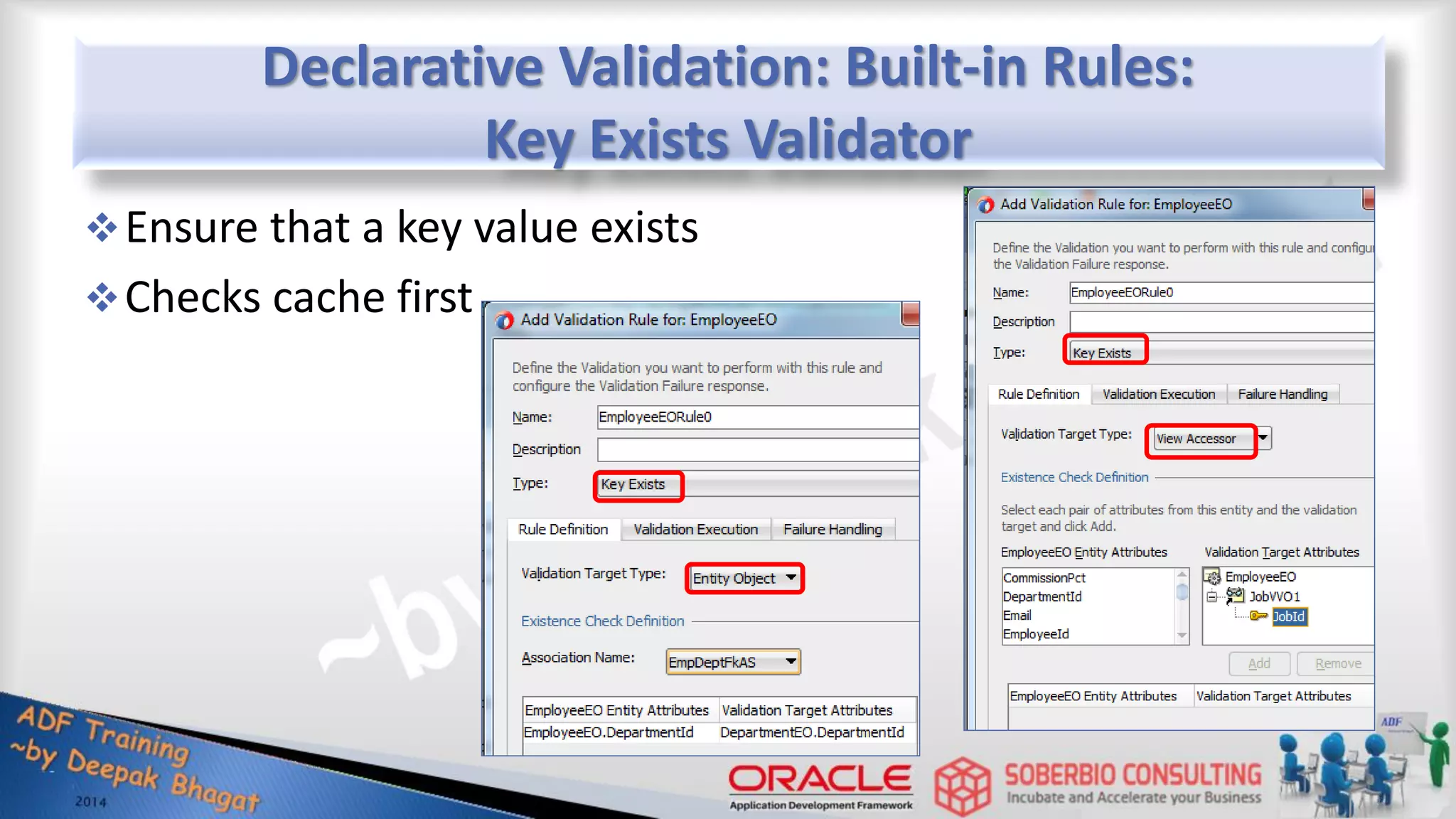

Declarative Validation: Built-in Rules: Key Exists Validator Ensure that a key value exists Checks cache first

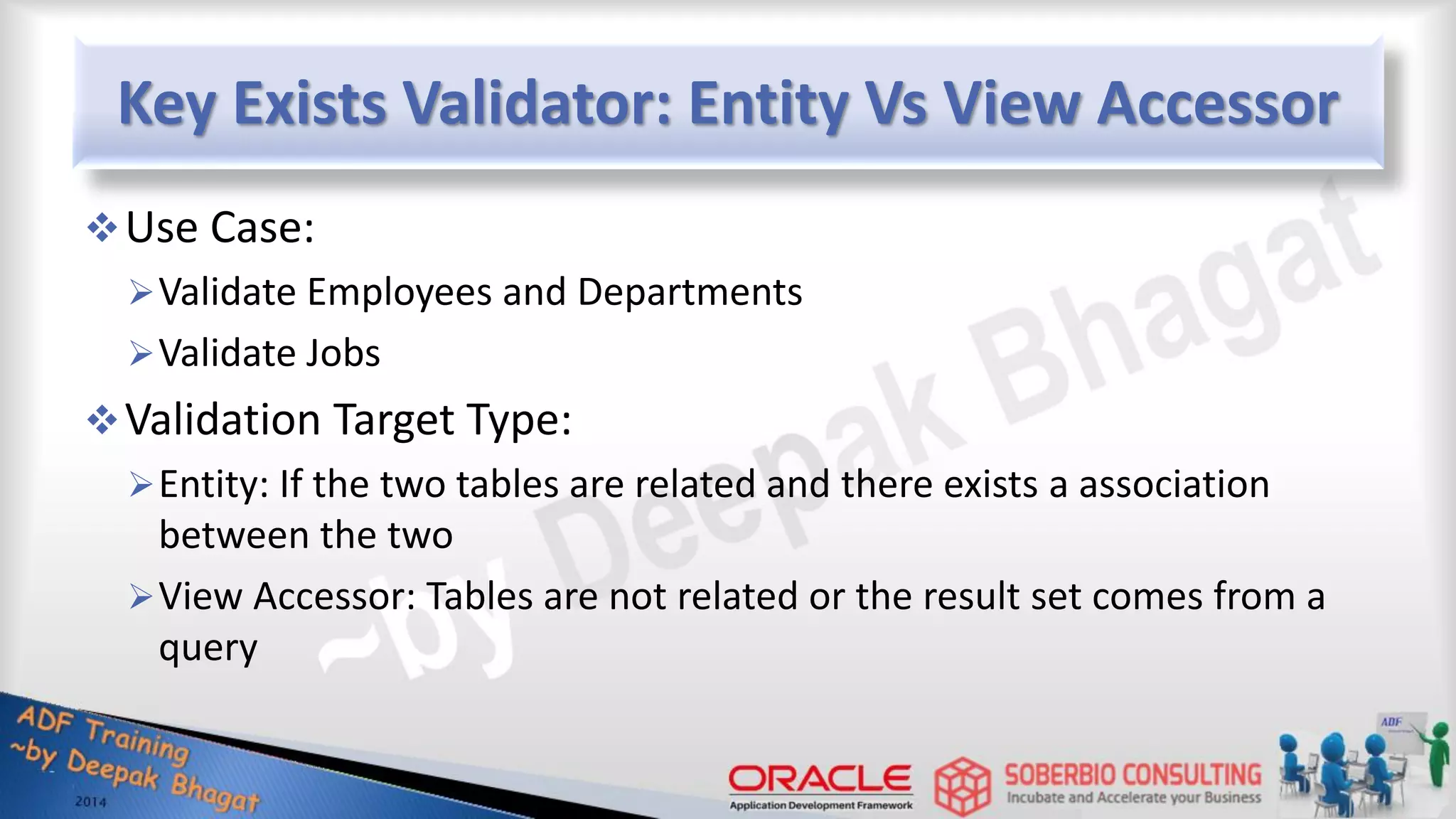

Key Exists Validator: Entity Vs View Accessor Use Case: Validate Employees and Departments Validate Jobs Validation Target Type: Entity: If the two tables are related and there exists a association between the two View Accessor: Tables are not related or the result set comes from a query

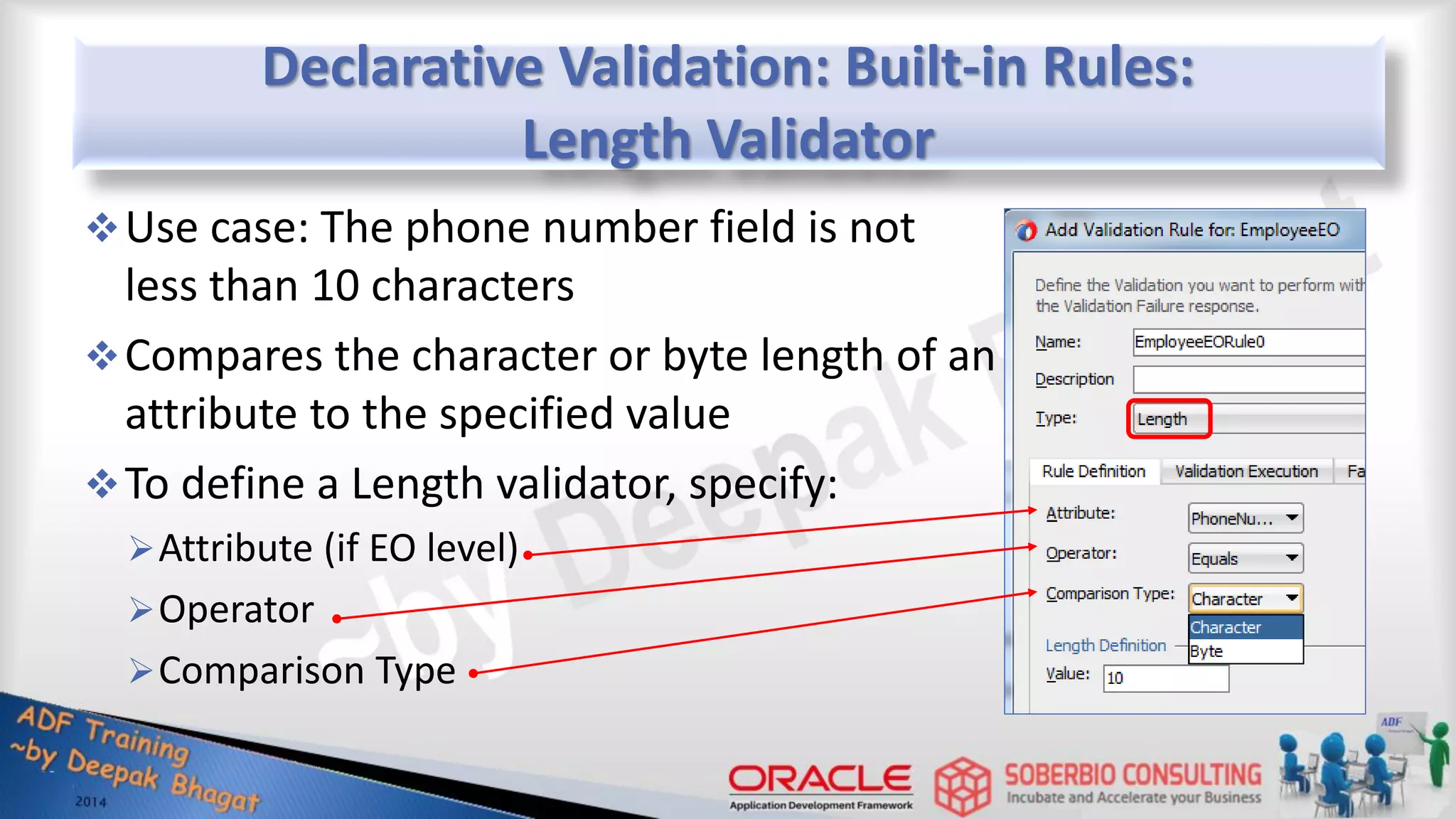

Declarative Validation: Built-in Rules: Length Validator Use case: The phone number field is not less than 10 characters Compares the character or byte length of an attribute to the specified value To define a Length validator, specify: Attribute (if EO level) Operator Comparison Type

Declarative Validation: Built-in Rules: List Validator Use case: Validate JobId Compares an attribute against a list of values Ensures that value is in (or not in) a list defined by: Literal Values Query Result View Object Attribute View Accessor Attribute

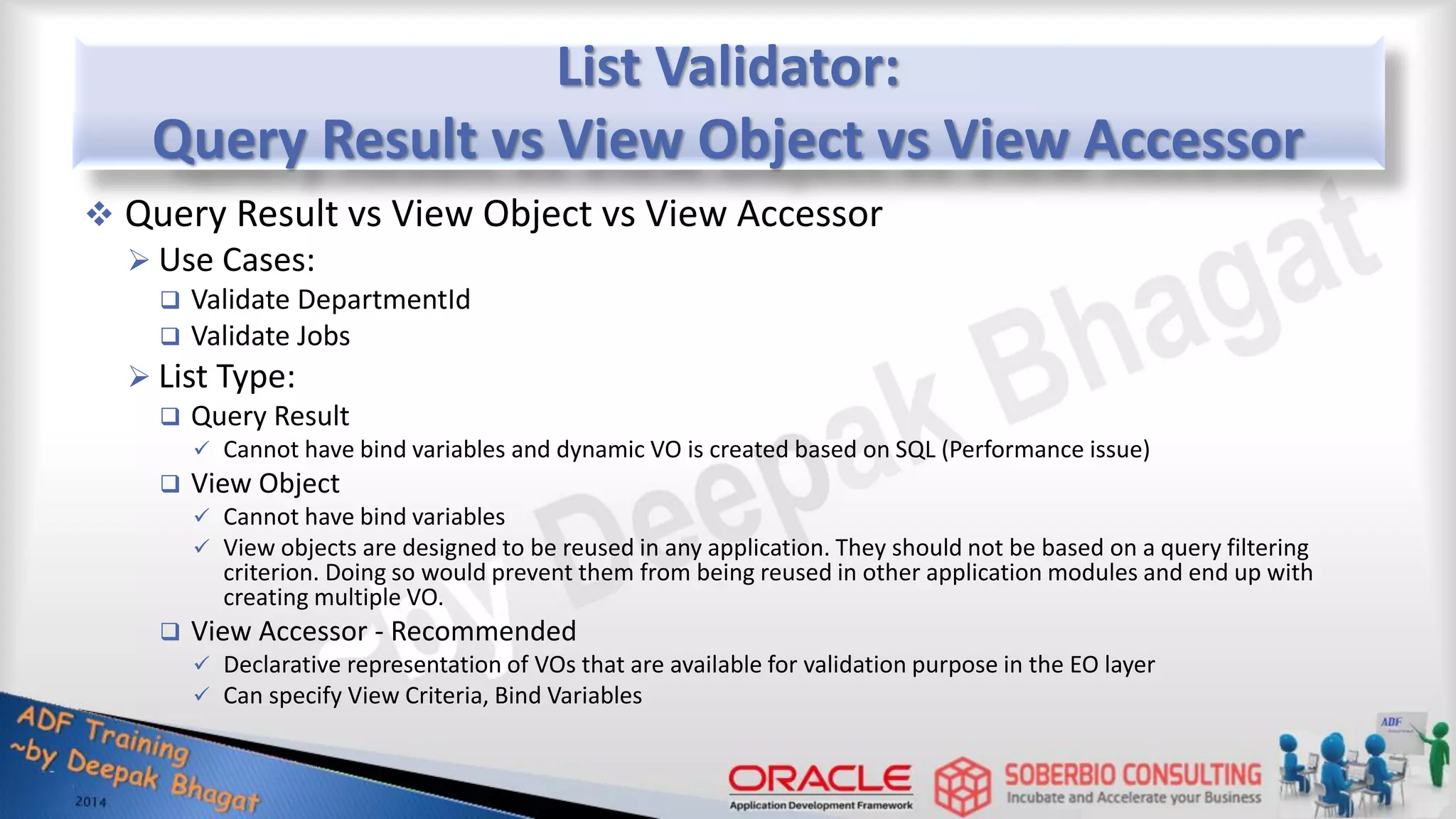

List Validator: Query Result vs View Object vs View Accessor  Query Result vs View Object vs View Accessor  Use Cases:  Validate DepartmentId  Validate Jobs  List Type:  Query Result  Cannot have bind variables and dynamic VO is created based on SQL (Performance issue)  View Object  Cannot have bind variables  View objects are designed to be reused in any application. They should not be based on a query filtering criterion. Doing so would prevent them from being reused in other application modules and end up with creating multiple VO.  View Accessor - Recommended  Declarative representation of VOs that are available for validation purpose in the EO layer  Can specify View Criteria, Bind Variables

List Validator vs Key Exists Validator  Use Case: Validate Jobs (List Validator) Validate EmployeeByEmail (Key Exists Validator)  Validation Rule Type: List Validator should be used typically when  The query results are small as the results are cached  There are no bind variables in the query  Query does not have to be executed again in the same transaction Key Exists Validator List should be used typically when  The query uses a bind value in the query and hence needs to be executed every time as needed  The bind value is required in the query as otherwise the result set maybe quite large

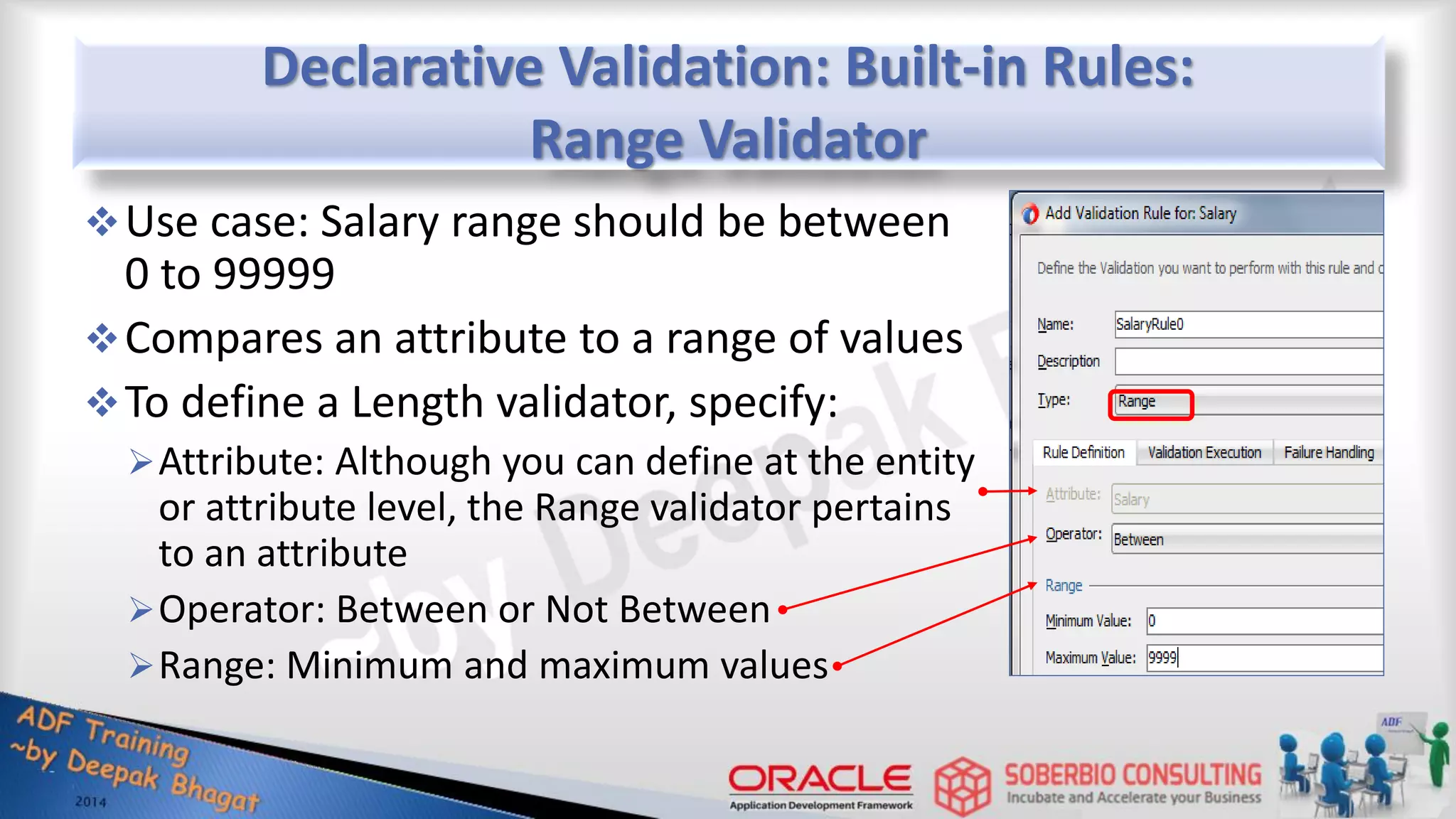

Declarative Validation: Built-in Rules: Range Validator Use case: Salary range should be between 0 to 99999 Compares an attribute to a range of values To define a Length validator, specify: Attribute: Although you can define at the entity or attribute level, the Range validator pertains to an attribute Operator: Between or Not Between Range: Minimum and maximum values

Declarative Validation: Built-in Rules: Regular Expression Validator  Use Case: Validate email address, URL value  The expression validator is similar to the method validator, except that the code is written in Groovy expression language  Capable of calling another java method with in Groovy expression  To define Regular Expression validator, specify:  Attribute  Operator  Predefined Expressions  Enter Regular Expression  Expression Qualifiers

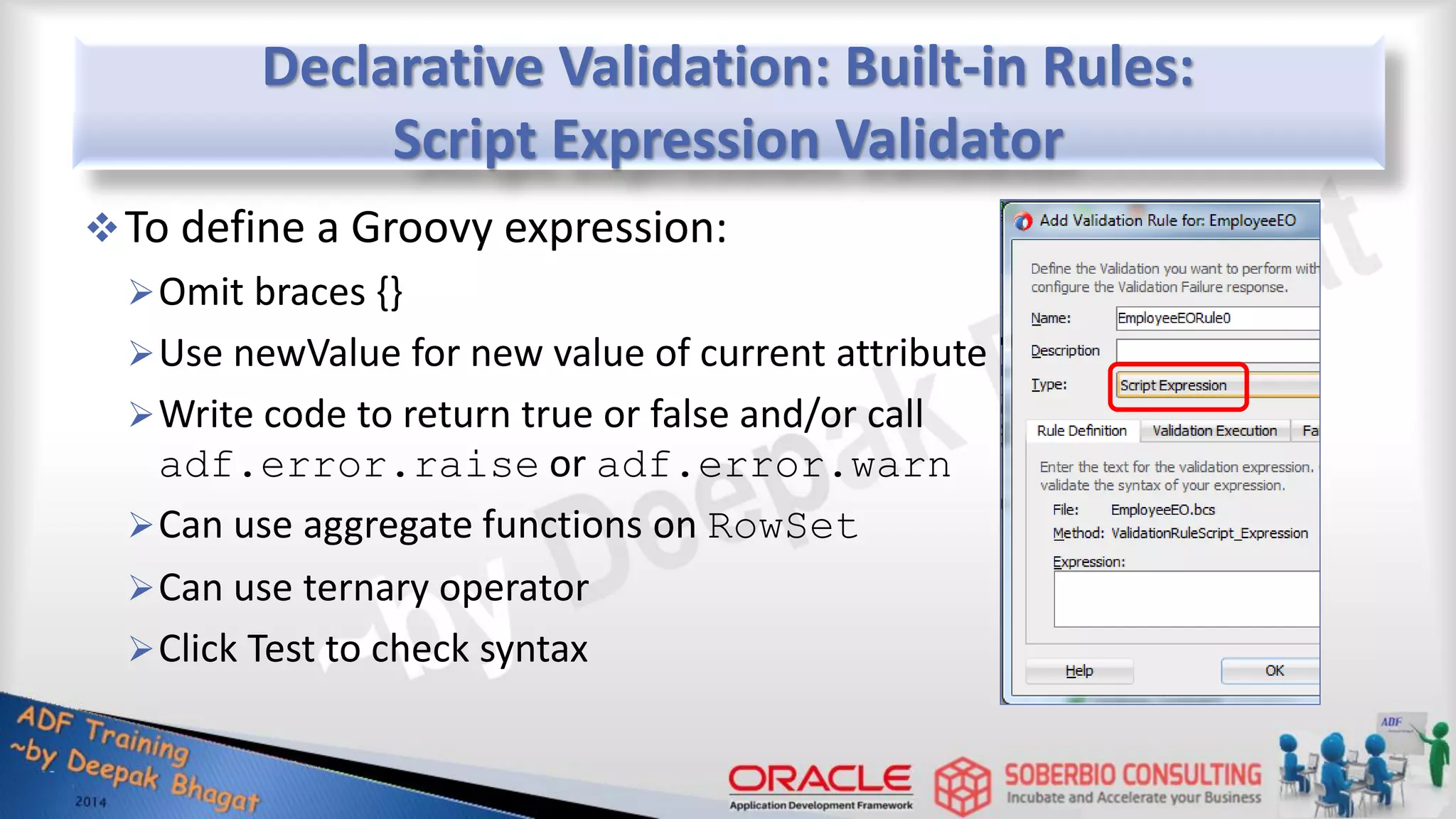

Declarative Validation: Built-in Rules: Script Expression Validator To define a Groovy expression: Omit braces {} Use newValue for new value of current attribute Write code to return true or false and/or call adf.error.raise or adf.error.warn Can use aggregate functions on RowSet Can use ternary operator Click Test to check syntax

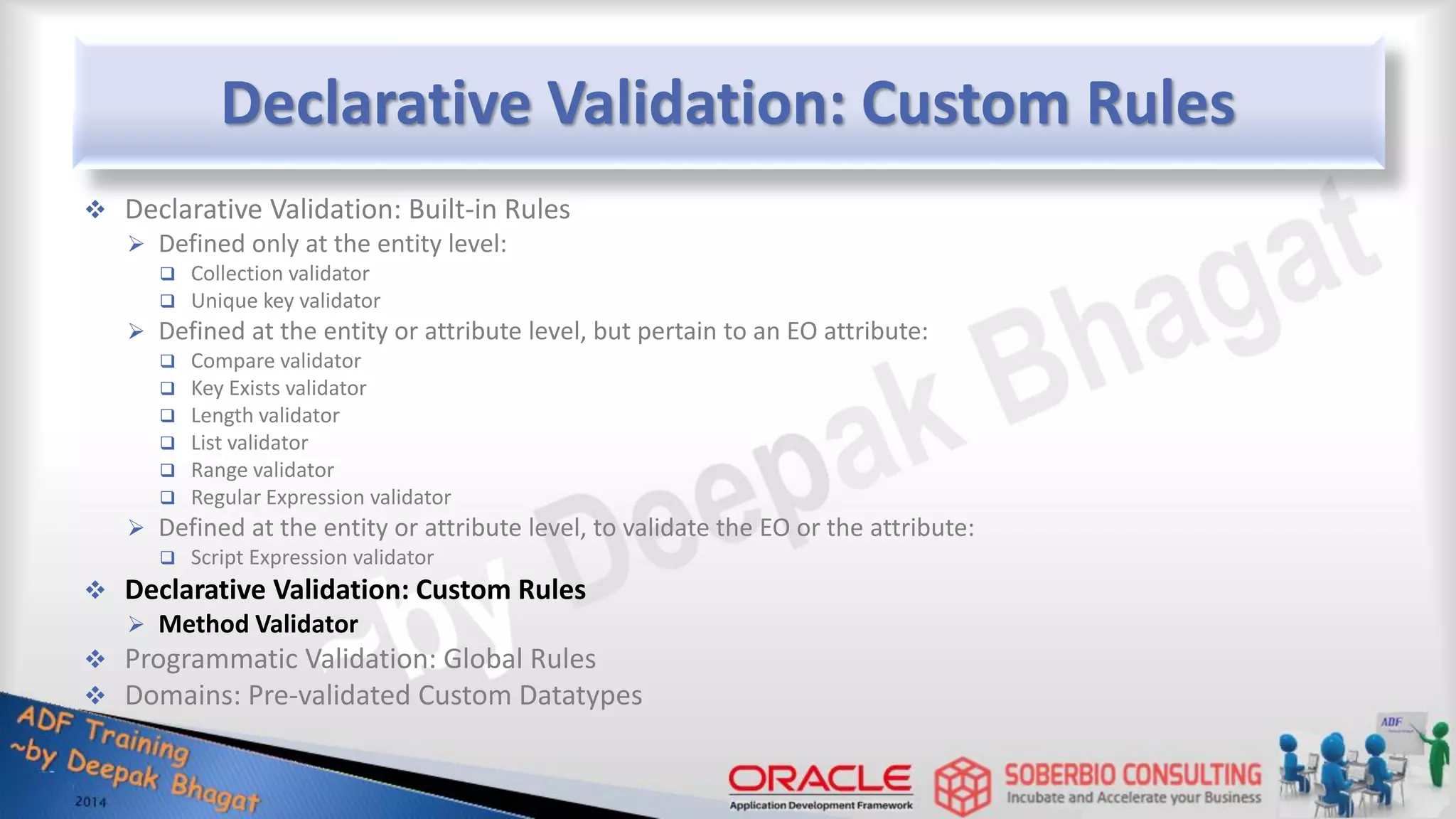

Declarative Validation: Custom Rules  Declarative Validation: Built-in Rules  Defined only at the entity level:  Collection validator  Unique key validator  Defined at the entity or attribute level, but pertain to an EO attribute:  Compare validator  Key Exists validator  Length validator  List validator  Range validator  Regular Expression validator  Defined at the entity or attribute level, to validate the EO or the attribute:  Script Expression validator  Declarative Validation: Custom Rules  Method Validator  Programmatic Validation: Global Rules  Domains: Pre-validated Custom Datatypes

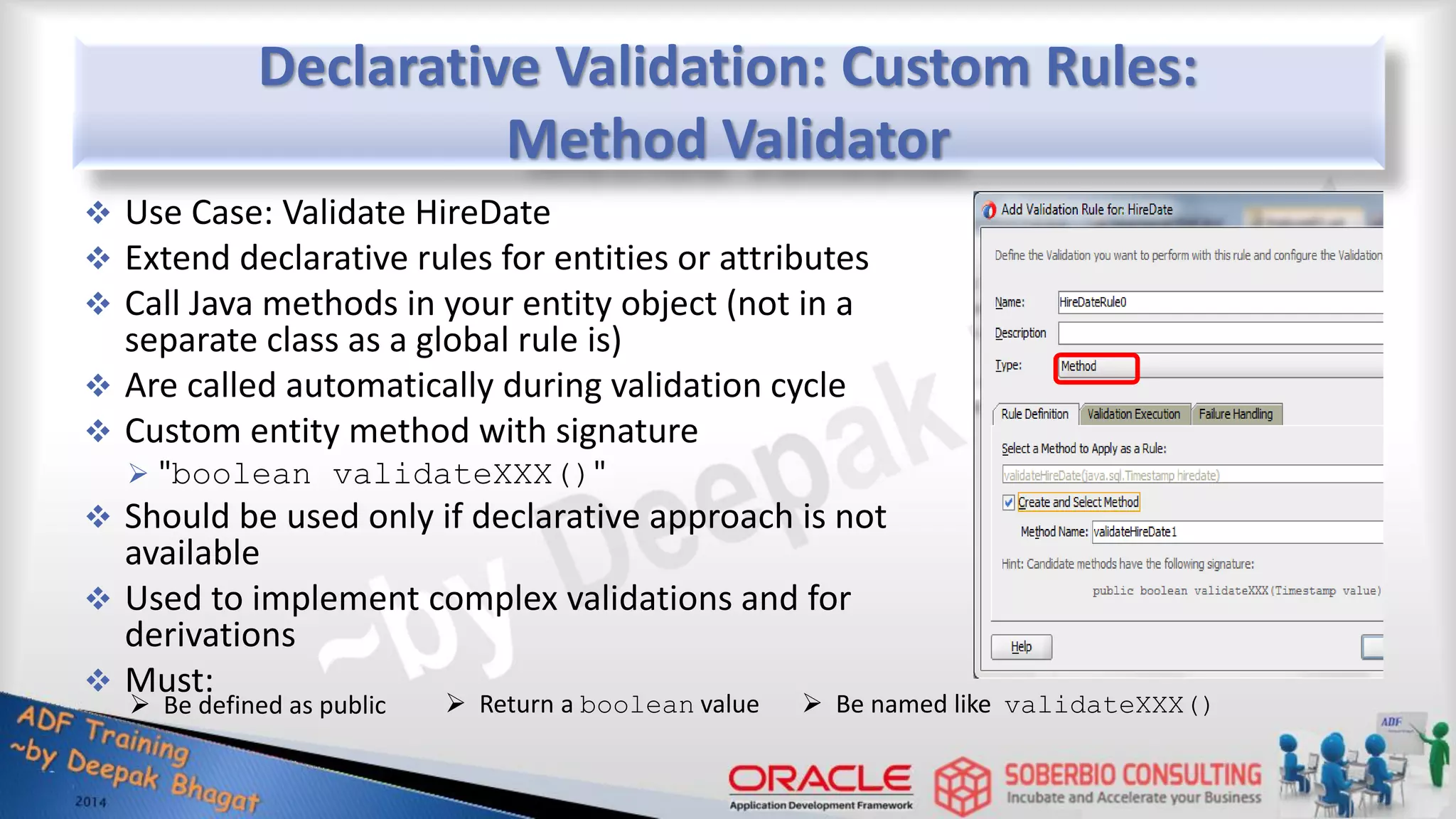

Declarative Validation: Custom Rules: Method Validator  Use Case: Validate HireDate  Extend declarative rules for entities or attributes  Call Java methods in your entity object (not in a separate class as a global rule is)  Are called automatically during validation cycle  Custom entity method with signature  "boolean validateXXX()"  Should be used only if declarative approach is not available  Used to implement complex validations and for derivations  Must:  Be defined as public  Return a boolean value  Be named like validateXXX()

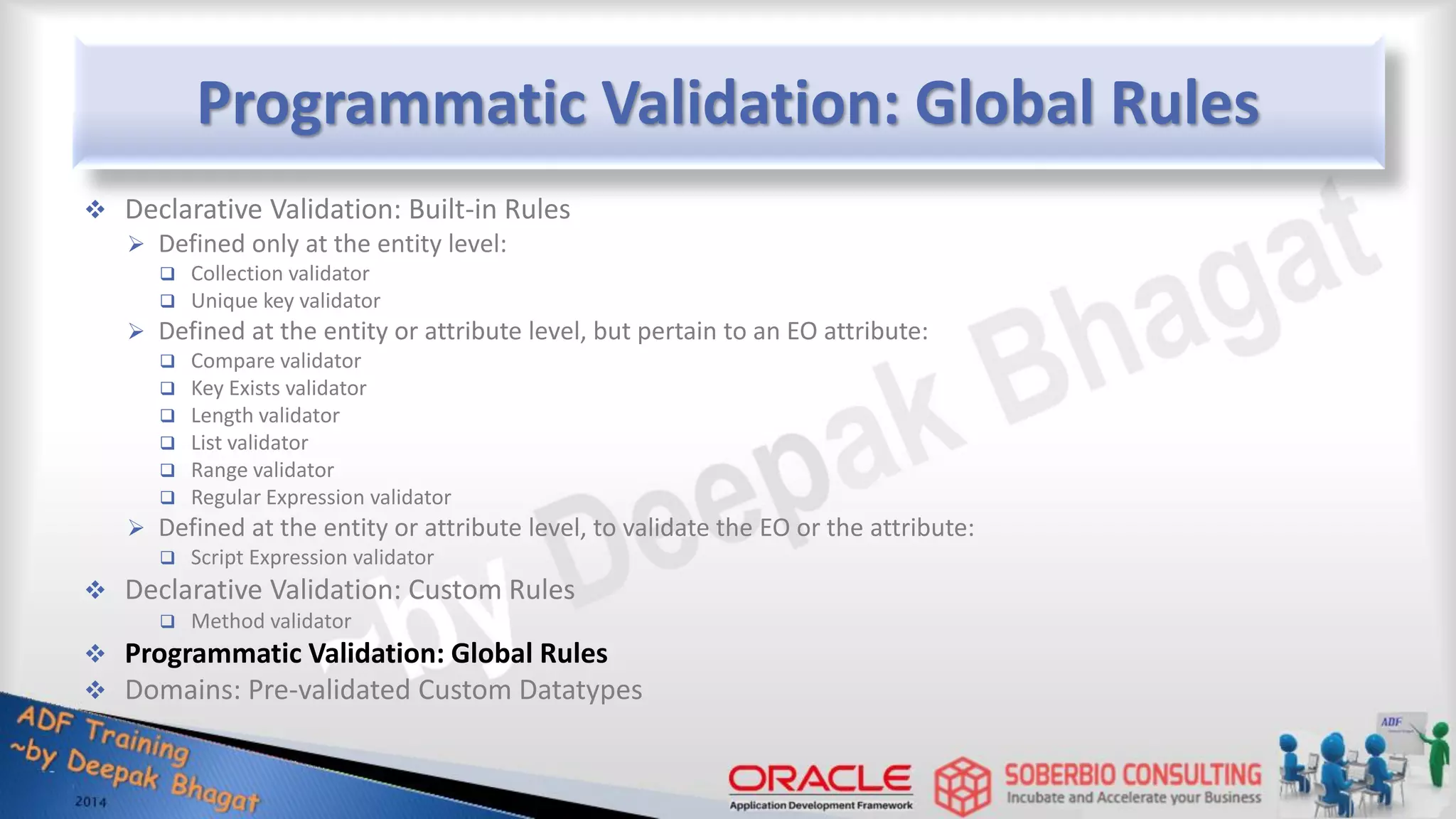

Programmatic Validation: Global Rules  Declarative Validation: Built-in Rules  Defined only at the entity level:  Collection validator  Unique key validator  Defined at the entity or attribute level, but pertain to an EO attribute:  Compare validator  Key Exists validator  Length validator  List validator  Range validator  Regular Expression validator  Defined at the entity or attribute level, to validate the EO or the attribute:  Script Expression validator  Declarative Validation: Custom Rules  Method validator  Programmatic Validation: Global Rules  Domains: Pre-validated Custom Datatypes

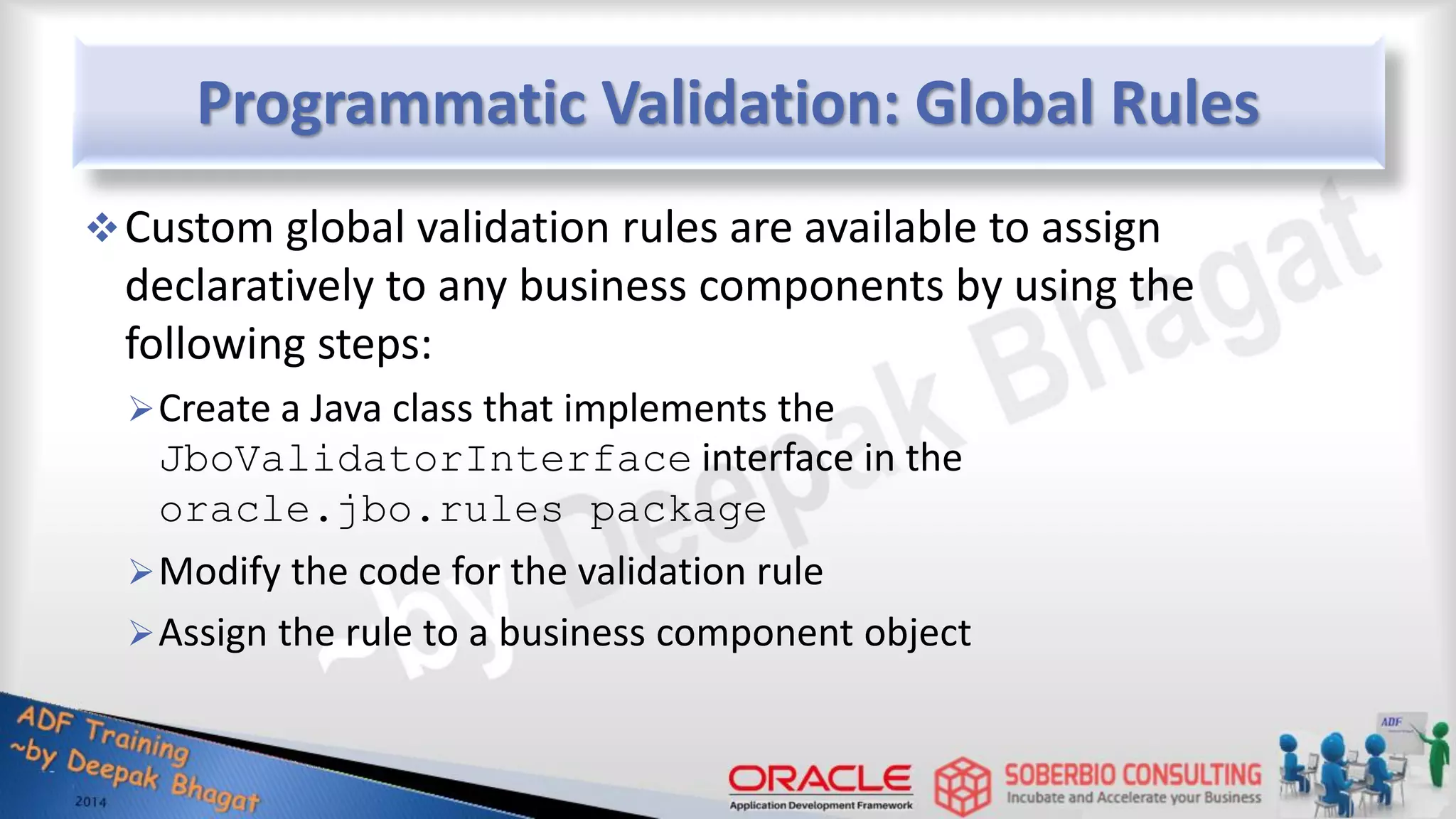

Programmatic Validation: Global Rules Custom global validation rules are available to assign declaratively to any business components by using the following steps: Create a Java class that implements the JboValidatorInterface interface in the oracle.jbo.rules package Modify the code for the validation rule Assign the rule to a business component object

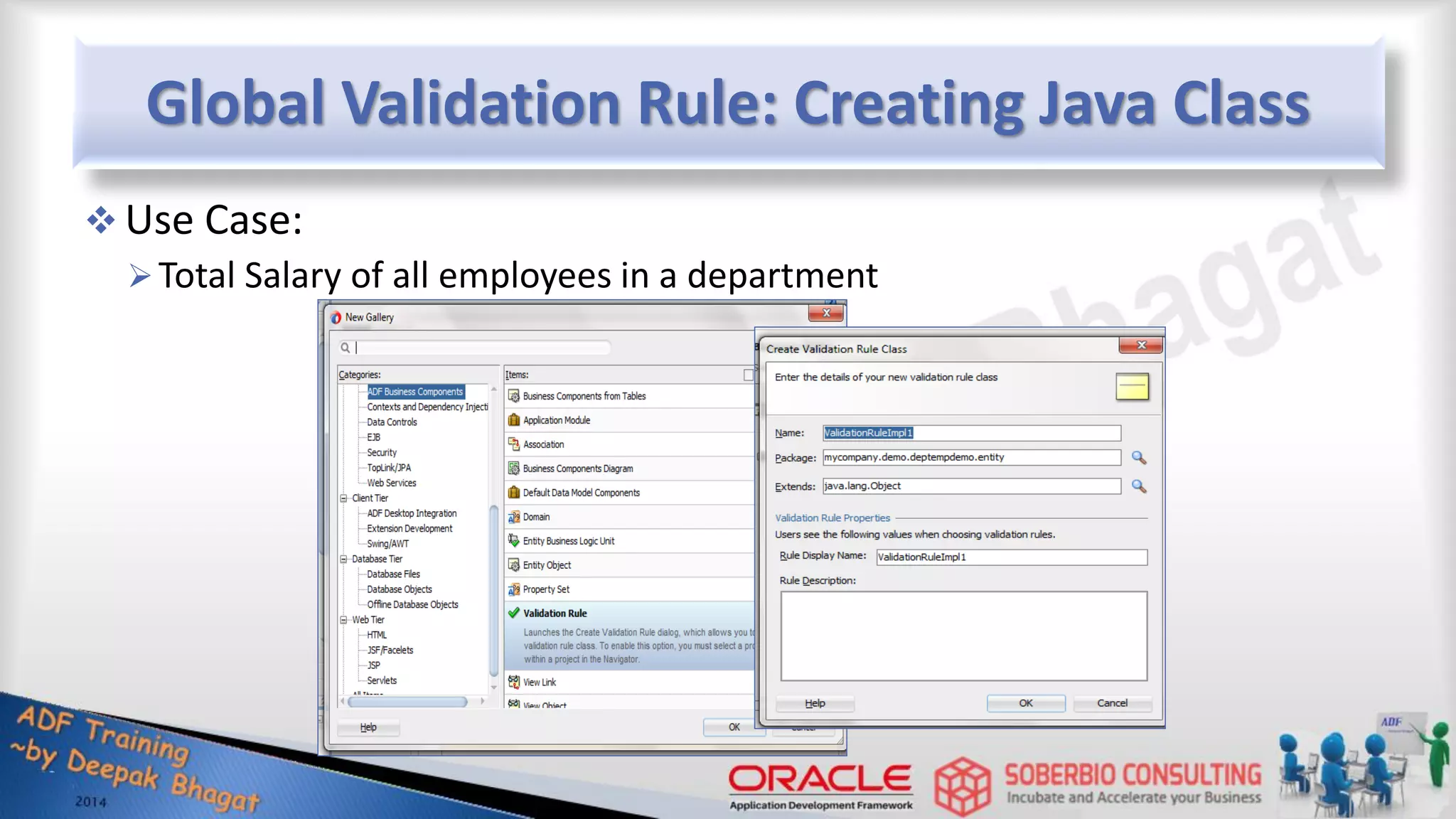

Global Validation Rule: Creating Java Class  Use Case: Total Salary of all employees in a department

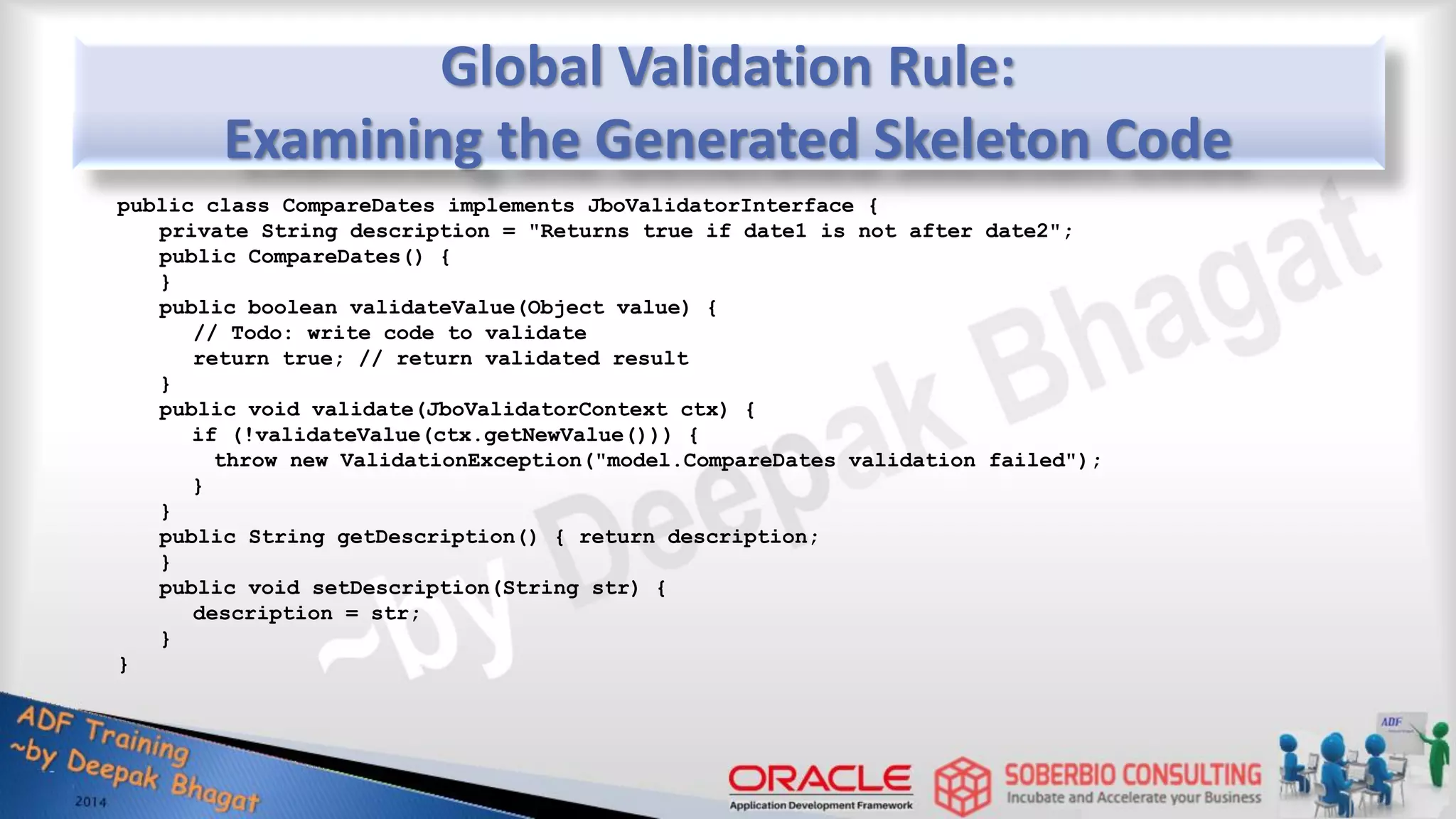

Global Validation Rule: Examining the Generated Skeleton Code public class CompareDates implements JboValidatorInterface { private String description = "Returns true if date1 is not after date2"; public CompareDates() { } public boolean validateValue(Object value) { // Todo: write code to validate return true; // return validated result } public void validate(JboValidatorContext ctx) { if (!validateValue(ctx.getNewValue())) { throw new ValidationException("model.CompareDates validation failed"); } } public String getDescription() { return description; } public void setDescription(String str) { description = str; } }

Global Validation Rule: Modifying the Code public class CompareDates implements JboValidatorInterface { private String description = "Return true if date1 is not after date2"; private String earlierDateAttrName = ""; private String laterDateAttrName = ""; public void validate(JboValidatorContext ctx) { if (validatorAttachedAtEntityLevel(ctx)){ EntityImpl eo = (EntityImpl)ctx.getSource(); Date earlierDate = (Date)eo.getAttribute(getEarlierDateAttrName()); Date laterDate = (Date)eo.getAttribute(getLaterDateAttrName()); if (!validateValue(earlierDate,laterDate)) { throw new ValidationException("model.CompareDates validation failed"); } } else { throw new RuntimeException("Rule must be at entity level"); } } private boolean validateValue(Date earlierDate, Date laterDate) { return (earlierDate == null) || (laterDate == null) || (earlierDate.compareTo(laterDate) <= 0); } private boolean validatorAttachedAtEntityLevel(JboValidatorContext ctx) { return ctx.getOldValue() instanceof EntityImpl; } } 1 3 4 2

Domains: Pre-validated Custom Datatypes  Declarative Validation: Built-in Rules  Defined only at the entity level:  Collection validator  Unique key validator  Defined at the entity or attribute level, but pertain to an EO attribute:  Compare validator  Key Exists validator  Length validator  List validator  Range validator  Regular Expression validator  Defined at the entity or attribute level, to validate the EO or the attribute:  Script Expression validator  Declarative Validation: Custom Rules  Method validator  Programmatic Validation: Global Rules  Domains: Pre-validated Custom Datatypes

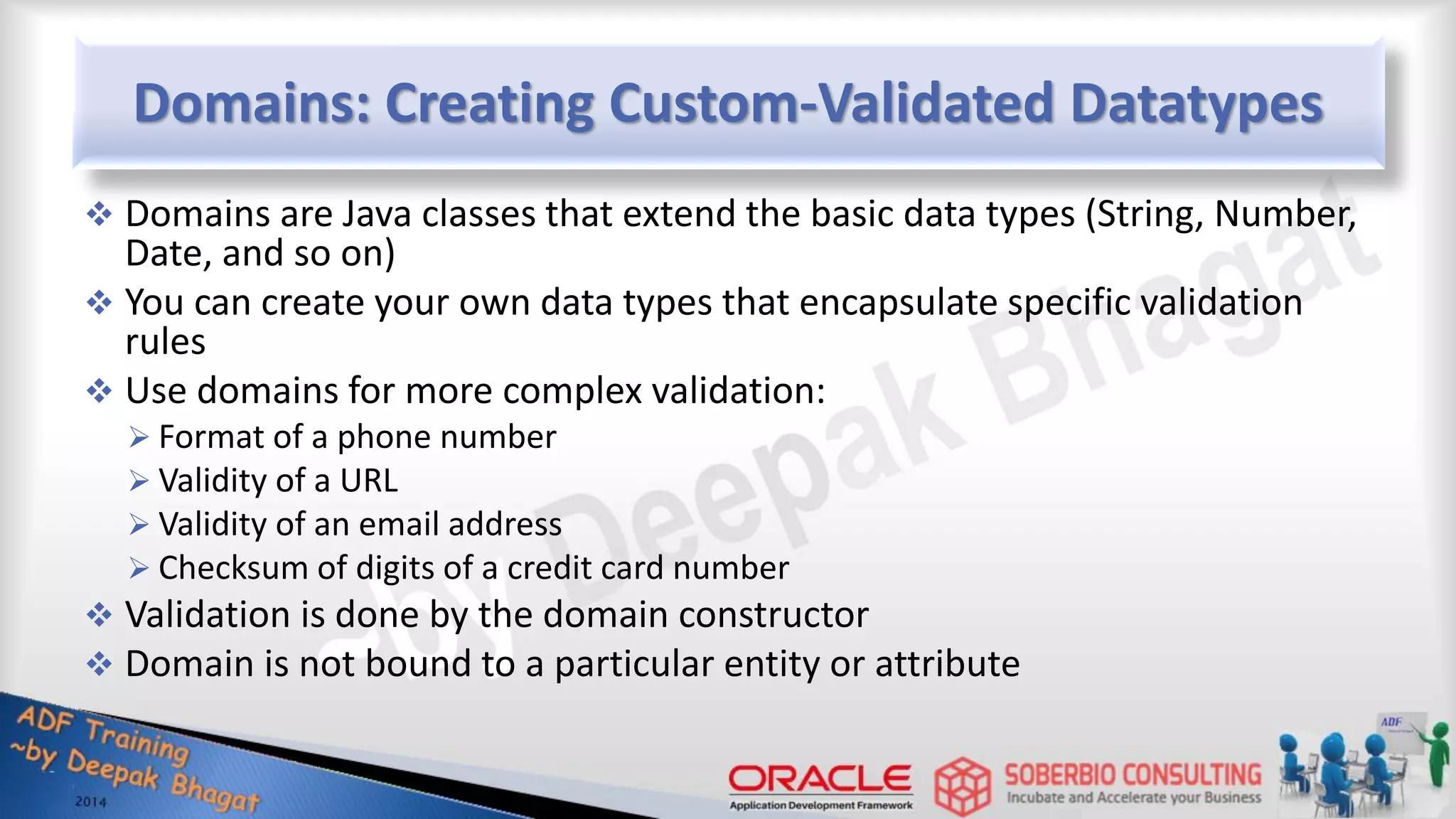

Domains: Creating Custom-Validated Datatypes  Domains are Java classes that extend the basic data types (String, Number, Date, and so on)  You can create your own data types that encapsulate specific validation rules  Use domains for more complex validation:  Format of a phone number  Validity of a URL  Validity of an email address  Checksum of digits of a credit card number  Validation is done by the domain constructor  Domain is not bound to a particular entity or attribute

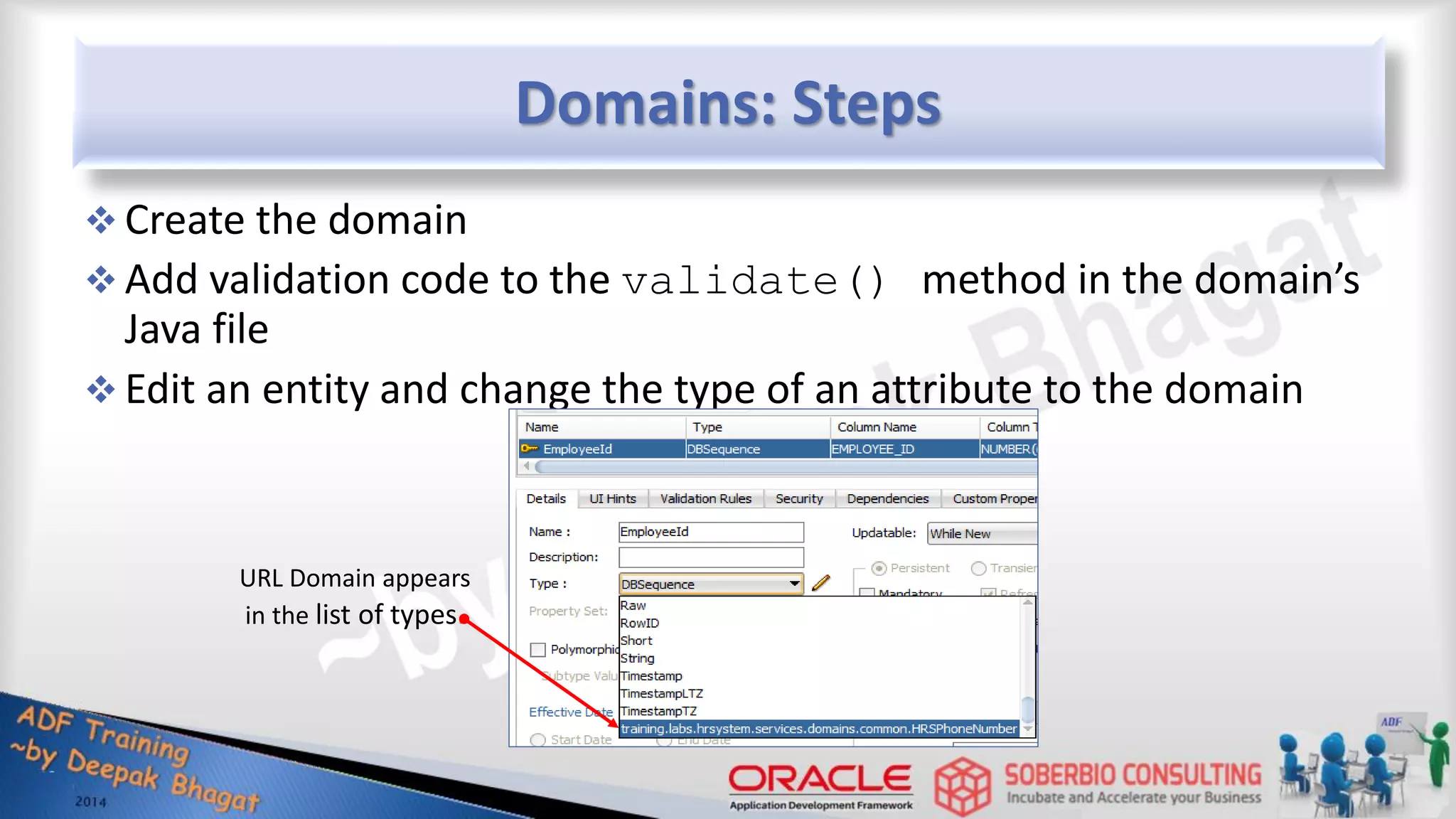

Domains: Steps  Create the domain  Add validation code to the validate() method in the domain’s Java file  Edit an entity and change the type of an attribute to the domain URL Domain appears in the list of types.

Domains: Code Validation  The validate() method is called by the domain’s constructor: (mData is a private String variable containing the string to be validated.)  Example: URLDomain verifies that an attribute is a valid URL protected void validate() { try { // Make sure the user entered a valid URL java.net.URL u = new java.net.URL(mData); } catch (java.net.MalformedURLException e){ throw new oracle.jbo.domain.DomainValidationException ("Invalid URL"); } } }

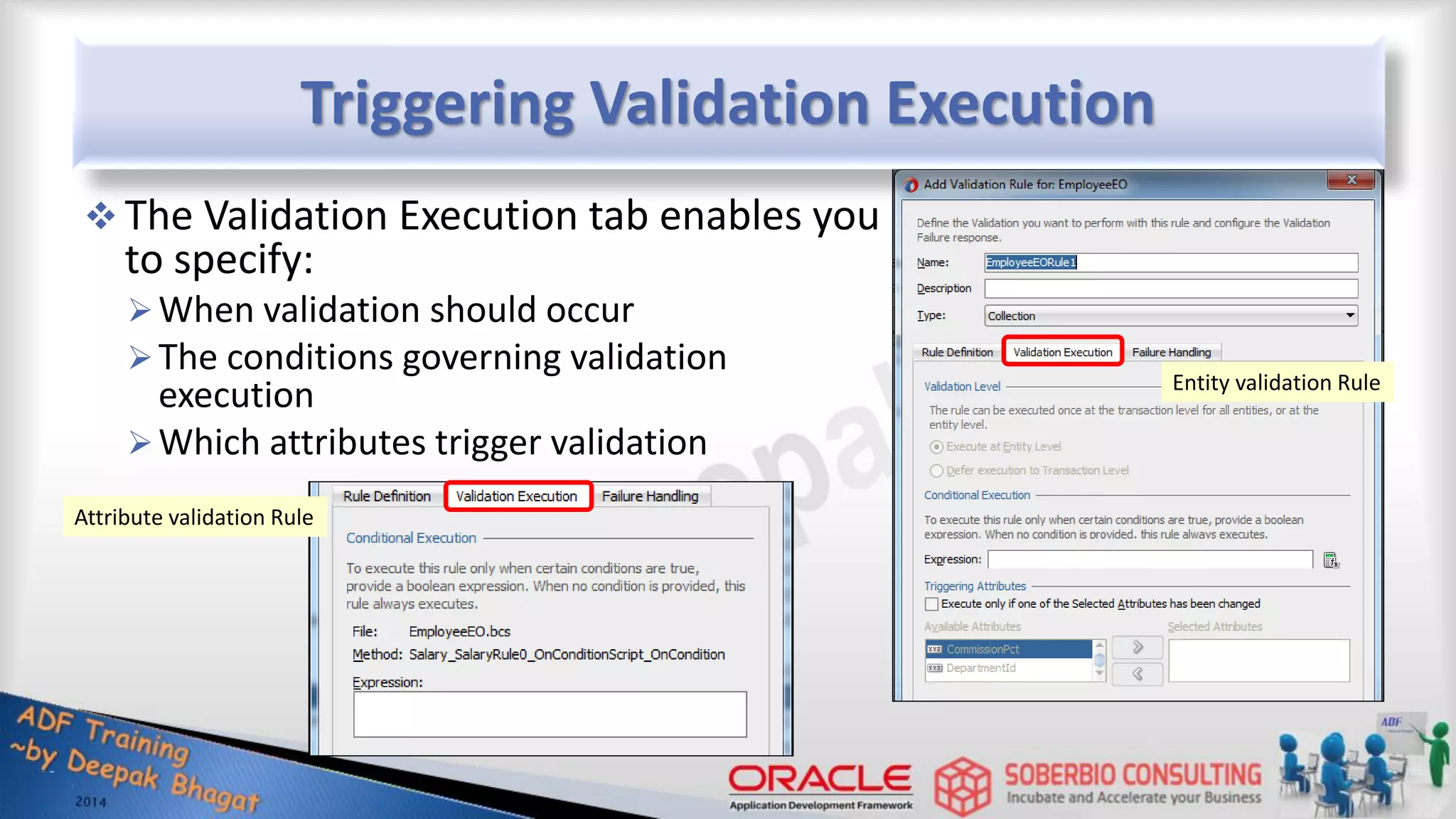

Triggering Validation Execution  The Validation Execution tab enables you to specify: When validation should occur The conditions governing validation execution Which attributes trigger validation Entity validation Rule Attribute validation Rule

Specifying Validation Order  Changed attributes are validated when they lose focus  Changed entities are validated at commit time  In compositions, child entities are validated before parent entities  You can control execution order of validation within attributes or an entity  You can specify validation at the transaction level for some validators

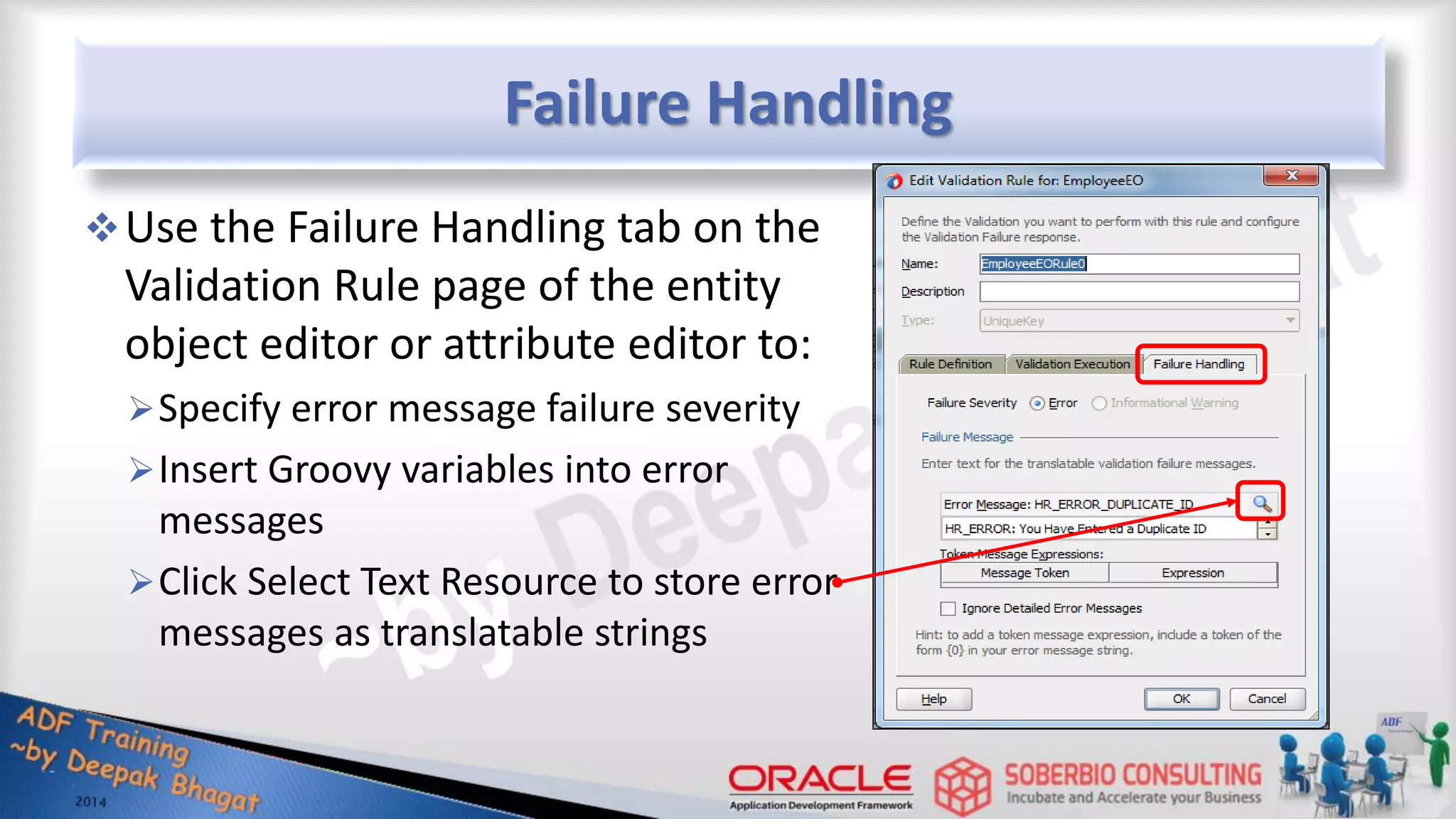

Failure Handling Use the Failure Handling tab on the Validation Rule page of the entity object editor or attribute editor to: Specify error message failure severity Insert Groovy variables into error messages Click Select Text Resource to store error messages as translatable strings

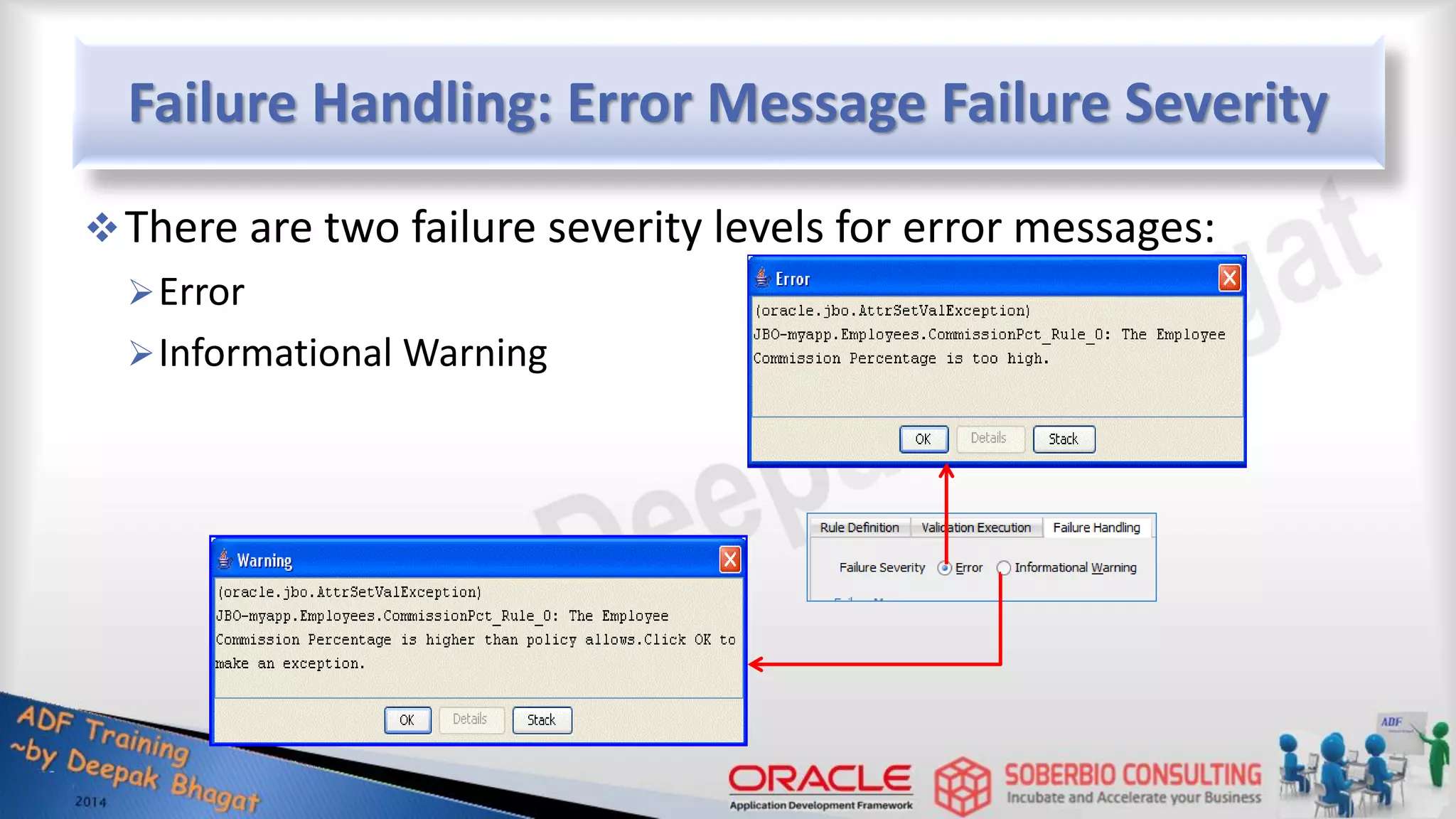

Failure Handling: Error Message Failure Severity There are two failure severity levels for error messages: Error Informational Warning

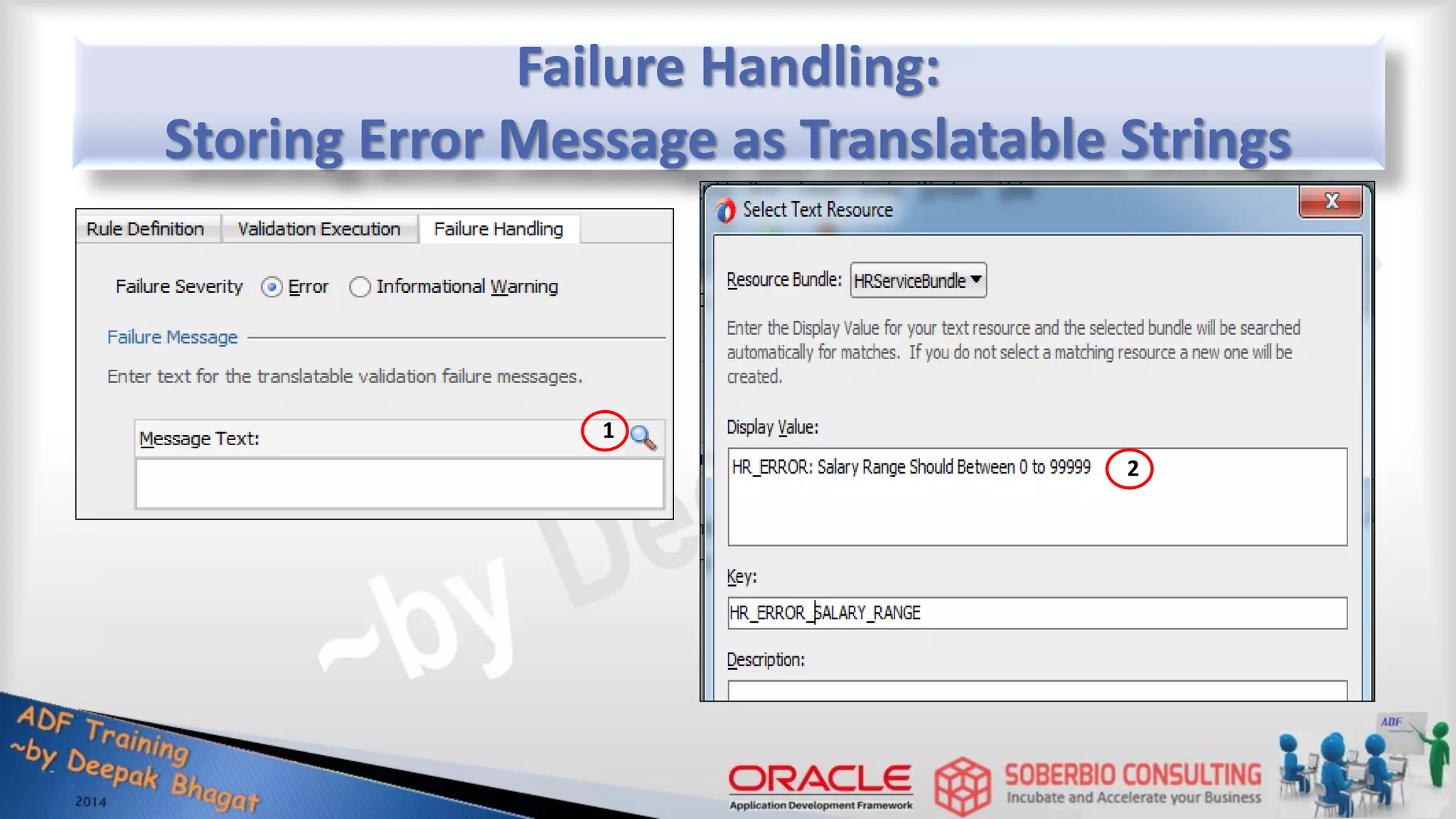

Failure Handling: Storing Error Message as Translatable Strings 1 2

Failure Handling: Groovy Support Use Groovy expressions in validation error messages: You indicate a variable by surrounding a name with braces {} Message tokens are added automatically You provide message token expressions: source.hints. <attr>.label for labels <attr> for values

Groovy Expressions for Validation  Groovy Expression Type Validation  In addition to the existing Groovy debugging support within JDeveloper, developers can now ensure the quality of their groovy expressions with type checking that occurs, by default, during project compilation  You use the Script Expression validator or Compare validator when using Groovy for validation

Key Guidelines for Using Validation  Validate both in UI and Server Layers to serve multiple channels (Web Services)  Reuse VO for Validation and LOV  Groovy Expressions: Java-like scripting code stored in the XML definition of an entity object Do not use for complex validations Code completion not available  Adding code in ValidateEntity Method Avoid if possible Extra care should be taken by the developer to bundle exceptions. Framework takes care of it for declarative validations

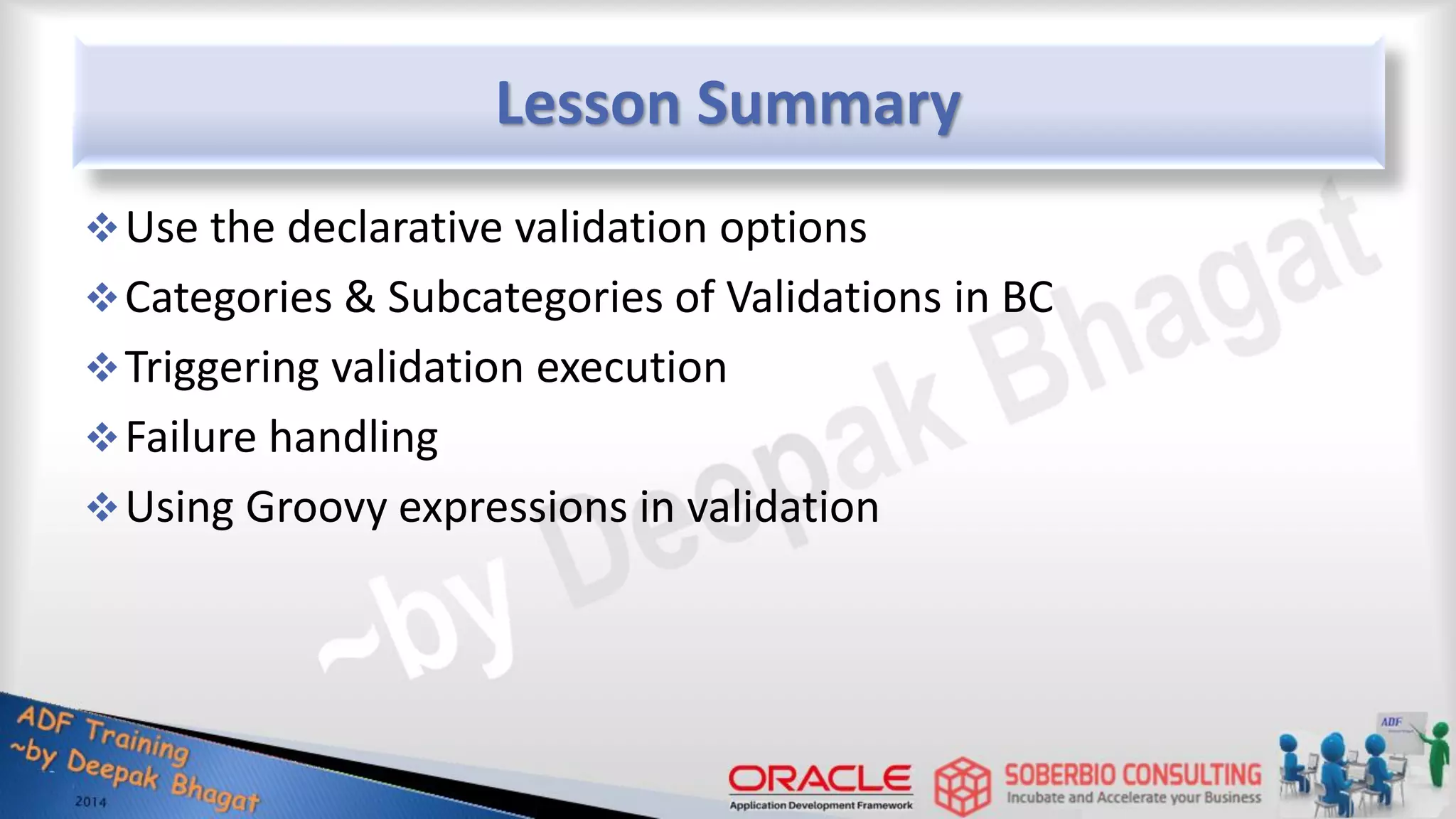

Lesson Summary Use the declarative validation options Categories & Subcategories of Validations in BC Triggering validation execution Failure handling Using Groovy expressions in validation

10 Introducing User Interface Technologies

Lesson Agenda  Evolution of web tier from HTML, Servlets, JSPs to JSF  Overview of Java Server Faces and it’s architecture  Discuss JSF UI components  Understand navigation using JSF Controller  Describe the purpose of managed and backing beans  Explain the JSF life cycle  Introduce how ADF Faces augments the JSF  Overview of ADF Faces rich functionalities  Overview of ADF Faces rich components

Evolution of J2EE Web UIs Enabling the World Wide Web with HTML and HTTP Using Java as a language for web development Describing Servlets Describing Java Server Pages (JSP) Evolution of J2EE Web Tier Comparing JSF against traditional JSP

The Web (WWW) with HTML HTML: A markup language for defining Web pages HTTP: A stateless request/response protocol for serving Web content, such as HTML pages Web server Browser client HTTP request HTTP response HTML document HTML files

Web Development Web server Application server Presentation Servlets, JSP pages (JSPs), JavaServer Faces (JSF) Enterprise JavaBeans (EJB), CORBA Client Data Business logic

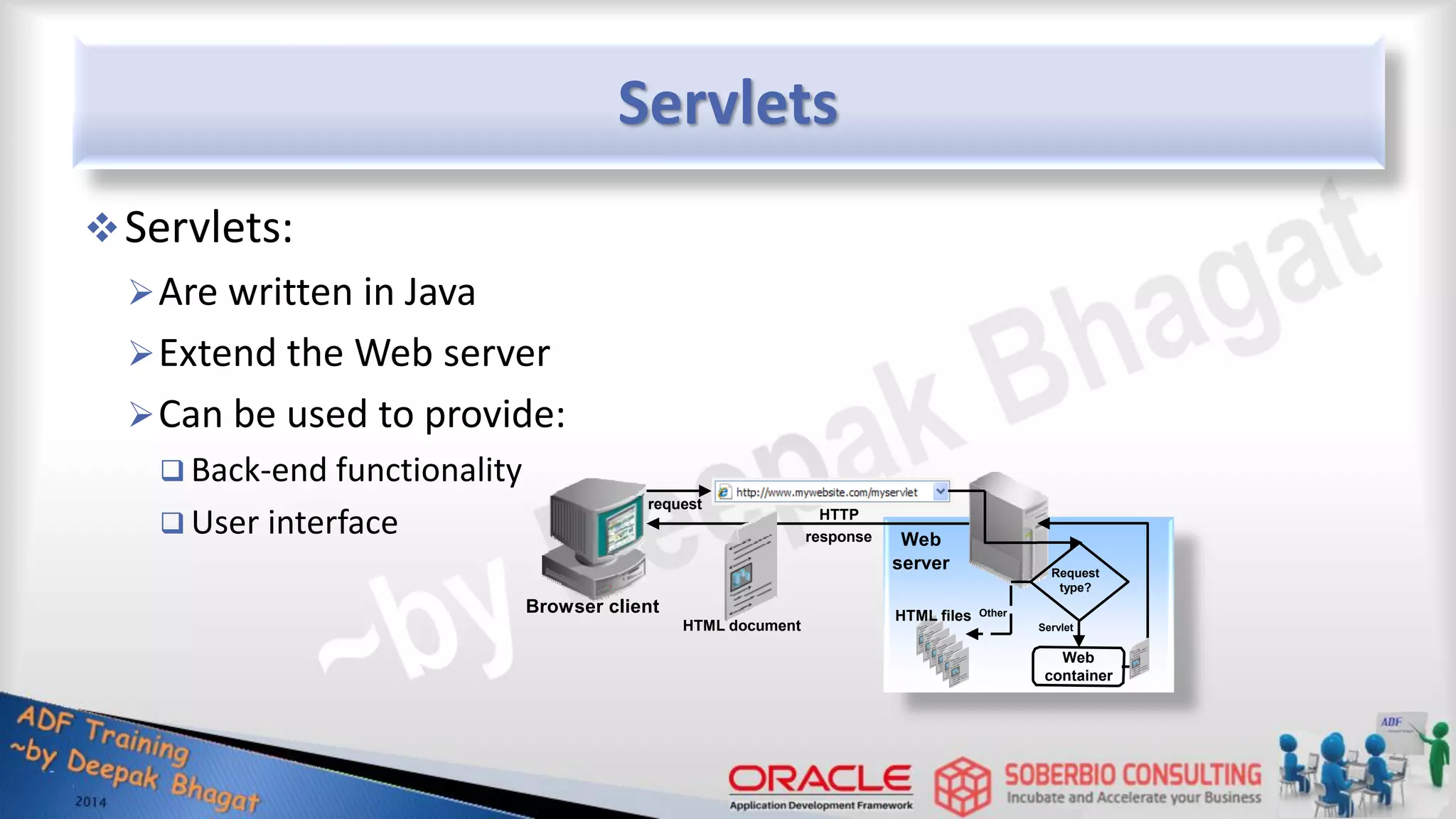

Servlets Servlets: Are written in Java Extend the Web server Can be used to provide:  Back-end functionality  User interface Web server Browser client request HTTP response HTML document HTML files Other Request type? Web container Servlet

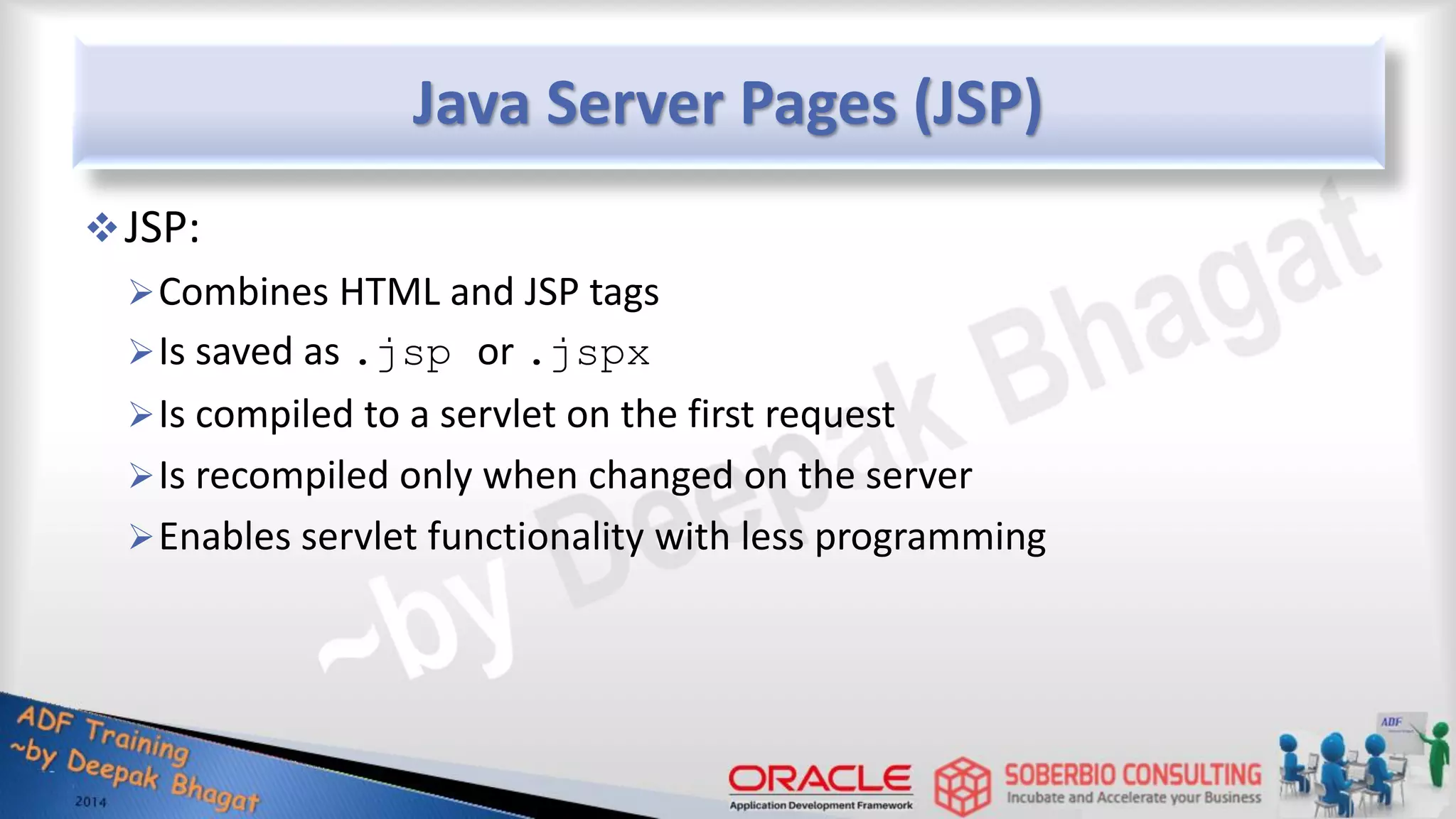

Java Server Pages (JSP) JSP: Combines HTML and JSP tags Is saved as .jsp or .jspx Is compiled to a servlet on the first request Is recompiled only when changed on the server Enables servlet functionality with less programming

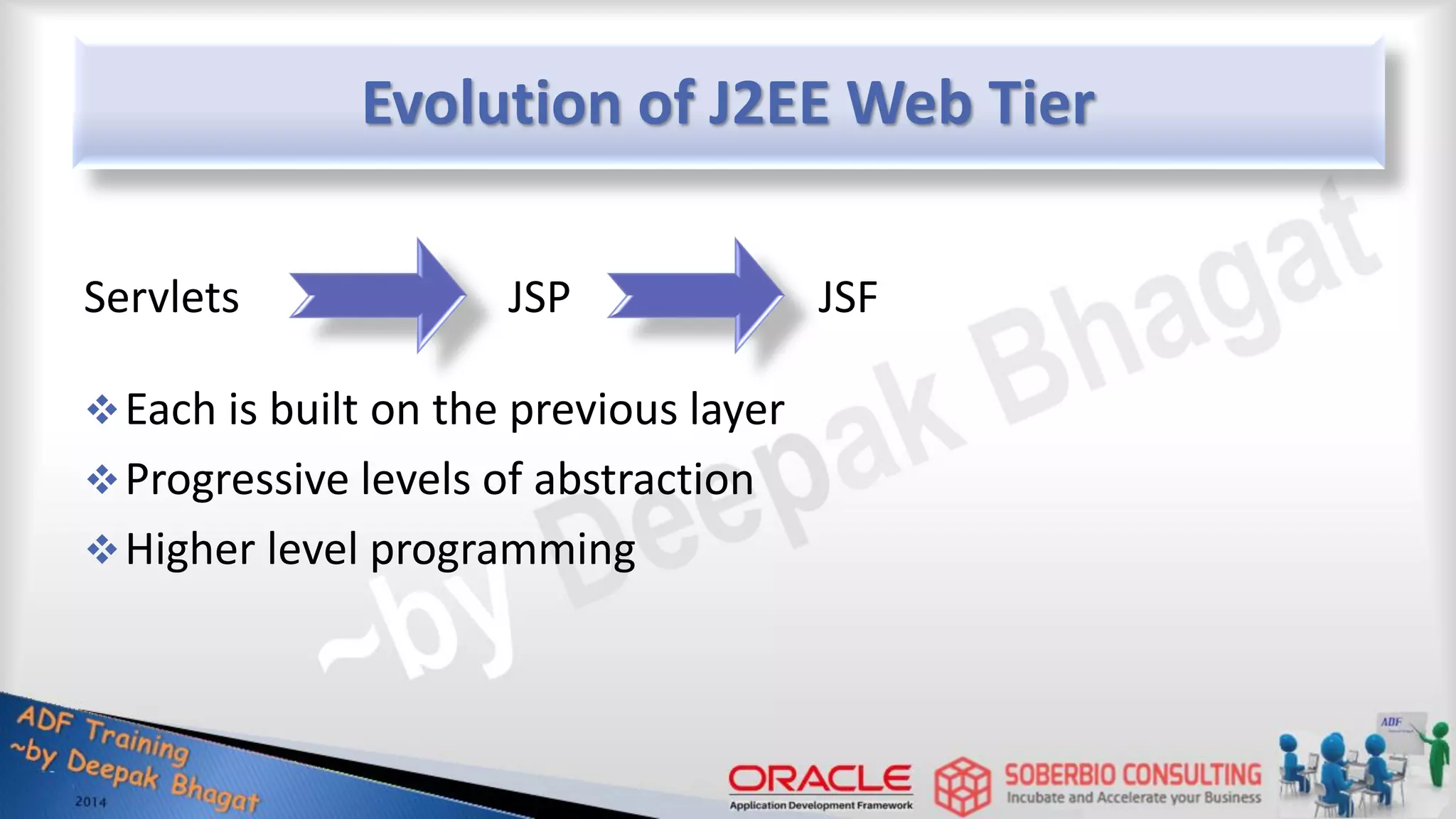

Evolution of J2EE Web Tier Each is built on the previous layer Progressive levels of abstraction Higher level programming Servlets JSP JSF

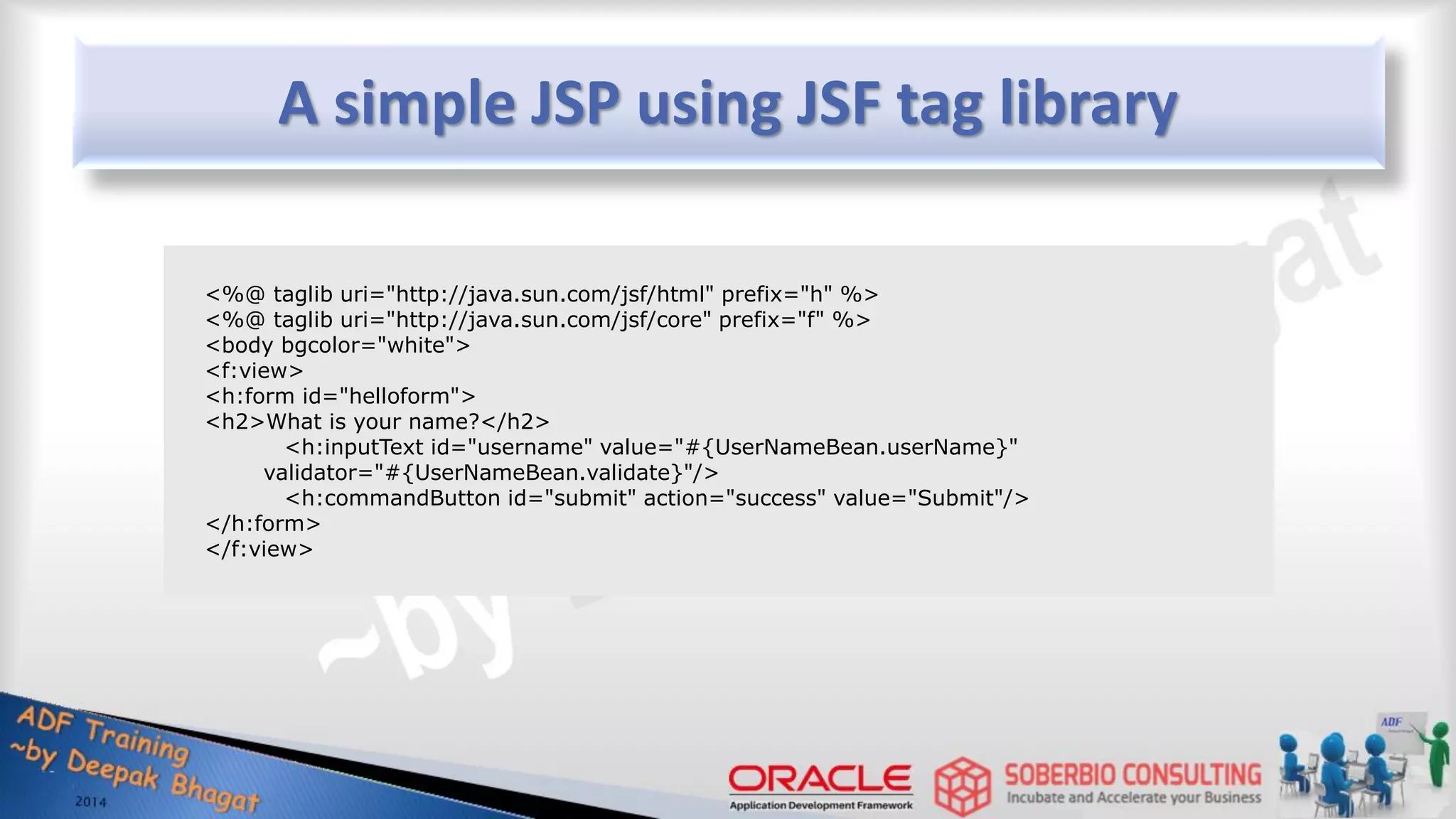

A simple JSP using JSF tag library <%@ taglib uri="http://java.sun.com/jsf/html" prefix="h" %> <%@ taglib uri="http://java.sun.com/jsf/core" prefix="f" %> <body bgcolor="white"> <f:view> <h:form id="helloform"> <h2>What is your name?</h2> <h:inputText id="username" value="#{UserNameBean.userName}" validator="#{UserNameBean.validate}"/> <h:commandButton id="submit" action="success" value="Submit"/> </h:form> </f:view>

Applications Pages UI Components Markup Java Http Requests Ease of Development Lower Level JSF vs. Traditional JSP Product UI Events Developer JSF JSP

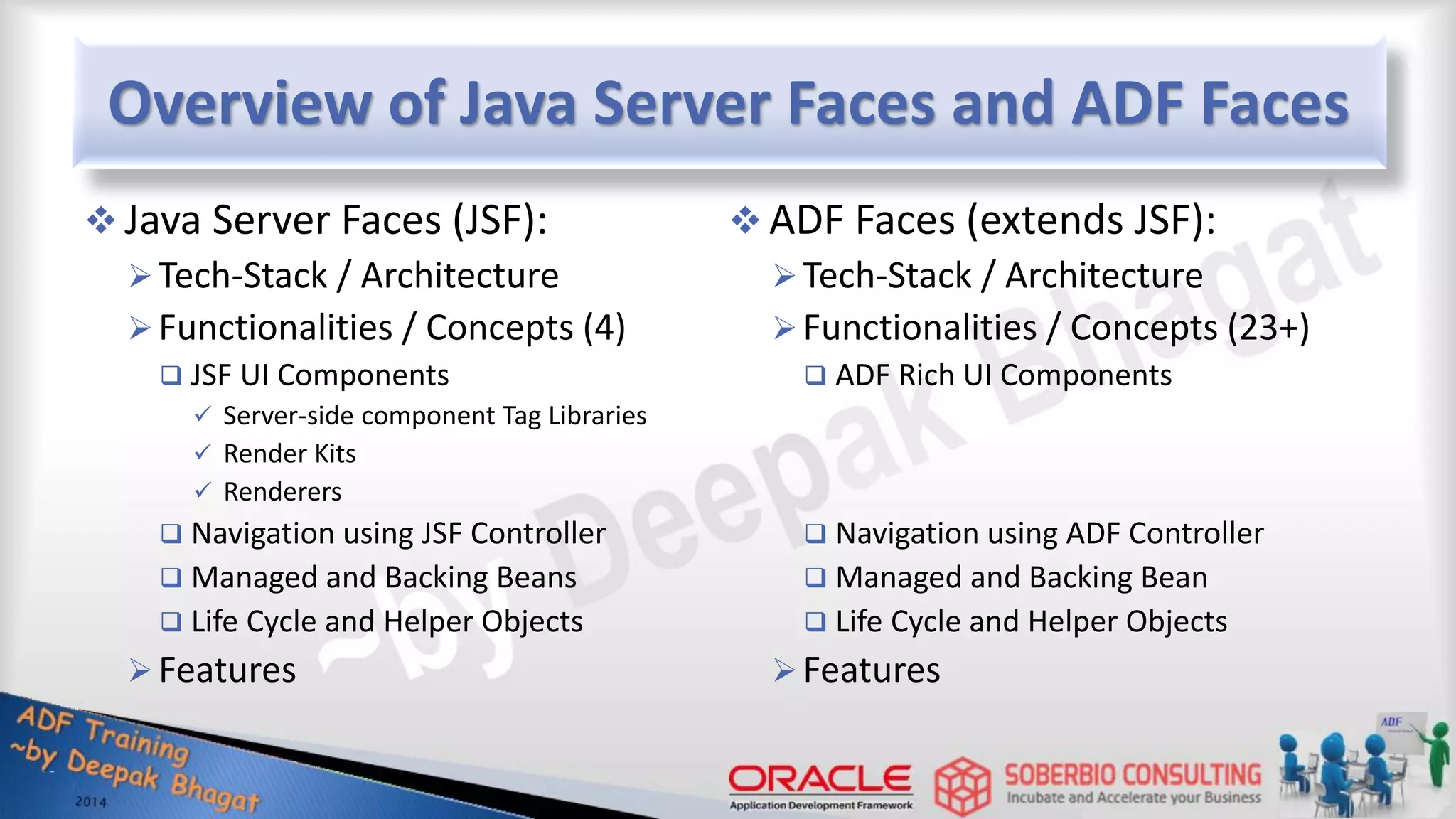

Overview of Java Server Faces and ADF Faces  Java Server Faces (JSF): Tech-Stack / Architecture Functionalities / Concepts (4)  JSF UI Components  Server-side component Tag Libraries  Render Kits  Renderers  Navigation using JSF Controller  Managed and Backing Beans  Life Cycle and Helper Objects Features  ADF Faces (extends JSF): Tech-Stack / Architecture Functionalities / Concepts (23+)  ADF Rich UI Components (L11-L18)  Navigation using ADF Controller (L13)  Managed and Backing Bean (L15)  Life Cycle and Helper Objects (L16) Features

Overview of Java Server Faces (JSF)  Java Server Faces (JSF): Tech-Stack / Architecture Functionalities / Concepts (4)  JSF UI Components  Server-side component Tag Libraries  Render Kits  Renderers  Navigation using JSF Controller  Managed and Backing Beans  Life Cycle and Helper Objects Features  ADF Faces (extends JSF): Tech-Stack / Architecture Functionalities / Concepts (23+)  ADF Rich UI Components  Navigation using ADF Controller  Managed and Backing Bean  Life Cycle and Helper Objects Features

Tech-Stack of JSF  Java Server Faces (JSF): Tech-Stack / Architecture Functionalities / Concepts (4)  JSF UI Components  Server-side component Tag Libraries  Render Kits  Renderers  Navigation using JSF Controller  Managed and Backing Beans  Life Cycle and Helper Objects Features  ADF Faces (extends JSF): Tech-Stack / Architecture Functionalities / Concepts (23+)  ADF Rich UI Components  Navigation using ADF Controller  Managed and Backing Bean  Life Cycle and Helper Objects Features

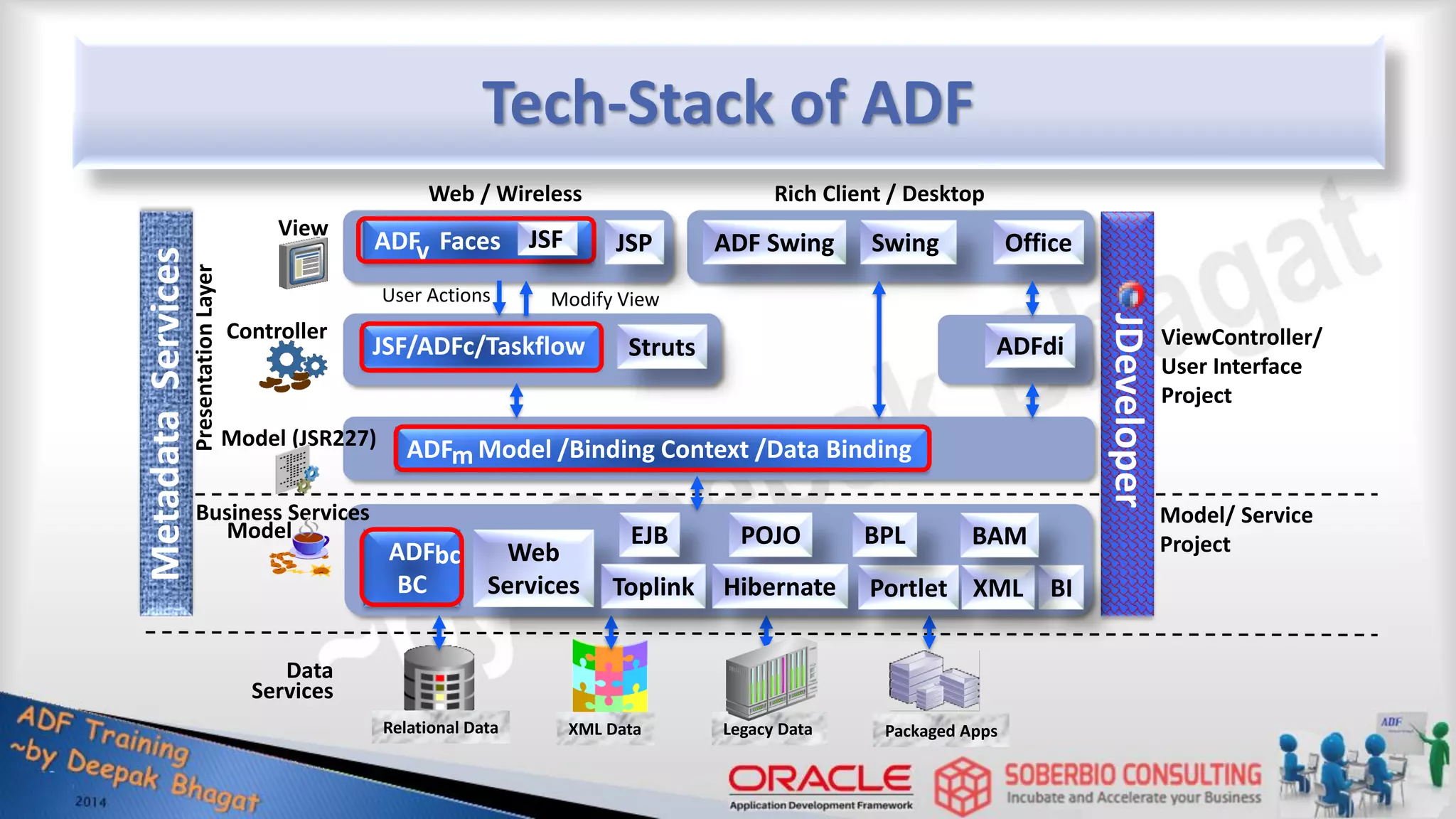

Tech-Stack of ADF Metadata Services JDeveloper Model (JSR227) View Controller Business Services Relational Data XML Data Packaged Apps Legacy Data Data Services ADF Faces JSF/ADFc/Taskflow ADF Model /Binding Context /Data Binding ADF BC JSP Struts ADF Swing Swing Office ADFdi EJB Web Services POJO Toplink Hibernate Portlet BI XML Web / Wireless Rich Client / Desktop User Actions Modify View ViewController/ User Interface Project Model/ Service Project Model Presentation Layer v m bc BAM BPL JSF

Skins Render Kits UI Component Tree 1. UI Component is rendered through Renderer class 2. Expression Language Value Binding is used to access managed bean also know as a "backing bean" 3. Managed bean accesses J2EE persistence layer faces-config.xml trinidad.xml 1. EL accesses “bindings” object to value bind UI components 2. ADF “bindings” object is set through ADF Filter in web.xml 3. Bindings object accesses ADF Binding container, which then accesses DataControl 4. Business Services provide access to various data sources ADF Model /Binding Context /Data Binding Tech-Stack of View Layer View Controller Business Services ADF Faces Components ADF “binding” object ADF BC JSF Components Struts Swing Component ADFdi EJB POJO Toplink Portlet BI XML Web Rich Client / Desktop Relational Data XML Data Legacy Data Packaged Apps ADF Binding Container / ADF Bindings ADF Data Controls Data Services Wireless Industrial Faces Servlet / Front Controller ITS XML XML Swing L&F HTML Renderer WML Renderer Telnet Swing Renderer SVG ADF Faces Model (JSR227) Metadata Services JDeveloper Managed Bean ADF Faces Expr. Language J2EE Persistence JSF Page

Skins Render Kits UI Component Tree 1. UI Component is rendered through Renderer class 2. Expression Language Value Binding is used to access managed bean also know as a "backing bean" 3. Managed bean accesses J2EE persistence layer faces-config.xml trinidad.xml Tech-Stack of JSF View Controller JSF UI Components Tree EJB POJO Toplink Portlet BI XML Web Relational Data XML Data Legacy Data Packaged Apps Data Services Wireless Faces Servlet / Front Controller XML XML HTML Renderer WML Renderer SVG Model (JSR227) Metadata Services Managed Bean Expr. Language J2EE Persistence JSF Page 1. JSF UI Components 2. Navigation / JSF Controller 3. Managed and Backing Beans 4. Life Cycle and Helper Objects

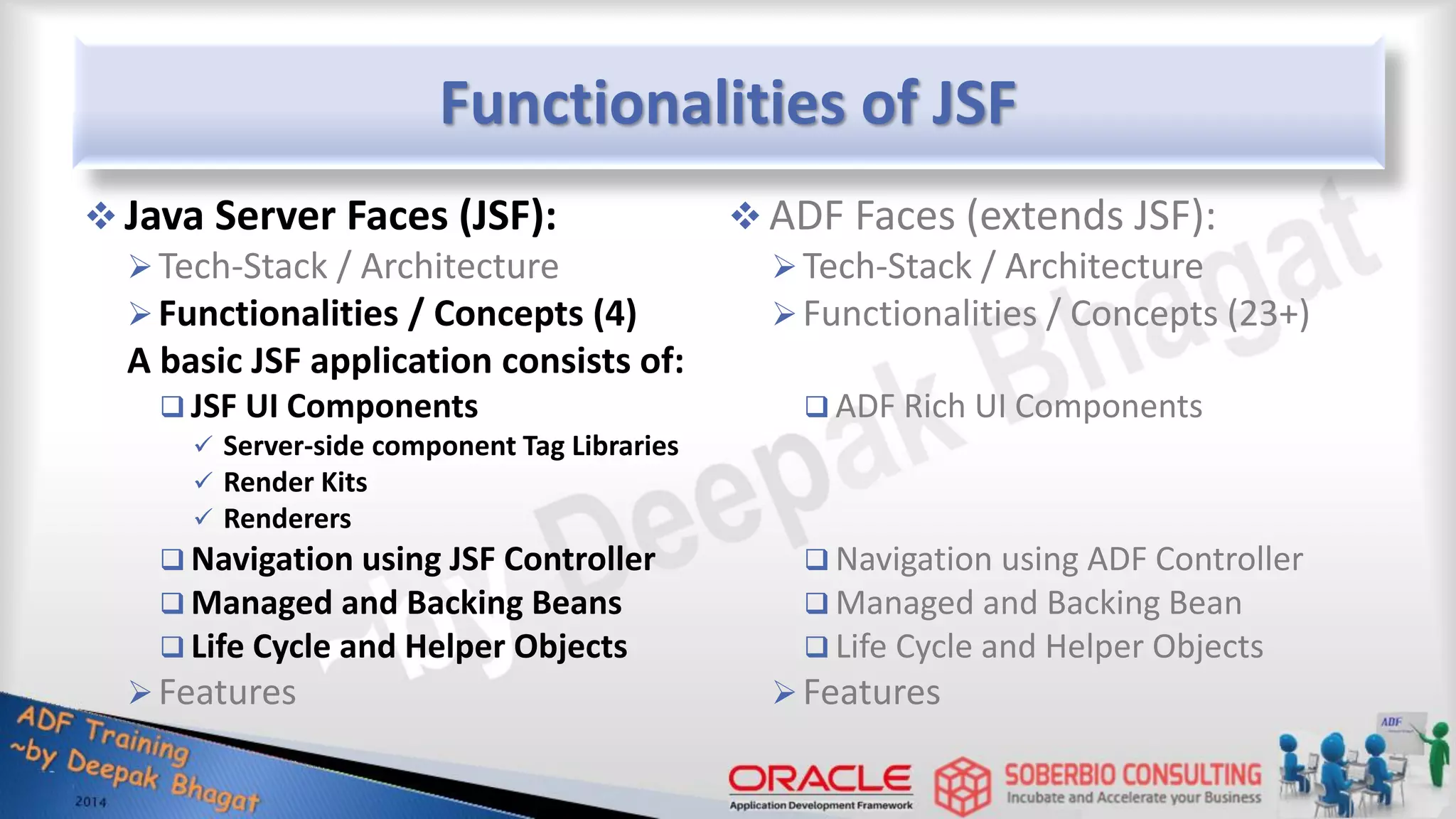

Functionalities of JSF  Java Server Faces (JSF): Tech-Stack / Architecture Functionalities / Concepts (4) A basic JSF application consists of:  JSF UI Components  Server-side component Tag Libraries  Render Kits  Renderers  Navigation using JSF Controller  Managed and Backing Beans  Life Cycle and Helper Objects Features  ADF Faces (extends JSF): Tech-Stack / Architecture Functionalities / Concepts (23+)  ADF Rich UI Components  Navigation using ADF Controller  Managed and Backing Bean  Life Cycle and Helper Objects Features

JSF Functionalities: Overview Navigation UI Component View Renderer Backing bean Validator Converter Message Action method EventListener Event Model objects generates selects executes specialized outcome contains updates generates generates generates verifies value consumes manipulates displays translates value Contained in

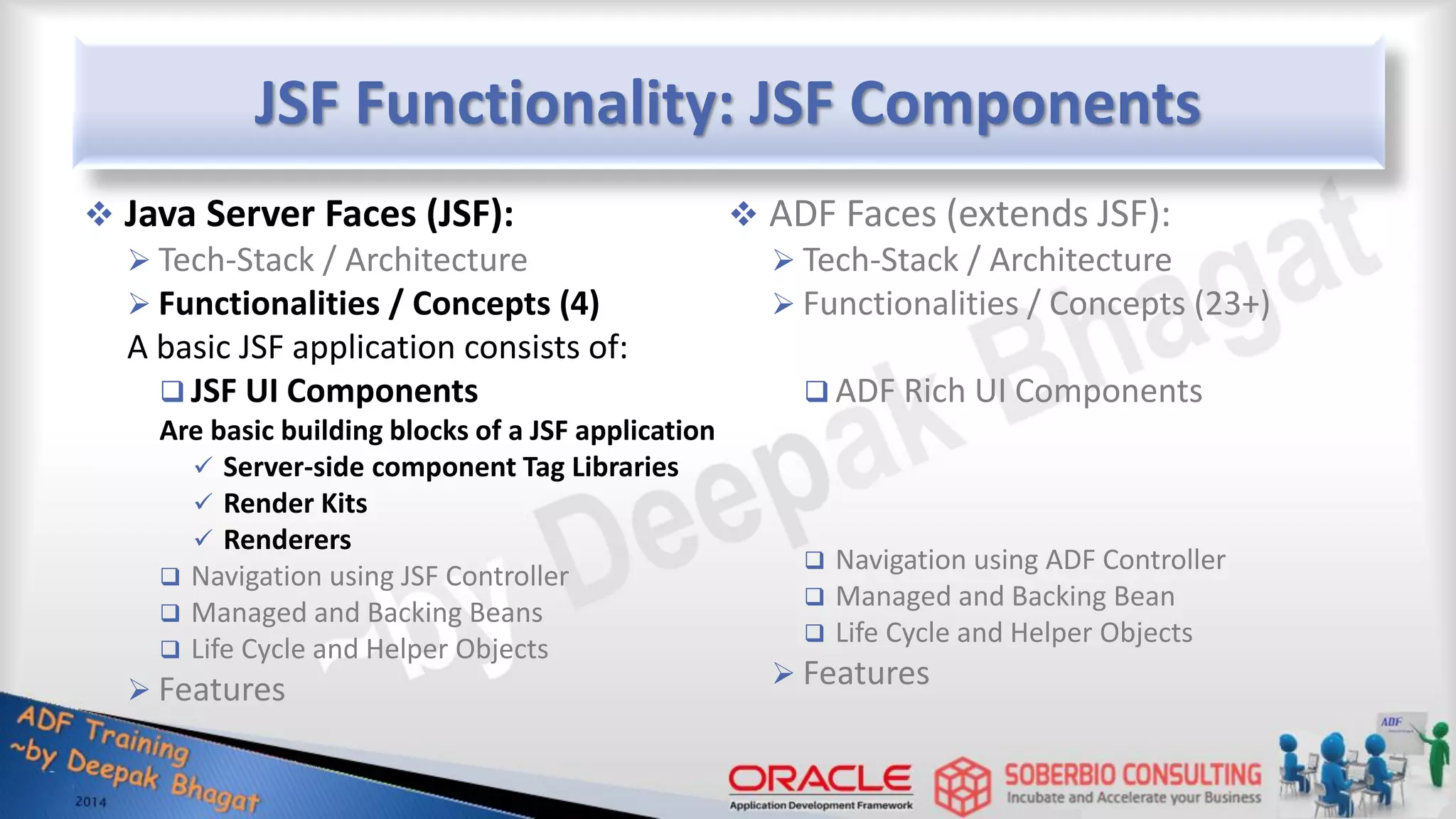

JSF Functionality: JSF Components  Java Server Faces (JSF):  Tech-Stack / Architecture  Functionalities / Concepts (4) A basic JSF application consists of:  JSF UI Components Are basic building blocks of a JSF application  Server-side component Tag Libraries  Render Kits  Renderers  Navigation using JSF Controller  Managed and Backing Beans  Life Cycle and Helper Objects  Features  ADF Faces (extends JSF):  Tech-Stack / Architecture  Functionalities / Concepts (23+)  ADF Rich UI Components  Navigation using ADF Controller  Managed and Backing Bean  Life Cycle and Helper Objects  Features

Components: Tag Libraries  Java Server Faces (JSF):  Tech-Stack / Architecture  Functionalities / Concepts (4) A basic JSF application consists of:  JSF UI Components Are basic building blocks of a JSF application  Server-side component Tag Libraries  Render Kits  Renderers  Navigation using JSF Controller  Managed and Backing Beans  Life Cycle and Helper Objects  Features  ADF Faces (extends JSF):  Tech-Stack / Architecture  Functionalities / Concepts (23+)  ADF Rich UI Components  Navigation using ADF Controller  Managed and Backing Bean  Life Cycle and Helper Objects  Features

Components: Tag Libraries Server-side component tag libraries: Encapsulated in base UI Component tag libraries  Core – For application tasks  Validation, Datatype conversion  HTML – For rendering basic HTML  Input fields, menus, tables button Can be invoked directly or in JSP using these tag libraries  Example: UIInput can be invoked in a JSP with <h:inputText ..>

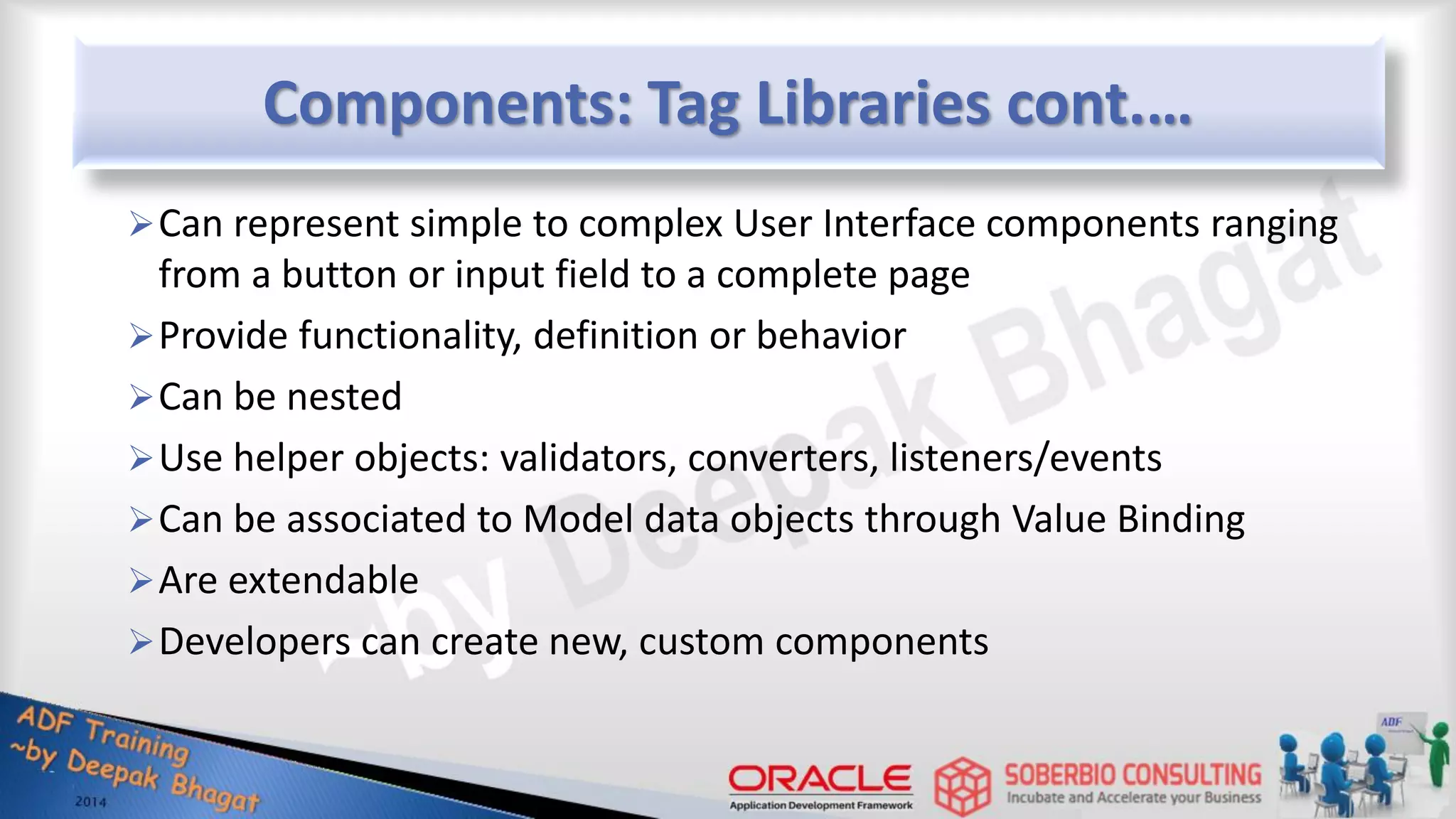

Components: Tag Libraries cont.… Can represent simple to complex User Interface components ranging from a button or input field to a complete page Provide functionality, definition or behavior Can be nested Use helper objects: validators, converters, listeners/events Can be associated to Model data objects through Value Binding Are extendable Developers can create new, custom components

Components: Render Kits  Java Server Faces (JSF):  Tech-Stack / Architecture  Functionalities / Concepts (4) A basic JSF application consists of:  JSF UI Components Are basic building blocks of a JSF application  Server-side component Tag Libraries  Render Kits  Renderers  Navigation using JSF Controller  Managed and Backing Beans  Life Cycle and Helper Objects  Features  ADF Faces (extends JSF):  Tech-Stack / Architecture  Functionalities / Concepts (23+)  ADF Rich UI Components  Navigation using ADF Controller  Managed and Backing Bean  Life Cycle and Helper Objects  Features

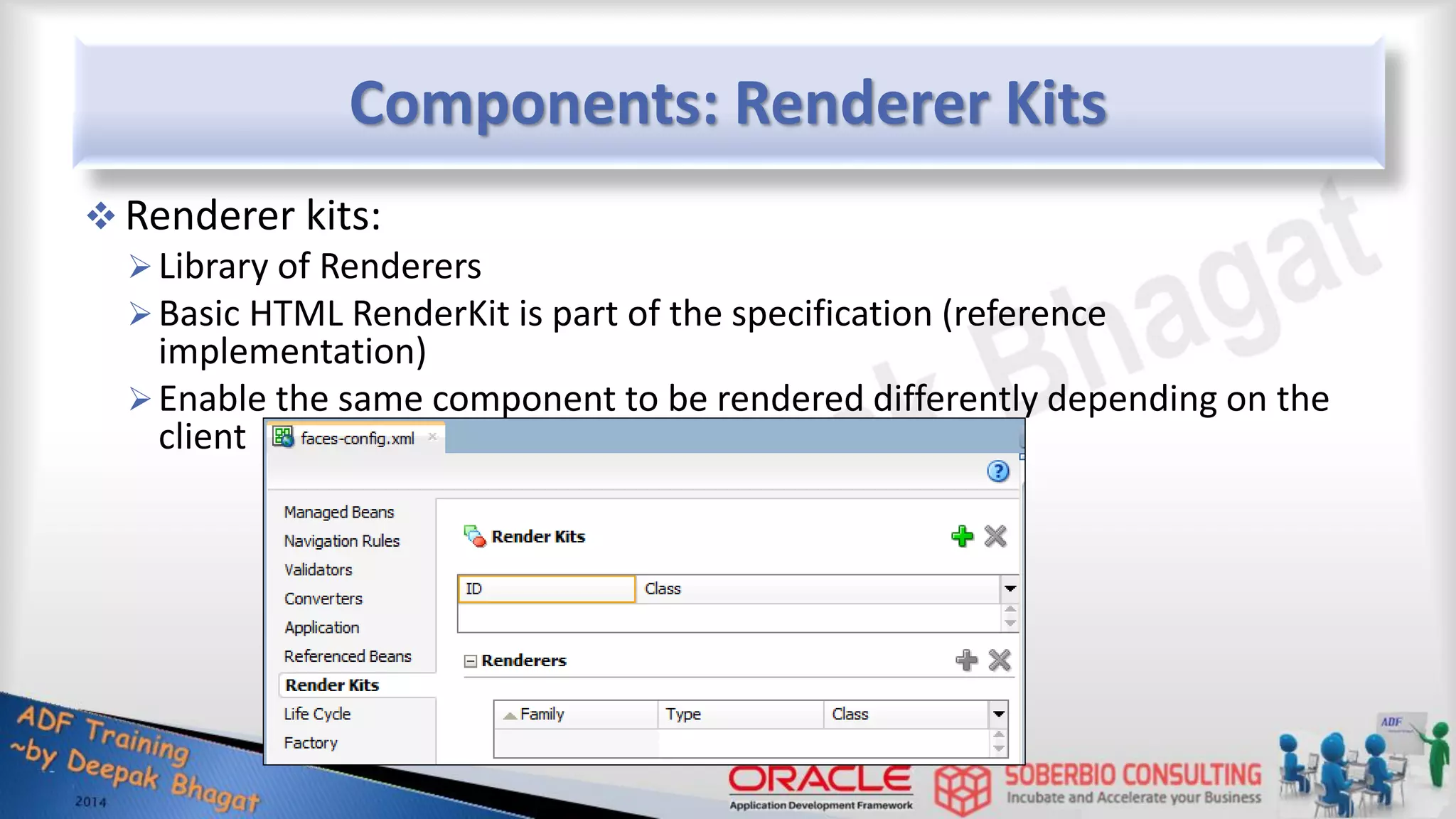

Components: Renderer Kits  Renderer kits: Library of Renderers Basic HTML RenderKit is part of the specification (reference implementation) Enable the same component to be rendered differently depending on the client

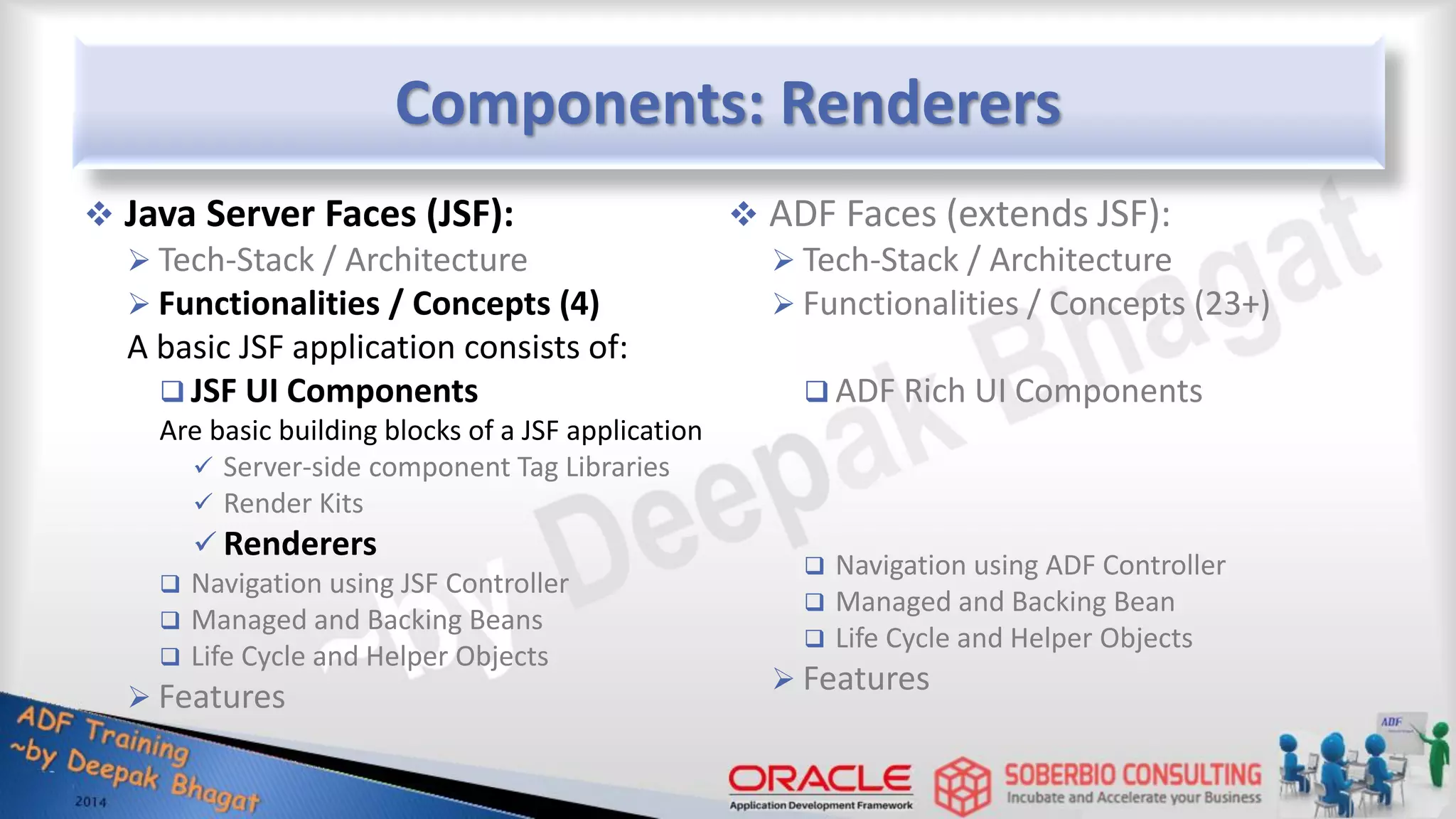

Components: Renderers  Java Server Faces (JSF):  Tech-Stack / Architecture  Functionalities / Concepts (4) A basic JSF application consists of:  JSF UI Components Are basic building blocks of a JSF application  Server-side component Tag Libraries  Render Kits  Renderers  Navigation using JSF Controller  Managed and Backing Beans  Life Cycle and Helper Objects  Features  ADF Faces (extends JSF):  Tech-Stack / Architecture  Functionalities / Concepts (23+)  ADF Rich UI Components  Navigation using ADF Controller  Managed and Backing Bean  Life Cycle and Helper Objects  Features

Components: Renderers  Renderers: Converts components to and from a specific markup language Display UI components in a technology understood by the output device Display in different forms based on invocation  Example: UIOutput -> text label, date label.. When an item has focus, its highlighting looks different depending on the client

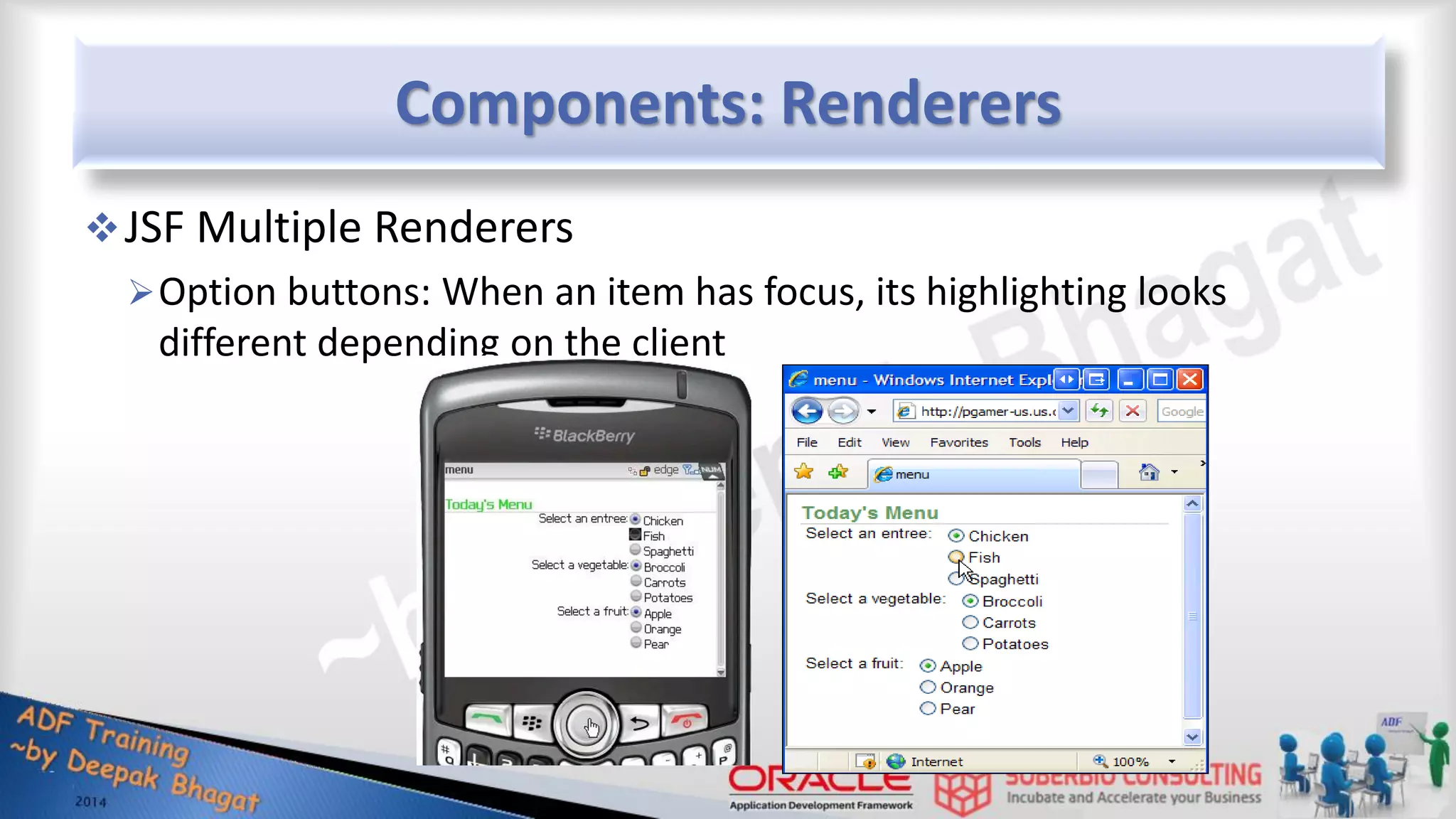

Components: Renderers JSF Multiple Renderers Option buttons: When an item has focus, its highlighting looks different depending on the client

JSF Functionality: Navigation using JSF Controller  Java Server Faces (JSF): Tech-Stack / Architecture Functionalities / Concepts (4) A basic JSF application consists of:  JSF UI Components  Server-side component Tag Libraries  Render Kits  Renderers  Navigation using JSF Controller  Managed and Backing Beans  Life Cycle and Helper Objects Features  ADF Faces (extends JSF): Tech-Stack / Architecture Functionalities / Concepts (23+)  ADF Rich UI Components  Navigation using ADF Controller  Managed and Backing Bean  Life Cycle and Helper Objects Features

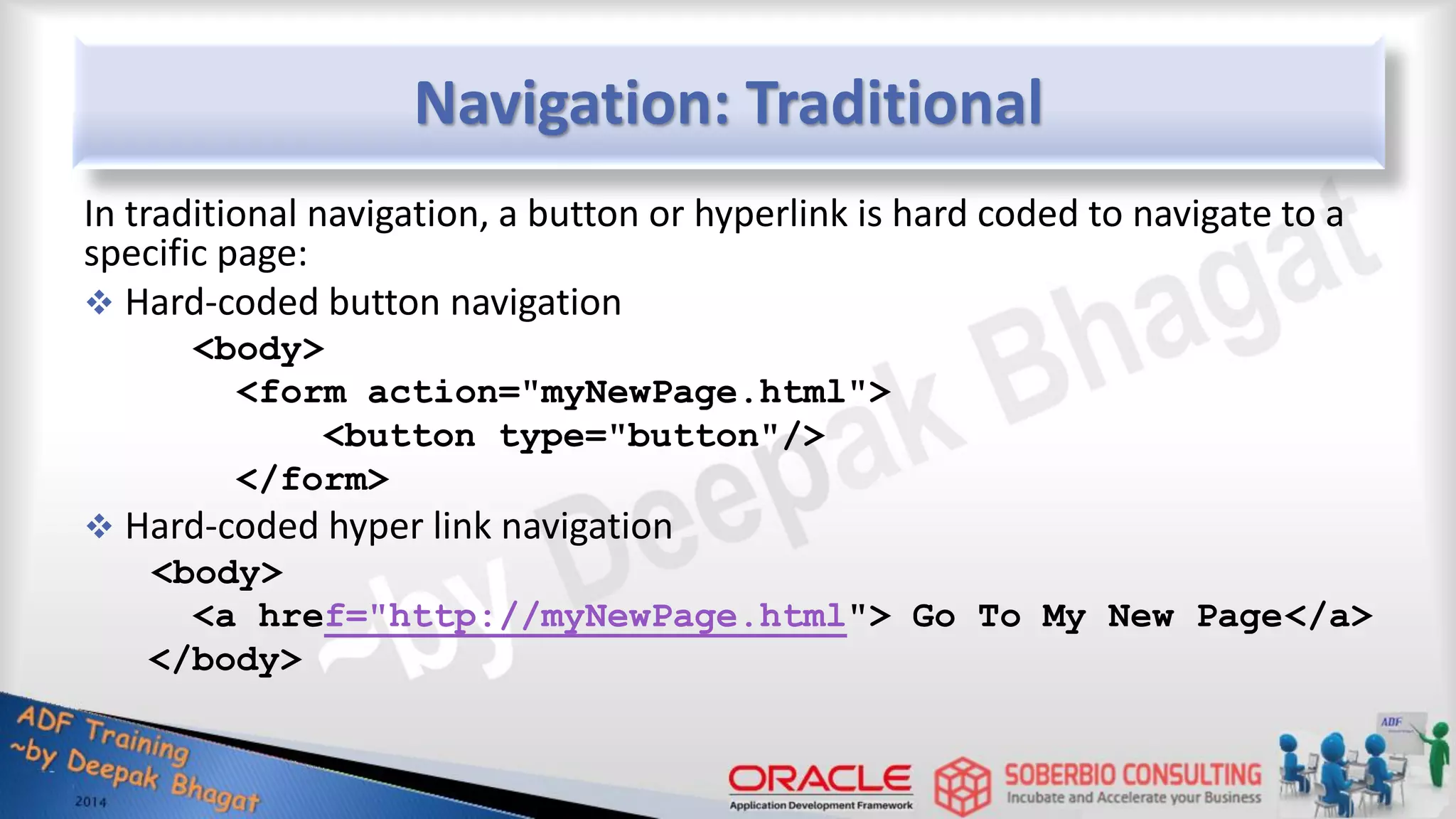

Navigation: Traditional In traditional navigation, a button or hyperlink is hard coded to navigate to a specific page:  Hard-coded button navigation <body> <form action="myNewPage.html"> <button type="button"/> </form>  Hard-coded hyper link navigation <body> <a href="http://myNewPage.html"> Go To My New Page</a> </body>

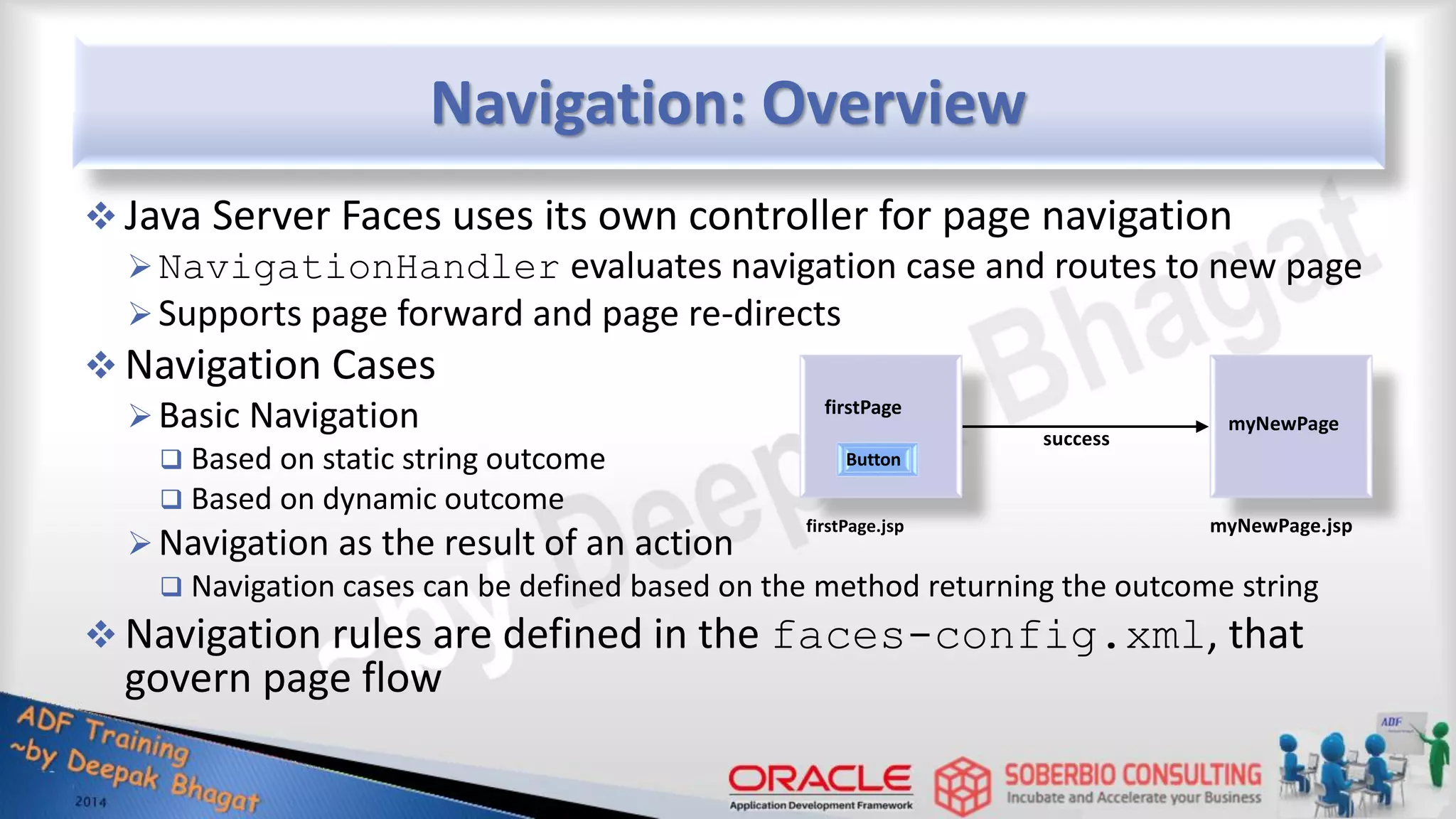

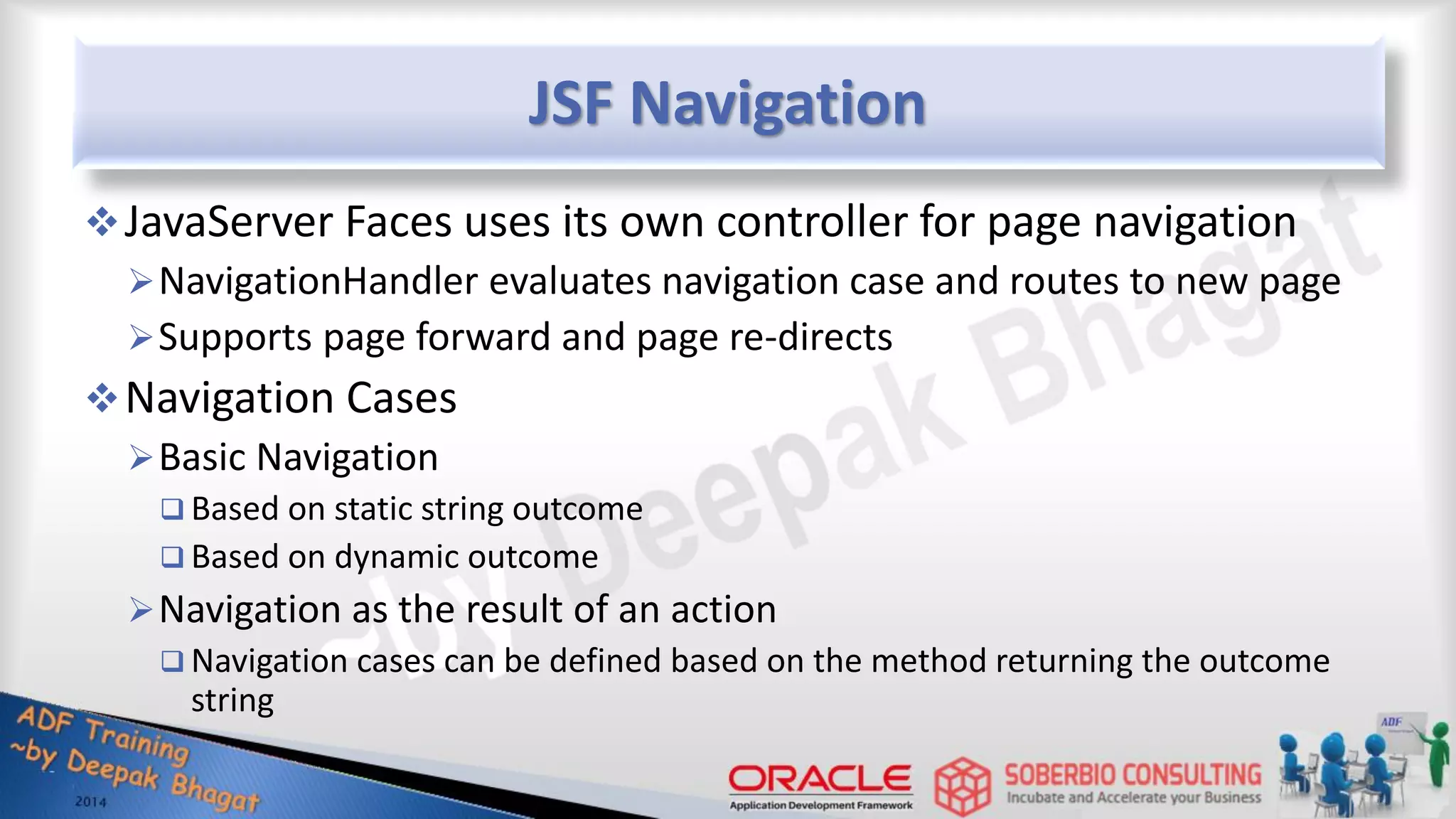

Navigation: Overview  Java Server Faces uses its own controller for page navigation NavigationHandler evaluates navigation case and routes to new page Supports page forward and page re-directs  Navigation Cases Basic Navigation  Based on static string outcome  Based on dynamic outcome Navigation as the result of an action  Navigation cases can be defined based on the method returning the outcome string  Navigation rules are defined in the faces-config.xml, that govern page flow myNewPage firstPage.jsp myNewPage.jsp success firstPage Button

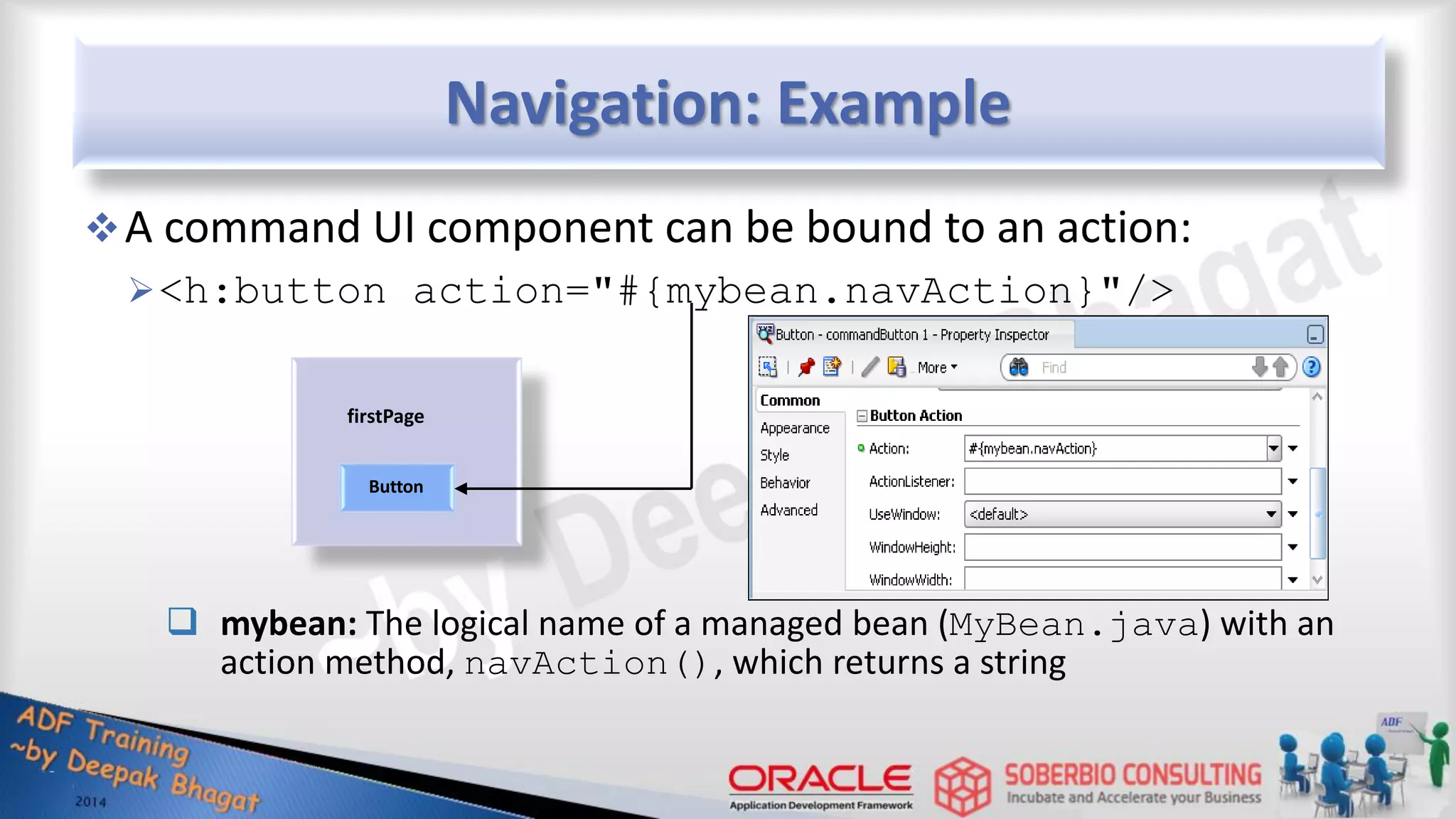

Navigation: Example A command UI component can be bound to an action: <h:button action="#{mybean.navAction}"/>  mybean: The logical name of a managed bean (MyBean.java) with an action method, navAction(), which returns a string firstPage Button

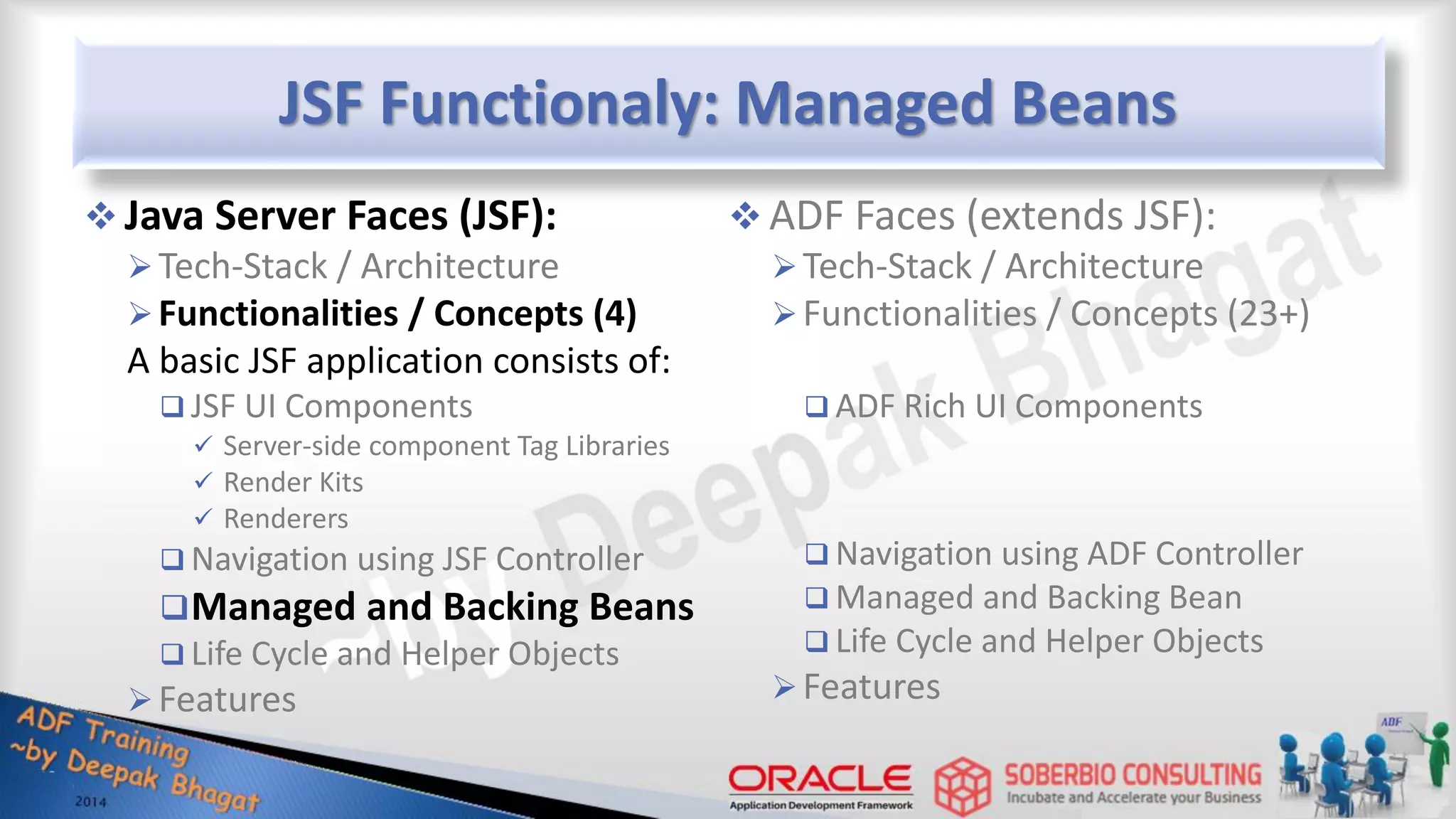

JSF Functionaly: Managed Beans  Java Server Faces (JSF): Tech-Stack / Architecture Functionalities / Concepts (4) A basic JSF application consists of:  JSF UI Components  Server-side component Tag Libraries  Render Kits  Renderers  Navigation using JSF Controller Managed and Backing Beans  Life Cycle and Helper Objects Features  ADF Faces (extends JSF): Tech-Stack / Architecture Functionalities / Concepts (23+)  ADF Rich UI Components  Navigation using ADF Controller  Managed and Backing Bean  Life Cycle and Helper Objects Features

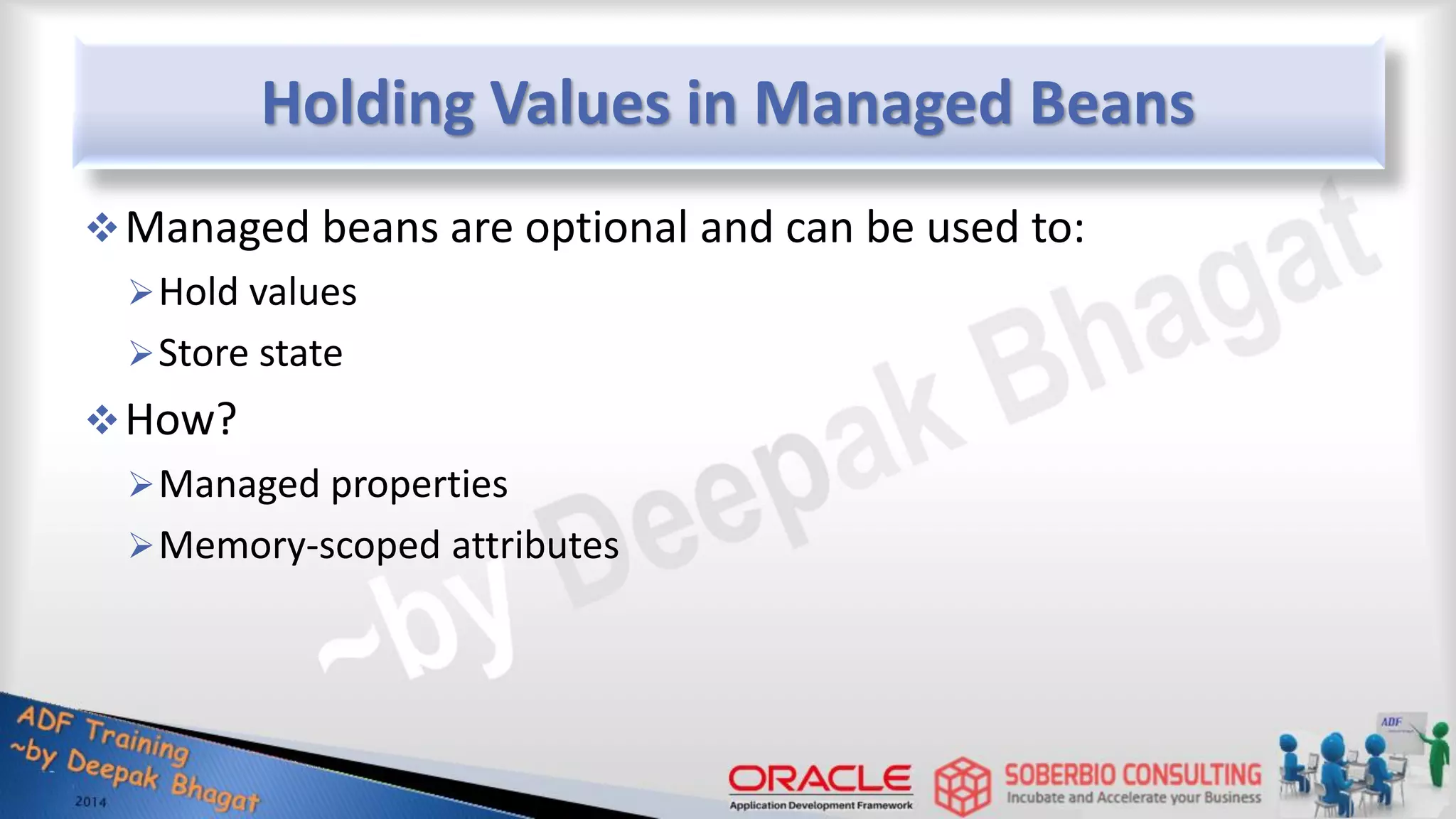

JSF Functionality: Managed Beans  Managed Beans:  Facilitate the UI logic of the application  Kind of like Struts Form beans and Actions combined  Encapsulates business logic, data and properties of components  Hold presentation and controller logic  Store state  example: authenticated user information  Execute Java routines when, for example, a user clicks a button  Define handler for Event Listeners  Add any code needed by UI  Are optionally created or used  Backing beans: Are a specialized type of managed beans that:  contain accessors for UI components  Have a one-to-one relationship with a page  Note: ADF BC applications define business logic mainly in the model layer, not the UI layer

JSF Functionality: JSF Life Cycle  Java Server Faces (JSF): Tech-Stack / Architecture Functionalities / Concepts (4) A basic JSF application consists of:  JSF UI Components  Server-side component Tag Libraries  Render Kits  Renderers  Navigation using JSF Controller  Managed and Backing Beans Life Cycle and Helper Objects Features  ADF Faces (extends JSF): Tech-Stack / Architecture Functionalities / Concepts (23+)  ADF Rich UI Components  Navigation using ADF Controller  Managed and Backing Bean  Life Cycle and Helper Objects Features

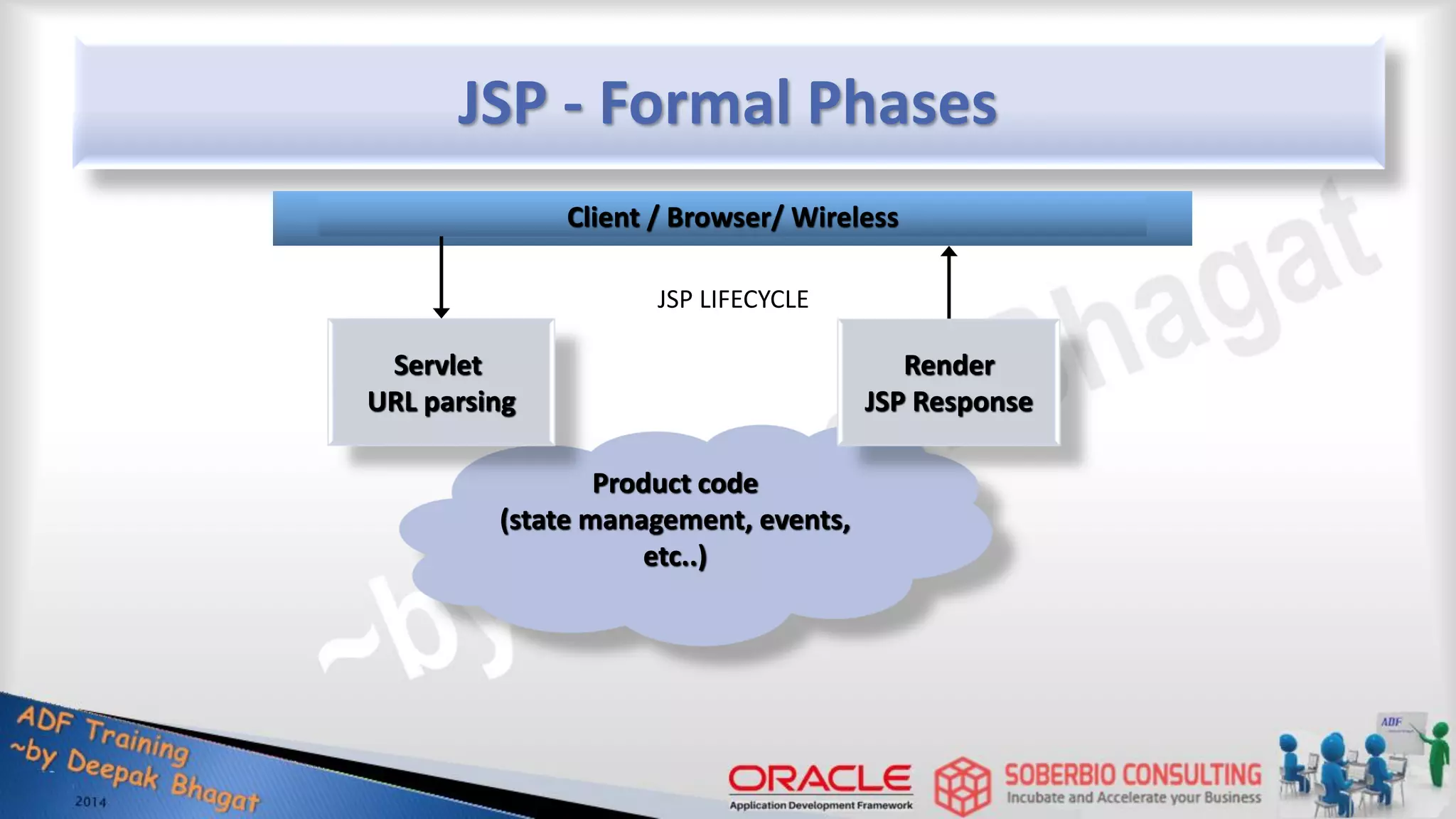

Product code (state management, events, etc..) JSP LIFECYCLE JSP - Formal Phases Servlet URL parsing Client / Browser/ Wireless Render JSP Response

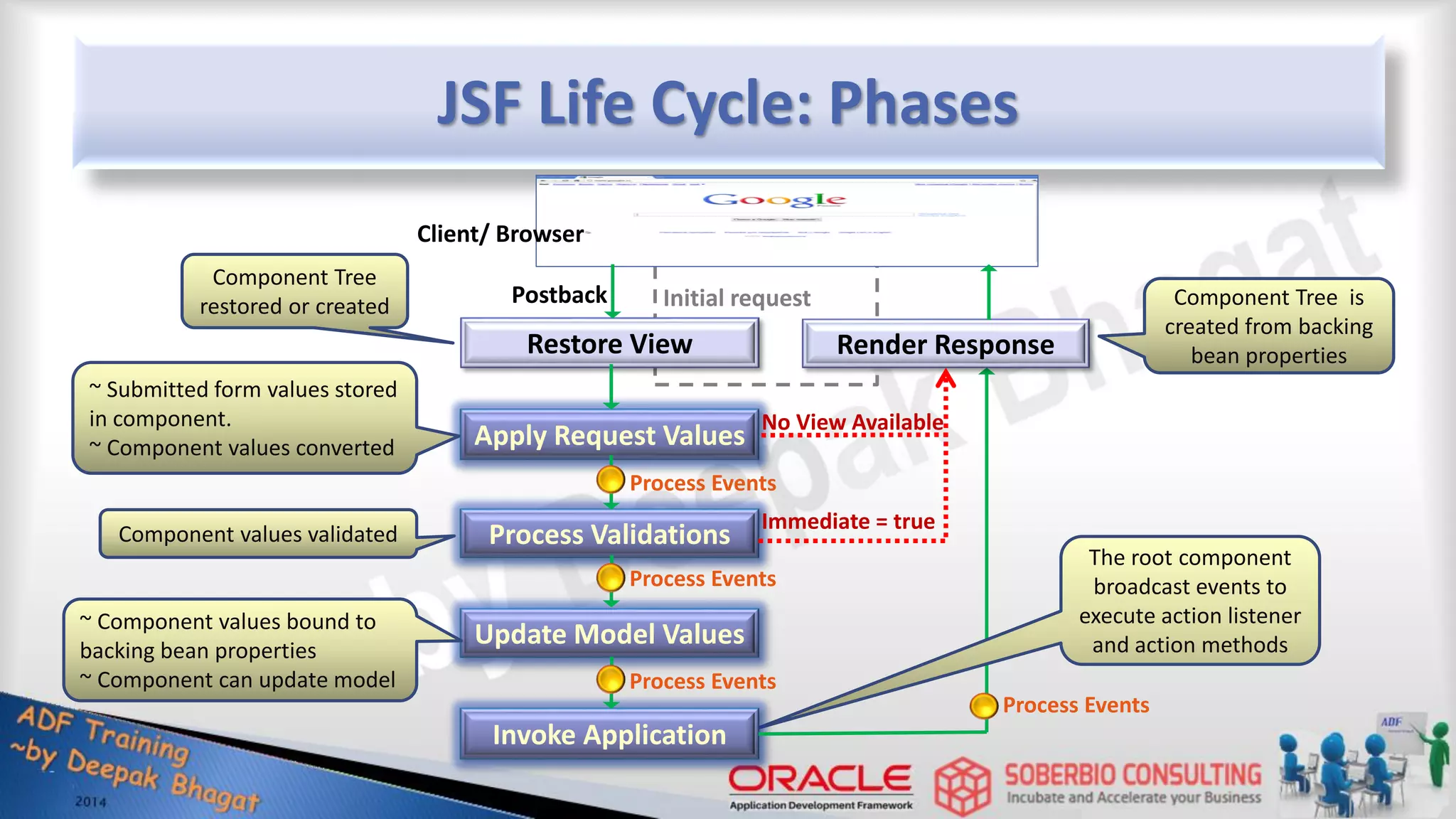

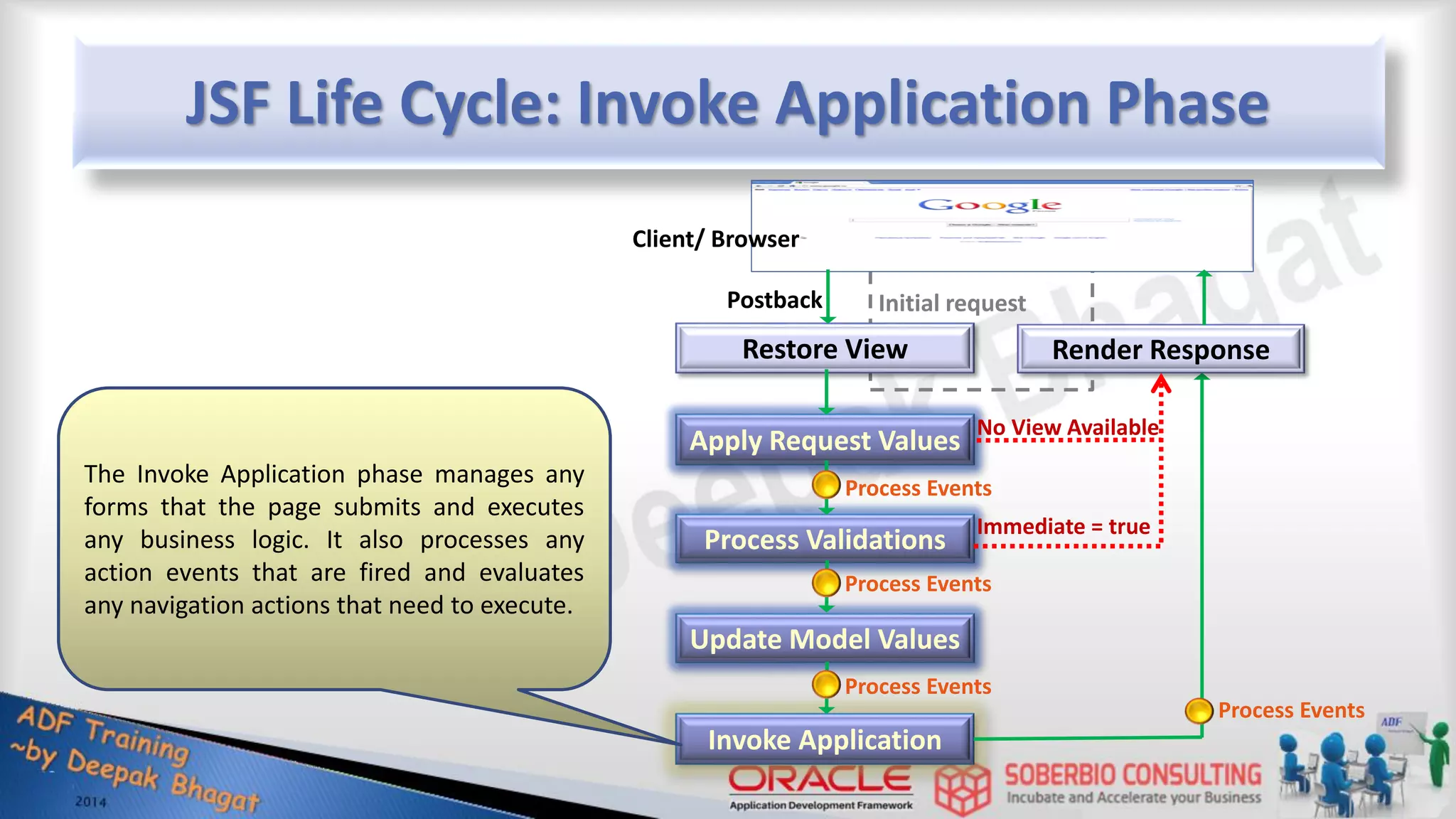

The root component broadcast events to execute action listener and action methods JSF Life Cycle: Phases Restore View Render Response Apply Request Values Update Model Values Invoke Application Process Validations Initial request Postback Client/ Browser Process Events Process Events Process Events Process Events No View Available Immediate = true Component Tree restored or created ~ Submitted form values stored in component. ~ Component values converted Component values validated ~ Component values bound to backing bean properties ~ Component can update model Component Tree is created from backing bean properties

JSF Life Cycle: Overview Life Cycle and Helper Objects:  Request processing is managed by FacesServlet, which creates the FacesContext object  When a client makes a request for the page, the life cycle starts  During the life cycle, JSF implementation builds the view (tree of UI components) while considering the state saved from the previous postback  When the client performs a postback of the page, JSF implementation must perform life-cycle steps:  Conversion  Validation

Features of JSF  Java Server Faces (JSF): Tech-Stack / Architecture Functionalities / Concepts (4)  JSF UI Components  Server-side component Tag Libraries  Render Kits  Renderers  Navigation using JSF Controller  Managed and Backing Beans  Life Cycle and Helper Objects Features  ADF Faces (extends JSF): Tech-Stack / Architecture Functionalities / Concepts (23+)  ADF Rich UI Components  Navigation using ADF Controller  Managed and Backing Bean  Life Cycle and Helper Objects Features

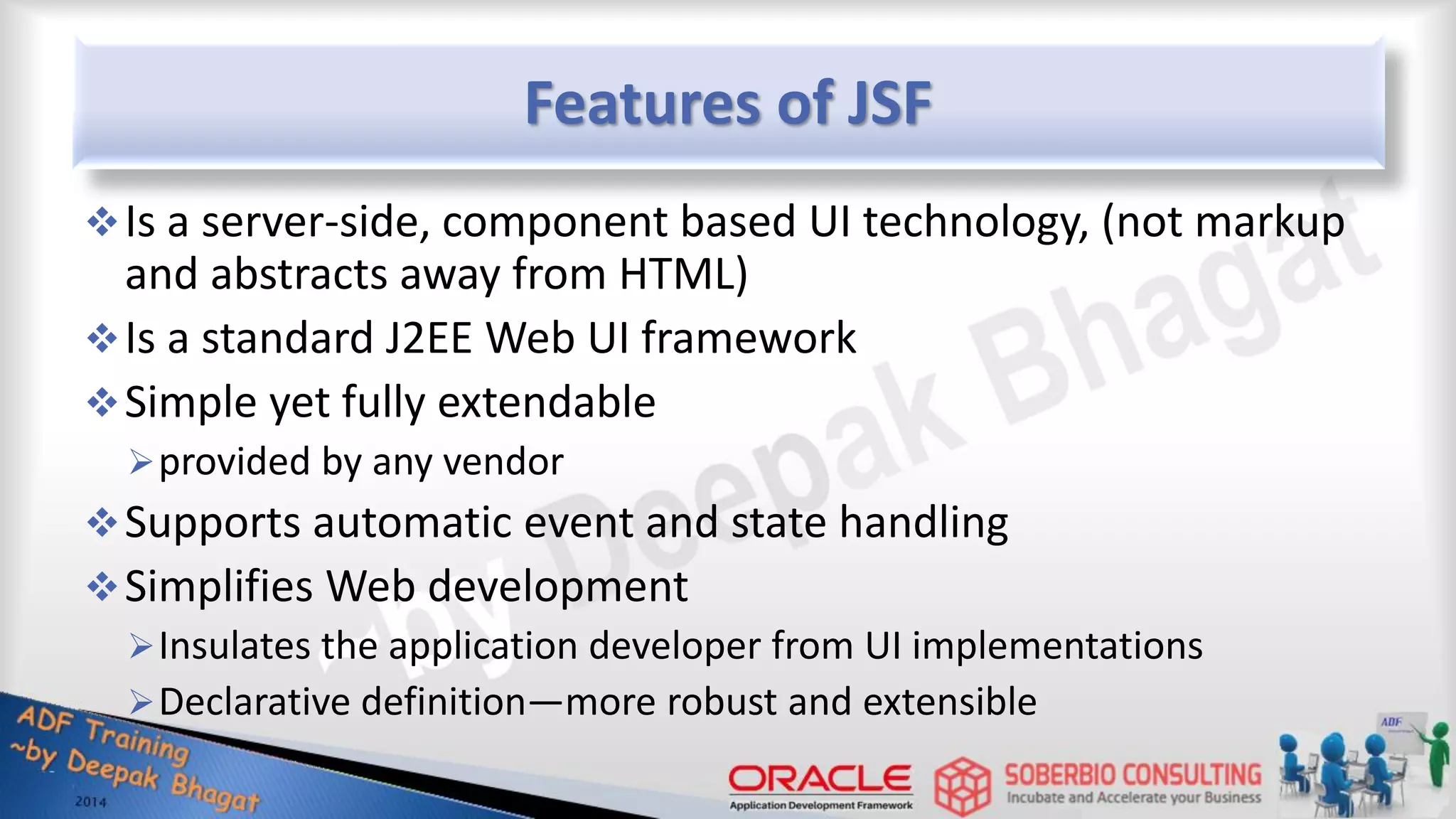

Features of JSF Is a server-side, component based UI technology, (not markup and abstracts away from HTML) Is a standard J2EE Web UI framework Simple yet fully extendable provided by any vendor Supports automatic event and state handling Simplifies Web development Insulates the application developer from UI implementations Declarative definition—more robust and extensible

Features of JSF cont.… Choice of UI technology Scale up (rich clients) Scale down (mobile devices) Has a diverse client base (not just HTML) Clear separation of presentation and behavior Supports existing views and controllers Designed to be leveraged by tools

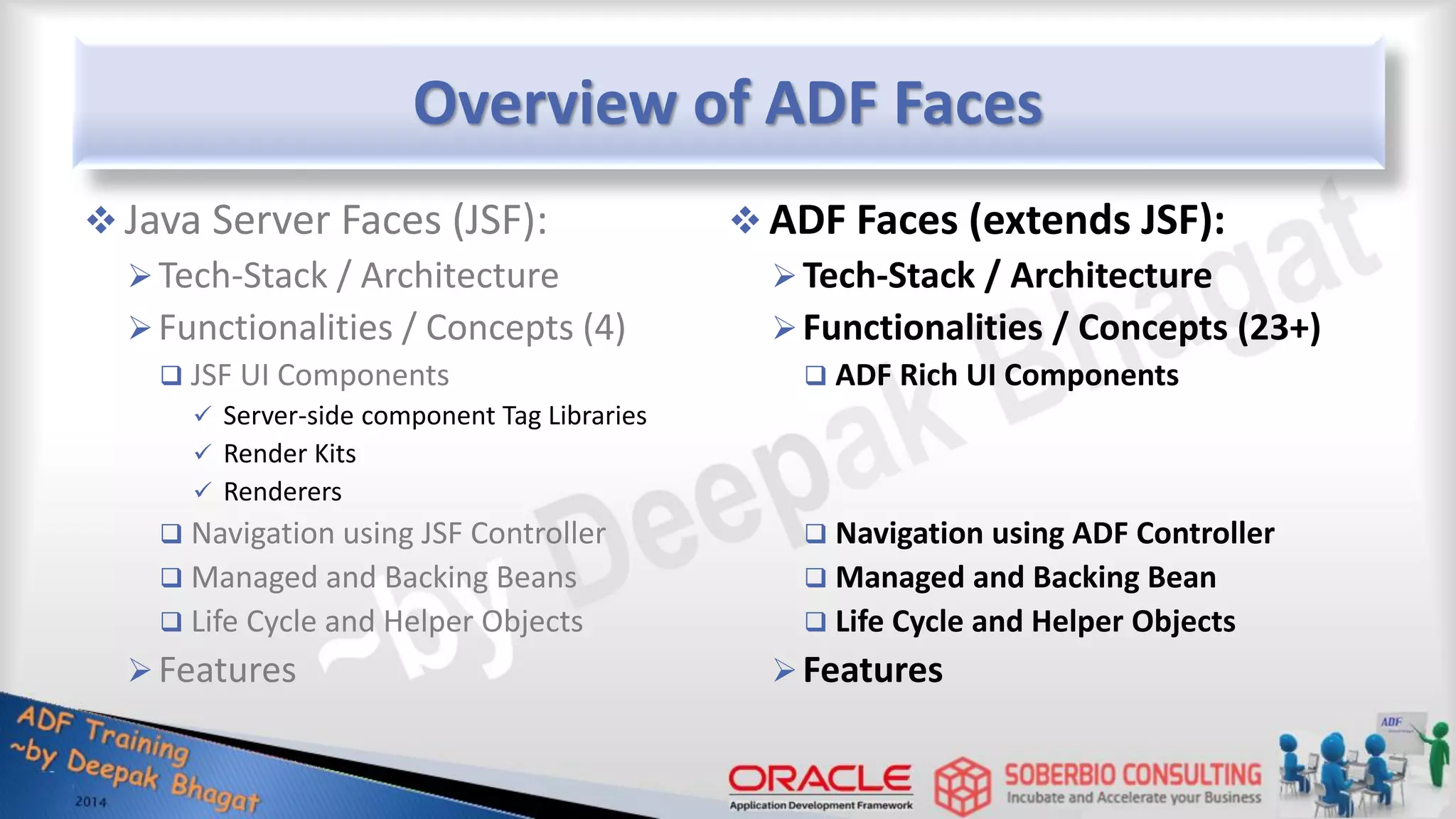

Overview of Java Server Faces and ADF Faces  Java Server Faces (JSF): Tech-Stack / Architecture Functionalities / Concepts (4)  JSF UI Components  Server-side component Tag Libraries  Render Kits  Renderers  Navigation using JSF Controller  Managed and Backing Beans  Life Cycle and Helper Objects Features  ADF Faces (extends JSF): Tech-Stack / Architecture Functionalities / Concepts (23+)  ADF Rich UI Components  Navigation using ADF Controller  Managed and Backing Bean  Life Cycle and Helper Objects Features

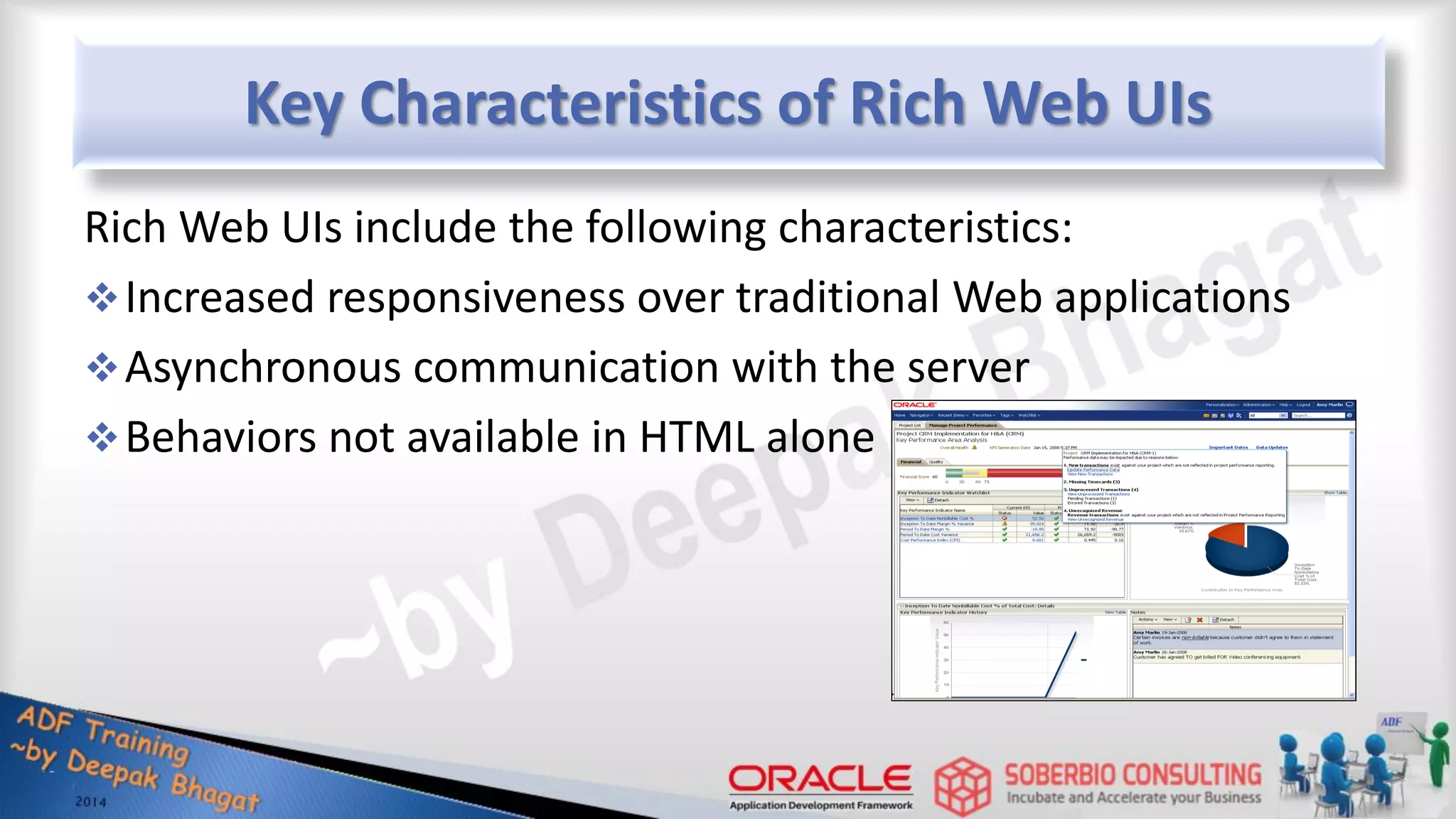

Key Characteristics of Rich Web UIs Rich Web UIs include the following characteristics: Increased responsiveness over traditional Web applications Asynchronous communication with the server Behaviors not available in HTML alone

Overview of ADF Faces  Java Server Faces (JSF): Tech-Stack / Architecture Functionalities / Concepts (4)  JSF UI Components  Server-side component Tag Libraries  Render Kits  Renderers  Navigation using JSF Controller  Managed and Backing Beans  Life Cycle and Helper Objects Features  ADF Faces (extends JSF): Tech-Stack / Architecture Functionalities / Concepts (23+)  ADF Rich UI Components  Navigation using ADF Controller  Managed and Backing Bean  Life Cycle and Helper Objects Features

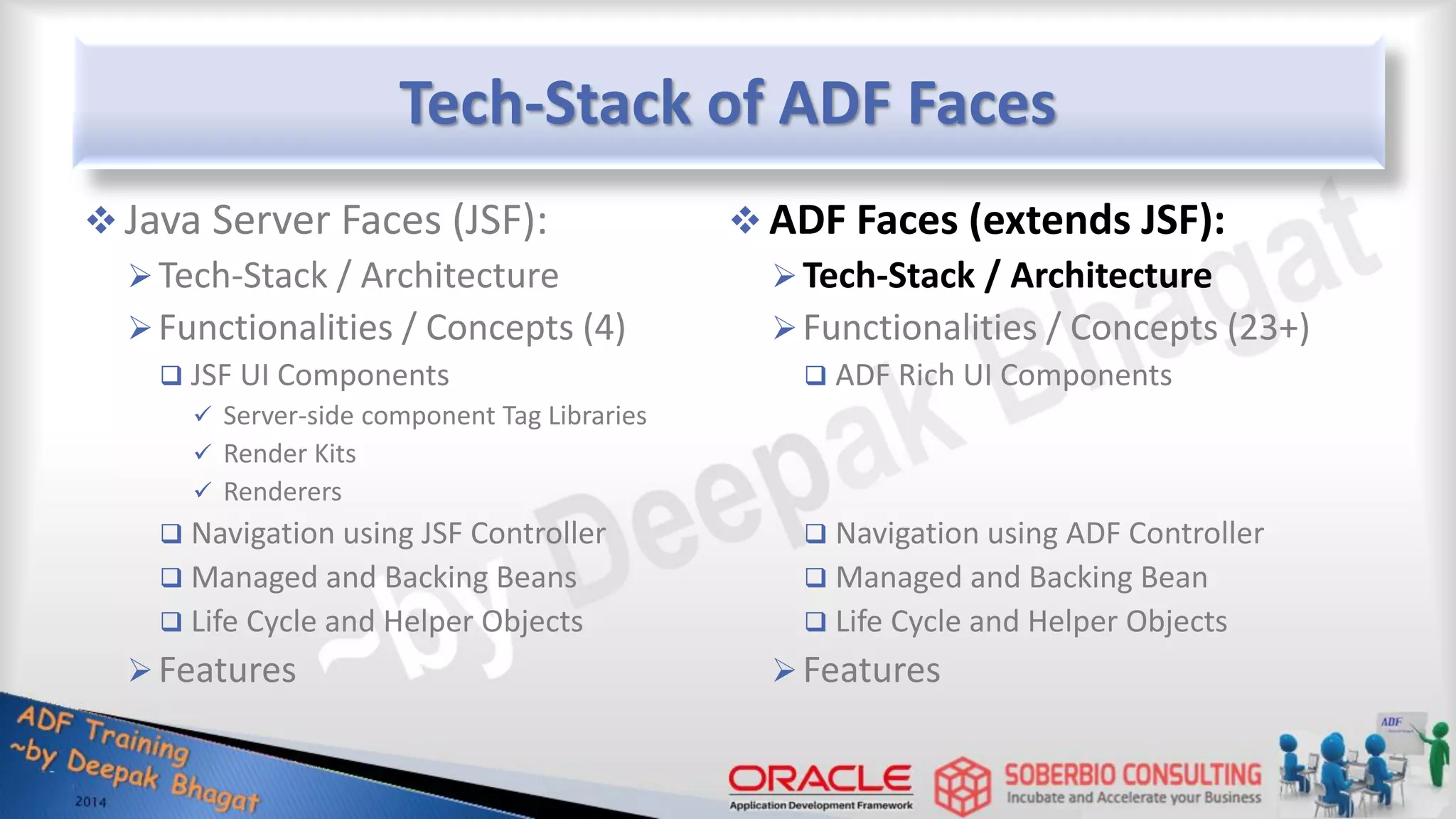

Tech-Stack of ADF Faces  Java Server Faces (JSF): Tech-Stack / Architecture Functionalities / Concepts (4)  JSF UI Components  Server-side component Tag Libraries  Render Kits  Renderers  Navigation using JSF Controller  Managed and Backing Beans  Life Cycle and Helper Objects Features  ADF Faces (extends JSF): Tech-Stack / Architecture Functionalities / Concepts (23+)  ADF Rich UI Components  Navigation using ADF Controller  Managed and Backing Bean  Life Cycle and Helper Objects Features

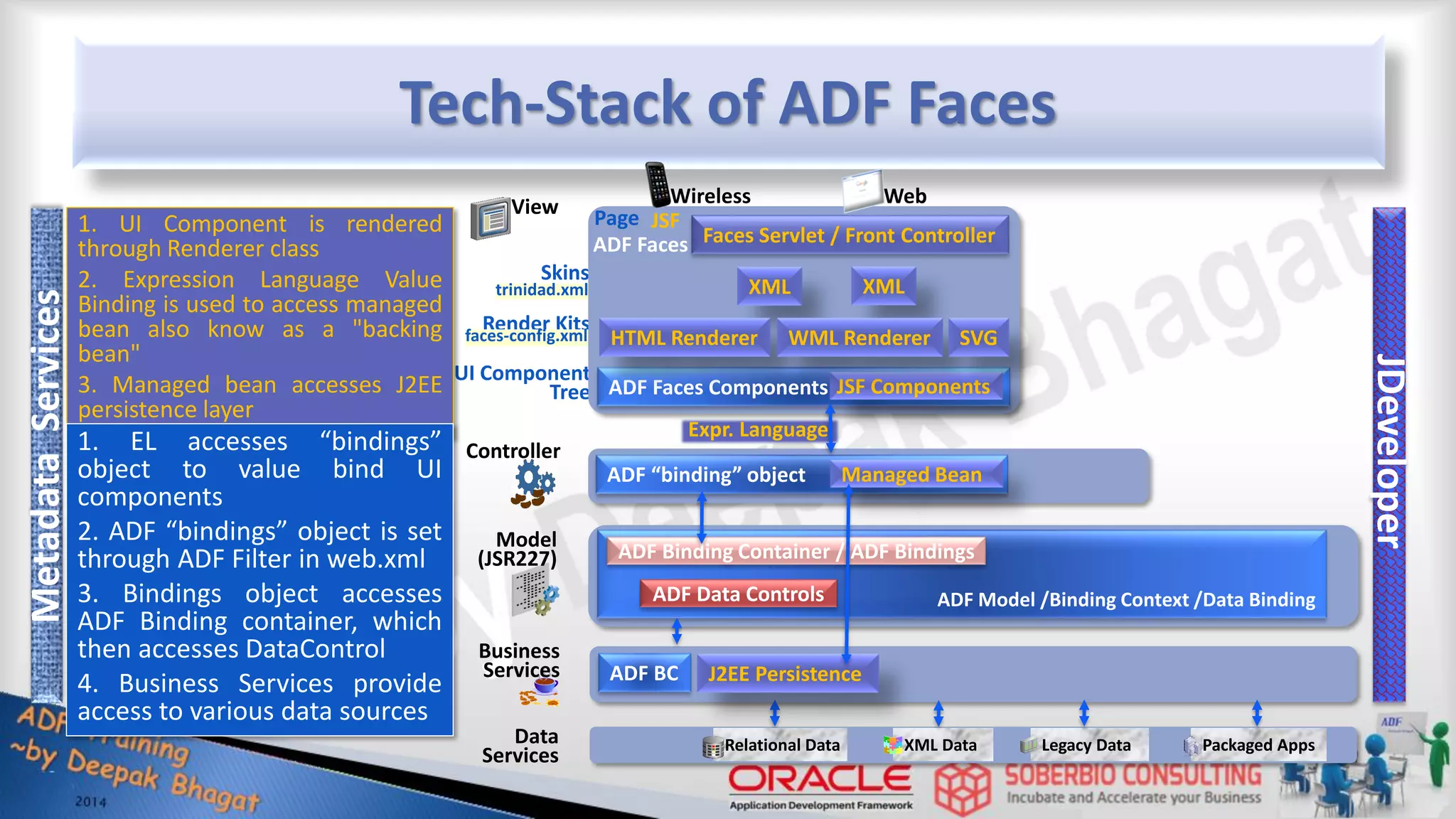

Skins Render Kits UI Component Tree 1. UI Component is rendered through Renderer class 2. Expression Language Value Binding is used to access managed bean also know as a "backing bean" 3. Managed bean accesses J2EE persistence layer faces-config.xml trinidad.xml 1. EL accesses “bindings” object to value bind UI components 2. ADF “bindings” object is set through ADF Filter in web.xml 3. Bindings object accesses ADF Binding container, which then accesses DataControl 4. Business Services provide access to various data sources ADF Model /Binding Context /Data Binding Tech-Stack of ADF Faces View Controller Business Services ADF Faces Components ADF “binding” object ADF BC JSF Components Web Relational Data XML Data Legacy Data Packaged Apps ADF Binding Container / ADF Bindings ADF Data Controls Data Services Wireless Faces Servlet / Front Controller XML XML HTML Renderer WML Renderer SVG Model (JSR227) Metadata Services JDeveloper Managed Bean ADF Faces Expr. Language J2EE Persistence JSF Page

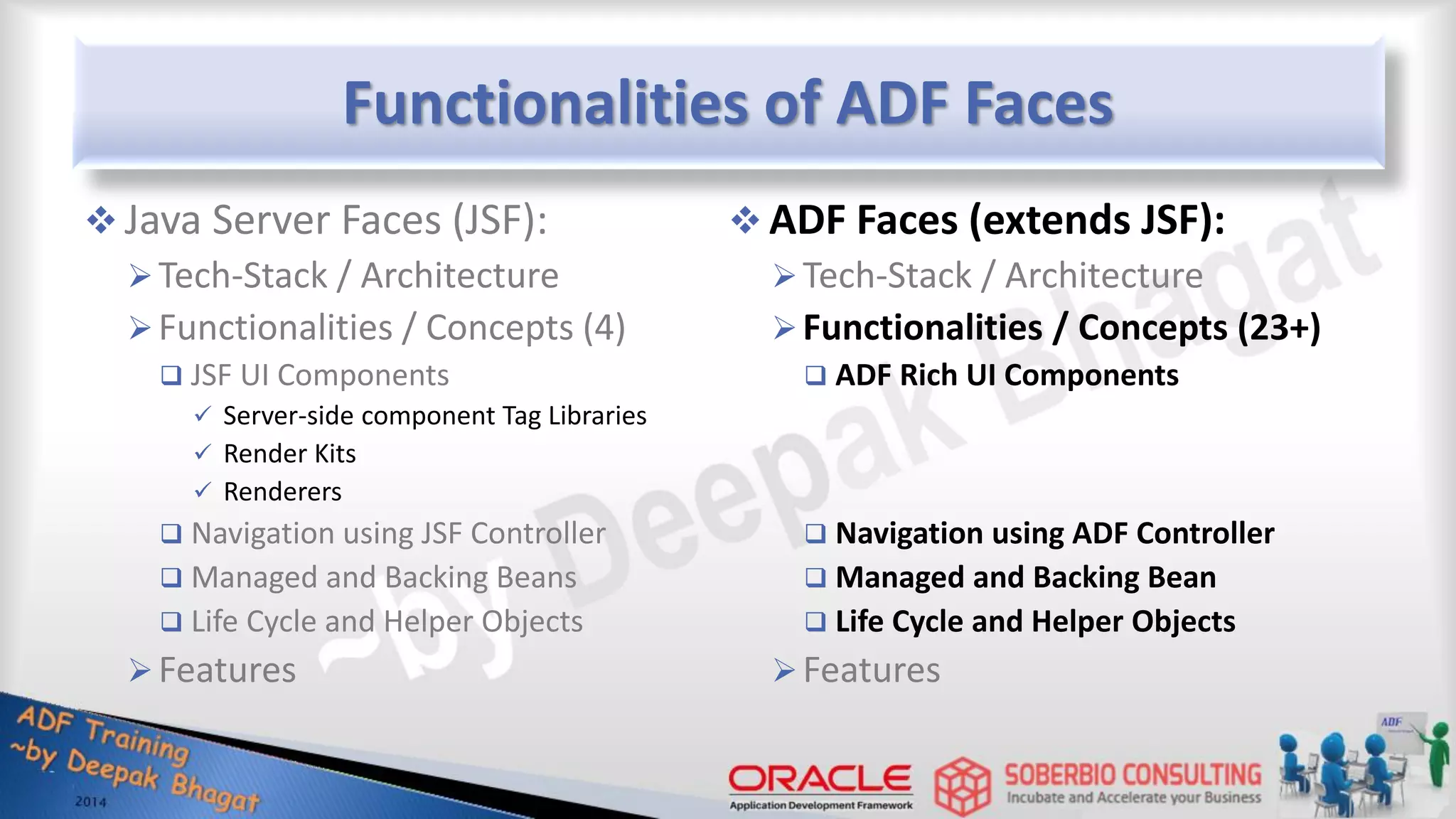

Functionalities of ADF Faces  Java Server Faces (JSF): Tech-Stack / Architecture Functionalities / Concepts (4)  JSF UI Components  Server-side component Tag Libraries  Render Kits  Renderers  Navigation using JSF Controller  Managed and Backing Beans  Life Cycle and Helper Objects Features  ADF Faces (extends JSF): Tech-Stack / Architecture Functionalities / Concepts (23+)  ADF Rich UI Components  Navigation using ADF Controller  Managed and Backing Bean  Life Cycle and Helper Objects Features

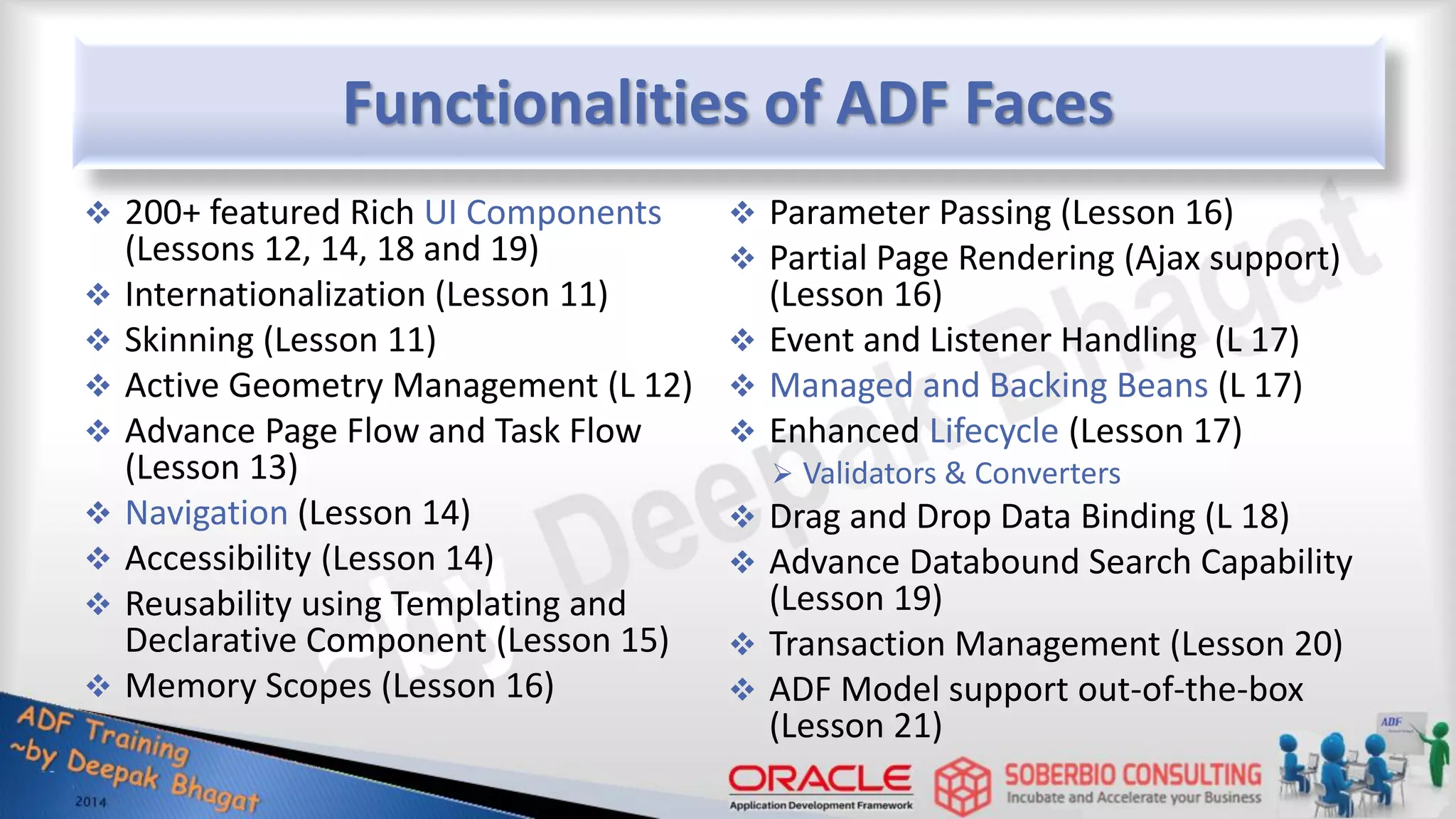

Functionalities of ADF Faces  200+ featured Rich UI Components (Lessons 12, 14, 18 and 19)  Internationalization (Lesson 11)  Skinning (Lesson 11)  Active Geometry Management (L 12)  Advance Page Flow and Task Flow (Lesson 13)  Navigation (Lesson 14)  Accessibility (Lesson 14)  Reusability using Templating and Declarative Component (Lesson 15)  Memory Scopes (Lesson 16)  Parameter Passing (Lesson 16)  Partial Page Rendering (Ajax support) (Lesson 16)  Event and Listener Handling (L 17)  Managed and Backing Beans (L 17)  Enhanced Lifecycle (Lesson 17)  Validators & Converters  Drag and Drop Data Binding (L 18)  Advance Databound Search Capability (Lesson 19)  Transaction Management (Lesson 20)  ADF Model support out-of-the-box (Lesson 21)

ADF Faces Functionality: ADF Faces Components  Java Server Faces (JSF): Tech-Stack / Architecture Functionalities / Concepts (4)  JSF UI Components  Server-side component Tag Libraries  Render Kits  Renderers  Navigation using JSF Controller  Managed and Backing Beans  Life Cycle and Helper Objects Features  ADF Faces (extends JSF): Tech-Stack / Architecture Functionalities / Concepts (23+)  ADF Rich UI Components  Navigation using ADF Controller  Managed and Backing Bean  Life Cycle and Helper Objects Features

ADF Faces Functionality: ADF Faces Components  Layout Components: (L 12)  Headers, Layout, Grouping, Spacing, etc..  Navigation Control Components: (L14)  Button, Link, Train, Navigation, etc..  Menu and Toolbar explorer-type containers: (L 14)  Menu, Toolbar, Toolbox, etc..  Secondary Windows Layout: (L 14)  Popup, Dialog, Window, etc.  Text and Selection Components: (L18)  Output, Input, LOV, etc..  Data Views: (L 18)  Table, Tree, List, Carousel, Calendar, etc.  Advance Data Visualization Components (L 18)  Chart, Graph, Gauge, NBox, Pivot Table, Map, Gantt, Timeline, Hierarchy Viewer, Sunburst, Diagram, etc..  Data Query Components (L 19)  Query and Quick Query ADF Faces components generally fall into the following categories:

ADF Faces Components cont.…  Layout Components: (Lesson 12)  Core Structure and Page Management Components  Document, Form, Inline Frame, Template and Facet Definition  Interactive Containers (Show/Hide Capabilities) and Headers Components  Panel Accordion, Panel Tabbed, Panel Drawer, Panel Springboard, Panel Box, Panel Header, Show Detail Header, Show Detail and Show Detail Item  Page Layout Containers  Panel Grid, Panel Stretch Layout, Panel Splitter Layout, Masonry Layout, Panel Border Layout, Panel Form Layout, Panel Dashboard and Panel Collection  Grouping Containers  Panel Group Layout and Group  Spacing Components  Spacer and Separator  Miscellaneous Containers  Deck, Decorative Box, Panel List, Grid Cell and Grid Row

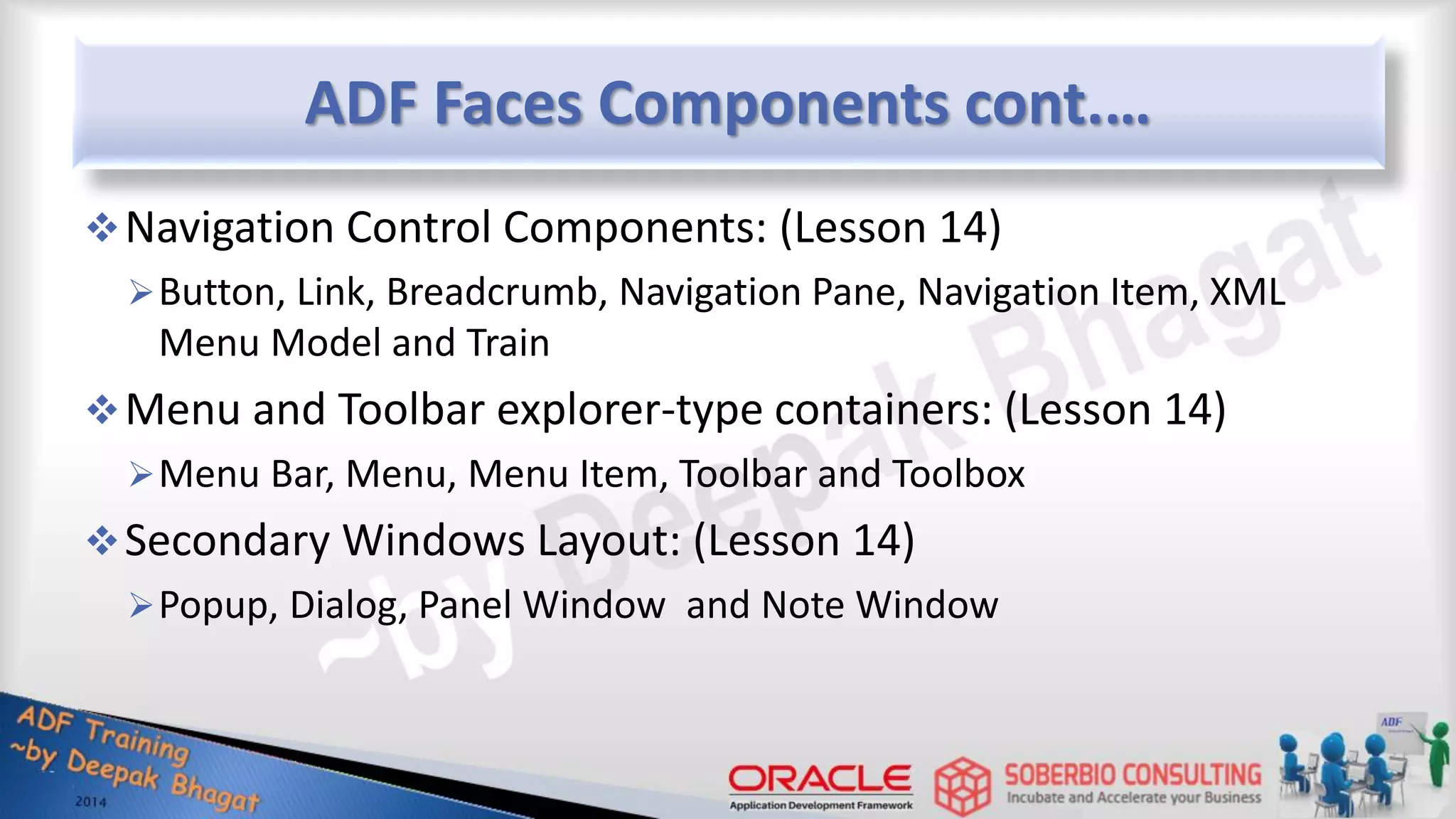

ADF Faces Components cont.… Navigation Control Components: (Lesson 14) Button, Link, Breadcrumb, Navigation Pane, Navigation Item, XML Menu Model and Train Menu and Toolbar explorer-type containers: (Lesson 14) Menu Bar, Menu, Menu Item, Toolbar and Toolbox Secondary Windows Layout: (Lesson 14) Popup, Dialog, Panel Window and Note Window

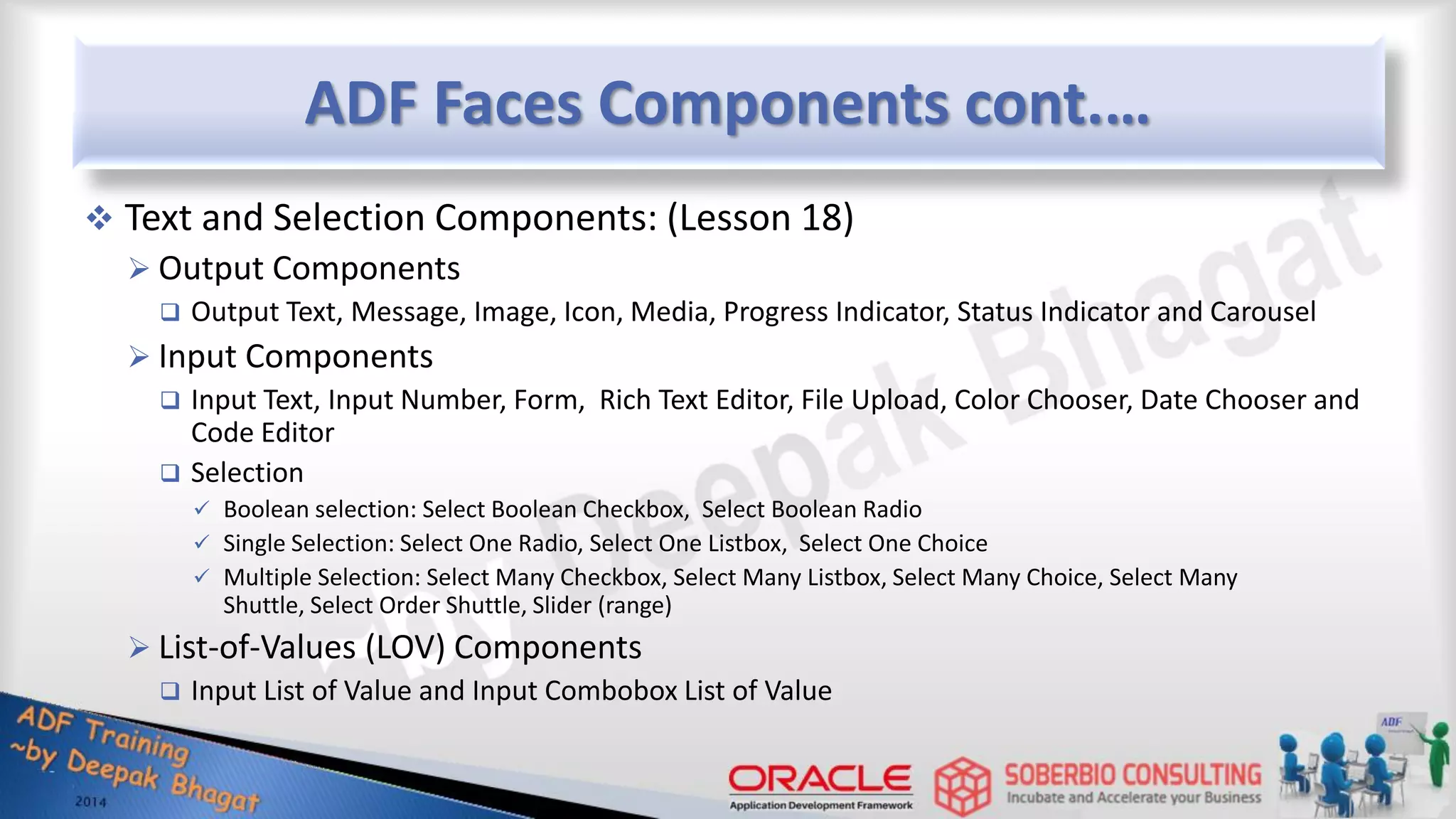

ADF Faces Components cont.…  Text and Selection Components: (Lesson 18)  Output Components  Output Text, Message, Image, Icon, Media, Progress Indicator, Status Indicator and Carousel  Input Components  Input Text, Input Number, Form, Rich Text Editor, File Upload, Color Chooser, Date Chooser and Code Editor  Selection  Boolean selection: Select Boolean Checkbox, Select Boolean Radio  Single Selection: Select One Radio, Select One Listbox, Select One Choice  Multiple Selection: Select Many Checkbox, Select Many Listbox, Select Many Choice, Select Many Shuttle, Select Order Shuttle, Slider (range)  List-of-Values (LOV) Components  Input List of Value and Input Combobox List of Value

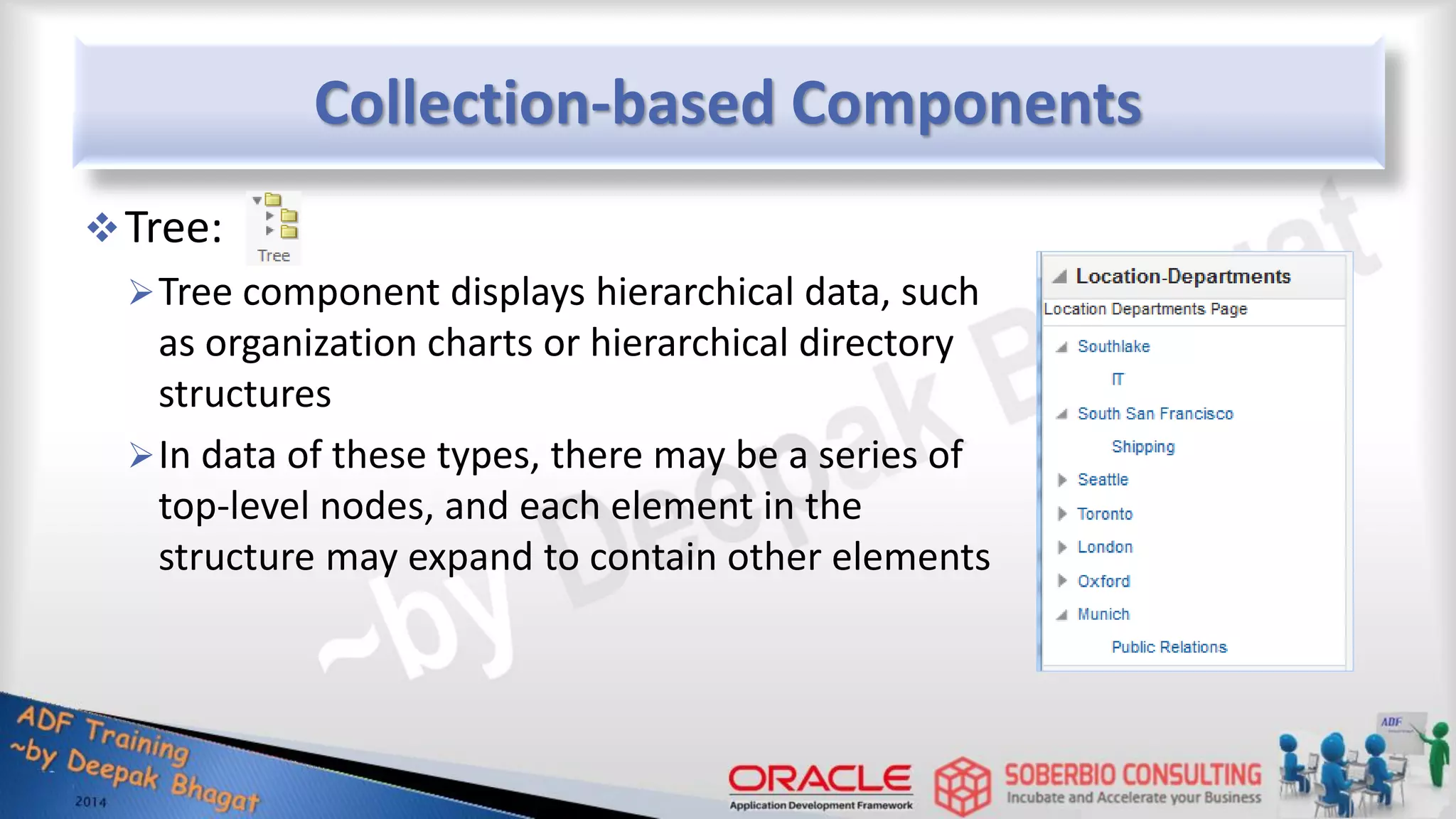

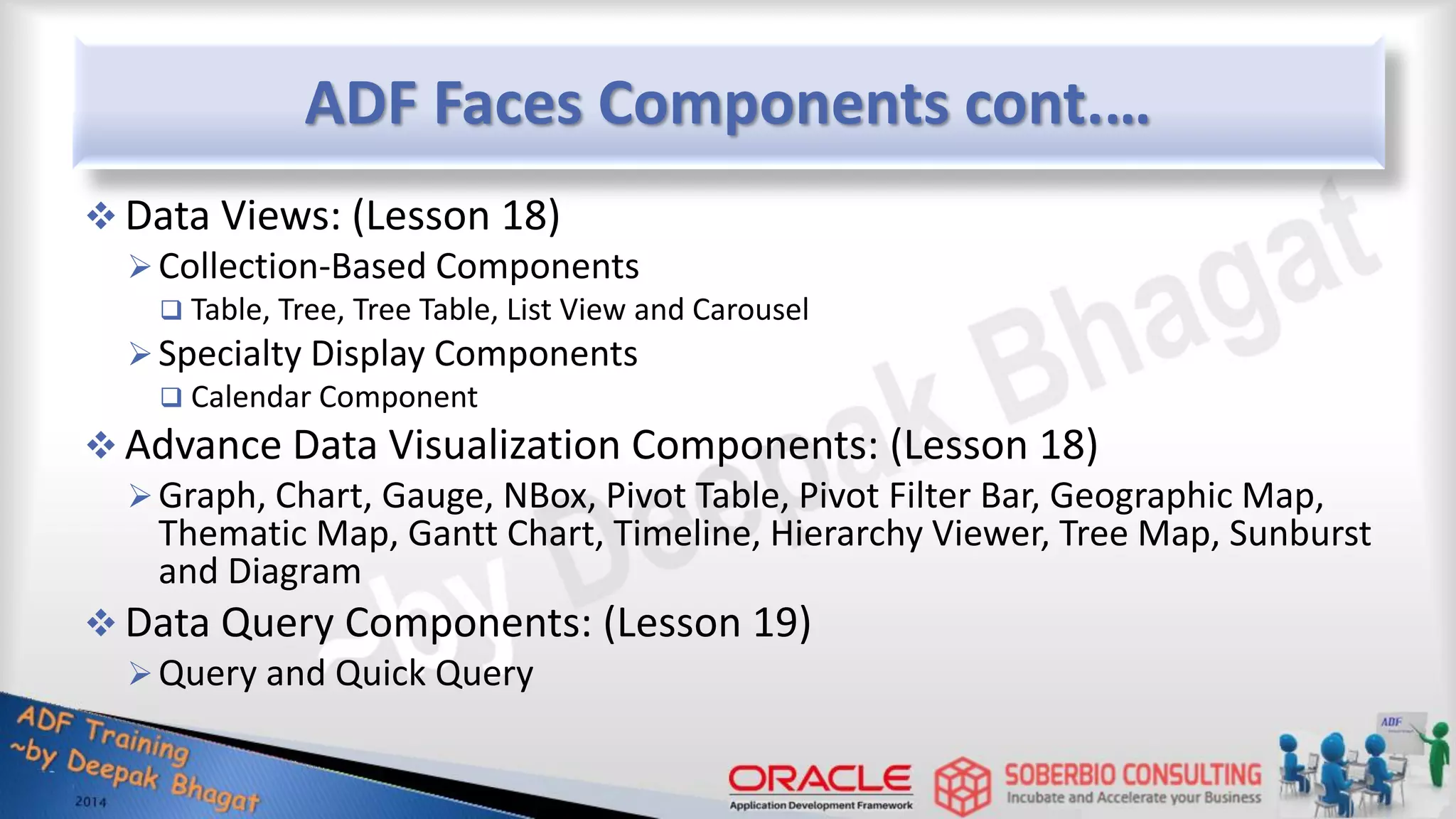

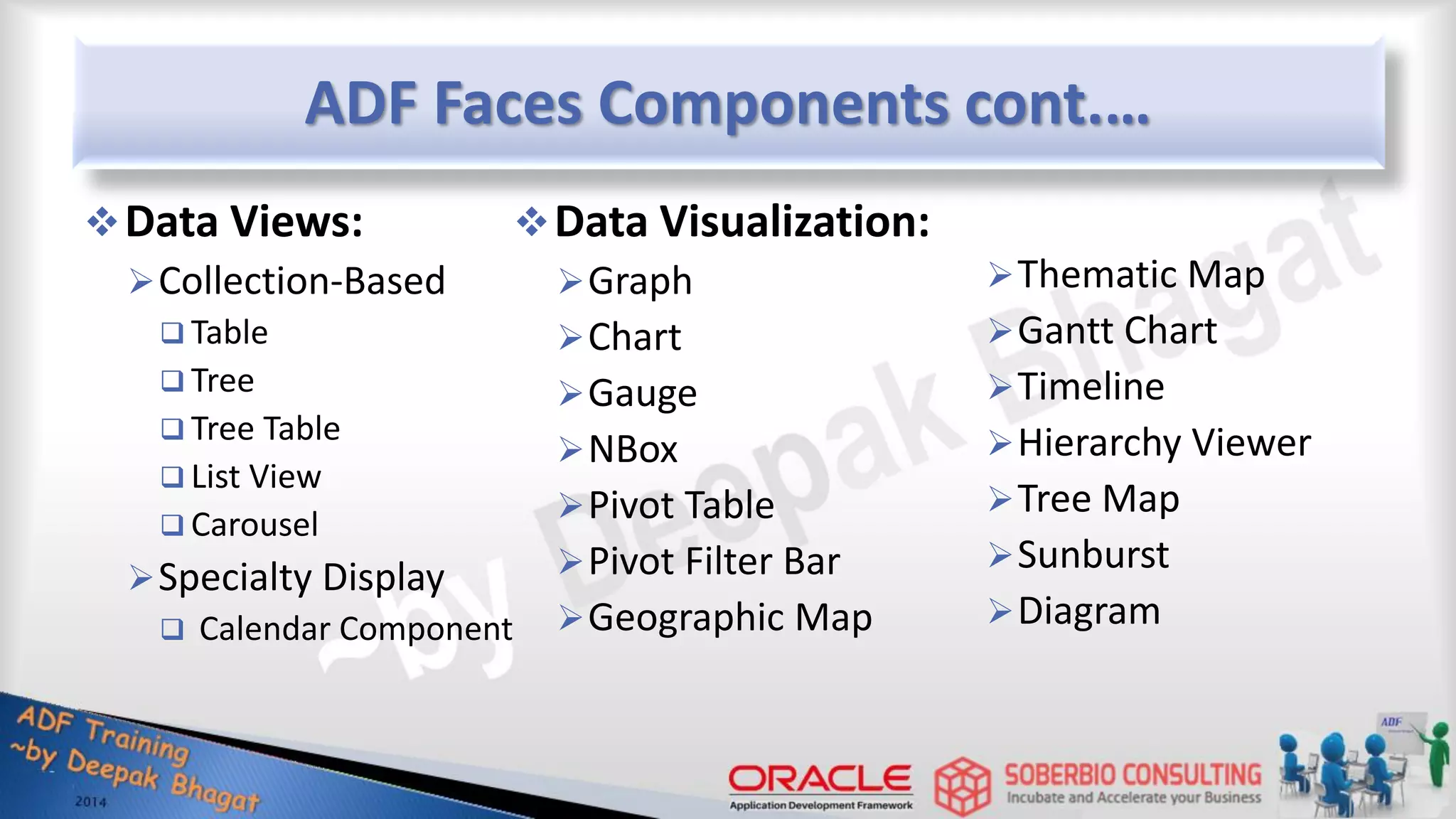

ADF Faces Components cont.…  Data Views: (Lesson 18) Collection-Based Components  Table, Tree, Tree Table, List View and Carousel Specialty Display Components  Calendar Component  Advance Data Visualization Components: (Lesson 18) Graph, Chart, Gauge, NBox, Pivot Table, Pivot Filter Bar, Geographic Map, Thematic Map, Gantt Chart, Timeline, Hierarchy Viewer, Tree Map, Sunburst and Diagram  Data Query Components: (Lesson 19) Query and Quick Query

ADF Faces Rich Components Demo ADF Faces Rich Client (UI Components) Demo: https://docs.oracle.com/middleware/1221/adf/develop-faces/GUID- EE22FD96-2723-4F07-95A9-04931E42C365.htm

ADF Functionality: Navigation using ADF Controller  Java Server Faces (JSF): Tech-Stack / Architecture Functionalities / Concepts (4)  JSF UI Components  Server-side component Tag Libraries  Render Kits  Renderers  Navigation using JSF Controller  Managed and Backing Beans  Life Cycle and Helper Objects Features  ADF Faces (extends JSF): Tech-Stack / Architecture Functionalities / Concepts (23+)  ADF Rich UI Components  Navigation using ADF Controller  Managed and Backing Bean  Life Cycle and Helper Objects Features

ADF Functionality: Navigation using ADF Controller  Is built on top of the JSF navigation model  Handles page flow  Promotes page reuse through abstraction  Increases flexibility and manageability  Is the place for code execution, such as programmatic interaction with the model and business service  Supports application tasks  Input validation  State management  Security  Declarative transaction control  Provides declarative Back button control

ADF Faces Functionality: ADF Life Cycle  Java Server Faces (JSF): Tech-Stack / Architecture Functionalities / Concepts (4)  JSF UI Components  Server-side component Tag Libraries  Render Kits  Renderers  Navigation using JSF Controller  Managed and Backing Beans  Life Cycle and Helper Objects Features  ADF Faces (extends JSF): Tech-Stack / Architecture Functionalities / Concepts (23+)  ADF Rich UI Components  Navigation using ADF Controller  Managed and Backing Bean (Lesson 16)  Life Cycle and Helper Objects Features

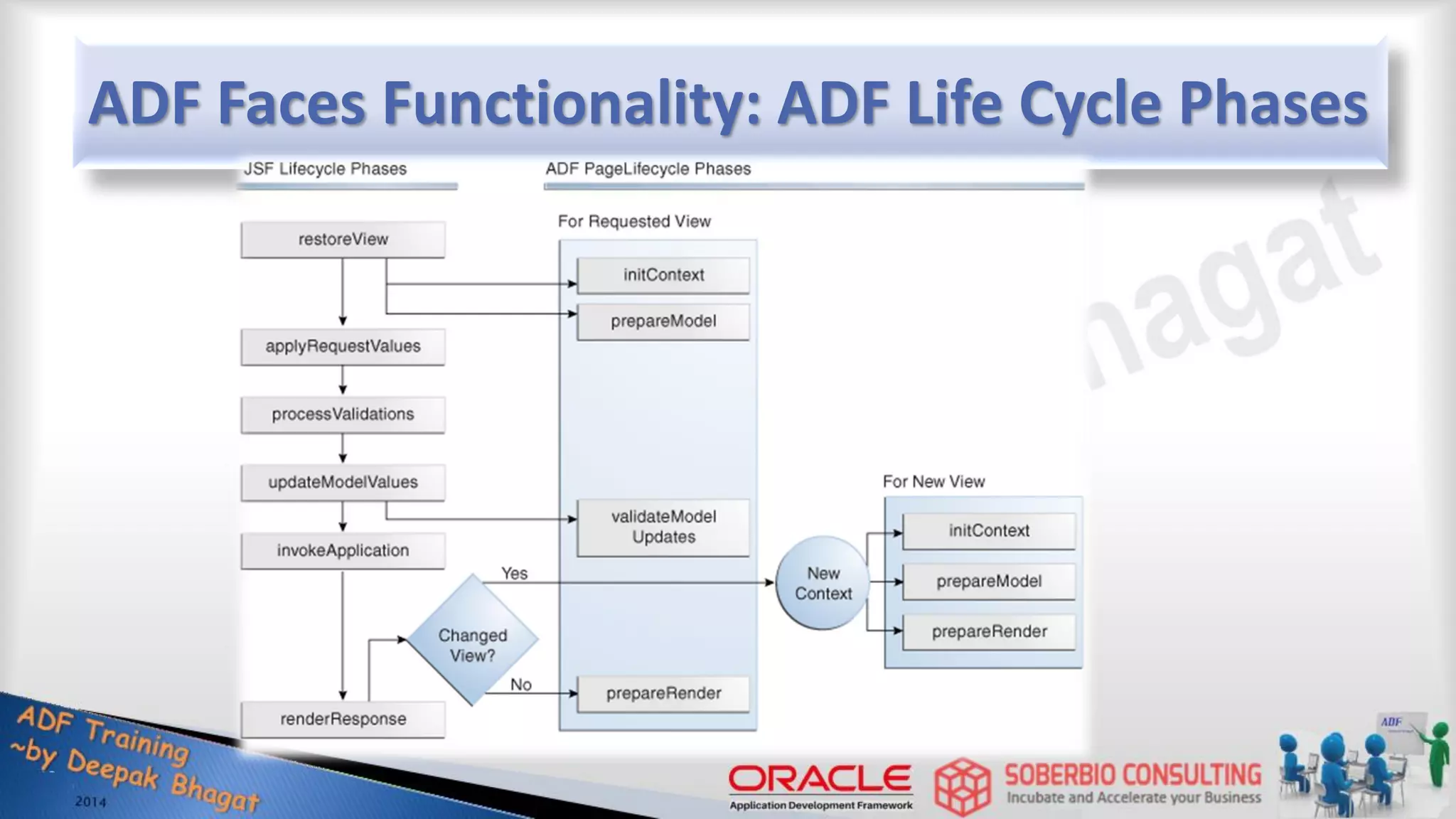

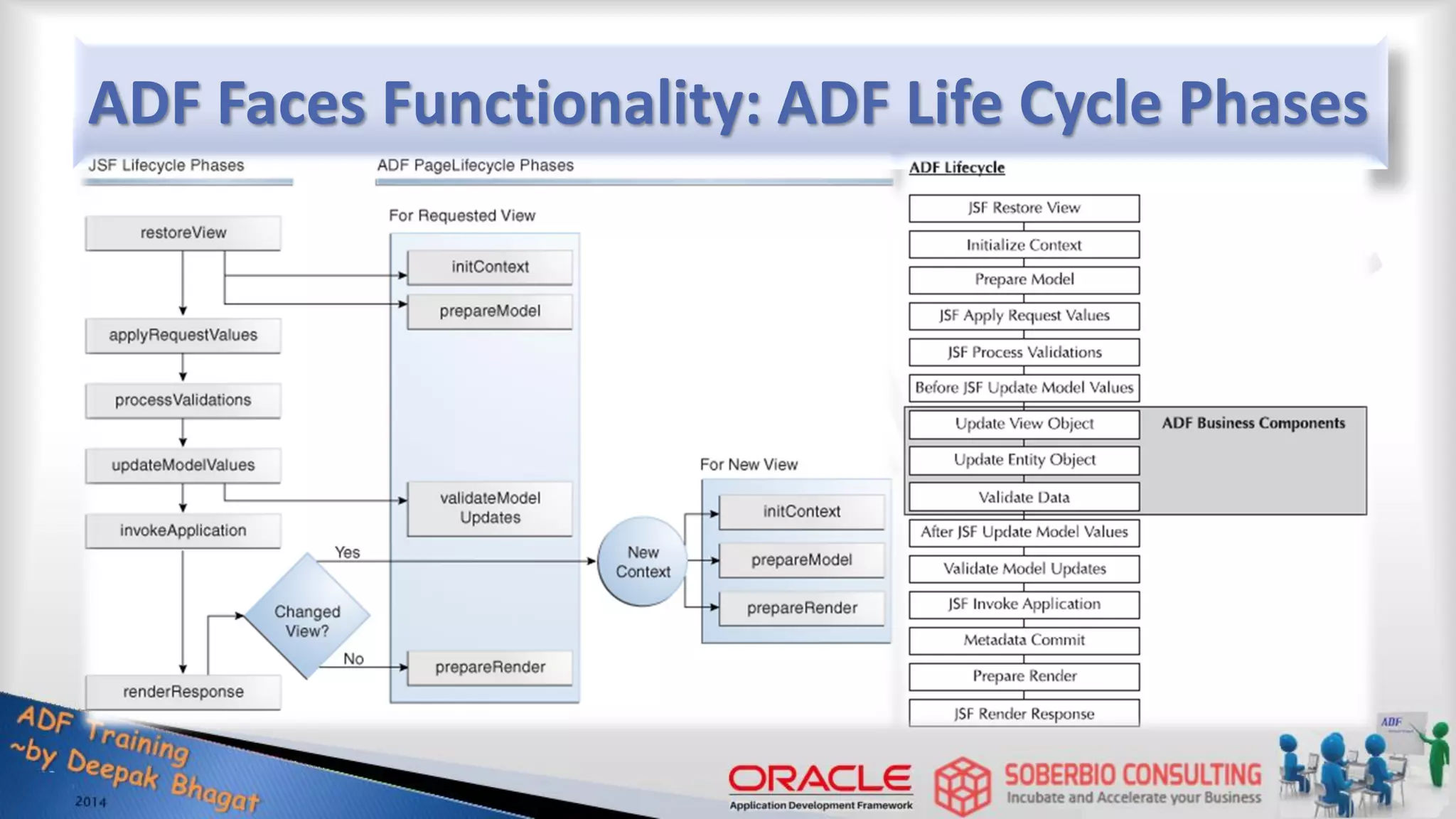

ADF Faces Functionality: ADF Life Cycle Phases

JSF and ADF Life Cycle Phases JSF Phases ADF Phases Events Restore View JSF Restore View before(JSF Restore View) after(JSF Restore View) Init Context before(Init Context) after(Init Context) Prepare Model before, after Apply Request Values JSF Apply Request Values before, after Process Validations JSF Process Validations before, after Update Model Values JSF Update Model Values before, after Validate Model Updates before, after Invoke Application JSF Invoke Application before, after Metadata Commit before, after Render Response JSF Render Response before, after Only after navigation Init Context before, after Only after navigation Prepare Model before, after Prepare Render before, after

Features of ADF Faces  Java Server Faces (JSF): Tech-Stack / Architecture Functionalities / Concepts (4)  JSF UI Components  Server-side component Tag Libraries  Render Kits  Renderers  Navigation using JSF Controller  Managed and Backing Beans  Life Cycle and Helper Objects Features  ADF Faces (extends JSF): Tech-Stack / Architecture Functionalities / Concepts (23+)  ADF Rich UI Components  Navigation using ADF Controller  Managed and Backing Bean  Life Cycle and Helper Objects Features

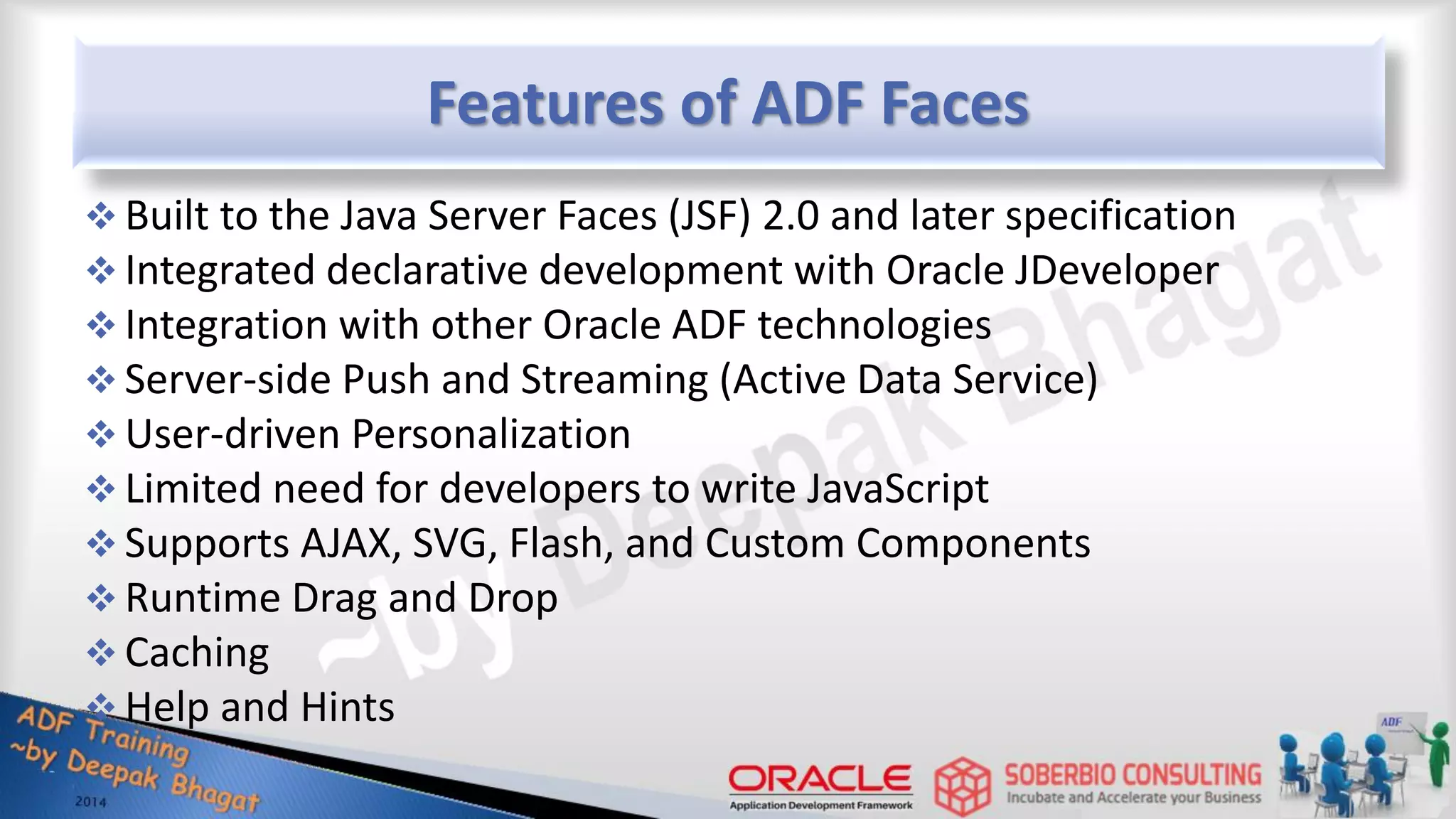

Features of ADF Faces  Built to the Java Server Faces (JSF) 2.0 and later specification  Integrated declarative development with Oracle JDeveloper  Integration with other Oracle ADF technologies  Server-side Push and Streaming (Active Data Service)  User-driven Personalization  Limited need for developers to write JavaScript  Supports AJAX, SVG, Flash, and Custom Components  Runtime Drag and Drop  Caching  Help and Hints

Lesson Summary  Evolution of web tier from HTML, Servlets, JSPs to JSF  Overview of Java Server Faces and it’s architecture  Discuss JSF UI components  Understand navigation  Describe the purpose of managed and backing beans  Explain the JSF life cycle  Introduce how ADF Faces augments the JSF  Overview of ADF Faces rich functionalities  Overview of ADF Faces rich components

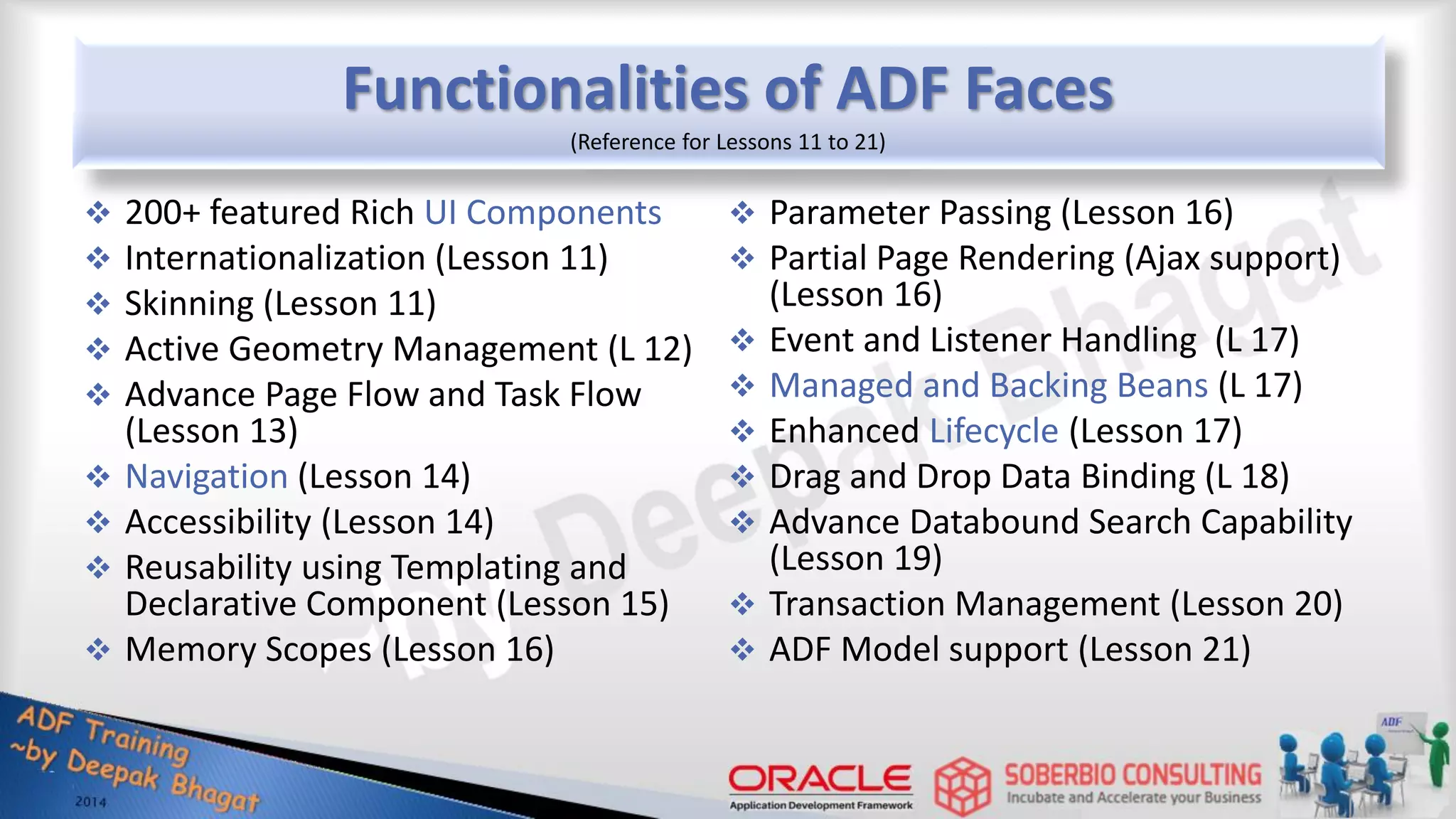

Functionalities of ADF Faces (Reference for Lessons 11 to 21)  200+ featured Rich UI Components  Internationalization (Lesson 11)  Skinning (Lesson 11)  Active Geometry Management (L 12)  Advance Page Flow and Task Flow (Lesson 13)  Navigation (Lesson 14)  Accessibility (Lesson 14)  Reusability using Templating and Declarative Component (Lesson 15)  Memory Scopes (Lesson 16)  Parameter Passing (Lesson 16)  Partial Page Rendering (Ajax support) (Lesson 16)  Event and Listener Handling (L 17)  Managed and Backing Beans (L 17)  Enhanced Lifecycle (Lesson 17)  Drag and Drop Data Binding (L 18)  Advance Databound Search Capability (Lesson 19)  Transaction Management (Lesson 20)  ADF Model support (Lesson 21)

ADF Faces Functionality: ADF Faces Components (Reference for Lessons 12, 14, 18 & 19)  Layout Components: (L 12)  Headers, Layout, Grouping, Spacing, etc..  Navigation Control Components: (L14)  Button, Link, Train, Navigation, etc..  Menu and Toolbar explorer-type containers: (L 14)  Menu, Toolbar, Toolbox, etc..  Secondary Windows Layout: (L 14)  Popup, Dialog, Window, etc.  Text and Selection Components: (L18)  Output, Input, LOV, etc..  Data Views: (L 18)  Table, Tree, List, Carousel, Calendar, etc.  Advance Data Visualization Components (L 18)  Chart, Graph, Gauge, NBox, Pivot Table, Map, Gantt, Timeline, Hierarchy Viewer, Sunburst, Diagram, etc..  Data Query Components (L 19)  Query and Quick Query

11 Getting Started with Rich User Interface

Lesson Agenda Examine configuration files Internationalizing the User Interface Changing look and feel using ADF Faces skins Ways to add components to the page Use of facets

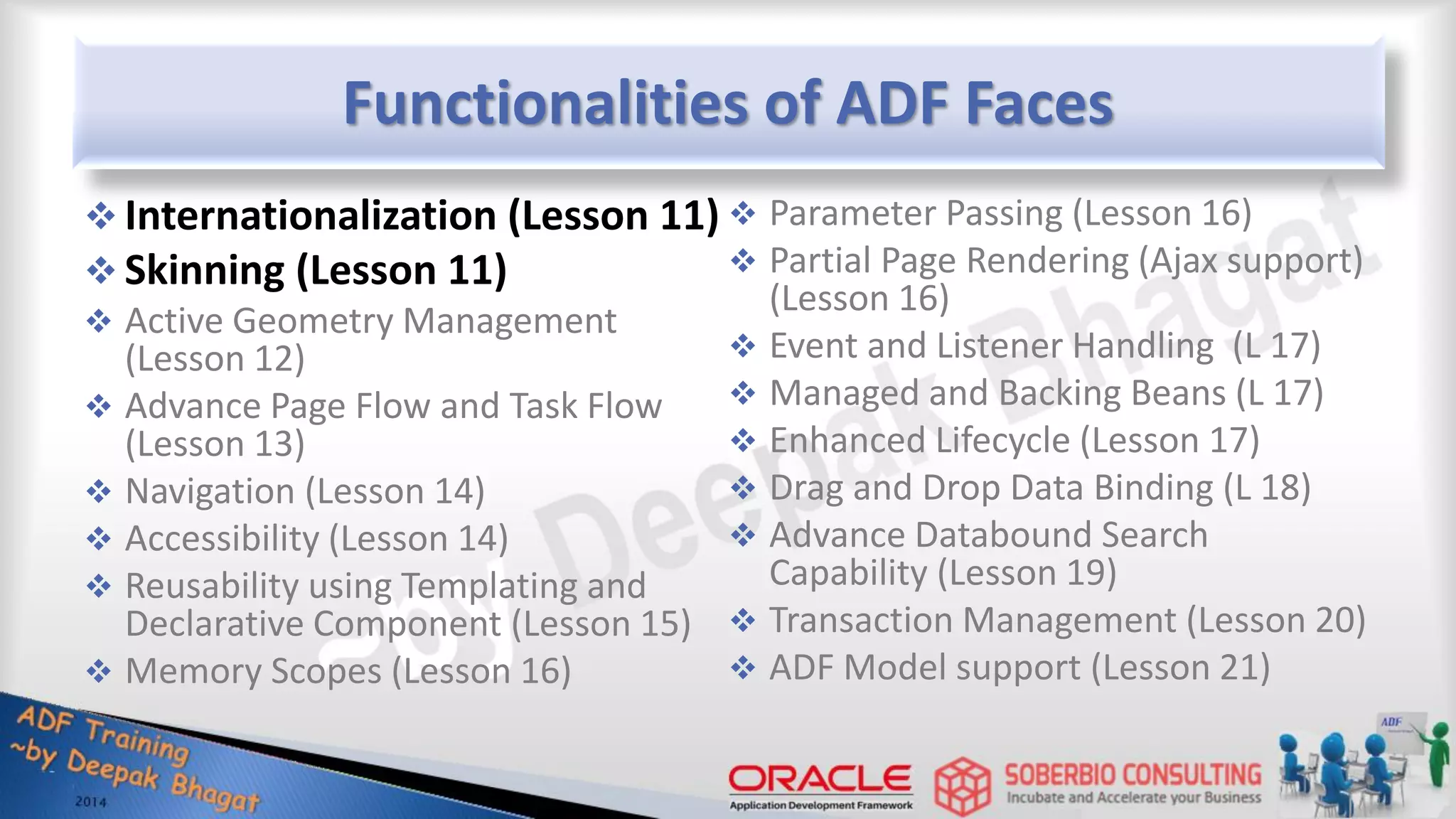

Functionalities of ADF Faces  Internationalization (Lesson 11)  Skinning (Lesson 11)  Active Geometry Management (Lesson 12)  Advance Page Flow and Task Flow (Lesson 13)  Navigation (Lesson 14)  Accessibility (Lesson 14)  Reusability using Templating and Declarative Component (Lesson 15)  Memory Scopes (Lesson 16)  Parameter Passing (Lesson 16)  Partial Page Rendering (Ajax support) (Lesson 16)  Event and Listener Handling (L 17)  Managed and Backing Beans (L 17)  Enhanced Lifecycle (Lesson 17)  Drag and Drop Data Binding (L 18)  Advance Databound Search Capability (Lesson 19)  Transaction Management (Lesson 20)  ADF Model support (Lesson 21)

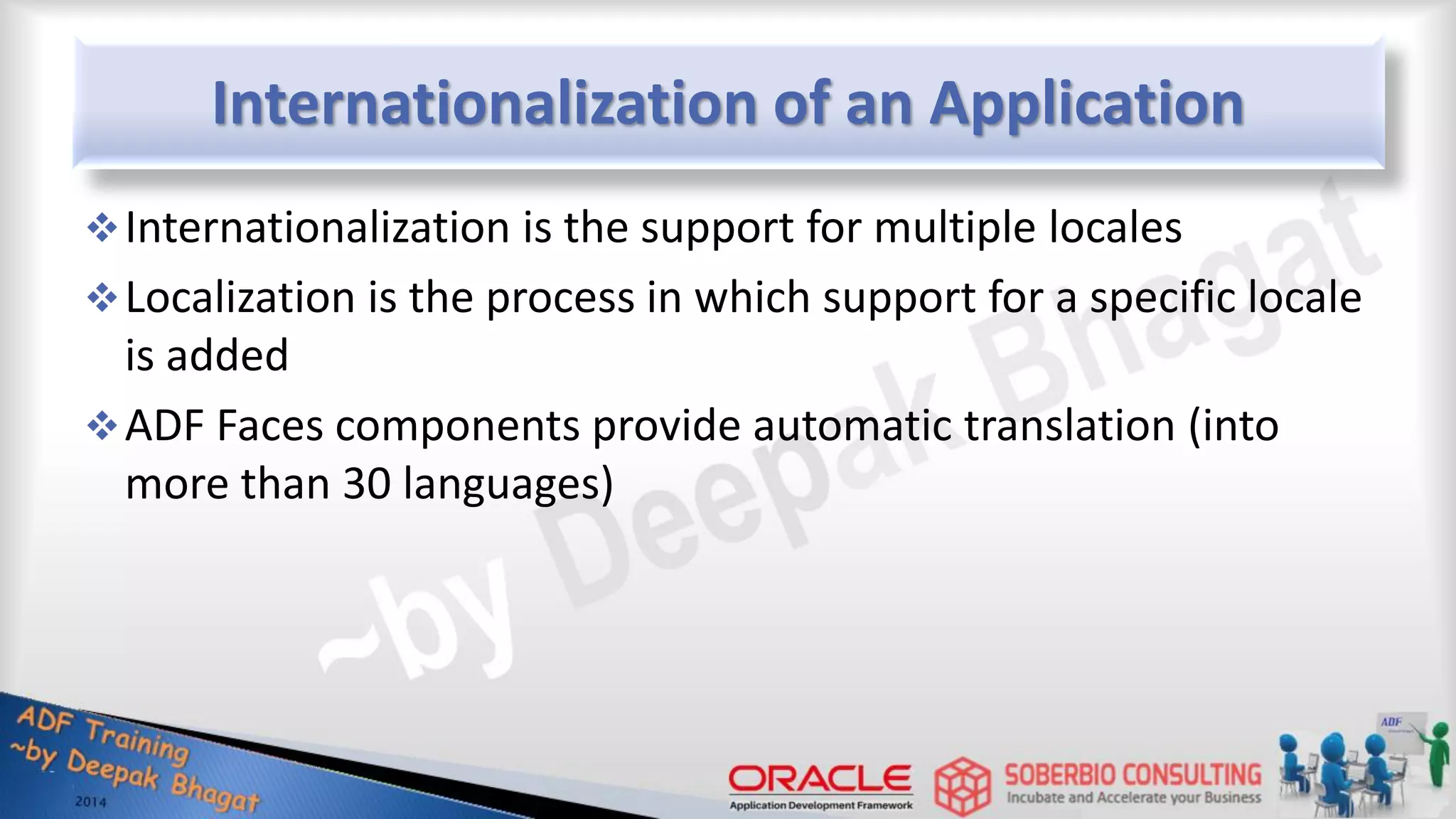

Internationalization of an Application Internationalization is the support for multiple locales Localization is the process in which support for a specific locale is added ADF Faces components provide automatic translation (into more than 30 languages)

Resource Bundles  Resource bundles are simple properties files that contain the translatable strings used in an application  Translation strings can be parameterized to dynamically include strings like exceptions or counter  You do not need to load the base resource bundle on each page of your application hrdemo.browserTitle=HRDemo Beispielanwendung hrdemo.about=Über dieses Beispiel hrdemo.copyright=u00a9 Deepak Bhagat, 2017 hrdemo.contact=Kontakt UIResources_de.properties hrdemo.browserTitle=HRDemo Sample Application hrdemo.about=About this demo hrdemo.copyright=u00a9 Deepak Bhagat, 2017 hrdemo.contact=Contact Us UIResources.properties

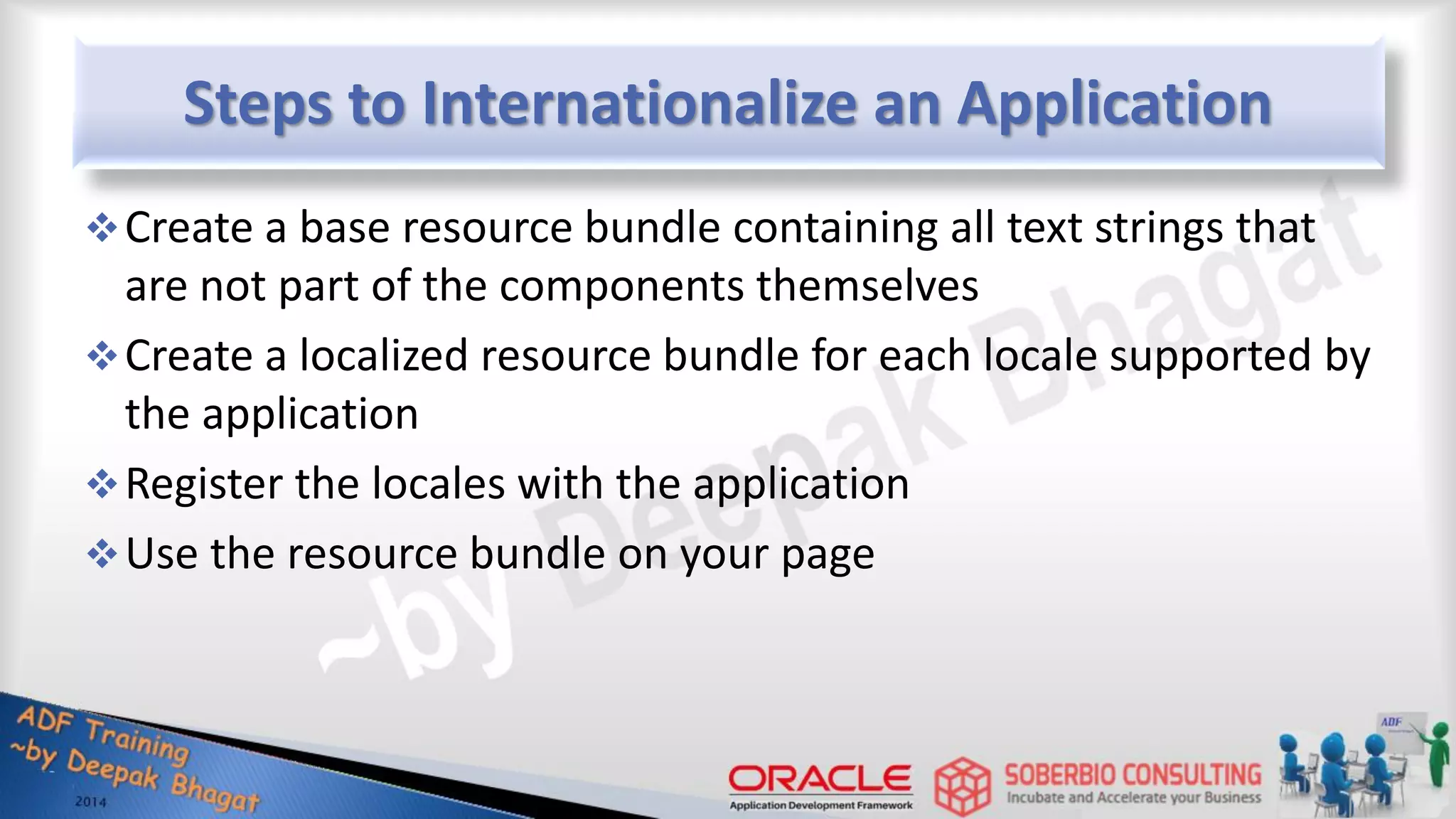

Steps to Internationalize an Application Create a base resource bundle containing all text strings that are not part of the components themselves Create a localized resource bundle for each locale supported by the application Register the locales with the application Use the resource bundle on your page

Automatically Create Resource Bundles Set project properties to create a resource bundle automatically

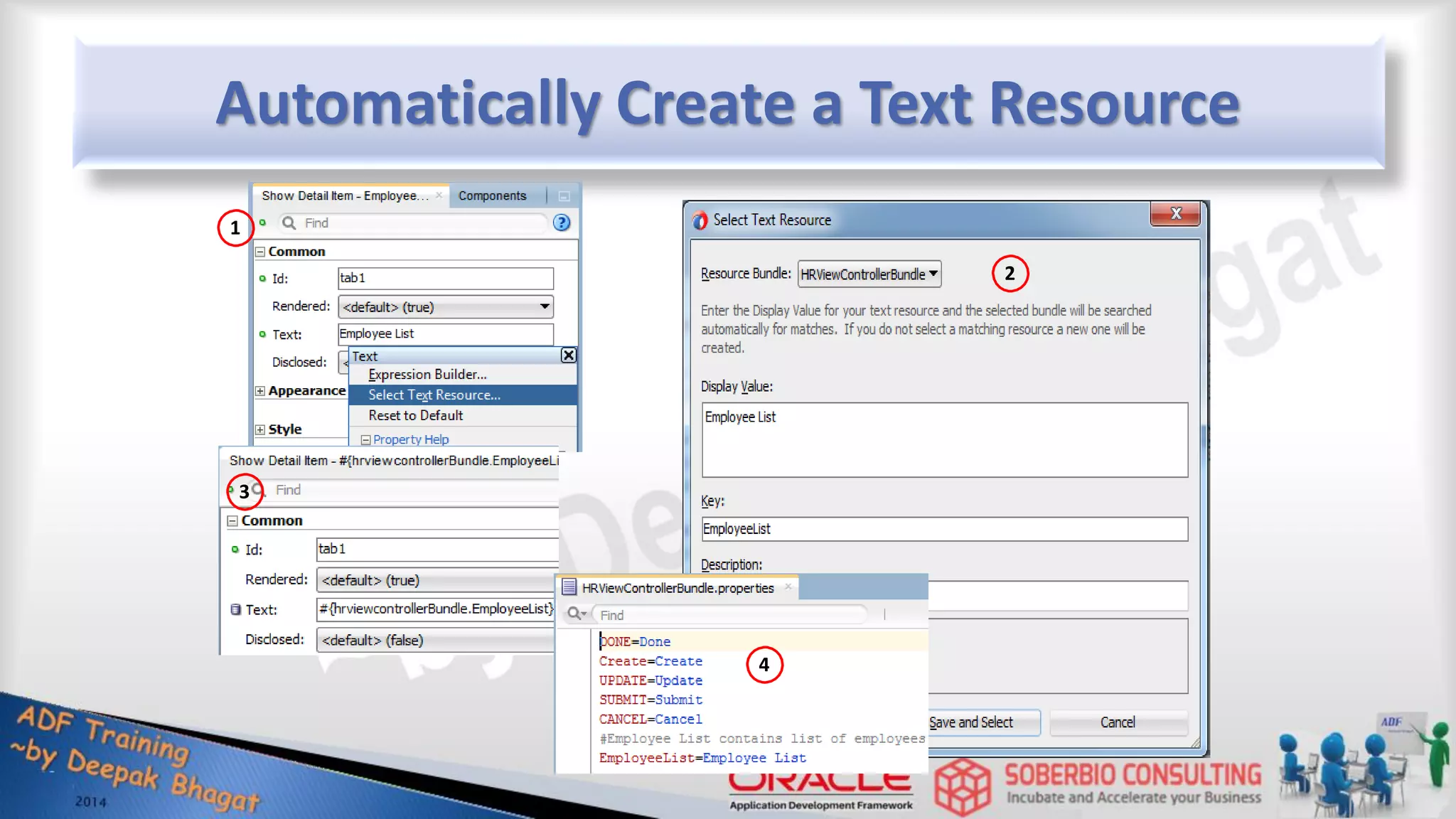

Automatically Create a Text Resource 1 3 4 2

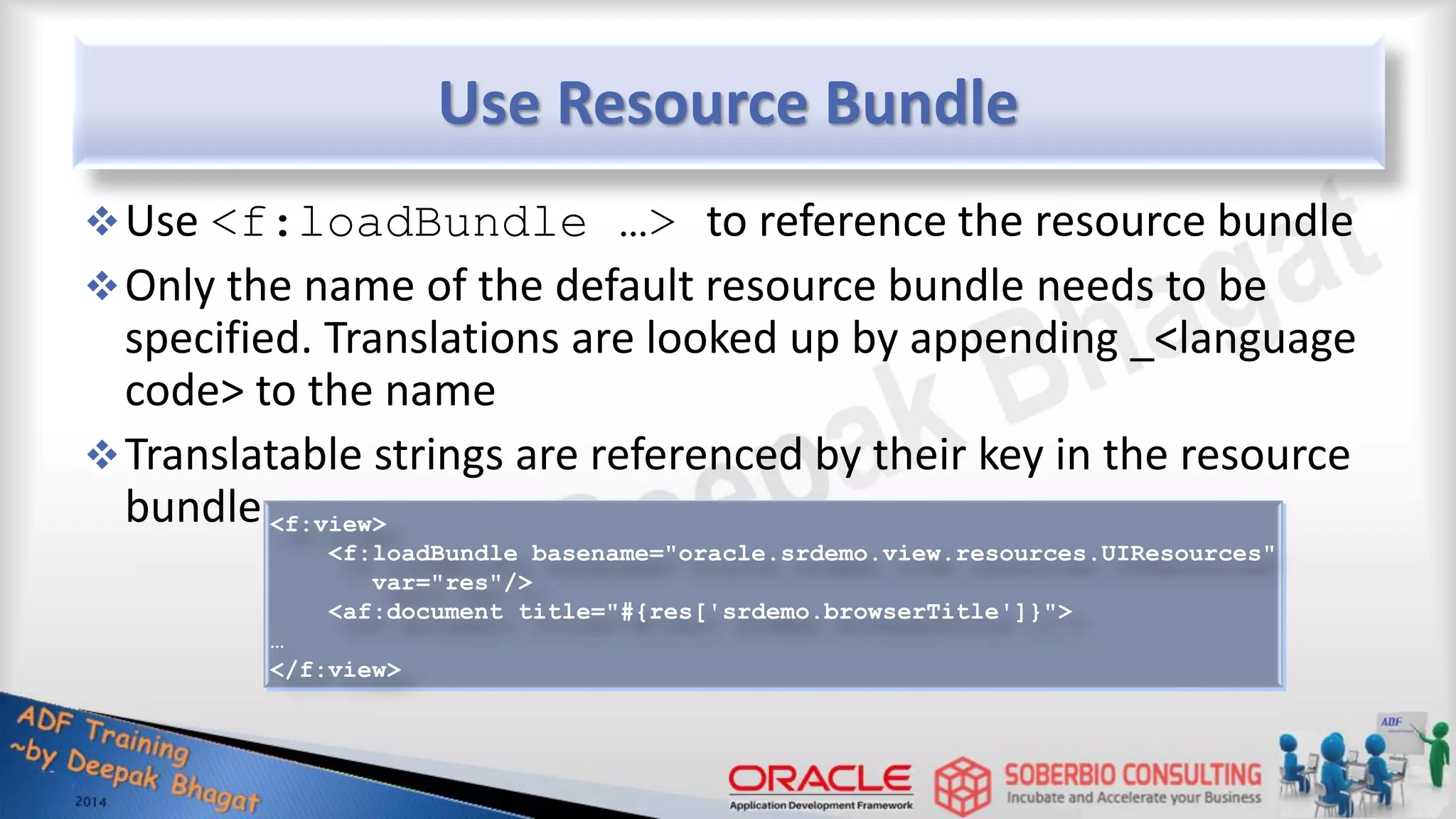

Use Resource Bundle Use <f:loadBundle …> to reference the resource bundle Only the name of the default resource bundle needs to be specified. Translations are looked up by appending _<language code> to the name Translatable strings are referenced by their key in the resource bundle <f:view> <f:loadBundle basename="oracle.srdemo.view.resources.UIResources" var="res"/> <af:document title="#{res['srdemo.browserTitle']}"> … </f:view>

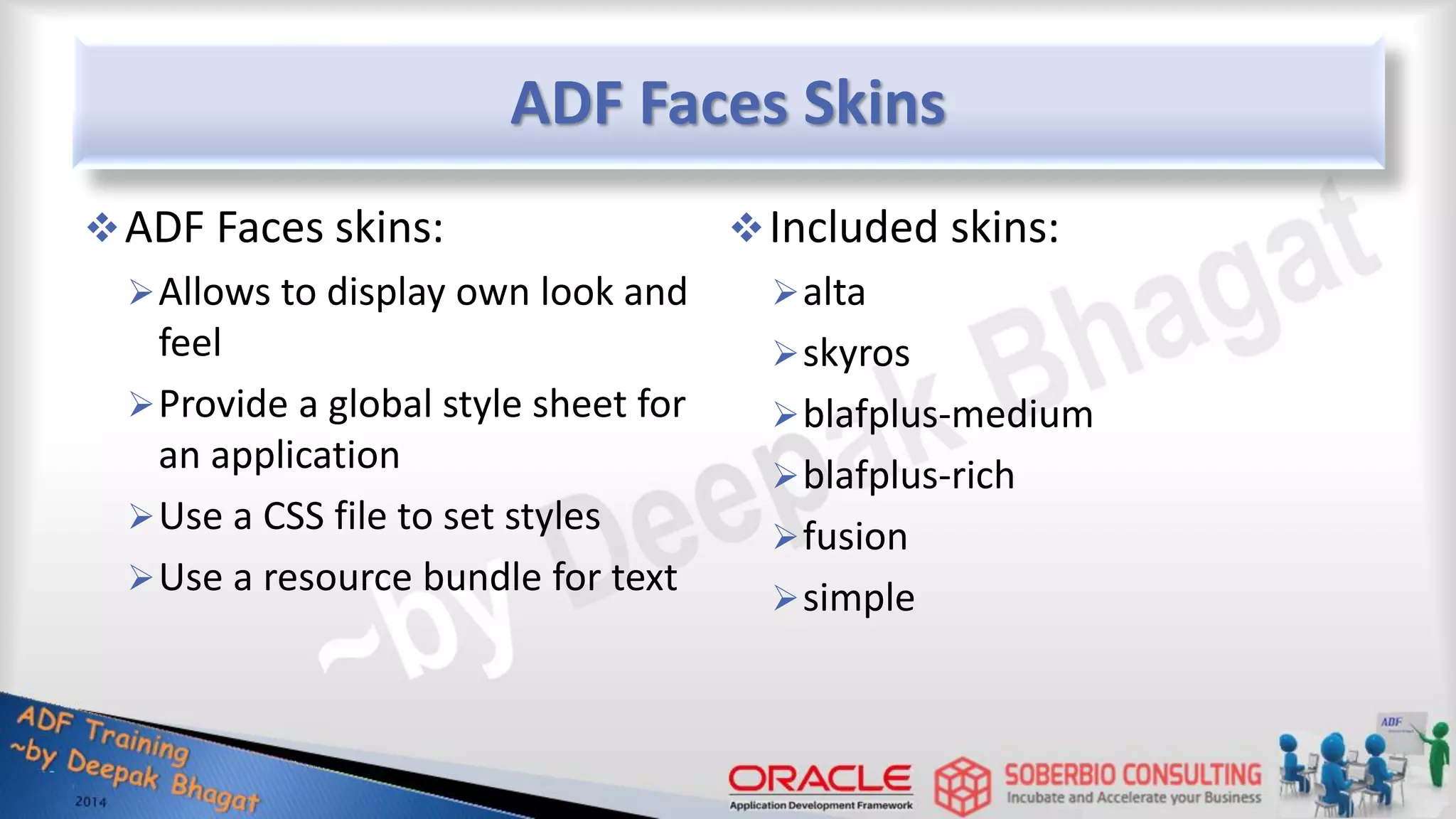

ADF Faces Skins ADF Faces skins: Allows to display own look and feel Provide a global style sheet for an application Use a CSS file to set styles Use a resource bundle for text Included skins: alta skyros blafplus-medium blafplus-rich fusion simple

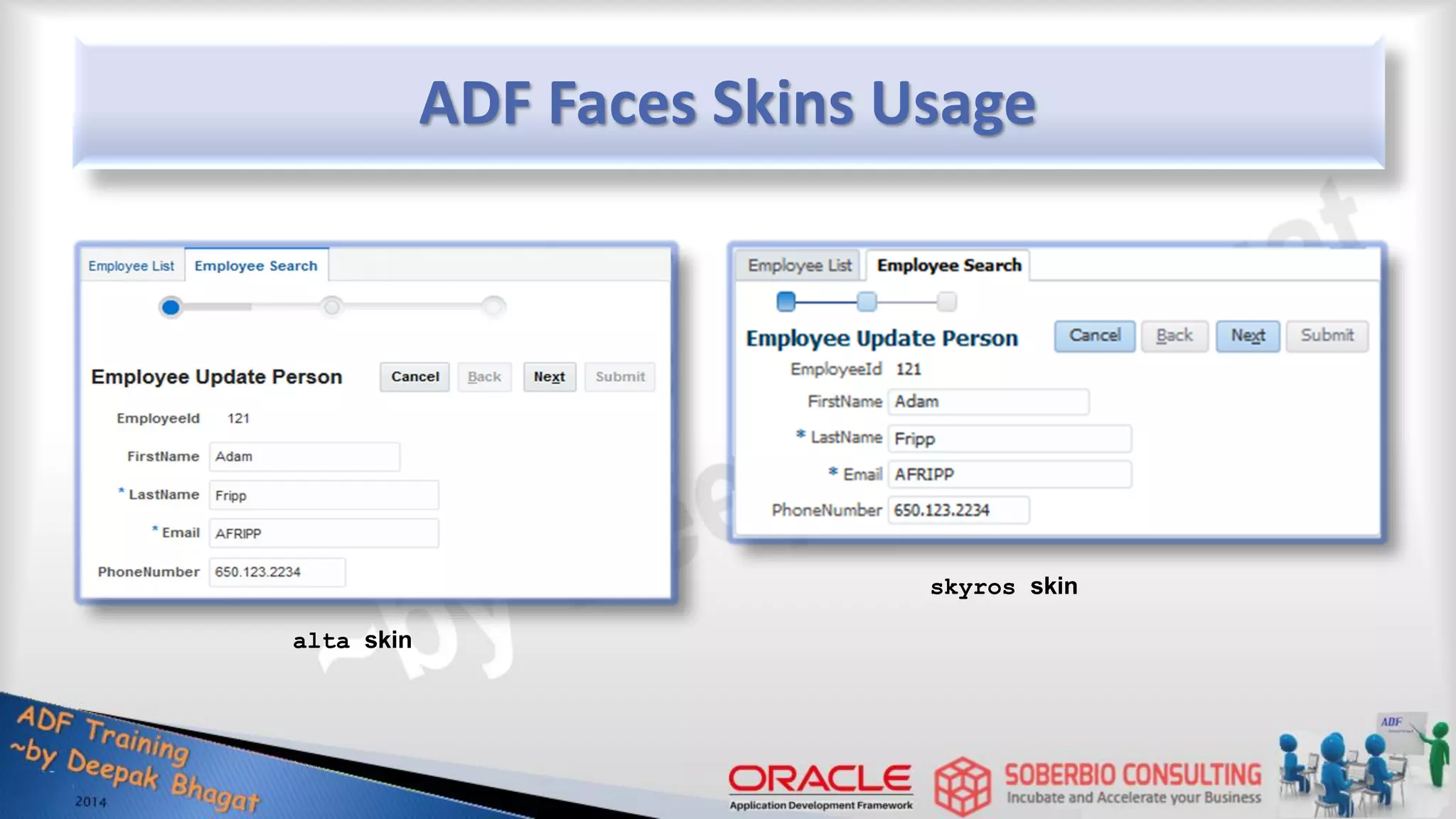

ADF Faces Skins Usage alta skin skyros skin

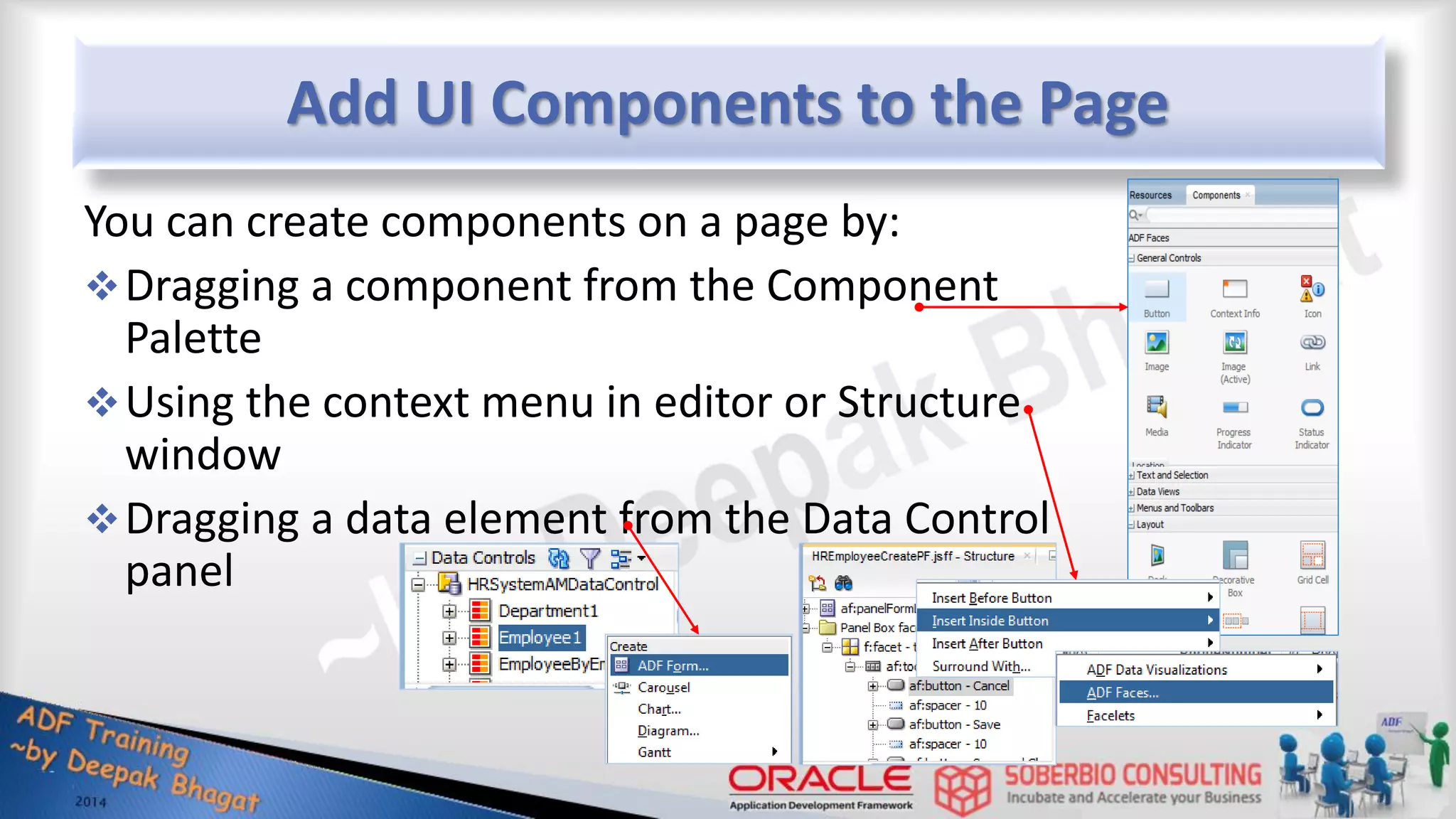

Add UI Components to the Page You can create components on a page by: Dragging a component from the Component Palette Using the context menu in editor or Structure window Dragging a data element from the Data Control panel

Use of Component Facets Facets are:  Placeholders for subcomponents  Similar to detail elements  Used to specify subordinate elements such as toolbars, headers, or footers  Displayed with the component

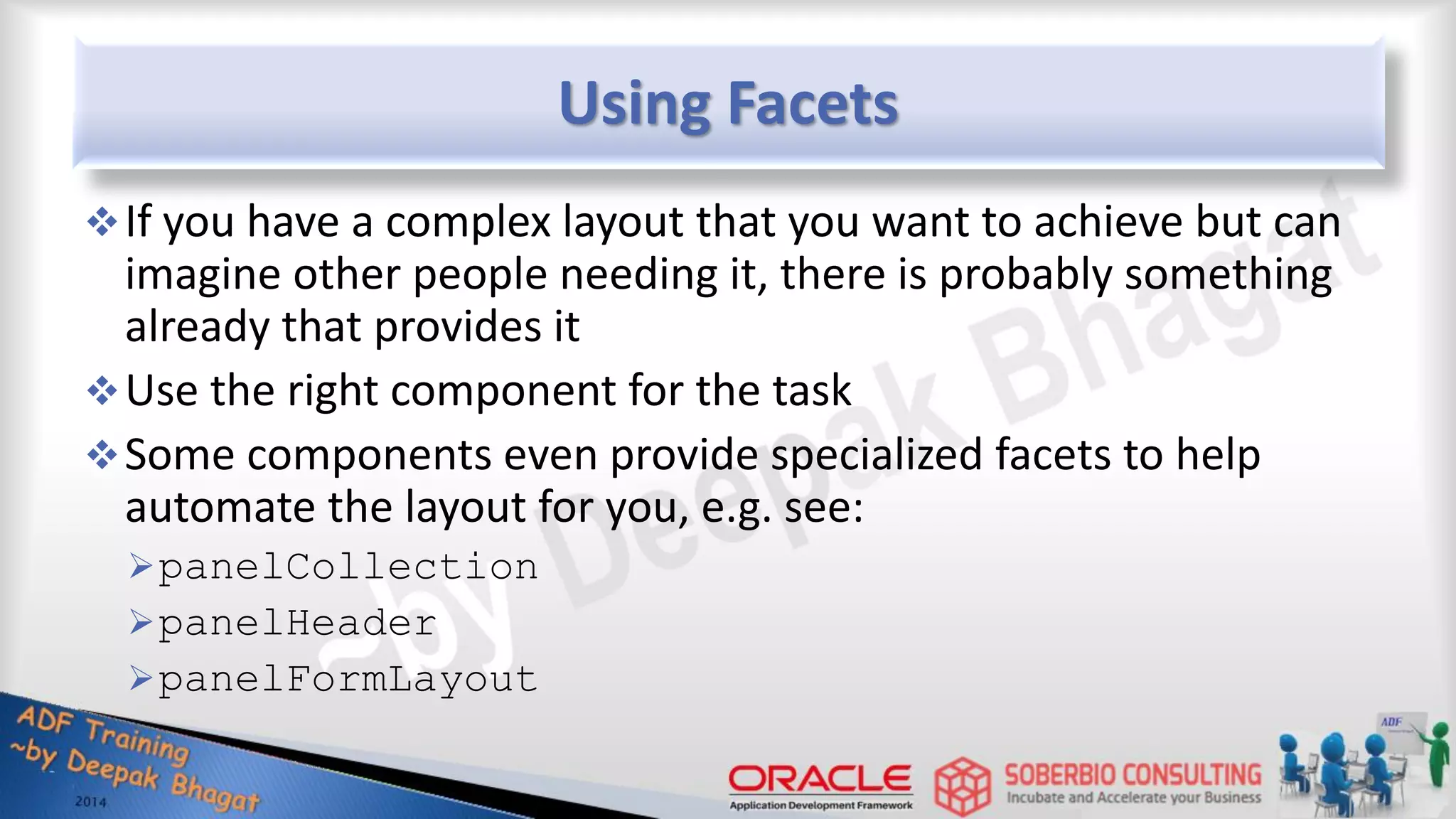

Using Facets If you have a complex layout that you want to achieve but can imagine other people needing it, there is probably something already that provides it Use the right component for the task Some components even provide specialized facets to help automate the layout for you, e.g. see: panelCollection panelHeader panelFormLayout

Configuration Files General Configuration Files:  web.xml  (J2EE)  trinidad-config.xml  (JSF Skinning)  faces-config.xml  (JSF)  Similar to struts-config.xml  Contains two main types of components  Managed Beans  Navigation Model  adf-settings.xml  (ADF faces Settings)  adfc-config.xml  (ADF Faces)  adf-config.xml  (ADF Faces)  weblogic-application.xml  (WLS specific deployment descriptor)

Custom Configuration Files  adf-faces-config.xml ADF faces configuration  adf-faces-skins.xml Skins  adf-faces-impl.jar and adf-faces-api.jar Component libraries  adfshare.jar Common library for ADF databinding  af.tld and afh.tld Tag libraries

web.xml File  Web.xml  Standard J2EE deployment descriptor  Registers JSF Servlet (FacesServlet)  ADF Filter  ADF Resources Servlet  ADF Bindings Filter  Context param to identify CPX file

faces-config.xml File  faces-config.xml  JSF configuration file  Configure JSF resources  Navigation Rules  Managed Beans  Converters  Validators  LifeCycle (ADFPhaseListener)  Renderer  Can have multiple faces-configs (param in web.xml)

Lesson Summary Examine configuration files Internationalizing the User Interface Changing look and feel using ADF Faces skins Ways to add components to the page Use of facets

12 Planning Pages using Layout Components

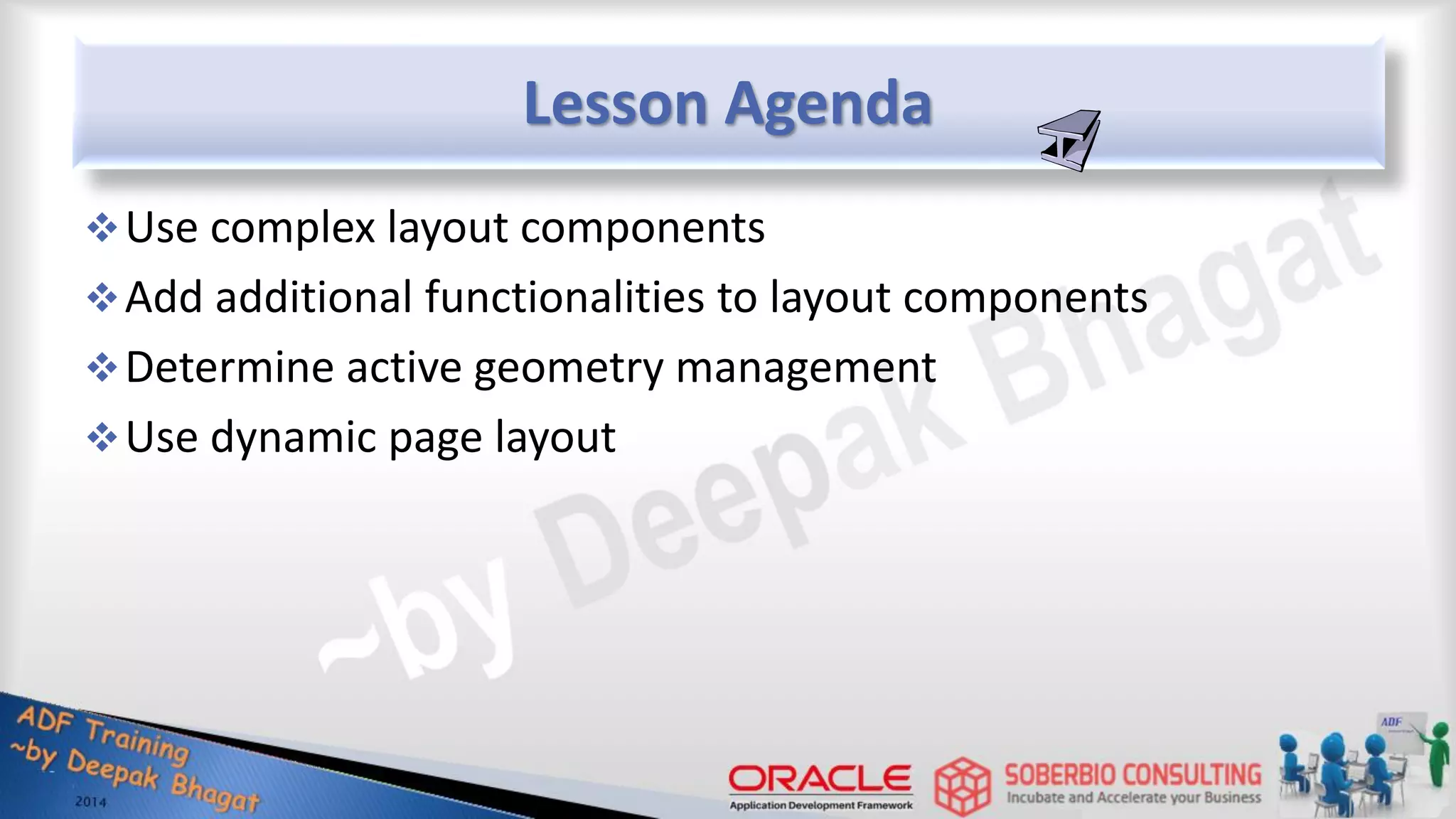

Lesson Agenda Use complex layout components Add additional functionalities to layout components Determine active geometry management Use dynamic page layout

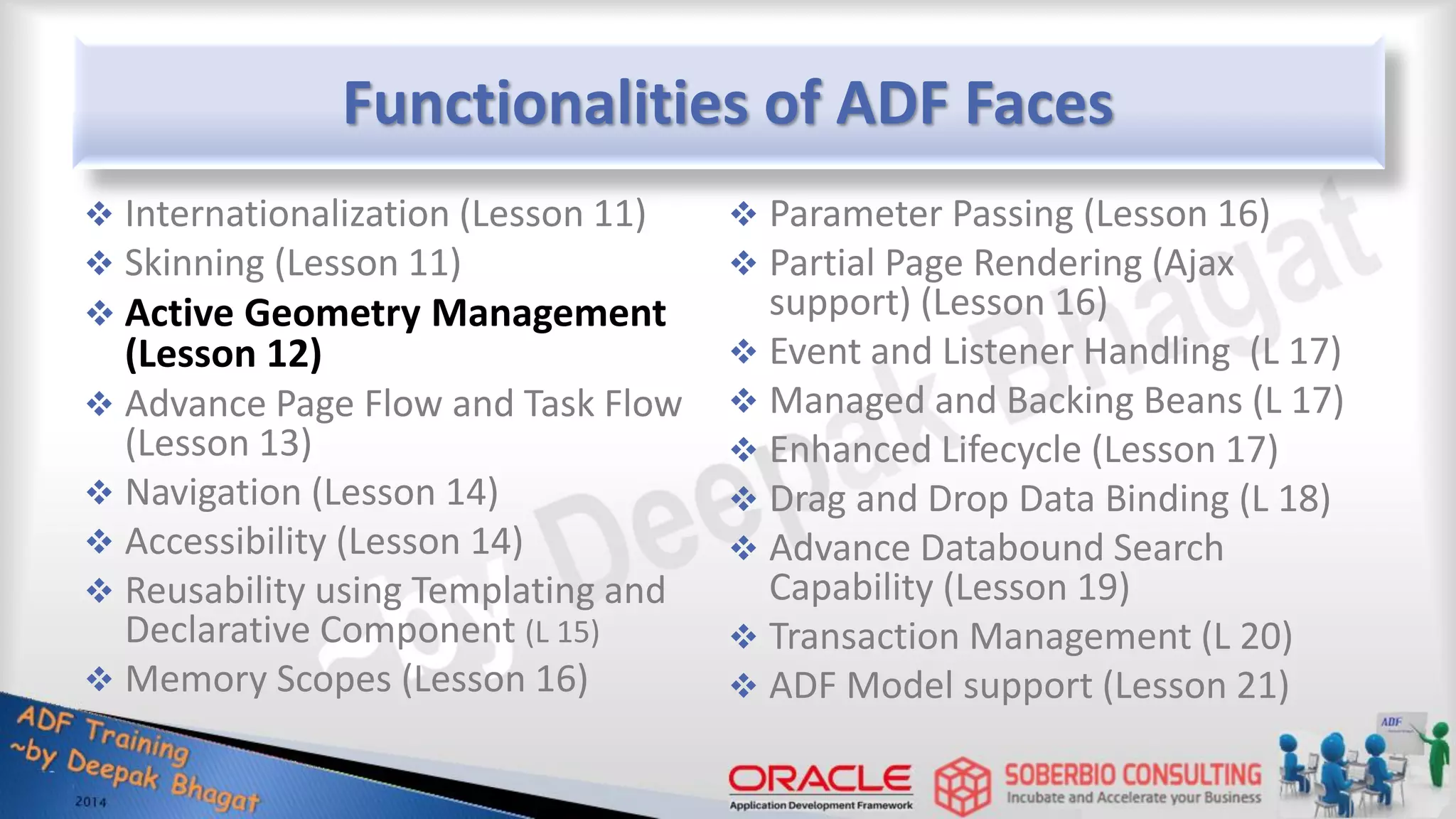

Functionalities of ADF Faces  Internationalization (Lesson 11)  Skinning (Lesson 11)  Active Geometry Management (Lesson 12)  Advance Page Flow and Task Flow (Lesson 13)  Navigation (Lesson 14)  Accessibility (Lesson 14)  Reusability using Templating and Declarative Component (L 15)  Memory Scopes (Lesson 16)  Parameter Passing (Lesson 16)  Partial Page Rendering (Ajax support) (Lesson 16)  Event and Listener Handling (L 17)  Managed and Backing Beans (L 17)  Enhanced Lifecycle (Lesson 17)  Drag and Drop Data Binding (L 18)  Advance Databound Search Capability (Lesson 19)  Transaction Management (L 20)  ADF Model support (Lesson 21)

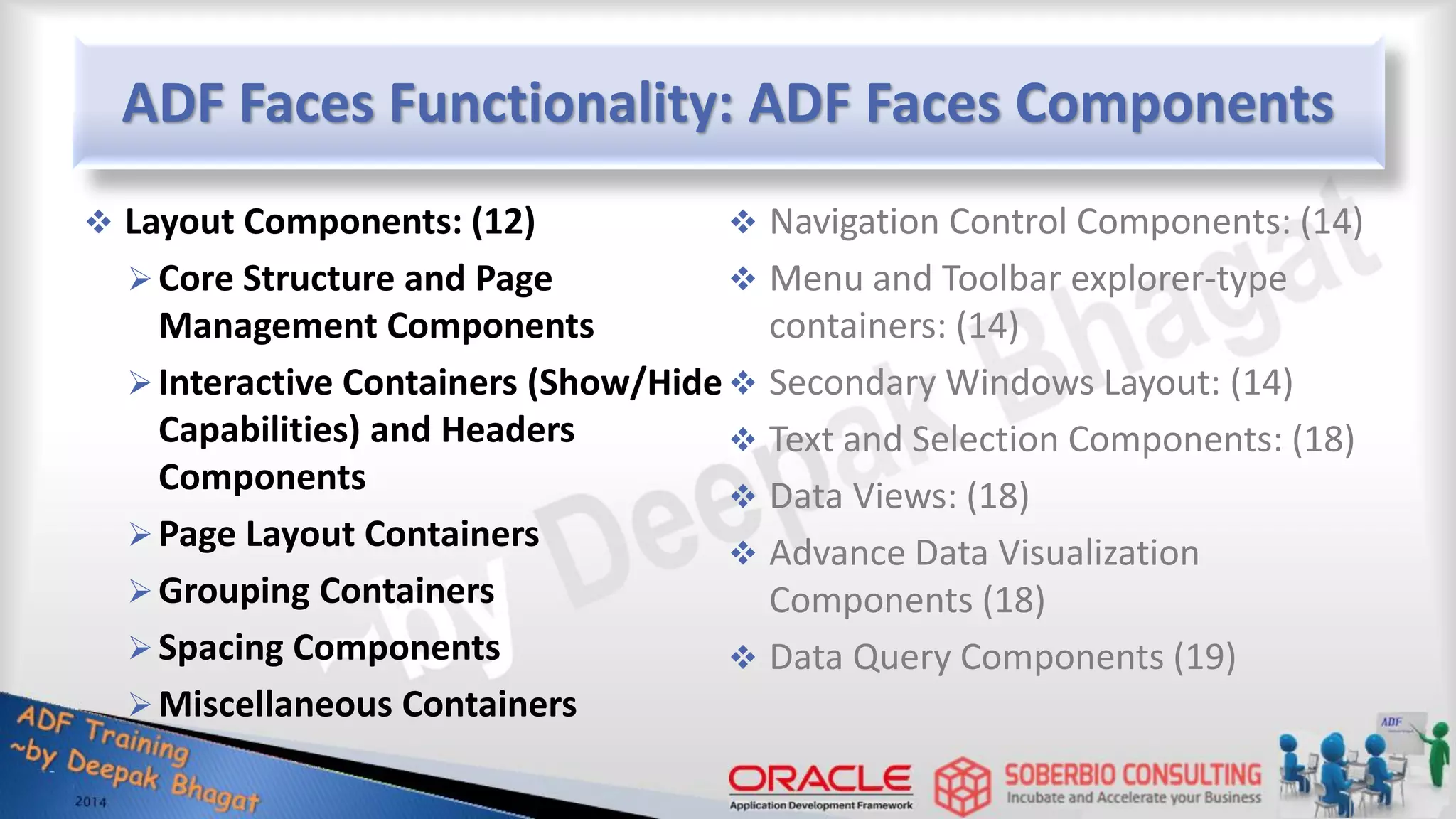

ADF Faces Functionality: ADF Faces Components  Layout Components: (12) Core Structure and Page Management Components Interactive Containers (Show/Hide Capabilities) and Headers Components Page Layout Containers Grouping Containers Spacing Components Miscellaneous Containers  Navigation Control Components: (14)  Menu and Toolbar explorer-type containers: (14)  Secondary Windows Layout: (14)  Text and Selection Components: (18)  Data Views: (18)  Advance Data Visualization Components (18)  Data Query Components (19)

Planning Pages using Layout Components Panel Accordion Disclosed=many showDetailItem Disclosed=true InflexibleHeaight=297 Text=“Location-Departments” showDetailItem Disclosed=true Text=“Quick Search” Panel Tabbed showDetailItem Text=“Employee List” showDetailItem Text=“Employee Search” BATHRSystemIndex.jsf 1. Panel Splitter – vertical splitterPosition=135 2. Panel Splitter – horizontal splitterPosition=220 Employee List

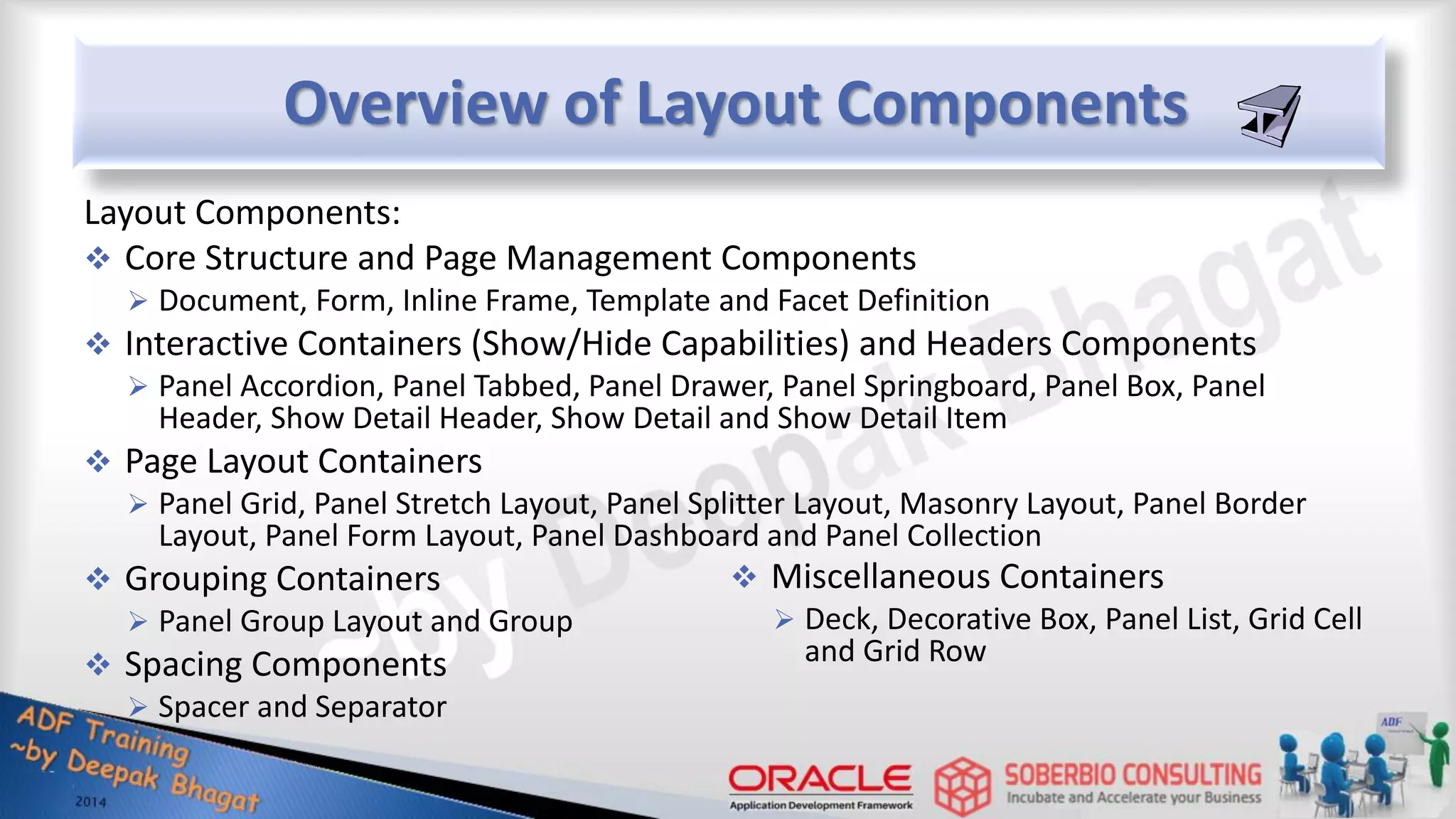

Overview of Layout Components Layout Components:  Core Structure and Page Management Components  Document, Form, Inline Frame, Template and Facet Definition  Interactive Containers (Show/Hide Capabilities) and Headers Components  Panel Accordion, Panel Tabbed, Panel Drawer, Panel Springboard, Panel Box, Panel Header, Show Detail Header, Show Detail and Show Detail Item  Page Layout Containers  Panel Grid, Panel Stretch Layout, Panel Splitter Layout, Masonry Layout, Panel Border Layout, Panel Form Layout, Panel Dashboard and Panel Collection  Grouping Containers  Panel Group Layout and Group  Spacing Components  Spacer and Separator  Miscellaneous Containers  Deck, Decorative Box, Panel List, Grid Cell and Grid Row

Layout Components: Core Structure Form Creates an HTML <form> element Inline Frame  Creates an inline iframe tag

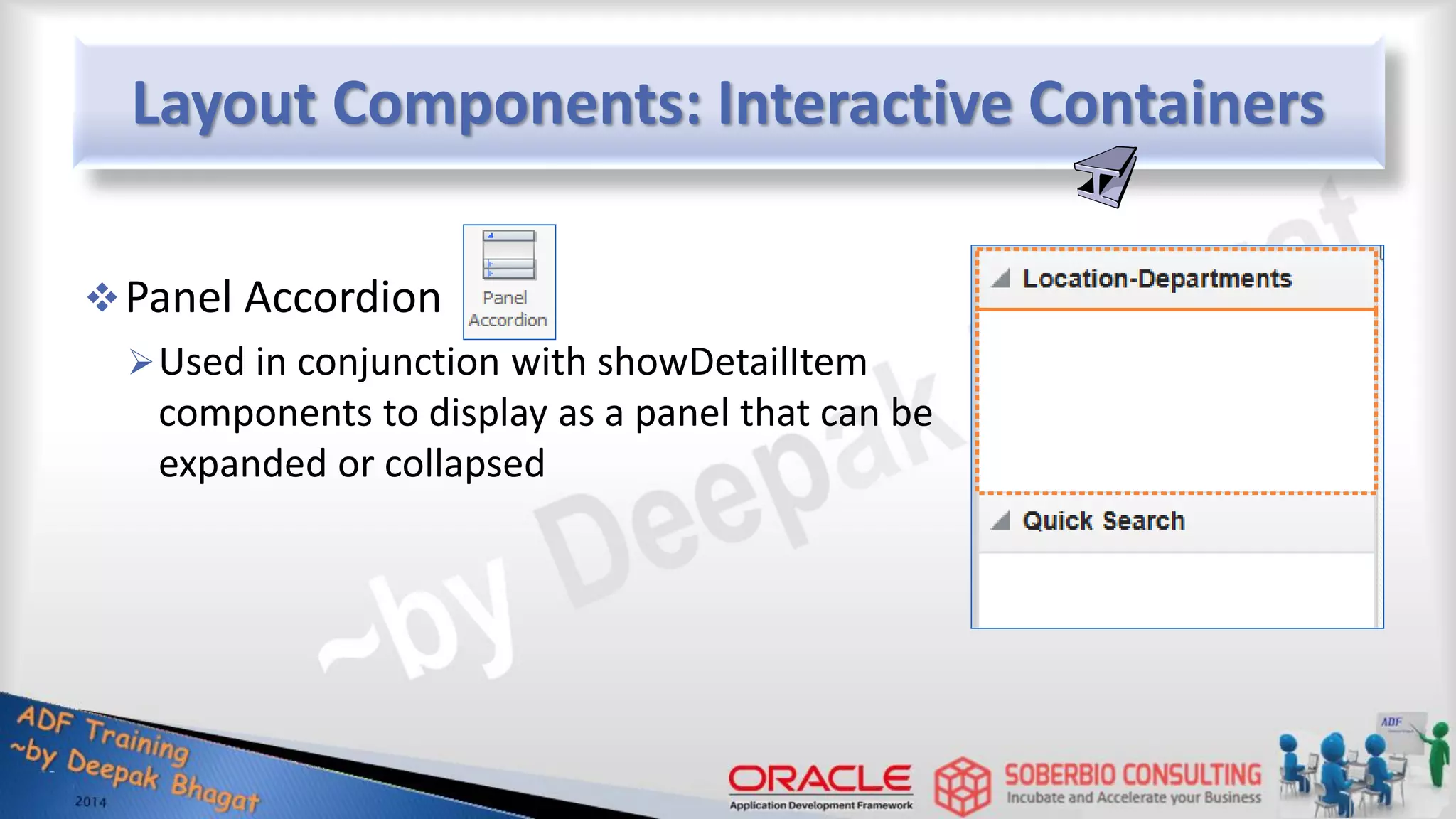

Layout Components: Interactive Containers Panel Accordion Used in conjunction with showDetailItem components to display as a panel that can be expanded or collapsed

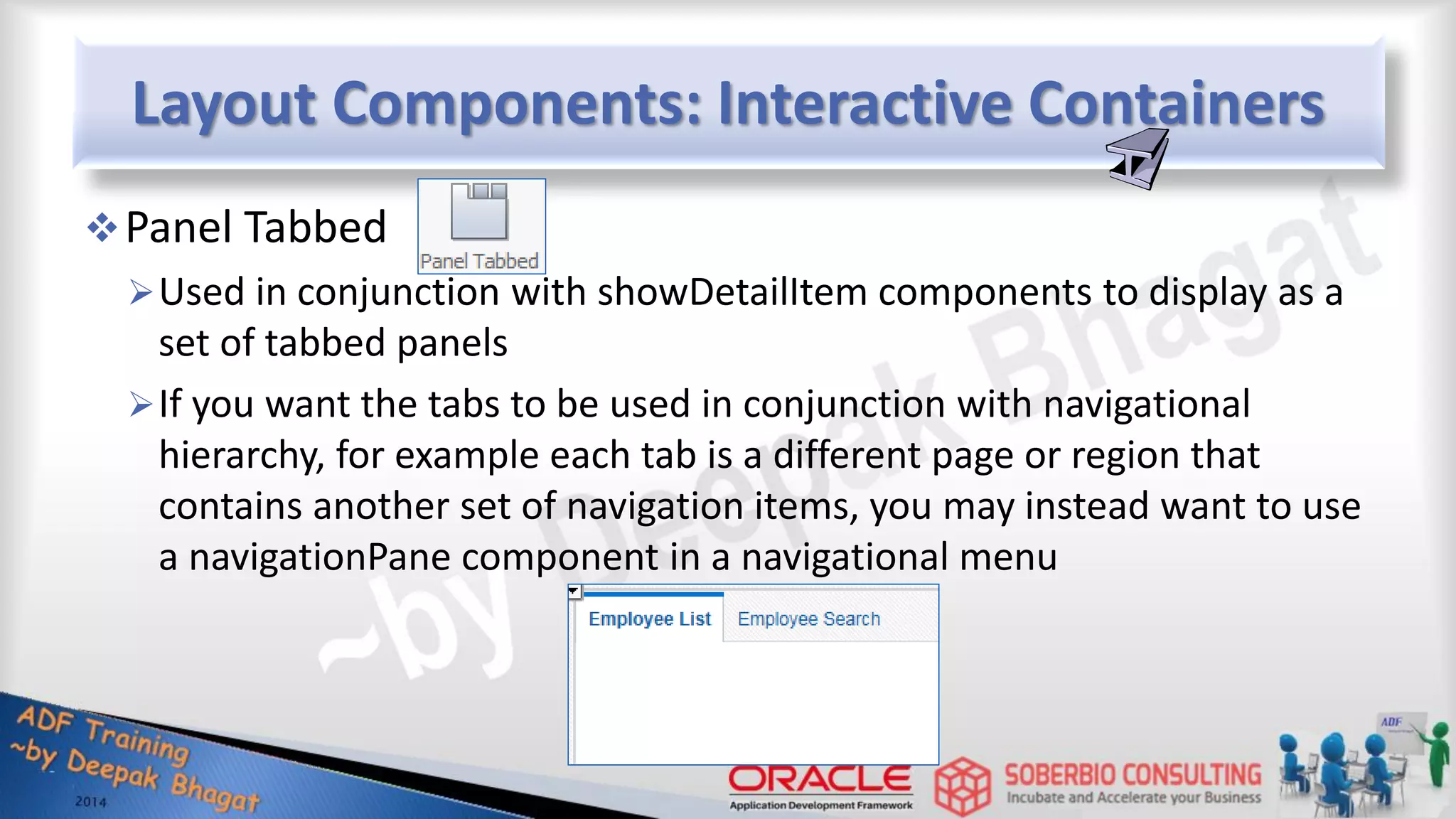

Layout Components: Interactive Containers Panel Tabbed Used in conjunction with showDetailItem components to display as a set of tabbed panels If you want the tabs to be used in conjunction with navigational hierarchy, for example each tab is a different page or region that contains another set of navigation items, you may instead want to use a navigationPane component in a navigational menu

Layout Components: Interactive Containers Panel Drawer (New 12c Feature) Used in conjunction with showDetailItem components to display as a set of tabs that can open and close like a drawer

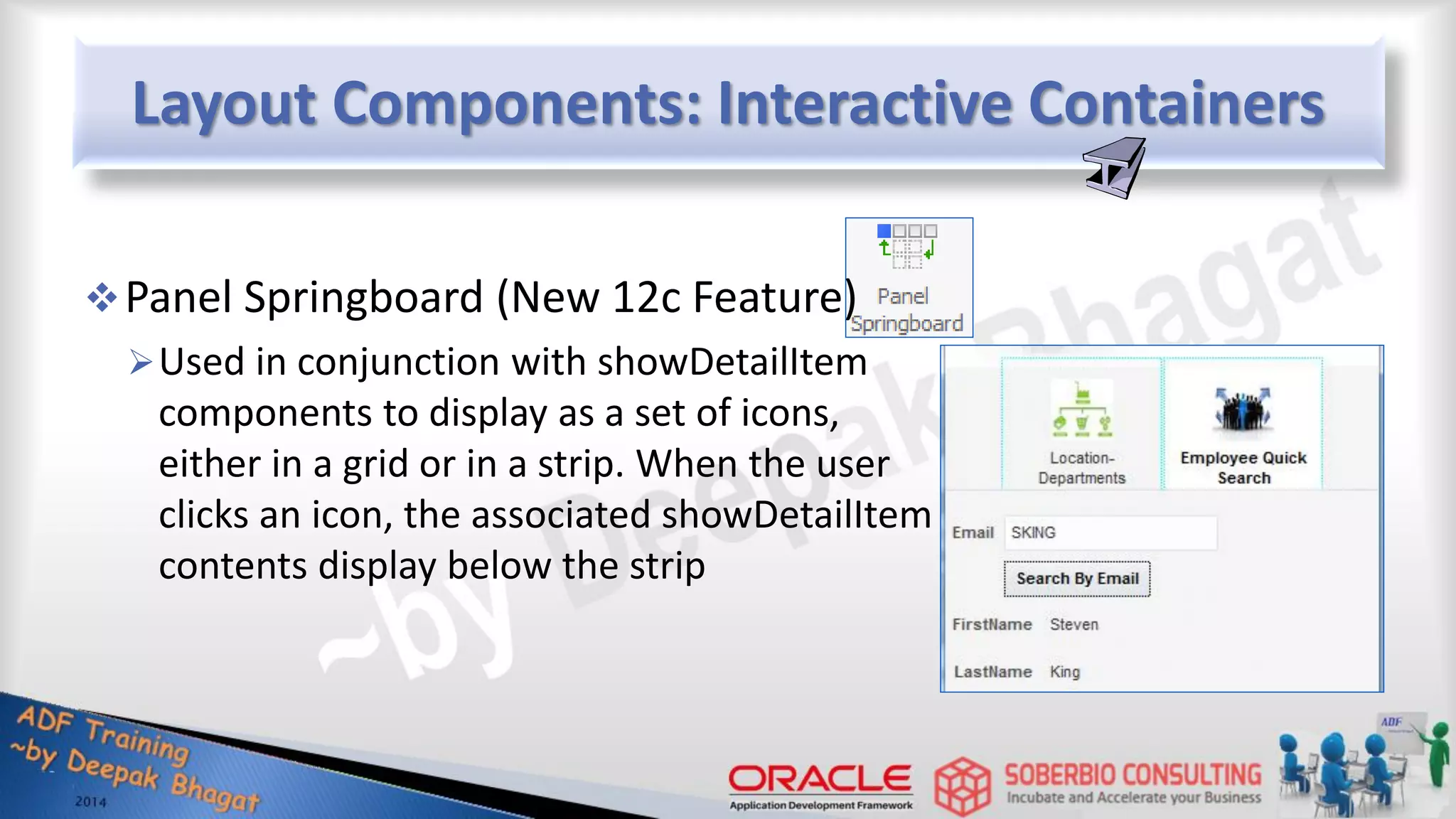

Layout Components: Interactive Containers Panel Springboard (New 12c Feature) Used in conjunction with showDetailItem components to display as a set of icons, either in a grid or in a strip. When the user clicks an icon, the associated showDetailItem contents display below the strip

Layout Components: Interactive Containers Panel Box Titled box that can contain child components. Has a toolbar facet Panel Header Contains child components and provides a header that can include messages, toolbars, and help topics

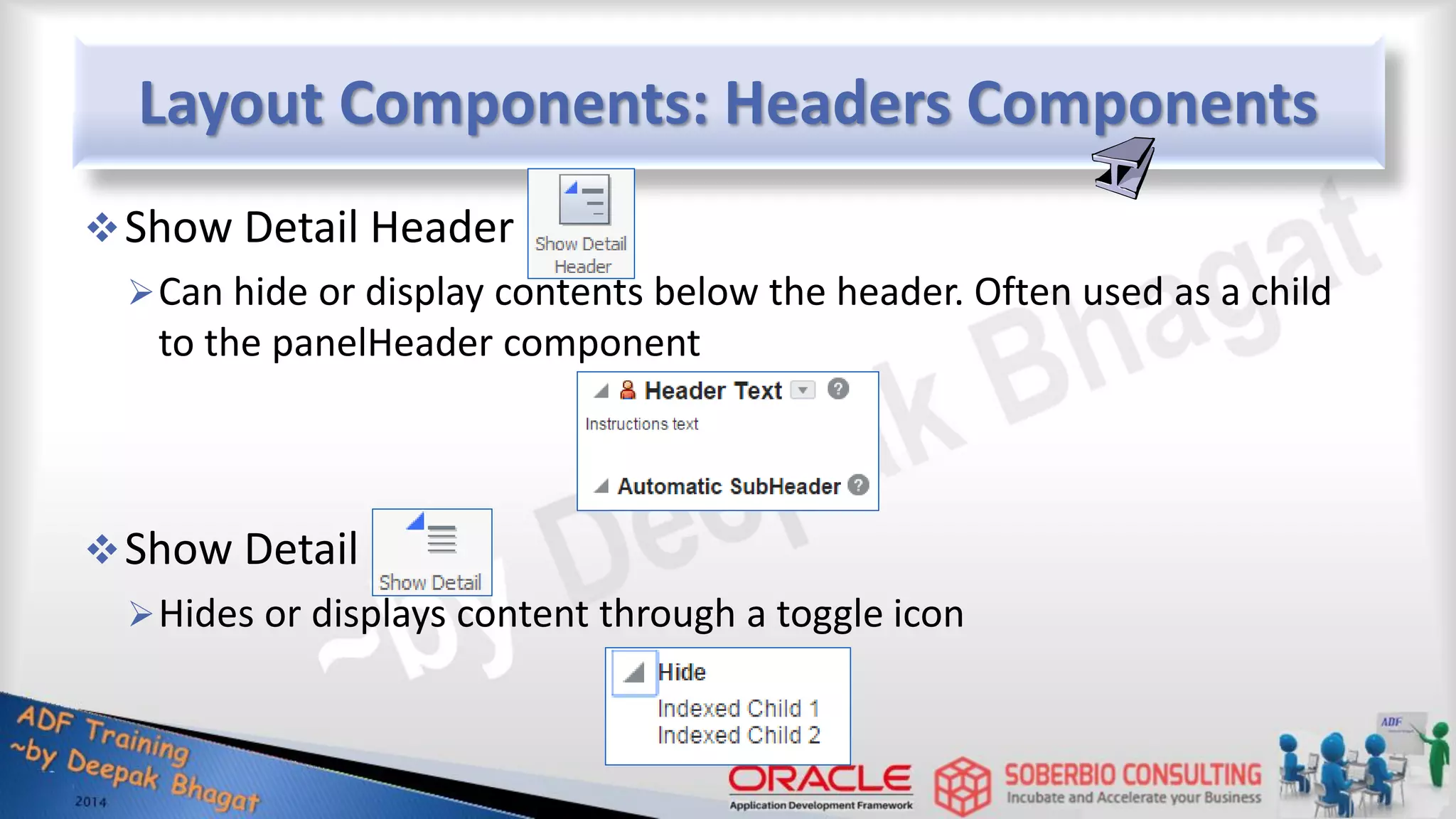

Layout Components: Headers Components Show Detail Header Can hide or display contents below the header. Often used as a child to the panelHeader component Show Detail Hides or displays content through a toggle icon

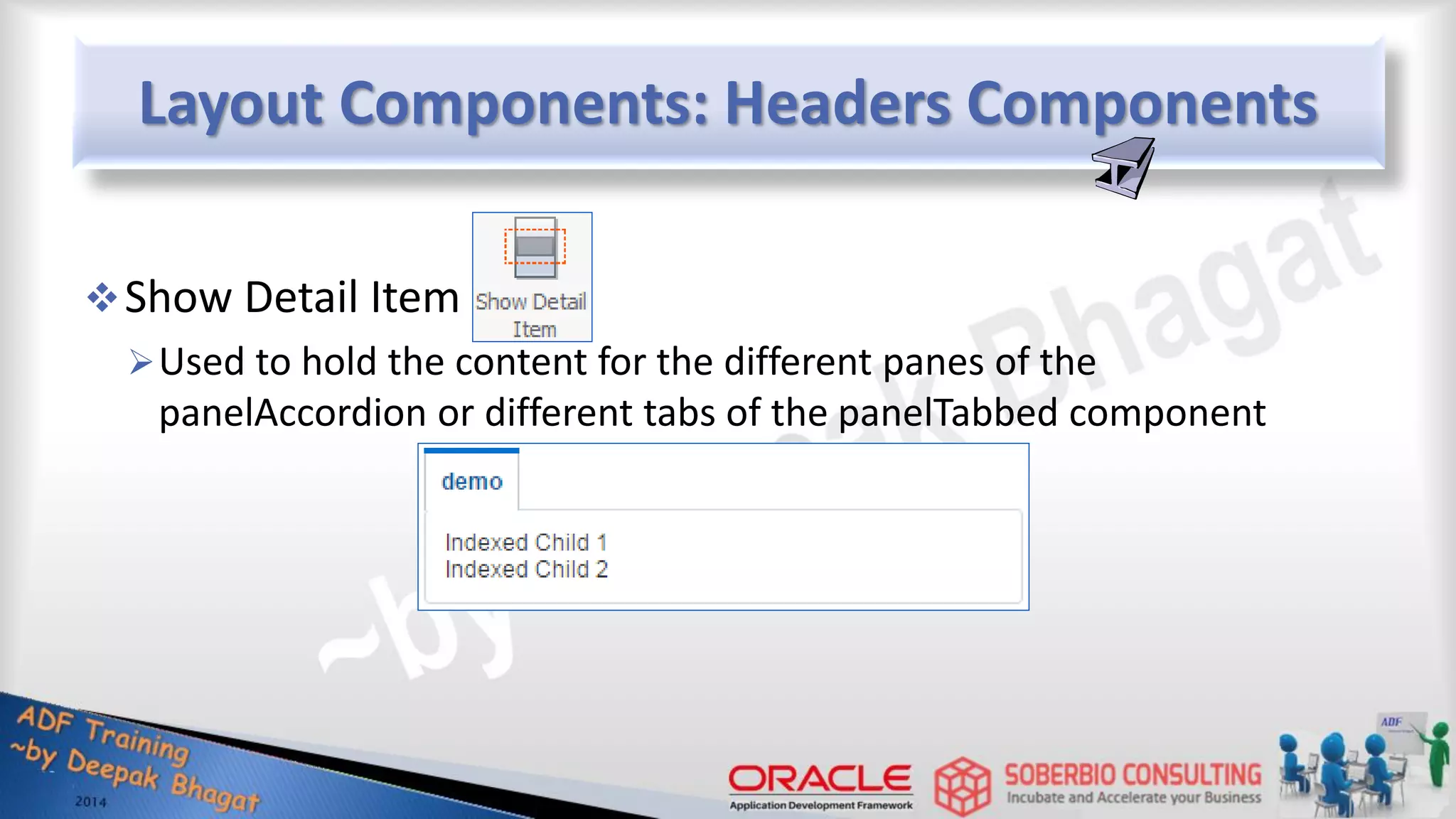

Layout Components: Headers Components Show Detail Item Used to hold the content for the different panes of the panelAccordion or different tabs of the panelTabbed component

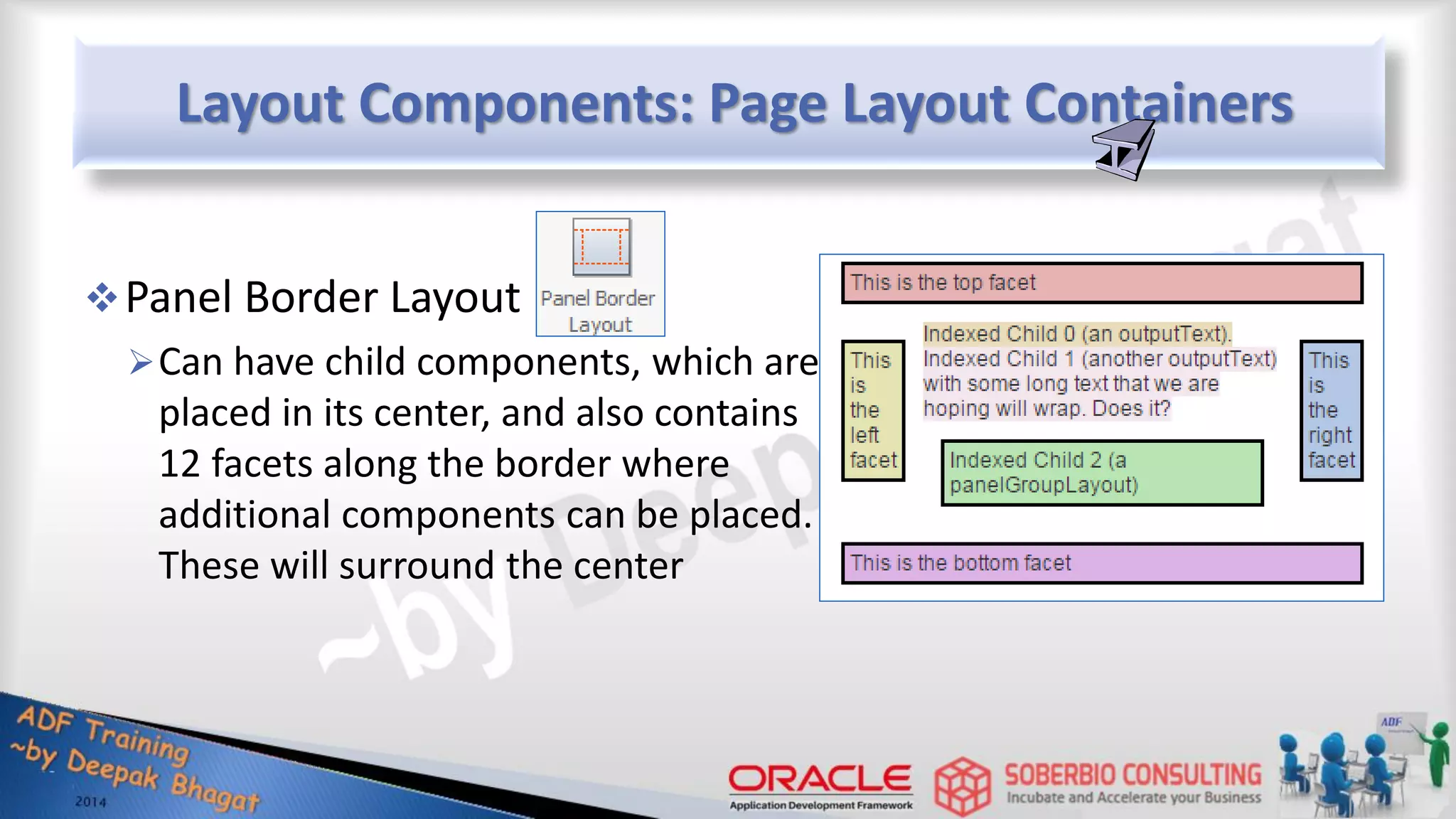

Layout Components: Page Layout Containers Panel Border Layout Can have child components, which are placed in its center, and also contains 12 facets along the border where additional components can be placed. These will surround the center

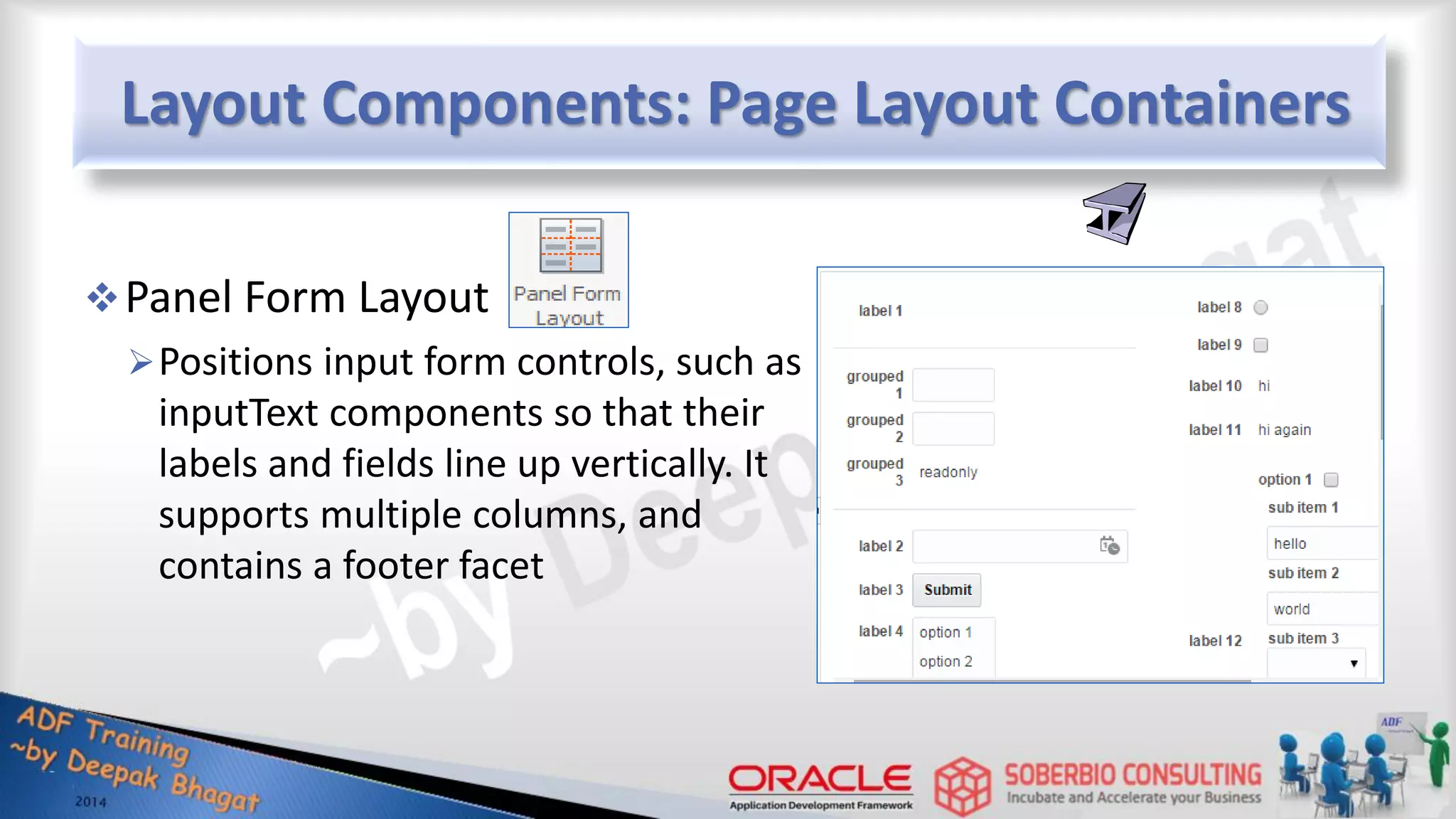

Layout Components: Page Layout Containers Panel Form Layout Positions input form controls, such as inputText components so that their labels and fields line up vertically. It supports multiple columns, and contains a footer facet

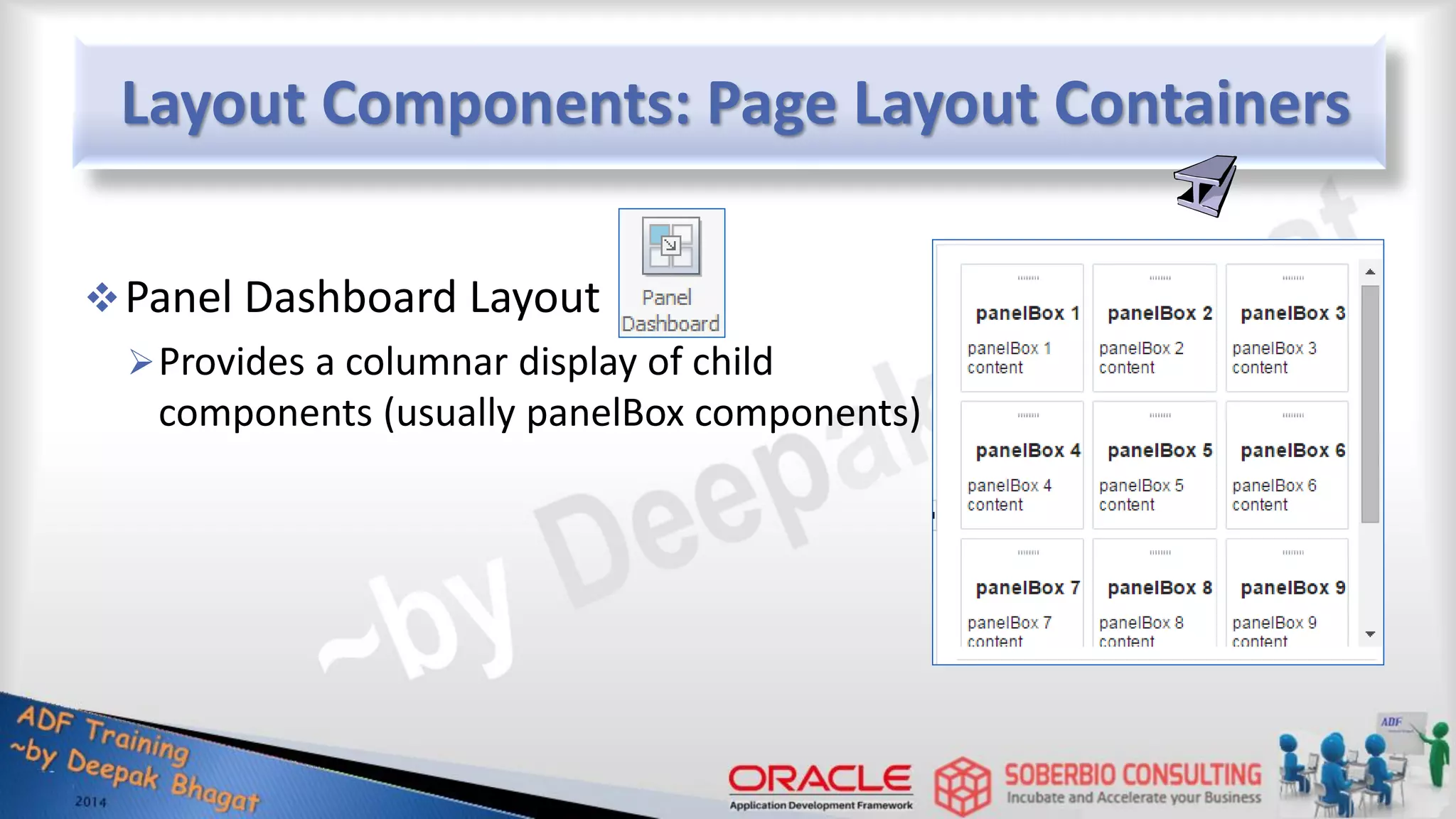

Layout Components: Page Layout Containers Panel Dashboard Layout Provides a columnar display of child components (usually panelBox components)

Layout Components: Page Layout Containers Panel Collection Layout Used in conjunction with collection components such as table, tree and treeTable to provide menus, toolbars, and status bars for those components

Layout Components: Page Layout Containers Panel Grid Layout Used in conjunction with gridRow and gridCell components to provide an HTML table-like layout where you define the rows and cells, and then place other components as children to the cells

Layout Components: Page Layout Containers Panel Stretch Layout Contains top, bottom, start, center, and end facets where you can place other components

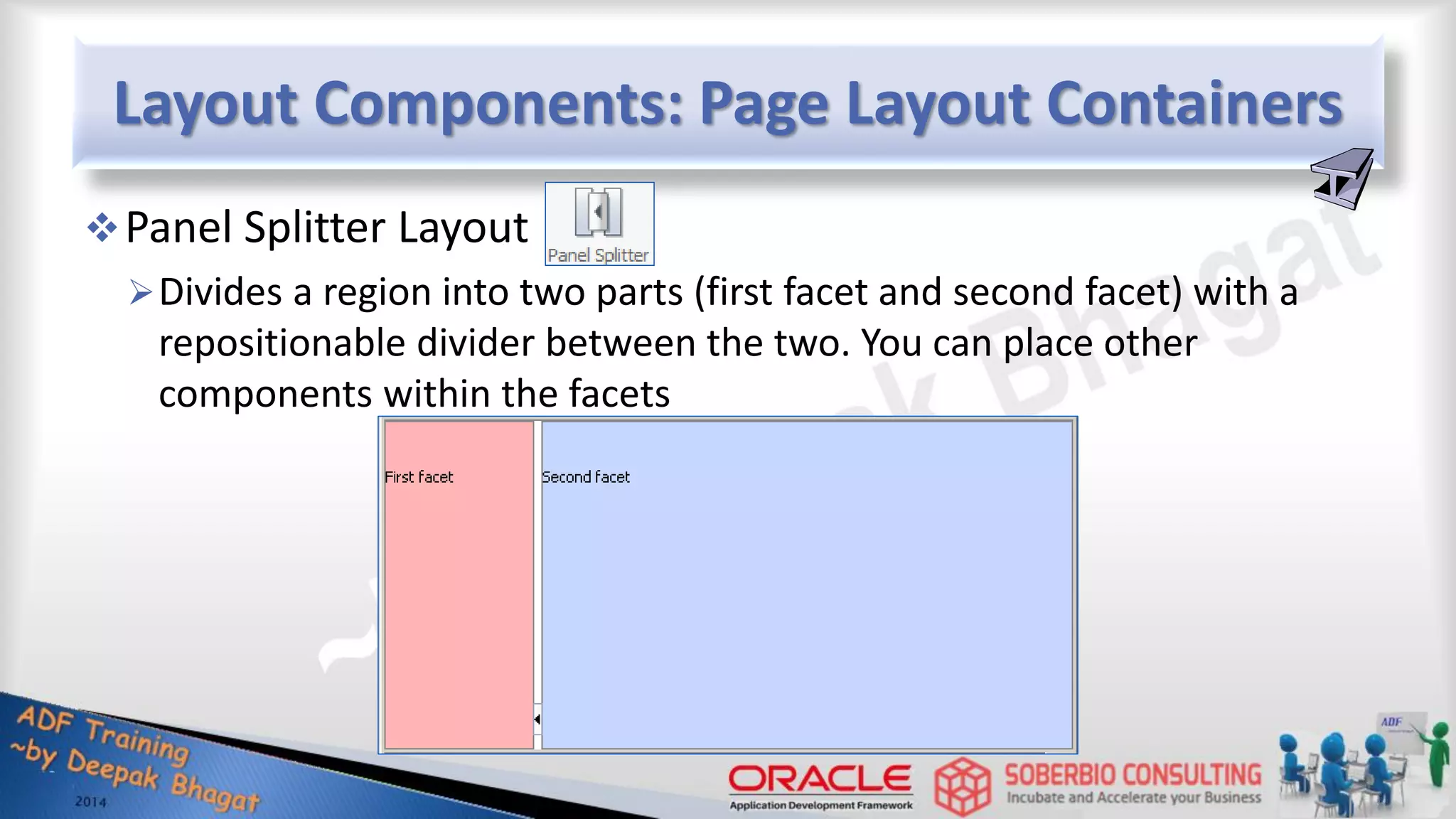

Layout Components: Page Layout Containers Panel Splitter Layout Divides a region into two parts (first facet and second facet) with a repositionable divider between the two. You can place other components within the facets

Create Resizable Panes: Panel Splitter

Layout Components: Page Layout Containers Masonry Layout Provides a dynamically-sized grid of child components

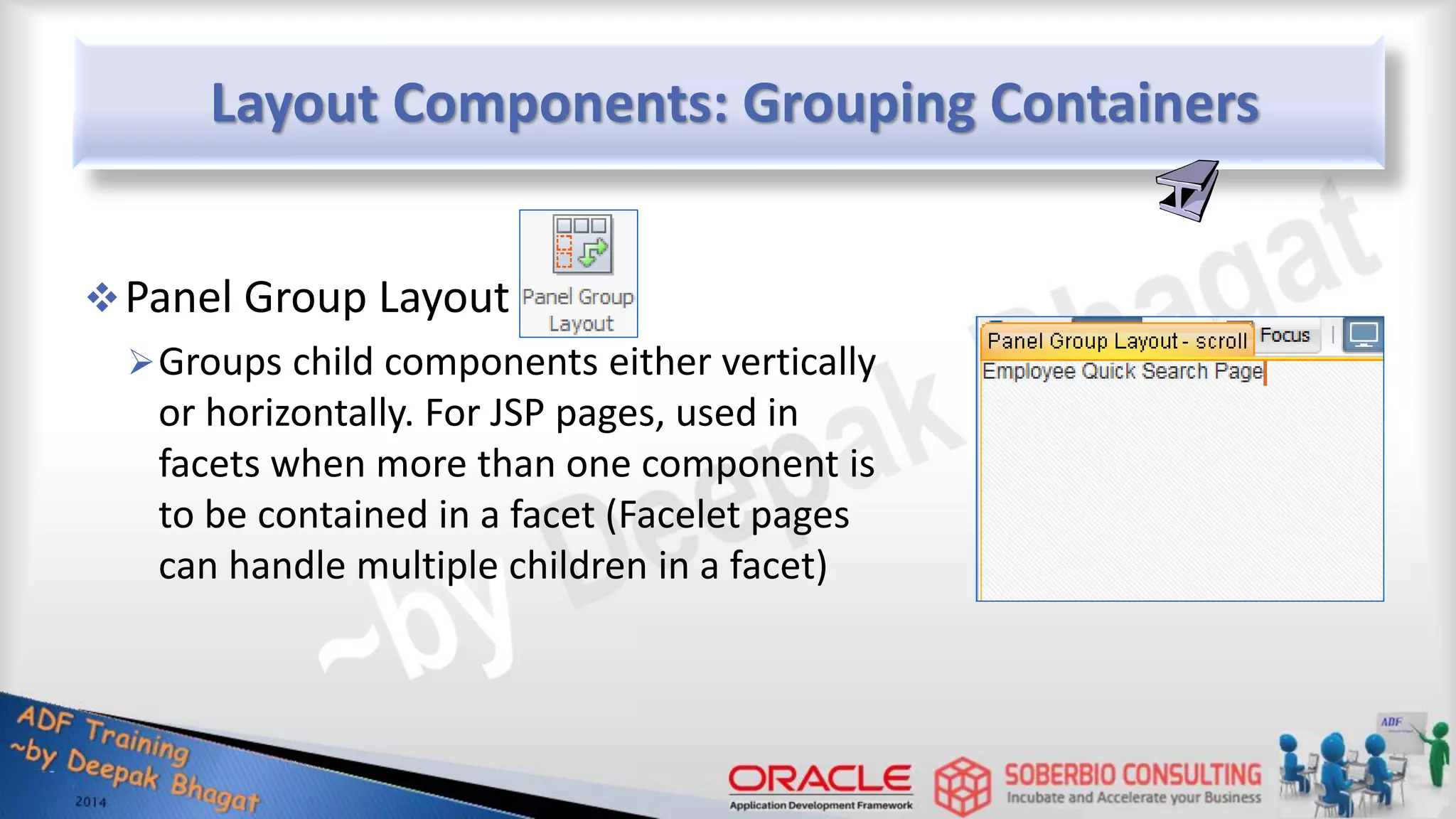

Layout Components: Grouping Containers Panel Group Layout Groups child components either vertically or horizontally. For JSP pages, used in facets when more than one component is to be contained in a facet (Facelet pages can handle multiple children in a facet)

Layout Components: Grouping Containers Group Groups child components without regard to layout unless handled by the parent component of the group. For JSP pages, used in facets when more than one component is to be contained in a facet (Facelet pages can handle multiple children in a facet)

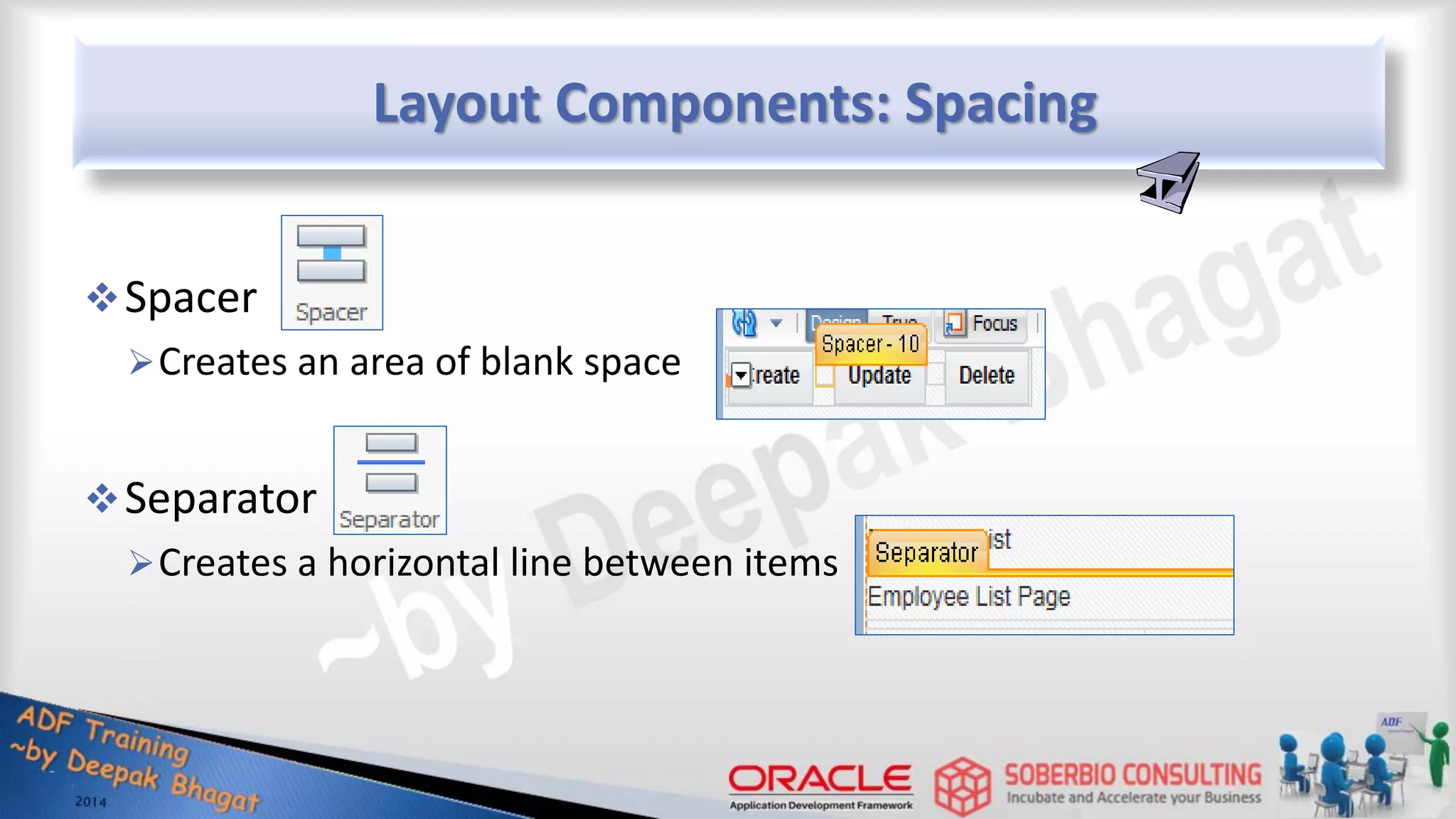

Layout Components: Spacing Spacer Creates an area of blank space Separator Creates a horizontal line between items

Layout Components: Miscellaneous Containers Deck Provides animated transitions between its child components, using the af:transition tag Decorative Box Creates a container component whose facets use style themes to apply a bordered look to its children. This component is typically used as a container for the navigationPane component that is configured to display tabs

Layout Components: Miscellaneous Containers Panel List Renders each child component as a list item and renders a bullet next to it. Can be nested to create hierarchical lists

Layout Components: Additional Functionalities Once you have added a layout component to your page, you need to add functionality such as responding to events  Templates: Once a layout is created, it can be saved as a template. When template is modified, all pages that consume the template will automatically reflect the changes  Themes: Themes add color styling to some of layout components, such as the panelBox component  Skins: Can change look & feel, icons and other properties of layout components using skins  Localization: Instead of entering values for attributes that take strings as values, you can use property files. These files allow you to manage translation of these strings

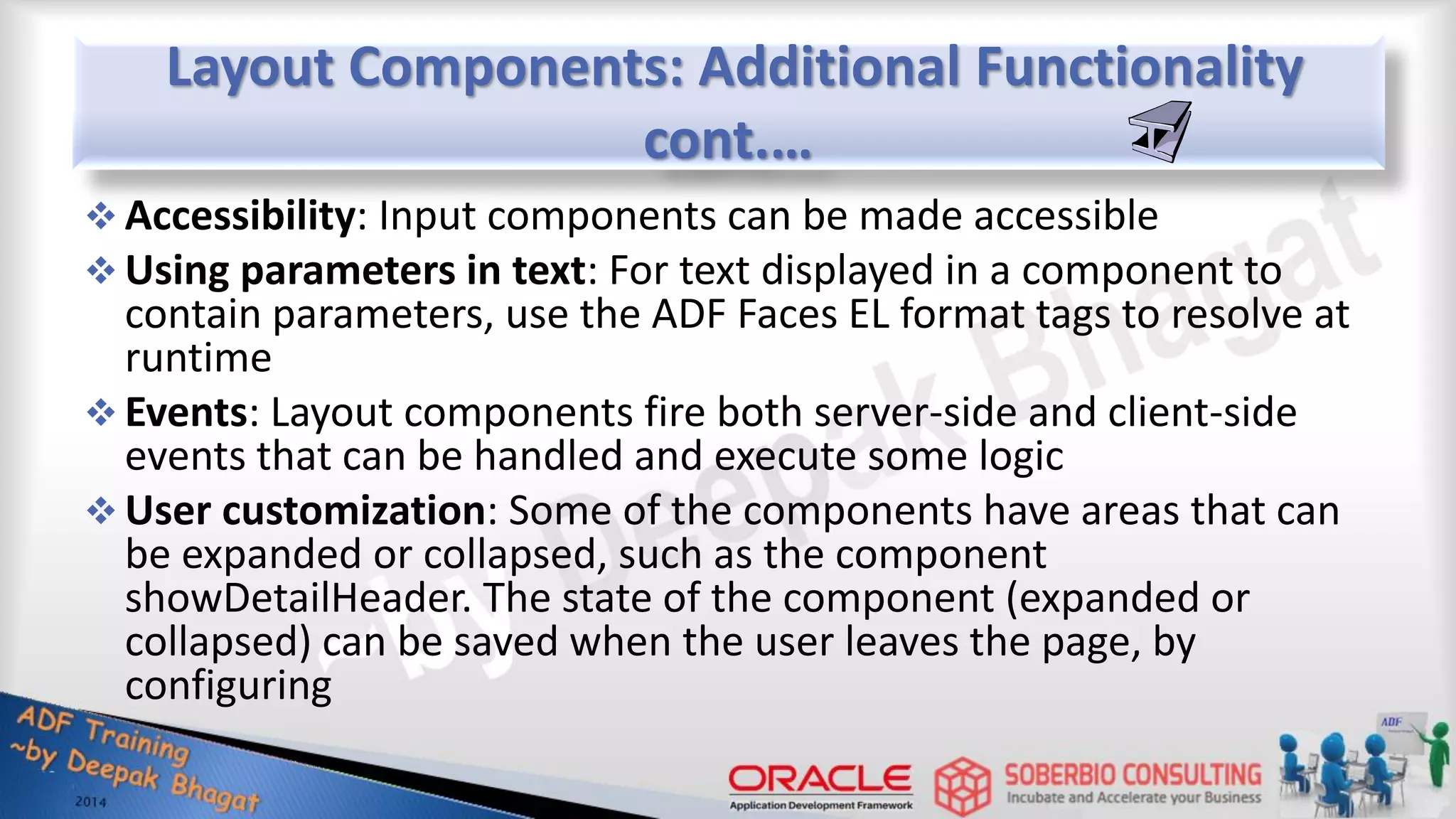

Layout Components: Additional Functionality cont.…  Accessibility: Input components can be made accessible  Using parameters in text: For text displayed in a component to contain parameters, use the ADF Faces EL format tags to resolve at runtime  Events: Layout components fire both server-side and client-side events that can be handled and execute some logic  User customization: Some of the components have areas that can be expanded or collapsed, such as the component showDetailHeader. The state of the component (expanded or collapsed) can be saved when the user leaves the page, by configuring

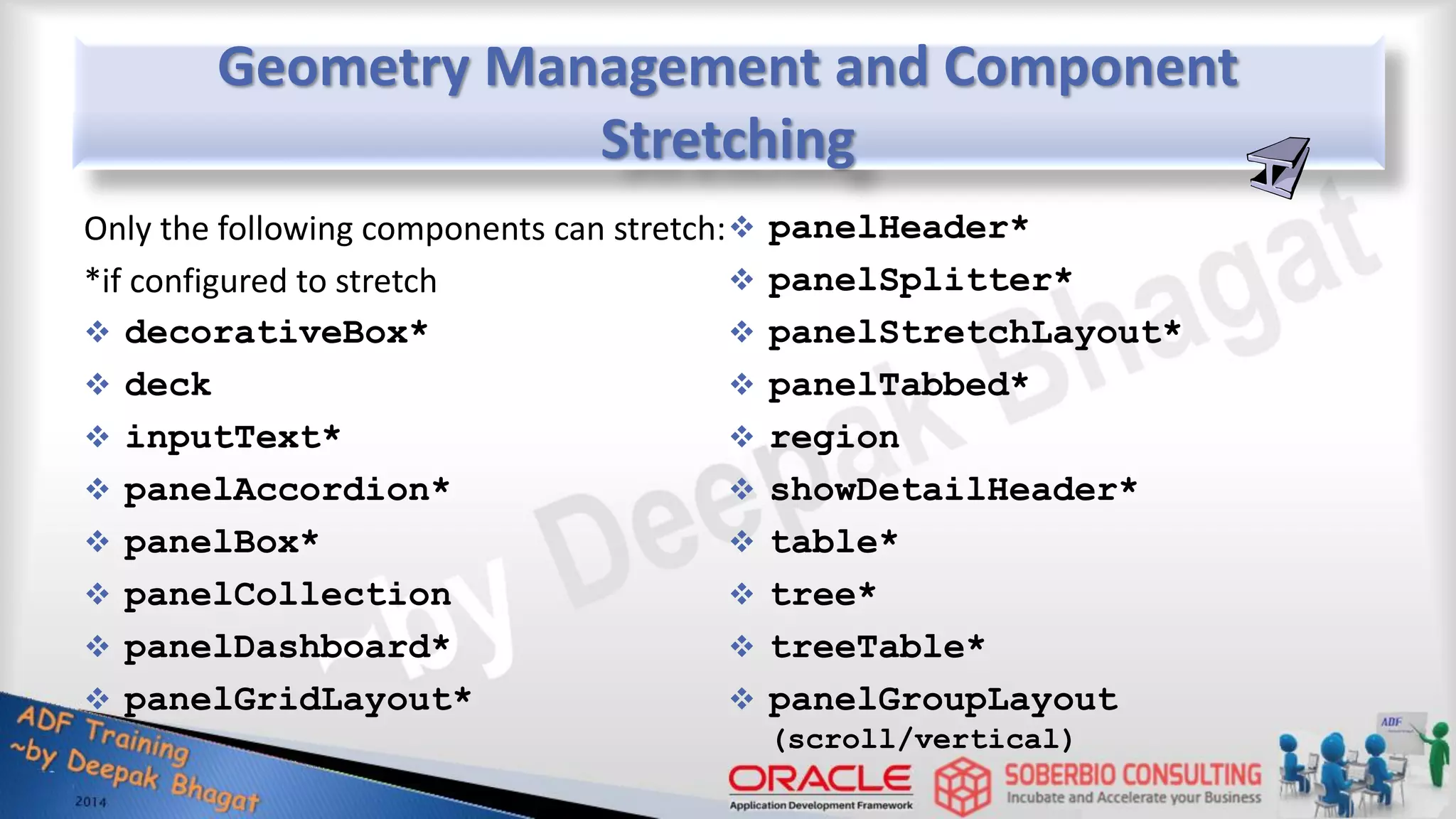

Geometry Management and Component Stretching Only the following components can stretch: *if configured to stretch  decorativeBox*  deck  inputText*  panelAccordion*  panelBox*  panelCollection  panelDashboard*  panelGridLayout*  panelHeader*  panelSplitter*  panelStretchLayout*  panelTabbed*  region  showDetailHeader*  table*  tree*  treeTable*  panelGroupLayout (scroll/vertical)

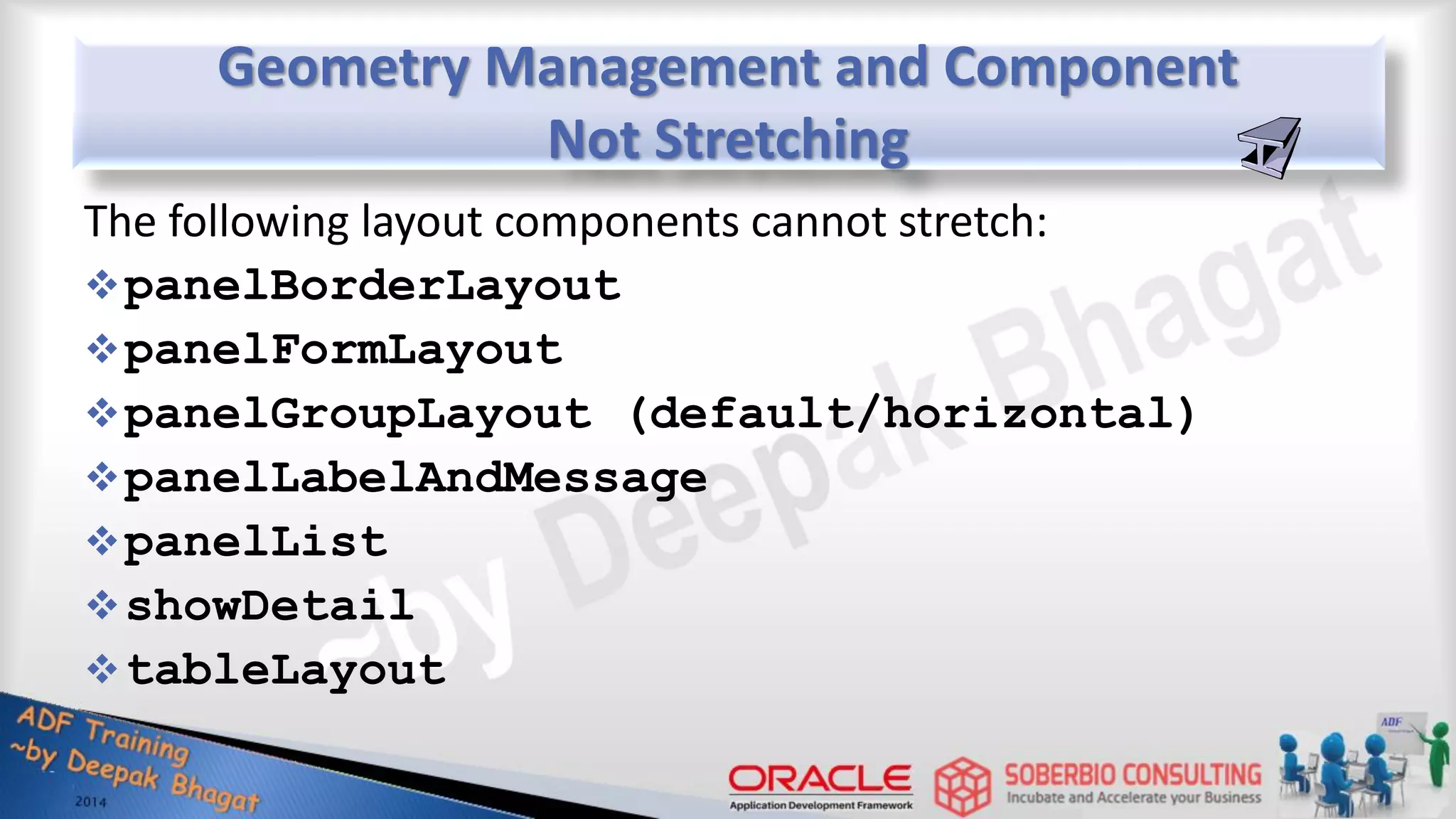

Geometry Management and Component Not Stretching The following layout components cannot stretch: panelBorderLayout panelFormLayout panelGroupLayout (default/horizontal) panelLabelAndMessage panelList showDetail tableLayout

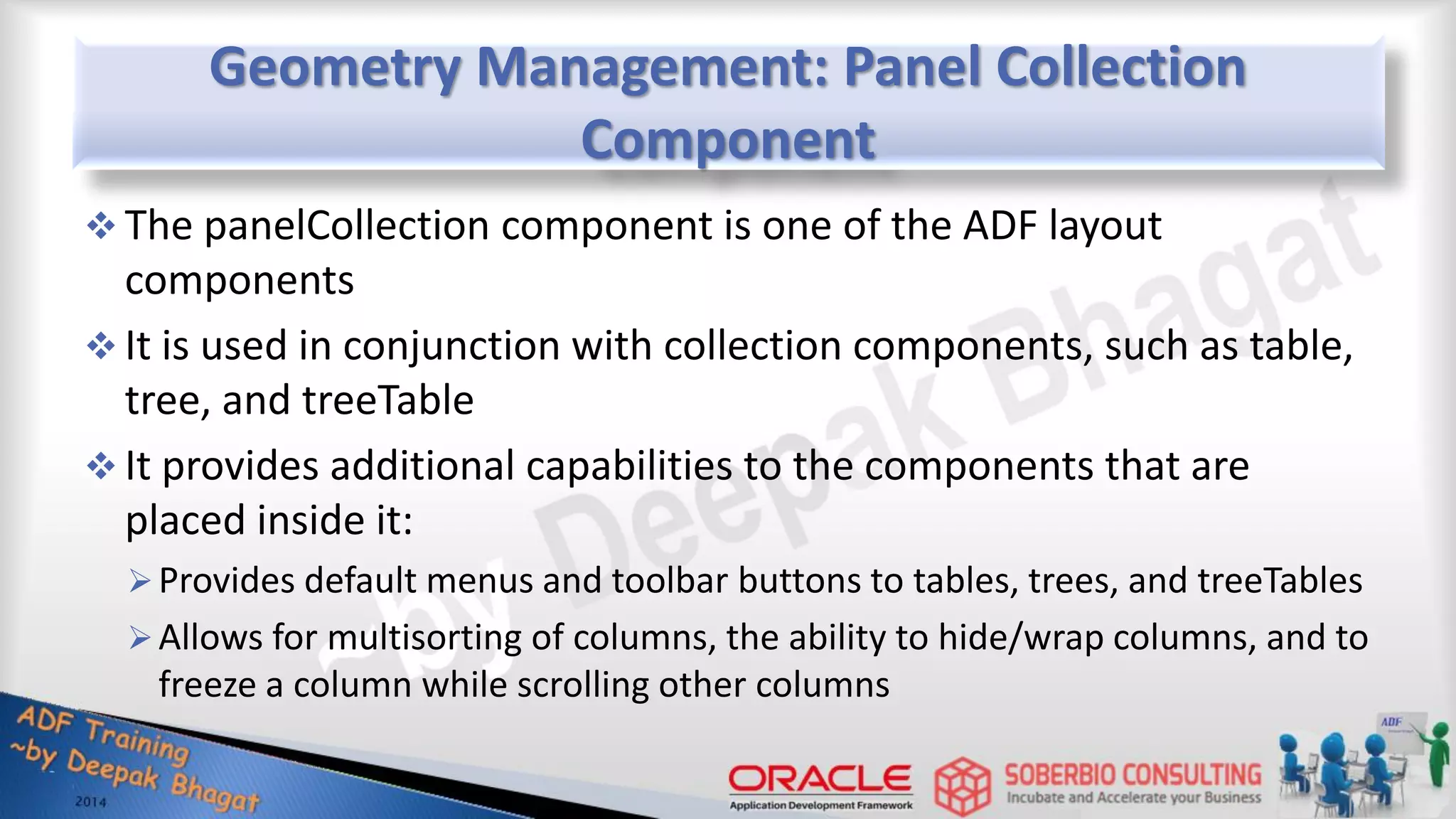

Geometry Management: Panel Collection Component  The panelCollection component is one of the ADF layout components  It is used in conjunction with collection components, such as table, tree, and treeTable  It provides additional capabilities to the components that are placed inside it: Provides default menus and toolbar buttons to tables, trees, and treeTables Allows for multisorting of columns, the ability to hide/wrap columns, and to freeze a column while scrolling other columns

Geometry Management: Panel Collection Component cont.… Use panelCollection for table with menus and toolbars: A panel component that aggregates collection components like table, treeTable and tree to display standard/application menus, toolbars and statusbar items

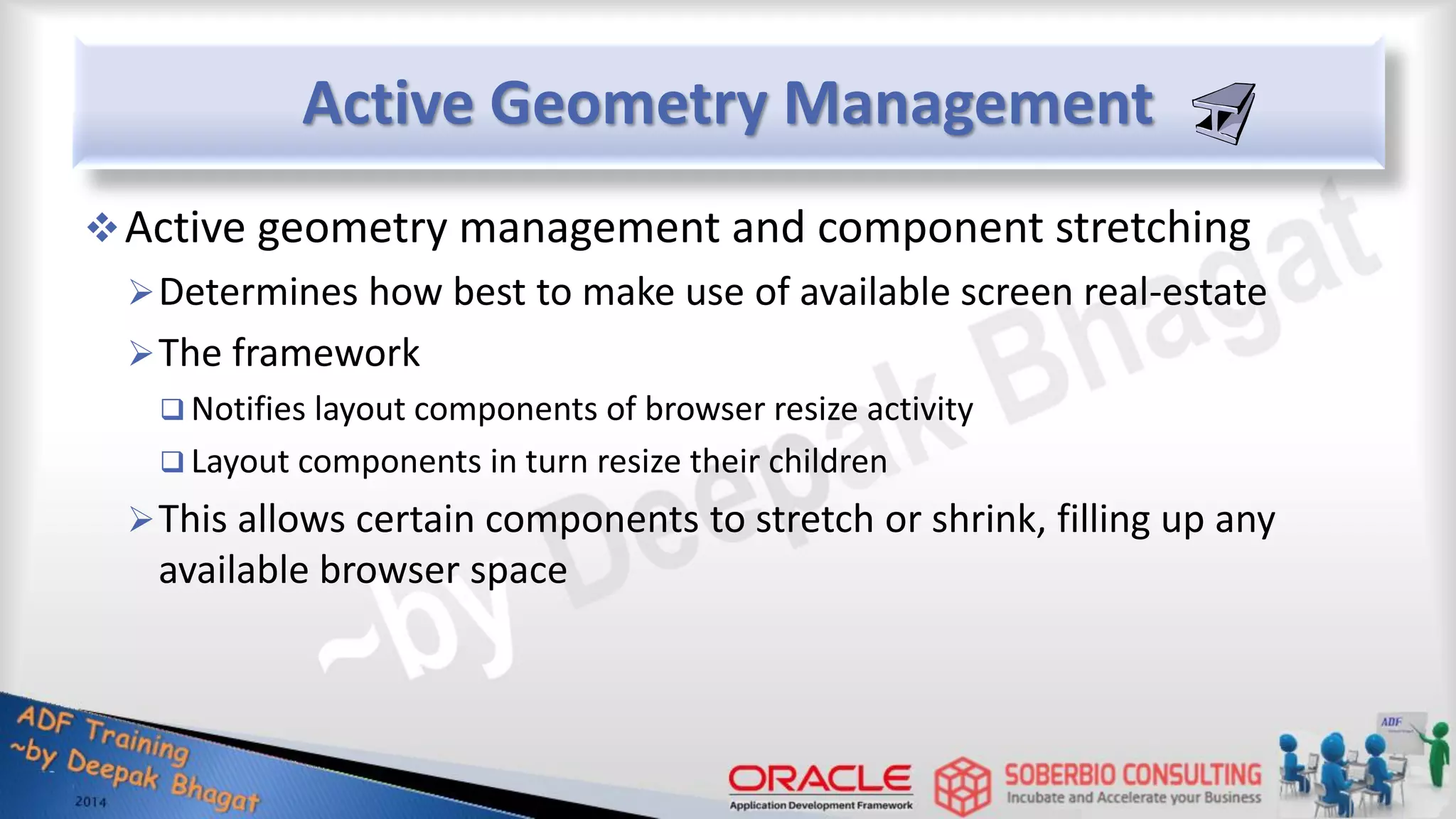

Active Geometry Management Active geometry management and component stretching Determines how best to make use of available screen real-estate The framework  Notifies layout components of browser resize activity  Layout components in turn resize their children This allows certain components to stretch or shrink, filling up any available browser space

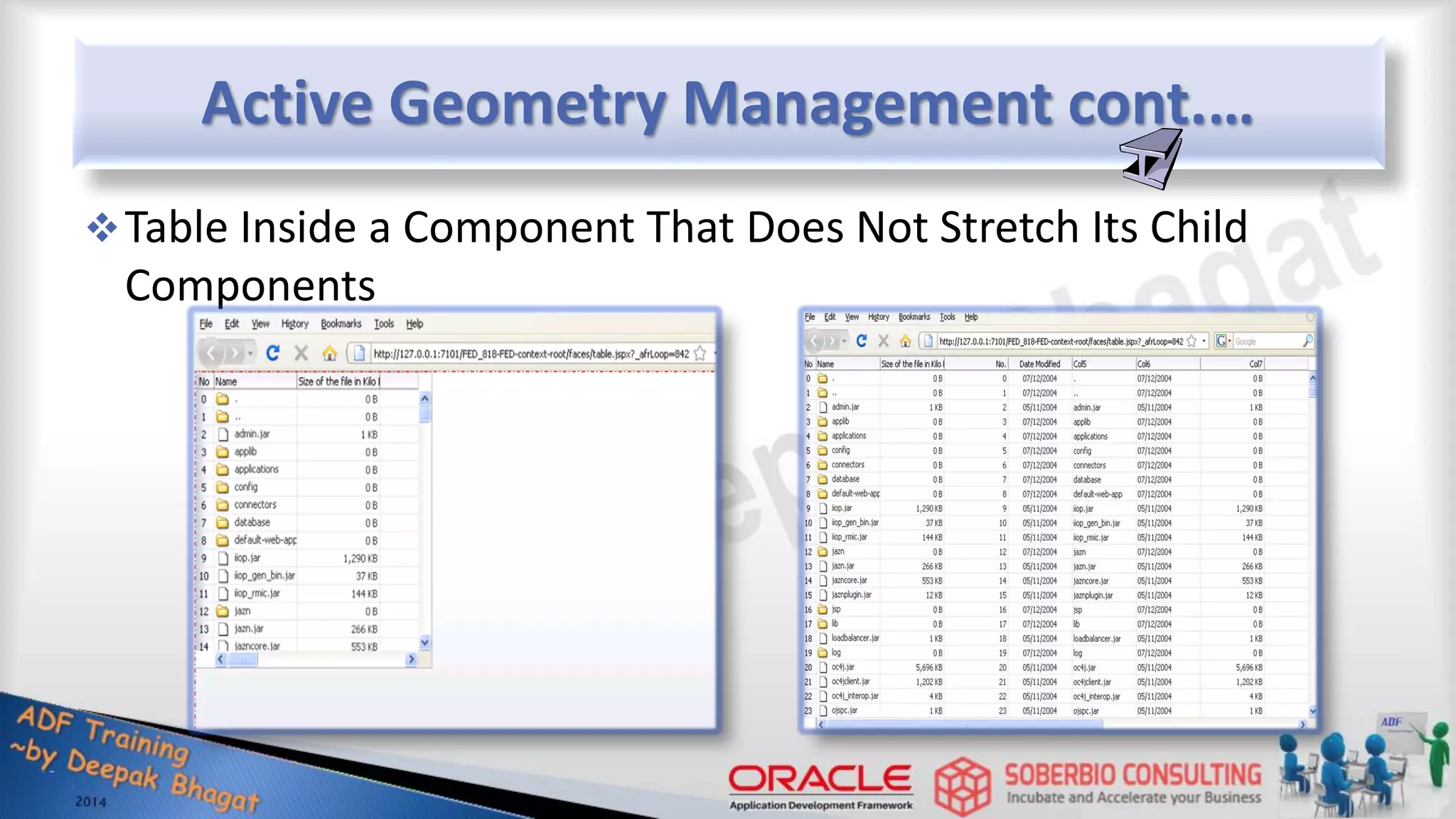

Active Geometry Management cont.… Table Inside a Component That Does Not Stretch Its Child Components

Relation of styles and stretching  What does being stretched mean for styles? When a Renderer stretches a child component, the root element of that child will have an inlineStyle injected The injection is at the beginning of the inlineStyle Trying to override the dimensions of a stretched child is asking for trouble  What priorities do styles/skin have? inlineStyle beats styleClass The further right inside of an inlineStyle wins In a .css file, the lower the definition wins if there is equal weight but if another definition is more specific, it wins (see W3C CSS spec for specificity rules on how to rank specificity)

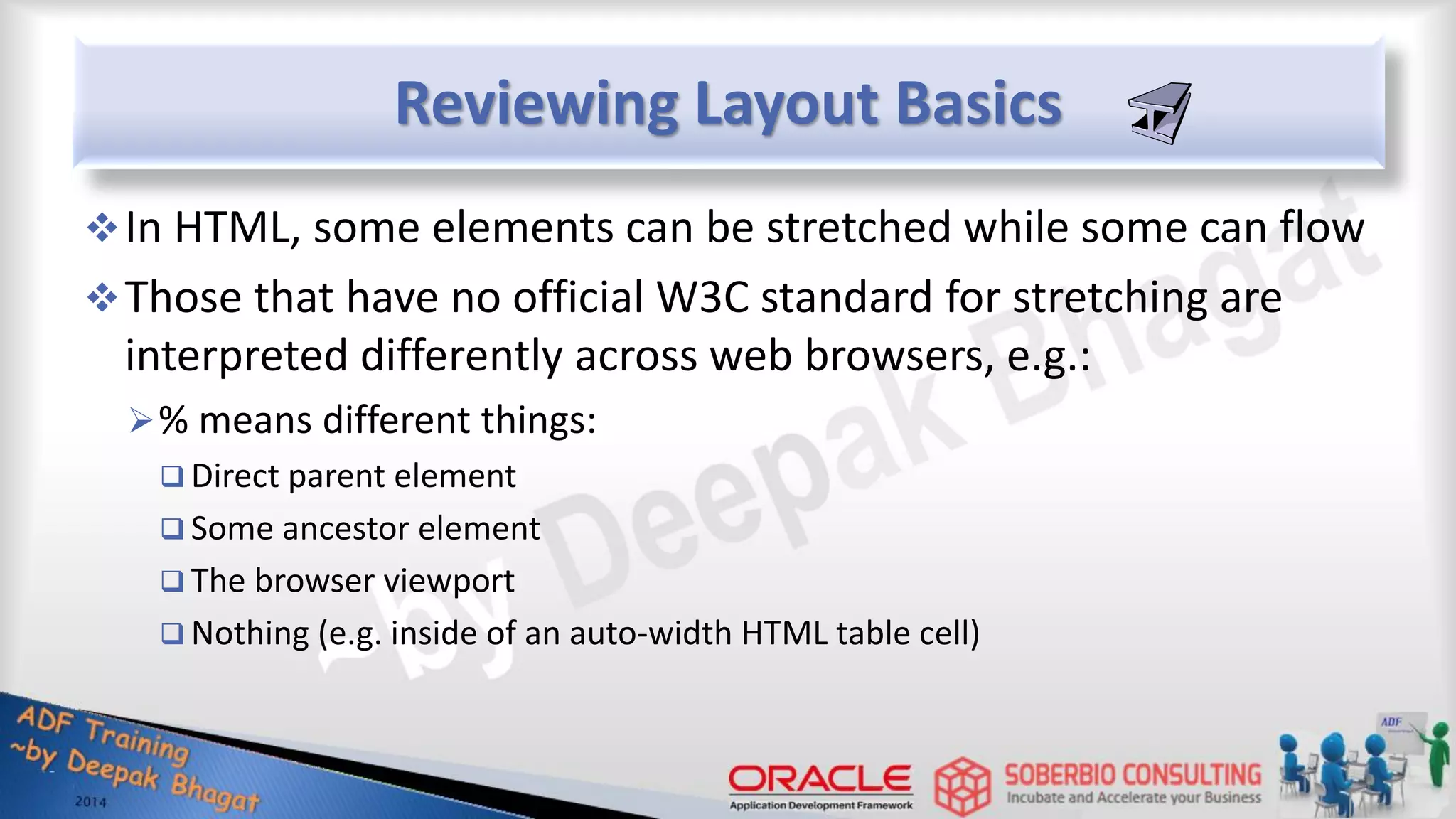

Reviewing Layout Basics In HTML, some elements can be stretched while some can flow Those that have no official W3C standard for stretching are interpreted differently across web browsers, e.g.: % means different things:  Direct parent element  Some ancestor element  The browser viewport  Nothing (e.g. inside of an auto-width HTML table cell)

Reviewing Layout Basics cont.…  Changing styles (e.g. inlineStyle or styleClass) can impact the ability for a component to stretch or flow  Don’t modify styles; instead solve problems using a declarative approach to insulate you from browser-specific issues  In ADF Faces, the HTML limitations translates to:  Whether the component supports being stretched by an ancestor  Whether the component must flow on its own  Whether the component supports stretching its children  Whether the component must let the children flow  Third-party components need this info documented  The outer shell of components can be stretchable ones  The inner island(s) of components must be flowing  Cannot stretch components in a flowing island

Stretching and Flowing  Browsers are unreliable; not robust:  Some things can stretch others must flow  % dimensions mean different things  Don’t be a slave to the browsers, avoid inlineStyle like the plague!  Highly recommended that you build your layouts like this:  Use a stretchable outer frame  Inside this frame, have flowing islands (e.g. scrollable areas)  Do not attempt to stretch something vertically in a flowing island!  Need custom styling?  Find a declarative approach (theme, hint, other attribute)  e.g. make the page dark blue with af:document’s theme="dark"  Use the styleClass attribute  Organizations can use a custom skin (to change how a component looks or just to make custom global selectors)

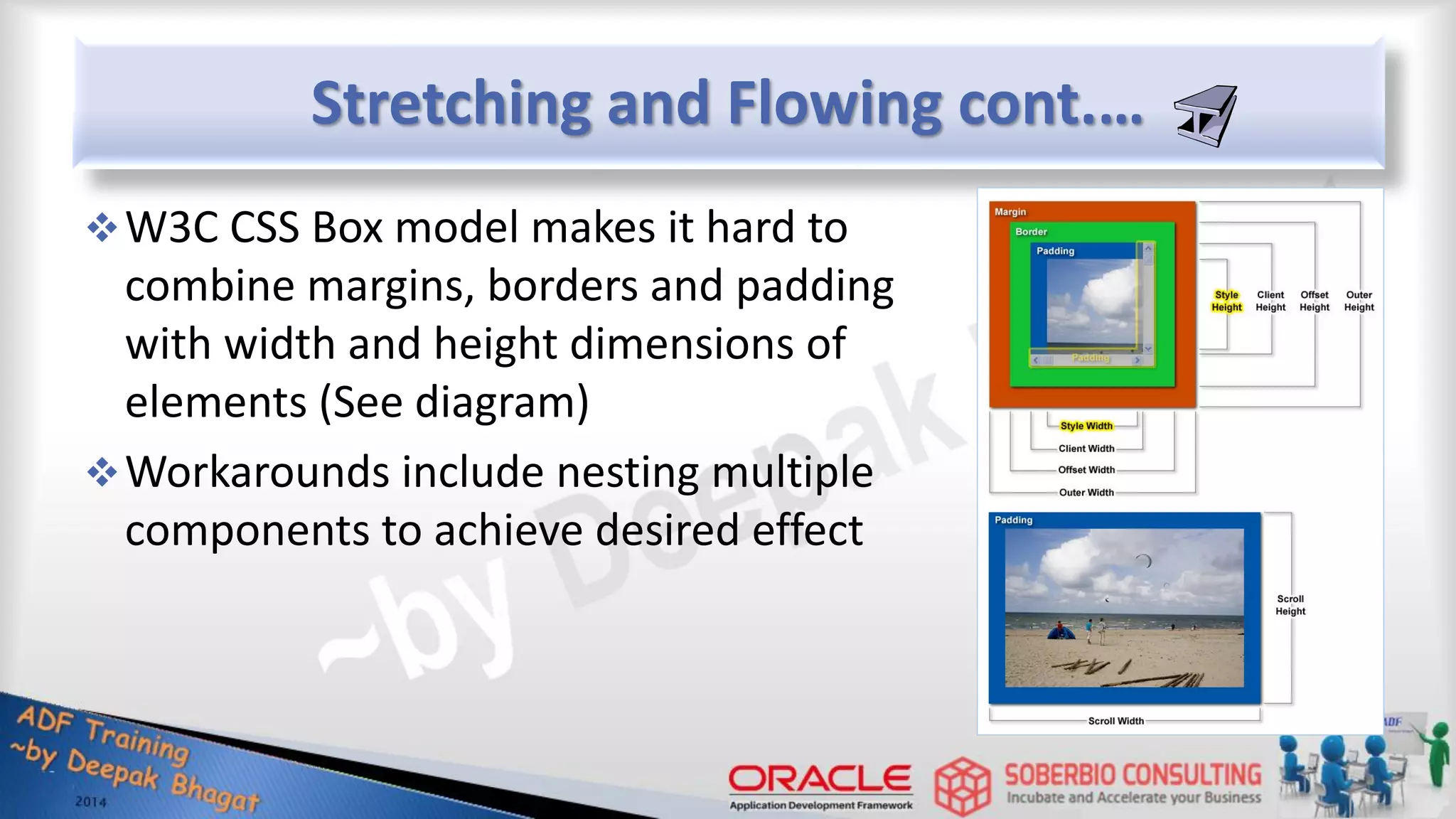

Stretching and Flowing cont.… W3C CSS Box model makes it hard to combine margins, borders and padding with width and height dimensions of elements (See diagram) Workarounds include nesting multiple components to achieve desired effect

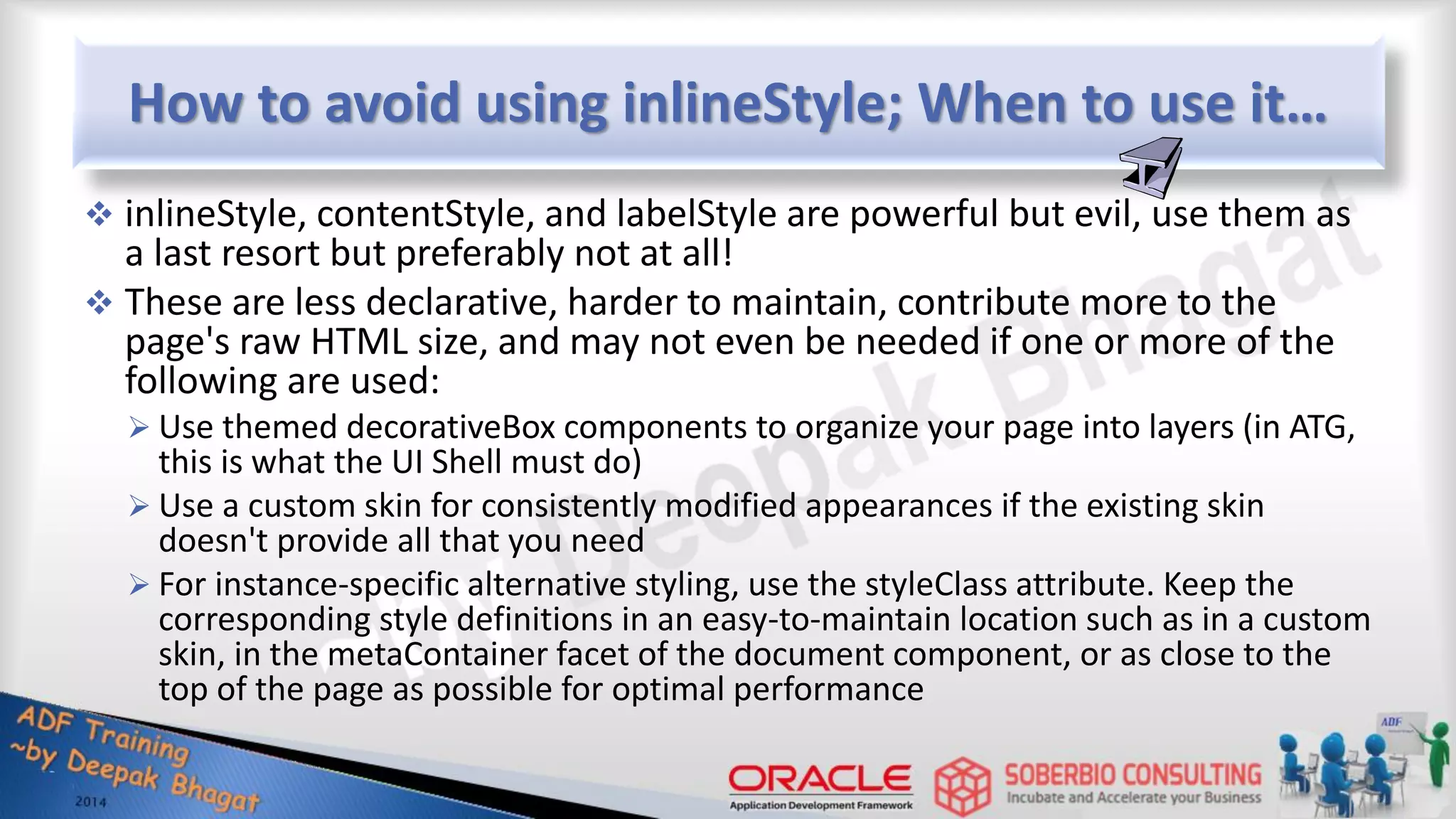

How to avoid using inlineStyle; When to use it…  inlineStyle, contentStyle, and labelStyle are powerful but evil, use them as a last resort but preferably not at all!  These are less declarative, harder to maintain, contribute more to the page's raw HTML size, and may not even be needed if one or more of the following are used:  Use themed decorativeBox components to organize your page into layers (in ATG, this is what the UI Shell must do)  Use a custom skin for consistently modified appearances if the existing skin doesn't provide all that you need  For instance-specific alternative styling, use the styleClass attribute. Keep the corresponding style definitions in an easy-to-maintain location such as in a custom skin, in the metaContainer facet of the document component, or as close to the top of the page as possible for optimal performance

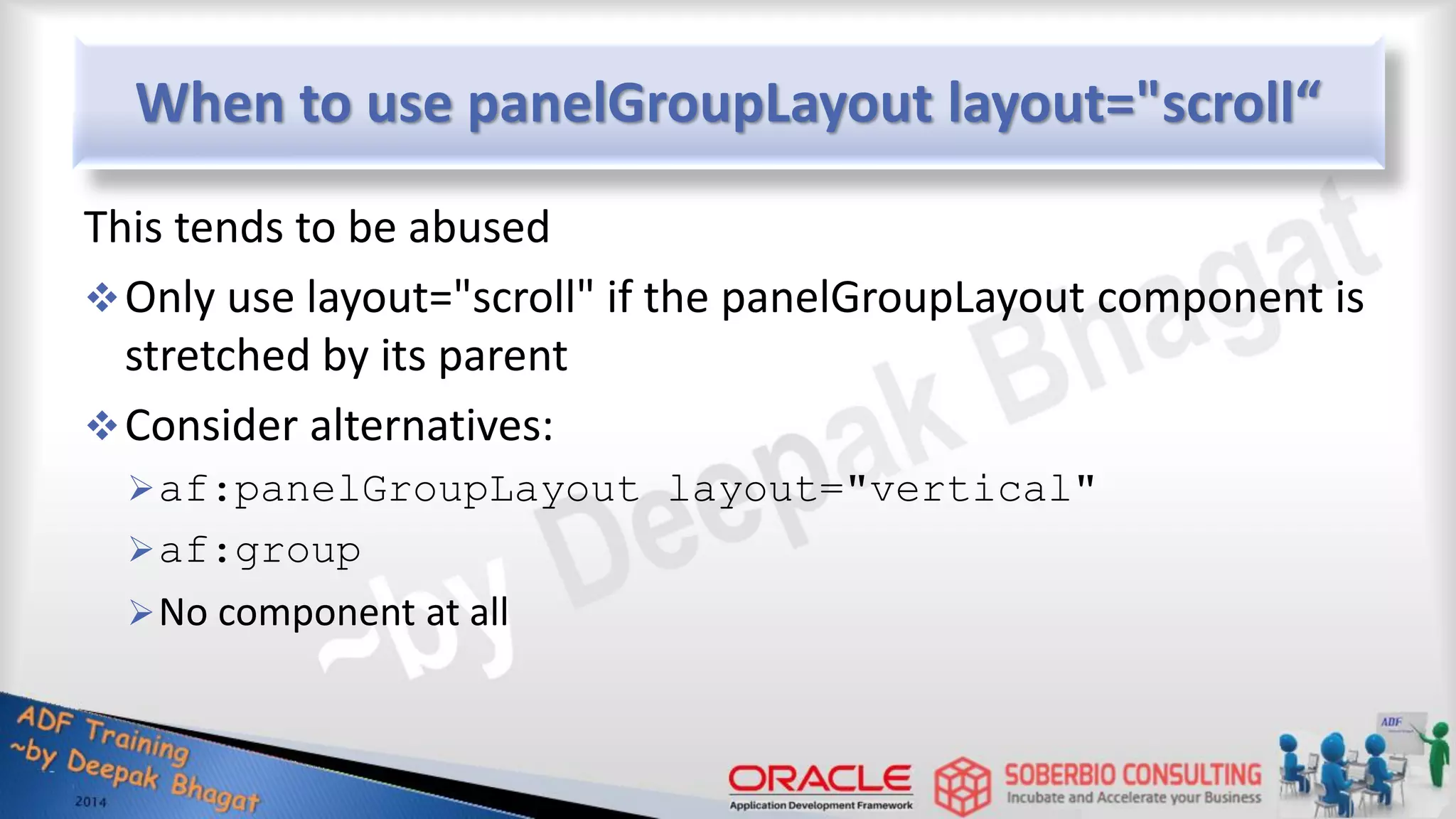

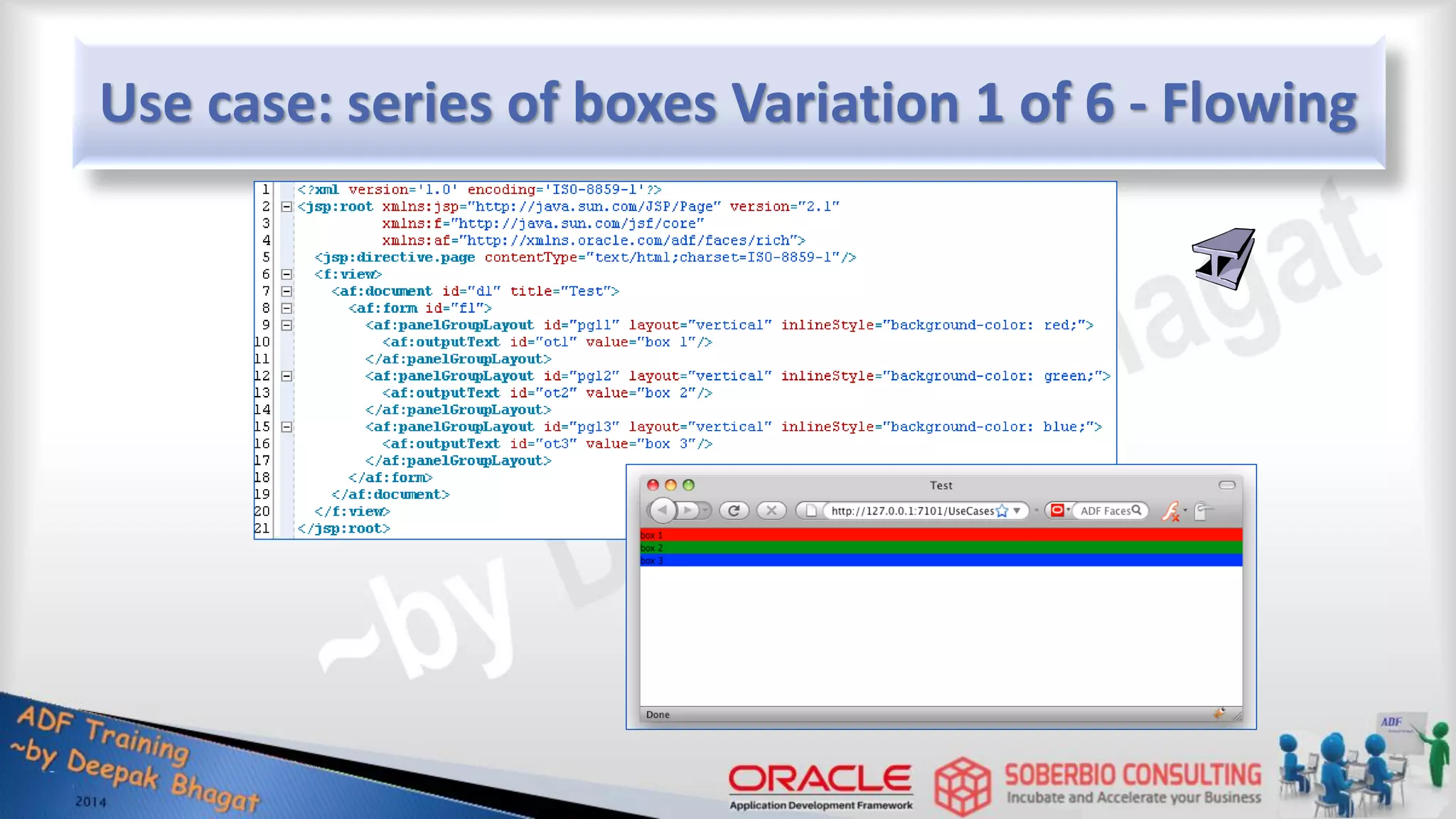

Use case: series of boxes Variation 1 of 6 - Flowing

Use case: series of boxes Variation 2 of 6 - Stretch the 1st box

Use case: series of boxes Variation 3 of 6 - Stretch the 2nd box

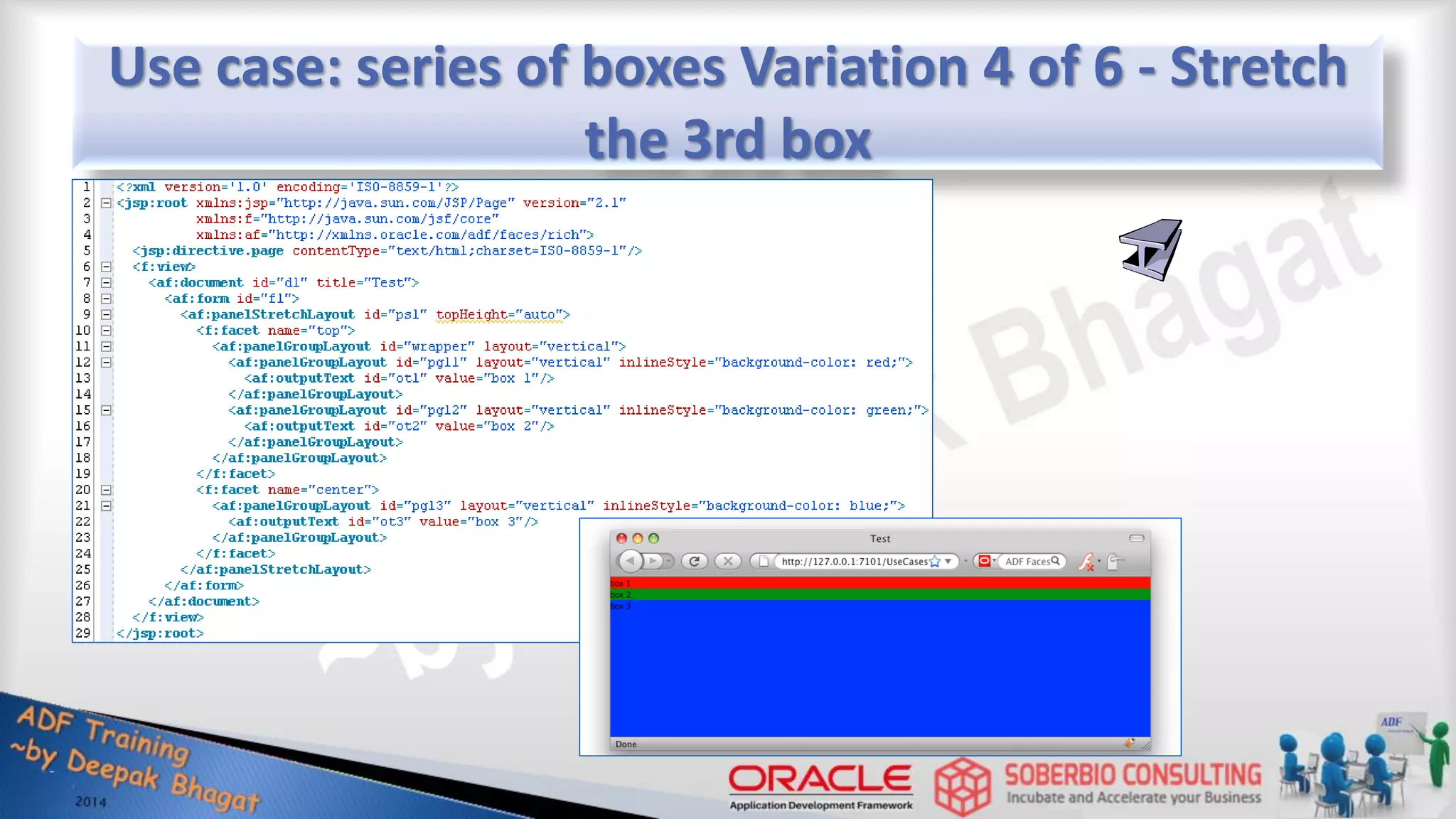

Use case: series of boxes Variation 4 of 6 - Stretch the 3rd box

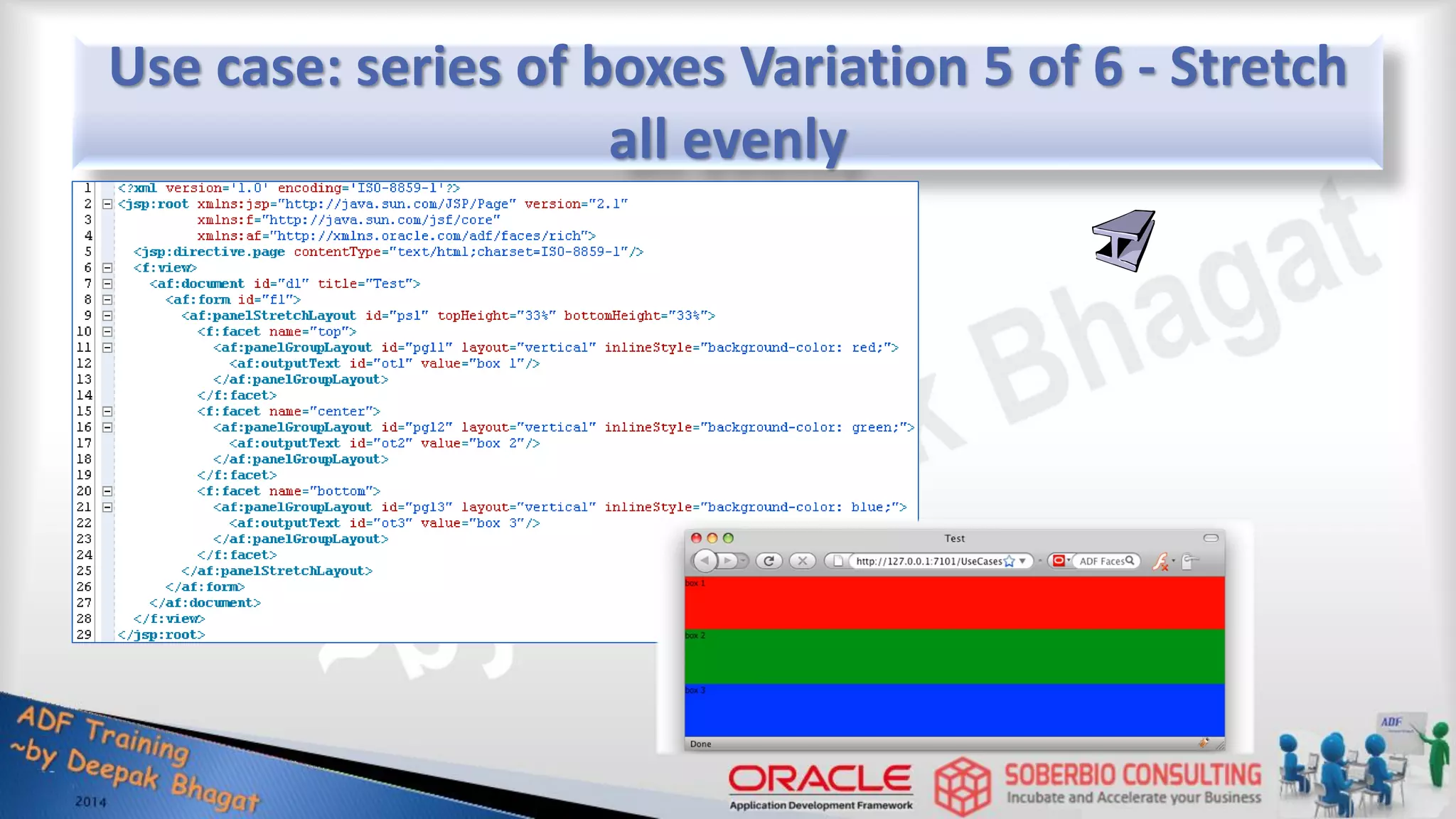

Use case: series of boxes Variation 5 of 6 - Stretch all evenly

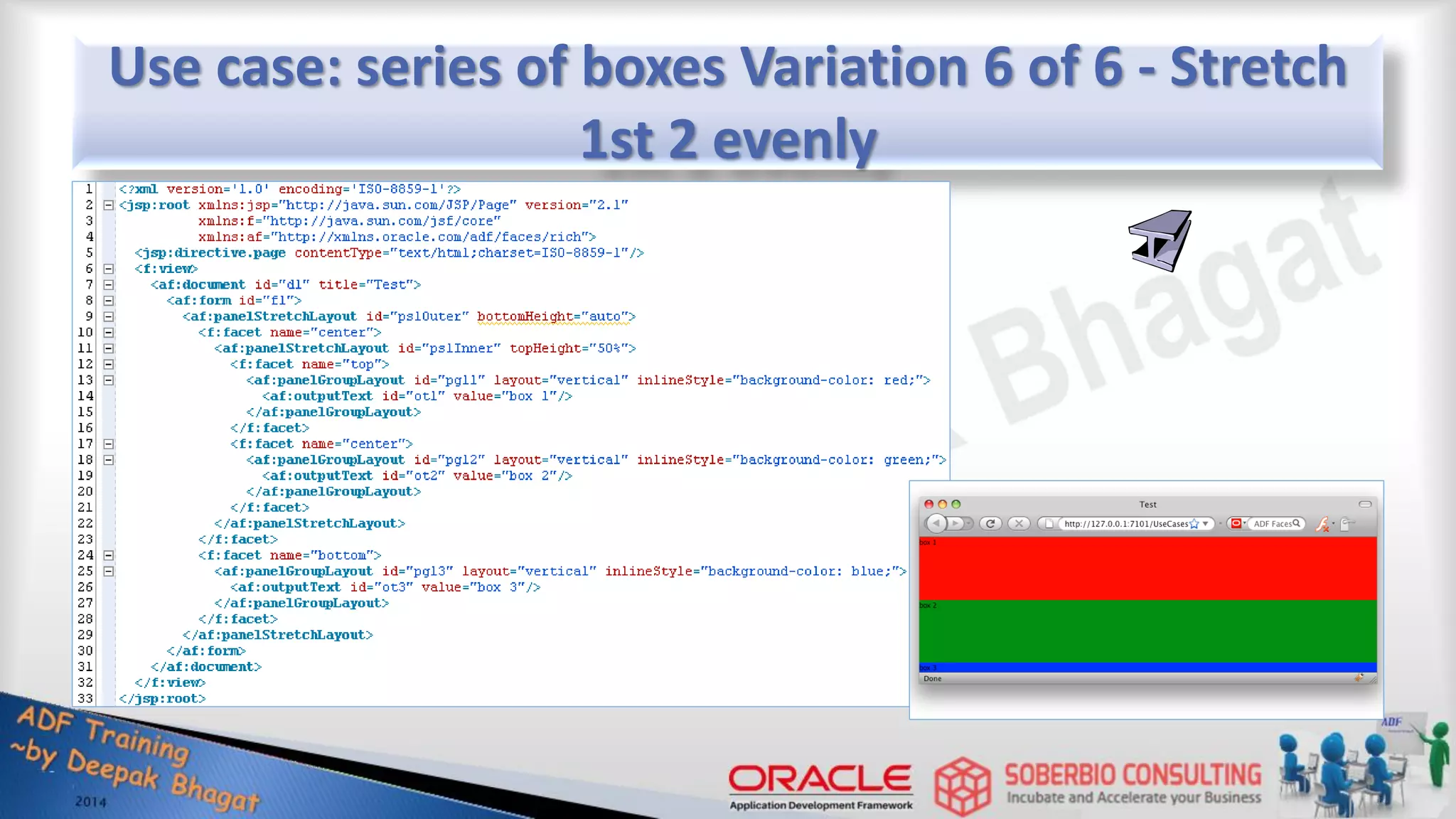

Use case: series of boxes Variation 6 of 6 - Stretch 1st 2 evenly

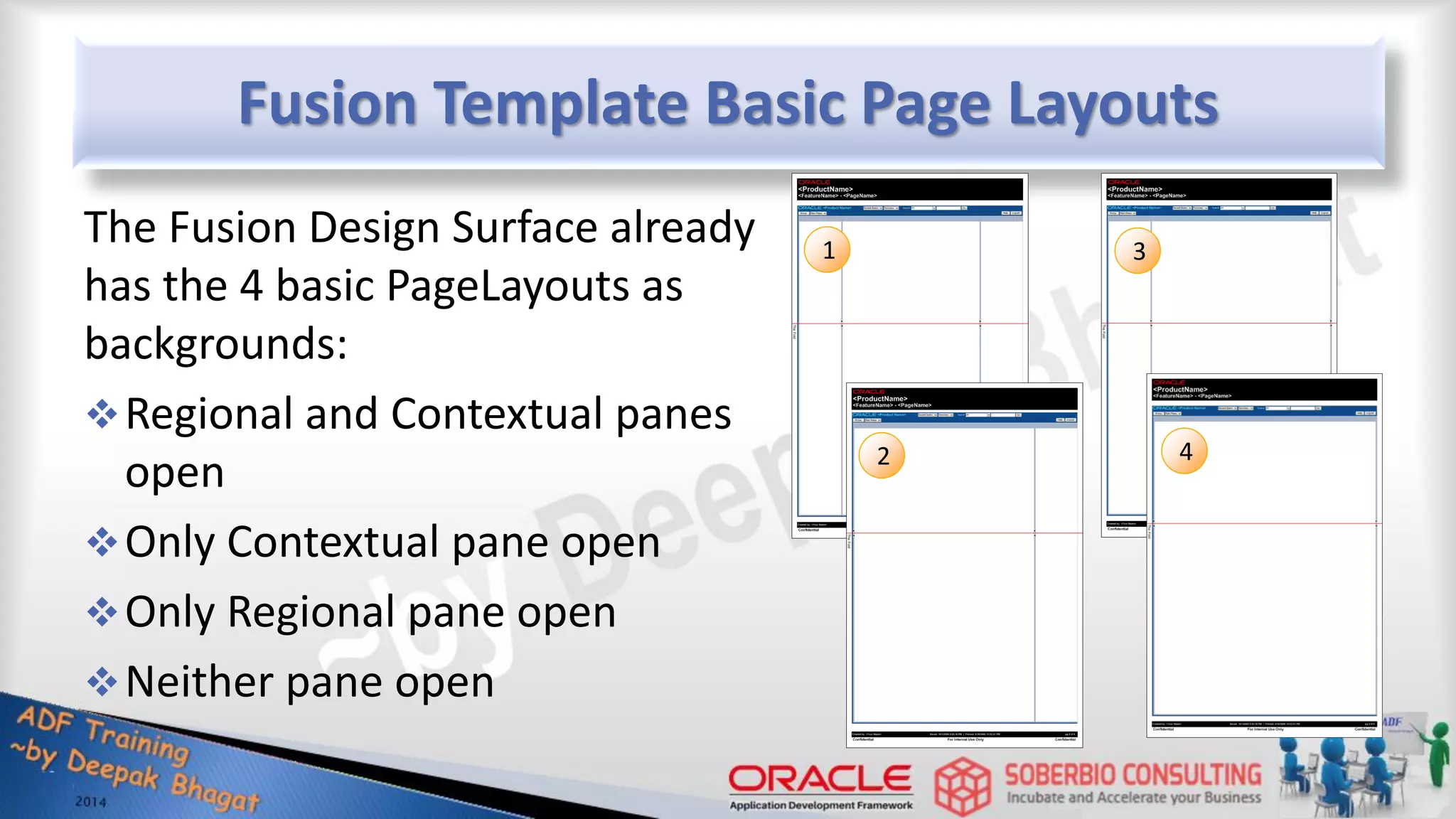

Fusion Template Basic Page Layouts The Fusion Design Surface already has the 4 basic PageLayouts as backgrounds: Regional and Contextual panes open Only Contextual pane open Only Regional pane open Neither pane open 1 3 2 4

Resizing Content Panes - 1 Starting Point The BG_… page you want to use

Resizing Content Panes - 2 1 2 Drag the edge top corner of a layer  In this case the splitter is moving with the edge of the Content Layer it since the splitter is glued to the left layer  If the splitter needs to be moved the controls for the splitter are on the left side (1). It has connection points on the right the other region needs to be snapped/glued to (2).

Resizing Content Panes - 3 Drag the other regions edge to snap to the first region moved.

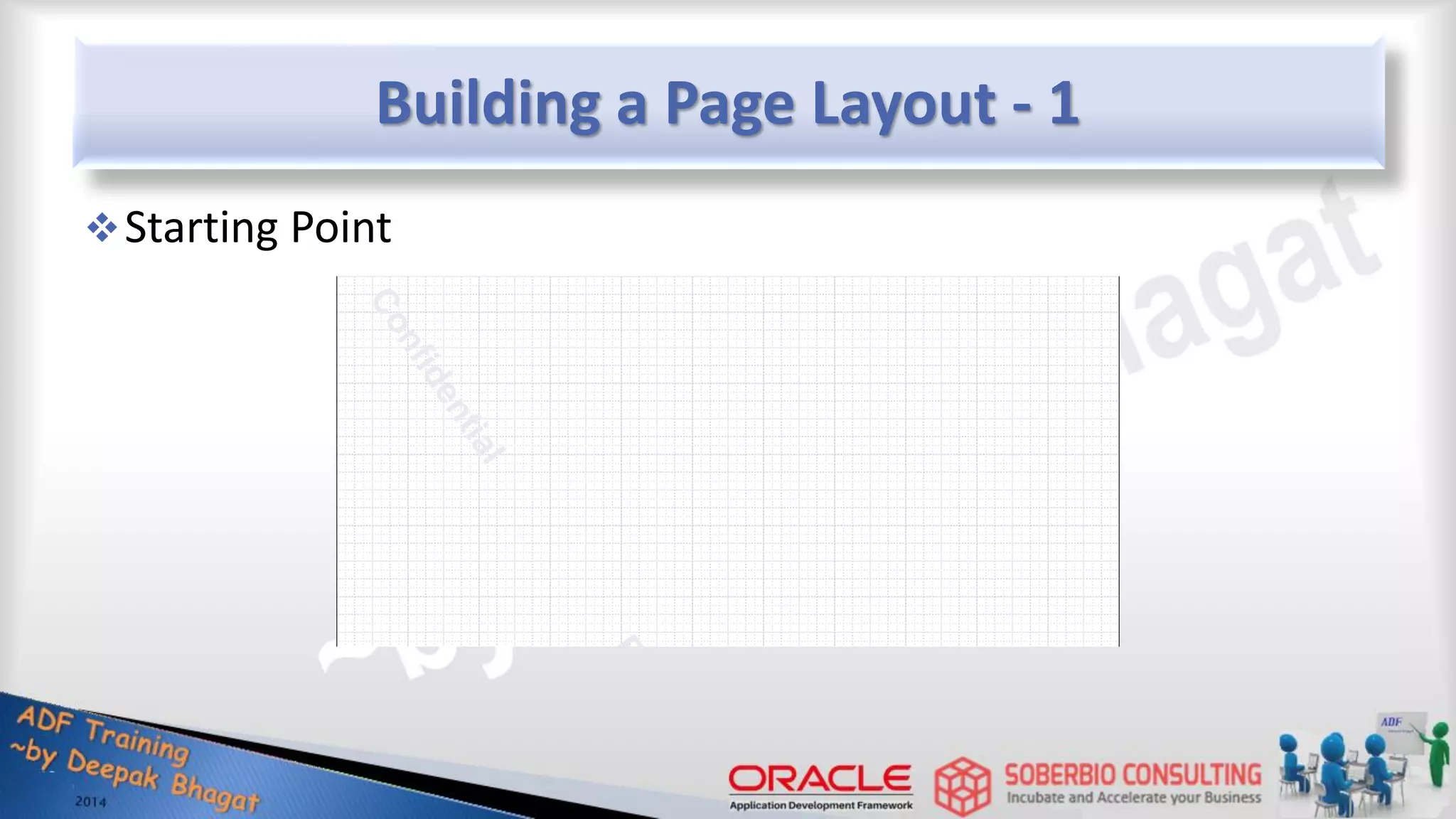

Building a Page Layout - 1 Starting Point

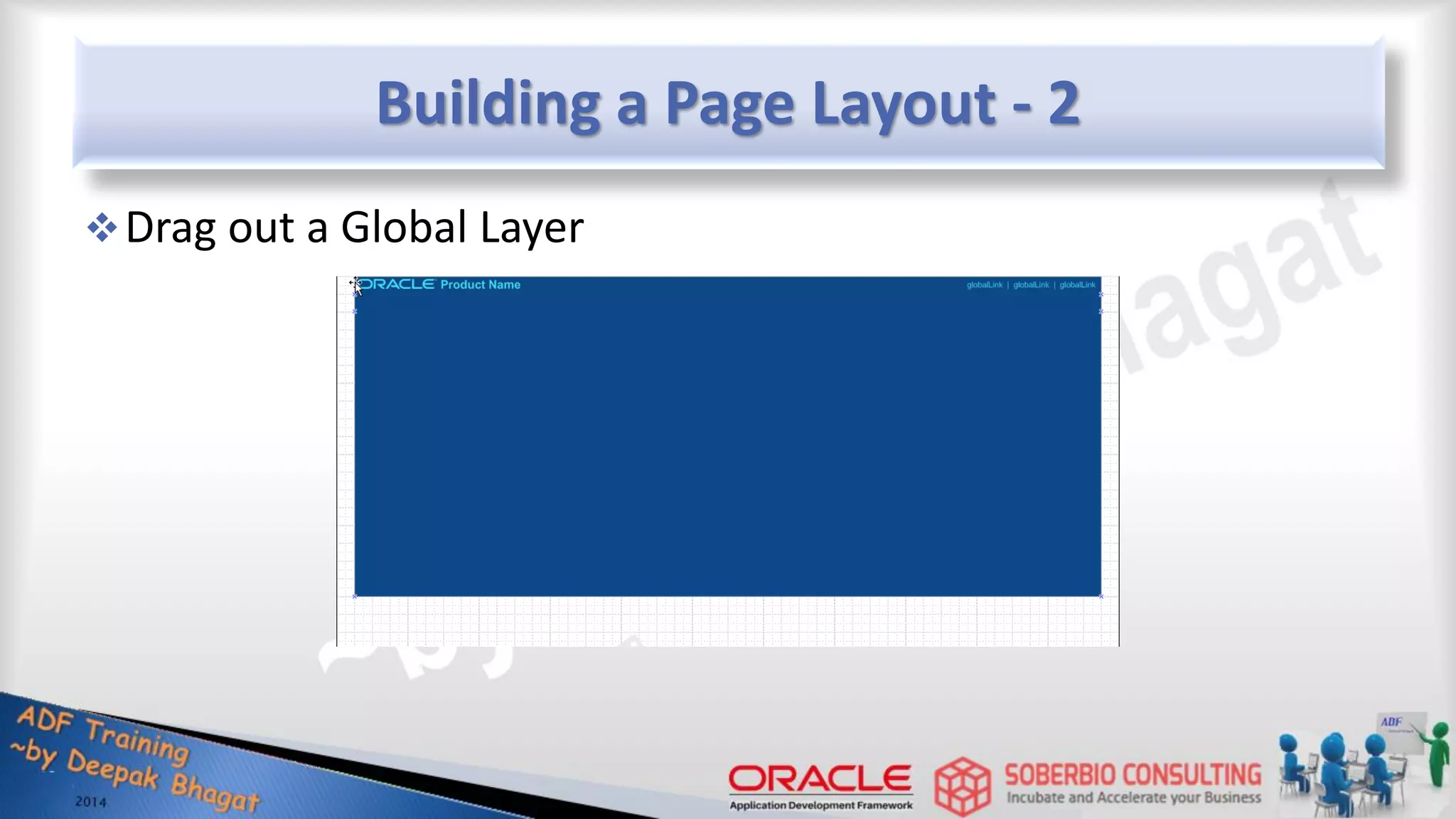

Building a Page Layout - 2 Drag out a Global Layer

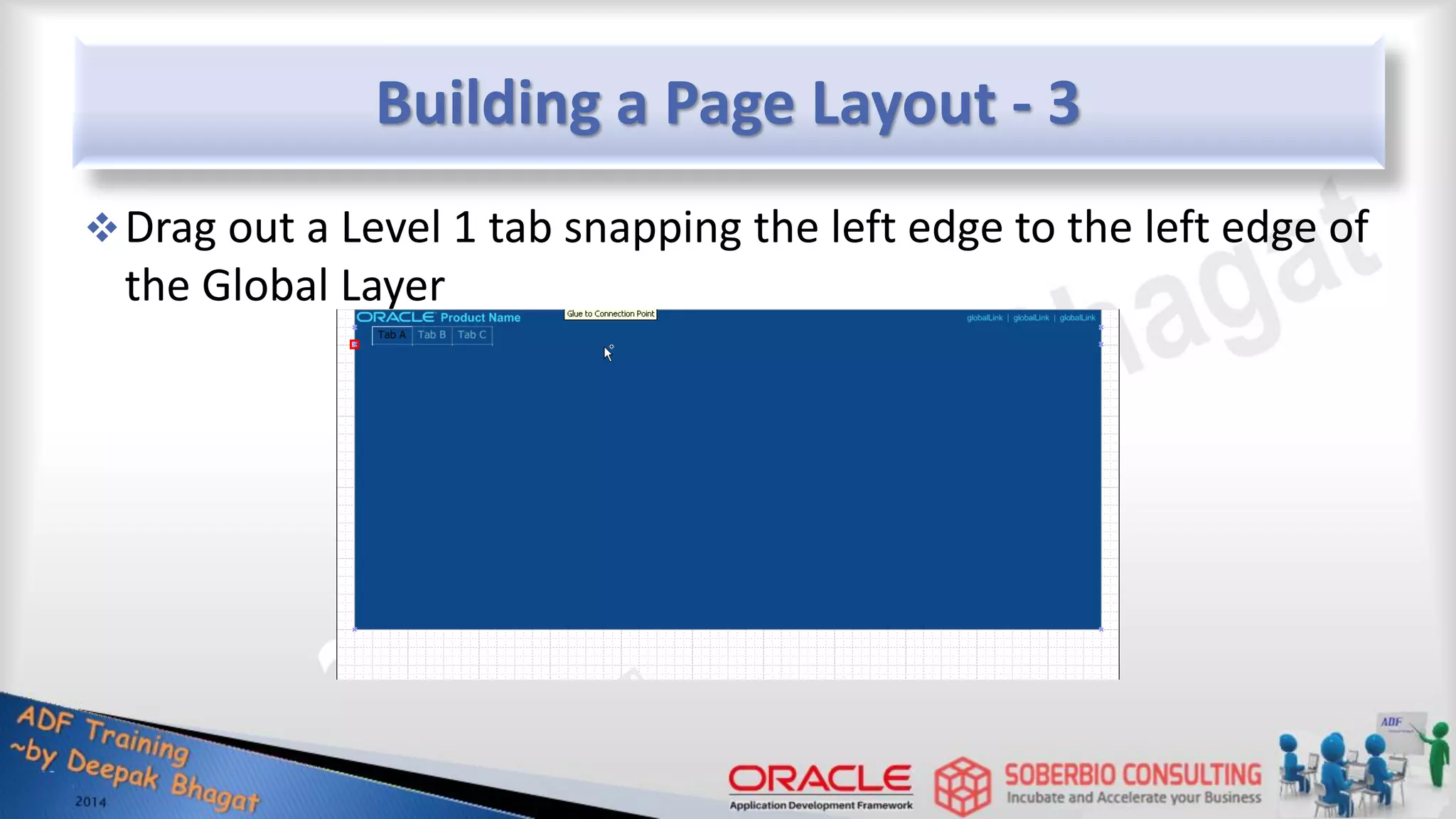

Building a Page Layout - 3 Drag out a Level 1 tab snapping the left edge to the left edge of the Global Layer

Building a Page Layout - 4 Drag out the right control point to make the tabs the length of the Global Layer

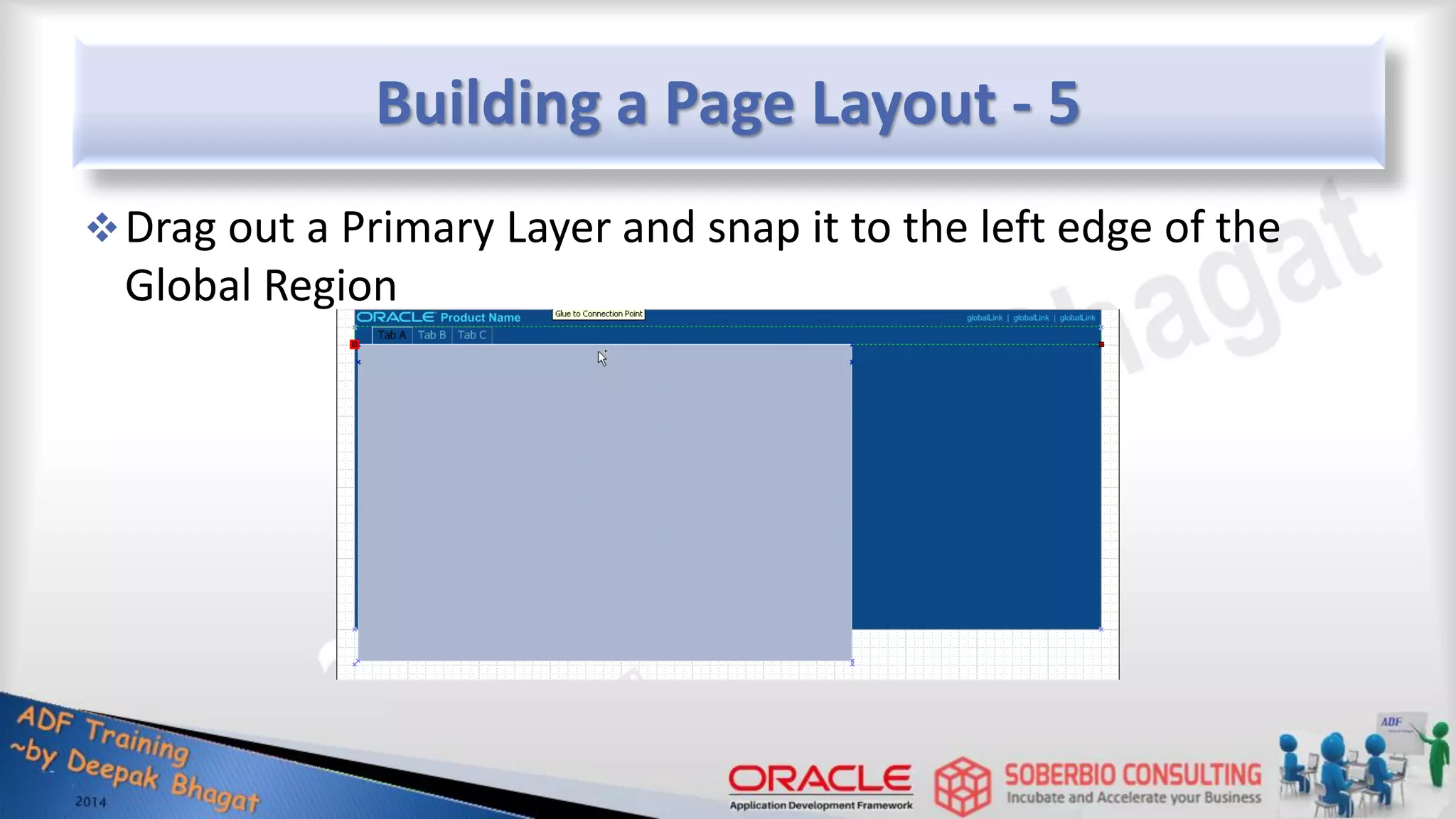

Building a Page Layout - 5 Drag out a Primary Layer and snap it to the left edge of the Global Region

Building a Page Layout - 6 Drag out the Primary Layers right-side control point to the Global Layers right edge

Building a Page Layout - 7 Snap the Primary Layers bottom control point until it snaps to the bottom of the Global Layer

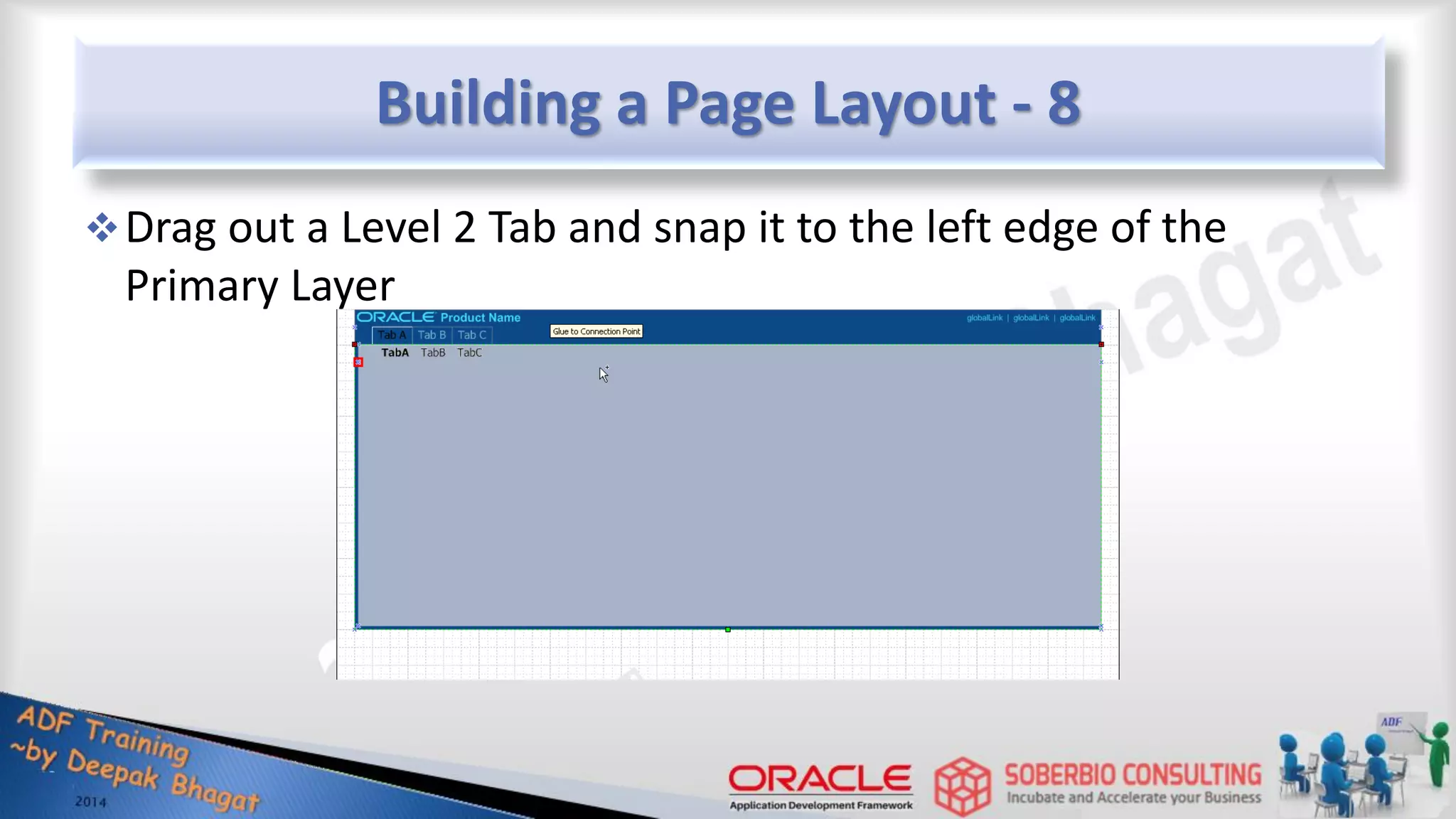

Building a Page Layout - 8 Drag out a Level 2 Tab and snap it to the left edge of the Primary Layer

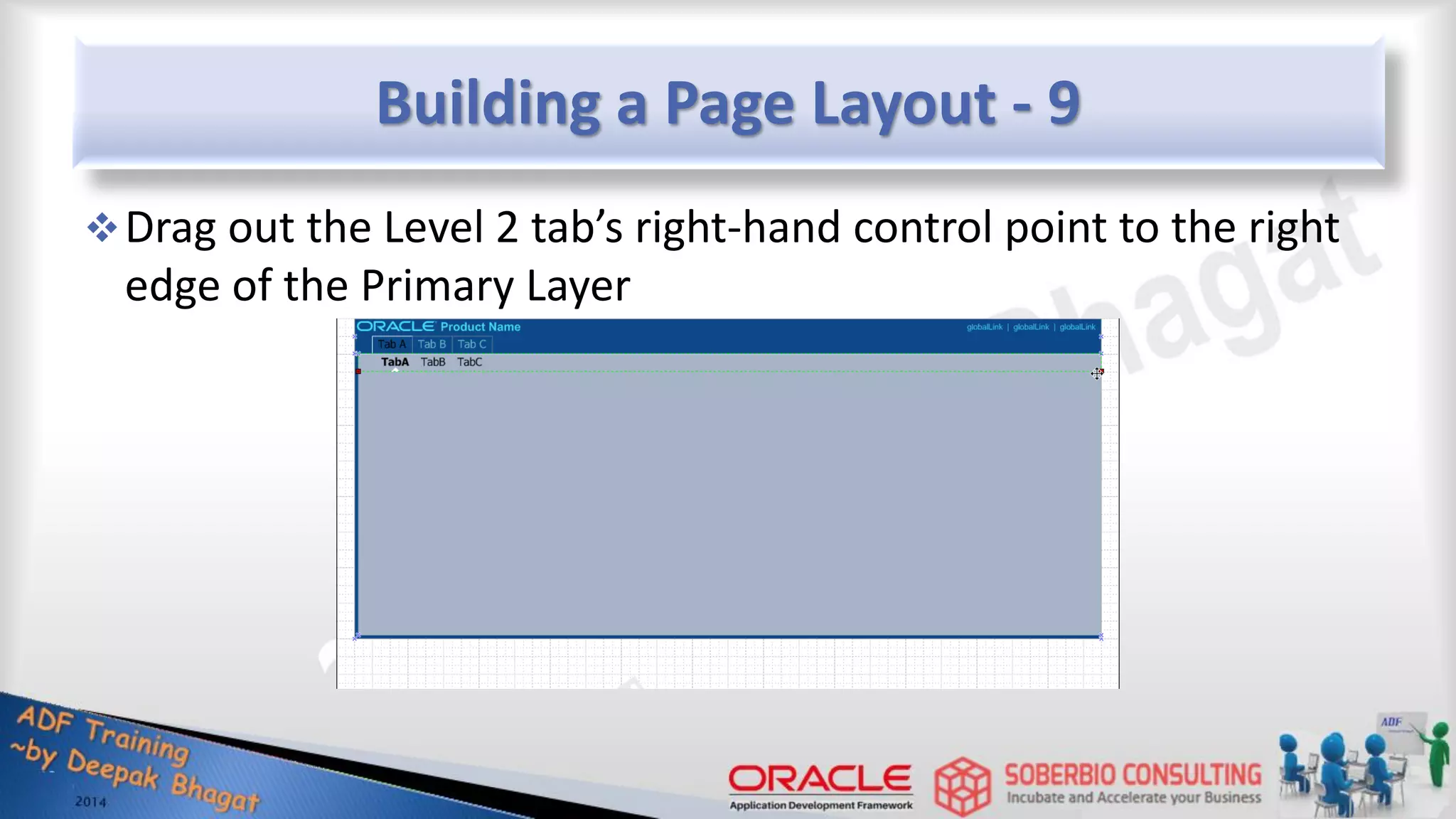

Building a Page Layout - 9 Drag out the Level 2 tab’s right-hand control point to the right edge of the Primary Layer

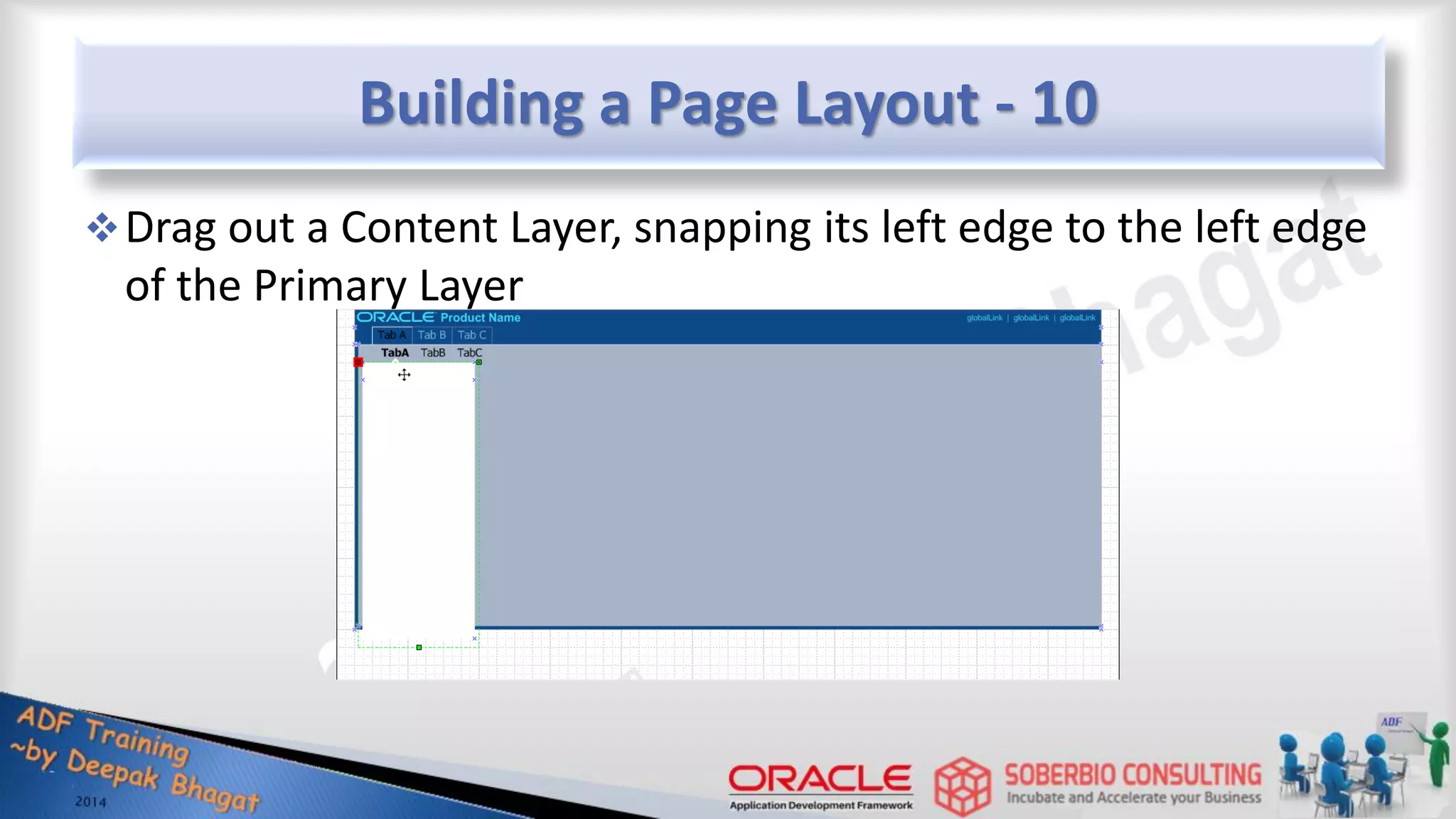

Building a Page Layout - 10 Drag out a Content Layer, snapping its left edge to the left edge of the Primary Layer

Building a Page Layout - 11 Drag the Content Layers bottom control point until it snaps to the bottom of the Global Layer

Building a Page Layout - 12 Right-click the Content Layer and turn off the Offset Left The Offset left and right provide space for splitters between Content Layers. Since this will be a Regional Content pane and there will be no splitter on the left.

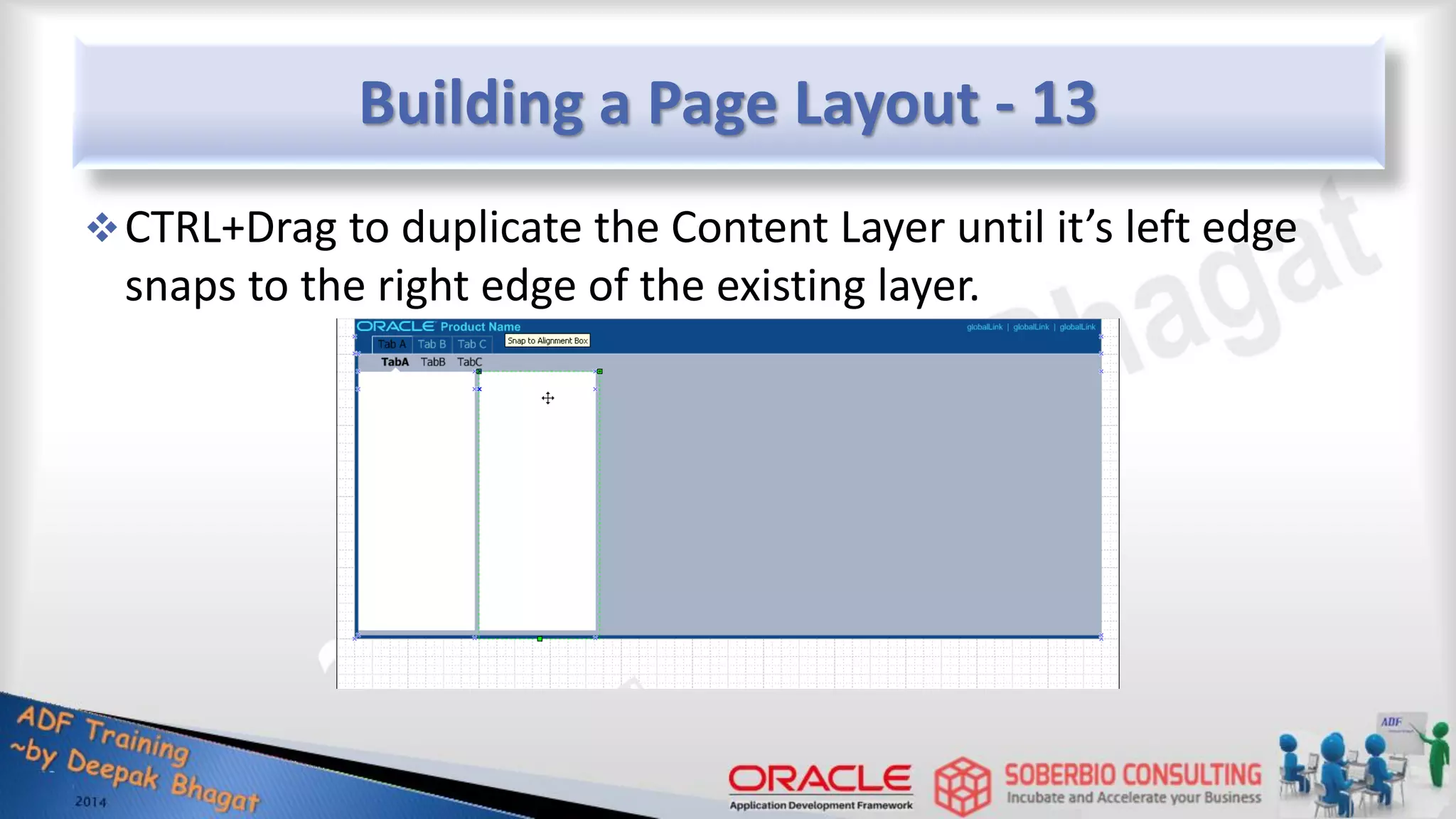

Building a Page Layout - 13 CTRL+Drag to duplicate the Content Layer until it’s left edge snaps to the right edge of the existing layer.

Building a Page Layout - 14 Drag the new layers right-hand control point to the desired width

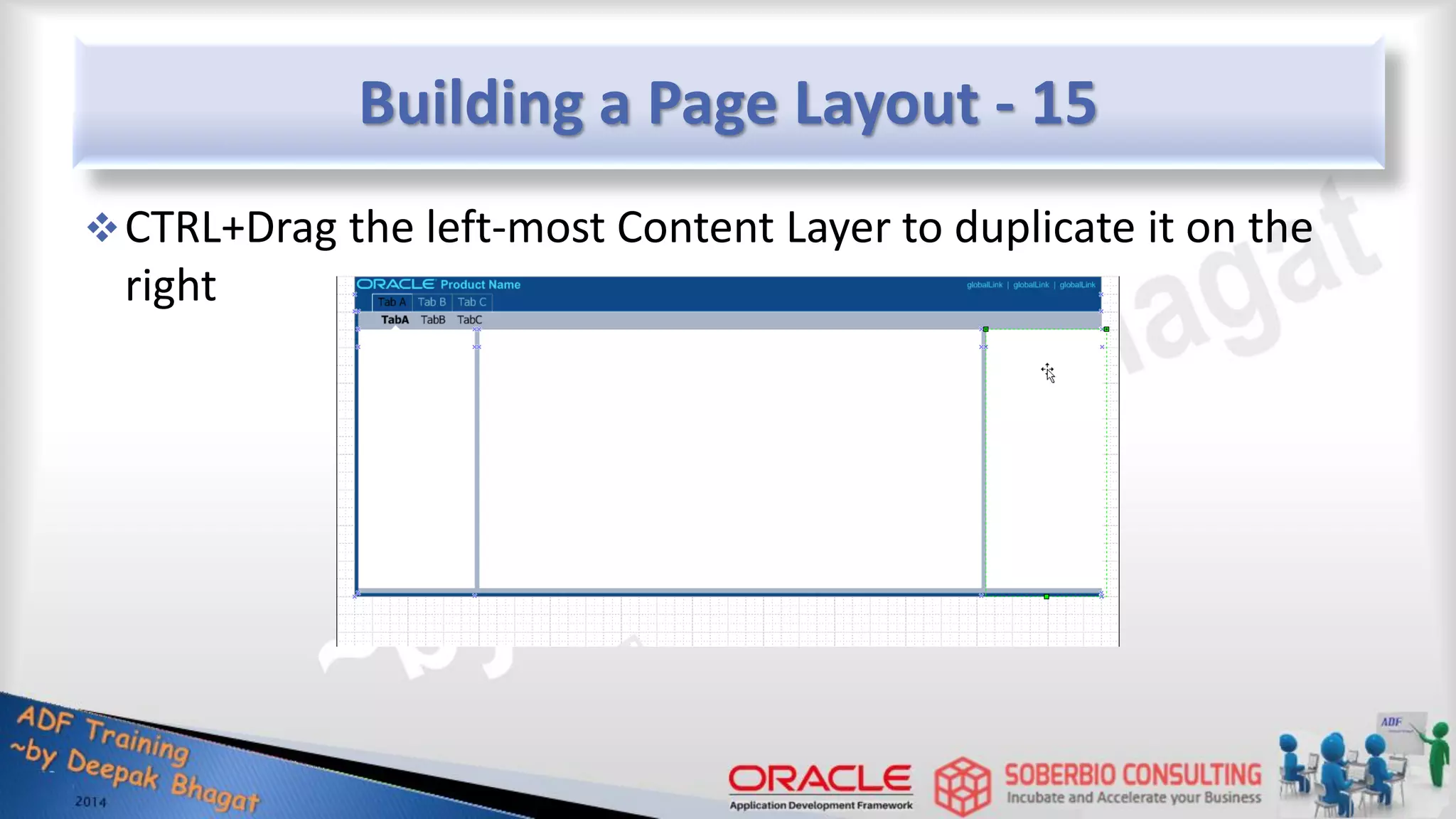

Building a Page Layout - 15 CTRL+Drag the left-most Content Layer to duplicate it on the right

Building a Page Layout - 16 After resizing it, right-click the layer and turn off the Offset Right since this is an open Contextual Region

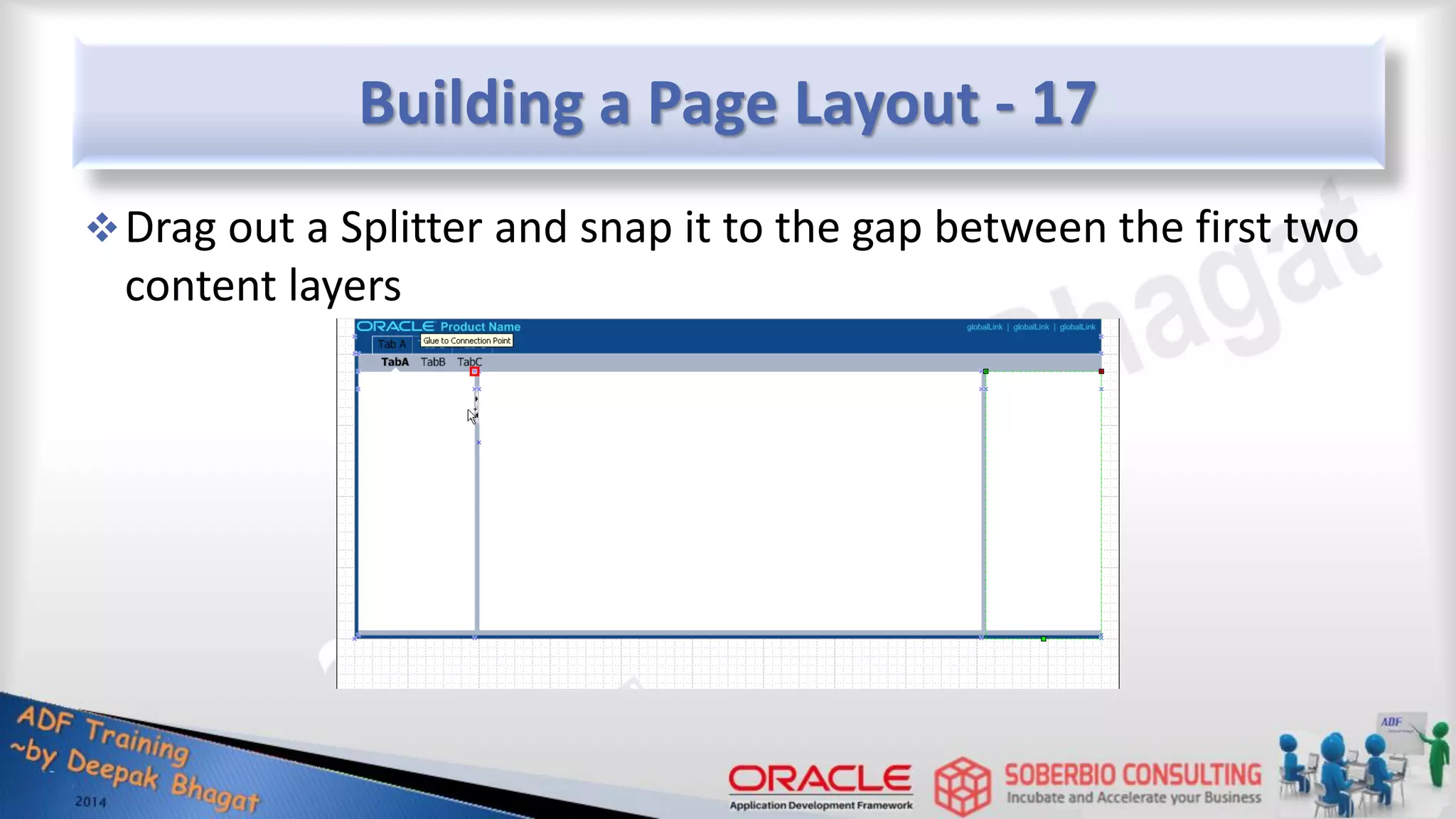

Building a Page Layout - 17 Drag out a Splitter and snap it to the gap between the first two content layers

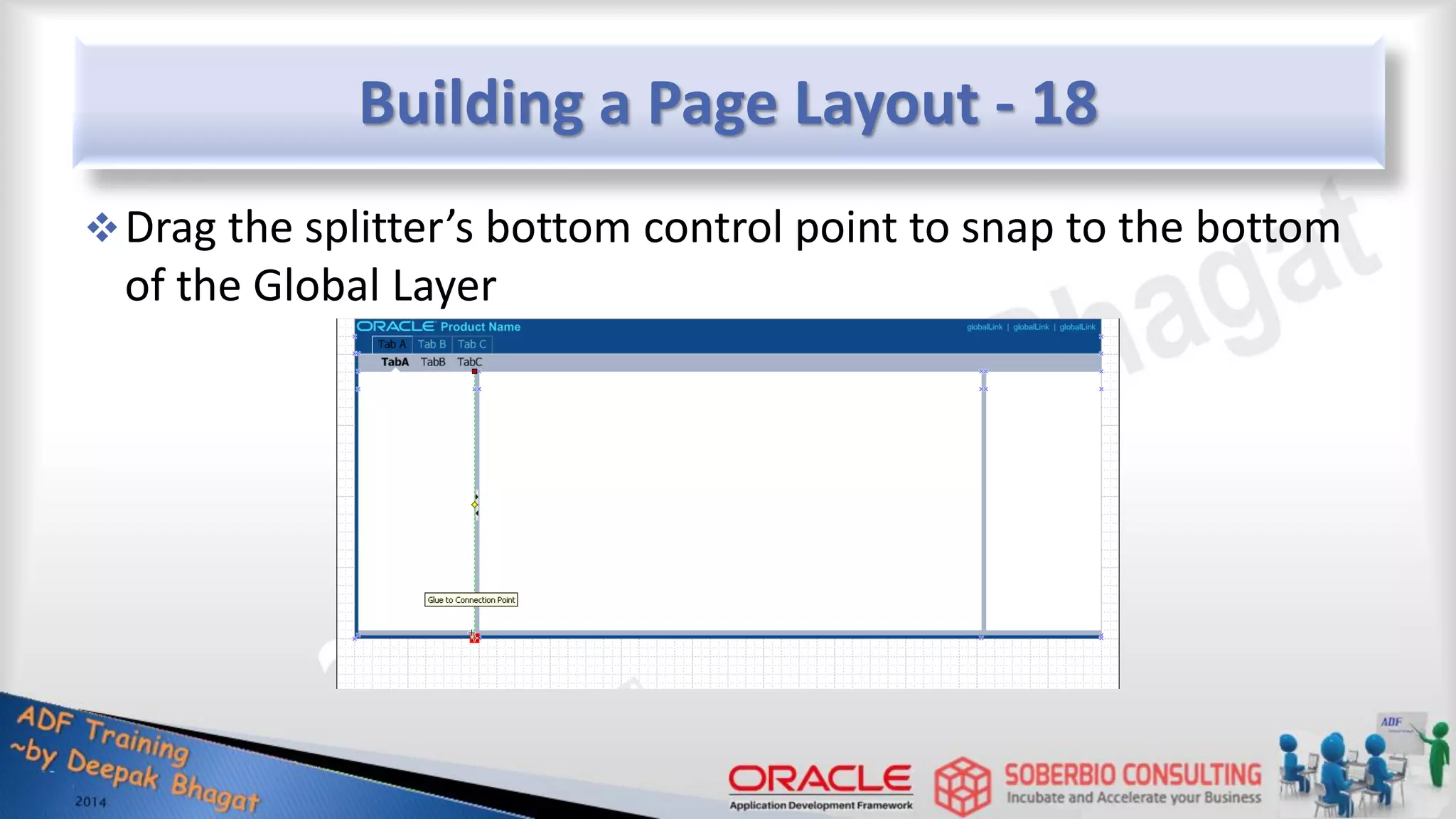

Building a Page Layout - 18 Drag the splitter’s bottom control point to snap to the bottom of the Global Layer

Building a Page Layout - 19 CTRL+Drag the Splitter to duplicate it

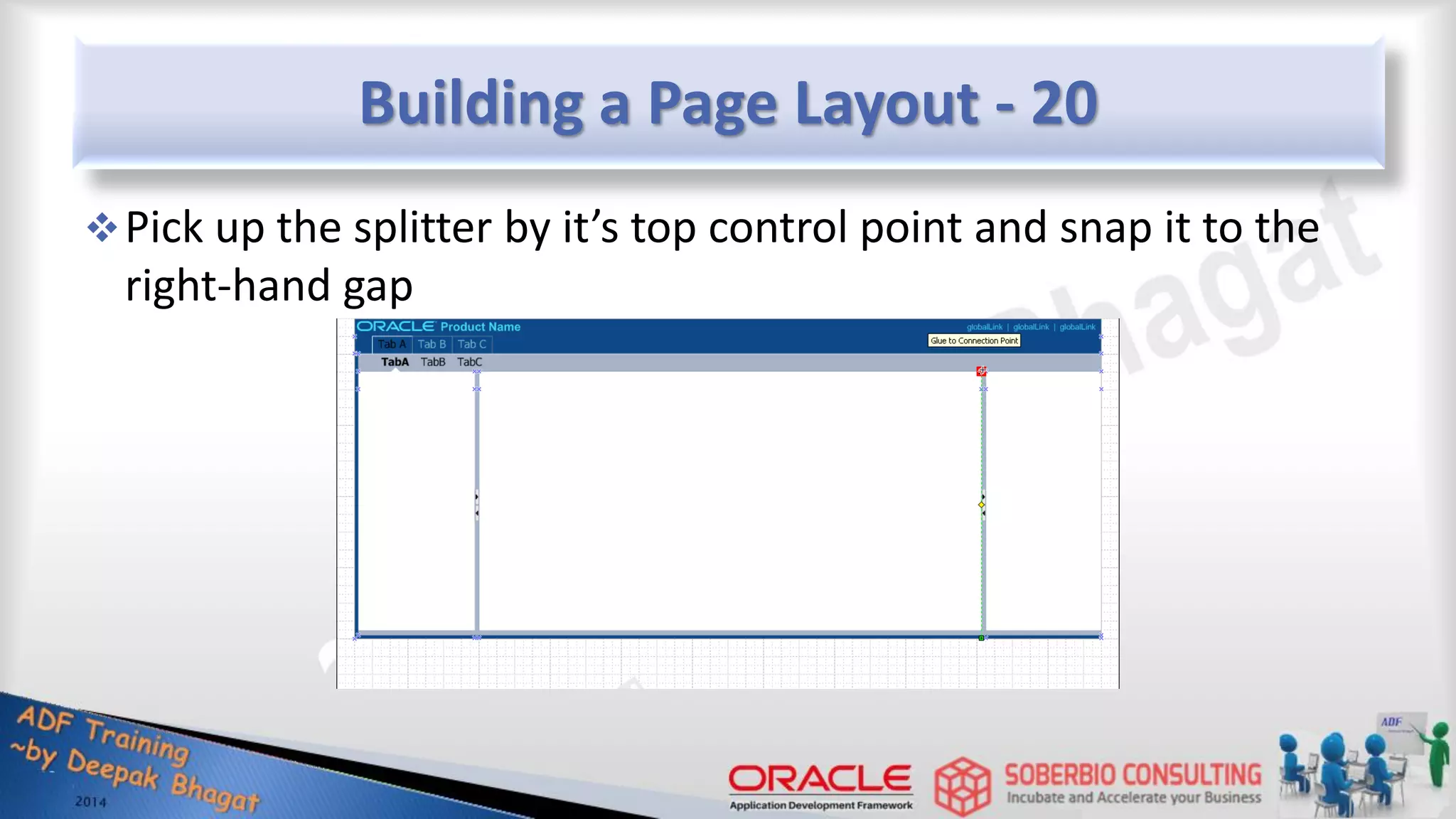

Building a Page Layout - 20 Pick up the splitter by it’s top control point and snap it to the right-hand gap

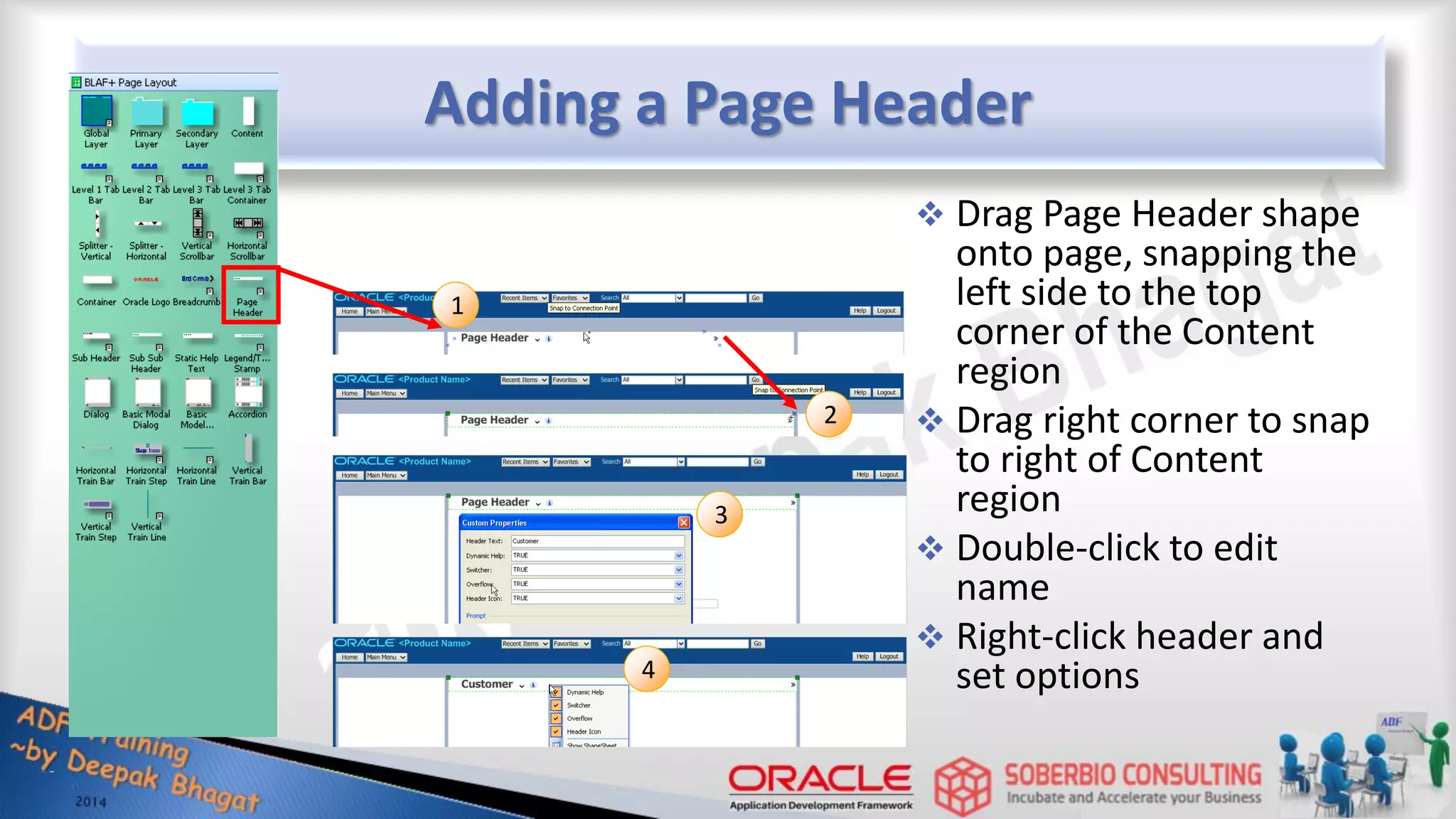

Adding a Page Header  Drag Page Header shape onto page, snapping the left side to the top corner of the Content region  Drag right corner to snap to right of Content region  Double-click to edit name  Right-click header and set options 1 3 2 4

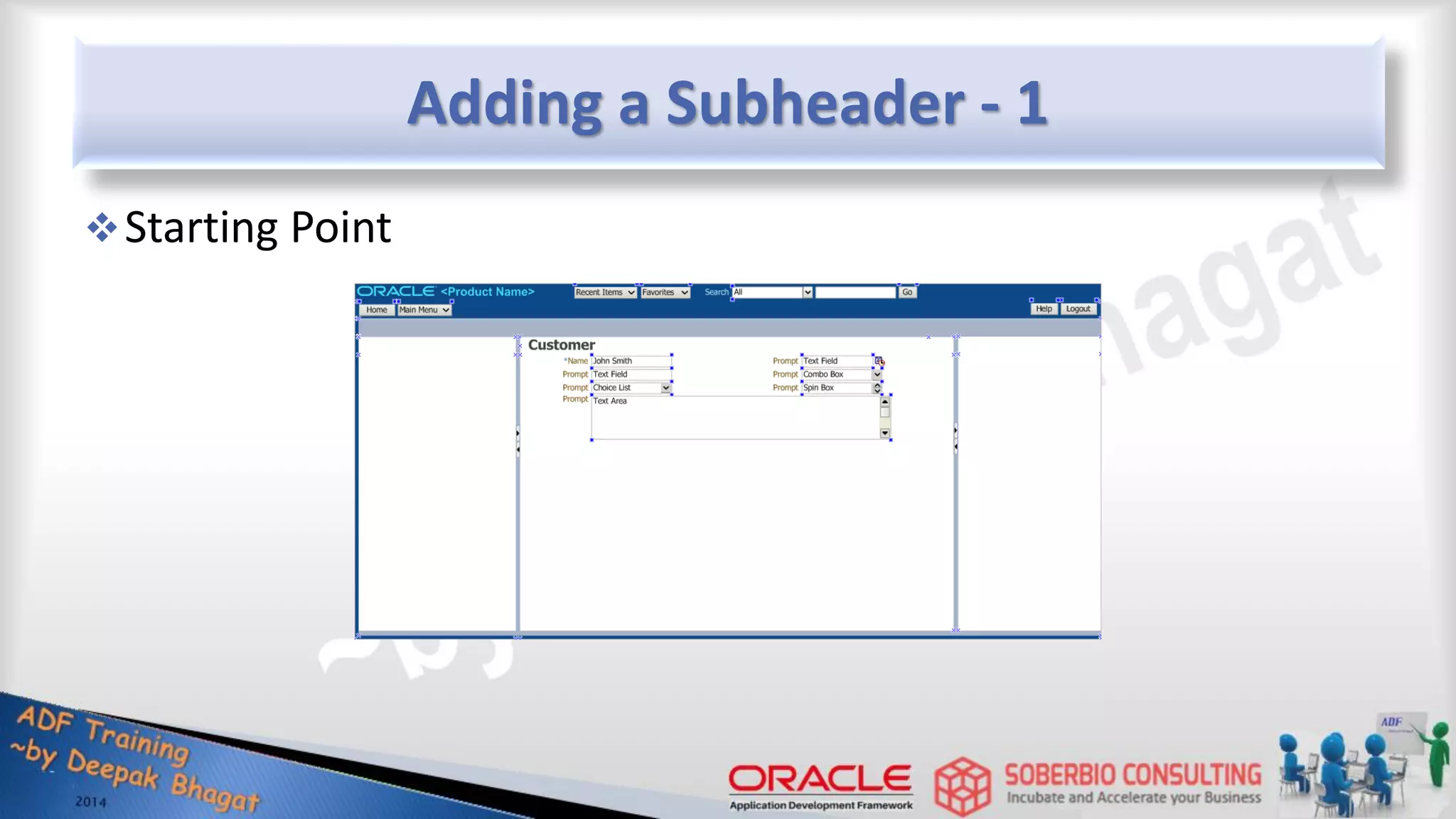

Adding a Subheader - 1 Starting Point

Adding a Subheader - 2 Drag out Sub Header onto page, snapping left edge to edge of Content Layer  Subheaders have offsets so that they snap into place with the proper spacing around them, which is why the control points are not on the geometry

Adding a Subheader - 3 Drag the Subheaders right-side control point till it meets the edge of the container

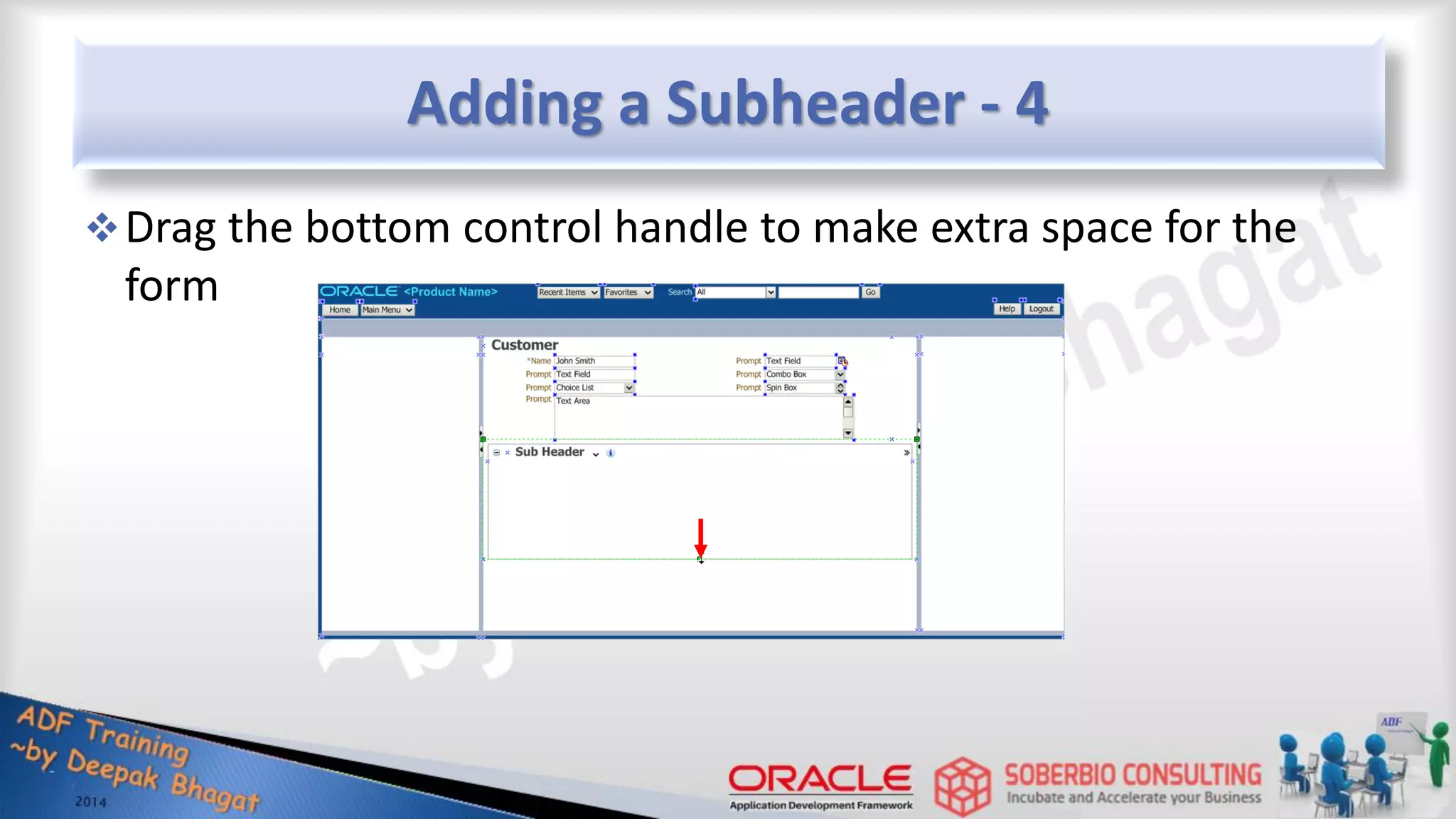

Adding a Subheader - 4 Drag the bottom control handle to make extra space for the form

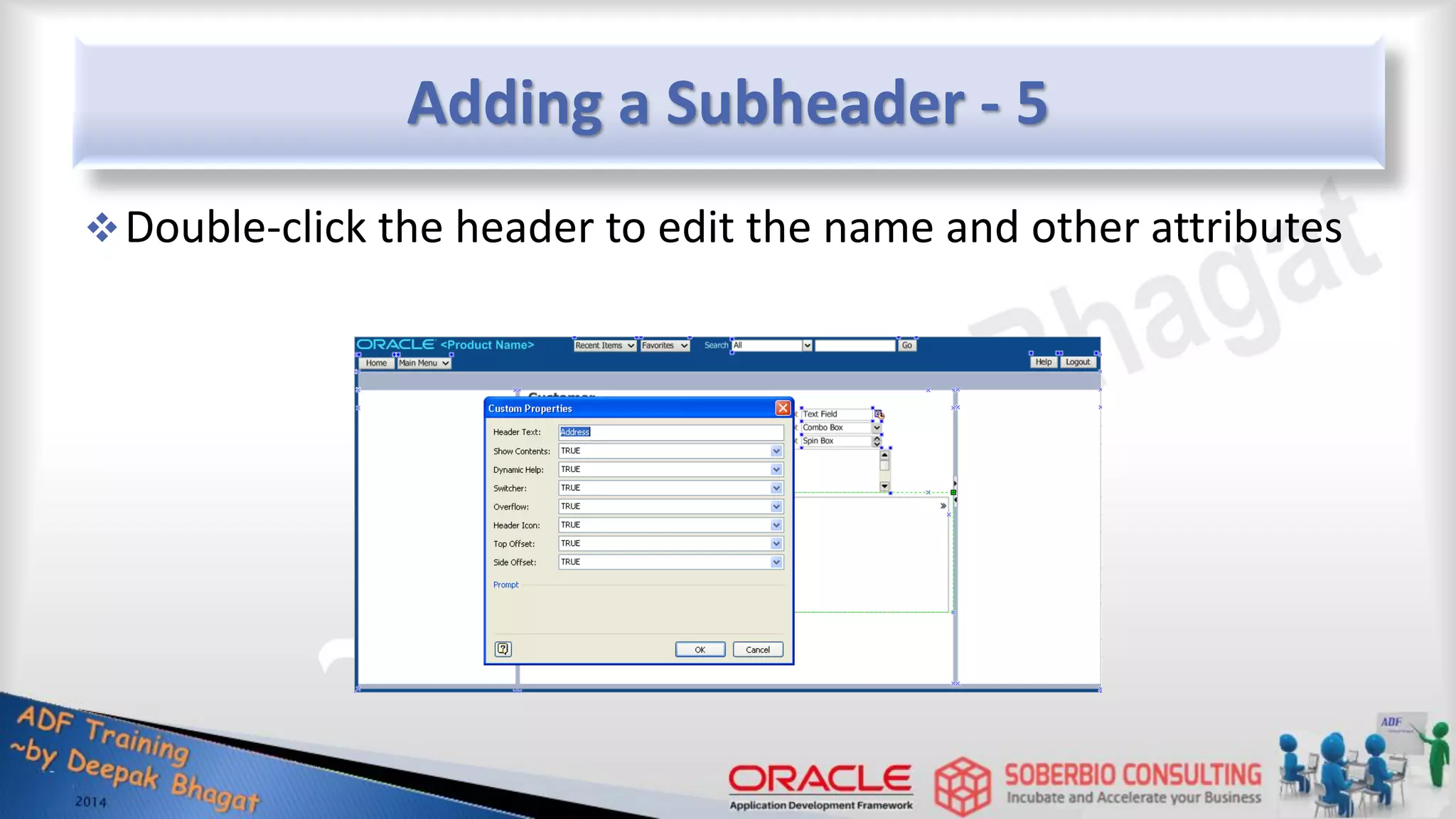

Adding a Subheader - 5 Double-click the header to edit the name and other attributes

Adding a Subheader - 6 You’re ready to fill it with a form, table or other content

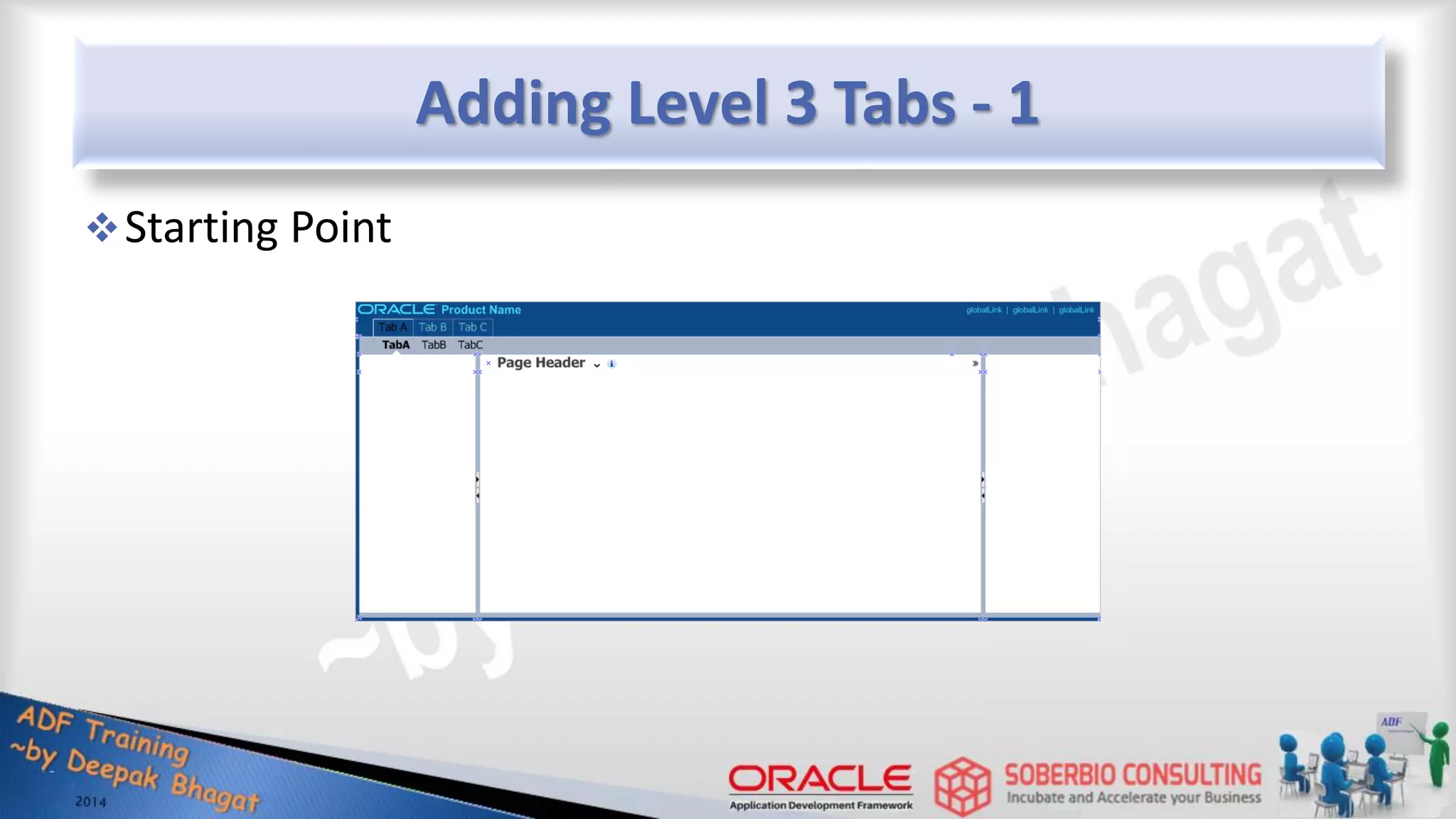

Adding Level 3 Tabs - 1 Starting Point

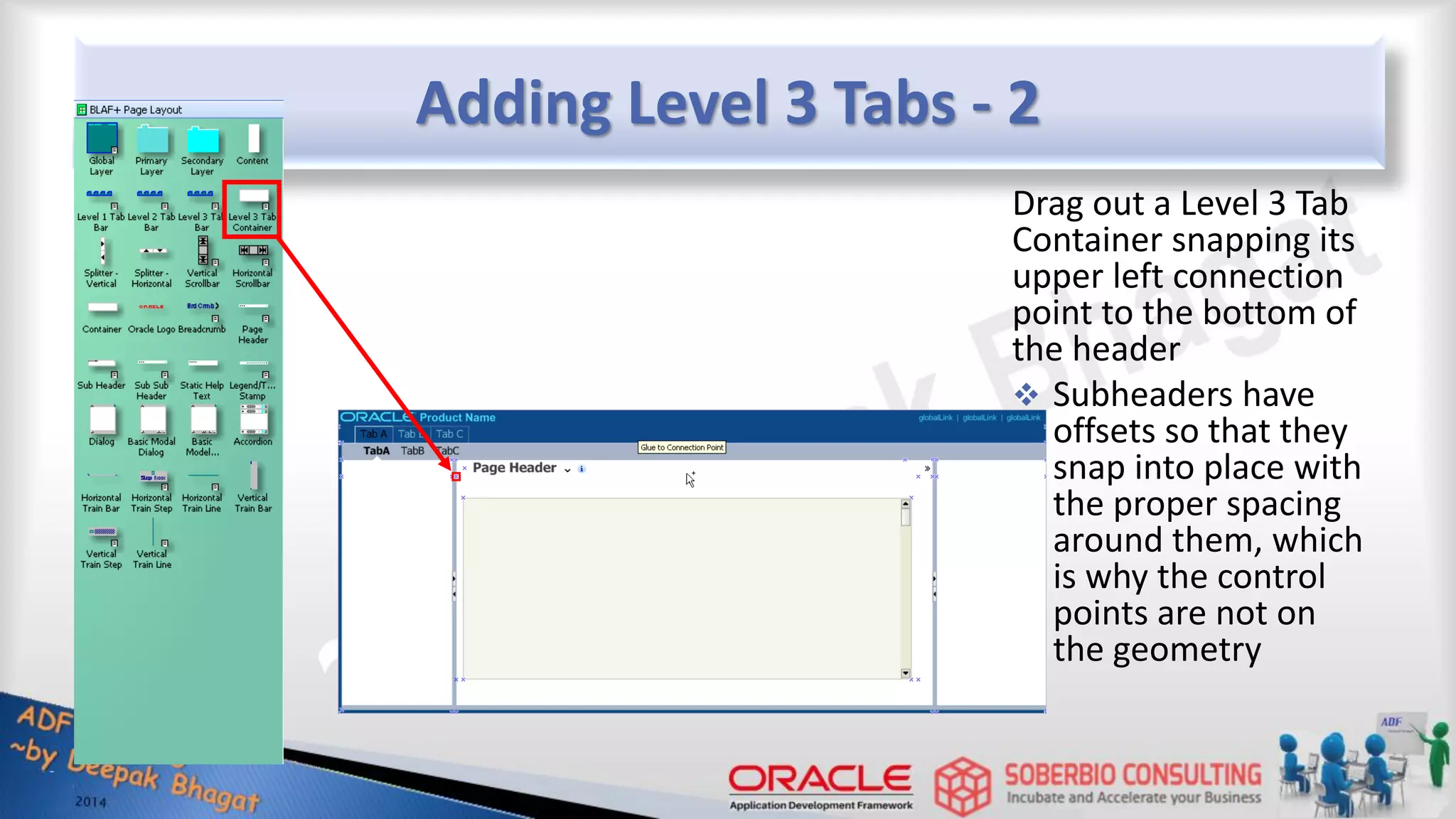

Adding Level 3 Tabs - 2 Drag out a Level 3 Tab Container snapping its upper left connection point to the bottom of the header  Subheaders have offsets so that they snap into place with the proper spacing around them, which is why the control points are not on the geometry

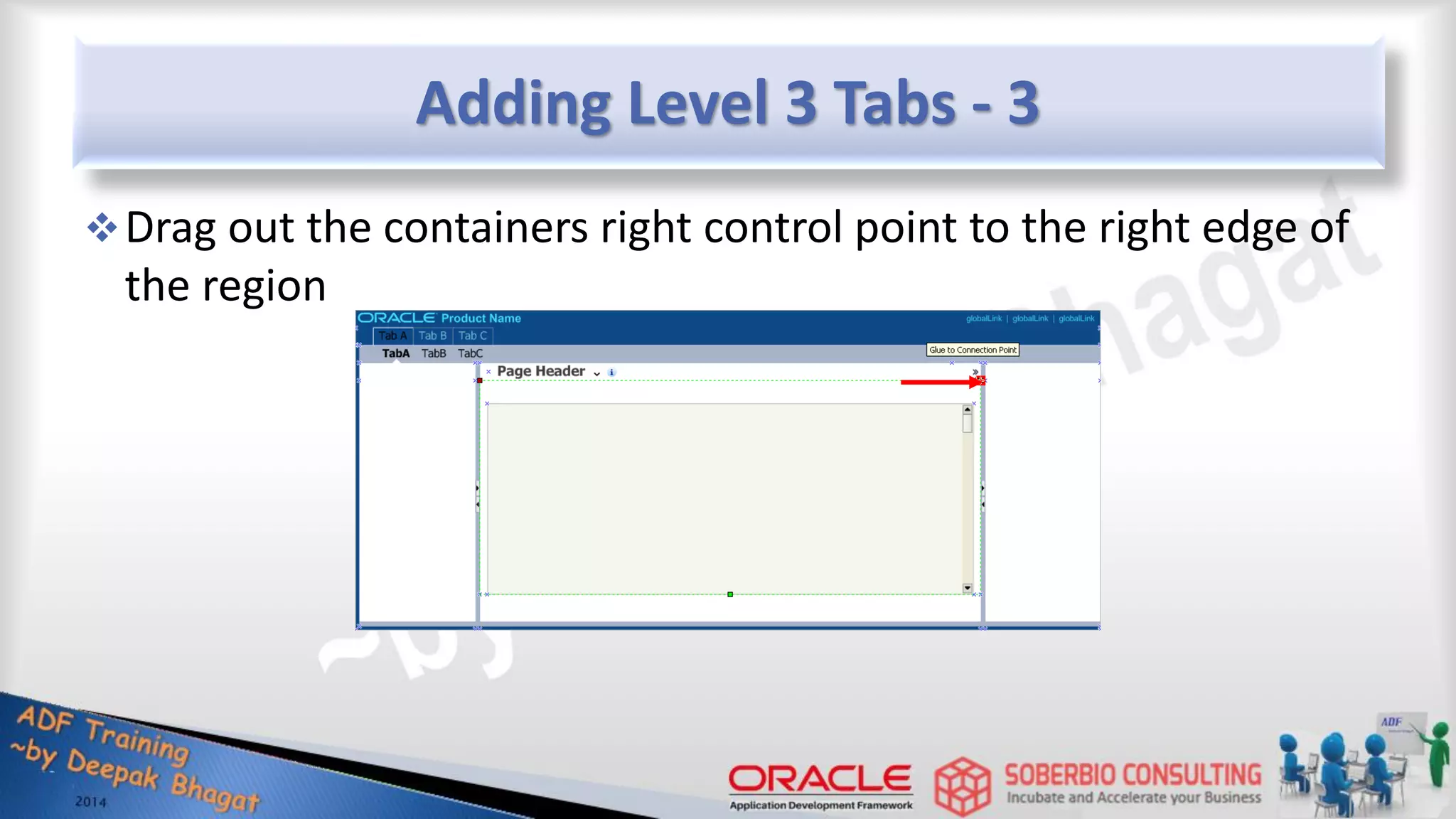

Adding Level 3 Tabs - 3 Drag out the containers right control point to the right edge of the region

Adding Level 3 Tabs - 4 Drag out a Level 3 tab snapping the left edge to the top of the container

Adding Level 3 Tabs - 5 Drag out the tabs right control point to the edge of the container

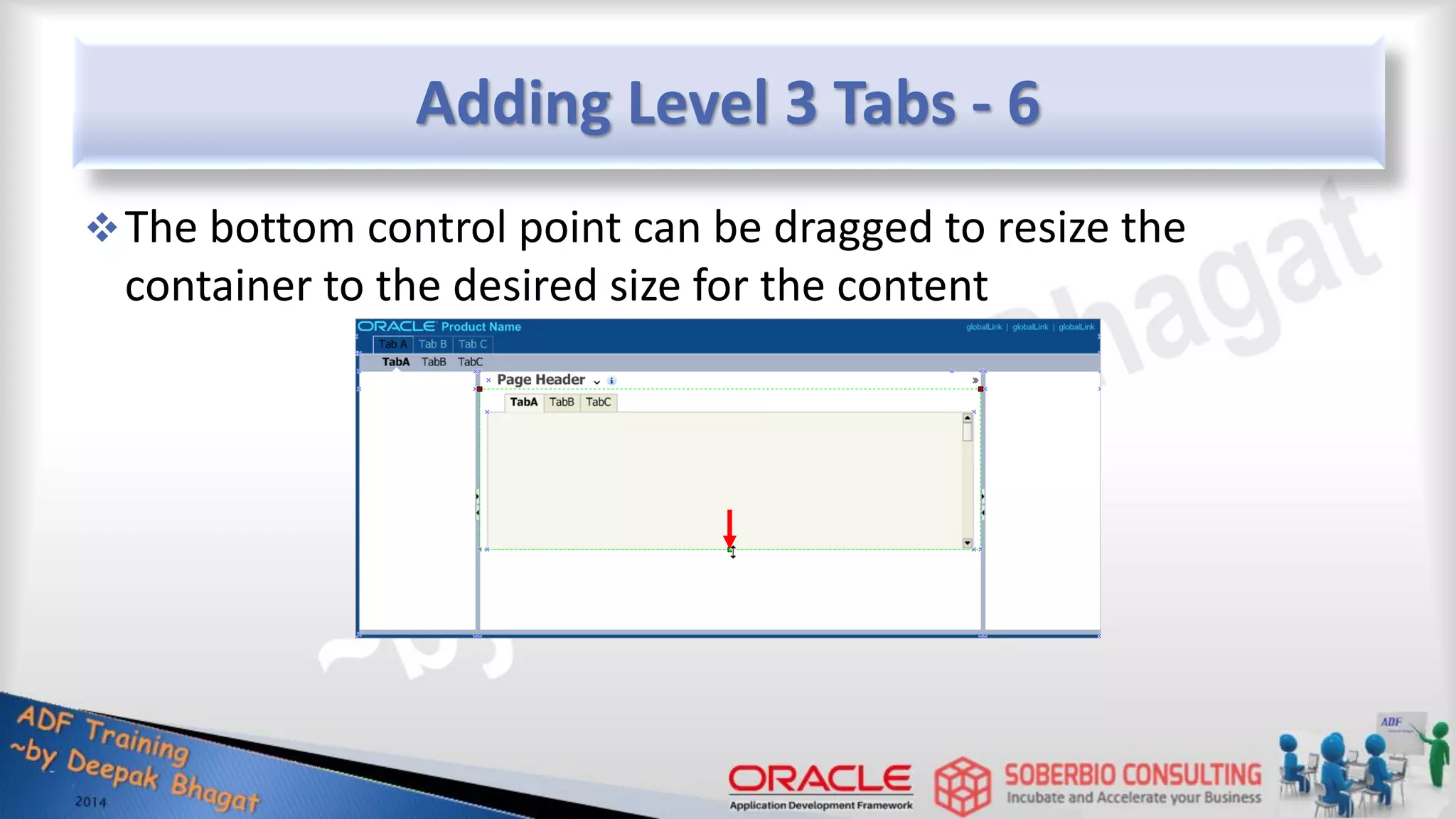

Adding Level 3 Tabs - 6 The bottom control point can be dragged to resize the container to the desired size for the content

Adding Level 3 Tabs - 7 If the region will be taller then a screen’s height then you can add the bottom tabs by CTRL+Dragging the top tab down to snap to the bottom of the container

Adding Level 3 Tabs - 8 The bottom tabs need to be flipped so they appear under the container. This can be done using the right-click context menu

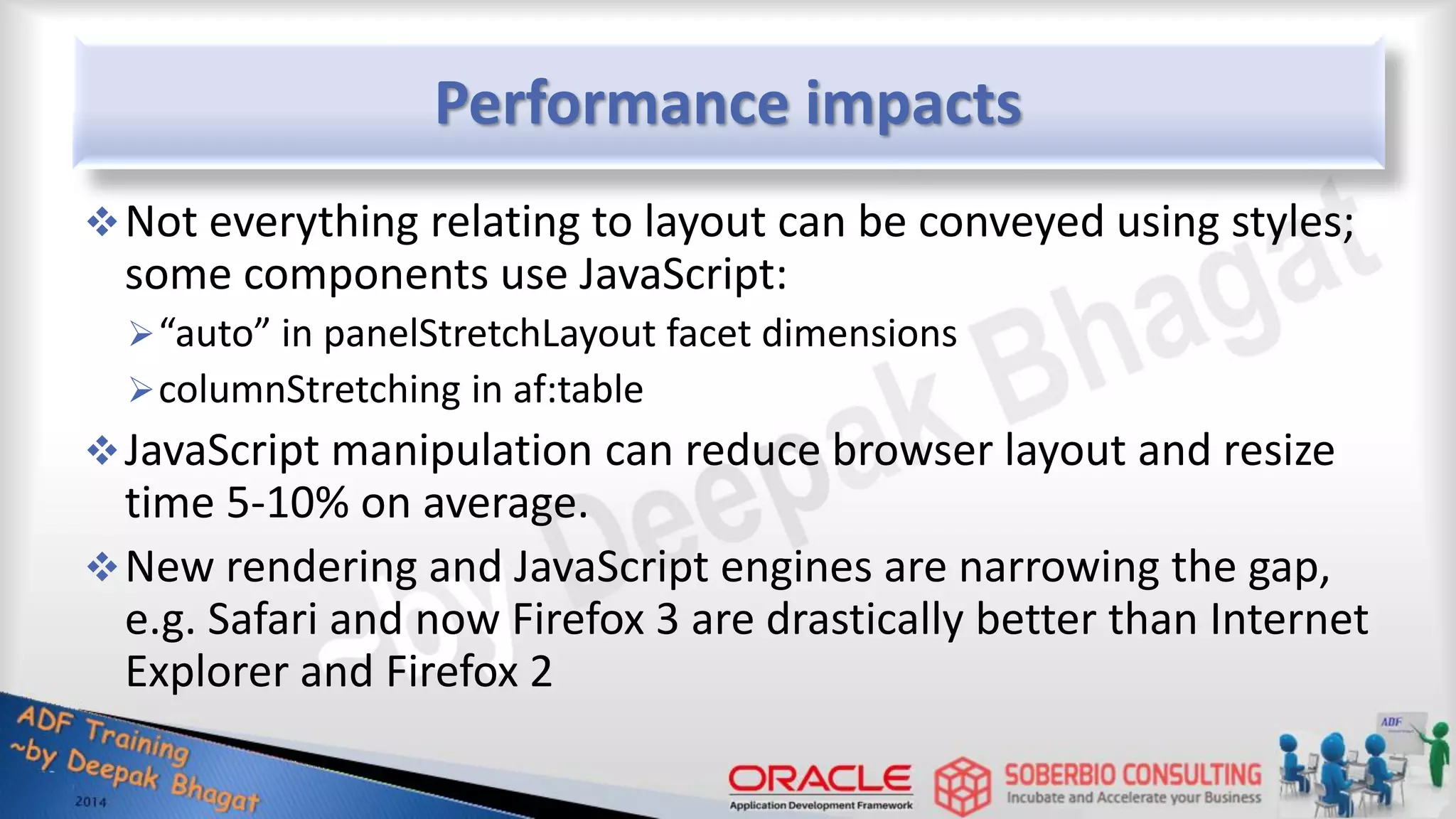

Performance impacts Not everything relating to layout can be conveyed using styles; some components use JavaScript: “auto” in panelStretchLayout facet dimensions columnStretching in af:table JavaScript manipulation can reduce browser layout and resize time 5-10% on average. New rendering and JavaScript engines are narrowing the gap, e.g. Safari and now Firefox 3 are drastically better than Internet Explorer and Firefox 2

Dynamic Layouts Dynamic page layout is made possible by using: Partial page rendering (PPR) – (Lesson 16) Expression Language (EL) – (Lesson 21)

Lesson Summary Use complex layout components Add additional functionalities to layout components Determine active geometry management Use dynamic page layout

13 Designing User Interfaces and Flows

Lesson Agenda Features of task flows Differentiate between bounded and unbounded task flows List and discuss task flow activities Explain static and dynamic regions How to extract a task flow How to convert task flow to use page fragment How to convert to unbounded task flow

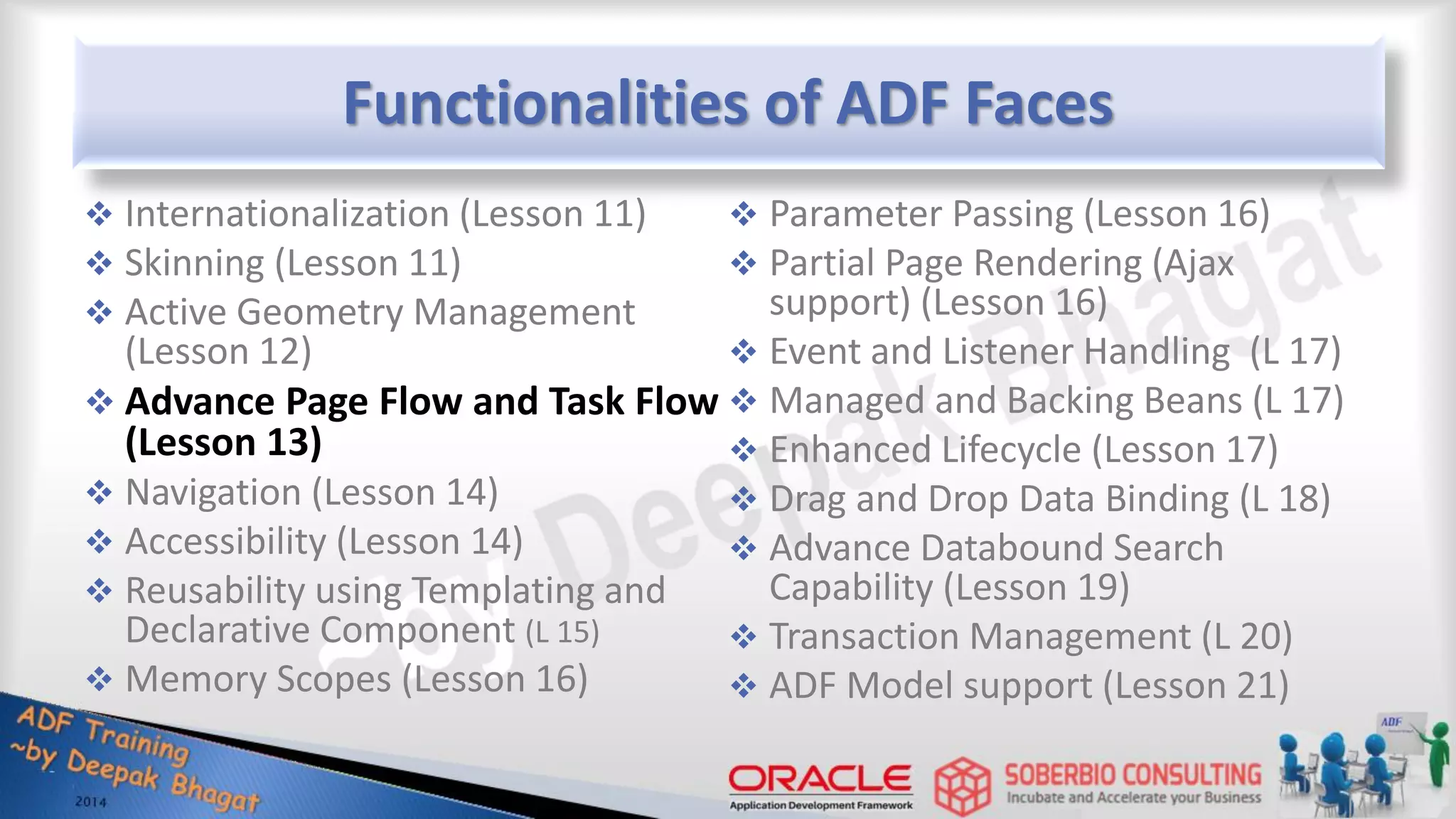

Designing User Interface and Flows Panel Accordion showDetailItem showDetailItem Panel Tabbed showDetailItem showDetailItem BATHRSystemIndex.jsf LocationDeptartmentTF EmployeeQuickSearchTF EmployeeListTF EmployeeSearchTF EmployeeCreateTF EmployeeDetailTF EmployeeListPF EmployeeSearchPF EmployeeUpdateTF EmployeeDetailPF LocationDeptartmentPF QuickSearchPF EmployeeCreatePF EmployeeUpdatePersonPF EmployeeUpdateJobPF EmployeeUpdateConfirmPF Region TF Call Page Fragment

Features of ADF Task Flows ADF task flows are logical units of page / process flows that:  Can be either unbounded or bounded  Offer advantages over JSF page flows An application can be broken into a series of tasks (with visual repn.) An application can contain nodes other than pages Navigate between activities, other than pages Have a shared memory scope Parameter/context passing Event firing & handling Automatic transaction management Dropped into a page as a Region Exposed remotely as a Portlet Behavior (Trains)

Additional Functionalities of ADF Task Flows Following are the additional functionalities:  Task flows can invoke managed beans  Task flows are reusable  Task flows can be secured by defining the privileges that are required for someone to use it  You can extend the functionality that your task flows implement by writing custom code  Make sure when you write custom code that you do not import packages that are marked internal, as in the following example: import oracle.adfinternal.controller.*;

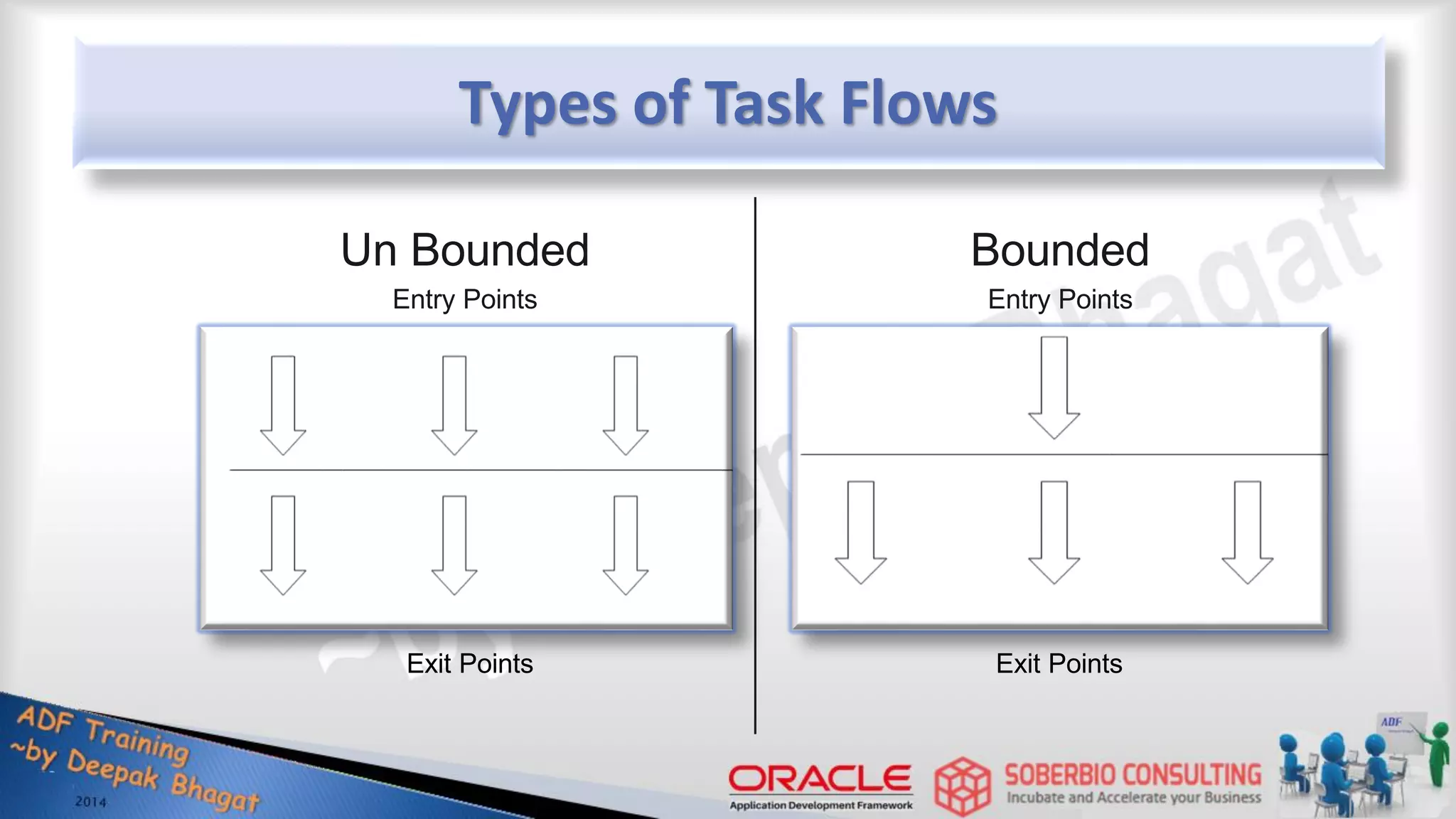

Types of Task Flows Un Bounded Entry Points Bounded Entry Points Exit Points Exit Points

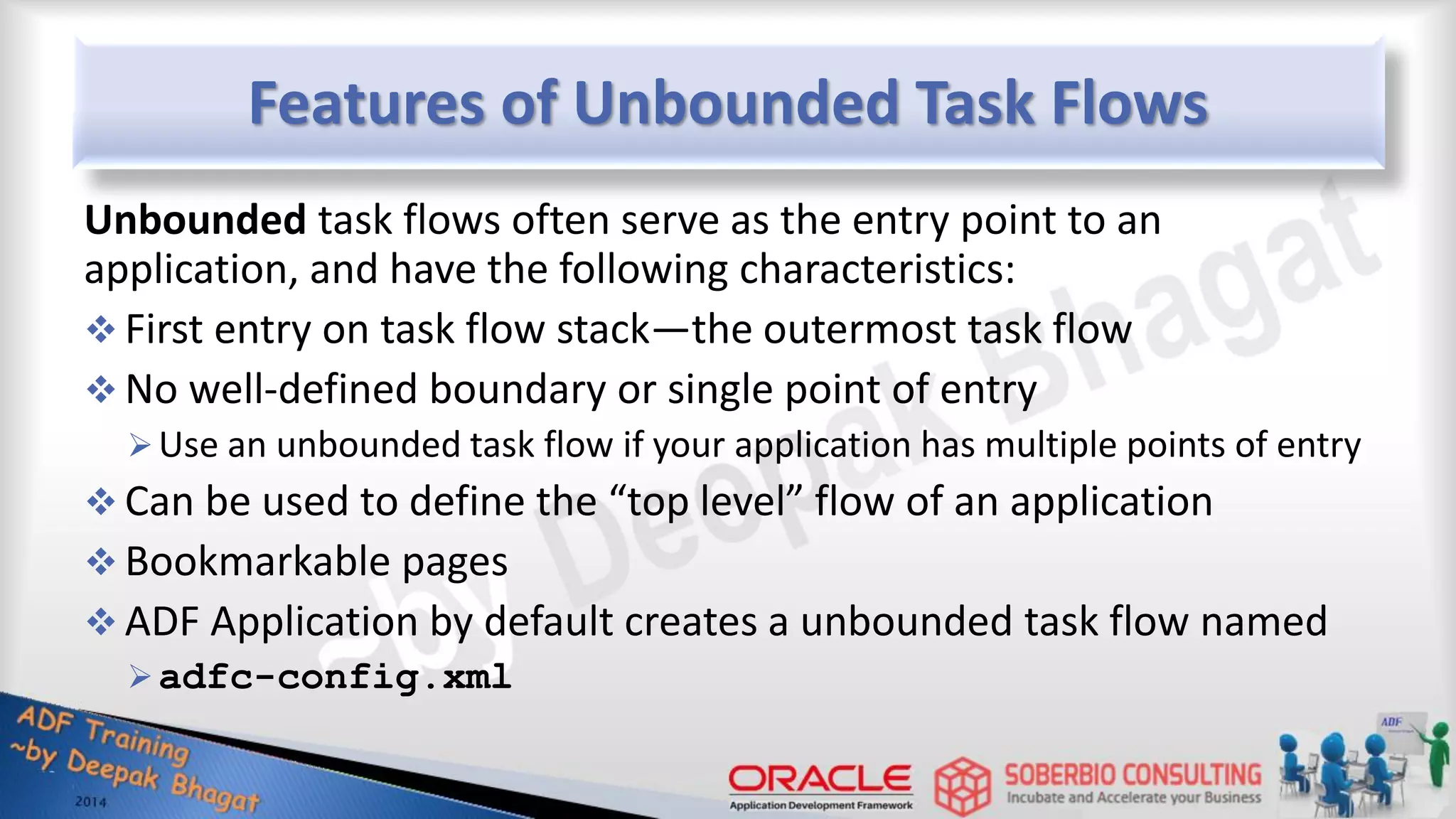

Features of Unbounded Task Flows Unbounded task flows often serve as the entry point to an application, and have the following characteristics:  First entry on task flow stack—the outermost task flow  No well-defined boundary or single point of entry Use an unbounded task flow if your application has multiple points of entry  Can be used to define the “top level” flow of an application  Bookmarkable pages  ADF Application by default creates a unbounded task flow named adfc-config.xml

Implementing Unbounded Task Flows The unbounded task flow source file is adfc-config.xml The editor contains four tabs to show different views: Diagram Overview Source History You can easily test the task flow functionality in the unbounded task flow, and convert to bounded when it is functioning correctly

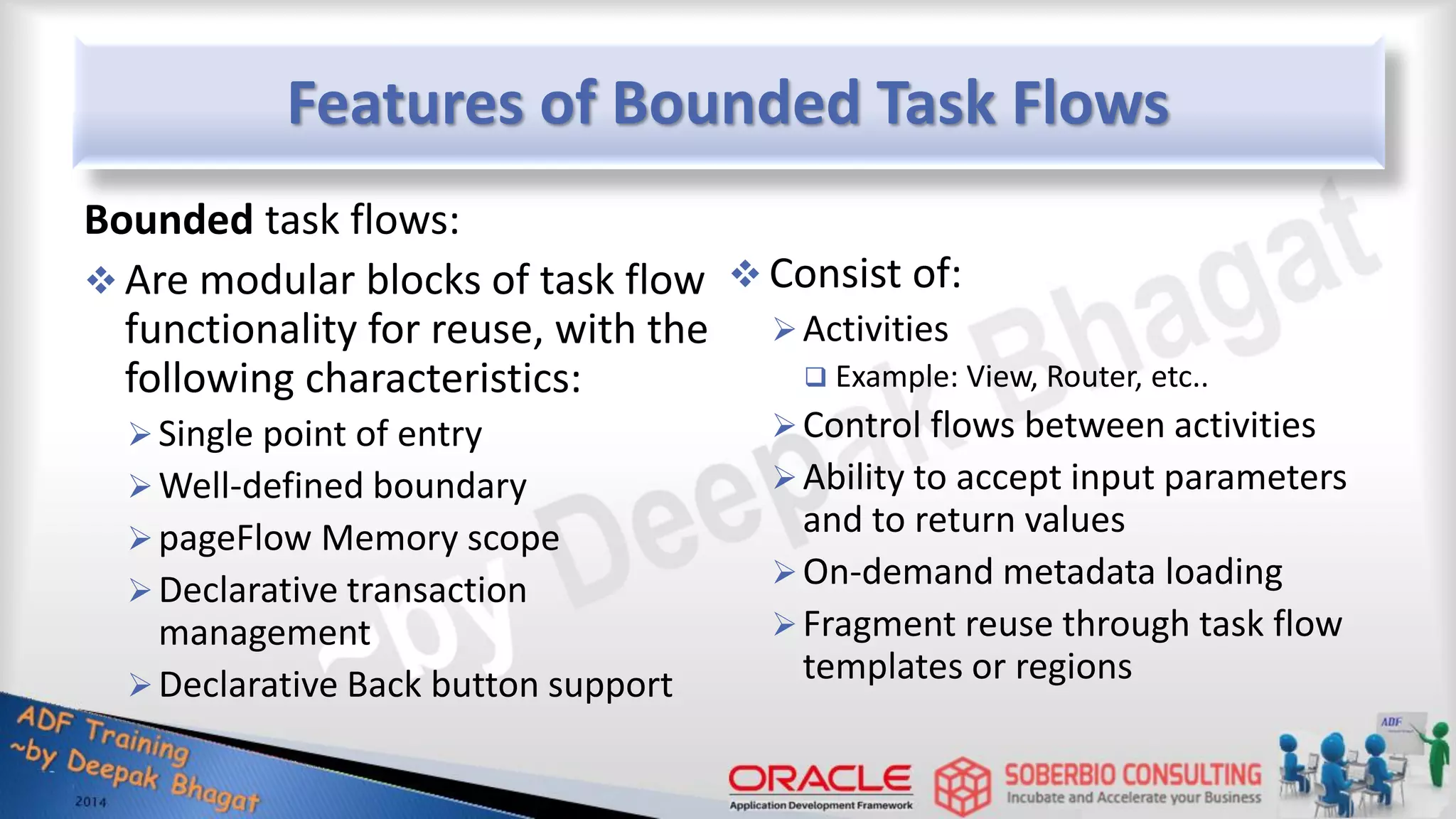

Features of Bounded Task Flows Bounded task flows:  Are modular blocks of task flow functionality for reuse, with the following characteristics: Single point of entry Well-defined boundary pageFlow Memory scope Declarative transaction management Declarative Back button support  Consist of: Activities  Example: View, Router, etc.. Control flows between activities Ability to accept input parameters and to return values On-demand metadata loading Fragment reuse through task flow templates or regions

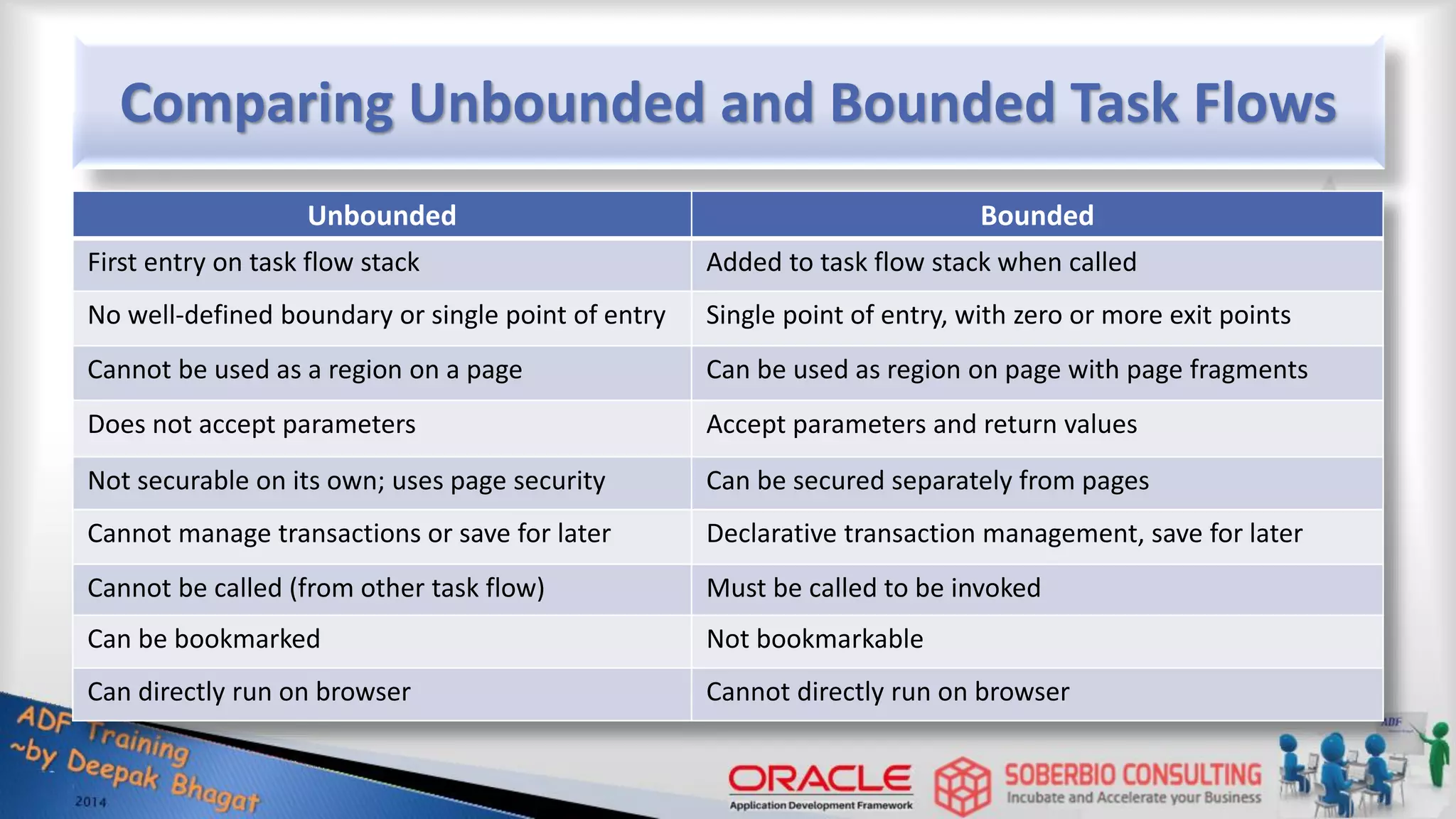

Comparing Unbounded and Bounded Task Flows Unbounded Bounded First entry on task flow stack Added to task flow stack when called No well-defined boundary or single point of entry Single point of entry, with zero or more exit points Cannot be used as a region on a page Can be used as region on page with page fragments Does not accept parameters Accept parameters and return values Not securable on its own; uses page security Can be secured separately from pages Cannot manage transactions or save for later Declarative transaction management, save for later Cannot be called (from other task flow) Must be called to be invoked Can be bookmarked Not bookmarkable Can directly run on browser Cannot directly run on browser

Types of Task Flow Activities and Components

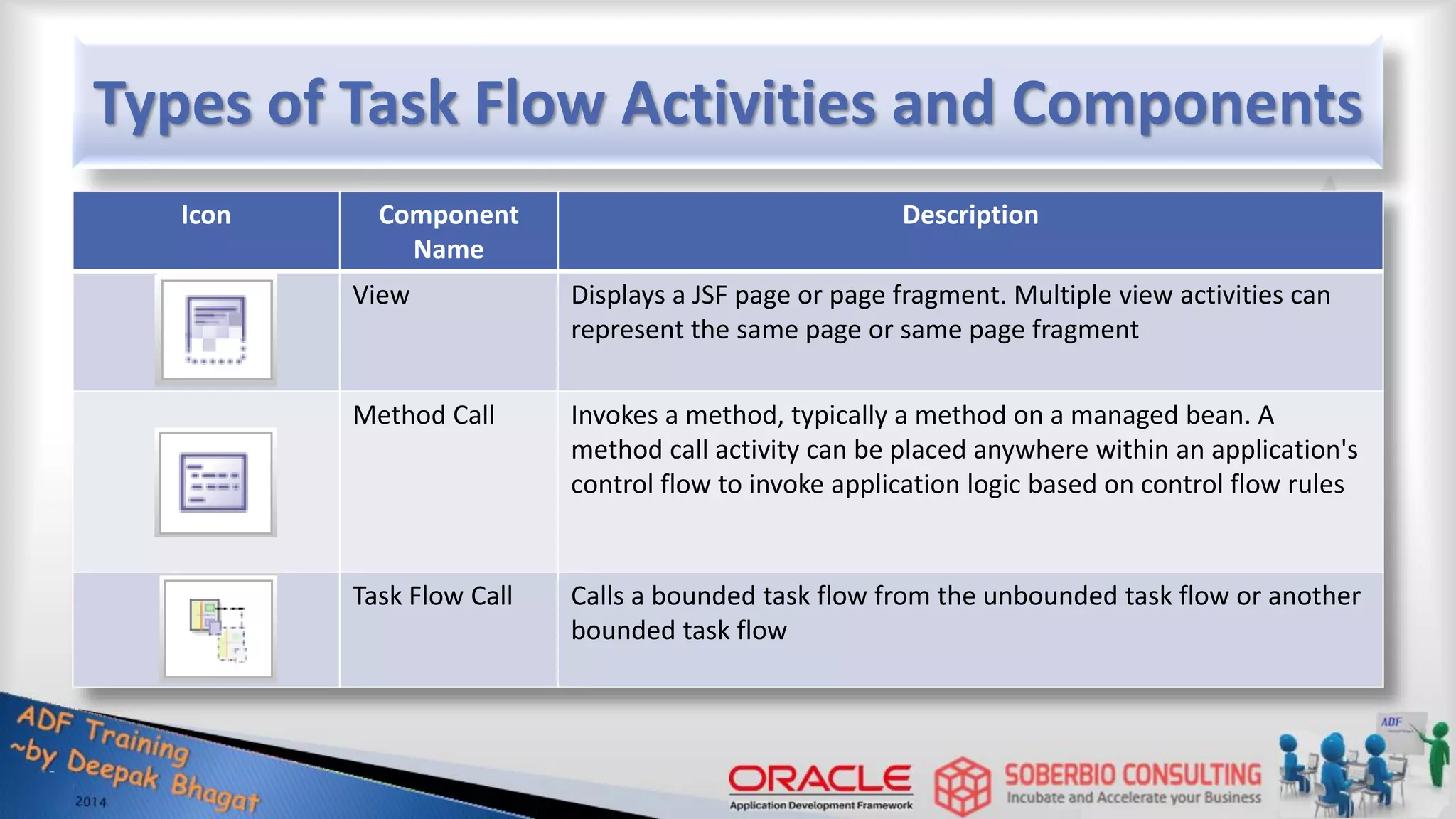

Types of Task Flow Activities and Components Icon Component Name Description View Displays a JSF page or page fragment. Multiple view activities can represent the same page or same page fragment Method Call Invokes a method, typically a method on a managed bean. A method call activity can be placed anywhere within an application's control flow to invoke application logic based on control flow rules Task Flow Call Calls a bounded task flow from the unbounded task flow or another bounded task flow

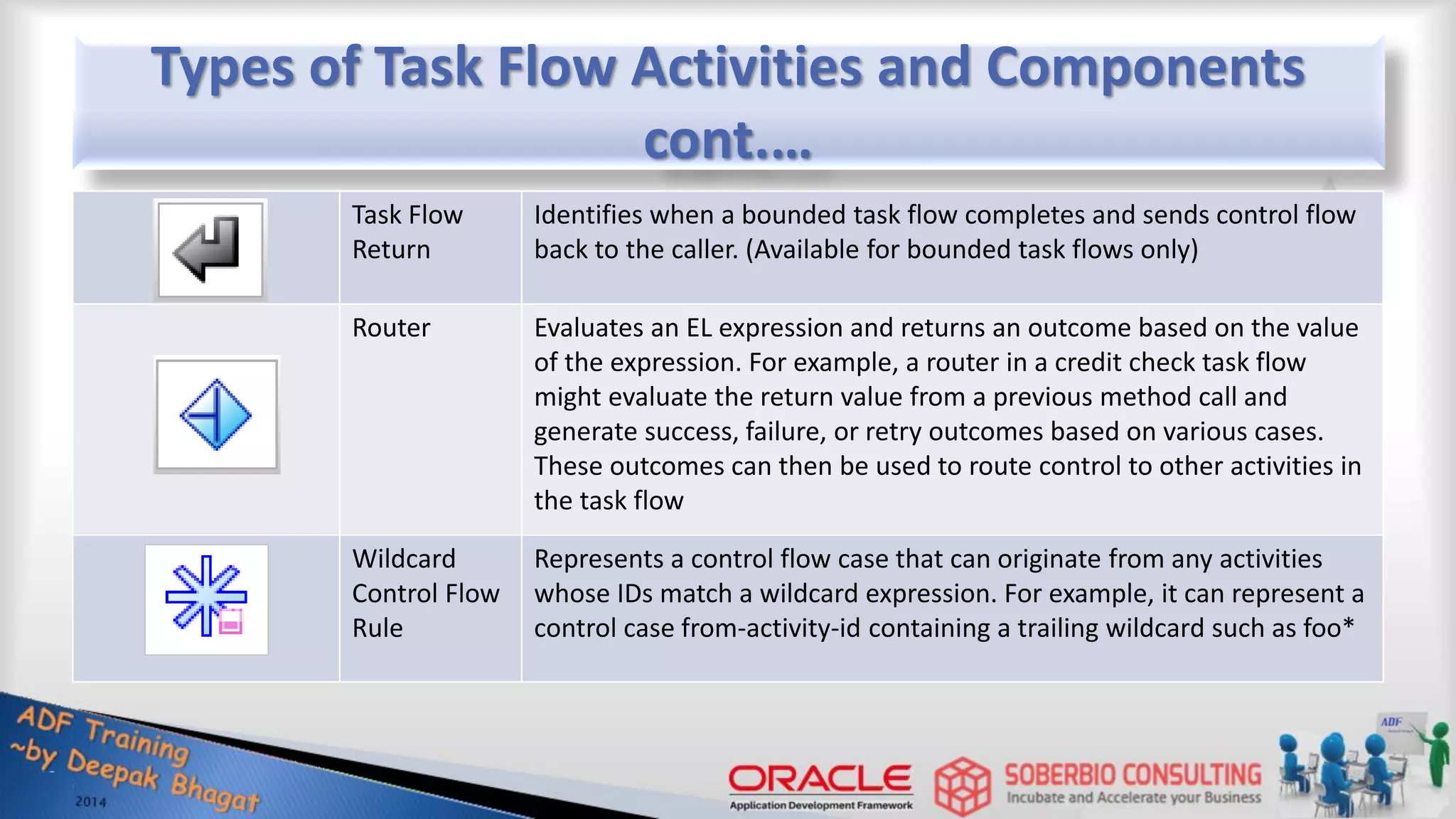

Types of Task Flow Activities and Components cont.… Task Flow Return Identifies when a bounded task flow completes and sends control flow back to the caller. (Available for bounded task flows only) Router Evaluates an EL expression and returns an outcome based on the value of the expression. For example, a router in a credit check task flow might evaluate the return value from a previous method call and generate success, failure, or retry outcomes based on various cases. These outcomes can then be used to route control to other activities in the task flow Wildcard Control Flow Rule Represents a control flow case that can originate from any activities whose IDs match a wildcard expression. For example, it can represent a control case from-activity-id containing a trailing wildcard such as foo*

Types of Task Flow Activities and Components cont.… Control Flow Case Identifies how control passes from one activity to the next in the application URL View Redirects the root view port (for example, a browser page) to any URL- addressable resource, even from within the context of an ADF region Parent Action Allows a bounded task flow to generate outcomes that are passed to its parent view activity. Typically used for a bounded task flow running in an ADF region that needs to trigger navigation of its parent view activity Save Point Restore Restores a previous persistent save point, including application state and data, in an application supporting save for later functionality. A save point captures a snapshot of the Fusion web application at a specific instance. Save point restore enables the application to restore whatever was captured when the save point was originally created

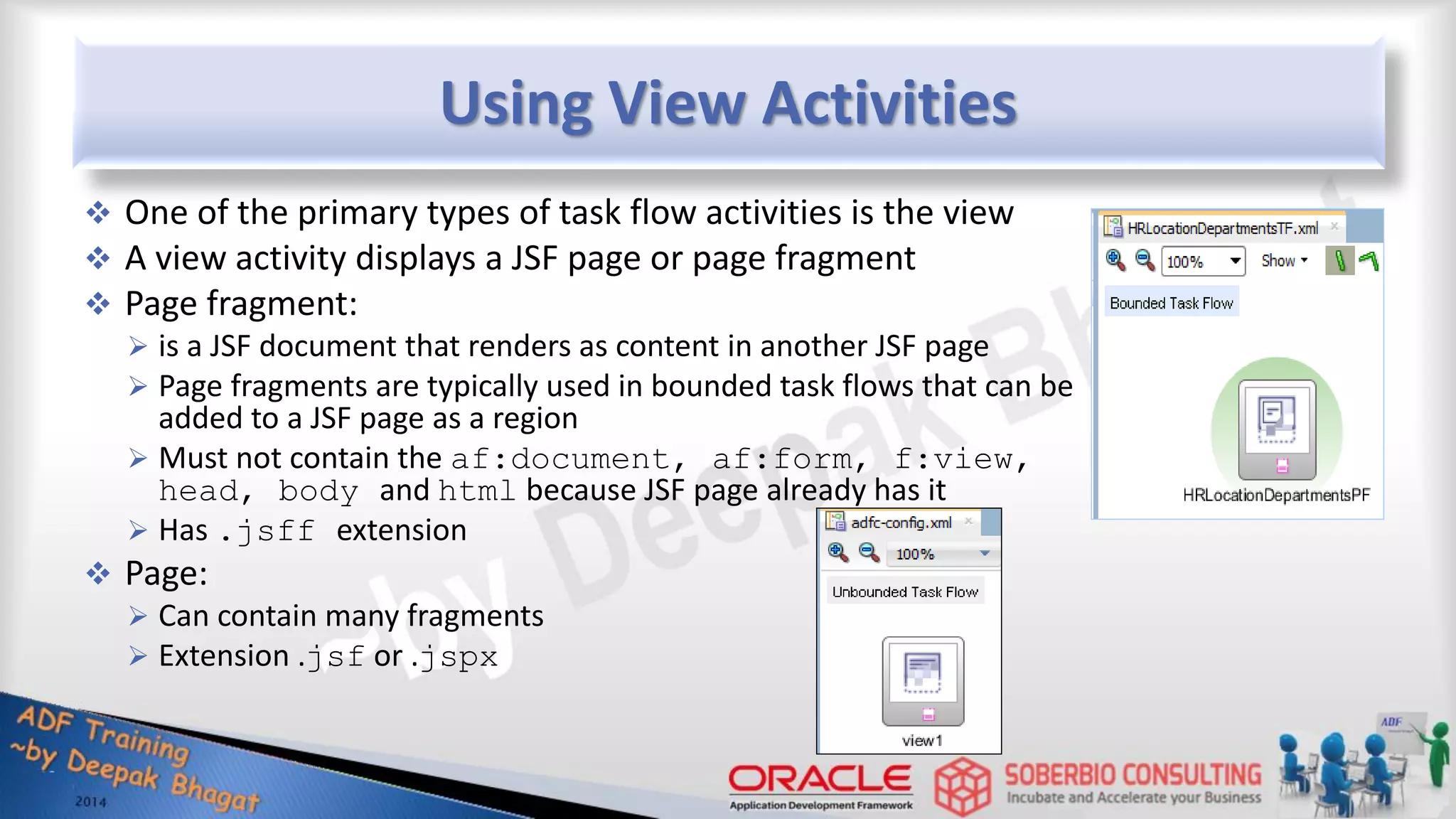

Using View Activities  One of the primary types of task flow activities is the view  A view activity displays a JSF page or page fragment  Page fragment:  is a JSF document that renders as content in another JSF page  Page fragments are typically used in bounded task flows that can be added to a JSF page as a region  Must not contain the af:document, af:form, f:view, head, body and html because JSF page already has it  Has .jsff extension  Page:  Can contain many fragments  Extension .jsf or .jspx

Defining Task Flow Return Activity When you return from a called task flow, the task flow return activity specifies the outcome that is returned to the caller

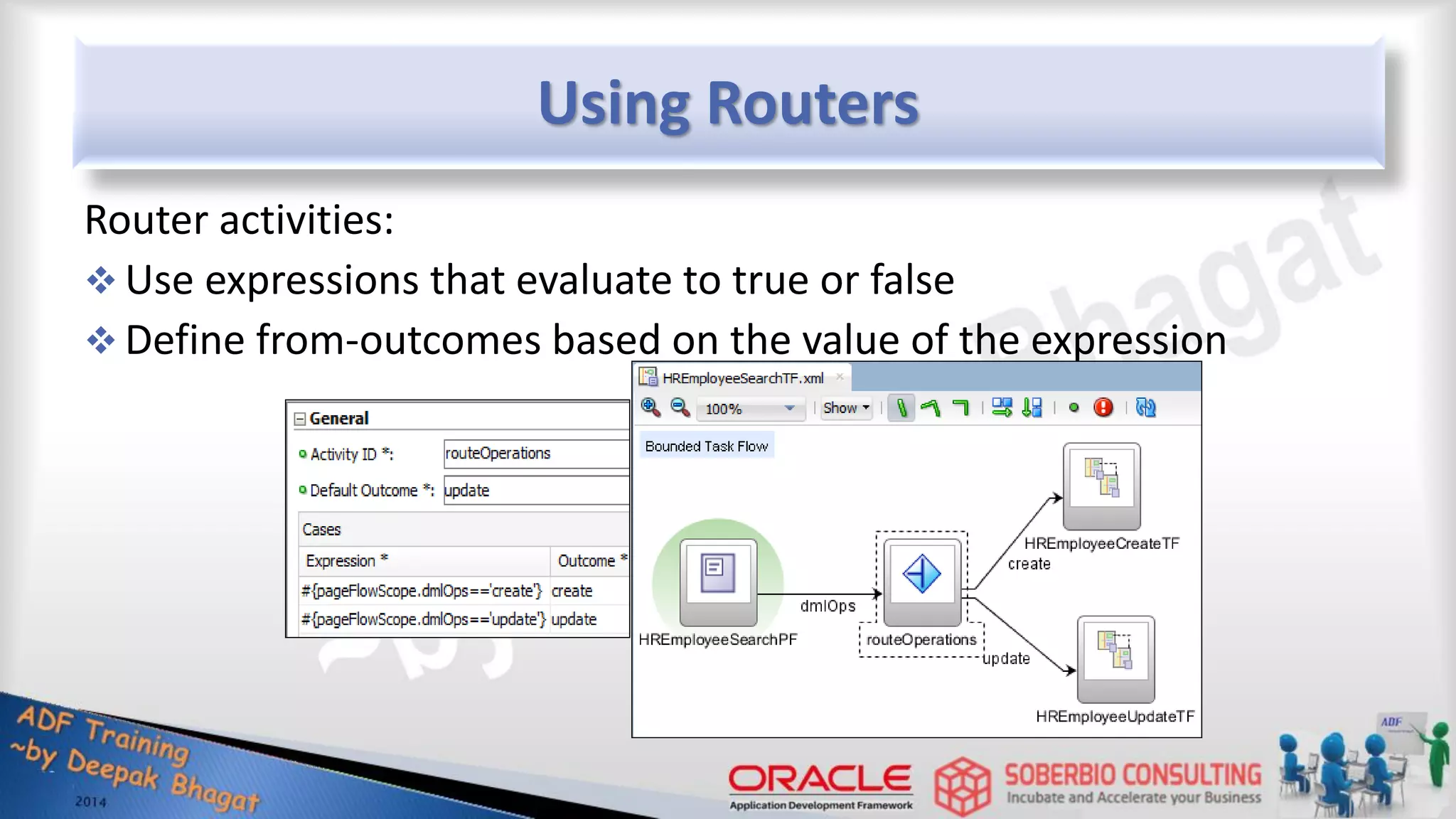

Using Routers Router activities:  Use expressions that evaluate to true or false  Define from-outcomes based on the value of the expression

Router - Example Use the router activity in a task flow to declaratively route control to activities based on logic specified in an EL expression An EL expression evaluating to either true or false, for example, #{scope.user==“ALEN"}

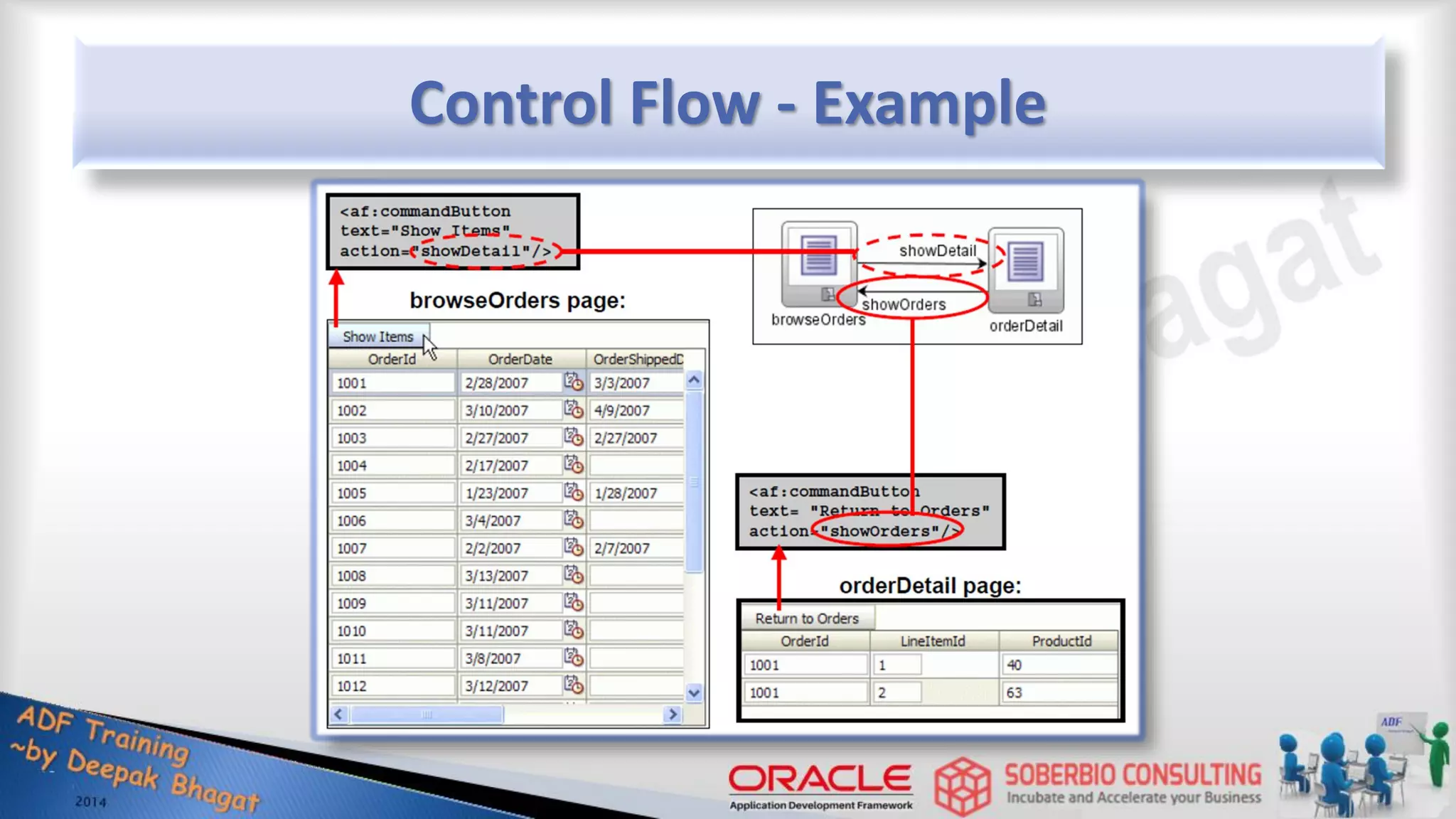

Defining ADF Control Flow Rules  Define flow through activities, such as views (pages)  Are stored in task flow configuration files  Can be defined by using:  The visual editor (Navigation Modeler)  The .xml console (Configuration Editor)  The .xml file directly  The Structure window  Are invoked by:  Command components (button and link)  Tabs or breadcrumbs  Trains

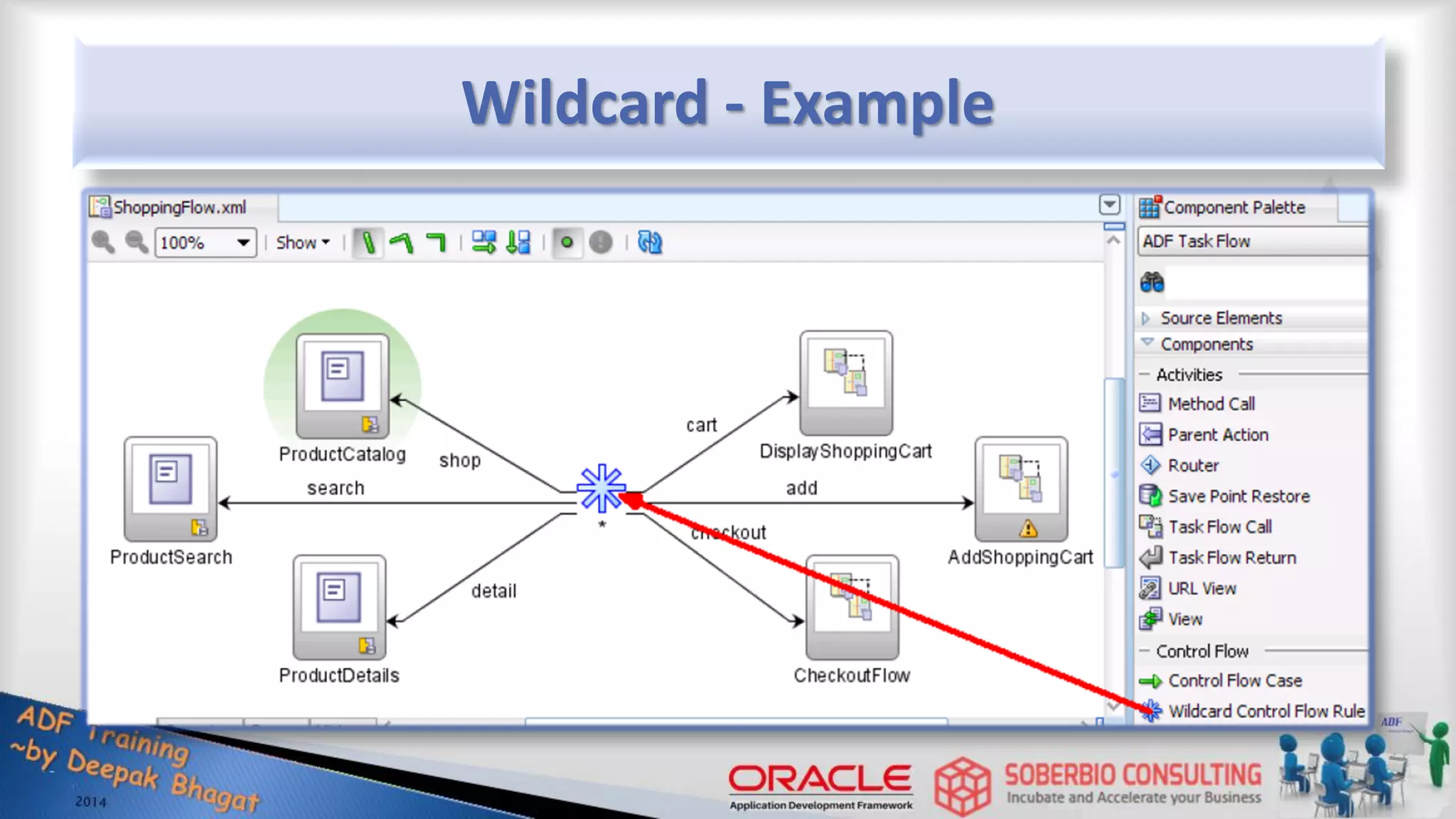

Using Wild Cards To define a global (for all pages) control flow rule, drag a wildcard control flow rule to the page:

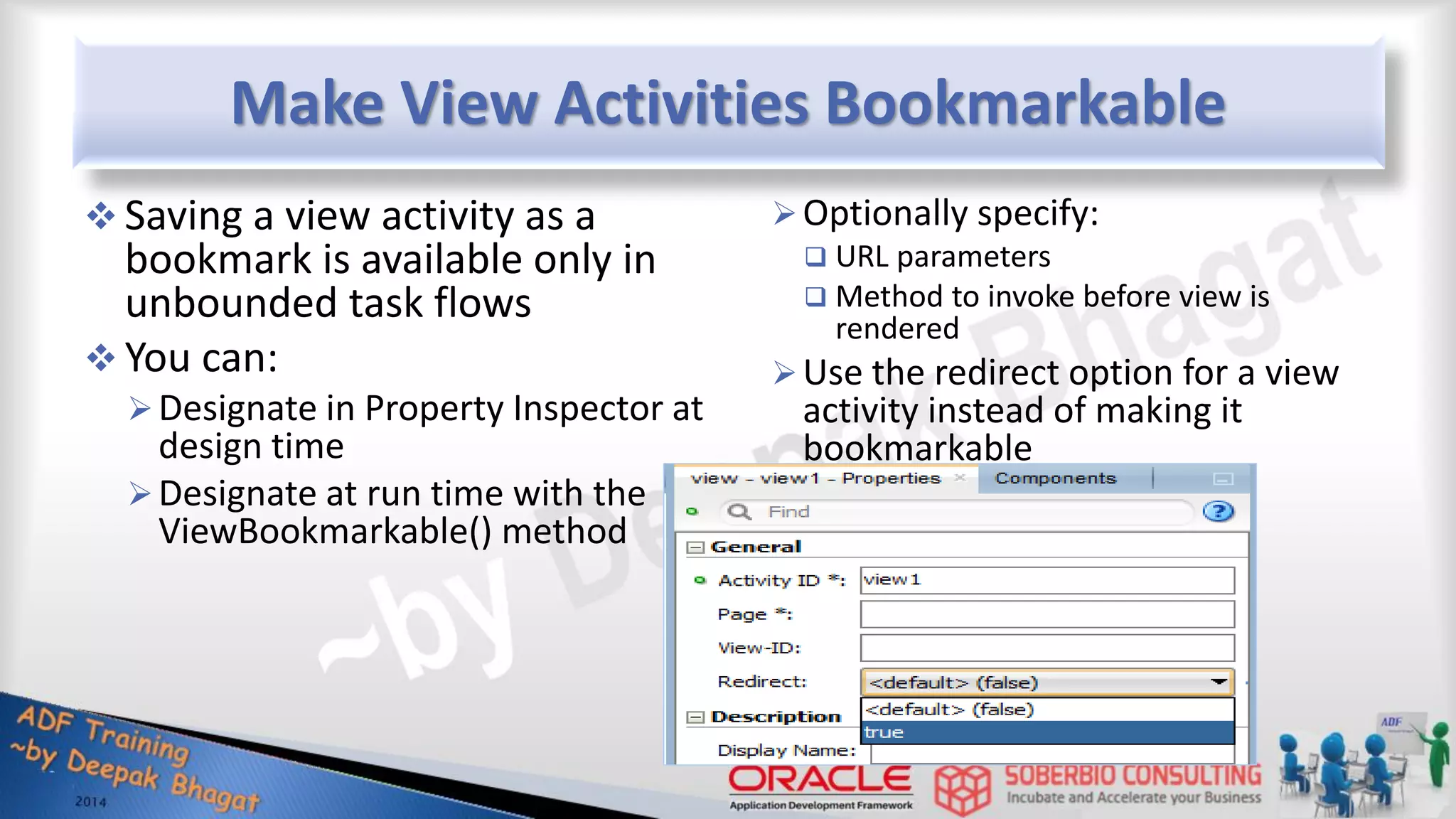

Make View Activities Bookmarkable  Saving a view activity as a bookmark is available only in unbounded task flows  You can: Designate in Property Inspector at design time Designate at run time with the ViewBookmarkable() method Optionally specify:  URL parameters  Method to invoke before view is rendered Use the redirect option for a view activity instead of making it bookmarkable

Check for Dirty Data Checking for Dirty Data Add this method in your ViewObjectImpl and expose it using client interface Call this method in your view layer whenever you need to find the dirty state of a VO by creating a method binding like #{bindings.isDirty.execute} Further modify this method to return the states as described in point 1 above, by iterating through rows

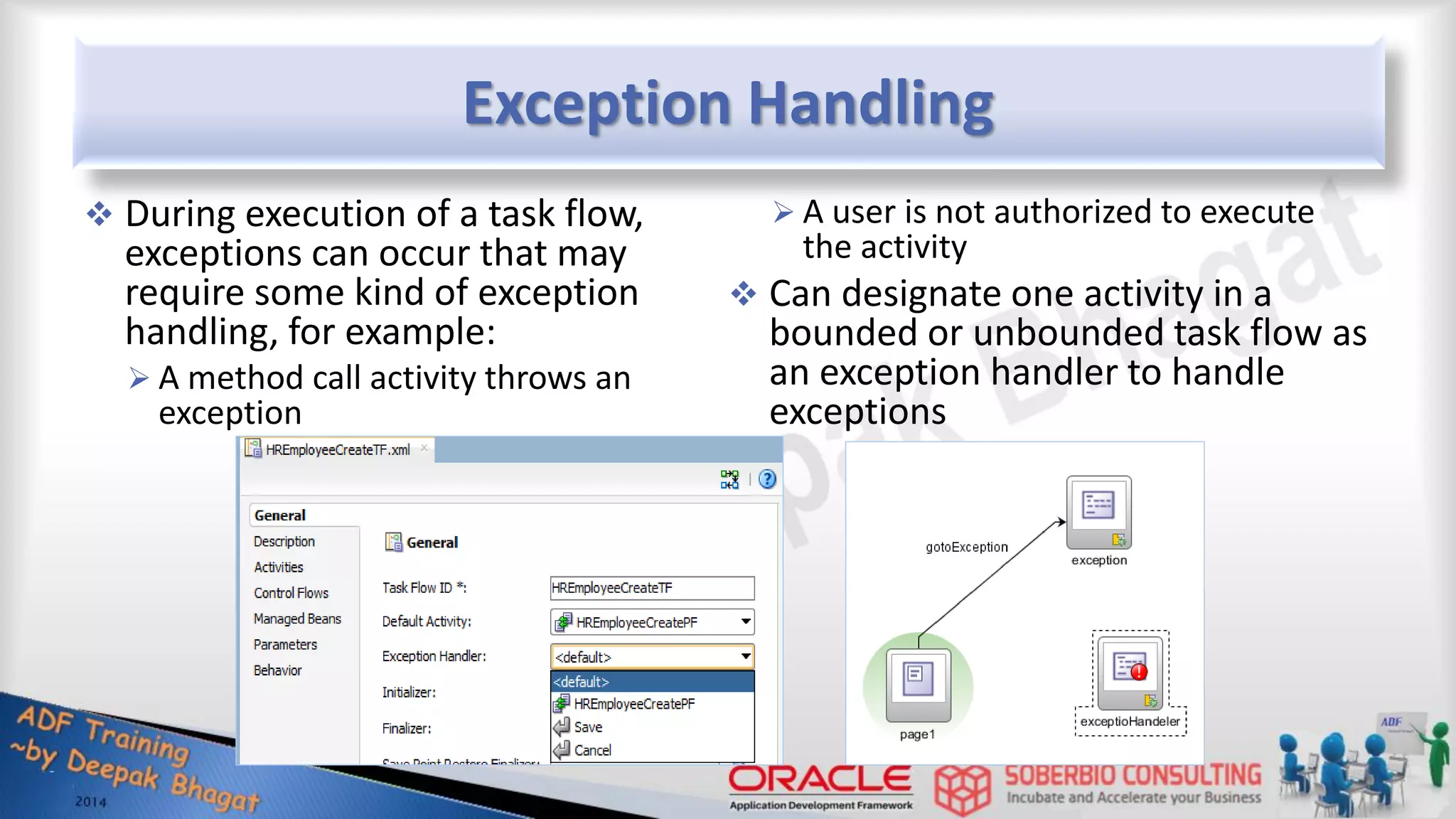

Exception Handling  During execution of a task flow, exceptions can occur that may require some kind of exception handling, for example:  A method call activity throws an exception  A user is not authorized to execute the activity  Can designate one activity in a bounded or unbounded task flow as an exception handler to handle exceptions

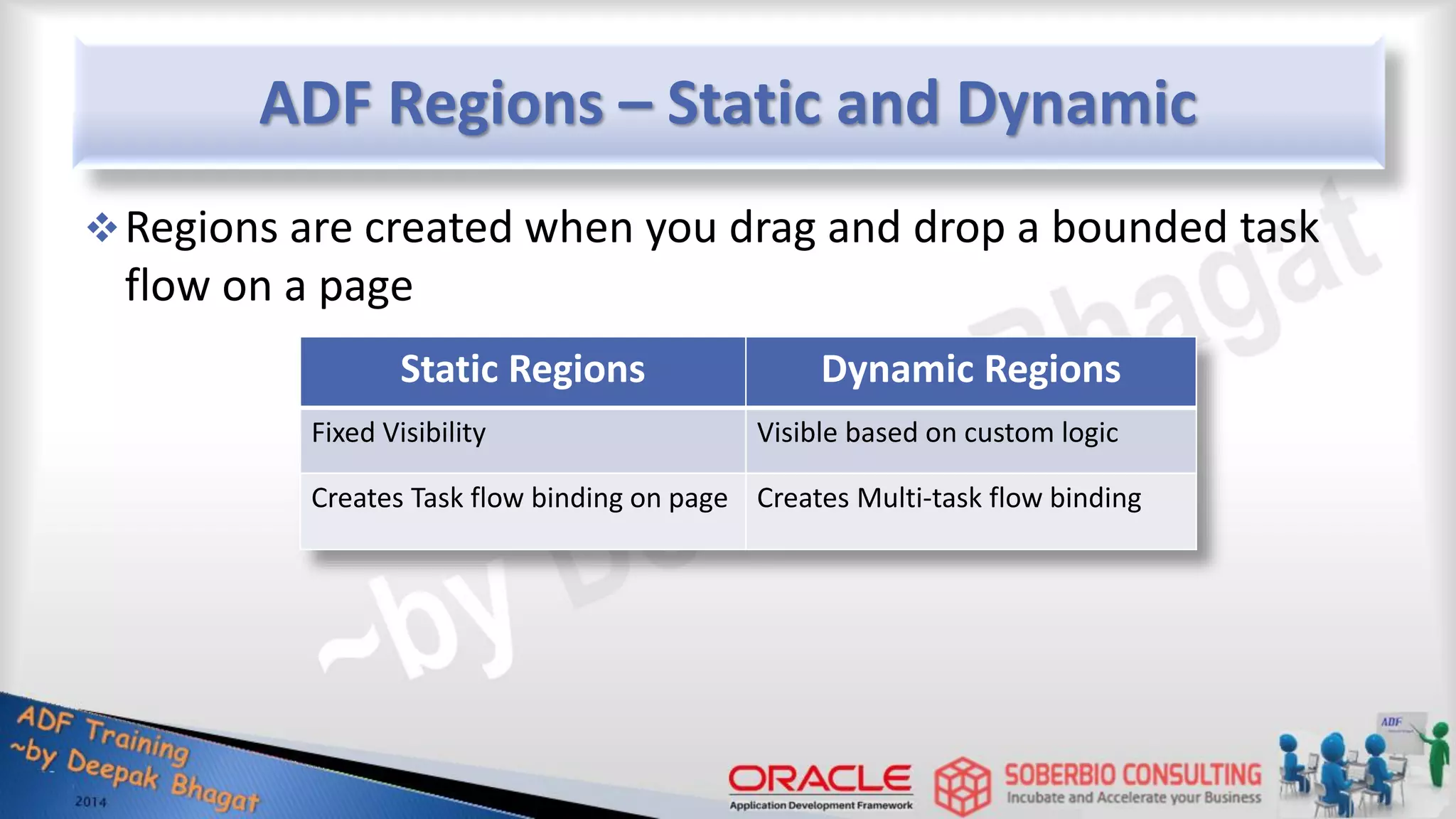

ADF Regions – Static and Dynamic Regions are created when you drag and drop a bounded task flow on a page Static Regions Dynamic Regions Fixed Visibility Visible based on custom logic Creates Task flow binding on page Creates Multi-task flow binding

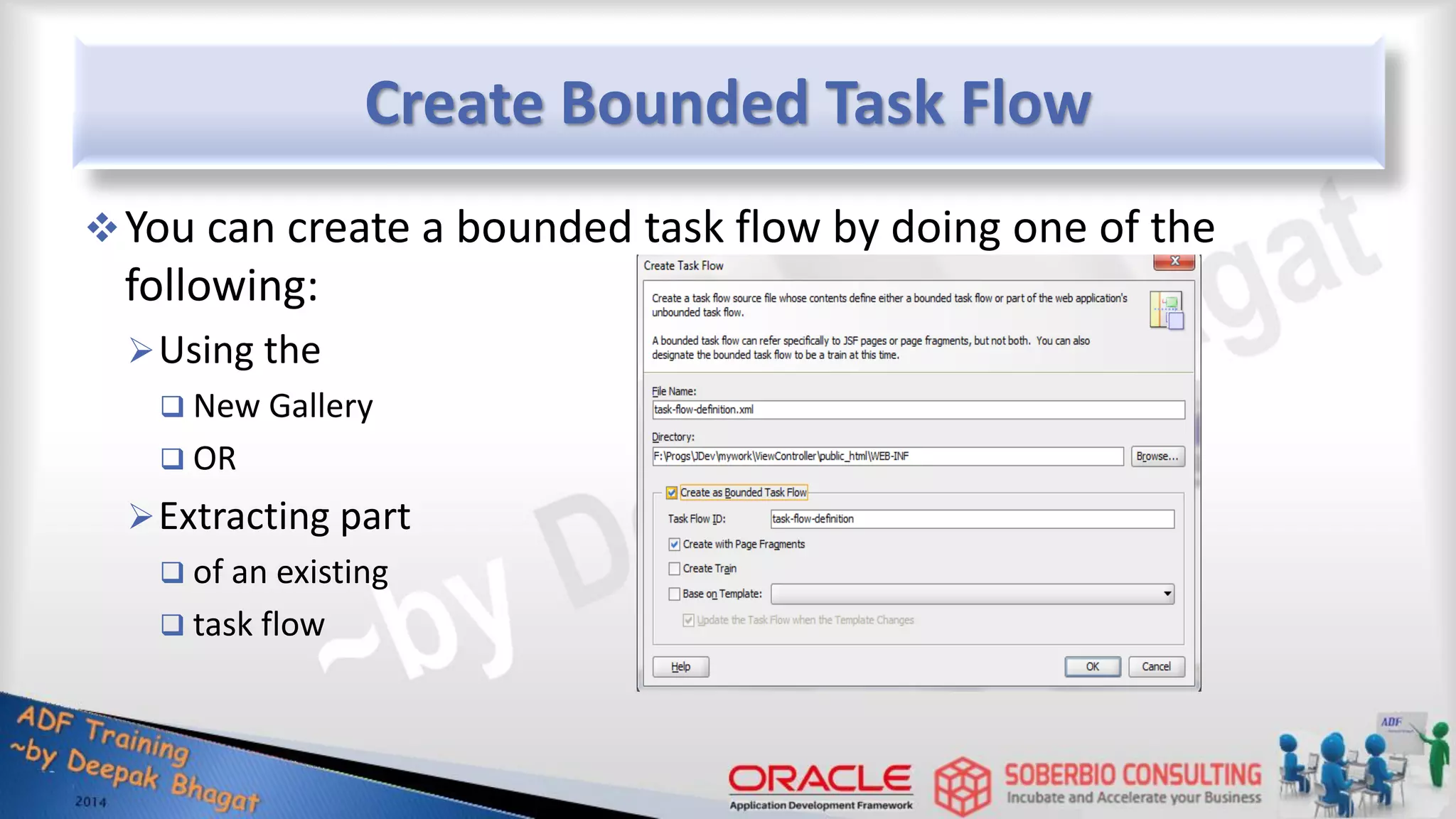

Create Bounded Task Flow You can create a bounded task flow by doing one of the following: Using the  New Gallery  OR Extracting part  of an existing  task flow

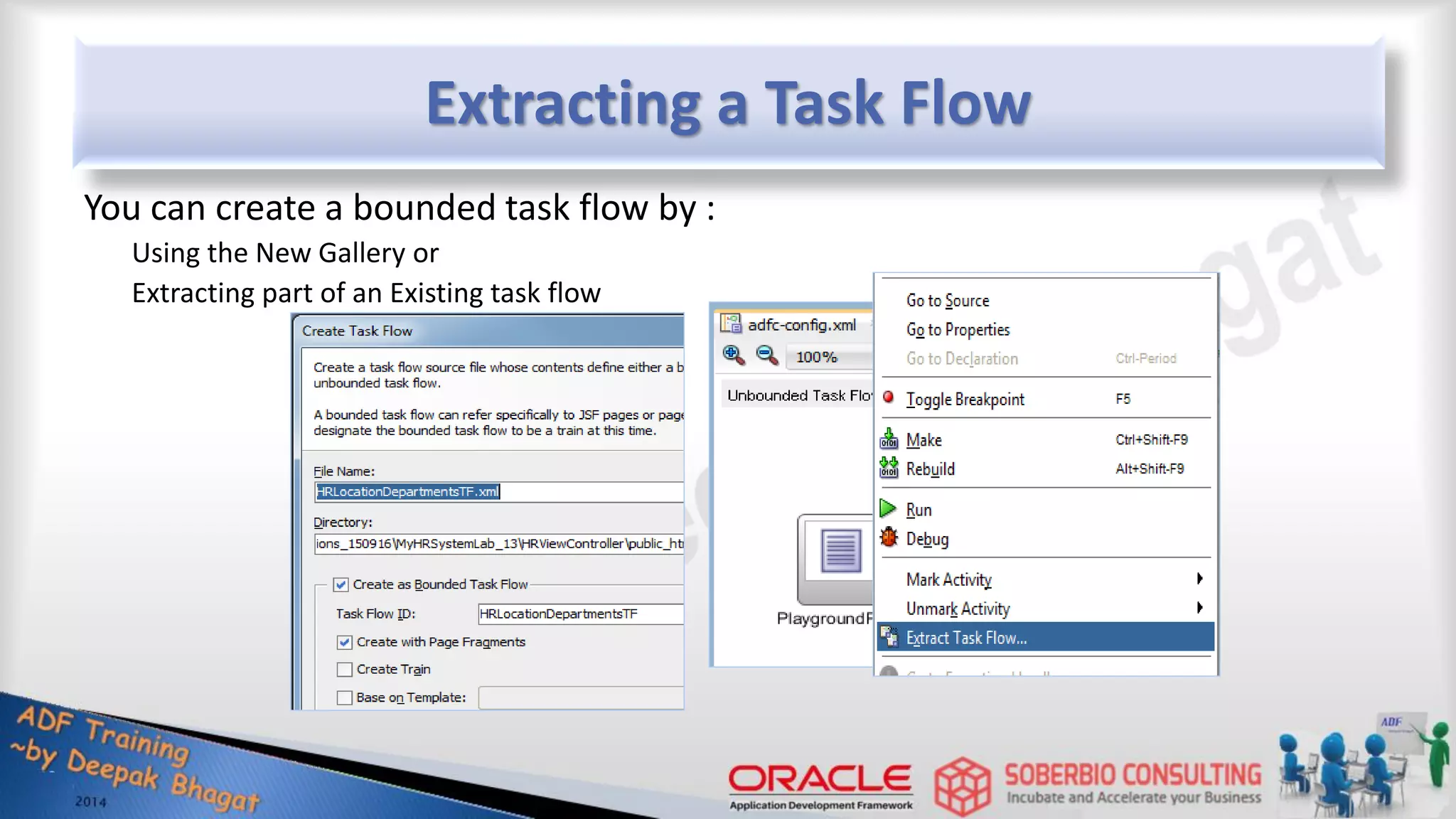

Extracting a Task Flow You can create a bounded task flow by : Using the New Gallery or Extracting part of an Existing task flow

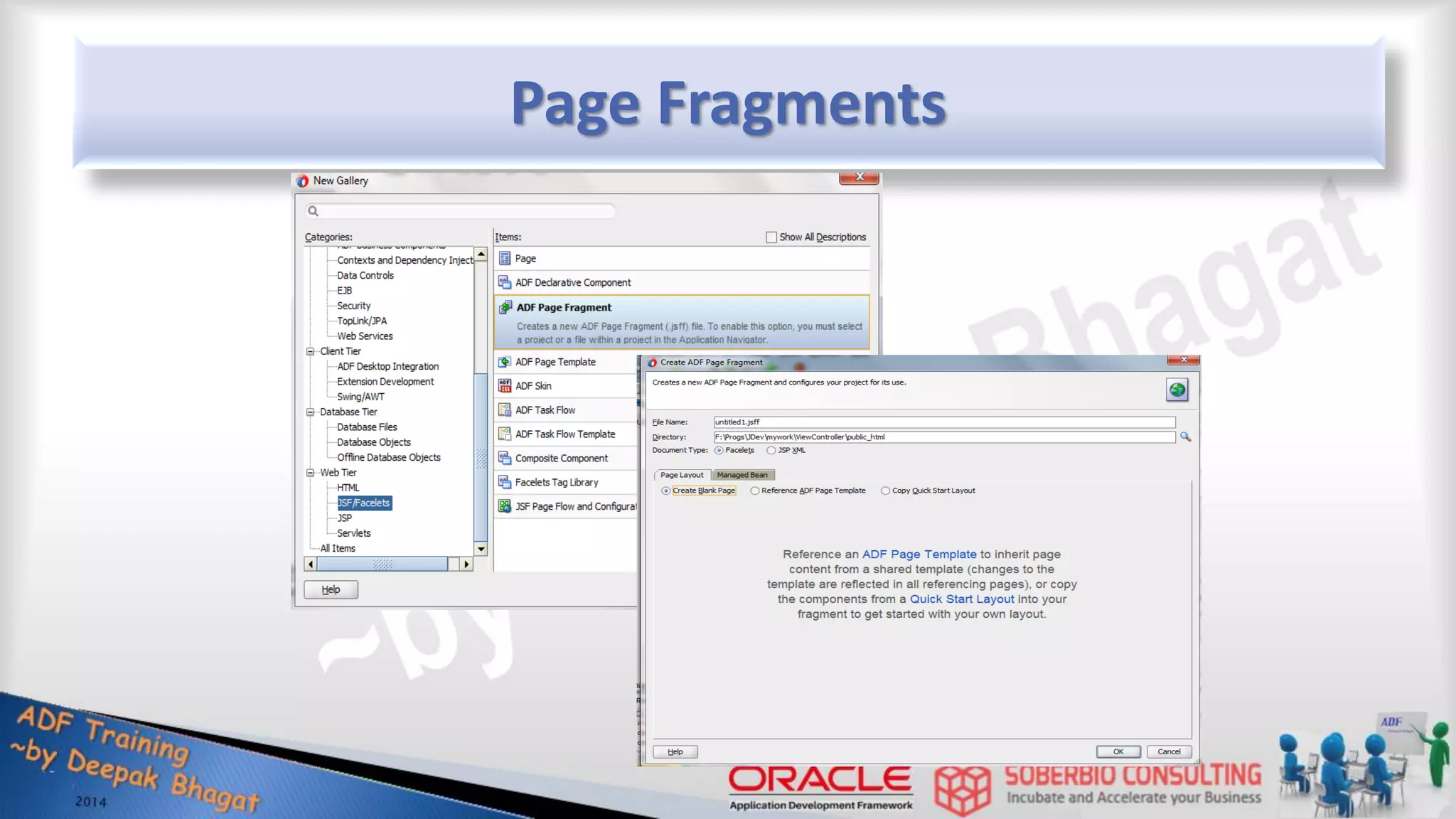

Converting a Bounded Task Flow to use Page Fragments To use a bounded task flow containing pages as a region, convert it to a task flow with page fragments

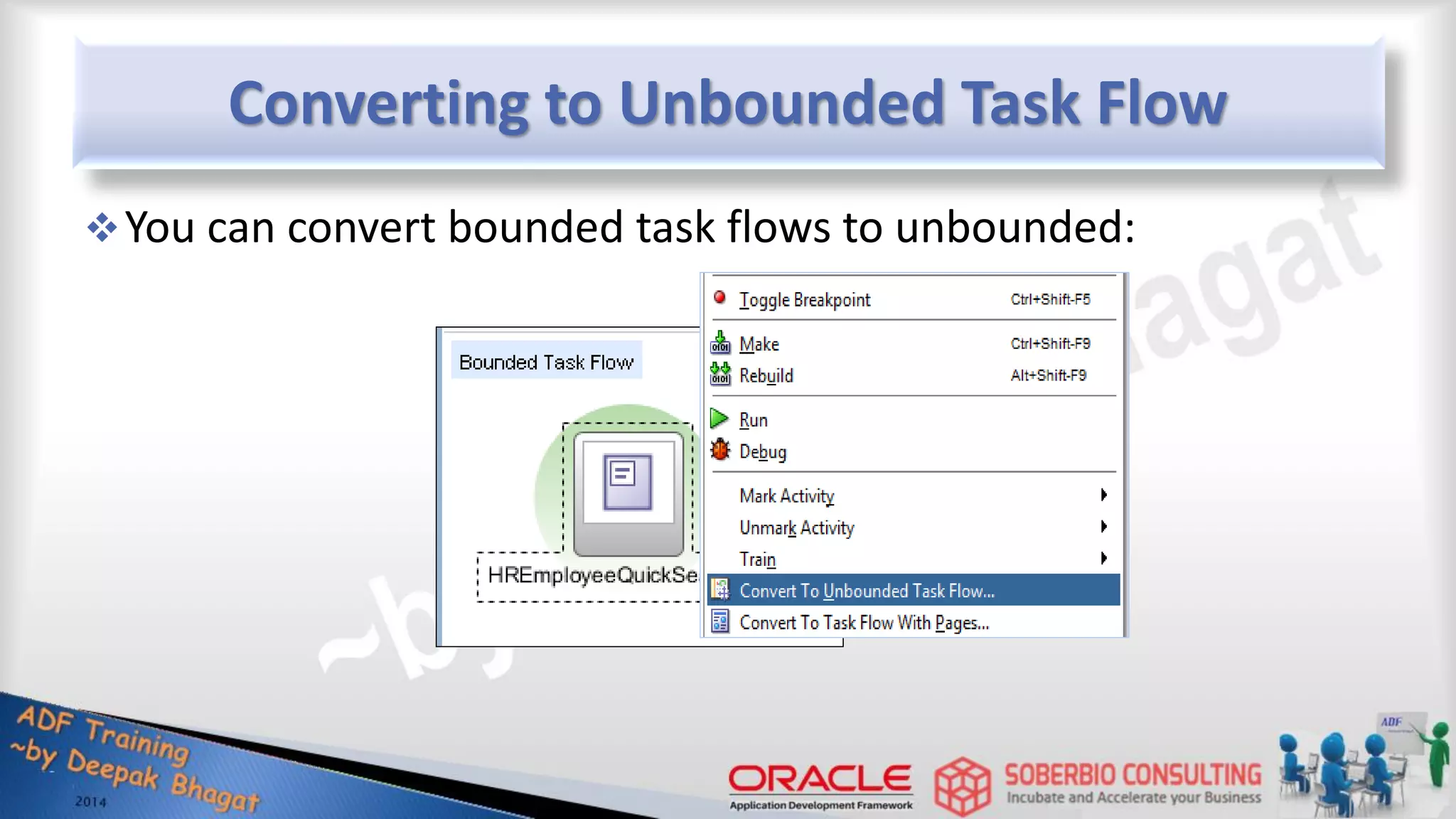

Converting to Unbounded Task Flow You can convert bounded task flows to unbounded:

Lesson Summary Features of task flows Differentiate between bounded and unbounded task flows List and discuss task flow activities Explain static and dynamic regions How to extracting a task flow How to converting task flow to use page fragment How to converting a task flow

14 Interactively Controlling with Navigation Components

Lesson Agenda List of Navigation Components Implement Buttons and Links Use Breadcrumbs and Navigation Panes Define Trains Implement explorer type containers like Menu and Toolbars Use secondary Windows like Popup, Dialog and Windows Performing navigation Add Accessibility compliance using Access Key

Functionalities of ADF Faces  Internationalization (Lesson 11)  Skinning (Lesson 11)  Active Geometry Management (Lesson 12)  Advance Page Flow and Task Flow (Lesson 13)  Navigation (Lesson 14)  Accessibility (Lesson 14)  Reusability using Templating and Declarative Component (L 15)  Memory Scopes (Lesson 16)  Parameter Passing (Lesson 16)  Partial Page Rendering (Ajax support) (Lesson 16)  Event and Listener Handling (L 17)  Managed and Backing Beans (L 17)  Enhanced Lifecycle (Lesson 17)  Drag and Drop Data Binding (L 18)  Advance Databound Search Capability (Lesson 18)  Transaction Management (L 20)  ADF Model support (Lesson 21)

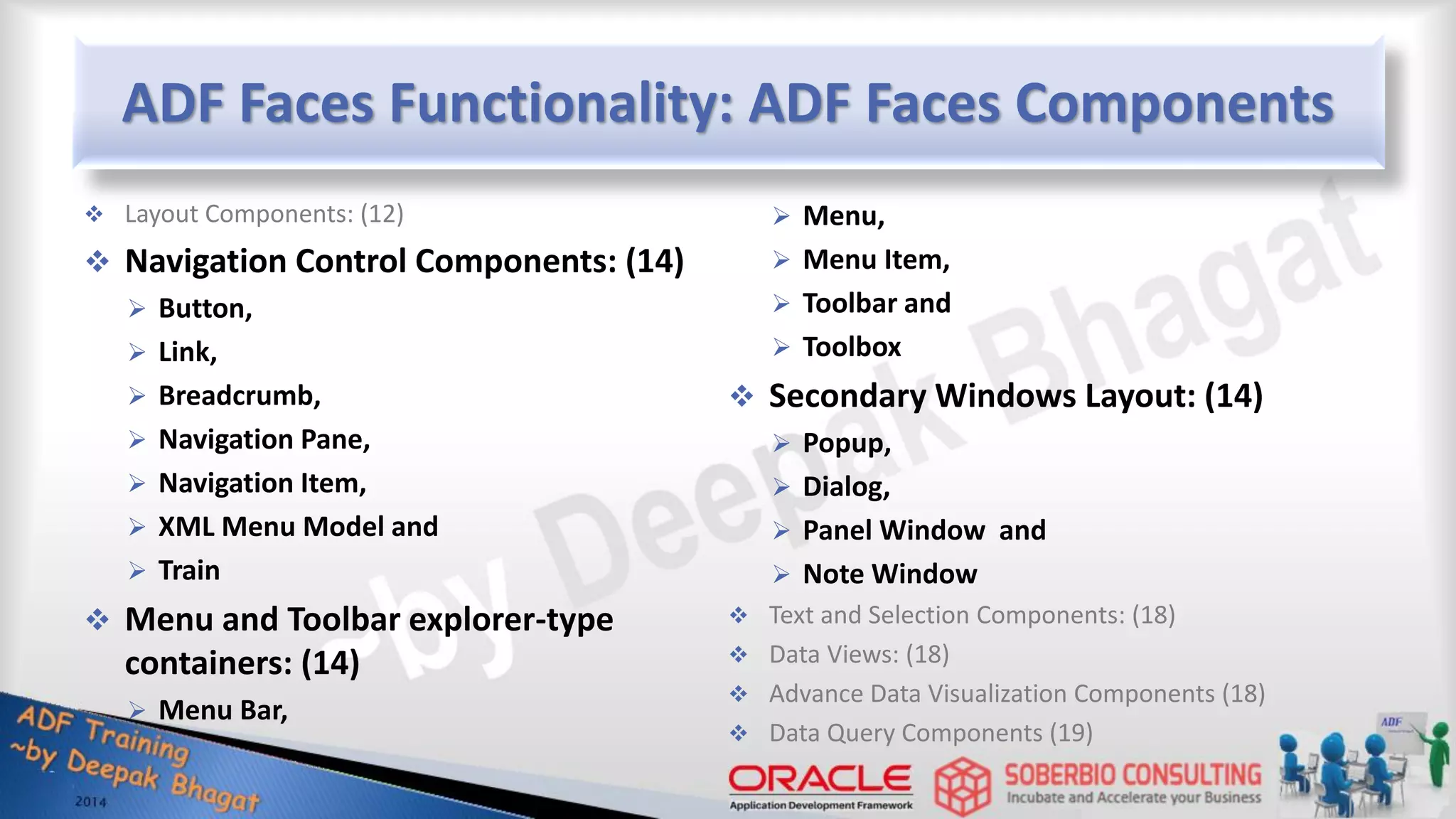

ADF Faces Functionality: ADF Faces Components  Layout Components: (12)  Navigation Control Components: (14)  Button,  Link,  Breadcrumb,  Navigation Pane,  Navigation Item,  XML Menu Model and  Train  Menu and Toolbar explorer-type containers: (14)  Menu Bar,  Menu,  Menu Item,  Toolbar and  Toolbox  Secondary Windows Layout: (14)  Popup,  Dialog,  Panel Window and  Note Window  Text and Selection Components: (18)  Data Views: (18)  Advance Data Visualization Components (18)  Data Query Components (19)

Overview of Navigation Components  Navigation components allow users to drill down for more information, to navigate to related pages or windows, and to perform specific actions on data and navigate at the same time  The common forms of navigation components are buttons and links, most of which can be used on their own and a few that can only be used in conjunction with other components  Some components render navigable items such as tabs and breadcrumbs for navigating hierarchical pages and keeping track of the user's current location in the page hierarchy. Navigation components can provide navigation with or without server-side actions

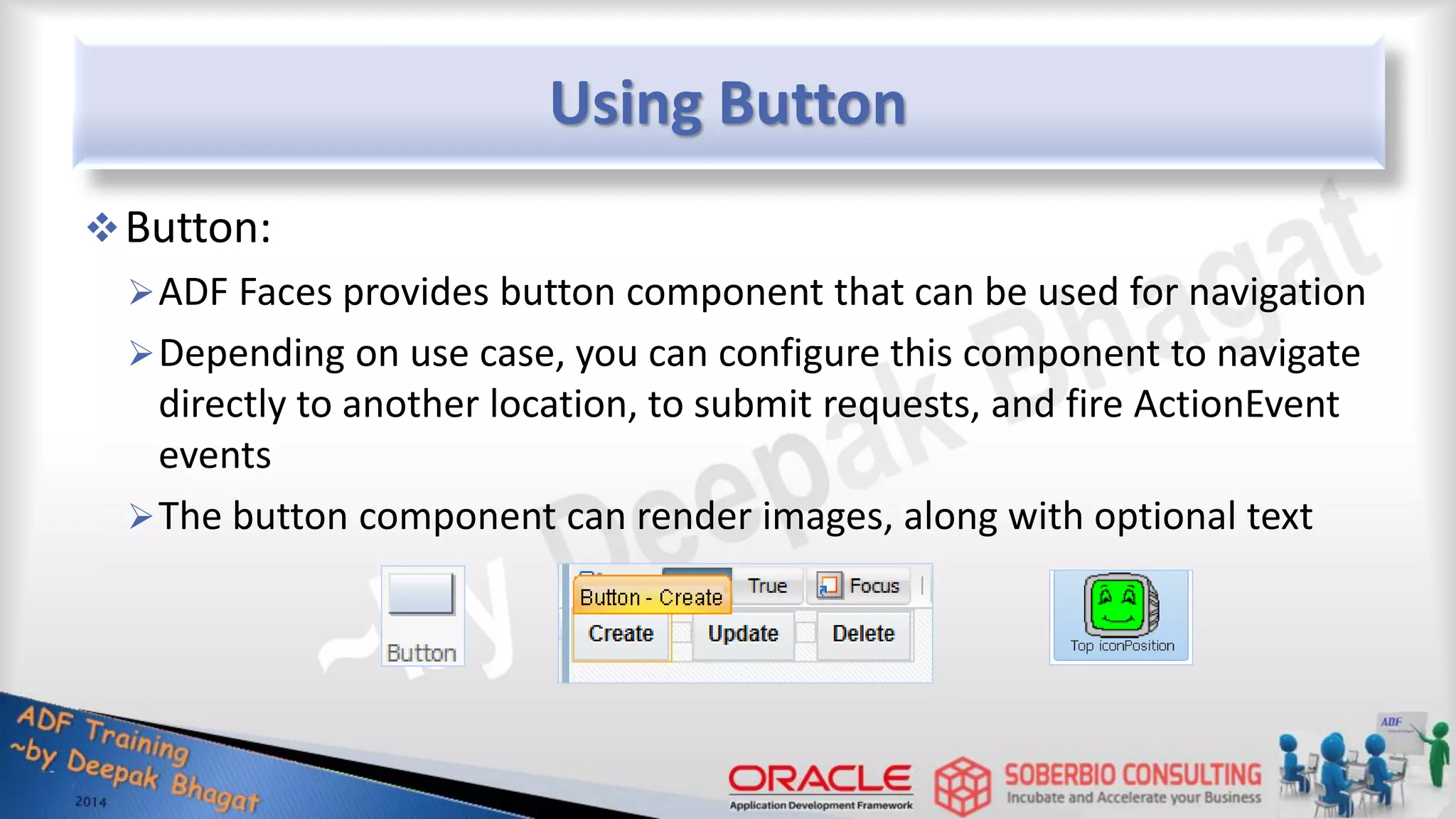

Using Button Button: ADF Faces provides button component that can be used for navigation Depending on use case, you can configure this component to navigate directly to another location, to submit requests, and fire ActionEvent events The button component can render images, along with optional text

Using Link Link: A link can be set to either launch an action or navigate to destination The link can contain a textual value holder, like output text or image

Using Breadcrumbs Breadcrumb component is used in hierarchical site layouts to indicate the path back to the root page of the hierarchy with links You can define: Breadcrumbs explicitly Links using the XML Menu Model Breadcrumb links (Navigation Items)

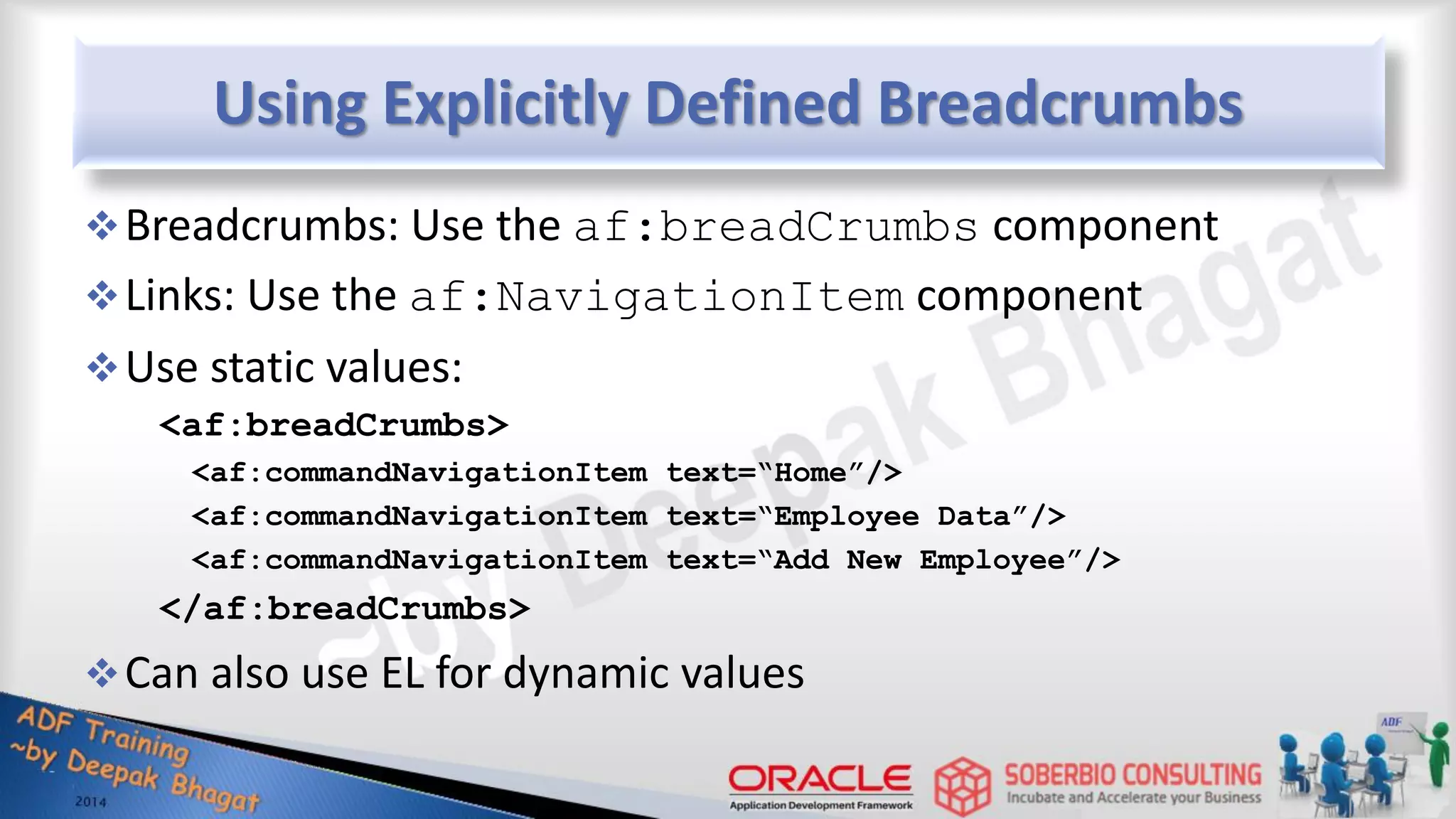

Using Explicitly Defined Breadcrumbs Breadcrumbs: Use the af:breadCrumbs component Links: Use the af:NavigationItem component Use static values: <af:breadCrumbs> <af:commandNavigationItem text=“Home”/> <af:commandNavigationItem text=“Employee Data”/> <af:commandNavigationItem text=“Add New Employee”/> </af:breadCrumbs> Can also use EL for dynamic values

Using Navigation Pane Navigation Pane creates a series of navigation items representing one level in a navigation hierarchy You can either: Define navigation levels explicitly Or Bind to XML Menu Model

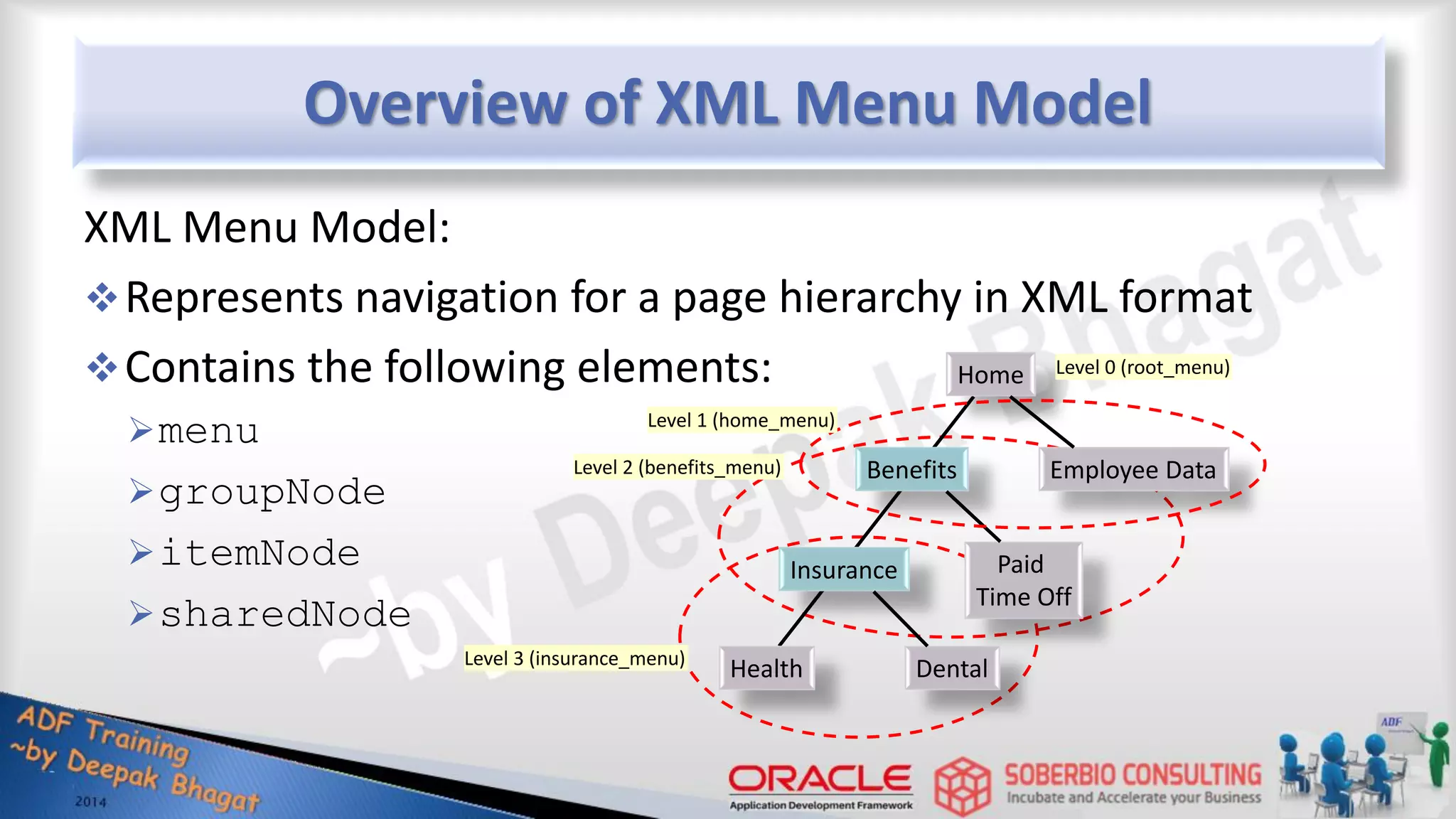

Overview of XML Menu Model XML Menu Model: Represents navigation for a page hierarchy in XML format Contains the following elements: menu groupNode itemNode sharedNode Home Benefits Employee Data Insurance Paid Time Off Health Dental Level 0 (root_menu) Level 1 (home_menu) Level 2 (benefits_menu) Level 3 (insurance_menu)

Defining Sequence of Steps (Train) The Train component: is a specialized type of task flow with linear steps indicates the location of the current page within a multi-step process. Each step is represented as a train stop Navigation buttons rendered by af:trainButtonBar Creating the task flow for a train Navigation items rendered by af:train

Skipping Train Stop Controlled by the skip property of the train stop: If true, users cannot navigate to that train stop Typically set to an expression that evaluates to true or false, such as managed bean method or property Step 1 of train Step 2 of train Step 3 of train

Using Menus for Navigation Menu bar:  Menu bars allow you to organize menus, buttons, and other simple components in a horizontal bar  When a user clicks a menu in the bar, the menu drops down and the user can select from the menu items  You can group menu bars and toolbars in a toolbox

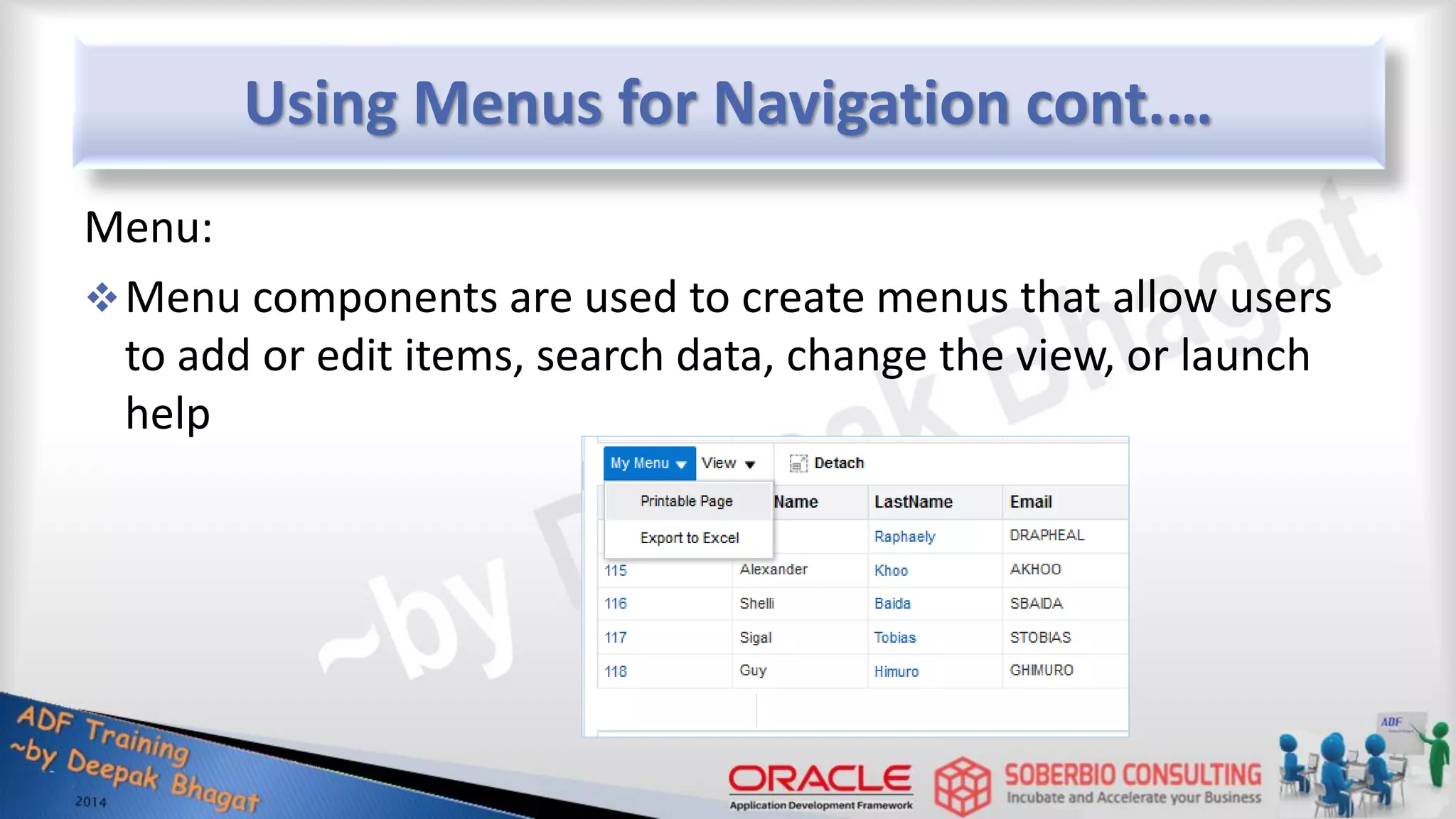

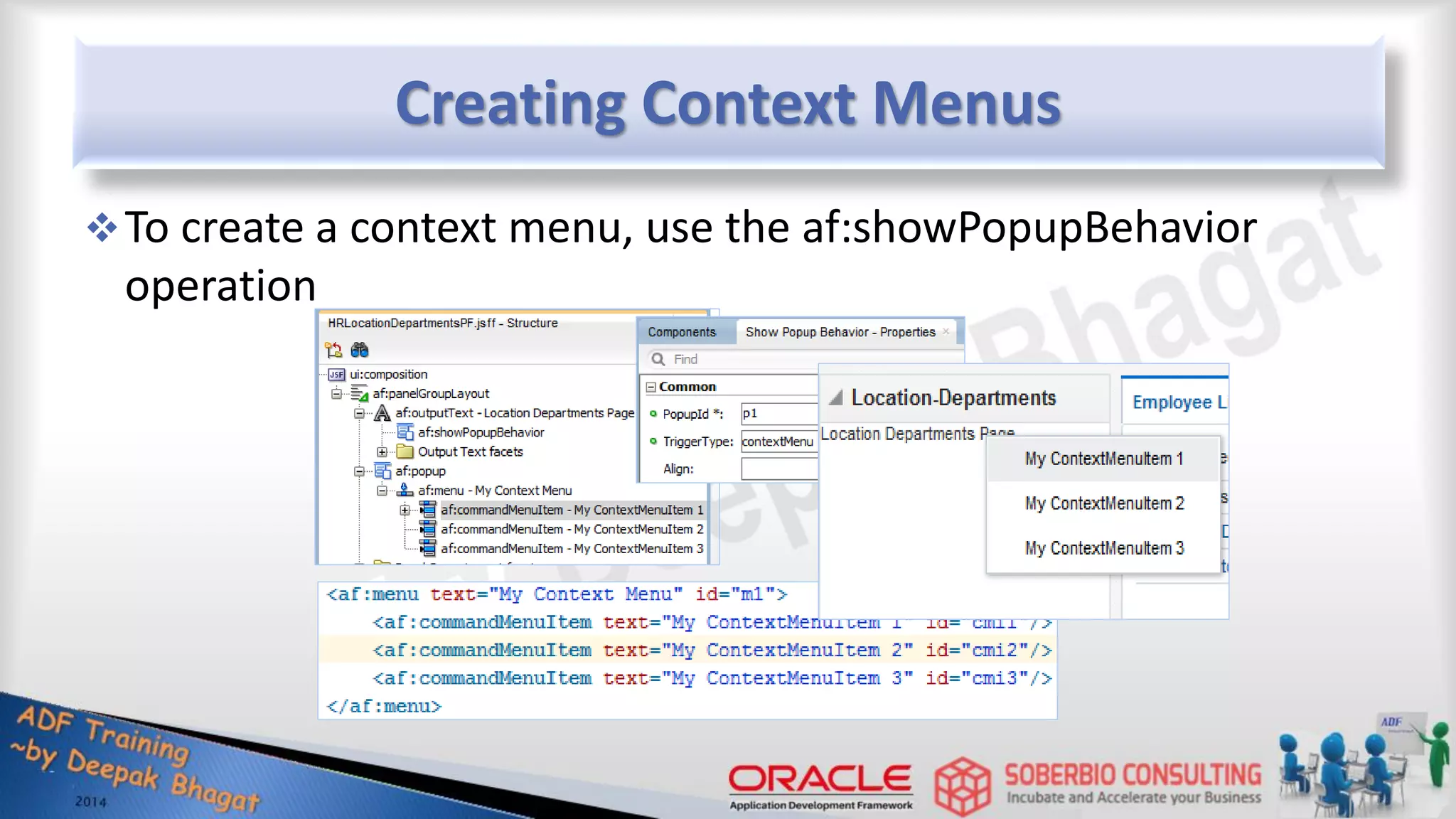

Using Menus for Navigation cont.… Menu: Menu components are used to create menus that allow users to add or edit items, search data, change the view, or launch help

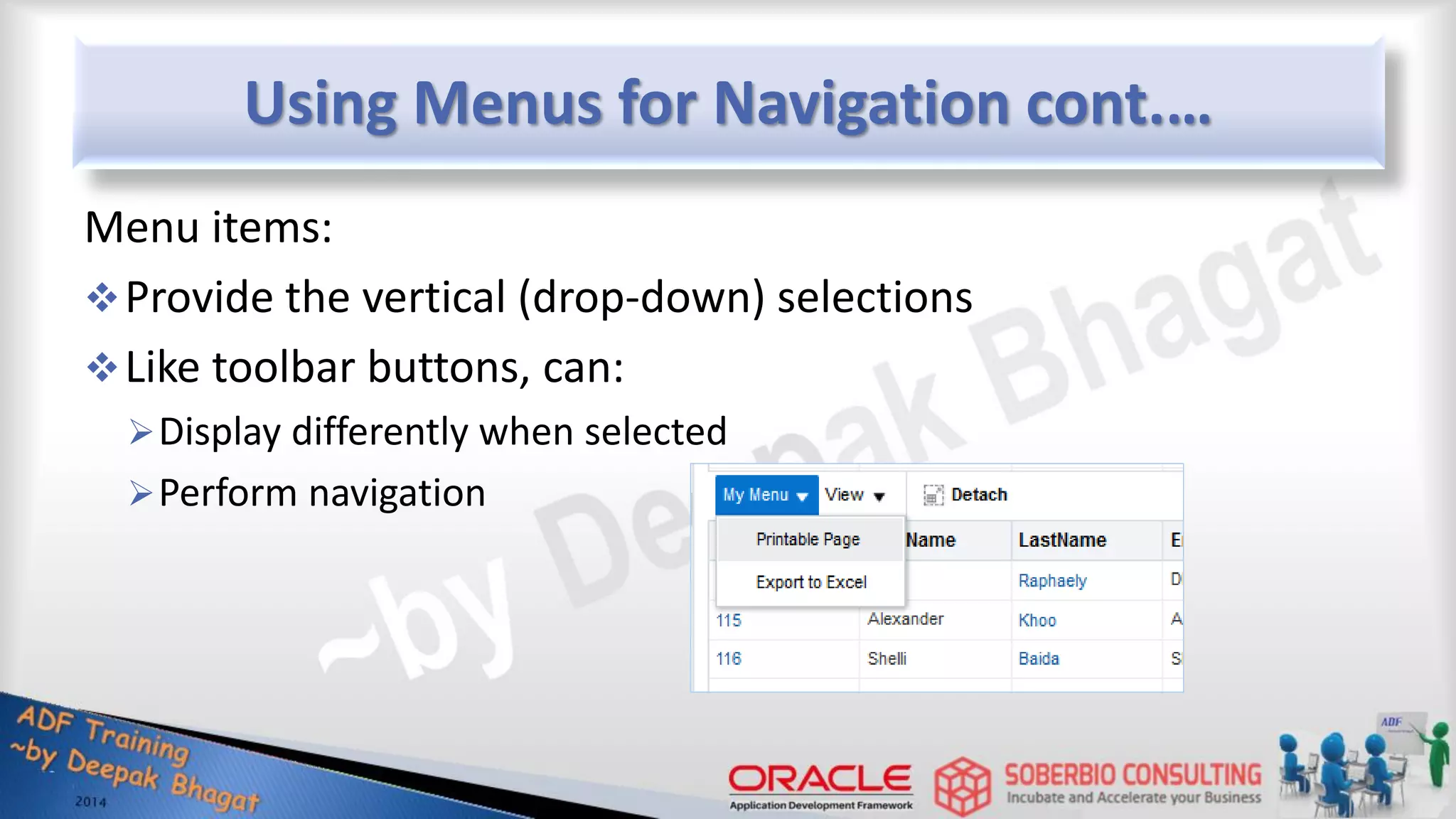

Using Menus for Navigation cont.… Menu items: Provide the vertical (drop-down) selections Like toolbar buttons, can: Display differently when selected Perform navigation

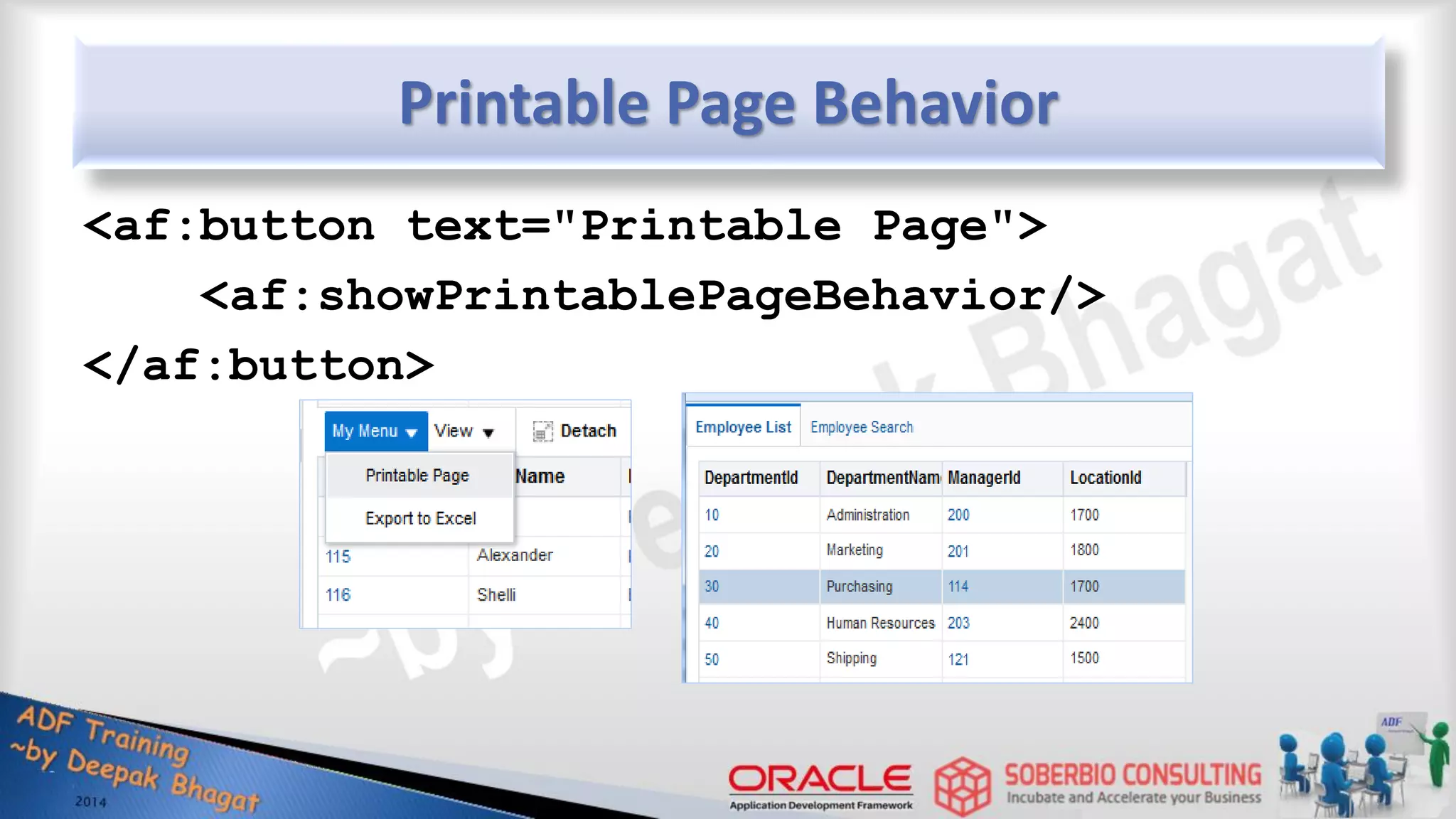

Printable Page Behavior <af:button text="Printable Page"> <af:showPrintablePageBehavior/> </af:button>

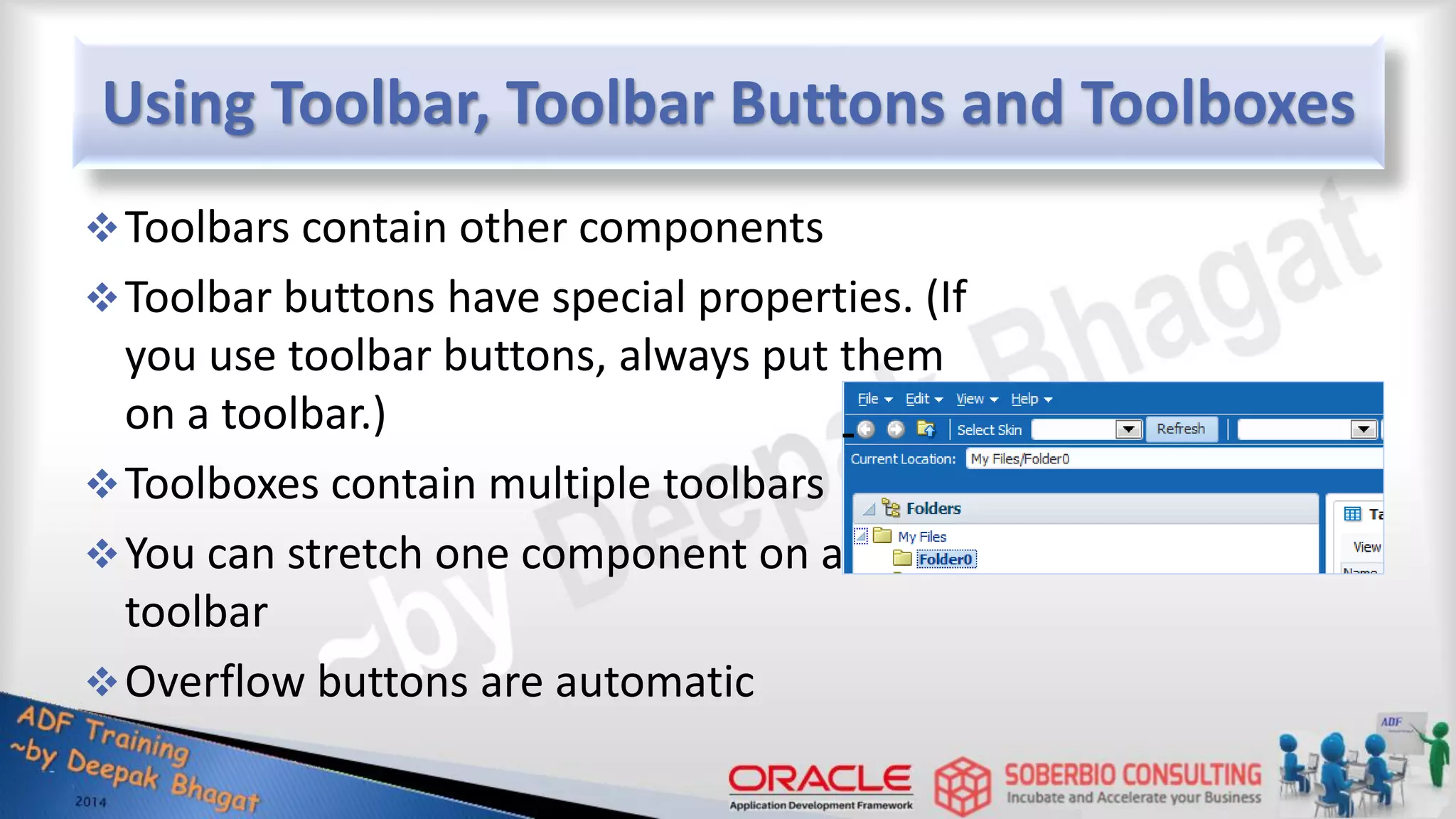

Using Toolbar, Toolbar Buttons and Toolboxes Toolbars contain other components Toolbar buttons have special properties. (If you use toolbar buttons, always put them on a toolbar.) Toolboxes contain multiple toolbars You can stretch one component on a toolbar Overflow buttons are automatic

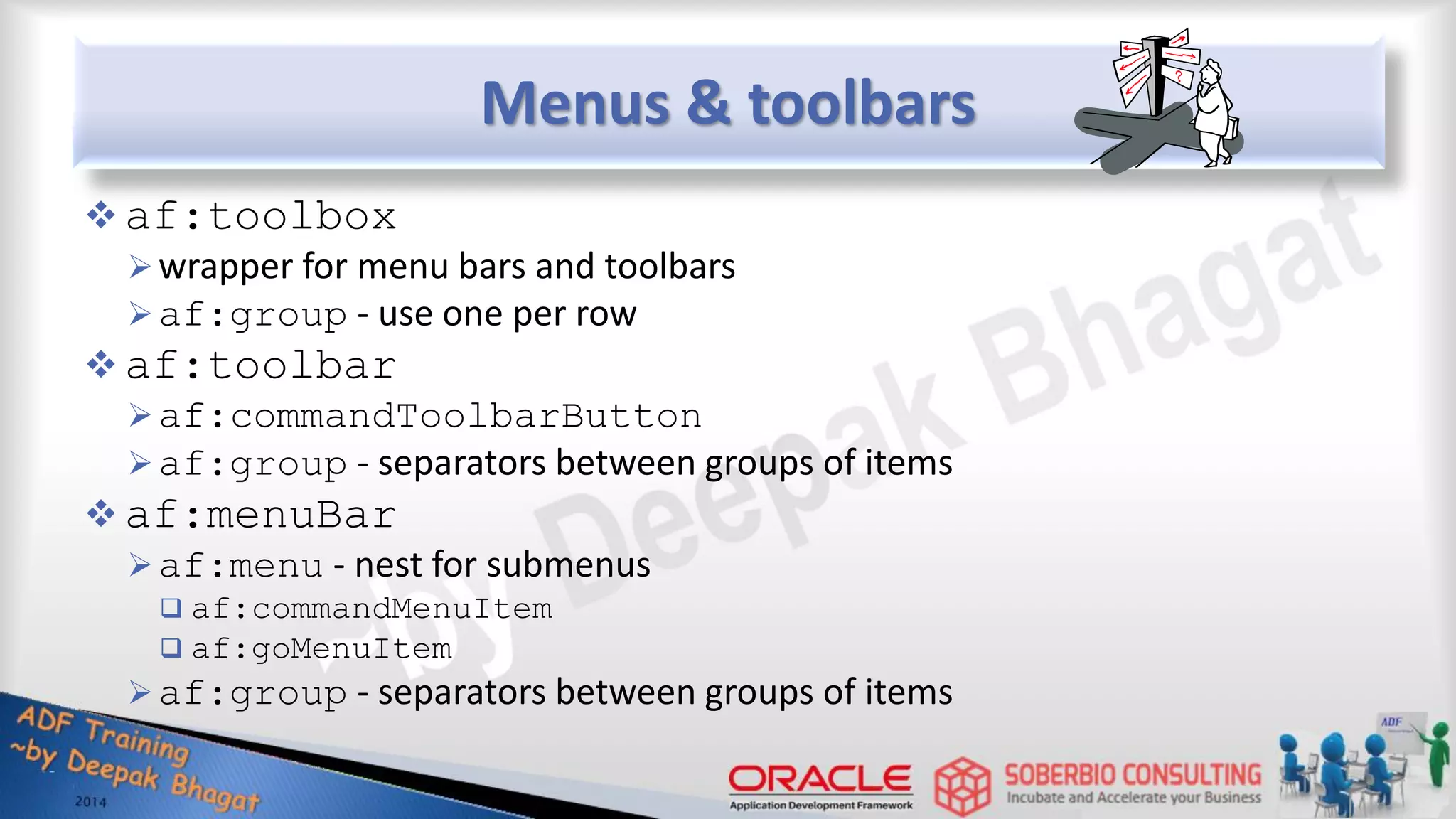

Menus & toolbars  af:toolbox wrapper for menu bars and toolbars af:group - use one per row  af:toolbar af:commandToolbarButton af:group - separators between groups of items  af:menuBar af:menu - nest for submenus  af:commandMenuItem  af:goMenuItem af:group - separators between groups of items

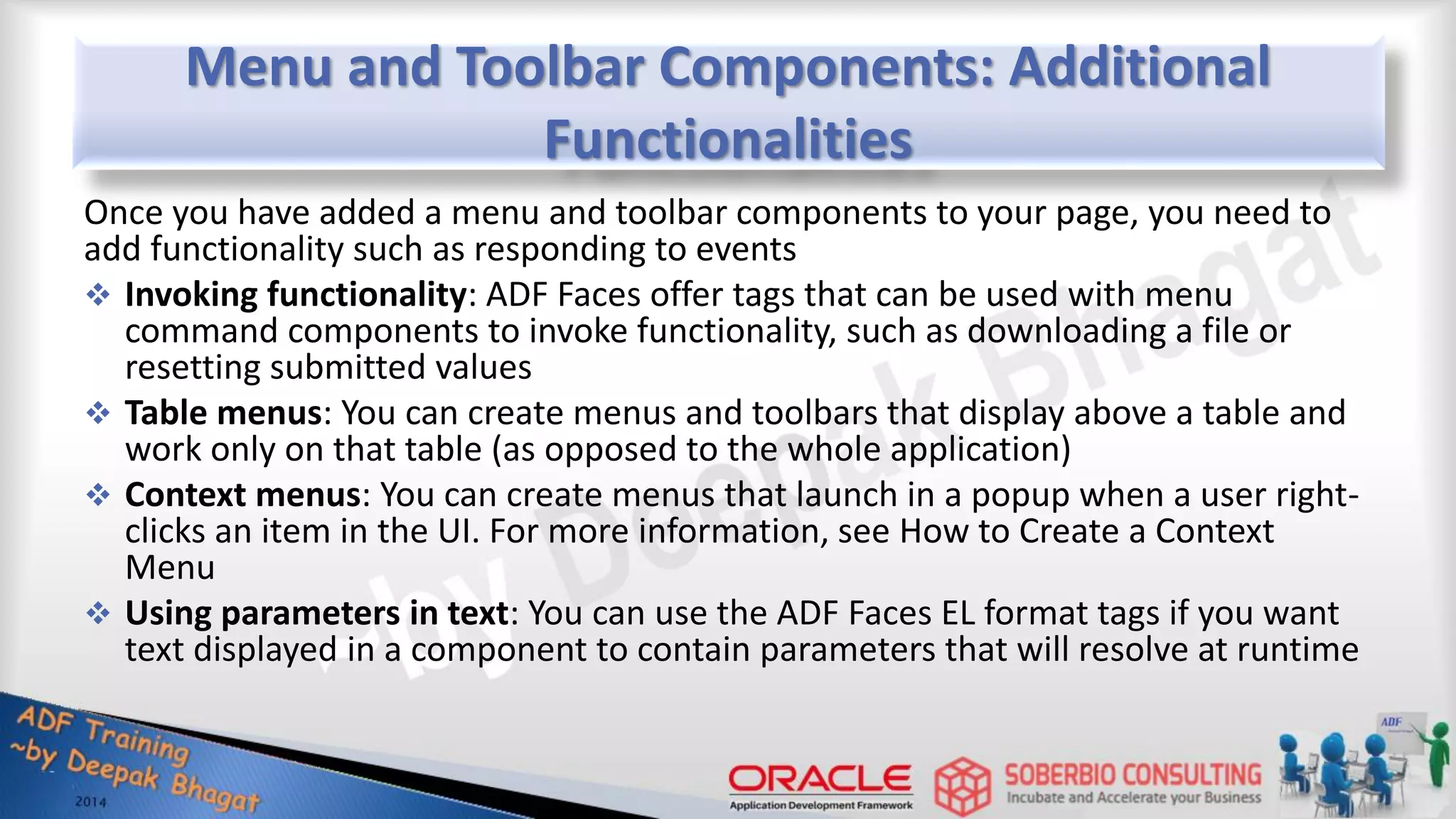

Menu and Toolbar Components: Additional Functionalities Once you have added a menu and toolbar components to your page, you need to add functionality such as responding to events  Invoking functionality: ADF Faces offer tags that can be used with menu command components to invoke functionality, such as downloading a file or resetting submitted values  Table menus: You can create menus and toolbars that display above a table and work only on that table (as opposed to the whole application)  Context menus: You can create menus that launch in a popup when a user right- clicks an item in the UI. For more information, see How to Create a Context Menu  Using parameters in text: You can use the ADF Faces EL format tags if you want text displayed in a component to contain parameters that will resolve at runtime

Menu and Toolbar Components: Additional Functionalities cont.…  Events: You can use command menu components to launch action events. For more information about events, see Handling Events  Accessibility: You can use specific attributes on the menu components to create shortcuts that allow users to open menus using a keyboard  Localization: Instead of entering values for attributes that take strings as values, you can use property files. These files allow you to manage translation of these strings  Skins: You can change the look and feel of menus (such as the icon used to display a selected menu item), along with some basic functionality (such as the maximum number of menu items that display) by changing the skin

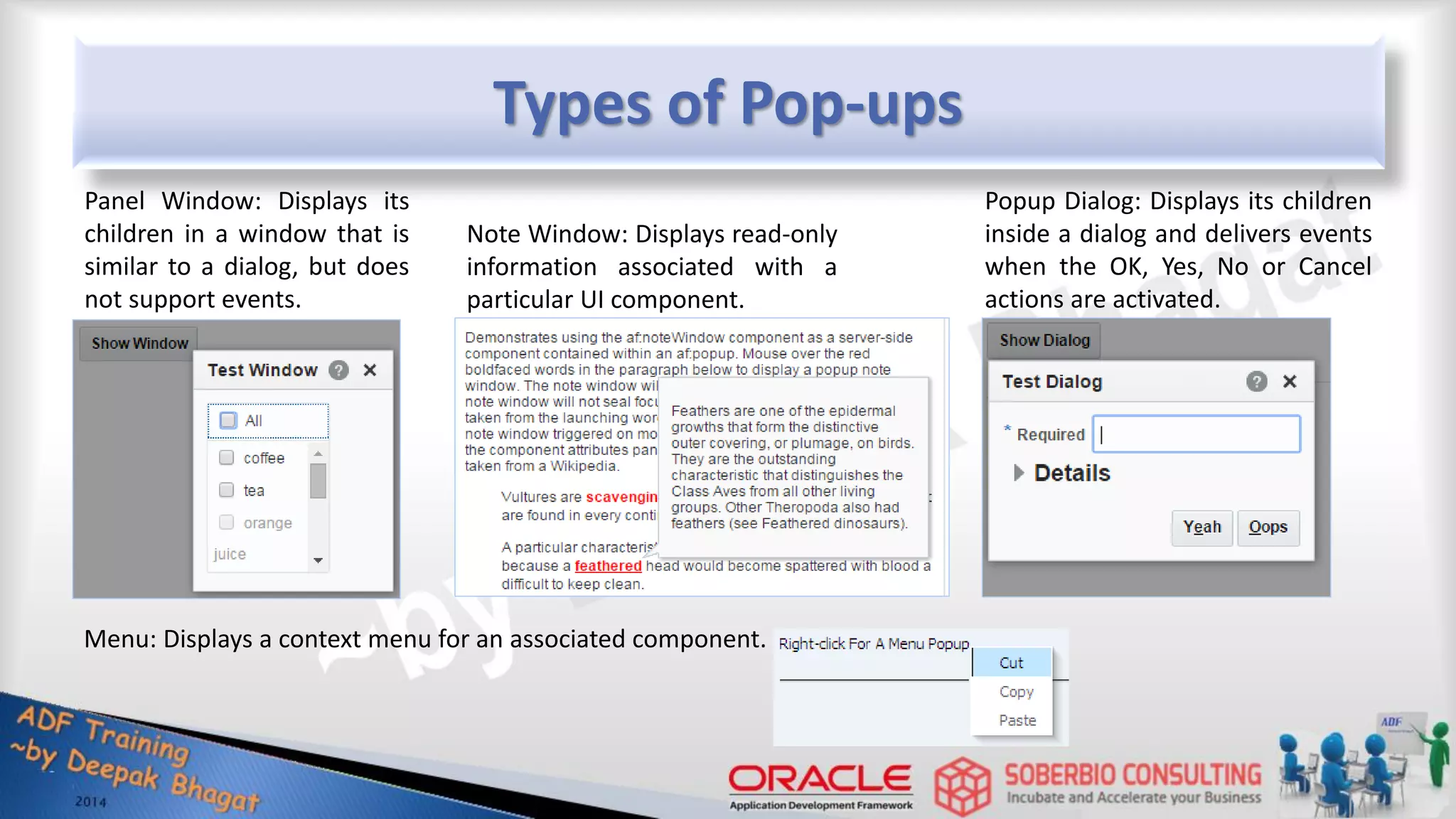

Types of Pop-ups Panel Window: Displays its children in a window that is similar to a dialog, but does not support events. Popup Dialog: Displays its children inside a dialog and delivers events when the OK, Yes, No or Cancel actions are activated. Note Window: Displays read-only information associated with a particular UI component. Menu: Displays a context menu for an associated component.

Creating Pop-up Menus Popup: The popup component is an invisible container control whose contents will be used in popup windows, such as context menus, note windows, dialogs and popup selectors These types of "popup windows" are within the same browser window and using layers of HTML to simulate an external browser window

Popup Menus: Additional Functionalities Once you have added a popup component (or related components) to your page, you may find that you need to add functionality such as accessibility and localization  Using parameters in text: You can use the ADF Faces EL format tags if you want the text displayed in a component to contain parameters that will resolve at runtime  Events: The dialog component renders ADF Faces button components. You can also use a button component in conjunction with the showPopupBehavior tag to launch a popup. The button component used in conjunction with the showPopupBehavior tag delivers ActionEvent events when activated  Messages: Popup dialogs and secondary windows are frequently used to provide different levels of help information for users

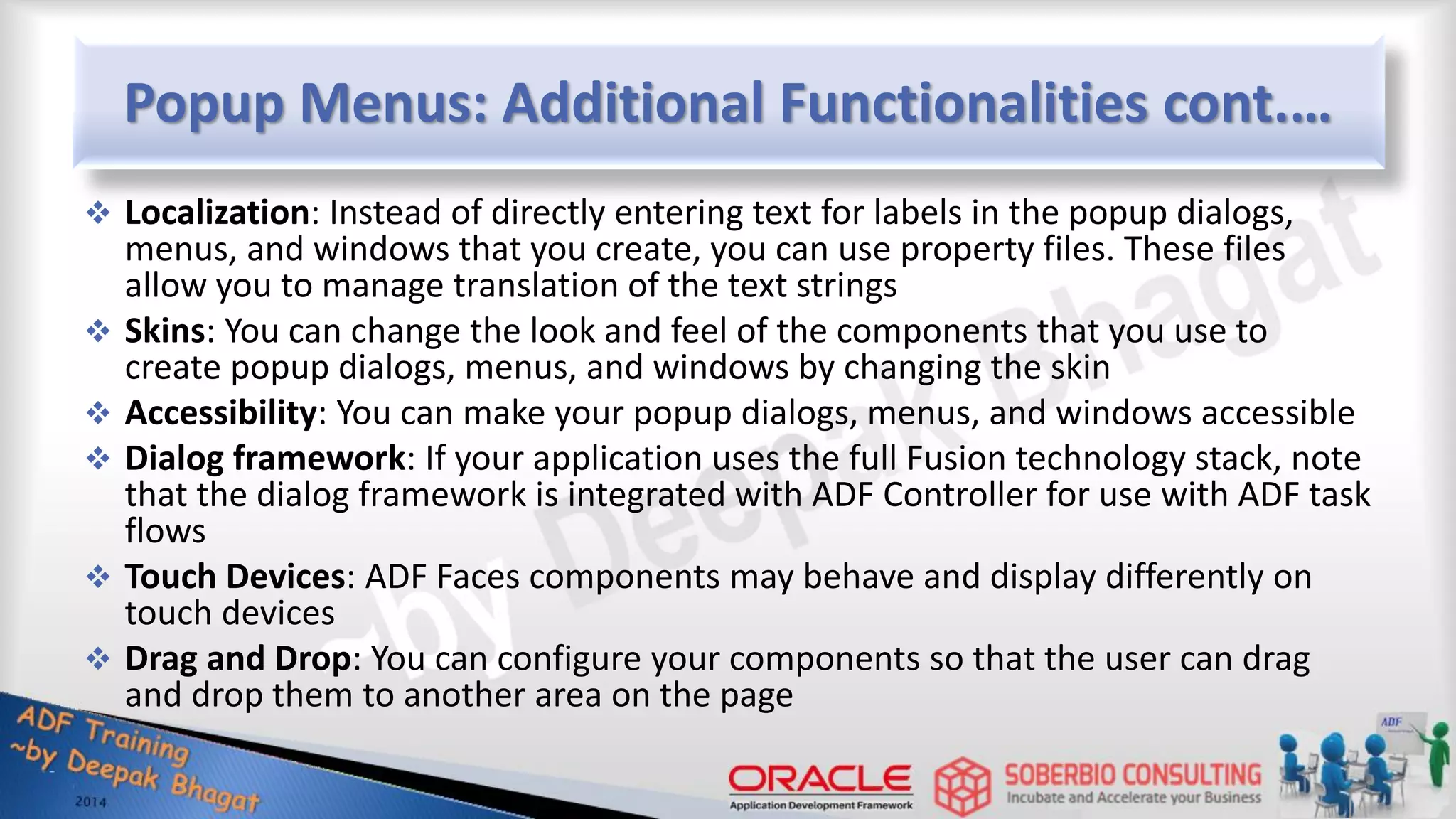

Popup Menus: Additional Functionalities cont.…  Localization: Instead of directly entering text for labels in the popup dialogs, menus, and windows that you create, you can use property files. These files allow you to manage translation of the text strings  Skins: You can change the look and feel of the components that you use to create popup dialogs, menus, and windows by changing the skin  Accessibility: You can make your popup dialogs, menus, and windows accessible  Dialog framework: If your application uses the full Fusion technology stack, note that the dialog framework is integrated with ADF Controller for use with ADF task flows  Touch Devices: ADF Faces components may behave and display differently on touch devices  Drag and Drop: You can configure your components so that the user can drag and drop them to another area on the page

Creating Context Menus To create a context menu, use the af:showPopupBehavior operation

Additional Functionalities of Navigation Components Once you have added a navigation component to your page, you need to add functionality such as responding to events Using parameters in text: ADF Faces EL format tags can be used to display text in a component to contain parameters that will resolve at runtime Events: Components fire both server-side and client-side events that the application react to by executing some logic Partial page rendering: ADF Faces navigation components can be used to trigger partial rerendering of components on a page

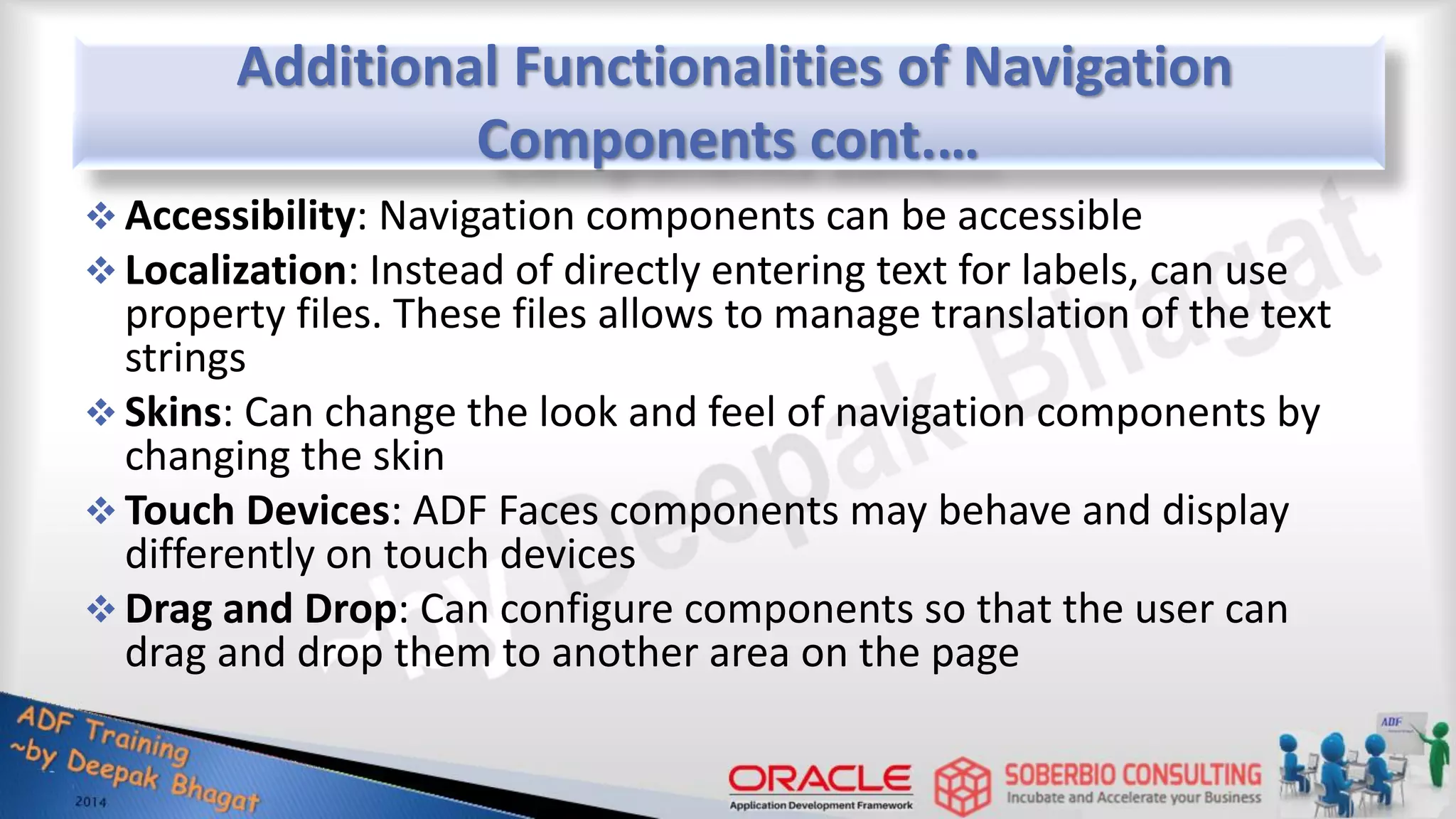

Additional Functionalities of Navigation Components cont.…  Accessibility: Navigation components can be accessible  Localization: Instead of directly entering text for labels, can use property files. These files allows to manage translation of the text strings  Skins: Can change the look and feel of navigation components by changing the skin  Touch Devices: ADF Faces components may behave and display differently on touch devices  Drag and Drop: Can configure components so that the user can drag and drop them to another area on the page

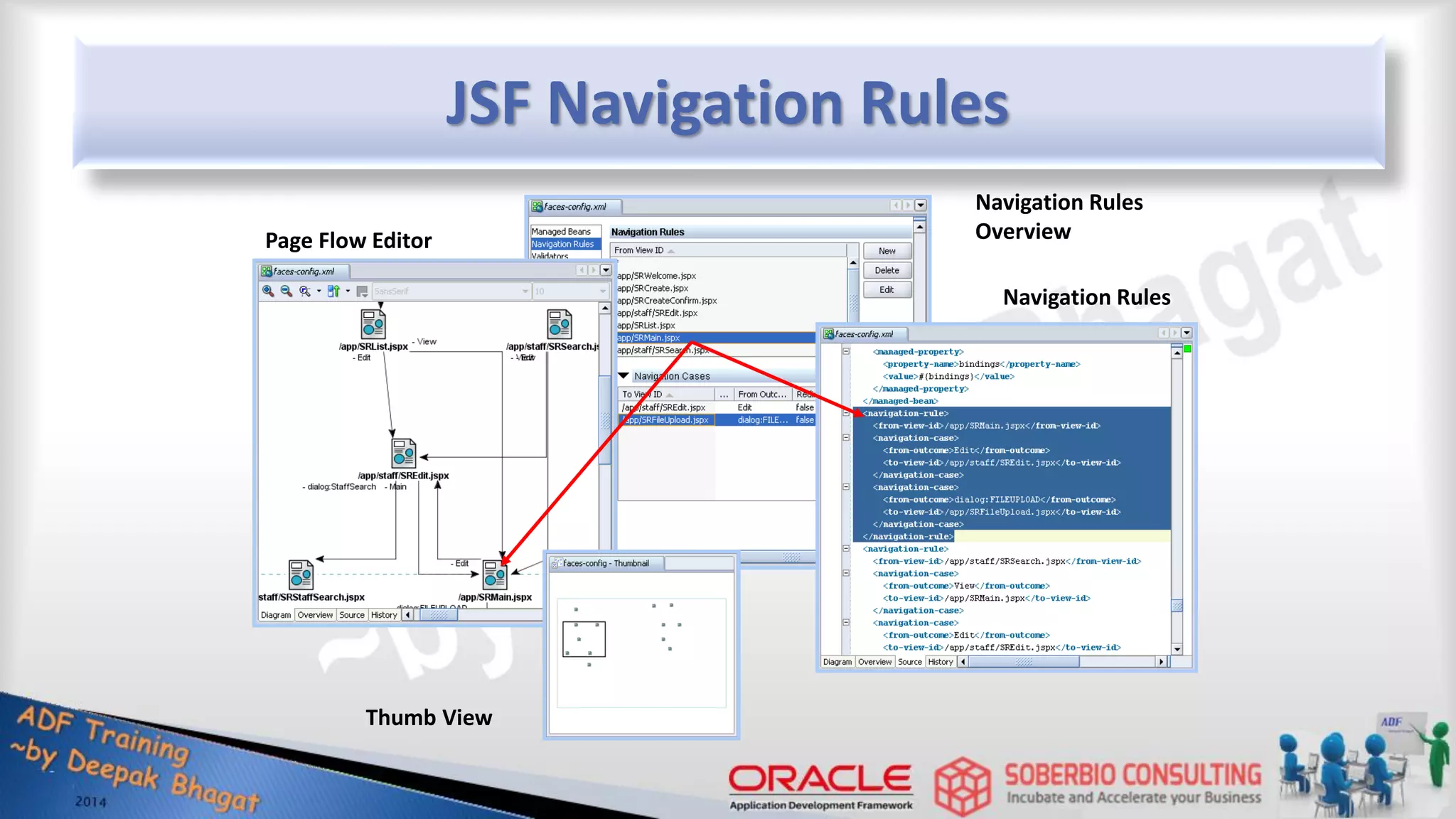

JSF Navigation Rules Page Flow Editor Navigation Rules Overview Navigation Rules Thumb View

JSF Navigation JavaServer Faces uses its own controller for page navigation NavigationHandler evaluates navigation case and routes to new page Supports page forward and page re-directs Navigation Cases Basic Navigation  Based on static string outcome  Based on dynamic outcome Navigation as the result of an action  Navigation cases can be defined based on the method returning the outcome string

How Navigation Targets are Determined  Pluggable class that handles navigation  Navigation is based on navigation cases defined in faces-config.xml  Determine <from-view> element to use  Exact ViewId match (“/app/public.jsp”)  Wildcard ViewId match (“/app/*”)  Default ViewId match (“*”)  Determine navigation to case lookup  Elements specifying both from-action and from-outcome  Elements specifying only from-outcome  Elements specifying only from-action  Elements where both elements are null

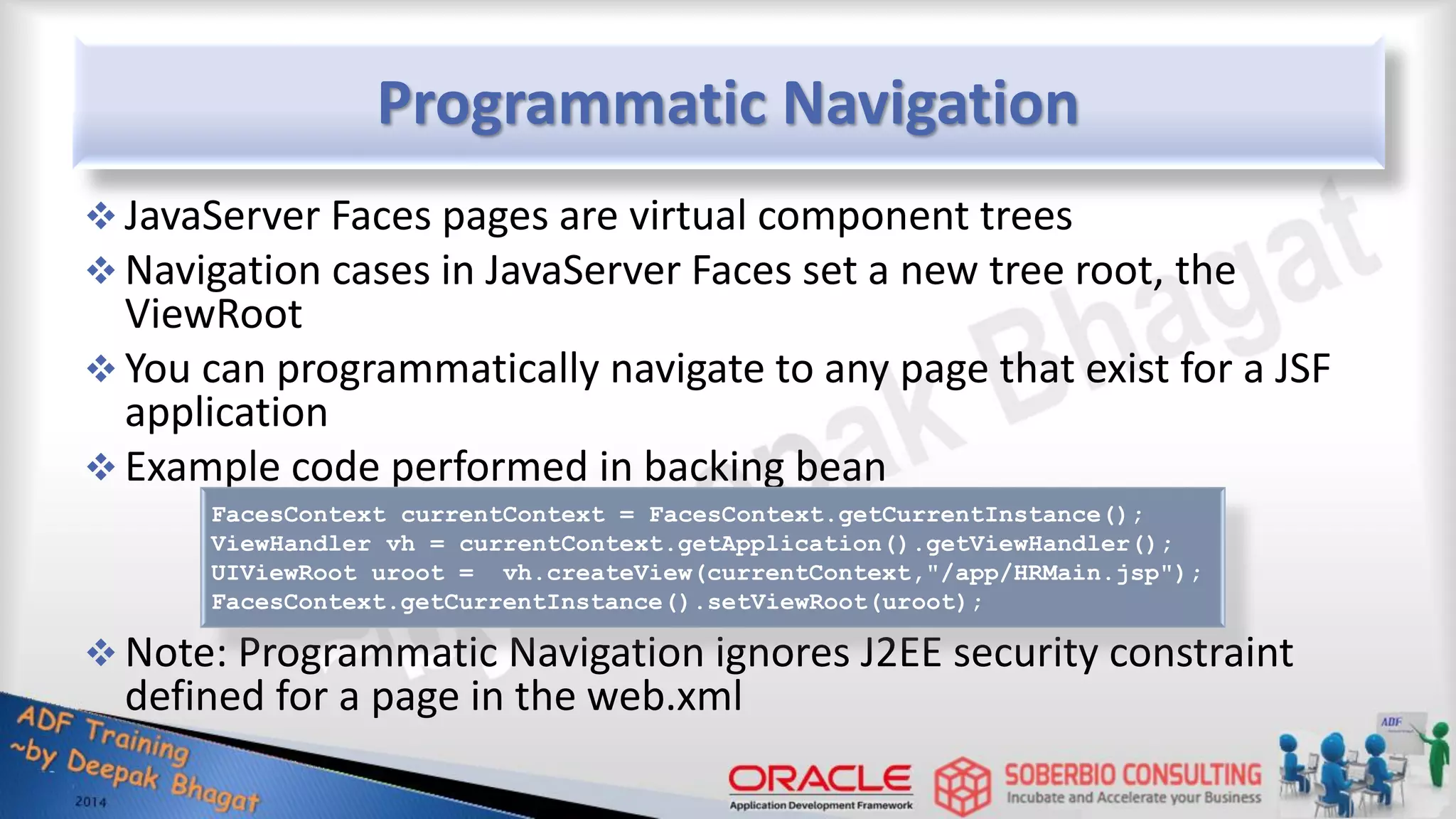

Programmatic Navigation  JavaServer Faces pages are virtual component trees  Navigation cases in JavaServer Faces set a new tree root, the ViewRoot  You can programmatically navigate to any page that exist for a JSF application  Example code performed in backing bean  Note: Programmatic Navigation ignores J2EE security constraint defined for a page in the web.xml FacesContext currentContext = FacesContext.getCurrentInstance(); ViewHandler vh = currentContext.getApplication().getViewHandler(); UIViewRoot uroot = vh.createView(currentContext,"/app/HRMain.jsp"); FacesContext.getCurrentInstance().setViewRoot(uroot);

Conditional Navigation Bind command action to Managed Bean or Backing Bean Return value defines navigation case No navigation occurs if navigation case doesn’t exist public String commandButton2_action() { boolean isManager = FacesContext.getCurrentInstance(). getExternalContext().isUserInRole("manager"); if (isManager){ return "managerview" } return "employeeview"; }

Perform Navigation in ADF Control flow rules are defined in the task flow A component fires an action event to generate a String outcome corresponding to the control case from-outcome The event listener responds by executing navigation

Accessibility ADF Faces components have built-in accessibility that work with a range of assistive technologies, including screen readers ADF Faces accessibility audit rules provide direction to create accessible images, tables, frames, forms, error messages, and popup windows using accessible HTML markup

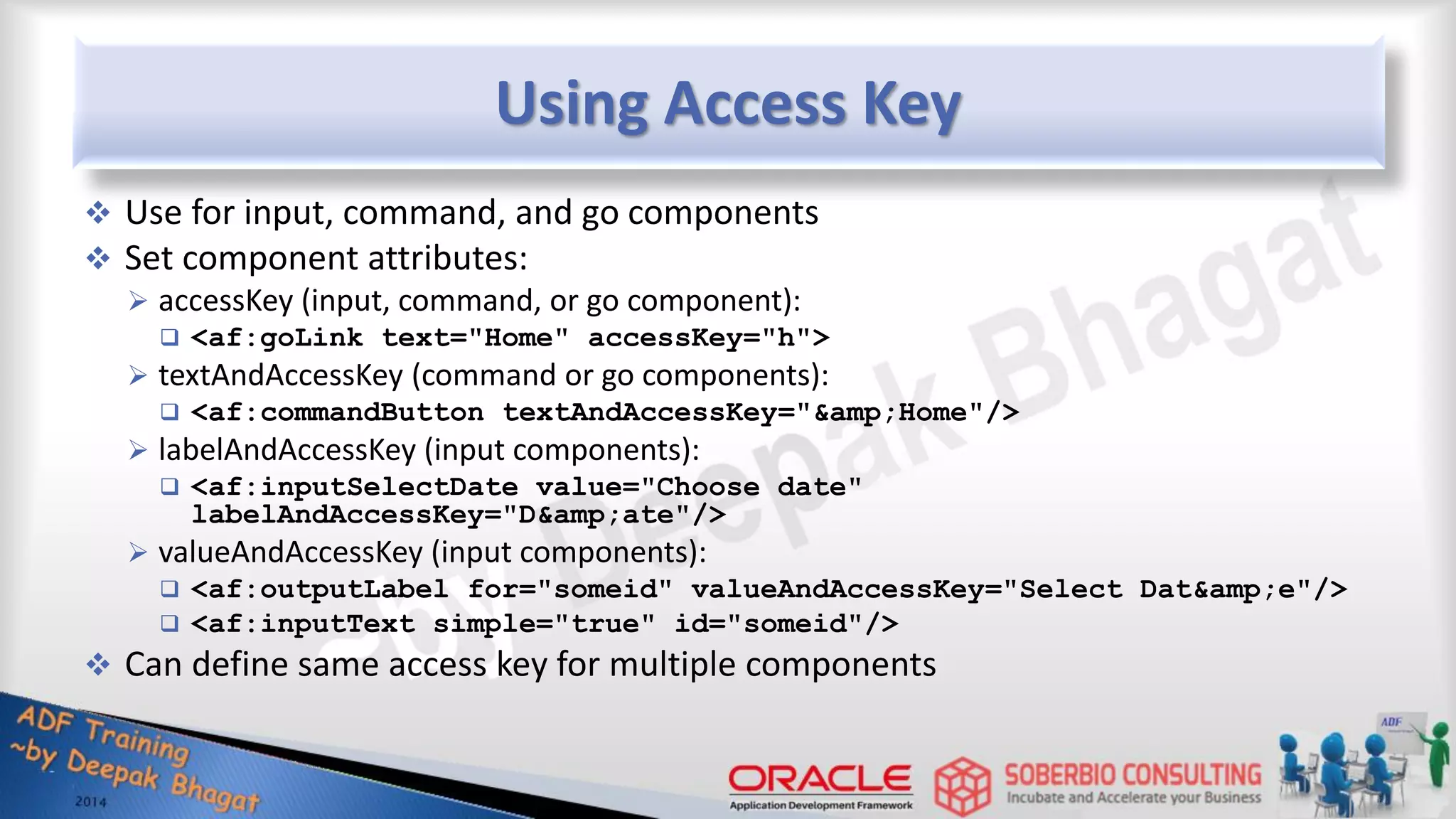

Using Access Key  Use for input, command, and go components  Set component attributes:  accessKey (input, command, or go component):  <af:goLink text="Home" accessKey="h">  textAndAccessKey (command or go components):  <af:commandButton textAndAccessKey="&Home"/>  labelAndAccessKey (input components):  <af:inputSelectDate value="Choose date" labelAndAccessKey="D&ate"/>  valueAndAccessKey (input components):  <af:outputLabel for="someid" valueAndAccessKey="Select Dat&e"/>  <af:inputText simple="true" id="someid"/>  Can define same access key for multiple components

Lesson Summary List of Navigation Components Implement Buttons and Links Use Breadcrumbs and Navigation Panes Define Trains Implement explorer type containers like Menu and Toolbars Use secondary Windows like Popup, Dialog and Windows Performing navigation Add Accessibility compliance using Access Key

15 Ensuring Reusability in Web Applications

Lesson Agenda Explain the benefits of reusing components Create and use a resource catalog Create and use ADF libraries Use a bounded task flow as a region Create a page fragment and use it in a bounded task flow Create and use a page template and task flow template Create a declarative component and use it on a page

Benefits of Reusability Designing code to be reused has the following benefits: Increased developer productivity Fewer bugs—debug once Consistency: In functionality In look and feel Easier maintainability Rapid adaptability

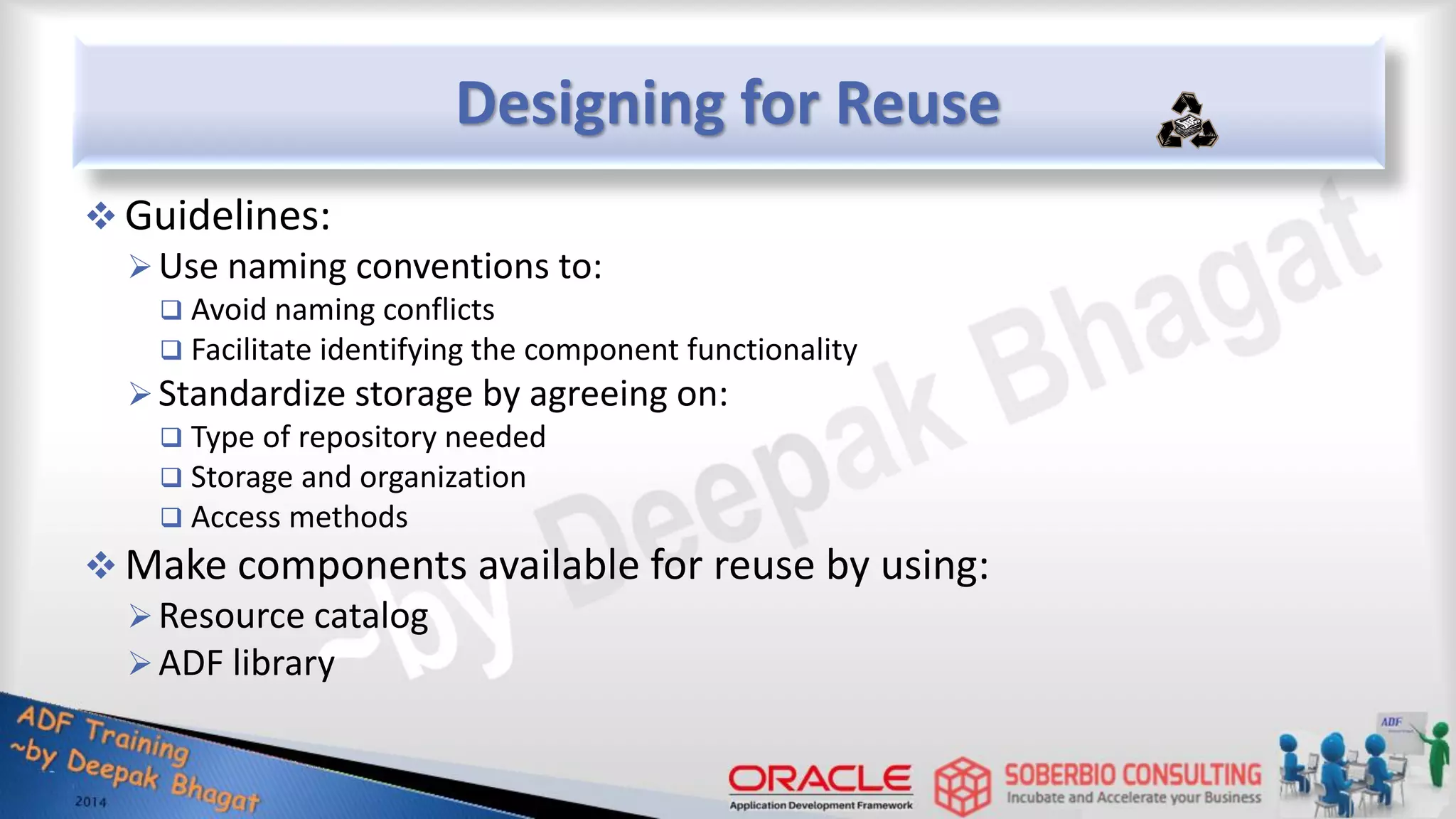

Designing for Reuse  Guidelines: Use naming conventions to:  Avoid naming conflicts  Facilitate identifying the component functionality Standardize storage by agreeing on:  Type of repository needed  Storage and organization  Access methods  Make components available for reuse by using: Resource catalog ADF library

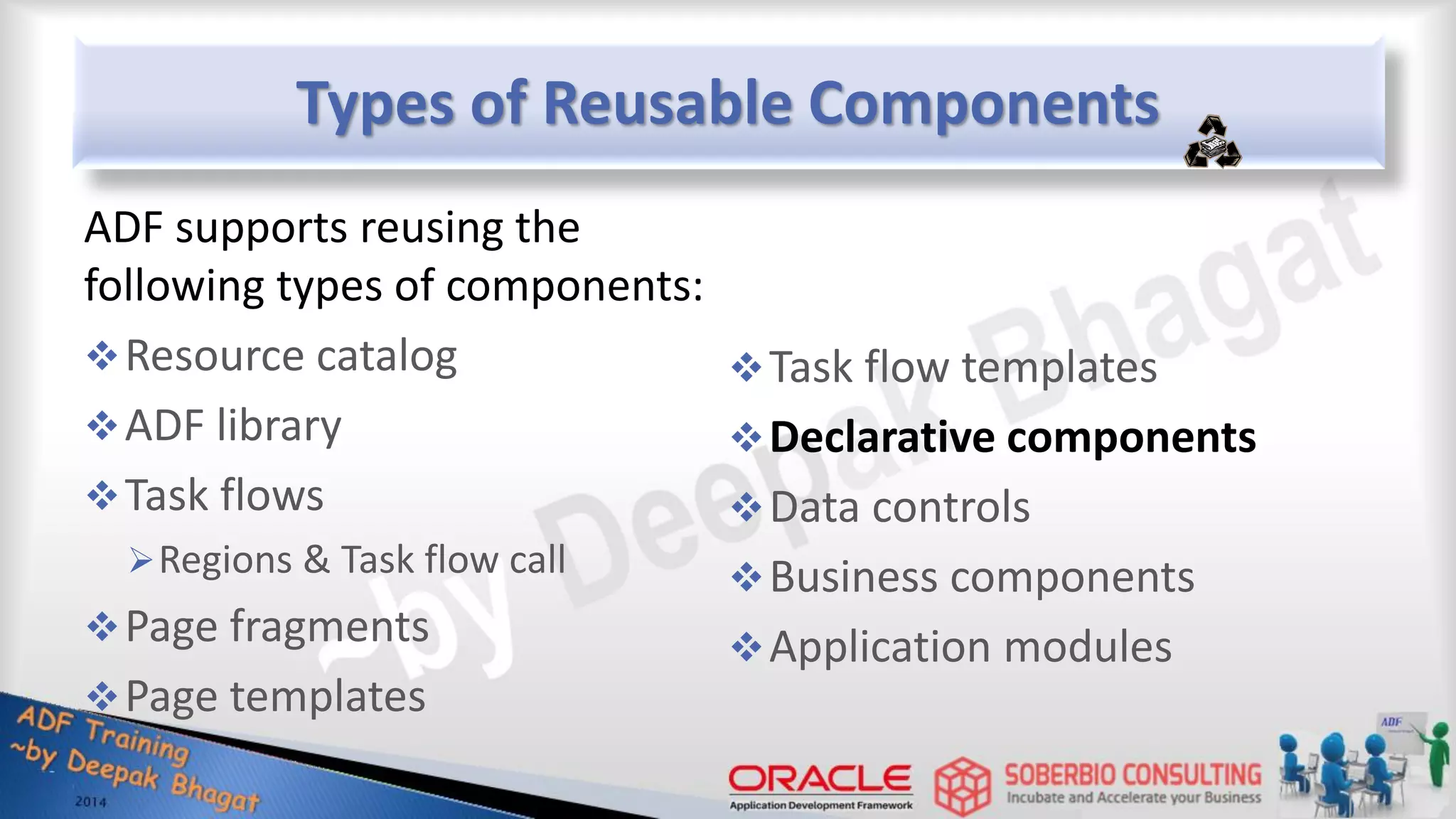

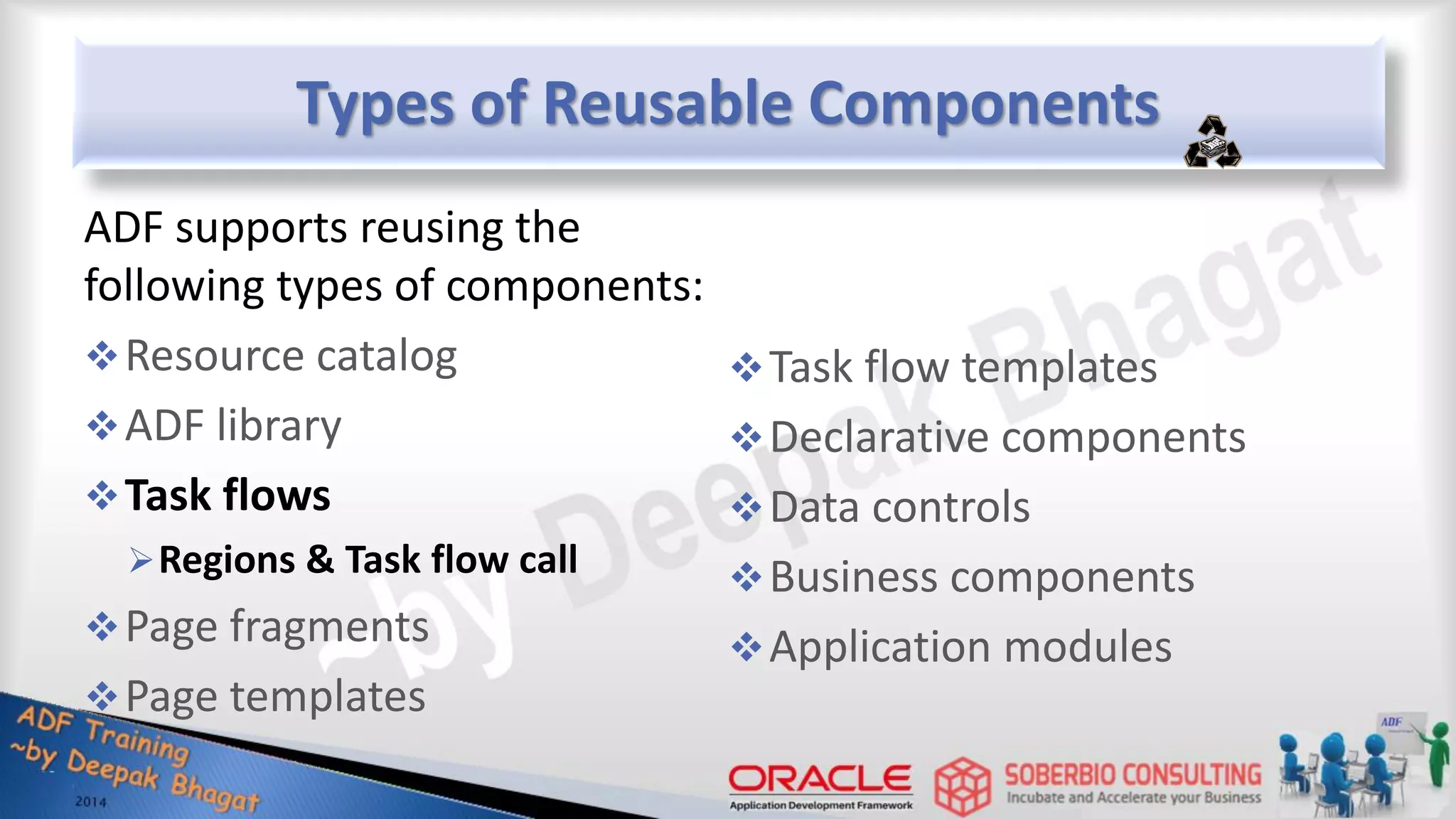

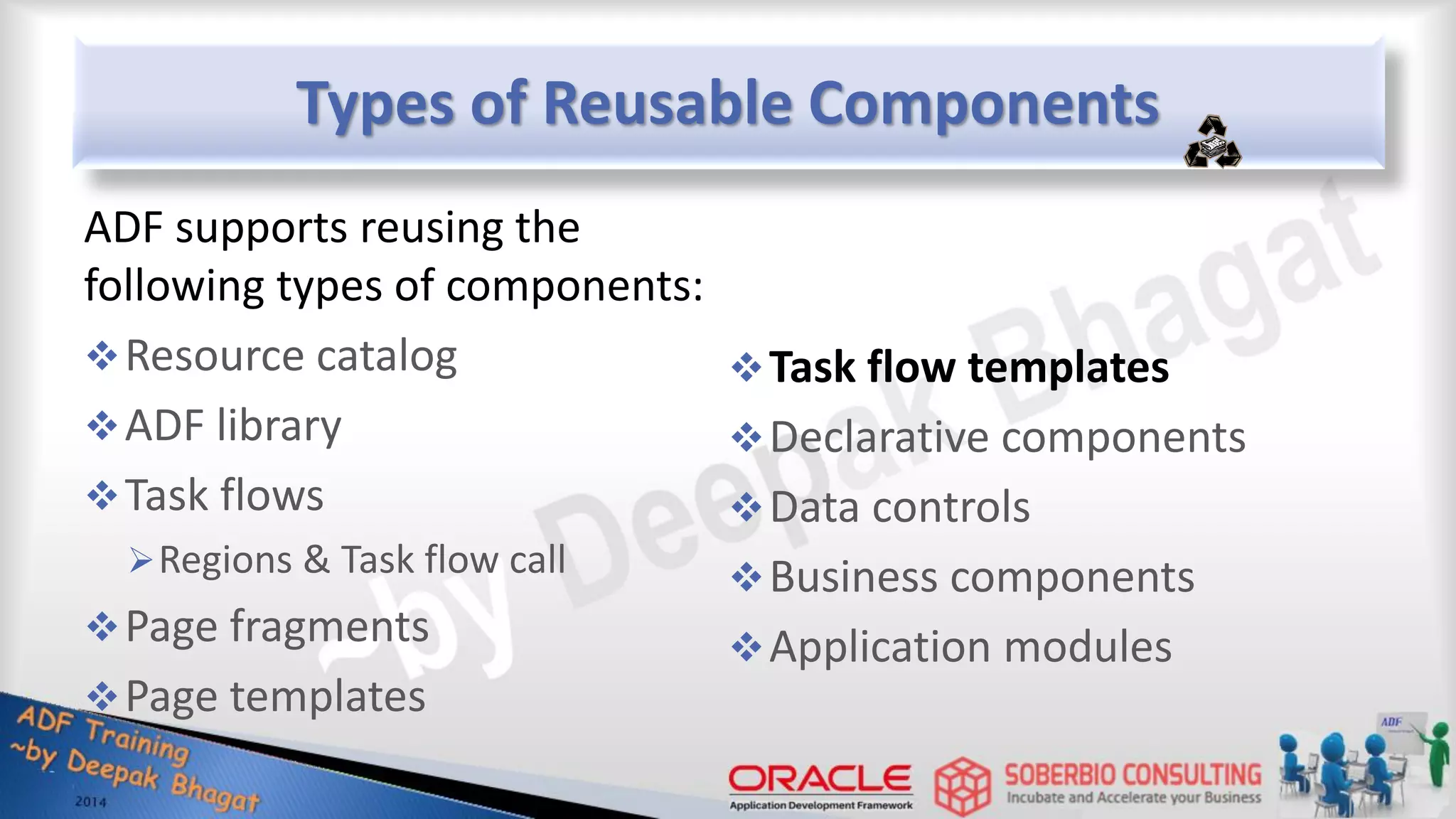

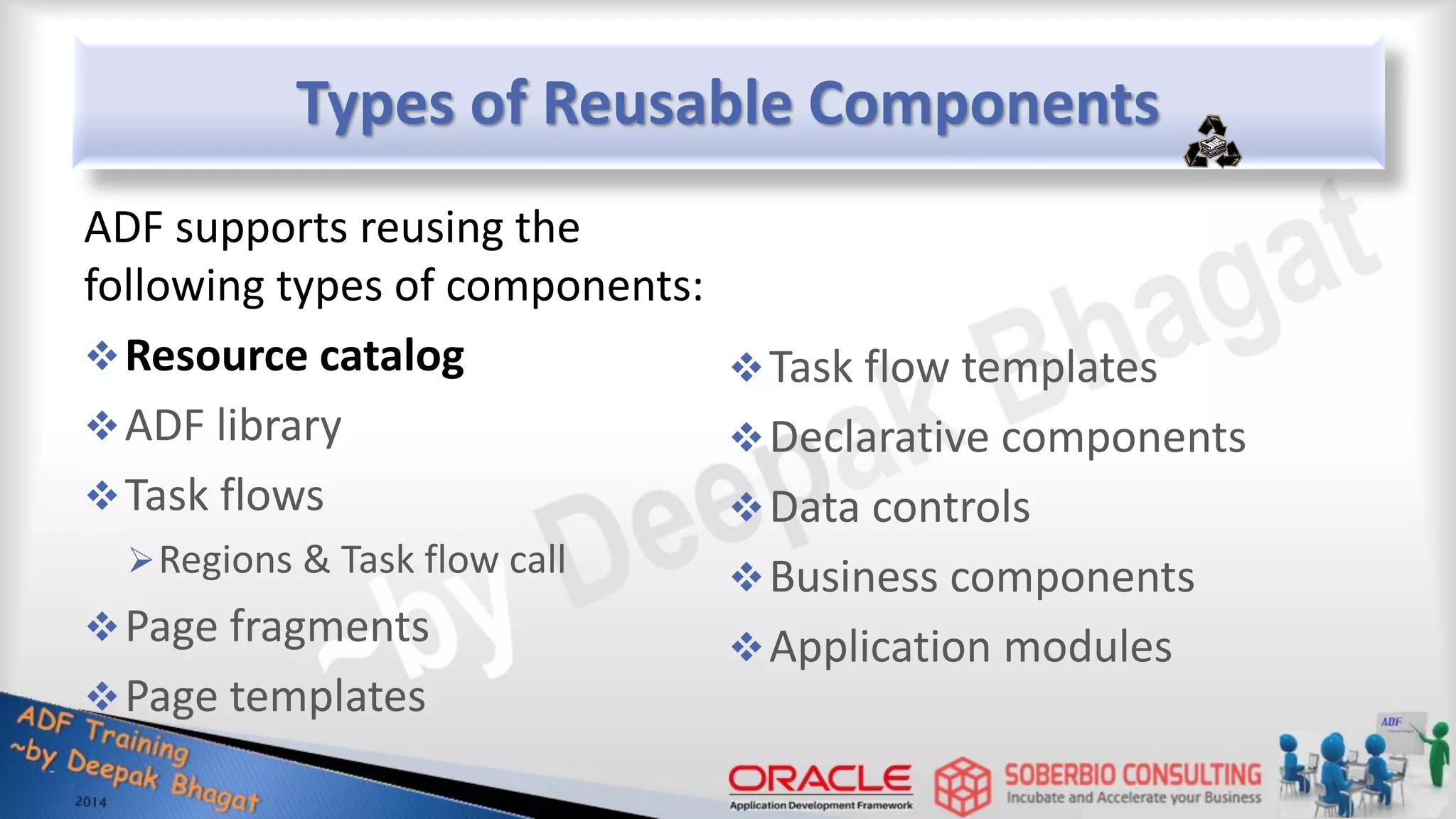

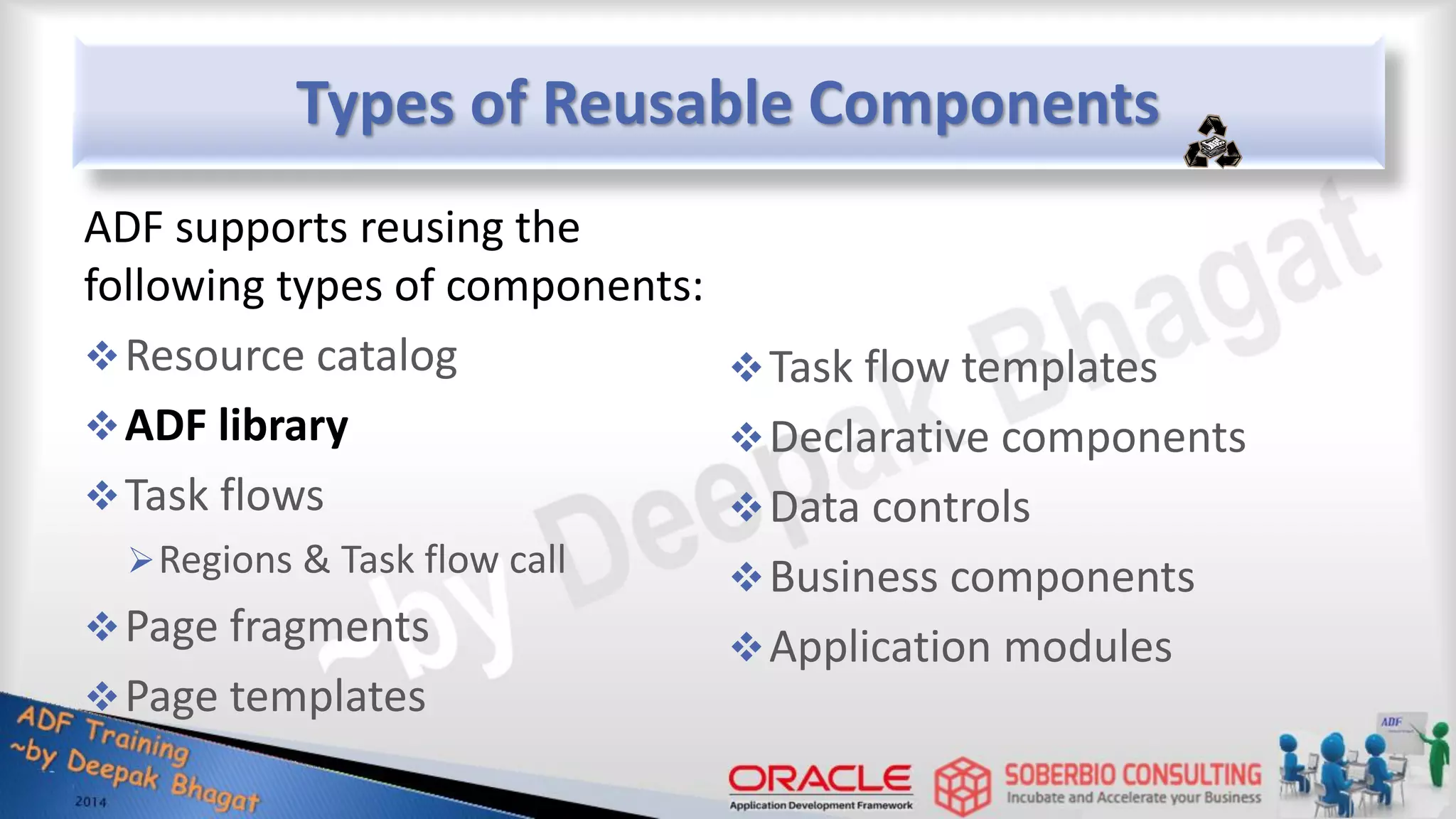

Types of Reusable Components ADF supports reusing the following types of components: Resource catalog ADF library Task flows Regions & Task flow call Page fragments Page templates Task flow templates Declarative components Data controls Business components Application modules

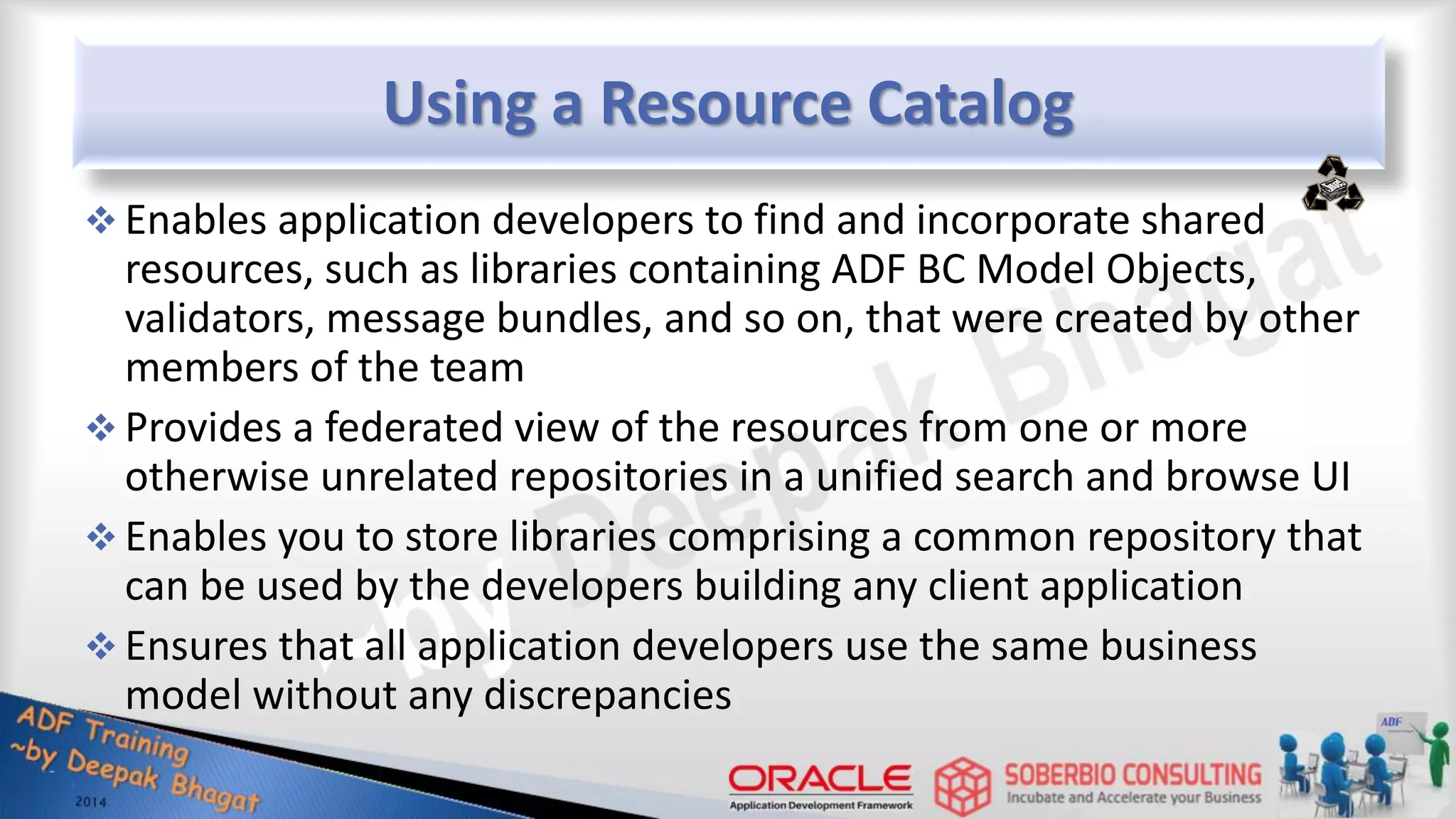

Using a Resource Catalog  Enables application developers to find and incorporate shared resources, such as libraries containing ADF BC Model Objects, validators, message bundles, and so on, that were created by other members of the team  Provides a federated view of the resources from one or more otherwise unrelated repositories in a unified search and browse UI  Enables you to store libraries comprising a common repository that can be used by the developers building any client application  Ensures that all application developers use the same business model without any discrepancies

Using a Resource Catalog Creating a catalog: Adding resources to a catalog:

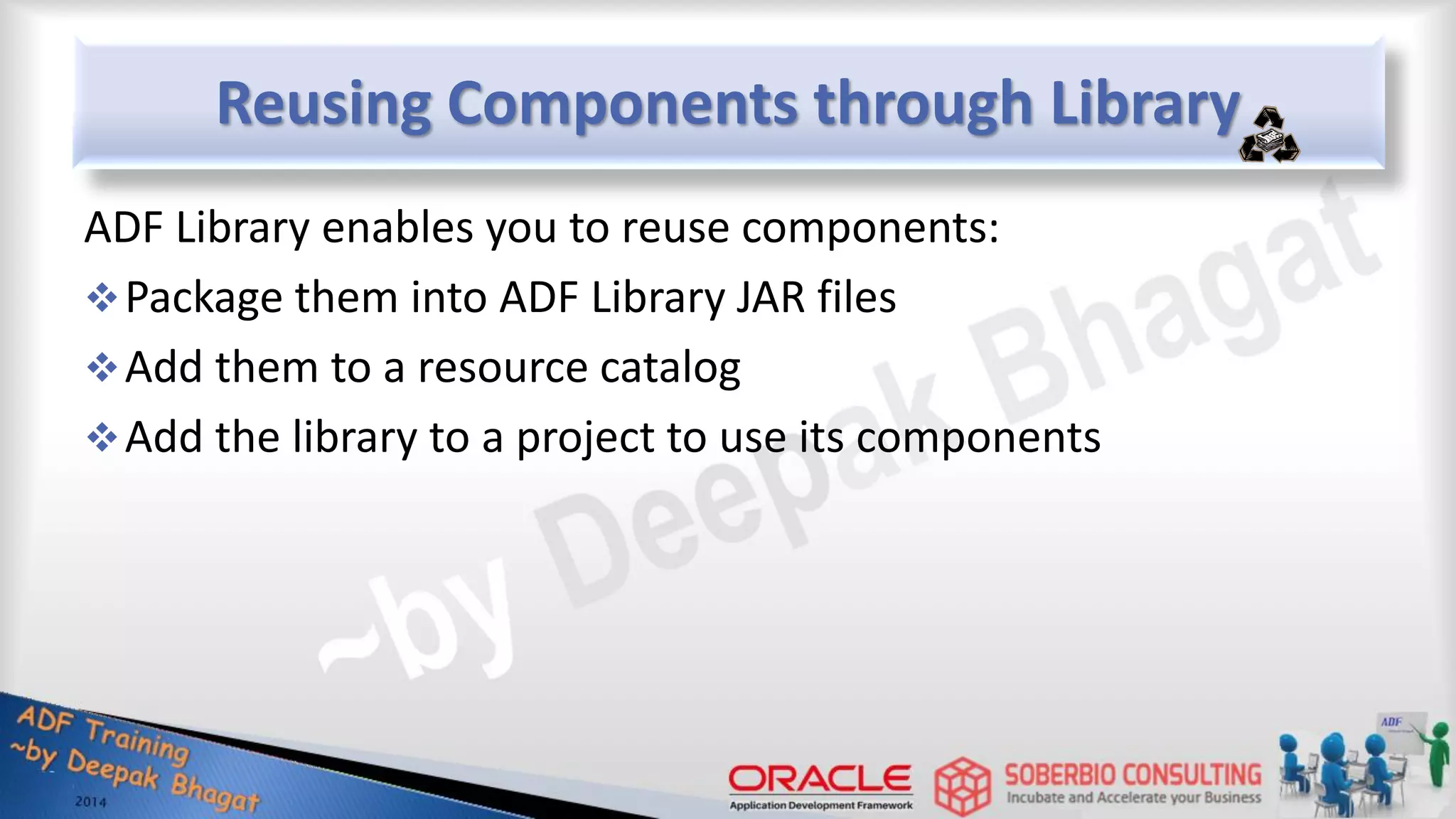

Reusing Components through Library ADF Library enables you to reuse components: Package them into ADF Library JAR files Add them to a resource catalog Add the library to a project to use its components

Removing an ADF Library from Project Removed by Using Resource Palette Using Project Properties

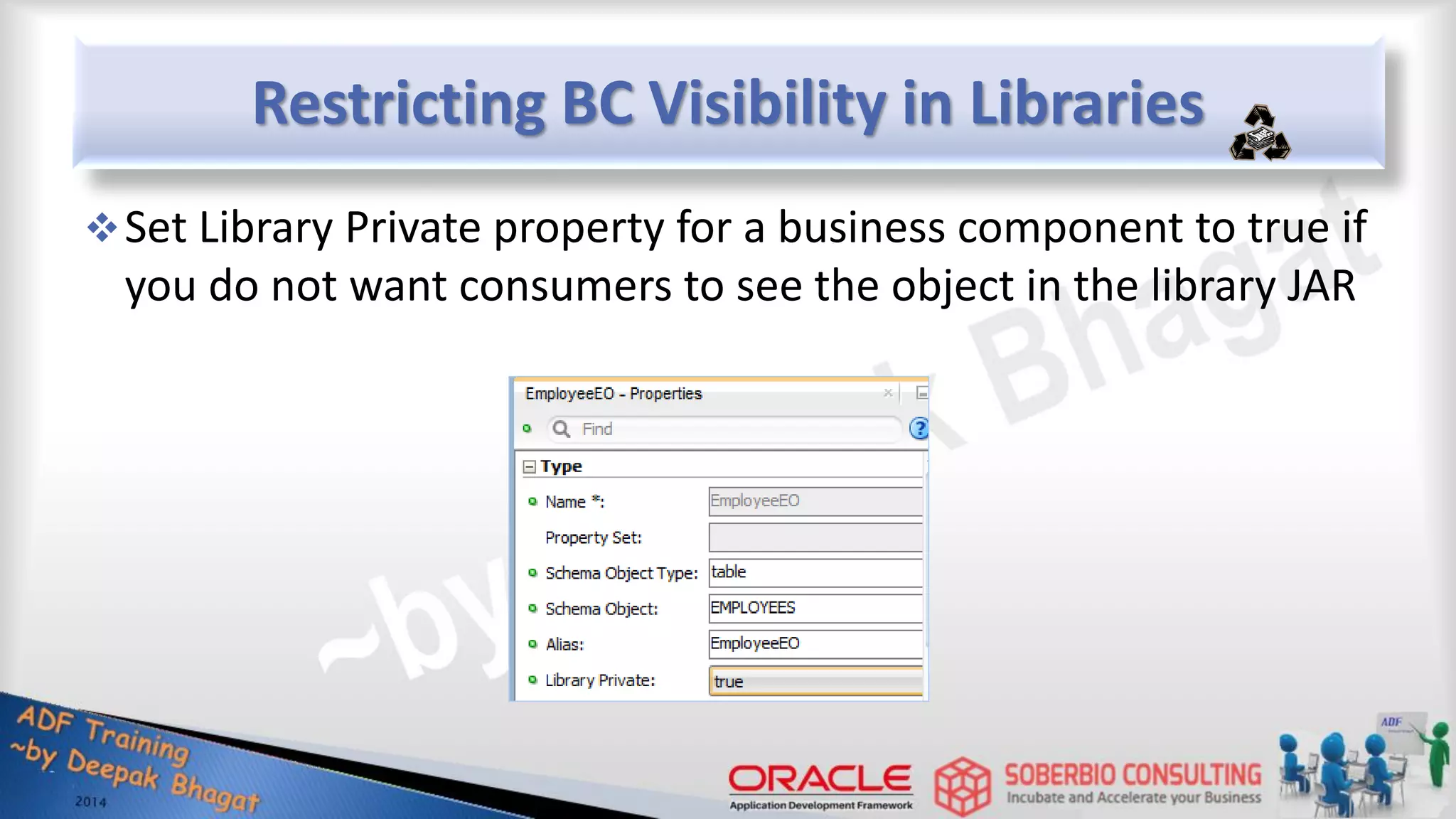

Restricting BC Visibility in Libraries Set Library Private property for a business component to true if you do not want consumers to see the object in the library JAR

Features of Regions  Are reusable task flow that represents as part of a page  They have their own Navigation rules  They have their own Managed-beans  They have their own ADFm Page Definition  Each page within the region is a page-fragment (jsff)  All of this is provided by the ADF Controller. Very little is handled by View  Can share information and transaction boundaries with other page content BATHRSystemIndex.jsf DepartmentListPF.jsff EmployeeListPF.jsff Region-EmployeeList <af:region> Region-QuickSearch <af:region> QuickSearchPF.jsff

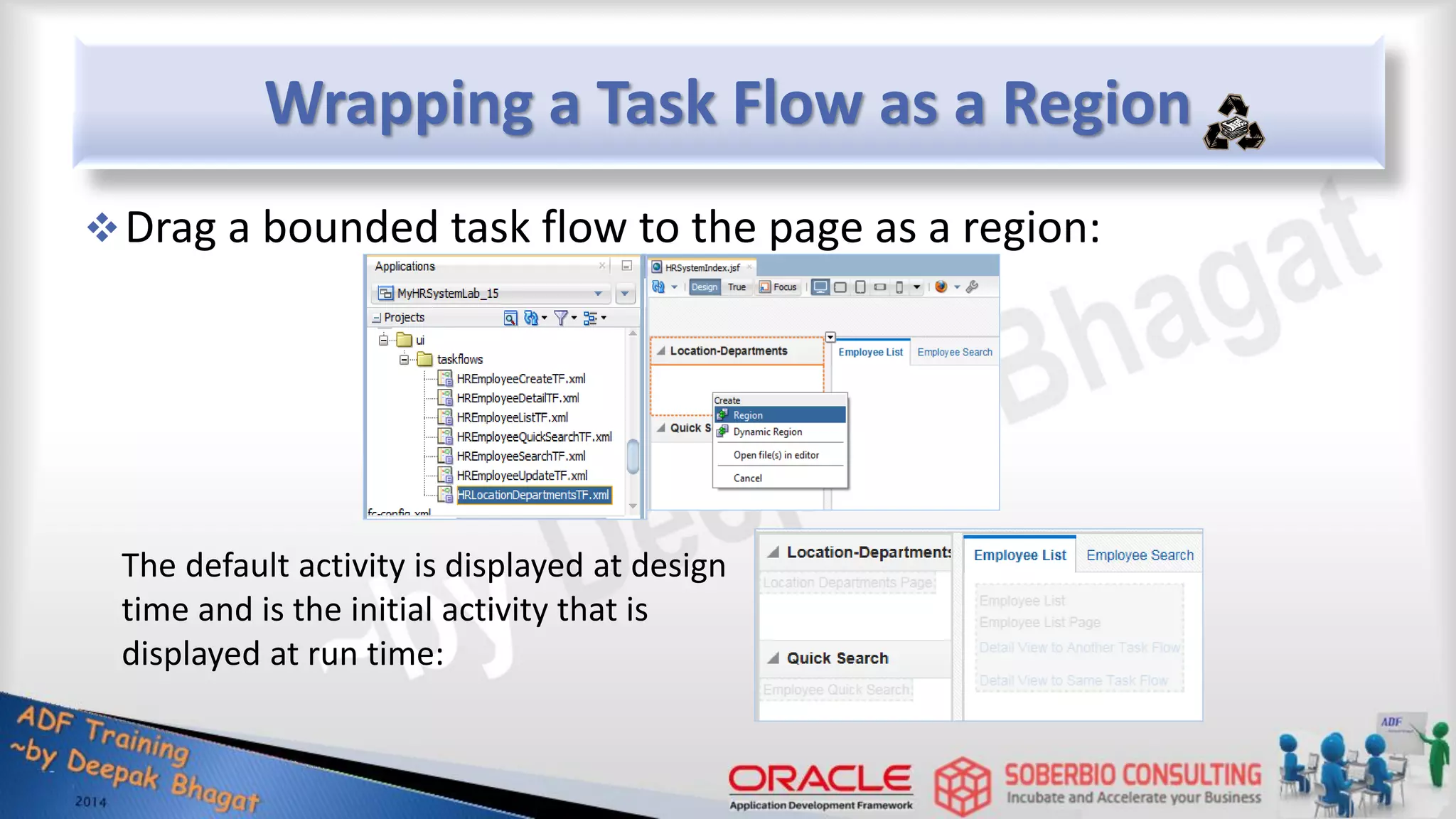

Wrapping a Task Flow as a Region Drag a bounded task flow to the page as a region: The default activity is displayed at design time and is the initial activity that is displayed at run time:

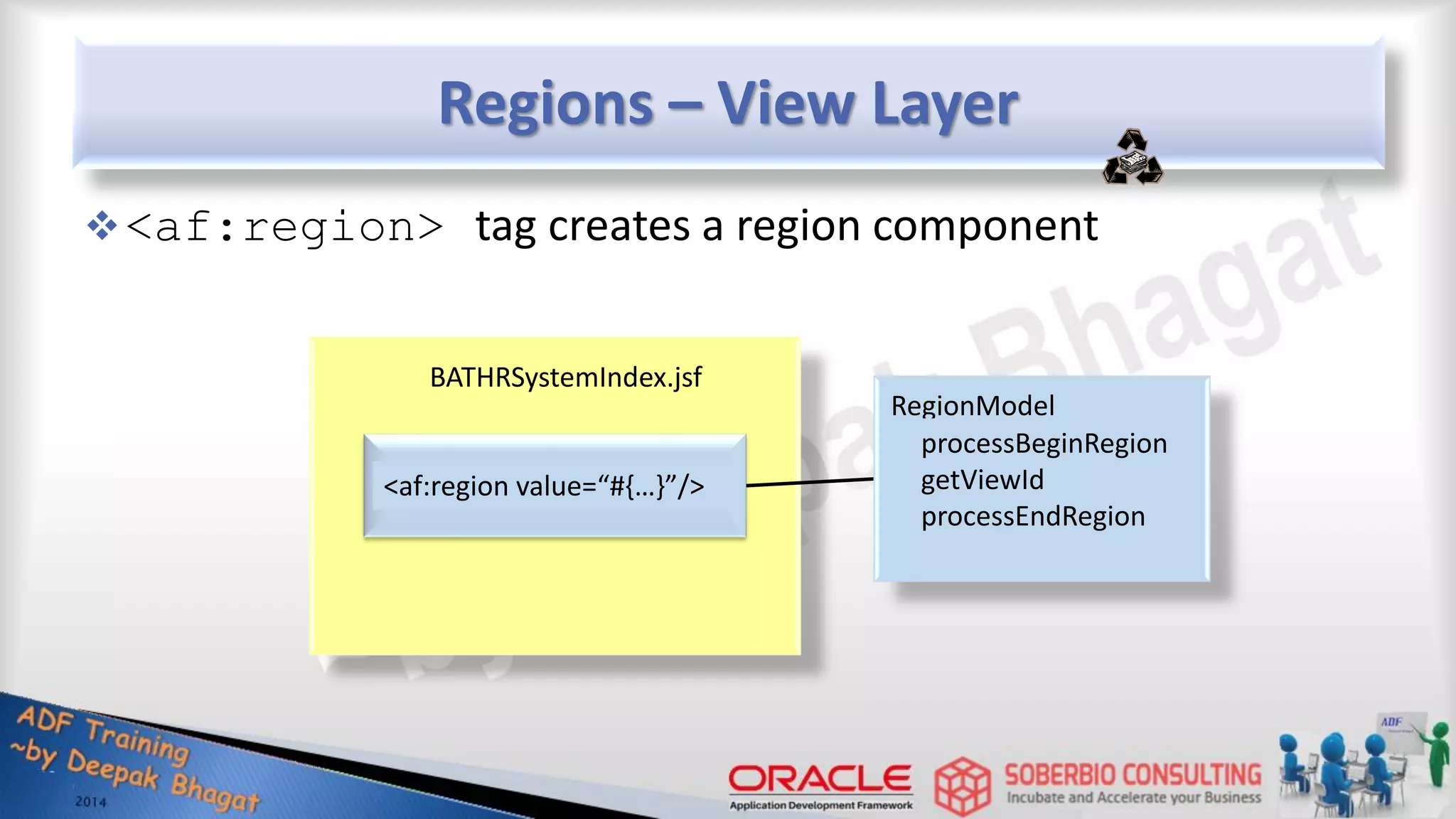

Regions – View Layer <af:region> tag creates a region component BATHRSystemIndex.jsf <af:region value=“#{…}”/> RegionModel processBeginRegion getViewId processEndRegion

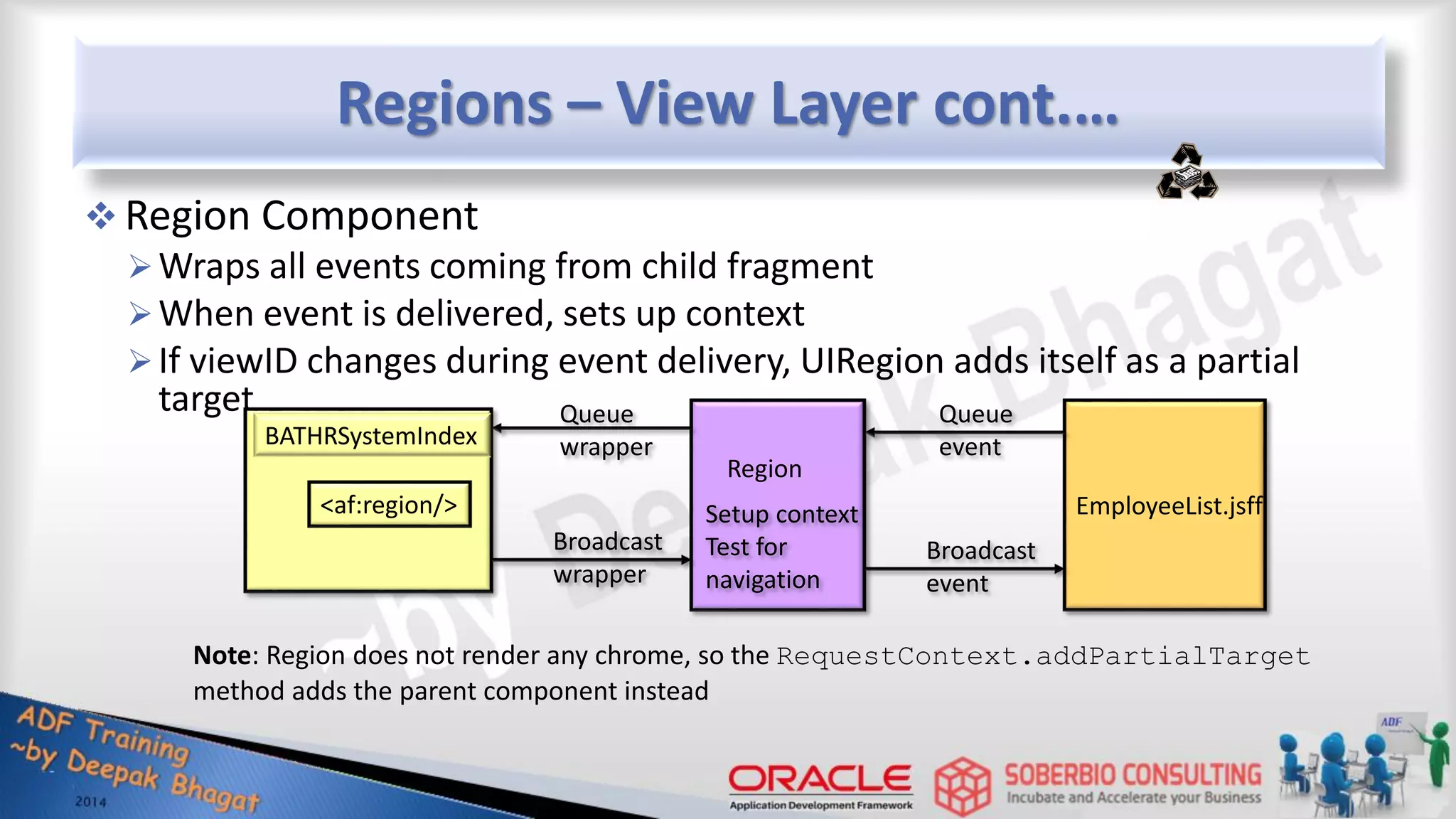

Regions – View Layer cont.…  Region Component Wraps all events coming from child fragment When event is delivered, sets up context If viewID changes during event delivery, UIRegion adds itself as a partial target BATHRSystemIndex <af:region/> Region EmployeeList.jsff Broadcast event Broadcast wrapper Queue wrapper Queue event Setup context Test for navigation Note: Region does not render any chrome, so the RequestContext.addPartialTarget method adds the parent component instead

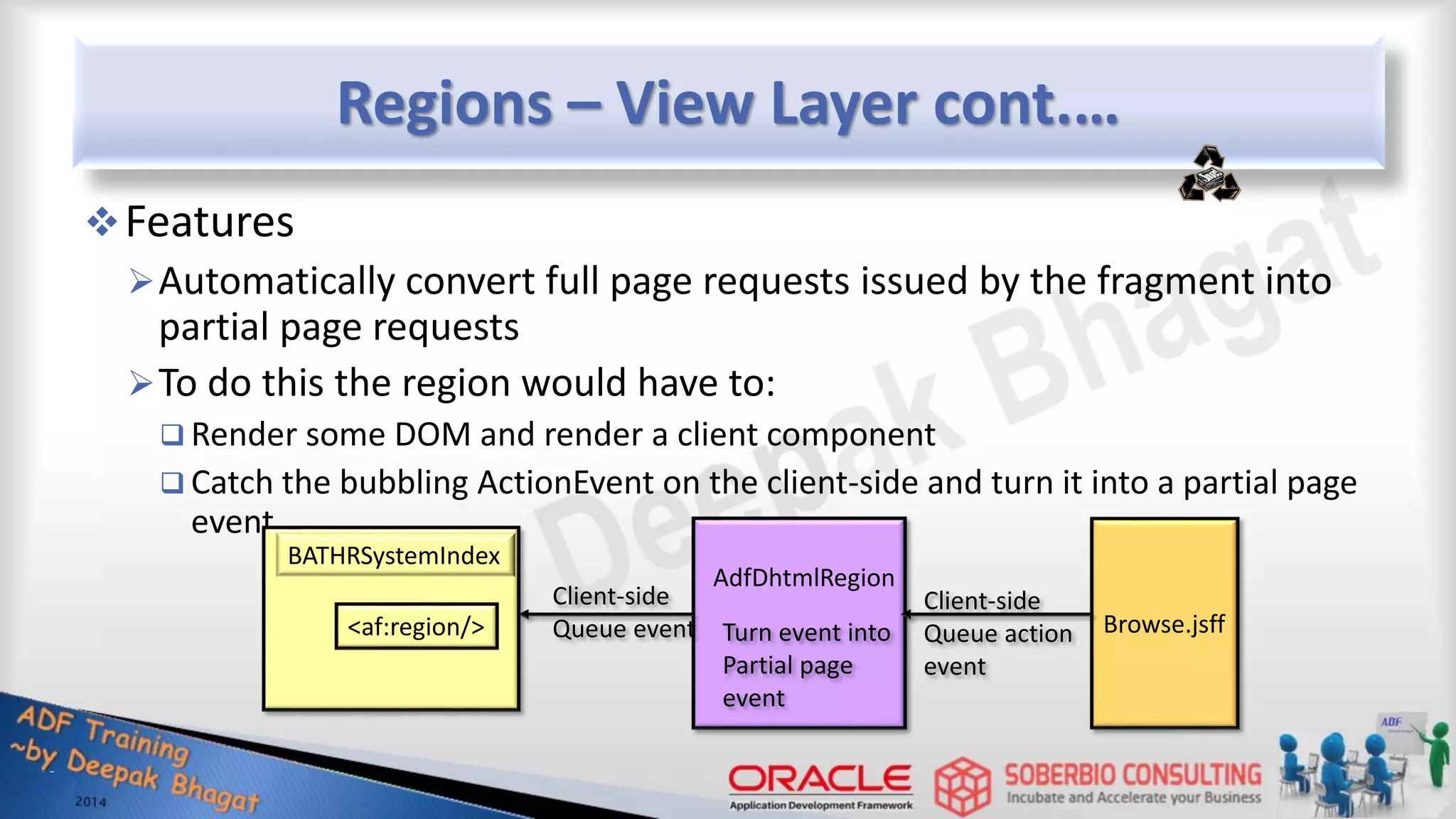

Regions – View Layer cont.… Features Automatically convert full page requests issued by the fragment into partial page requests To do this the region would have to:  Render some DOM and render a client component  Catch the bubbling ActionEvent on the client-side and turn it into a partial page event BATHRSystemIndex <af:region/> AdfDhtmlRegion Browse.jsff Client-side Queue event Client-side Queue action event Turn event into Partial page event

Regions – Controller Layer Task Flow Region Model: Manages the region’s lifecycle Figures out the correct page fragment to render Manages the “bindings” EL variable, within the page fragment BATHRSystemIndex.jsf <af:region value=“#{bindings.region1.regionModel}”/> RegionModel = TaskFLowRegionModel processBeginRegion getViewId processEndRegion

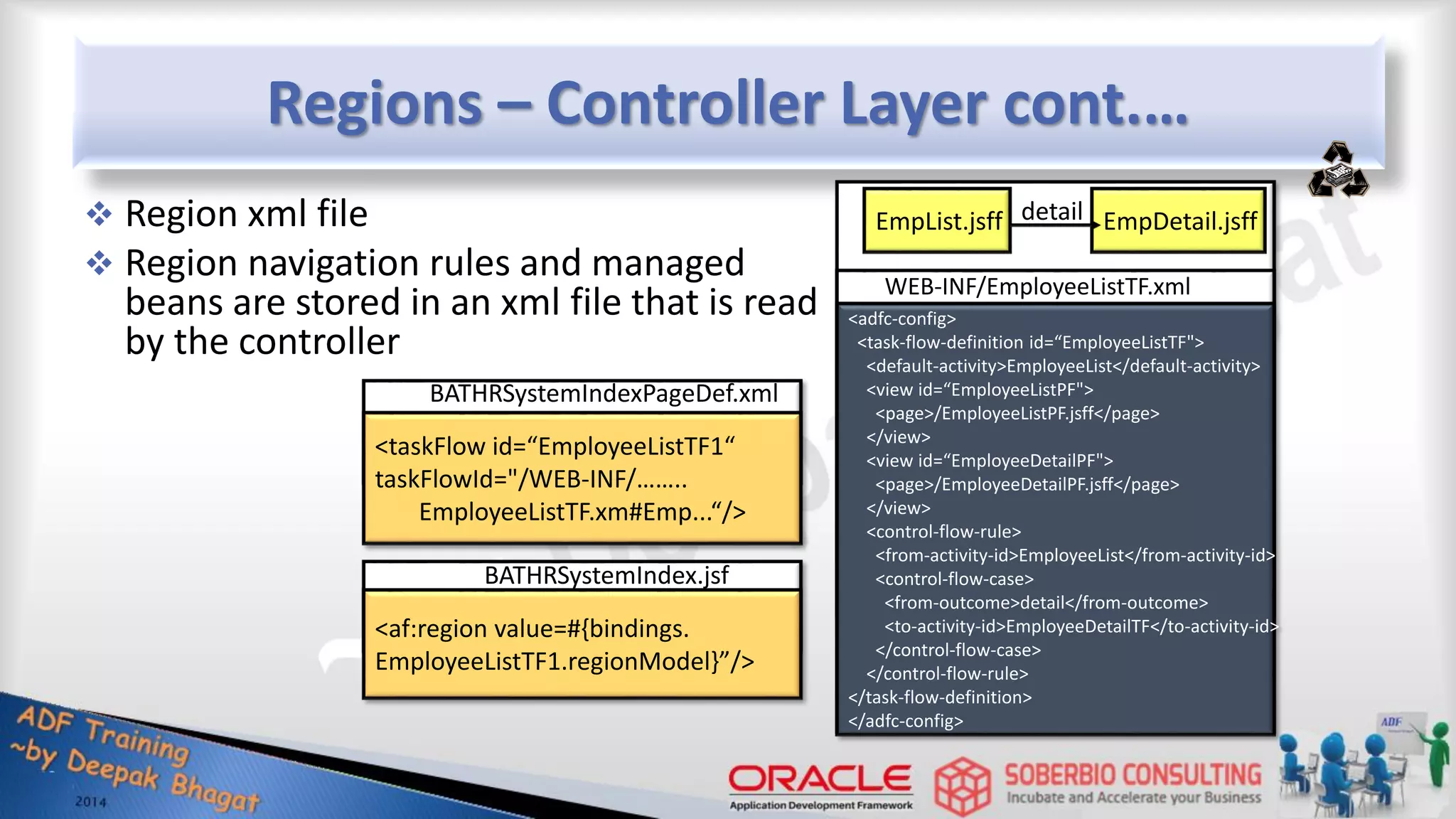

Regions – Controller Layer cont.…  Region xml file  Region navigation rules and managed beans are stored in an xml file that is read by the controller <af:region value=#{bindings. EmployeeListTF1.regionModel}”/> BATHRSystemIndex.jsf <taskFlow id=“EmployeeListTF1“ taskFlowId="/WEB-INF/…….. EmployeeListTF.xm#Emp...“/> BATHRSystemIndexPageDef.xml <adfc-config> <task-flow-definition id=“EmployeeListTF"> <default-activity>EmployeeList</default-activity> <view id=“EmployeeListPF"> <page>/EmployeeListPF.jsff</page> </view> <view id=“EmployeeDetailPF"> <page>/EmployeeDetailPF.jsff</page> </view> <control-flow-rule> <from-activity-id>EmployeeList</from-activity-id> <control-flow-case> <from-outcome>detail</from-outcome> <to-activity-id>EmployeeDetailTF</to-activity-id> </control-flow-case> </control-flow-rule> </task-flow-definition> </adfc-config> WEB-INF/EmployeeListTF.xml EmpList.jsff EmpDetail.jsff detail

Regions – Controller Layer cont.… Each page/fragment has its own PageDefinition Any Databinding.cpx files that are packaged with the region are merged with the main DataBindings.cpx #{bindings…} HRSystemIndex <pageMap> <page path="/EmpList.jsff" usageId=“EmpListPageDef"/> <page path="/EmpDetail.jsff" usageId=“EmpDetailPageDef"/> <page path="/HRSystemIndex.jsf" usageId=“HRSystemIndexPageDef"/> </pageMap> <pageDefinitionUsages> <page id=" EmpListPageDef " path=“...pageDef. EmpListPageDef "/> <page id=" EmpDetailPageDef " path=“pageDef. EmpDetailPageDef "/> <page id=“HRSystemIndexPageDef" path="pageDef.HRSystemPageDef"/> </pageDefinitionUsages> Databinding.cpx #{bindings…} EmpList.jsff #{bindings…} EmpDetail.jsff HRSystemIndexPageDef.xml EmpListPageDef.xml EmpDetailPageDef.xml

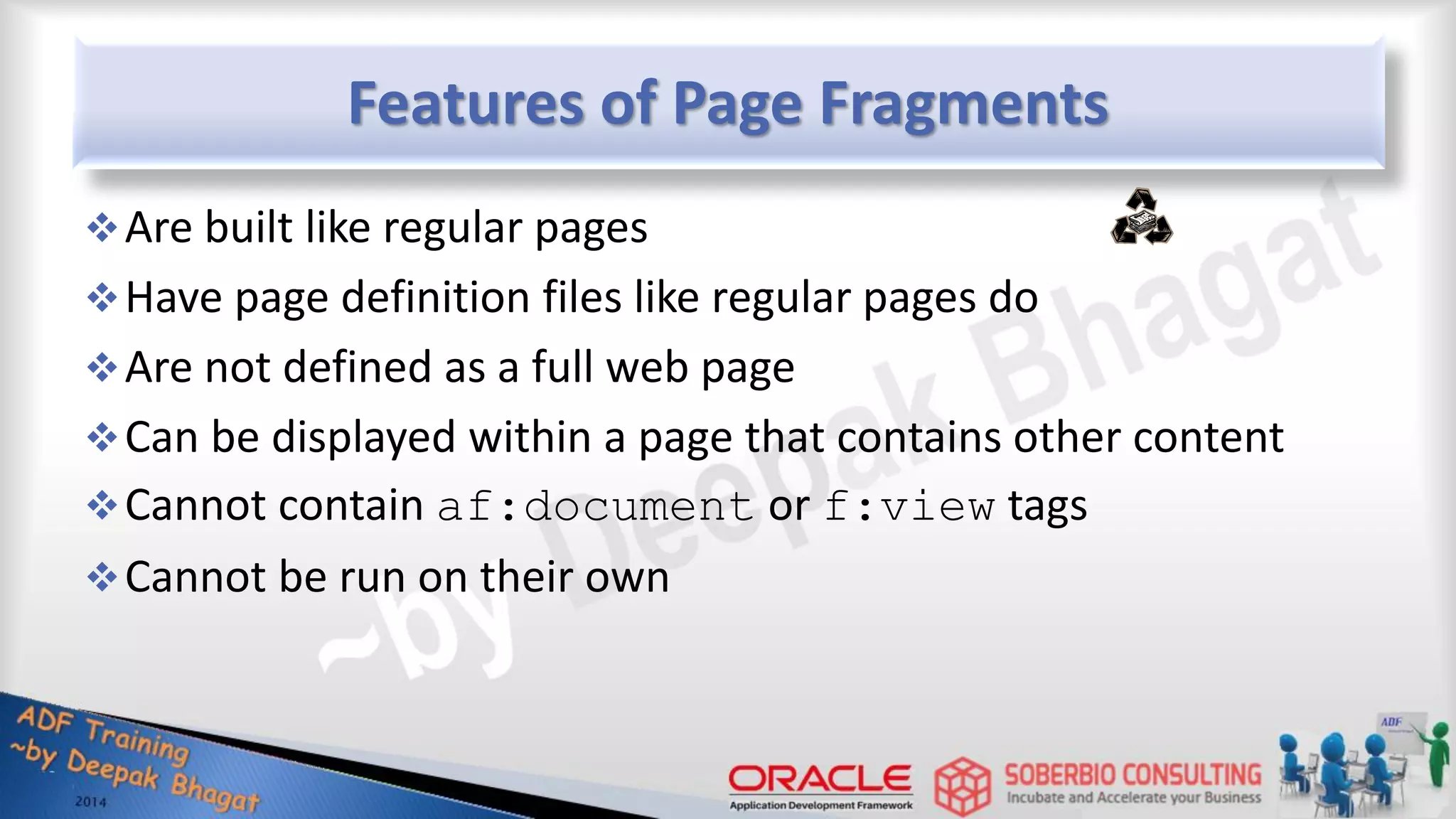

Features of Page Fragments Are built like regular pages Have page definition files like regular pages do Are not defined as a full web page Can be displayed within a page that contains other content Cannot contain af:document or f:view tags Cannot be run on their own

Using a Page Fragment on a Page You can use a page fragment on a page by: Inserting the jsp:include tag:  The included page fragment uses the binding context of the consuming page  Page definition file for page fragment is not loaded (does not use bindings) Inserting a bounded task flow with page fragments as a region on your page  The page fragment can have its own binding context Modifying the page fragment affects all pages that use it (but check the overall layout of consuming pages)

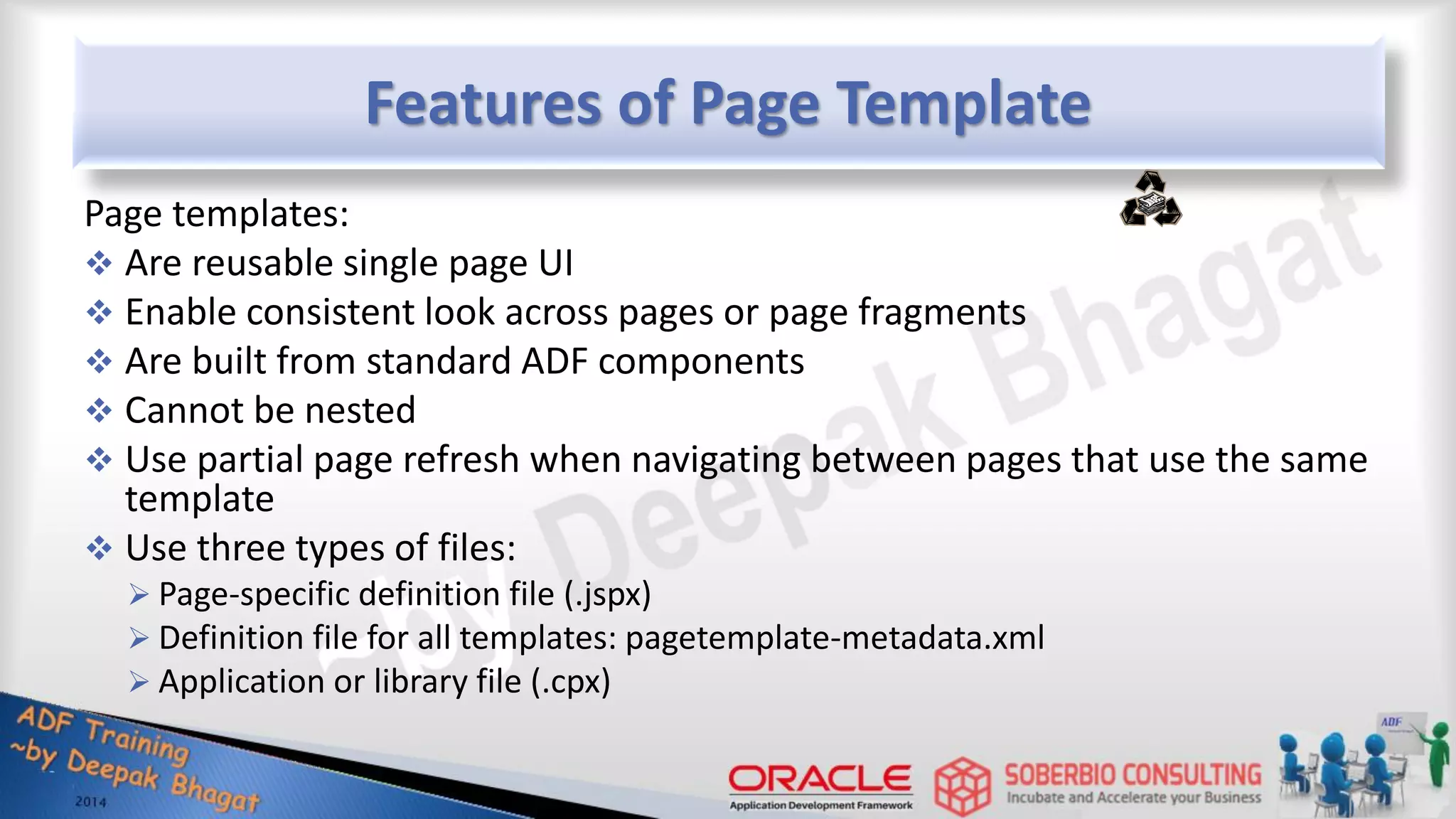

Features of Page Template Page templates:  Are reusable single page UI  Enable consistent look across pages or page fragments  Are built from standard ADF components  Cannot be nested  Use partial page refresh when navigating between pages that use the same template  Use three types of files:  Page-specific definition file (.jspx)  Definition file for all templates: pagetemplate-metadata.xml  Application or library file (.cpx)

Contents in Page Templates Have custom attributes and facets Consists of af:pageTemplateDef af:xmlContent - define attributes and facets af:facetRef af:pageTemplate Tag in jspx to use the template

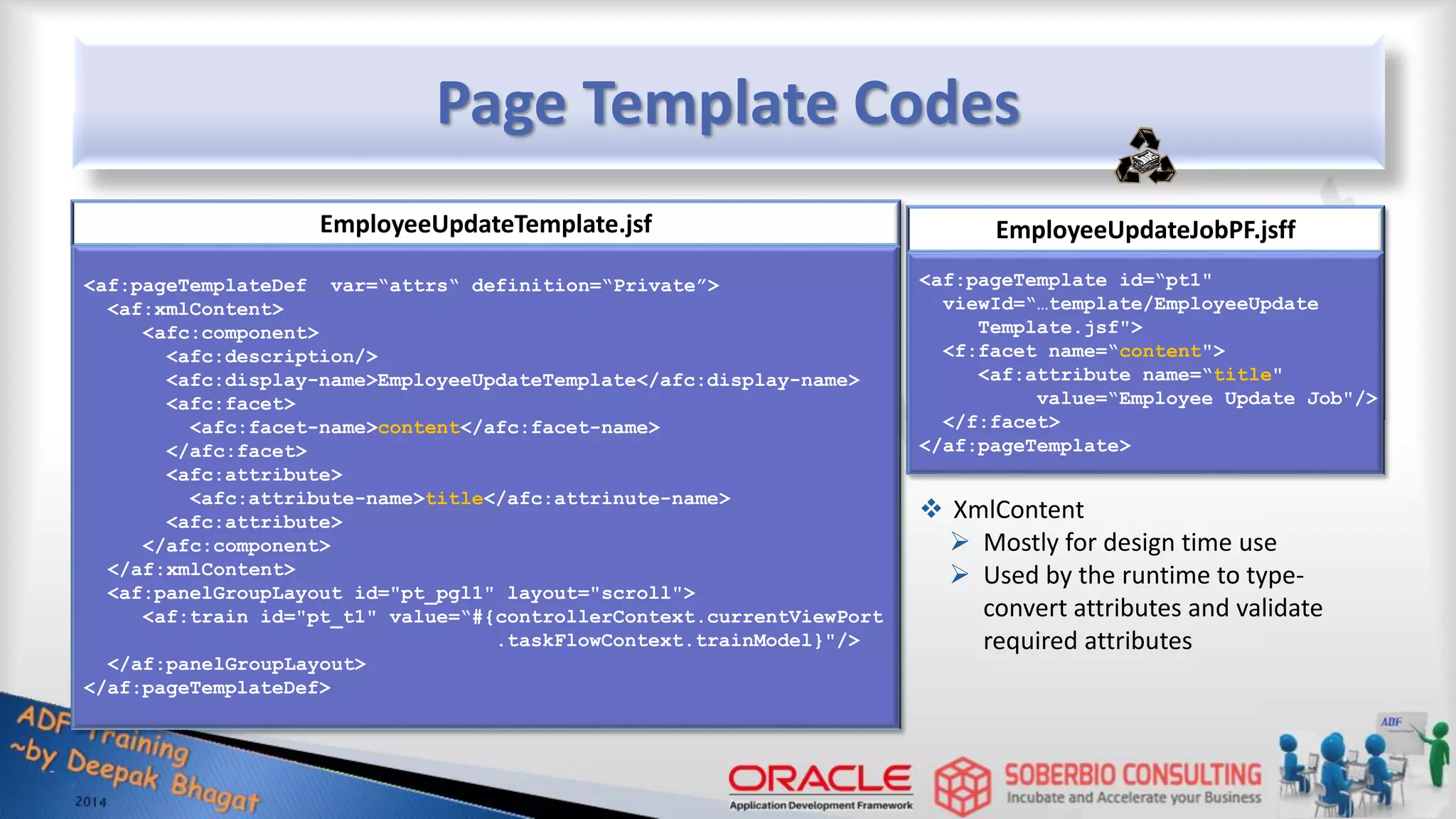

Page Template Codes <af:pageTemplateDef var=“attrs“ definition=“Private”> <af:xmlContent> <afc:component> <afc:description/> <afc:display-name>EmployeeUpdateTemplate</afc:display-name> <afc:facet> <afc:facet-name>content</afc:facet-name> </afc:facet> <afc:attribute> <afc:attribute-name>title</afc:attrinute-name> <afc:attribute> </afc:component> </af:xmlContent> <af:panelGroupLayout id="pt_pgl1" layout="scroll"> <af:train id="pt_t1" value=“#{controllerContext.currentViewPort .taskFlowContext.trainModel}"/> </af:panelGroupLayout> </af:pageTemplateDef> EmployeeUpdateTemplate.jsf <af:pageTemplate id=“pt1" viewId=“…template/EmployeeUpdate Template.jsf"> <f:facet name=“content"> <af:attribute name=“title" value=“Employee Update Job"/> </f:facet> </af:pageTemplate> EmployeeUpdateJobPF.jsff  XmlContent  Mostly for design time use  Used by the runtime to type- convert attributes and validate required attributes

Page Template Codes cont.… facetRef  This is the most complicated part of the pageTemplate implementation  The facetRef tags moves a component defined in the template usage into the template definition  The facetRef creates a new component which wraps the relocated component, because: Components inside the facetRef need to run in the context that they were defined in; not in the template context  The facetRef component restores the context to the outside context before lifecycle methods are run on the child

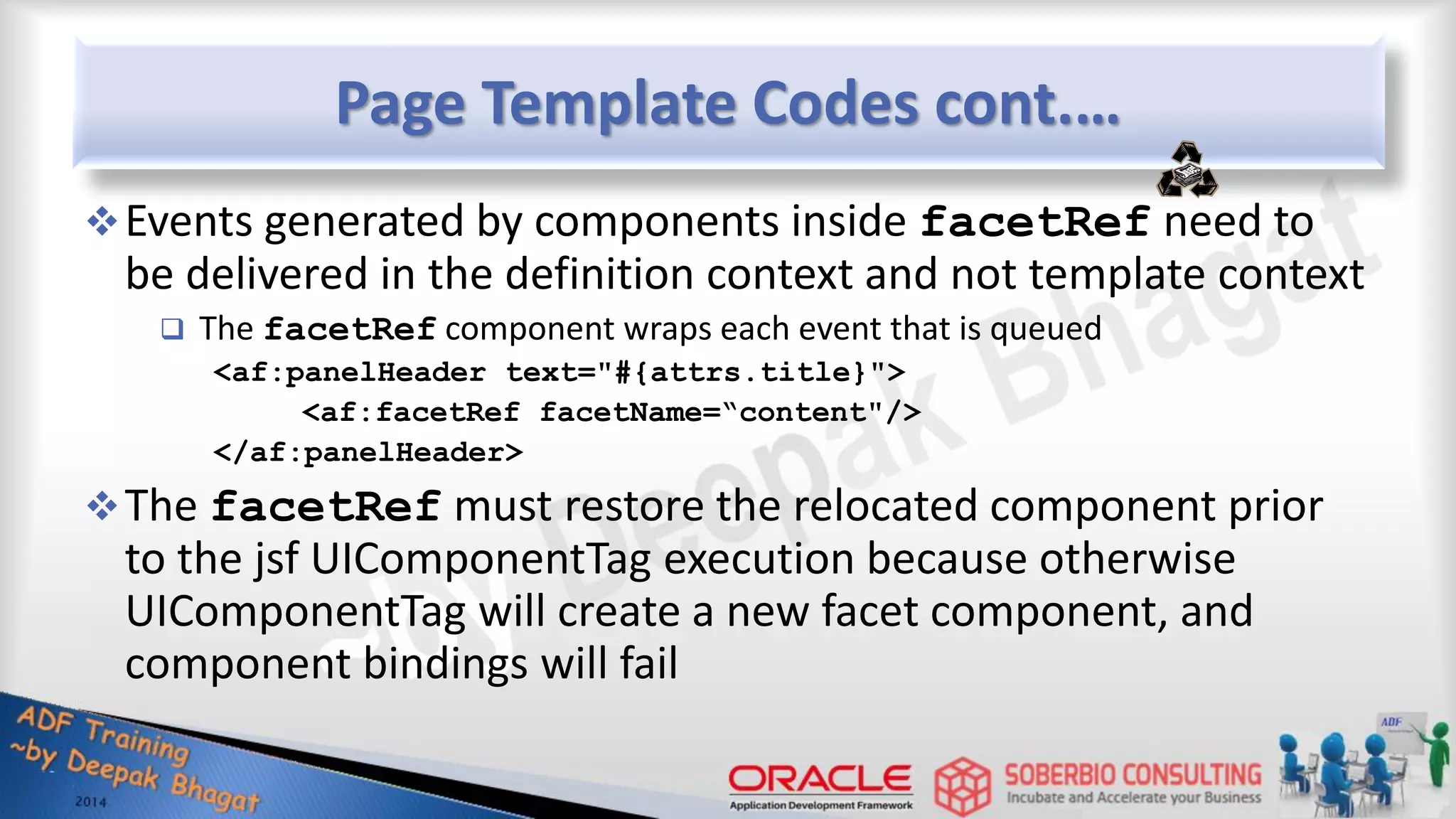

Page Template Codes cont.… Events generated by components inside facetRef need to be delivered in the definition context and not template context  The facetRef component wraps each event that is queued <af:panelHeader text="#{attrs.title}"> <af:facetRef facetName=“content"/> </af:panelHeader> The facetRef must restore the relocated component prior to the jsf UIComponentTag execution because otherwise UIComponentTag will create a new facet component, and component bindings will fail

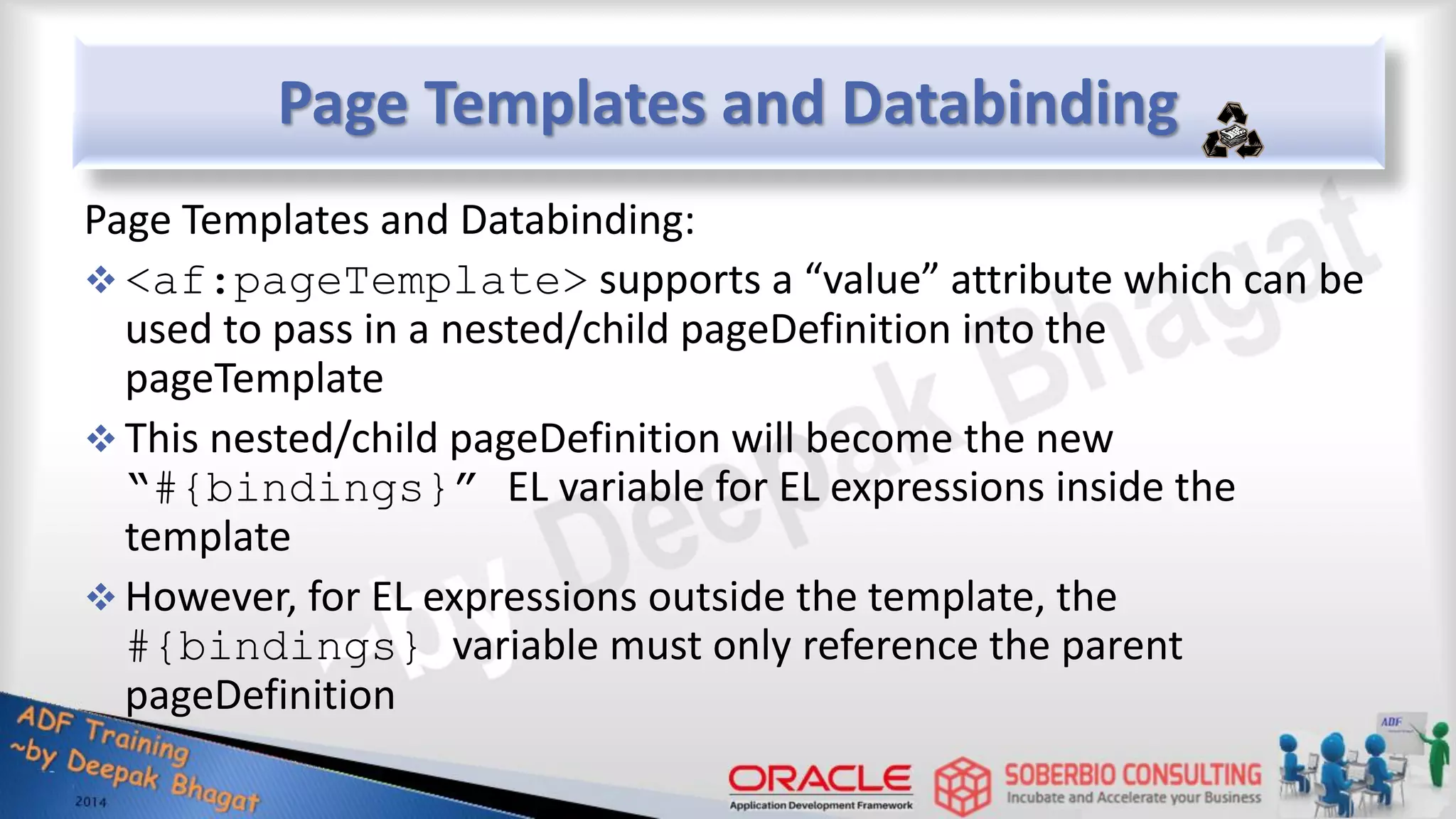

Page Templates and Databinding Page Templates and Databinding:  <af:pageTemplate> supports a “value” attribute which can be used to pass in a nested/child pageDefinition into the pageTemplate  This nested/child pageDefinition will become the new “#{bindings}” EL variable for EL expressions inside the template  However, for EL expressions outside the template, the #{bindings} variable must only reference the parent pageDefinition

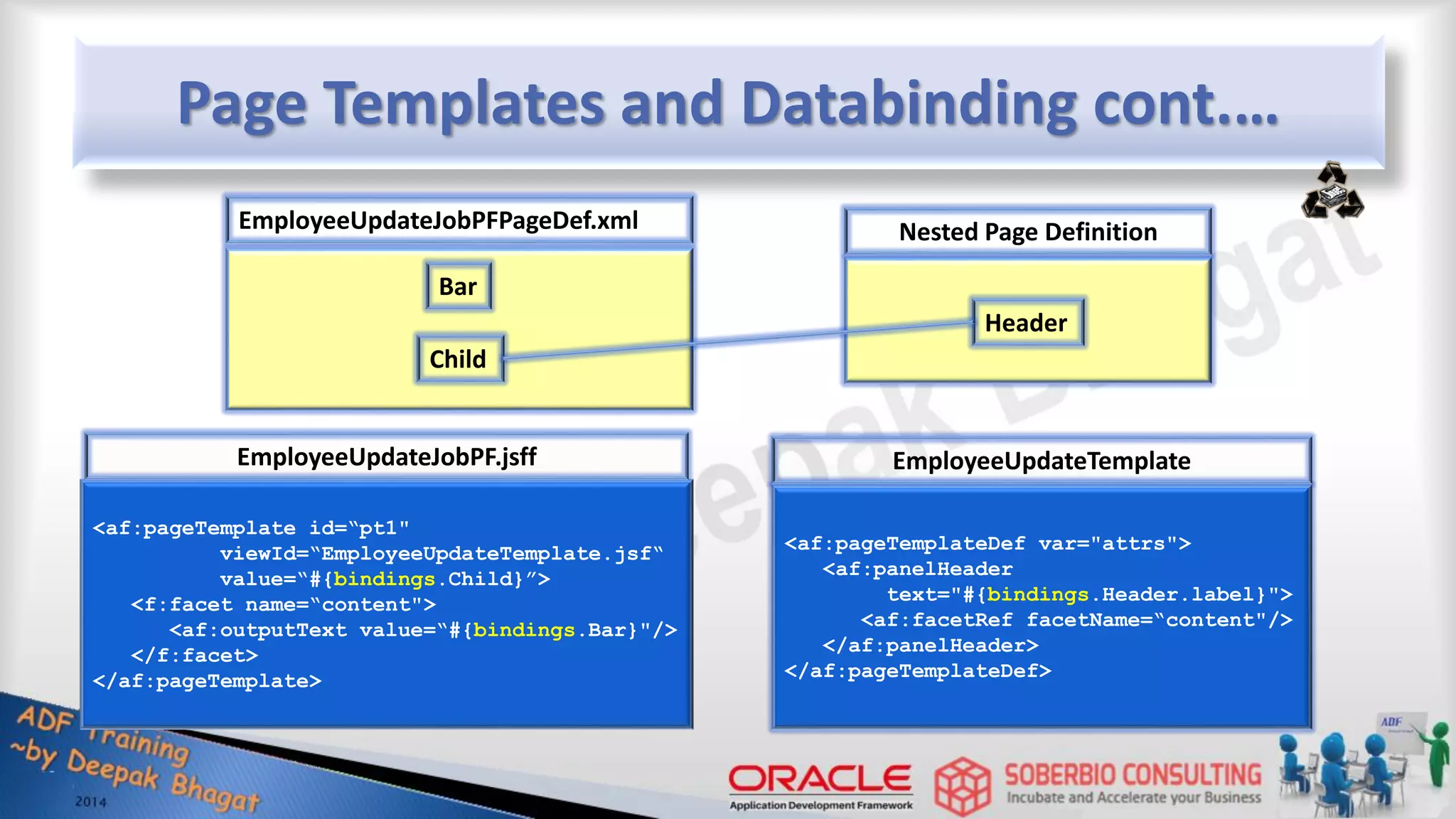

Page Templates and Databinding cont.… <af:pageTemplate id=“pt1" viewId=“EmployeeUpdateTemplate.jsf“ value=“#{bindings.Child}”> <f:facet name=“content"> <af:outputText value=“#{bindings.Bar}"/> </f:facet> </af:pageTemplate> <af:pageTemplateDef var="attrs"> <af:panelHeader text="#{bindings.Header.label}"> <af:facetRef facetName=“content"/> </af:panelHeader> </af:pageTemplateDef> EmployeeUpdateTemplate EmployeeUpdateJobPFPageDef.xml Bar Child Nested Page Definition Header EmployeeUpdateJobPF.jsff

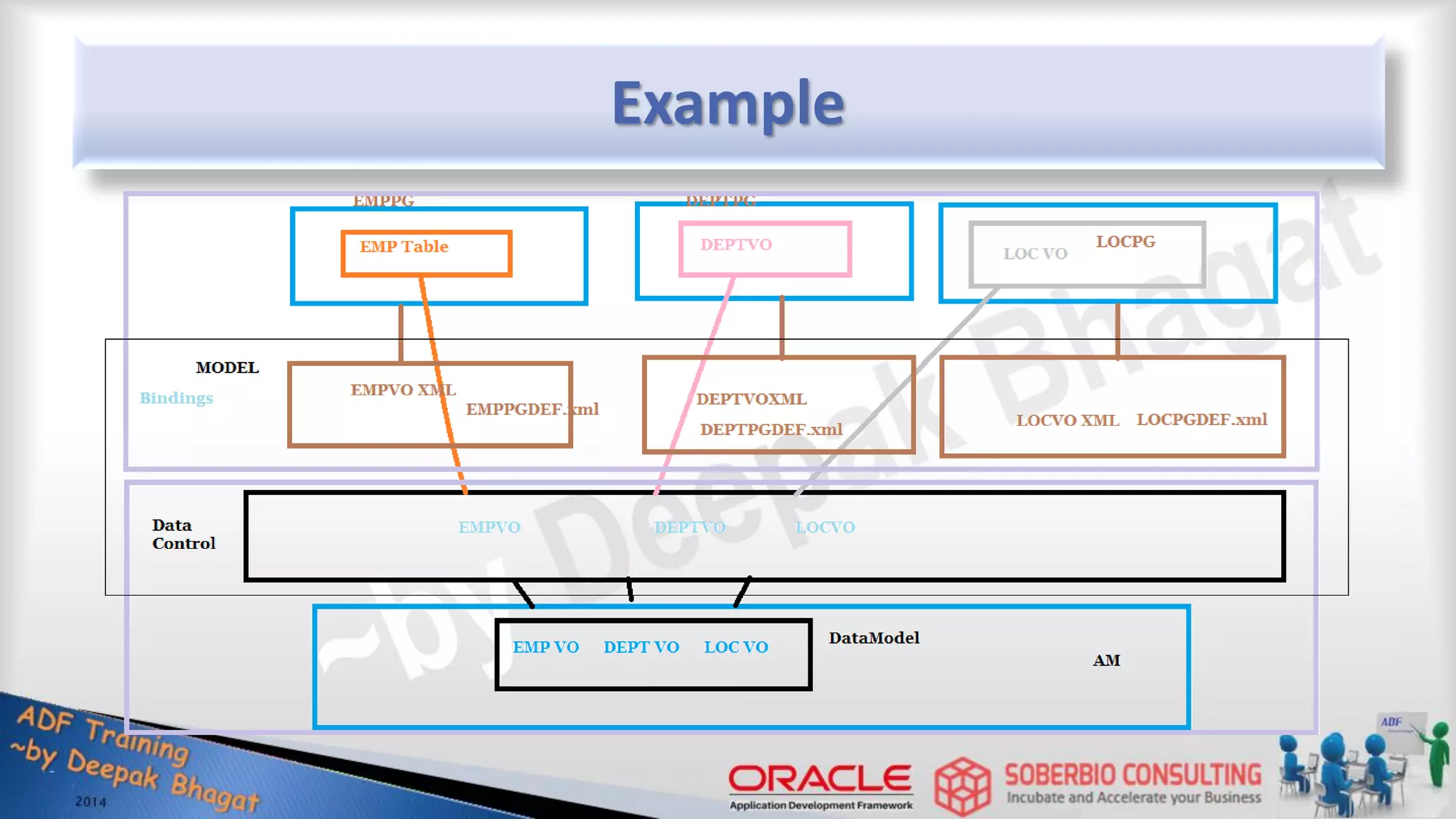

Example: Page Templates Association of Business Object to Page  Example 1: Employee Update Job 1 displayed in Page A Employee Update Job 2 displayed in Page B  Example 2: Employee Update Person 1 displayed in Page X Employee Update Person 2 displayed in Page Y  Example 3: Employee Update Confirm 1 starts from Page M Employee Update Confirm 2 starts from Page N

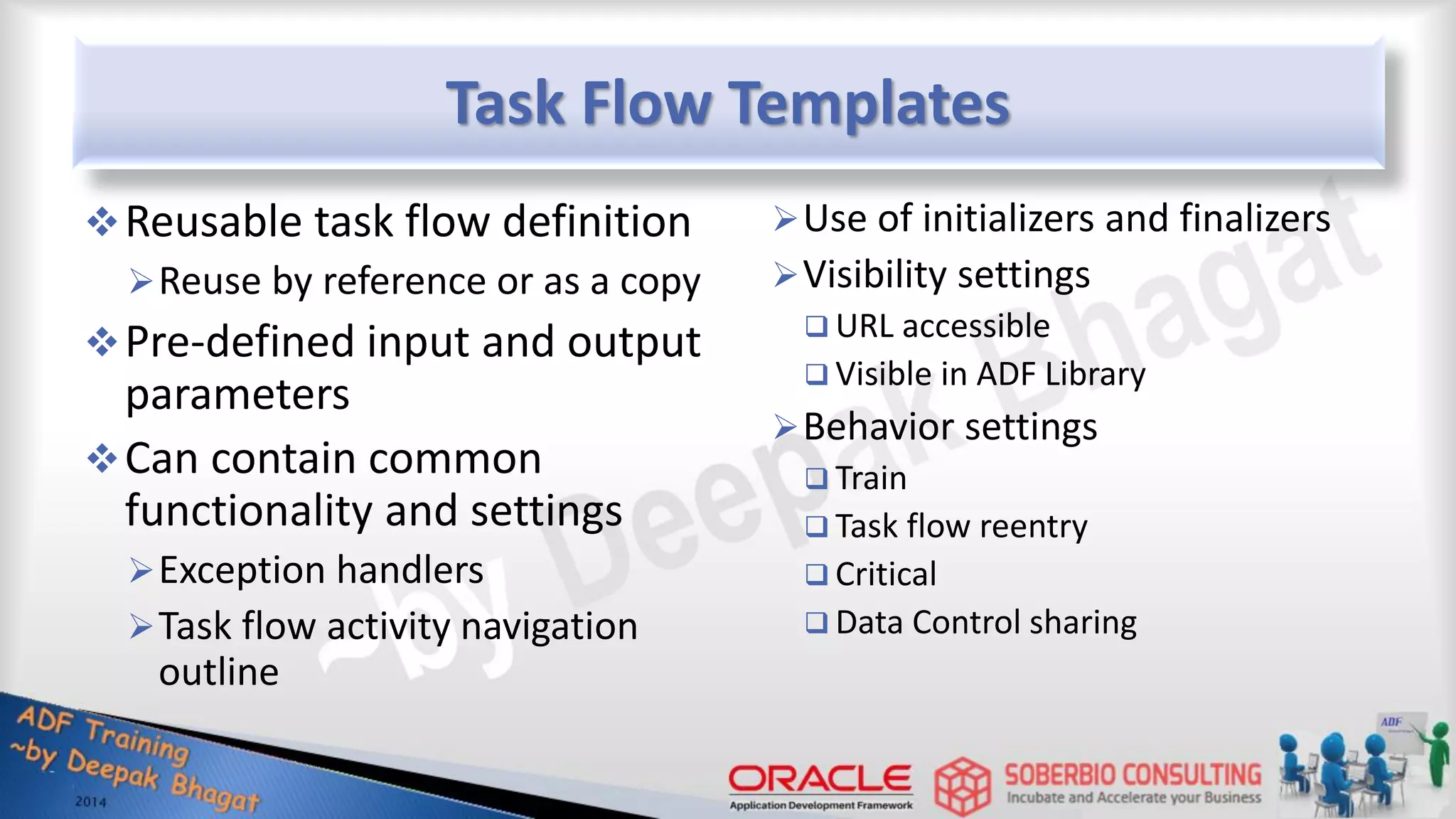

Task Flow Templates Reusable task flow definition Reuse by reference or as a copy Pre-defined input and output parameters Can contain common functionality and settings Exception handlers Task flow activity navigation outline Use of initializers and finalizers Visibility settings  URL accessible  Visible in ADF Library Behavior settings  Train  Task flow reentry  Critical  Data Control sharing

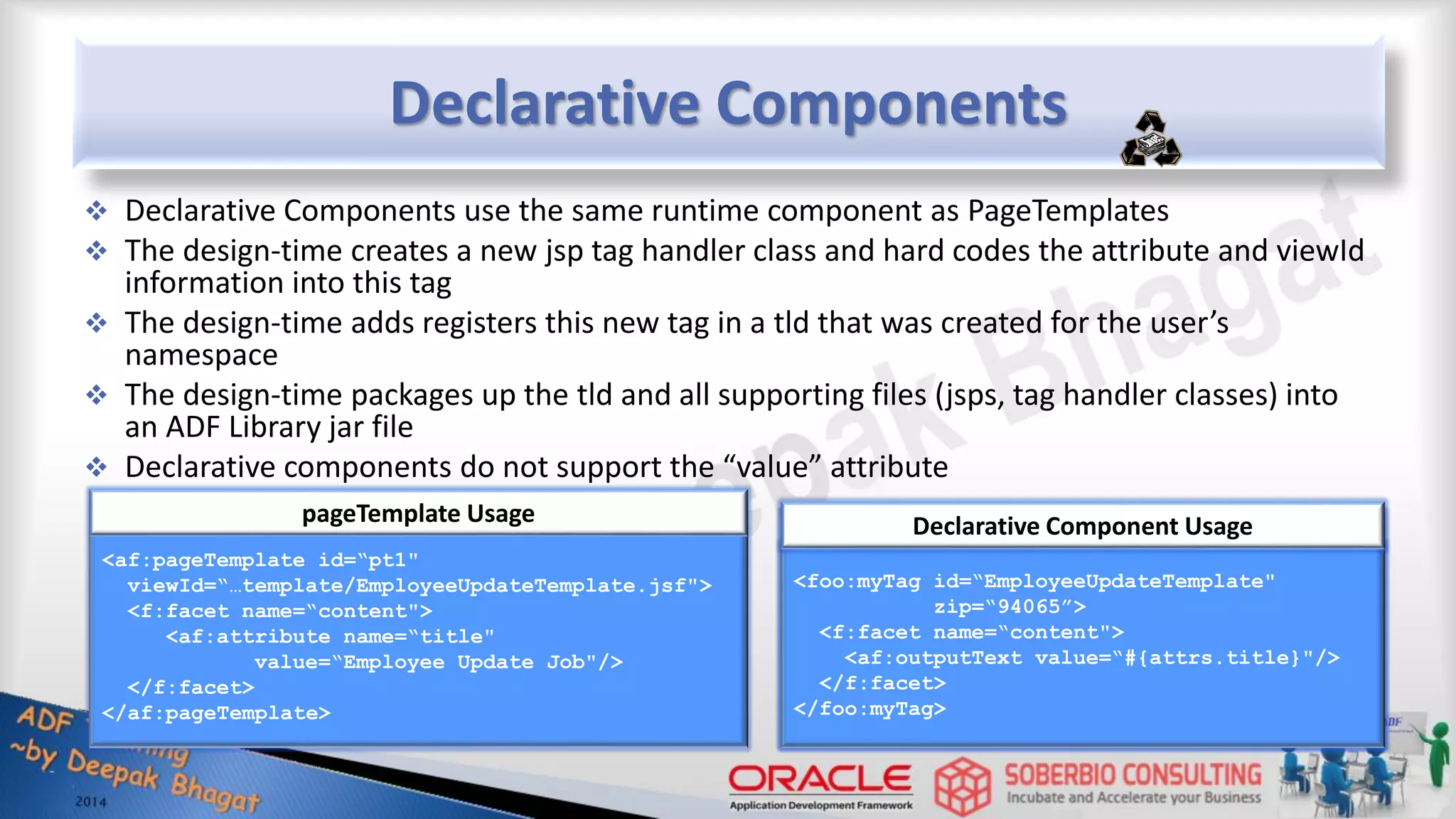

Declarative Components  Declarative Components use the same runtime component as PageTemplates  The design-time creates a new jsp tag handler class and hard codes the attribute and viewId information into this tag  The design-time adds registers this new tag in a tld that was created for the user’s namespace  The design-time packages up the tld and all supporting files (jsps, tag handler classes) into an ADF Library jar file  Declarative components do not support the “value” attribute <af:pageTemplate id=“pt1" viewId=“…template/EmployeeUpdateTemplate.jsf"> <f:facet name=“content"> <af:attribute name=“title" value=“Employee Update Job"/> </f:facet> </af:pageTemplate> pageTemplate Usage <foo:myTag id=“EmployeeUpdateTemplate" zip=“94065”> <f:facet name=“content"> <af:outputText value=“#{attrs.title}"/> </f:facet> </foo:myTag> Declarative Component Usage

Features of Declarative Components Declarative components:  Are component definitions that are reusable across applications  When changed, affect all pages that use them  Are made up of any number of other components  Do not have data binding in their definition  Can be made available for reuse in the Component Palette  Are defined only at design time in: One .jspx file for each component One declarativecomp-metadata.xml file for all declarative components in a project

Creating a Declarative Component The JSF Declarative Component dialog box: Is invoked with New > Web Tier > JSF/Facelets > ADF Declarative Component Creates the <af:componentDef> tag in .jspx file Creates metadata

Using a Declarative Component on a Page To use a declarative component on a page: Deploy the component’s project as an ADF library JAR file Add the ADF library to your current project Select the ADF library from the Component Palette drop-down list Select the declarative component and drag it to your page, providing values for any attributes

Deciding Which Reusable Component to Use  You can use a page template when you want: Similar page layout to be used on multiple pages Similar look on multiple pages  You can use a bounded task flow when you want to: Reuse a set of activities and control flows Use multiple page fragments in a region on a page Create a portlet from a set of activities and control flows  You can use a declarative component when you want to: Use a similar grouping of components on multiple pages or applications Select the component from the Component Palette

Lesson Summary Explain the benefits of reusing components Create and use a resource catalog Create and use ADF libraries Use a bounded task flow as a region Create a page fragment and use it in a bounded task flow Create and use a page template and task flow template Create a declarative component and use it on a page

16 Working with Parameters, Scopes and Partial Page Refresh

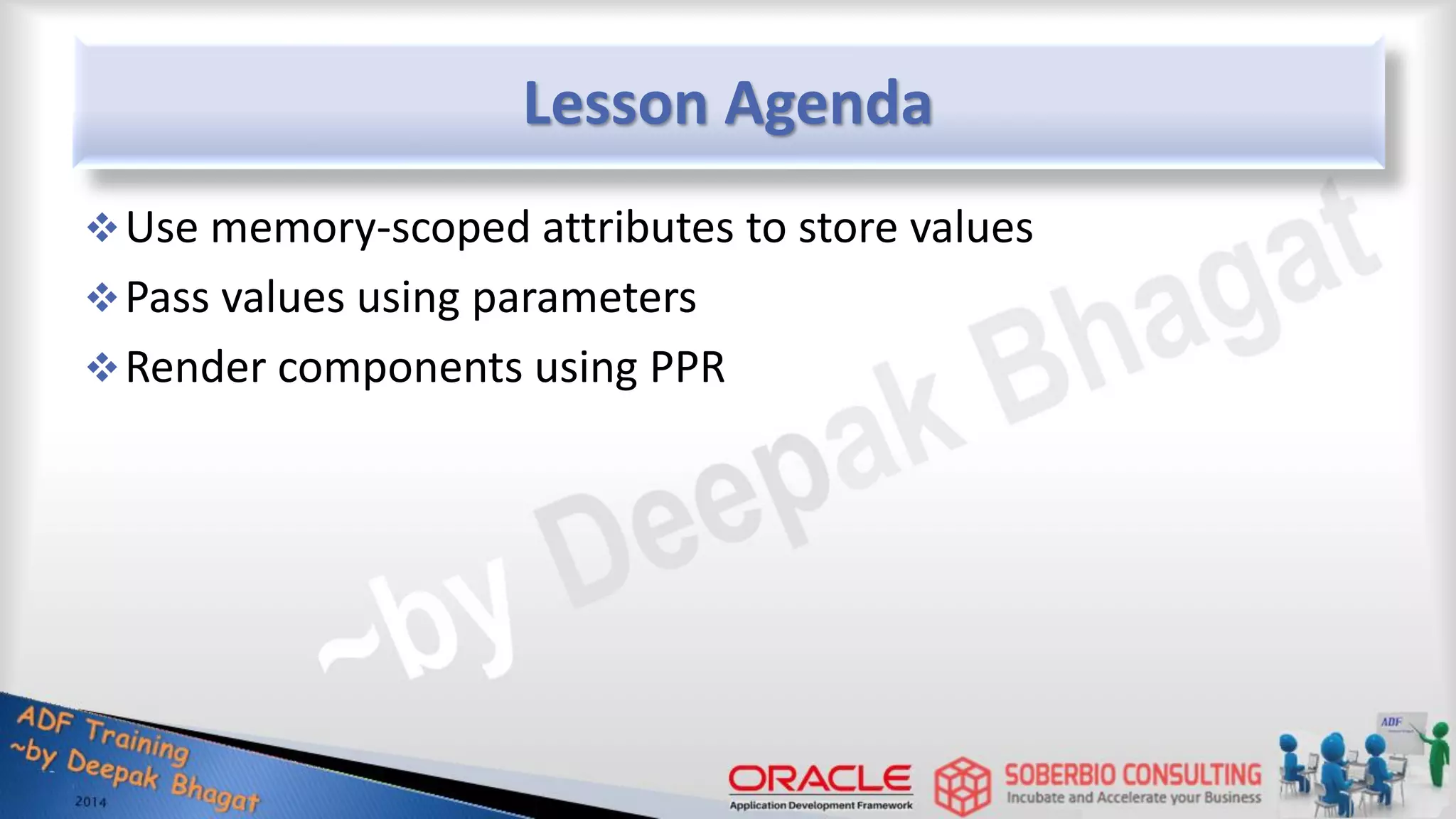

Lesson Agenda Use memory-scoped attributes to store values Pass values using parameters Render components using PPR

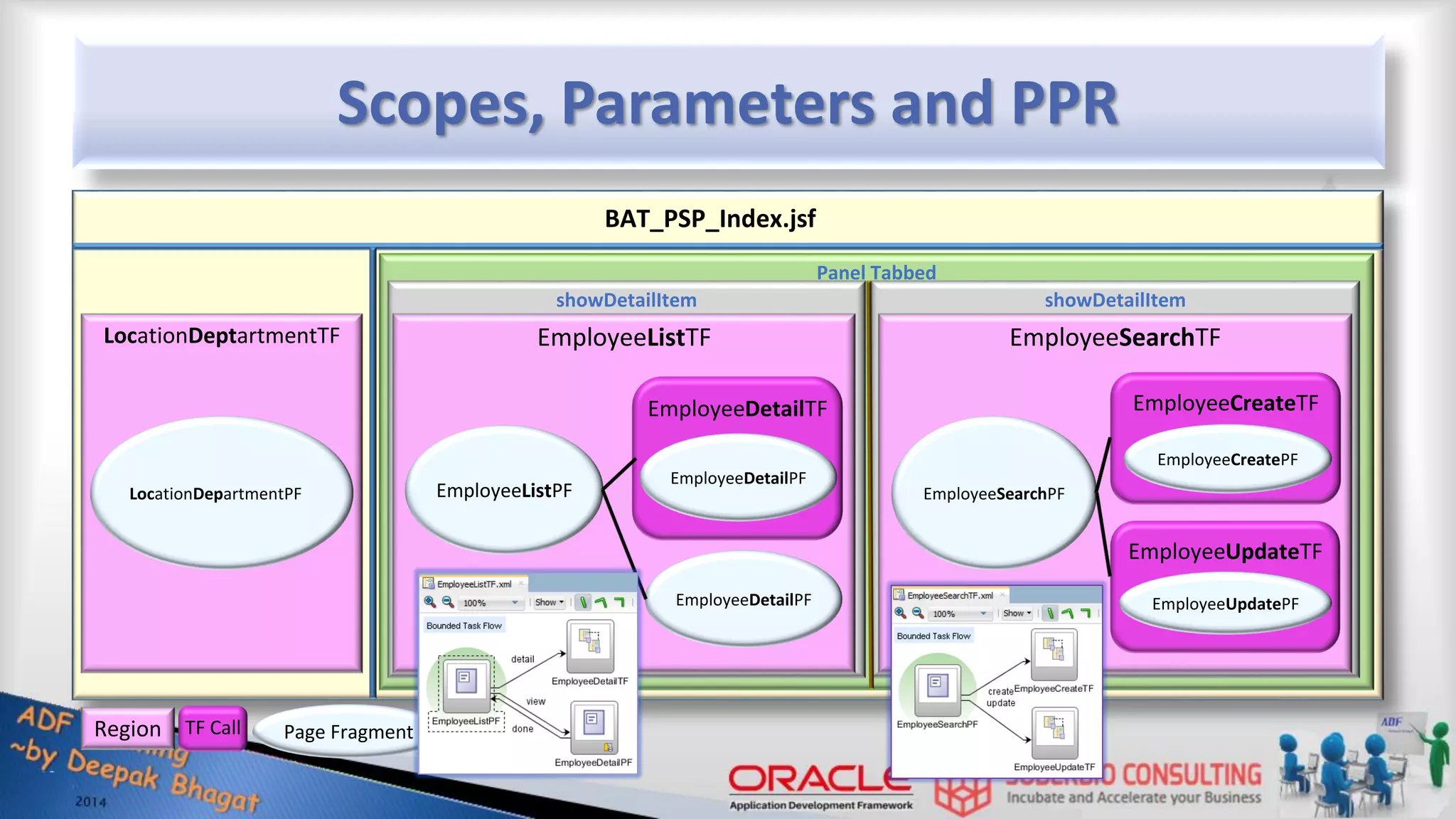

Scopes, Parameters and PPR Panel Tabbed showDetailItem showDetailItem BAT_PSP_Index.jsf LocationDeptartmentTF EmployeeListTF EmployeeSearchTF EmployeeCreateTF EmployeeDetailTF EmployeeListPF EmployeeSearchPF EmployeeUpdateTF EmployeeDetailPF LocationDepartmentPF EmployeeCreatePF EmployeeDetailPF EmployeeUpdatePF Region TF Call Page Fragment

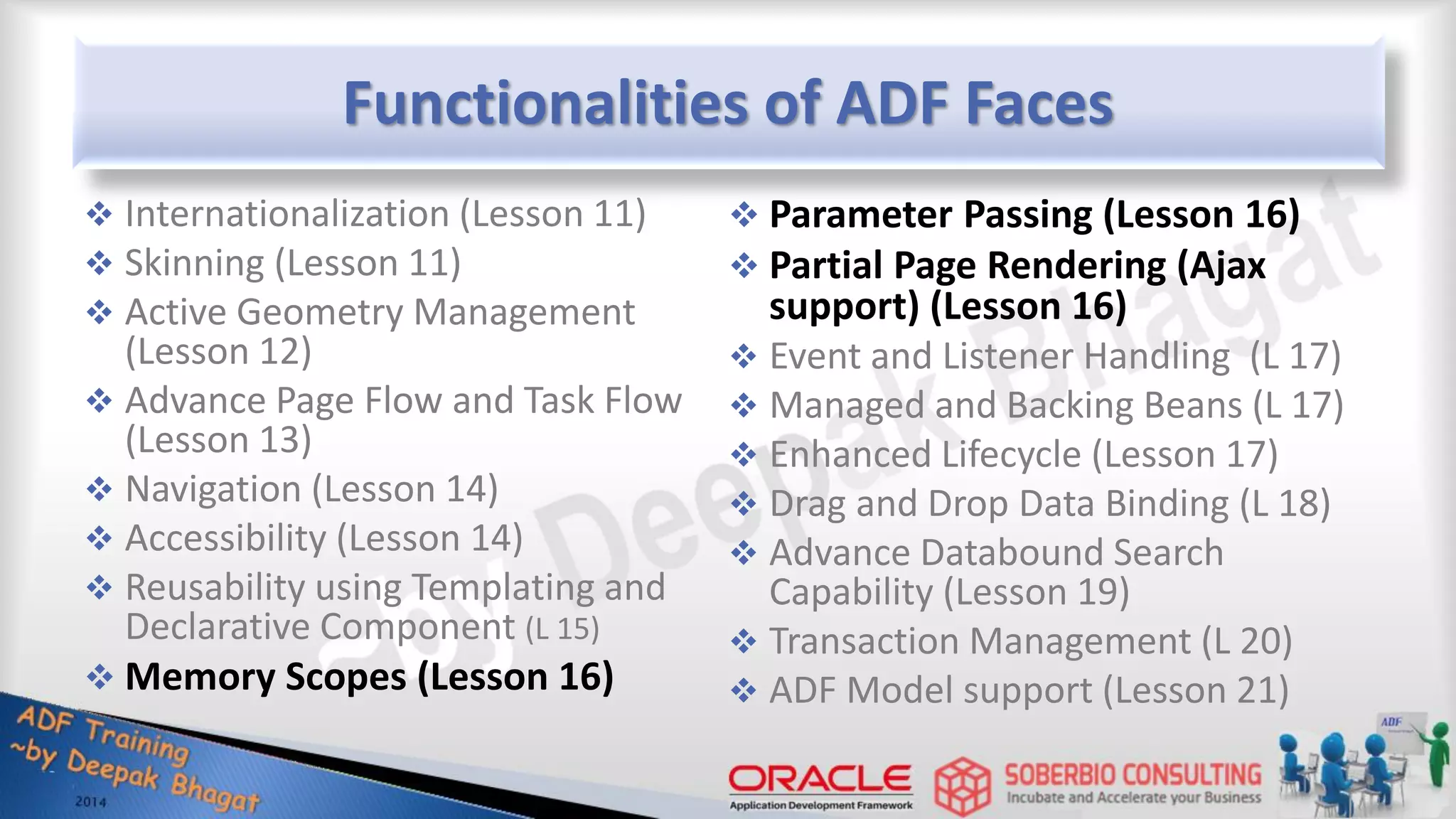

ADF Faces Functionalities  Memory scopes  Scope define lifespan to instantiated ADF objects at runtime  Scope can be accessed as a java.util.Map from the ADFContext API  Parameter passing  Parameters can be passed across task flows, regions and pages  Partial page rendering (Ajax support)  When an event on one component causes only another component to be rendered  Many ADF Faces components have ajax-style functionality implemented natively  Example: The ADF Faces table component lets you scroll through the table, sort the table by clicking column header, mark a row or several rows for selection, and even expand specific rows in the table, all without requiring the page to be submitted to the server and with no coding needed

Using Memory Scope Attributes  JSF scopes:  None  Application: The object is available for the duration of the application  Session: The object is available for the duration of the user session  Request: The object is available from the time an HTTP request is made until a response is sent back to the client  Additional ADF Faces scopes:  Page flow: The object is available for the duration of a single task flow’s lifetime  View: The object is available until the view ID for the current view activity changes. This scope can be used to hold values for a given page  Backing bean: Used for managed beans for page fragments and declarative components only. Is just like Request Scope. Each page can have multiple fragments or declarative components and we would want to separate the scope instances from each other.

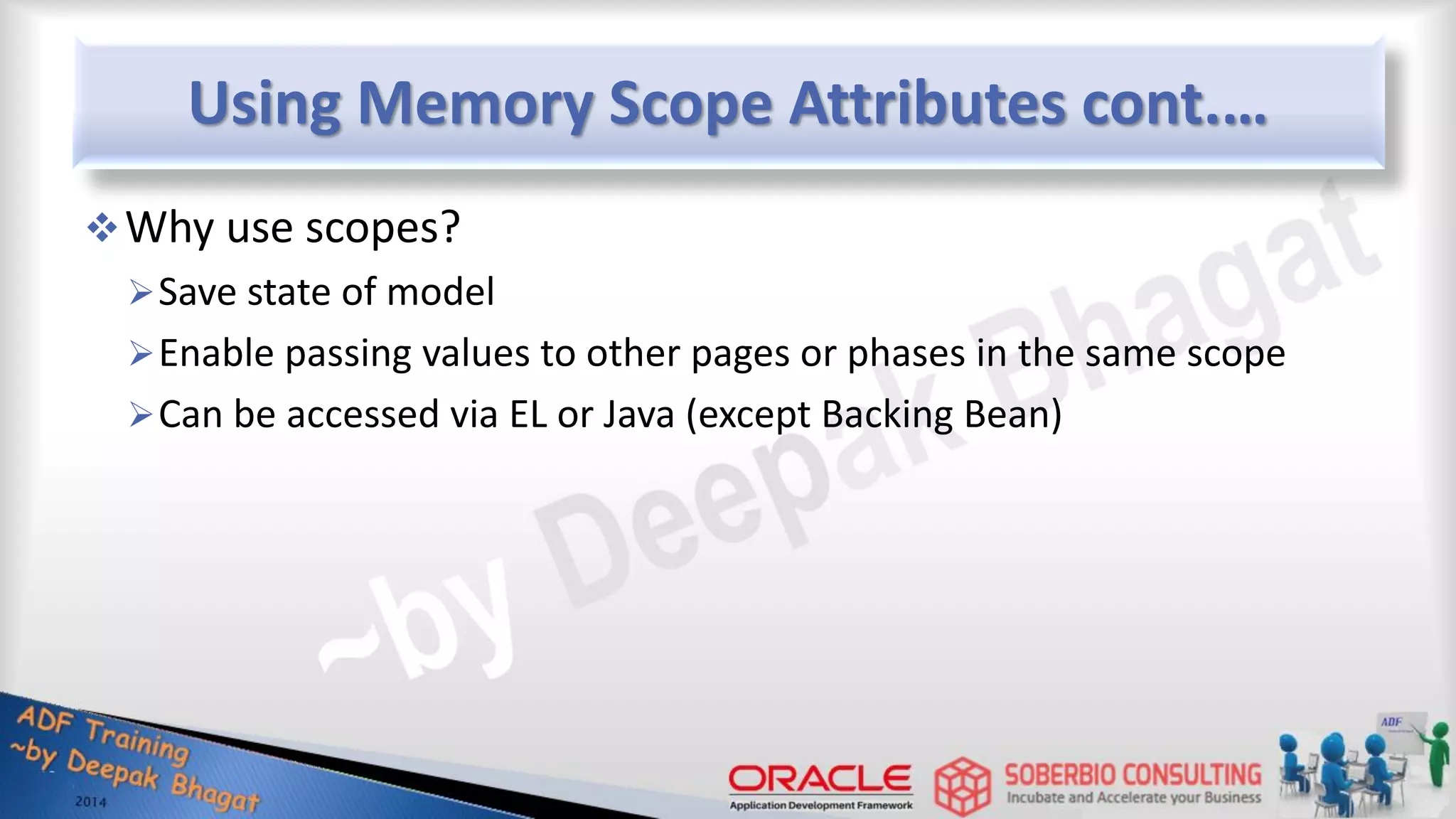

Using Memory Scope Attributes cont.… Why use scopes? Save state of model Enable passing values to other pages or phases in the same scope Can be accessed via EL or Java (except Backing Bean)

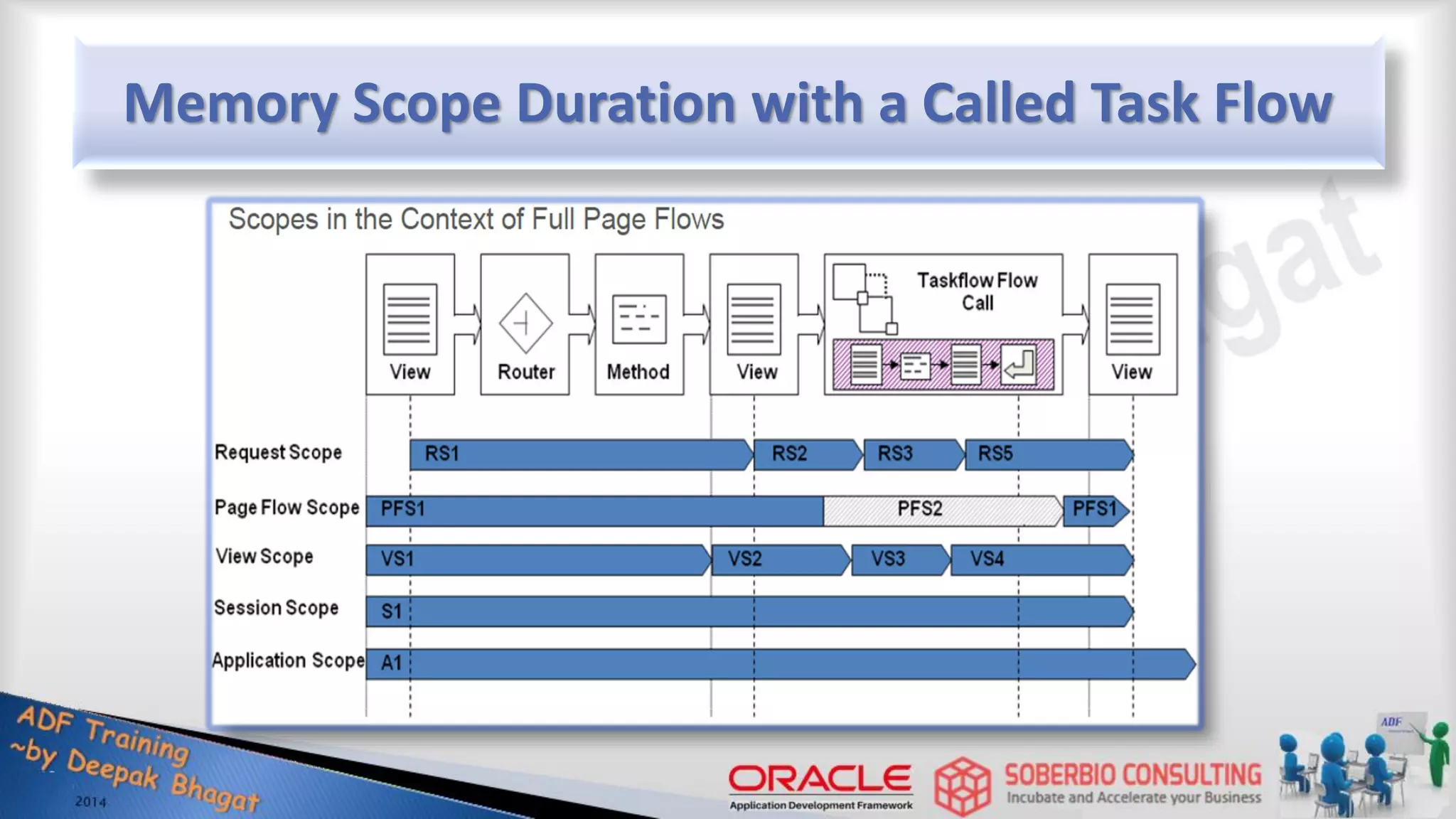

Memory Scope Duration with a Called Task Flow

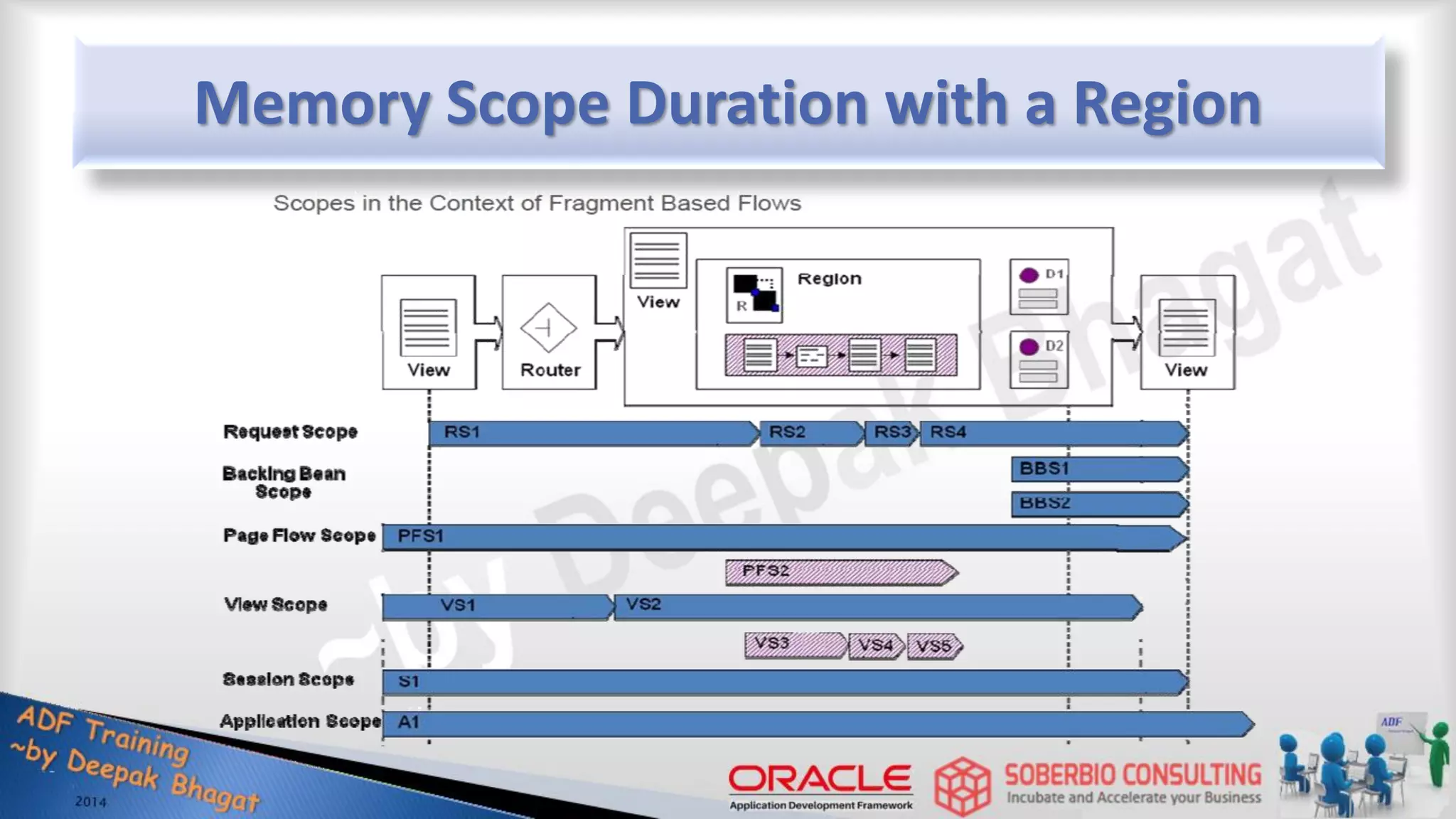

Memory Scope Duration with a Region

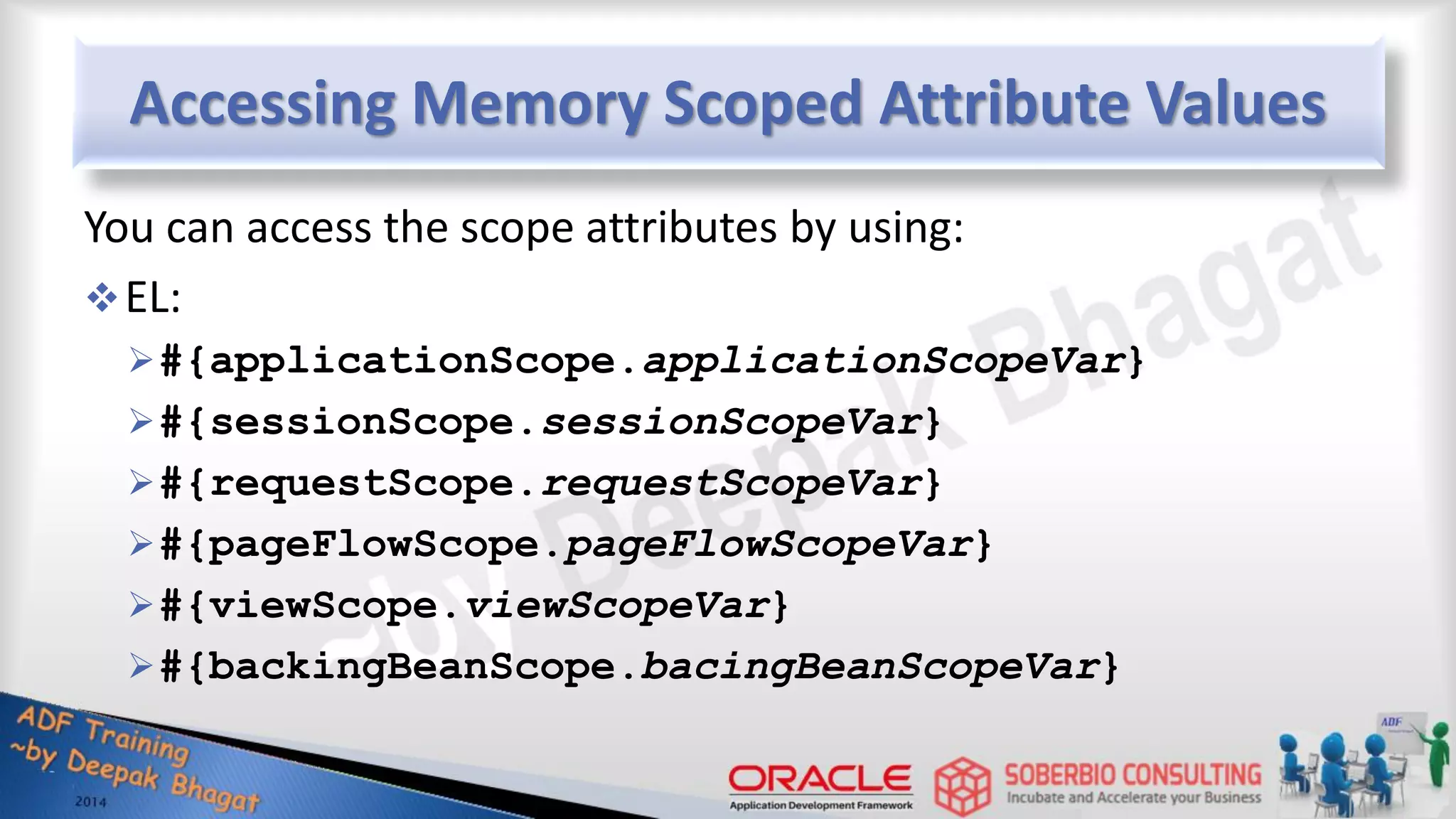

Accessing Memory Scoped Attribute Values You can access the scope attributes by using: EL: #{applicationScope.applicationScopeVar} #{sessionScope.sessionScopeVar} #{requestScope.requestScopeVar} #{pageFlowScope.pageFlowScopeVar} #{viewScope.viewScopeVar} #{backingBeanScope.bacingBeanScopeVar}

Accessing Memory Scoped Attribute Values cont.… Java code to access memory scoped attribute values: import oracle.adf.share.ADFContext; ADFContext.getCurrent()  .getApplicationScope().get("applicationScopeVar");  .getSessionScope().get("sessionScopeVar");  .getRequestScope().get("requestScopeVar");  .getPageFlowScope().get("pageFlowScopeVar");  .getViewScope().get("viewScopeVar");

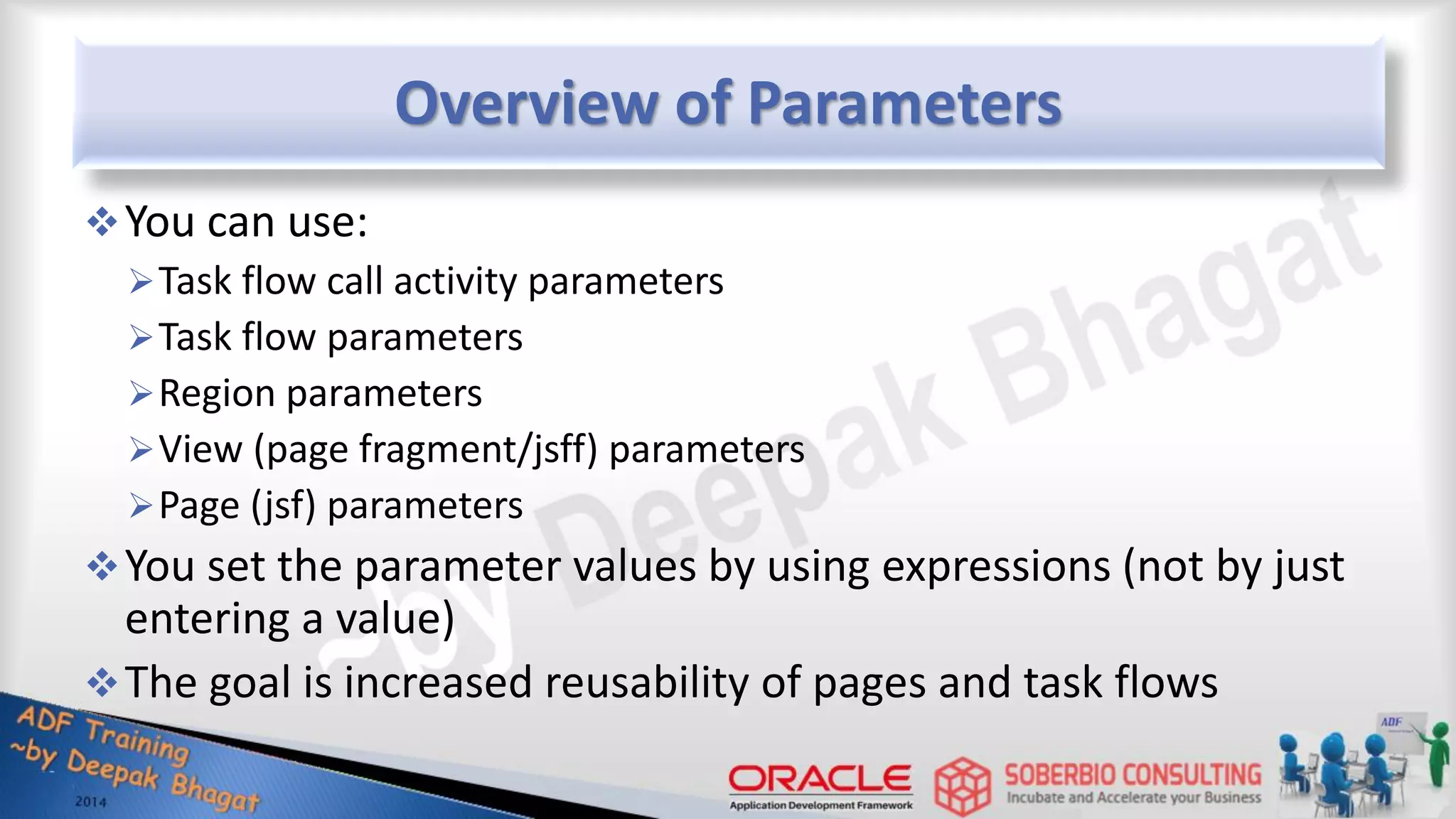

Overview of Parameters You can use: Task flow call activity parameters Task flow parameters Region parameters View (page fragment/jsff) parameters Page (jsf) parameters You set the parameter values by using expressions (not by just entering a value) The goal is increased reusability of pages and task flows

Use Task Flow Parameters  Task flow parameters are:  Input parameters to pass a value into a task flow  Defined in the .xml file for the task flow (You can use the Property Inspector for the task flow.)

Job of the Task Flow Parameter Stores input value in a page-flow-scoped attribute:

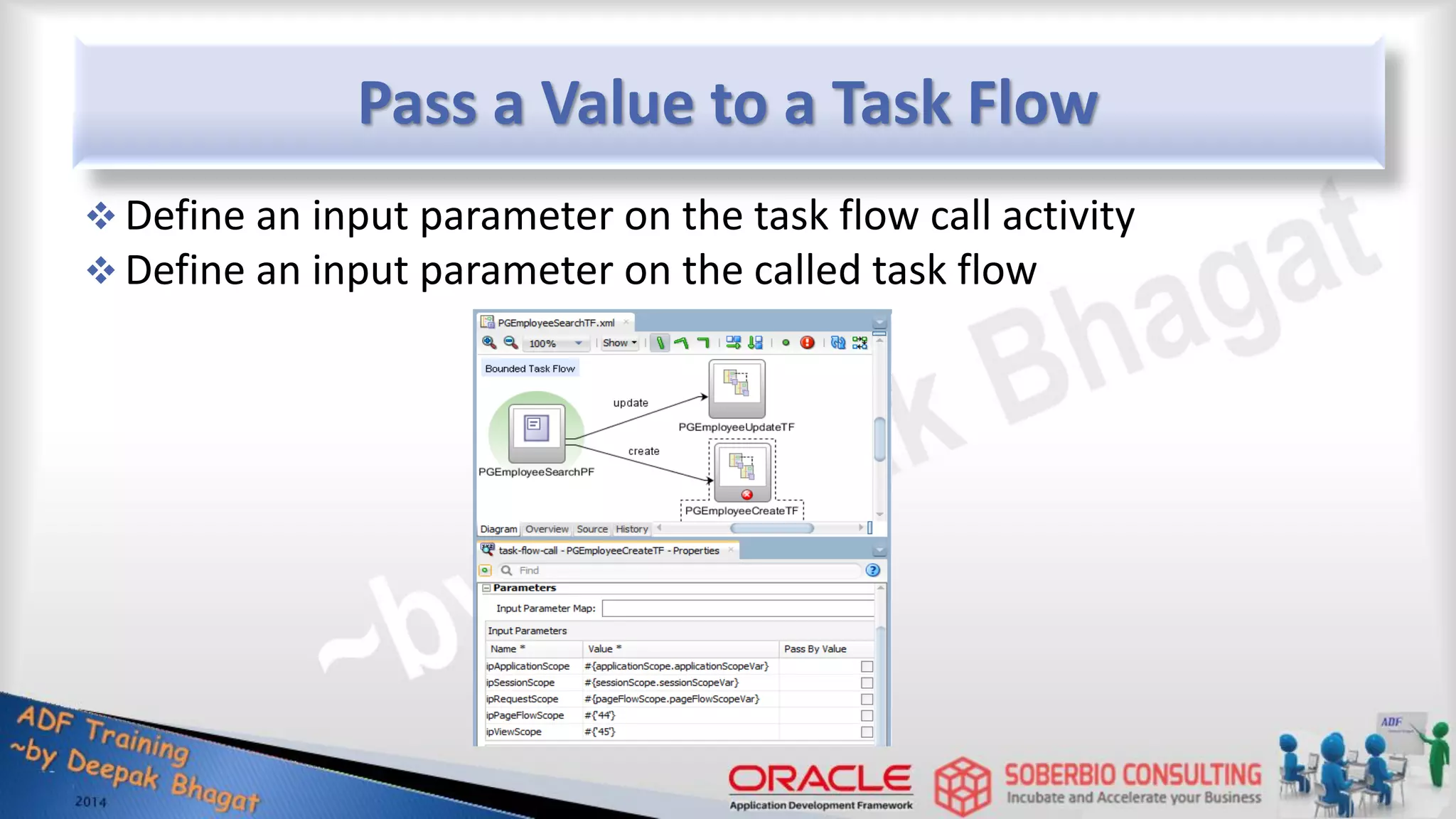

Pass a Value to a Task Flow  Define an input parameter on the task flow call activity  Define an input parameter on the called task flow

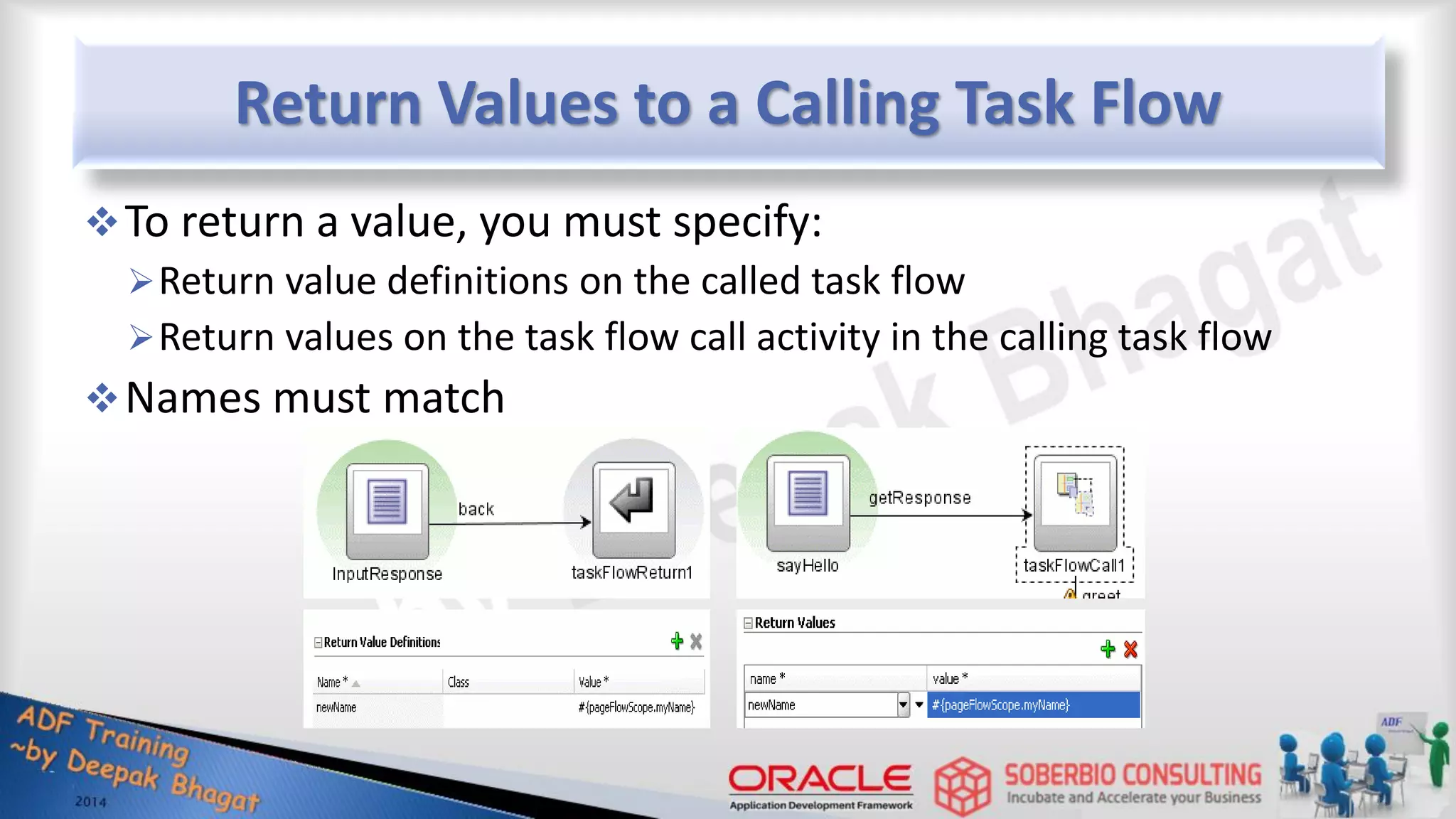

Return Values to a Calling Task Flow To return a value, you must specify: Return value definitions on the called task flow Return values on the task flow call activity in the calling task flow Names must match

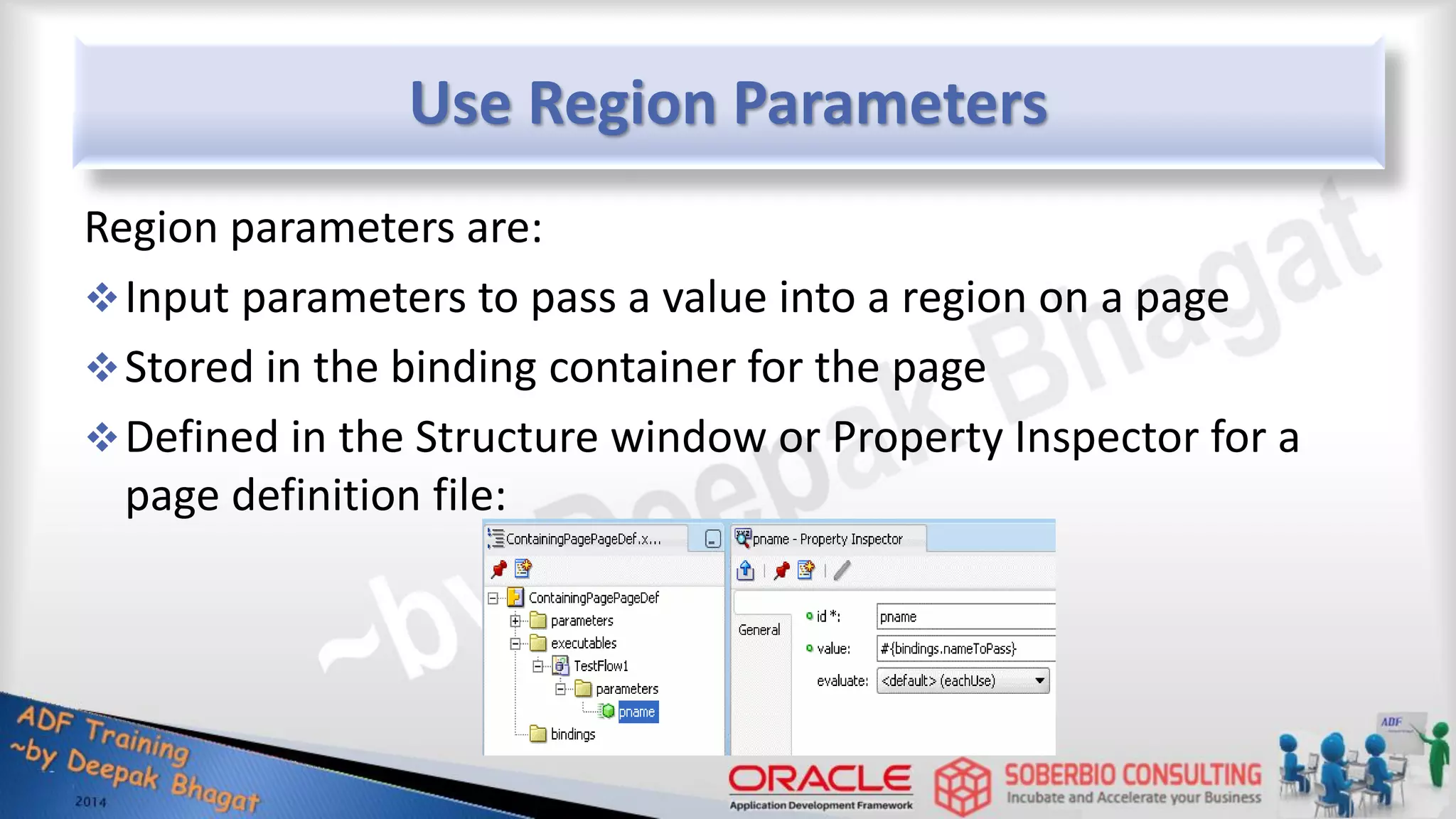

Use Region Parameters Region parameters are: Input parameters to pass a value into a region on a page Stored in the binding container for the page Defined in the Structure window or Property Inspector for a page definition file:

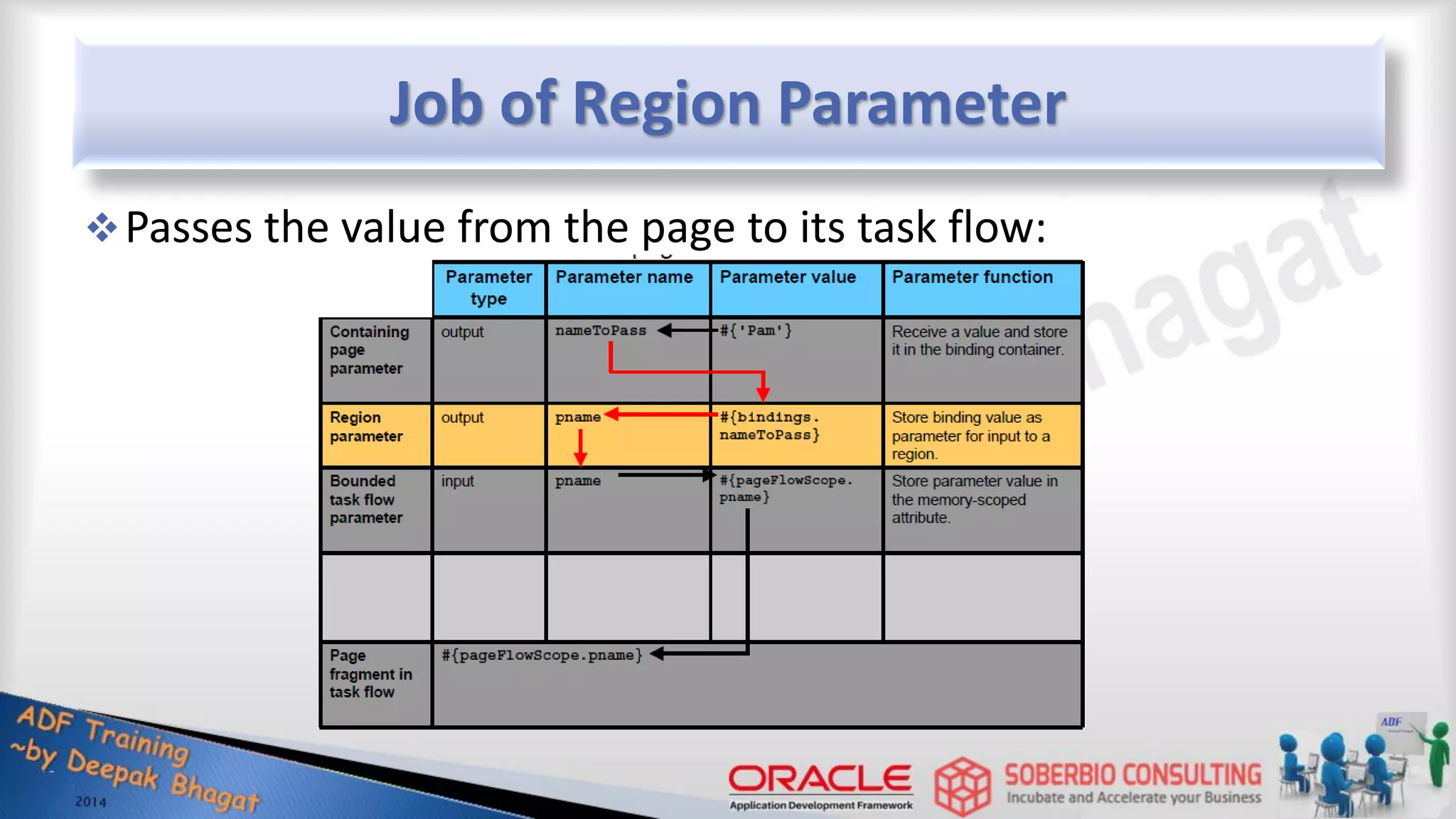

Job of Region Parameter Passes the value from the page to its task flow:

Job of View Activity Parameter Populates the page-flow-scoped attribute expected by the page:

Use Page Parameters Page parameters are: Output parameters to pass a value from a page Stored in the binding container for the page Defined in the Structure window or Property Inspector for a page definition file #{bindings.nameToPass}

Job of the Page Parameter Receives a value and stores it in a parameter in the binding container:

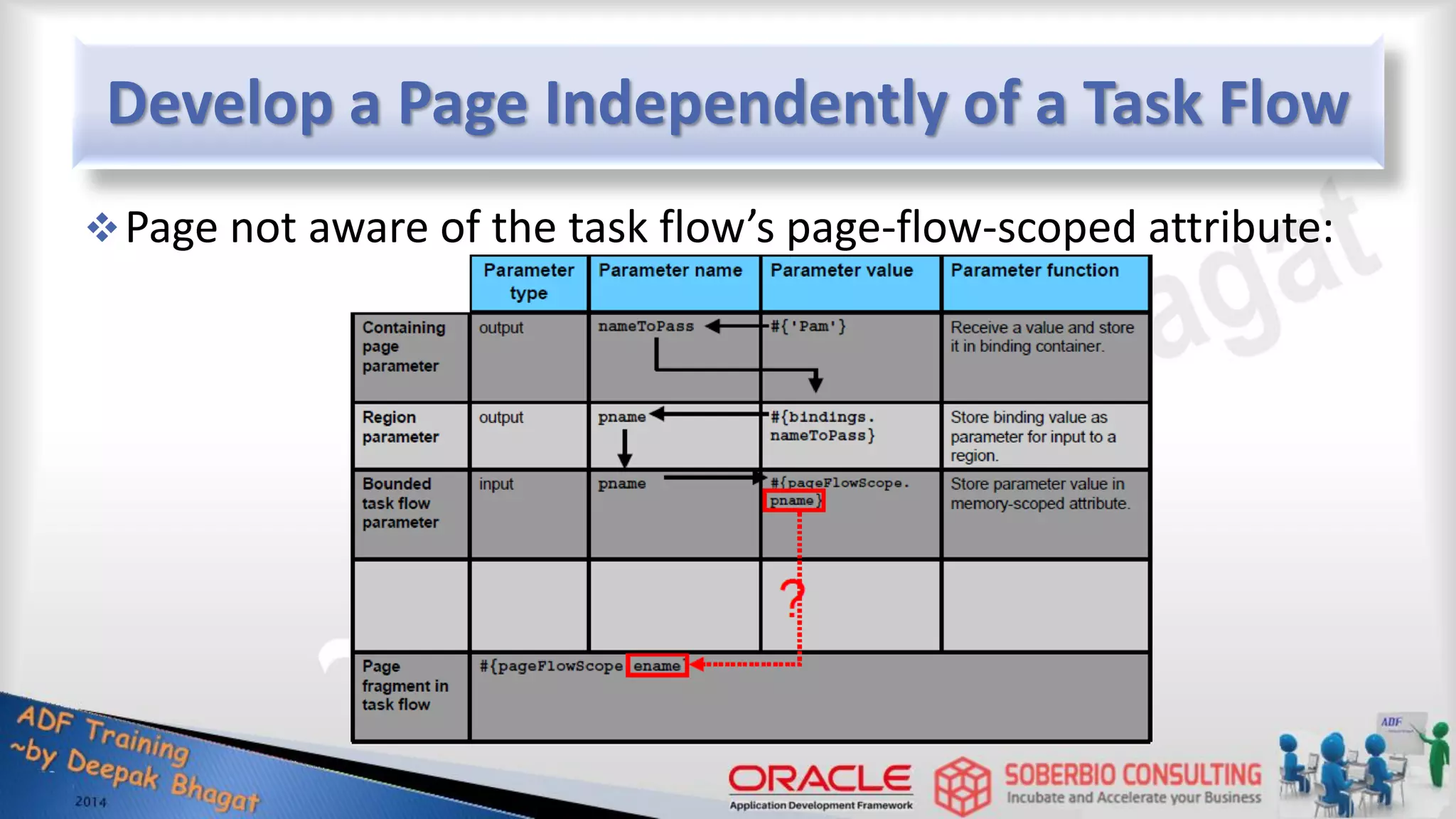

Develop a Page Independently of a Task Flow Page not aware of the task flow’s page-flow-scoped attribute:

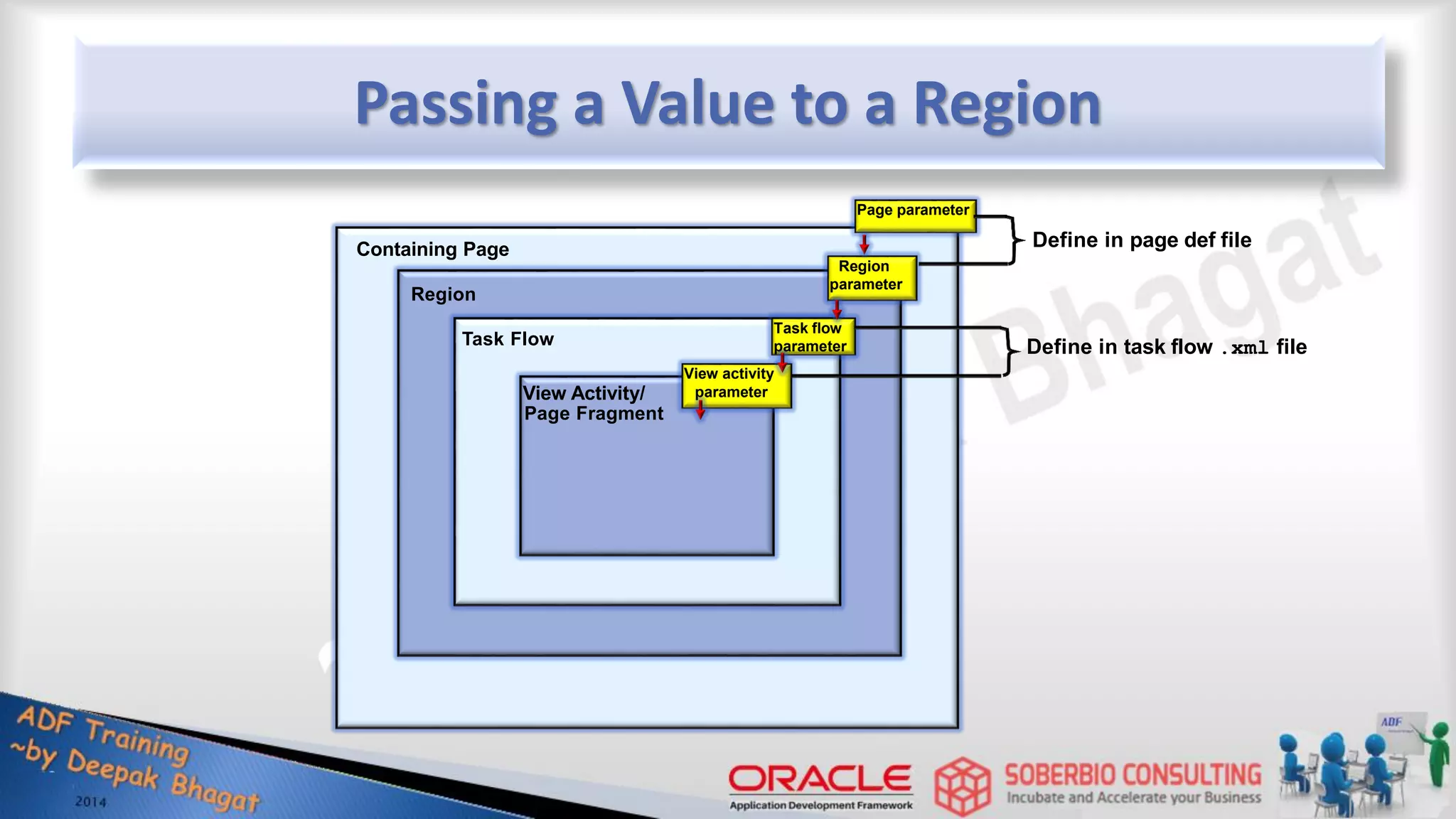

Passing a Value to a Region Page Fragment View activity parameter Task flow parameter Region parameter Page parameter Containing Page Region Task Flow View Activity/ Define in page def file Define in task flow .xml file

Deciding the Usage of Parameter Parameters are designed to: Improve reusability Encapsulate functionality You can use more than one type of parameter to achieve these goals

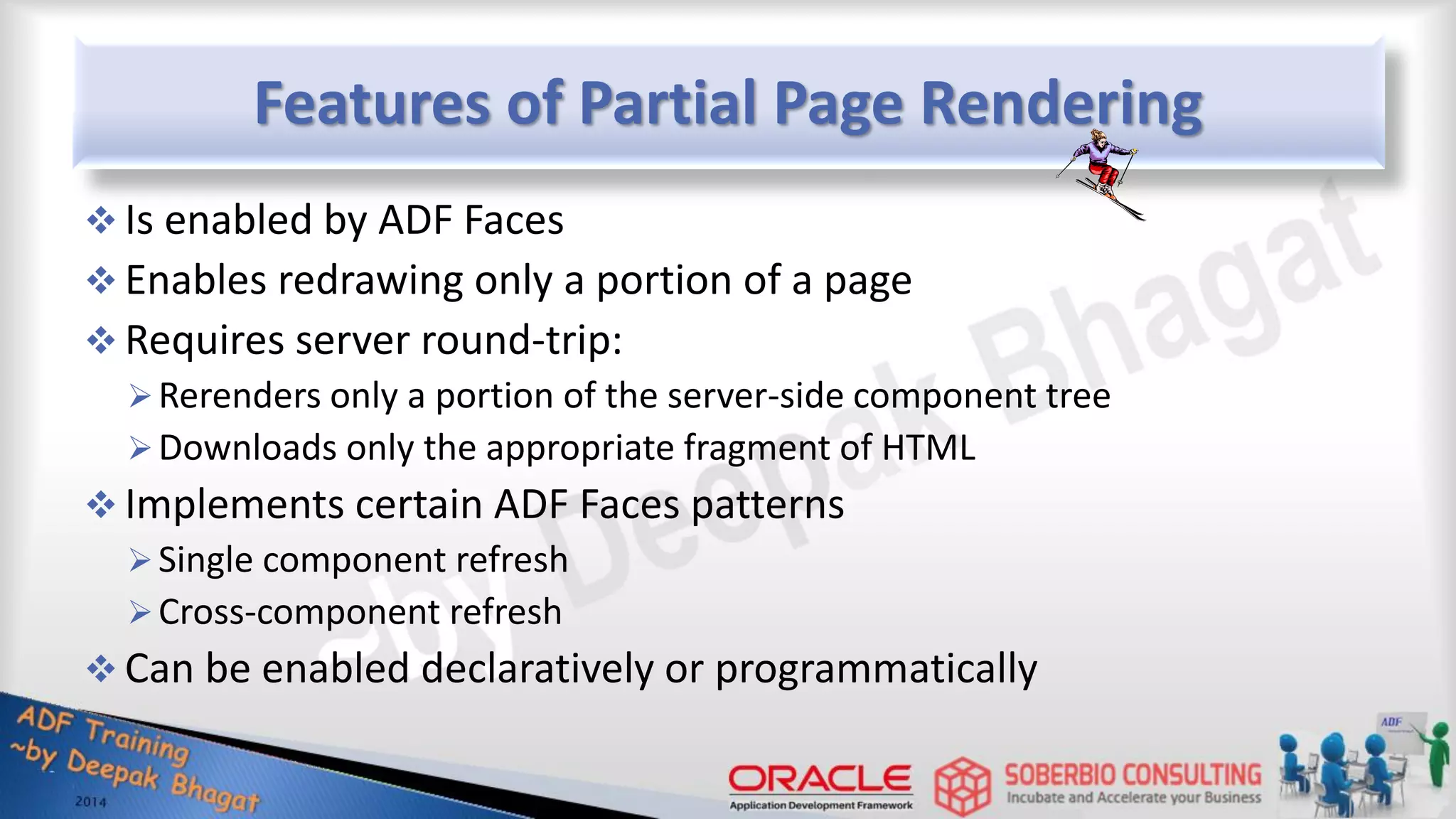

Features of Partial Page Rendering  Is enabled by ADF Faces  Enables redrawing only a portion of a page  Requires server round-trip: Rerenders only a portion of the server-side component tree Downloads only the appropriate fragment of HTML  Implements certain ADF Faces patterns Single component refresh Cross-component refresh  Can be enabled declaratively or programmatically

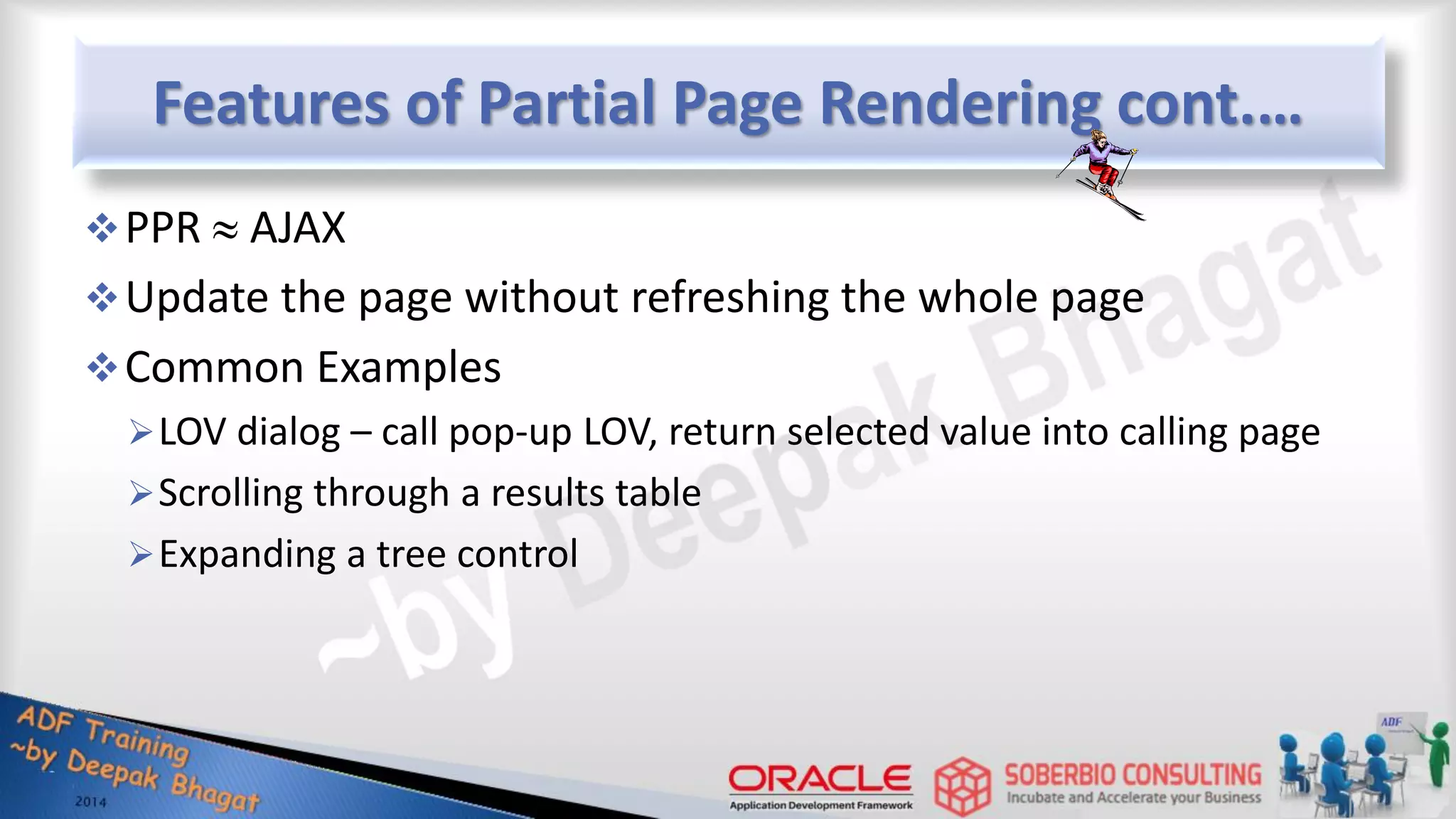

Features of Partial Page Rendering cont.… PPR  AJAX Update the page without refreshing the whole page Common Examples LOV dialog – call pop-up LOV, return selected value into calling page Scrolling through a results table Expanding a tree control

Partial Page Rendering Attributes Explicit PPR attributes: partialSubmit – Used by commandItems autoSubmit – Used by input items / lists etc. partialTriggers – All components

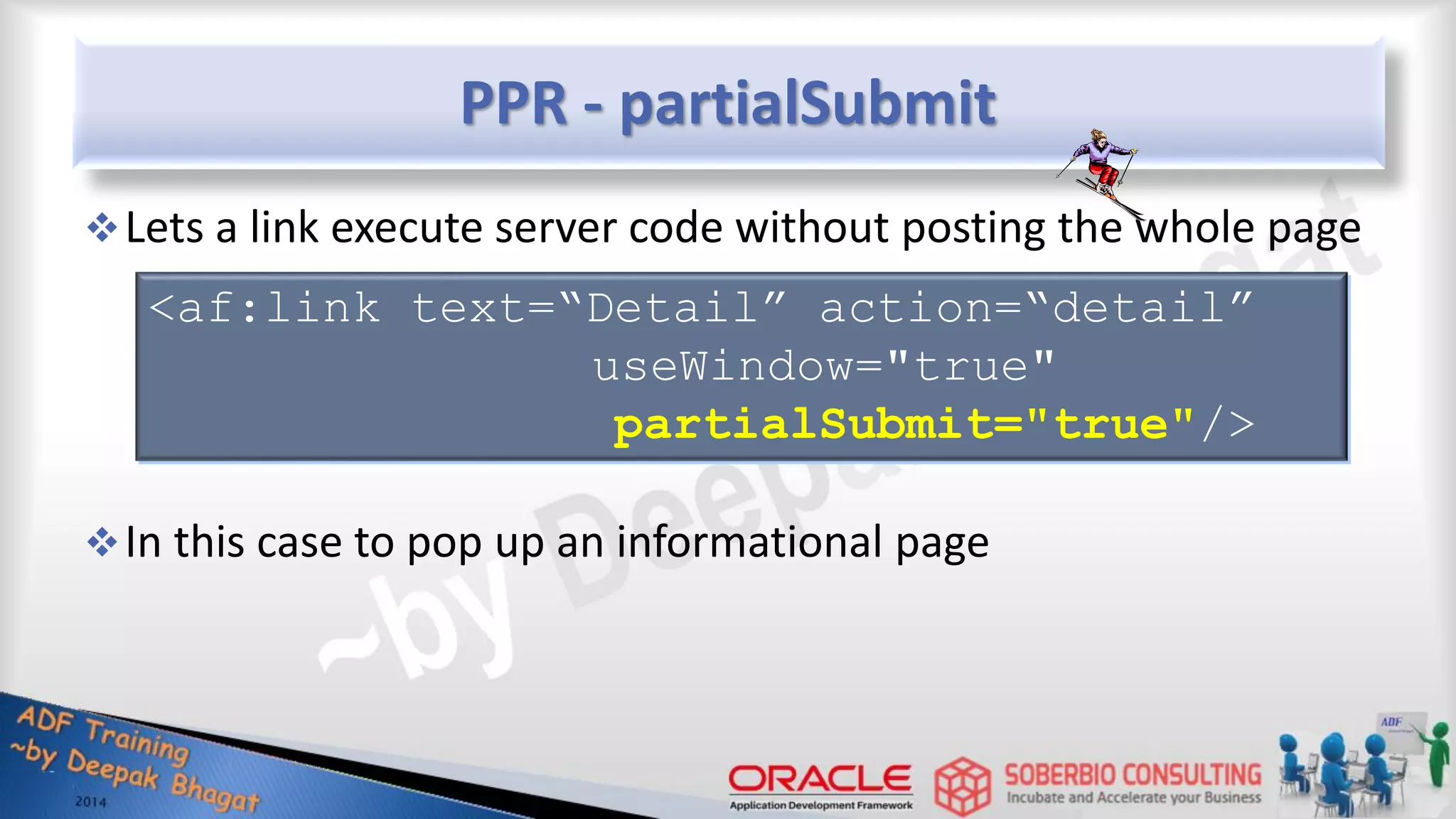

PPR - partialSubmit Lets a link execute server code without posting the whole page In this case to pop up an informational page <af:link text=“Detail” action=“detail” useWindow="true" partialSubmit="true"/>

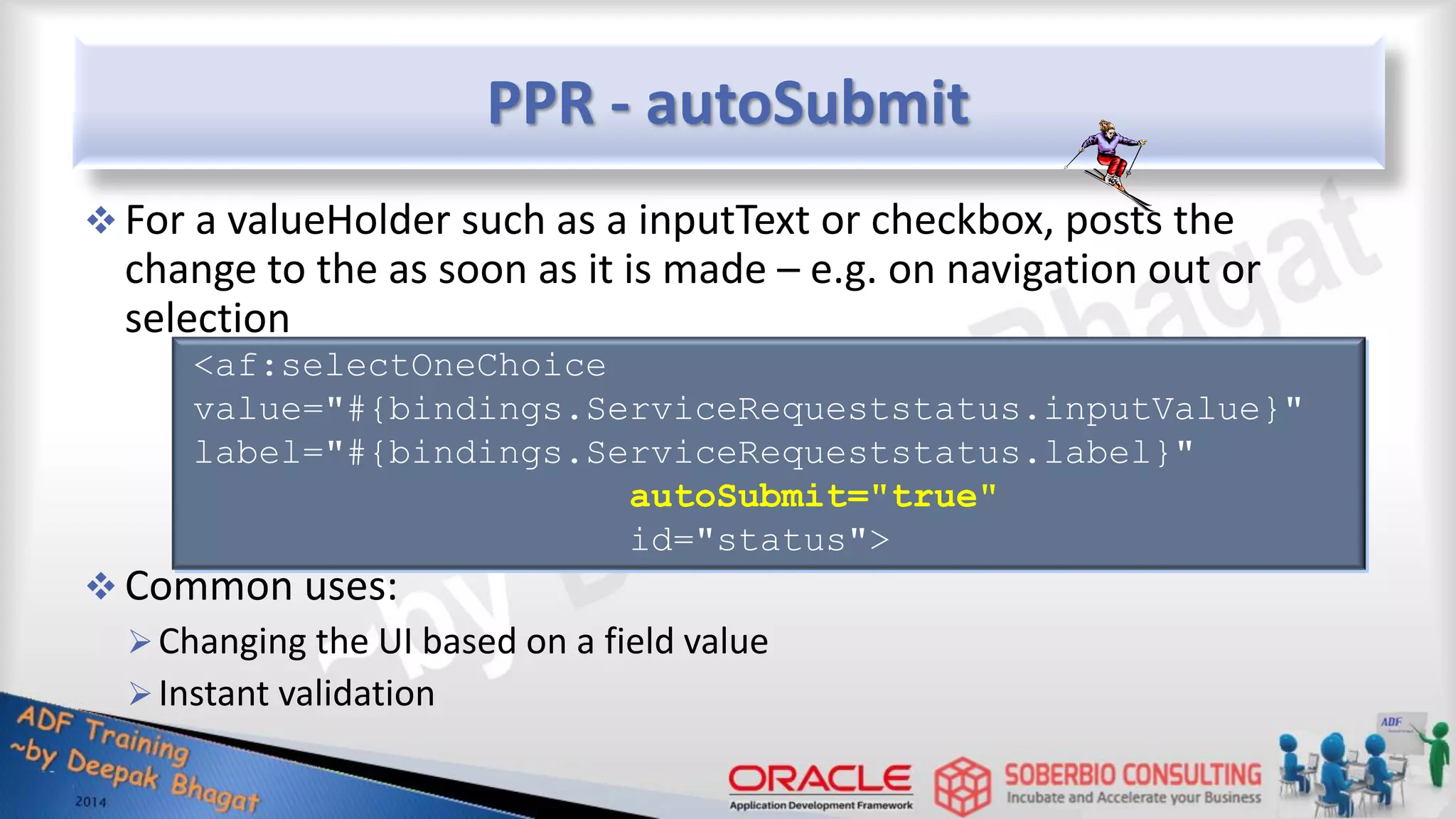

PPR - autoSubmit  For a valueHolder such as a inputText or checkbox, posts the change to the as soon as it is made – e.g. on navigation out or selection  Common uses: Changing the UI based on a field value Instant validation <af:selectOneChoice value="#{bindings.ServiceRequeststatus.inputValue}" label="#{bindings.ServiceRequeststatus.label}" autoSubmit="true" id="status">

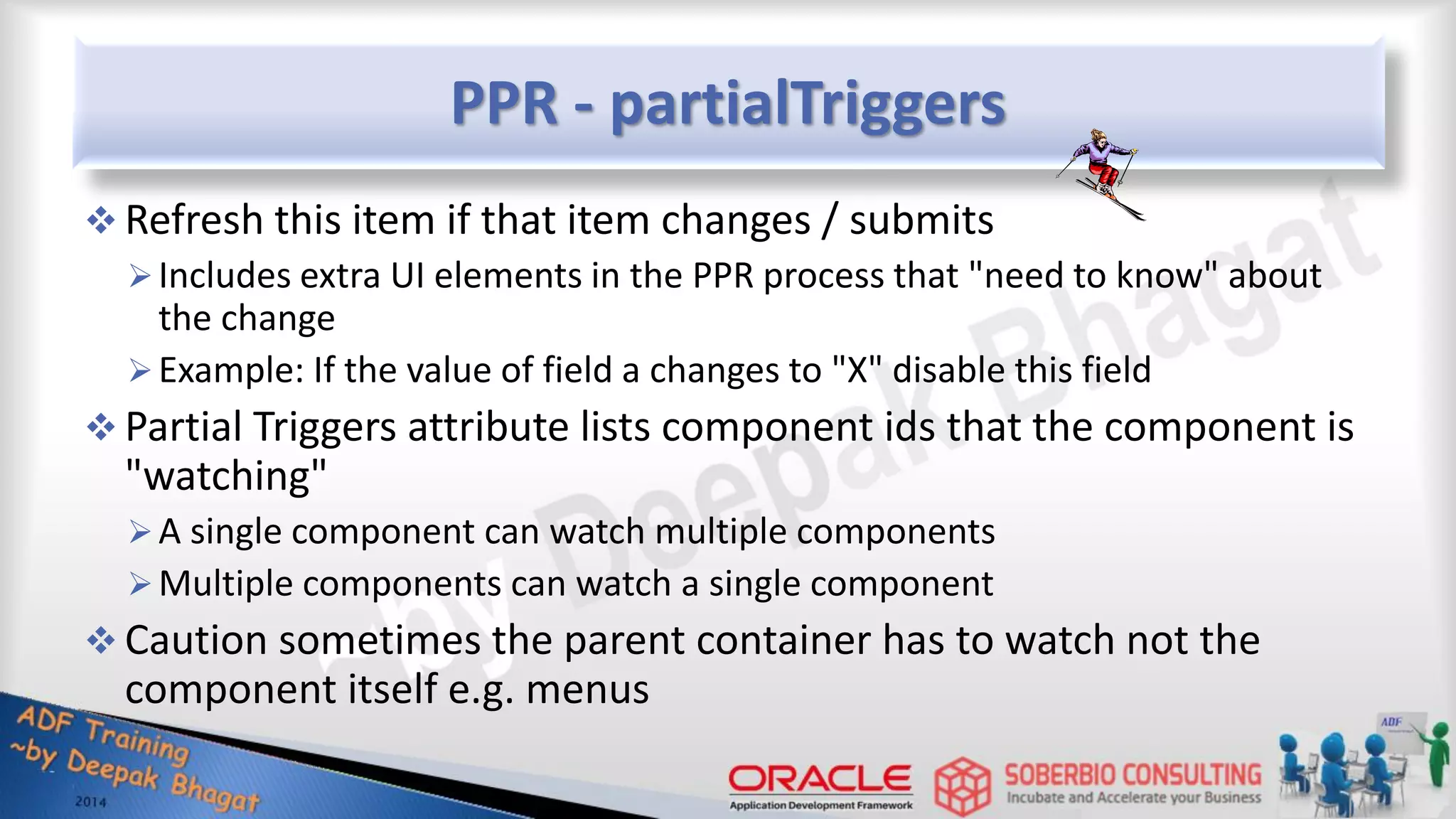

PPR - partialTriggers  Refresh this item if that item changes / submits Includes extra UI elements in the PPR process that "need to know" about the change Example: If the value of field a changes to "X" disable this field  Partial Triggers attribute lists component ids that the component is "watching" A single component can watch multiple components Multiple components can watch a single component  Caution sometimes the parent container has to watch not the component itself e.g. menus

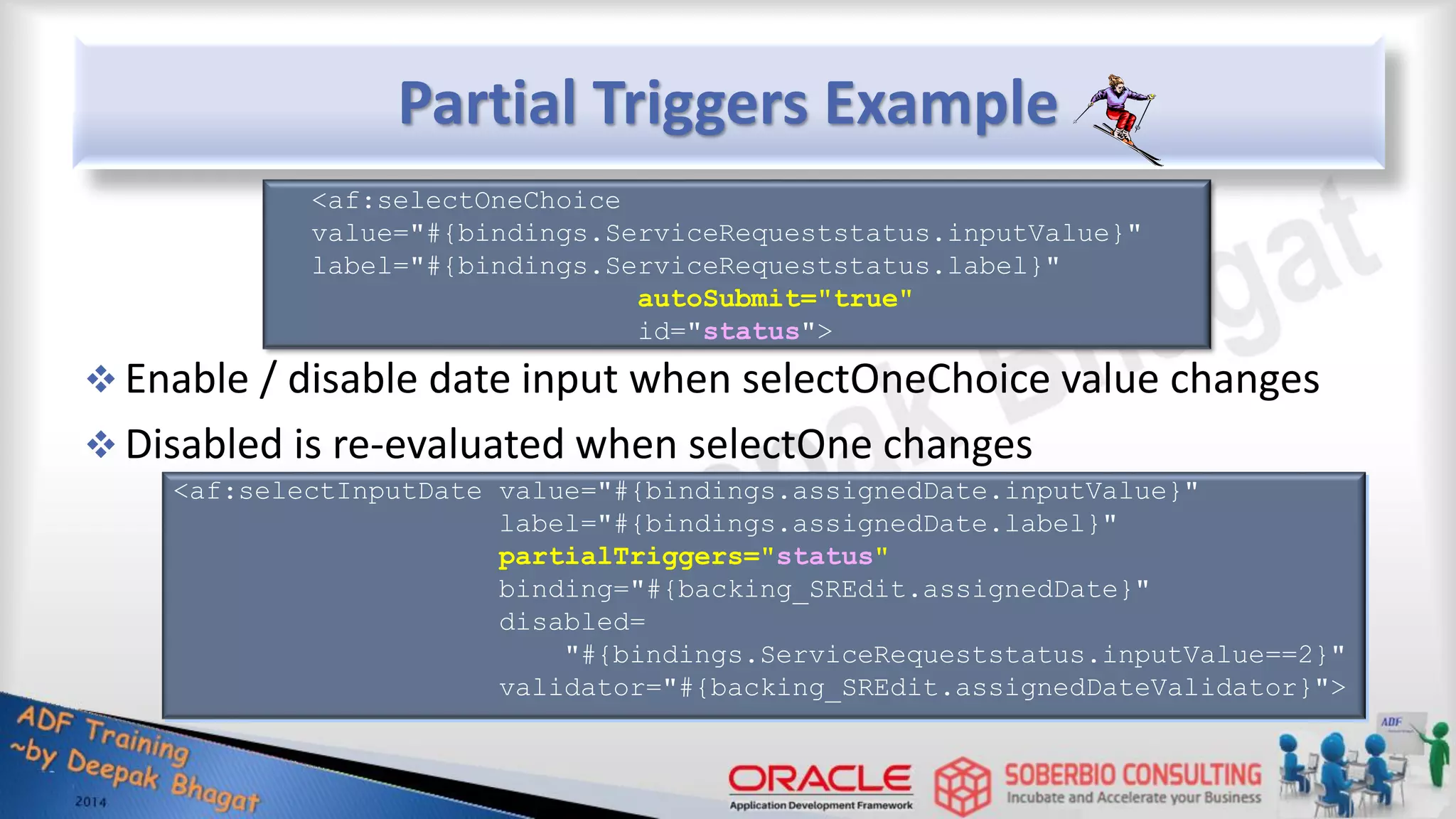

Partial Triggers Example  Enable / disable date input when selectOneChoice value changes  Disabled is re-evaluated when selectOne changes <af:selectOneChoice value="#{bindings.ServiceRequeststatus.inputValue}" label="#{bindings.ServiceRequeststatus.label}" autoSubmit="true" id="status"> <af:selectInputDate value="#{bindings.assignedDate.inputValue}" label="#{bindings.assignedDate.label}" partialTriggers="status" binding="#{backing_SREdit.assignedDate}" disabled= "#{bindings.ServiceRequeststatus.inputValue==2}" validator="#{backing_SREdit.assignedDateValidator}">

Conditional Rendering You can use EL for any of a component’s attributes Example of setting attributes with EL: <af:selectOneChoice value="#{bindings.CardTypeCode.inputValue}" label="#{bindings.CardTypeCode.label}" partialTriggers="PaymentType" rendered="#{bindings.PaymentTypeCode.inputValue == 'CC'}"> <f:selectItems value="#{bindings.CardTypeCode.items}"/> </af:selectOneChoice>

Conditional Rendering cont.…  JSF components have a Rendered property that can be set with EL  Reference a method in a managed bean with EL to conditionally render a component #{sessionScope.sessionScopeVar=='3'}

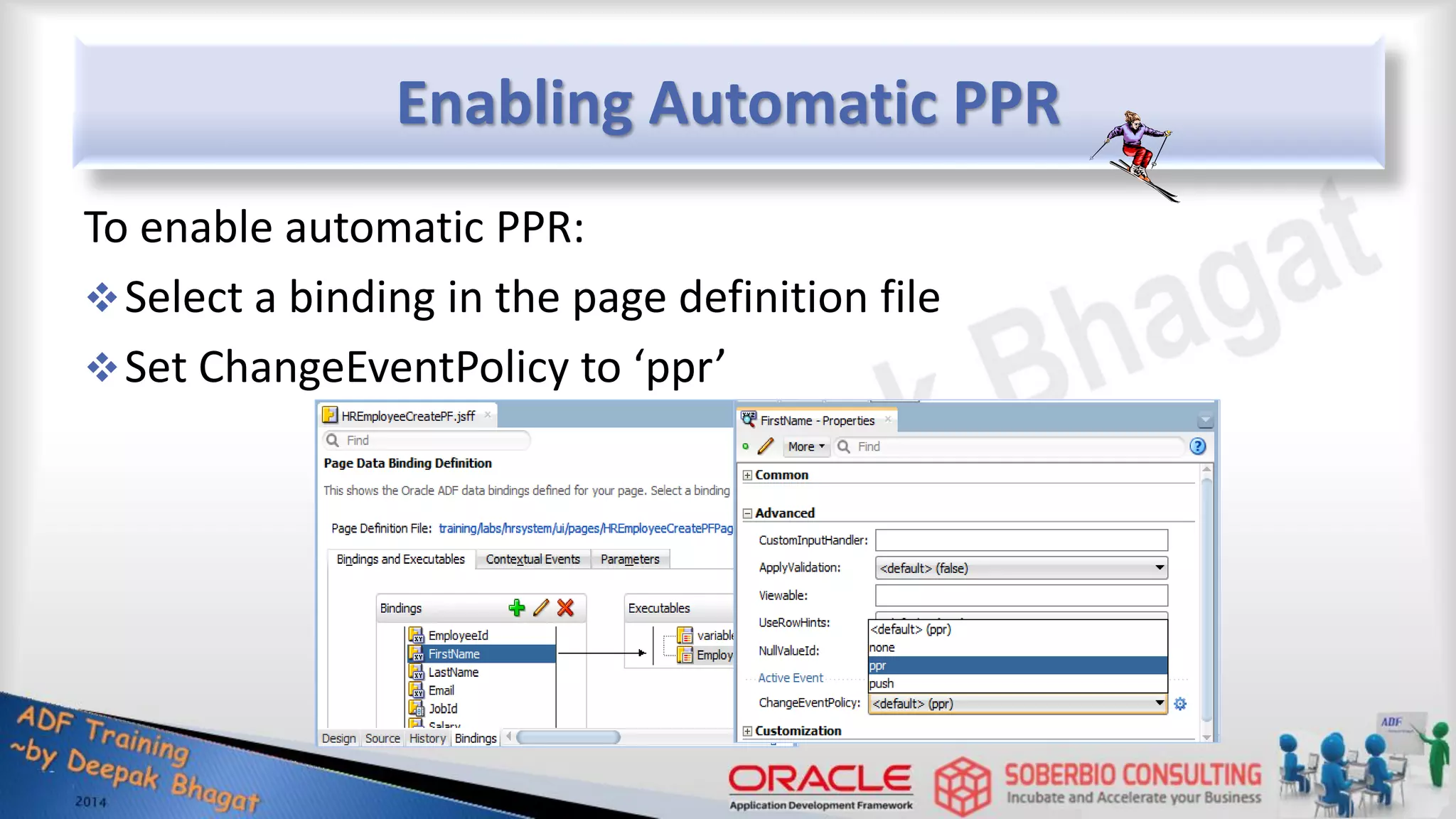

Enabling Automatic PPR To enable automatic PPR: Select a binding in the page definition file Set ChangeEventPolicy to ‘ppr’

Lesson Summary Use memory-scoped attributes to store values Pass values using parameters Render components using PPR

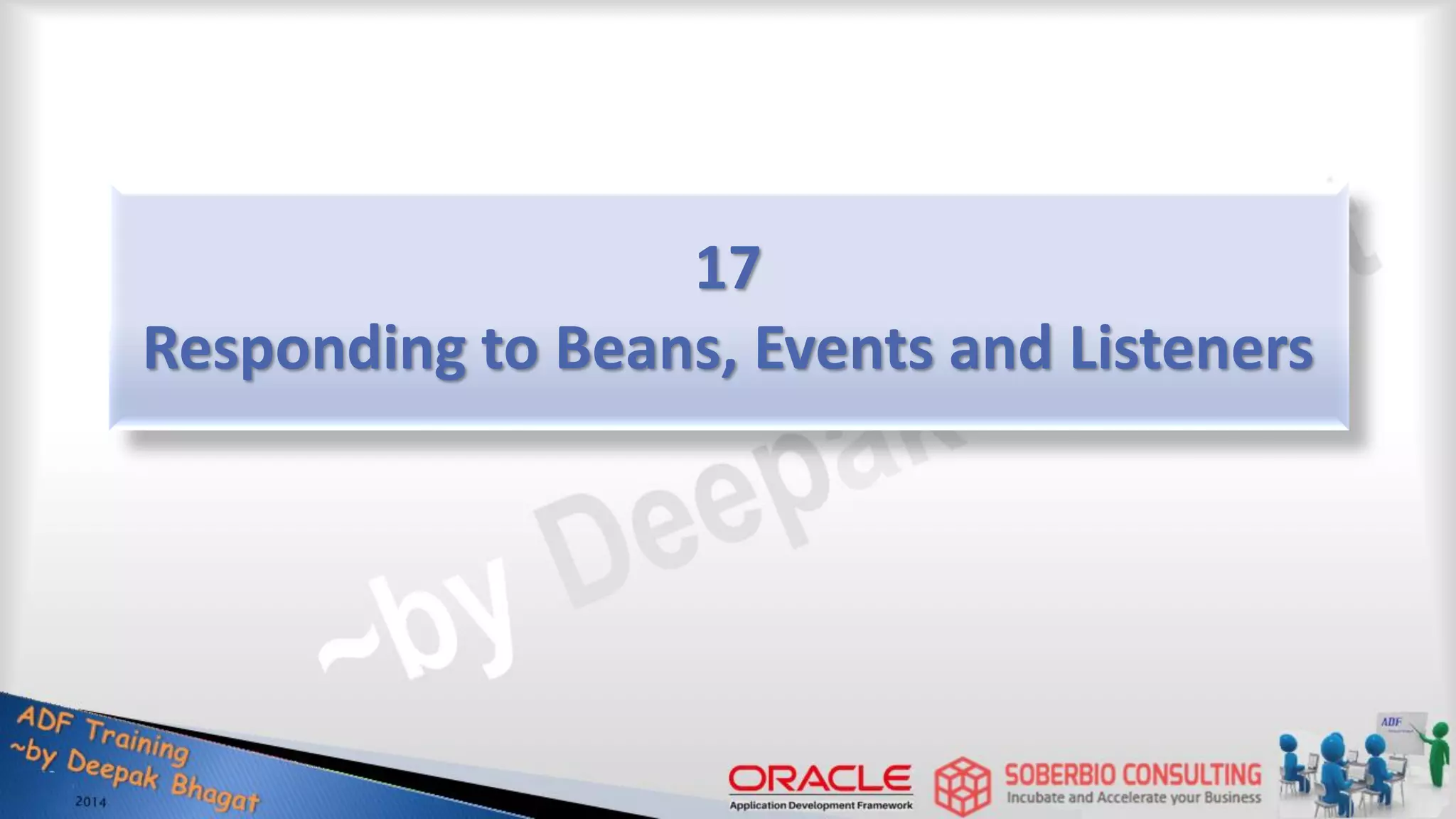

17 Responding to Beans, Events and Listeners

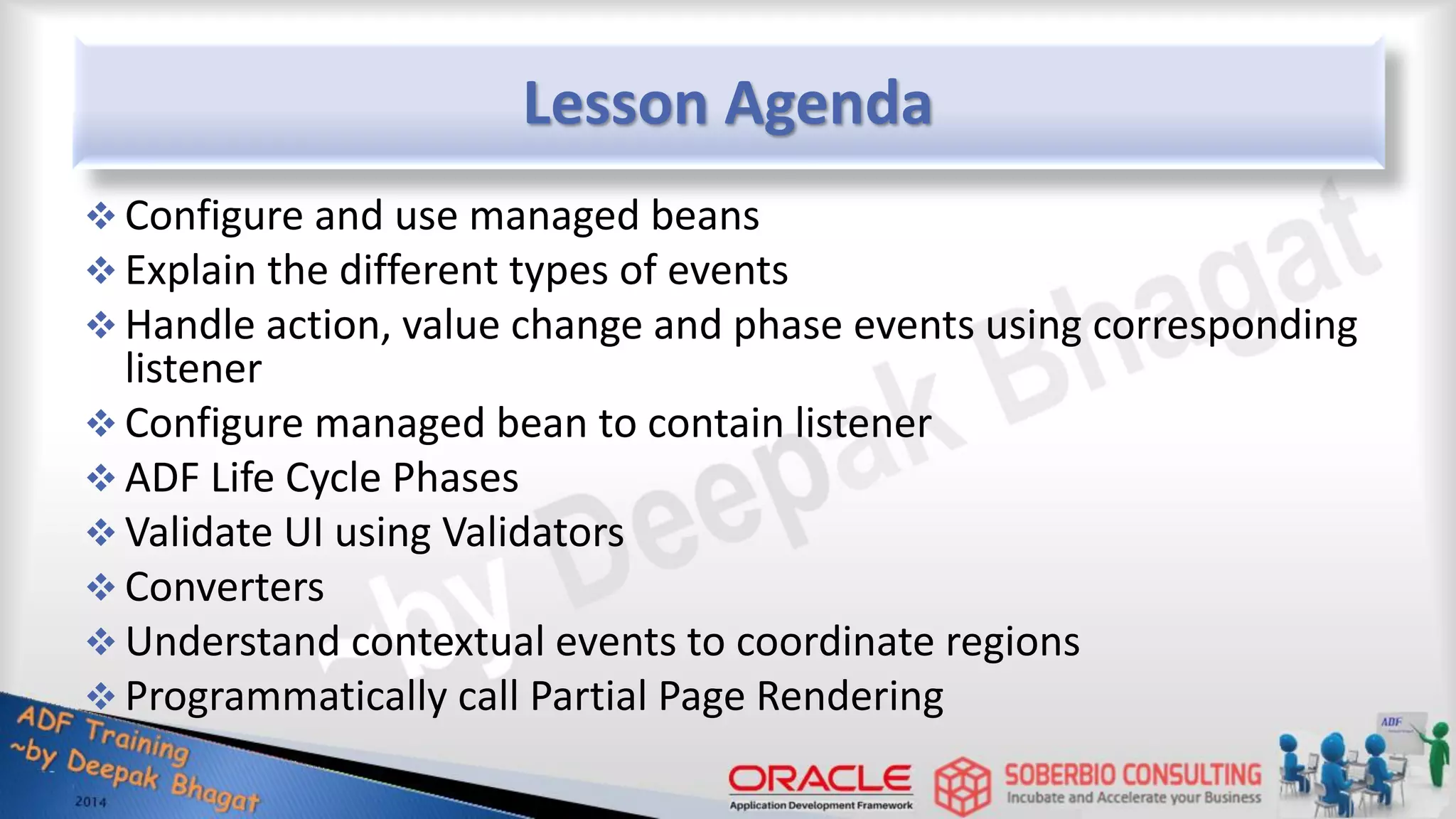

Lesson Agenda  Configure and use managed beans  Explain the different types of events  Handle action, value change and phase events using corresponding listener  Configure managed bean to contain listener  ADF Life Cycle Phases  Validate UI using Validators  Converters  Understand contextual events to coordinate regions  Programmatically call Partial Page Rendering

Functionalities of ADF Faces  Internationalization (Lesson 11)  Skinning (Lesson 11)  Active Geometry Management (Lesson 12)  Advance Page Flow and Task Flow (Lesson 13)  Navigation (Lesson 14)  Accessibility (Lesson 14)  Reusability using Templating and Declarative Component (L 15)  Memory Scopes (Lesson 16)  Parameter Passing (Lesson 16)  Partial Page Rendering (Ajax support) (Lesson 16)  Managed and Backing Beans (L 17)  Event and Listener Handling (L 17)  Enhanced Lifecycle (Lesson 17)  Drag and Drop Data Binding (L 18)  Advance Databound Search Capability (Lesson 19)  Transaction Management (L 20)  ADF Model support (Lesson 21)

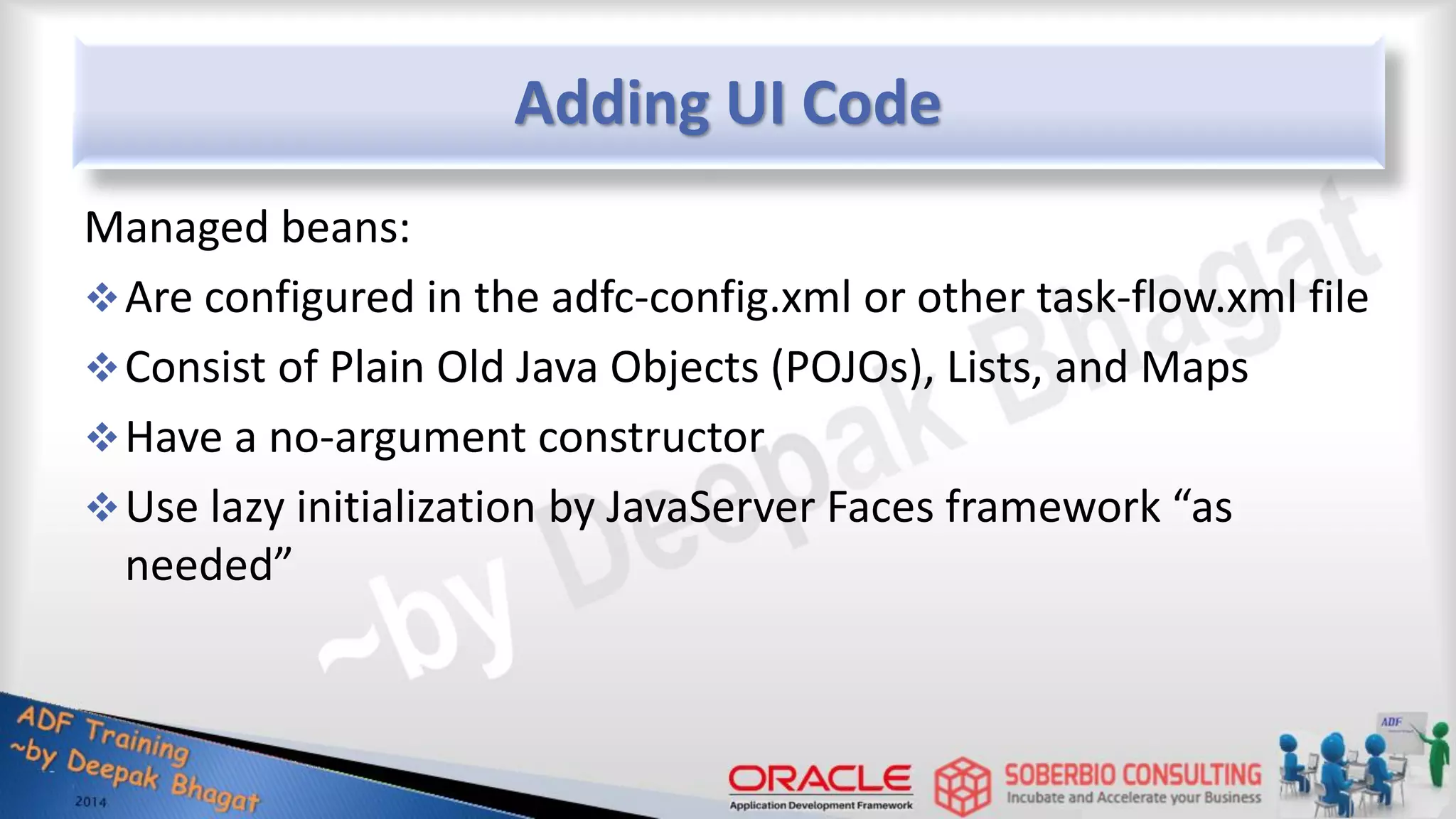

Adding UI Code Managed beans: Are configured in the adfc-config.xml or other task-flow.xml file Consist of Plain Old Java Objects (POJOs), Lists, and Maps Have a no-argument constructor Use lazy initialization by JavaServer Faces framework “as needed”

Registering Existing Java Classes as Managed Beans Use the Overview tab of the task flow.

Configuring Managed Beans Entry in HREmployeeListTF.xml: <managed-bean id="__1"> <managed-bean-name>employeeListBean</managed-bean-name> <managed-bean-class>…beans.HREmployeeListBean</managed-bean-class> <managed-bean-scope>backingBean</managed-bean-scope> </managed-bean>  Skeleton for new managed bean:

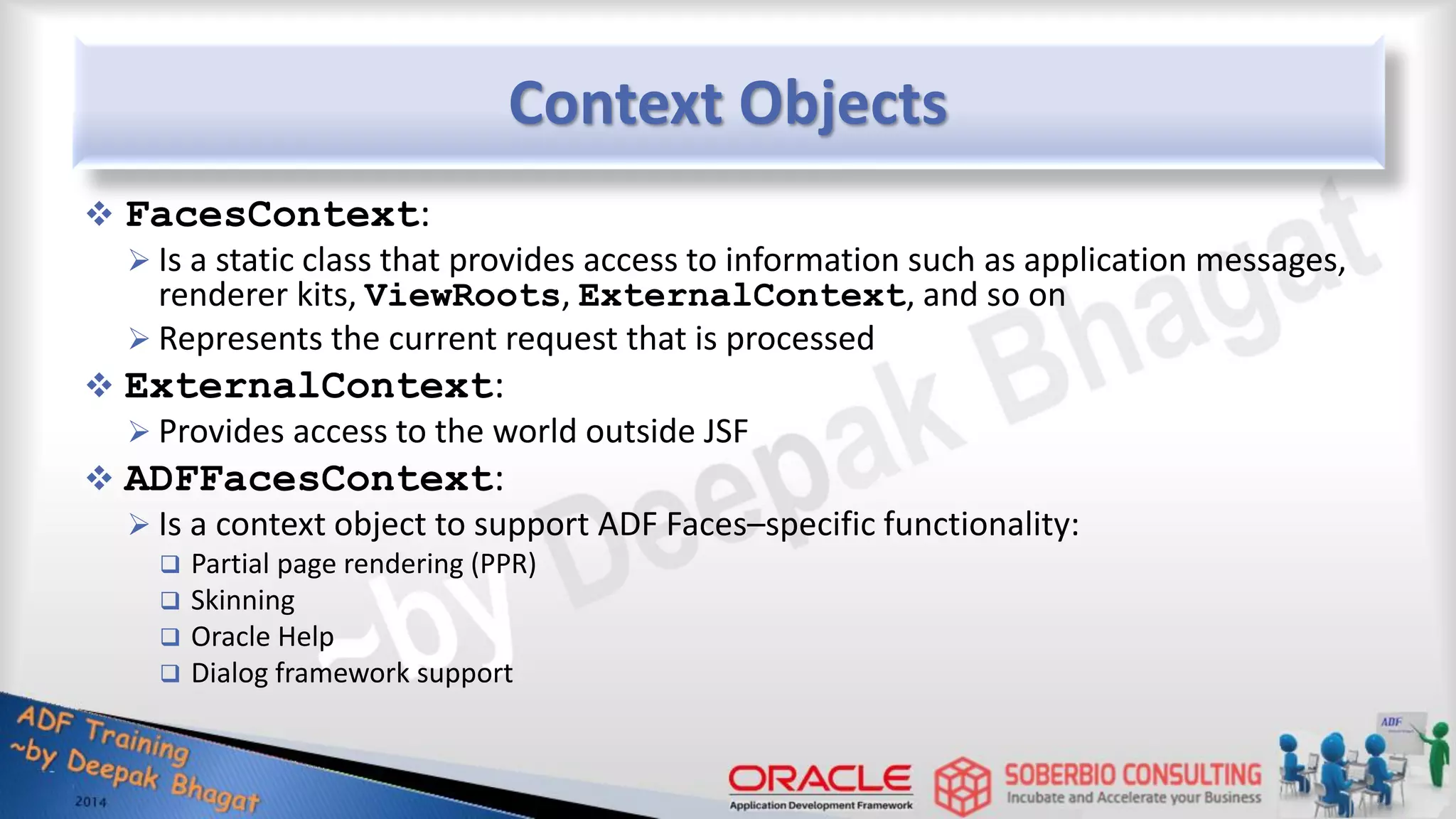

Context Objects  FacesContext:  Is a static class that provides access to information such as application messages, renderer kits, ViewRoots, ExternalContext, and so on  Represents the current request that is processed  ExternalContext:  Provides access to the world outside JSF  ADFFacesContext:  Is a context object to support ADF Faces–specific functionality:  Partial page rendering (PPR)  Skinning  Oracle Help  Dialog framework support

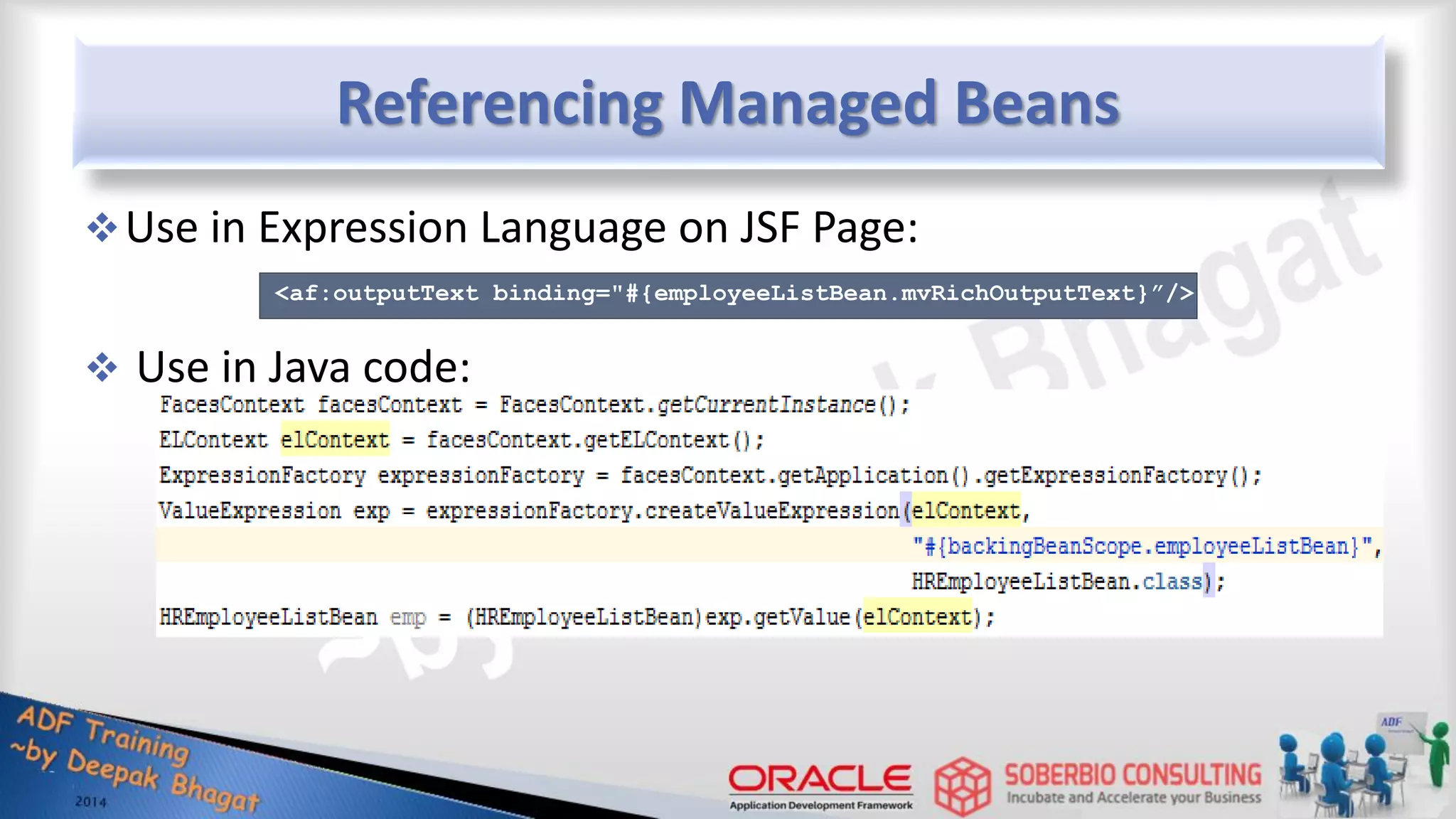

Referencing Managed Beans Use in Expression Language on JSF Page:  Use in Java code: <af:outputText binding="#{employeeListBean.mvRichOutputText}”/>

Holding Values in Managed Beans Managed beans are optional and can be used to: Hold values Store state How? Managed properties Memory-scoped attributes

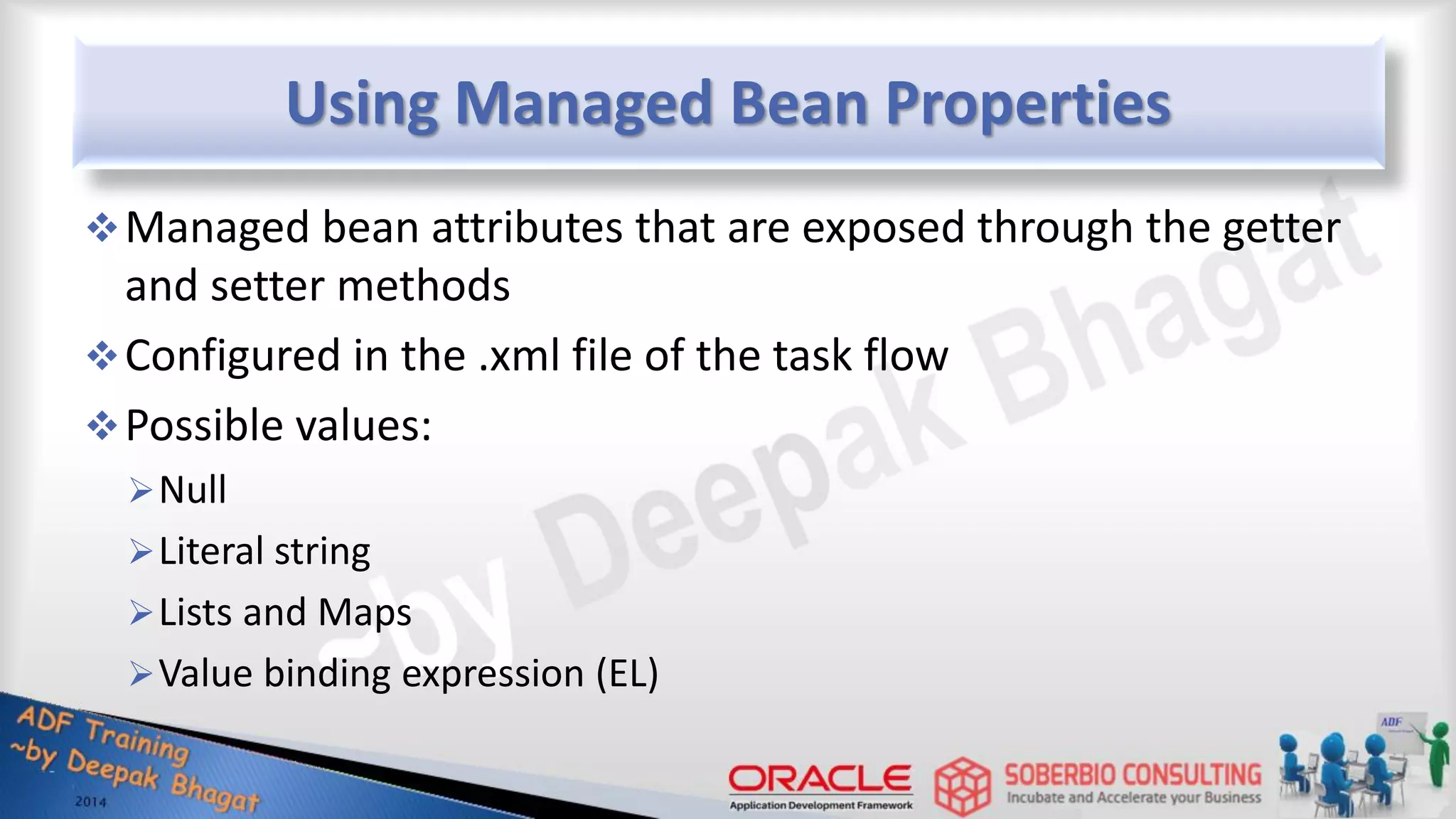

Using Managed Bean Properties Managed bean attributes that are exposed through the getter and setter methods Configured in the .xml file of the task flow Possible values: Null Literal string Lists and Maps Value binding expression (EL)

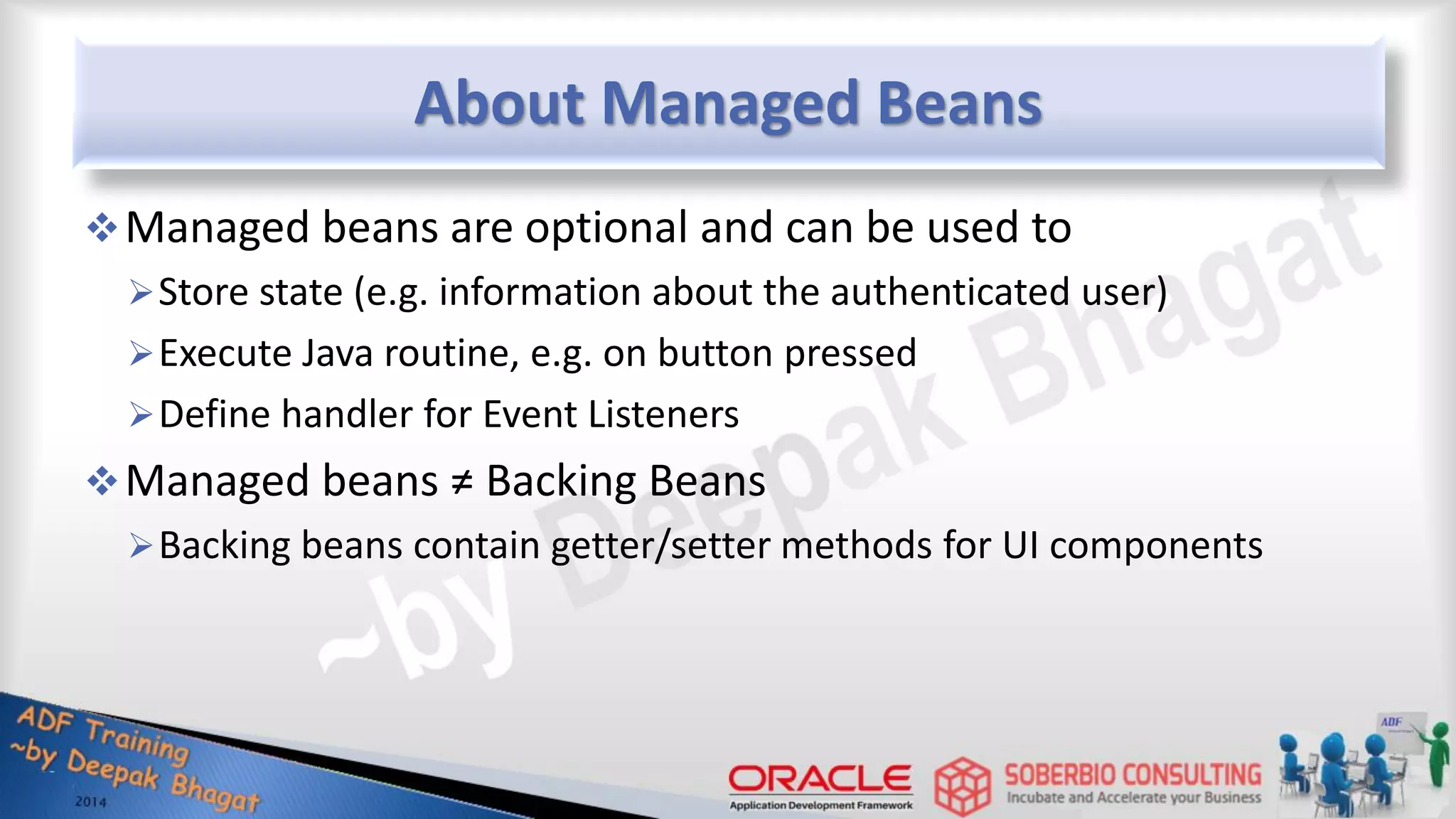

About Managed Beans Managed beans are optional and can be used to Store state (e.g. information about the authenticated user) Execute Java routine, e.g. on button pressed Define handler for Event Listeners Managed beans ≠ Backing Beans Backing beans contain getter/setter methods for UI components

Relationships Between Managed Beans Managed beans can access other beans Beans in scope … Can access beans in scope … None Application Session Request None YES NO NO NO Application YES YES NO NO Session YES YES YES NO Request YES YES YES YES

Map Example HashMap as managed bean <managed-bean> <managed-bean-name>MyBookmarksMap</managed-bean-name> <managed-bean-class>java.util.HashMap</managed-bean-class> <managed-bean-scope>application</managed-bean-scope> <map-entries> <map-entry> <key>Oracle Fusion Middleware</key> <value>http://oracle.com/middleware</value> </map-entry> <map-entry> <key>Oracle ADF</key> <value>http://oracle.com/adf</value> </map-entry> </map-entries> </managed-bean>

Nested Properties  Nested values like “foo.bar” are not supported in managed properties  Work around: Use the combination of two managed beans <managed-bean> <managed-bean-name>myBean</managed-bean-name> <managed-bean-class>package.MyBean</managed-bean-class> <managed- bean-scope>session</mananged-bean-scope> <managed-property> <property-name>foo</property-name> <value>#{fooBean}</value> </managed-property> </managed-bean> <managed-bean> <managed-bean-name>fooBean</managed-bean> <managed-bean-class>package.FooBean</managed-bean-class> <managed-bean-scope>session</managed-bean-scope> <managed-property> <property-name>bar</property-name> <value>Hello World</value> </managed-property> </managed-bean>

About Backing Beans  Backing Beans are Managed Beans, but Managed Beans are not necessarily Backing Beans  JavaBeans that are associated with (bound to) UI components in a page  Can be used to programmatically modify properties on UI components  Can have methods defined that associate functionality with components, e.g. Validation Event handling Navigation

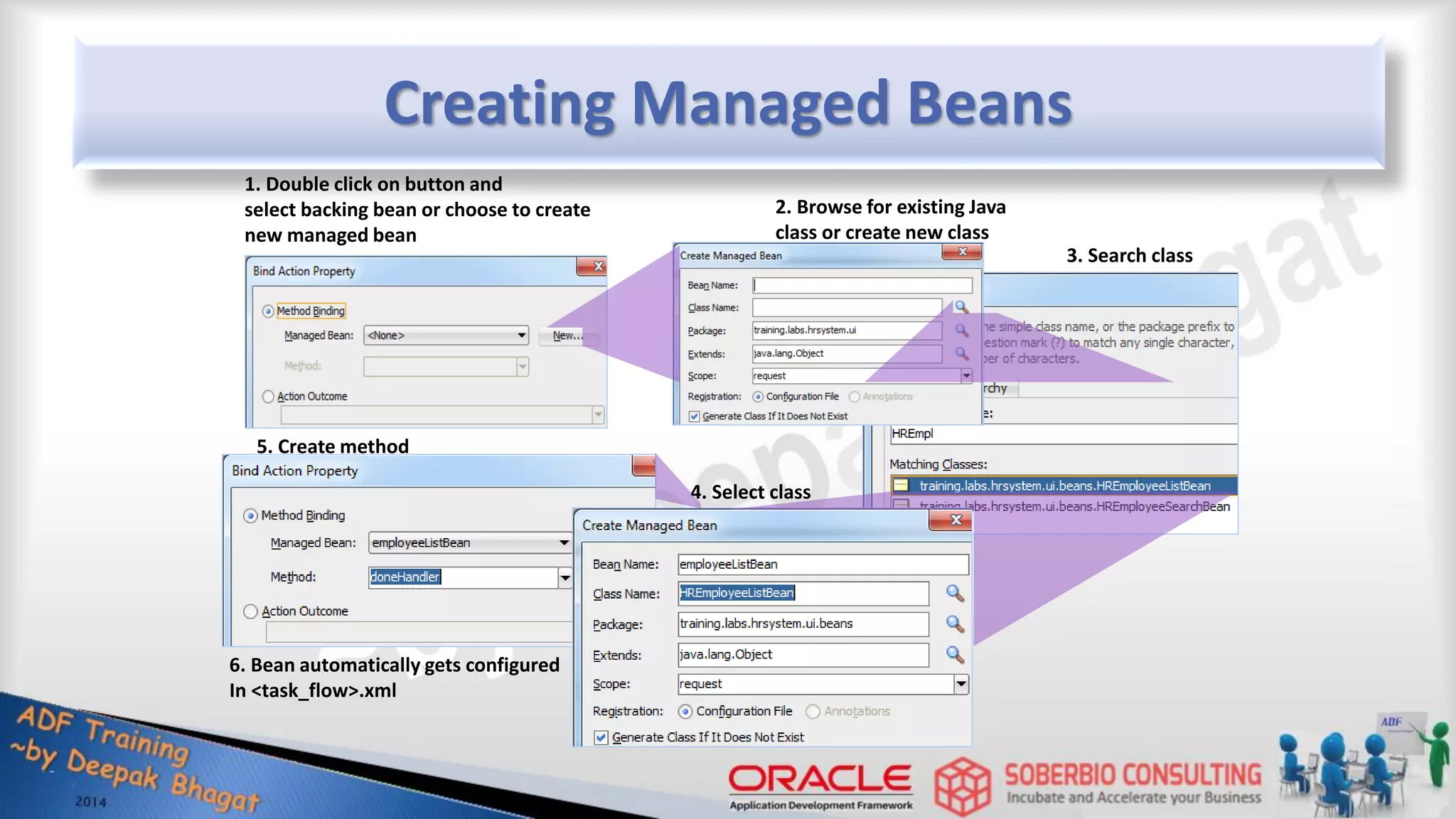

Creating Managed Beans 1. Double click on button and select backing bean or choose to create new managed bean 2. Browse for existing Java class or create new class 3. Search class 4. Select class 5. Create method 6. Bean automatically gets configured In <task_flow>.xml

Automatic Backing Bean Creation in JDeveloper  JDeveloper “auto-binding” options  Don’t use auto-binding  Use auto-binding  Bind to existing Managed Bean  Auto-binding creates instance variable and accessor methods for each page UI component  Instance variable names are not meaningful  Refactor names through ID property in Property Inspector  Configures Managed Bean in faces-config.xml

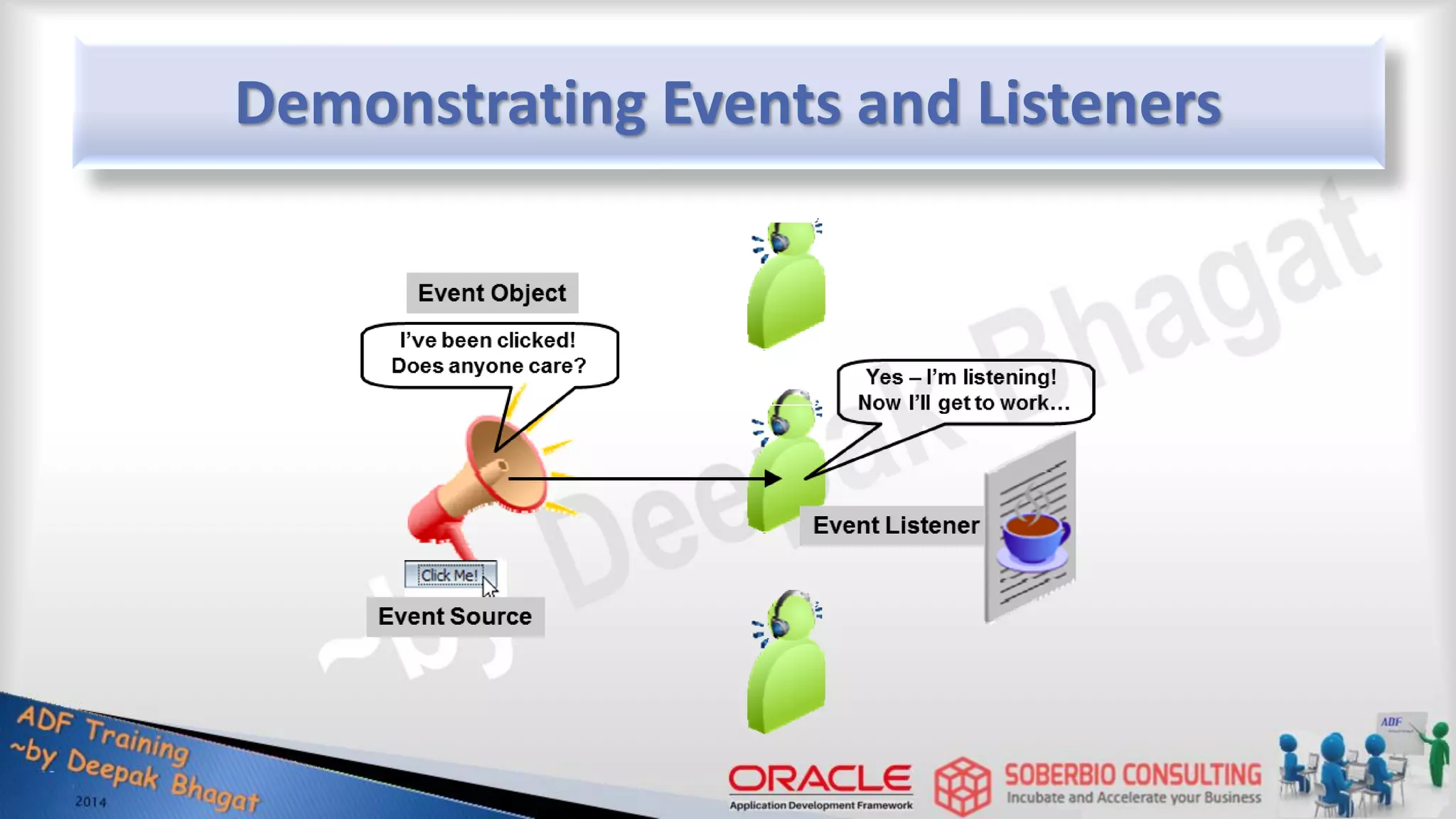

Demonstrating Events and Listeners

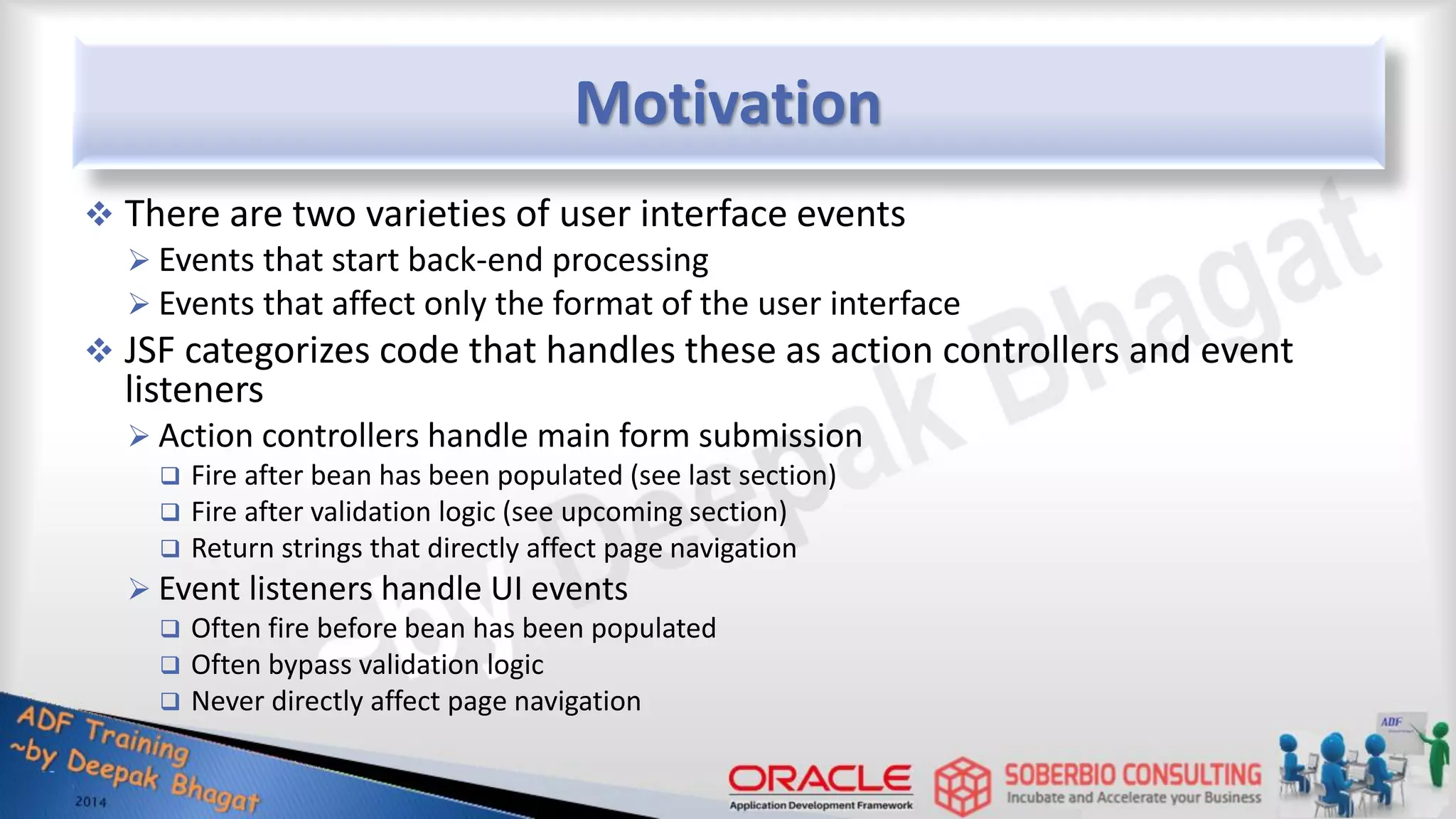

Motivation  There are two varieties of user interface events  Events that start back-end processing  Events that affect only the format of the user interface  JSF categorizes code that handles these as action controllers and event listeners  Action controllers handle main form submission  Fire after bean has been populated (see last section)  Fire after validation logic (see upcoming section)  Return strings that directly affect page navigation  Event listeners handle UI events  Often fire before bean has been populated  Often bypass validation logic  Never directly affect page navigation

JSF Event Model  The JSF event model is based on the event model defined by the JavaBeans specification where the event is represented by a specific class  An event source object fires an event by calling an event notification method on event listener objects registered to receive the event, passing a reference to the event object as a notification method argument  Developers can write their own event listener implementations, or reference a backing bean method using Expression Language  Events are queued on the server and executed at the end of the “Apply Request Value” Phase

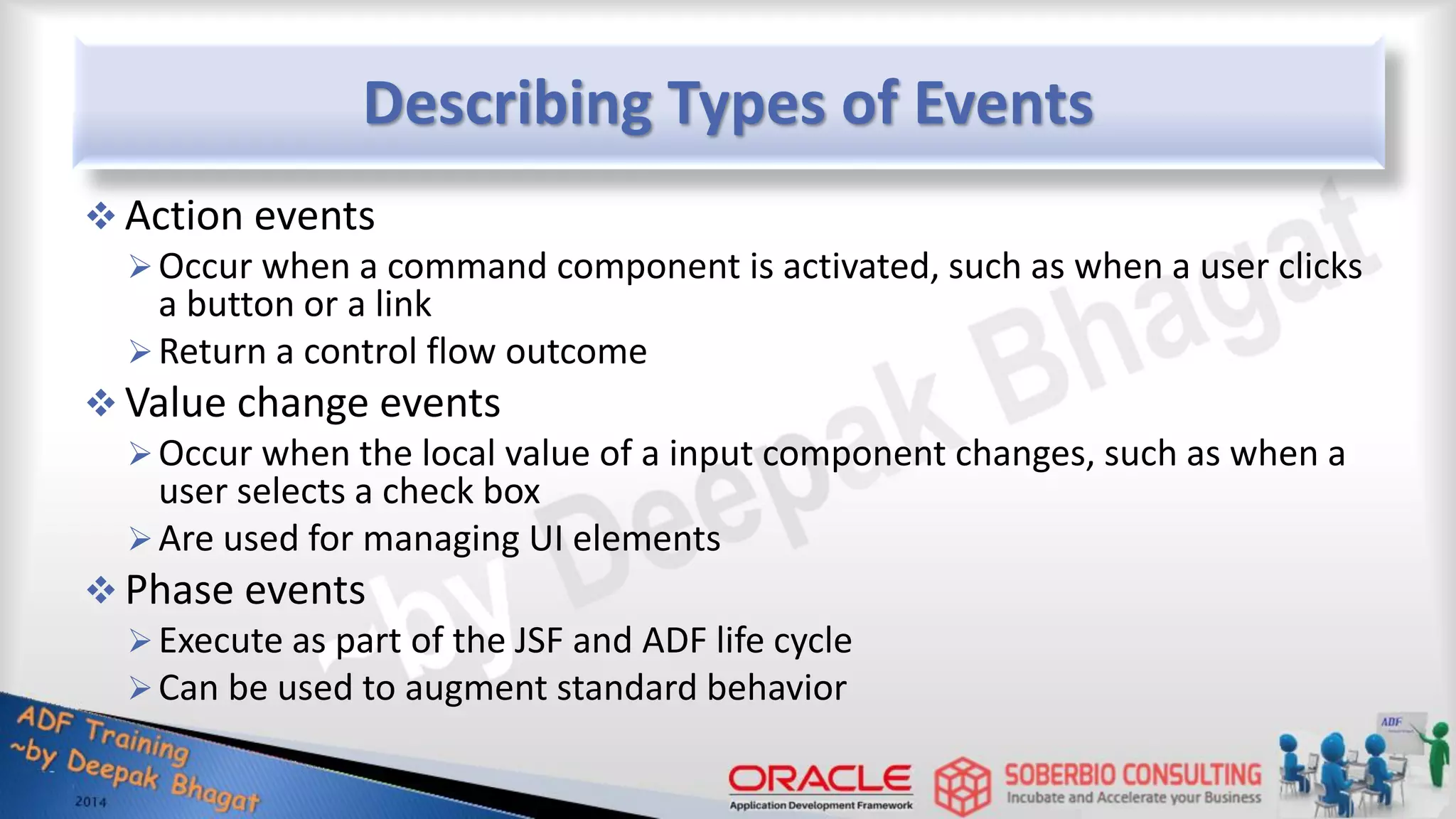

Describing Types of Events  Action events Occur when a command component is activated, such as when a user clicks a button or a link Return a control flow outcome  Value change events Occur when the local value of a input component changes, such as when a user selects a check box Are used for managing UI elements  Phase events Execute as part of the JSF and ADF life cycle Can be used to augment standard behavior

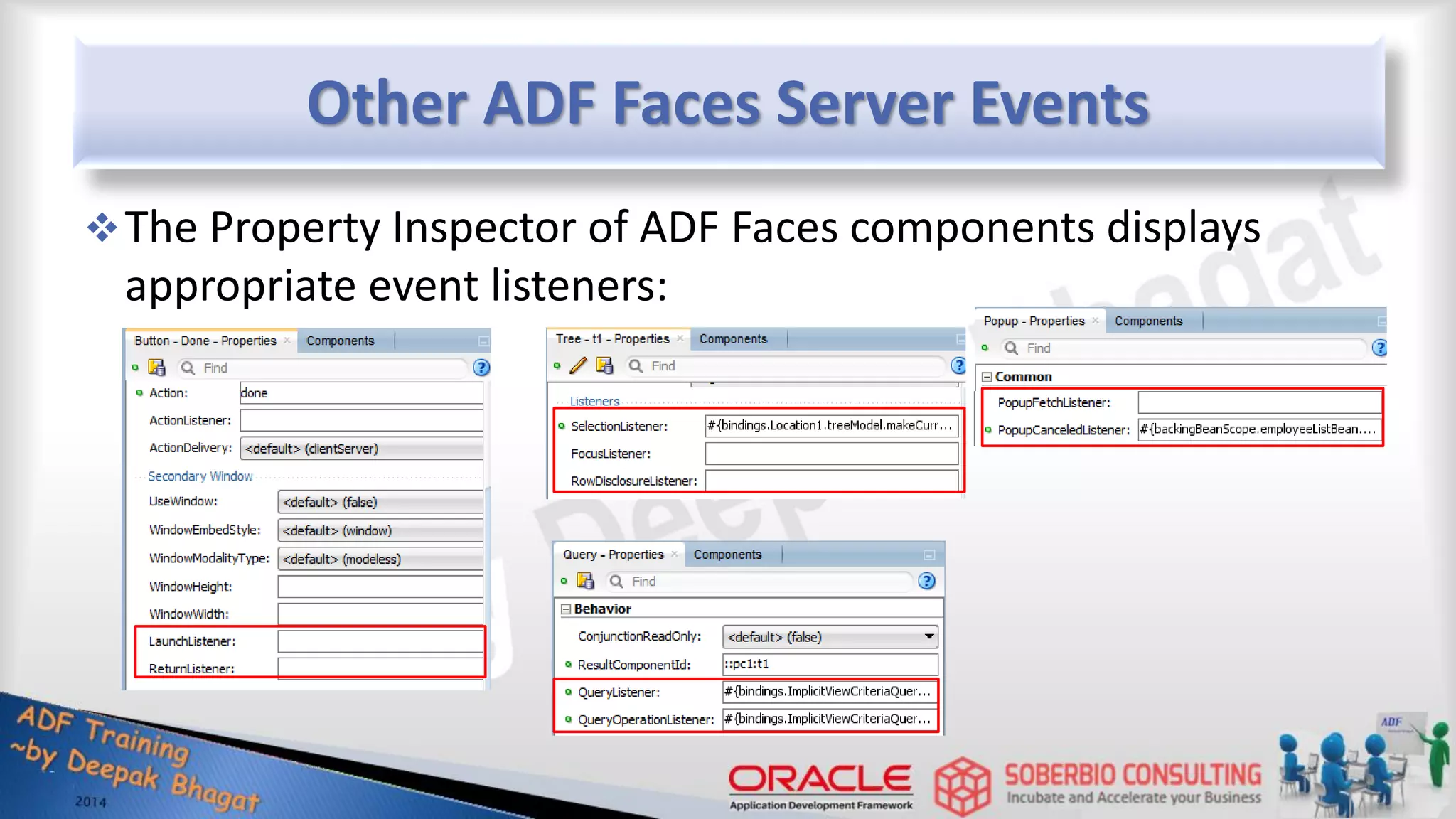

Other ADF Faces Server Events The Property Inspector of ADF Faces components displays appropriate event listeners:

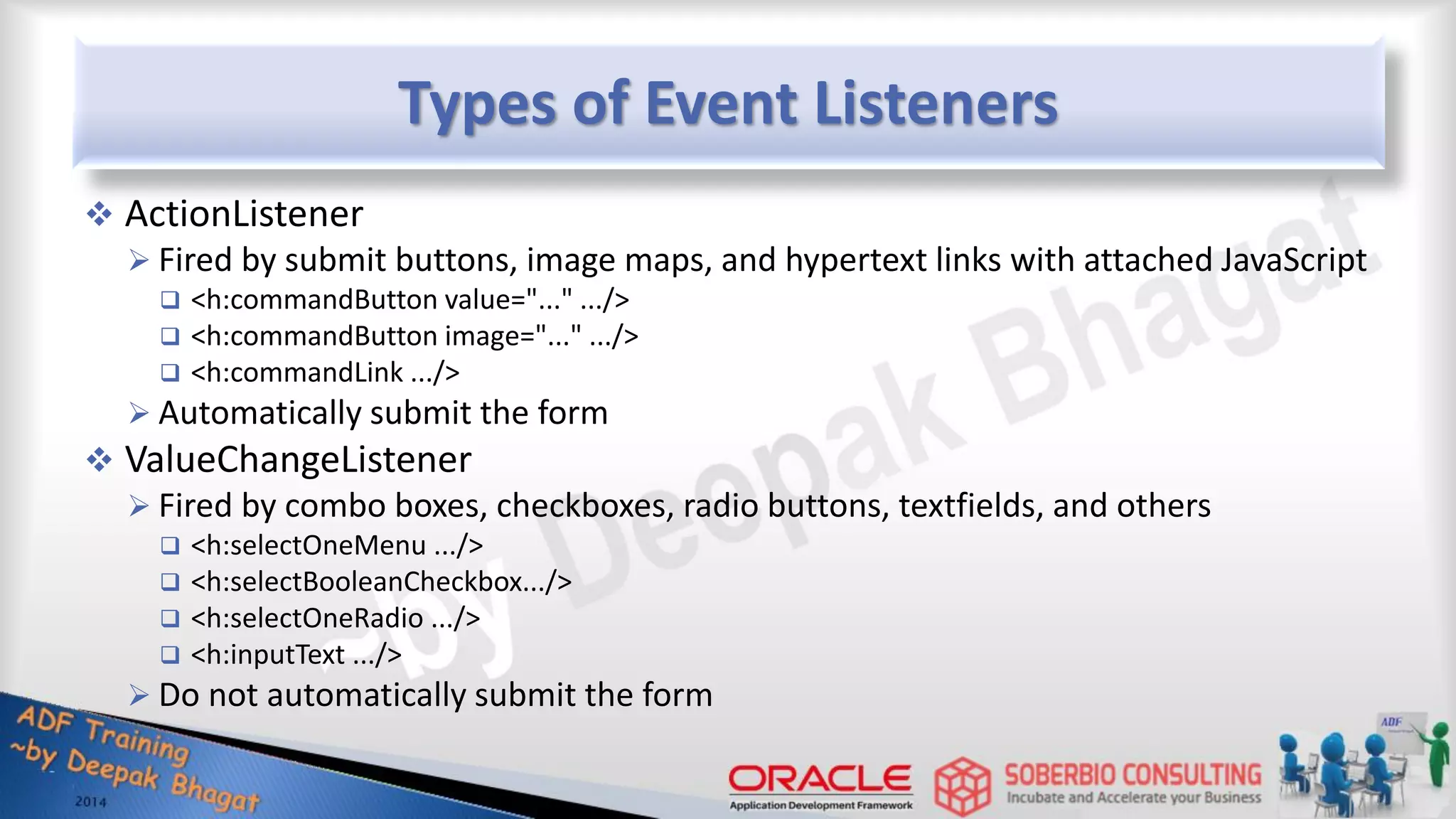

Types of Event Listeners  ActionListener  Fired by submit buttons, image maps, and hypertext links with attached JavaScript  <h:commandButton value="..." .../>  <h:commandButton image="..." .../>  <h:commandLink .../>  Automatically submit the form  ValueChangeListener  Fired by combo boxes, checkboxes, radio buttons, textfields, and others  <h:selectOneMenu .../>  <h:selectBooleanCheckbox.../>  <h:selectOneRadio .../>  <h:inputText .../>  Do not automatically submit the form

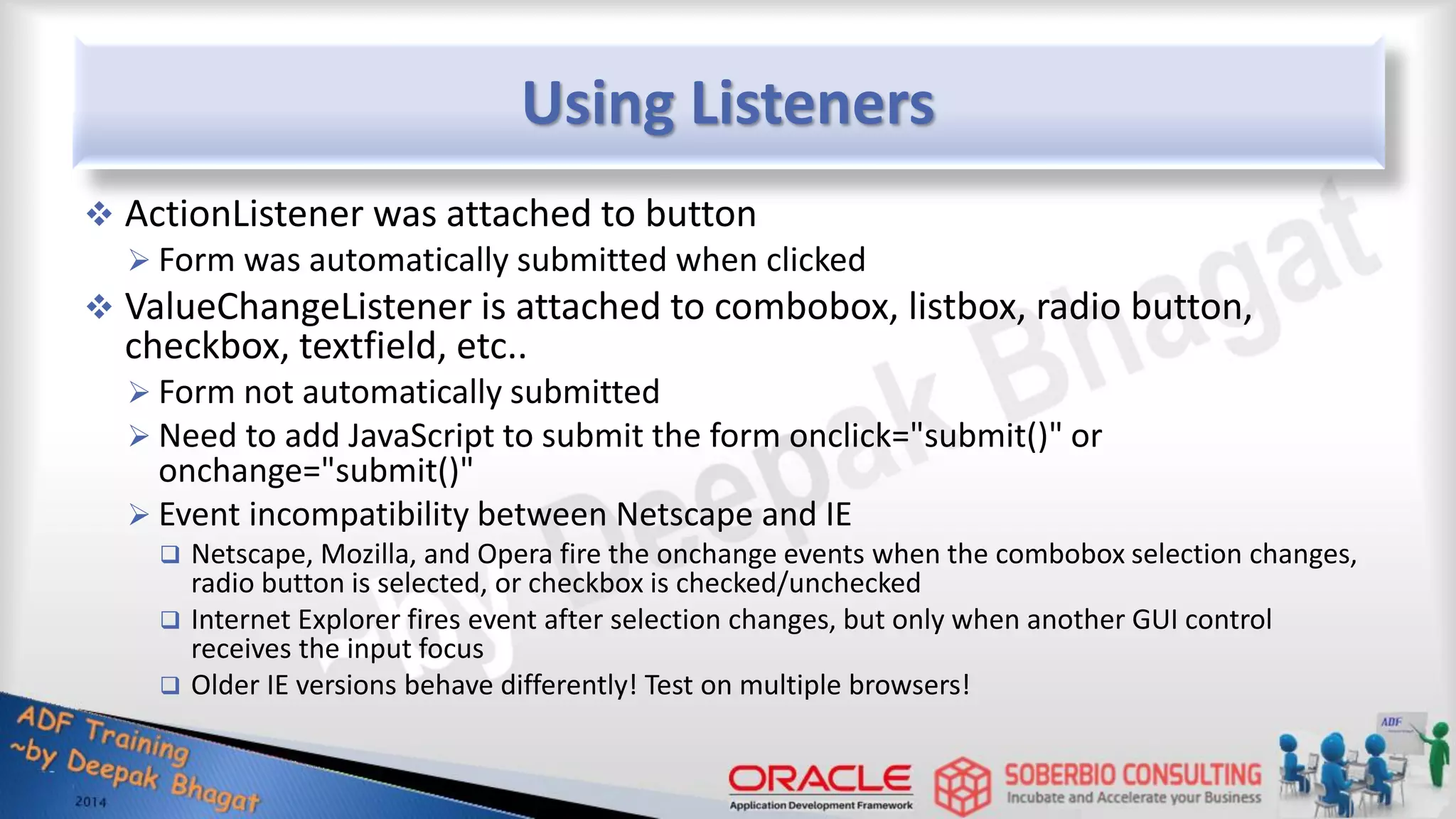

Using Listeners  ActionListener was attached to button  Form was automatically submitted when clicked  ValueChangeListener is attached to combobox, listbox, radio button, checkbox, textfield, etc..  Form not automatically submitted  Need to add JavaScript to submit the form onclick="submit()" or onchange="submit()"  Event incompatibility between Netscape and IE  Netscape, Mozilla, and Opera fire the onchange events when the combobox selection changes, radio button is selected, or checkbox is checked/unchecked  Internet Explorer fires event after selection changes, but only when another GUI control receives the input focus  Older IE versions behave differently! Test on multiple browsers!

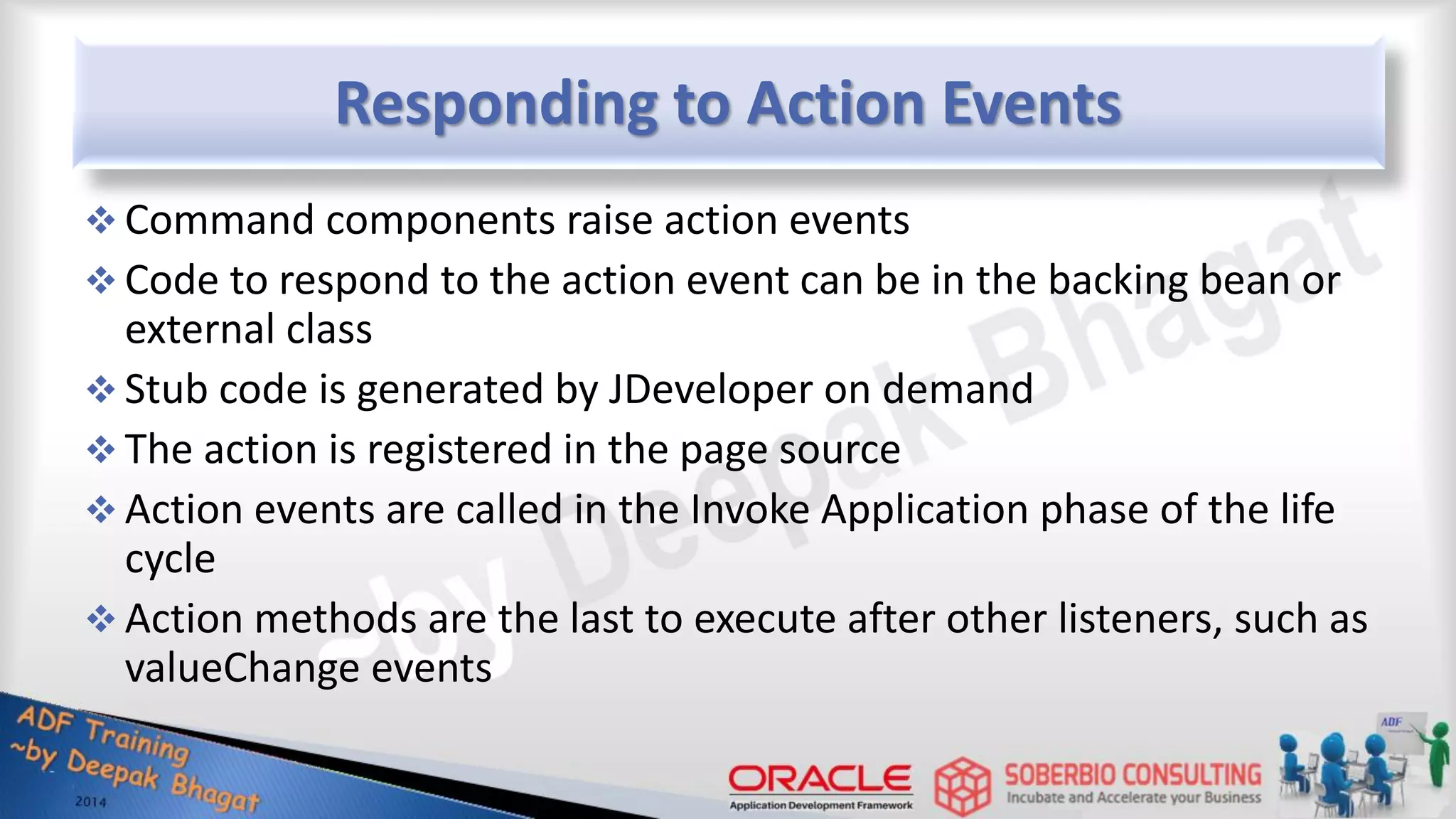

Responding to Action Events  Command components raise action events  Code to respond to the action event can be in the backing bean or external class  Stub code is generated by JDeveloper on demand  The action is registered in the page source  Action events are called in the Invoke Application phase of the life cycle  Action methods are the last to execute after other listeners, such as valueChange events

Action Listener  Listener is usually in the form bean class  But can be in separate class if you use FacesContext to get the request or session object and look up the form bean explicitly  Takes an ActionEvent as an argument  No return type (not String as in action controllers)  ActionEvent is in javax.faces.event  ActionEvent has a getComponent method that lets you obtain the UIComponent reference  From the UIComponent, you can get the component ID, renderer, and other low-level information  Sample code public void someMethod(ActionEvent event) { doSomeSideEffects(); }

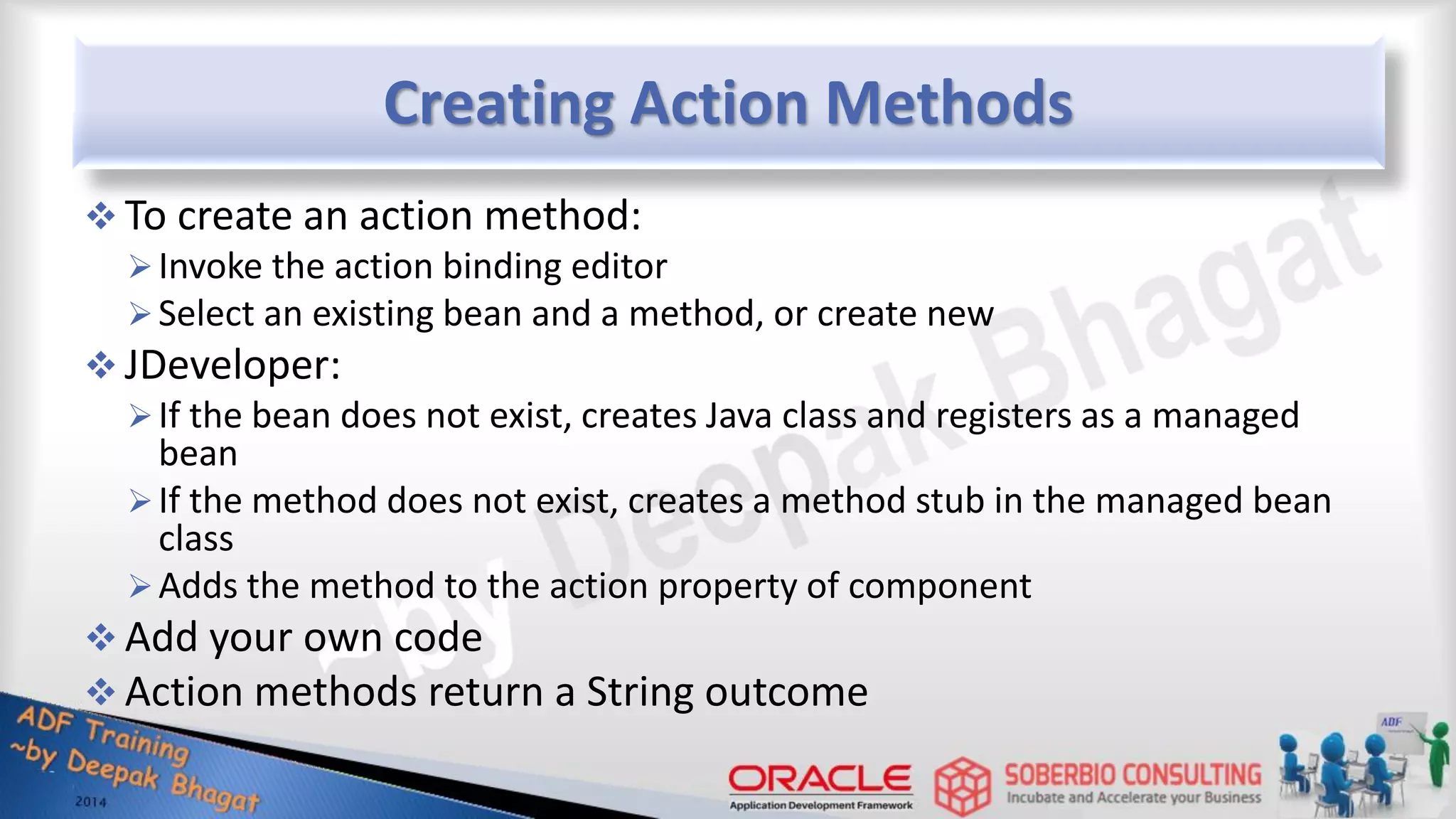

Creating Action Methods  To create an action method: Invoke the action binding editor Select an existing bean and a method, or create new  JDeveloper: If the bean does not exist, creates Java class and registers as a managed bean If the method does not exist, creates a method stub in the managed bean class Adds the method to the action property of component  Add your own code  Action methods return a String outcome

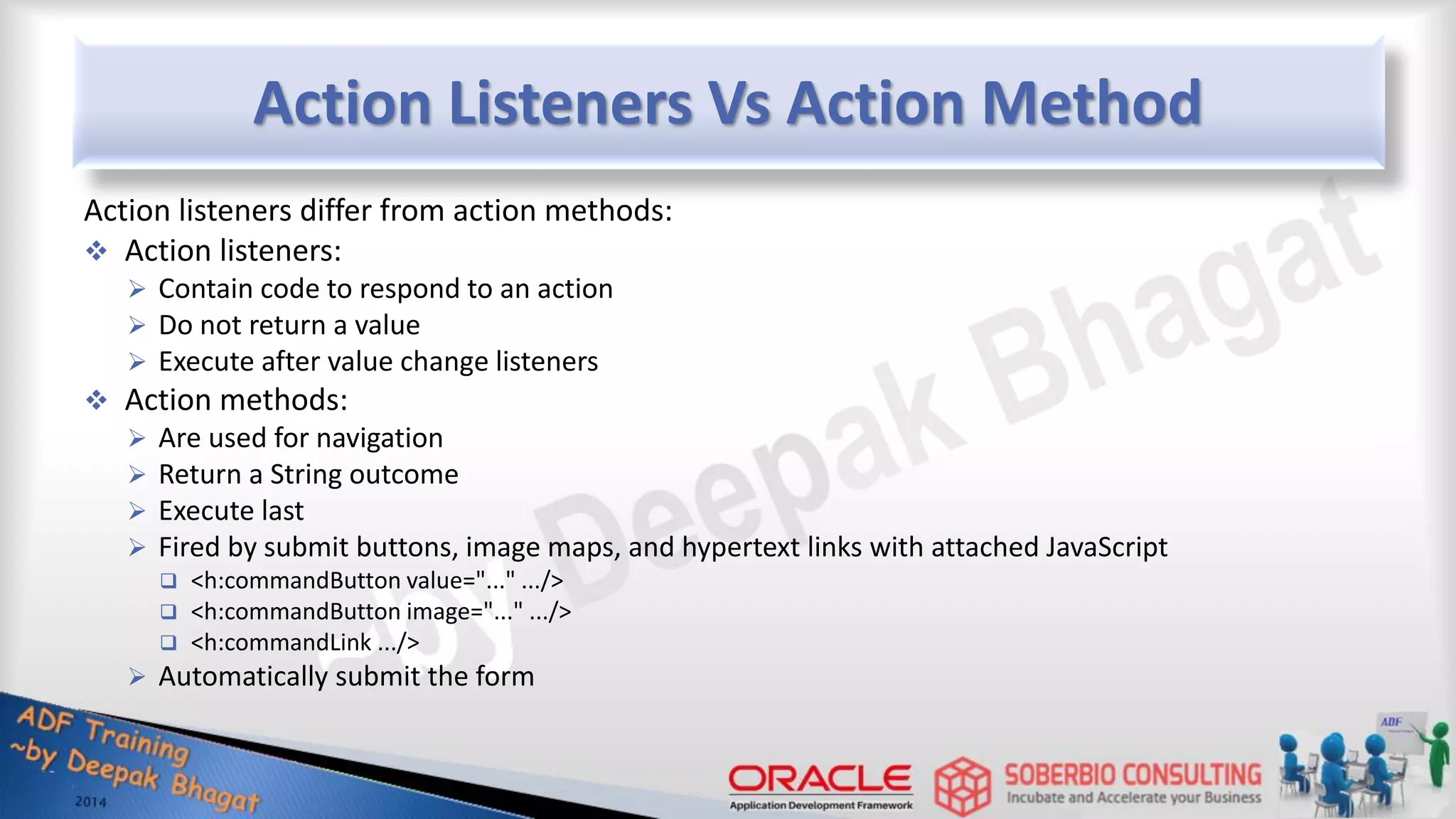

Action Listeners Vs Action Method Action listeners differ from action methods:  Action listeners:  Contain code to respond to an action  Do not return a value  Execute after value change listeners  Action methods:  Are used for navigation  Return a String outcome  Execute last  Fired by submit buttons, image maps, and hypertext links with attached JavaScript  <h:commandButton value="..." .../>  <h:commandButton image="..." .../>  <h:commandLink .../>  Automatically submit the form

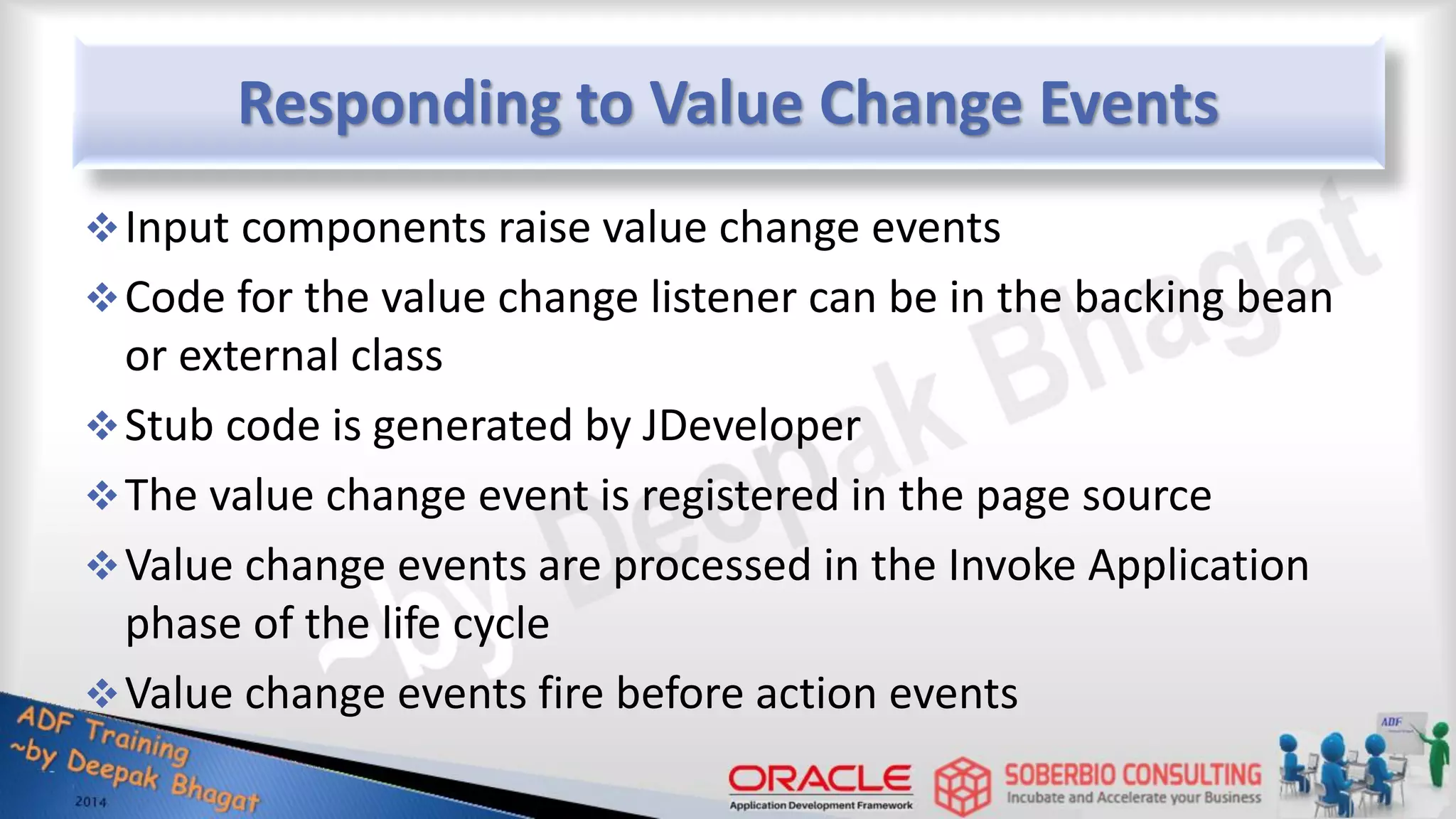

Responding to Value Change Events Input components raise value change events Code for the value change listener can be in the backing bean or external class Stub code is generated by JDeveloper The value change event is registered in the page source Value change events are processed in the Invoke Application phase of the life cycle Value change events fire before action events

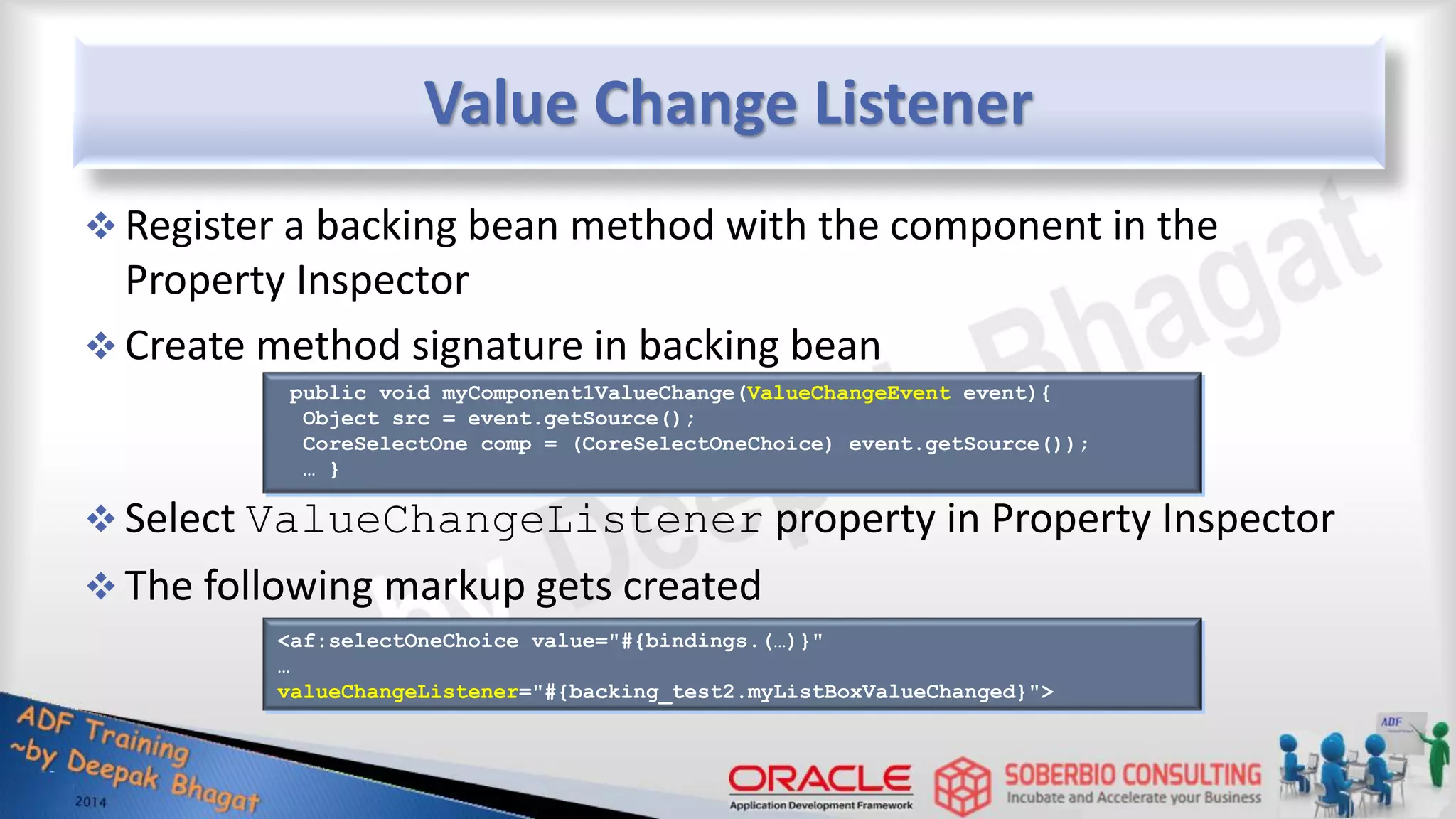

Value Change Listener  Register a backing bean method with the component in the Property Inspector  Create method signature in backing bean  Select ValueChangeListener property in Property Inspector  The following markup gets created public void myComponent1ValueChange(ValueChangeEvent event){ Object src = event.getSource(); CoreSelectOne comp = (CoreSelectOneChoice) event.getSource()); … } <af:selectOneChoice value="#{bindings.(…)}" … valueChangeListener="#{backing_test2.myListBoxValueChanged}">

Creating Value Change Listener Select the input component in the visual editor Edit the valueChangeListener property and select a bean and method, or create a new one JDeveloper: Creates the method in the managed bean if it does not already exist Adds the method to the valueChangeListener property in the page source Add your code

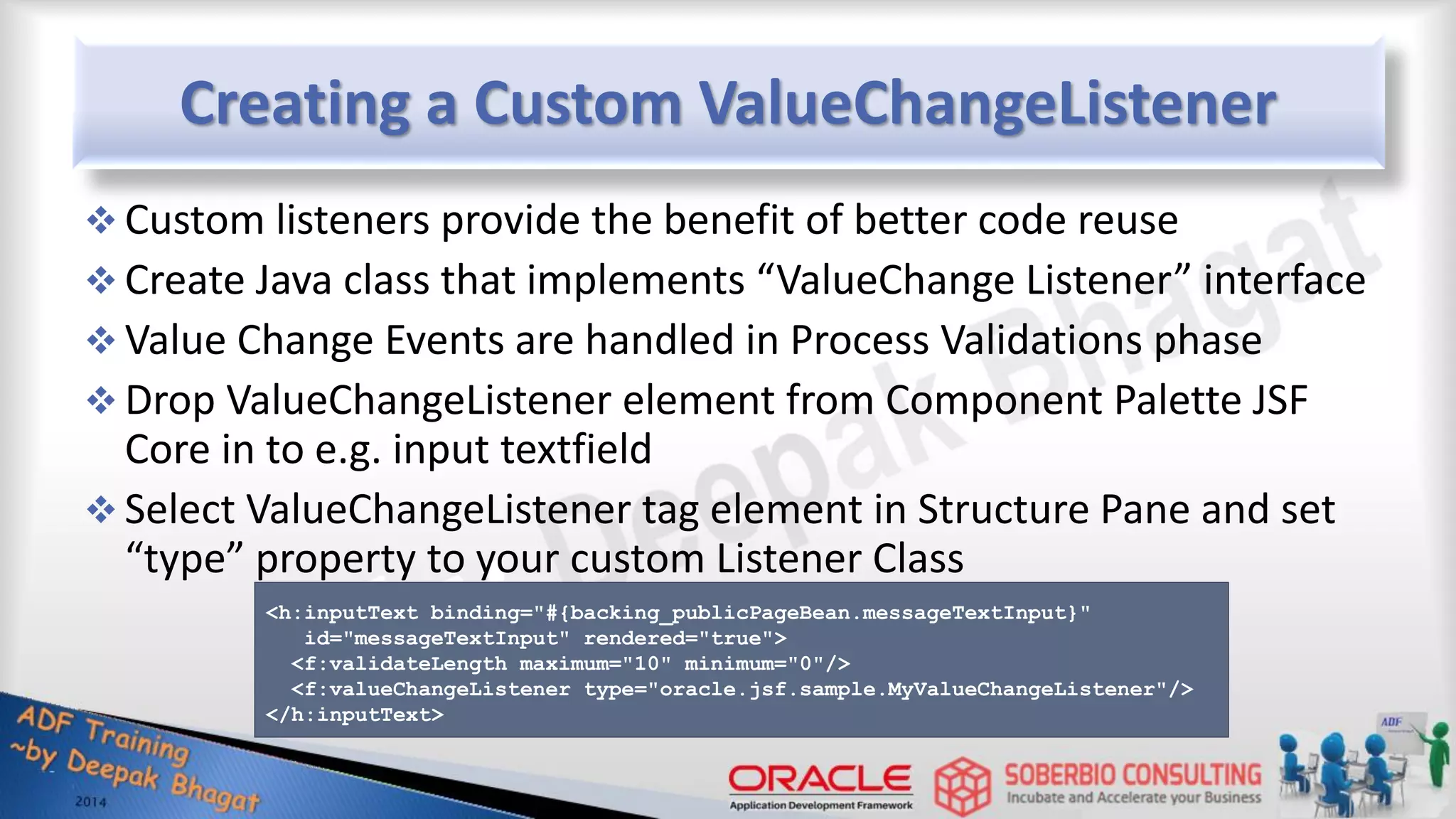

Creating a Custom ValueChangeListener  Custom listeners provide the benefit of better code reuse  Create Java class that implements “ValueChange Listener” interface  Value Change Events are handled in Process Validations phase  Drop ValueChangeListener element from Component Palette JSF Core in to e.g. input textfield  Select ValueChangeListener tag element in Structure Pane and set “type” property to your custom Listener Class <h:inputText binding="#{backing_publicPageBean.messageTextInput}" id="messageTextInput" rendered="true"> <f:validateLength maximum="10" minimum="0"/> <f:valueChangeListener type="oracle.jsf.sample.MyValueChangeListener"/> </h:inputText>

Using Value Change Listeners  ActionListener was attached to button  Form was automatically submitted when clicked  ValueChangeListener is attached to combobox, listbox, radio button, checkbox, textfield, etc..  Form not automatically submitted  Need to add JavaScript to submit the form onclick="submit()" or onchange="submit()"  Event incompatibility between Netscape and IE  Netscape, Mozilla, and Opera fire the onchange events when the combobox selection changes, radio button is selected, or checkbox is checked/unchecked  Internet Explorer fires event after selection changes, but only when another GUI control receives the input focus  Older IE versions behave differently! Test on multiple browsers!

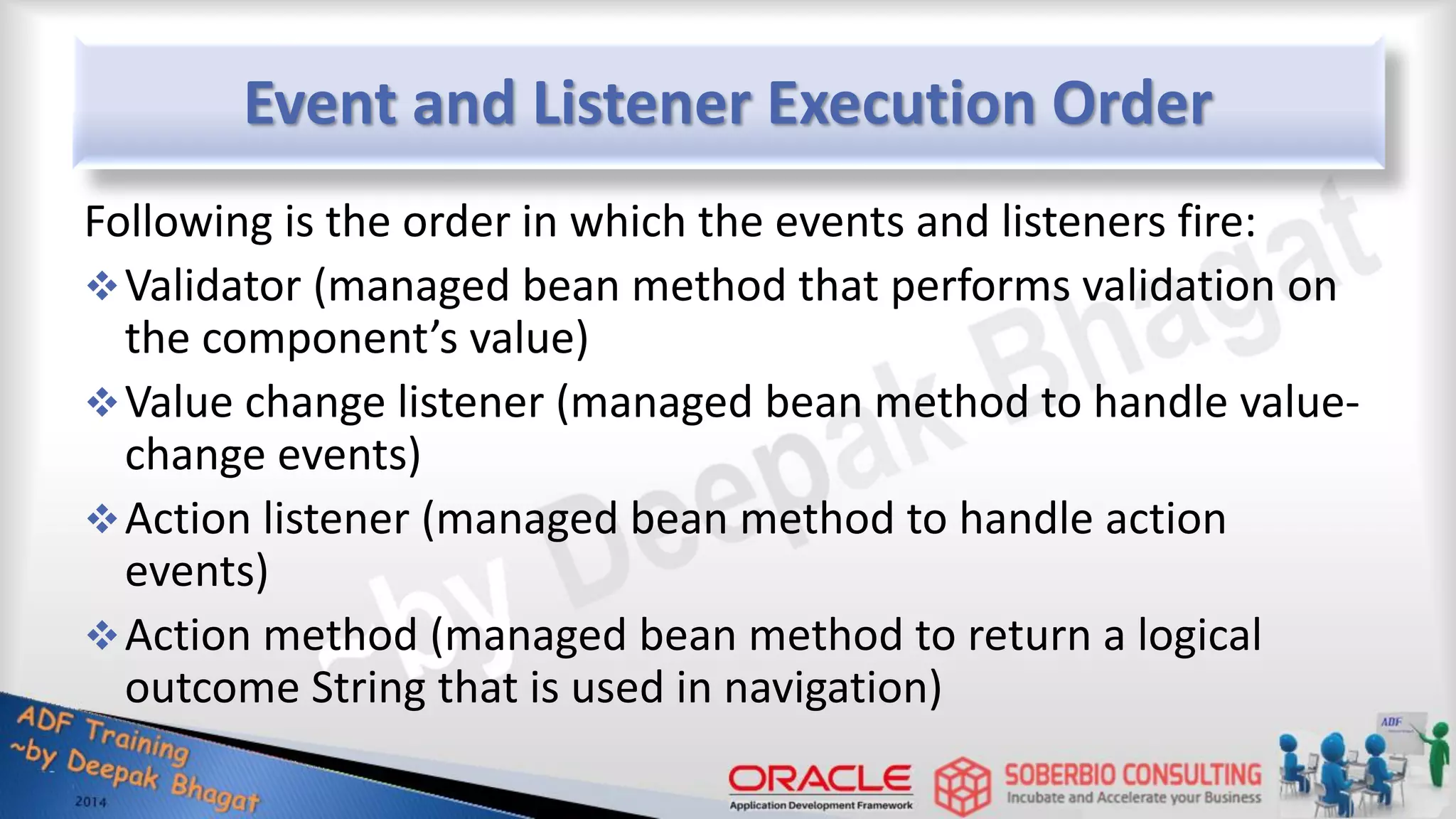

Event and Listener Execution Order Following is the order in which the events and listeners fire: Validator (managed bean method that performs validation on the component’s value) Value change listener (managed bean method to handle valuechange events) Action listener (managed bean method to handle action events) Action method (managed bean method to return a logical outcome String that is used in navigation)

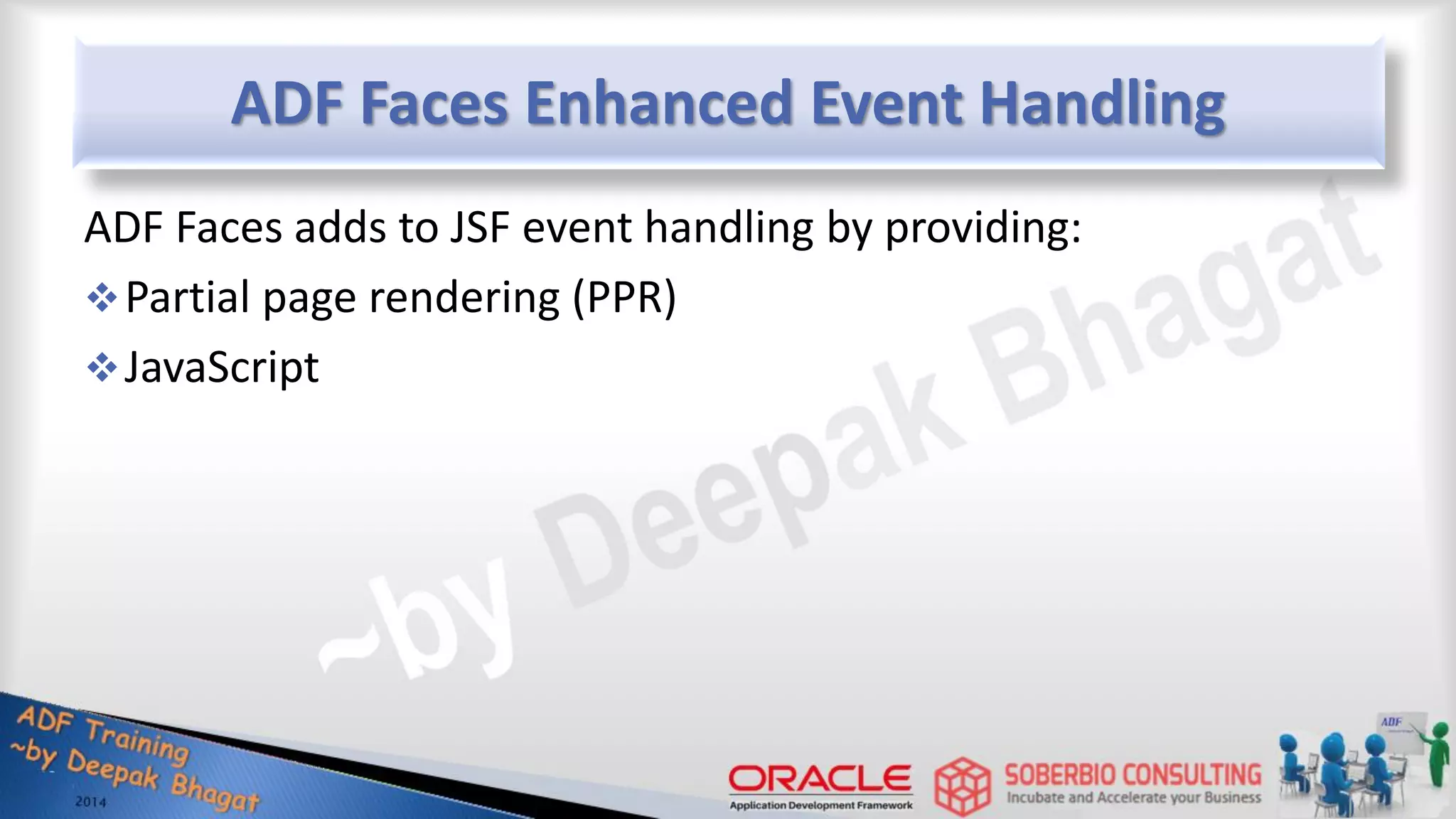

ADF Faces Enhanced Event Handling ADF Faces adds to JSF event handling by providing: Partial page rendering (PPR) JavaScript

Enabling PPR Programmatically Why? Need logic to determine whether a component should refresh Refresh should occur on only one of several events that a triggering component may fire (for example, on row selection in table, use a selection listener) How? Use the addPartialTarget method ADFFacesContext.getCurrentInstance().addPartial Target(employeeList.getMvRichOutputText());

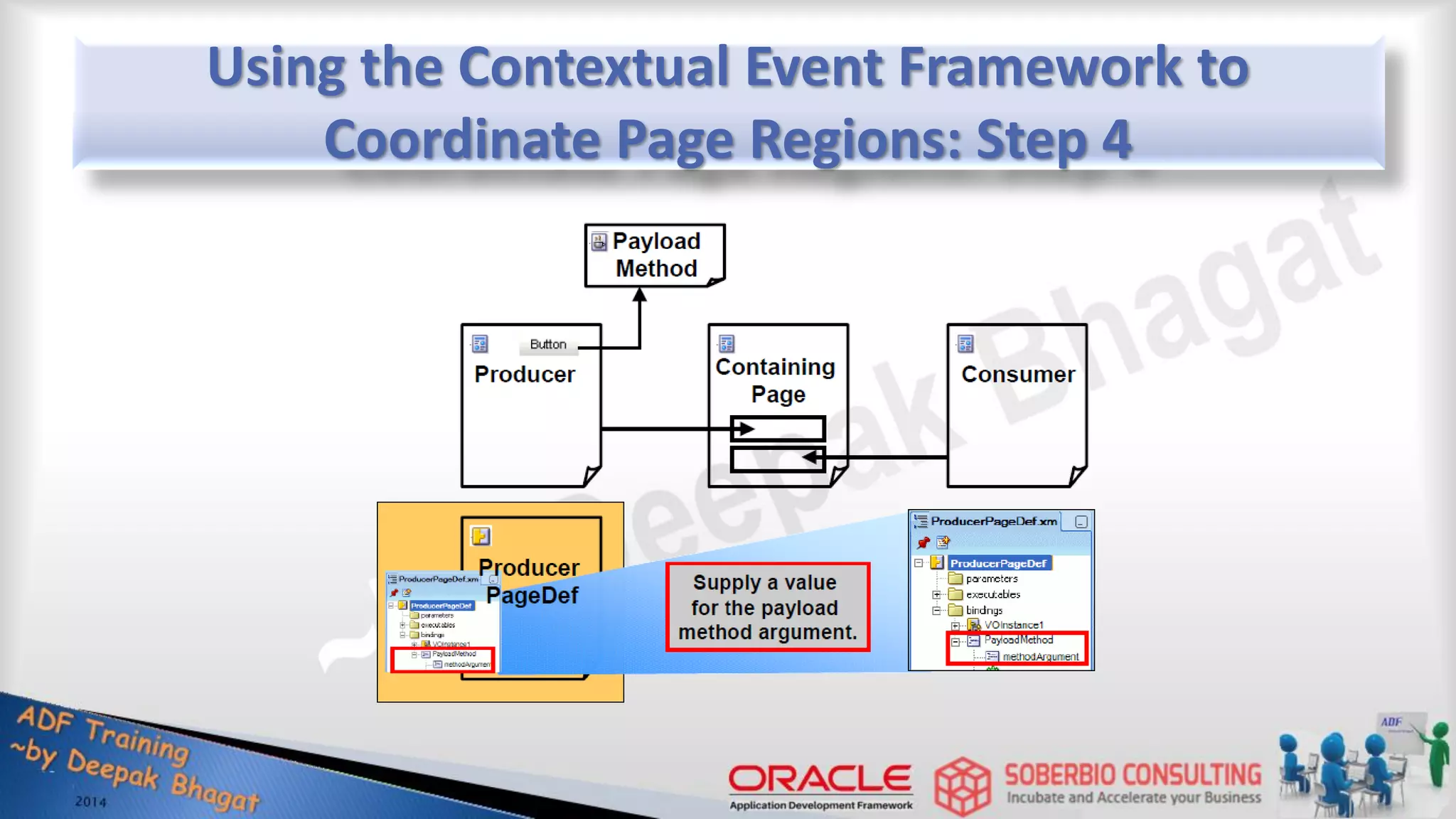

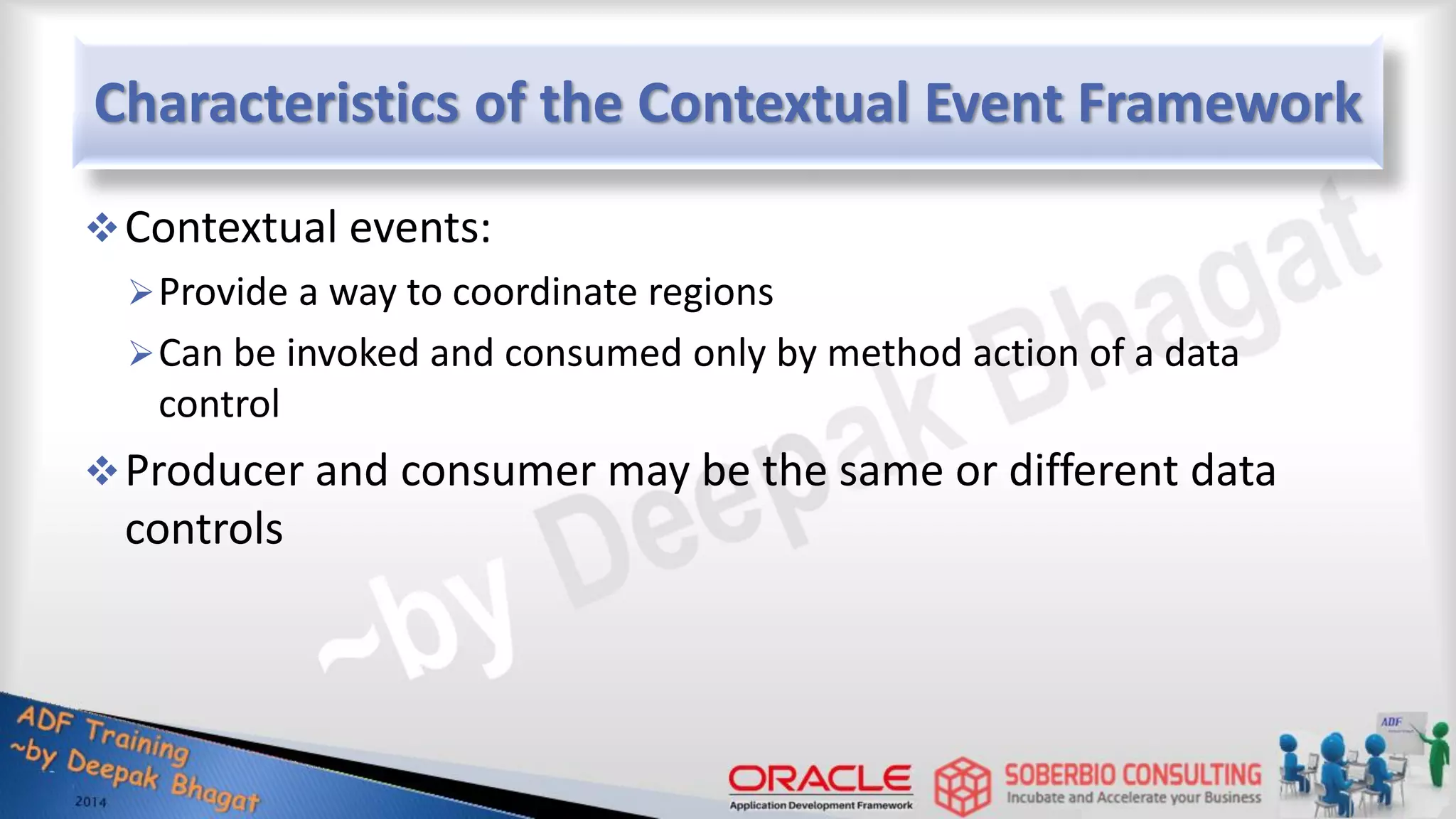

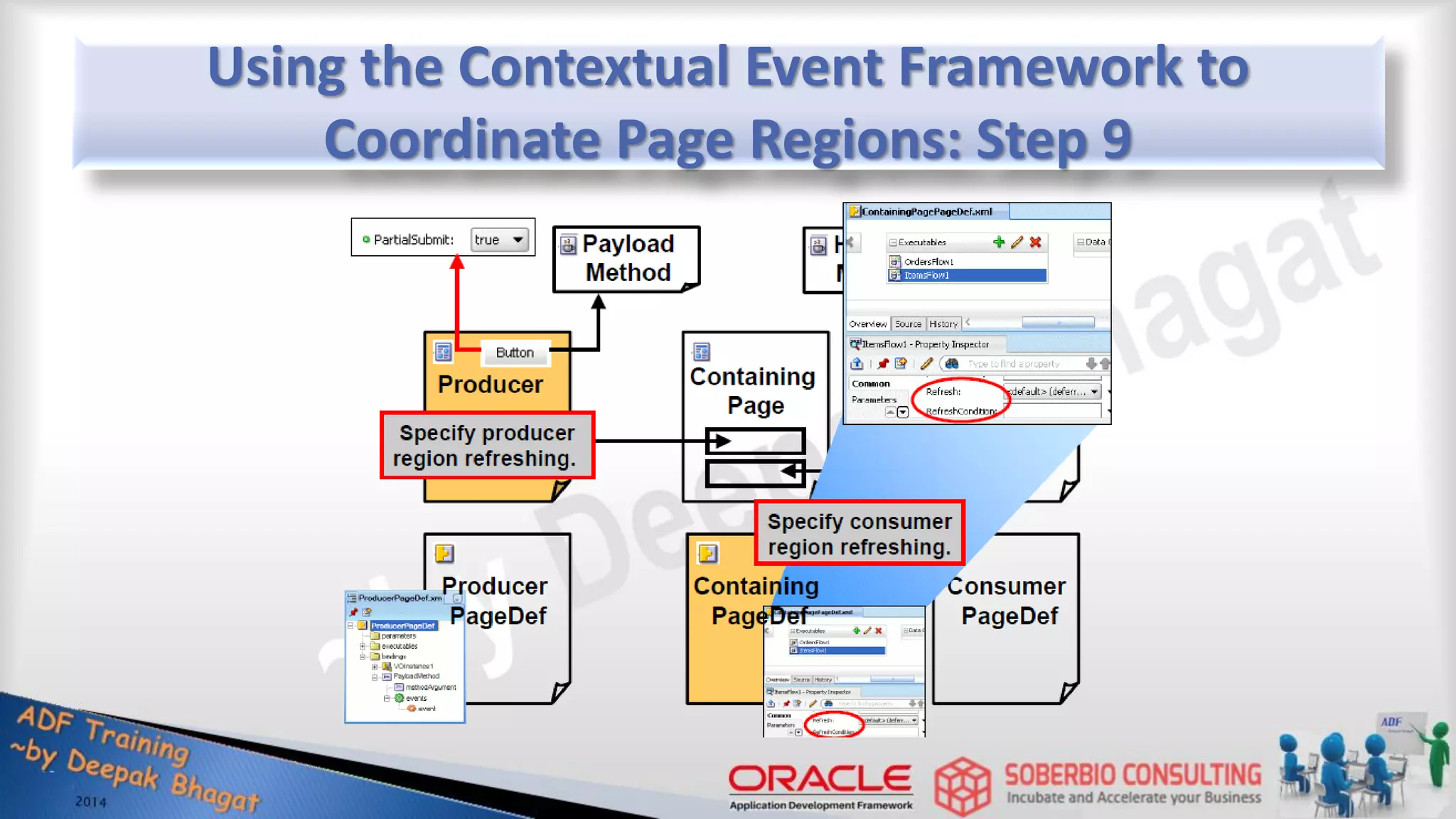

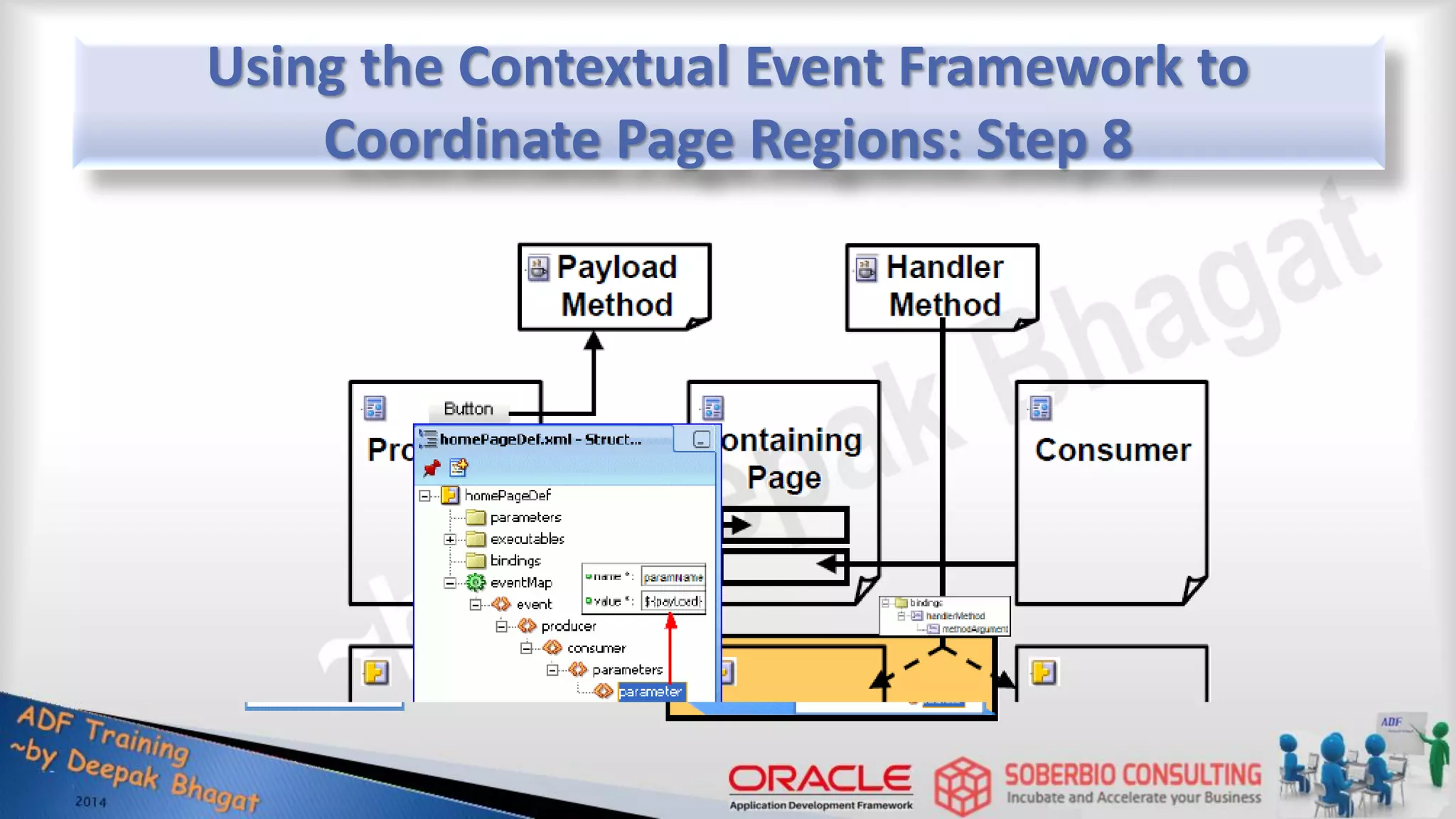

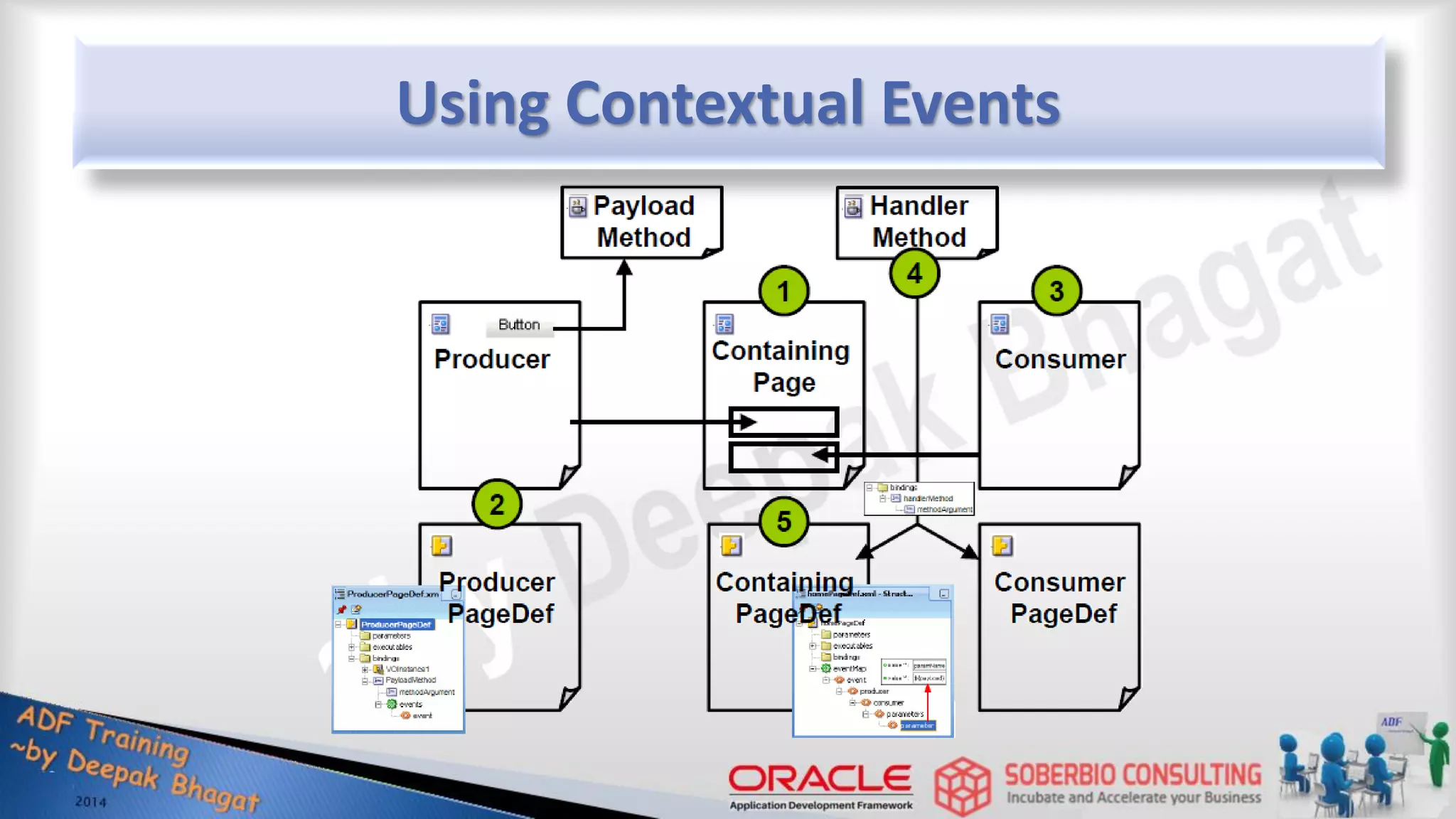

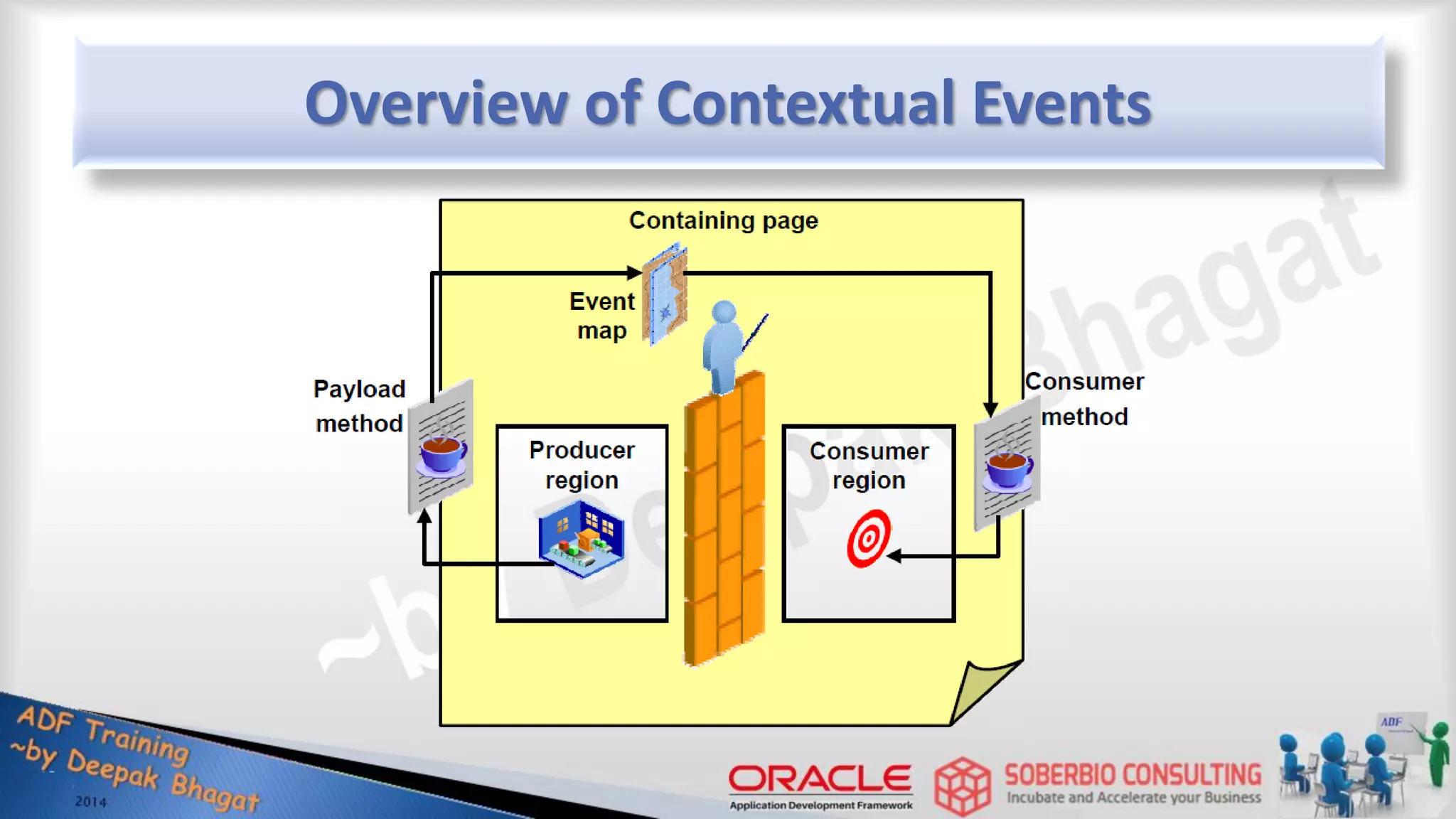

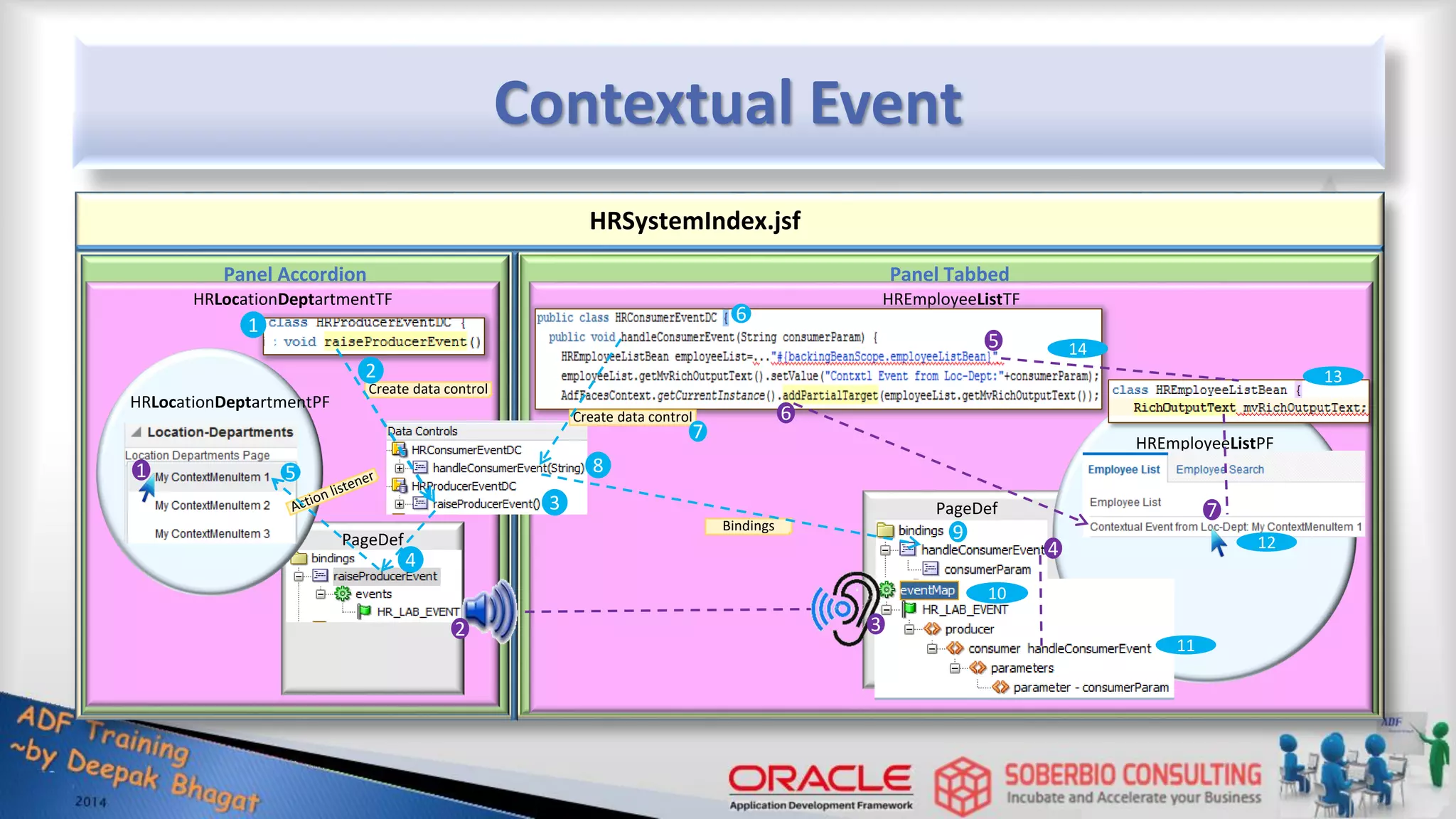

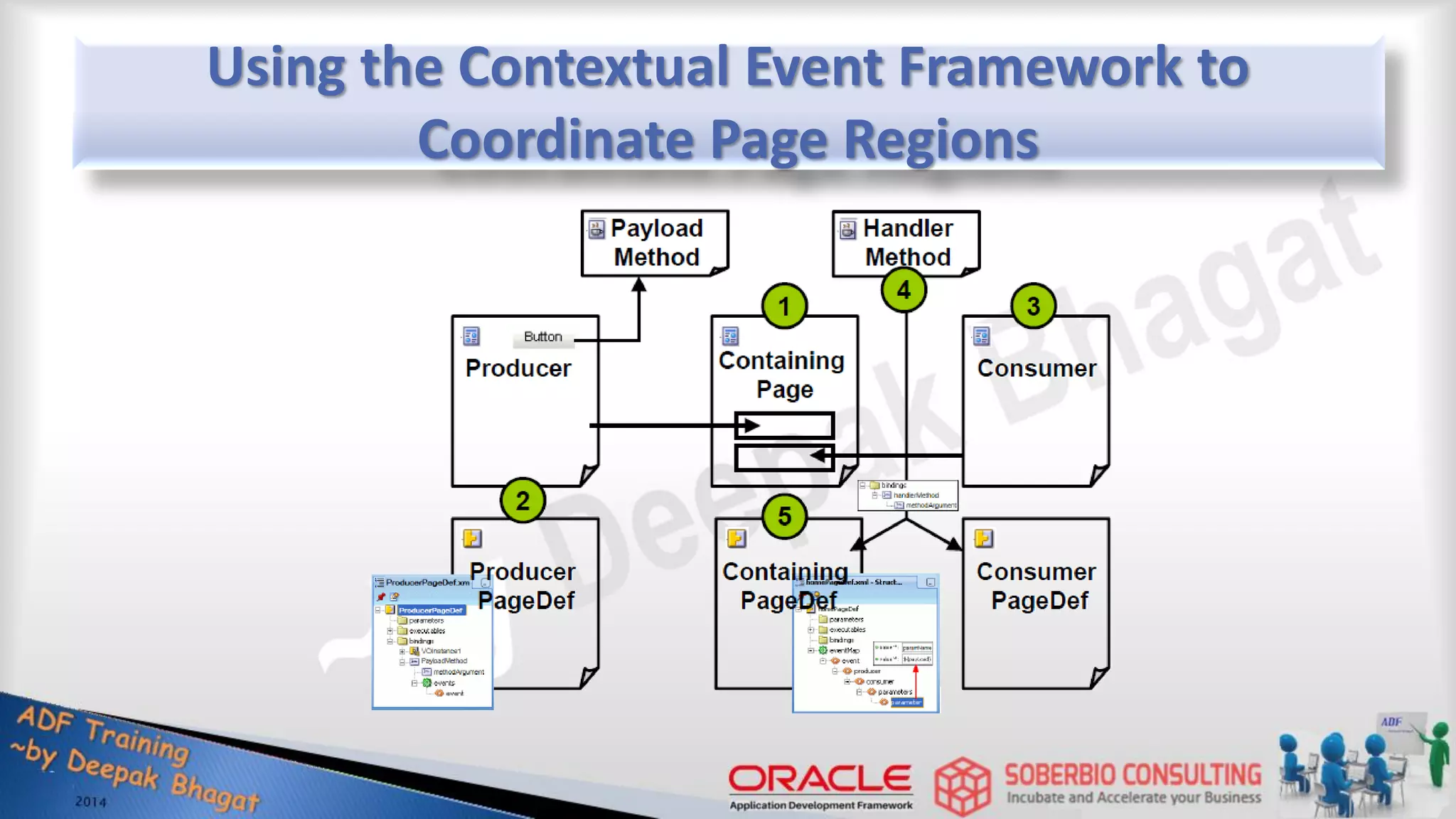

Characteristics of the Contextual Event Framework Contextual events: Provide a way to coordinate regions Can be invoked and consumed only by method action of a data control Producer and consumer may be the same or different data controls

JSF Life Cycle: Restore View Phase Restore View Render Response Apply Request Values Update Model Values Invoke Application Process Validations Initial request Postback Client/ Browser Process Events Process Events Process Events Process Events No View Available Immediate = true A request comes in through the JSF servlet. The request is examined for the viewId to load; viewId is bound to a page. viewId is used by the framework to look up the components of the page. • If it is the first time a page is requested, the framework creates the component tree for this page. • If the page has been requested before, the component tree gets reassembled. The current viewId is saved in the viewRoot property of FacesContext.

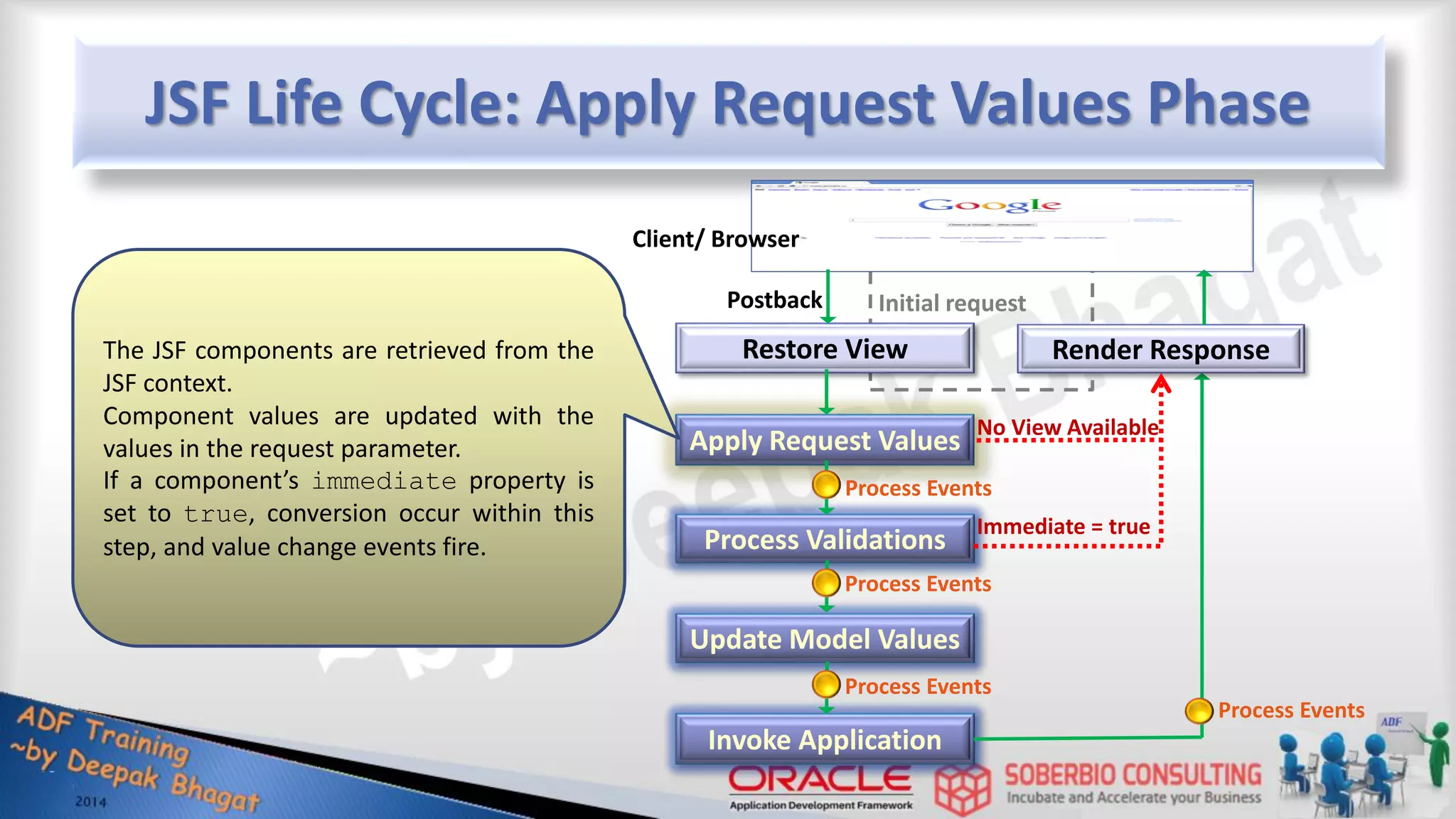

JSF Life Cycle: Apply Request Values Phase Restore View Render Response Apply Request Values Update Model Values Invoke Application Process Validations Initial request Postback Client/ Browser Process Events Process Events Process Events Process Events No View Available Immediate = true The JSF components are retrieved from the JSF context. Component values are updated with the values in the request parameter. If a component’s immediate property is set to true, conversion occur within this step, and value change events fire.

JSF Life Cycle: Process Validations Phase Restore View Render Response Apply Request Values Update Model Values Invoke Application Process Validations Initial request Postback Client/ Browser Process Events Process Events Process Events Process Events No View Available Immediate = true The request parameter values are converted to the expected data types. Validation is performed for each component value, where immediate is not set to true. Value change events fire.

JSF Life Cycle: Update Model Values Phase Restore View Render Response Apply Request Values Update Model Values Invoke Application Process Validations Initial request Postback Client/ Browser Process Events Process Events Process Events Process Events No View Available Immediate = true Until this step, the request only updated the components, setting their submittedValue property. Now, the model (Managed Beans or in the ADF case, the binding container) is updated with the validated values.

JSF Life Cycle: Invoke Application Phase Restore View Render Response Apply Request Values Update Model Values Invoke Application Process Validations Initial request Postback Client/ Browser Process Events Process Events Process Events Process Events No View Available Immediate = true The Invoke Application phase manages any forms that the page submits and executes any business logic. It also processes any action events that are fired and evaluates any navigation actions that need to execute.

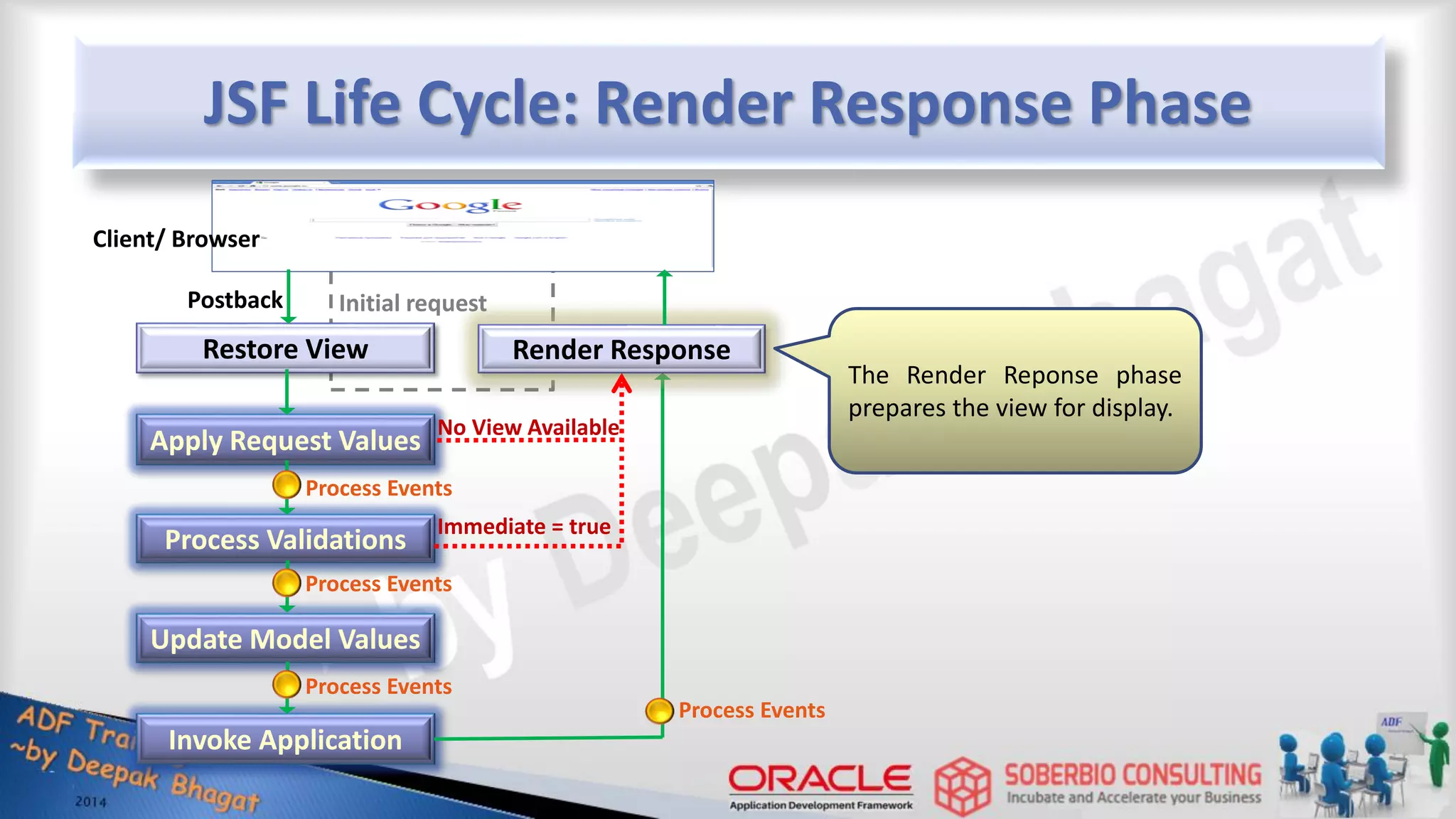

JSF Life Cycle: Render Response Phase Restore View Render Response Apply Request Values Update Model Values Invoke Application Process Validations Initial request Postback Client/ Browser Process Events Process Events Process Events Process Events No View Available Immediate = true The Render Reponse phase prepares the view for display.

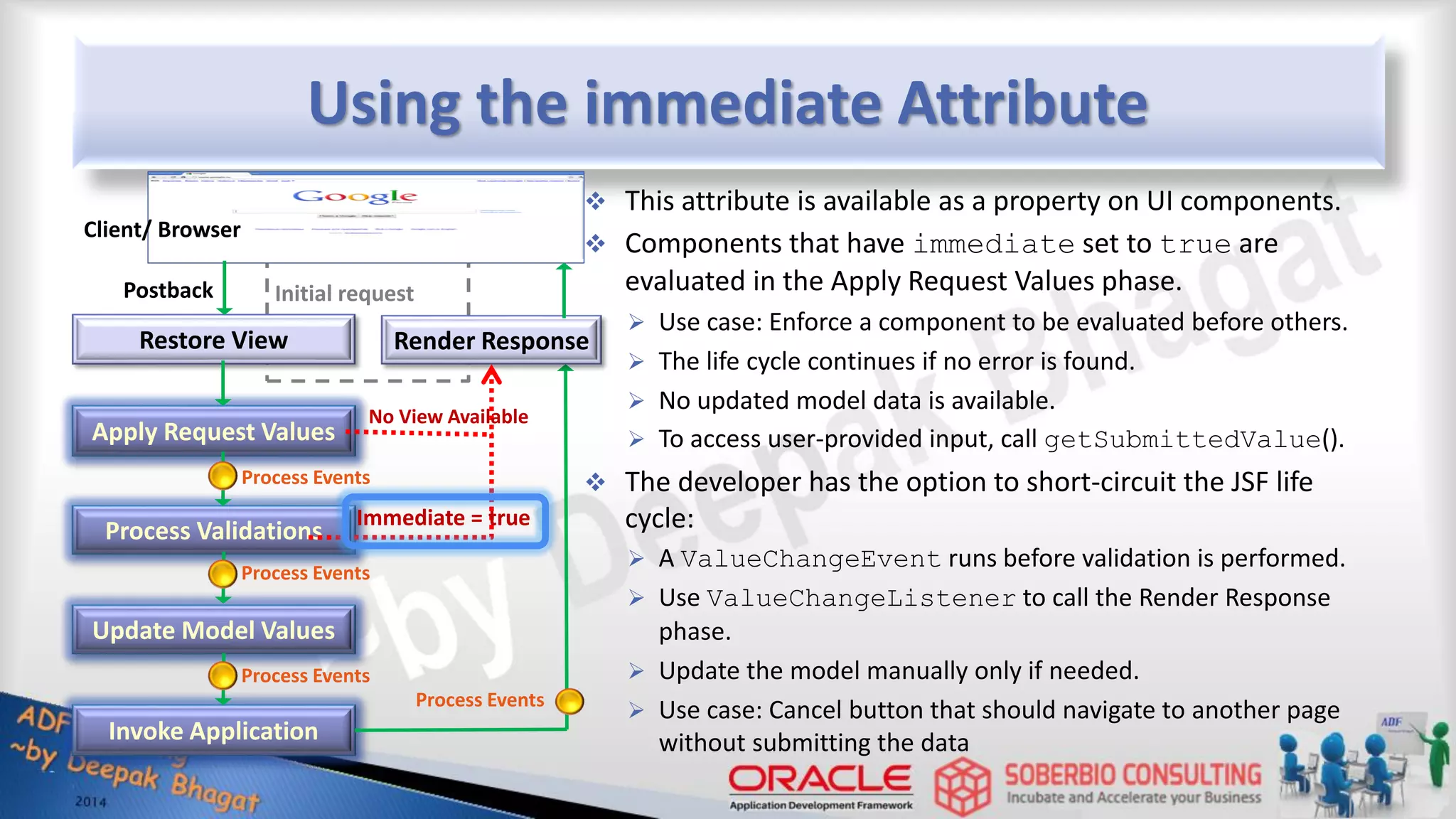

Using the immediate Attribute  This attribute is available as a property on UI components.  Components that have immediate set to true are evaluated in the Apply Request Values phase.  Use case: Enforce a component to be evaluated before others.  The life cycle continues if no error is found.  No updated model data is available.  To access user-provided input, call getSubmittedValue().  The developer has the option to short-circuit the JSF life cycle:  A ValueChangeEvent runs before validation is performed.  Use ValueChangeListener to call the Render Response phase.  Update the model manually only if needed.  Use case: Cancel button that should navigate to another page without submitting the data Restore View Render Response Apply Request Values Update Model Values Invoke Application Process Validations Initial request Postback Client/ Browser Process Events Process Events Process Events Process Events No View Available Immediate = true

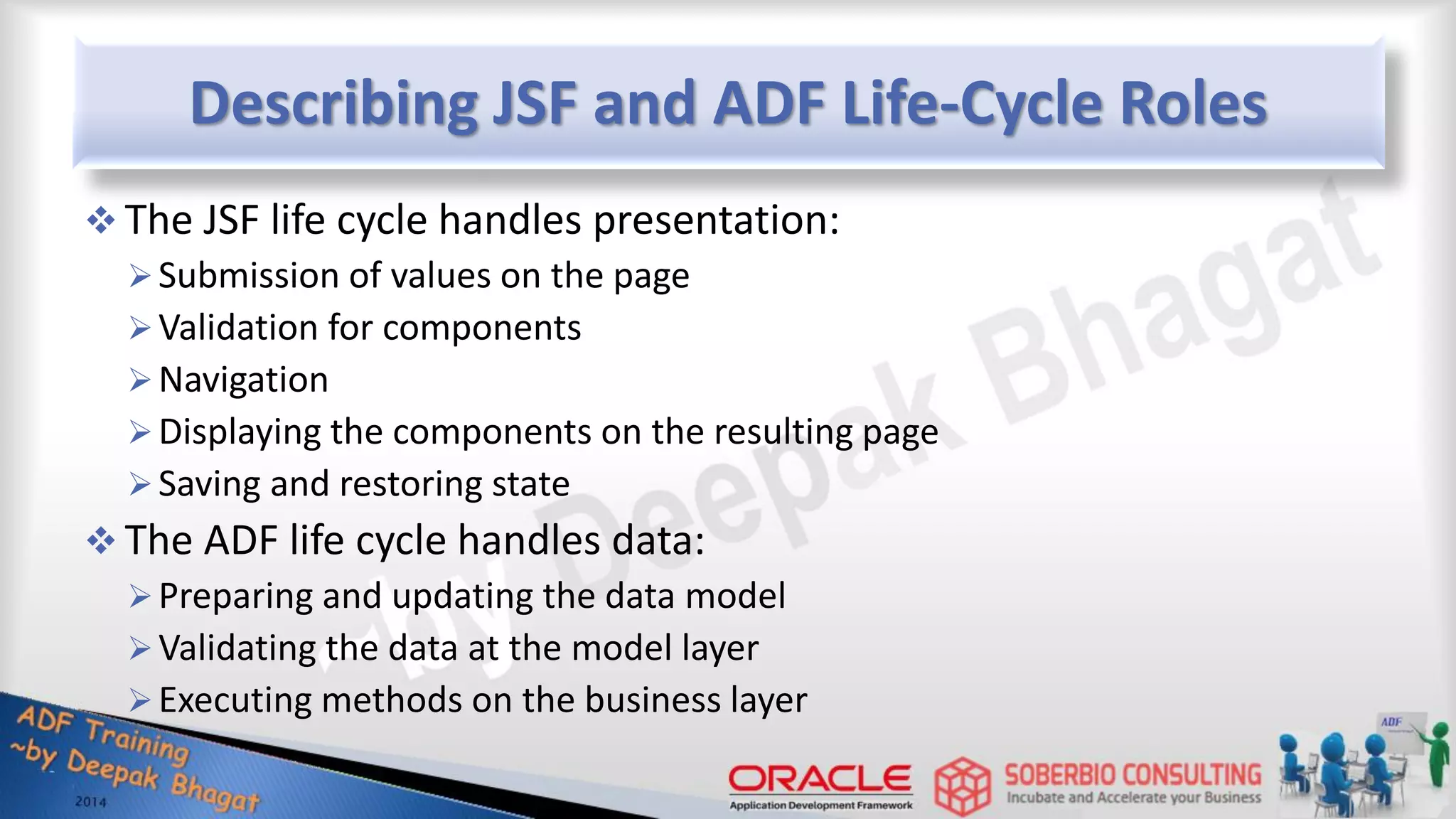

Describing JSF and ADF Life-Cycle Roles  The JSF life cycle handles presentation: Submission of values on the page Validation for components Navigation Displaying the components on the resulting page Saving and restoring state  The ADF life cycle handles data: Preparing and updating the data model Validating the data at the model layer Executing methods on the business layer

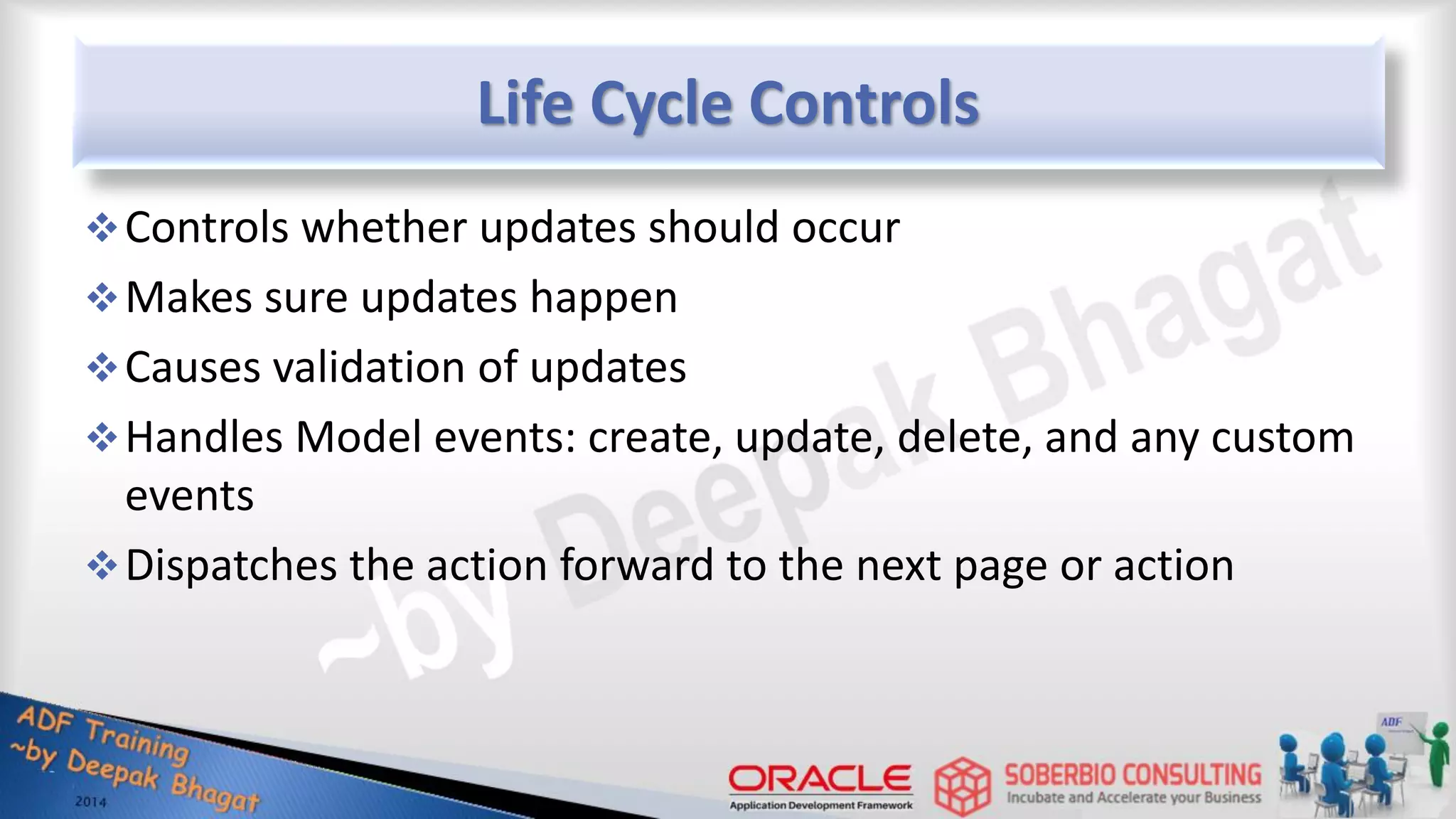

Life Cycle Controls Controls whether updates should occur Makes sure updates happen Causes validation of updates Handles Model events: create, update, delete, and any custom events Dispatches the action forward to the next page or action

Phase Identifiers PhaseId.ANY_PHASE PhaseId.APPLY_REQUEST_VALUES PhaseId.PROCESS_VALIDATIONS PhaseId.UPDATE_MODEL_VALUES PhaseId.INVOKE_APPLICATION PhaseId.RENDER_RESPONSE PhaseId.RESTORE_VIEW

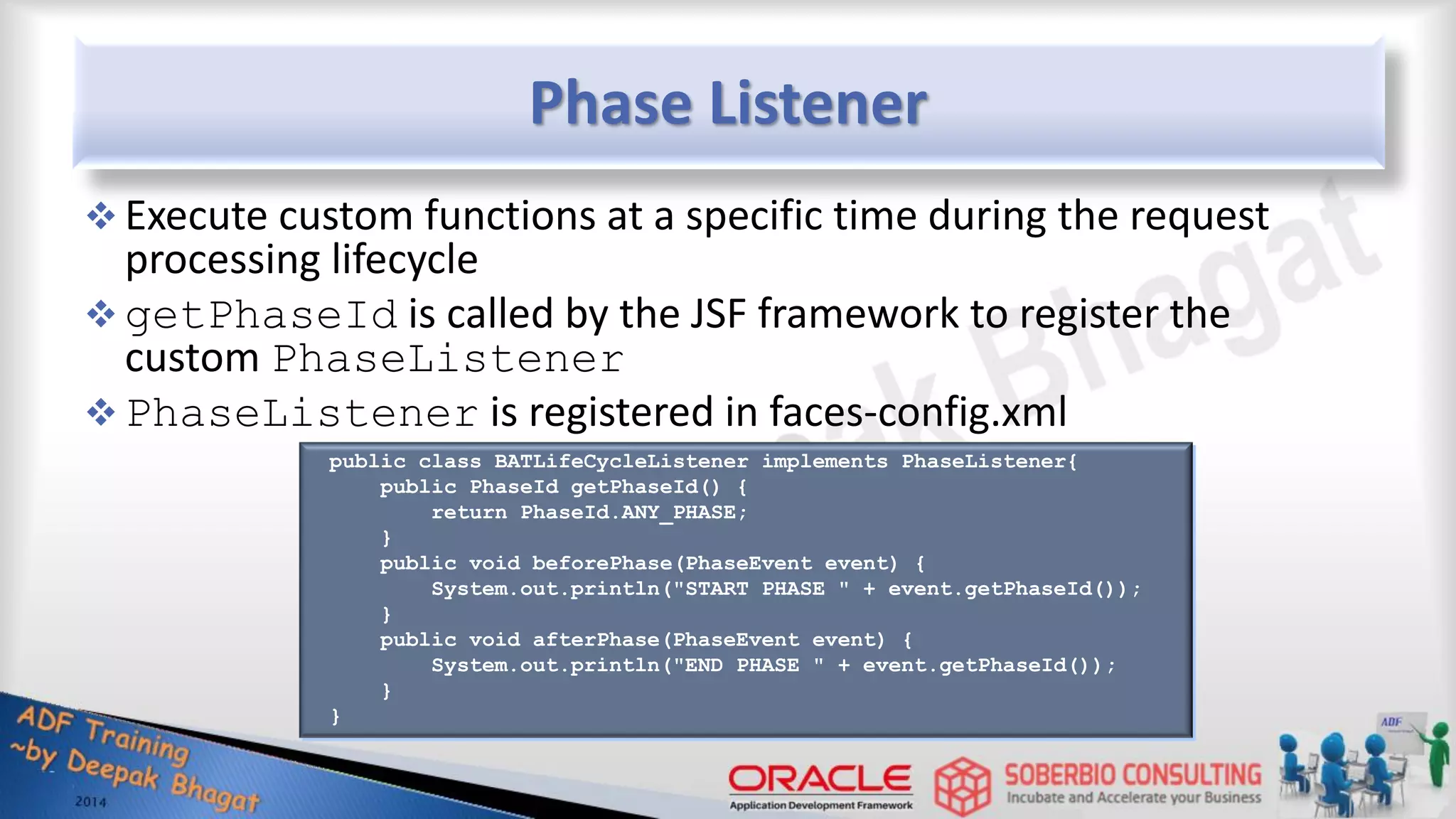

Phase Listener  Execute custom functions at a specific time during the request processing lifecycle  getPhaseId is called by the JSF framework to register the custom PhaseListener  PhaseListener is registered in faces-config.xml public class BATLifeCycleListener implements PhaseListener{ public PhaseId getPhaseId() { return PhaseId.ANY_PHASE; } public void beforePhase(PhaseEvent event) { System.out.println("START PHASE " + event.getPhaseId()); } public void afterPhase(PhaseEvent event) { System.out.println("END PHASE " + event.getPhaseId()); } }

ViewHandler Pluggable mechanism to provide custom handling of the activities in the Render Response and Restore View phases of the request processing lifecycle This allows for implementations to support different response generation technologies, as well as alternative strategies for saving and restoring the state of each view Good place to add custom security handling Configured in faces-config.xml Custom ViewHandler can decorate default ViewHandler

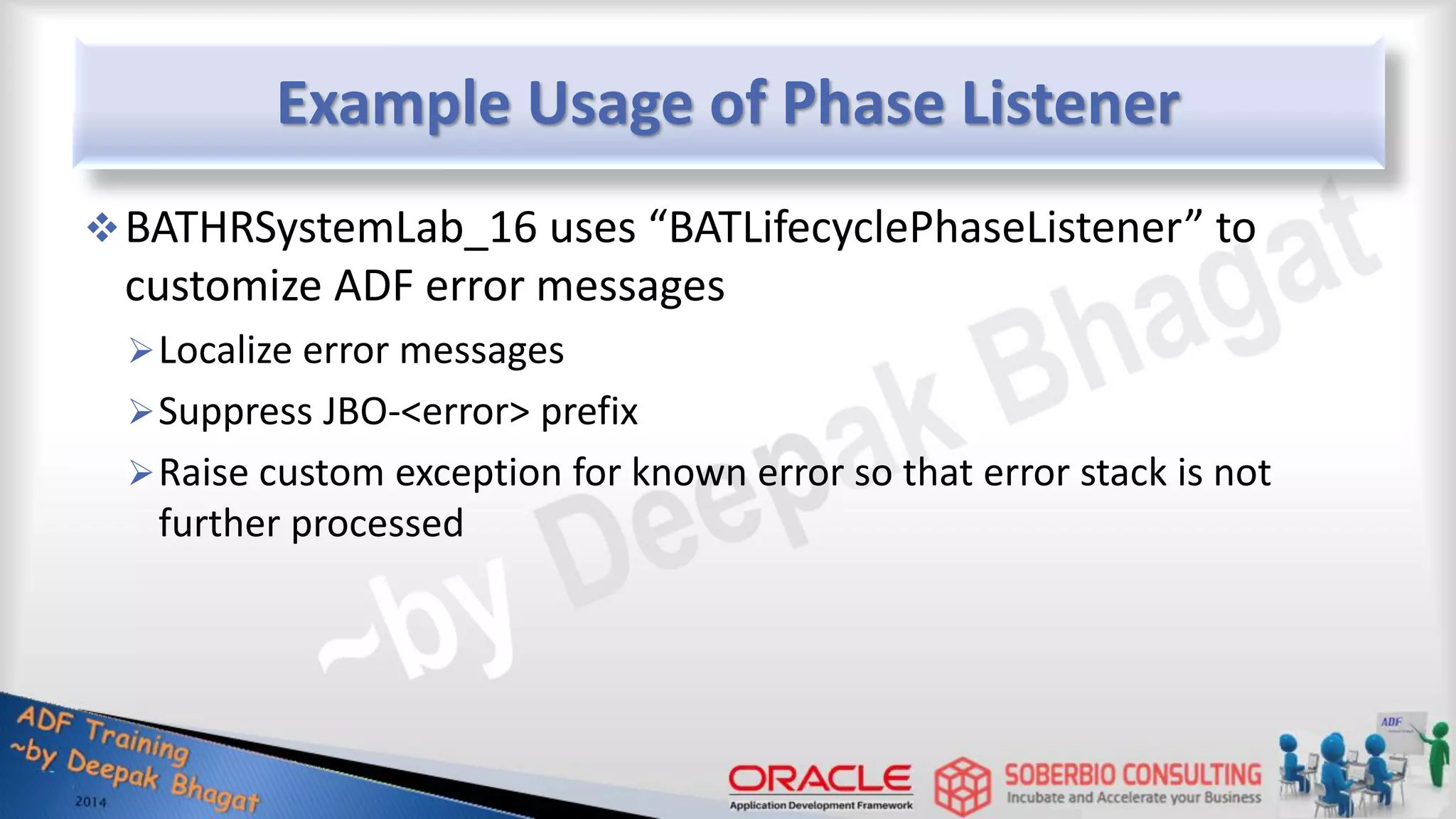

Example Usage of Phase Listener BATHRSystemLab_16 uses “BATLifecyclePhaseListener” to customize ADF error messages Localize error messages Suppress JBO-<error> prefix Raise custom exception for known error so that error stack is not further processed

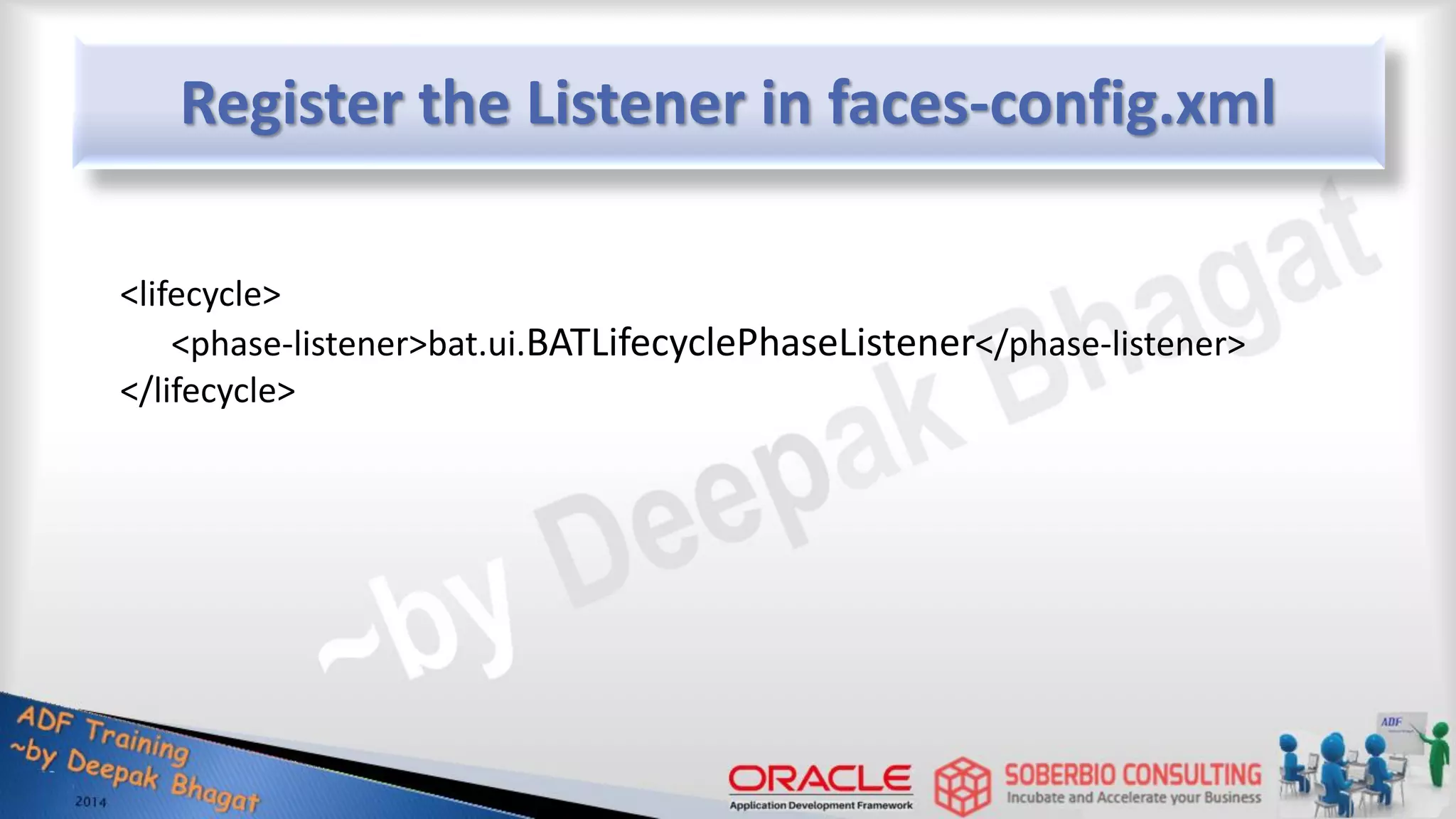

Register the Listener in faces-config.xml <lifecycle> <phase-listener>bat.ui.BATLifecyclePhaseListener</phase-listener> </lifecycle>

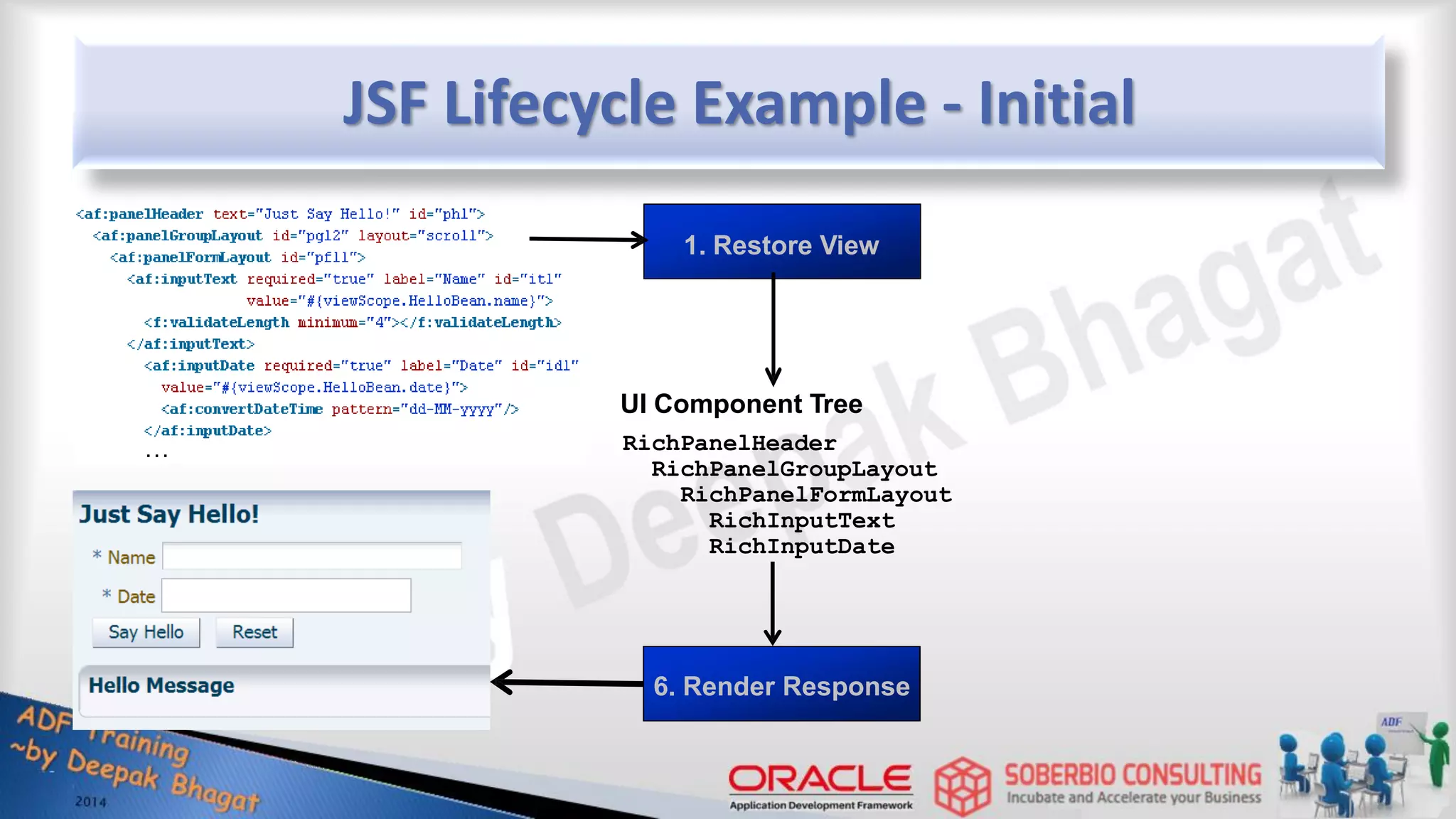

JSF Lifecycle Example - Initial 1. Restore View UI Component Tree RichPanelHeader RichPanelGroupLayout RichPanelFormLayout RichInputText RichInputDate 6. Render Response

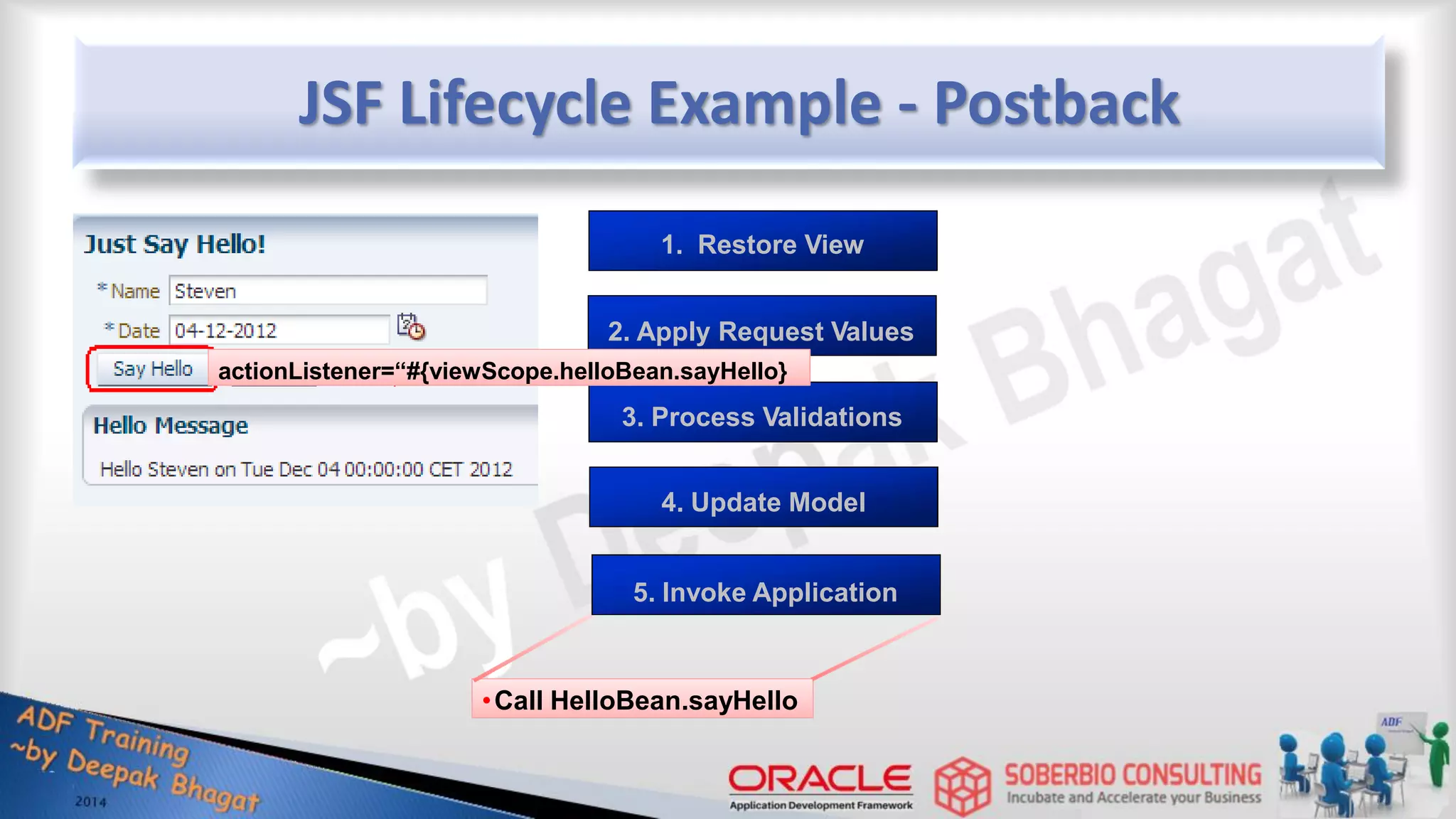

JSF Lifecycle Example - Postback 1. Restore View 2. Apply Request Values richInputText.setSubmittedValue(“Steven”) richInputDate.setSubmittedValue(“04-12-2012”)

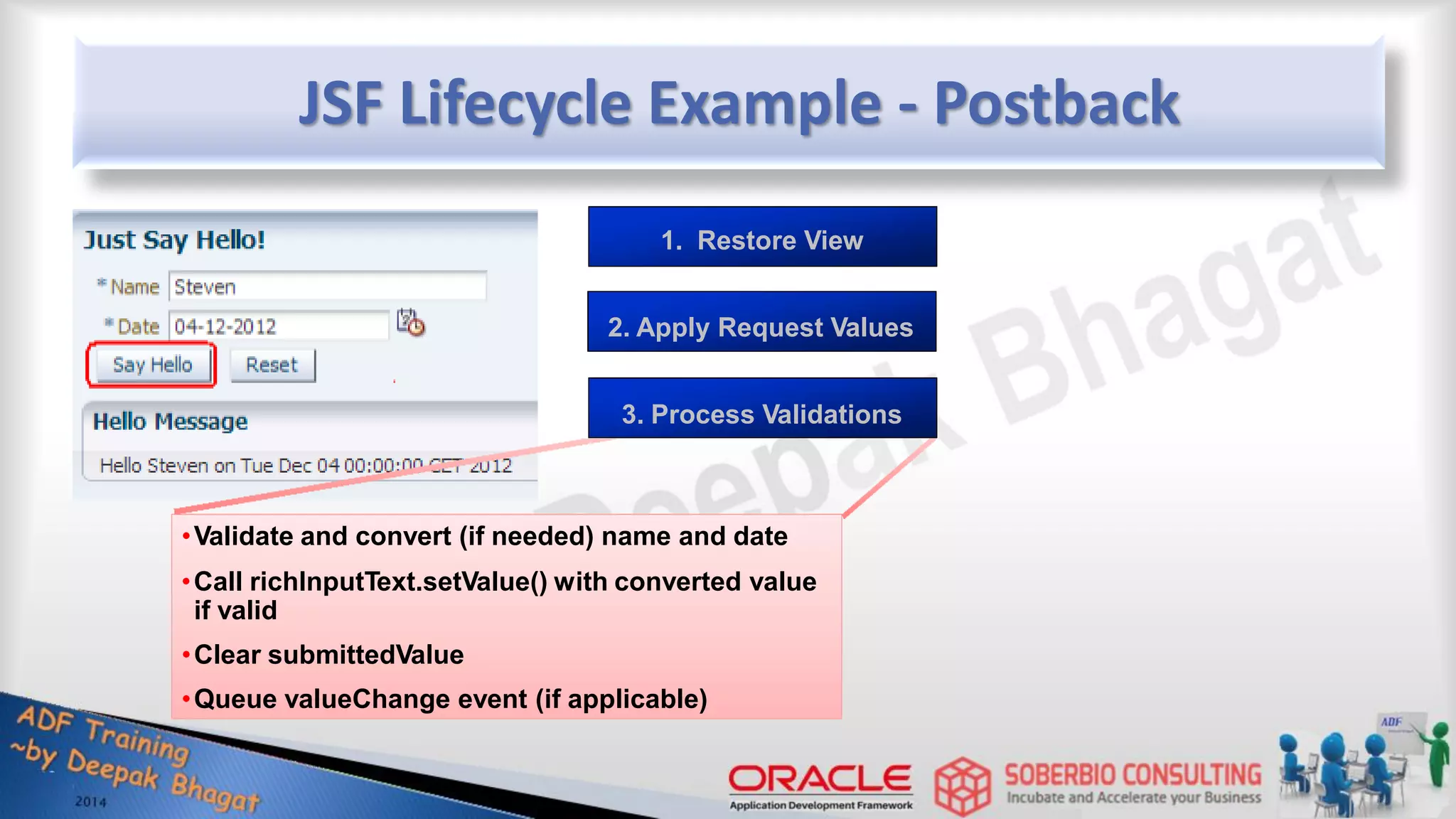

JSF Lifecycle Example - Postback 1. Restore View 2. Apply Request Values 3. Process Validations •Validate and convert (if needed) name and date •Call richInputText.setValue() with converted value if valid •Clear submittedValue •Queue valueChange event (if applicable)

1. Restore View value=“#{viewScope.HelloBean.name} 2. Apply Request Values 3. Process Validations 4. Update Model •Call HelloBean.setName with component value •Call HelloBean.setDate with component value •Clear submitted and (local) component value value=“#{viewScope.HelloBean.date} JSF Lifecycle Example - Postback

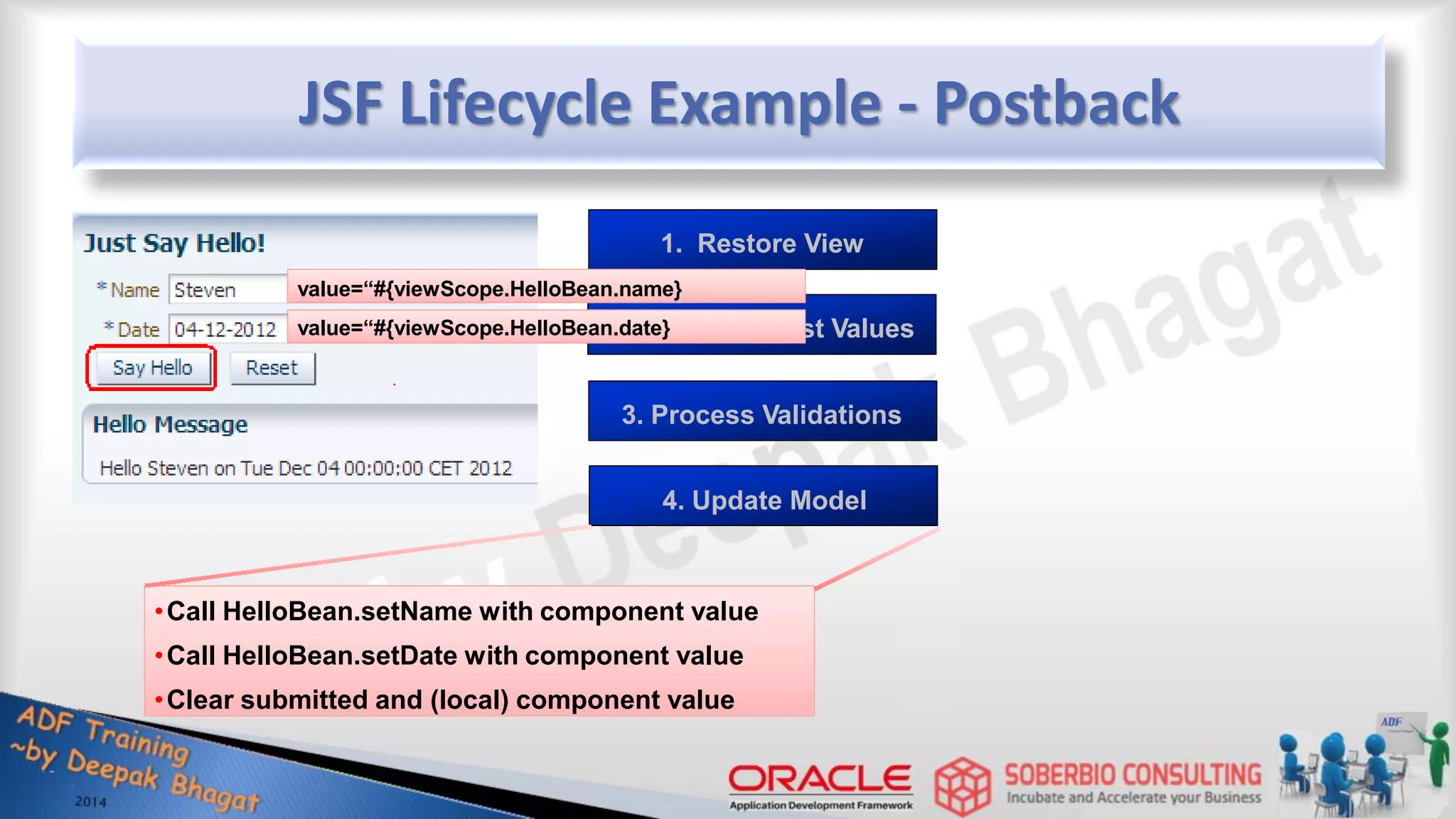

JSF Lifecycle Example - Postback 1. Restore View 2. Apply Request Values actionListener=“#{viewScope.helloBean.sayHello} 3. Process Validations 4. Update Model 5. Invoke Application •Call HelloBean.sayHello

JSF Lifecycle Example - Postback 1. Restore View 2. Apply Request Values 3. Process Validations 4. Update Model 5. Invoke Application 6. Render Response

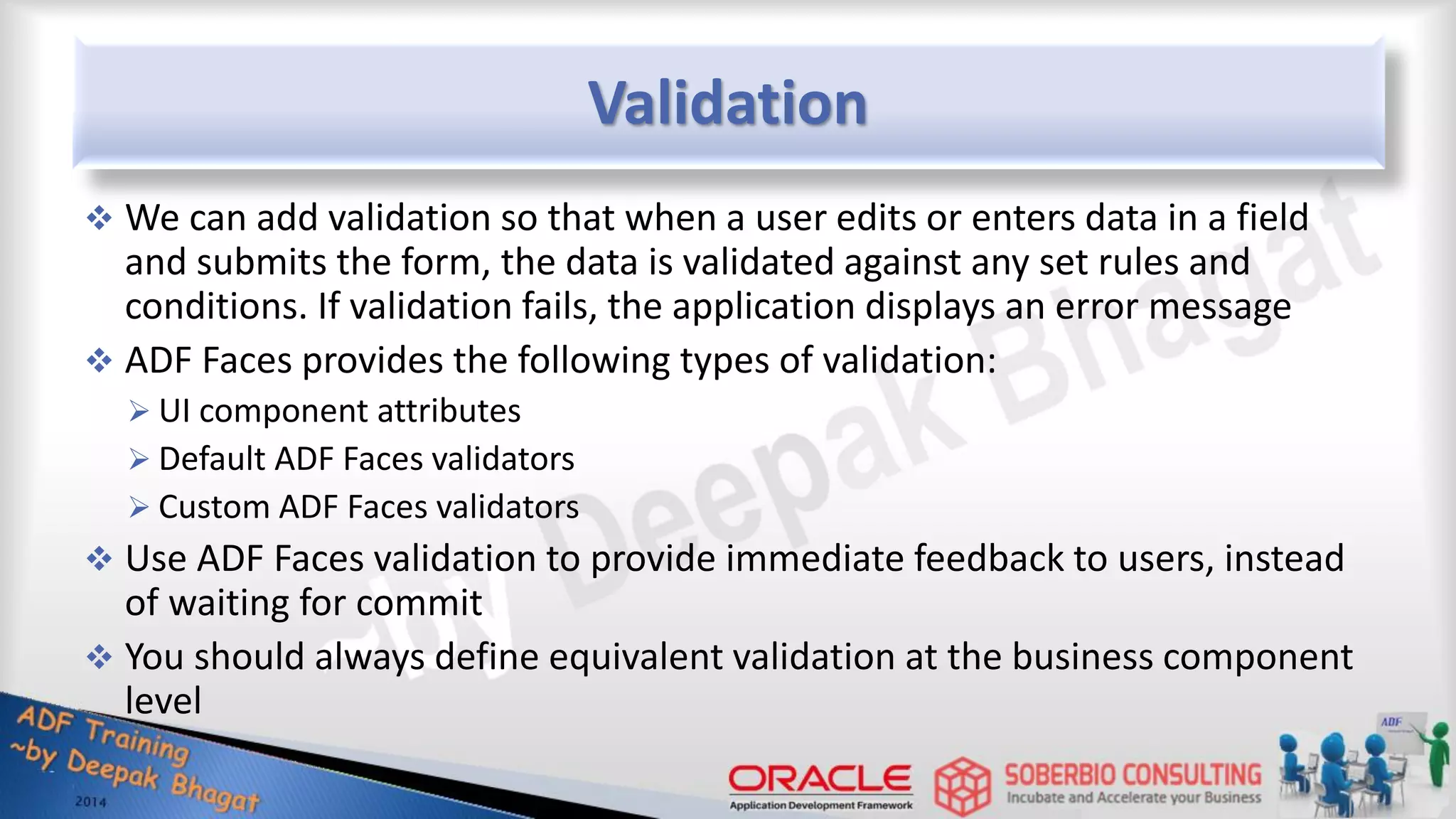

Validation  We can add validation so that when a user edits or enters data in a field and submits the form, the data is validated against any set rules and conditions. If validation fails, the application displays an error message  ADF Faces provides the following types of validation:  UI component attributes  Default ADF Faces validators  Custom ADF Faces validators  Use ADF Faces validation to provide immediate feedback to users, instead of waiting for commit  You should always define equivalent validation at the business component level

Validation Approaches  Manual validation  Use string properties for bean  Do validation in setter methods and/or action controller  Return null to redisplay form  Create custom error messages  Implicit automatic validation  Use int, double, etc.. bean properties. Or add required.  System redisplays form if there is conversion error  Use h:message to display field-specific error message  Explicit automatic validation  Use f:convertNumber, f:convertDateTime, f:validateLength, f:validateDoubleRange, or f:validateLongRange  System redisplays form if failure; use h:message again  Custom validators  Extend Validator, override validate, register in faces-config.xml

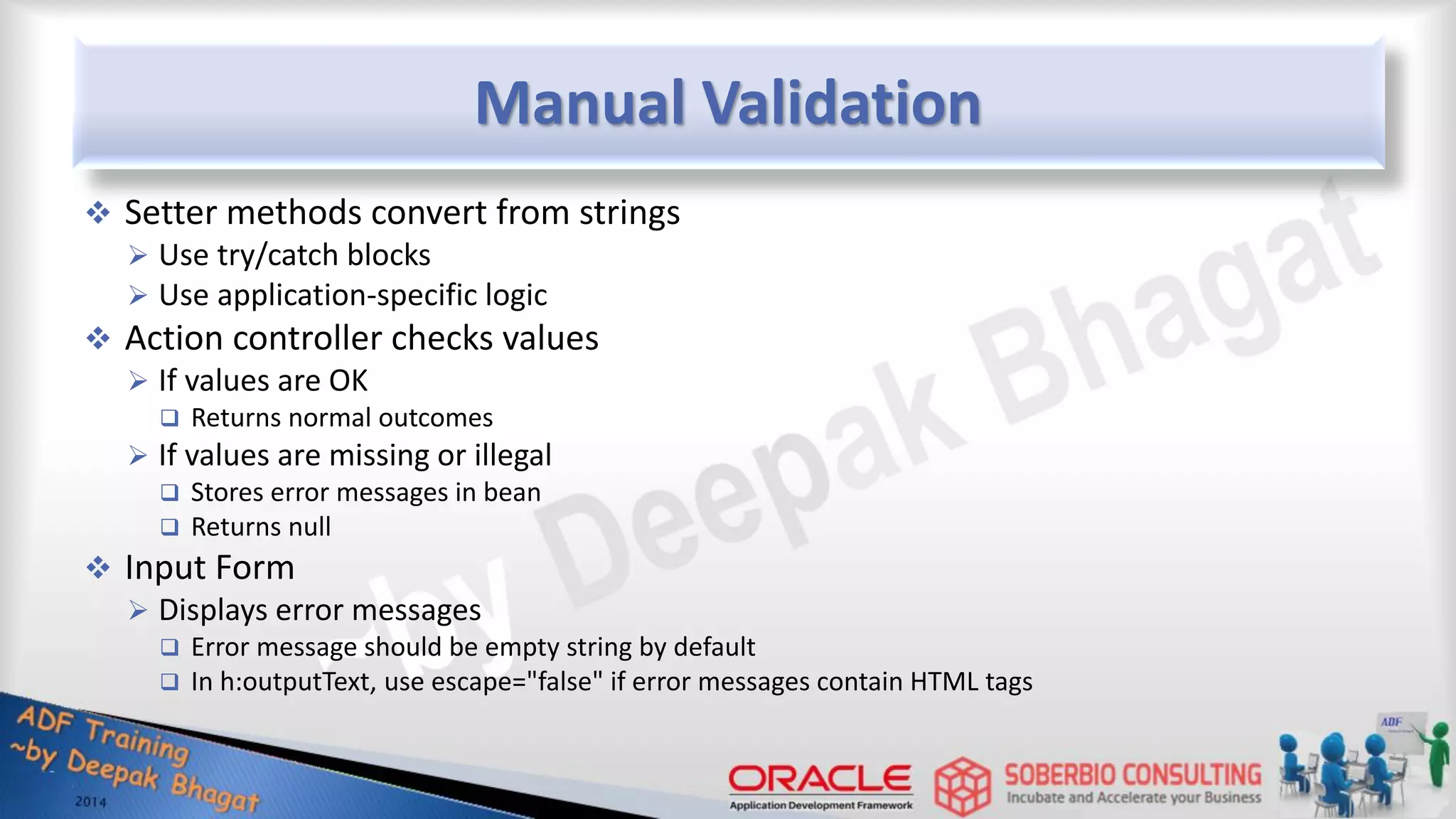

Manual Validation  Setter methods convert from strings  Use try/catch blocks  Use application-specific logic  Action controller checks values  If values are OK  Returns normal outcomes  If values are missing or illegal  Stores error messages in bean  Returns null  Input Form  Displays error messages  Error message should be empty string by default  In h:outputText, use escape="false" if error messages contain HTML tags

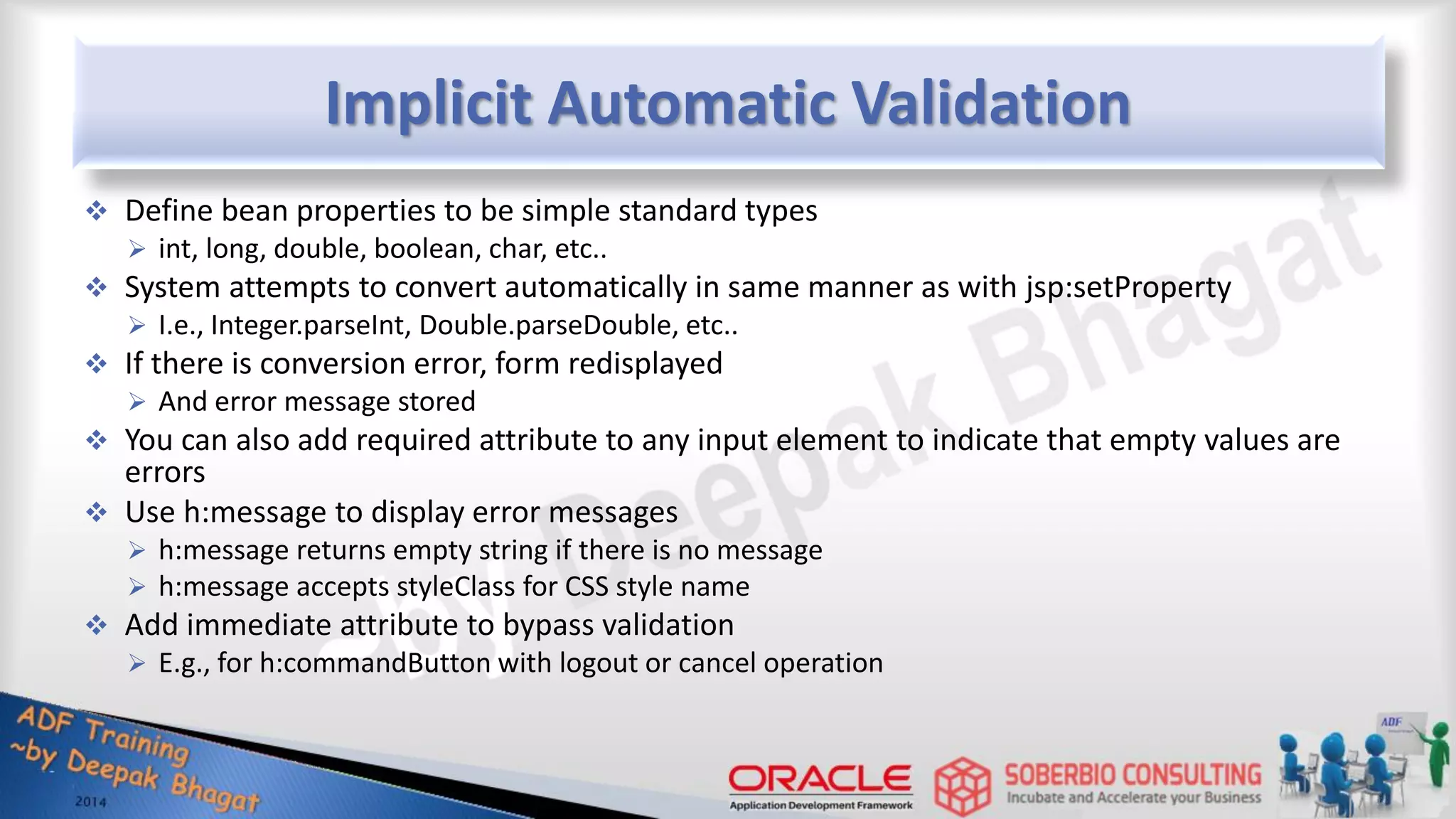

Implicit Automatic Validation  Define bean properties to be simple standard types  int, long, double, boolean, char, etc..  System attempts to convert automatically in same manner as with jsp:setProperty  I.e., Integer.parseInt, Double.parseDouble, etc..  If there is conversion error, form redisplayed  And error message stored  You can also add required attribute to any input element to indicate that empty values are errors  Use h:message to display error messages  h:message returns empty string if there is no message  h:message accepts styleClass for CSS style name  Add immediate attribute to bypass validation  E.g., for h:commandButton with logout or cancel operation

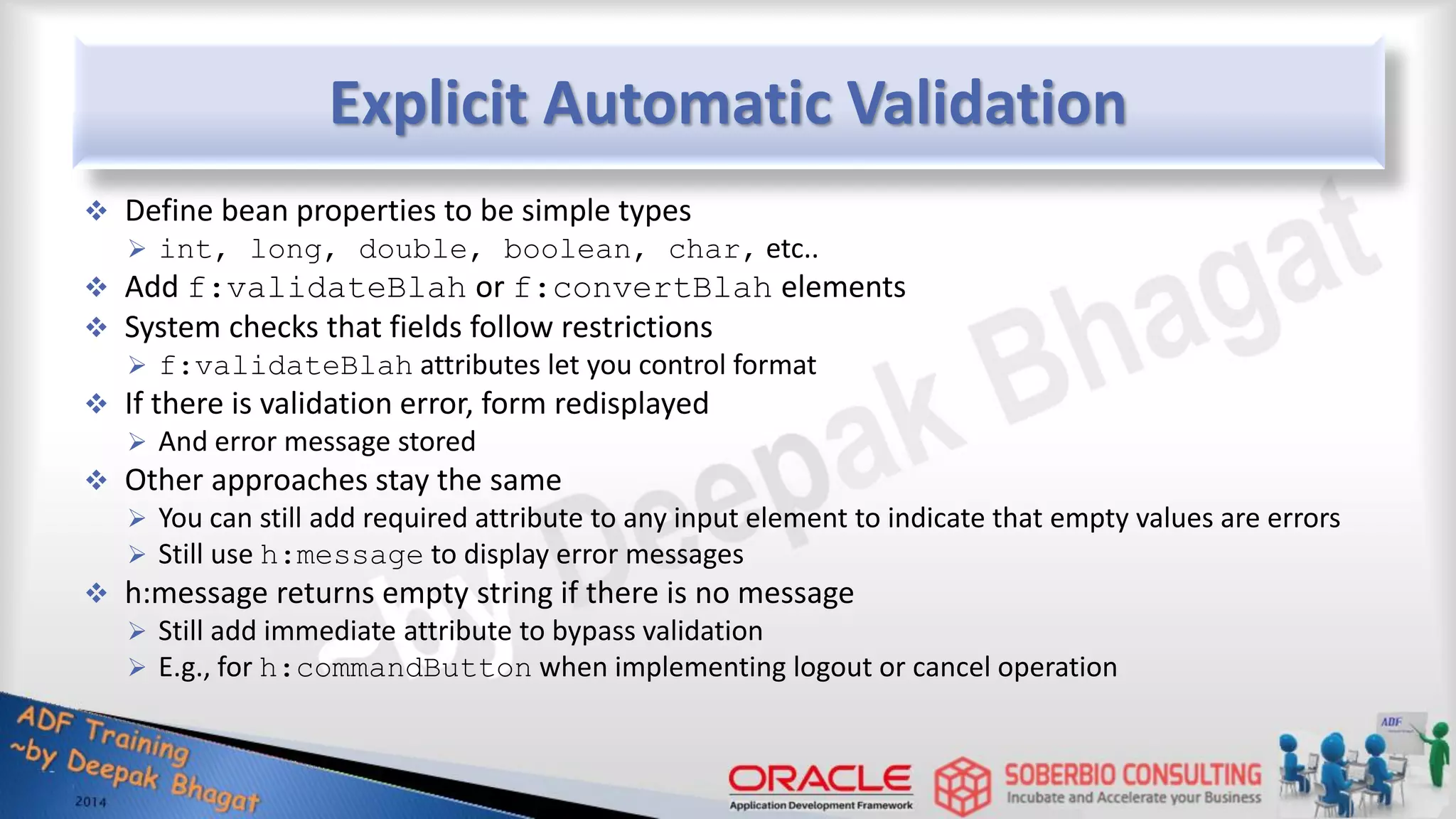

Explicit Automatic Validation  Define bean properties to be simple types  int, long, double, boolean, char, etc..  Add f:validateBlah or f:convertBlah elements  System checks that fields follow restrictions  f:validateBlah attributes let you control format  If there is validation error, form redisplayed  And error message stored  Other approaches stay the same  You can still add required attribute to any input element to indicate that empty values are errors  Still use h:message to display error messages  h:message returns empty string if there is no message  Still add immediate attribute to bypass validation  E.g., for h:commandButton when implementing logout or cancel operation

Example of Explicit Validation <h:form> <TABLE> <TR> <TD>User ID: <h:inputText value="#{bean.userID}“ id="userID"> <f:validateLength minimum="5" maximum="6"/> </h:inputText> </TD> <TD> <h:message for="userID“ styleClass="RED"/> </TD> </TR> <TR> <TD>Keyword: <h:inputText value="#{bean.keyword}“ id="keyword"> <f:validateLength minimum="3"/> </h:inputText> </TD> <TD><h:message for="keyword“ styleClass="RED"/></TD> </TR>

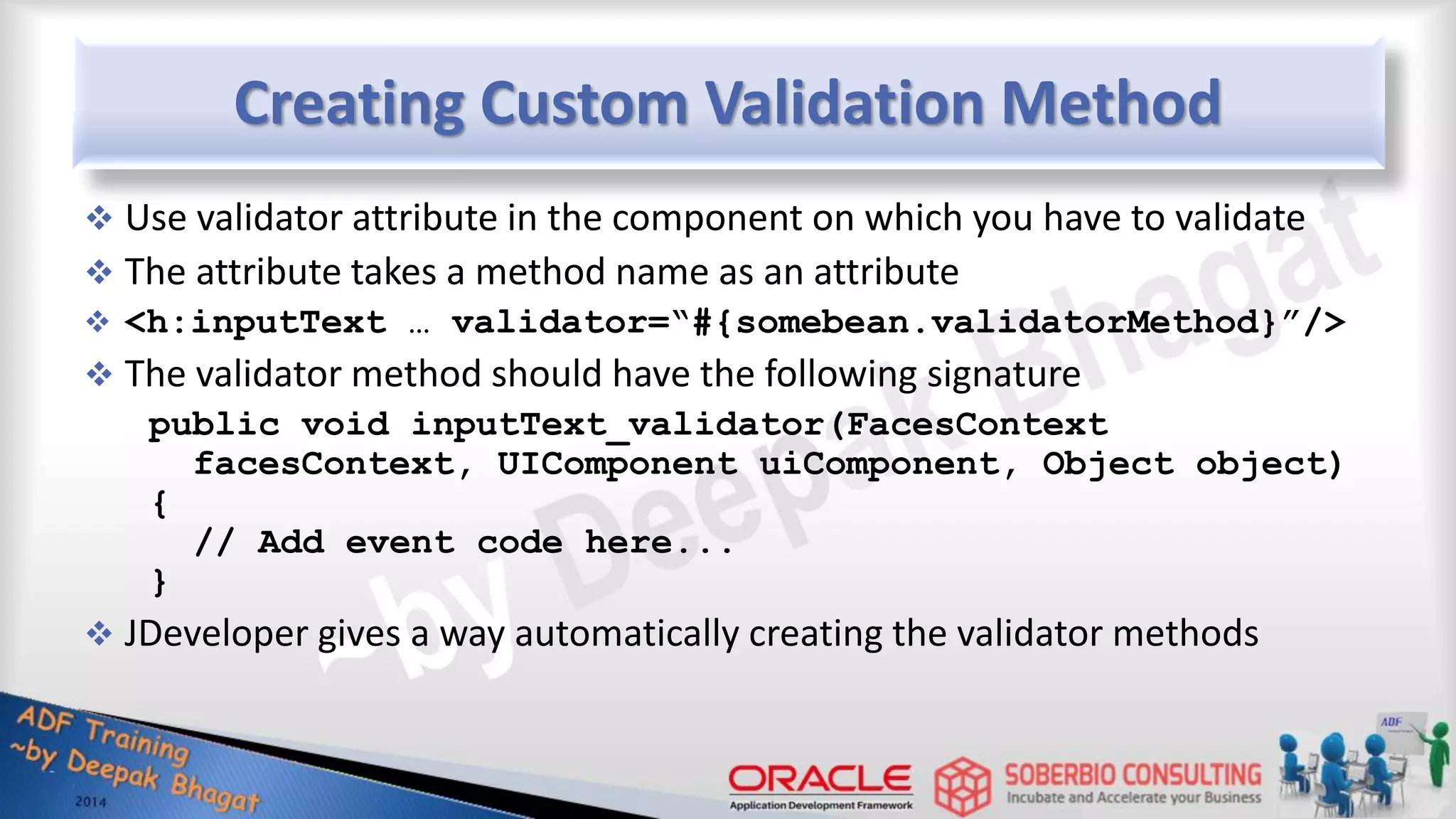

Creating Custom Validation Method  Use validator attribute in the component on which you have to validate  The attribute takes a method name as an attribute  <h:inputText … validator=“#{somebean.validatorMethod}”/>  The validator method should have the following signature public void inputText_validator(FacesContext facesContext, UIComponent uiComponent, Object object) { // Add event code here... }  JDeveloper gives a way automatically creating the validator methods

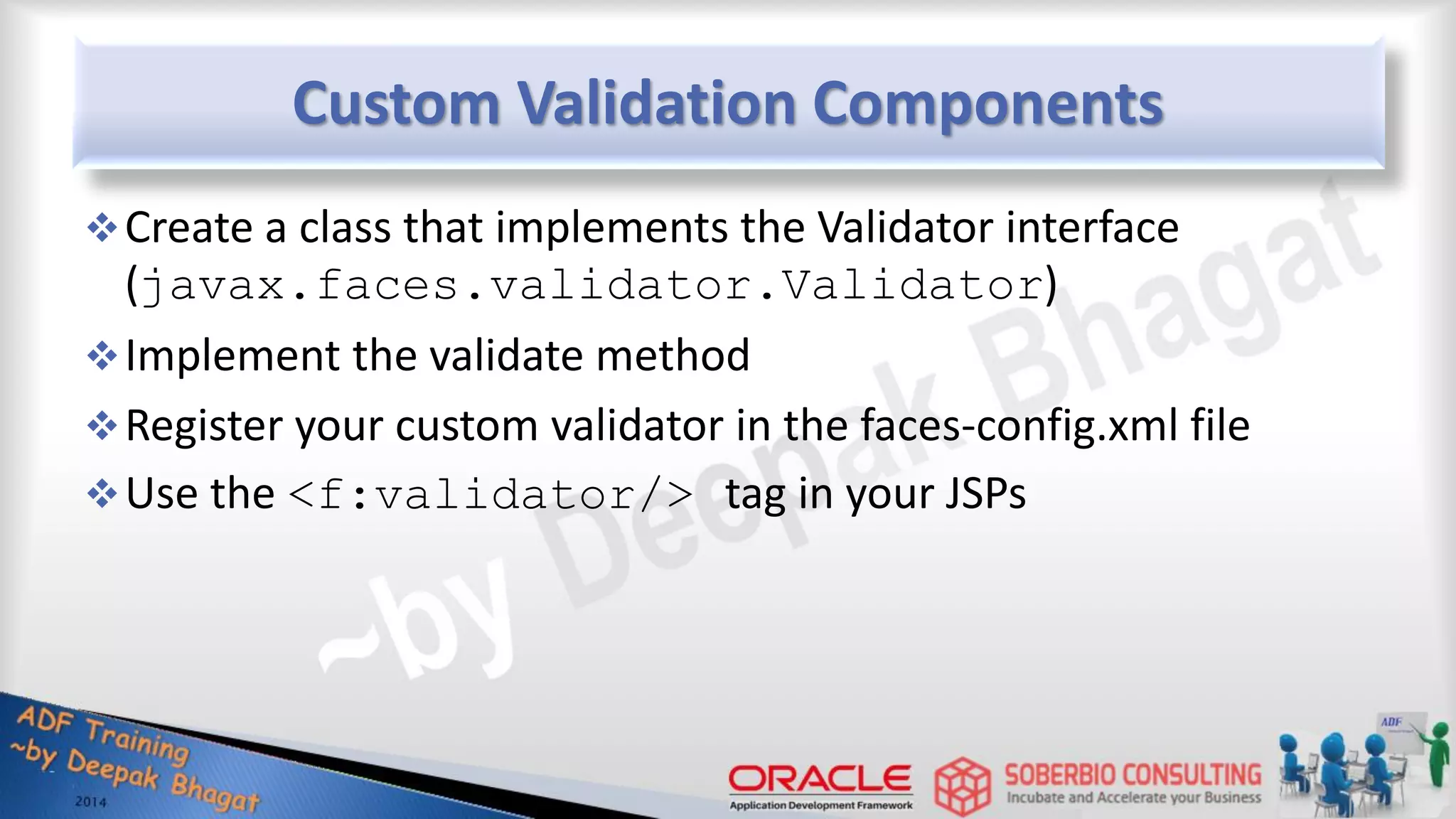

Custom Validation Components Create a class that implements the Validator interface (javax.faces.validator.Validator) Implement the validate method Register your custom validator in the faces-config.xml file Use the <f:validator/> tag in your JSPs

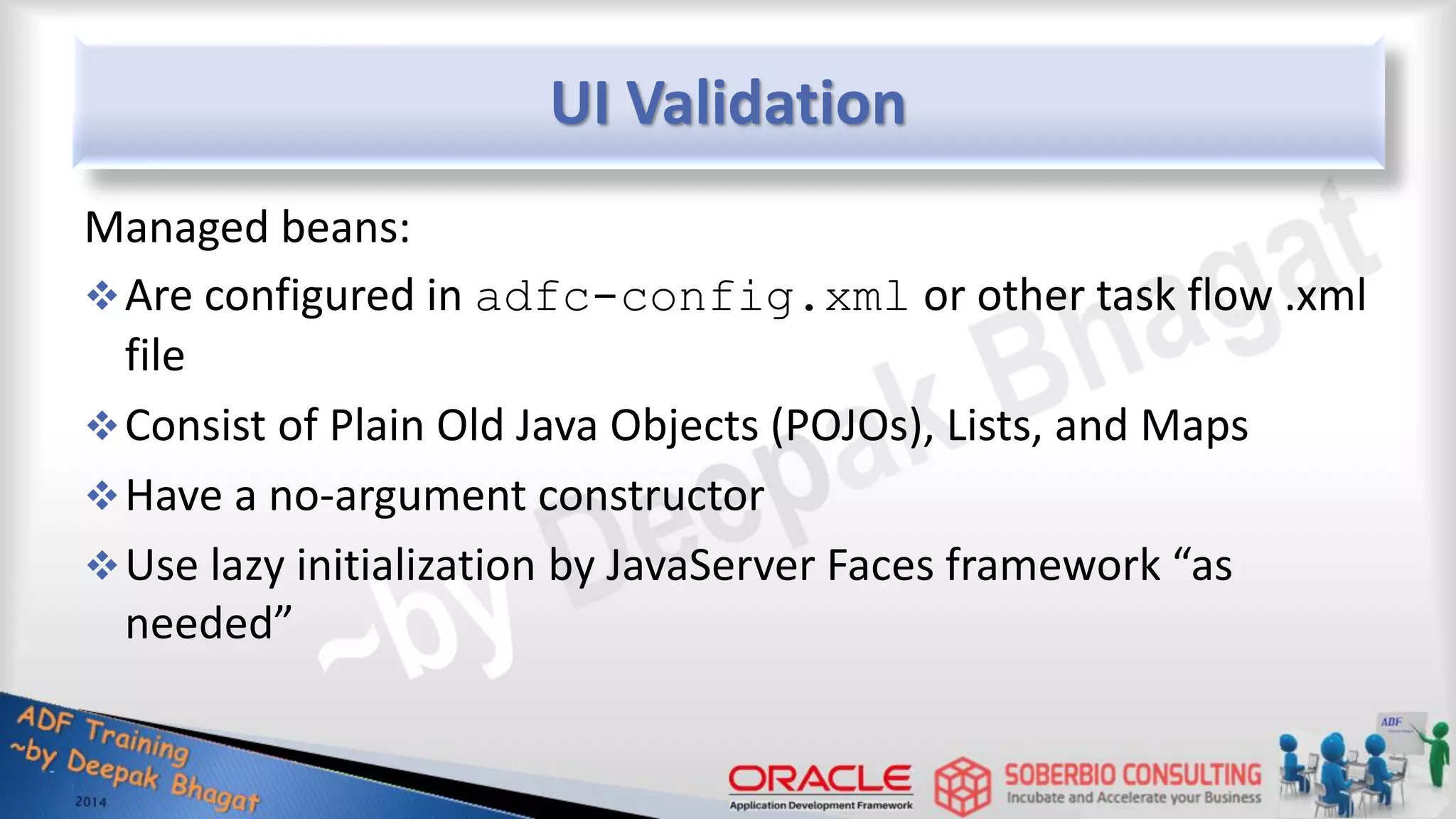

UI Validation Managed beans: Are configured in adfc-config.xml or other task flow .xml file Consist of Plain Old Java Objects (POJOs), Lists, and Maps Have a no-argument constructor Use lazy initialization by JavaServer Faces framework “as needed”

Input Validation  Use input validation to Avoid “garbage-in-garbage-out” applications Block bad user input Avoid attacks Avoid misuse of form fields  JavaServer Faces and ADF provide the following options for validation ADF binding validation JSF validator components Backing bean "coded" validation

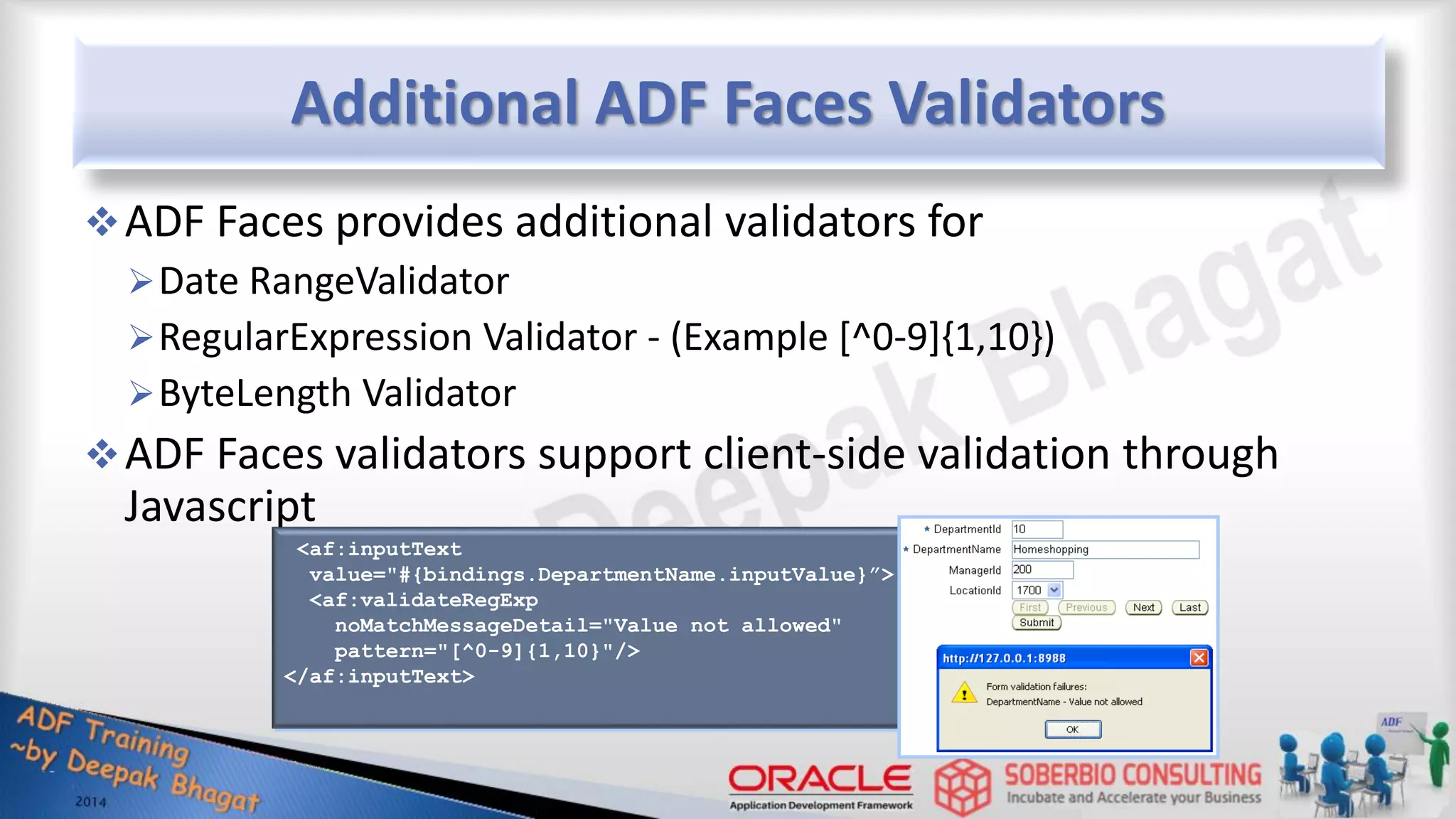

Additional ADF Faces Validators ADF Faces provides additional validators for Date RangeValidator RegularExpression Validator - (Example [^0-9]{1,10}) ByteLength Validator ADF Faces validators support client-side validation through Javascript <af:inputText value="#{bindings.DepartmentName.inputValue}”> <af:validateRegExp noMatchMessageDetail="Value not allowed" pattern="[^0-9]{1,10}"/> </af:inputText>

Creating Backing Bean Validation in JDeveloper

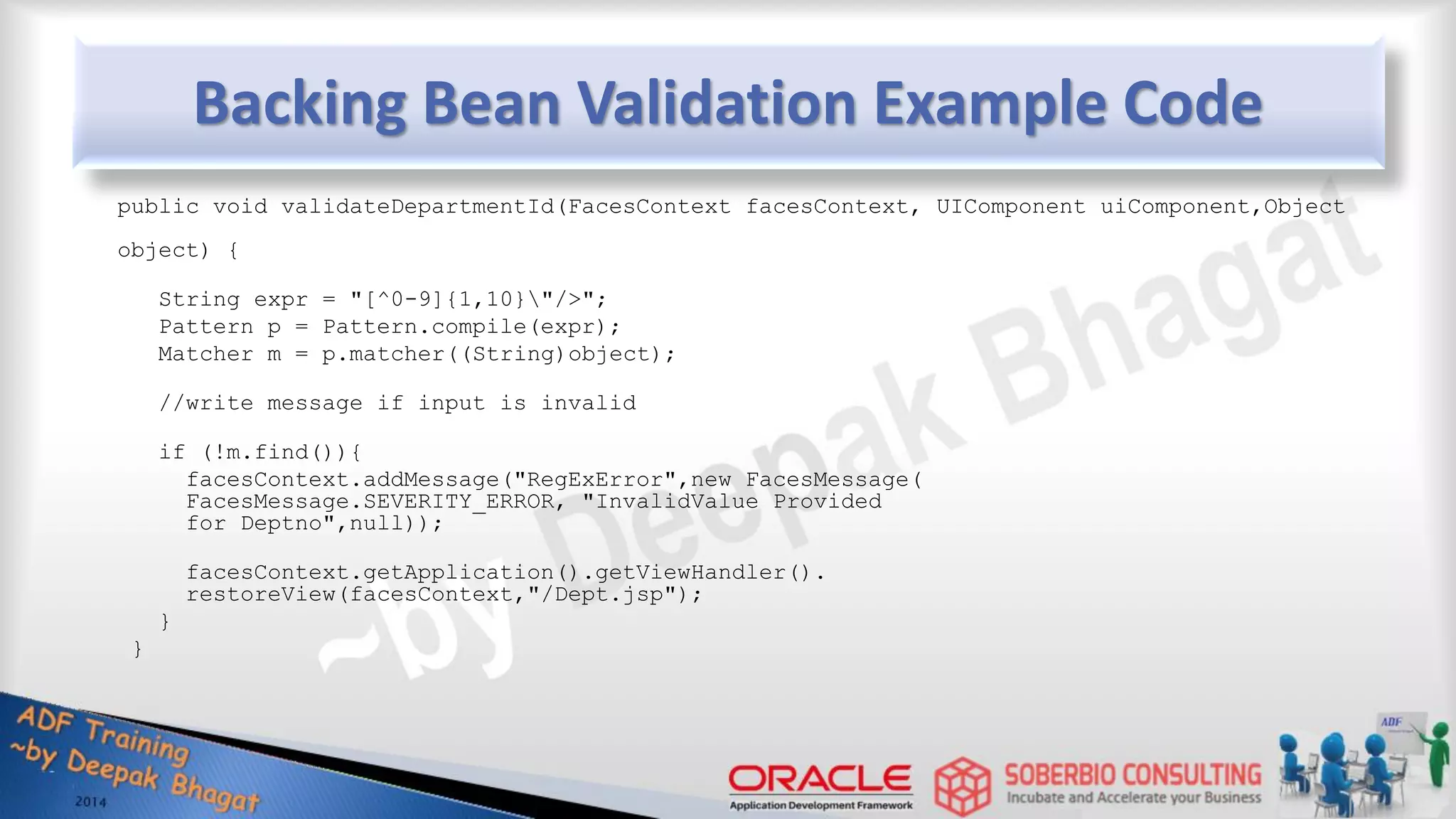

Backing Bean Validation Example Code public void validateDepartmentId(FacesContext facesContext, UIComponent uiComponent,Object object) { String expr = "[^0-9]{1,10}"/>"; Pattern p = Pattern.compile(expr); Matcher m = p.matcher((String)object); //write message if input is invalid if (!m.find()){ facesContext.addMessage("RegExError",new FacesMessage( FacesMessage.SEVERITY_ERROR, "InvalidValue Provided for Deptno",null)); facesContext.getApplication().getViewHandler(). restoreView(facesContext,"/Dept.jsp"); } }

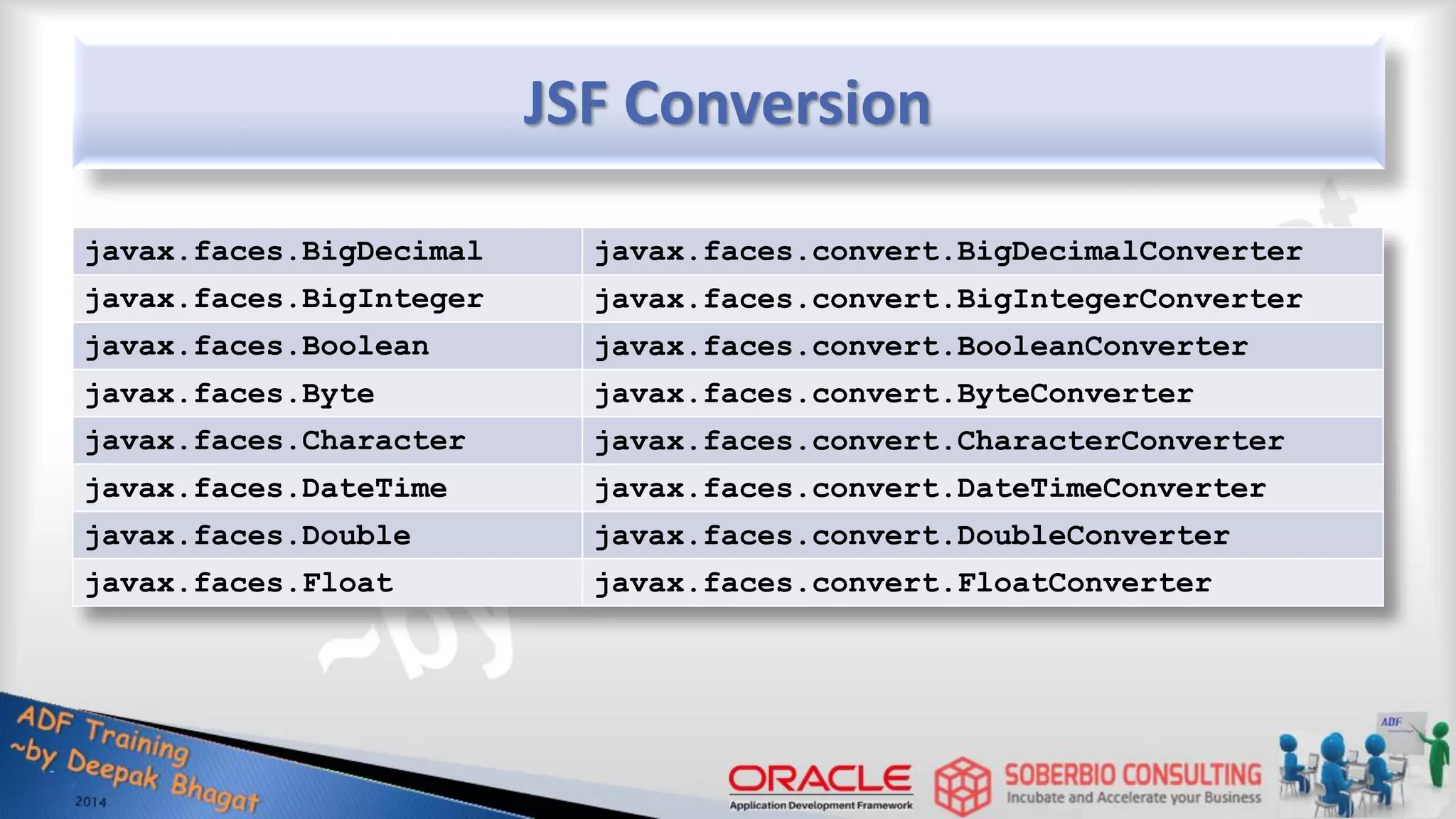

JSF Conversion javax.faces.BigDecimal javax.faces.convert.BigDecimalConverter javax.faces.BigInteger javax.faces.convert.BigIntegerConverter javax.faces.Boolean javax.faces.convert.BooleanConverter javax.faces.Byte javax.faces.convert.ByteConverter javax.faces.Character javax.faces.convert.CharacterConverter javax.faces.DateTime javax.faces.convert.DateTimeConverter javax.faces.Double javax.faces.convert.DoubleConverter javax.faces.Float javax.faces.convert.FloatConverter

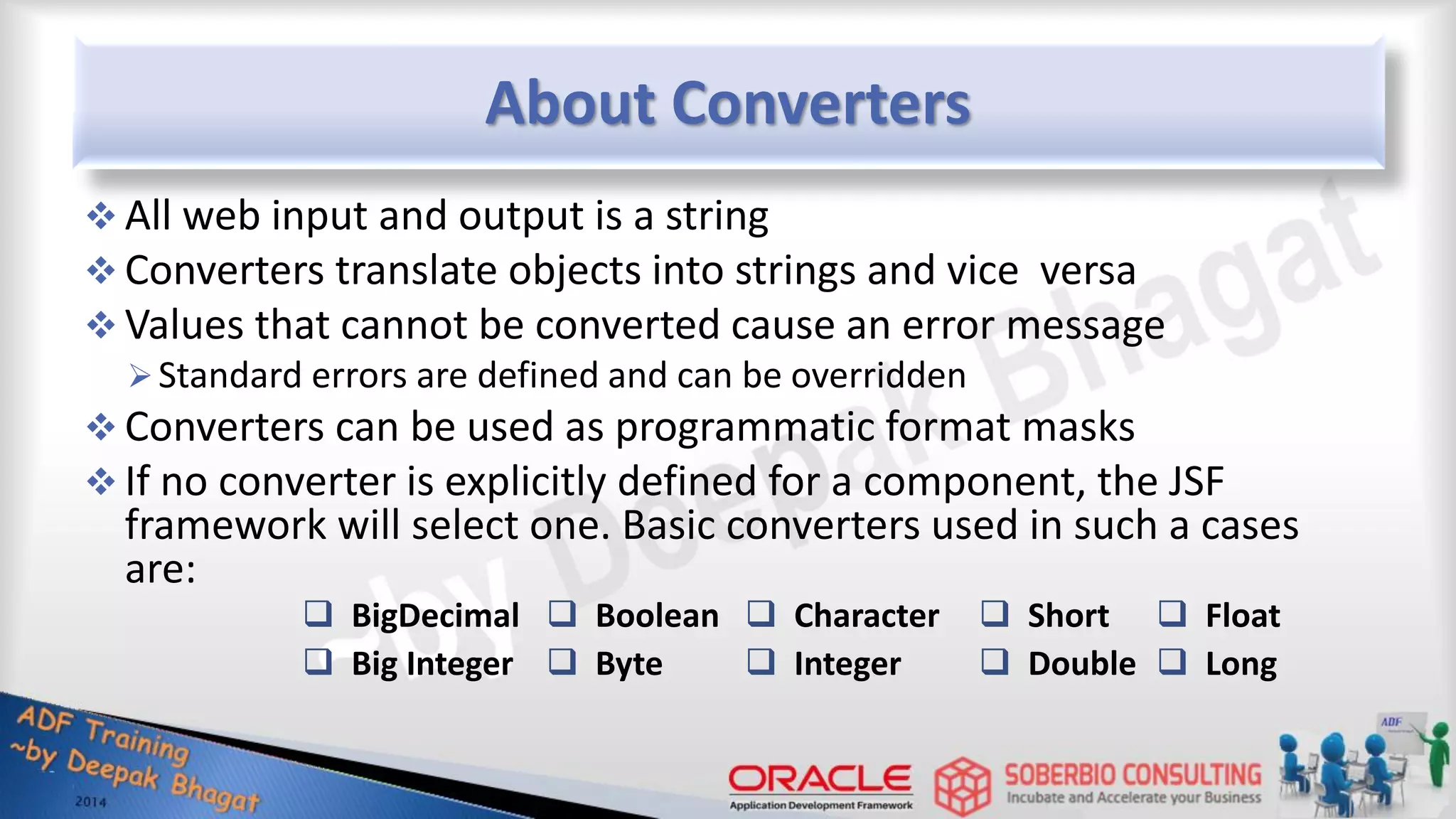

About Converters  All web input and output is a string  Converters translate objects into strings and vice versa  Values that cannot be converted cause an error message Standard errors are defined and can be overridden  Converters can be used as programmatic format masks  If no converter is explicitly defined for a component, the JSF framework will select one. Basic converters used in such a cases are:  BigDecimal  Big Integer  Short  Double  Character  Integer  Float  Long  Boolean  Byte

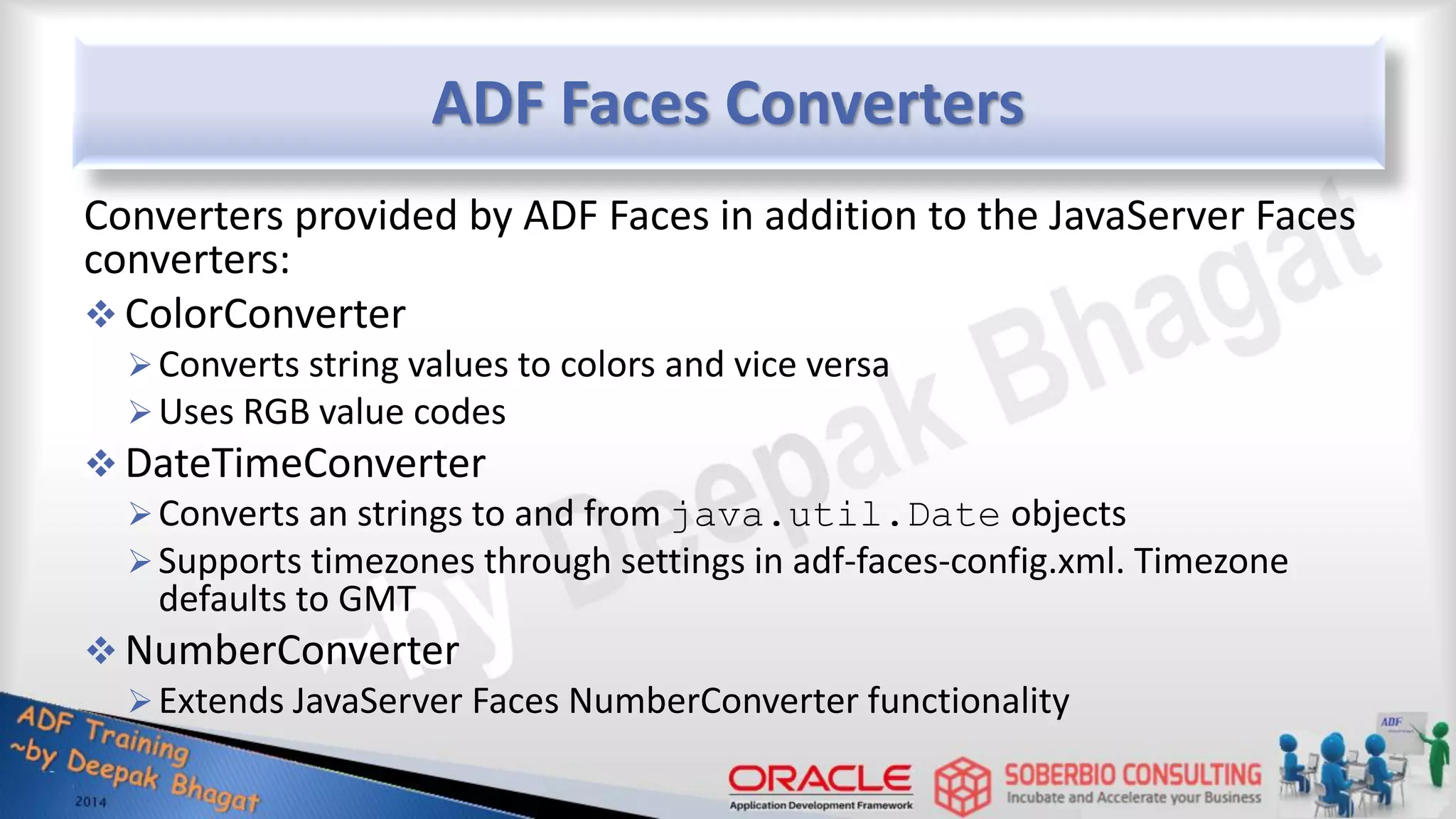

ADF Faces Converters Converters provided by ADF Faces in addition to the JavaServer Faces converters:  ColorConverter Converts string values to colors and vice versa Uses RGB value codes  DateTimeConverter Converts an strings to and from java.util.Date objects Supports timezones through settings in adf-faces-config.xml. Timezone defaults to GMT  NumberConverter Extends JavaServer Faces NumberConverter functionality

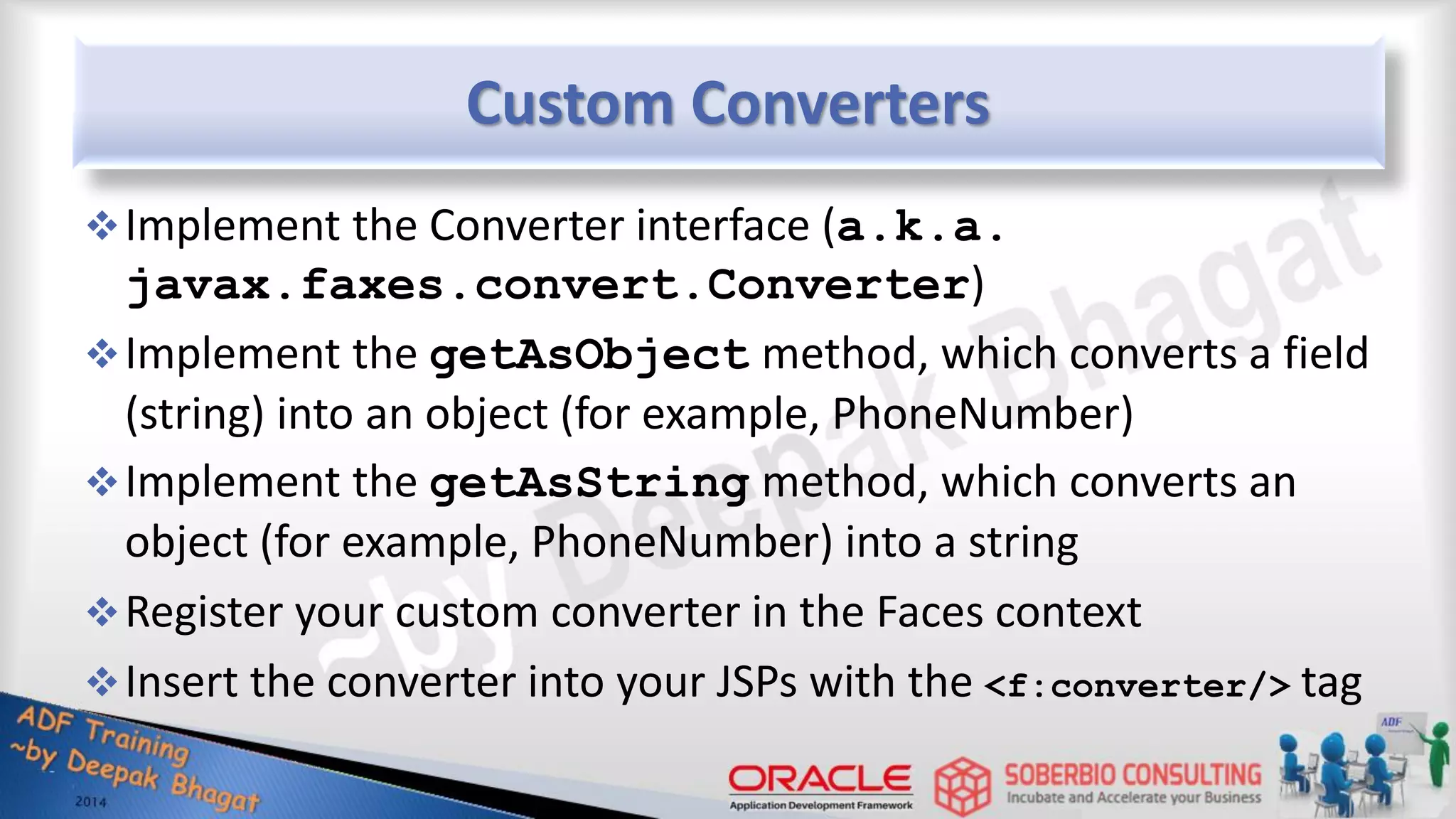

Custom Converters Implement the Converter interface (a.k.a. javax.faxes.convert.Converter) Implement the getAsObject method, which converts a field (string) into an object (for example, PhoneNumber) Implement the getAsString method, which converts an object (for example, PhoneNumber) into a string Register your custom converter in the Faces context Insert the converter into your JSPs with the <f:converter/> tag

Step 1: Implement the Converter interface import javax.faces.convert.Converter; public class PhoneConverter implements Converter { ... } Step 2: Implement the getAsObject method public class PhoneConverter implements Converter{ public Object getAsObject(FacesContext context, UIComponent component, String value) { } } Step 3: Implement the getAsString method public String getAsString(FacesContext context, UIComponent component, Object value){ return value.toString(); } Custom Converters

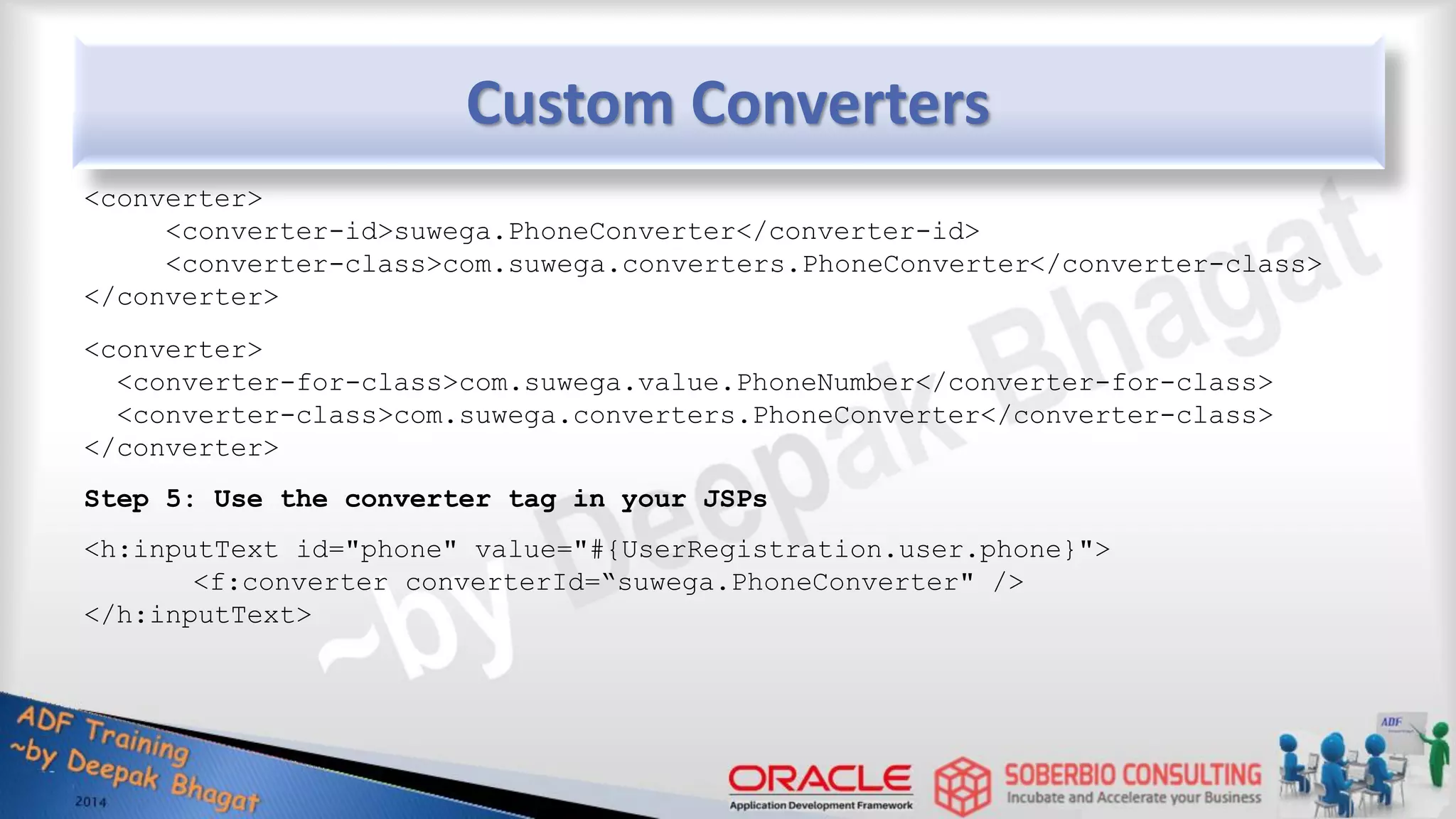

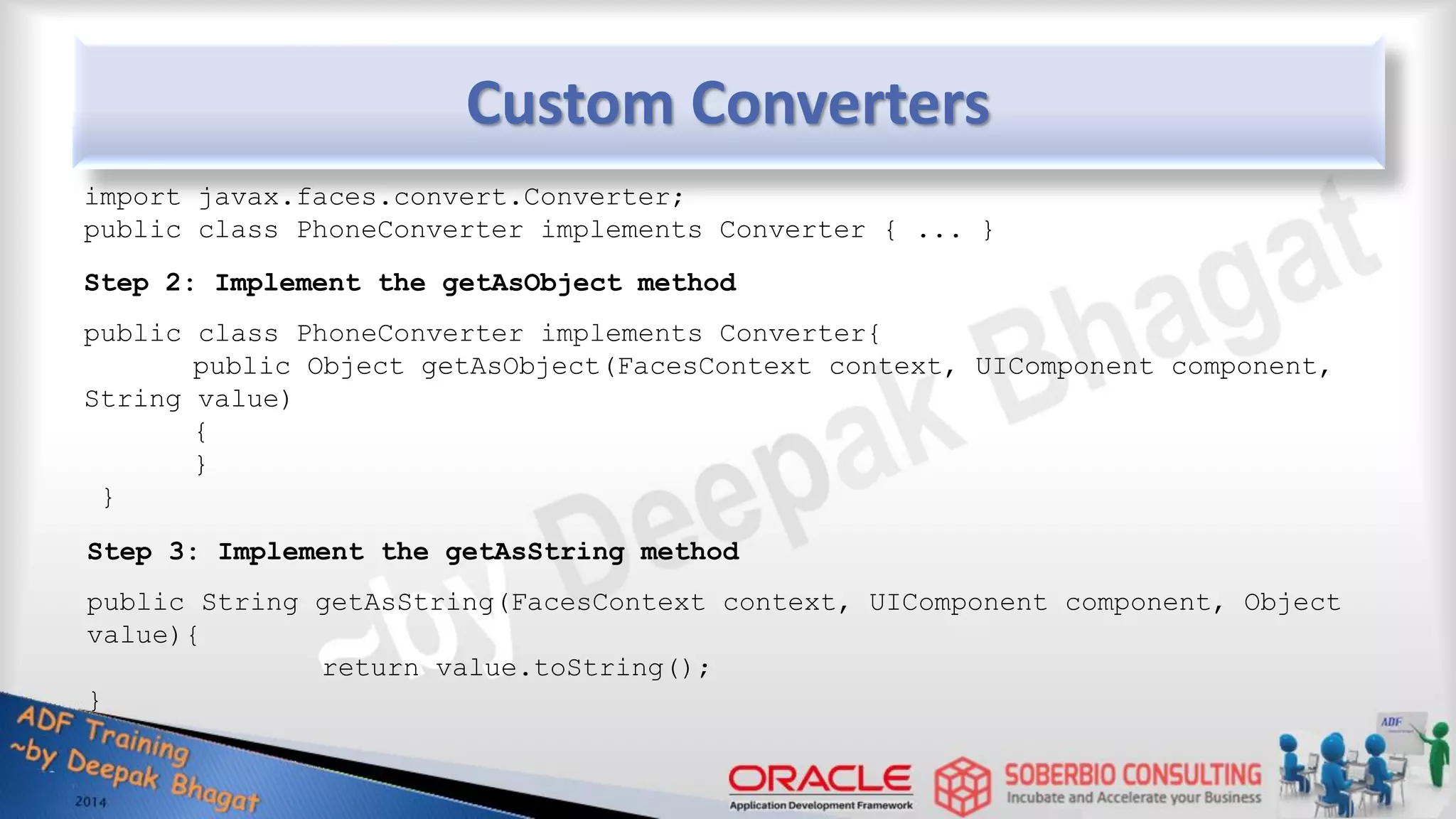

Step 4: Register custom converter with faces context <converter> <converter-id>suwega.PhoneConverter</converter-id> <converter-class>com.suwega.converters.PhoneConverter</converter-class> </converter> <converter> <converter-for-class>com.suwega.value.PhoneNumber</converter-for-class> <converter-class>com.suwega.converters.PhoneConverter</converter-class> </converter> Step 5: Use the converter tag in your JSPs <h:inputText id="phone" value="#{UserRegistration.user.phone}"> <f:converter converterId=“suwega.PhoneConverter" /> </h:inputText> Custom Converters

Lesson Summary  Configure and use managed beans  Explain the different types of events  Handle action, value change and phase events using corresponding listener  Configure managed bean to contain listener  ADF Life Cycle Phases  Validate UI using Validators  Converters  Understand contextual events to coordinate regions  Programmatically call Partial Page Rendering

18 Binding Model Layer with Business Services and Databound View

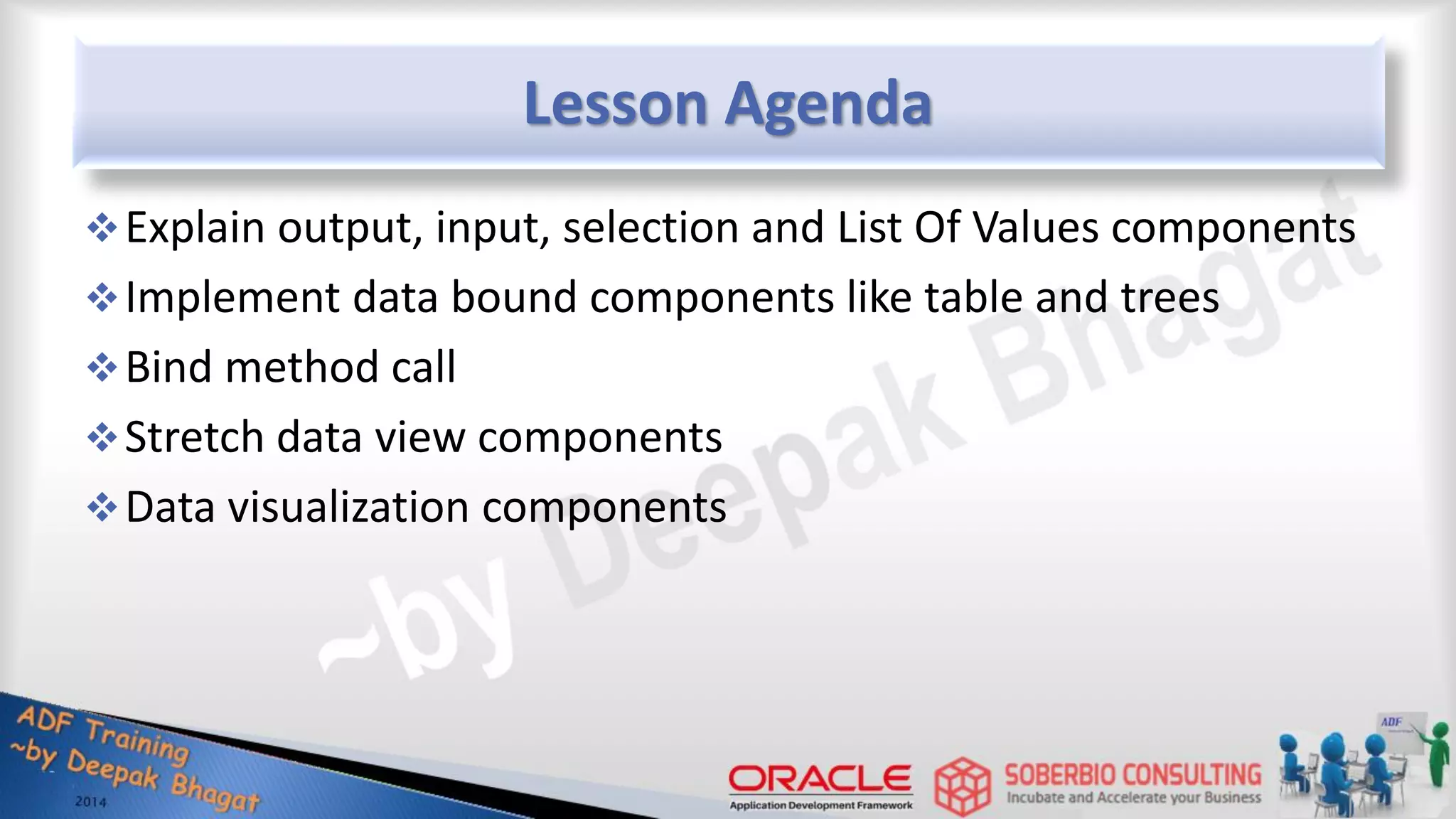

Lesson Agenda Explain output, input, selection and List Of Values components Implement data bound components like table and trees Bind method call Stretch data view components Data visualization components

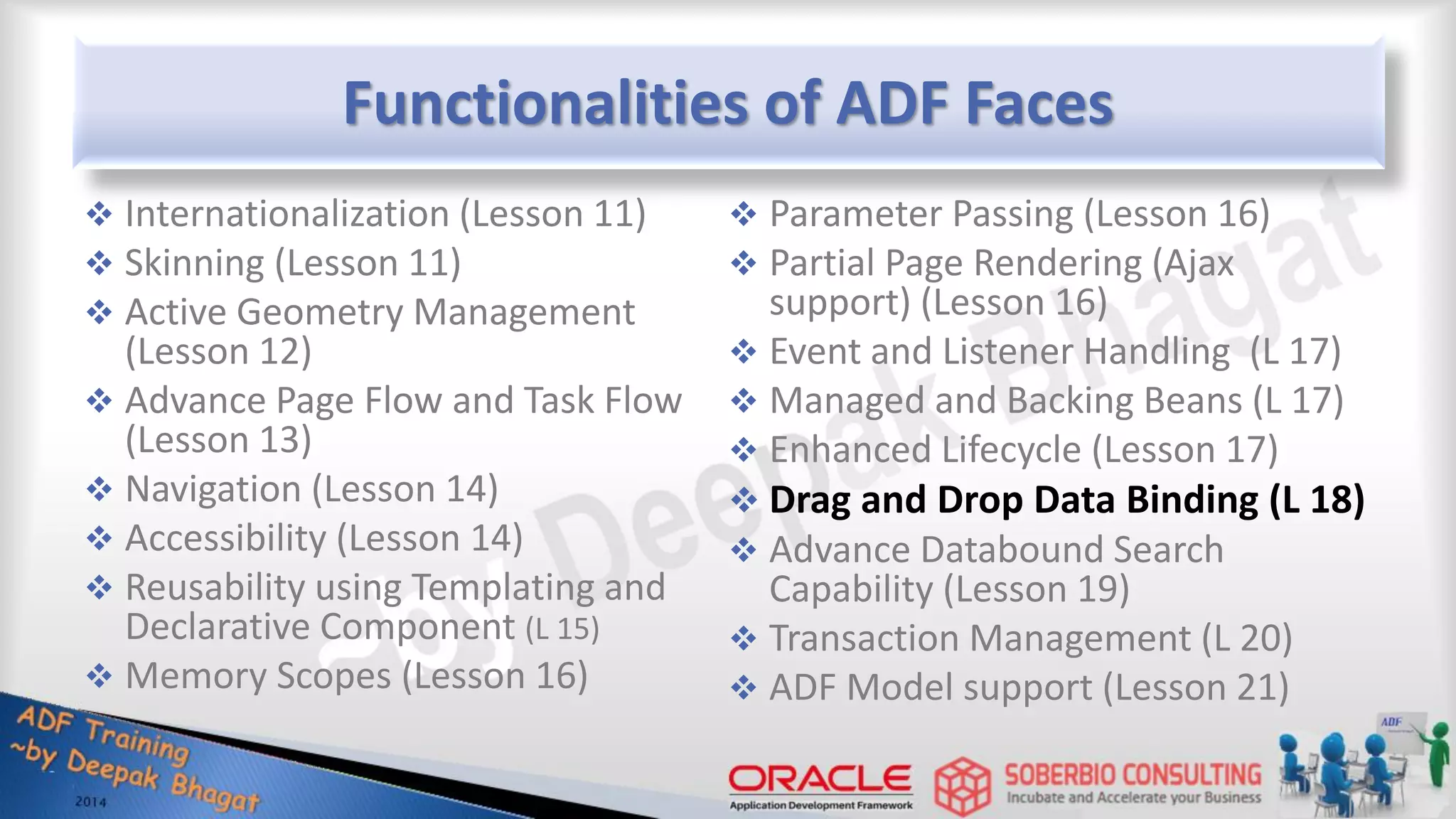

ADF Faces Functionality: ADF Faces Components  Layout Components: (12)  Navigation Control Components: (14)  Menu and Toolbar: (14)  Secondary Windows Layout: (14)  Text and Selection Comps: (18) Output Comps* Input Comps* List-of-Values (LOV) Comps*  Data Views: (18) Collection-Based Comps* Specialty Display Comps*  Advance Data Visualization Comps* (18)  Data Query Components (19) Chart Graph Gauge NBox Pivot Table Map Gantt Timeline Hierarchy Viewer Sunburst Diagram *Comps = Components

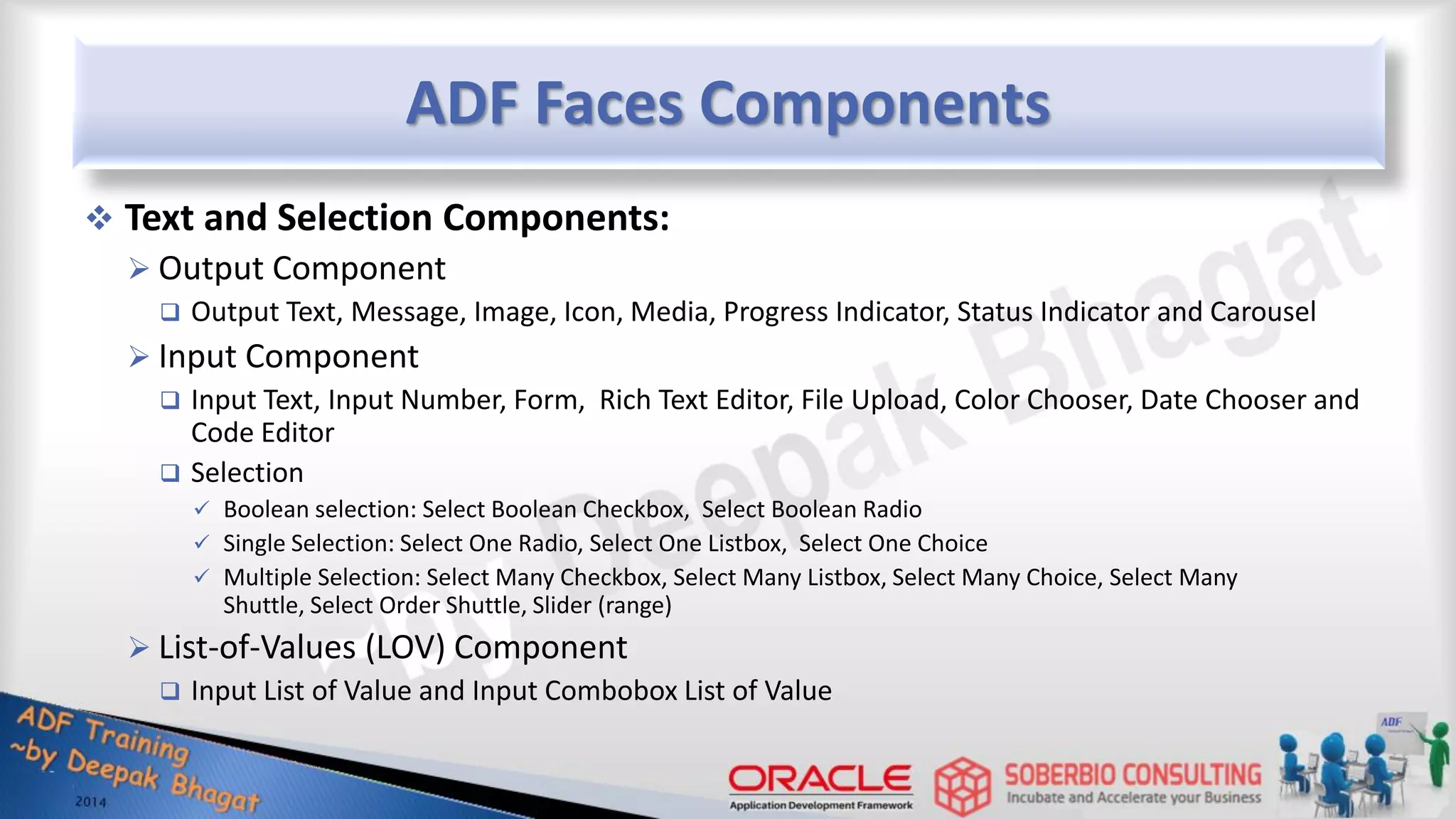

ADF Faces Components  Text and Selection Components:  Output Component  Output Text, Message, Image, Icon, Media, Progress Indicator, Status Indicator and Carousel  Input Component  Input Text, Input Number, Form, Rich Text Editor, File Upload, Color Chooser, Date Chooser and Code Editor  Selection  Boolean selection: Select Boolean Checkbox, Select Boolean Radio  Single Selection: Select One Radio, Select One Listbox, Select One Choice  Multiple Selection: Select Many Checkbox, Select Many Listbox, Select Many Choice, Select Many Shuttle, Select Order Shuttle, Slider (range)  List-of-Values (LOV) Component  Input List of Value and Input Combobox List of Value

ADF Faces Components cont.… Data Views: Collection-Based  Table  Tree  Tree Table  List View  Carousel Specialty Display  Calendar Component Data Visualization: Graph Chart Gauge NBox Pivot Table Pivot Filter Bar Geographic Map Thematic Map Gantt Chart Timeline Hierarchy Viewer Tree Map Sunburst Diagram

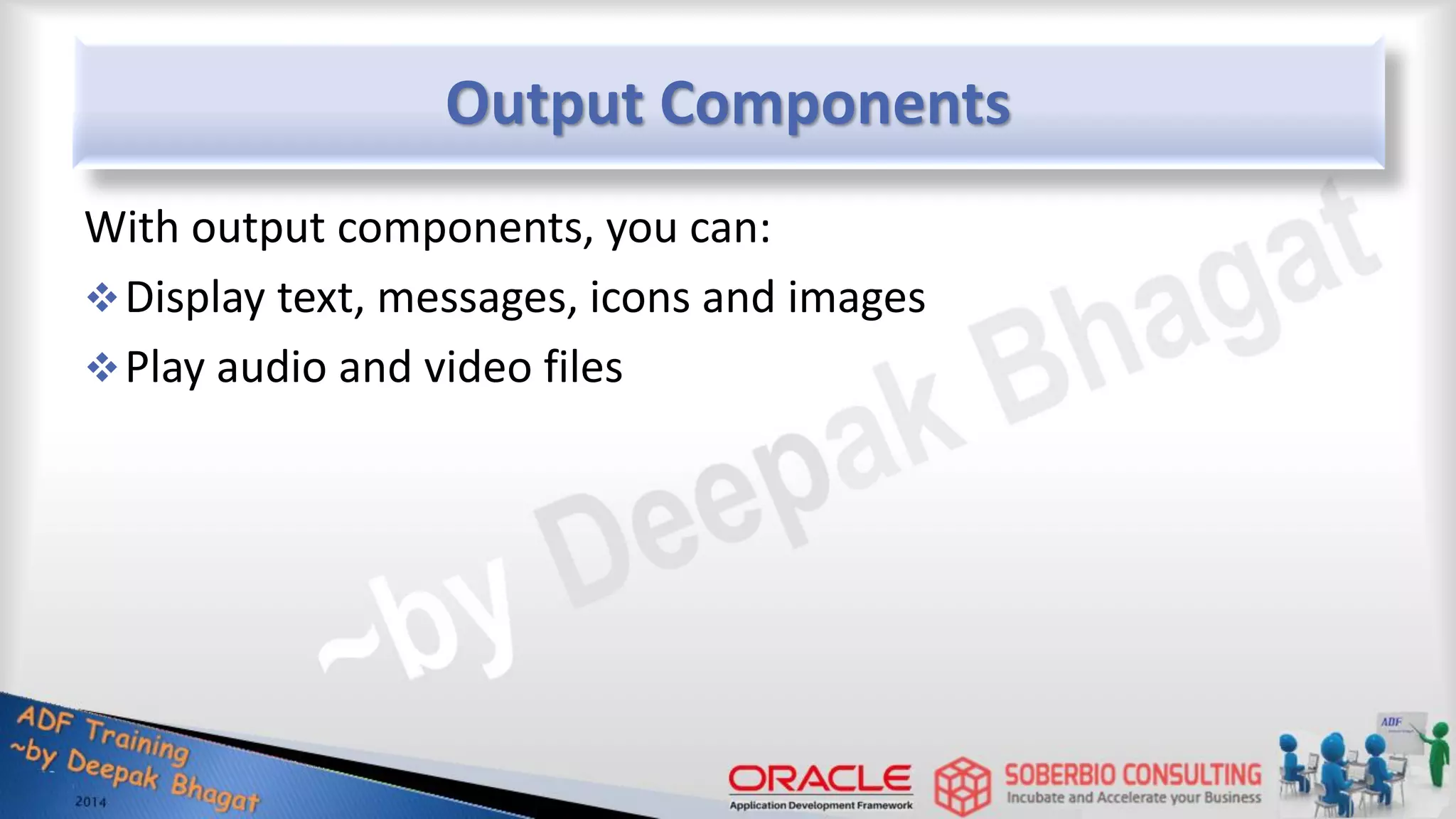

Output Components With output components, you can: Display text, messages, icons and images Play audio and video files

Output Components Output Text: The outputText component can be used as a child to many other components to display read-only text When you need the text to be formatted, you can use the outputFormatted component

Output Components Message: Messages can typically be divided into two types: Error messages that display when an error occurs in the application, for example when a user enters incompatible information Informational messages to display more detailed information

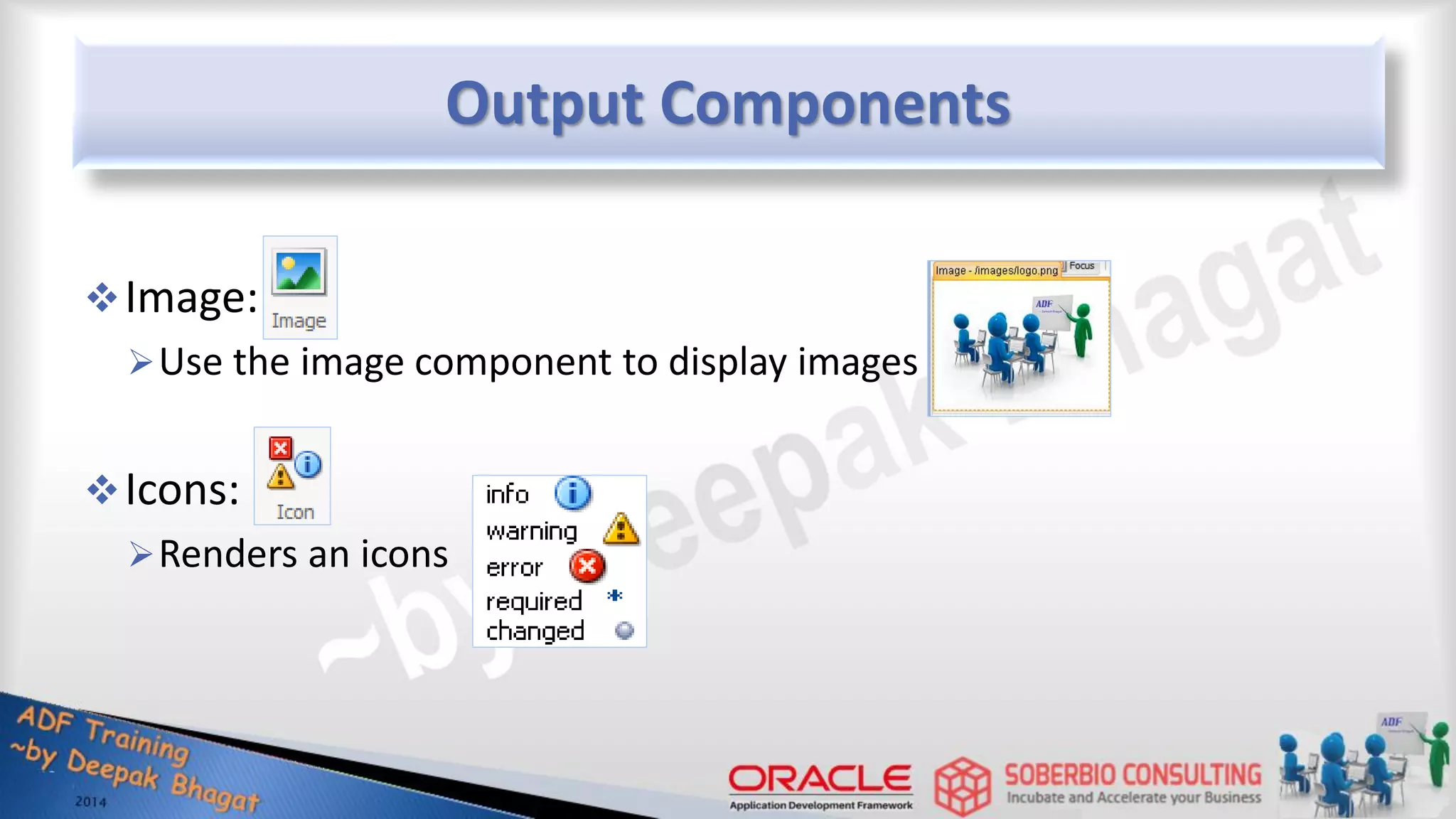

Output Components Image: Use the image component to display images Icons: Renders an icons

Output Components Media: The media component displays media content such as audio, video or image in a player embedded in the user agent

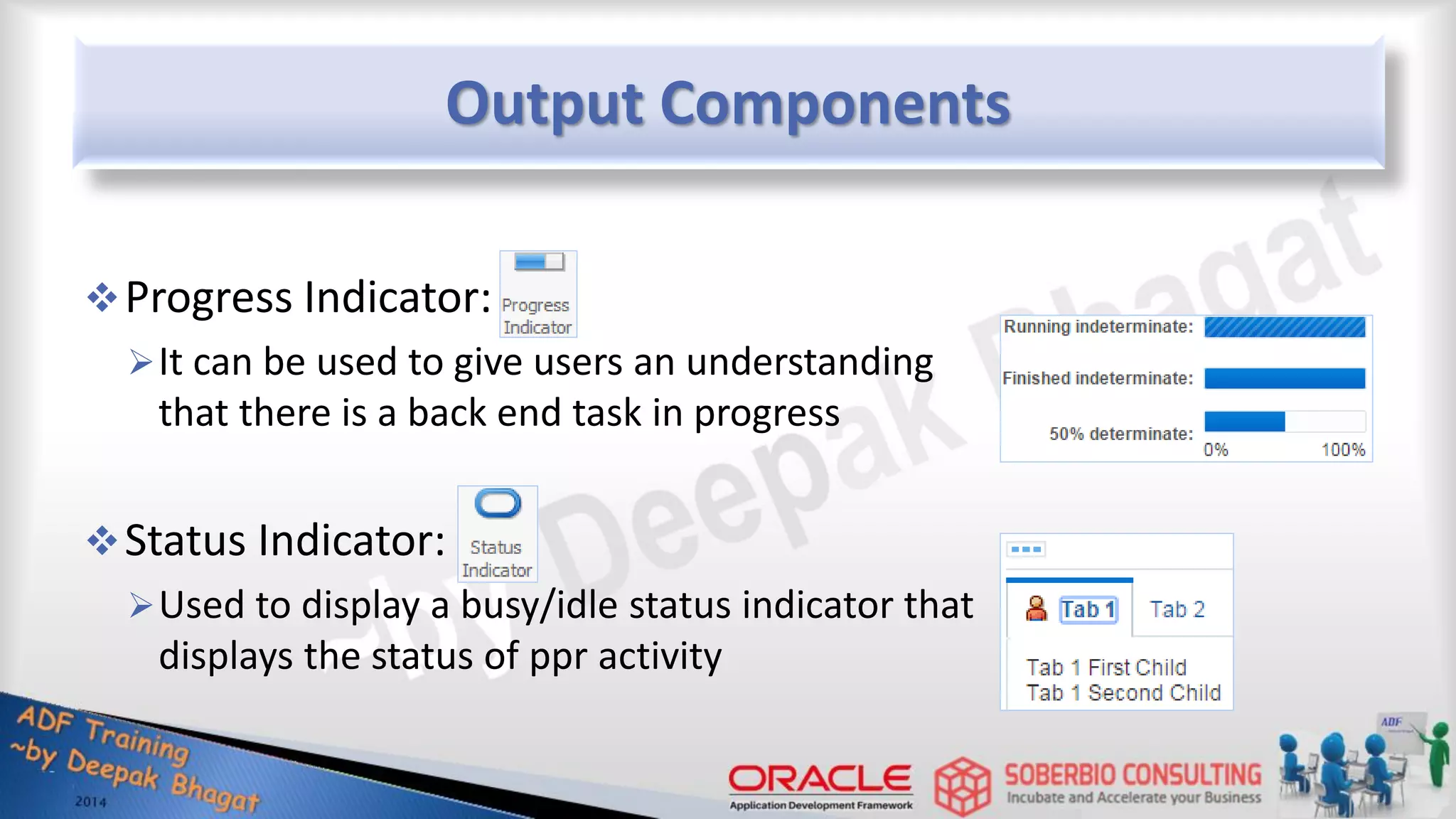

Output Components Progress Indicator: It can be used to give users an understanding that there is a back end task in progress Status Indicator: Used to display a busy/idle status indicator that displays the status of ppr activity

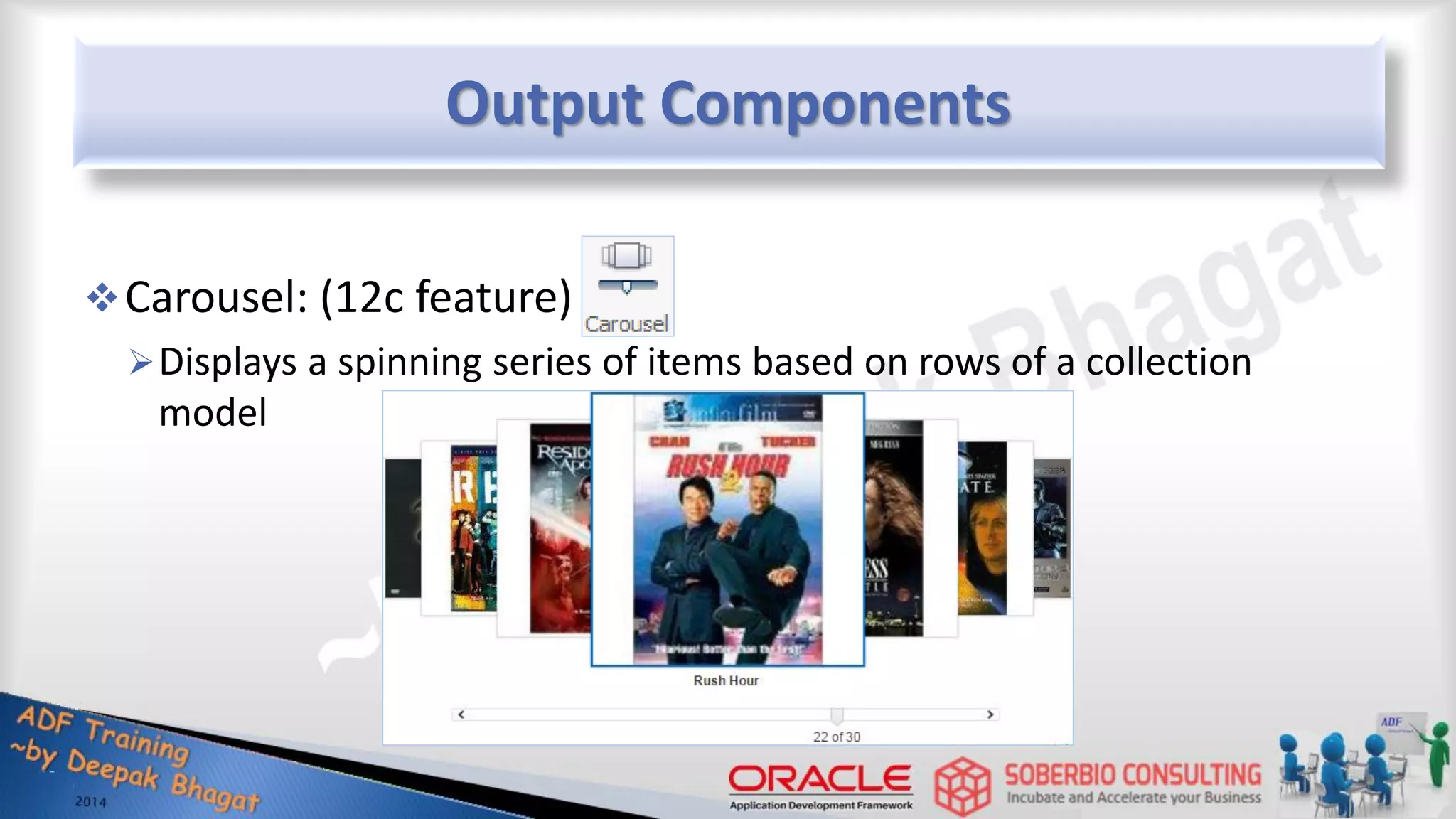

Output Components Carousel: (12c feature) Displays a spinning series of items based on rows of a collection model

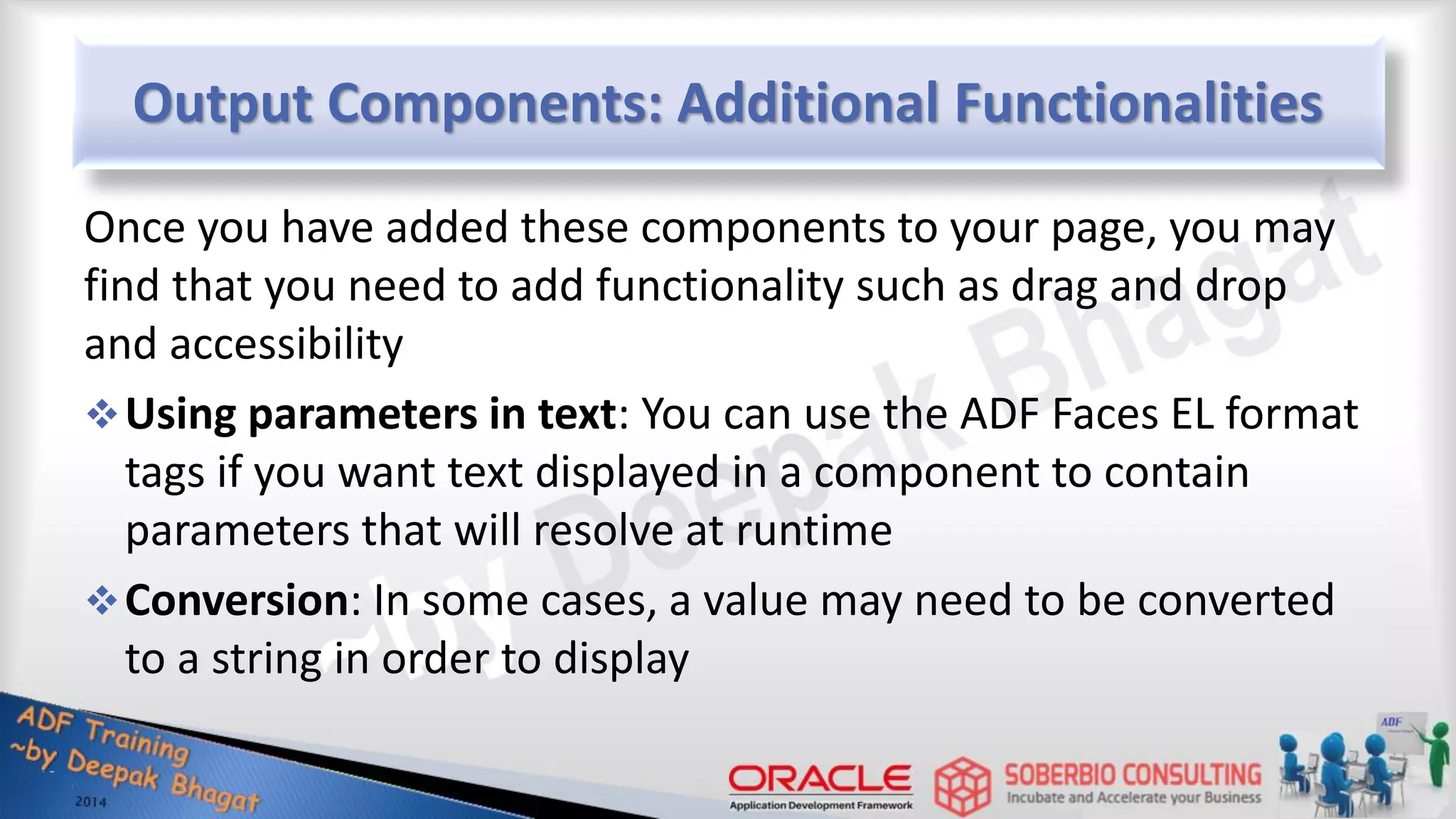

Output Components: Additional Functionalities Once you have added these components to your page, you may find that you need to add functionality such as drag and drop and accessibility Using parameters in text: You can use the ADF Faces EL format tags if you want text displayed in a component to contain parameters that will resolve at runtime Conversion: In some cases, a value may need to be converted to a string in order to display

Output Components: Additional Functionalities cont.… Drag and drop: You can configure a page so that a user can drag and drop output components or values of output components, to another area on a page Localization: Instead of entering values for attributes that take strings as values, you can use property files. These files allow you to manage translation of these strings Skins: You can change the look and feel of output components by changing the skin

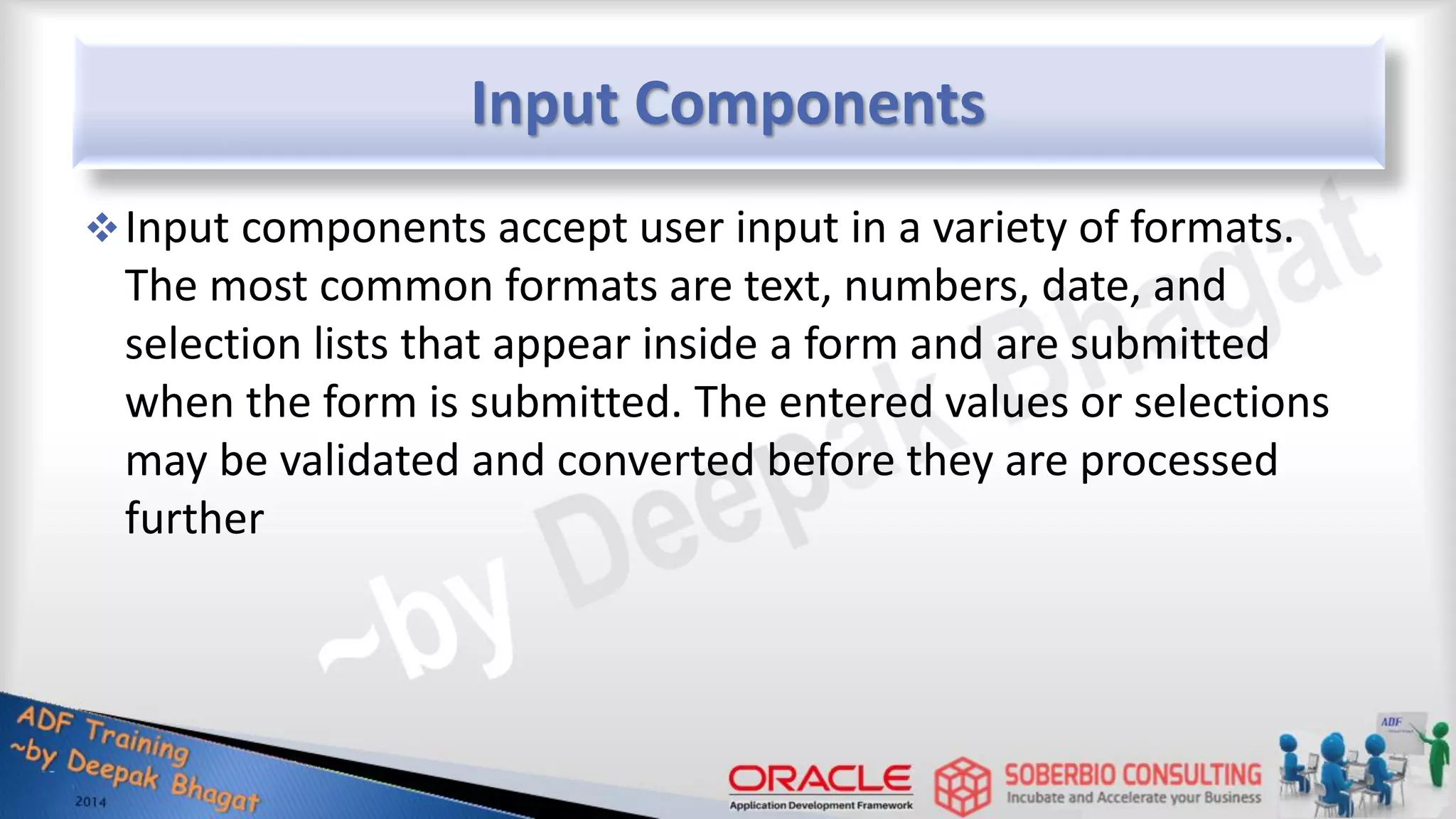

Input Components Input components accept user input in a variety of formats. The most common formats are text, numbers, date, and selection lists that appear inside a form and are submitted when the form is submitted. The entered values or selections may be validated and converted before they are processed further

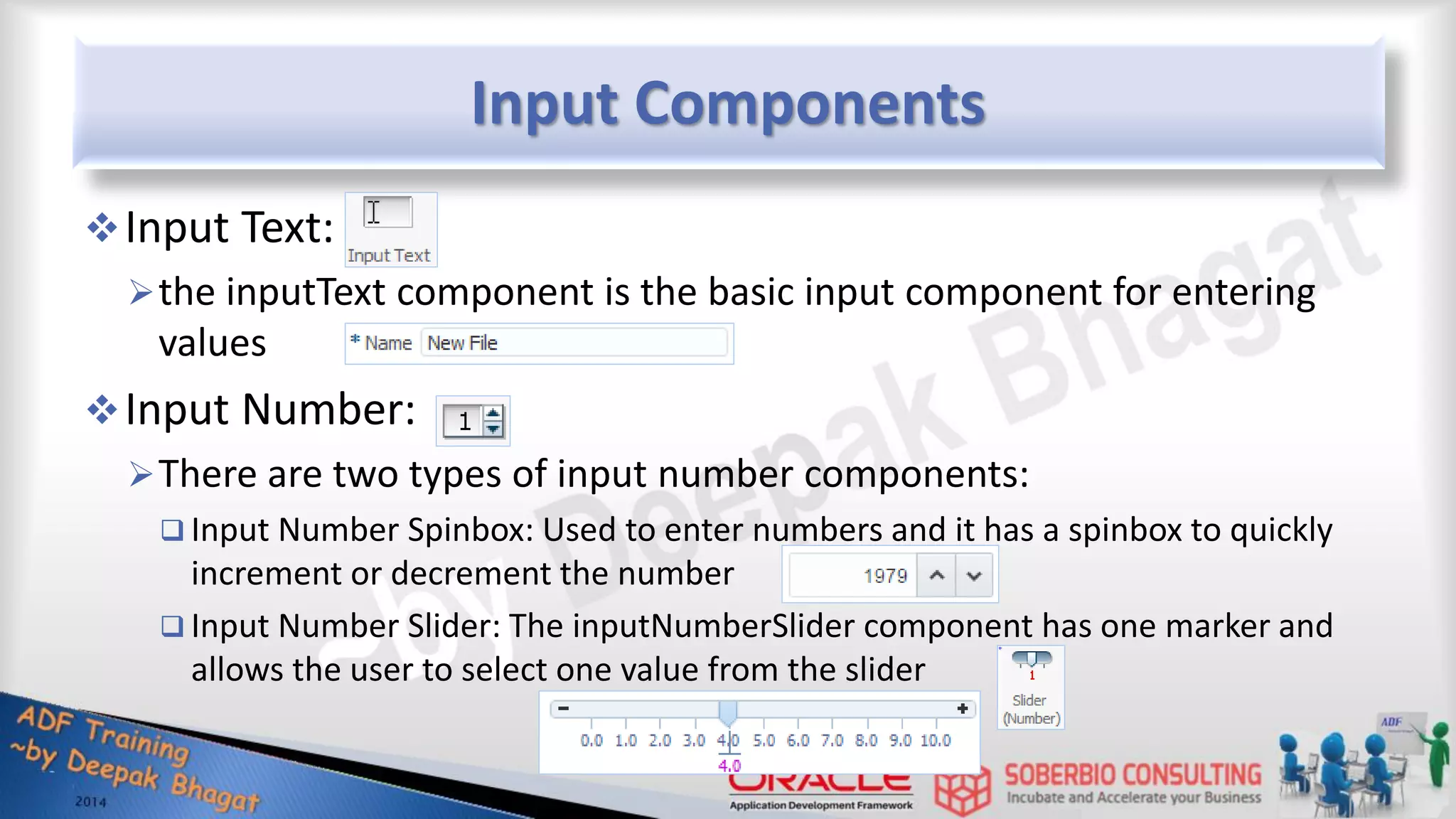

Input Components Input Text: the inputText component is the basic input component for entering values Input Number: There are two types of input number components:  Input Number Spinbox: Used to enter numbers and it has a spinbox to quickly increment or decrement the number  Input Number Slider: The inputNumberSlider component has one marker and allows the user to select one value from the slider

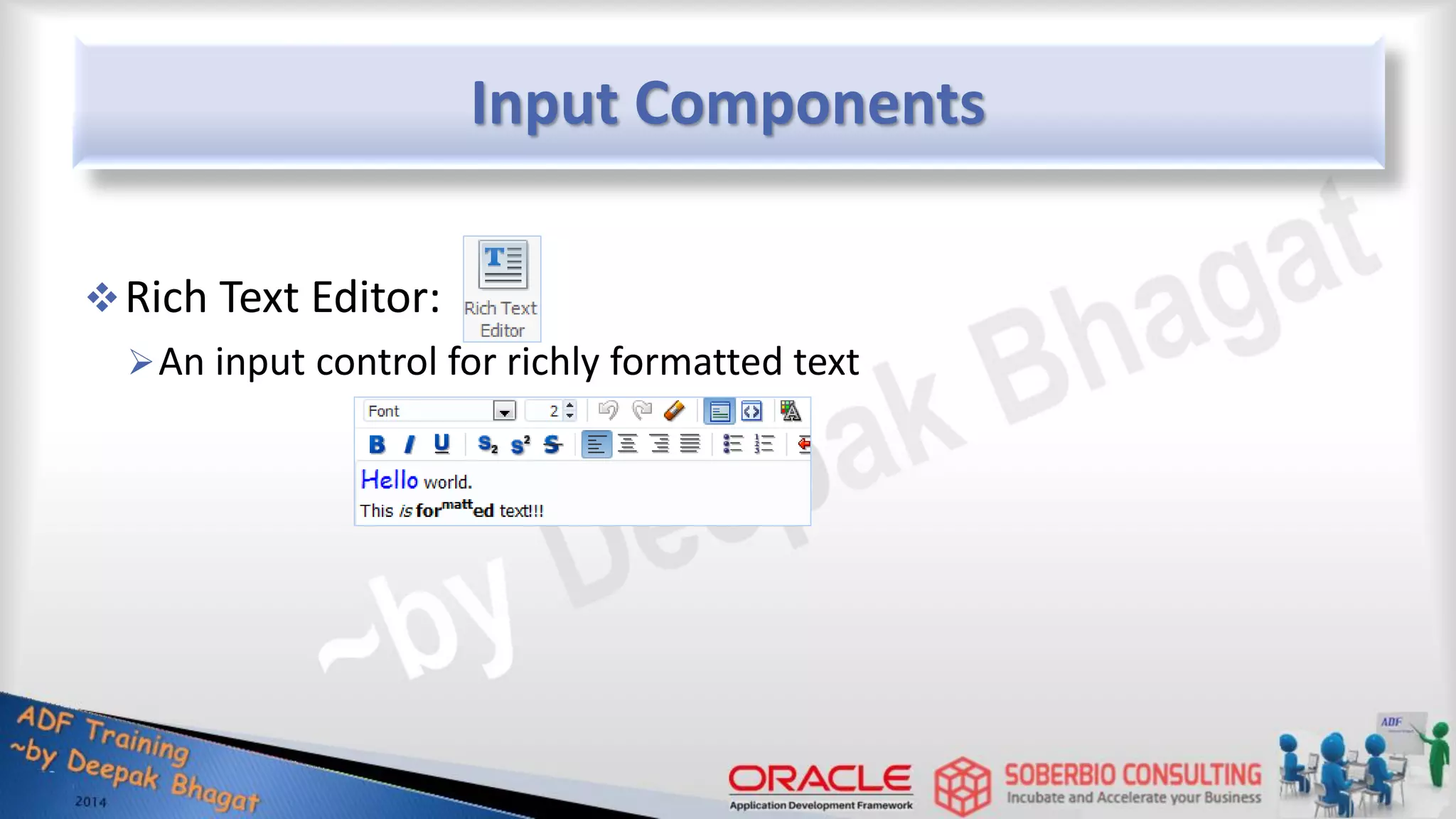

Input Components Rich Text Editor: An input control for richly formatted text

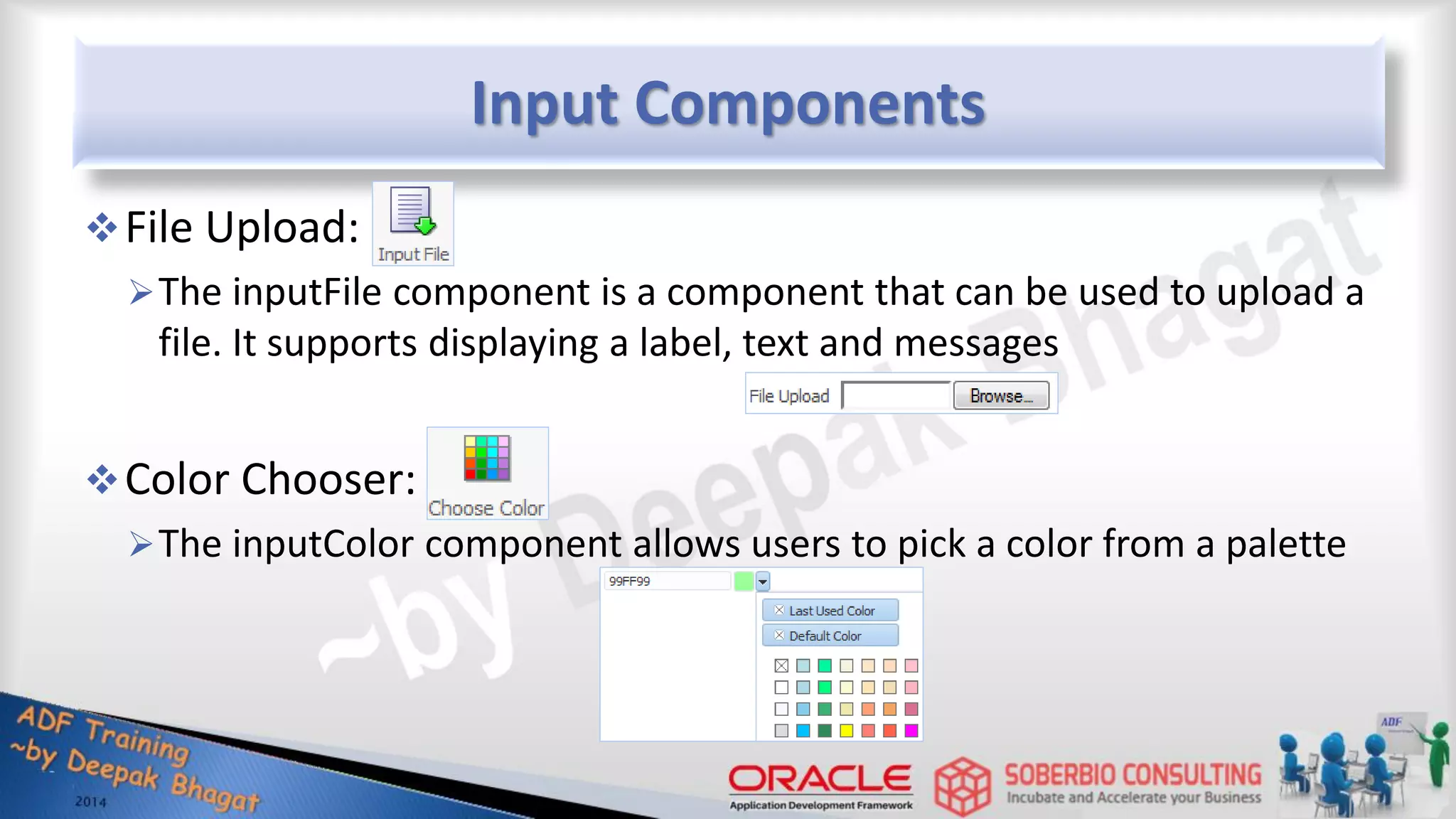

Input Components File Upload: The inputFile component is a component that can be used to upload a file. It supports displaying a label, text and messages Color Chooser: The inputColor component allows users to pick a color from a palette

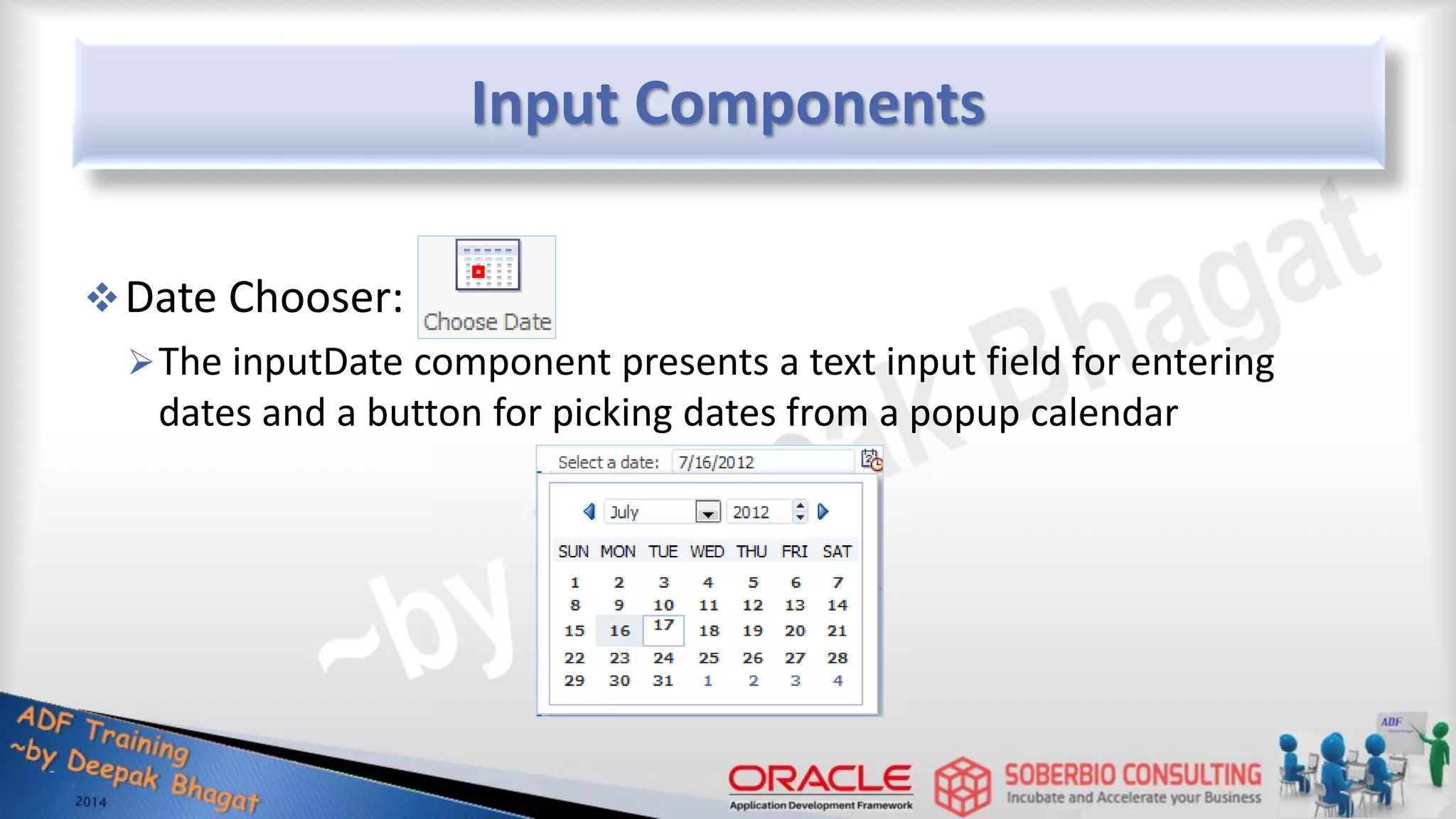

Input Components Date Chooser: The inputDate component presents a text input field for entering dates and a button for picking dates from a popup calendar

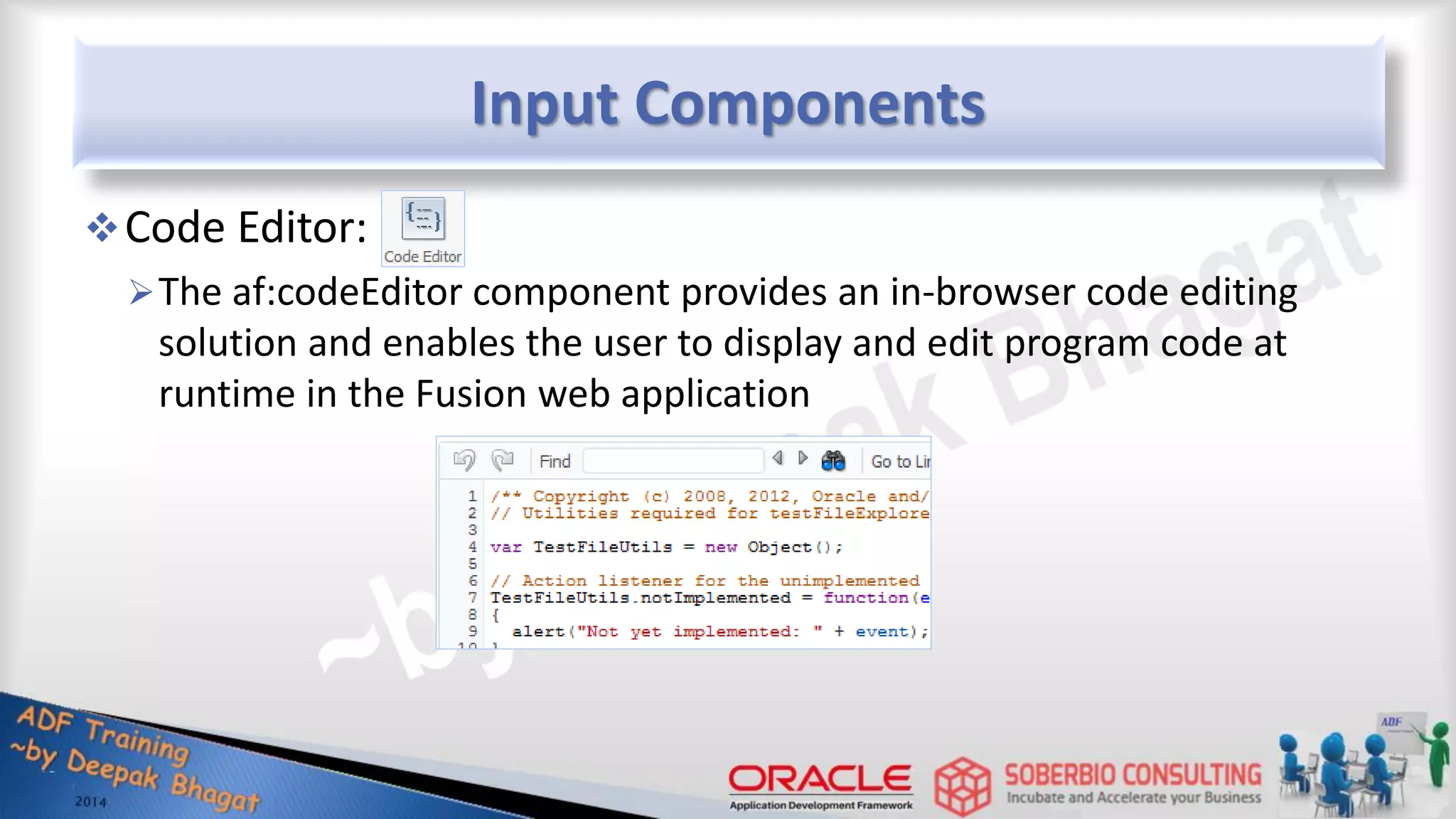

Input Components Code Editor: The af:codeEditor component provides an in-browser code editing solution and enables the user to display and edit program code at runtime in the Fusion web application

Input Components: Selection components Selection Components: The selection components allow the user to select single and multiple values from a list or group of items The select components are categorized into three types as shown in the following list:  Boolean Selection  Single Selection  Multiple Selections

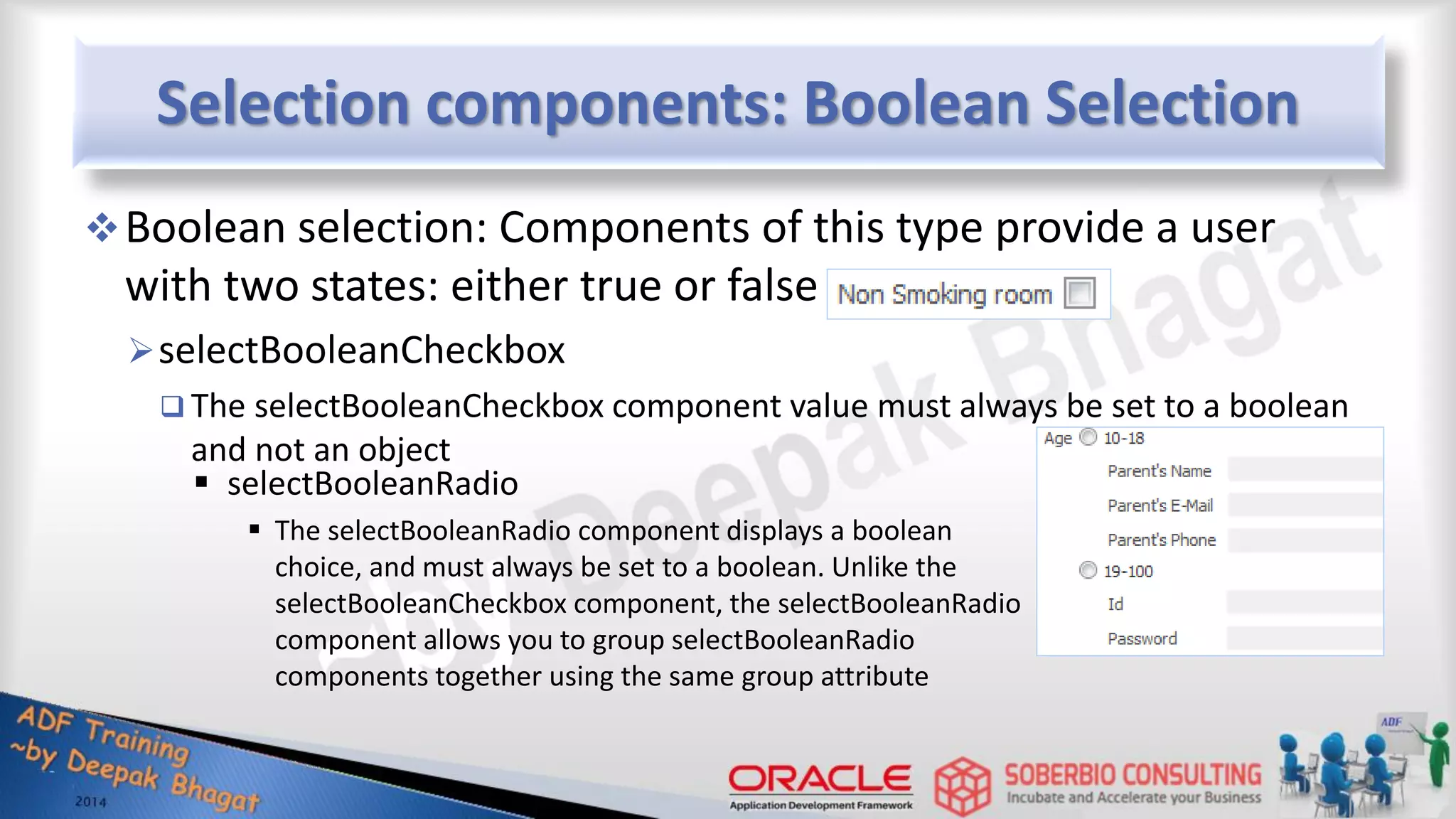

Selection components: Boolean Selection Boolean selection: Components of this type provide a user with two states: either true or false selectBooleanCheckbox  The selectBooleanCheckbox component value must always be set to a boolean and not an object  selectBooleanRadio  The selectBooleanRadio component displays a boolean choice, and must always be set to a boolean. Unlike the selectBooleanCheckbox component, the selectBooleanRadio component allows you to group selectBooleanRadio components together using the same group attribute

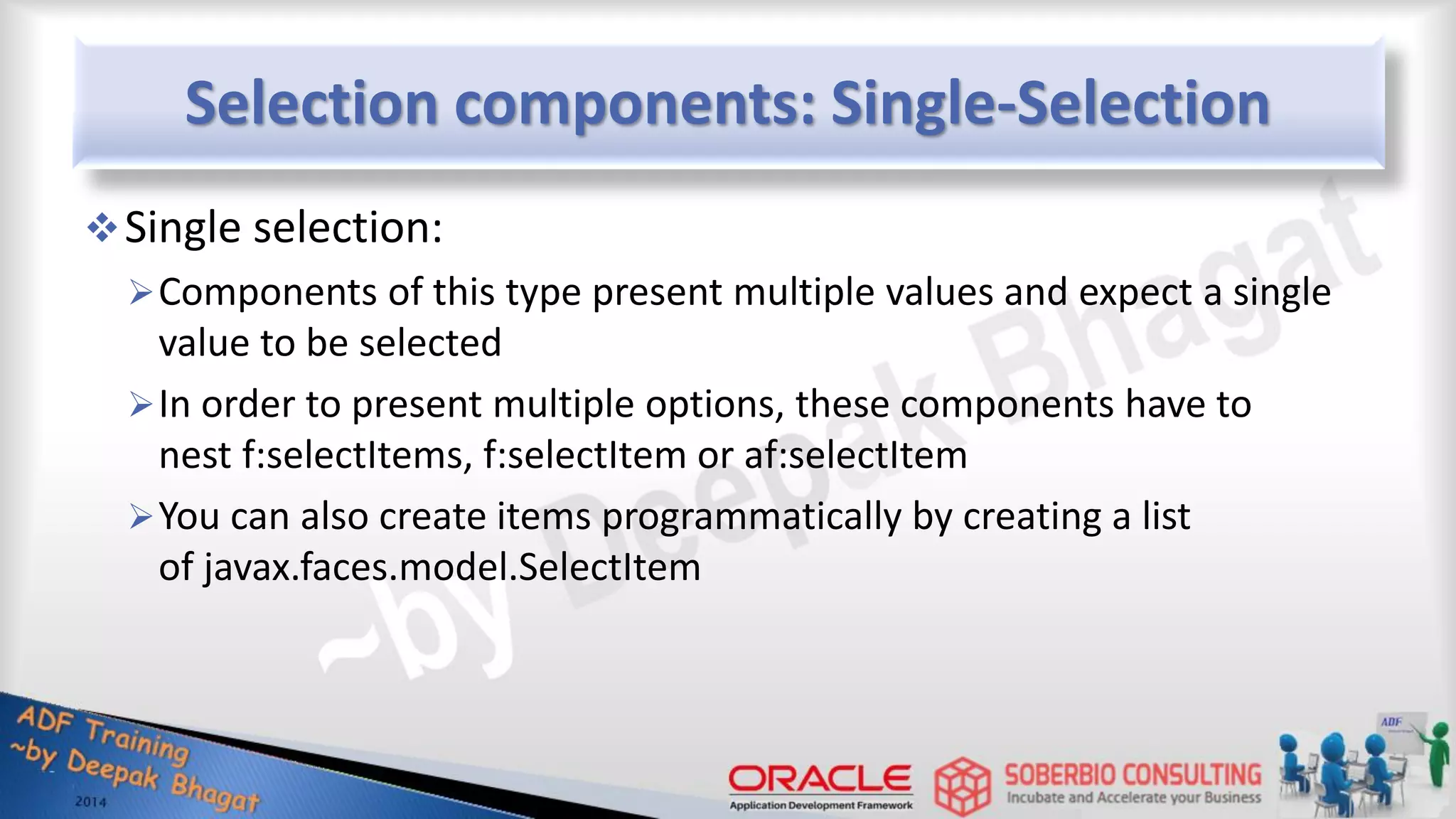

Selection components: Single-Selection Single selection: Components of this type present multiple values and expect a single value to be selected In order to present multiple options, these components have to nest f:selectItems, f:selectItem or af:selectItem You can also create items programmatically by creating a list of javax.faces.model.SelectItem

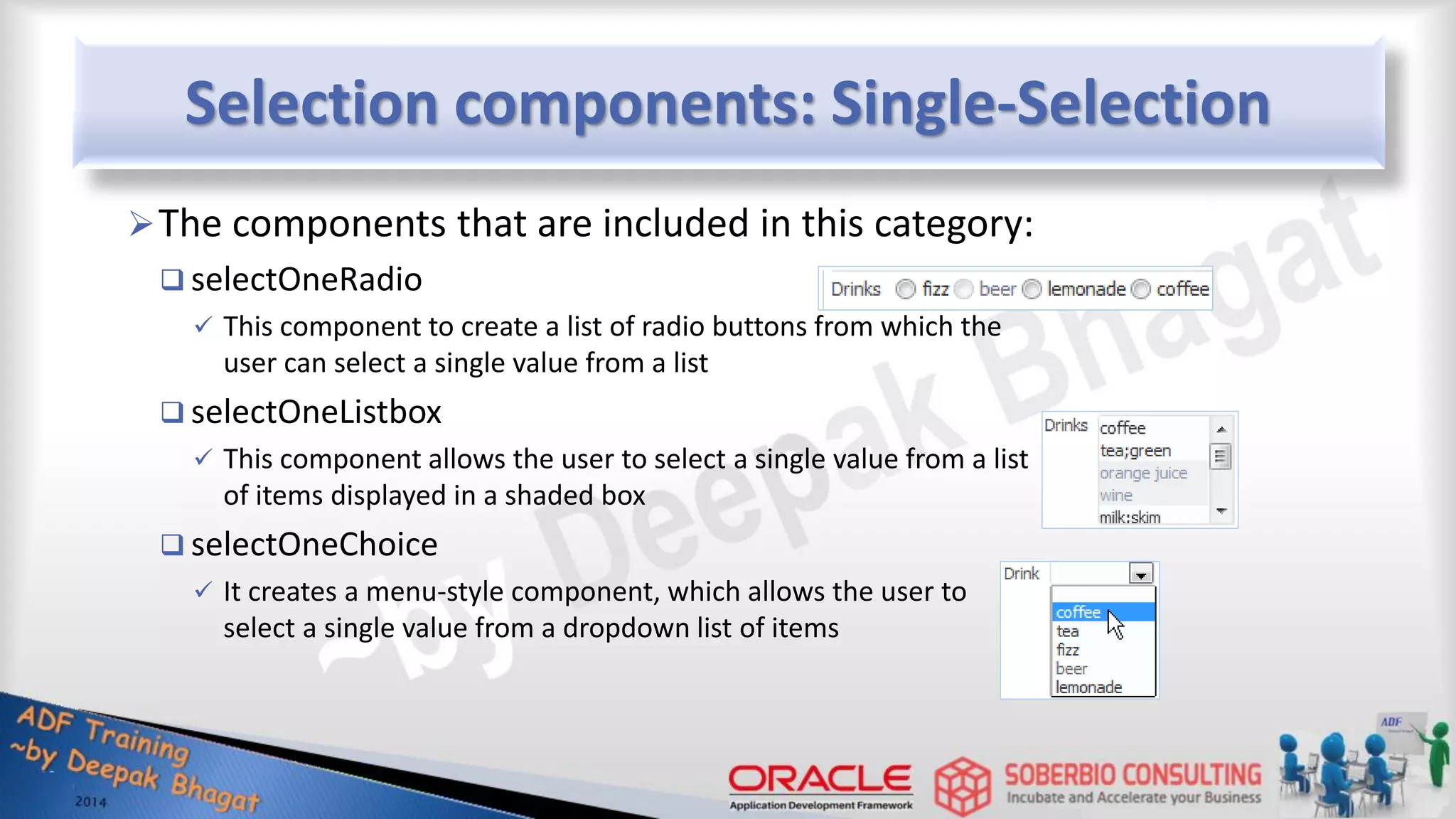

Selection components: Single-Selection The components that are included in this category:  selectOneRadio  This component to create a list of radio buttons from which the user can select a single value from a list  selectOneListbox  This component allows the user to select a single value from a list of items displayed in a shaded box  selectOneChoice  It creates a menu-style component, which allows the user to select a single value from a dropdown list of items

Selection components: Multiple Selection Multiple selections Like single selection components, these components present multiple values and expect multiple values to be selected The components that are included in this category are:  selectManyCheckbox  It is used to create a list of checkboxes from which the user can select one or more values

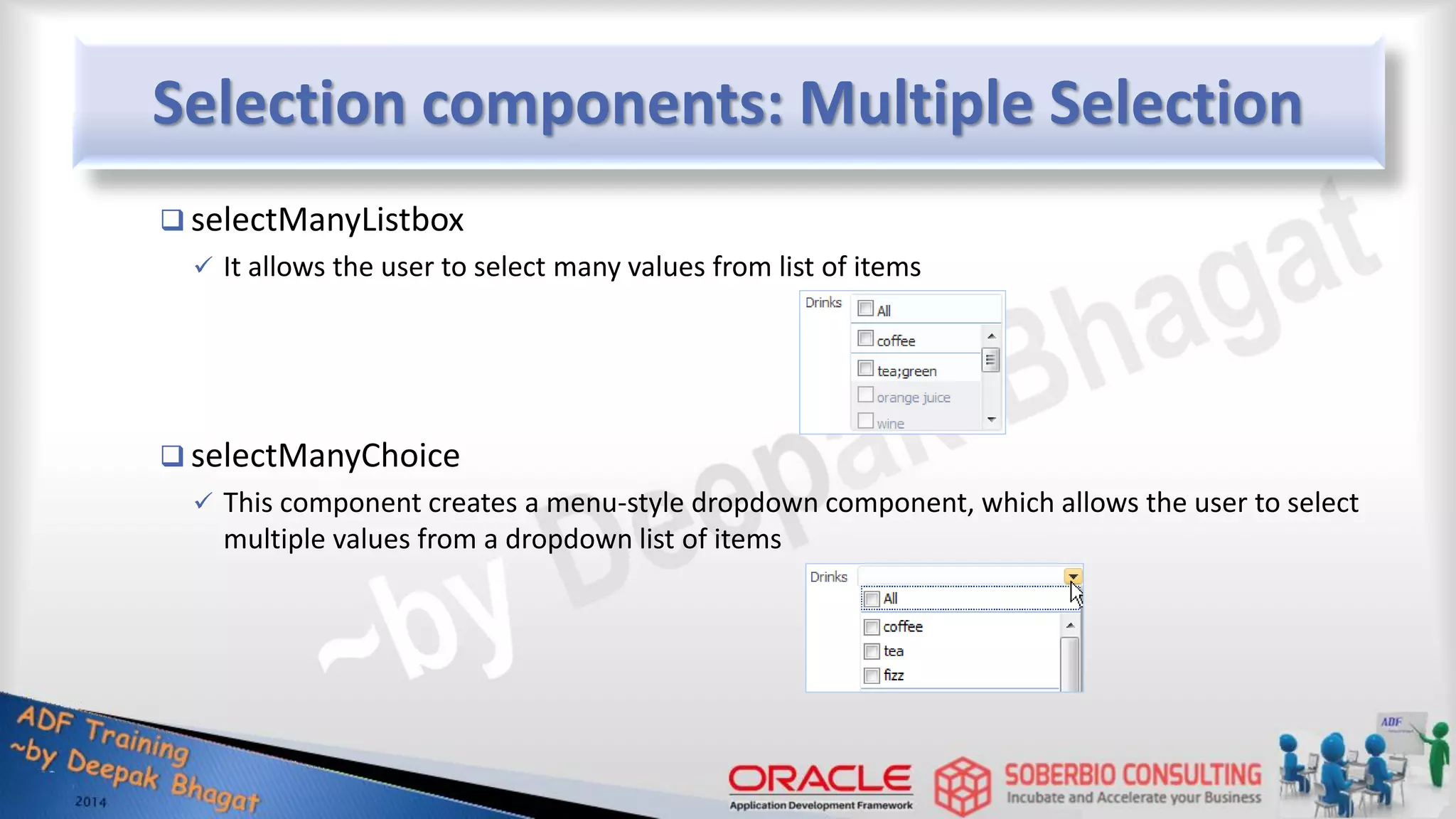

Selection components: Multiple Selection  selectManyListbox  It allows the user to select many values from list of items  selectManyChoice  This component creates a menu-style dropdown component, which allows the user to select multiple values from a dropdown list of items

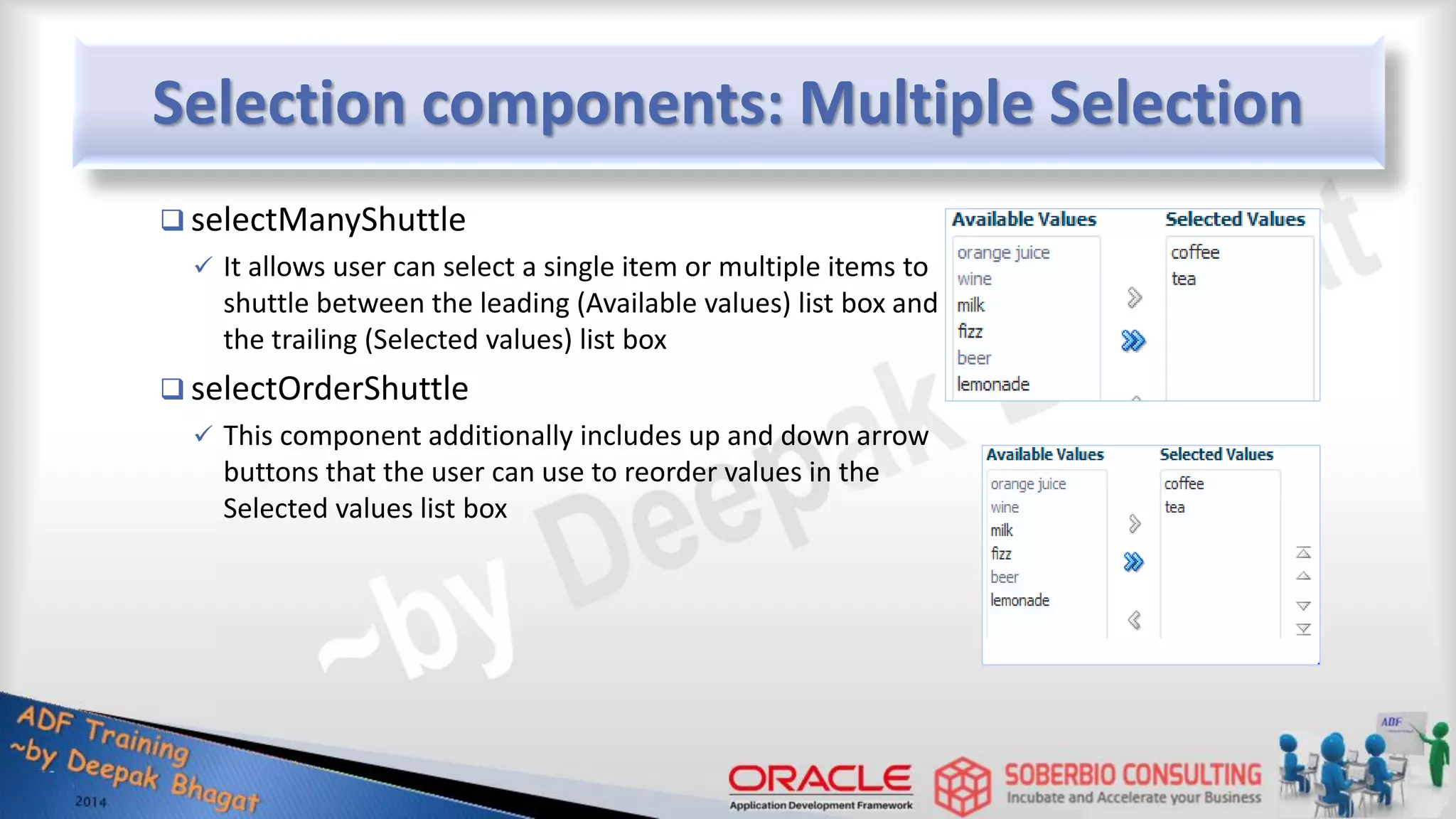

Selection components: Multiple Selection  selectManyShuttle  It allows user can select a single item or multiple items to shuttle between the leading (Available values) list box and the trailing (Selected values) list box  selectOrderShuttle  This component additionally includes up and down arrow buttons that the user can use to reorder values in the Selected values list box

Input Components: Additional Functionalities Once you have added an input component or form to your page, you may find that you need to add functionality such as validation and accessibility  Using parameters in text: You can use the ADF Faces EL format tags if you want text displayed in a component to contain parameters that will resolve at runtime  Client components: Input components can be client components  JavaScript APIs: All input components have JavaScript client APIs that you can use to set or get property values  Events: Input components fire both server-side and client-side events that you can have your application react to by executing some logic

Input Components: Additional Functionalities cont.…  Can add validation and conversion to input components  Can display tips and messages, as well as associate online help with input components  There may be times when you want the certain input components to be validated before other components on the page  If other components on the page to update based on selections, make from a selection component  Use the scrollComponentIntoViewBehavior tag with the richTextEditor component to allow users to jump to specific areas in the component  Can change the icons used for required and changed notifications using skins  Can make your input components accessible

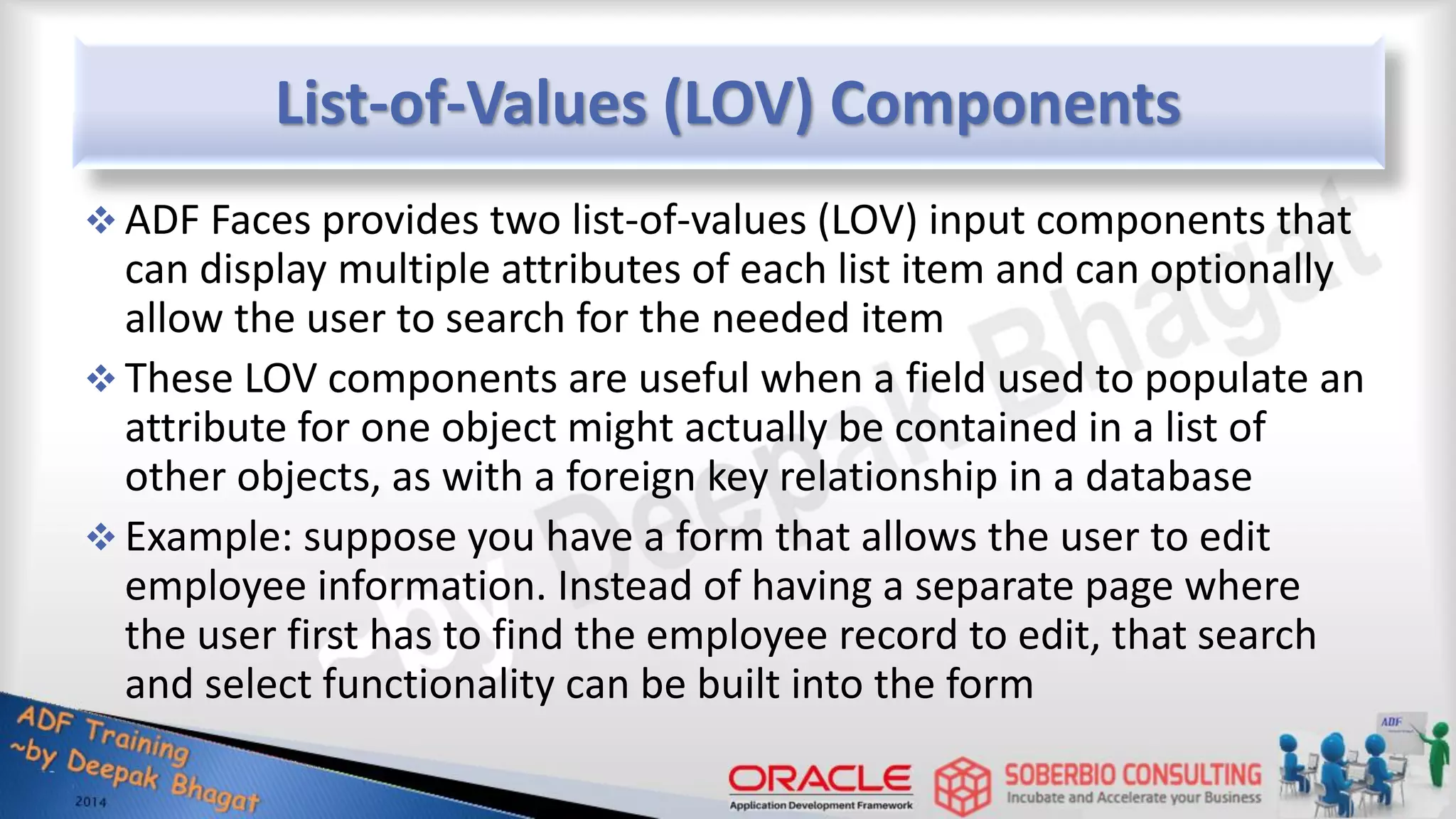

List-of-Values (LOV) Components  ADF Faces provides two list-of-values (LOV) input components that can display multiple attributes of each list item and can optionally allow the user to search for the needed item  These LOV components are useful when a field used to populate an attribute for one object might actually be contained in a list of other objects, as with a foreign key relationship in a database  Example: suppose you have a form that allows the user to edit employee information. Instead of having a separate page where the user first has to find the employee record to edit, that search and select functionality can be built into the form

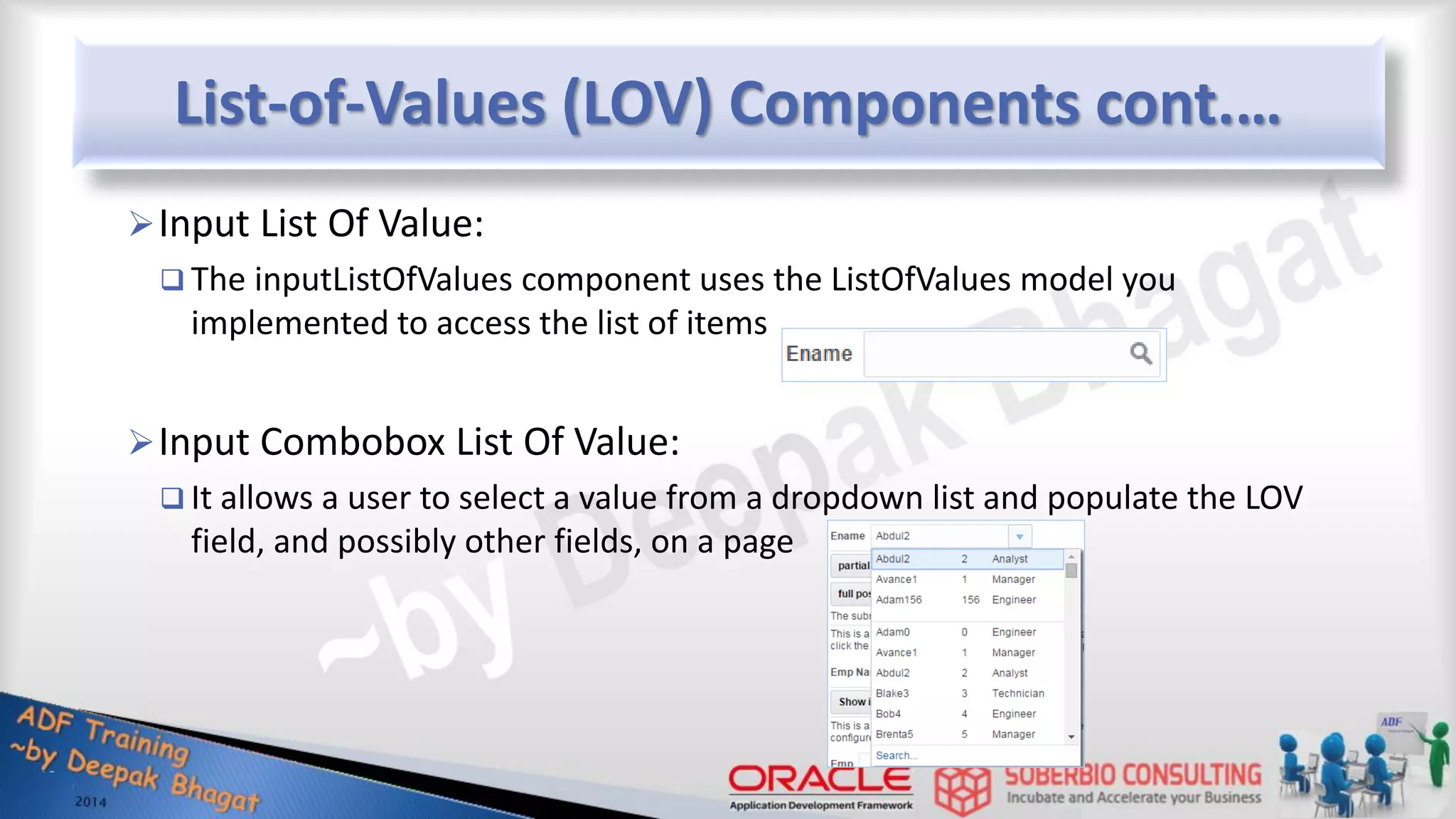

List-of-Values (LOV) Components cont.… Input List Of Value:  The inputListOfValues component uses the ListOfValues model you implemented to access the list of items Input Combobox List Of Value:  It allows a user to select a value from a dropdown list and populate the LOV field, and possibly other fields, on a page

List-of-Values Components: Additional Functionalities Once you have added a list-of-value component to your page, you may find that you need to add functionality such as validation and accessibility Client components: Components can be client components JavaScript APIs: All list-of-value components have JavaScript client APIs that you can use to set or get property values Events: List-of-value components fire both server-side and client-side events that you can have your application react to by executing some logic

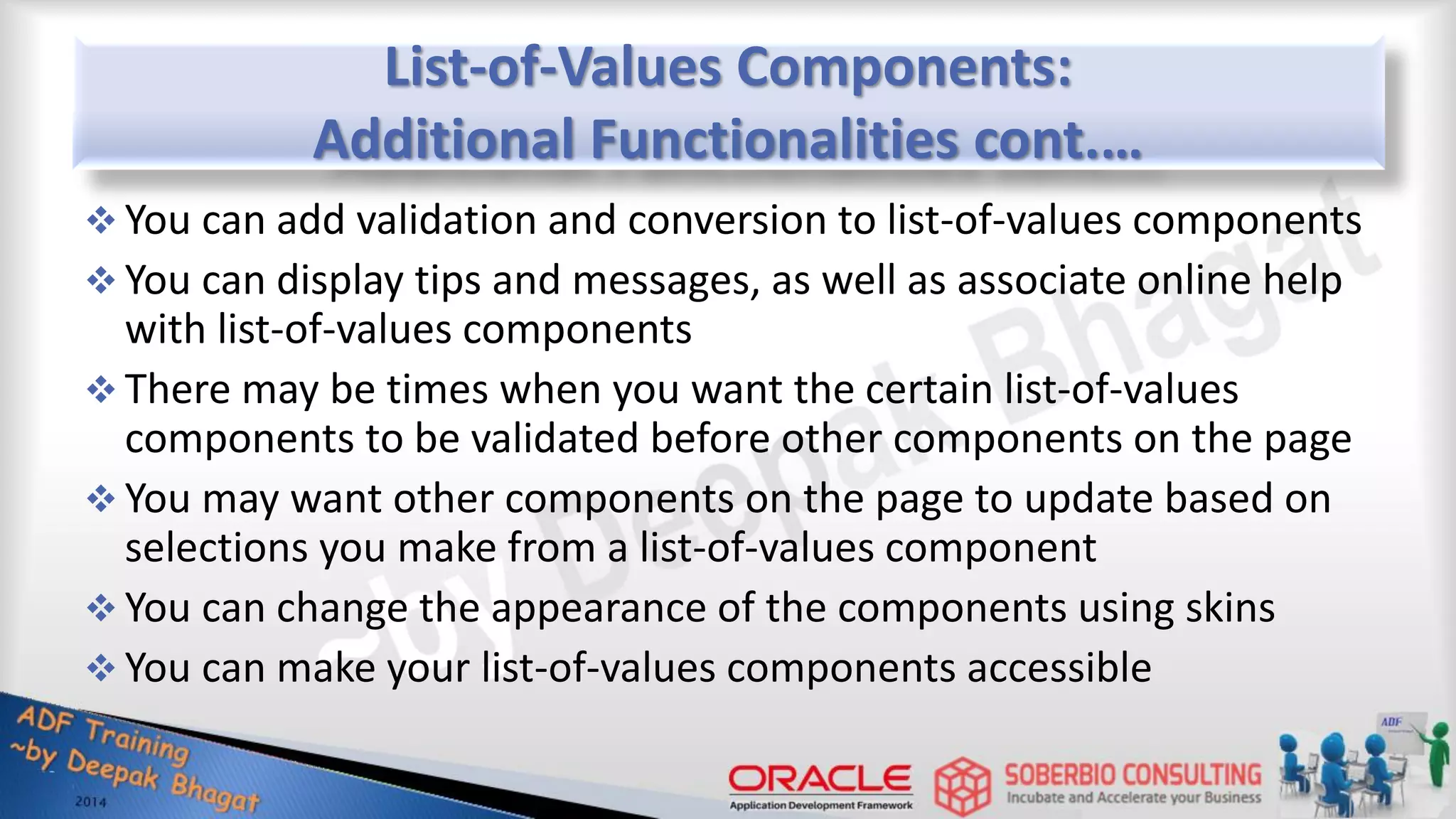

List-of-Values Components: Additional Functionalities cont.…  You can add validation and conversion to list-of-values components  You can display tips and messages, as well as associate online help with list-of-values components  There may be times when you want the certain list-of-values components to be validated before other components on the page  You may want other components on the page to update based on selections you make from a list-of-values component  You can change the appearance of the components using skins  You can make your list-of-values components accessible

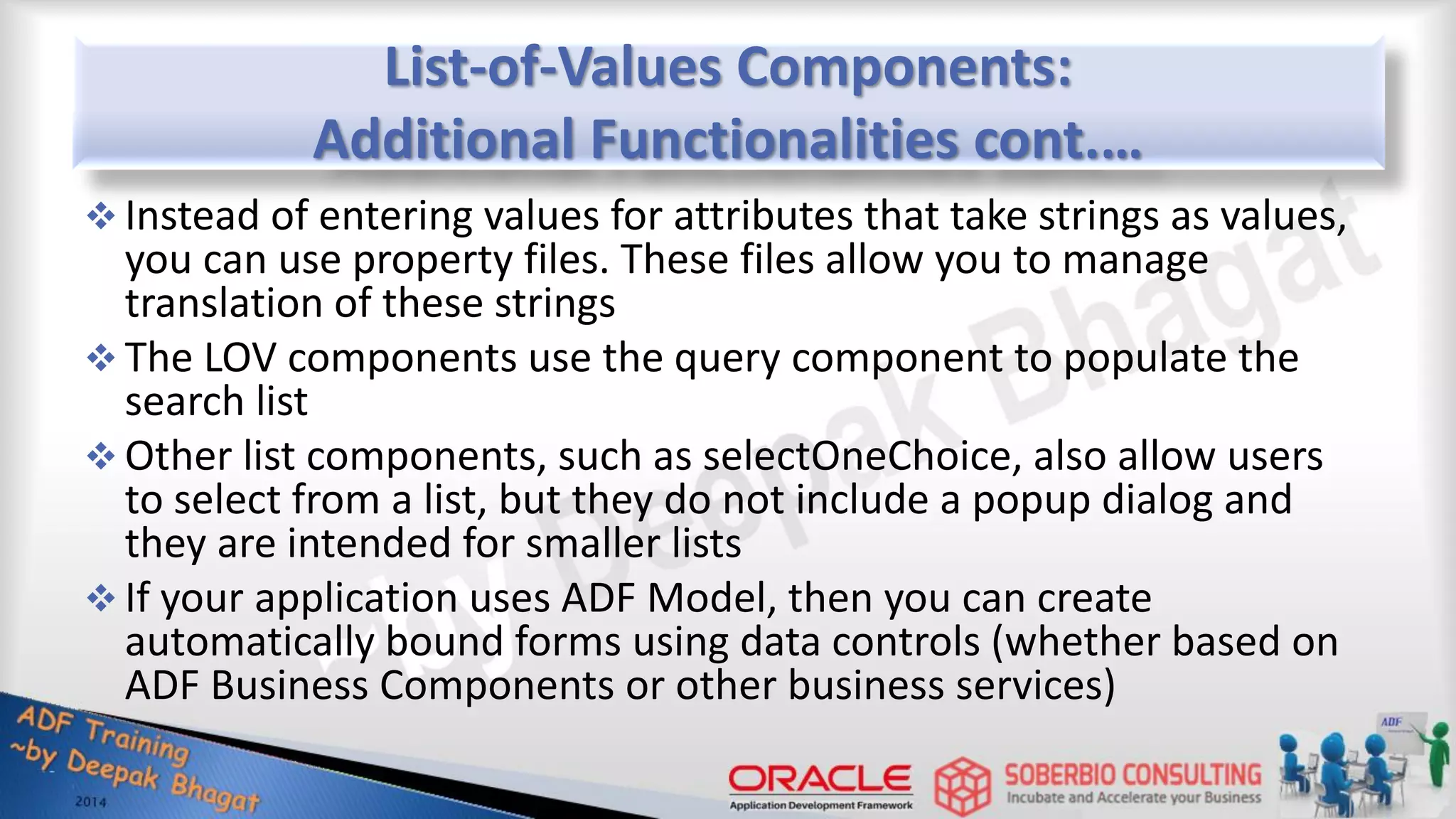

List-of-Values Components: Additional Functionalities cont.…  Instead of entering values for attributes that take strings as values, you can use property files. These files allow you to manage translation of these strings  The LOV components use the query component to populate the search list  Other list components, such as selectOneChoice, also allow users to select from a list, but they do not include a popup dialog and they are intended for smaller lists  If your application uses ADF Model, then you can create automatically bound forms using data controls (whether based on ADF Business Components or other business services)

Defining a List You can define a list: At the model layer In the UI

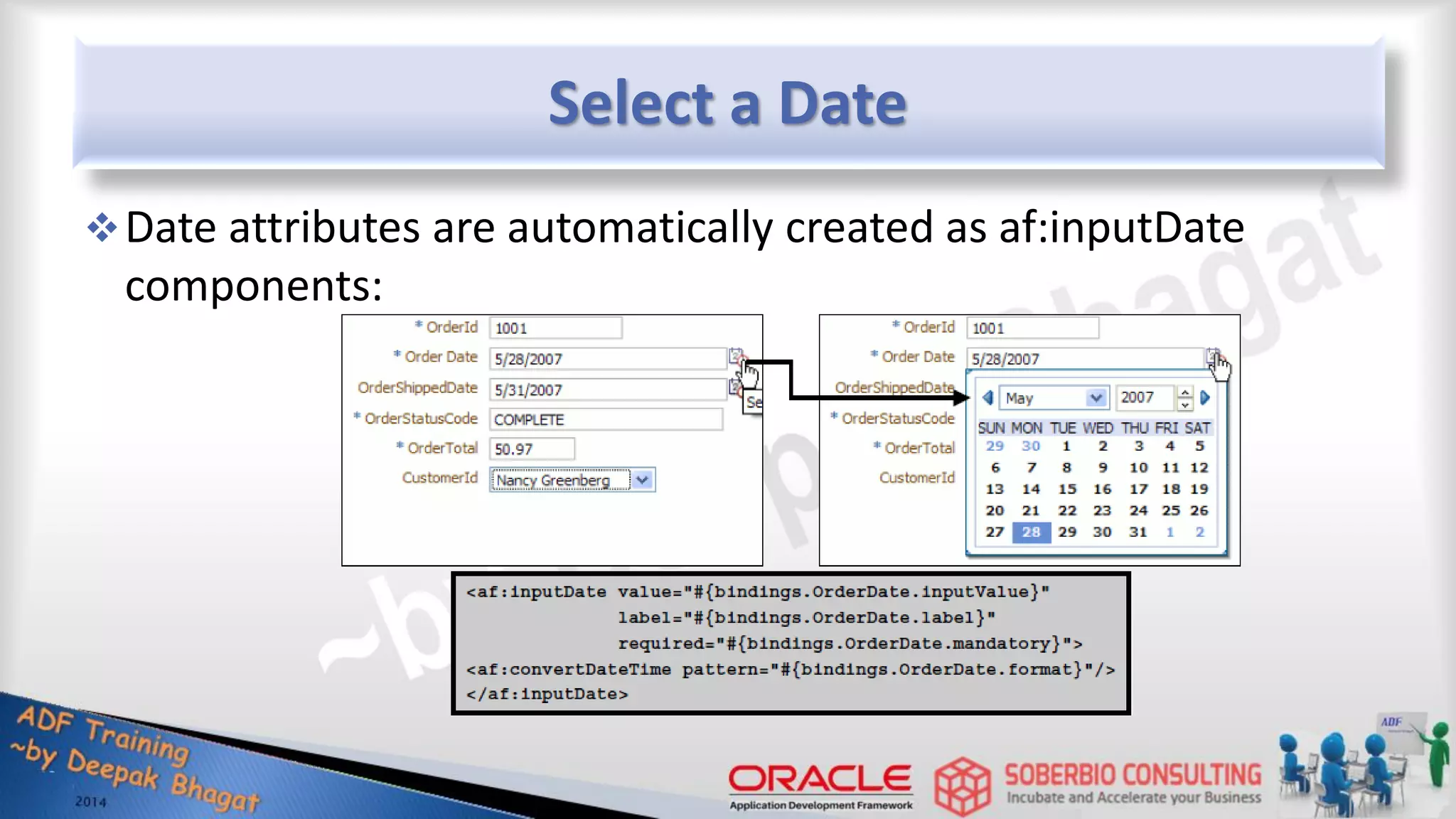

Select a Date Date attributes are automatically created as af:inputDate components:

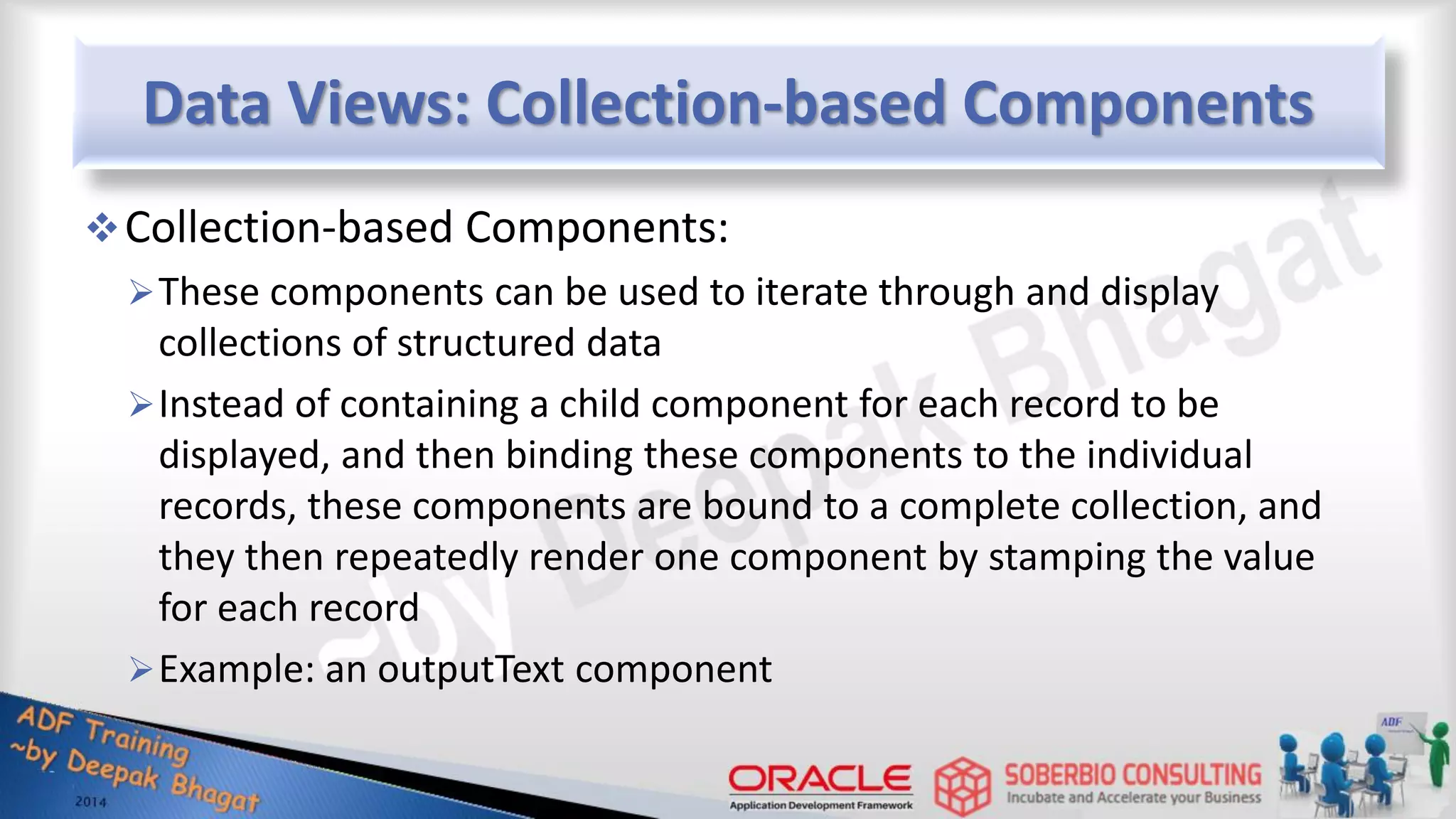

Data Views: Collection-based Components Collection-based Components: These components can be used to iterate through and display collections of structured data Instead of containing a child component for each record to be displayed, and then binding these components to the individual records, these components are bound to a complete collection, and they then repeatedly render one component by stamping the value for each record Example: an outputText component

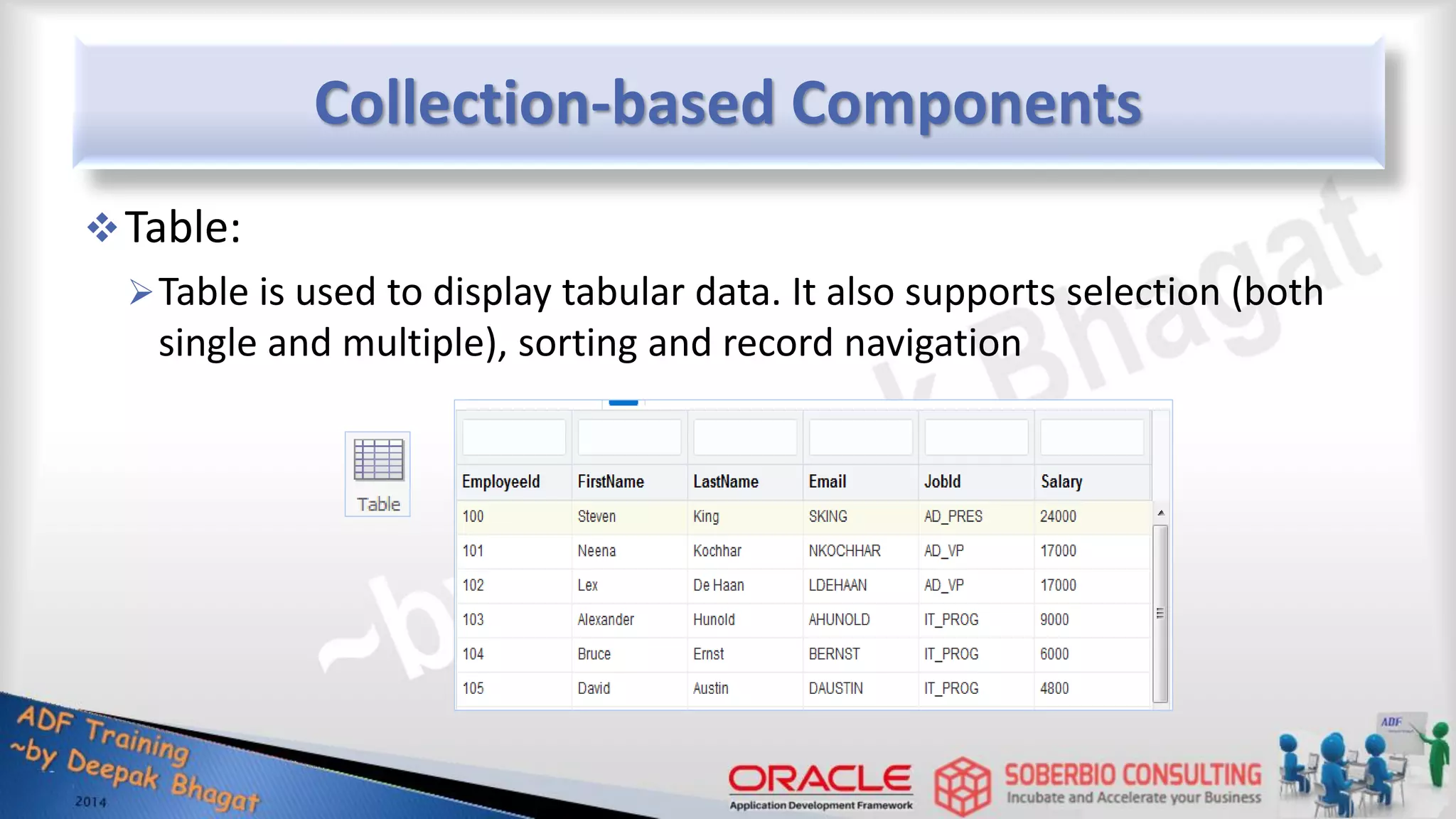

Collection-based Components Table: Table is used to display tabular data. It also supports selection (both single and multiple), sorting and record navigation

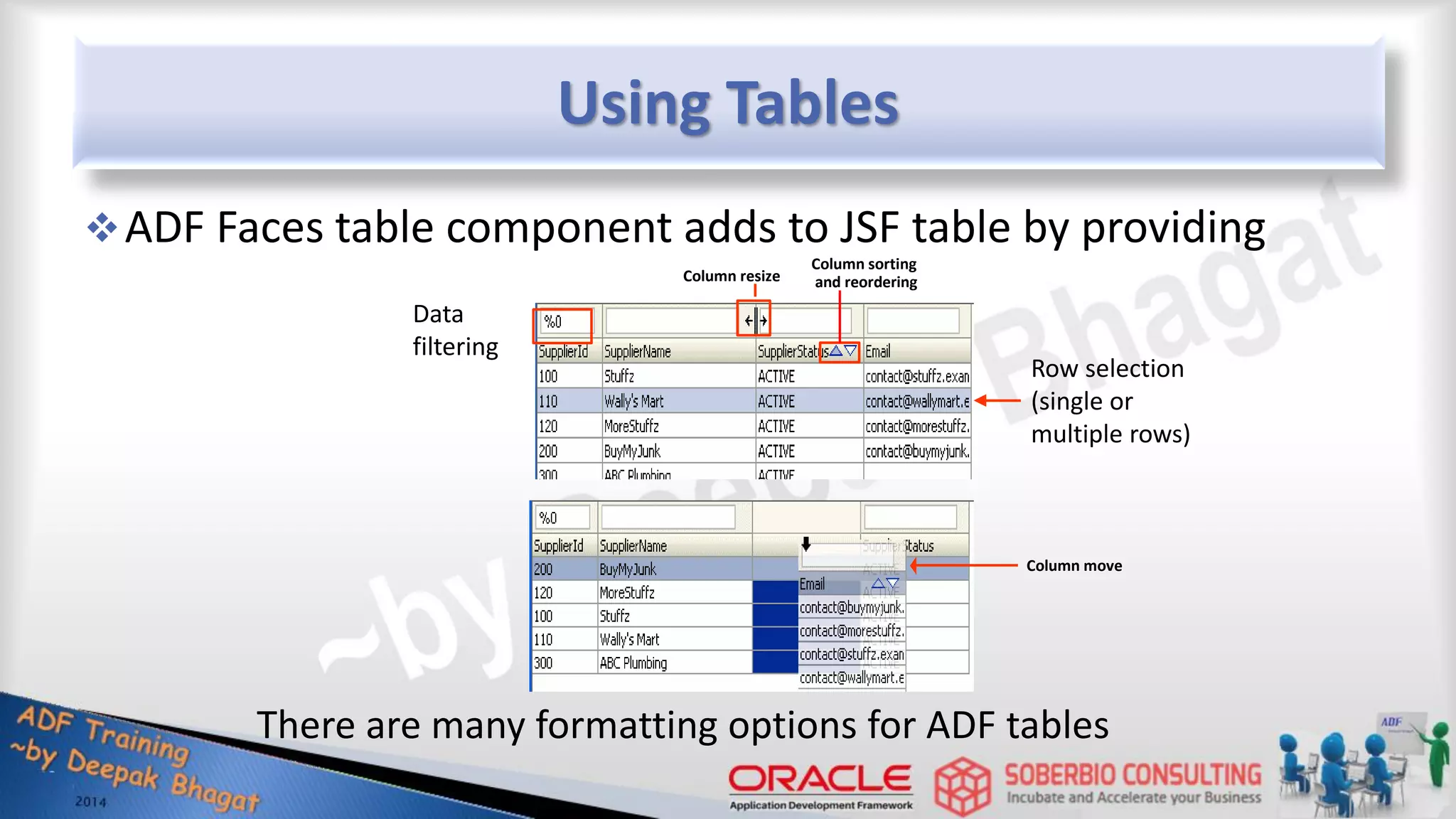

Using Tables ADF Faces table component adds to JSF table by providing Column sorting and reordering Column resize Column move Data filtering Row selection (single or multiple rows) There are many formatting options for ADF tables

Setting Table Attributes Type Description Attribute(s) Setting(s) Grid Lines (table attribute) Lines separating cells verticalGridVisible horizontalGridVisible true or false Banding (table attribute) Alternating background colors rowBandingInterval columnBandingInterval Number of rows or columns you want to be in each band Column or row headers Labels for columns or rows header facet or headerText attribute Text to display in header rowHeader column attribute true or false Column groups Common label for group of columns To group columns, nest af:column tags, using the outer af:column tag as the group, and the inner tags as the columns within the group. Column formatting Align, wrap, width, height Align nowrap width, height start,end,left, right, center, true or false number or % Row selection Selection of single or multiple rows rowSelection single or multiple

Collection-based Components Tree: Tree component displays hierarchical data, such as organization charts or hierarchical directory structures In data of these types, there may be a series of top-level nodes, and each element in the structure may expand to contain other elements

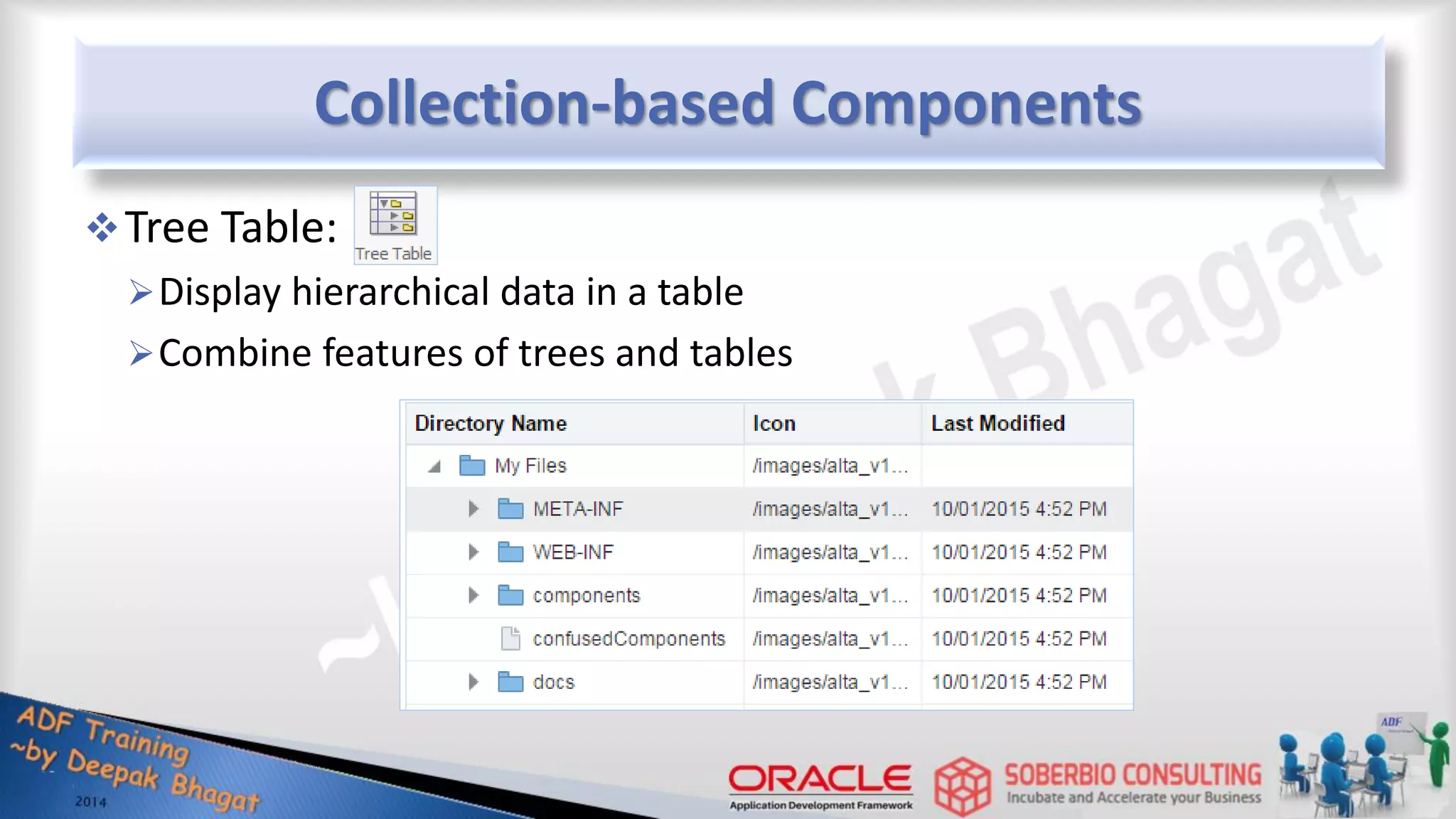

Collection-based Components Tree Table: Display hierarchical data in a table Combine features of trees and tables

Using Table Model Methods in a Selection Listener You can do the following programmatically: Make row current: setRowIndex() or setRowKey() Access data in the current row: getRowData() Obtain number of rows: getRowCount() Determine whether you are at the end of the table: isRowAvailable()

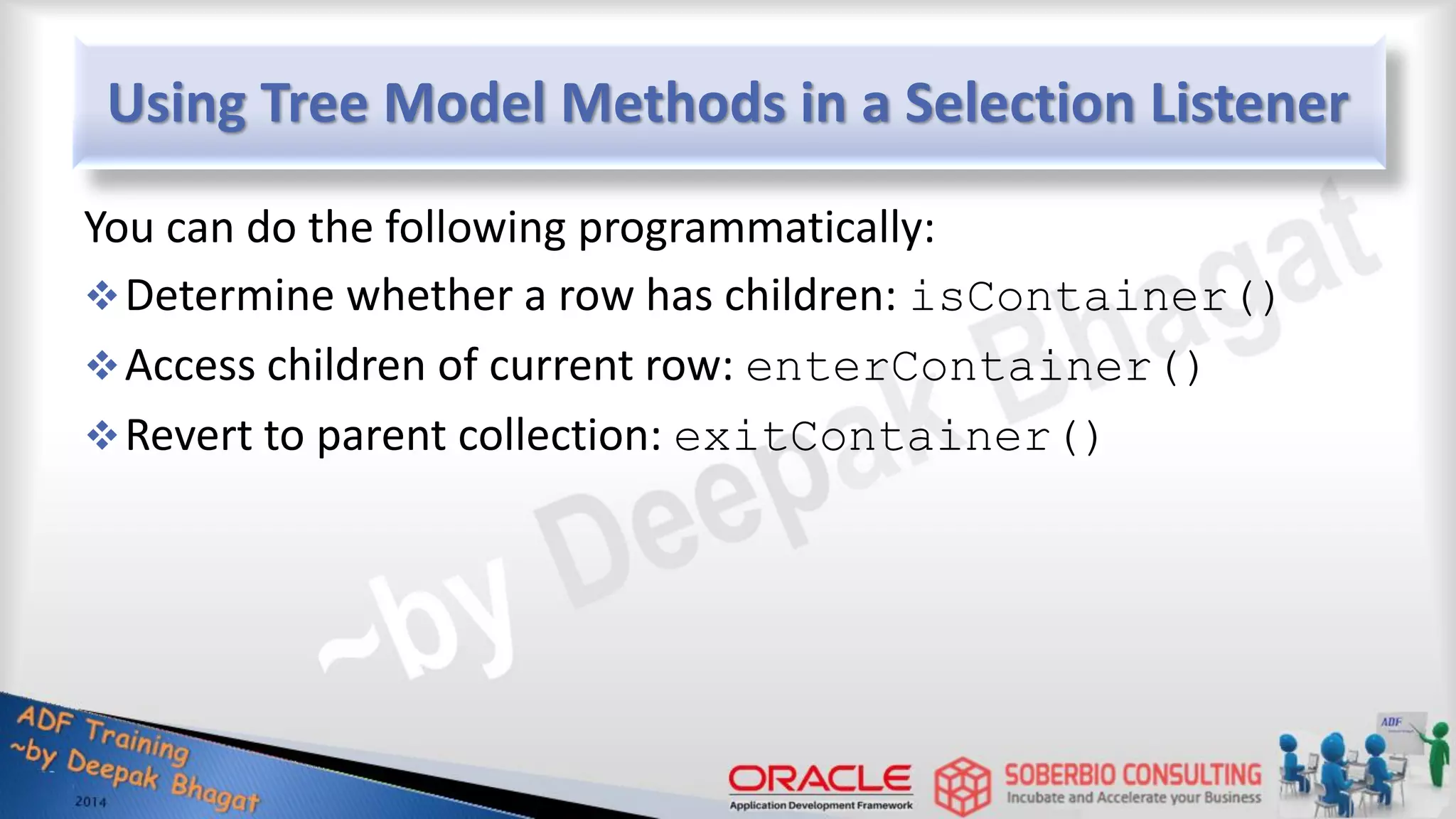

Using Tree Model Methods in a Selection Listener You can do the following programmatically: Determine whether a row has children: isContainer() Access children of current row: enterContainer() Revert to parent collection: exitContainer()

Collection-based Components List component: Instead of using a table with multiple columns, you can use the listView and listItem components to display structured data in a simple table-like format that contains just one column The listView component with a listItem component

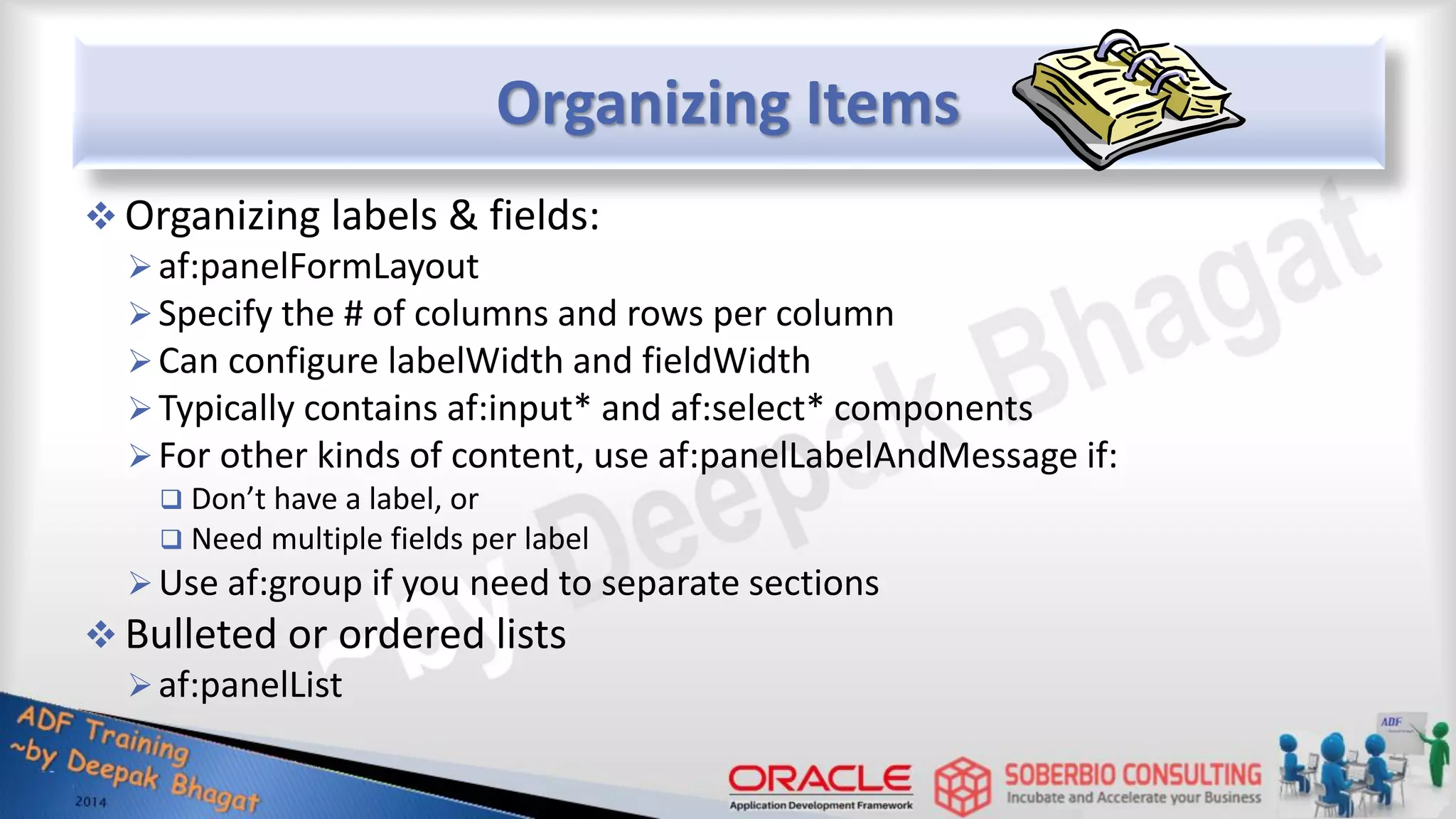

Organizing Items  Organizing labels & fields: af:panelFormLayout Specify the # of columns and rows per column Can configure labelWidth and fieldWidth Typically contains af:input* and af:select* components For other kinds of content, use af:panelLabelAndMessage if:  Don’t have a label, or  Need multiple fields per label Use af:group if you need to separate sections  Bulleted or ordered lists af:panelList

Collection-based Components: Additional Functionalities Once you have added a collection-based component to your page, you may find that you need to add functionality such as validation and accessibility  Customizing the toolbar: You can customize the toolbar included in the panelCollection component, which provides menus, toolbars, and status bars for the table and tree table components  Geometry management of the table width: If the table is a child to a component that stretches its children, then this width setting will be overridden and the table will automatically stretch to fit its container  Active data: If your application uses active data, then you can have the data in your tables and trees update automatically, whenever the data in the data source changes  Accessibility: You can make your components accessible

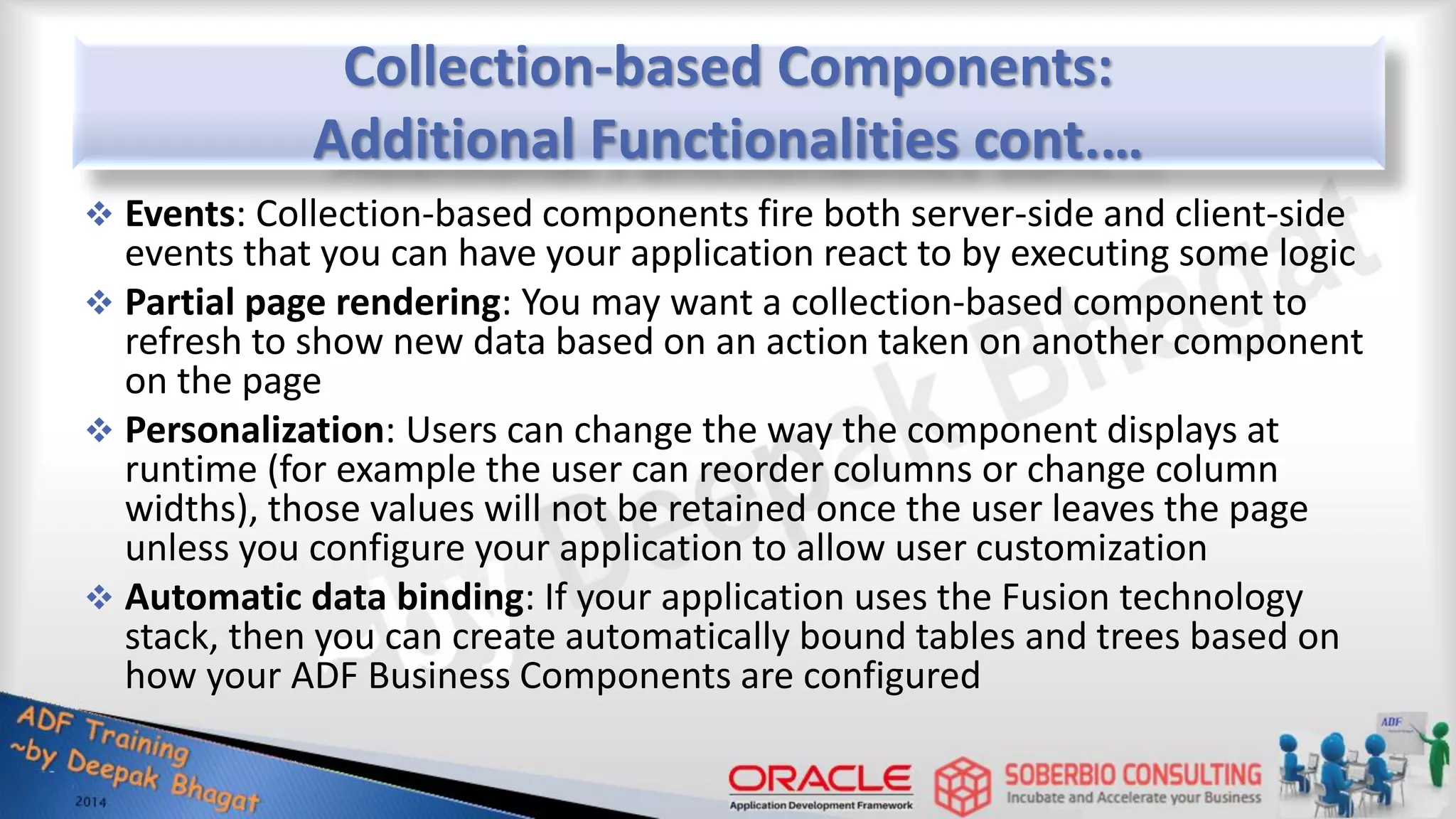

Collection-based Components: Additional Functionalities cont.…  Events: Collection-based components fire both server-side and client-side events that you can have your application react to by executing some logic  Partial page rendering: You may want a collection-based component to refresh to show new data based on an action taken on another component on the page  Personalization: Users can change the way the component displays at runtime (for example the user can reorder columns or change column widths), those values will not be retained once the user leaves the page unless you configure your application to allow user customization  Automatic data binding: If your application uses the Fusion technology stack, then you can create automatically bound tables and trees based on how your ADF Business Components are configured

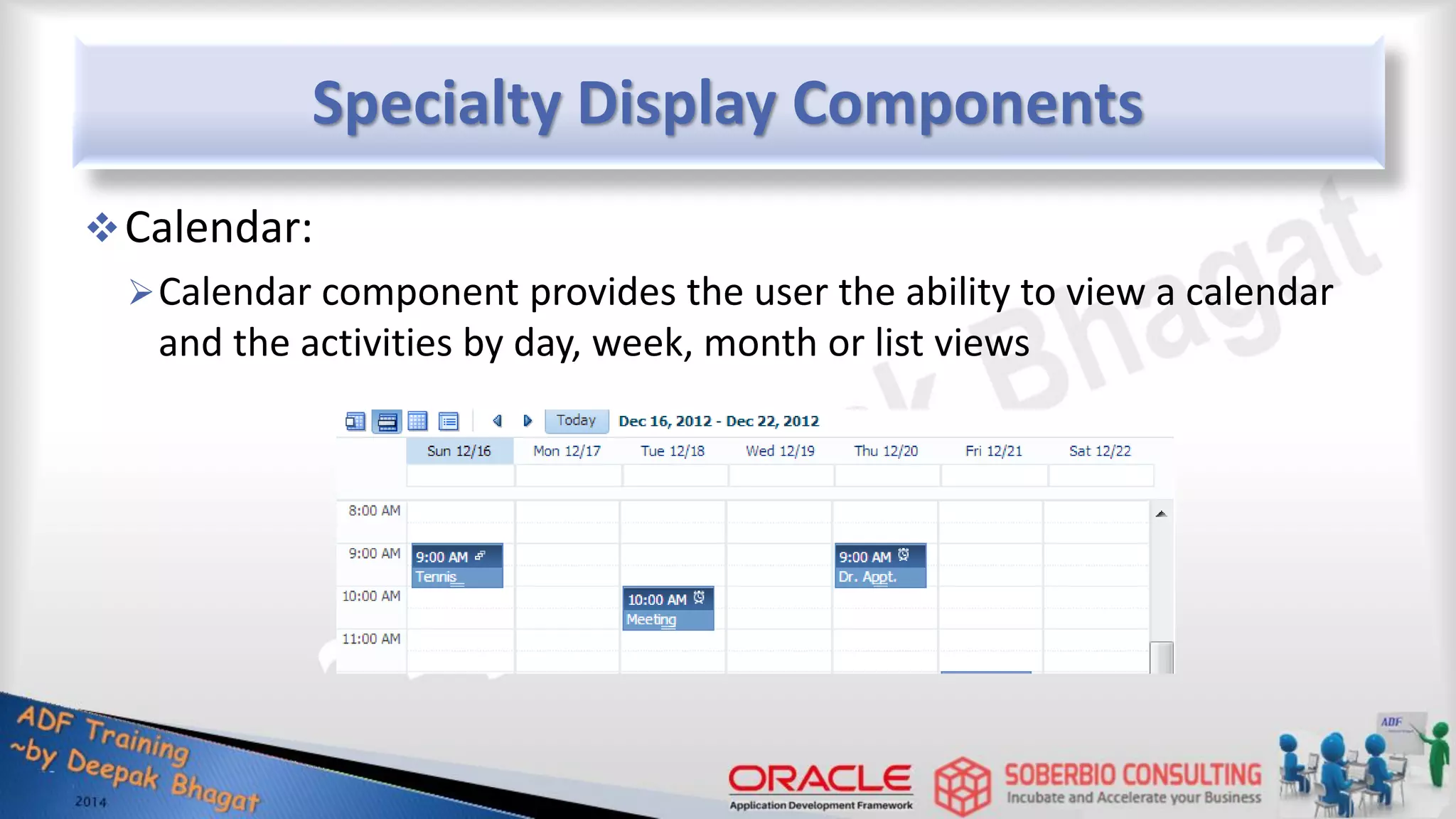

Specialty Display Components Calendar: Calendar component provides the user the ability to view a calendar and the activities by day, week, month or list views

Data Visualization Components (DVT) Data Visualization Component: ADF Data Visualization components provide significant graphical and tabular capabilities for displaying and analyzing data

Using Data Visualization Components Common features: Design time creation by using: Data Controls panel JSF visual editor Property Inspector Component Palette Live data preview at design time Support for data binding Chart NBox

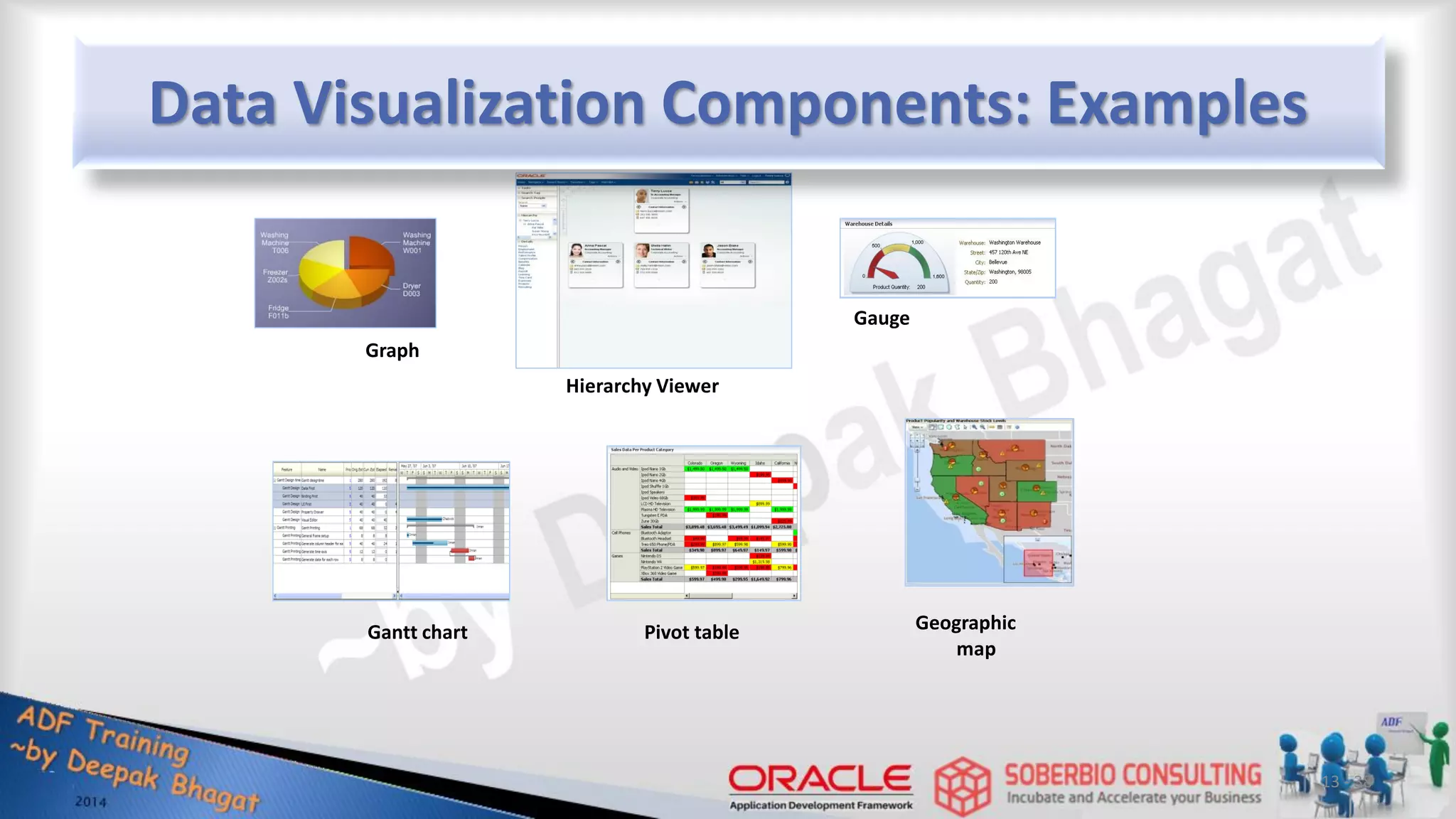

Gauge Graph Hierarchy Viewer Data Visualization Components: Examples 13 - 38 Geographic map Pivot table Gantt chart

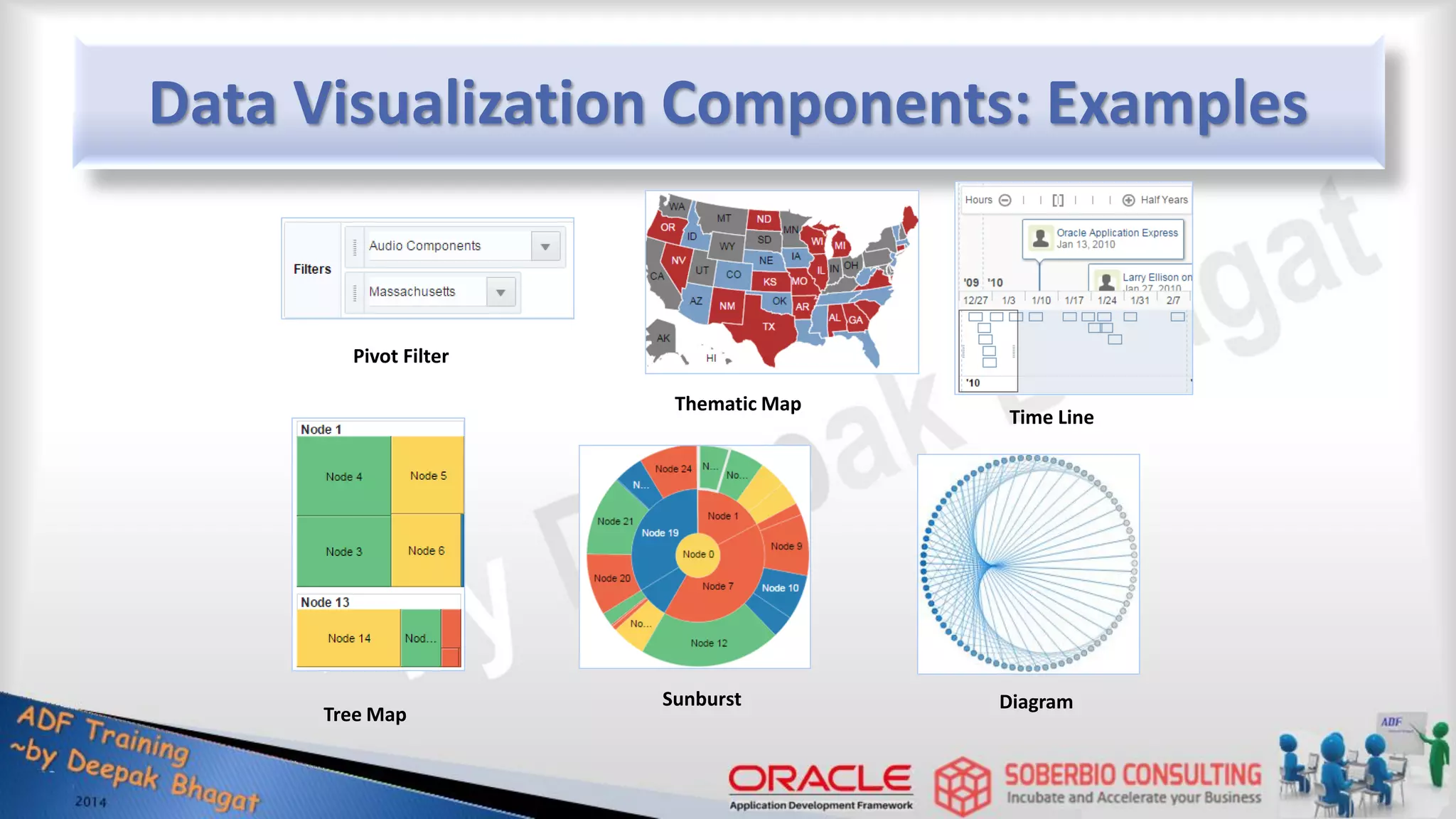

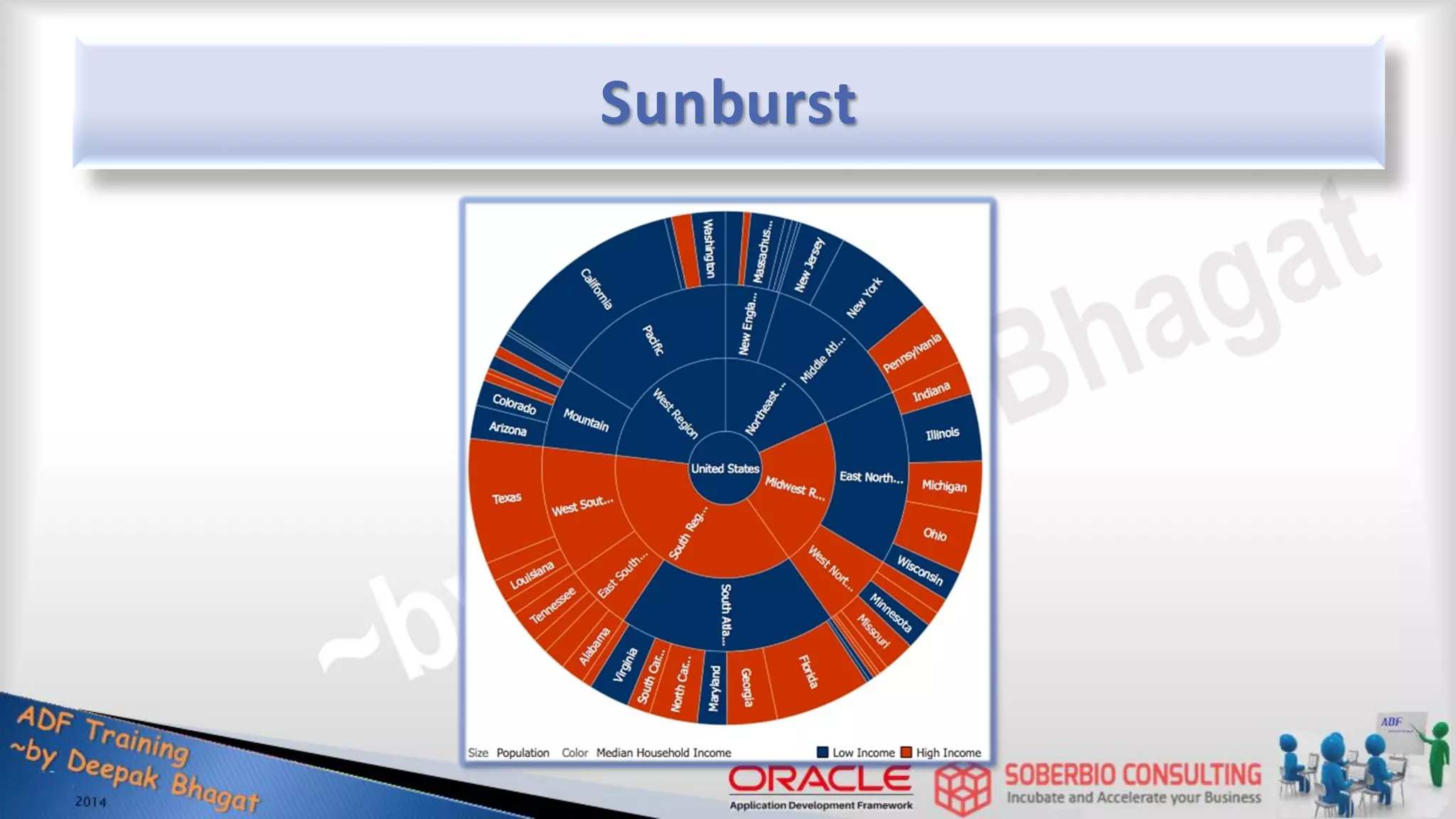

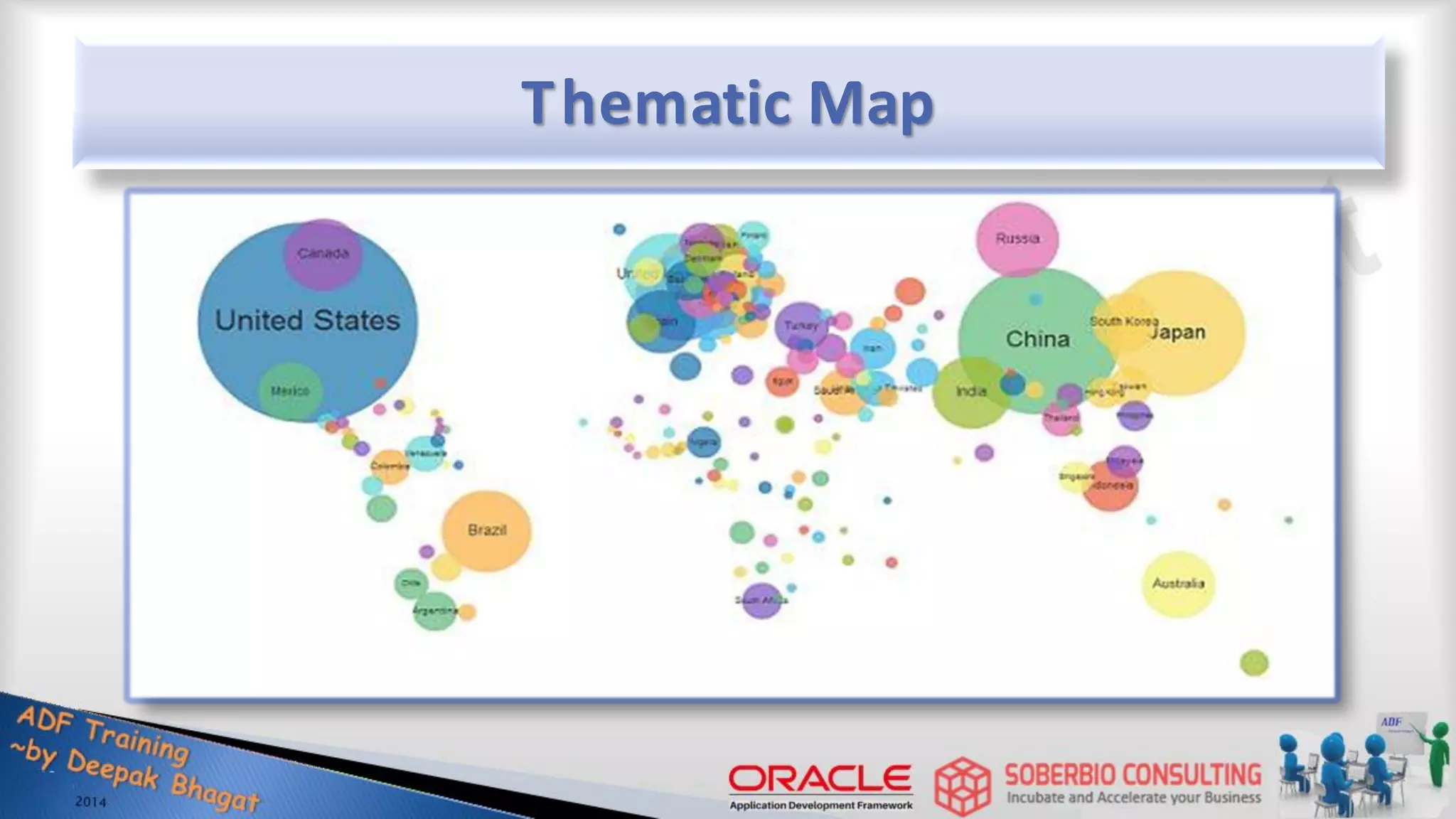

Data Visualization Components: Examples Pivot Filter Thematic Map Time Line Tree Map Sunburst Diagram

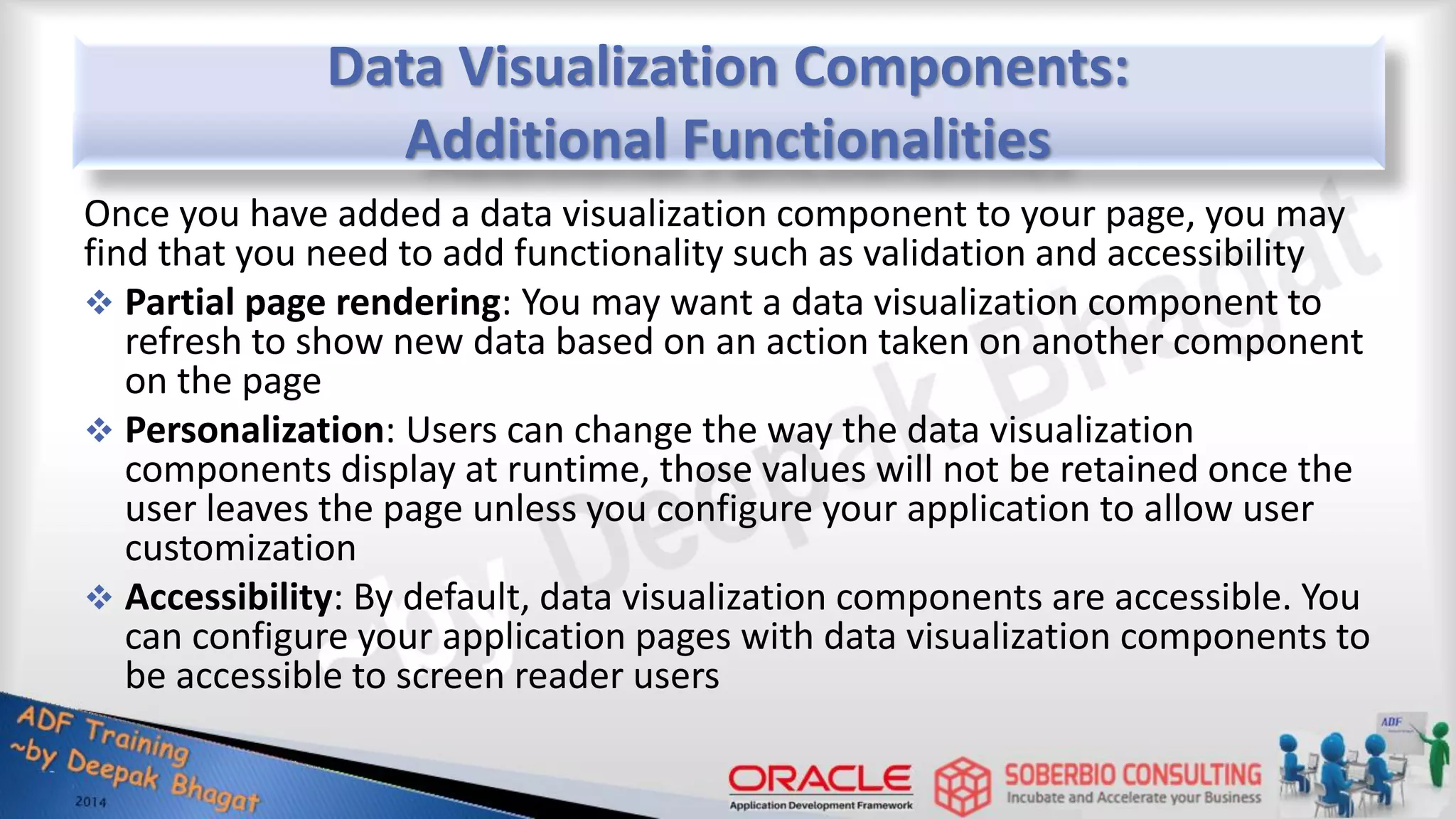

Data Visualization Components: Additional Functionalities Once you have added a data visualization component to your page, you may find that you need to add functionality such as validation and accessibility  Partial page rendering: You may want a data visualization component to refresh to show new data based on an action taken on another component on the page  Personalization: Users can change the way the data visualization components display at runtime, those values will not be retained once the user leaves the page unless you configure your application to allow user customization  Accessibility: By default, data visualization components are accessible. You can configure your application pages with data visualization components to be accessible to screen reader users

Data Visualization Components: Additional Functionalities cont.…  Touch devices: When you know that your ADF Faces application will be run on touch devices, the best practice is to create pages specific for that device  Skins and styles: You can customize the appearance of data visualization components using an ADF skin that you apply to the application or by applying CSS style properties directly using a style-related property (styleClass or inlineStyle)  Placeholder data controls: If you know the data visualization components on your page will eventually use ADF data binding, but you need to develop the pages before the data controls are ready, then you should consider using placeholder data controls, rather than manually binding the components. Using placeholder data controls will provide the same declarative development experience as using developed data controls

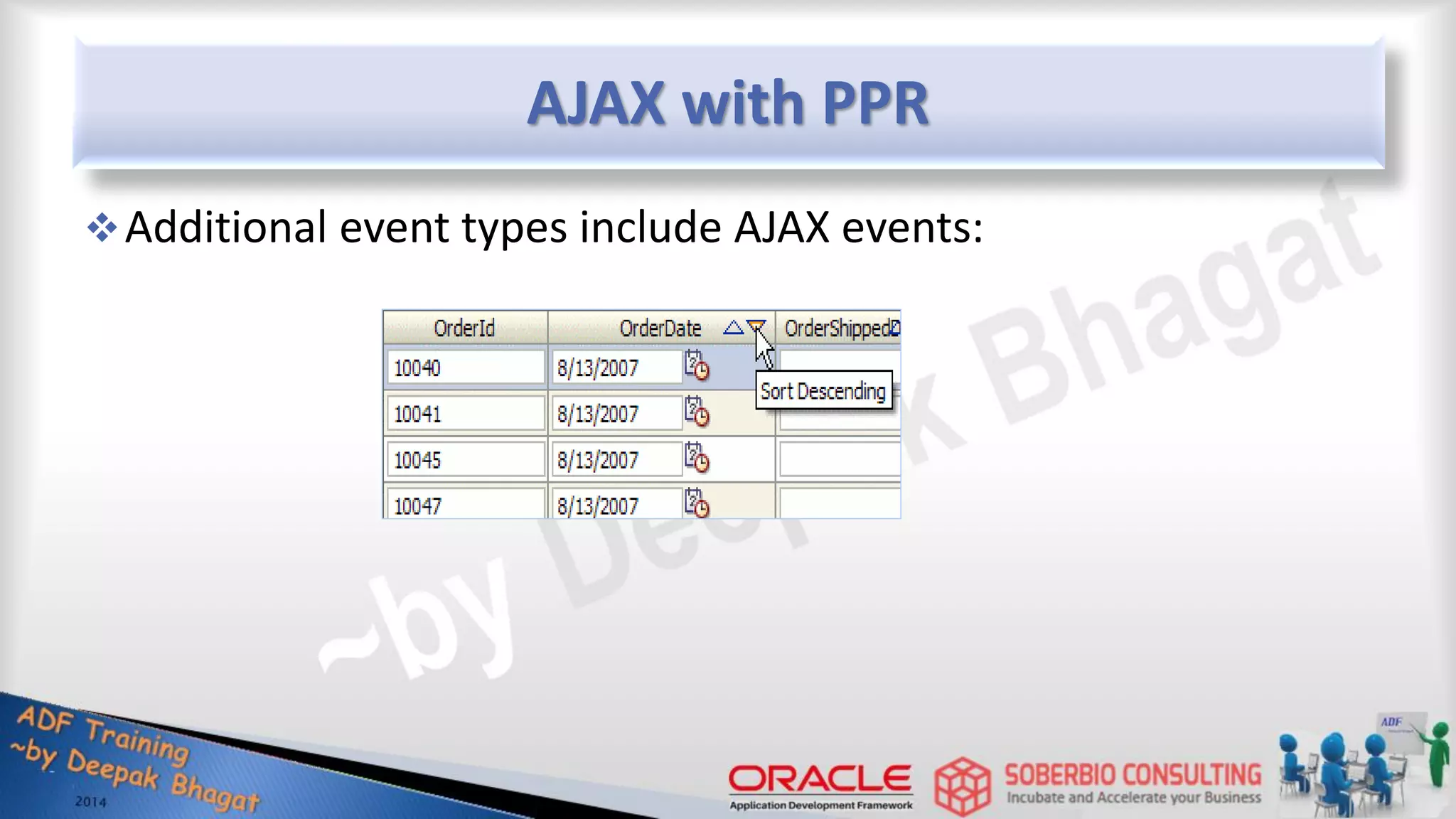

AJAX with PPR Additional event types include AJAX events:

Run and Test the Page Run the page Test the functionality

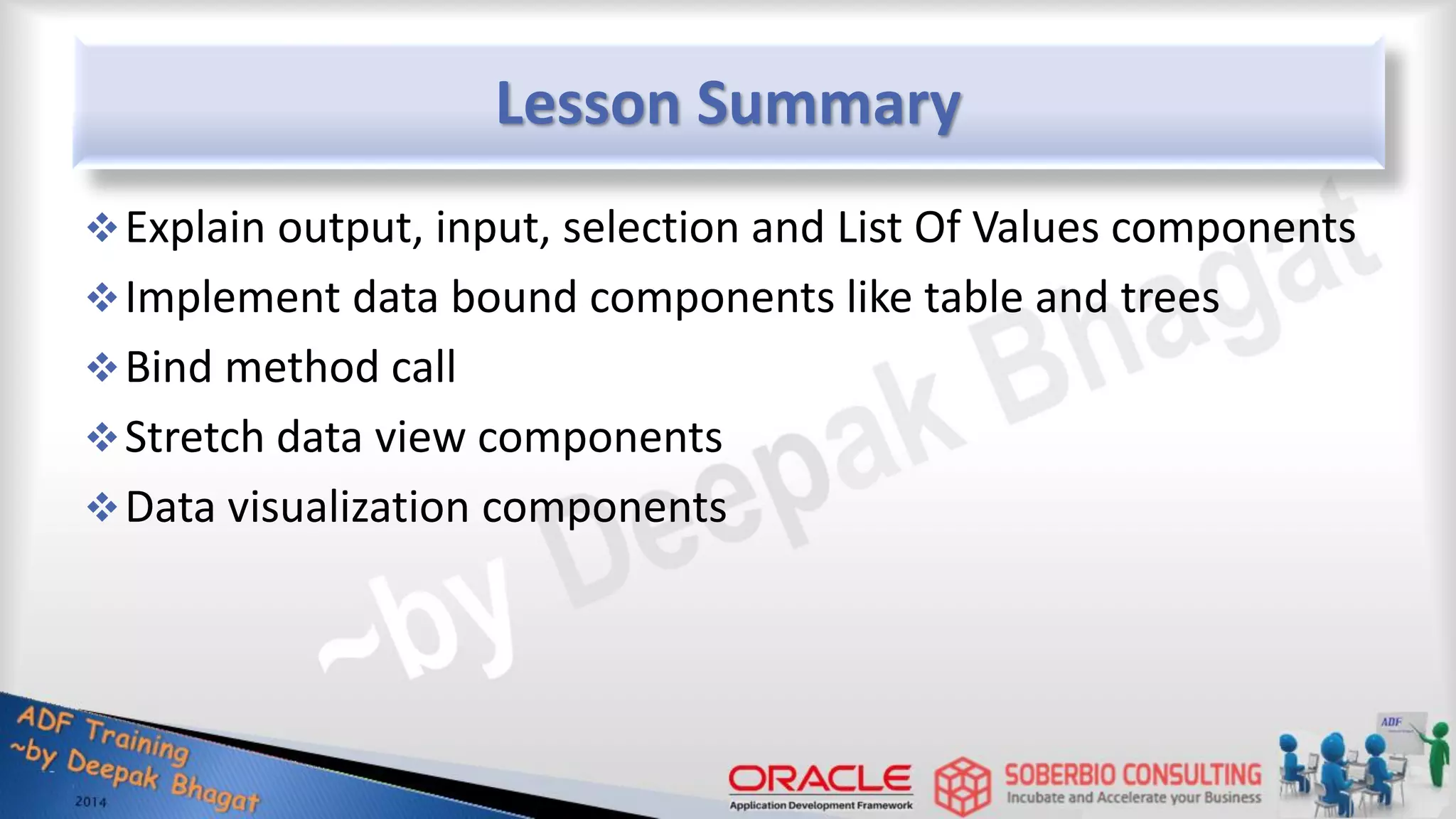

Lesson Summary Explain output, input, selection and List Of Values components Implement data bound components like table and trees Bind method call Stretch data view components Data visualization components

19 Querying Data with Search Components

Lesson Agenda Query search Quick query components

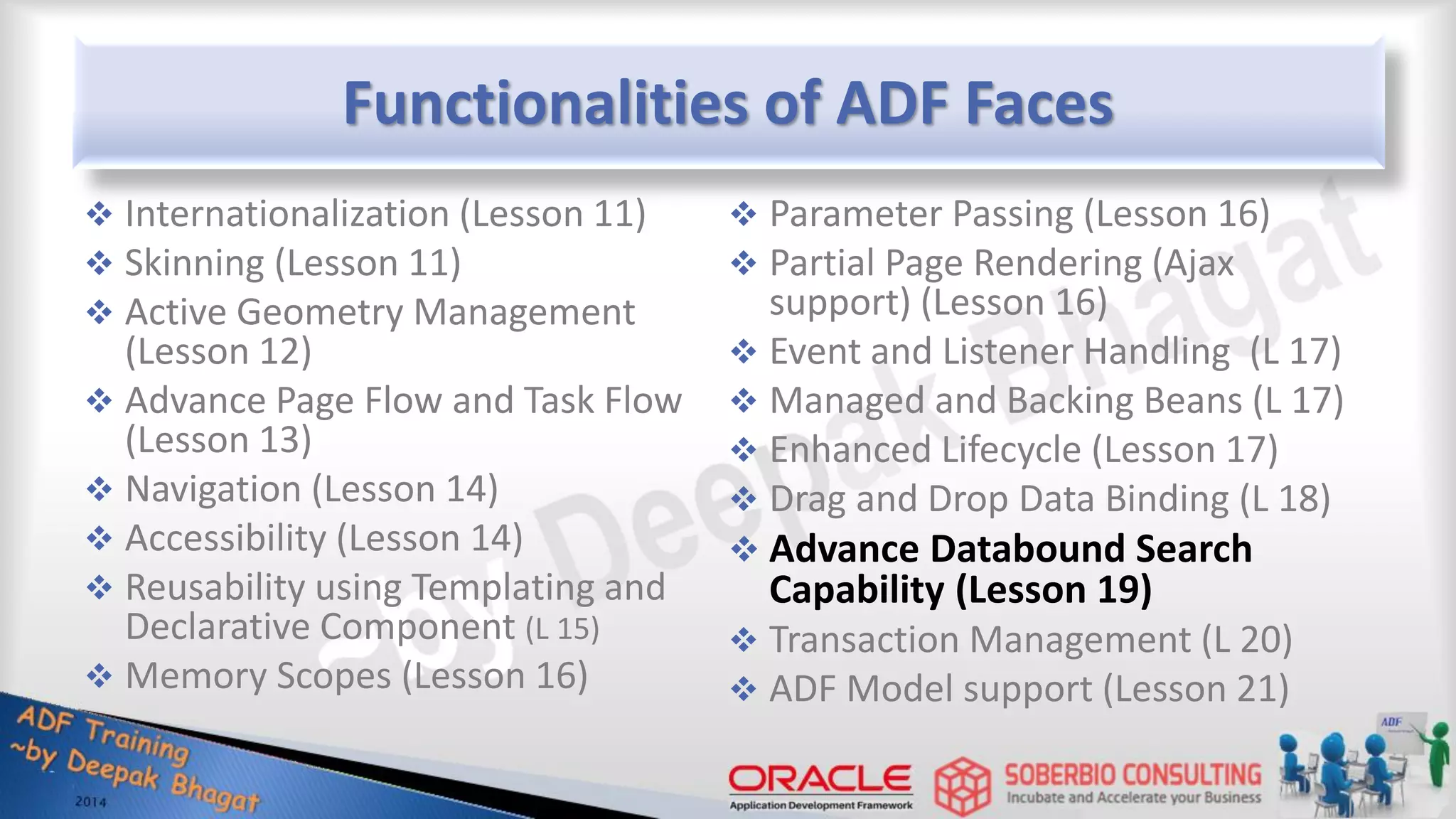

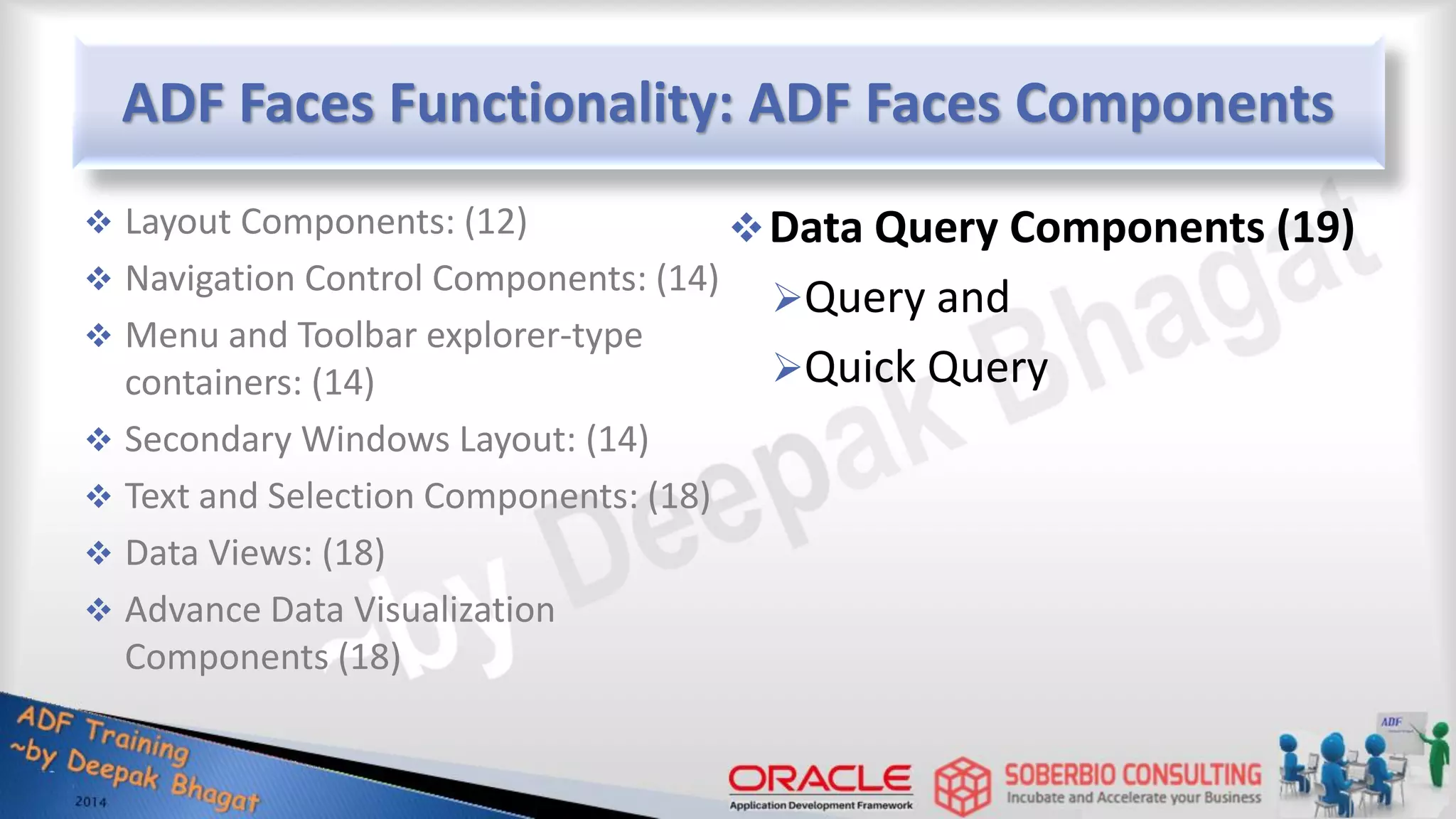

ADF Faces Functionality: ADF Faces Components  Layout Components: (12)  Navigation Control Components: (14)  Menu and Toolbar explorer-type containers: (14)  Secondary Windows Layout: (14)  Text and Selection Components: (18)  Data Views: (18)  Advance Data Visualization Components (18) Data Query Components (19) Query and Quick Query

Query Search Component Query: The query component provides the user the ability to perform a query or personalize saved searches Advanced mode query with dynamically added search criterion

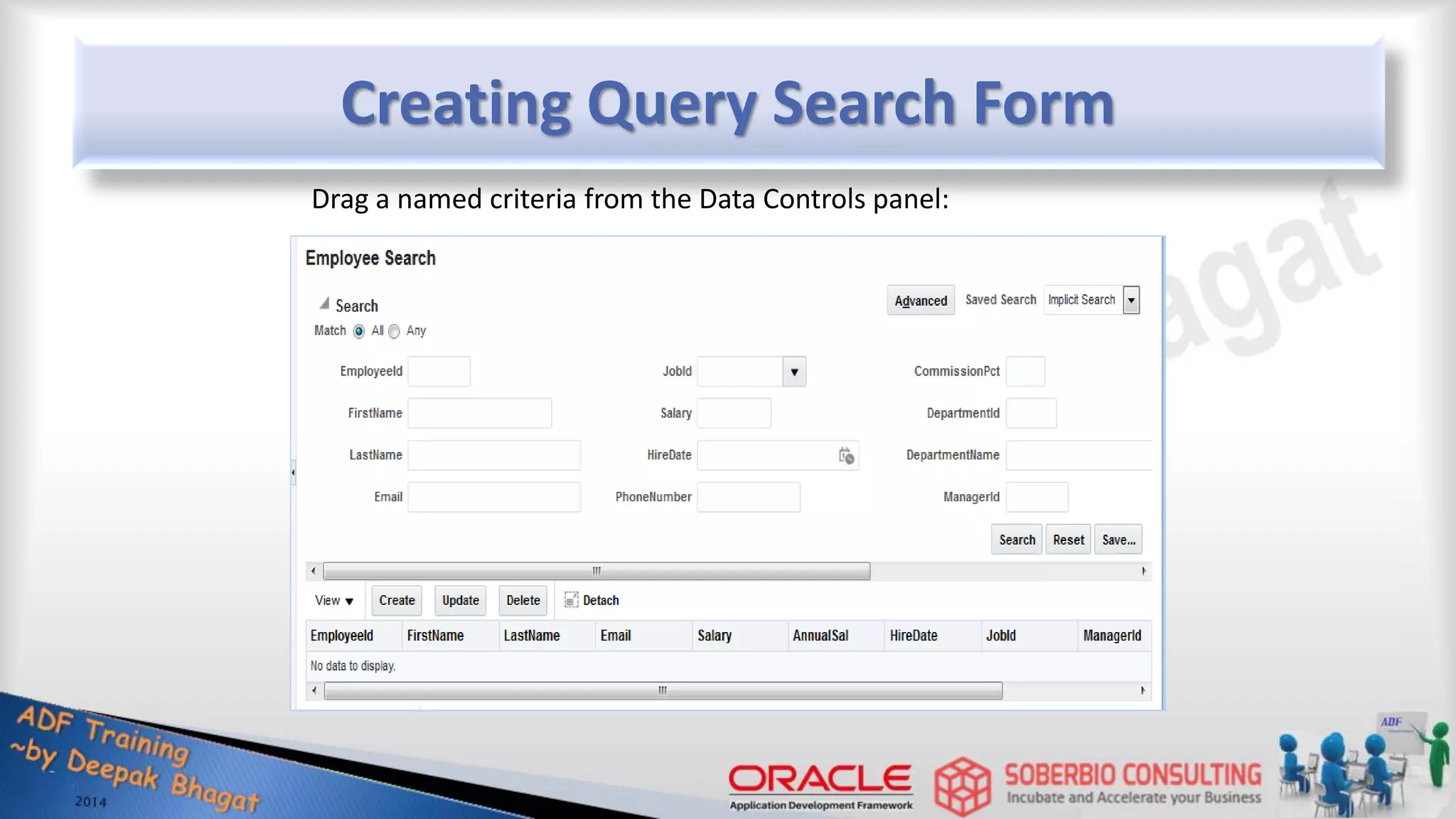

Creating Query Search Form Drag a named criteria from the Data Controls panel:

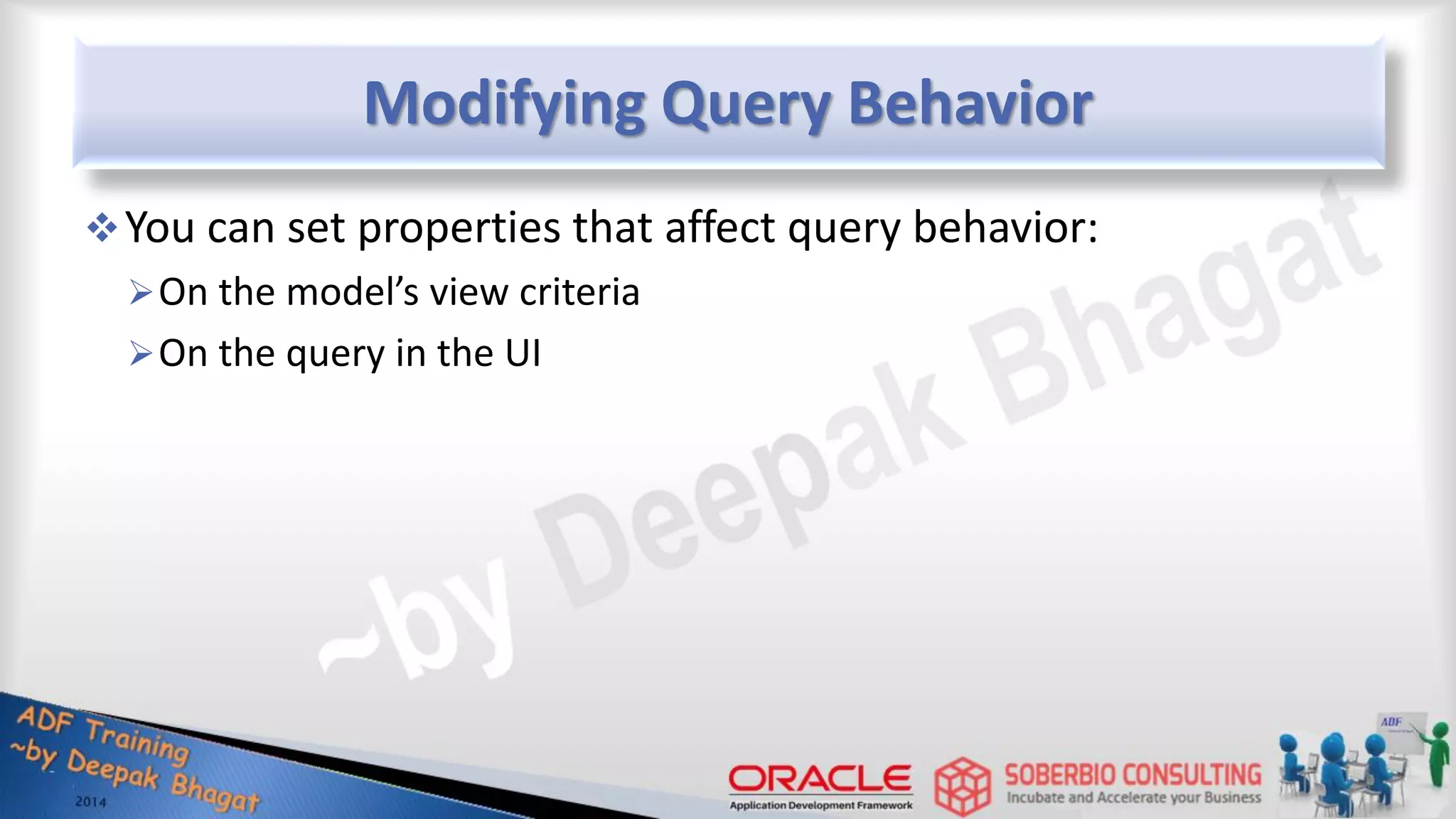

Modifying Query Behavior You can set properties that affect query behavior: On the model’s view criteria On the query in the UI

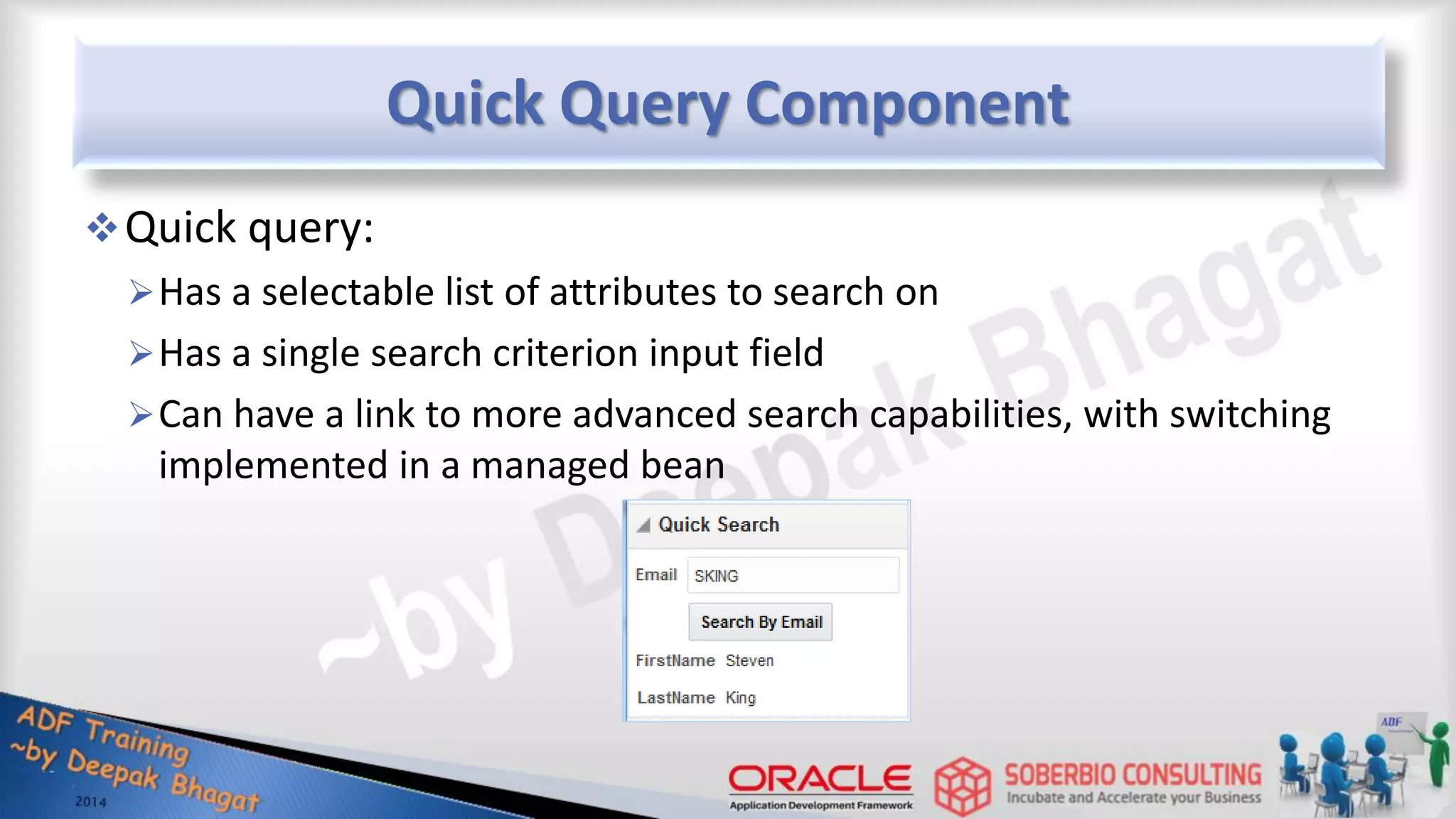

Quick Query Component Quick query: Has a selectable list of attributes to search on Has a single search criterion input field Can have a link to more advanced search capabilities, with switching implemented in a managed bean

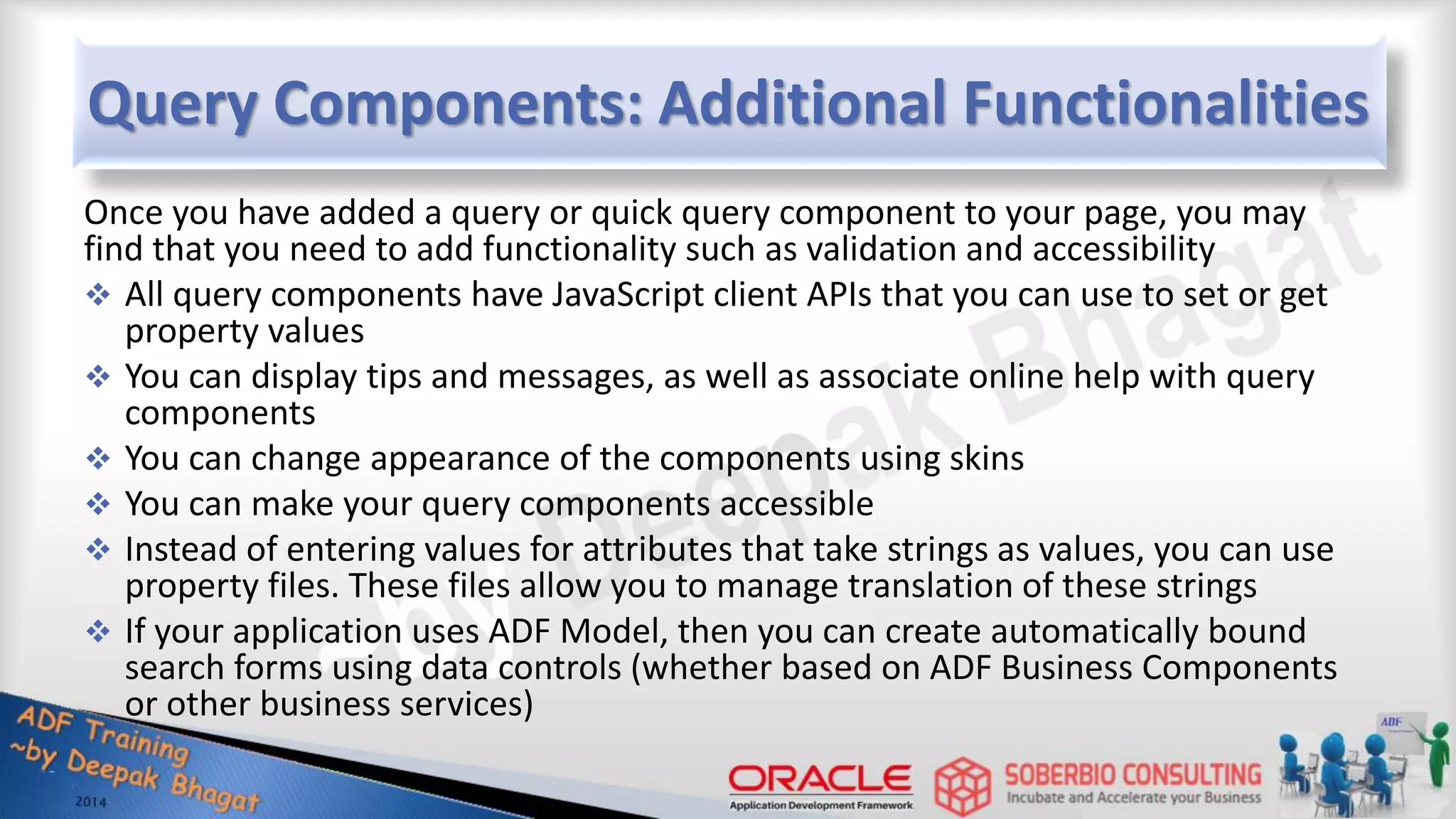

Query Components: Additional Functionalities Once you have added a query or quick query component to your page, you may find that you need to add functionality such as validation and accessibility  All query components have JavaScript client APIs that you can use to set or get property values  You can display tips and messages, as well as associate online help with query components  You can change appearance of the components using skins  You can make your query components accessible  Instead of entering values for attributes that take strings as values, you can use property files. These files allow you to manage translation of these strings  If your application uses ADF Model, then you can create automatically bound search forms using data controls (whether based on ADF Business Components or other business services)

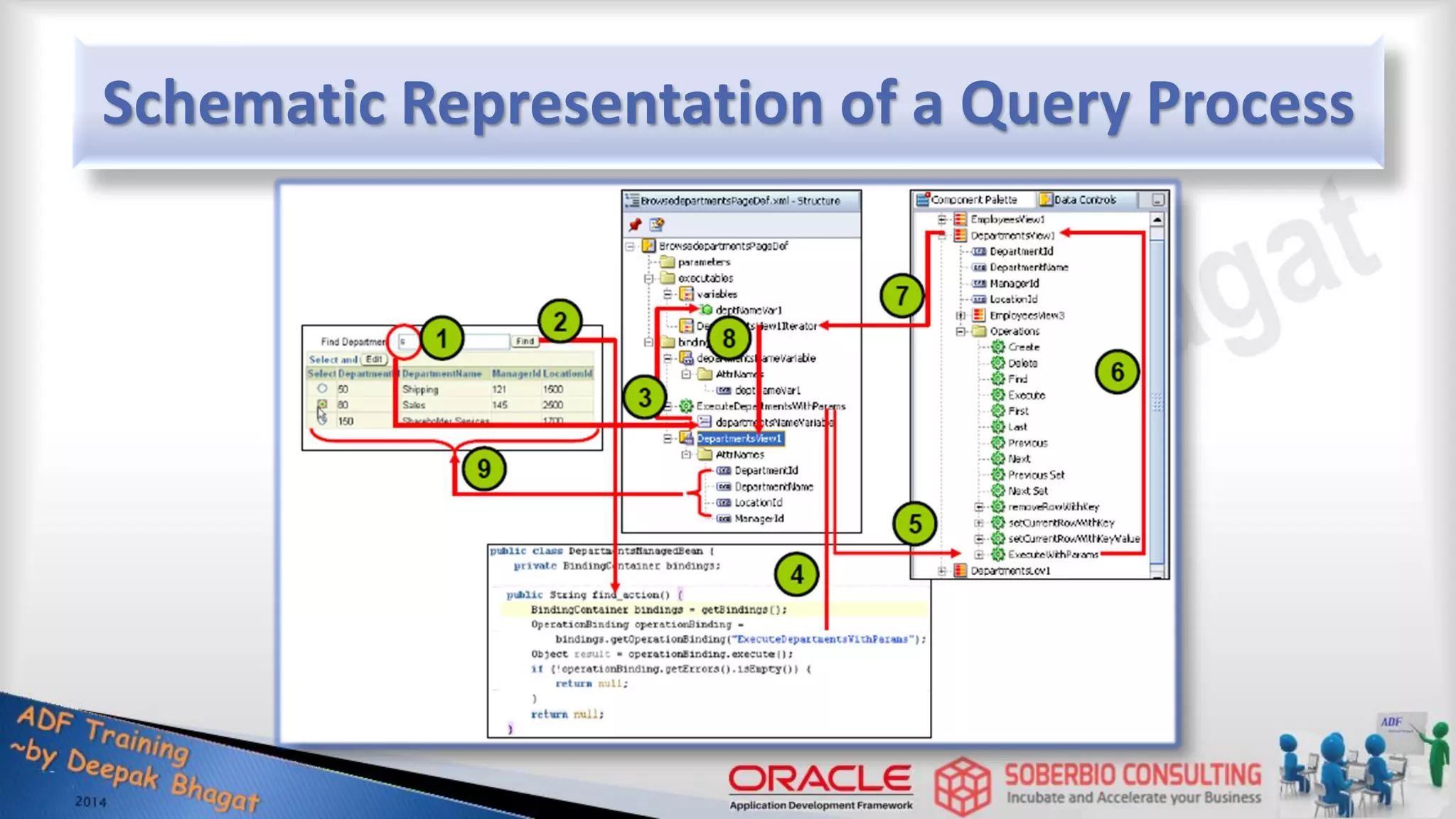

Schematic Representation of a Query Process

Lesson Summary Query search Quick query components

Lesson Agenda Describe ADF BC transaction handling Implement task flow transaction control Handle transaction exceptions Define response to the browser’s Back button Enable the save for later functionality

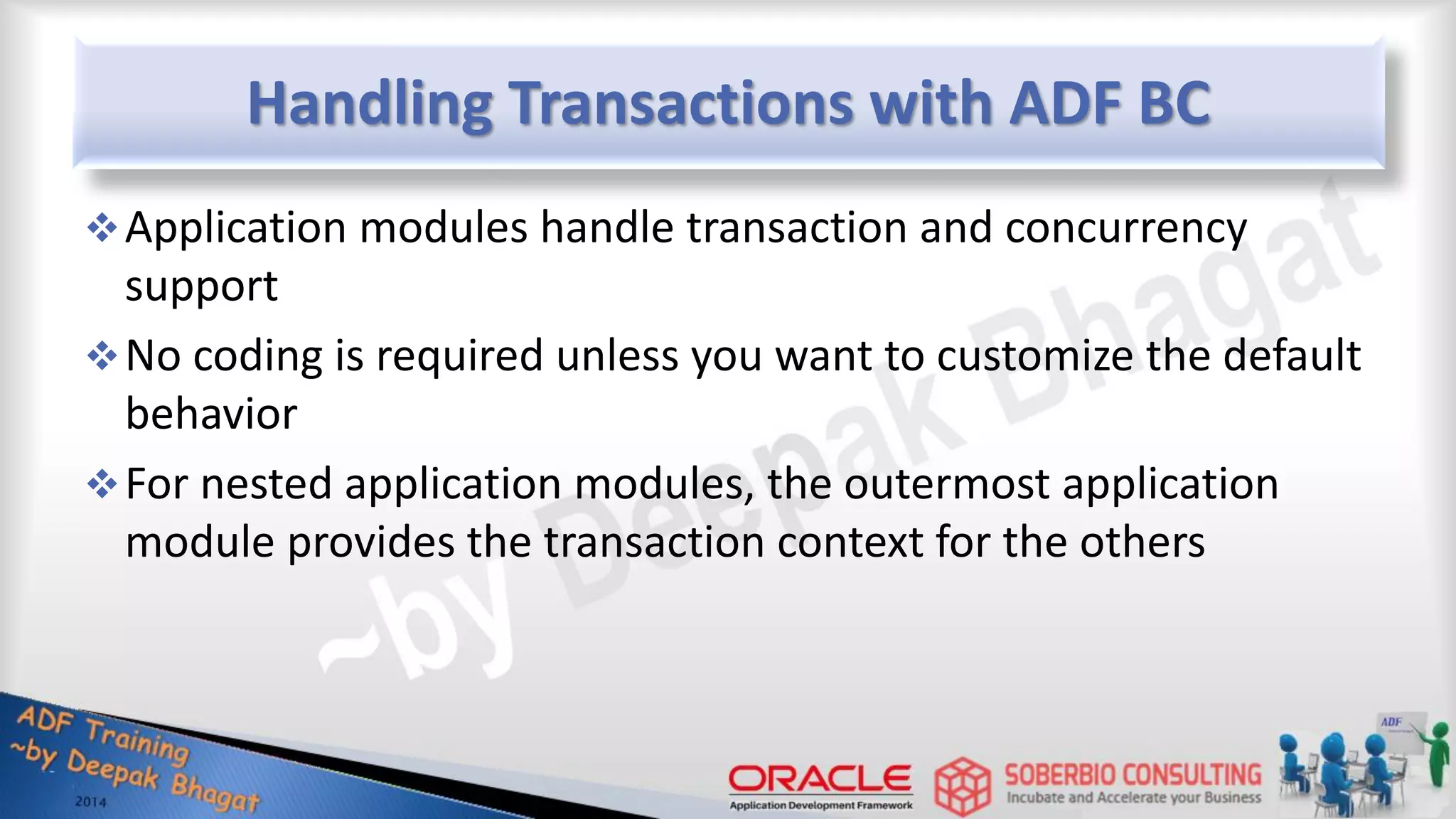

Handling Transactions with ADF BC Application modules handle transaction and concurrency support No coding is required unless you want to customize the default behavior For nested application modules, the outermost application module provides the transaction context for the others

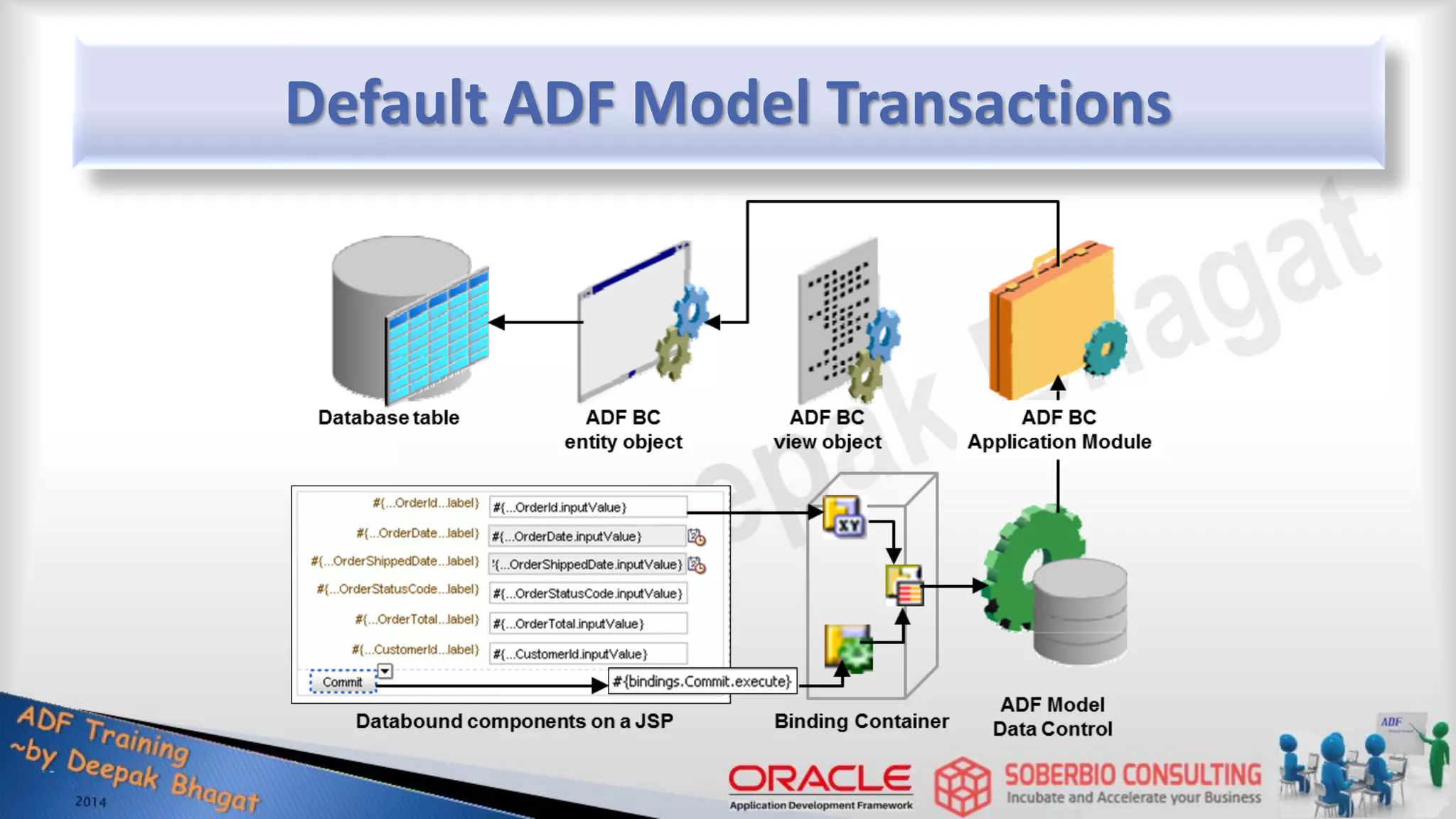

Default ADF Model Transactions

Sharing Data Controls Data control scopes:  Shared (default): Called flow shares data control (AM) instances with calling flow <data-control-scope> <shared/> </data-control-scope>  Isolated: Called flow has unique instance of data controls (AM) <data-control-scope> <isolated/> </data-control-scope>

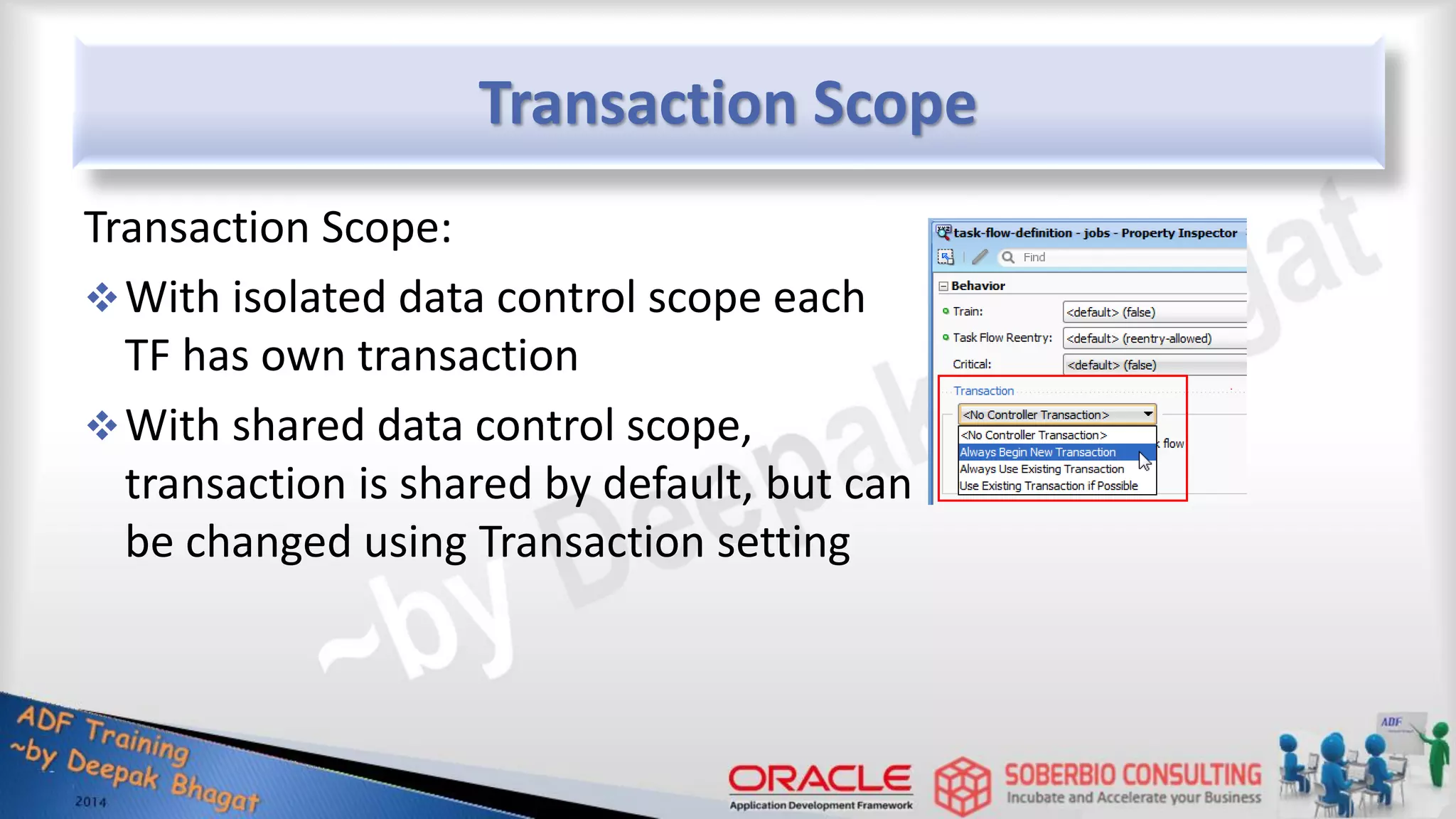

Transaction Scope Transaction Scope: With isolated data control scope each TF has own transaction With shared data control scope, transaction is shared by default, but can be changed using Transaction setting

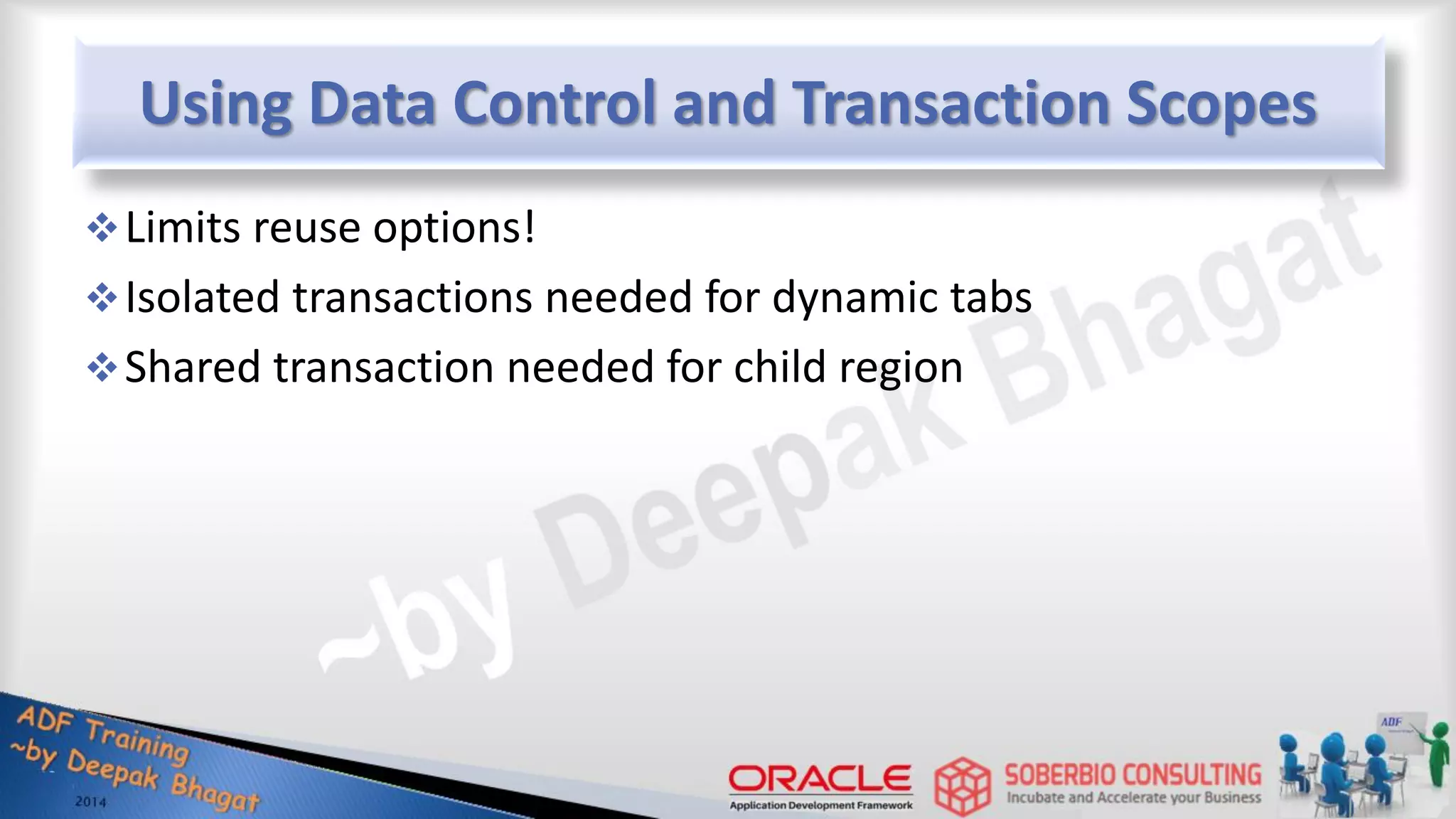

Using Data Control and Transaction Scopes Limits reuse options! Isolated transactions needed for dynamic tabs Shared transaction needed for child region

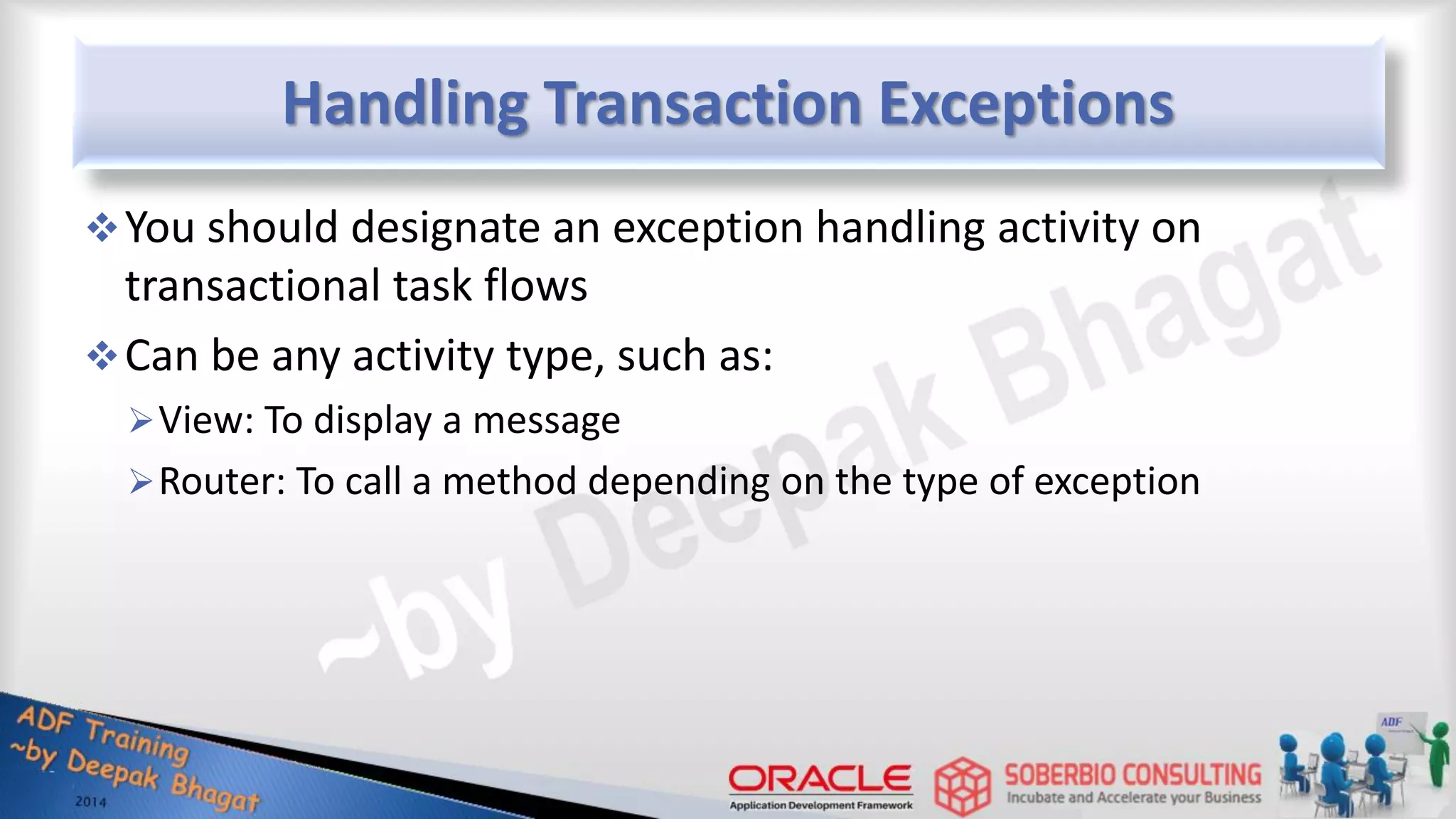

Handling Transaction Exceptions You should designate an exception handling activity on transactional task flows Can be any activity type, such as: View: To display a message Router: To call a method depending on the type of exception

Designating an Exception Handler Activity

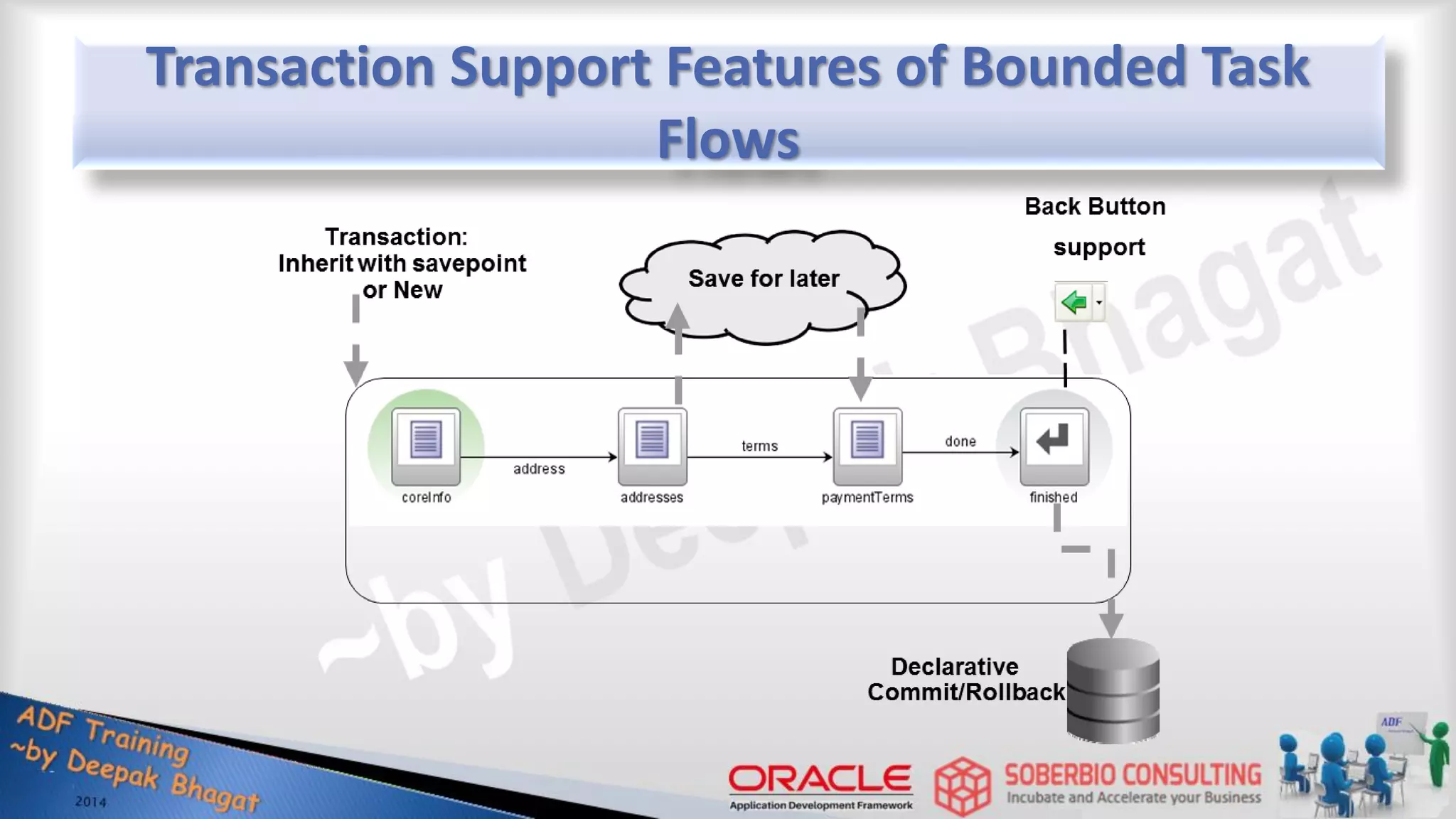

Transaction Support Features of Bounded Task Flows

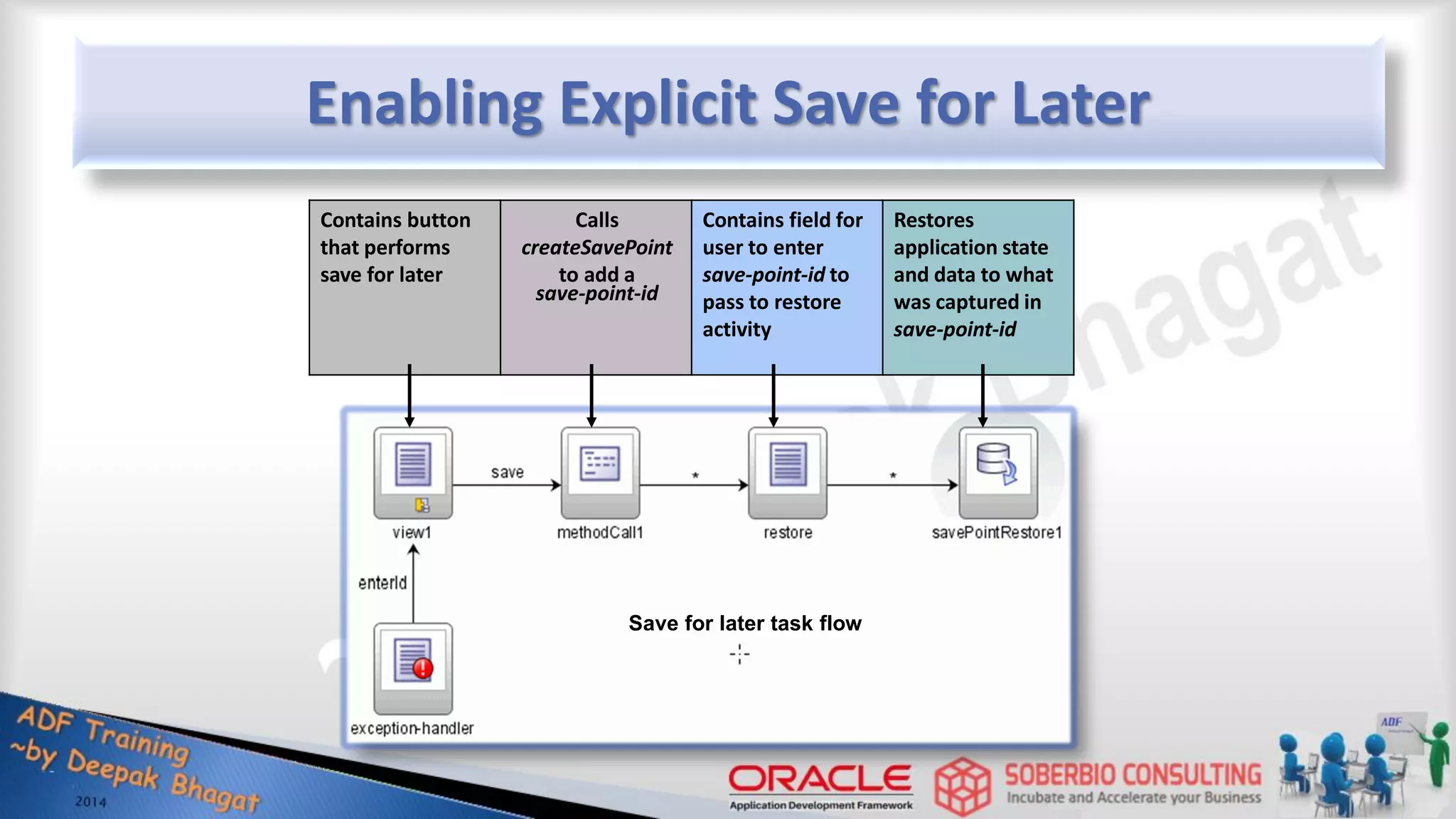

Enabling Explicit Save for Later Save for later task flow Contains button that performs save for later Calls createSavePoint to add a save-point-id Contains field for user to enter save-point-id to pass to restore activity Restores application state and data to what was captured in save-point-id

Enabling Implicit Save for Later To enable implicit save for later: Change a setting in adfc-config.xml Mark the task flow as critical

Restoring Save Points A Save Point Restore activity: Restores the state of the application Deletes the savepoint from its persistence store Optionally performs additional logic with a Save Point Restore Finalizer Is required in applications that are responsible for restoring save-point-id (not necessarily the same application that was saved for later)

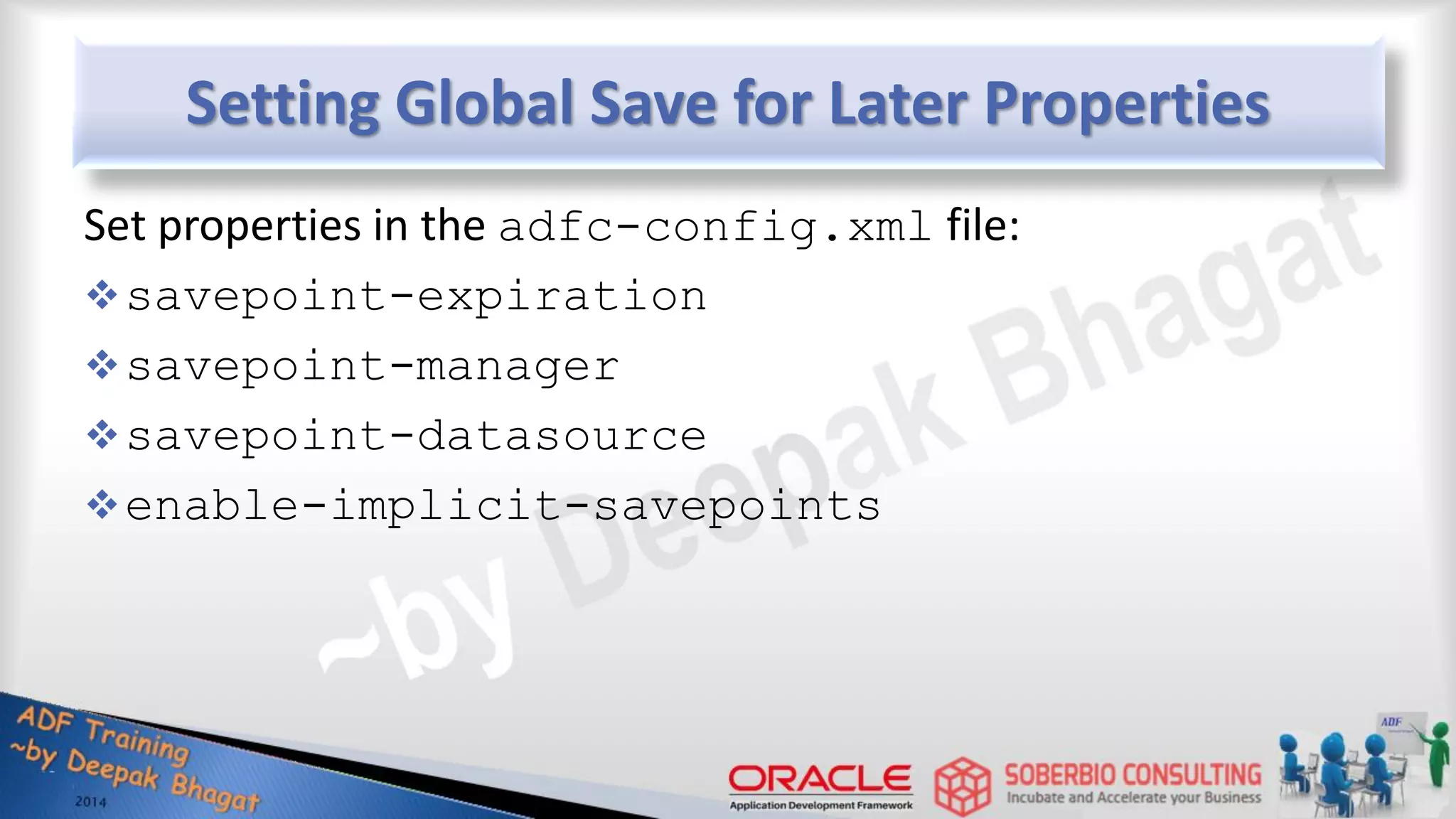

Setting Global Save for Later Properties Set properties in the adfc-config.xml file: savepoint-expiration savepoint-manager savepoint-datasource enable-implicit-savepoints

Create and CreateInsert The Create operation performs the following code: // create a new row for the view object Row newRow = yourViewObject.createRow(); // mark the row as being "initialized", but not yet new newRow.setNewRowState(Row.STATUS_INITIALIZED); In addition, the CreateInsert operation performs: // insert new row into view object's default rowset yourViewObject.insertRow(newRow);

Defining Response to the Back Button The Task Flow Reentry property determines whether the user can return to an exited task flow by clicking the browser’s Back button: reentry-allowed: OK reentry-not-allowed: Throws exception reentry-outcome-dependent: Depends on the outcome from exited task flow

Lesson Summary Describe ADF BC transaction handling Implement task flow transaction control Handle transaction exceptions Enable the save for later functionality Define response to the browser’s Back button

21 Understanding Data Controls and Bindings

Lesson Agenda Importance of model Types of data controls Types of data bindings ADF Configuration files Data binding using Expression Language (EL) ADF binding class hierarchy Refresh Binding Executables

ADF Faces Functionalities  Internationalization (Lesson 11)  Skinning (Lesson 11)  Active Geometry Management (L 12)  Advance Page Flow and Task Flow (Lesson 13)  Navigation (Lesson 14)  Accessibility (Lesson 14)  Reusability using Templating and Declarative Component (L 15)  Memory Scopes (Lesson 16)  Parameter Passing (Lesson 16)  Partial Page Rendering (Ajax support) (Lesson 16)  Event and Listener Handling (L 17)  Managed and Backing Beans (L 17)  Enhanced Lifecycle (Lesson 17)  Drag and Drop Data Binding (L 18)  Advance Databound Search Capability (Lesson 19)  Transaction Management (L 20) ADF Model support out-of- the-box (21)

Client-Server Architecture Server Relational Data Legacy Data Data Services ADF Swing Swing Office EJB POJO Toplink Hibernate Tuxedo Client

The Need for a Standard There is no standard way to bind data from any user interfaces to any business services Developers create their own integration layers Vendors have implemented different solutions Integrating components from different vendors requires learning and coding

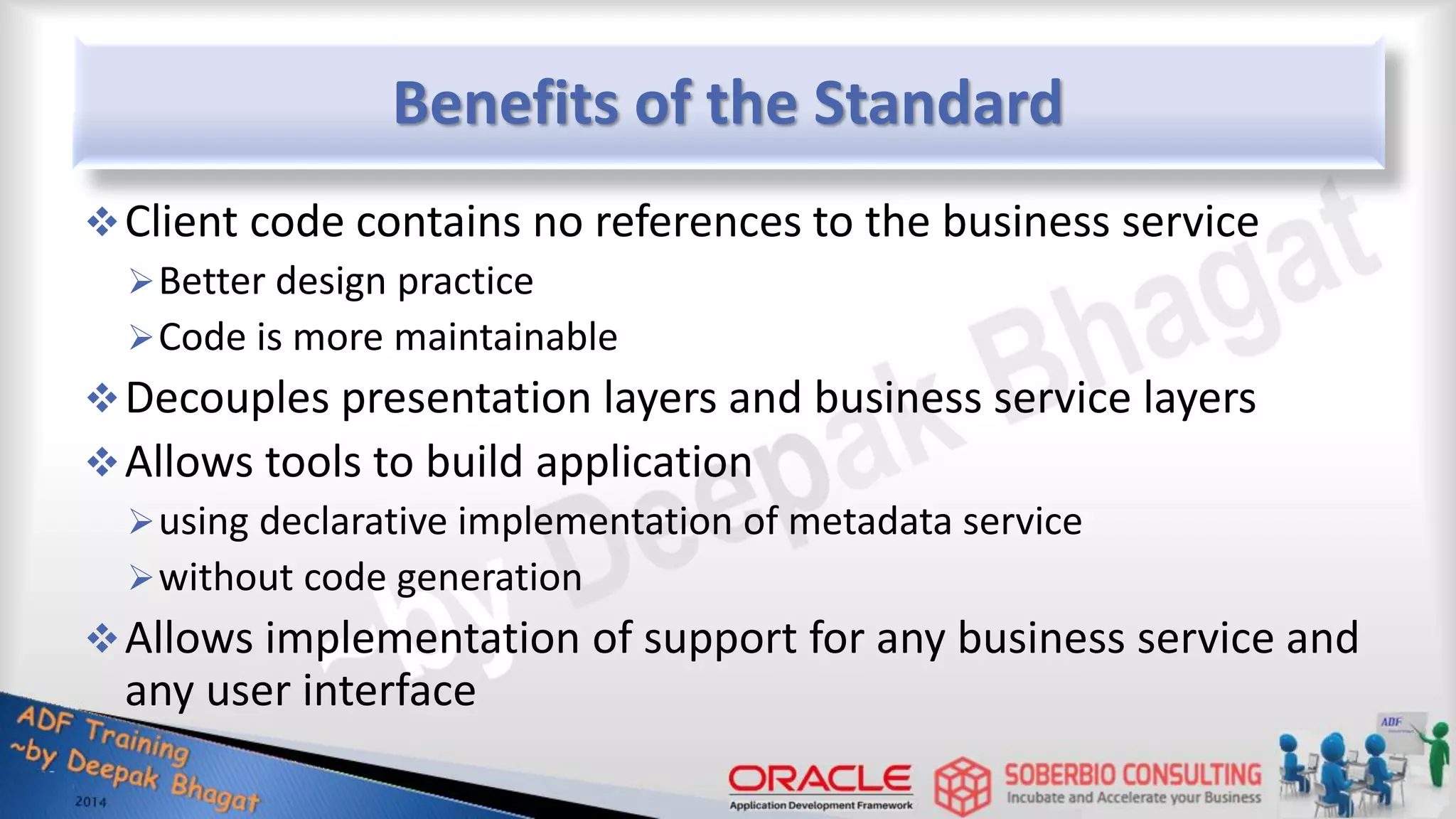

Benefits of the Standard Client code contains no references to the business service Better design practice Code is more maintainable Decouples presentation layers and business service layers Allows tools to build application using declarative implementation of metadata service without code generation Allows implementation of support for any business service and any user interface

ADF Faces ADF Binding Layer Model (JSR227) Business Services Application Module/ Services Data Control /Binding Context ADF BC Binding Container / Bindings View Controller /Data Binding ADFm  Provides public interfaces of business services  Gives access to service layer  Defines all the bindings for a page by connecting UI components to data or actions and data control  Created automatically when a databound component is added to a page  Maps pages to page definitions  Declares data control usages  Binds page components to data without writing any code

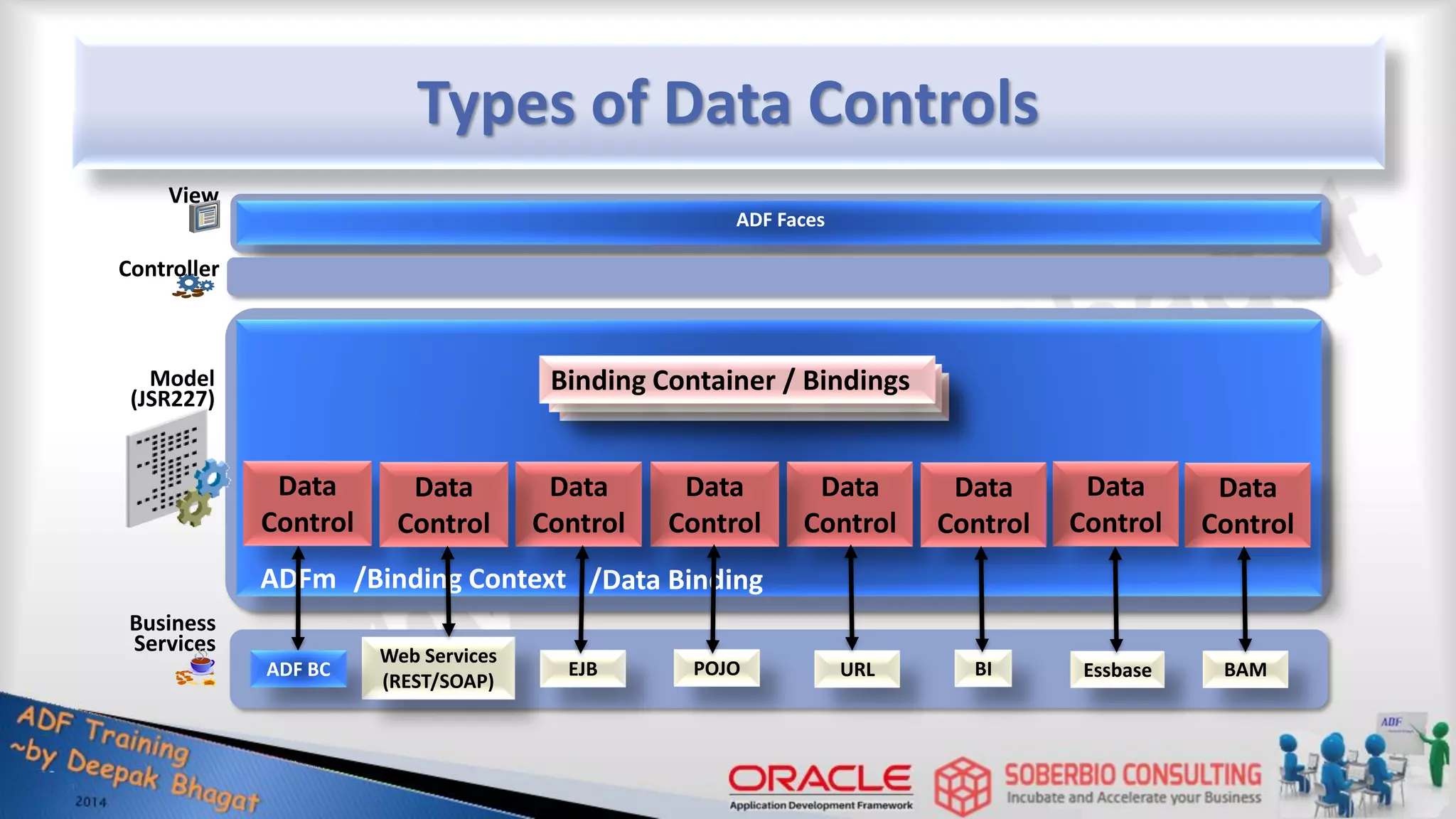

ADF Faces Types of Data Controls Model (JSR227) Business Services Data Control /Binding Context Binding Container / Bindings View Controller /Data Binding ADFm Data Control Data Control Data Control Data Control Web Services (REST/SOAP) EJB POJO URL ADF BC BI Essbase BAM Data Control Data Control Data Control

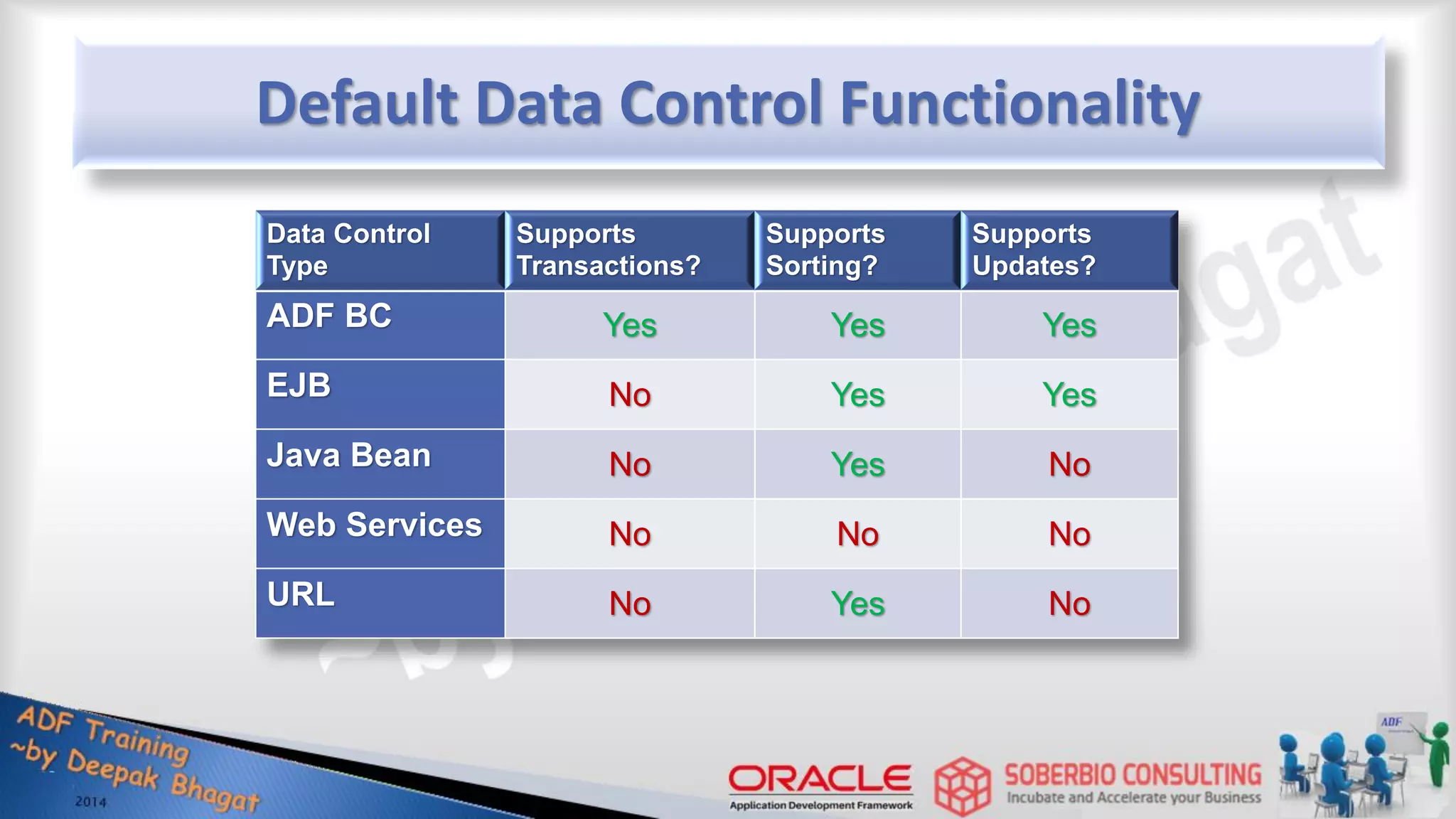

Default Data Control Functionality Data Control Type Supports Transactions? Supports Sorting? Supports Updates? ADF BC Yes Yes Yes EJB No Yes Yes Java Bean No Yes No Web Services No No No URL No Yes No

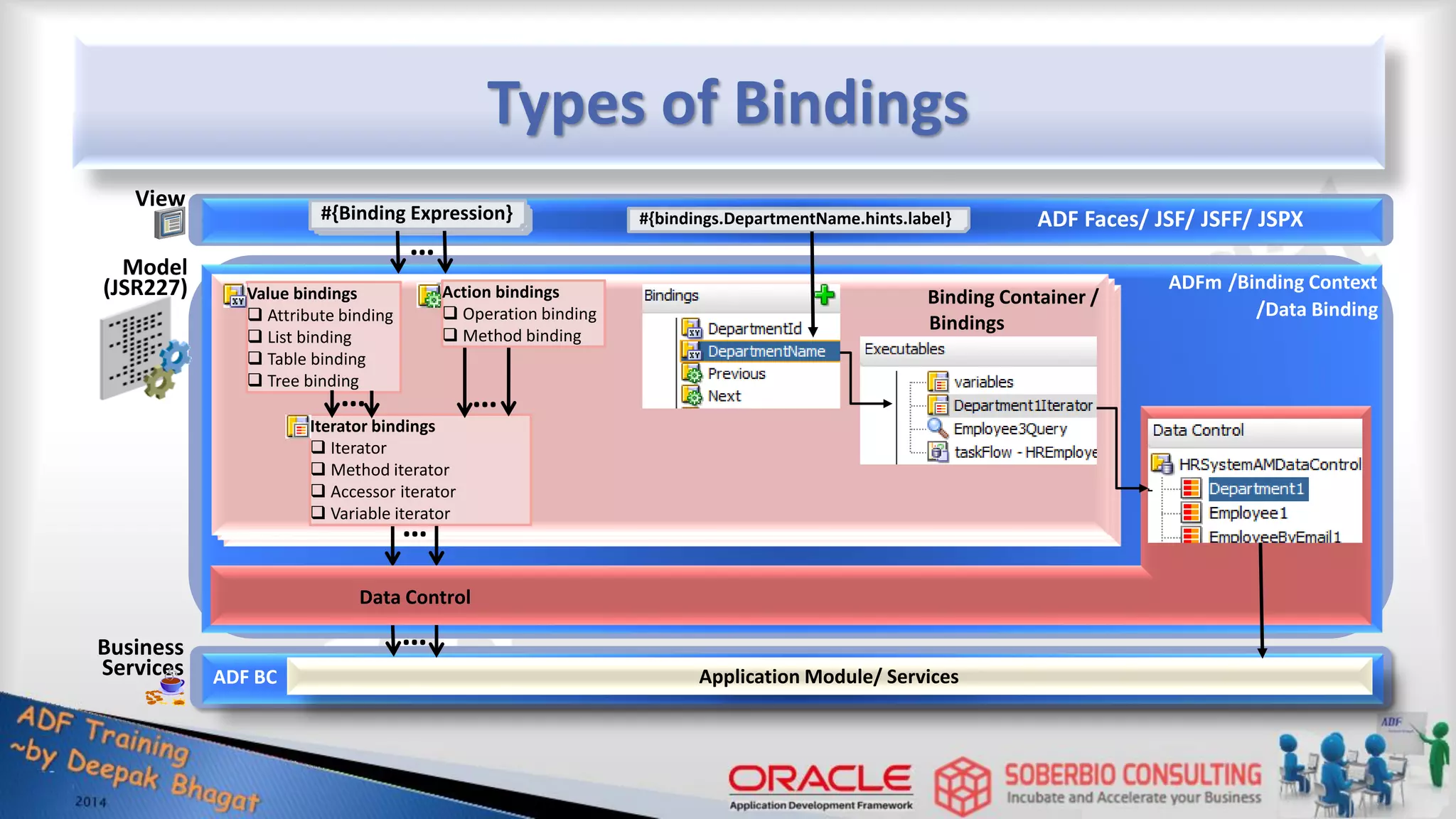

Types of Bindings Model (JSR227) Business Services Application Module/ Services /Binding Context ADF BC View ADFm #{Binding Expression} Value bindings  Attribute binding  List binding  Table binding  Tree binding Iterator bindings  Iterator  Method iterator  Accessor iterator  Variable iterator Action bindings  Operation binding  Method binding … … … … … ADF Faces/ JSF/ JSFF/ JSPX Binding Container / /Data Binding #{bindings.DepartmentName.hints.label} Data Control Bindings

Types of Bindings: Source View Model (JSR227) Business Services Application Module/ Services /Binding Context ADF BC View ADFm <af:inputText value=“#{bindings.DepartmentName.inputValue}” label =“#{bindings.DepartmentName.hints.label}” ADF Faces/ JSF/ JSFF/ JSPX Binding Container / /Data Binding Data Control <executables> <iterator id="Department1Iterator" DataControl="HRSystemAMDataControl" Binds="Department1"/> </executables> <bindings> <attributeValues IterBinding="Department1Iterator“ id="DepartmentName"> <AttrNames> <Item Value="DepartmentName"/> </AttrNames> </attributeValues> ... </bindings> Bindings

ADF Faces ADF Configuration and Metadata Files Model (JSR227) Business Services Application Module/ Services Data Control /Binding Context ADF BC Binding Container / <pagename>.jsf /.jspx* <pagename>PageDef.xml* View Controller /Data Binding ADFm ViewController/ User Interface Project (<ViewController>.jpr) Model/ Service Project (<Model>.jpr) <ApplicationModuleName>.xml bc4j.xcfg DataControls.dcx DataBindings.cpx <Model>.jpx web.xml adfc-config.xml faces-config.xml (ADFBindingFilter) trinidad-config.xml <task-flow-definition>.xml adfm.xml Web Configuration Files Data Binding Files Data Control Files Presentation Layer Application Configuration Files adf-config.xml ADF Configuration Files adf-settings.xml * Denotes multiple files of this type may exist in the project  Solid lines indicate hierarchy of metadata --> Dotted lines indicate references to objects in the ADF binding context Metadata Services JDeveloper Bindings

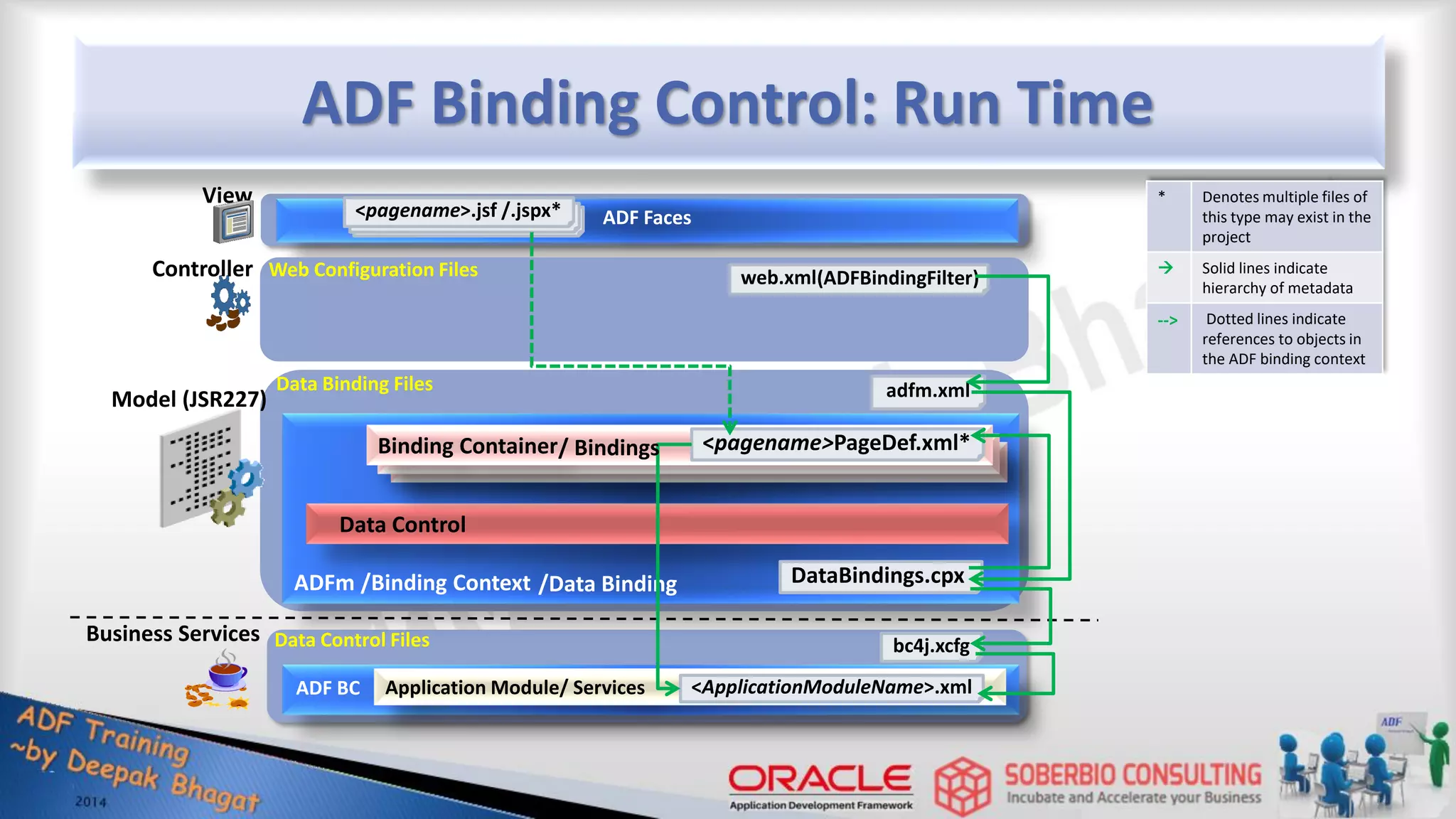

ADF Faces ADF Binding Control: Run Time Model (JSR227) Business Services Application Module/ Services Data Control /Binding Context ADF BC Binding Container <pagename>.jsf /.jspx* <pagename>PageDef.xml* View Controller /Data Binding ADFm <ApplicationModuleName>.xml bc4j.xcfg DataBindings.cpx web.xml(ADFBindingFilter) adfm.xml Web Configuration Files Data Binding Files Data Control Files * Denotes multiple files of this type may exist in the project  Solid lines indicate hierarchy of metadata --> Dotted lines indicate references to objects in the ADF binding context / Bindings

ADF Binding Control: File Hierarchy web.xml <filter> <filter-name>adfBindings</filter-name> </filter> adfm.xml <MetadataDirectory> … </MetadataDirectory> DataBindings.cpx <Application > </Application> <pagename>.jsf /.jspx* <af:xxx </af:xxx> <ApplicationModuleName>.xml bc4j.xcfg <BC4JConfig> </BC4JConfig> <pagename>PageDef.xml* <pageDefinition> </pageDefinition> <filter-class>oracle.adf.model.servlet.ADFBindingFilter</filter-class> <DataBindingRegistry path=".../DataBindings.cpx"/> <dataControlUsages> <BC4JDataControl id=“<amname>“ Configuration=“<AM>Local”…/> </dataControlUsages> <pageDefinitionUsages> <page id="<pagename>PageDef" path=“<pkgname>“/>… </pageDefinitionUsages> <AppModuleConfigBag> <AppModuleConfigname=“<AM>Local”>… <ViewUsage Name=“<voname>” ViewObjectName=“<ViewObject>”/> value="#{bindings.<Attribute>.inputValue}“ columns="#{bindings.<Attribute>.hints.displayWidth}" label="#{bindings.<Attribute>.hints.label}“ <executables> <Iterator id=“<voname>Iterator” Binds=”<voname>”/> … </executables> <bindings> <… <IterBinding=“<voname>Iterator”>… /> … </bindings > Model (JSR227) Business Services View Controller

Creating Page Definition Bindings  In the Bindings section, click on the + icon.  The Insert Item wizard opens and will list all the bindings options for the page definition file as shown in the following screenshot:  Click on the action item; this will open a Binding for Action palette.  Select the EmpDirectoryModuleDataControl option; this will populate the Operation section with the Commit operation.  Click on the OK button and binding creation is complete.

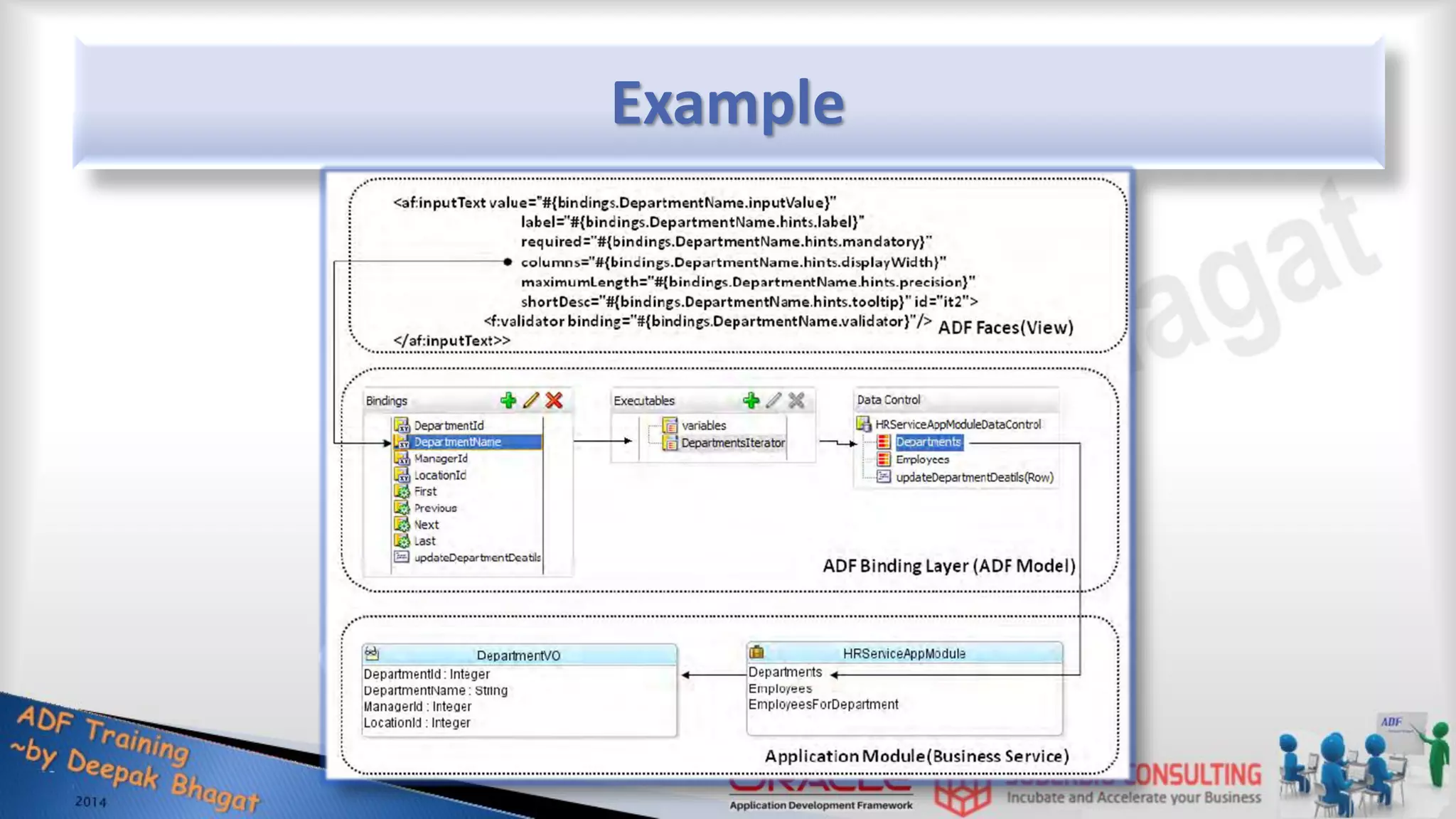

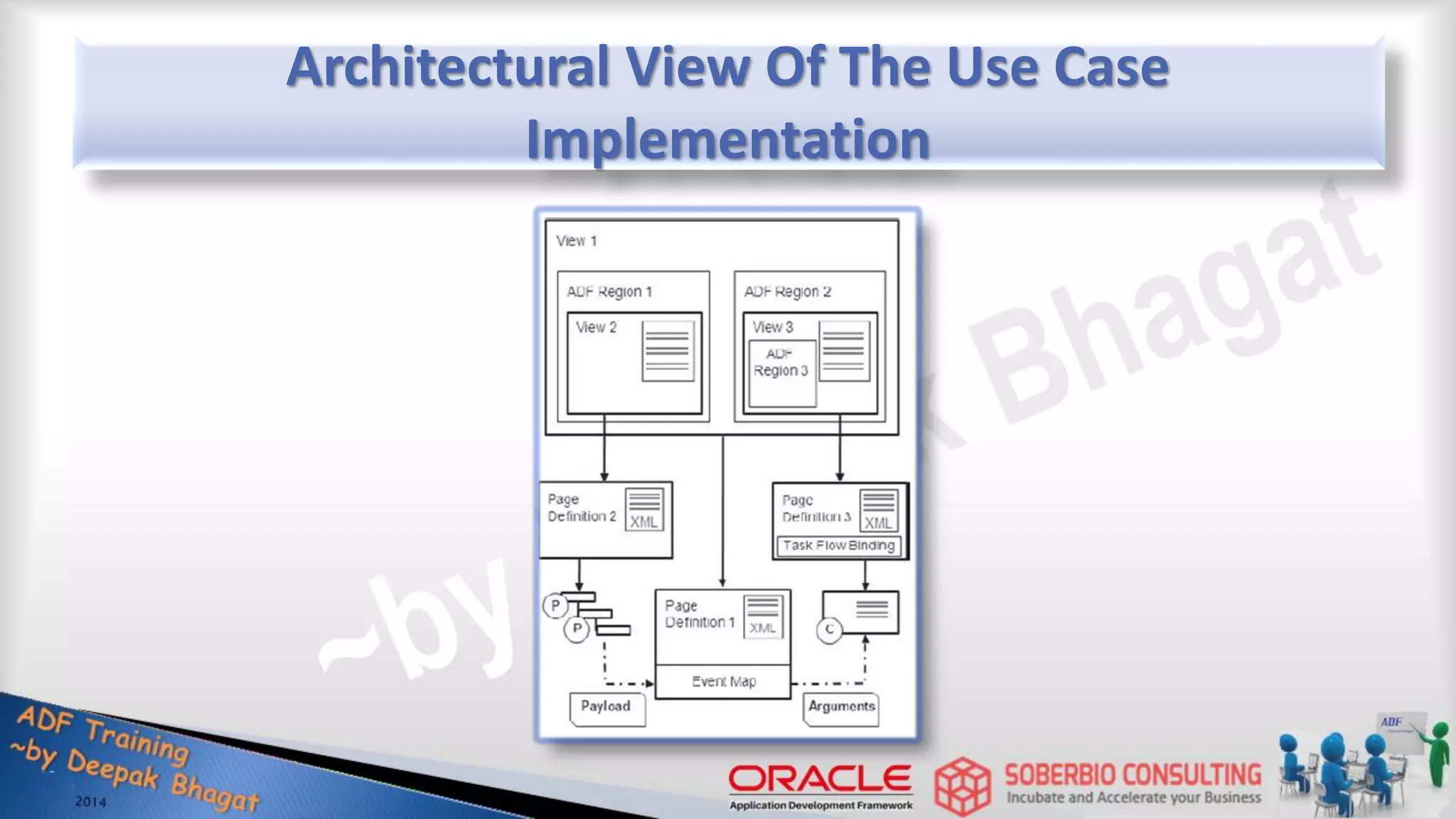

Architectural View Of The Use Case Implementation

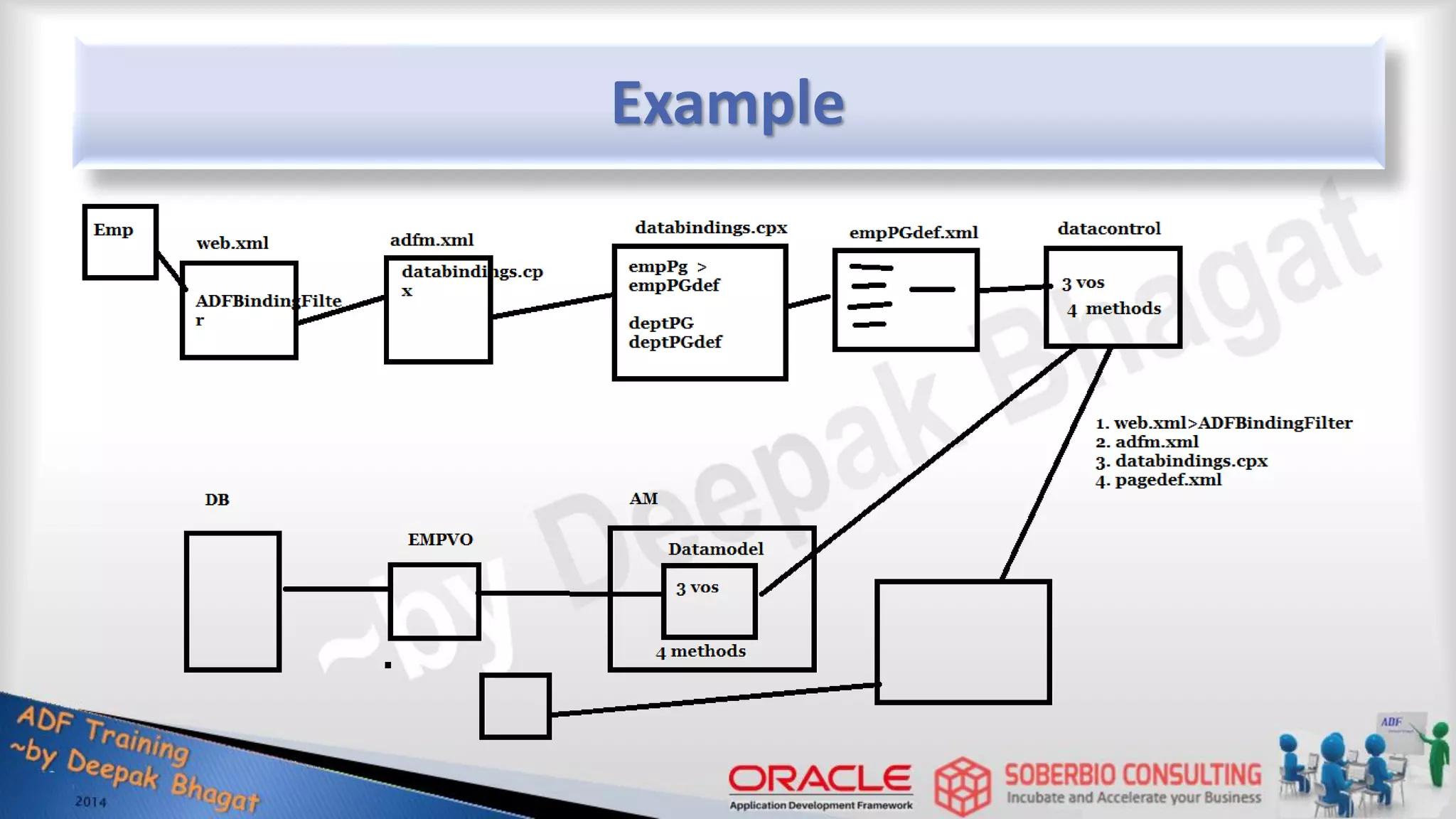

web.xml adfm.xml DataBindings.cpx DataControls.dcx PageDef.xml

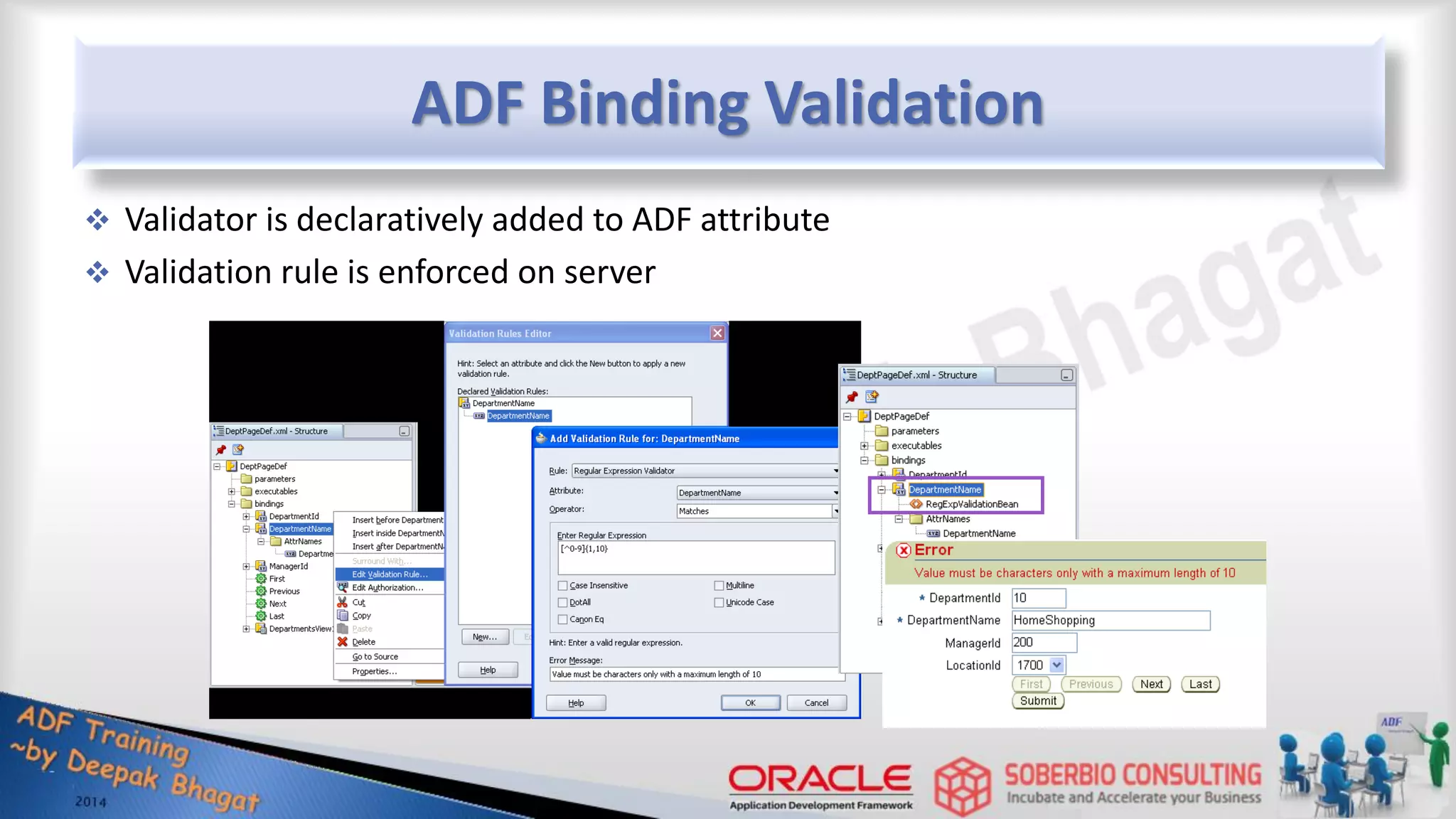

ADF Binding Validation  Validator is declaratively added to ADF attribute  Validation rule is enforced on server

Control Hints and Validation  Declarative validation rules for data controls and bindings Consistent interface for common validation Extensible for complex application validation Metadata based  Control hints for data controls and bindings, including: Labels Date and currency formatting

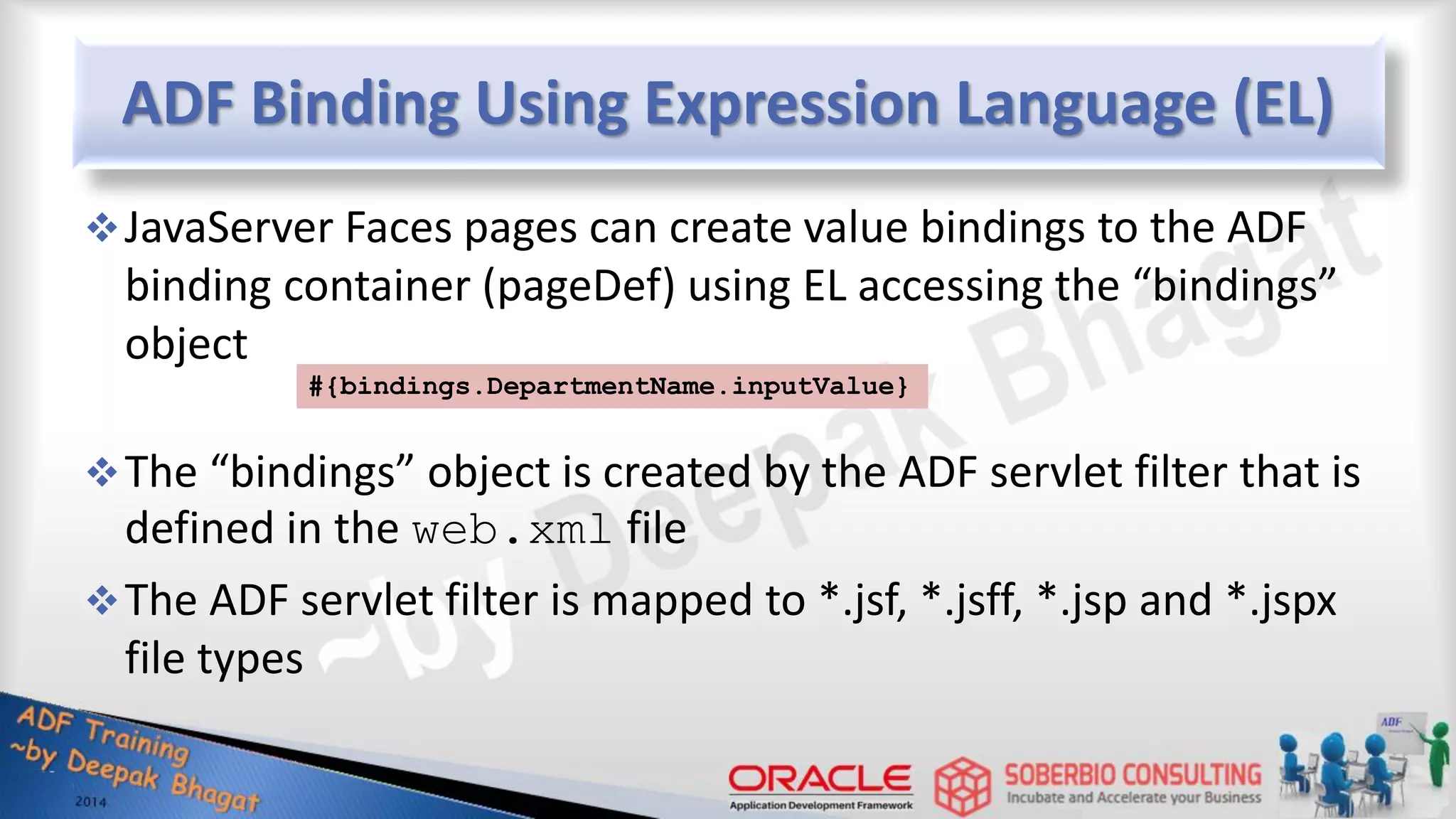

ADF Binding Using Expression Language (EL) JavaServer Faces pages can create value bindings to the ADF binding container (pageDef) using EL accessing the “bindings” object The “bindings” object is created by the ADF servlet filter that is defined in the web.xml file The ADF servlet filter is mapped to *.jsf, *.jsff, *.jsp and *.jspx file types #{bindings.DepartmentName.inputValue}

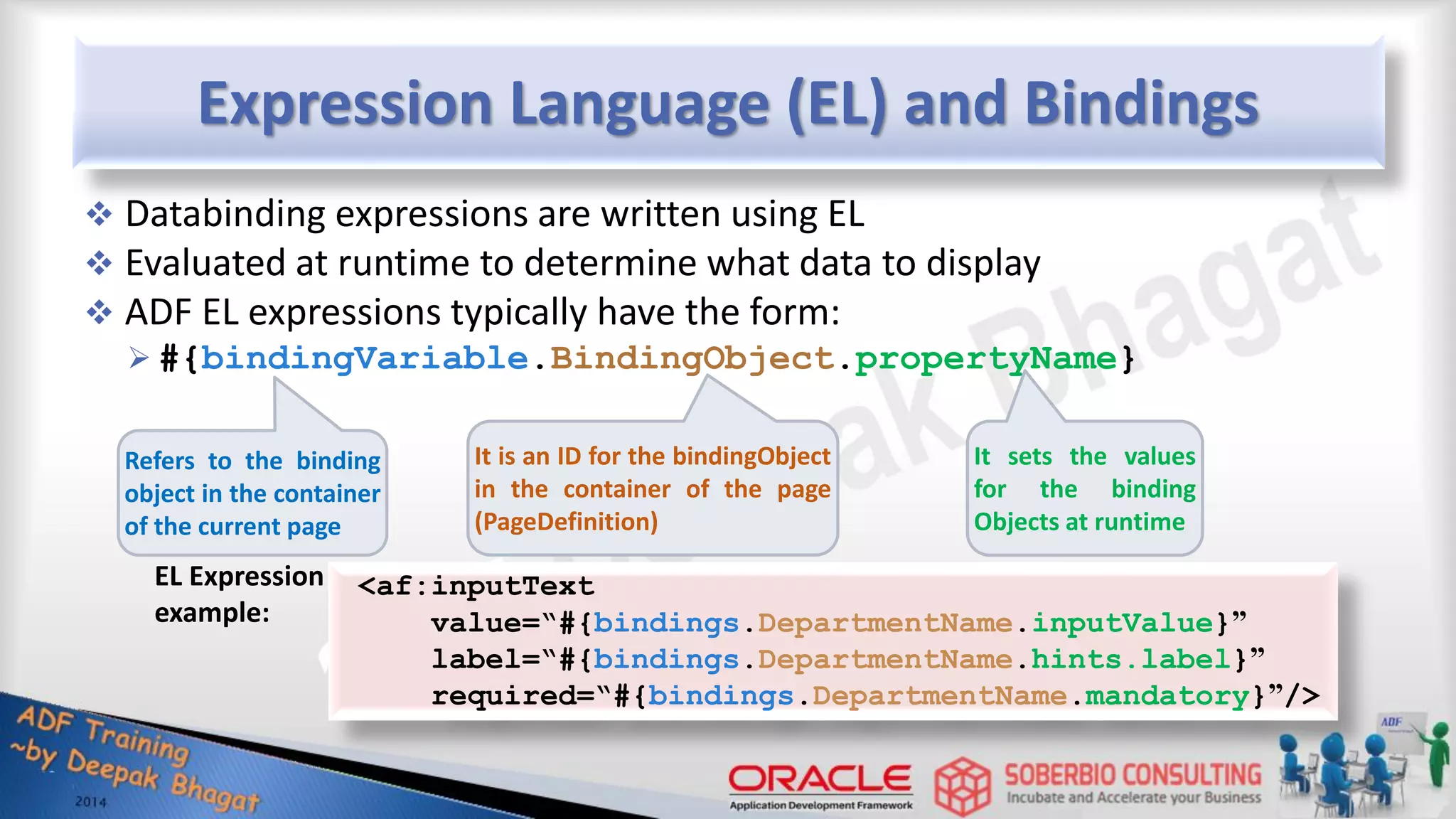

Expression Language (EL) and Bindings  Databinding expressions are written using EL  Evaluated at runtime to determine what data to display  ADF EL expressions typically have the form:  #{bindingVariable.BindingObject.propertyName} Refers to the binding object in the container of the current page It is an ID for the bindingObject in the container of the page (PageDefinition) It sets the values for the binding Objects at runtime <af:inputText value=“#{bindings.DepartmentName.inputValue}” label=“#{bindings.DepartmentName.hints.label}” required=“#{bindings.DepartmentName.mandatory}”/> EL Expression example:

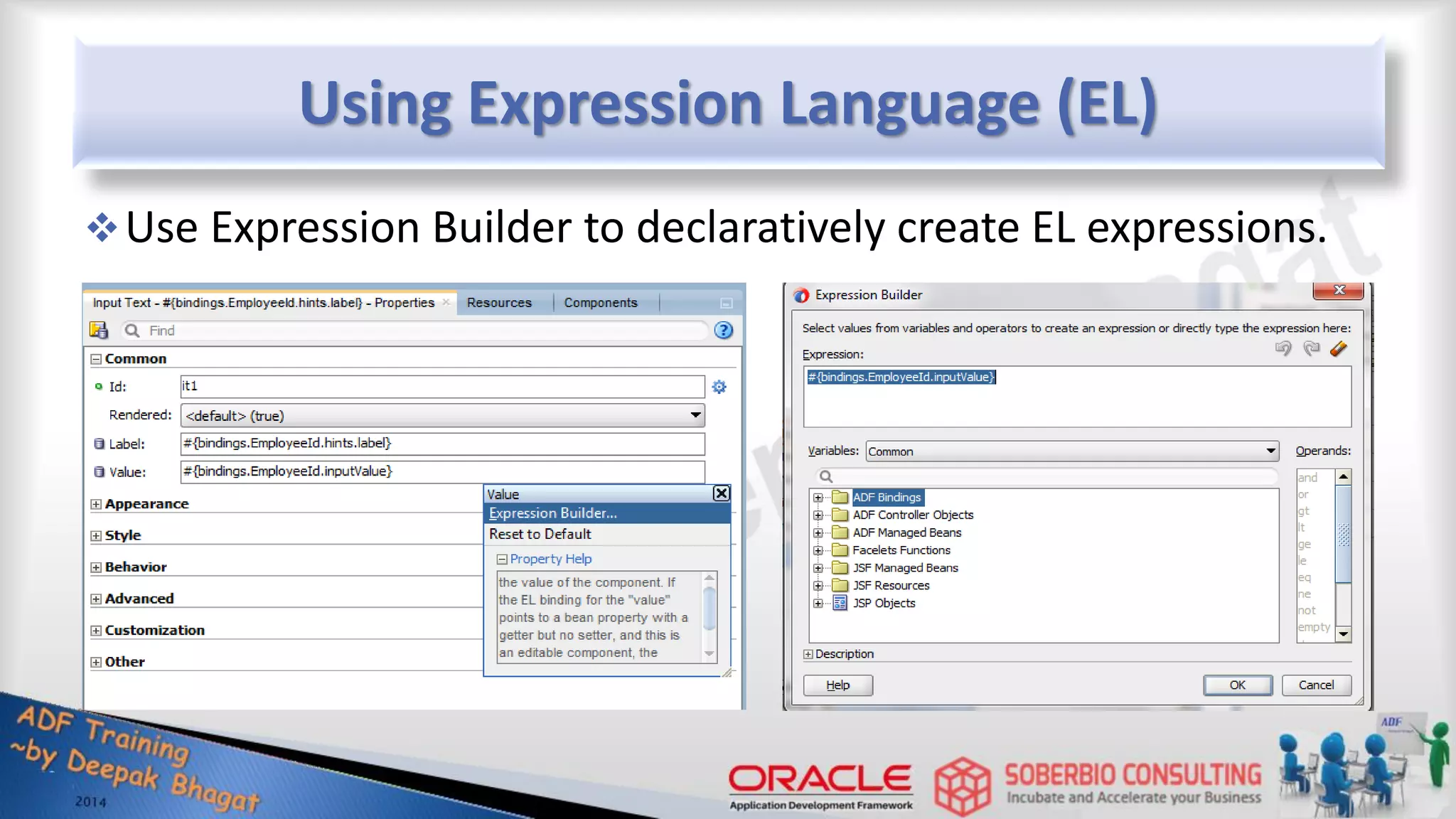

Using Expression Language (EL) Use Expression Builder to declaratively create EL expressions.

Immediate EL Syntax: ${}  It is evaluated immediately.  It can be used only within template text or as the value of a JSP tag attribute. <fmt:formatNumber value="${sessionScope.cart.total}"/>  Code example: The JSP value attribute references the EL that gets the total price from the session-scoped bean named cart. The JSP engine evaluates the expression, converts it, and passes the returned value to the tag handler.  Immediate evaluation expressions are always read-only value expressions. The example can only get the total price from the cart bean; it cannot set the total price.

Deferred EL Syntax: #{}  It is evaluated at other phases of the page life cycle as defined by the technology that uses the expression (JSF). <h:inputText id="name" value="#{customer.name}" />  Code example: The JSF value attribute references the EL that points to the name property of the customer bean.  First request: #{customer.name} is evaluated during the Render Response phase of the life cycle. EL gets the value of name from the customer bean, as is done in the immediate evaluation.  Postback: JSF evaluates the expression at different phases of the life cycle, during which the value is retrieved from the request, validated, and propagated to the customer bean.  Deferred EL can be value expressions that can be used to read and write data.

Programmatic Expression Language

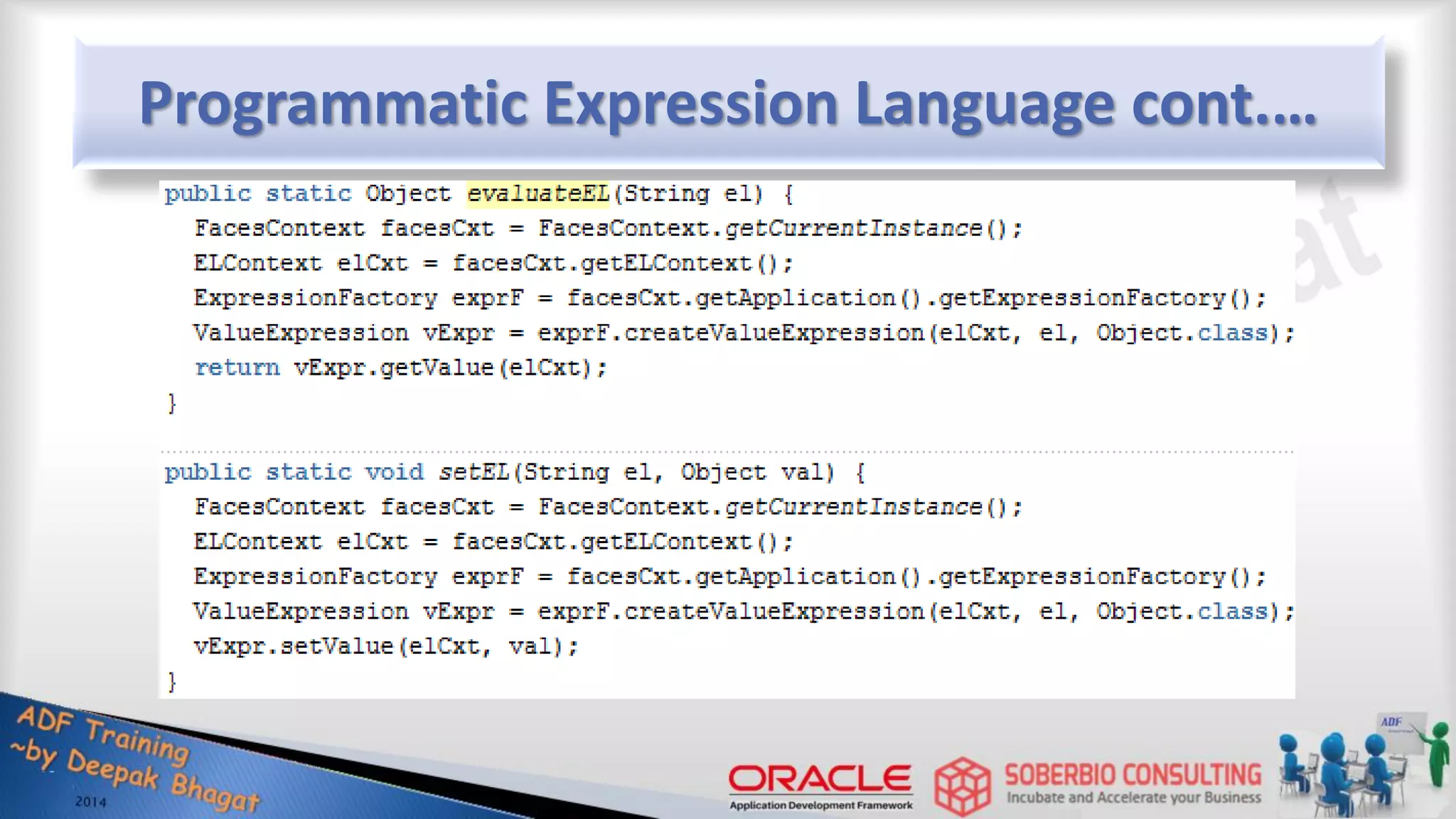

Programmatic Expression Language cont.…

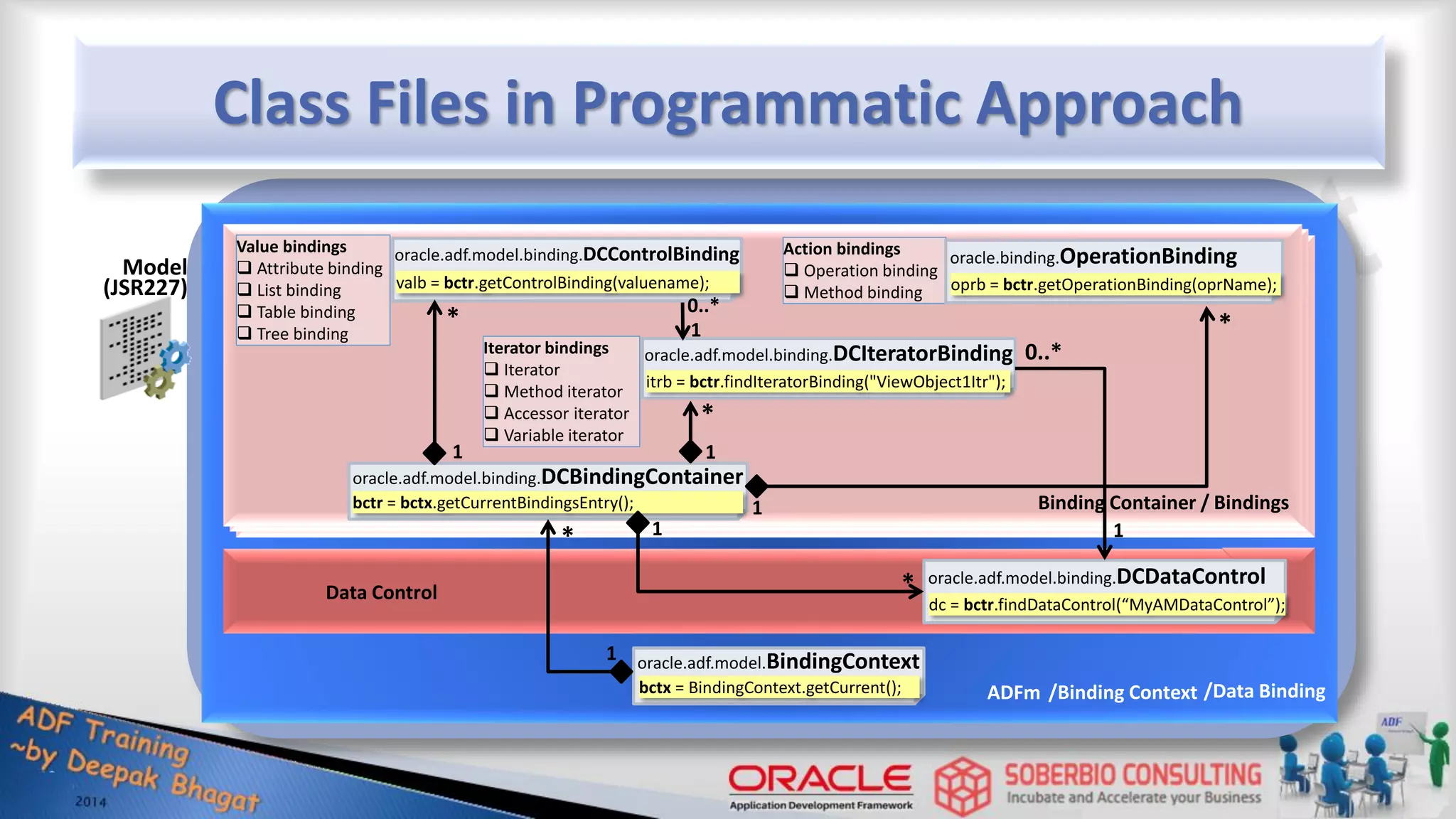

Class Files in Programmatic Approach Model (JSR227) /Binding Context ADFm Value bindings  Attribute binding  List binding  Table binding  Tree binding Iterator bindings  Iterator  Method iterator  Accessor iterator  Variable iterator Action bindings  Operation binding  Method binding Binding Container / /Data Binding Data Control oracle.adf.model.BindingContext bctx = BindingContext.getCurrent(); oracle.adf.model.binding.DCBindingContainer bctr = bctx.getCurrentBindingsEntry(); oracle.adf.model.binding.DCIteratorBinding itrb = bctr.findIteratorBinding("ViewObject1Itr"); oracle.binding.OperationBinding oprb = bctr.getOperationBinding(oprName); oracle.adf.model.binding.DCControlBinding valb = bctr.getControlBinding(valuename); oracle.adf.model.binding.DCDataControl dc = bctr.findDataControl(“MyAMDataControl”); Bindings * 1 1 * 1 * 0..* 1 0..* 1 1 * * 1

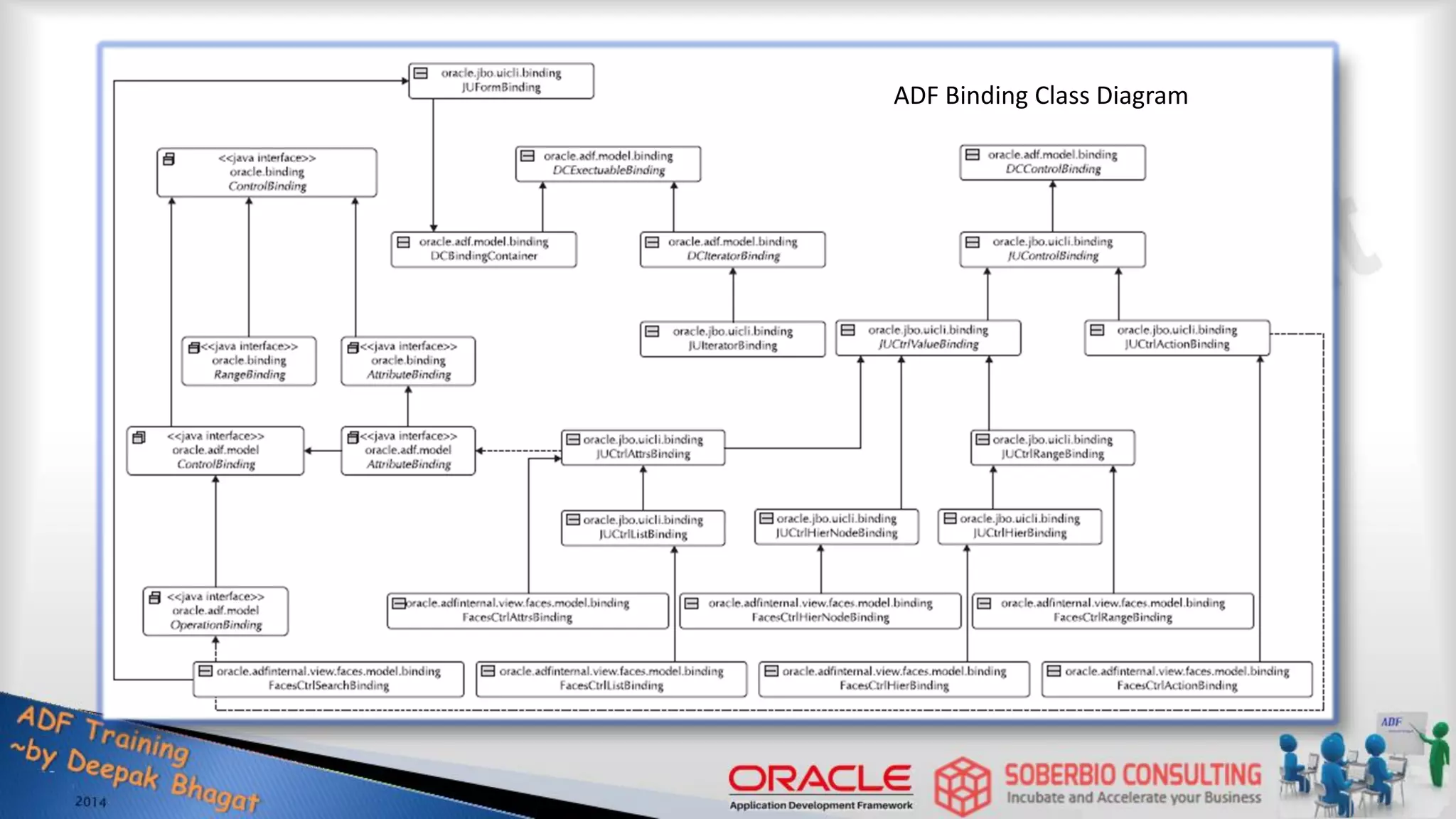

ADF Binding Class Hierarchy BindingContext BindingContainer DCDataControl DCBindingContainer DCIteratorBinding DCControlBinding ControlBinding JUIteratorBinding JUControlBinding OperationBinding AttributeBinding getCurrentBindingsEntry() 1 * 1 * 1 * 1 * 1 * 1 * 1 * 0..* 1 0..* 1 0..* 1 0..* 1 findDataControl() findIteratorBinding() getOperationBinding() getControlBinding() getAttributeBindings() findCtrlBinding() getDataControl() getApplication() getDCIteratorBinding() getIteratorBinding() Prefix Package DC* oracle.adf.model.binding JU* oracle.jobo.uicli.binding Others oracle.adf.model or oracle.binding /Binding Context ADFm Value bindings  Attribute binding  List binding  Table binding  Tree binding Iterator bindings  Iterator  Method iterator  Accessor iterator  Variable iterator Action bindings  Operation binding  Method binding Binding Container /Data Binding Data Control Bindings /

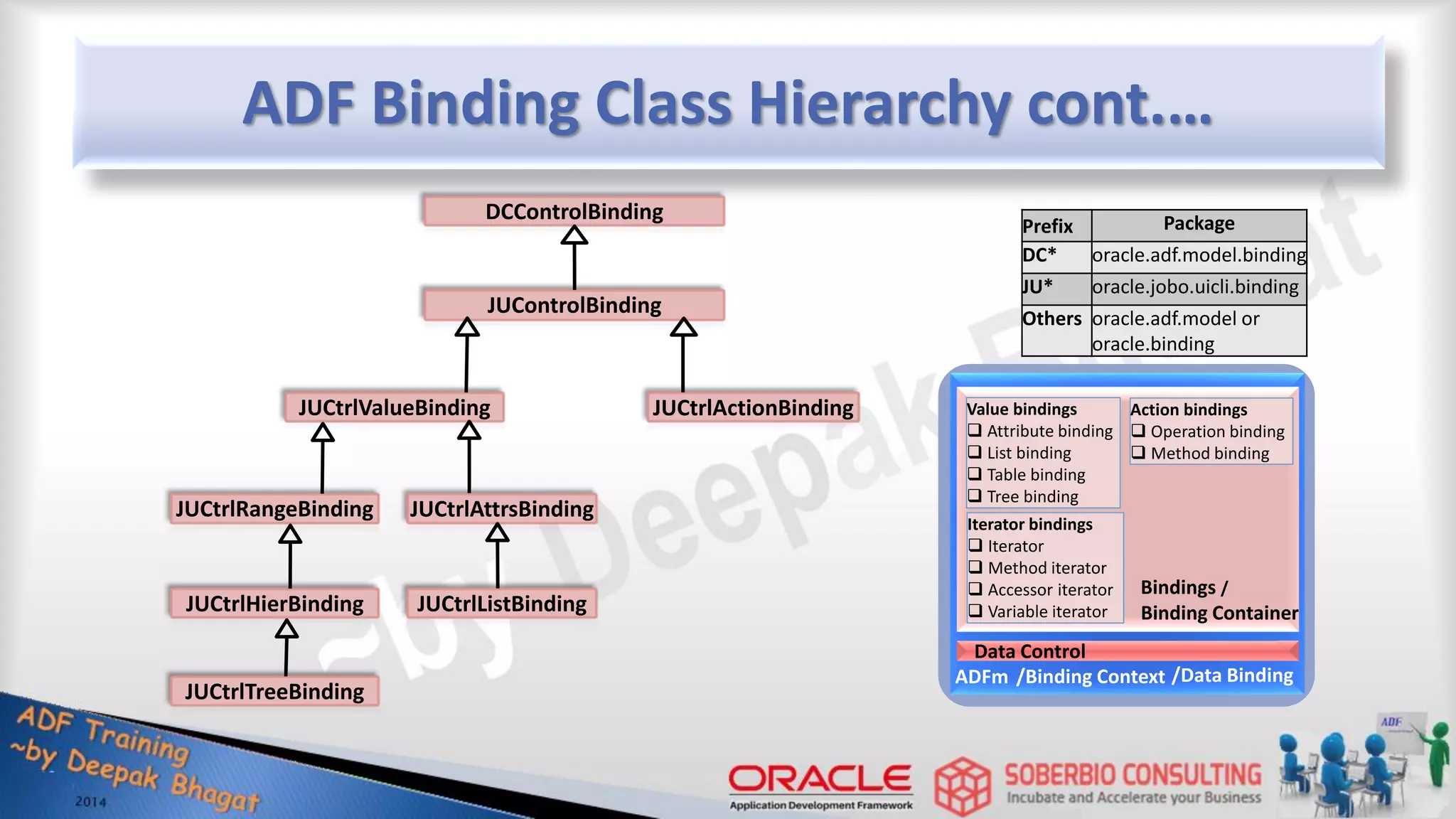

ADF Binding Class Hierarchy cont.… JUControlBinding JUCtrlTreeBinding JUCtrlListBinding JUCtrlHierBinding JUCtrlRangeBinding JUCtrlAttrsBinding JUCtrlValueBinding JUCtrlActionBinding Prefix Package DC* oracle.adf.model.binding JU* oracle.jobo.uicli.binding Others oracle.adf.model or oracle.binding /Binding Context ADFm Value bindings  Attribute binding  List binding  Table binding  Tree binding Iterator bindings  Iterator  Method iterator  Accessor iterator  Variable iterator Action bindings  Operation binding  Method binding Binding Container /Data Binding Data Control Bindings / DCControlBinding

Programmatic Approach of Binding /Binding Context ADFm Value bindings  Attribute binding  List binding  Table binding  Tree binding Iterator bindings  Iterator  Method iterator  Accessor iterator  Variable iterator Action bindings  Operation binding  Method binding Binding Container /Data Binding Data Control Bindings /

Programmatic Approach of Binding cont.… /Binding Context ADFm Value bindings  Attribute binding  List binding  Table binding  Tree binding Iterator bindings  Iterator  Method iterator  Accessor iterator  Variable iterator Action bindings  Operation binding  Method binding Binding Container /Data Binding Data Control Bindings /

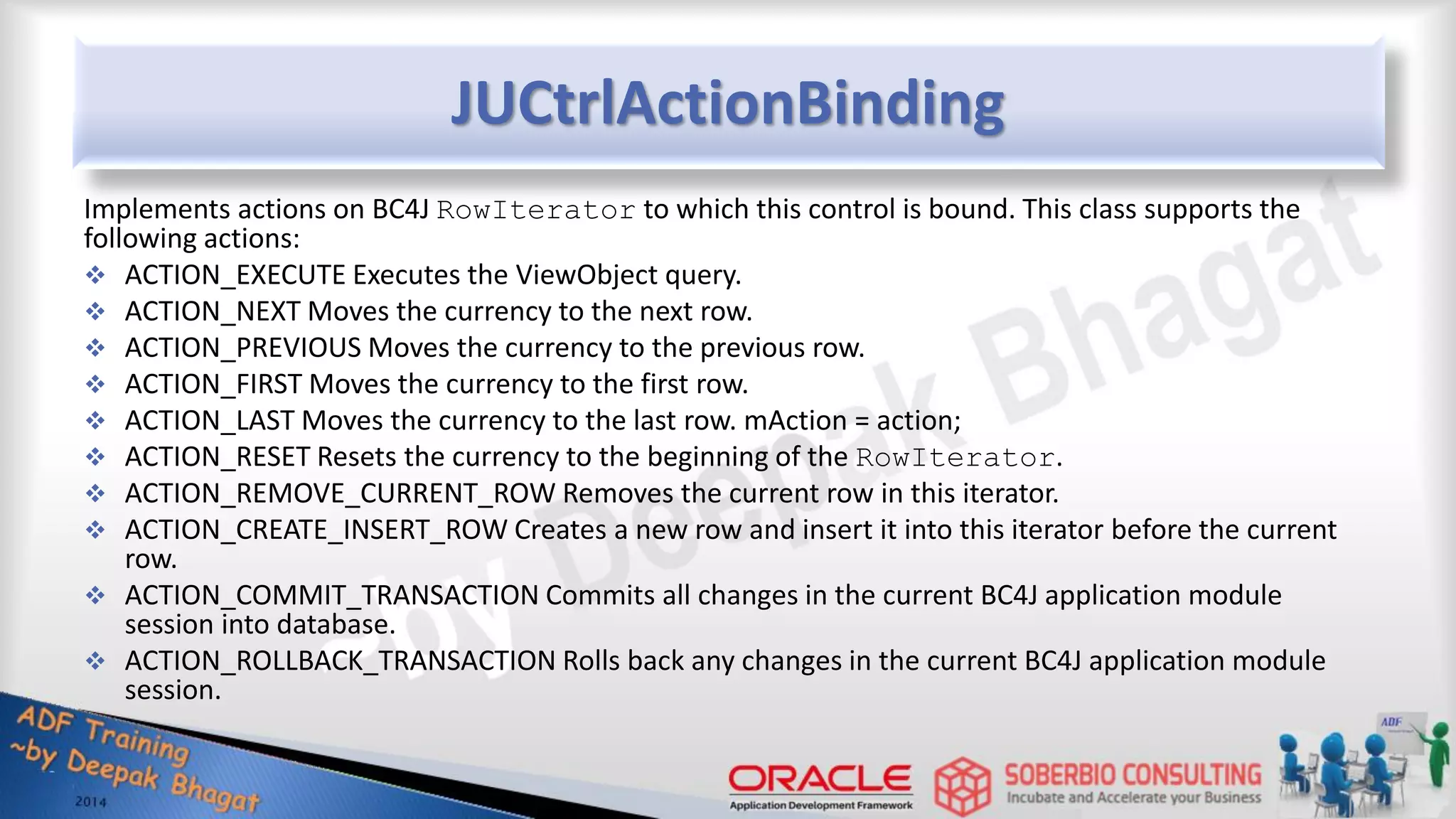

JUCtrlActionBinding Implements actions on BC4J RowIterator to which this control is bound. This class supports the following actions:  ACTION_EXECUTE Executes the ViewObject query.  ACTION_NEXT Moves the currency to the next row.  ACTION_PREVIOUS Moves the currency to the previous row.  ACTION_FIRST Moves the currency to the first row.  ACTION_LAST Moves the currency to the last row. mAction = action;  ACTION_RESET Resets the currency to the beginning of the RowIterator.  ACTION_REMOVE_CURRENT_ROW Removes the current row in this iterator.  ACTION_CREATE_INSERT_ROW Creates a new row and insert it into this iterator before the current row.  ACTION_COMMIT_TRANSACTION Commits all changes in the current BC4J application module session into database.  ACTION_ROLLBACK_TRANSACTION Rolls back any changes in the current BC4J application module session.

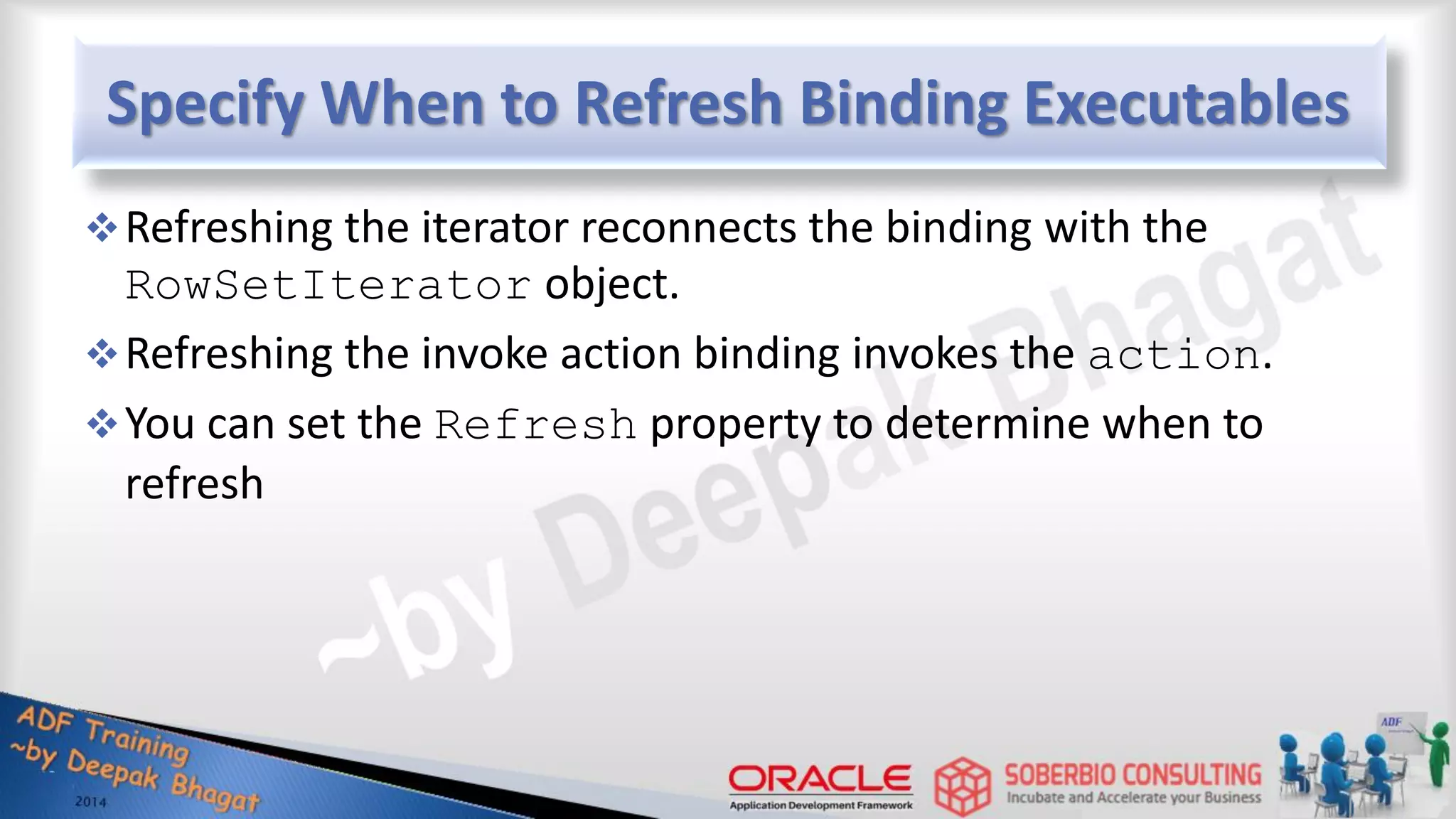

Specify When to Refresh Binding Executables Refreshing the iterator reconnects the binding with the RowSetIterator object. Refreshing the invoke action binding invokes the action. You can set the Refresh property to determine when to refresh

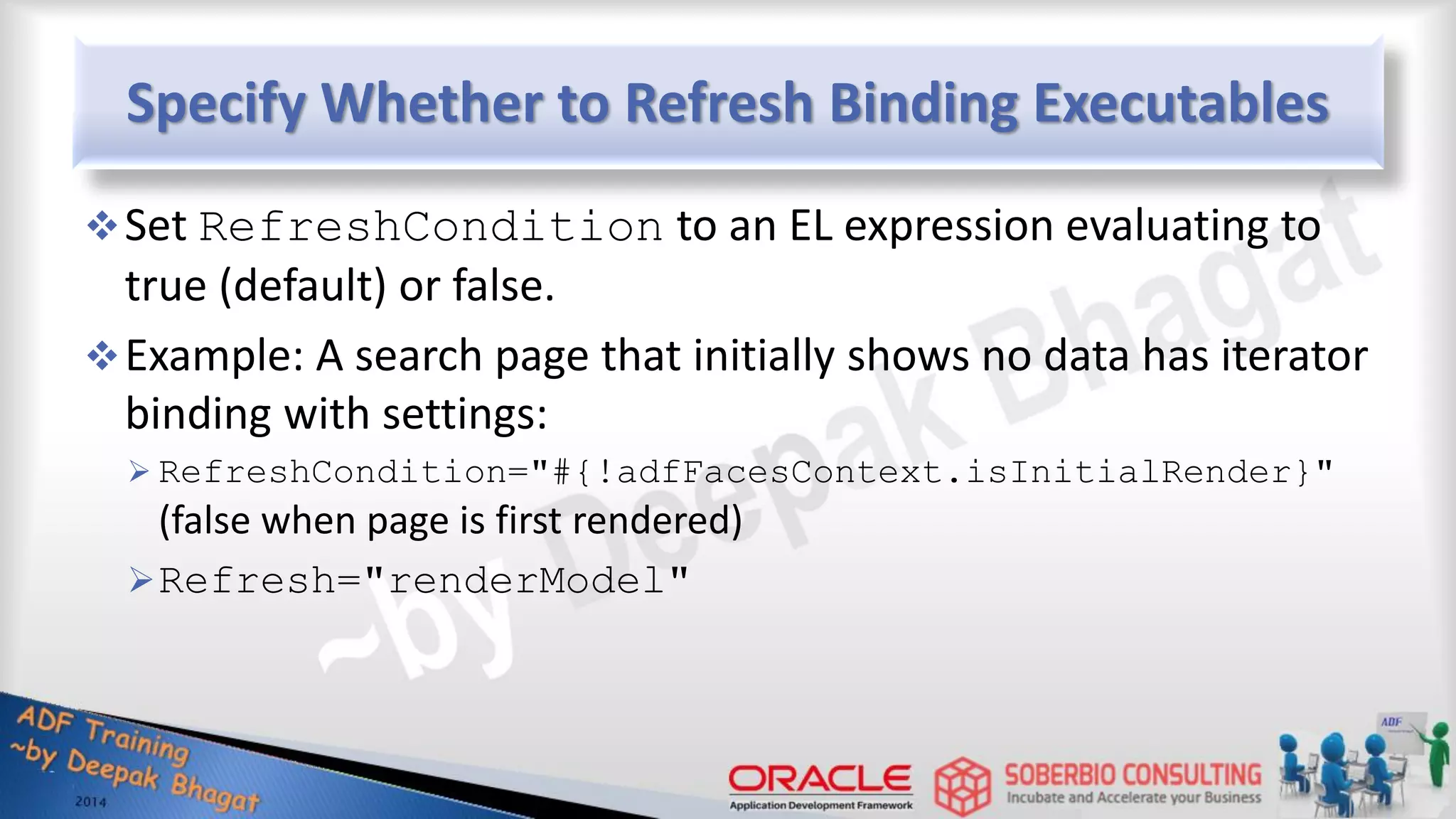

Specify Whether to Refresh Binding Executables Set RefreshCondition to an EL expression evaluating to true (default) or false. Example: A search page that initially shows no data has iterator binding with settings:  RefreshCondition="#{!adfFacesContext.isInitialRender}" (false when page is first rendered) Refresh="renderModel"

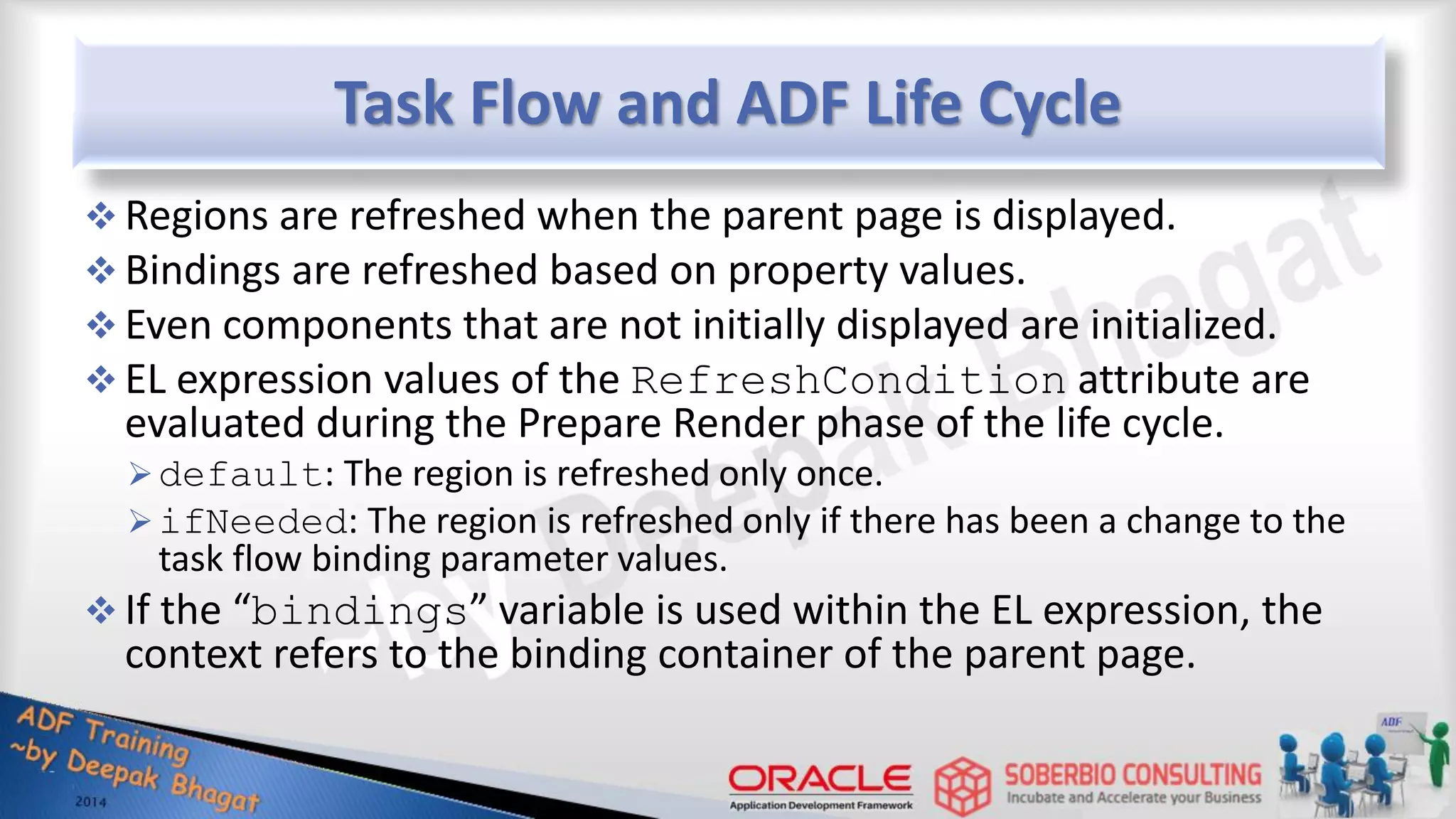

Task Flow and ADF Life Cycle  Regions are refreshed when the parent page is displayed.  Bindings are refreshed based on property values.  Even components that are not initially displayed are initialized.  EL expression values of the RefreshCondition attribute are evaluated during the Prepare Render phase of the life cycle. default: The region is refreshed only once. ifNeeded: The region is refreshed only if there has been a change to the task flow binding parameter values.  If the “bindings” variable is used within the EL expression, the context refers to the binding container of the parent page.

Declarative Control over Individual Page Life Cycle  Executables: Iterator bindings invokeAction  Refresh attribute values: ifNeeded: Fires both during the Prepare Model and Prepare Render phases prepareModel: Fires only during the Prepare Model phase renderModel: Fires only during the Prepare Render phase  RefreshCondition expression: Boolean expression, which controls whether the executable should fire at all

Lesson Summary Importance of model Types of data controls Types of data bindings ADF Configuration files Data binding using Expression Language (EL) ADF binding class hierarchy Refresh Binding Executables

22 Programmatically Customizing Business Services

Lesson Agenda Using business component client APIs Implement programmatic modifications Implement method validation Generate Java classes for business components Add service methods to an application module Handle transactions Create a test client

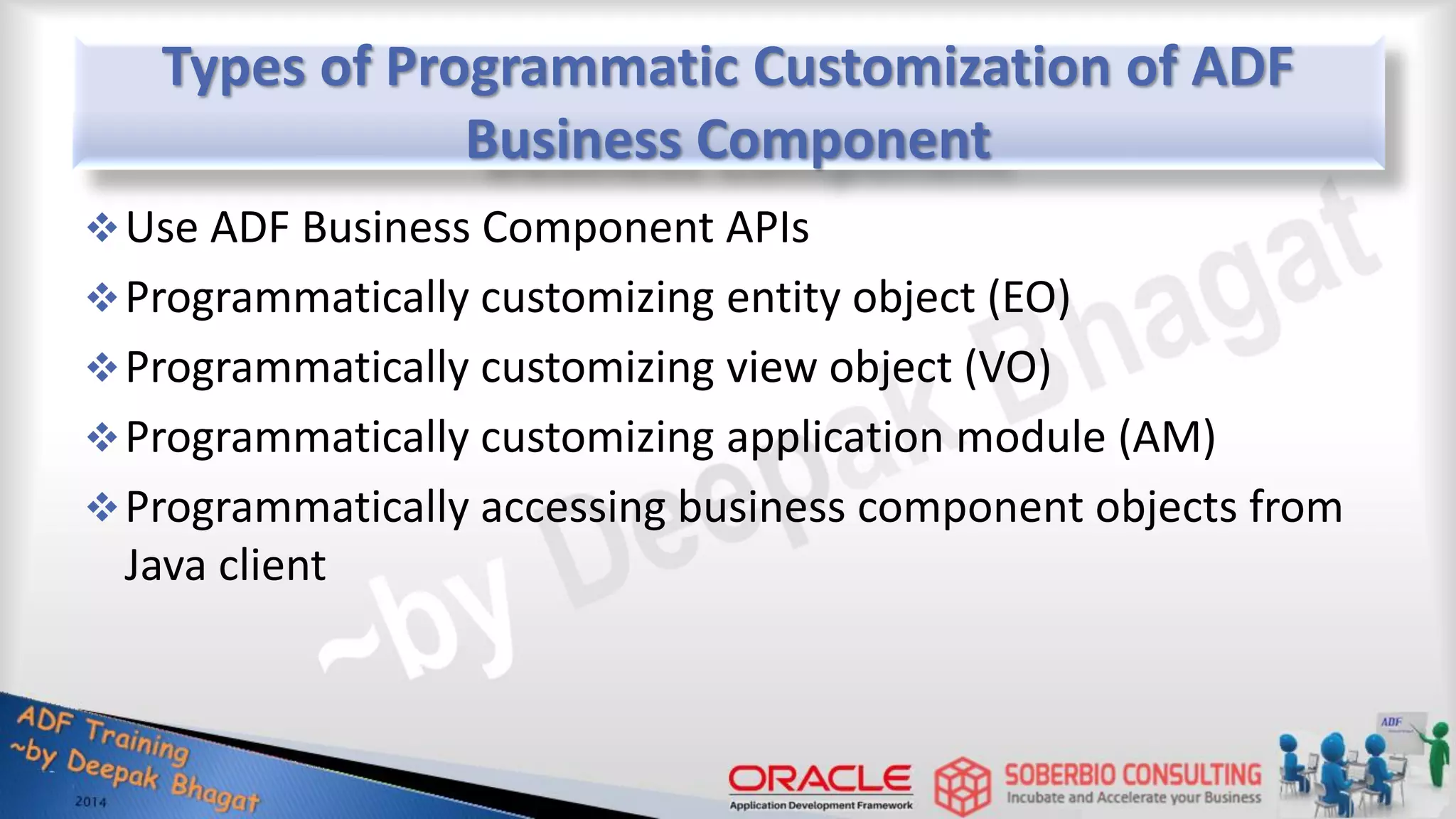

Types of Programmatic Customization of ADF Business Component Use ADF Business Component APIs Programmatically customizing entity object (EO) Programmatically customizing view object (VO) Programmatically customizing application module (AM) Programmatically accessing business component objects from Java client

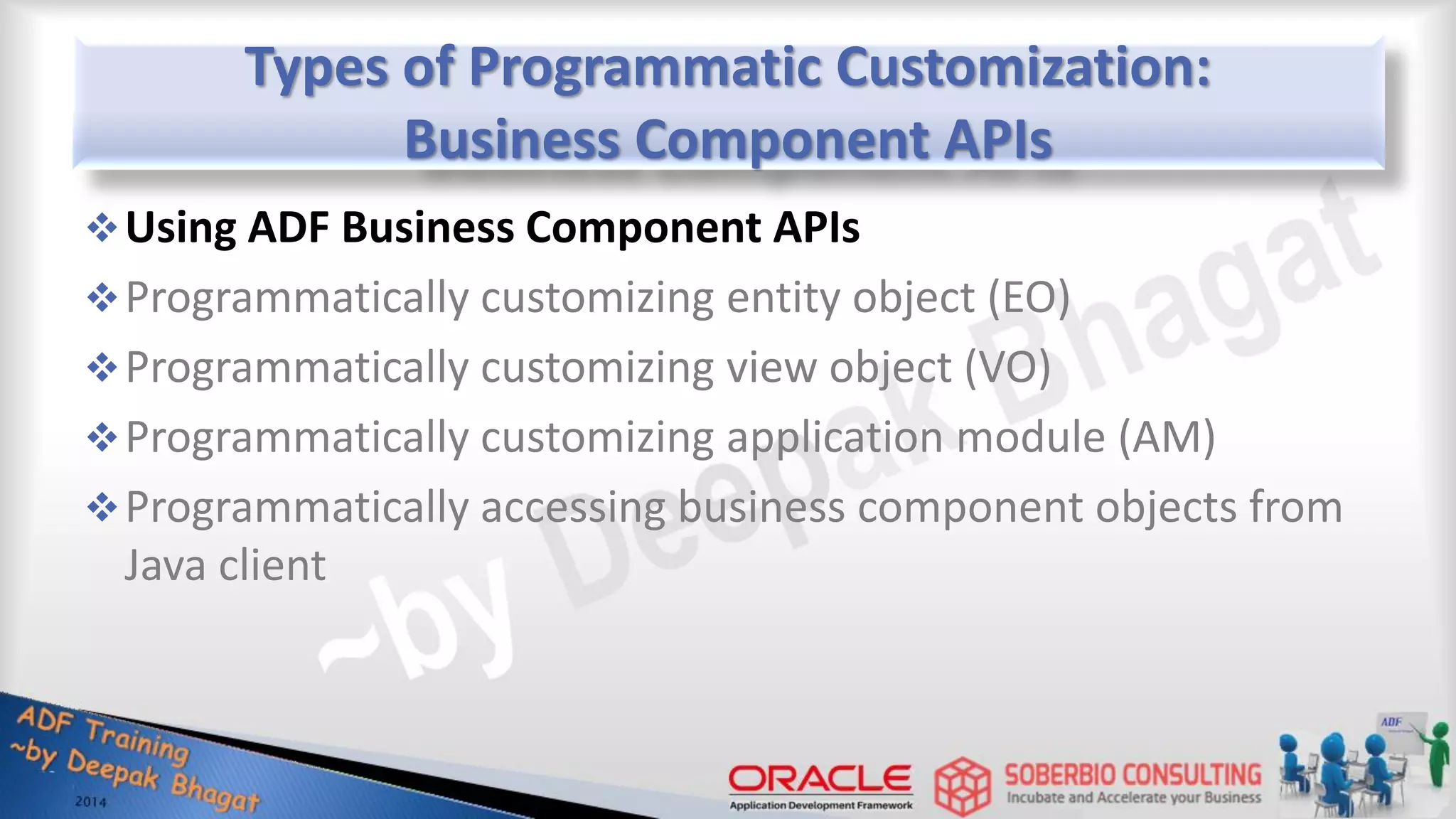

Types of Programmatic Customization: Business Component APIs Using ADF Business Component APIs Programmatically customizing entity object (EO) Programmatically customizing view object (VO) Programmatically customizing application module (AM) Programmatically accessing business component objects from Java client

Using ADF Business Component APIs  Provides prebuilt code in two main packages: oracle.jbo.server oracle.jbo  Server interfaces in the oracle.jbo.server package include: Entity Object  Client interfaces in the oracle.jbo package include: Application Module View Object Row (But NOT Entity)

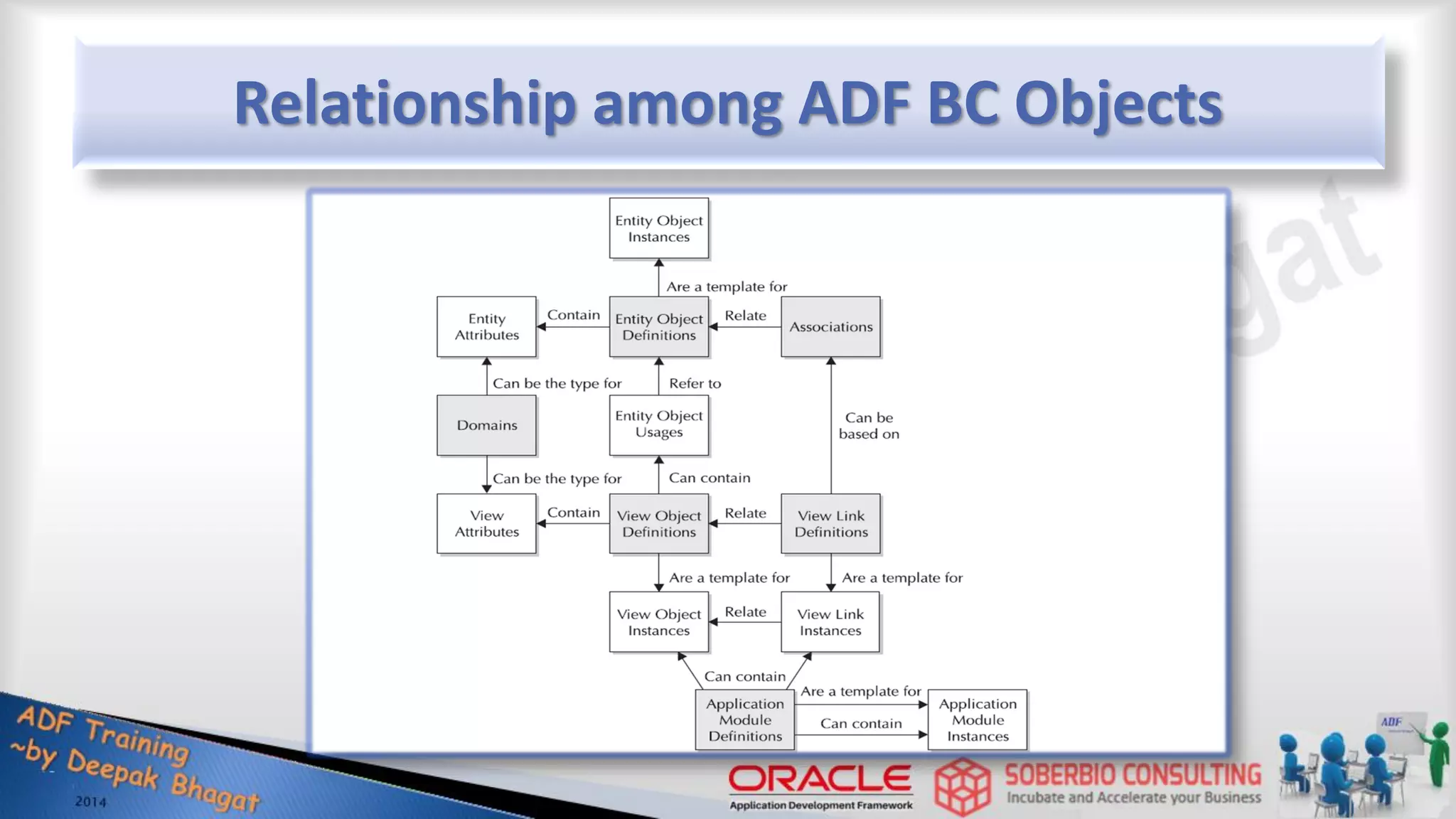

Relationship among ADF BC Objects

Set Of Defines Query to Produce Class Diagram of ADF BC EntityDefinition ApplicationModule ViewCriteriaRow RowSetIterator Key ViewCriteria RowSet Row ViewObject StructureDef AttributeHints AttributeDef Entity Key Transaction Table Rows Set Of Can Be Filtered Using Query by Example Iterates Rows in Group Of Uses Transaction Contains Data Model Instances Identified By HasUIHints Identified By Represents Row in and Encapsulates Validation For Manages Associated To Linked To RELATED_TO Uses Attributes From 1 0..1 1 1 1 * 1 * * * * * * 1 0..1 * 0..1 * 0..1 * 1 * 1 1 1 * 0..1 * Defines Mapping To Delegates Storage and Validation To 0..1 *

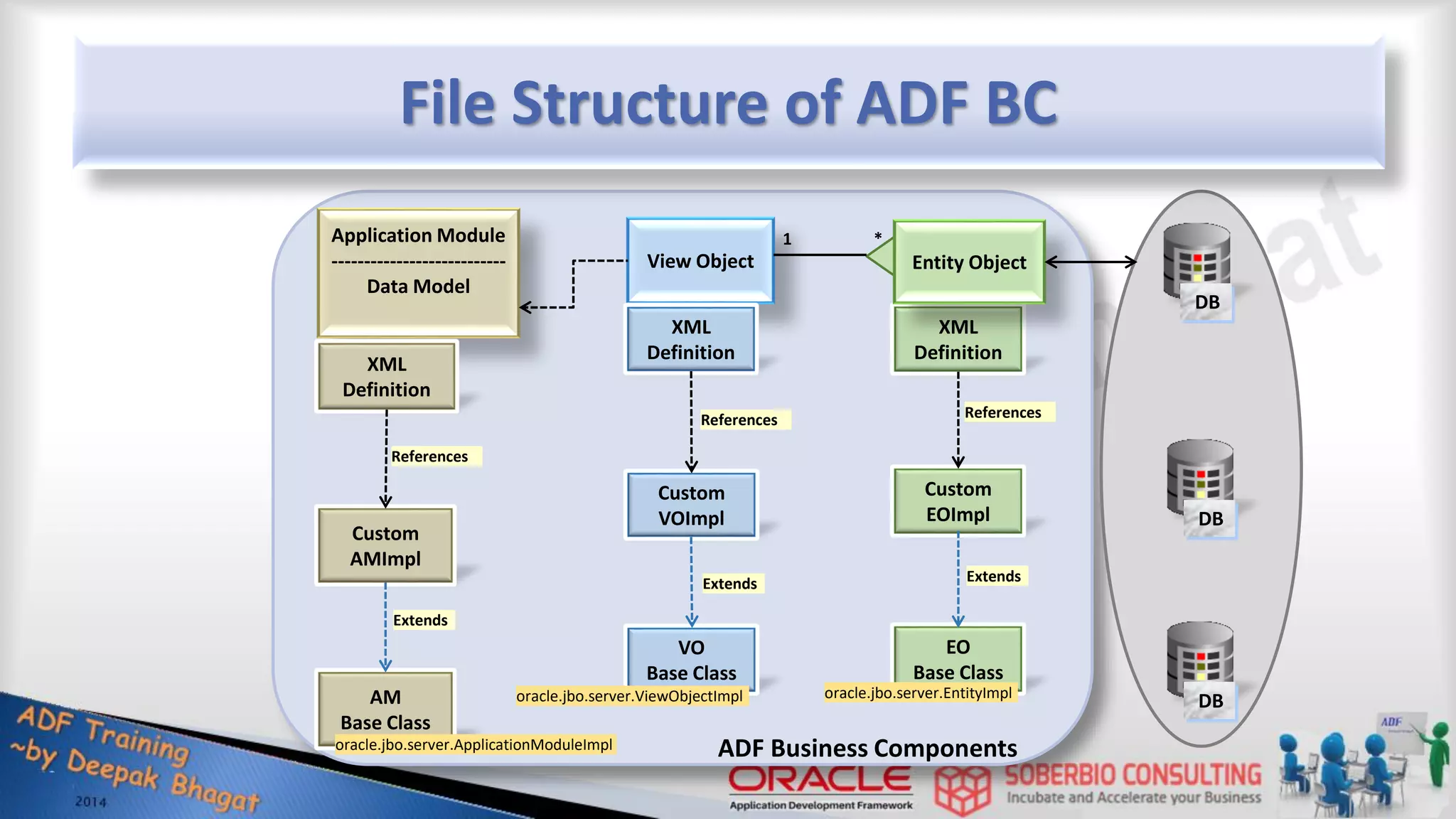

File Structure of ADF BC Application Module --------------------------- Data Model View Object XML Definition XML Definition Entity Object XML Definition Custom AMImpl AM Base Class Custom VOImpl VO Base Class EO Base Class Custom EOImpl DB DB DB 1 * References Extends References Extends References Extends ADF Business Components oracle.jbo.server.ApplicationModuleImpl oracle.jbo.server.EntityImpl oracle.jbo.server.ViewObjectImpl

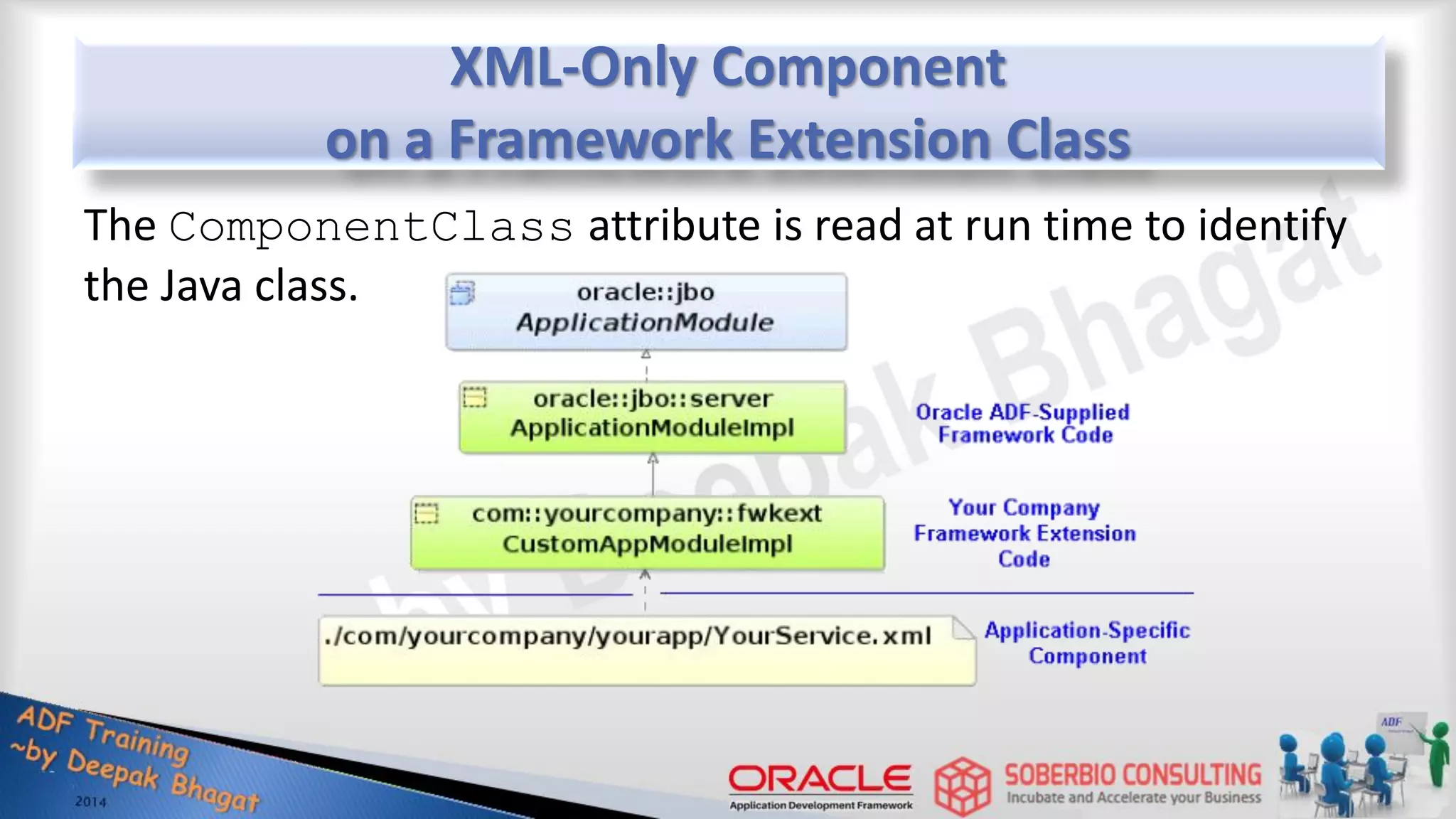

XML-Only Component on a Framework Extension Class The ComponentClass attribute is read at run time to identify the Java class.

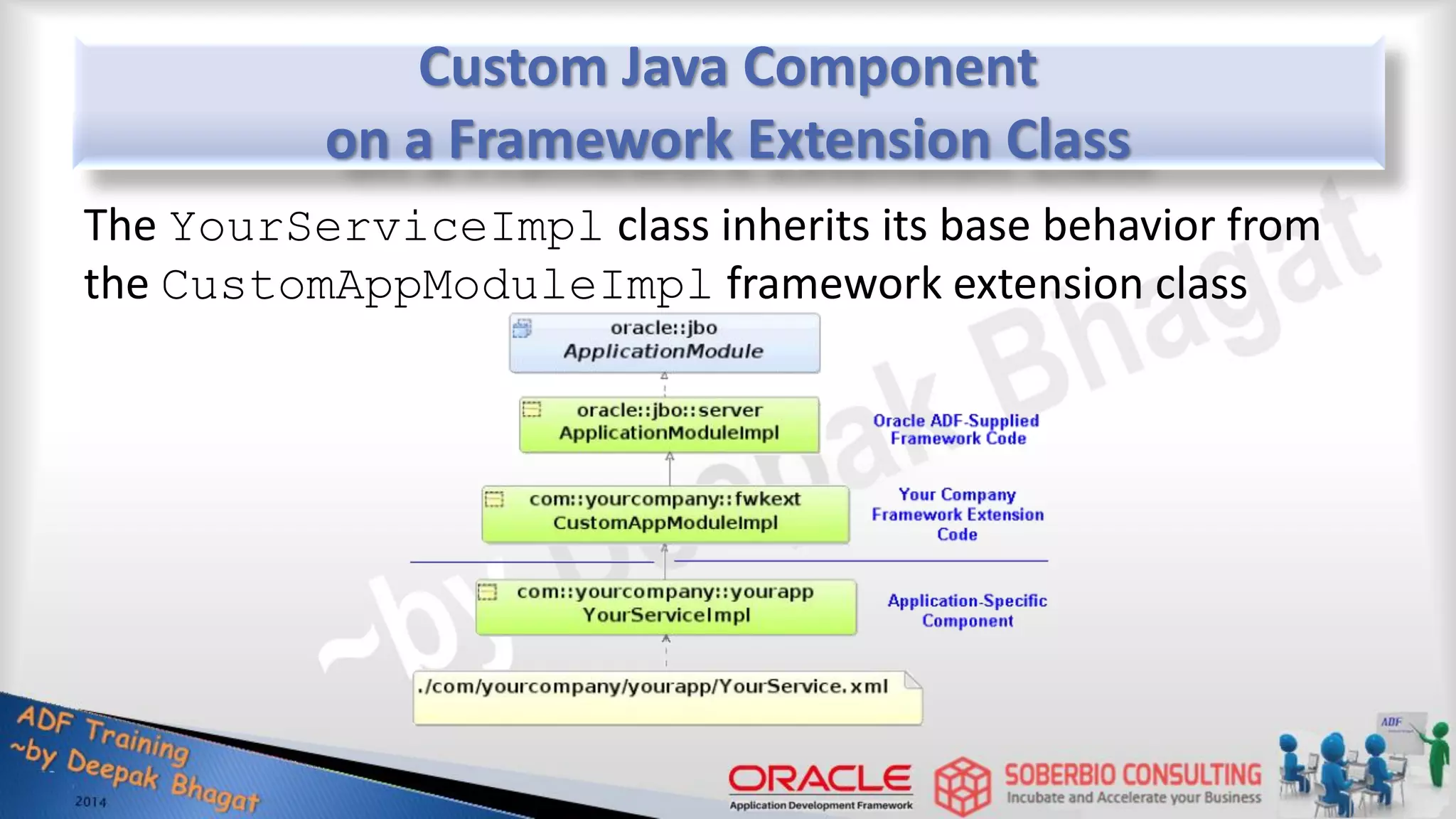

Custom Java Component on a Framework Extension Class The YourServiceImpl class inherits its base behavior from the CustomAppModuleImpl framework extension class

Types of Programmatic Customization: Entity Objects Use ADF Business Component APIs Programmatically customizing entity object (EO) Programmatically customizing view object (VO) Programmatically customizing application module (AM) Programmatically accessing business component objects from Java client

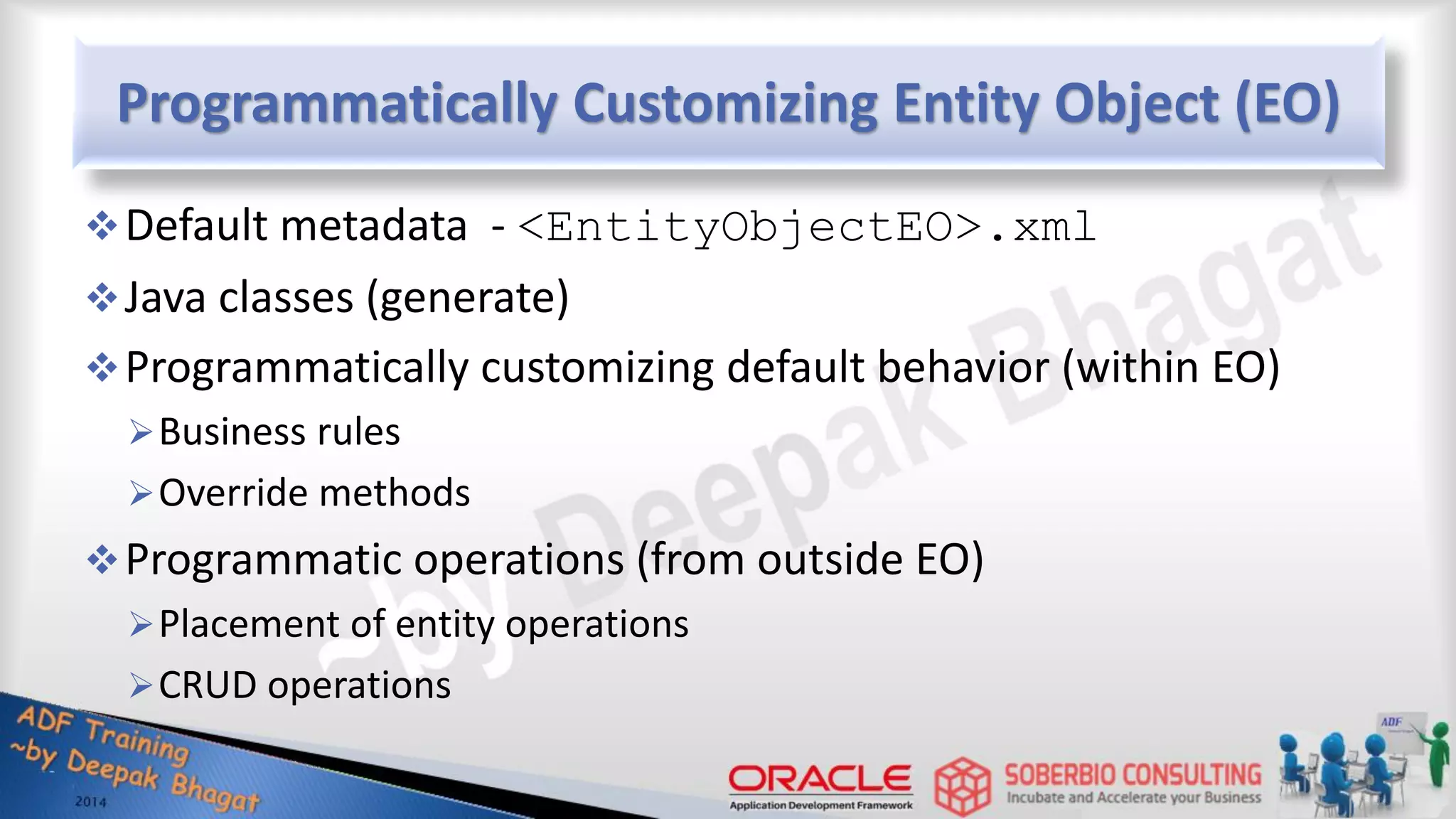

Programmatically Customizing Entity Object (EO) Default metadata - <EntityObjectEO>.xml Java classes (generate) Programmatically customizing default behavior (within EO) Business rules Override methods Programmatic operations (from outside EO) Placement of entity operations CRUD operations

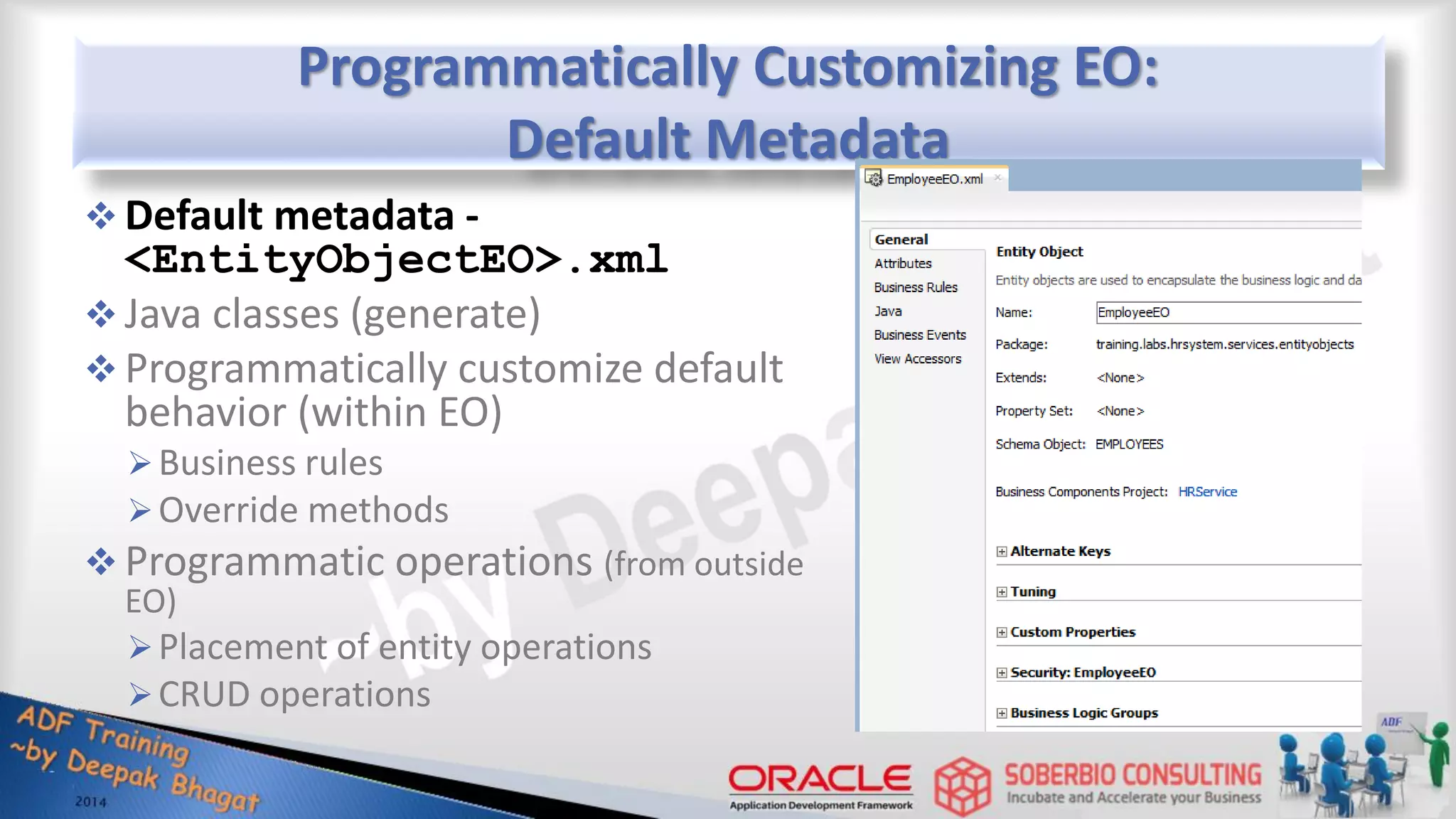

Programmatically Customizing EO: Default Metadata  Default metadata - <EntityObjectEO>.xml  Java classes (generate)  Programmatically customize default behavior (within EO) Business rules Override methods  Programmatic operations (from outside EO) Placement of entity operations CRUD operations

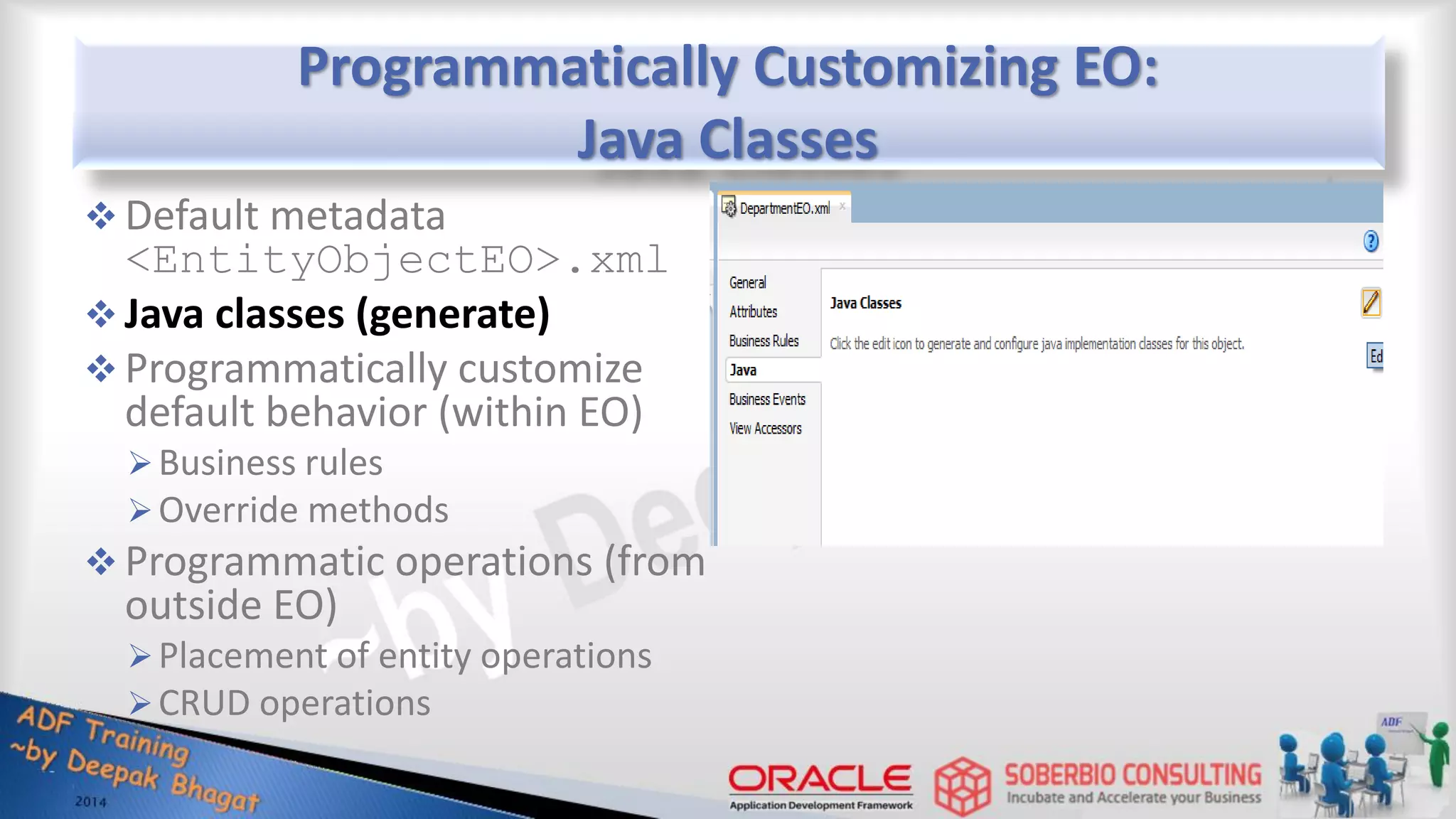

Programmatically Customizing EO: Java Classes  Default metadata <EntityObjectEO>.xml  Java classes (generate)  Programmatically customize default behavior (within EO) Business rules Override methods  Programmatic operations (from outside EO) Placement of entity operations CRUD operations

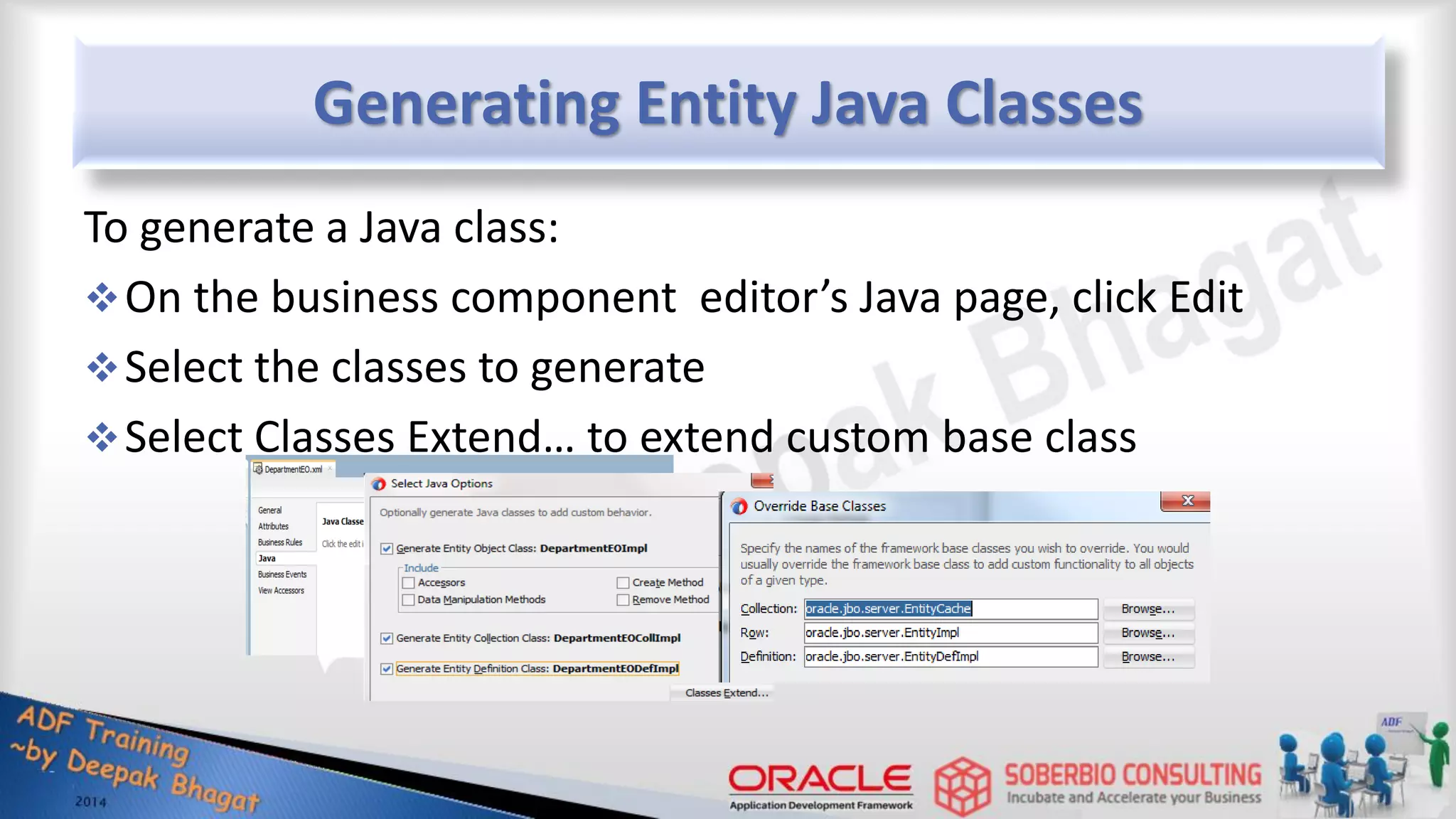

Generating Entity Java Classes To generate a Java class: On the business component editor’s Java page, click Edit Select the classes to generate Select Classes Extend… to extend custom base class

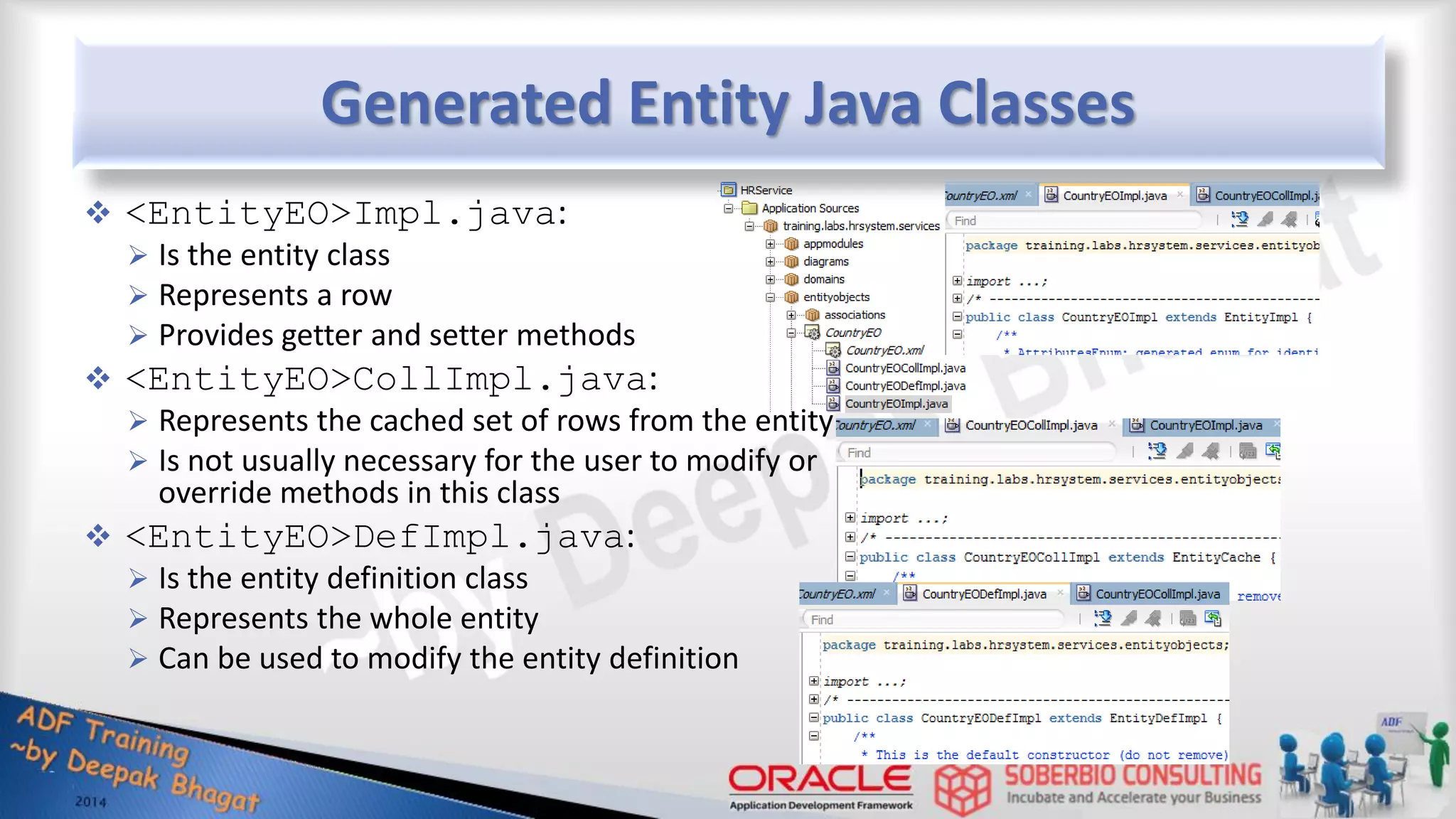

Generated Entity Java Classes  <EntityEO>Impl.java:  Is the entity class  Represents a row  Provides getter and setter methods  <EntityEO>CollImpl.java:  Represents the cached set of rows from the entity  Is not usually necessary for the user to modify or override methods in this class  <EntityEO>DefImpl.java:  Is the entity definition class  Represents the whole entity  Can be used to modify the entity definition

Programmatically Customizing EO: Default Behavior  Default metadata - <EntityObjectEO>.xml  Java classes (generate)  Programmatically customizing default behavior (within EO) Business rules Override methods  Programmatic operations (from outside EO) Placement of entity operations CRUD operations

Programmatically Customizing Default Behavior Programmatically customizing default behavior (within EO) Business rules  Method Validation Override base class methods Examples:  initDefaults() to initialize PK with DBSequence  remove() and doDML() to delete a row  beforeCommit(), validateEntity(), etc.

Programmatically Customizing Default Behavior: Business Rules Programmatically customizing default behavior (within EO) Business rules  Method Validation Override base class methods Examples:  initDefaults() to initialize PK with DBSequence  remove() and doDML() to delete a row  beforeCommit(), validateEntity(), etc.

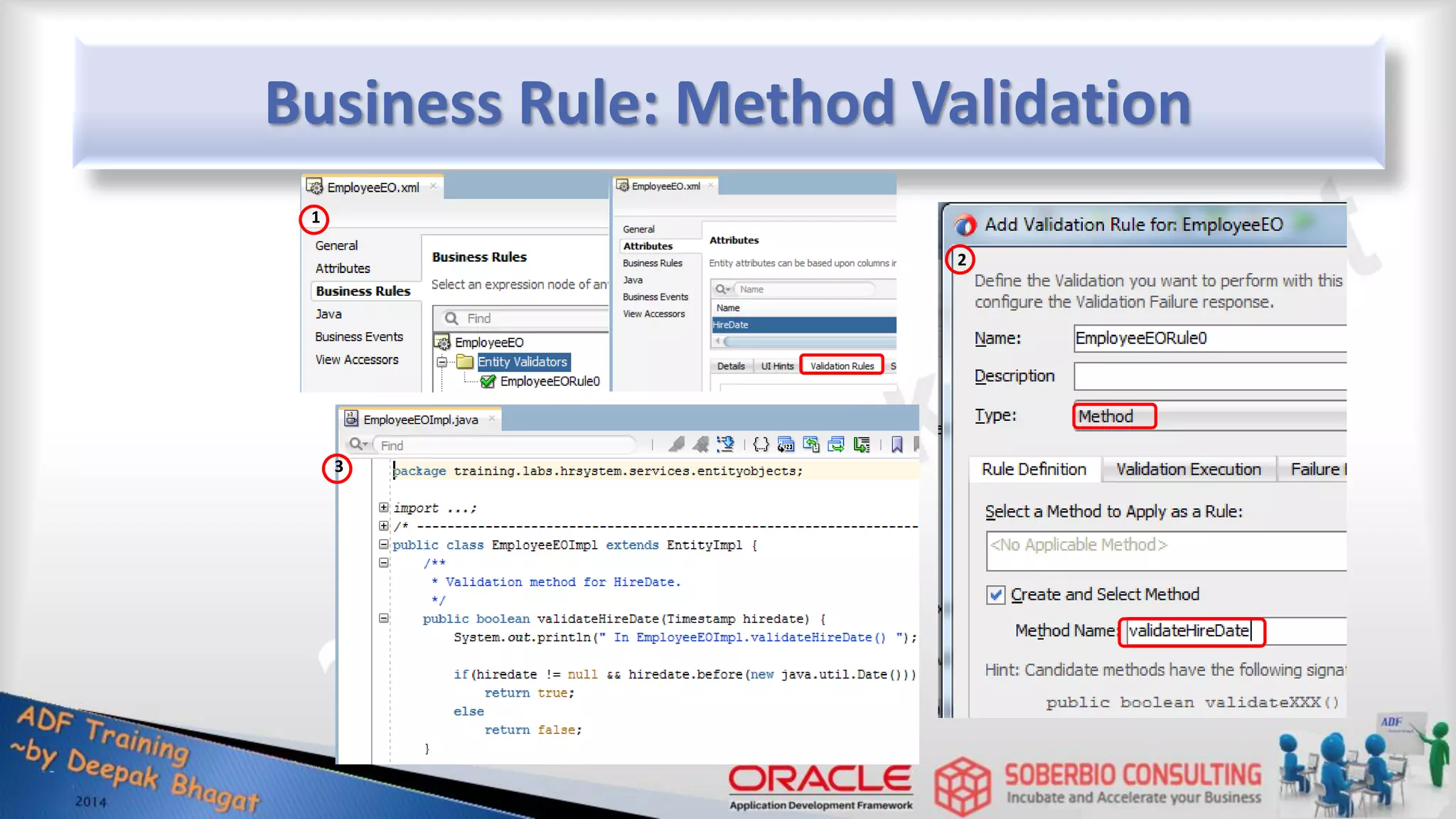

Business Rule: Method Validation 1 2 3

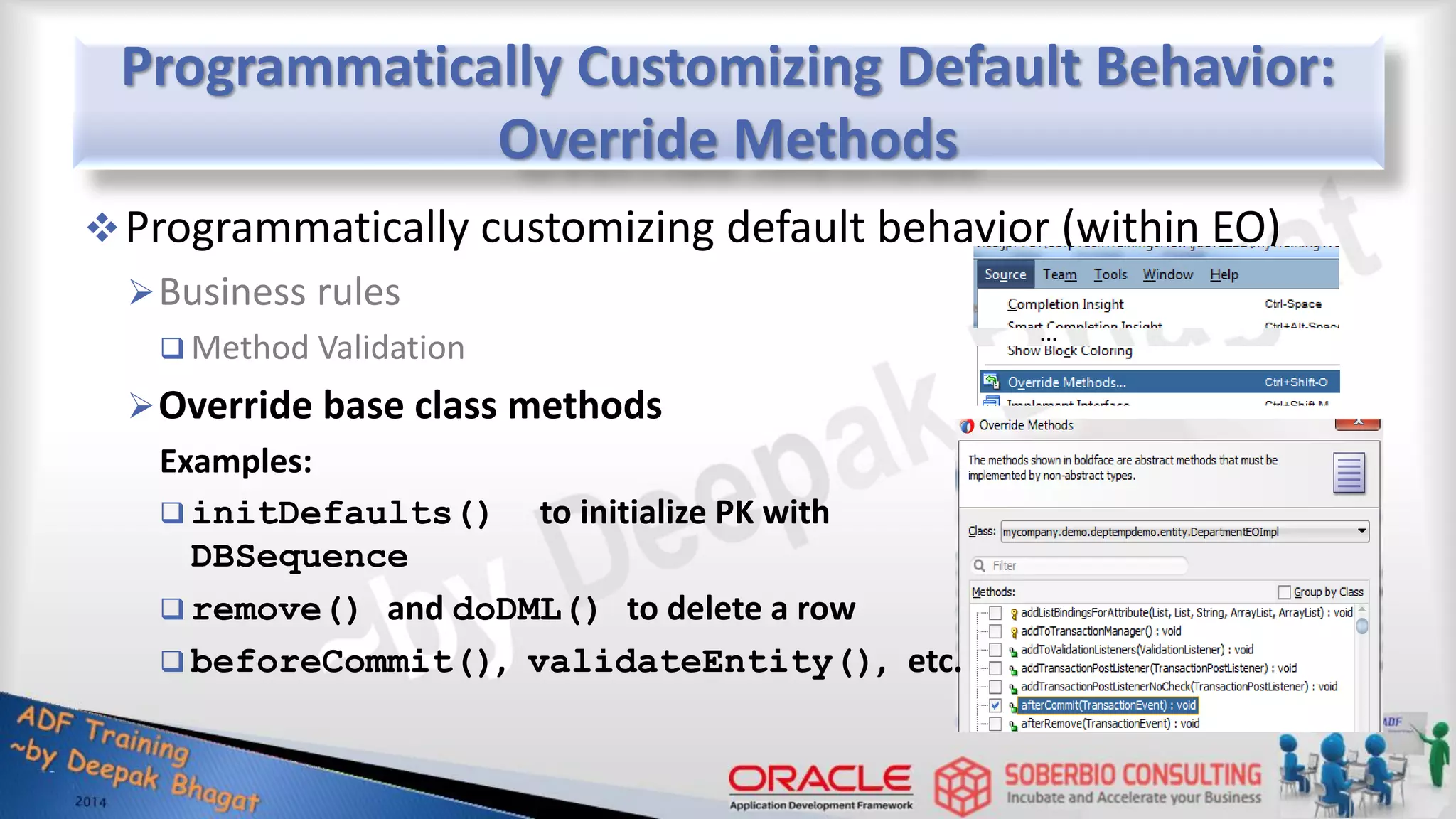

Programmatically Customizing Default Behavior: Override Methods Programmatically customizing default behavior (within EO) Business rules  Method Validation Override base class methods Examples:  initDefaults() to initialize PK with DBSequence  remove() and doDML() to delete a row  beforeCommit(), validateEntity(), etc. …

Override Method: Some Useful Methods Operation Explanation setAttribute(): For example, if the attribute is Empno, the setter will be setEmpno(). This method is used to set the attribute information for an entity object. getAttribute(): For example, if the attribute is Empno, the setter will be getEmpno(). This method is used to get the attribute value of an entity object. create() This is used to create a new entity object. initDefaults() The defaulting logic for an entity object can be added to this method. validateEntity() This method is used to validate an entity. beforeCommit() Logic that has to be applied before committing the record is added in this method. afterCommit() Logic that has to be applied after committing the record is added in this method. remove() This method is used to remove an entity object. doDML() This method is used to perform operations based on the DML operations INSERT, UPDATE, and DELETE.

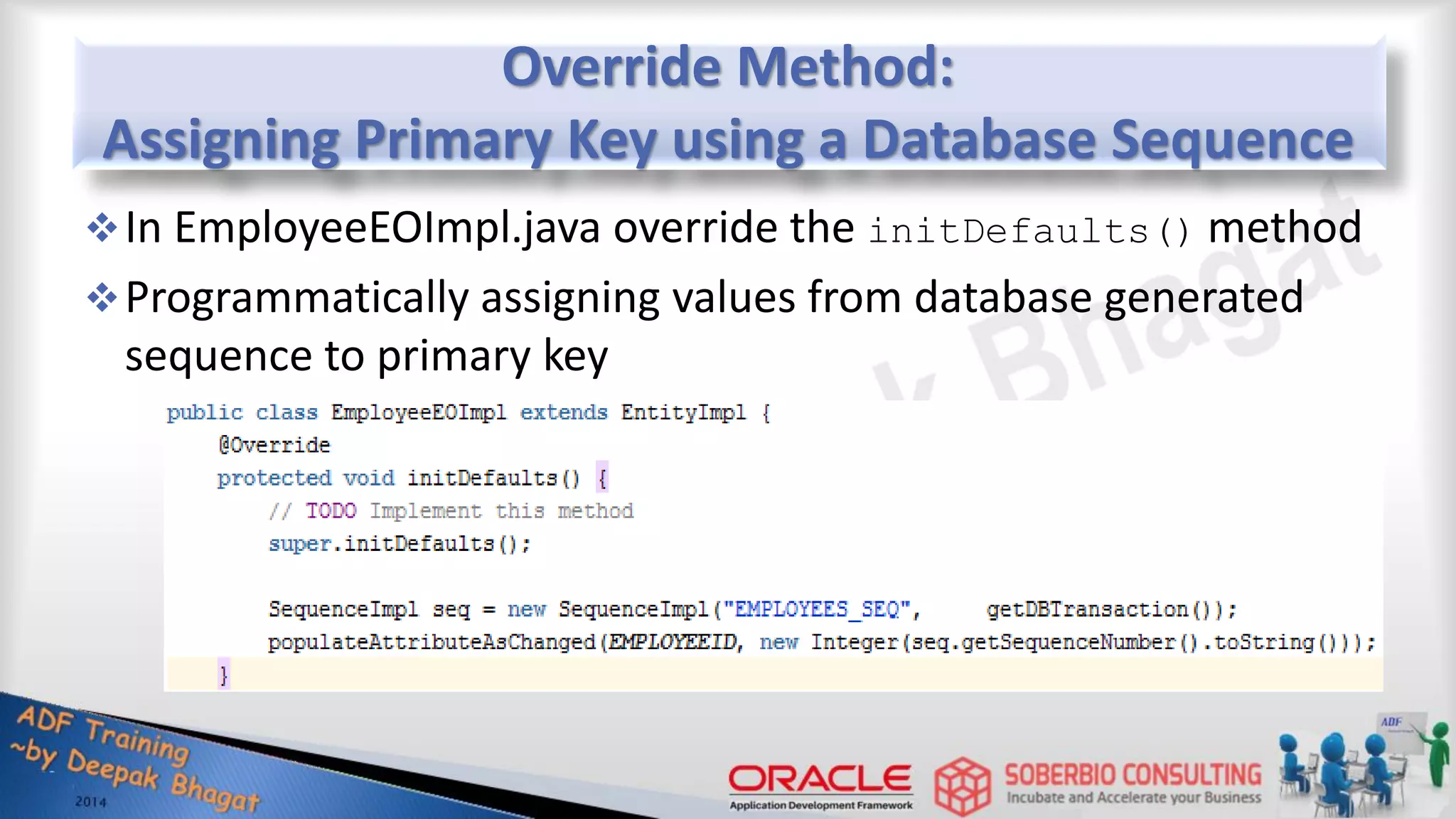

Override Method: Assigning Primary Key using a Database Sequence In EmployeeEOImpl.java override the initDefaults() method Programmatically assigning values from database generated sequence to primary key

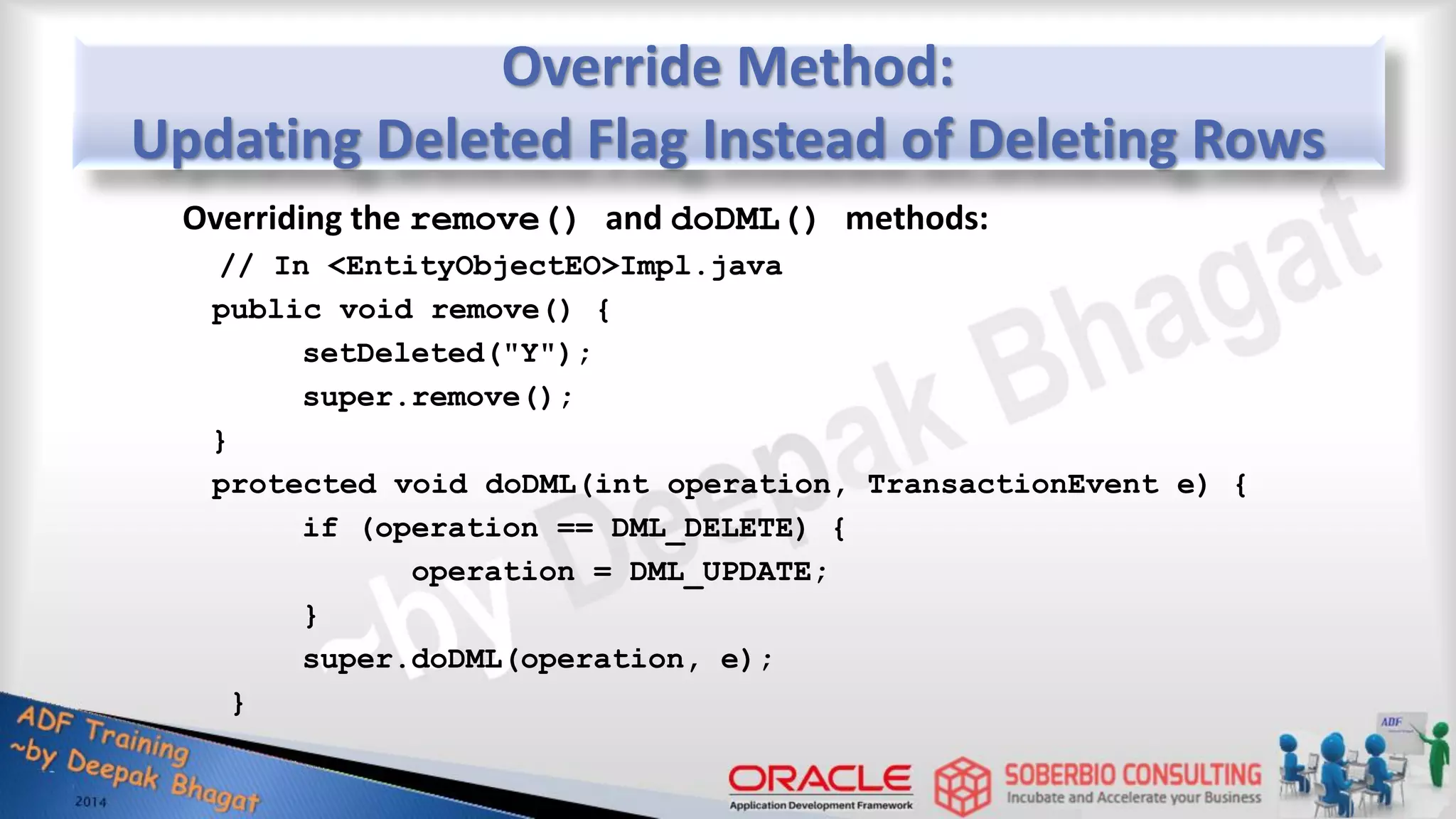

Override Method: Updating Deleted Flag Instead of Deleting Rows Overriding the remove() and doDML() methods: // In <EntityObjectEO>Impl.java public void remove() { setDeleted("Y"); super.remove(); } protected void doDML(int operation, TransactionEvent e) { if (operation == DML_DELETE) { operation = DML_UPDATE; } super.doDML(operation, e); }

Programmatically Customizing EO: Operations Default metadata - <EntityObjectEO>.xml Java classes (generate) Programmatically customizing default behavior (within EO) Business rules Override methods Programmatic operations (from outside EO) Placement of entity operations CRUD operations

Programmatic Operations on EO  Programmatic operations (from outside EO) Placement of entity operations CRUD operations  Read (Find) entity object  By primary key  By traversing association from » Master entity to detail entity » Detail entity to master entity  Through view object  Update (modify) entity object  Delete (remove) entity object  Create (add) entity object

Programmatic Operations on EO Programmatic operations (from outside EO) Placement of entity operations CRUD operations  Read (Find) entity object  By primary key  By traversing association  Through view object  Update (modify) entity object  Delete (remove) entity object  Create (add) entity object

Programmatic Operations on EO: Placements Code to manipulate an entity object is typically placed outside it, in Another entity object class A service method of an application module class (though VO) Java clients accessing business components such as entity object, view object or service methods

Programmatic Operations on EO: CRUD Ops  Programmatic operations (from outside EO) Placement of entity operations CRUD operations  Read (Find) entity object  By primary key  By traversing association from » Master entity to detail entity » Detail entity to master entity  Through view object  Update (modify) entity object  Delete (remove) entity object  Create (add) entity object

Reading EO: Find by Primary Key

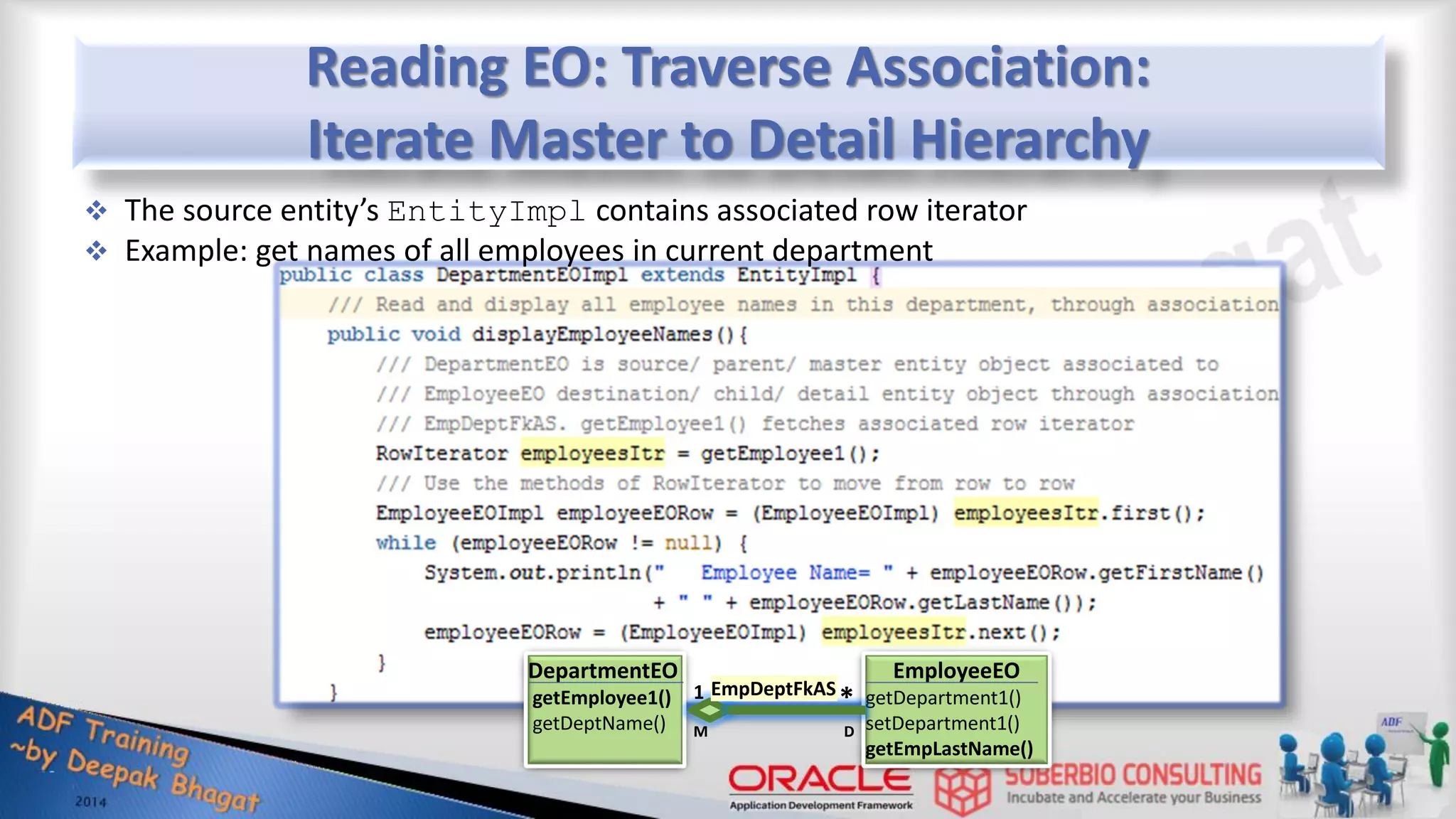

Reading EO: Traverse Association: Iterate Master to Detail Hierarchy  The source entity’s EntityImpl contains associated row iterator  Example: get names of all employees in current department EmployeeEO getDepartment1() setDepartment1() getEmpLastName() DepartmentEO getEmployee1() getDeptName() 1 M * D EmpDeptFkAS

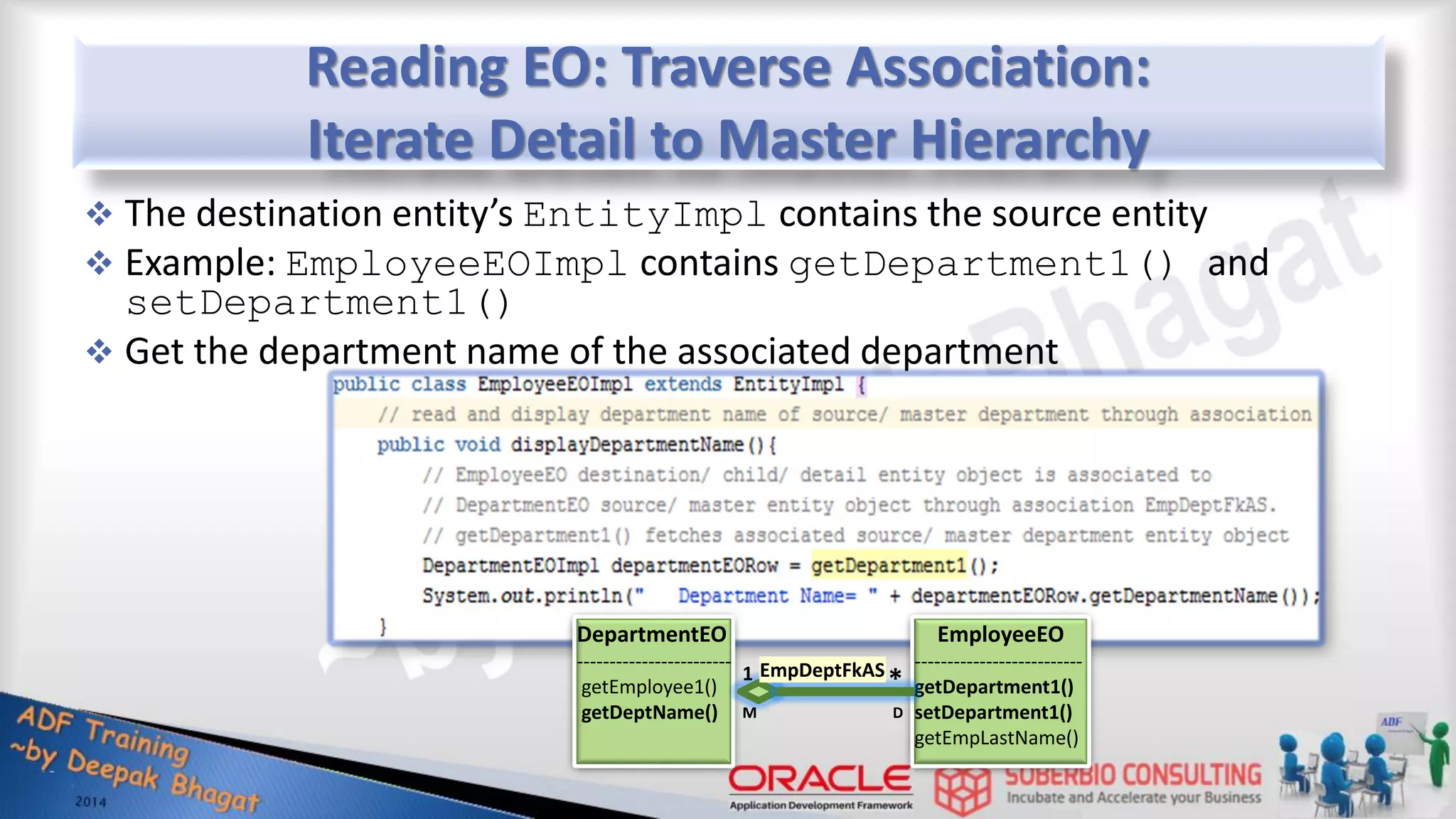

Reading EO: Traverse Association: Iterate Detail to Master Hierarchy  The destination entity’s EntityImpl contains the source entity  Example: EmployeeEOImpl contains getDepartment1() and setDepartment1()  Get the department name of the associated department EmployeeEO -------------------------- getDepartment1() setDepartment1() getEmpLastName() DepartmentEO ------------------------ getEmployee1() getDeptName() 1 M * D EmpDeptFkAS

Reading EO: Find EO through View Object

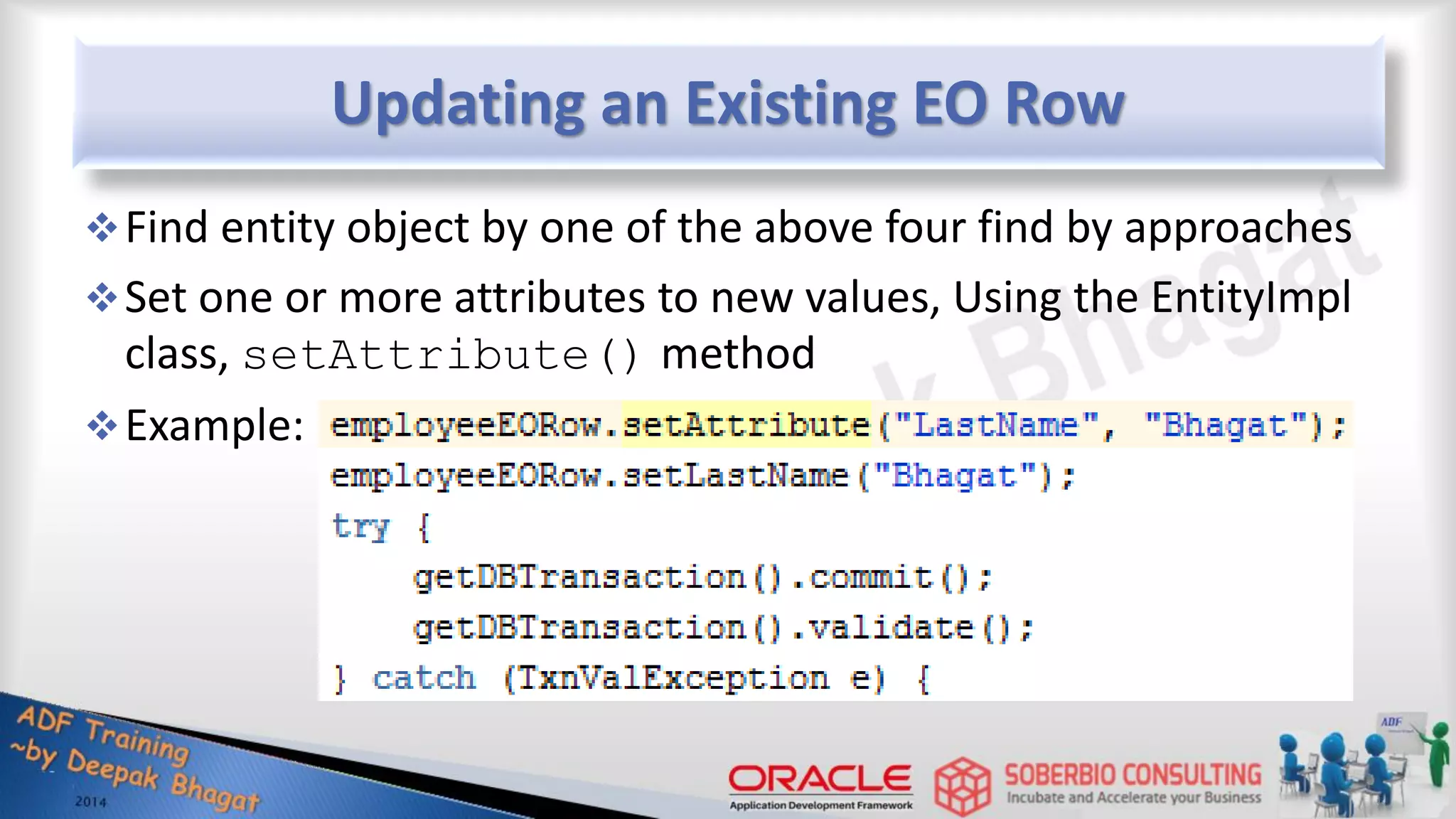

Updating an Existing EO Row Find entity object by one of the above four find by approaches Set one or more attributes to new values, Using the EntityImpl class, setAttribute() method Example:

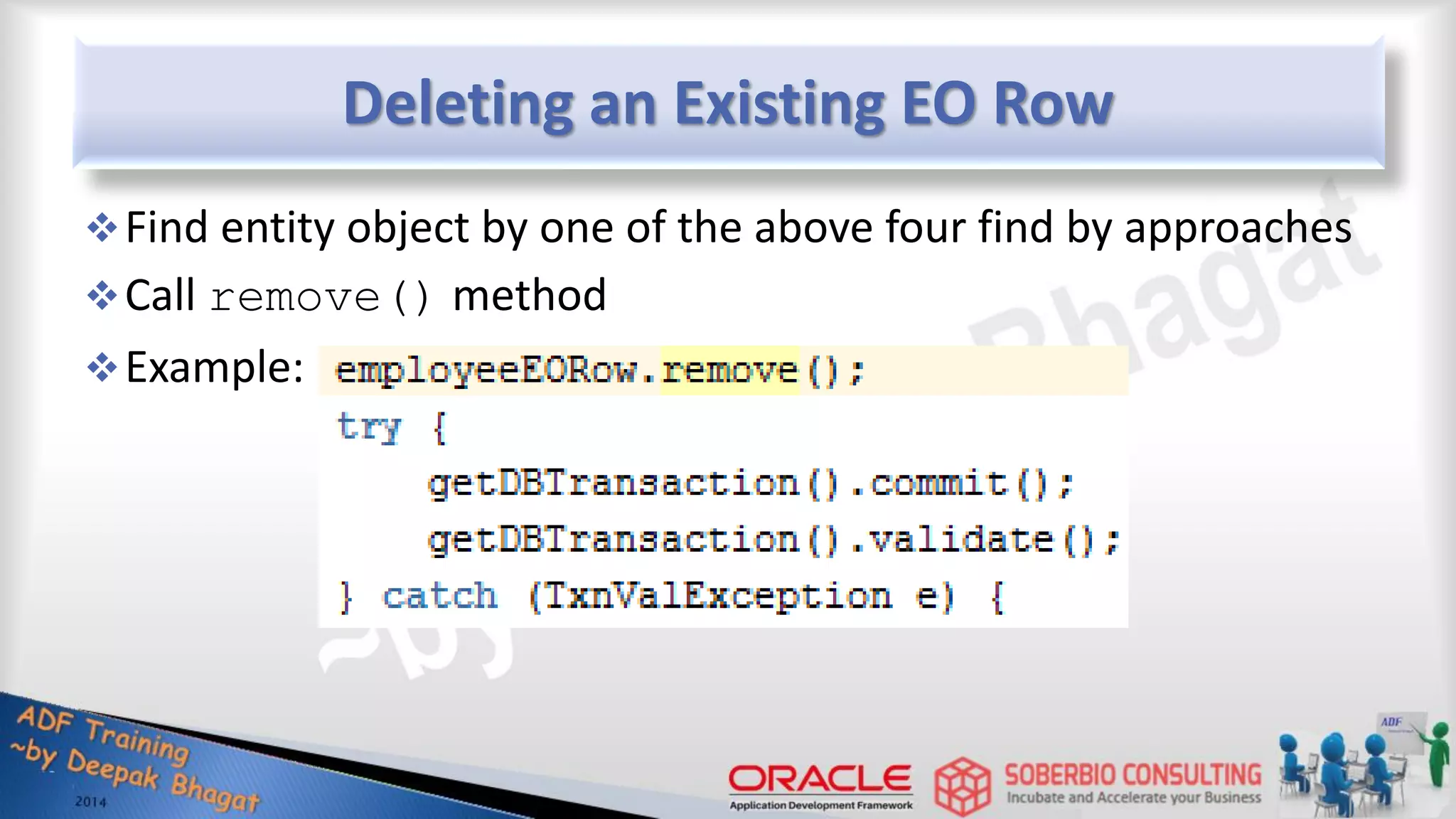

Deleting an Existing EO Row Find entity object by one of the above four find by approaches Call remove() method Example:

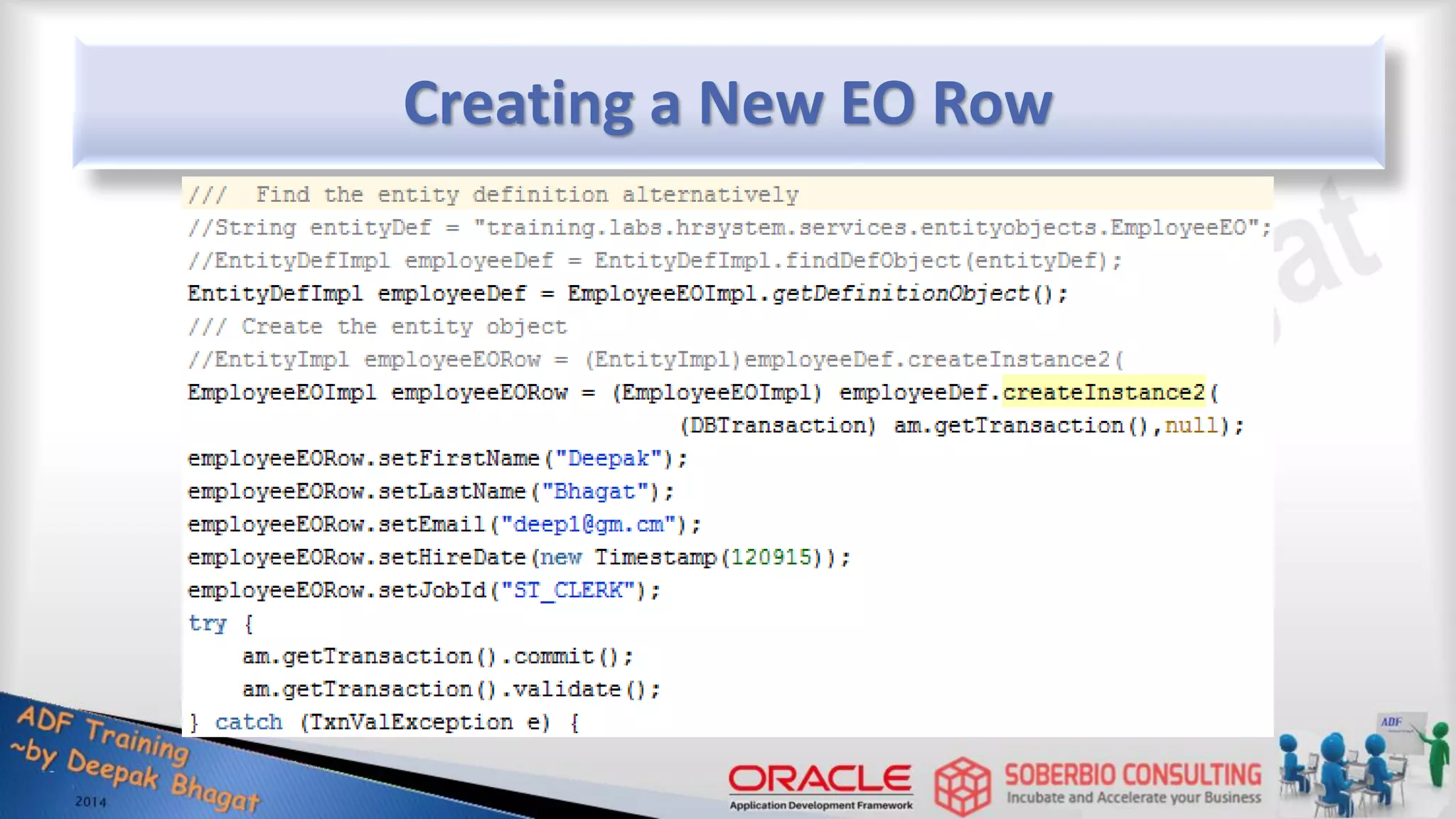

Creating a New EO Row Find entity object by one of the above four find by approaches Call createRow() method Example using destination/ child entity

Programmatically Customizing EO: Summary Read by Primary Key Read through Association Read through View Object Update Delete Create EO Yes Yes No Yes Yes Yes VO (services) No No Yes Yes Yes Yes Java Client - EO Yes Yes No Yes Yes Yes Java Client - VO No No Yes Yes Yes Yes Java Client – Services No No Yes Yes Yes Yes

Types of Programmatic Customization: View Objects Use ADF Business Component APIs Programmatically customizing entity object (EO) Programmatically customizing view object (VO) Programmatically customizing application module (AM) Programmatically accessing business component objects from Java client

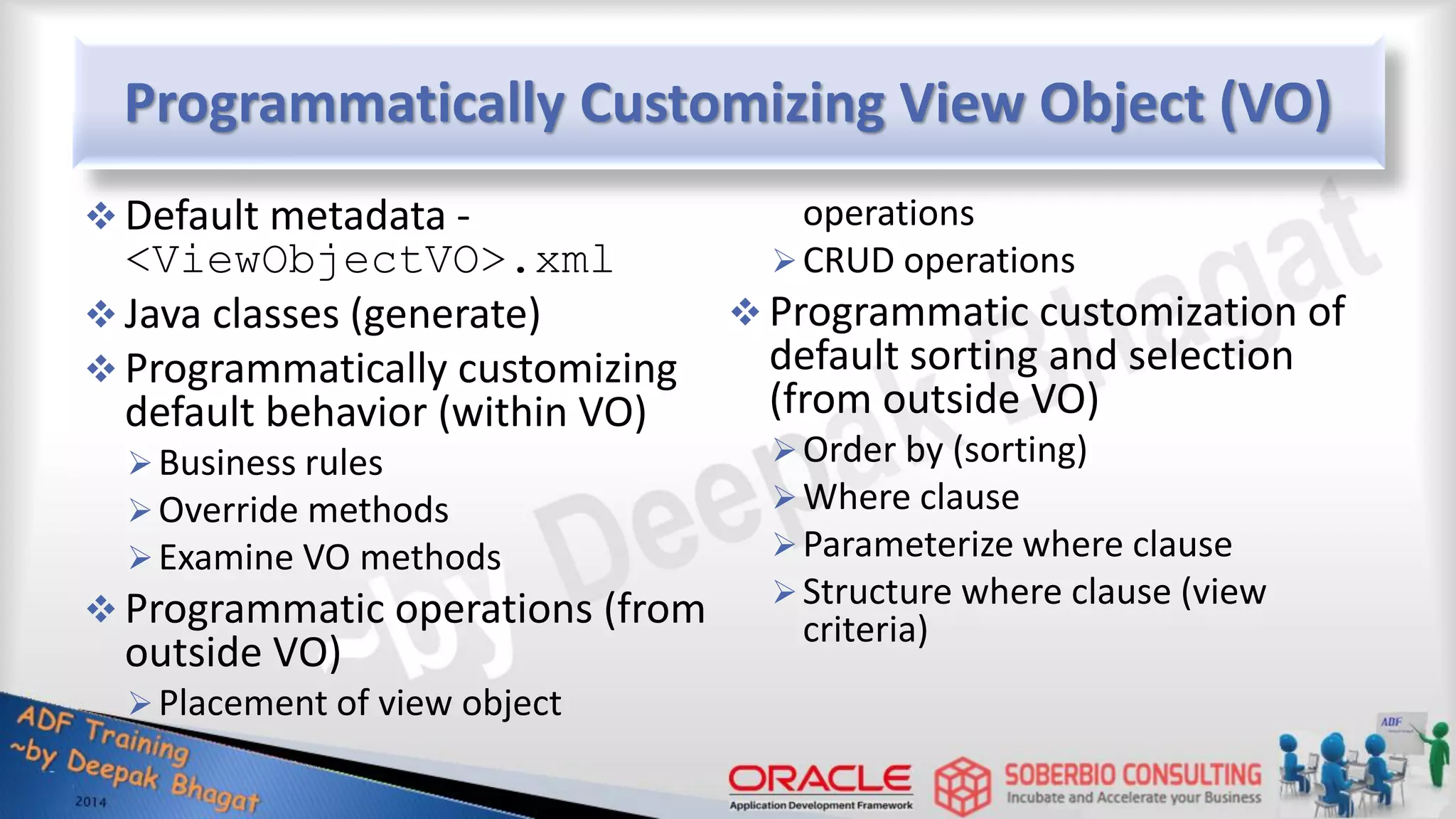

Programmatically Customizing View Object (VO)  Default metadata - <ViewObjectVO>.xml  Java classes (generate)  Programmatically customizing default behavior (within VO) Business rules Override methods Examine VO methods  Programmatic operations (from outside VO) Placement of view object operations CRUD operations  Programmatic customization of default sorting and selection (from outside VO) Order by (sorting) Where clause Parameterize where clause Structure where clause (view criteria)

Programmatically Customizing View Object (VO): Default Metadata  Default metadata - <ViewObjectVO>.xml  Java classes (generate)  Programmatically customizing default behavior (within VO)  Programmatic operations (from outside VO)  Programmatic customization of default sorting and selection (from outside VO)

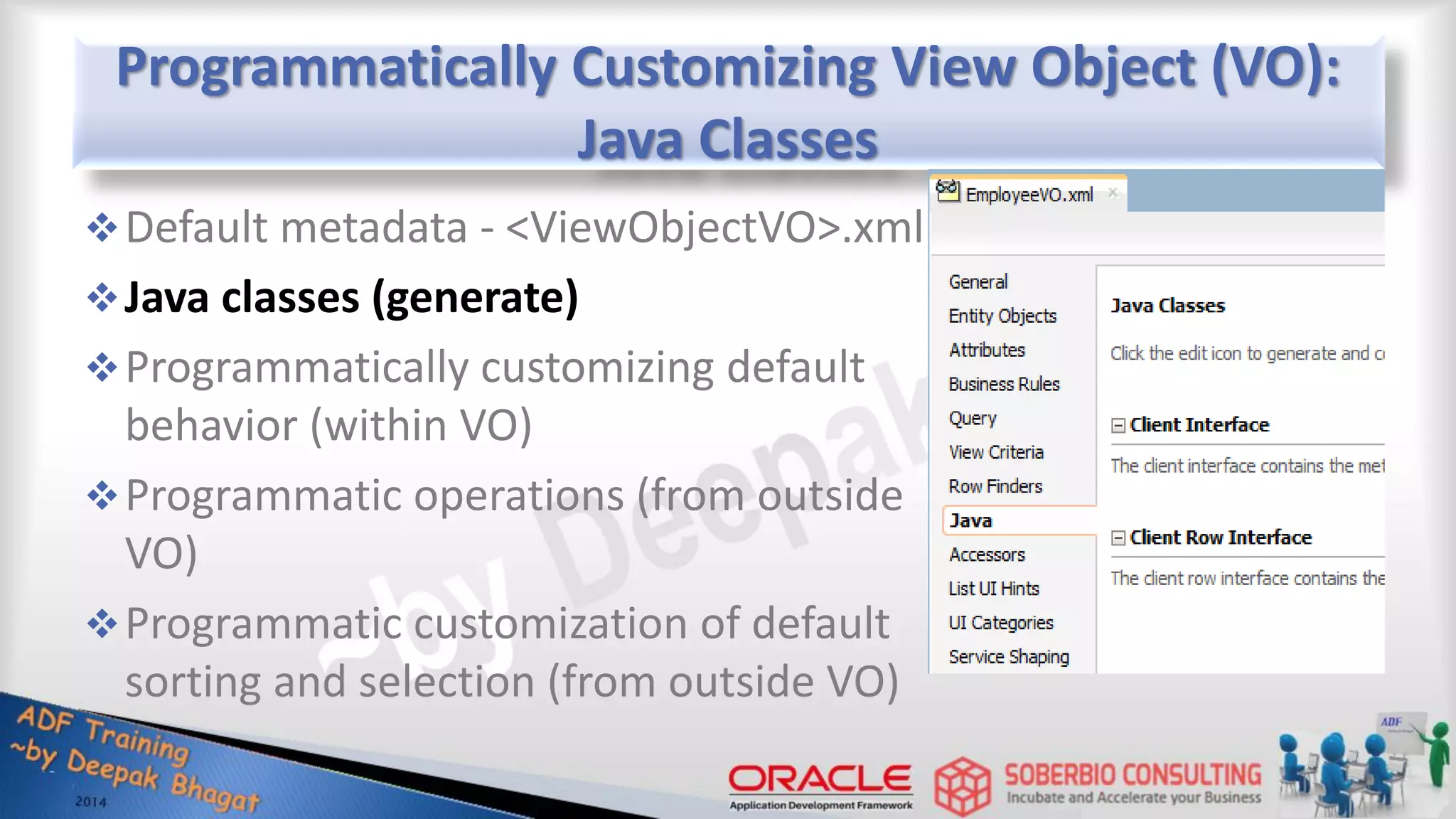

Programmatically Customizing View Object (VO): Java Classes Default metadata - <ViewObjectVO>.xml Java classes (generate) Programmatically customizing default behavior (within VO) Programmatic operations (from outside VO) Programmatic customization of default sorting and selection (from outside VO)

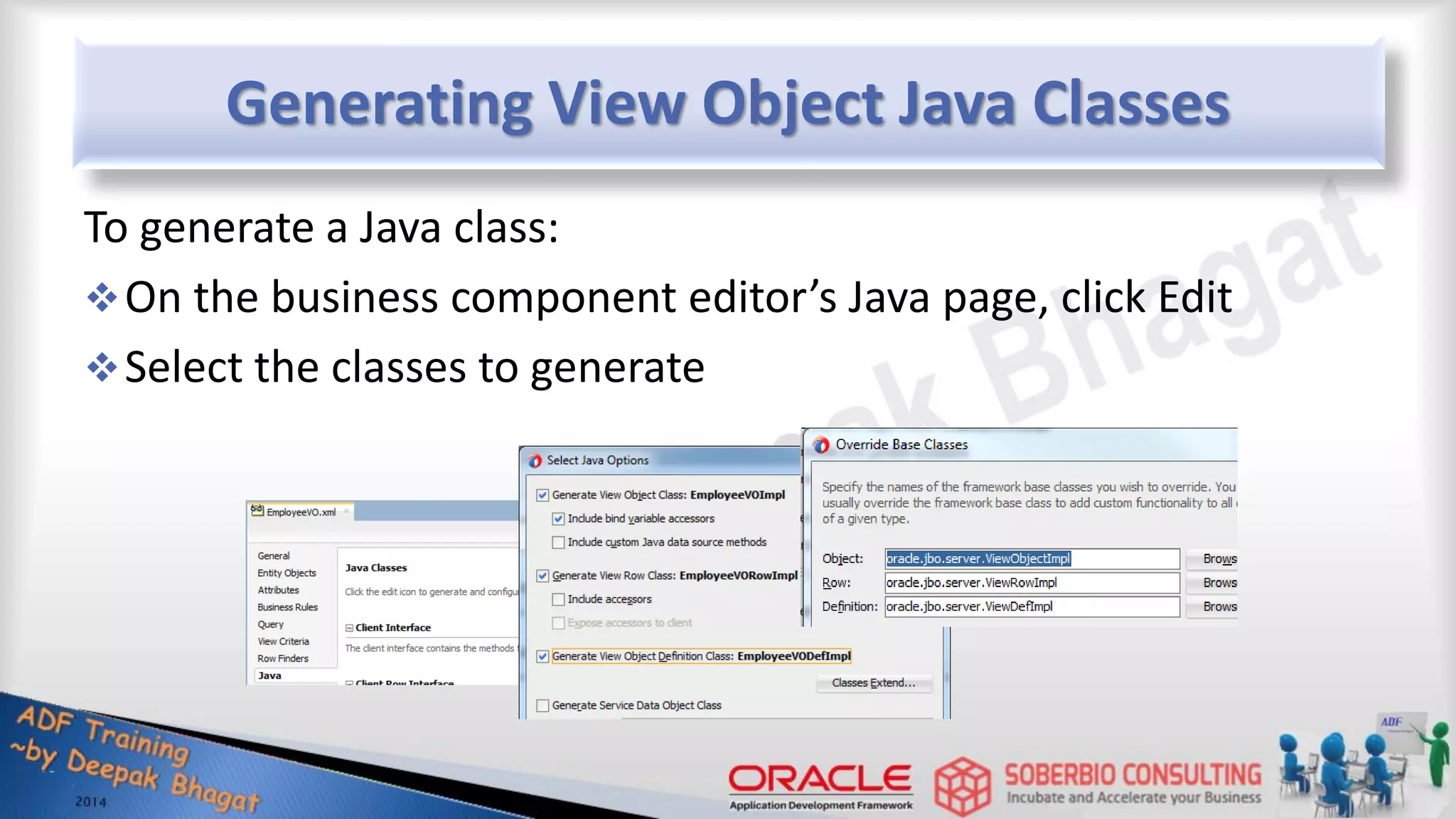

Generating View Object Java Classes To generate a Java class: On the business component editor’s Java page, click Edit Select the classes to generate

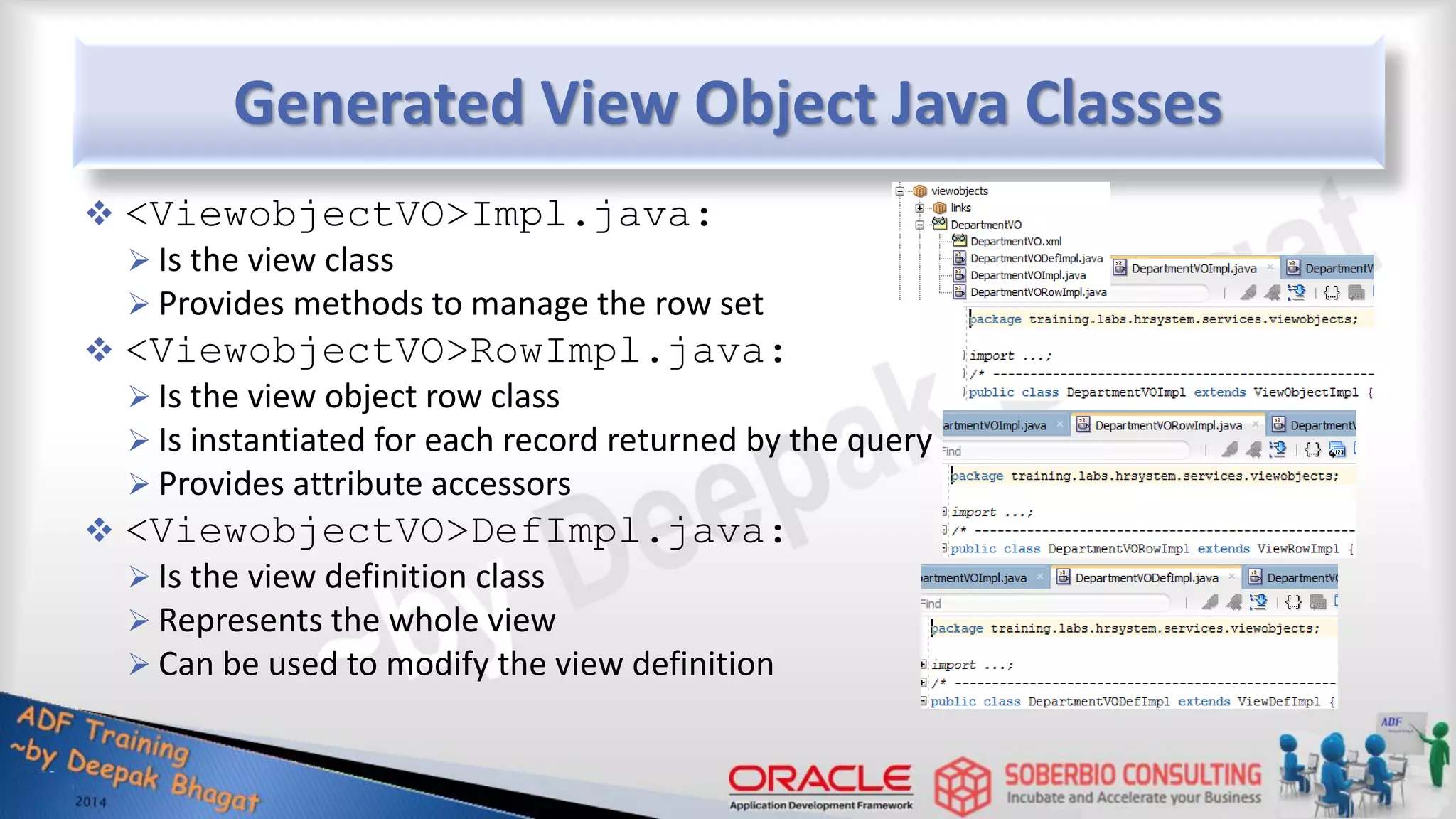

Generated View Object Java Classes  <ViewobjectVO>Impl.java:  Is the view class  Provides methods to manage the row set  <ViewobjectVO>RowImpl.java:  Is the view object row class  Is instantiated for each record returned by the query  Provides attribute accessors  <ViewobjectVO>DefImpl.java:  Is the view definition class  Represents the whole view  Can be used to modify the view definition

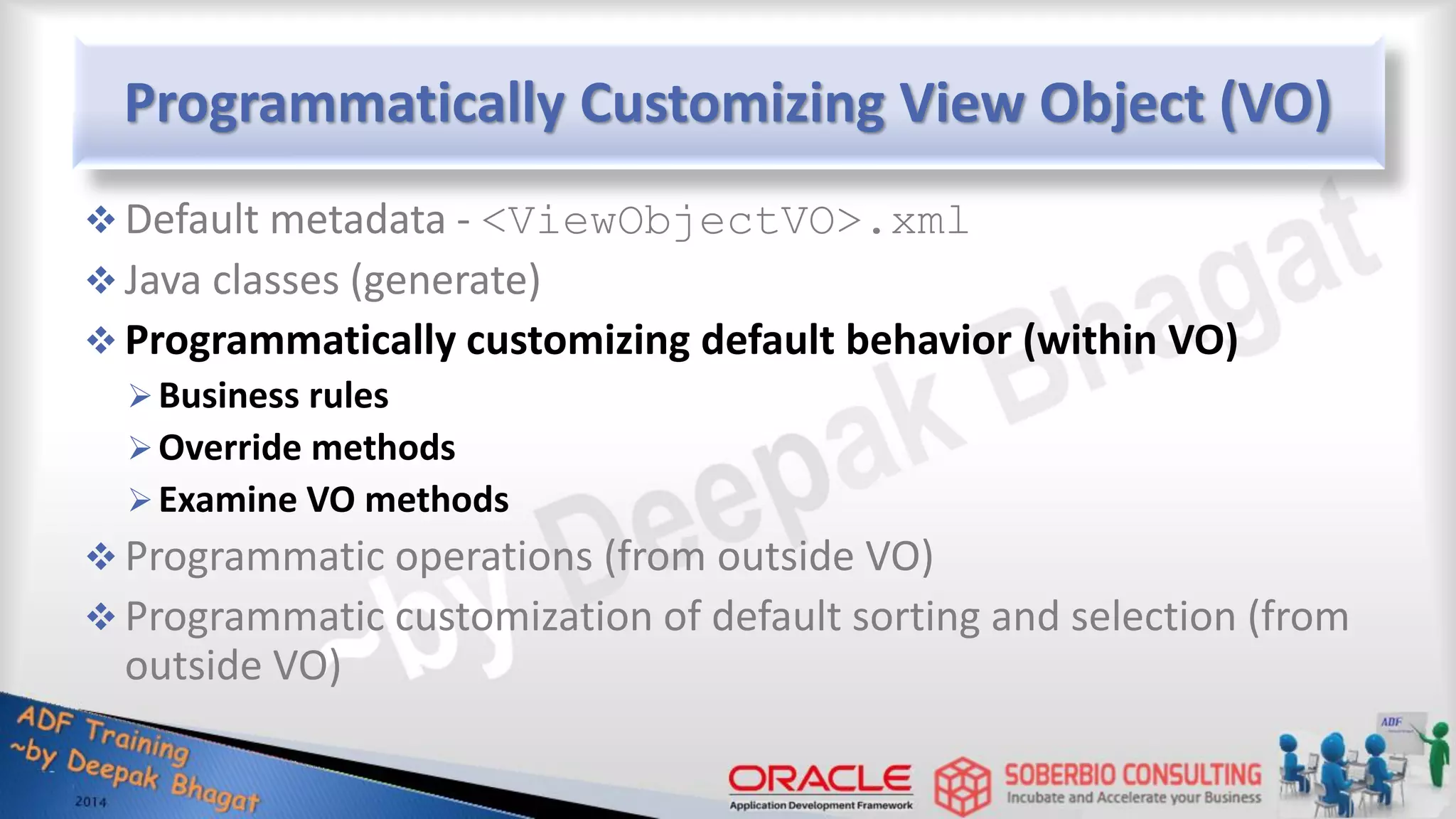

Programmatically Customizing View Object (VO)  Default metadata - <ViewObjectVO>.xml  Java classes (generate)  Programmatically customizing default behavior (within VO) Business rules Override methods Examine VO methods  Programmatic operations (from outside VO)  Programmatic customization of default sorting and selection (from outside VO)

Programmatically Customizing Default Behavior: Business Rule Programmatically customizing default behavior (within VO) Business rules  Only for transient attributes that are not read-only Override methods Examine VO methods

Programmatically Customizing Default Behavior: Override Methods Programmatically customizing default behavior (within VO) Business rules Override methods Examples:  remove() to delete a row  beforeCommit(), validate(), etc. Examine VO methods …

Programmatically Customizing Default Behavior Programmatically customizing default behavior (within VO) Business rules Override methods Examine VO methods

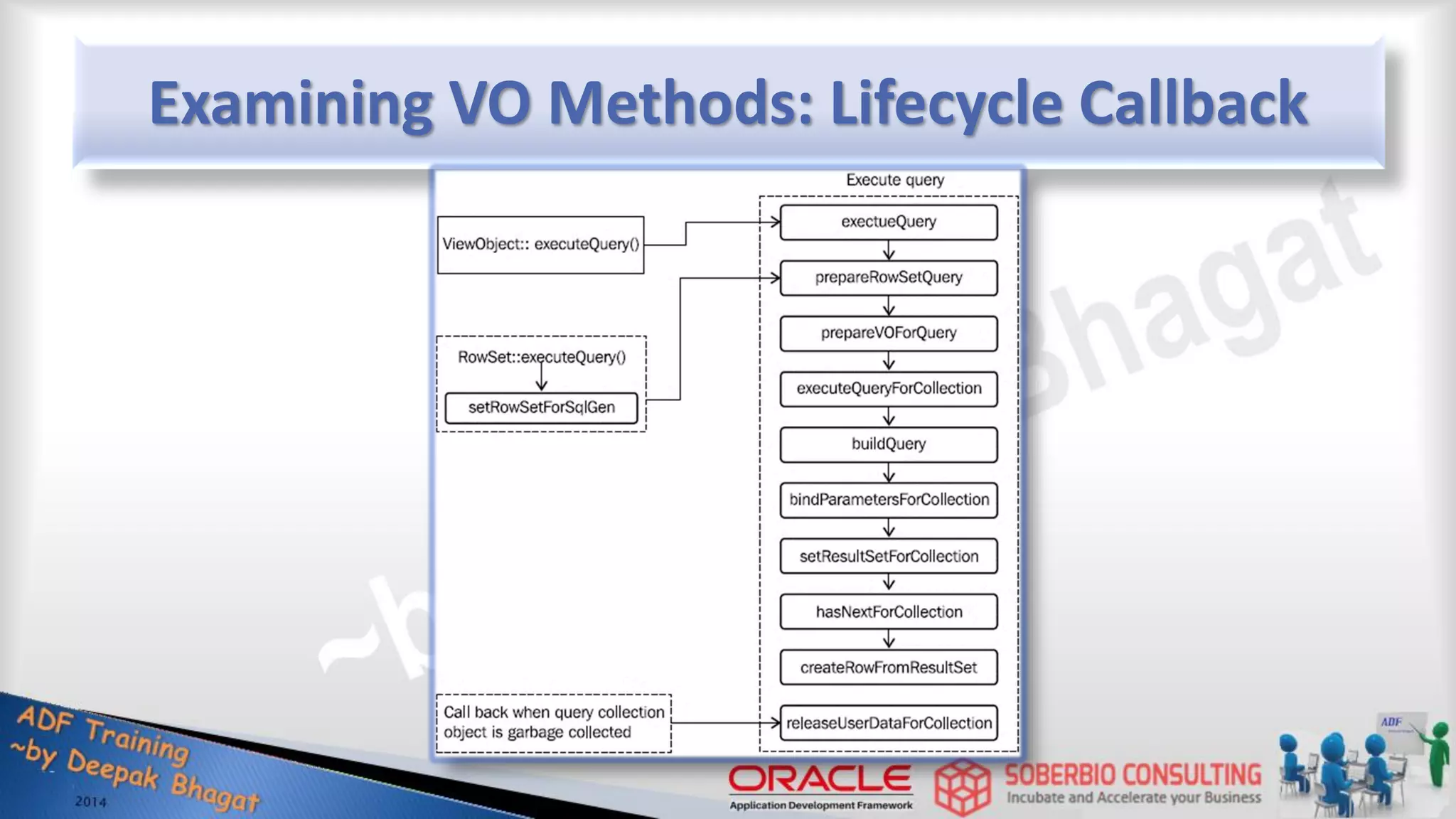

Examining VO Methods: Lifecycle Callback

Updatable VO based on Single EO: Sequence Diagram

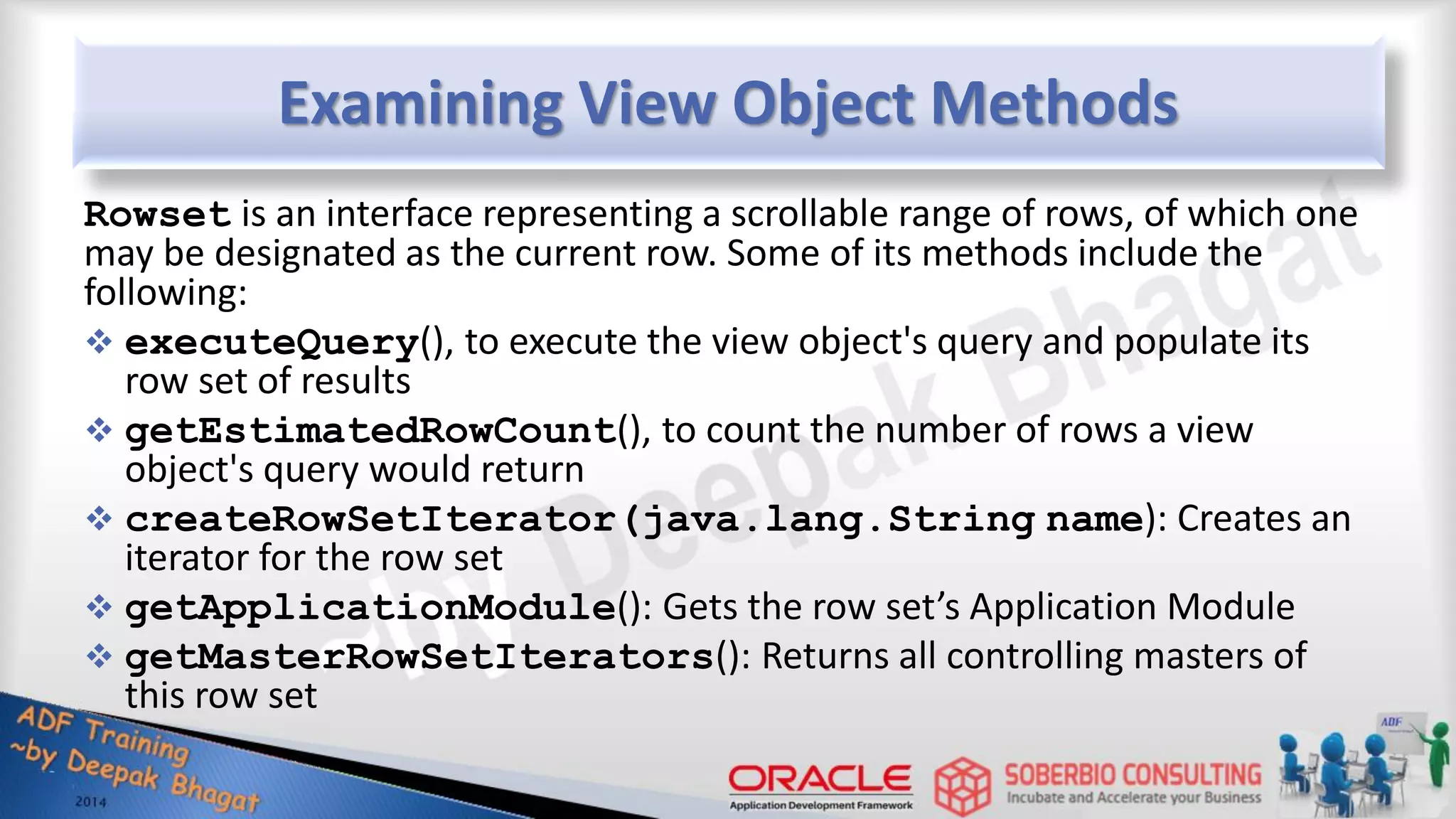

Examining View Object Methods Rowset is an interface representing a scrollable range of rows, of which one may be designated as the current row. Some of its methods include the following:  executeQuery(), to execute the view object's query and populate its row set of results  getEstimatedRowCount(), to count the number of rows a view object's query would return  createRowSetIterator(java.lang.String name): Creates an iterator for the row set  getApplicationModule(): Gets the row set’s Application Module  getMasterRowSetIterators(): Returns all controlling masters of this row set

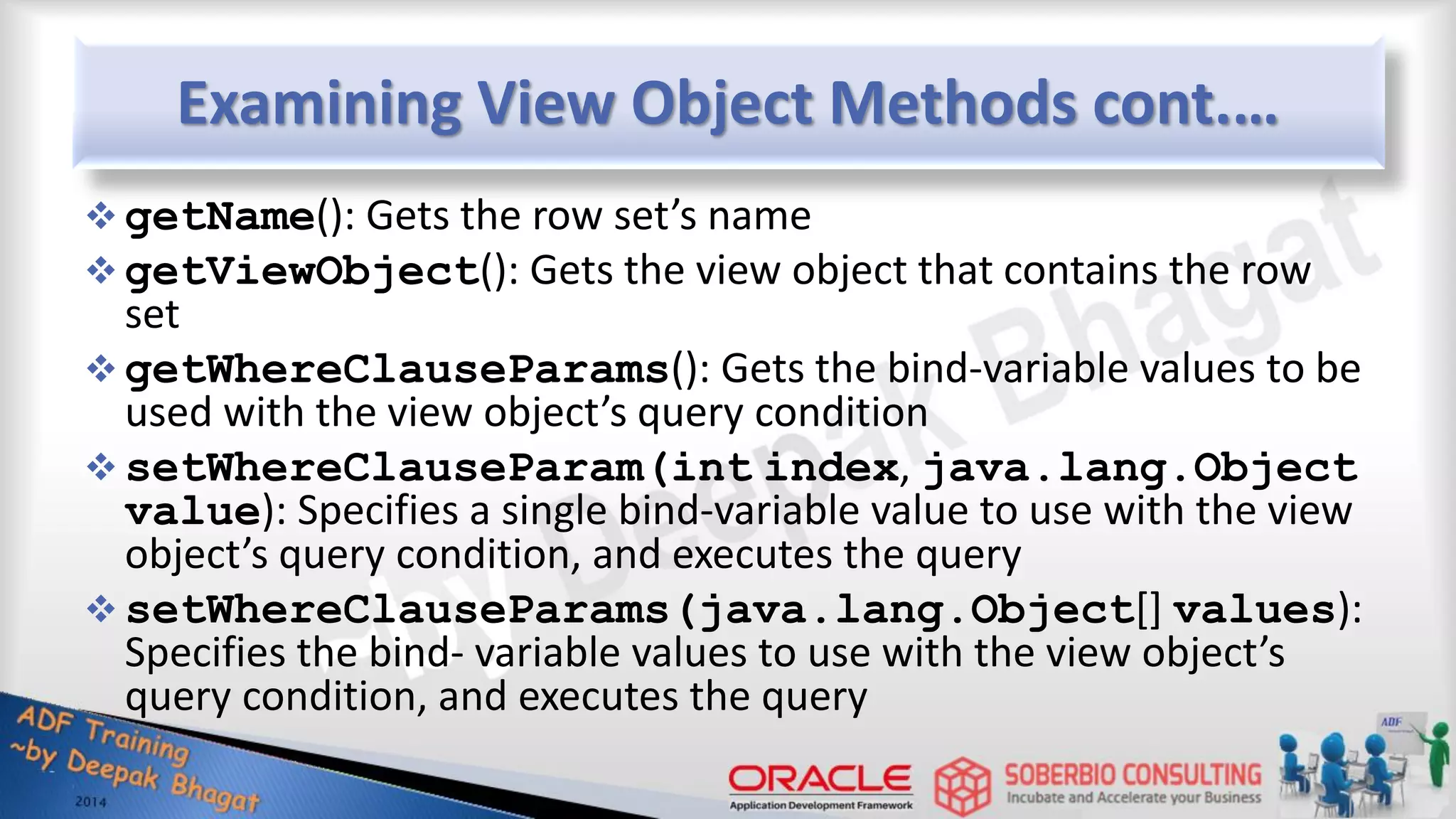

Examining View Object Methods cont.…  getName(): Gets the row set’s name  getViewObject(): Gets the view object that contains the row set  getWhereClauseParams(): Gets the bind-variable values to be used with the view object’s query condition  setWhereClauseParam(int index, java.lang.Object value): Specifies a single bind-variable value to use with the view object’s query condition, and executes the query  setWhereClauseParams(java.lang.Object[] values): Specifies the bind- variable values to use with the view object’s query condition, and executes the query

Examining View Object Methods cont.… The RowSet interface implements the RowIterator interface, which enables access to the row set. Some of its methods include the following:  createRow(): Creates a new Row object, but does not insert into the rowset  findByEntity(int eRowHandle, int maxNumOfRows): Finds and returns view rows that use the entity row, identified by the entity row handle, eRowHandle  findByKey(Key key, int maxNumOfRows): Finds and returns view rows that match the specified key  first(): Designates the first row of the row set as the current row  getRow(Key key): Accesses a row through a unique key  hasNext(): Tests for the existence of a row after the current row

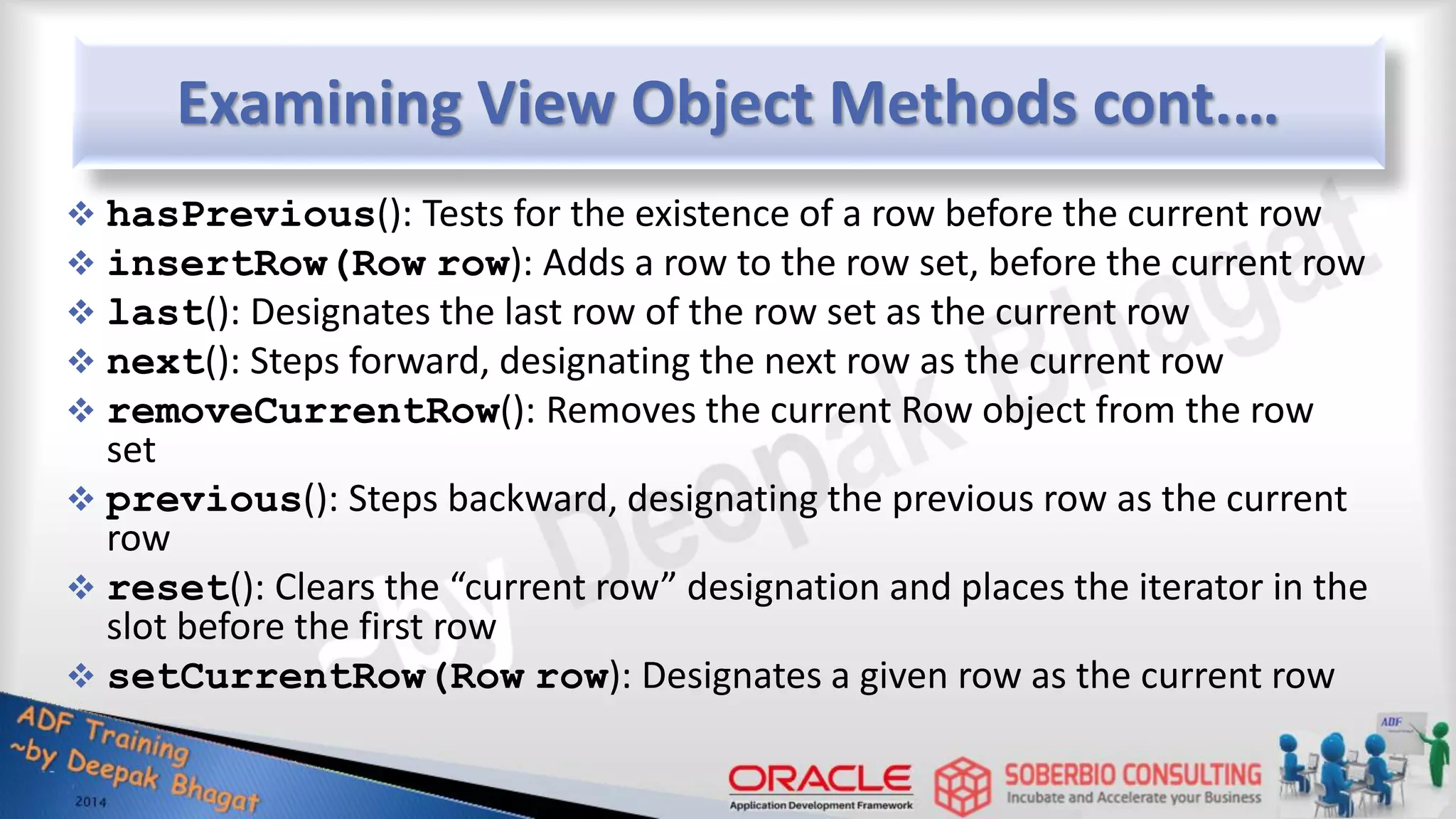

Examining View Object Methods cont.…  hasPrevious(): Tests for the existence of a row before the current row  insertRow(Row row): Adds a row to the row set, before the current row  last(): Designates the last row of the row set as the current row  next(): Steps forward, designating the next row as the current row  removeCurrentRow(): Removes the current Row object from the row set  previous(): Steps backward, designating the previous row as the current row  reset(): Clears the “current row” designation and places the iterator in the slot before the first row  setCurrentRow(Row row): Designates a given row as the current row

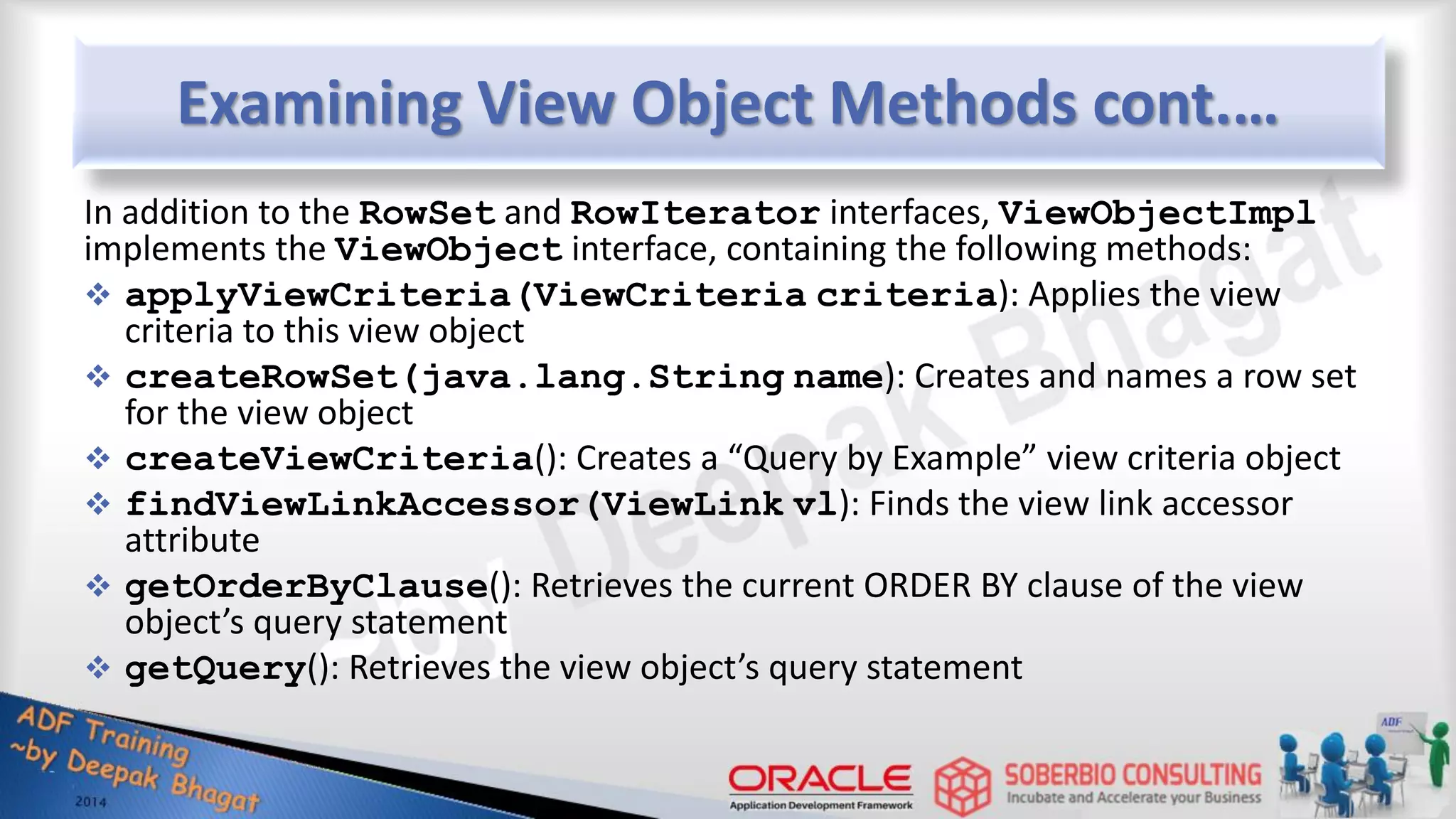

Examining View Object Methods cont.… In addition to the RowSet and RowIterator interfaces, ViewObjectImpl implements the ViewObject interface, containing the following methods:  applyViewCriteria(ViewCriteria criteria): Applies the view criteria to this view object  createRowSet(java.lang.String name): Creates and names a row set for the view object  createViewCriteria(): Creates a “Query by Example” view criteria object  findViewLinkAccessor(ViewLink vl): Finds the view link accessor attribute  getOrderByClause(): Retrieves the current ORDER BY clause of the view object’s query statement  getQuery(): Retrieves the view object’s query statement

Examining View Object Methods cont.…  getViewCriteria(): Gets this view object’s view criteria  getViewLinkNames(): Retrieves the names of the view object’s View Links  getWhereClause(): Retrieves the current WHERE clause of the view object’s query statement  isReadOnly(): Tests if the view object is read-only  setOrderByClause(java.lang.String expr): Sets the ORDER BY clause of the view object’s query statement  setWhereClause(java.lang.String cond): Sets the WHERE clause of the view object’s query statement The ViewObjectImpl class also implements some listener interfaces and contains many methods of its own, so there are several opportunities for programmatic manipulation. For a complete description of all methods that you can use for a view object, see Javadoc

Programmatically Customizing View Object (VO) Default metadata - <ViewObjectVO>.xml Java classes (generate) Programmatically customizing default behavior (within VO) Programmatic operations (from outside VO) Placement of view object operations CRUD operations Programmatic customization of default sorting and selection (from outside VO)

Programmatic Operations on VO  Programmatic operations (from outside VO) Placement of view operations CRUD operations  Read (Find) view object  By foreign key  By traversing links from » Master view to detail view » Detail view to master view » Retain and reuse a view link accessor row set  Update (modify) view object  Delete (remove) view object  Create (add) view object

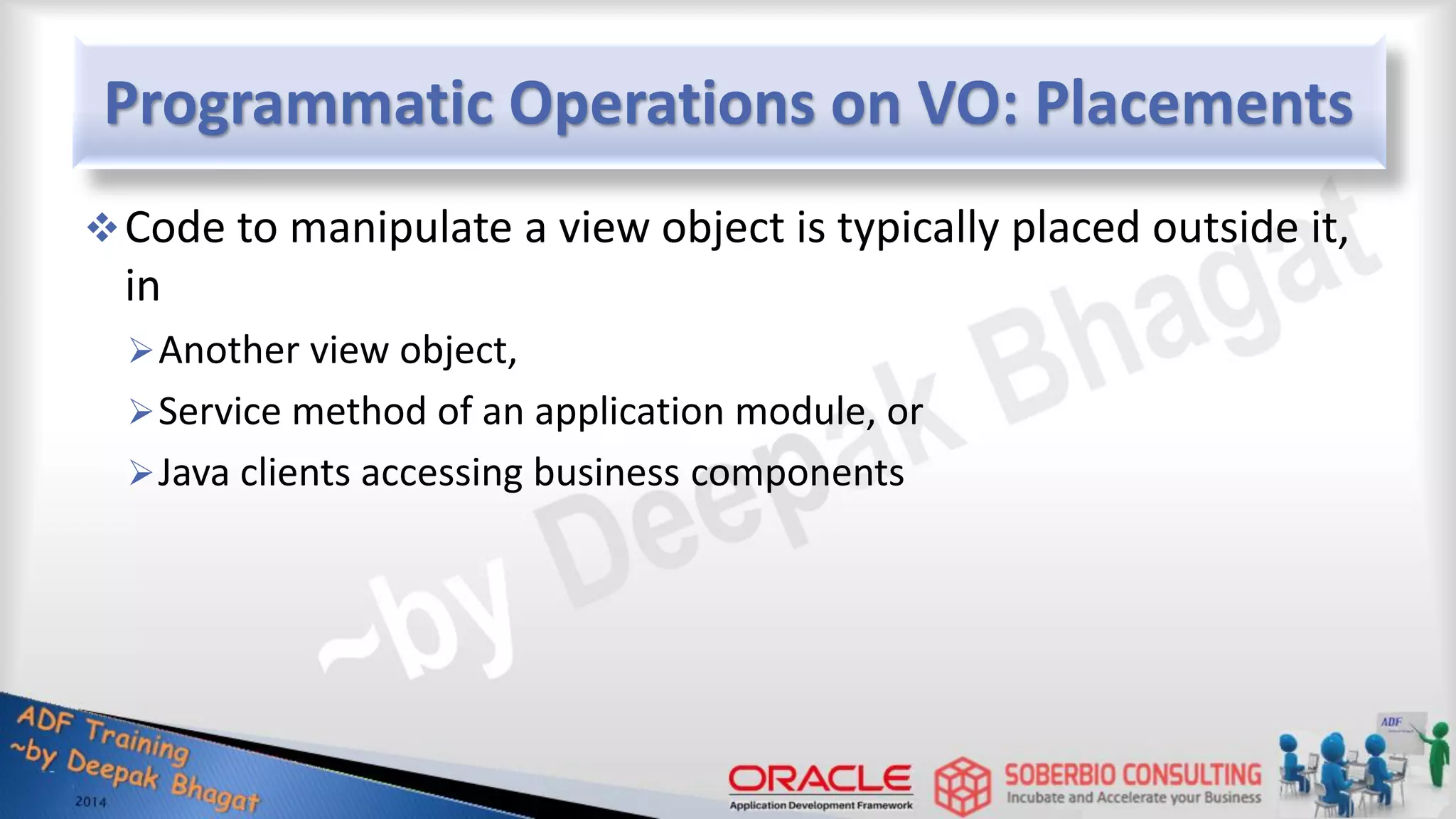

Programmatic Operations on VO: Placements Code to manipulate a view object is typically placed outside it, in Another view object, Service method of an application module, or Java clients accessing business components

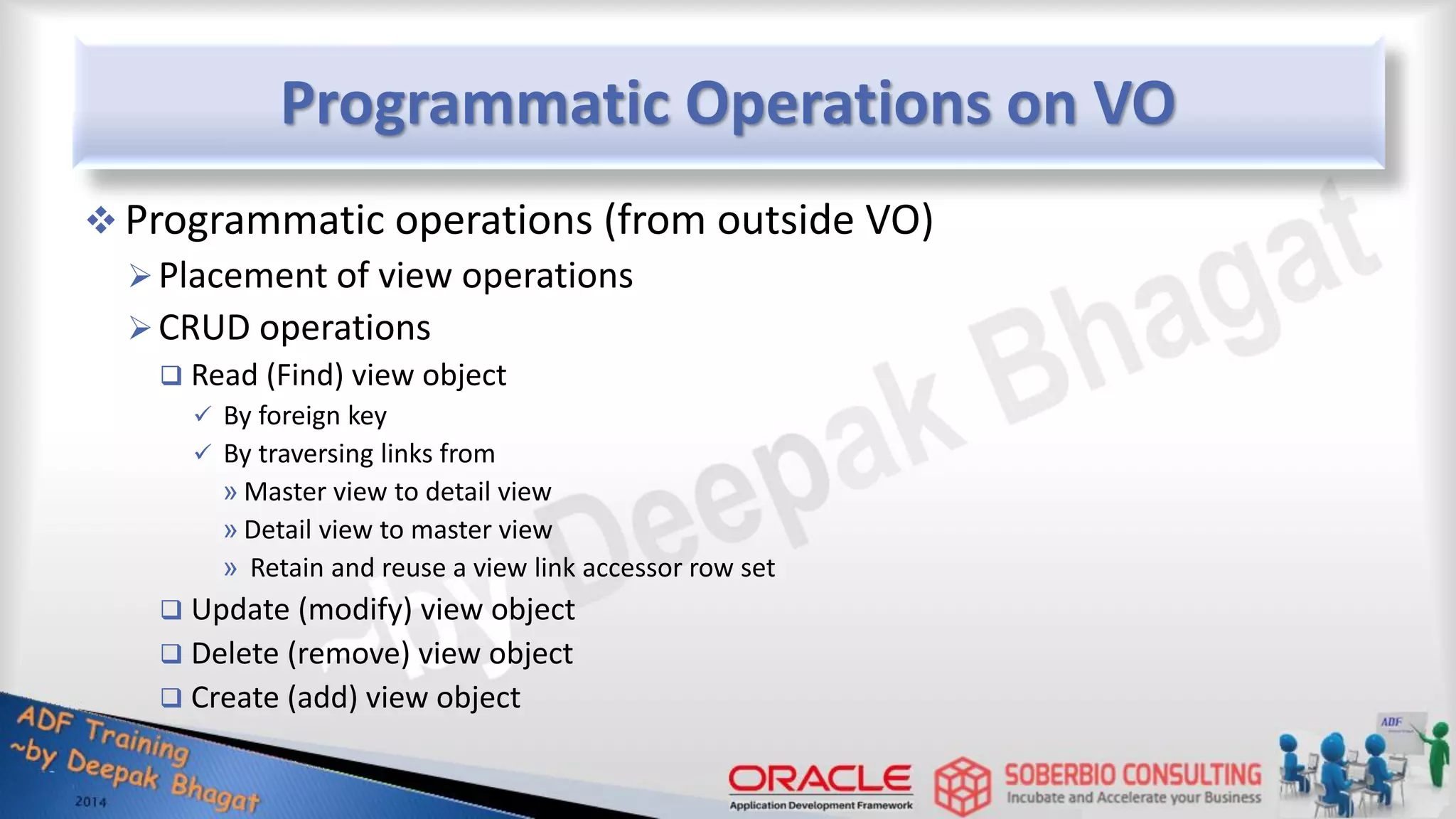

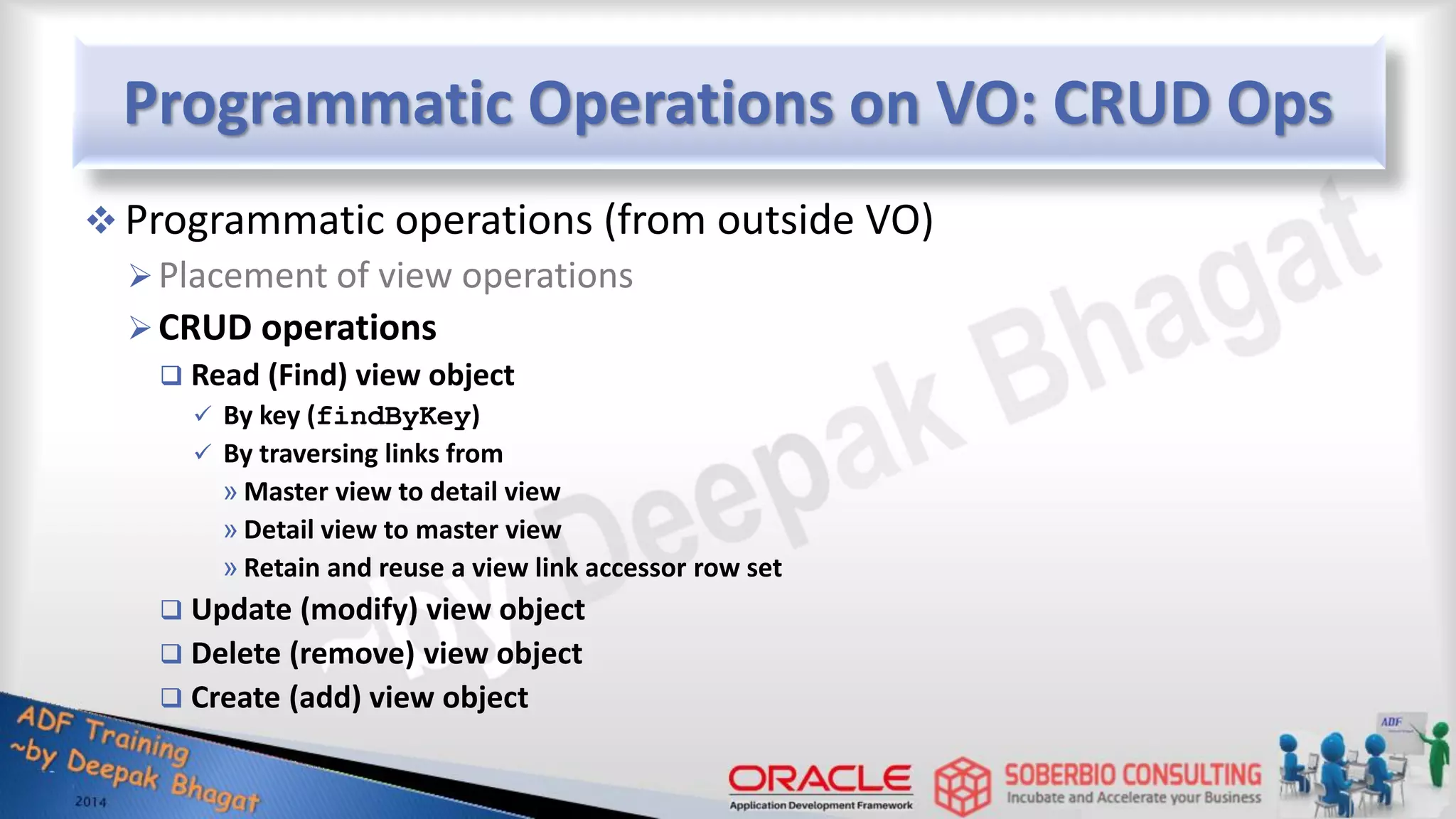

Programmatic Operations on VO: CRUD Ops  Programmatic operations (from outside VO) Placement of view operations CRUD operations  Read (Find) view object  By key (findByKey)  By traversing links from » Master view to detail view » Detail view to master view » Retain and reuse a view link accessor row set  Update (modify) view object  Delete (remove) view object  Create (add) view object

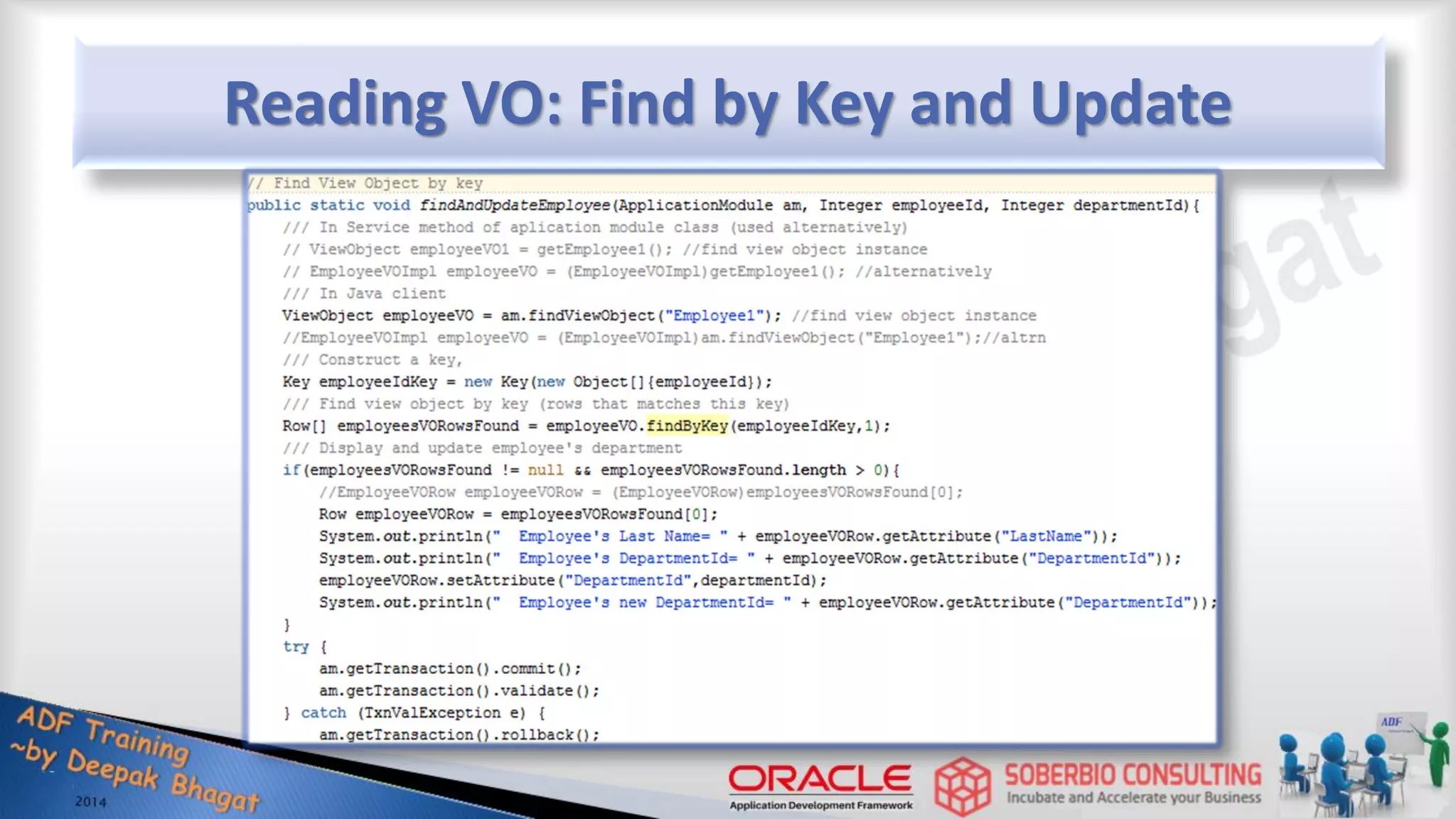

Reading VO: Find by Key and Update

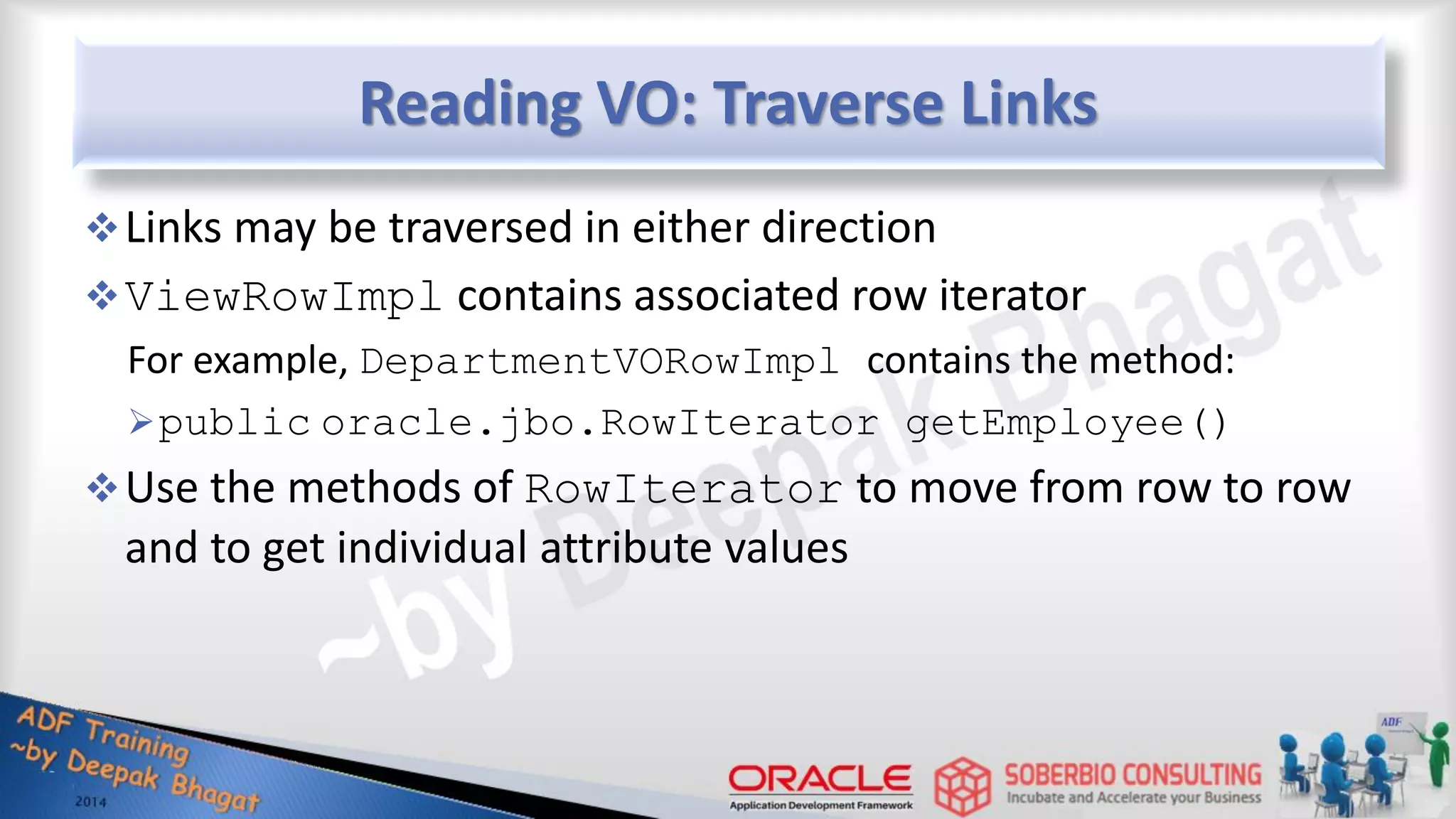

Reading VO: Traverse Links Links may be traversed in either direction ViewRowImpl contains associated row iterator For example, DepartmentVORowImpl contains the method: public oracle.jbo.RowIterator getEmployee() Use the methods of RowIterator to move from row to row and to get individual attribute values

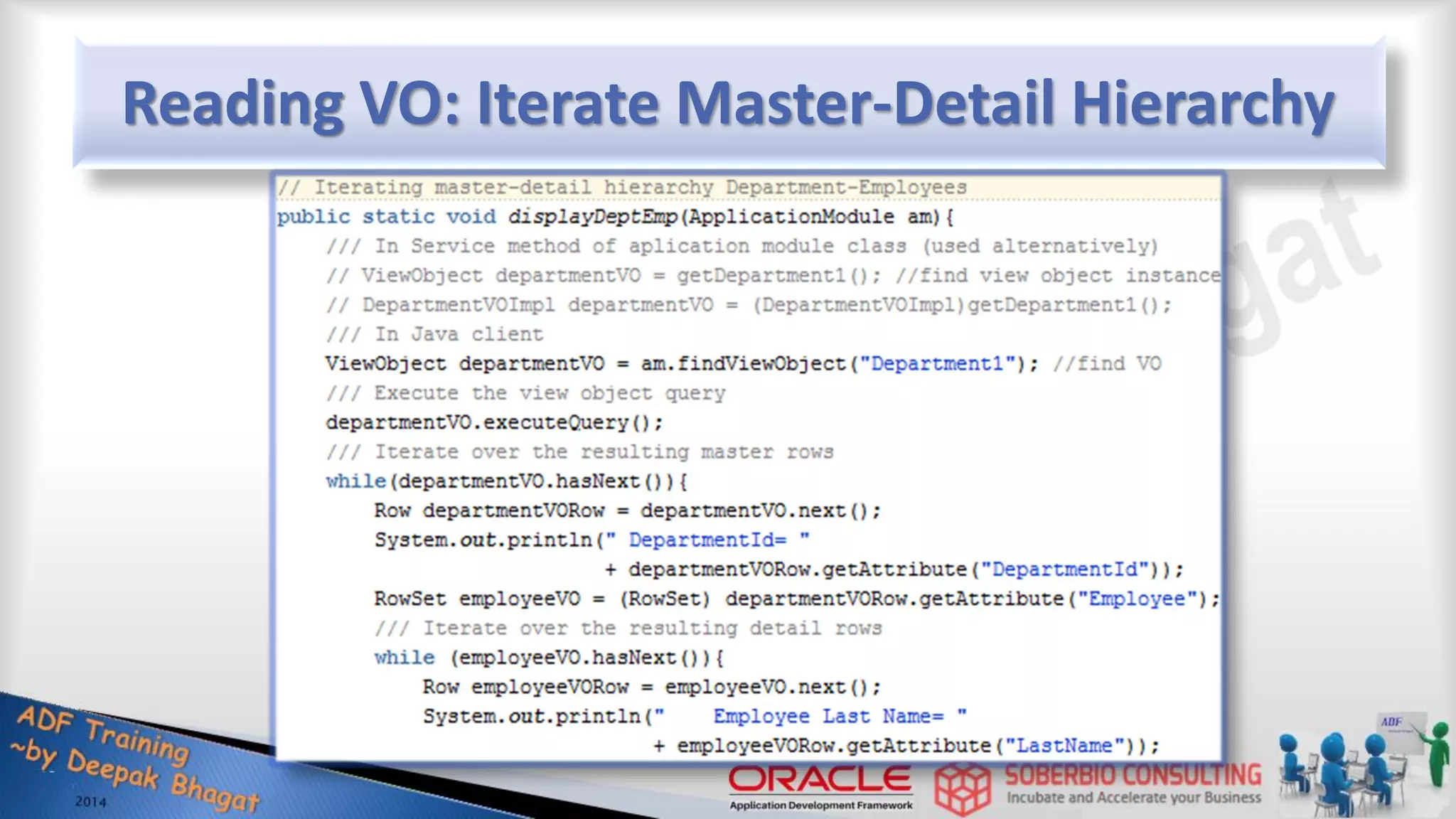

Reading VO: Iterate Master-Detail Hierarchy

Reading VO: Retain and Reuse a View Link Accessor Row Set Generate a Java class for the source view object Override the create() method Add setViewLinkAccessorRetained(true) Call reset() each time you reuse the RowSet object

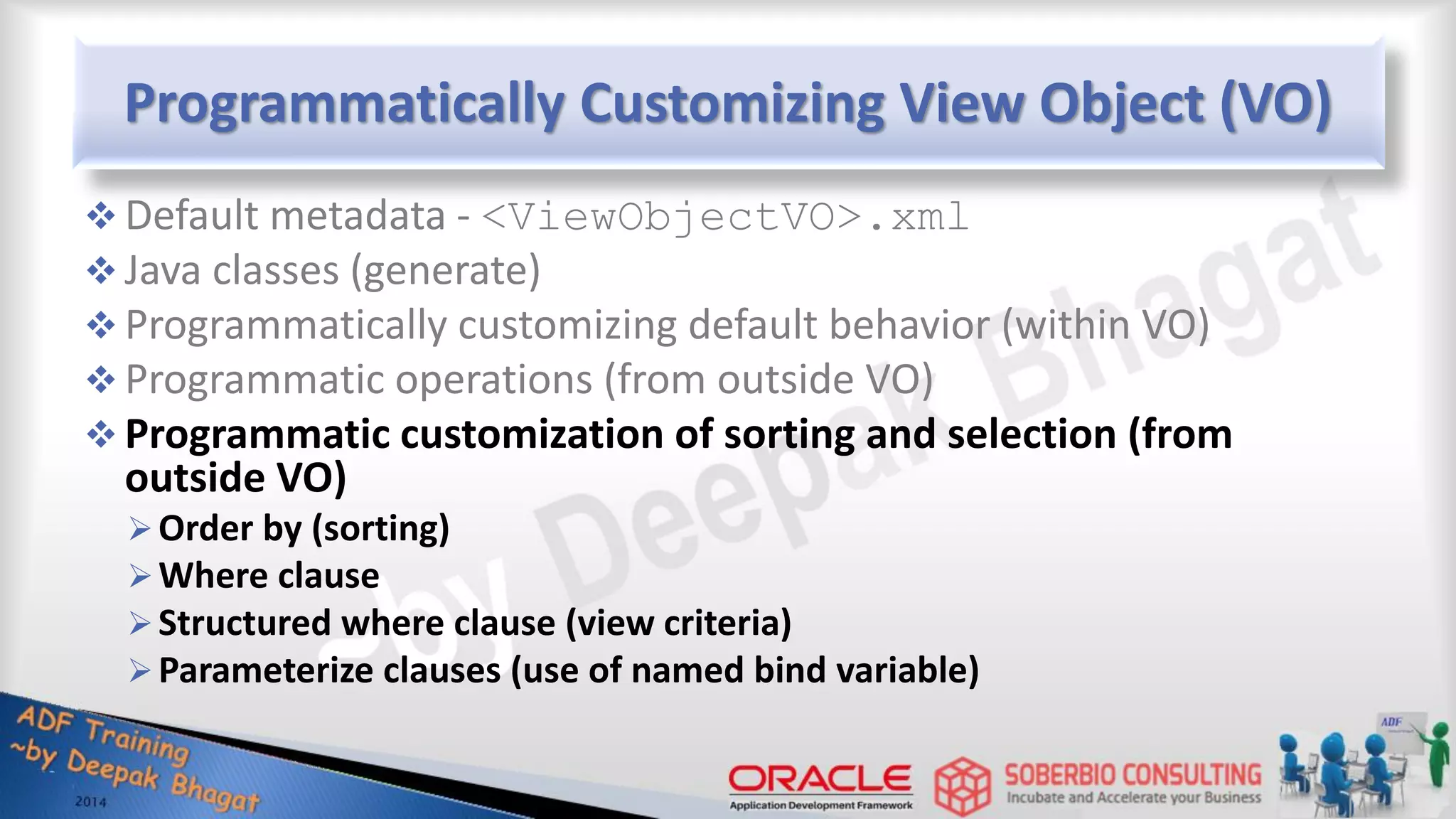

Programmatically Customizing View Object (VO)  Default metadata - <ViewObjectVO>.xml  Java classes (generate)  Programmatically customizing default behavior (within VO)  Programmatic operations (from outside VO)  Programmatic customization of sorting and selection (from outside VO) Order by (sorting) Where clause Structured where clause (view criteria) Parameterize clauses (use of named bind variable)

Programmatic Customization of Sorting and Selection  Programmatic customization of sorting and selection (from outside VO)  Getting handle of view object instance  Default order by (sorting)  Dynamic order by (sorting)  Default where clause  Dynamic where clause  Default structured where clause (view criteria)  Dynamic structured where clause (view criteria)  Default Parameterize clause (use of named bind variable)  Dynamic Parameterize clause (use of named bind variable)  Execute view object query  Using query results

Programmatic Customization of Sorting and Selection cont.…  Getting handle of view object instance  get<ViewObject> - Inside service method of AM  findViewObject() - In Java client  Example:  ViewObject vo = getLocation1(); // Inside service method of AM  ViewObject vo = am.findViewObject(“Location1”) // In Java client  Default order by (sorting)  Programmatic execution of view object query (shown later), with order by clause executes the default order by  Dynamic order by (sorting)  setOrderBy() overrides or sets order by on VO query at runtime  Example: vo.setOrderBy(“CITY”);

Programmatic Customization of Sorting and Selection cont.…  Default where clause  Programmatic execution of view object query (shown later), with where clause, executes the default where clause  Dynamic where clause  setWhereClause() is used to set where clause dynamically at runtime  Example: vo.setWhereClause(“POSTAL_CODE like ‘733%’");  Default structured where clause (view criteria)  First get the view criteria manager using getViewCriteriaManager()  Next get the view criteria from it’s manager using getViewCriteria()  Next apply it to the view object using applyViewCriteria()  Example:  ViewCriteriaManager vcmanager = vo.getViewCriteriaManager();  ViewCriteria vc = vcmanager.getViewCriteria("LocationVOCriteria");  vo.applyViewCriteria(vc);

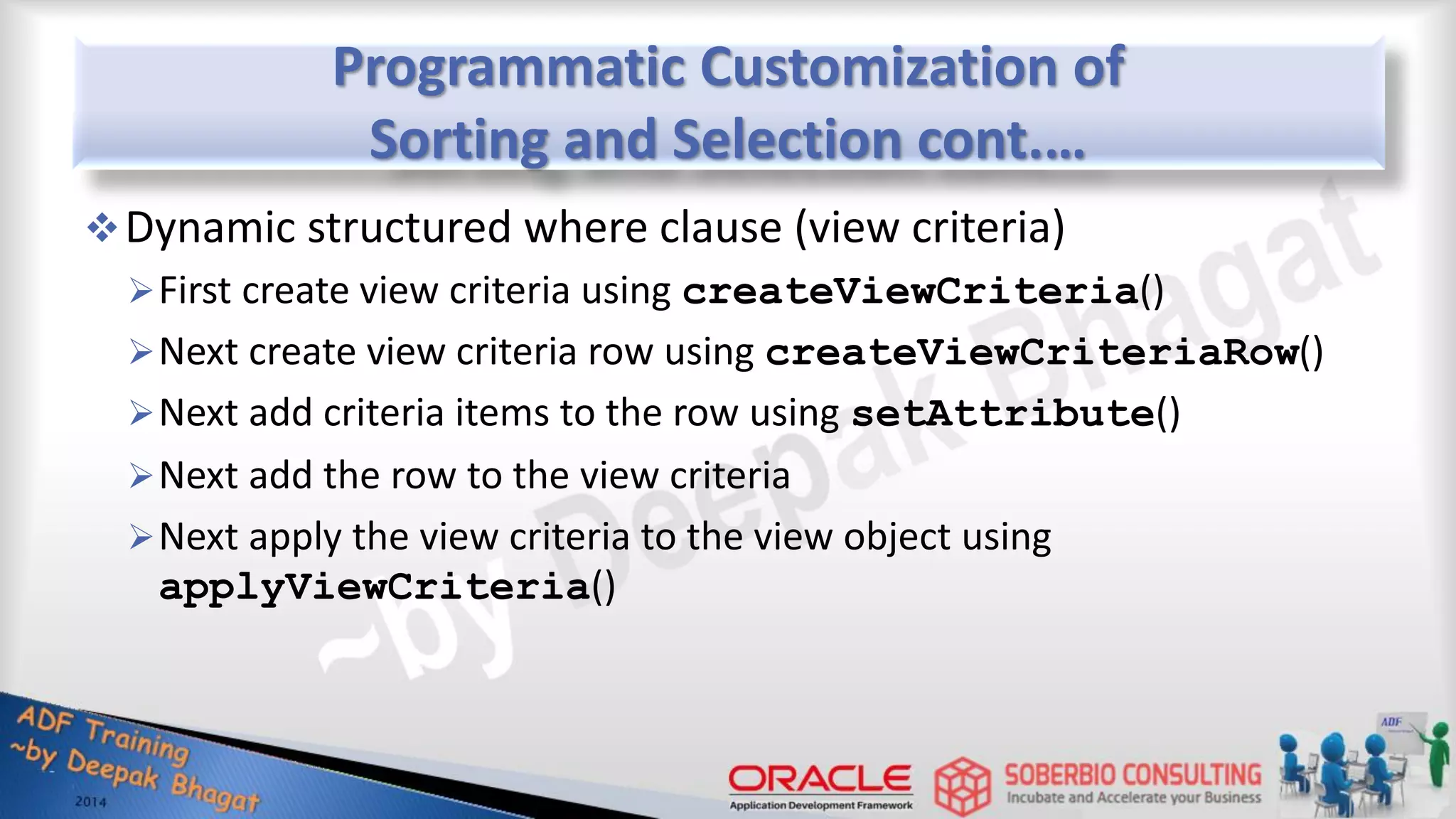

Programmatic Customization of Sorting and Selection cont.… Dynamic structured where clause (view criteria) First create view criteria using createViewCriteria() Next create view criteria row using createViewCriteriaRow() Next add criteria items to the row using setAttribute() Next add the row to the view criteria Next apply the view criteria to the view object using applyViewCriteria()

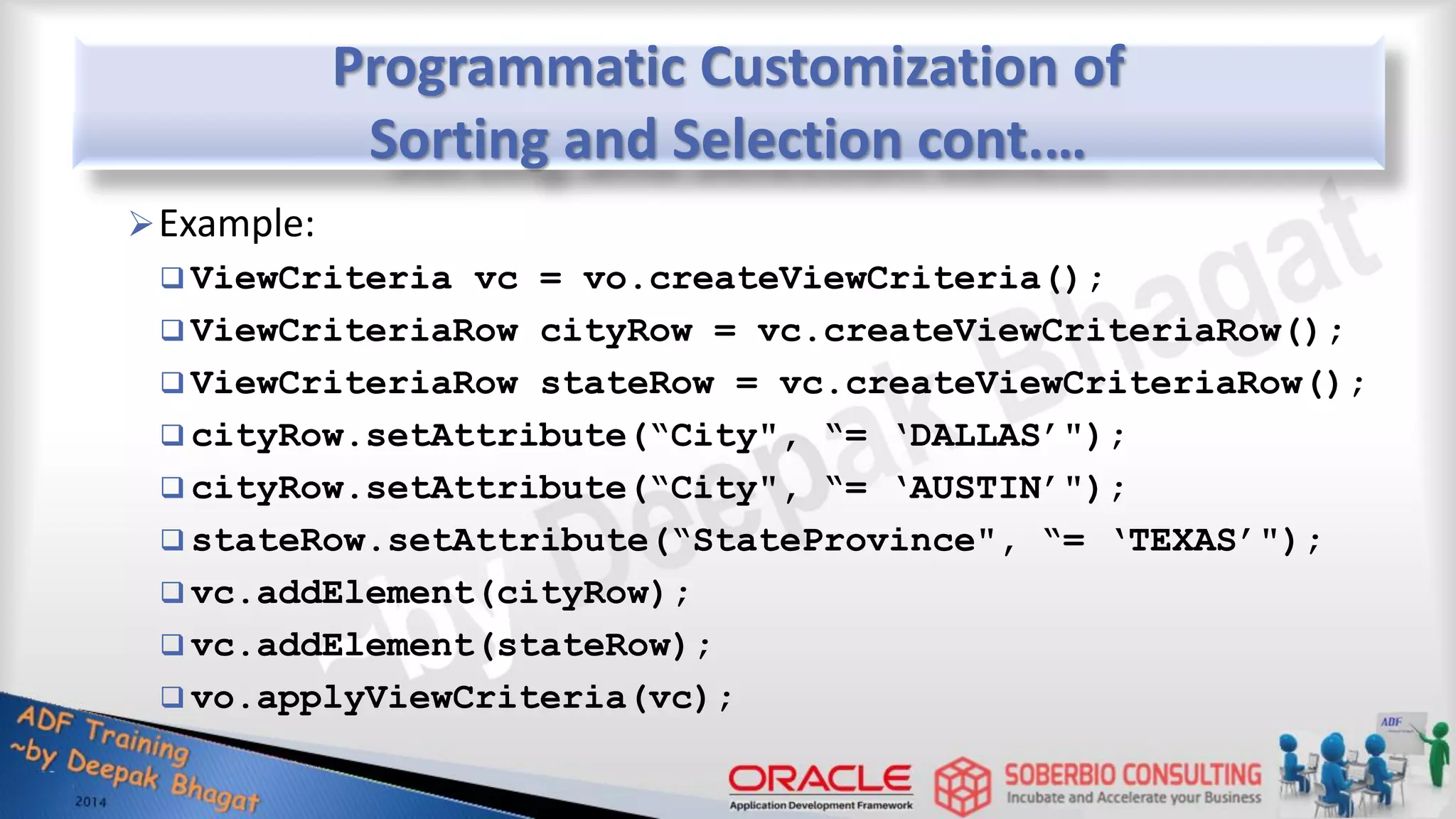

Programmatic Customization of Sorting and Selection cont.… Example:  ViewCriteria vc = vo.createViewCriteria();  ViewCriteriaRow cityRow = vc.createViewCriteriaRow();  ViewCriteriaRow stateRow = vc.createViewCriteriaRow();  cityRow.setAttribute(“City", “= ‘DALLAS’");  cityRow.setAttribute(“City", “= ‘AUSTIN’");  stateRow.setAttribute(“StateProvince", “= ‘TEXAS’");  vc.addElement(cityRow);  vc.addElement(stateRow);  vo.applyViewCriteria(vc);

TIP: Architecture of View Criteria

Programmatic Customization of Sorting and Selection cont.…  Default Parameterize clause (use of named bind variable) setNamedWhereClauseParam() is used to assign values at run time to named bind variables of parameterized where clause and view criteria Example: vo.setNamedWhereClauseParam("p_manager_id", “103”)  Dynamic Parameterize clause (use of named bind variable) defineNamedWhereClauseParam() is used to add at run time to named bind variables of dynamic where clause and dynamic view criteria with bind variables Example:  vo.setWhereClause(“COUNTRY_ID = :p_countryId");  vo.defineNamedWhereClauseParam(“p_countryId", null, null);  vo.setNamedWhereClauseParam(“p_countryId", “US”);

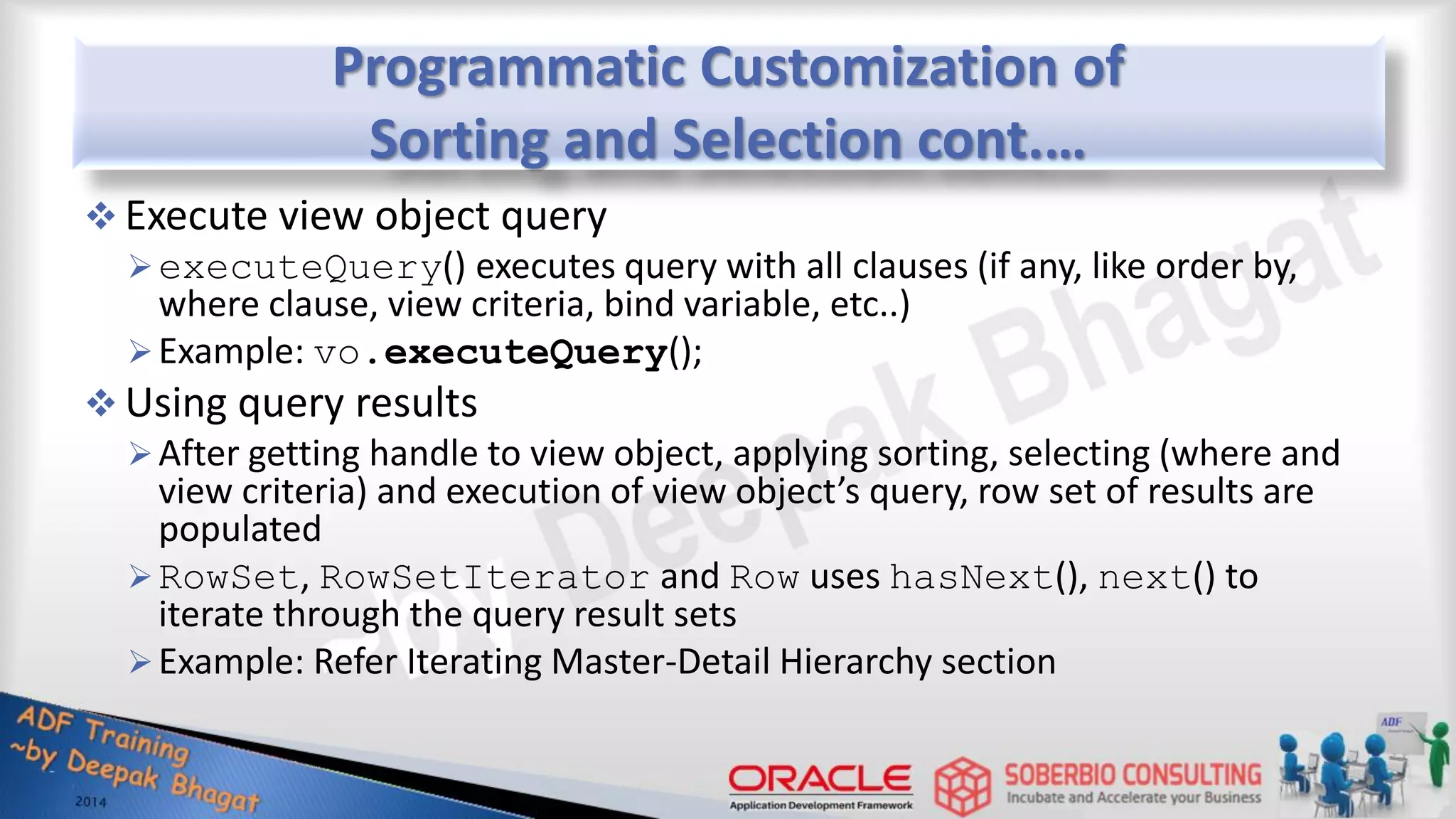

Programmatic Customization of Sorting and Selection cont.…  Execute view object query executeQuery() executes query with all clauses (if any, like order by, where clause, view criteria, bind variable, etc..) Example: vo.executeQuery();  Using query results After getting handle to view object, applying sorting, selecting (where and view criteria) and execution of view object’s query, row set of results are populated RowSet, RowSetIterator and Row uses hasNext(), next() to iterate through the query result sets Example: Refer Iterating Master-Detail Hierarchy section

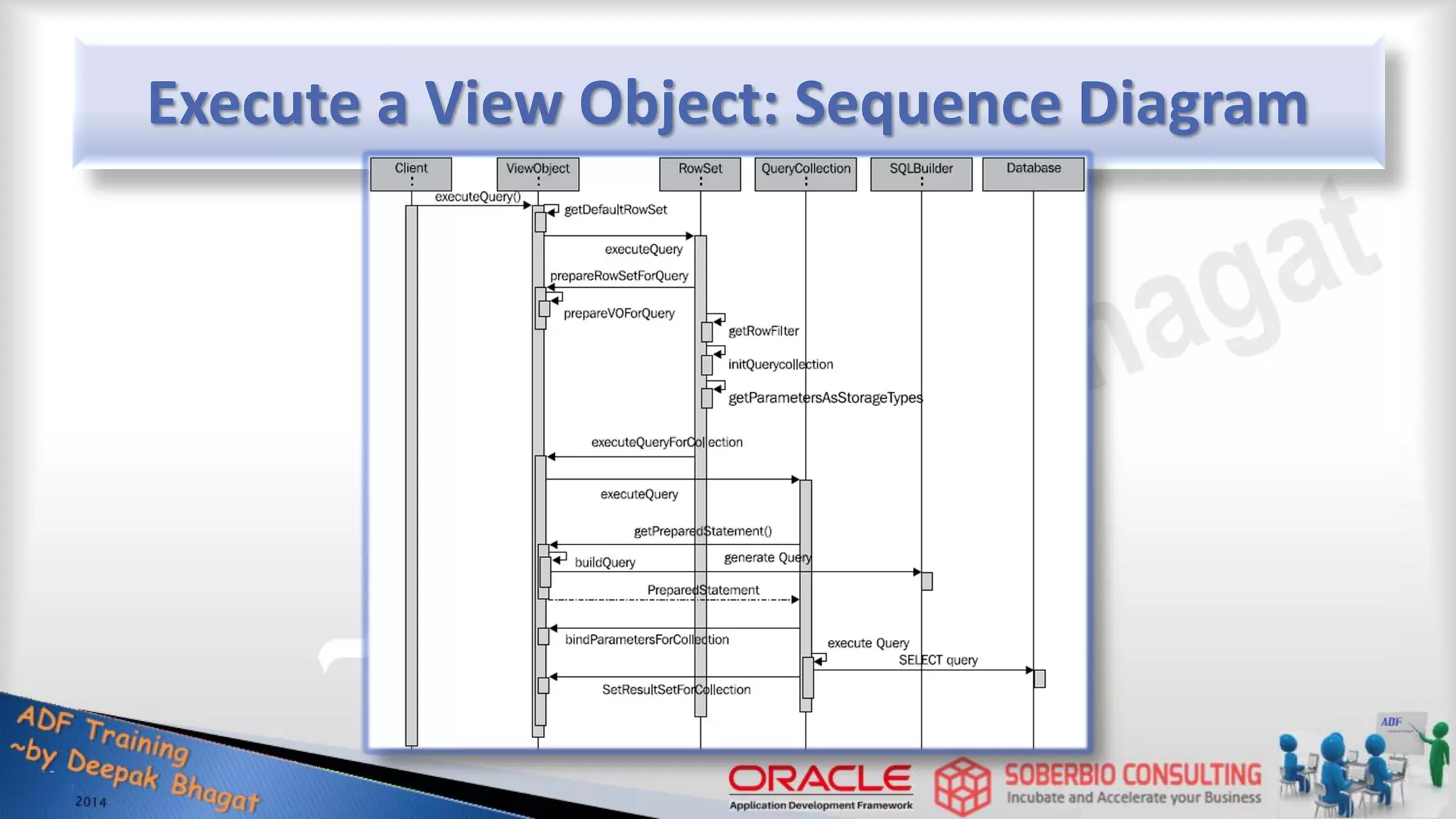

Execute a View Object: Sequence Diagram

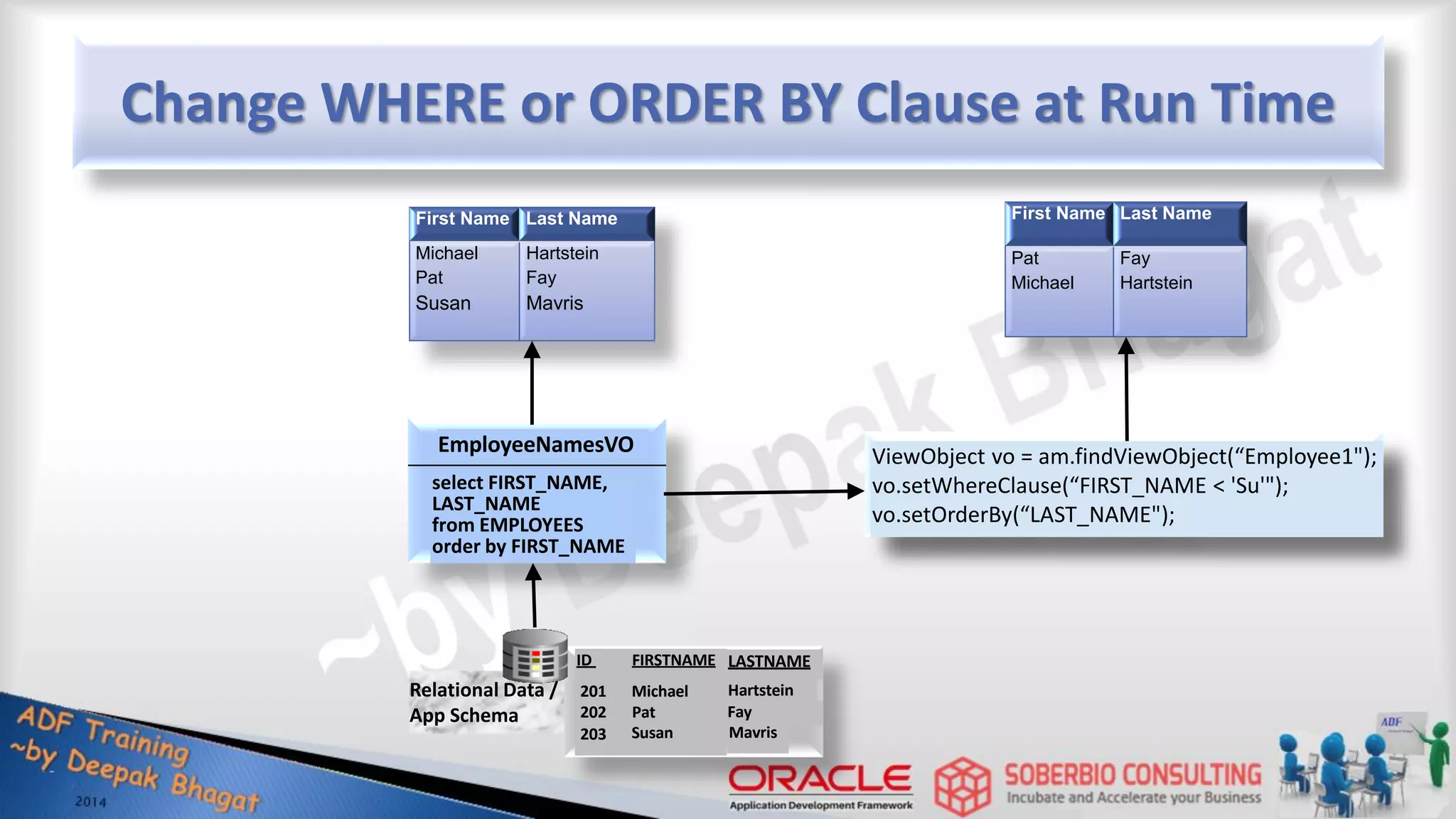

Change WHERE or ORDER BY Clause at Run Time ID FIRSTNAME 201 Michael 202 Pat 203 Susan LASTNAME Hartstein select FIRST_NAME, LAST_NAME from EMPLOYEES order by FIRST_NAME ViewObject vo = am.findViewObject(“Employee1"); vo.setWhereClause(“FIRST_NAME < 'Su'"); vo.setOrderBy(“LAST_NAME"); Mavris First Name Last Name Michael Pat Susan Hartstein Fay Mavris First Name Last Name Pat Michael Fay Hartstein EmployeeNamesVO Relational Data / App Schema Fay

Types of Programmatic Customization: Application Module Use ADF Business Component APIs Programmatically customize entity object (EO) Programmatically customize view object (VO) Programmatically customize application module (AM) Programmatically accessing business component objects from Java client

Programmatically Customizing AM  Default metadata <AppModuleAM>.xml bc4j.xcfg  Java classes (generate)  API  Service Methods Add Implement  EO and AS  VO and VL Publish Test (using ADF Model Tester)  Transactions Access transaction Commit transaction  Post Phase  Commit Phase Locking  Configuration Properties

Programmatically Customizing AM: Default Metadata  Default metadata <AppModuleAM>.xml bc4j.xcfg  Java classes (generate)  Service Methods Add Implement  EO and AS  VO and VL Publish Test (using ADF Model Tester)  API  Transactions Access transaction Commit transaction  Post Phase  Commit Phase Locking  Configuration Properties

Programmatically Customizing AM: Default Metadata Default metadata <AppModuleAM>.xml  Includes detailed metadata about the view objects included bc4j.xcfg

Programmatically Customizing AM: Default Metadata Default metadata <AppModuleAM>.xml bc4j.xcfg:  Contains all the configuration and connection details

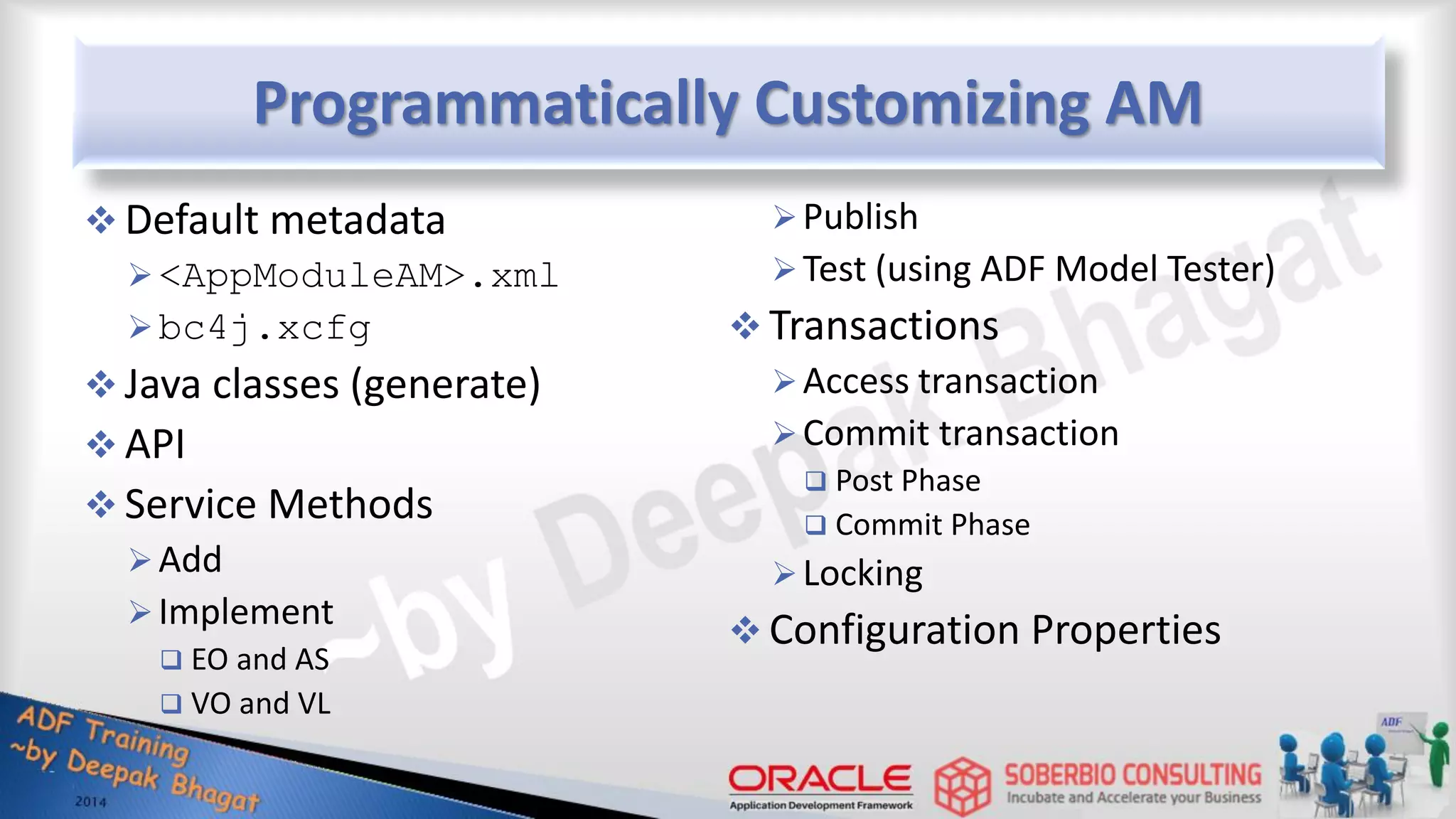

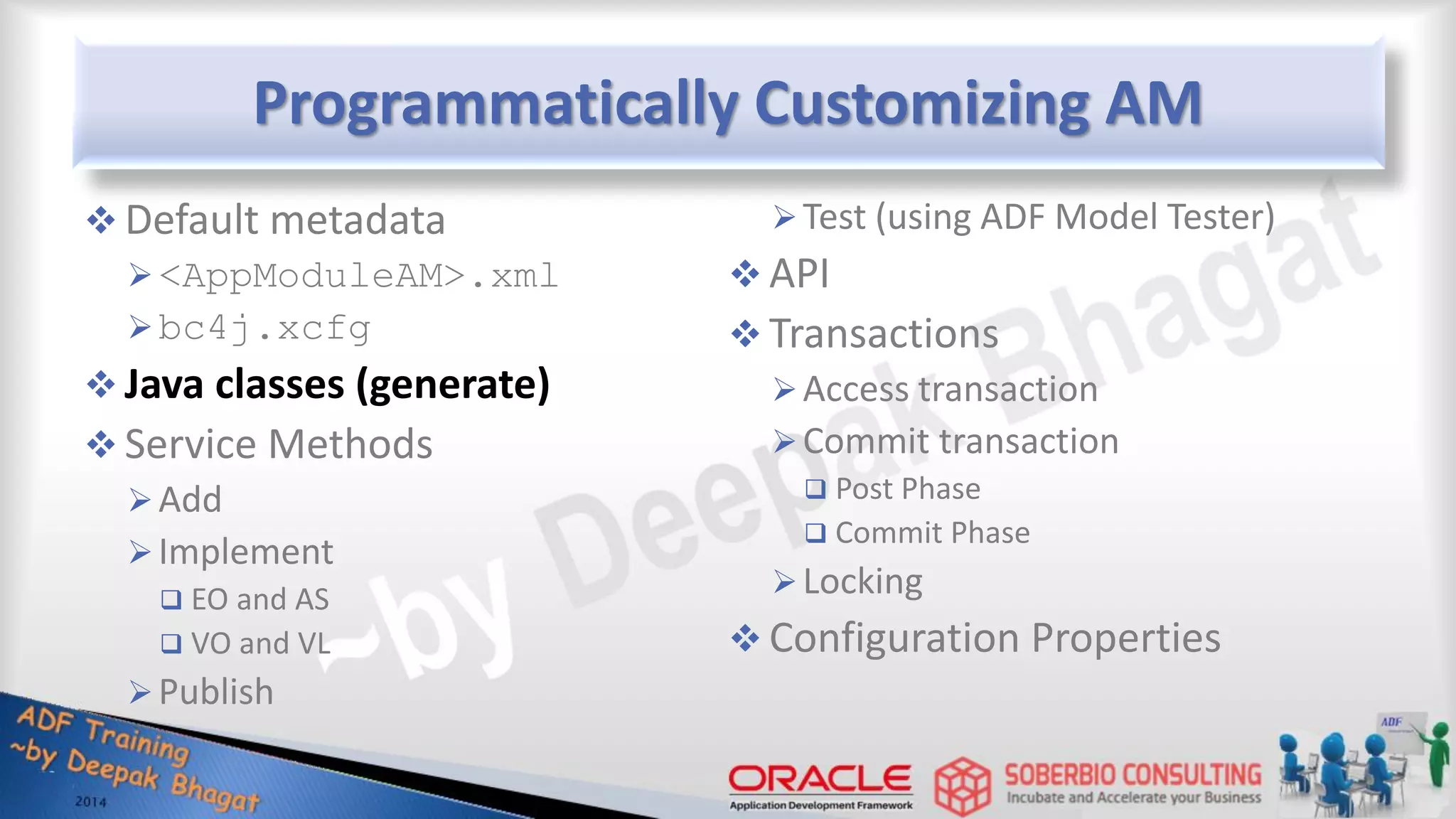

Programmatically Customizing AM  Default metadata <AppModuleAM>.xml bc4j.xcfg  Java classes (generate)  Service Methods Add Implement  EO and AS  VO and VL Publish Test (using ADF Model Tester)  API  Transactions Access transaction Commit transaction  Post Phase  Commit Phase Locking  Configuration Properties

Generate Application Module Java Classes To generate a Java class: On the business component editor’s Java page, click Edit Select the classes to generate

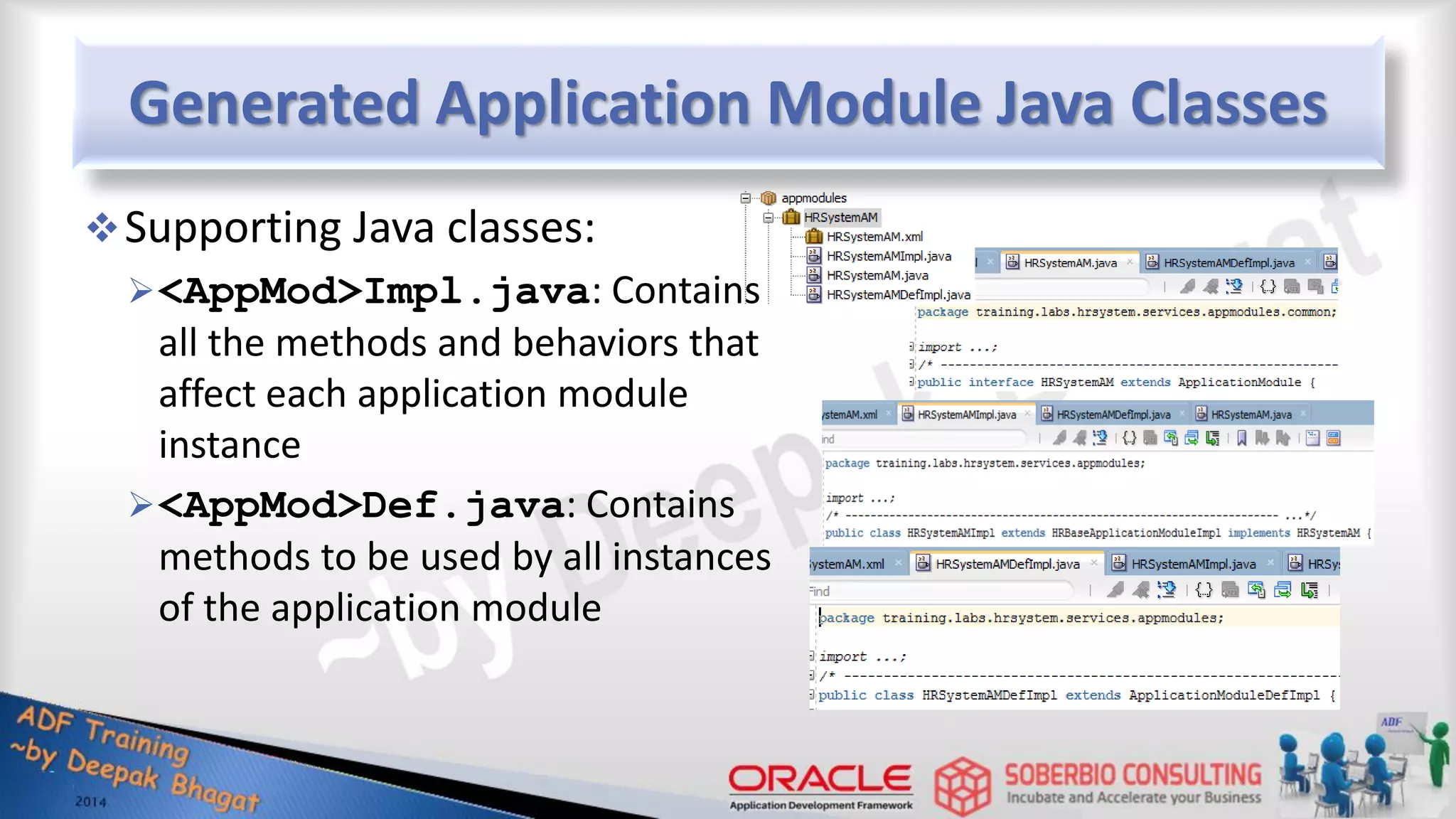

Generated Application Module Java Classes Supporting Java classes: <AppMod>Impl.java: Contains all the methods and behaviors that affect each application module instance <AppMod>Def.java: Contains methods to be used by all instances of the application module

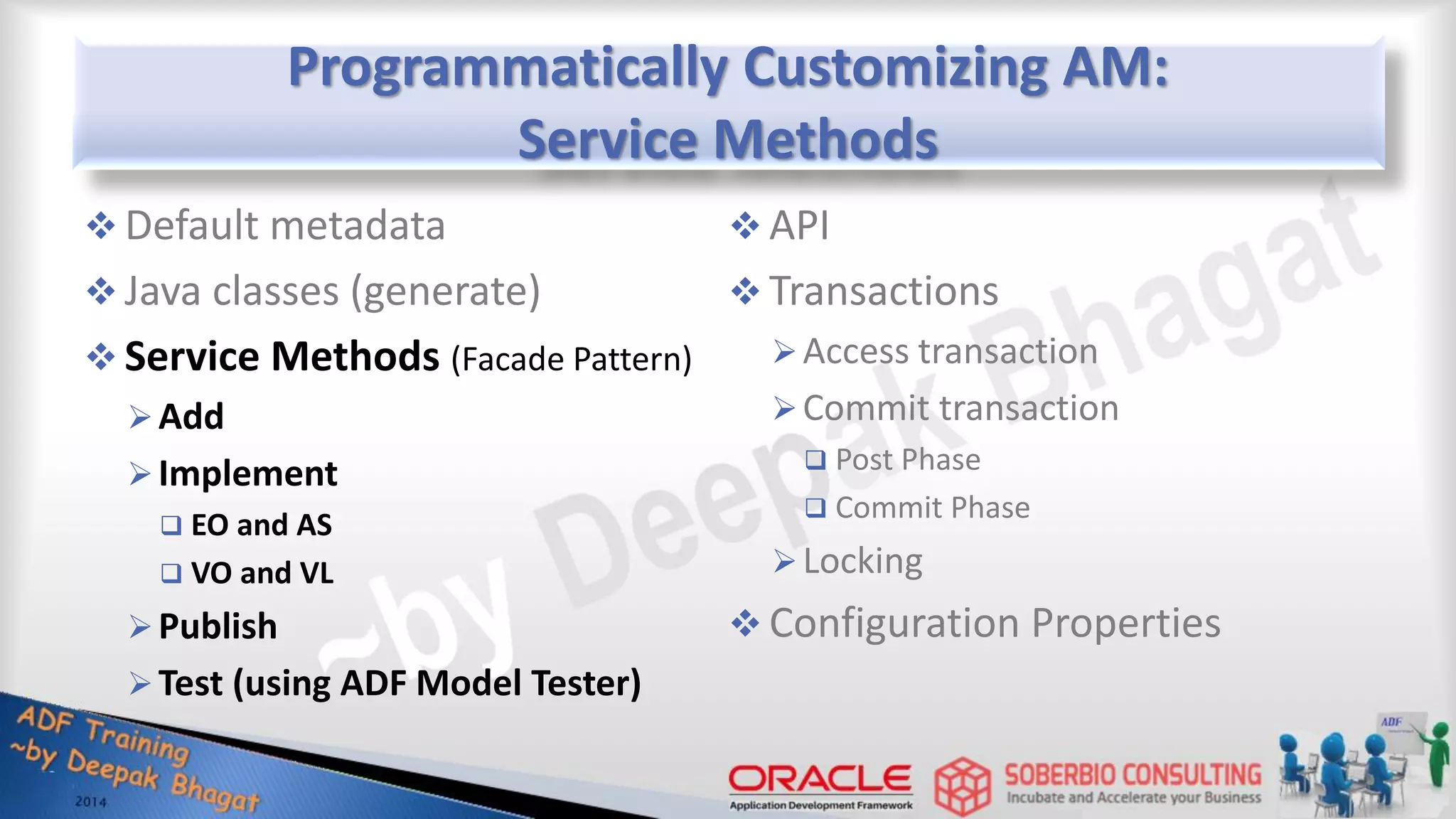

Programmatically Customizing AM: Service Methods  Default metadata  Java classes (generate)  Service Methods (Facade Pattern) Add Implement  EO and AS  VO and VL Publish Test (using ADF Model Tester)  API  Transactions Access transaction Commit transaction  Post Phase  Commit Phase Locking  Configuration Properties

Adding Service Methods to an Application Module Service methods: Are useful for:  Code that is not dependent on a specific view  Performing operations across view object instances  Managing transactions  Dynamically changing the data model Can be called from the client, requiring very little data manipulation in the client itself Are implemented in the application module’s class Are added by:  Adding code to the Java class  Publishing to the client interface

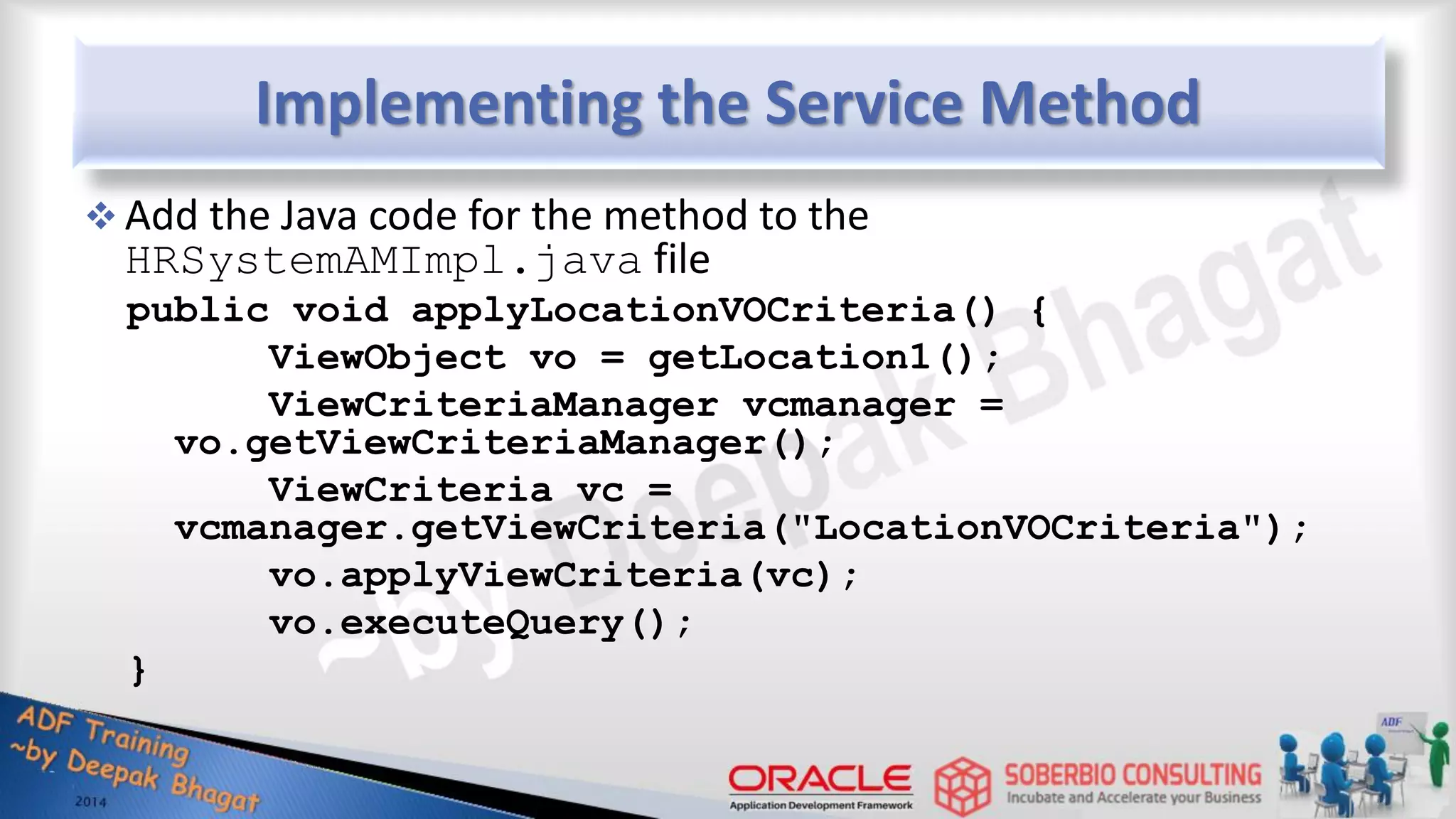

Implementing the Service Method  Add the Java code for the method to the HRSystemAMImpl.java file public void applyLocationVOCriteria() { ViewObject vo = getLocation1(); ViewCriteriaManager vcmanager = vo.getViewCriteriaManager(); ViewCriteria vc = vcmanager.getViewCriteria("LocationVOCriteria"); vo.applyViewCriteria(vc); vo.executeQuery(); }

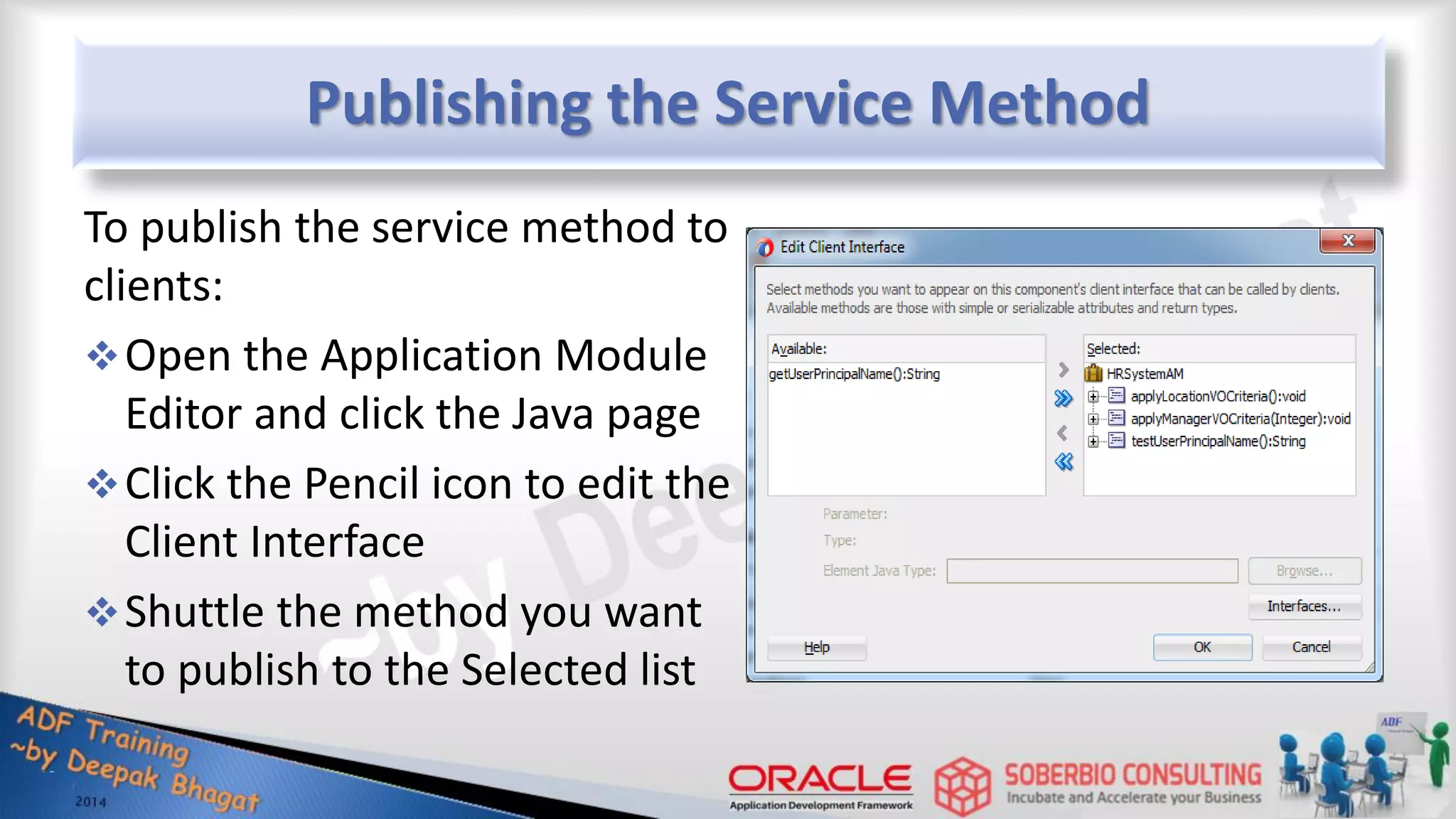

Publishing the Service Method To publish the service method to clients: Open the Application Module Editor and click the Java page Click the Pencil icon to edit the Client Interface Shuttle the method you want to publish to the Selected list

Test Services using ADF Model Tester Show the AM Select the method. Set Parameter values Click Execute Observe results

Programmatically Customizing AM: API Default metadata Java classes (generate) Service Methods Add Implement  EO and AS  VO and VL Publish Test (using ADF Model Tester) API Transactions Access transaction Commit transaction  Post Phase  Commit Phase Locking Configuration Properties

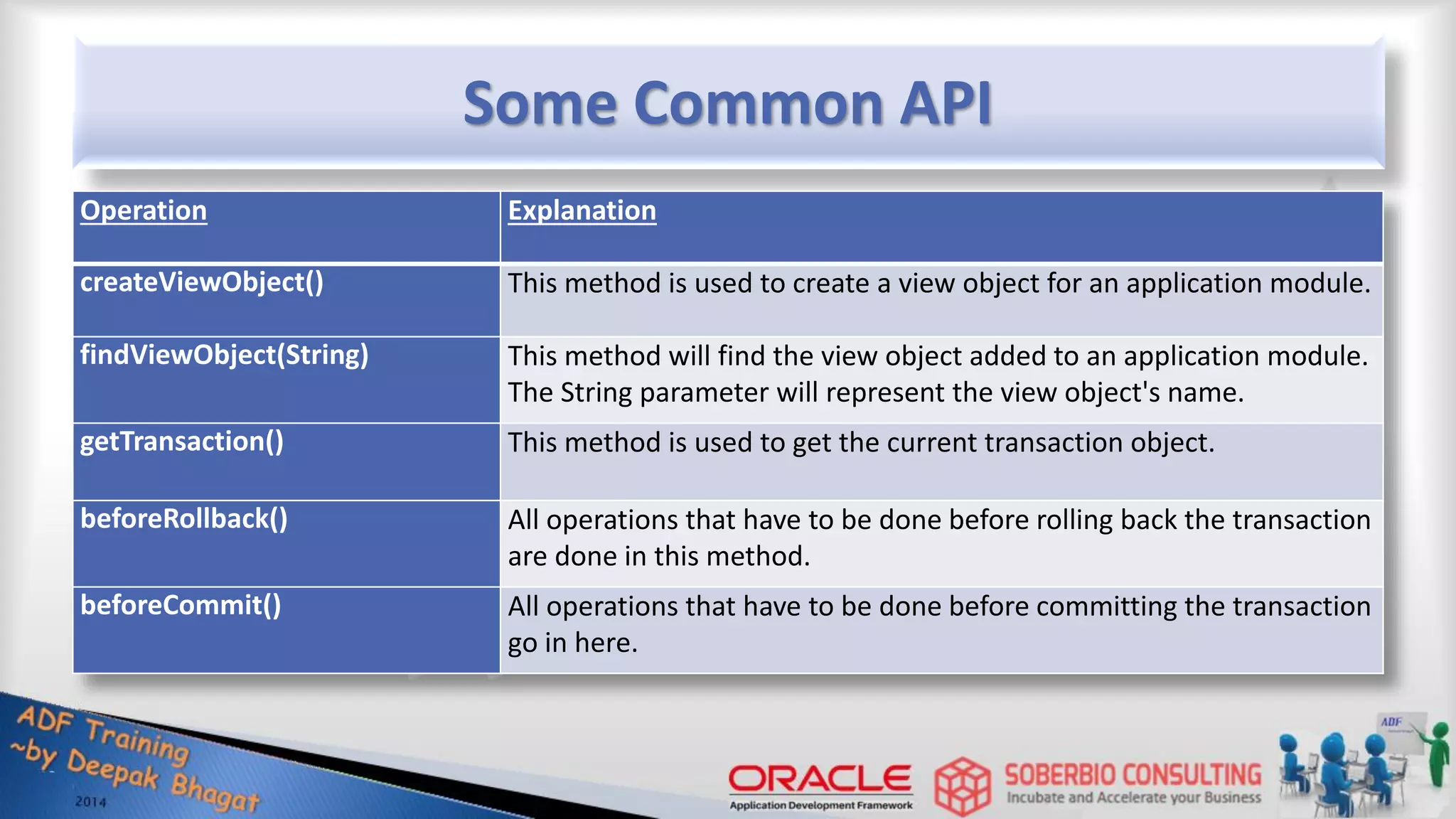

Some Common API Operation Explanation createViewObject() This method is used to create a view object for an application module. findViewObject(String) This method will find the view object added to an application module. The String parameter will represent the view object's name. getTransaction() This method is used to get the current transaction object. beforeRollback() All operations that have to be done before rolling back the transaction are done in this method. beforeCommit() All operations that have to be done before committing the transaction go in here.

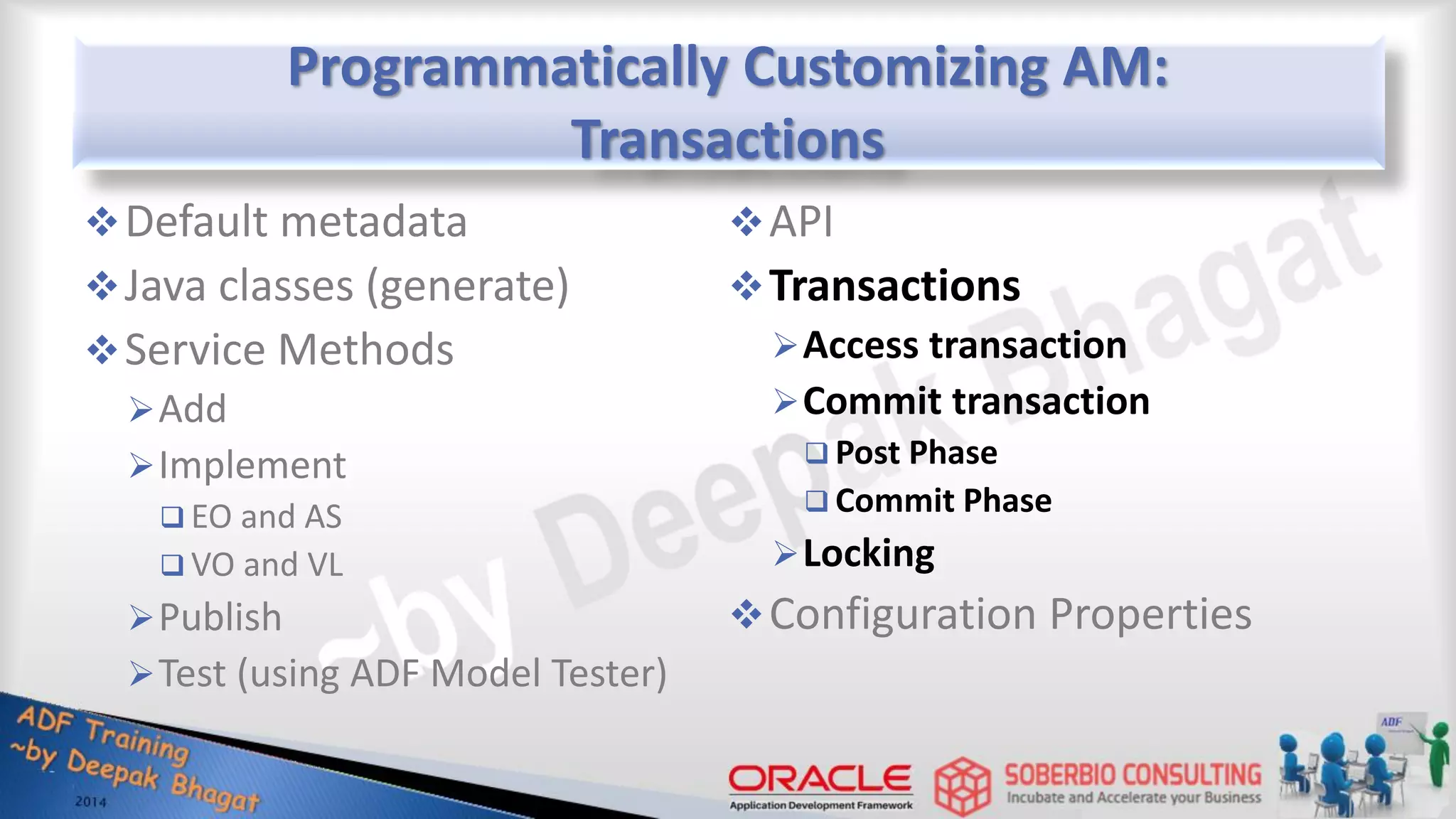

Programmatically Customizing AM: Transactions Default metadata Java classes (generate) Service Methods Add Implement  EO and AS  VO and VL Publish Test (using ADF Model Tester) API Transactions Access transaction Commit transaction  Post Phase  Commit Phase Locking Configuration Properties

Accessing Transaction  Transaction and DBTransaction are interfaces that define database transactions  Use the methods in these interfaces to access an application module’s transaction  Example: // In service method  getDBTransaction().commit(); // Commit the transaction // In Java client  ApplicationModuleImpl am;  am.getTransaction().commit(); // Commit the transaction

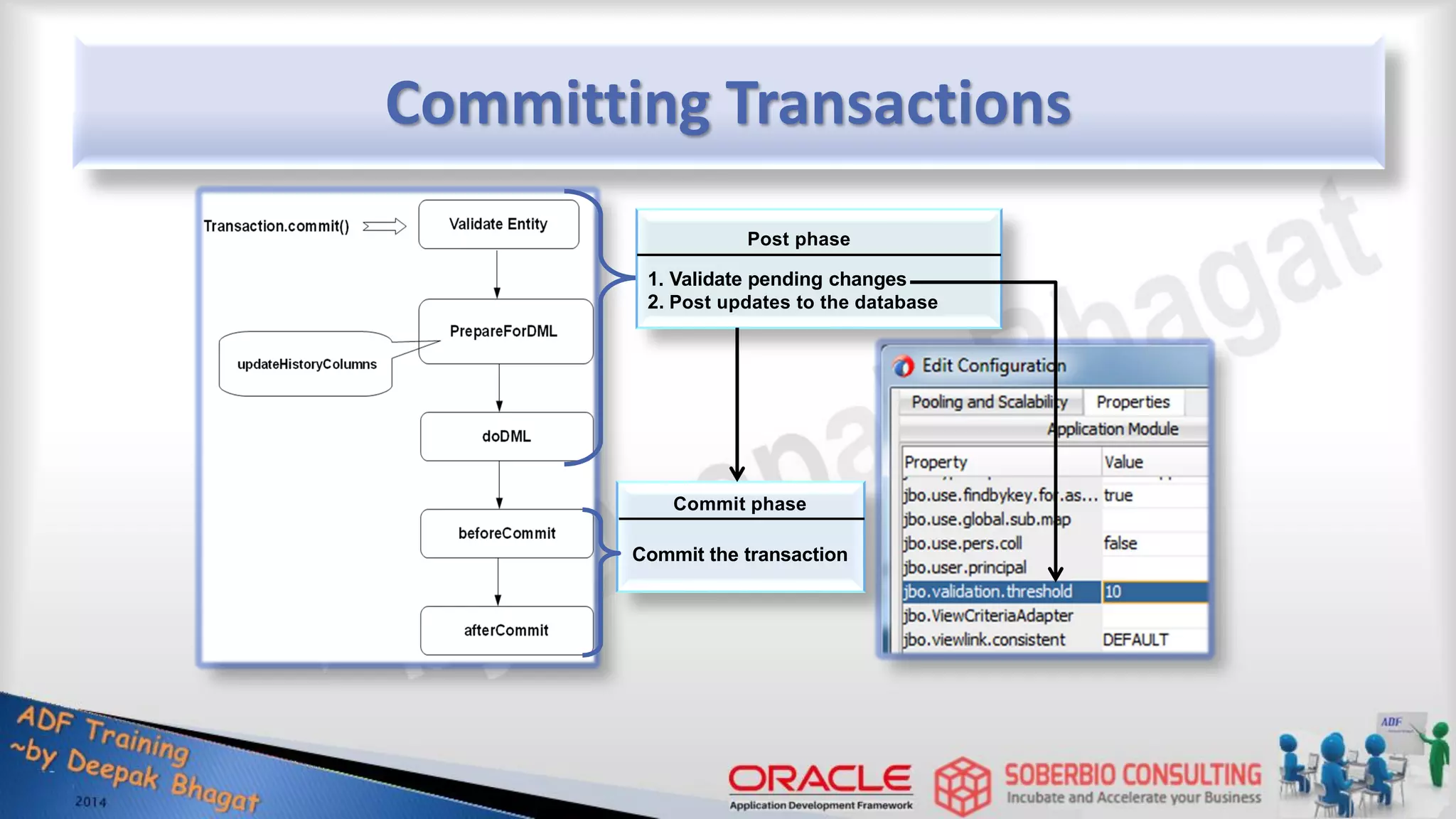

Committing Transactions Post phase 1. Validate pending changes 2. Post updates to the database Commit phase Commit the transaction

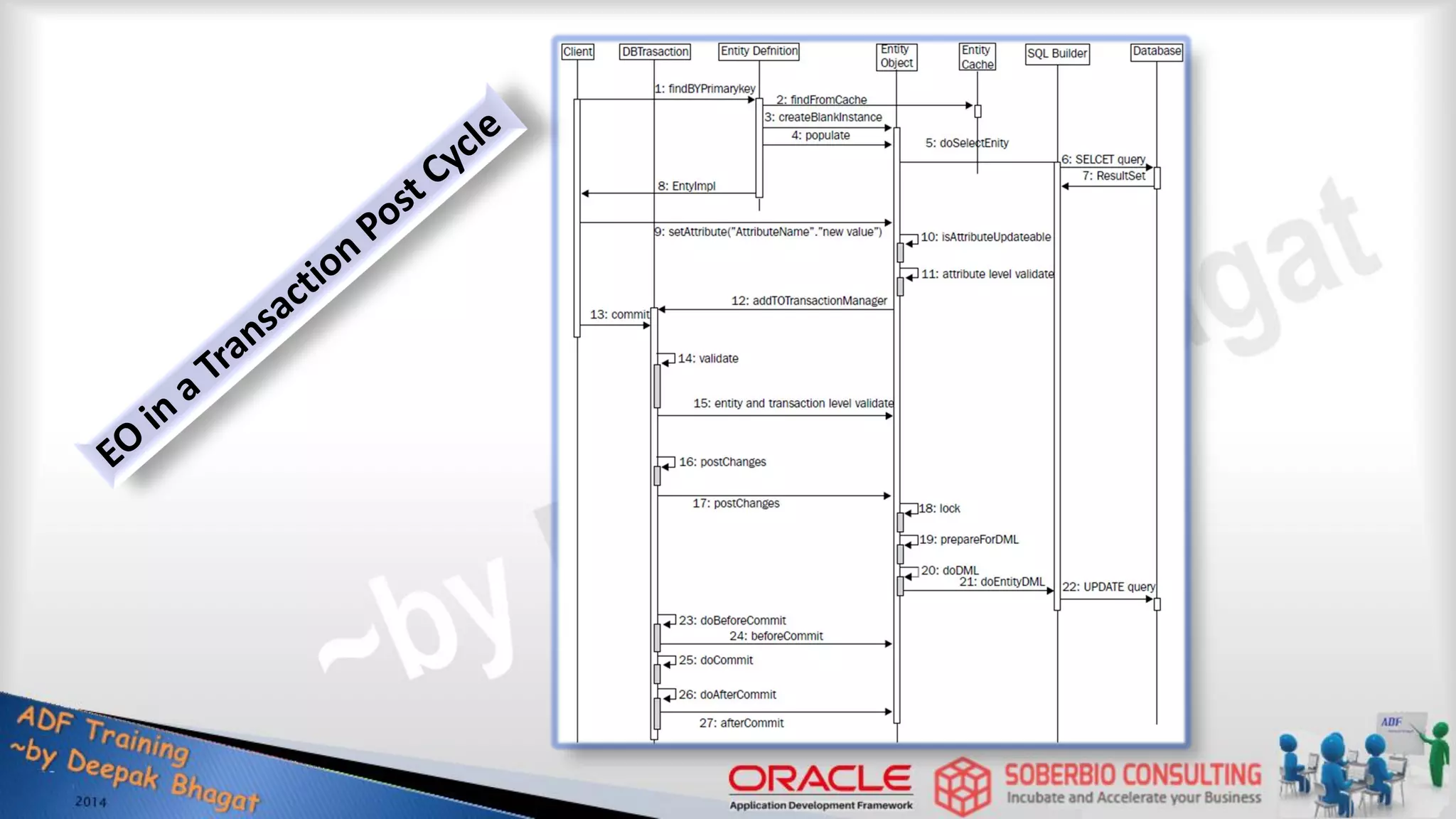

Committing Transaction: Sequence Diagram

Customizing the Post Phase  Override the entity object’s postChanges() method  Example: For a deleted entity, mark the database row instead of deleting the data public void postChanges(TransactionEvent e) { if (getPostState() == Entity.STATUS_DELETED) { // Custom code to mark database rows, such as // by updating a Deleted flag in the record } else { super.postChanges(e); } }

Customizing the Commit Phase  Implement a TransactionListener  Implement beforeCommit() and afterCommit()  Add your listener to the transaction’s list of event subscribers  Alternatively, override the entity object’s beforeCommit() or afterCommit() methods  Example:  In EmployeeEOImpl, print notification that record is committed: @Override public void afterCommit(TransactionEvent transactionEvent) { System.out.println("Record committed for " + getFirstName() + " " + getLastName()); super.afterCommit(transactionEvent); }

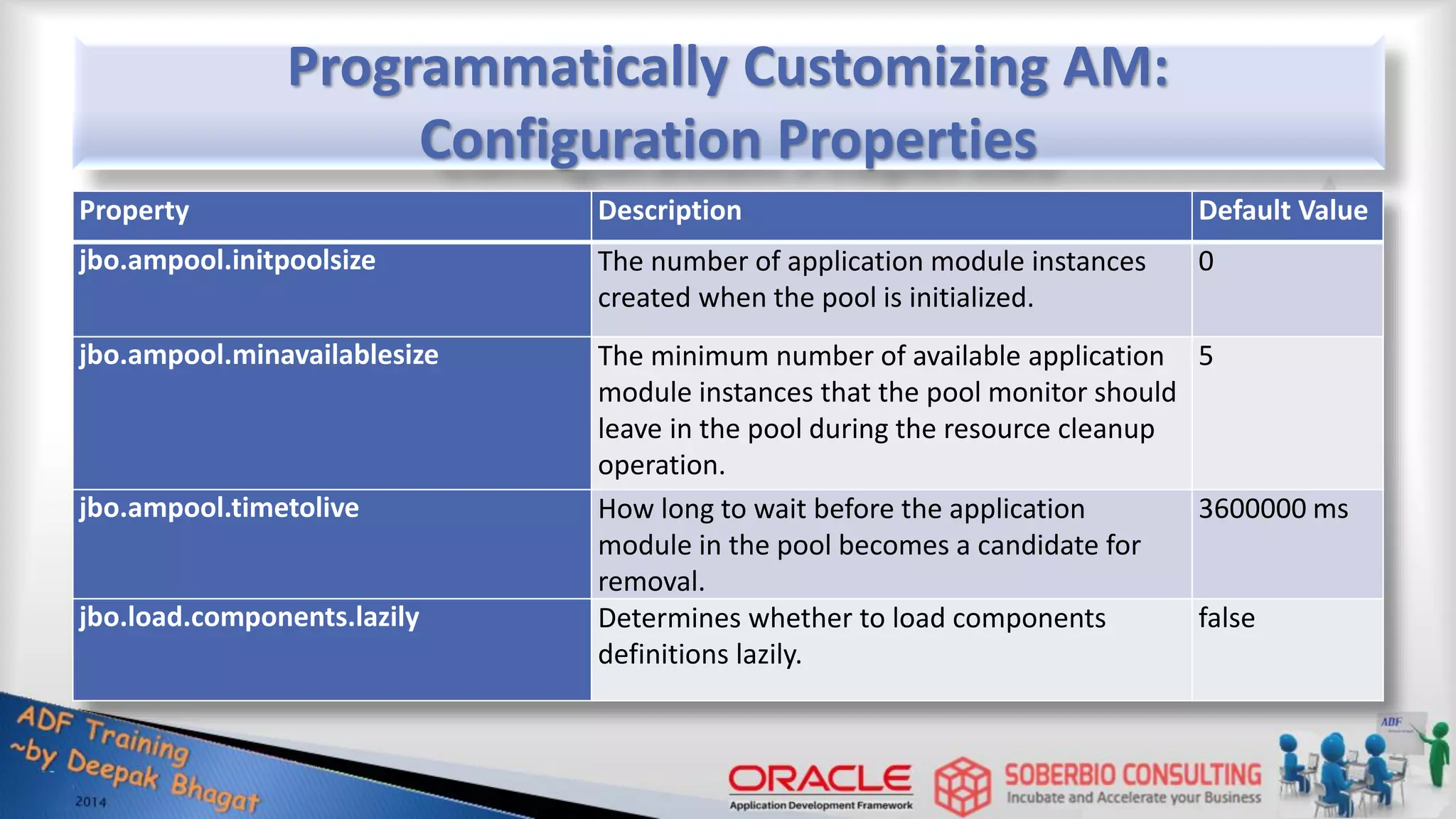

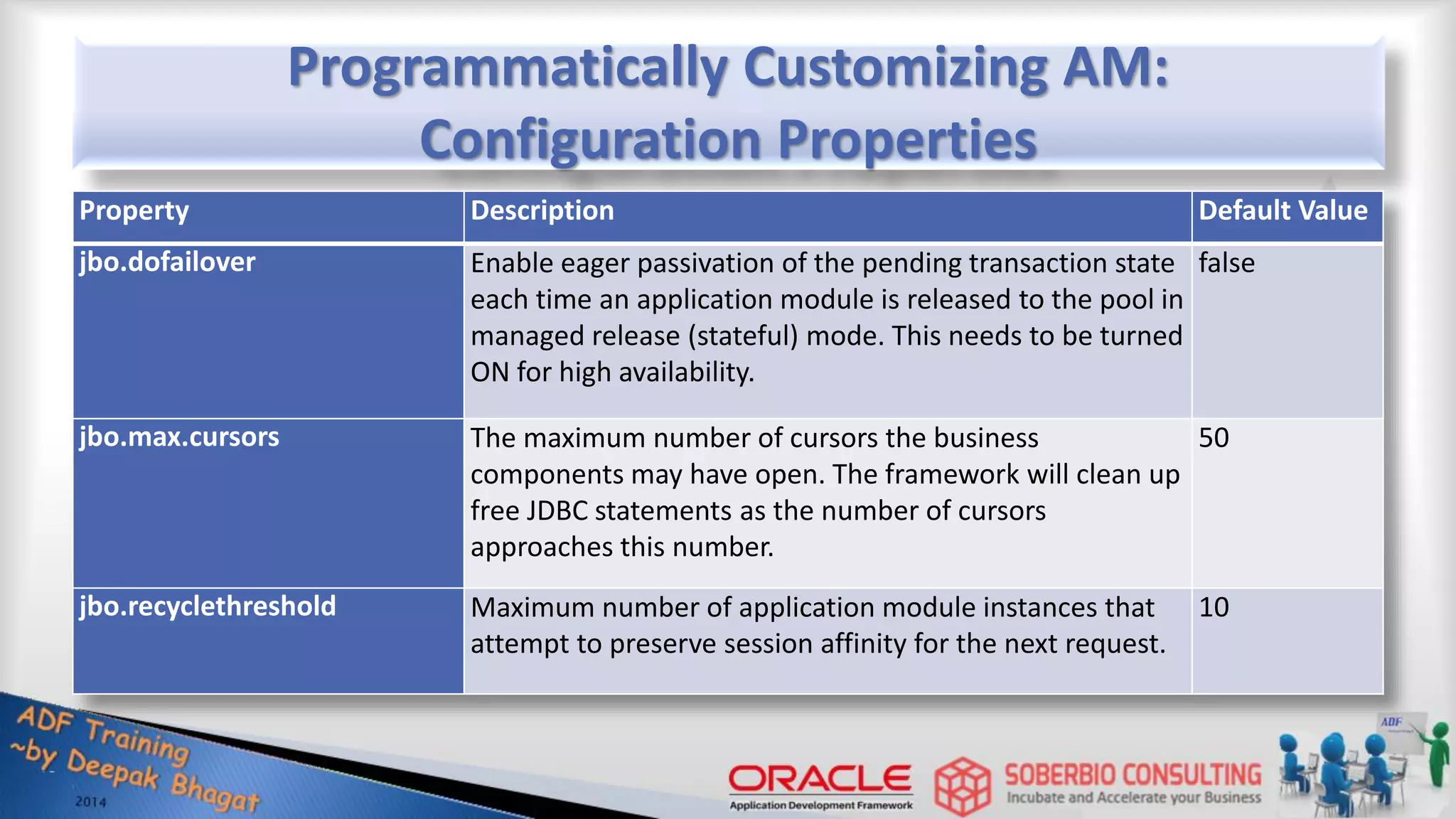

Programmatically Customizing AM: Configuration Properties Property Description Default Value jbo.ampool.initpoolsize The number of application module instances created when the pool is initialized. 0 jbo.ampool.minavailablesize The minimum number of available application module instances that the pool monitor should leave in the pool during the resource cleanup operation. 5 jbo.ampool.timetolive How long to wait before the application module in the pool becomes a candidate for removal. 3600000 ms jbo.load.components.lazily Determines whether to load components definitions lazily. false

Programmatically Customizing AM: Configuration Properties Property Description Default Value jbo.dofailover Enable eager passivation of the pending transaction state each time an application module is released to the pool in managed release (stateful) mode. This needs to be turned ON for high availability. false jbo.max.cursors The maximum number of cursors the business components may have open. The framework will clean up free JDBC statements as the number of cursors approaches this number. 50 jbo.recyclethreshold Maximum number of application module instances that attempt to preserve session affinity for the next request. 10

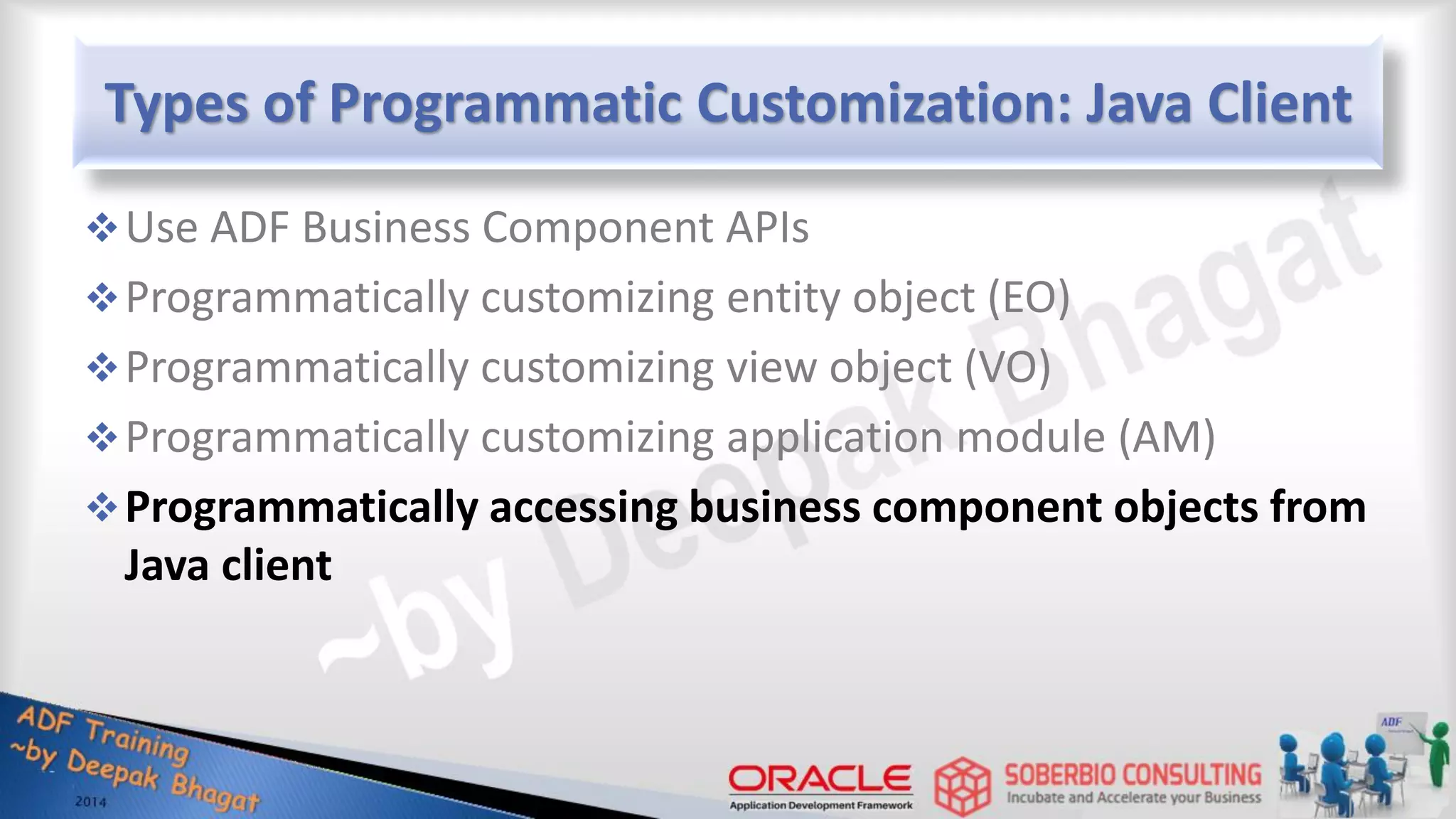

Types of Programmatic Customization: Java Client Use ADF Business Component APIs Programmatically customizing entity object (EO) Programmatically customizing view object (VO) Programmatically customizing application module (AM) Programmatically accessing business component objects from Java client

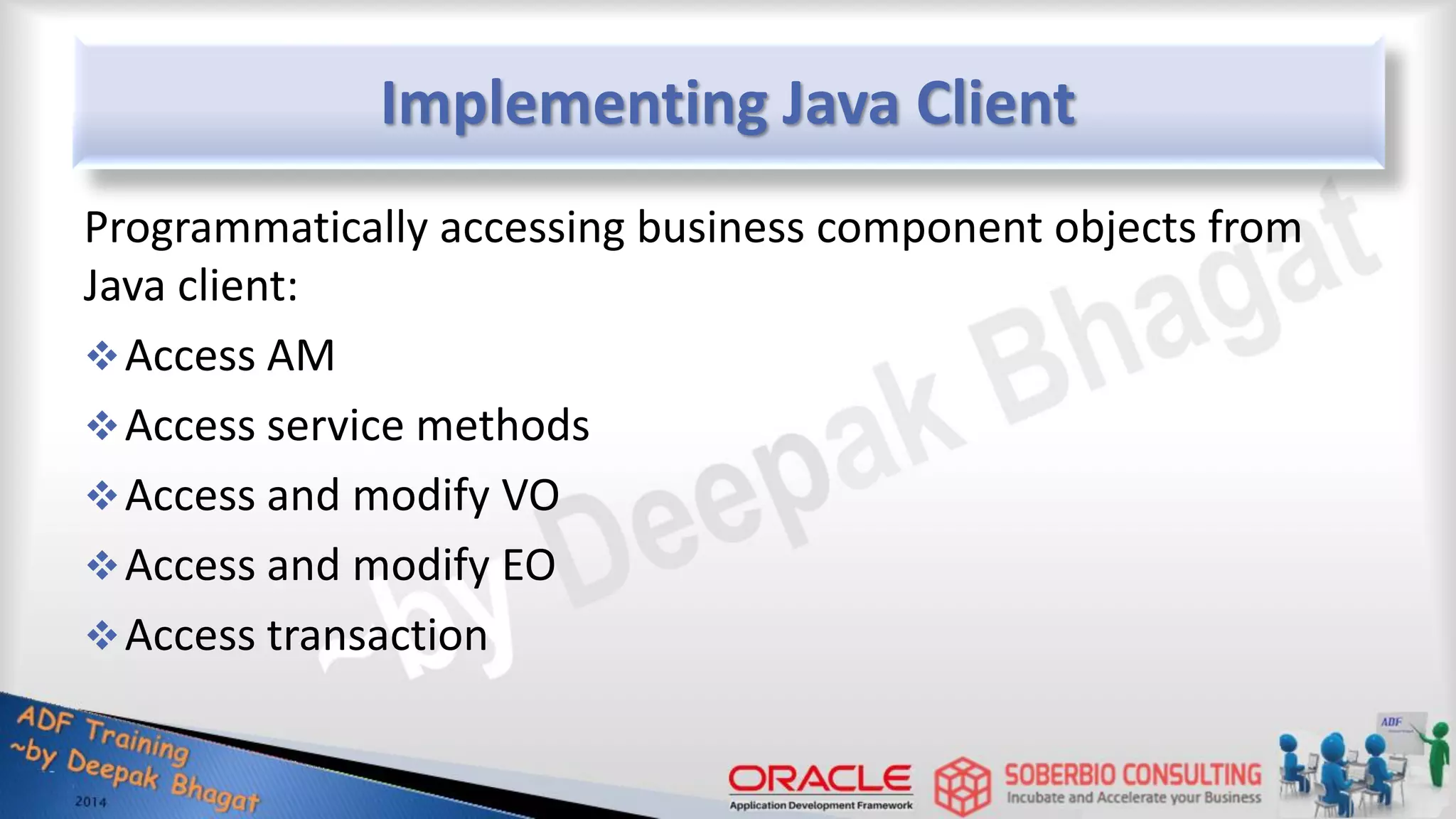

Implementing Java Client Programmatically accessing business component objects from Java client: Access AM Access service methods Access and modify VO Access and modify EO Access transaction

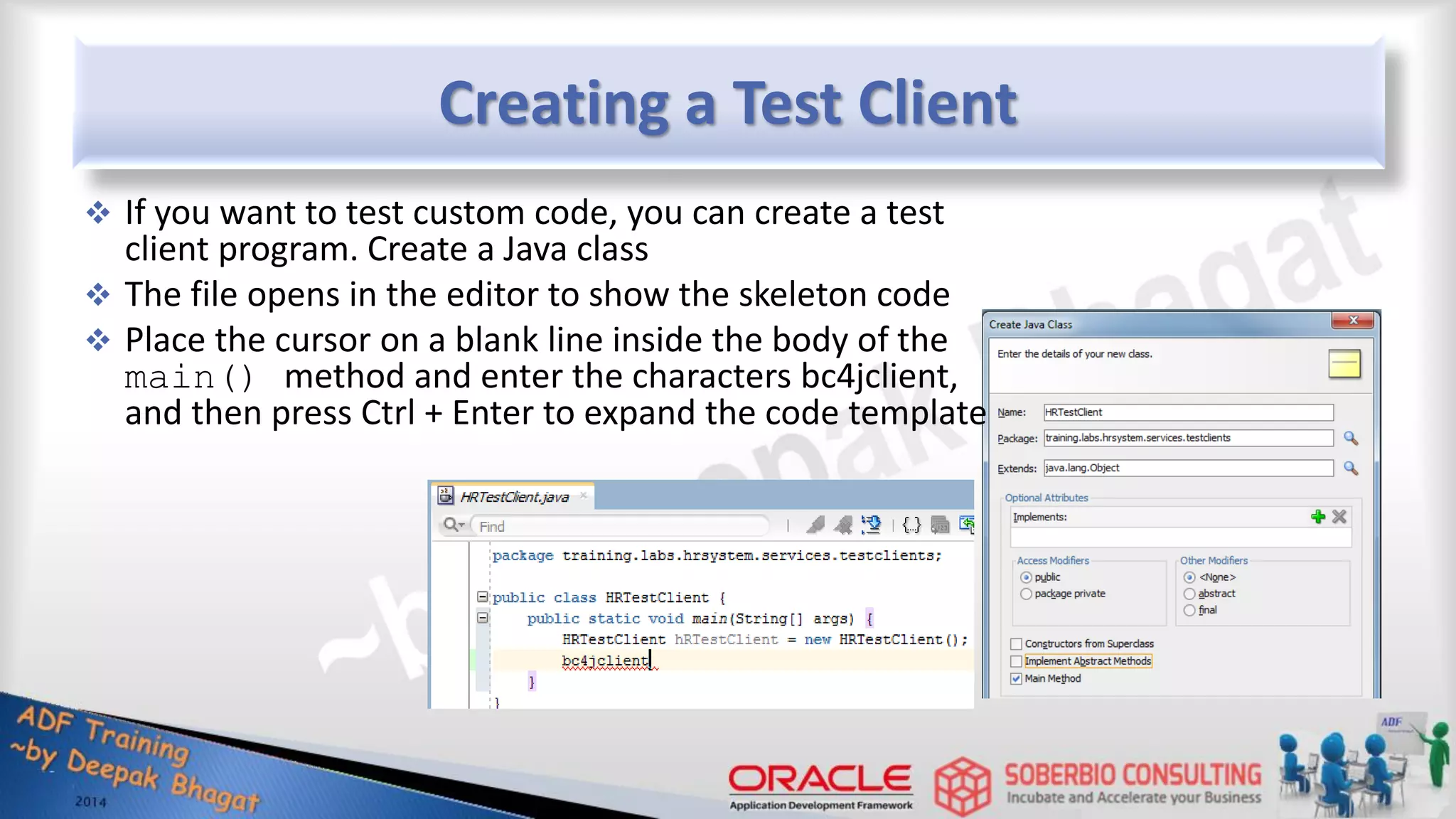

Creating a Test Client  If you want to test custom code, you can create a test client program. Create a Java class  The file opens in the editor to show the skeleton code  Place the cursor on a blank line inside the body of the main() method and enter the characters bc4jclient, and then press Ctrl + Enter to expand the code template

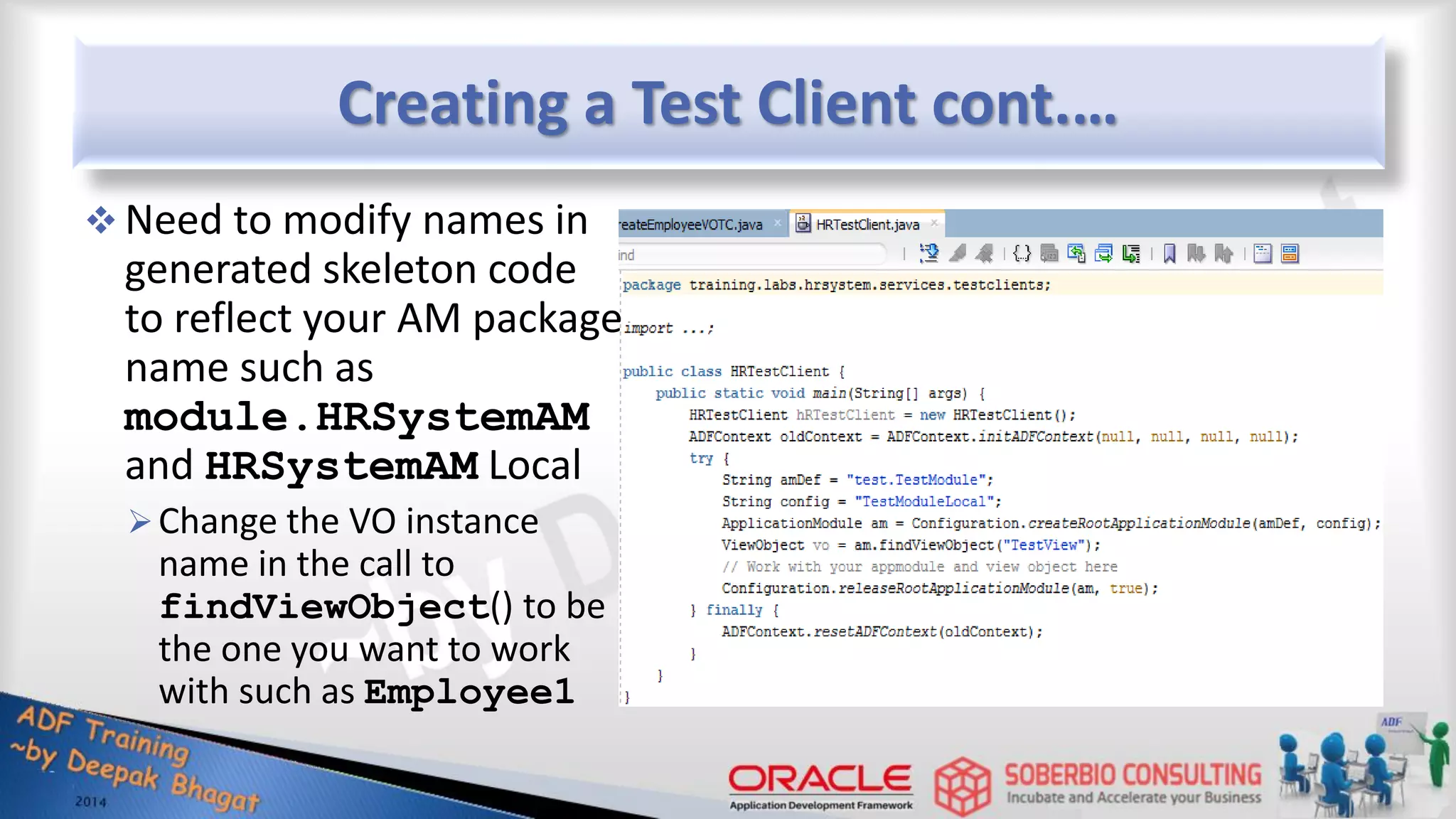

Creating a Test Client cont.…  Need to modify names in generated skeleton code to reflect your AM package name such as module.HRSystemAM and HRSystemAM Local Change the VO instance name in the call to findViewObject() to be the one you want to work with such as Employee1

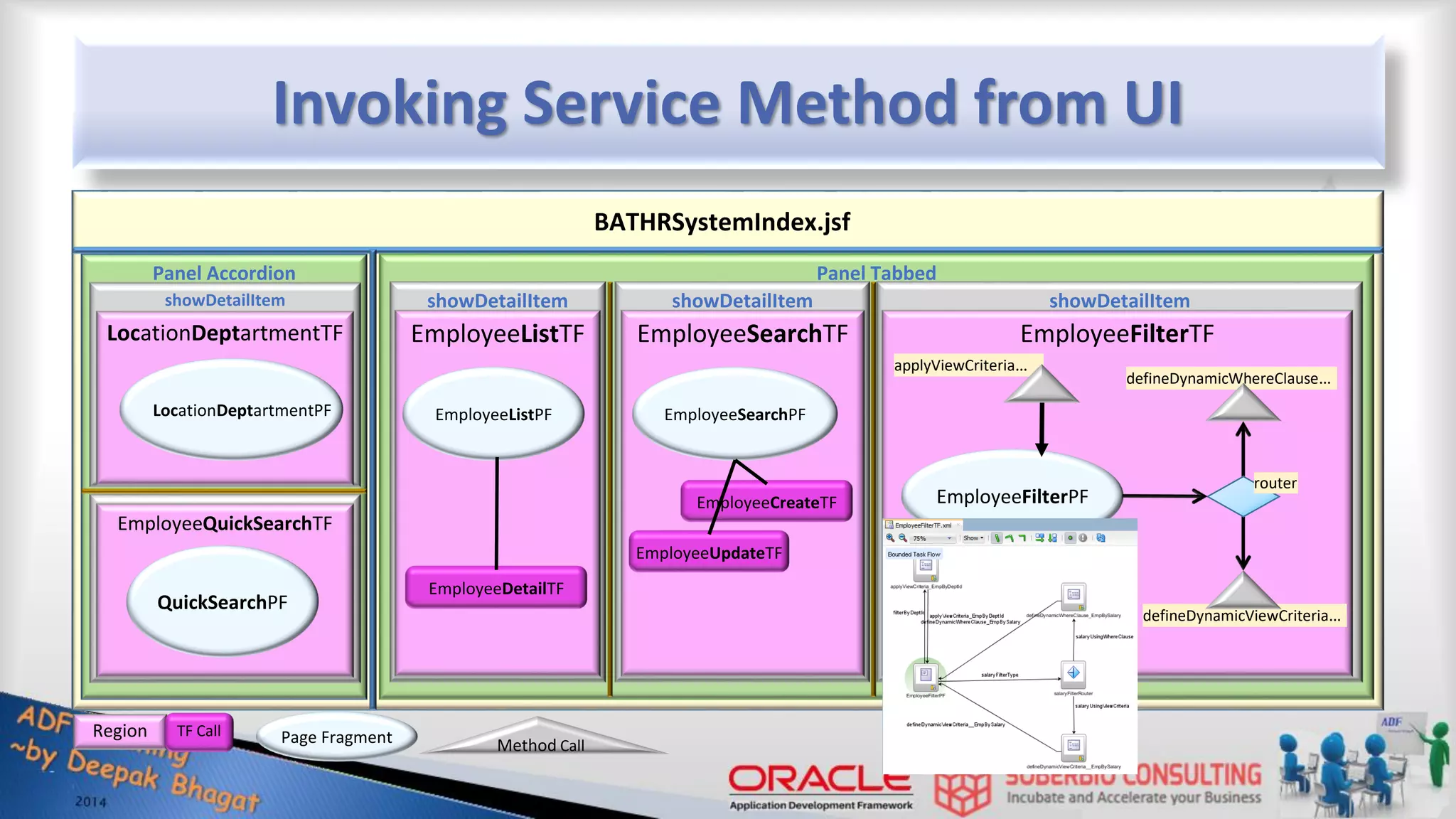

Invoking Service Method from UI Panel Accordion showDetailItem showDetailItem Panel Tabbed showDetailItem showDetailItem BATHRSystemIndex.jsf LocationDeptartmentTF EmployeeQuickSearchTF EmployeeListTF EmployeeSearchTF LocationDeptartmentPF QuickSearchPF Region TF Call Page Fragment showDetailItem EmployeeFilterTF EmployeeFilterPF EmployeeListPF EmployeeSearchPF EmployeeDetailTF EmployeeCreateTF EmployeeUpdateTF Method Call applyViewCriteria… defineDynamicWhereClause… defineDynamicViewCriteria… router

Invoking Service Method from UI contd…

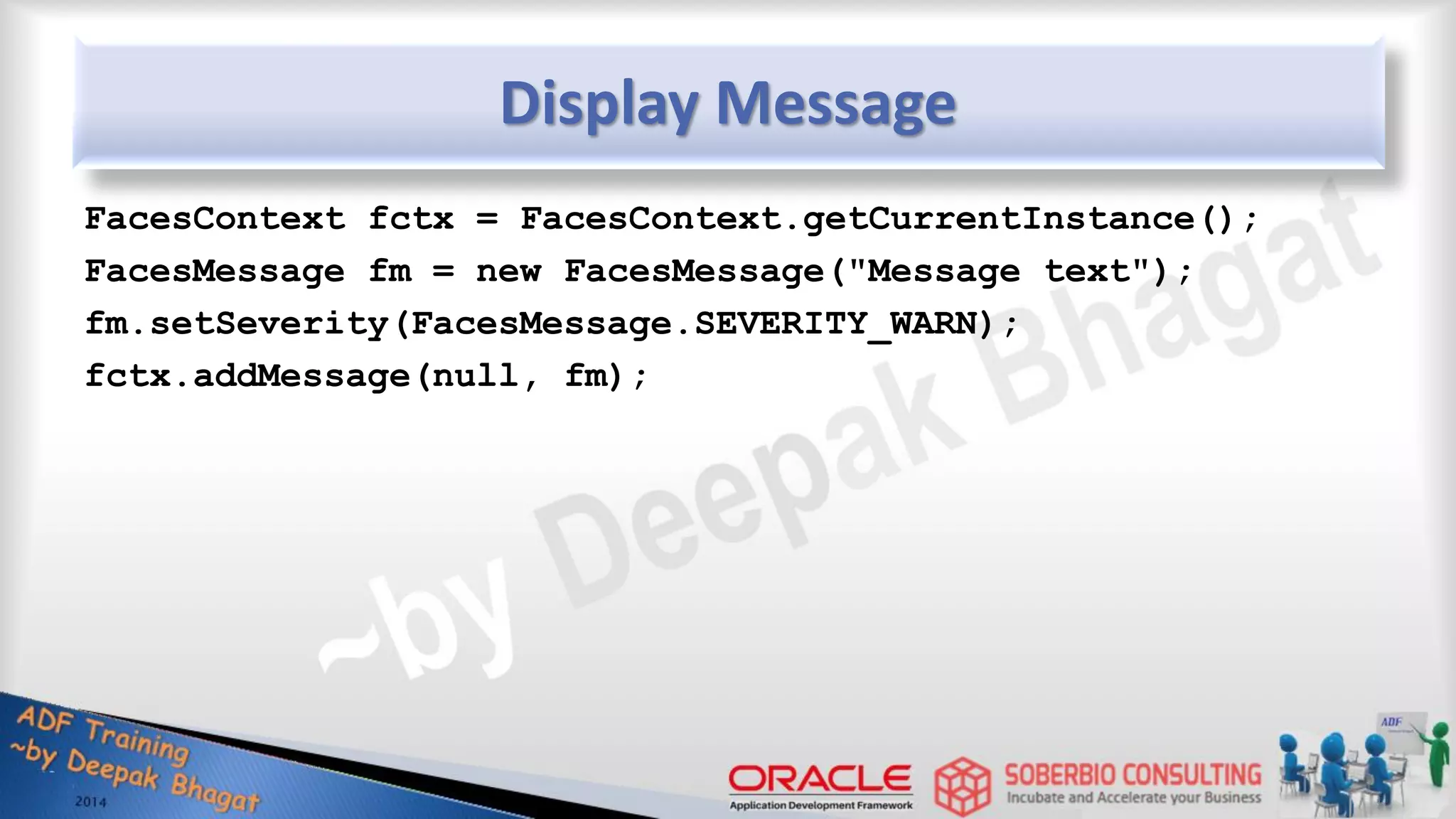

Display Message FacesContext fctx = FacesContext.getCurrentInstance(); FacesMessage fm = new FacesMessage("Message text"); fm.setSeverity(FacesMessage.SEVERITY_WARN); fctx.addMessage(null, fm);

Lesson Summary Use business component client APIs Implement programmatic modifications Generate Java classes for business components Override class methods Add service methods to an application module Handle transactions Create a test client

Lesson Agenda ADF supported application servers ADF deployment diagram Building and deploying ADF ADF build setup Deployment profile types Deployment to cloud service Create various deployment profiles Deploy and run an ADF Application

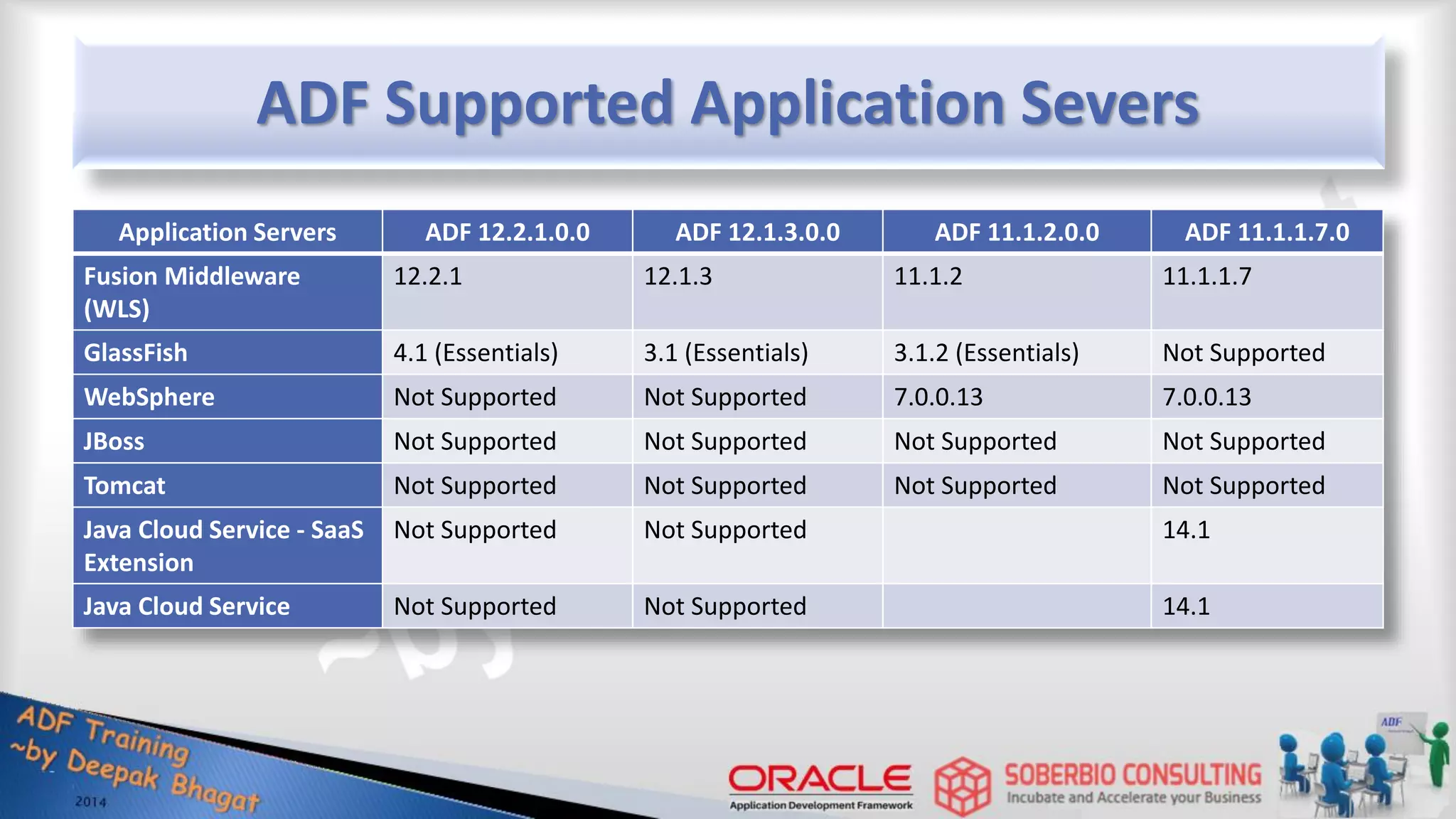

ADF Supported Application Severs Application Servers ADF 12.2.1.0.0 ADF 12.1.3.0.0 ADF 11.1.2.0.0 ADF 11.1.1.7.0 Fusion Middleware (WLS) 12.2.1 12.1.3 11.1.2 11.1.1.7 GlassFish 4.1 (Essentials) 3.1 (Essentials) 3.1.2 (Essentials) Not Supported WebSphere Not Supported Not Supported 7.0.0.13 7.0.0.13 JBoss Not Supported Not Supported Not Supported Not Supported Tomcat Not Supported Not Supported Not Supported Not Supported Java Cloud Service - SaaS Extension Not Supported Not Supported 14.1 Java Cloud Service Not Supported Not Supported 14.1

ADF Application [EAR = JAR + WAR] ADF Deployment Diagram Business Service [JAR] View Controller [WAR] …

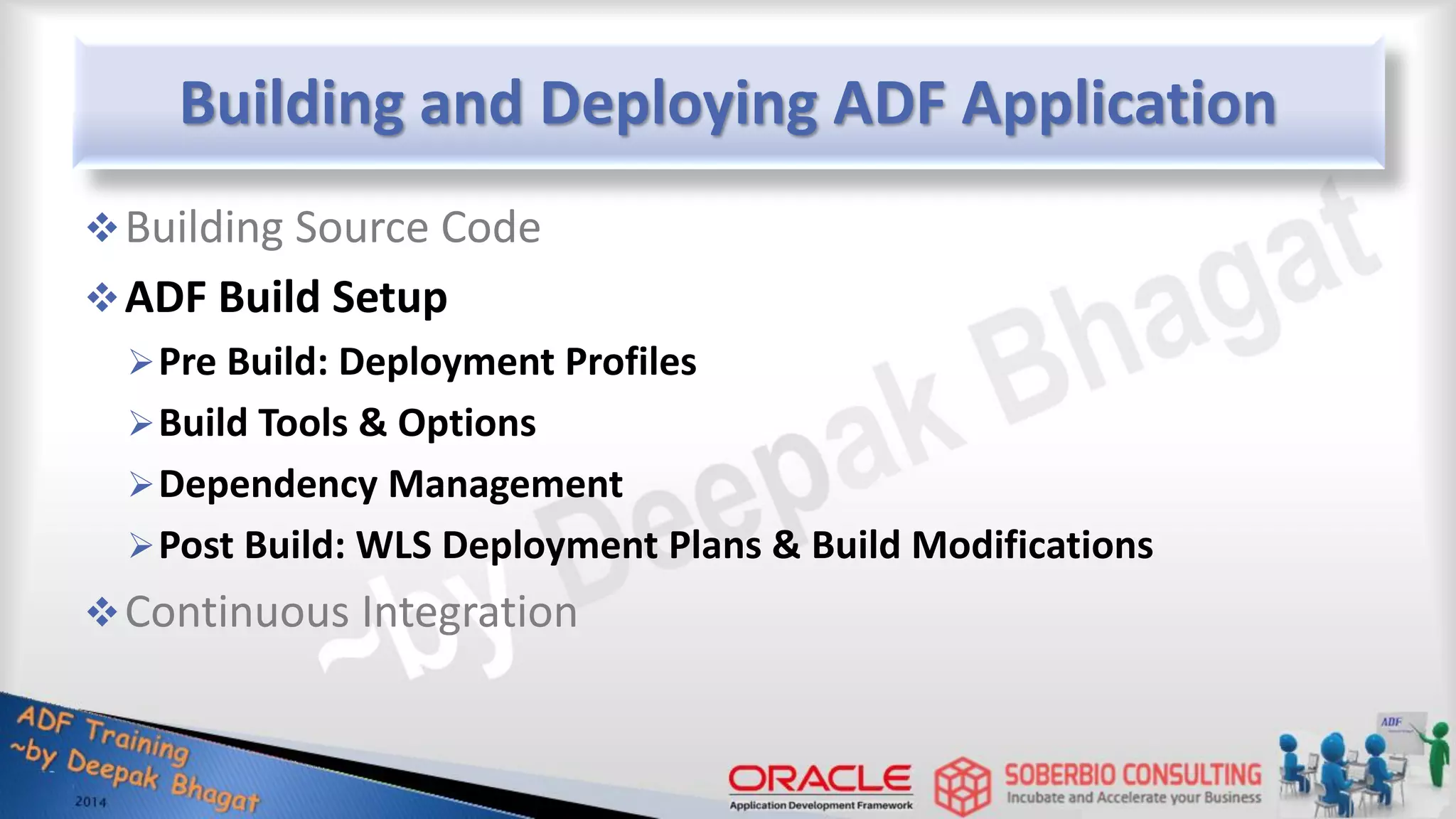

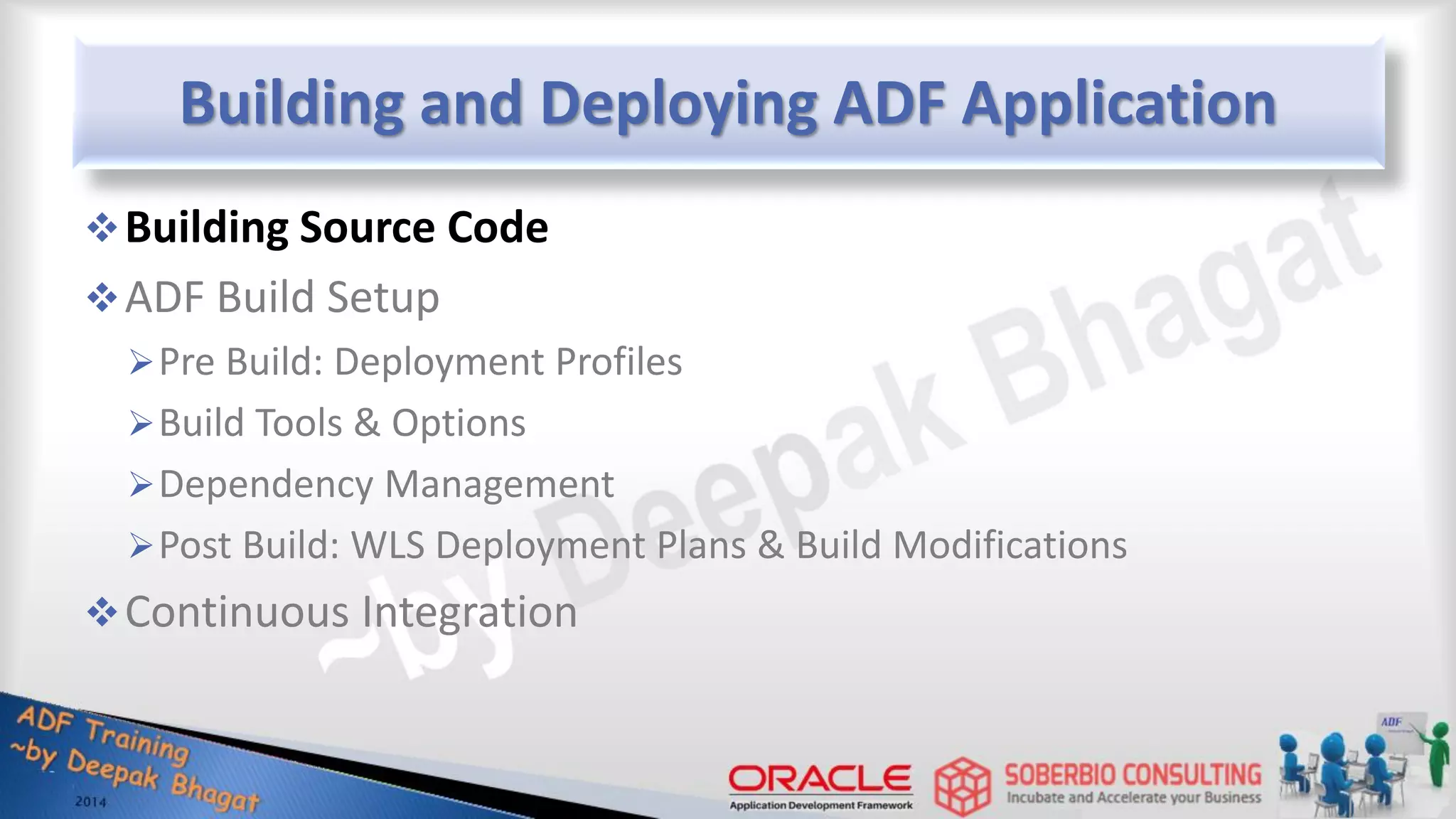

Building and Deploying ADF Application Building Source Code ADF Build Setup Pre Build: Deployment Profiles Build Tools & Options Dependency Management Post Build: WLS Deployment Plans & Build Modifications Continuous Integration

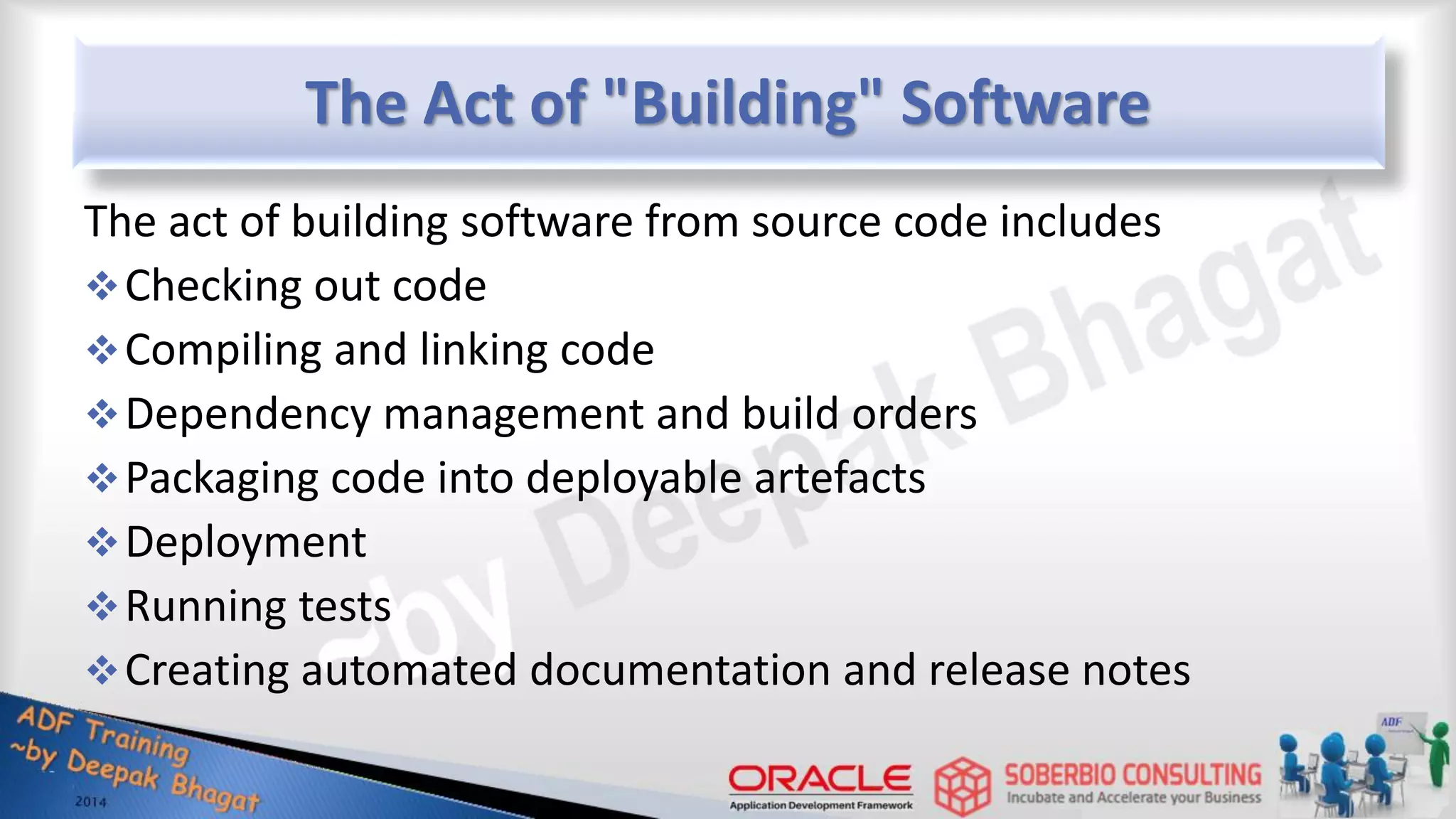

The Act of "Building" Software The act of building software from source code includes Checking out code Compiling and linking code Dependency management and build orders Packaging code into deployable artefacts Deployment Running tests Creating automated documentation and release notes

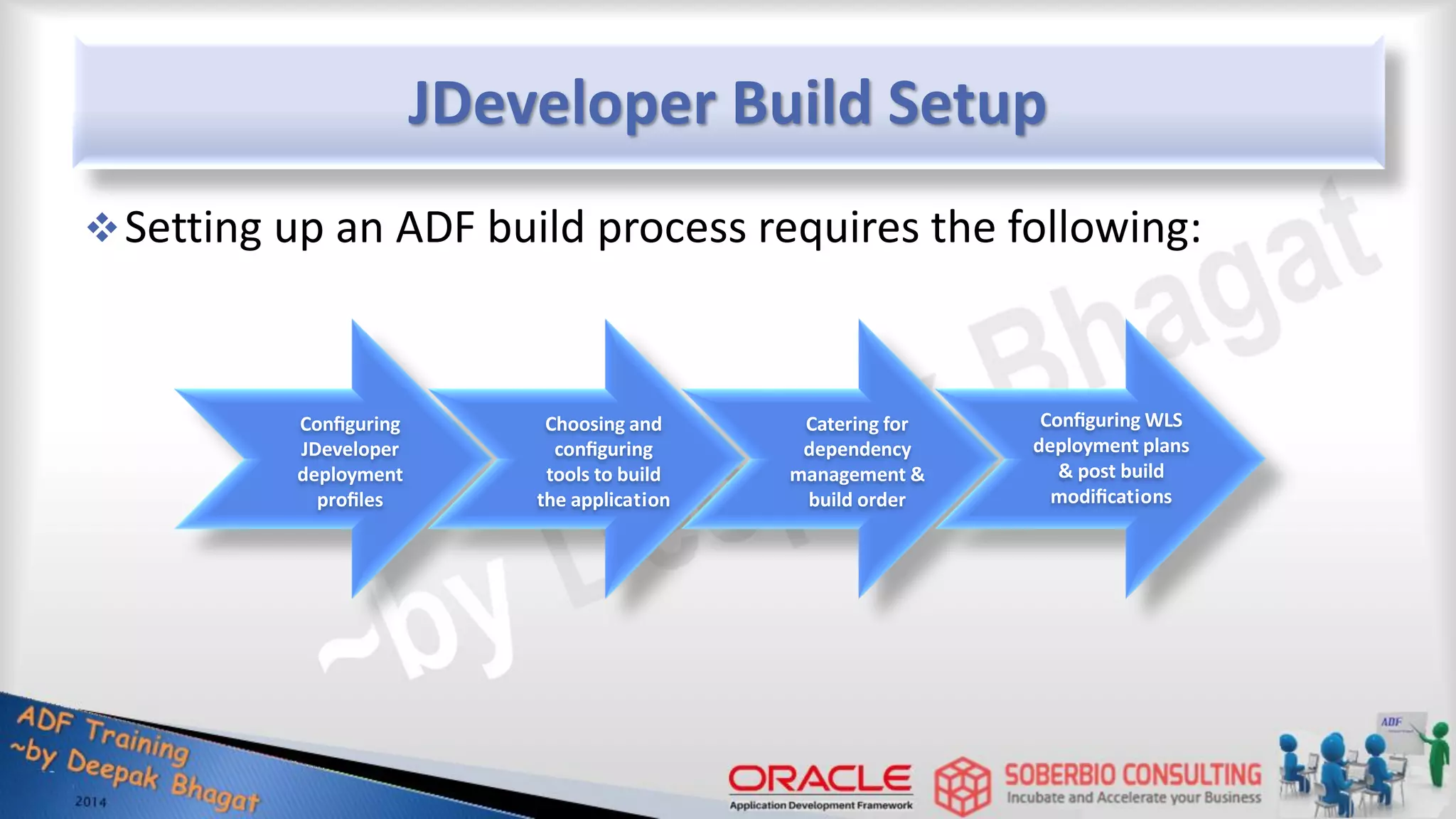

JDeveloper Build Setup Setting up an ADF build process requires the following: Configuring JDeveloper deployment profiles Choosing and configuring tools to build the application Catering for dependency management & build order Configuring WLS deployment plans & post build modifications

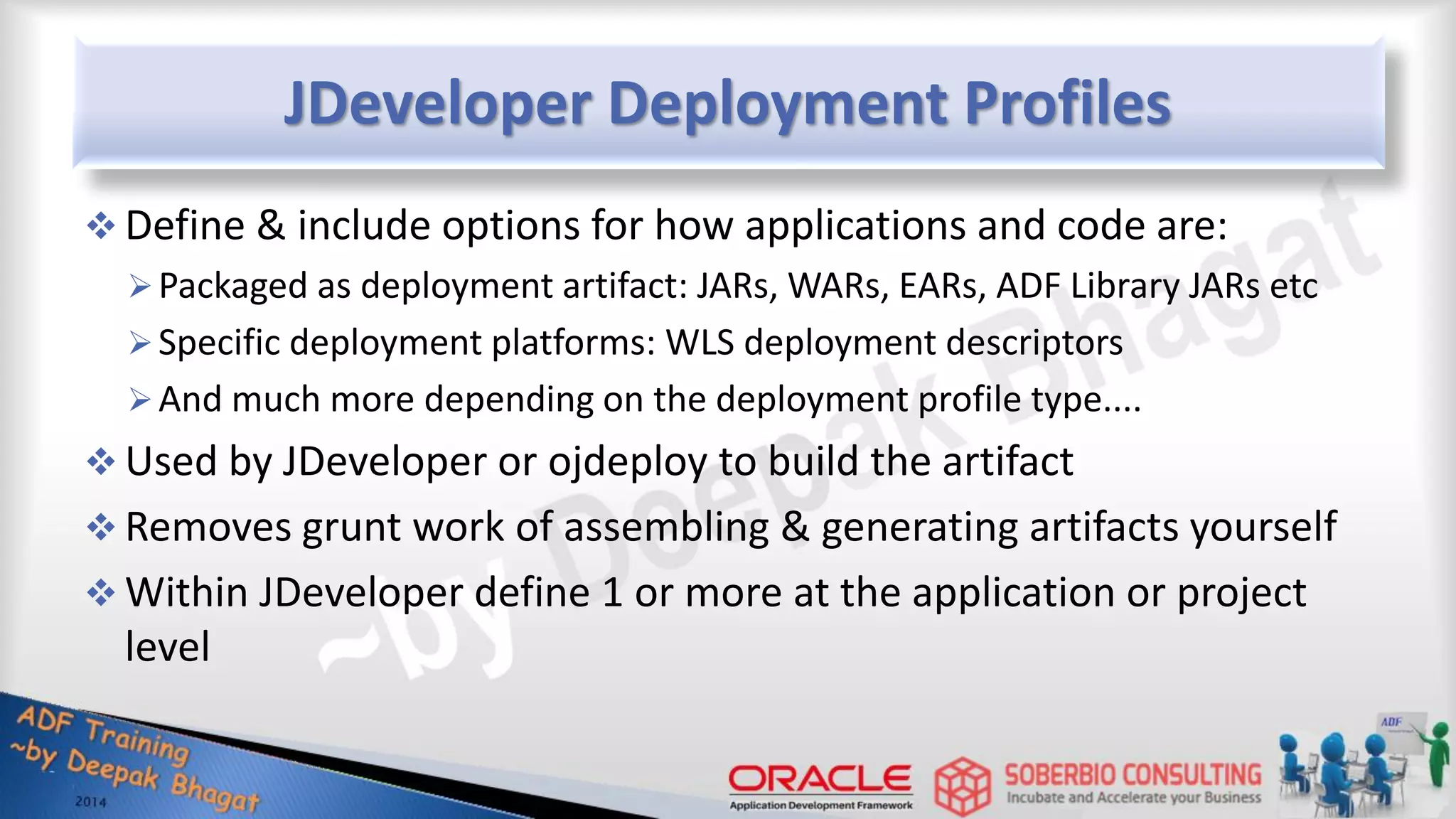

JDeveloper Deployment Profiles  Define & include options for how applications and code are: Packaged as deployment artifact: JARs, WARs, EARs, ADF Library JARs etc Specific deployment platforms: WLS deployment descriptors And much more depending on the deployment profile type....  Used by JDeveloper or ojdeploy to build the artifact  Removes grunt work of assembling & generating artifacts yourself  Within JDeveloper define 1 or more at the application or project level

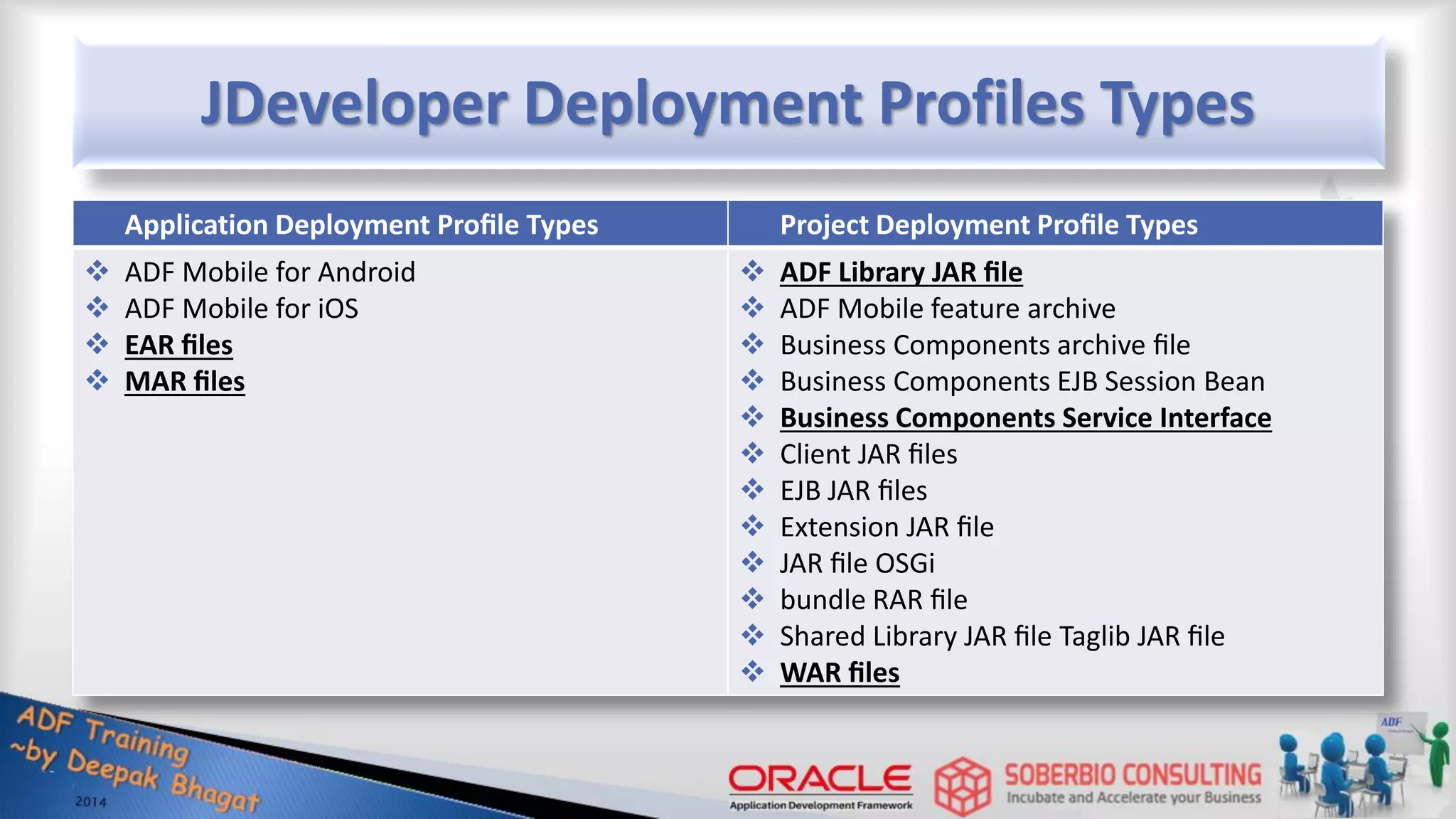

JDeveloper Deployment Profiles Types  Application Deployment Profile Types  Project Deployment Profile Types  ADF Mobile for Android  ADF Mobile for iOS  EAR files  MAR files  ADF Library JAR file  ADF Mobile feature archive  Business Components archive file  Business Components EJB Session Bean  Business Components Service Interface  Client JAR files  EJB JAR files  Extension JAR file  JAR file OSGi  bundle RAR file  Shared Library JAR file Taglib JAR file  WAR files

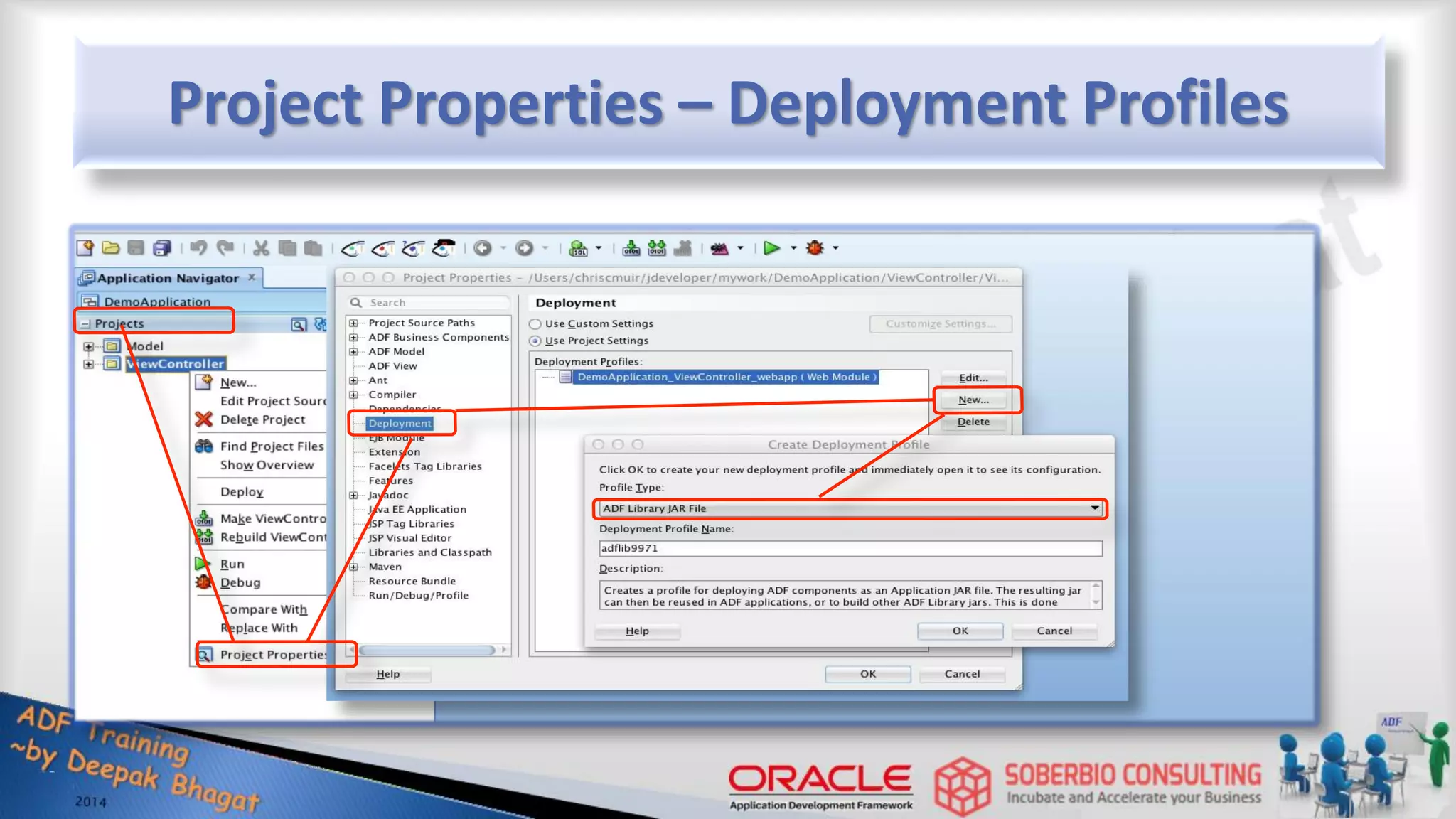

Project Properties – Deployment Profiles

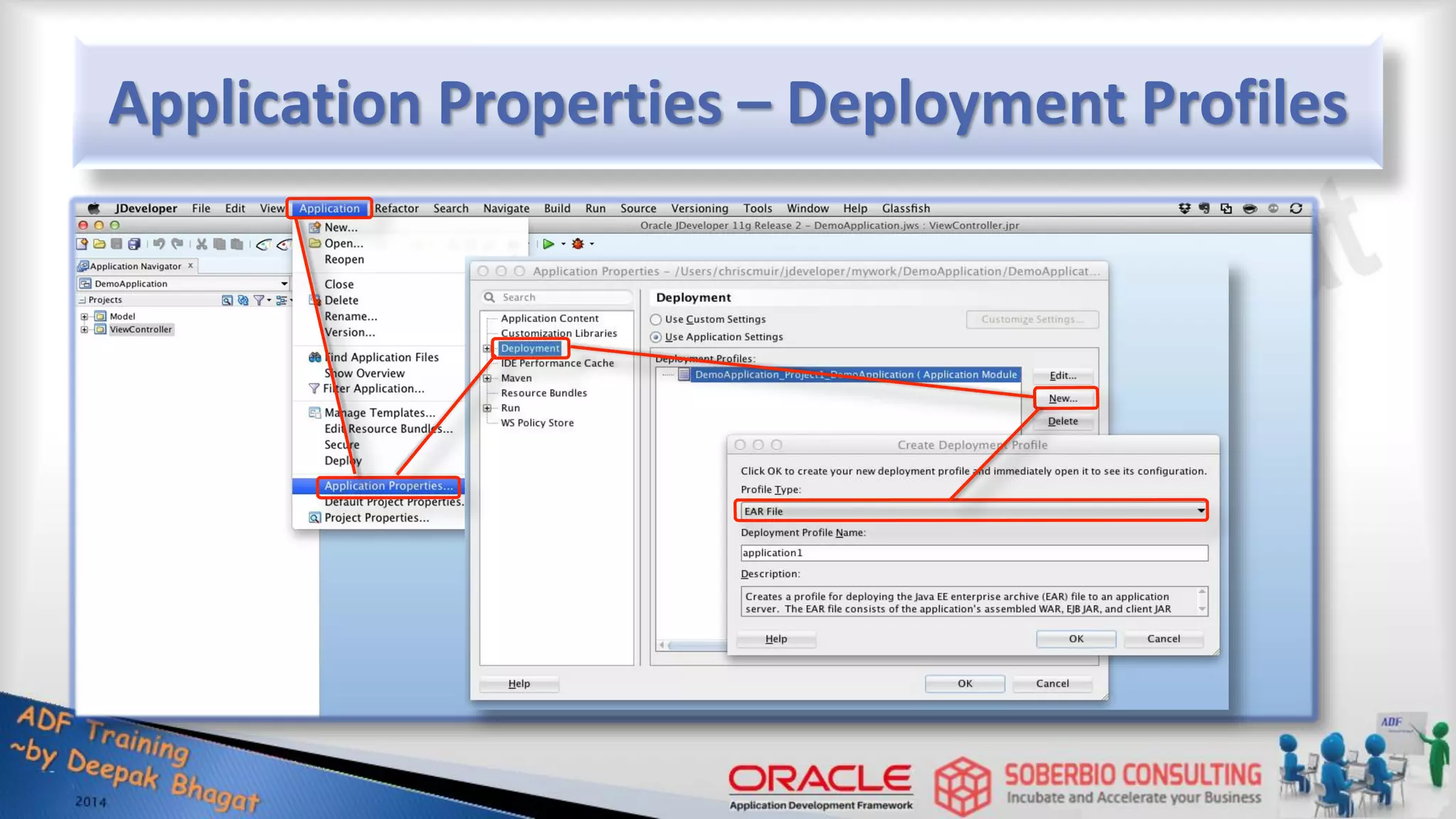

Application Properties – Deployment Profiles

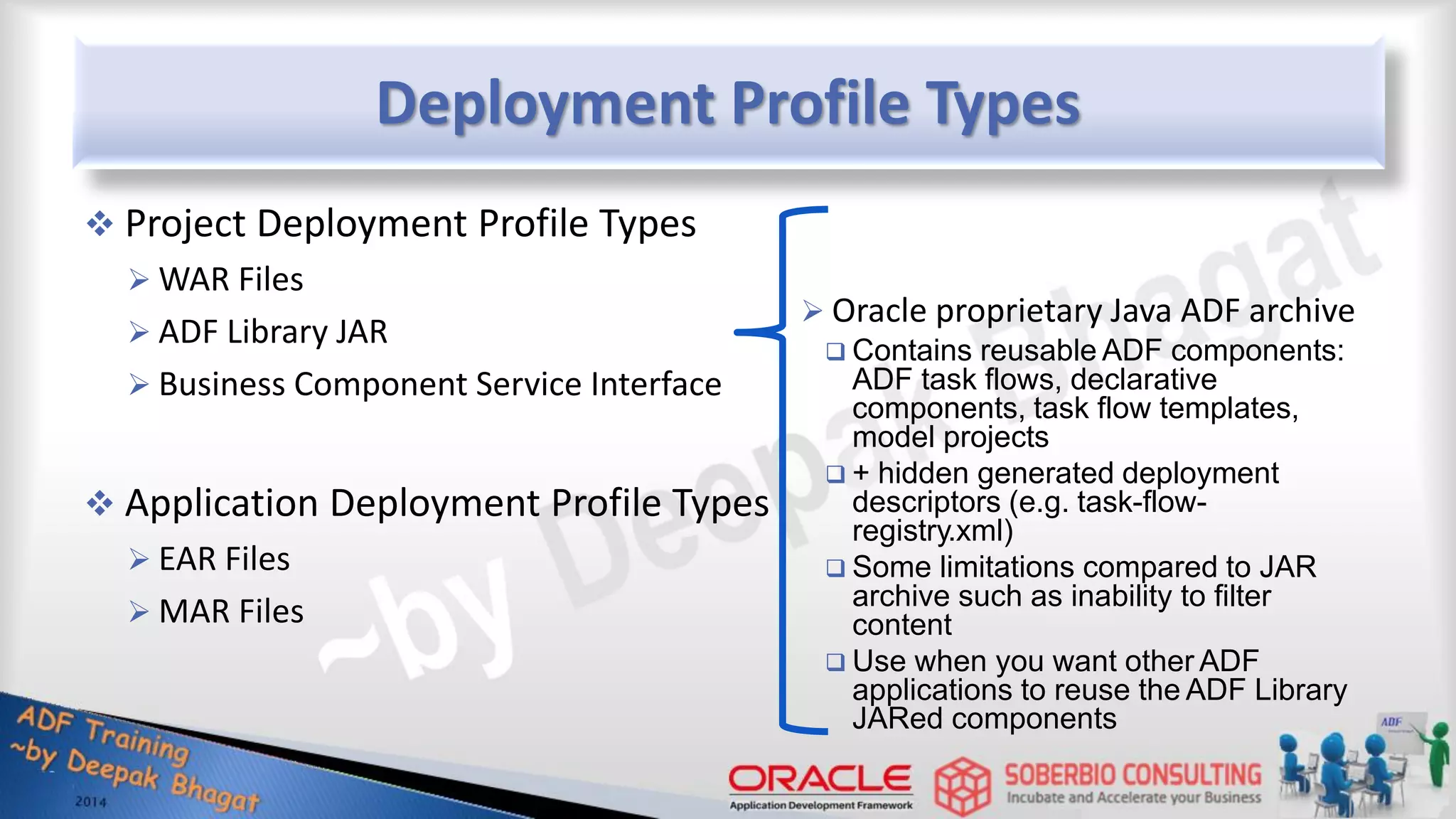

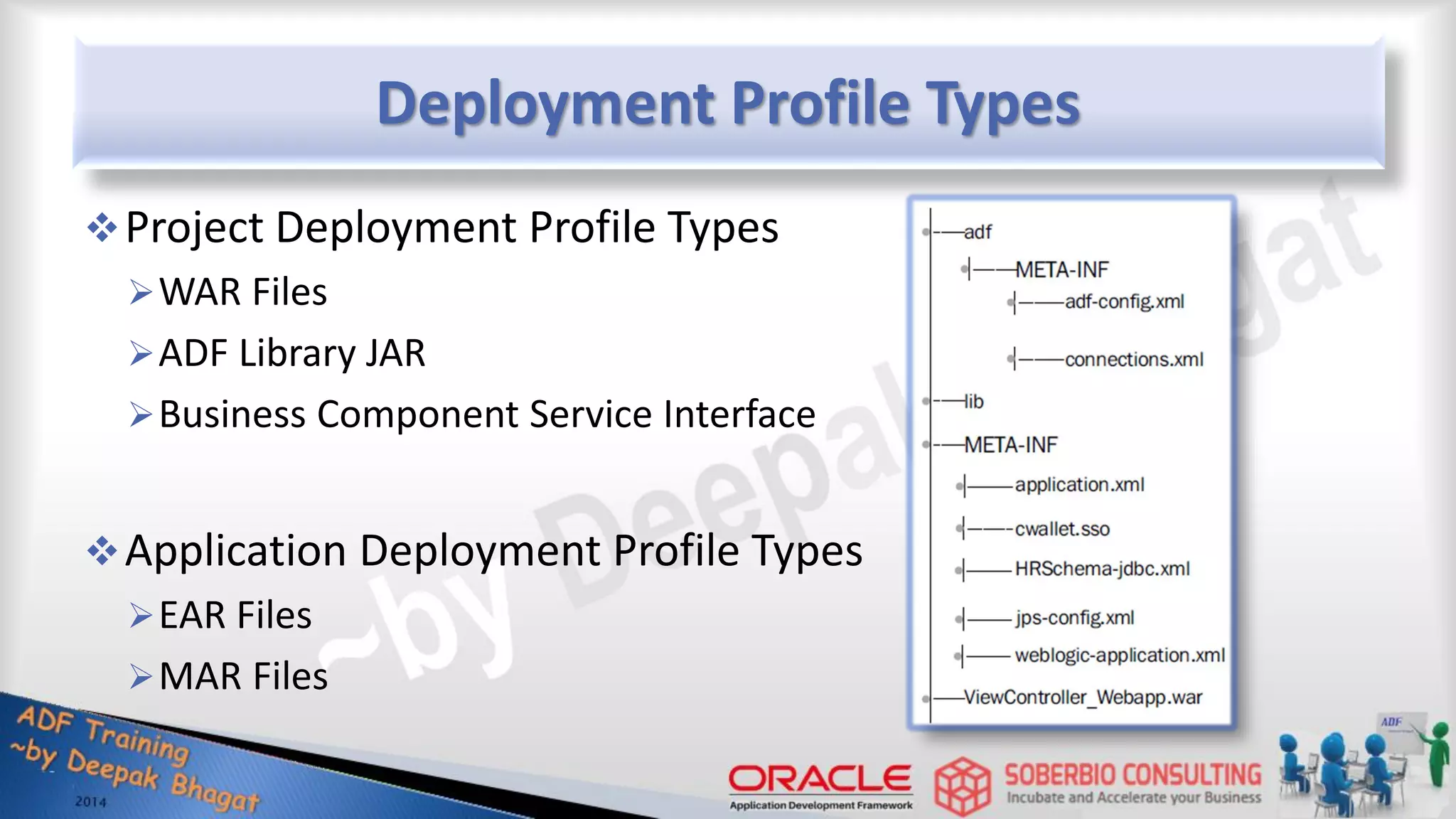

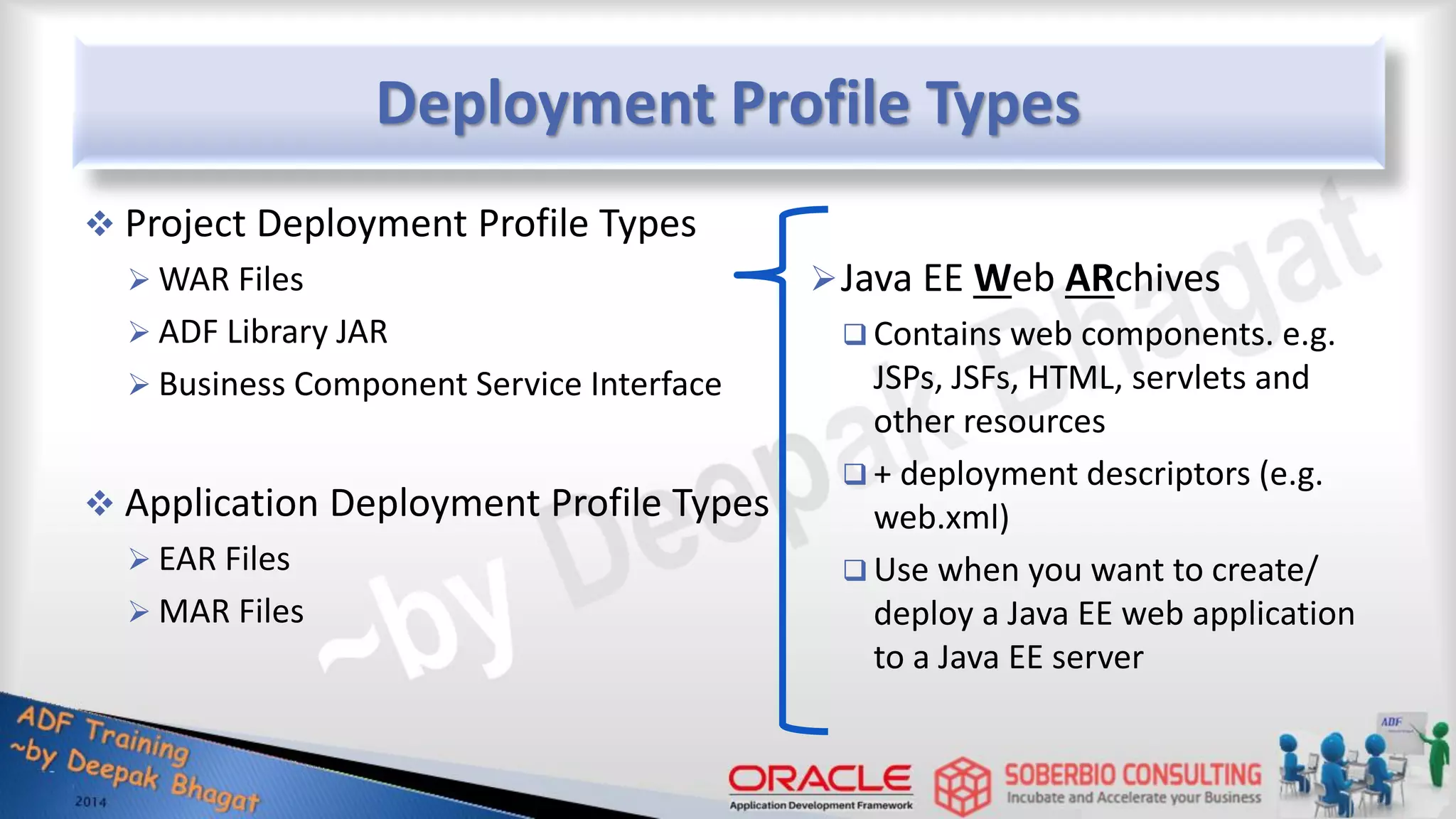

Deployment Profile Types Project Deployment Profile Types WAR Files ADF Library JAR Business Component Service Interface Application Deployment Profile Types EAR Files MAR Files

Deployment Profile Types  Project Deployment Profile Types  WAR Files  ADF Library JAR  Business Component Service Interface  Application Deployment Profile Types  EAR Files  MAR Files Java EE Web ARchives  Contains web components. e.g. JSPs, JSFs, HTML, servlets and other resources  + deployment descriptors (e.g. web.xml)  Use when you want to create/ deploy a Java EE web application to a Java EE server

Deployment Profile Types  Project Deployment Profile Types  WAR Files  ADF Library JAR  Business Component Service Interface  Application Deployment Profile Types  EAR Files  MAR Files  Oracle proprietary Java ADF archive  Contains reusable ADF components: ADF task flows, declarative components, task flow templates, model projects  + hidden generated deployment descriptors (e.g. task-flow- registry.xml)  Some limitations compared to JAR archive such as inability to filter content  Use when you want other ADF applications to reuse the ADF Library JARed components

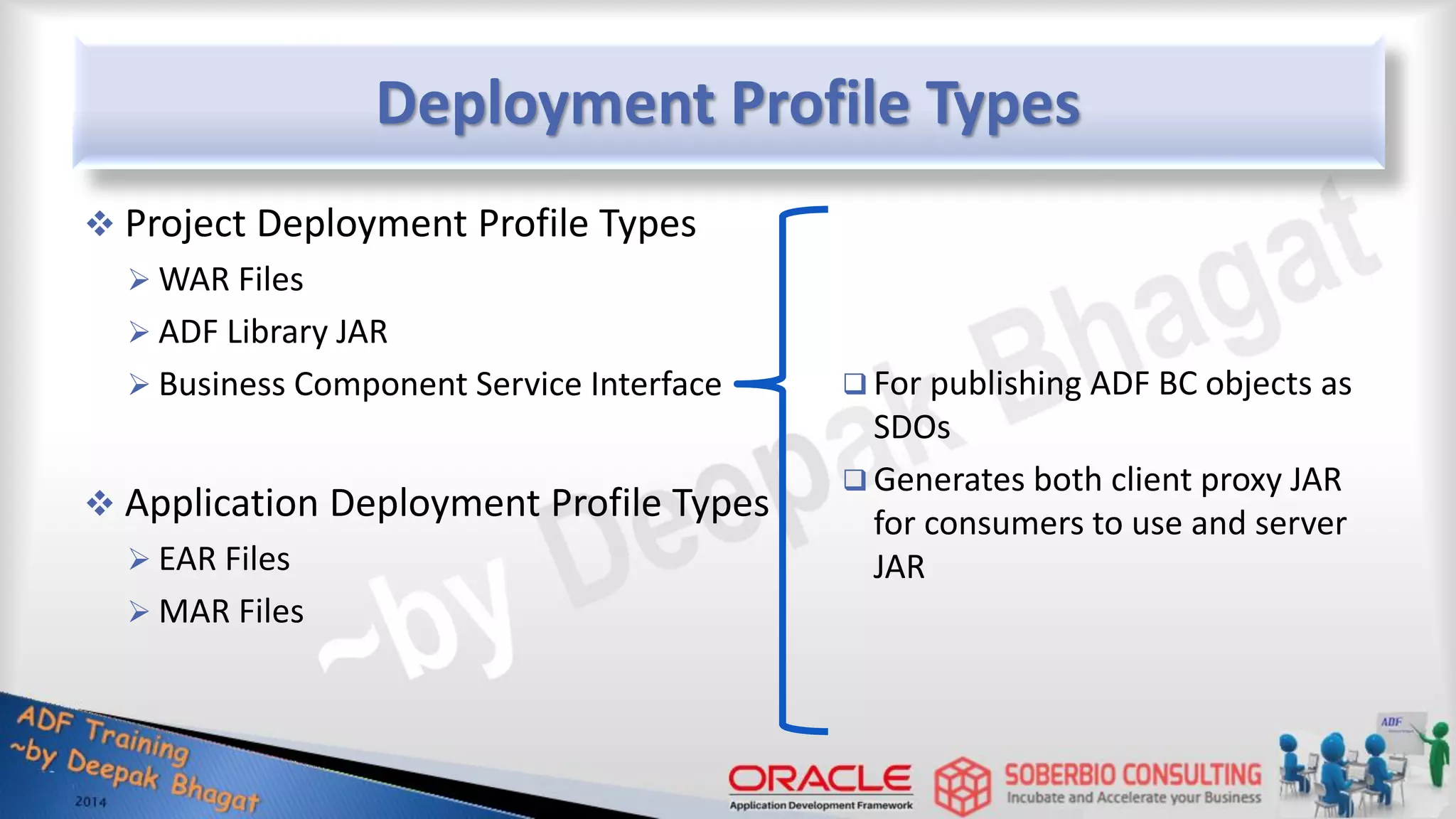

Deployment Profile Types  Project Deployment Profile Types  WAR Files  ADF Library JAR  Business Component Service Interface  Application Deployment Profile Types  EAR Files  MAR Files  For publishing ADF BC objects as SDOs  Generates both client proxy JAR for consumers to use and server JAR

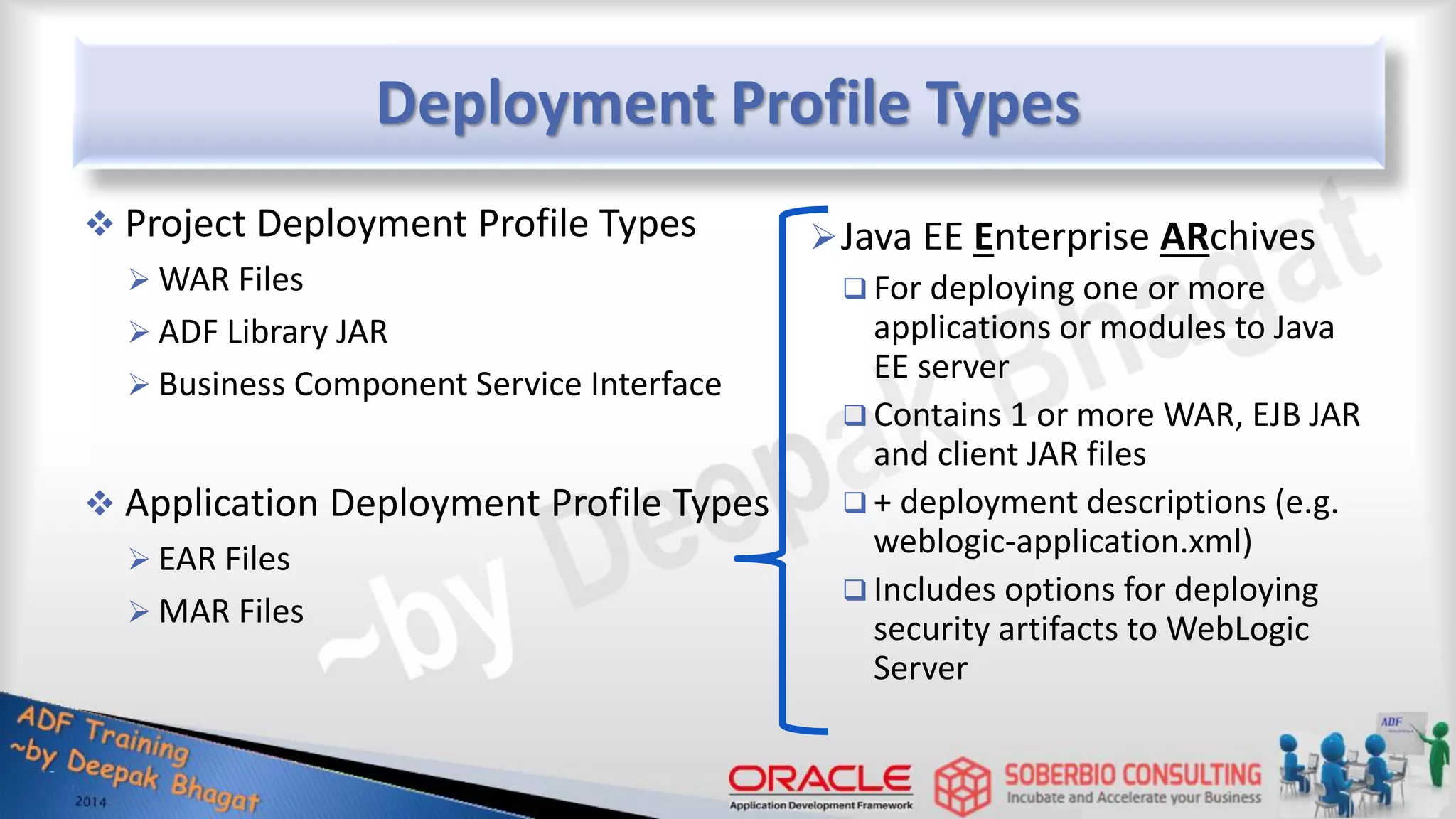

Deployment Profile Types  Project Deployment Profile Types  WAR Files  ADF Library JAR  Business Component Service Interface  Application Deployment Profile Types  EAR Files  MAR Files Java EE Enterprise ARchives  For deploying one or more applications or modules to Java EE server  Contains 1 or more WAR, EJB JAR and client JAR files  + deployment descriptions (e.g. weblogic-application.xml)  Includes options for deploying security artifacts to WebLogic Server

Deployment Profile Types  Project Deployment Profile Types  WAR Files  ADF Library JAR  Business Component Service Interface  Application Deployment Profile Types  EAR Files  MAR Files Metadata ARchive file  For deploying seeded customizations or base metadata for MDS repository in application server

Deployment Profile Types Consider defining naming standards for the deployment profiles, the default profile names can be messy. Don’t leave outdated or unused deployment profiles against the applicaIons an d p rojects, it's hard for the next programmer to know which one to use.

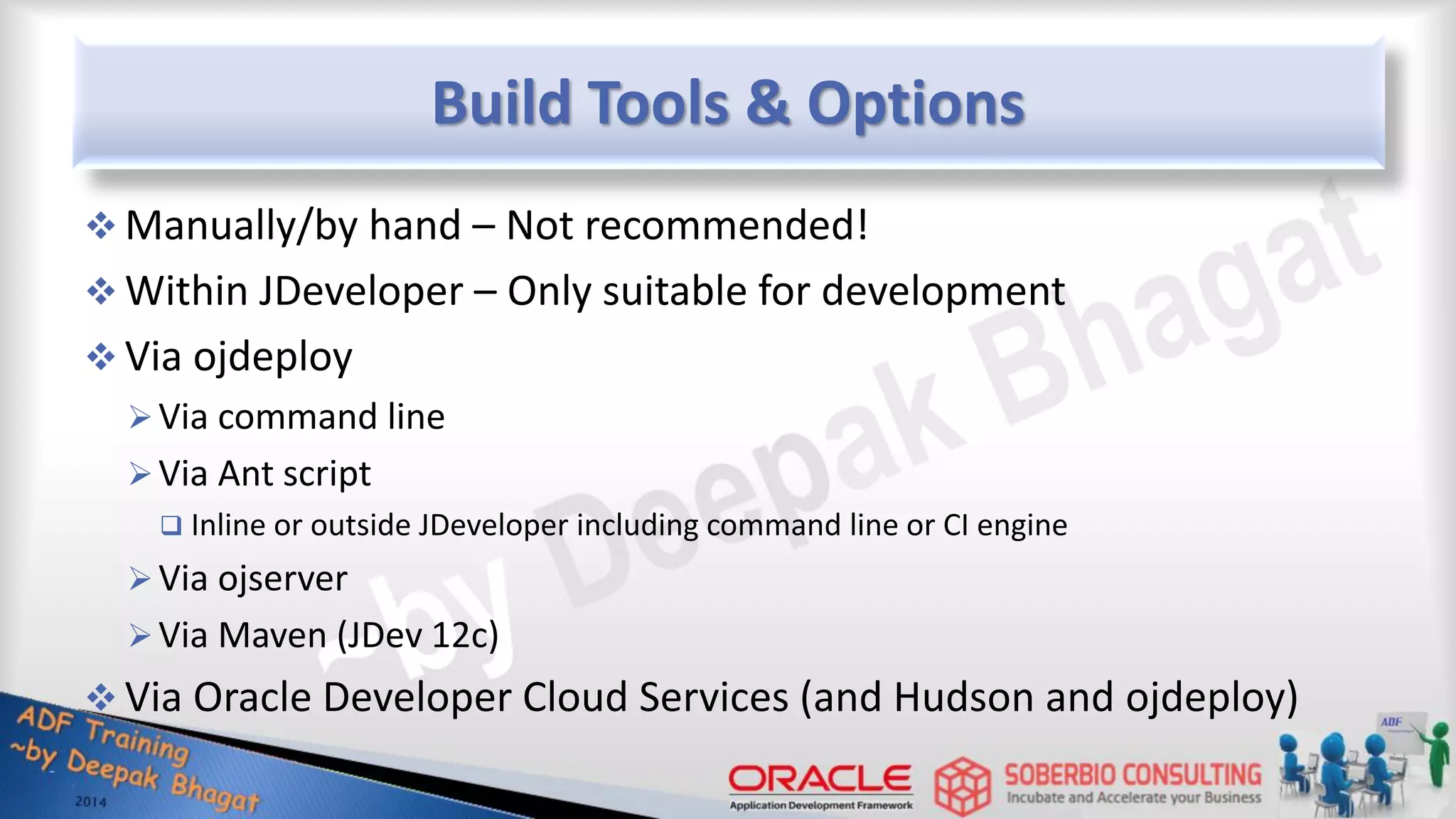

Build Tools & Options  Manually/by hand – Not recommended!  Within JDeveloper – Only suitable for development  Via ojdeploy Via command line Via Ant script  Inline or outside JDeveloper including command line or CI engine Via ojserver Via Maven (JDev 12c)  Via Oracle Developer Cloud Services (and Hudson and ojdeploy)

Build Tools & Options – ojdeploy Compilation and intelligent ADF post compilation processor Badly named – “builds” not “deploys” "Headless" JDeveloper version Called via command line or Apache Ant Calls the inline build function in JDeveloper Builds one artifact at a time Requires file system access to source code Requires a full-blown JDeveloper install to operate

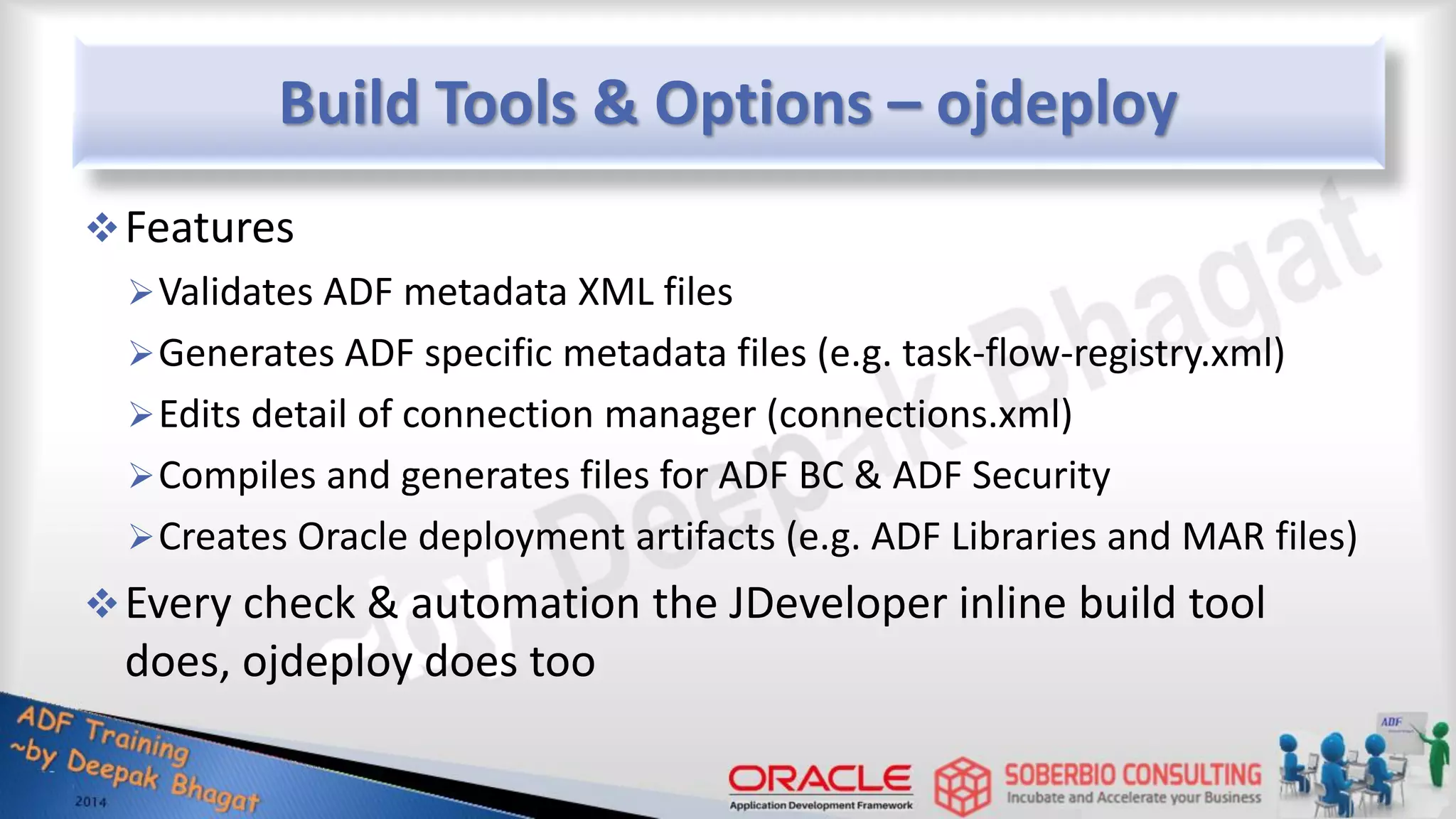

Build Tools & Options – ojdeploy Features Validates ADF metadata XML files Generates ADF specific metadata files (e.g. task-flow-registry.xml) Edits detail of connection manager (connections.xml) Compiles and generates files for ADF BC & ADF Security Creates Oracle deployment artifacts (e.g. ADF Libraries and MAR files) Every check & automation the JDeveloper inline build tool does, ojdeploy does too

Build Tools & Options – ojdeploy  Pros Understands JDeveloper application artifacts Beyond compilation ensures health of your ADF project Automagical  Cons Requires full check of source code, no version control intelligence Requires a full JDeveloper install on your build server Start/stop cycle is slow Blackbox implementation No inbuilt dependency management intelligence

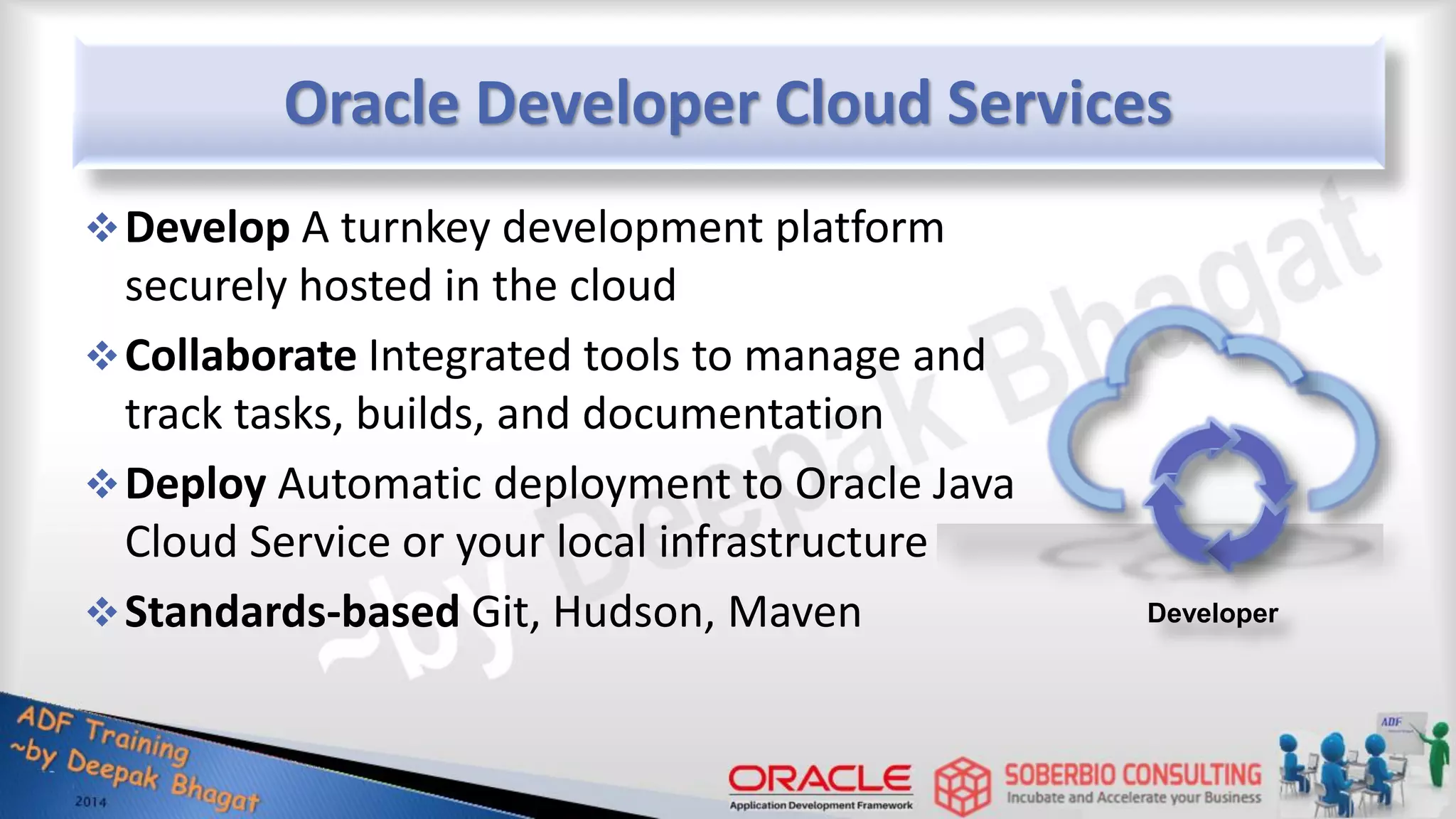

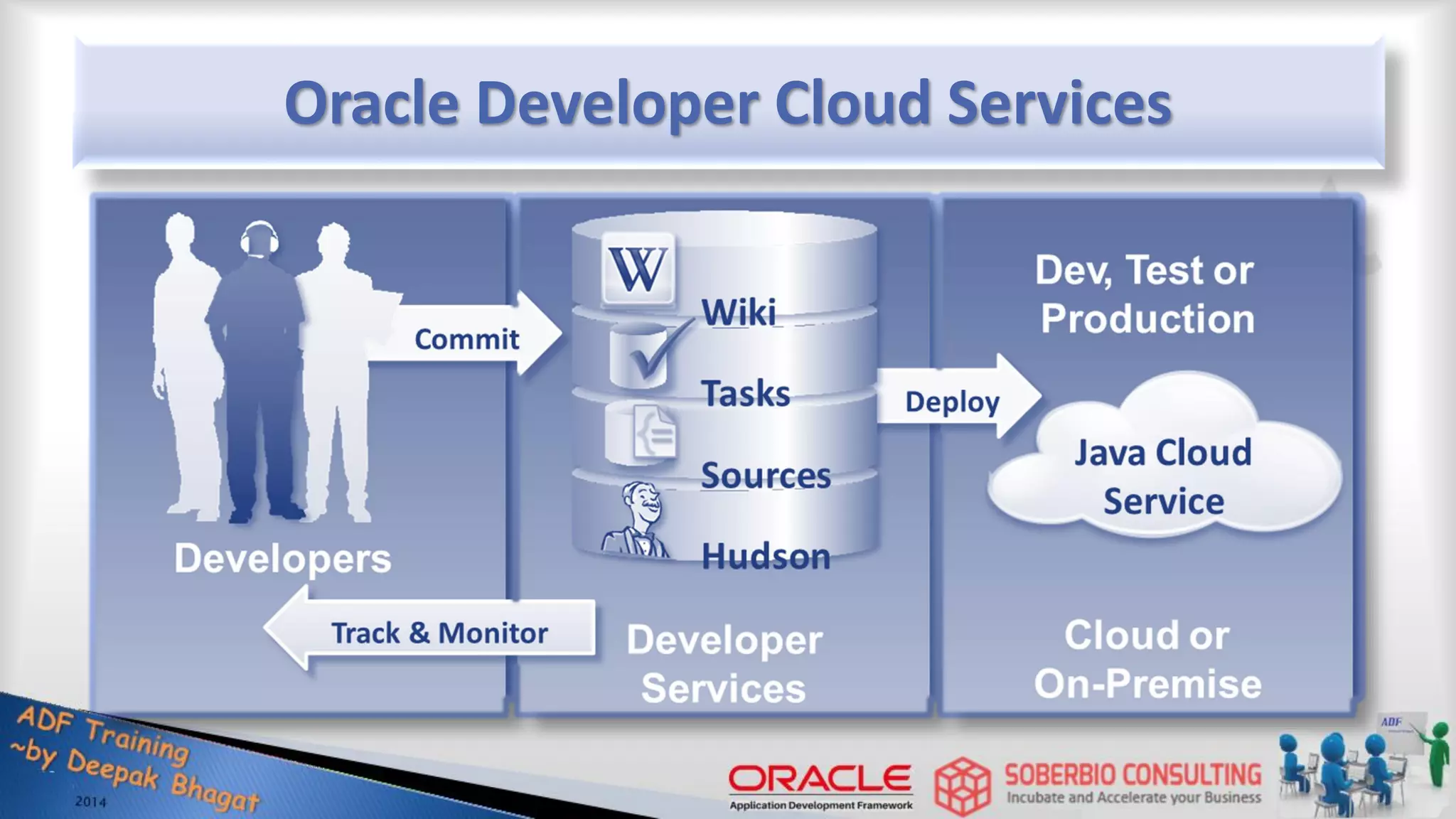

Oracle Developer Cloud Services Developer Develop A turnkey development platform securely hosted in the cloud Collaborate Integrated tools to manage and track tasks, builds, and documentation Deploy Automatic deployment to Oracle Java Cloud Service or your local infrastructure Standards-based Git, Hudson, Maven

Oracle Developer Cloud Services

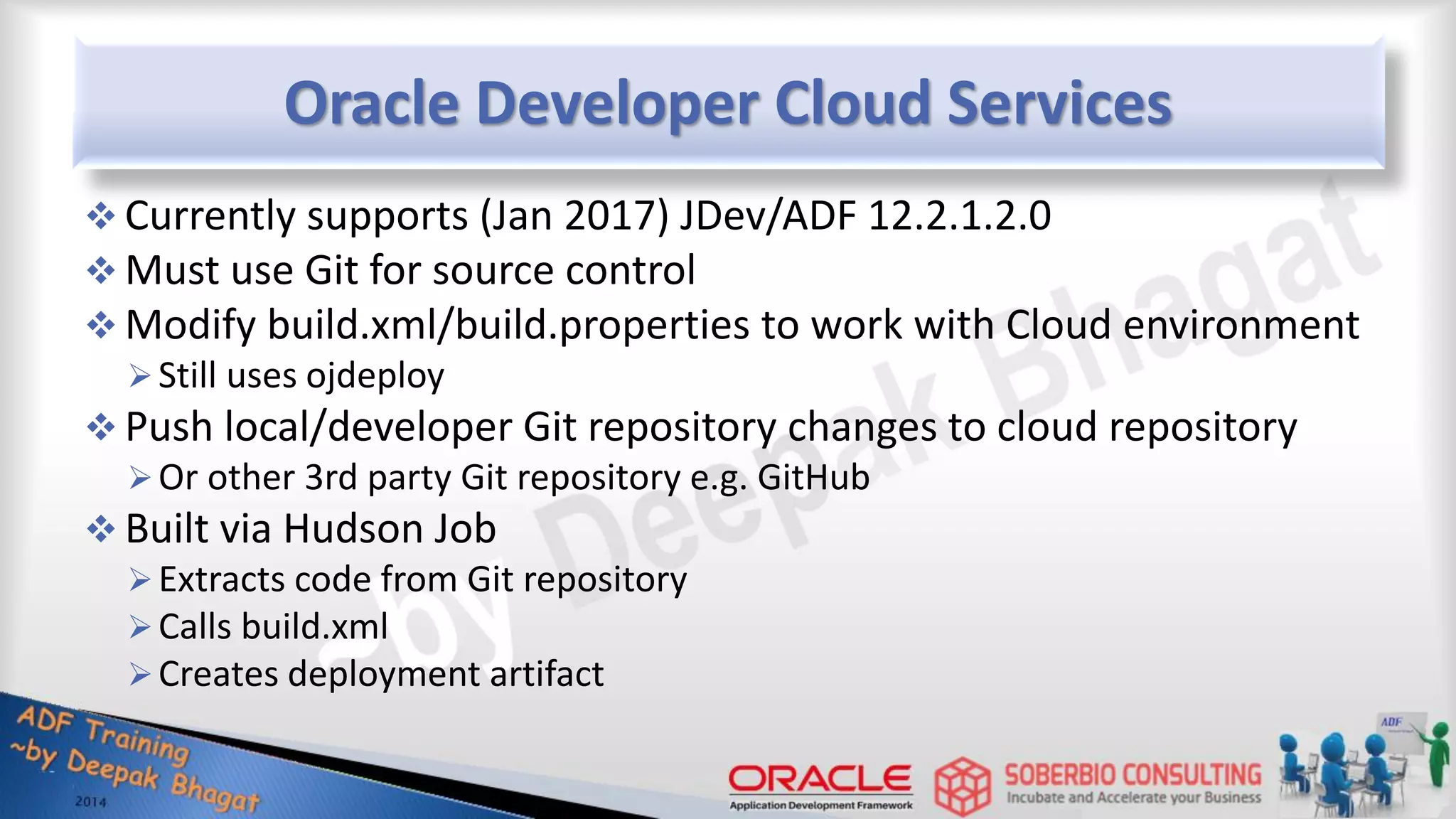

Oracle Developer Cloud Services  Currently supports (Jan 2017) JDev/ADF 12.2.1.2.0  Must use Git for source control  Modify build.xml/build.properties to work with Cloud environment Still uses ojdeploy  Push local/developer Git repository changes to cloud repository Or other 3rd party Git repository e.g. GitHub  Built via Hudson Job Extracts code from Git repository Calls build.xml Creates deployment artifact

Build Tools & Options - Dependency Management To build in the correct order dependencies must be configured JDeveloper projects record the libraries they're dependent on But is locked up in the associated/undocumented .jpr file JDeveloper provides no useful dependency management assistance Supplement JDeveloper with a dependency management tool Manual Apache Ant scripts Apache Ivy Apache Maven

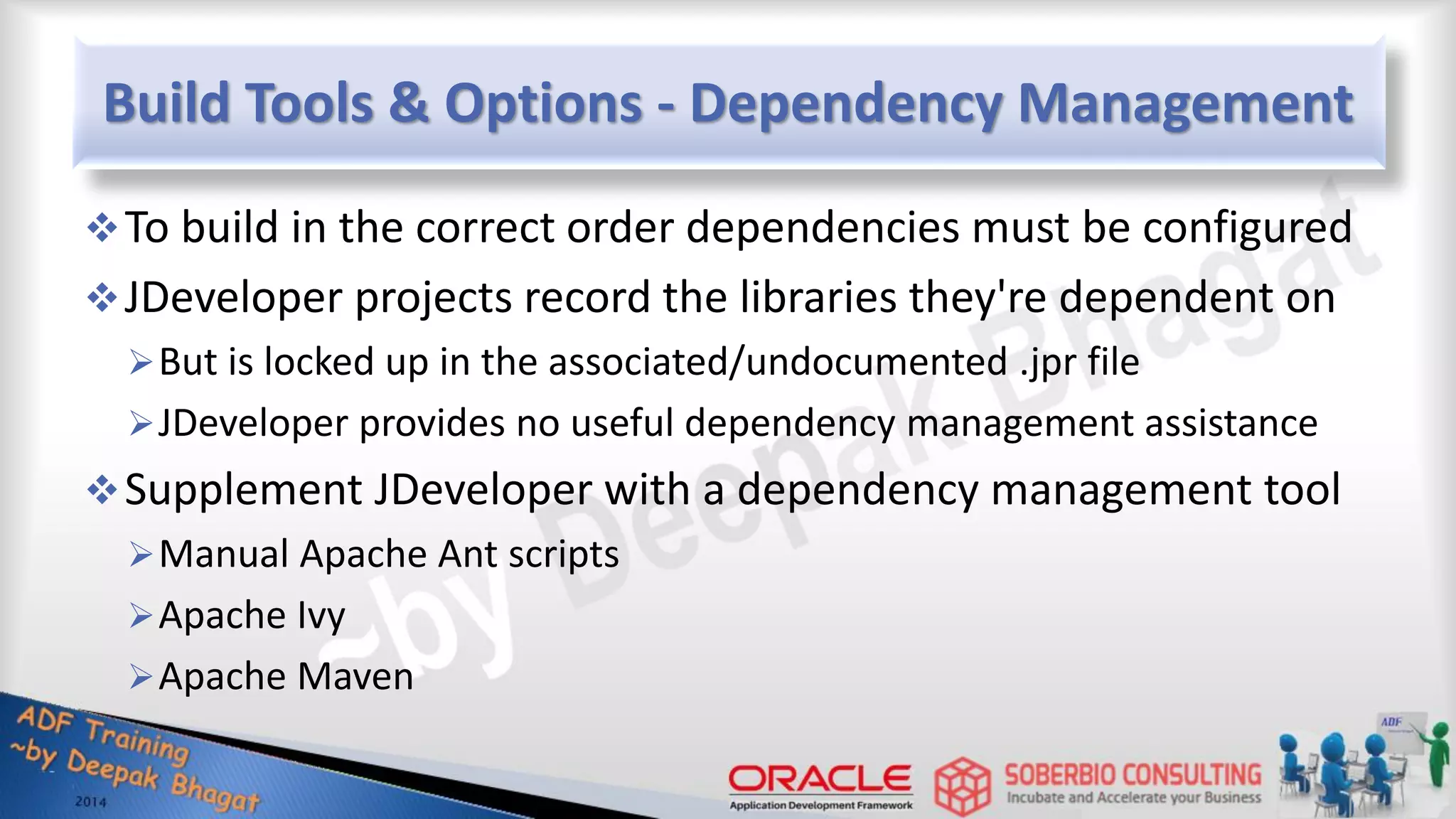

Build Tools & Options - Dependency Management  Hardcoded Ant scripts for small projects are okay Simply wont scale to large projects – scripts become impossible to maintain  Dependency management tools provide assistance with Define and track the modules, versions and dependencies Library repositories Allows developers share versioned modules Through publish/retrieve mechanism Define dependencies and transient (indirect) dependencies Conflict resolution on dependencies

Post Build Building Source Code ADF Build Setup Pre Build: Deployment Profiles Build Tools & Options Dependency Management Post Build: WLS Deployment Plans & Build Modifications Continuous Integration

Building and Deploying  Upon deployment of the artefacts may be necessary to modify it  Such as modifying configuration files for different dev/test/prod environments  e.g. these web.xml settings should be set/unset per environment <context-param> <param-name>oracle.adf.view.rich.ASSERT_ENABLED</param-name> <param-value>true</param-value> </context-param> <context-param> <param-name>org.apache.myfaces.trinidad.DEBUG_JAVASCRIPT</param-name> <param-value>true</param-value> </context-param>  2 options  WLS deployment plans  Ant scripts

Building and Deploying ADF Application Building Source Code ADF Build Setup Pre Build: Deployment Profiles Build Tools & Options Dependency Management Post Build: WLS Deployment Plans & Build Modifications Continuous Integration (CI)

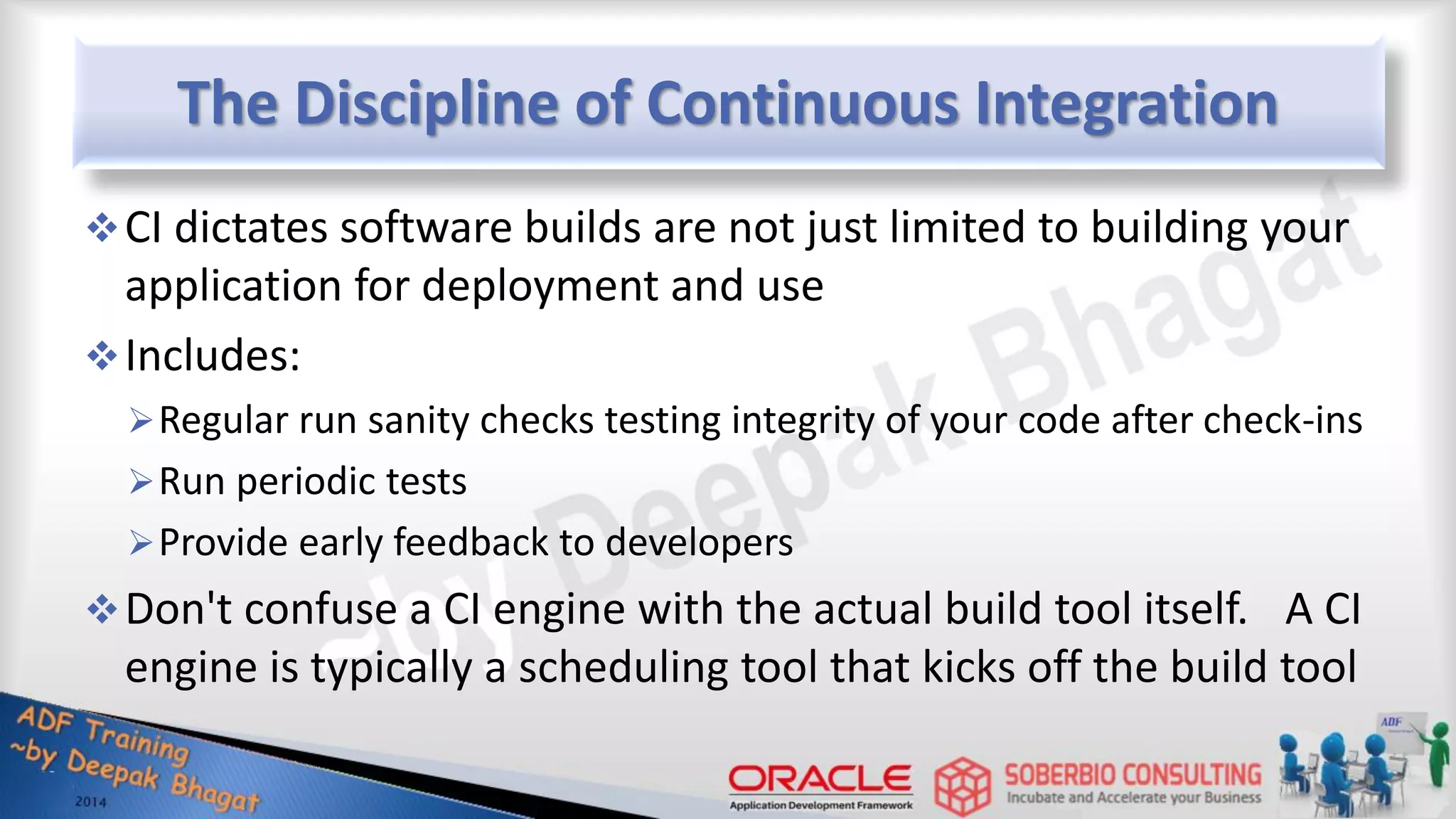

The Discipline of Continuous Integration CI dictates software builds are not just limited to building your application for deployment and use Includes: Regular run sanity checks testing integrity of your code after check-ins Run periodic tests Provide early feedback to developers Don't confuse a CI engine with the actual build tool itself. A CI engine is typically a scheduling tool that kicks off the build tool

Hudson  There are plenty of CI engines available  Oracle recommends Hudson  Hudson was inherited by Oracle from Sun  Was donated to the Eclipse Foundation in 2012  Jenkins was an open source fork of Hudson  Oracle recommends Hudson over Jenkins Ongoing support from Oracle Removed IP concerns over internal code Used internally by Oracle and Oracle's Developer Cloud Services extensively Widening supports for ADF applications

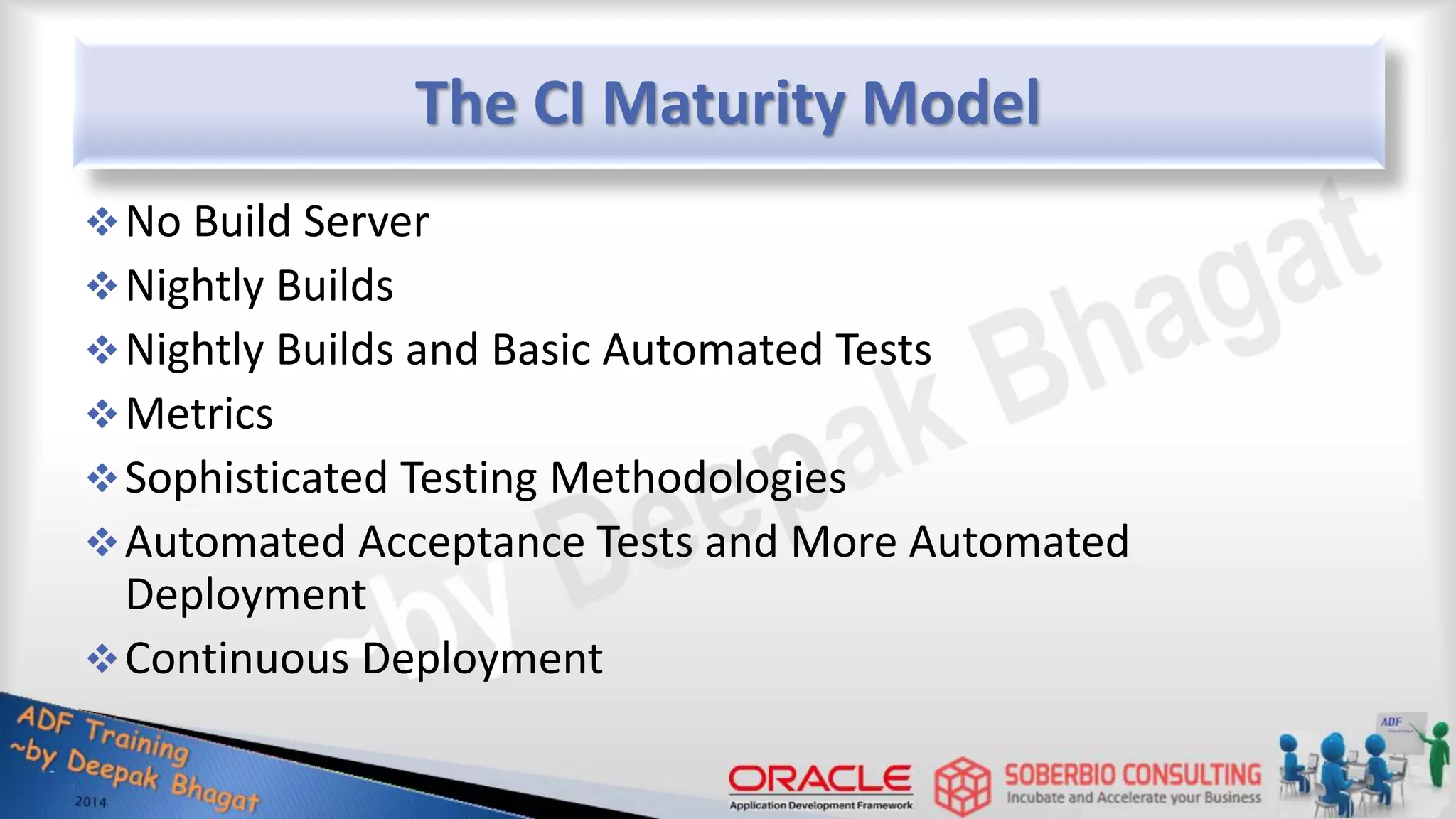

The CI Maturity Model No Build Server Nightly Builds Nightly Builds and Basic Automated Tests Metrics Sophisticated Testing Methodologies Automated Acceptance Tests and More Automated Deployment Continuous Deployment

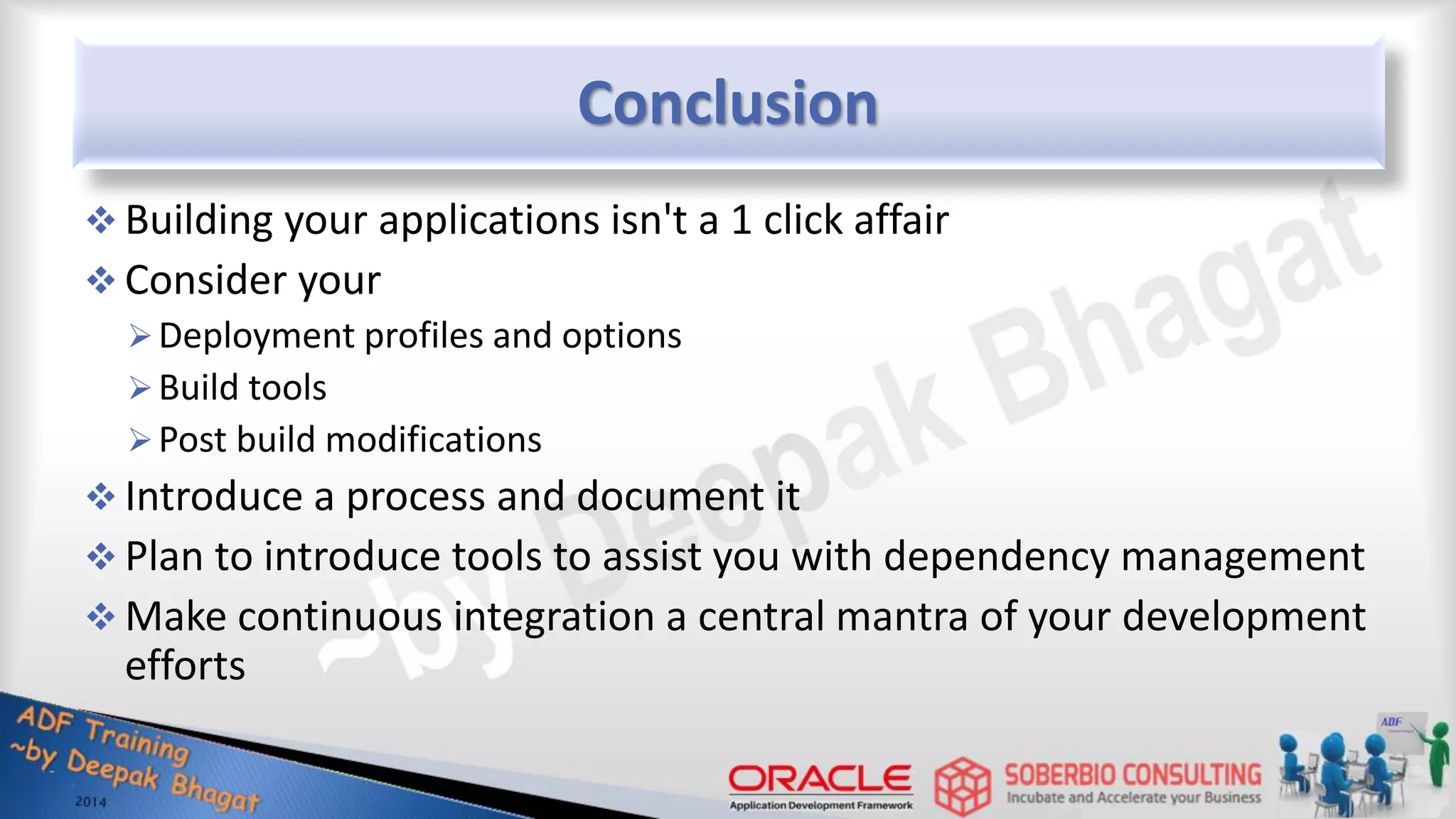

Conclusion  Building your applications isn't a 1 click affair  Consider your Deployment profiles and options Build tools Post build modifications  Introduce a process and document it  Plan to introduce tools to assist you with dependency management  Make continuous integration a central mantra of your development efforts

Lesson Summary ADF Supported Application Servers ADF Deployment Diagram Building And Deploying ADF ADF Build Setup Deployment Profile types Deployment to Cloud Service

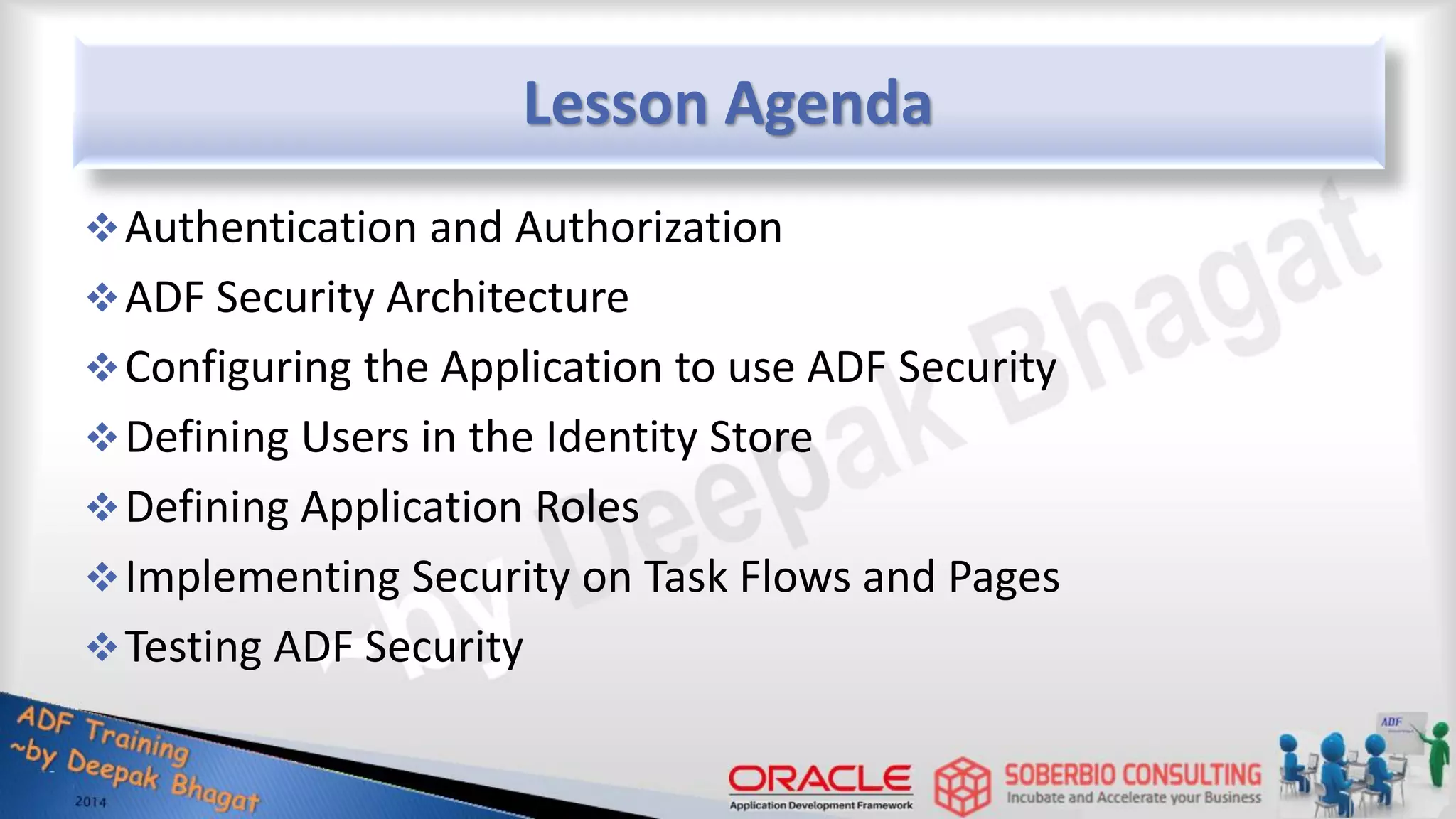

Lesson Agenda Authentication and Authorization ADF Security Architecture Configuring the Application to use ADF Security Defining Users in the Identity Store Defining Application Roles Implementing Security on Task Flows and Pages Testing ADF Security

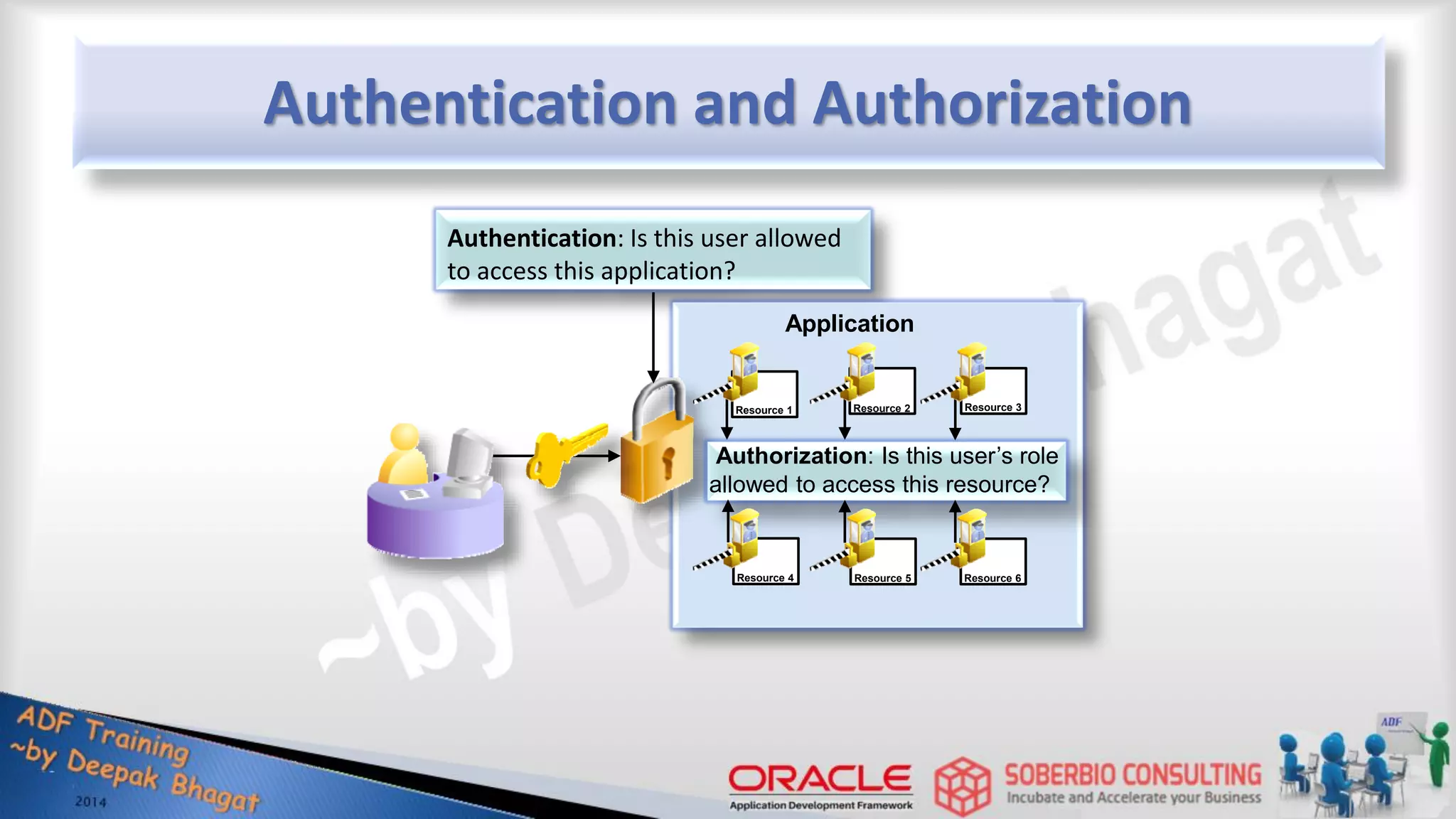

Authentication and Authorization Authentication: Is this user allowed to access this application? Authorization: Is this user’s role allowed to access this resource? Resource 2 Resource 1 Resource 3 Resource 4 Resource 5 Resource 6 Application

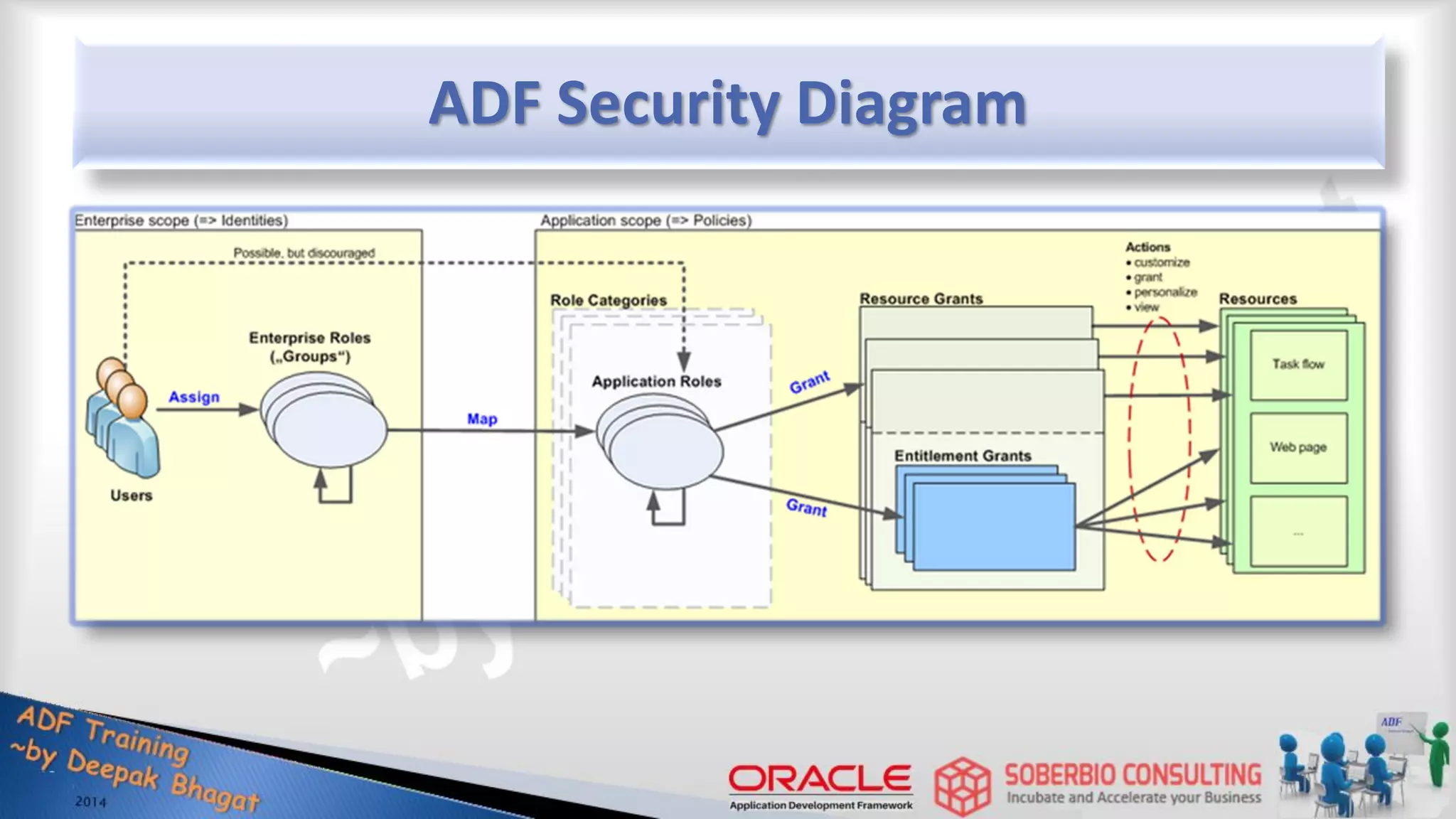

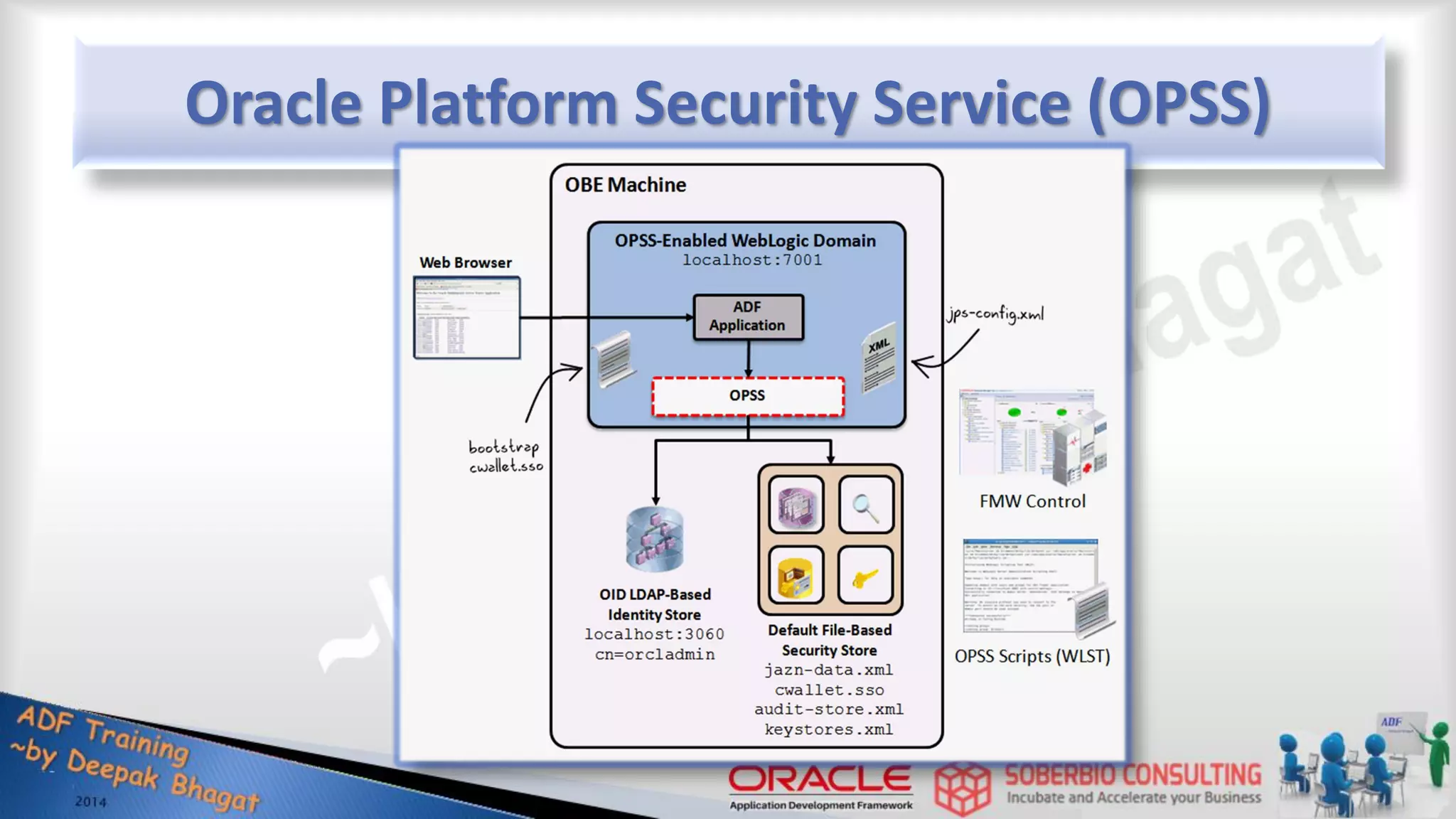

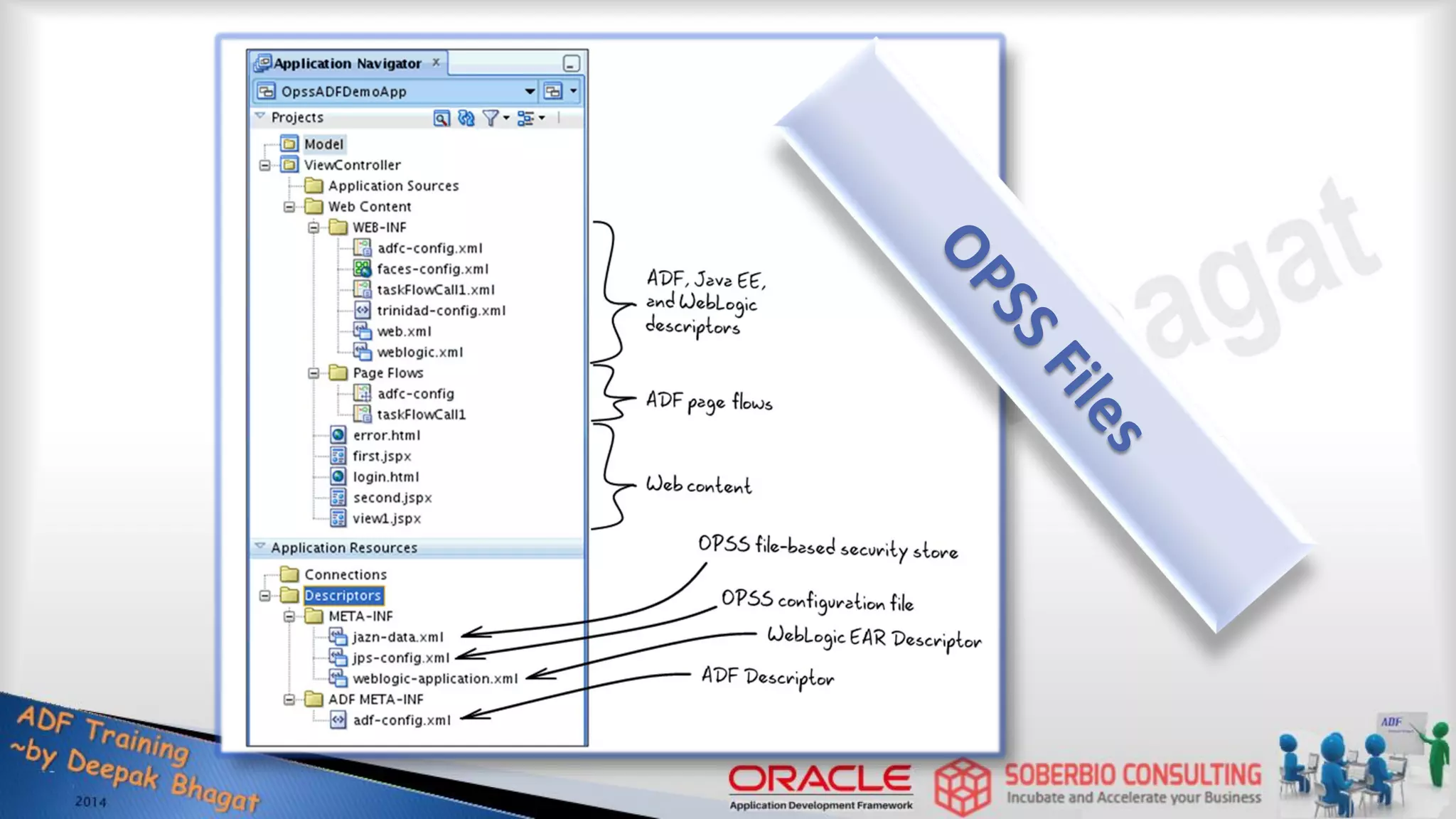

Oracle Platform Security Service (OPSS)

Lesson Summary Authentication and Authorization ADF Security Architecture Configuring the Application to use ADF Security Defining Users in the Identity Store Defining Application Roles Implementing Security on Task Flows and Pages Testing ADF Security

25 Debugging and Troubleshooting ADF Applications

Lesson Agenda Troubleshooting Business Services and User Interfaces JUnit, ADF Model Tester and Java test client Design-time code validation Tools for logging and diagnostics JDeveloper Debugger JDeveloper Profiler and FileMon Sources of help

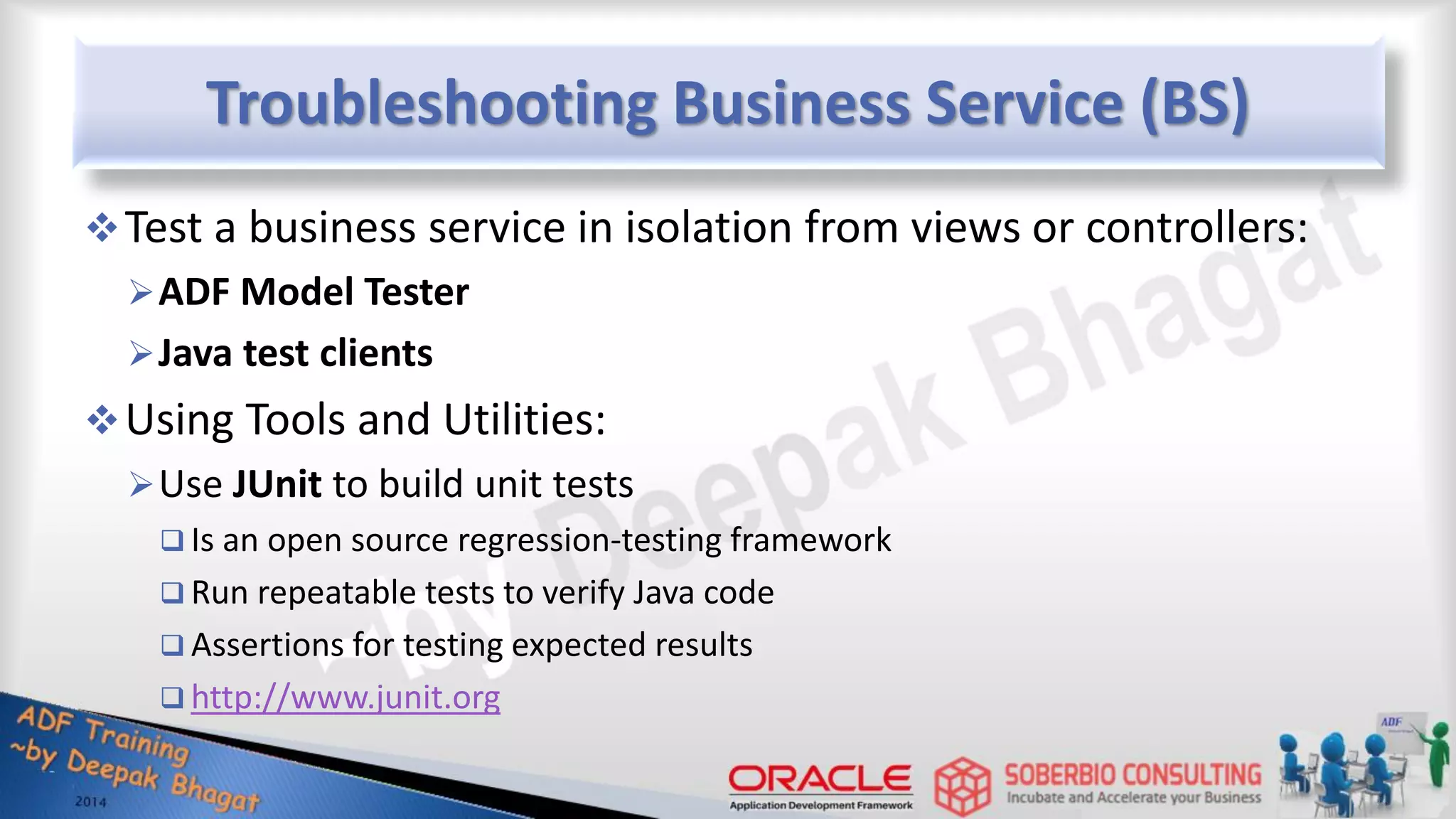

Troubleshooting Business Service (BS) Test a business service in isolation from views or controllers: ADF Model Tester Java test clients Using Tools and Utilities: Use JUnit to build unit tests  Is an open source regression-testing framework  Run repeatable tests to verify Java code  Assertions for testing expected results  http://www.junit.org

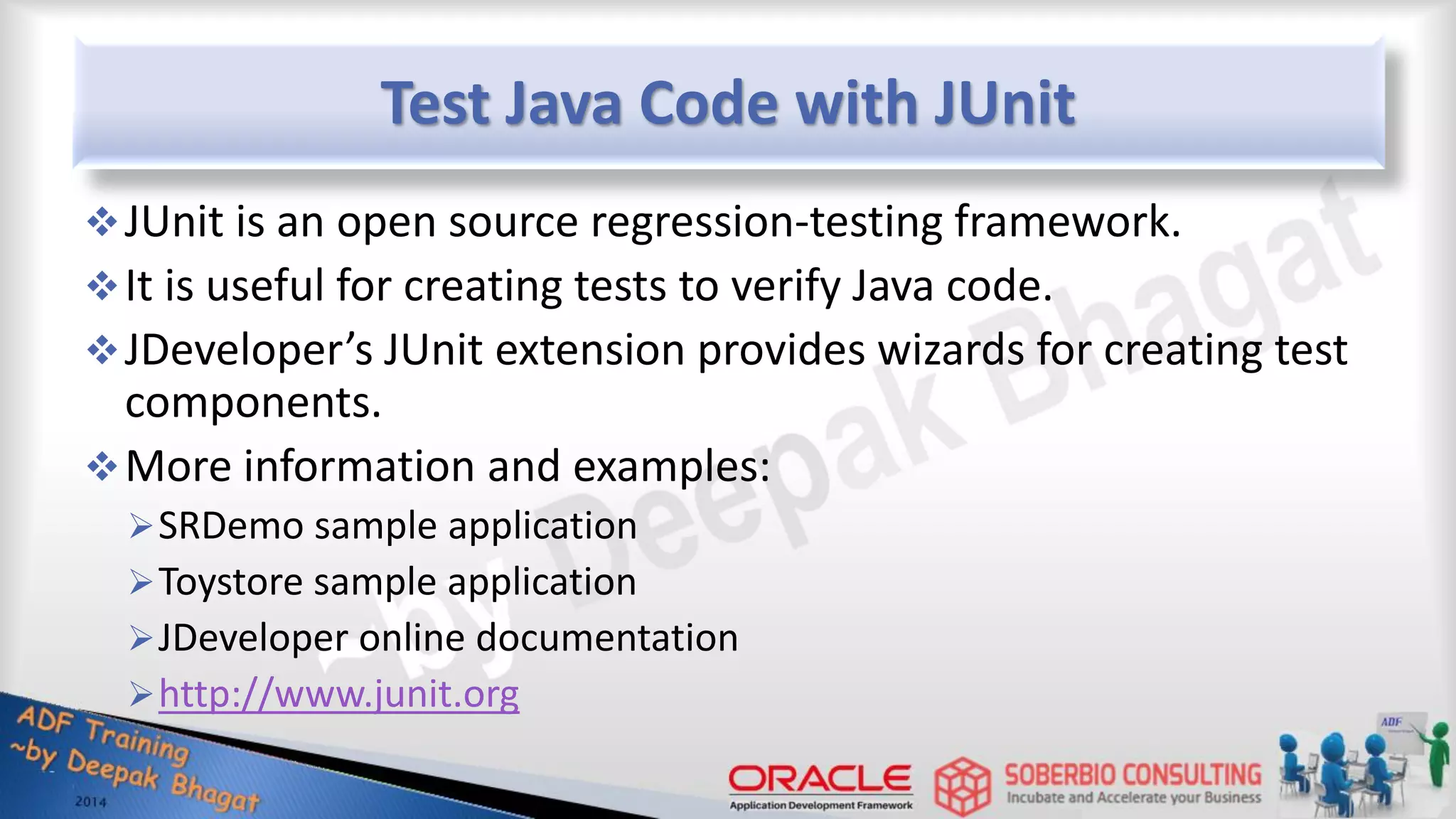

Test Java Code with JUnit JUnit is an open source regression-testing framework. It is useful for creating tests to verify Java code. JDeveloper’s JUnit extension provides wizards for creating test components. More information and examples: SRDemo sample application Toystore sample application JDeveloper online documentation http://www.junit.org

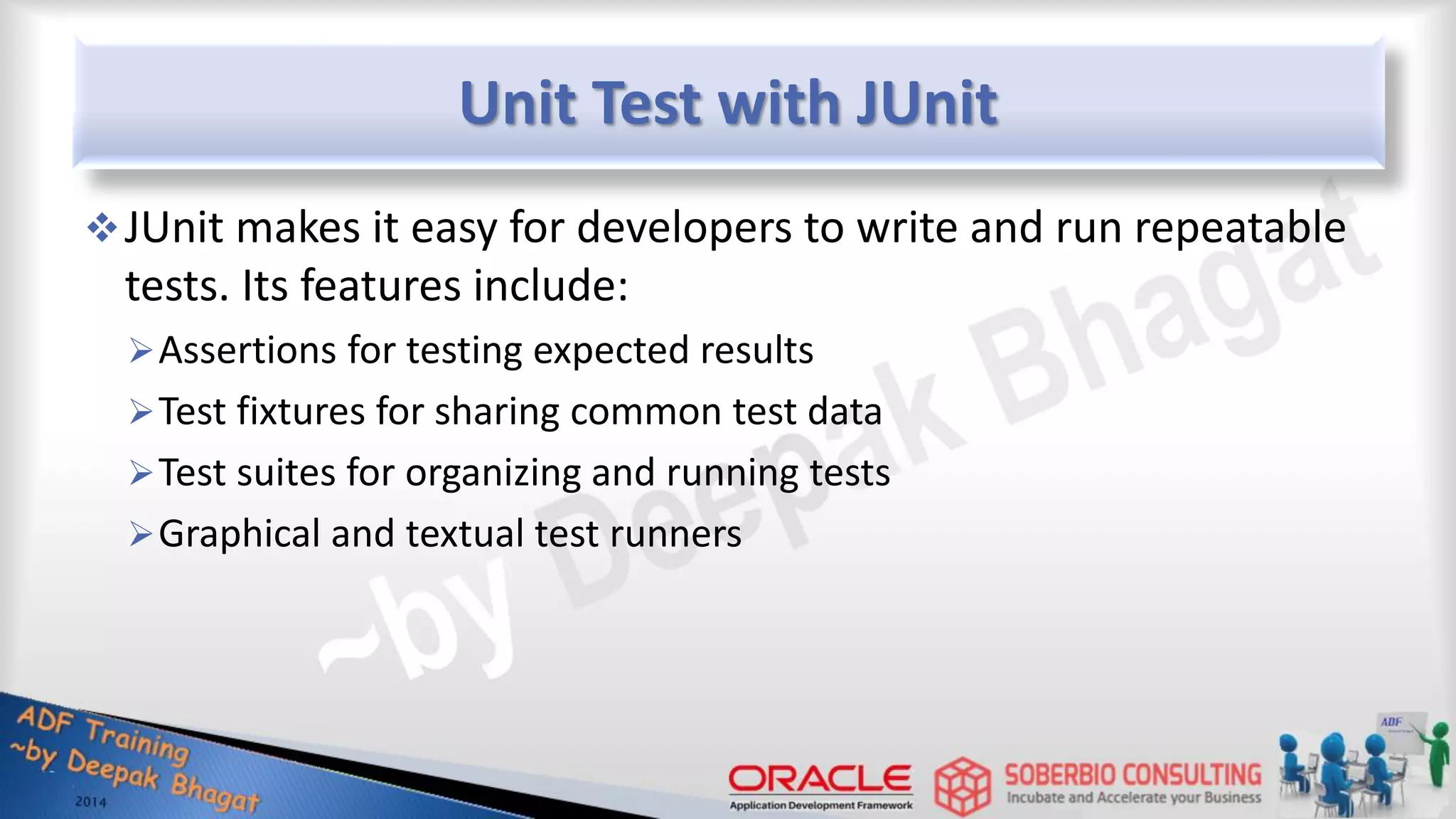

Unit Test with JUnit JUnit makes it easy for developers to write and run repeatable tests. Its features include: Assertions for testing expected results Test fixtures for sharing common test data Test suites for organizing and running tests Graphical and textual test runners

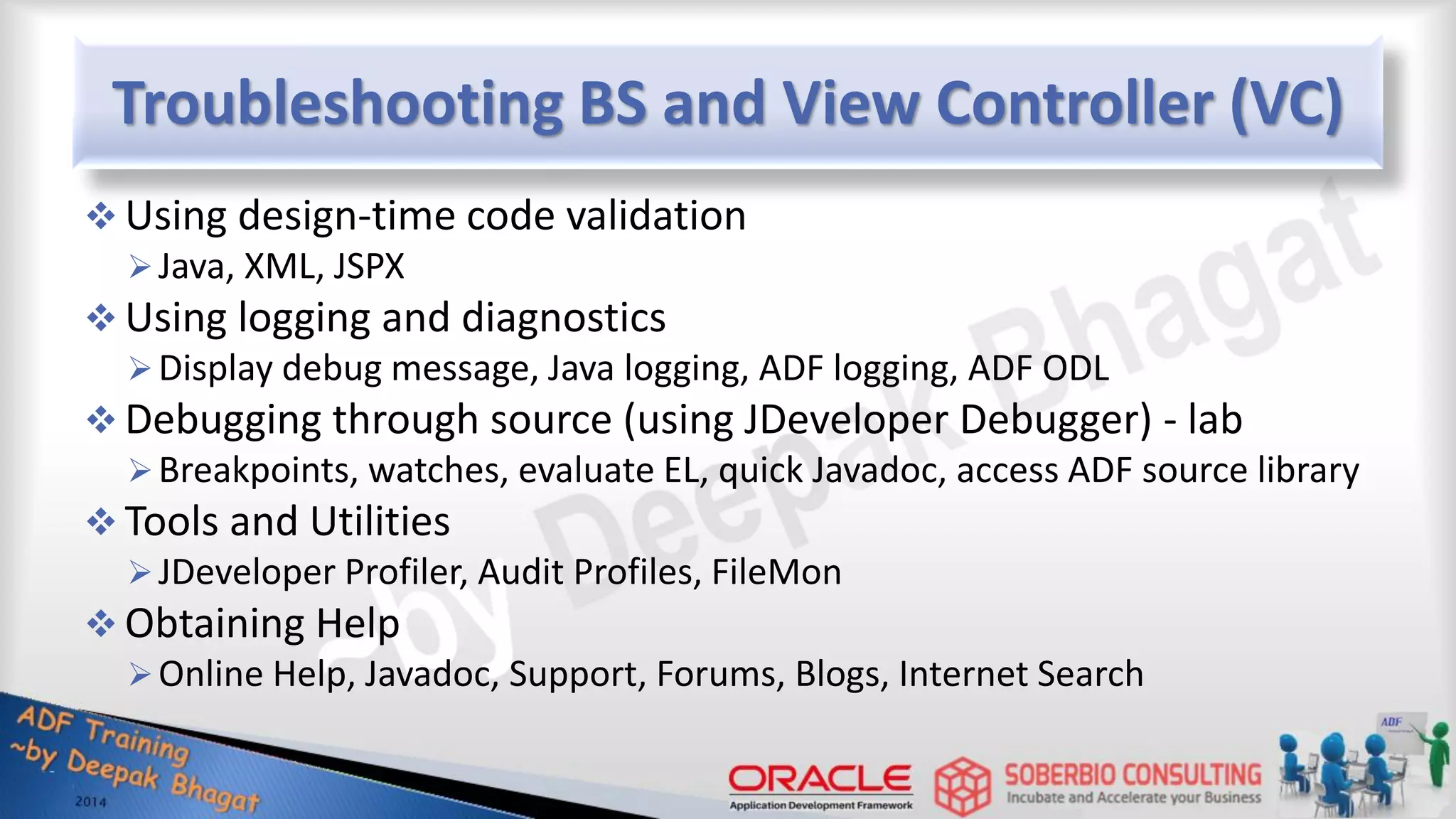

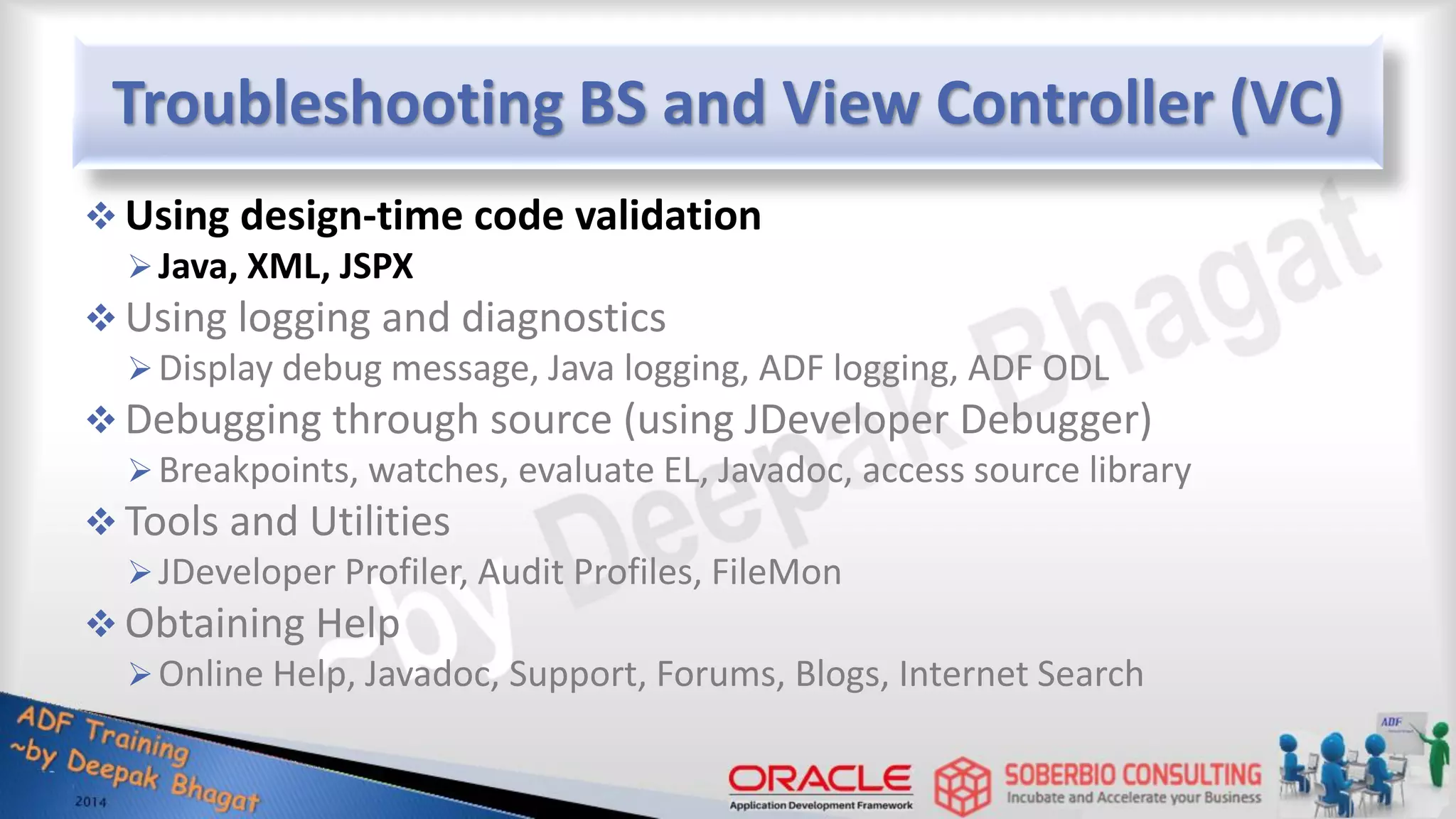

Troubleshooting BS and View Controller (VC)  Using design-time code validation Java, XML, JSPX  Using logging and diagnostics Display debug message, Java logging, ADF logging, ADF ODL  Debugging through source (using JDeveloper Debugger) - lab Breakpoints, watches, evaluate EL, quick Javadoc, access ADF source library  Tools and Utilities JDeveloper Profiler, Audit Profiles, FileMon  Obtaining Help Online Help, Javadoc, Support, Forums, Blogs, Internet Search

Troubleshooting BS and View Controller (VC)  Using design-time code validation Java, XML, JSPX  Using logging and diagnostics Display debug message, Java logging, ADF logging, ADF ODL  Debugging through source (using JDeveloper Debugger) Breakpoints, watches, evaluate EL, Javadoc, access source library  Tools and Utilities JDeveloper Profiler, Audit Profiles, FileMon  Obtaining Help Online Help, Javadoc, Support, Forums, Blogs, Internet Search

Using Design-Time Code Validation JDeveloper’s editors provide error cues and correction suggestions for files such as: Java XML  xsd JSPX  Syntax is checked and errors and warnings are flagged  Errors are visible in Design, Source and Bindings editors

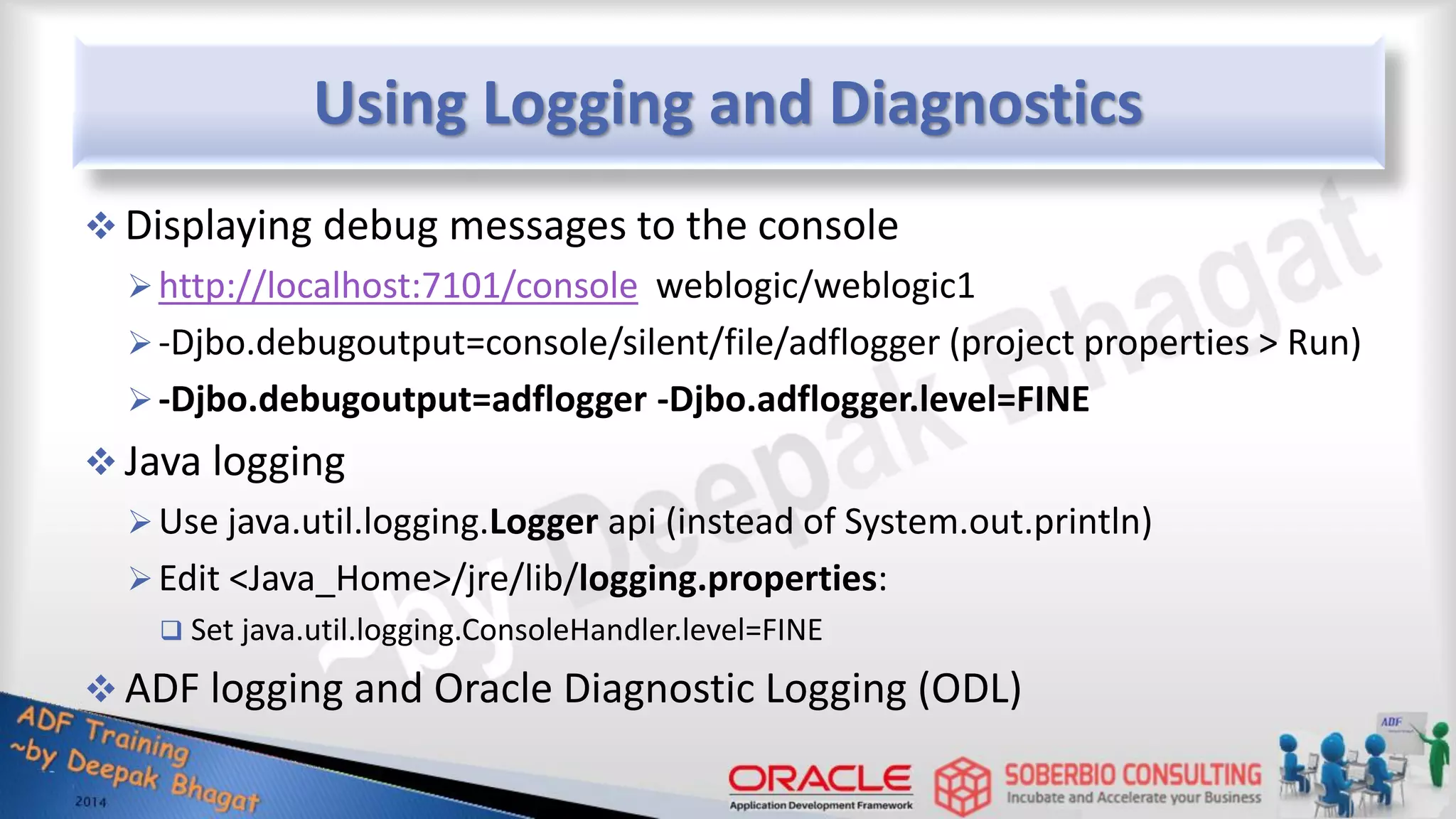

Using Logging and Diagnostics  Displaying debug messages to the console http://localhost:7101/console weblogic/weblogic1 -Djbo.debugoutput=console/silent/file/adflogger (project properties > Run) -Djbo.debugoutput=adflogger -Djbo.adflogger.level=FINE  Java logging Use java.util.logging.Logger api (instead of System.out.println) Edit <Java_Home>/jre/lib/logging.properties:  Set java.util.logging.ConsoleHandler.level=FINE  ADF logging and Oracle Diagnostic Logging (ODL)

Using Logging and Diagnostics cont.… ADF logging and Oracle Diagnostic Logging (ODL) Use ADFLogger api (instead of System.out.println in Java source code) Use ODL Log Analyzer to view log entries of a log file ODL provide control over messages’  Logging level and  Module filter Edit logging.xml to control level or filter over messages; or Configure ODL Configuration to control level or filter over messages  Access ODL Configuration from Application Server Navigator or Log window

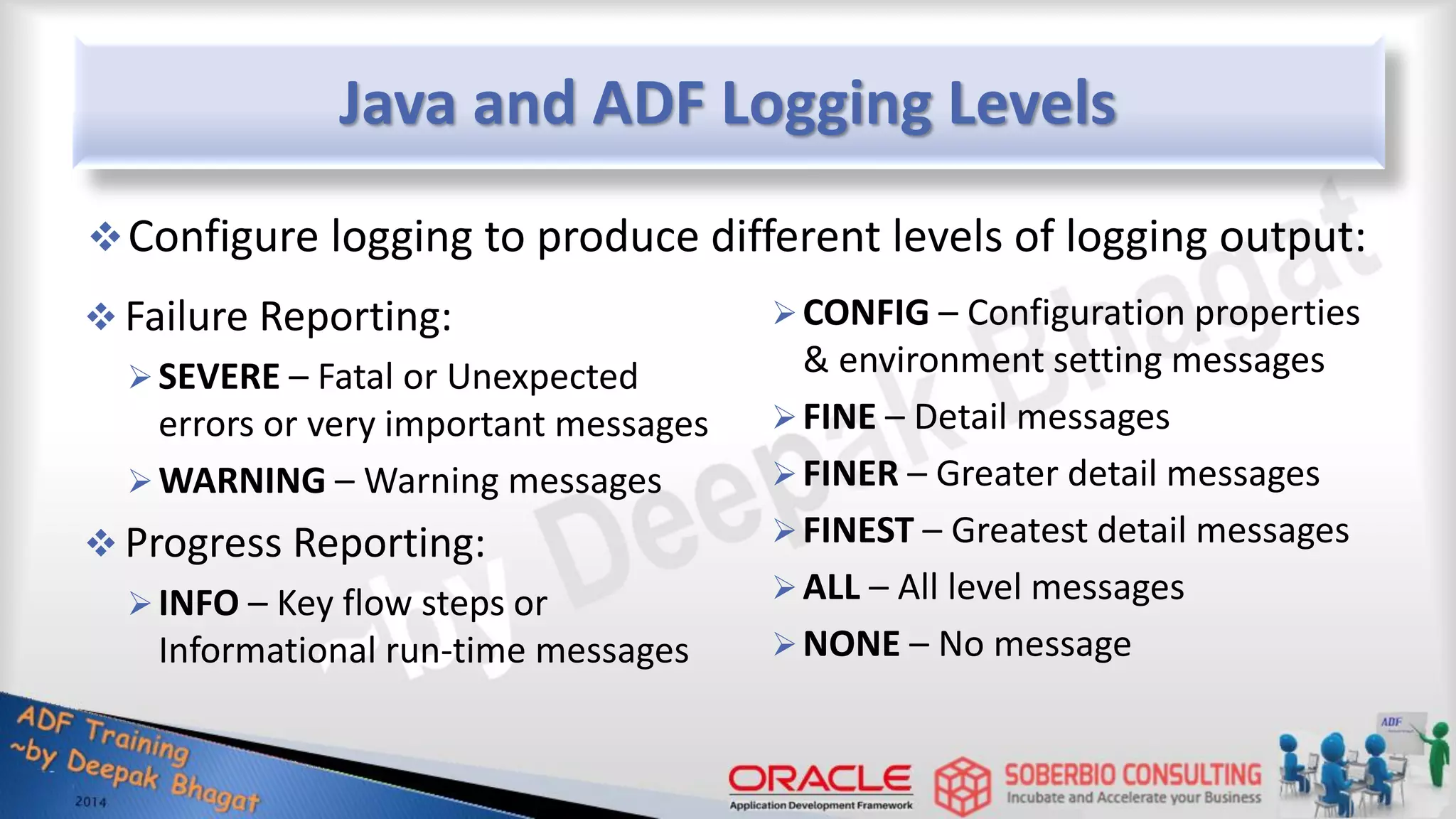

Java and ADF Logging Levels  Failure Reporting: SEVERE – Fatal or Unexpected errors or very important messages WARNING – Warning messages  Progress Reporting: INFO – Key flow steps or Informational run-time messages CONFIG – Configuration properties & environment setting messages FINE – Detail messages FINER – Greater detail messages FINEST – Greatest detail messages ALL – All level messages NONE – No message Configure logging to produce different levels of logging output:

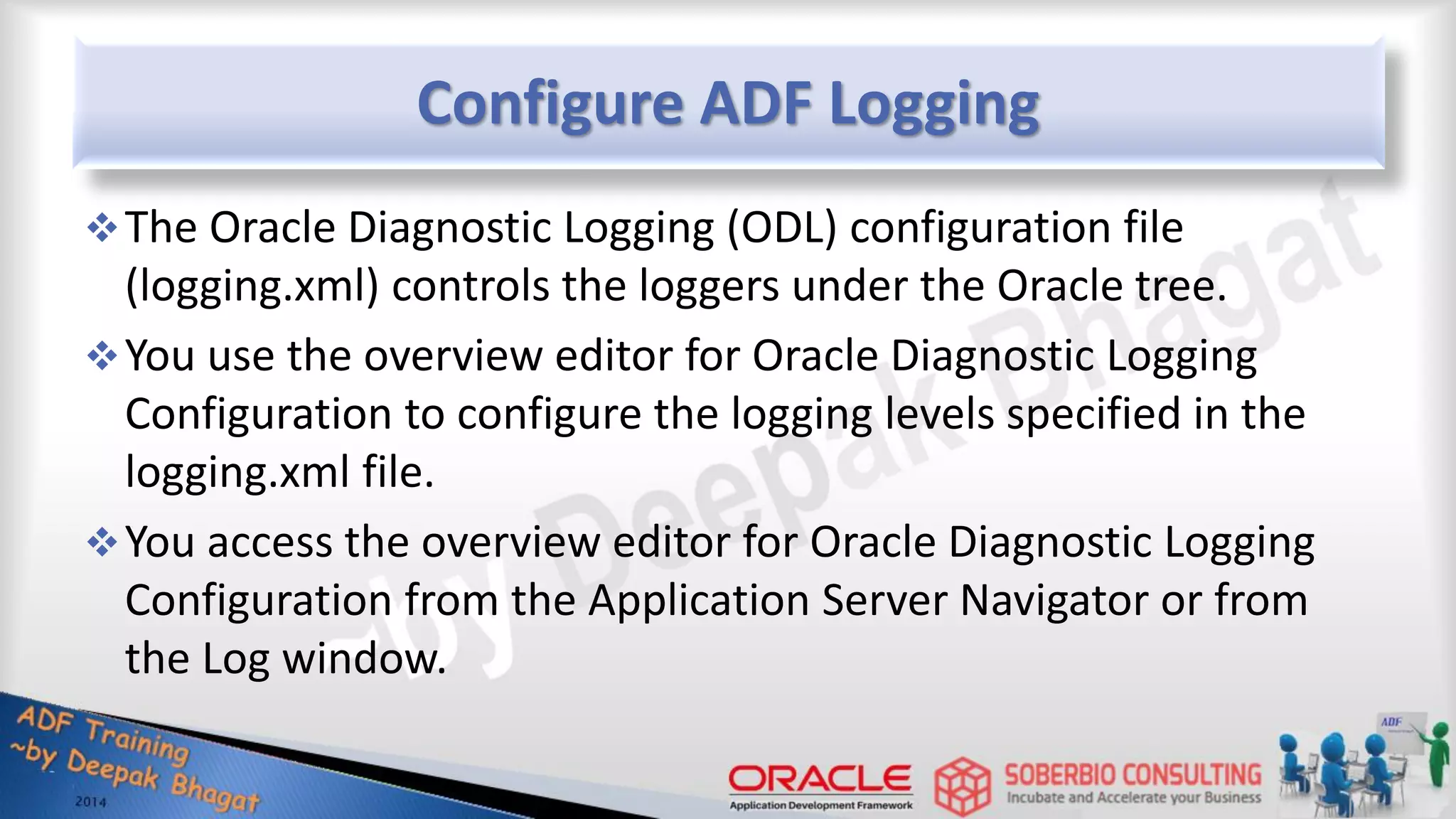

Configure ADF Logging The Oracle Diagnostic Logging (ODL) configuration file (logging.xml) controls the loggers under the Oracle tree. You use the overview editor for Oracle Diagnostic Logging Configuration to configure the logging levels specified in the logging.xml file. You access the overview editor for Oracle Diagnostic Logging Configuration from the Application Server Navigator or from the Log window.

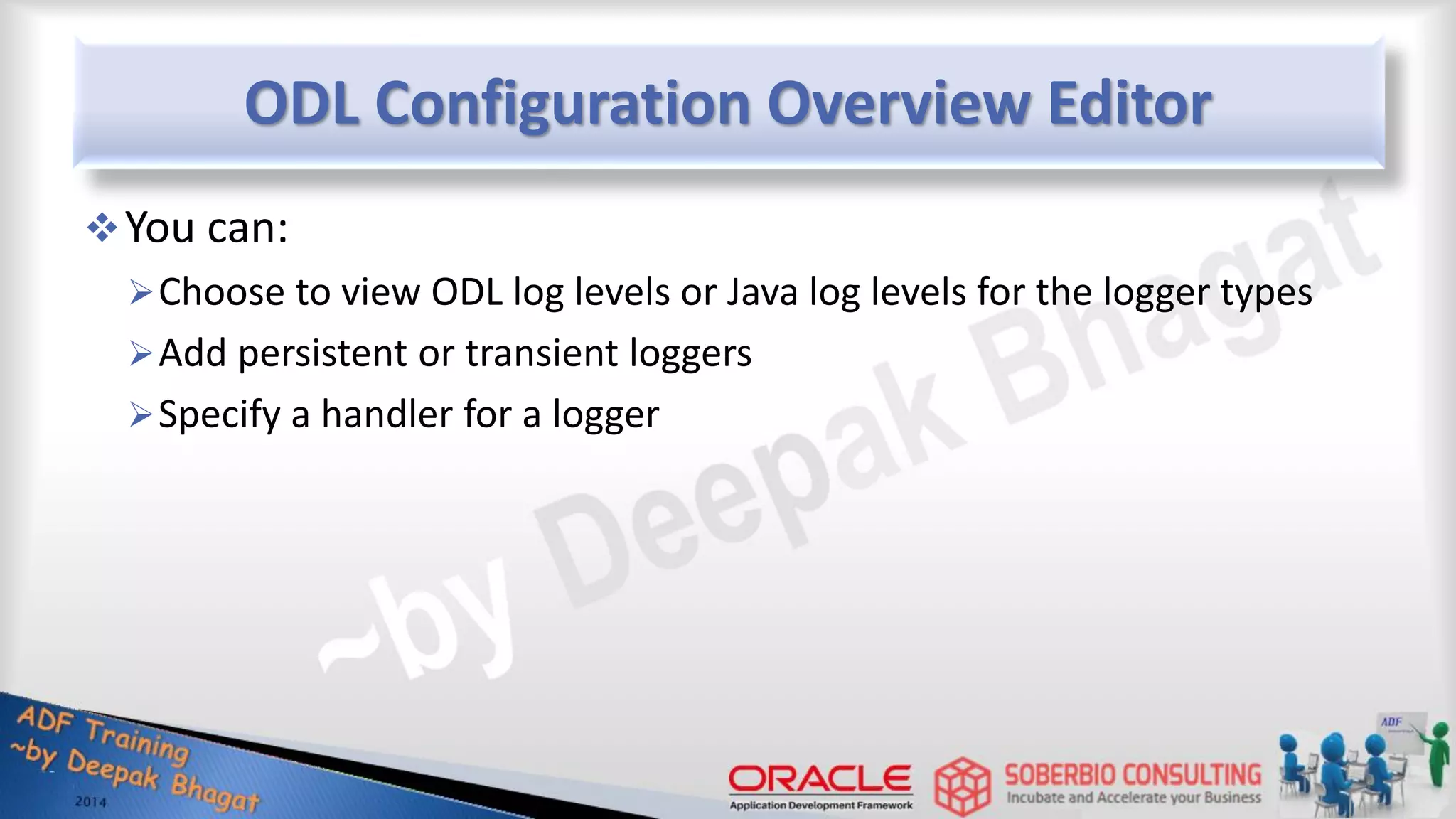

ODL Configuration Overview Editor You can: Choose to view ODL log levels or Java log levels for the logger types Add persistent or transient loggers Specify a handler for a logger

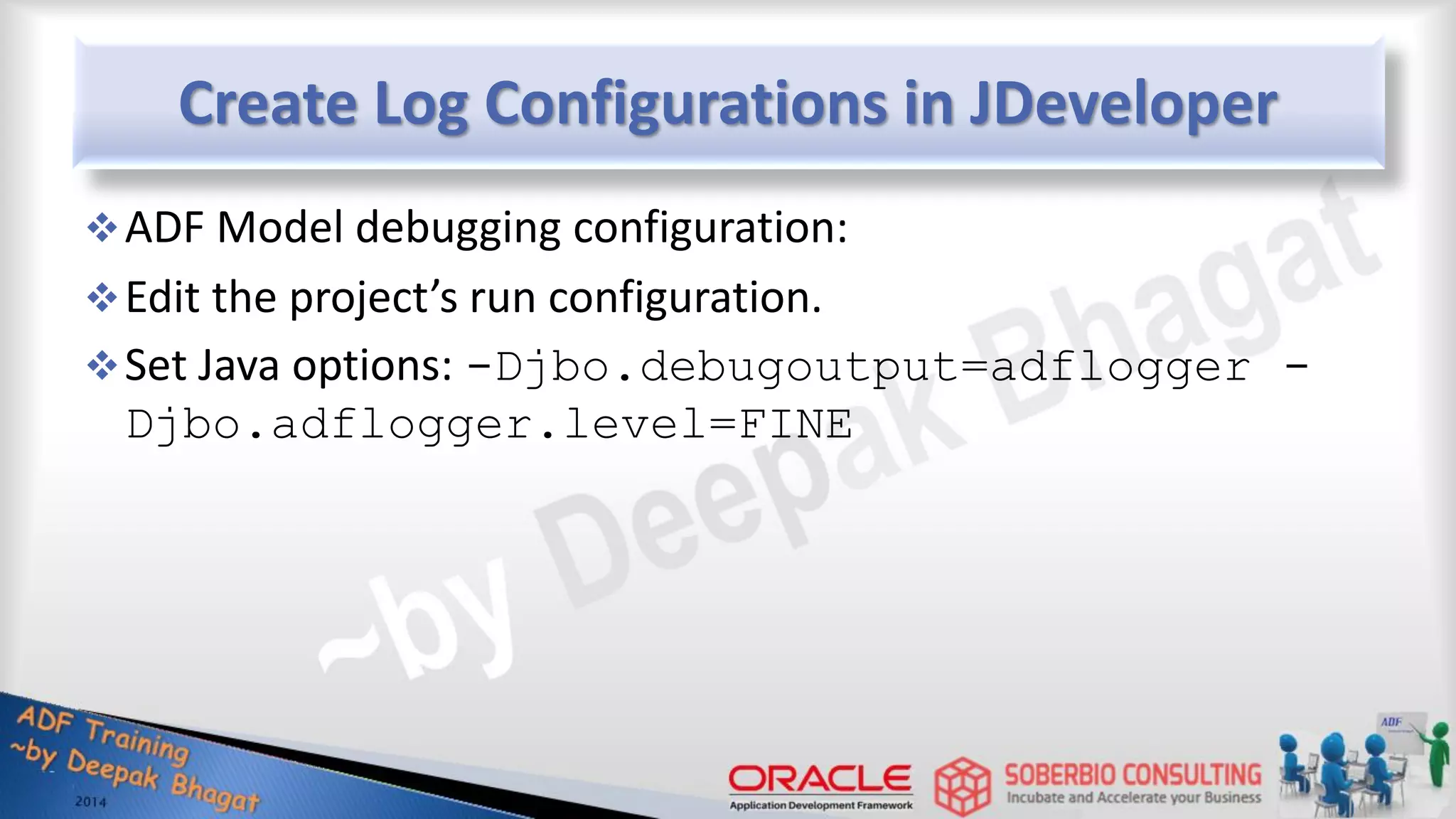

Create Log Configurations in JDeveloper ADF Model debugging configuration: Edit the project’s run configuration. Set Java options: -Djbo.debugoutput=adflogger - Djbo.adflogger.level=FINE

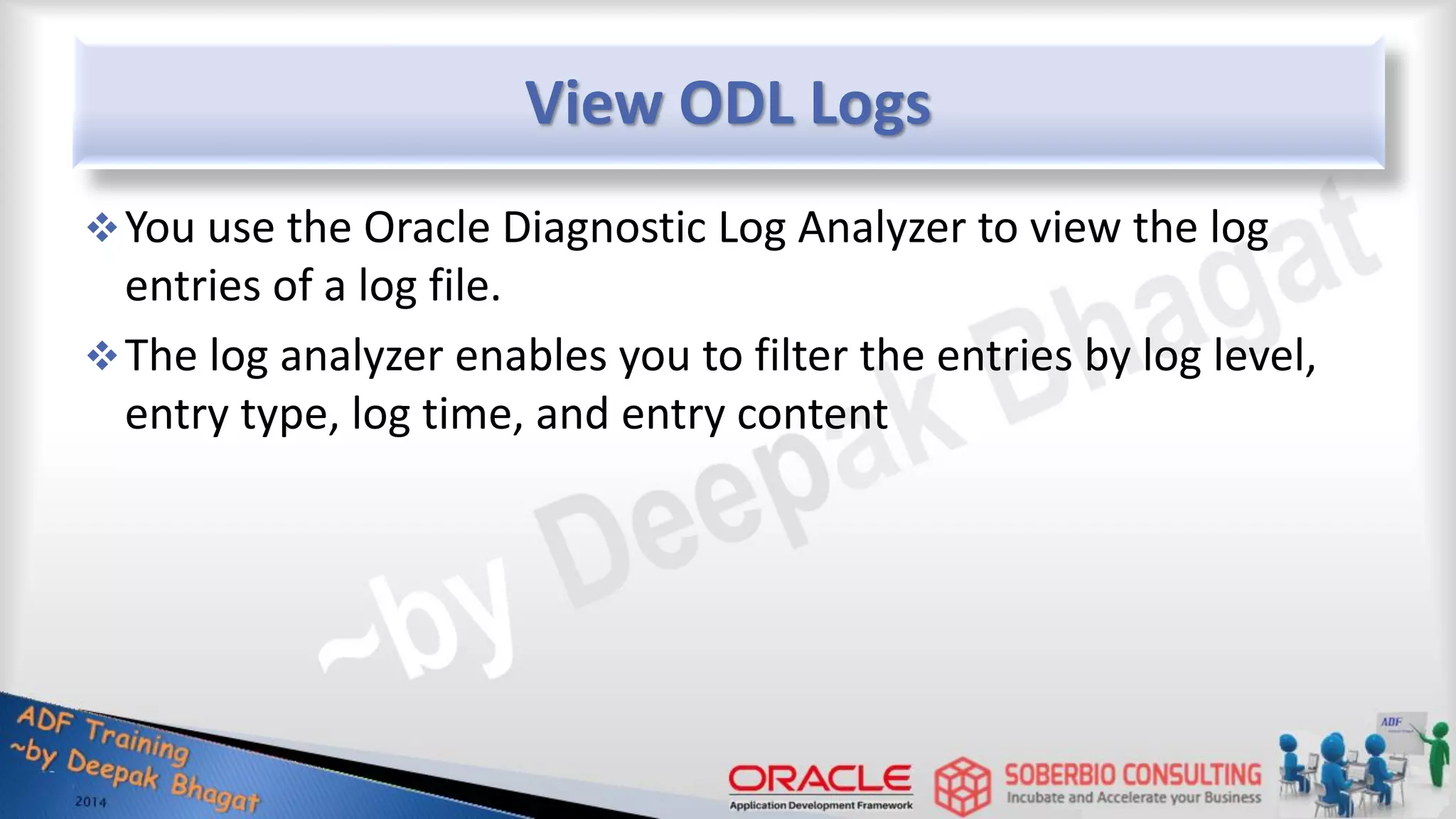

View ODL Logs You use the Oracle Diagnostic Log Analyzer to view the log entries of a log file. The log analyzer enables you to filter the entries by log level, entry type, log time, and entry content

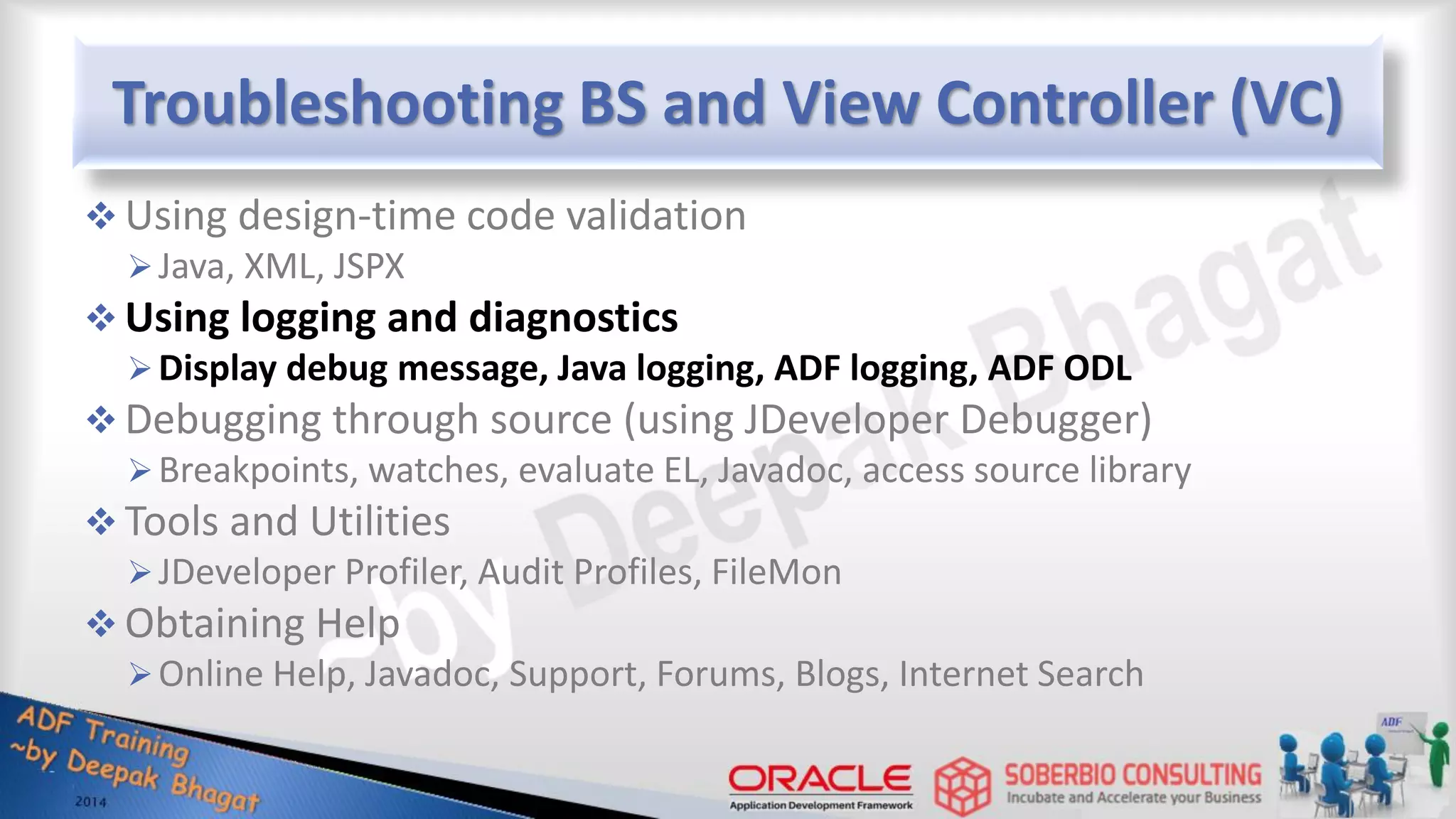

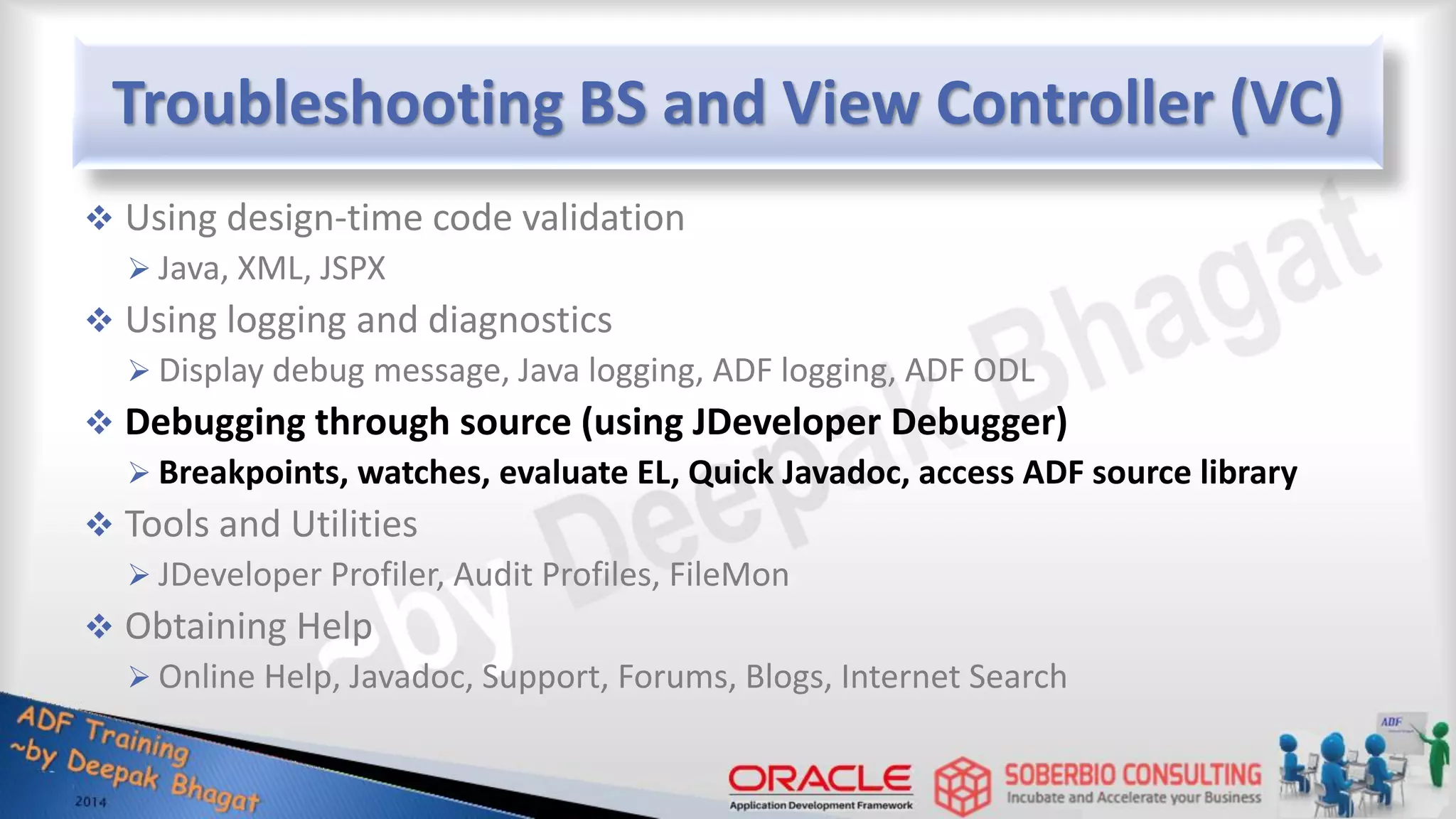

Troubleshooting BS and View Controller (VC)  Using design-time code validation  Java, XML, JSPX  Using logging and diagnostics  Display debug message, Java logging, ADF logging, ADF ODL  Debugging through source (using JDeveloper Debugger)  Breakpoints, watches, evaluate EL, Quick Javadoc, access ADF source library  Tools and Utilities  JDeveloper Profiler, Audit Profiles, FileMon  Obtaining Help  Online Help, Javadoc, Support, Forums, Blogs, Internet Search

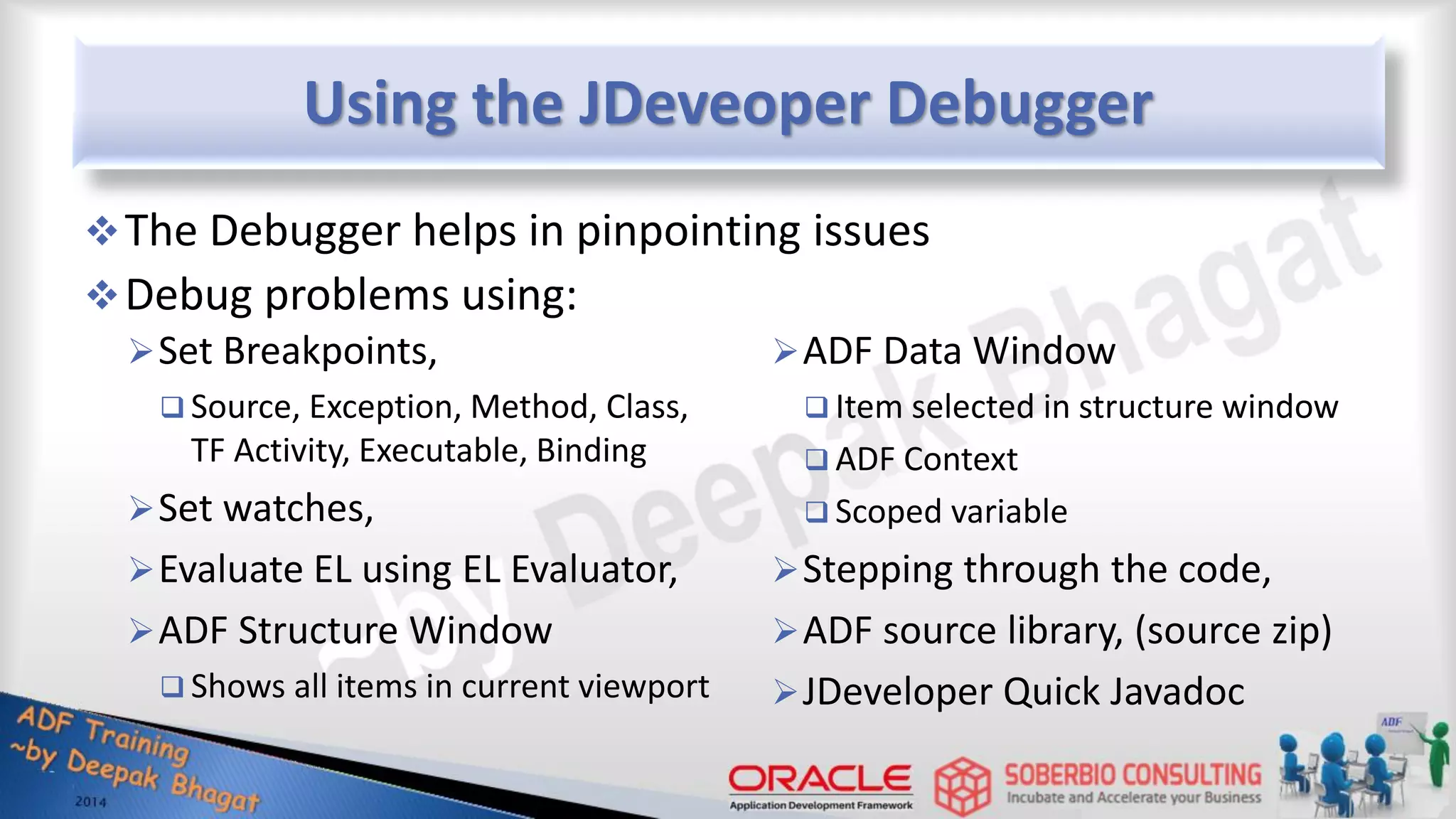

Using the JDeveoper Debugger Set Breakpoints,  Source, Exception, Method, Class, TF Activity, Executable, Binding Set watches, Evaluate EL using EL Evaluator, ADF Structure Window  Shows all items in current viewport ADF Data Window  Item selected in structure window  ADF Context  Scoped variable Stepping through the code, ADF source library, (source zip) JDeveloper Quick Javadoc The Debugger helps in pinpointing issues Debug problems using:

Types of Breakpoints Type Breaks when… Source A particular source line in a particular class in a particular package is run Exception An exception of the class (or a subclass) is thrown Method A method in a given class is invoked Class Any method is a class is invoked Watchpoint A given field is accessed or modified Task flow activities A particular task flow activity in task flow diagram Executables A particular executable in pageDef Bindings A particular binding in pageDef

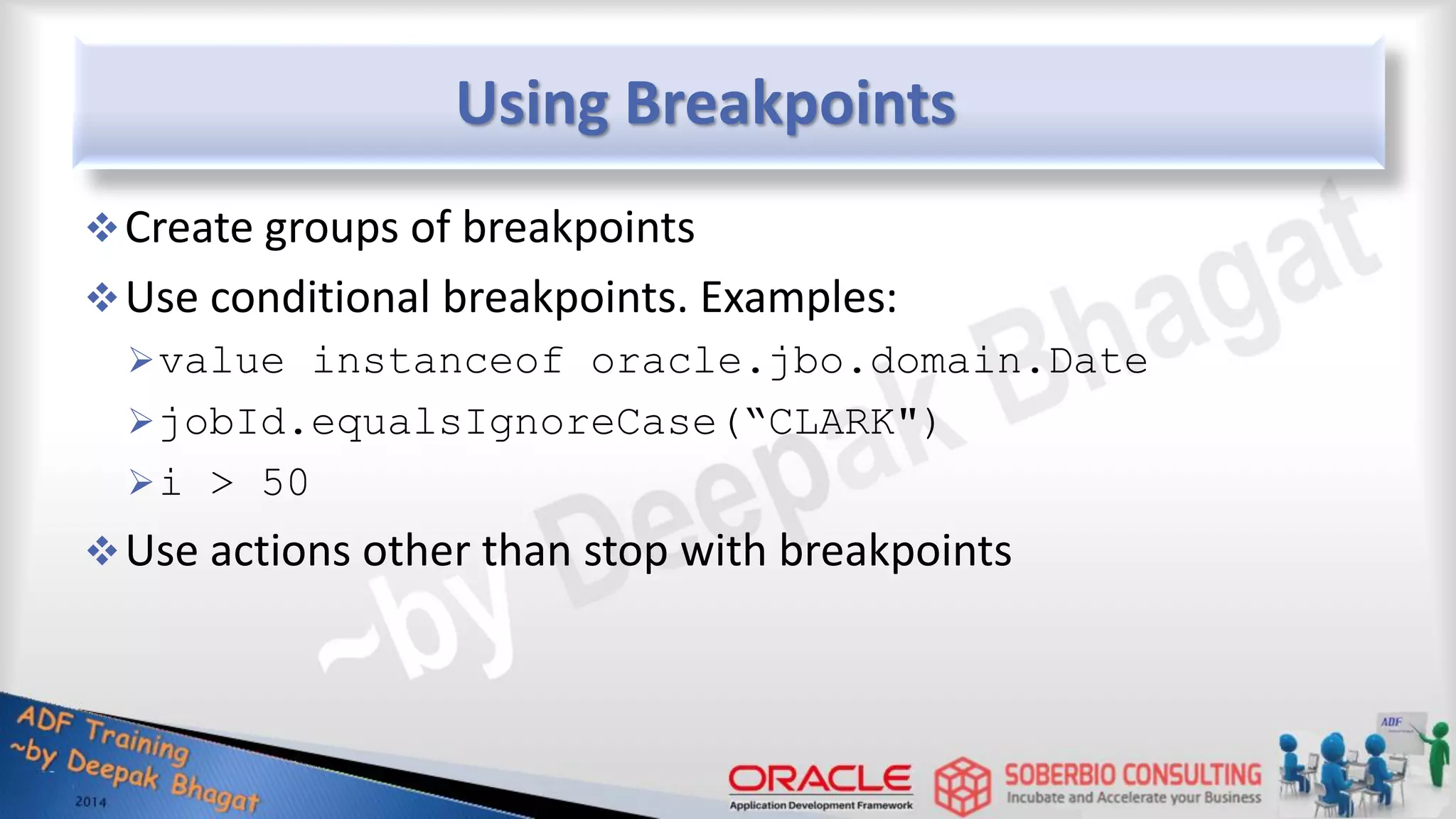

Using Breakpoints Create groups of breakpoints Use conditional breakpoints. Examples: value instanceof oracle.jbo.domain.Date jobId.equalsIgnoreCase(“CLARK") i > 50 Use actions other than stop with breakpoints

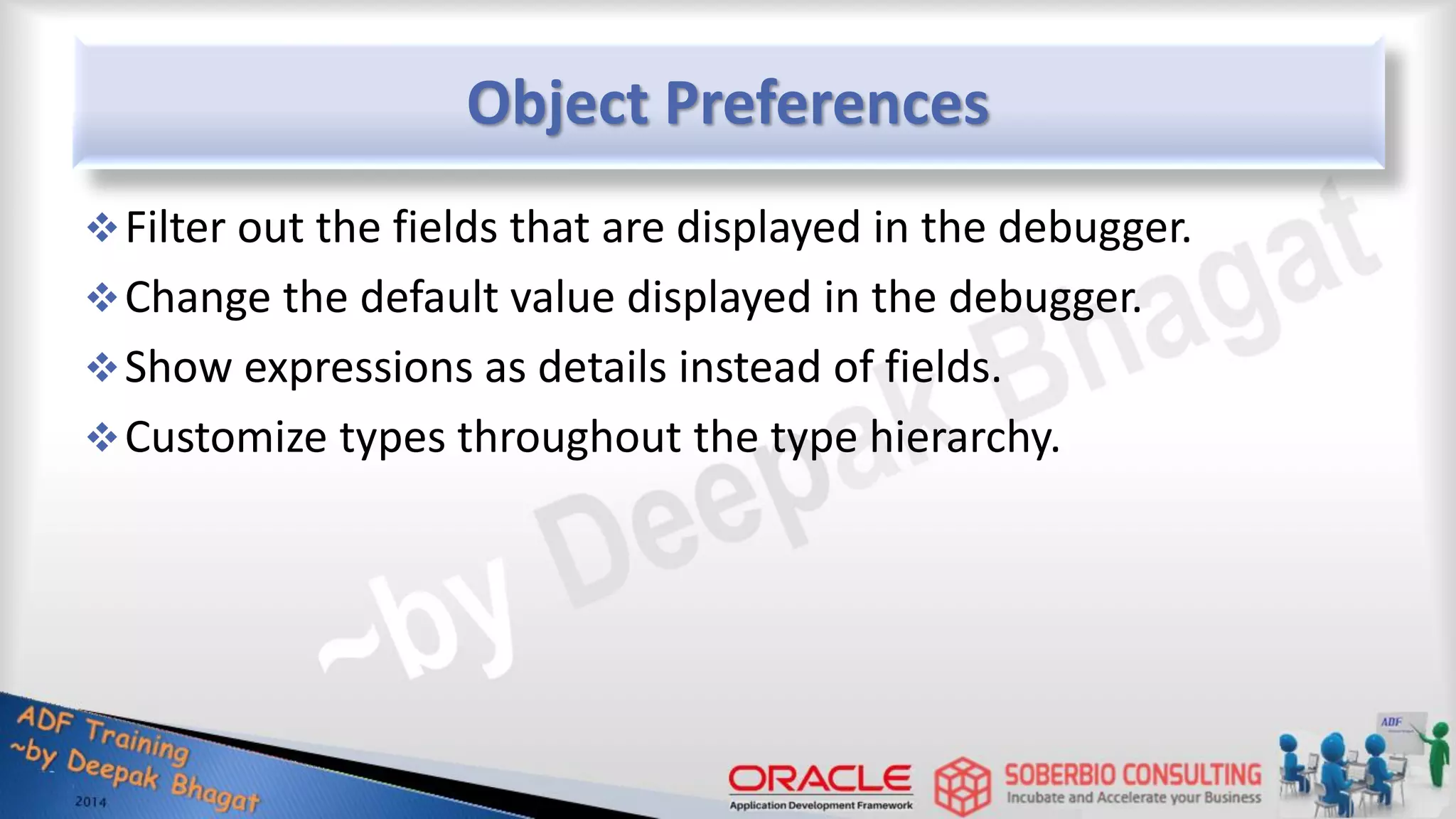

Object Preferences Filter out the fields that are displayed in the debugger. Change the default value displayed in the debugger. Show expressions as details instead of fields. Customize types throughout the type hierarchy.

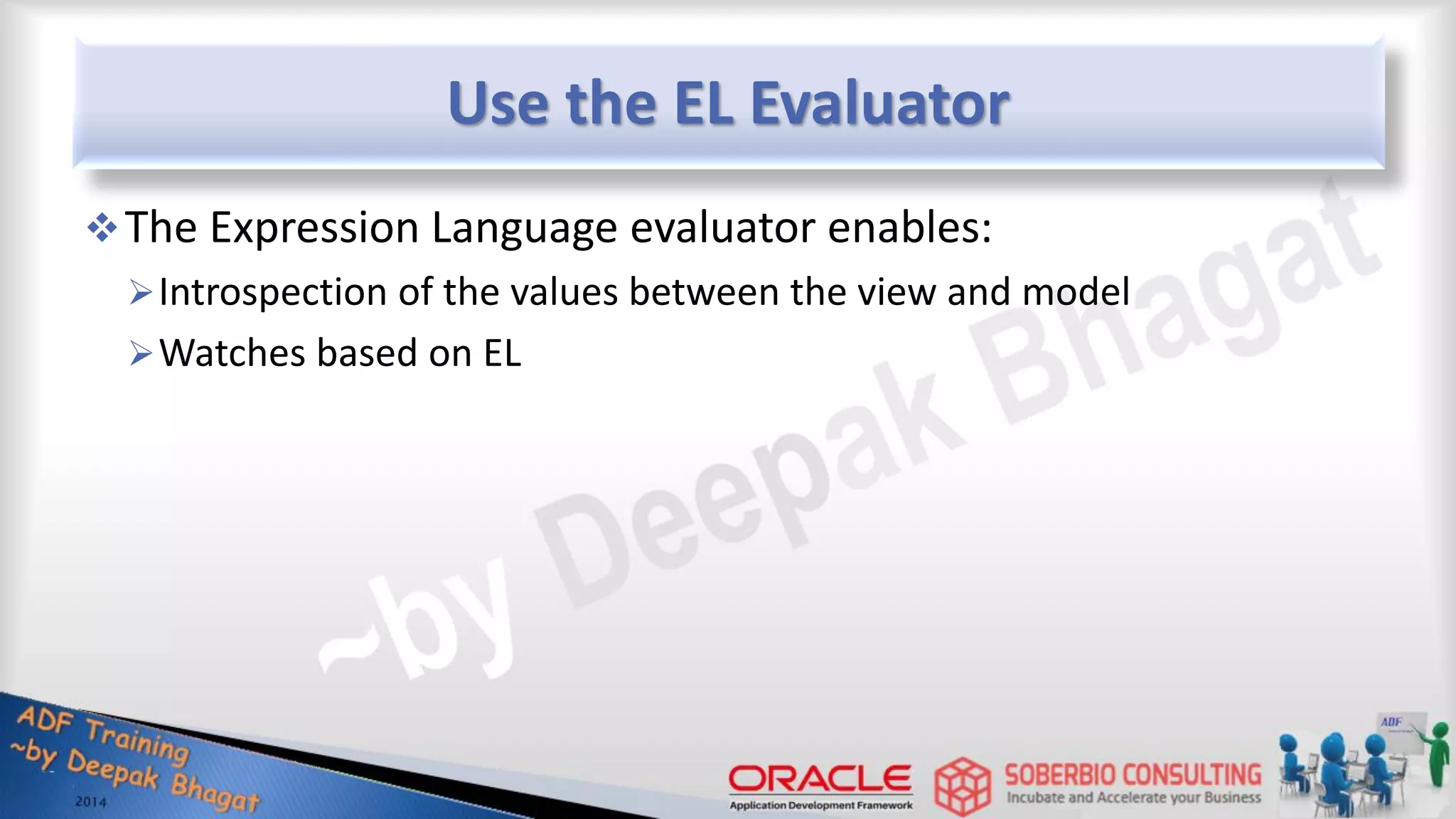

Use the EL Evaluator The Expression Language evaluator enables: Introspection of the values between the view and model Watches based on EL

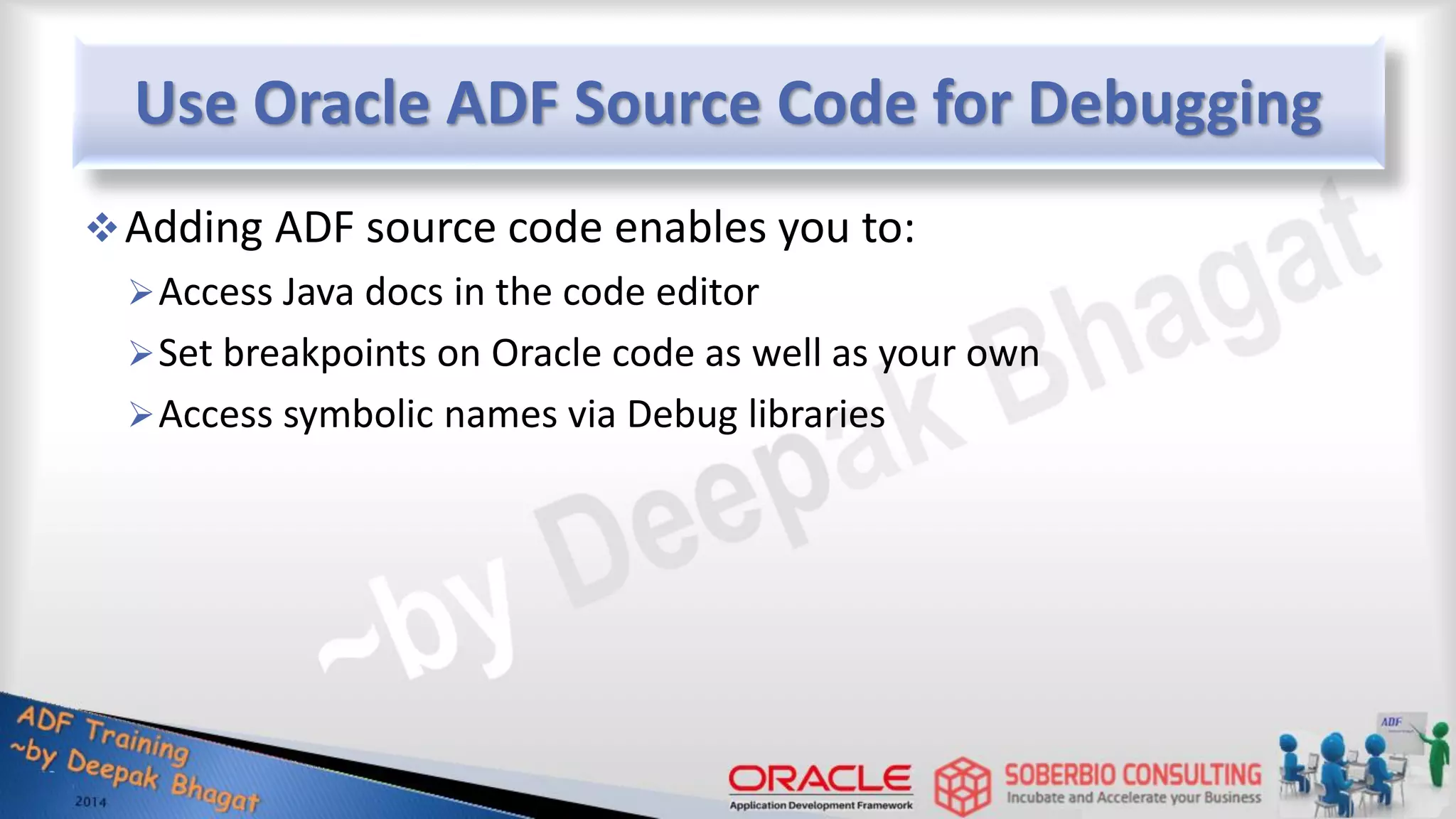

Use Oracle ADF Source Code for Debugging Adding ADF source code enables you to: Access Java docs in the code editor Set breakpoints on Oracle code as well as your own Access symbolic names via Debug libraries

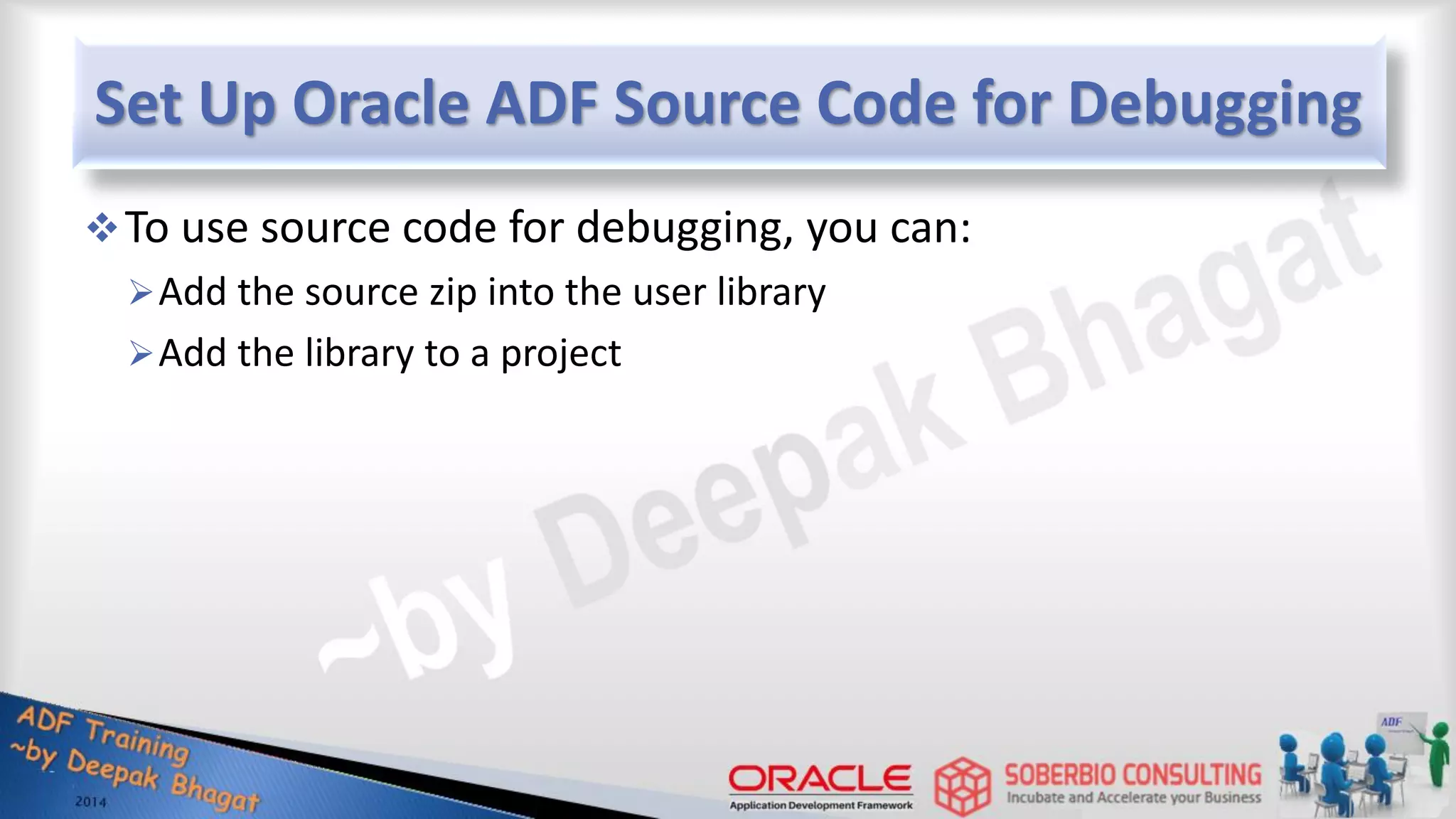

Set Up Oracle ADF Source Code for Debugging To use source code for debugging, you can: Add the source zip into the user library Add the library to a project

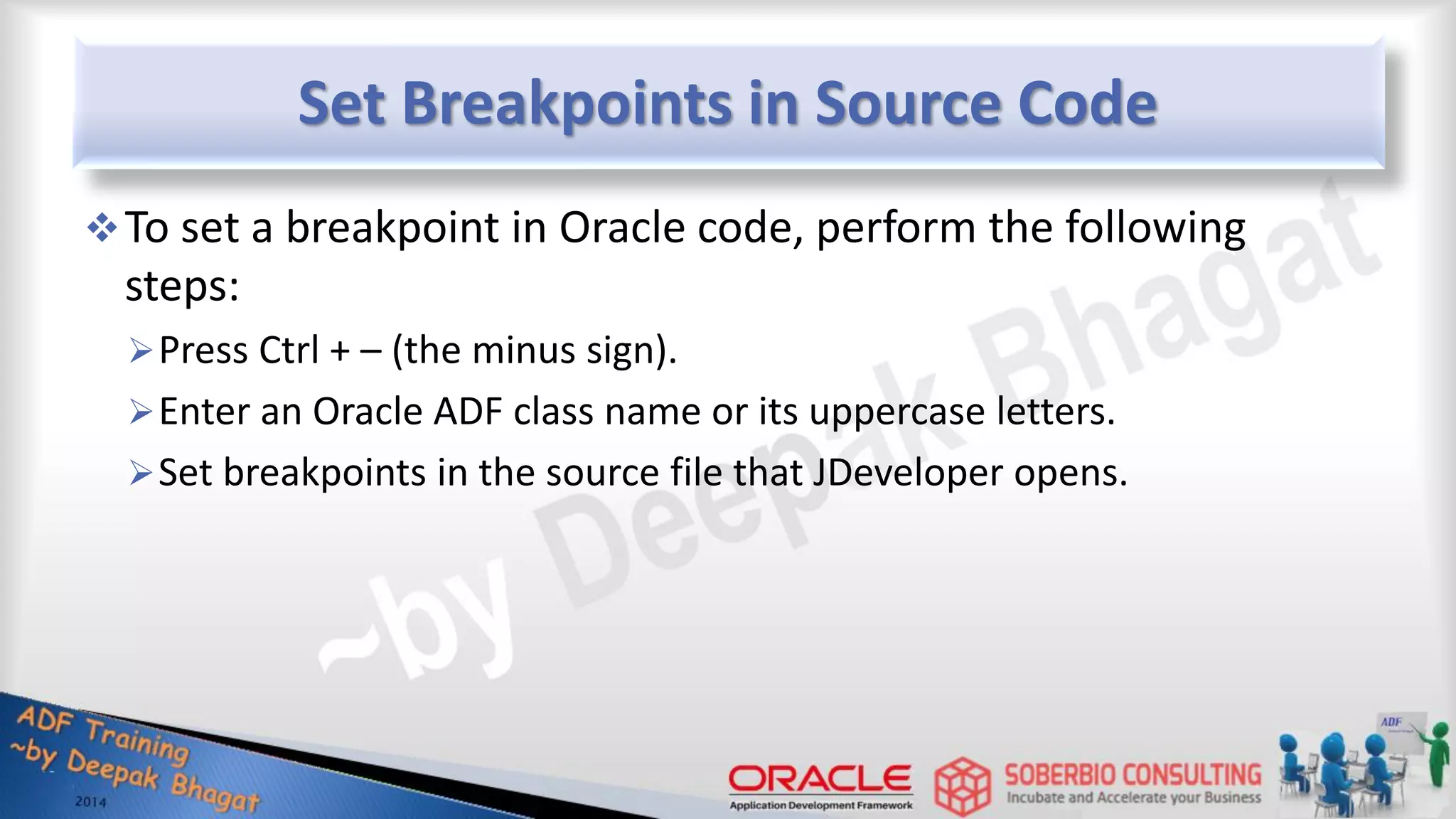

Set Breakpoints in Source Code To set a breakpoint in Oracle code, perform the following steps: Press Ctrl + – (the minus sign). Enter an Oracle ADF class name or its uppercase letters. Set breakpoints in the source file that JDeveloper opens.

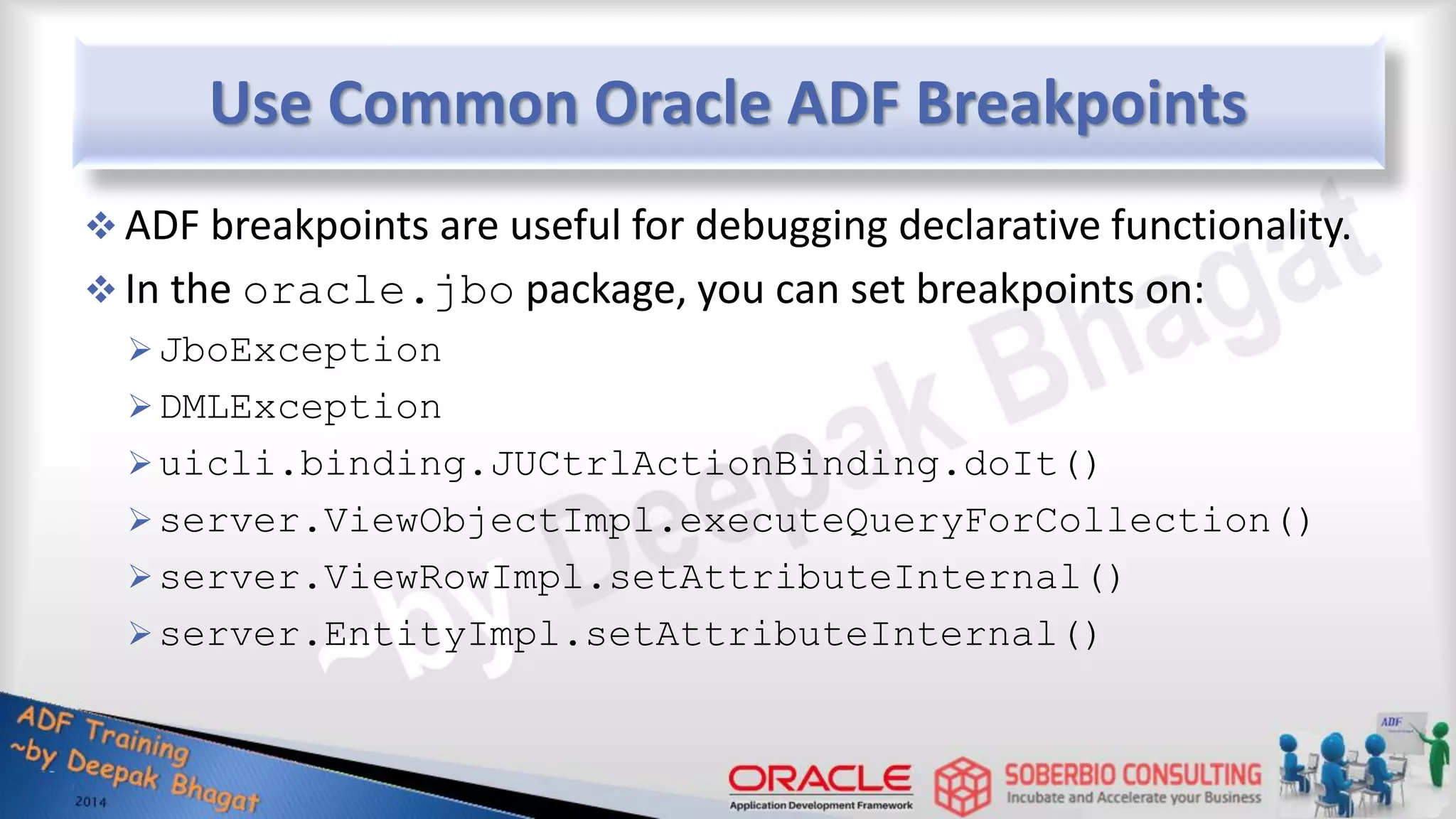

Use Common Oracle ADF Breakpoints  ADF breakpoints are useful for debugging declarative functionality.  In the oracle.jbo package, you can set breakpoints on: JboException DMLException uicli.binding.JUCtrlActionBinding.doIt() server.ViewObjectImpl.executeQueryForCollection() server.ViewRowImpl.setAttributeInternal() server.EntityImpl.setAttributeInternal()

Debug <debug-output> element in adf-faces-config.xml <debug-output>true</debug-output> Context parameter in web.xml <context-param> <param-name> oracle.adfinternal.view.faces.DISABLE_CONTENT_COMPRESSION </param-name> <param-value>true</param-value> </context-param>

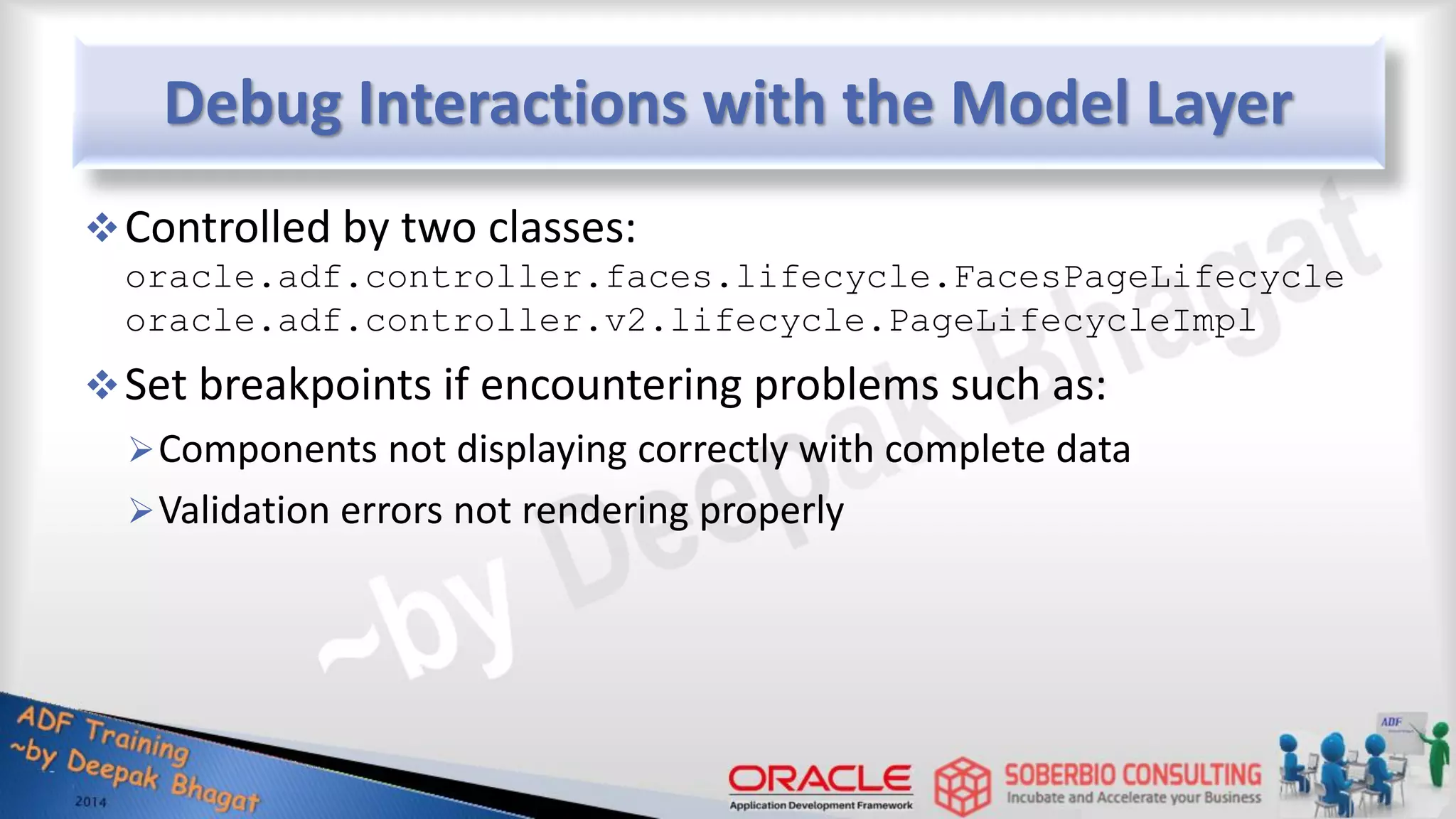

Debug Interactions with the Model Layer Controlled by two classes: oracle.adf.controller.faces.lifecycle.FacesPageLifecycle oracle.adf.controller.v2.lifecycle.PageLifecycleImpl Set breakpoints if encountering problems such as: Components not displaying correctly with complete data Validation errors not rendering properly

Correct Failures to Display Data To debug all executables: oracle.adf.model.binding.DCBindingContainer internalRefreshControl(int, boolean) To debug the method iterator: oracle.jbo.uicli.binding.JUMethodIteratorDef initSourceRSI() To debug an attribute binding: oracle.jbo.uicli.binding.JUCtrlValueBinding getInputValue()

Correct Failures to Invoke Actions and Methods Actions are ignored if an executable or its target binding is not executed. You can debug the action or method invocation by breaking on DCDataControl.invokeOperation(), which is the entry point for action and method execution. You can debug the invocation of coded methods by breaking on DCGenericDataControl.invokeOperation().

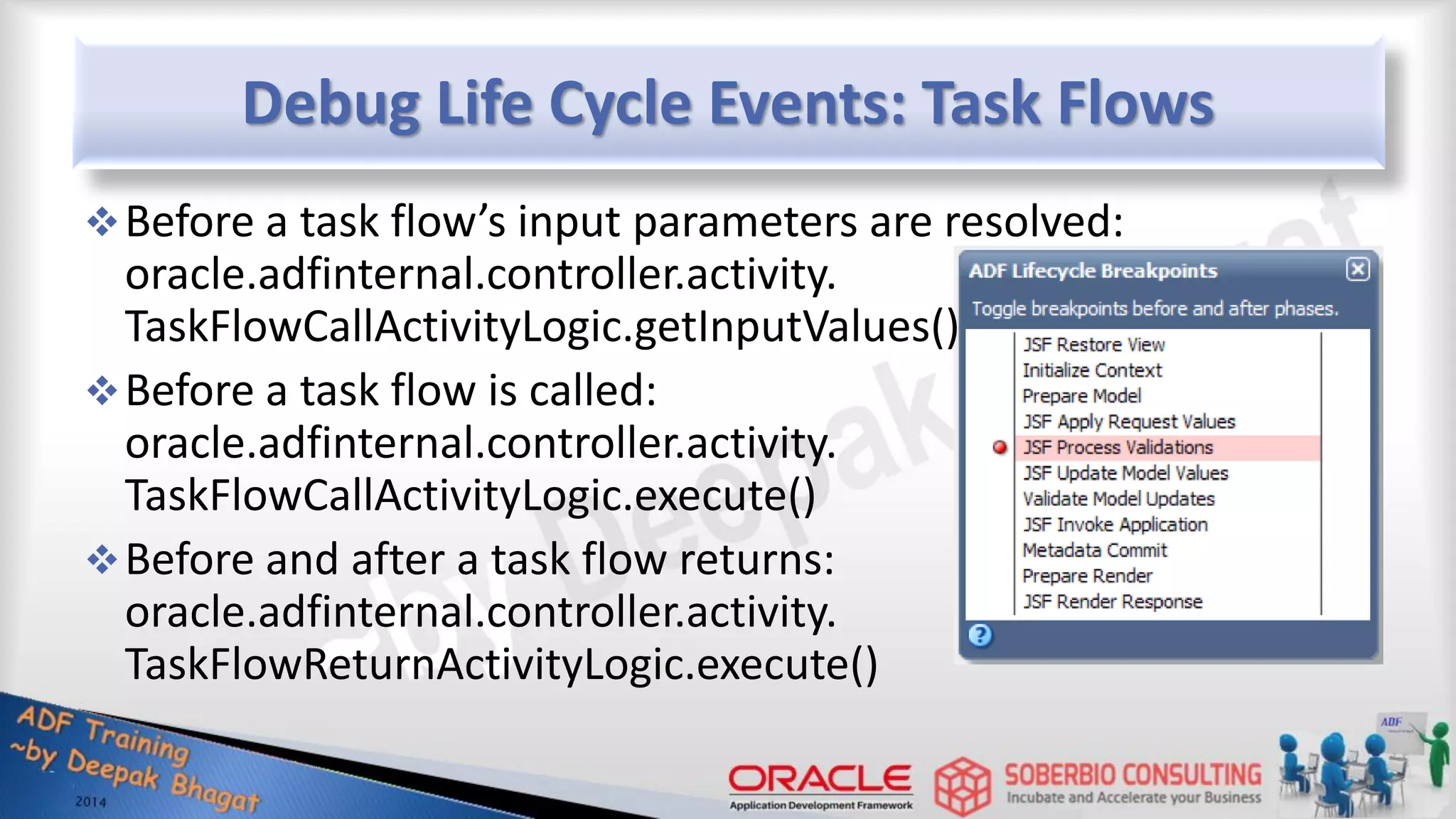

Debug Life Cycle Events: Task Flows Before a task flow’s input parameters are resolved: oracle.adfinternal.controller.activity. TaskFlowCallActivityLogic.getInputValues() Before a task flow is called: oracle.adfinternal.controller.activity. TaskFlowCallActivityLogic.execute() Before and after a task flow returns: oracle.adfinternal.controller.activity. TaskFlowReturnActivityLogic.execute()

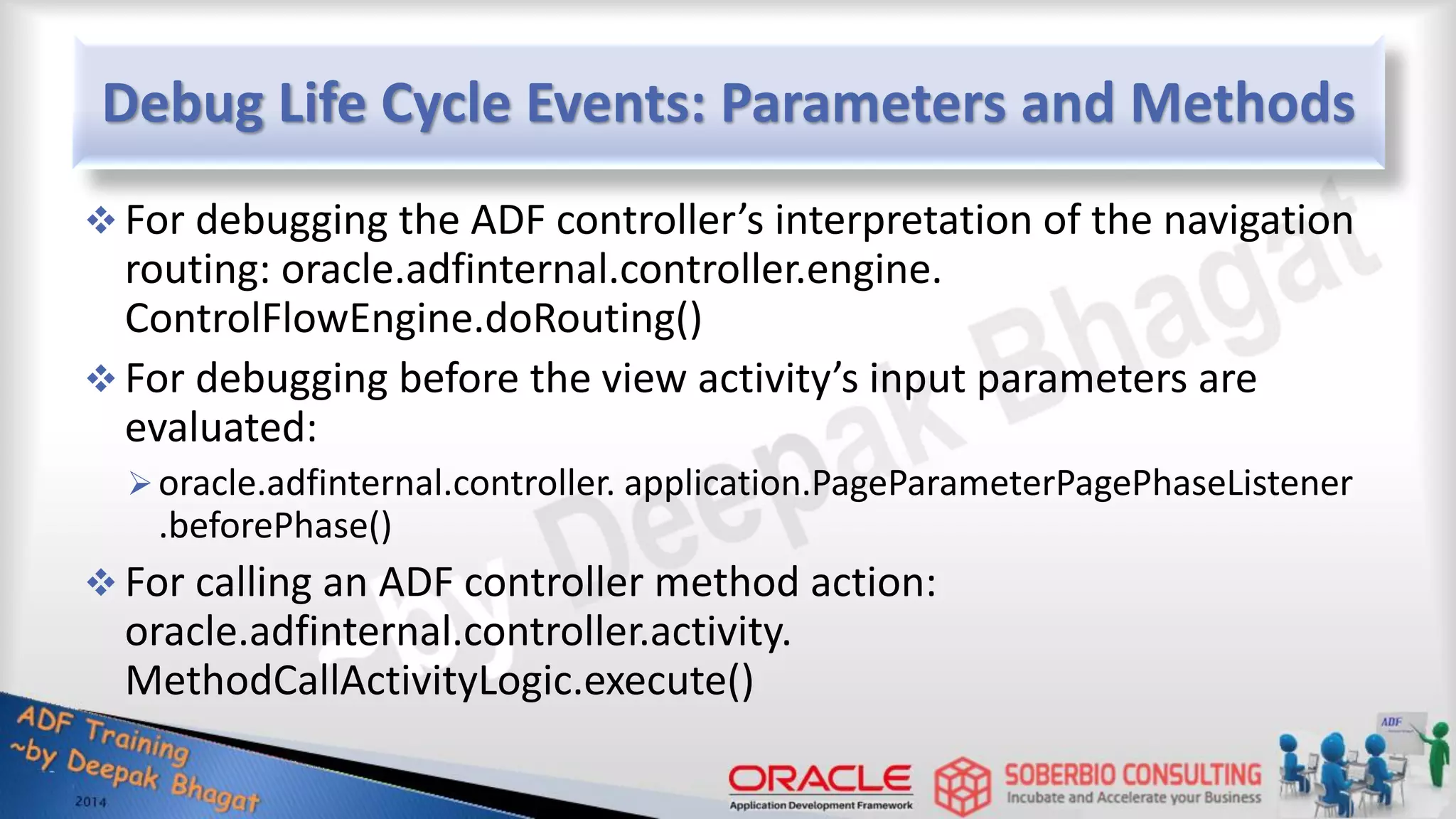

Debug Life Cycle Events: Parameters and Methods  For debugging the ADF controller’s interpretation of the navigation routing: oracle.adfinternal.controller.engine. ControlFlowEngine.doRouting()  For debugging before the view activity’s input parameters are evaluated: oracle.adfinternal.controller. application.PageParameterPagePhaseListener .beforePhase()  For calling an ADF controller method action: oracle.adfinternal.controller.activity. MethodCallActivityLogic.execute()

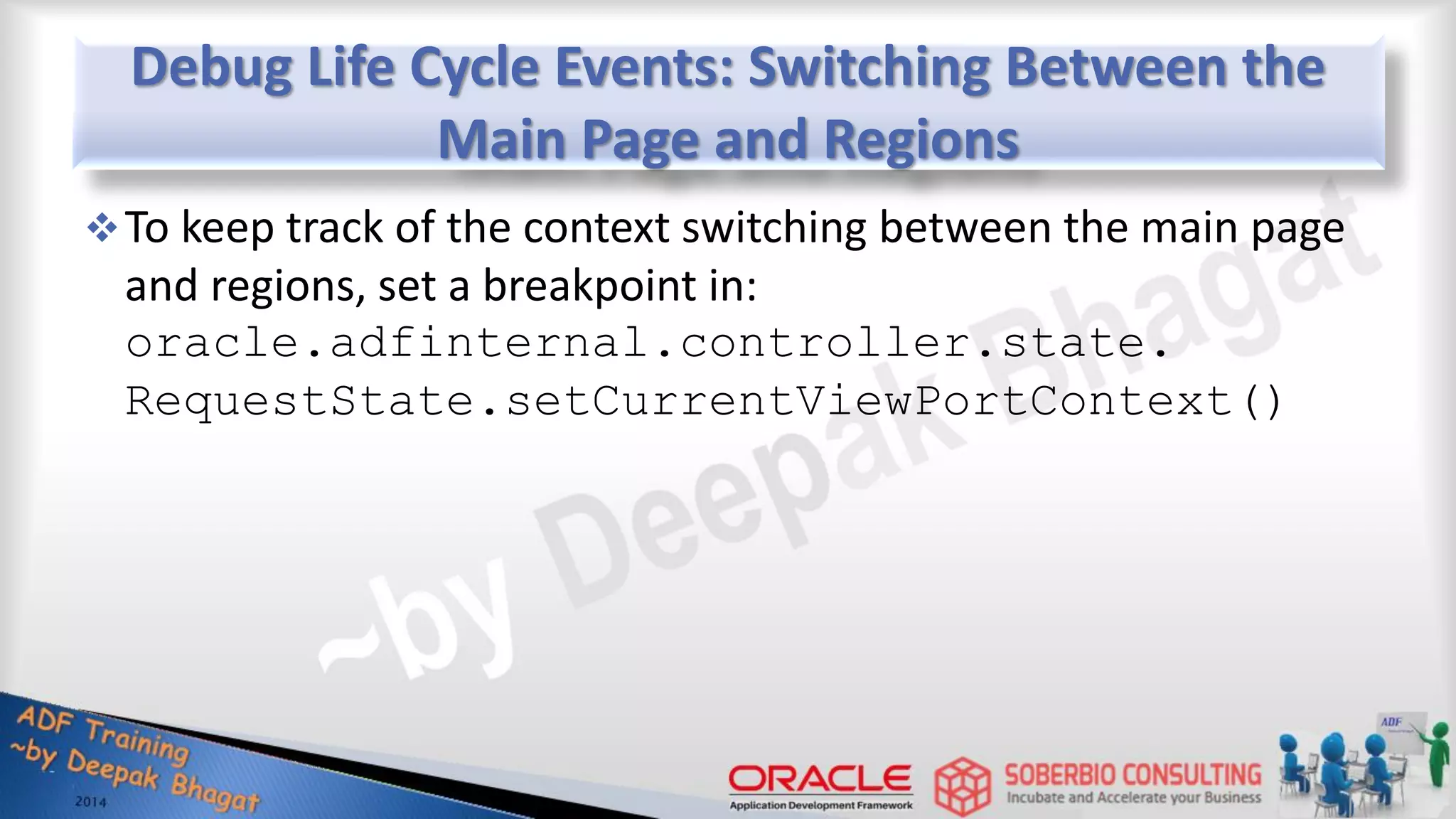

Debug Life Cycle Events: Switching Between the Main Page and Regions To keep track of the context switching between the main page and regions, set a breakpoint in: oracle.adfinternal.controller.state. RequestState.setCurrentViewPortContext()

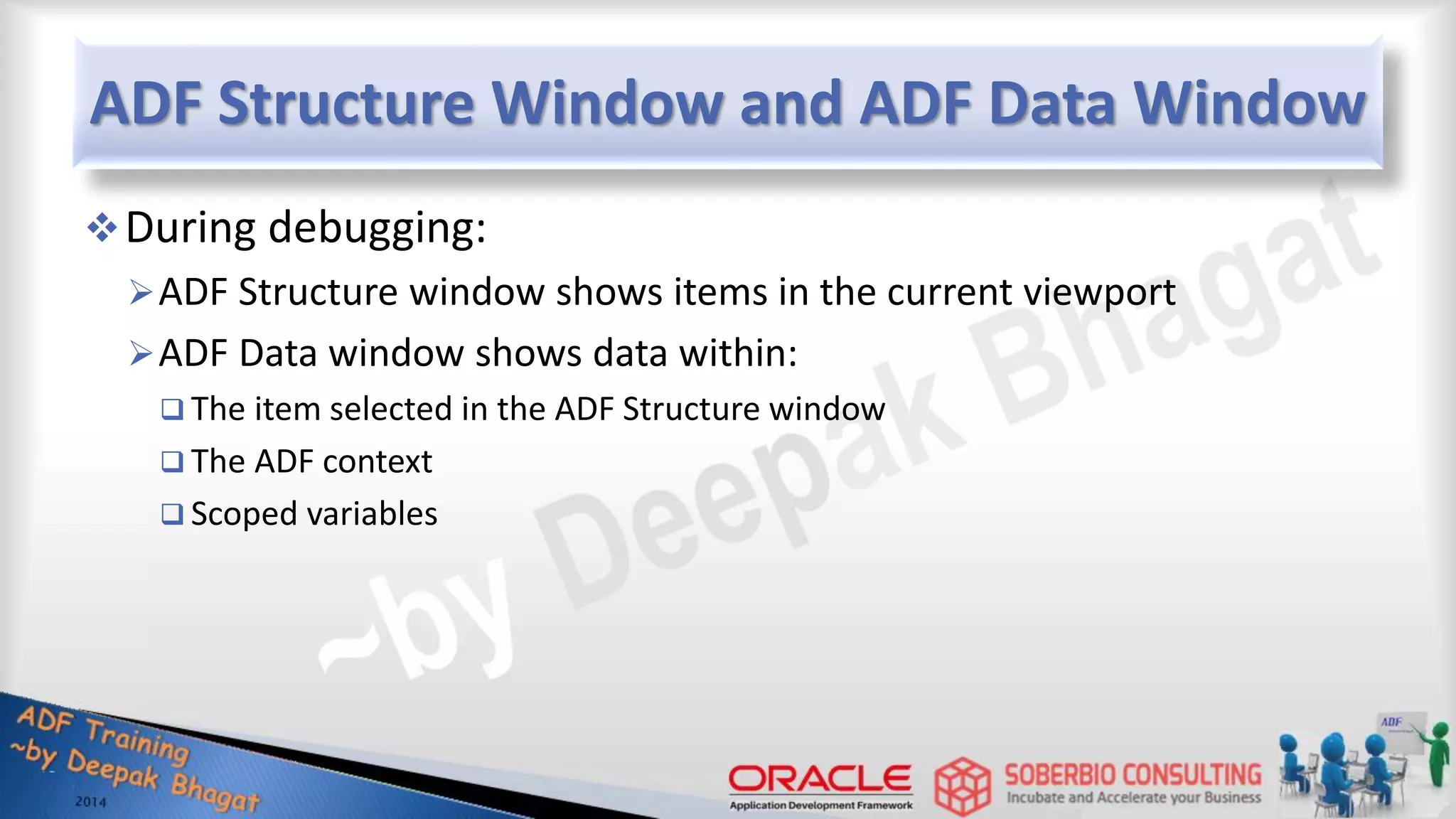

ADF Structure Window and ADF Data Window During debugging: ADF Structure window shows items in the current viewport ADF Data window shows data within:  The item selected in the ADF Structure window  The ADF context  Scoped variables

Troubleshooting BS and View Controller (VC)  Using design-time code validation Java, XML, JSPX  Using logging and diagnostics Display debug message, Java logging, ADF logging, ADF ODL  Debugging through source (using JDeveloper Debugger) Breakpoints, watches, evaluate EL, Javadoc, access source library  Tools and Utilities FileMon, Audit Profiles, JDeveloper Profiler  Obtaining Help Online Help, Javadoc, Support, Forums, Blogs, Internet Search

Using FileMon Is useful for troubleshooting CLASSPATH problems Shows path that an running application is looking in for classes and files Free Windows utility that can be downloaded from http://www.sysinternals.com

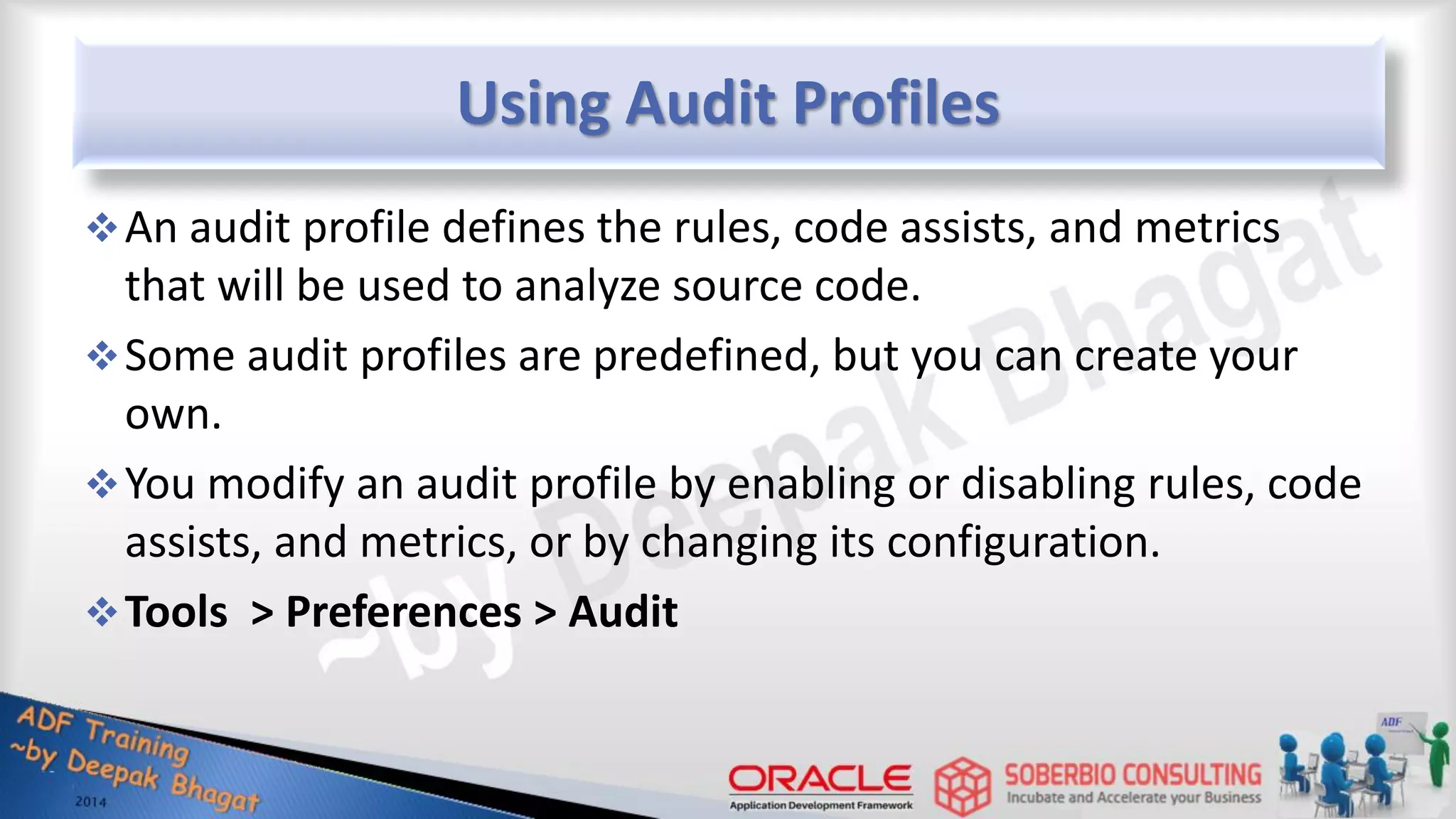

Using Audit Profiles An audit profile defines the rules, code assists, and metrics that will be used to analyze source code. Some audit profiles are predefined, but you can create your own. You modify an audit profile by enabling or disabling rules, code assists, and metrics, or by changing its configuration. Tools > Preferences > Audit

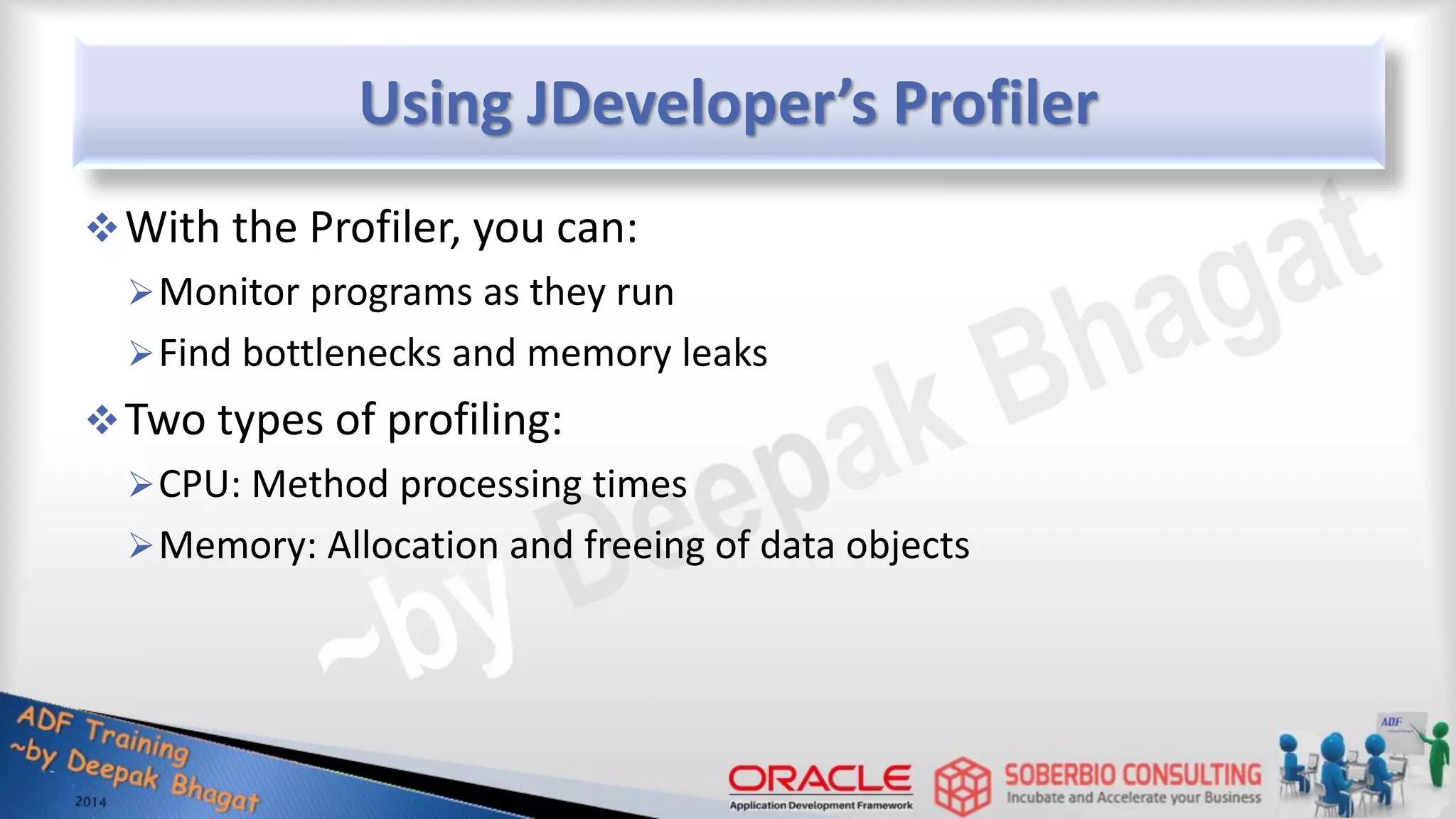

Using JDeveloper’s Profiler With the Profiler, you can: Monitor programs as they run Find bottlenecks and memory leaks Two types of profiling: CPU: Method processing times Memory: Allocation and freeing of data objects

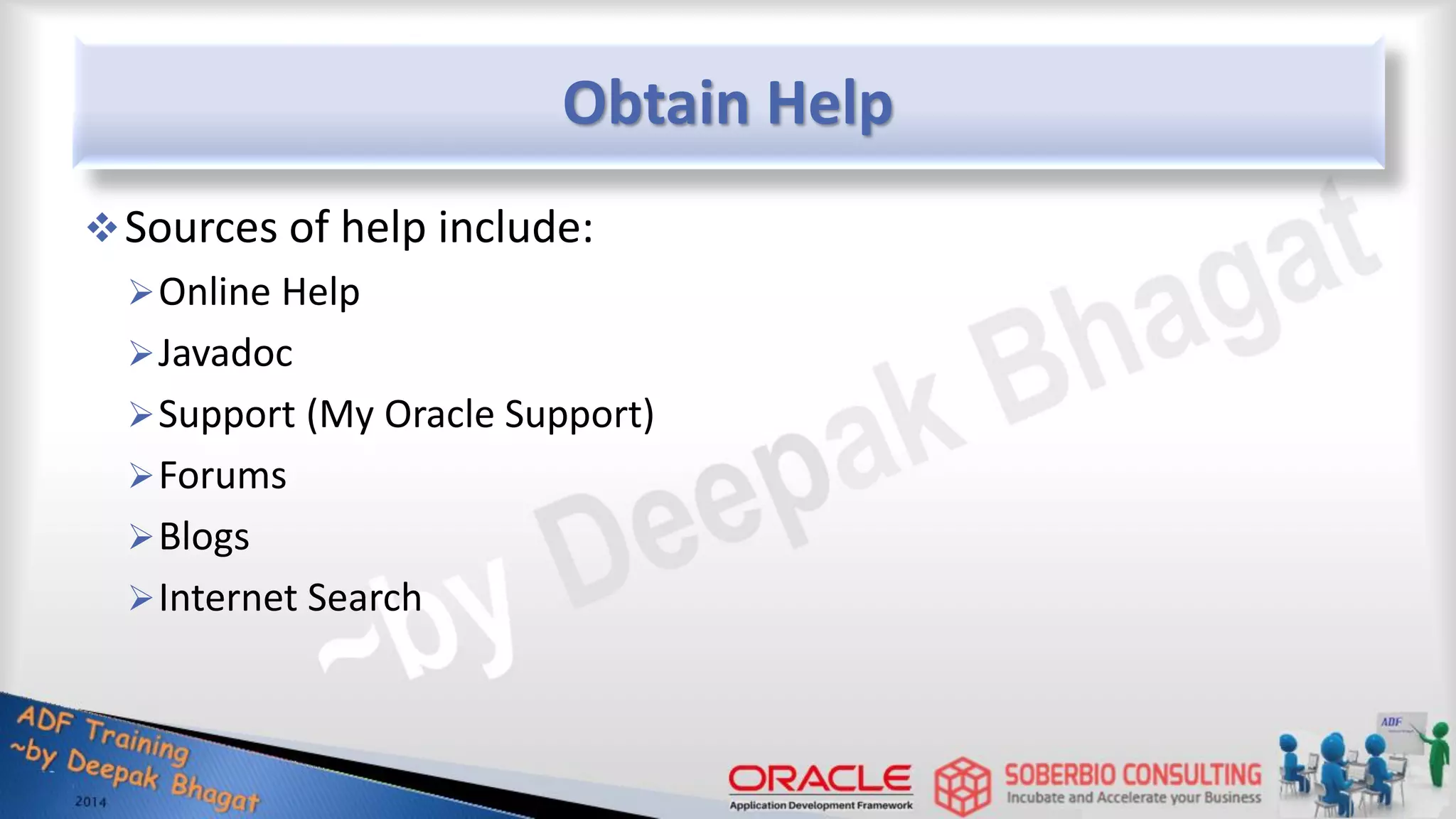

Obtain Help Sources of help include: Online Help Javadoc Support (My Oracle Support) Forums Blogs Internet Search

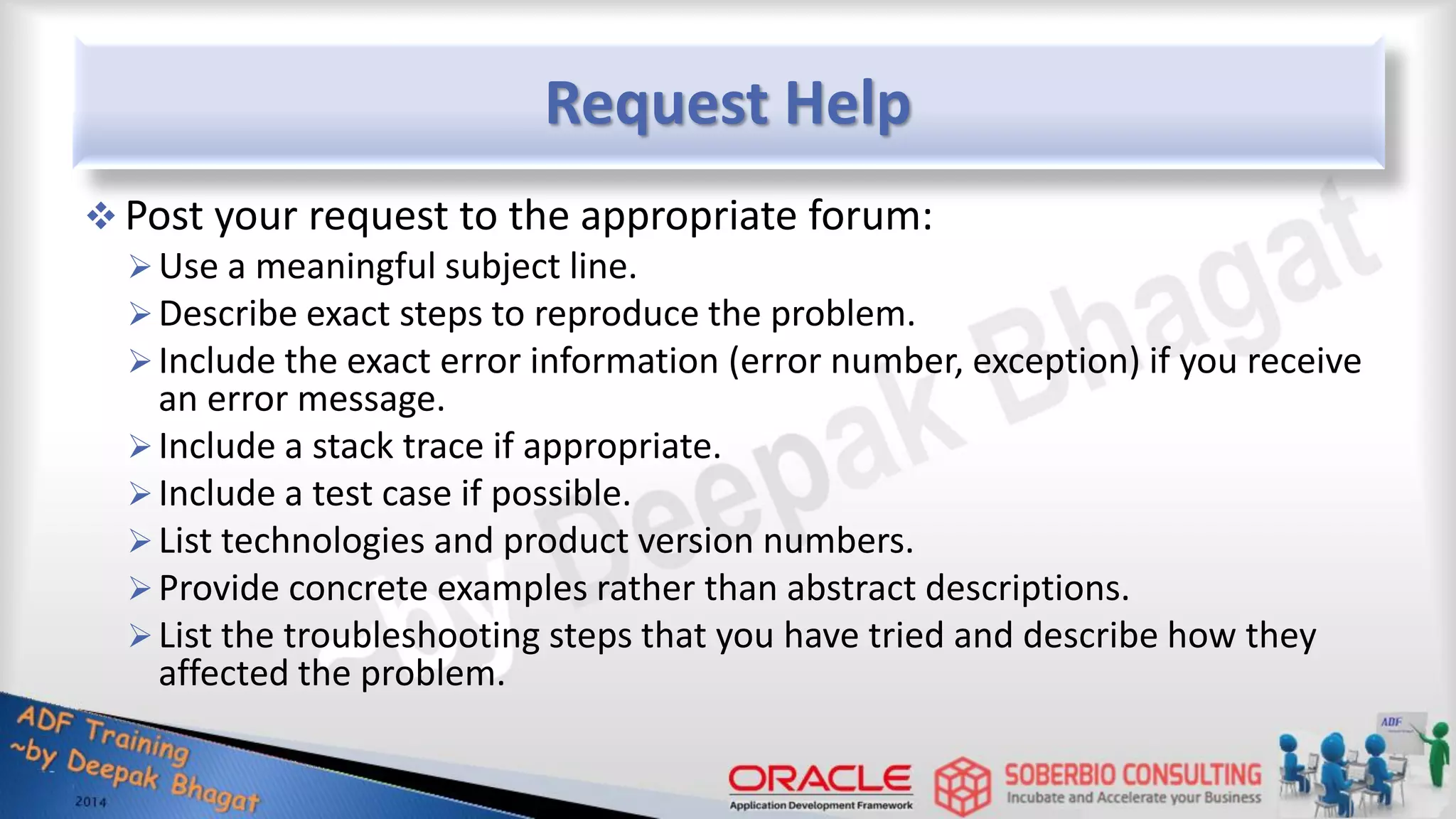

Request Help  Post your request to the appropriate forum: Use a meaningful subject line. Describe exact steps to reproduce the problem. Include the exact error information (error number, exception) if you receive an error message. Include a stack trace if appropriate. Include a test case if possible. List technologies and product version numbers. Provide concrete examples rather than abstract descriptions. List the troubleshooting steps that you have tried and describe how they affected the problem.

Lesson Summary In this lesson, you should have learned how to use: Troubleshooting Business Components and View Controller Design-time code validation Tools for logging and diagnostics JDeveloper Debugger JUnit, JDeveloper Profiler and FileMon Sources of help

Lesson Agenda Entity Objects View Objects Association and View Link Application Modules Model / Binding Pages / View Layout Task Flows and Memory Scopes Designing for reuse Conform to PPR Guidelines Managed Beans Other general Java best practices

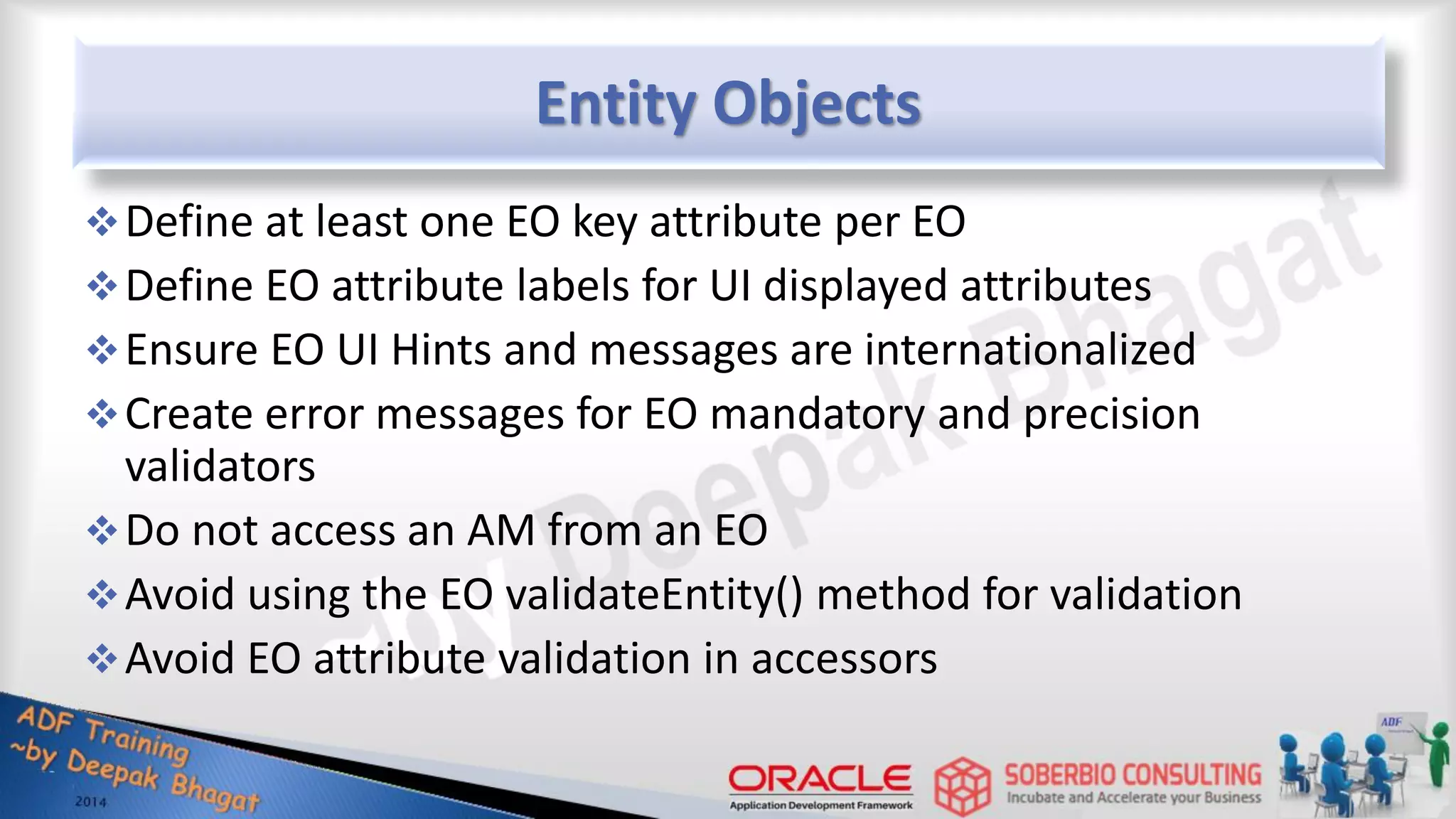

Entity Objects Define at least one EO key attribute per EO Define EO attribute labels for UI displayed attributes Ensure EO UI Hints and messages are internationalized Create error messages for EO mandatory and precision validators Do not access an AM from an EO Avoid using the EO validateEntity() method for validation Avoid EO attribute validation in accessors

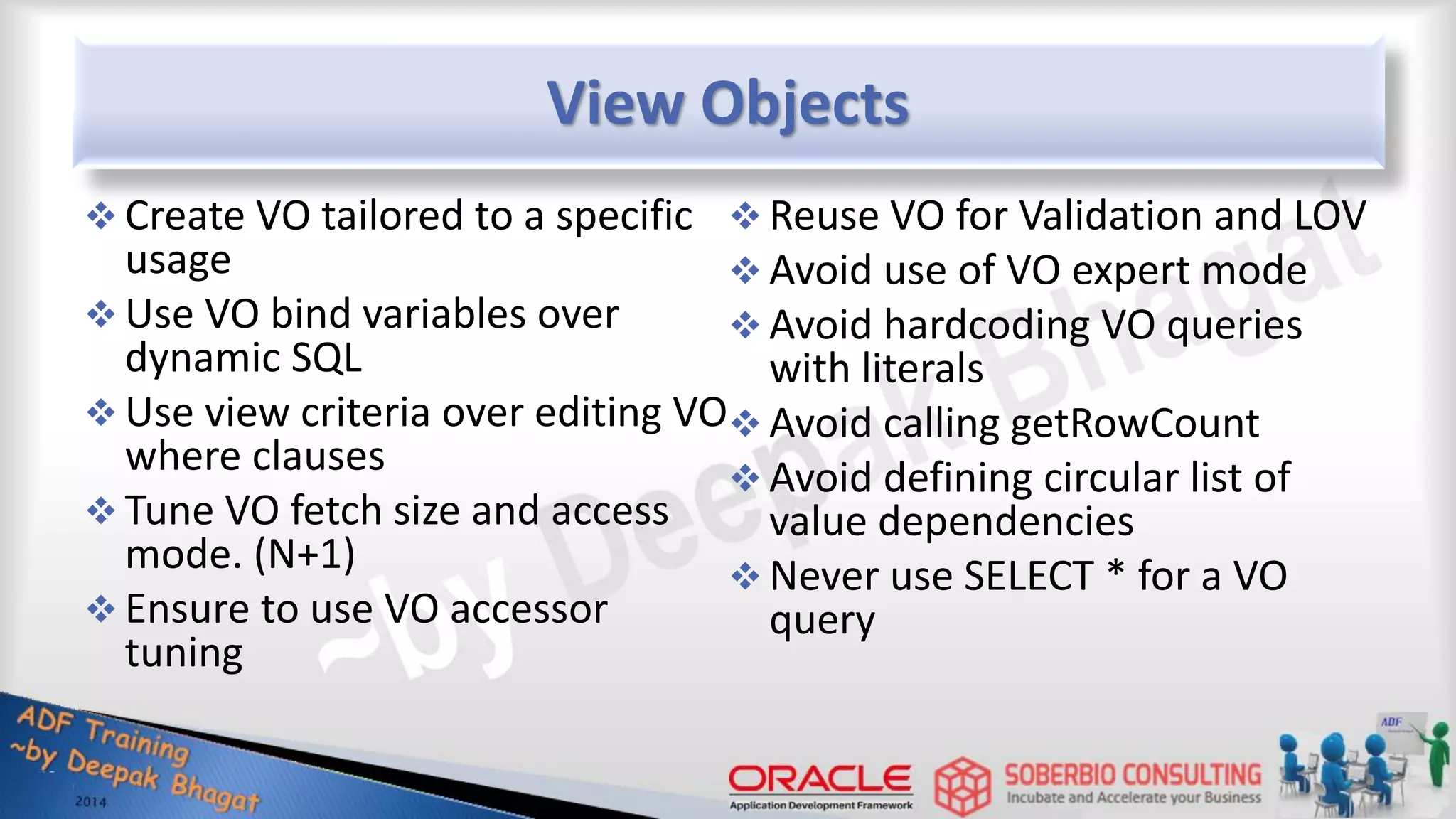

View Objects  Create VO tailored to a specific usage  Use VO bind variables over dynamic SQL  Use view criteria over editing VO where clauses  Tune VO fetch size and access mode. (N+1)  Ensure to use VO accessor tuning  Reuse VO for Validation and LOV  Avoid use of VO expert mode  Avoid hardcoding VO queries with literals  Avoid calling getRowCount  Avoid defining circular list of value dependencies  Never use SELECT * for a VO query

Association and View Link Specify fetch size for association when needed Use Retain Association/View Link Accessor Avoid repeated calls to association or view link accessors Close unused RowSet

Application Modules Use optimistic locking Use view object typesafe getters Use application module JDBC data source only not JDBC URLs Use the Lazy Loading option Close callableStatement and preparedStatements Don’t import view or controller classes Don't hardcode human readable text

Model / Binding Do not use Refresh = “always” for the executable iterator binding. Do not leave any unused executables or binding entry in a page definition file. The RangeSize property must be set appropriately so that only the required rows are fetched to the middle tier.

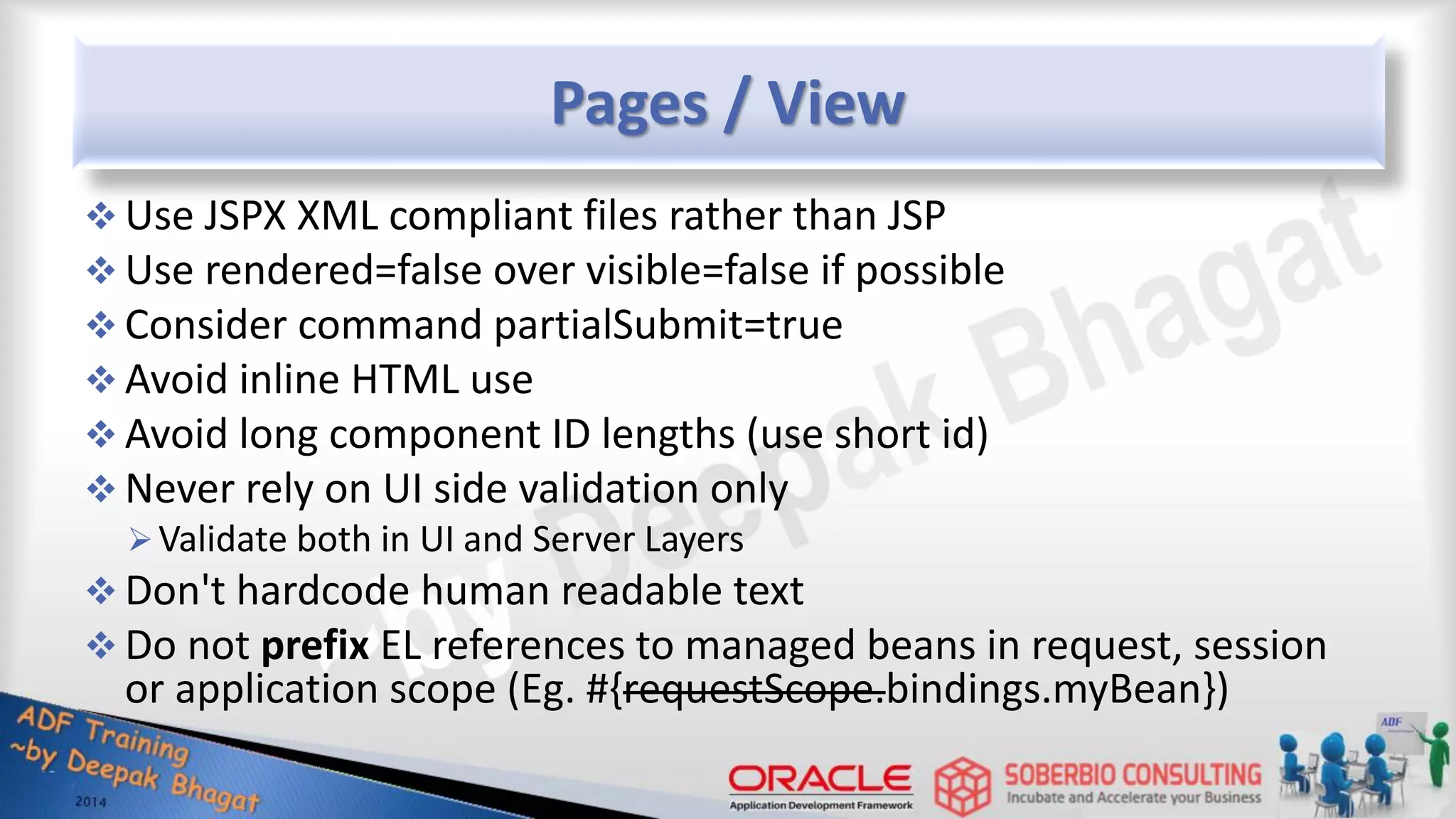

Pages / View  Use JSPX XML compliant files rather than JSP  Use rendered=false over visible=false if possible  Consider command partialSubmit=true  Avoid inline HTML use  Avoid long component ID lengths (use short id)  Never rely on UI side validation only Validate both in UI and Server Layers  Don't hardcode human readable text  Do not prefix EL references to managed beans in request, session or application scope (Eg. #{requestScope.bindings.myBean})

Layouts InlineStyle, contentStyle, and labelStyle are powerful but evil use them as a last resort but preferably not at all! Avoid stretching vertically inside a non-stretched container Never specify a height value with percent units Never use the "position" style These results in inconsistent behaviour across browsers Minimize the use of components with stretchable behavior Go for the deferred child component creation if possible

When to use panelGroupLayout layout="scroll“ This tends to be abused Only use layout="scroll" if the panelGroupLayout component is stretched by its parent Consider alternatives: af:panelGroupLayout layout="vertical" af:group No component at all

Task Flows and Memory Scopes  Define a common task flow template  Use required parameters  Use bound methods on task flows rather than invokeAction executables in the pageDef  Use such variable or component that is calculated or persisted  Define task flow exception handlers  Avoid Session and Application scopes  Do not cache shorter living objects, due to high availability issue  Go for lazy loading of initialization of task flows whenever possible

Designing for Reuse Guidelines: Use naming conventions to:  Avoid naming conflicts  Facilitate identifying the component functionality Standardize storage by agreeing on:  Type of repository needed  Storage and organization  Access methods Make components available for reuse by using: Resource catalog ADF library Avoid unwanted regions in the page. It is recommended to have a maximum of 10 regions in a page Avoid task flow in a pop-up

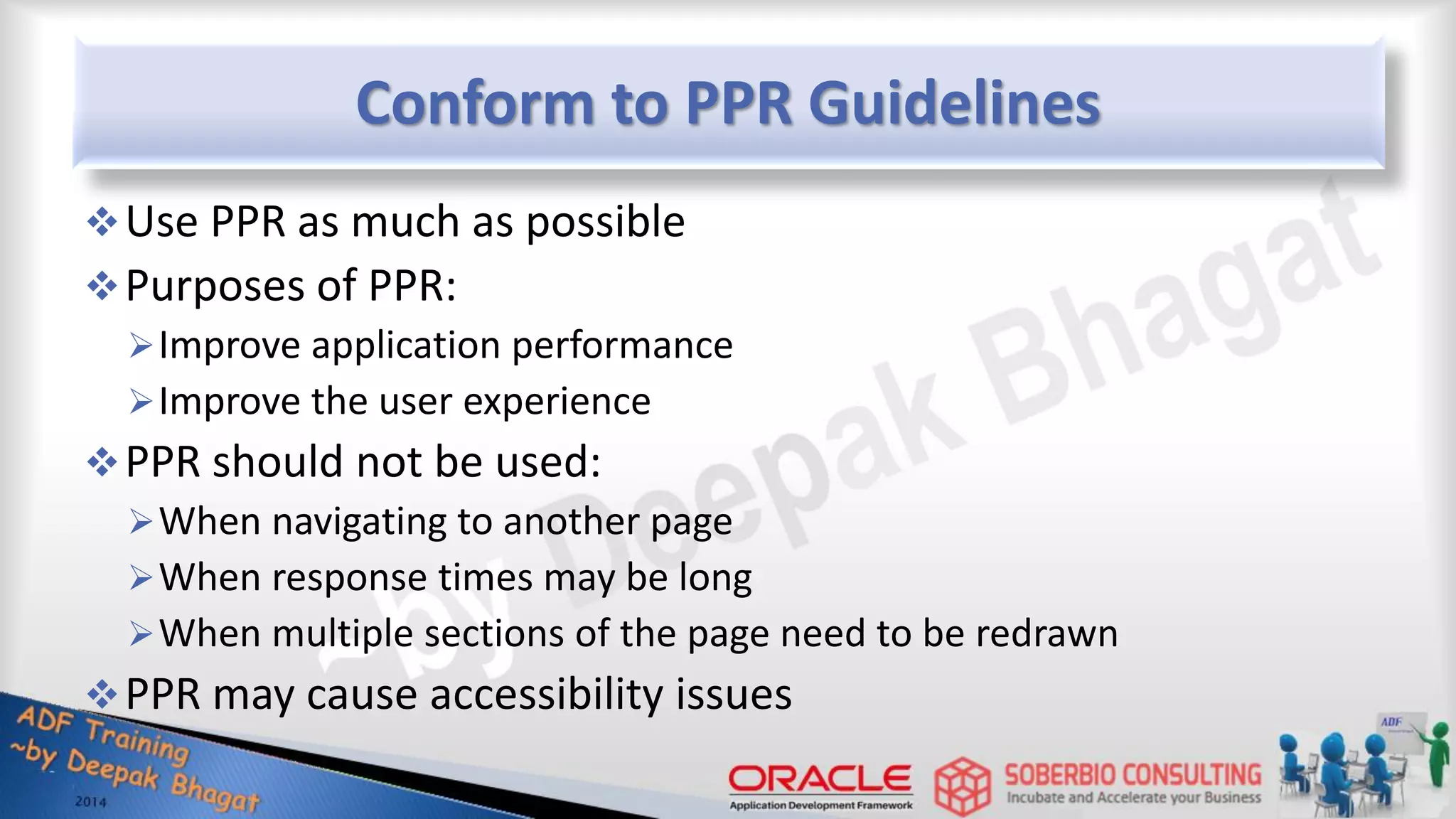

Conform to PPR Guidelines Use PPR as much as possible Purposes of PPR: Improve application performance Improve the user experience PPR should not be used: When navigating to another page When response times may be long When multiple sections of the page need to be redrawn PPR may cause accessibility issues

Managed Beans  Limit custom code in bean accessors  Implement serialization for application, session, pageFlow and view scope beans  Only interact with BC custom methods through exposed client interface  Define application and session scope beans in adfc-config.xml  Define bounded task flow bean in their own .xml file  Utilize common utility class for common functions  Only create backing beans when actually needed  Avoid business logic in bean methods (delegate them to BC)  Avoid application and session scope variables, instead use pageFlow scope  Do not bind unnecessary component references into backing beans

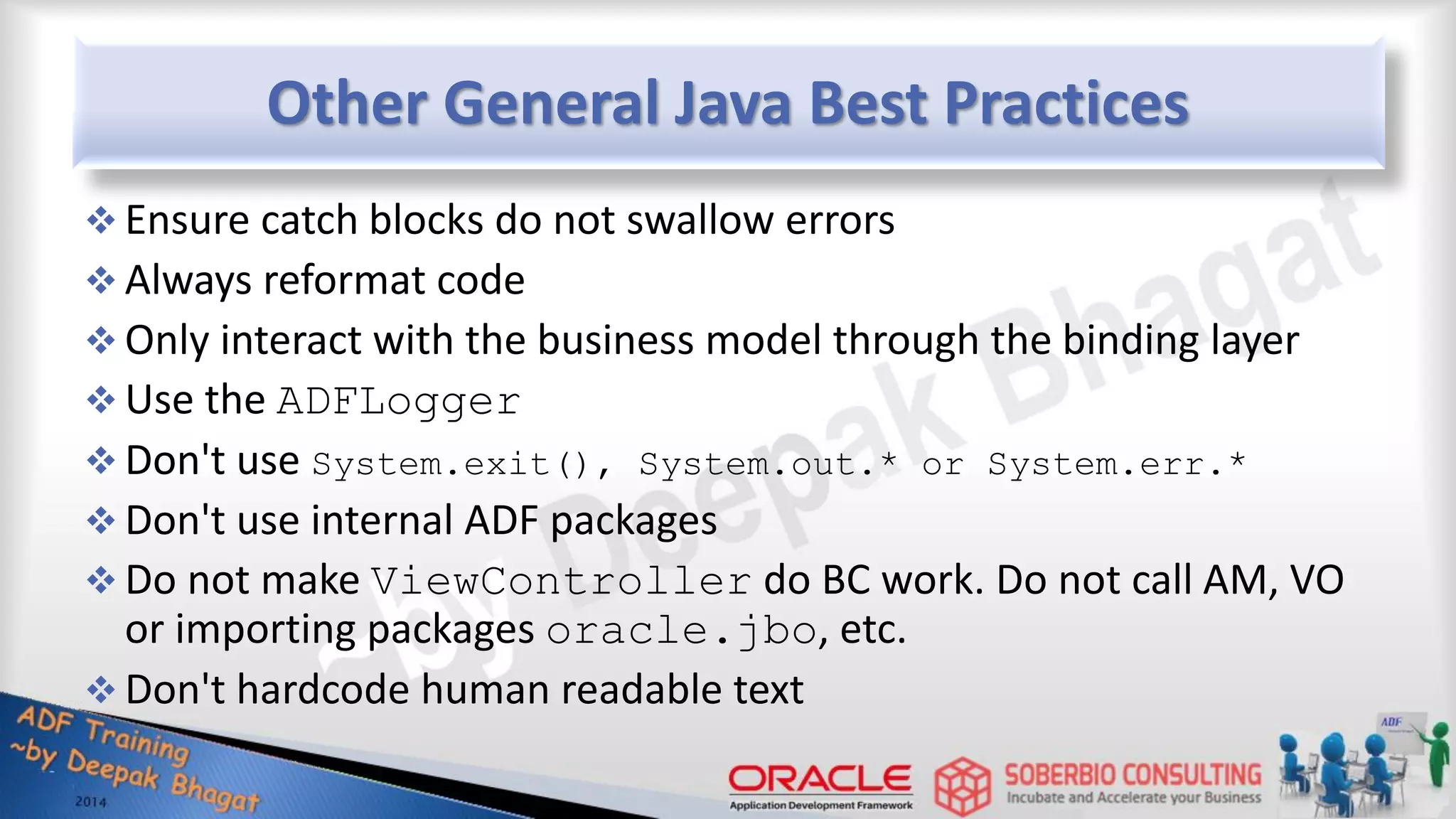

Other General Java Best Practices  Ensure catch blocks do not swallow errors  Always reformat code  Only interact with the business model through the binding layer  Use the ADFLogger  Don't use System.exit(), System.out.* or System.err.*  Don't use internal ADF packages  Do not make ViewController do BC work. Do not call AM, VO or importing packages oracle.jbo, etc.  Don't hardcode human readable text

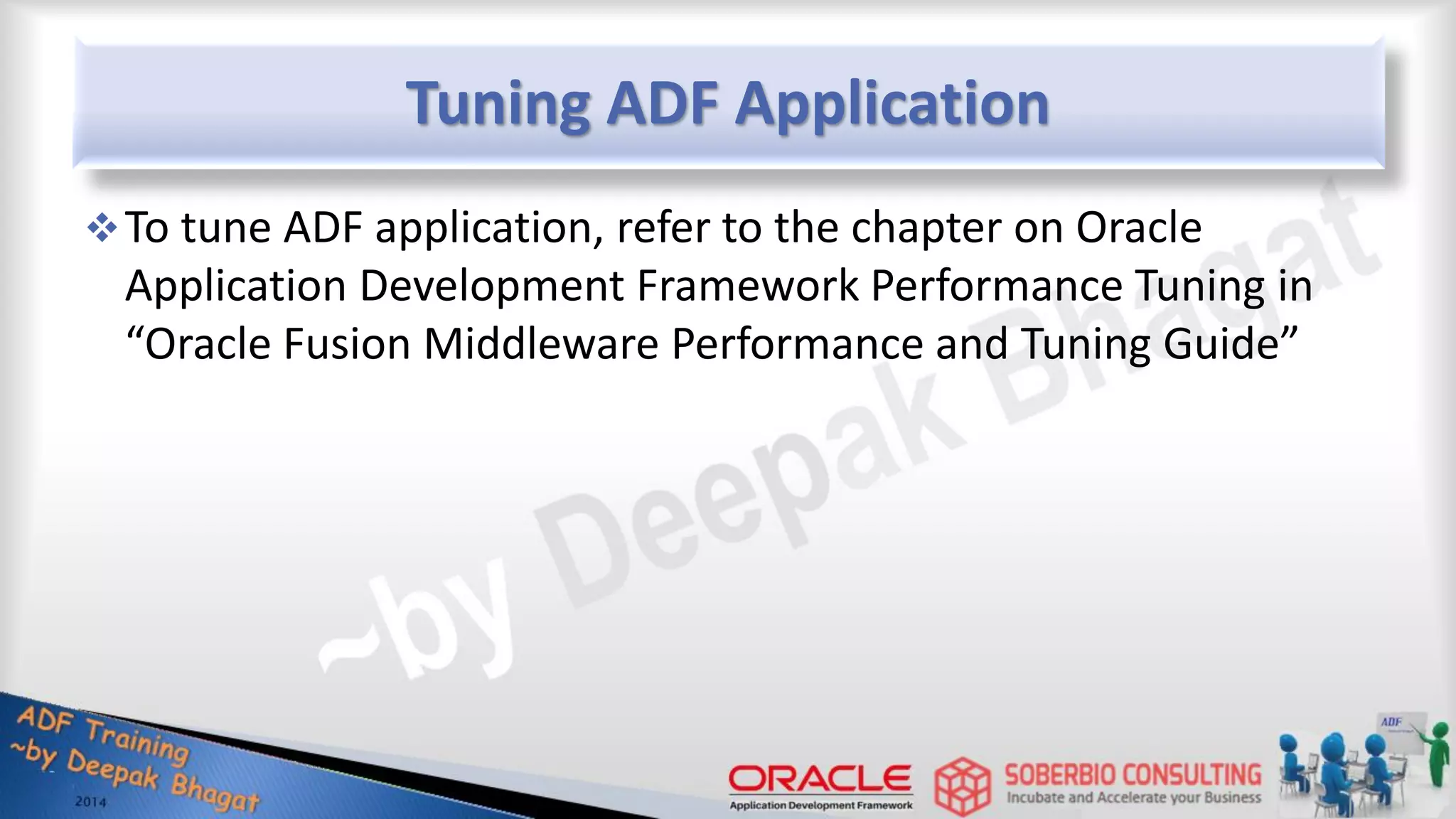

Tuning ADF Application To tune ADF application, refer to the chapter on Oracle Application Development Framework Performance Tuning in “Oracle Fusion Middleware Performance and Tuning Guide”

Lesson Summary Entity Objects Vie Objects Association and View Link Application Modules Model / Binding Pages / View Layout Task Flows and Memory Scopes Designing for reuse Conform to PPR Guidelines Managed Beans Other general Java best practices

Lesson Agenda ADF 12c New Features Projects in ADF

ADF 12c New Features JDeveloper IDE -3 ADF Business Components -2 ADF Model -1 ADF Controller -1 ADF View -1 ADF Faces -1 DVT -14

JDeveloper IDE  Oracle Public Cloud: upload database objects to your Database Cloud Service.  Background processing: Supports scheduling jobs for background processing and a UI to manage these jobs. For example creating/scanning indexes.  File Templates: Define custom file templates and invoke them from the gallery.  Show Empty Folders: New option to display empty folders in the Application navigator.  Common Issues Window: Any problems found with your application are now reported into a single, consolidated Issues window so you can see all your mistakes at glance!  Build on Save: A new preference allows to compile modified files automatically on saving.  Download and Apply patches from Update Center: Distribute critical patches through Check for Updates tool.  Windowing System:  Ability to drag-and-drop to reorder editor tabs  Ability to float editor windows outside of the IDE  Fully customizable toolbar  Drag-and-drop reshaping / resizing of docking areas  Ability to use editors in maximized state

JDeveloper IDE contd… Start Page

JDeveloper IDE contd… Context-sensitive New menu

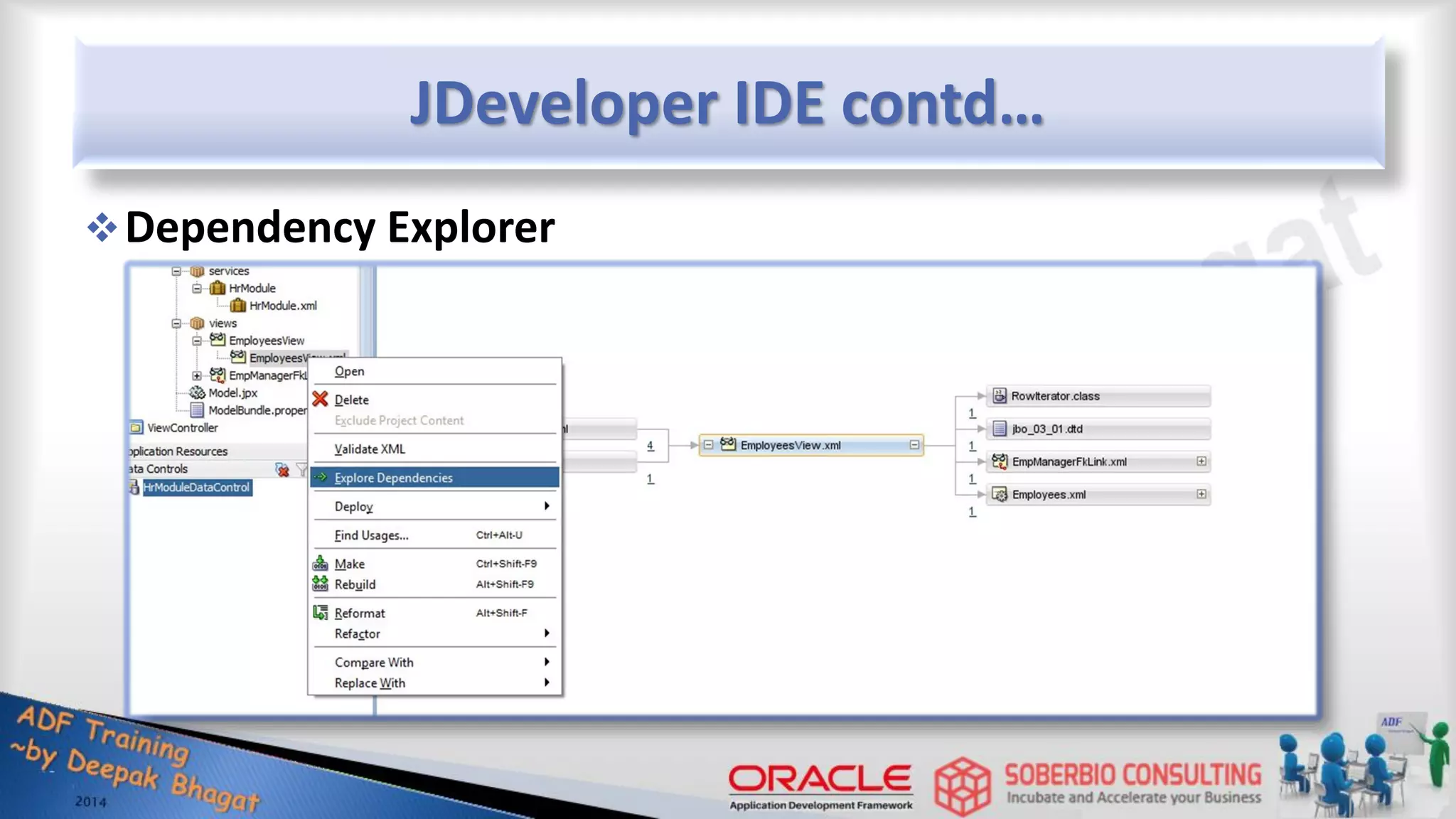

JDeveloper IDE contd… Dependency Explorer

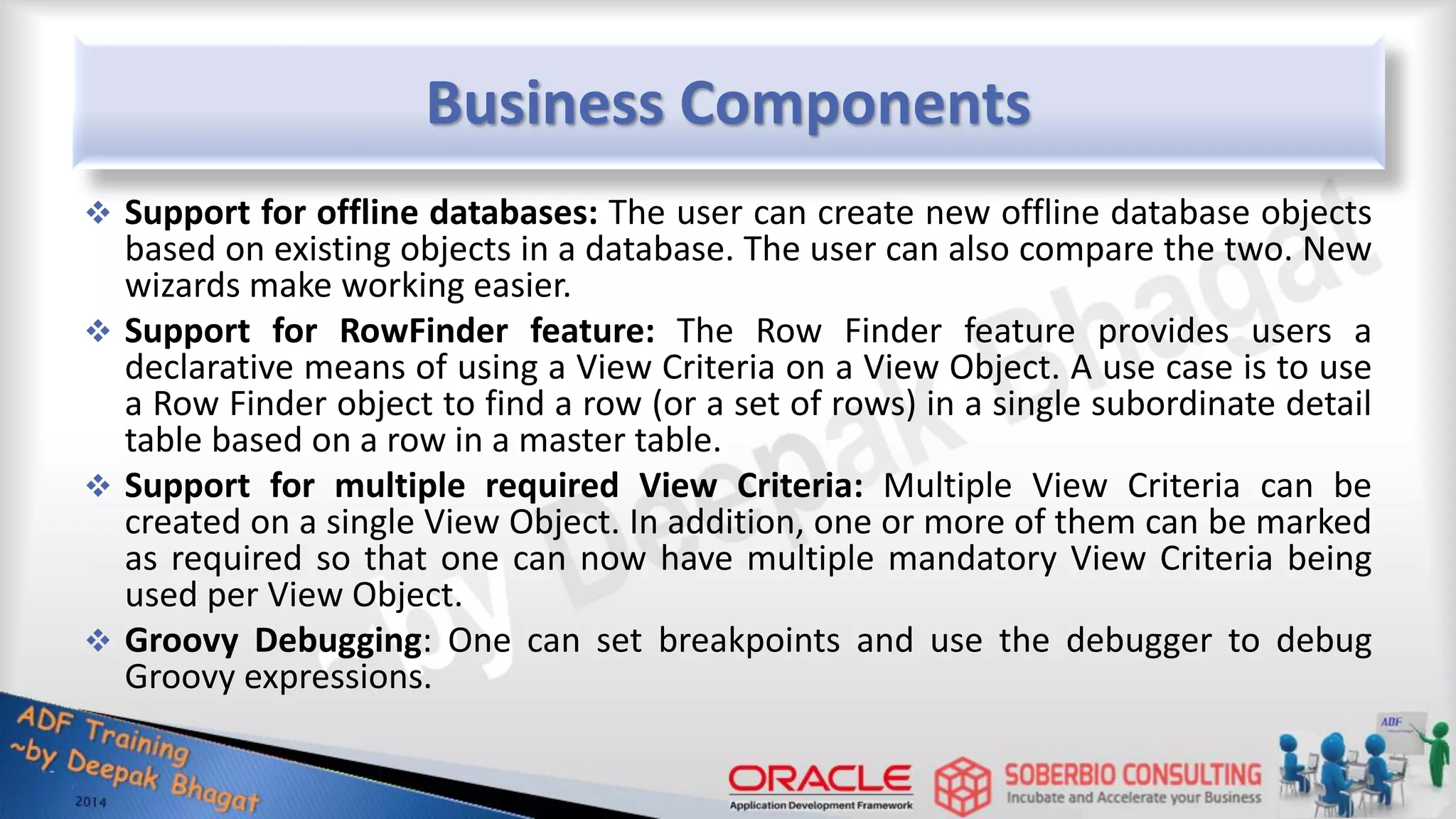

Business Components  Support for offline databases: The user can create new offline database objects based on existing objects in a database. The user can also compare the two. New wizards make working easier.  Support for RowFinder feature: The Row Finder feature provides users a declarative means of using a View Criteria on a View Object. A use case is to use a Row Finder object to find a row (or a set of rows) in a single subordinate detail table based on a row in a master table.  Support for multiple required View Criteria: Multiple View Criteria can be created on a single View Object. In addition, one or more of them can be marked as required so that one can now have multiple mandatory View Criteria being used per View Object.  Groovy Debugging: One can set breakpoints and use the debugger to debug Groovy expressions.

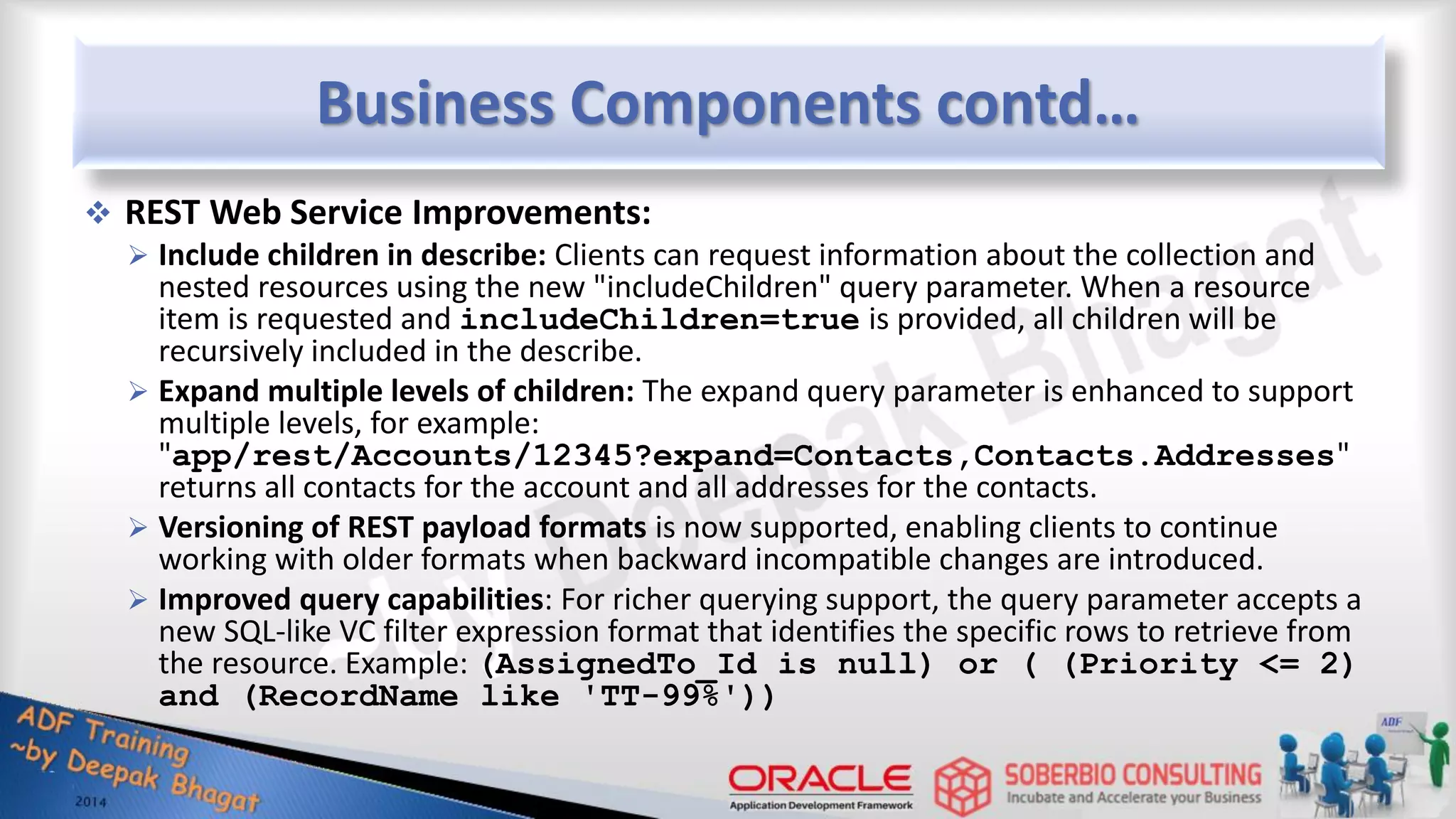

Business Components contd…  REST Web Service Improvements:  Include children in describe: Clients can request information about the collection and nested resources using the new "includeChildren" query parameter. When a resource item is requested and includeChildren=true is provided, all children will be recursively included in the describe.  Expand multiple levels of children: The expand query parameter is enhanced to support multiple levels, for example: "app/rest/Accounts/12345?expand=Contacts,Contacts.Addresses" returns all contacts for the account and all addresses for the contacts.  Versioning of REST payload formats is now supported, enabling clients to continue working with older formats when backward incompatible changes are introduced.  Improved query capabilities: For richer querying support, the query parameter accepts a new SQL-like VC filter expression format that identifies the specific rows to retrieve from the resource. Example: (AssignedTo_Id is null) or ( (Priority <= 2) and (RecordName like 'TT-99%'))

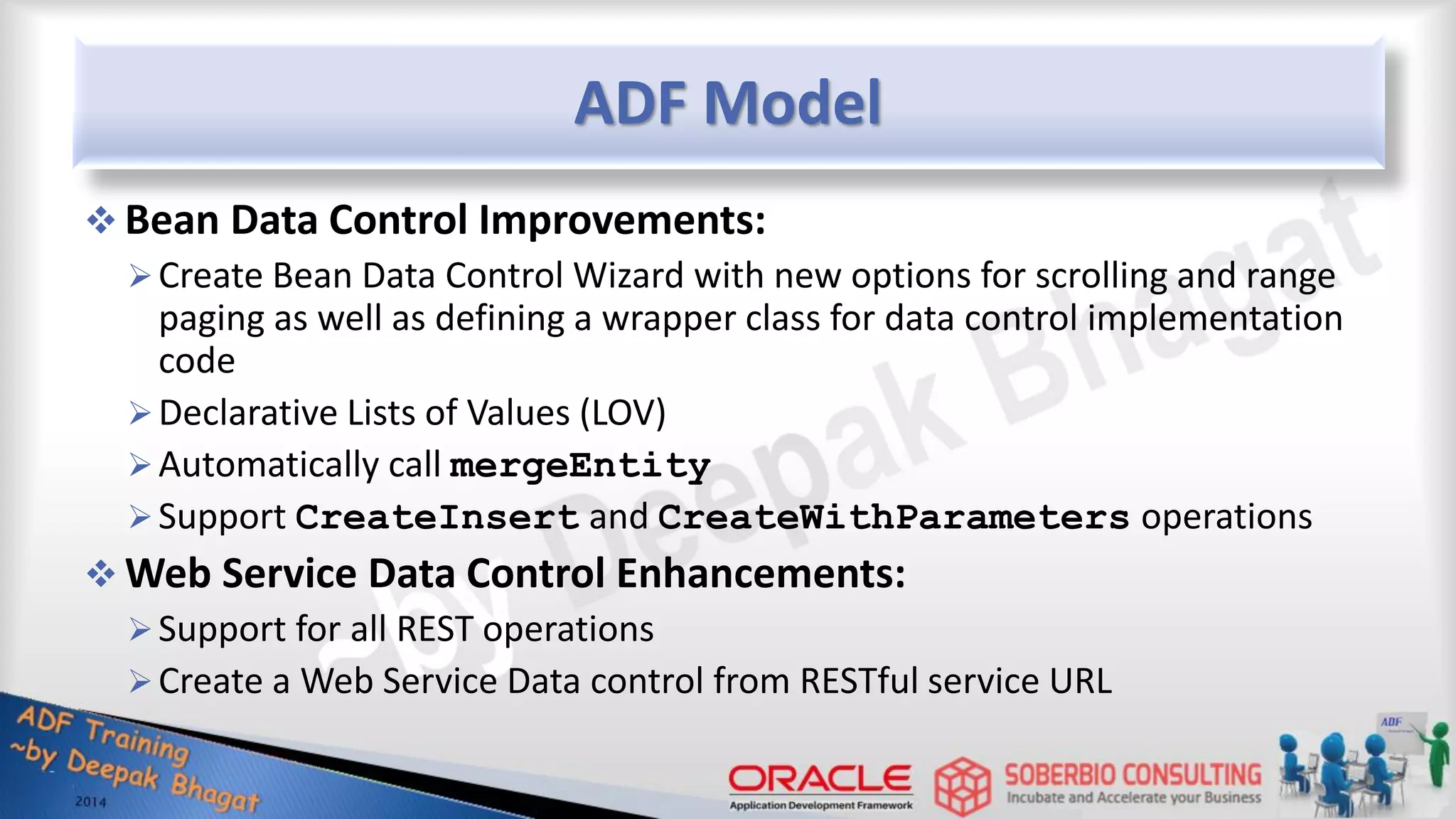

ADF Model  Bean Data Control Improvements: Create Bean Data Control Wizard with new options for scrolling and range paging as well as defining a wrapper class for data control implementation code Declarative Lists of Values (LOV) Automatically call mergeEntity Support CreateInsert and CreateWithParameters operations  Web Service Data Control Enhancements: Support for all REST operations Create a Web Service Data control from RESTful service URL

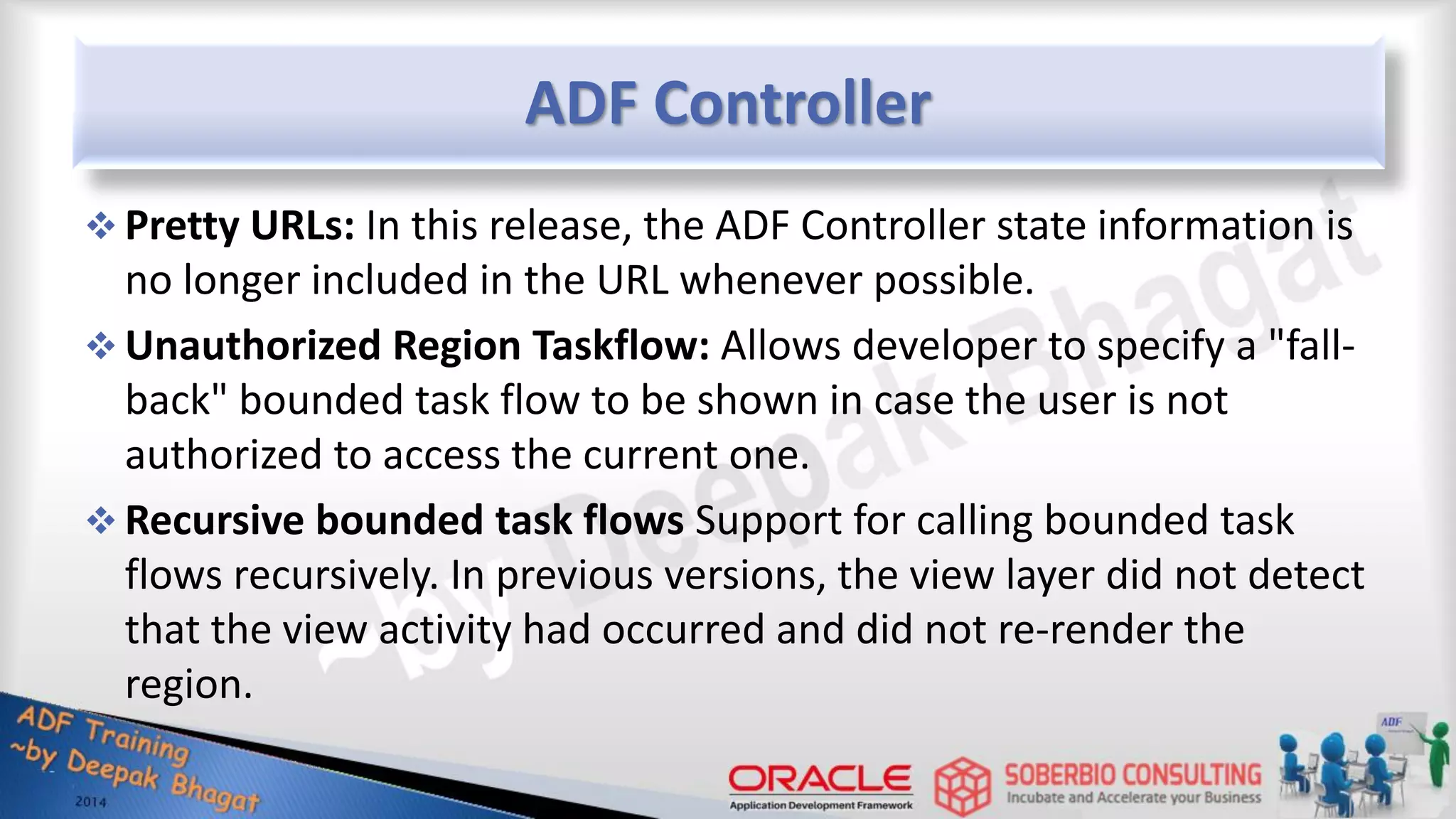

ADF Controller  Pretty URLs: In this release, the ADF Controller state information is no longer included in the URL whenever possible.  Unauthorized Region Taskflow: Allows developer to specify a "fall- back" bounded task flow to be shown in case the user is not authorized to access the current one.  Recursive bounded task flows Support for calling bounded task flows recursively. In previous versions, the view layer did not detect that the view activity had occurred and did not re-render the region.

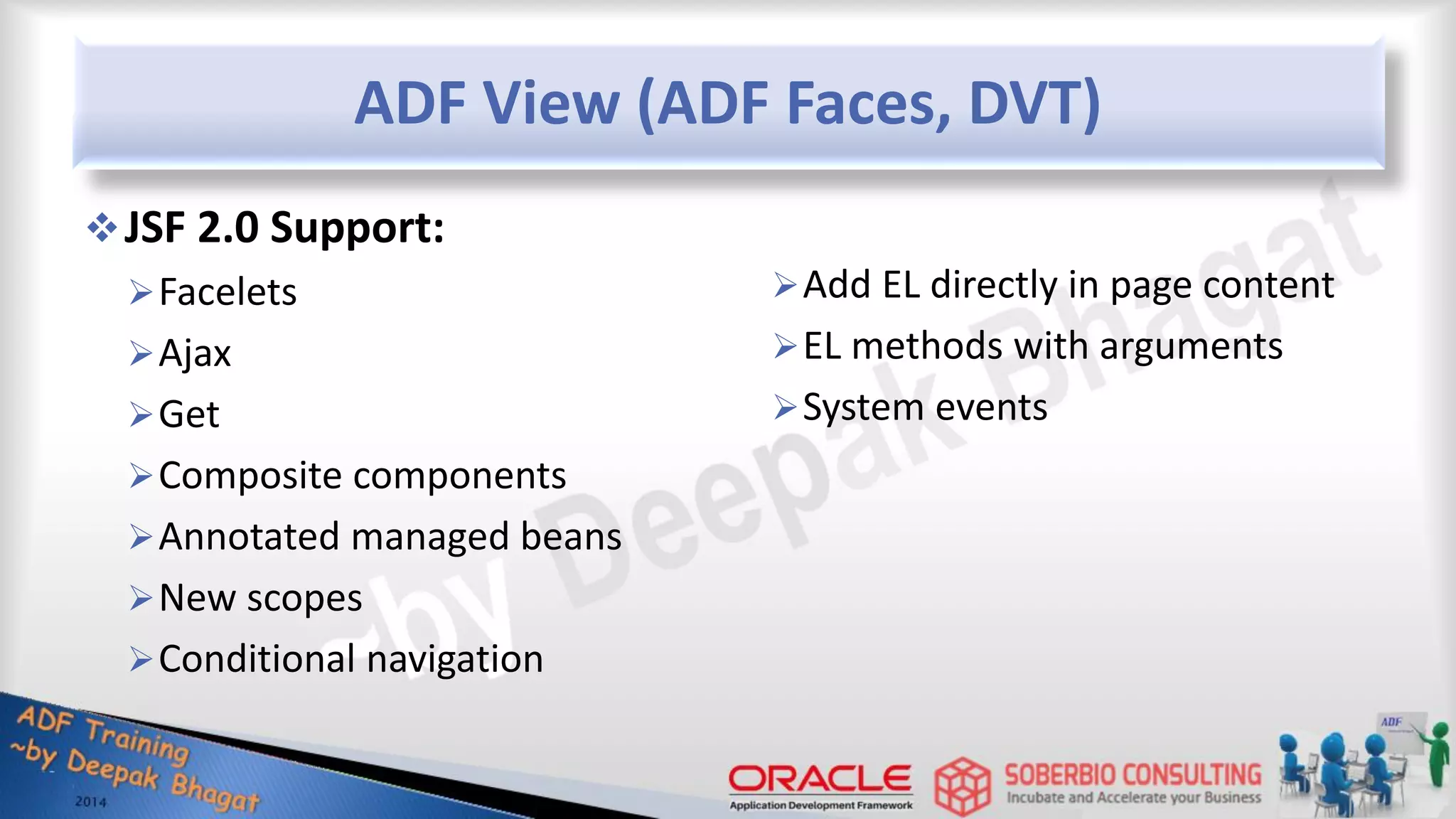

ADF View (ADF Faces, DVT) JSF 2.0 Support: Facelets Ajax Get Composite components Annotated managed beans New scopes Conditional navigation Add EL directly in page content EL methods with arguments System events

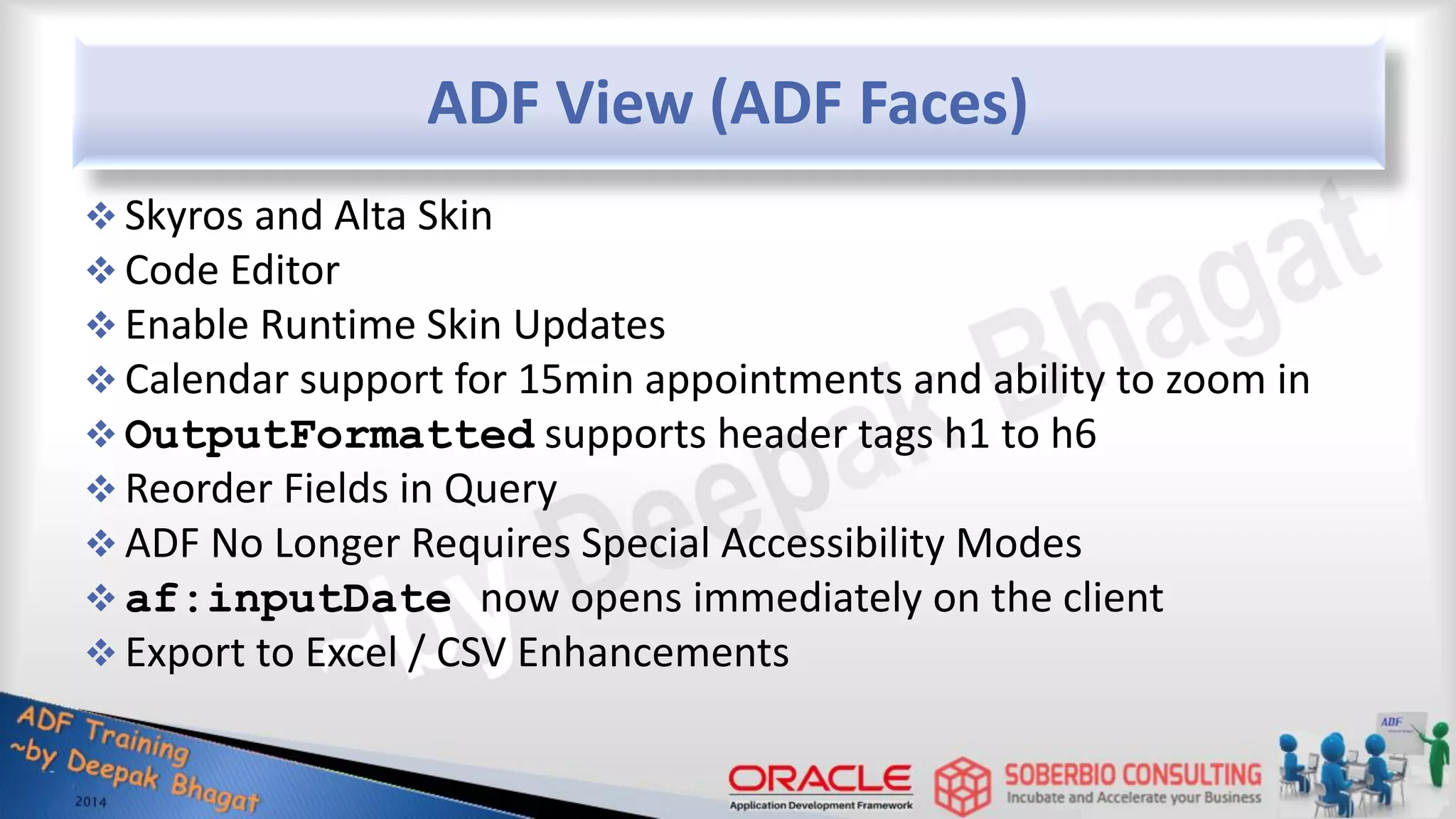

ADF View (ADF Faces)  Skyros and Alta Skin  Code Editor  Enable Runtime Skin Updates  Calendar support for 15min appointments and ability to zoom in  OutputFormatted supports header tags h1 to h6  Reorder Fields in Query  ADF No Longer Requires Special Accessibility Modes  af:inputDate now opens immediately on the client  Export to Excel / CSV Enhancements

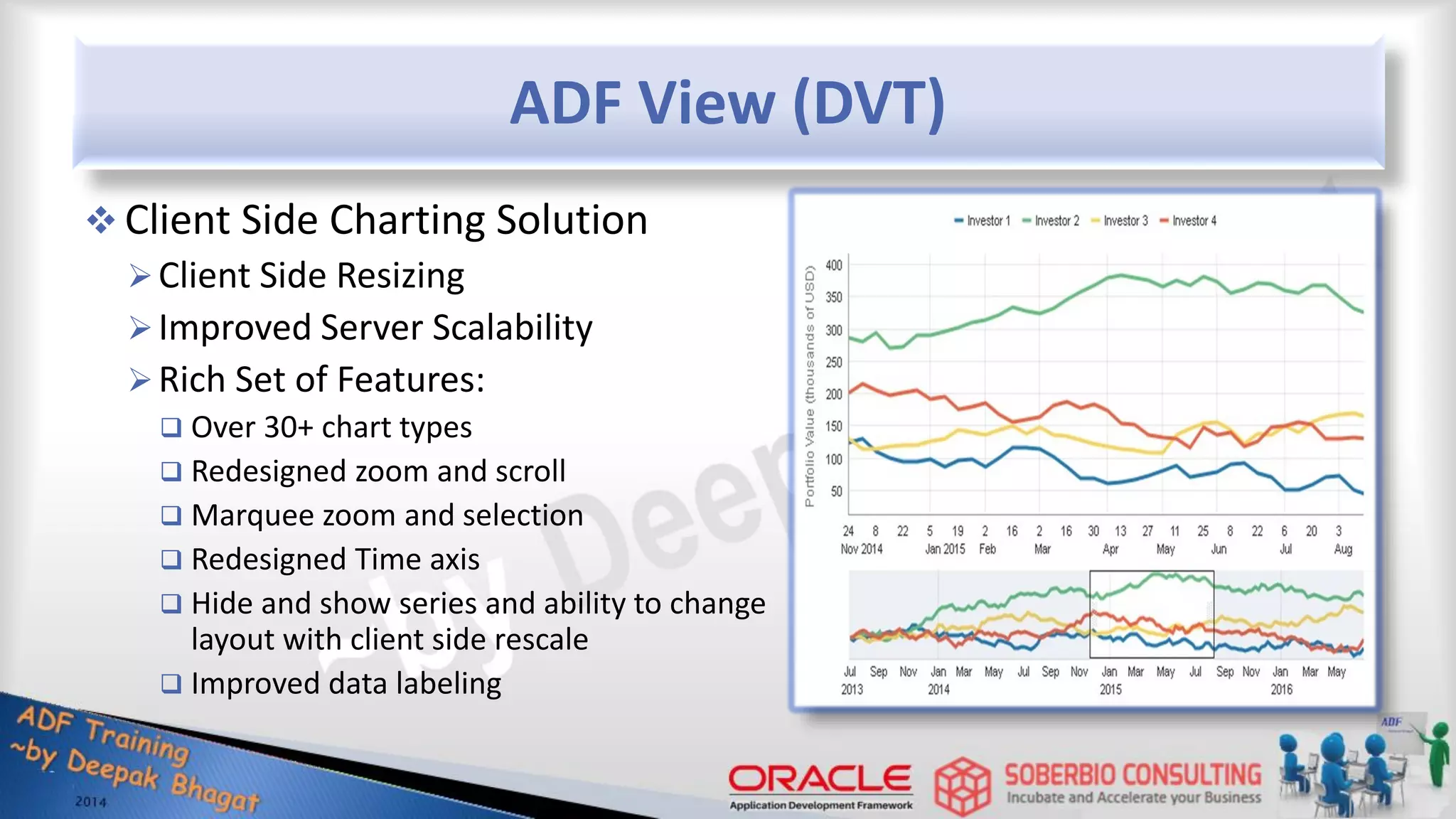

ADF View (DVT)  Client Side Charting Solution Client Side Resizing Improved Server Scalability Rich Set of Features:  Over 30+ chart types  Redesigned zoom and scroll  Marquee zoom and selection  Redesigned Time axis  Hide and show series and ability to change layout with client side rescale  Improved data labeling

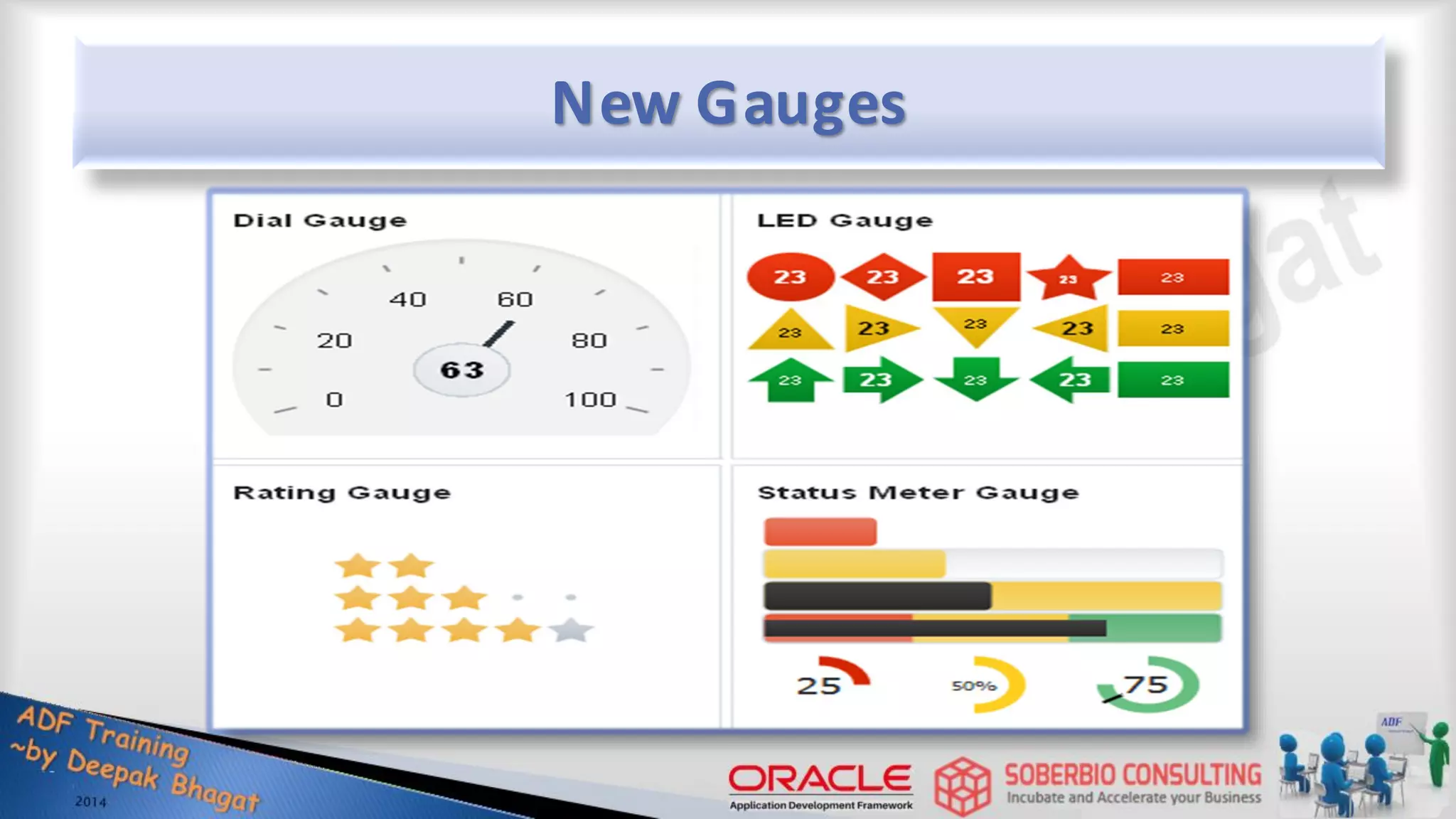

Projects Lab Solutions: Lab03 to Lab24 (excluding Lab15 & Lab16) Advance ADF Lab Solution: Lab28 Book ‘Developing Web Applications with Oracle ADF Essentials’ by Sten E. Vesterli. Chapter 5: Building Enterprise Application  Section ‘Example Application’ Oracle Fusion Order Demo (FOD) Samples Oracle Submit Samples

Lesson Summary ADF 12c New Features Projects in ADF

Lesson Agenda Following will be covered in Labs:  Custom View Criteria  Contextual Events  Traversing and deleting master- detail  Creating an Application Module base class  Programmatically calling EL, scopes and conditional display  Adding Router Activity  Programmatically handling confirm Dialog Yes and No  Programmatically invoking Popup  Programmatically closing Popup  Rendering Dynamic Region  Add Context Menu  Creating Data Control Method from Backing Bean  Programmatically adding PPR  Programmatically handling UI CRUD transactions

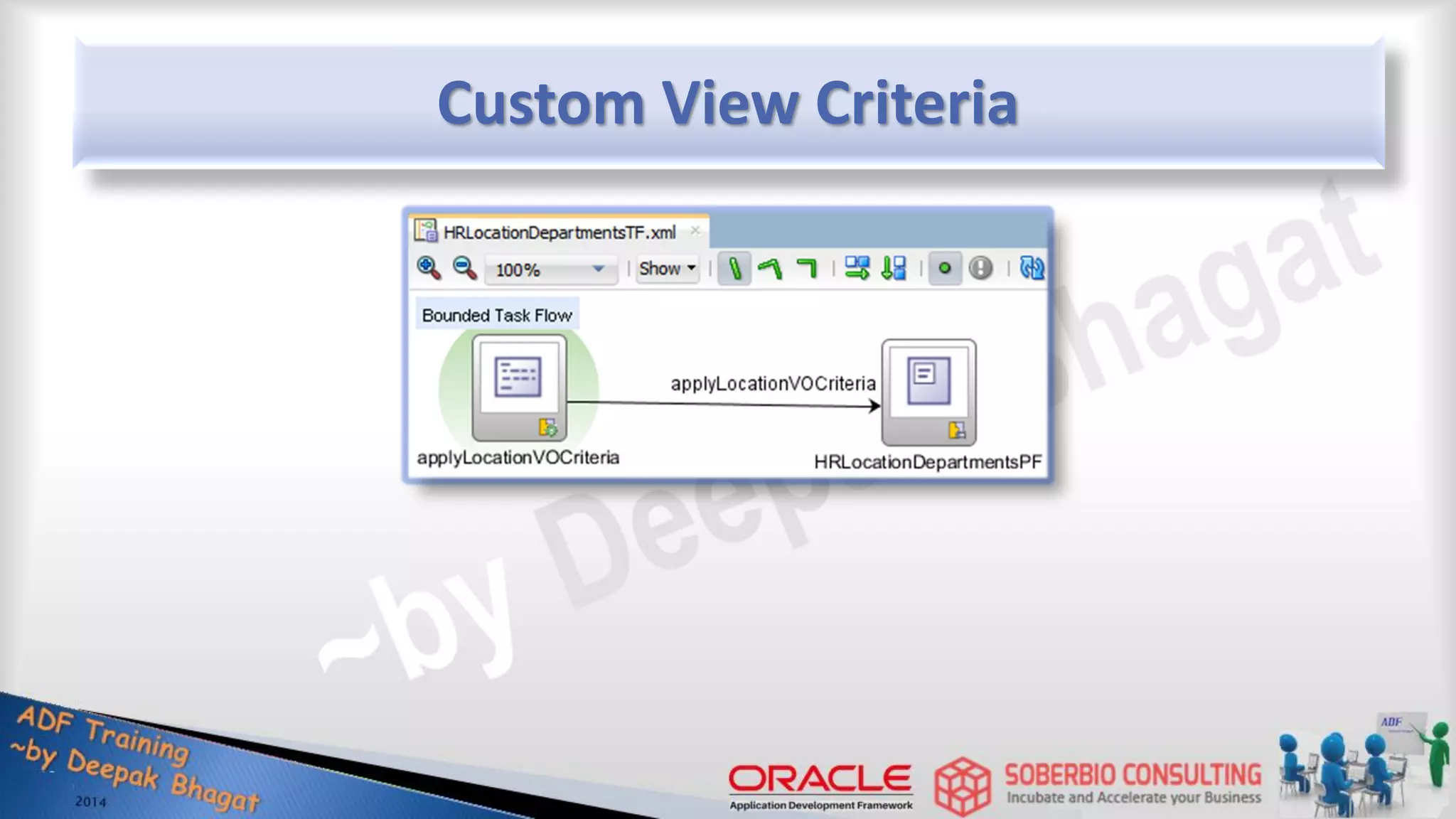

UI and Page Flow Design Panel Accordion showDetailItem showDetailItem Panel Tabbed showDetailItem showDetailItem HRSystemIndex.jsf HRLocationDeptartmentTF HREmployeeQuickSearchTF HREmployeeSearchTF HREmployeeCreateTF HREmployeeSearchPF HREmployeeUpdateTF HRLocationDeptartmentPF HREmployeeQuickSearchPF HREmployeeCreatePF HREmployeeListTF HREmployeeDetailTF HREmployeeListPF HREmployeeDetailPF HREmployeeDetailPF Dynamic Region HREmployeeSalaryGraphTF HRDeptManagerDetailTF Region TF Call HREmployeeUpdatePersonPF HREmployeeUpdateJobPF HREmployeeUpdateConfirmPF Page Fragment applyLocationVOCriteria

Contextual Event Panel Accordion Panel Tabbed HRSystemIndex.jsf HRLocationDeptartmentTF HREmployeeListTF PageDef PageDef HREmployeeListPF HRLocationDeptartmentPF Create data control Create data control Bindings 1 8 7 6 4 3 2 11 9 14 13 12 4 3 2 1 5 6 5 7 10

Characteristics of the Contextual Event Framework Contextual events: Provide a way to coordinate regions Can be invoked and consumed only by method action of a data control Producer and consumer may be the same or different data controls.

Using the Contextual Event Framework to Coordinate Page Regions

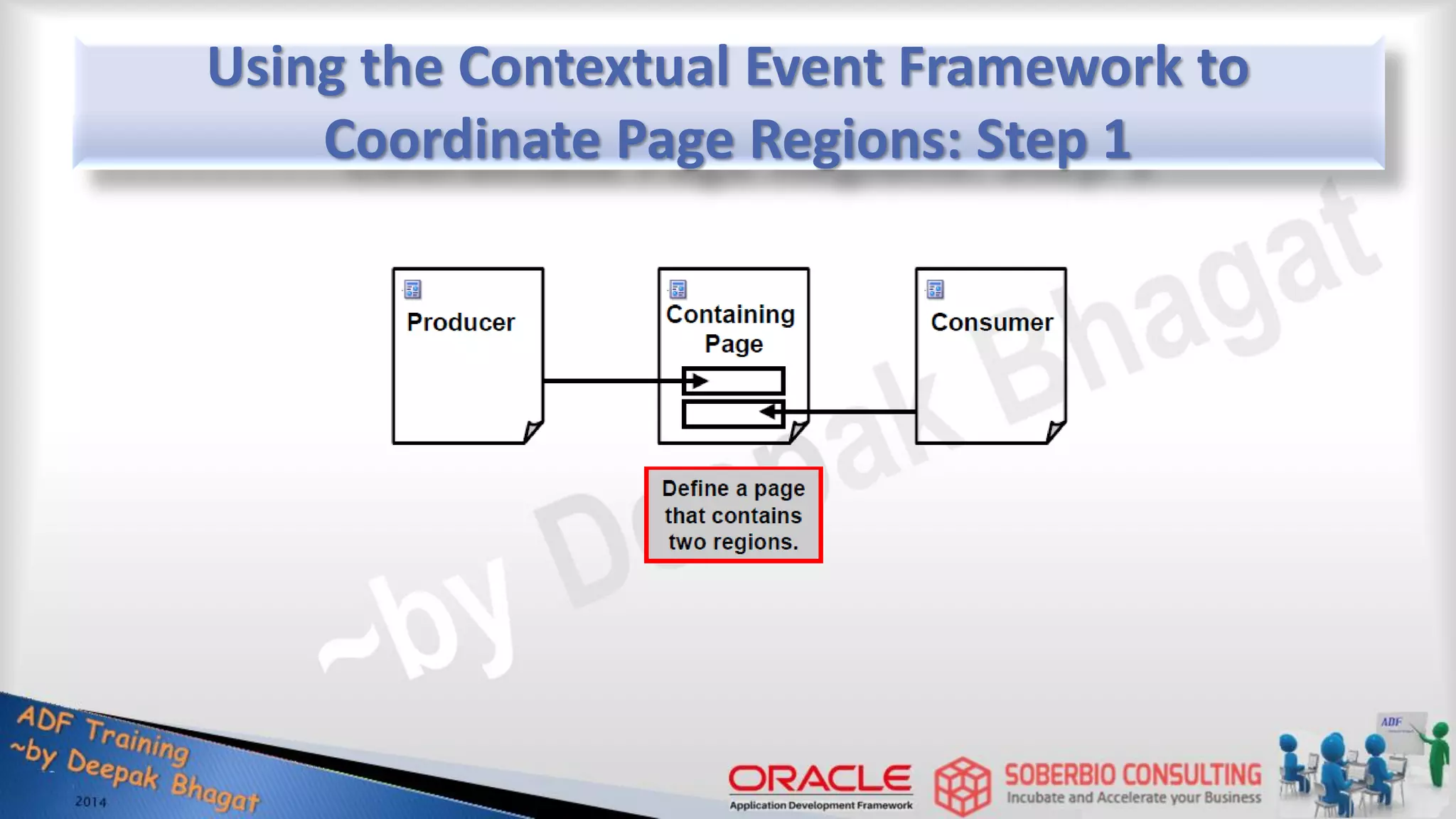

Using the Contextual Event Framework to Coordinate Page Regions: Step 1

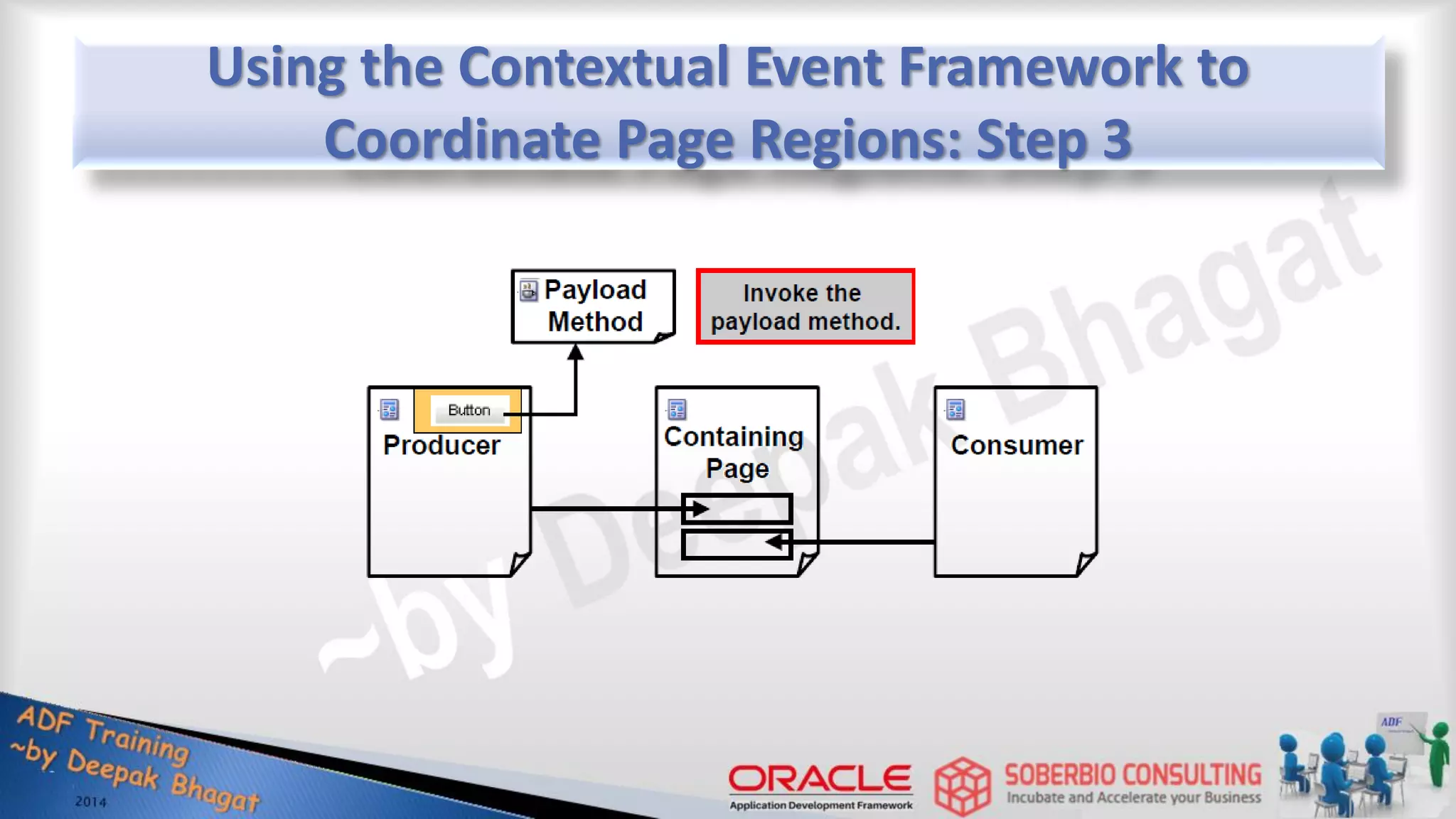

Using the Contextual Events Tab to Define an Event

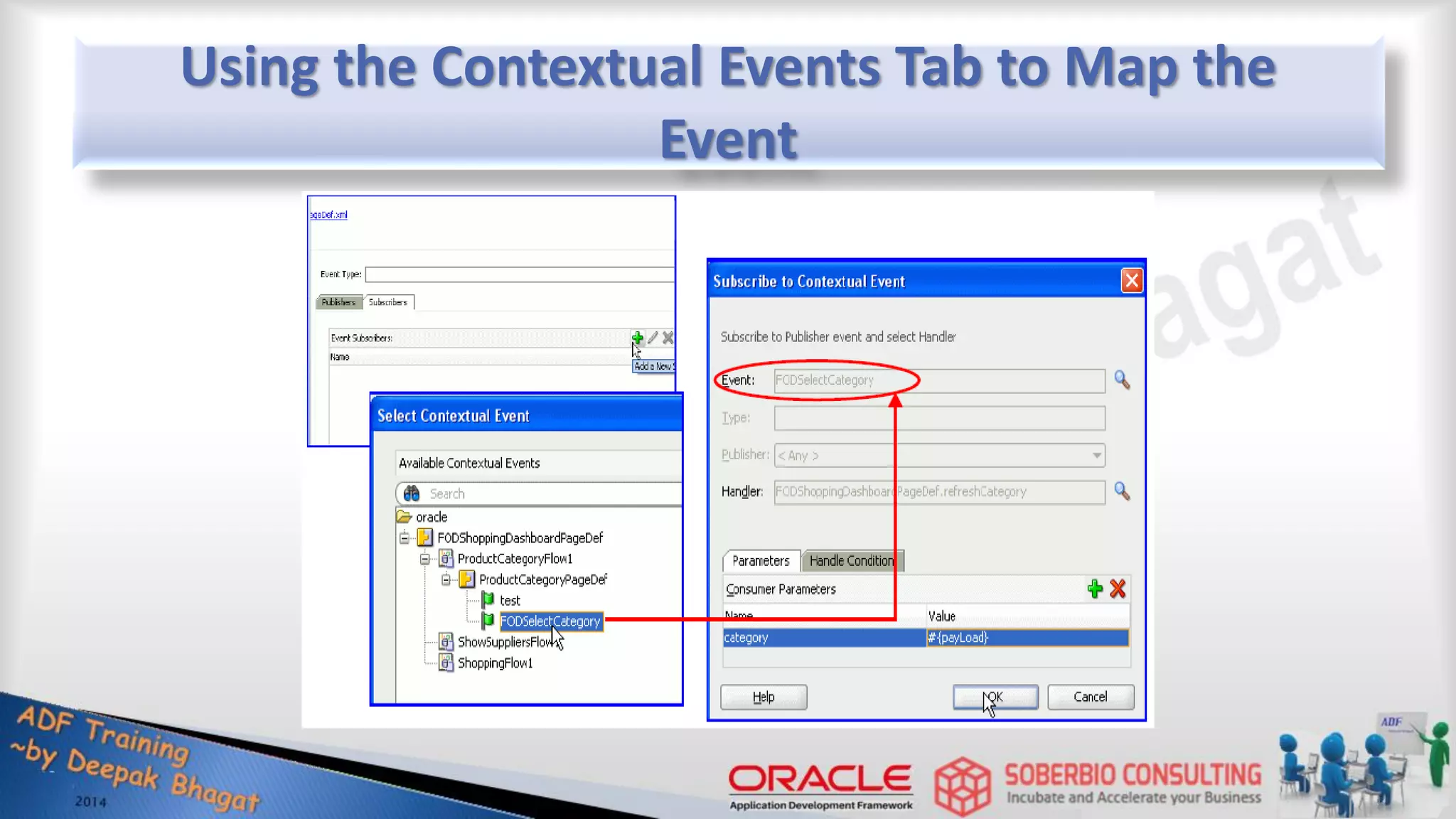

Using the Contextual Events Tab to Map the Event

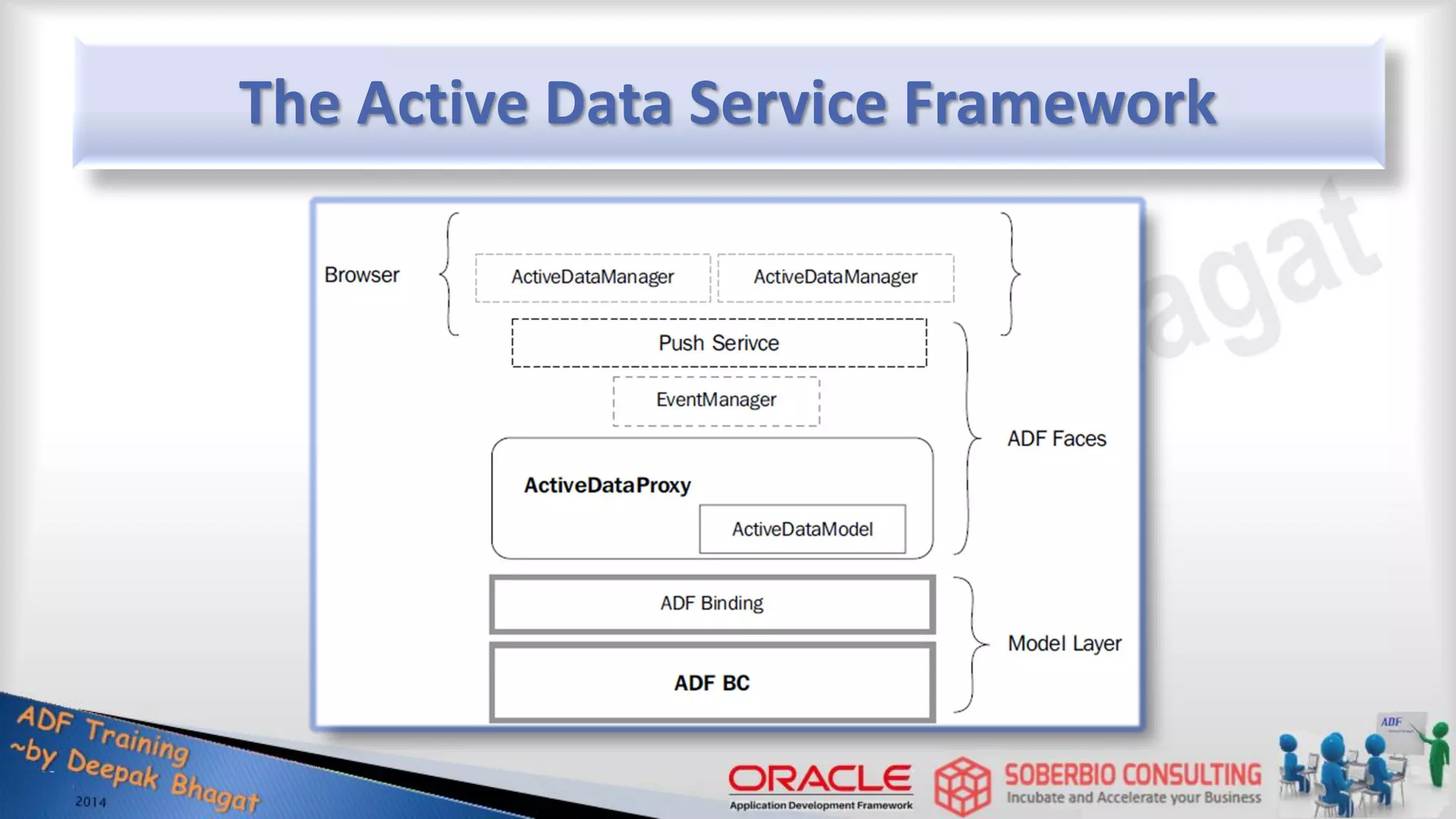

The Active Data Service Framework

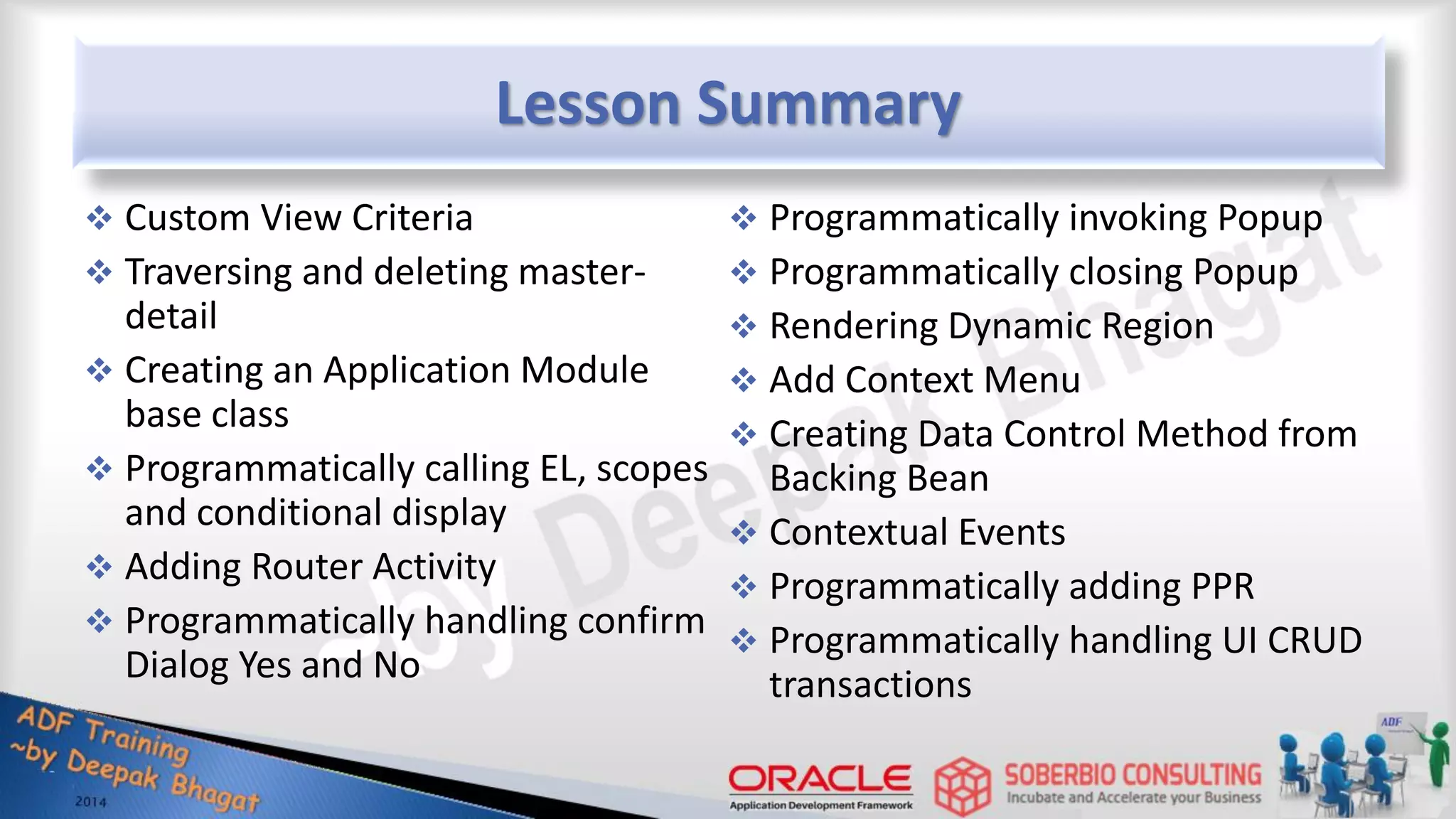

Lesson Summary  Custom View Criteria  Traversing and deleting master- detail  Creating an Application Module base class  Programmatically calling EL, scopes and conditional display  Adding Router Activity  Programmatically handling confirm Dialog Yes and No  Programmatically invoking Popup  Programmatically closing Popup  Rendering Dynamic Region  Add Context Menu  Creating Data Control Method from Backing Bean  Contextual Events  Programmatically adding PPR  Programmatically handling UI CRUD transactions

29 Integrating ADF with Web Service

Developing ADF Applications with ADF Data Controls

Lesson Agenda  What is Web Service  Types of Web Service  REST versus SOAP  When to use  Create REST Web Service with ADF Business Service  Create SOAP Web Service with ADF Business Service  Consume REST Web Service (ADF)  Consume REST Web Service (Generic)  Consume SOAP Web Service

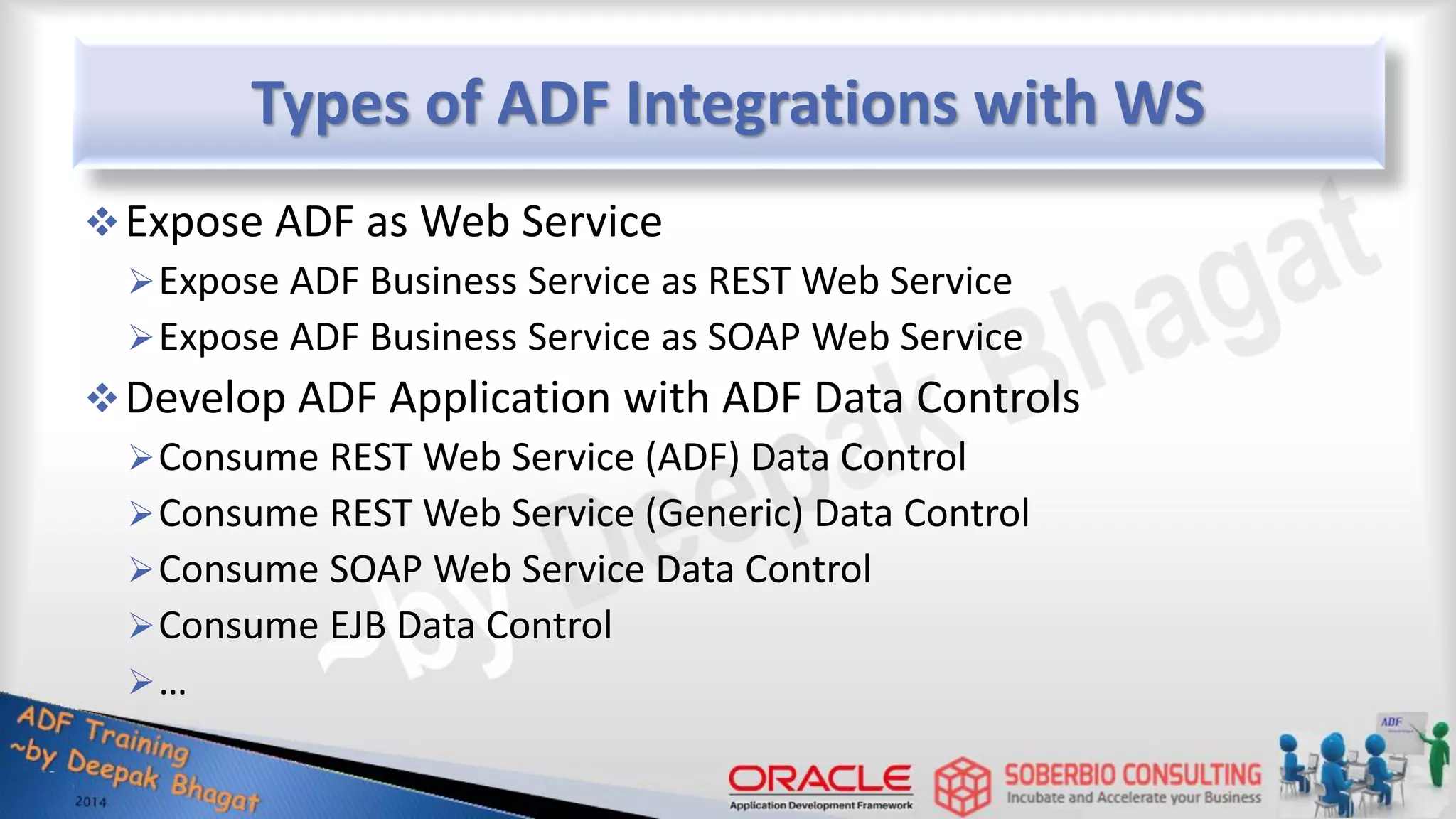

Types of ADF Integrations with WS Expose ADF as Web Service Expose ADF Business Service as REST Web Service Expose ADF Business Service as SOAP Web Service Develop ADF Application with ADF Data Controls Consume REST Web Service (ADF) Data Control Consume REST Web Service (Generic) Data Control Consume SOAP Web Service Data Control Consume EJB Data Control …

Types of ADF Integrations contd… Integrate ADF Application with Service Oriented Architecture (SOA) Mobile Application Framework (MAF) Cloud Service WebCenter (WC) PLSQL (Lesson 03 Extended Example) Business Intelligence (BI) …

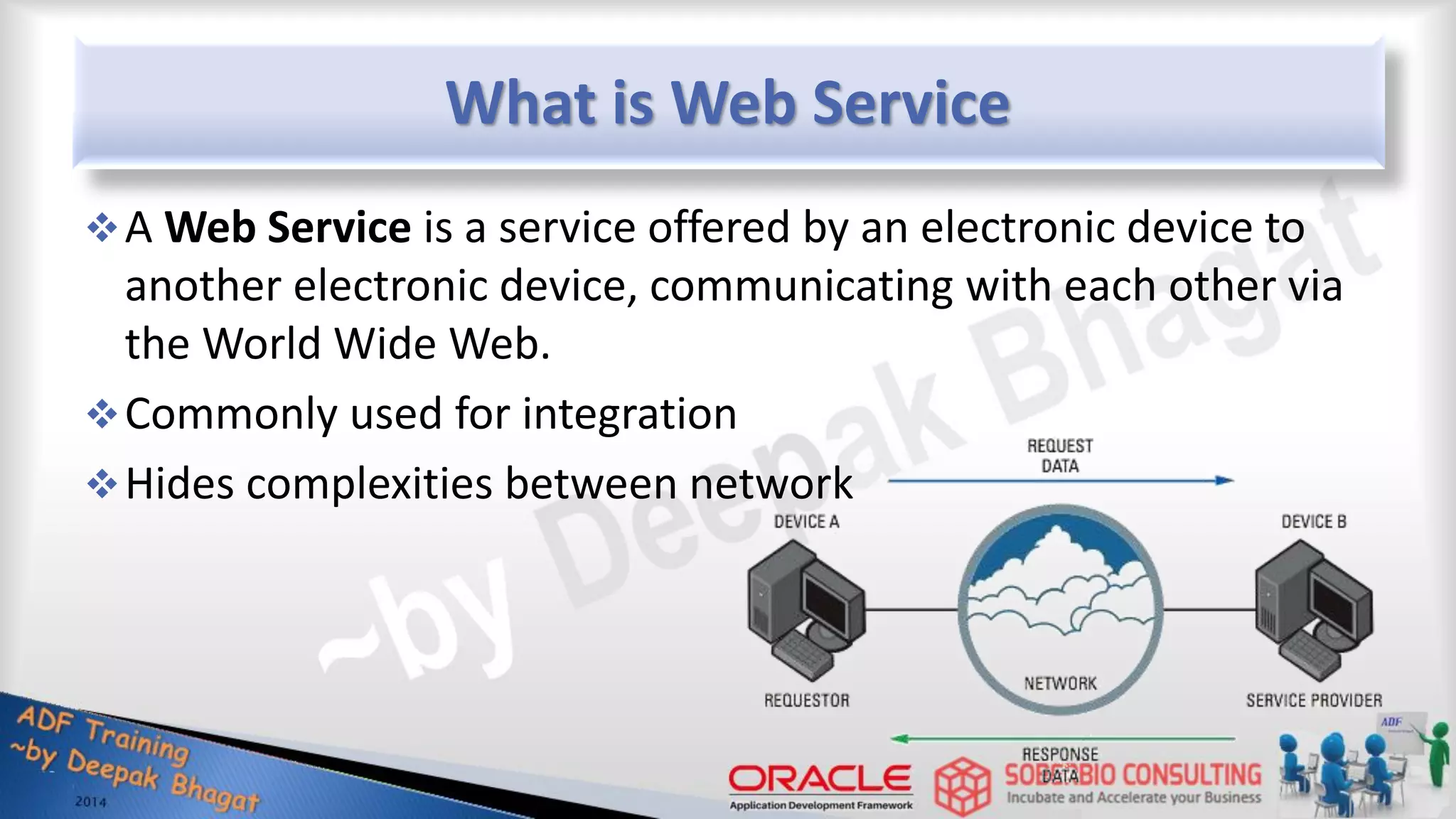

What is Web Service A Web Service is a service offered by an electronic device to another electronic device, communicating with each other via the World Wide Web. Commonly used for integration Hides complexities between network

Type of Web Services  REST (REpresentational State Transfer) HTTP based (GET, POST, PATCH, DELETE …) Simple familiar Programmer friendly No Contract  SOAP (Simple Object Access Protocol) Relies on XML message format Requires WSDL document Requires Contract Enterprise Standard

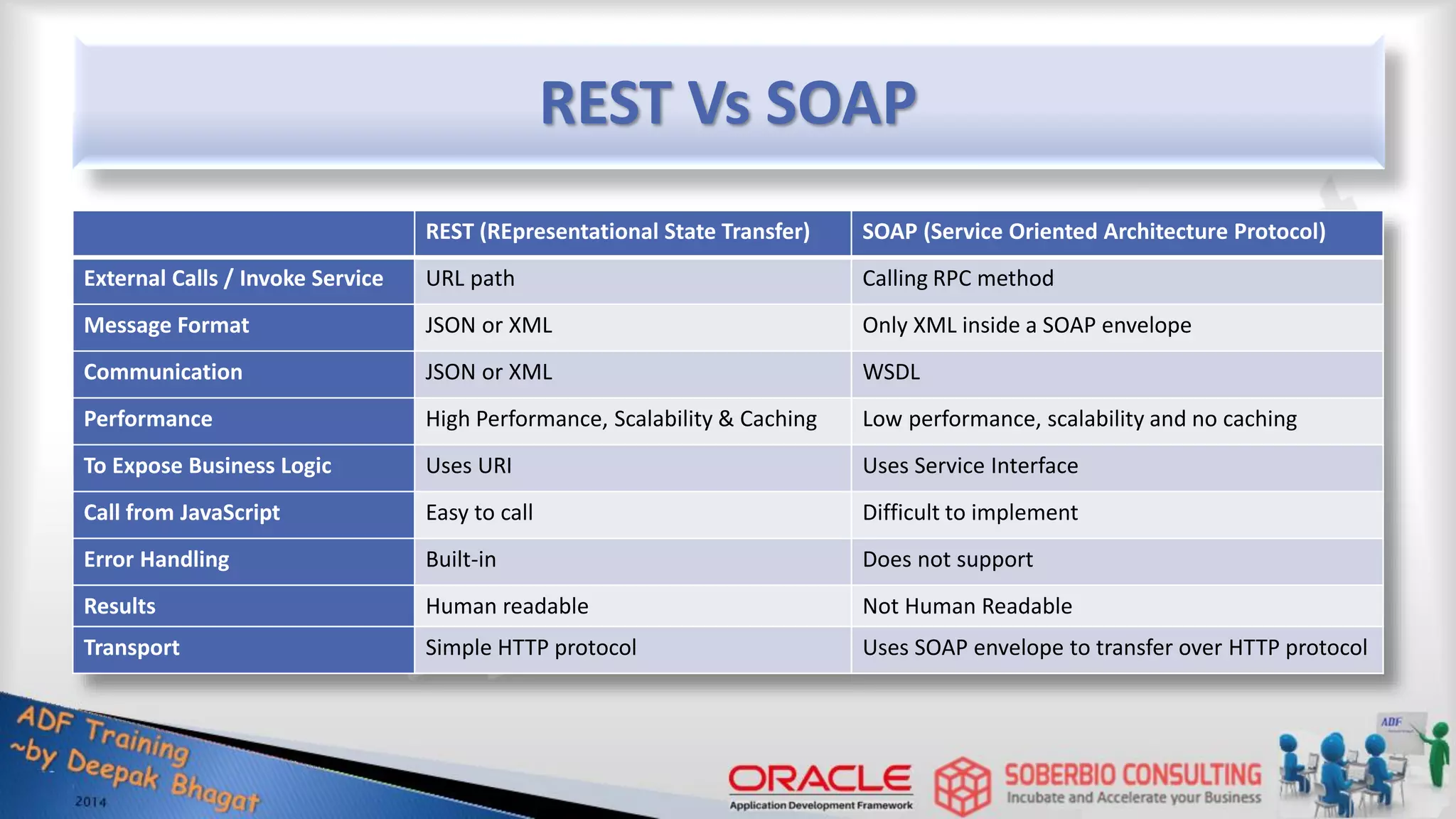

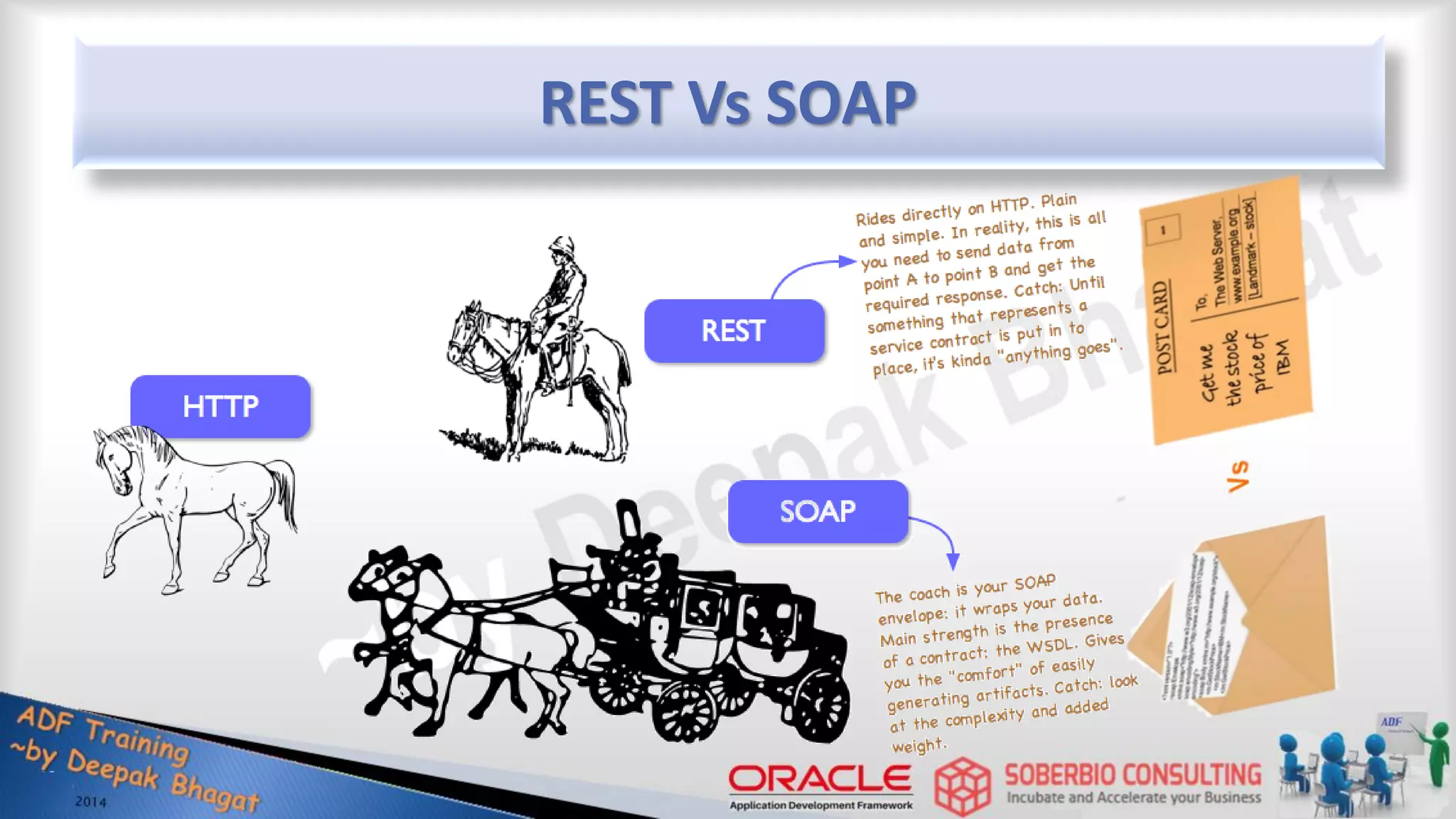

REST Vs SOAP REST (REpresentational State Transfer) SOAP (Service Oriented Architecture Protocol) External Calls / Invoke Service URL path Calling RPC method Message Format JSON or XML Only XML inside a SOAP envelope Communication JSON or XML WSDL Performance High Performance, Scalability & Caching Low performance, scalability and no caching To Expose Business Logic Uses URI Uses Service Interface Call from JavaScript Easy to call Difficult to implement Error Handling Built-in Does not support Results Human readable Not Human Readable Transport Simple HTTP protocol Uses SOAP envelope to transfer over HTTP protocol

When to Use When to use REST Cloud-based and mobile applications Creating highly scalable stateless applications When to use SOAP Internet applications – More mature tooling B2B applications – Strong contract Exposing existing applications

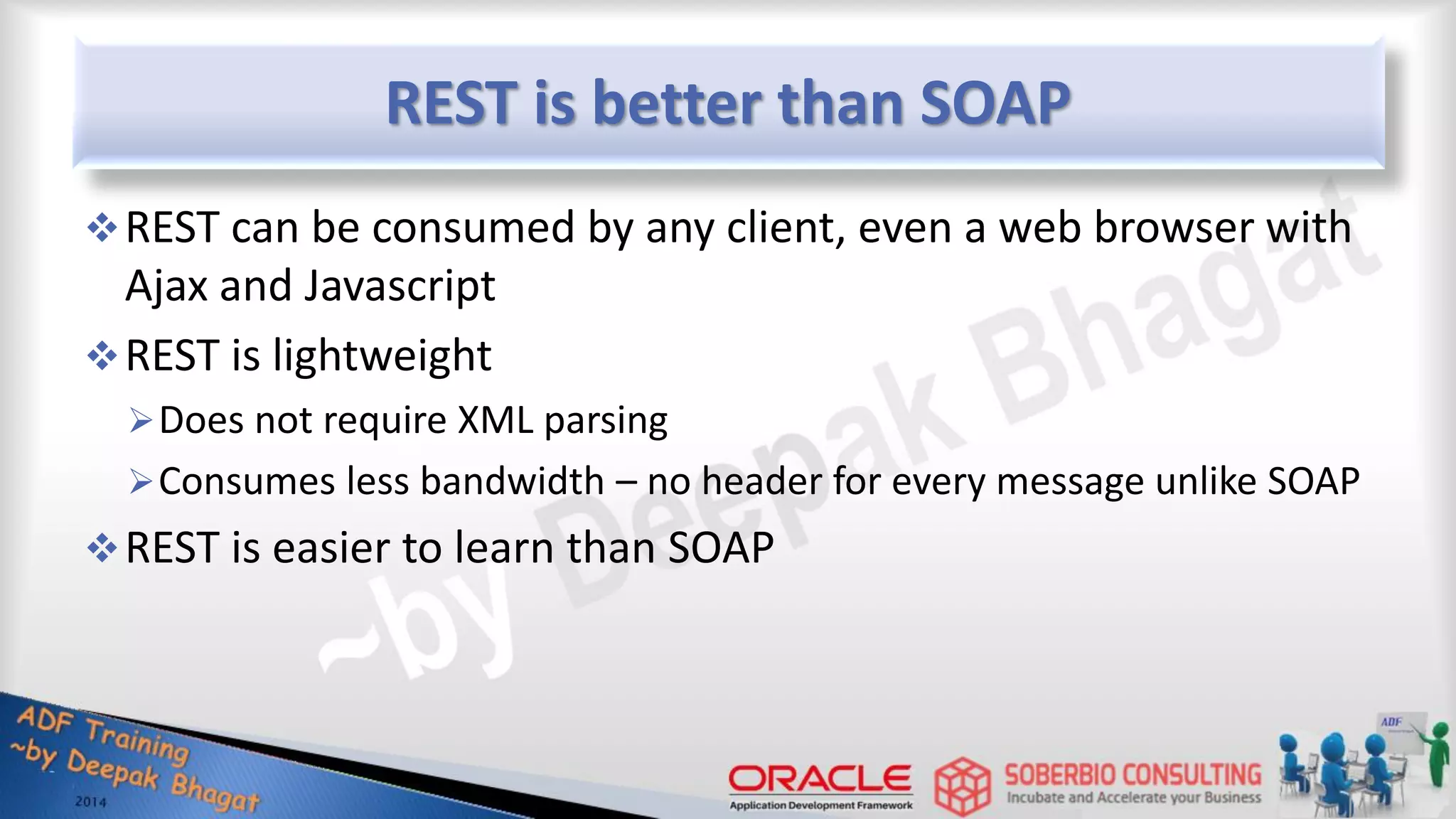

REST is better than SOAP REST can be consumed by any client, even a web browser with Ajax and Javascript REST is lightweight Does not require XML parsing Consumes less bandwidth – no header for every message unlike SOAP REST is easier to learn than SOAP

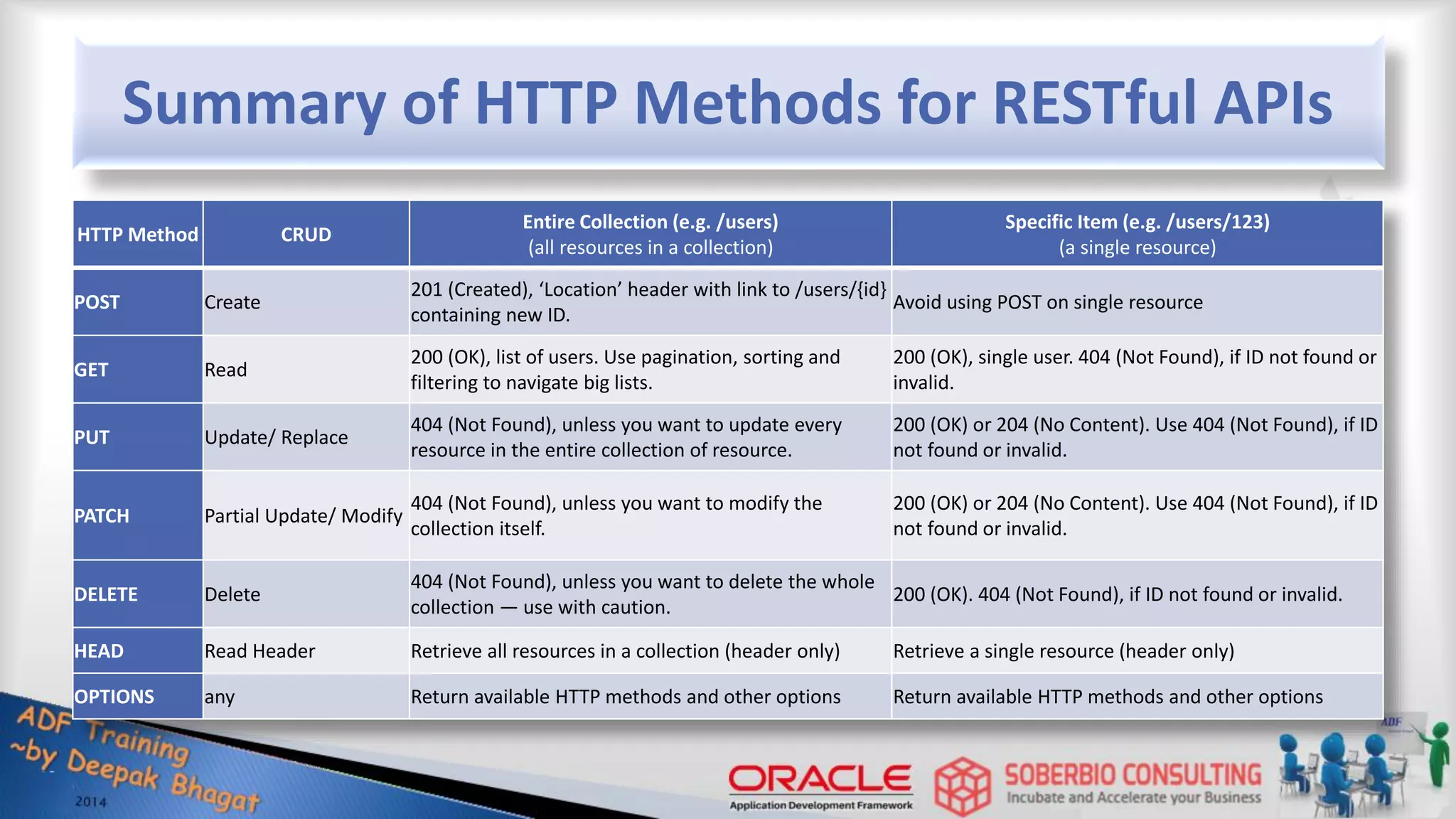

Summary of HTTP Methods for RESTful APIs HTTP Method CRUD Entire Collection (e.g. /users) (all resources in a collection) Specific Item (e.g. /users/123) (a single resource) POST Create 201 (Created), ‘Location’ header with link to /users/{id} containing new ID. Avoid using POST on single resource GET Read 200 (OK), list of users. Use pagination, sorting and filtering to navigate big lists. 200 (OK), single user. 404 (Not Found), if ID not found or invalid. PUT Update/ Replace 404 (Not Found), unless you want to update every resource in the entire collection of resource. 200 (OK) or 204 (No Content). Use 404 (Not Found), if ID not found or invalid. PATCH Partial Update/ Modify 404 (Not Found), unless you want to modify the collection itself. 200 (OK) or 204 (No Content). Use 404 (Not Found), if ID not found or invalid. DELETE Delete 404 (Not Found), unless you want to delete the whole collection — use with caution. 200 (OK). 404 (Not Found), if ID not found or invalid. HEAD Read Header Retrieve all resources in a collection (header only) Retrieve a single resource (header only) OPTIONS any Return available HTTP methods and other options Return available HTTP methods and other options

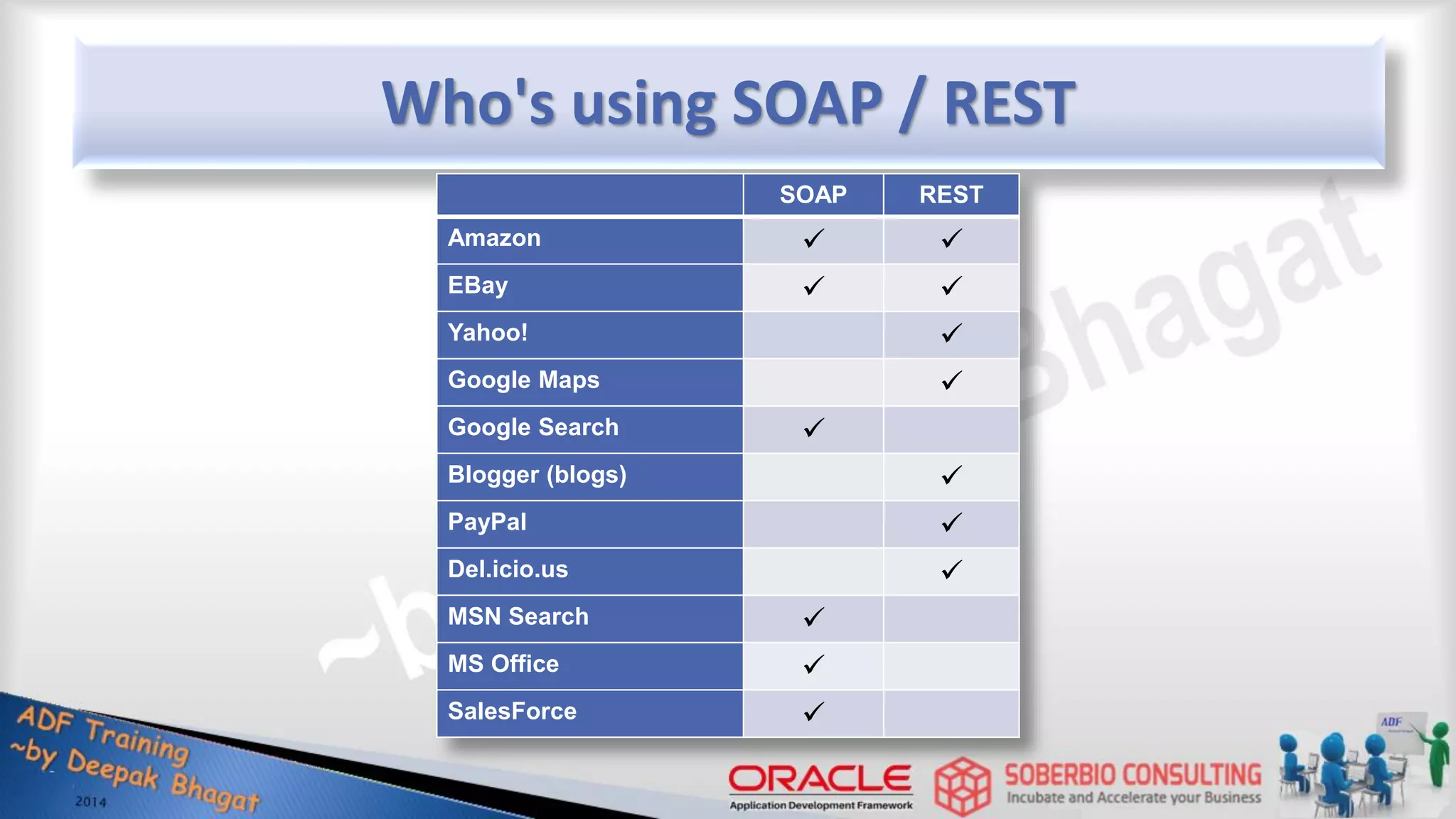

Who's using SOAP / REST SOAP REST Amazon   EBay   Yahoo!  Google Maps  Google Search  Blogger (blogs)  PayPal  Del.icio.us  MSN Search  MS Office  SalesForce 

Using the Data Control Palette Methods Parameters Return values

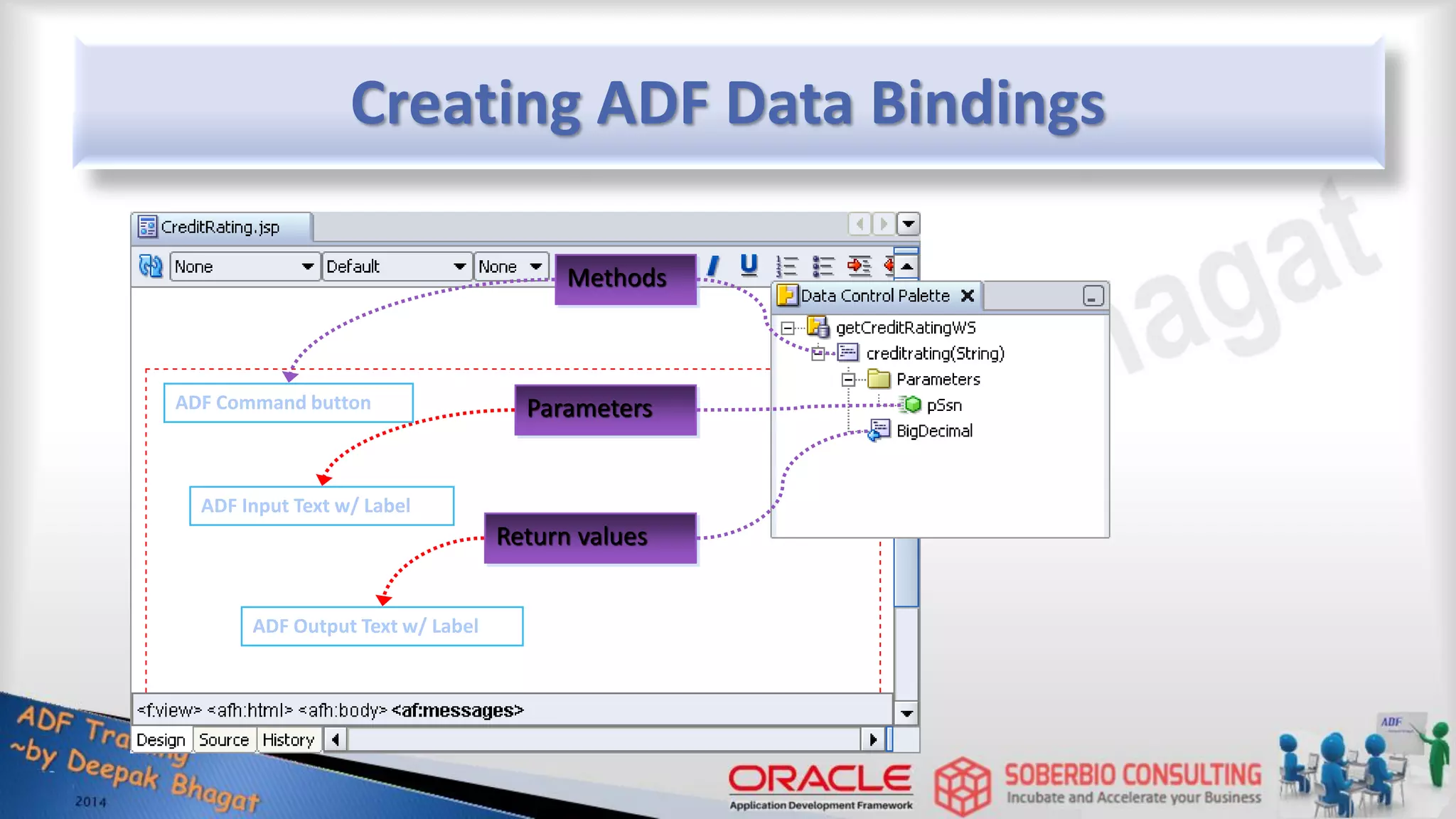

Creating ADF Data Bindings Methods Parameters Return values ADF Command button ADF Output Text w/ Label ADF Input Text w/ Label

Creating ADF Data Bindings Note: Data Control Validation & UI Hints not available in 10.1.3.0

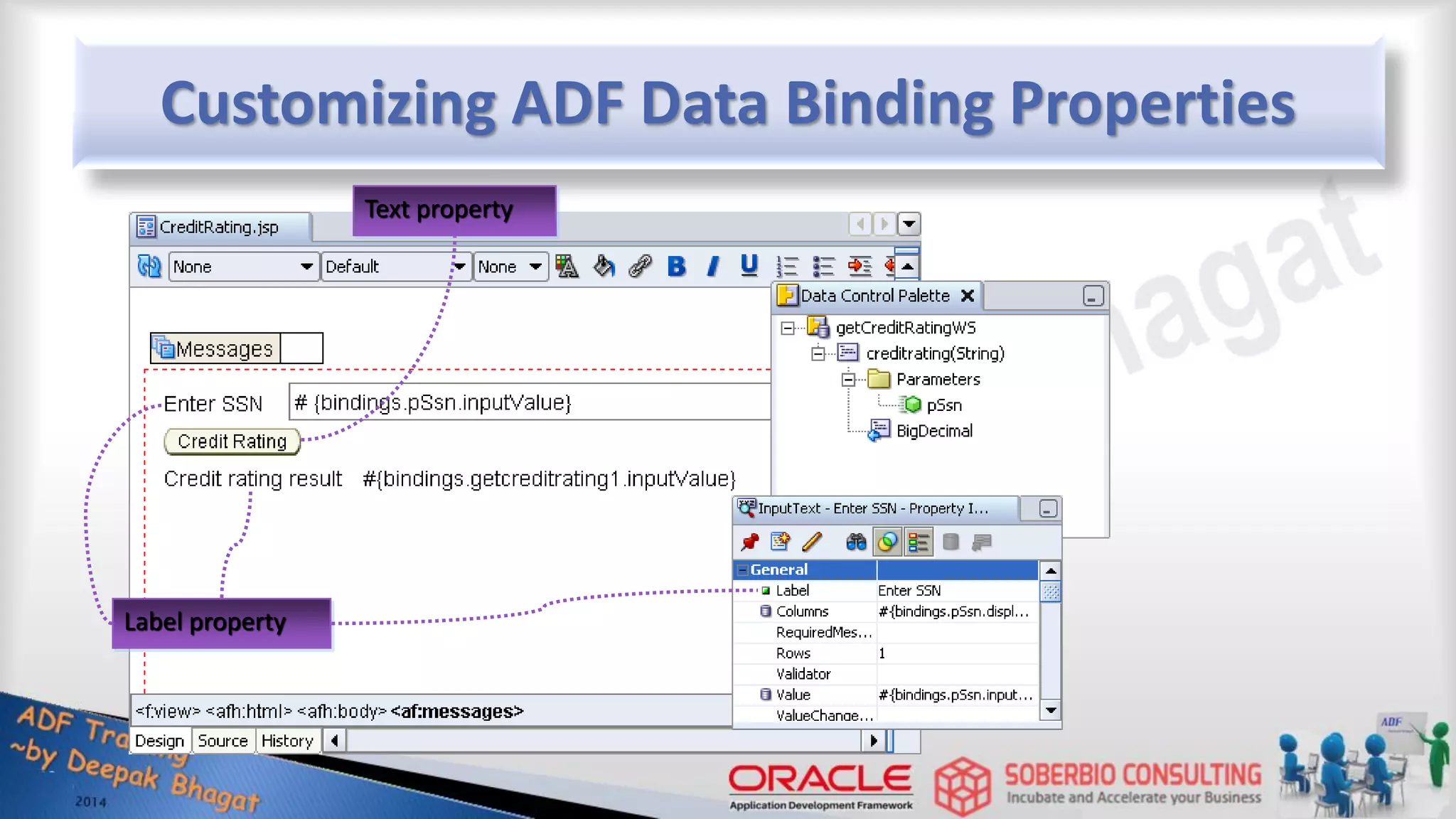

Customizing ADF Data Binding Properties Label property Text property

Web Service Provider Web Service can be Java Web Service, C, C++, C# Web Service EJB Web Service PL/SQL Web Service BC4J Web Service Any software component which adheres to the standards can be exposed as Web Service

SOAP Web Service Standards  WSDL – Web Service Definition Language  XML format published for describing Web services  Describes the public interface to Web Service, how to communicate to web service, protocol bindings and message formats required to interact with web service.  SOAP – Simple Object Access Protocol  Protocol for exchanging XML-based messages over a computer network, normally using HTTP  Providing a basic messaging framework  Different types of messaging patterns in SOAP, but by far the most common is the Remote Procedure Call (RPC) pattern, where one network node (the client) sends a request message to another node (the server), and the server immediately sends a response message to the client.  UDDI - Universal Description, Discovery, and Integration  A platform-independent, XML-based registry for businesses worldwide to list themselves on the Internet  Enabling businesses to publish service listings, discover other web services, define how the services or software applications interact over the Internet

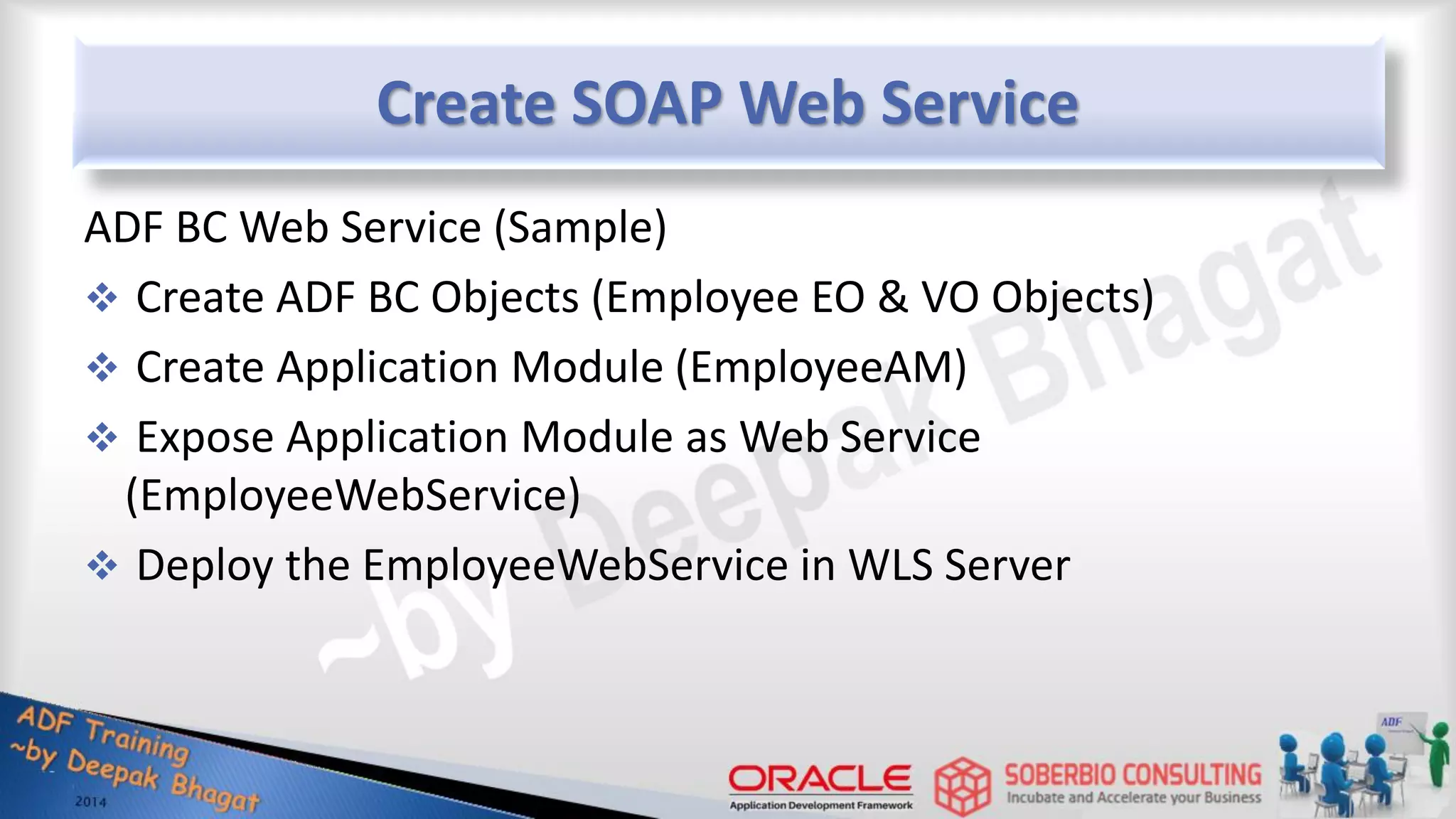

Create SOAP Web Service ADF BC Web Service (Sample)  Create ADF BC Objects (Employee EO & VO Objects)  Create Application Module (EmployeeAM)  Expose Application Module as Web Service (EmployeeWebService)  Deploy the EmployeeWebService in WLS Server

Create SOAP Web Service Java Web Service  Create Java Class  Create Service Interface  Create WSDL  Deploy the Service in Server  Test the Service using SOAP messages

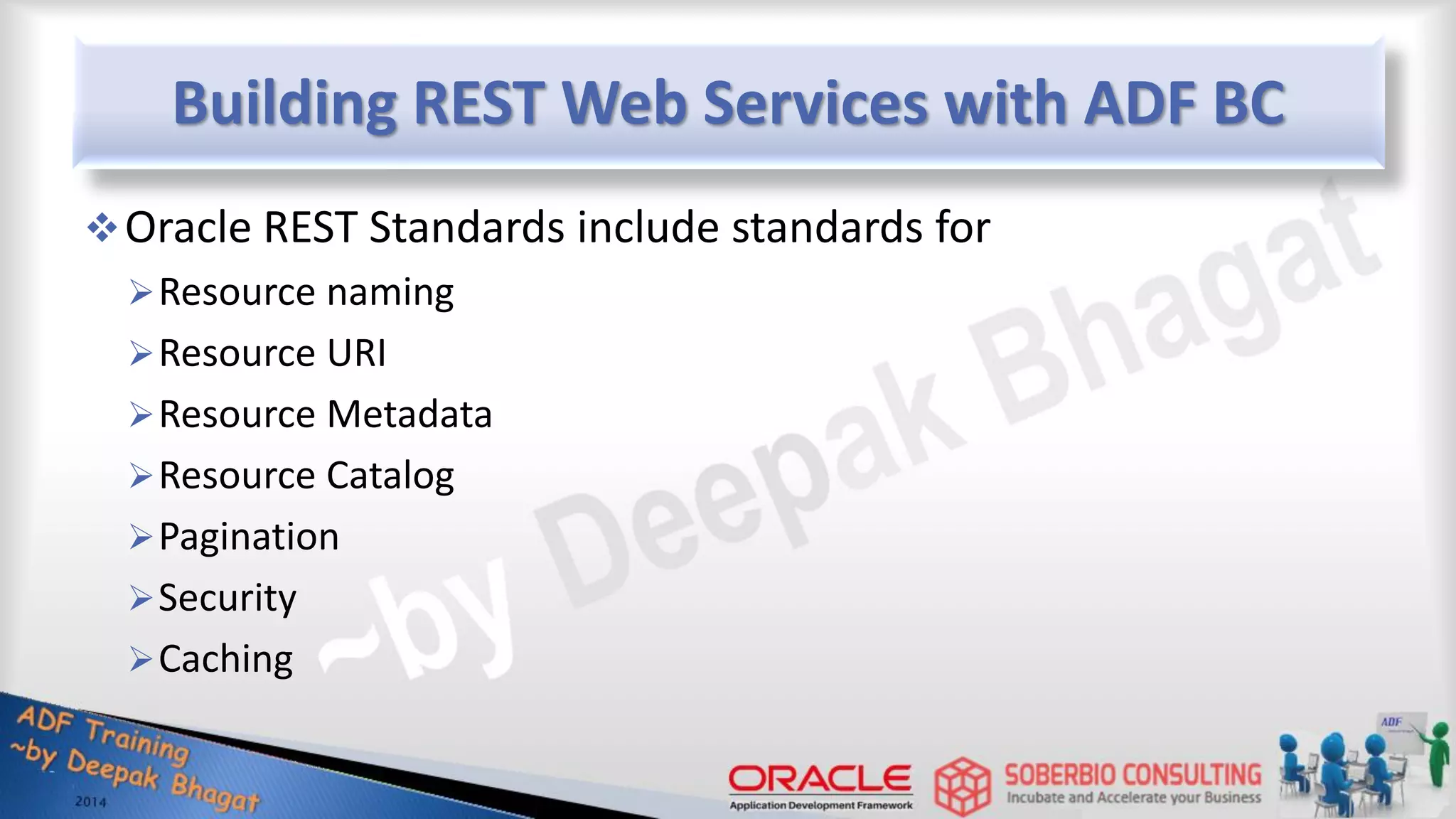

Building REST Web Services with ADF BC Oracle REST Standards include standards for Resource naming Resource URI Resource Metadata Resource Catalog Pagination Security Caching

Oracle REST API’s Use JSON Payload JavaScript Object Notation text-based open standard designed for human-readable data interchange. It is derived from the JavaScript scripting language for representing simple data structures and associative arrays, called objects. Despite its relationship to JavaScript, it is language-independent, with parsers available for many languages.

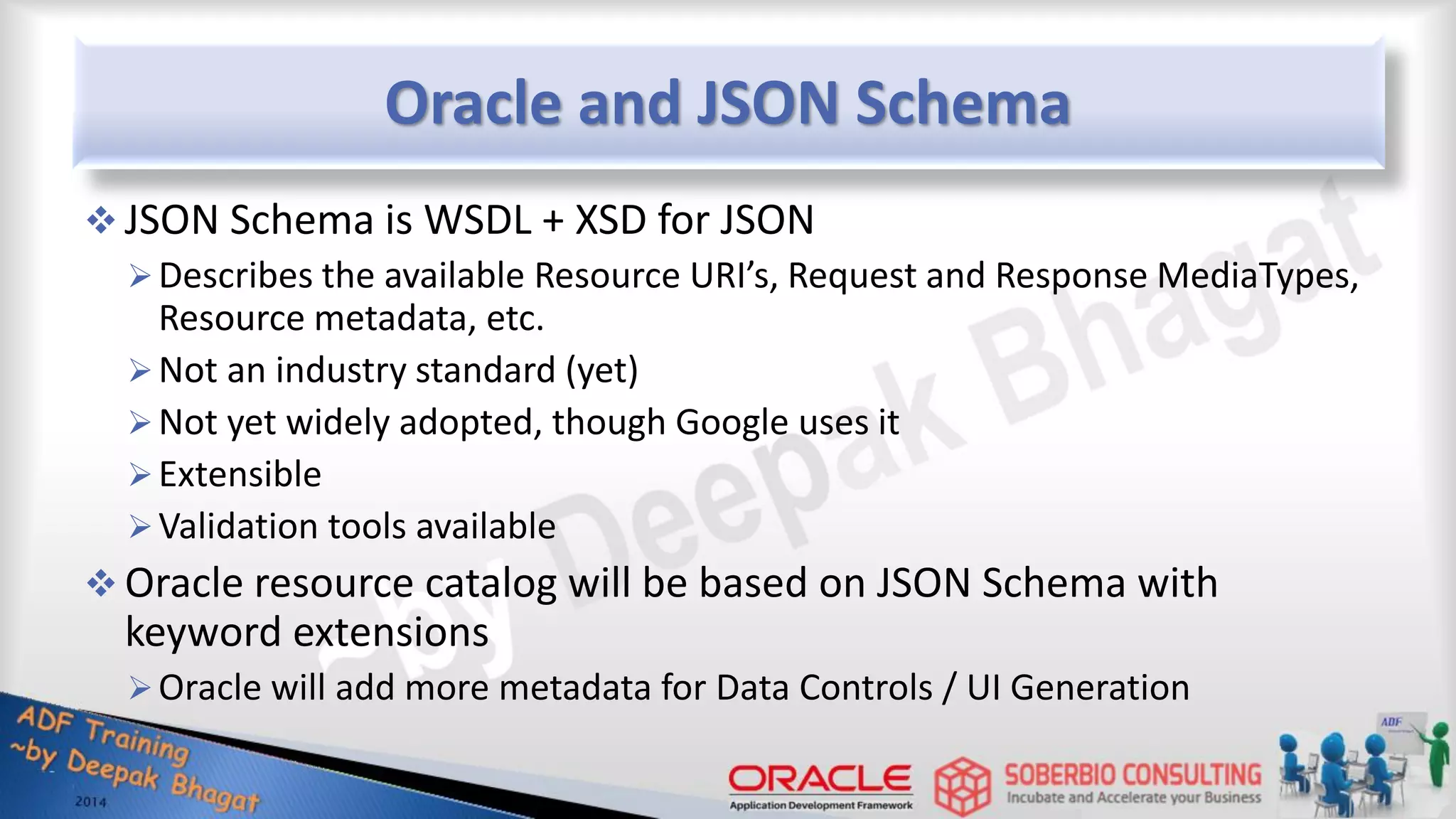

Oracle and JSON Schema  JSON Schema is WSDL + XSD for JSON Describes the available Resource URI’s, Request and Response MediaTypes, Resource metadata, etc. Not an industry standard (yet) Not yet widely adopted, though Google uses it Extensible Validation tools available  Oracle resource catalog will be based on JSON Schema with keyword extensions Oracle will add more metadata for Data Controls / UI Generation

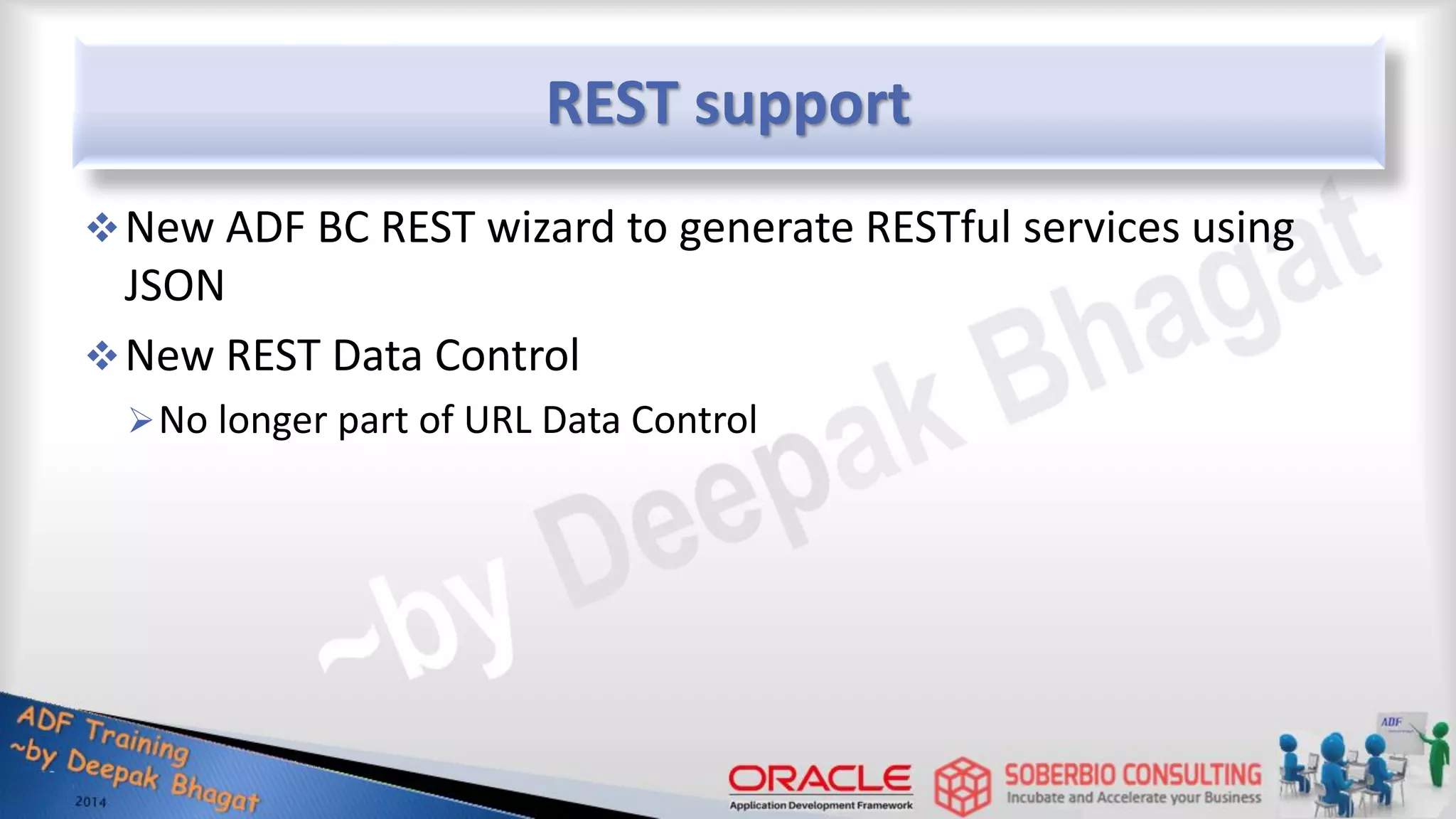

REST support New ADF BC REST wizard to generate RESTful services using JSON New REST Data Control No longer part of URL Data Control

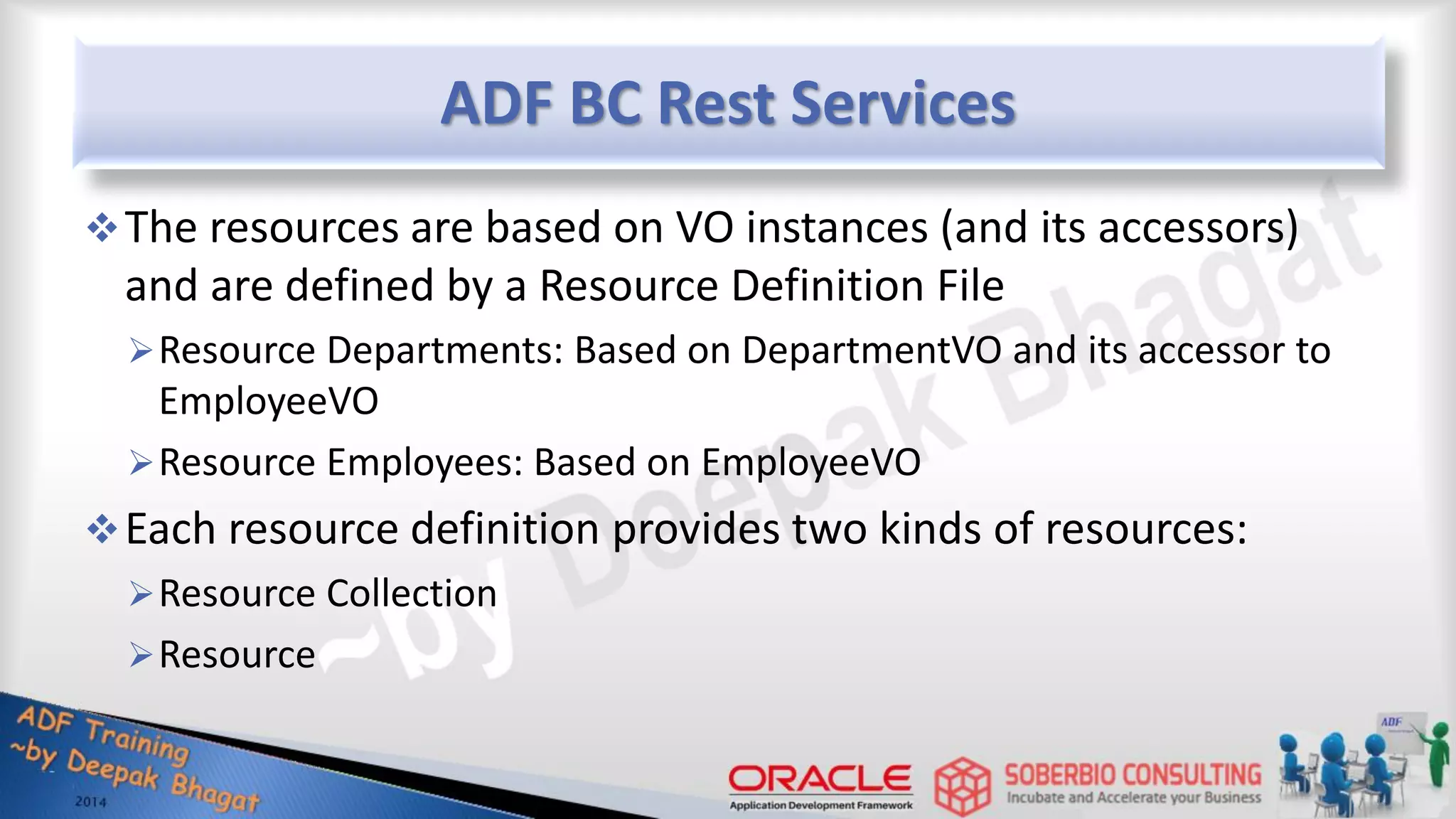

ADF BC Rest Services The resources are based on VO instances (and its accessors) and are defined by a Resource Definition File Resource Departments: Based on DepartmentVO and its accessor to EmployeeVO Resource Employees: Based on EmployeeVO Each resource definition provides two kinds of resources: Resource Collection Resource

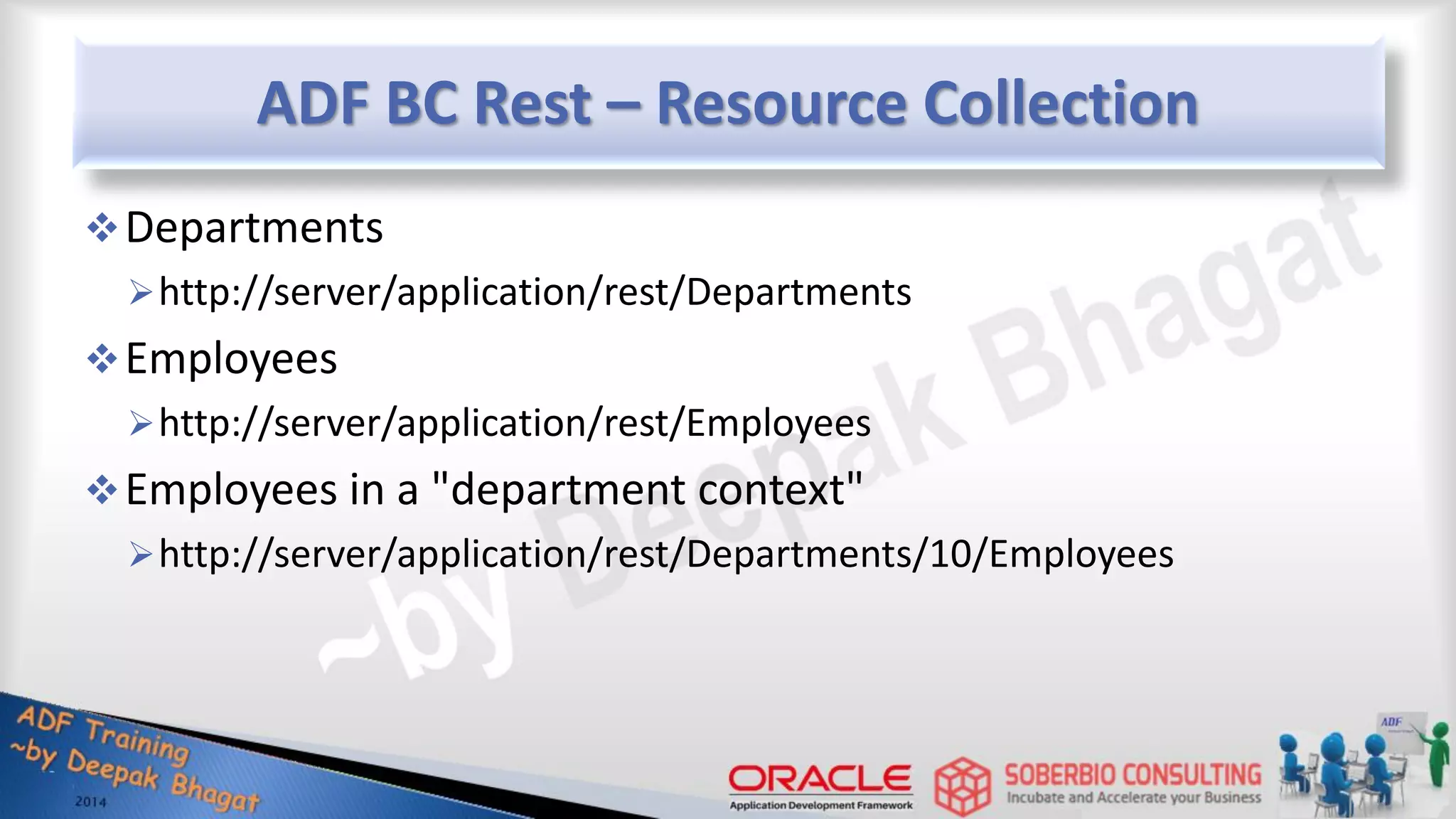

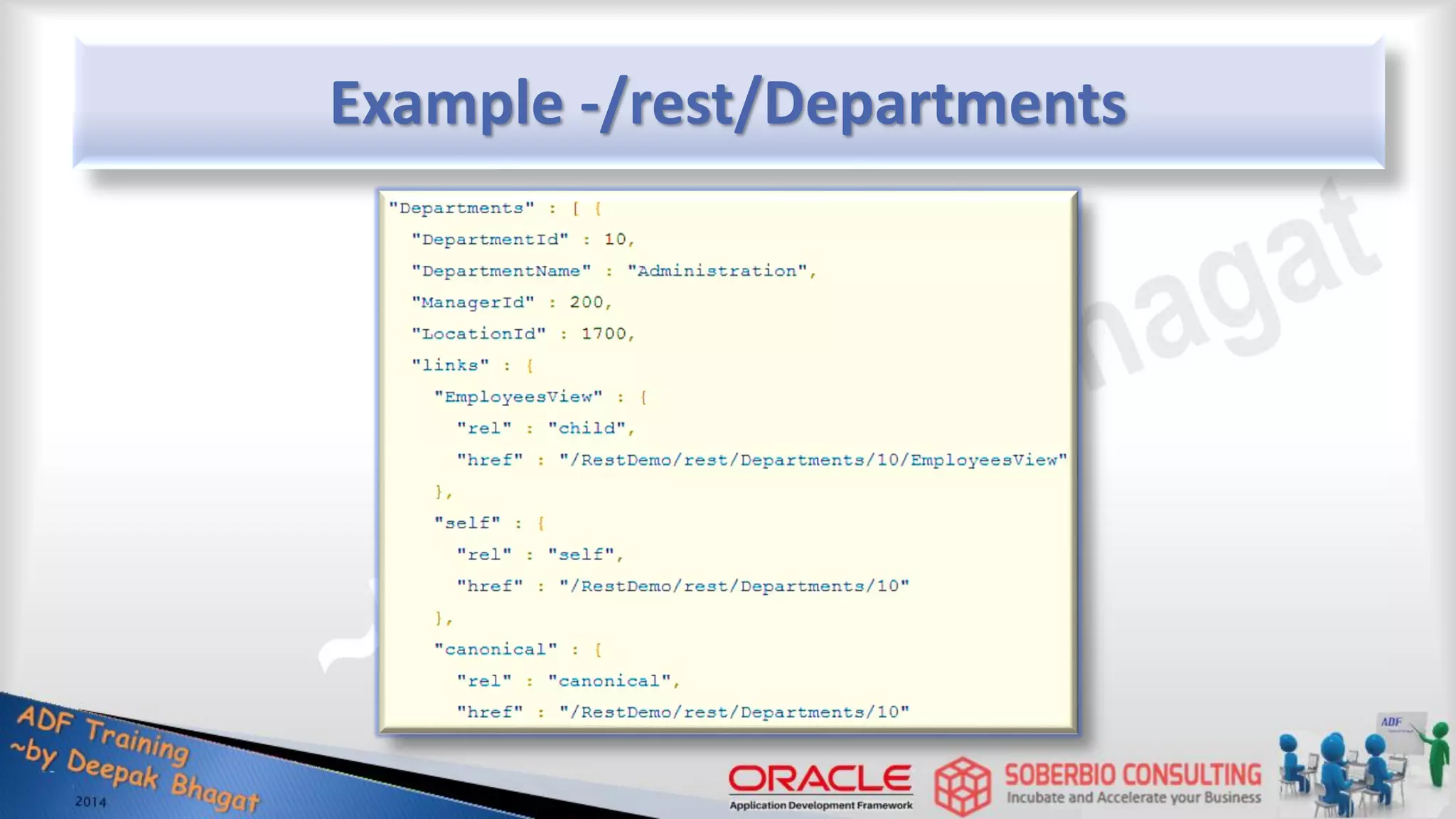

ADF BC Rest – Resource Collection Departments http://server/application/rest/Departments Employees http://server/application/rest/Employees Employees in a "department context" http://server/application/rest/Departments/10/Employees

ADF BC Rest – Single Resource Department http://server/application/rest/Departments/10 Employee http://server/application/rest/Employees/103 Employee in a "department context" http://server/application/rest/Departments/10/Employees/103

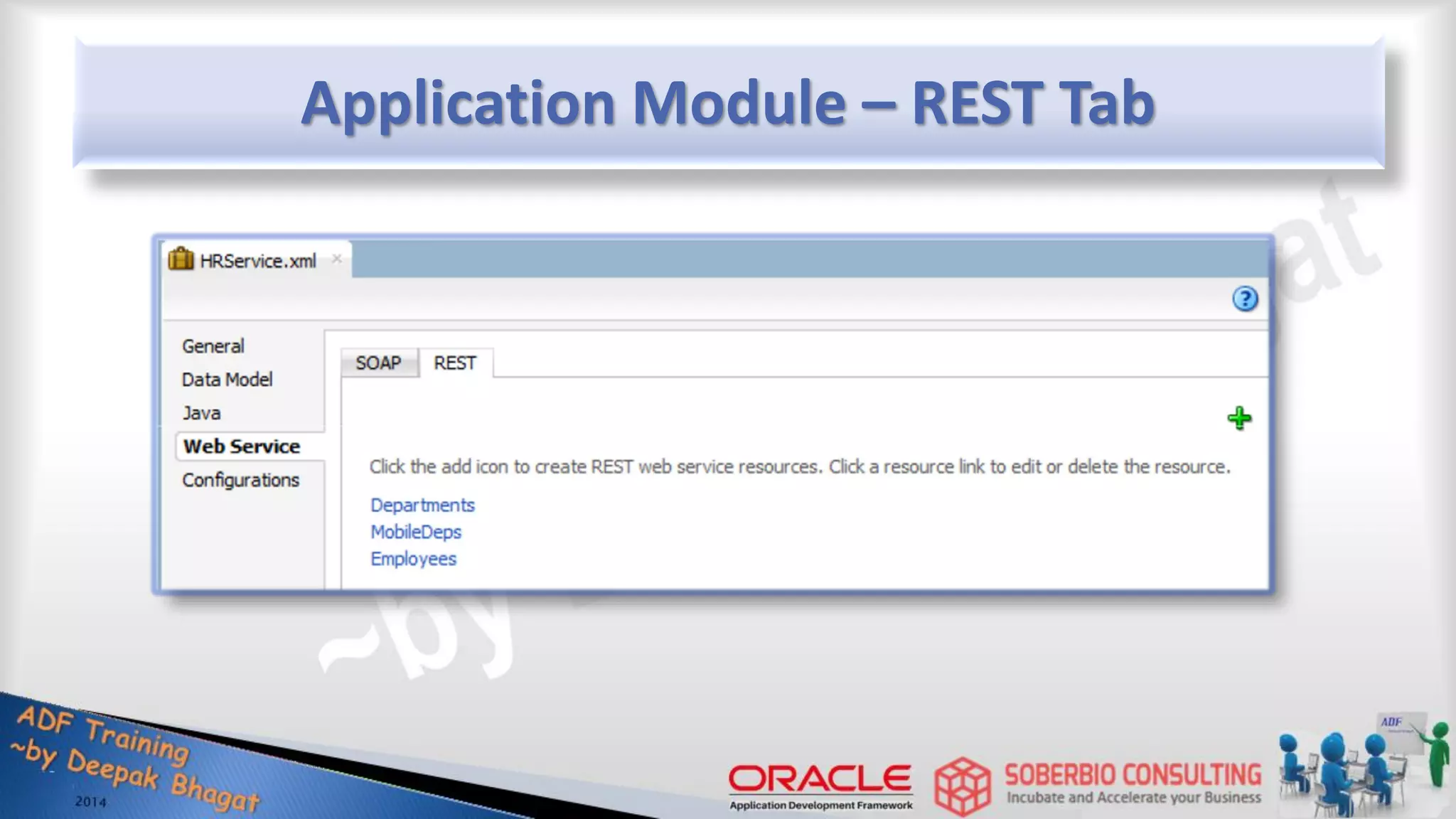

Application Module – REST Tab

ADF BC Rest - Expanding Links ?expand=EmployeesView

ADF BC Rest - No Links ?onlydata

ADF BC Rest - Pagination Request param ‘limit’ specifies range size Request param ‘offset’ specifies start index Example: /rest/Departments?limit=3&offset=0  Retrieves first three departments

ADF BC Rest – Collection Filtering Request param ‘query’ can specify “where clause” Examples: query={DepartmentName M*}  Returns departments starting with M query={DepartmentName *u*}  Returns departments containing an ‘u’ in the name query={DepartmentId < 40}  Returns departments with Id lower than 40

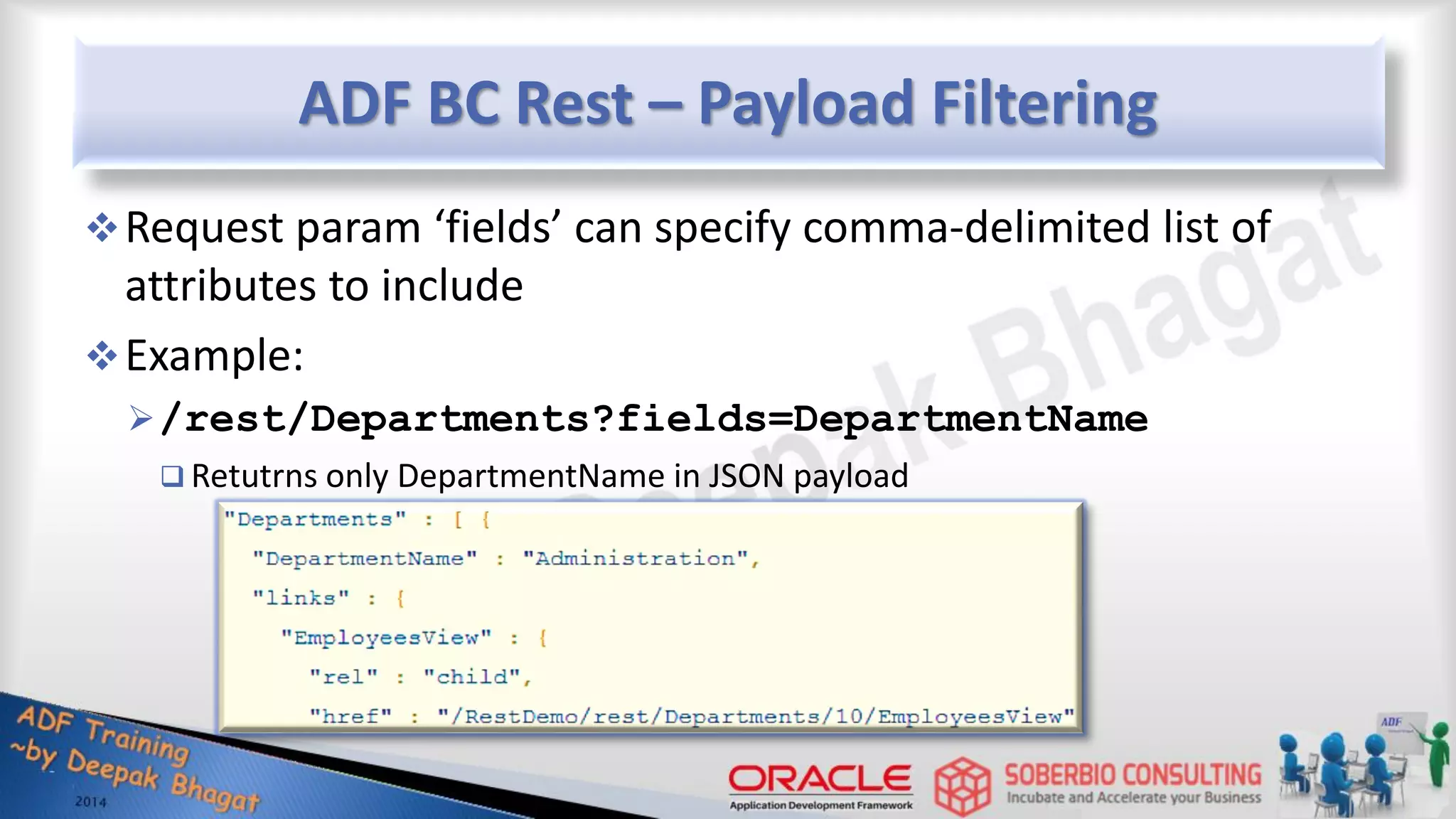

ADF BC Rest – Payload Filtering Request param ‘fields’ can specify comma-delimited list of attributes to include Example: /rest/Departments?fields=DepartmentName  Retutrns only DepartmentName in JSON payload

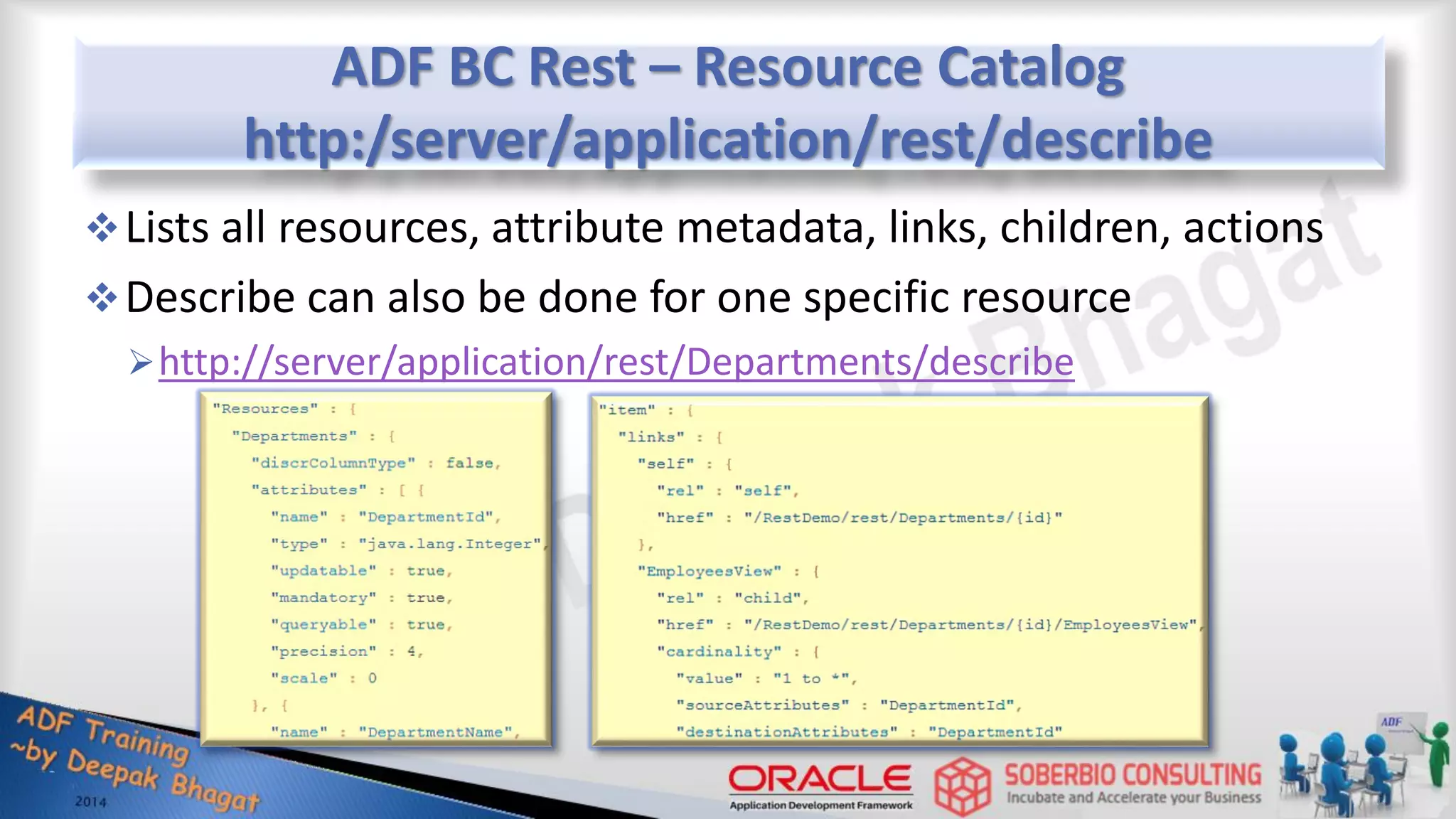

ADF BC Rest – Resource Catalog http:/server/application/rest/describe Lists all resources, attribute metadata, links, children, actions Describe can also be done for one specific resource http://server/application/rest/Departments/describe

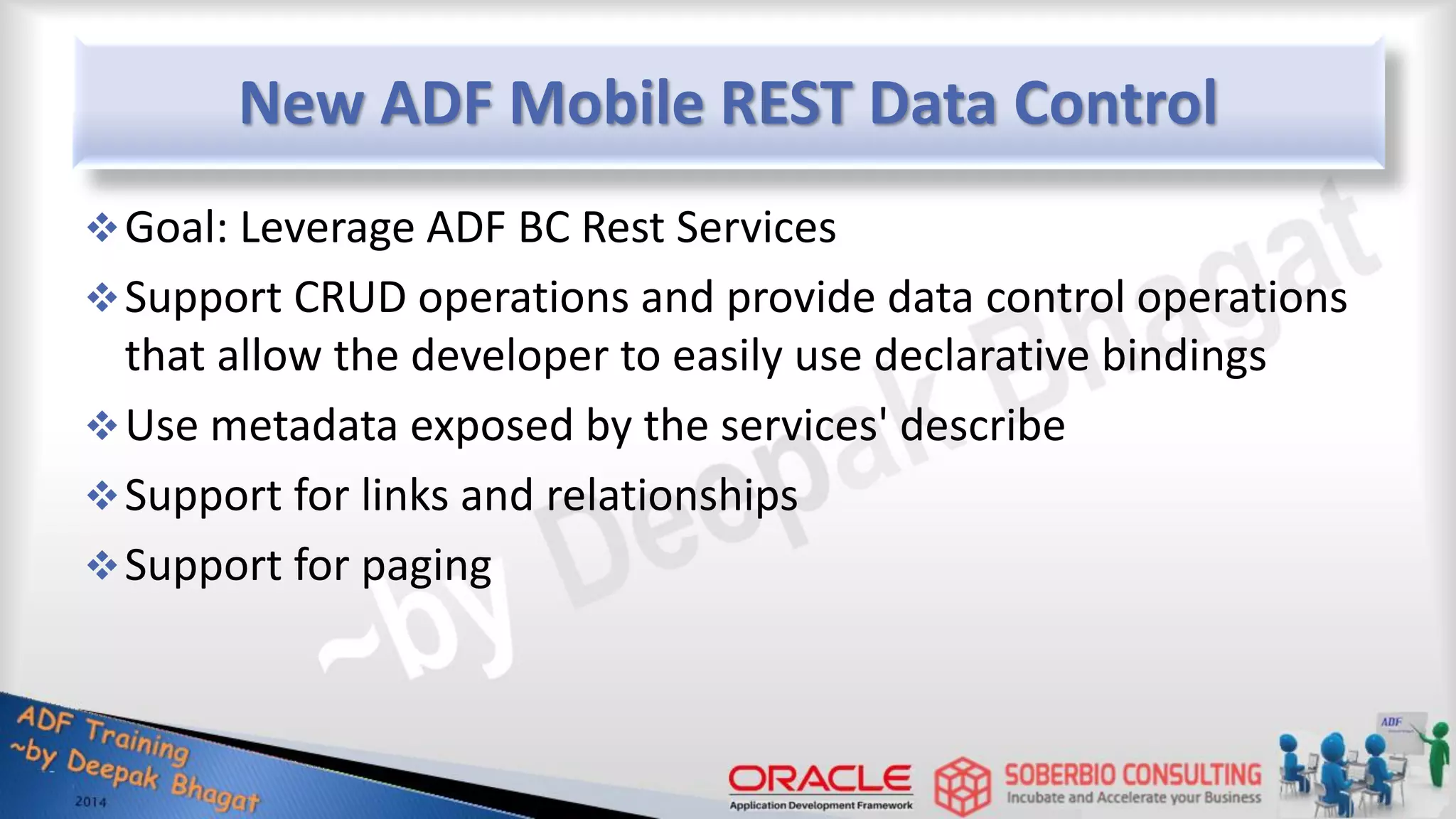

New ADF Mobile REST Data Control Goal: Leverage ADF BC Rest Services Support CRUD operations and provide data control operations that allow the developer to easily use declarative bindings Use metadata exposed by the services' describe Support for links and relationships Support for paging

Lesson Summary  What is Web Service  Types of Web Service  REST versus SOAP  When to use  Create REST Web Service with ADF Business Service  Create SOAP Web Service with ADF Business Service  Consume REST Web Service (ADF)  Consume REST Web Service (Generic)  Consume SOAP Web Service

Lesson Agenda ADFBC and EJB Mapping Consume EJB Data Control

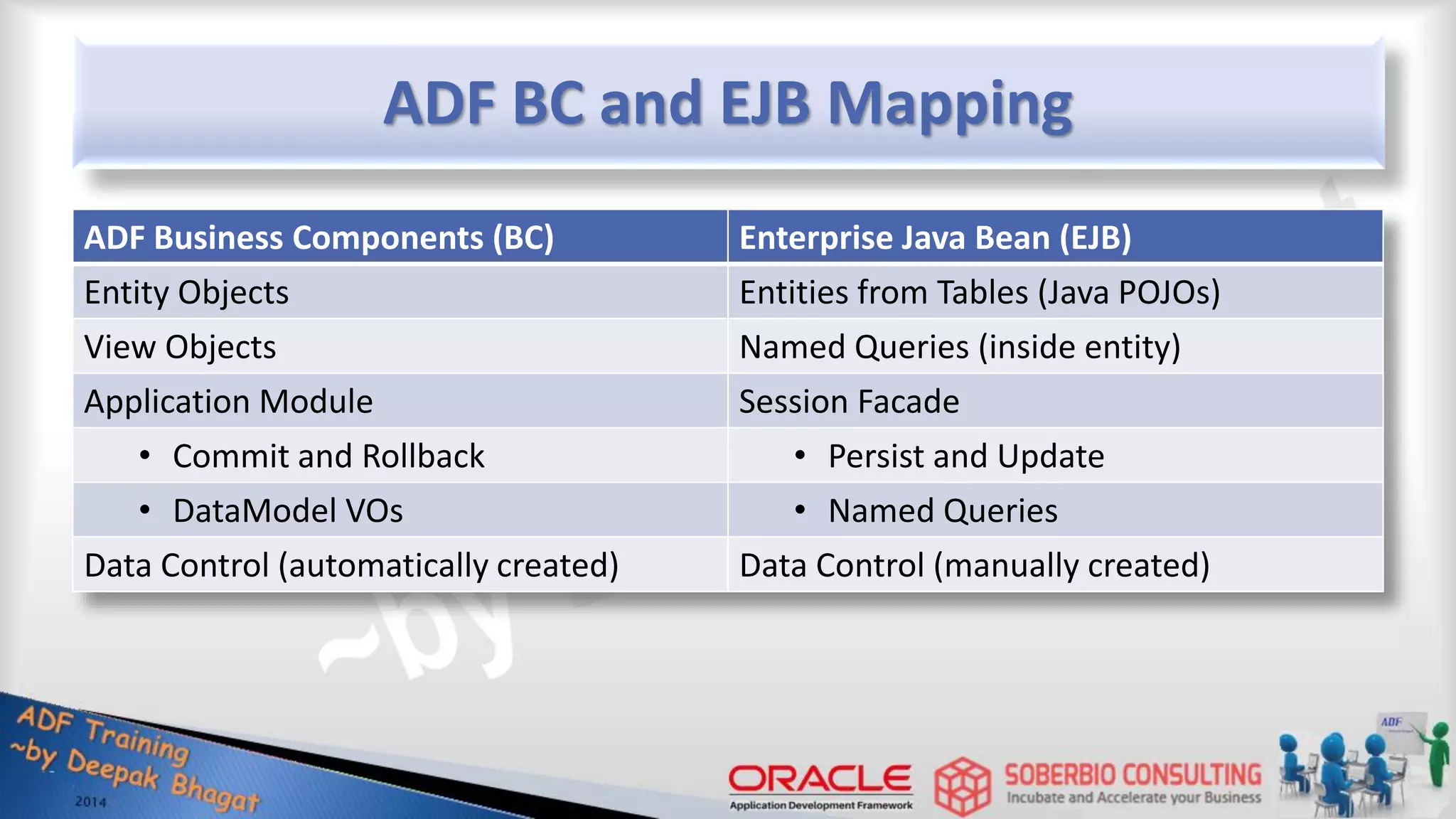

ADF BC and EJB Mapping ADF Business Components (BC) Enterprise Java Bean (EJB) Entity Objects Entities from Tables (Java POJOs) View Objects Named Queries (inside entity) Application Module Session Facade • Commit and Rollback • Persist and Update • DataModel VOs • Named Queries Data Control (automatically created) Data Control (manually created)

Lesson Summary ADFBC and EJB Mapping Consume EJB Data Control

31 Integrating ADF with Service Orientated Architecture (SOA)

Lesson Agenda Service Oriented Architecture Key SOA Standards Oracle SOA Platform Orchestrating services Create, deploy a SOA service and test

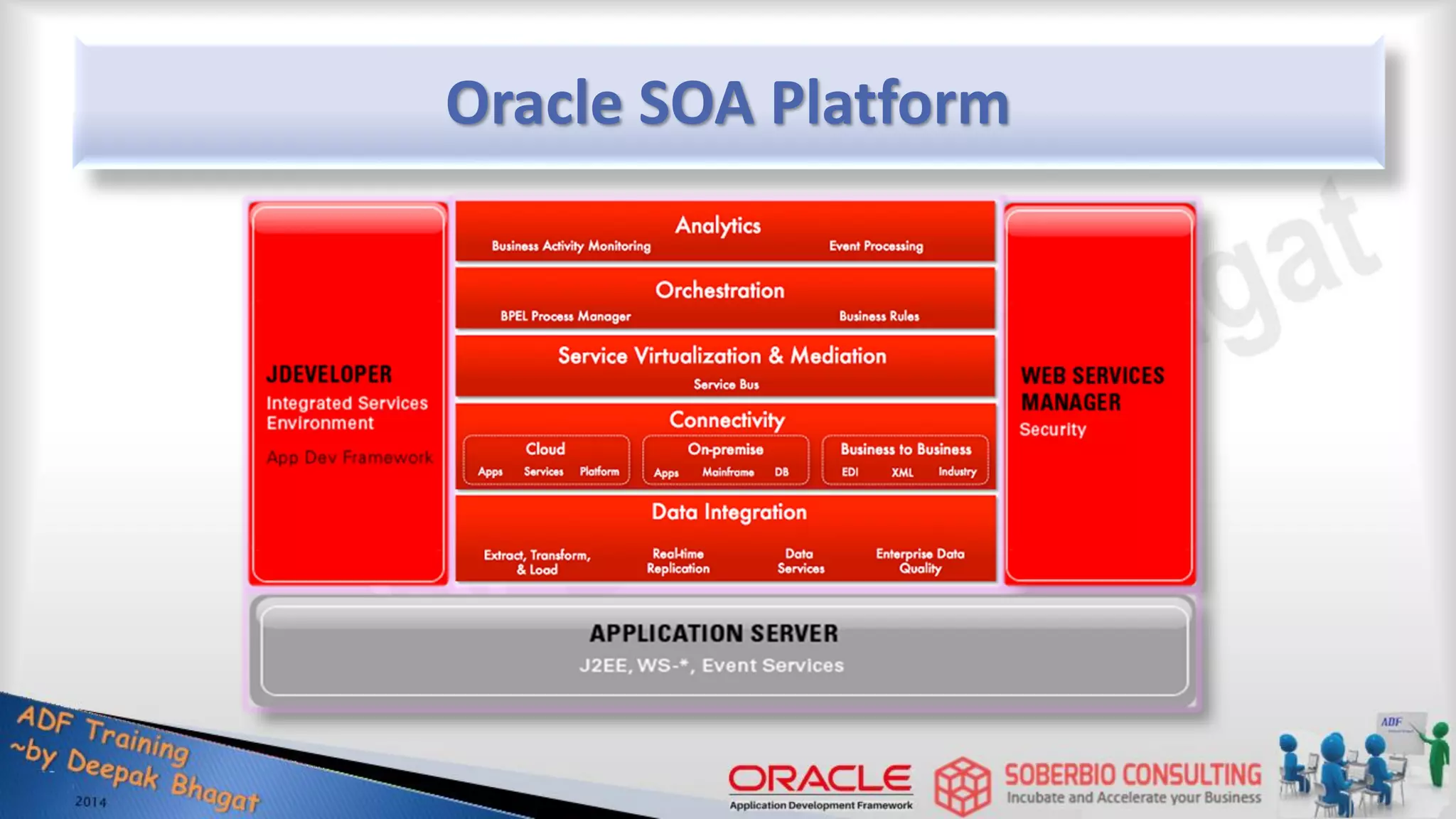

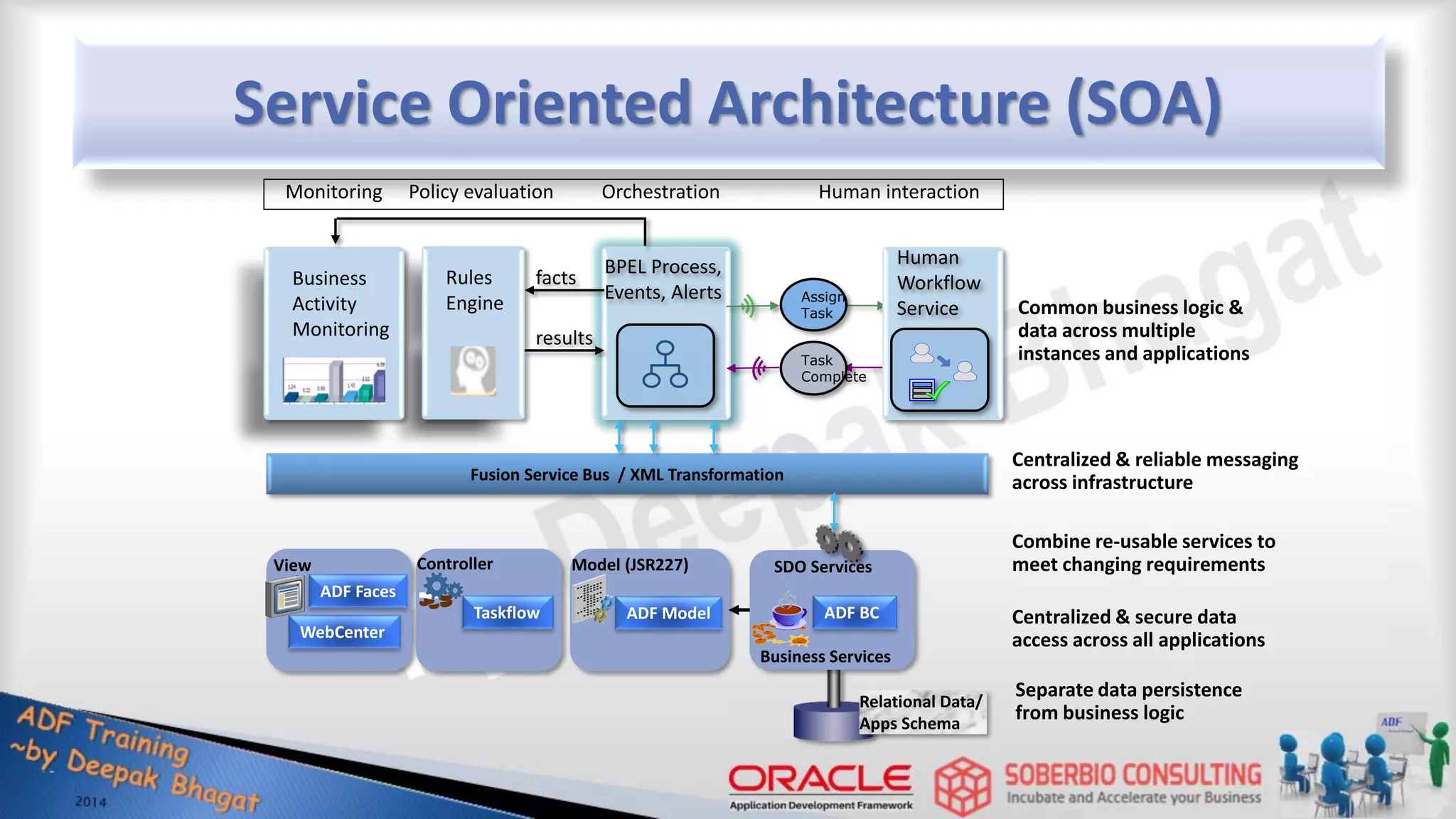

Service Oriented Architecture (SOA) Orchestration Human interaction Policy evaluation Monitoring Rules Engine Assign Task Task Complete Human Workflow Service BPEL Process, Events, Alerts results facts Business Activity Monitoring Fusion Service Bus / XML Transformation Relational Data/ Apps Schema Common business logic & data across multiple instances and applications Centralized & reliable messaging across infrastructure Combine re-usable services to meet changing requirements Centralized & secure data access across all applications Separate data persistence from business logic Model (JSR227) View Controller Business Services ADF Faces Taskflow ADF BC ADF Model WebCenter SDO Services

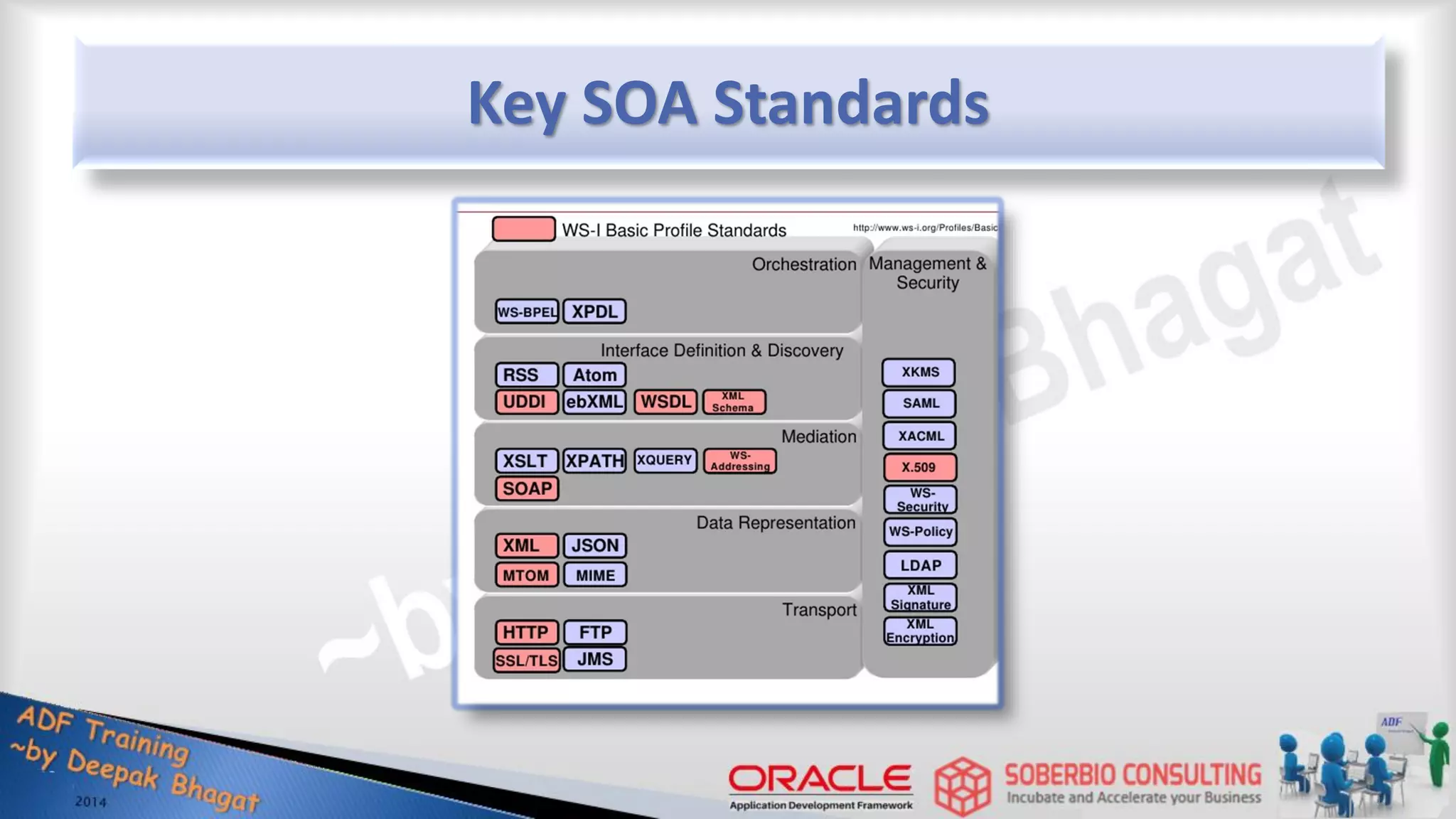

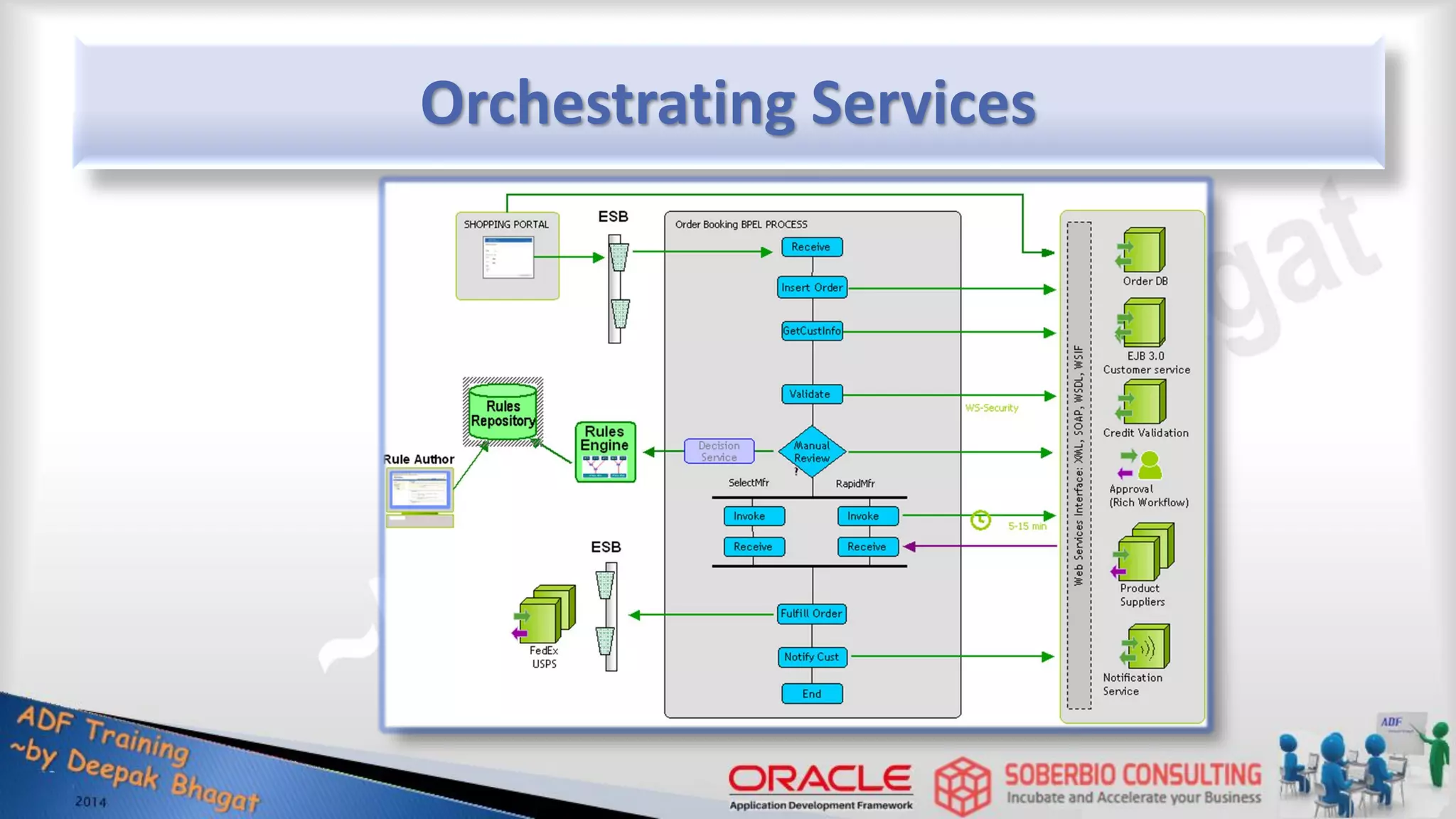

Lesson Summary Service Oriented Architecture Key SOA Standards Oracle SOA Platform Orchestrating services Create, deploy a SOA service and test

32 Integrating ADF with Mobile Application Framework (MAF)

Lesson Agenda Mobile Application Choices Native vs Web Hybrid Responsive Design Introduction of MAF History of MAF Prerequisites for MAF MAF Development Tools Non-Oracle Tools Needed Working with Emulator MAF Runtime Architecture MAF App Basic Creating MAF App

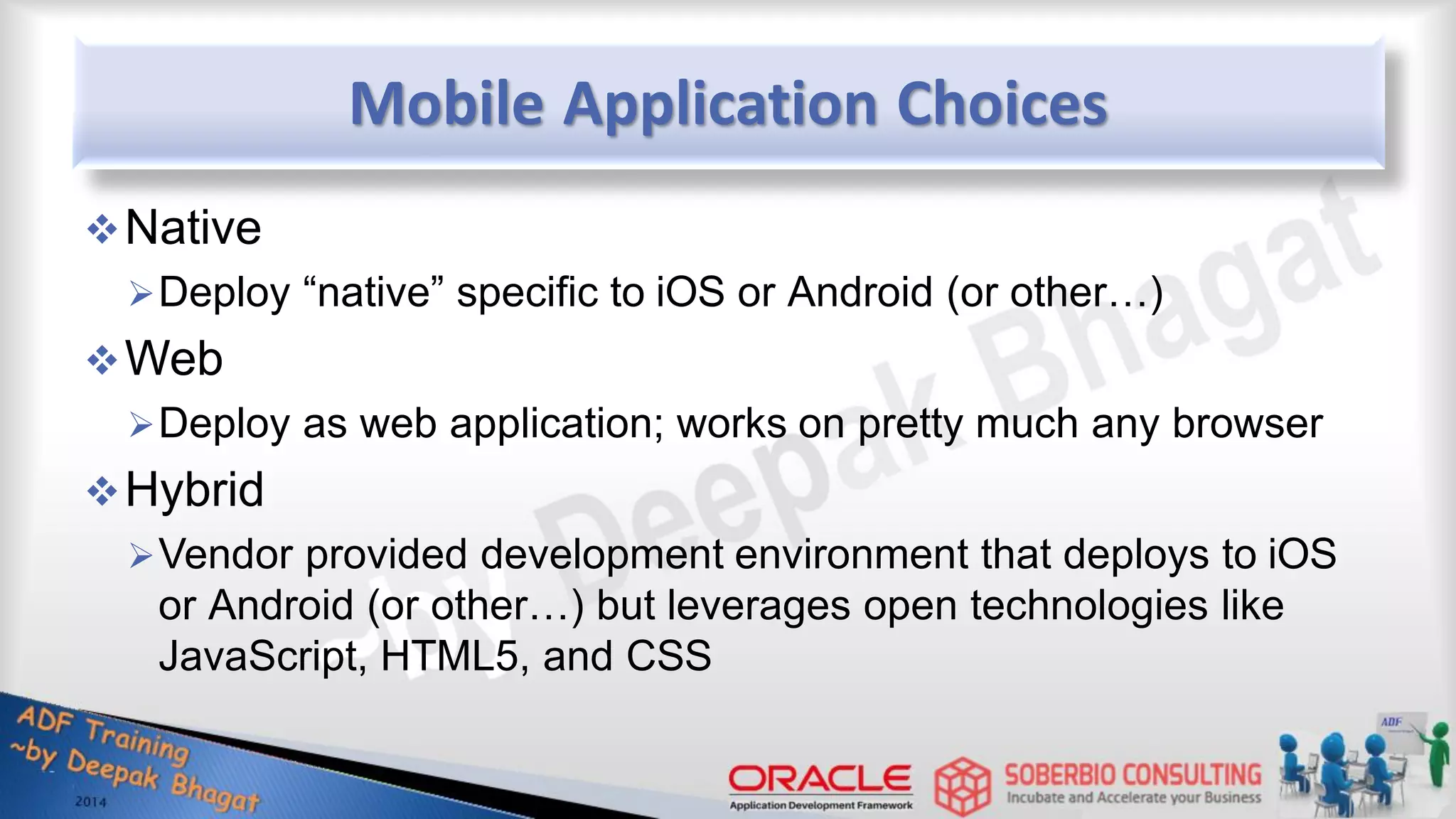

Mobile Application Choices Native Deploy “native” specific to iOS or Android (or other…) Web Deploy as web application; works on pretty much any browser Hybrid Vendor provided development environment that deploys to iOS or Android (or other…) but leverages open technologies like JavaScript, HTML5, and CSS

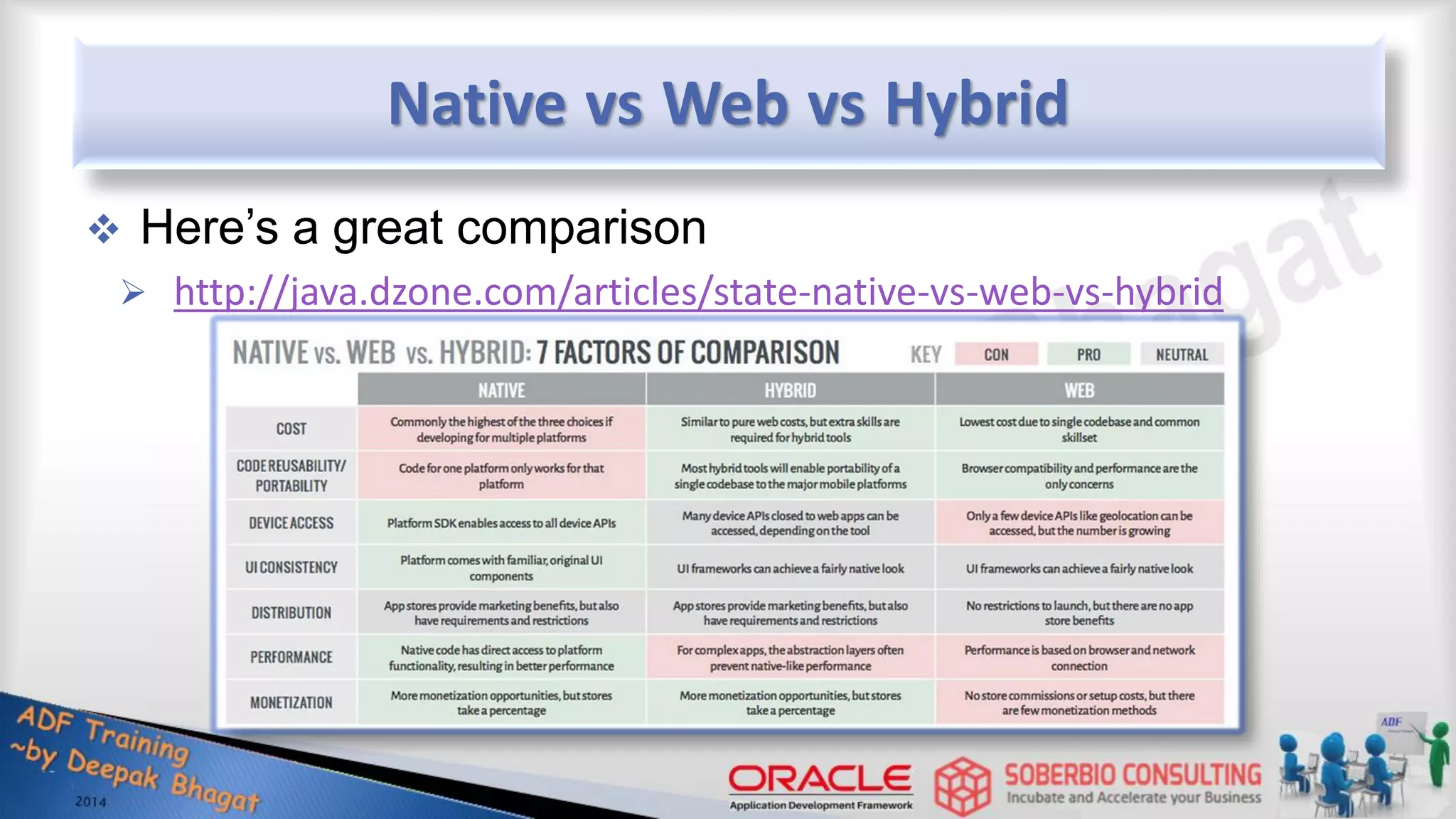

Native vs Web vs Hybrid  Here’s a great comparison  http://java.dzone.com/articles/state-native-vs-web-vs-hybrid

Responsive Whether apps are Native iOS/Android, Hybrid, or Web-based; our user’s devices come in all shapes and sizes Well-designed apps respond gracefully

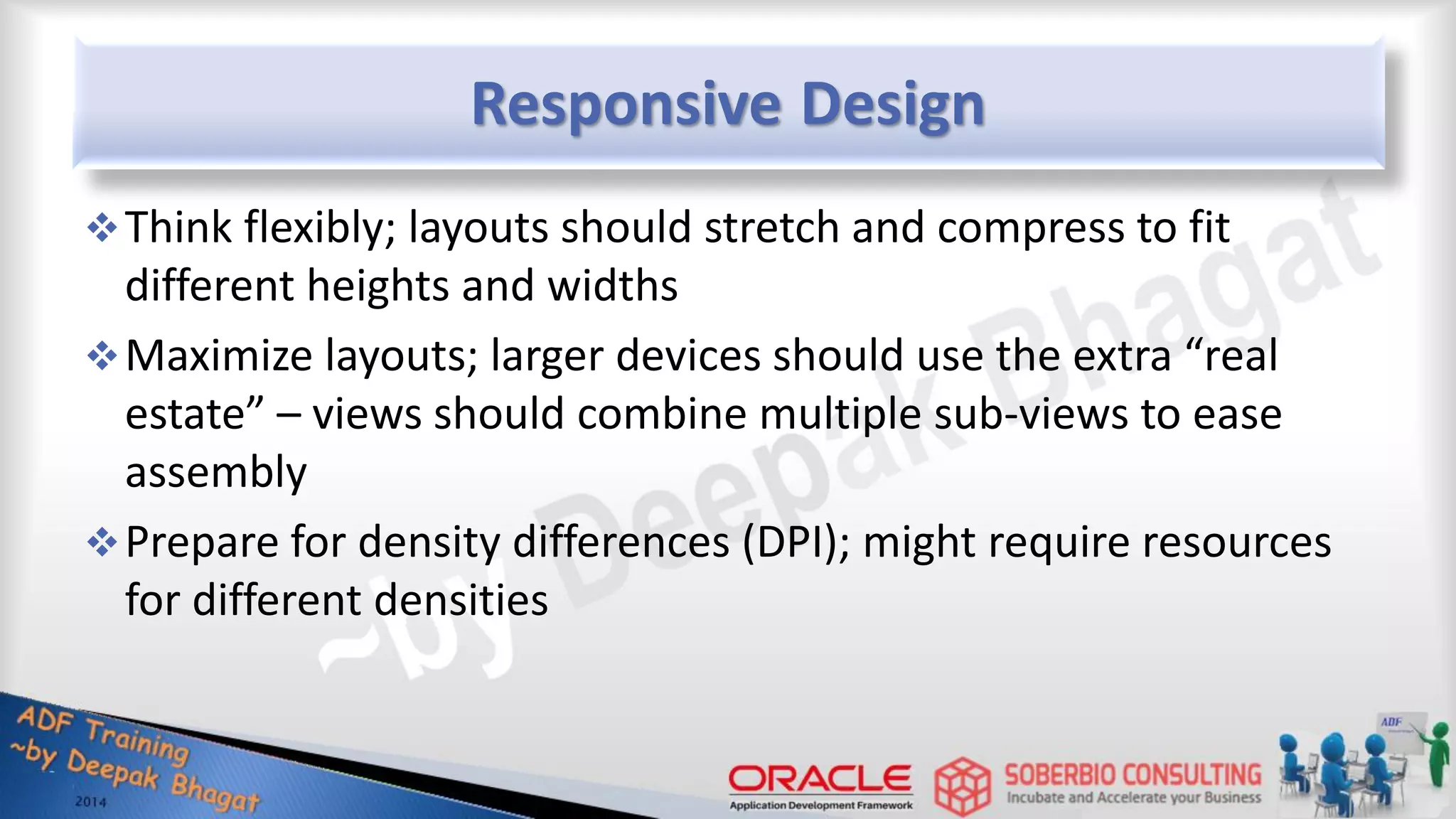

Responsive Design Think flexibly; layouts should stretch and compress to fit different heights and widths Maximize layouts; larger devices should use the extra “real estate” – views should combine multiple sub-views to ease assembly Prepare for density differences (DPI); might require resources for different densities

Introduction to Mobile Application Framework  MAF is a hybrid mobile architecture  It is Single framework for both Android and iOS  Can build same apln. for both devices without using any platform-specific tool  It uses pre-installed HTML5, JavaScript, and CSS to render the UI  It’s Components are defined for Apache Cordova objects,  To access device features such as camera, contacts, GPS, e-mail, etc.  It uses Webservices and SQLLite DB for Data sources  It has a MVC framework  It’s Application can be deployed in the Device or Emulator  It is feely available as a plugin for both JDeveloper and Eclipse IDE’s

Market Place Oracle recently released results from a global study with staggering statistics:  1 in 6 employees have found ways to bypass their companies’ IT security and use personal mobile devices for work without their employer knowing  Only 18 percent of respondents believe their company effectively controls what can be done on a mobile device  67 percent of workers are using their own personal mobile devices for work  68 percent of workers said they would be happier working in a more mobile and flexible way  Sales for Oracle Mobile is about 60% more when compared to sales in previous year, the same for ADF is about 20%

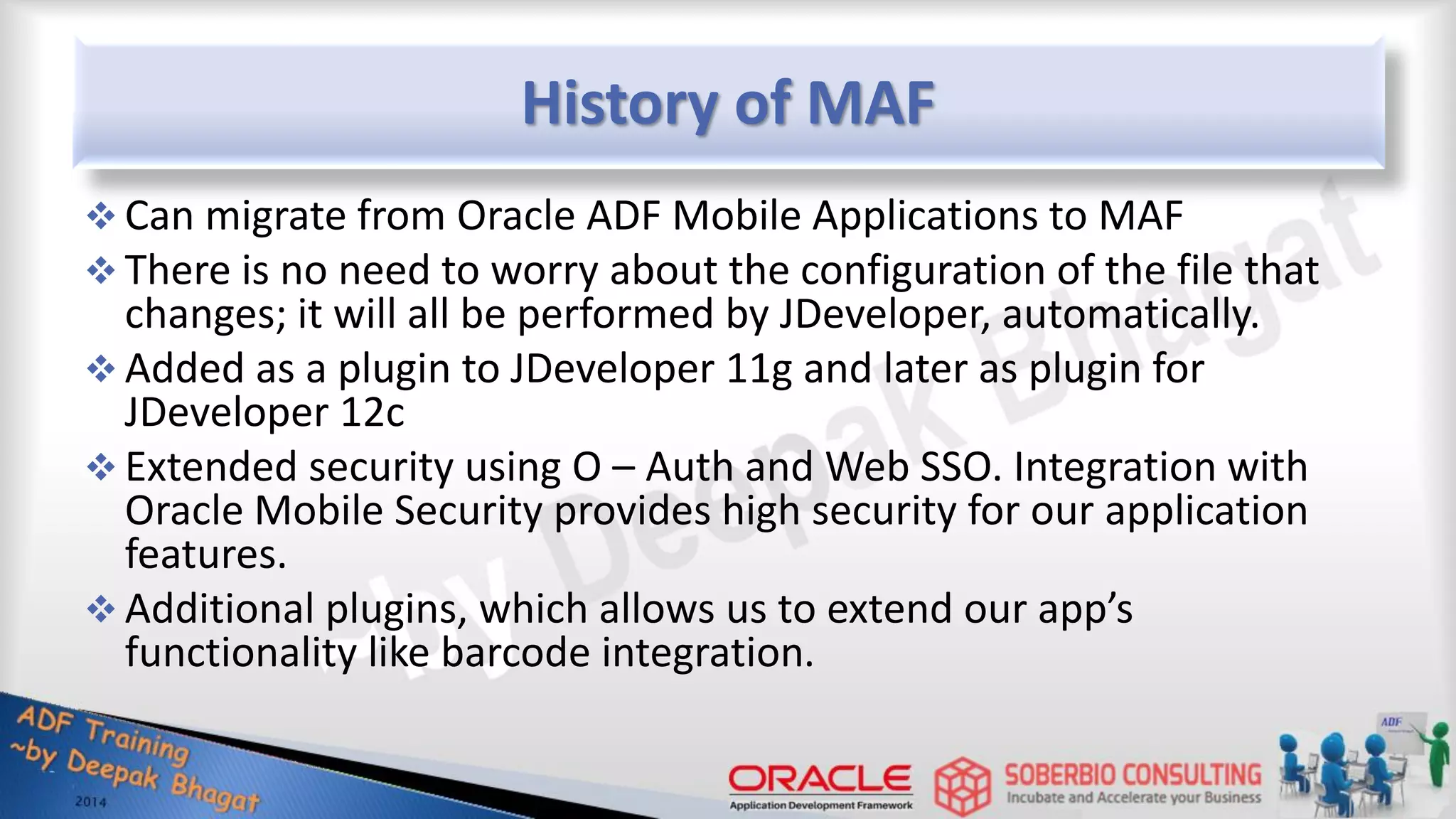

History of MAF  Can migrate from Oracle ADF Mobile Applications to MAF  There is no need to worry about the configuration of the file that changes; it will all be performed by JDeveloper, automatically.  Added as a plugin to JDeveloper 11g and later as plugin for JDeveloper 12c  Extended security using O – Auth and Web SSO. Integration with Oracle Mobile Security provides high security for our application features.  Additional plugins, which allows us to extend our app’s functionality like barcode integration.

Comparing Oracle MAF with ADF Mobile

Prerequisites for MAF System should be of 64 bit with more than 4 GB RAM for better performance The application are built on JDeveloper, so have to install it Install the plugin for Oracle MAF Must have an understanding on Java

MAF Development Tools JDeveloper Eclipse

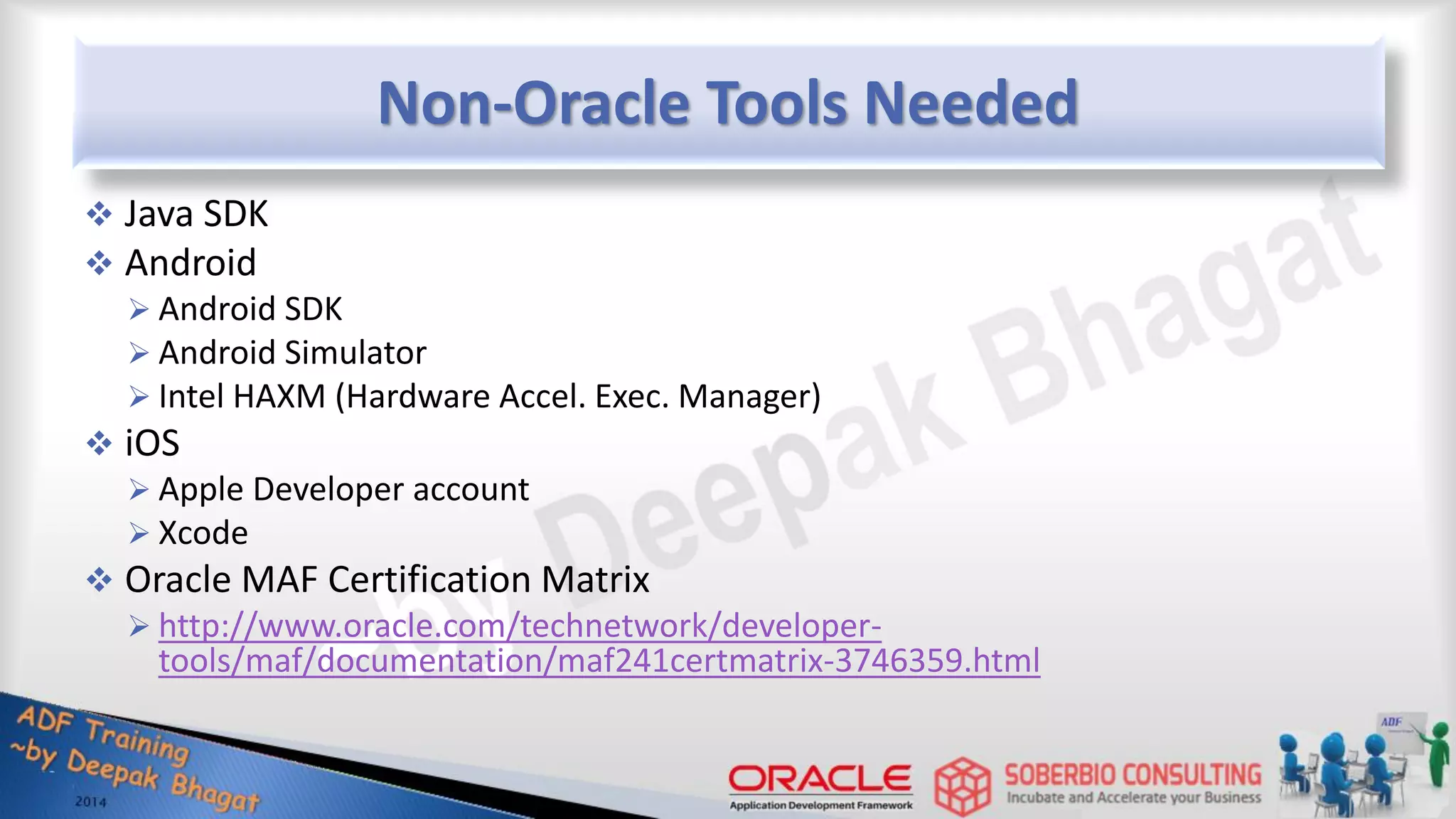

Non-Oracle Tools Needed  Java SDK  Android  Android SDK  Android Simulator  Intel HAXM (Hardware Accel. Exec. Manager)  iOS  Apple Developer account  Xcode  Oracle MAF Certification Matrix  http://www.oracle.com/technetwork/developer- tools/maf/documentation/maf241certmatrix-3746359.html

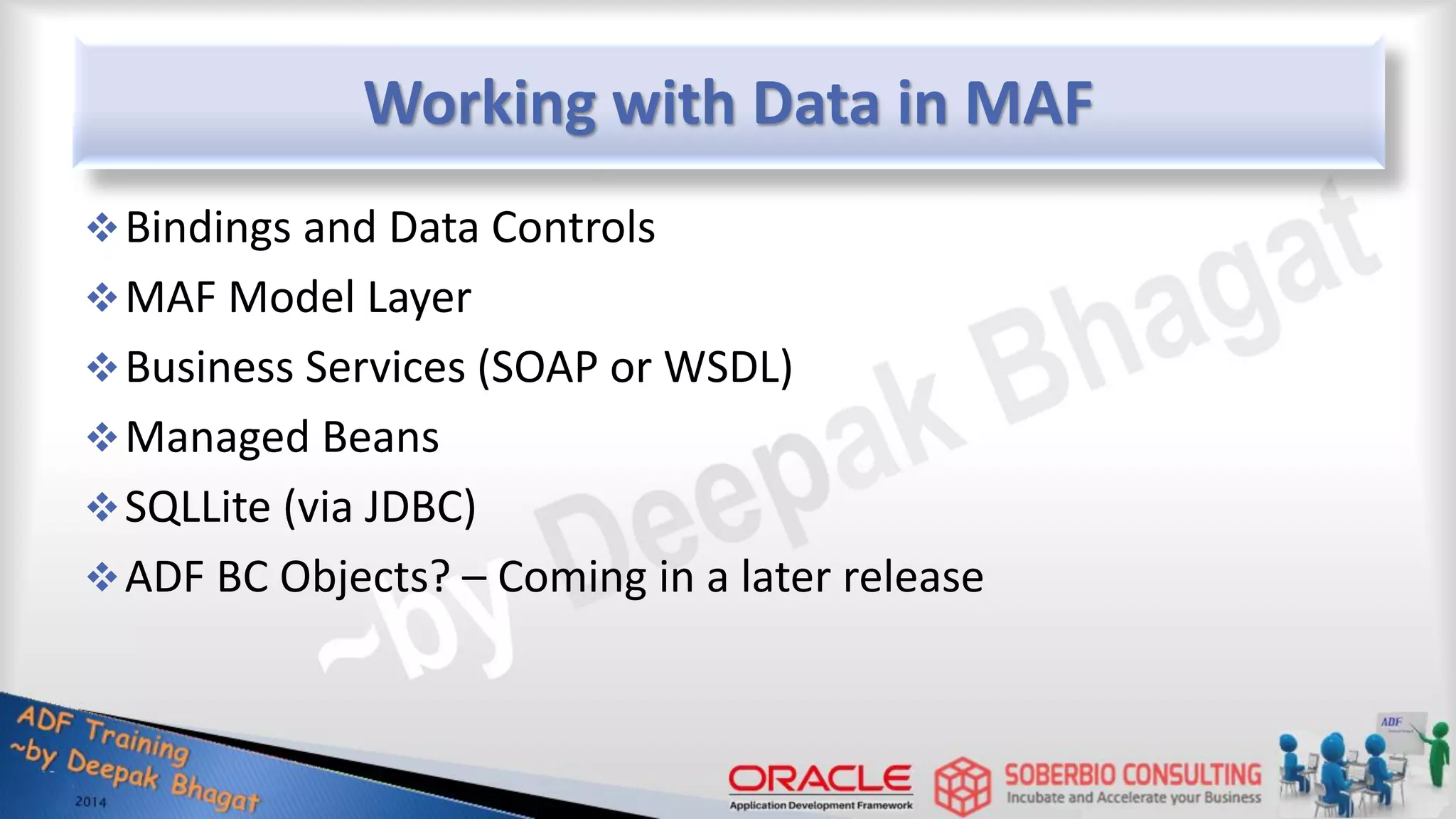

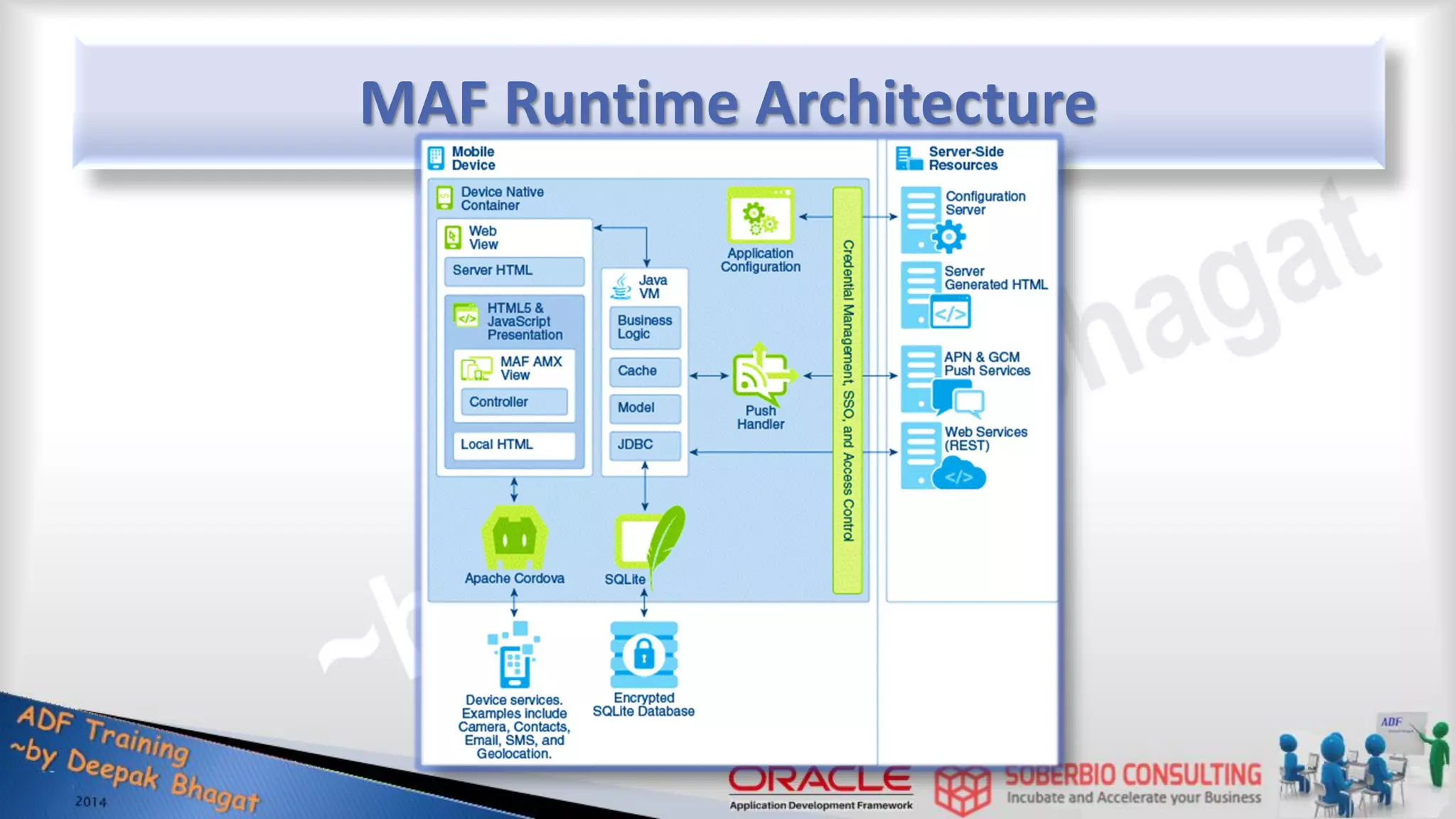

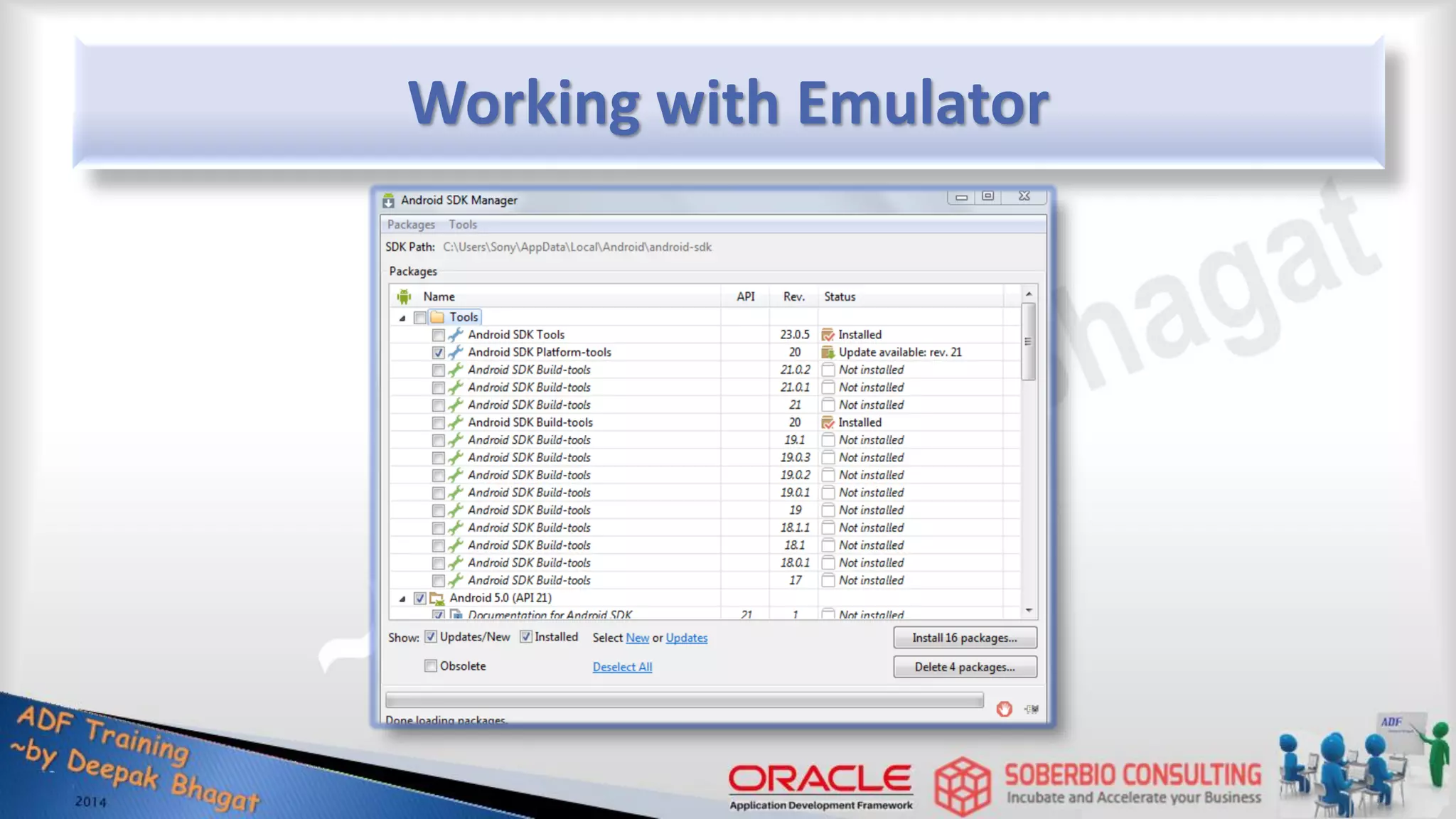

Working with Data in MAF Bindings and Data Controls MAF Model Layer Business Services (SOAP or WSDL) Managed Beans SQLLite (via JDBC) ADF BC Objects? – Coming in a later release

MAF User Interface Views Task Flows HTML5 + JavaScript + CSS – Touch, Gestures, Responsiveness Apache Cordova (PhoneGap) – Device Features

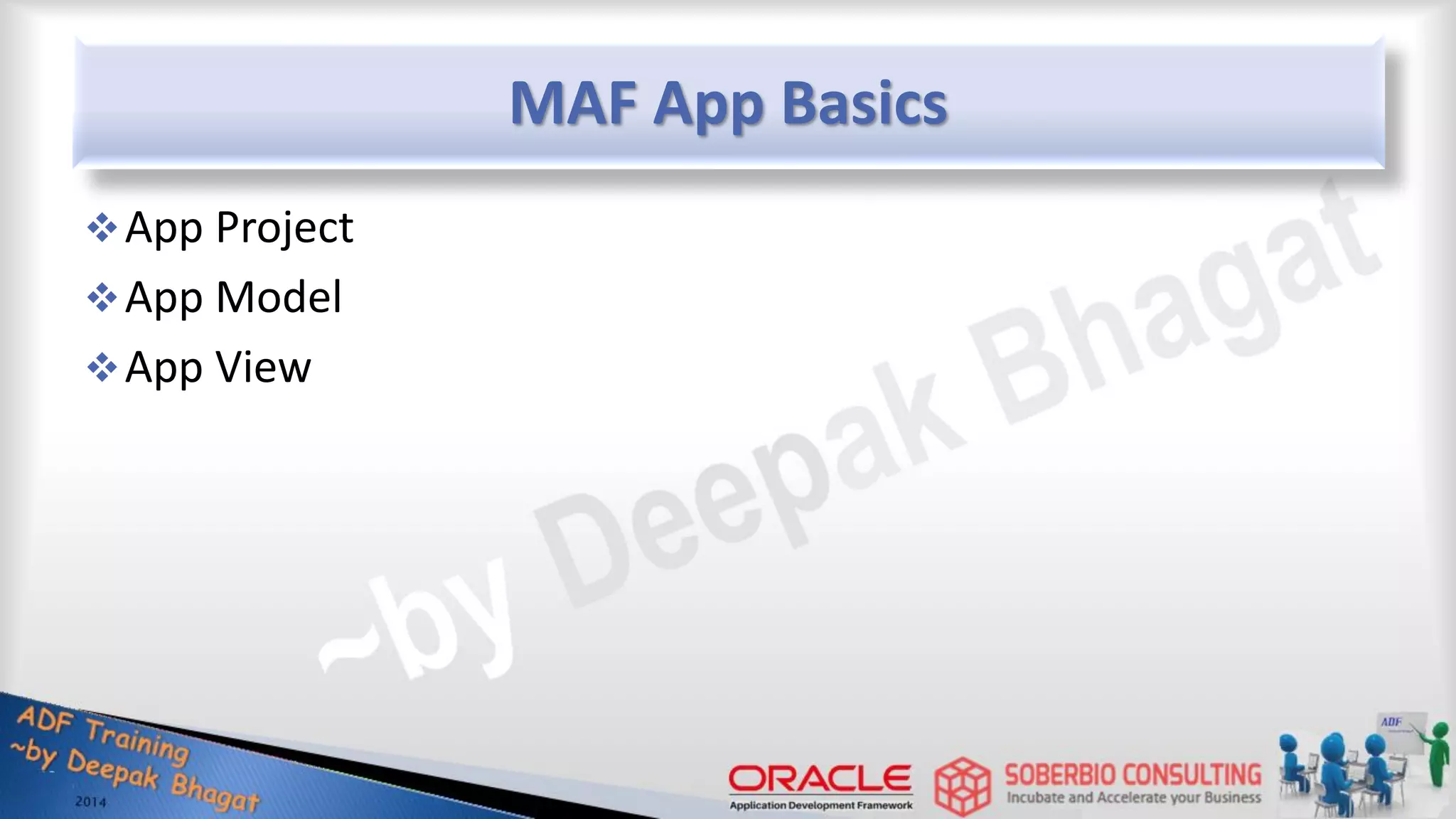

MAF App Basics App Project App Model App View

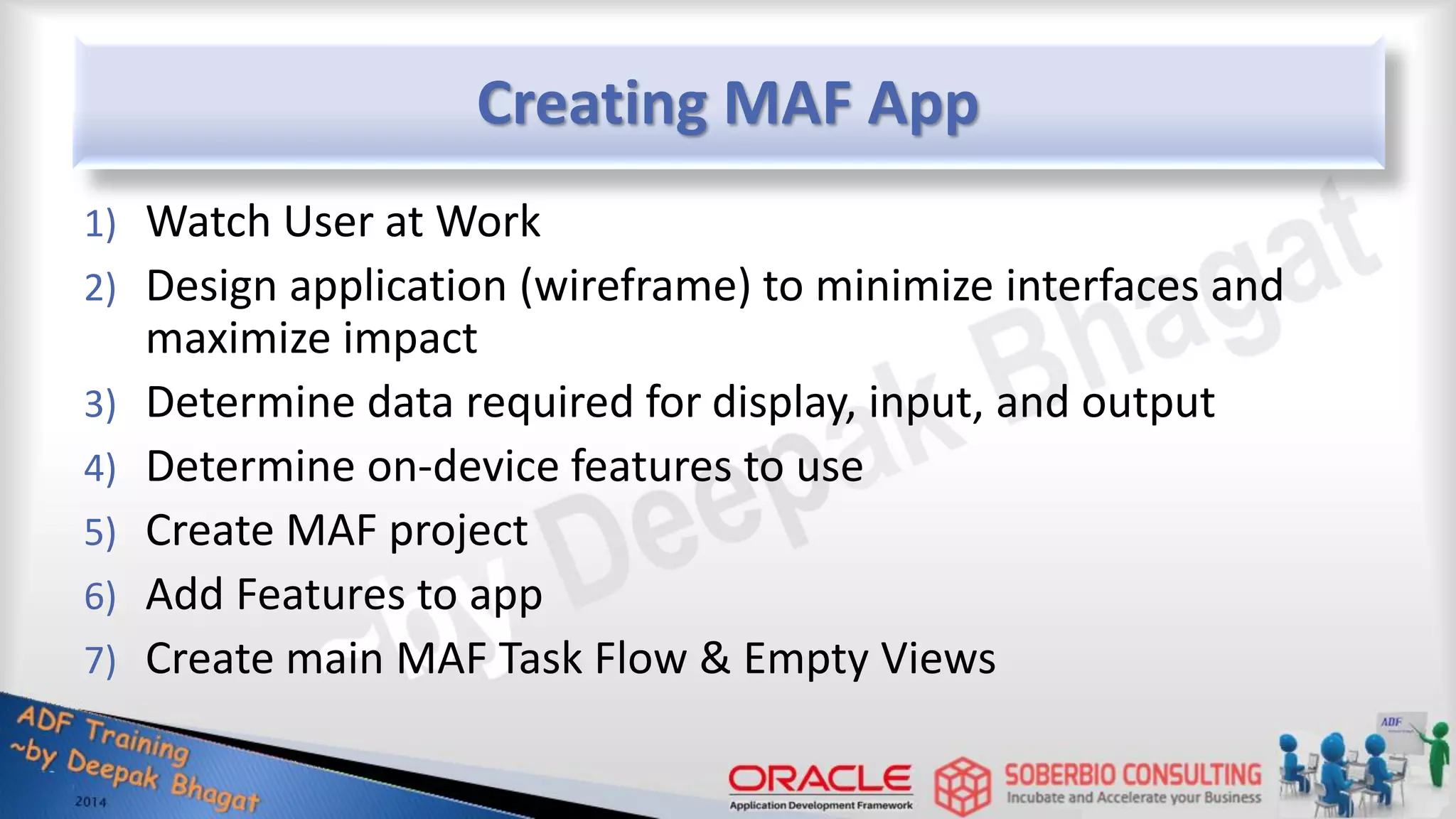

Creating MAF App 1) Watch User at Work 2) Design application (wireframe) to minimize interfaces and maximize impact 3) Determine data required for display, input, and output 4) Determine on-device features to use 5) Create MAF project 6) Add Features to app 7) Create main MAF Task Flow & Empty Views

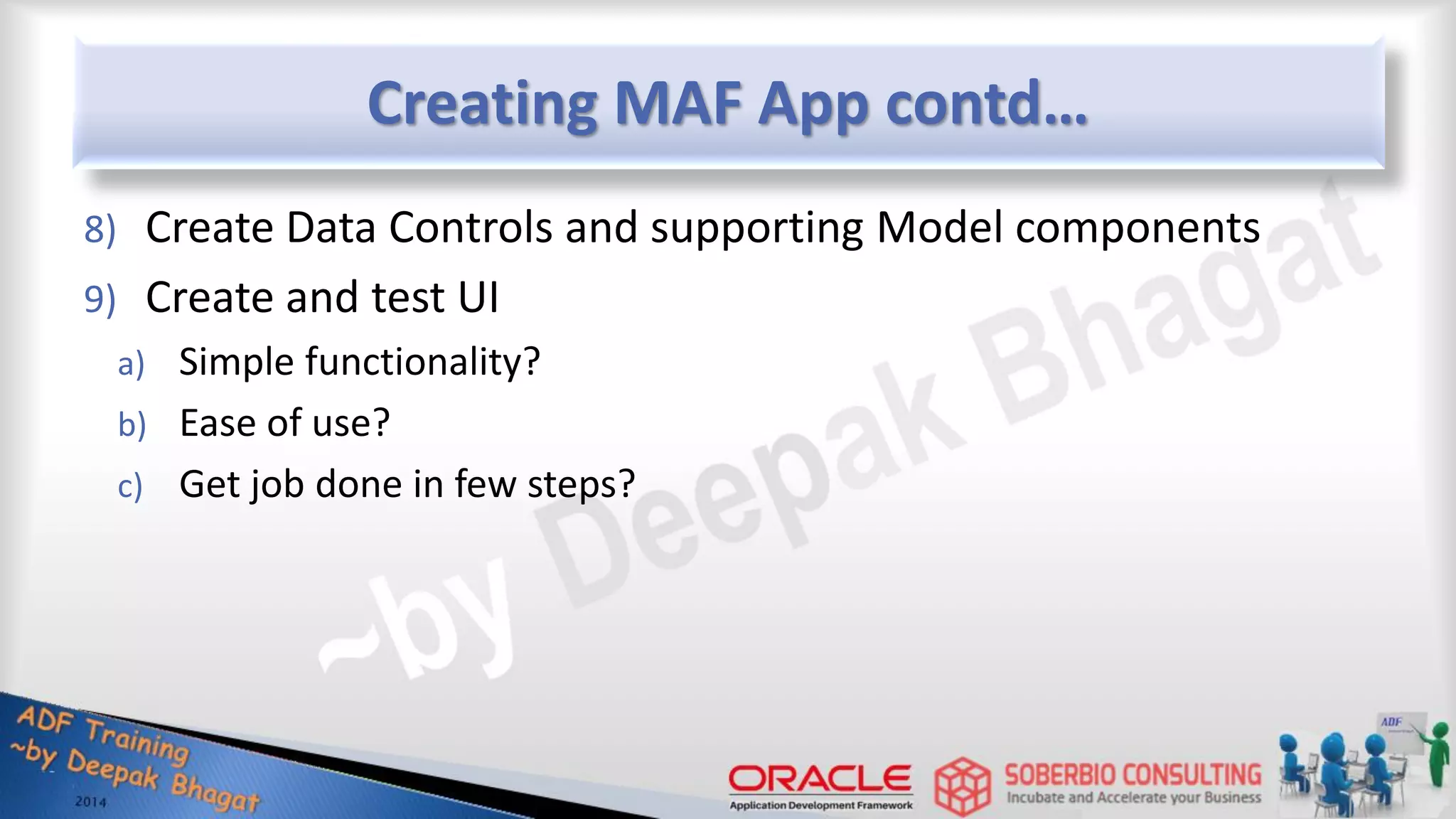

Creating MAF App contd… 8) Create Data Controls and supporting Model components 9) Create and test UI a) Simple functionality? b) Ease of use? c) Get job done in few steps?

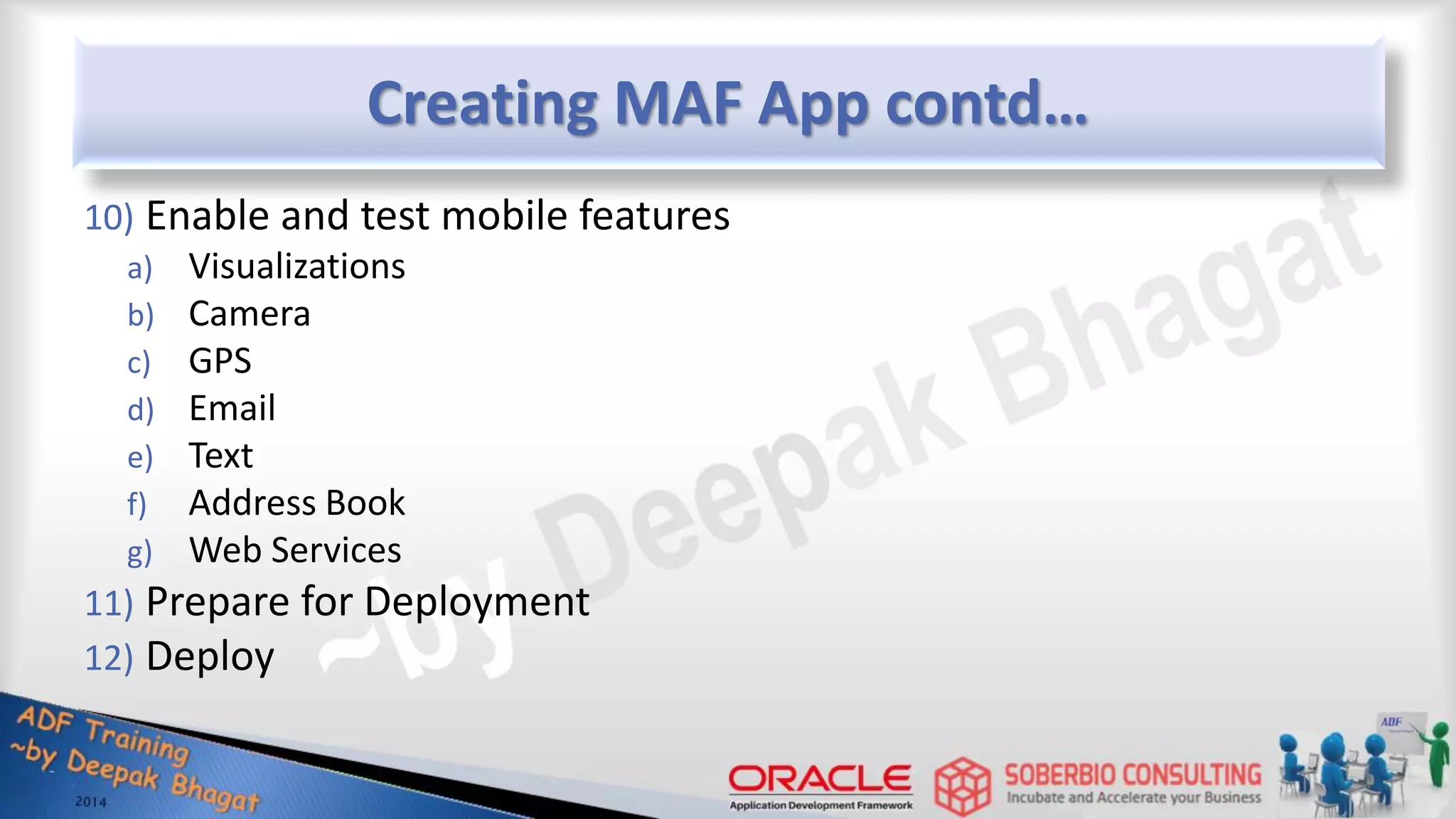

Creating MAF App contd… 10) Enable and test mobile features a) Visualizations b) Camera c) GPS d) Email e) Text f) Address Book g) Web Services 11) Prepare for Deployment 12) Deploy

Creating MAF App contd… 13) Deployment Steps a) Create Deployment Profile b) Deploy to Android Simulator c) Deploy to iOS Simulator d) Deploy to live Android e) Deploy to live iOS i. Deploy to file ii. Import file into iTunes iii. Sync with device 14) Test on all likely devices

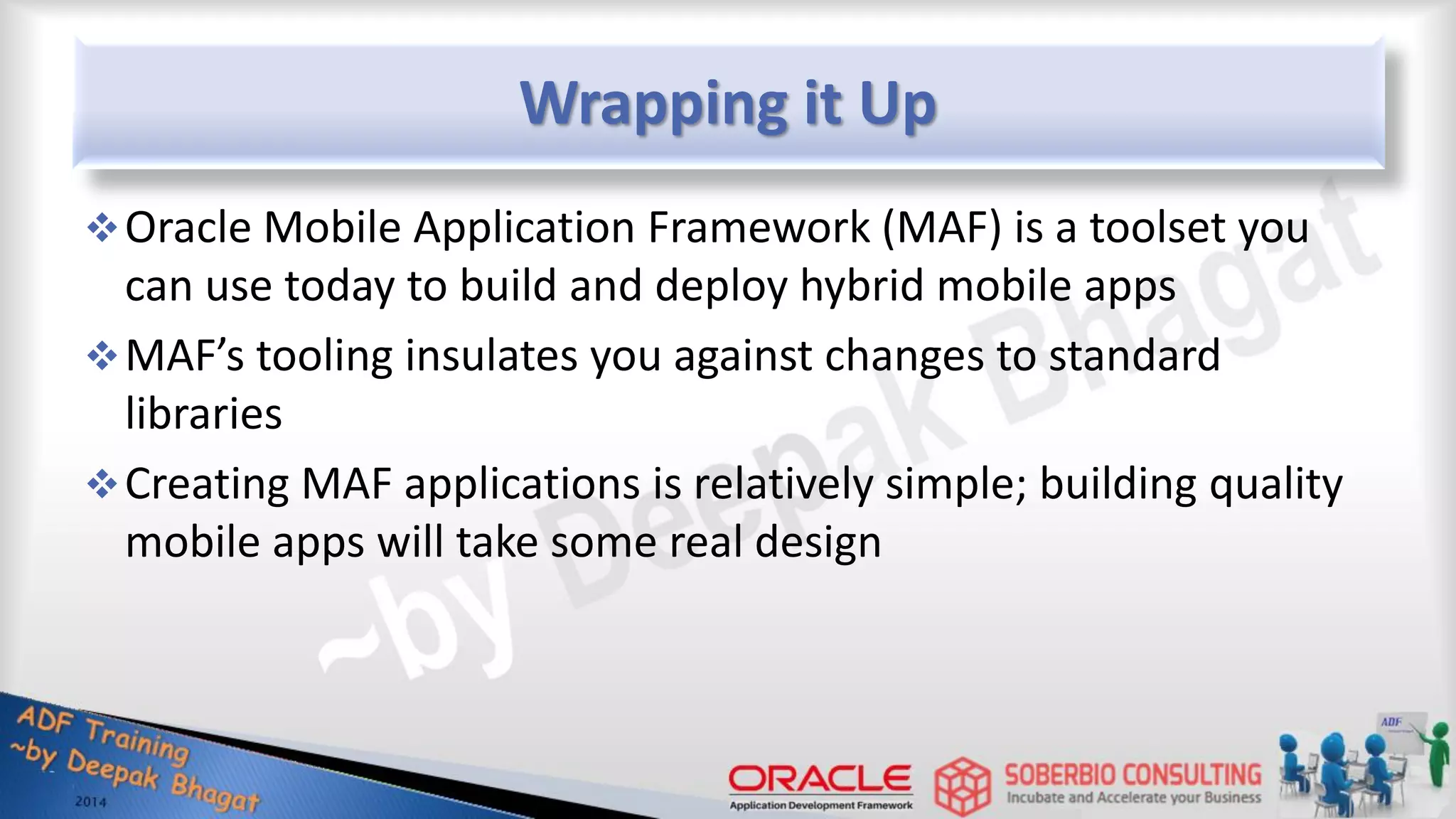

Wrapping it Up Oracle Mobile Application Framework (MAF) is a toolset you can use today to build and deploy hybrid mobile apps MAF’s tooling insulates you against changes to standard libraries Creating MAF applications is relatively simple; building quality mobile apps will take some real design

Lesson Summary Mobile Application Choices Native vs Web Hybrid Responsive Design Introduction of MAF History of MAF Prerequisites for MAF MAF Development Tools Non-Oracle Tools Needed Working with Emulator MAF Runtime Architecture MAF App Basic Creating MAF App

33 Integrating ADF with Cloud Service

Lesson Agenda What is Cloud Computing Cloud Service Models Cloud deployment models Elasticity Business Benefits of Cloud Technical Benefits of Cloud

What is Cloud Computing? Cloud computing allows application software to be operated using internet-enabled devices

Cloud Deployment Models Hybrid Cloud Public Cloud Private Cloud Community Cloud

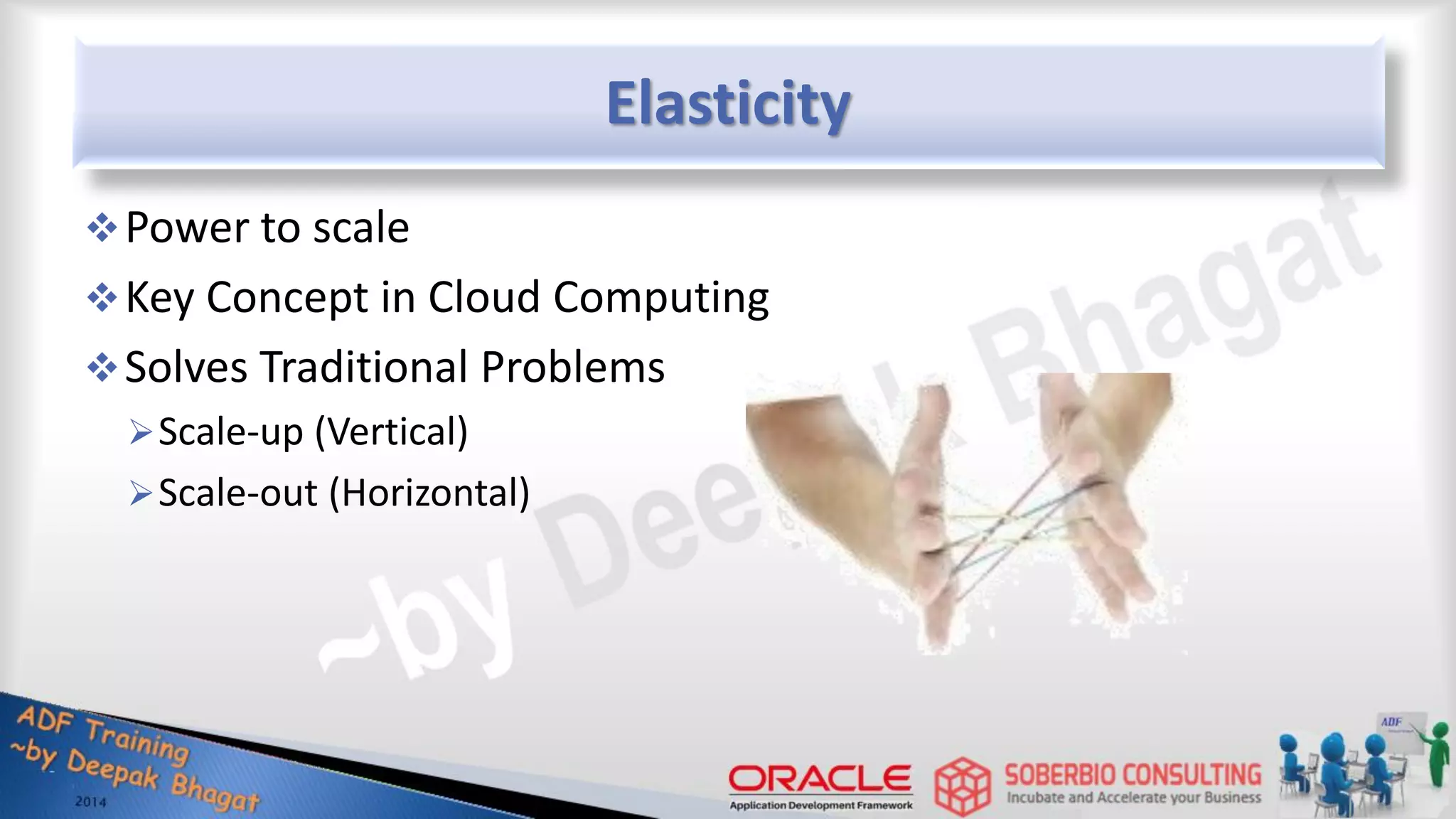

Elasticity Power to scale Key Concept in Cloud Computing Solves Traditional Problems Scale-up (Vertical) Scale-out (Horizontal)

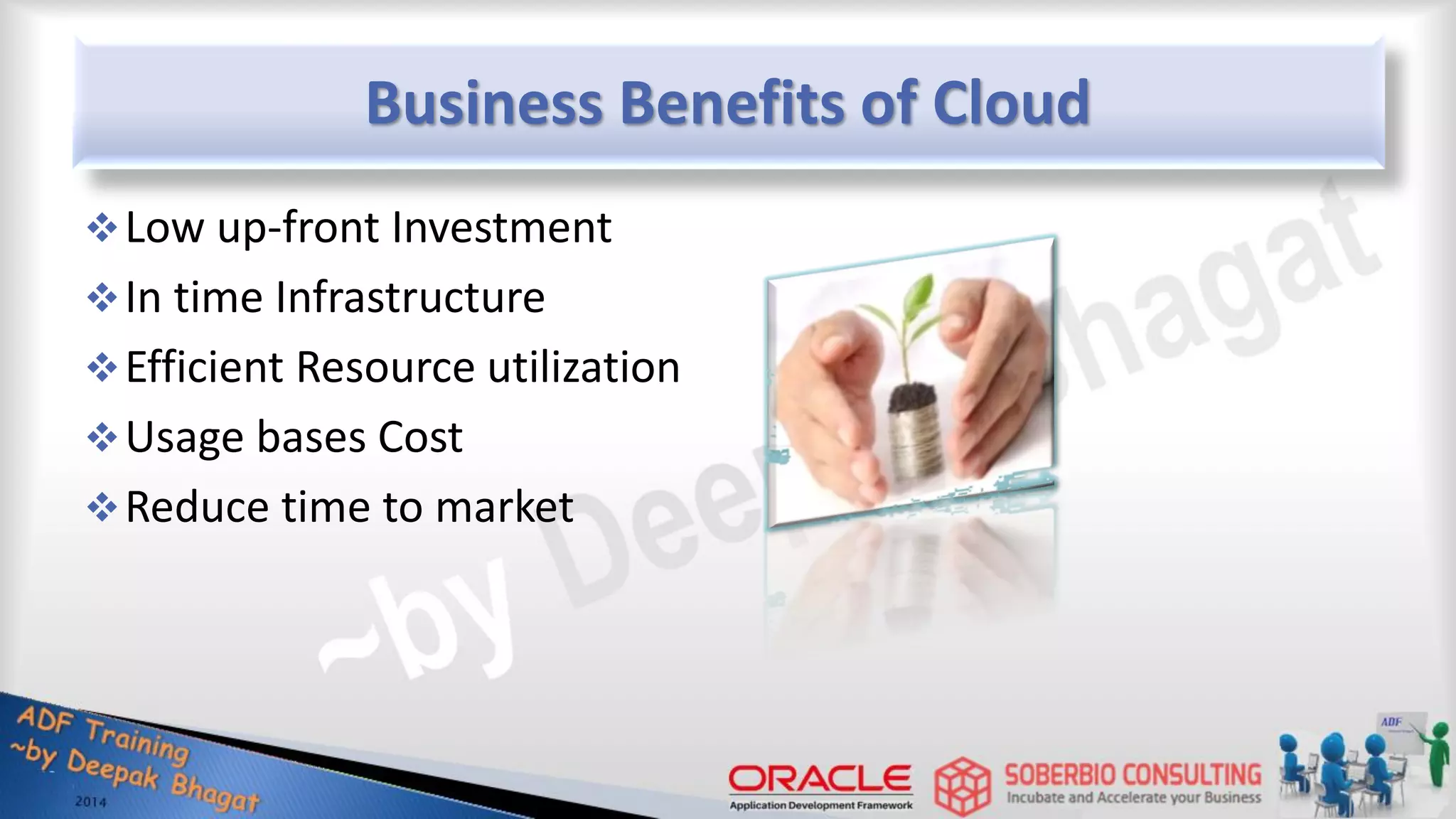

Business Benefits of Cloud Low up-front Investment In time Infrastructure Efficient Resource utilization Usage bases Cost Reduce time to market

Technical Benefits of Cloud Automation Auto-scaling Proactive scaling Efficient development lifecycle DR and Business Continuity

Lesson Summary What is Cloud Computing Cloud Service Models Cloud deployment models Elasticity Business Benefits of Cloud Technical Benefits of Cloud

34 Integrating ADF with WebCenter

Lesson Agenda  What is WebCenter  Pillars of WebCenter  Key Benefits of WebCenter  What is WebCenter Sites  WebCenter Sites Architecture  What is WebCenter Portal Cloud  WebCenter Portal Architecture  What is WebCenter Content  WebCenter Content Architecture

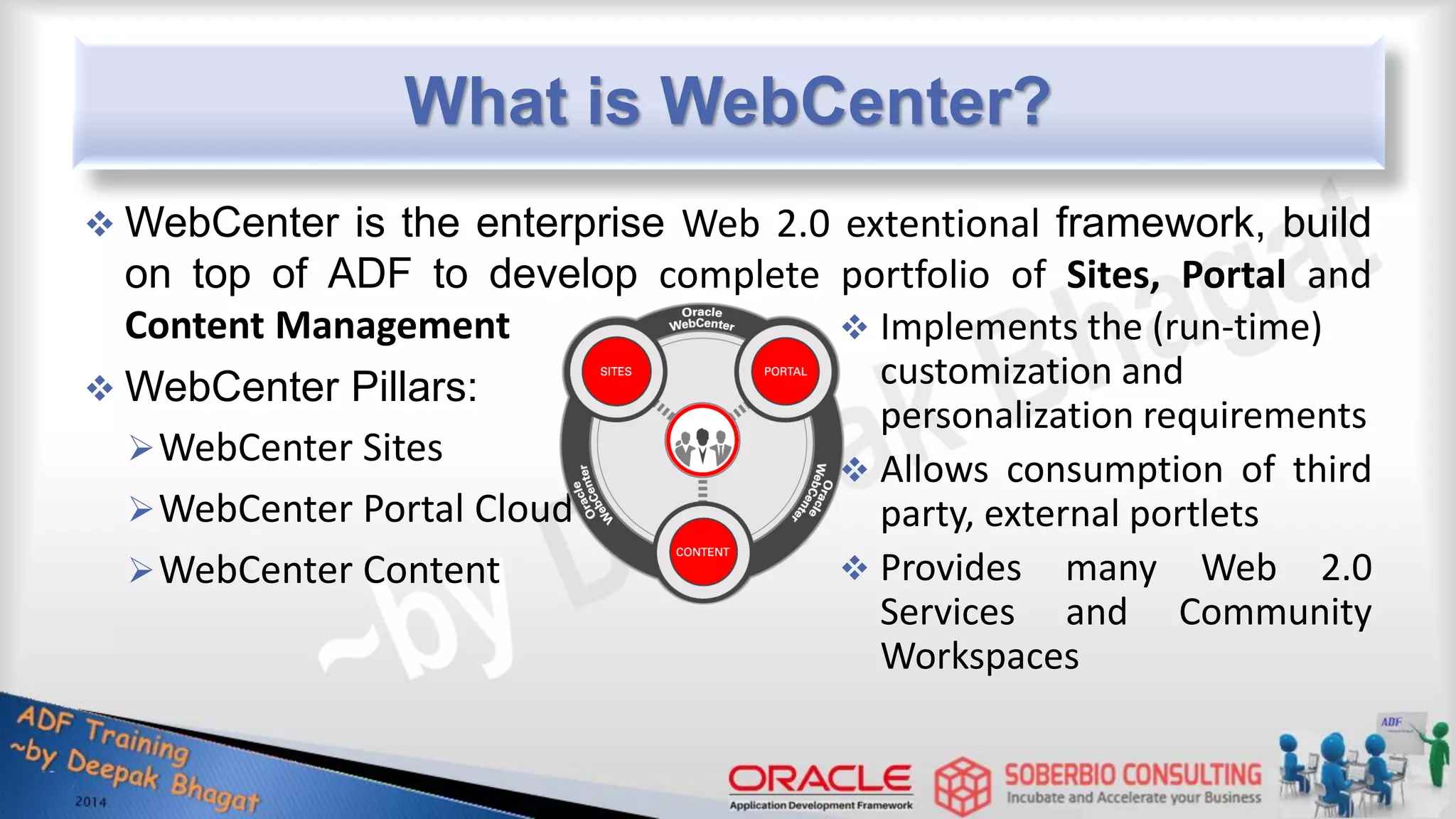

What is WebCenter?  WebCenter is the enterprise Web 2.0 extentional framework, build on top of ADF to develop complete portfolio of Sites, Portal and Content Management  WebCenter Pillars: WebCenter Sites WebCenter Portal Cloud WebCenter Content  Implements the (run-time) customization and personalization requirements  Allows consumption of third party, external portlets  Provides many Web 2.0 Services and Community Workspaces

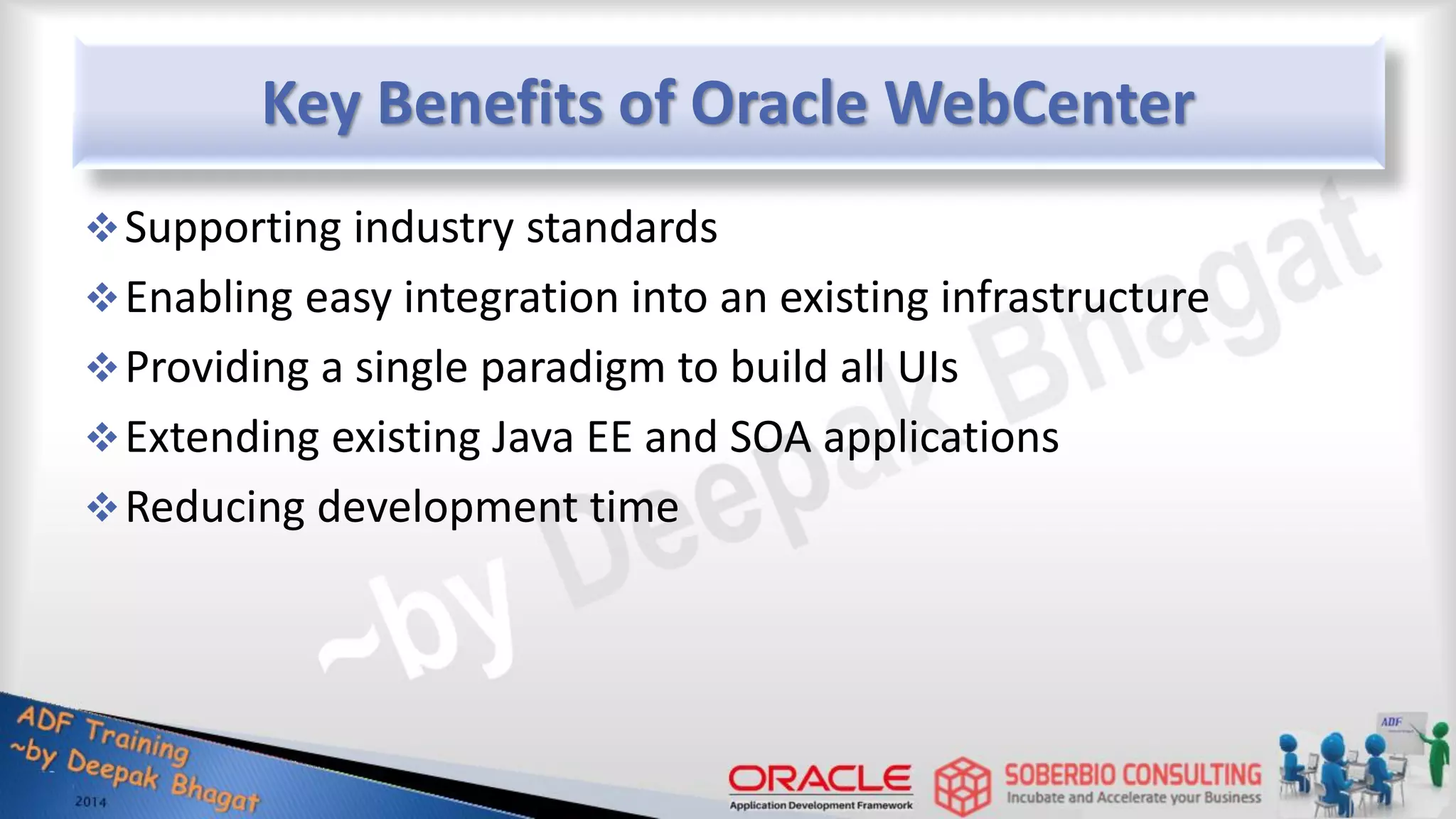

Key Benefits of Oracle WebCenter Supporting industry standards Enabling easy integration into an existing infrastructure Providing a single paradigm to build all UIs Extending existing Java EE and SOA applications Reducing development time

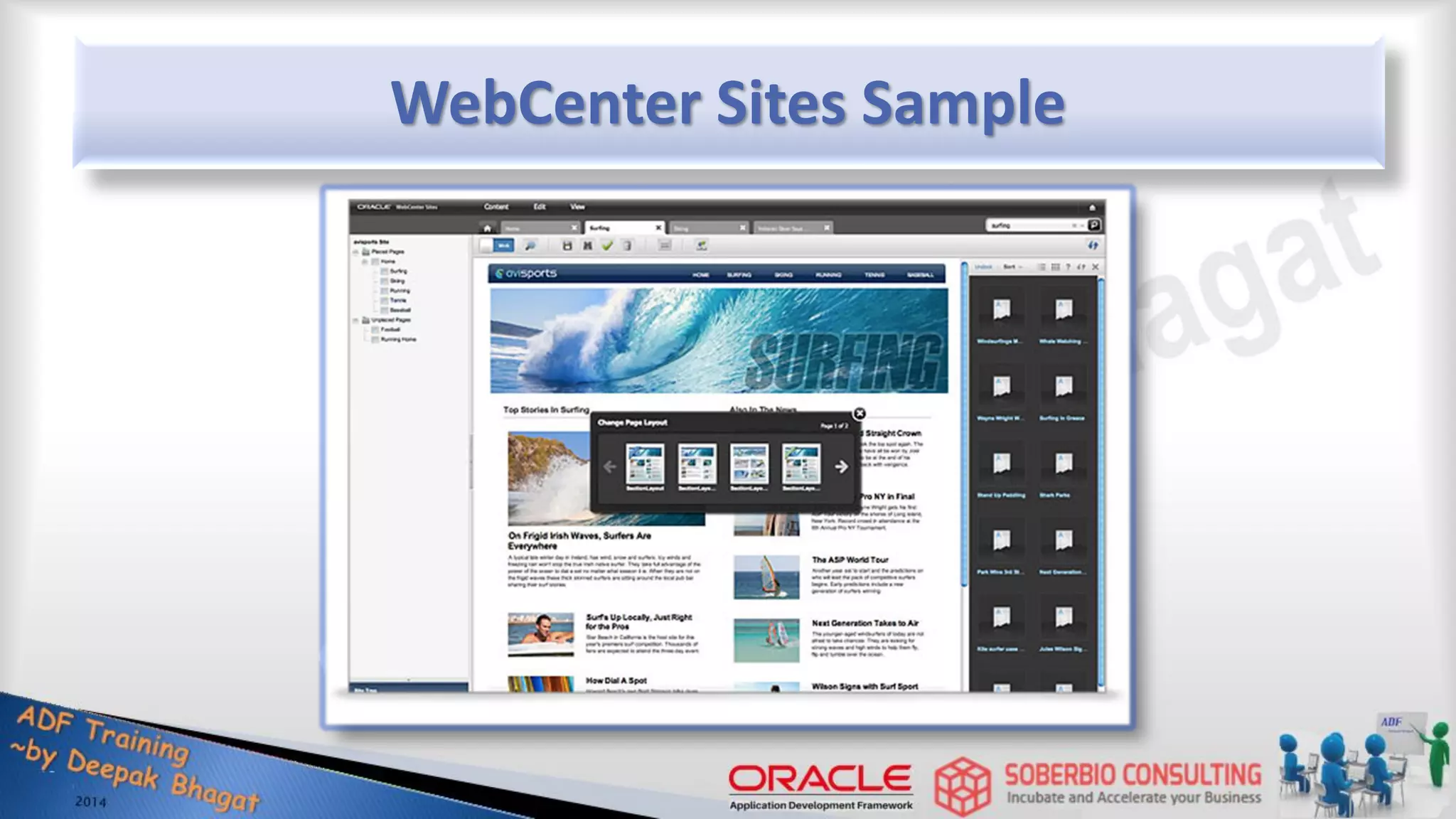

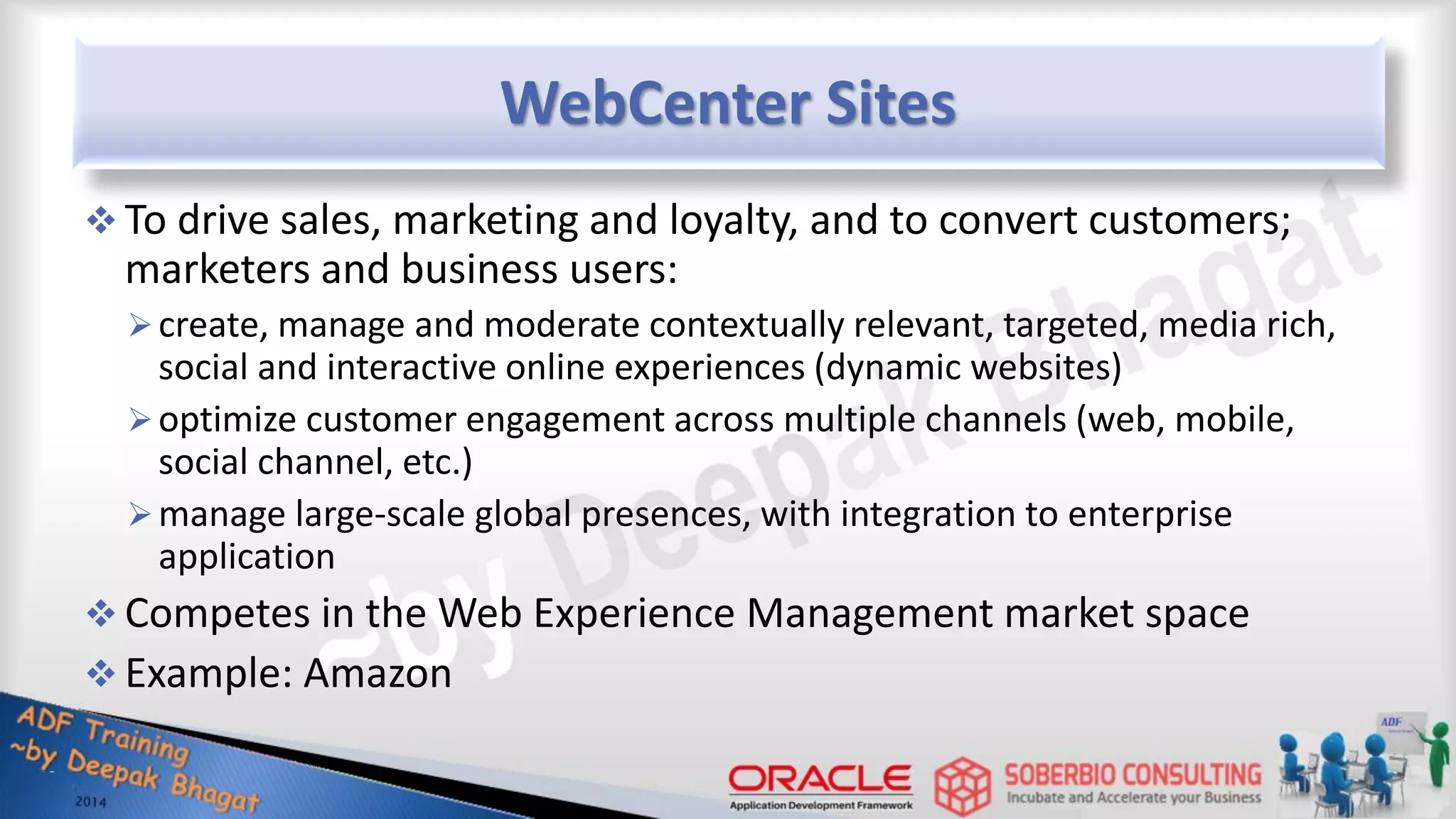

WebCenter Sites  To drive sales, marketing and loyalty, and to convert customers; marketers and business users: create, manage and moderate contextually relevant, targeted, media rich, social and interactive online experiences (dynamic websites) optimize customer engagement across multiple channels (web, mobile, social channel, etc.) manage large-scale global presences, with integration to enterprise application  Competes in the Web Experience Management market space  Example: Amazon

WebCenter Portal Cloud Organization create intranets, extranets, mash-ups, self-service enterprise portals (websites) and composite applications, with integrated collaboration and social services, like Portlets, RSS, Discussion forums, etc. Competes in the Mash-up and Self-Service Portal market space Example: Facebook, Vodafone, Verizon, Airtel

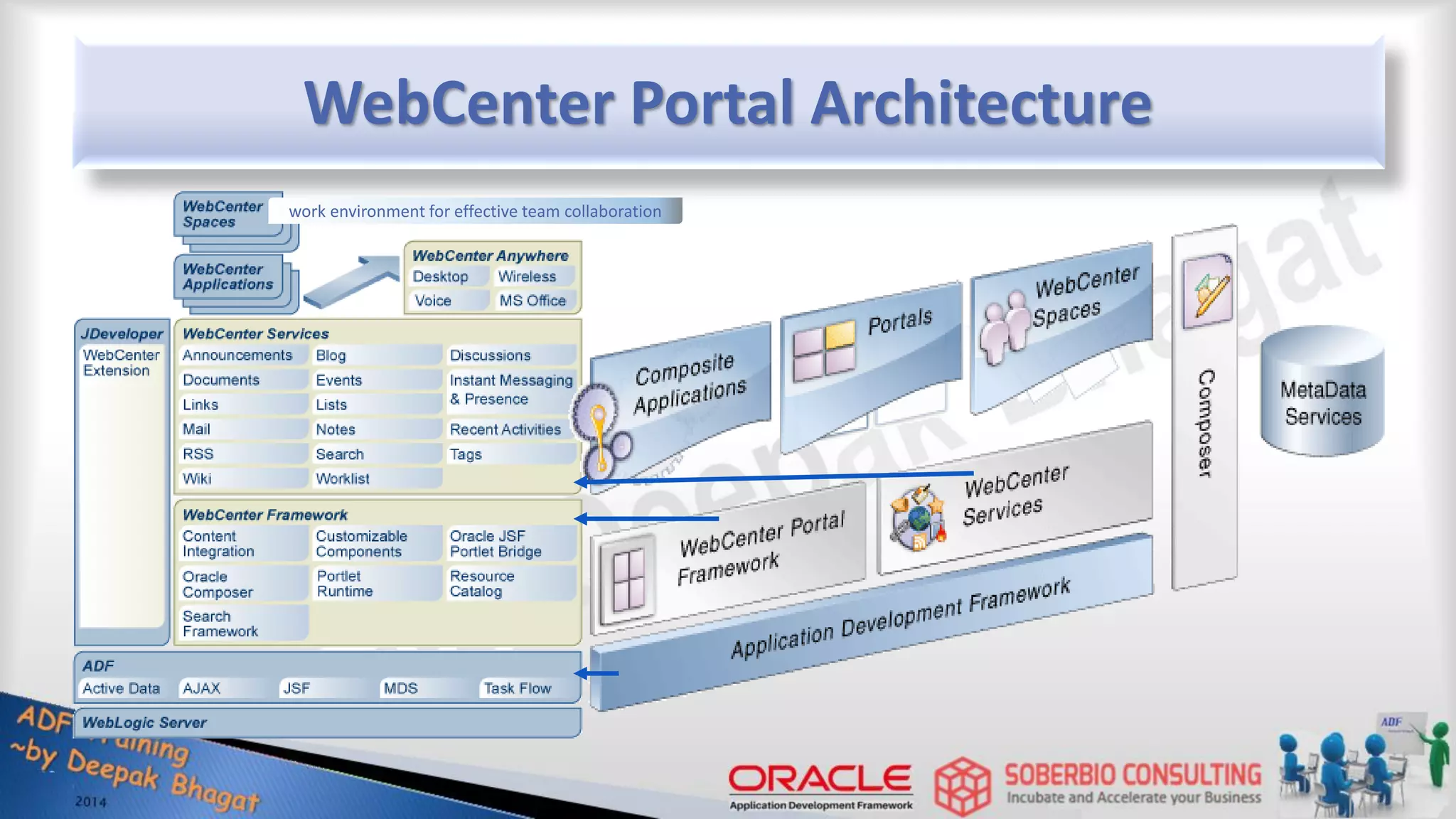

WebCenter Portal Architecture work environment for effective team collaboration

WebCenter Portal Framework  Content integration  JCR 170 support  Several content repositories  Portlets  Consumable portlets  Portlet containers for  JSR 168/PDK-Java  JSF-Portlet Bridge  Out-of-the-box portlets  Run-time customization

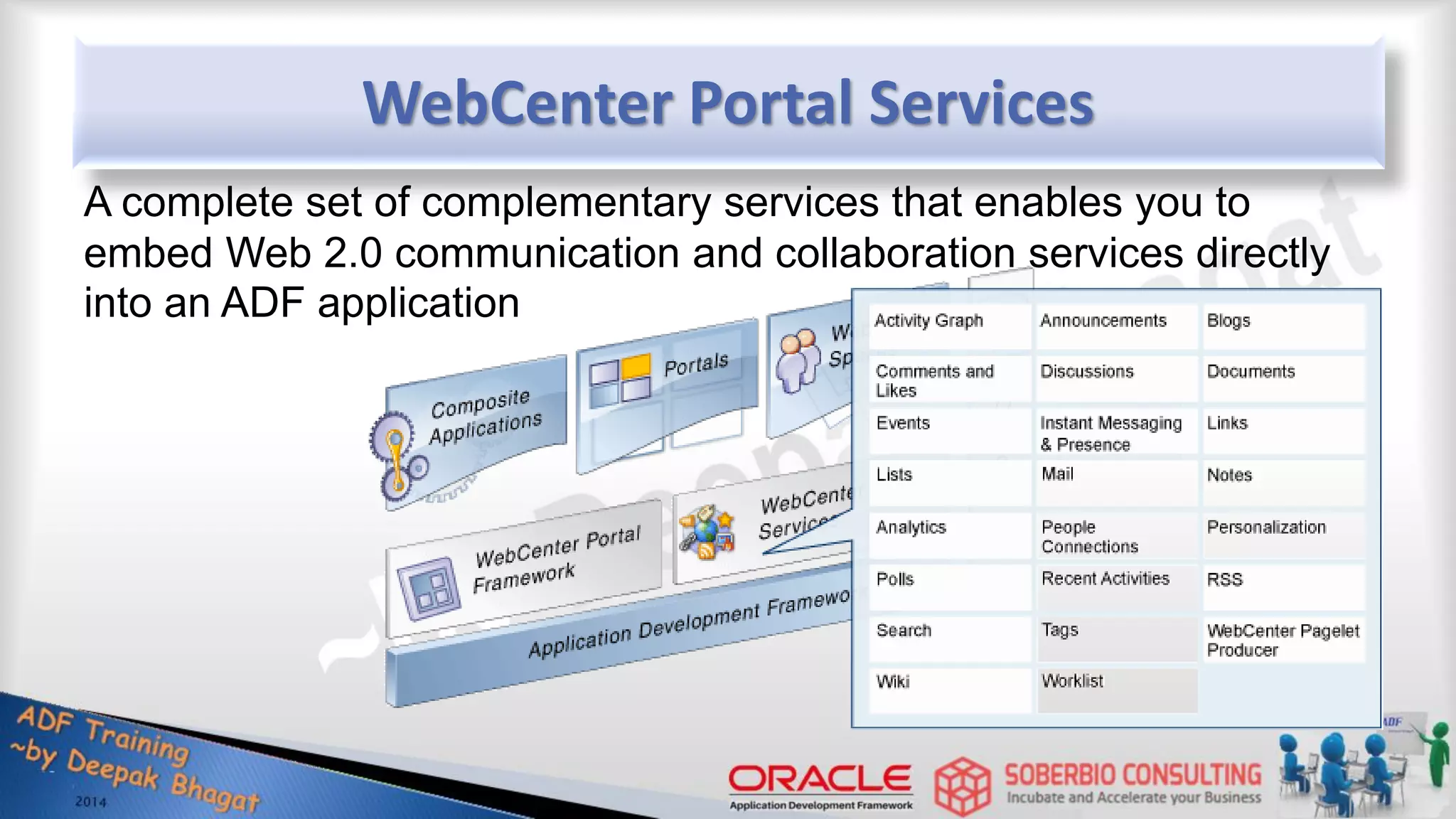

WebCenter Portal Services A complete set of complementary services that enables you to embed Web 2.0 communication and collaboration services directly into an ADF application

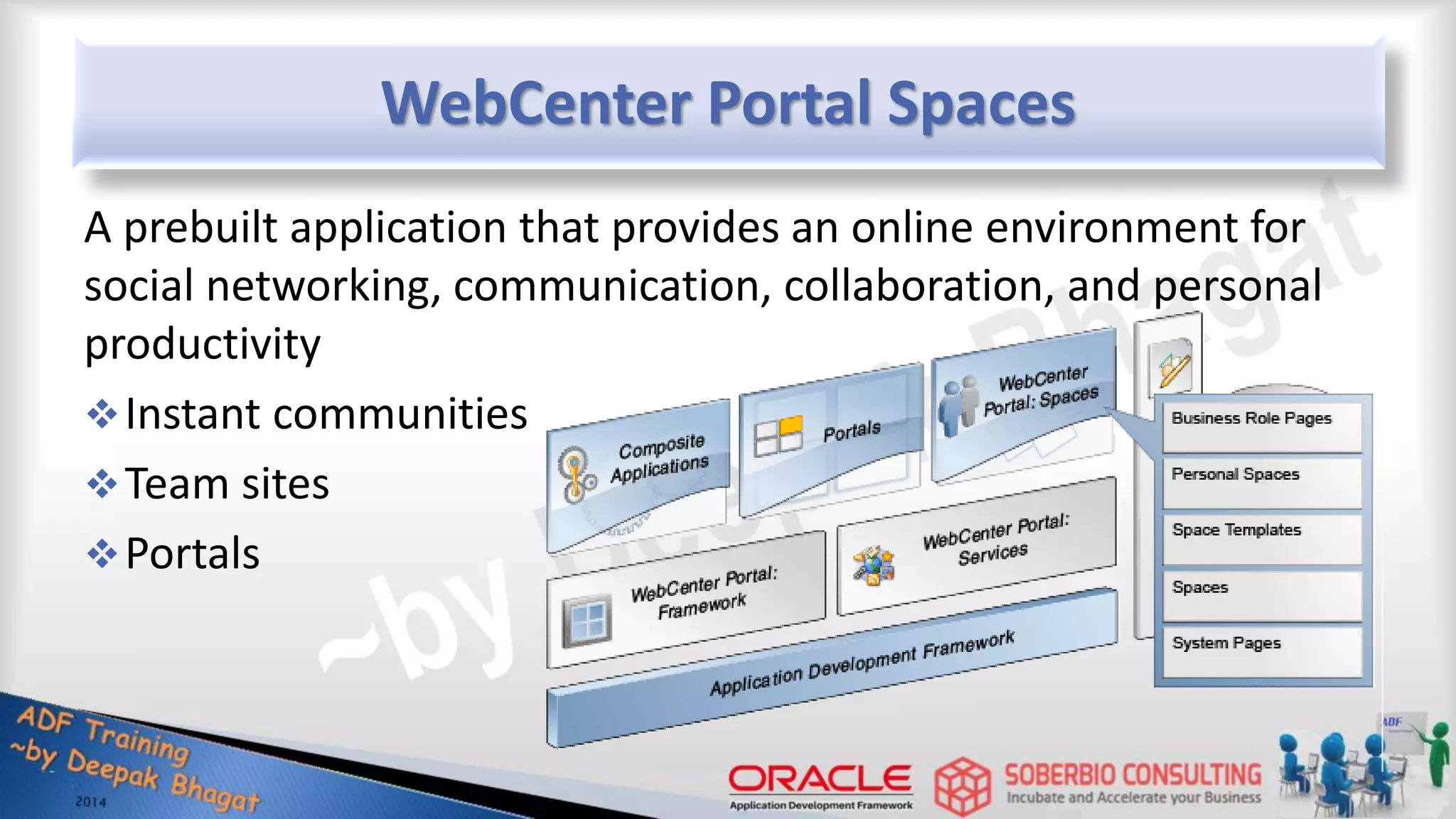

WebCenter Portal Spaces A prebuilt application that provides an online environment for social networking, communication, collaboration, and personal productivity Instant communities Team sites Portals

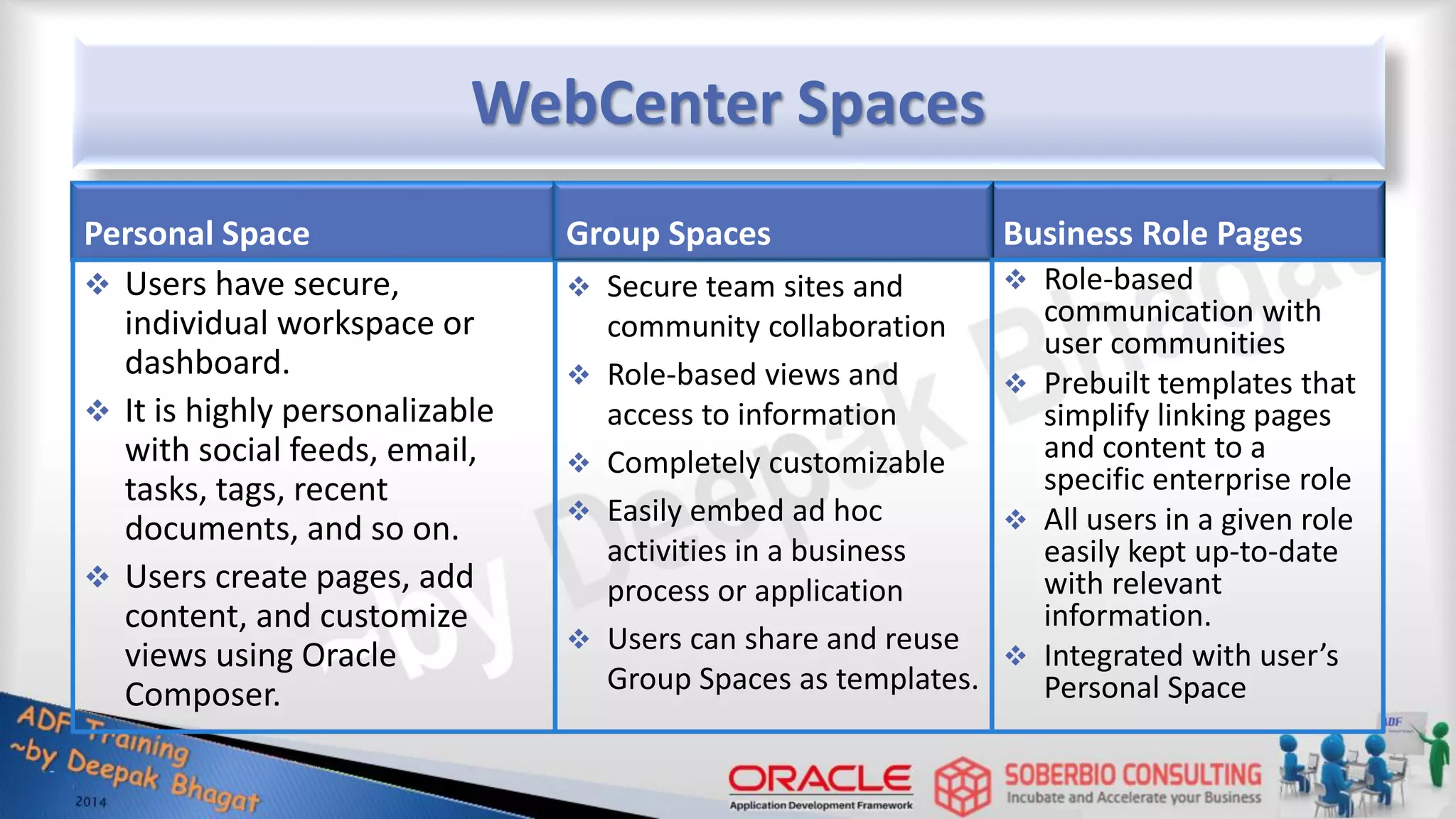

WebCenter Spaces Personal Space  Users have secure, individual workspace or dashboard.  It is highly personalizable with social feeds, email, tasks, tags, recent documents, and so on.  Users create pages, add content, and customize views using Oracle Composer. Business Role Pages  Secure team sites and community collaboration  Role-based views and access to information  Completely customizable  Easily embed ad hoc activities in a business process or application  Users can share and reuse Group Spaces as templates. Group Spaces  Role-based communication with user communities  Prebuilt templates that simplify linking pages and content to a specific enterprise role  All users in a given role easily kept up-to-date with relevant information.  Integrated with user’s Personal Space

WebCenter Portal Personal Space Sample

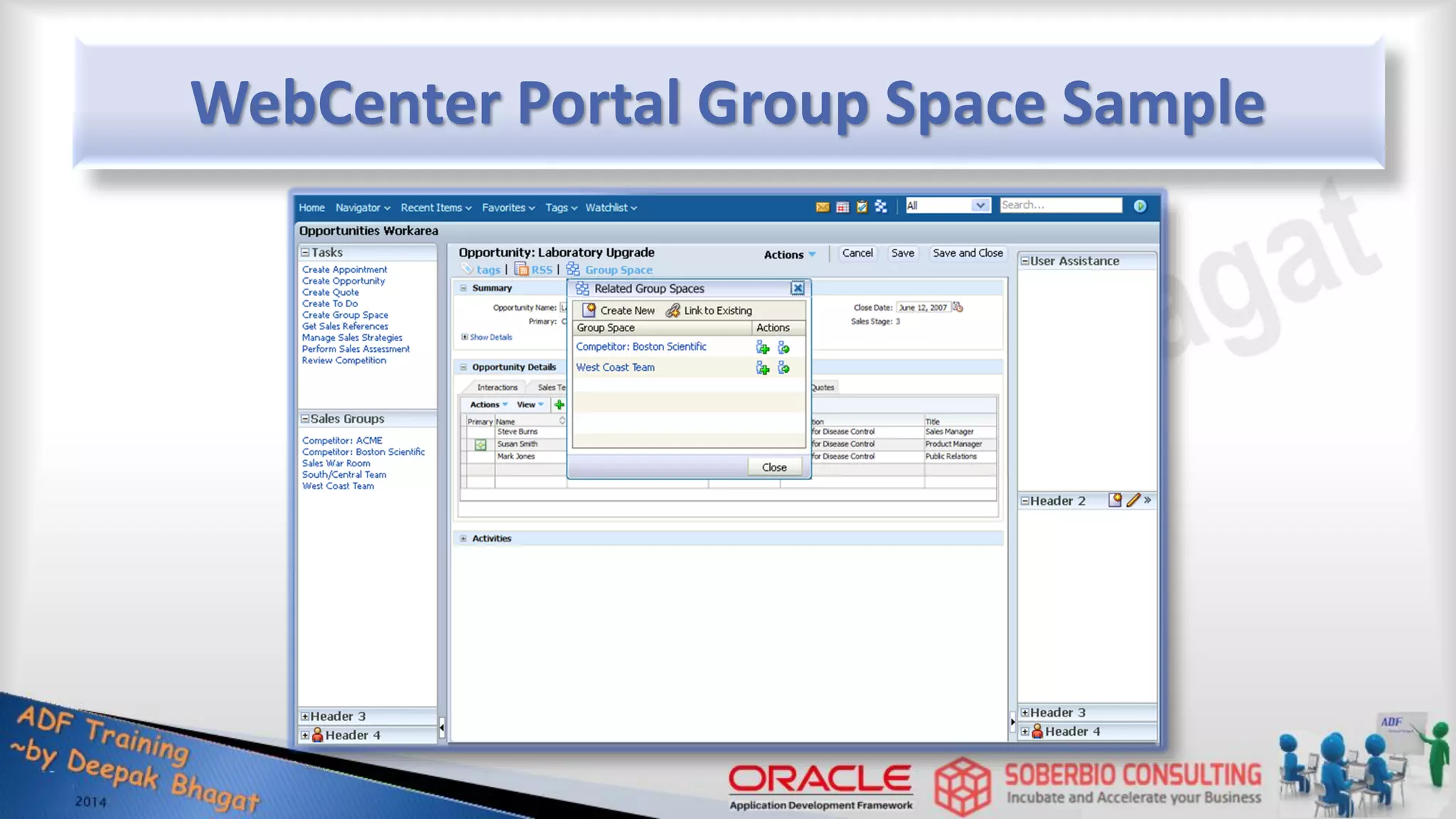

WebCenter Portal Group Space Sample

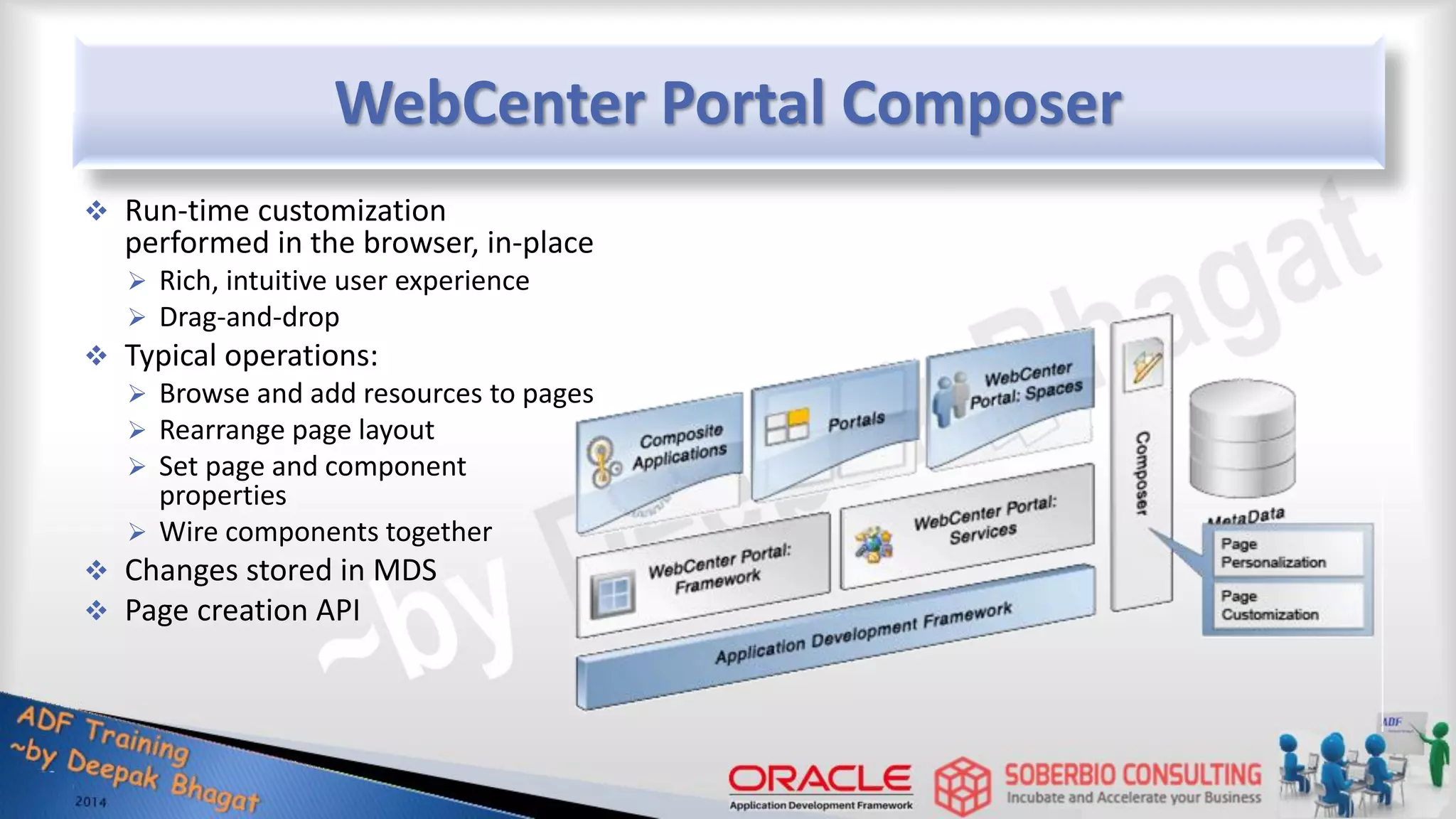

WebCenter Portal Composer  Run-time customization performed in the browser, in-place  Rich, intuitive user experience  Drag-and-drop  Typical operations:  Browse and add resources to pages  Rearrange page layout  Set page and component properties  Wire components together  Changes stored in MDS  Page creation API

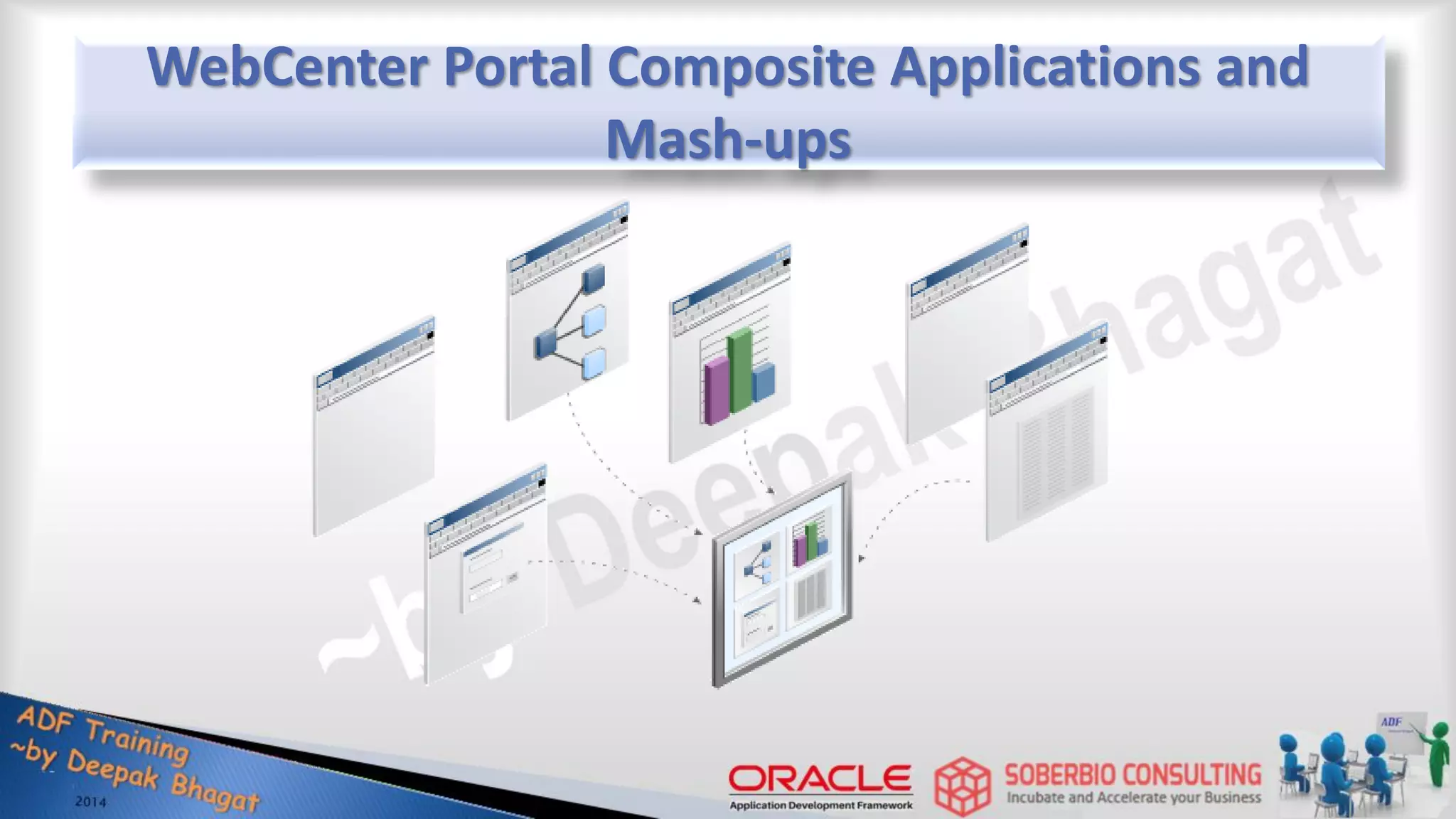

WebCenter Portal Composite Applications and Mash-ups

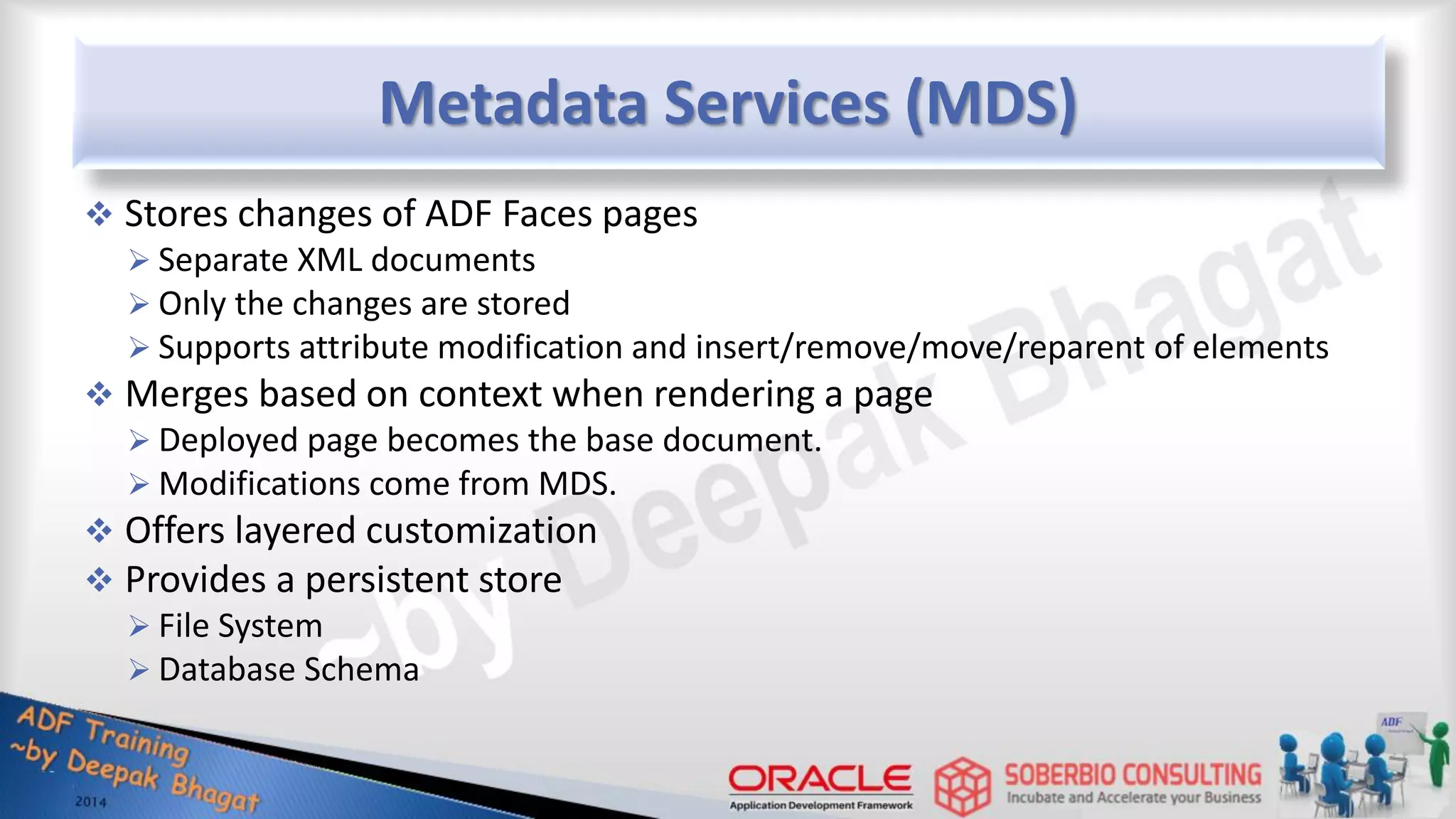

Metadata Services (MDS)  Stores changes of ADF Faces pages  Separate XML documents  Only the changes are stored  Supports attribute modification and insert/remove/move/reparent of elements  Merges based on context when rendering a page  Deployed page becomes the base document.  Modifications come from MDS.  Offers layered customization  Provides a persistent store  File System  Database Schema

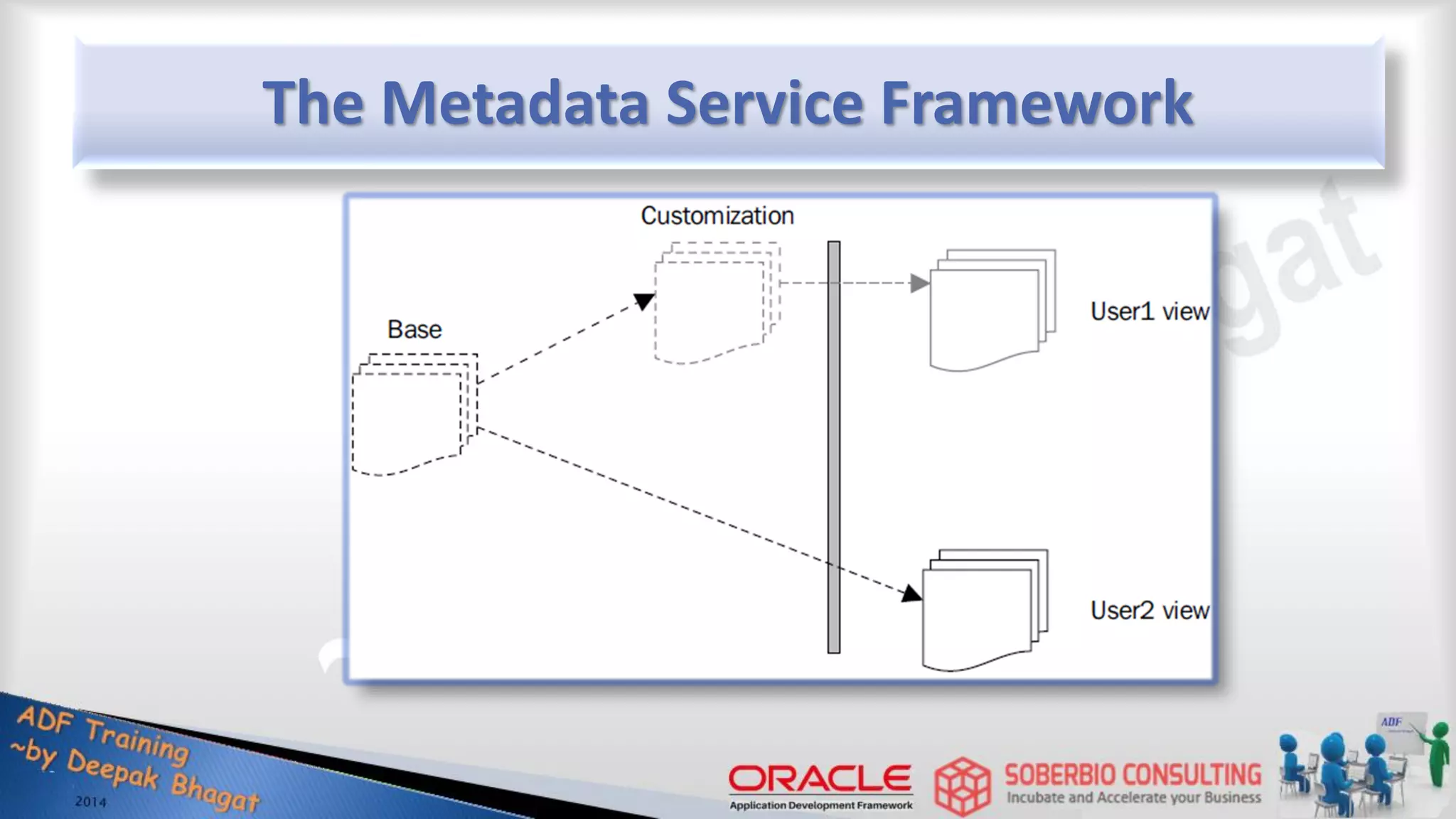

The Metadata Service Framework

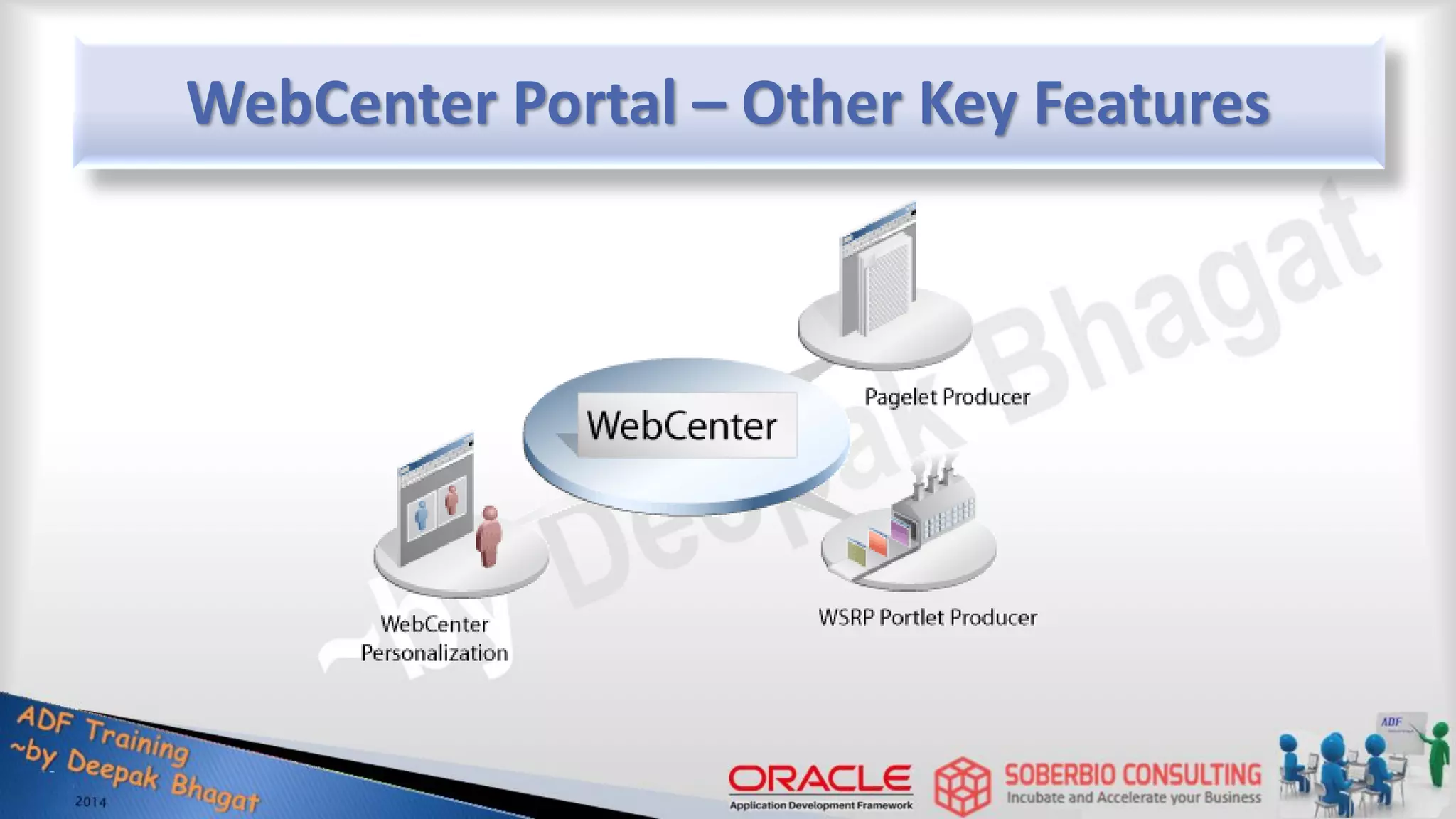

WebCenter Portal – Other Key Features

What Is a Portlet? A remote Web component that renders information in HTML format Portlets Render dynamic content Provide their own user interface Allow customization and personalization Are reusable

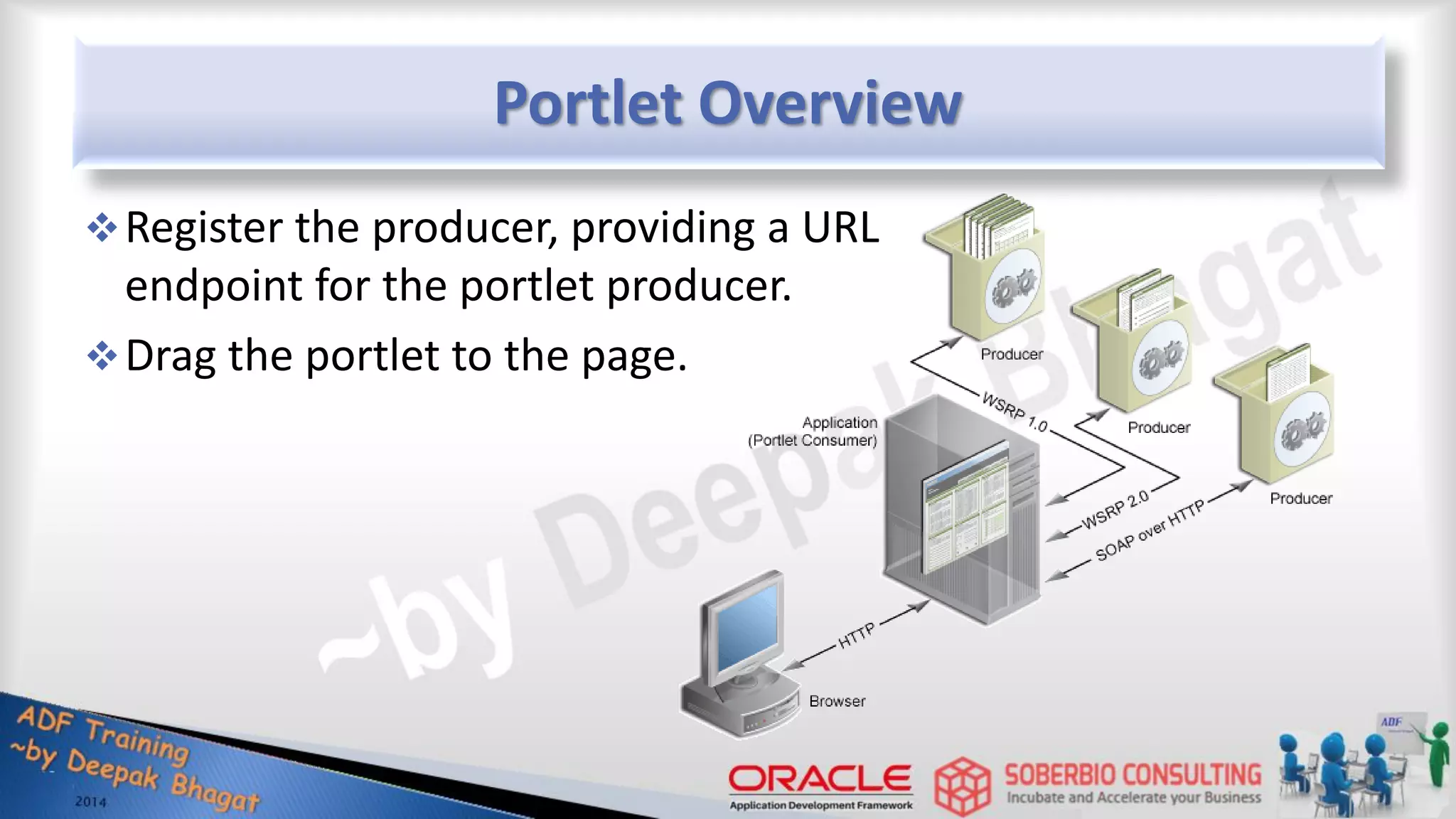

Portlet Overview Register the producer, providing a URL endpoint for the portlet producer. Drag the portlet to the page.

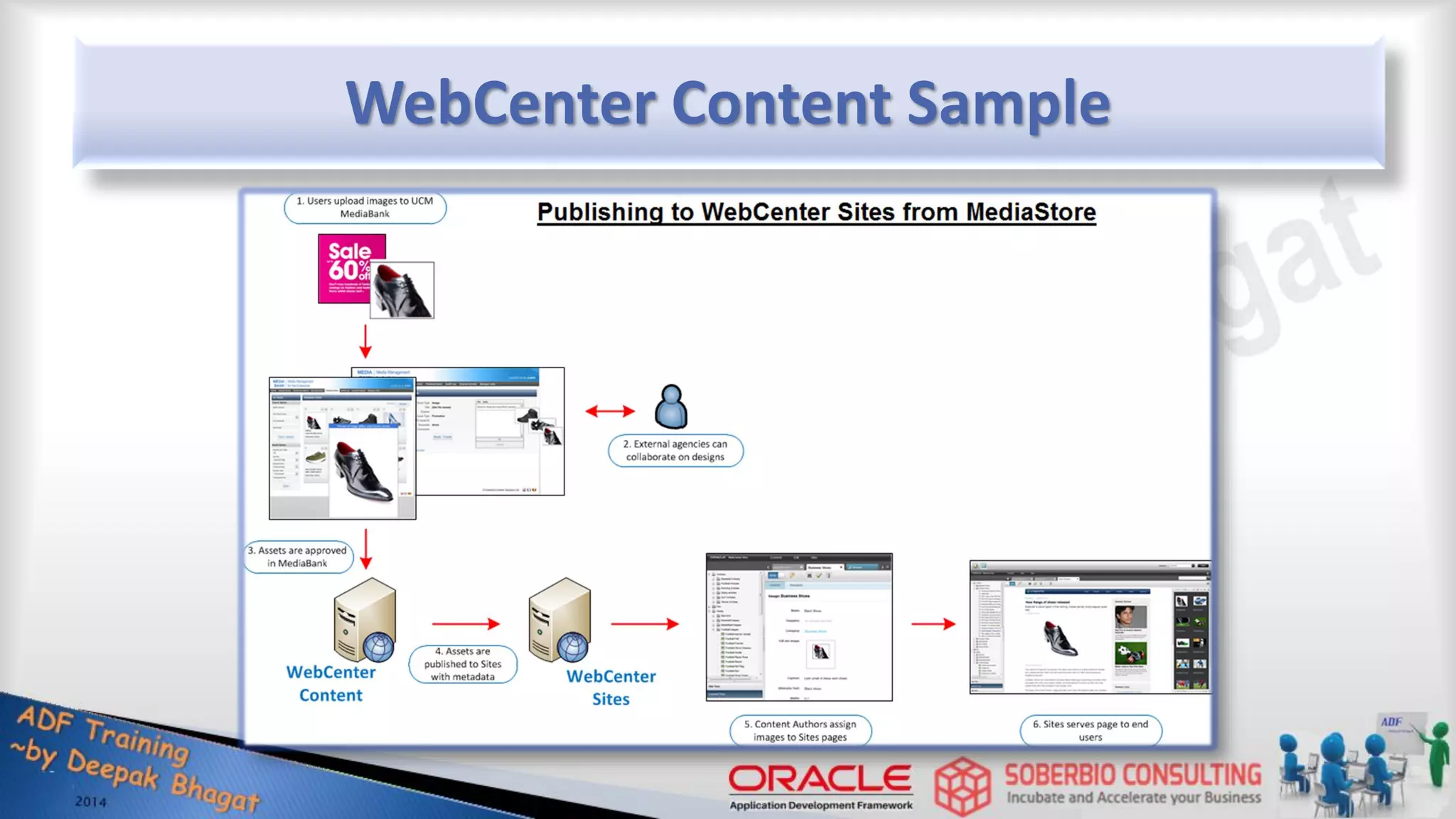

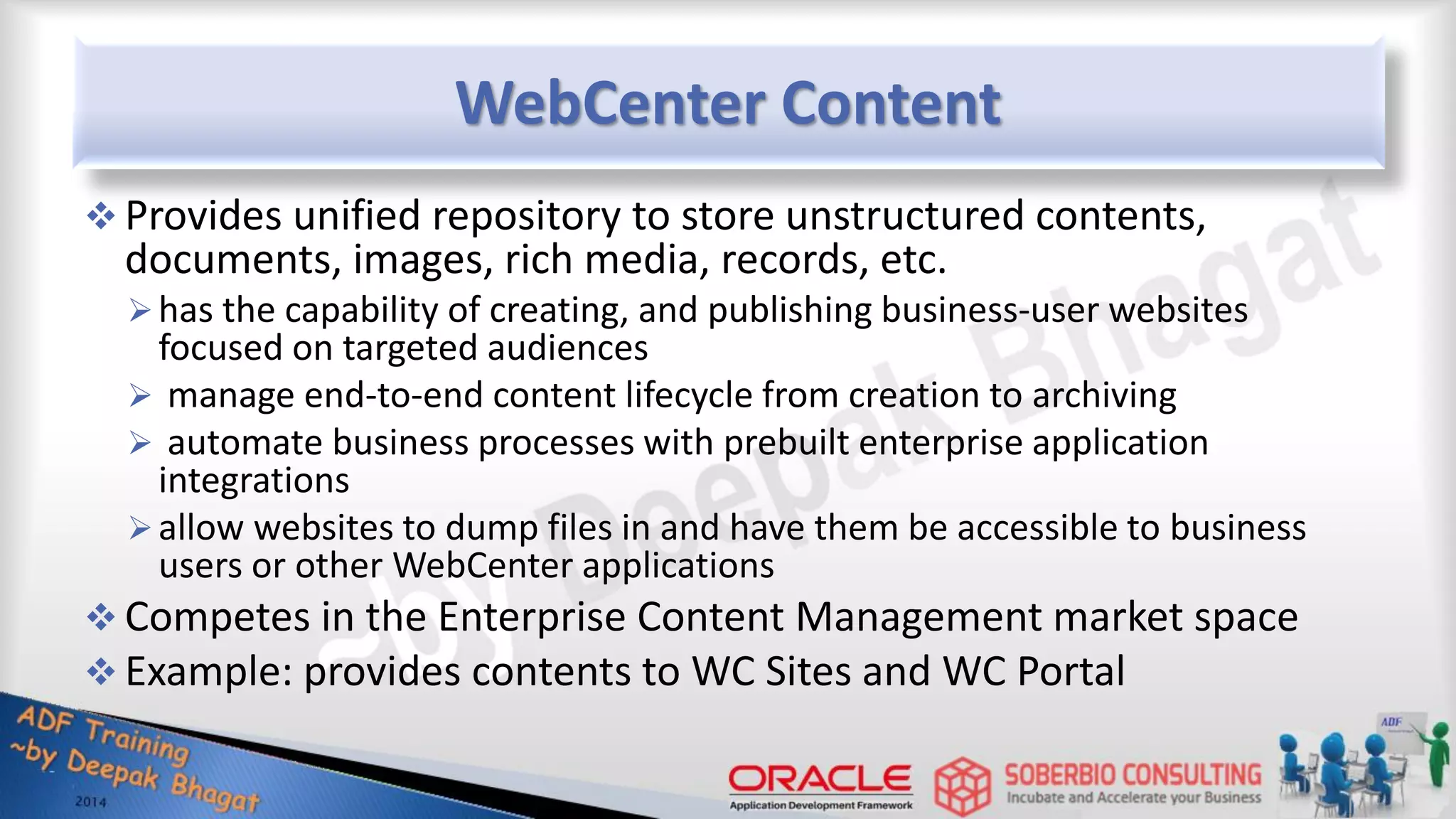

WebCenter Content  Provides unified repository to store unstructured contents, documents, images, rich media, records, etc. has the capability of creating, and publishing business-user websites focused on targeted audiences  manage end-to-end content lifecycle from creation to archiving  automate business processes with prebuilt enterprise application integrations allow websites to dump files in and have them be accessible to business users or other WebCenter applications  Competes in the Enterprise Content Management market space  Example: provides contents to WC Sites and WC Portal

WebCenter Content Architecture

Lesson Summary  What is WebCenter  Pillars of WebCenter  Key Benefits of WebCenter  What is WebCenter Sites  WebCenter Sites Architecture  What is WebCenter Portal Cloud  WebCenter Portal Architecture  What is WebCenter Content  WebCenter Content Architecture

Oracle ADF Tutorial

More Related Content

Similar to Oracle ADF Tutorial

Recently uploaded

Oracle ADF Tutorial
