Introduction to Spark with Scala
The document is a presentation on Apache Spark using Scala, outlining its significance as a fast and general engine for large-scale data processing. It introduces core concepts such as RDDs (Resilient Distributed Datasets) and Spark Streaming, providing installation steps and examples of code usage. The document also highlights Spark's evolution and its popularity in the field of data analytics.
Introduction to Spark with Scala
- 1. Introduction to Spark withScala Introduction to Spark with Scala Himanshu Gupta Software Consultant Knoldus Software LLP Himanshu Gupta Software Consultant Knoldus Software LLP
- 2. Who am I?Who am I ? Himanshu Gupta (@himanshug735) Software Consultant at Knoldus Software LLP Spark & Scala enthusiast Himanshu Gupta (@himanshug735) Software Consultant at Knoldus Software LLP Spark & Scala enthusiast

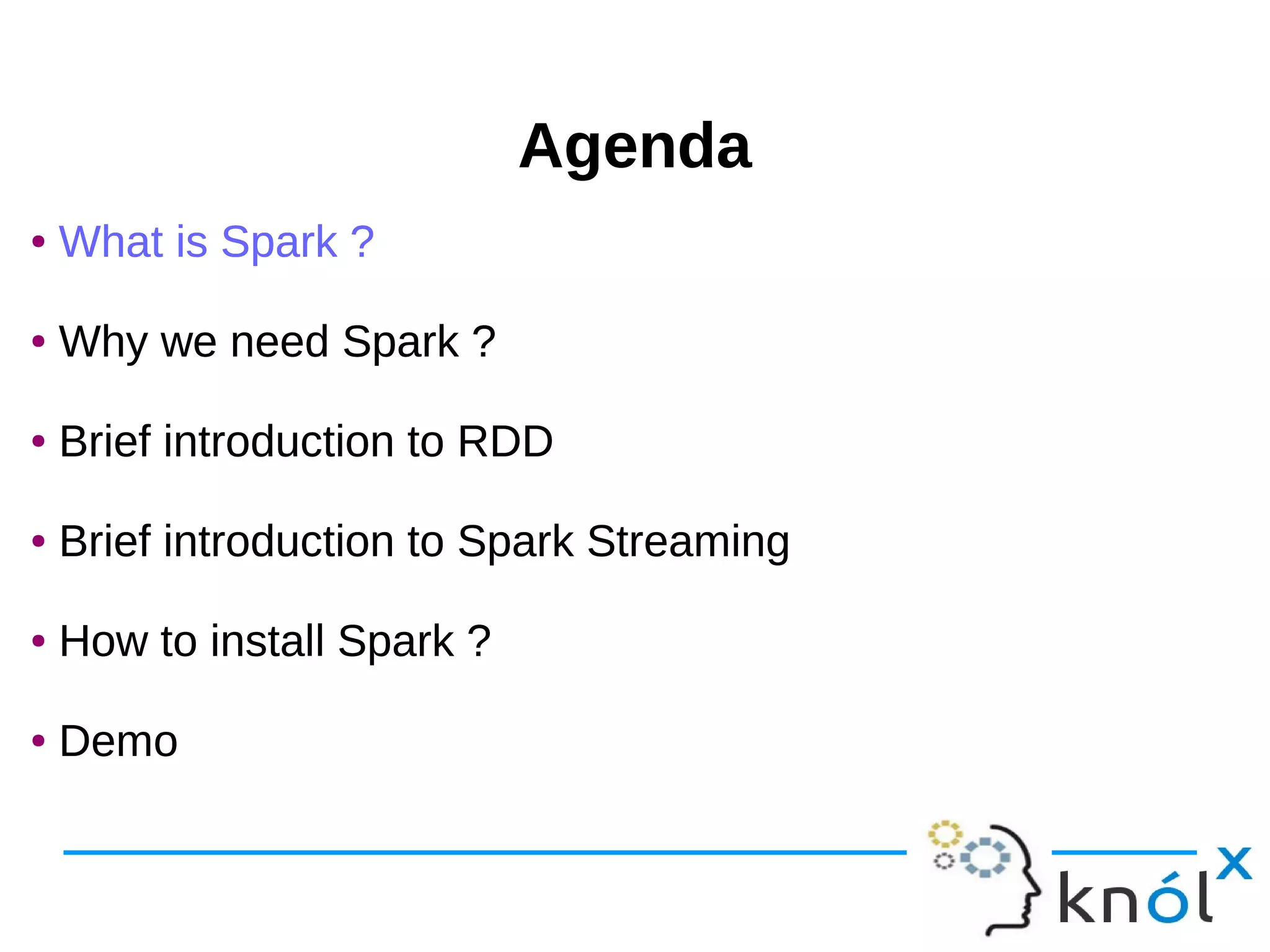

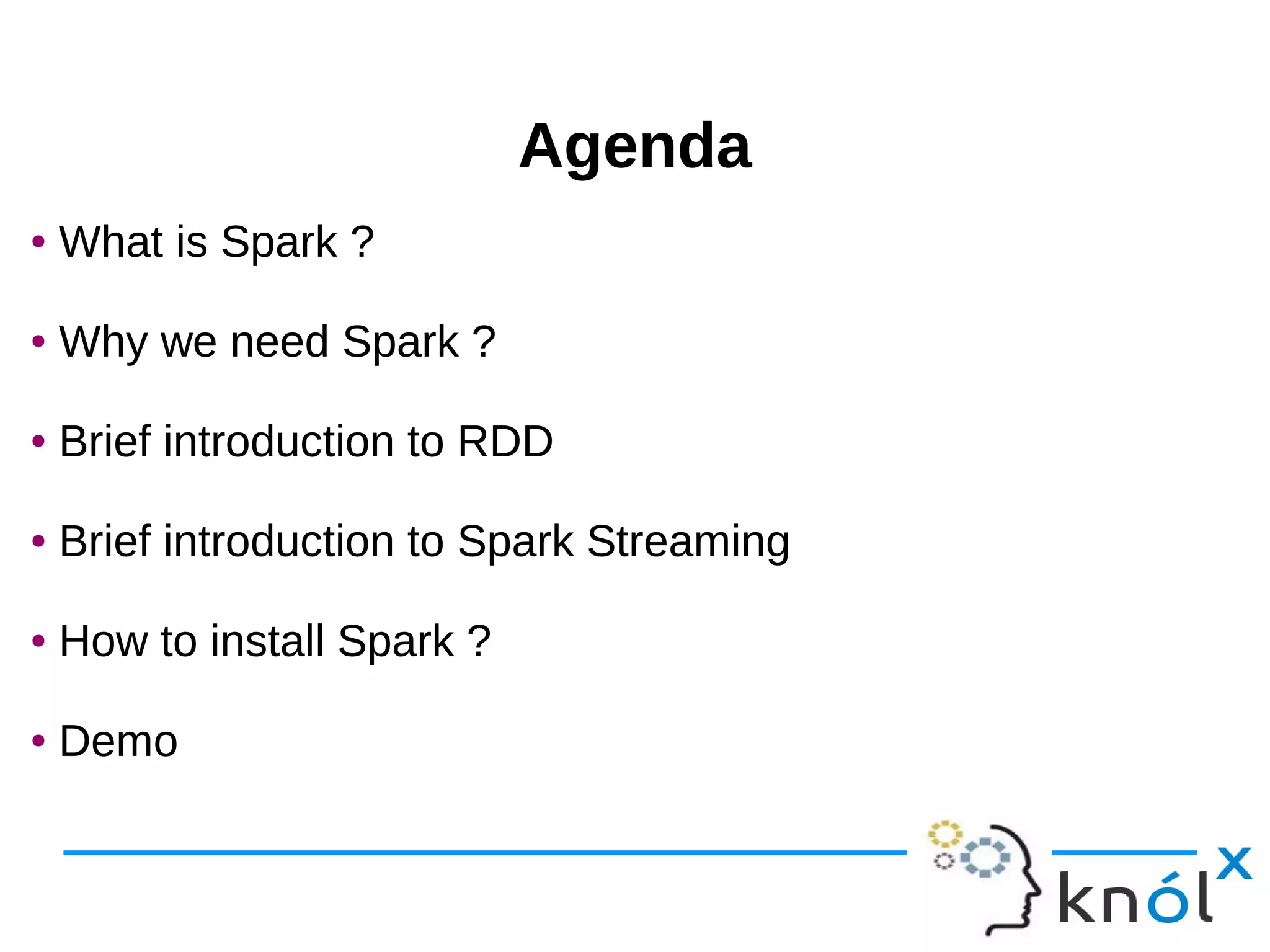

- 3. AgendaAgenda ● What isSpark ? ● Why we need Spark ? ● Brief introduction to RDD ● Brief introduction to Spark Streaming ● How to install Spark ? ● Demo ● What is Spark ? ● Why we need Spark ? ● Brief introduction to RDD ● Brief introduction to Spark Streaming ● How to install Spark ? ● Demo

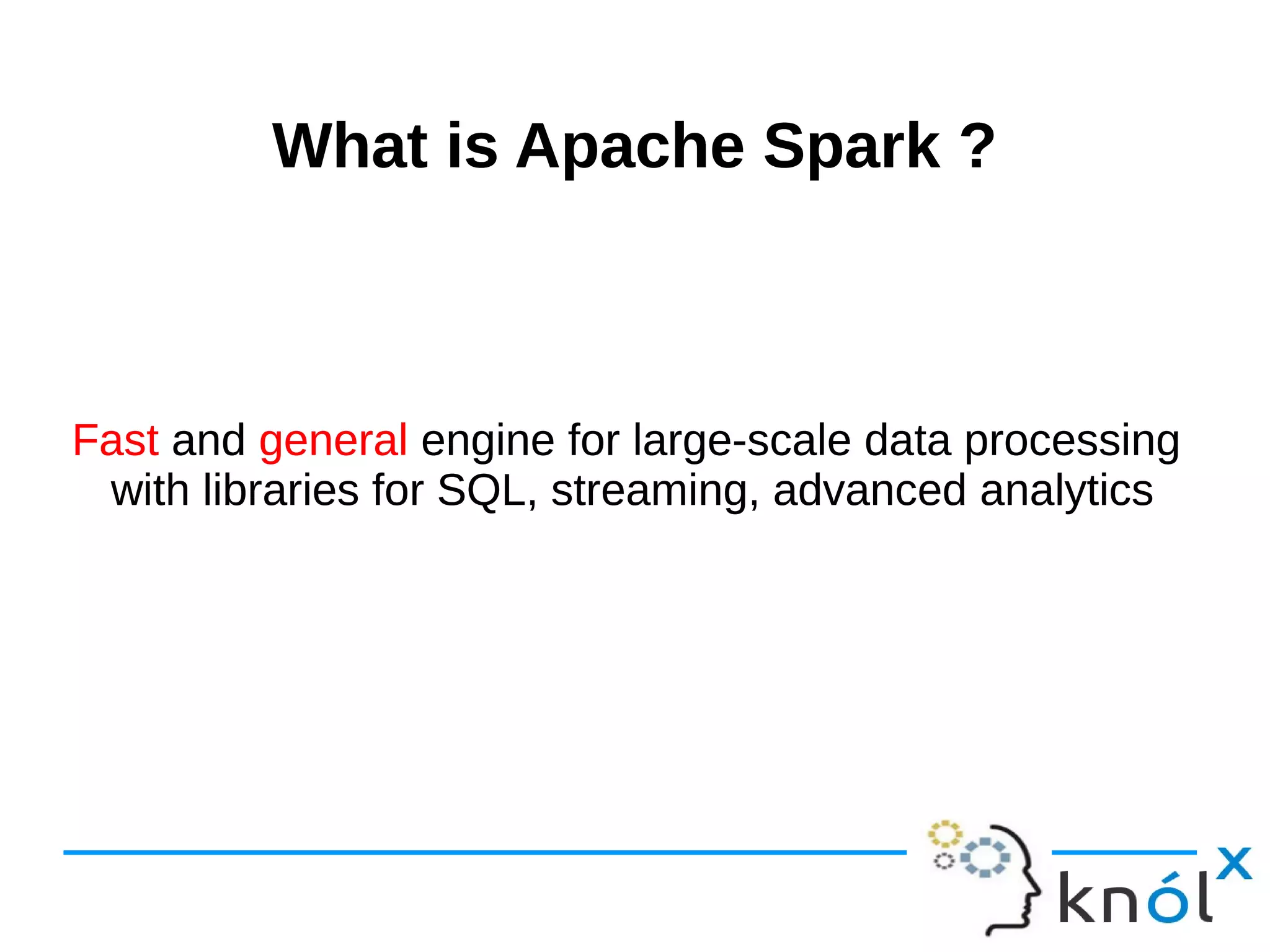

- 4. What is ApacheSpark ?What is Apache Spark ? Fast and general engine for large-scale data processing with libraries for SQL, streaming, advanced analytics Fast and general engine for large-scale data processing with libraries for SQL, streaming, advanced analytics

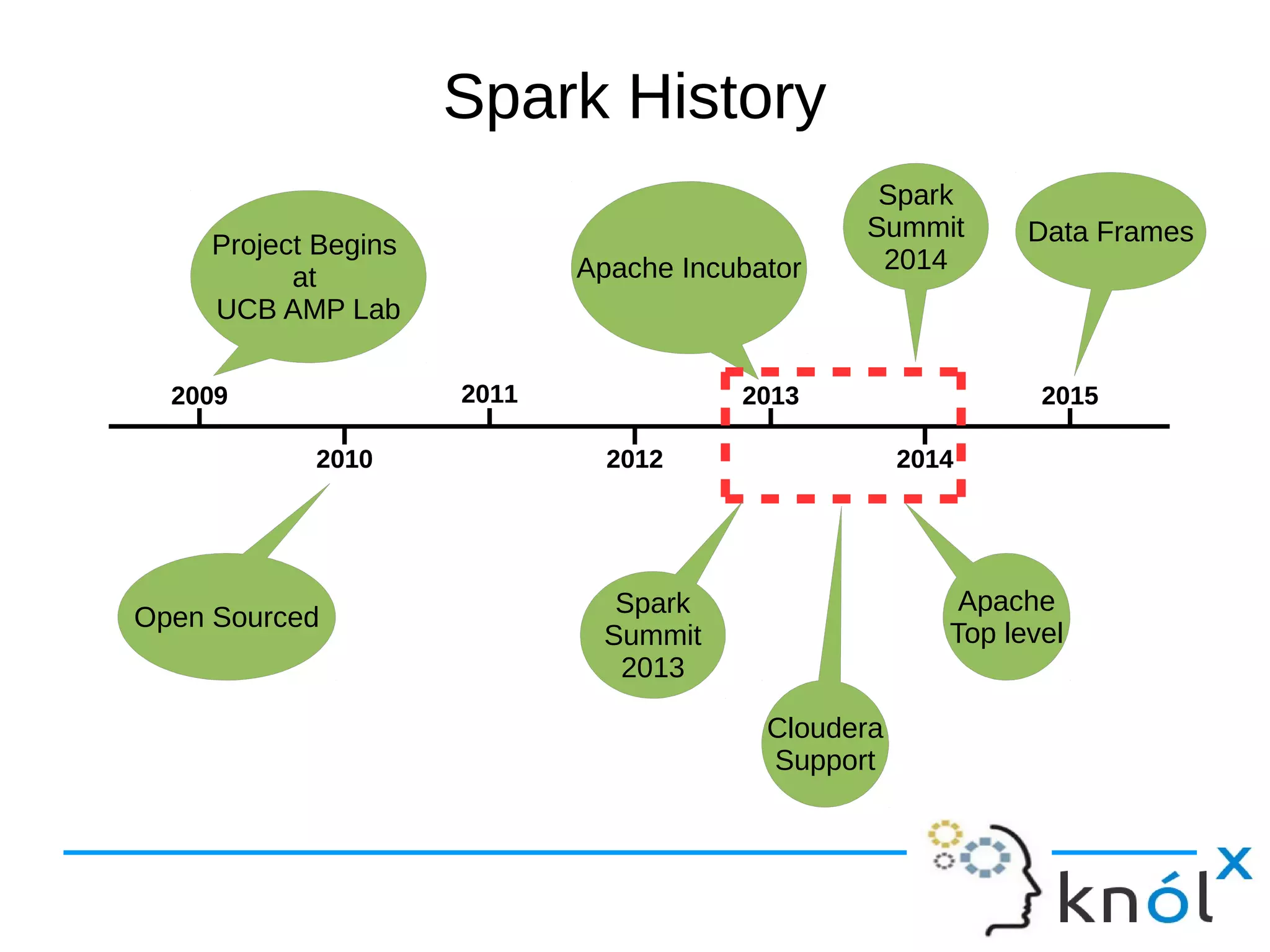

- 5. Spark HistorySpark History ProjectBegins at UCB AMP Lab 20092009 20102010 Open Sourced Apache Incubator 20112011 20122012 20132013 20142014 20152015 Data Frames Cloudera Support Apache Top level Spark Summit 2013 Spark Summit 2014

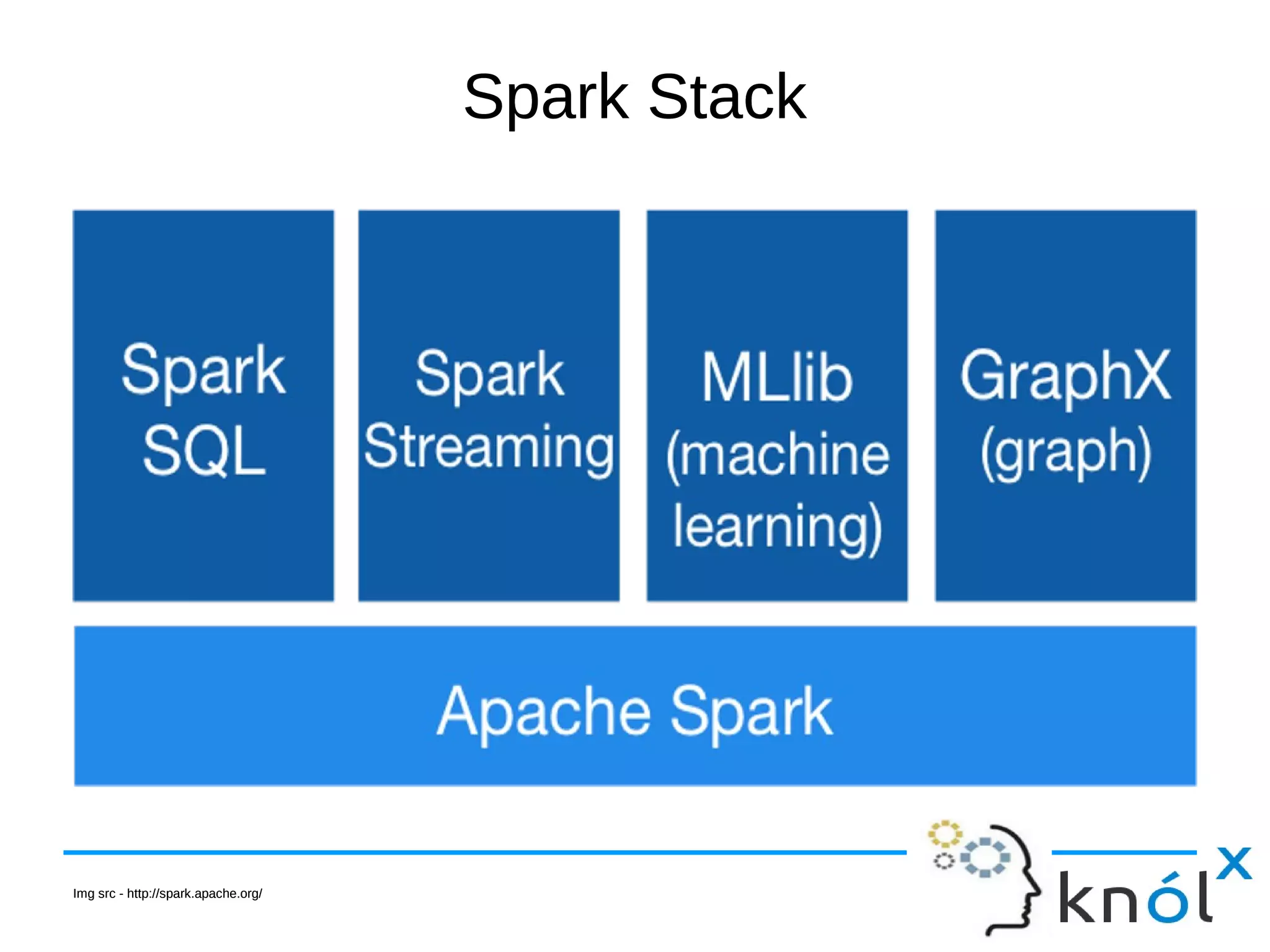

- 6. Spark StackSpark Stack Imgsrc - http://spark.apache.org/Img src - http://spark.apache.org/

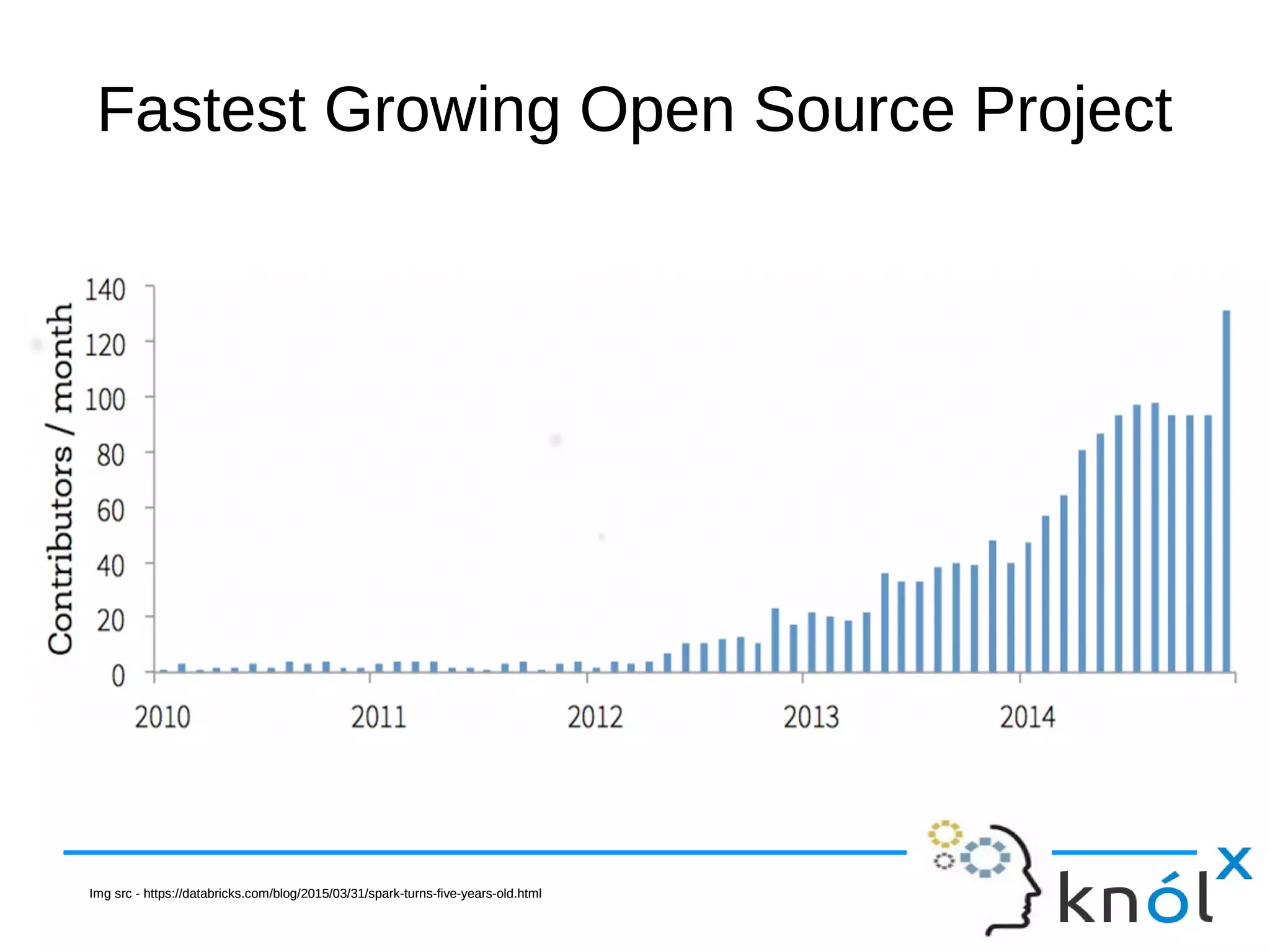

- 7. Fastest Growing OpenSource ProjectFastest Growing Open Source Project Img src - https://databricks.com/blog/2015/03/31/spark-turns-five-years-old.htmlImg src - https://databricks.com/blog/2015/03/31/spark-turns-five-years-old.html
- 8. AgendaAgenda ● What isSpark ? ● Why we need Spark ? ● Brief introduction to RDD ● Brief introduction to Spark Streaming ● How to install Spark ? ● Demo ● What is Spark ? ● Why we need Spark ? ● Brief introduction to RDD ● Brief introduction to Spark Streaming ● How to install Spark ? ● Demo

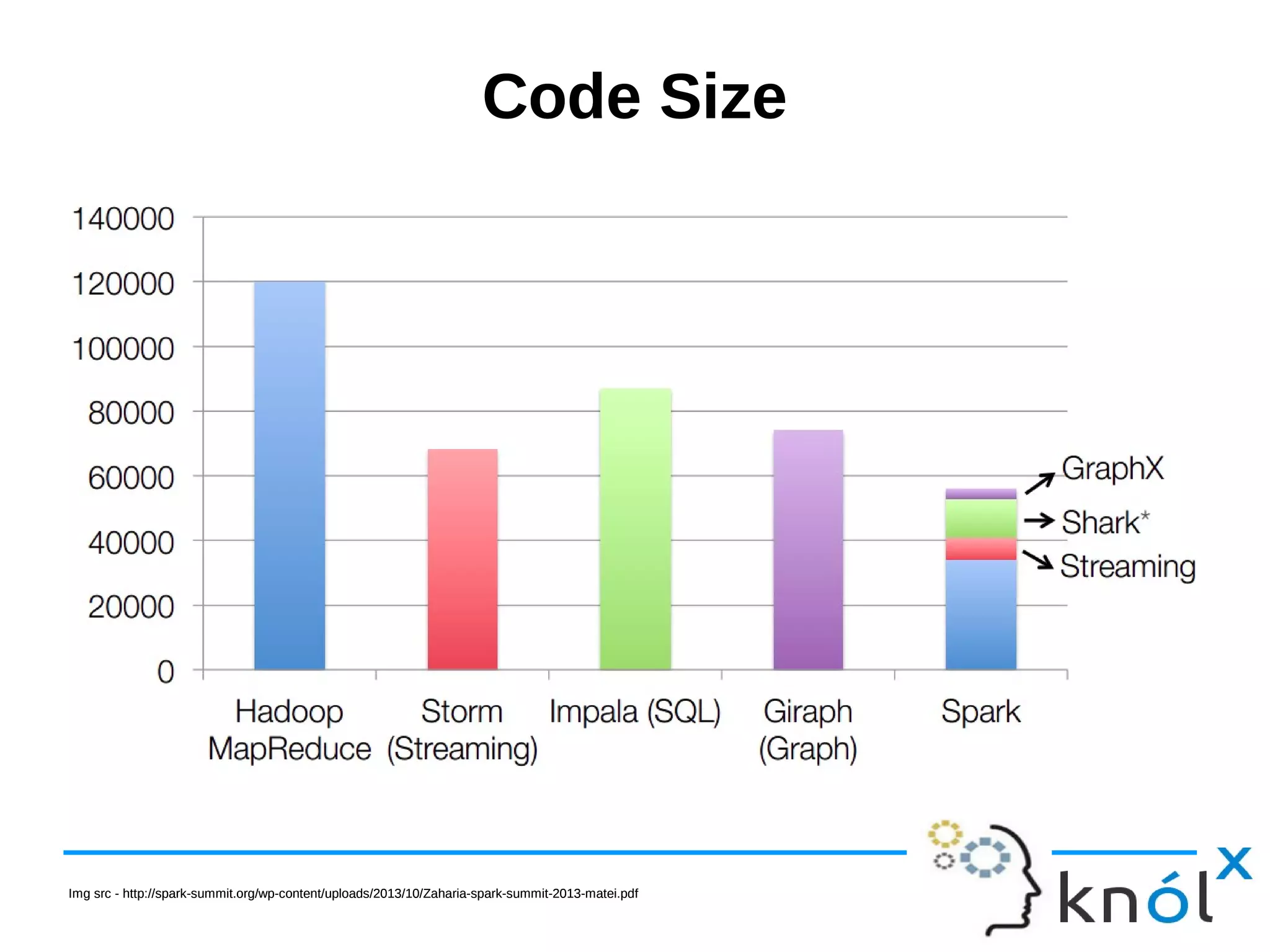

- 9. Code SizeCode Size Imgsrc - http://spark-summit.org/wp-content/uploads/2013/10/Zaharia-spark-summit-2013-matei.pdfImg src - http://spark-summit.org/wp-content/uploads/2013/10/Zaharia-spark-summit-2013-matei.pdf
- 10. Word Count Ex. publicstatic class WordCountMapClass extends MapReduceBase implements Mapper<LongWritable, Text, Text, IntWritable> { private final static IntWritable one = new IntWritable(1); private Text word = new Text(); } public void map(LongWritable key, Text value, OutputCollector<Text, IntWritable> output, Reporter reporter) throws IOException { String line = value.toString(); StringTokenizer itr = new StringTokenizer(line); while (itr.hasMoreTokens()) { word.set(itr.nextToken()); output.collect(word, one); } } public static class WorkdCountReduce extends MapReduceBase implements Reducer<Text, IntWritable, Text, IntWritable> { public void reduce(Text key, Iterator<IntWritable> values, OutputCollector<Text, IntWritable> output, Reporter reporter) throws IOException { int sum = 0; while (values.hasNext()) { sum += values.next().get(); } output.collect(key, new IntWritable(sum)); } } val file = spark.textFile("hdfs://...") val counts = file.flatMap(line => line.split(" ")) .map(word => (word, 1)) .reduceByKey(_ + _) counts.saveAsTextFile("hdfs://...")

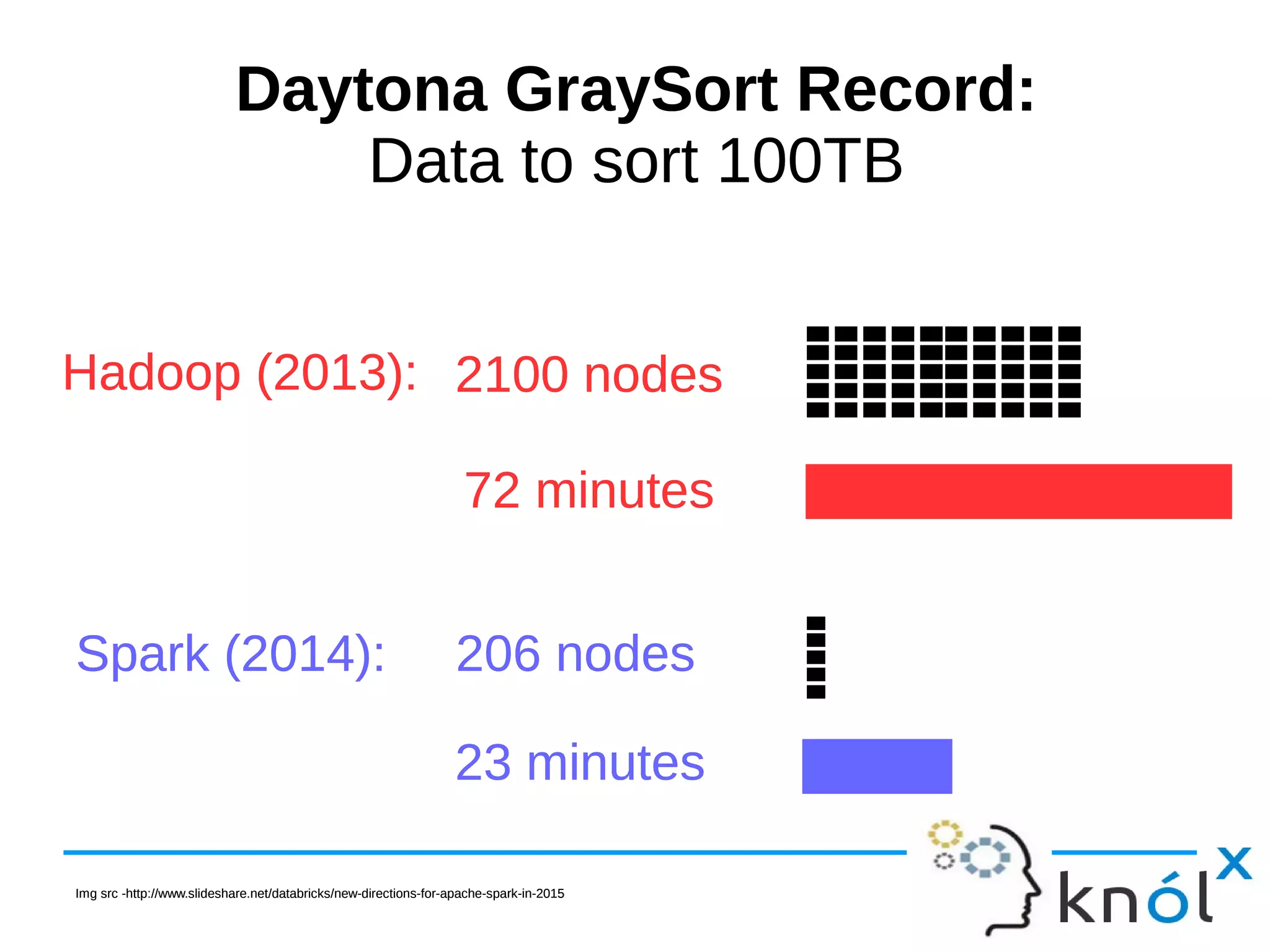

- 11. Daytona GraySort Record: Datato sort 100TB Daytona GraySort Record: Data to sort 100TB Img src -http://www.slideshare.net/databricks/new-directions-for-apache-spark-in-2015Img src -http://www.slideshare.net/databricks/new-directions-for-apache-spark-in-2015 Hadoop (2013):Hadoop (2013): 2100 nodes2100 nodes 72 minutes72 minutes Spark (2014):Spark (2014): 206 nodes206 nodes 23 minutes23 minutes
- 12. Runs EverywhereRuns Everywhere Imgsrc - http://spark.apache.org/
- 13. Who are usingApache Spark ?Who are using Apache Spark ? Img src - http://www.slideshare.net/datamantra/introduction-to-apache-spark-45062010Img src - http://www.slideshare.net/datamantra/introduction-to-apache-spark-45062010

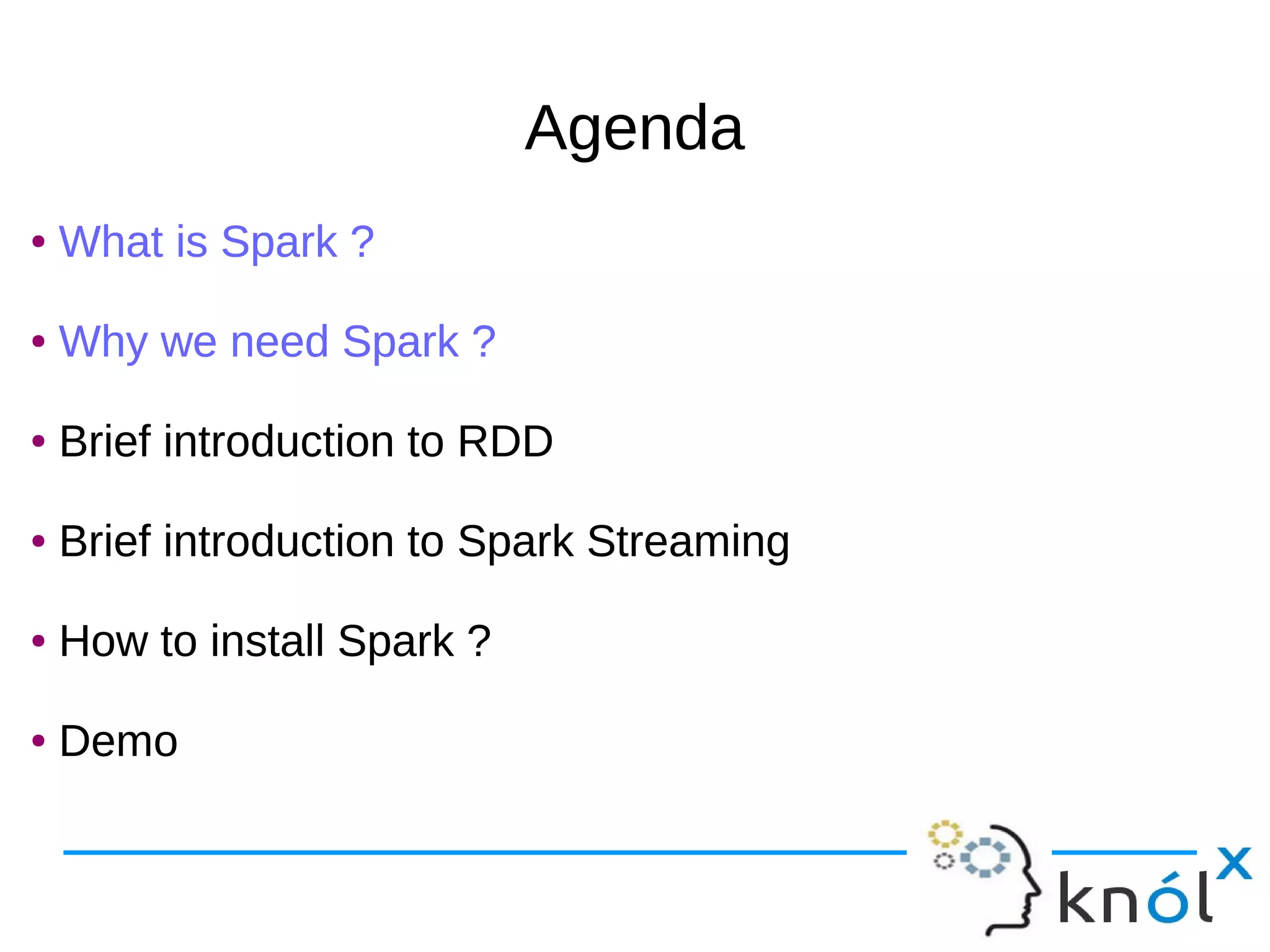

- 14. AgendaAgenda ● What isSpark ? ● Why we need Spark ? ● Brief introduction to RDD ● Brief introduction to Spark Streaming ● How to install Spark ? ● Demo ● What is Spark ? ● Why we need Spark ? ● Brief introduction to RDD ● Brief introduction to Spark Streaming ● How to install Spark ? ● Demo

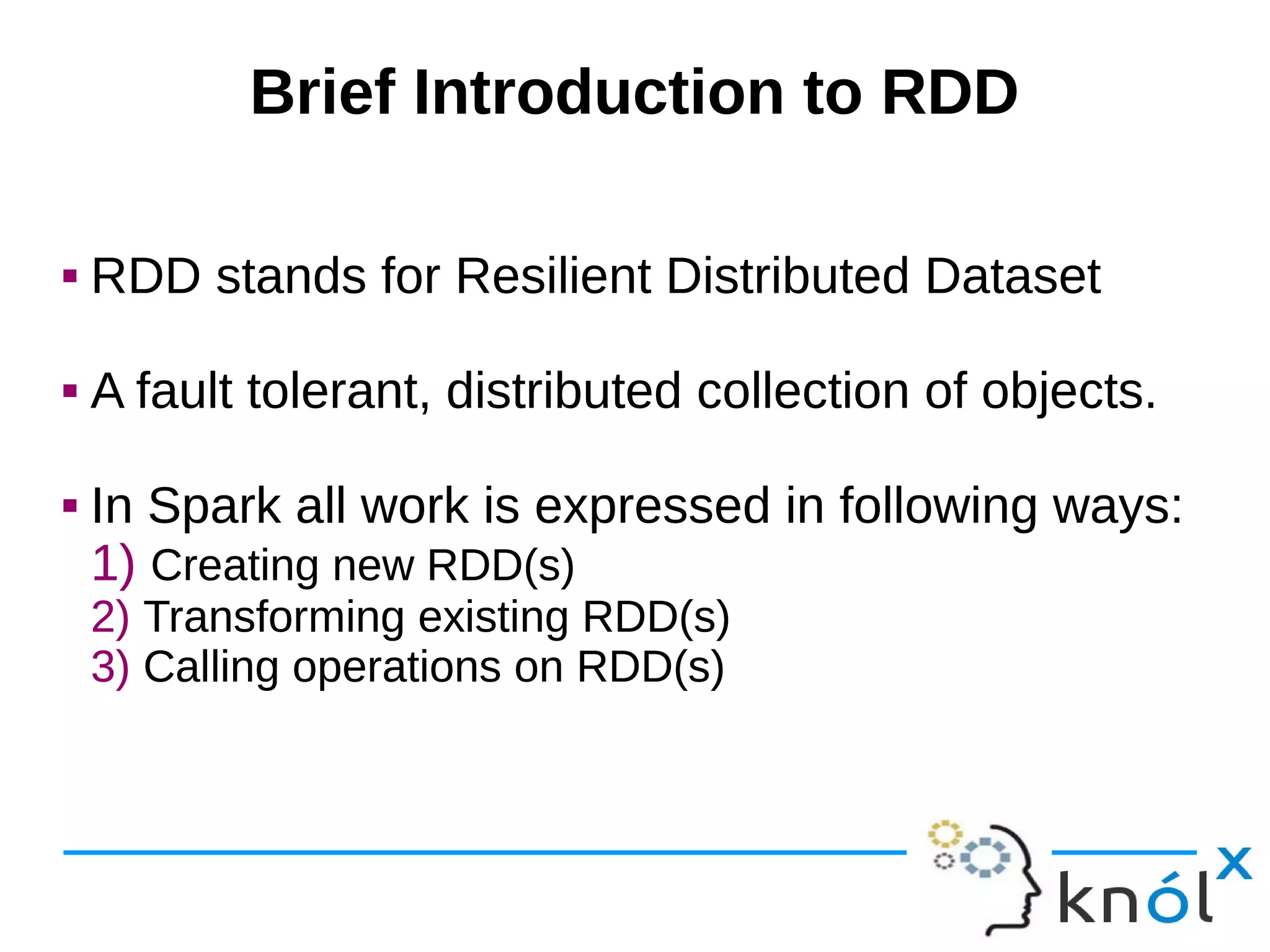

- 15. Brief Introduction toRDDBrief Introduction to RDD RDD stands for Resilient Distributed Dataset A fault tolerant, distributed collection of objects. In Spark all work is expressed in following ways: 1) Creating new RDD(s) 2) Transforming existing RDD(s) 3) Calling operations on RDD(s) RDD stands for Resilient Distributed Dataset A fault tolerant, distributed collection of objects. In Spark all work is expressed in following ways: 1) Creating new RDD(s) 2) Transforming existing RDD(s) 3) Calling operations on RDD(s)

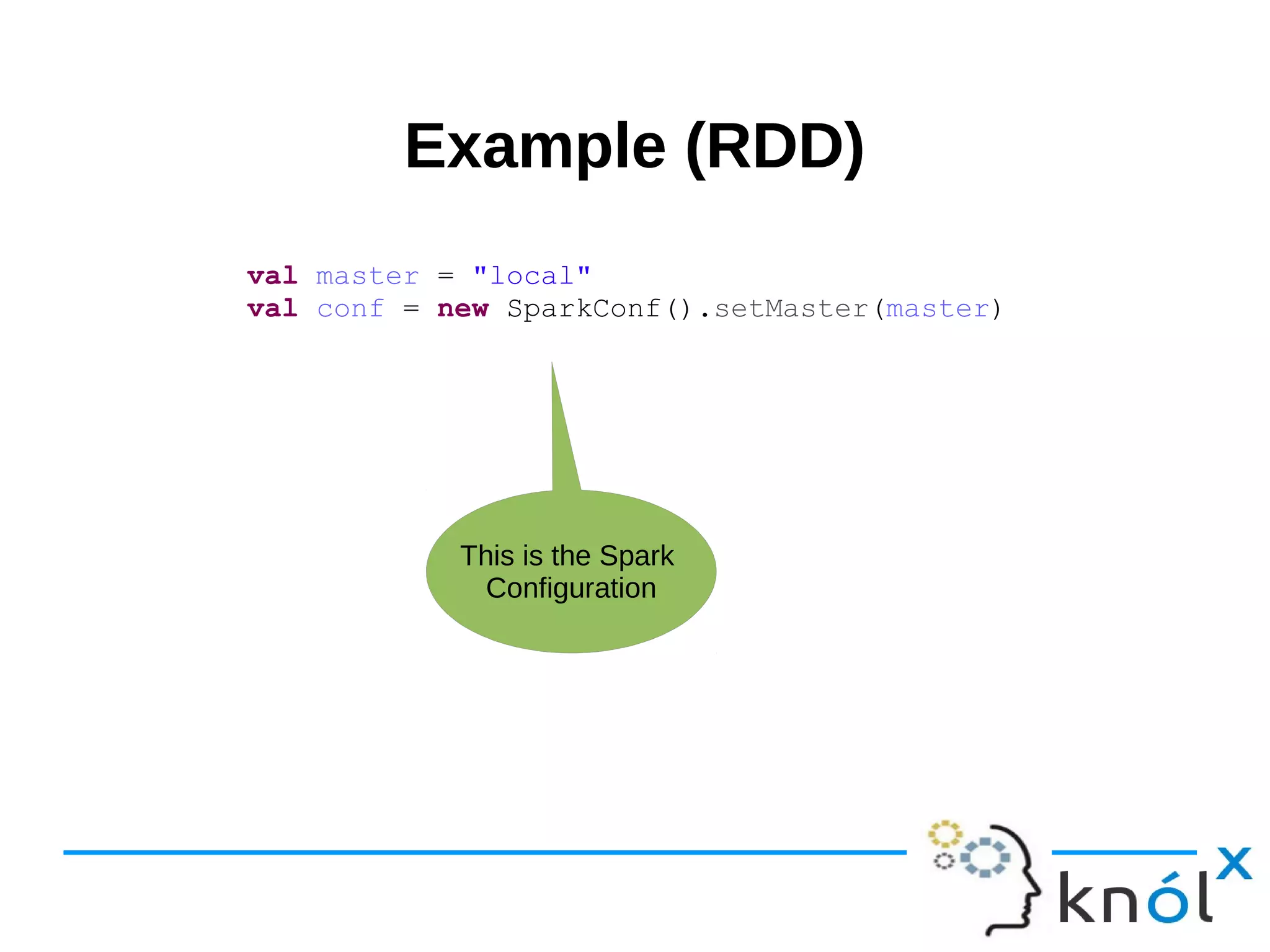

- 16. Example (RDD)Example (RDD) valmaster = "local" val conf = new SparkConf().setMaster(master) This is the Spark Configuration

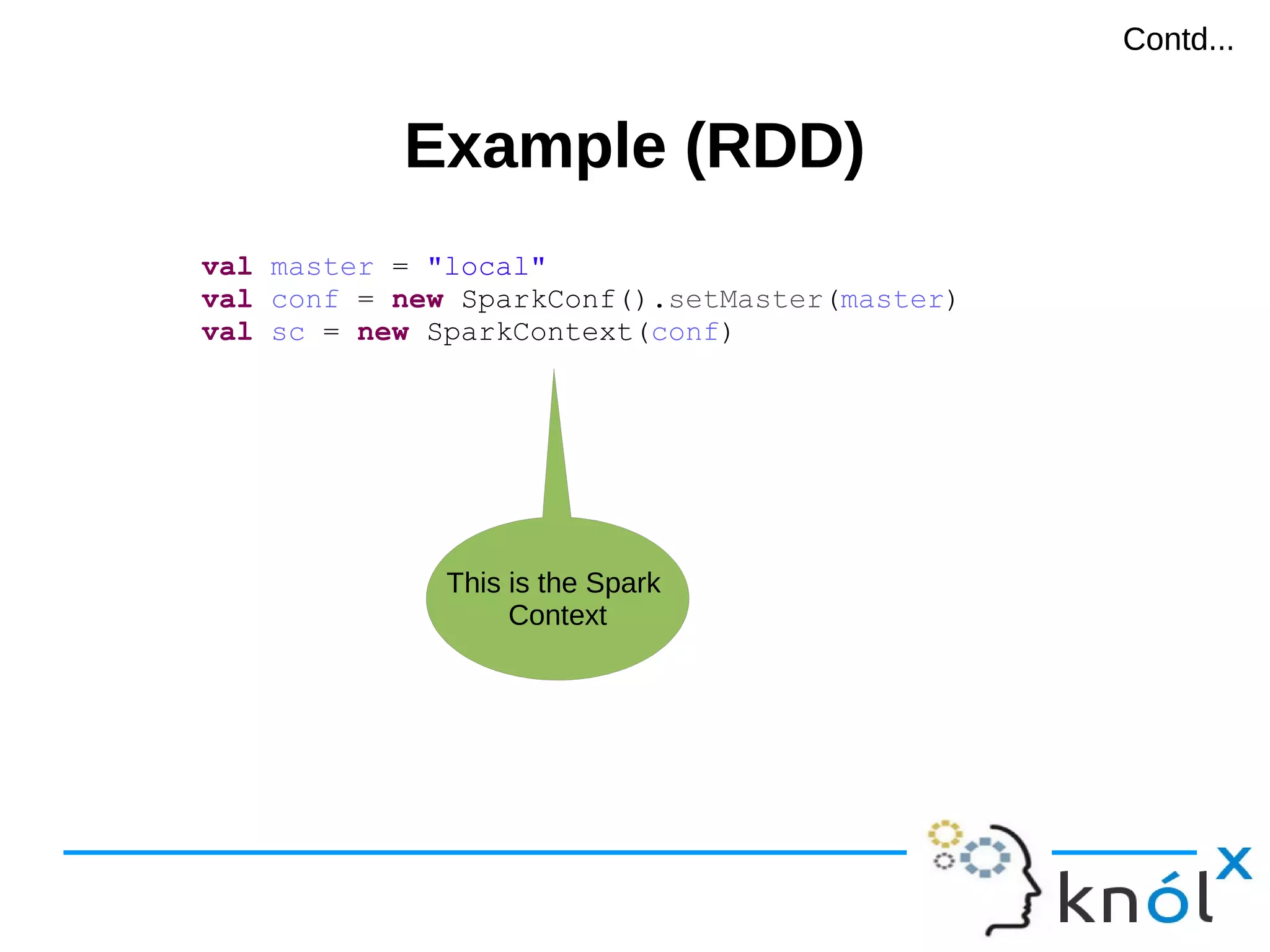

- 17. Example (RDD)Example (RDD) valmaster = "local" val conf = new SparkConf().setMaster(master) val sc = new SparkContext(conf) This is the Spark Context Contd...Contd...
- 18. Example (RDD)Example (RDD) valmaster = "local" val conf = new SparkConf().setMaster(master) val sc = new SparkContext(conf) This is the Spark Context Contd...Contd...

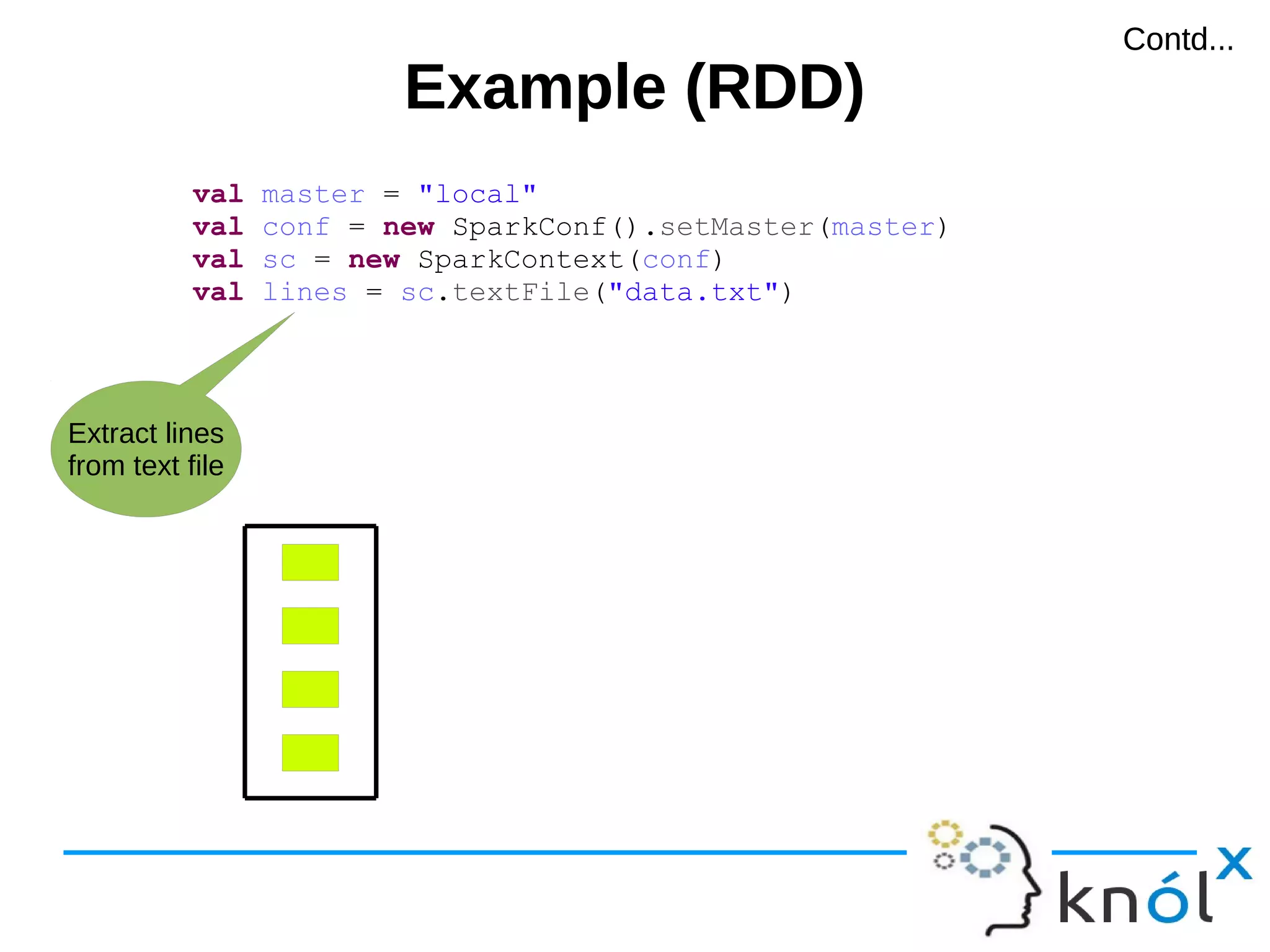

- 19. Example (RDD)Example (RDD) valmaster = "local" val conf = new SparkConf().setMaster(master) val sc = new SparkContext(conf) val lines = sc.textFile("data.txt") Extract lines from text file Contd...Contd...

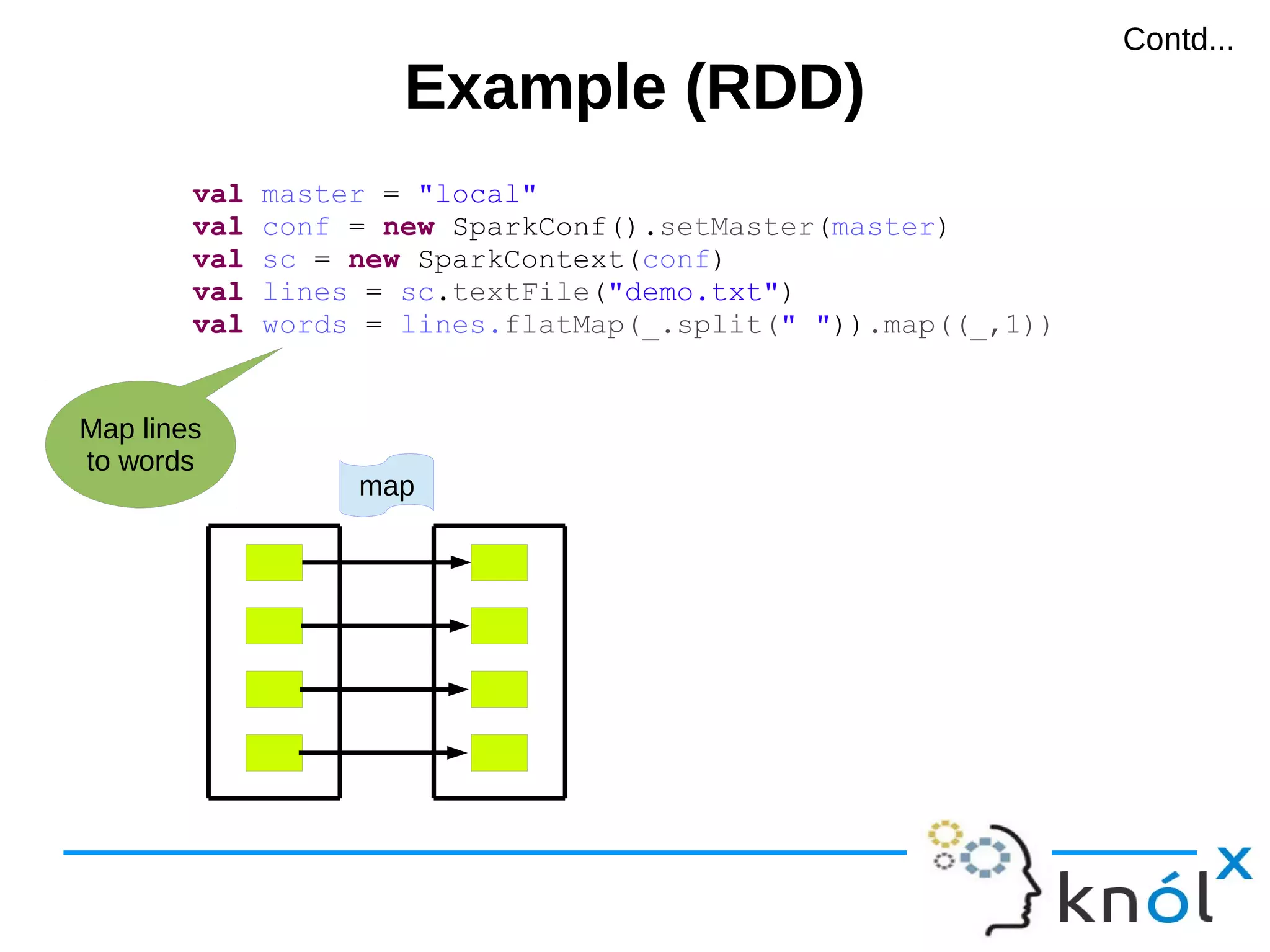

- 20. Example (RDD)Example (RDD) valmaster = "local" val conf = new SparkConf().setMaster(master) val sc = new SparkContext(conf) val lines = sc.textFile("demo.txt") val words = lines.flatMap(_.split(" ")).map((_,1)) Map lines to words map Contd...Contd...
- 21. Example (RDD)Example (RDD) valmaster = "local" val conf = new SparkConf().setMaster(master) val sc = new SparkContext(conf) val lines = sc.textFile("demo.txt") val words = lines.flatMap(_.split(" ")).map((_,1)) val wordCountRDD = words.reduceByKey(_ + _) Word Count RDD map groupBy Contd...Contd...
- 22. Example (RDD)Example (RDD) valmaster = "local" val conf = new SparkConf().setMaster(master) val sc = new SparkContext(conf) val lines = sc.textFile("demo.txt") val words = lines.flatMap(_.split(" ")).map((_,1)) val wordCountRDD = words.reduceByKey(_ + _) val wordCount = wordCountRDD.collect Map[word, count] map groupBy collect Starts Computation Contd...Contd...

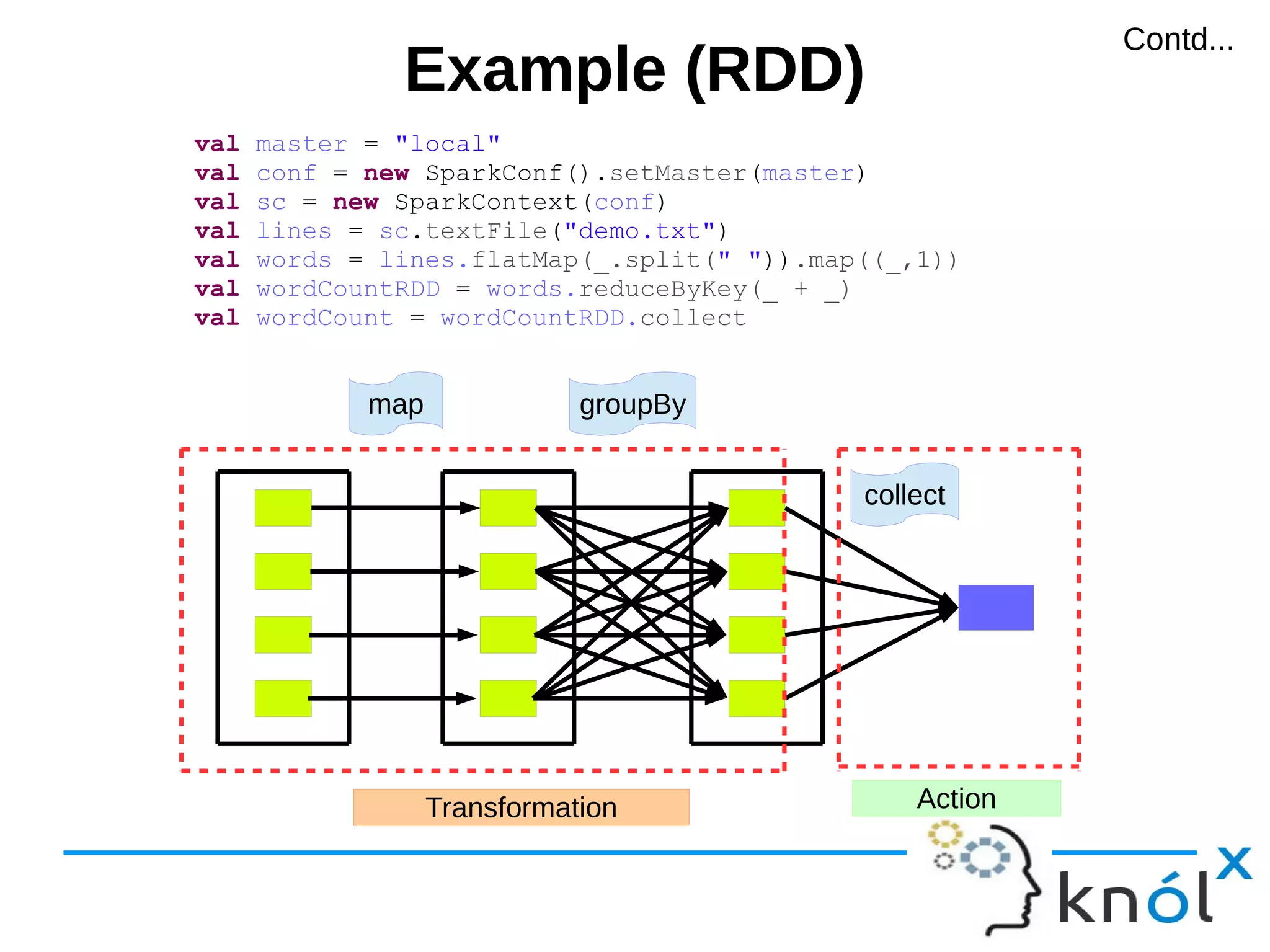

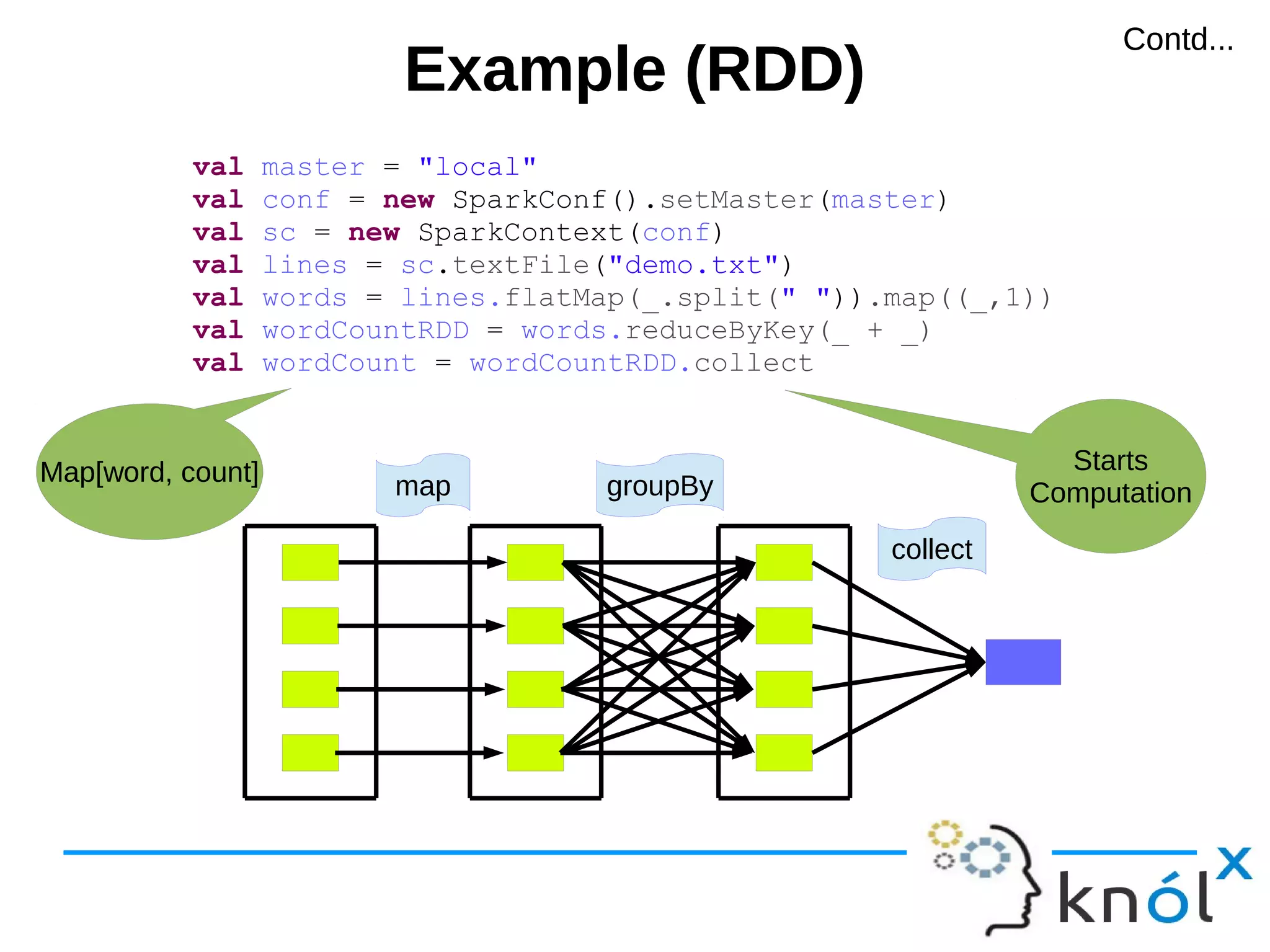

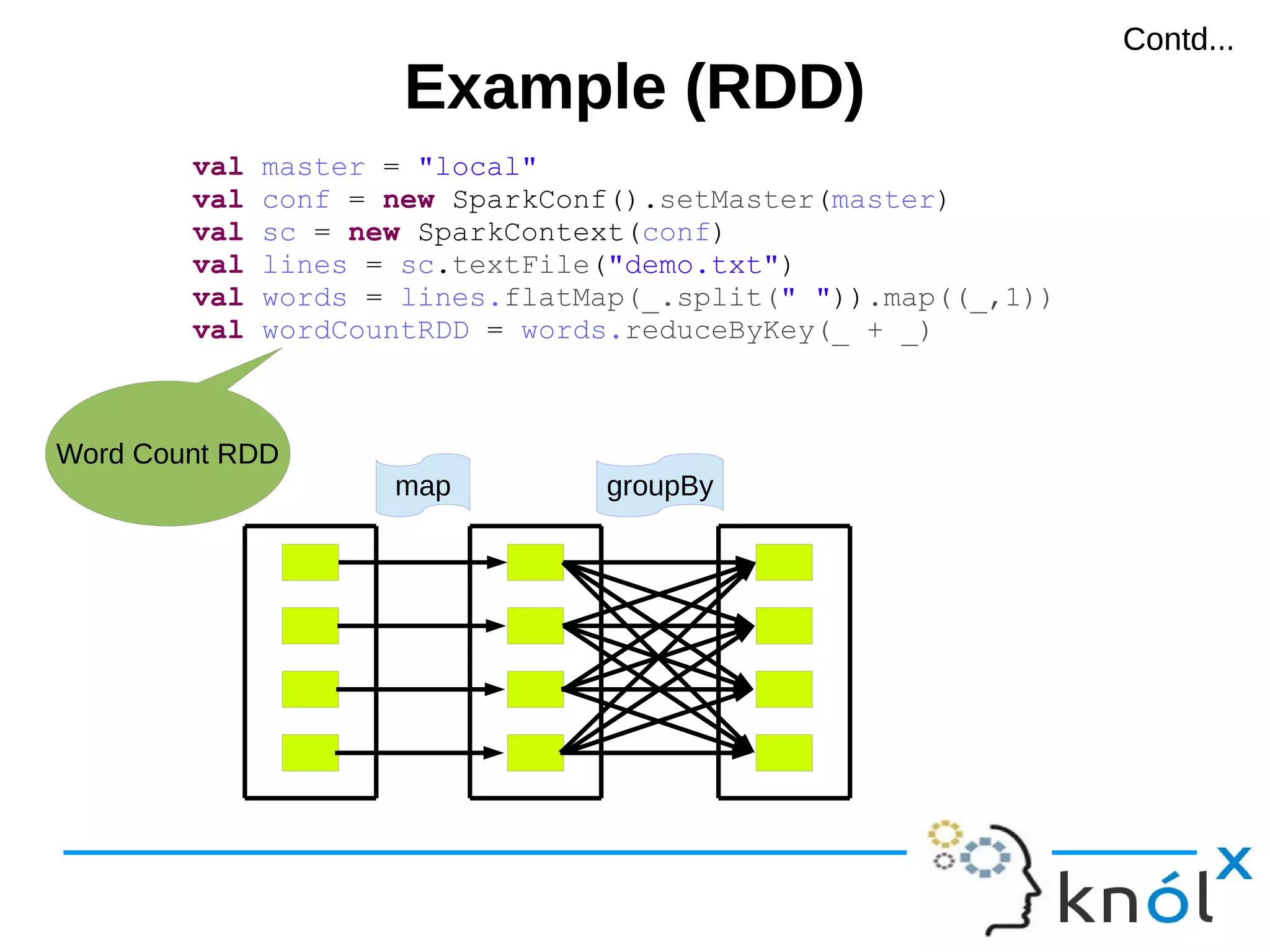

- 23. Example (RDD)Example (RDD) valmaster = "local" val conf = new SparkConf().setMaster(master) val sc = new SparkContext(conf) val lines = sc.textFile("demo.txt") val words = lines.flatMap(_.split(" ")).map((_,1)) val wordCountRDD = words.reduceByKey(_ + _) val wordCount = wordCountRDD.collect map groupBy collect Transformation Action Contd...Contd...

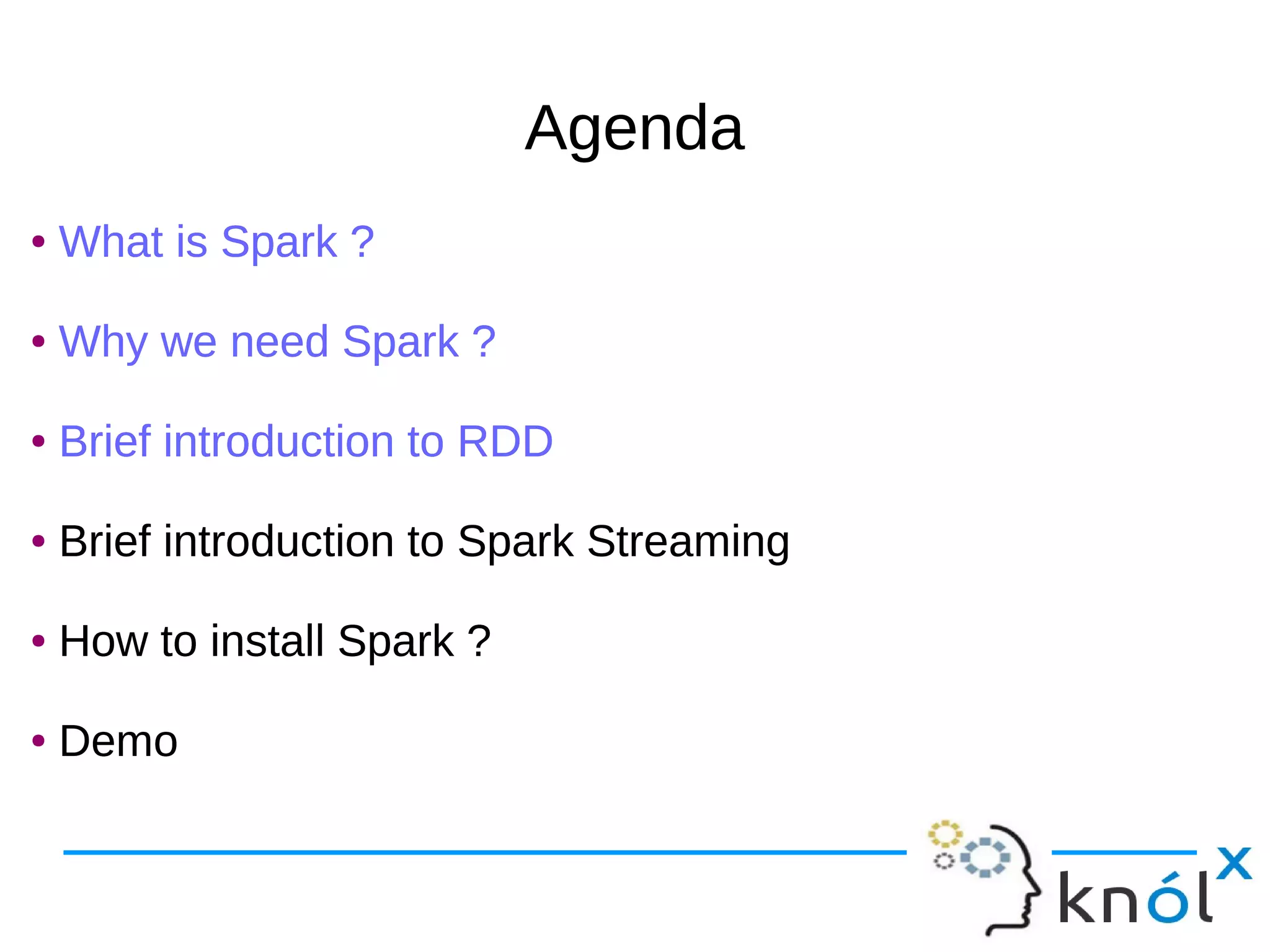

- 24. AgendaAgenda ● What isSpark ? ● Why we need Spark ? ● Brief introduction to RDD ● Brief introduction to Spark Streaming ● How to install Spark ? ● Demo ● What is Spark ? ● Why we need Spark ? ● Brief introduction to RDD ● Brief introduction to Spark Streaming ● How to install Spark ? ● Demo

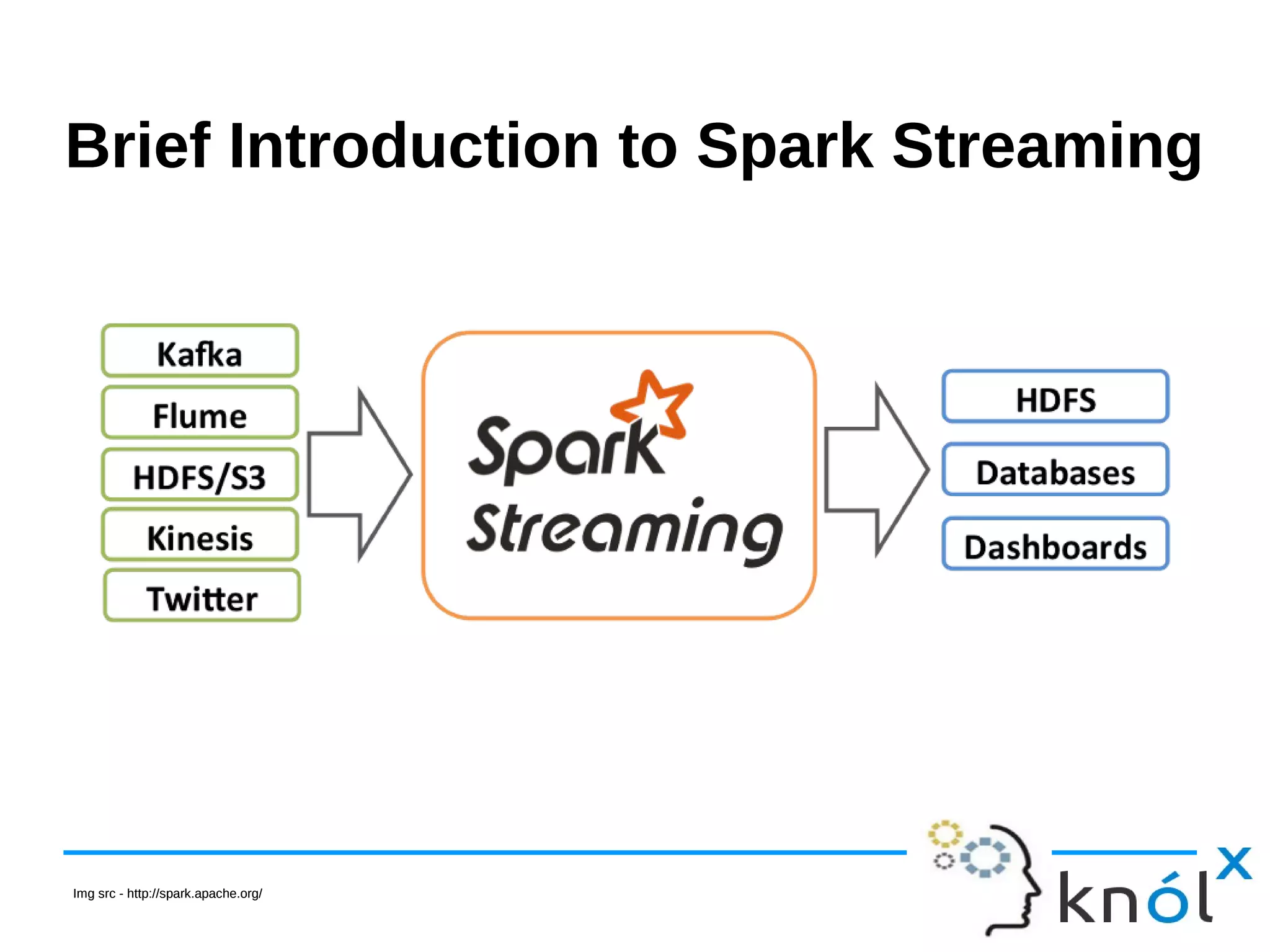

- 25. Brief Introduction toSpark StreamingBrief Introduction to Spark Streaming Img src - http://spark.apache.org/Img src - http://spark.apache.org/

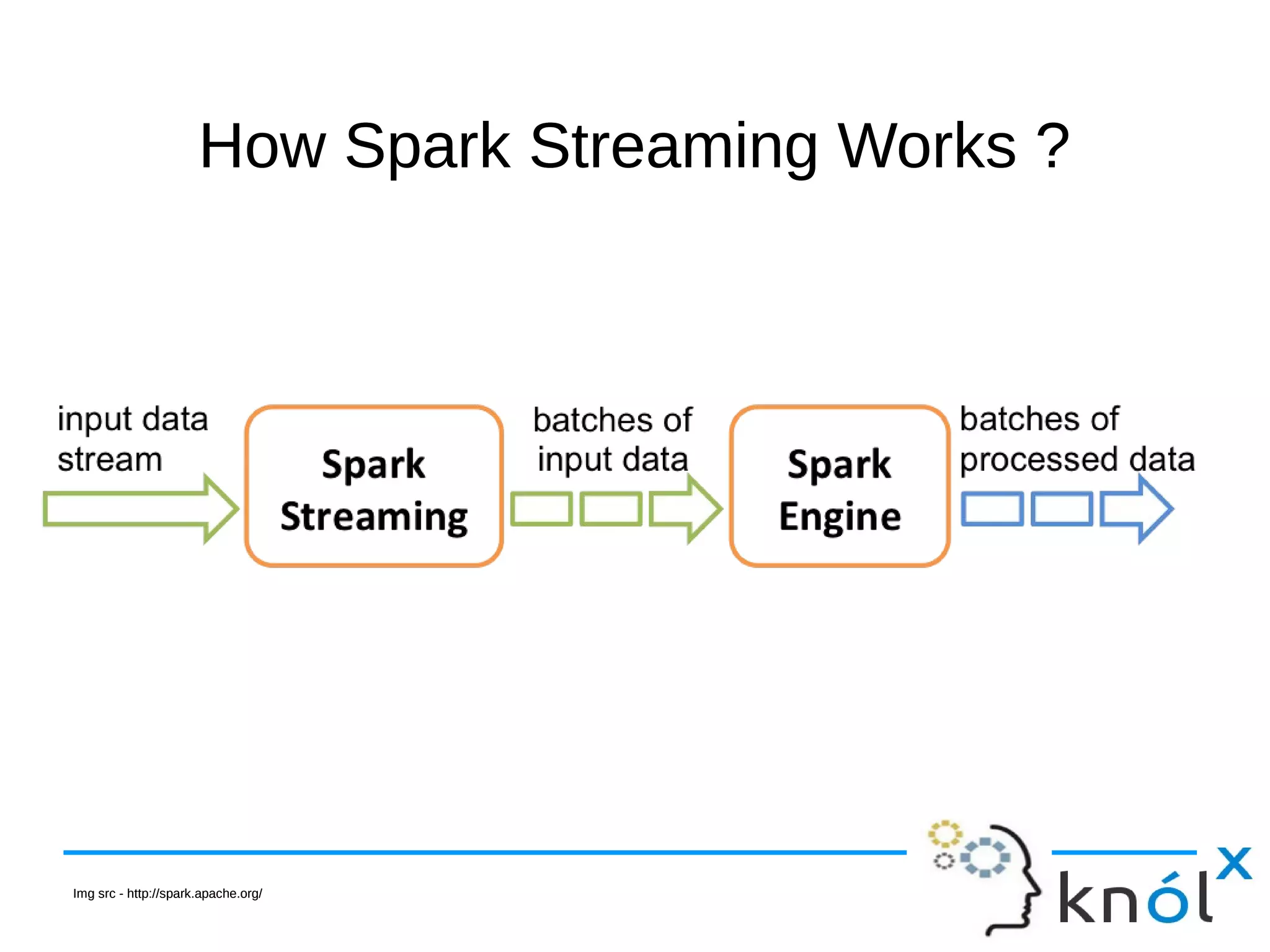

- 26. How Spark StreamingWorks ?How Spark Streaming Works ? Img src - http://spark.apache.org/Img src - http://spark.apache.org/

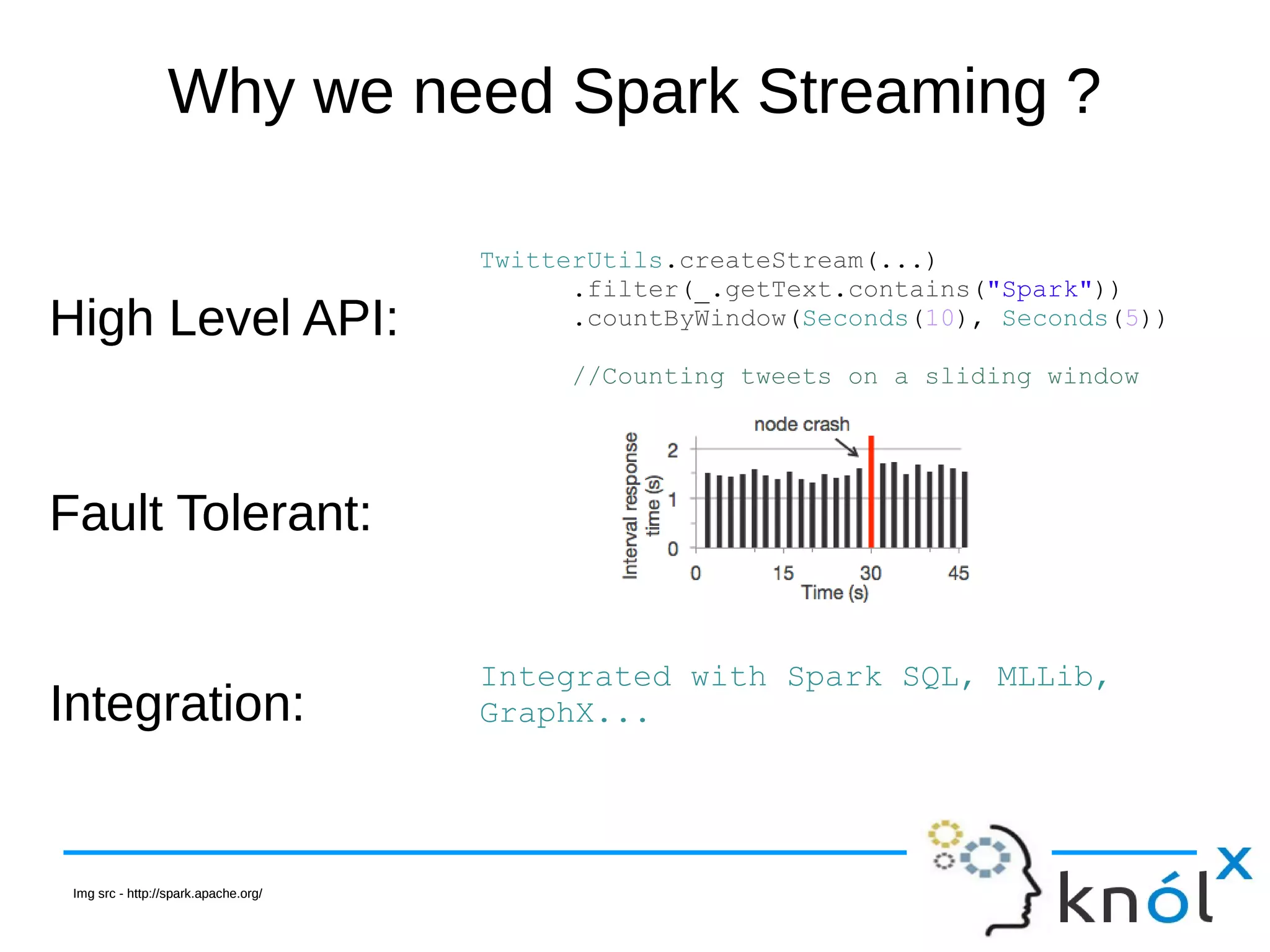

- 27. Why we needSpark Streaming ?Why we need Spark Streaming ? High Level API:High Level API: TwitterUtils.createStream(...) .filter(_.getText.contains("Spark")) .countByWindow(Seconds(10), Seconds(5)) //Counting tweets on a sliding window Fault Tolerant:Fault Tolerant: Integration:Integration: Img src - http://spark.apache.org/Img src - http://spark.apache.org/ Integrated with Spark SQL, MLLib, GraphX...

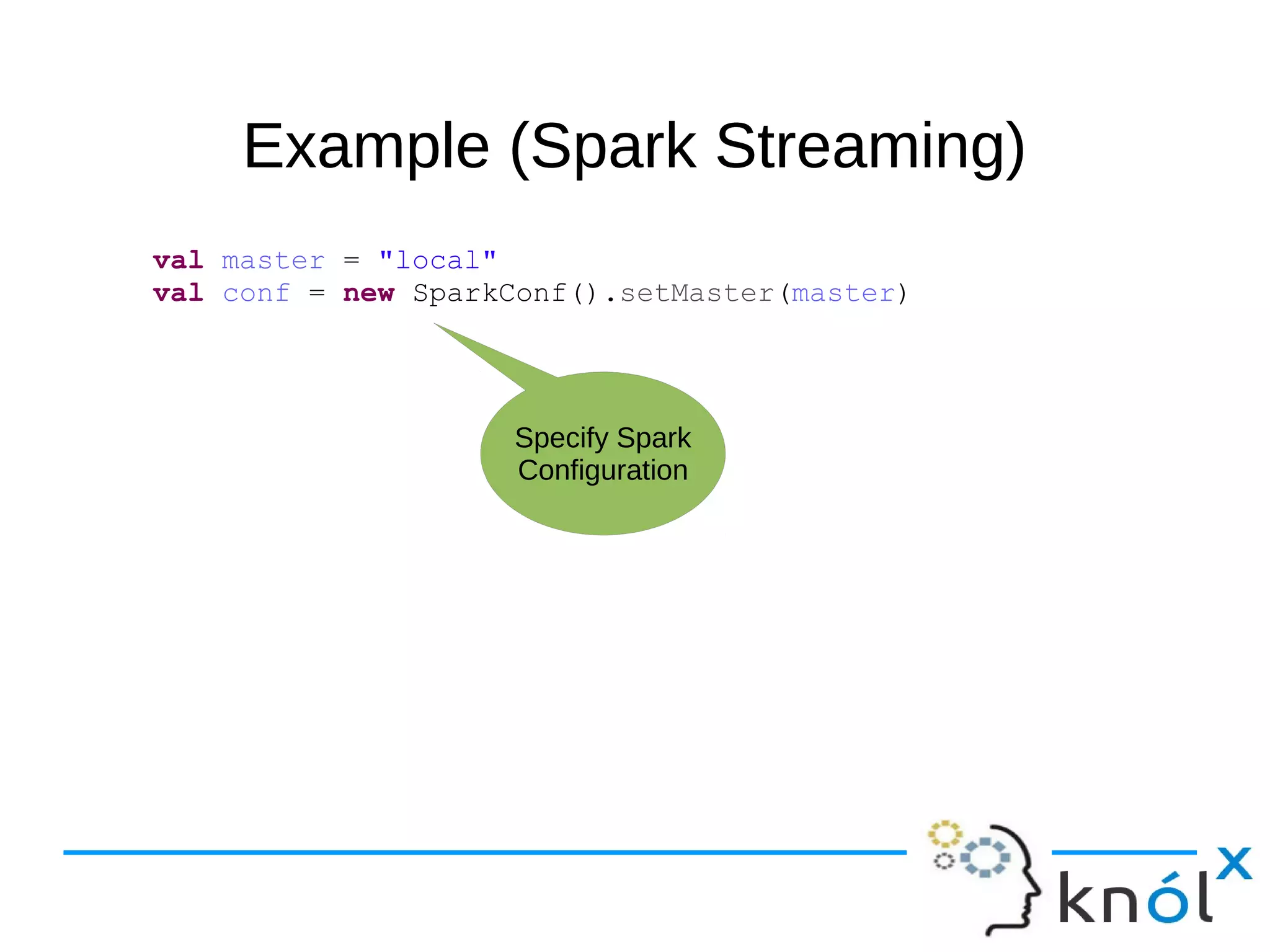

- 28. Example (Spark Streaming)Example(Spark Streaming) val master = "local" val conf = new SparkConf().setMaster(master) Specify Spark Configuration

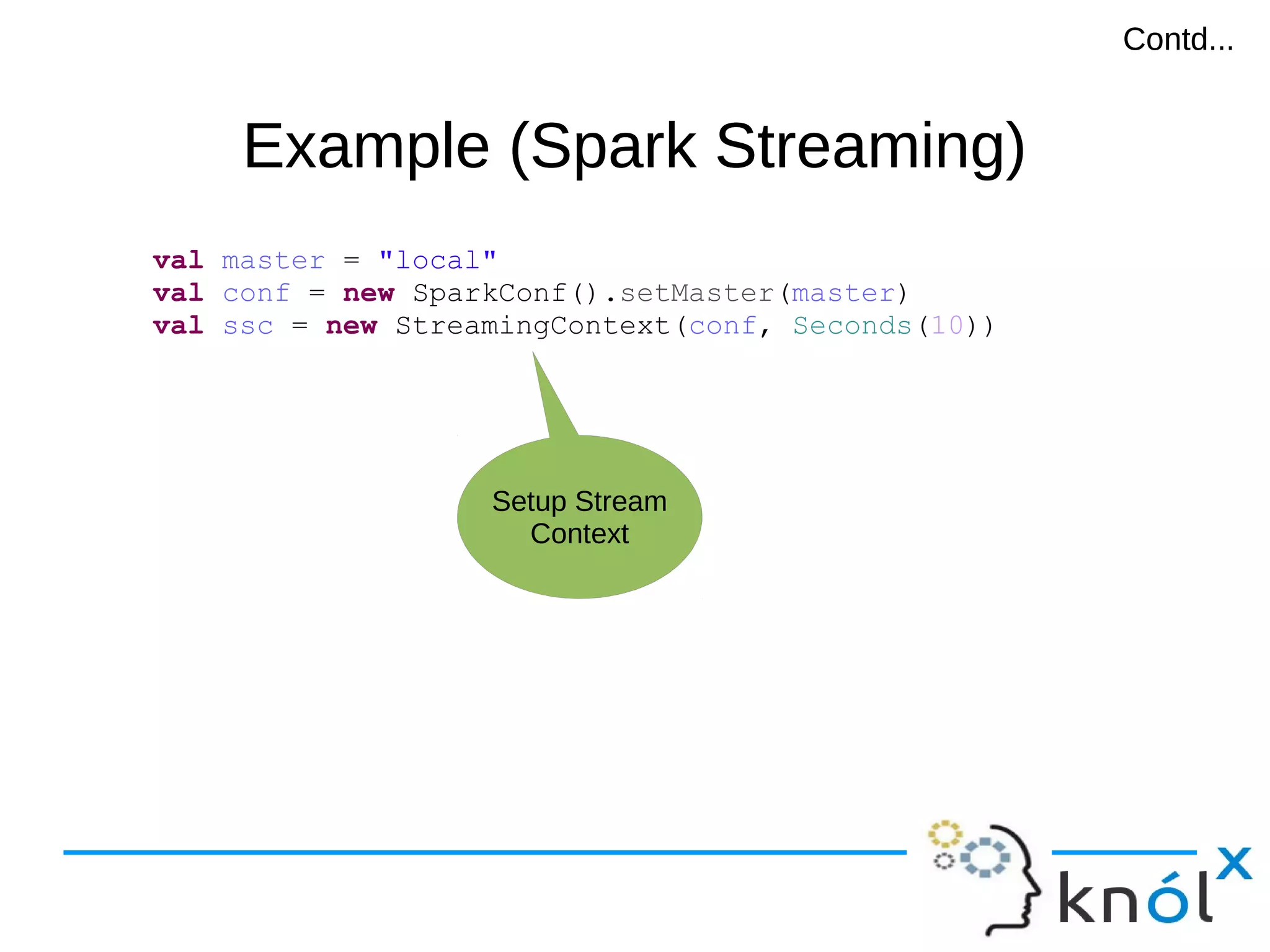

- 29. Example (Spark Streaming)Example(Spark Streaming) val master = "local" val conf = new SparkConf().setMaster(master) val ssc = new StreamingContext(conf, Seconds(10)) Setup Stream Context Contd...Contd...
- 30. Example (Spark Streaming)Example(Spark Streaming) val master = "local" val conf = new SparkConf().setMaster(master) val ssc = new StreamingContext(conf, Seconds(10)) val lines = ssc.socketTextStream("localhost", 9999) This is the ReceiverInputDStream lines DStream at time 0 - 1 at time 1 - 2 at time 2 - 3 at time 3 - 4 Contd...Contd...

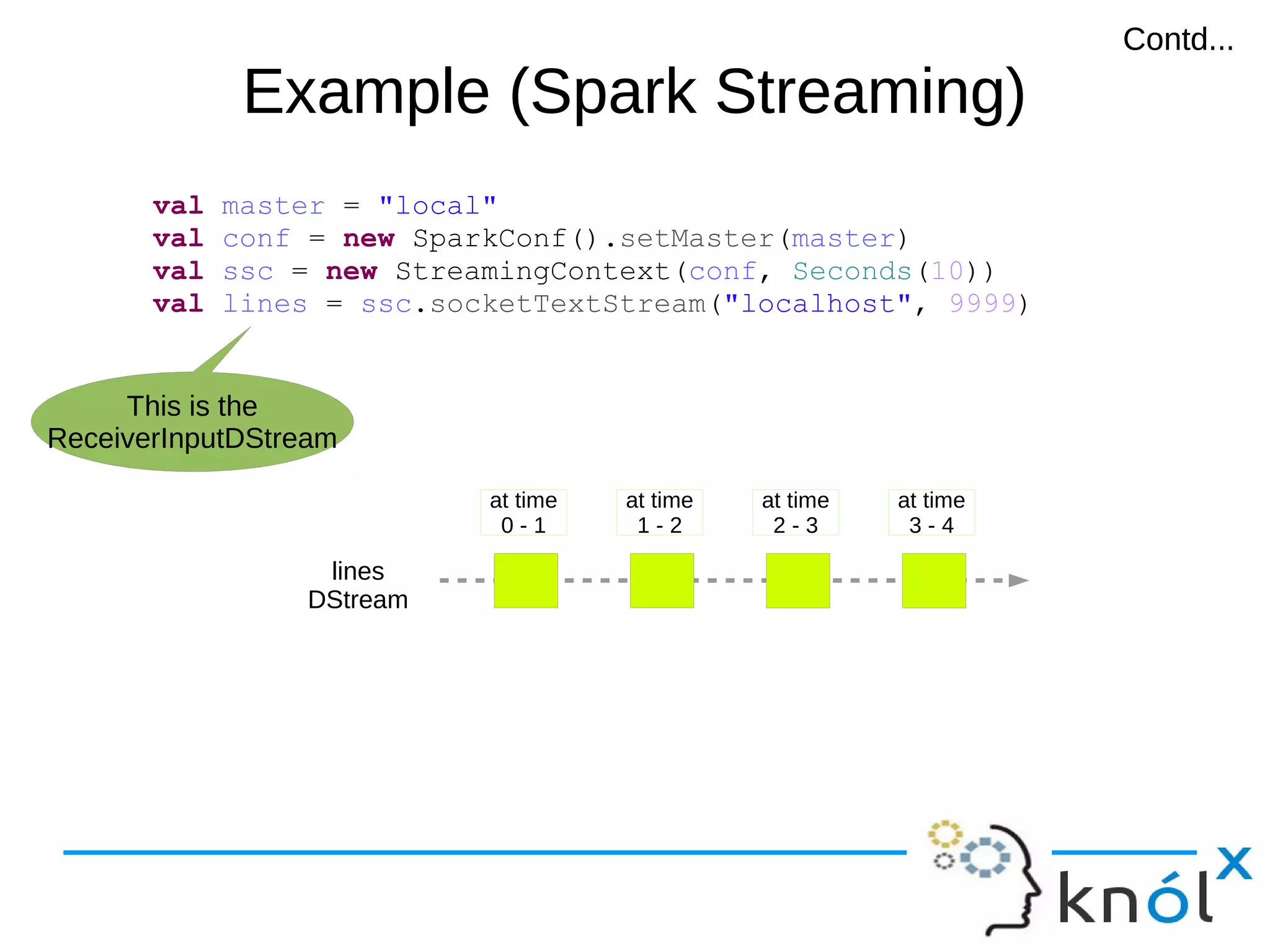

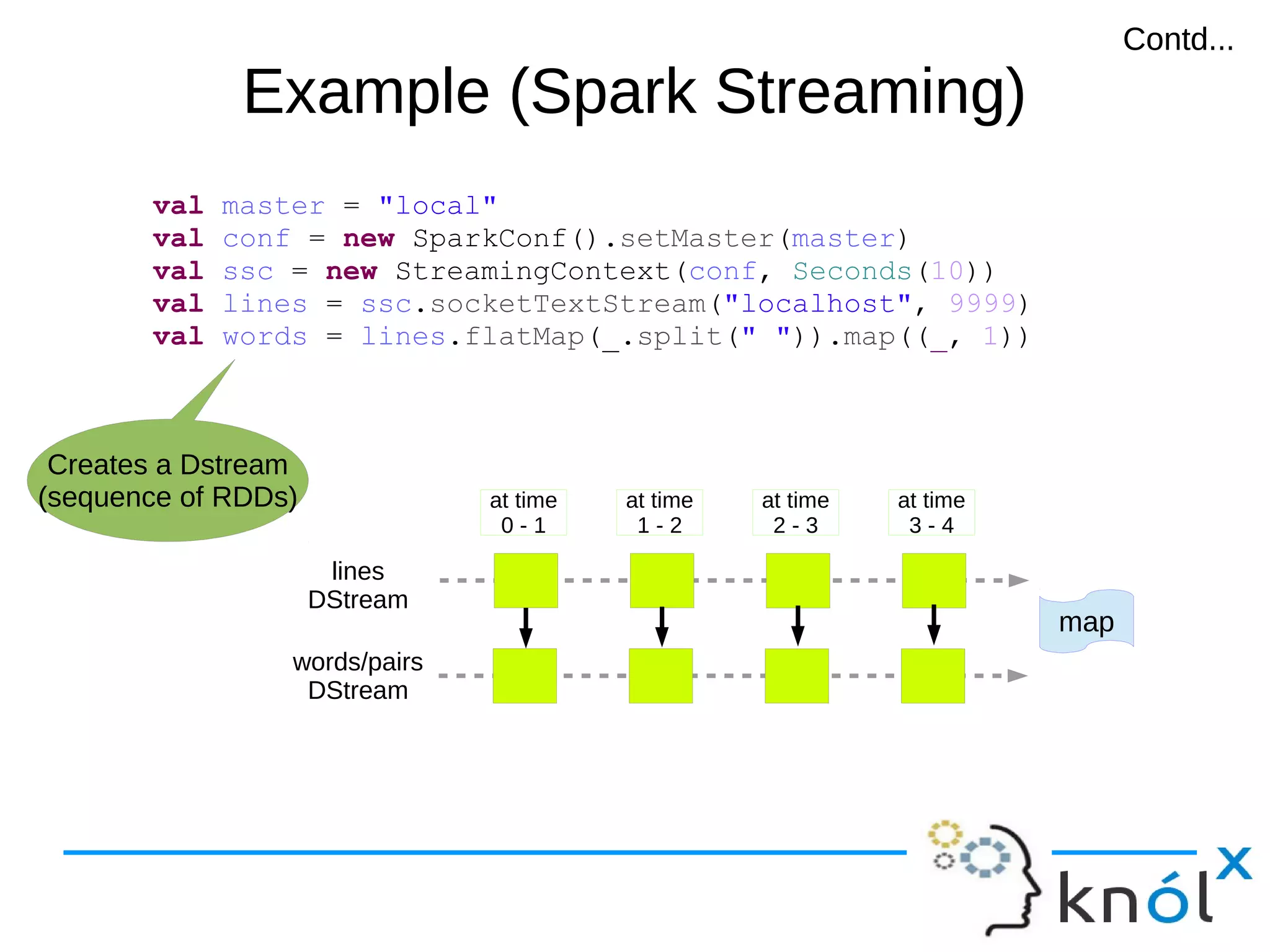

- 31. Example (Spark Streaming)Example(Spark Streaming) val master = "local" val conf = new SparkConf().setMaster(master) val ssc = new StreamingContext(conf, Seconds(10)) val lines = ssc.socketTextStream("localhost", 9999) val words = lines.flatMap(_.split(" ")).map((_, 1)) lines DStream at time 0 - 1 words/pairs DStream at time 1 - 2 at time 2 - 3 at time 3 - 4 map Creates a Dstream (sequence of RDDs) Contd...Contd...
- 32. Example (Spark Streaming)Example(Spark Streaming) val master = "local" val conf = new SparkConf().setMaster(master) val ssc = new StreamingContext(conf, Seconds(10)) val lines = ssc.socketTextStream("localhost", 9999) val words = lines.flatMap(_.split(" ")).map((_, 1)) val wordCounts = words.reduceByKey(_ + _) lines DStream at time 0 - 1 words/pairs DStream at time 1 - 2 at time 2 - 3 at time 3 - 4 wordCount DStream map groupBy Groups Dstream by Words Contd...Contd...

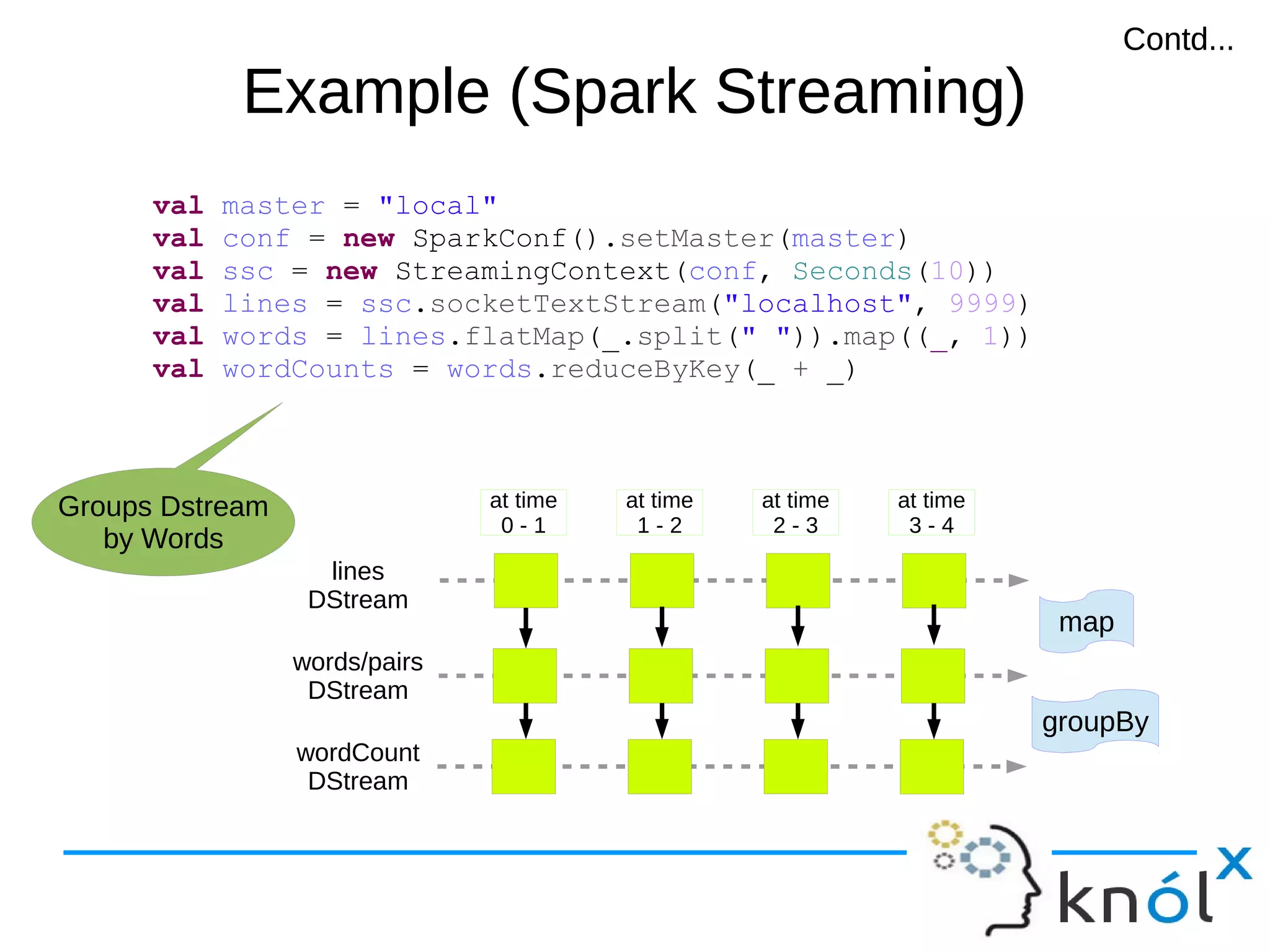

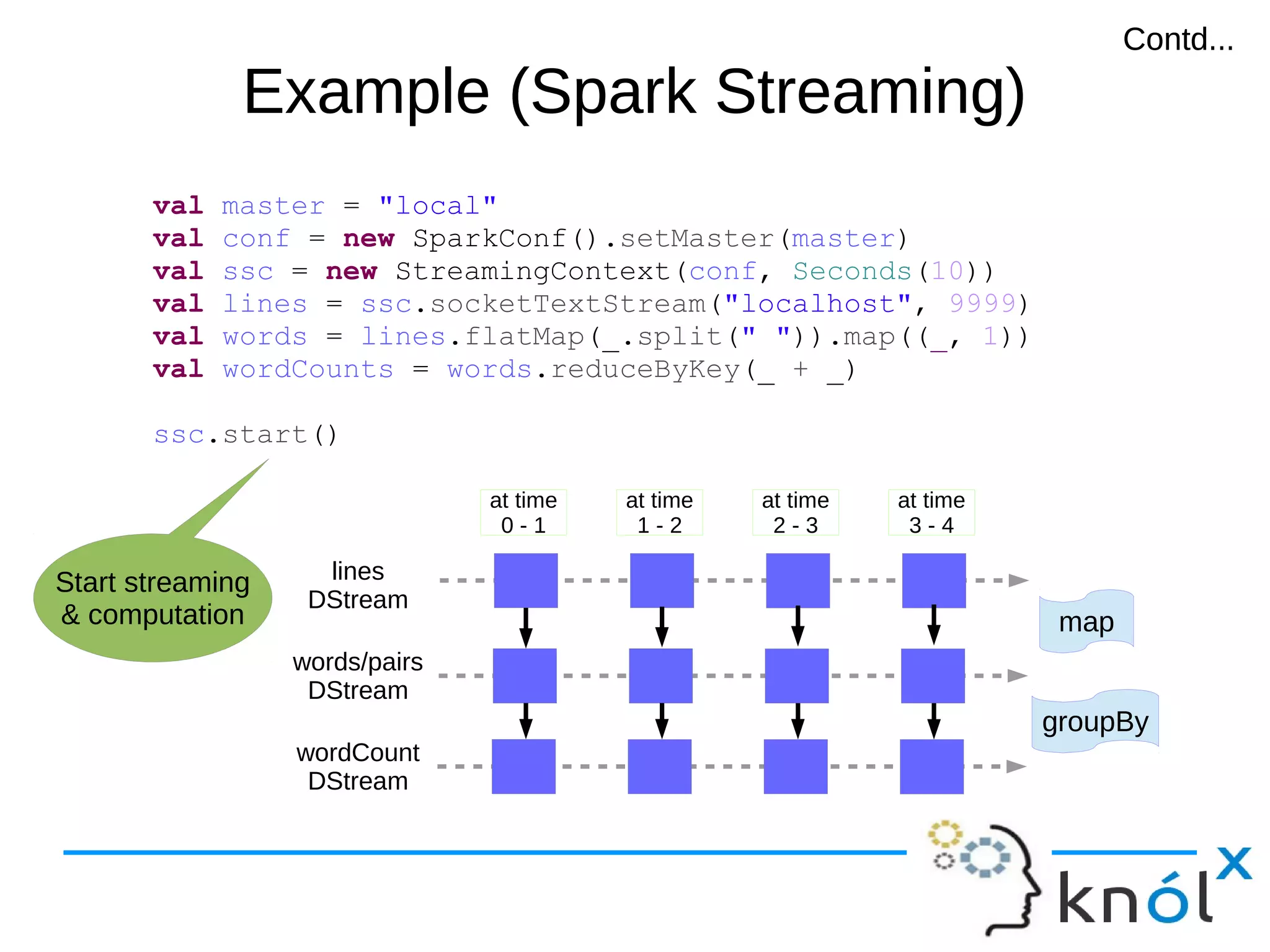

- 33. Example (Spark Streaming)Example(Spark Streaming) val master = "local" val conf = new SparkConf().setMaster(master) val ssc = new StreamingContext(conf, Seconds(10)) val lines = ssc.socketTextStream("localhost", 9999) val words = lines.flatMap(_.split(" ")).map((_, 1)) val wordCounts = words.reduceByKey(_ + _) ssc.start() lines DStream at time 0 - 1 words/pairs DStream at time 1 - 2 at time 2 - 3 at time 3 - 4 wordCount DStream map groupBy Start streaming & computation Contd...Contd...

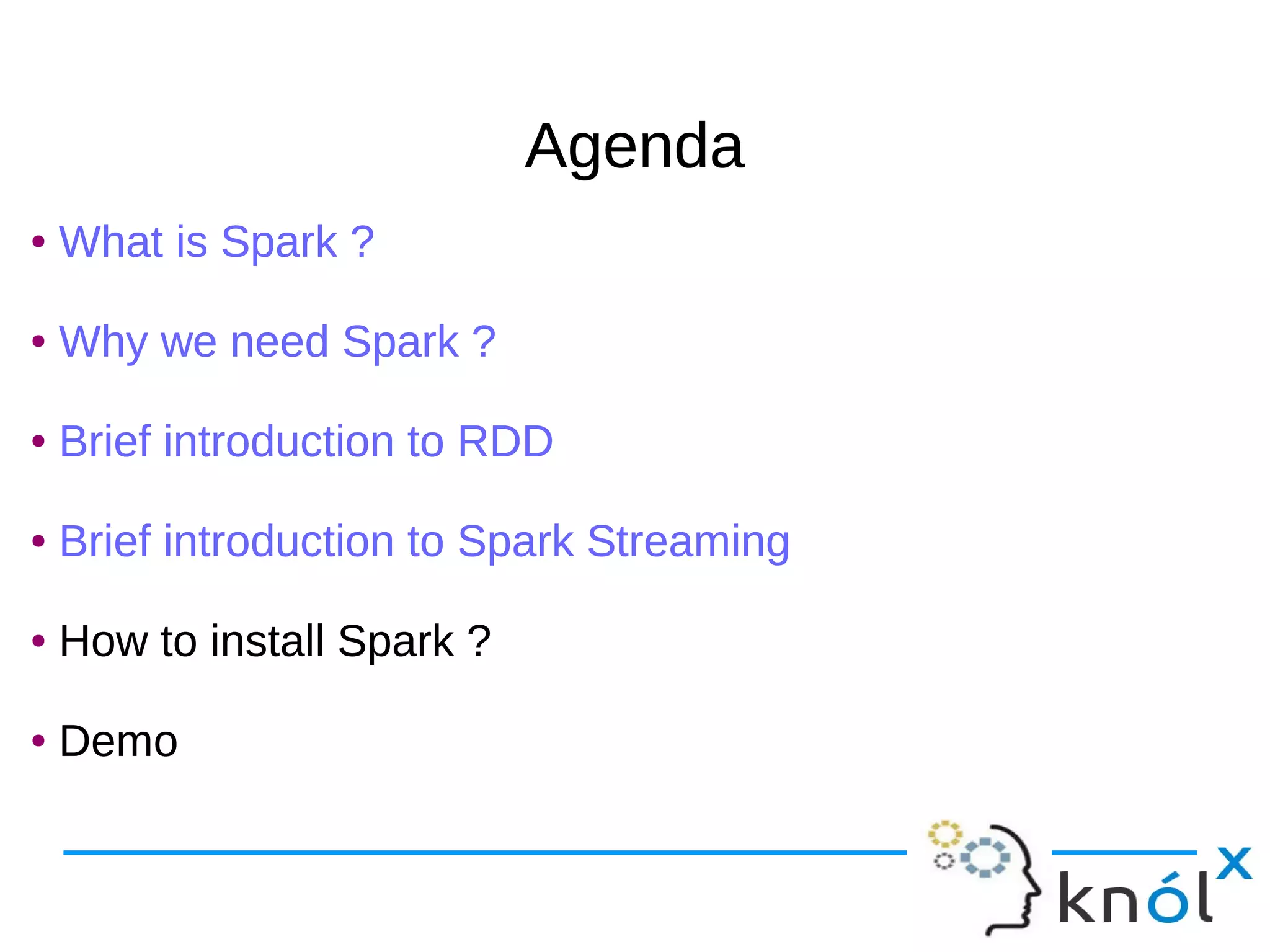

- 34. AgendaAgenda ● What isSpark ? ● Why we need Spark ? ● Brief introduction to RDD ● Brief introduction to Spark Streaming ● How to install Spark ? ● Demo ● What is Spark ? ● Why we need Spark ? ● Brief introduction to RDD ● Brief introduction to Spark Streaming ● How to install Spark ? ● Demo

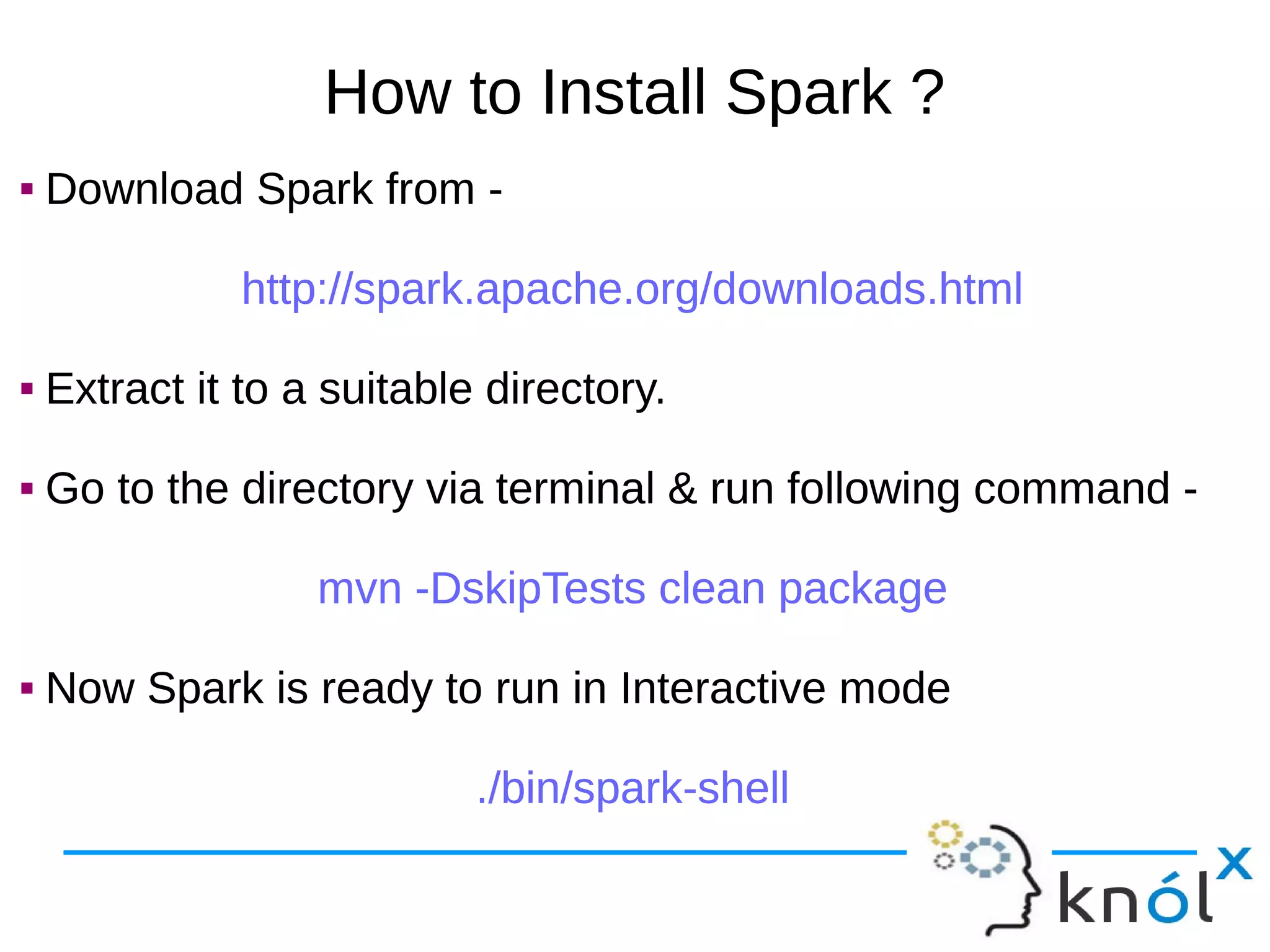

- 35. How to InstallSpark ? Download Spark from - http://spark.apache.org/downloads.html Extract it to a suitable directory. Go to the directory via terminal & run following command - mvn -DskipTests clean package Now Spark is ready to run in Interactive mode ./bin/spark-shell Download Spark from - http://spark.apache.org/downloads.html Extract it to a suitable directory. Go to the directory via terminal & run following command - mvn -DskipTests clean package Now Spark is ready to run in Interactive mode ./bin/spark-shell

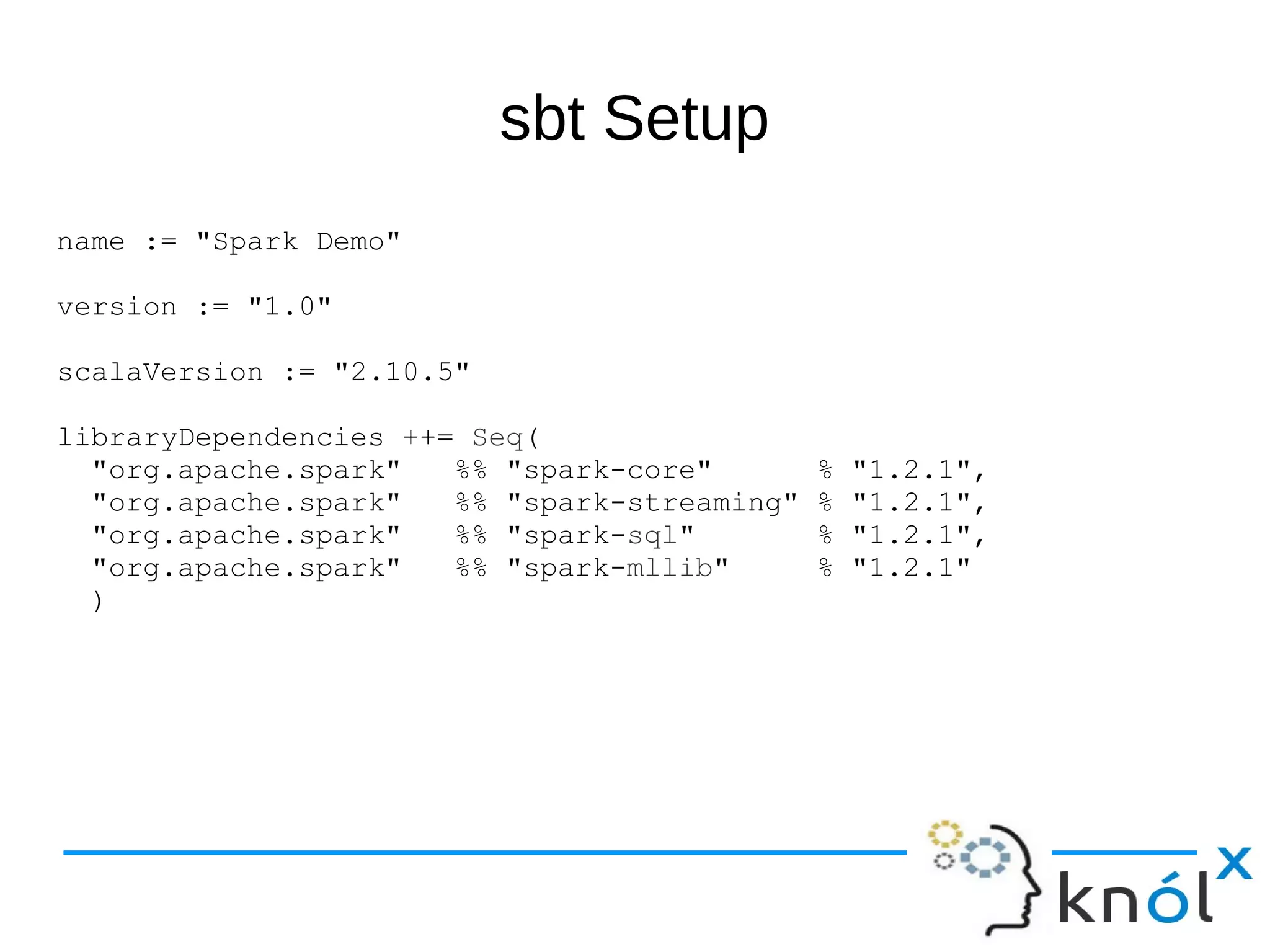

- 36. sbt Setup name :="Spark Demo" version := "1.0" scalaVersion := "2.10.5" libraryDependencies ++= Seq( "org.apache.spark" %% "spark-core" % "1.2.1", "org.apache.spark" %% "spark-streaming" % "1.2.1", "org.apache.spark" %% "spark-sql" % "1.2.1", "org.apache.spark" %% "spark-mllib" % "1.2.1" )

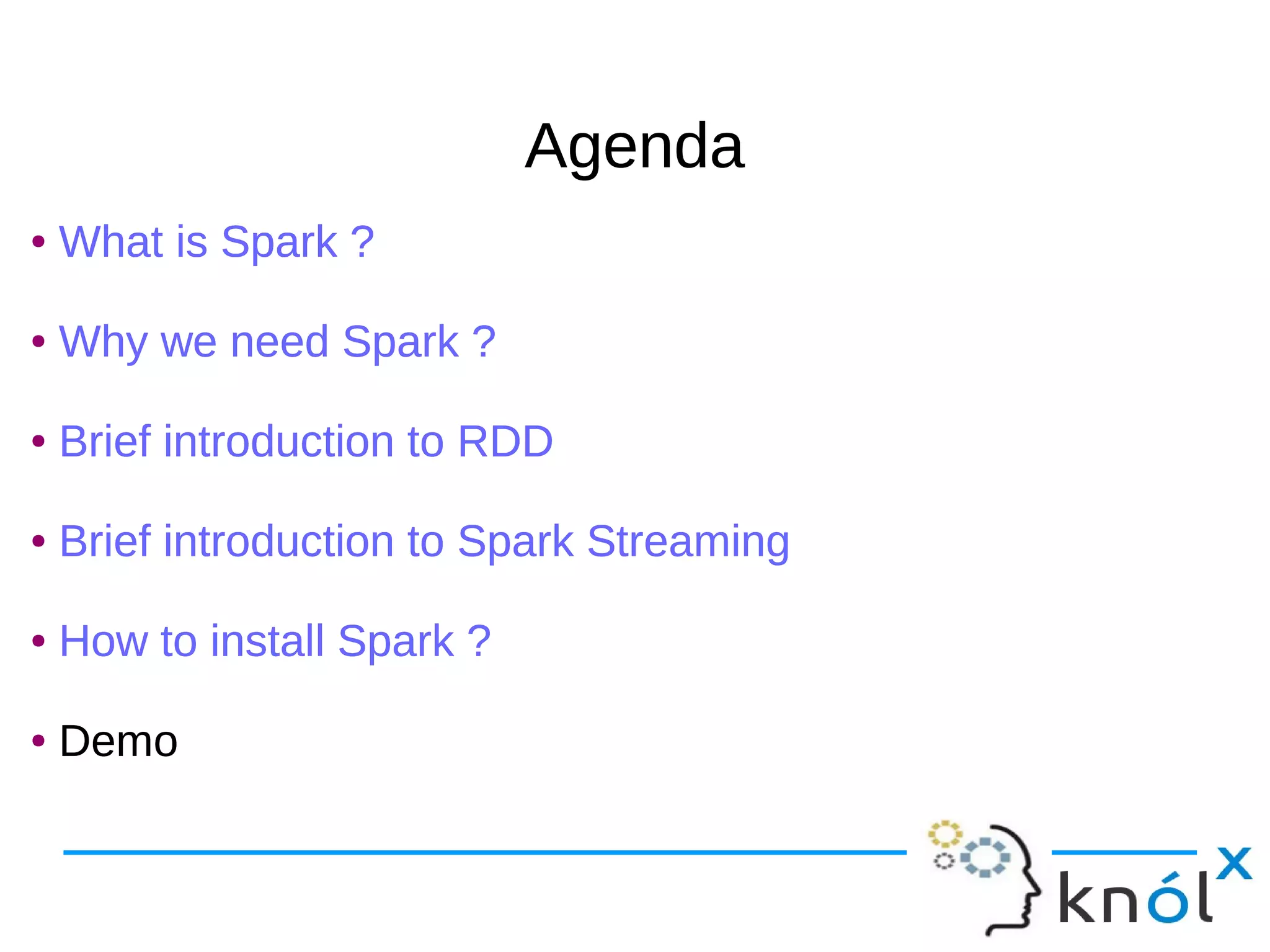

- 37. AgendaAgenda ● What isSpark ? ● Why we need Spark ? ● Brief introduction to RDD ● Brief introduction to Spark Streaming ● How to install Spark ? ● Demo ● What is Spark ? ● Why we need Spark ? ● Brief introduction to RDD ● Brief introduction to Spark Streaming ● How to install Spark ? ● Demo

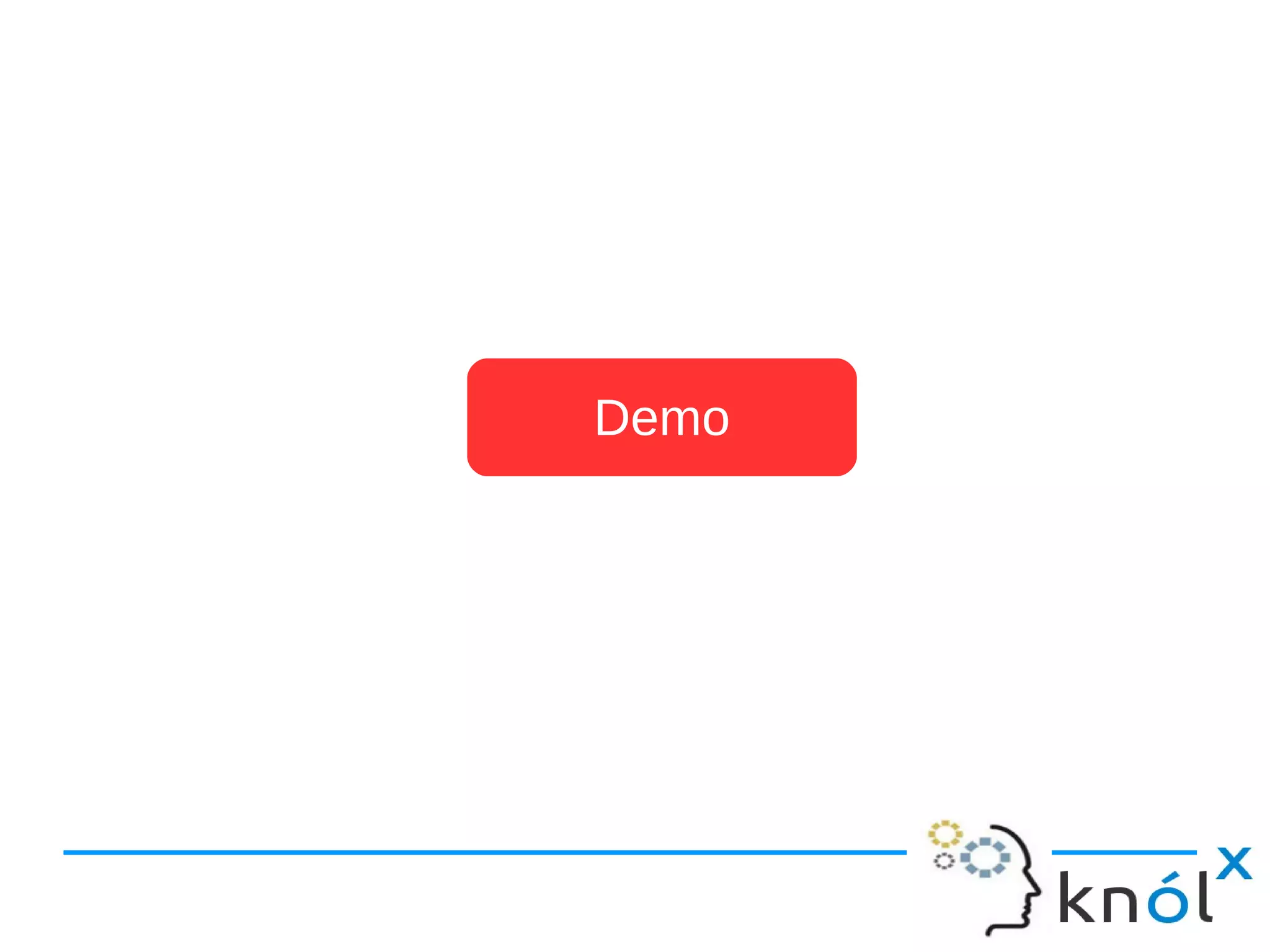

- 38.
- 39.

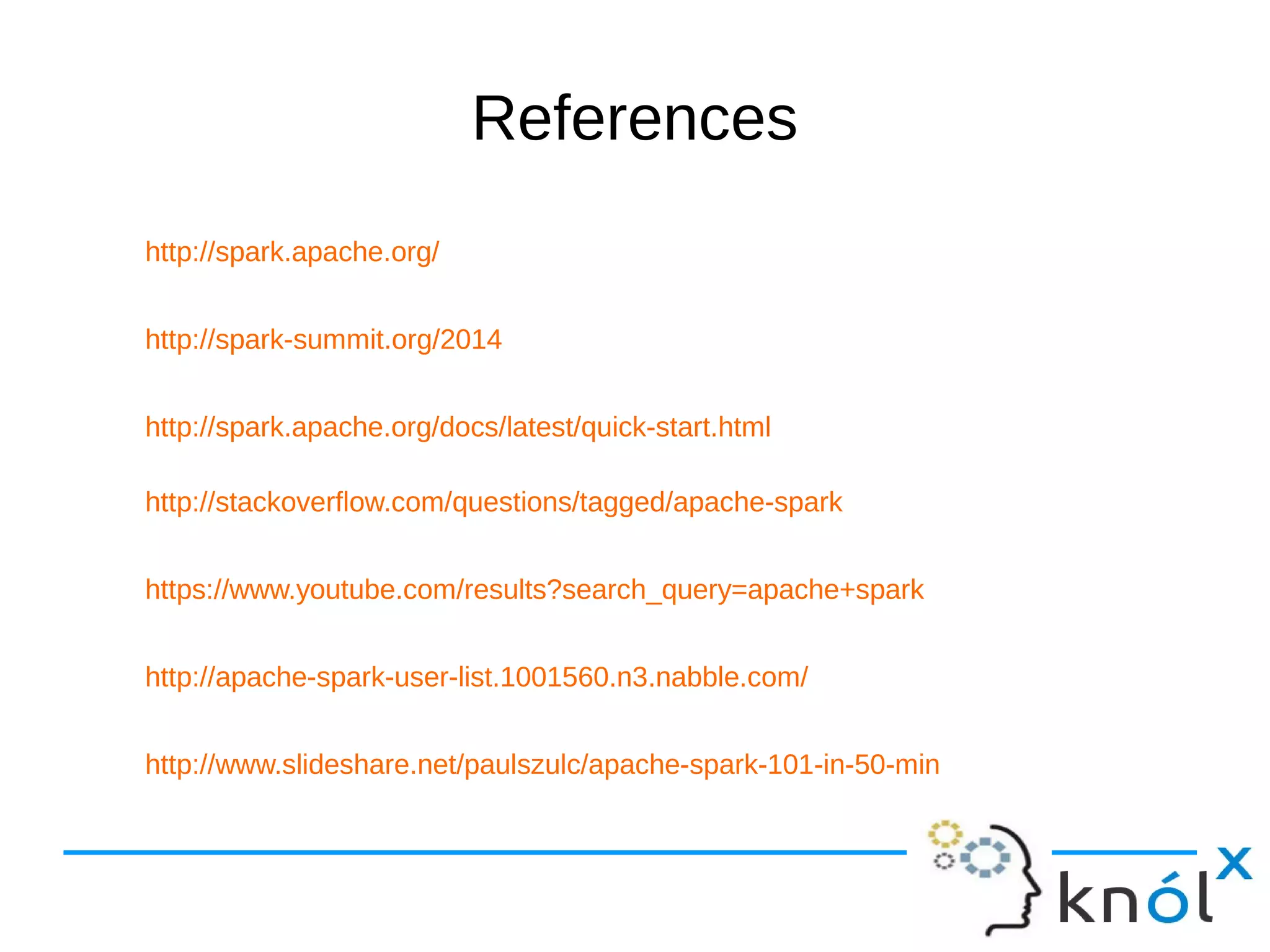

- 40.
- 41.
