Introduction to Chainer: A Flexible Framework for Deep Learning 2015-‐‑‒06-‐‑‒18 PFI/PFN Weekly Seminar Seiya Tokui (Preferred Networks)

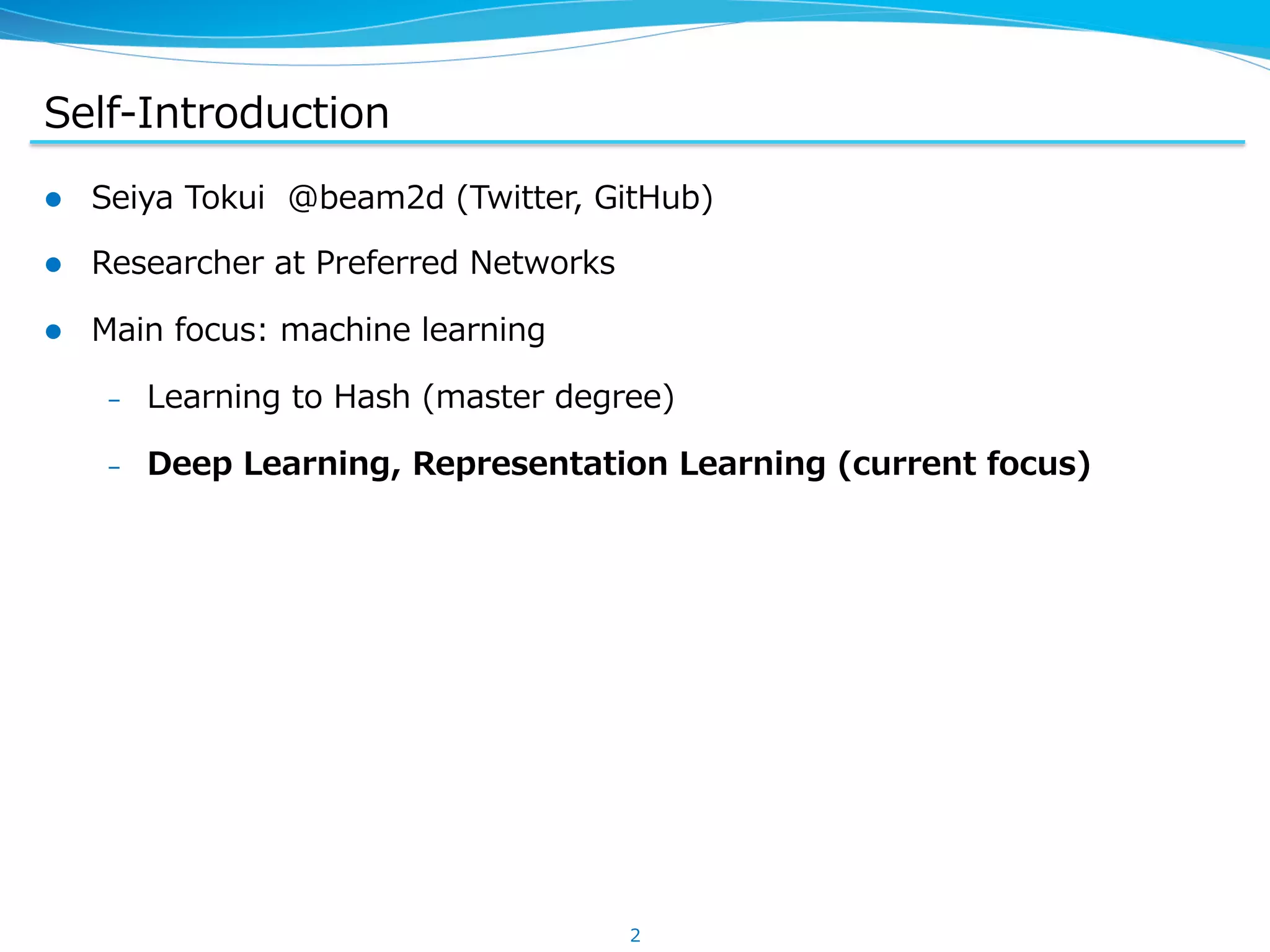

Self-‐‑‒Introduction l  Seiya Tokui @beam2d (Twitter, GitHub) l  Researcher at Preferred Networks l  Main focus: machine learning –  Learning to Hash (master degree) –  Deep Learning, Representation Learning (current focus) 2

3 A Powerful, Flexible, and Intuitive Framework of Neural Networks

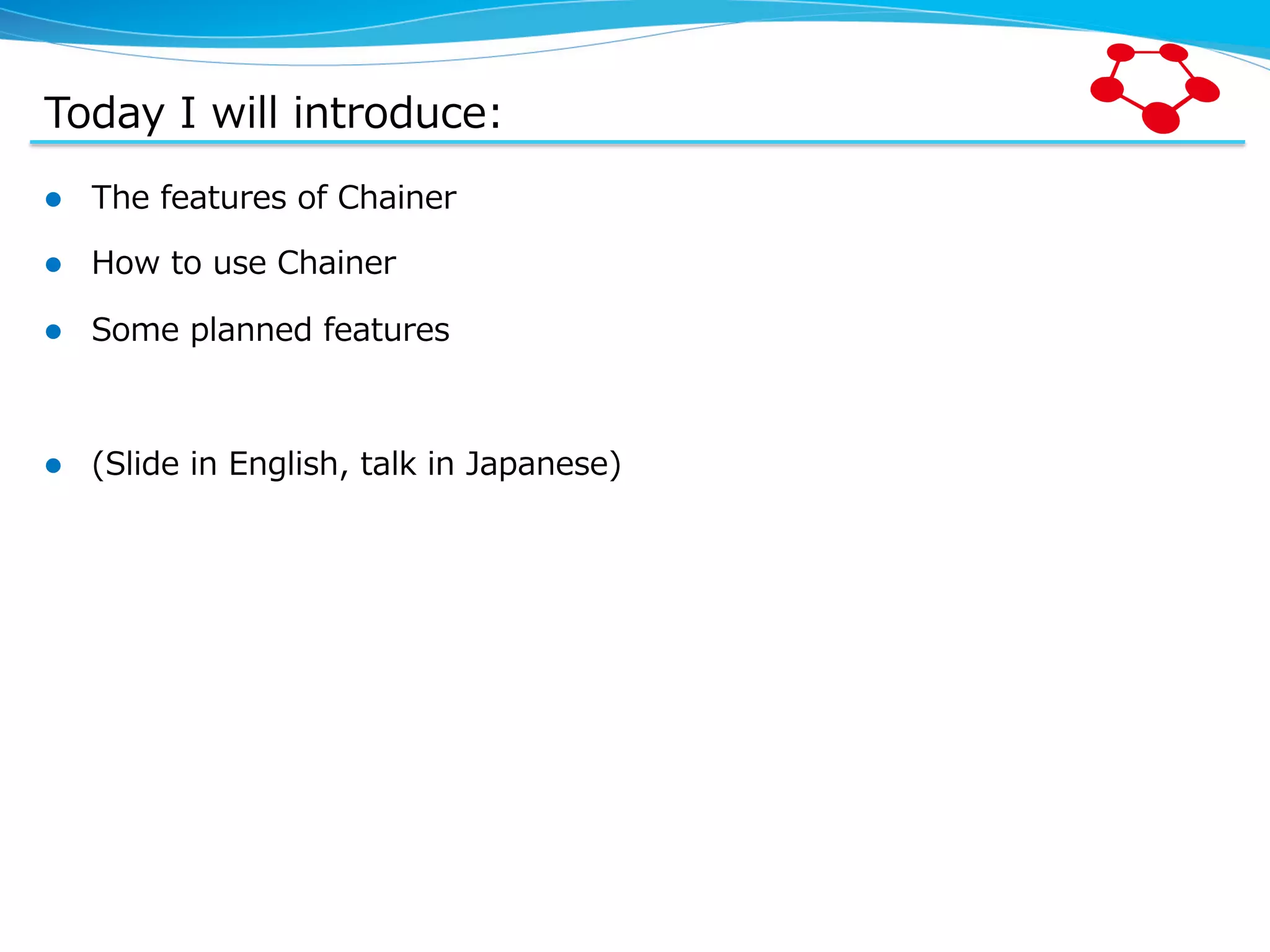

Today I will introduce: l  The features of Chainer l  How to use Chainer l  Some planned features l  (Slide in English, talk in Japanese)

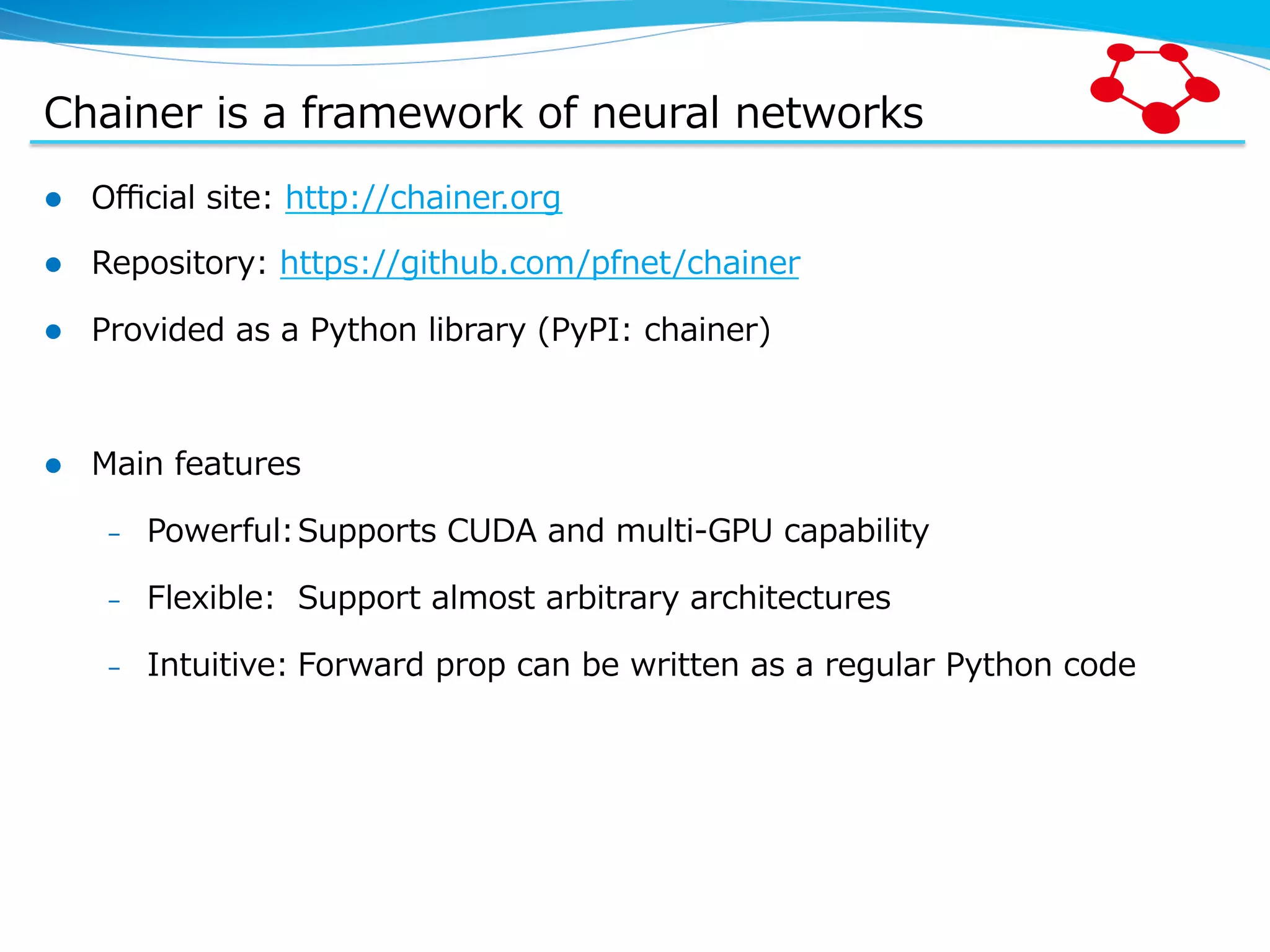

Chainer is a framework of neural networks l  Oﬃcial site: http://chainer.org l  Repository: https://github.com/pfnet/chainer l  Provided as a Python library (PyPI: chainer) l  Main features –  Powerful:Supports CUDA and multi-‐‑‒GPU capability –  Flexible: Support almost arbitrary architectures –  Intuitive: Forward prop can be written as a regular Python code

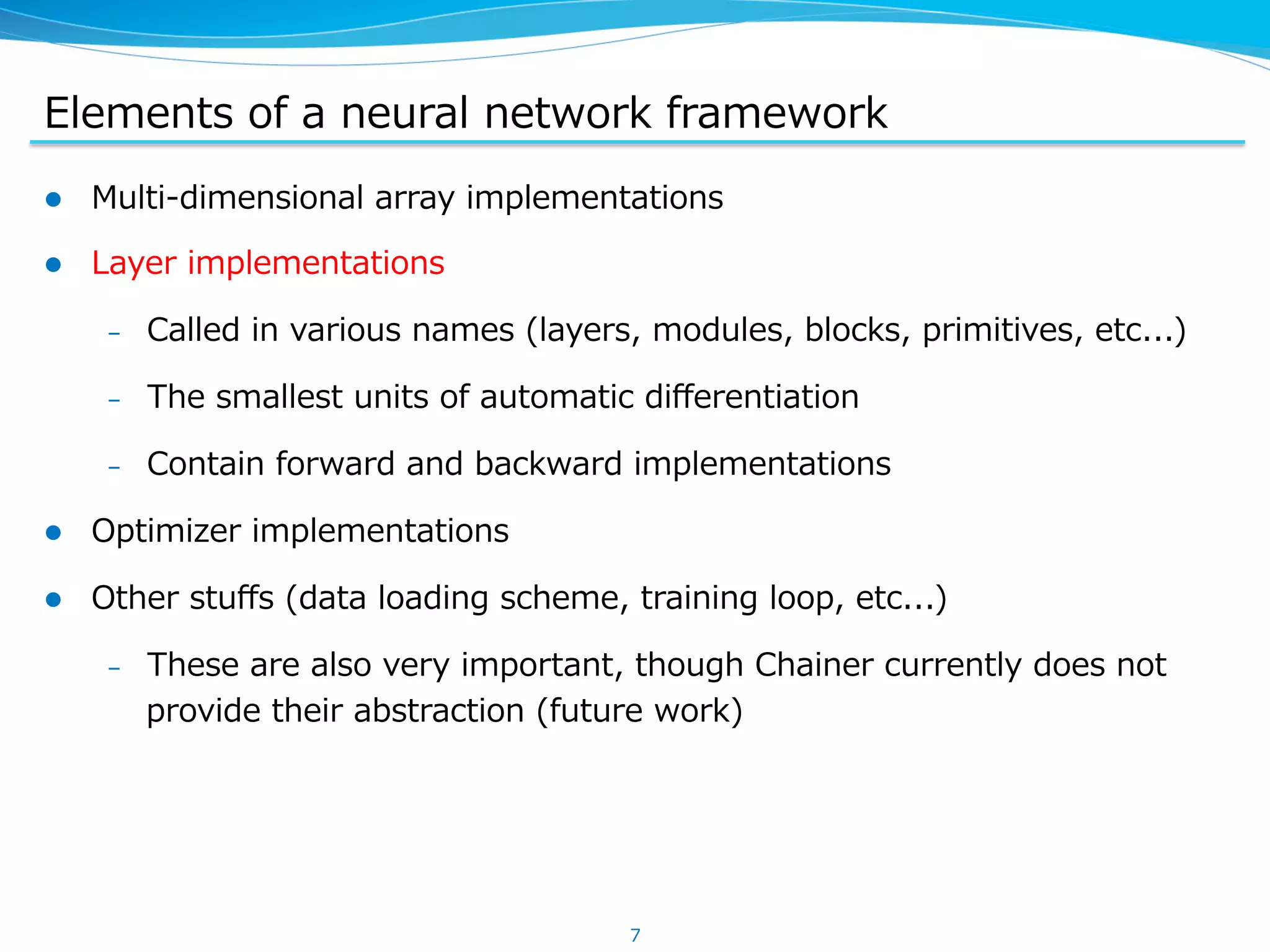

Elements of a neural network framework l  Multi-‐‑‒dimensional array implementations l  Layer implementations –  Called in various names (layers, modules, blocks, primitives, etc...) –  The smallest units of automatic diﬀerentiation –  Contain forward and backward implementations l  Optimizer implementations l  Other stuﬀs (data loading scheme, training loop, etc...) –  These are also very important, though Chainer currently does not provide their abstraction (future work) 7

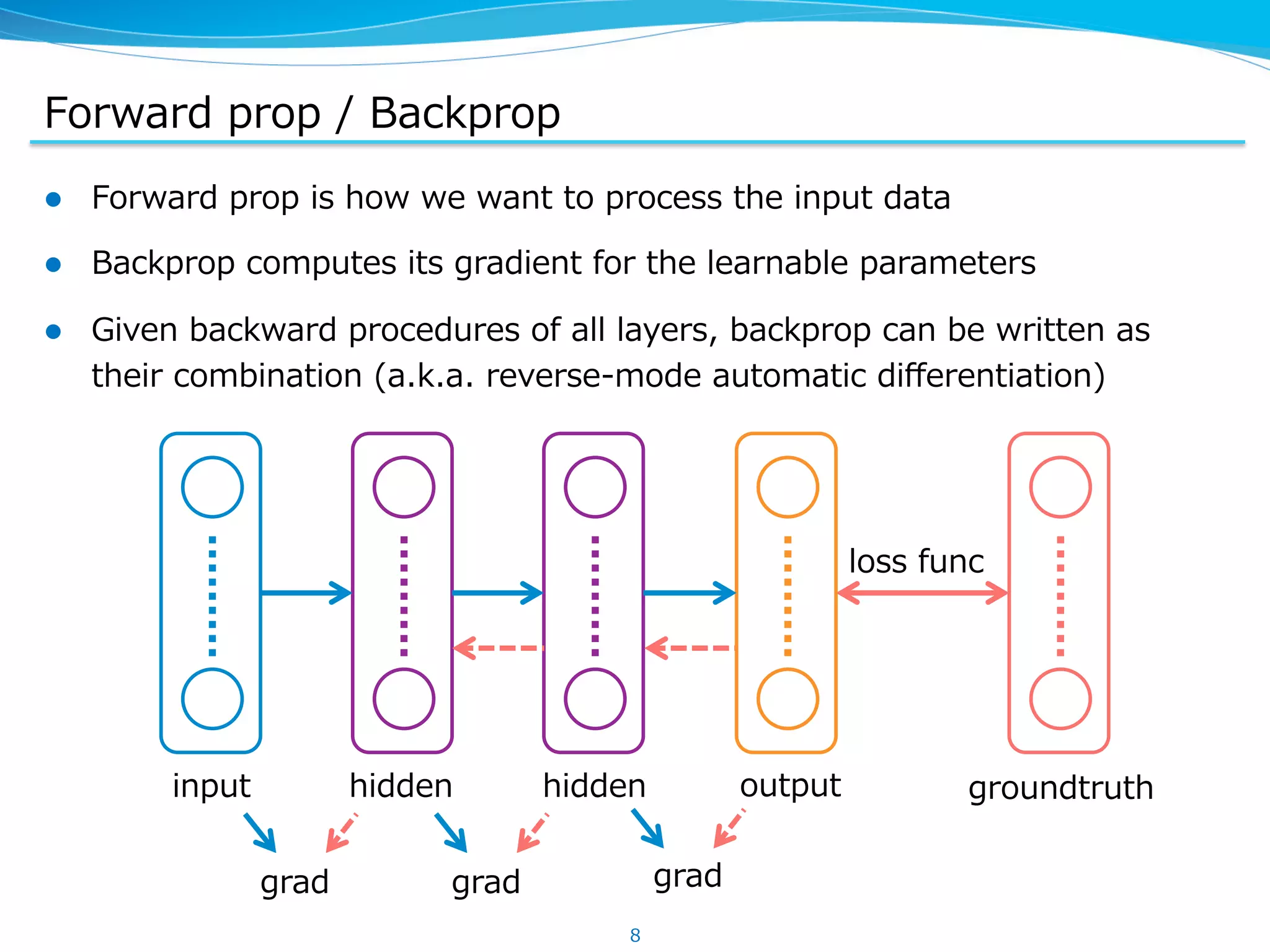

Forward prop / Backprop l  Forward prop is how we want to process the input data l  Backprop computes its gradient for the learnable parameters l  Given backward procedures of all layers, backprop can be written as their combination (a.k.a. reverse-‐‑‒mode automatic diﬀerentiation) 8 input hidden output groundtruth loss func gradgradgrad hidden

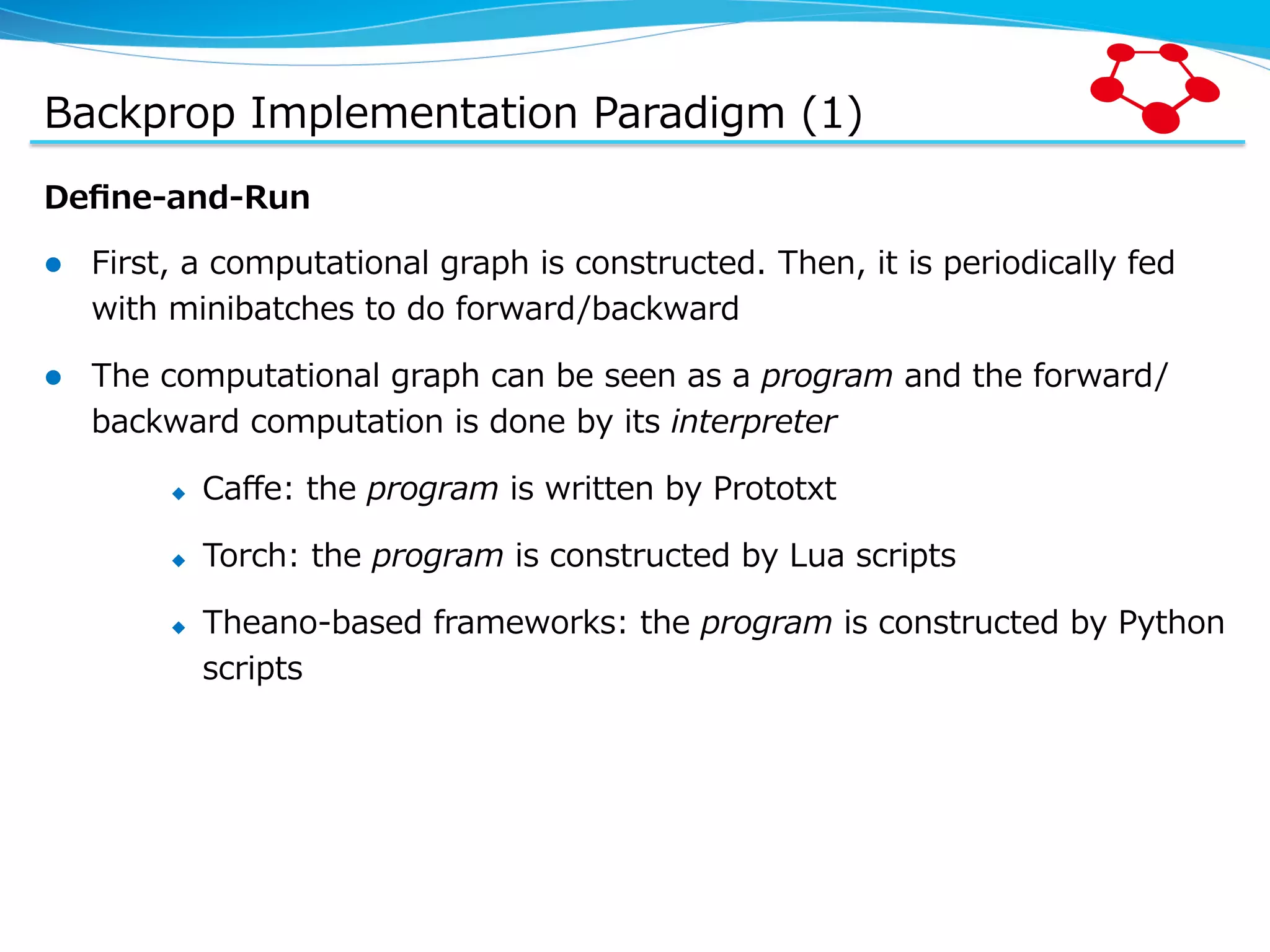

Backprop Implementation Paradigm (1) Deﬁne-‐‑‒and-‐‑‒Run l  First, a computational graph is constructed. Then, it is periodically fed with minibatches to do forward/backward l  The computational graph can be seen as a program and the forward/ backward computation is done by its interpreter u  Caﬀe: the program is written by Prototxt u  Torch: the program is constructed by Lua scripts u  Theano-‐‑‒based frameworks: the program is constructed by Python scripts

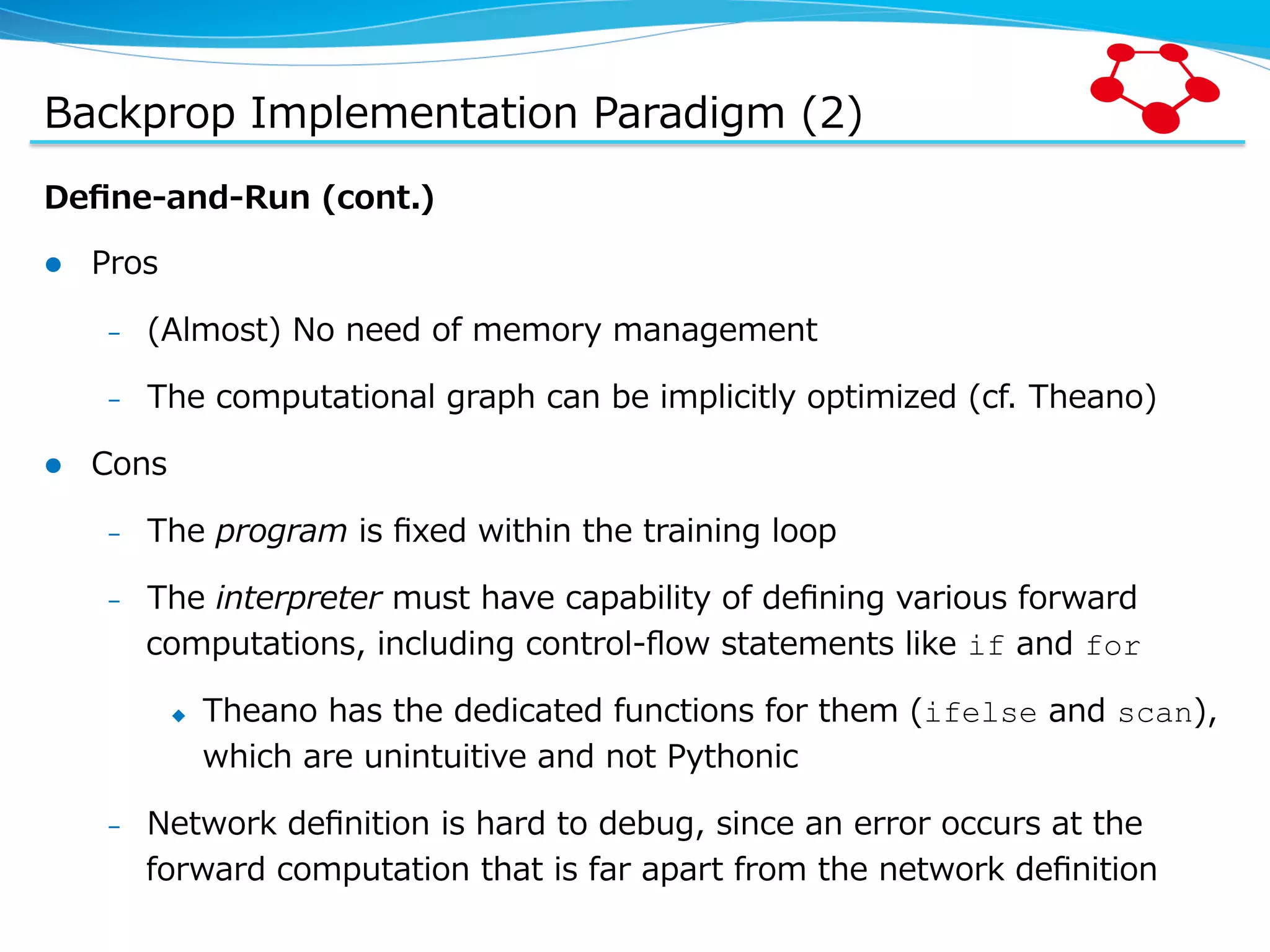

Backprop Implementation Paradigm (2) Define-‐‑‒and-‐‑‒Run (cont.) l  Pros –  (Almost) No need of memory management –  The computational graph can be implicitly optimized (cf. Theano) l  Cons –  The program is fixed within the training loop –  The interpreter must have capability of defining various forward computations, including control-‐‑‒flow statements like if and for u  Theano has the dedicated functions for them (ifelse and scan), which are unintuitive and not Pythonic –  Network definition is hard to debug, since an error occurs at the forward computation that is far apart from the network definition

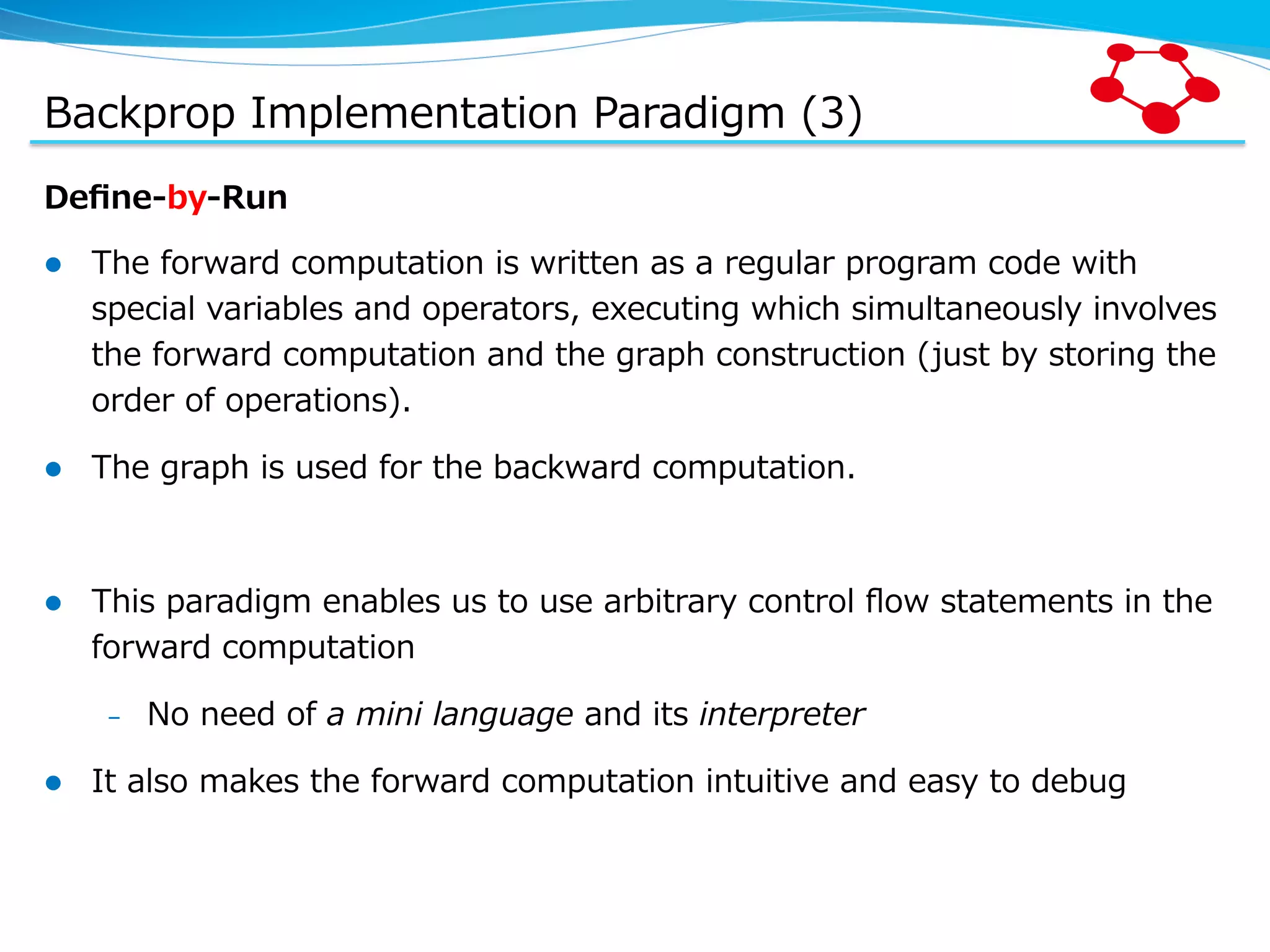

Backprop Implementation Paradigm (3) Deﬁne-‐‑‒by-‐‑‒Run l  The forward computation is written as a regular program code with special variables and operators, executing which simultaneously involves the forward computation and the graph construction (just by storing the order of operations). l  The graph is used for the backward computation. l  This paradigm enables us to use arbitrary control ﬂow statements in the forward computation –  No need of a mini language and its interpreter l  It also makes the forward computation intuitive and easy to debug

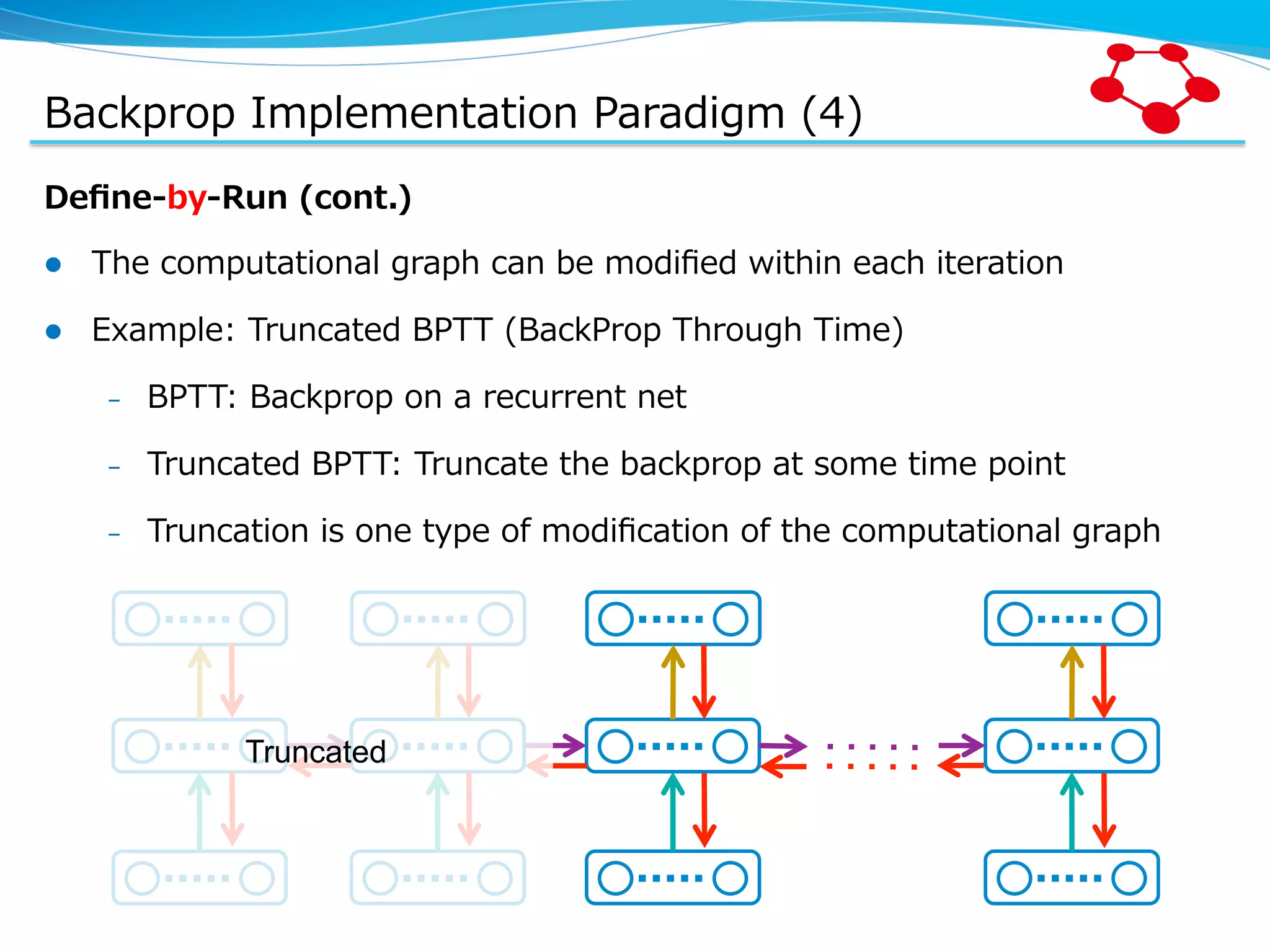

Backprop Implementation Paradigm (4) Define-‐‑‒by-‐‑‒Run (cont.) l  The computational graph can be modified within each iteration l  Example: Truncated BPTT (BackProp Through Time) –  BPTT: Backprop on a recurrent net –  Truncated BPTT: Truncate the backprop at some time point –  Truncation is one type of modification of the computational graph Truncated

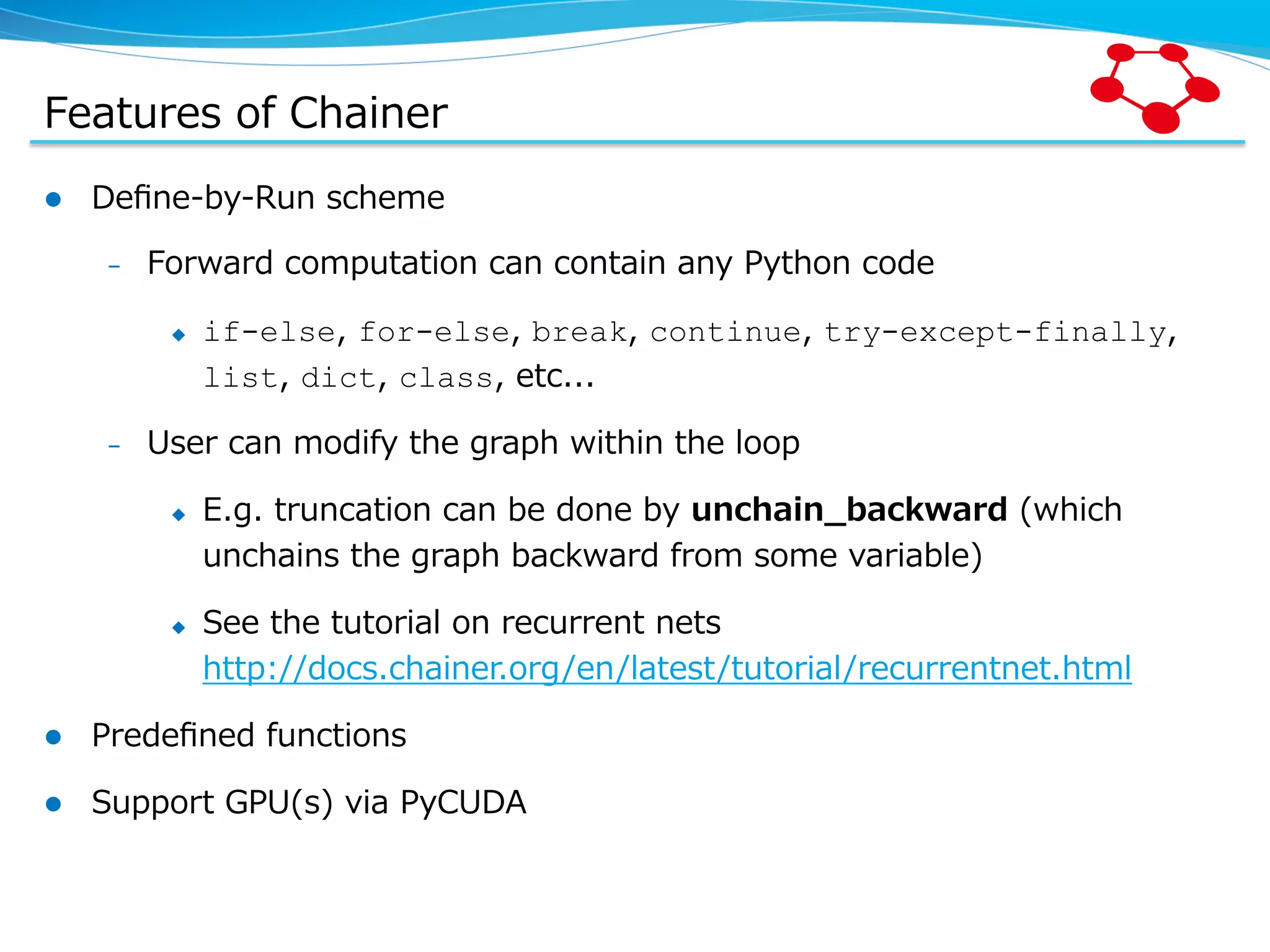

Features of Chainer l  Deﬁne-‐‑‒by-‐‑‒Run scheme –  Forward computation can contain any Python code u  if-else, for-else, break, continue, try-except-finally, list, dict, class, etc... –  User can modify the graph within the loop u  E.g. truncation can be done by unchain_̲backward (which unchains the graph backward from some variable) u  See the tutorial on recurrent nets http://docs.chainer.org/en/latest/tutorial/recurrentnet.html l  Predeﬁned functions l  Support GPU(s) via PyCUDA

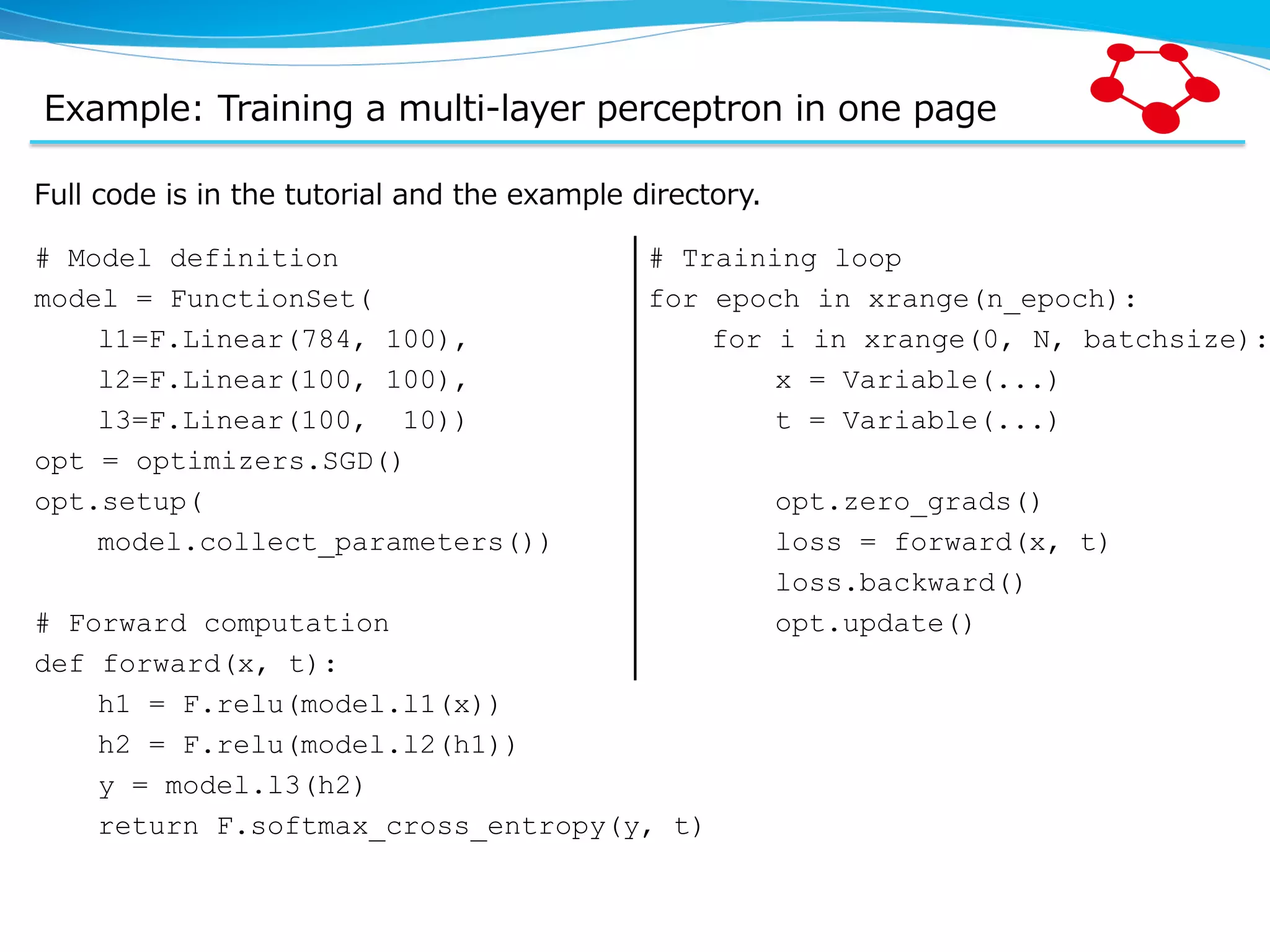

Example: Training a multi-‐‑‒layer perceptron in one page Full code is in the tutorial and the example directory. # Model definition model = FunctionSet( l1=F.Linear(784, 100), l2=F.Linear(100, 100), l3=F.Linear(100, 10)) opt = optimizers.SGD() opt.setup( model.collect_parameters()) # Forward computation def forward(x, t): h1 = F.relu(model.l1(x)) h2 = F.relu(model.l2(h1)) y = model.l3(h2) return F.softmax_cross_entropy(y, t) # Training loop for epoch in xrange(n_epoch): for i in xrange(0, N, batchsize): x = Variable(...) t = Variable(...) opt.zero_grads() loss = forward(x, t) loss.backward() opt.update()

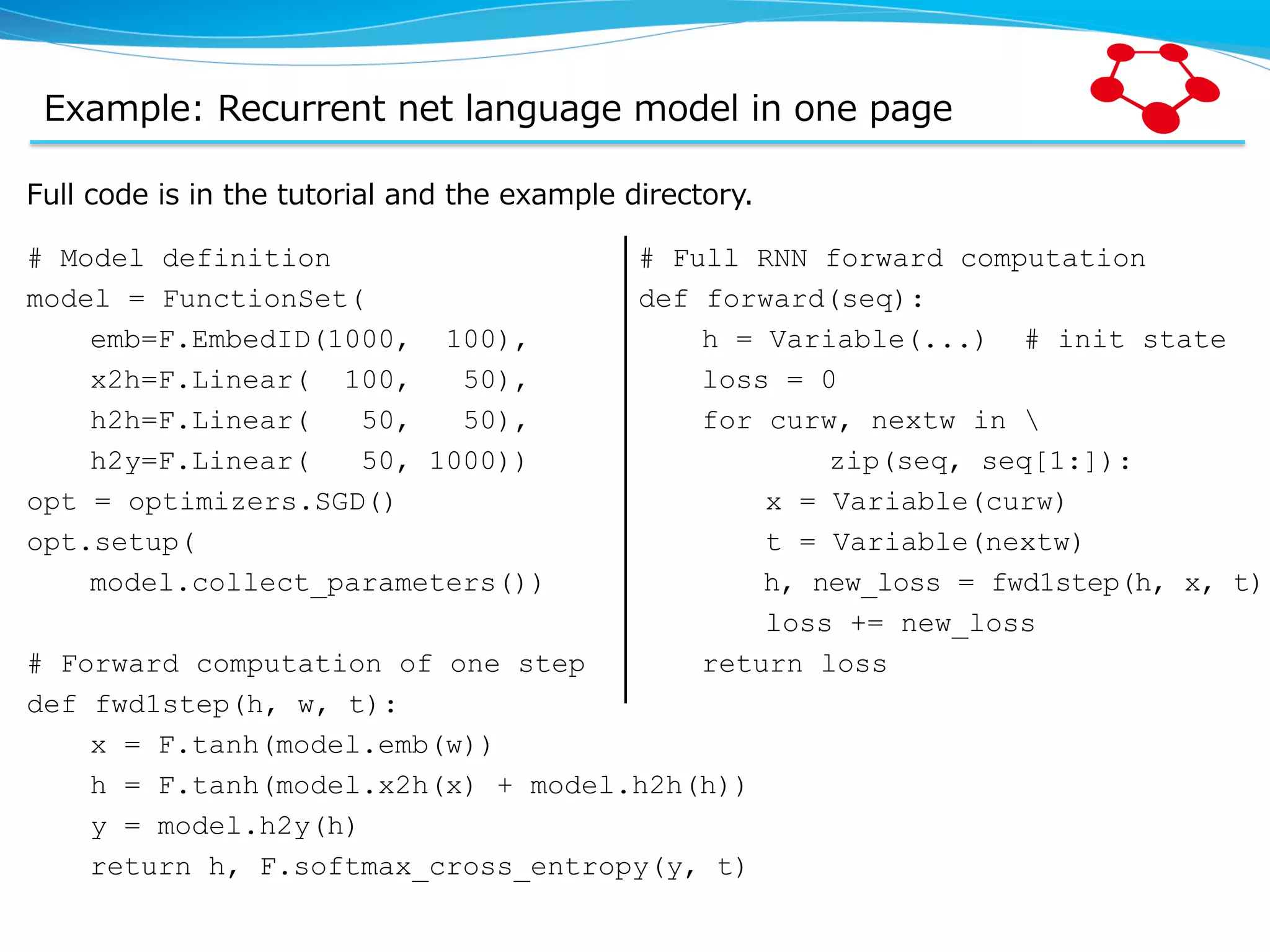

Example: Recurrent net language model in one page Full code is in the tutorial and the example directory. # Model definition model = FunctionSet( emb=F.EmbedID(1000, 100), x2h=F.Linear( 100, 50), h2h=F.Linear( 50, 50), h2y=F.Linear( 50, 1000)) opt = optimizers.SGD() opt.setup( model.collect_parameters()) # Forward computation of one step def fwd1step(h, w, t): x = F.tanh(model.emb(w)) h = F.tanh(model.x2h(x) + model.h2h(h)) y = model.h2y(h) return h, F.softmax_cross_entropy(y, t) # Full RNN forward computation def forward(seq): h = Variable(...) # init state loss = 0 for curw, nextw in zip(seq, seq[1:]): x = Variable(curw) t = Variable(nextw) h, new_loss = fwd1step(h, x, t) loss += new_loss return loss

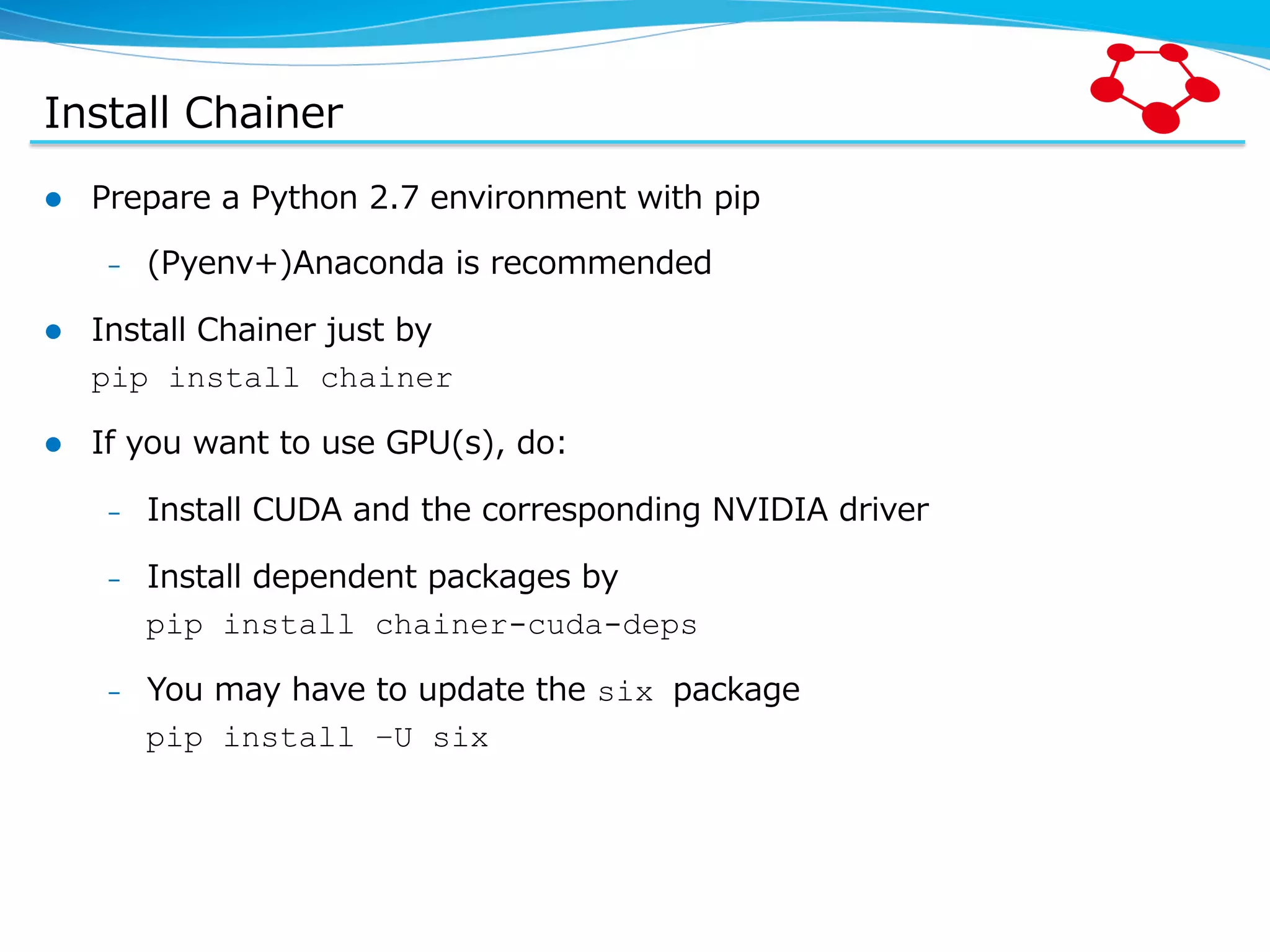

Install Chainer l  Prepare a Python 2.7 environment with pip –  (Pyenv+)Anaconda is recommended l  Install Chainer just by pip install chainer l  If you want to use GPU(s), do: –  Install CUDA and the corresponding NVIDIA driver –  Install dependent packages by pip install chainer-cuda-deps –  You may have to update the six package pip install –U six

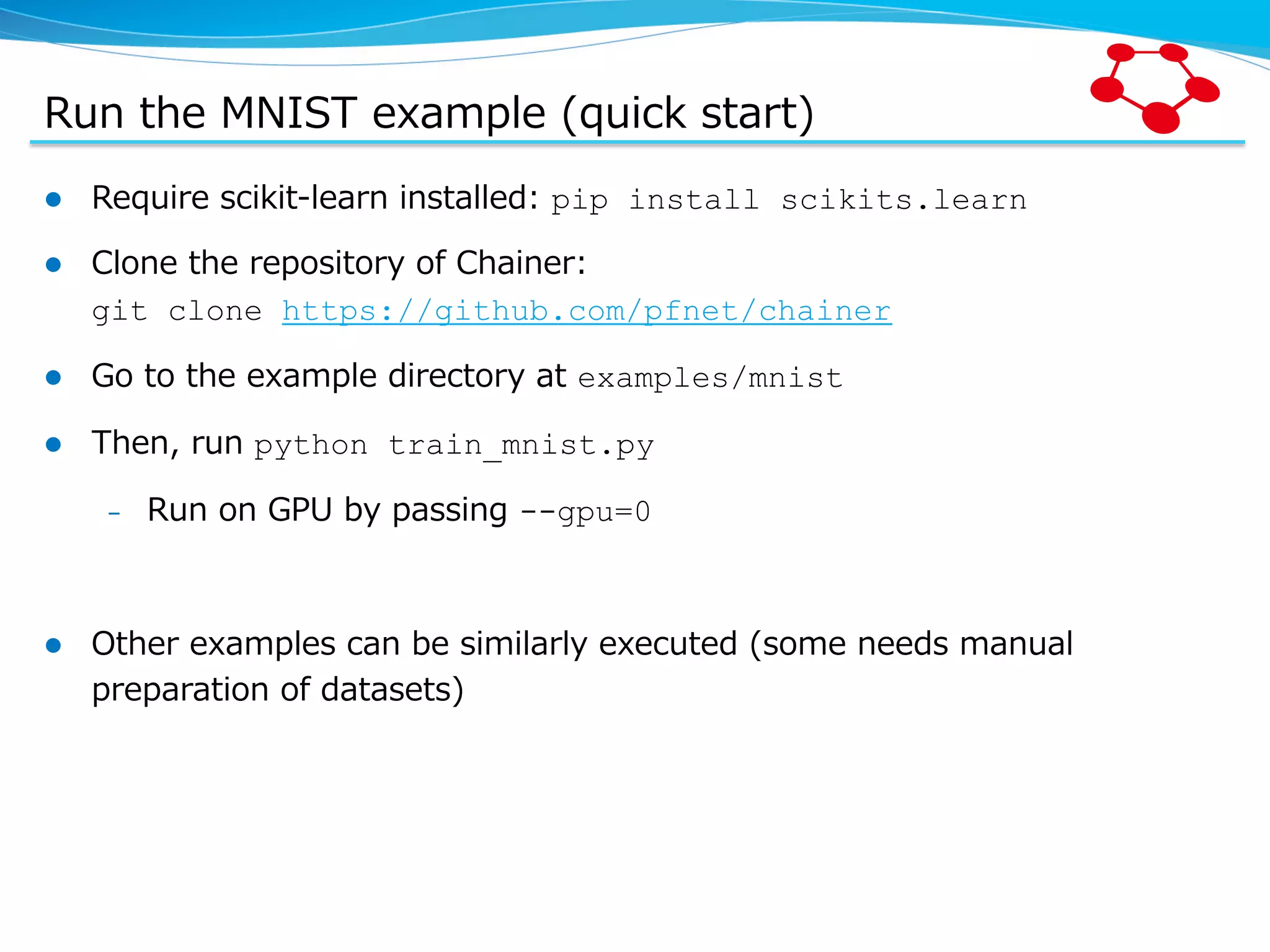

Run the MNIST example (quick start) l  Require scikit-‐‑‒learn installed: pip install scikits.learn l  Clone the repository of Chainer: git clone https://github.com/pfnet/chainer l  Go to the example directory at examples/mnist l  Then, run python train_mnist.py –  Run on GPU by passing --gpu=0 l  Other examples can be similarly executed (some needs manual preparation of datasets)

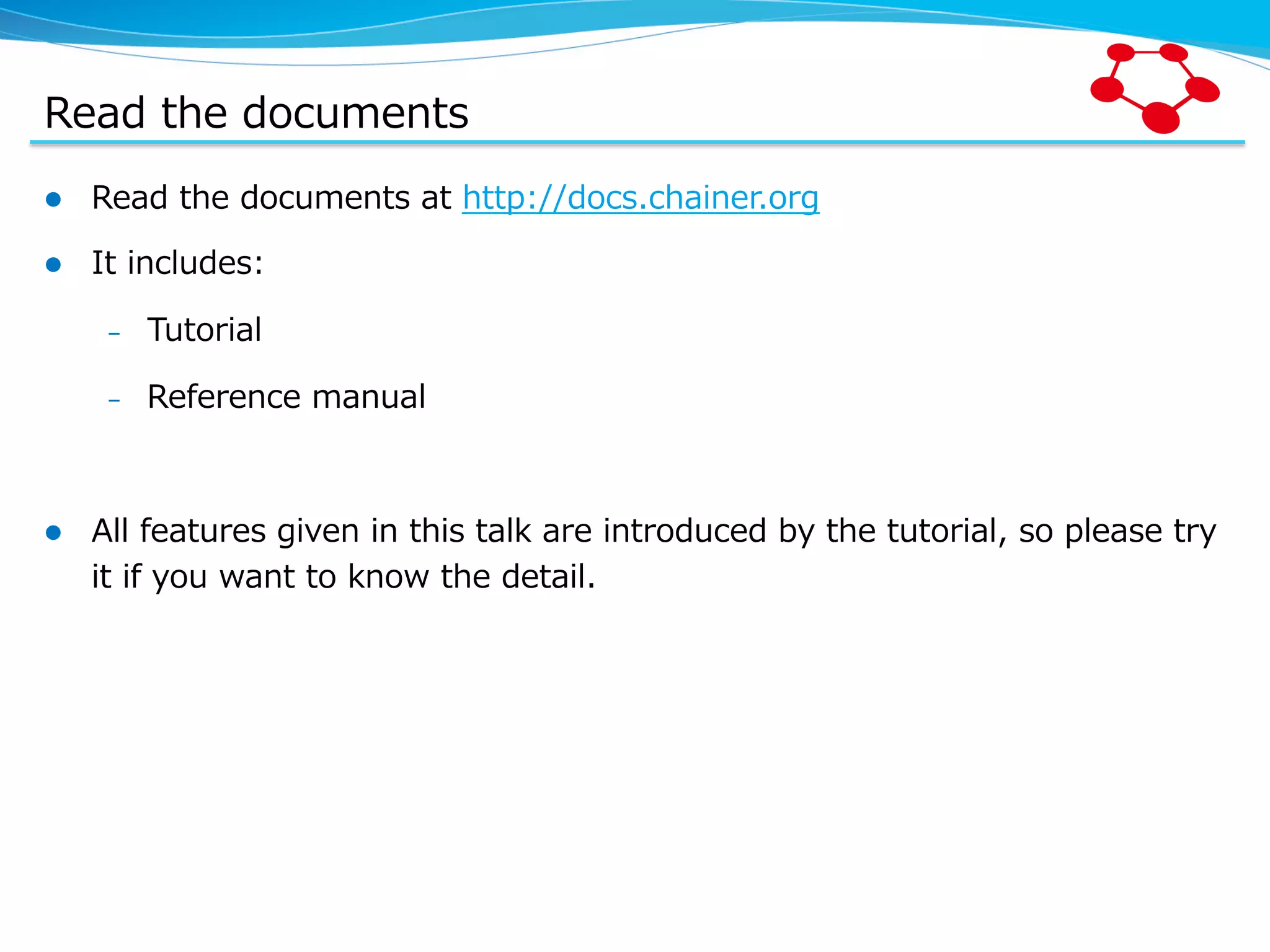

Read the documents l  Read the documents at http://docs.chainer.org l  It includes: –  Tutorial –  Reference manual l  All features given in this talk are introduced by the tutorial, so please try it if you want to know the detail.

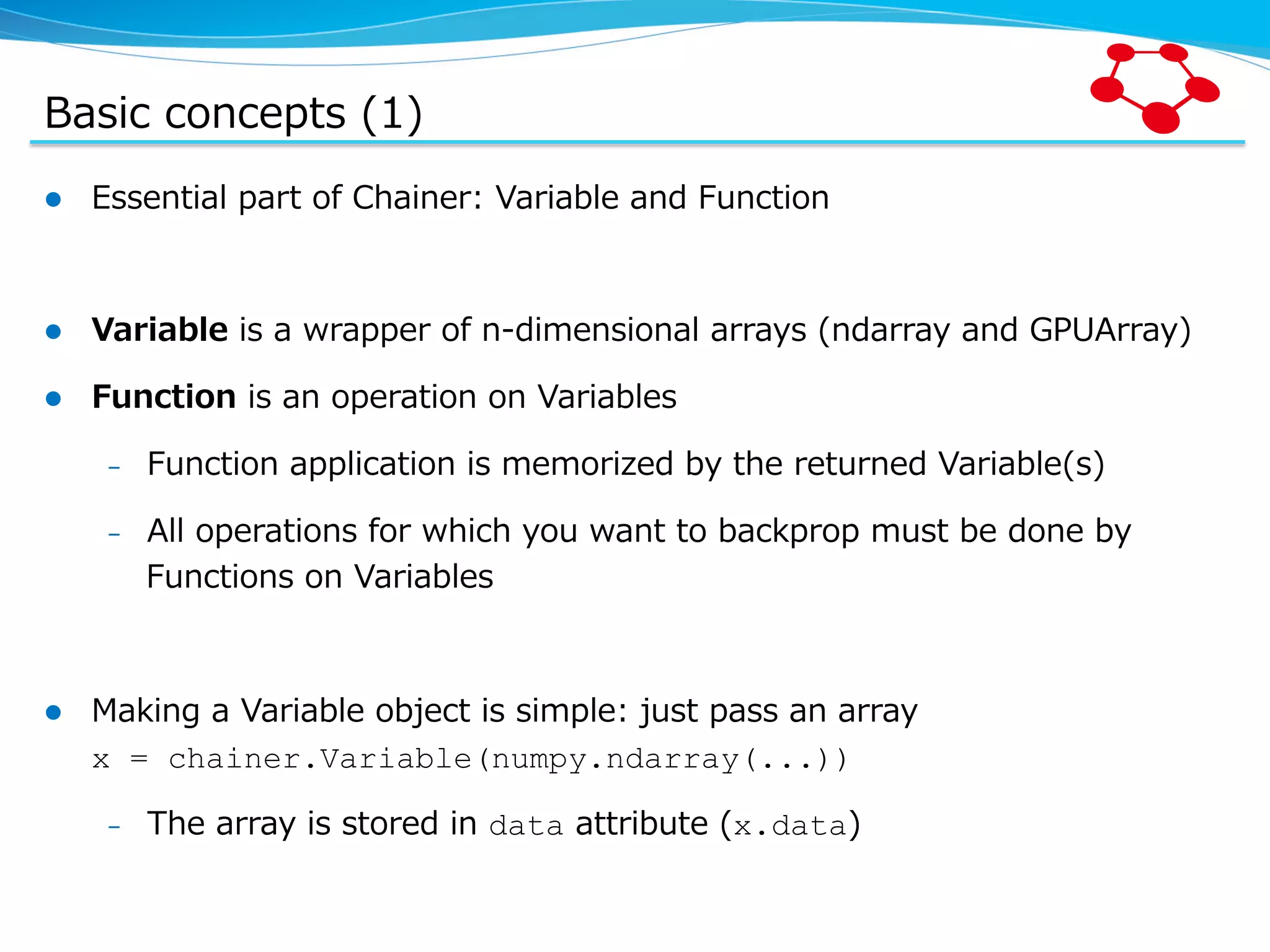

Basic concepts (1) l  Essential part of Chainer: Variable and Function l  Variable is a wrapper of n-‐‑‒dimensional arrays (ndarray and GPUArray) l  Function is an operation on Variables –  Function application is memorized by the returned Variable(s) –  All operations for which you want to backprop must be done by Functions on Variables l  Making a Variable object is simple: just pass an array x = chainer.Variable(numpy.ndarray(...)) –  The array is stored in data attribute (x.data)

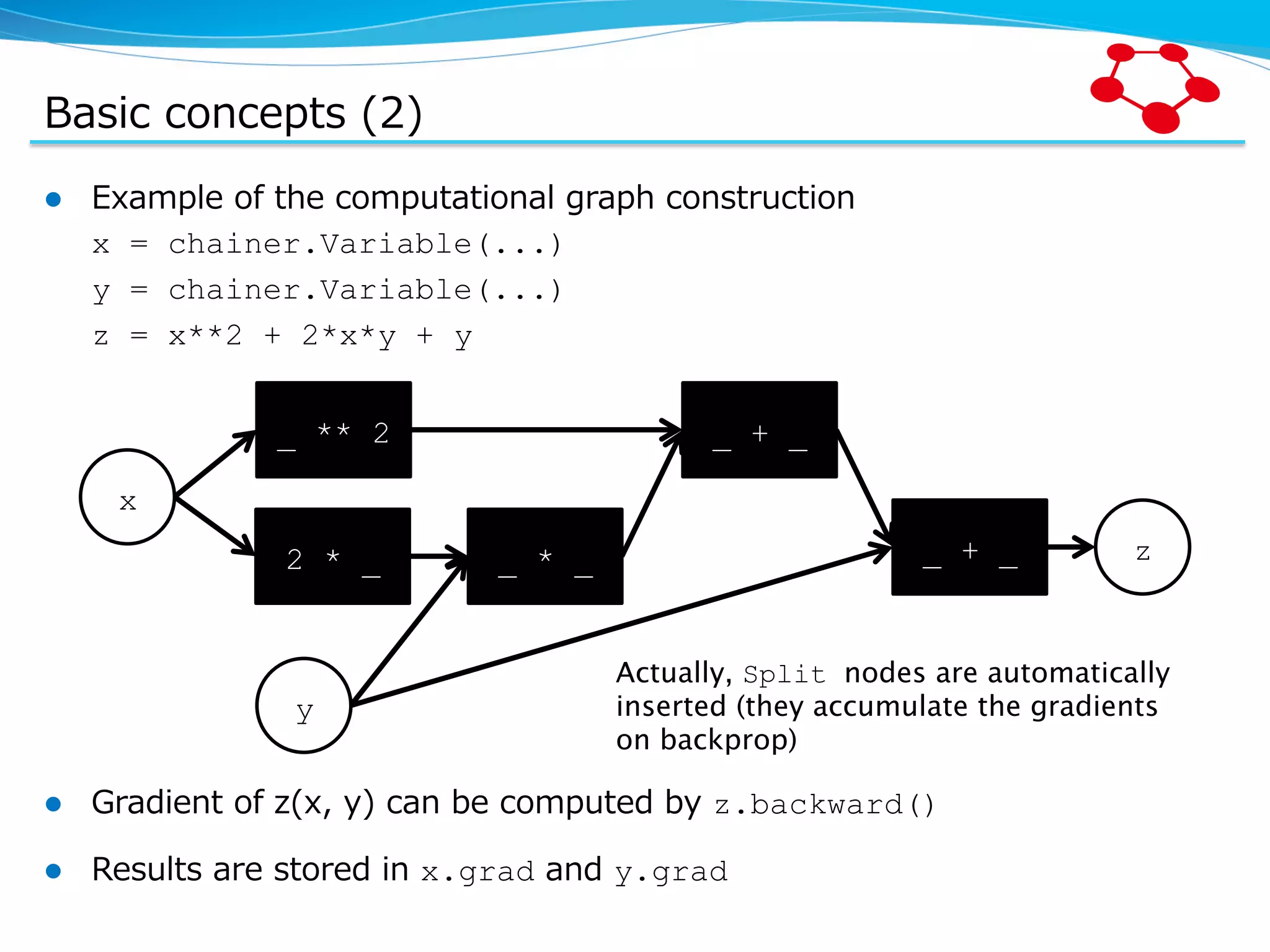

Basic concepts (2) l  Example of the computational graph construction x = chainer.Variable(...) y = chainer.Variable(...) z = x**2 + 2*x*y + y l  Gradient of z(x, y) can be computed by z.backward() l  Results are stored in x.grad and y.grad x y _ ** 2 2 * _ _ * _ _ + _ z _ + _ Actually, Split nodes are automatically inserted (they accumulate the gradients on backprop)

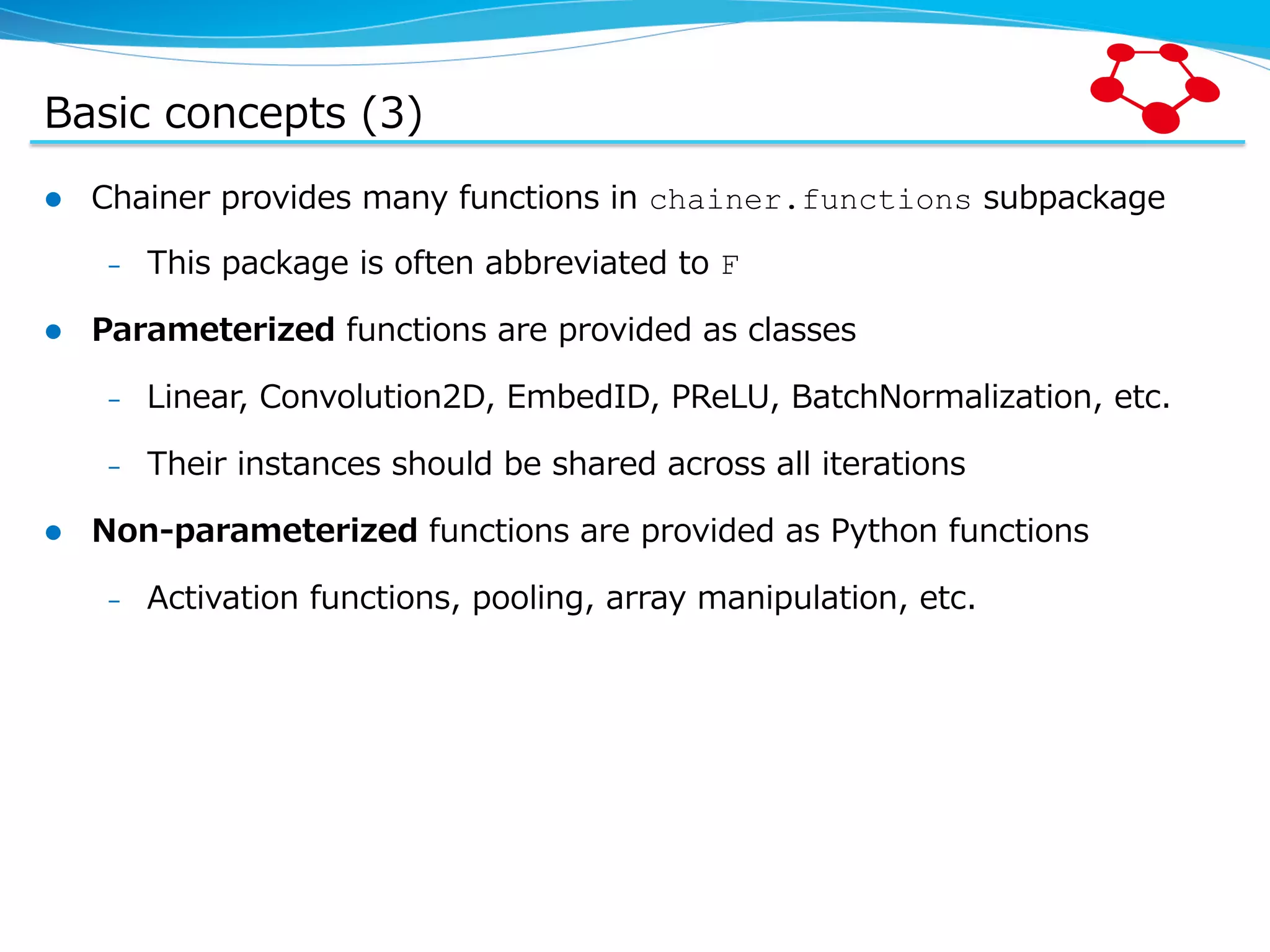

Basic concepts (3) l  Chainer provides many functions in chainer.functions subpackage –  This package is often abbreviated to F l  Parameterized functions are provided as classes –  Linear, Convolution2D, EmbedID, PReLU, BatchNormalization, etc. –  Their instances should be shared across all iterations l  Non-‐‑‒parameterized functions are provided as Python functions –  Activation functions, pooling, array manipulation, etc.

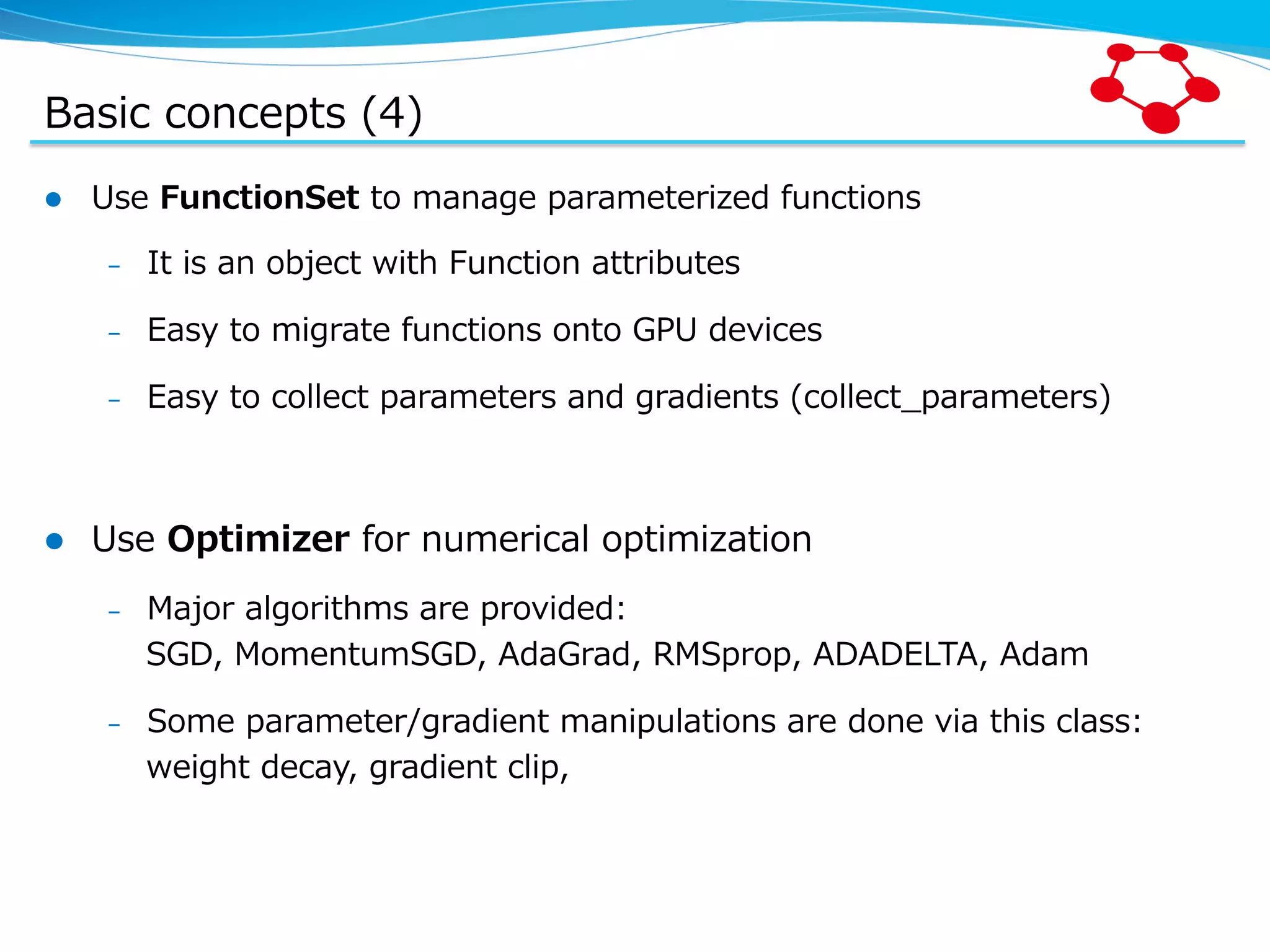

Basic concepts (4) l  Use FunctionSet to manage parameterized functions –  It is an object with Function attributes –  Easy to migrate functions onto GPU devices –  Easy to collect parameters and gradients (collect_̲parameters) l  Use Optimizer for numerical optimization –  Major algorithms are provided: SGD, MomentumSGD, AdaGrad, RMSprop, ADADELTA, Adam –  Some parameter/gradient manipulations are done via this class: weight decay, gradient clip,

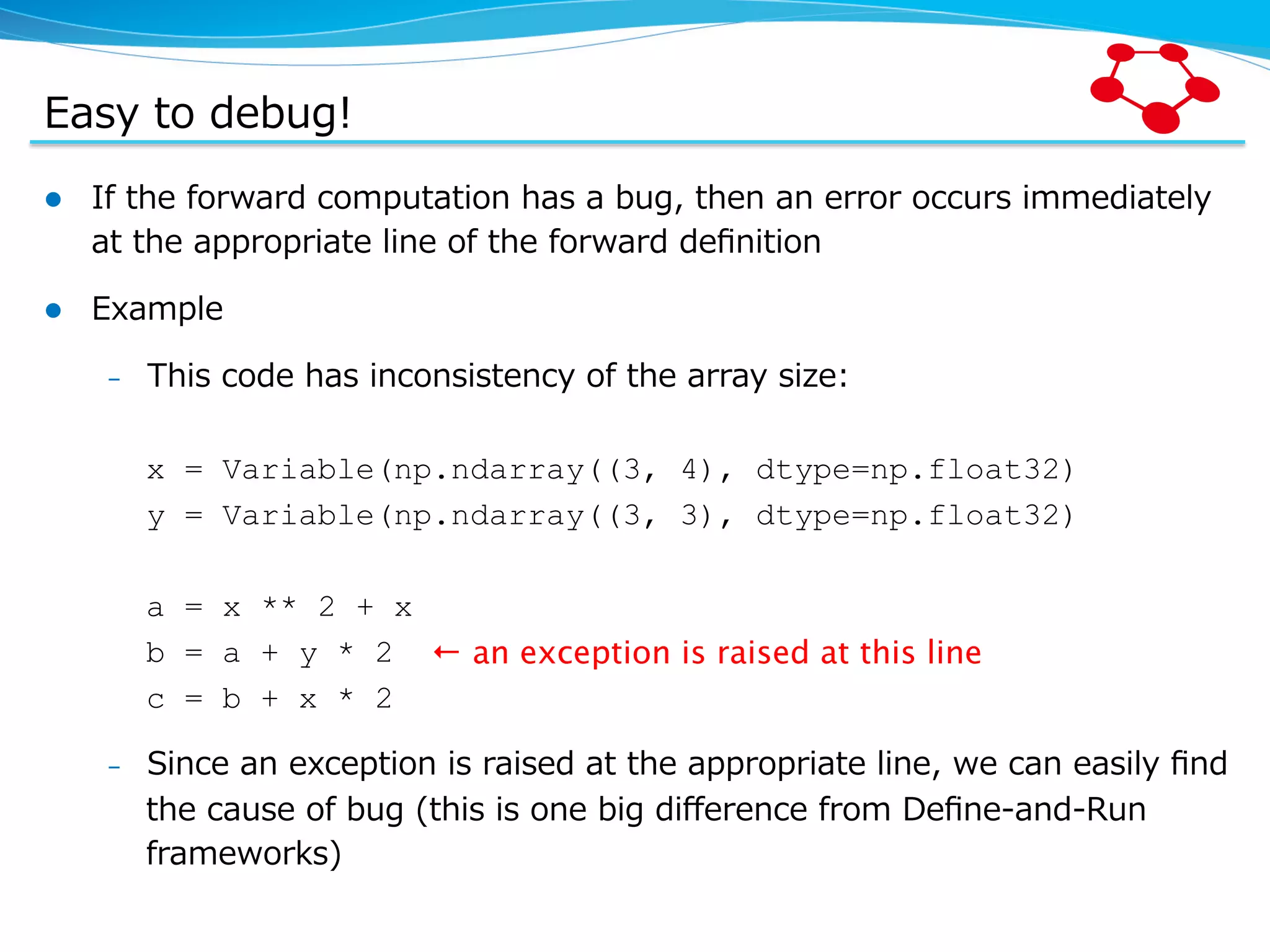

Easy to debug! l  If the forward computation has a bug, then an error occurs immediately at the appropriate line of the forward definition l  Example –  This code has inconsistency of the array size: x = Variable(np.ndarray((3, 4), dtype=np.float32) y = Variable(np.ndarray((3, 3), dtype=np.float32) a = x ** 2 + x b = a + y * 2 c = b + x * 2 –  Since an exception is raised at the appropriate line, we can easily find the cause of bug (this is one big difference from Define-‐‑‒and-‐‑‒Run frameworks) ← an exception is raised at this line

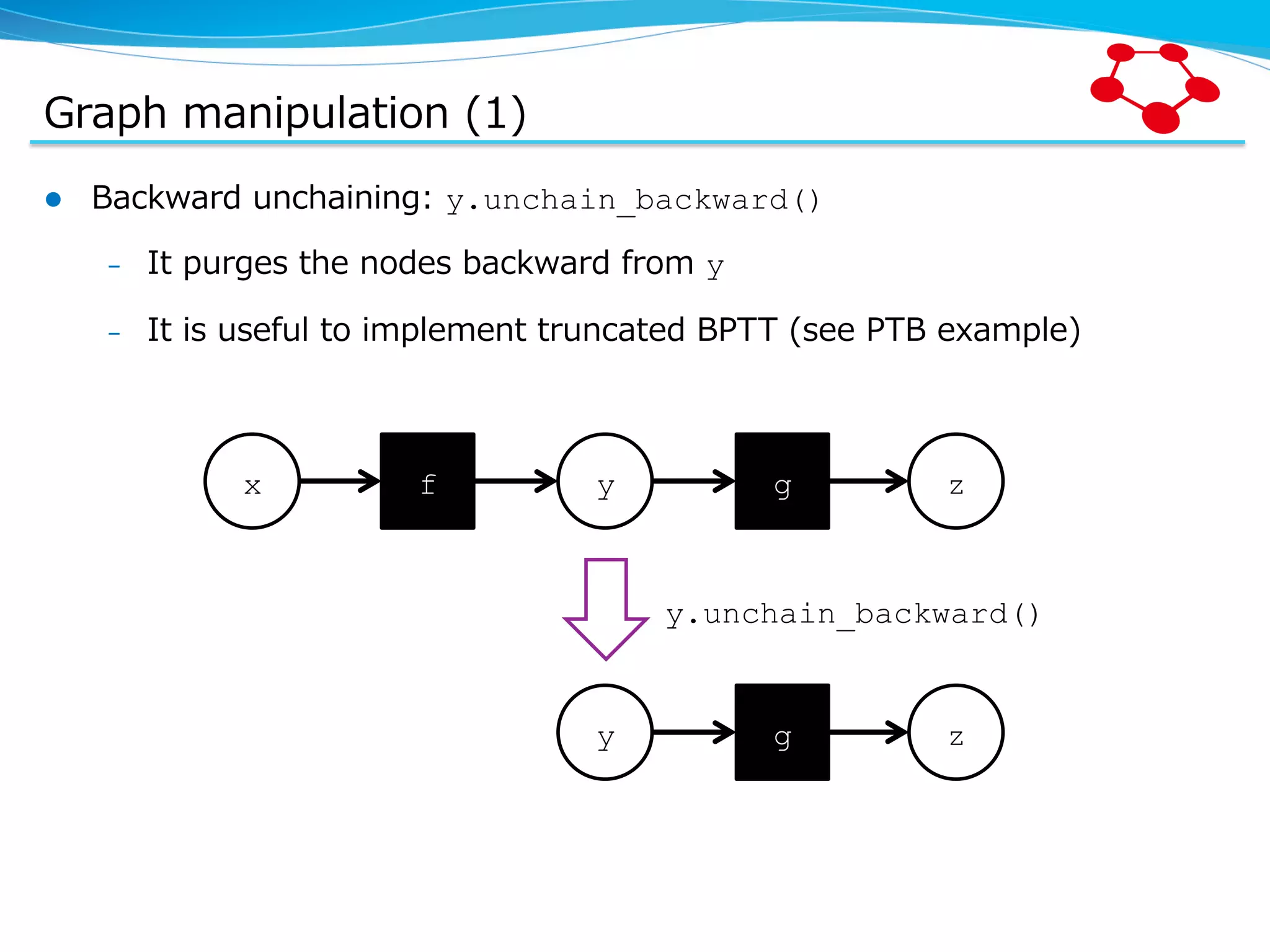

Graph manipulation (1) l  Backward unchaining: y.unchain_backward() –  It purges the nodes backward from y –  It is useful to implement truncated BPTT (see PTB example) x f y g z y g z y.unchain_backward()

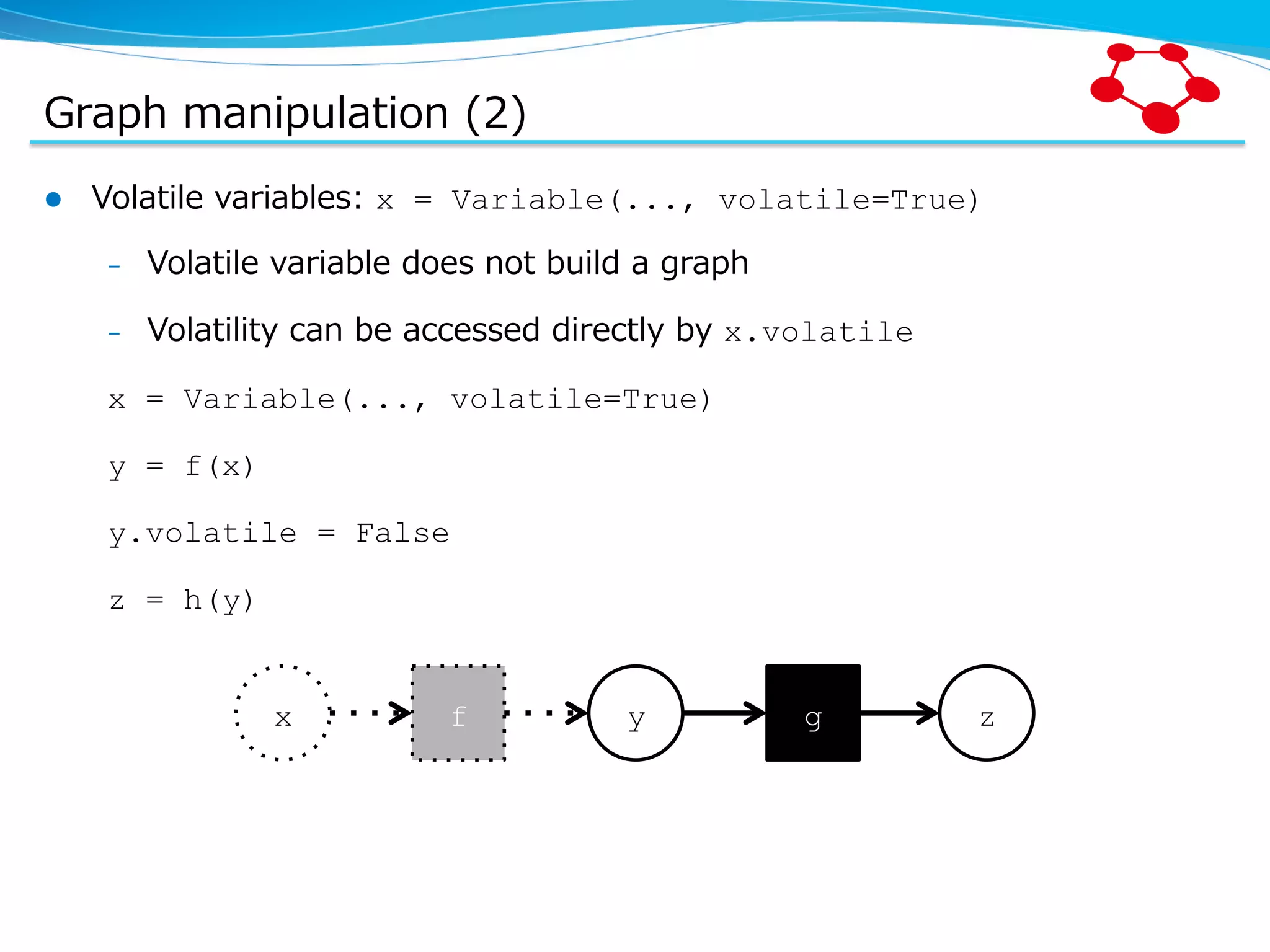

Graph manipulation (2) l  Volatile variables: x = Variable(..., volatile=True) –  Volatile variable does not build a graph –  Volatility can be accessed directly by x.volatile x = Variable(..., volatile=True) y = f(x) y.volatile = False z = h(y) x f y g z

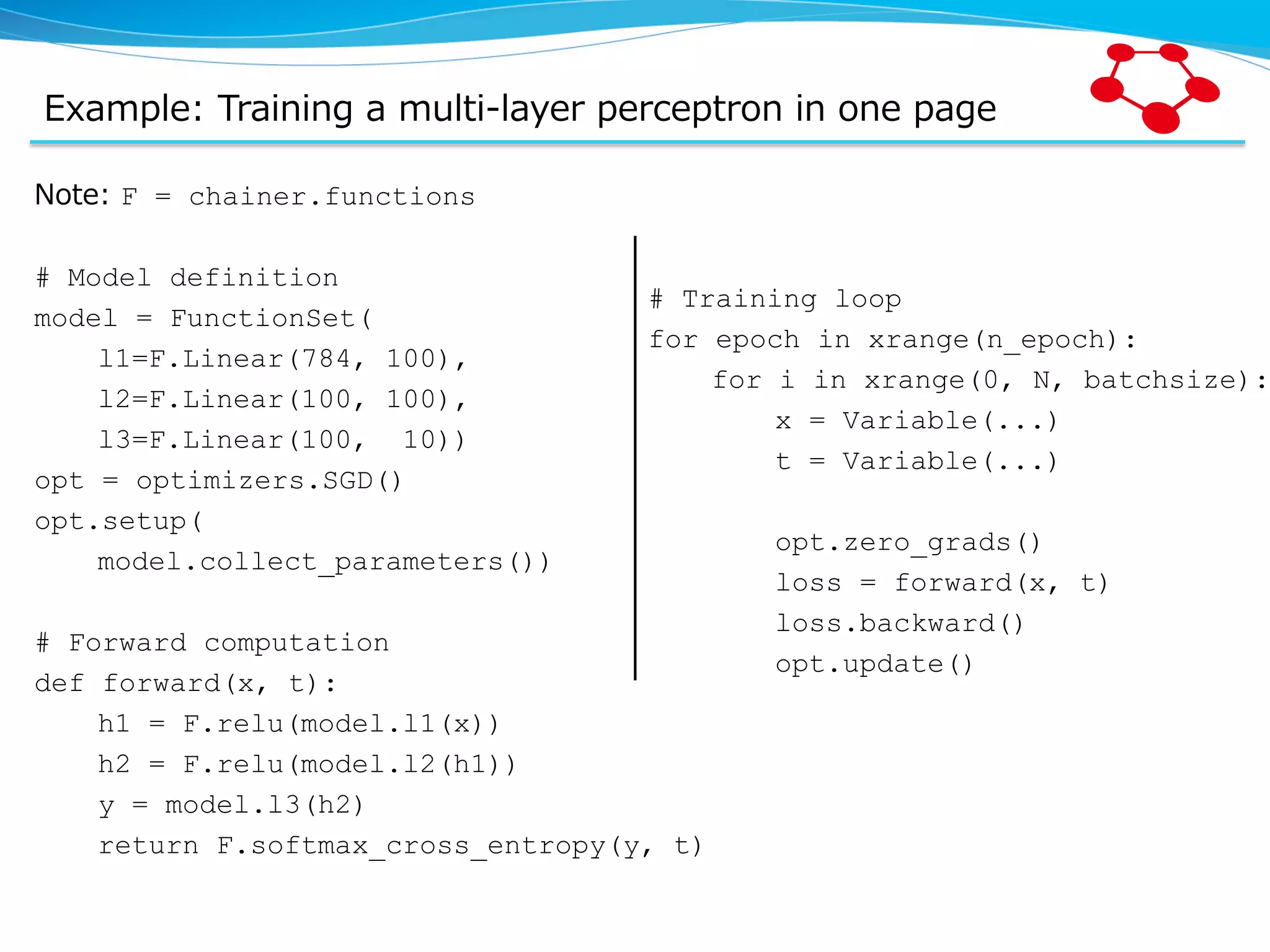

Example: Training a multi-‐‑‒layer perceptron in one page Note: F = chainer.functions # Model definition model = FunctionSet( l1=F.Linear(784, 100), l2=F.Linear(100, 100), l3=F.Linear(100, 10)) opt = optimizers.SGD() opt.setup( model.collect_parameters()) # Forward computation def forward(x, t): h1 = F.relu(model.l1(x)) h2 = F.relu(model.l2(h1)) y = model.l3(h2) return F.softmax_cross_entropy(y, t) # Training loop for epoch in xrange(n_epoch): for i in xrange(0, N, batchsize): x = Variable(...) t = Variable(...) opt.zero_grads() loss = forward(x, t) loss.backward() opt.update()

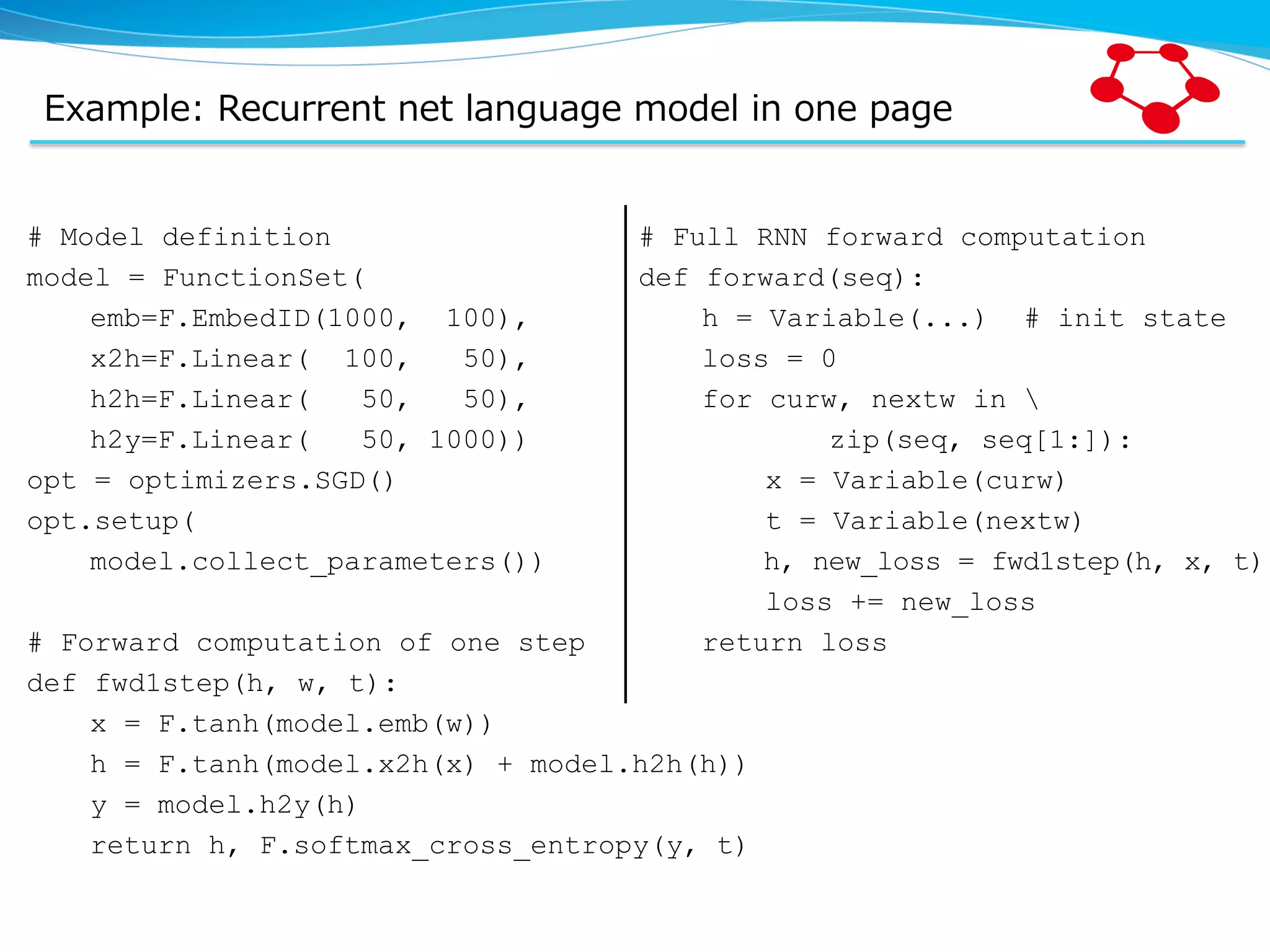

Example: Recurrent net language model in one page # Model definition model = FunctionSet( emb=F.EmbedID(1000, 100), x2h=F.Linear( 100, 50), h2h=F.Linear( 50, 50), h2y=F.Linear( 50, 1000)) opt = optimizers.SGD() opt.setup( model.collect_parameters()) # Forward computation of one step def fwd1step(h, w, t): x = F.tanh(model.emb(w)) h = F.tanh(model.x2h(x) + model.h2h(h)) y = model.h2y(h) return h, F.softmax_cross_entropy(y, t) # Full RNN forward computation def forward(seq): h = Variable(...) # init state loss = 0 for curw, nextw in zip(seq, seq[1:]): x = Variable(curw) t = Variable(nextw) h, new_loss = fwd1step(h, x, t) loss += new_loss return loss

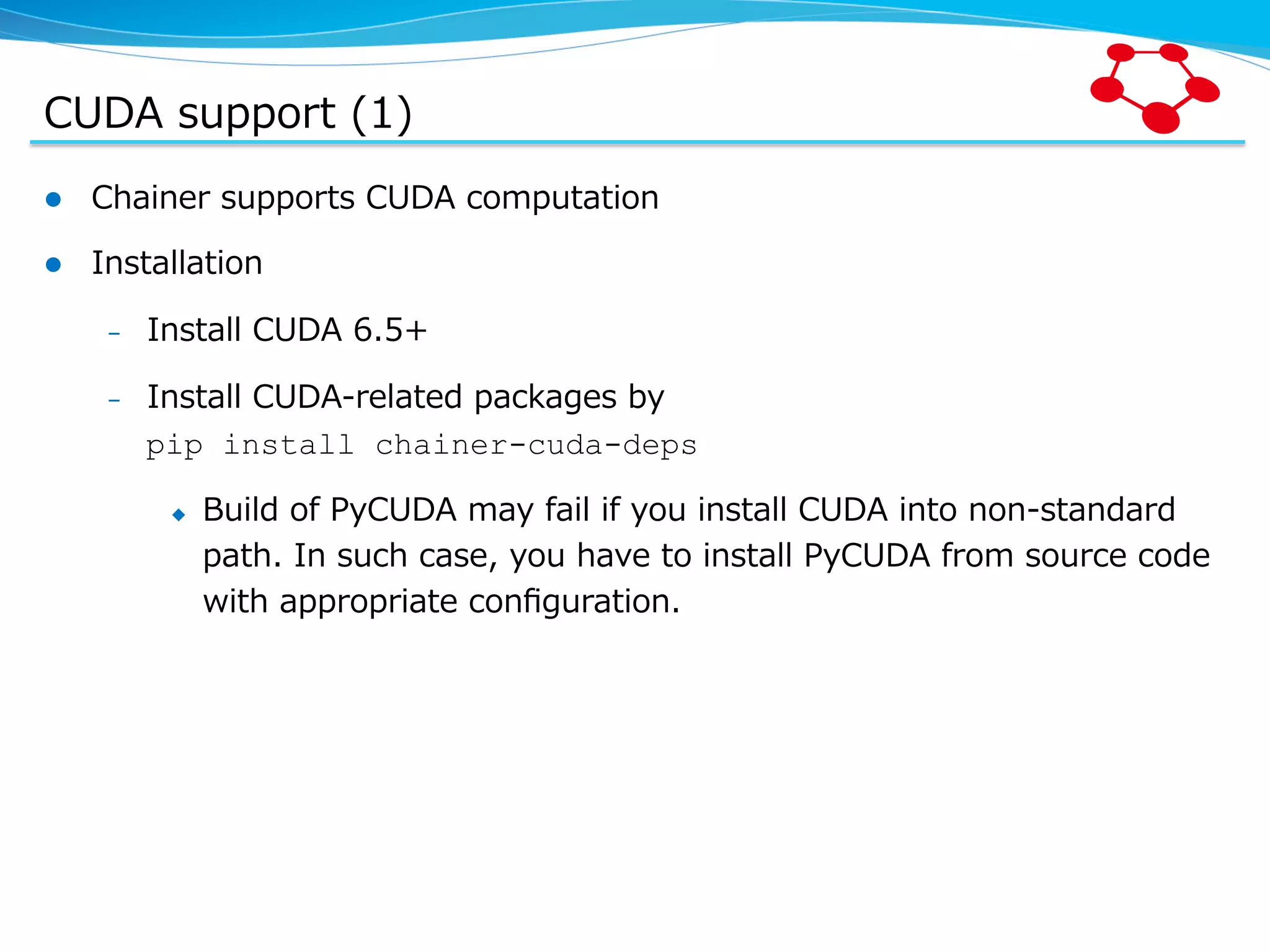

CUDA support (1) l  Chainer supports CUDA computation l  Installation –  Install CUDA 6.5+ –  Install CUDA-‐‑‒related packages by pip install chainer-cuda-deps u  Build of PyCUDA may fail if you install CUDA into non-‐‑‒standard path. In such case, you have to install PyCUDA from source code with appropriate conﬁguration.

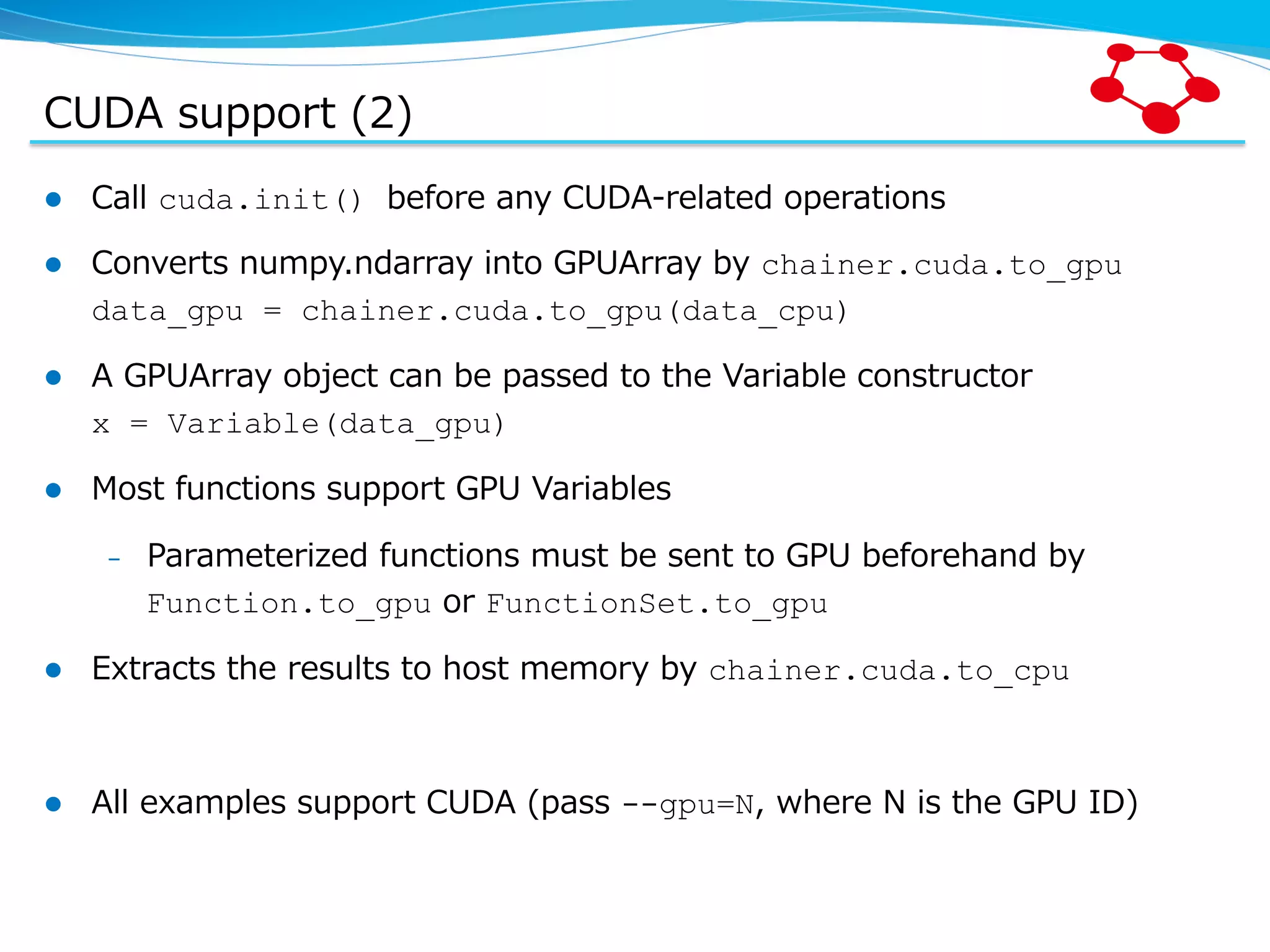

CUDA support (2) l  Call cuda.init() before any CUDA-‐‑‒related operations l  Converts numpy.ndarray into GPUArray by chainer.cuda.to_gpu data_gpu = chainer.cuda.to_gpu(data_cpu) l  A GPUArray object can be passed to the Variable constructor x = Variable(data_gpu) l  Most functions support GPU Variables –  Parameterized functions must be sent to GPU beforehand by Function.to_gpu or FunctionSet.to_gpu l  Extracts the results to host memory by chainer.cuda.to_cpu l  All examples support CUDA (pass --gpu=N, where N is the GPU ID)

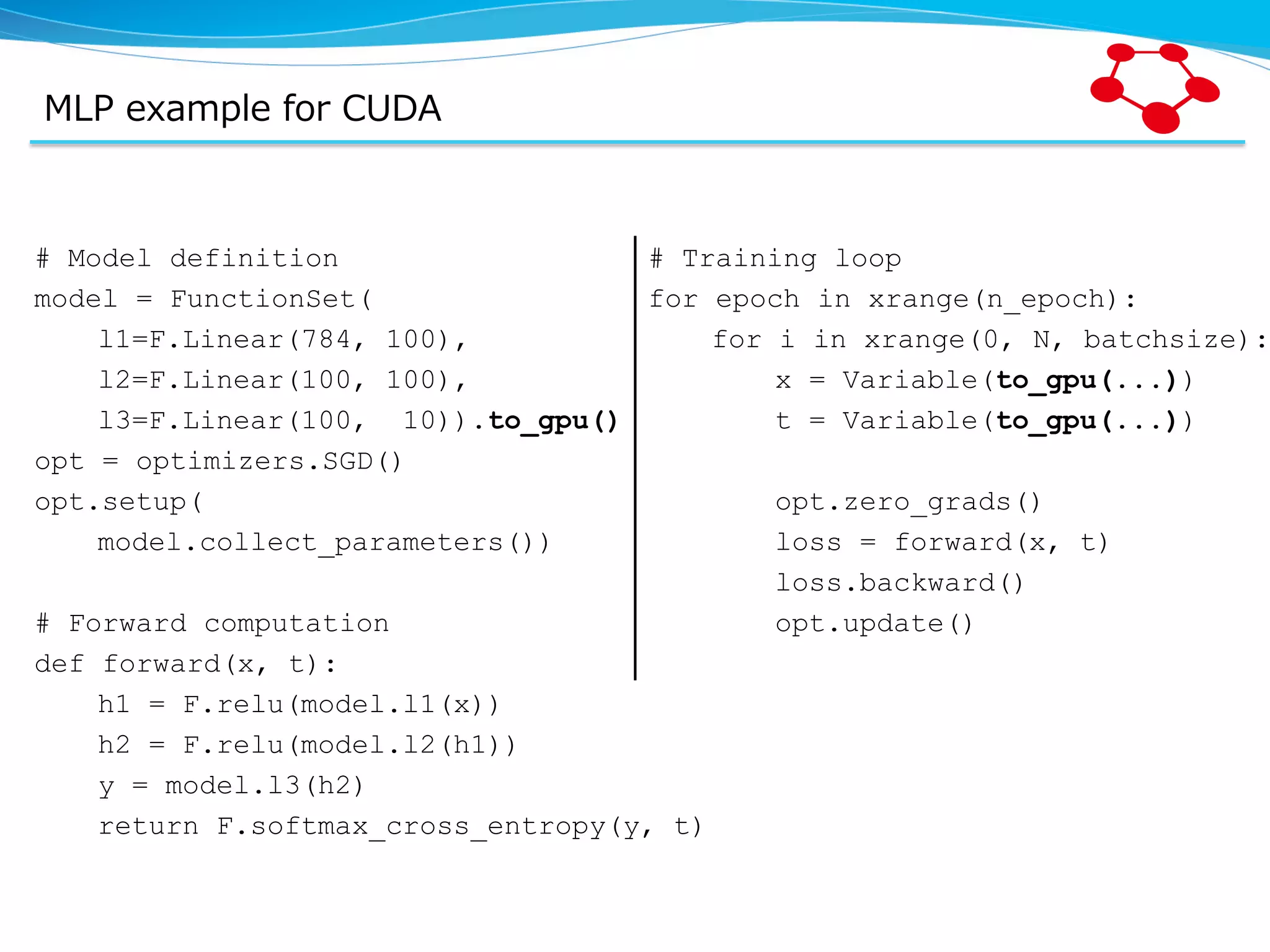

MLP example for CUDA # Model definition model = FunctionSet( l1=F.Linear(784, 100), l2=F.Linear(100, 100), l3=F.Linear(100, 10)).to_gpu() opt = optimizers.SGD() opt.setup( model.collect_parameters()) # Forward computation def forward(x, t): h1 = F.relu(model.l1(x)) h2 = F.relu(model.l2(h1)) y = model.l3(h2) return F.softmax_cross_entropy(y, t) # Training loop for epoch in xrange(n_epoch): for i in xrange(0, N, batchsize): x = Variable(to_gpu(...)) t = Variable(to_gpu(...)) opt.zero_grads() loss = forward(x, t) loss.backward() opt.update()

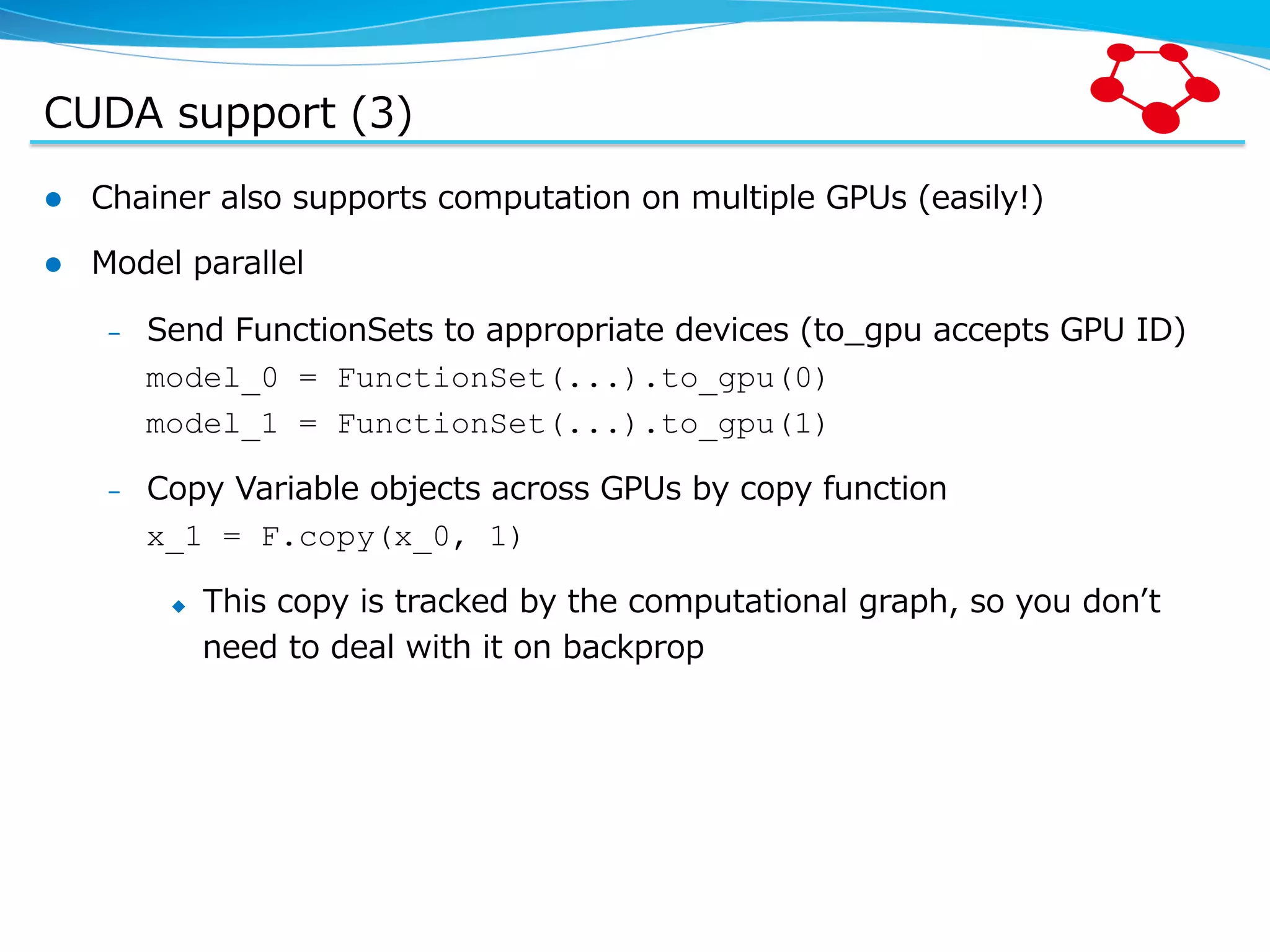

CUDA support (3) l  Chainer also supports computation on multiple GPUs (easily!) l  Model parallel –  Send FunctionSets to appropriate devices (to_̲gpu accepts GPU ID) model_0 = FunctionSet(...).to_gpu(0) model_1 = FunctionSet(...).to_gpu(1) –  Copy Variable objects across GPUs by copy function x_1 = F.copy(x_0, 1) u  This copy is tracked by the computational graph, so you donʼ’t need to deal with it on backprop

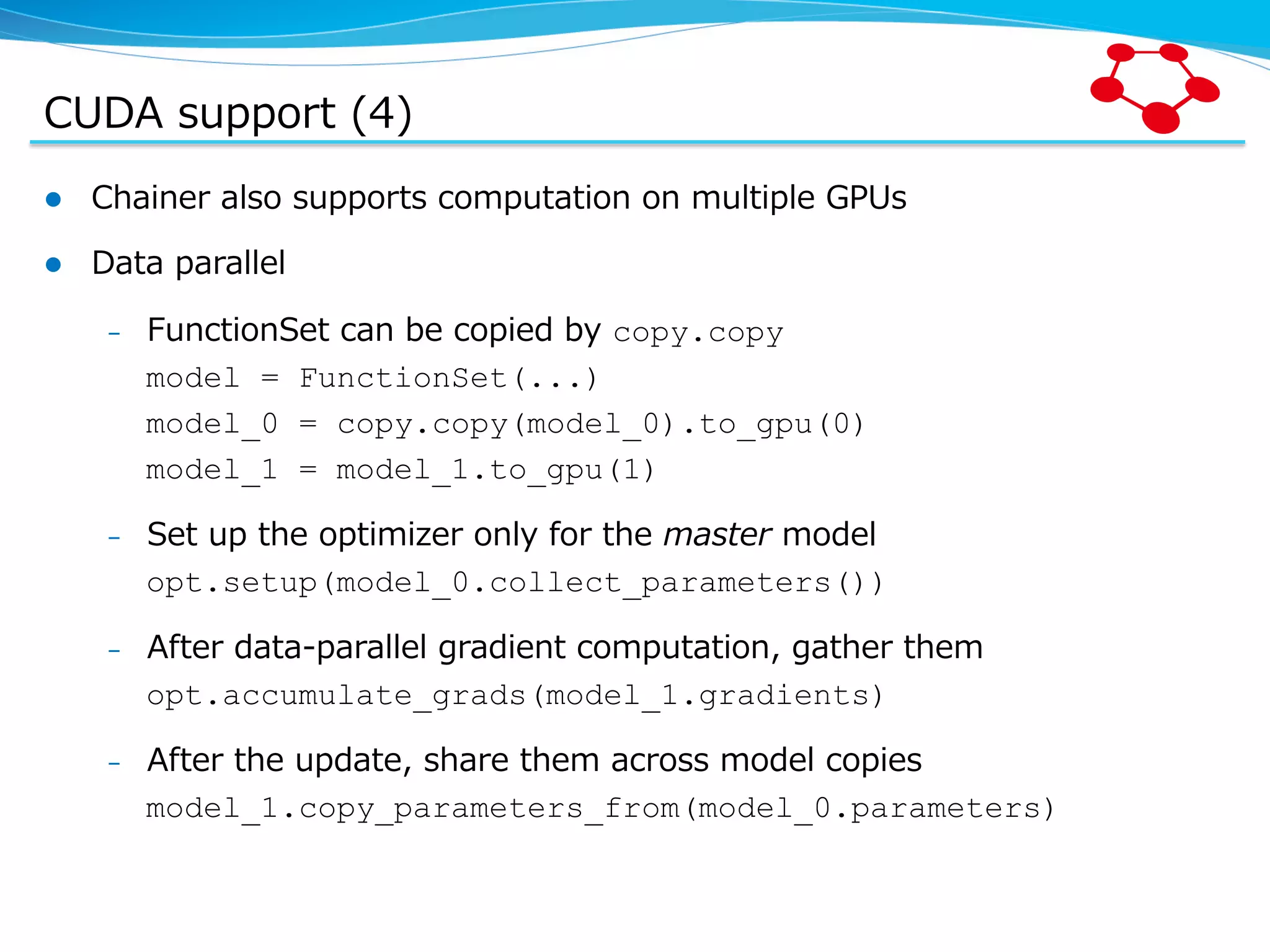

CUDA support (4) l  Chainer also supports computation on multiple GPUs l  Data parallel –  FunctionSet can be copied by copy.copy model = FunctionSet(...) model_0 = copy.copy(model_0).to_gpu(0) model_1 = model_1.to_gpu(1) –  Set up the optimizer only for the master model opt.setup(model_0.collect_parameters()) –  After data-‐‑‒parallel gradient computation, gather them opt.accumulate_grads(model_1.gradients) –  After the update, share them across model copies model_1.copy_parameters_from(model_0.parameters)

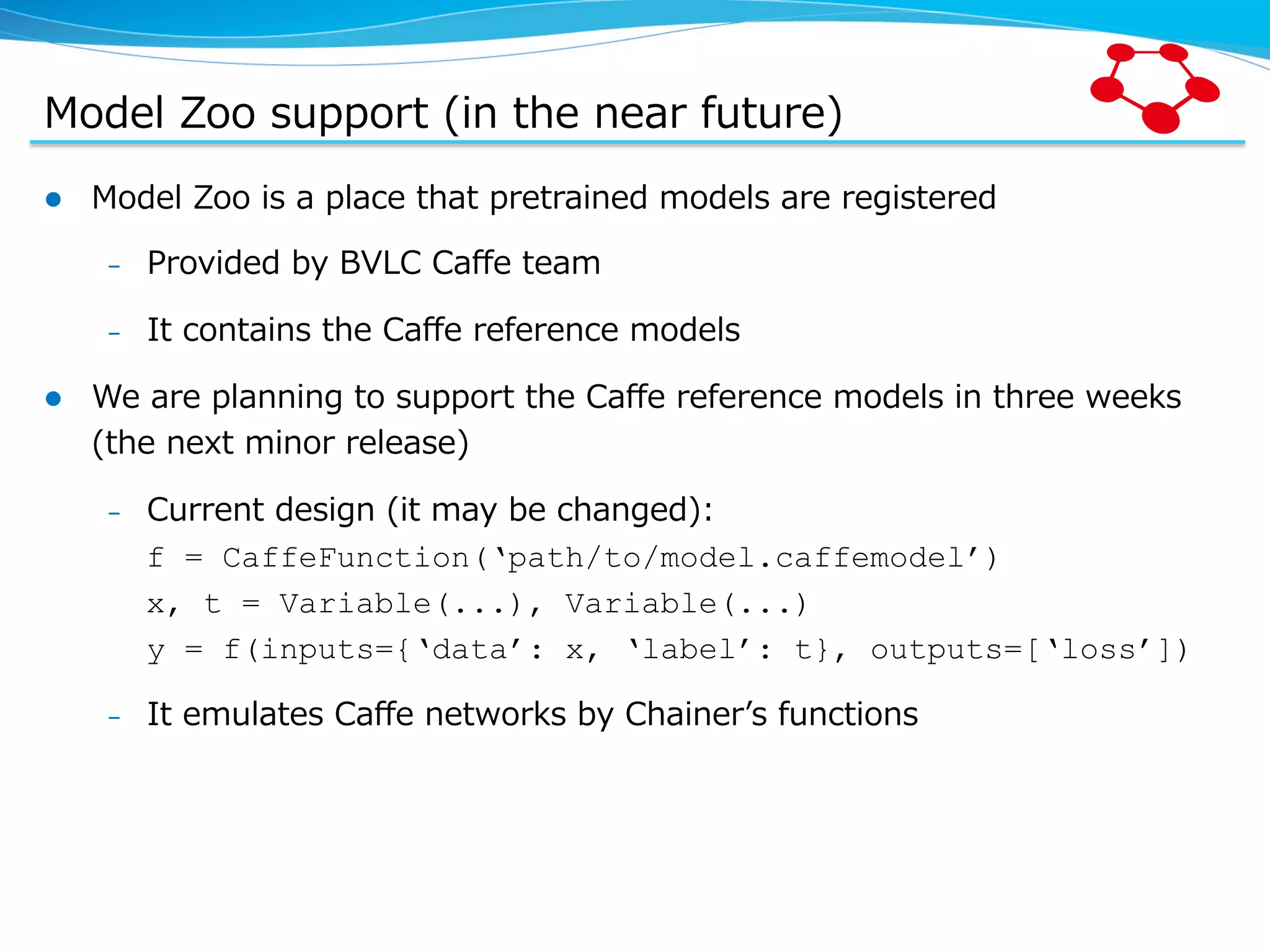

Model Zoo support (in the near future) l  Model Zoo is a place that pretrained models are registered –  Provided by BVLC Caffe team –  It contains the Caffe reference models l  We are planning to support the Caffe reference models in three weeks (the next minor release) –  Current design (it may be changed): f = CaffeFunction(‘path/to/model.caffemodel’) x, t = Variable(...), Variable(...) y = f(inputs={‘data’: x, ‘label’: t}, outputs=[‘loss’]) –  It emulates Caffe networks by Chainerʼ’s functions

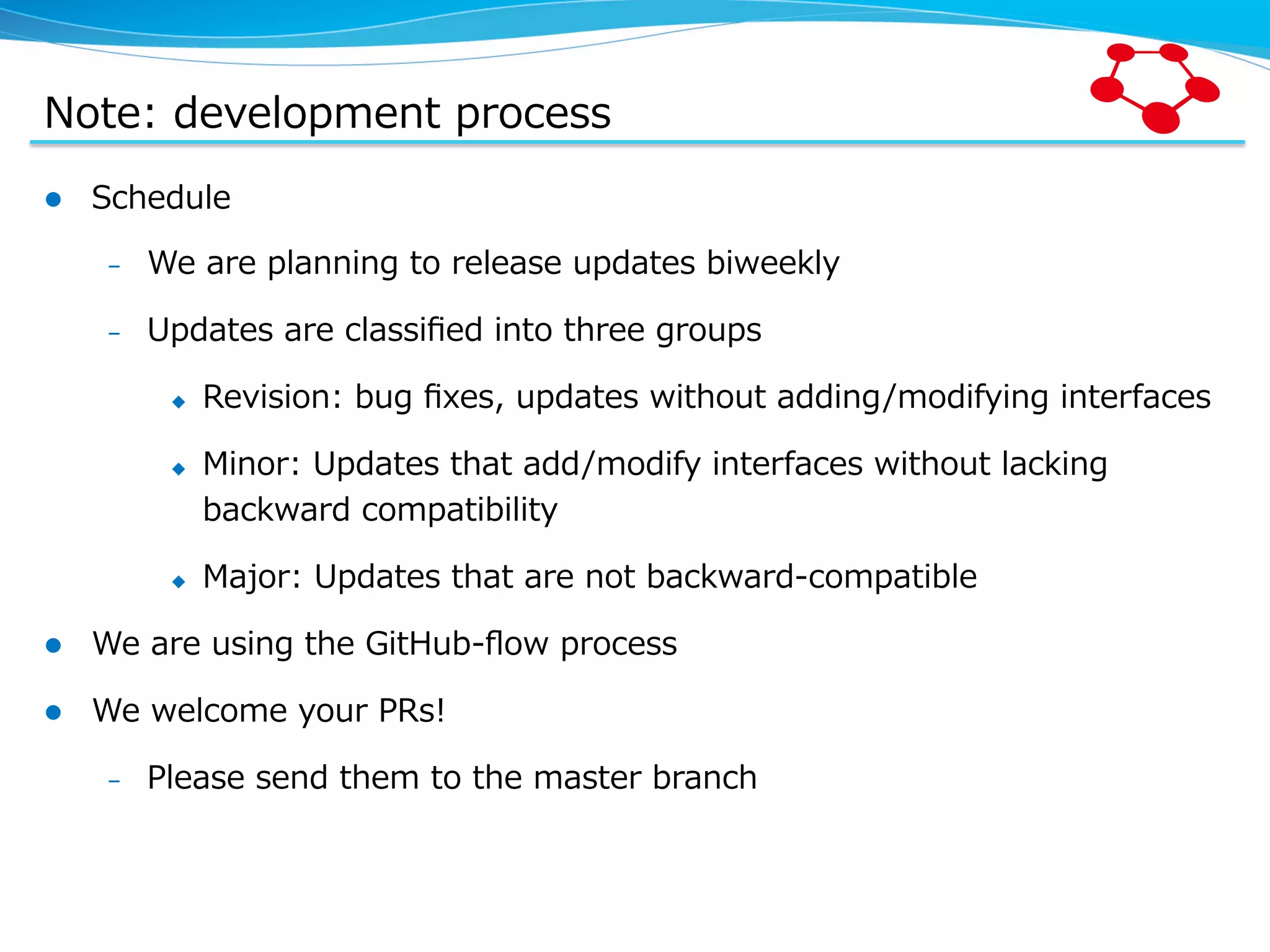

Note: development process l  Schedule –  We are planning to release updates biweekly –  Updates are classified into three groups u  Revision: bug fixes, updates without adding/modifying interfaces u  Minor: Updates that add/modify interfaces without lacking backward compatibility u  Major: Updates that are not backward-‐‑‒compatible l  We are using the GitHub-‐‑‒flow process l  We welcome your PRs! –  Please send them to the master branch

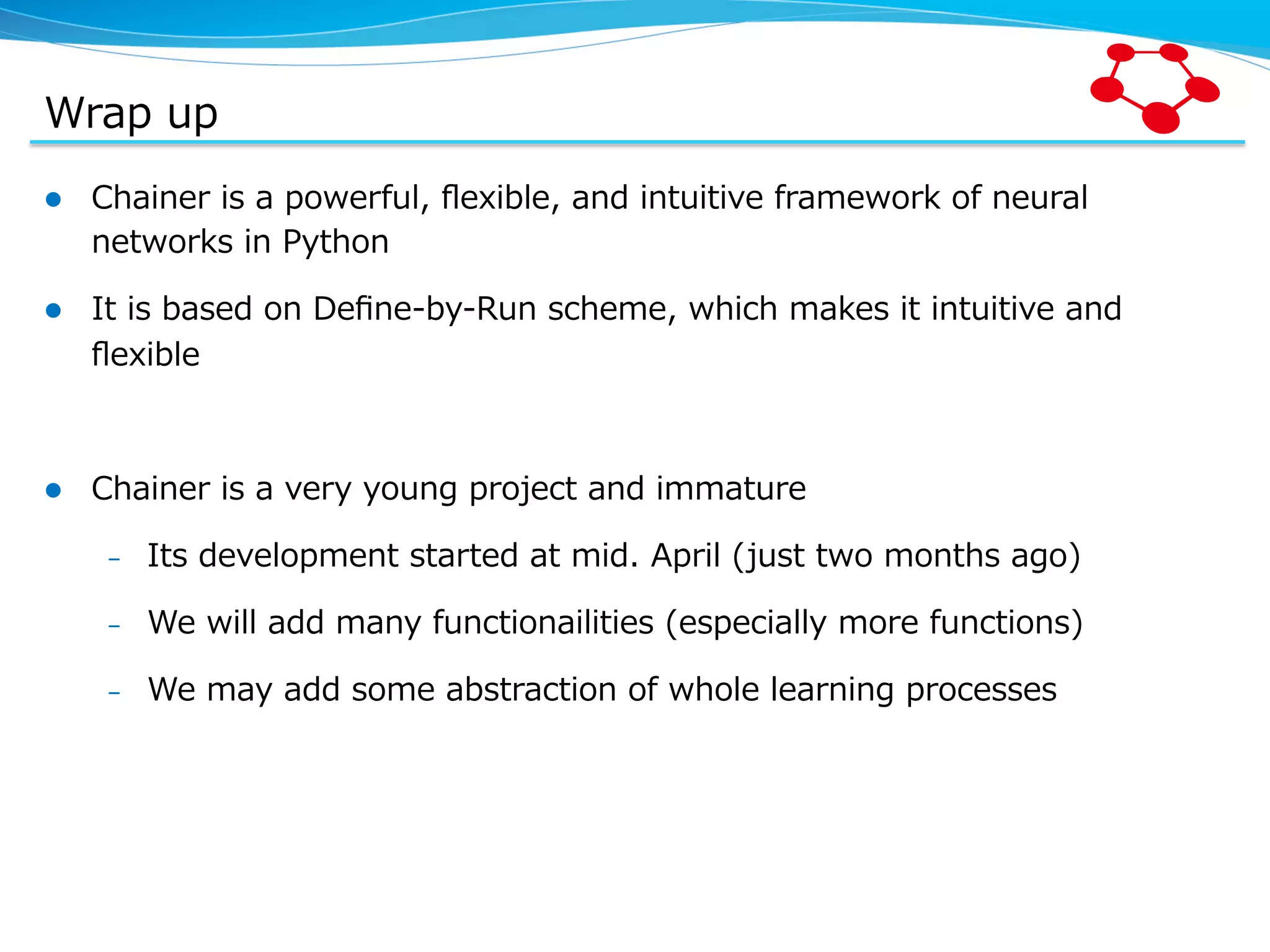

Wrap up l  Chainer is a powerful, flexible, and intuitive framework of neural networks in Python l  It is based on Define-‐‑‒by-‐‑‒Run scheme, which makes it intuitive and flexible l  Chainer is a very young project and immature –  Its development started at mid. April (just two months ago) –  We will add many functionailities (especially more functions) –  We may add some abstraction of whole learning processes
