Introduction to Basic Concepts in Web
- 1. Web Application ProgrammingIntroduction to Basic Concepts Jussi Pohjolainen TAMK University of Applied Sciences

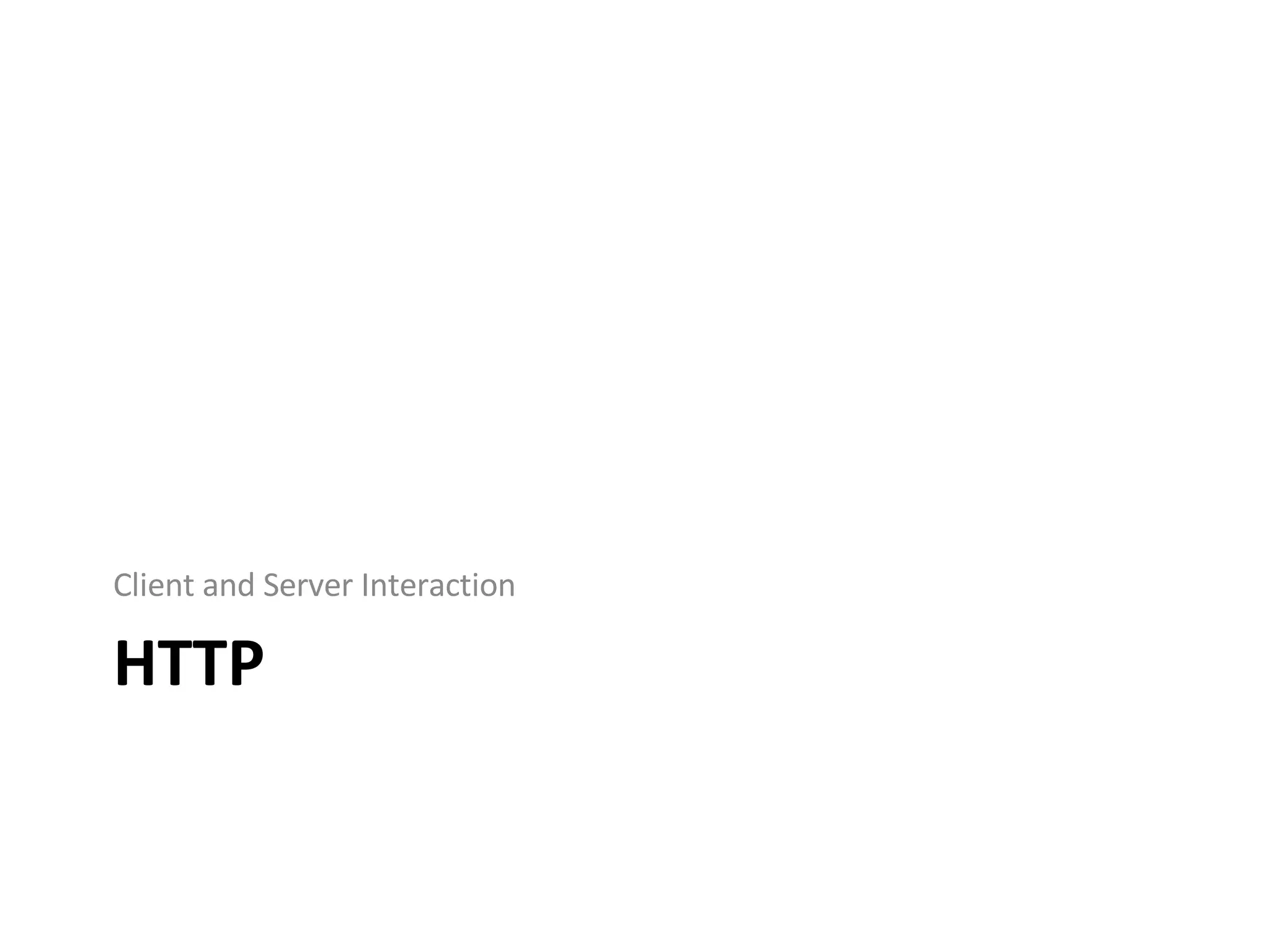

- 2. HTTP Client andServer Interaction

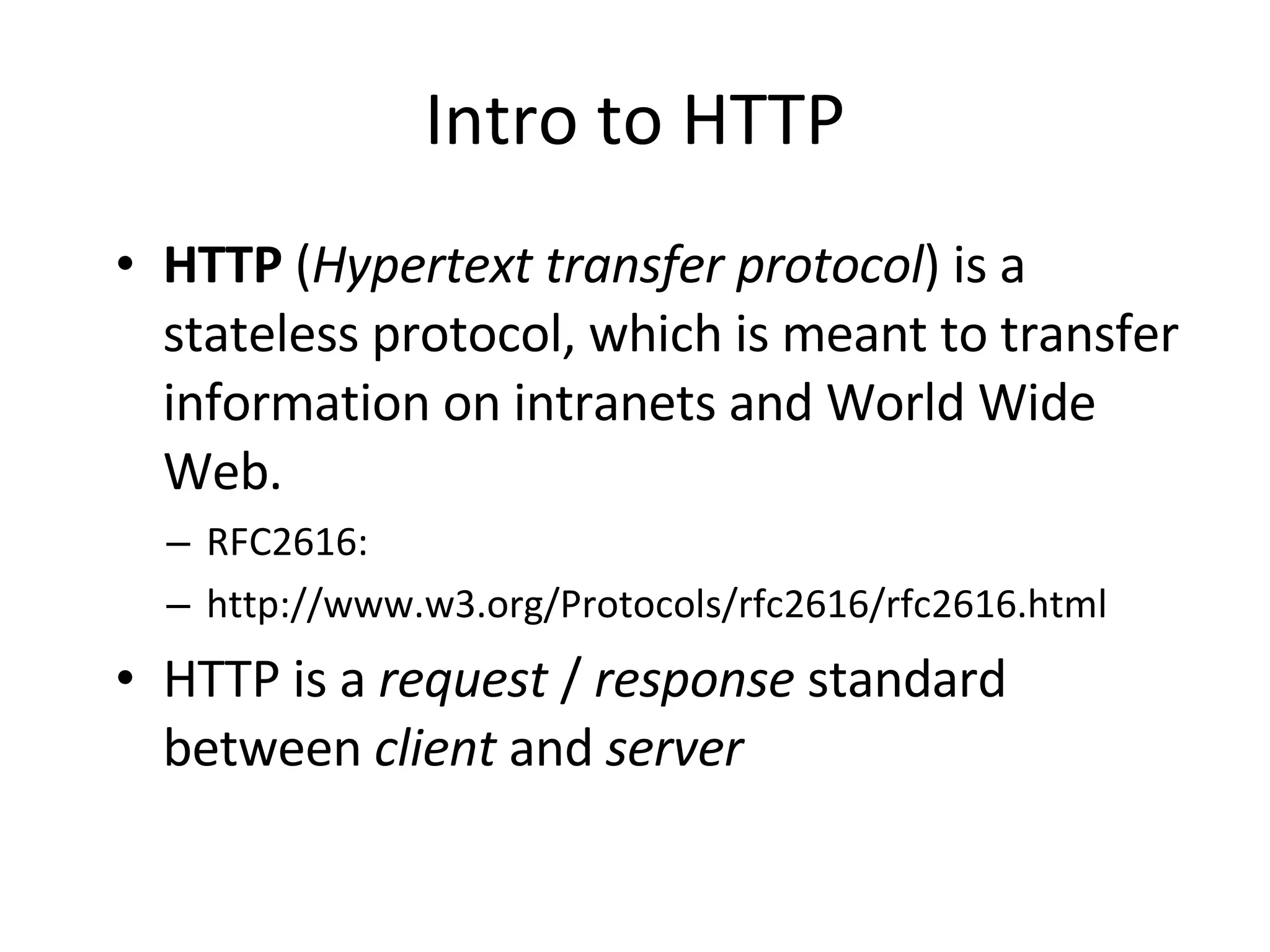

- 3. Intro to HTTPHTTP ( Hypertext transfer protocol ) is a stateless protocol, which is meant to transfer information on intranets and World Wide Web. RFC2616: http://www.w3.org/Protocols/rfc2616/rfc2616.html HTTP is a request / response standard between client and server

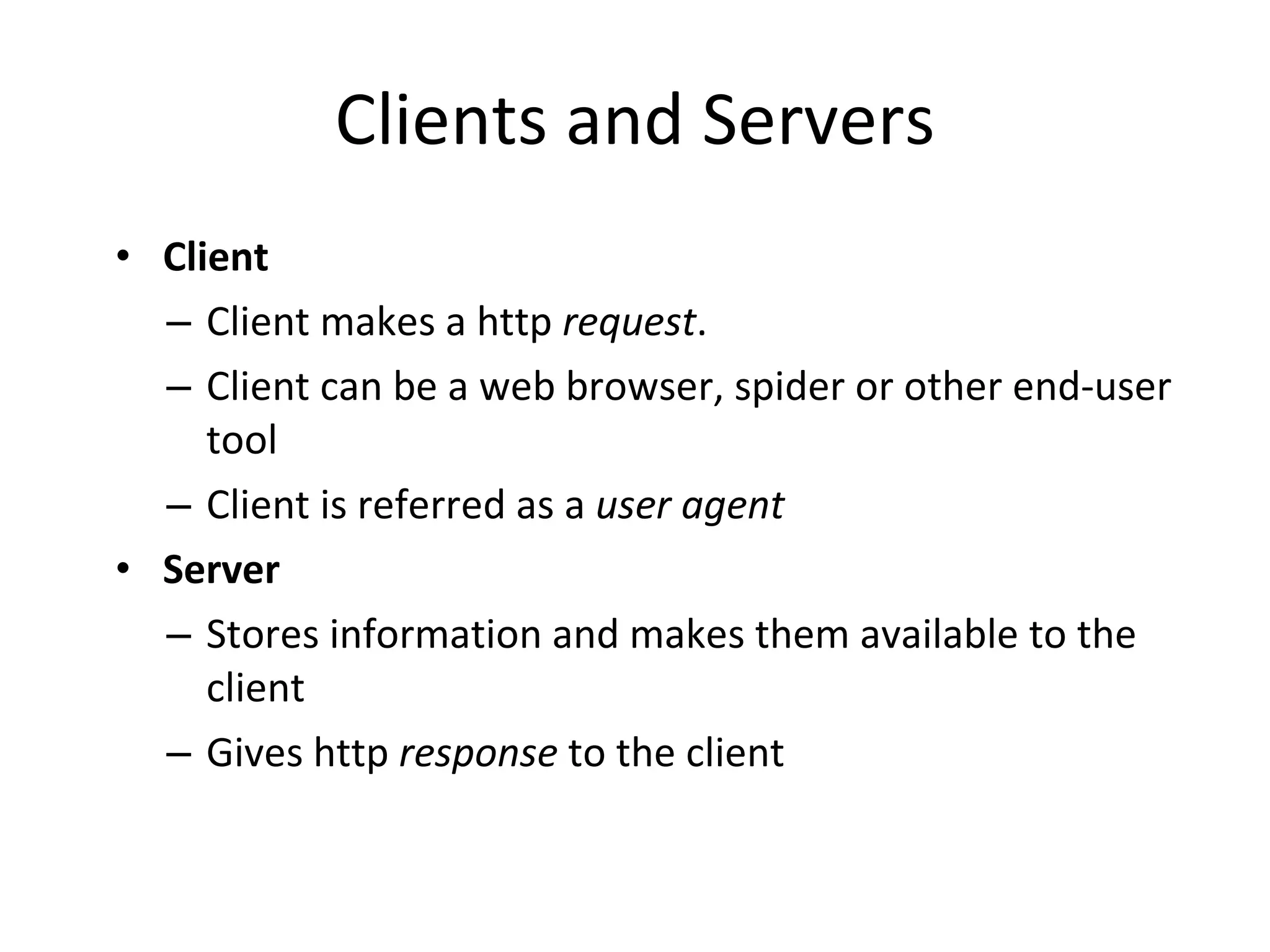

- 4. Clients and ServersClient Client makes a http request . Client can be a web browser, spider or other end-user tool Client is referred as a user agent Server Stores information and makes them available to the client Gives http response to the client

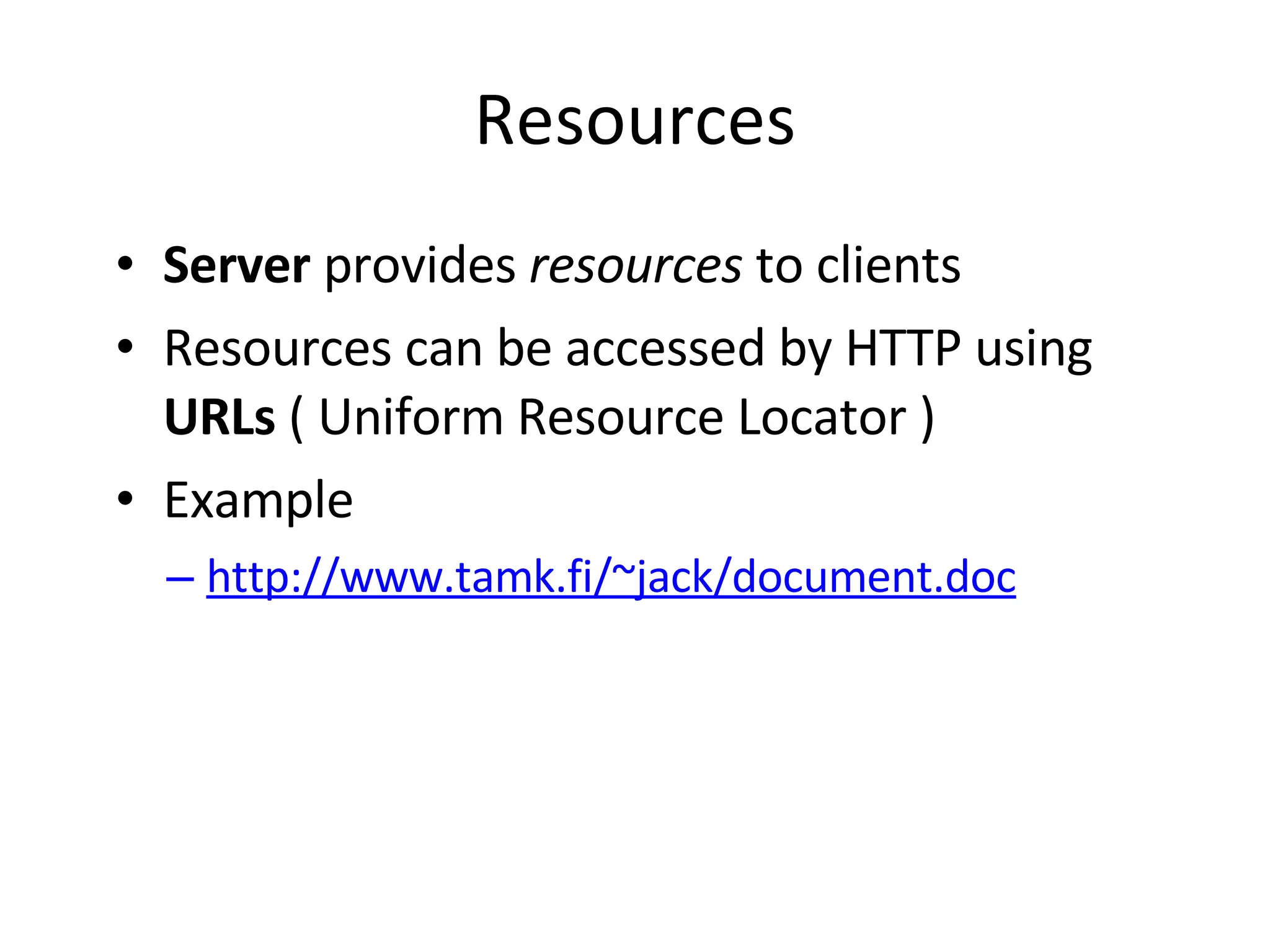

- 5. Resources Server provides resources to clients Resources can be accessed by HTTP using URLs ( Uniform Resource Locator ) Example http://www.tamk.fi/~jack/document.doc

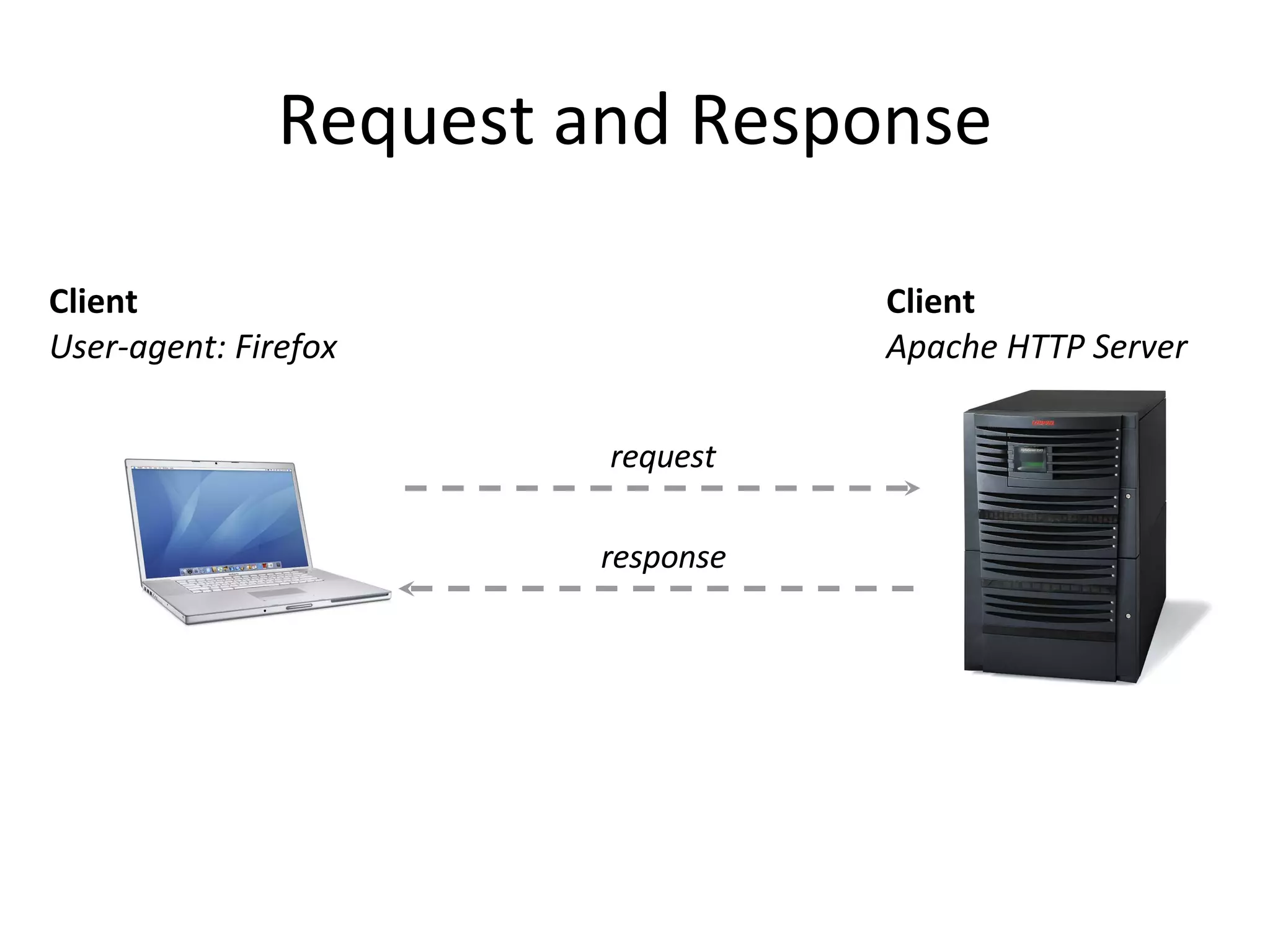

- 6. Request and ResponseClient User-agent: Firefox Client Apache HTTP Server request response

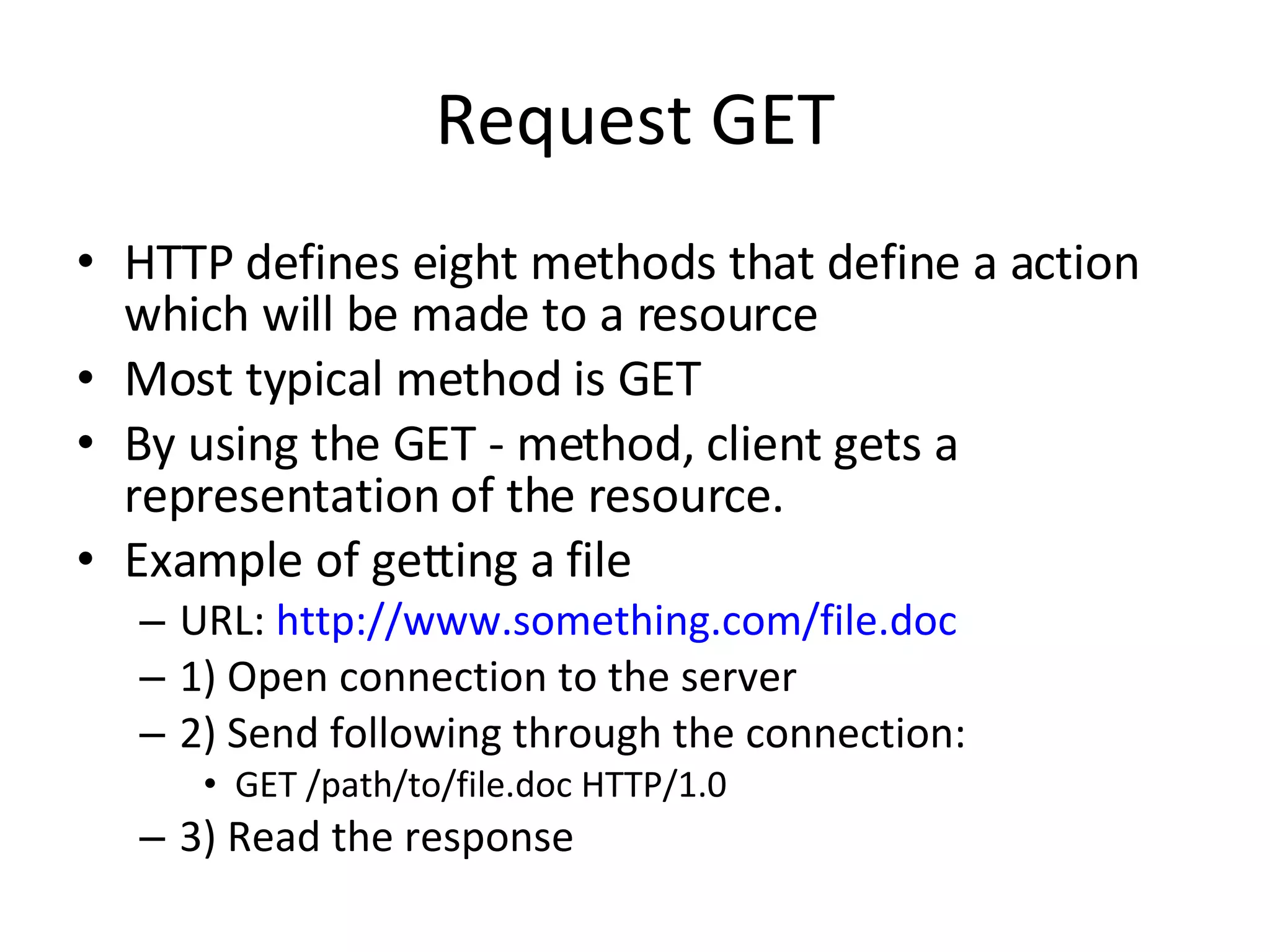

- 7. Request GET HTTPdefines eight methods that define a action which will be made to a resource Most typical method is GET By using the GET - method, client gets a representation of the resource. Example of getting a file URL: http://www.something.com/file.doc 1) Open connection to the server 2) Send following through the connection: GET /path/to/file.doc HTTP/1.0 3) Read the response

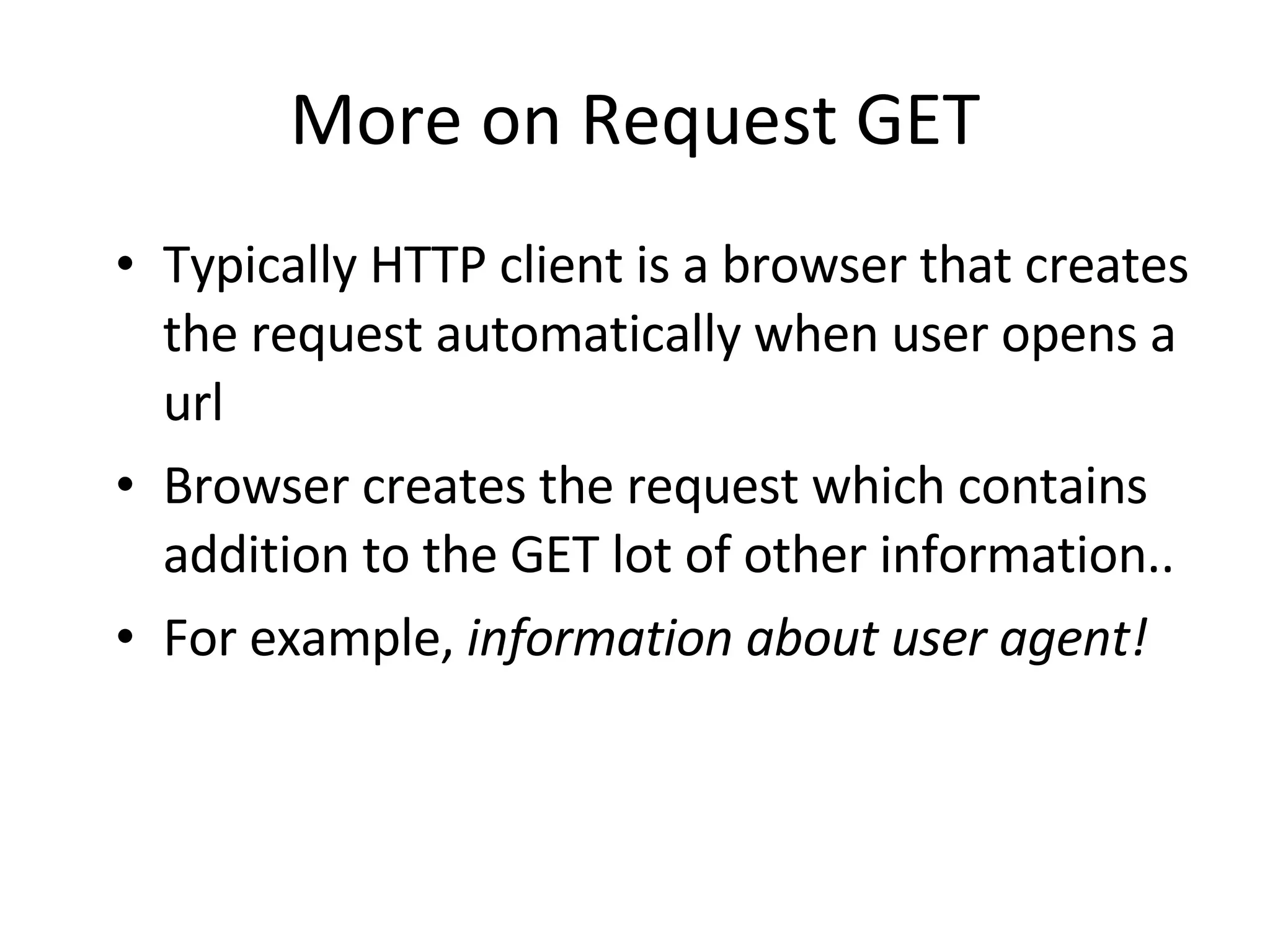

- 8. More on RequestGET Typically HTTP client is a browser that creates the request automatically when user opens a url Browser creates the request which contains addition to the GET lot of other information.. For example, information about user agent!

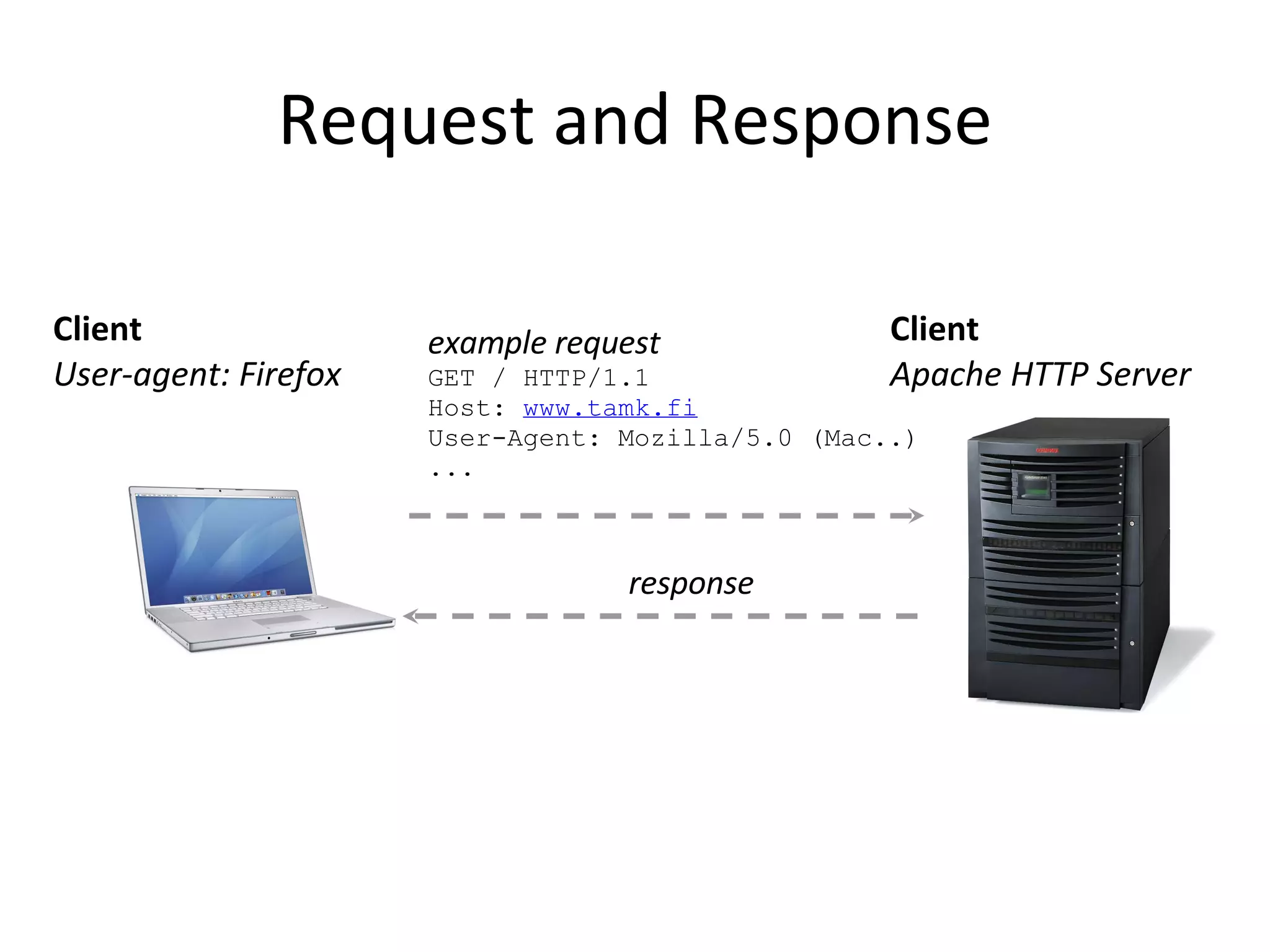

- 9. Request and ResponseClient User-agent: Firefox Client Apache HTTP Server example request GET / HTTP/1.1 Host: www.tamk.fi User-Agent: Mozilla/5.0 (Mac..) ... response

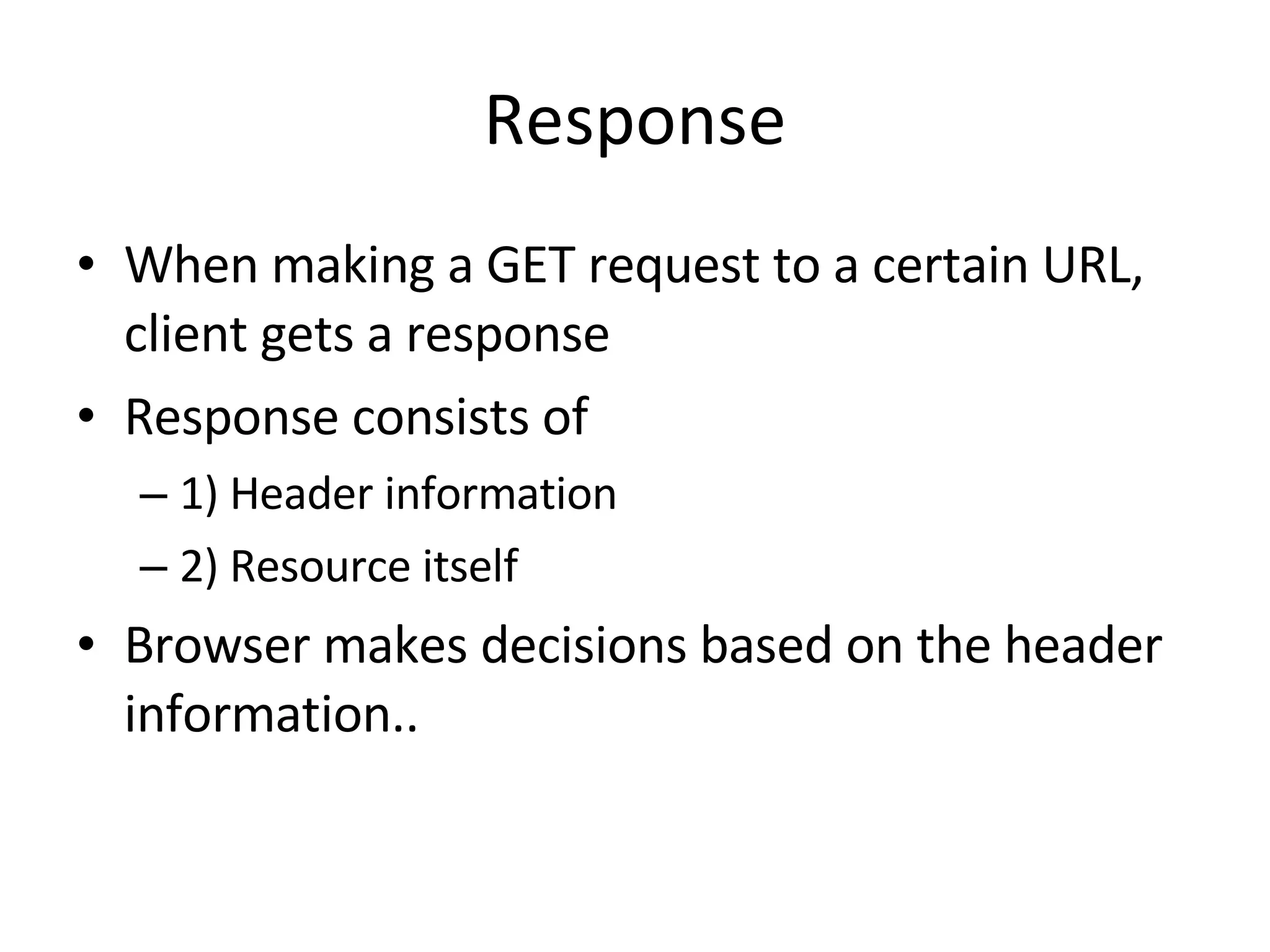

- 10. Response When makinga GET request to a certain URL, client gets a response Response consists of 1) Header information 2) Resource itself Browser makes decisions based on the header information..

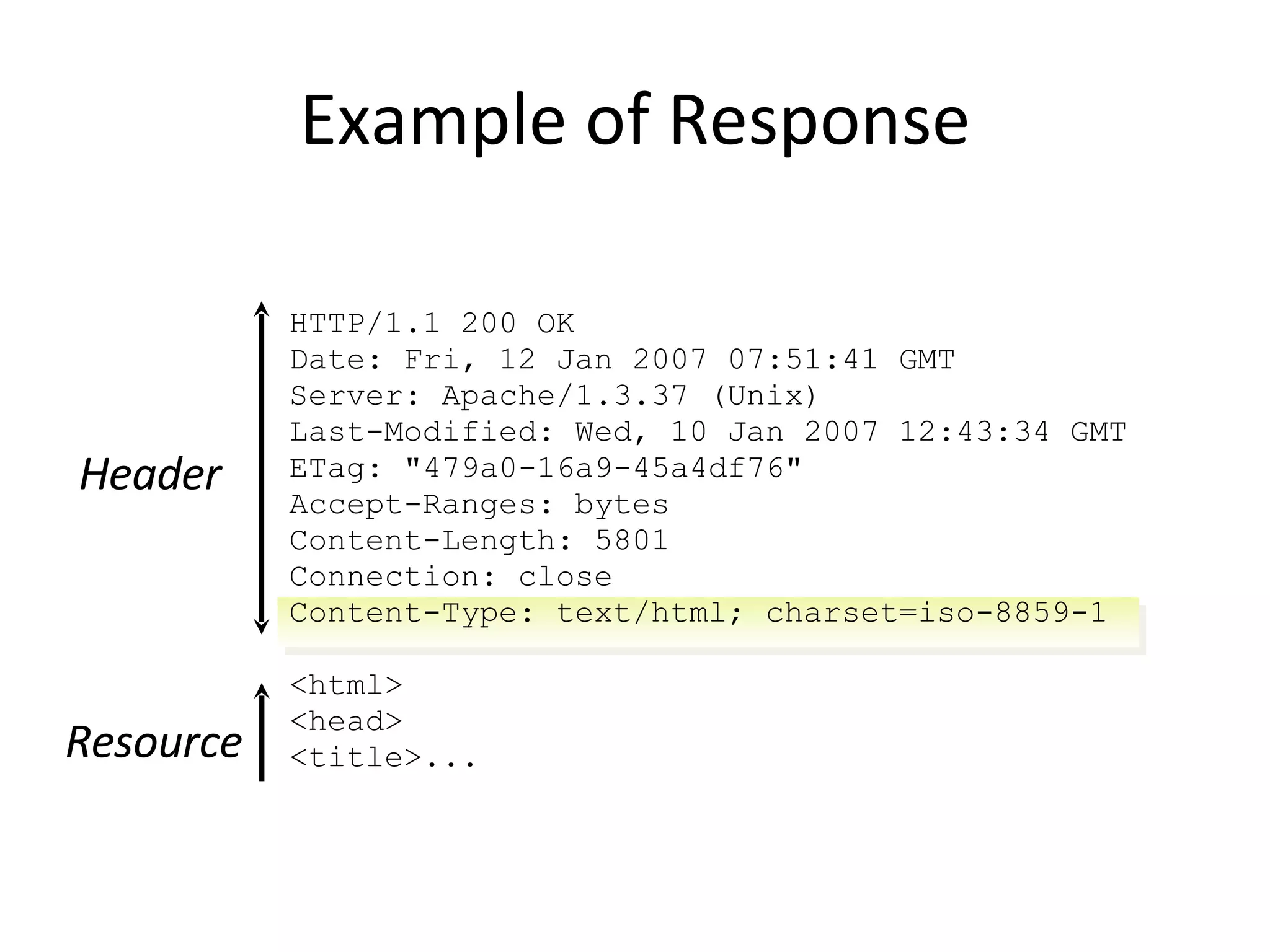

- 11. Example of ResponseHTTP/1.1 200 OK Date: Fri, 12 Jan 2007 07:51:41 GMT Server: Apache/1.3.37 (Unix) Last-Modified: Wed, 10 Jan 2007 12:43:34 GMT ETag: "479a0-16a9-45a4df76" Accept-Ranges: bytes Content-Length: 5801 Connection: close Content-Type: text/html; charset=iso-8859-1 <html> <head> <title>... Header Resource

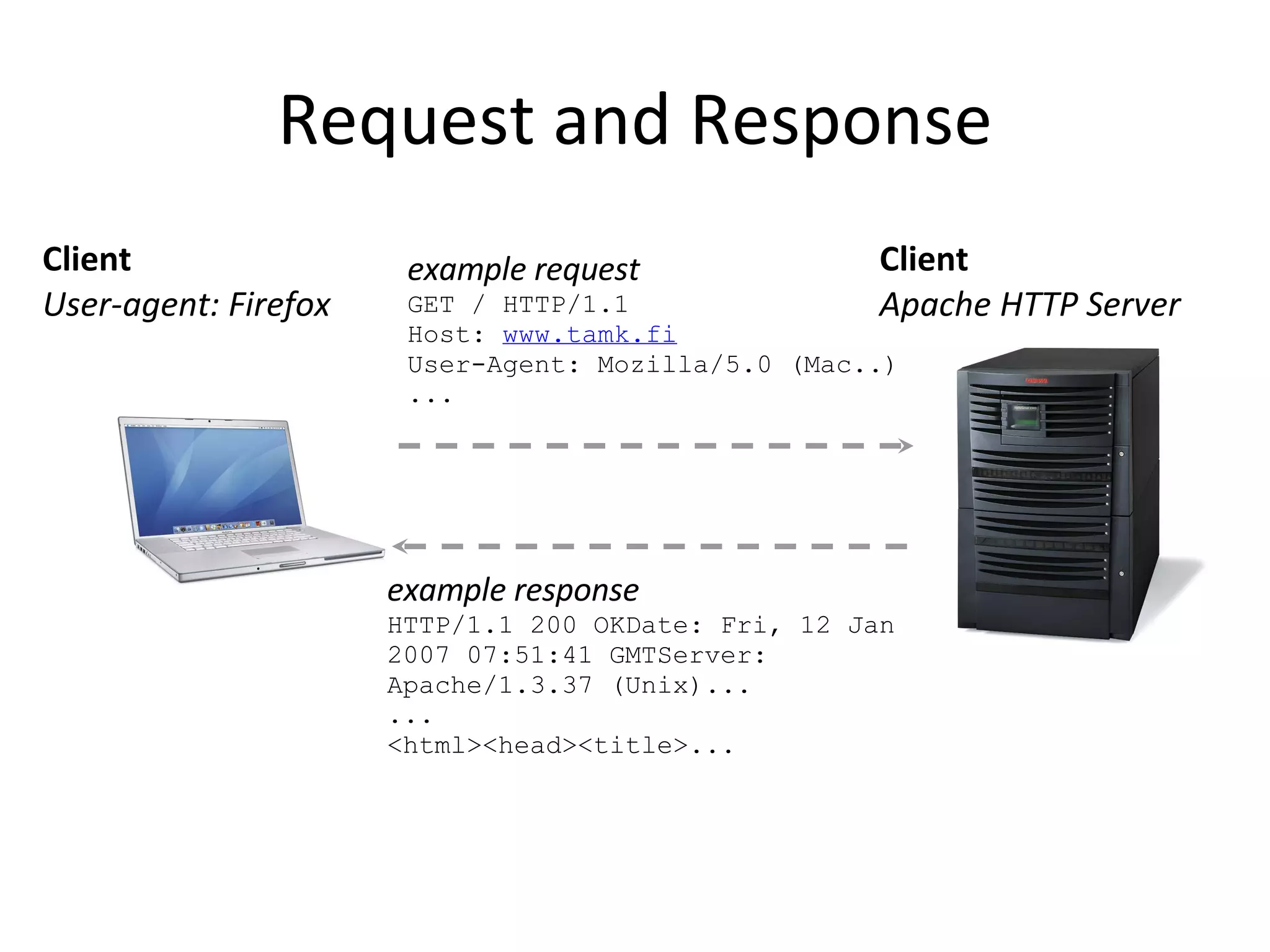

- 12. Request and ResponseClient User-agent: Firefox Client Apache HTTP Server example request GET / HTTP/1.1 Host: www.tamk.fi User-Agent: Mozilla/5.0 (Mac..) ... example response HTTP/1.1 200 OKDate: Fri, 12 Jan 2007 07:51:41 GMTServer: Apache/1.3.37 (Unix)... ... <html><head><title>...

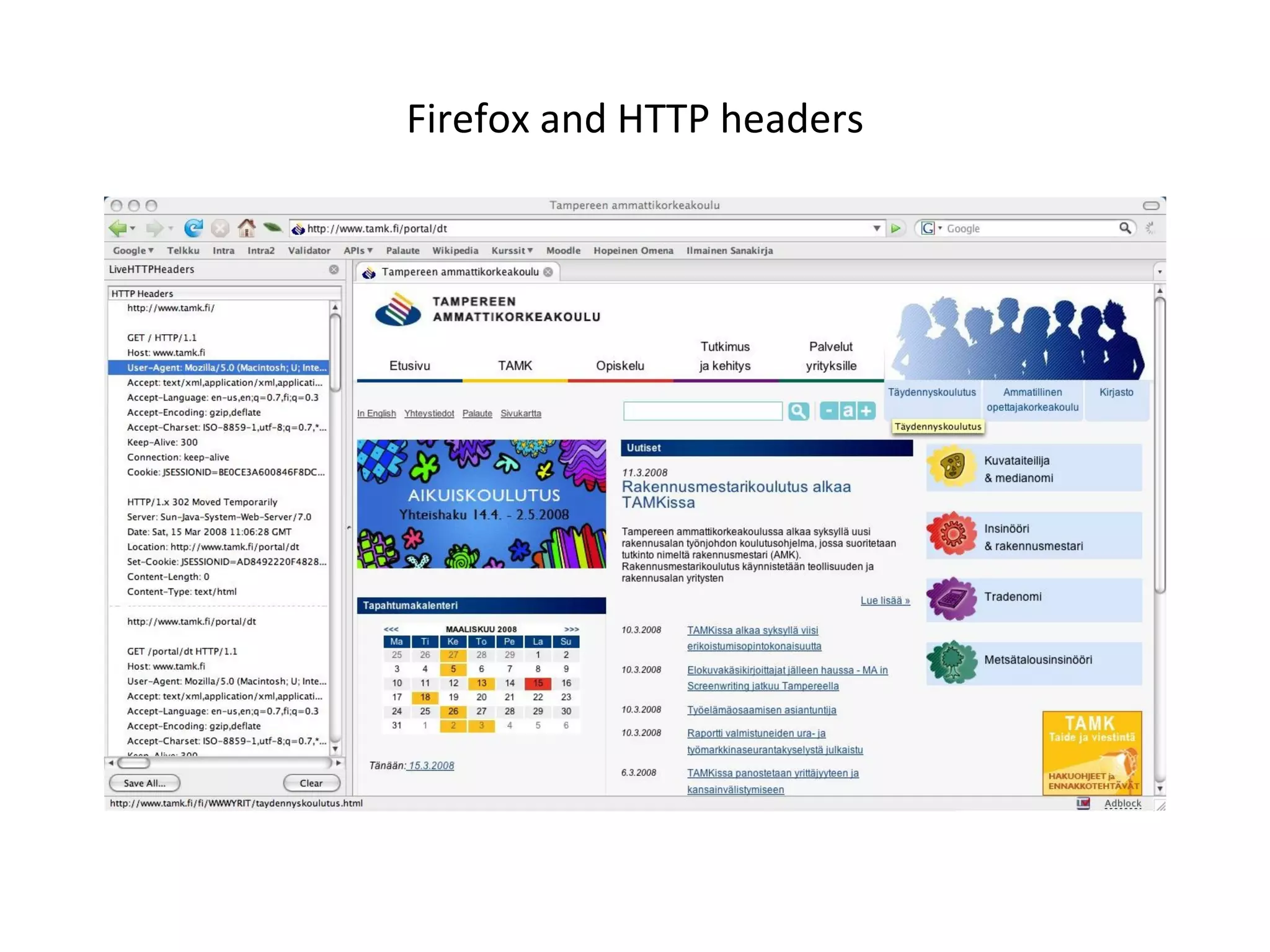

- 13. Firefox and HTTPheaders

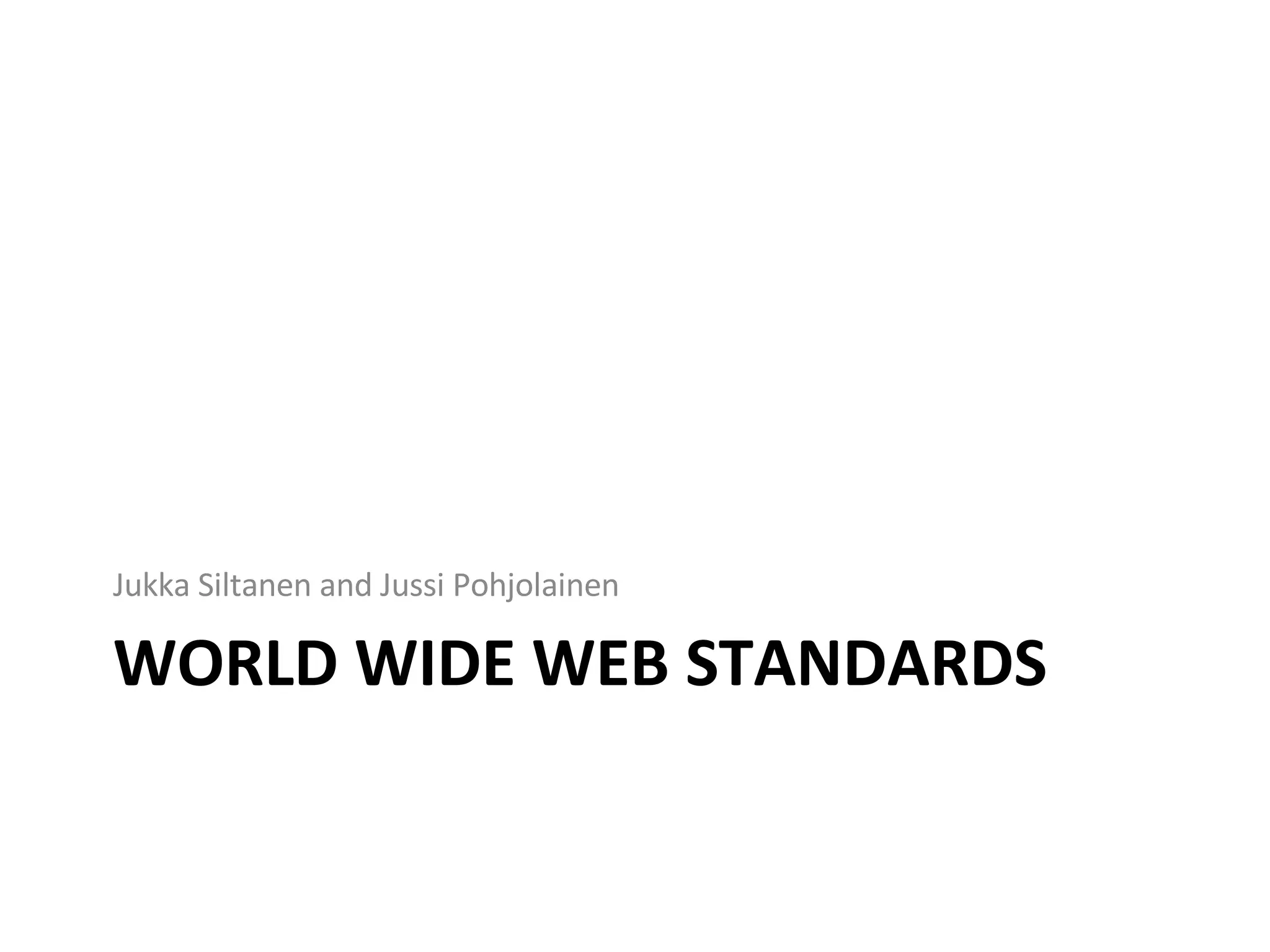

- 14. WORLD WIDE WEBSTANDARDS Jukka Siltanen and Jussi Pohjolainen

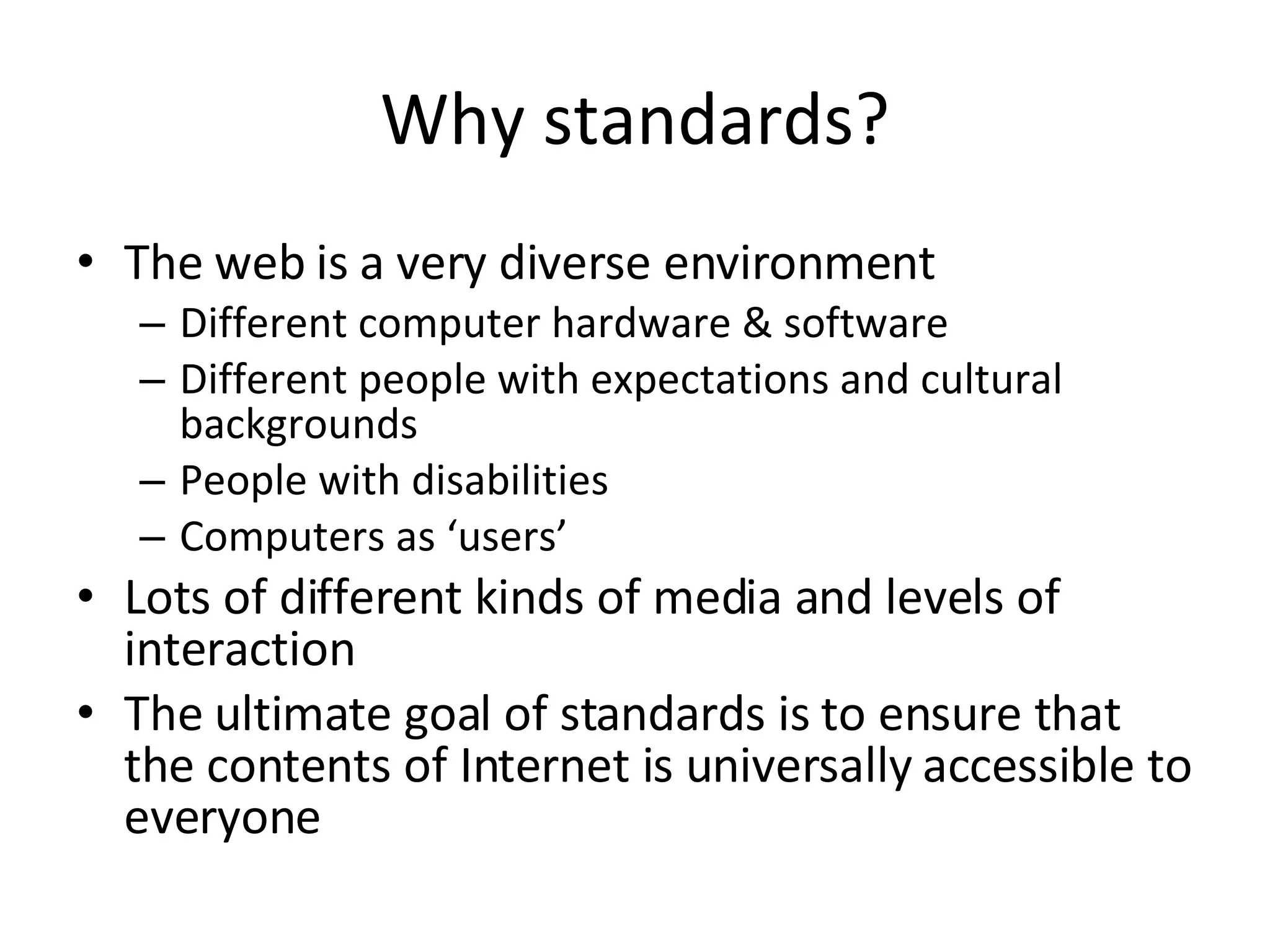

- 15. Why standards? Theweb is a very diverse environment Different computer hardware & software Different people with expectations and cultural backgrounds People with disabilities Computers as ‘users’ Lots of different kinds of media and levels of interaction The ultimate goal of standards is to ensure that the contents of Internet is universally accessible to everyone

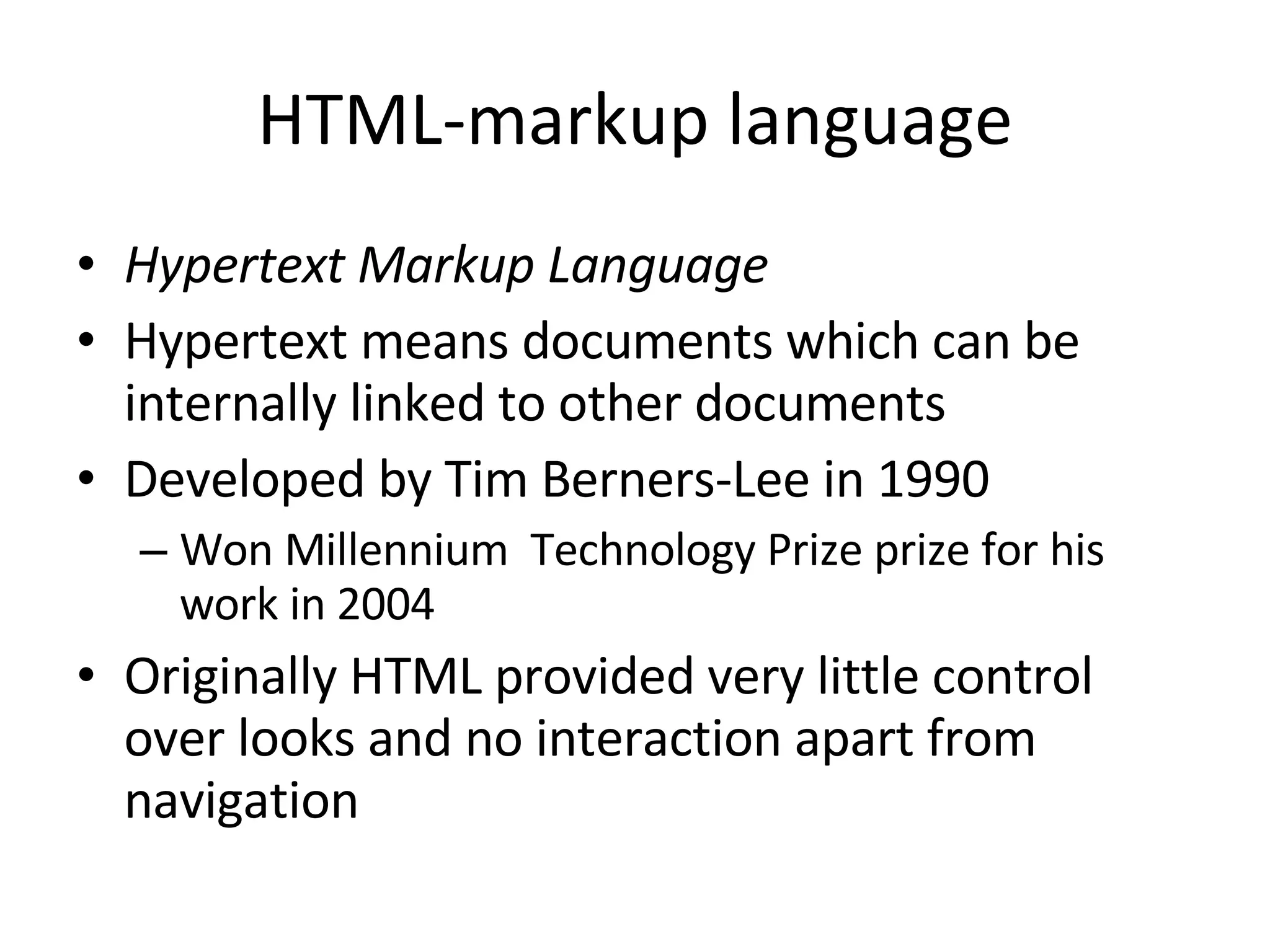

- 16. HTML-markup language HypertextMarkup Language Hypertext means documents which can be internally linked to other documents Developed by Tim Berners-Lee in 1990 Won Millennium Technology Prize prize for his work in 2004 Originally HTML provided very little control over looks and no interaction apart from navigation

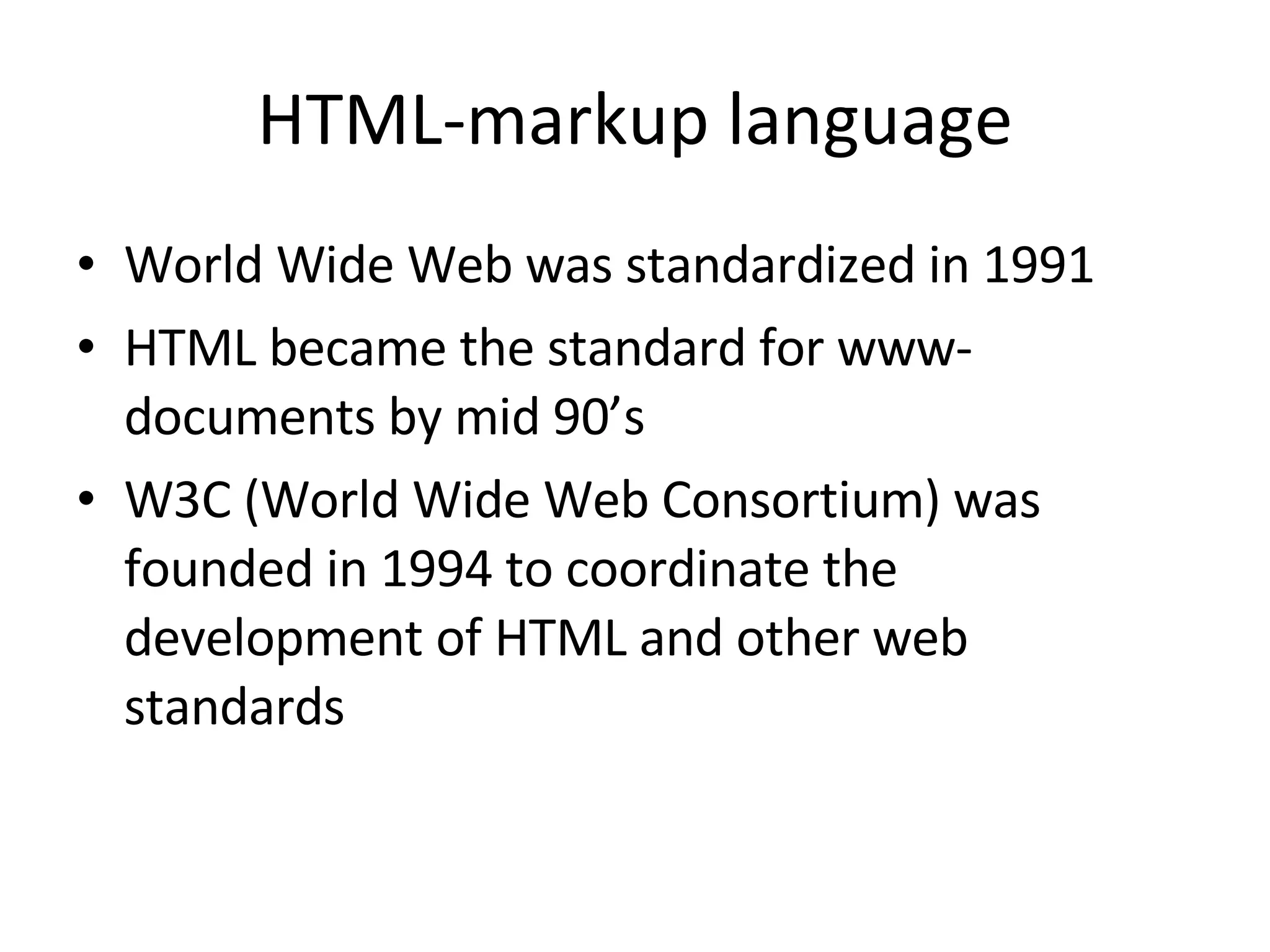

- 17. HTML-markup language WorldWide Web was standardized in 1991 HTML became the standard for www-documents by mid 90’s W3C (World Wide Web Consortium) was founded in 1994 to coordinate the development of HTML and other web standards

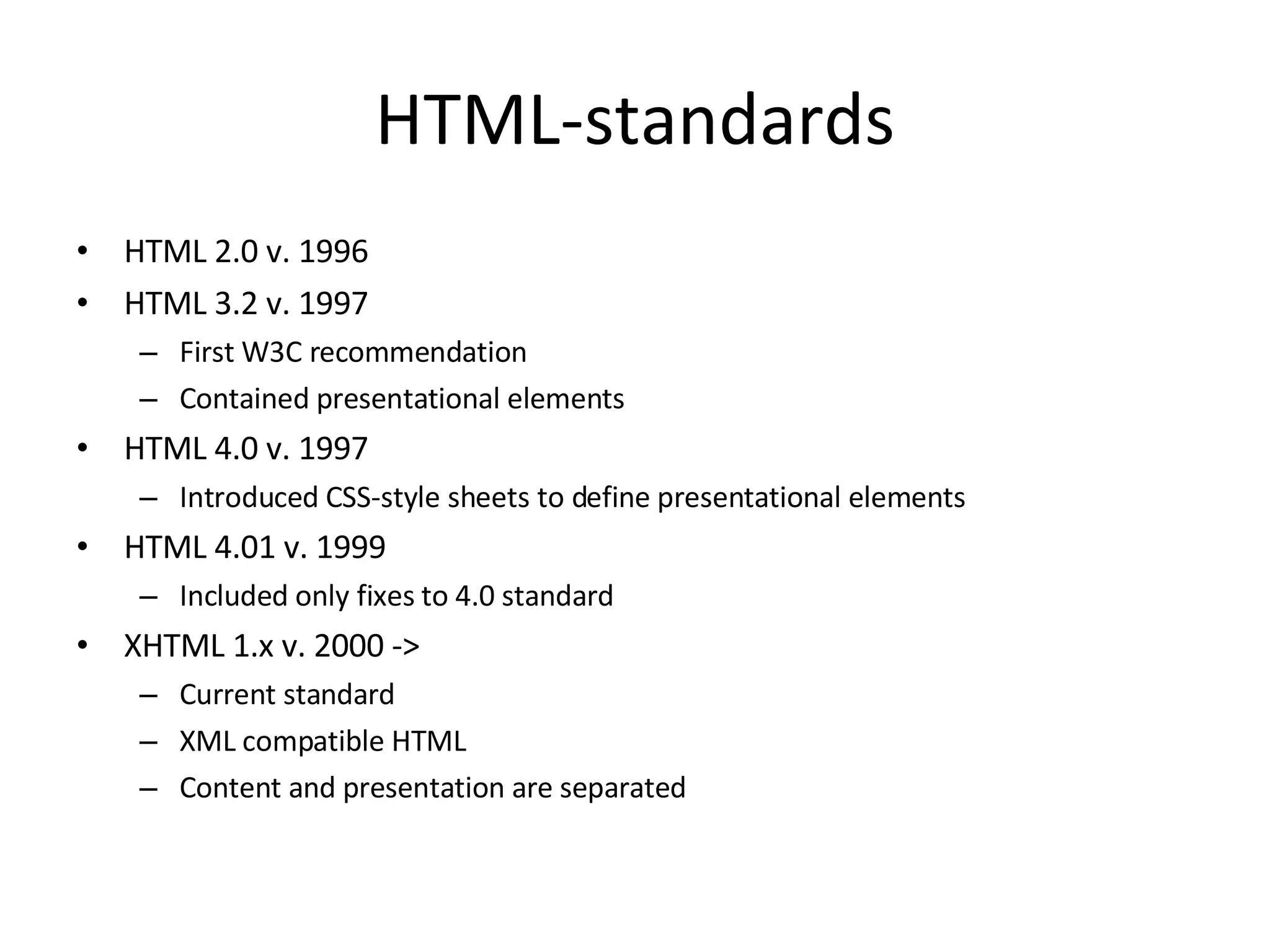

- 18. HTML-standards HTML 2.0v. 1996 HTML 3.2 v. 1997 First W3C recommendation Contained presentational elements HTML 4.0 v. 1997 Introduced CSS-style sheets to define presentational elements HTML 4.01 v. 1999 Included only fixes to 4.0 standard XHTML 1.x v. 2000 -> Current standard XML compatible HTML Content and presentation are separated

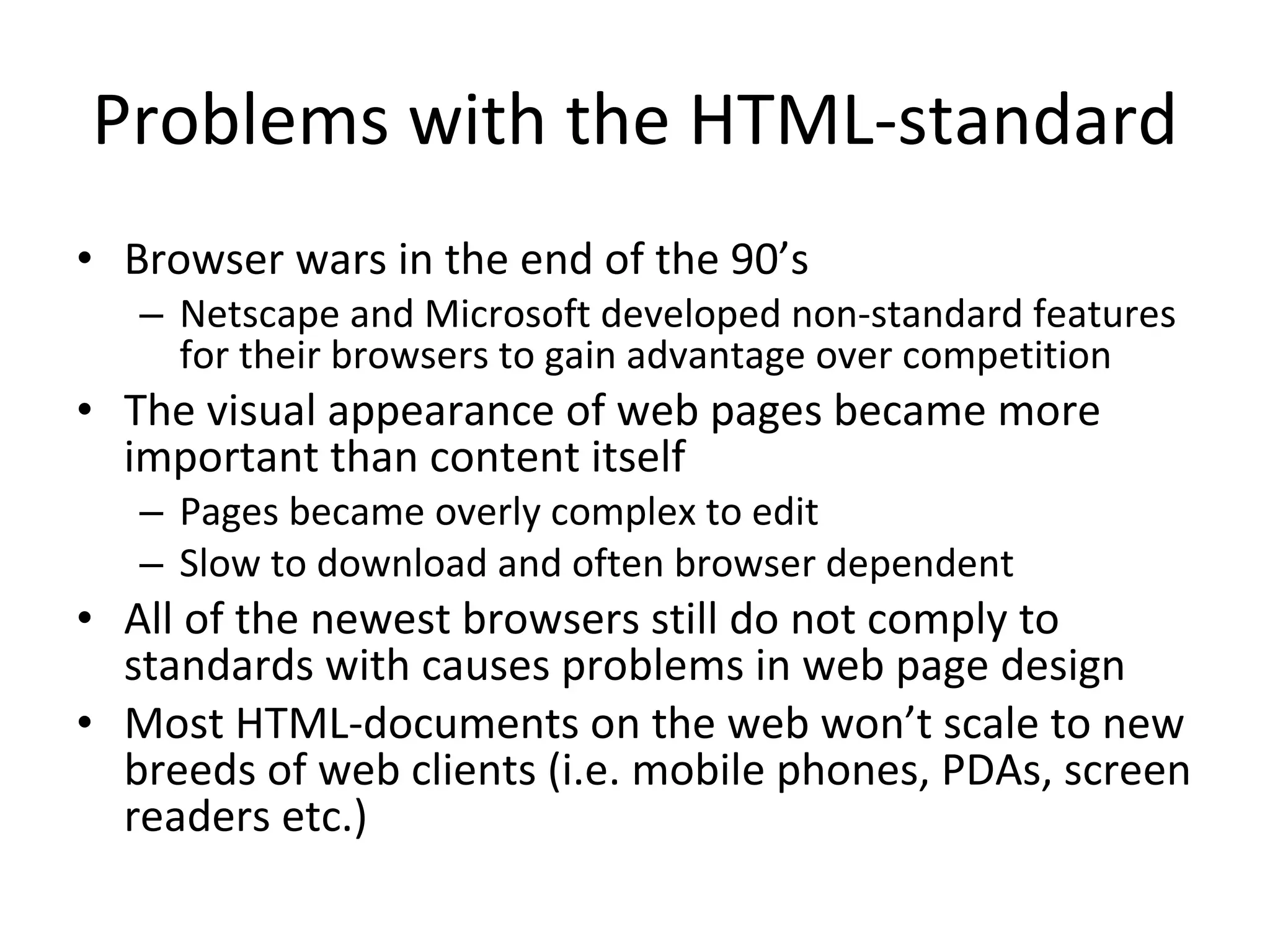

- 19. Problems with theHTML-standard Browser wars in the end of the 90’s Netscape and Microsoft developed non-standard features for their browsers to gain advantage over competition The visual appearance of web pages became more important than content itself Pages became overly complex to edit Slow to download and often browser dependent All of the newest browsers still do not comply to standards with causes problems in web page design Most HTML-documents on the web won’t scale to new breeds of web clients (i.e. mobile phones, PDAs, screen readers etc.)

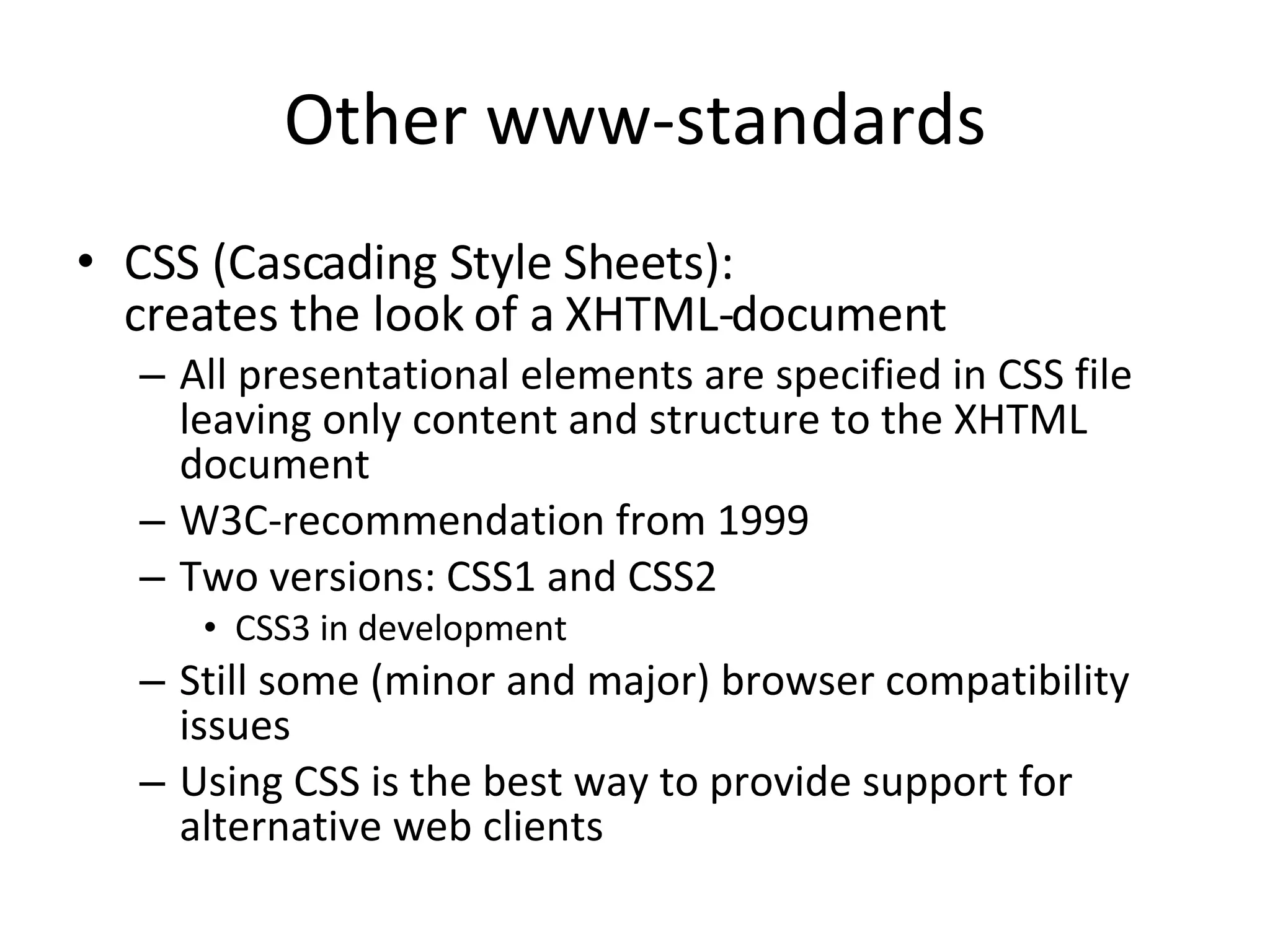

- 20. Other www-standards CSS(Cascading Style Sheets): creates the look of a XHTML-document All presentational elements are specified in CSS file leaving only content and structure to the XHTML document W3C-recommendation from 1999 Two versions: CSS1 and CSS2 CSS3 in development Still some (minor and major) browser compatibility issues Using CSS is the best way to provide support for alternative web clients

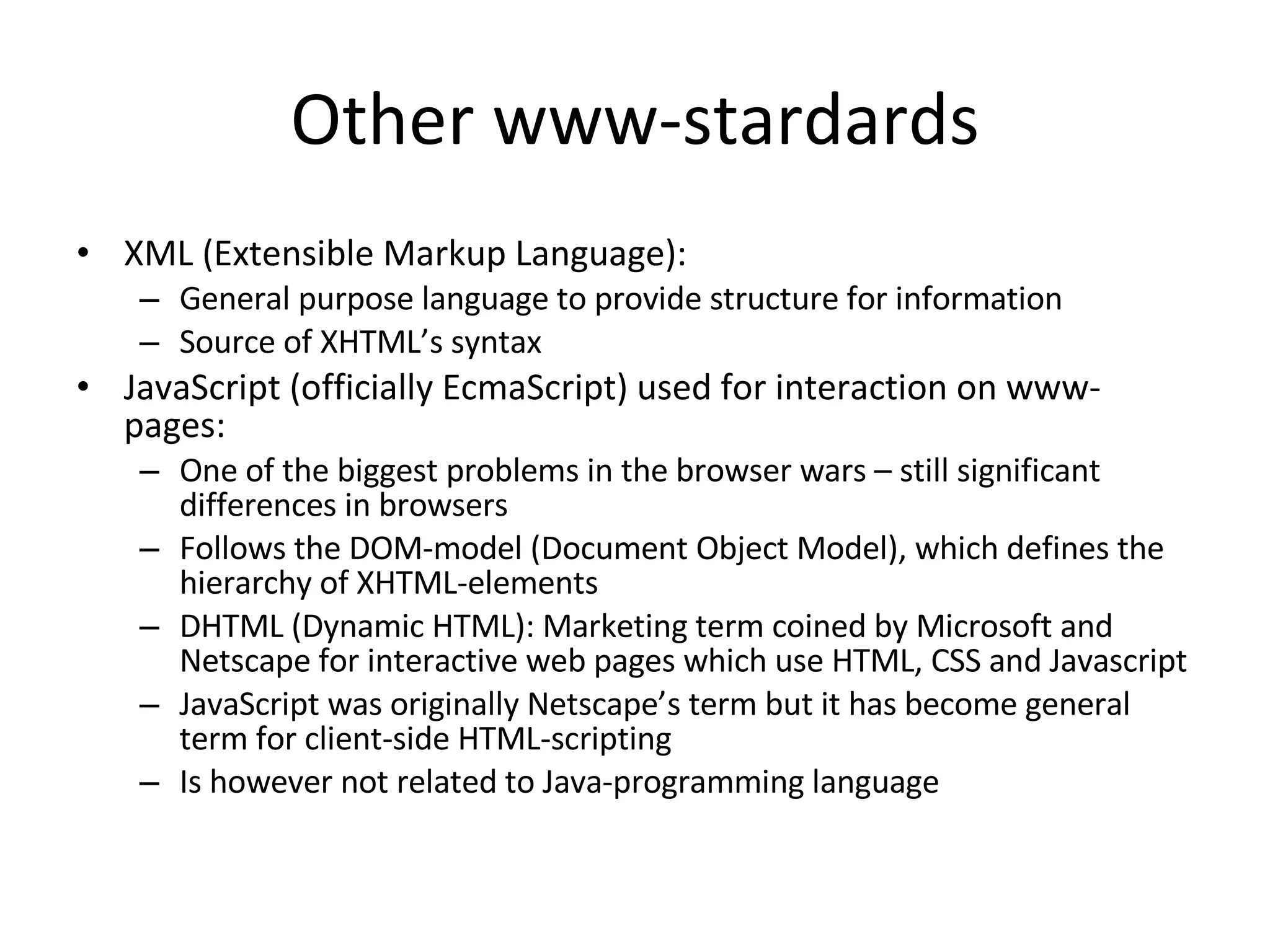

- 21. Other www-stardards XML(Extensible Markup Language): General purpose language to provide structure for information Source of XHTML’s syntax JavaScript (officially EcmaScript) used for interaction on www-pages: One of the biggest problems in the browser wars – still significant differences in browsers Follows the DOM-model (Document Object Model), which defines the hierarchy of XHTML-elements DHTML (Dynamic HTML): Marketing term coined by Microsoft and Netscape for interactive web pages which use HTML, CSS and Javascript JavaScript was originally Netscape’s term but it has become general term for client-side HTML-scripting Is however not related to Java-programming language

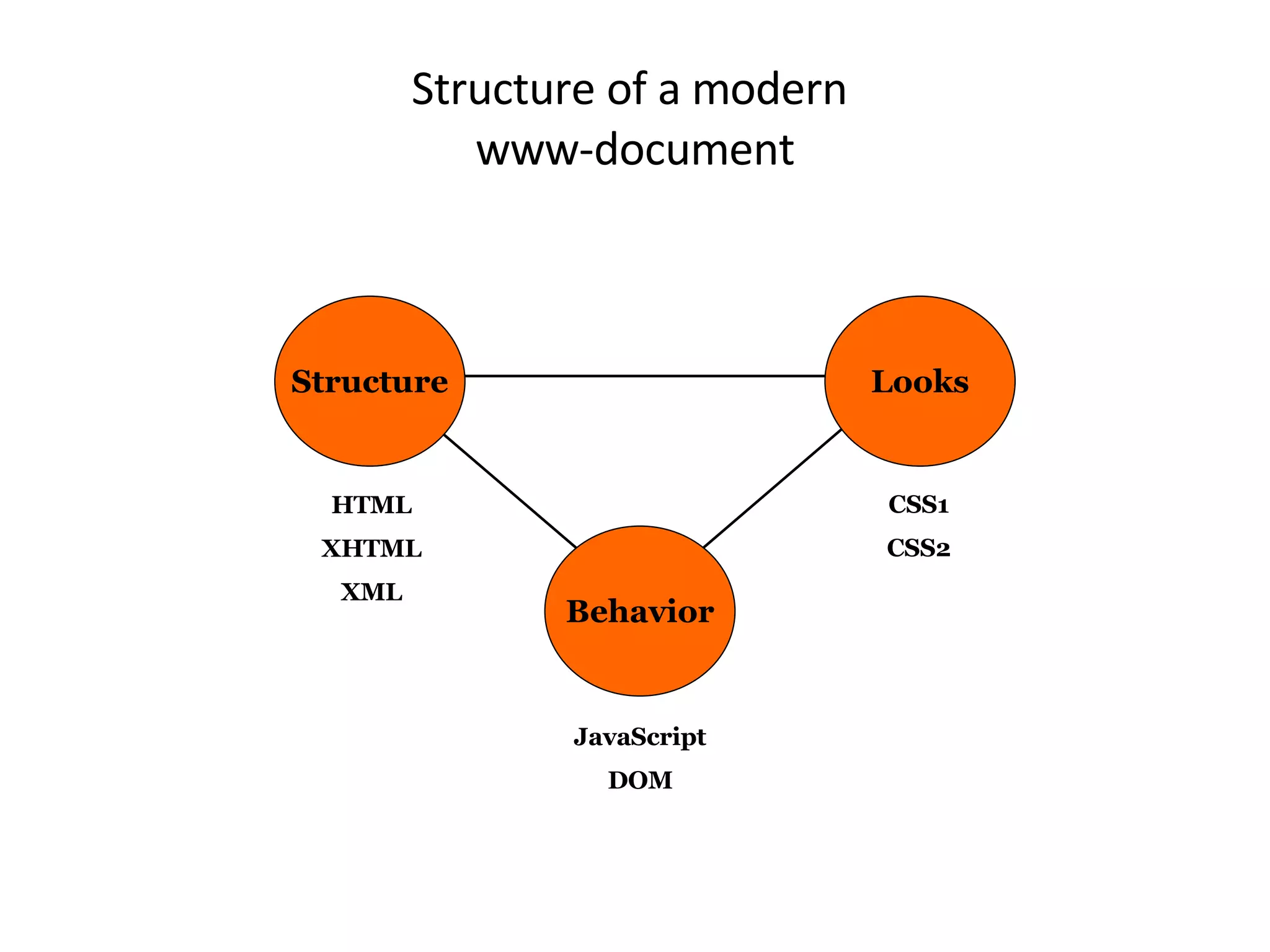

- 22. Structure of amodern www-document Structure Looks Behavior HTML XHTML XML JavaScript DOM CSS1 CSS2

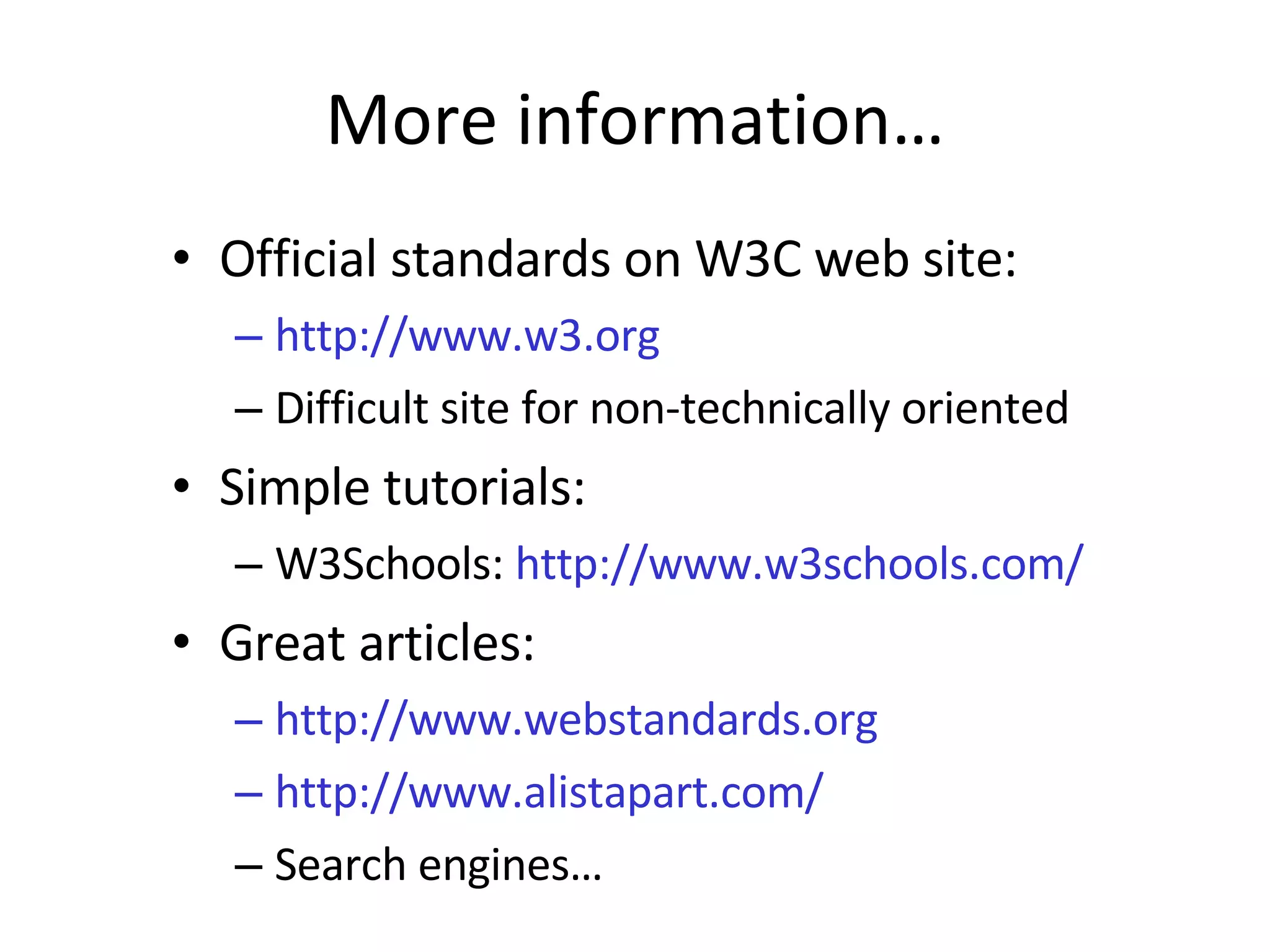

- 23. More information… Officialstandards on W3C web site: http://www.w3.org Difficult site for non-technically oriented Simple tutorials: W3Schools: http://www.w3schools.com/ Great articles: http://www.webstandards.org http://www.alistapart.com/ Search engines…
