Hands-on Labs: Raspberry Pi 2 + Windows 10 IoT Core
The document provides an overview of the 'bdgiotday' event sponsored by iot4bdg, focusing on using Raspberry Pi 2 with Windows 10 IoT Core for Internet of Things (IoT) projects. It includes technical details on Raspberry Pi specifications, setup instructions, and examples of programming with Node.js to control GPIO pins. Additionally, it highlights resources for development and invites attendees to participate in future events and workshops.
Hands-on Labs: Raspberry Pi 2 + Windows 10 IoT Core
- 1.
- 2.
- 3. sponsored by organized by IoT4Bdg supportedby media partners http://bit.ly/bdg-iotdevday
- 4. Raspberry Pi 2+ Windows 10 IoT Core
- 5. Andri Yadi @andri_yadi |a at dycode dot com http://andriyadi.me
- 6.
- 7.
- 9. 8 years ina row

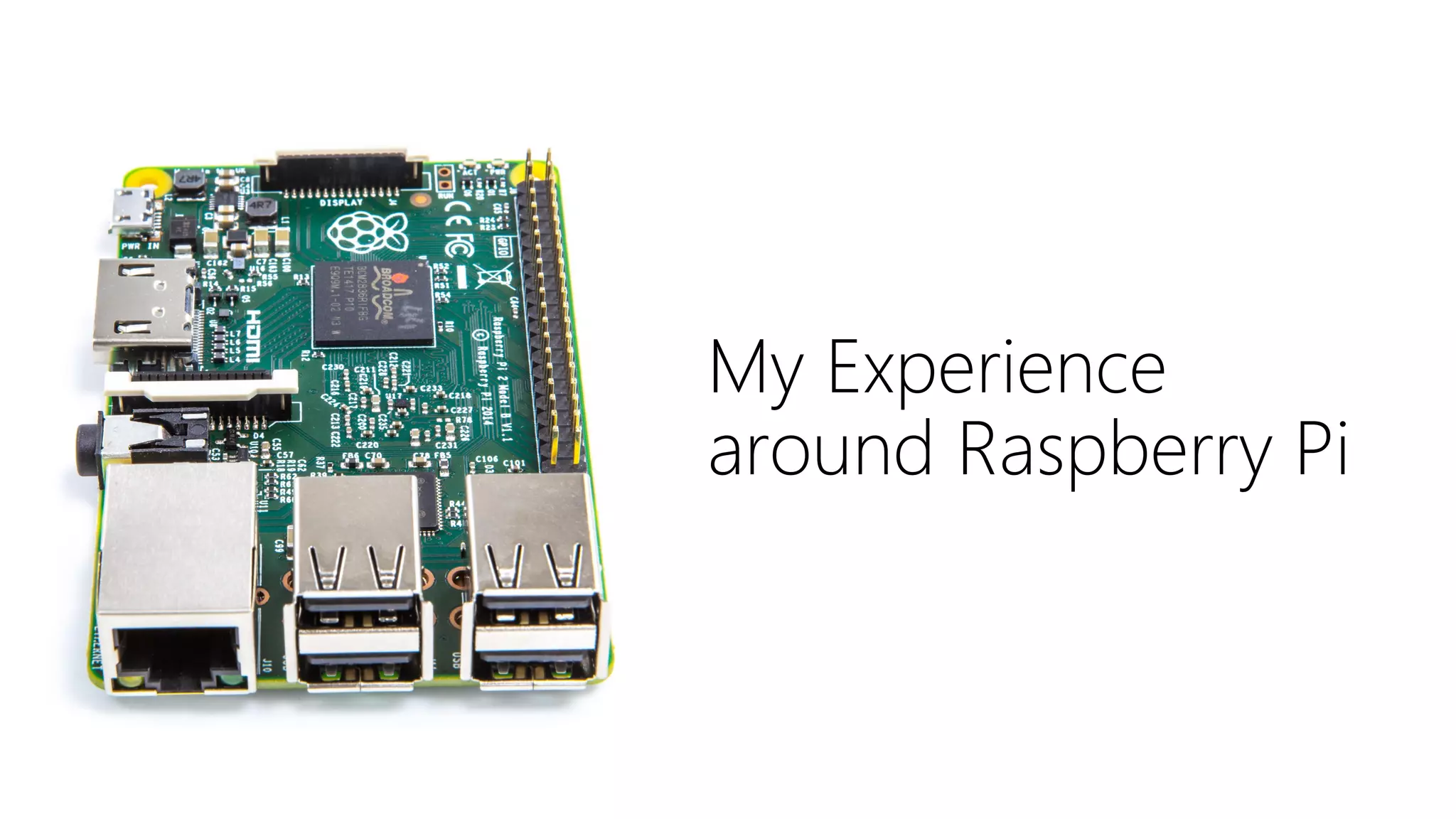

- 10.
- 11. A custom-made, compact,autonomous machine for delivering engagements Co-creator of

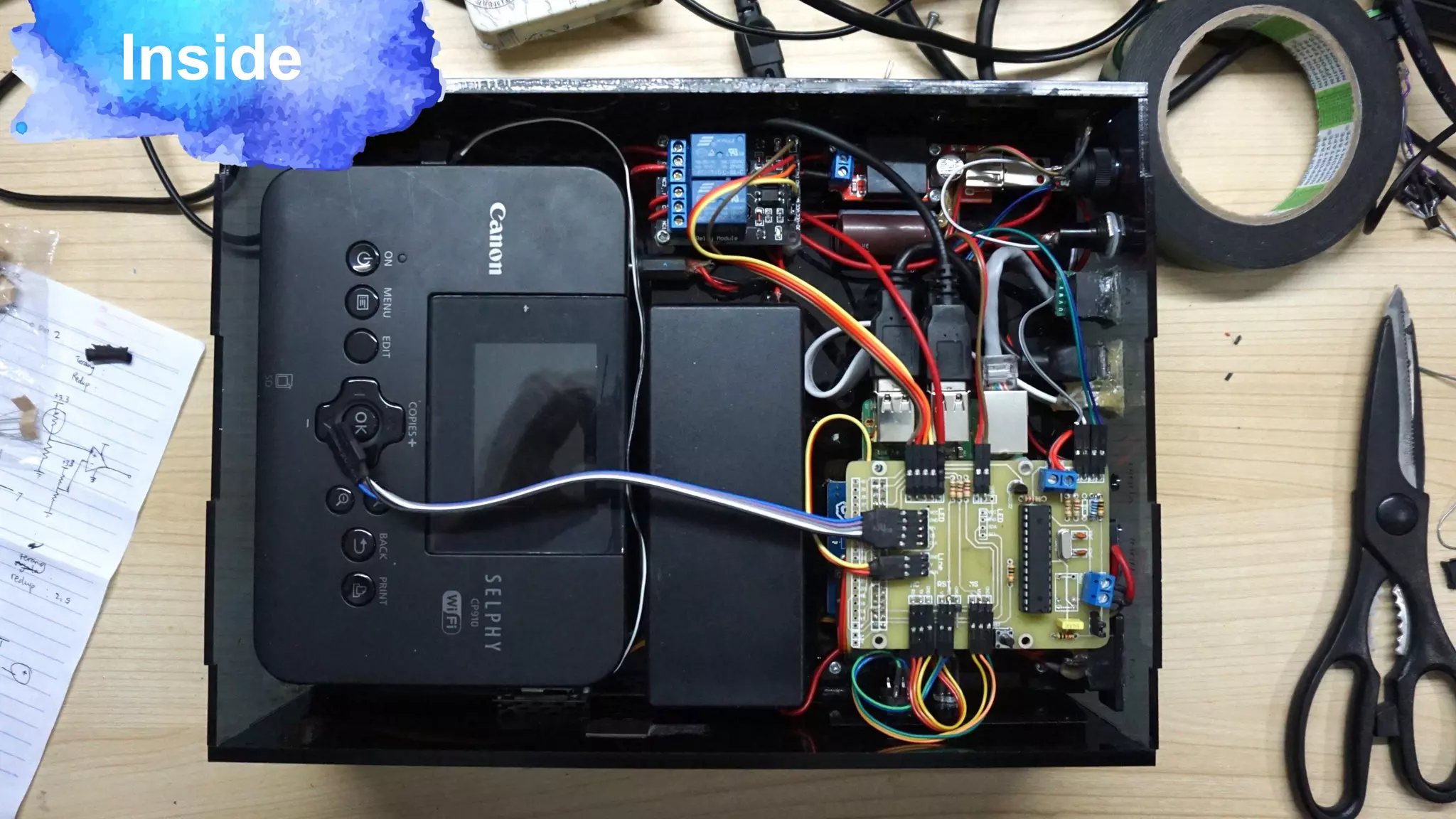

- 13.

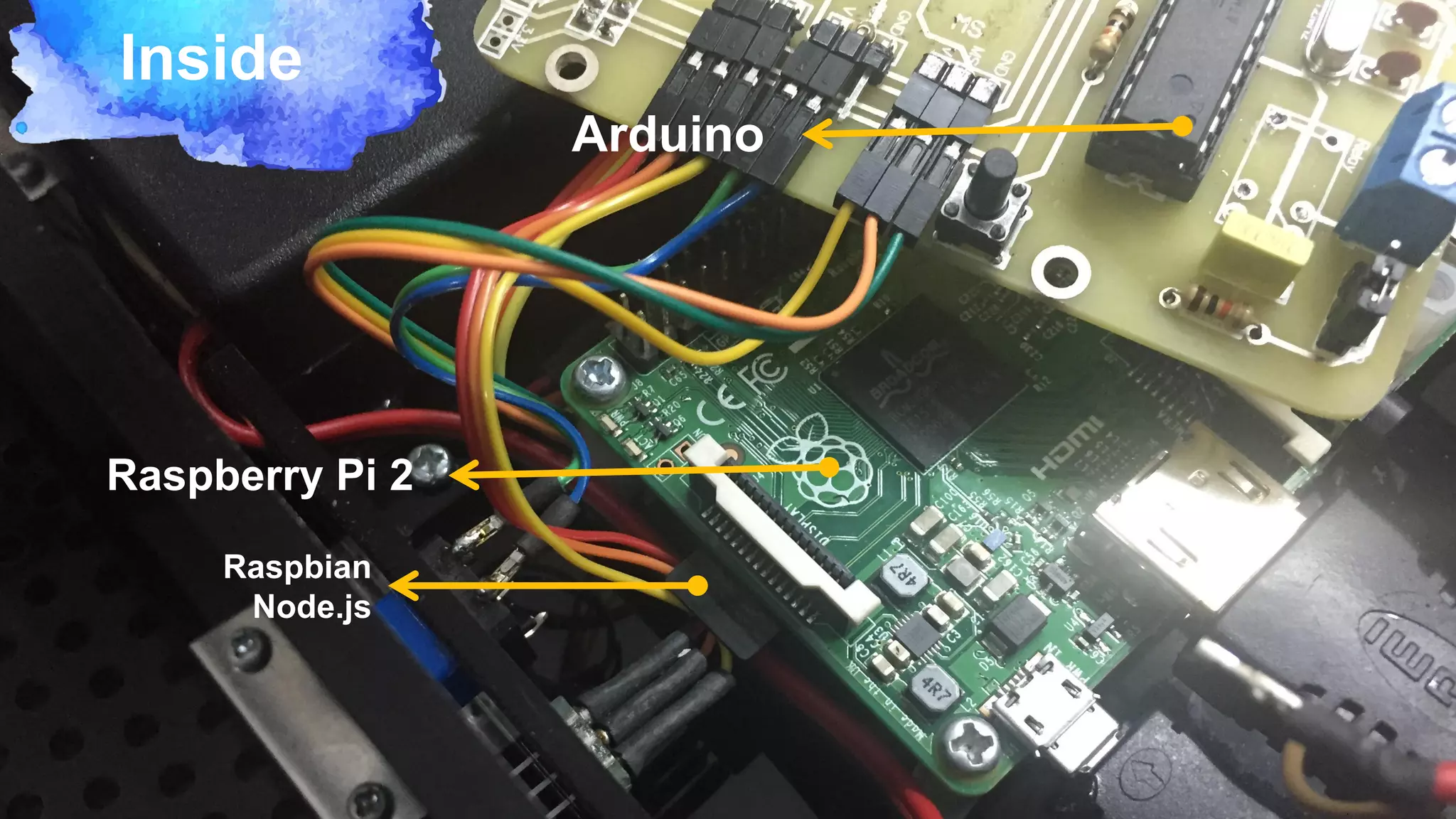

- 14.

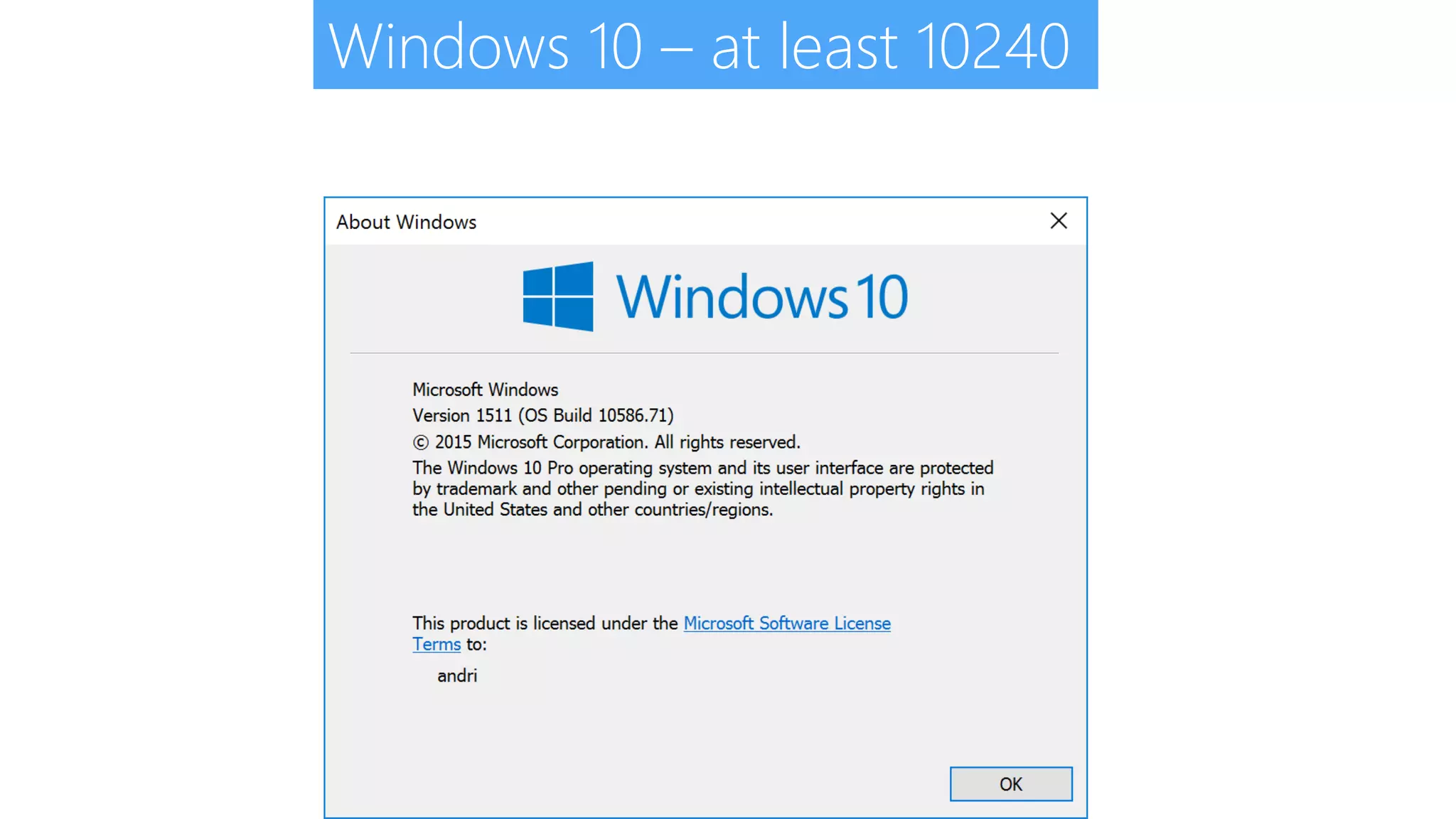

- 17. Windows 10 –at least 10240

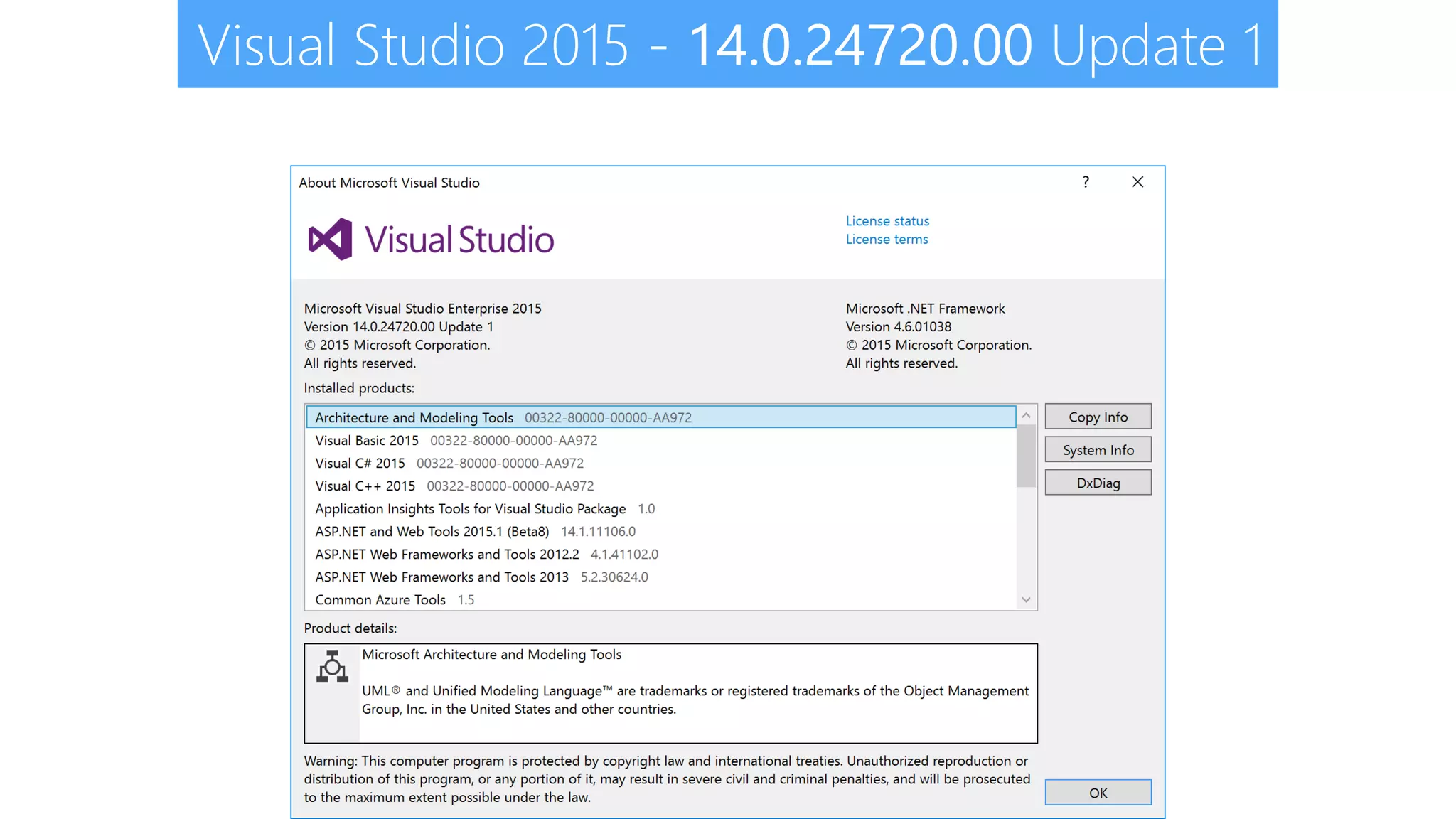

- 18. Visual Studio 2015- 14.0.24720.00 Update 1

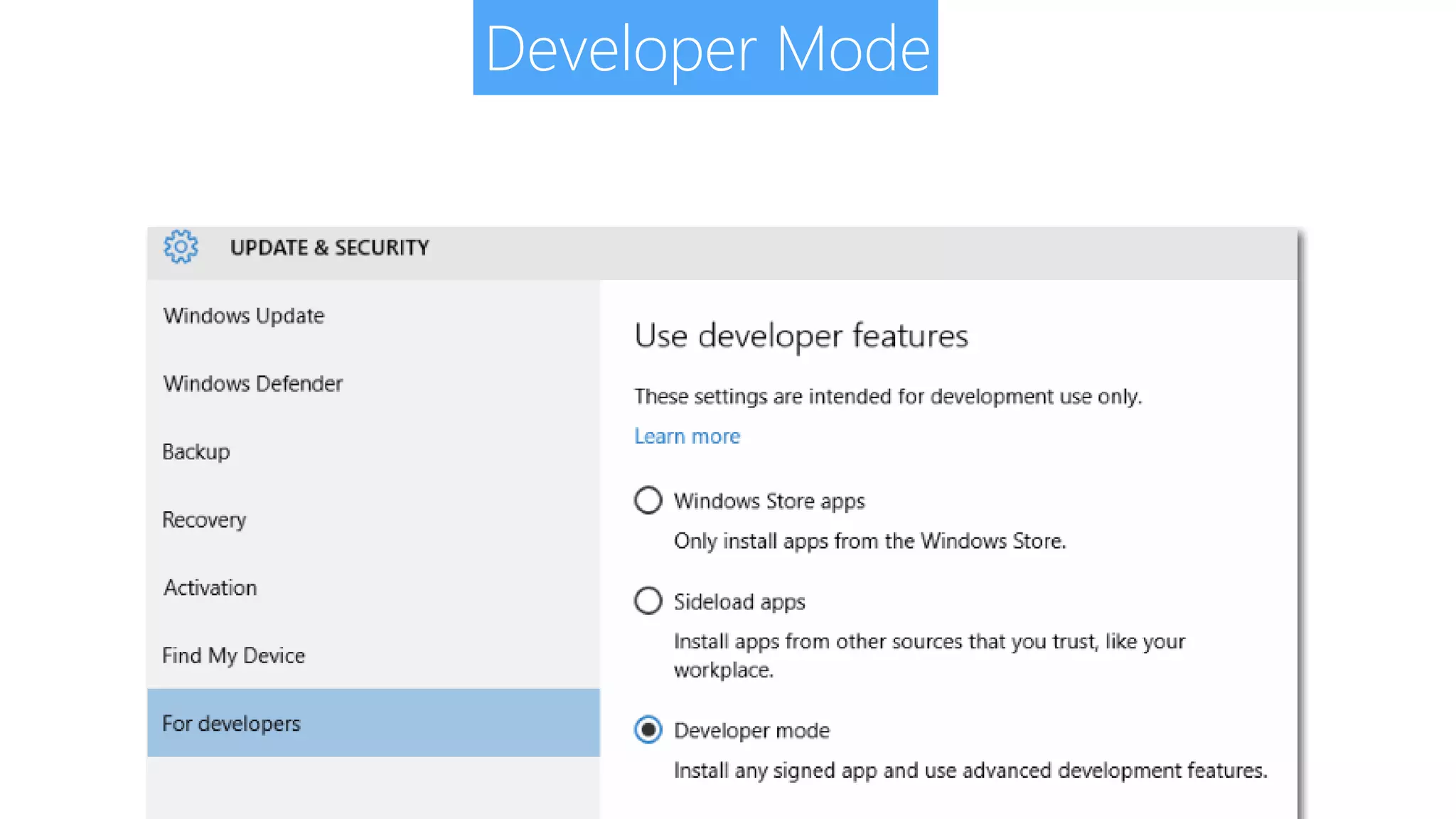

- 19.
- 21.

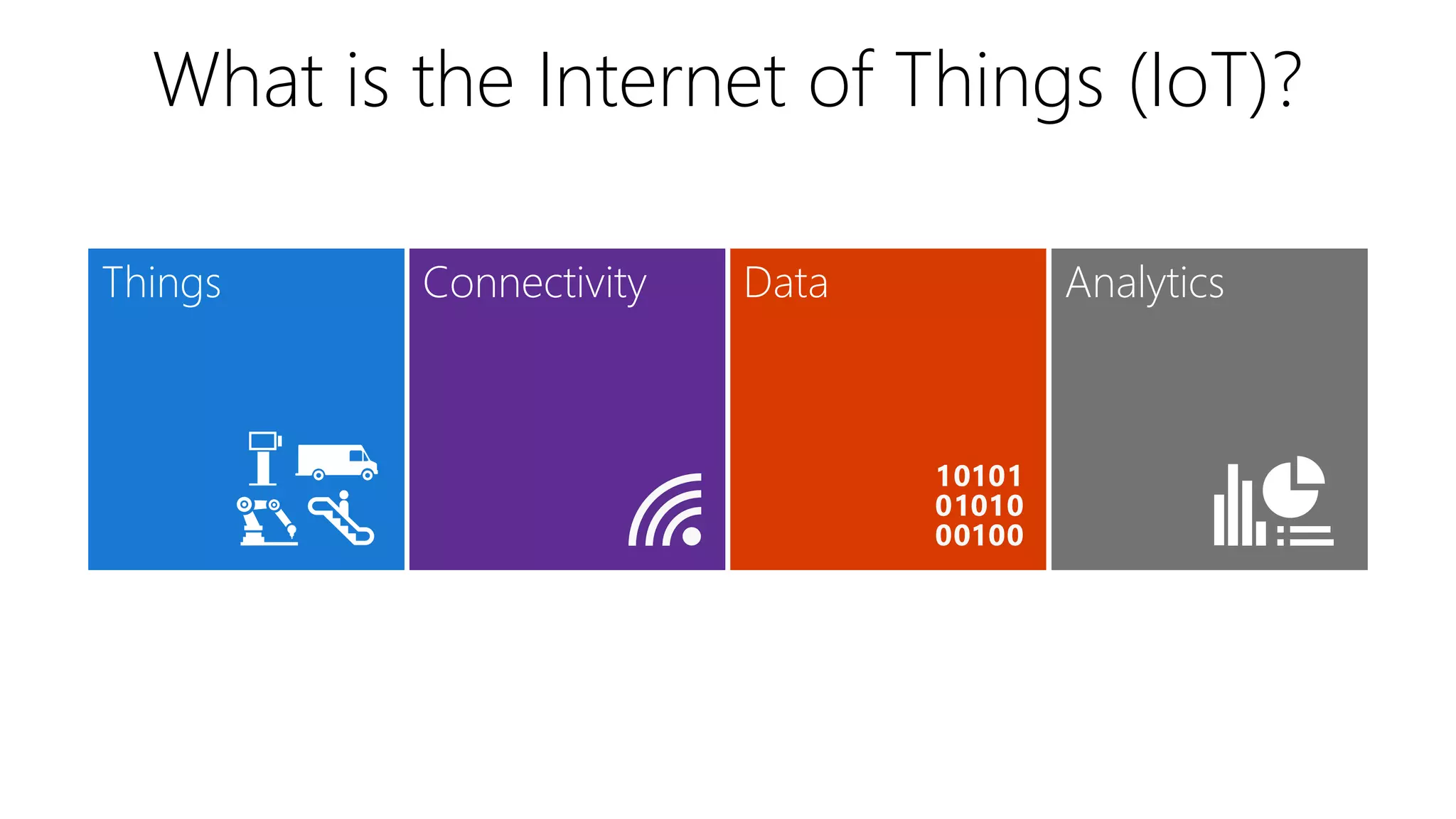

- 22. What is theInternet of Things (IoT)? Connectivity Data AnalyticsThings

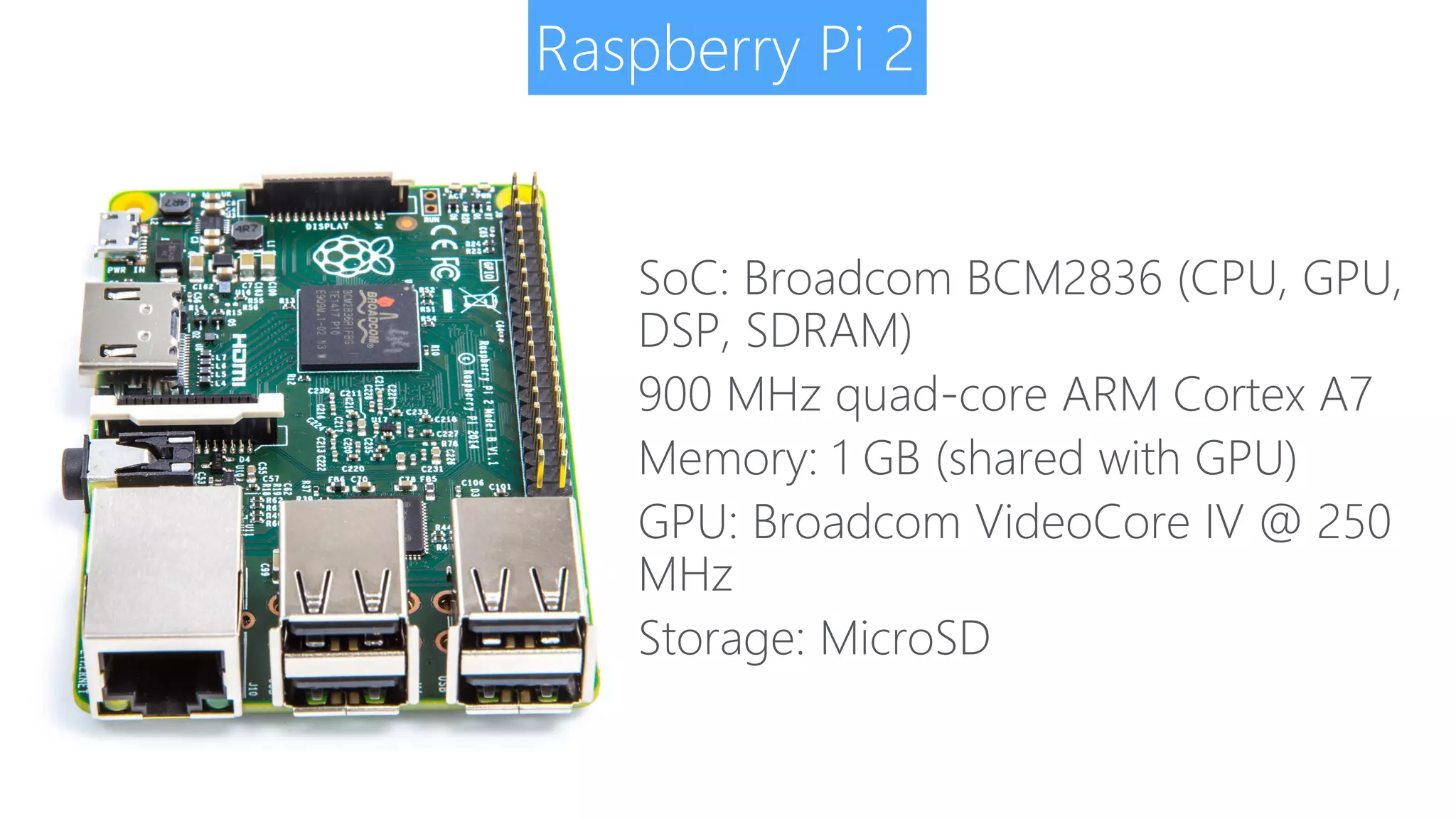

- 23. Raspberry Pi 2 SoC:Broadcom BCM2836 (CPU, GPU, DSP, SDRAM) 900 MHz quad-core ARM Cortex A7 Memory: 1 GB (shared with GPU) GPU: Broadcom VideoCore IV @ 250 MHz Storage: MicroSD

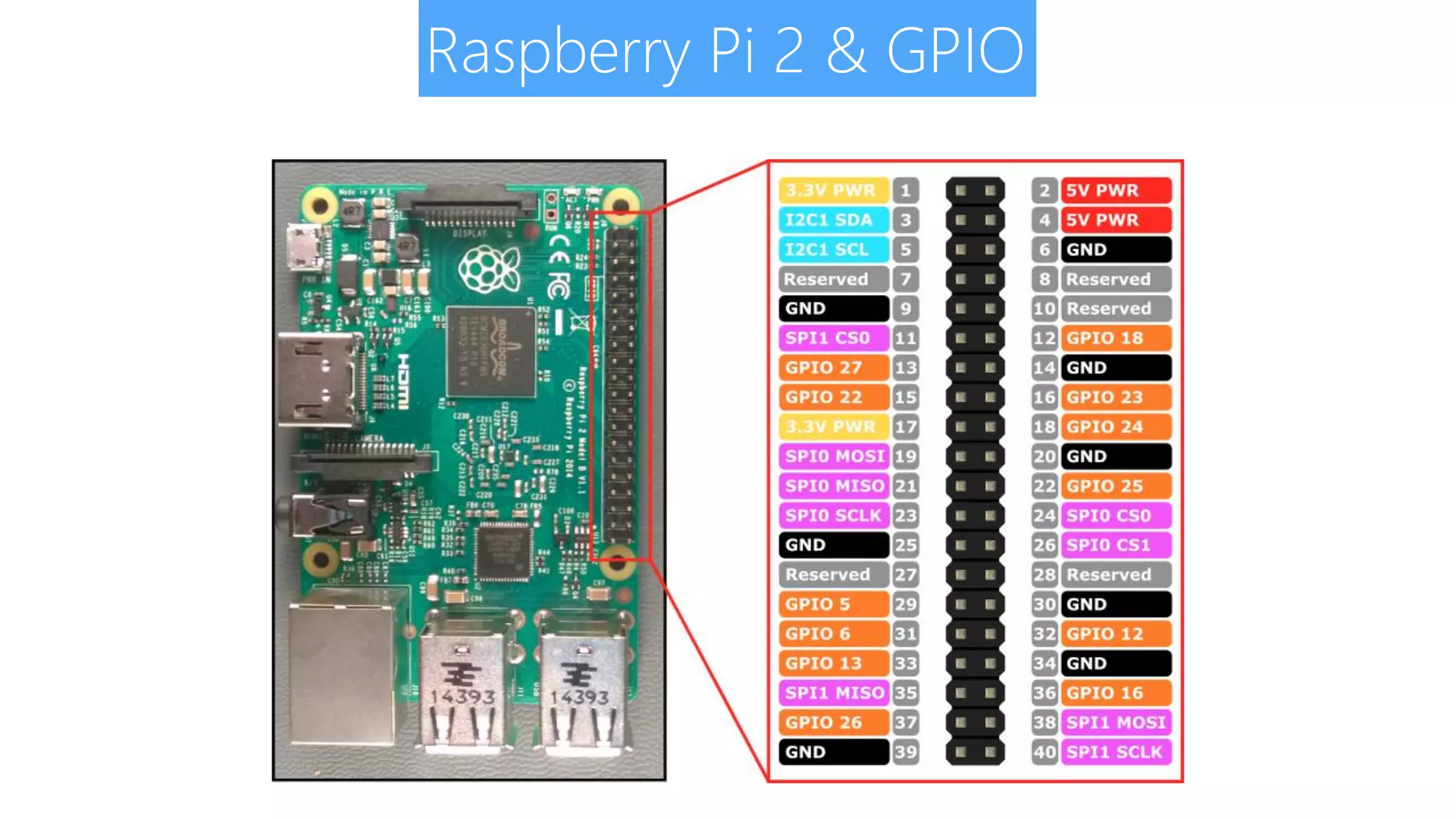

- 24. Raspberry Pi 2& GPIO
- 25.

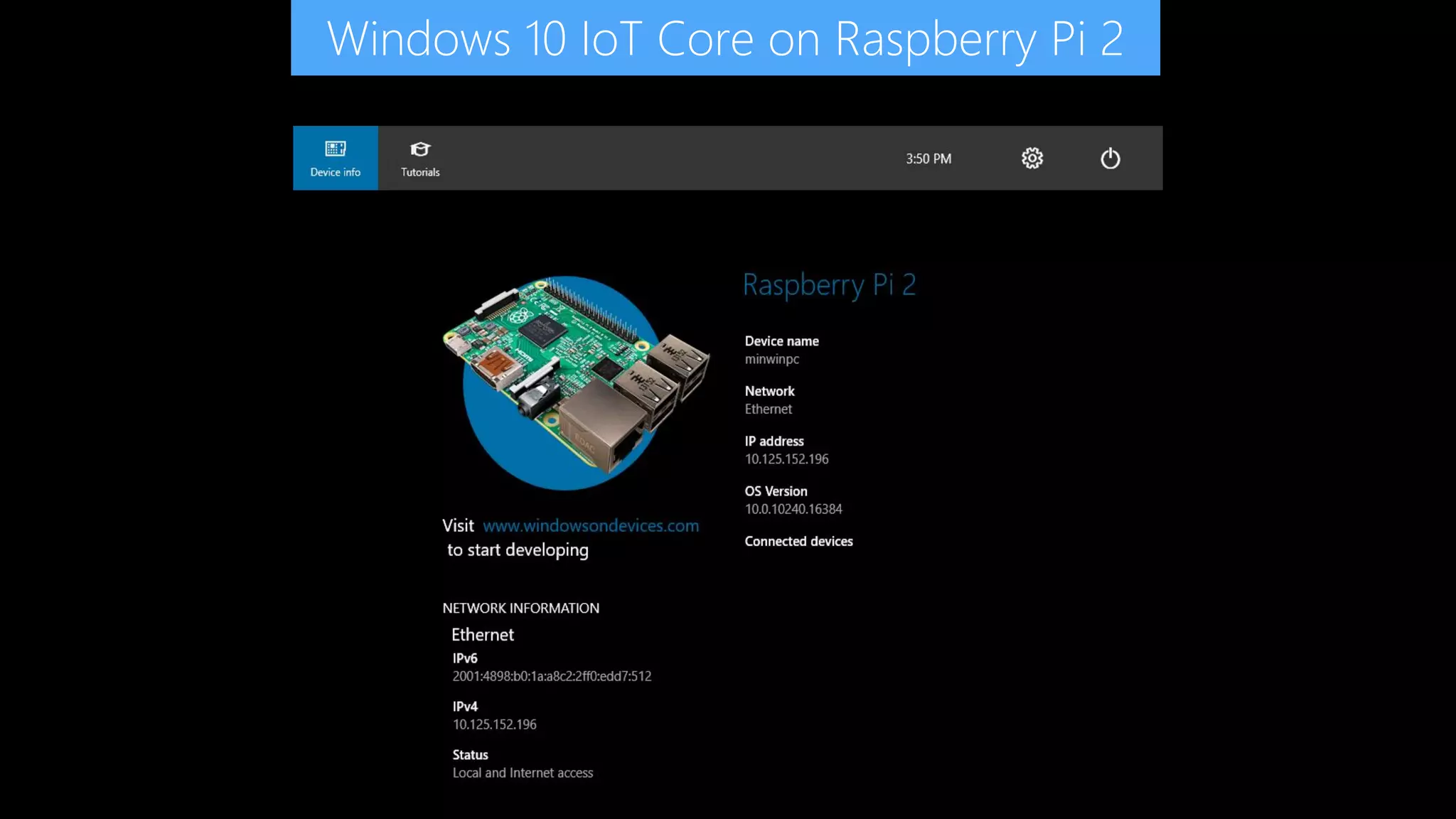

- 27. Windows 10 IoTCore on Raspberry Pi 2

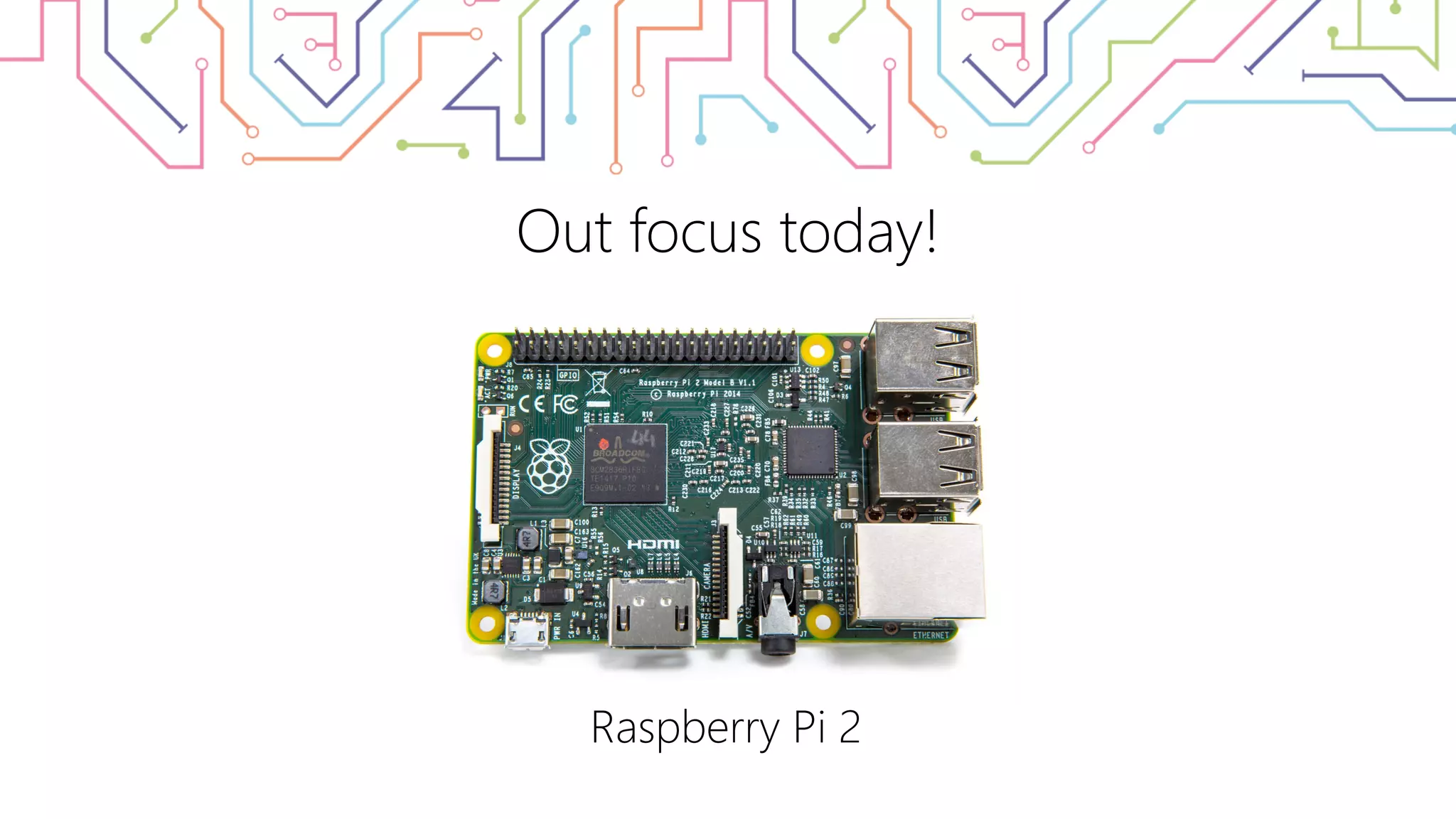

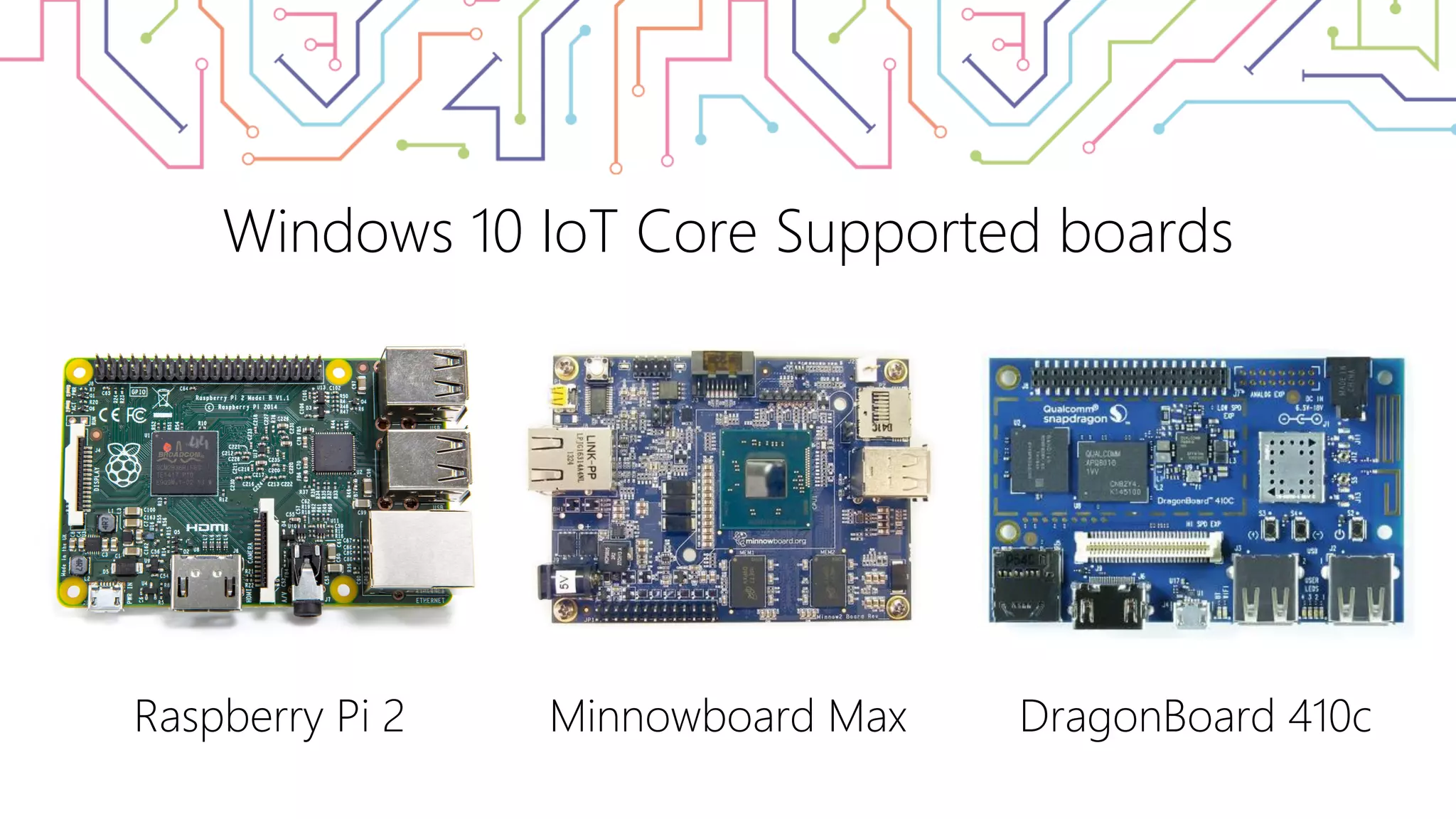

- 28. Windows 10 IoTCore Supported boards Raspberry Pi 2 Minnowboard Max DragonBoard 410c
- 29.

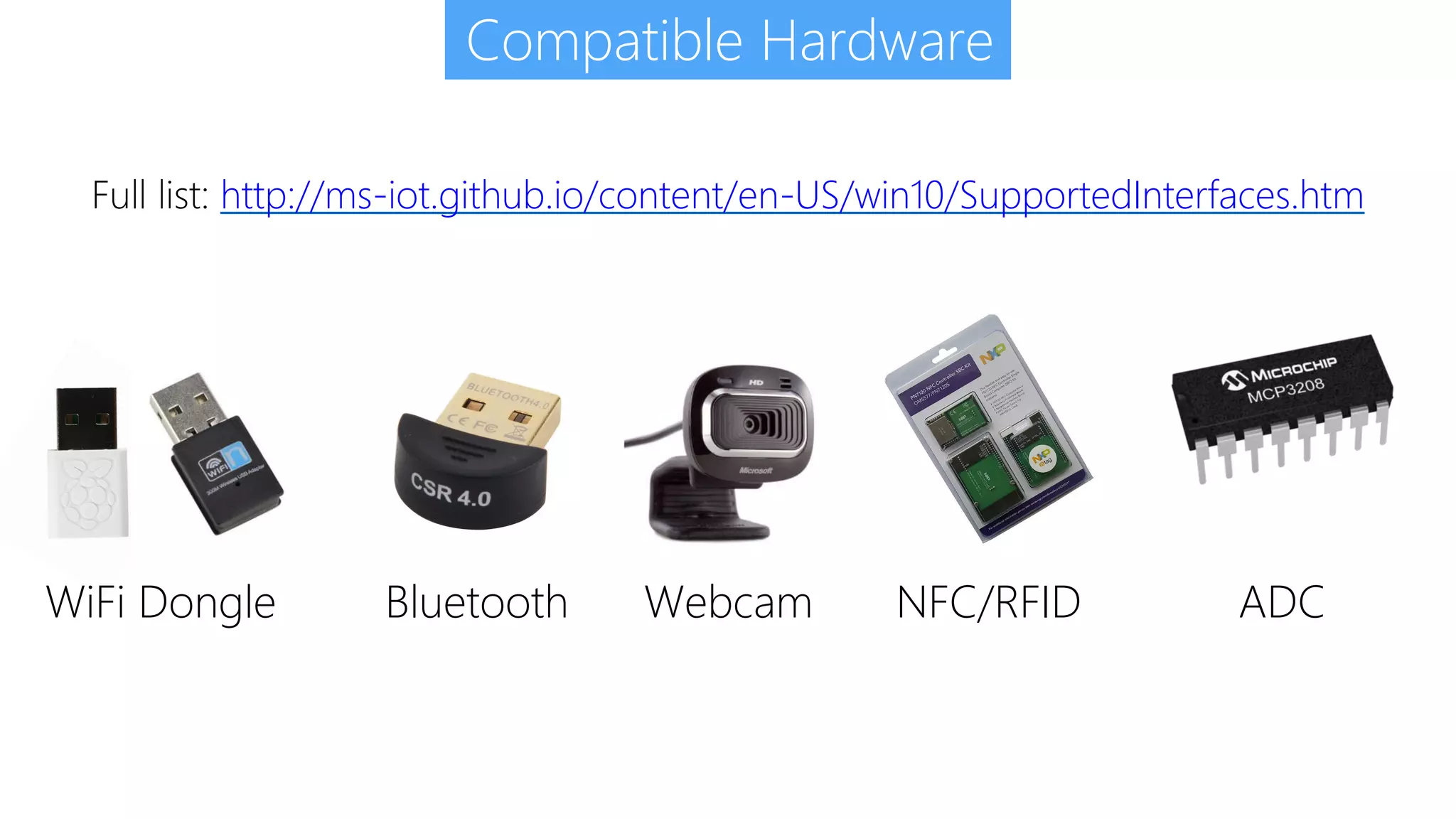

- 30. Full list: http://ms-iot.github.io/content/en-US/win10/SupportedInterfaces.htm CompatibleHardware WiFi Dongle Bluetooth Webcam NFC/RFID ADC
- 31. install & runWindows 10 IoT Core in Raspberry Pi 2

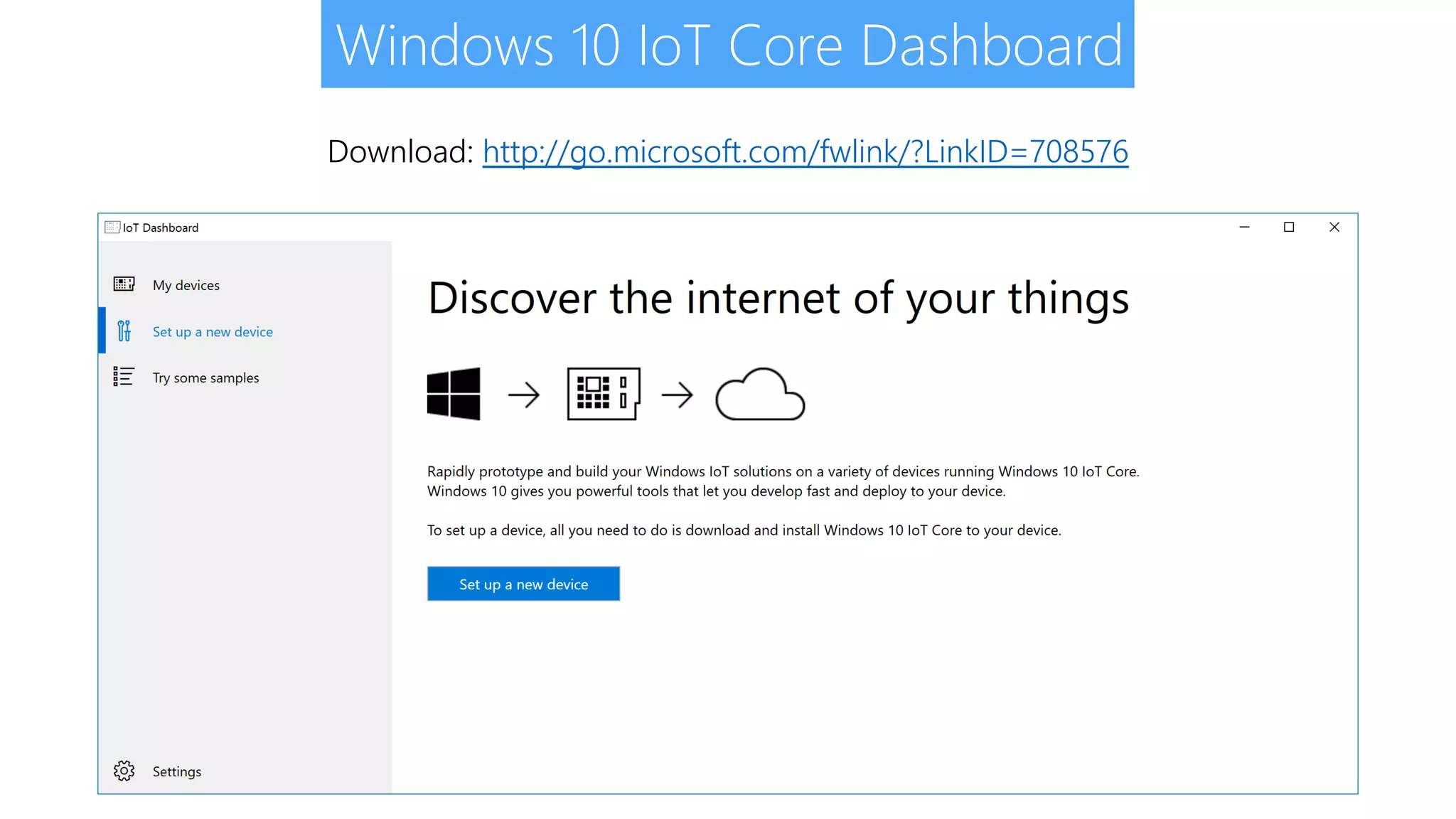

- 32. Windows 10 IoTCore Dashboard Download: http://go.microsoft.com/fwlink/?LinkID=708576

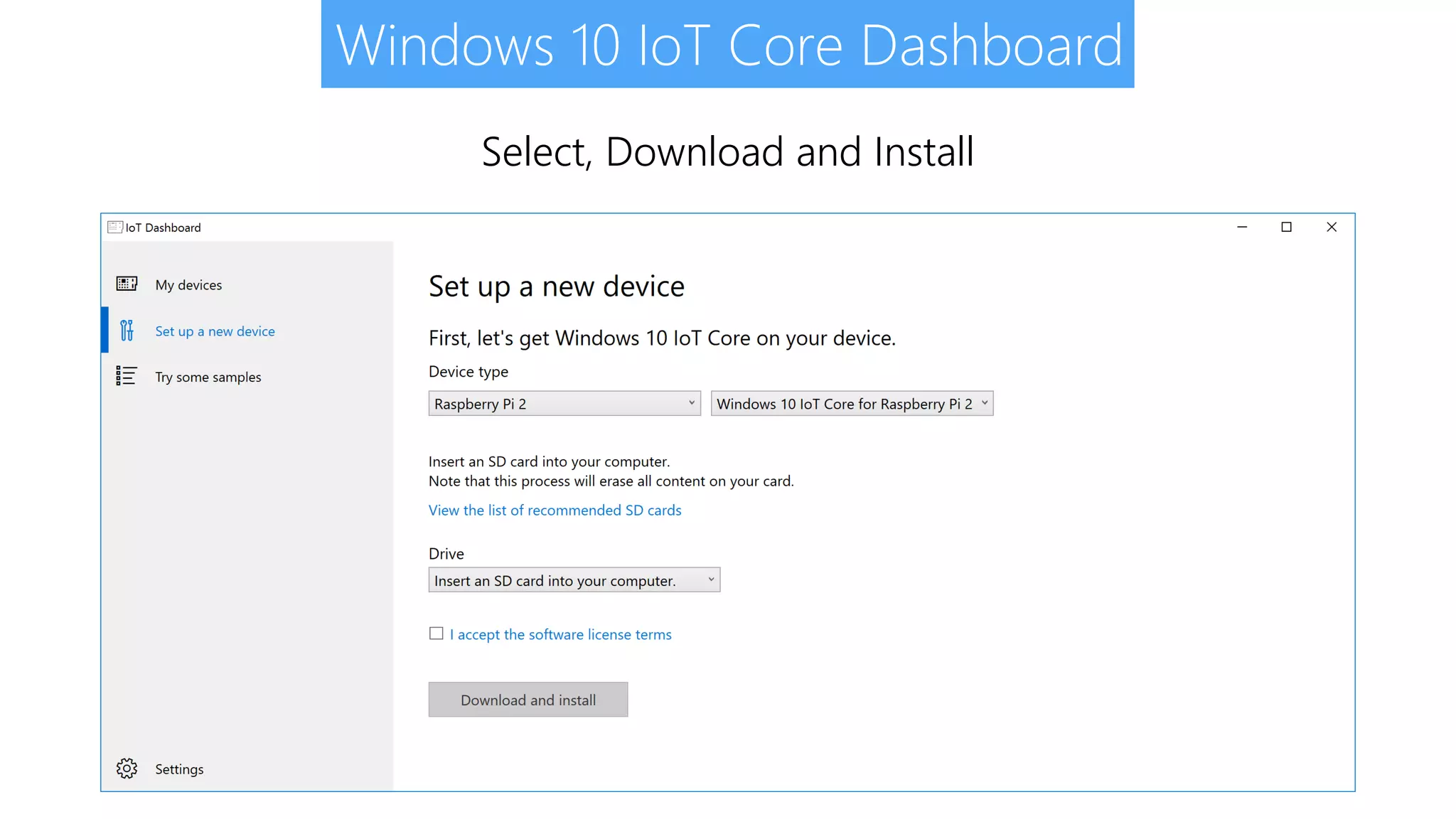

- 33. Windows 10 IoTCore Dashboard Select, Download and Install

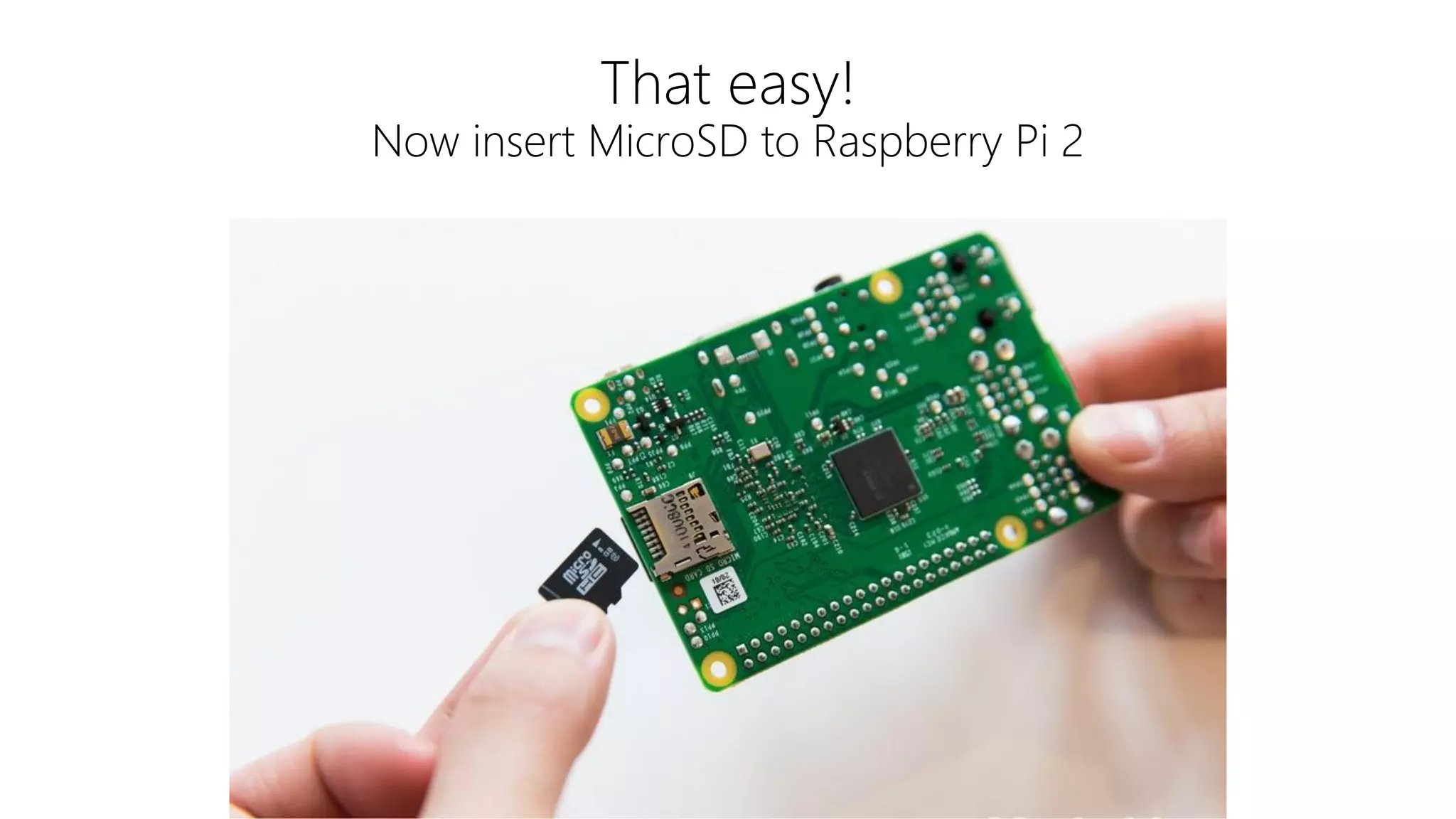

- 34. That easy! Now insertMicroSD to Raspberry Pi 2
- 35. Connecting Raspberry Pi2 to Wi-Fi for the 1st time

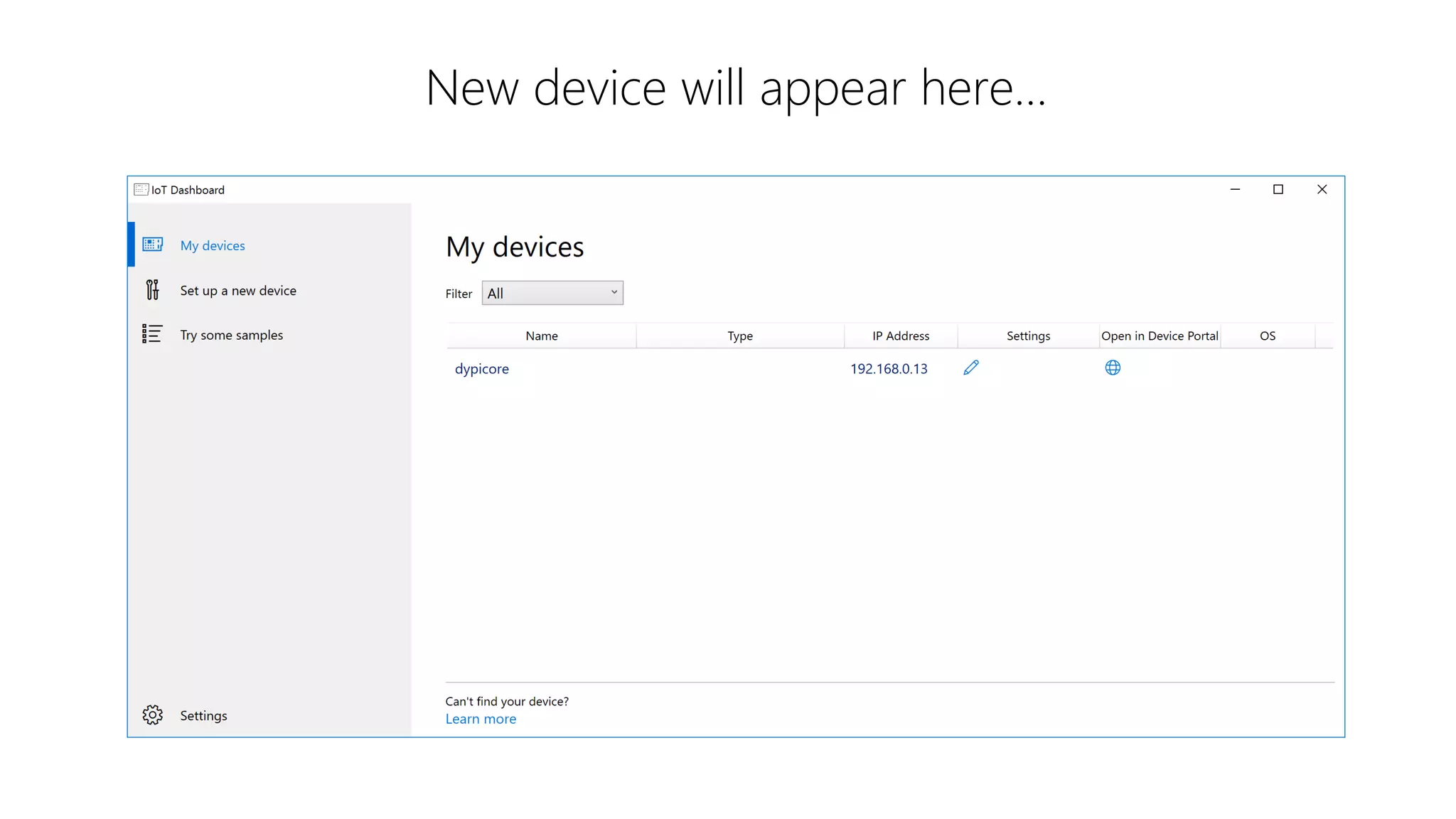

- 36. New device willappear here…
- 37. What next afterinstalling Windows 10 IoT Core? Code it!

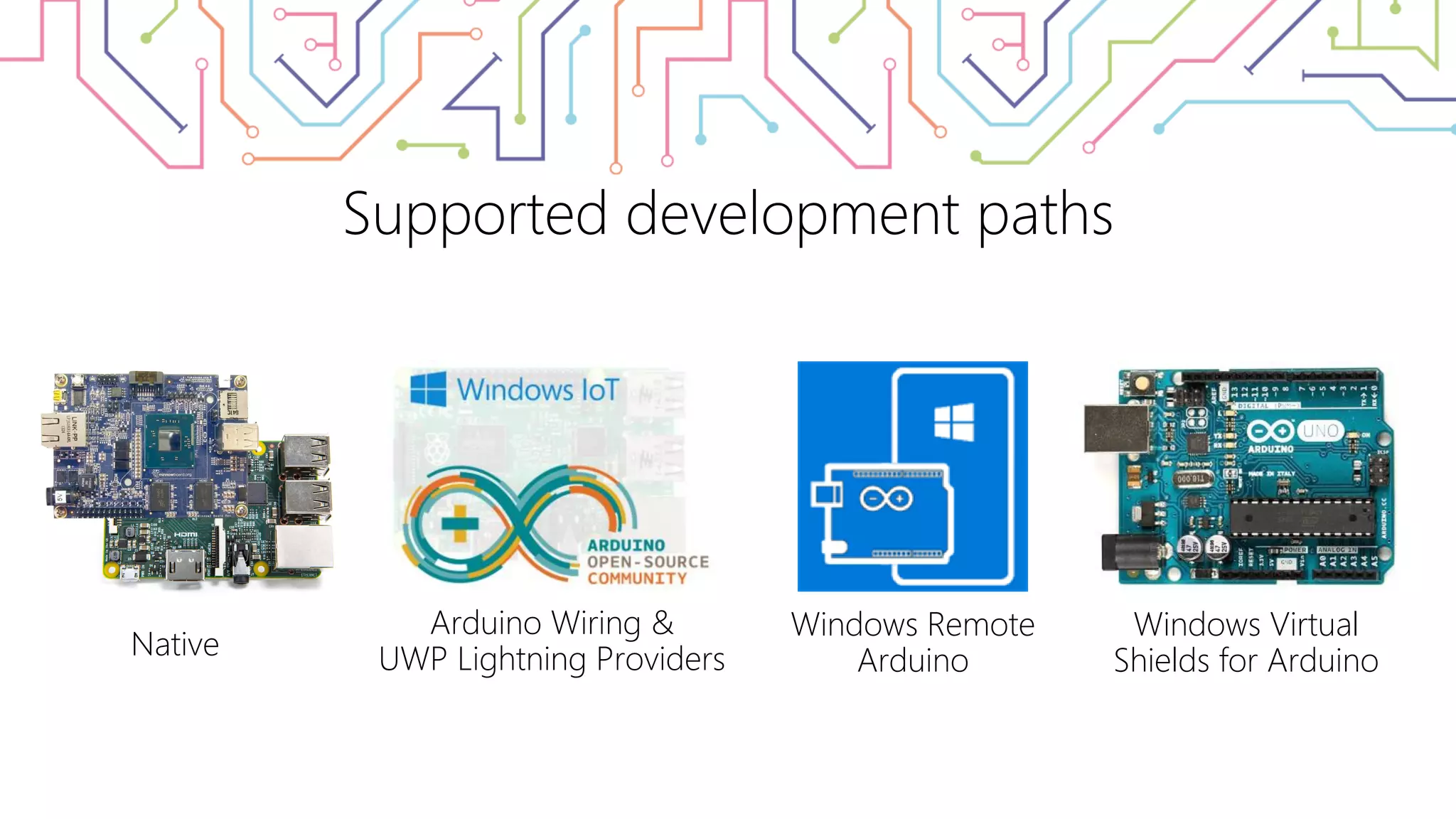

- 38. Supported development paths ArduinoWiring & UWP Lightning Providers Windows Remote Arduino Windows Virtual Shields for ArduinoNative
- 39.
- 40.
- 41. Why JavaScript? Explanation inBahasa Indonesia: http://andriyadi.me/bandung-iot- developer-day/

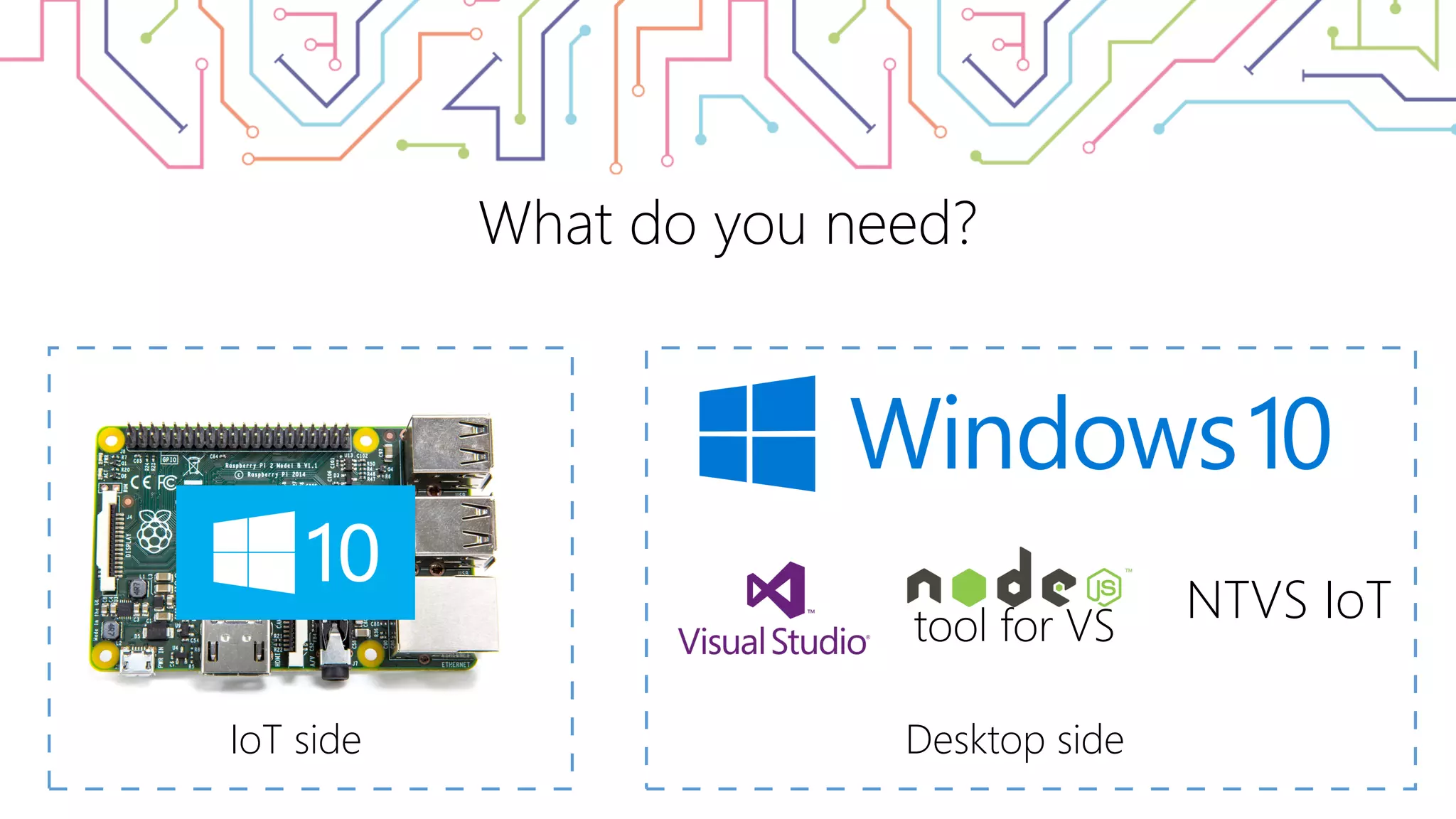

- 42. What do youneed? tool for VS IoT side Desktop side NTVS IoT
- 43.
- 45.
- 46.
- 47.

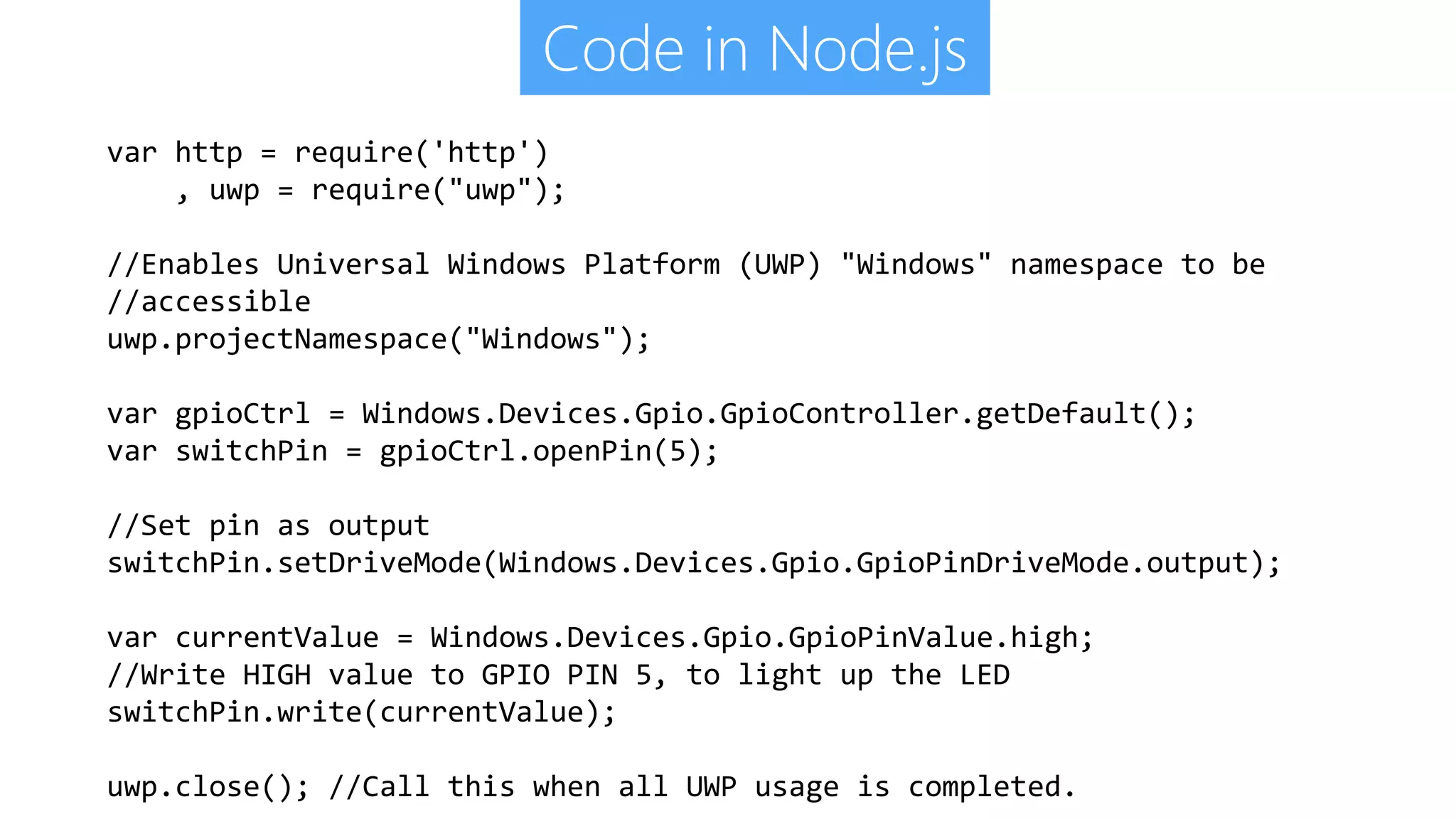

- 48. Code in Node.js varhttp = require('http') , uwp = require("uwp"); //Enables Universal Windows Platform (UWP) "Windows" namespace to be //accessible uwp.projectNamespace("Windows"); var gpioCtrl = Windows.Devices.Gpio.GpioController.getDefault(); var switchPin = gpioCtrl.openPin(5); //Set pin as output switchPin.setDriveMode(Windows.Devices.Gpio.GpioPinDriveMode.output); var currentValue = Windows.Devices.Gpio.GpioPinValue.high; //Write HIGH value to GPIO PIN 5, to light up the LED switchPin.write(currentValue); uwp.close(); //Call this when all UWP usage is completed.
- 49.

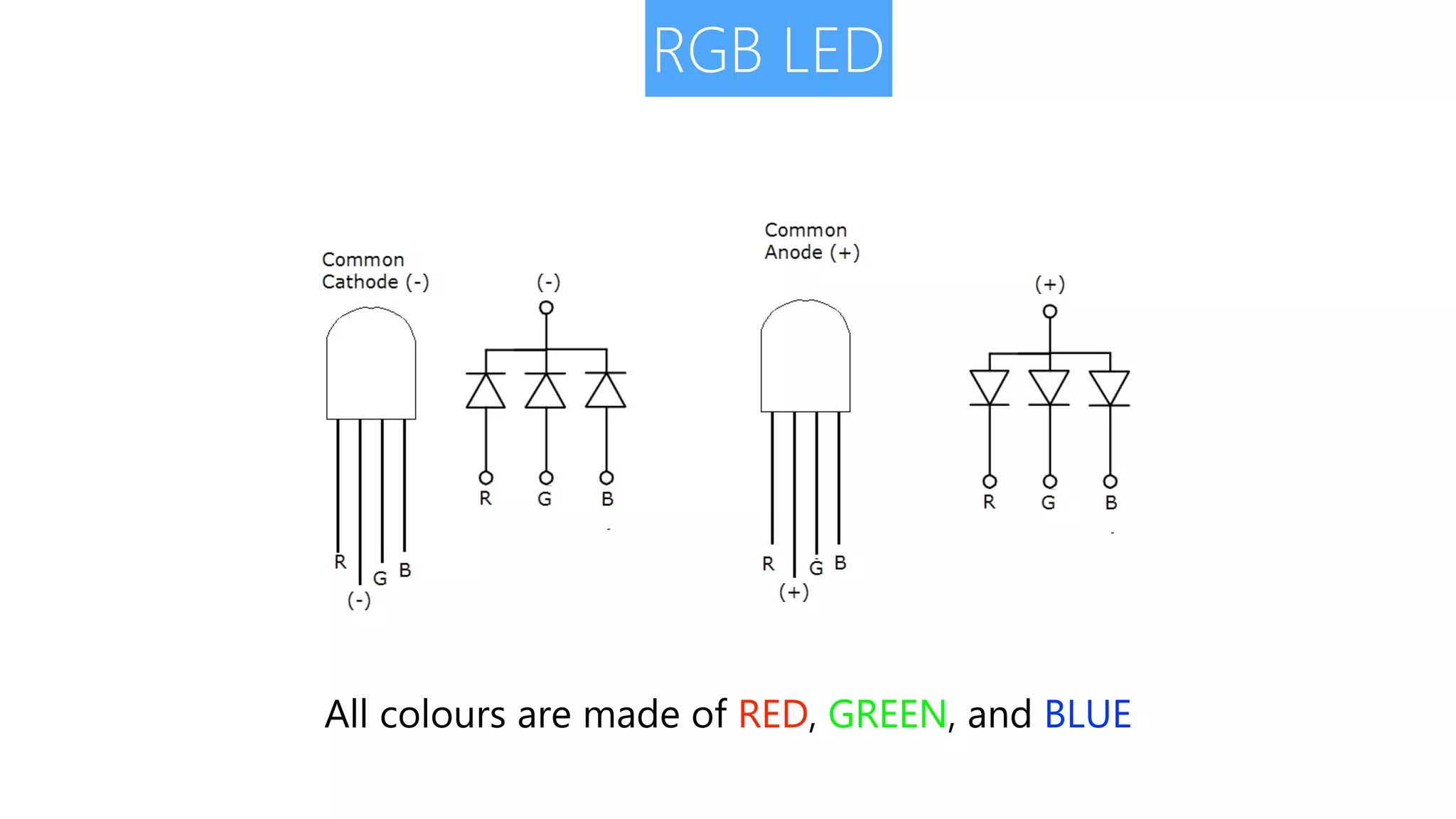

- 50. RGB LED All coloursare made of RED, GREEN, and BLUE

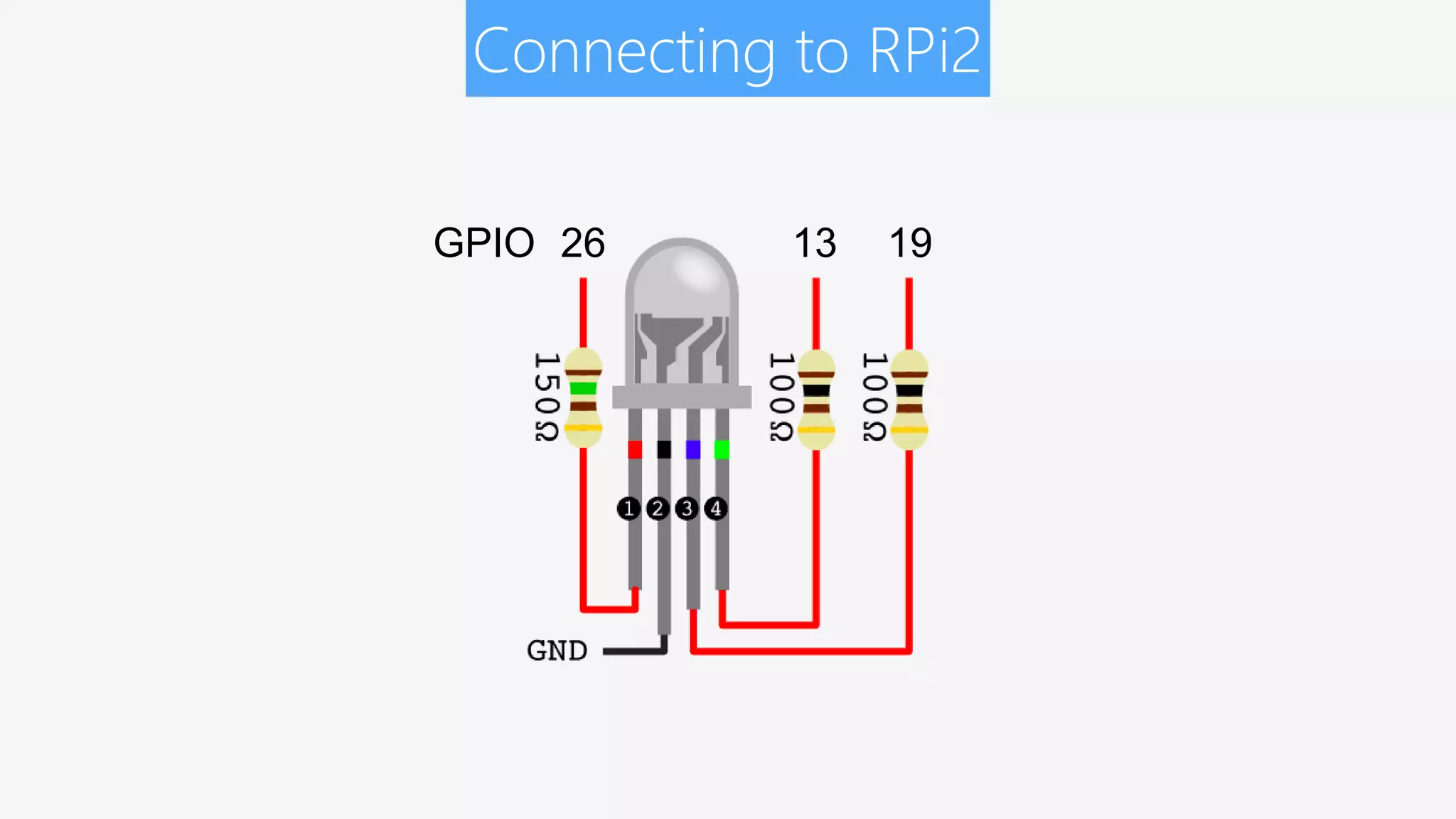

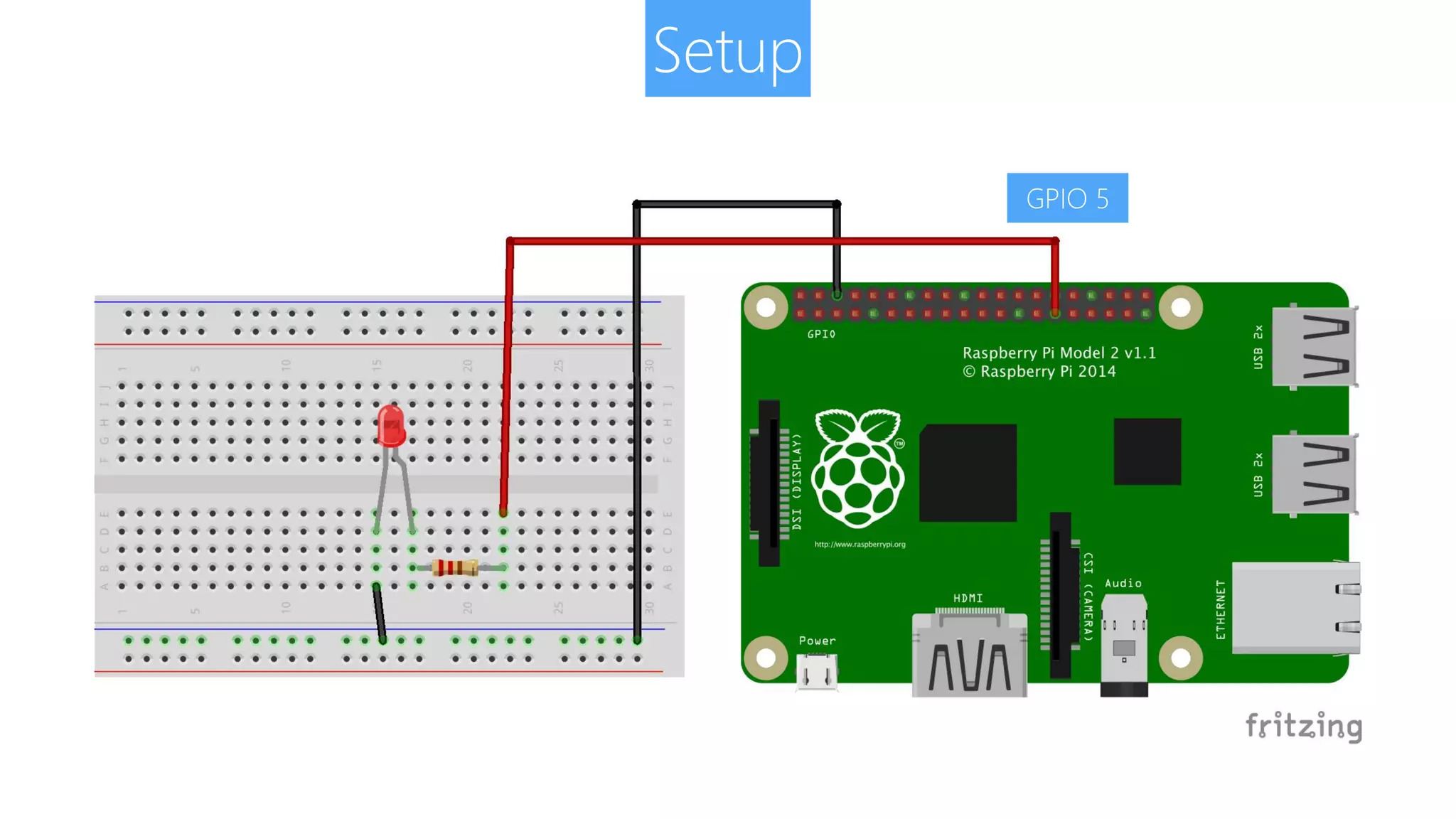

- 51. Connecting to RPi2 261913GPIO
- 52. Let’s turn onbigger light, a light bulb

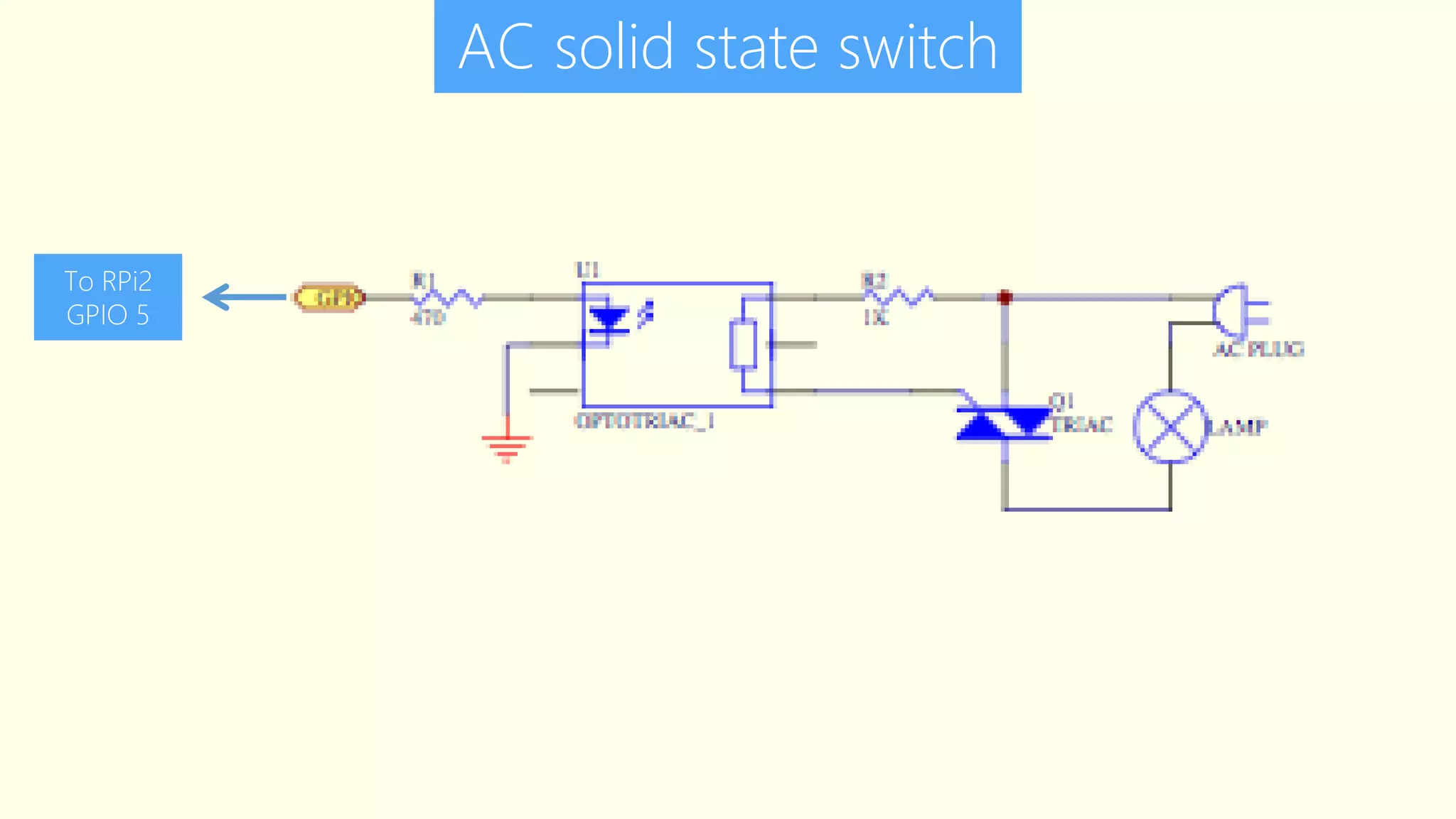

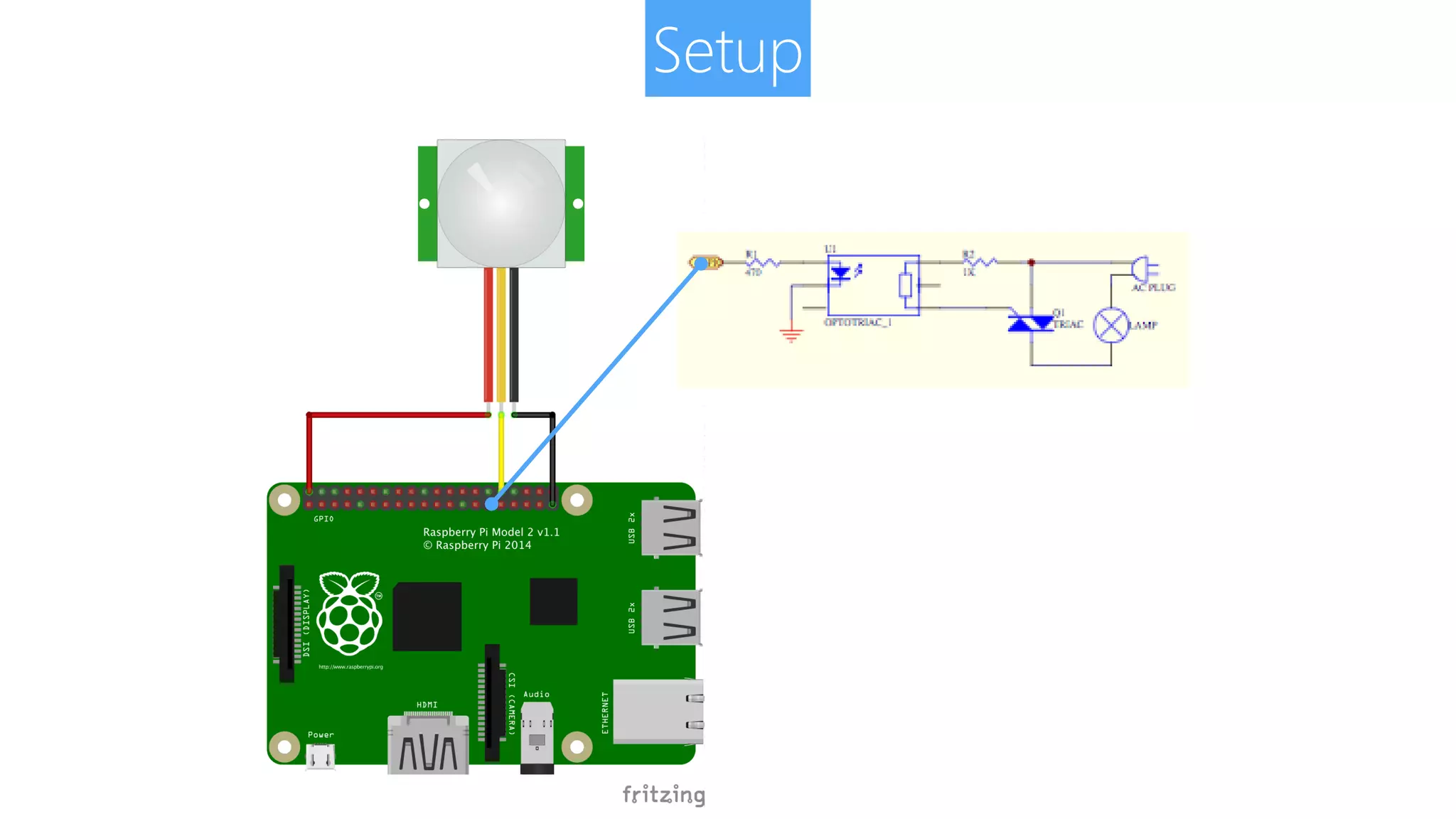

- 53. AC solid stateswitch To RPi2 GPIO 5

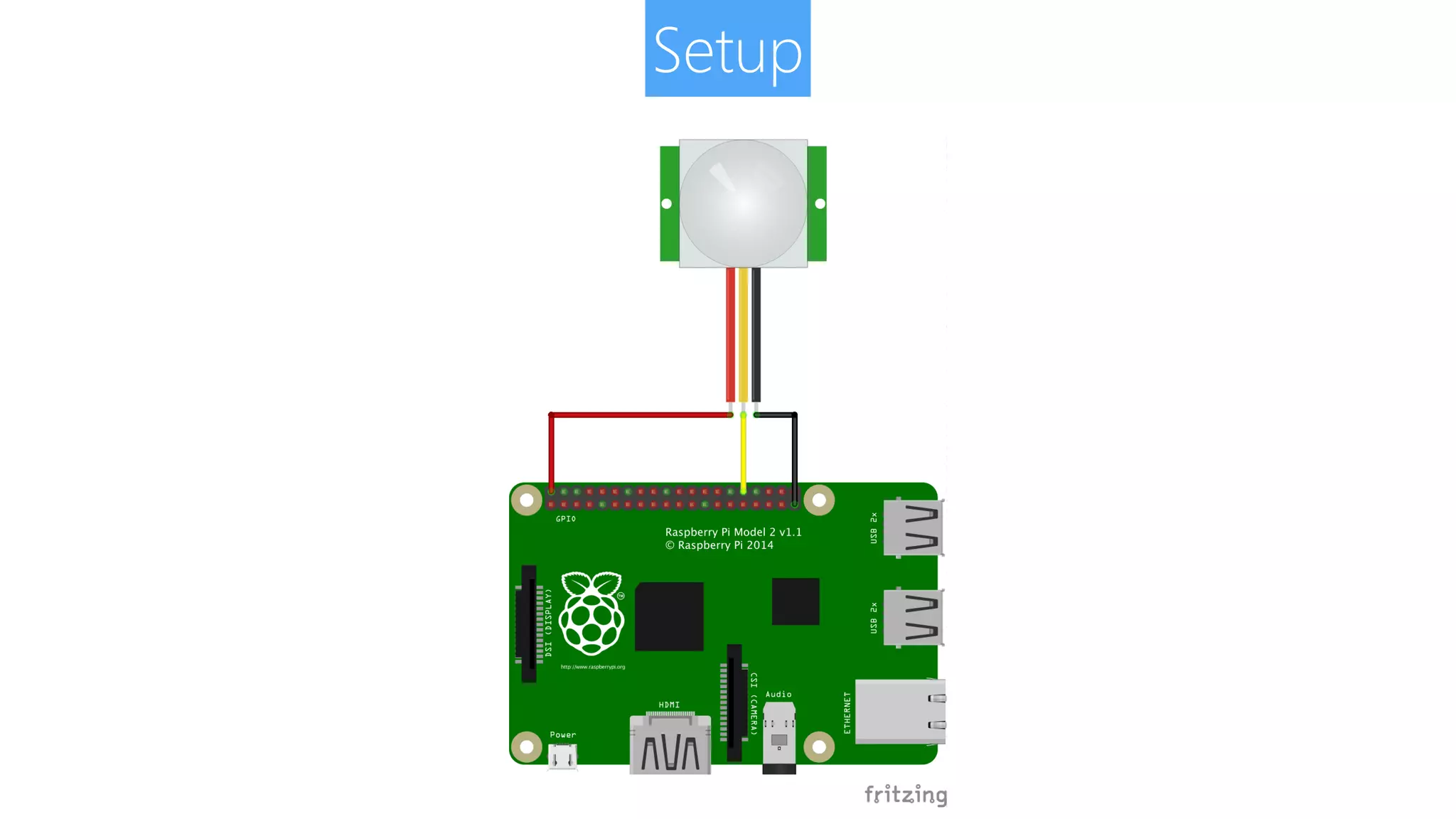

- 54. Detect motion usingPIR - GPIO interrupt HOL
- 55.
- 56. Turn on lightbulb when motion detected
- 57.
- 58. Capture motion - AccessUSB Camera HOL

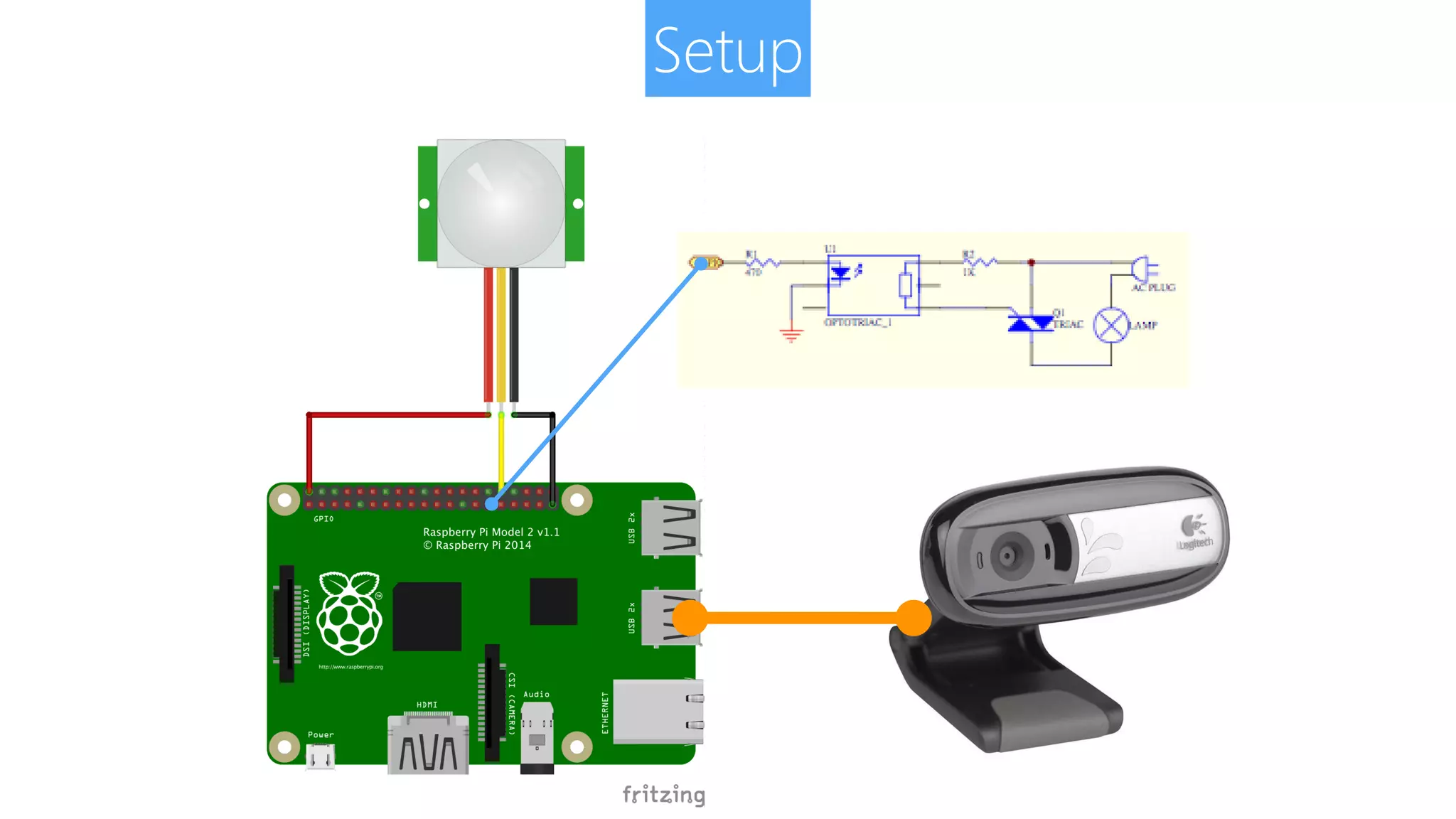

- 59.
- 60.
- 61.

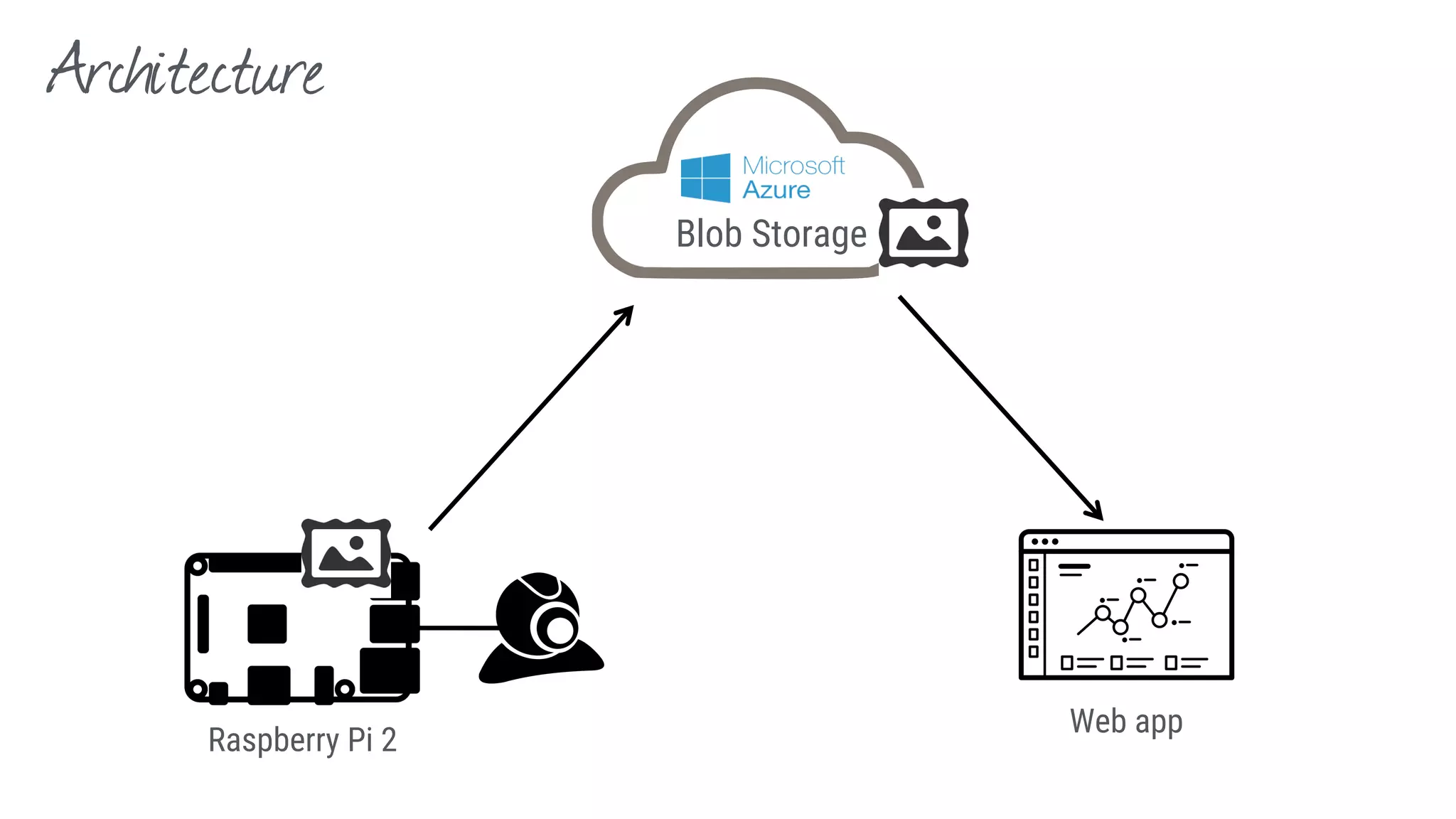

- 63. Architecture Raspberry Pi 2 Webapp Blob Storage

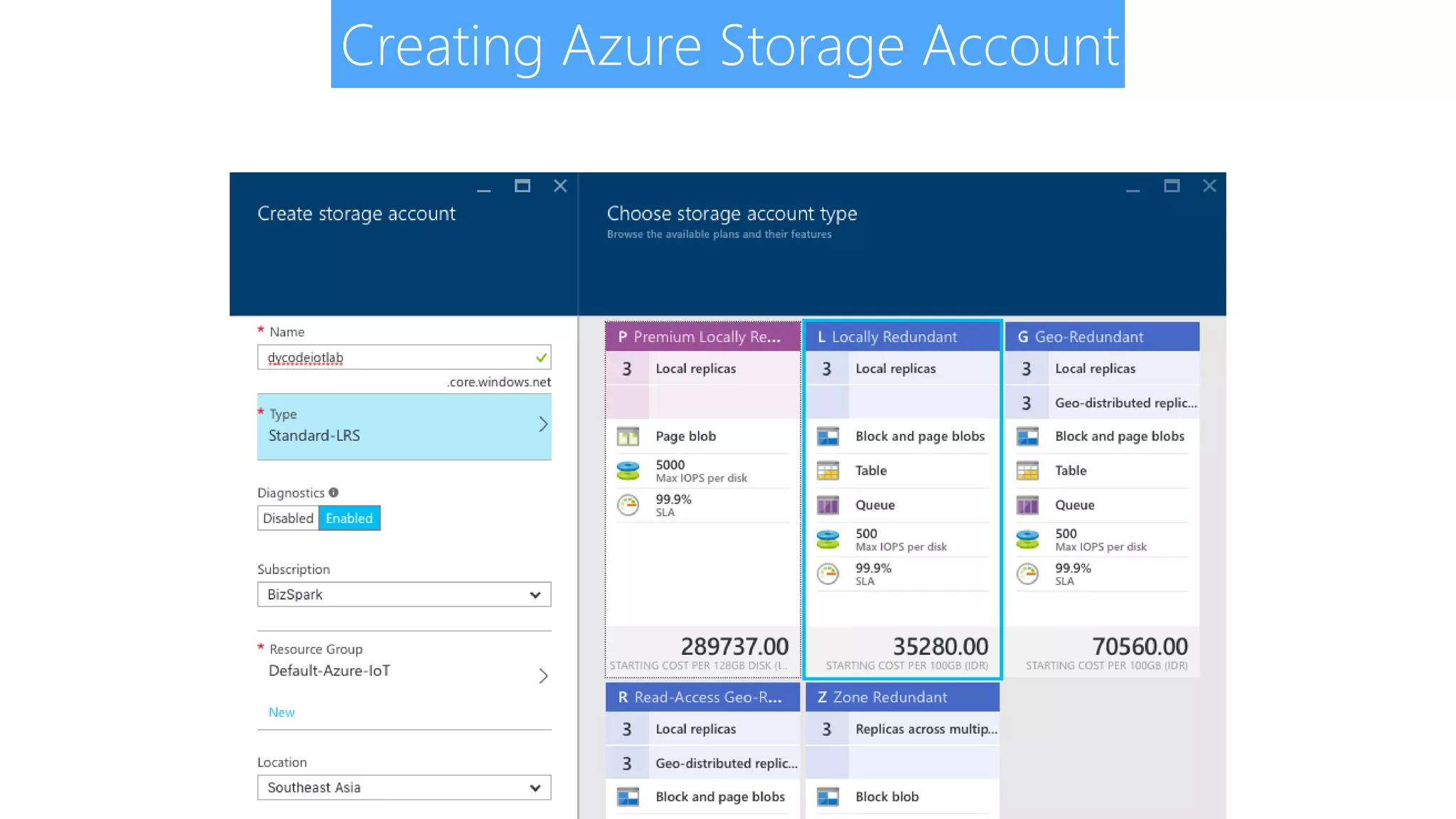

- 64. Creating Azure StorageAccount

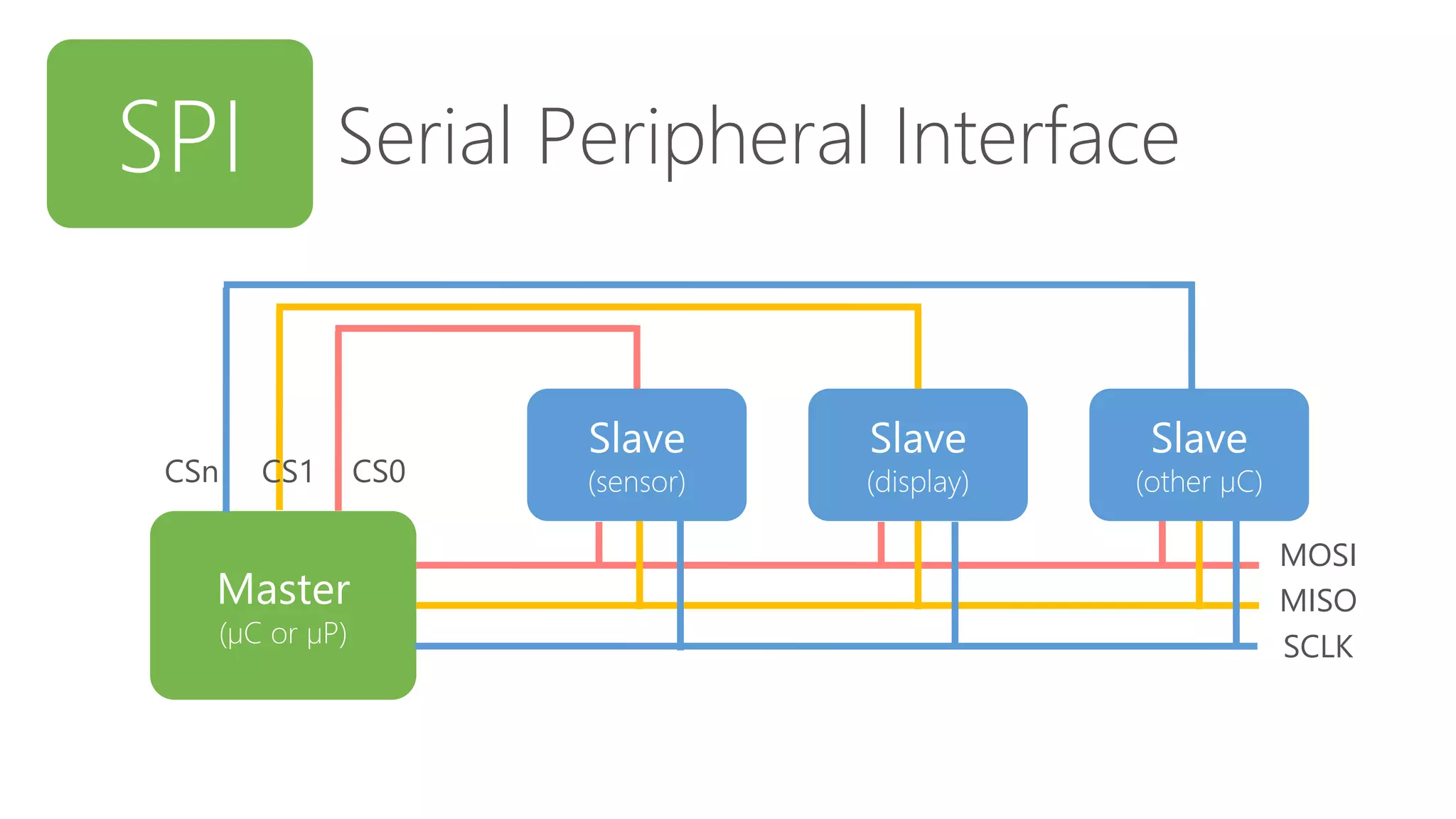

- 66. Master (µC or µP) SPISerial Peripheral Interface SCLK MOSI Slave (display) Slave (sensor) MISO Slave (other µC)CS0CS1CSn

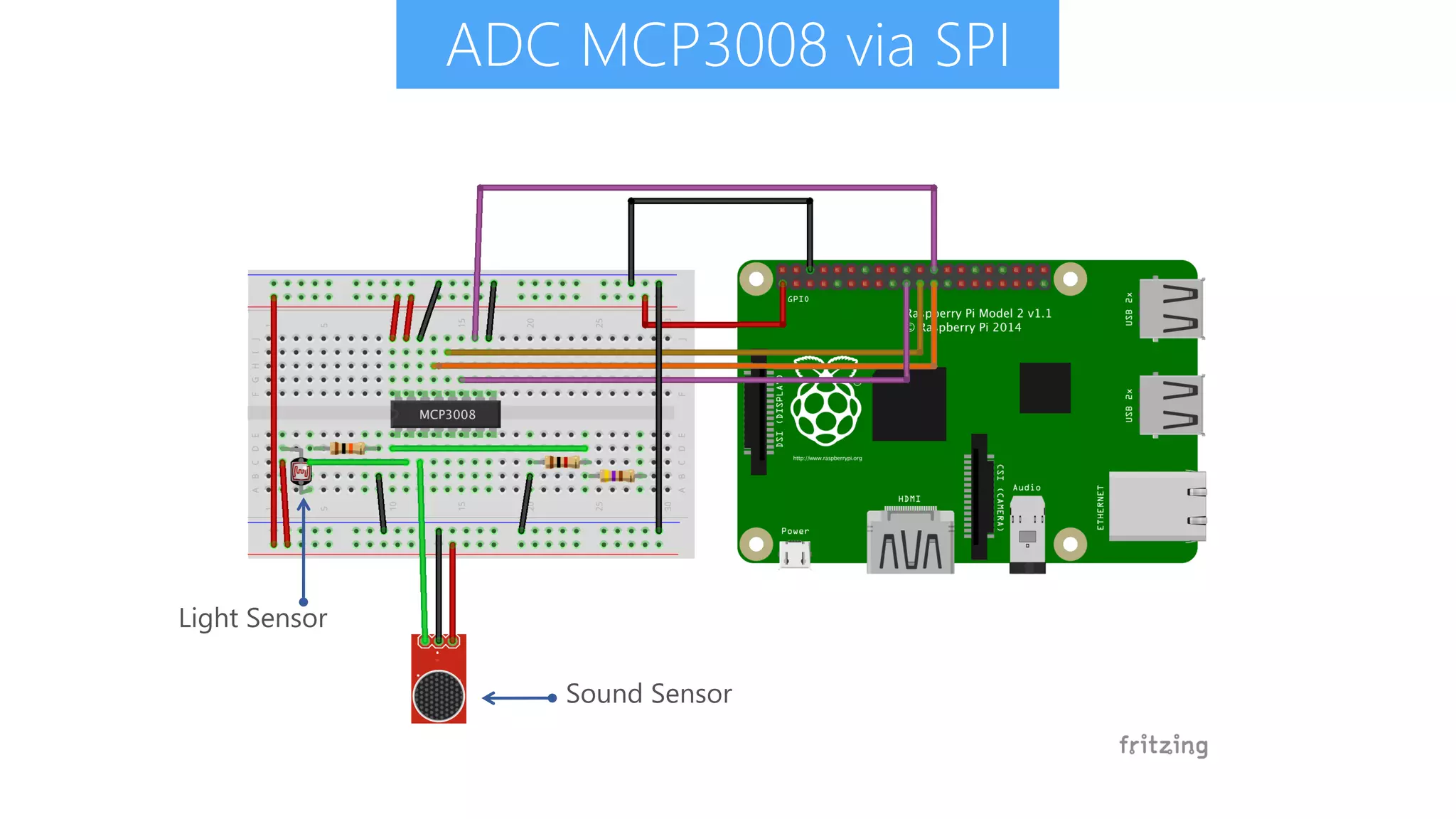

- 68. ADC MCP3008 viaSPI Light Sensor Sound Sensor
- 69.
- 70.
- 71. ….or HOL toturn on the light when it’s dark, using light sensor
- 72. To turn onthe light when it’s dark
- 73.

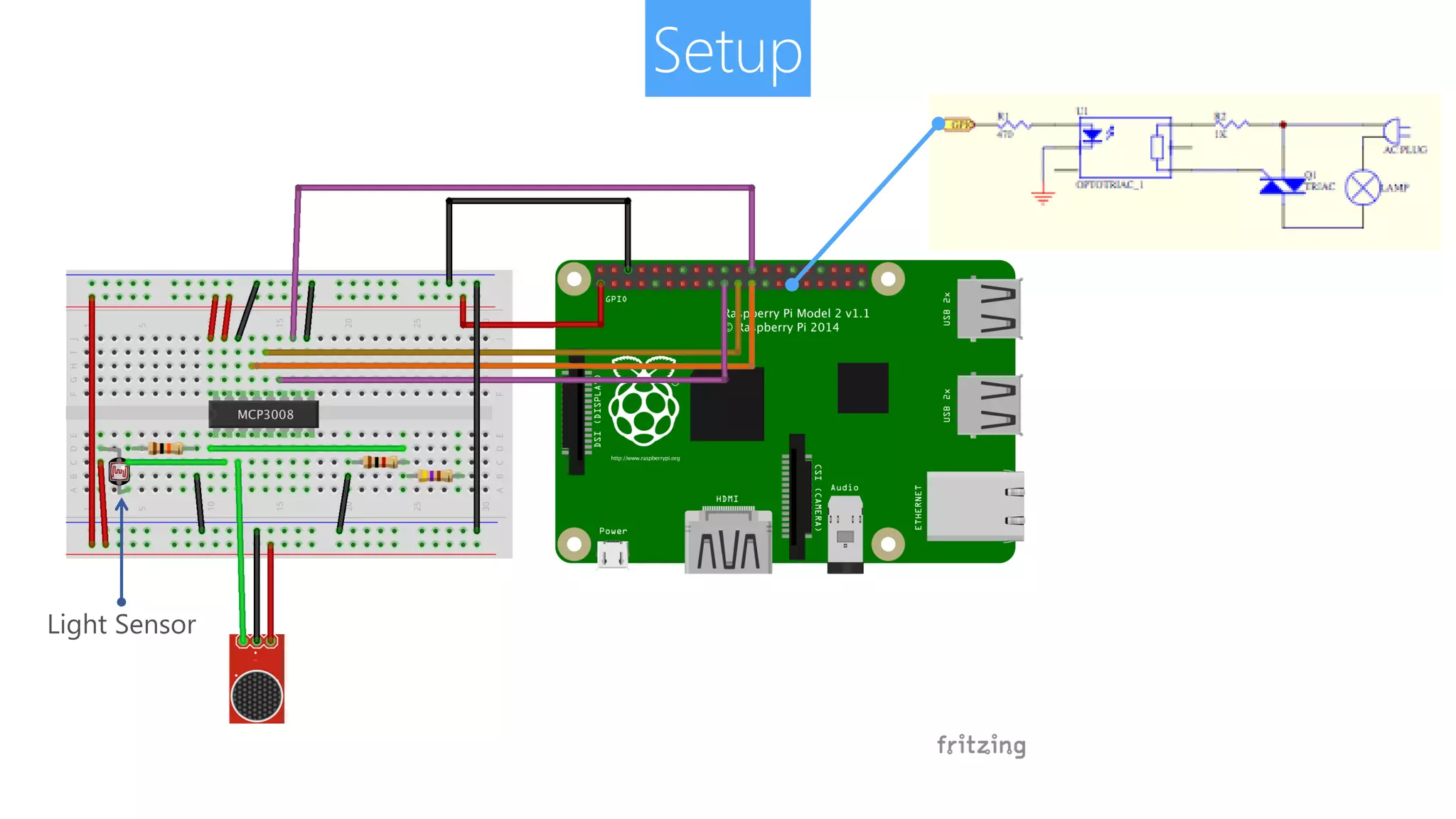

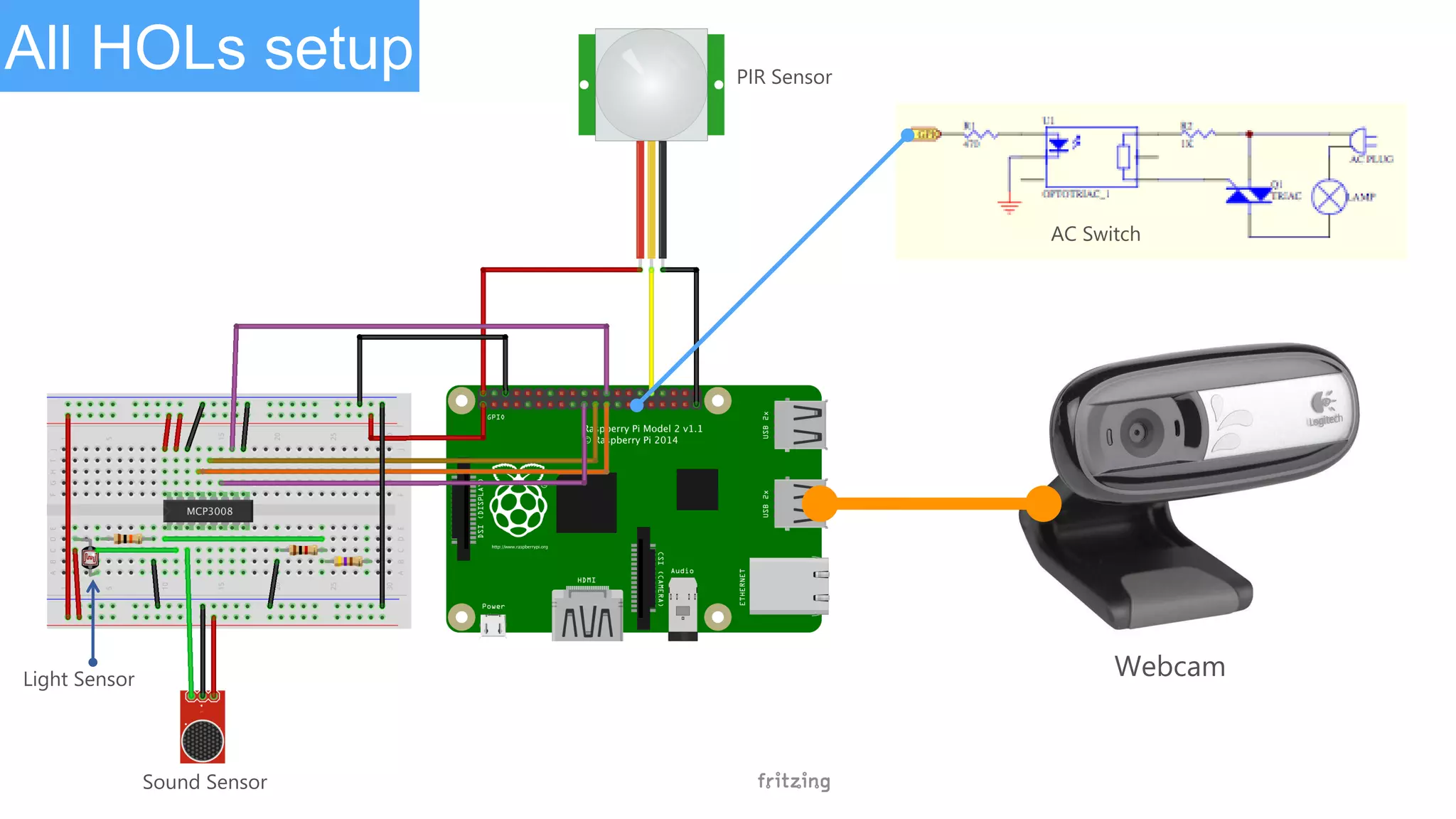

- 74. All HOLs setup SoundSensor PIR Sensor Webcam AC Switch Light Sensor
- 75.

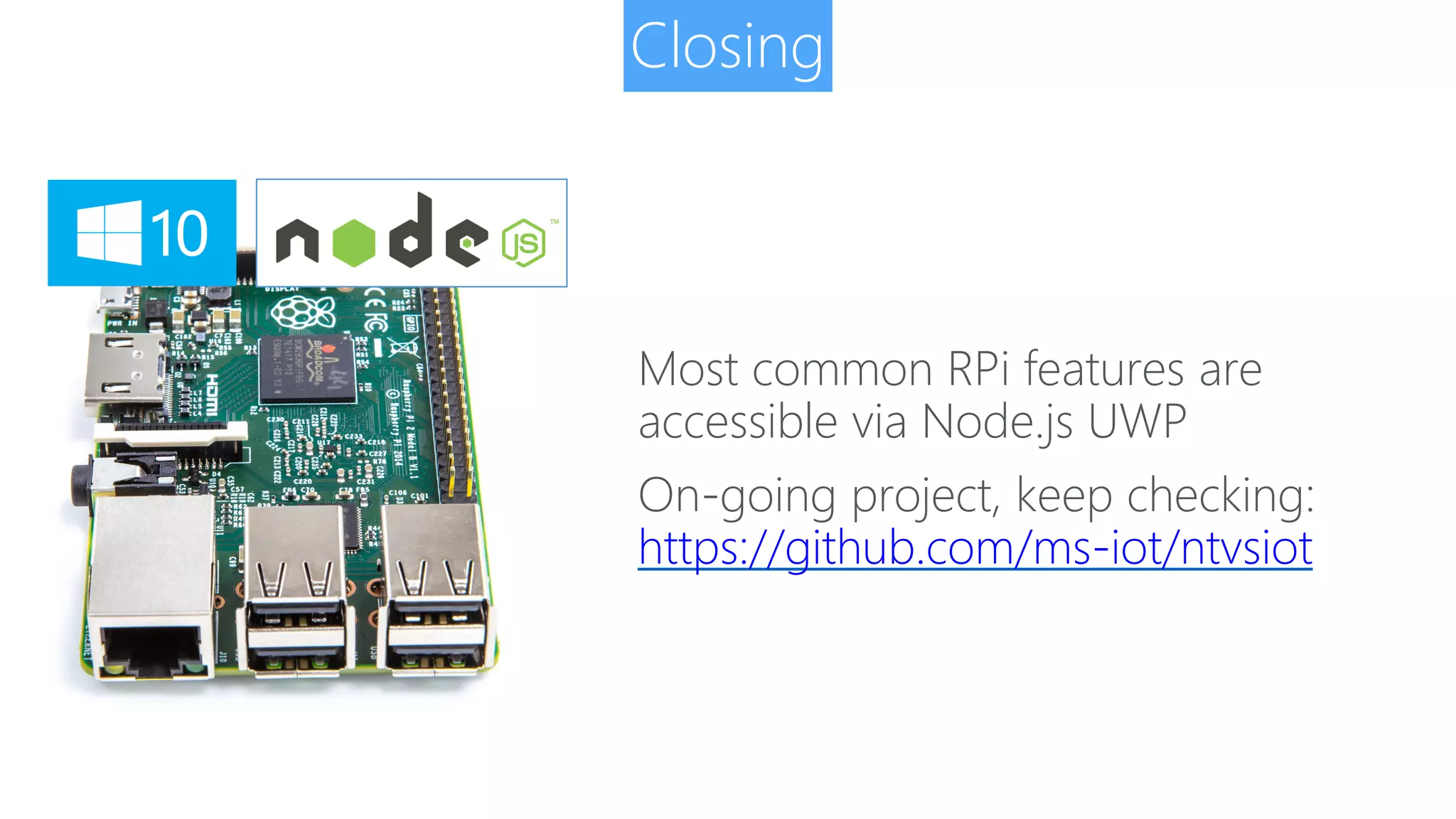

- 76. Closing Most common RPifeatures are accessible via Node.js UWP On-going project, keep checking: https://github.com/ms-iot/ntvsiot
