- 1. GRAPH ANALYTICS AND MACHINELEARNING STANLEY WANG SOLUTION ARCHITECT, TECH LEAD @SWANG68 http://www.linkedin.com/in/stanley-wang-a2b143b

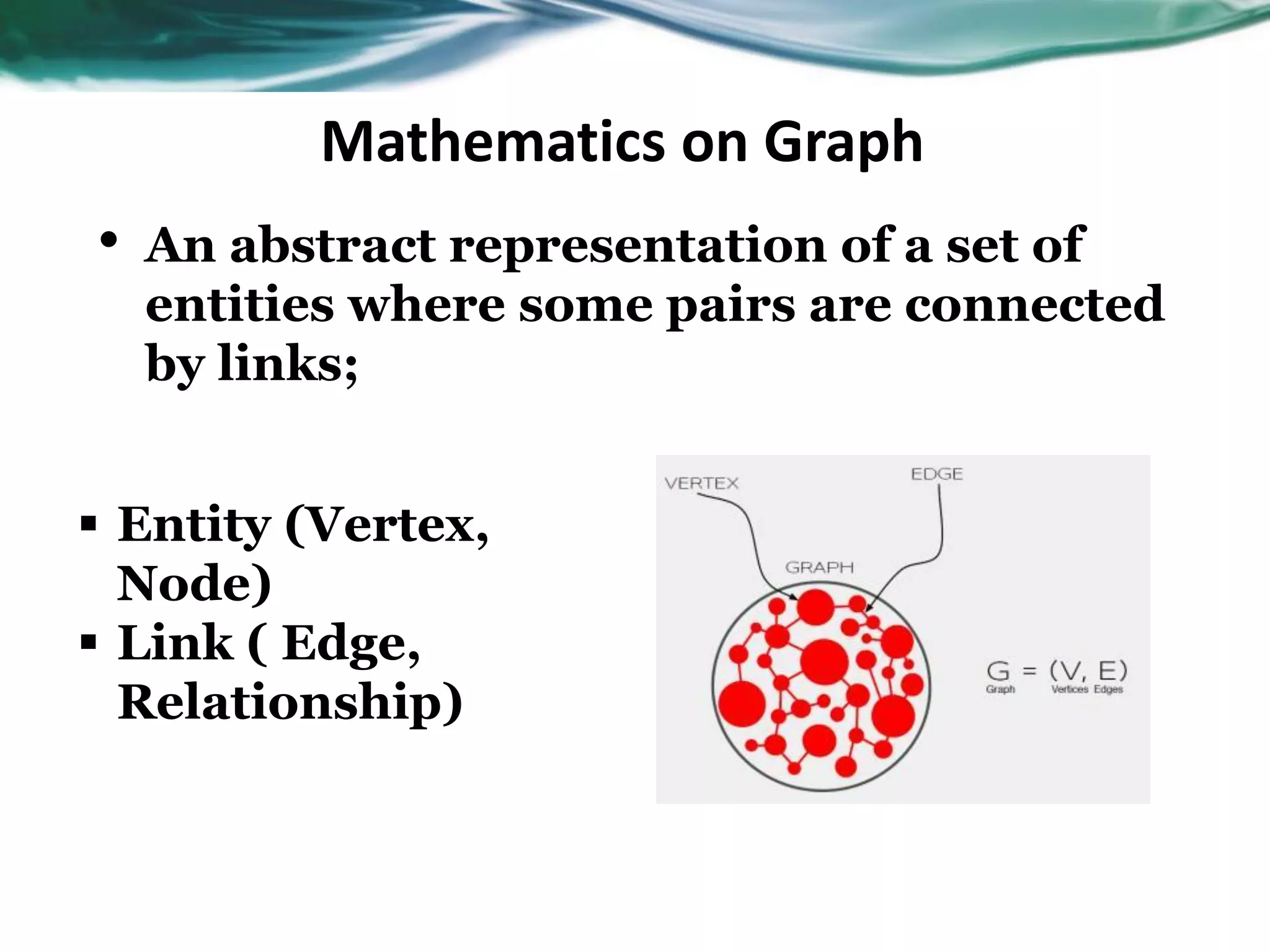

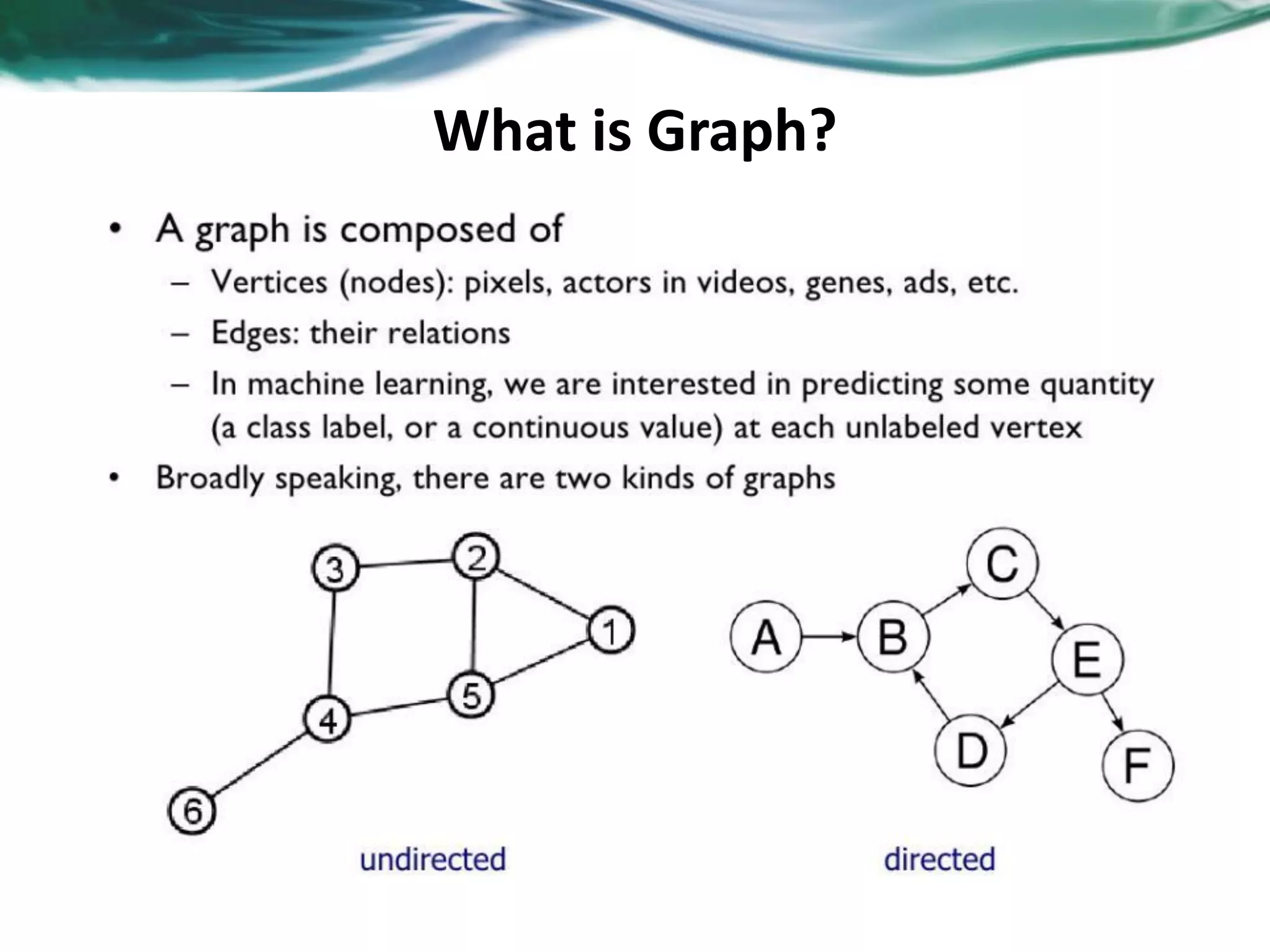

- 2. Mathematics on Graph •An abstract representation of a set of entities where some pairs are connected by links; Entity (Vertex, Node) Link ( Edge, Relationship)
- 3.

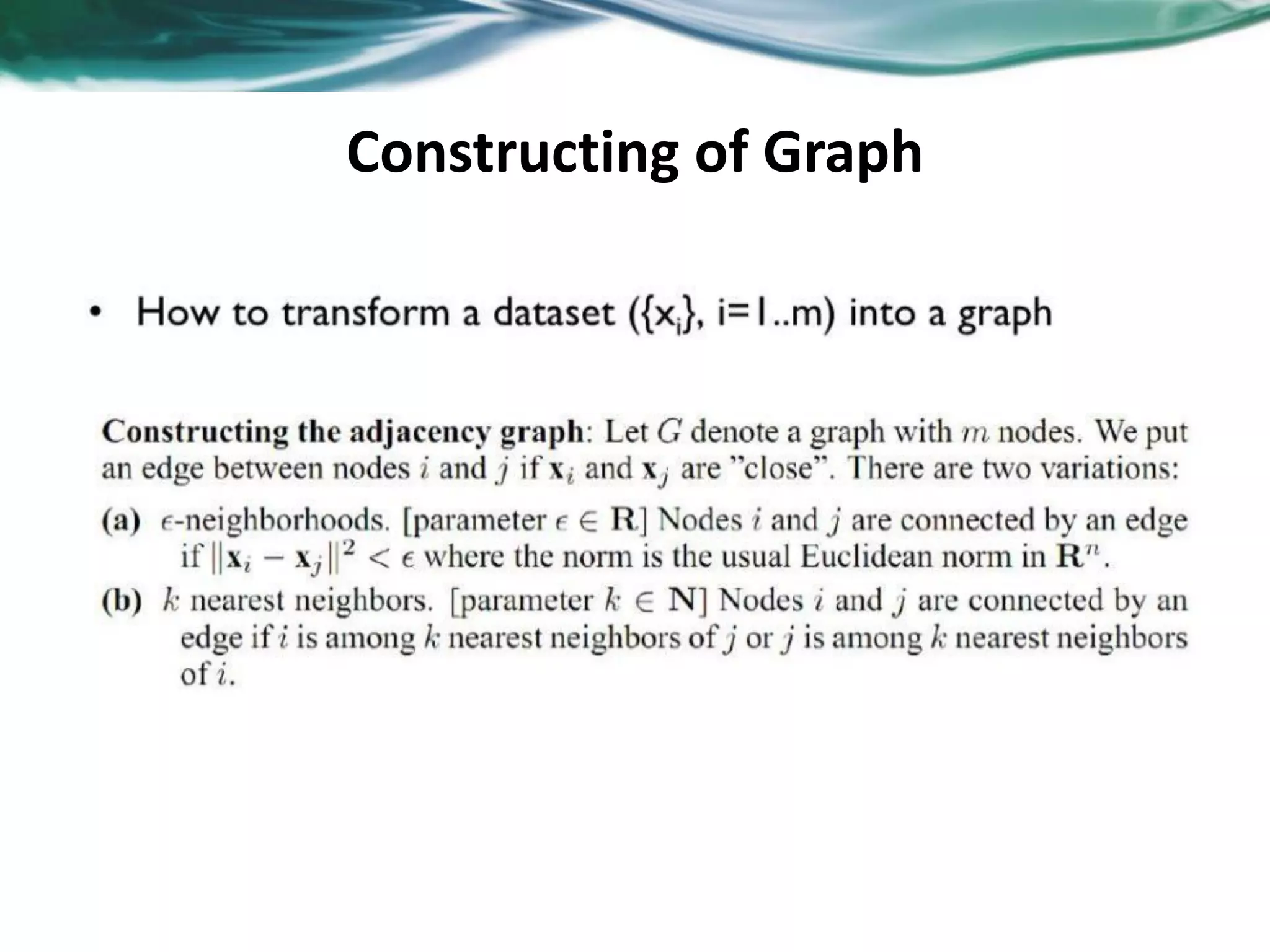

- 4.
- 5.
- 6.

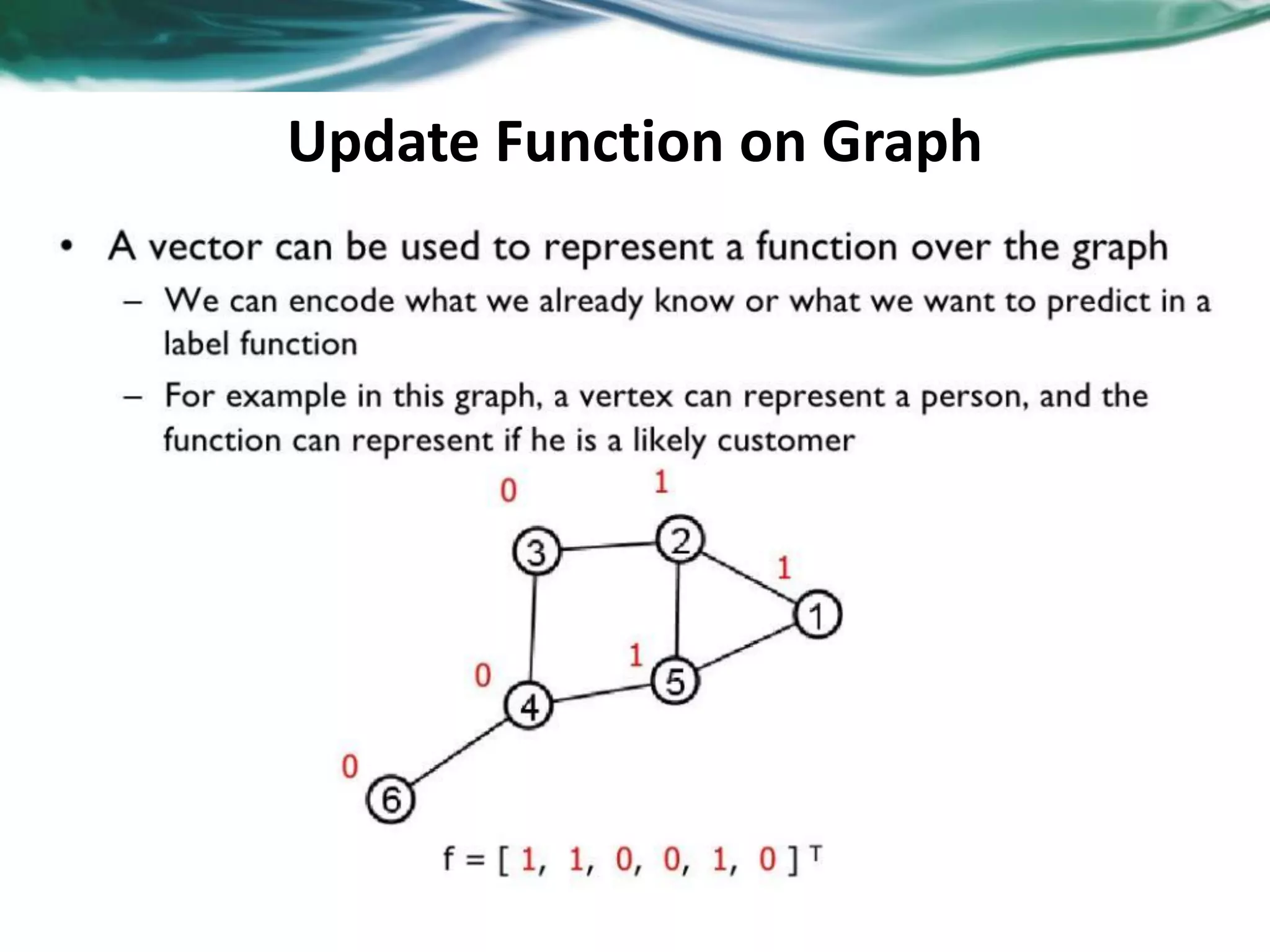

- 7. Update Function onGraph

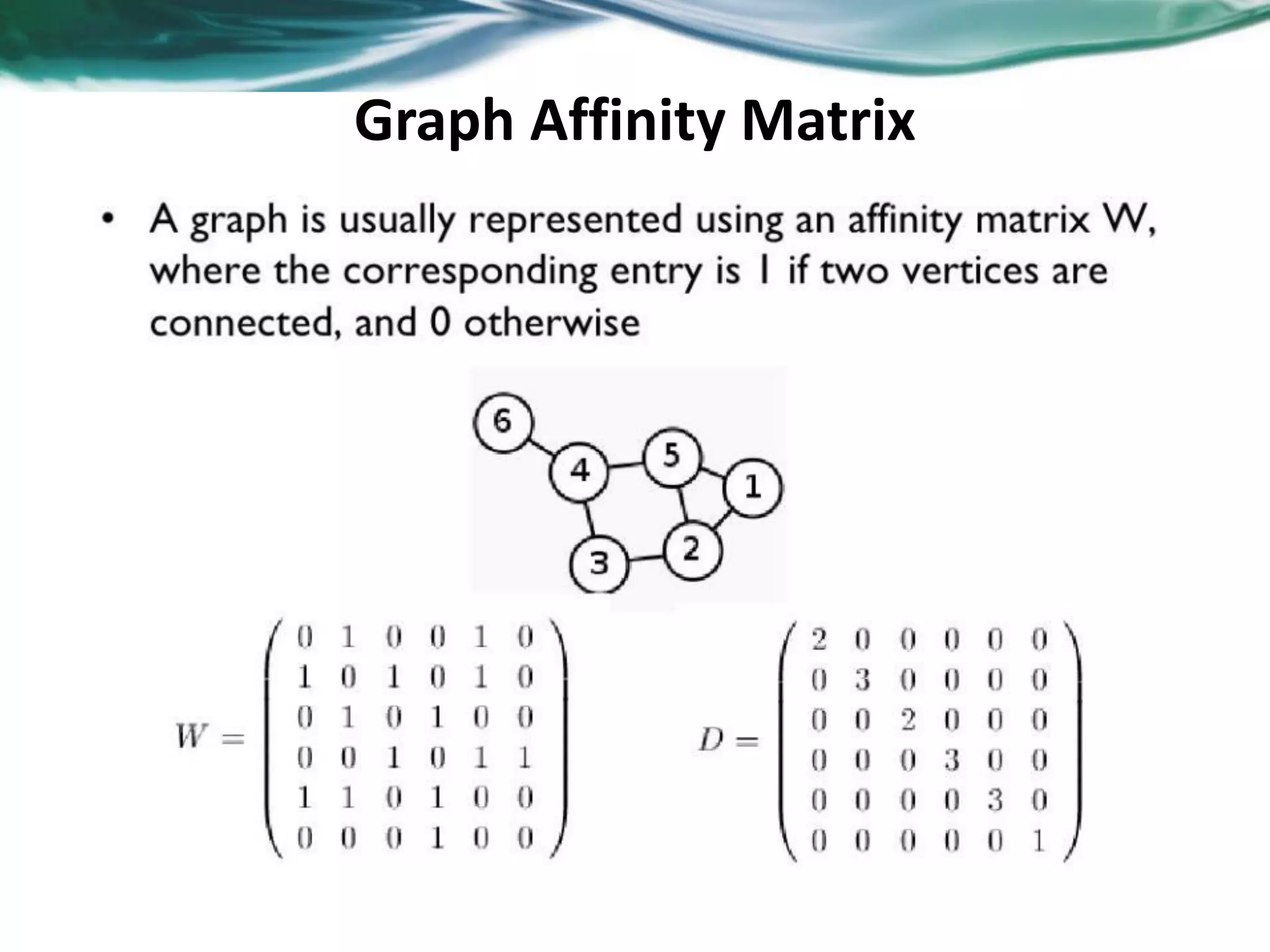

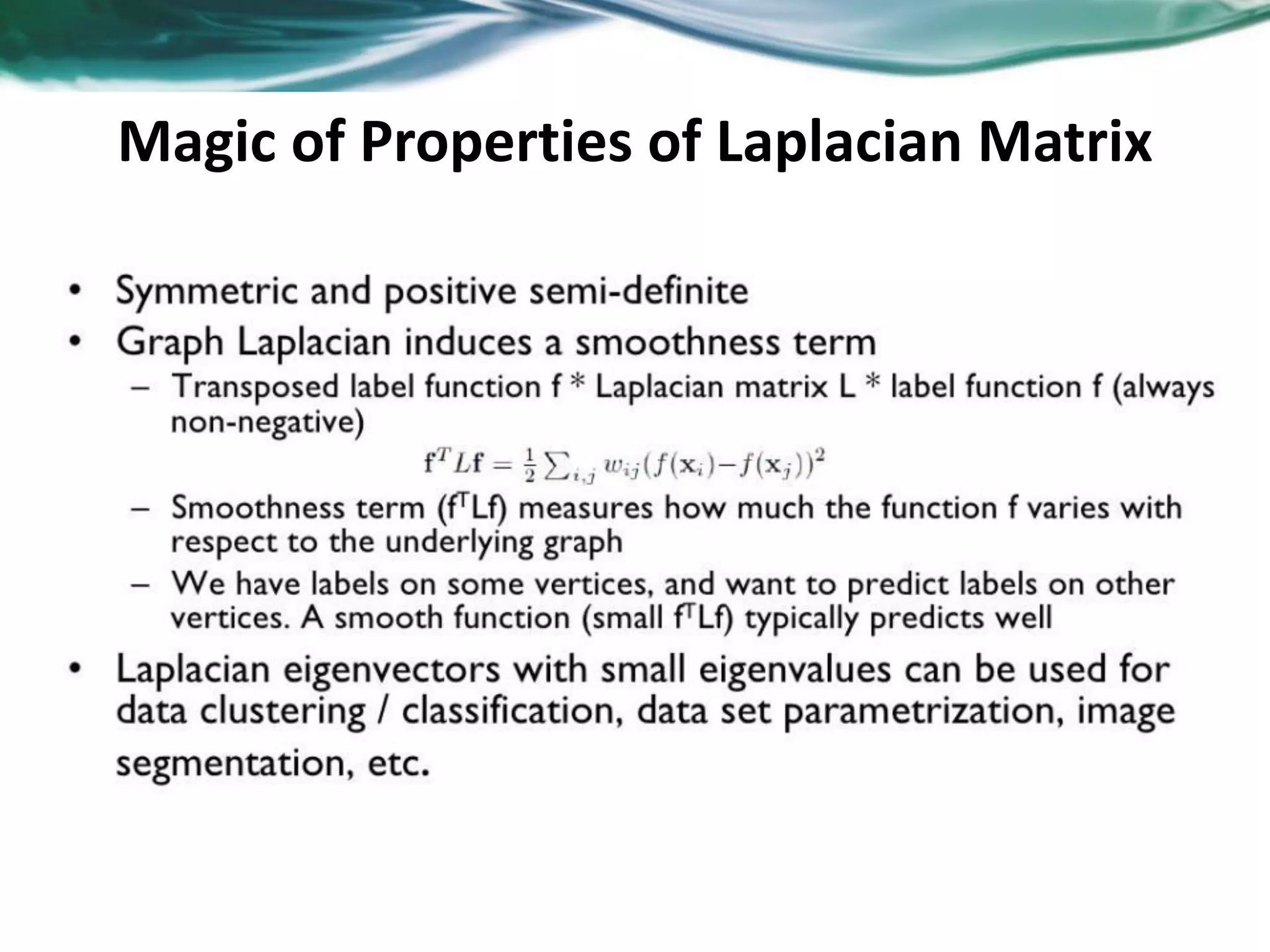

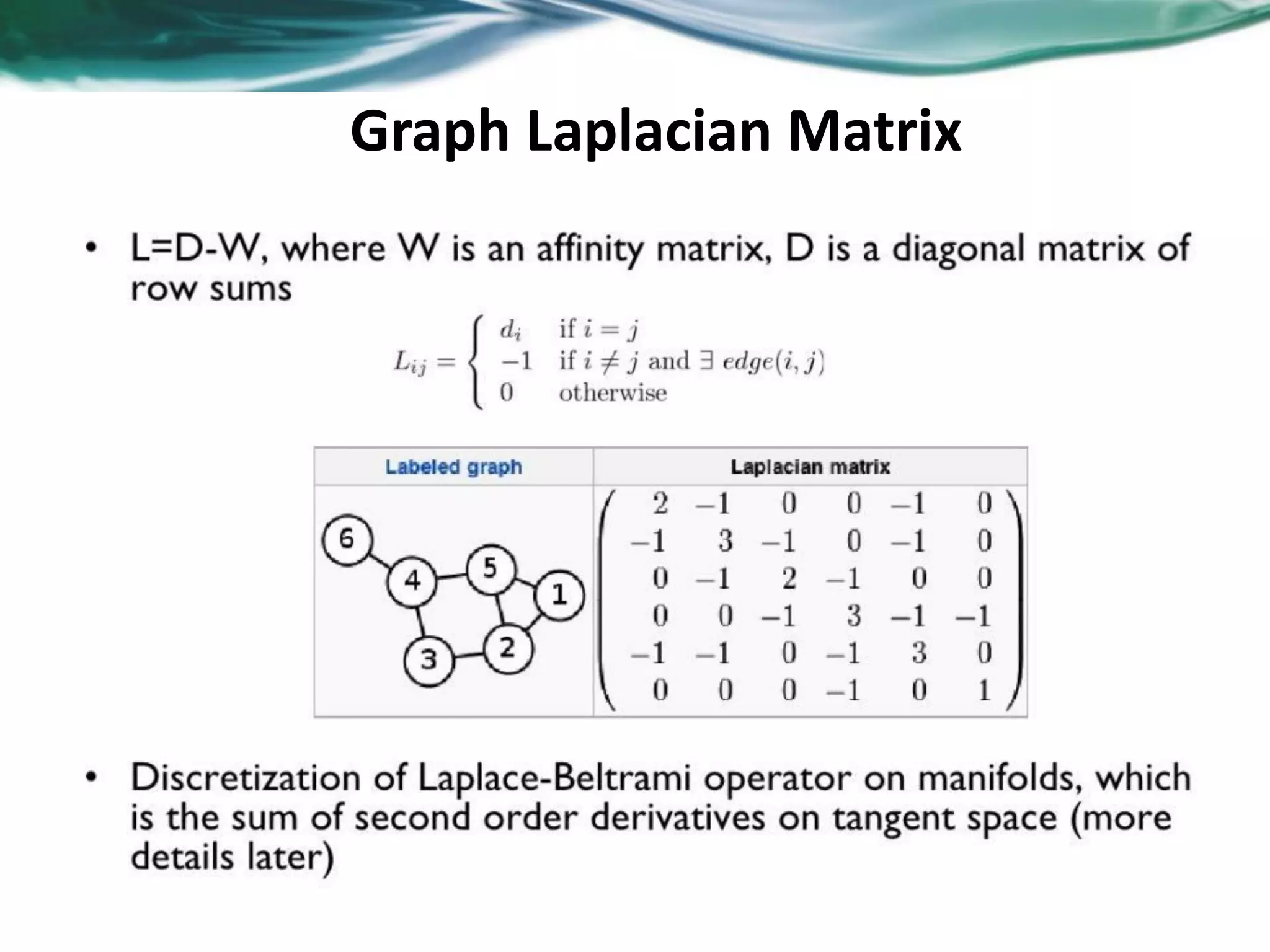

- 8. Magic of Propertiesof Laplacian Matrix

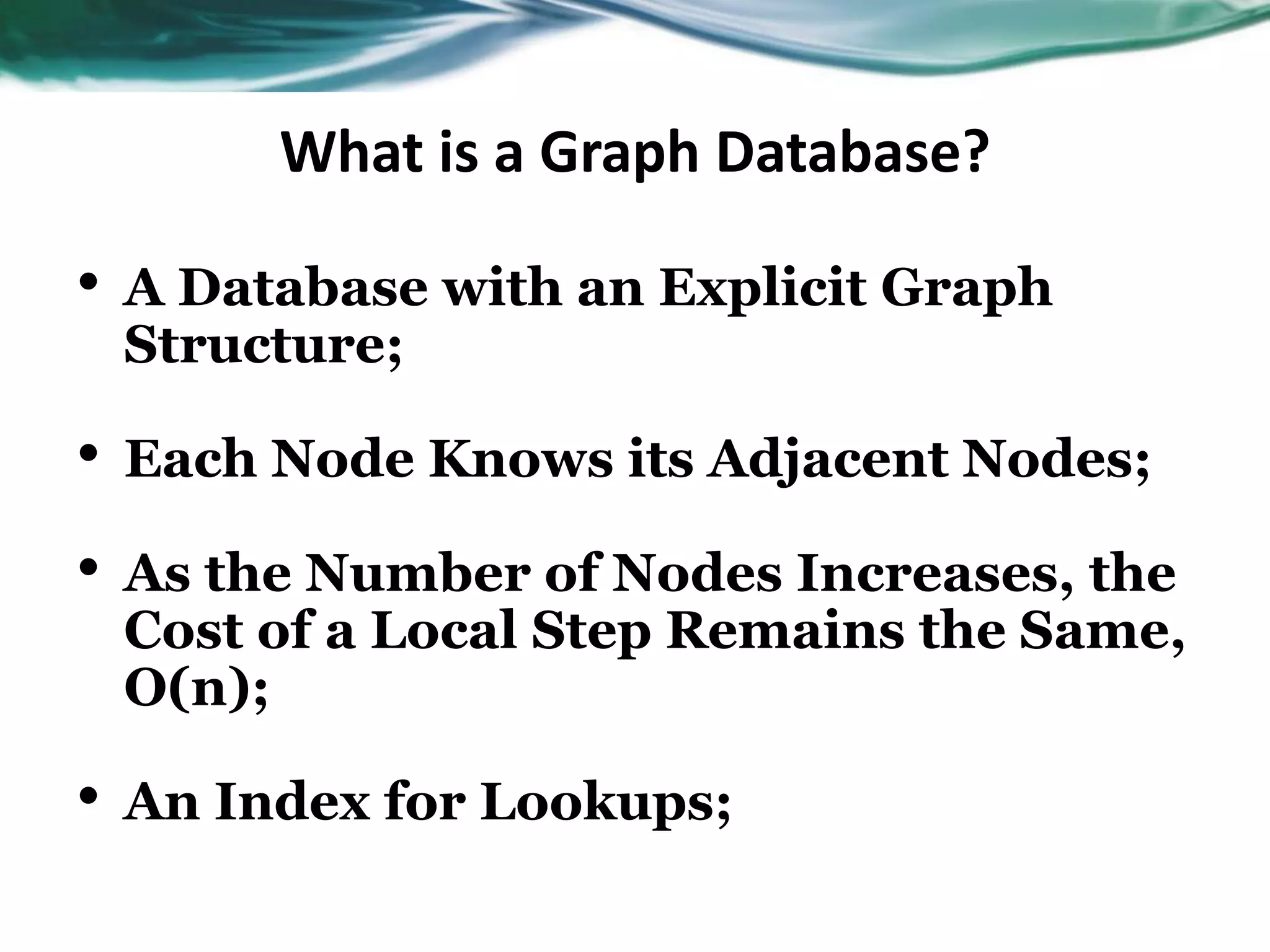

- 9. What is aGraph Database? • A Database with an Explicit Graph Structure; • Each Node Knows its Adjacent Nodes; • As the Number of Nodes Increases, the Cost of a Local Step Remains the Same, O(n); • An Index for Lookups;

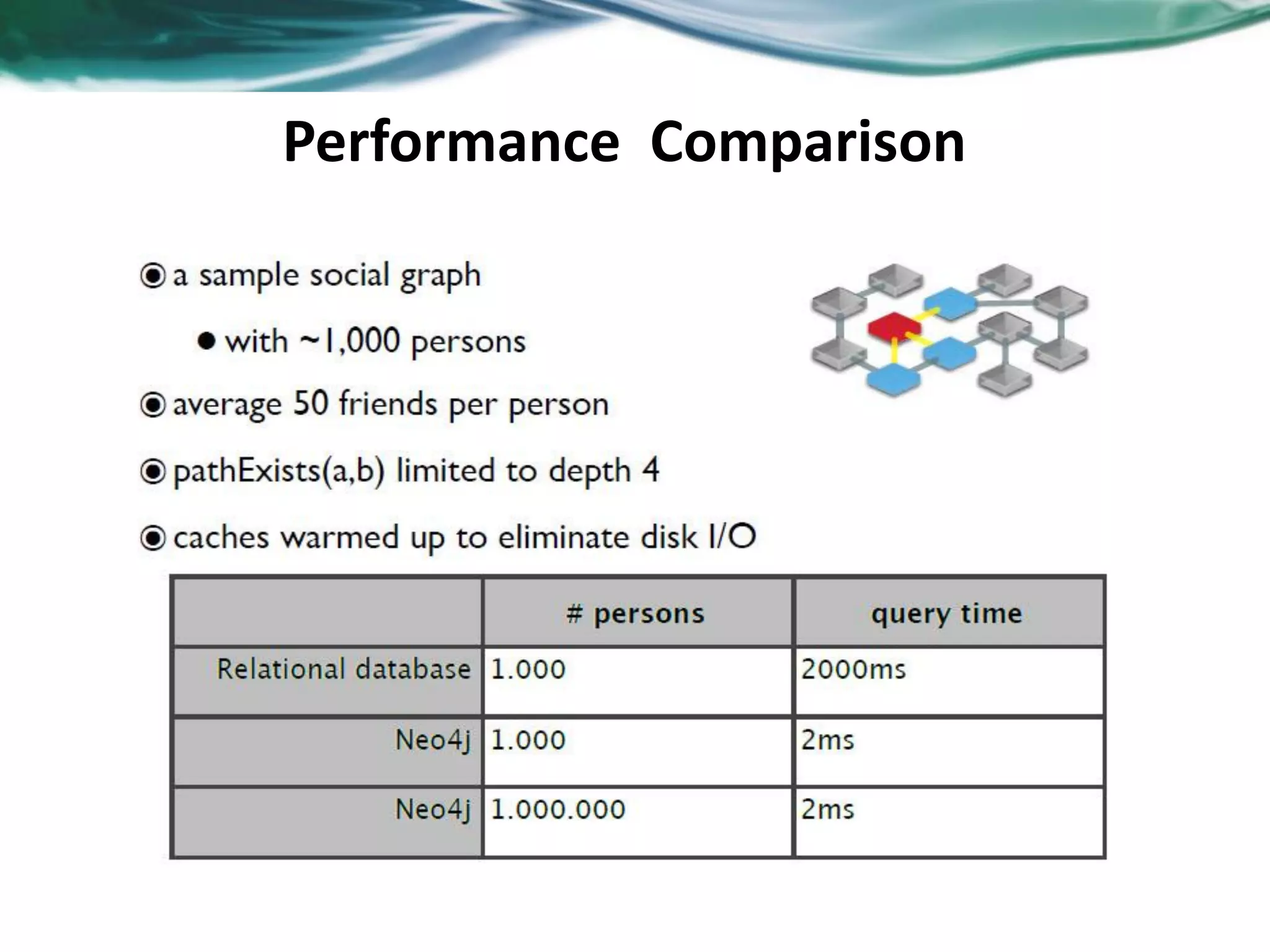

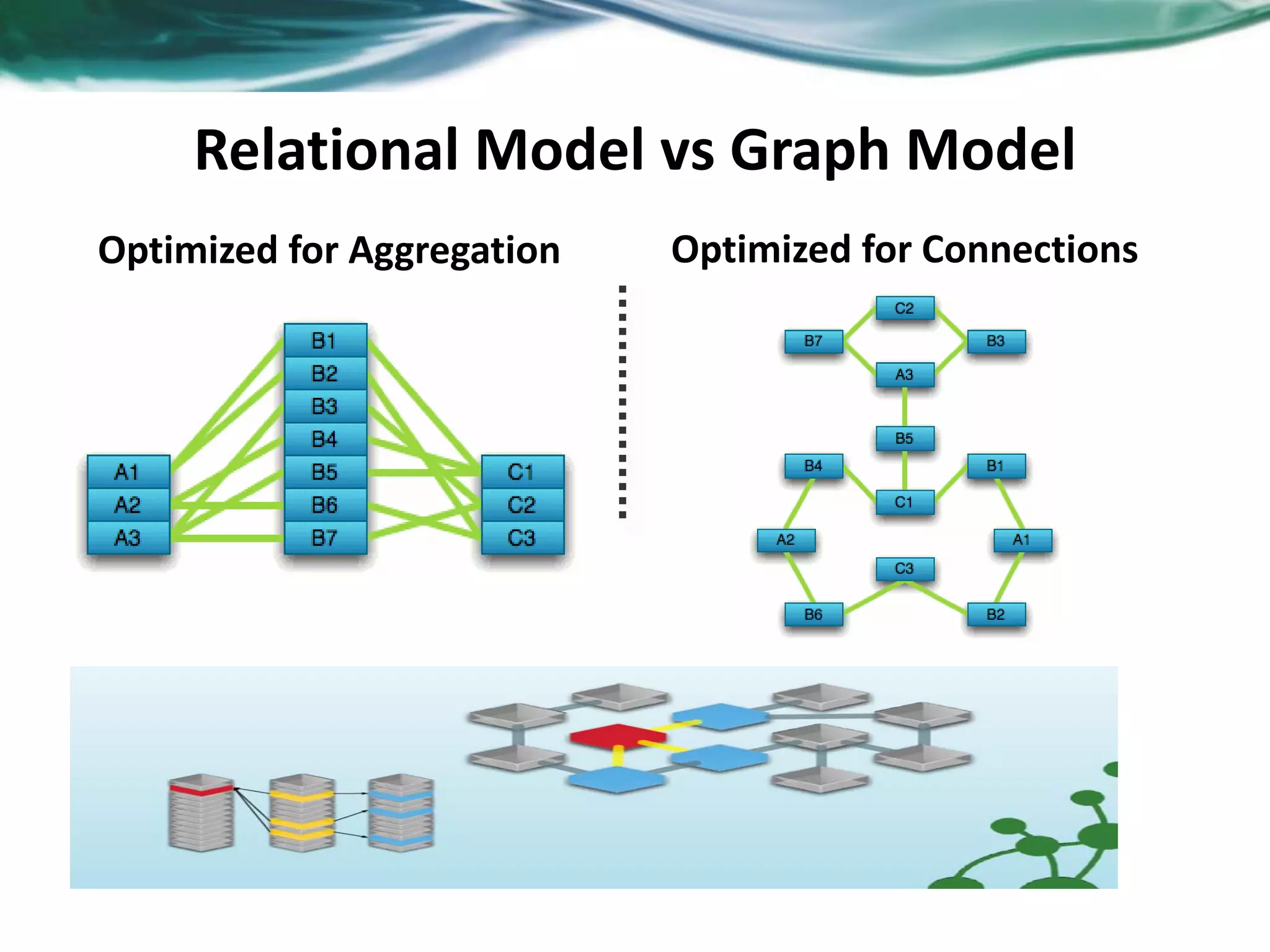

- 10. Relational Model vsGraph Model Optimized for Aggregation Optimized for Connections

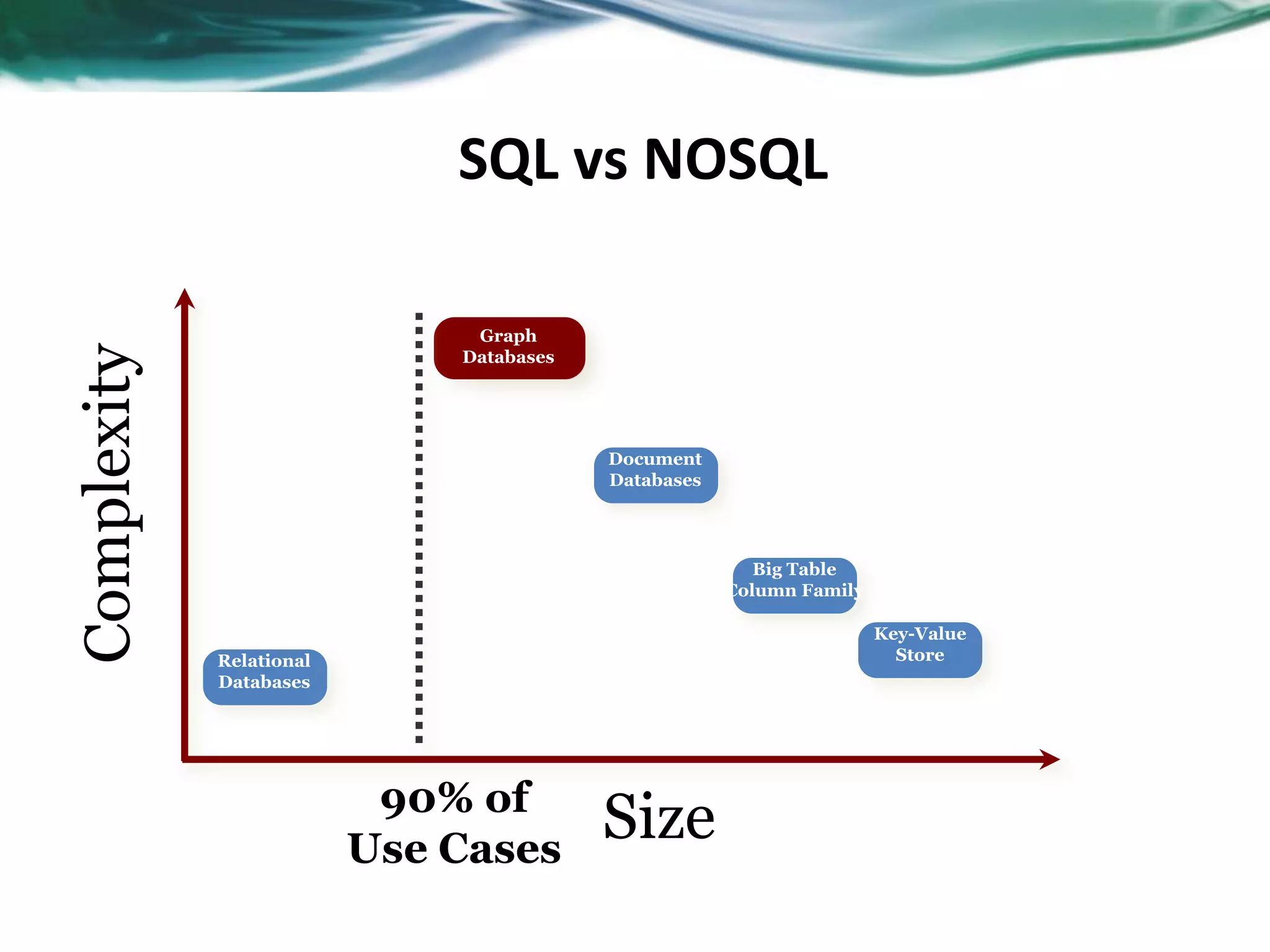

- 11. RDBMS SQL vs NOSQL Complexity BigTable Column Family Size Key-Value Store Document Databases Graph Databases 90% of Use Cases Relational Databases
- 12.

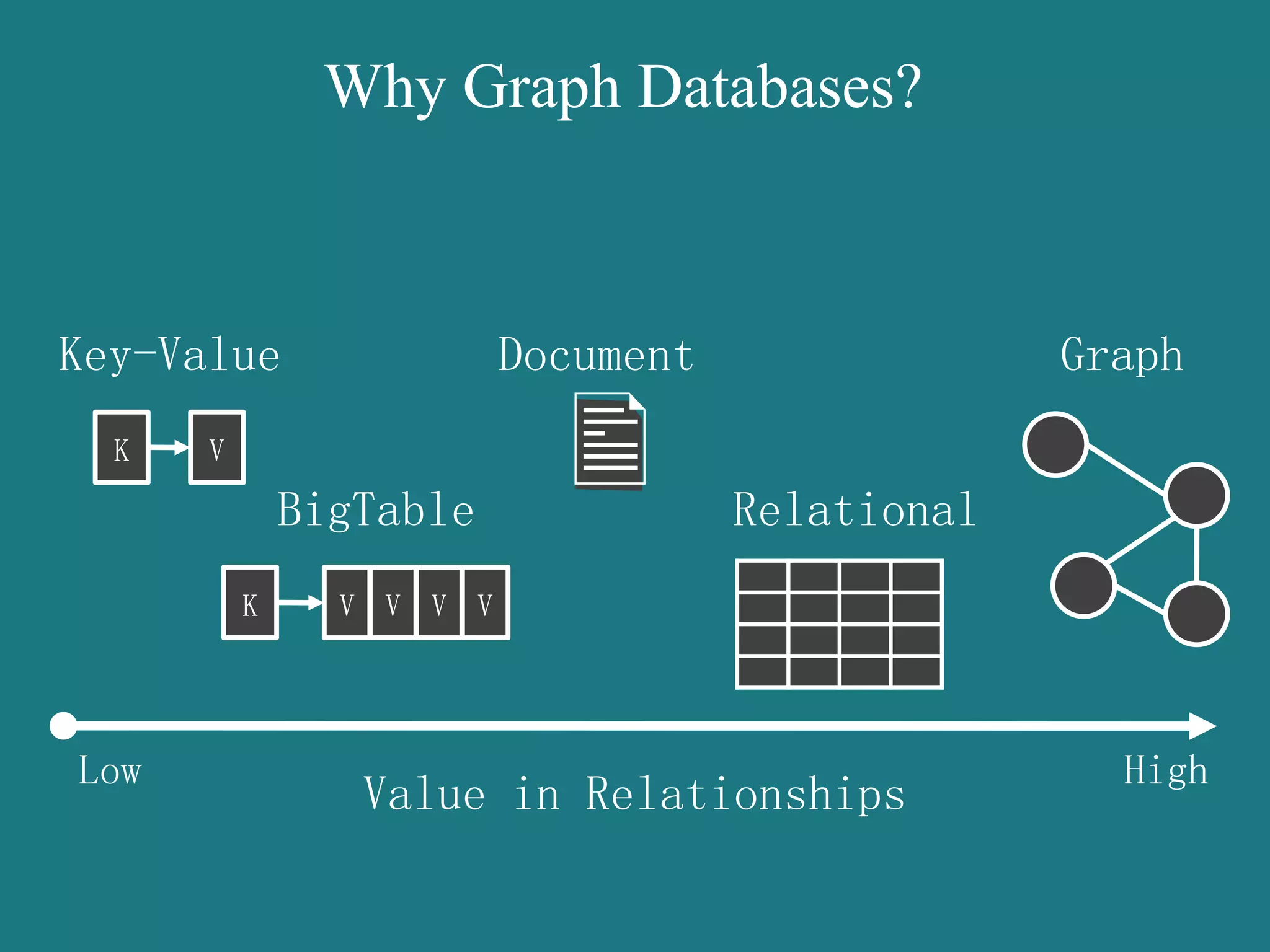

- 13. Value in Relationships LowHigh Key-Value Why Graph Databases? K V BigTable K V V V V Document Relational Graph

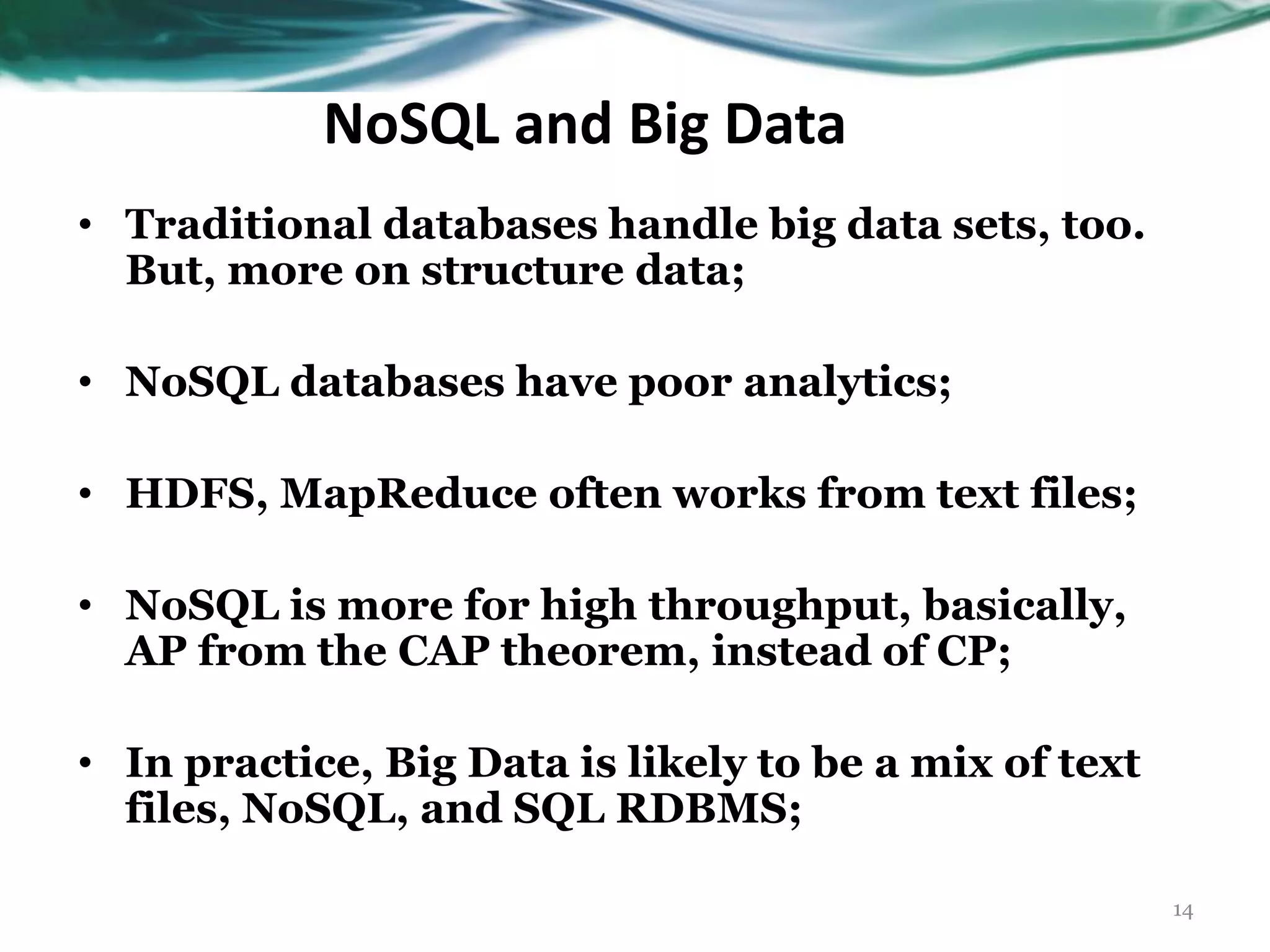

- 14. NoSQL and BigData 14 • Traditional databases handle big data sets, too. But, more on structure data; • NoSQL databases have poor analytics; • HDFS, MapReduce often works from text files; • NoSQL is more for high throughput, basically, AP from the CAP theorem, instead of CP; • In practice, Big Data is likely to be a mix of text files, NoSQL, and SQL RDBMS;

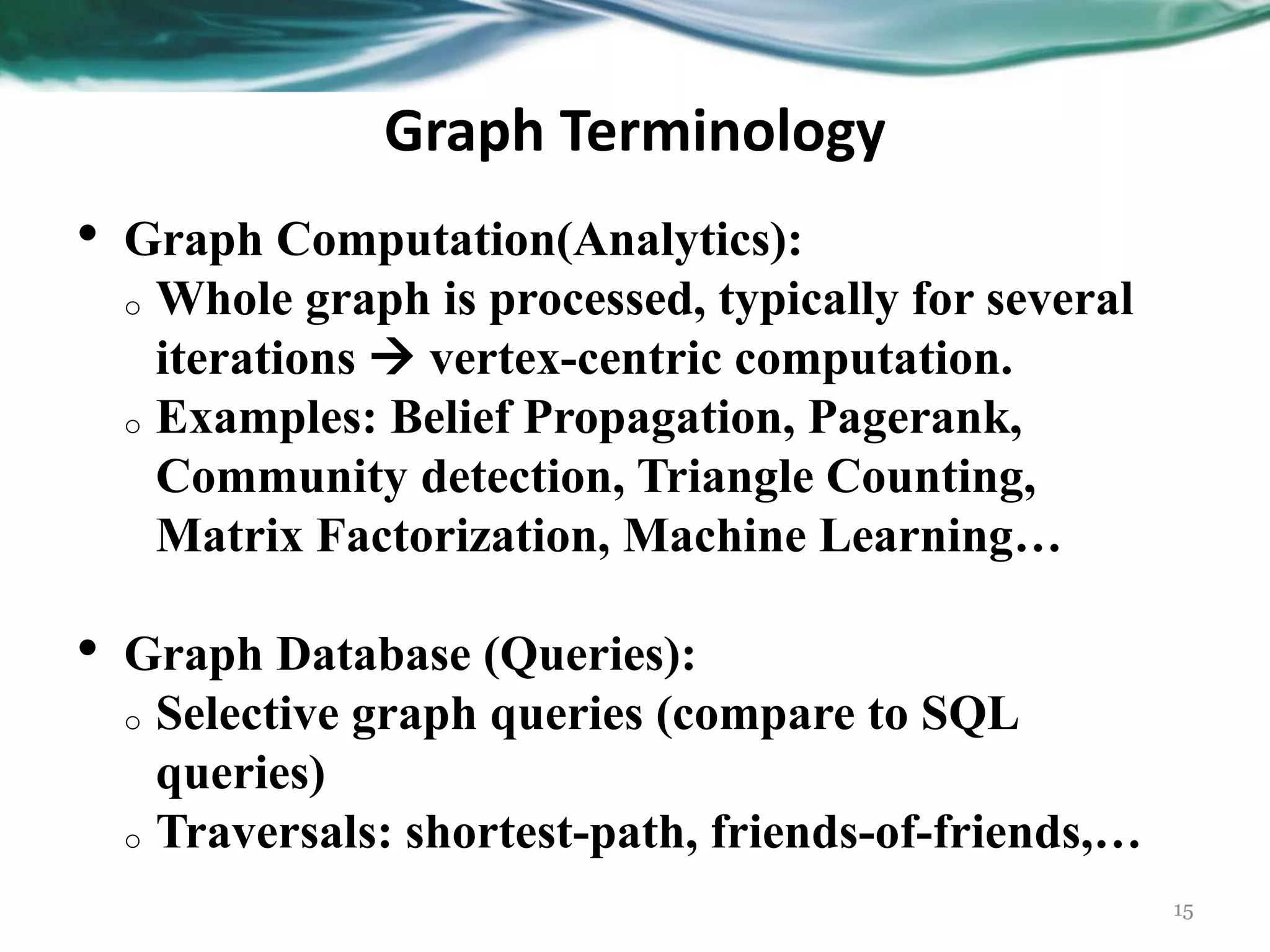

- 15. Graph Terminology • GraphComputation(Analytics): o Whole graph is processed, typically for several iterations vertex-centric computation. o Examples: Belief Propagation, Pagerank, Community detection, Triangle Counting, Matrix Factorization, Machine Learning… • Graph Database (Queries): o Selective graph queries (compare to SQL queries) o Traversals: shortest-path, friends-of-friends,… 15
- 16.
- 17. What Graph CanModel?

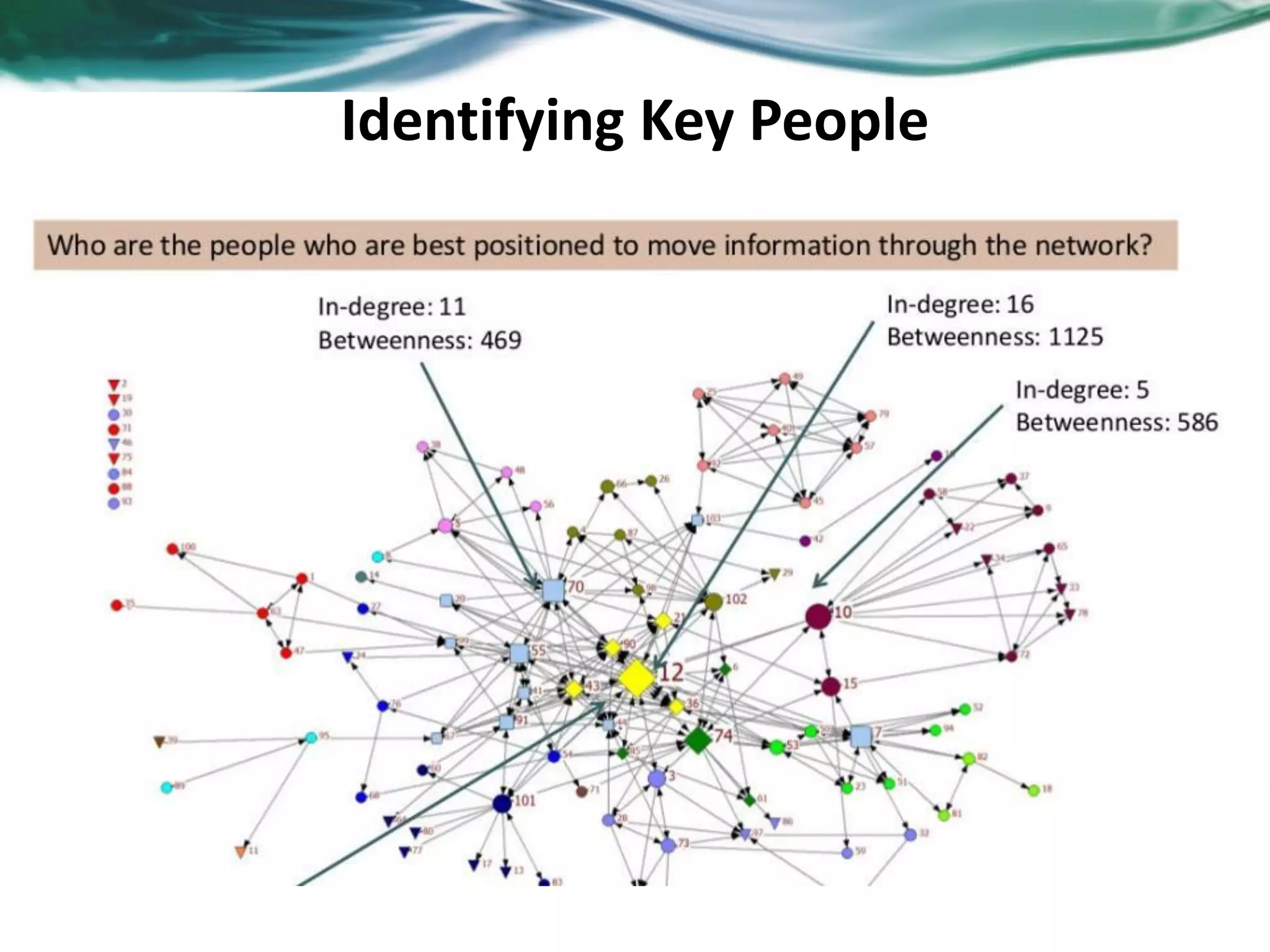

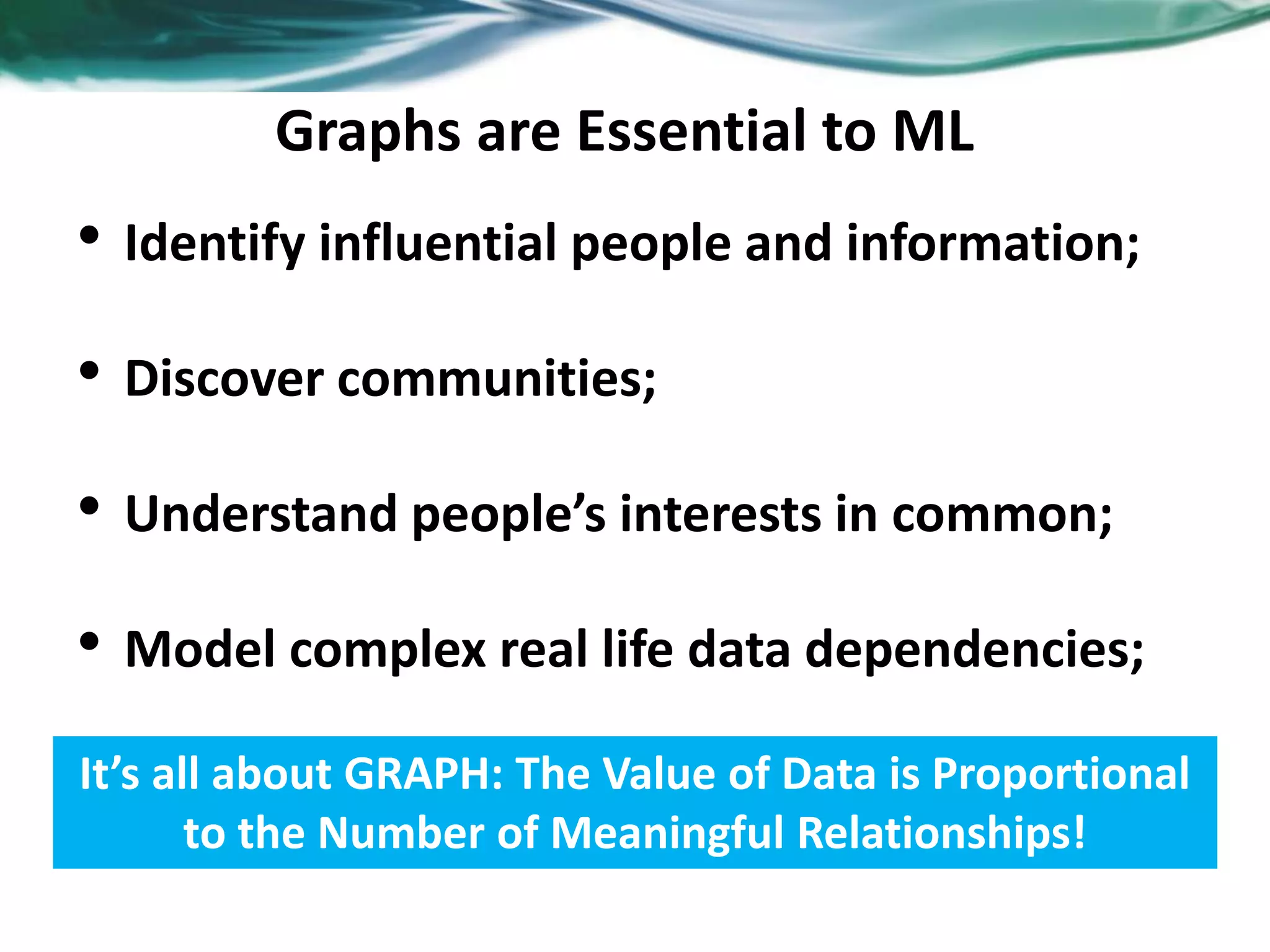

- 18. Graphs are Essentialto ML • Identify influential people and information; • Discover communities; • Understand people’s interests in common; • Model complex real life data dependencies; It’s all about GRAPH: The Value of Data is Proportional to the Number of Meaningful Relationships!

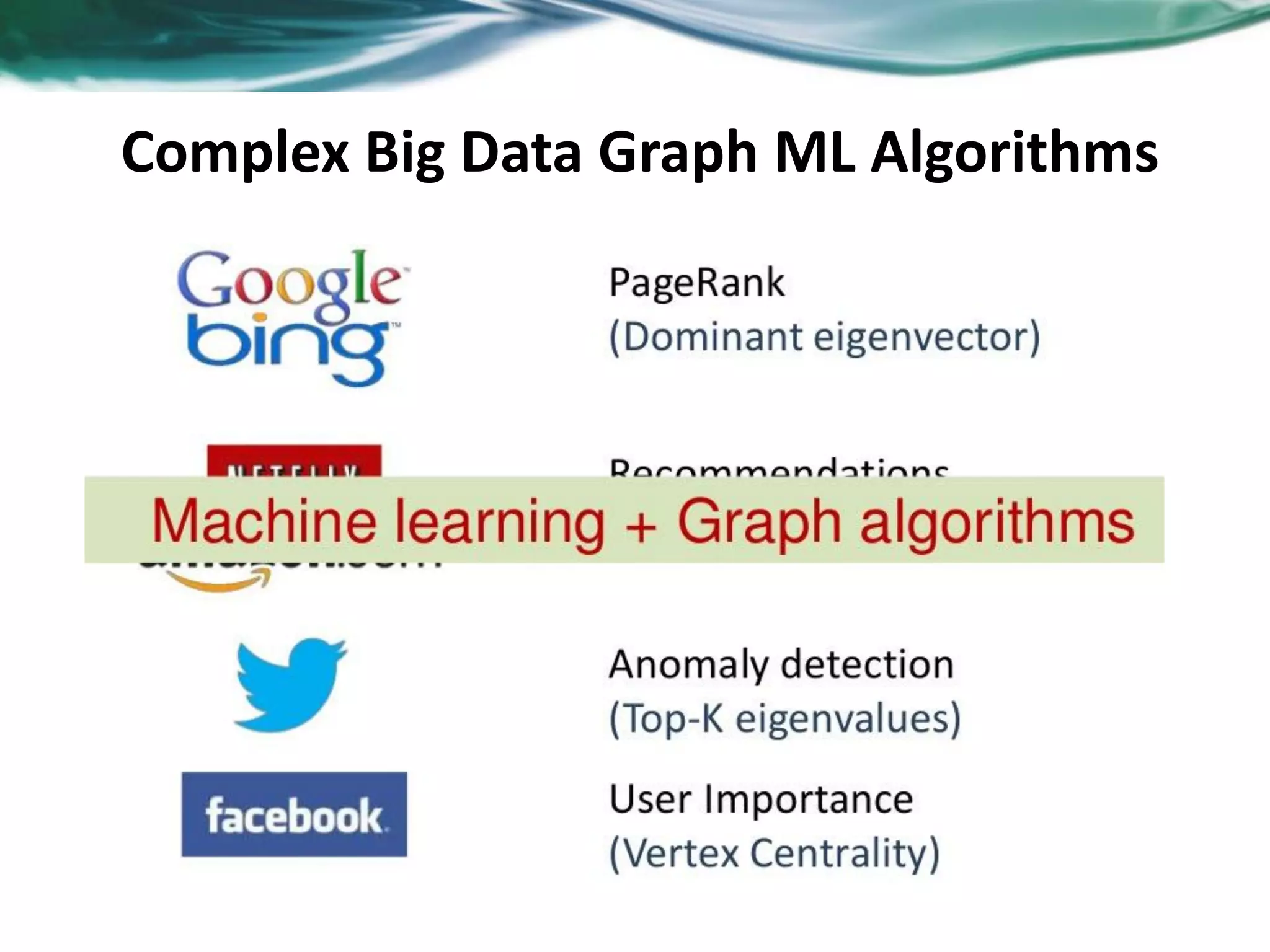

- 19. Complex Big DataGraph ML Algorithms

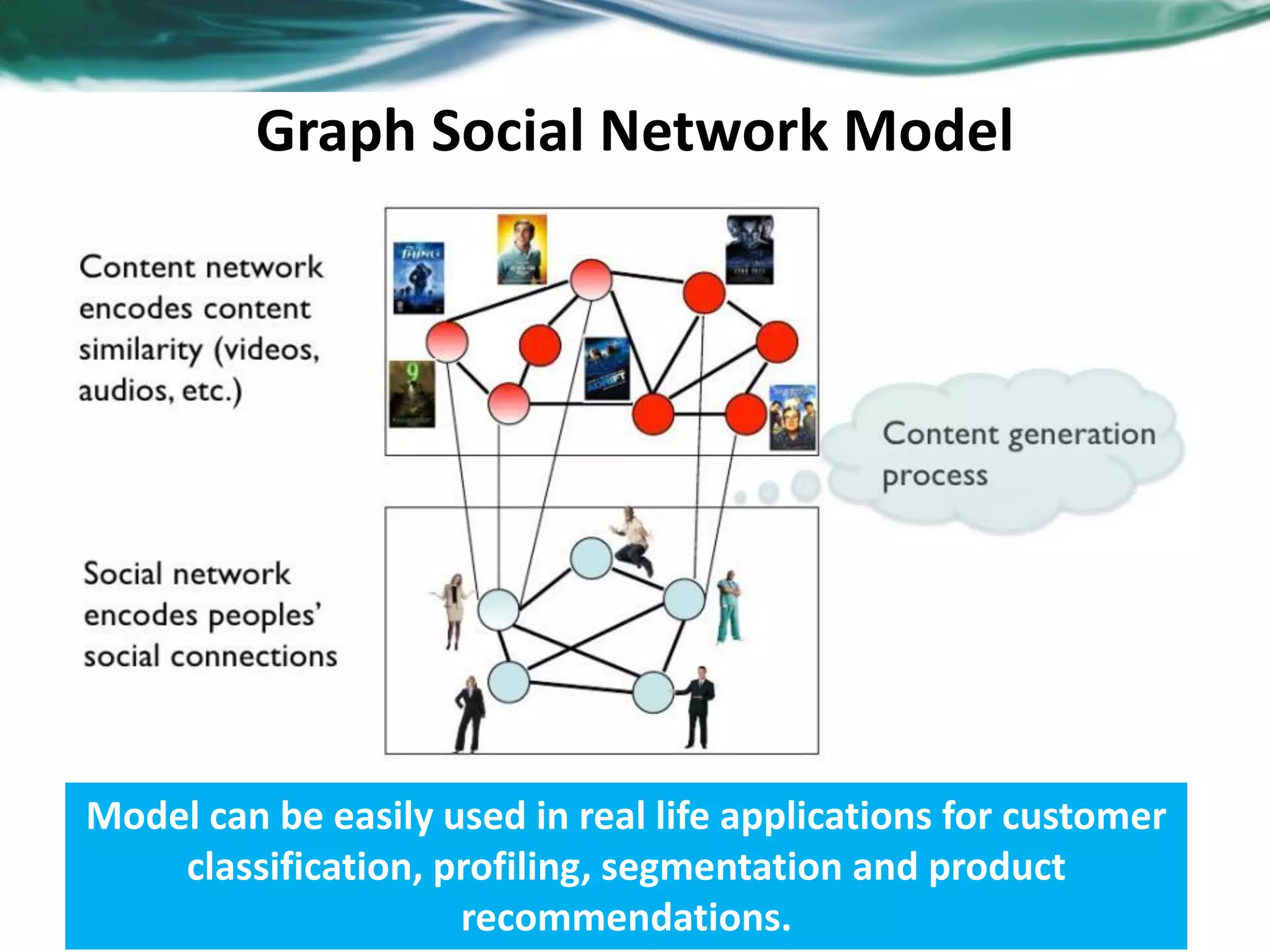

- 20. Graph Social NetworkModel Model can be easily used in real life applications for customer classification, profiling, segmentation and product recommendations.
- 21.

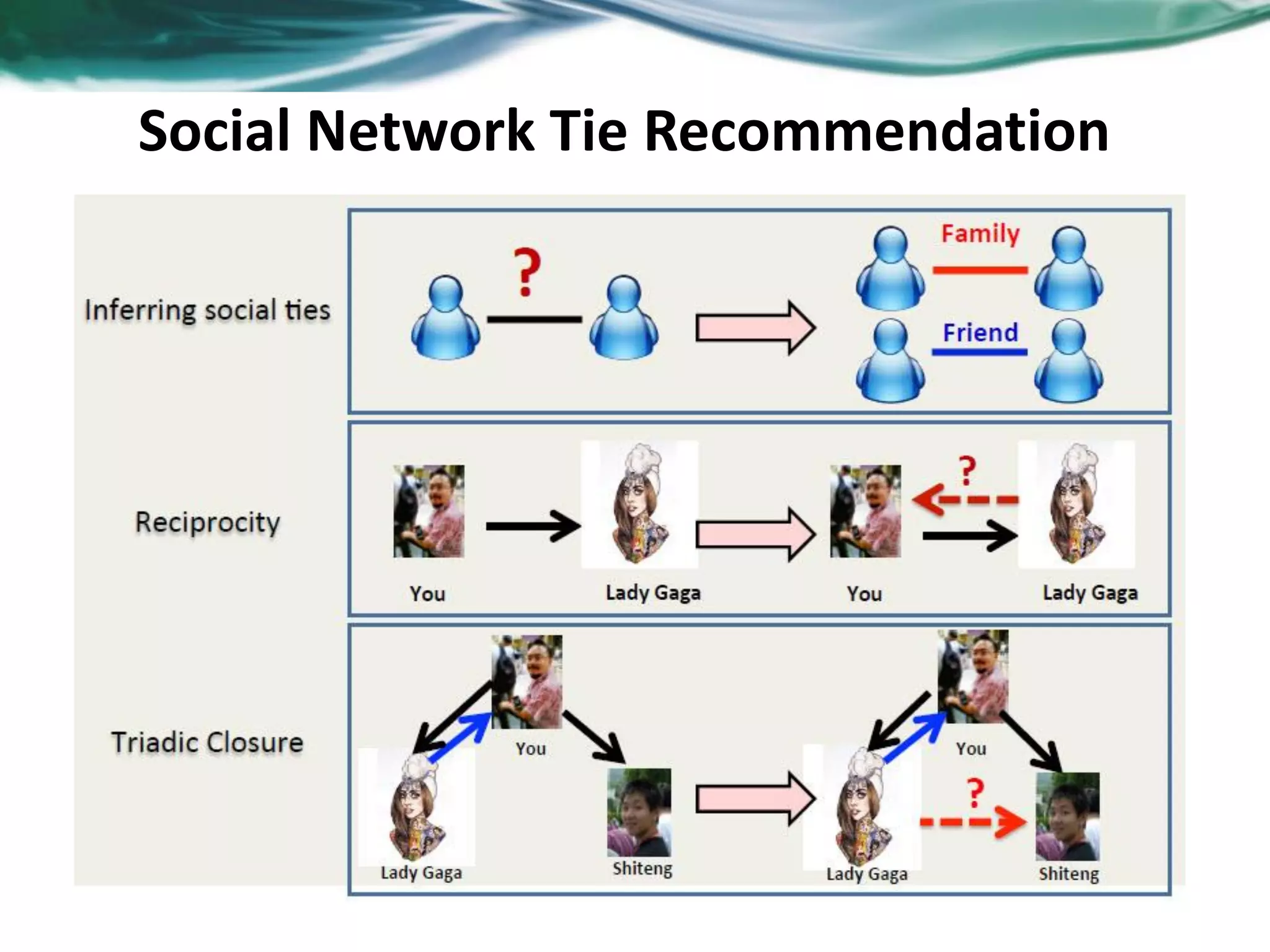

- 22. Social Network TieRecommendation

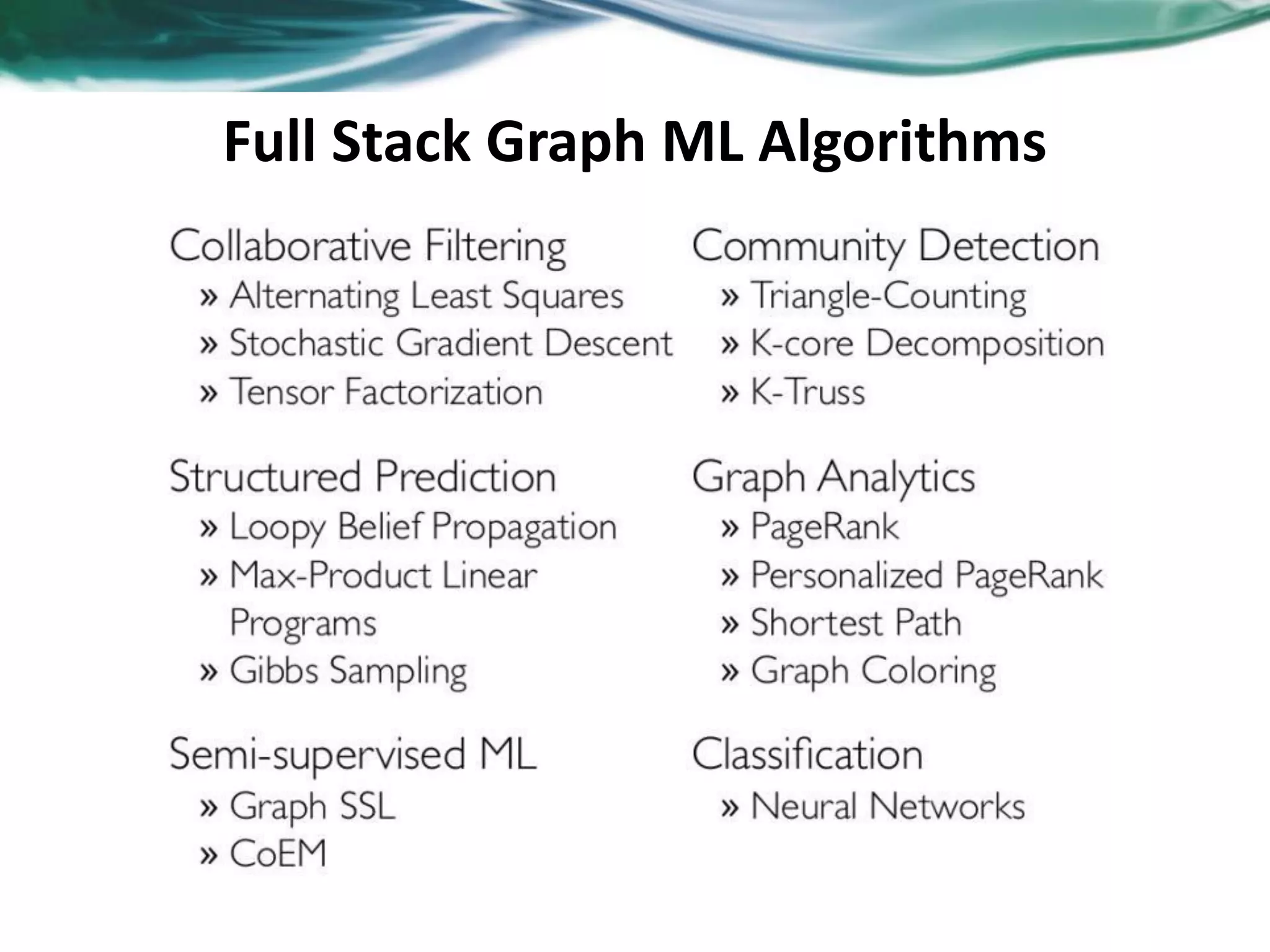

- 23. Full Stack GraphML Algorithms

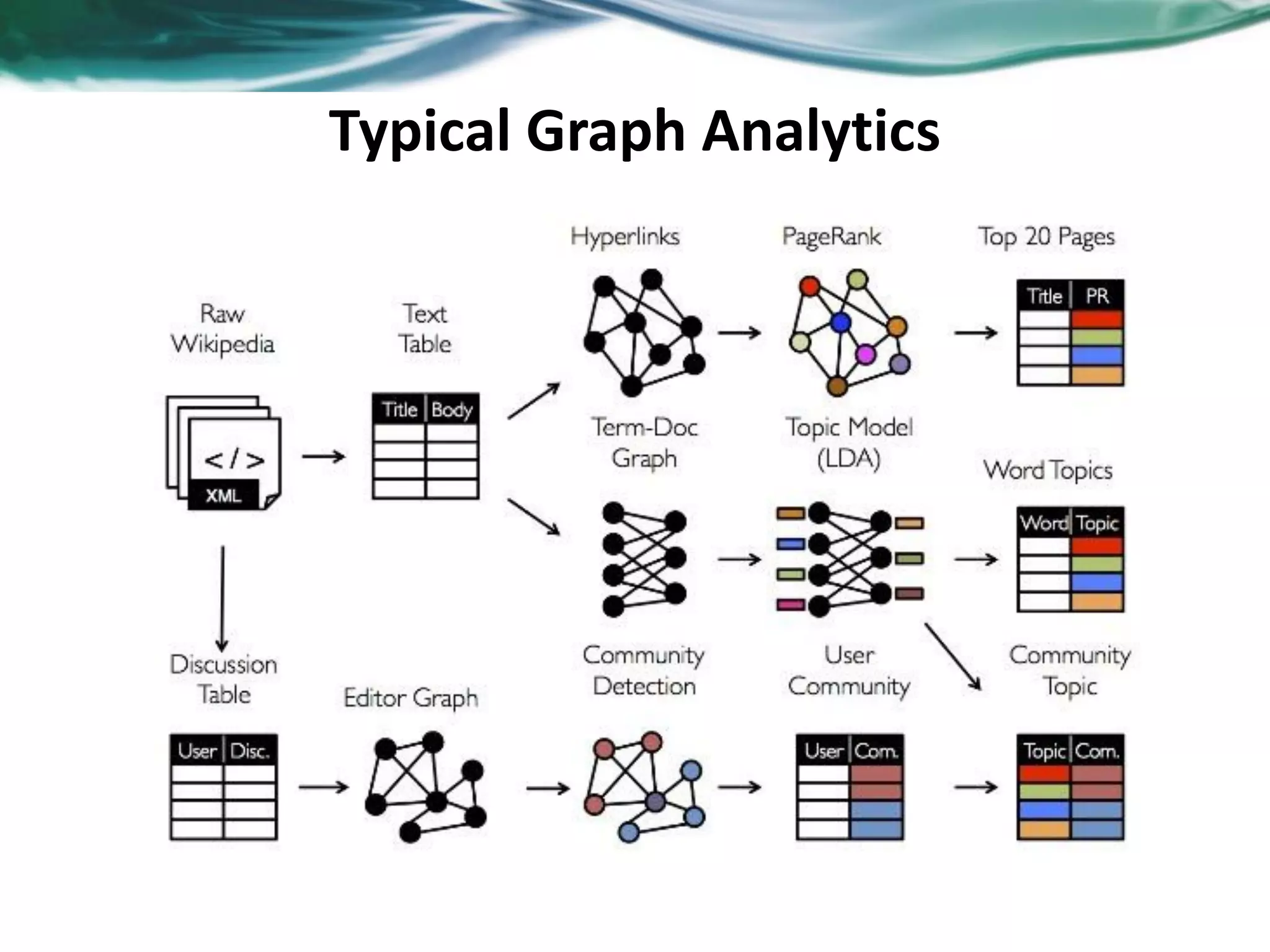

- 24.

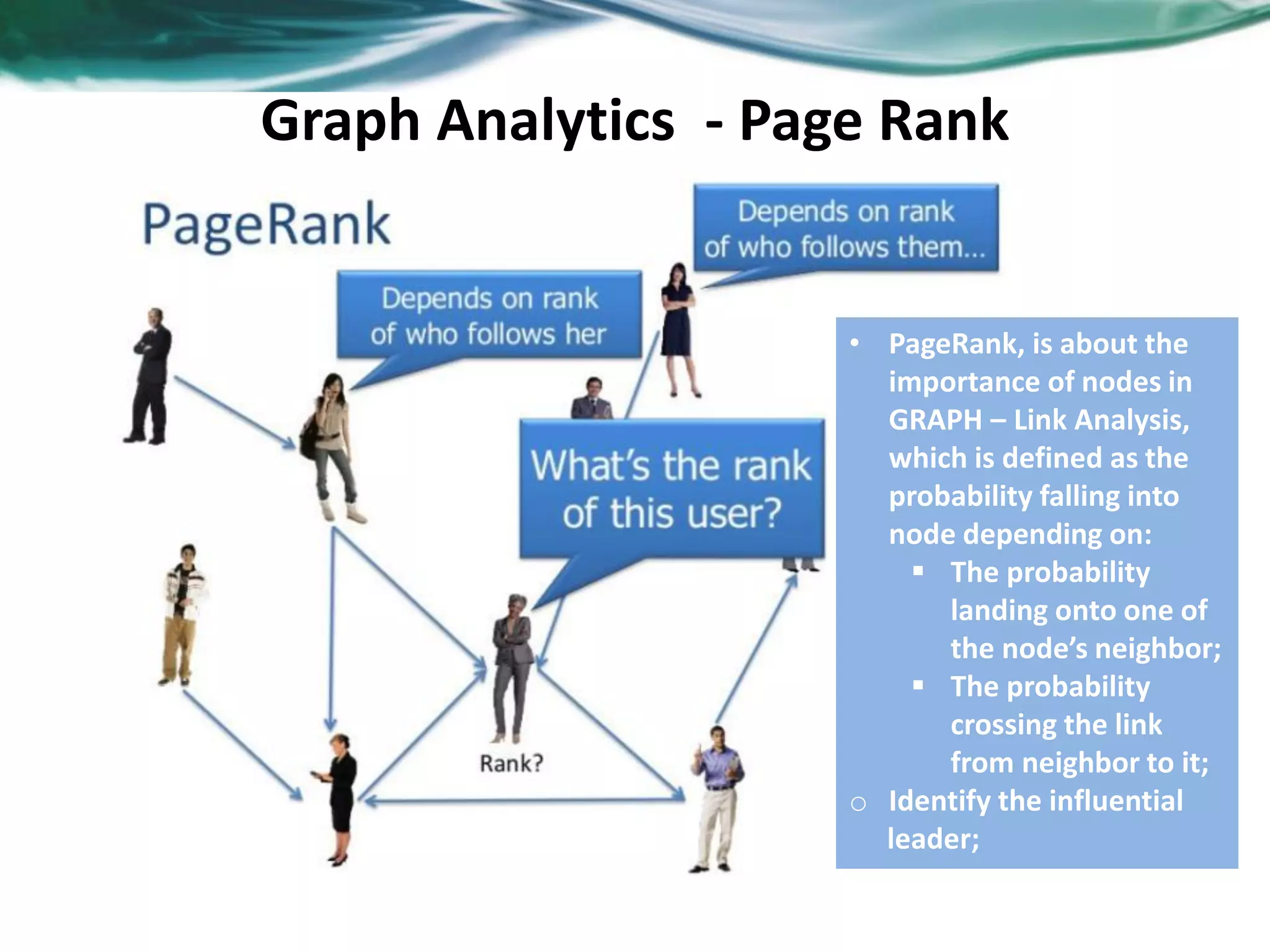

- 25. Graph Analytics -Page Rank • PageRank, is about the importance of nodes in GRAPH – Link Analysis, which is defined as the probability falling into node depending on: The probability landing onto one of the node’s neighbor; The probability crossing the link from neighbor to it; o Identify the influential leader;

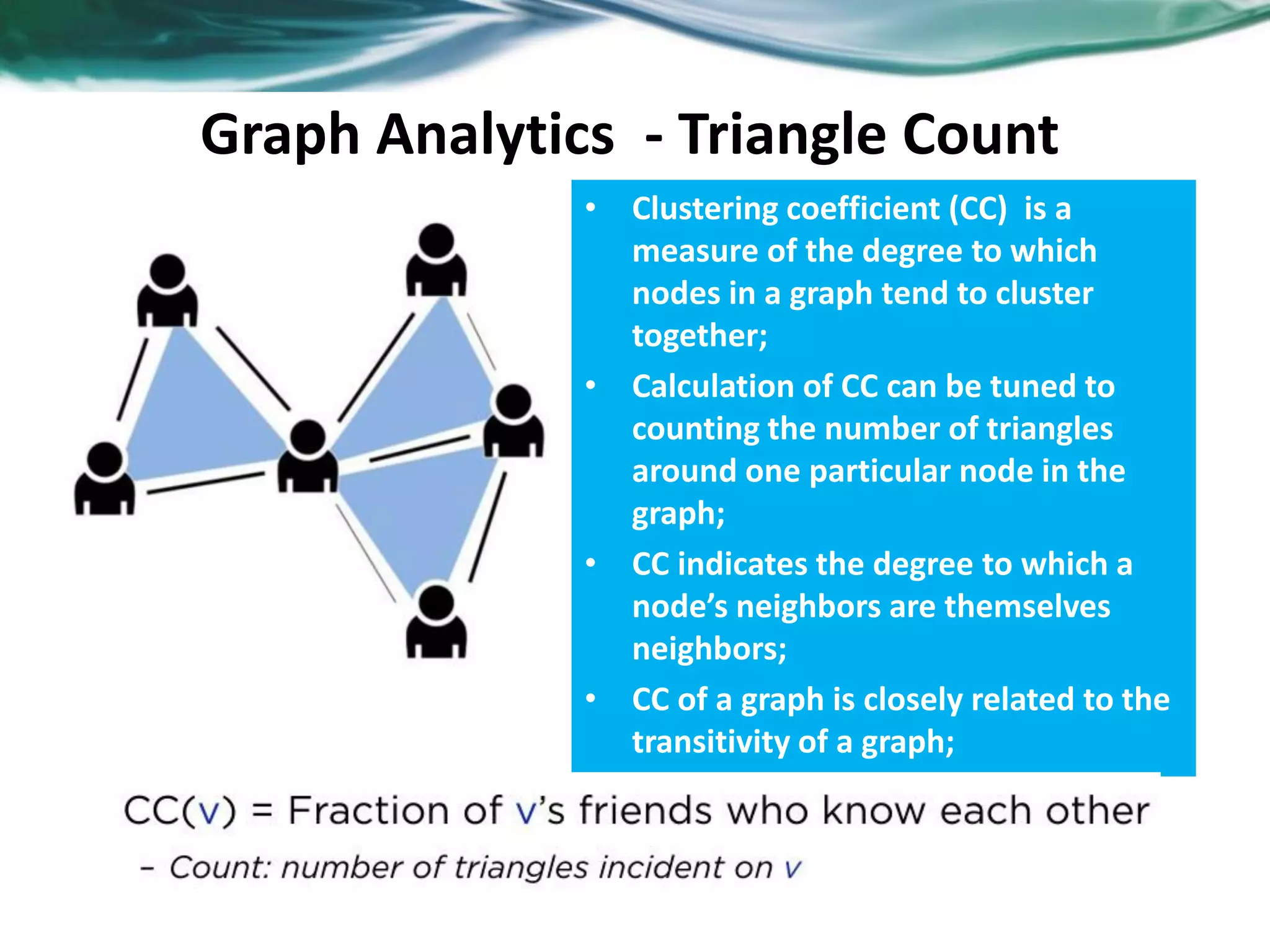

- 26. Graph Analytics -Triangle Count • Clustering coefficient (CC) is a measure of the degree to which nodes in a graph tend to cluster together; • Calculation of CC can be tuned to counting the number of triangles around one particular node in the graph; • CC indicates the degree to which a node’s neighbors are themselves neighbors; • CC of a graph is closely related to the transitivity of a graph;

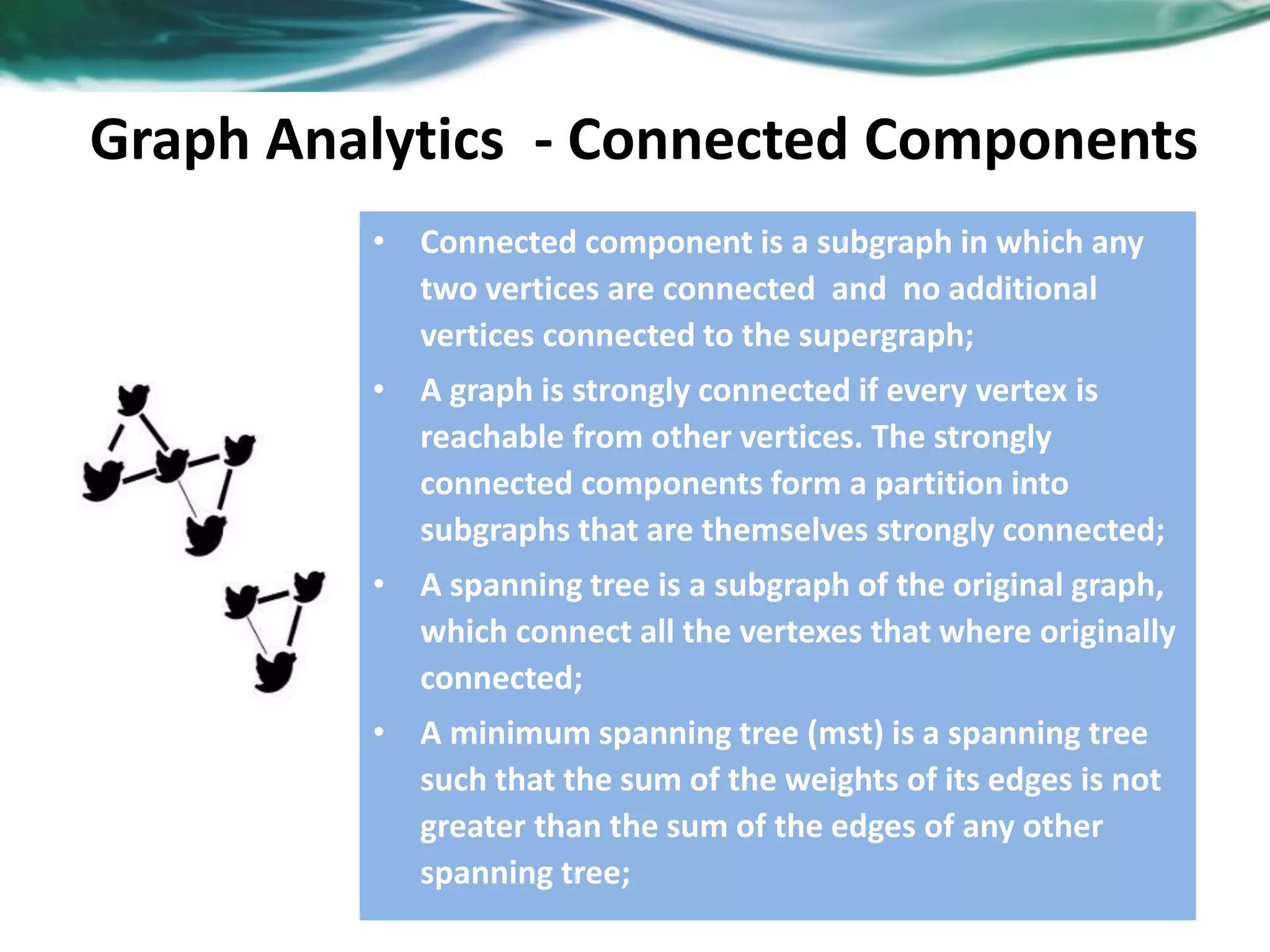

- 27. Graph Analytics -Connected Components • Connected component is a subgraph in which any two vertices are connected and no additional vertices connected to the supergraph; • A graph is strongly connected if every vertex is reachable from other vertices. The strongly connected components form a partition into subgraphs that are themselves strongly connected; • A spanning tree is a subgraph of the original graph, which connect all the vertexes that where originally connected; • A minimum spanning tree (mst) is a spanning tree such that the sum of the weights of its edges is not greater than the sum of the edges of any other spanning tree;

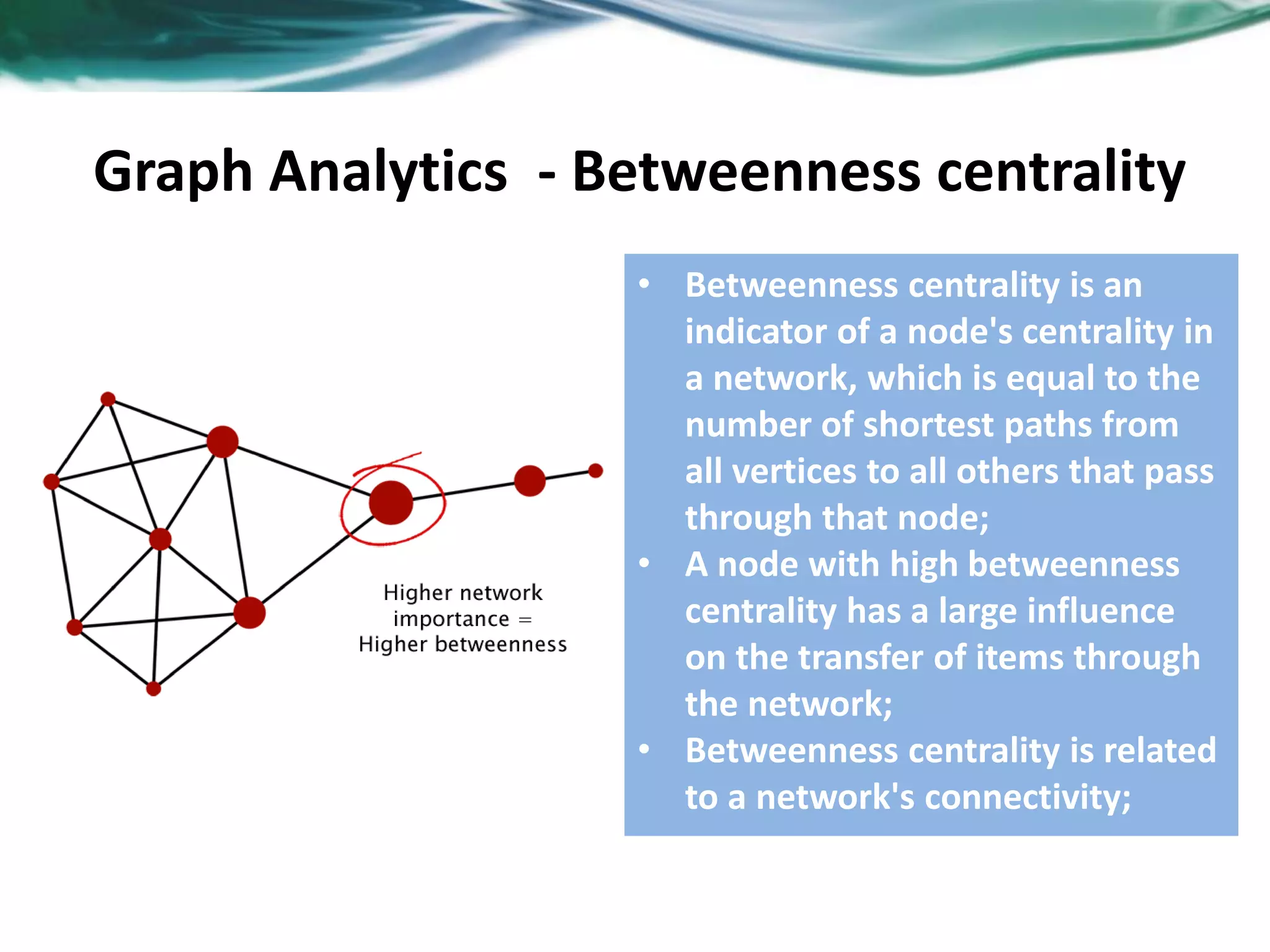

- 28. Graph Analytics -Betweenness centrality • Betweenness centrality is an indicator of a node's centrality in a network, which is equal to the number of shortest paths from all vertices to all others that pass through that node; • A node with high betweenness centrality has a large influence on the transfer of items through the network; • Betweenness centrality is related to a network's connectivity;

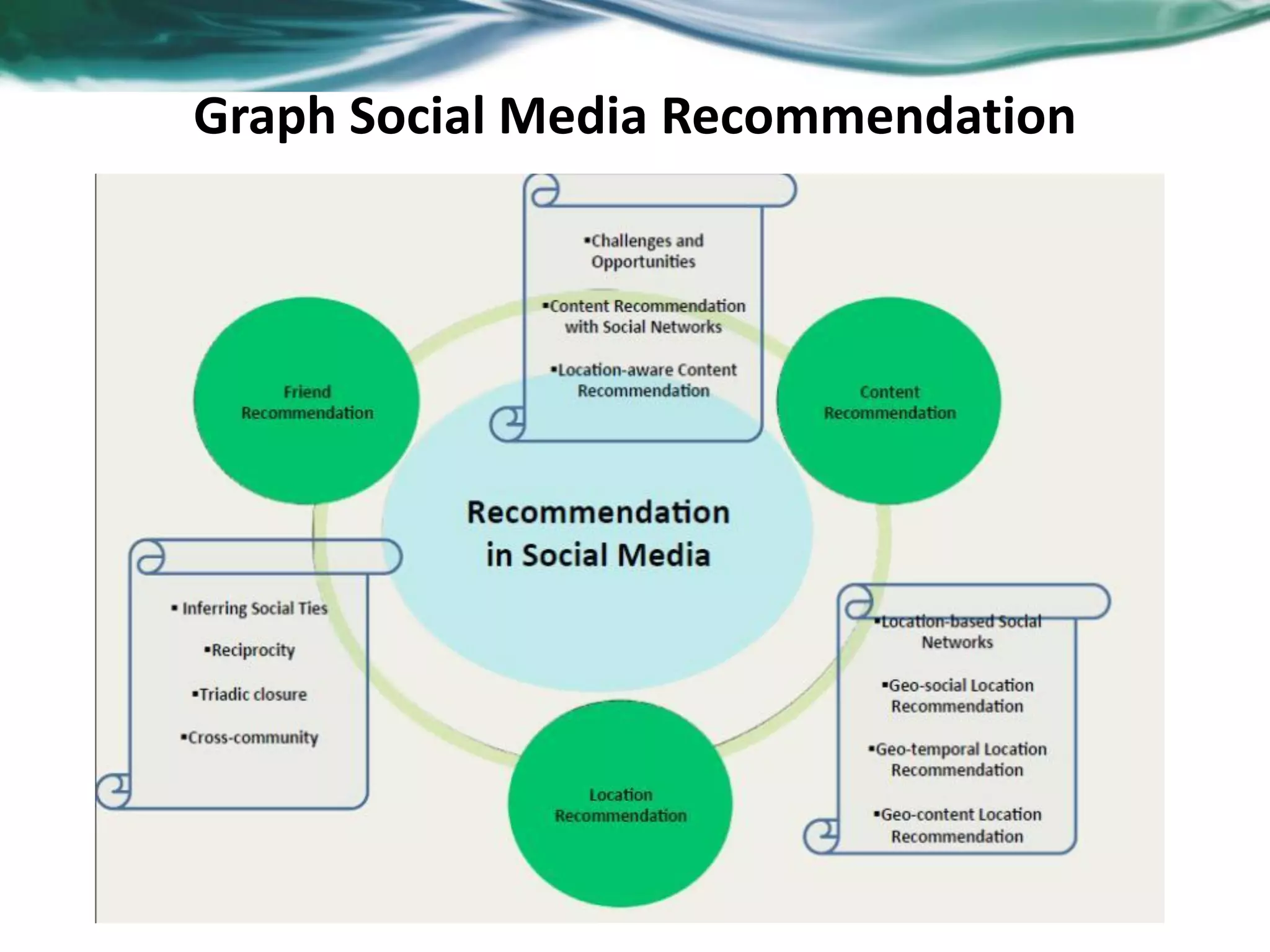

- 29. Graph Social MediaRecommendation

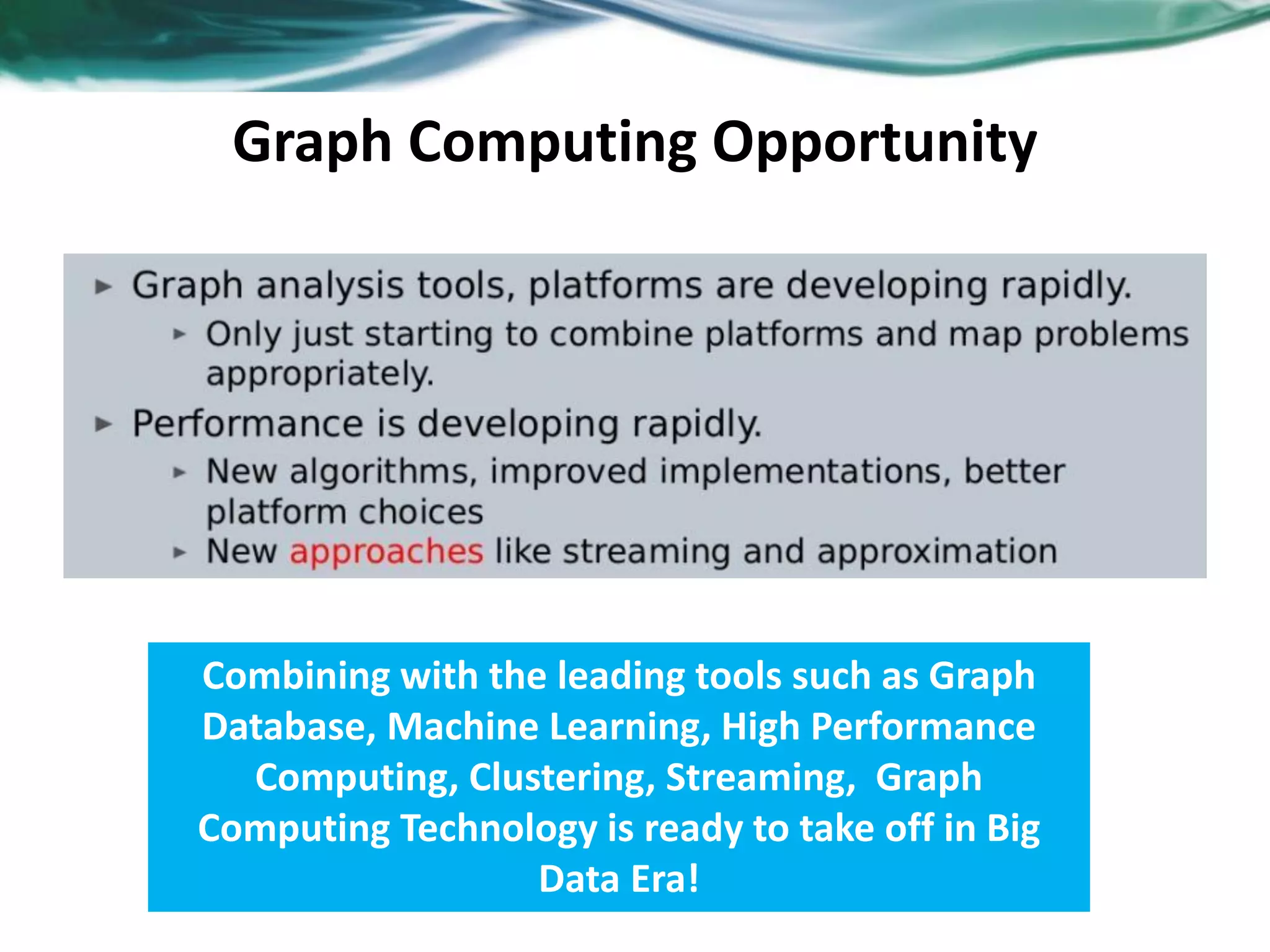

- 30. Graph Computing Opportunity Combiningwith the leading tools such as Graph Database, Machine Learning, High Performance Computing, Clustering, Streaming, Graph Computing Technology is ready to take off in Big Data Era!

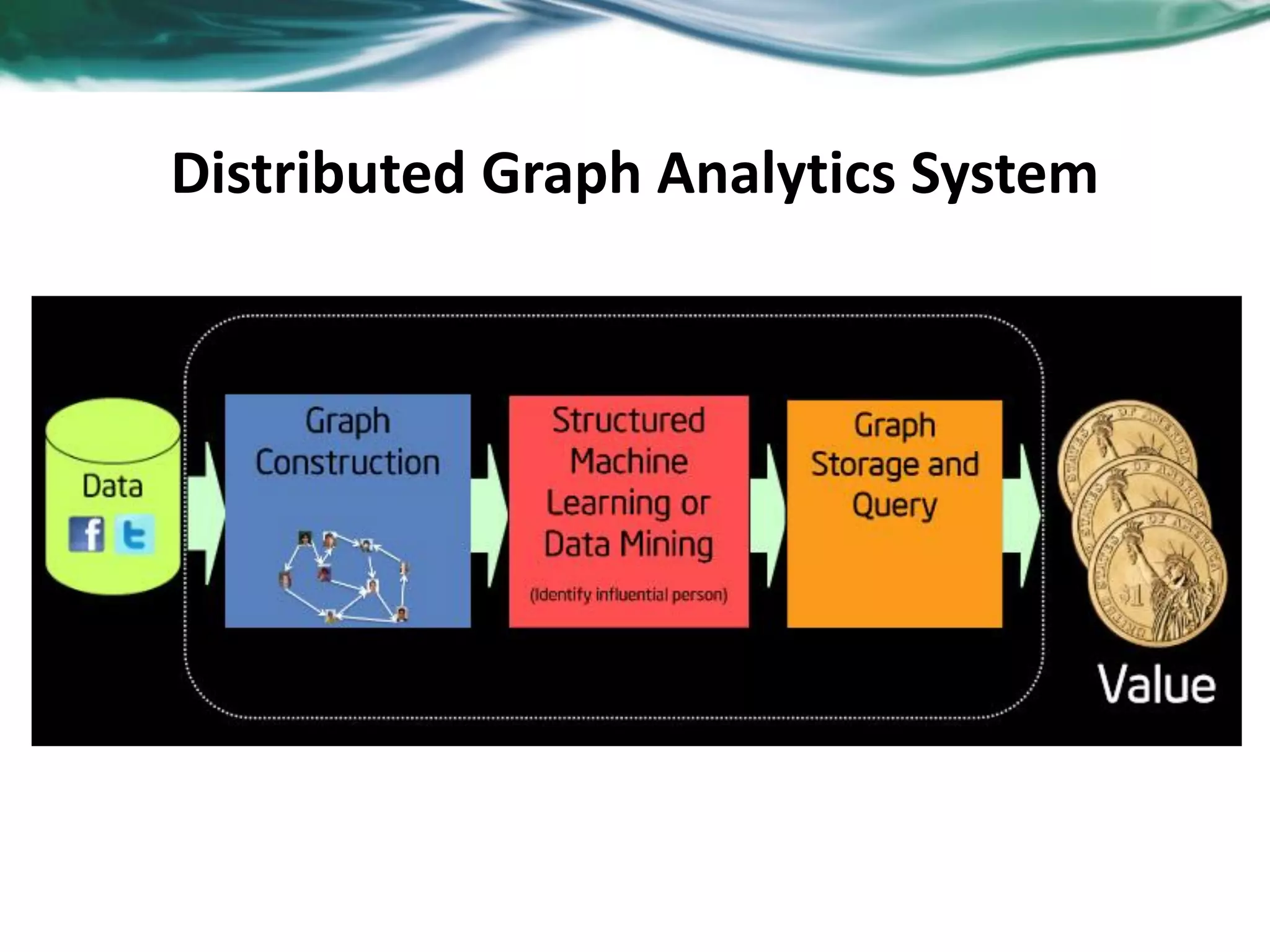

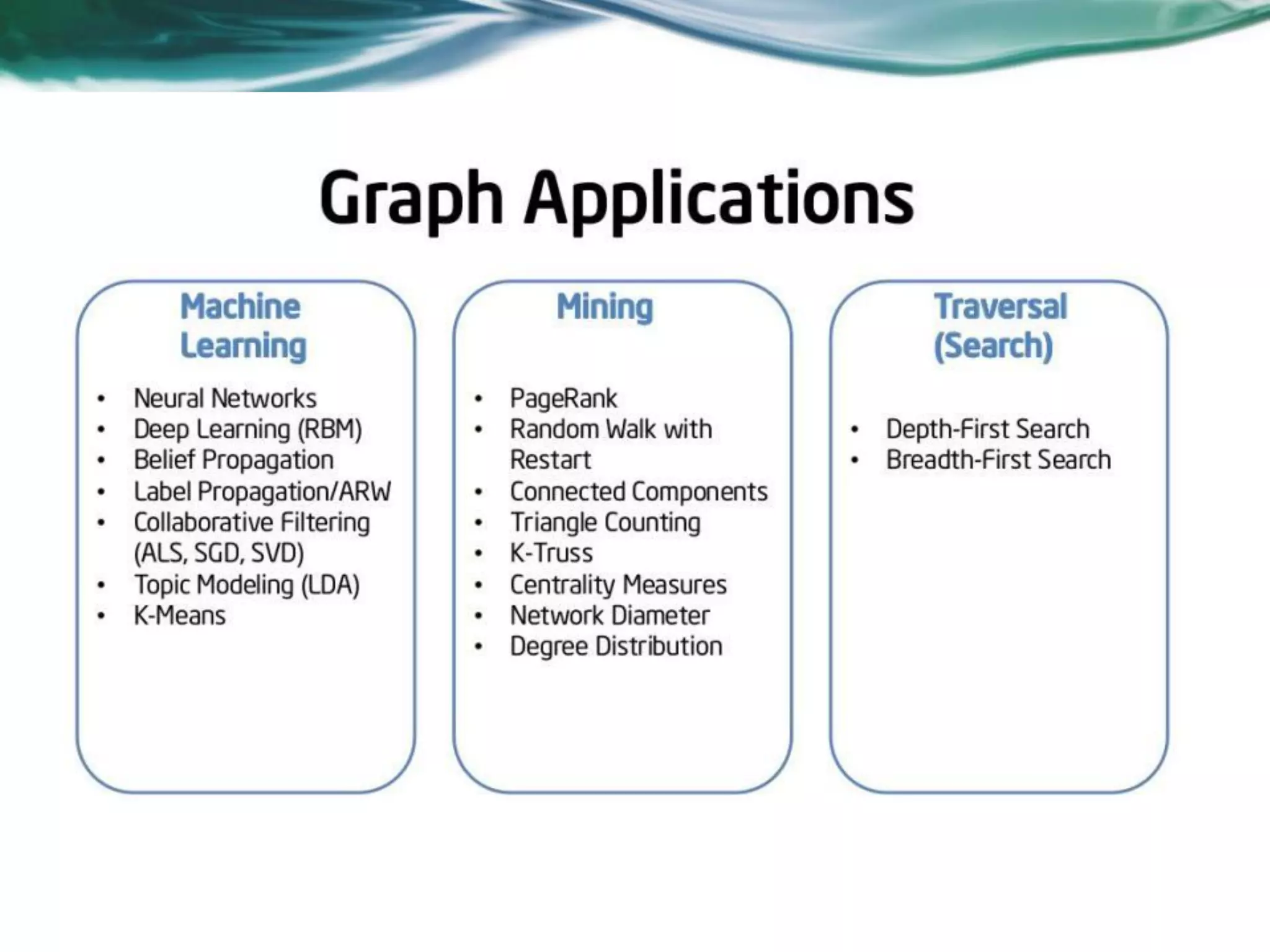

- 32.

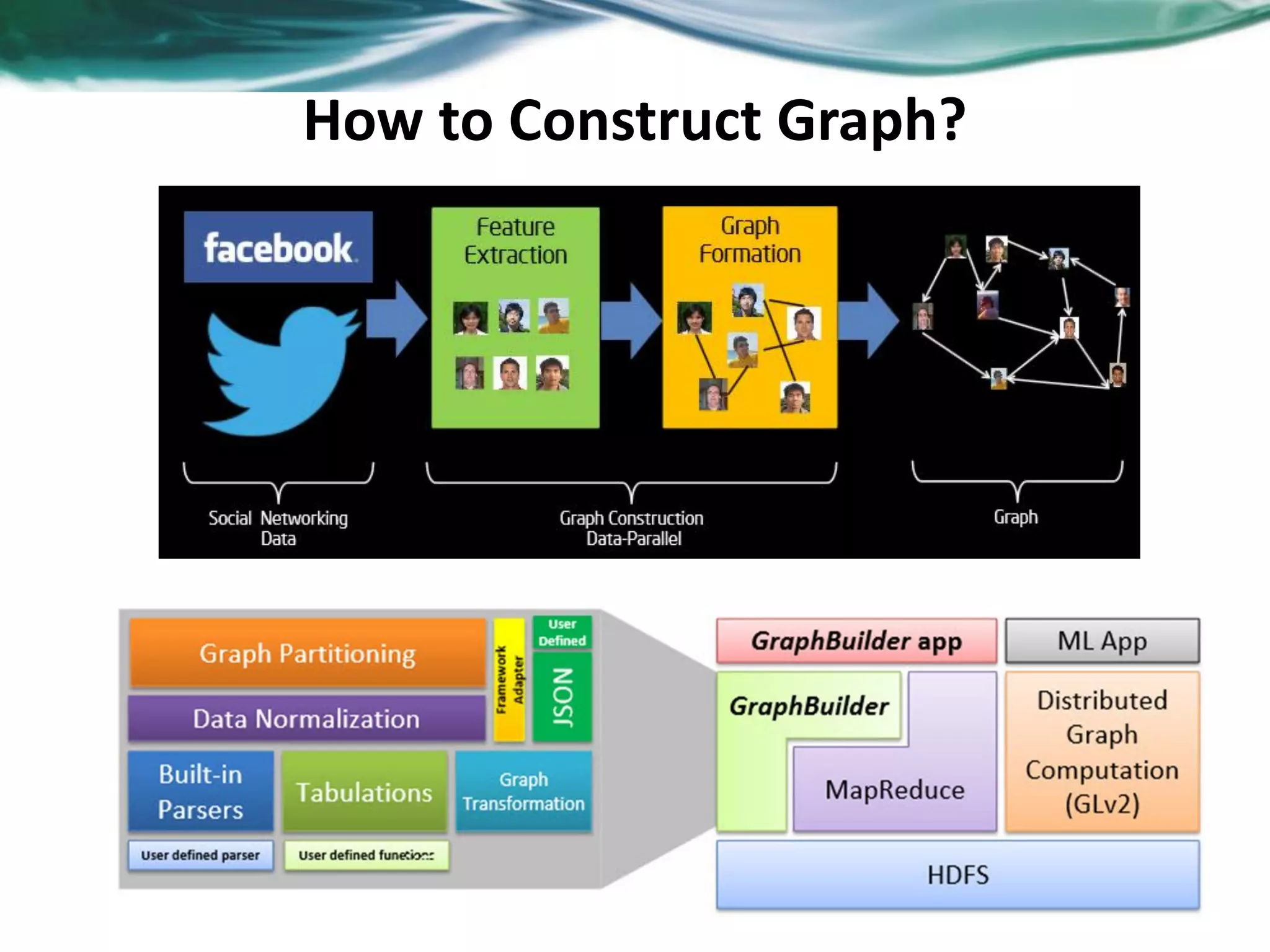

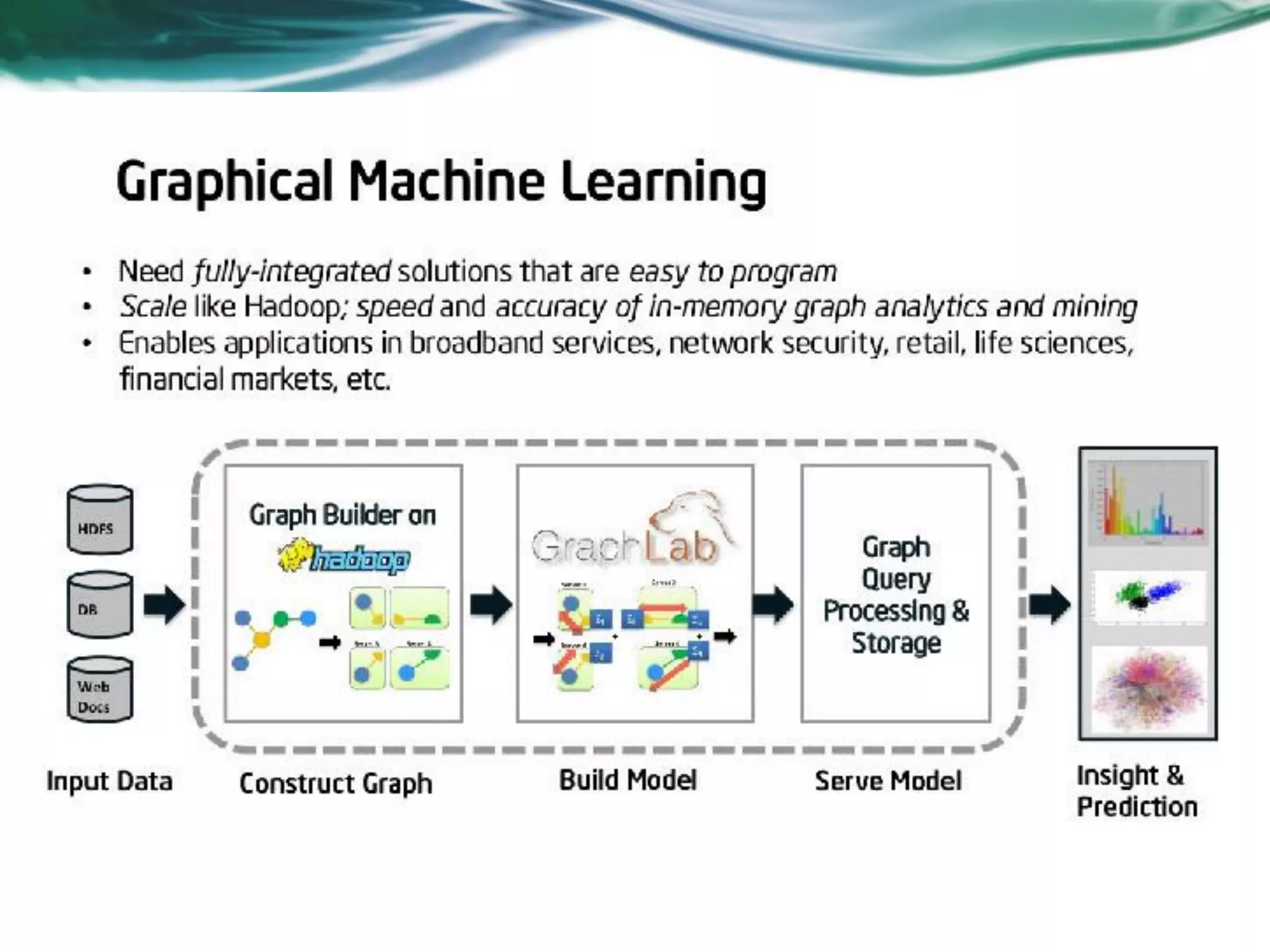

- 34. How to ConstructGraph?

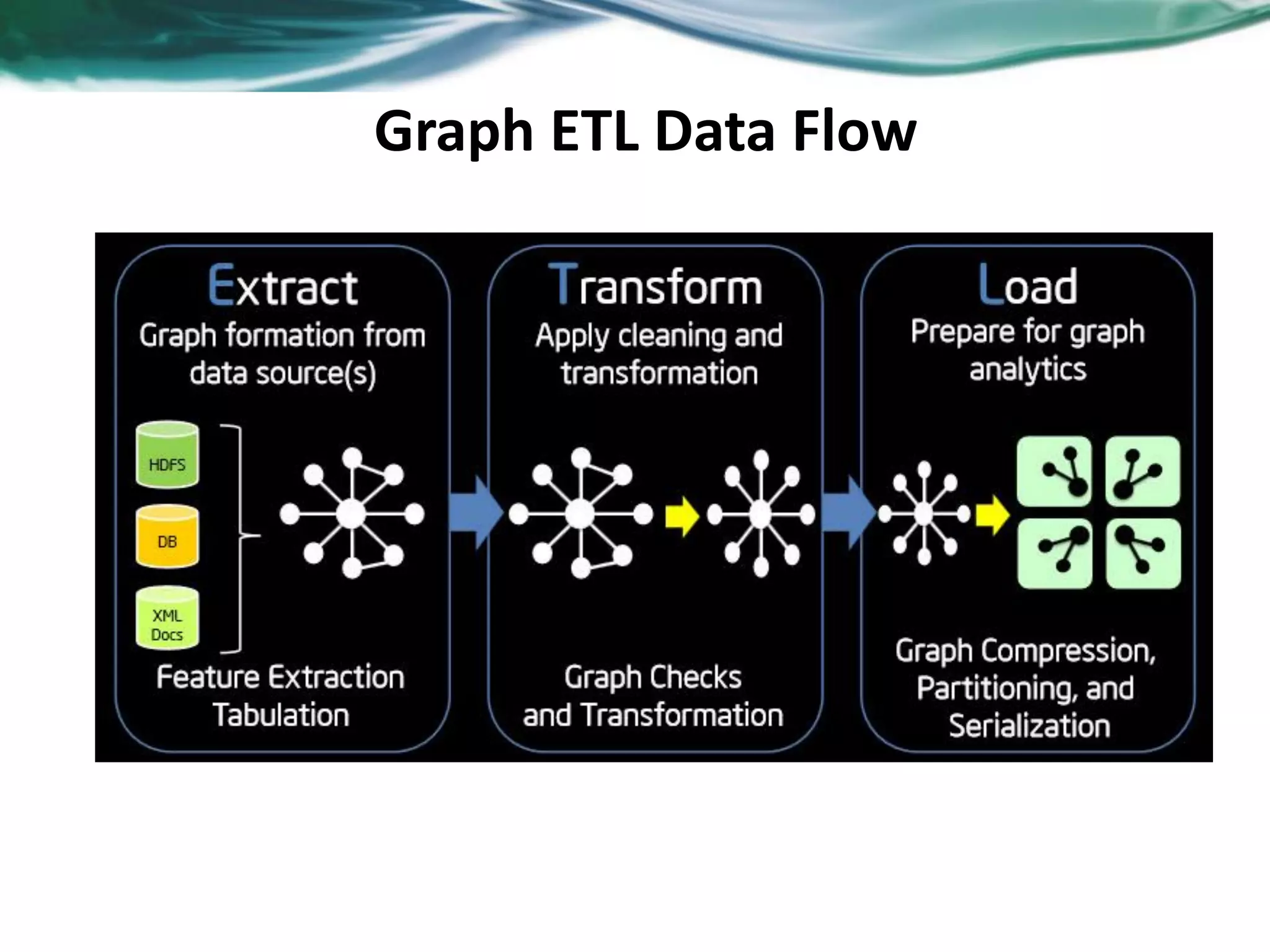

- 35. Graph ETL DataFlow

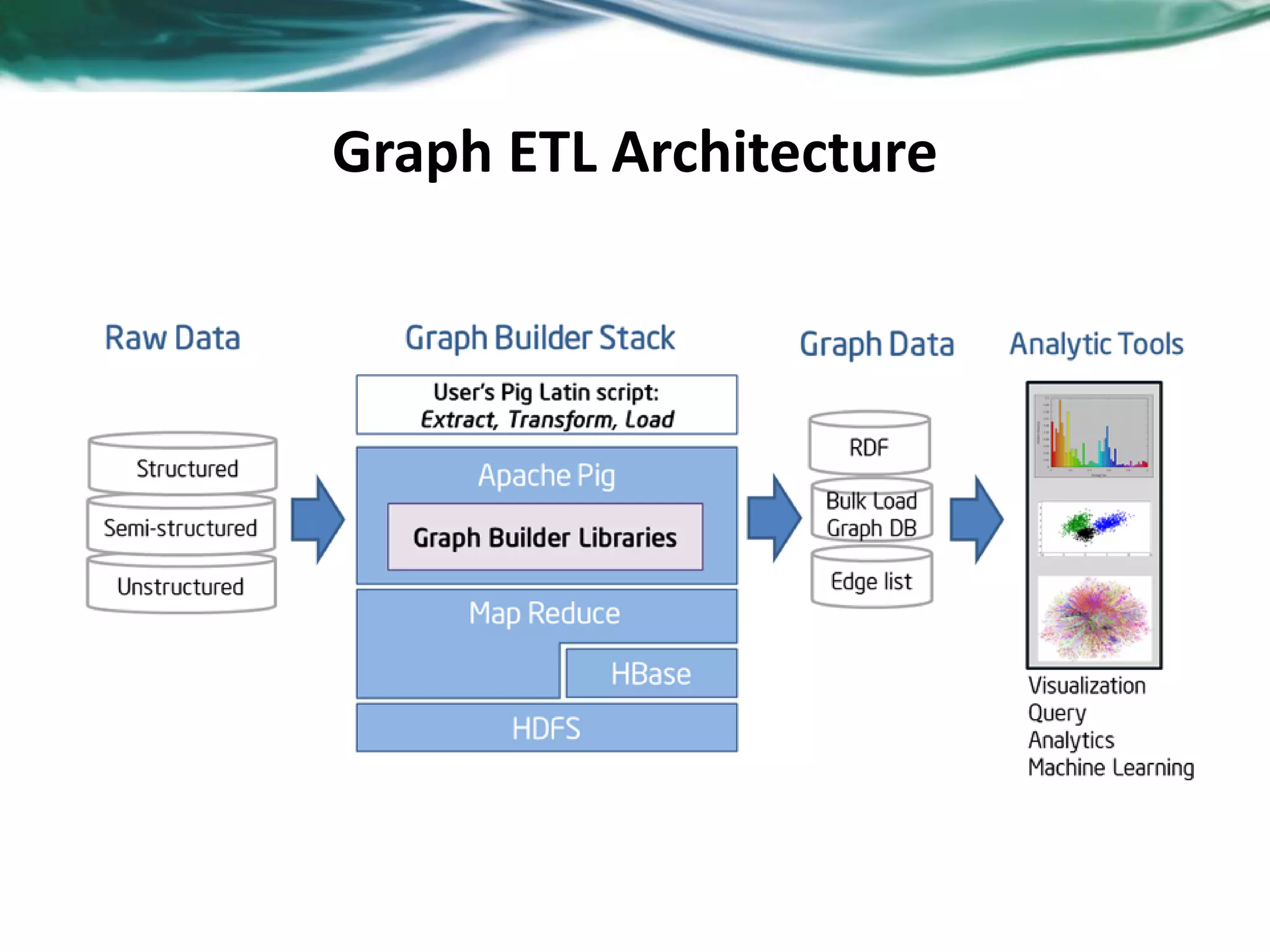

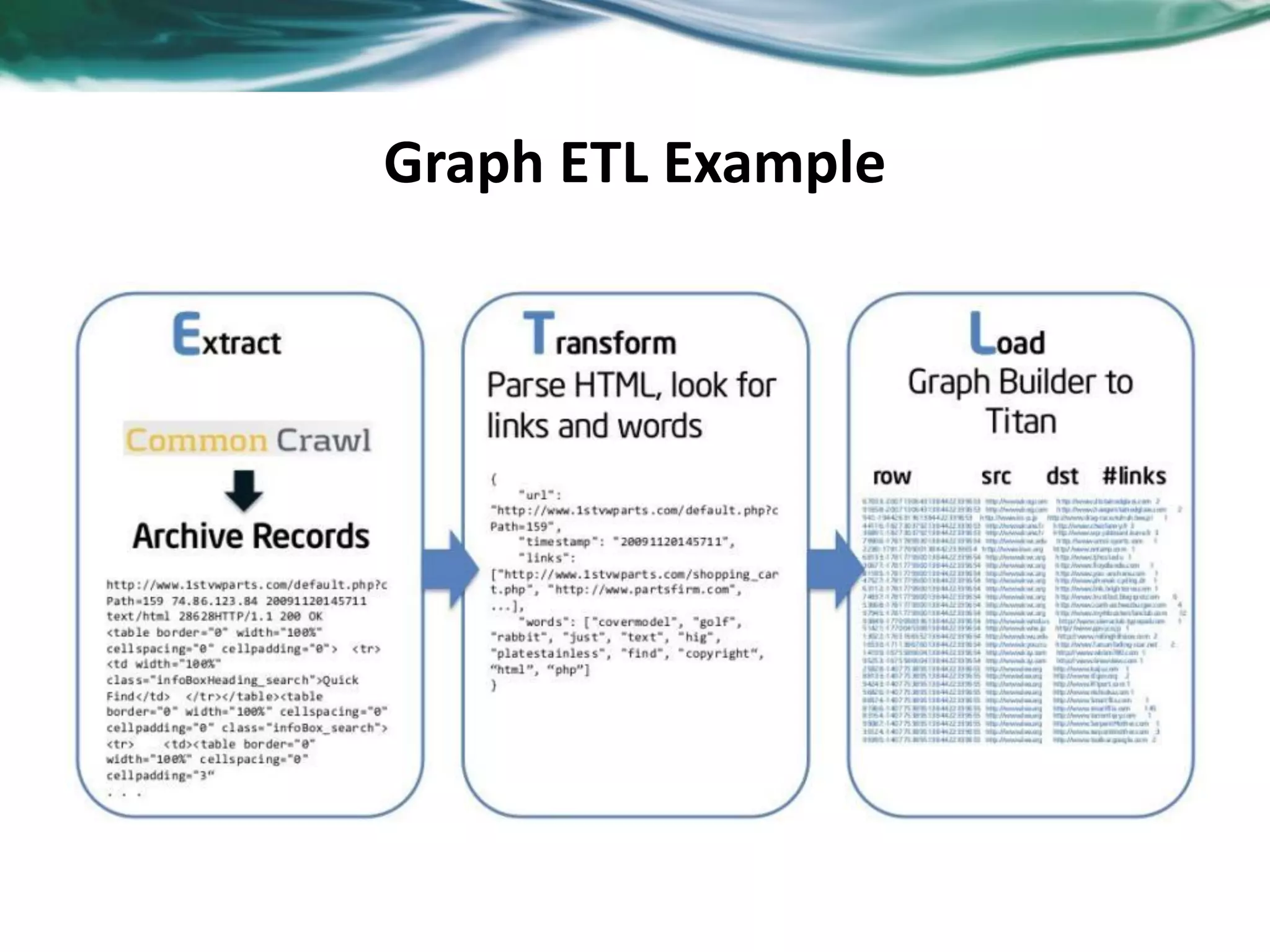

- 36.
- 37.
