Function Mesh for Apache Pulsar, the Way for Simple Streaming Solutions
The document presents an overview of Apache Pulsar Functions and the Function Mesh framework, detailing their functionalities, use cases, and deployment methods. Pulsar Functions are lightweight, integrating seamlessly into Pulsar for data processing, while the Function Mesh enhances Kubernetes integration for managing complex streaming jobs. It also highlights future developments and improvements for both systems, emphasizing their roles in cloud environments.
Function Mesh for Apache Pulsar, the Way for Simple Streaming Solutions
- 1. Pulsar Summit Asia2021 Function Mesh Complex Streaming Jobs Made Simple on Cloud Rui Fu @ StreamNative
- 2. • 付睿 • @freeznet •Software Engineer @ StreamNative • Apache Pulsar committer

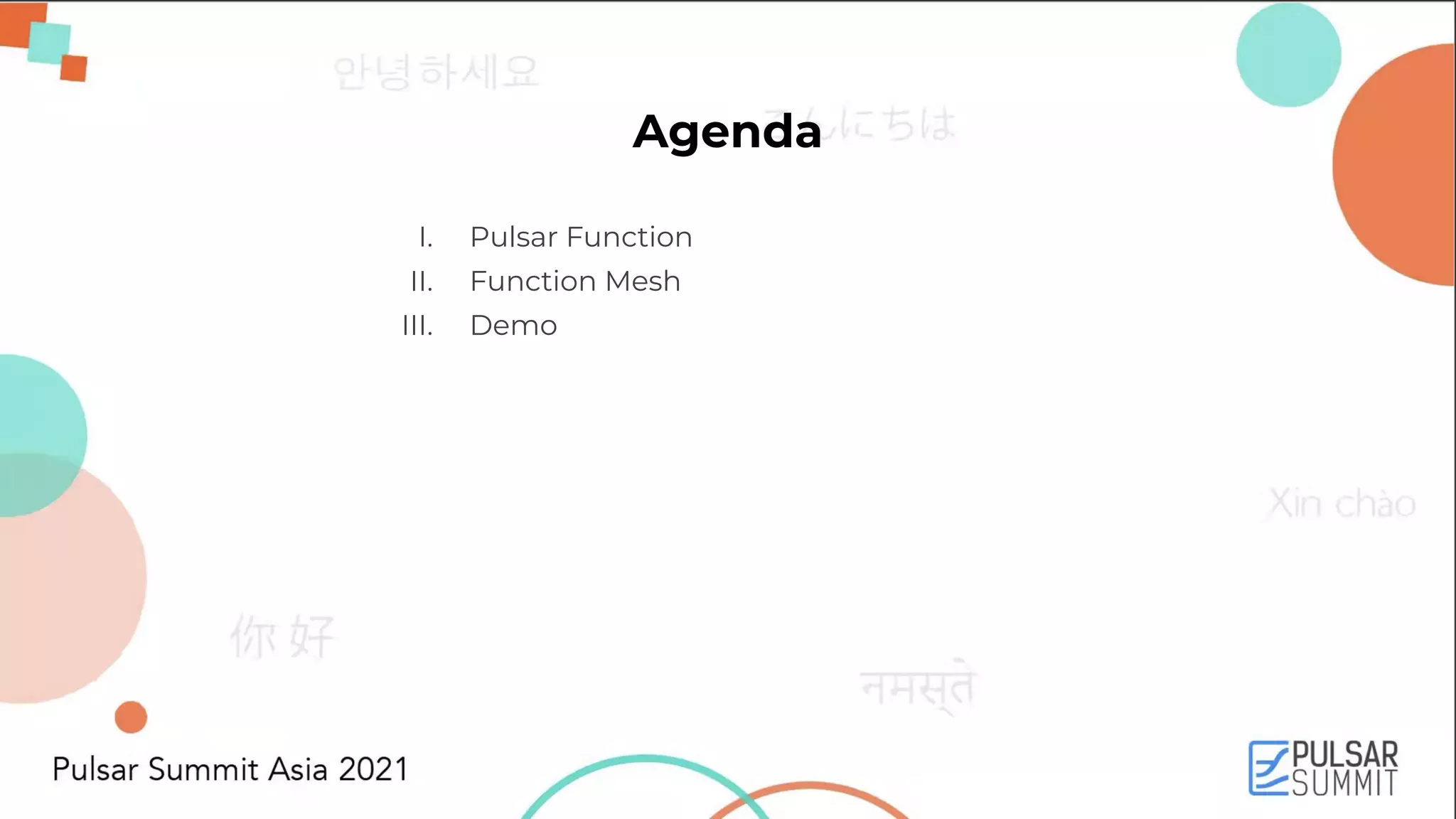

- 3. Agenda I. Pulsar Function II.Function Mesh III. Demo
- 4.

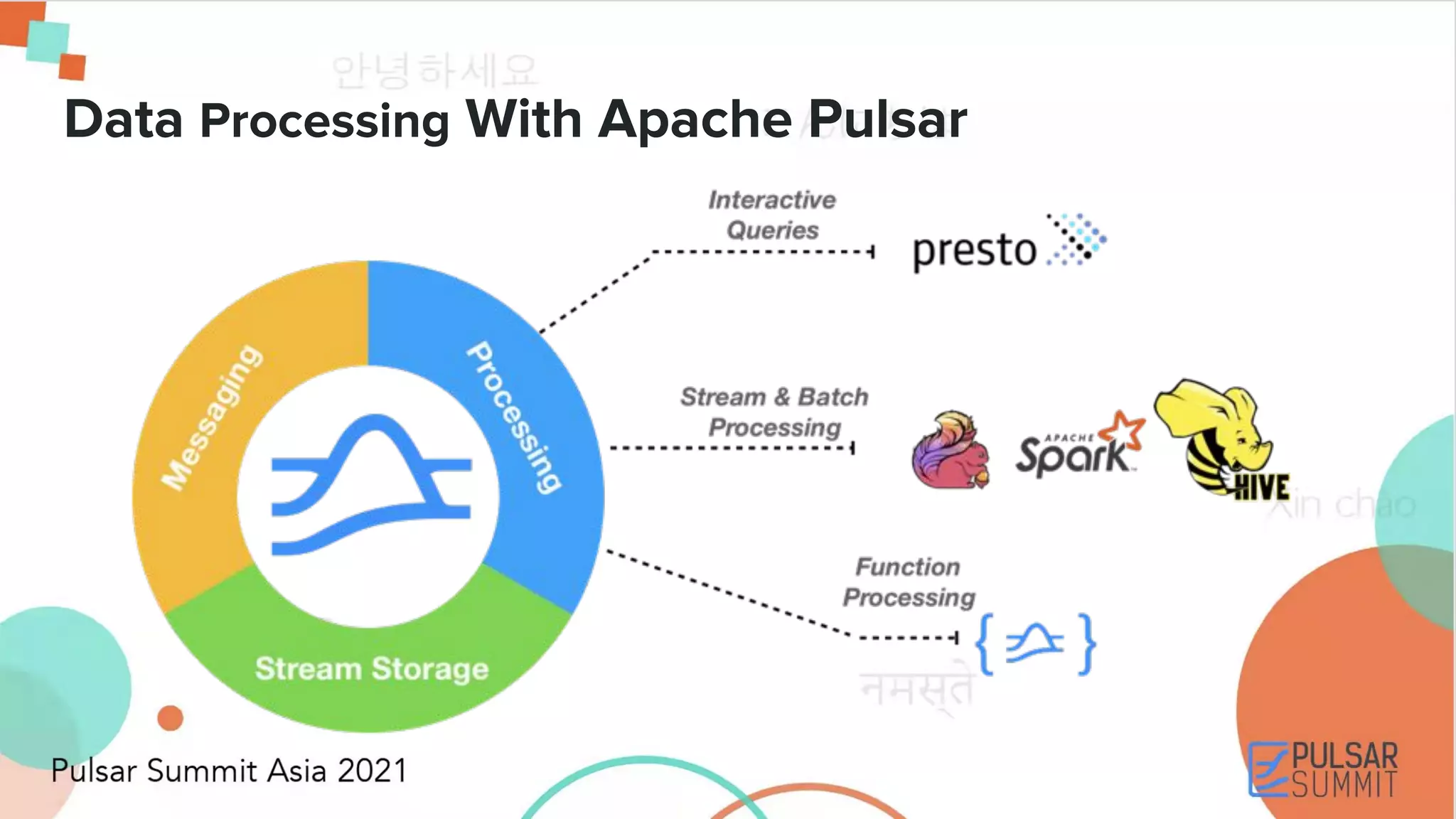

- 5. Data Processing WithApache Pulsar

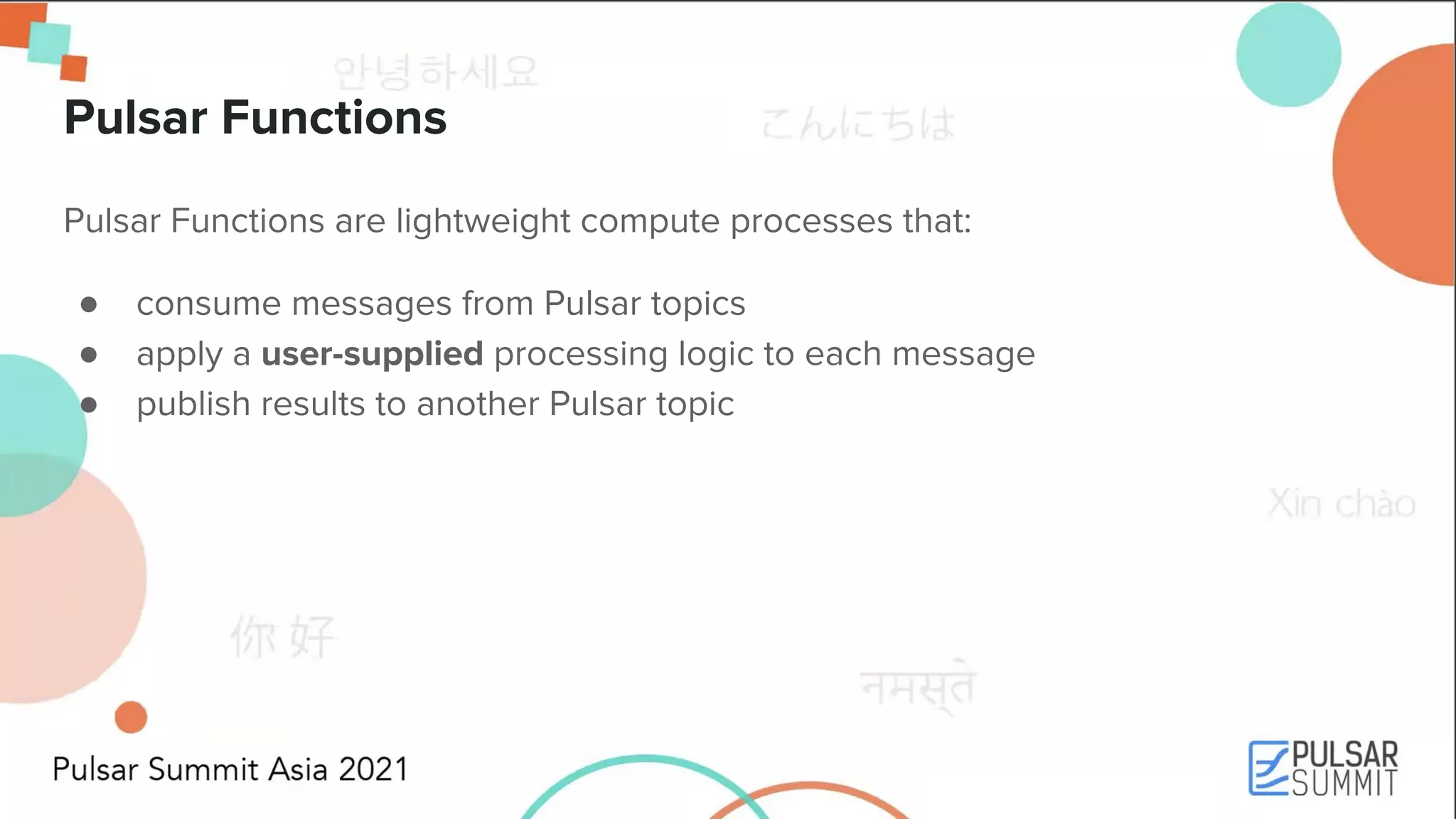

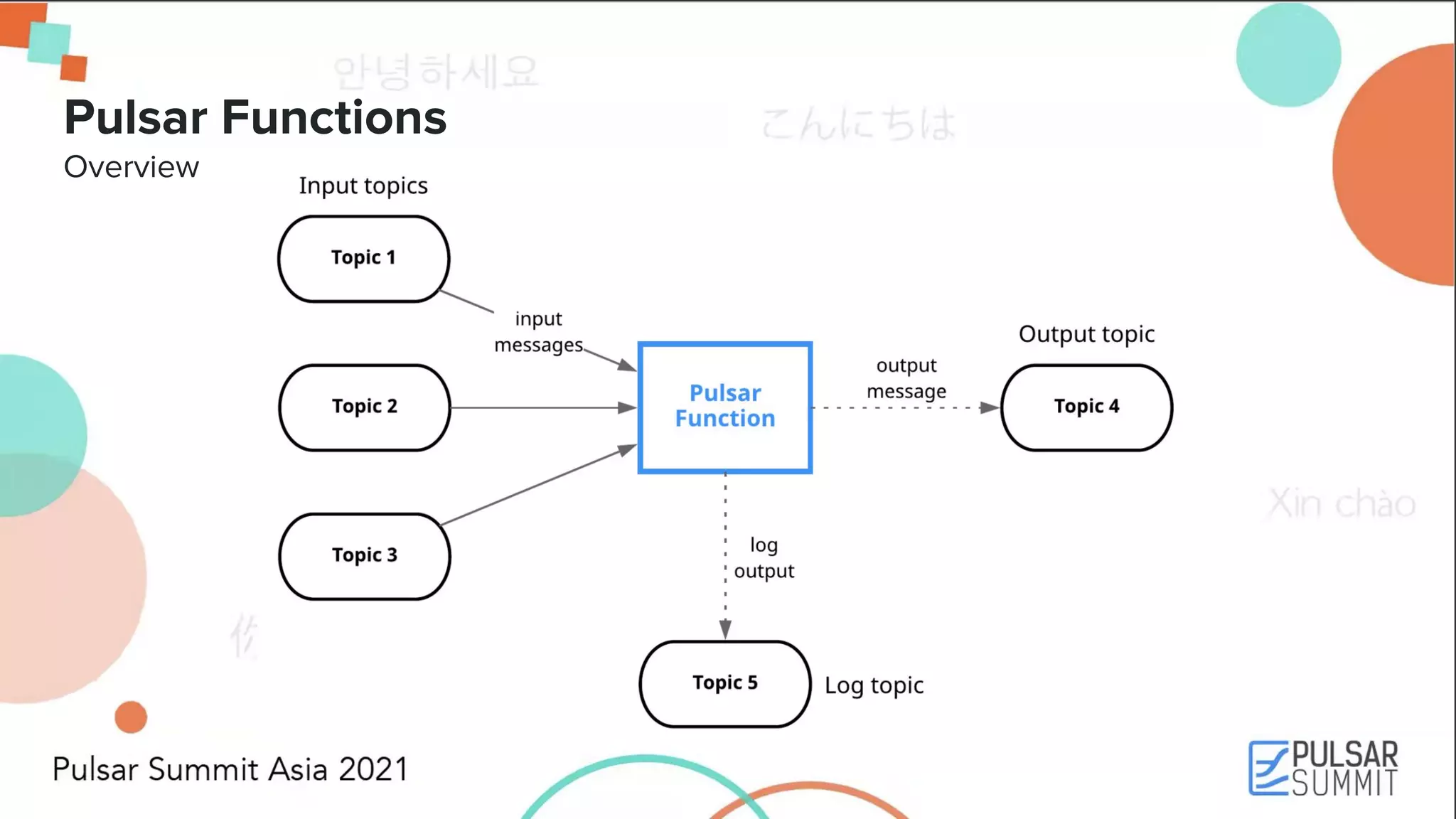

- 6. Pulsar Functions Pulsar Functionsare lightweight compute processes that: ● consume messages from Pulsar topics ● apply a user-supplied processing logic to each message ● publish results to another Pulsar topic
- 7.

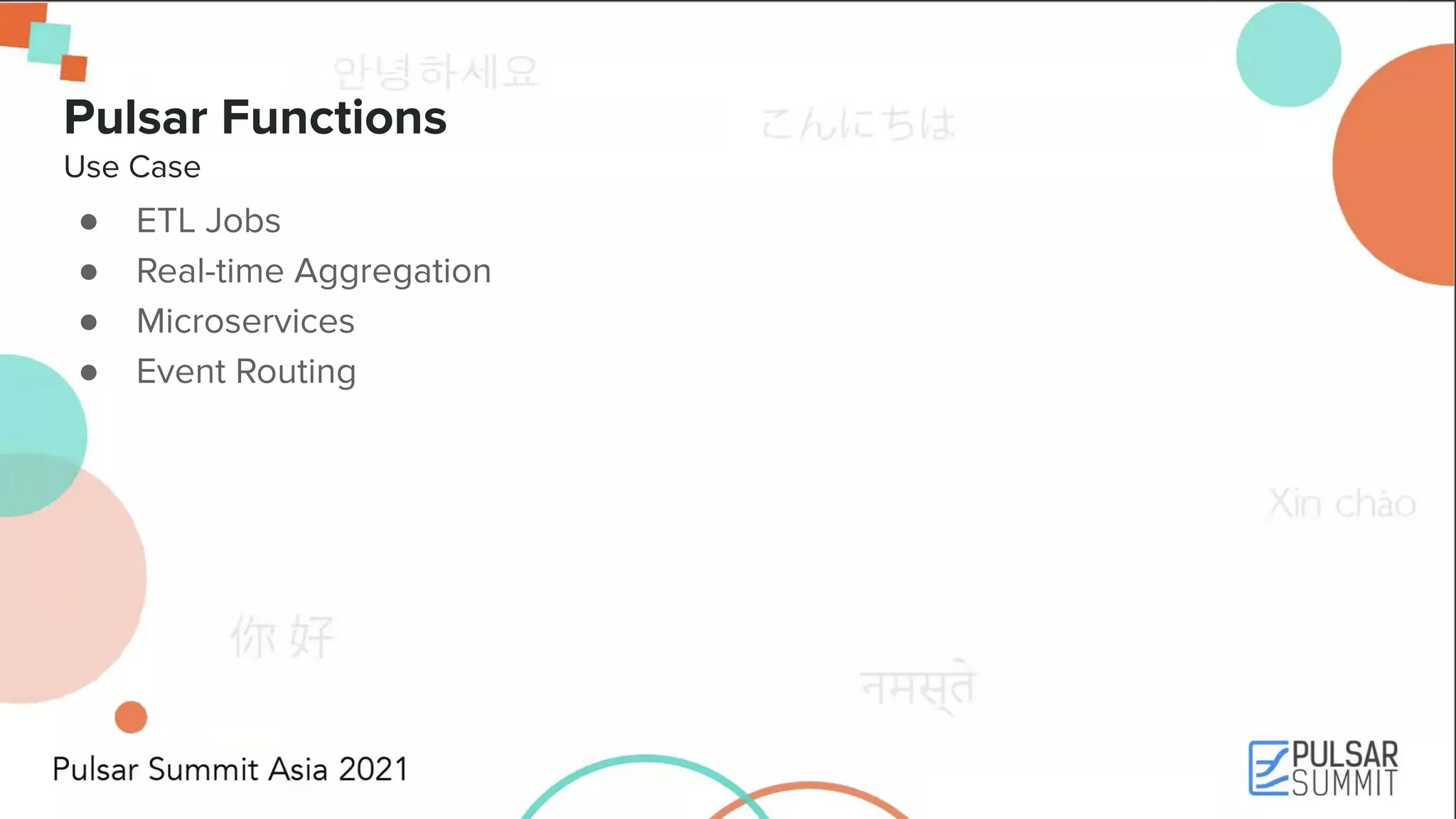

- 8. ● ETL Jobs ●Real-time Aggregation ● Microservices ● Event Routing Pulsar Functions Use Case

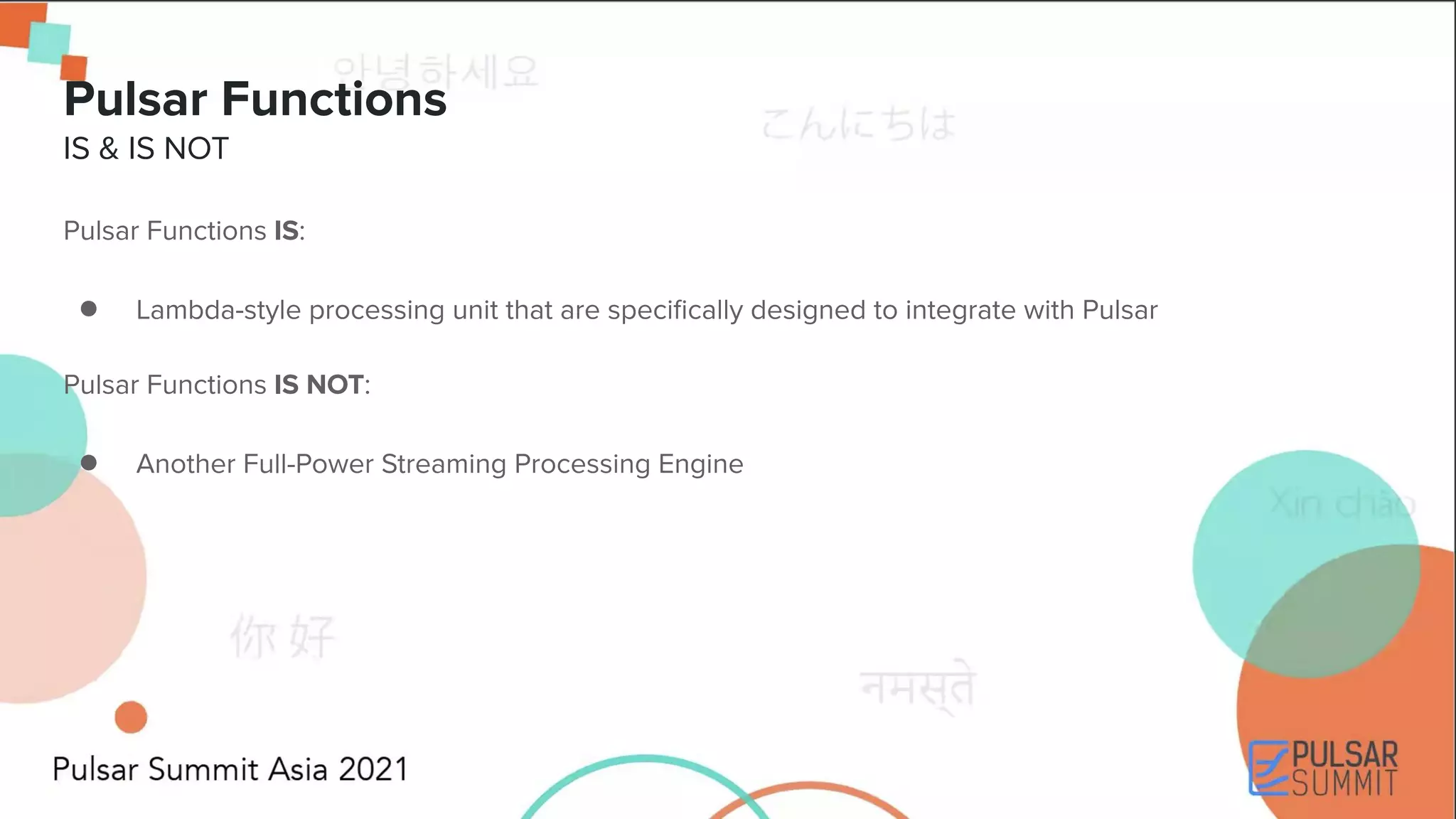

- 9. Pulsar Functions IS: ●Lambda-style processing unit that are specifically designed to integrate with Pulsar Pulsar Functions IS NOT: ● Another Full-Power Streaming Processing Engine Pulsar Functions IS & IS NOT

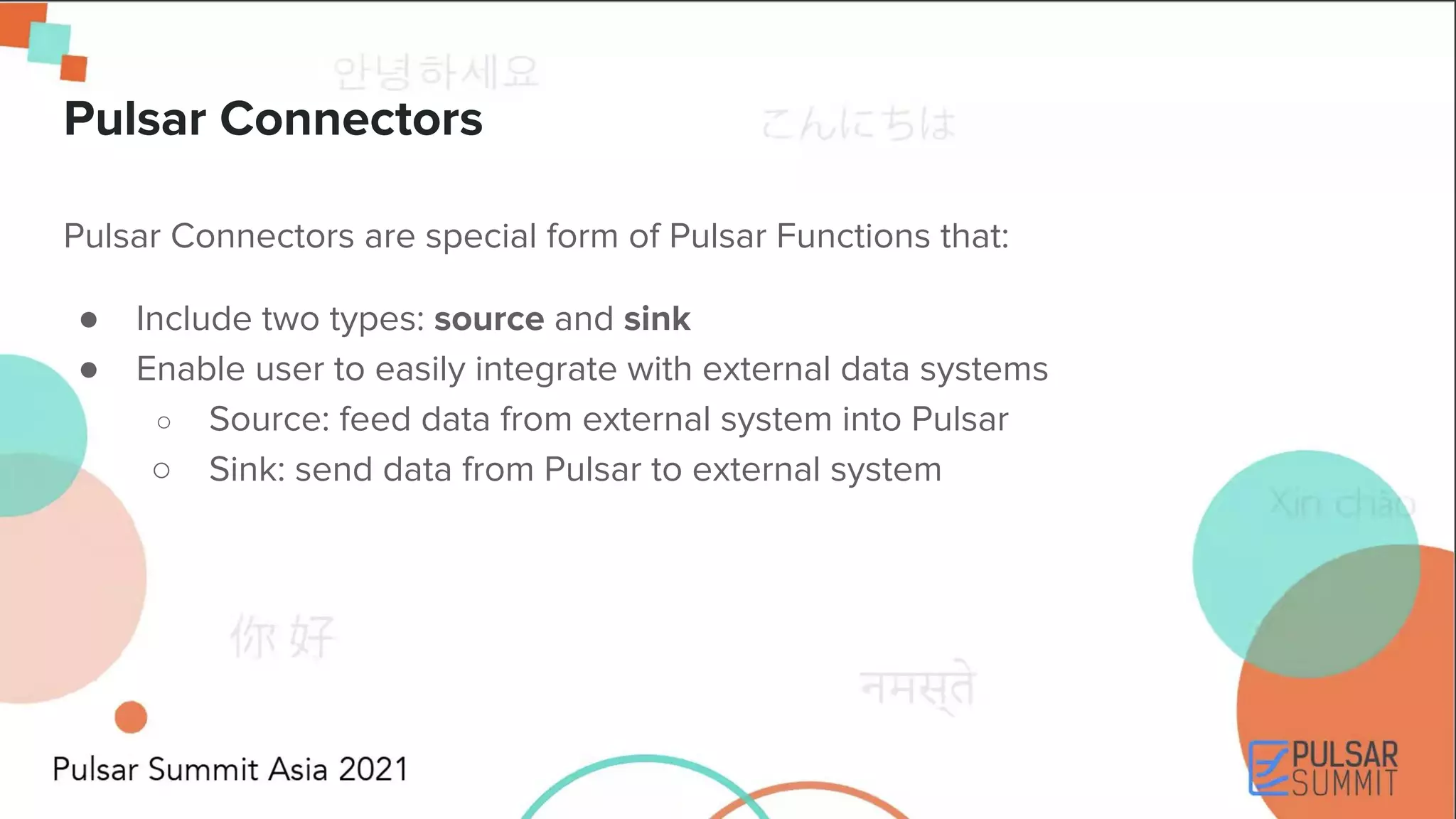

- 10. Pulsar Connectors arespecial form of Pulsar Functions that: ● Include two types: source and sink ● Enable user to easily integrate with external data systems ○ Source: feed data from external system into Pulsar ○ Sink: send data from Pulsar to external system Pulsar Connectors
- 11.

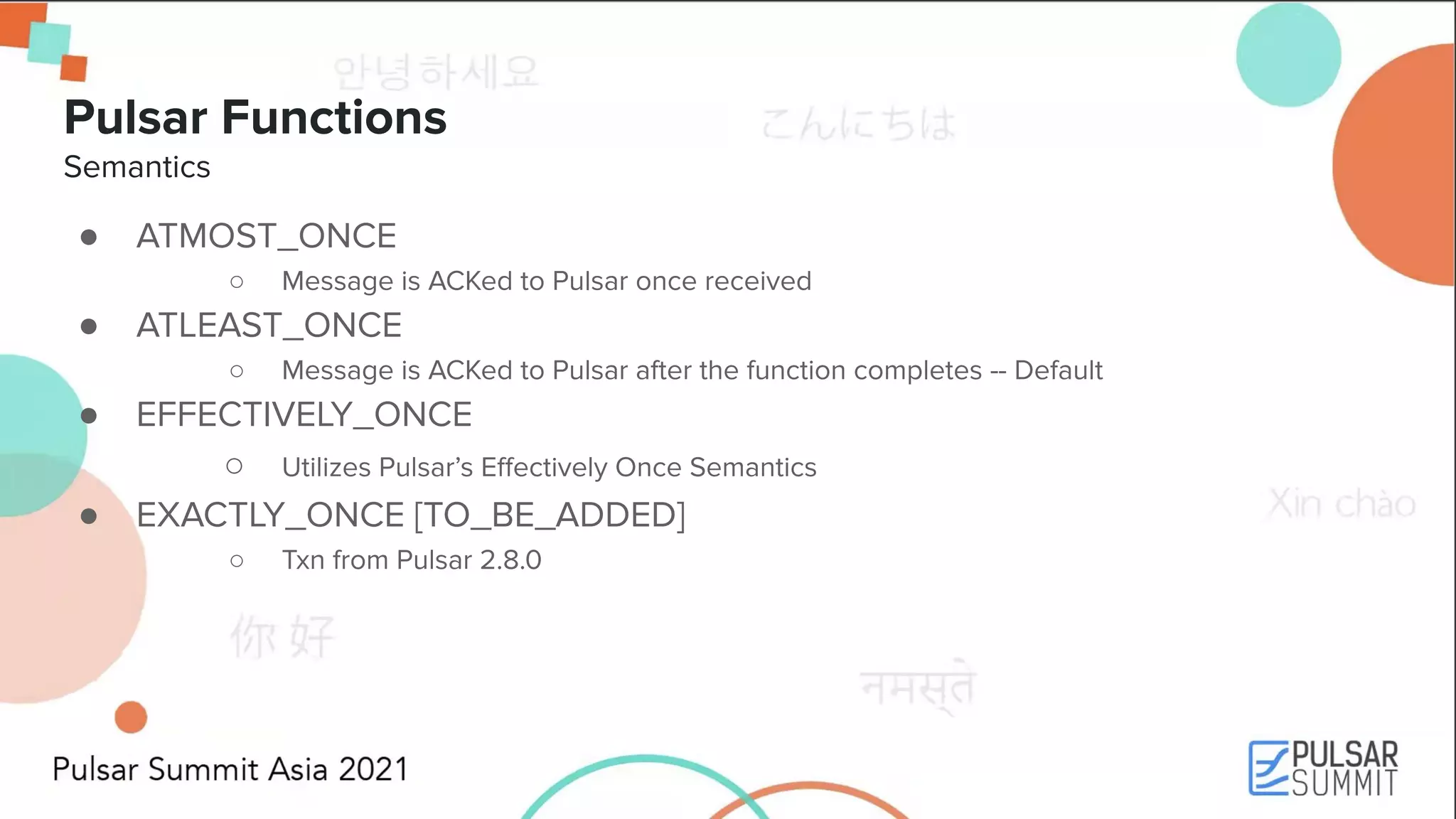

- 12. Pulsar Functions Semantics ● ATMOST_ONCE ○Message is ACKed to Pulsar once received ● ATLEAST_ONCE ○ Message is ACKed to Pulsar after the function completes -- Default ● EFFECTIVELY_ONCE ○ Utilizes Pulsar’s Effectively Once Semantics ● EXACTLY_ONCE [TO_BE_ADDED] ○ Txn from Pulsar 2.8.0

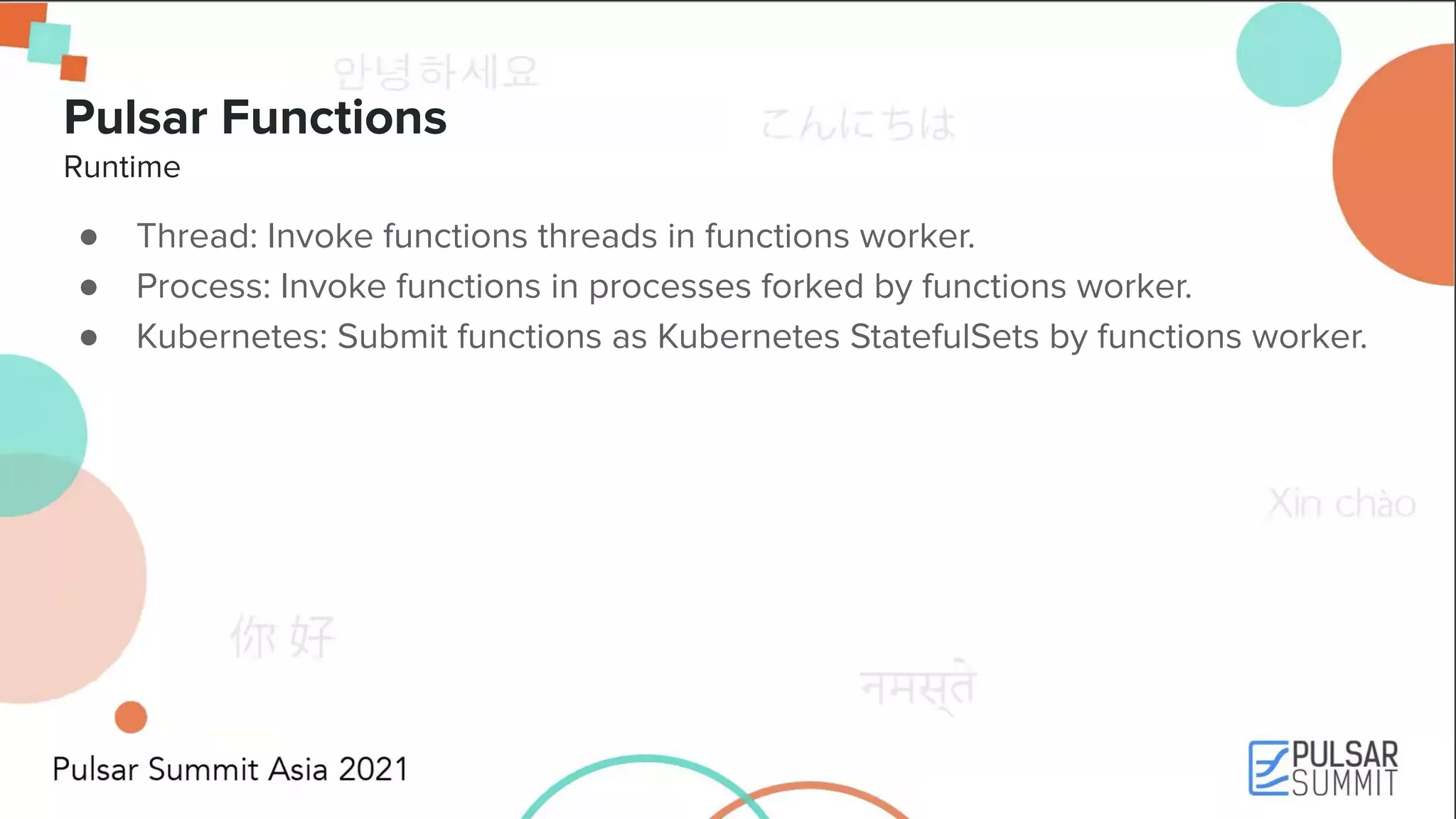

- 13. Pulsar Functions Runtime ● Thread:Invoke functions threads in functions worker. ● Process: Invoke functions in processes forked by functions worker. ● Kubernetes: Submit functions as Kubernetes StatefulSets by functions worker.
- 14.
- 15. Pulsar Functions Summary ● Developerproductivity ○ Intuitive API: `func process(input) output {}` ○ Multiple Languages Support: Java, Python, Golang ● Operational simplicity ○ Fully Integrated with Apache Pulsar ○ No Extra System/Service Setup Needed ● Easy troubleshooting ○ Convenient Local Runtime ○ Easy to Use log topics
- 16.

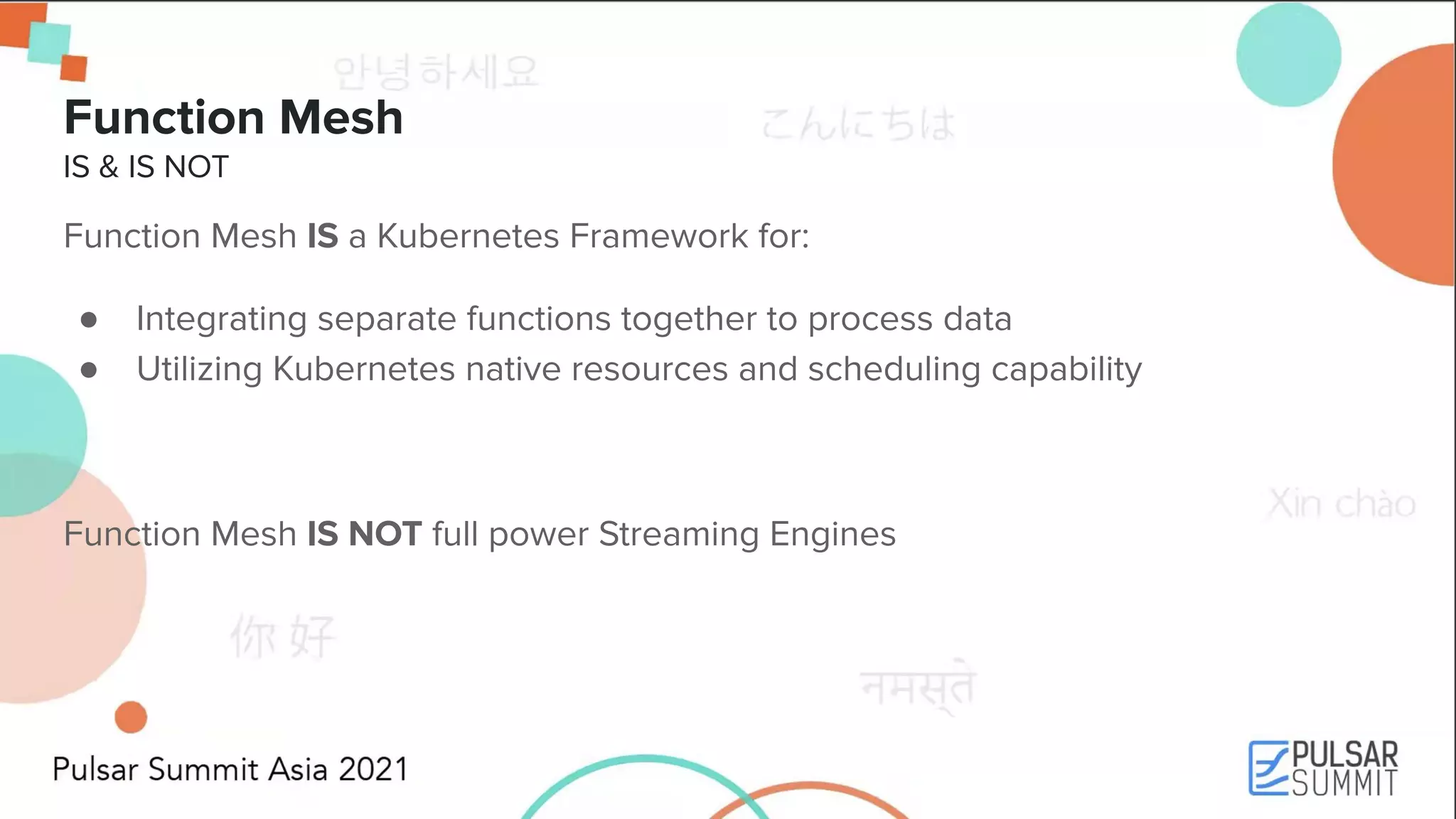

- 17. Function Mesh IS &IS NOT Function Mesh IS a Kubernetes Framework for: ● Integrating separate functions together to process data ● Utilizing Kubernetes native resources and scheduling capability Function Mesh IS NOT full power Streaming Engines

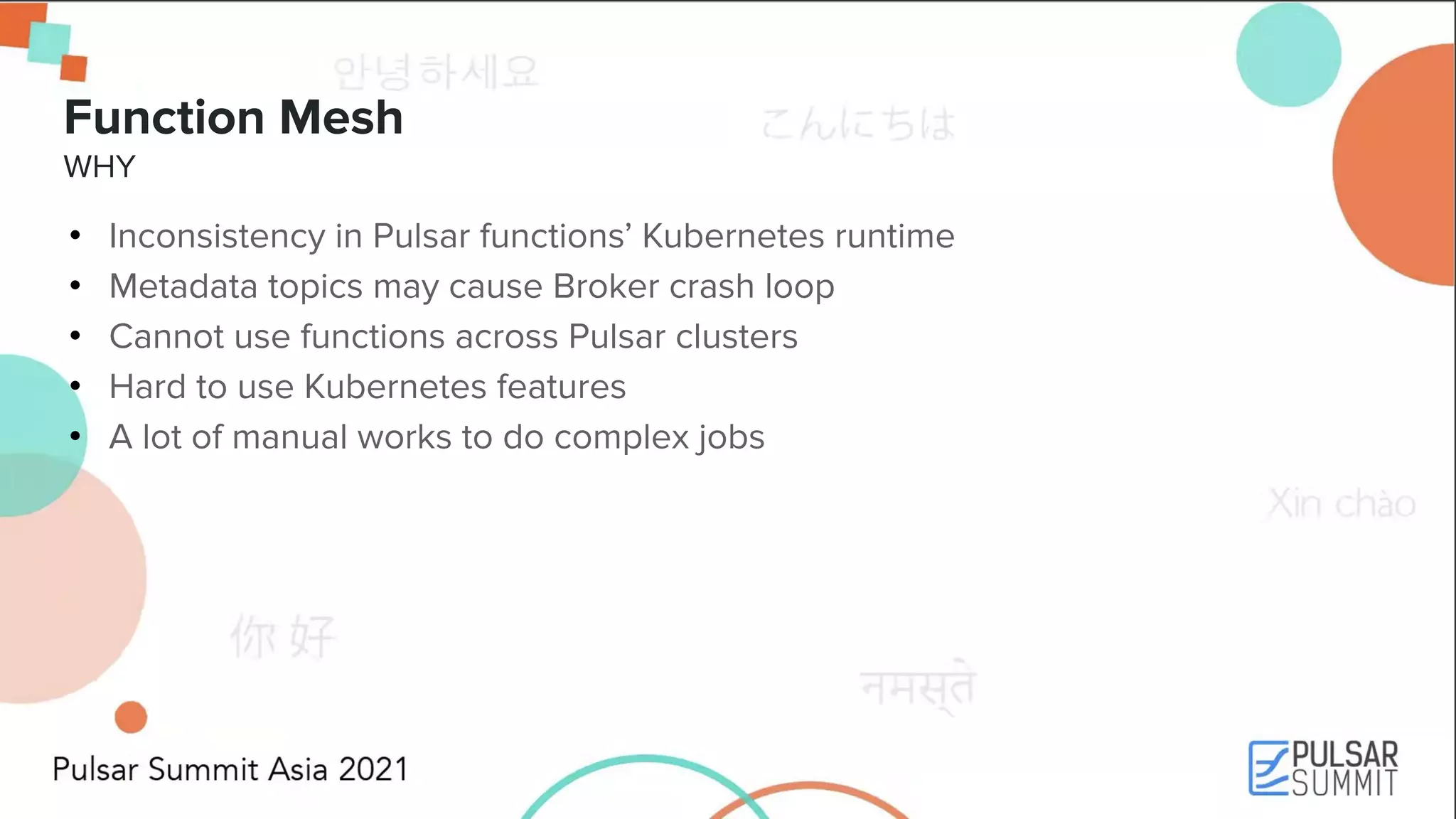

- 18. Function Mesh WHY • Inconsistencyin Pulsar functions’ Kubernetes runtime • Metadata topics may cause Broker crash loop • Cannot use functions across Pulsar clusters • Hard to use Kubernetes features • A lot of manual works to do complex jobs
- 19. Function Mesh Internals ● KubernetesOperator ● Function Runner ● Mesh Worker Service ● Pulsar Functions Feature Matrix

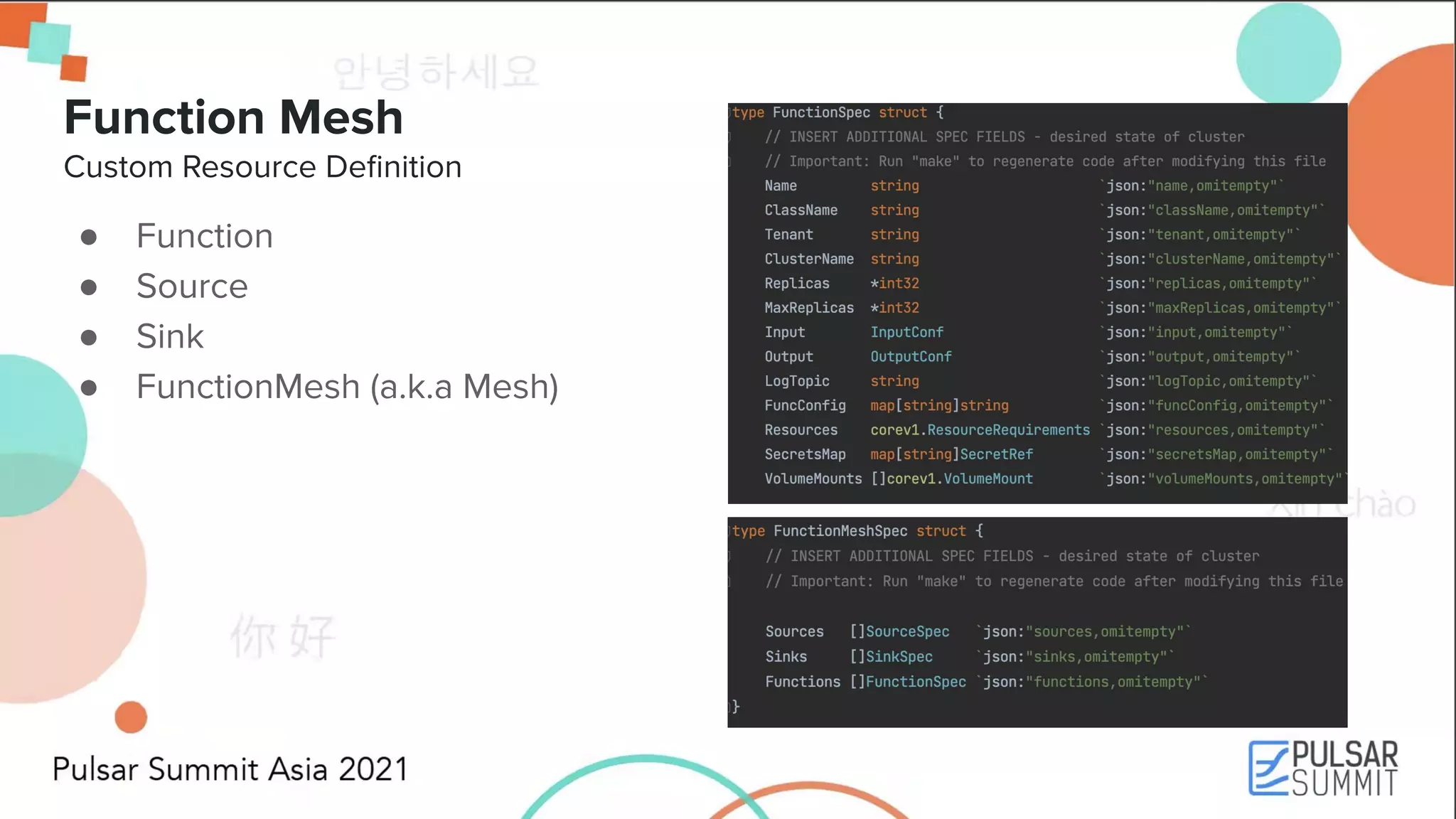

- 20. Function Mesh Custom ResourceDefinition ● Function ● Source ● Sink ● FunctionMesh (a.k.a Mesh)
- 21.
- 22.

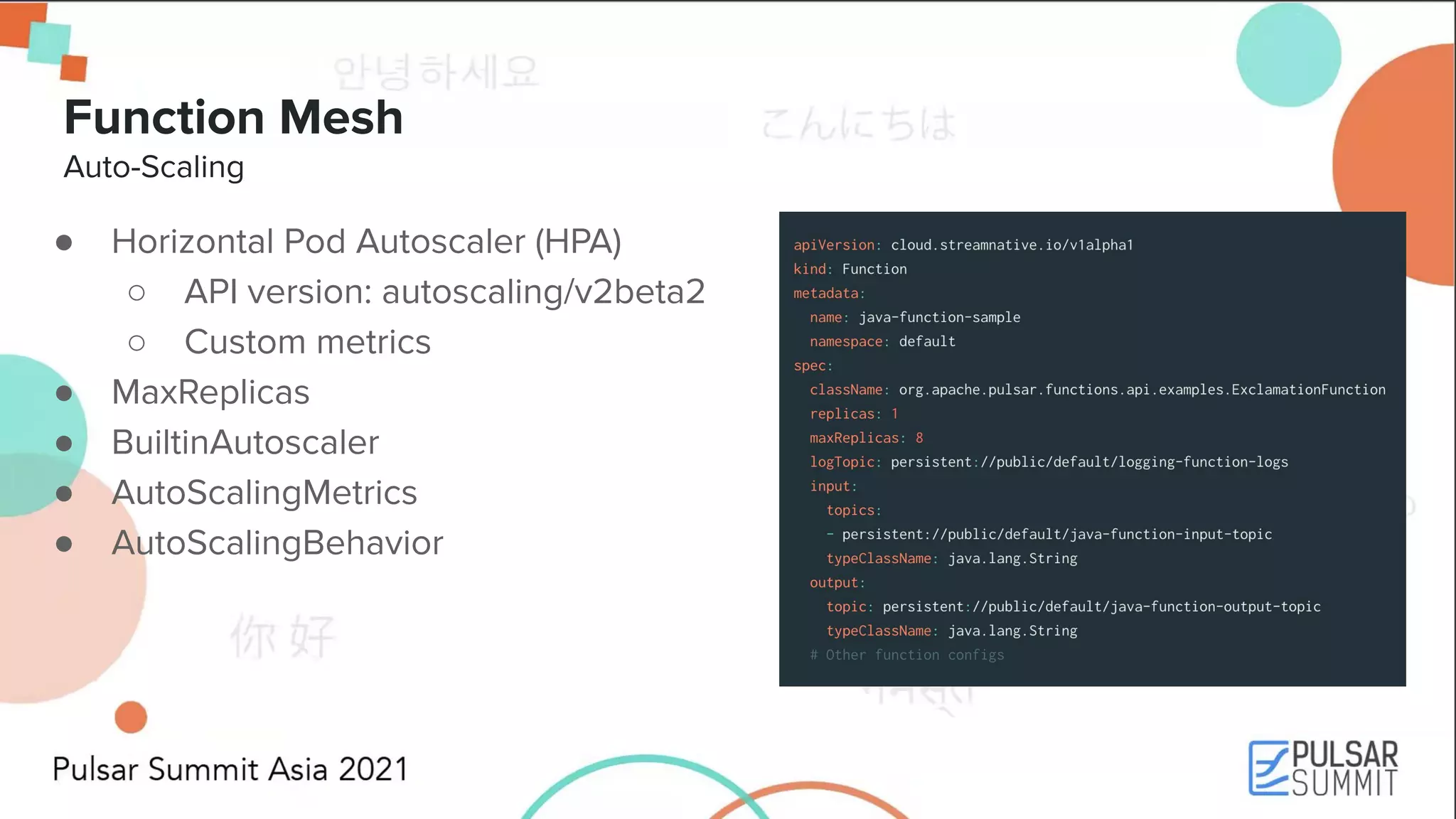

- 23. Function Mesh Auto-Scaling ● HorizontalPod Autoscaler (HPA) ○ API version: autoscaling/v2beta2 ○ Custom metrics ● MaxReplicas ● BuiltinAutoscaler ● AutoScalingMetrics ● AutoScalingBehavior

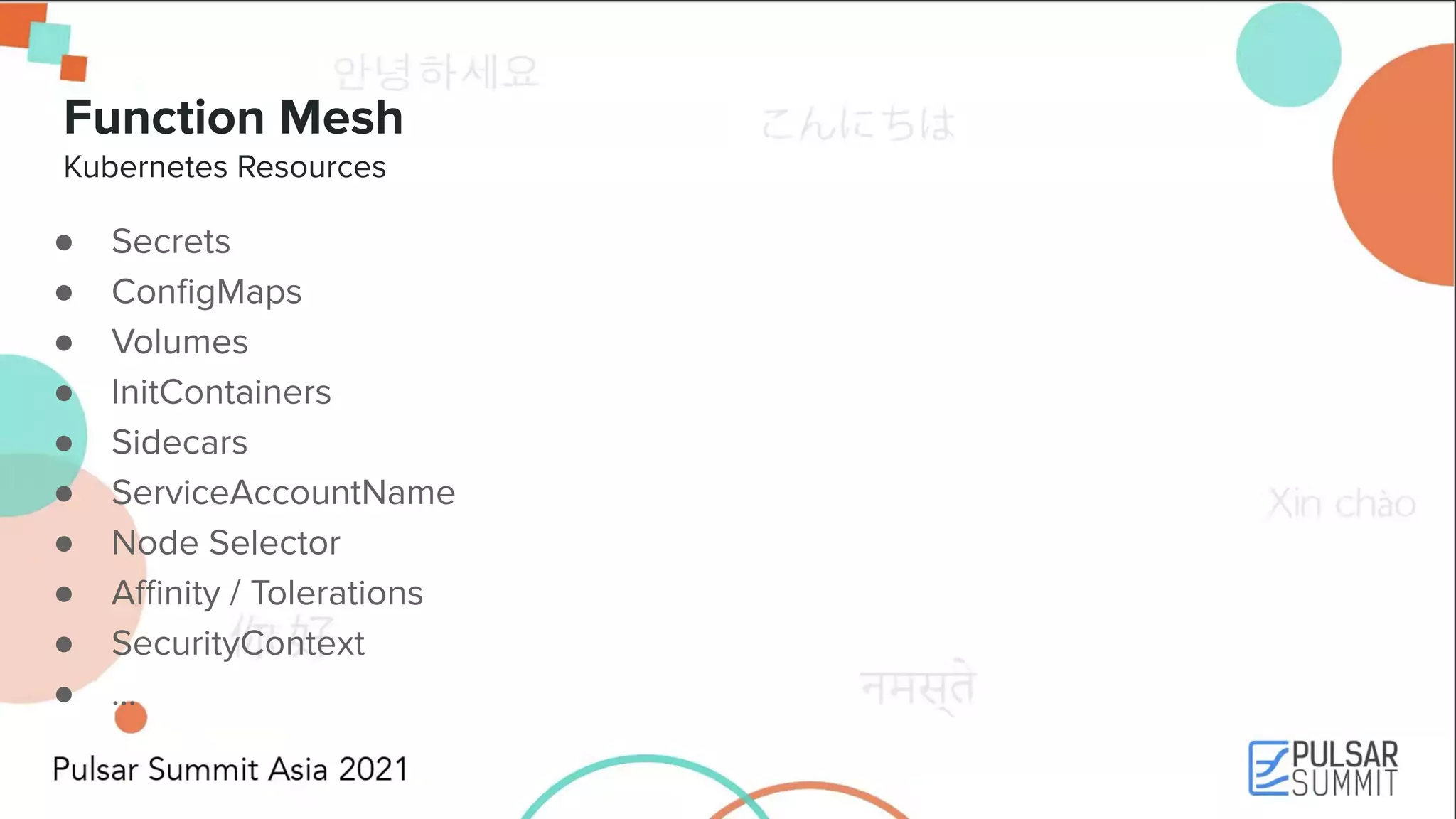

- 24. Function Mesh Kubernetes Resources ●Secrets ● ConfigMaps ● Volumes ● InitContainers ● Sidecars ● ServiceAccountName ● Node Selector ● Affinity / Tolerations ● SecurityContext ● ...
- 25. Function Mesh Internals ● KubernetesOperator ● Function Runner ● Mesh Worker Service ● Pulsar Functions Feature Matrix

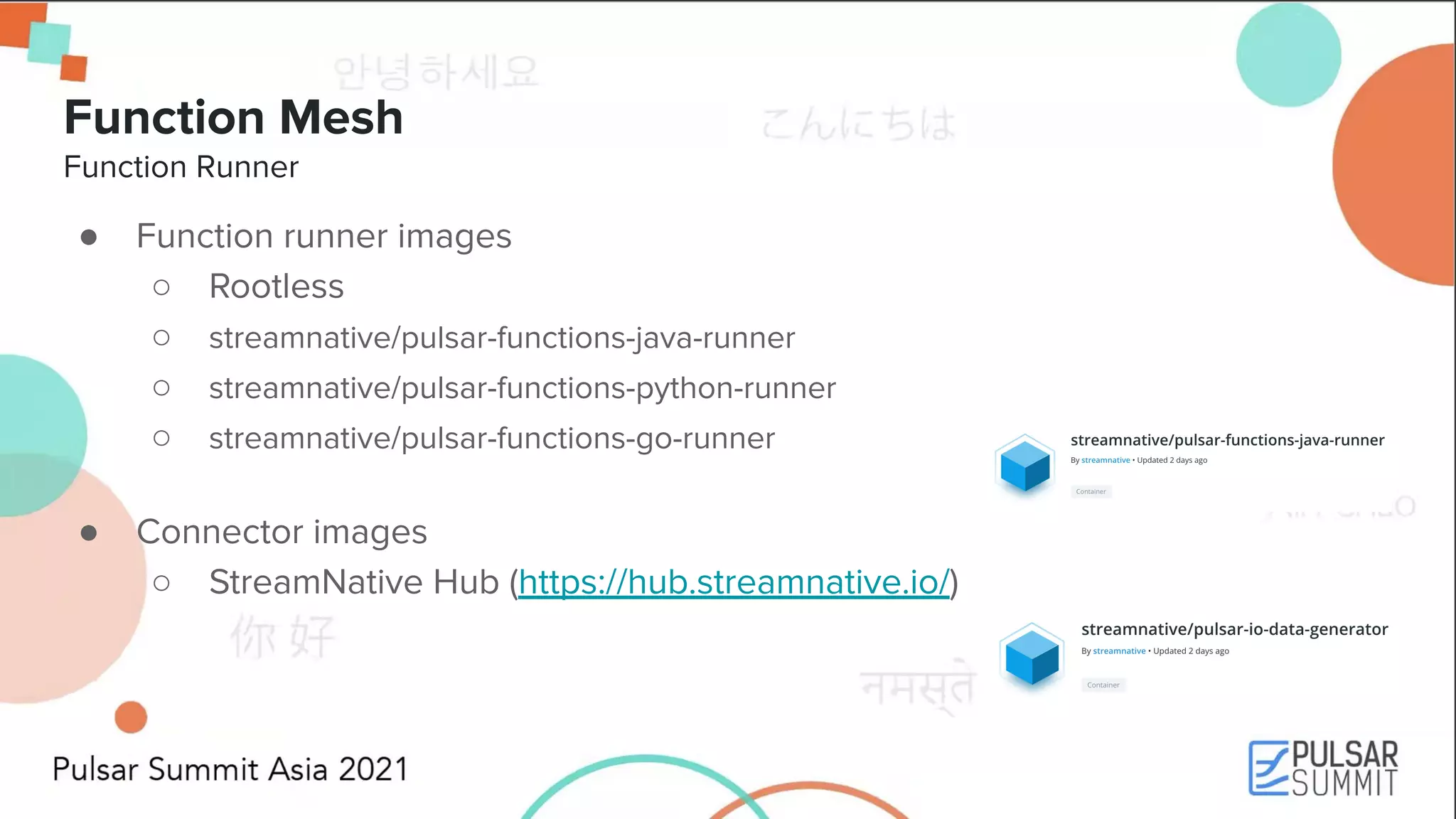

- 26. Function Mesh Function Runner ●Function runner images ○ Rootless ○ streamnative/pulsar-functions-java-runner ○ streamnative/pulsar-functions-python-runner ○ streamnative/pulsar-functions-go-runner ● Connector images ○ StreamNative Hub (https://hub.streamnative.io/)
- 27. Function Mesh Internals ● KubernetesOperator ● Function Runner ● Mesh Worker Service ● Pulsar Functions Feature Matrix

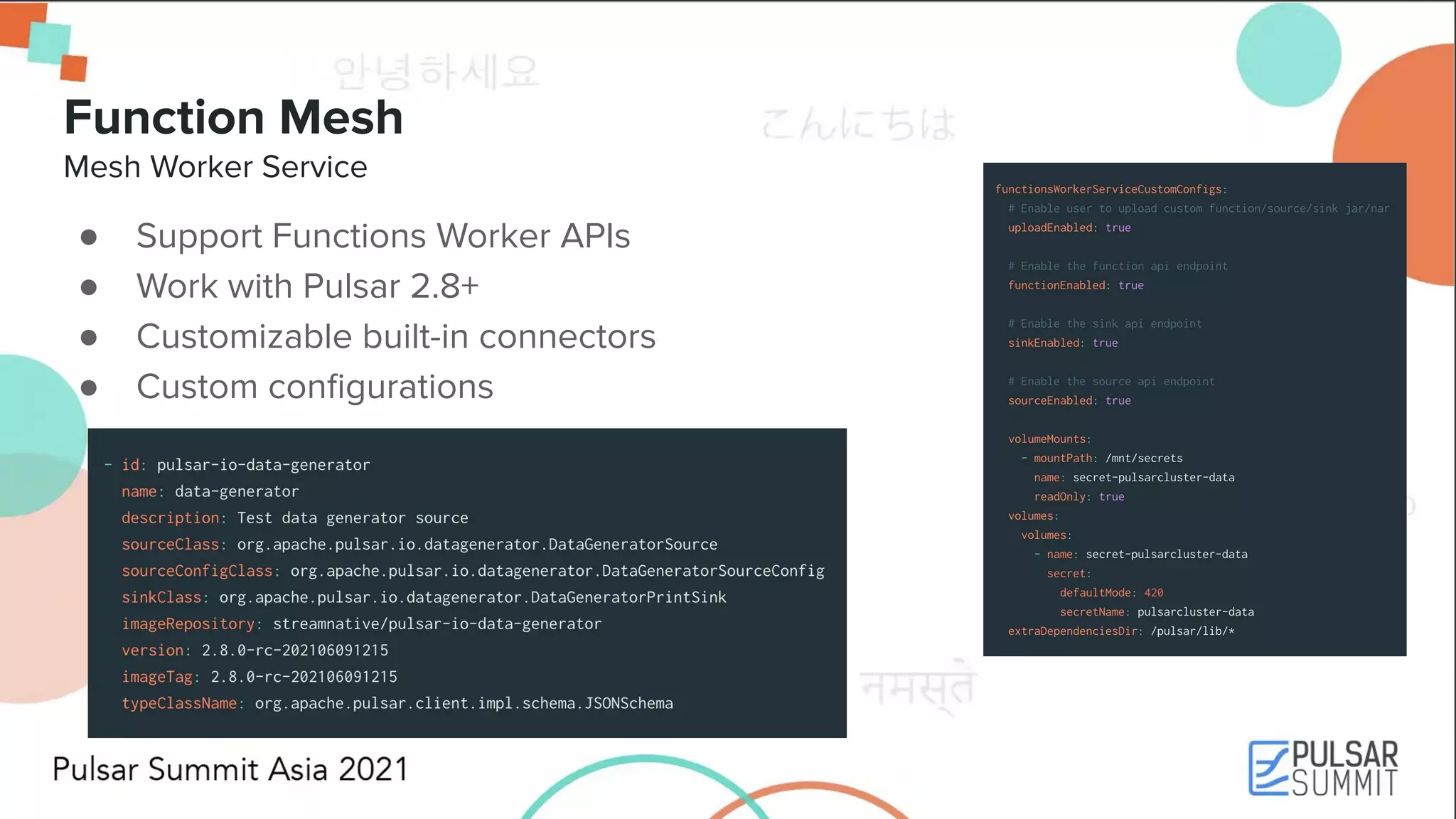

- 28. Function Mesh Mesh WorkerService ● Support Functions Worker APIs ● Work with Pulsar 2.8+ ● Customizable built-in connectors ● Custom configurations

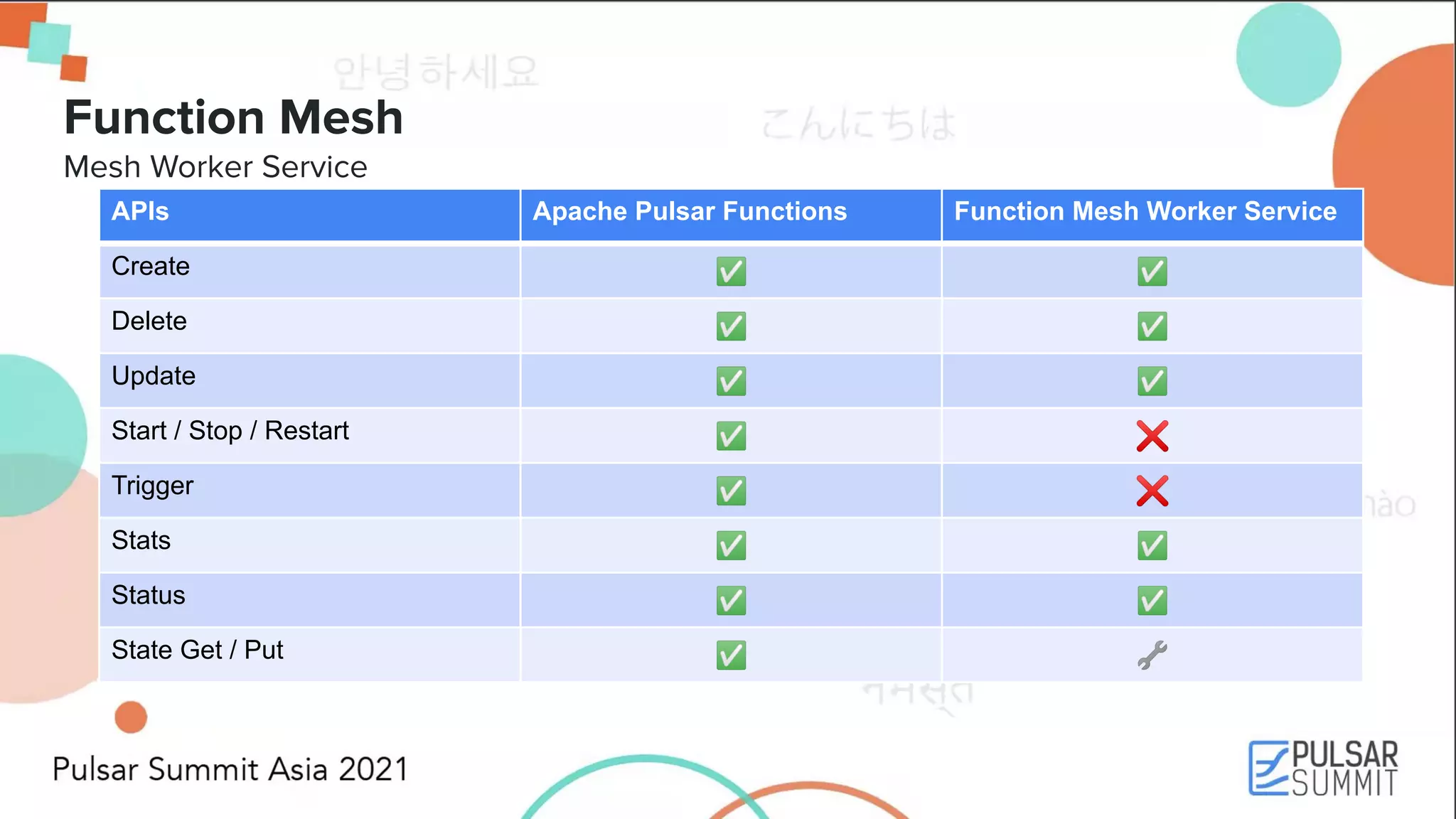

- 29. Function Mesh Mesh WorkerService APIs Apache Pulsar Functions Function Mesh Worker Service Create ✅ ✅ Delete ✅ ✅ Update ✅ ✅ Start / Stop / Restart ✅ ❌ Trigger ✅ ❌ Stats ✅ ✅ Status ✅ ✅ State Get / Put ✅ 🔧

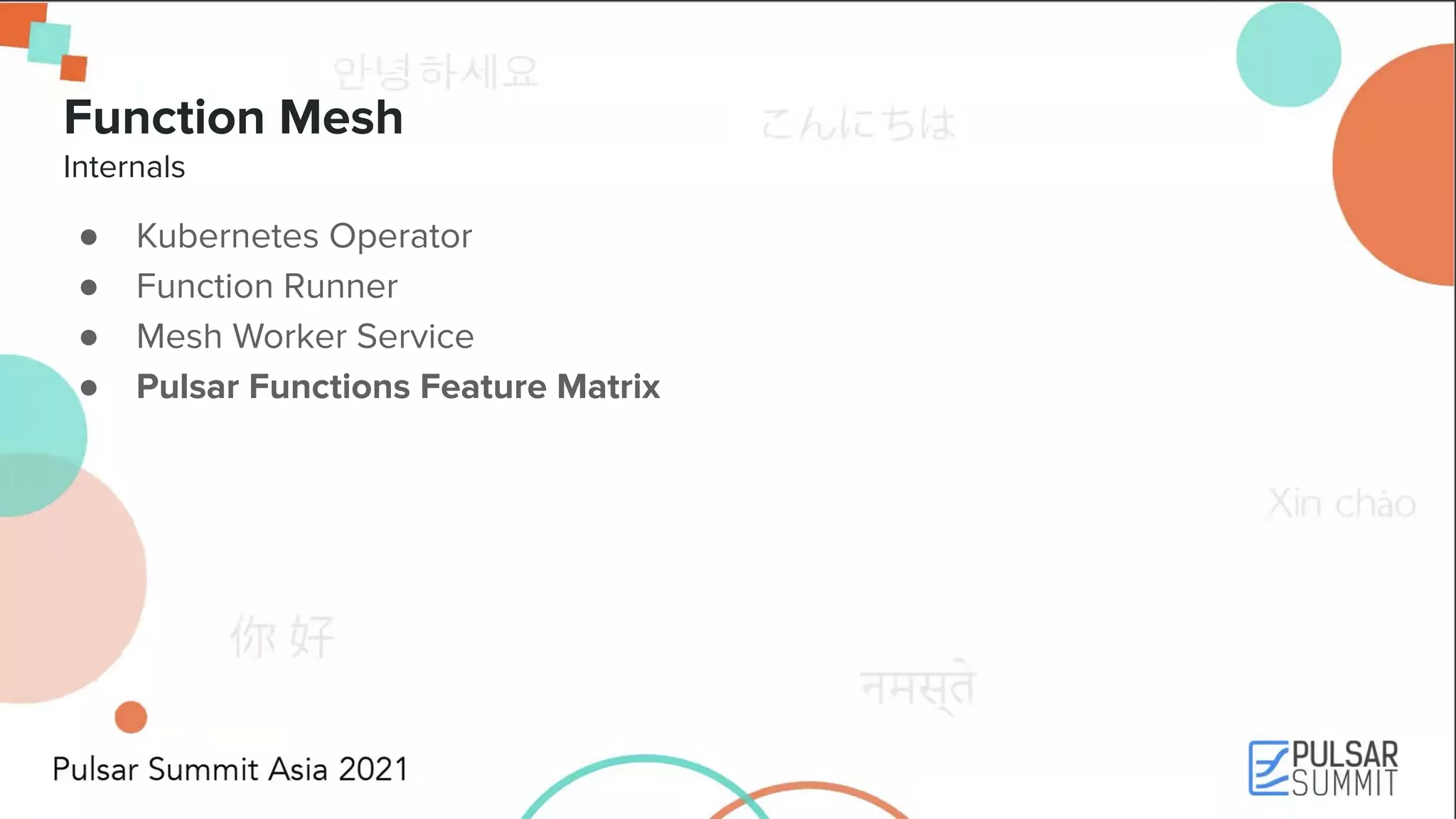

- 30. Function Mesh Internals ● KubernetesOperator ● Function Runner ● Mesh Worker Service ● Pulsar Functions Feature Matrix

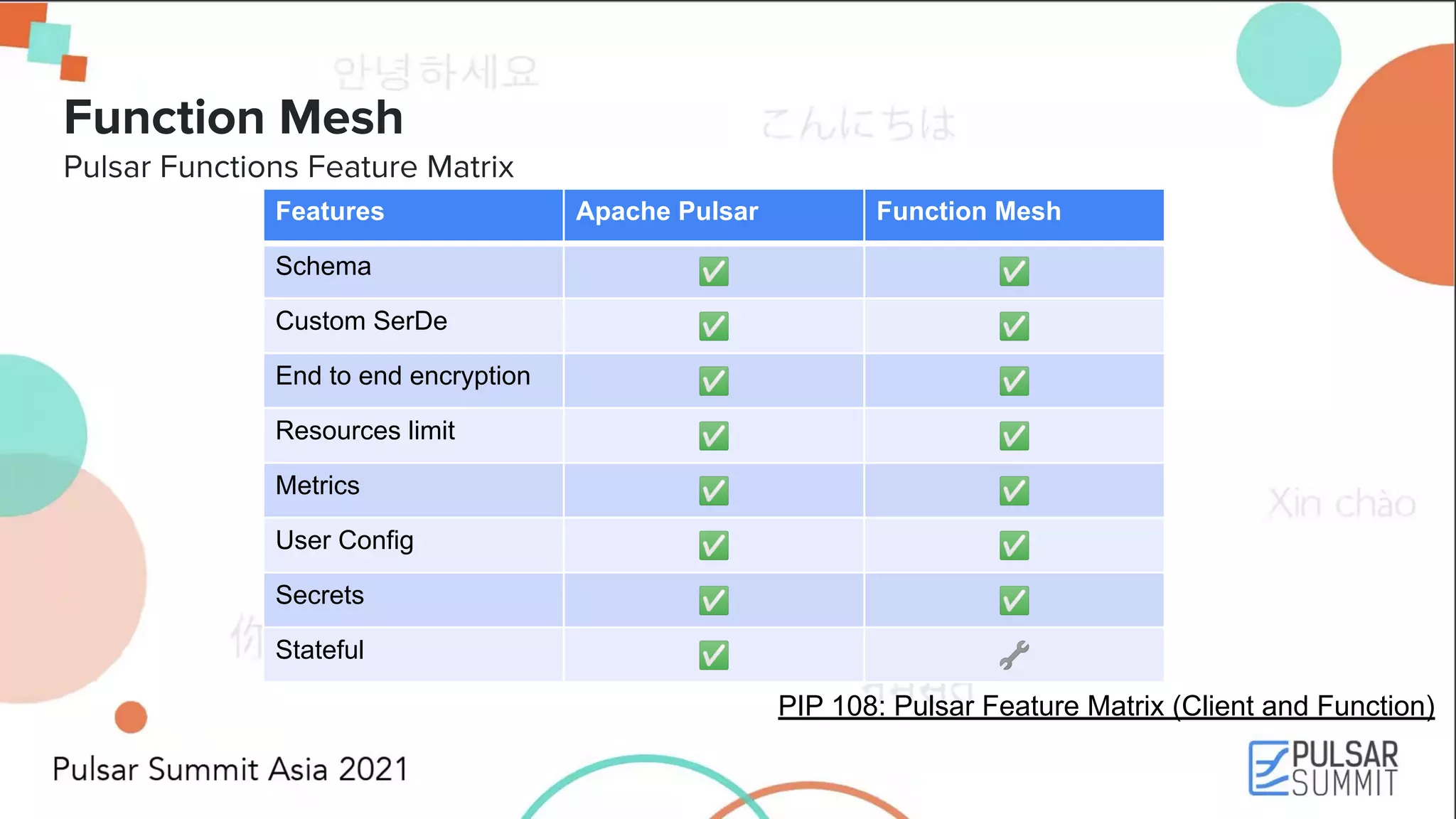

- 31. Function Mesh Pulsar FunctionsFeature Matrix PIP 108: Pulsar Feature Matrix (Client and Function) Features Apache Pulsar Function Mesh Schema ✅ ✅ Custom SerDe ✅ ✅ End to end encryption ✅ ✅ Resources limit ✅ ✅ Metrics ✅ ✅ User Config ✅ ✅ Secrets ✅ ✅ Stateful ✅ 🔧

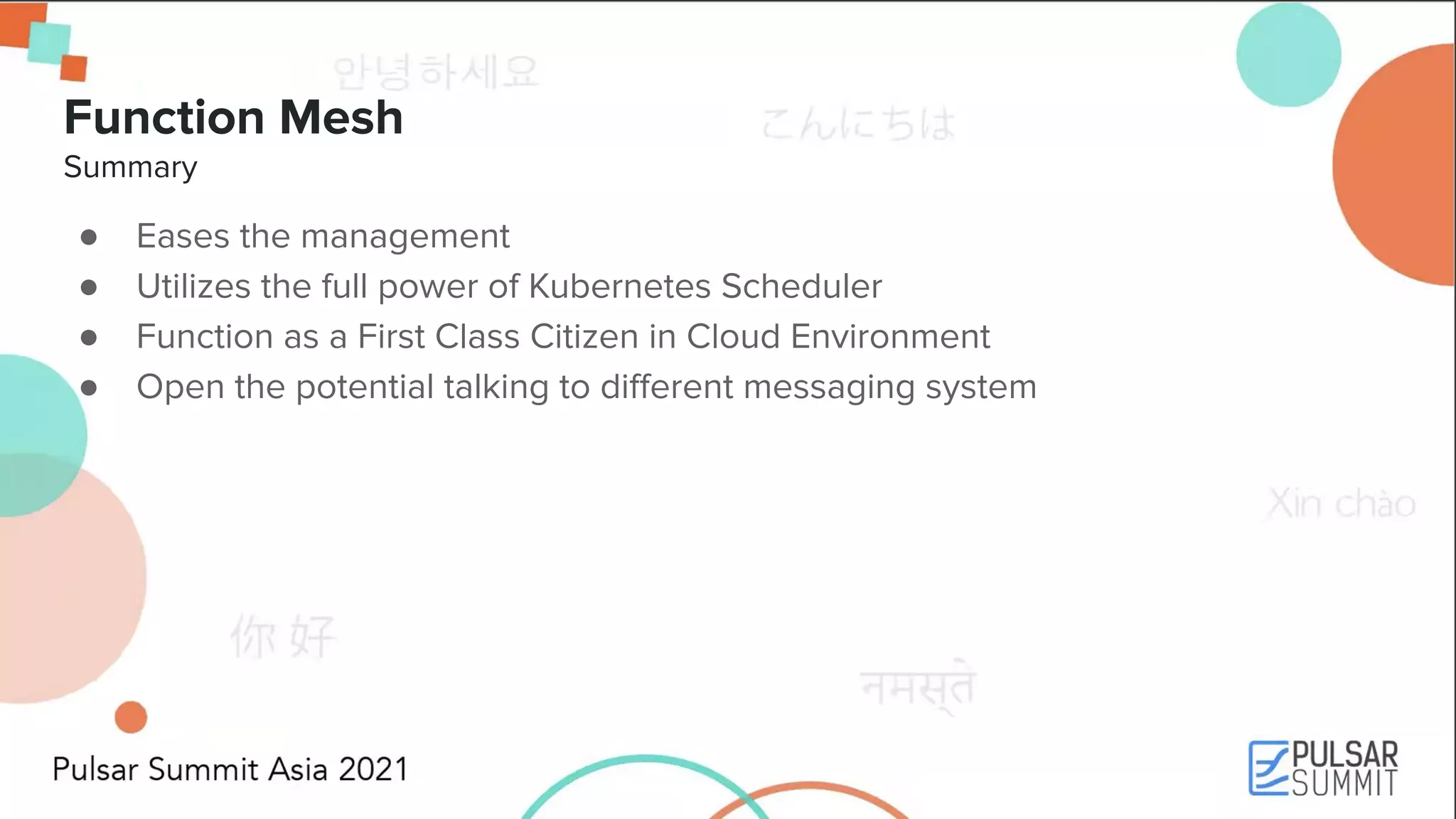

- 32. Function Mesh Summary ● Easesthe management ● Utilizes the full power of Kubernetes Scheduler ● Function as a First Class Citizen in Cloud Environment ● Open the potential talking to different messaging system

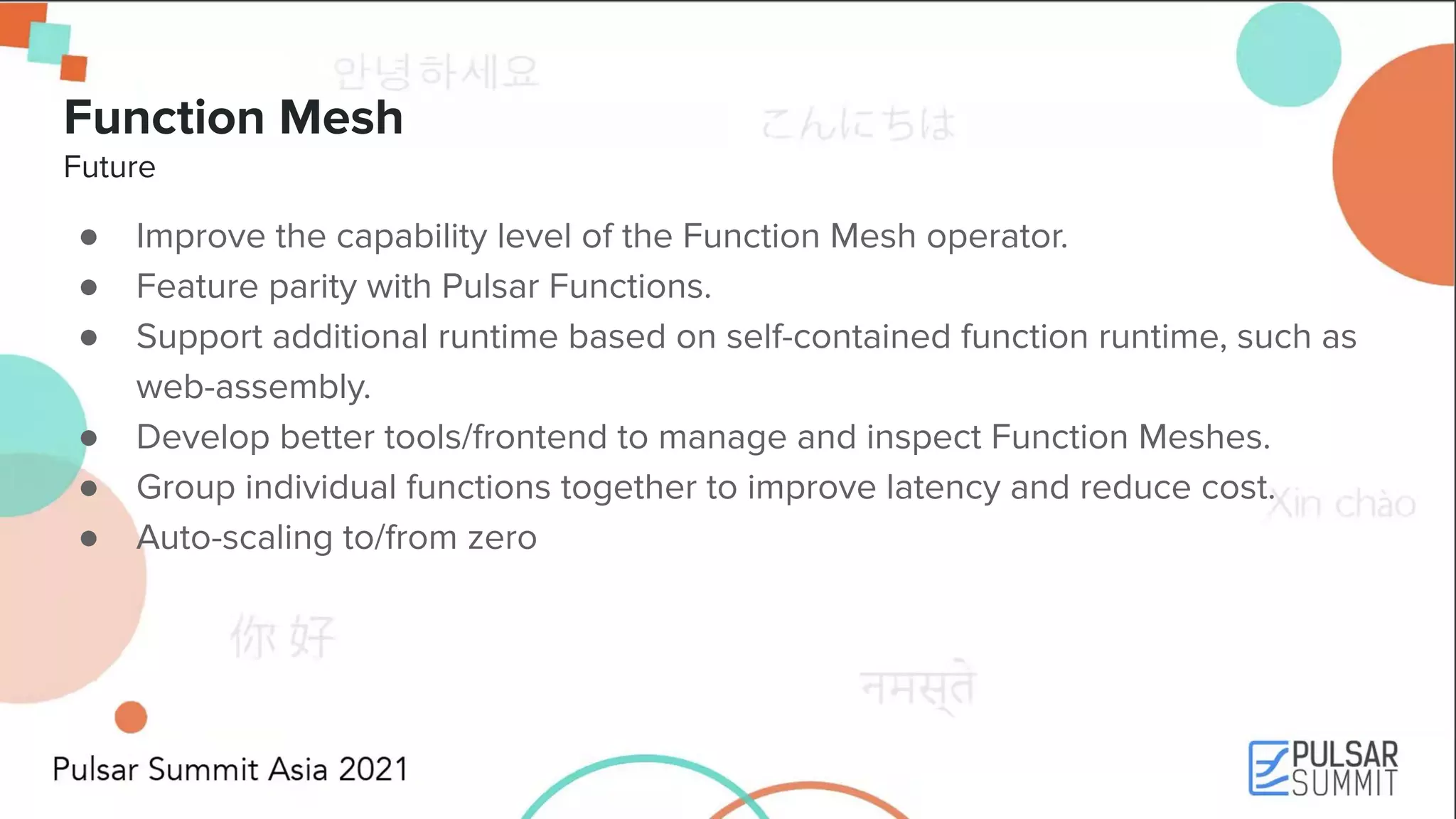

- 33. Function Mesh Future ● Improvethe capability level of the Function Mesh operator. ● Feature parity with Pulsar Functions. ● Support additional runtime based on self-contained function runtime, such as web-assembly. ● Develop better tools/frontend to manage and inspect Function Meshes. ● Group individual functions together to improve latency and reduce cost. ● Auto-scaling to/from zero

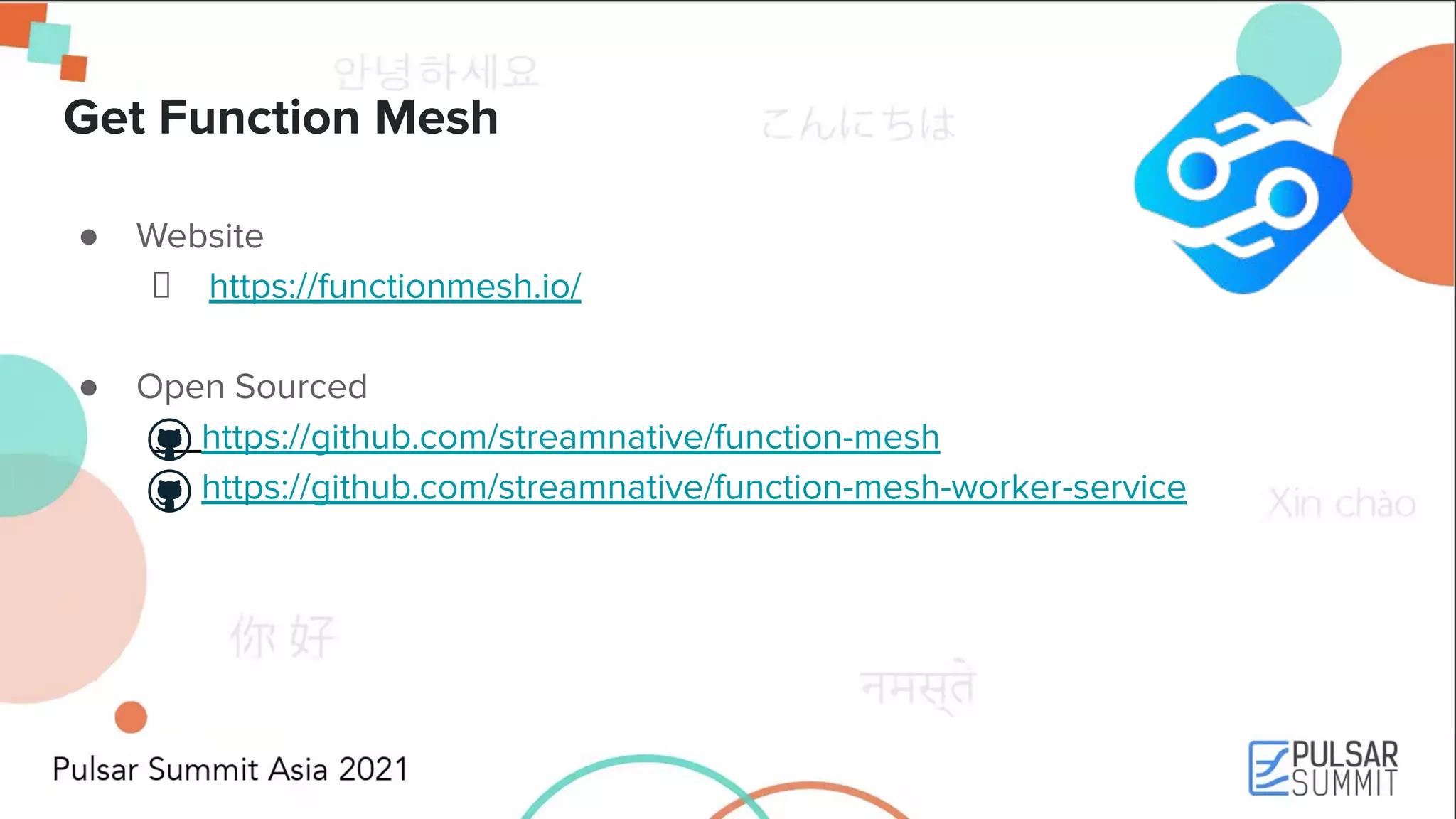

- 34. Get Function Mesh ●Website https://functionmesh.io/ ● Open Sourced https://github.com/streamnative/function-mesh https://github.com/streamnative/function-mesh-worker-service
- 35.

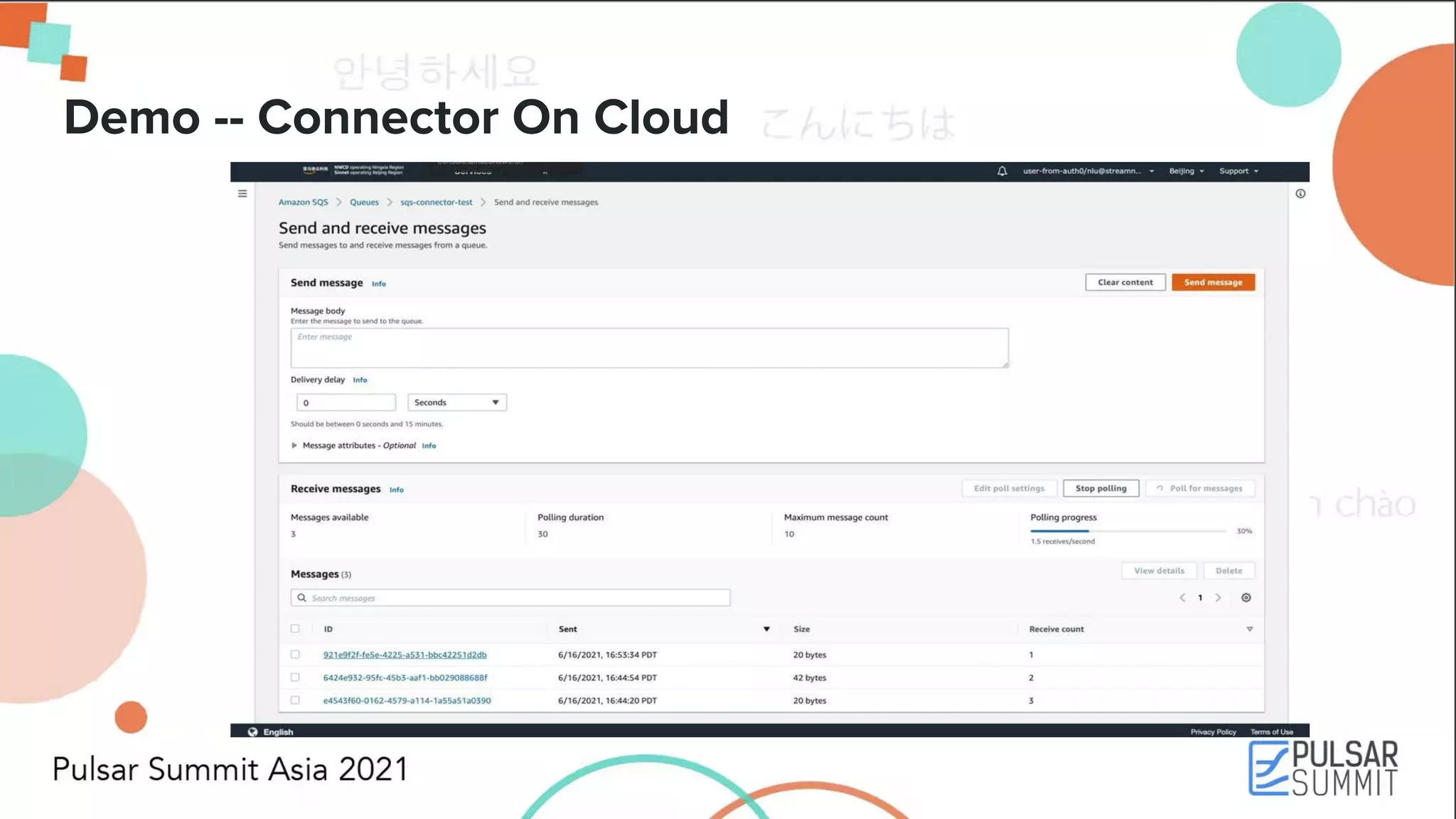

- 36. Demo -- ConnectorOn Cloud
- 37. We’re hiring Build Pulsarwith the team that builds Pulsar ✓ Work with the creators of Pulsar ✓ Exciting, growth-stage company ✓ Open and collaborative environment ✓ Competitive compensation and benefits ✓ Best teammates on earth https://streamnative.io/careers
