  Exploiting Undefined Behaviors forEfficient Symbolic Execution Asankhaya Sharma National University of Singapore
• 2.
  Motivation 17/2/2016 ICSE SRC2014 2
• 3.
  Rainbow Pony 17/2/2016 ICSESRC 2014 3
• 4.

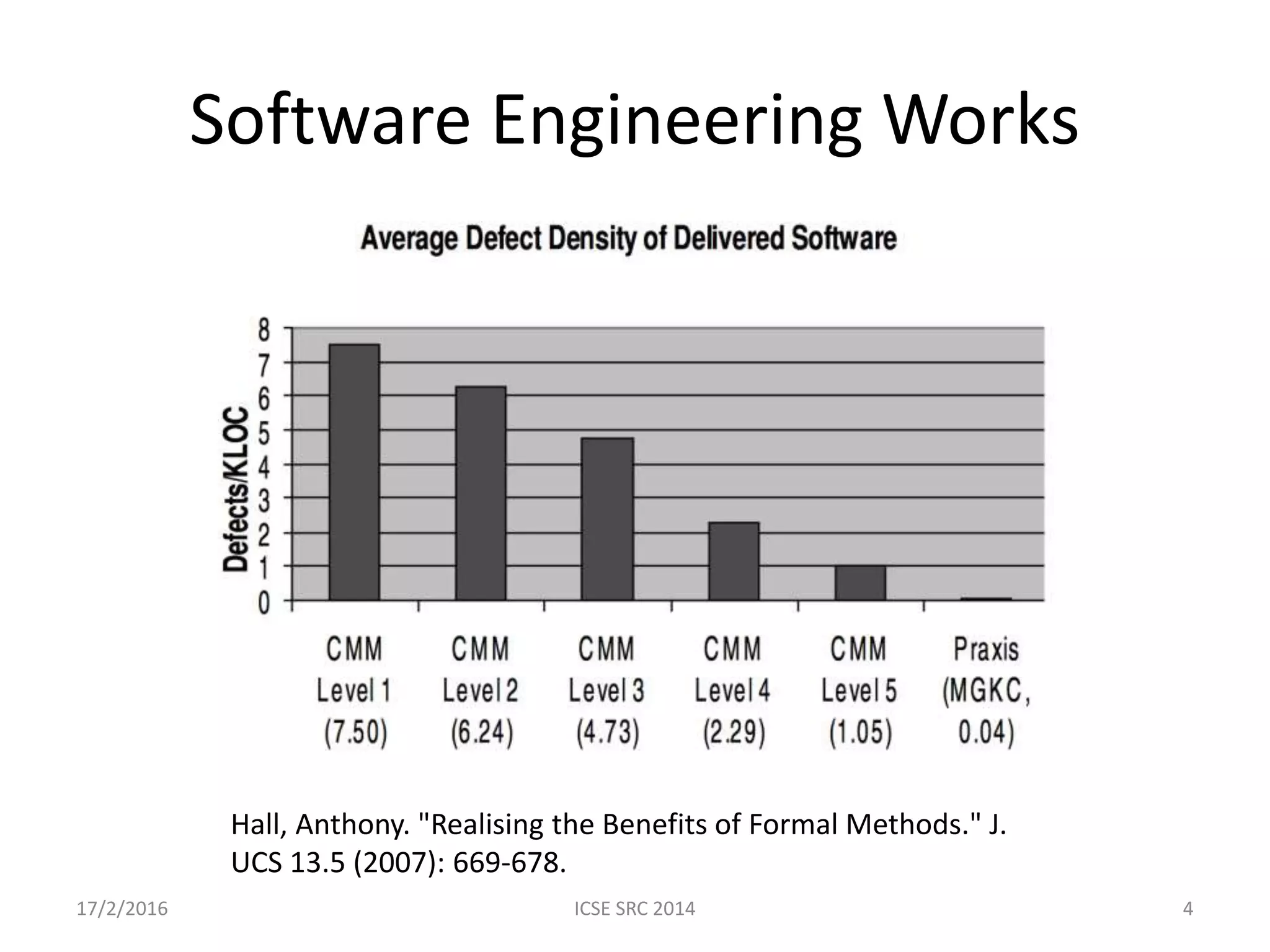

  Software Engineering Works Hall,Anthony. "Realising the Benefits of Formal Methods." J. UCS 13.5 (2007): 669-678. 17/2/2016 ICSE SRC 2014 4
• 5.

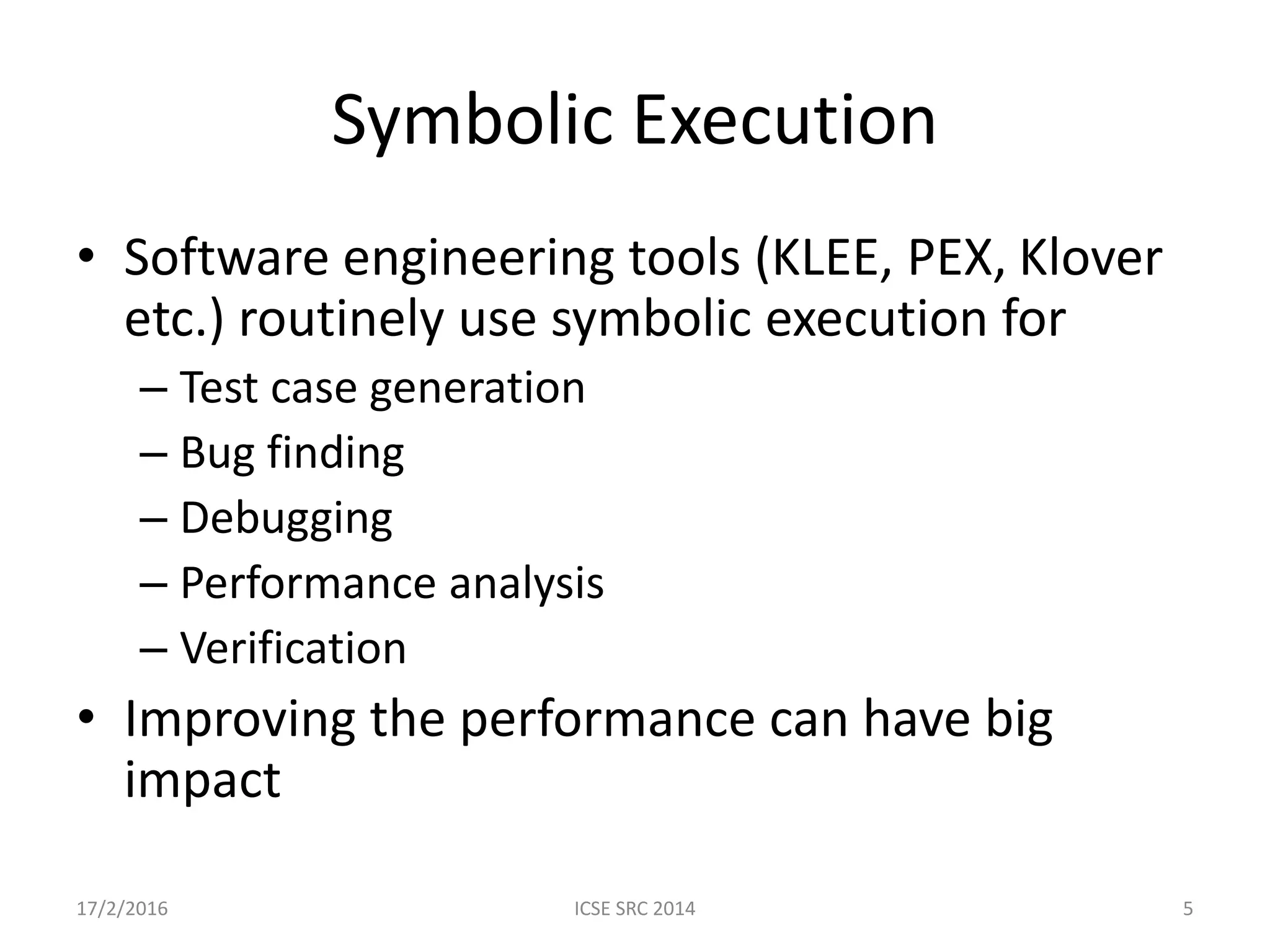

  Symbolic Execution • Softwareengineering tools (KLEE, PEX, Klover etc.) routinely use symbolic execution for – Test case generation – Bug finding – Debugging – Performance analysis – Verification • Improving the performance can have big impact 17/2/2016 ICSE SRC 2014 5
• 6.

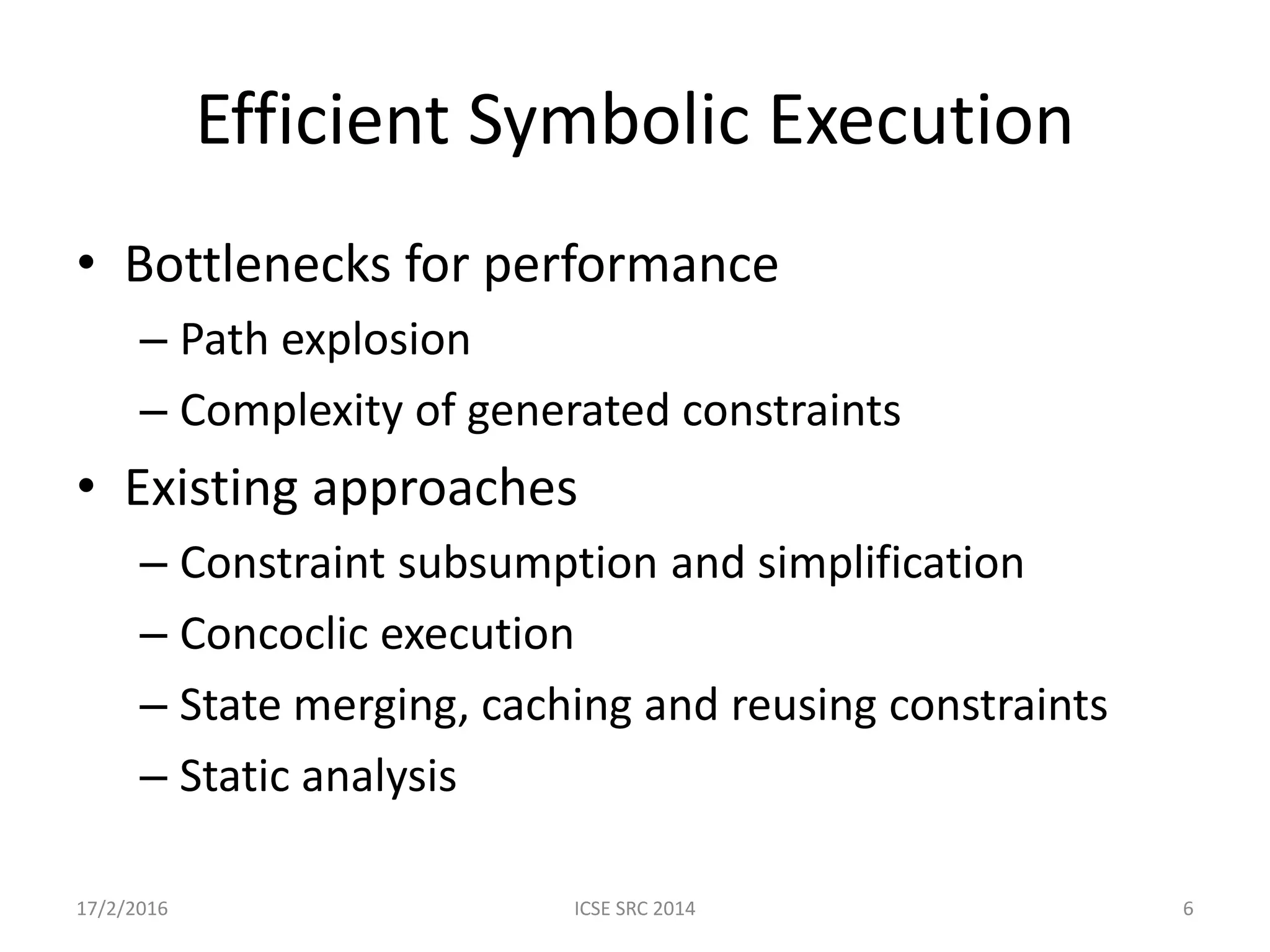

  Efficient Symbolic Execution •Bottlenecks for performance – Path explosion – Complexity of generated constraints • Existing approaches – Constraint subsumption and simplification – Concoclic execution – State merging, caching and reusing constraints – Static analysis 17/2/2016 ICSE SRC 2014 6
• 7.

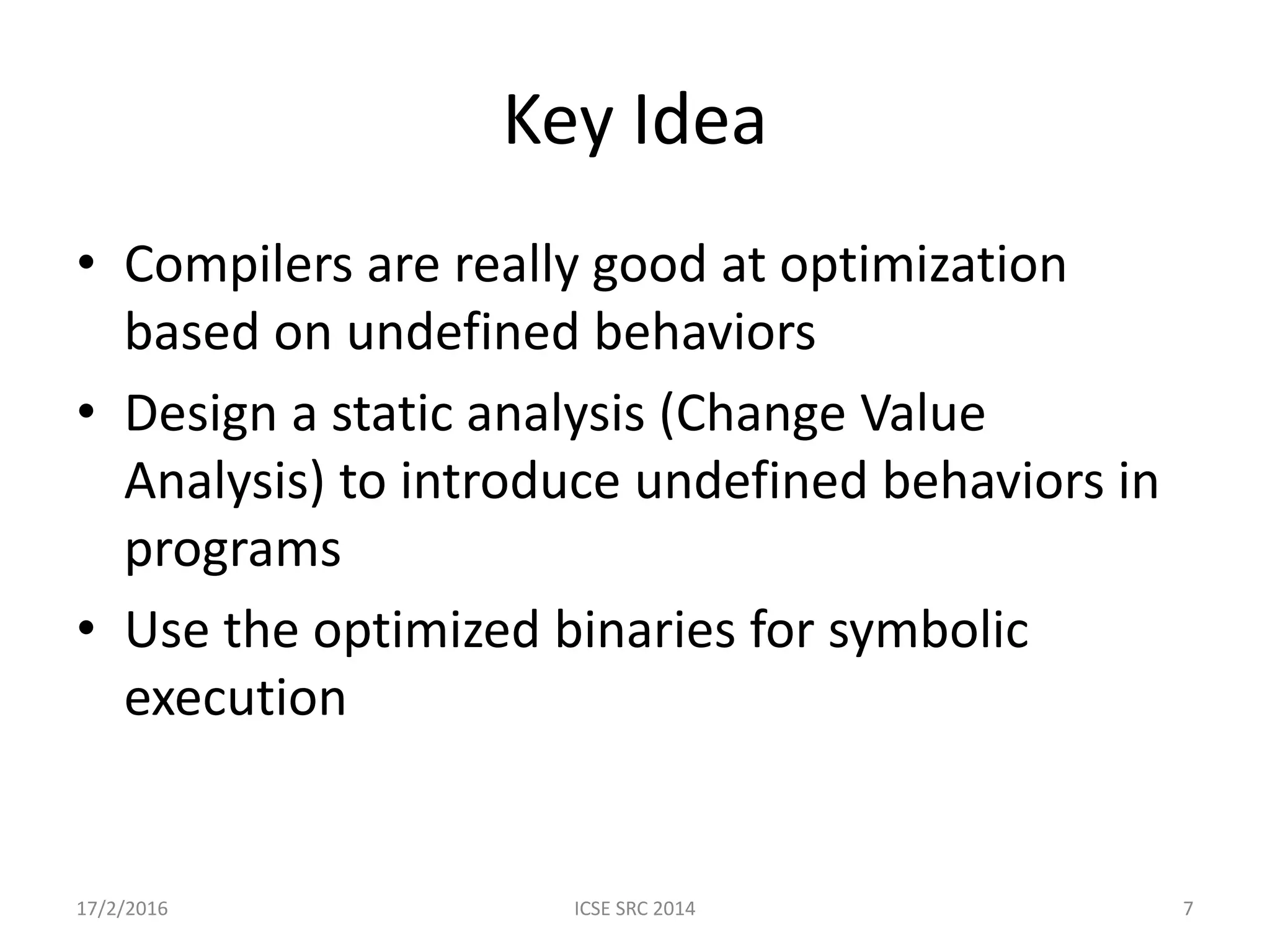

  Key Idea • Compilersare really good at optimization based on undefined behaviors • Design a static analysis (Change Value Analysis) to introduce undefined behaviors in programs • Use the optimized binaries for symbolic execution 17/2/2016 ICSE SRC 2014 7
• 8.

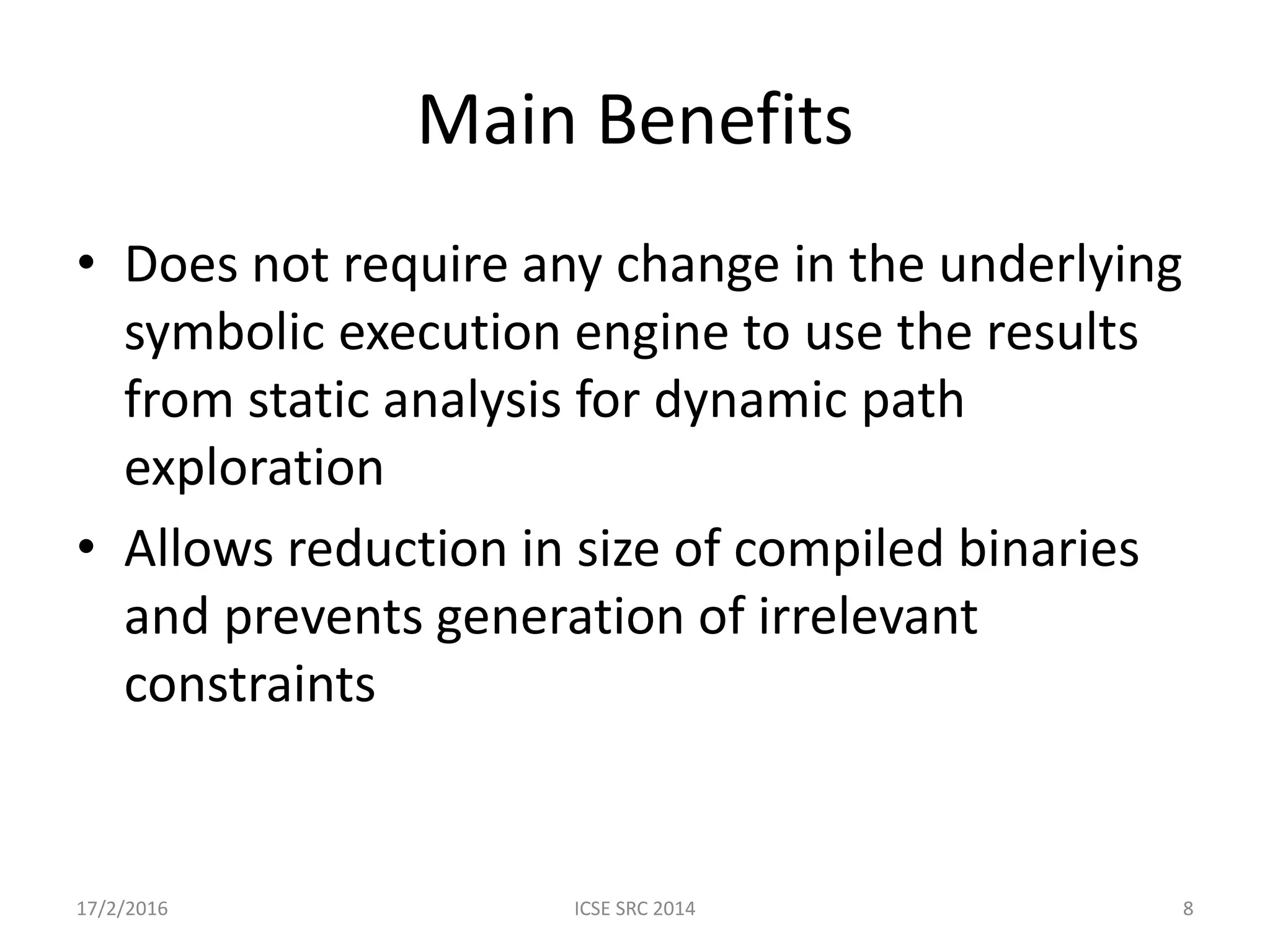

  Main Benefits • Doesnot require any change in the underlying symbolic execution engine to use the results from static analysis for dynamic path exploration • Allows reduction in size of compiled binaries and prevents generation of irrelevant constraints 17/2/2016 ICSE SRC 2014 8
• 9.

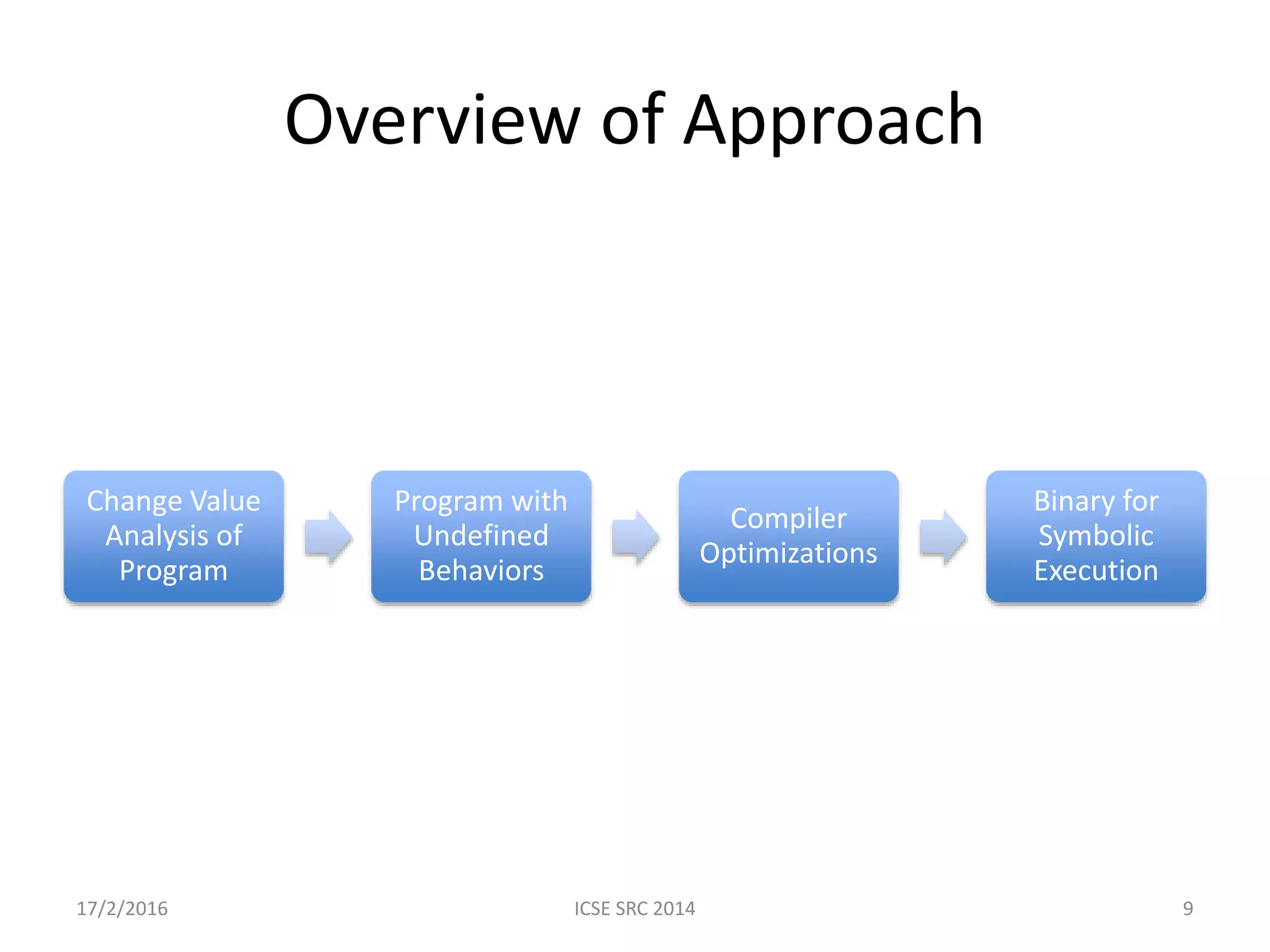

  Overview of Approach ChangeValue Analysis of Program Program with Undefined Behaviors Compiler Optimizations Binary for Symbolic Execution 17/2/2016 ICSE SRC 2014 9
• 10.

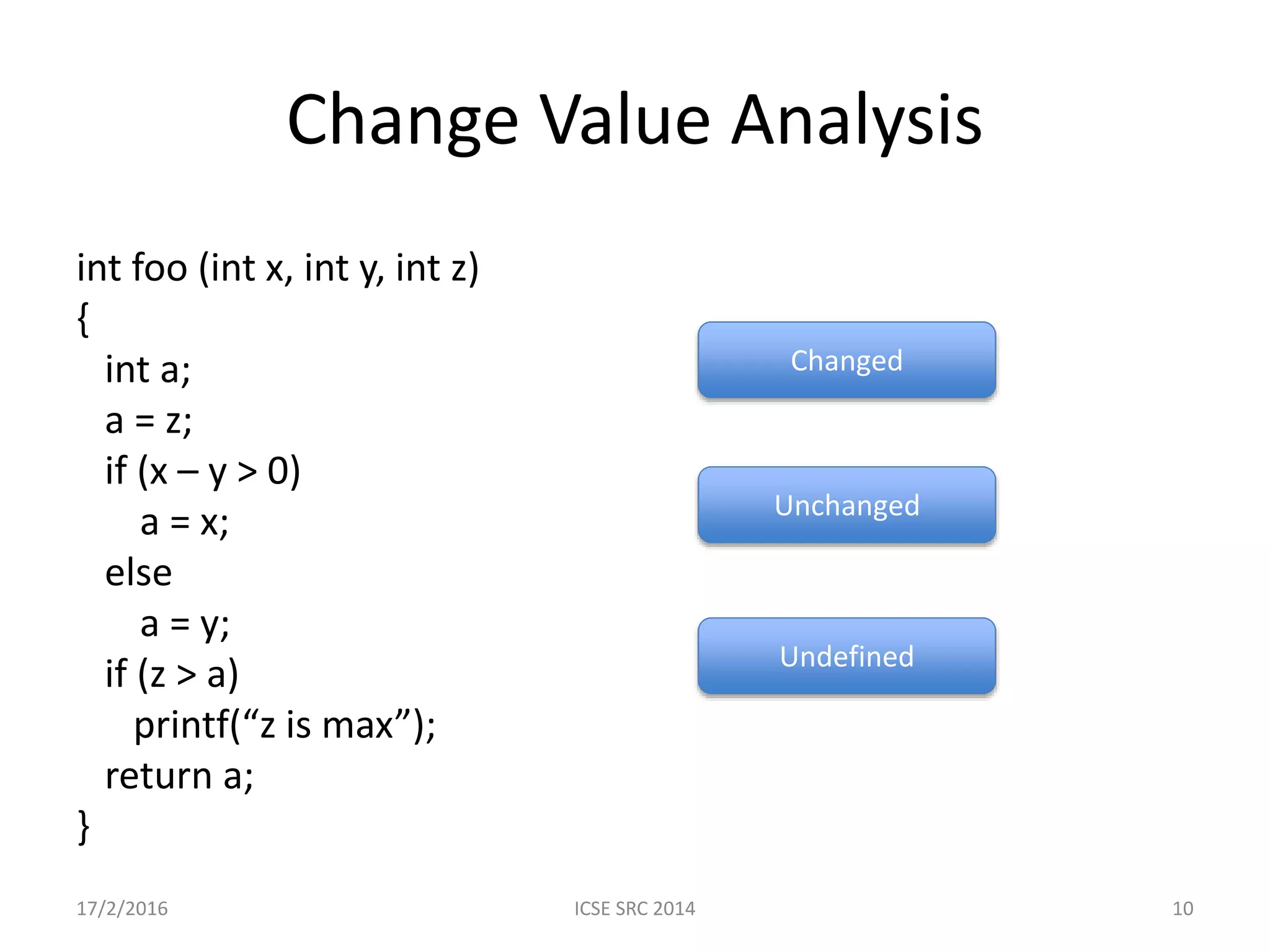

  Change Value Analysis intfoo (int x, int y, int z) { int a; a = z; if (x – y > 0) a = x; else a = y; if (z > a) printf(“z is max”); return a; } Changed Unchanged Undefined 17/2/2016 ICSE SRC 2014 10
• 11.
  Change Value Analysis intfoo (int x, int y, int z) { int a; a = z; if (x – y > 0) a = x; else a = y; if (z > a) printf(“z is max”); return a; } Changed Unchanged Undefined a 17/2/2016 ICSE SRC 2014 11
• 12.

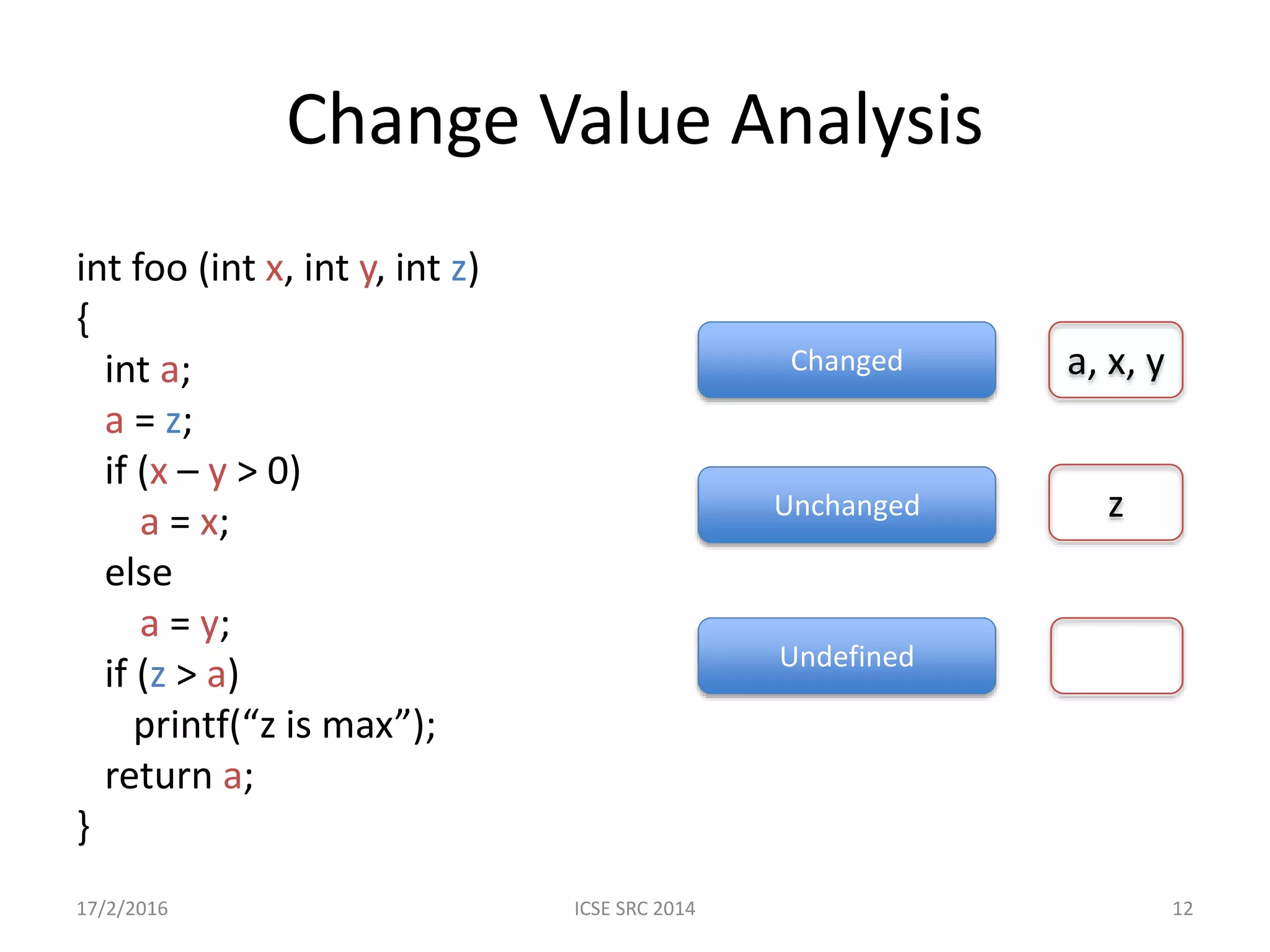

  Change Value Analysis intfoo (int x, int y, int z) { int a; a = z; if (x – y > 0) a = x; else a = y; if (z > a) printf(“z is max”); return a; } Changed Unchanged Undefined a, x, y z 17/2/2016 ICSE SRC 2014 12
• 13.

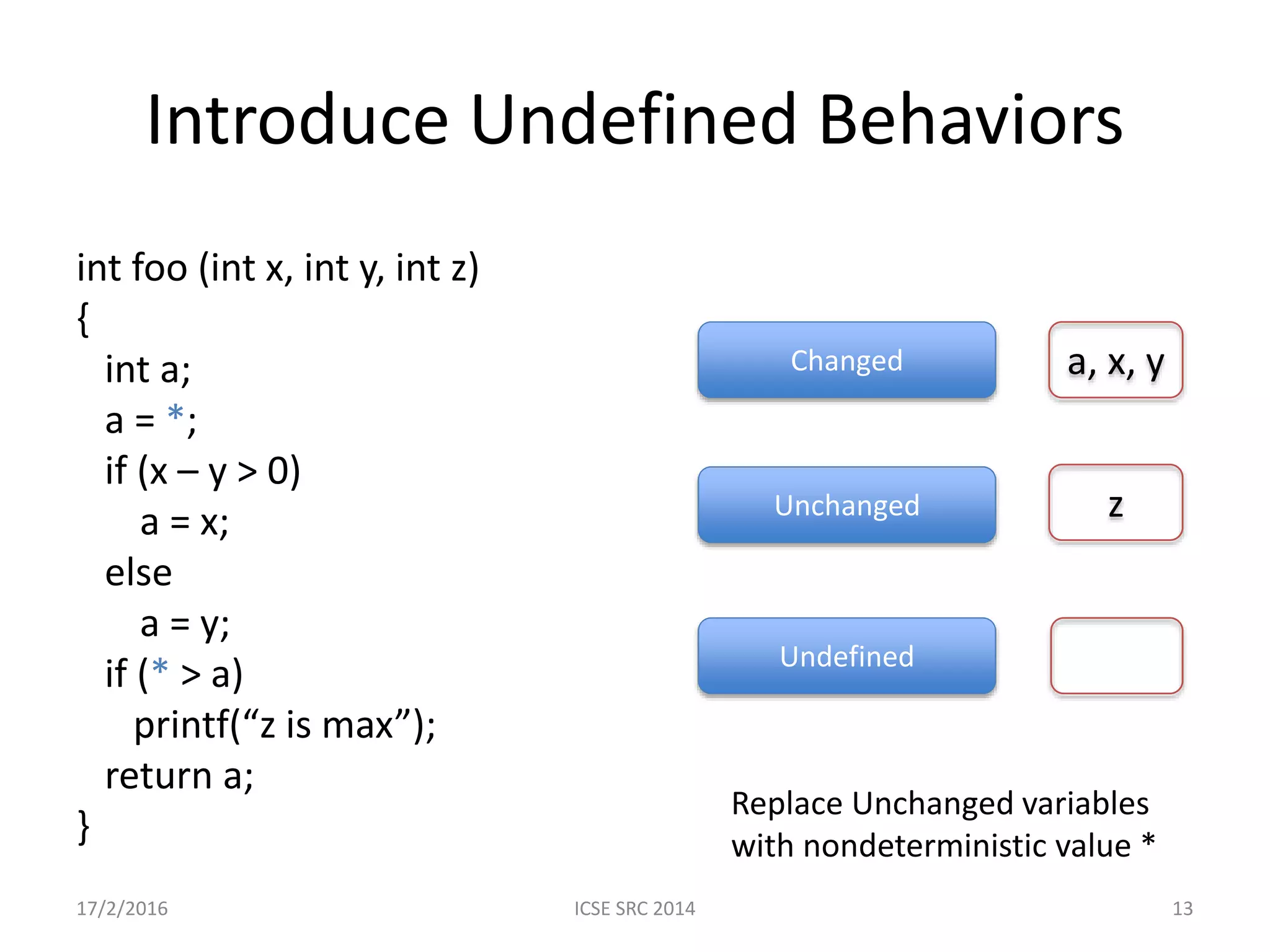

  Introduce Undefined Behaviors intfoo (int x, int y, int z) { int a; a = *; if (x – y > 0) a = x; else a = y; if (* > a) printf(“z is max”); return a; } Changed Unchanged Undefined a, x, y z Replace Unchanged variables with nondeterministic value * 17/2/2016 ICSE SRC 2014 13
• 14.

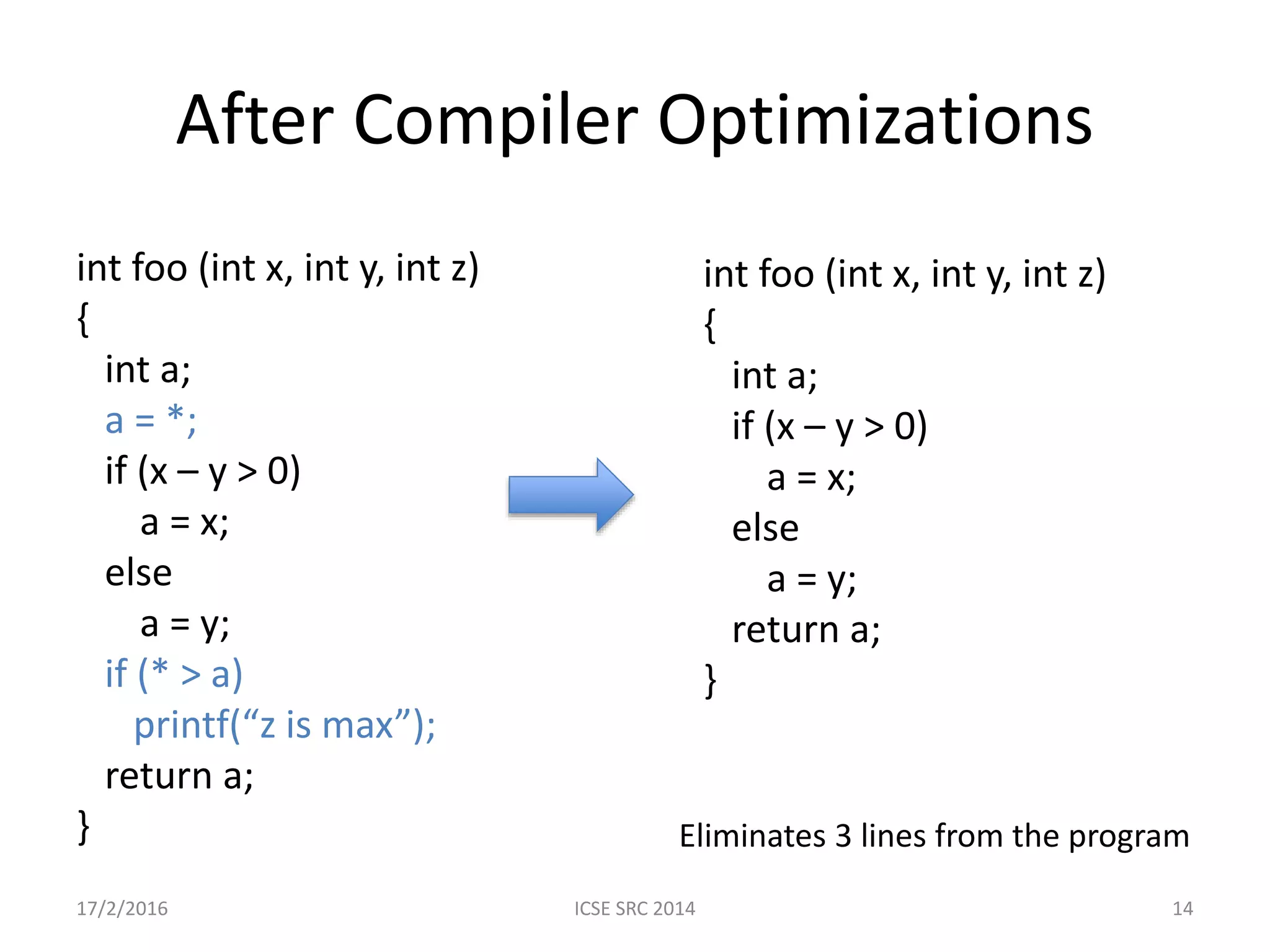

  After Compiler Optimizations intfoo (int x, int y, int z) { int a; a = *; if (x – y > 0) a = x; else a = y; if (* > a) printf(“z is max”); return a; } int foo (int x, int y, int z) { int a; if (x – y > 0) a = x; else a = y; return a; } Eliminates 3 lines from the program 17/2/2016 ICSE SRC 2014 14
• 15.

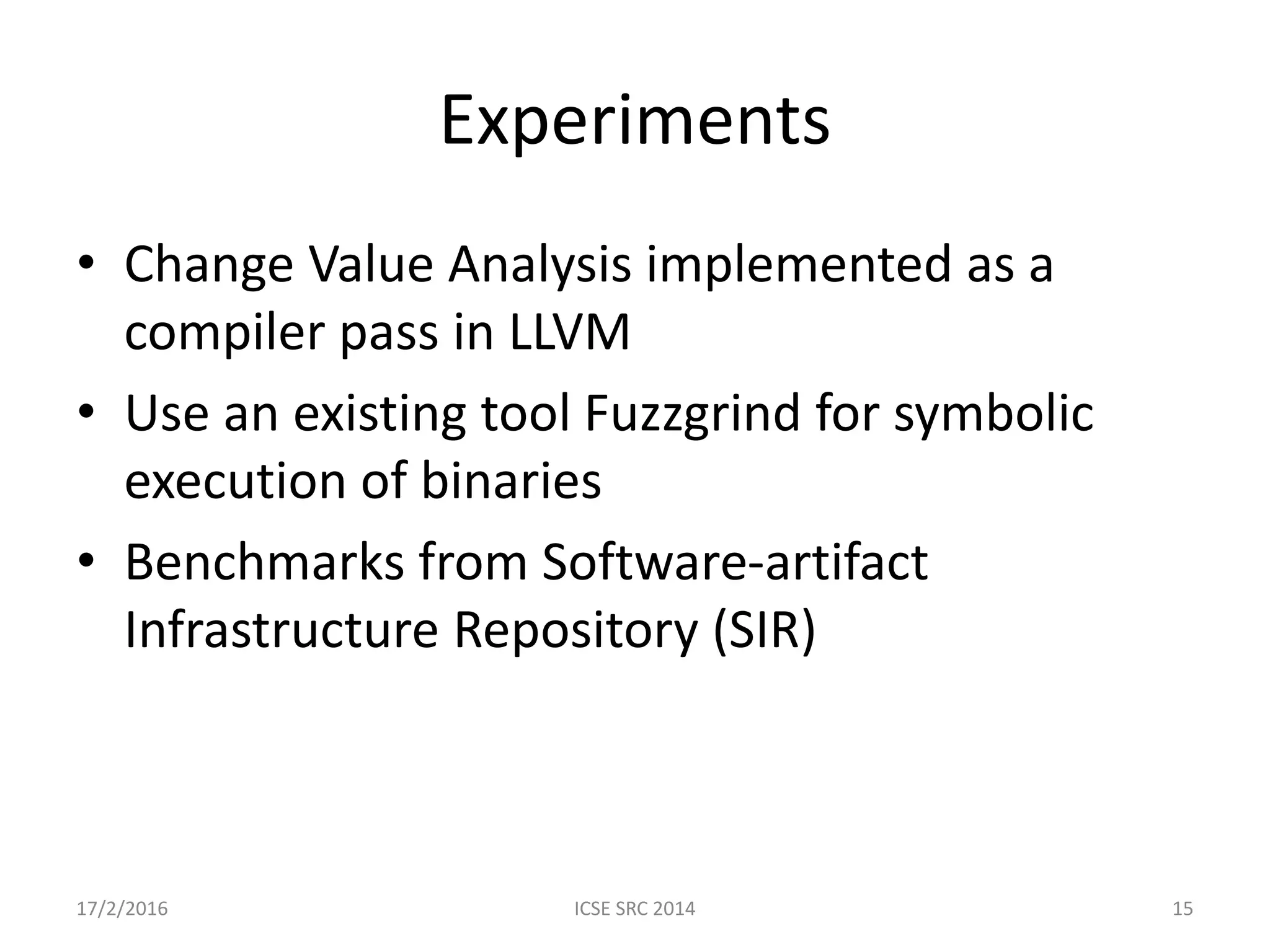

  Experiments • Change ValueAnalysis implemented as a compiler pass in LLVM • Use an existing tool Fuzzgrind for symbolic execution of binaries • Benchmarks from Software-artifact Infrastructure Repository (SIR) 17/2/2016 ICSE SRC 2014 15
• 16.

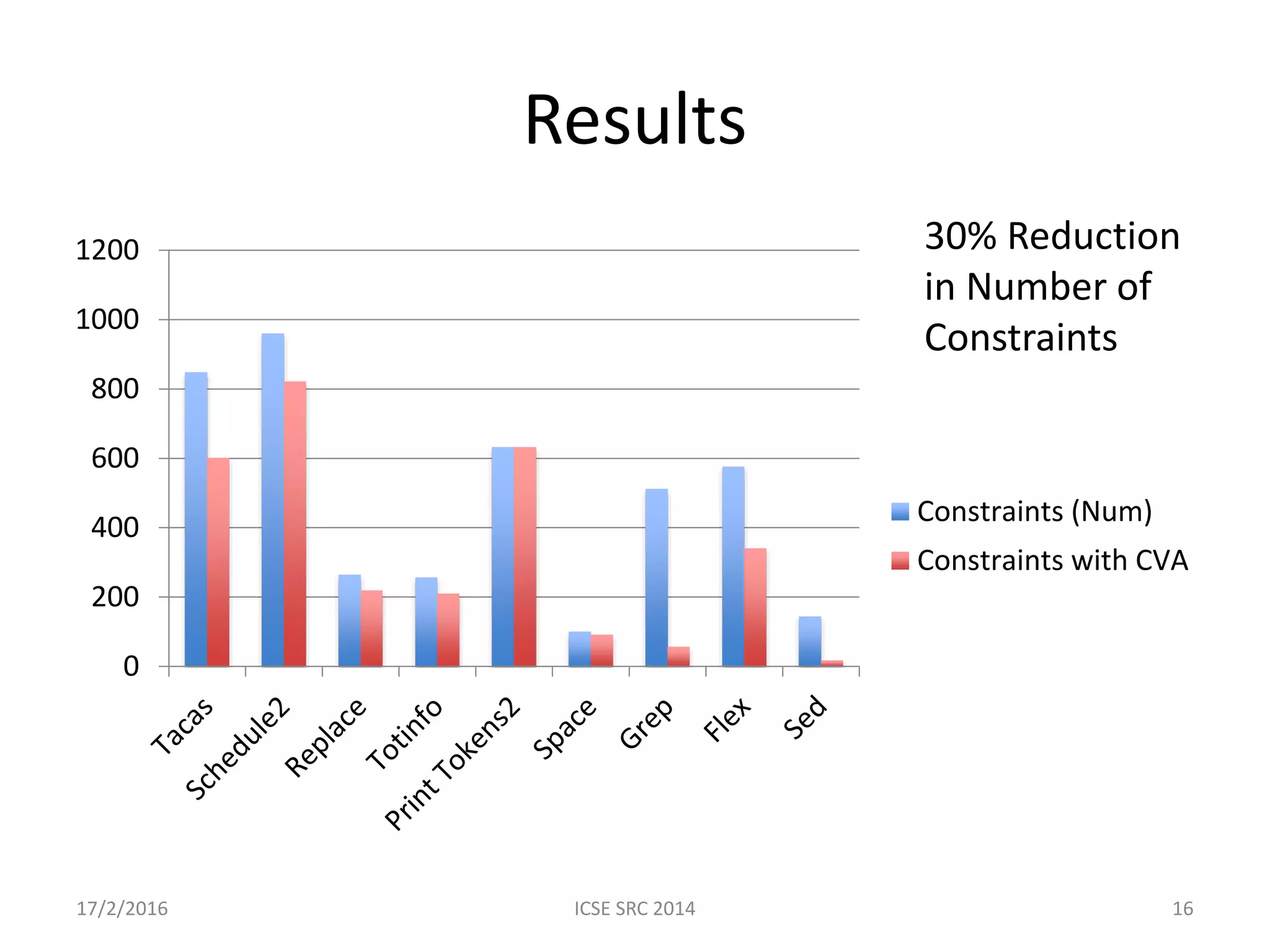

  Results 0 200 400 600 800 1000 1200 Constraints (Num) Constraints withCVA 30% Reduction in Number of Constraints 17/2/2016 ICSE SRC 2014 16
• 17.

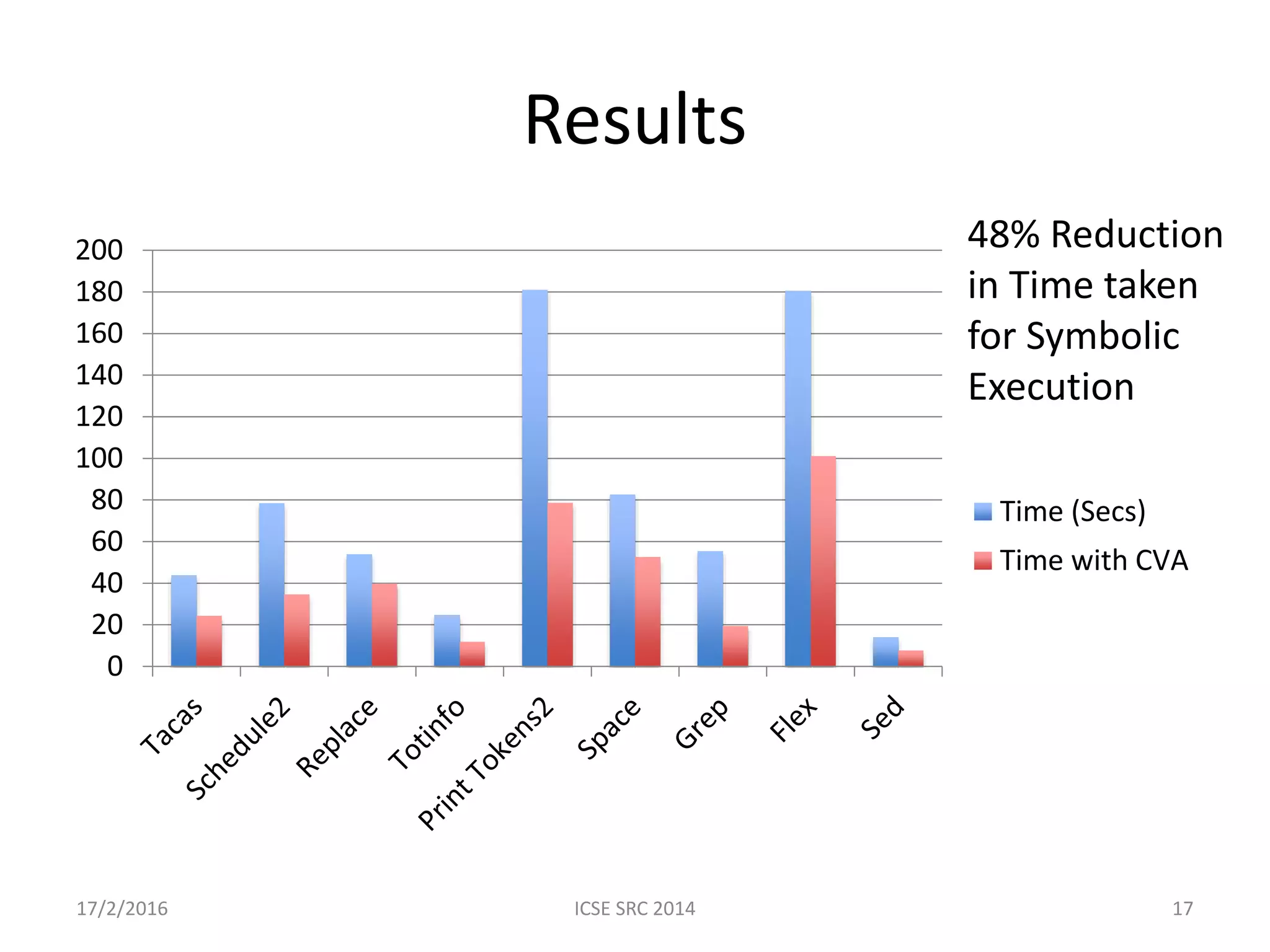

  Results 0 20 40 60 80 100 120 140 160 180 200 Time (Secs) Time withCVA 48% Reduction in Time taken for Symbolic Execution 17/2/2016 ICSE SRC 2014 17
• 18.

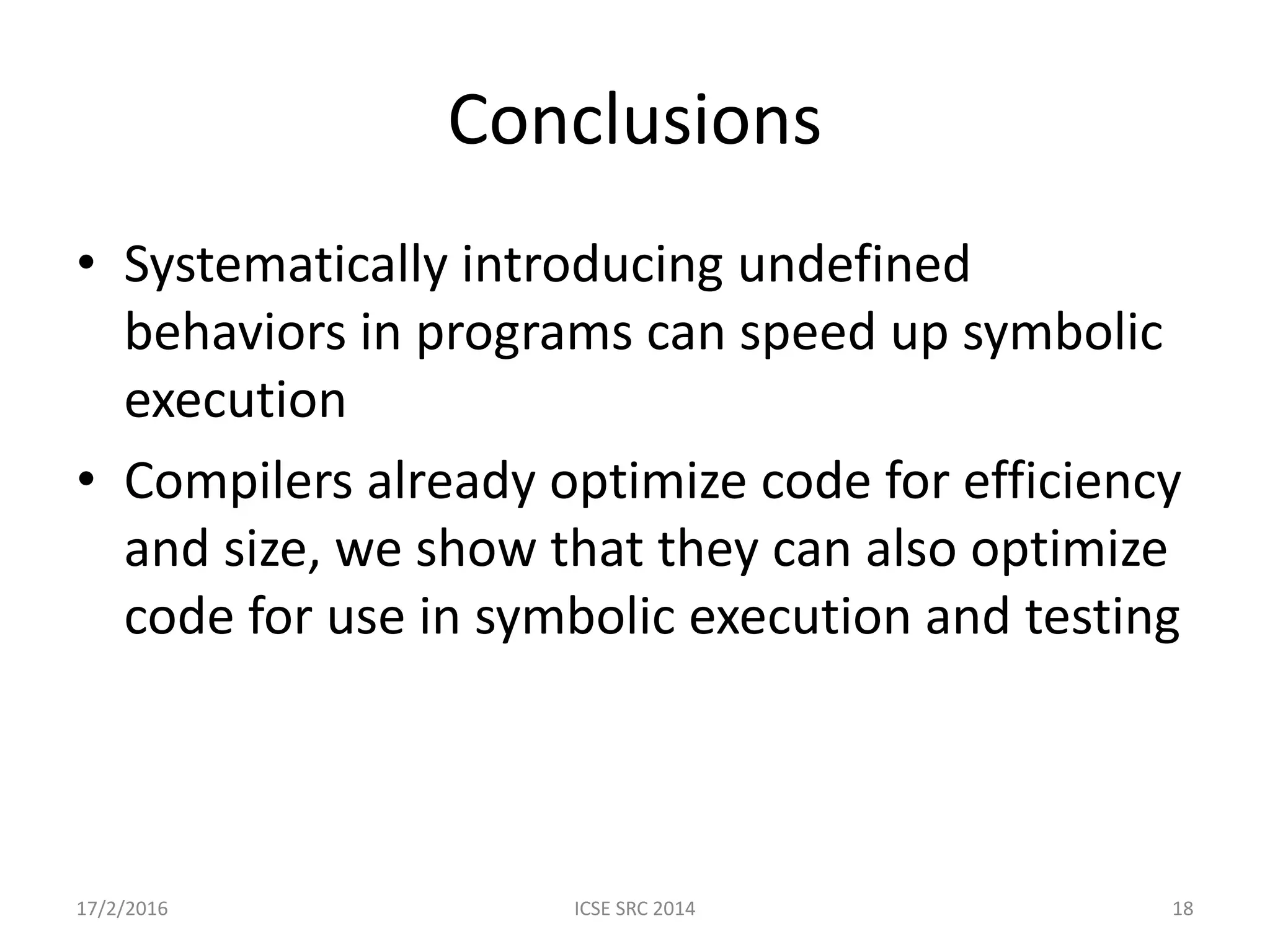

  Conclusions • Systematically introducingundefined behaviors in programs can speed up symbolic execution • Compilers already optimize code for efficiency and size, we show that they can also optimize code for use in symbolic execution and testing 17/2/2016 ICSE SRC 2014 18
• 19.

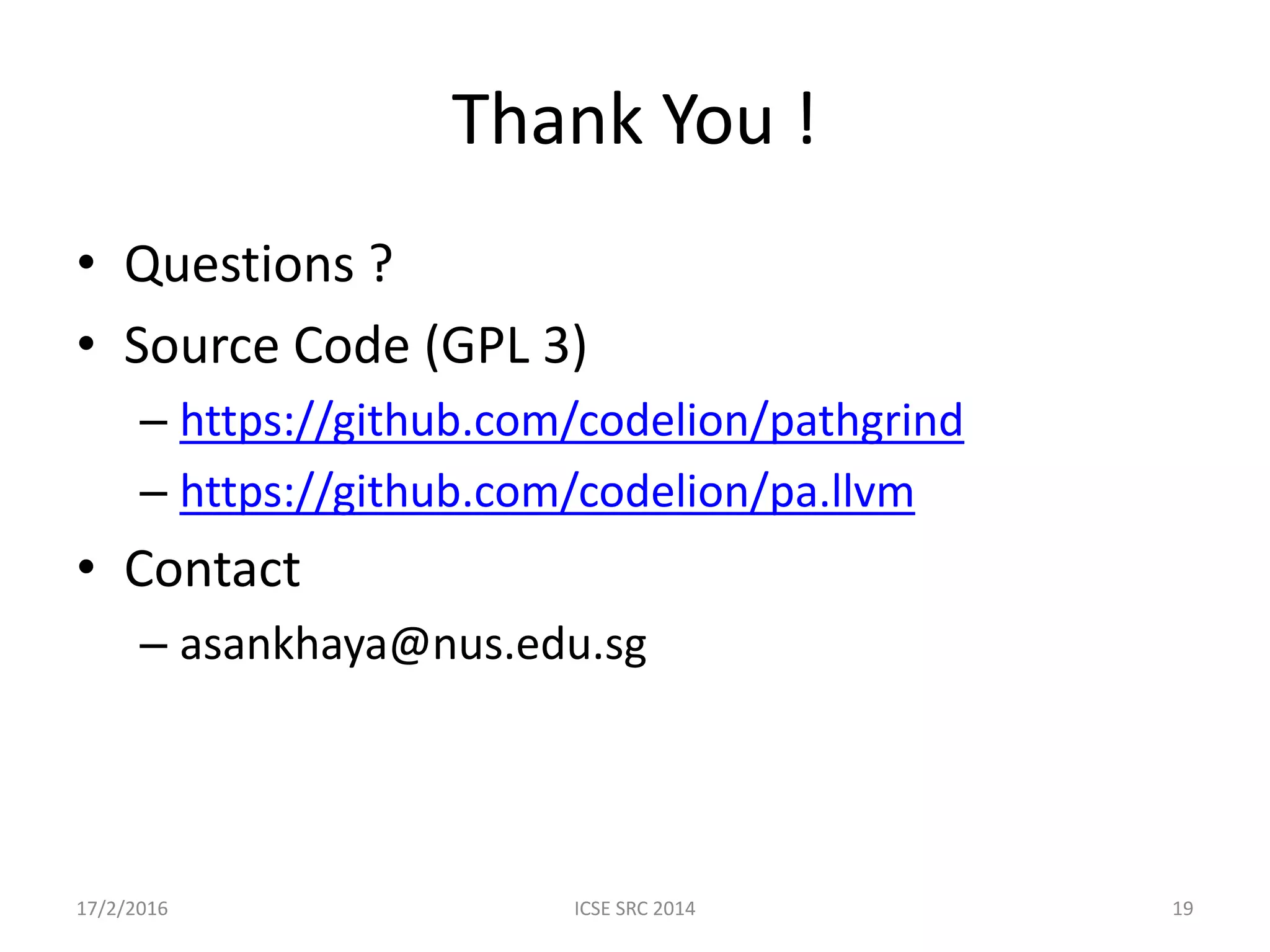

  Thank You ! •Questions ? • Source Code (GPL 3) – https://github.com/codelion/pathgrind – https://github.com/codelion/pa.llvm • Contact – asankhaya@nus.edu.sg 17/2/2016 ICSE SRC 2014 19
• 20.

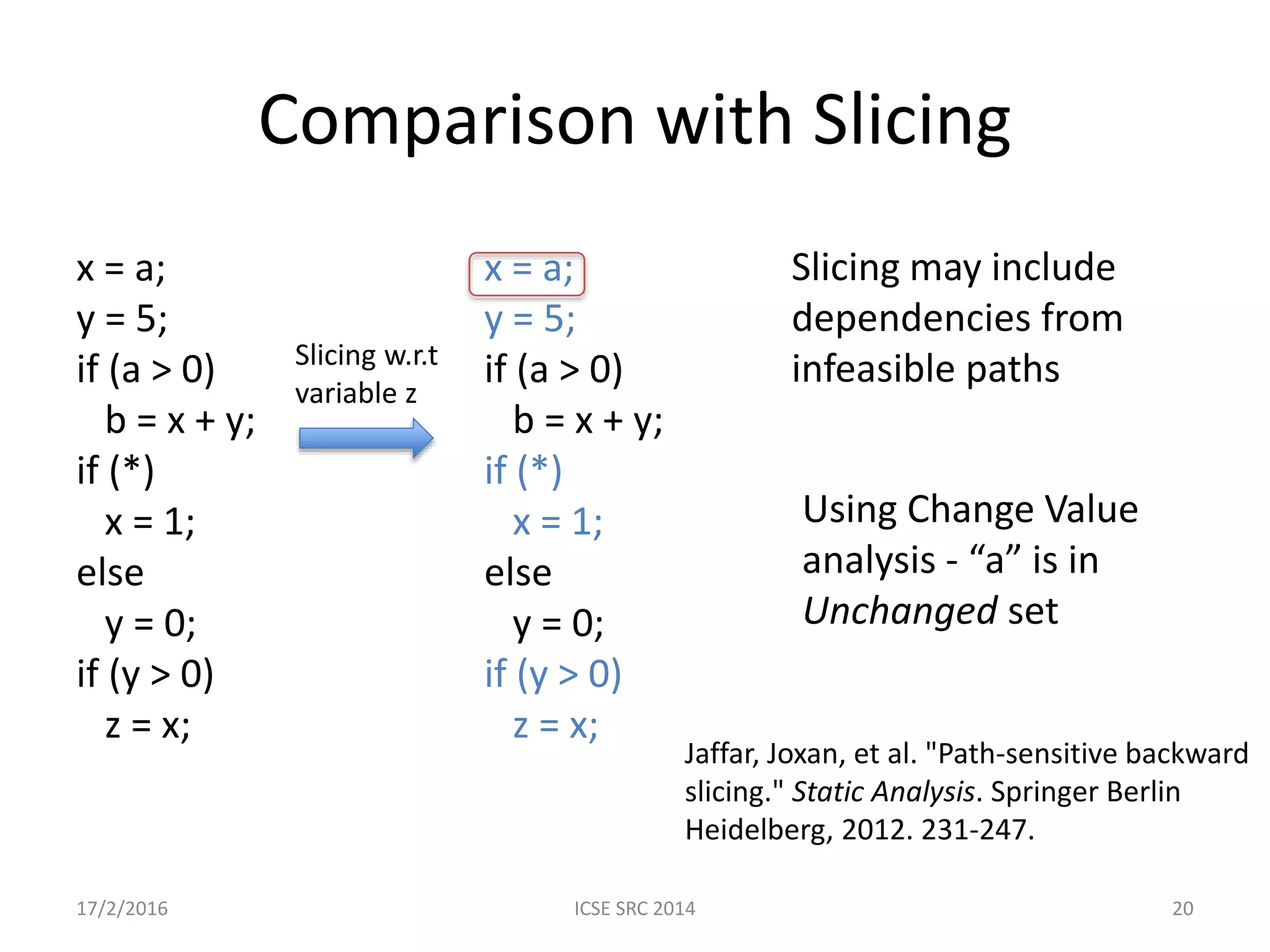

  Comparison with Slicing 17/2/2016ICSE SRC 2014 20 x = a; y = 5; if (a > 0) b = x + y; if (*) x = 1; else y = 0; if (y > 0) z = x; Slicing w.r.t variable z x = a; y = 5; if (a > 0) b = x + y; if (*) x = 1; else y = 0; if (y > 0) z = x; Slicing may include dependencies from infeasible paths Jaffar, Joxan, et al. "Path-sensitive backward slicing." Static Analysis. Springer Berlin Heidelberg, 2012. 231-247. Using Change Value analysis - “a” is in Unchanged set
