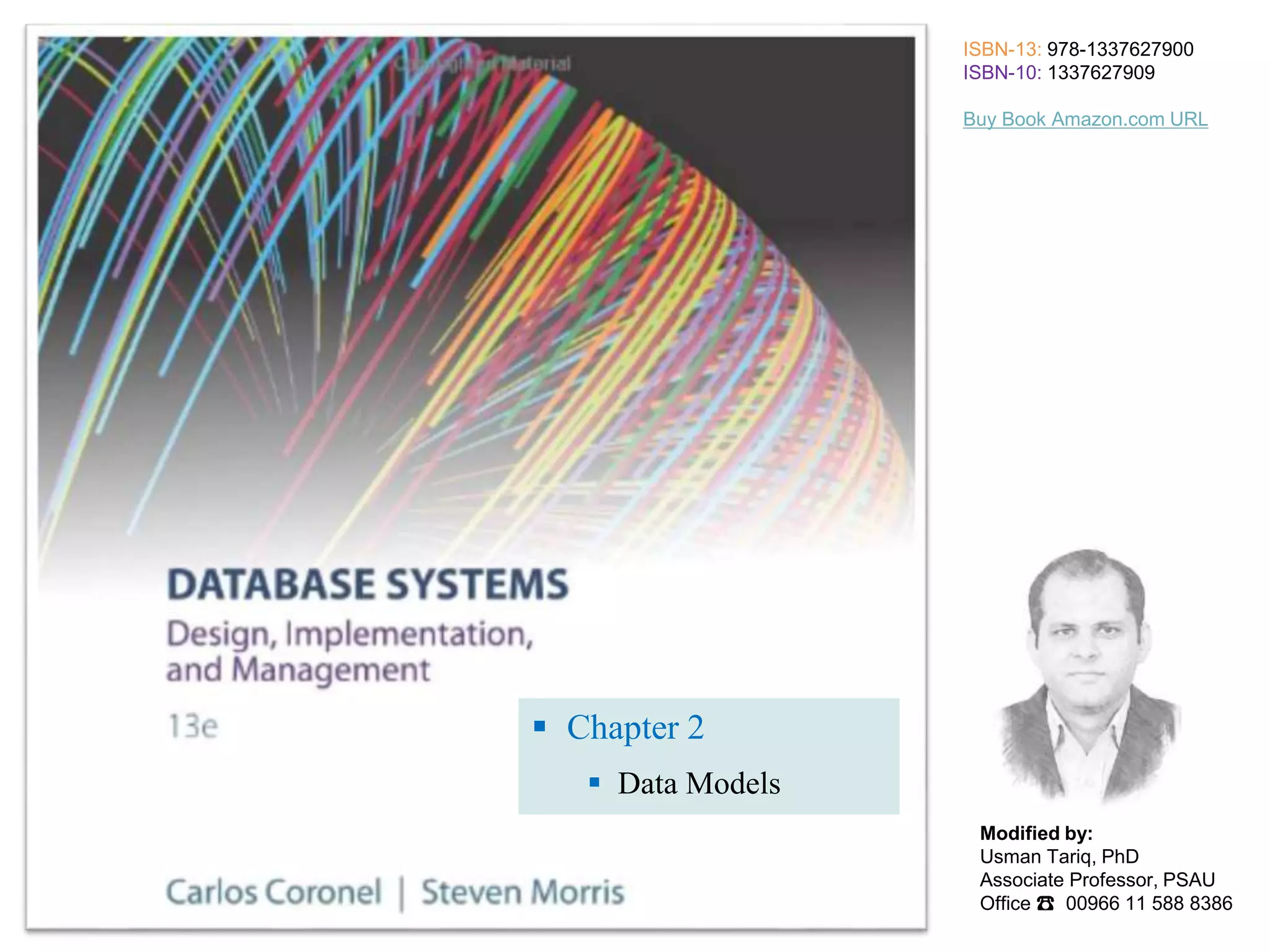

 Chapter 2  Data Models ISBN-13: 978-1337627900 ISBN-10: 1337627909 Buy Book Amazon.com URL Modified by: Usman Tariq, PhD Associate Professor, PSAU Office ☎ 00966 11 588 8386

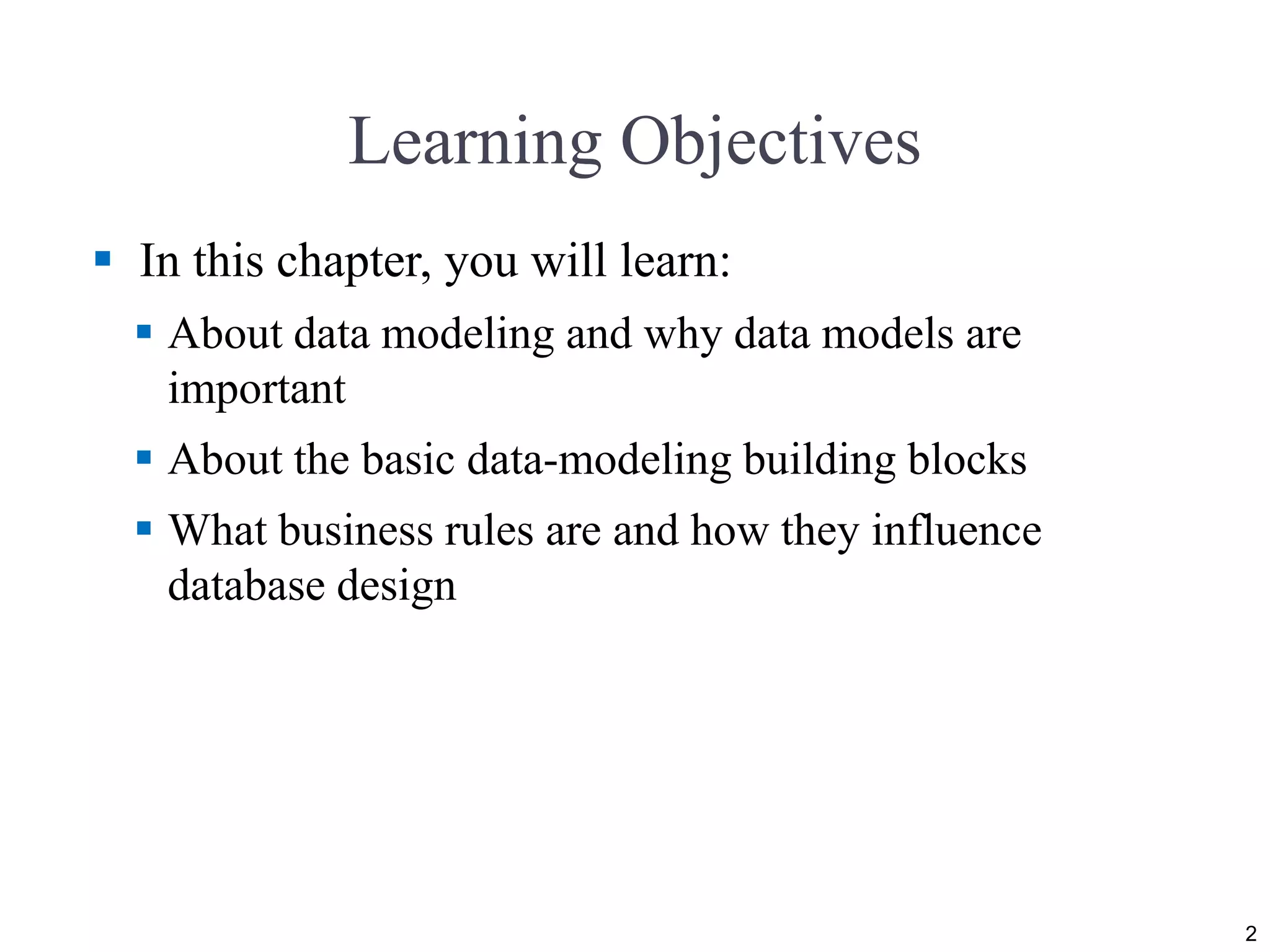

Learning Objectives  In this chapter, you will learn:  About data modeling and why data models are important  About the basic data-modeling building blocks  What business rules are and how they influence database design 2

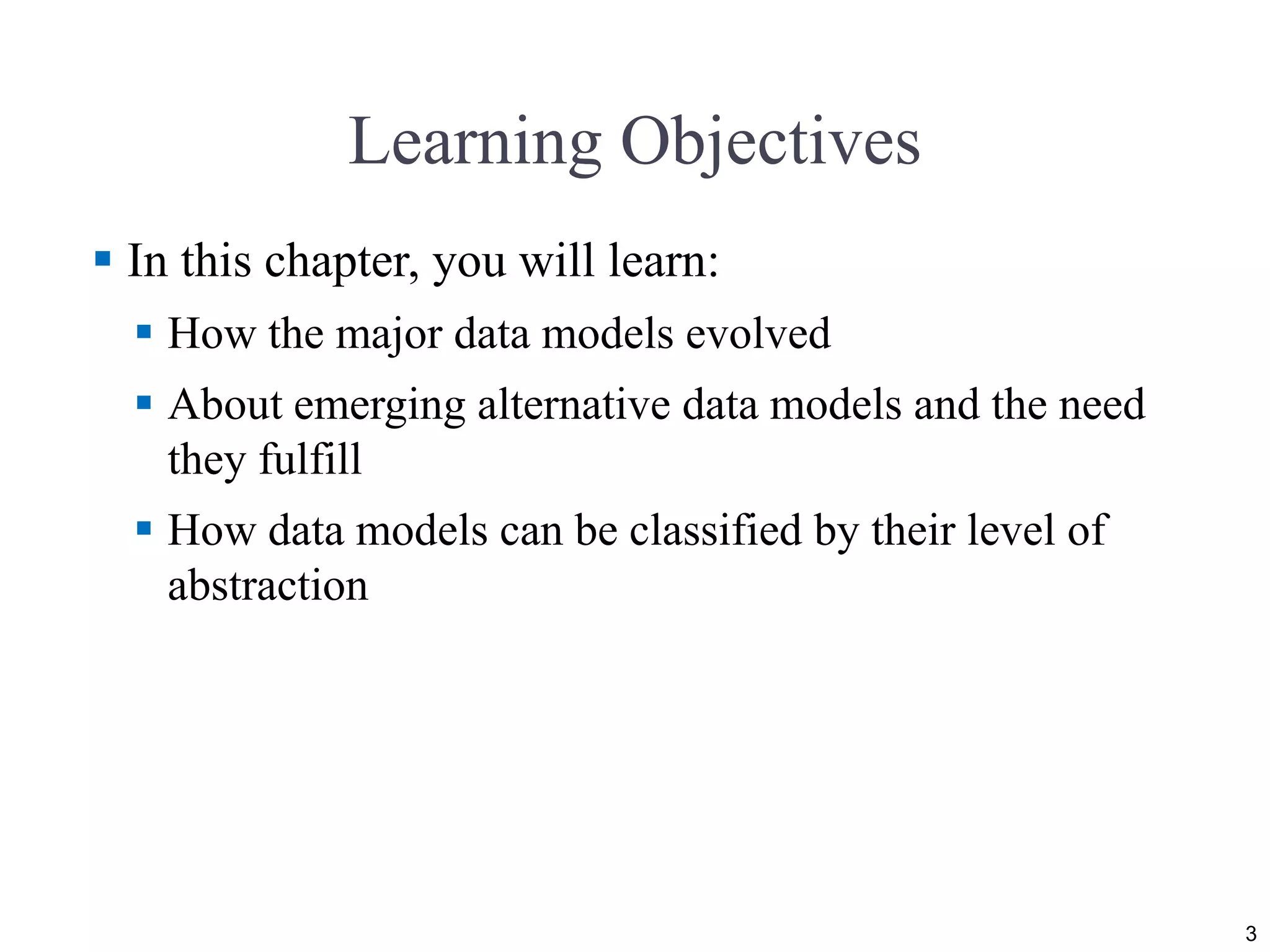

Learning Objectives  In this chapter, you will learn:  How the major data models evolved  About emerging alternative data models and the need they fulfill  How data models can be classified by their level of abstraction 3

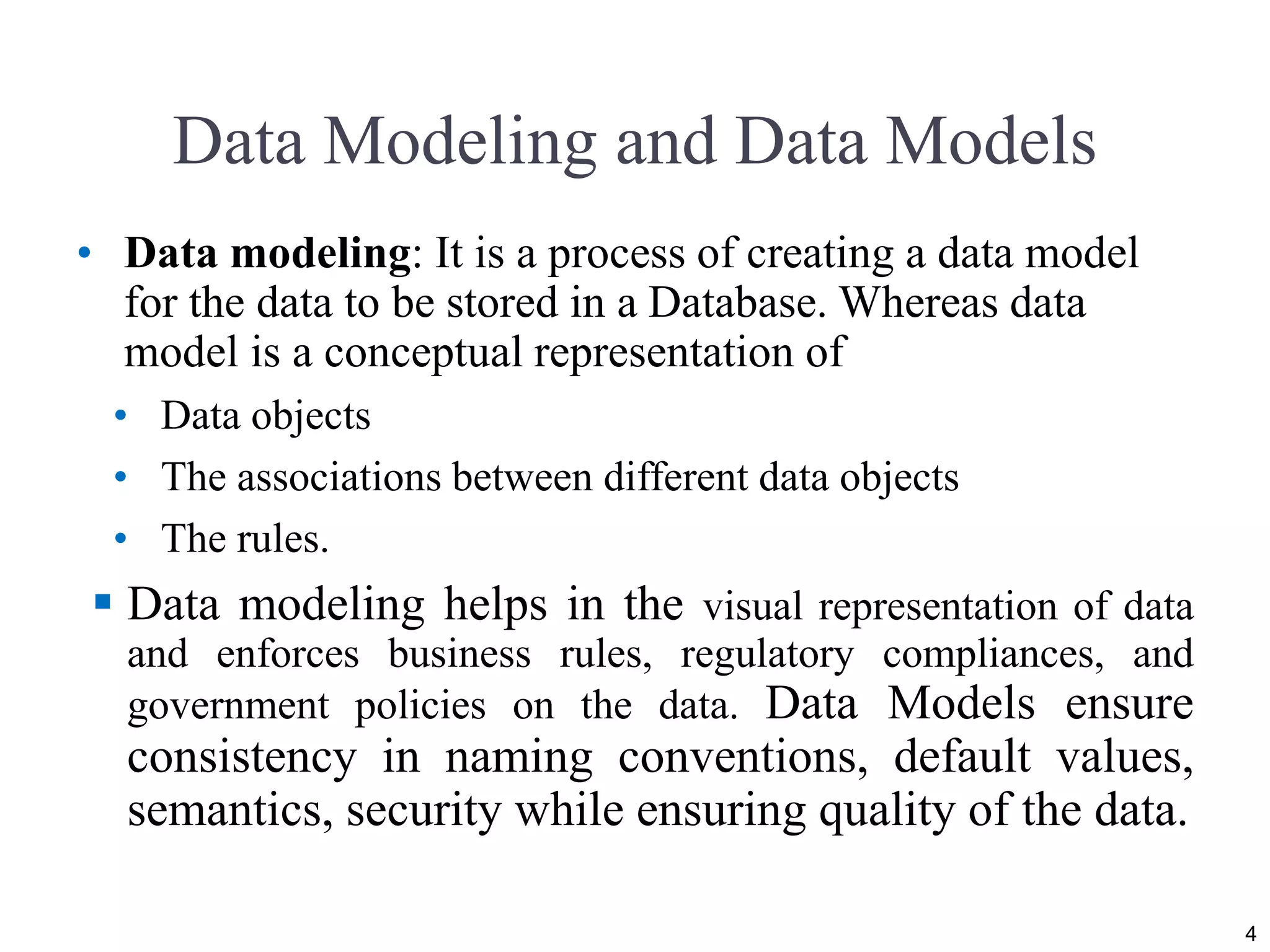

Data Modeling and Data Models • Data modeling: It is a process of creating a data model for the data to be stored in a Database. Whereas data model is a conceptual representation of • Data objects • The associations between different data objects • The rules.  Data modeling helps in the visual representation of data and enforces business rules, regulatory compliances, and government policies on the data. Data Models ensure consistency in naming conventions, default values, semantics, security while ensuring quality of the data. 4

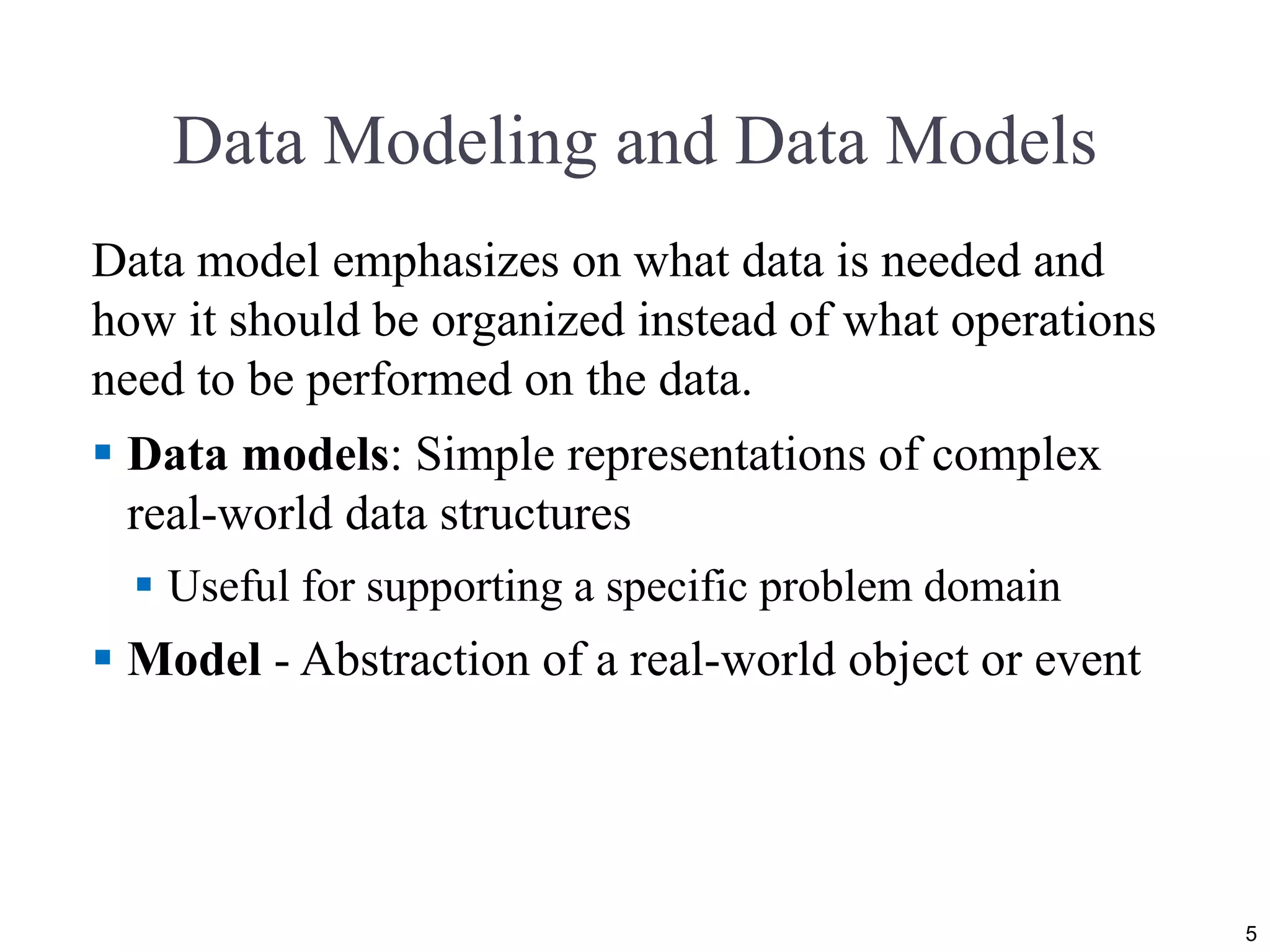

Data Modeling and Data Models Data model emphasizes on what data is needed and how it should be organized instead of what operations need to be performed on the data.  Data models: Simple representations of complex real-world data structures  Useful for supporting a specific problem domain  Model - Abstraction of a real-world object or event 5

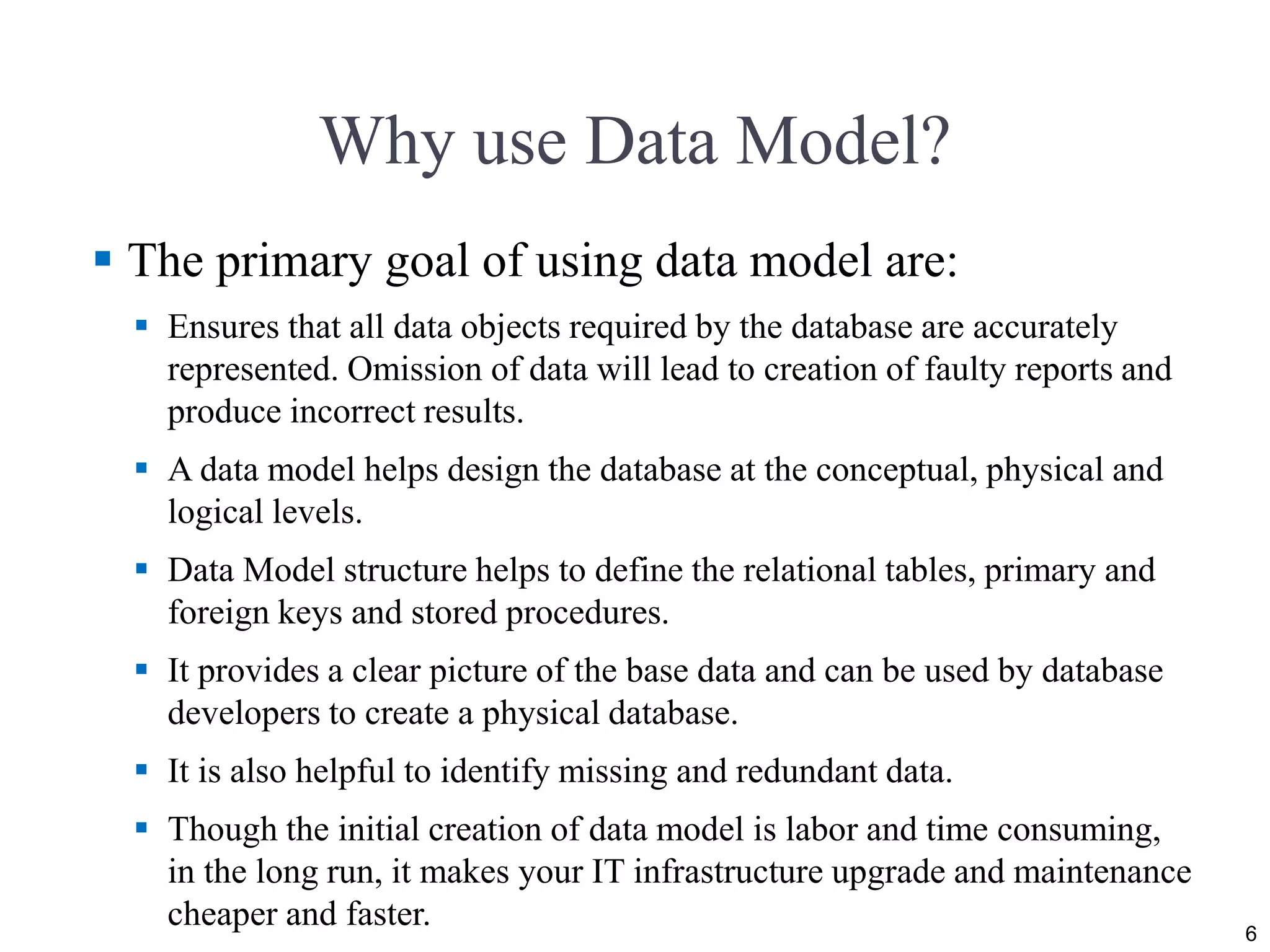

Why use Data Model?  The primary goal of using data model are:  Ensures that all data objects required by the database are accurately represented. Omission of data will lead to creation of faulty reports and produce incorrect results.  A data model helps design the database at the conceptual, physical and logical levels.  Data Model structure helps to define the relational tables, primary and foreign keys and stored procedures.  It provides a clear picture of the base data and can be used by database developers to create a physical database.  It is also helpful to identify missing and redundant data.  Though the initial creation of data model is labor and time consuming, in the long run, it makes your IT infrastructure upgrade and maintenance cheaper and faster. 6

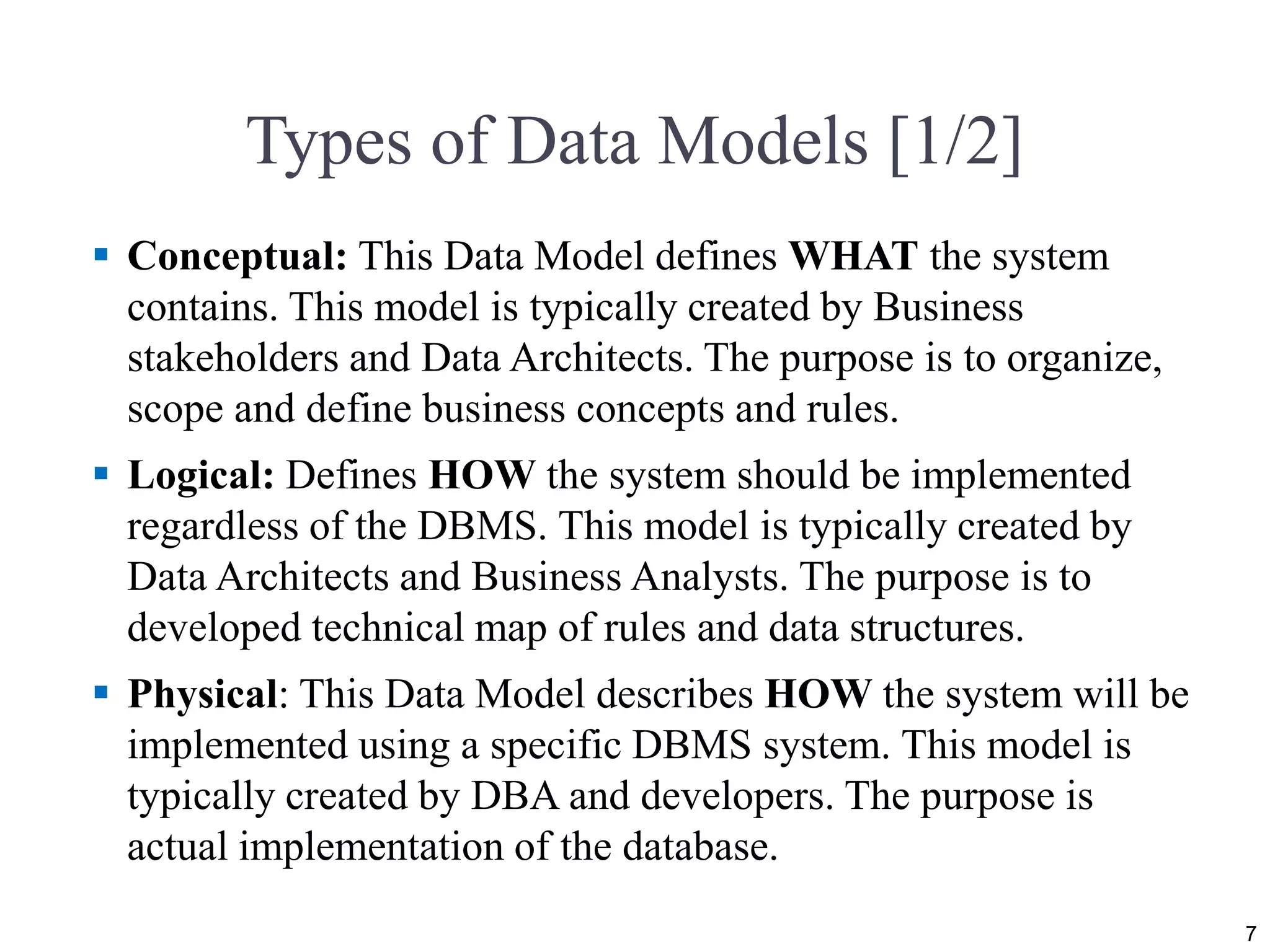

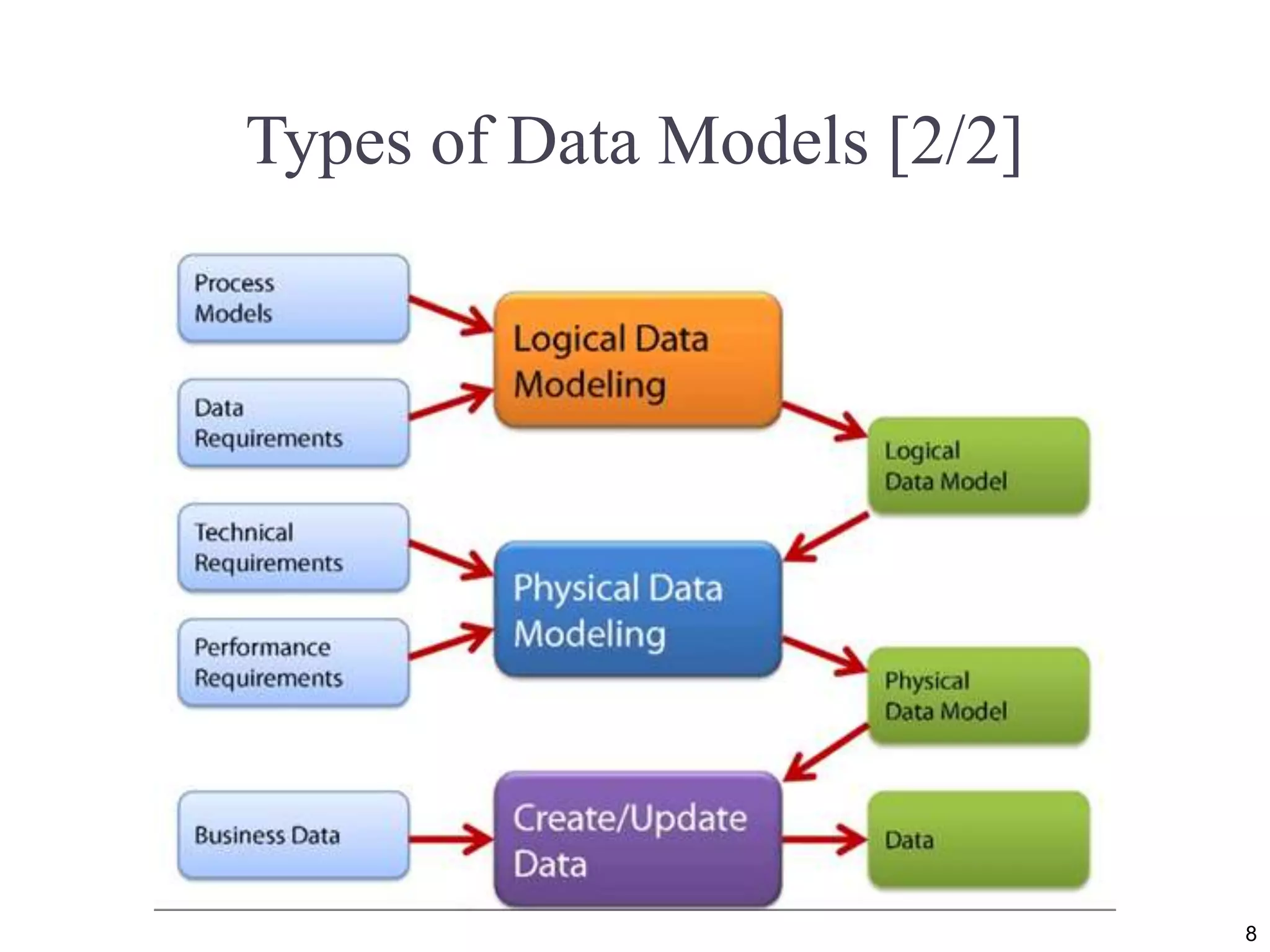

Types of Data Models [1/2]  Conceptual: This Data Model defines WHAT the system contains. This model is typically created by Business stakeholders and Data Architects. The purpose is to organize, scope and define business concepts and rules.  Logical: Defines HOW the system should be implemented regardless of the DBMS. This model is typically created by Data Architects and Business Analysts. The purpose is to developed technical map of rules and data structures.  Physical: This Data Model describes HOW the system will be implemented using a specific DBMS system. This model is typically created by DBA and developers. The purpose is actual implementation of the database. 7

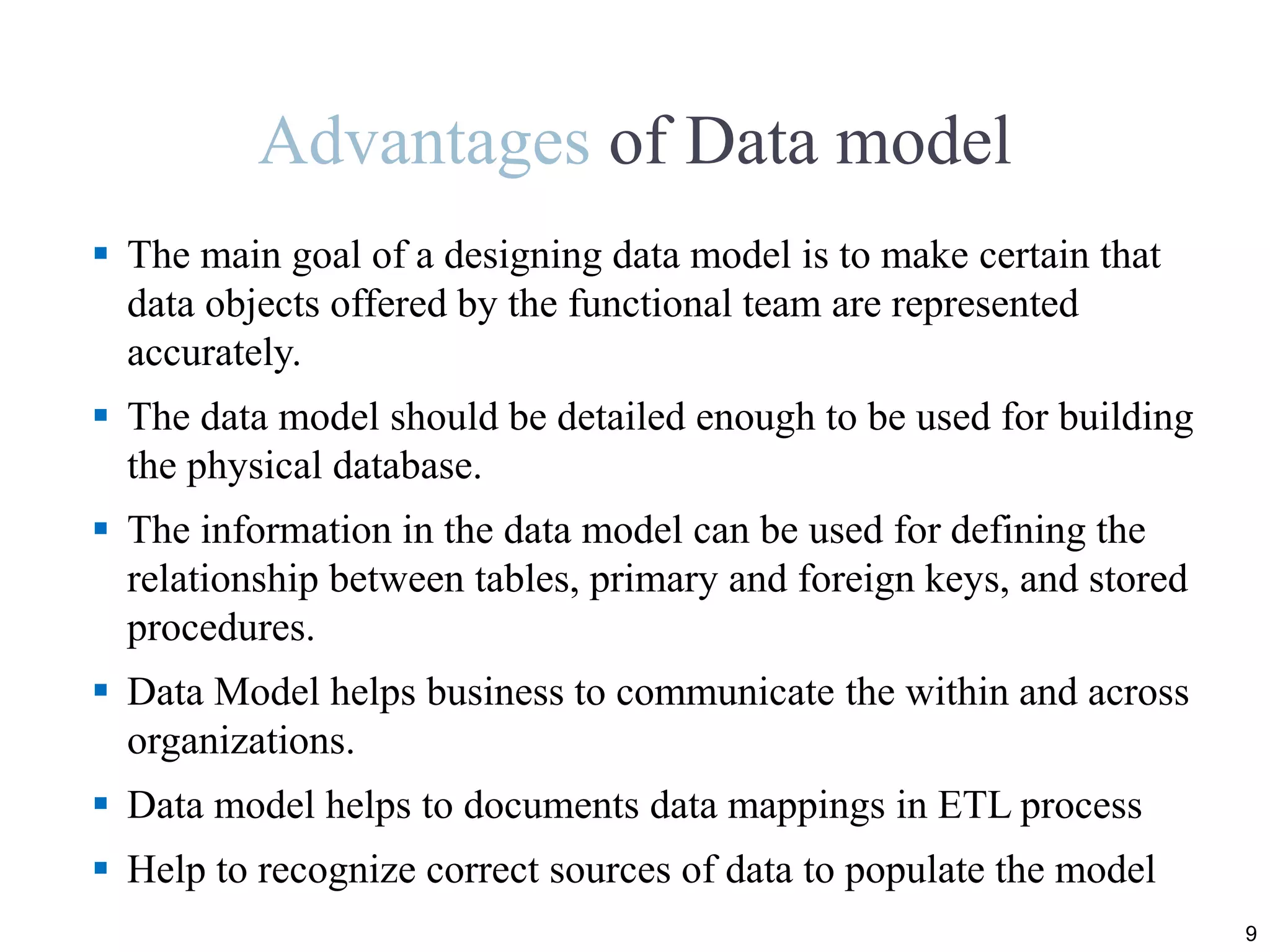

Advantages of Data model  The main goal of a designing data model is to make certain that data objects offered by the functional team are represented accurately.  The data model should be detailed enough to be used for building the physical database.  The information in the data model can be used for defining the relationship between tables, primary and foreign keys, and stored procedures.  Data Model helps business to communicate the within and across organizations.  Data model helps to documents data mappings in ETL process  Help to recognize correct sources of data to populate the model 9

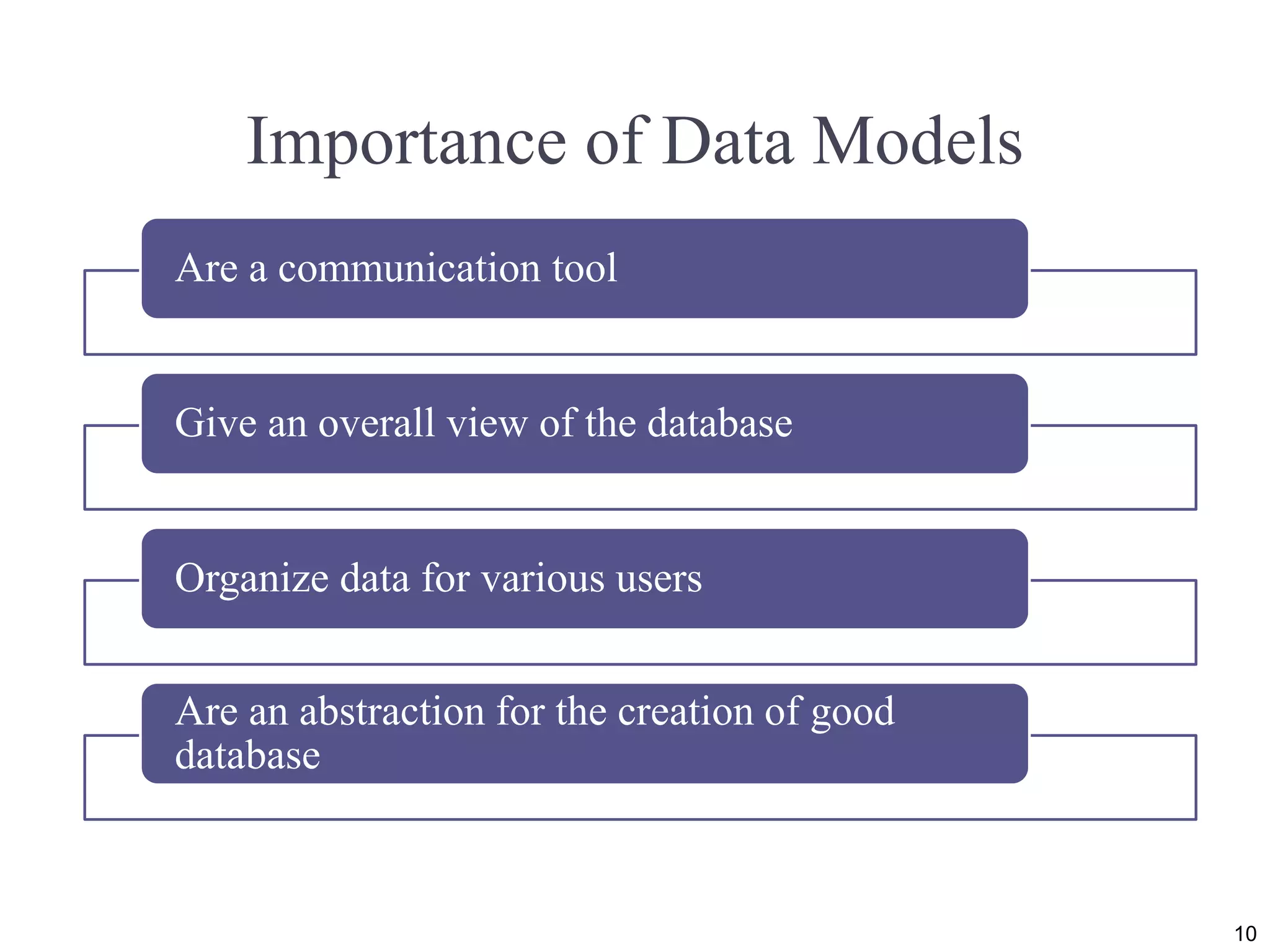

Importance of Data Models Are a communication tool Give an overall view of the database Organize data for various users Are an abstraction for the creation of good database 10

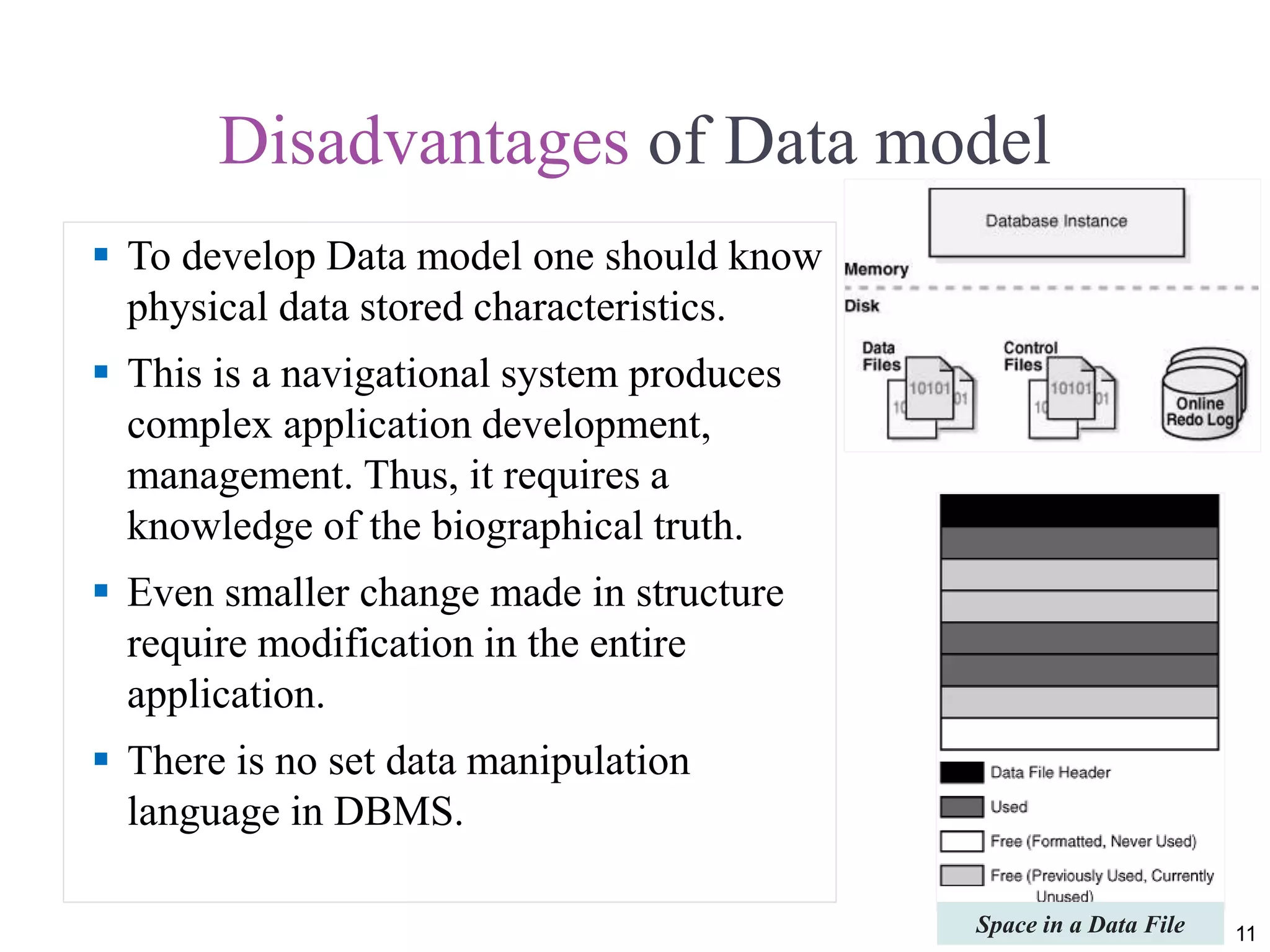

Disadvantages of Data model  To develop Data model one should know physical data stored characteristics.  This is a navigational system produces complex application development, management. Thus, it requires a knowledge of the biographical truth.  Even smaller change made in structure require modification in the entire application.  There is no set data manipulation language in DBMS. 11Space in a Data File

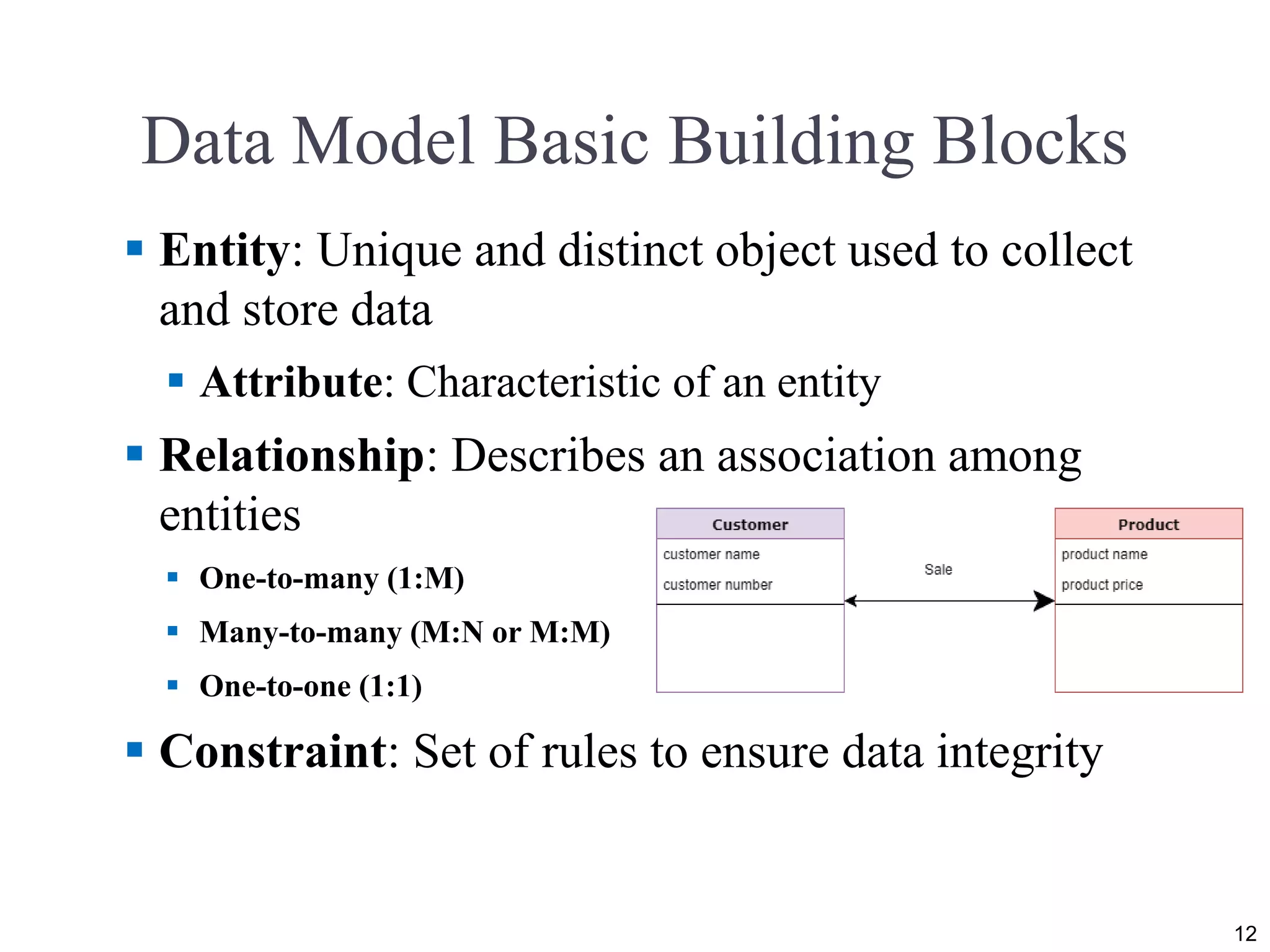

Data Model Basic Building Blocks  Entity: Unique and distinct object used to collect and store data  Attribute: Characteristic of an entity  Relationship: Describes an association among entities  One-to-many (1:M)  Many-to-many (M:N or M:M)  One-to-one (1:1)  Constraint: Set of rules to ensure data integrity 12

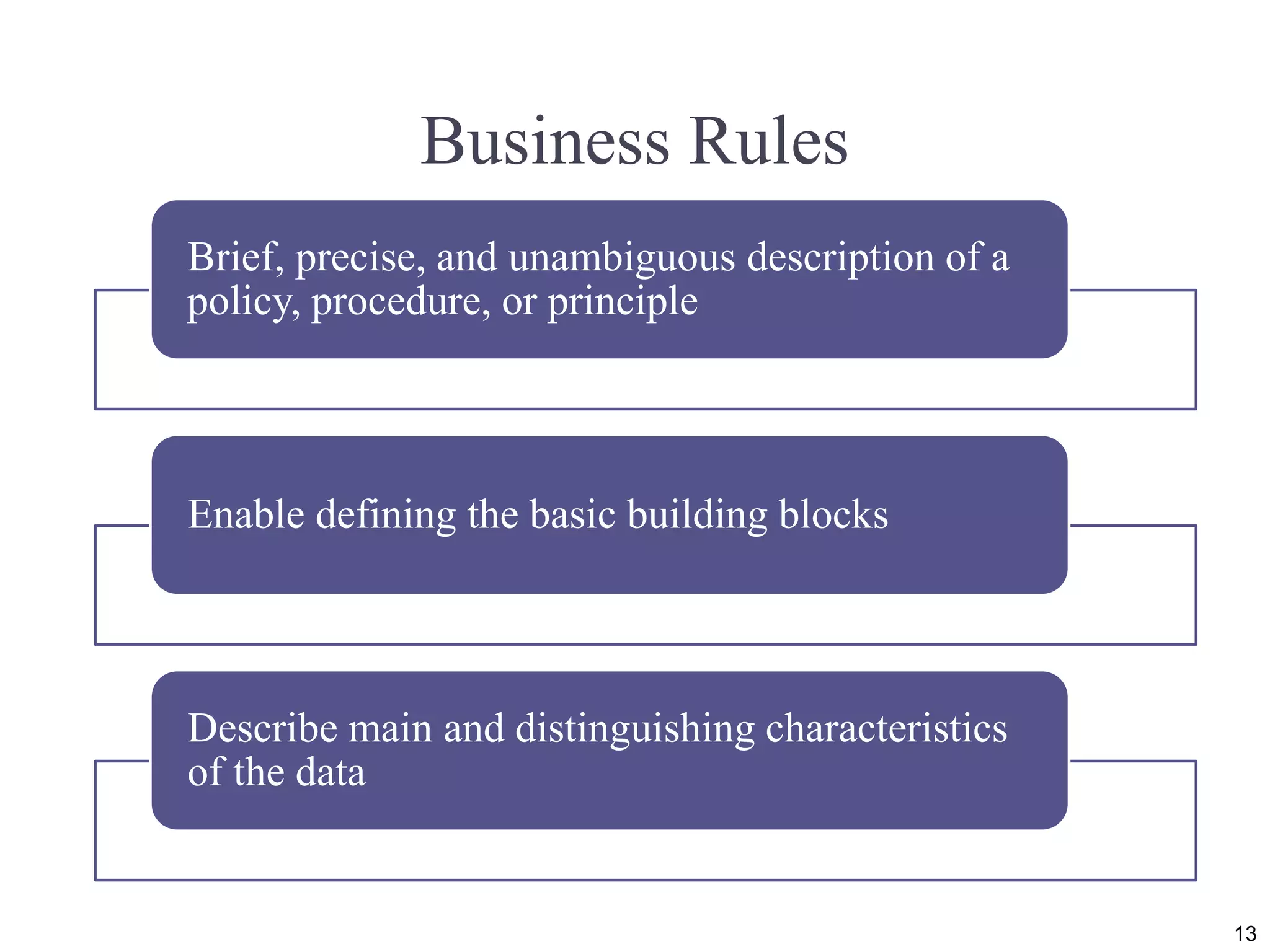

Business Rules Brief, precise, and unambiguous description of a policy, procedure, or principle Enable defining the basic building blocks Describe main and distinguishing characteristics of the data 13

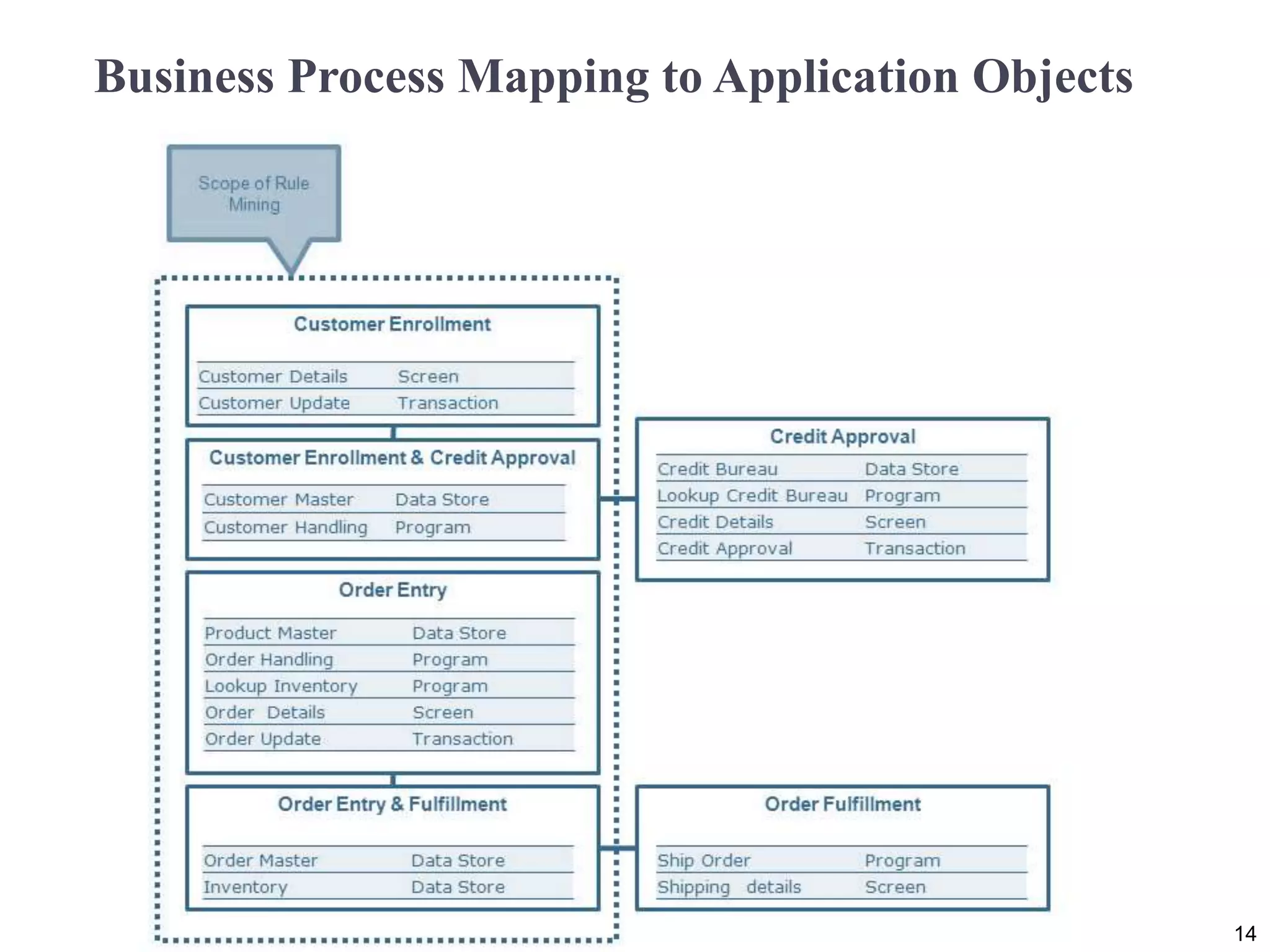

Business Process Mapping to Application Objects 14

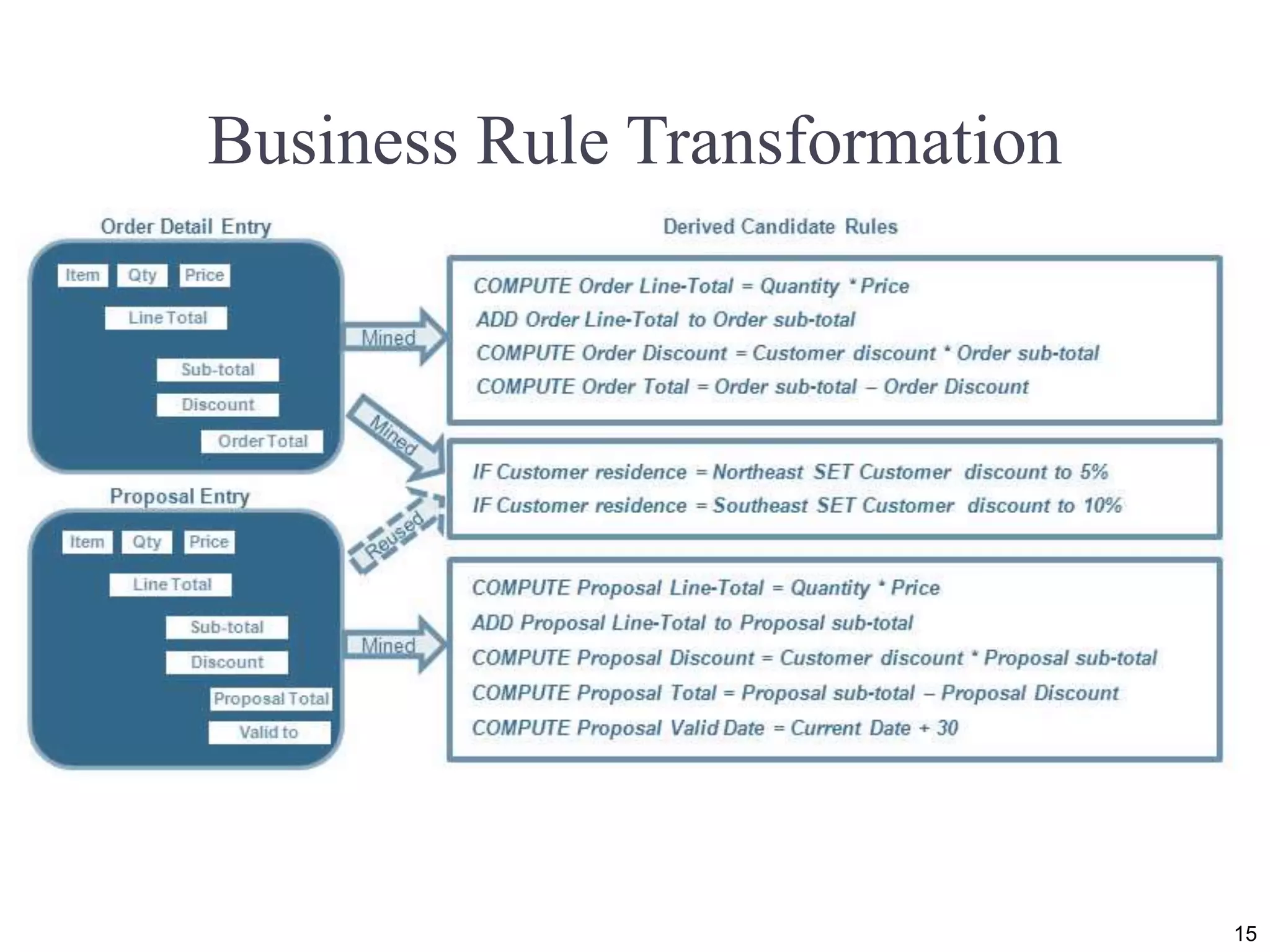

Business Rule Transformation 15

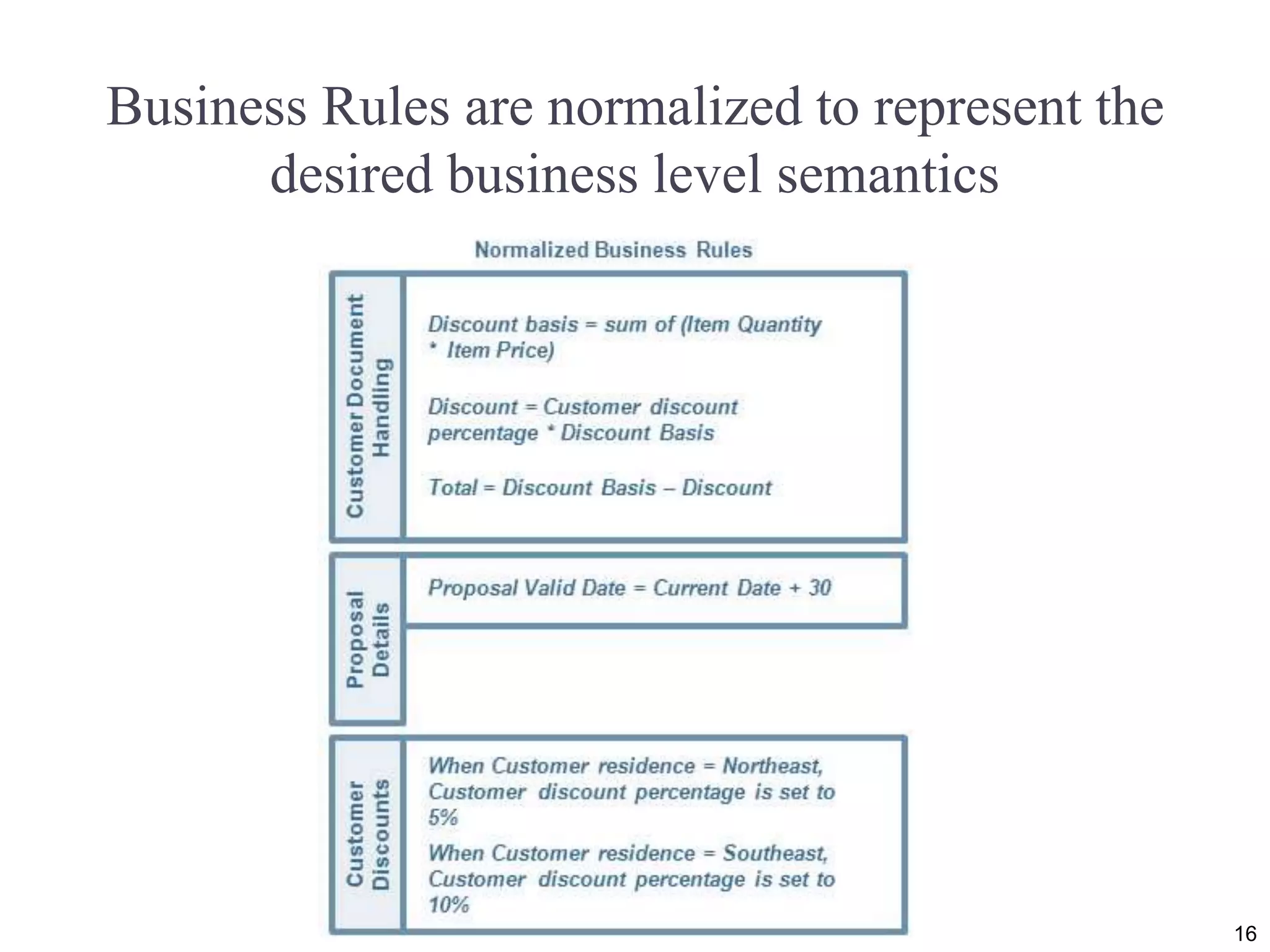

Business Rules are normalized to represent the desired business level semantics 16

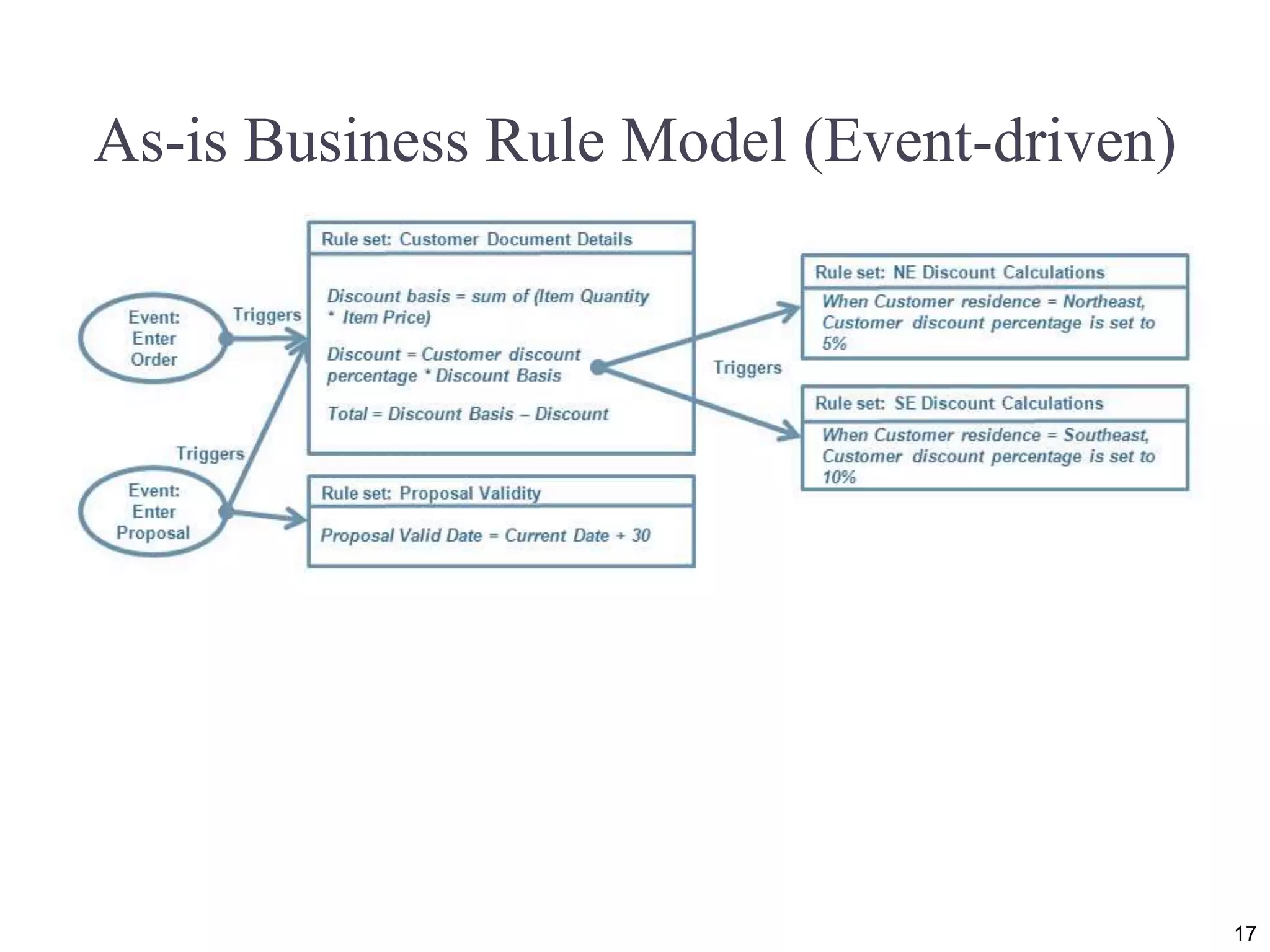

As-is Business Rule Model (Event-driven) 17

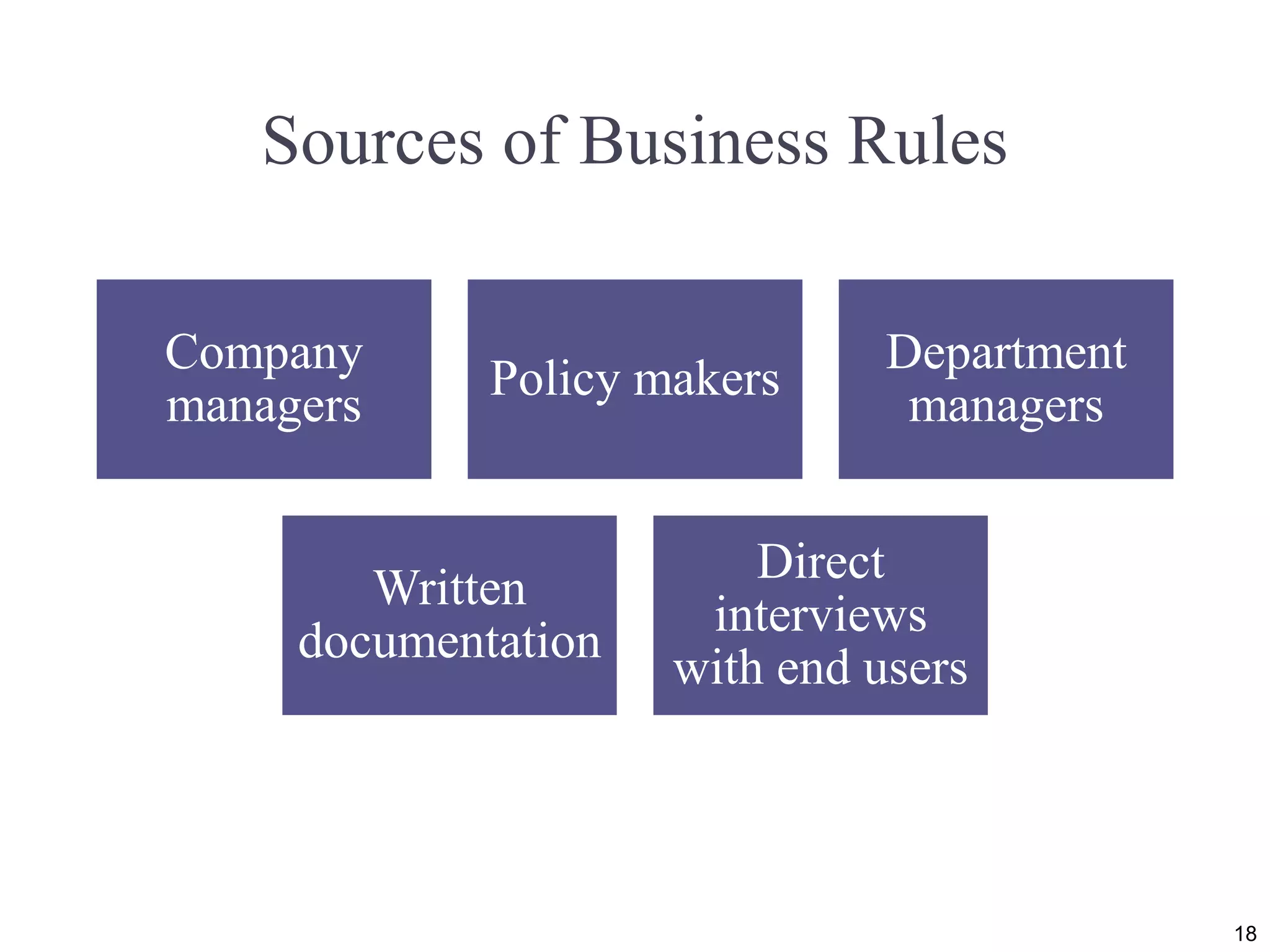

Sources of Business Rules Company managers Policy makers Department managers Written documentation Direct interviews with end users 18

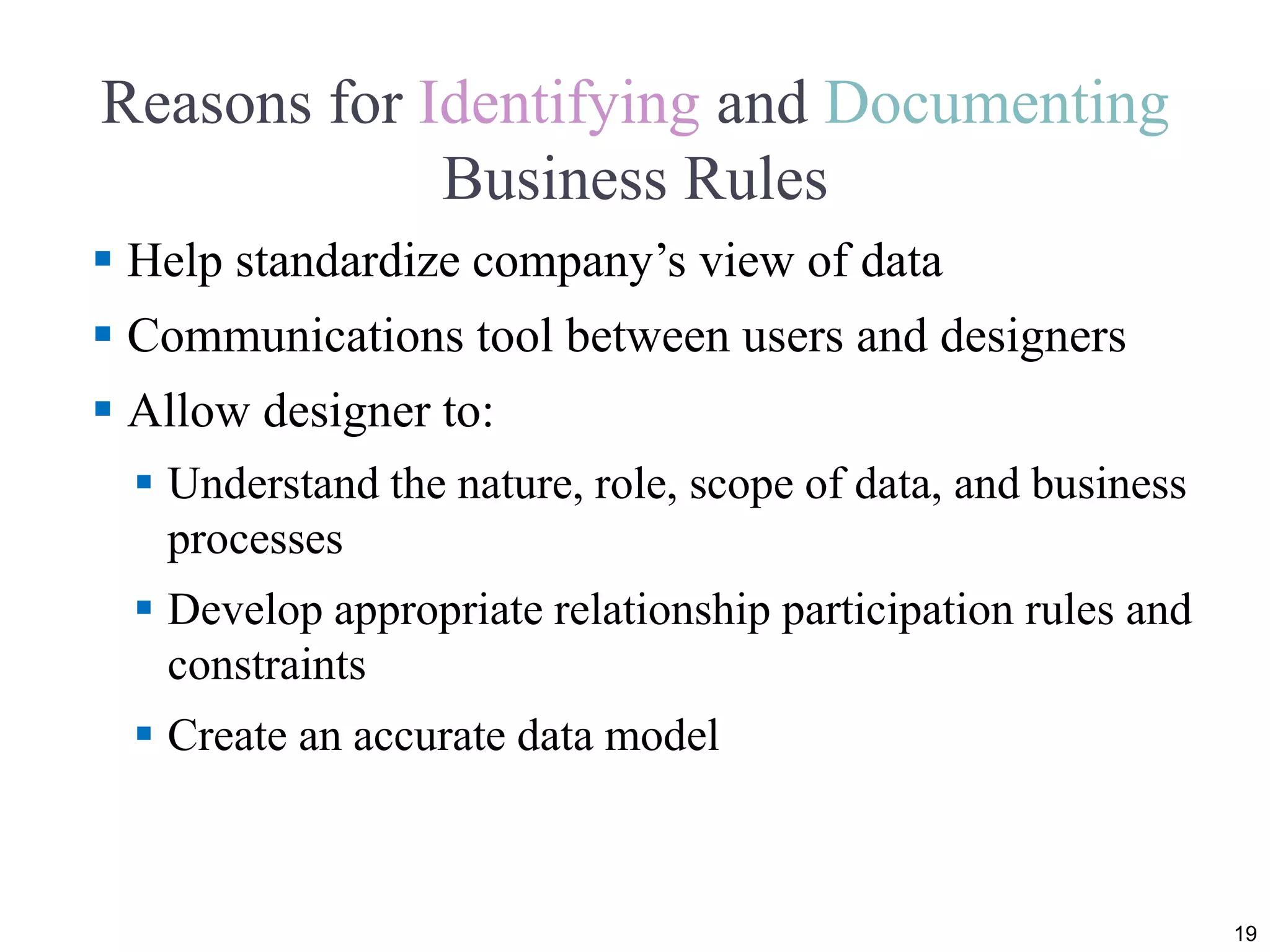

Reasons for Identifying and Documenting Business Rules  Help standardize company’s view of data  Communications tool between users and designers  Allow designer to:  Understand the nature, role, scope of data, and business processes  Develop appropriate relationship participation rules and constraints  Create an accurate data model 19

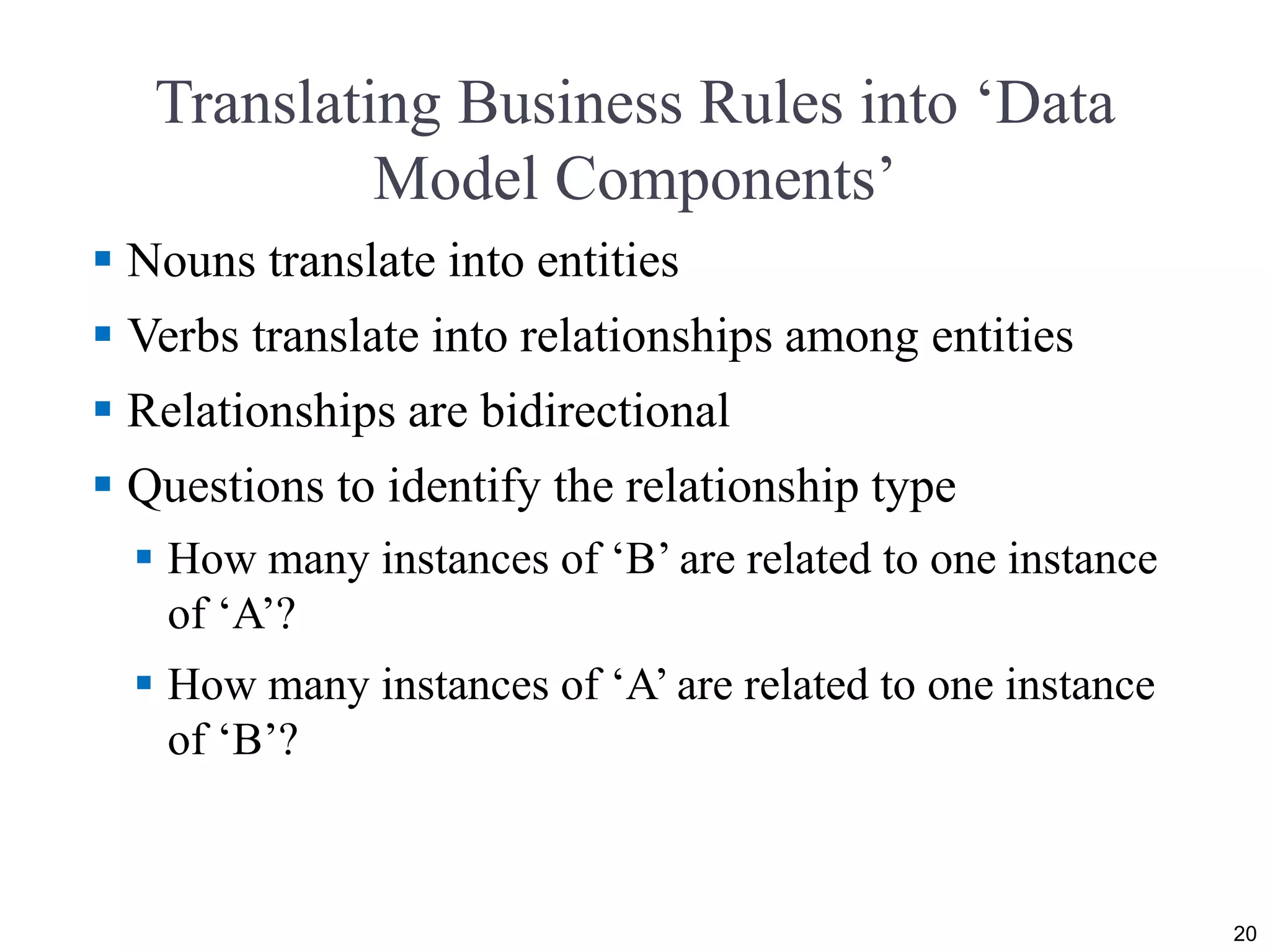

Translating Business Rules into ‘Data Model Components’  Nouns translate into entities  Verbs translate into relationships among entities  Relationships are bidirectional  Questions to identify the relationship type  How many instances of ‘B’ are related to one instance of ‘A’?  How many instances of ‘A’ are related to one instance of ‘B’? 20

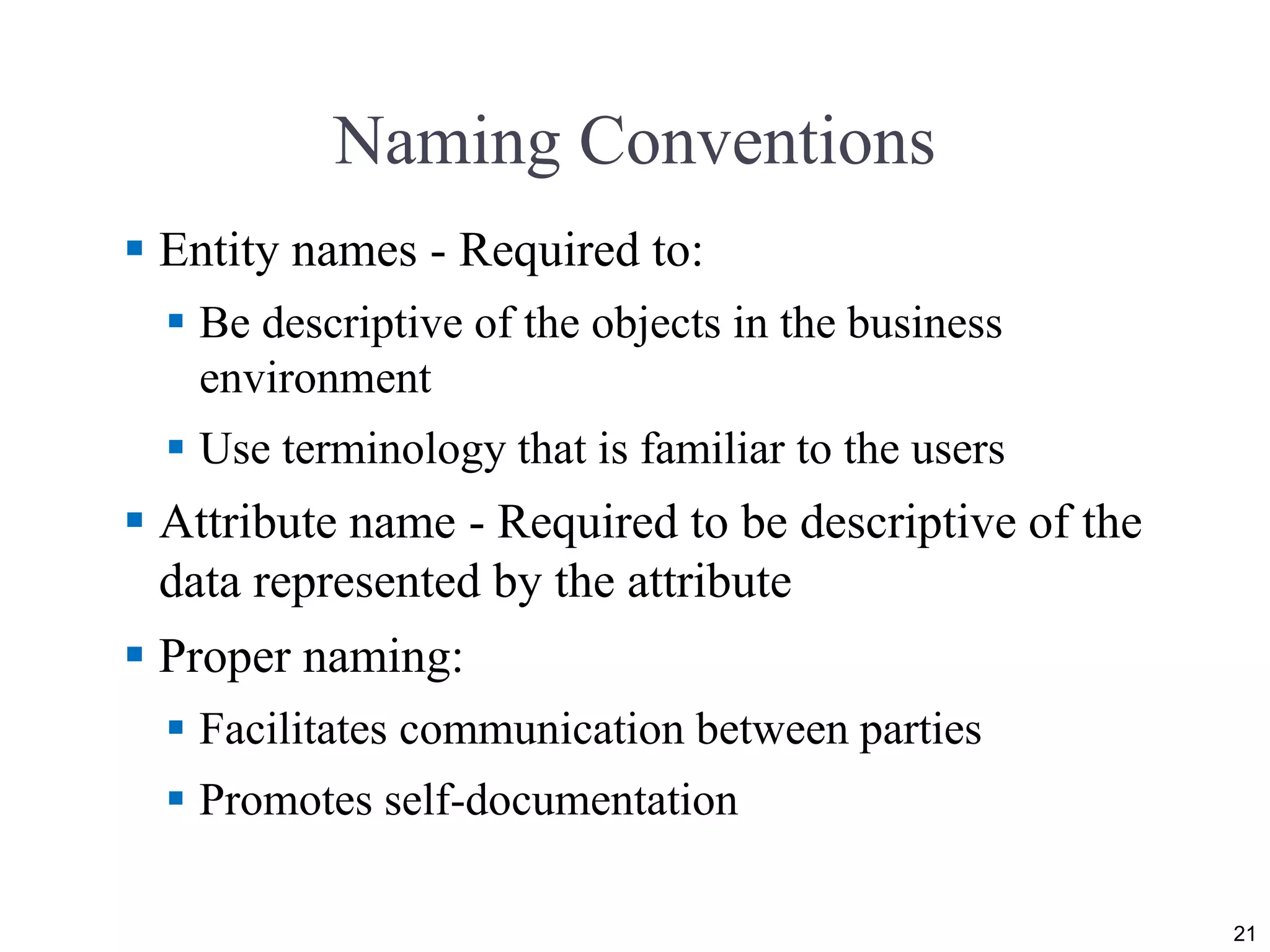

Naming Conventions  Entity names - Required to:  Be descriptive of the objects in the business environment  Use terminology that is familiar to the users  Attribute name - Required to be descriptive of the data represented by the attribute  Proper naming:  Facilitates communication between parties  Promotes self-documentation 21

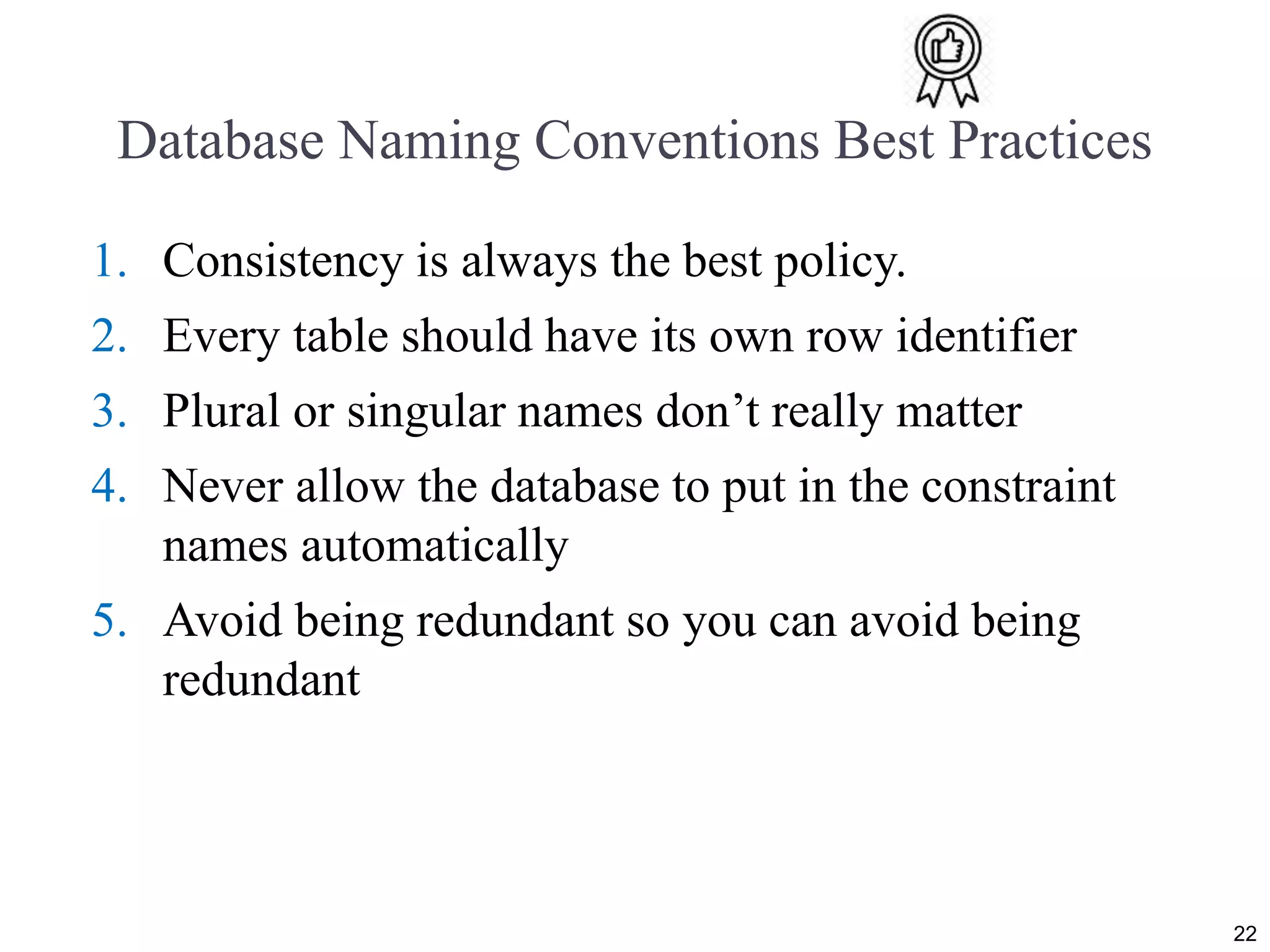

Database Naming Conventions Best Practices 1. Consistency is always the best policy. 2. Every table should have its own row identifier 3. Plural or singular names don’t really matter 4. Never allow the database to put in the constraint names automatically 5. Avoid being redundant so you can avoid being redundant 22

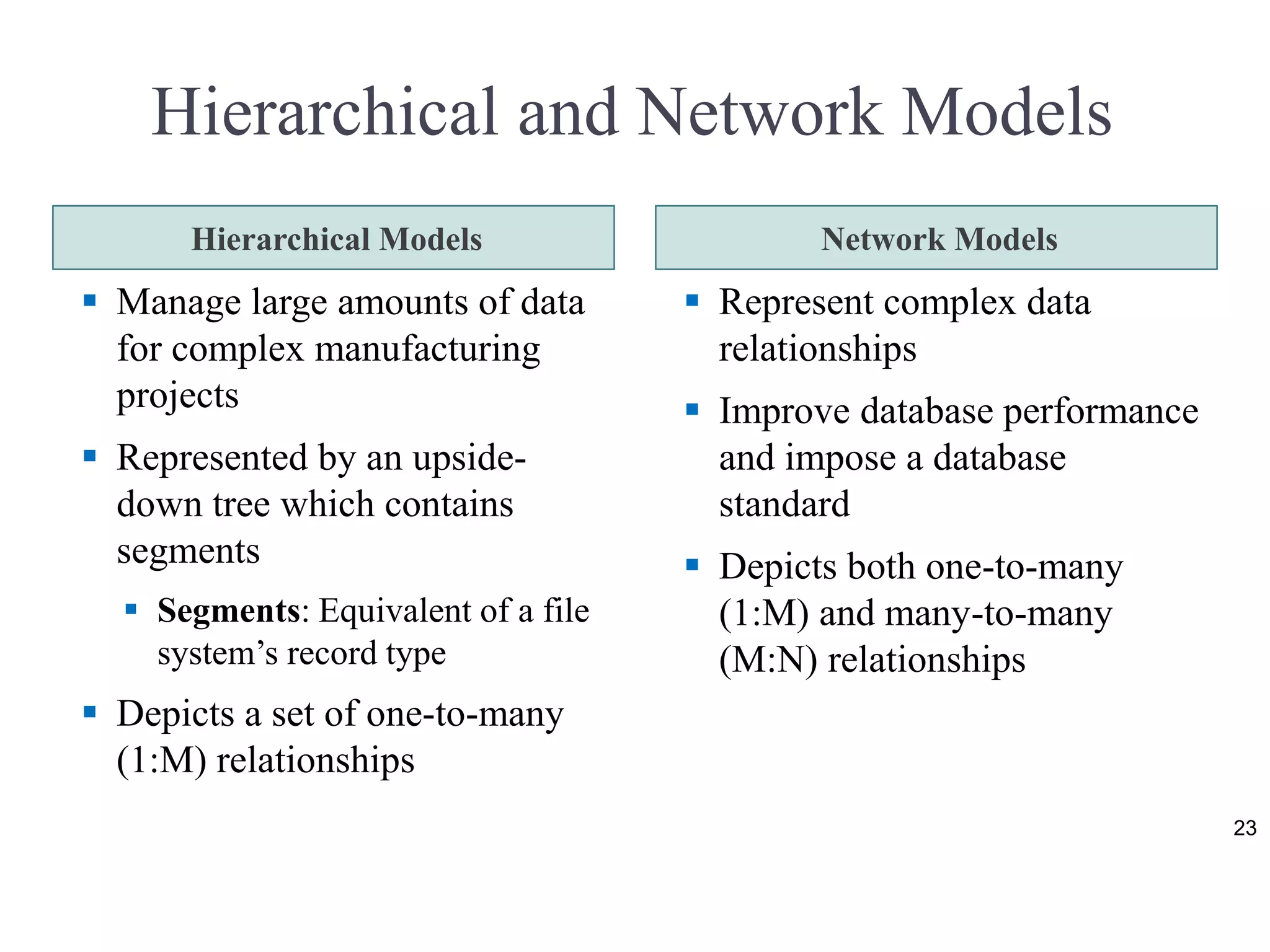

Hierarchical and Network Models Hierarchical Models Network Models  Manage large amounts of data for complex manufacturing projects  Represented by an upside- down tree which contains segments  Segments: Equivalent of a file system’s record type  Depicts a set of one-to-many (1:M) relationships  Represent complex data relationships  Improve database performance and impose a database standard  Depicts both one-to-many (1:M) and many-to-many (M:N) relationships 23

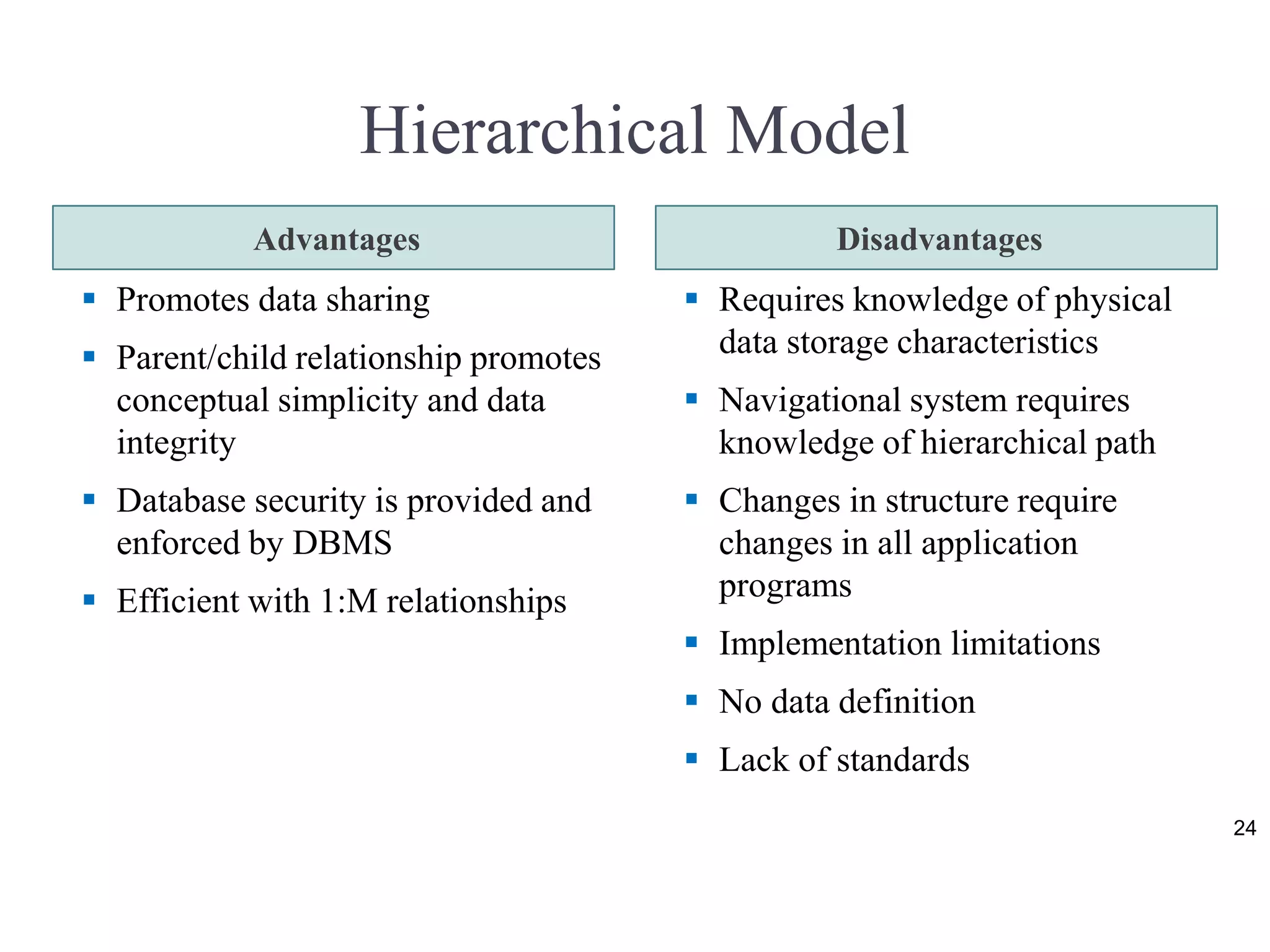

Hierarchical Model Advantages Disadvantages  Promotes data sharing  Parent/child relationship promotes conceptual simplicity and data integrity  Database security is provided and enforced by DBMS  Efficient with 1:M relationships  Requires knowledge of physical data storage characteristics  Navigational system requires knowledge of hierarchical path  Changes in structure require changes in all application programs  Implementation limitations  No data definition  Lack of standards 24

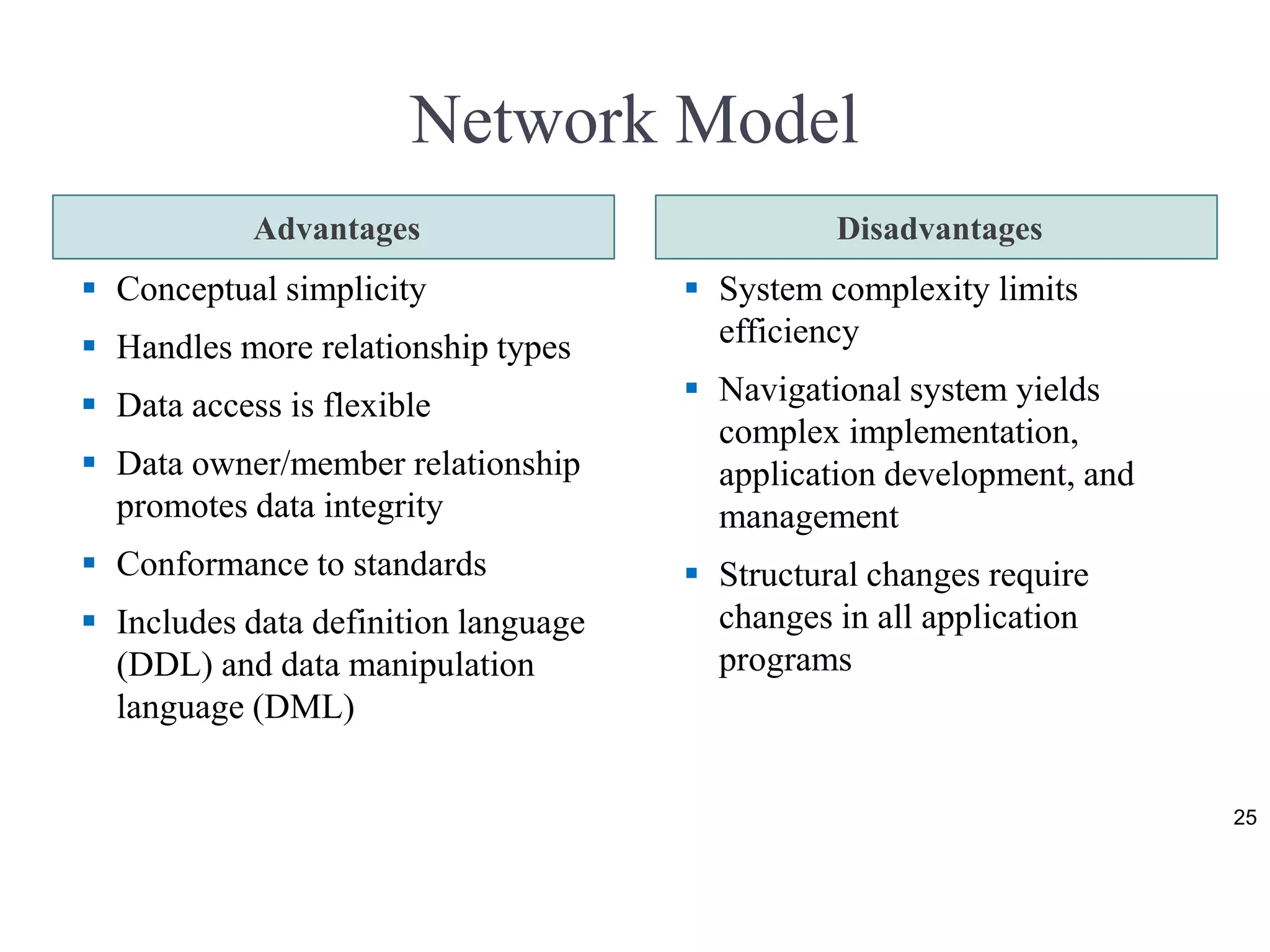

Network Model Advantages Disadvantages  Conceptual simplicity  Handles more relationship types  Data access is flexible  Data owner/member relationship promotes data integrity  Conformance to standards  Includes data definition language (DDL) and data manipulation language (DML)  System complexity limits efficiency  Navigational system yields complex implementation, application development, and management  Structural changes require changes in all application programs 25

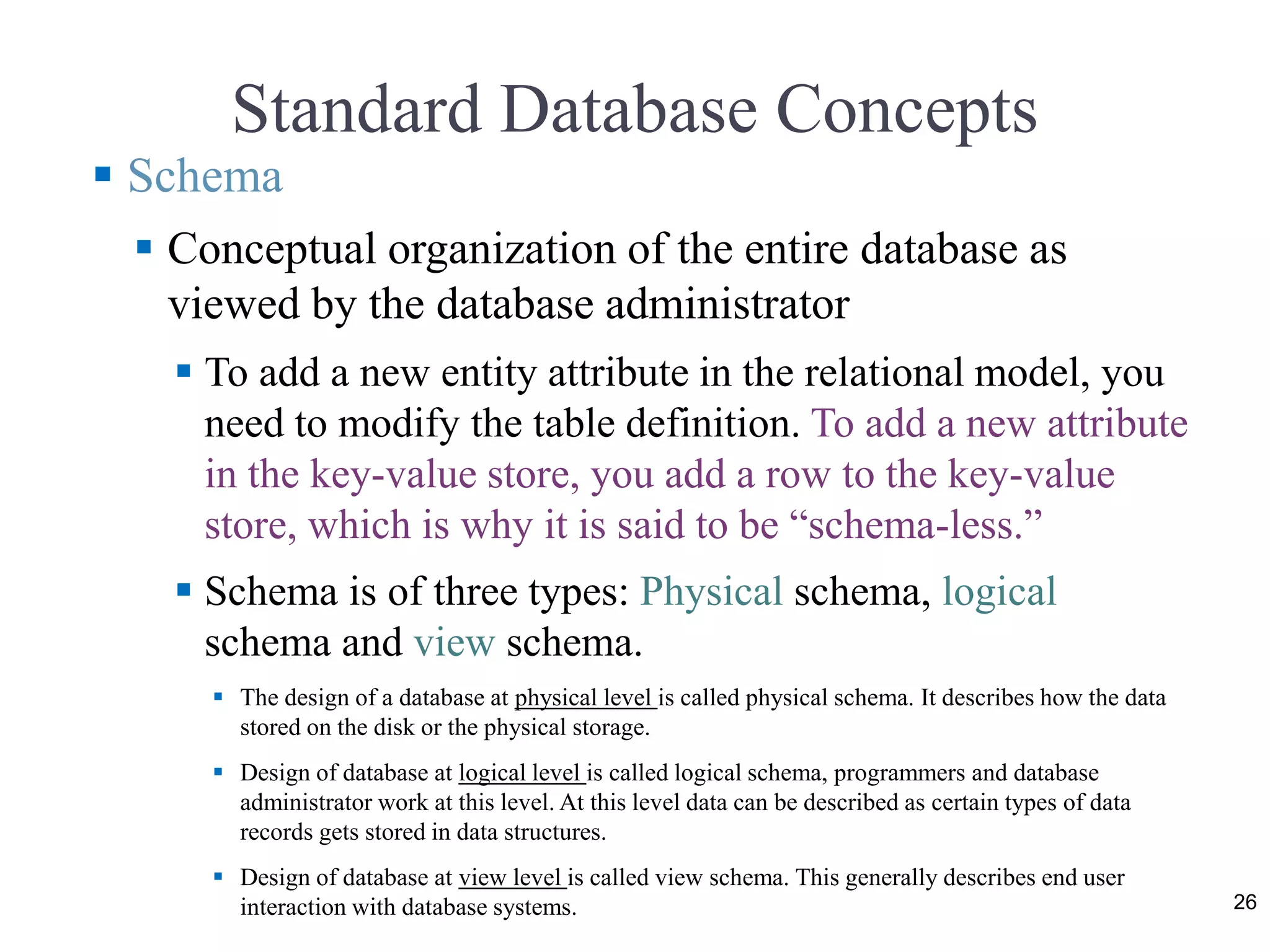

Standard Database Concepts 26  Schema  Conceptual organization of the entire database as viewed by the database administrator  To add a new entity attribute in the relational model, you need to modify the table definition. To add a new attribute in the key-value store, you add a row to the key-value store, which is why it is said to be “schema-less.”  Schema is of three types: Physical schema, logical schema and view schema.  The design of a database at physical level is called physical schema. It describes how the data stored on the disk or the physical storage.  Design of database at logical level is called logical schema, programmers and database administrator work at this level. At this level data can be described as certain types of data records gets stored in data structures.  Design of database at view level is called view schema. This generally describes end user interaction with database systems.

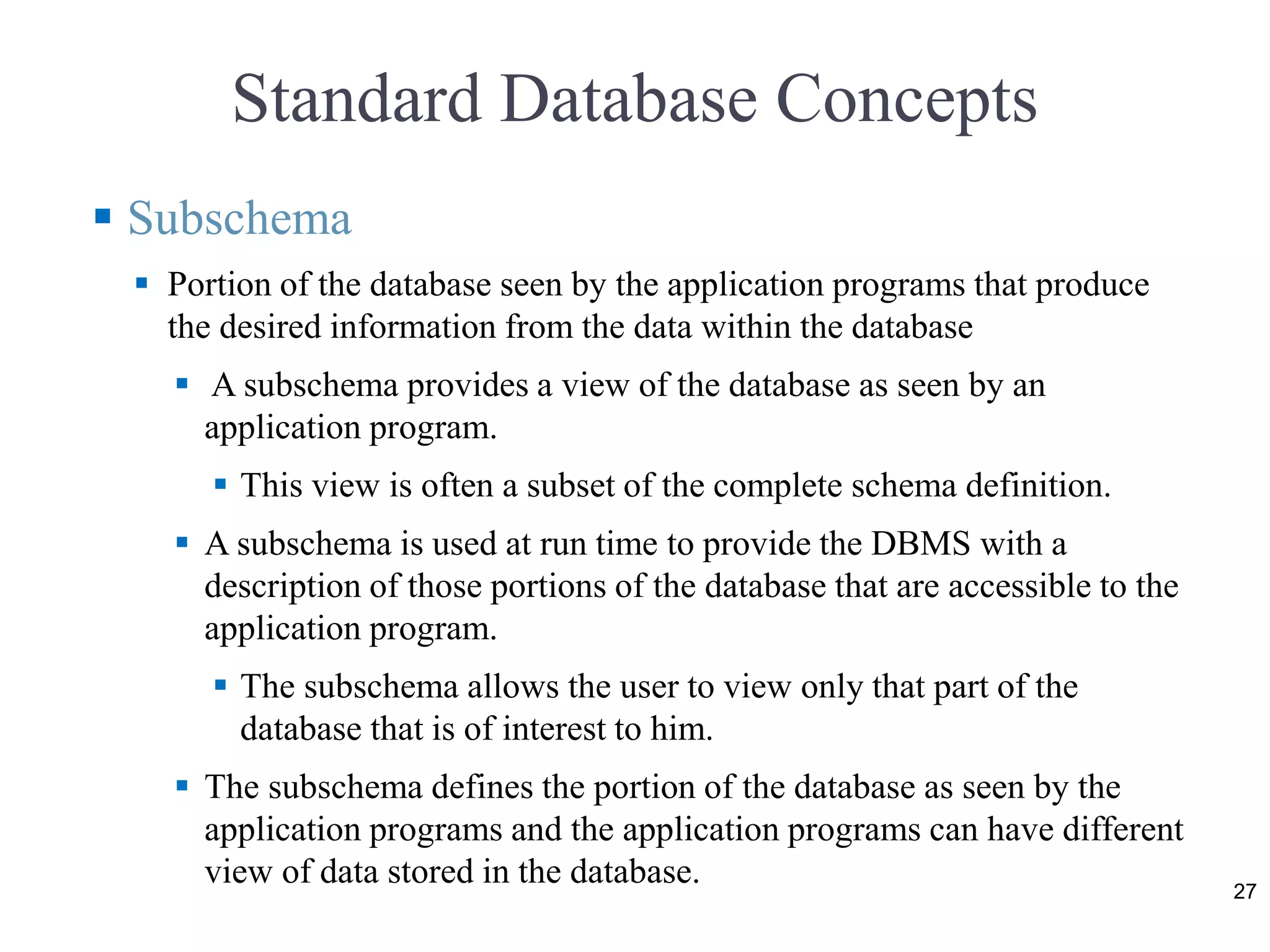

Standard Database Concepts  Subschema  Portion of the database seen by the application programs that produce the desired information from the data within the database  A subschema provides a view of the database as seen by an application program.  This view is often a subset of the complete schema definition.  A subschema is used at run time to provide the DBMS with a description of those portions of the database that are accessible to the application program.  The subschema allows the user to view only that part of the database that is of interest to him.  The subschema defines the portion of the database as seen by the application programs and the application programs can have different view of data stored in the database. 27

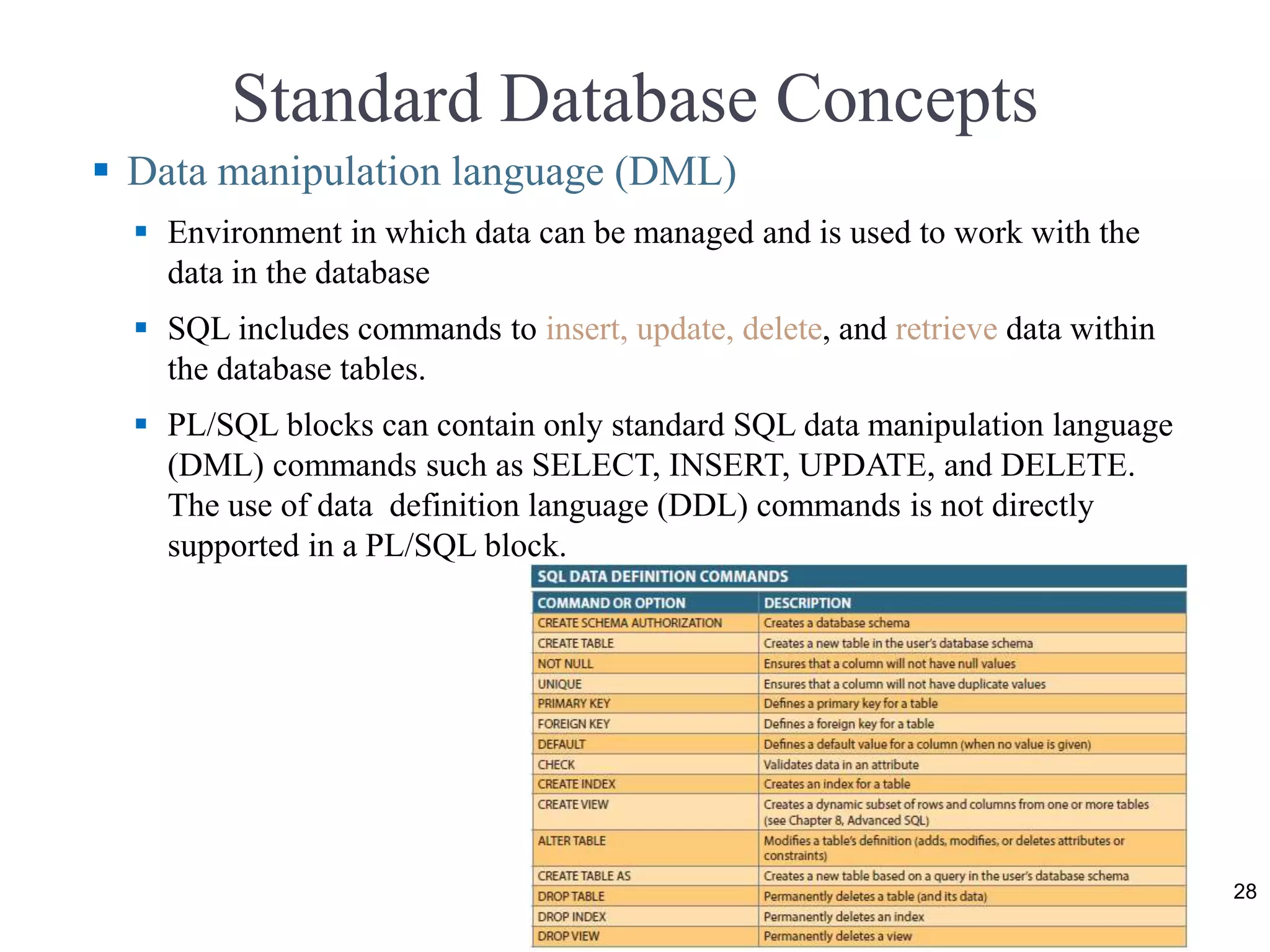

Standard Database Concepts 28  Data manipulation language (DML)  Environment in which data can be managed and is used to work with the data in the database  SQL includes commands to insert, update, delete, and retrieve data within the database tables.  PL/SQL blocks can contain only standard SQL data manipulation language (DML) commands such as SELECT, INSERT, UPDATE, and DELETE. The use of data definition language (DDL) commands is not directly supported in a PL/SQL block.

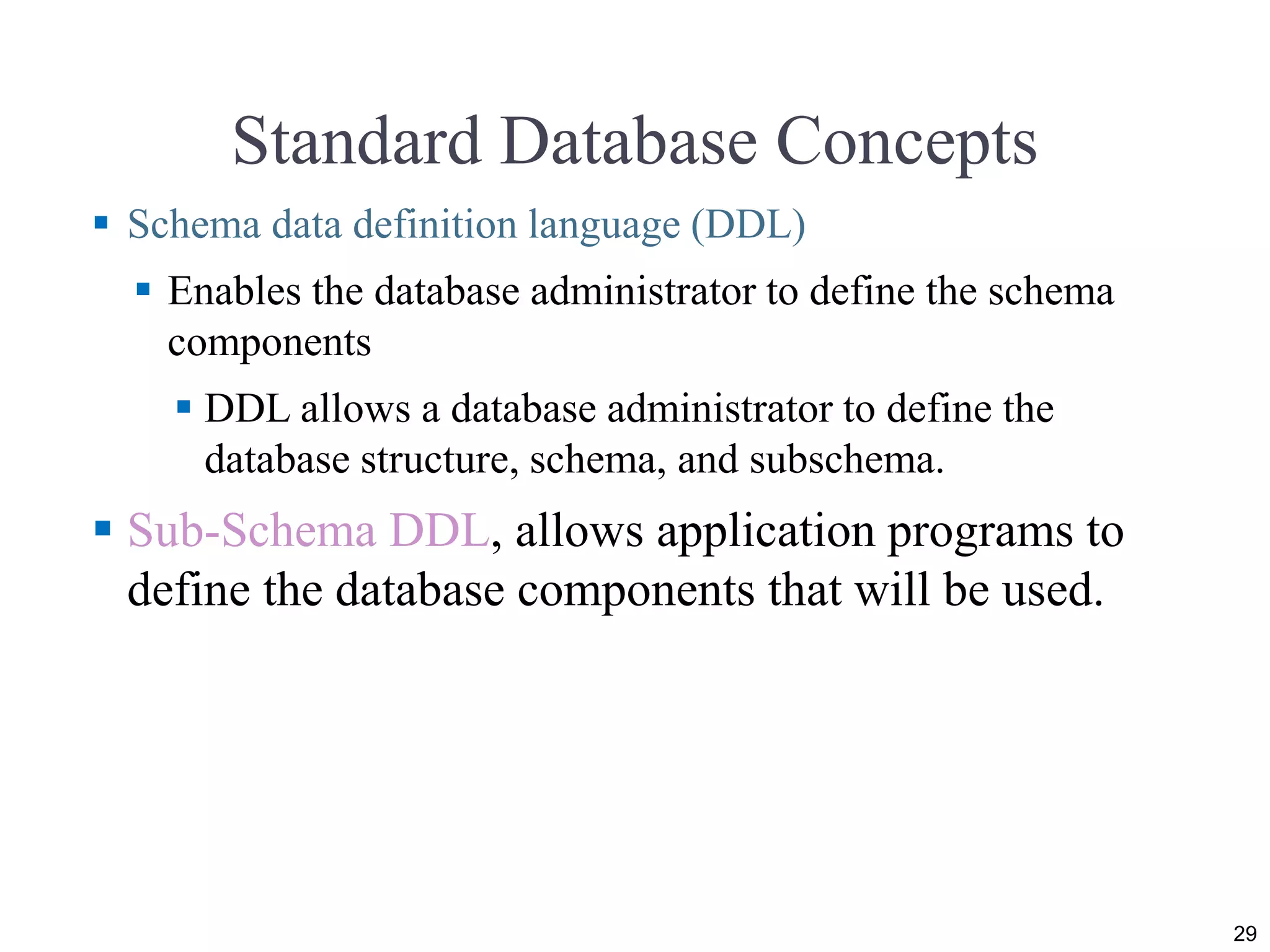

Standard Database Concepts  Schema data definition language (DDL)  Enables the database administrator to define the schema components  DDL allows a database administrator to define the database structure, schema, and subschema.  Sub-Schema DDL, allows application programs to define the database components that will be used. 29

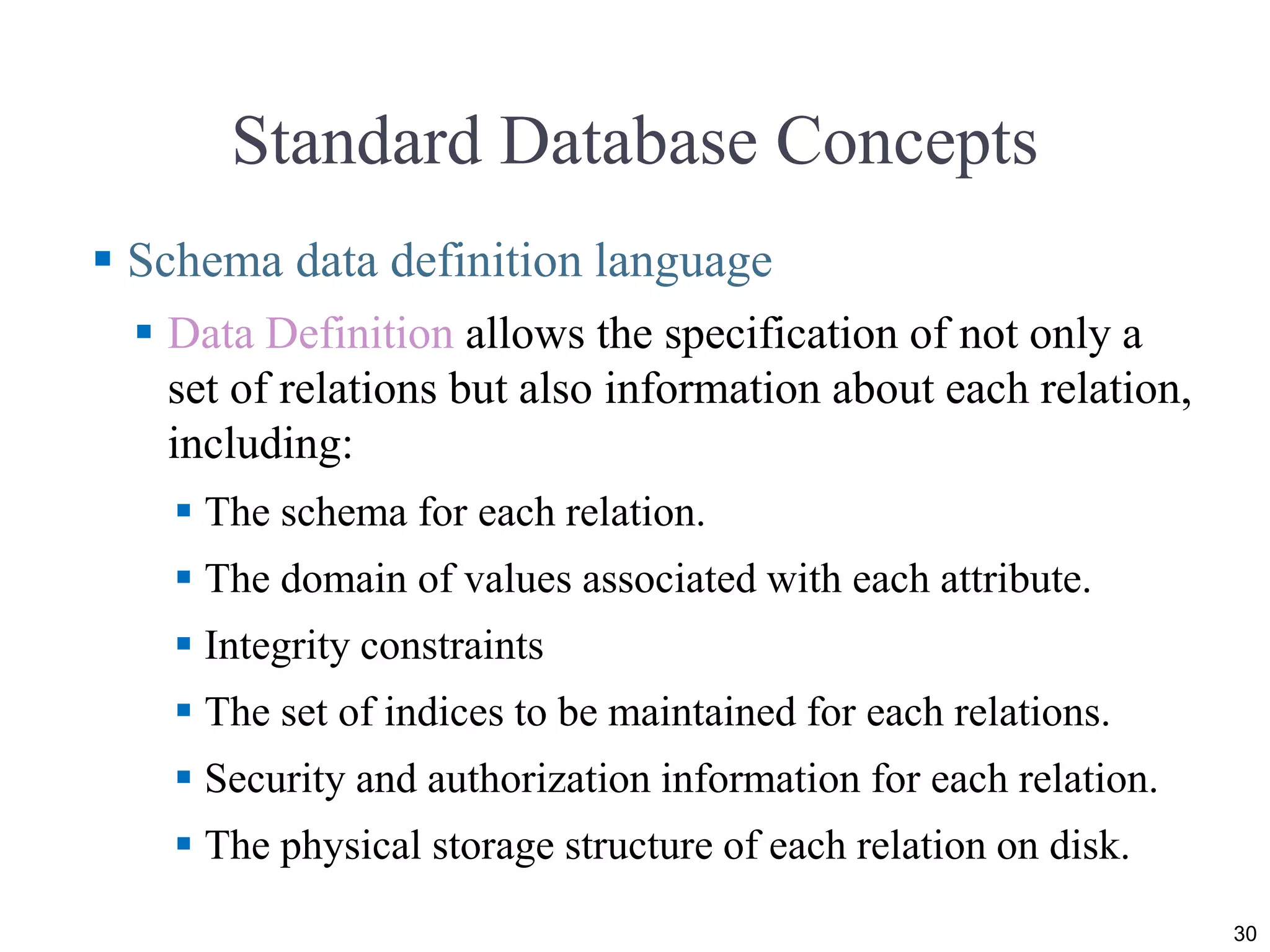

Standard Database Concepts  Schema data definition language  Data Definition allows the specification of not only a set of relations but also information about each relation, including:  The schema for each relation.  The domain of values associated with each attribute.  Integrity constraints  The set of indices to be maintained for each relations.  Security and authorization information for each relation.  The physical storage structure of each relation on disk. 30

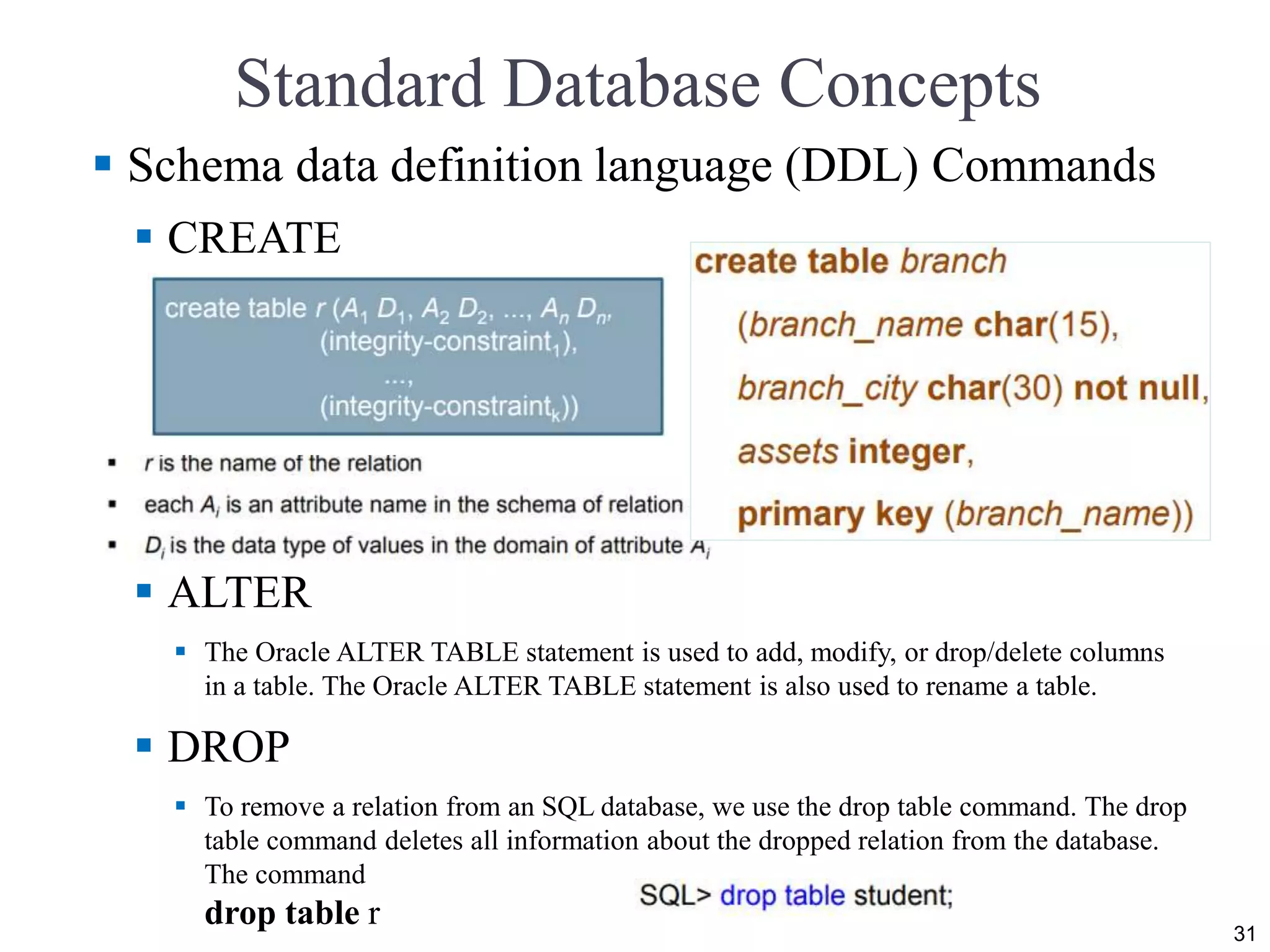

Standard Database Concepts  Schema data definition language (DDL) Commands  CREATE  ALTER  The Oracle ALTER TABLE statement is used to add, modify, or drop/delete columns in a table. The Oracle ALTER TABLE statement is also used to rename a table.  DROP  To remove a relation from an SQL database, we use the drop table command. The drop table command deletes all information about the dropped relation from the database. The command drop table r 31

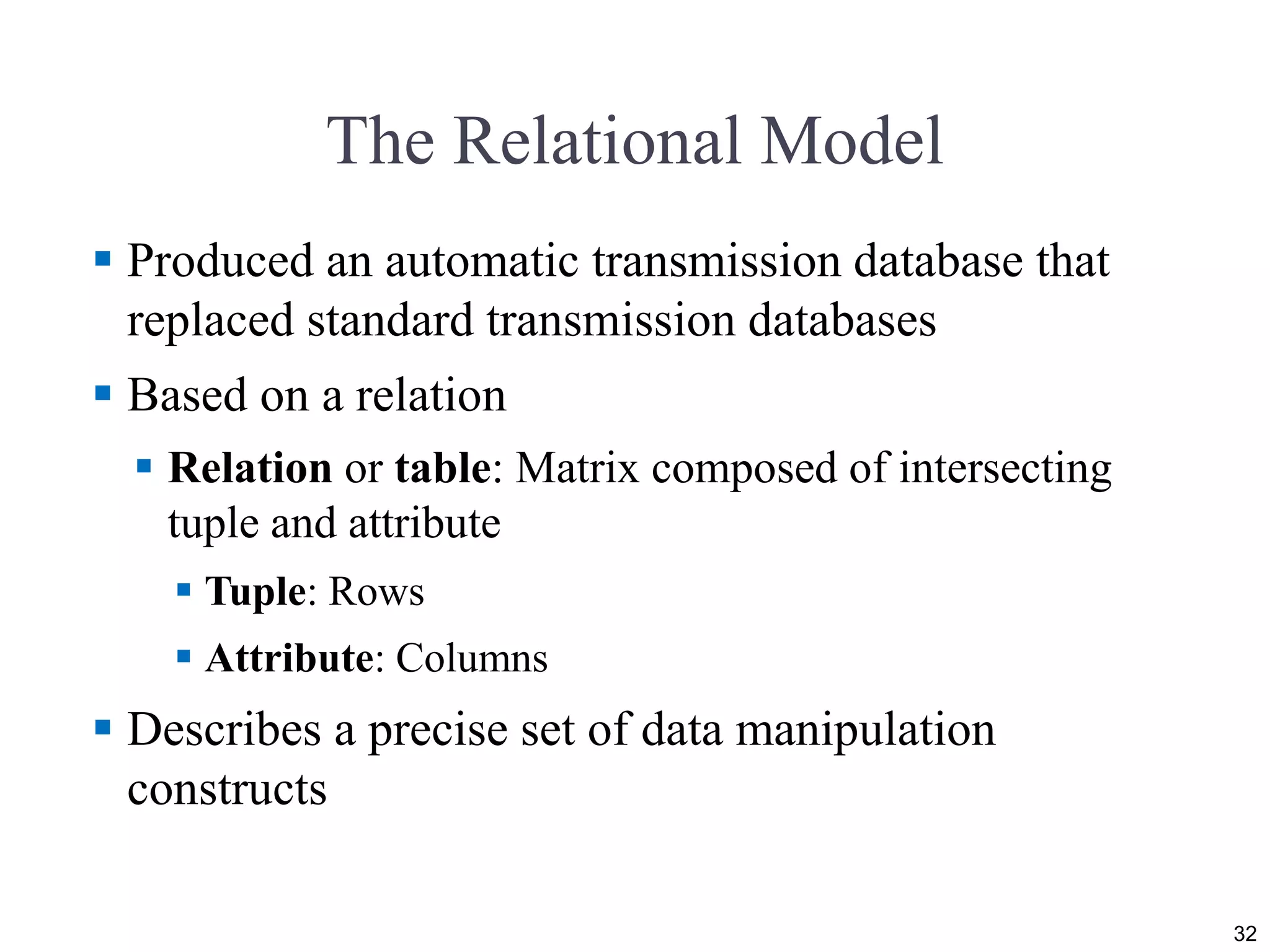

The Relational Model  Produced an automatic transmission database that replaced standard transmission databases  Based on a relation  Relation or table: Matrix composed of intersecting tuple and attribute  Tuple: Rows  Attribute: Columns  Describes a precise set of data manipulation constructs 32

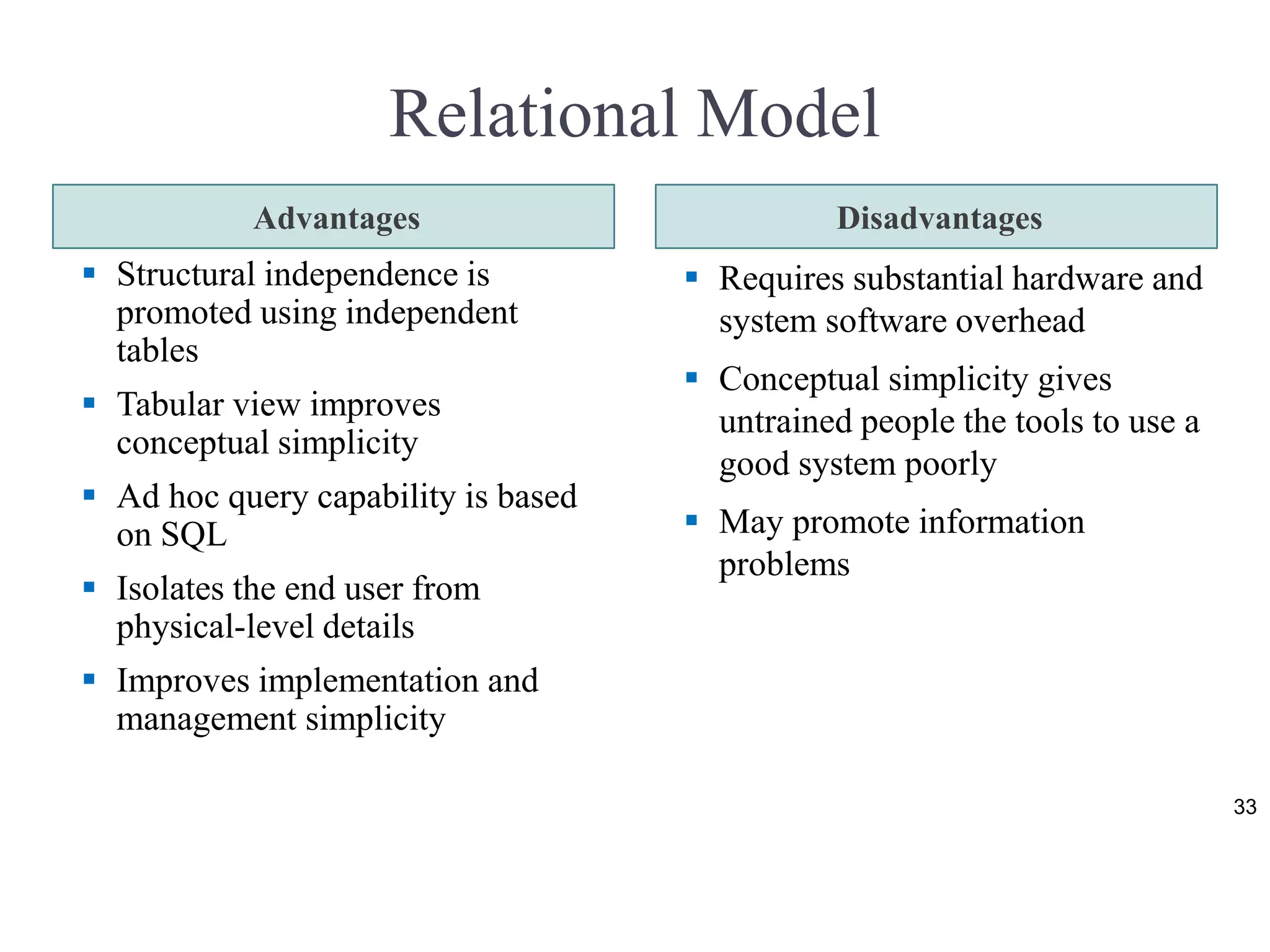

Relational Model Advantages Disadvantages  Structural independence is promoted using independent tables  Tabular view improves conceptual simplicity  Ad hoc query capability is based on SQL  Isolates the end user from physical-level details  Improves implementation and management simplicity  Requires substantial hardware and system software overhead  Conceptual simplicity gives untrained people the tools to use a good system poorly  May promote information problems 33

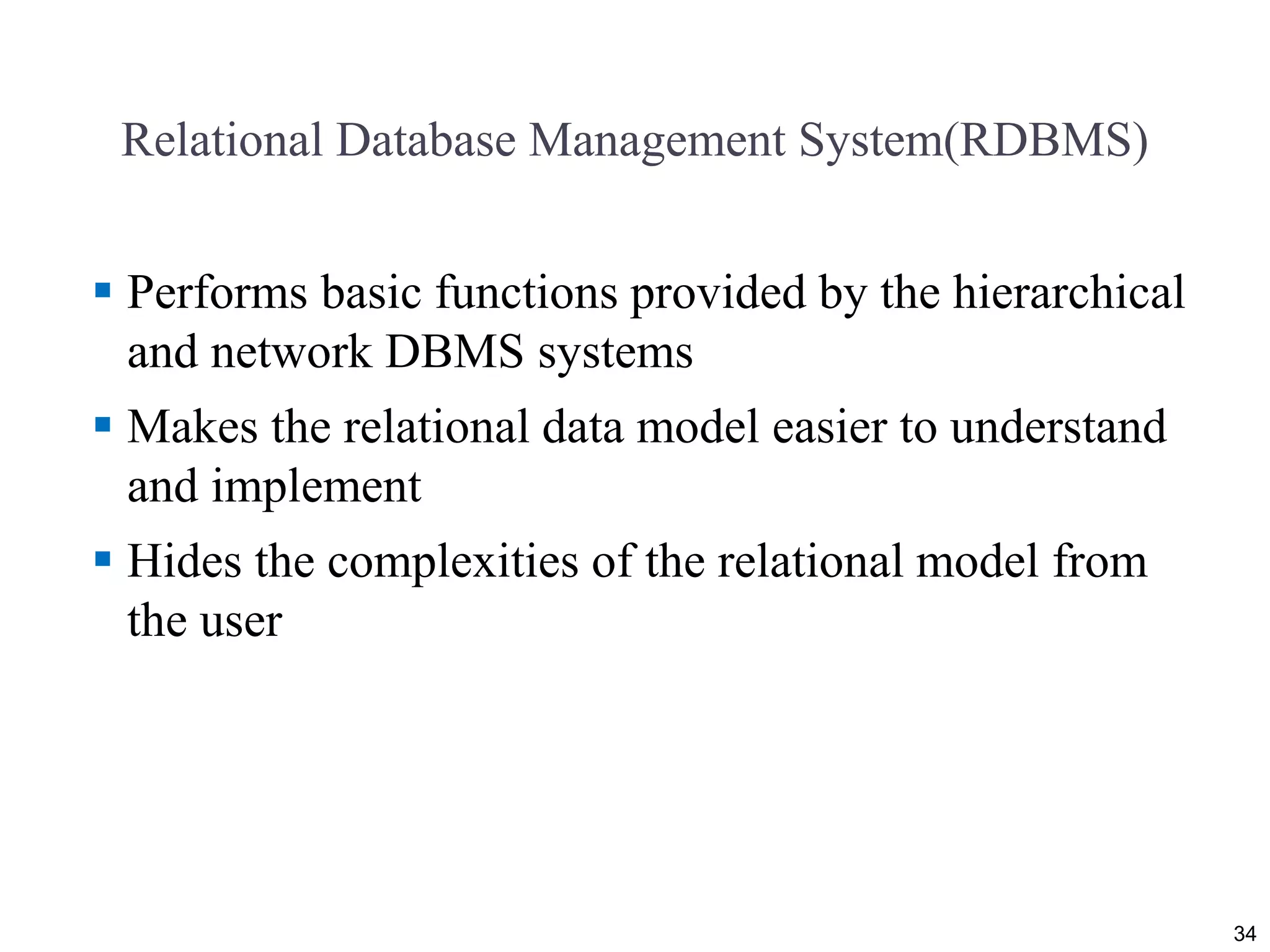

Relational Database Management System(RDBMS)  Performs basic functions provided by the hierarchical and network DBMS systems  Makes the relational data model easier to understand and implement  Hides the complexities of the relational model from the user 34

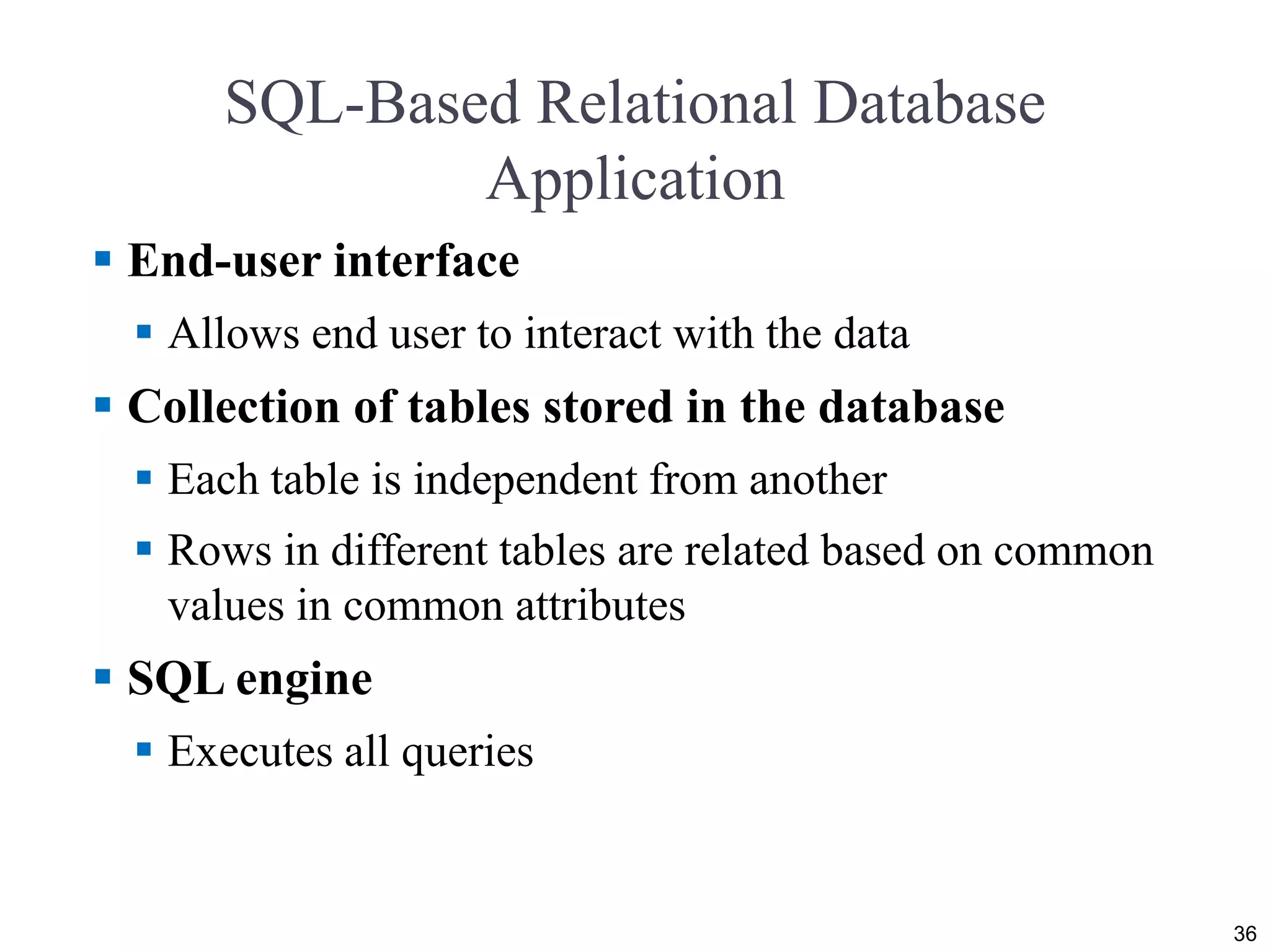

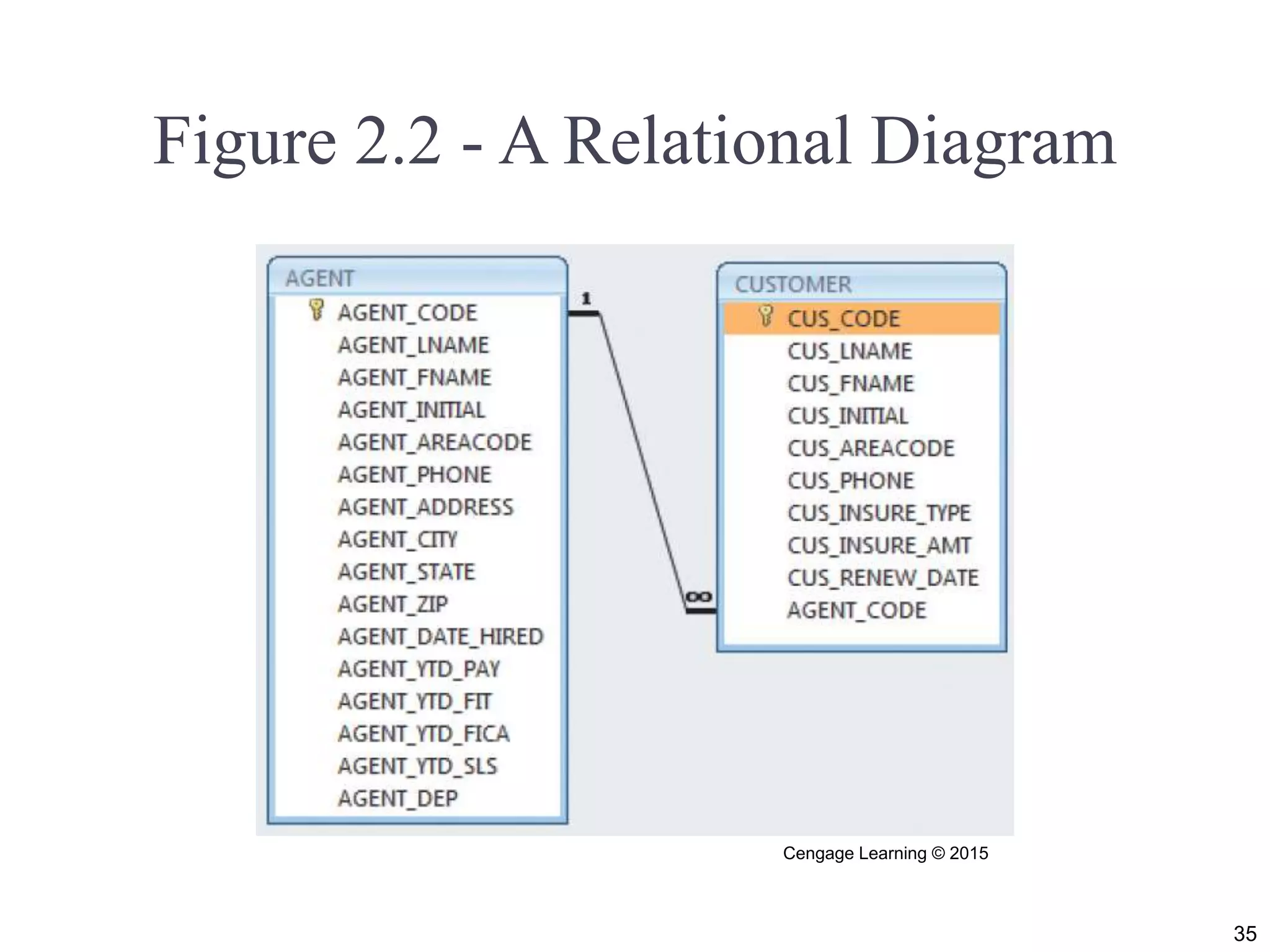

SQL-Based Relational Database Application  End-user interface  Allows end user to interact with the data  Collection of tables stored in the database  Each table is independent from another  Rows in different tables are related based on common values in common attributes  SQL engine  Executes all queries 36

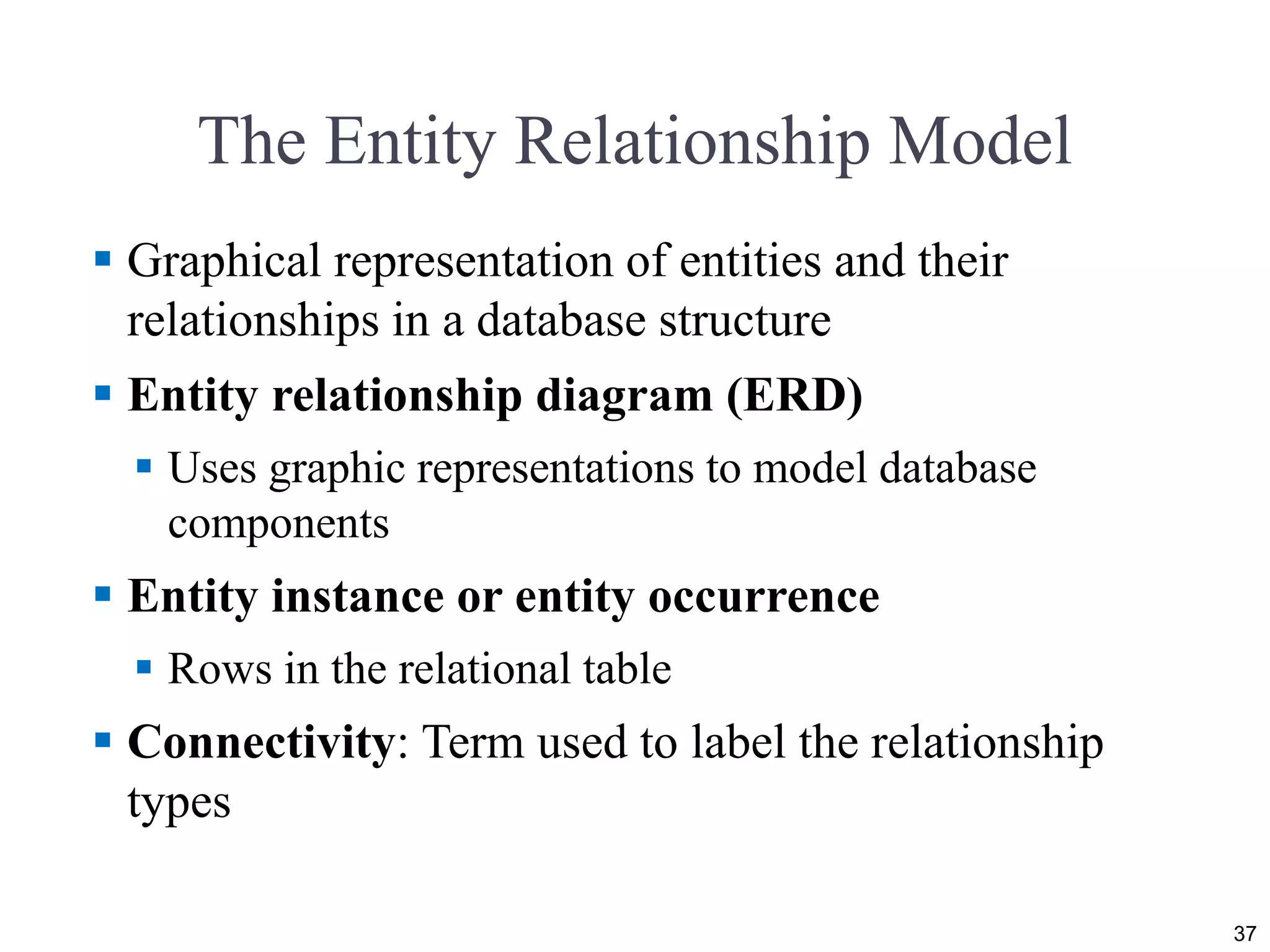

The Entity Relationship Model  Graphical representation of entities and their relationships in a database structure  Entity relationship diagram (ERD)  Uses graphic representations to model database components  Entity instance or entity occurrence  Rows in the relational table  Connectivity: Term used to label the relationship types 37

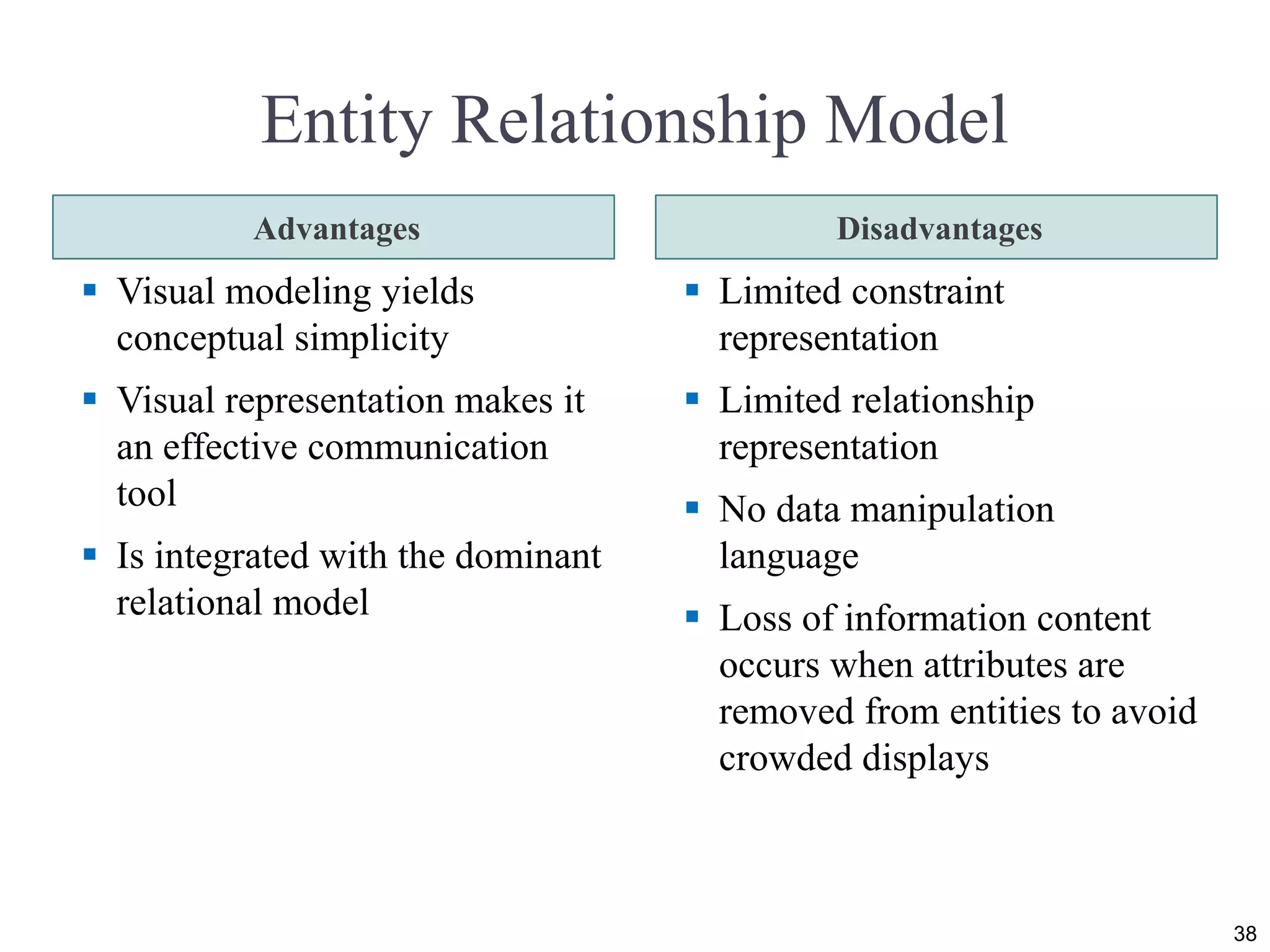

Entity Relationship Model Advantages Disadvantages  Visual modeling yields conceptual simplicity  Visual representation makes it an effective communication tool  Is integrated with the dominant relational model  Limited constraint representation  Limited relationship representation  No data manipulation language  Loss of information content occurs when attributes are removed from entities to avoid crowded displays 38

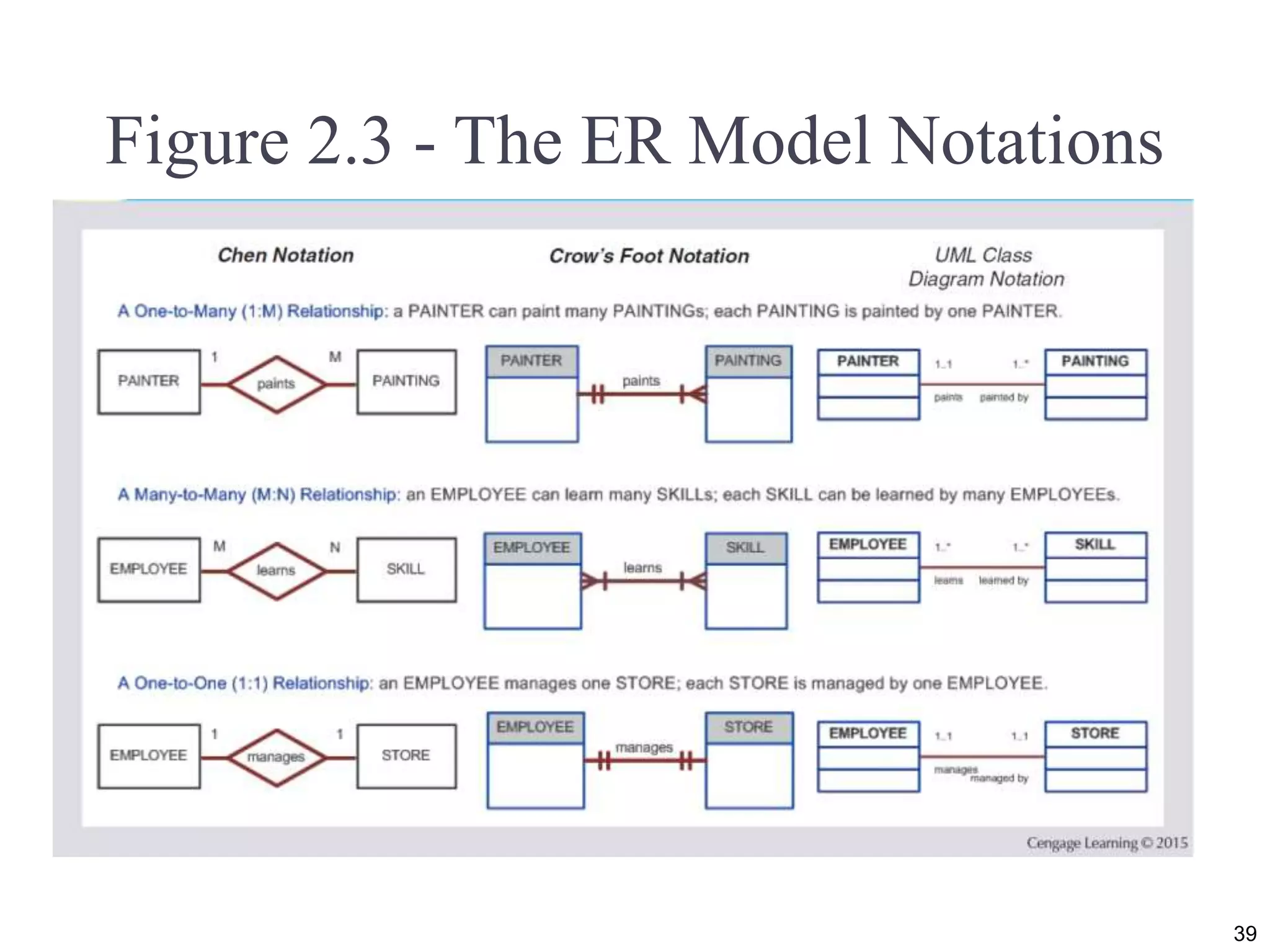

Figure 2.3 - The ER Model Notations 39

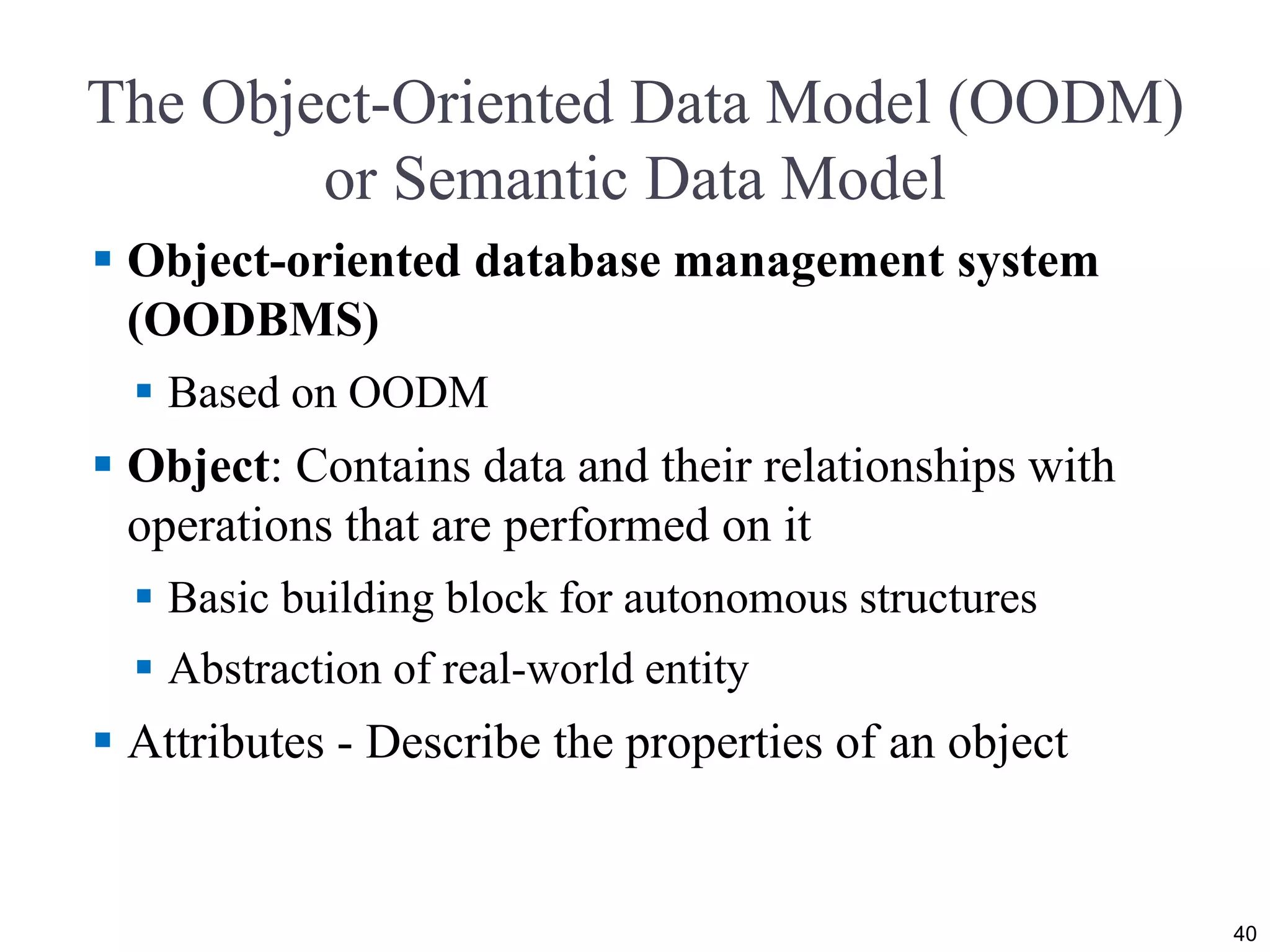

The Object-Oriented Data Model (OODM) or Semantic Data Model  Object-oriented database management system (OODBMS)  Based on OODM  Object: Contains data and their relationships with operations that are performed on it  Basic building block for autonomous structures  Abstraction of real-world entity  Attributes - Describe the properties of an object 40

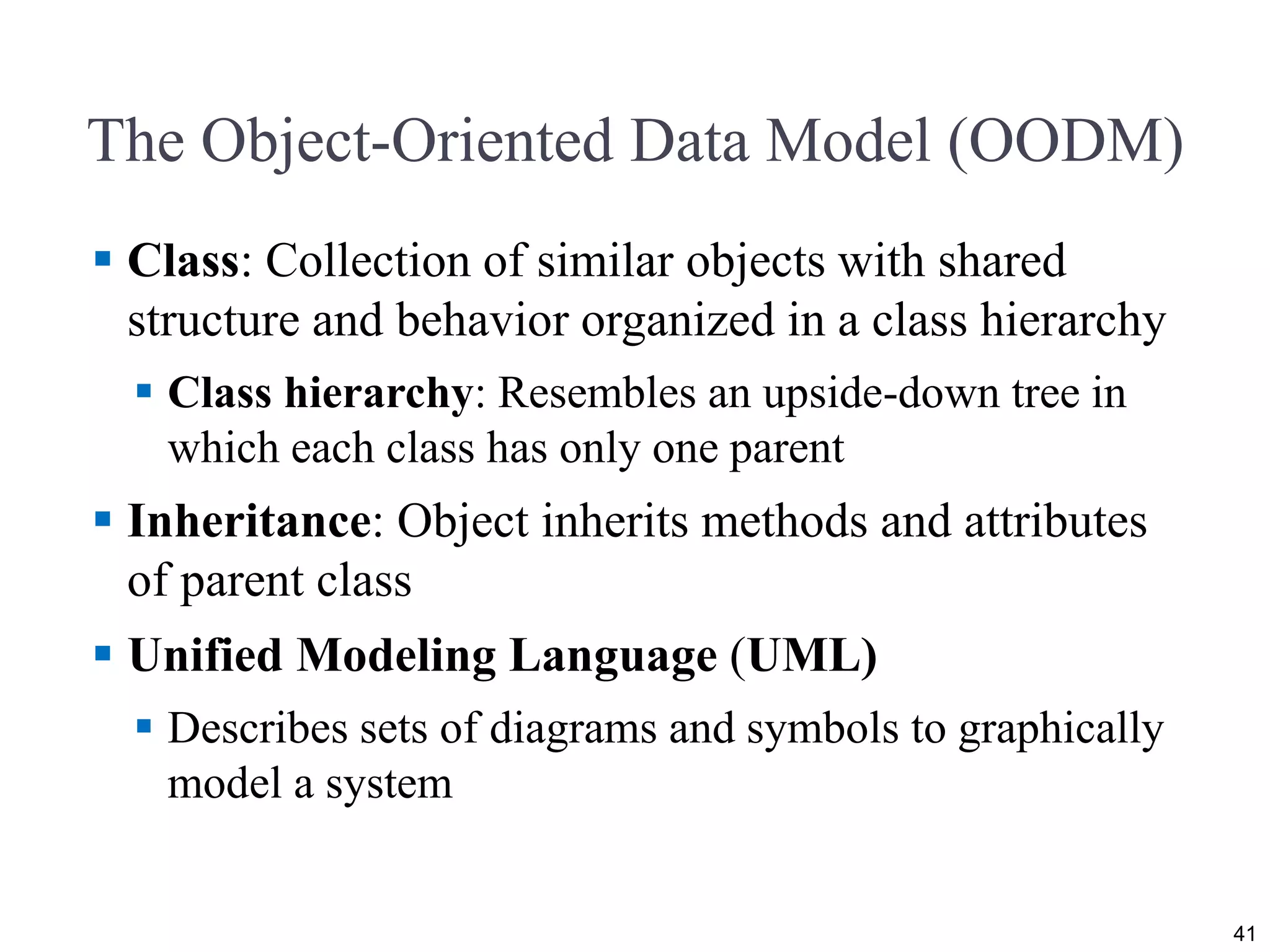

The Object-Oriented Data Model (OODM)  Class: Collection of similar objects with shared structure and behavior organized in a class hierarchy  Class hierarchy: Resembles an upside-down tree in which each class has only one parent  Inheritance: Object inherits methods and attributes of parent class  Unified Modeling Language (UML)  Describes sets of diagrams and symbols to graphically model a system 41

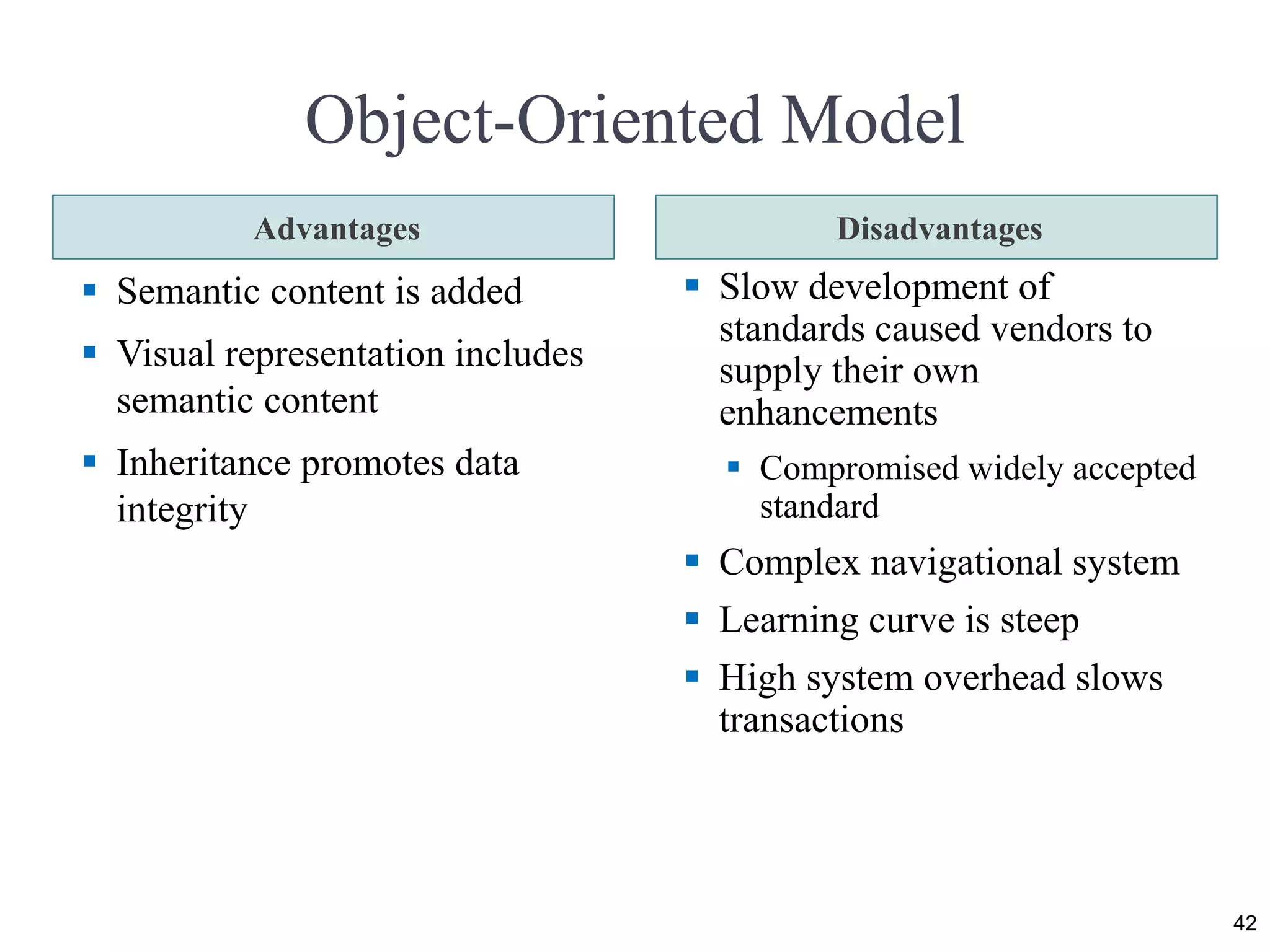

Object-Oriented Model Advantages Disadvantages  Semantic content is added  Visual representation includes semantic content  Inheritance promotes data integrity  Slow development of standards caused vendors to supply their own enhancements  Compromised widely accepted standard  Complex navigational system  Learning curve is steep  High system overhead slows transactions 42

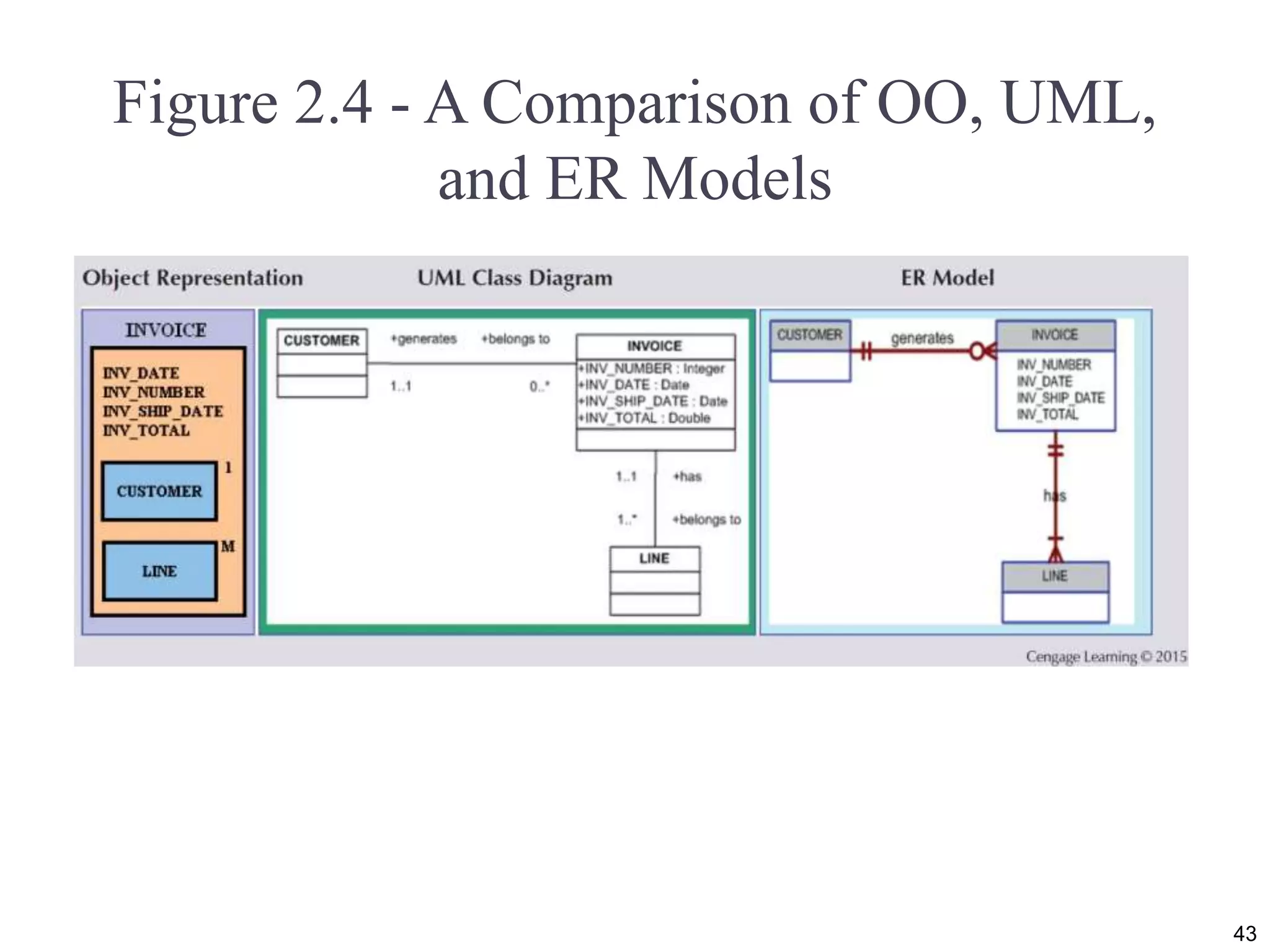

Figure 2.4 - A Comparison of OO, UML, and ER Models 43

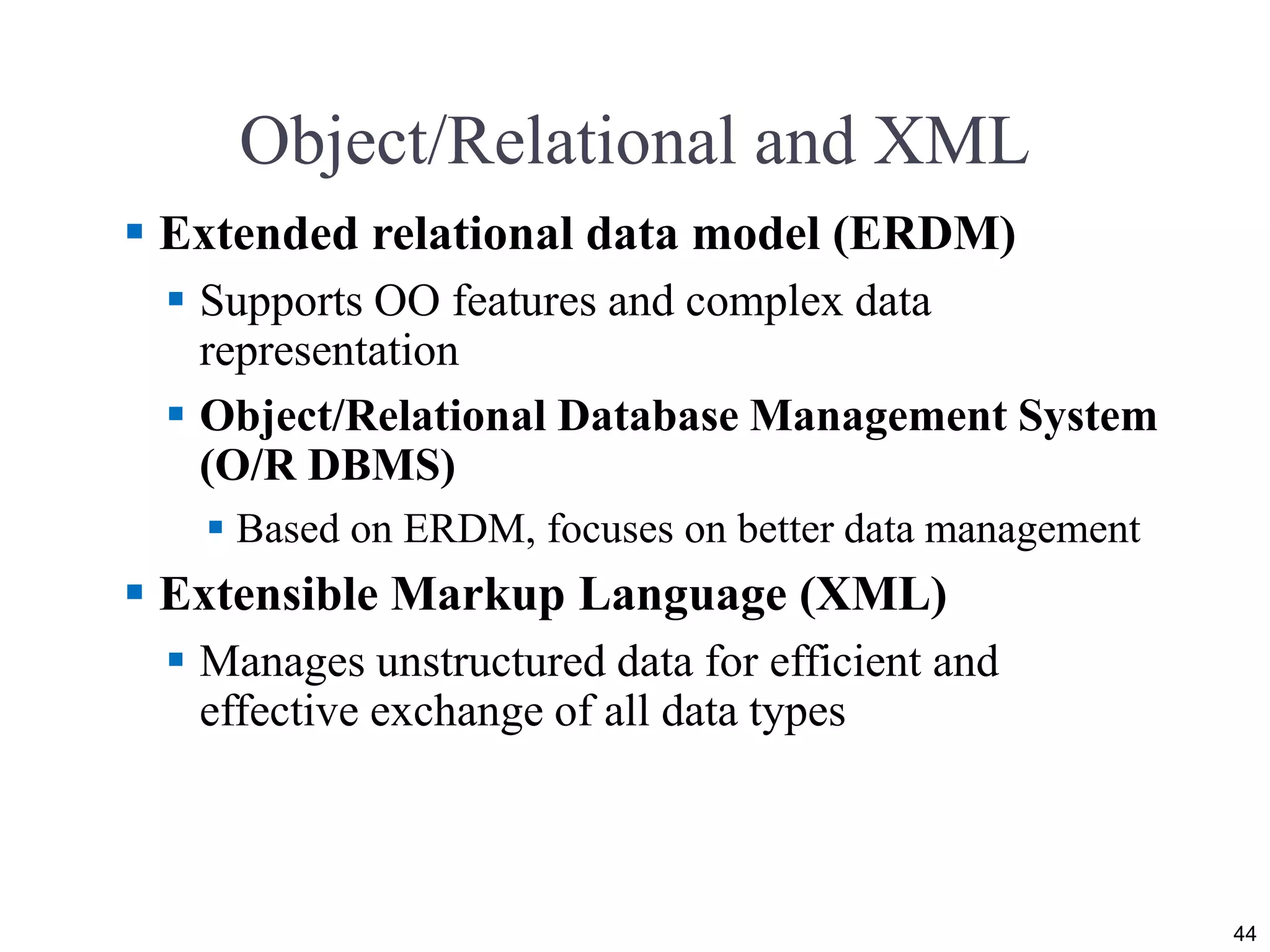

Object/Relational and XML  Extended relational data model (ERDM)  Supports OO features and complex data representation  Object/Relational Database Management System (O/R DBMS)  Based on ERDM, focuses on better data management  Extensible Markup Language (XML)  Manages unstructured data for efficient and effective exchange of all data types 44

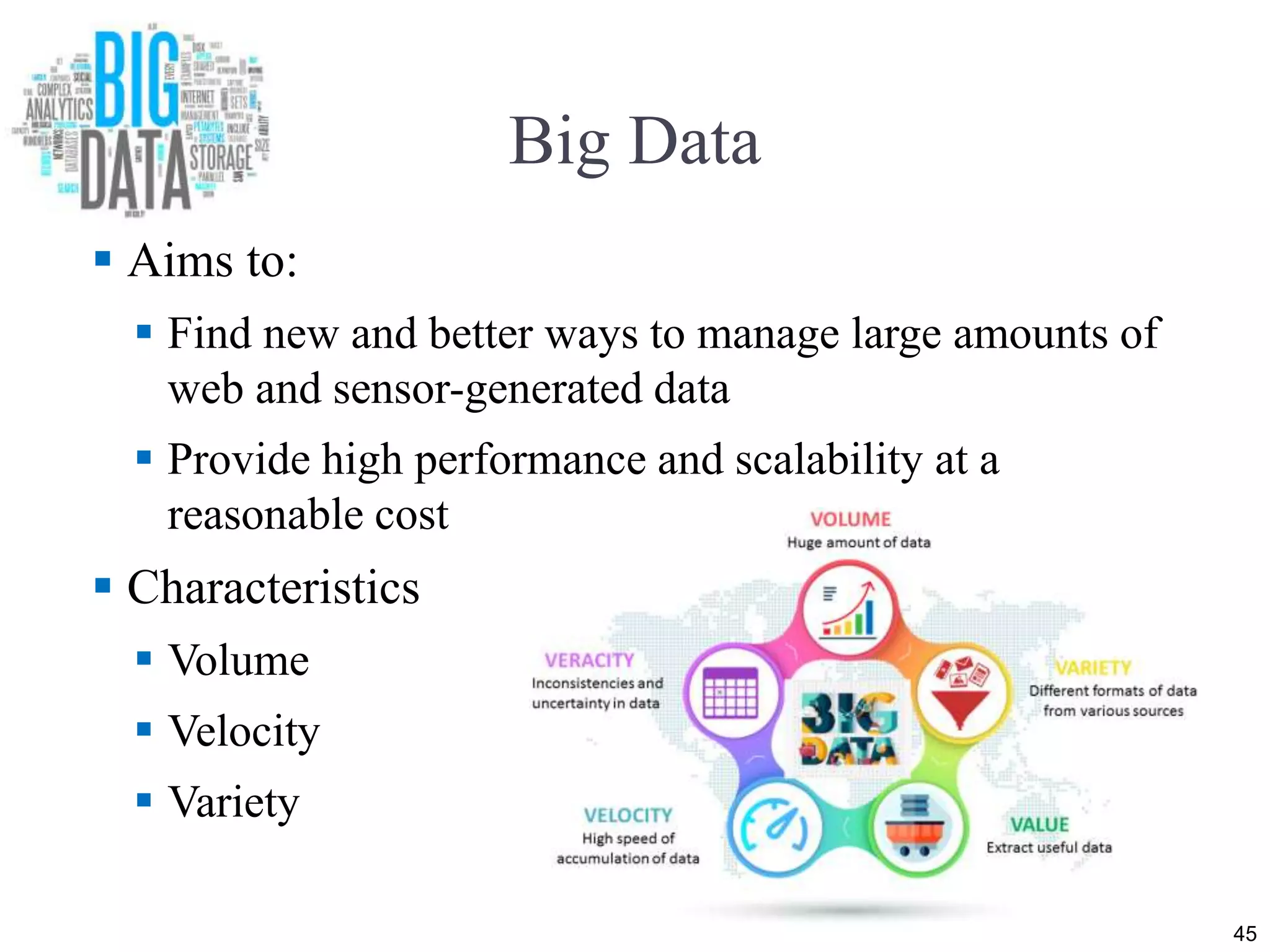

Big Data  Aims to:  Find new and better ways to manage large amounts of web and sensor-generated data  Provide high performance and scalability at a reasonable cost  Characteristics  Volume  Velocity  Variety 45

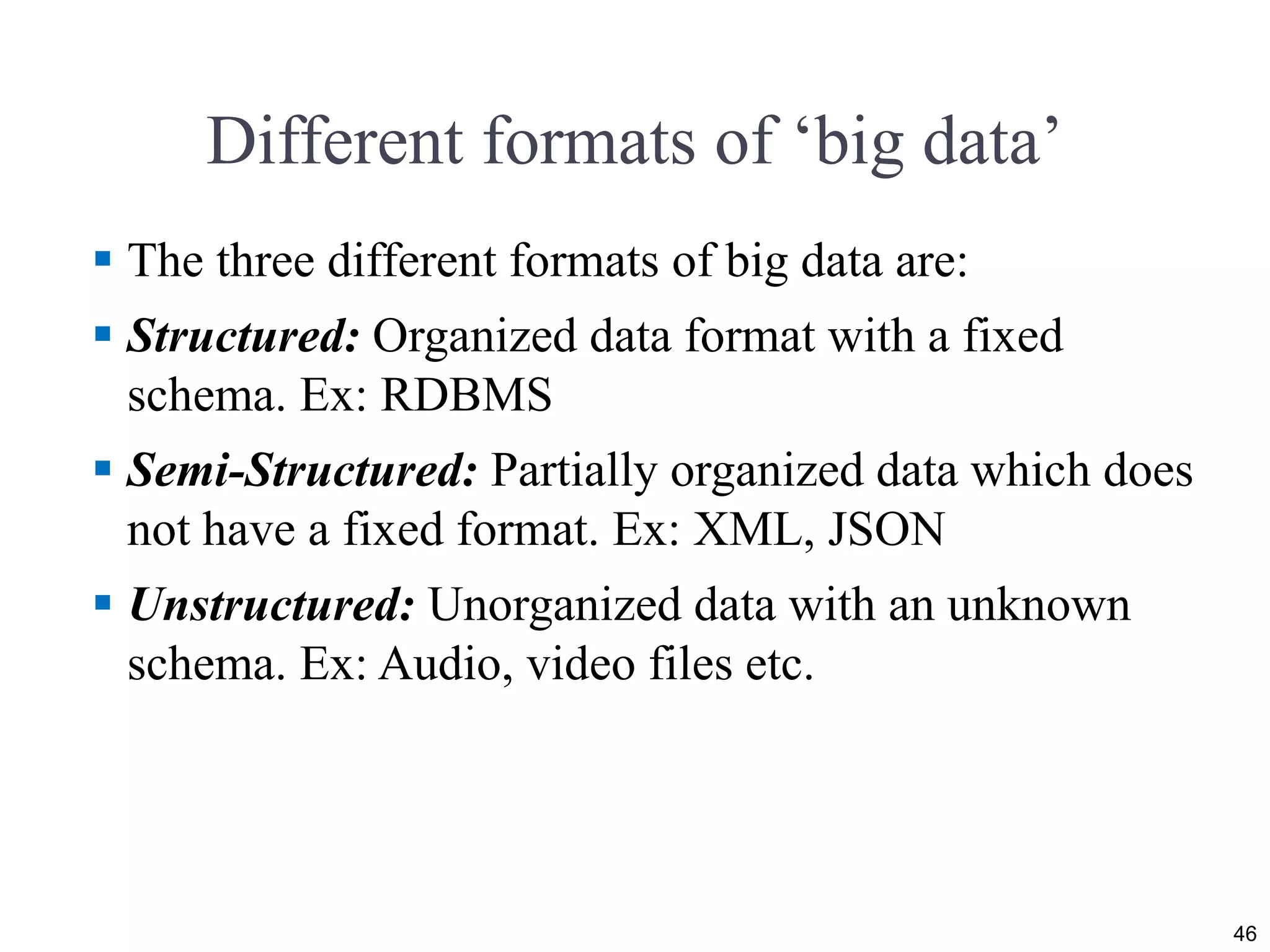

Different formats of ‘big data’  The three different formats of big data are:  Structured: Organized data format with a fixed schema. Ex: RDBMS  Semi-Structured: Partially organized data which does not have a fixed format. Ex: XML, JSON  Unstructured: Unorganized data with an unknown schema. Ex: Audio, video files etc. 46

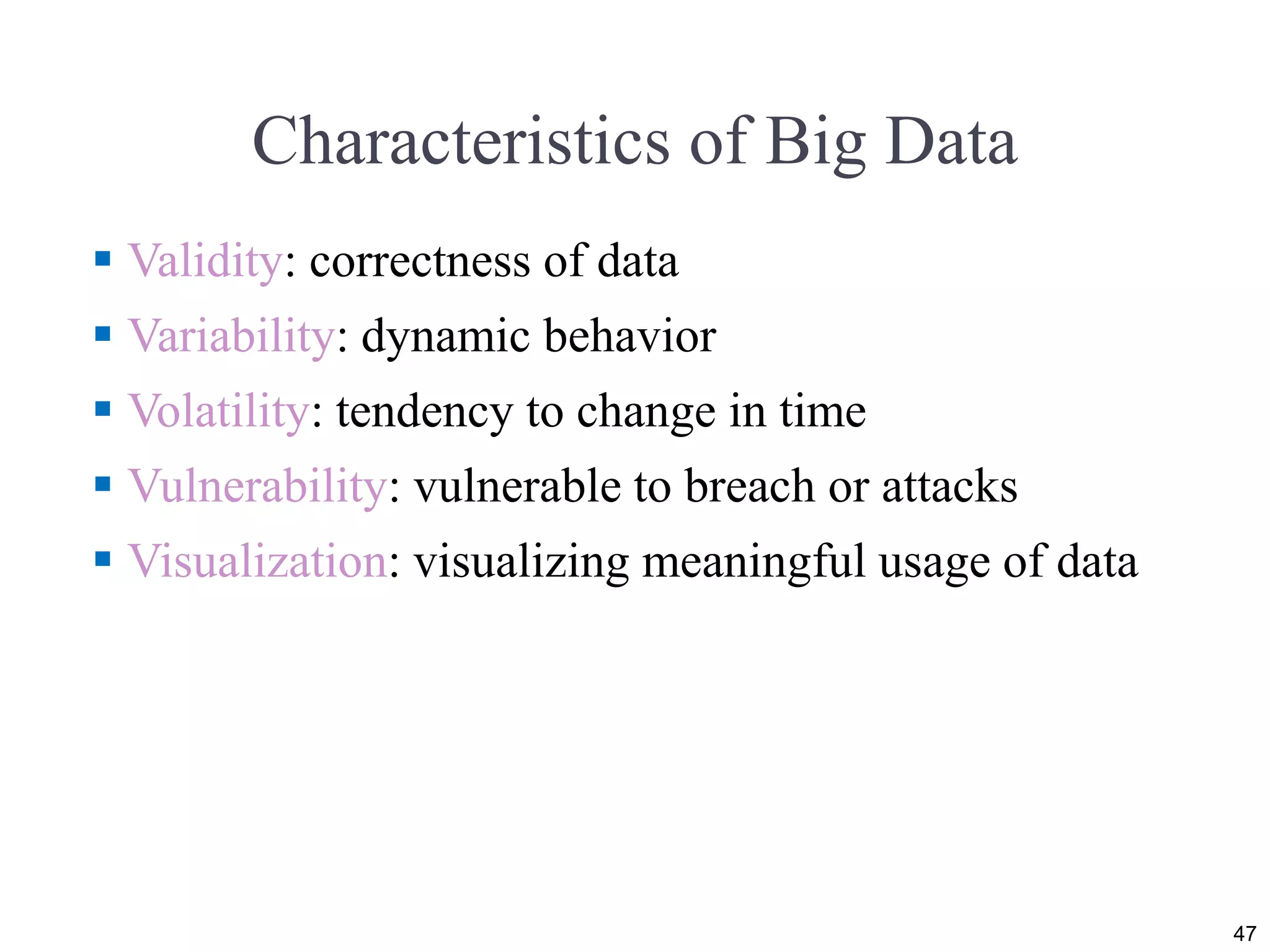

Characteristics of Big Data  Validity: correctness of data  Variability: dynamic behavior  Volatility: tendency to change in time  Vulnerability: vulnerable to breach or attacks  Visualization: visualizing meaningful usage of data 47

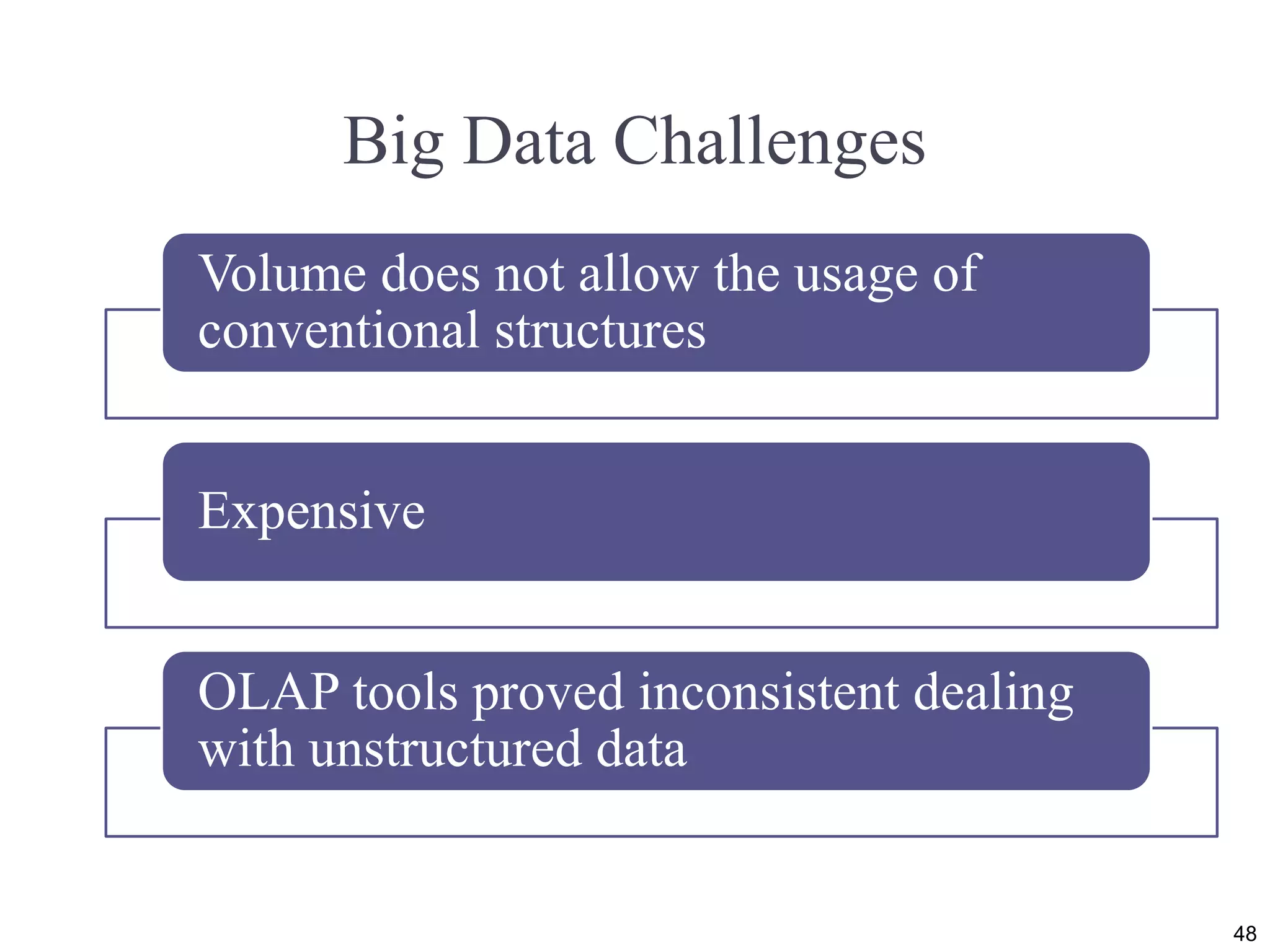

Big Data Challenges Volume does not allow the usage of conventional structures Expensive OLAP tools proved inconsistent dealing with unstructured data 48

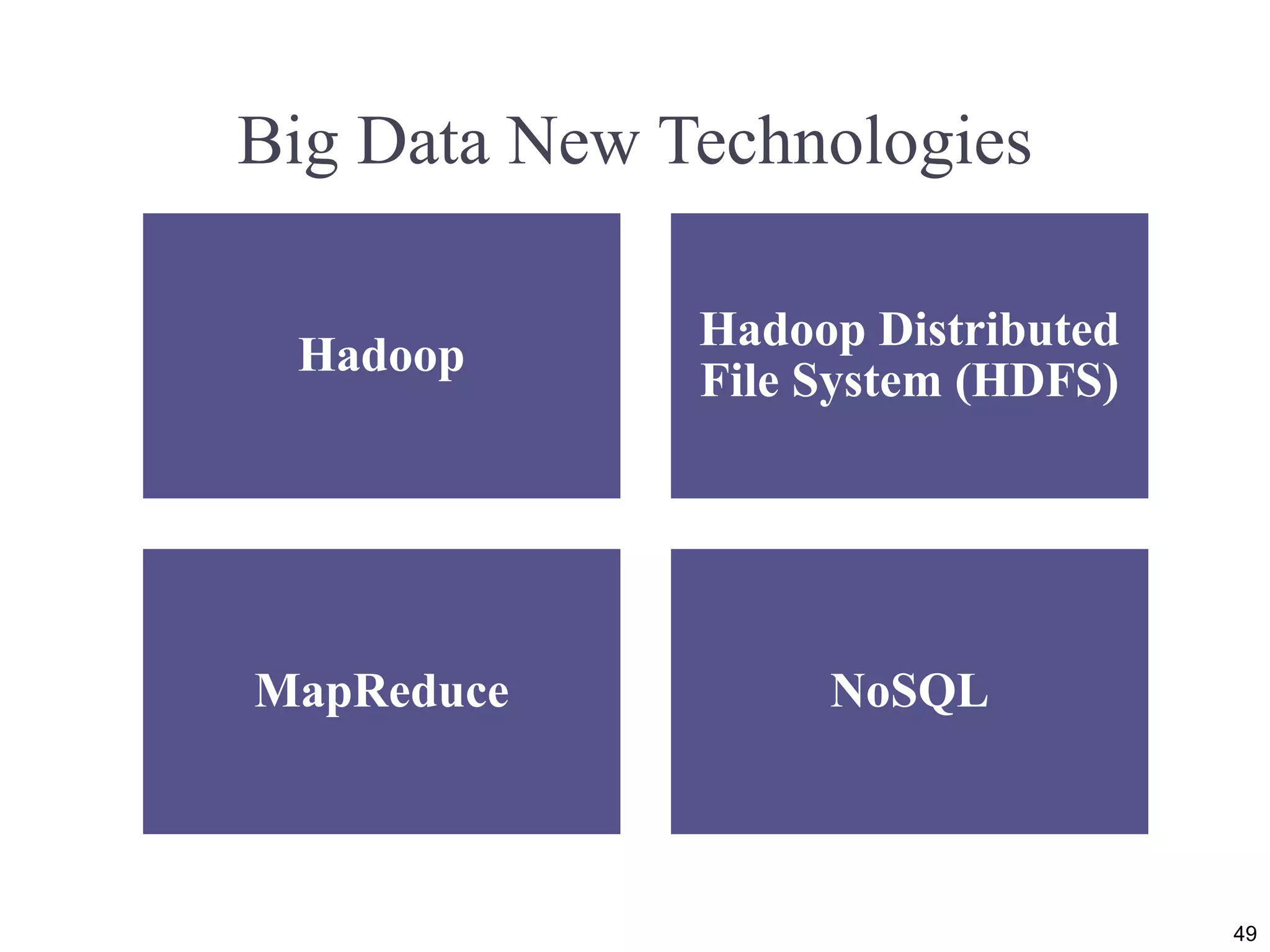

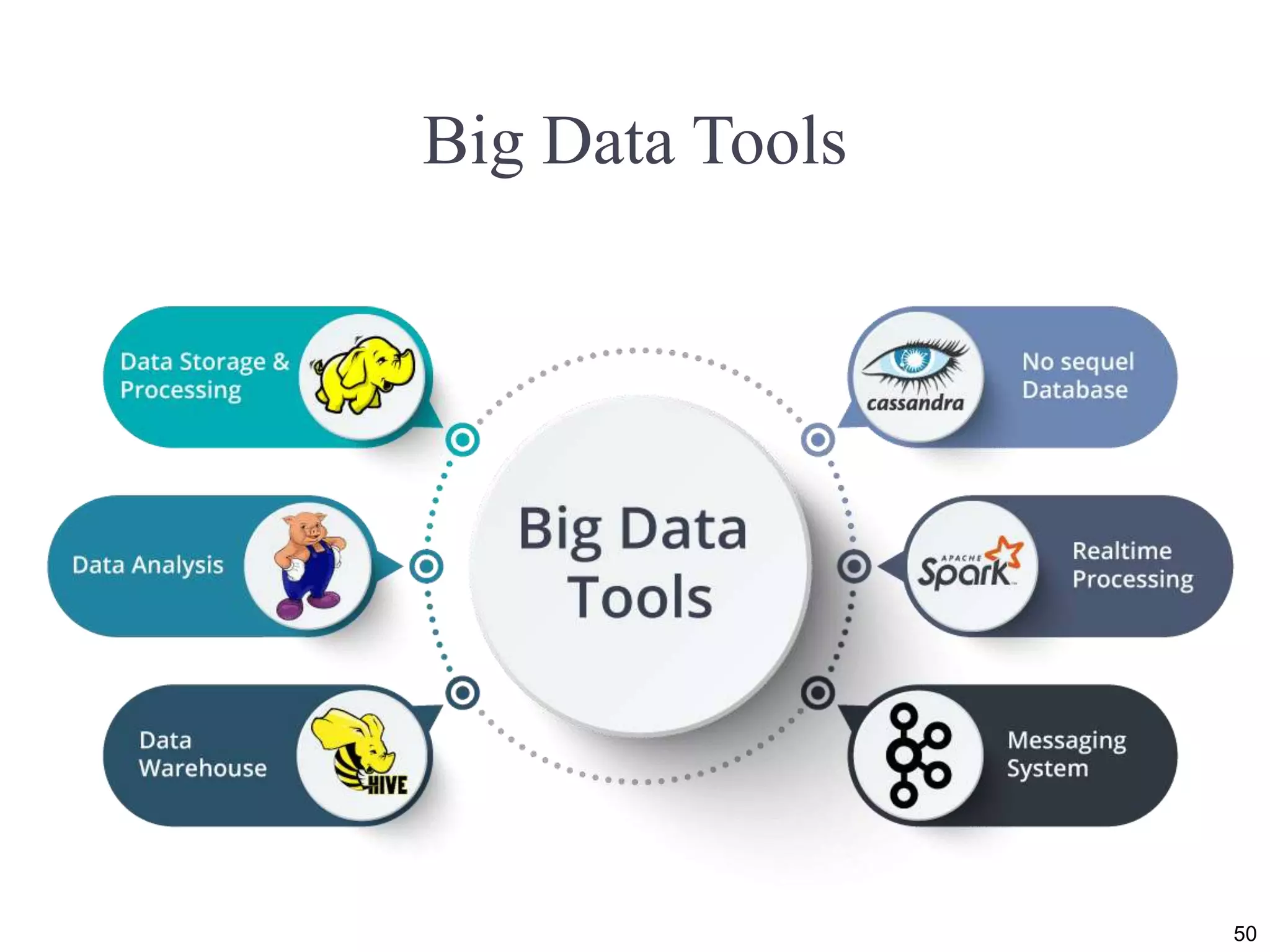

Big Data New Technologies Hadoop Hadoop Distributed File System (HDFS) MapReduce NoSQL 49

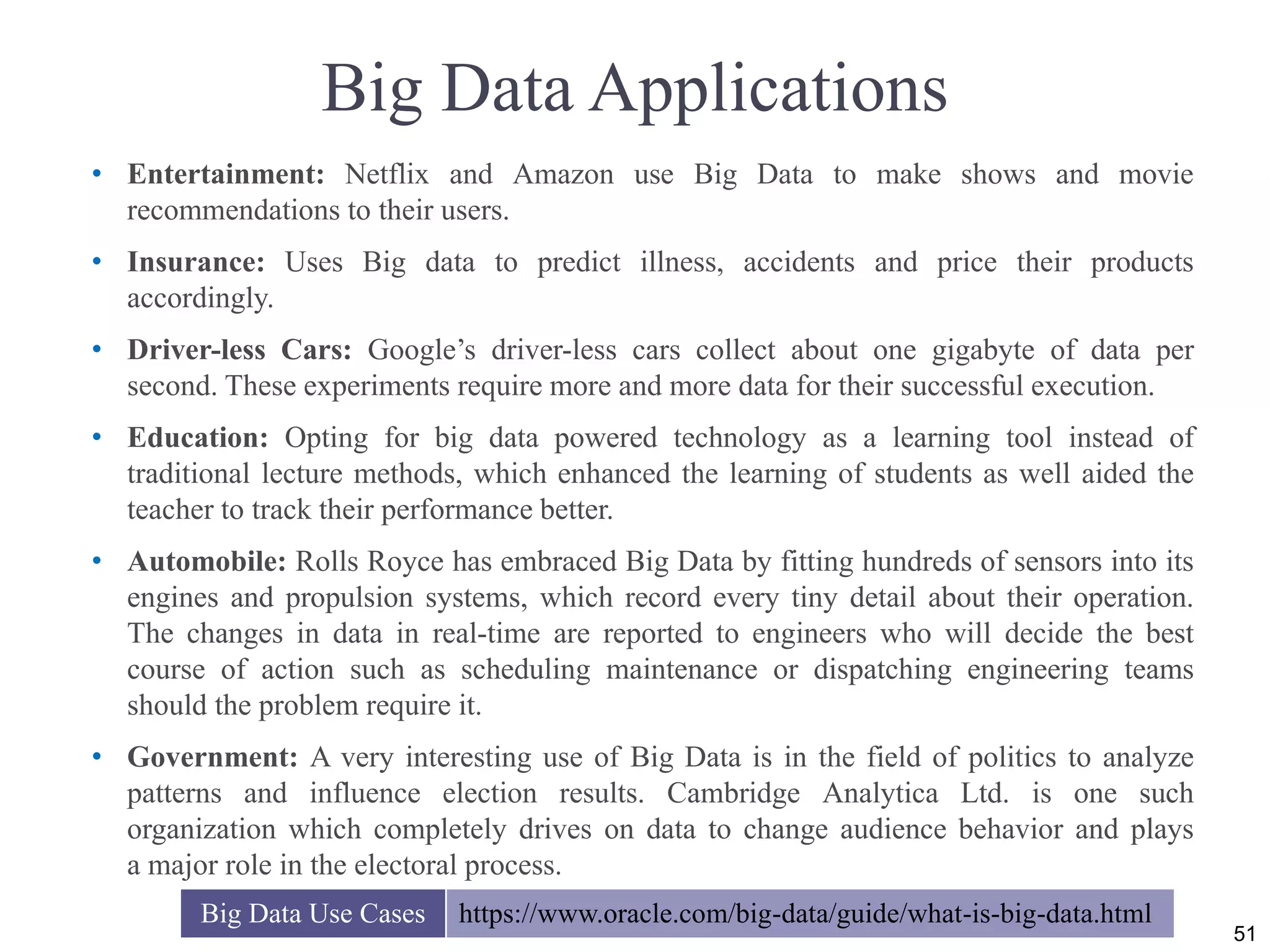

Big Data Applications • Entertainment: Netflix and Amazon use Big Data to make shows and movie recommendations to their users. • Insurance: Uses Big data to predict illness, accidents and price their products accordingly. • Driver-less Cars: Google’s driver-less cars collect about one gigabyte of data per second. These experiments require more and more data for their successful execution. • Education: Opting for big data powered technology as a learning tool instead of traditional lecture methods, which enhanced the learning of students as well aided the teacher to track their performance better. • Automobile: Rolls Royce has embraced Big Data by fitting hundreds of sensors into its engines and propulsion systems, which record every tiny detail about their operation. The changes in data in real-time are reported to engineers who will decide the best course of action such as scheduling maintenance or dispatching engineering teams should the problem require it. • Government: A very interesting use of Big Data is in the field of politics to analyze patterns and influence election results. Cambridge Analytica Ltd. is one such organization which completely drives on data to change audience behavior and plays a major role in the electoral process. 51 Big Data Use Cases https://www.oracle.com/big-data/guide/what-is-big-data.html

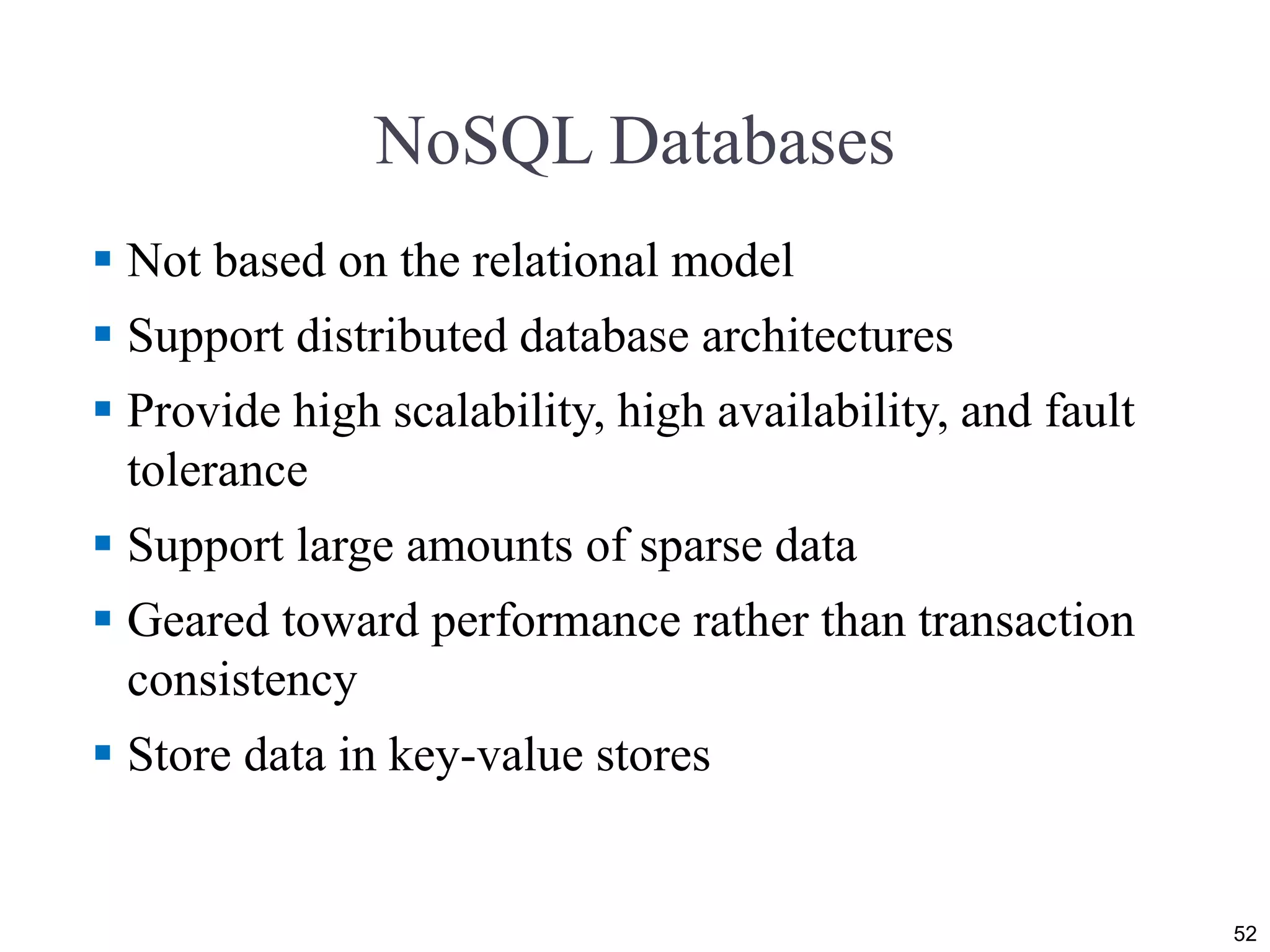

NoSQL Databases  Not based on the relational model  Support distributed database architectures  Provide high scalability, high availability, and fault tolerance  Support large amounts of sparse data  Geared toward performance rather than transaction consistency  Store data in key-value stores 52

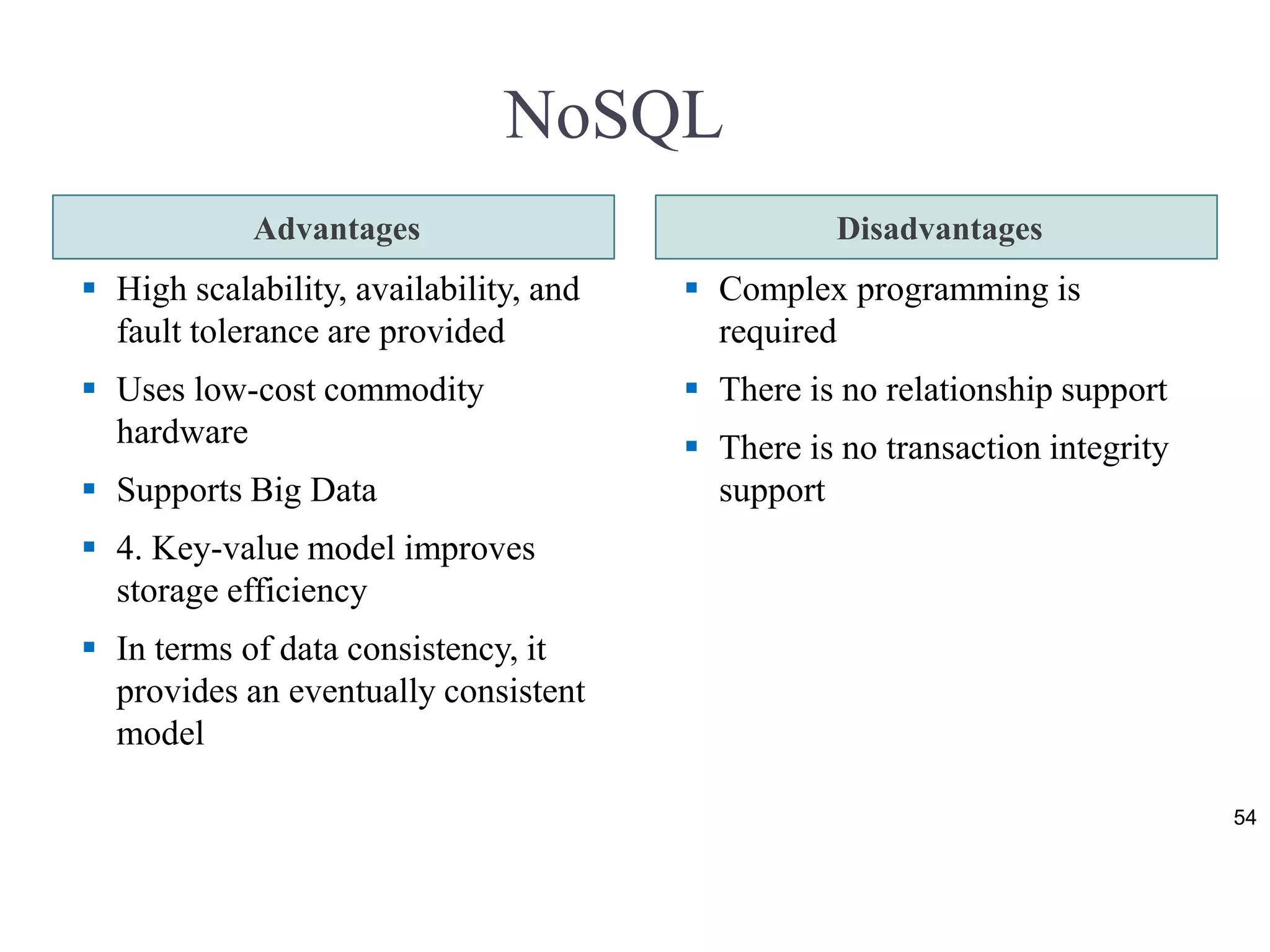

NoSQL Advantages Disadvantages  High scalability, availability, and fault tolerance are provided  Uses low-cost commodity hardware  Supports Big Data  4. Key-value model improves storage efficiency  In terms of data consistency, it provides an eventually consistent model  Complex programming is required  There is no relationship support  There is no transaction integrity support 54

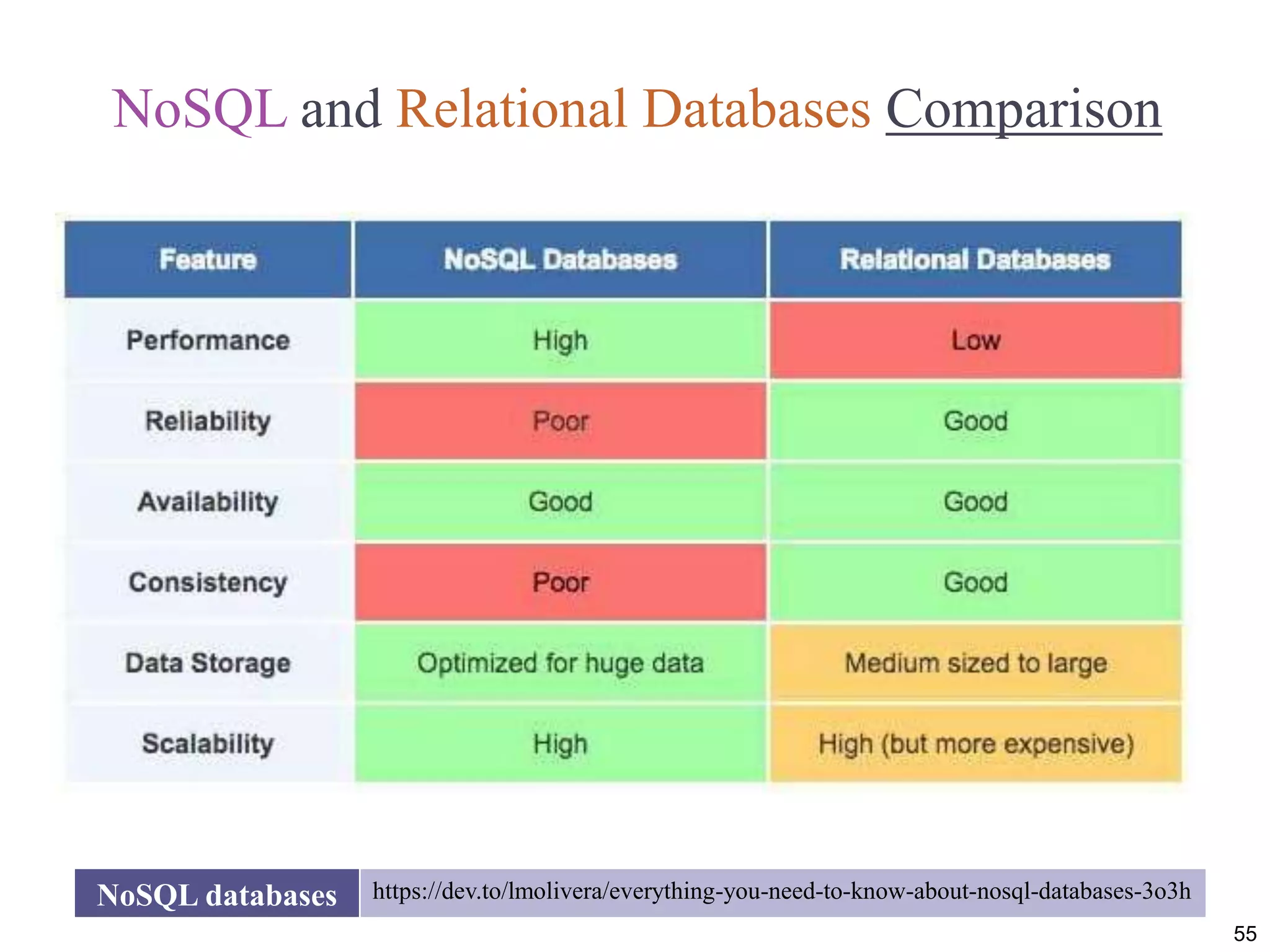

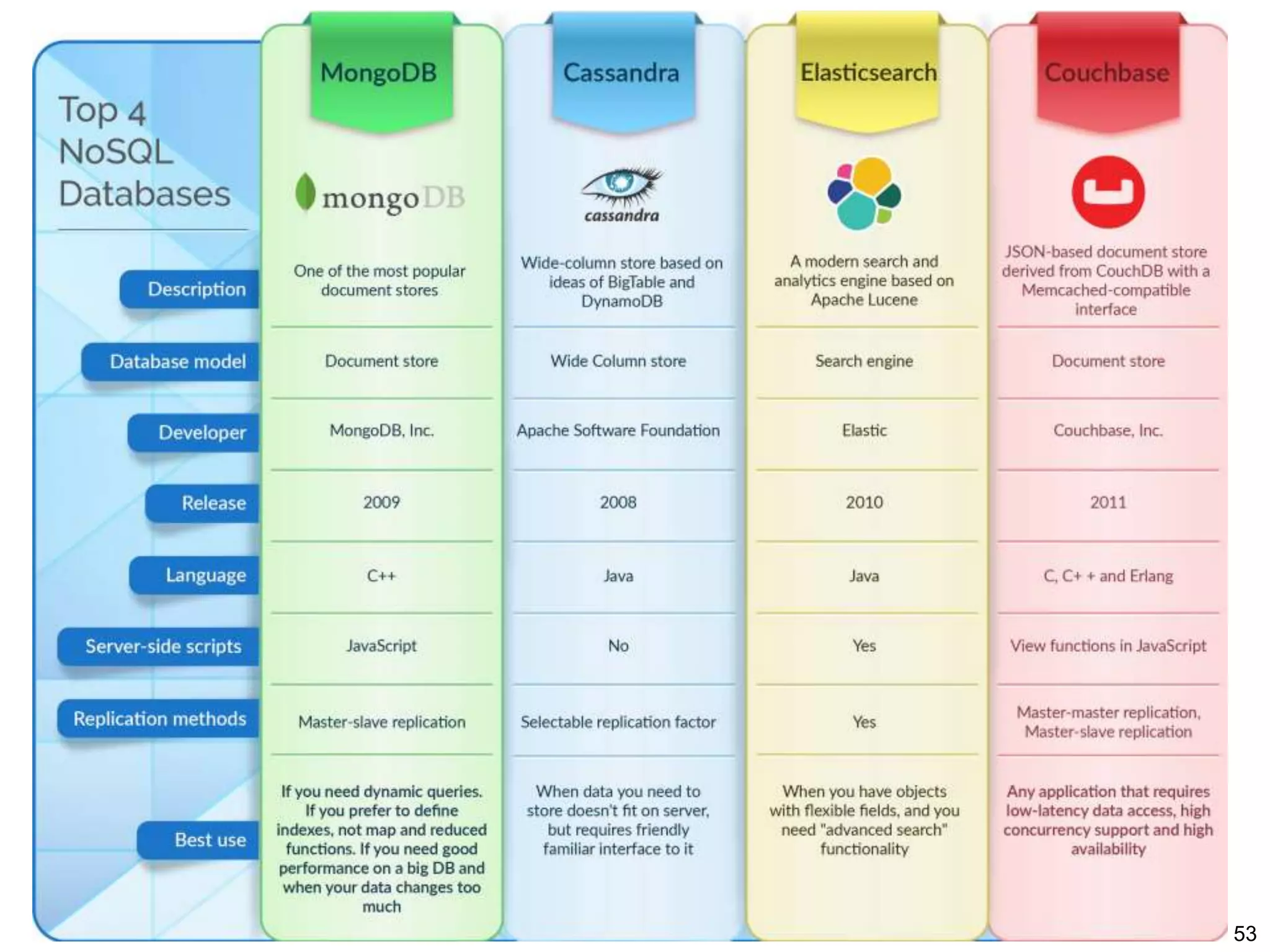

NoSQL and Relational Databases Comparison 55 NoSQL databases https://dev.to/lmolivera/everything-you-need-to-know-about-nosql-databases-3o3h

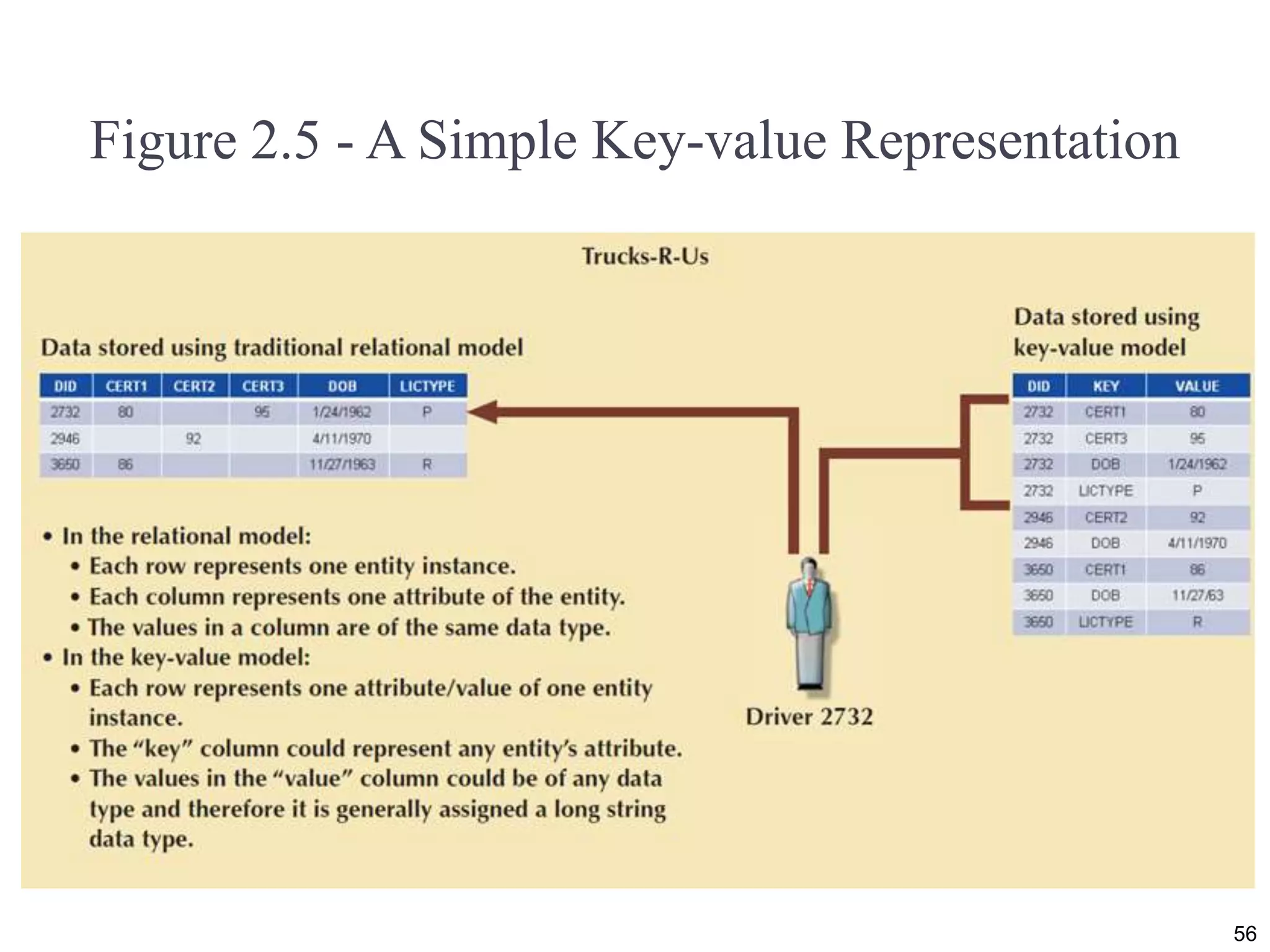

Figure 2.5 - A Simple Key-value Representation 56

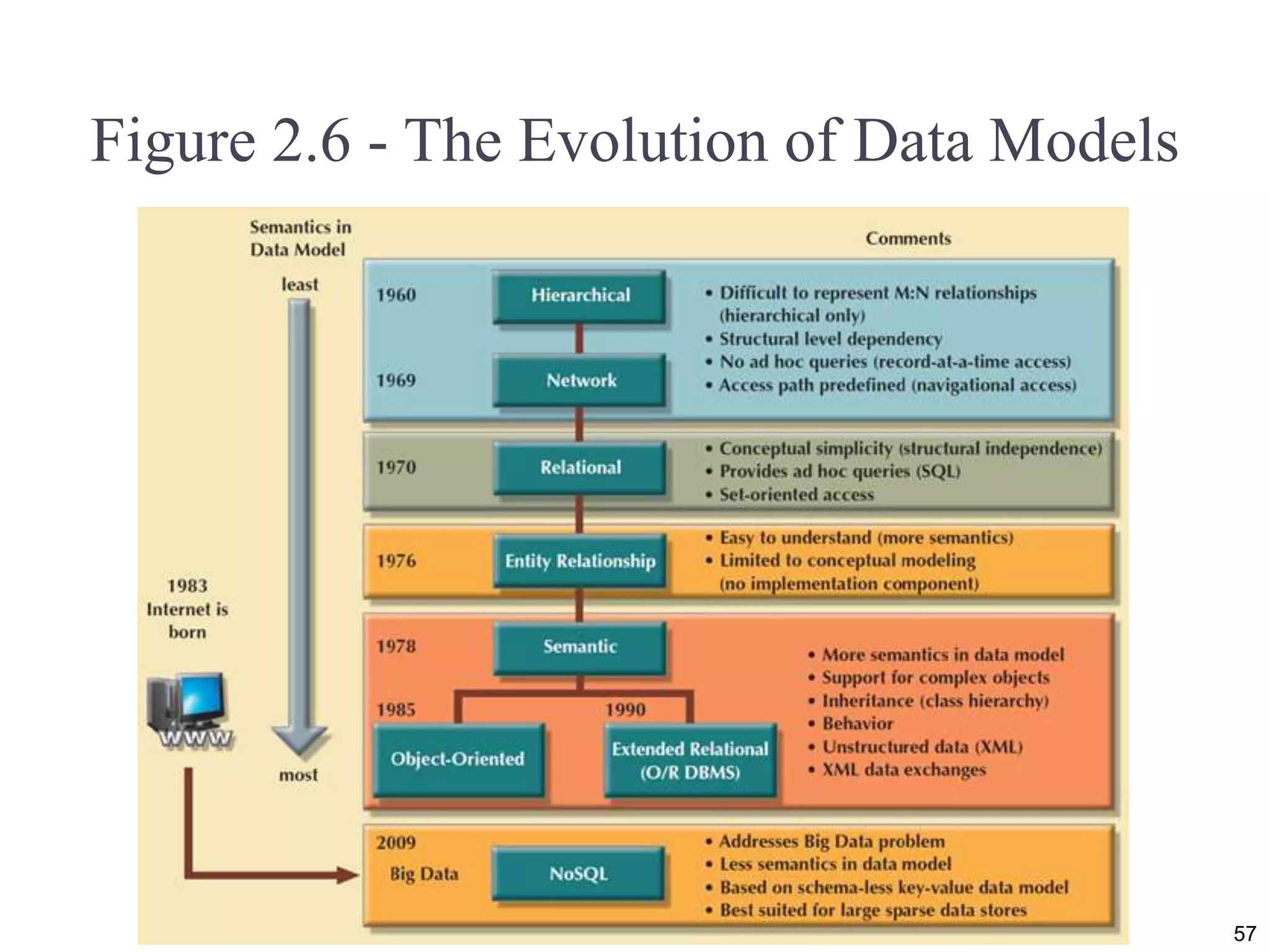

Figure 2.6 - The Evolution of Data Models 57

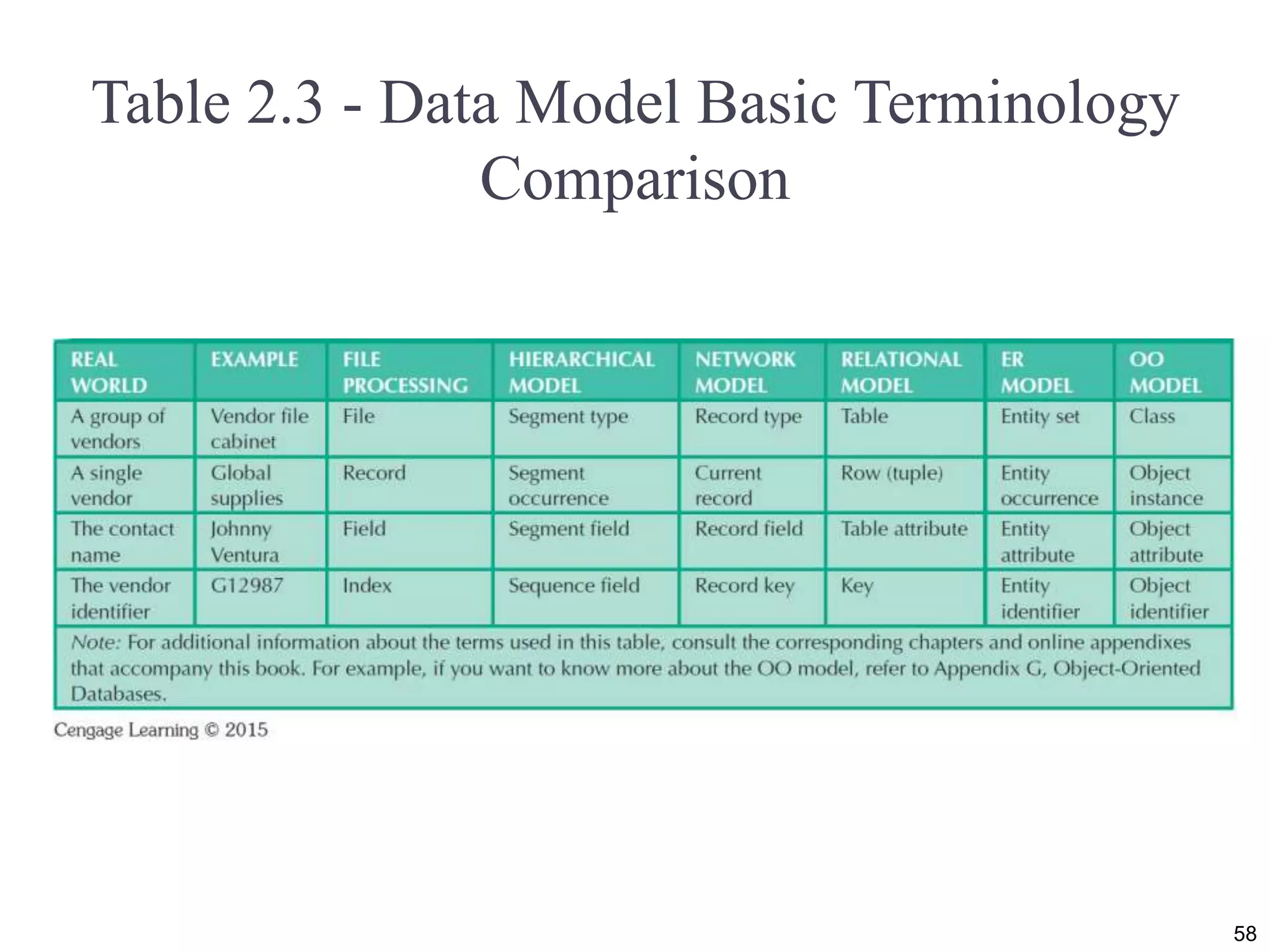

Table 2.3 - Data Model Basic Terminology Comparison 58

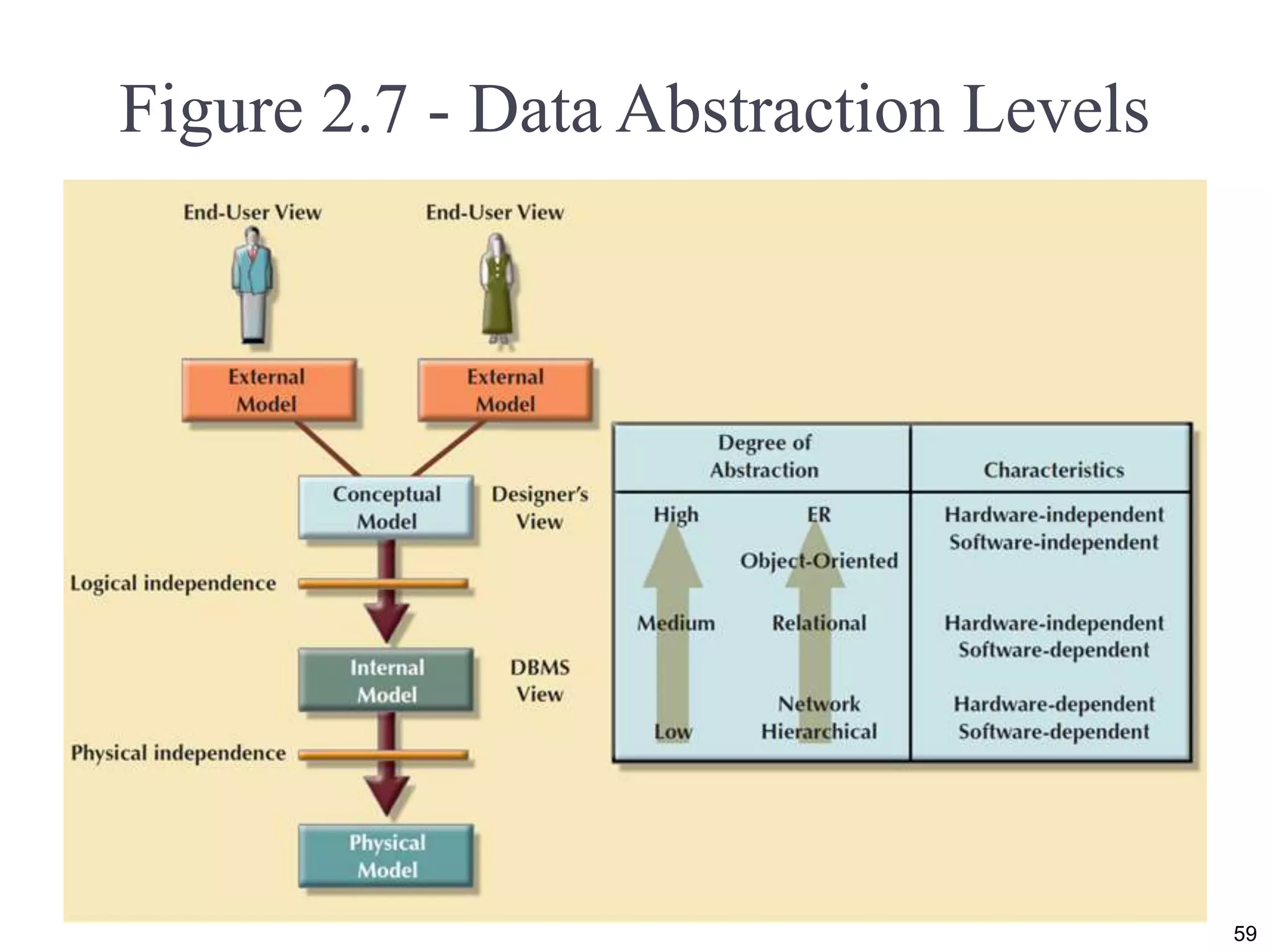

Figure 2.7 - Data Abstraction Levels 59

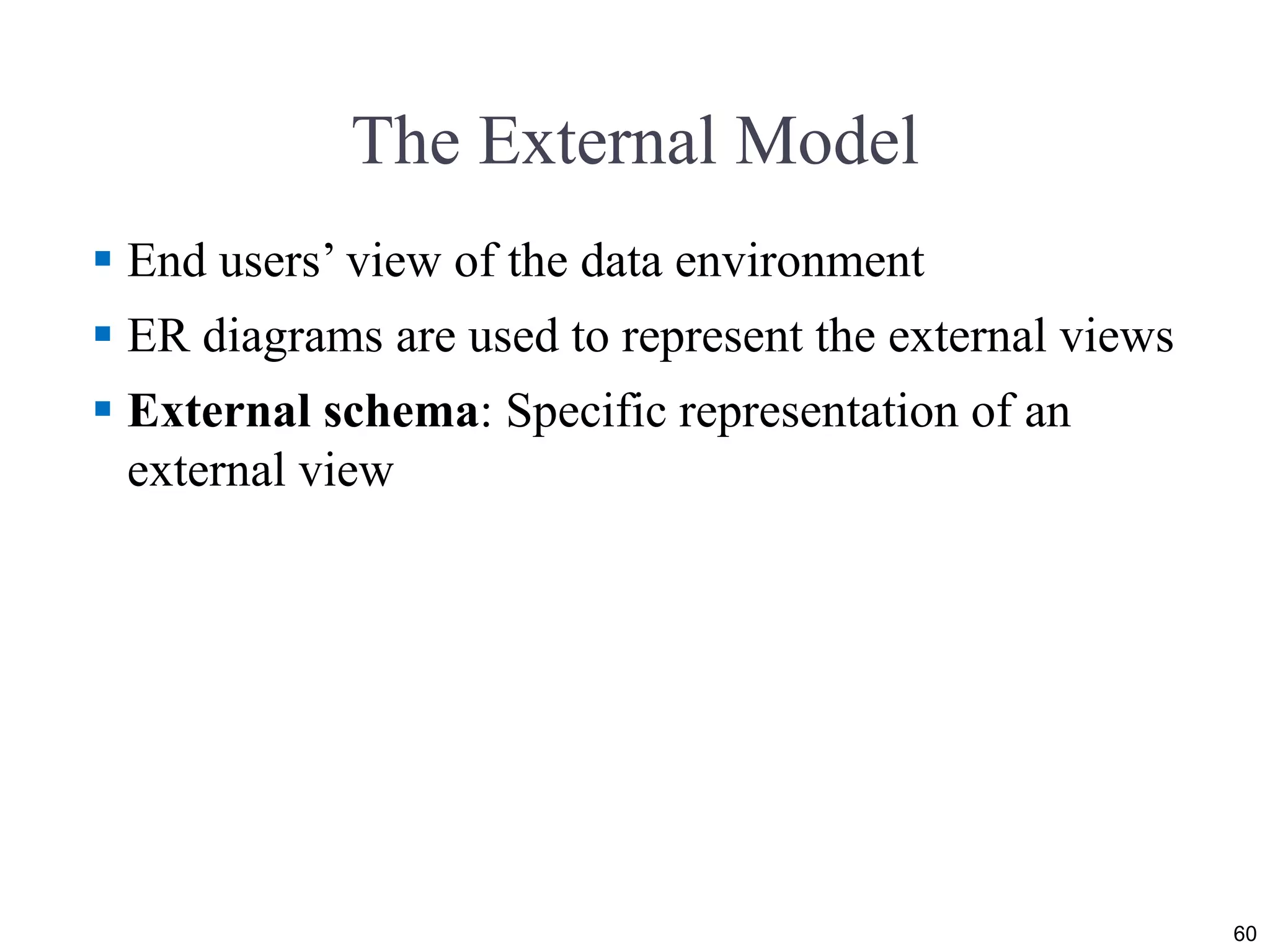

The External Model  End users’ view of the data environment  ER diagrams are used to represent the external views  External schema: Specific representation of an external view 60

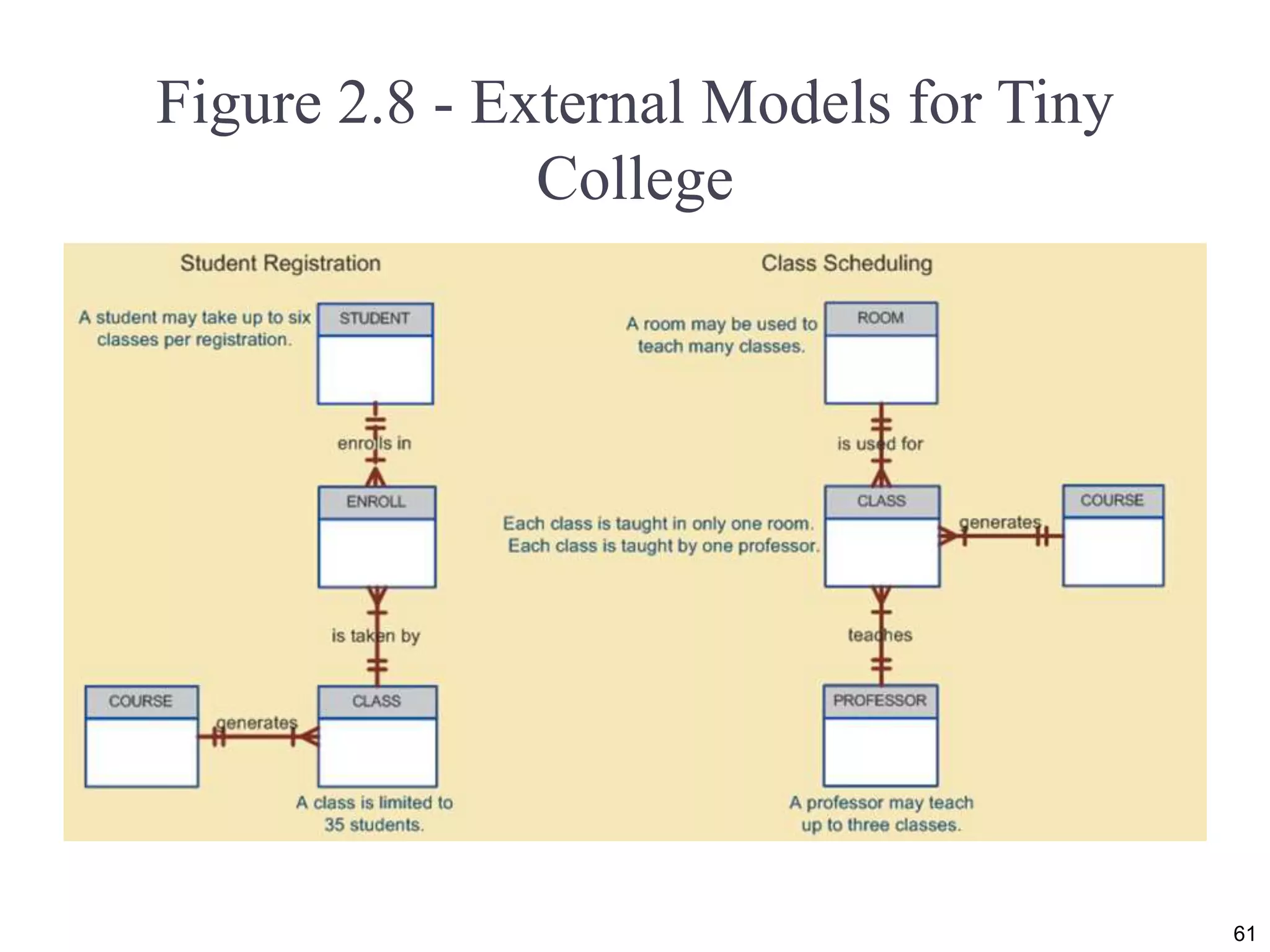

Figure 2.8 - External Models for Tiny College 61

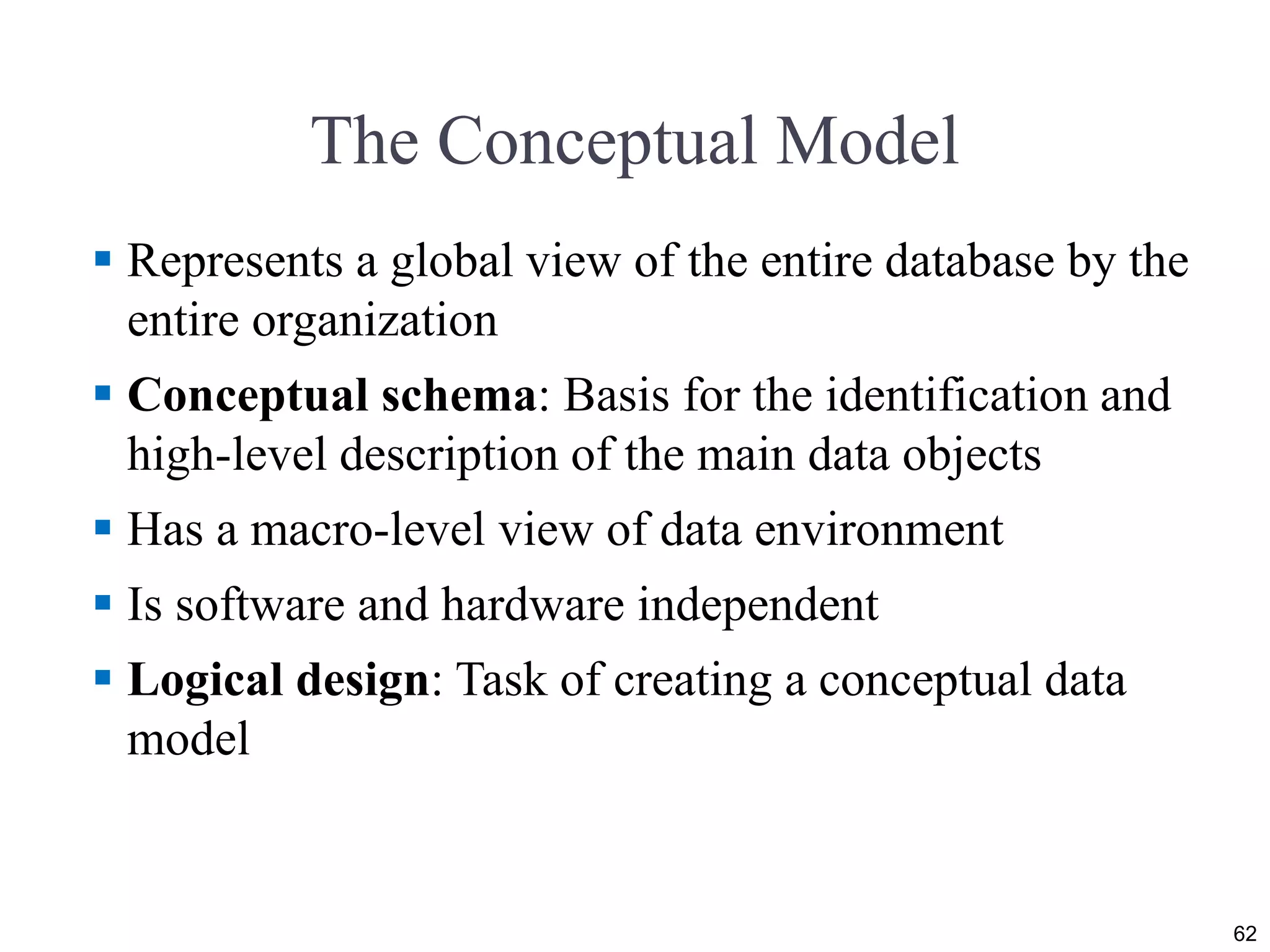

The Conceptual Model  Represents a global view of the entire database by the entire organization  Conceptual schema: Basis for the identification and high-level description of the main data objects  Has a macro-level view of data environment  Is software and hardware independent  Logical design: Task of creating a conceptual data model 62

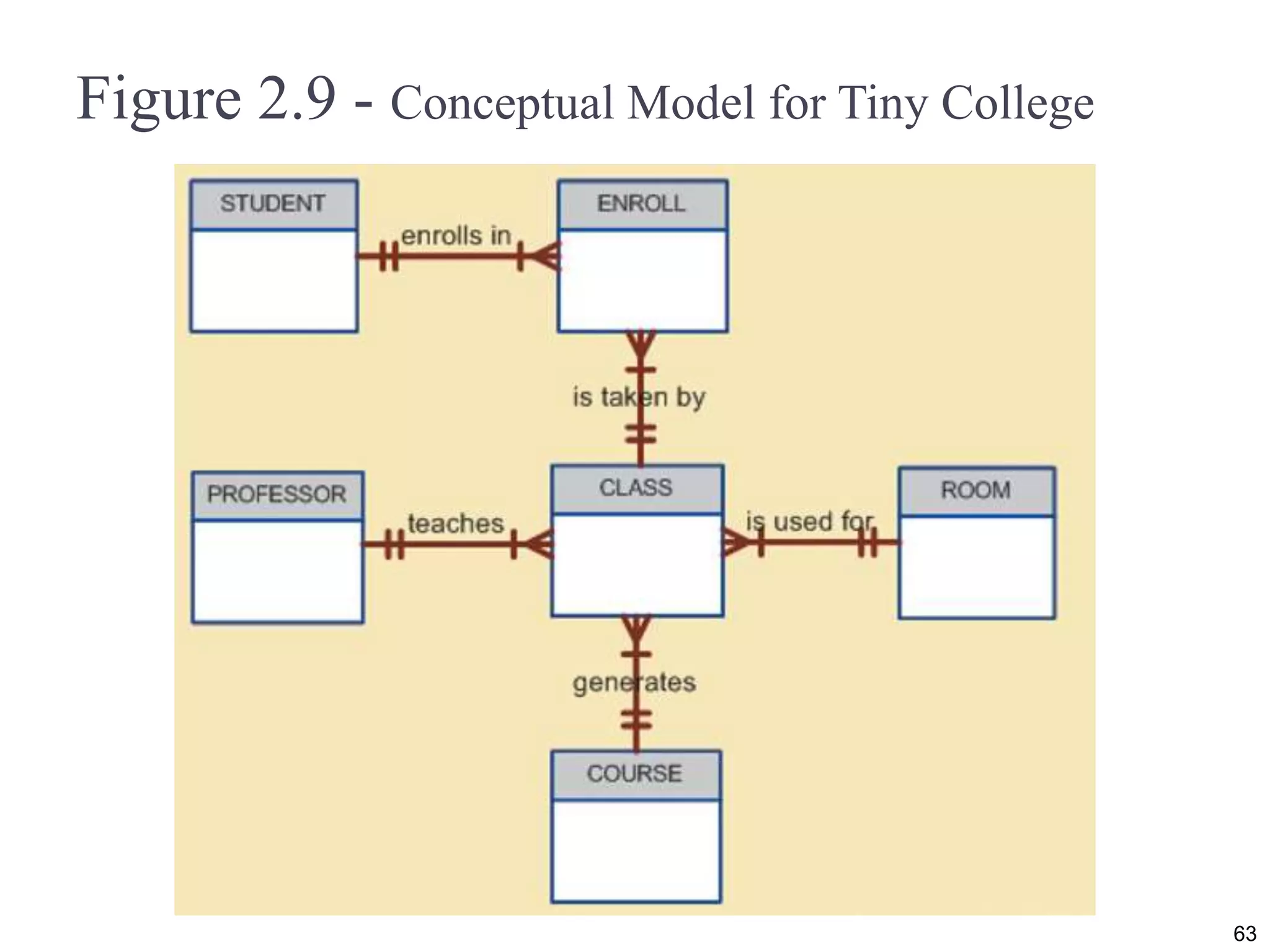

Figure 2.9 - Conceptual Model for Tiny College 63

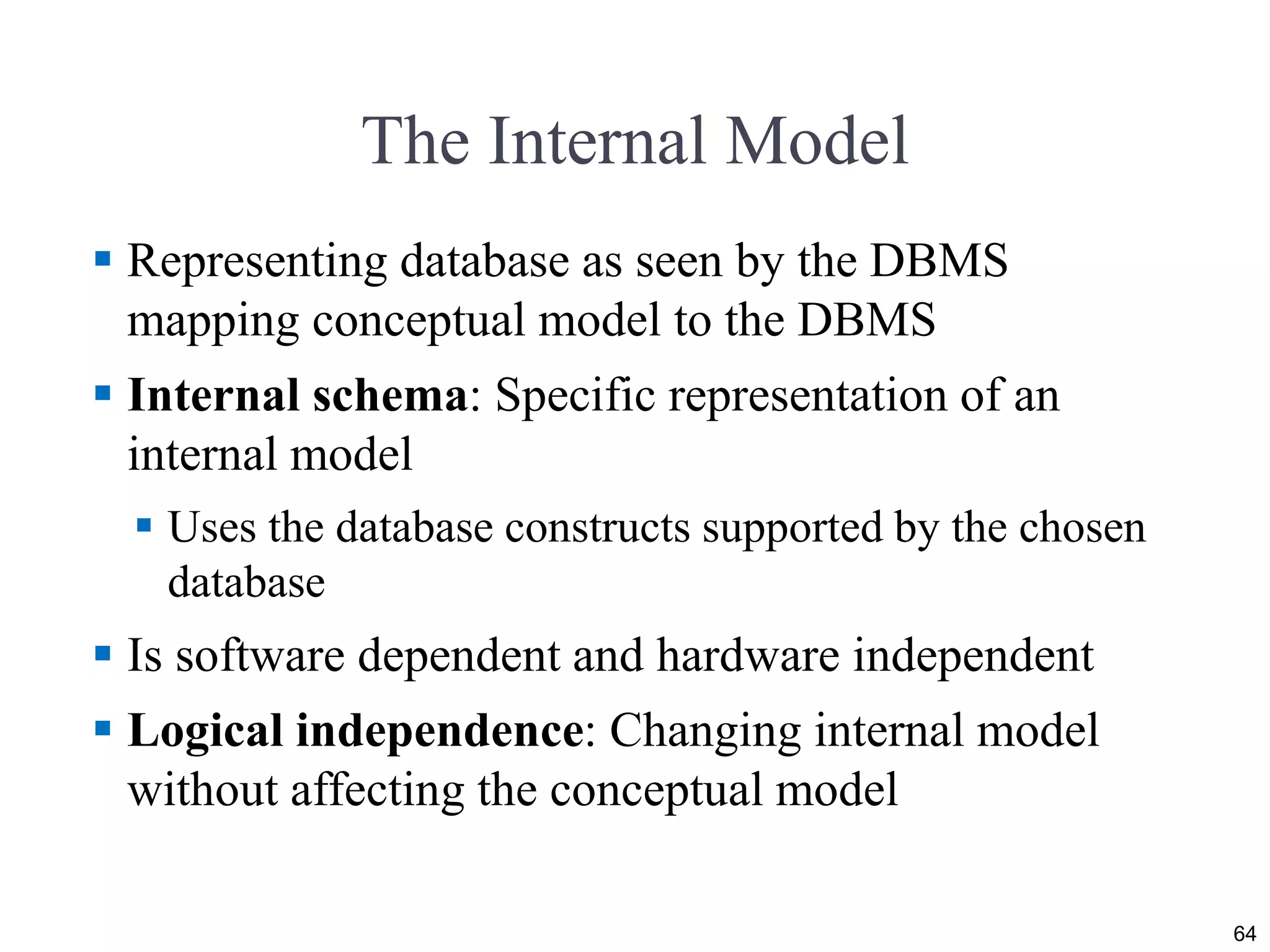

The Internal Model  Representing database as seen by the DBMS mapping conceptual model to the DBMS  Internal schema: Specific representation of an internal model  Uses the database constructs supported by the chosen database  Is software dependent and hardware independent  Logical independence: Changing internal model without affecting the conceptual model 64

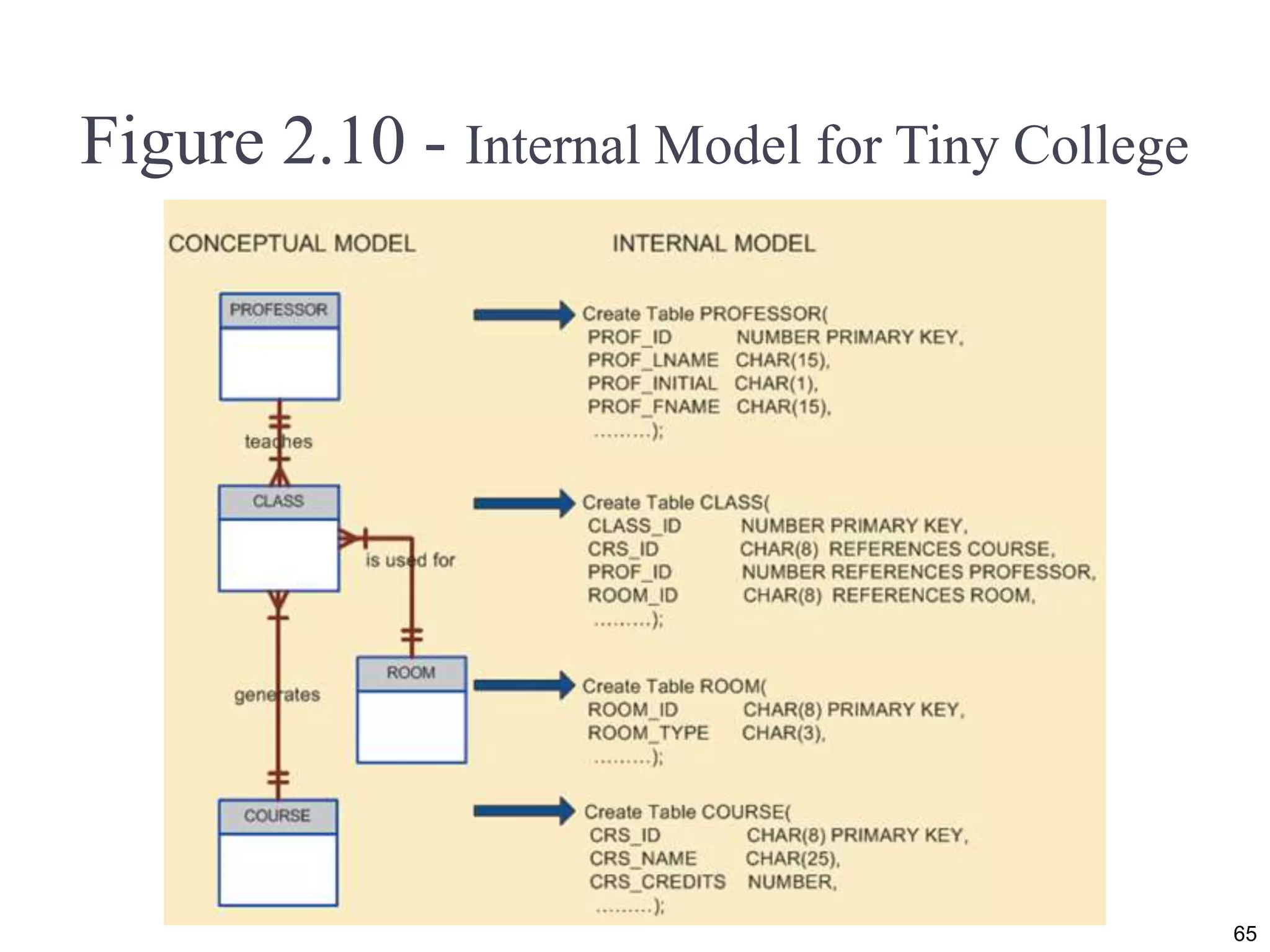

Figure 2.10 - Internal Model for Tiny College 65

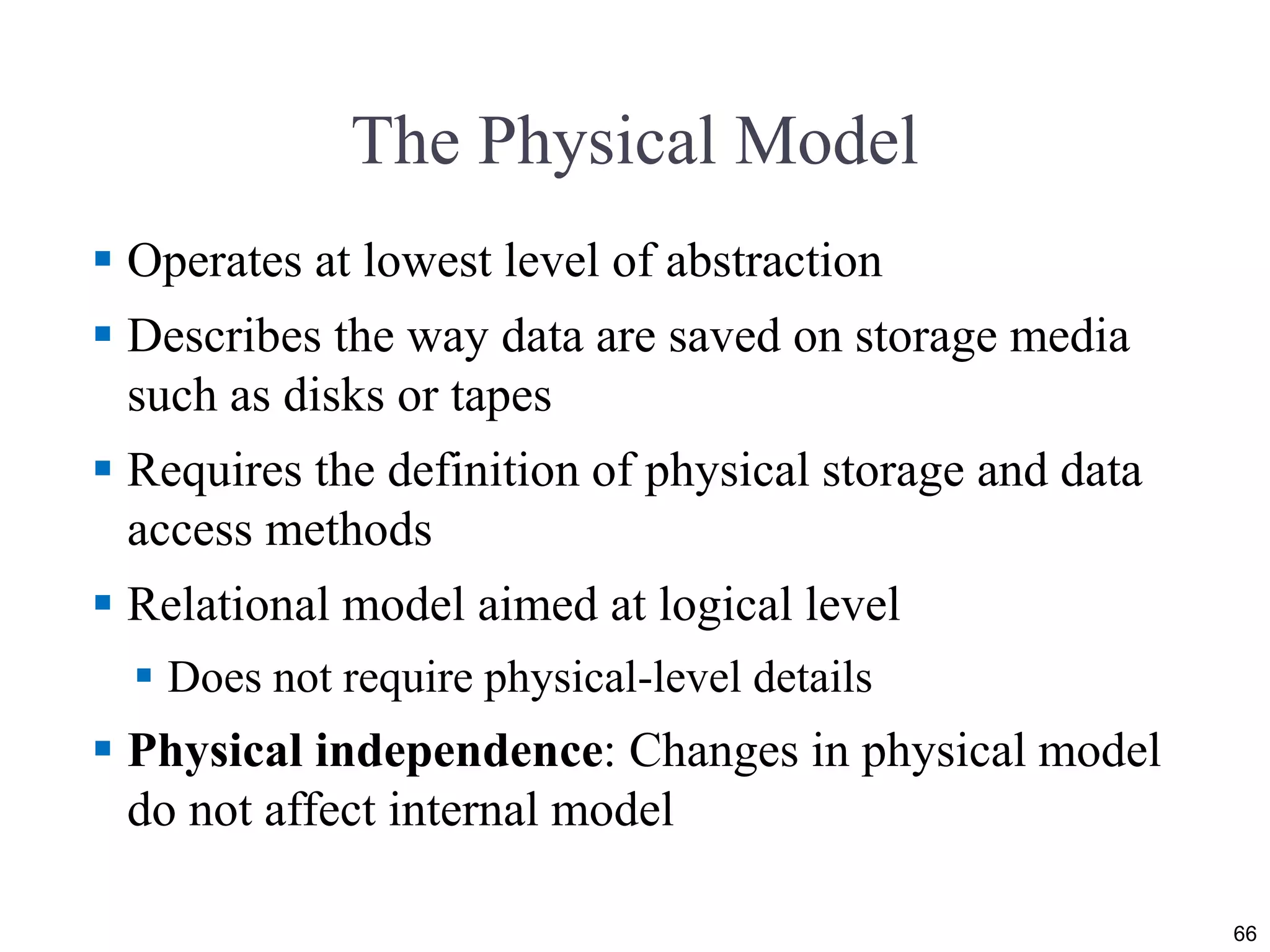

The Physical Model  Operates at lowest level of abstraction  Describes the way data are saved on storage media such as disks or tapes  Requires the definition of physical storage and data access methods  Relational model aimed at logical level  Does not require physical-level details  Physical independence: Changes in physical model do not affect internal model 66
