<Insert Picture Here> Best Practices - PHP and the Oracle Database Christopher Jones, Product Development, Oracle

The following is intended to outline our general product direction. It is intended for information purposes only, and may not be incorporated into any contract. It is not a commitment to deliver any material, code, or functionality, and should not be relied upon in making purchasing decisions. The development, release, and timing of any features or functionality described for Oracle’s products remains at the sole discretion of Oracle. © 2009 Oracle Corporation

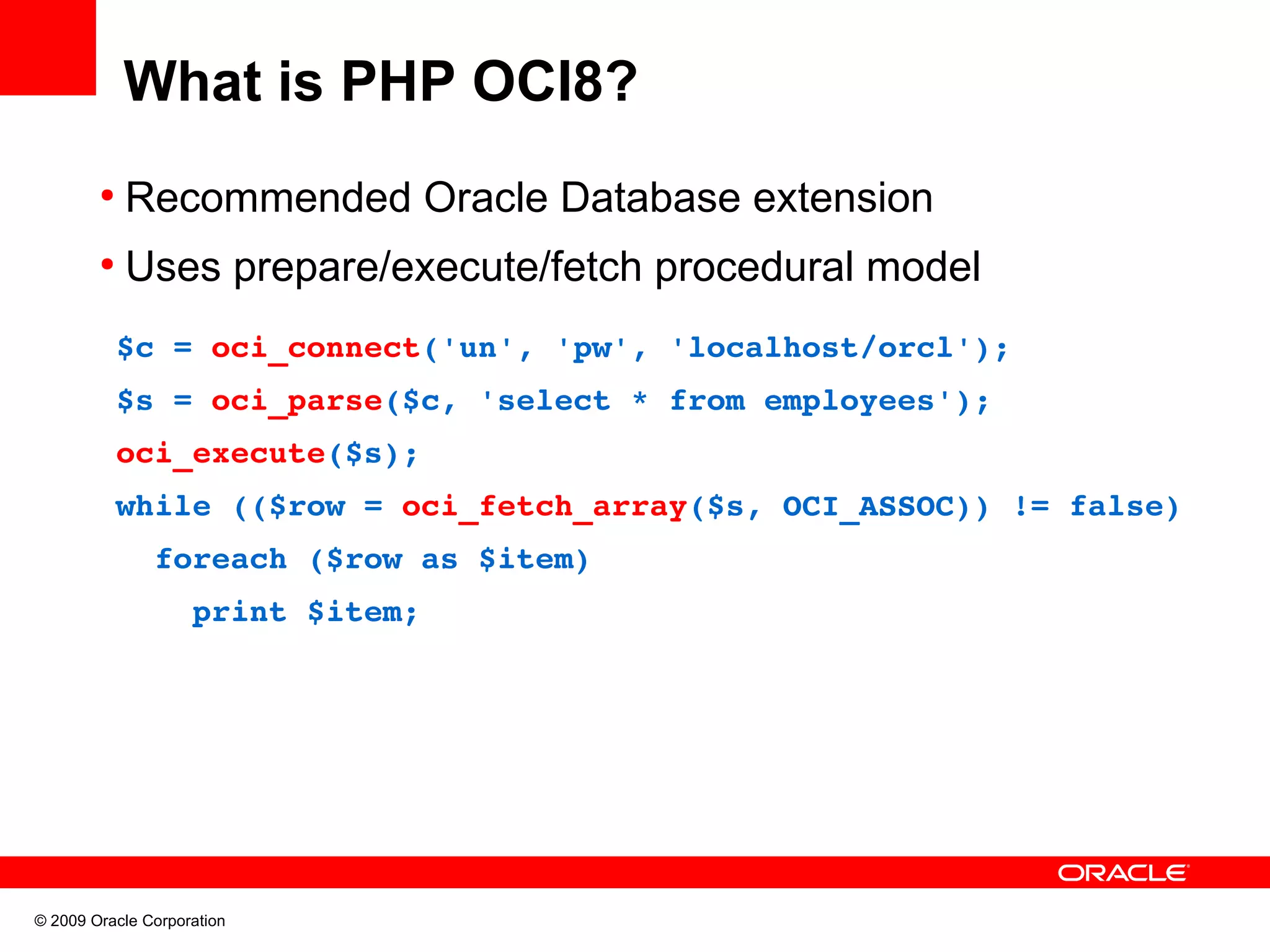

What is PHP OCI8? ● Recommended Oracle Database extension ● Uses prepare/execute/fetch procedural model $c = oci_connect('un', 'pw', 'localhost/orcl'); $s = oci_parse($c, 'select * from employees'); oci_execute($s); while (($row = oci_fetch_array($s, OCI_ASSOC)) != false) foreach ($row as $item) print $item; © 2009 Oracle Corporation

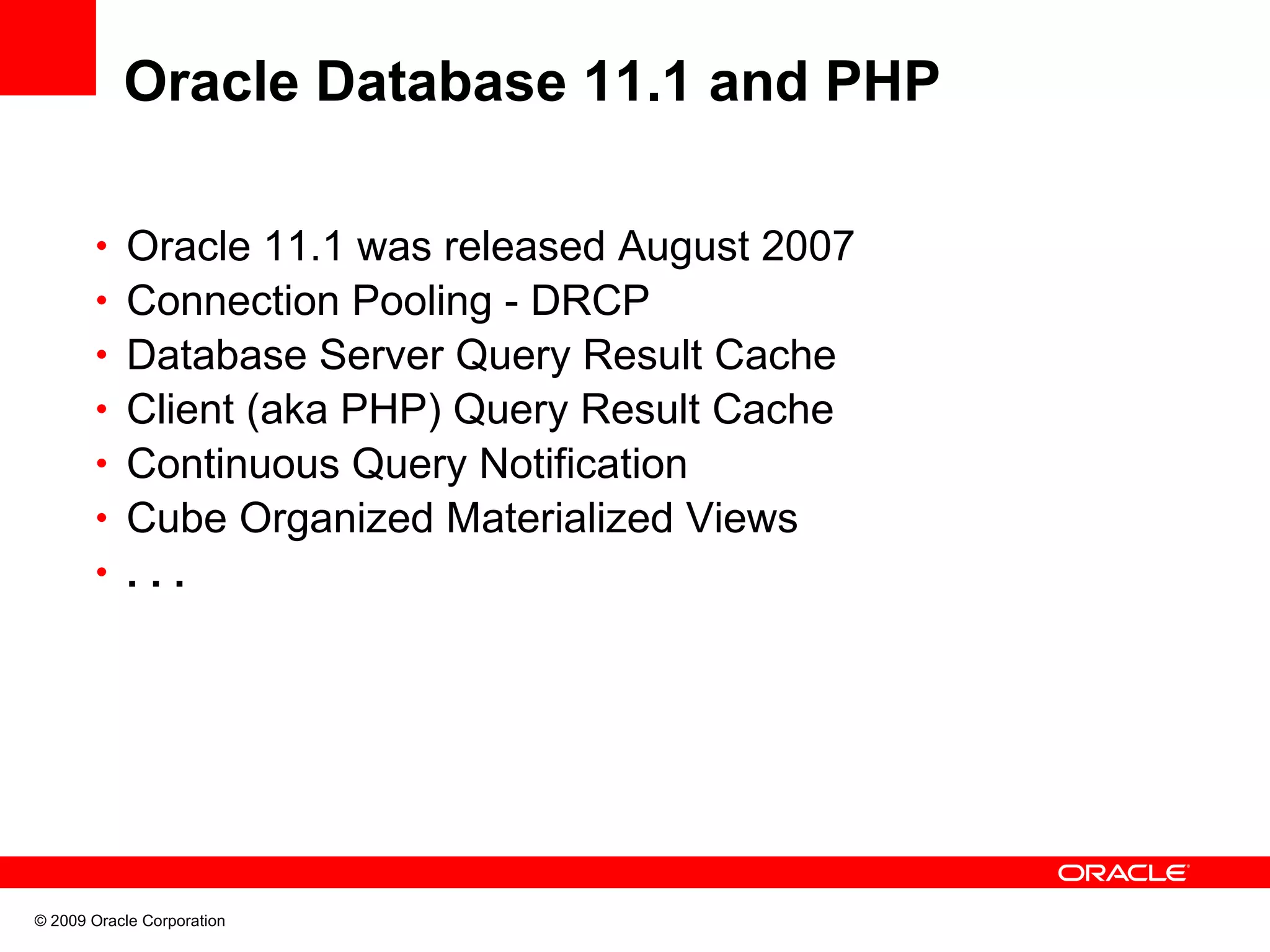

Oracle Database 11.1 and PHP • Oracle 11.1 was released August 2007 • Connection Pooling - DRCP • Database Server Query Result Cache • Client (aka PHP) Query Result Cache • Continuous Query Notification • Cube Organized Materialized Views • ... © 2009 Oracle Corporation

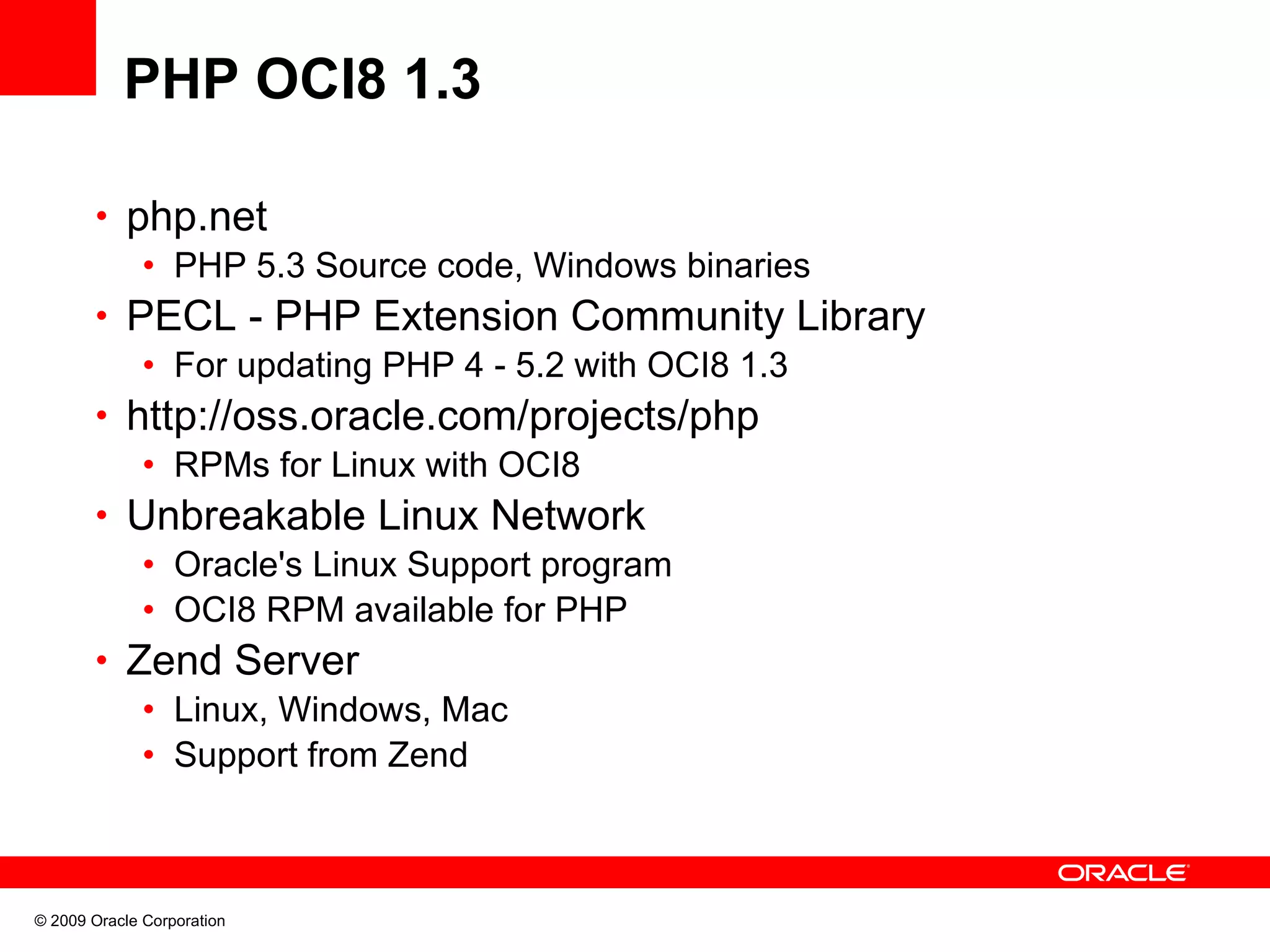

PHP OCI8 1.3 • php.net • PHP 5.3 Source code, Windows binaries • PECL - PHP Extension Community Library • For updating PHP 4 - 5.2 with OCI8 1.3 • http://oss.oracle.com/projects/php • RPMs for Linux with OCI8 • Unbreakable Linux Network • Oracle's Linux Support program • OCI8 RPM available for PHP • Zend Server • Linux, Windows, Mac • Support from Zend © 2009 Oracle Corporation

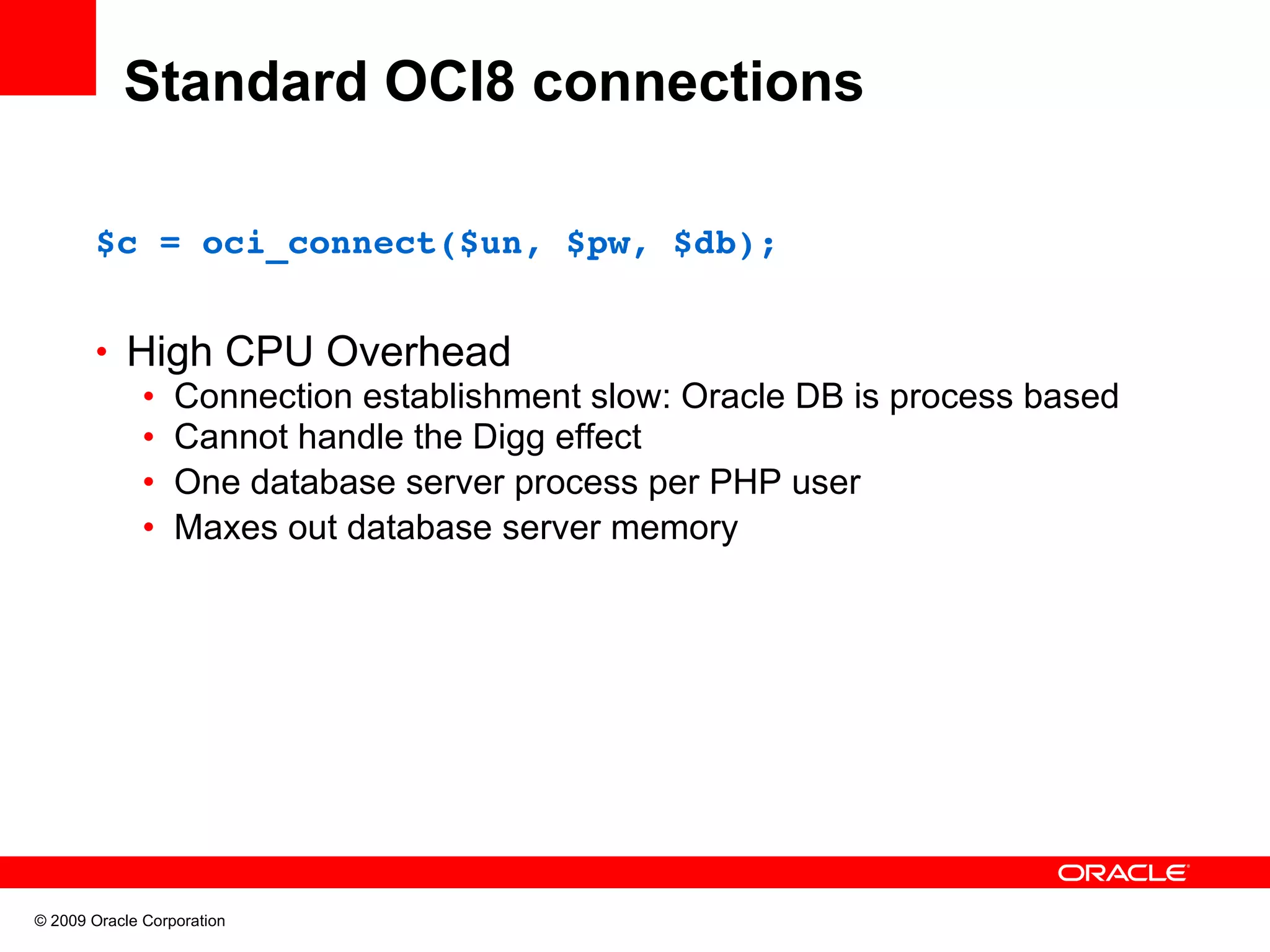

Standard OCI8 connections $c = oci_connect($un, $pw, $db); • High CPU Overhead • Connection establishment slow: Oracle DB is process based • Cannot handle the Digg effect • One database server process per PHP user • Maxes out database server memory © 2009 Oracle Corporation

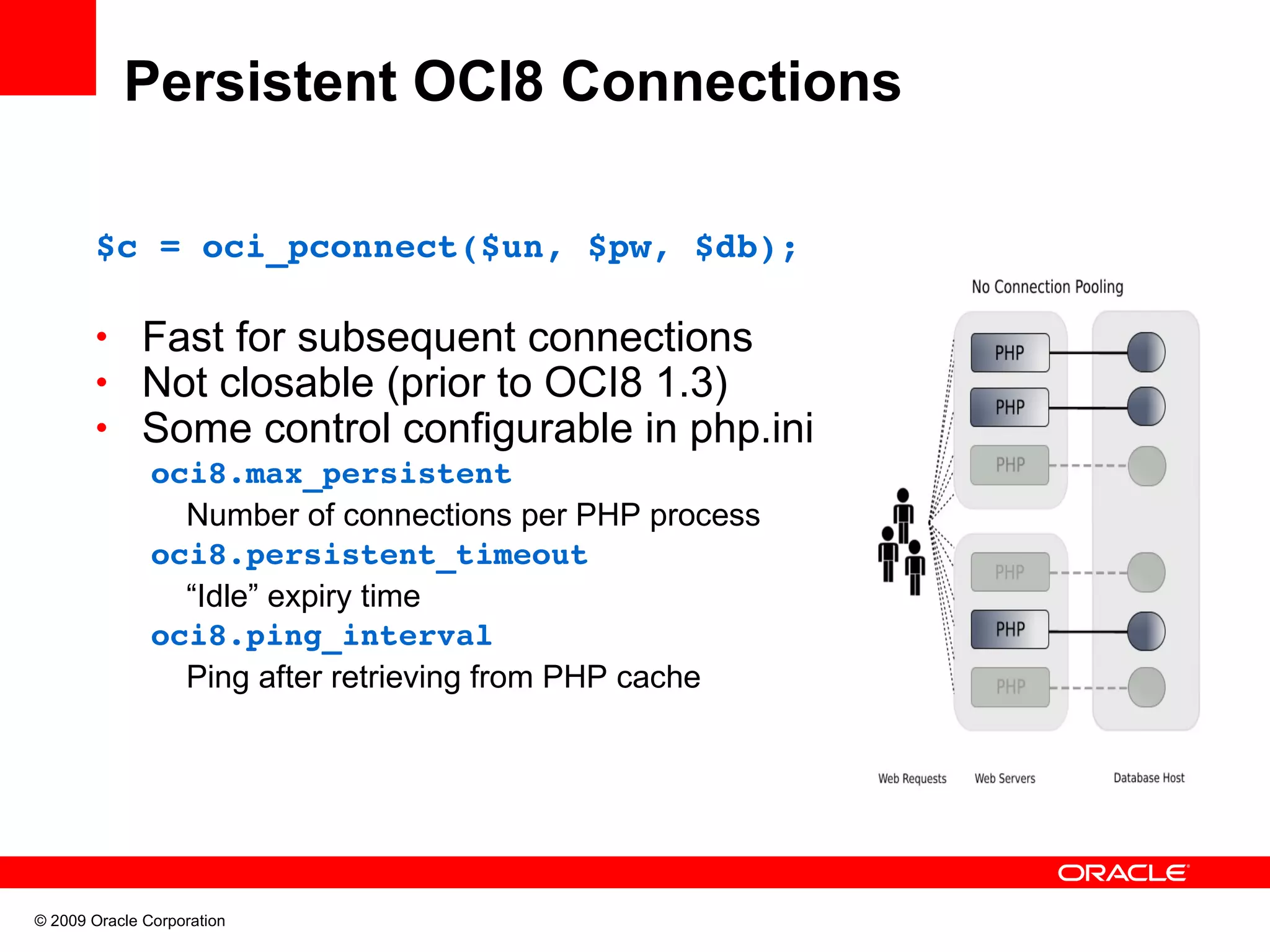

Persistent OCI8 Connections $c = oci_pconnect($un, $pw, $db); • Fast for subsequent connections • Not closable (prior to OCI8 1.3) • Some control configurable in php.ini oci8.max_persistent Number of connections per PHP process oci8.persistent_timeout “Idle” expiry time oci8.ping_interval Ping after retrieving from PHP cache © 2009 Oracle Corporation

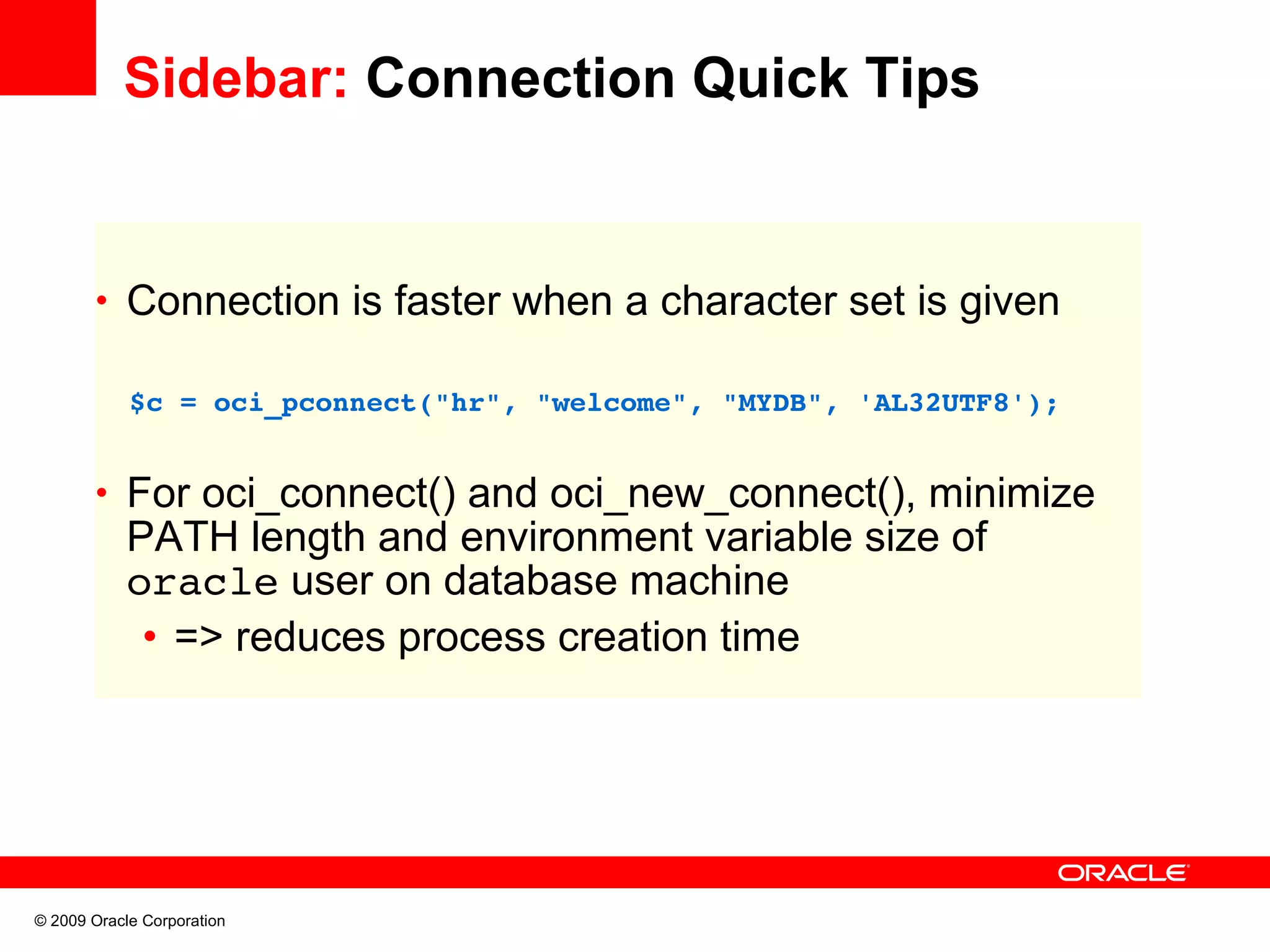

Sidebar: Connection Quick Tips • Connection is faster when a character set is given $c = oci_pconnect("hr", "welcome", "MYDB", 'AL32UTF8'); • For oci_connect() and oci_new_connect(), minimize PATH length and environment variable size of oracle user on database machine • => reduces process creation time © 2009 Oracle Corporation

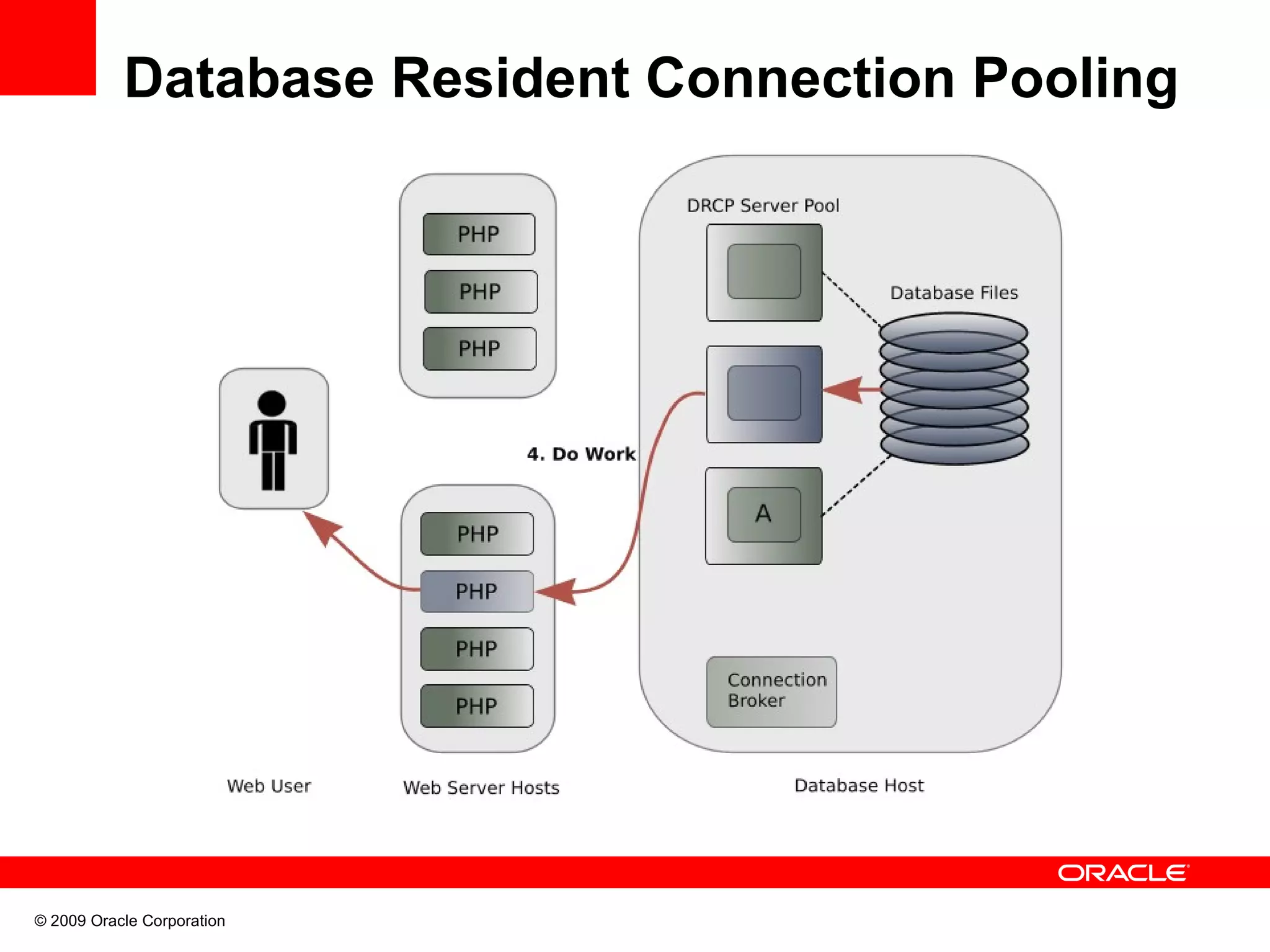

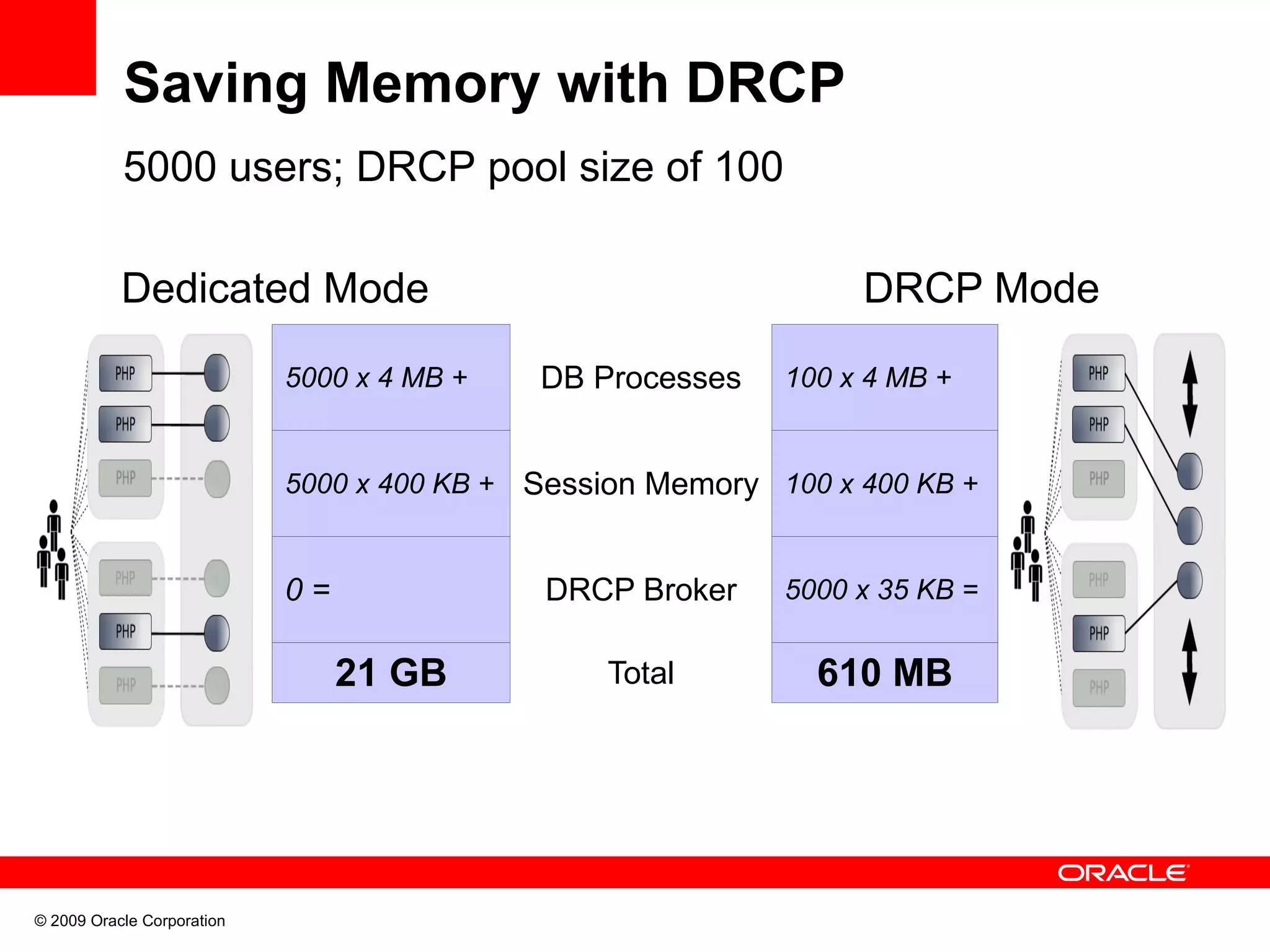

Saving Memory with DRCP 5000 users; DRCP pool size of 100 Dedicated Mode DRCP Mode 5000 x 4 MB + DB Processes 100 x 4 MB + 5000 x 400 KB + Session Memory 100 x 400 KB + 0= DRCP Broker 5000 x 35 KB = 21 GB Total 610 MB © 2009 Oracle Corporation

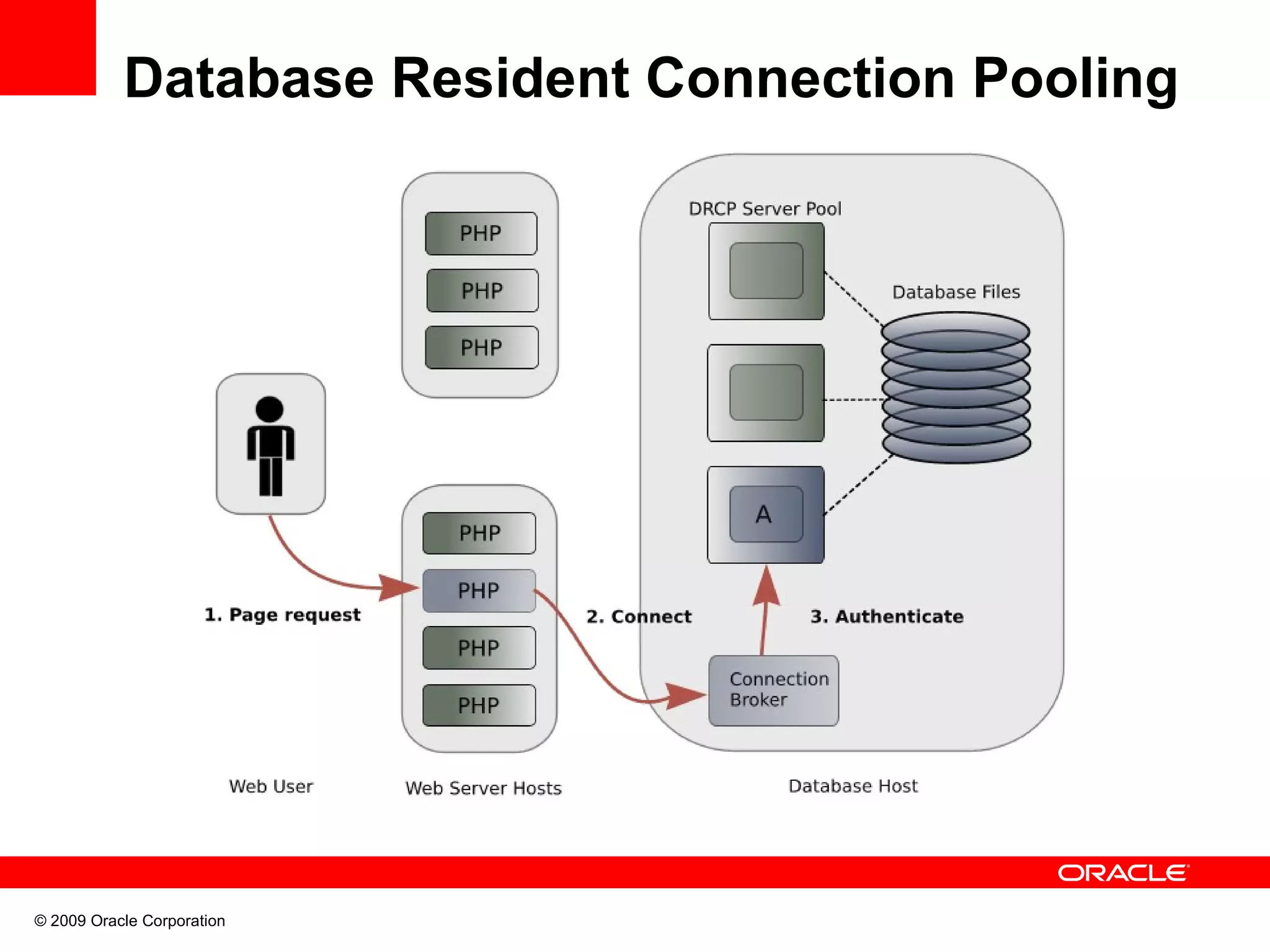

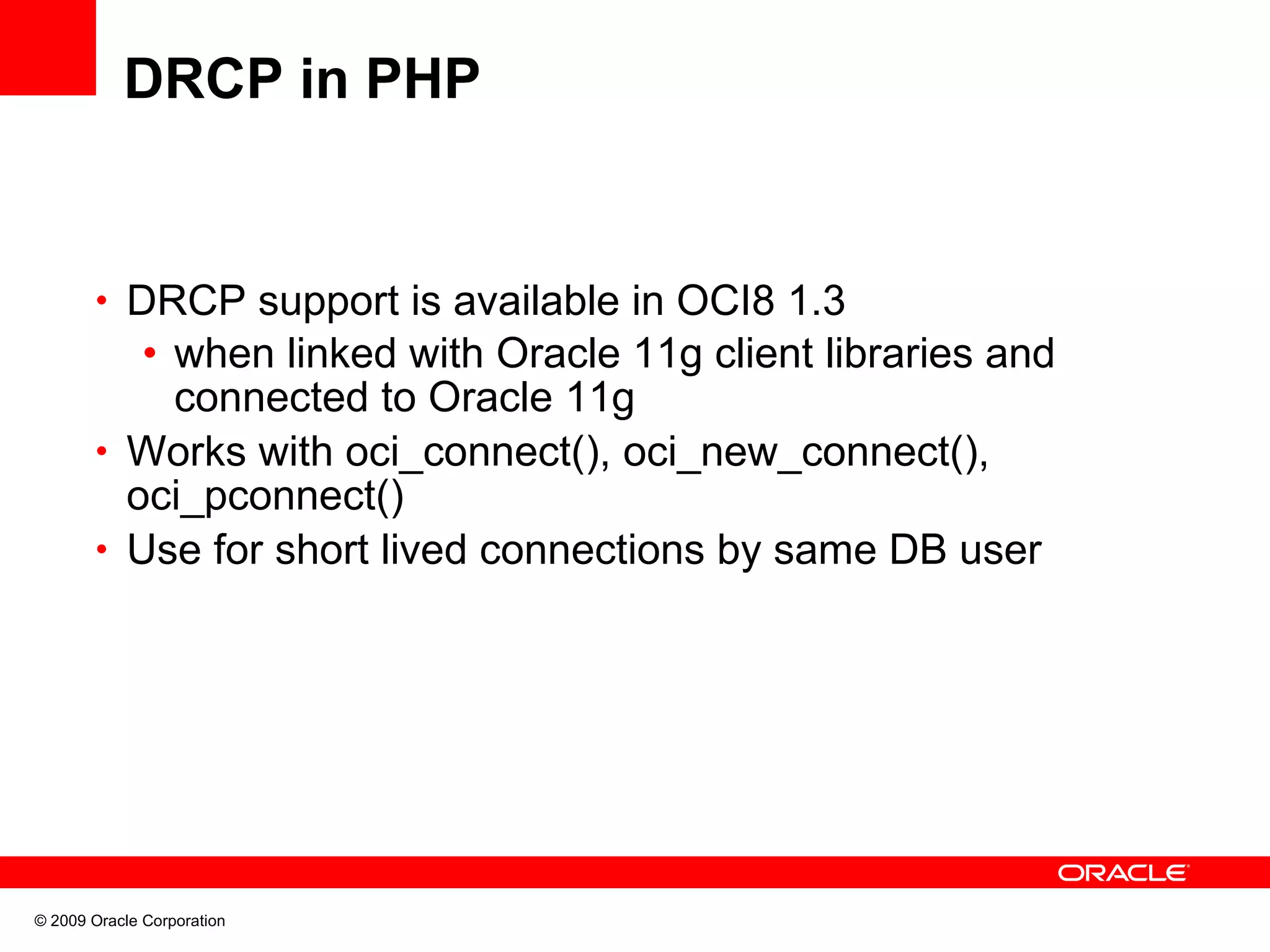

DRCP in PHP • DRCP support is available in OCI8 1.3 • when linked with Oracle 11g client libraries and connected to Oracle 11g • Works with oci_connect(), oci_new_connect(), oci_pconnect() • Use for short lived connections by same DB user © 2009 Oracle Corporation

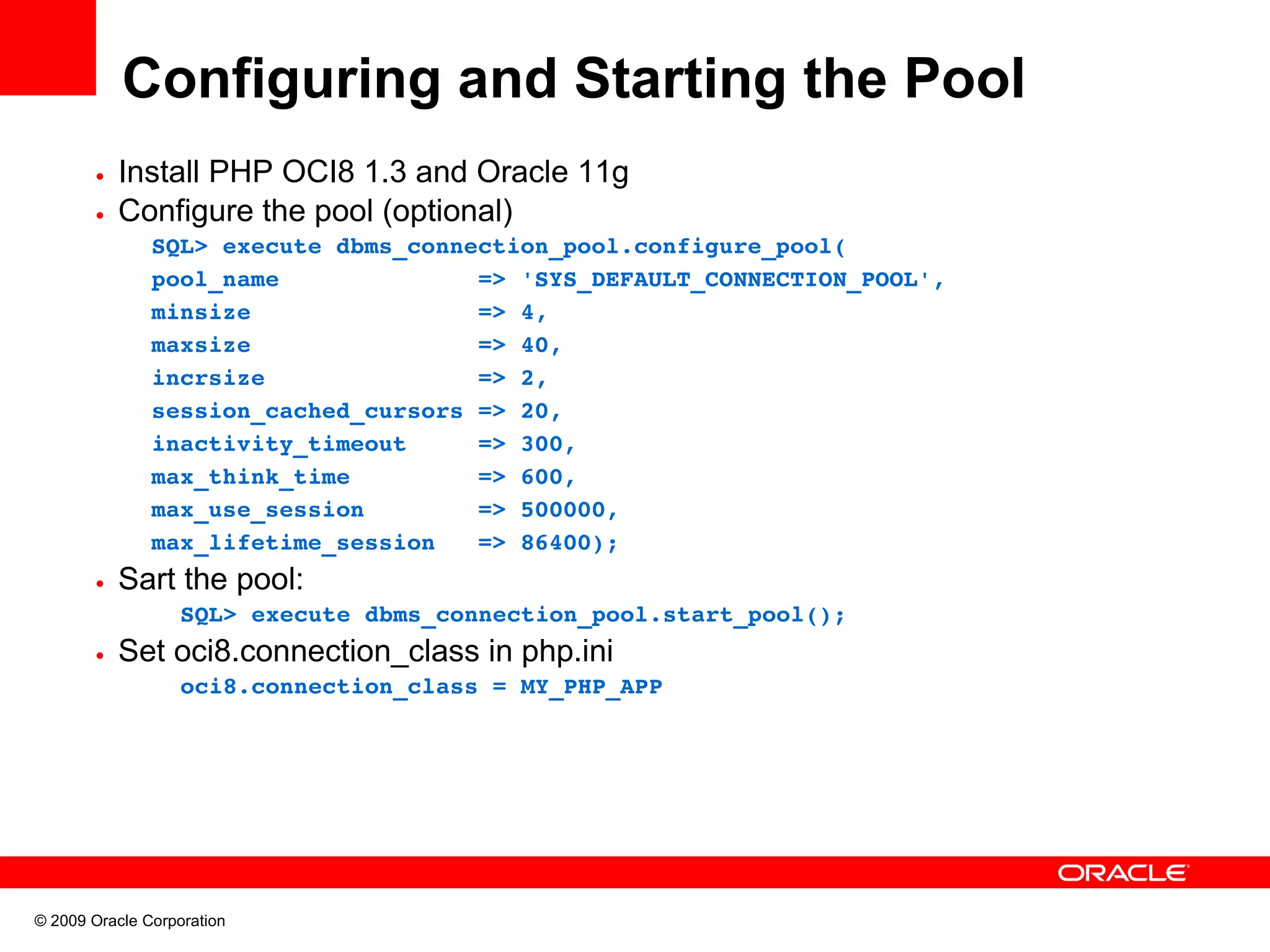

Configuring and Starting the Pool • Install PHP OCI8 1.3 and Oracle 11g • Configure the pool (optional) SQL> execute dbms_connection_pool.configure_pool( pool_name => 'SYS_DEFAULT_CONNECTION_POOL', minsize => 4, maxsize => 40, incrsize => 2, session_cached_cursors => 20, inactivity_timeout => 300, max_think_time => 600, max_use_session => 500000, max_lifetime_session => 86400); • Sart the pool: SQL> execute dbms_connection_pool.start_pool(); • Set oci8.connection_class in php.ini oci8.connection_class = MY_PHP_APP © 2009 Oracle Corporation

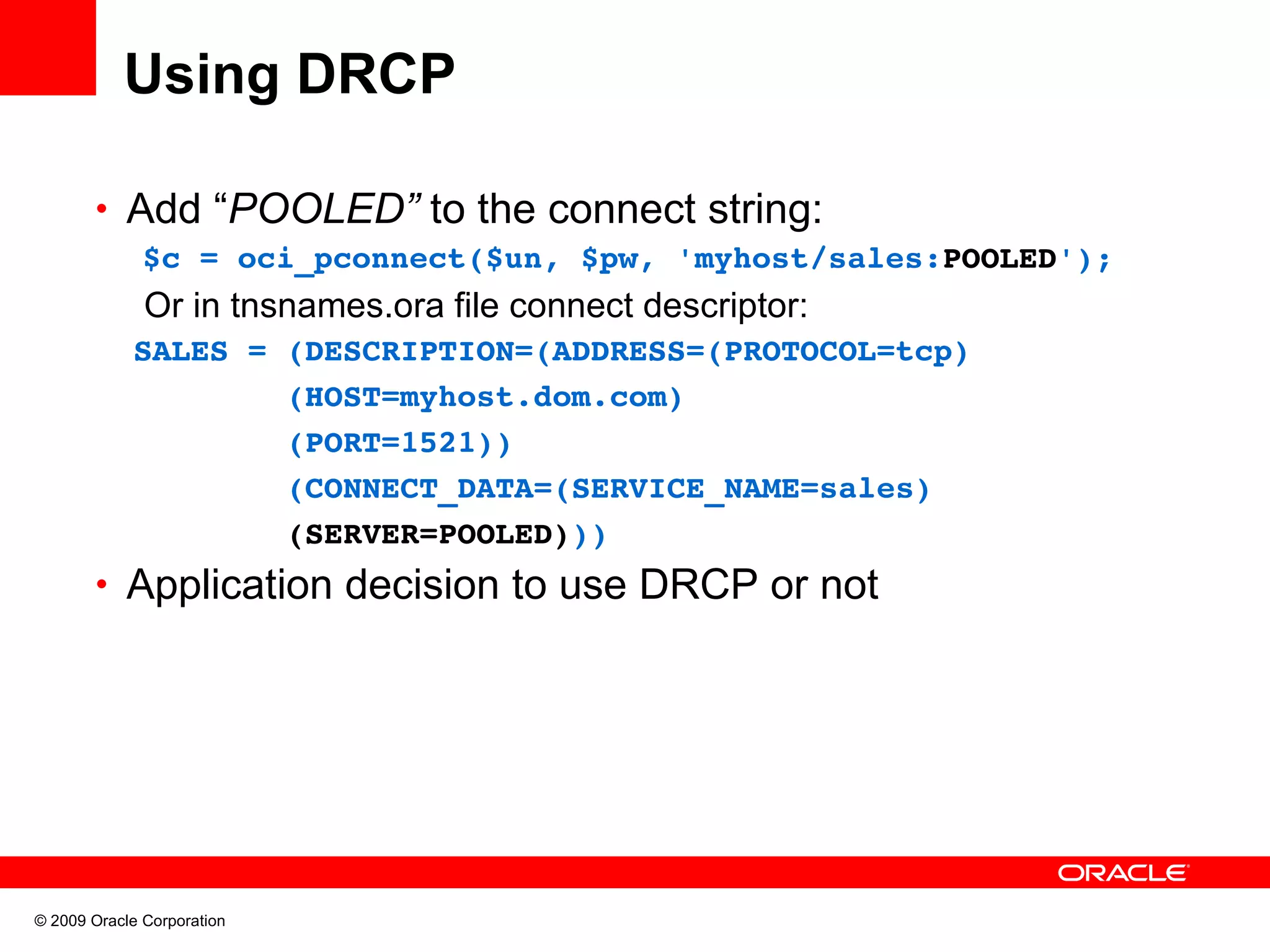

Using DRCP • Add “POOLED” to the connect string: $c = oci_pconnect($un, $pw, 'myhost/sales:POOLED'); Or in tnsnames.ora file connect descriptor: SALES = (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp) (HOST=myhost.dom.com) (PORT=1521)) (CONNECT_DATA=(SERVICE_NAME=sales) (SERVER=POOLED))) • Application decision to use DRCP or not © 2009 Oracle Corporation

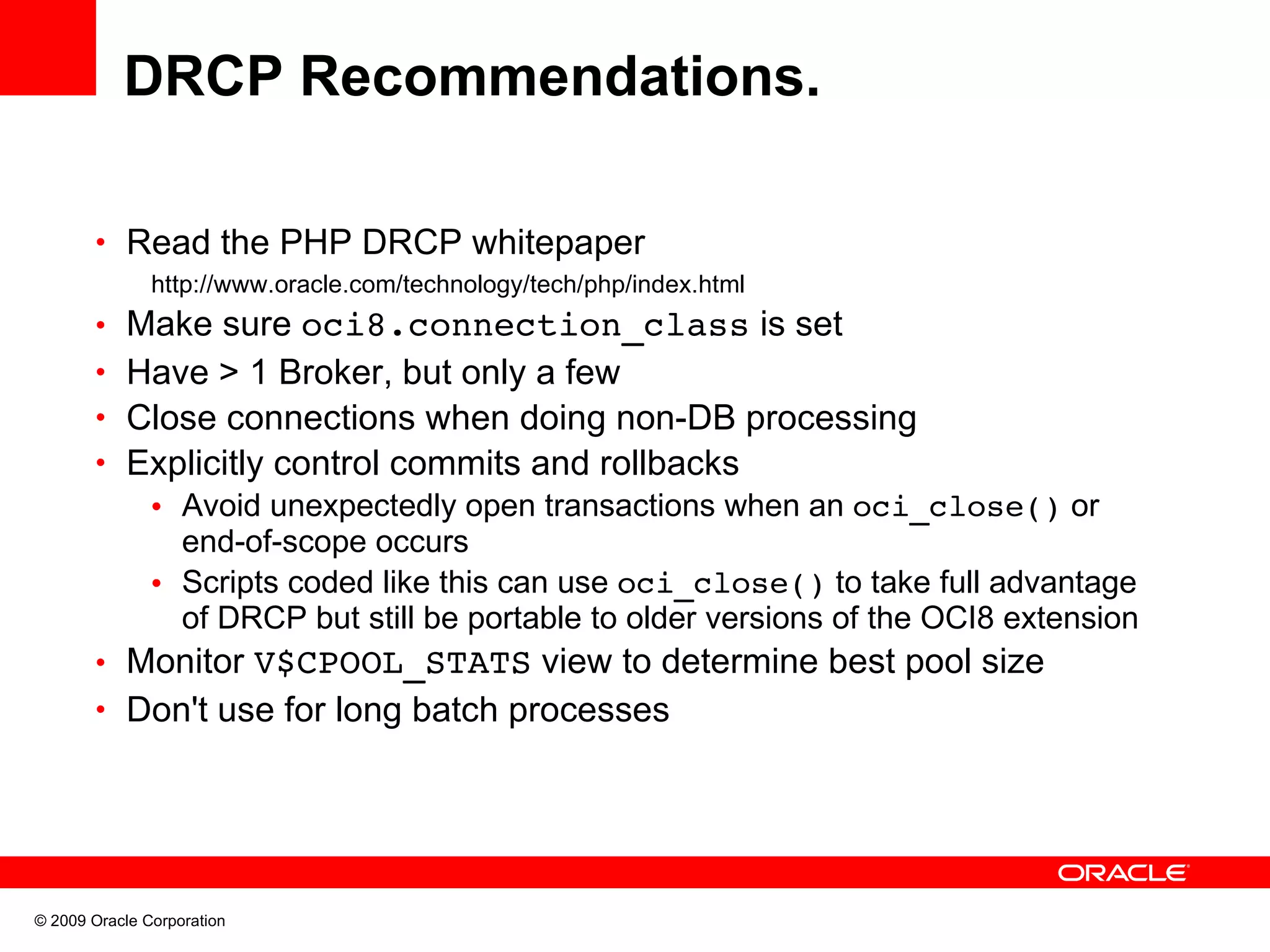

DRCP Recommendations. • Read the PHP DRCP whitepaper http://www.oracle.com/technology/tech/php/index.html • Make sure oci8.connection_class is set • Have > 1 Broker, but only a few • Close connections when doing non-DB processing • Explicitly control commits and rollbacks • Avoid unexpectedly open transactions when an oci_close() or end-of-scope occurs • Scripts coded like this can use oci_close() to take full advantage of DRCP but still be portable to older versions of the OCI8 extension • Monitor V$CPOOL_STATS view to determine best pool size • Don't use for long batch processes © 2009 Oracle Corporation

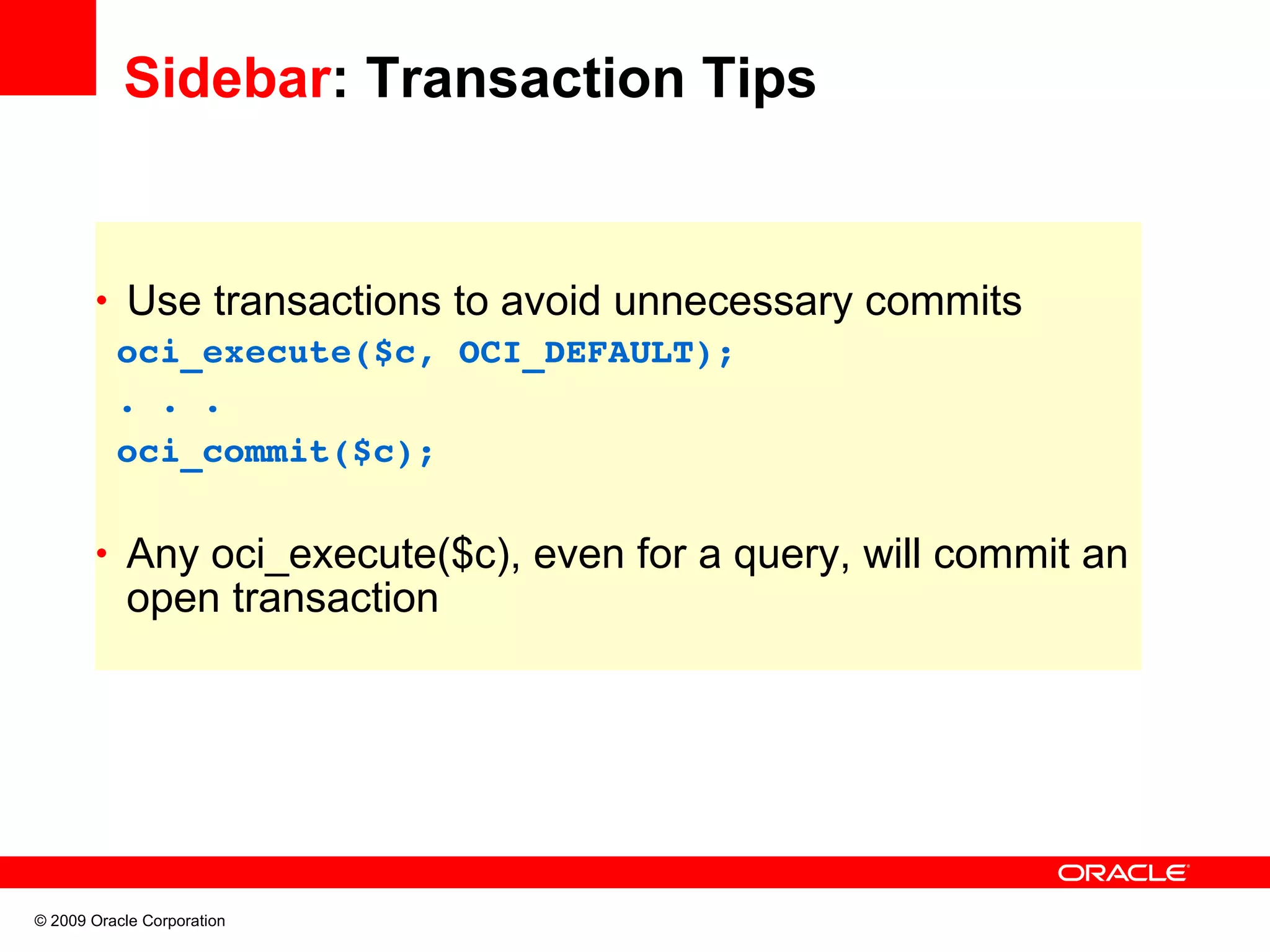

Sidebar: Transaction Tips • Use transactions to avoid unnecessary commits oci_execute($c, OCI_DEFAULT); . . . oci_commit($c); • Any oci_execute($c), even for a query, will commit an open transaction © 2009 Oracle Corporation

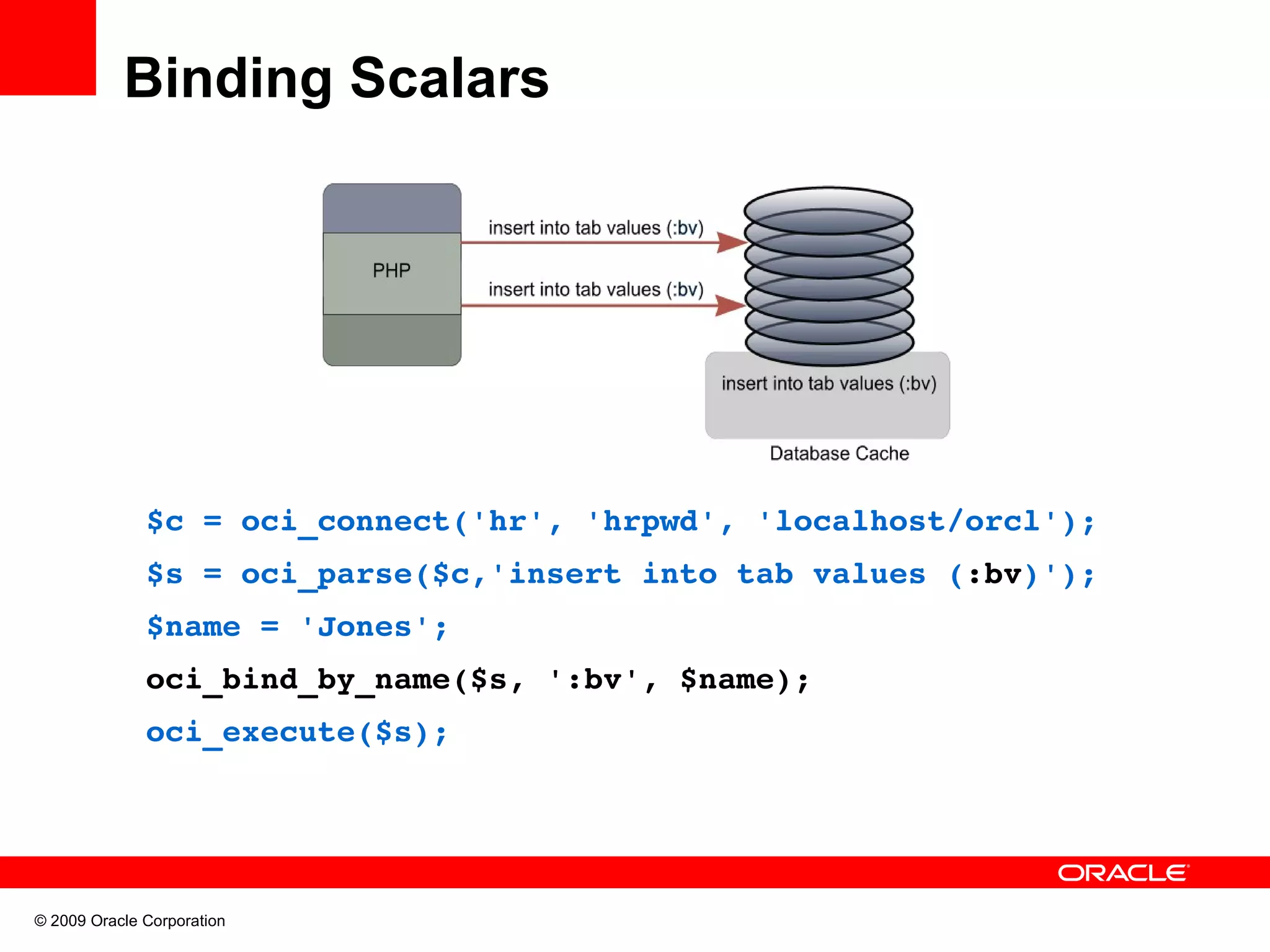

Binding Scalars $c = oci_connect('hr', 'hrpwd', 'localhost/orcl'); $s = oci_parse($c,'insert into tab values (:bv)'); $name = 'Jones'; oci_bind_by_name($s, ':bv', $name); oci_execute($s); © 2009 Oracle Corporation

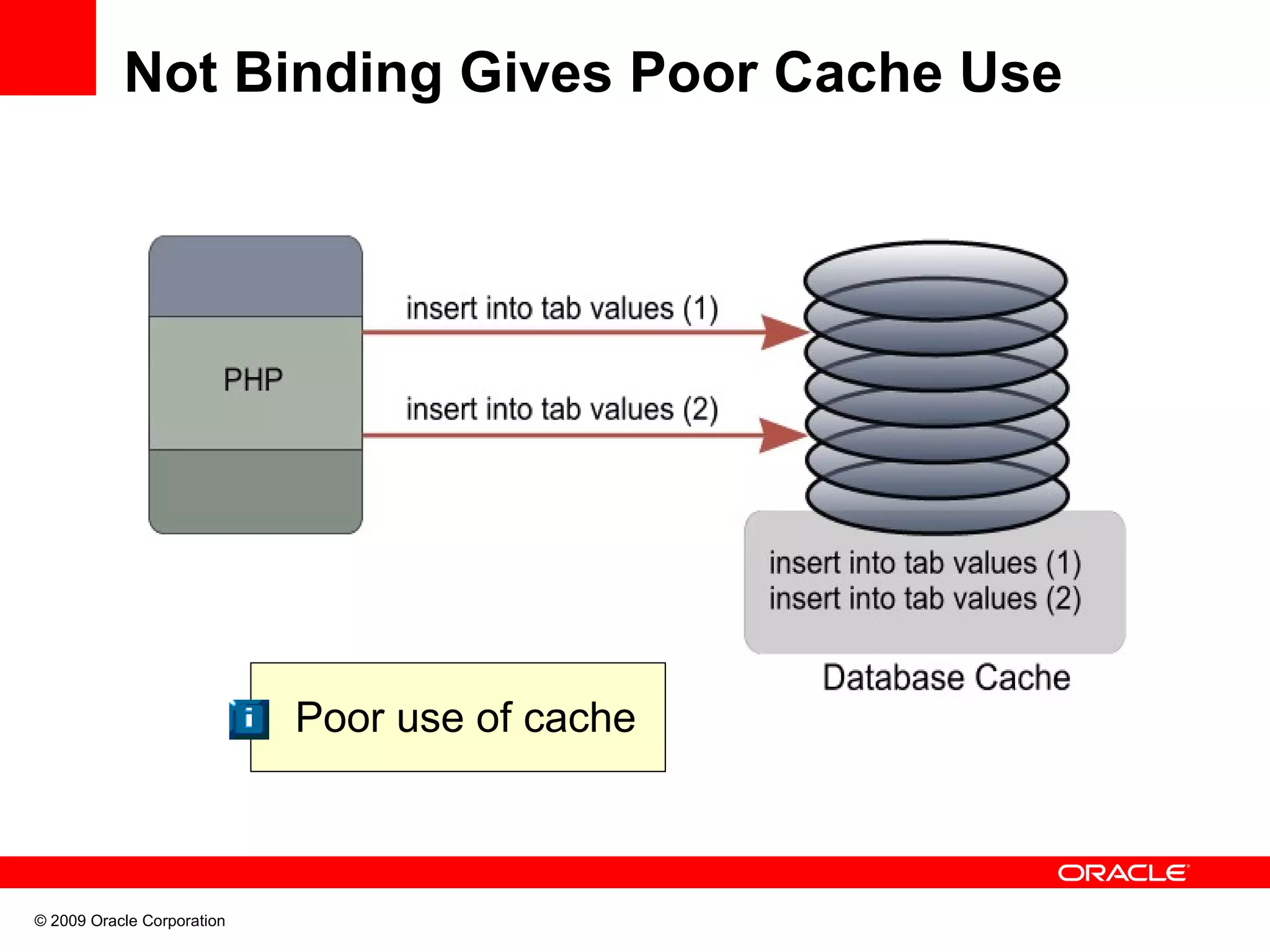

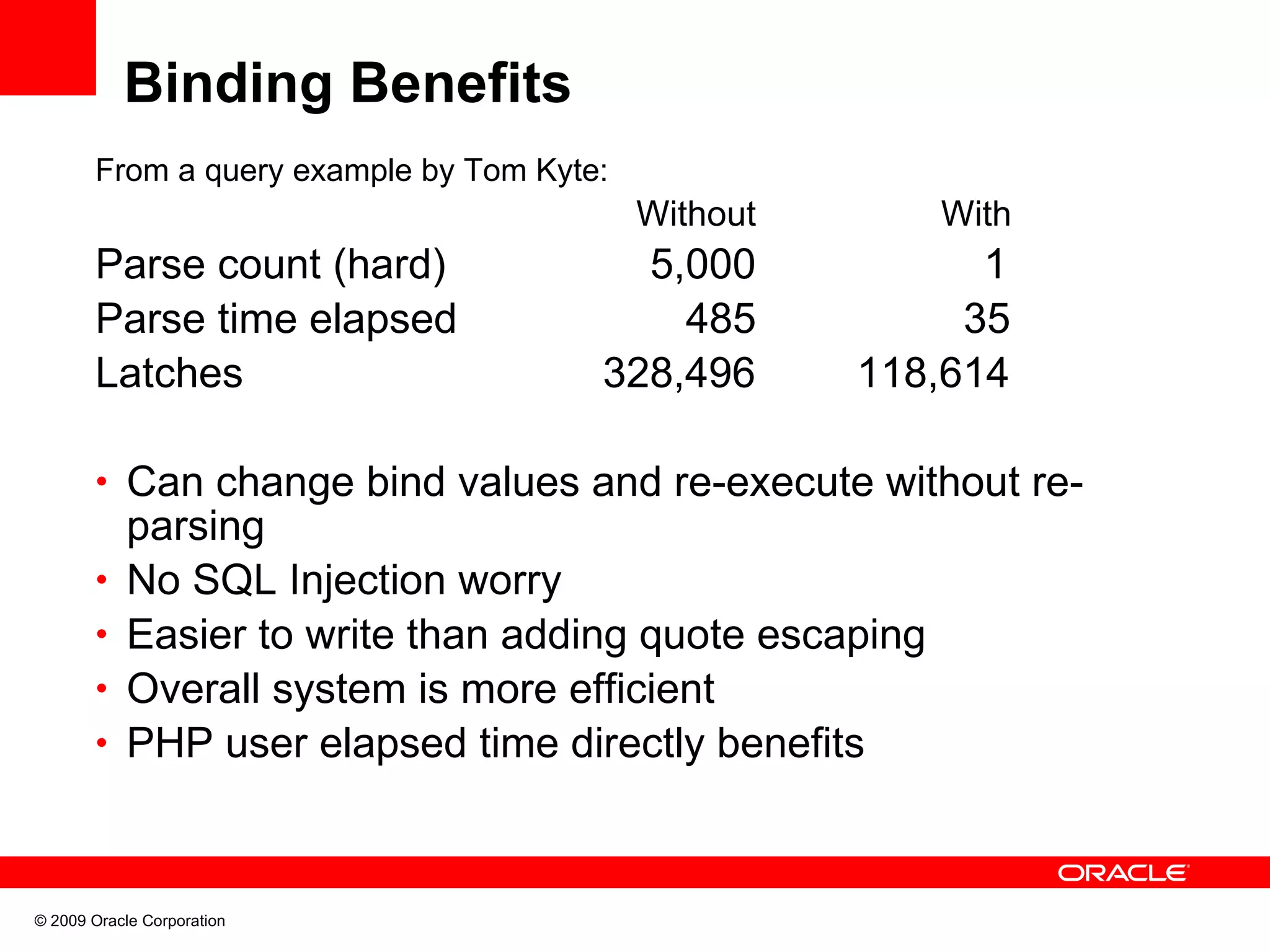

Binding Benefits From a query example by Tom Kyte: Without With Parse count (hard) 5,000 1 Parse time elapsed 485 35 Latches 328,496 118,614 • Can change bind values and re-execute without re- parsing • No SQL Injection worry • Easier to write than adding quote escaping • Overall system is more efficient • PHP user elapsed time directly benefits © 2009 Oracle Corporation

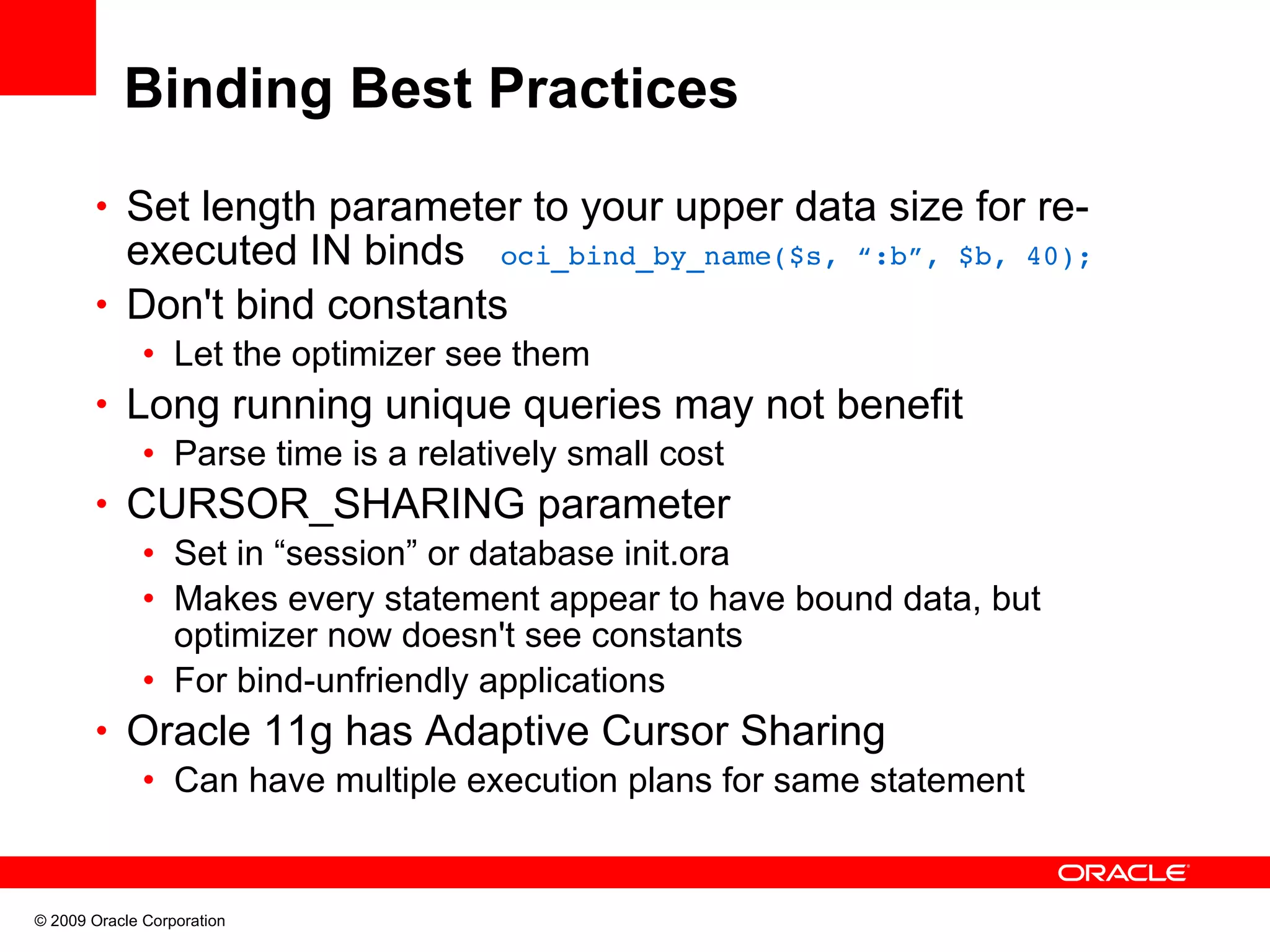

Binding Best Practices • Set length parameter to your upper data size for re- executed IN binds oci_bind_by_name($s, “:b”, $b, 40); • Don't bind constants • Let the optimizer see them • Long running unique queries may not benefit • Parse time is a relatively small cost • CURSOR_SHARING parameter • Set in “session” or database init.ora • Makes every statement appear to have bound data, but optimizer now doesn't see constants • For bind-unfriendly applications • Oracle 11g has Adaptive Cursor Sharing • Can have multiple execution plans for same statement © 2009 Oracle Corporation

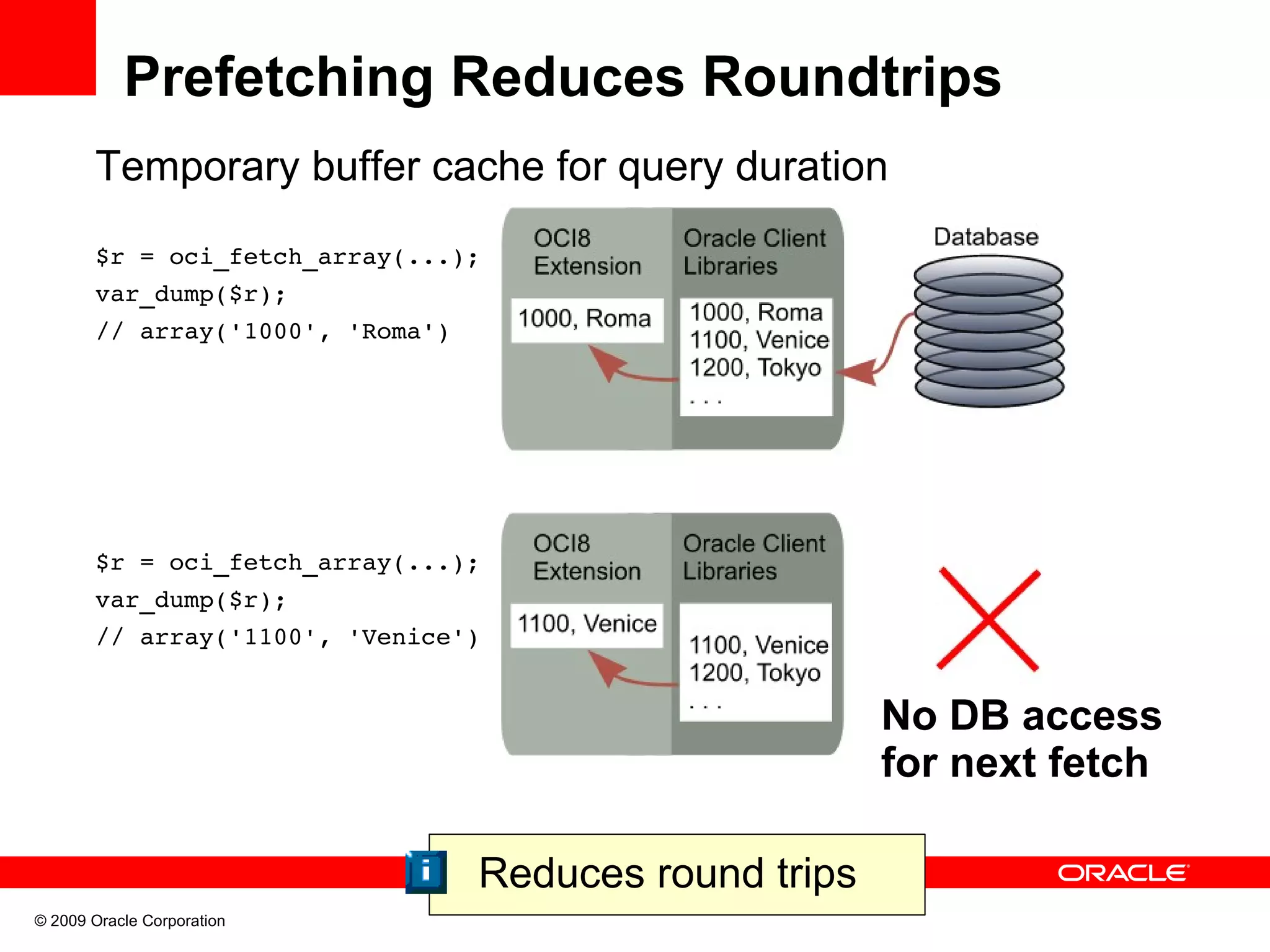

Prefetching Reduces Roundtrips Temporary buffer cache for query duration $r = oci_fetch_array(...); var_dump($r); // array('1000', 'Roma') $r = oci_fetch_array(...); var_dump($r); // array('1100', 'Venice') No DB access for next fetch Reduces round trips © 2009 Oracle Corporation

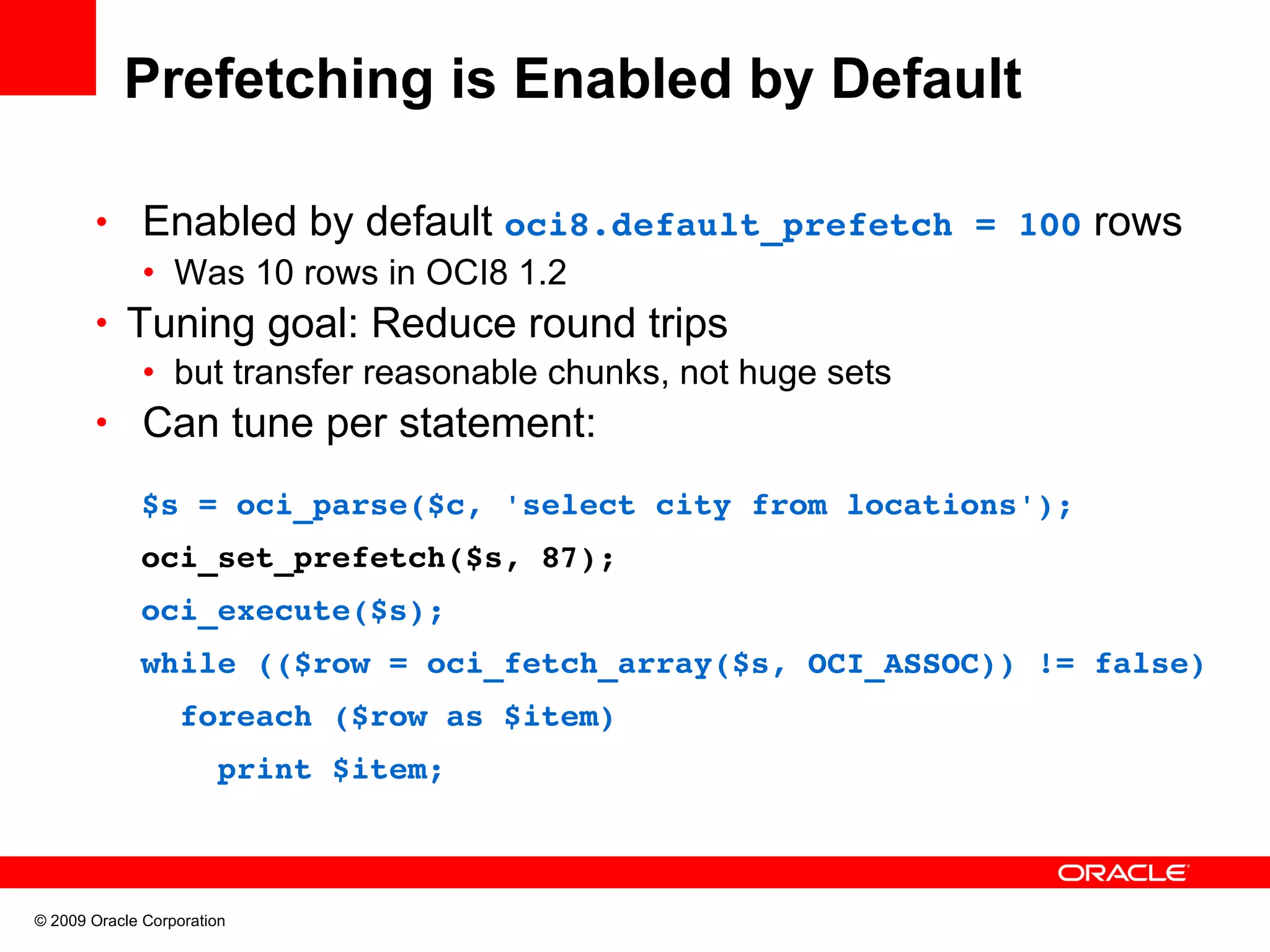

Prefetching is Enabled by Default • Enabled by default oci8.default_prefetch = 100 rows • Was 10 rows in OCI8 1.2 • Tuning goal: Reduce round trips • but transfer reasonable chunks, not huge sets • Can tune per statement: $s = oci_parse($c, 'select city from locations'); oci_set_prefetch($s, 87); oci_execute($s); while (($row = oci_fetch_array($s, OCI_ASSOC)) != false) foreach ($row as $item) print $item; © 2009 Oracle Corporation

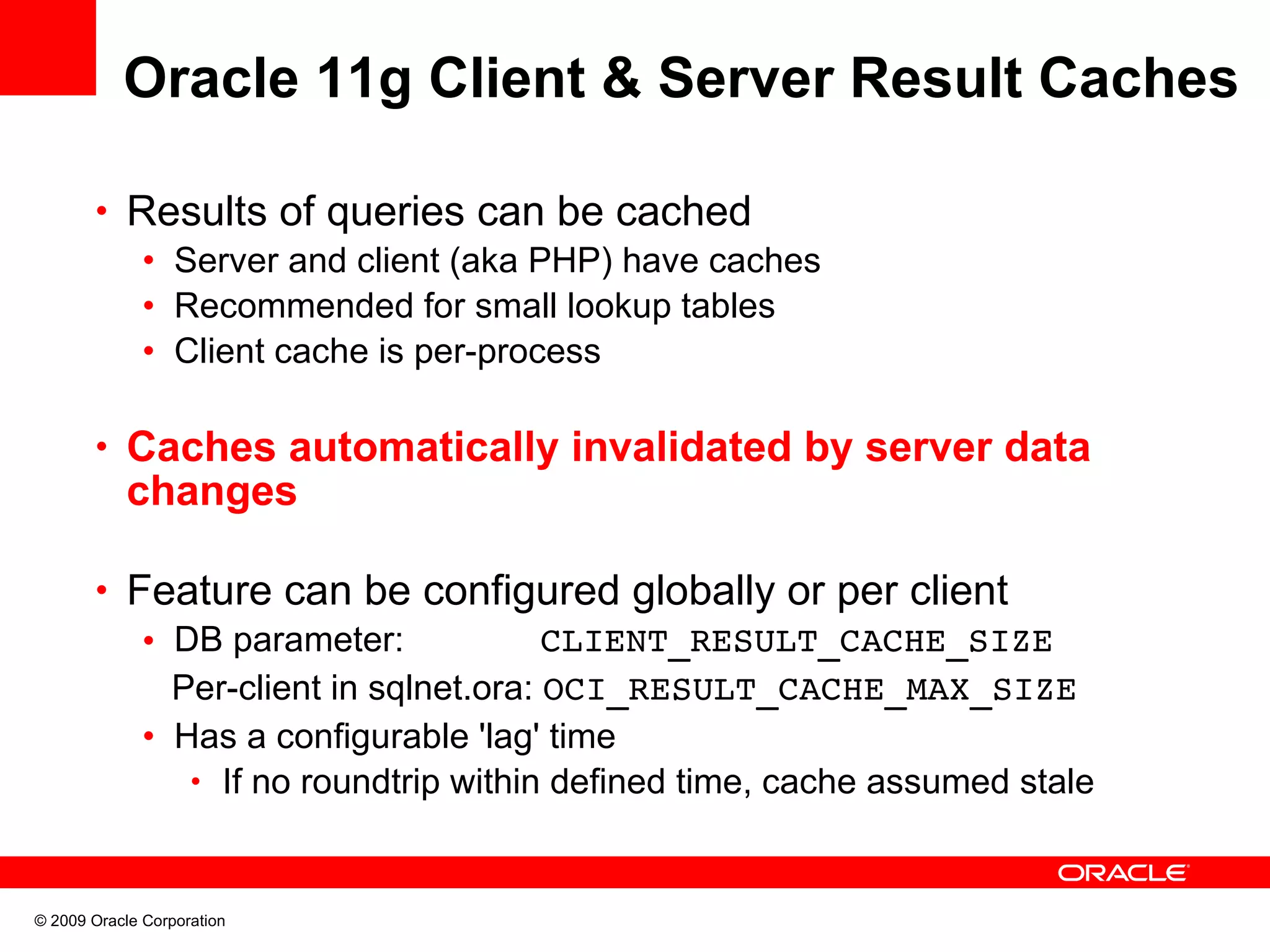

Oracle 11g Client & Server Result Caches • Results of queries can be cached • Server and client (aka PHP) have caches • Recommended for small lookup tables • Client cache is per-process • Caches automatically invalidated by server data changes • Feature can be configured globally or per client • DB parameter: CLIENT_RESULT_CACHE_SIZE Per-client in sqlnet.ora: OCI_RESULT_CACHE_MAX_SIZE • Has a configurable 'lag' time • If no roundtrip within defined time, cache assumed stale © 2009 Oracle Corporation

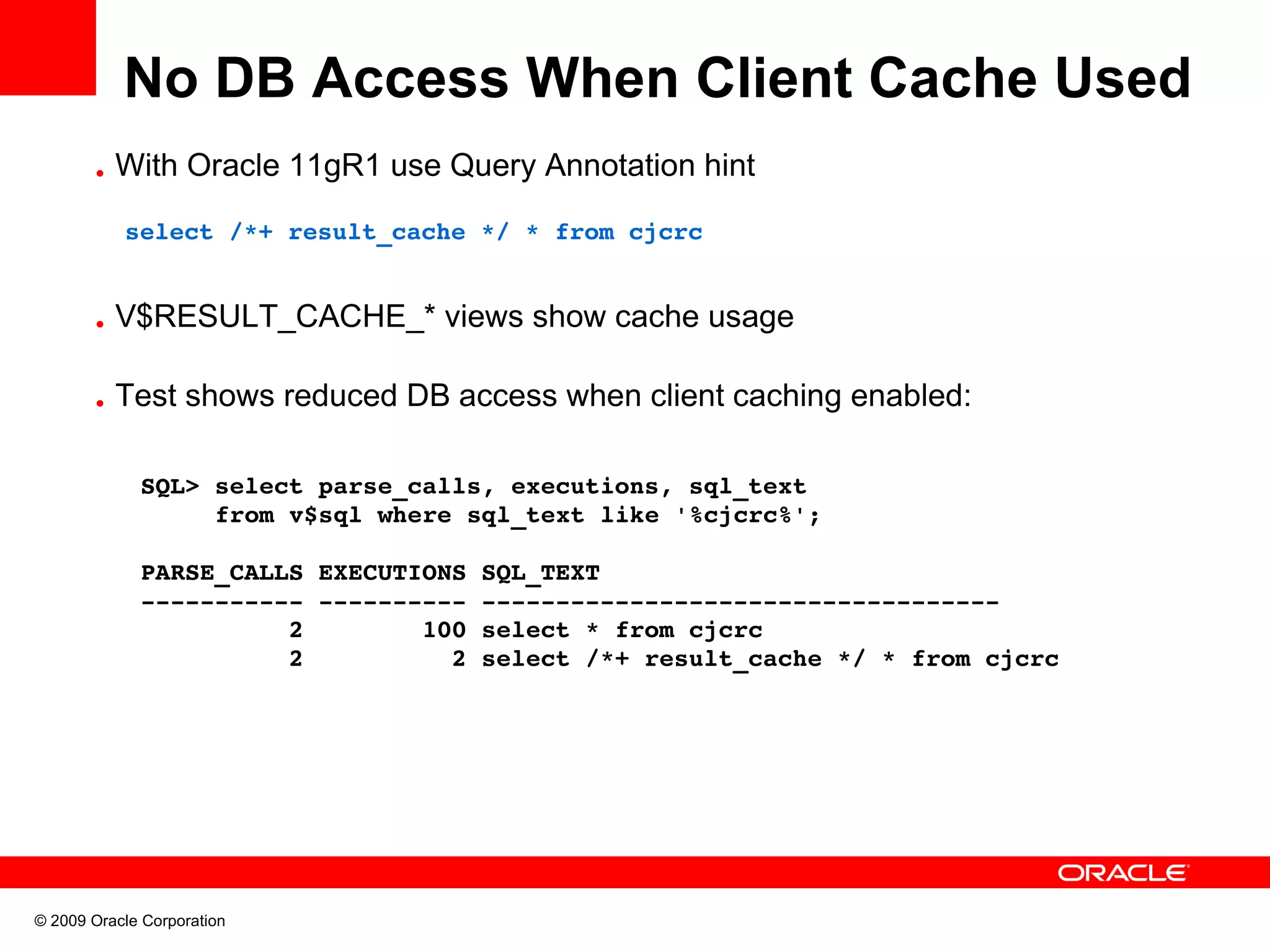

No DB Access When Client Cache Used • With Oracle 11gR1 use Query Annotation hint select /*+ result_cache */ * from cjcrc • V$RESULT_CACHE_* views show cache usage • Test shows reduced DB access when client caching enabled: SQL> select parse_calls, executions, sql_text from v$sql where sql_text like '%cjcrc%'; PARSE_CALLS EXECUTIONS SQL_TEXT 2 100 select * from cjcrc 2 2 select /*+ result_cache */ * from cjcrc © 2009 Oracle Corporation

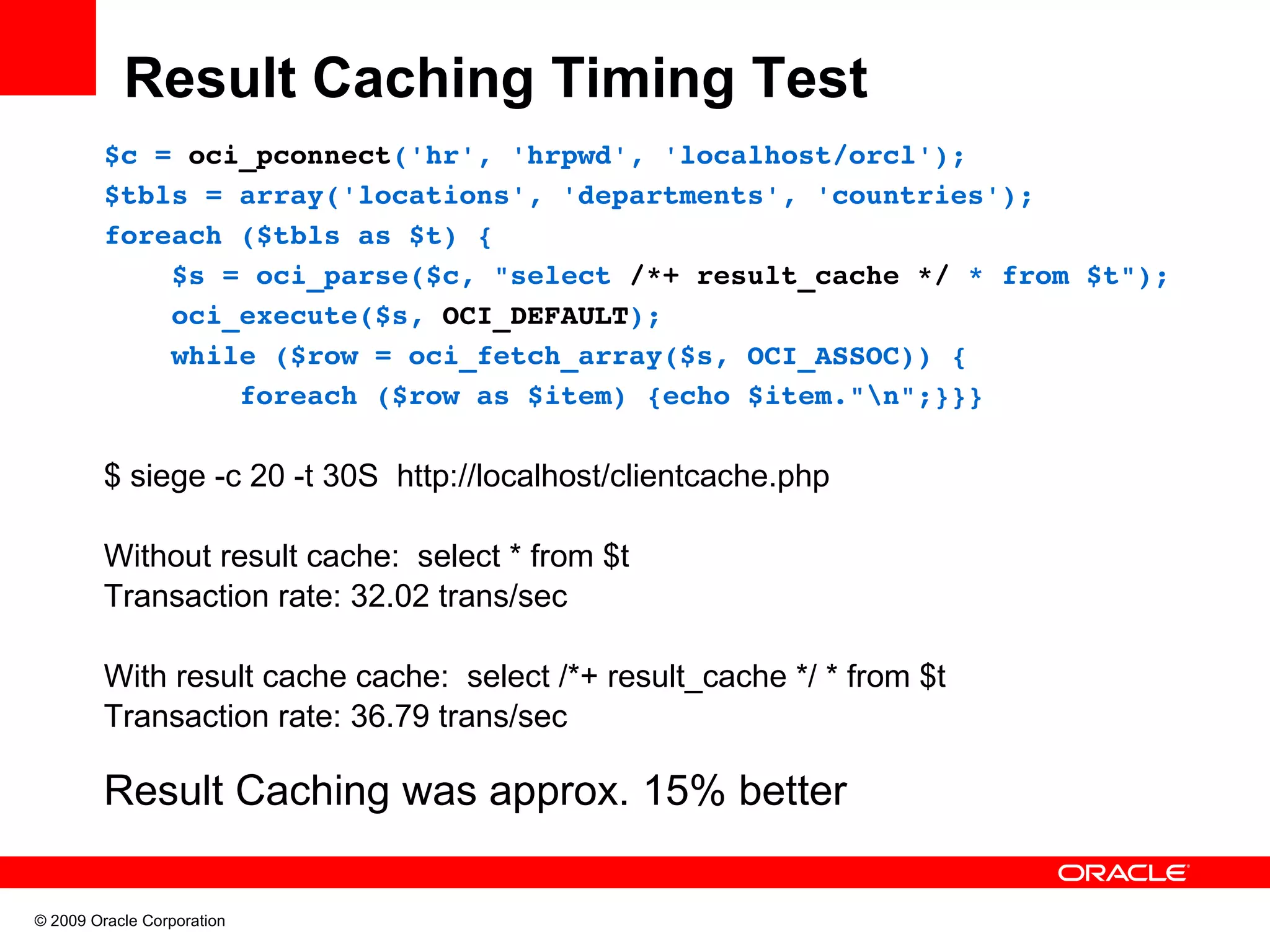

Result Caching Timing Test $c = oci_pconnect('hr', 'hrpwd', 'localhost/orcl'); $tbls = array('locations', 'departments', 'countries'); foreach ($tbls as $t) { $s = oci_parse($c, "select /*+ result_cache */ * from $t"); oci_execute($s, OCI_DEFAULT); while ($row = oci_fetch_array($s, OCI_ASSOC)) { foreach ($row as $item) {echo $item."n";}}} $ siege -c 20 -t 30S http://localhost/clientcache.php Without result cache: select * from $t Transaction rate: 32.02 trans/sec With result cache cache: select /*+ result_cache */ * from $t Transaction rate: 36.79 trans/sec Result Caching was approx. 15% better © 2009 Oracle Corporation

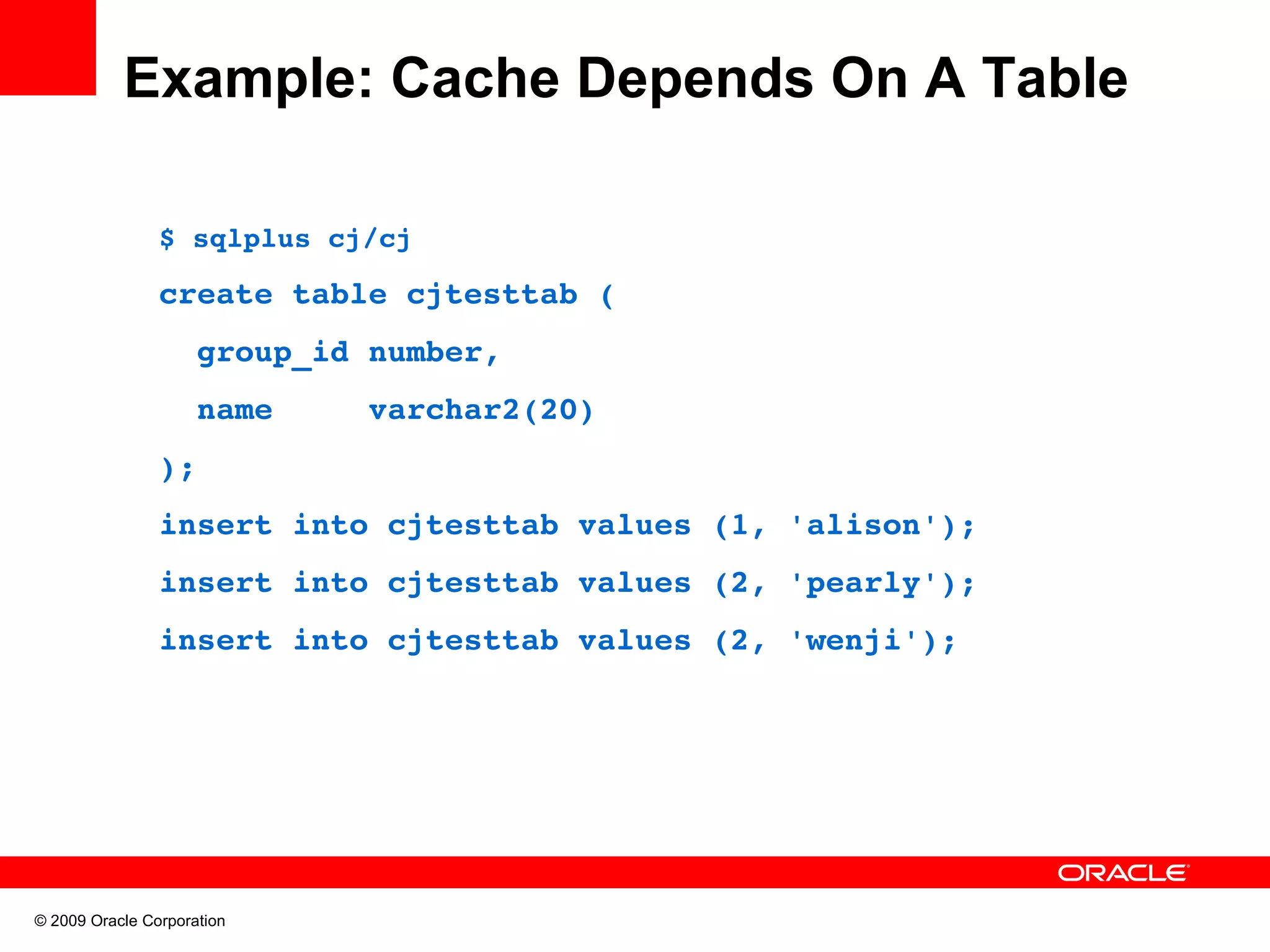

Example: Cache Depends On A Table $ sqlplus cj/cj create table cjtesttab ( group_id number, name varchar2(20) ); insert into cjtesttab values (1, 'alison'); insert into cjtesttab values (2, 'pearly'); insert into cjtesttab values (2, 'wenji'); © 2009 Oracle Corporation

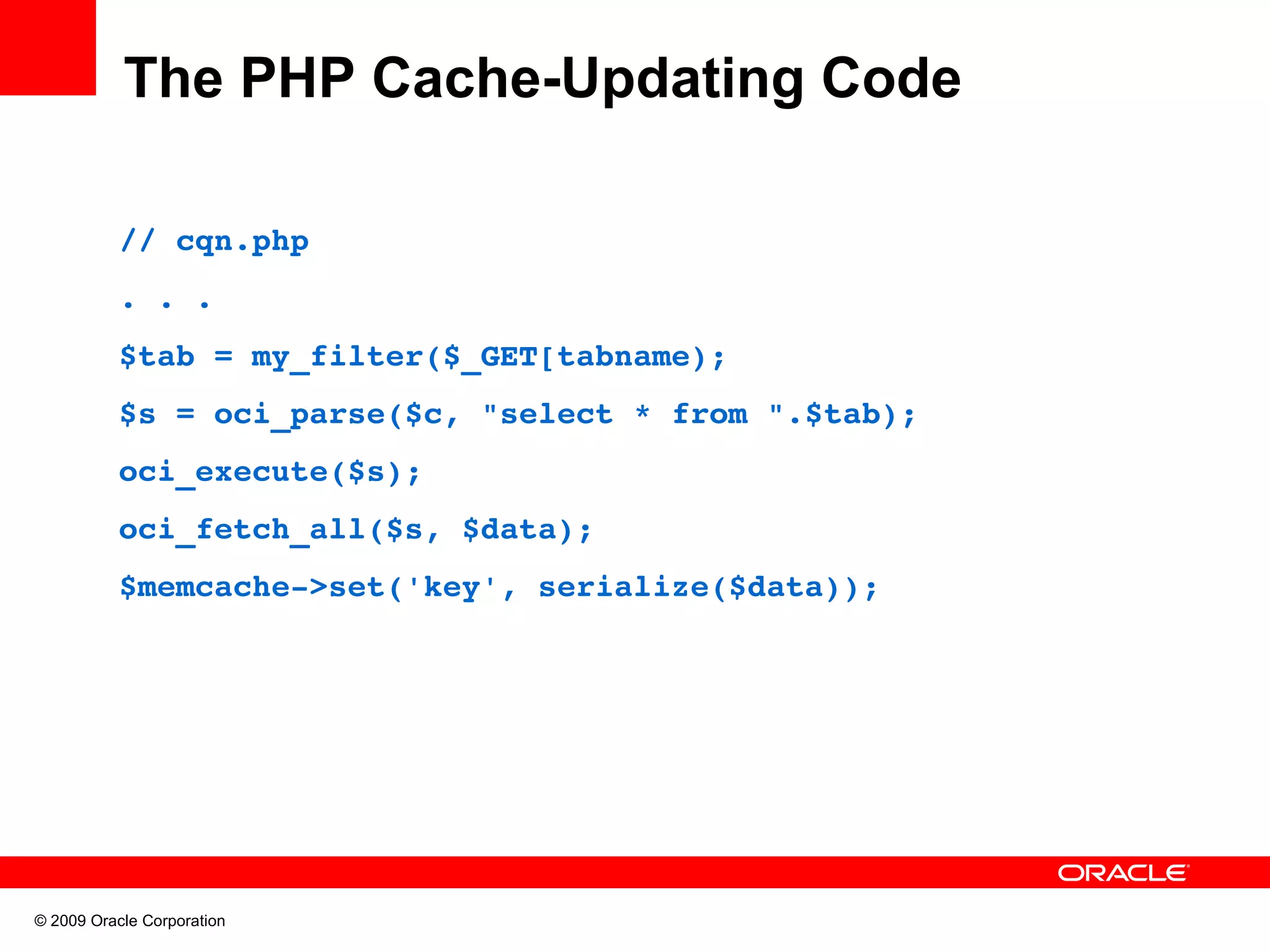

The PHP Cache-Updating Code // cqn.php . . . $tab = my_filter($_GET[tabname); $s = oci_parse($c, "select * from ".$tab); oci_execute($s); oci_fetch_all($s, $data); $memcache>set('key', serialize($data)); © 2009 Oracle Corporation

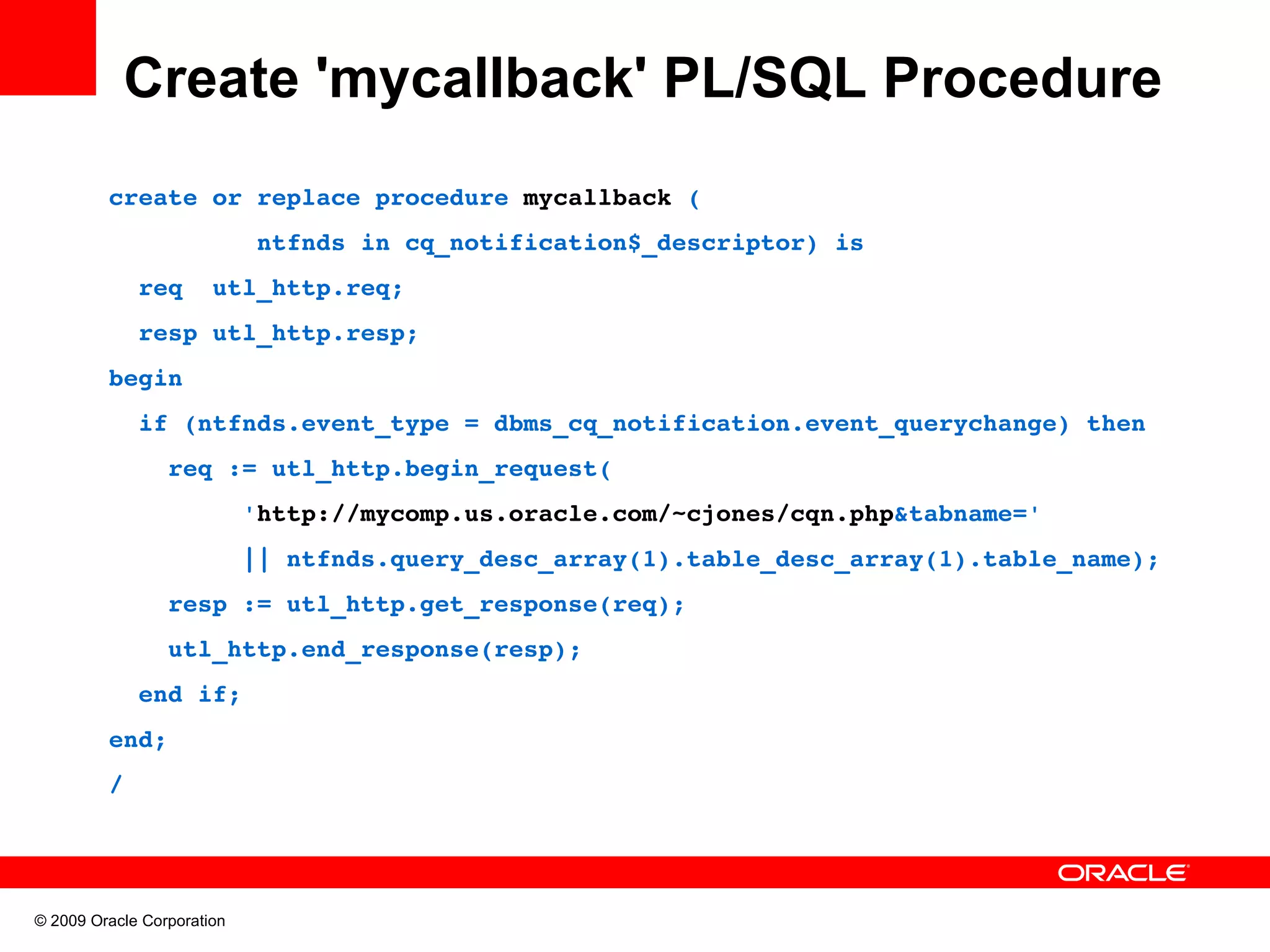

Create 'mycallback' PL/SQL Procedure create or replace procedure mycallback ( ntfnds in cq_notification$_descriptor) is req utl_http.req; resp utl_http.resp; begin if (ntfnds.event_type = dbms_cq_notification.event_querychange) then req := utl_http.begin_request( 'http://mycomp.us.oracle.com/~cjones/cqn.php&tabname=' || ntfnds.query_desc_array(1).table_desc_array(1).table_name); resp := utl_http.get_response(req); utl_http.end_response(resp); end if; end; / © 2009 Oracle Corporation

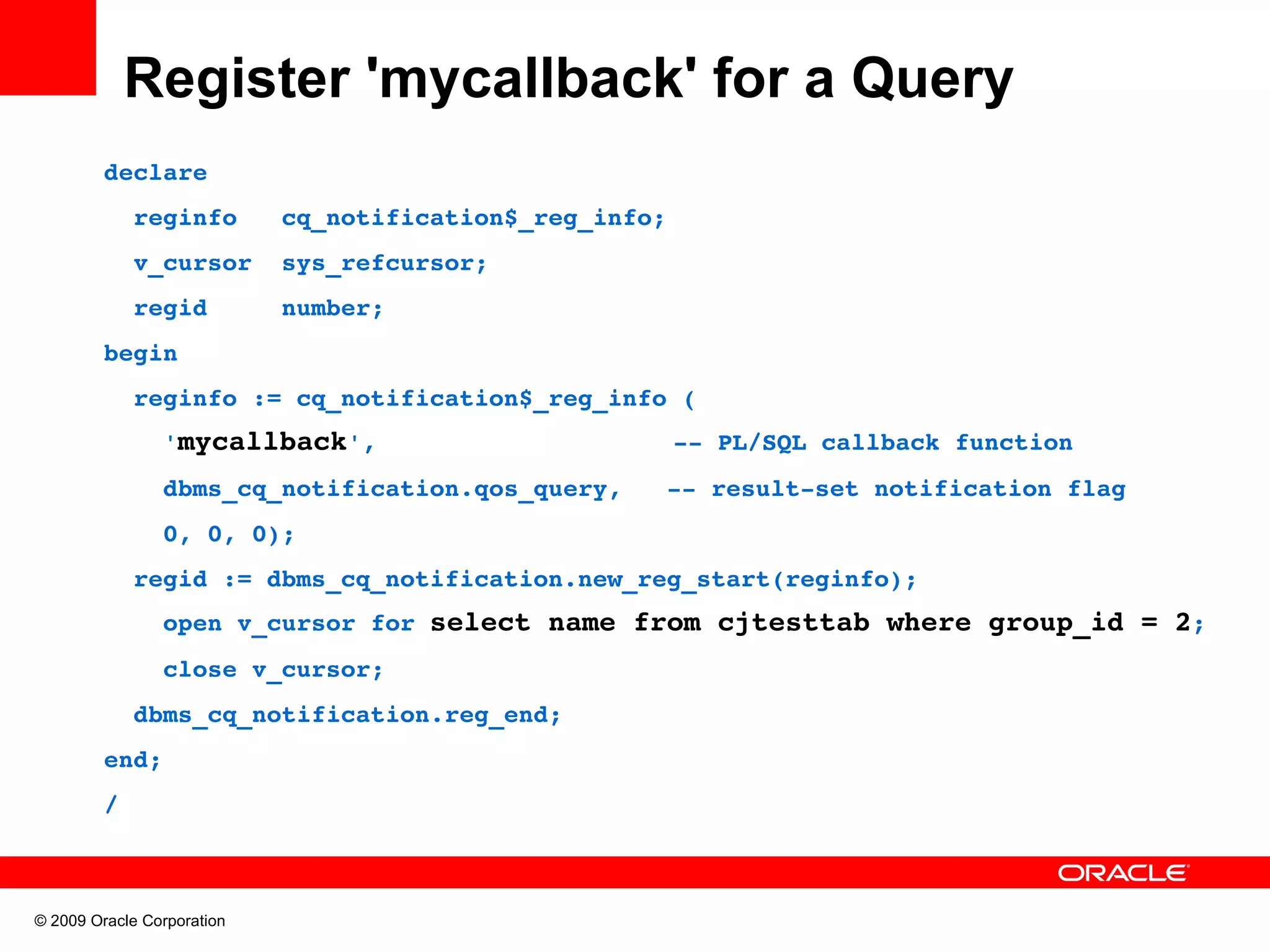

Register 'mycallback' for a Query declare reginfo cq_notification$_reg_info; v_cursor sys_refcursor; regid number; begin reginfo := cq_notification$_reg_info ( 'mycallback', PL/SQL callback function dbms_cq_notification.qos_query, resultset notification flag 0, 0, 0); regid := dbms_cq_notification.new_reg_start(reginfo); open v_cursor for select name from cjtesttab where group_id = 2; close v_cursor; dbms_cq_notification.reg_end; end; / © 2009 Oracle Corporation

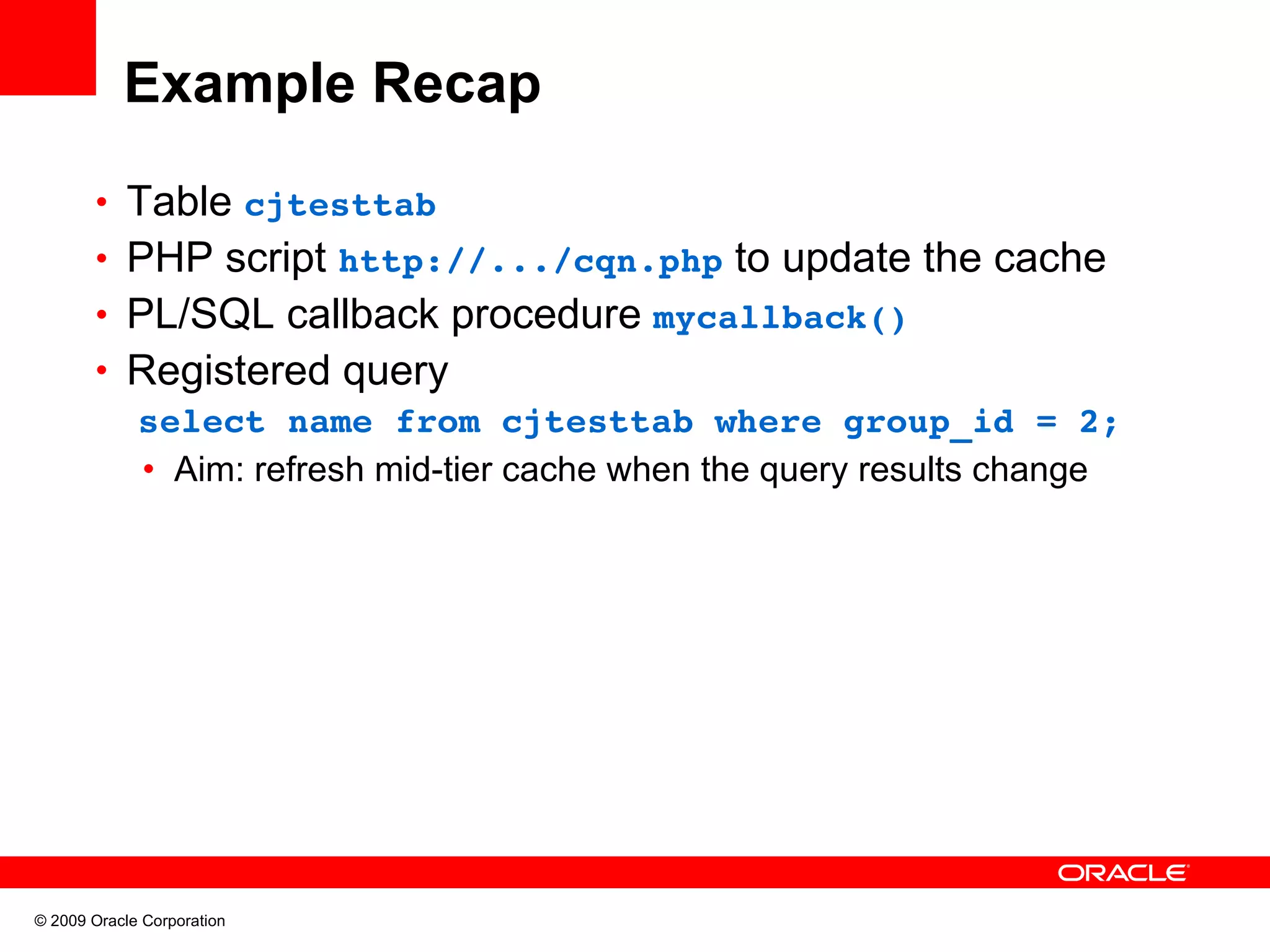

Example Recap • Table cjtesttab • PHP script http://.../cqn.php to update the cache • PL/SQL callback procedure mycallback() • Registered query select name from cjtesttab where group_id = 2; • Aim: refresh mid-tier cache when the query results change © 2009 Oracle Corporation

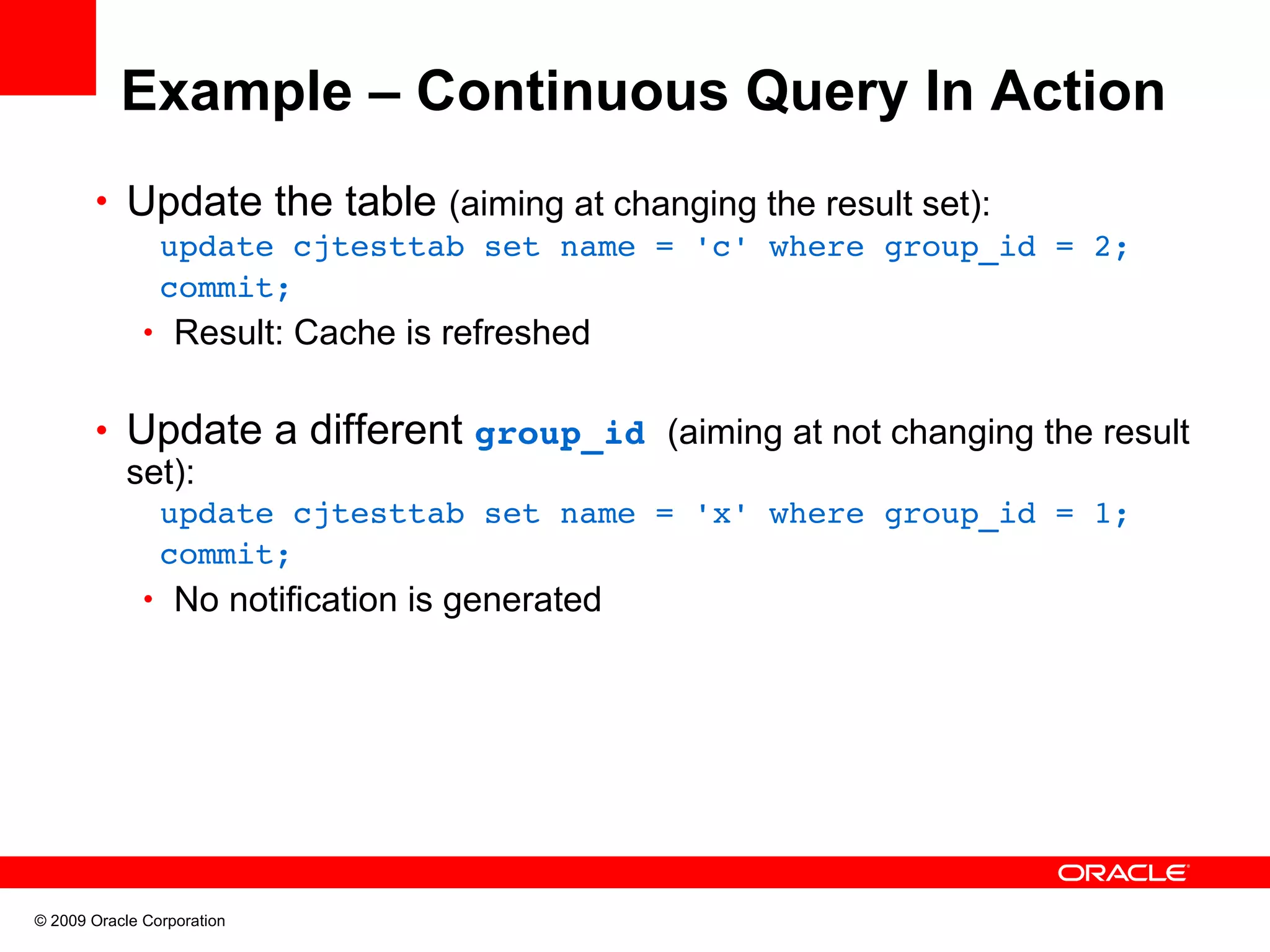

Example – Continuous Query In Action • Update the table (aiming at changing the result set): update cjtesttab set name = 'c' where group_id = 2; commit; • Result: Cache is refreshed • Update a different group_id (aiming at not changing the result set): update cjtesttab set name = 'x' where group_id = 1; commit; • No notification is generated © 2009 Oracle Corporation

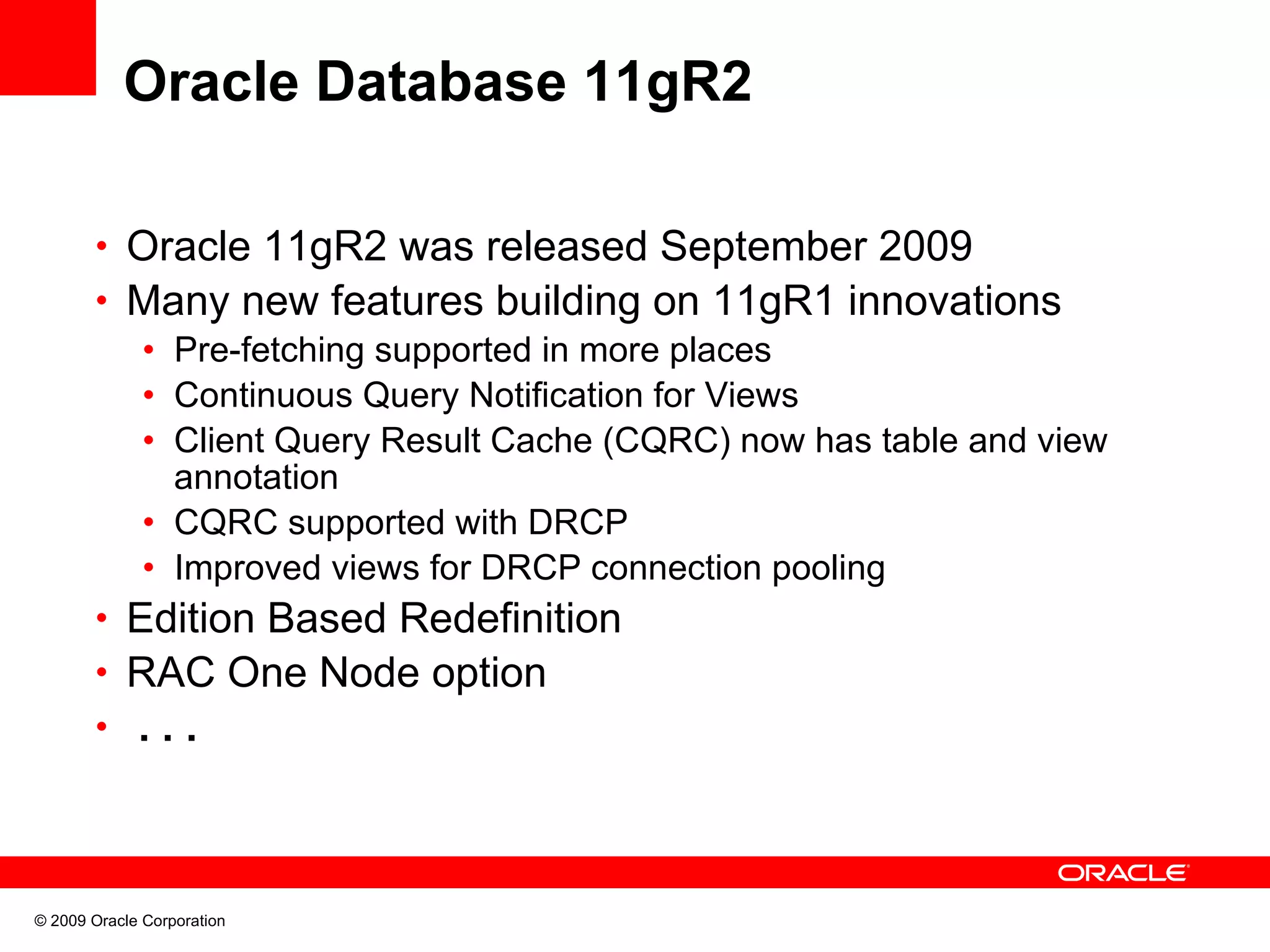

Oracle Database 11gR2 • Oracle 11gR2 was released September 2009 • Many new features building on 11gR1 innovations • Pre-fetching supported in more places • Continuous Query Notification for Views • Client Query Result Cache (CQRC) now has table and view annotation • CQRC supported with DRCP • Improved views for DRCP connection pooling • Edition Based Redefinition • RAC One Node option • ... © 2009 Oracle Corporation

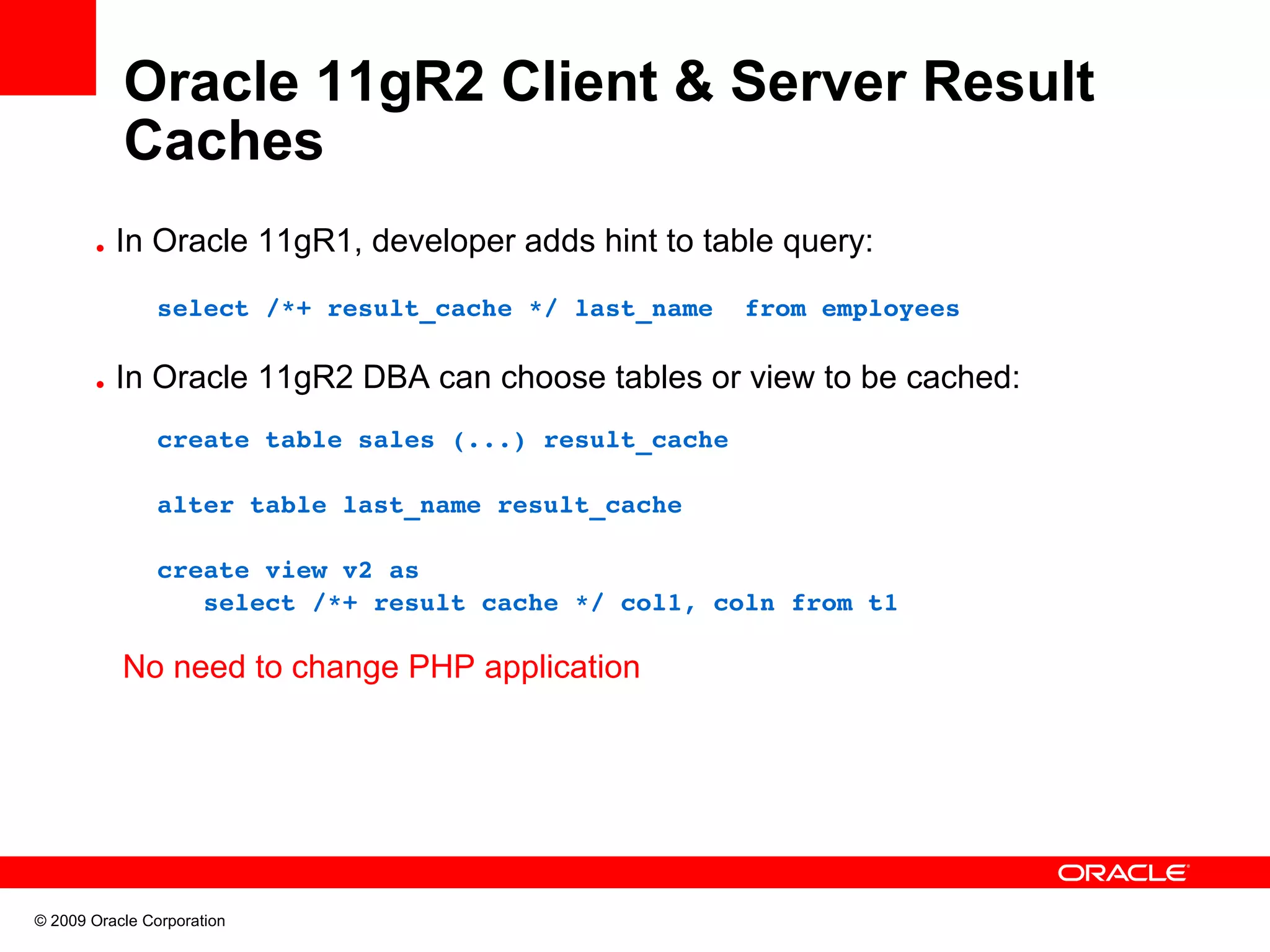

Oracle 11gR2 Client & Server Result Caches • In Oracle 11gR1, developer adds hint to table query: select /*+ result_cache */ last_name from employees • In Oracle 11gR2 DBA can choose tables or view to be cached: create table sales (...) result_cache alter table last_name result_cache create view v2 as select /*+ result cache */ col1, coln from t1 No need to change PHP application © 2009 Oracle Corporation

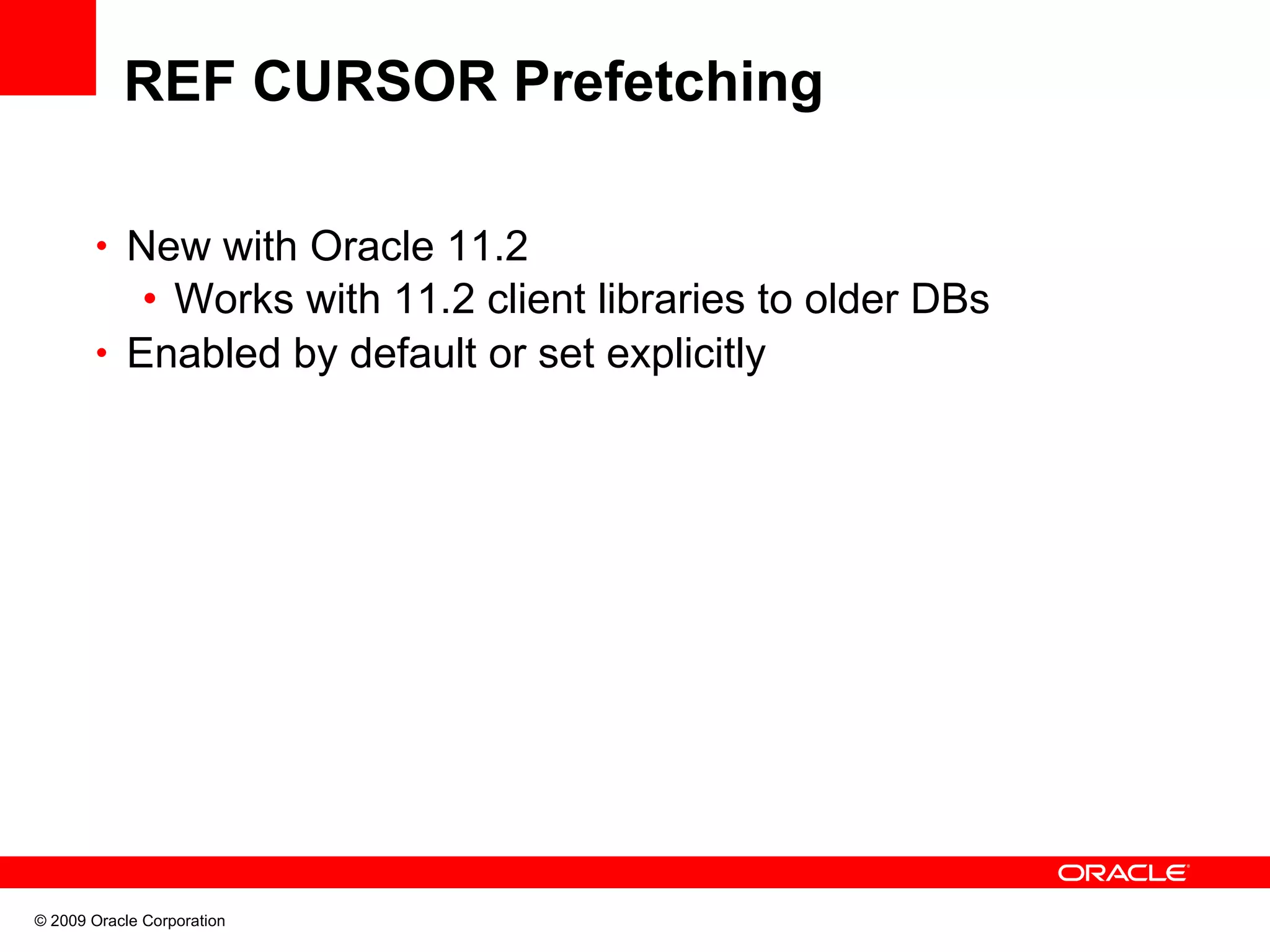

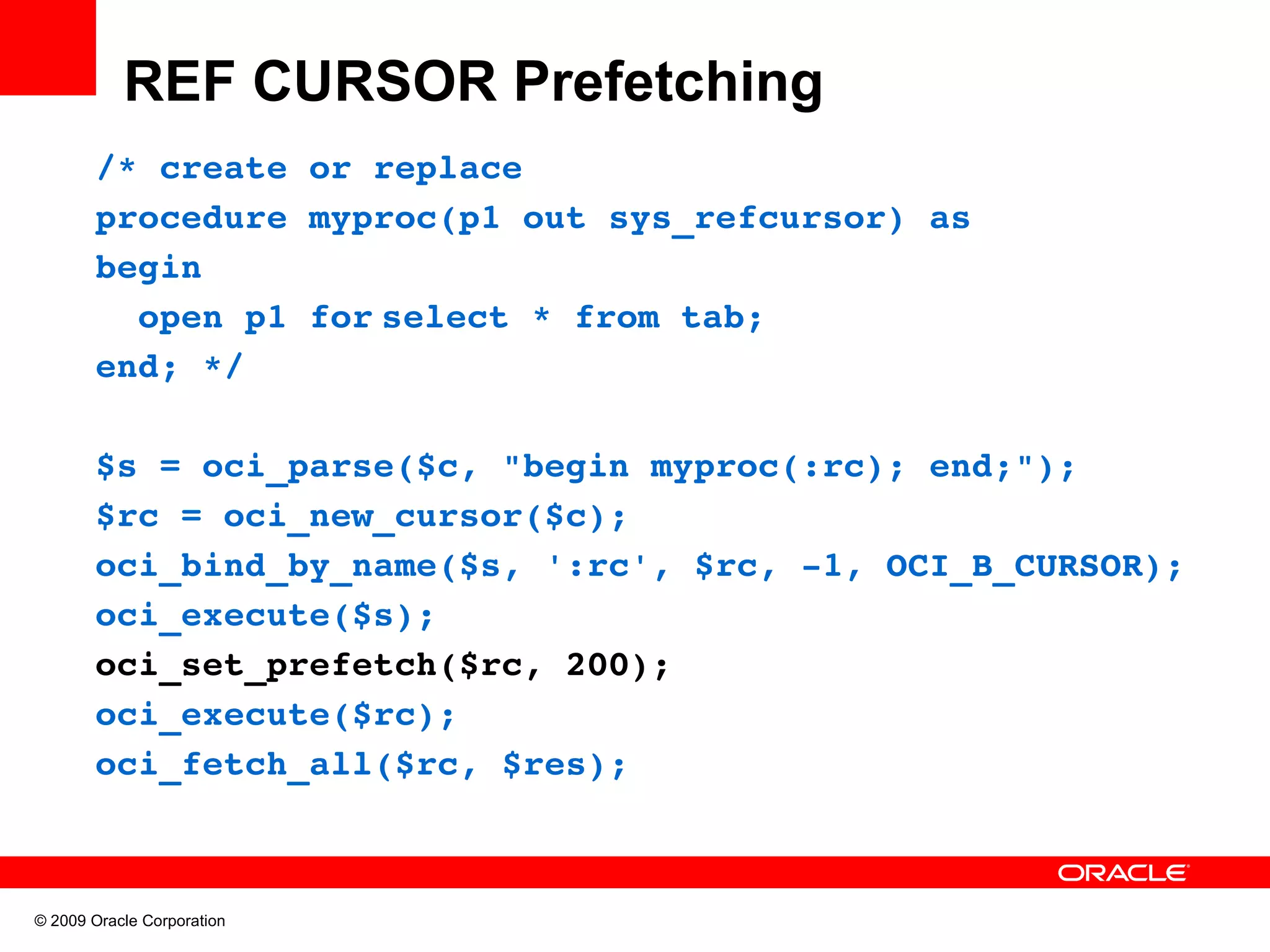

REF CURSOR Prefetching /* create or replace procedure myproc(p1 out sys_refcursor) as begin open p1 for select * from tab; end; */ $s = oci_parse($c, "begin myproc(:rc); end;"); $rc = oci_new_cursor($c); oci_bind_by_name($s, ':rc', $rc, 1, OCI_B_CURSOR); oci_execute($s); oci_set_prefetch($rc, 200); oci_execute($rc); oci_fetch_all($rc, $res); © 2009 Oracle Corporation

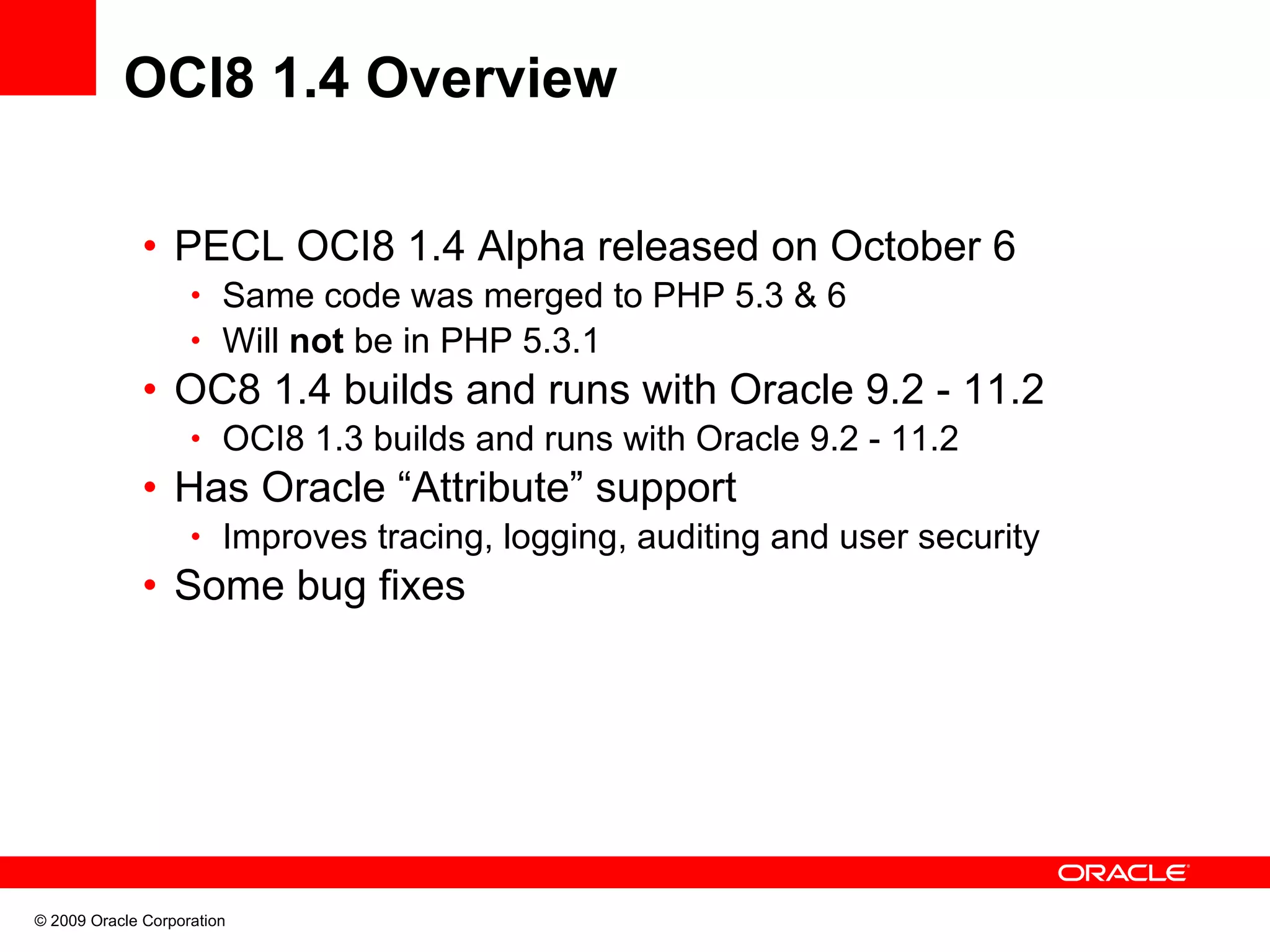

OCI8 1.4 Overview • PECL OCI8 1.4 Alpha released on October 6 • Same code was merged to PHP 5.3 & 6 • Will not be in PHP 5.3.1 • OC8 1.4 builds and runs with Oracle 9.2 - 11.2 • OCI8 1.3 builds and runs with Oracle 9.2 - 11.2 • Has Oracle “Attribute” support • Improves tracing, logging, auditing and user security • Some bug fixes © 2009 Oracle Corporation

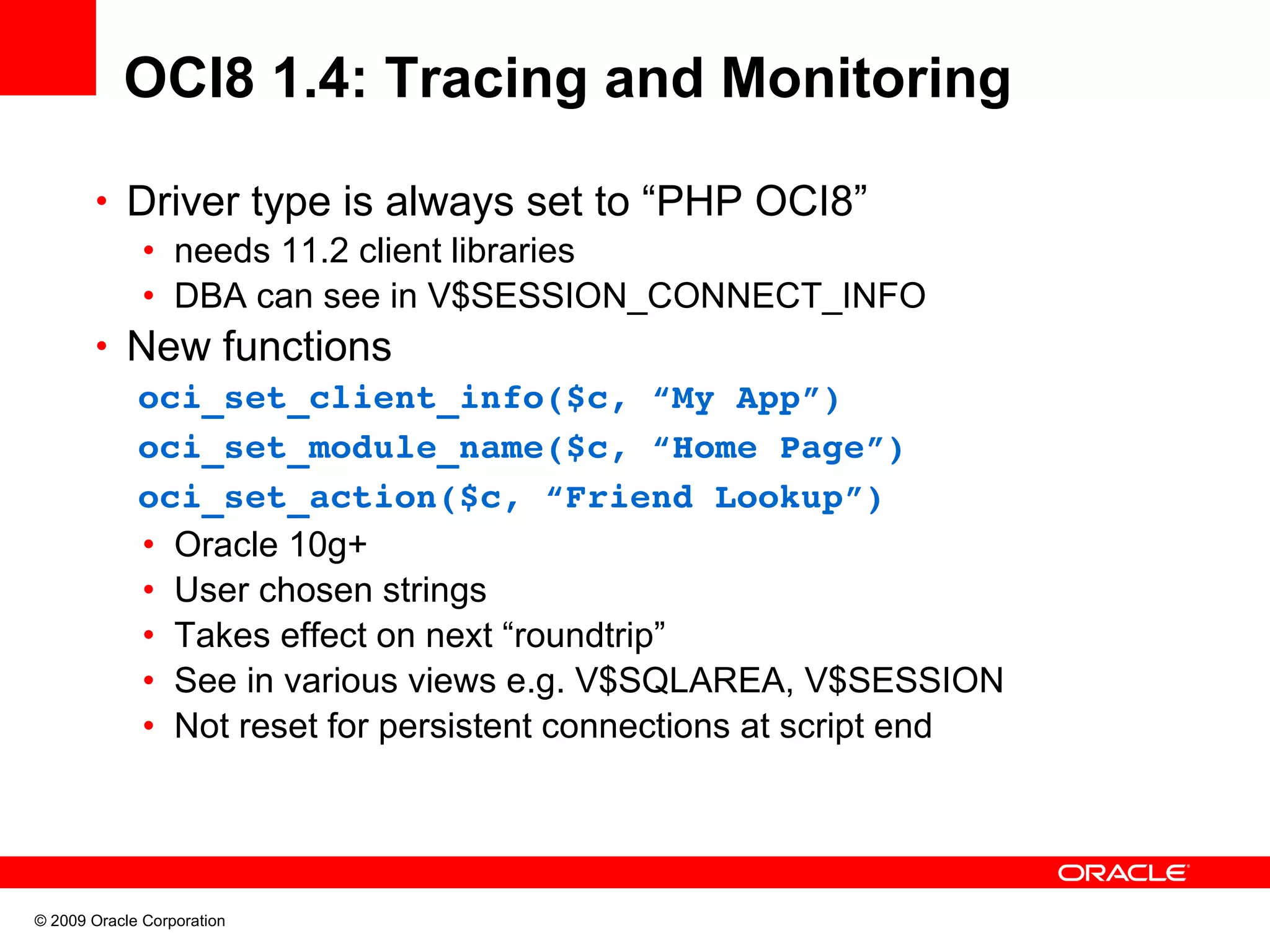

OCI8 1.4: Tracing and Monitoring • Driver type is always set to “PHP OCI8” • needs 11.2 client libraries • DBA can see in V$SESSION_CONNECT_INFO • New functions oci_set_client_info($c, “My App”) oci_set_module_name($c, “Home Page”) oci_set_action($c, “Friend Lookup”) • Oracle 10g+ • User chosen strings • Takes effect on next “roundtrip” • See in various views e.g. V$SQLAREA, V$SESSION • Not reset for persistent connections at script end © 2009 Oracle Corporation

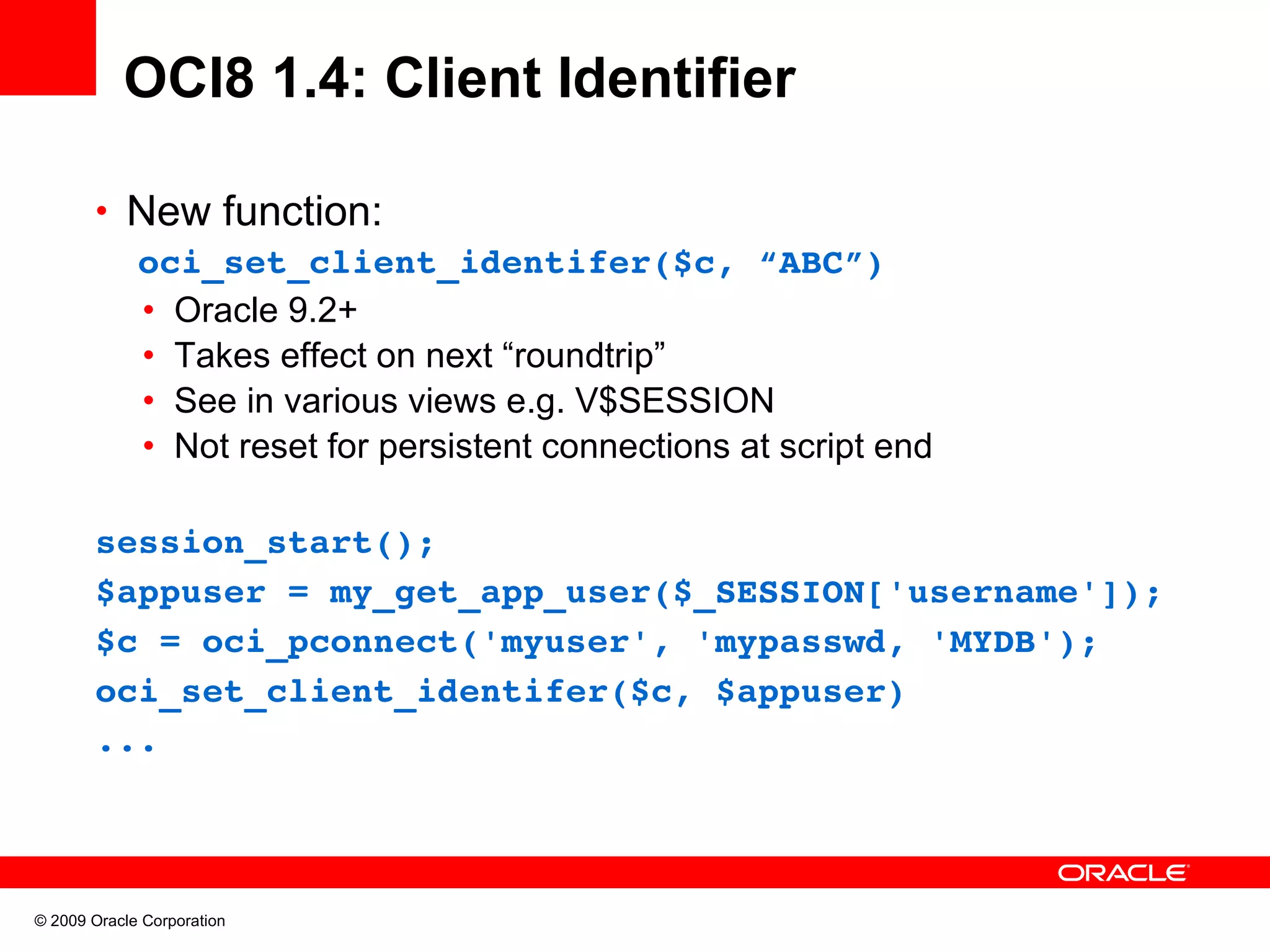

OCI8 1.4: Client Identifier • New function: oci_set_client_identifer($c, “ABC”) • Oracle 9.2+ • Takes effect on next “roundtrip” • See in various views e.g. V$SESSION • Not reset for persistent connections at script end session_start(); $appuser = my_get_app_user($_SESSION['username']); $c = oci_pconnect('myuser', 'mypasswd, 'MYDB'); oci_set_client_identifer($c, $appuser) ... © 2009 Oracle Corporation

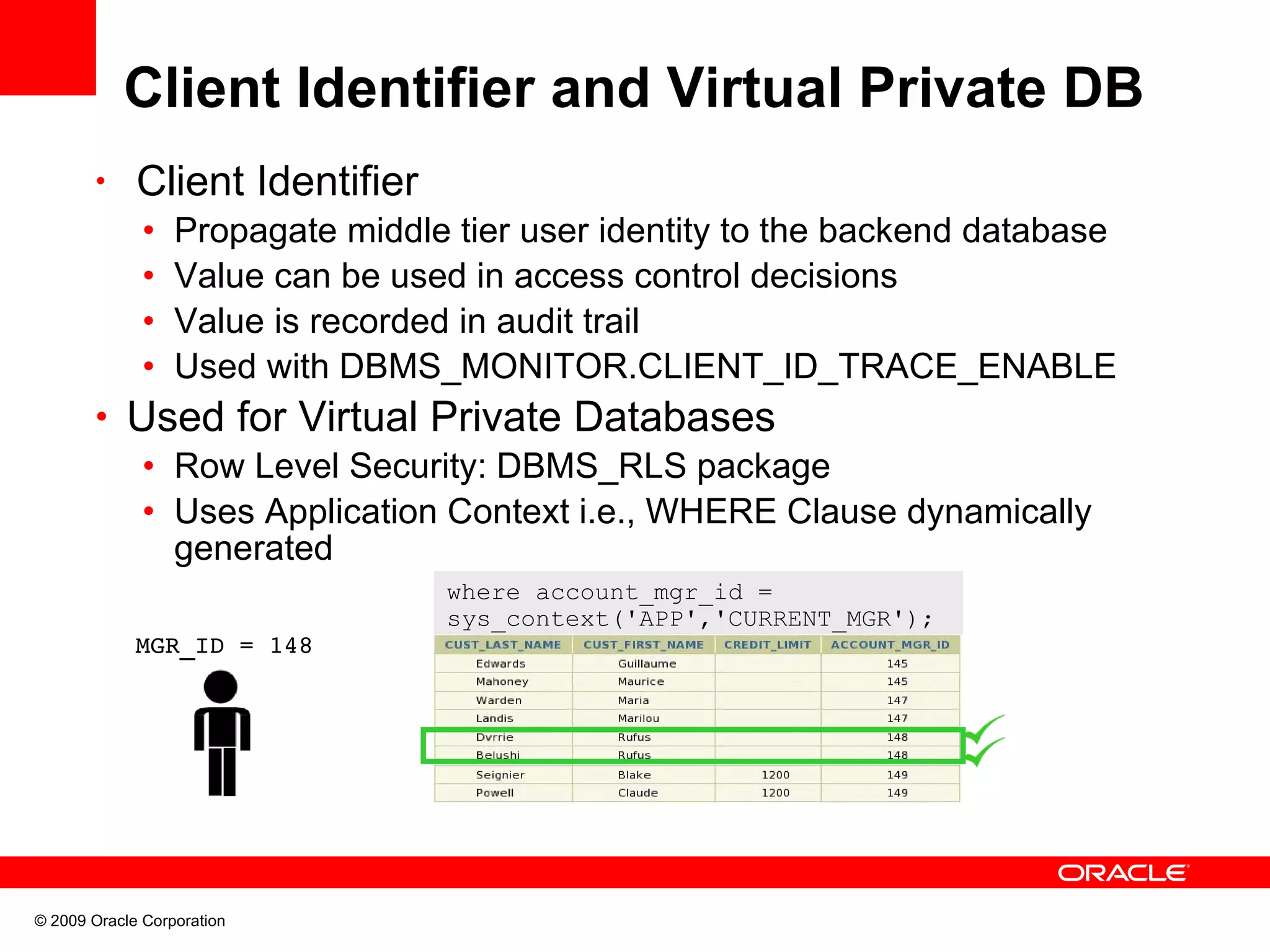

Client Identifier and Virtual Private DB • Client Identifier • Propagate middle tier user identity to the backend database • Value can be used in access control decisions • Value is recorded in audit trail • Used with DBMS_MONITOR.CLIENT_ID_TRACE_ENABLE • Used for Virtual Private Databases • Row Level Security: DBMS_RLS package • Uses Application Context i.e., WHERE Clause dynamically generated y where account_mgr_id = olic DP sys_context('APP','CURRENT_MGR'); VP MGR_ID = 148 © 2009 Oracle Corporation

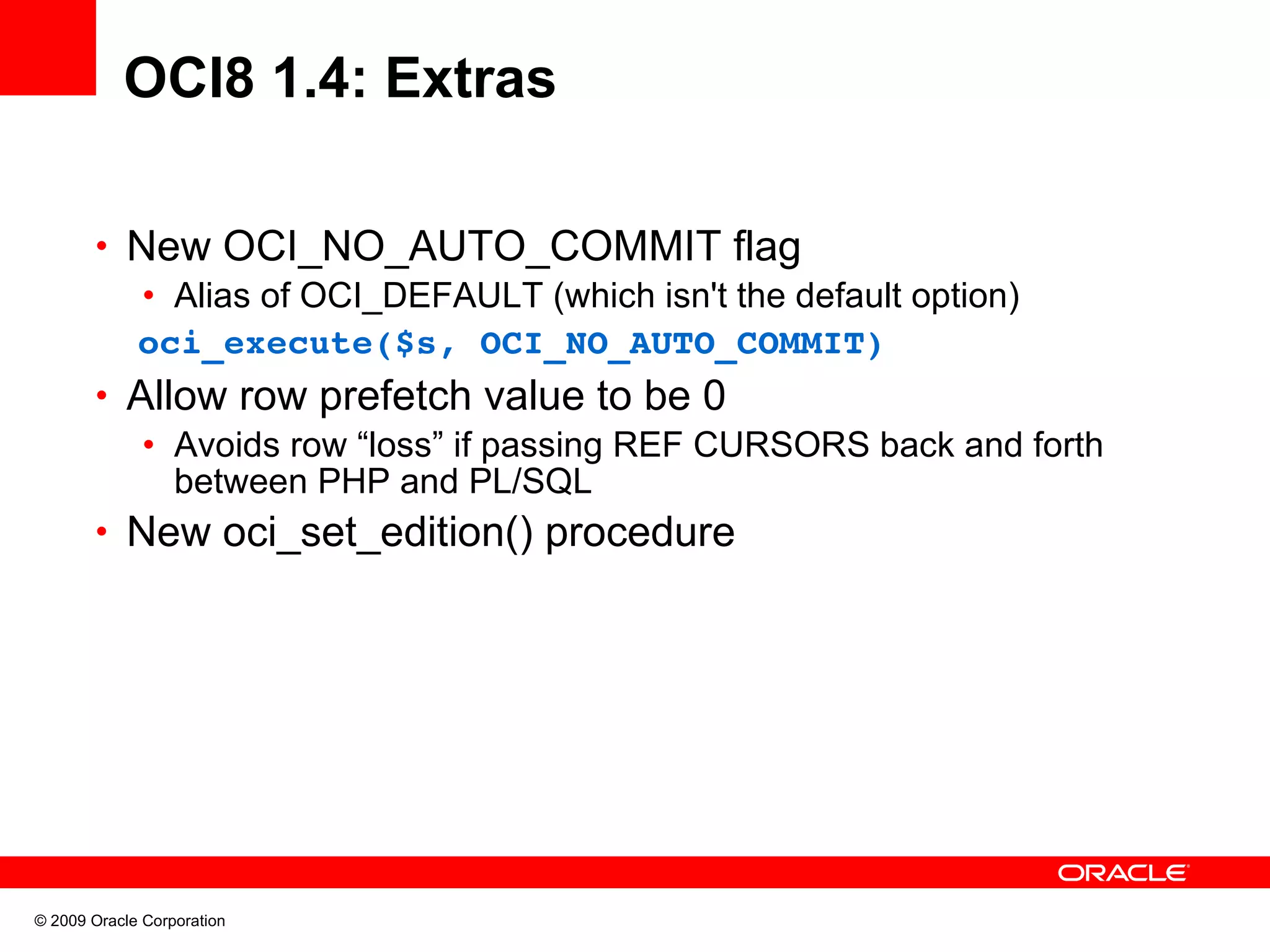

OCI8 1.4: Extras • New OCI_NO_AUTO_COMMIT flag • Alias of OCI_DEFAULT (which isn't the default option) oci_execute($s, OCI_NO_AUTO_COMMIT) • Allow row prefetch value to be 0 • Avoids row “loss” if passing REF CURSORS back and forth between PHP and PL/SQL • New oci_set_edition() procedure © 2009 Oracle Corporation

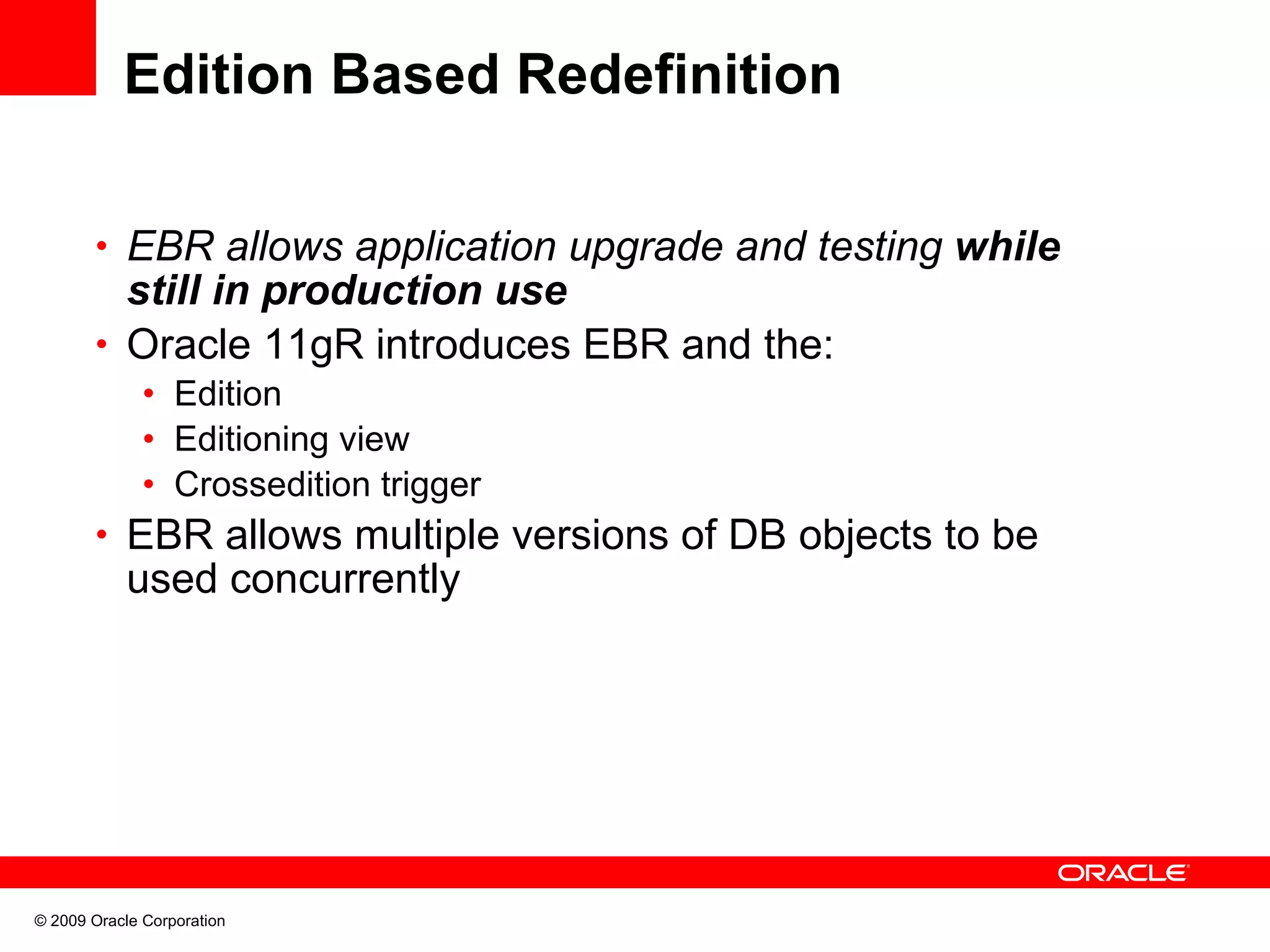

Edition Based Redefinition • EBR allows application upgrade and testing while still in production use • Oracle 11gR introduces EBR and the: • Edition • Editioning view • Crossedition trigger • EBR allows multiple versions of DB objects to be used concurrently © 2009 Oracle Corporation

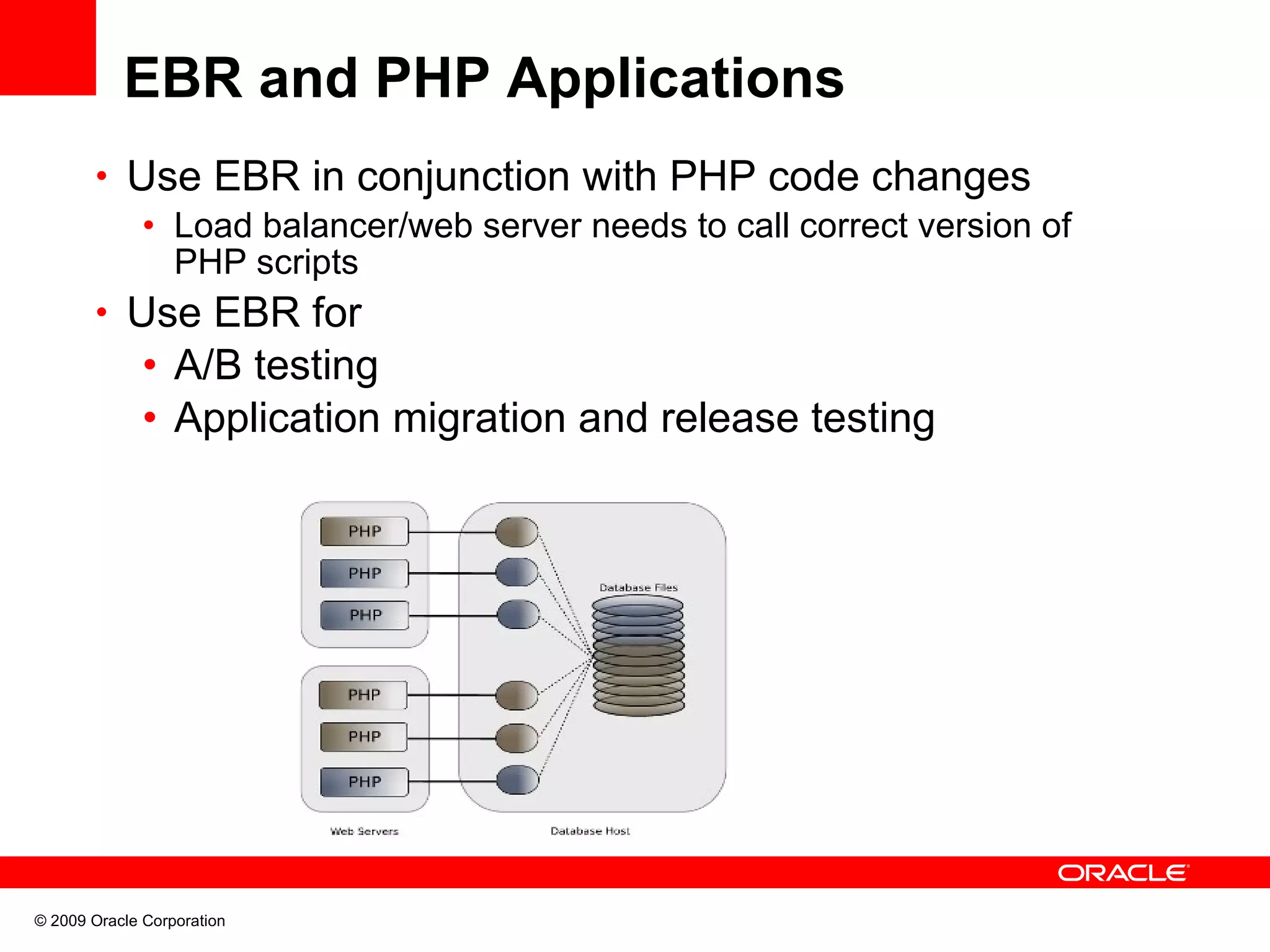

EBR and PHP Applications • Use EBR in conjunction with PHP code changes • Load balancer/web server needs to call correct version of PHP scripts • Use EBR for • A/B testing • Application migration and release testing © 2009 Oracle Corporation

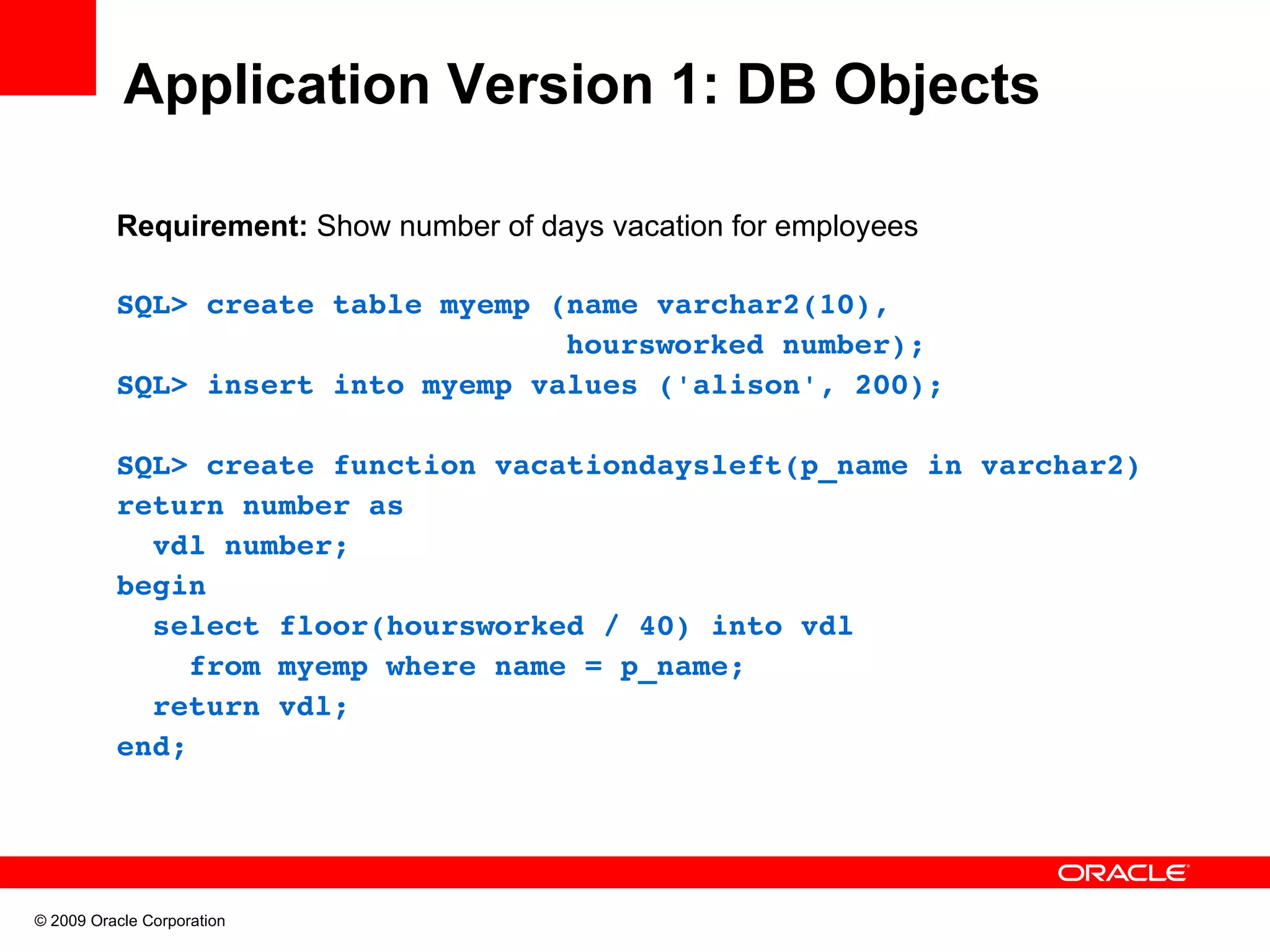

Application Version 1: DB Objects Requirement: Show number of days vacation for employees SQL> create table myemp (name varchar2(10), hoursworked number); SQL> insert into myemp values ('alison', 200); SQL> create function vacationdaysleft(p_name in varchar2) return number as vdl number; begin select floor(hoursworked / 40) into vdl from myemp where name = p_name; return vdl; end; © 2009 Oracle Corporation

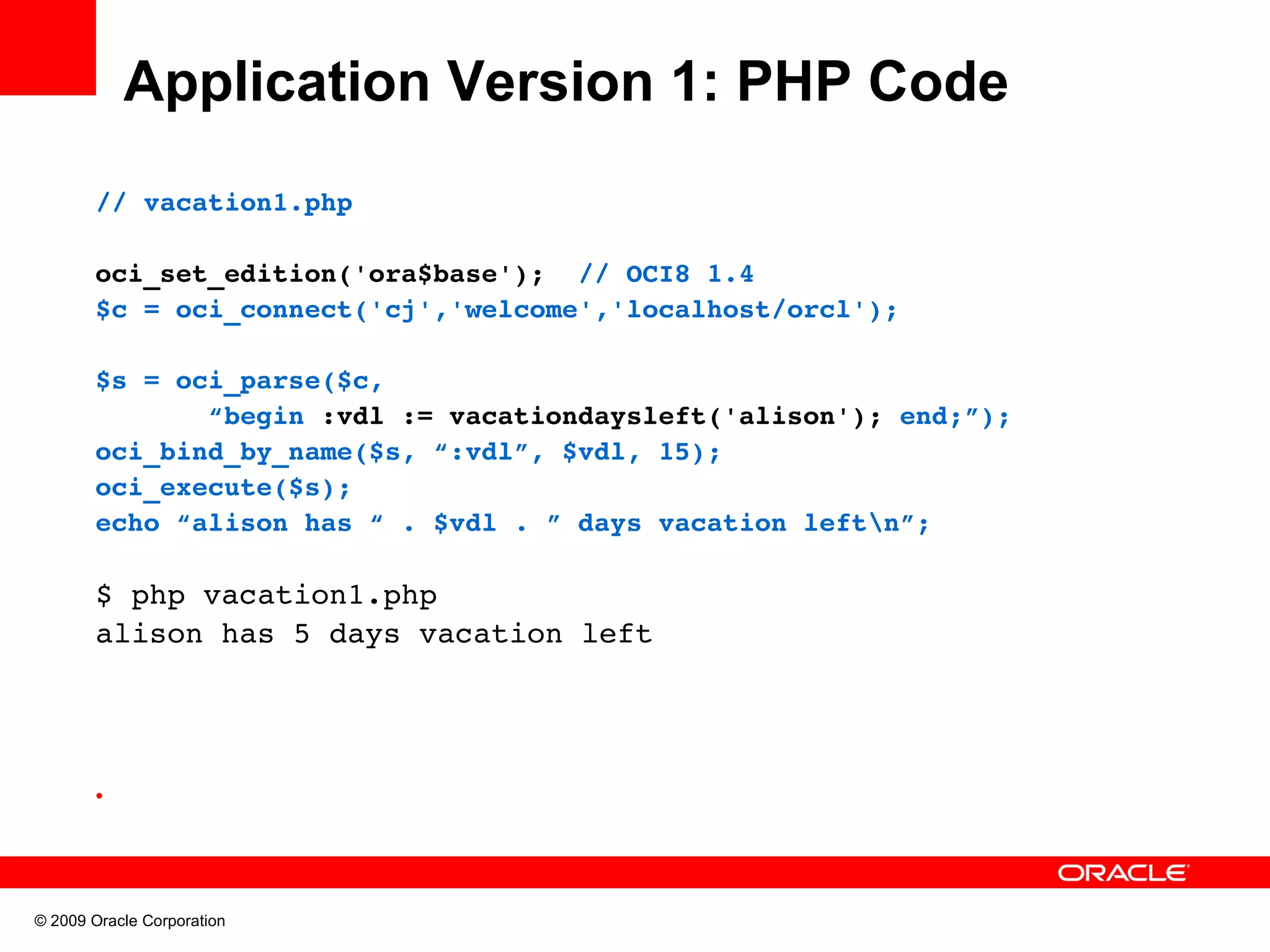

Application Version 1: PHP Code // vacation1.php oci_set_edition('ora$base'); // OCI8 1.4 $c = oci_connect('cj','welcome','localhost/orcl'); $s = oci_parse($c, “begin :vdl := vacationdaysleft('alison'); end;”); oci_bind_by_name($s, “:vdl”, $vdl, 15); oci_execute($s); echo “alison has “ . $vdl . ” days vacation leftn”; $ php vacation1.php alison has 5 days vacation left • © 2009 Oracle Corporation

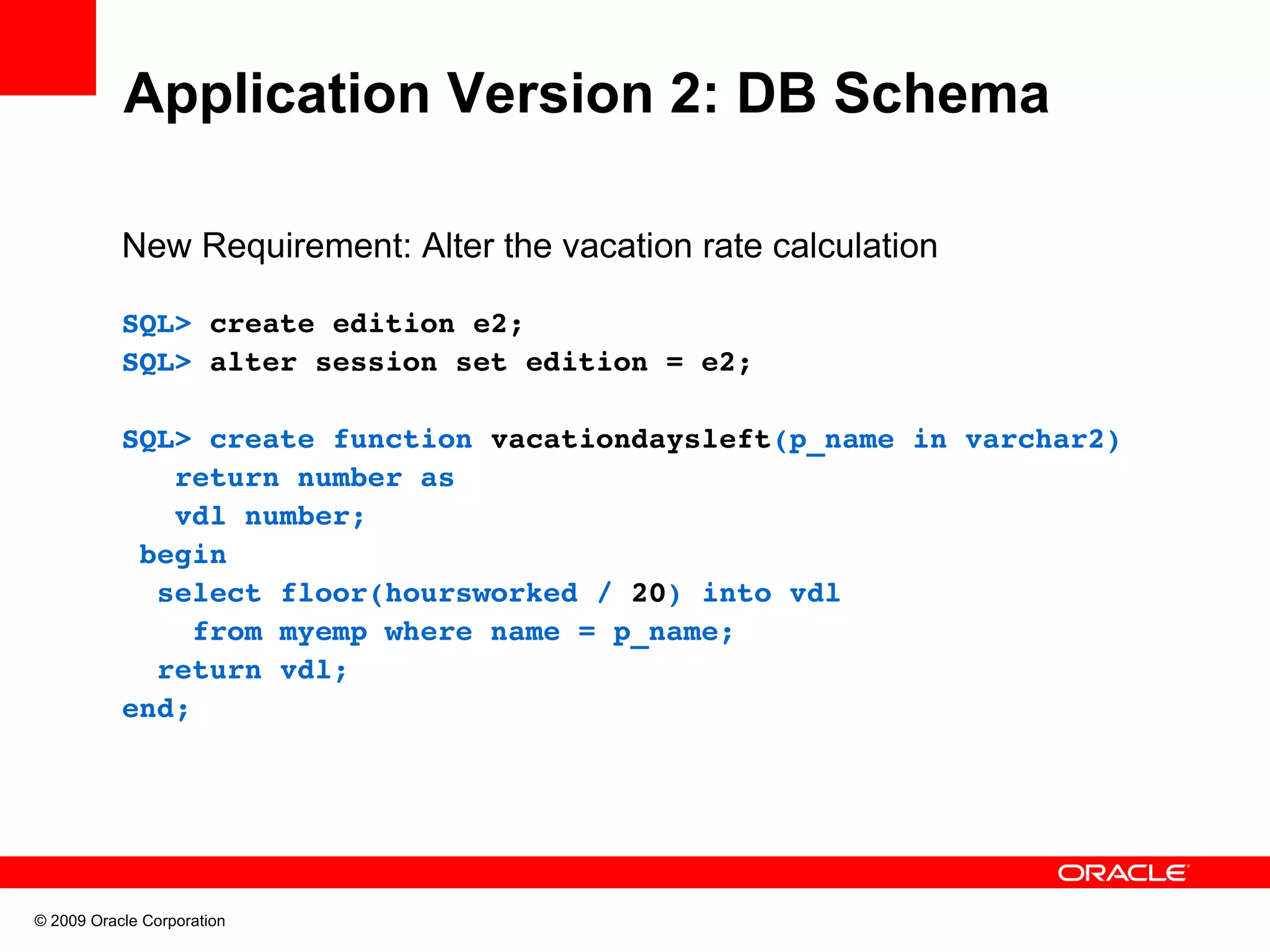

Application Version 2: DB Schema New Requirement: Alter the vacation rate calculation SQL> create edition e2; SQL> alter session set edition = e2; SQL> create function vacationdaysleft(p_name in varchar2) return number as vdl number; begin select floor(hoursworked / 20) into vdl from myemp where name = p_name; return vdl; end; © 2009 Oracle Corporation

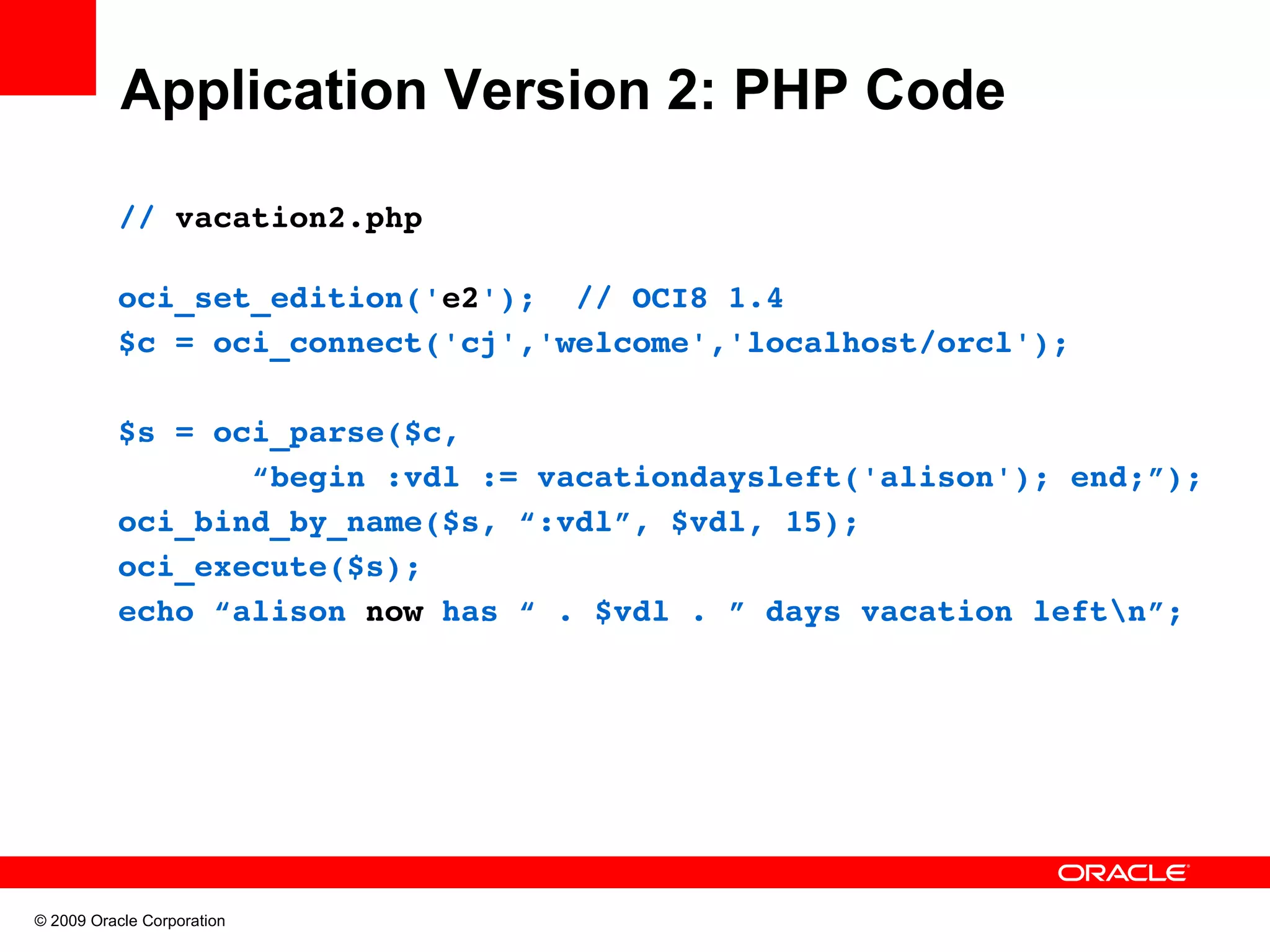

Application Version 2: PHP Code // vacation2.php oci_set_edition('e2'); // OCI8 1.4 $c = oci_connect('cj','welcome','localhost/orcl'); $s = oci_parse($c, “begin :vdl := vacationdaysleft('alison'); end;”); oci_bind_by_name($s, “:vdl”, $vdl, 15); oci_execute($s); echo “alison now has “ . $vdl . ” days vacation leftn”; © 2009 Oracle Corporation

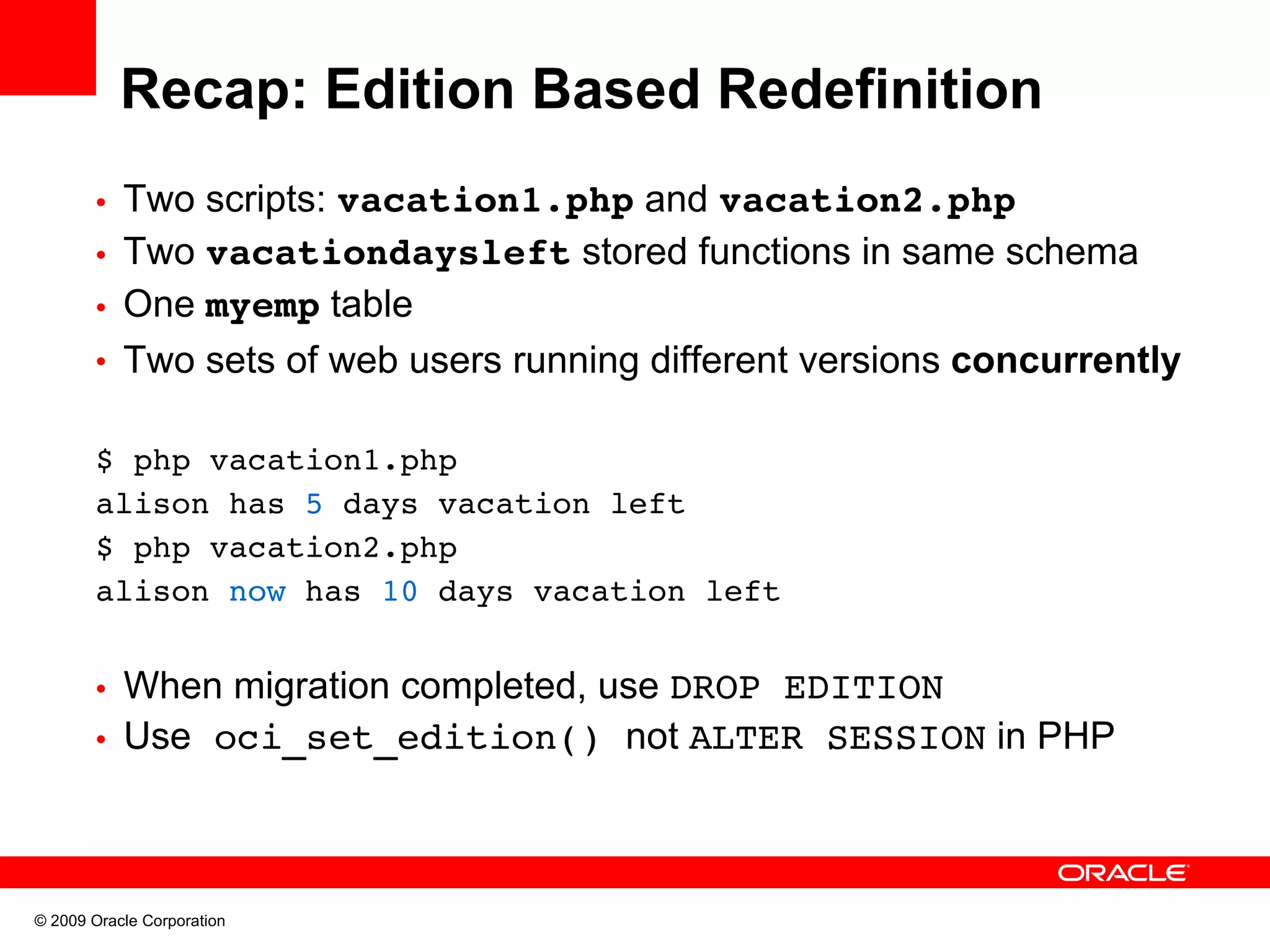

Recap: Edition Based Redefinition • Two scripts: vacation1.php and vacation2.php • Two vacationdaysleft stored functions in same schema • One myemp table • Two sets of web users running different versions concurrently $ php vacation1.php alison has 5 days vacation left $ php vacation2.php alison now has 10 days vacation left • When migration completed, use DROP EDITION • Use oci_set_edition() not ALTER SESSION in PHP © 2009 Oracle Corporation

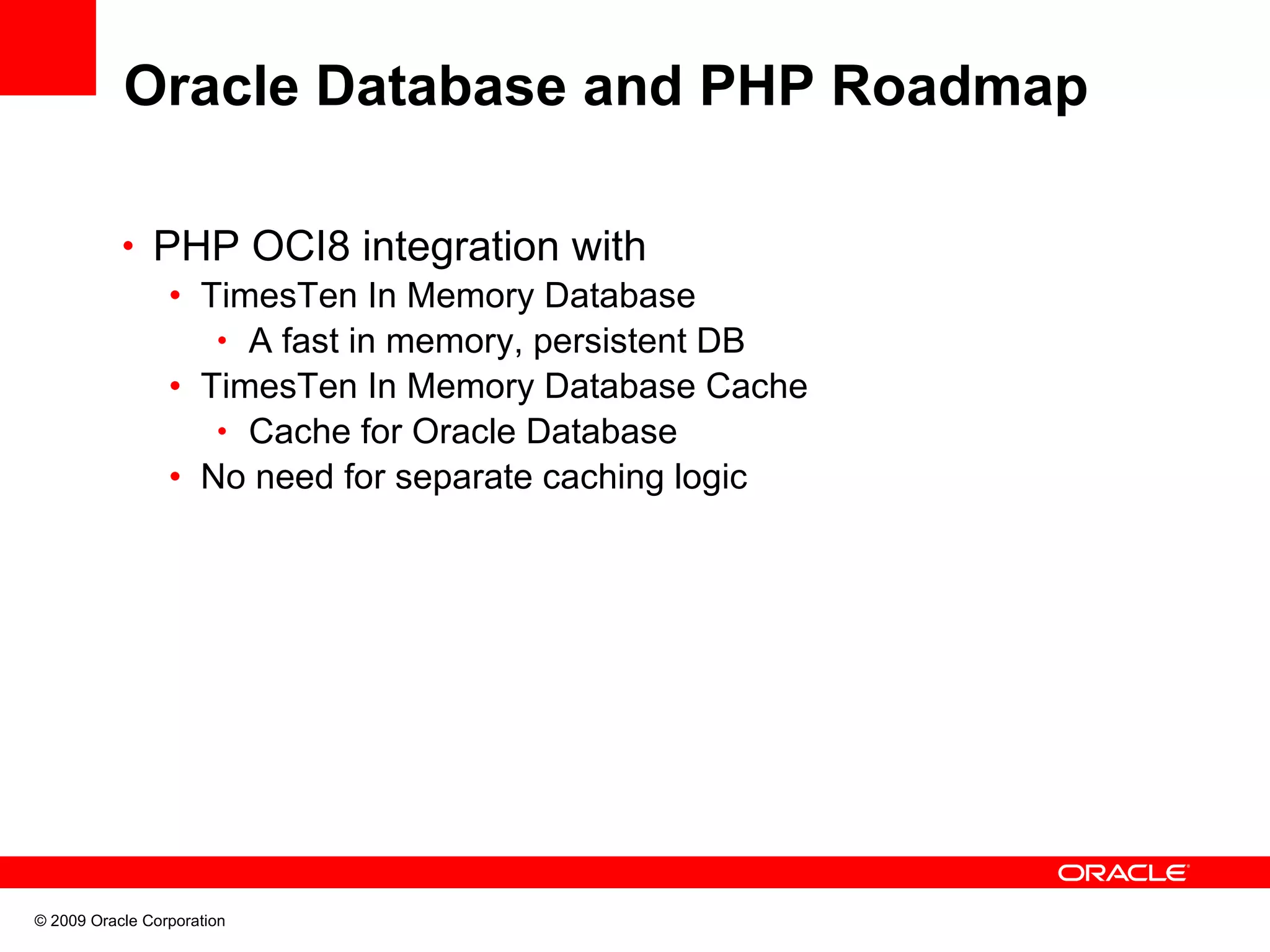

Oracle Database and PHP Roadmap • PHP OCI8 integration with • TimesTen In Memory Database • A fast in memory, persistent DB • TimesTen In Memory Database Cache • Cache for Oracle Database • No need for separate caching logic © 2009 Oracle Corporation

The preceding is intended to outline our general product direction. It is intended for information purposes only, and may not be incorporated into any contract. It is not a commitment to deliver any material, code, or functionality, and should not be relied upon in making purchasing decisions. The development, release, and timing of any features or functionality described for Oracle’s products remains at the sole discretion of Oracle. © 2009 Oracle Corporation

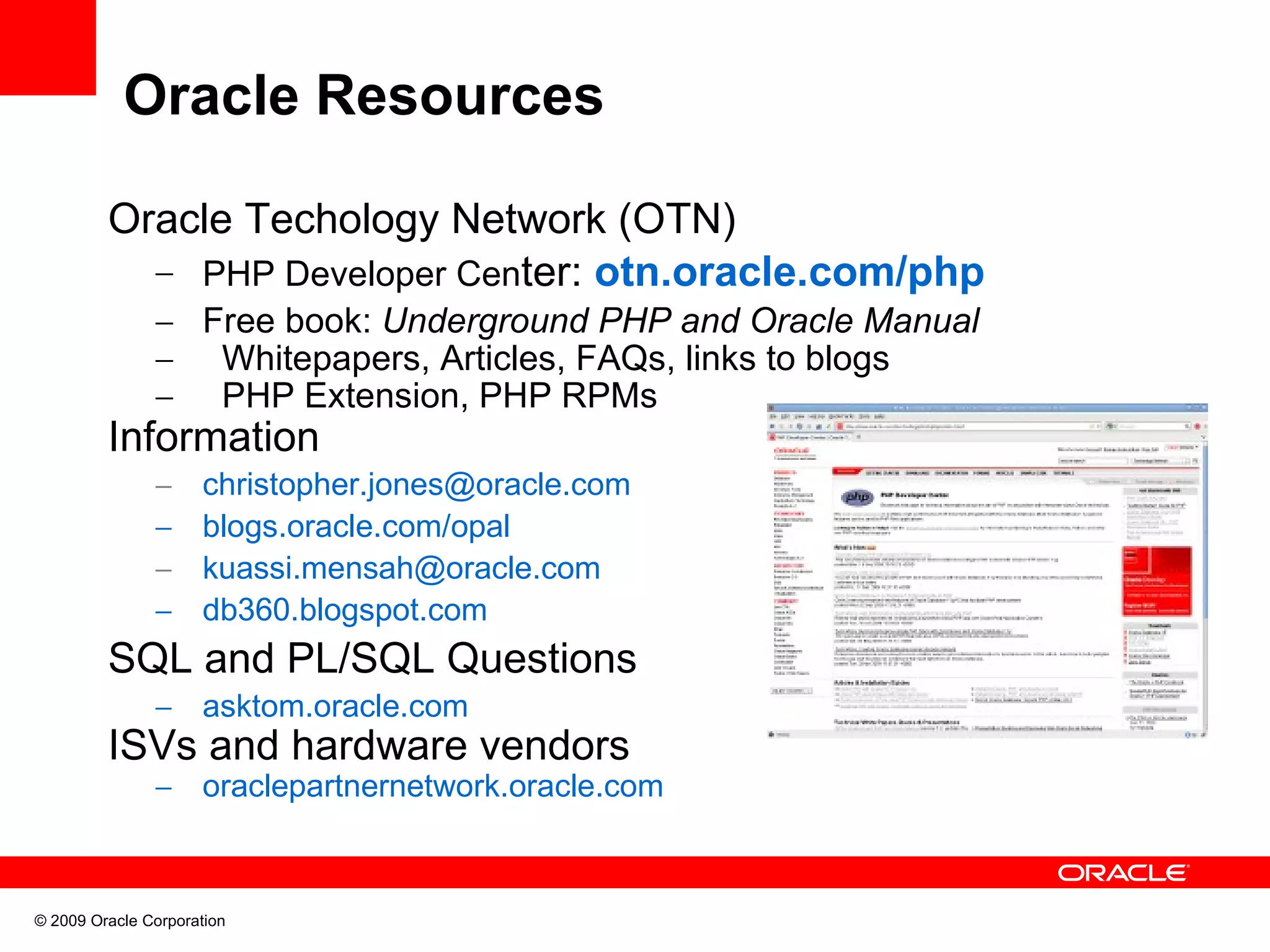

Oracle Resources Oracle Techology Network (OTN) – PHP Developer Center: otn.oracle.com/php – Free book: Underground PHP and Oracle Manual – Whitepapers, Articles, FAQs, links to blogs – PHP Extension, PHP RPMs Information – christopher.jones@oracle.com – blogs.oracle.com/opal – kuassi.mensah@oracle.com – db360.blogspot.com SQL and PL/SQL Questions – asktom.oracle.com ISVs and hardware vendors – oraclepartnernetwork.oracle.com © 2009 Oracle Corporation

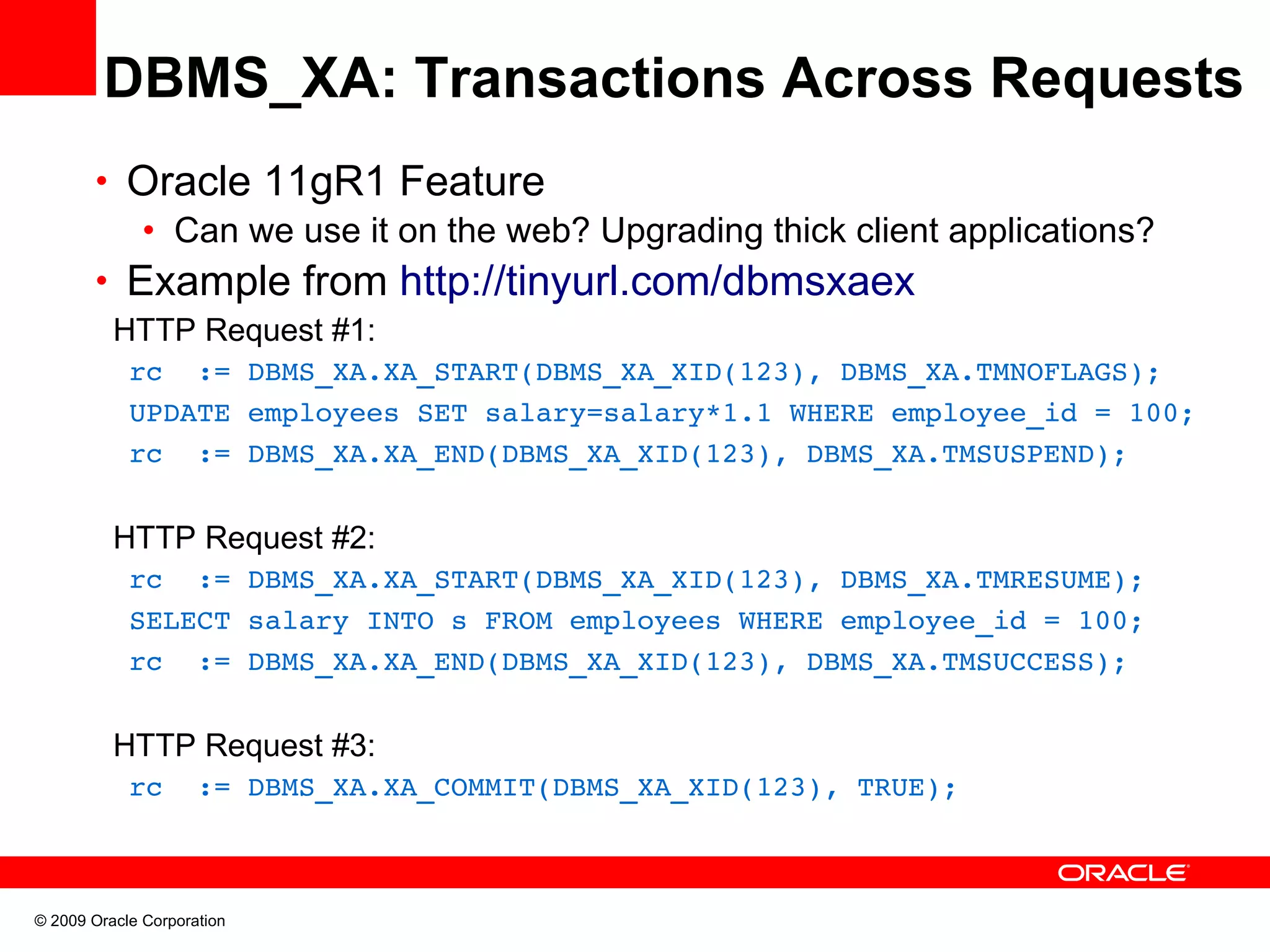

DBMS_XA: Transactions Across Requests • Oracle 11gR1 Feature • Can we use it on the web? Upgrading thick client applications? • Example from http://tinyurl.com/dbmsxaex HTTP Request #1: rc := DBMS_XA.XA_START(DBMS_XA_XID(123), DBMS_XA.TMNOFLAGS); UPDATE employees SET salary=salary*1.1 WHERE employee_id = 100; rc := DBMS_XA.XA_END(DBMS_XA_XID(123), DBMS_XA.TMSUSPEND); HTTP Request #2: rc := DBMS_XA.XA_START(DBMS_XA_XID(123), DBMS_XA.TMRESUME); SELECT salary INTO s FROM employees WHERE employee_id = 100; rc := DBMS_XA.XA_END(DBMS_XA_XID(123), DBMS_XA.TMSUCCESS); HTTP Request #3: rc := DBMS_XA.XA_COMMIT(DBMS_XA_XID(123), TRUE); © 2009 Oracle Corporation

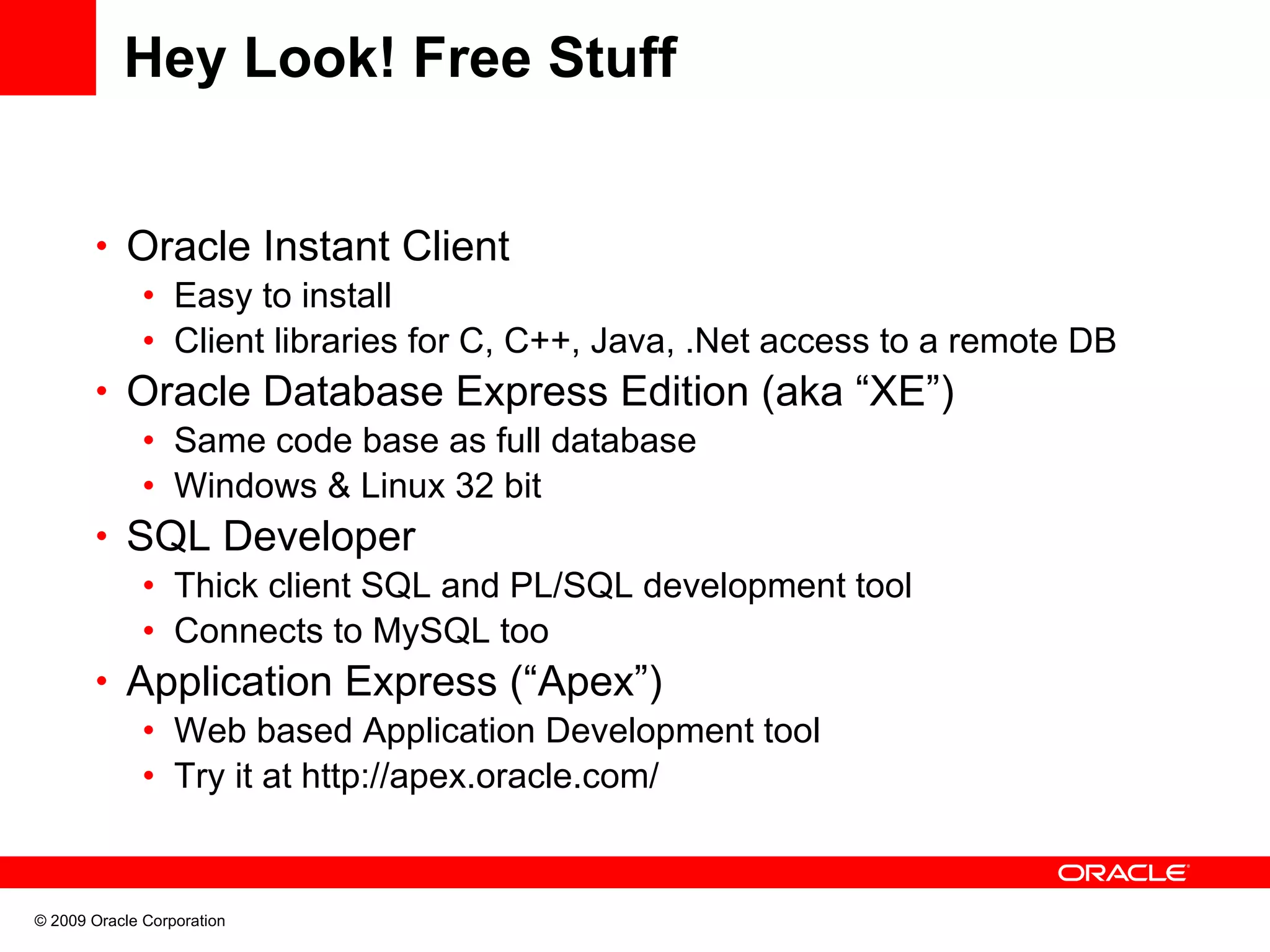

Hey Look! Free Stuff • Oracle Instant Client • Easy to install • Client libraries for C, C++, Java, .Net access to a remote DB • Oracle Database Express Edition (aka “XE”) • Same code base as full database • Windows & Linux 32 bit • SQL Developer • Thick client SQL and PL/SQL development tool • Connects to MySQL too • Application Express (“Apex”) • Web based Application Development tool • Try it at http://apex.oracle.com/ © 2009 Oracle Corporation
