What is Apache Kafka, and What is an Event Streaming Platform?
The document discusses Apache Kafka, an event streaming platform that enables real-time data processing, transitioning from traditional batch systems to continuous streaming. It highlights Kafka's architecture, including log-based storage, topic partitioning, and consumer group coordination that provide scalability and fault tolerance. Stream processing capabilities using KSQL are emphasized, benefiting various types of users from developers to data engineers.
What is Apache Kafka, and What is an Event Streaming Platform?
- 1. 1 Apache Kafka Event StreamingPlatform March, 2019 / Boston, MA @gamussa | #BostonKafka | @ConfluentINc
- 2. @gamussa | #BostonKafka| @ConfluentINc 2
- 3. @gamussa | #BostonKafka| @ConfluentINc
- 4. Raffle, yeah 🚀 Follow@gamussa 📸 🖼 🏋 Tag @gamussa With #BostonKafka
- 5. @gamussa | #BostonKafka| @ConfluentINc 5 A company is build on DATA FLOWS but All we have is DATA STORES

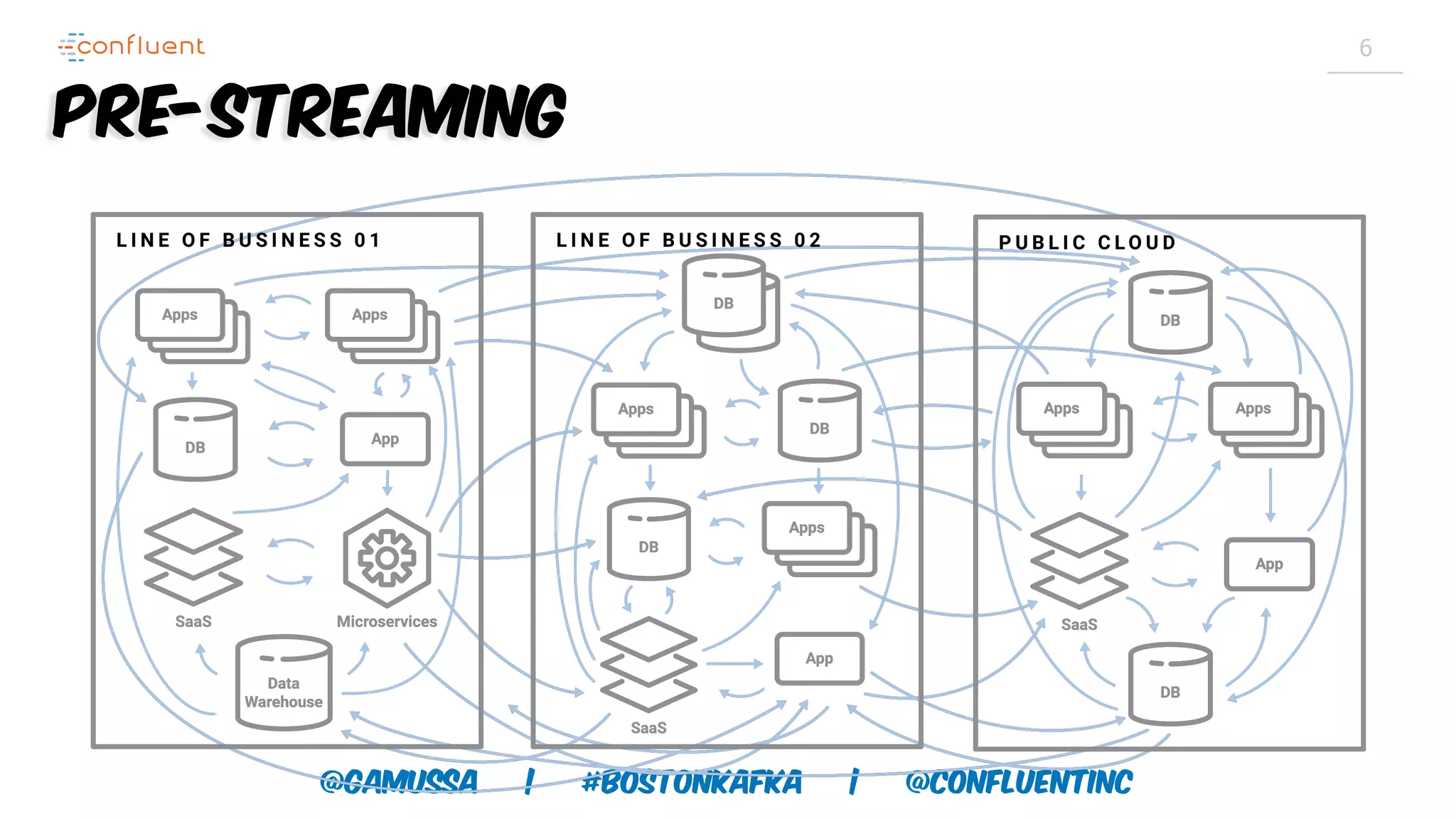

- 6. @gamussa | #BostonKafka| @ConfluentINc 6 Pre-Streaming
- 7. @gamussa | #BostonKafka| @ConfluentINc 7
- 8. @gamussa | #BostonKafka| @ConfluentINc 8 New World Streaming first • DB/DWH + Many more distributed data systems • Monolith -> Microservices • Batch -> Real-time

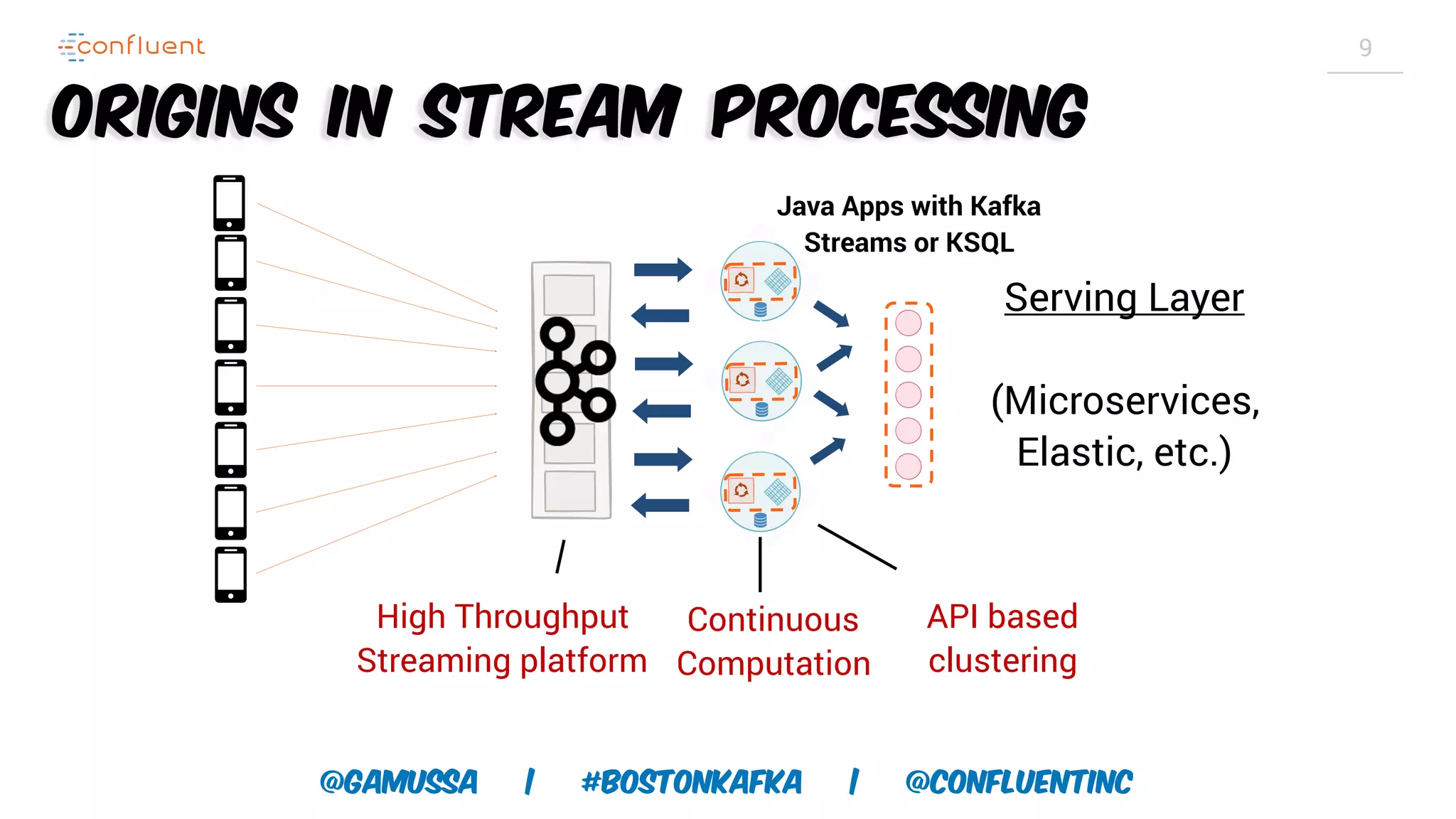

- 9. @gamussa | #BostonKafka| @ConfluentINc 9 Origins in Stream Processing Serving Layer (Microservices, Elastic, etc.) Java Apps with Kafka Streams or KSQL Continuous Computation High Throughput Streaming platform API based clustering

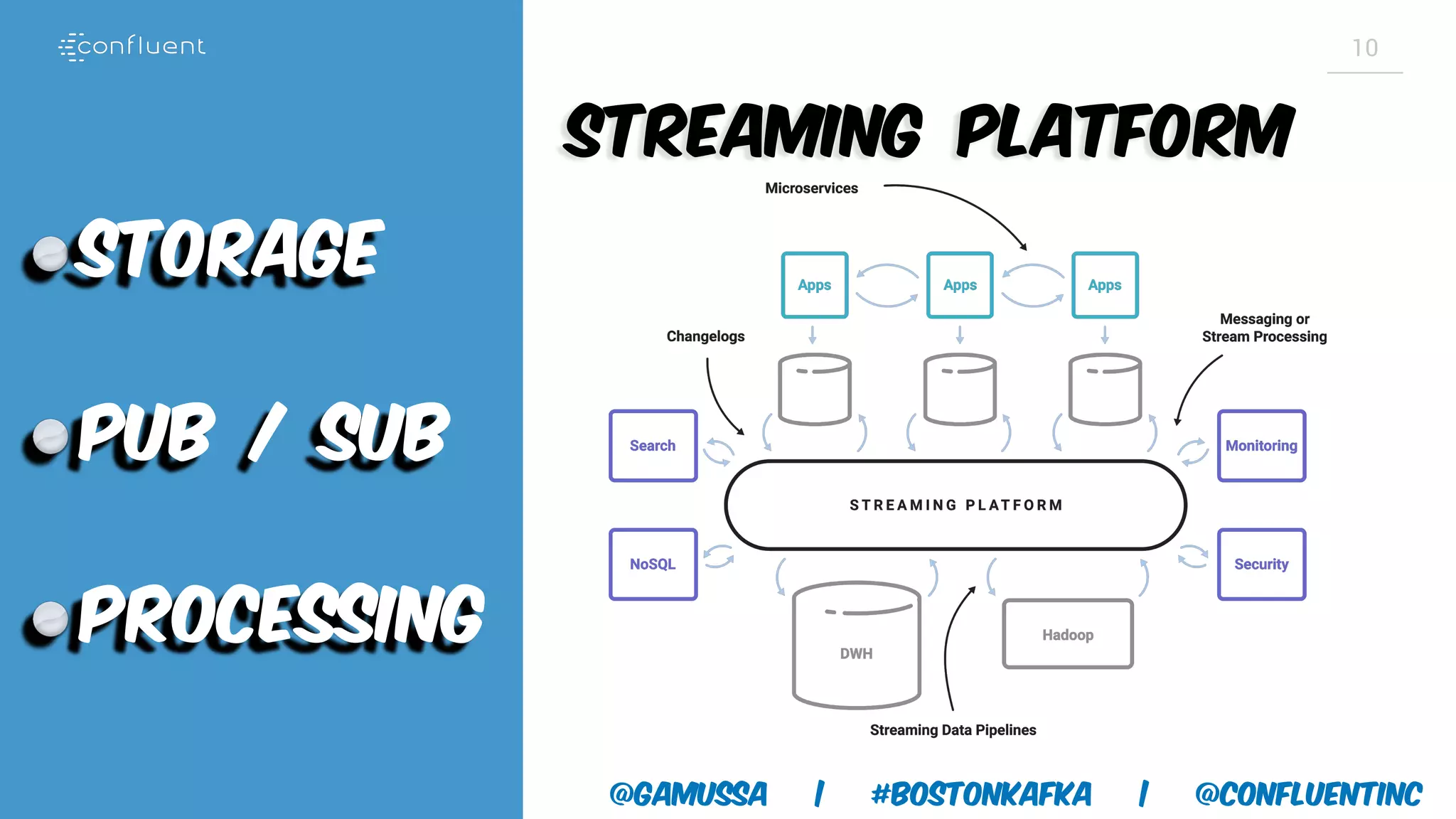

- 10. @gamussa | #BostonKafka| @ConfluentINc 10 Streaming Platform Storage Pub / Sub Processing
- 11. @gamussa | #BostonKafka| @ConfluentINc 11 Storage
- 12. @gamussa | #BostonKafka| @ConfluentINc 12 ● DB - table ● Hadoop - file ● Kafka - ? Core Abstraction
- 13. @gamussa | #BostonKafka| @ConfluentINc 13 LOG

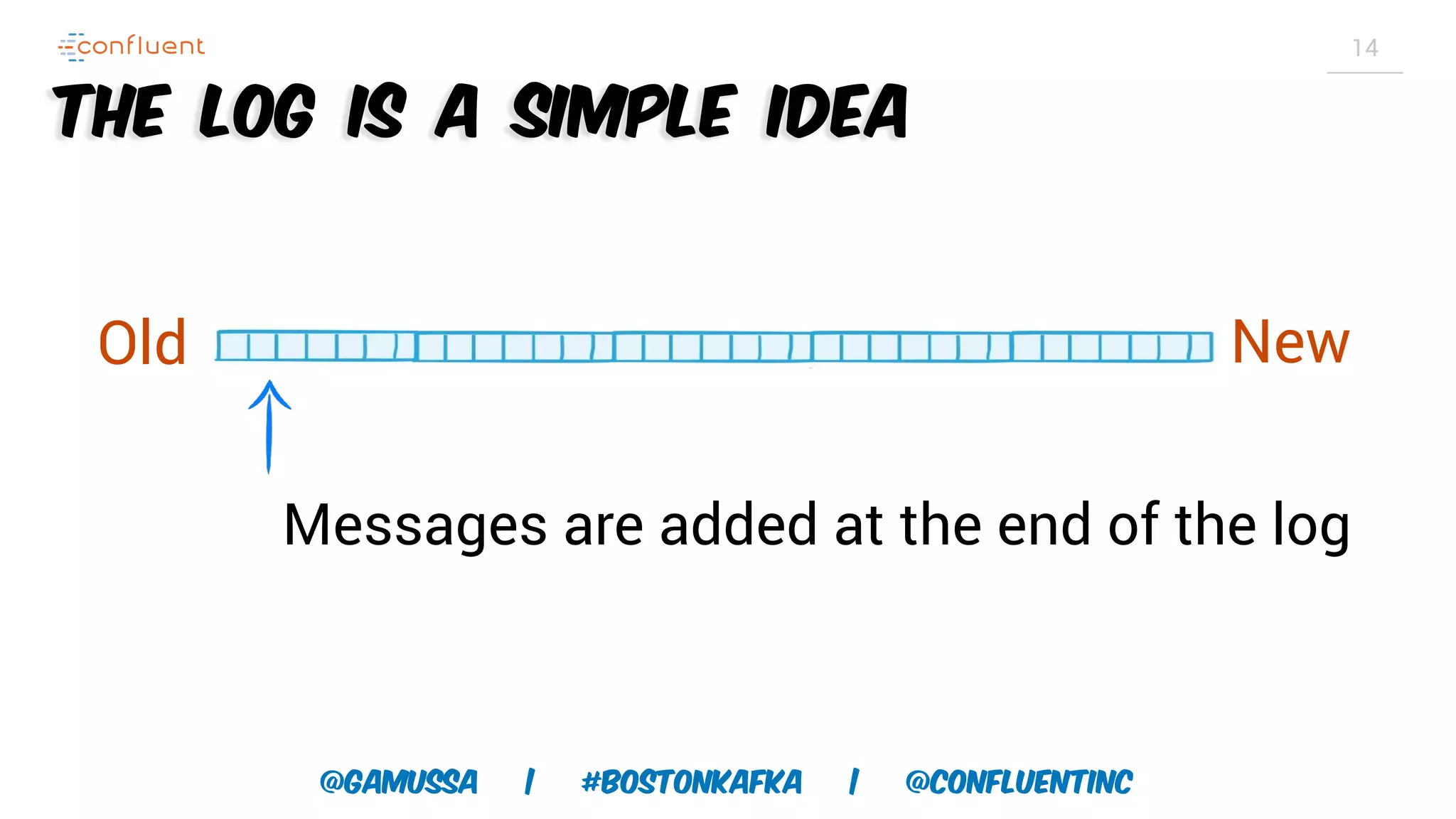

- 14. @gamussa | #BostonKafka| @ConfluentINc 14 The log is a simple idea Messages are added at the end of the log Old New
- 15. @gamussa | #BostonKafka| @ConfluentINc 15 Messages are added at the end of the log Old New The log is a simple idea
- 16. @gamussa | #BostonKafka| @ConfluentINc 16 Pub / Sub

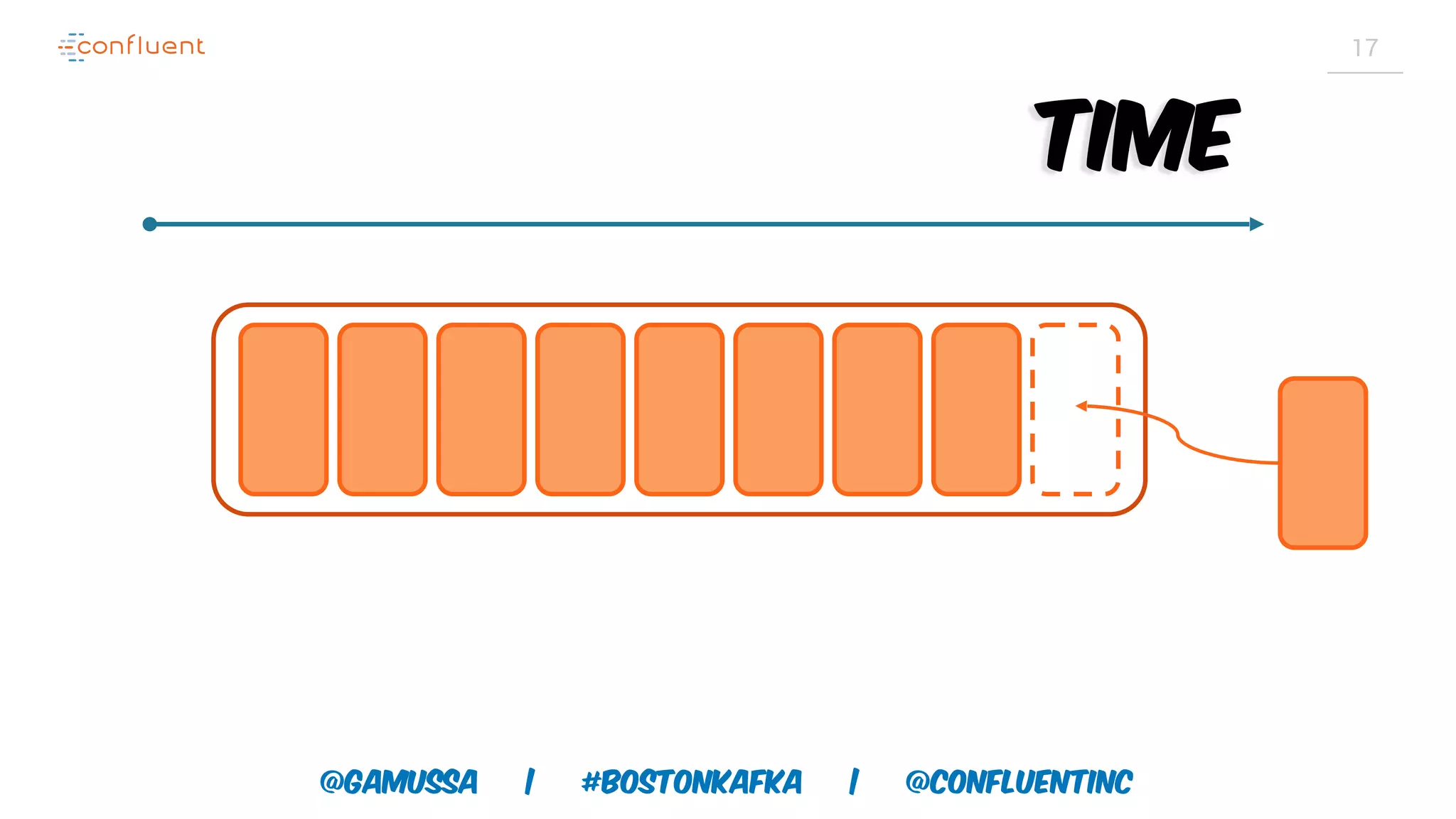

- 17. @gamussa | #BostonKafka| @ConfluentINc 17 Time

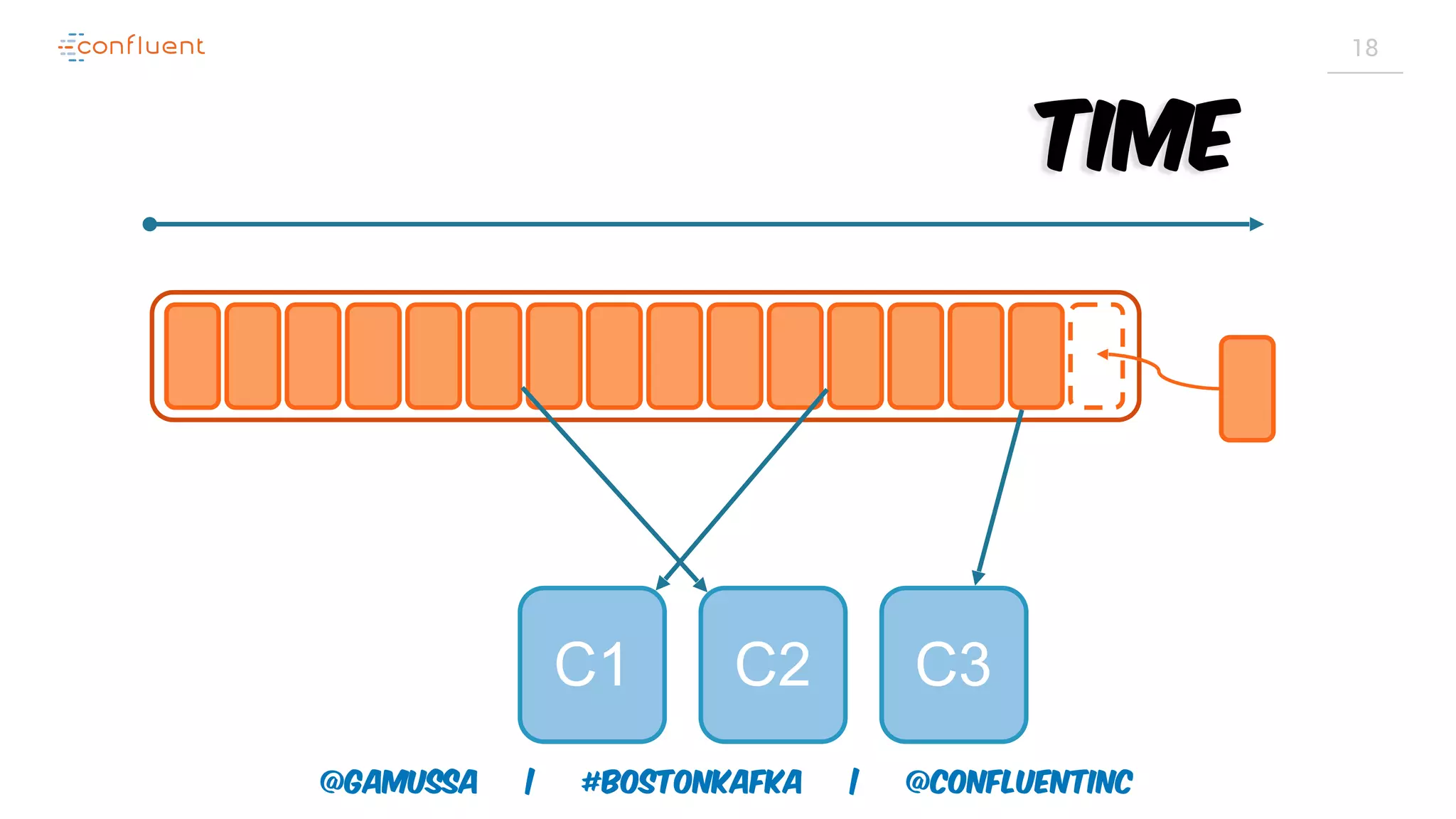

- 18. @gamussa | #BostonKafka| @ConfluentINc 18 C2 C3C1 Time

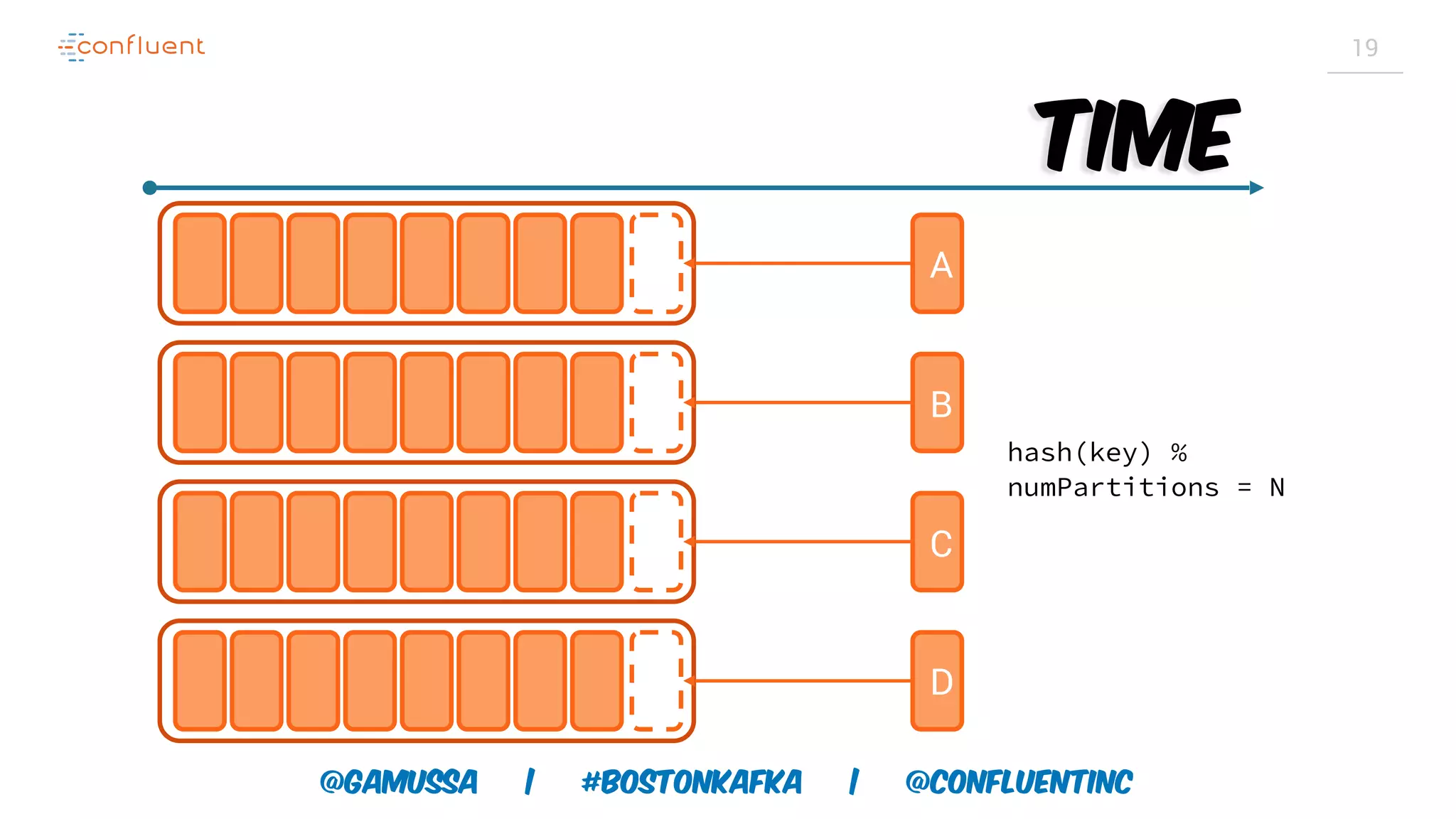

- 19. @gamussa | #BostonKafka| @ConfluentINc 19 Time A B C D hash(key) % numPartitions = N

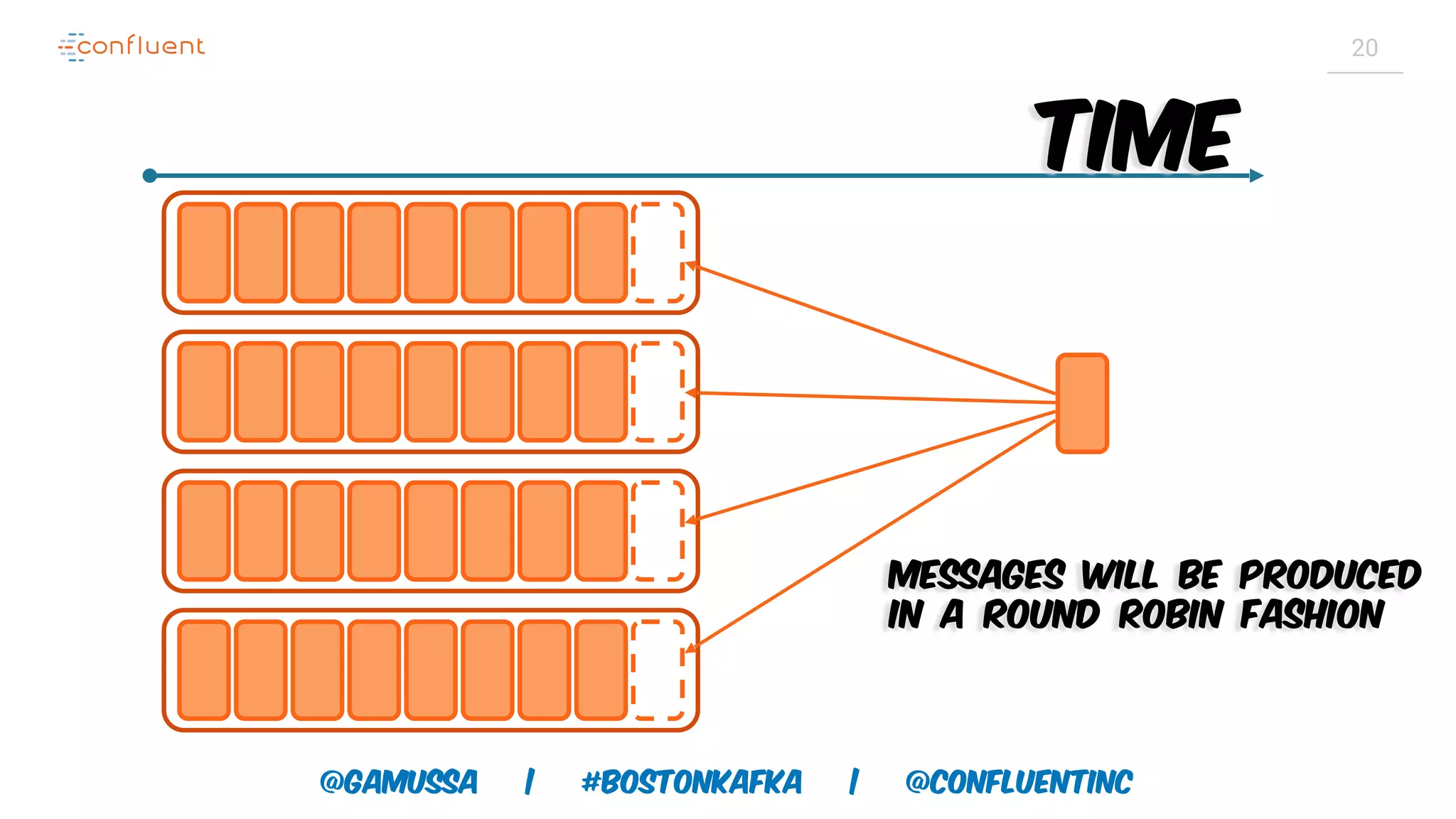

- 20. @gamussa | #BostonKafka| @ConfluentINc 20 Messages will be produced in a round robin fashion Time

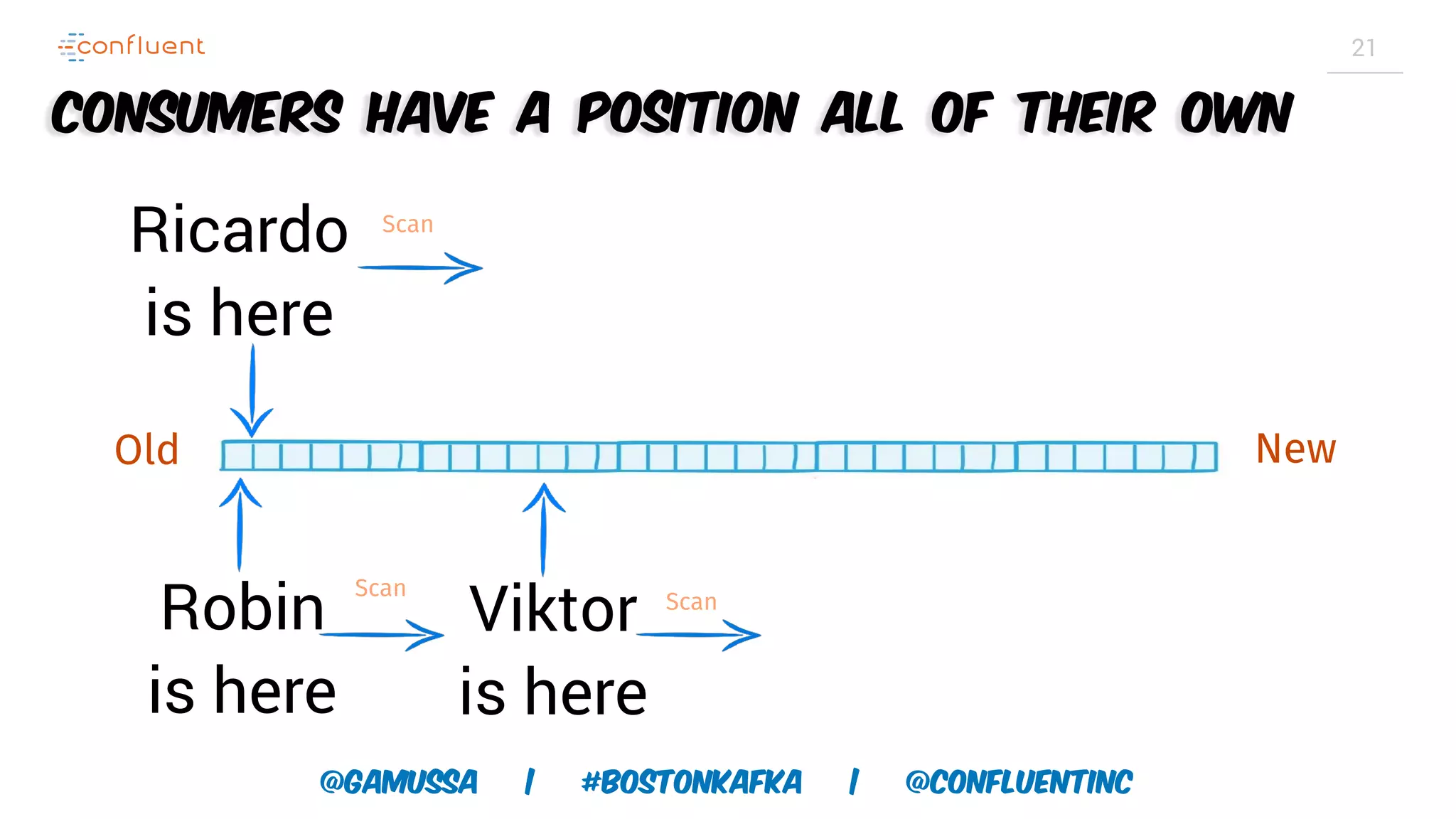

- 21. @gamussa | #BostonKafka| @ConfluentINc 21 Consumers have a position all of their own Old New Robin is here Scan Viktor is here Scan Ricardo is here Scan

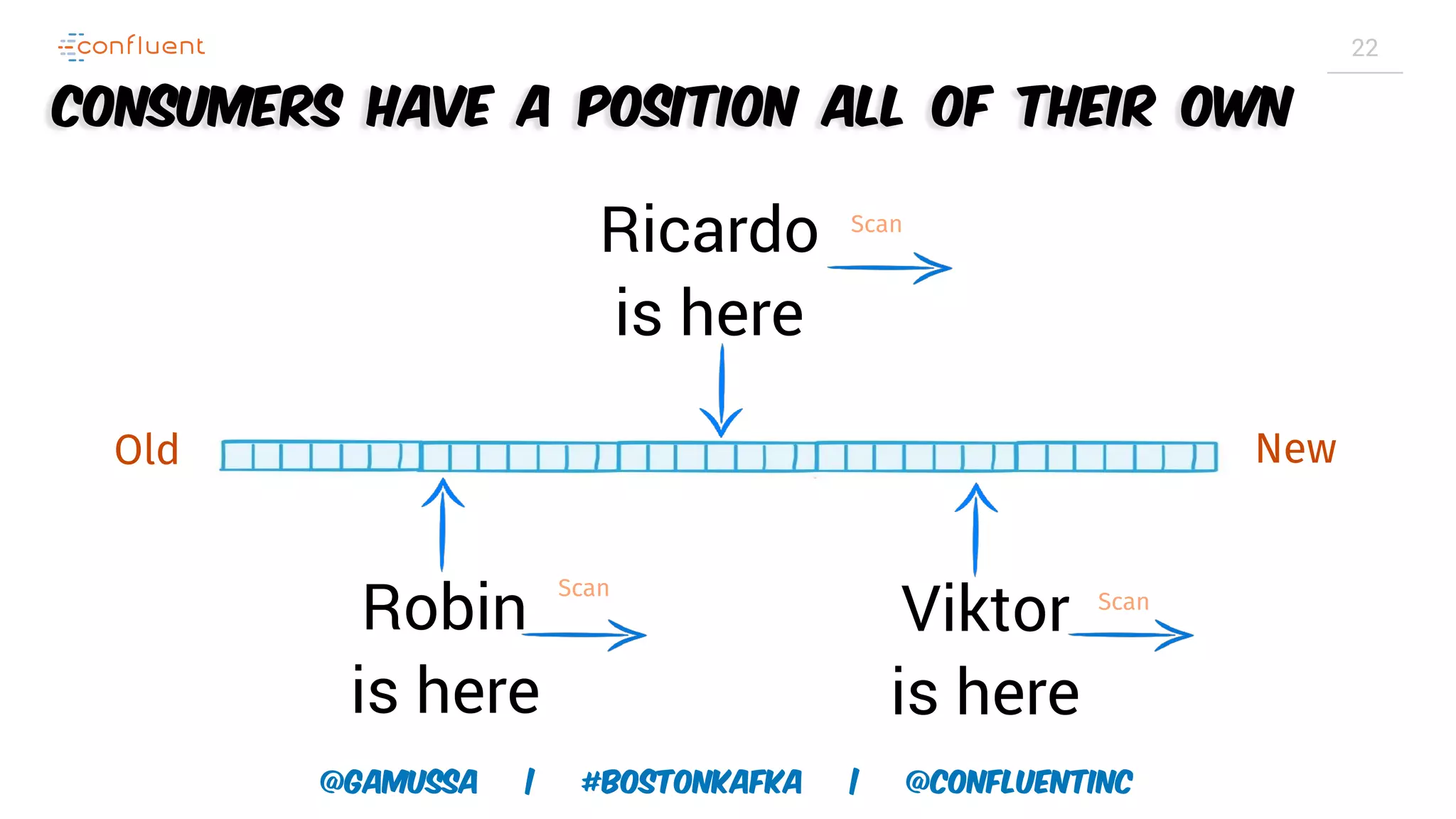

- 22. @gamussa | #BostonKafka| @ConfluentINc 22 Old New Robin is here Scan Viktor is here Scan Ricardo is here Scan Consumers have a position all of their own

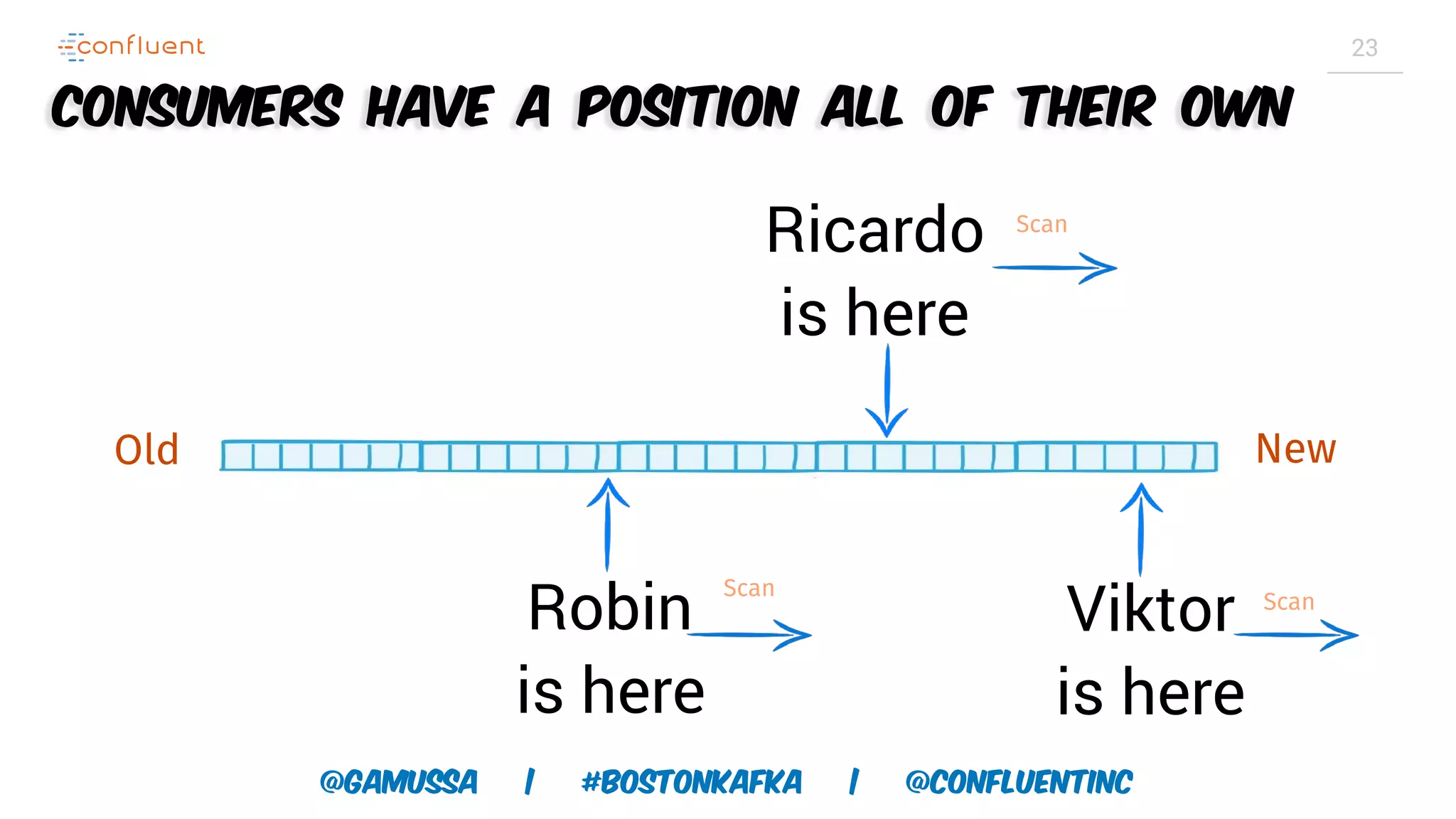

- 23. @gamussa | #BostonKafka| @ConfluentINc 23 Old New Robin is here Scan Viktor is here Scan Ricardo is here Scan Consumers have a position all of their own
- 24. @gamussa | #BostonKafka| @ConfluentINc 24 Only Sequential Access Old New Read to offset & scan
- 25.

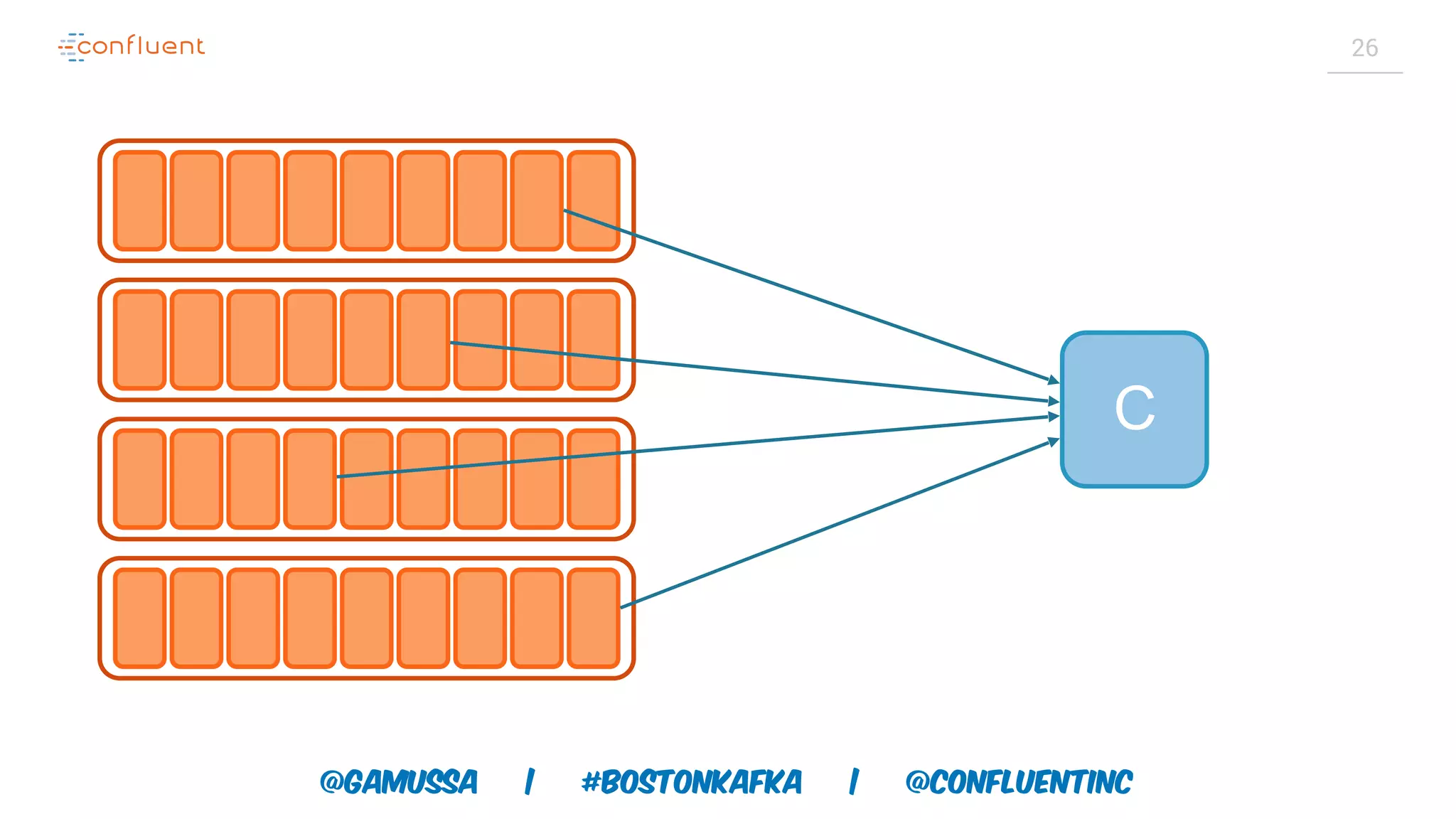

- 26. @gamussa | #BostonKafka| @ConfluentINc 26 C
- 27. @gamussa | #BostonKafka| @ConfluentINc 27 CC C1 CC C2

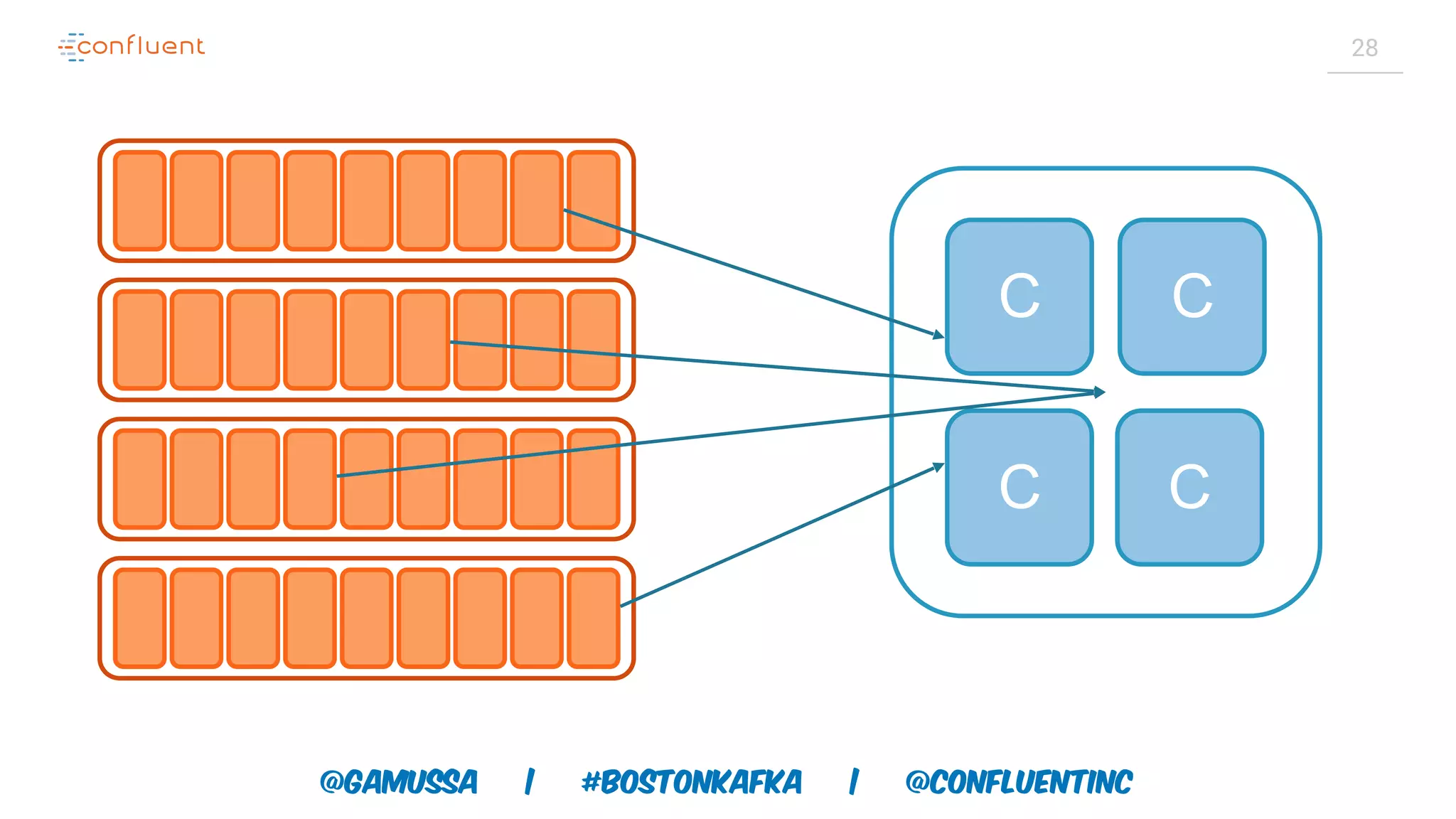

- 28. @gamussa | #BostonKafka| @ConfluentINc 28 C C C C

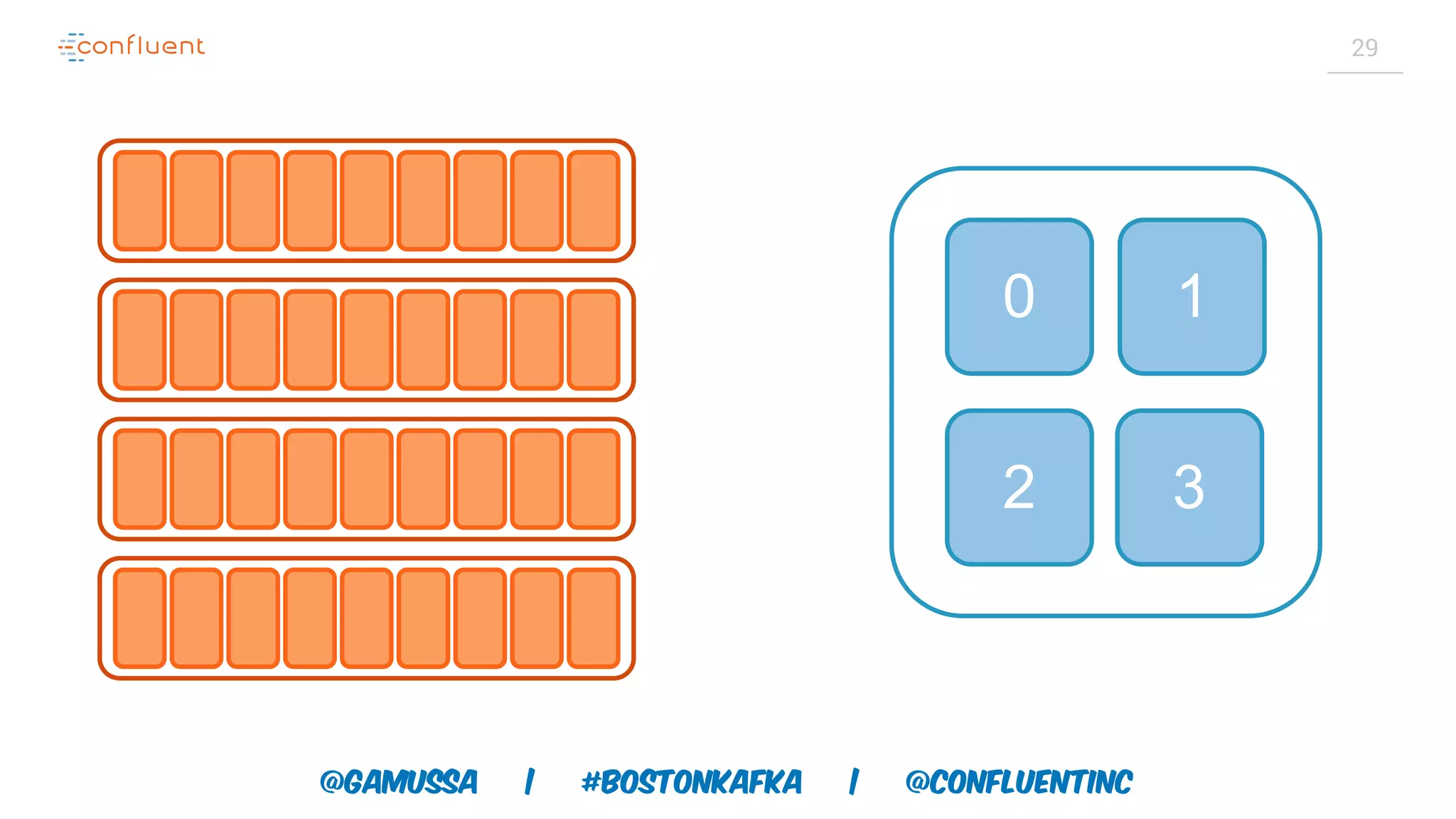

- 29. @gamussa | #BostonKafka| @ConfluentINc 29 0 1 2 3

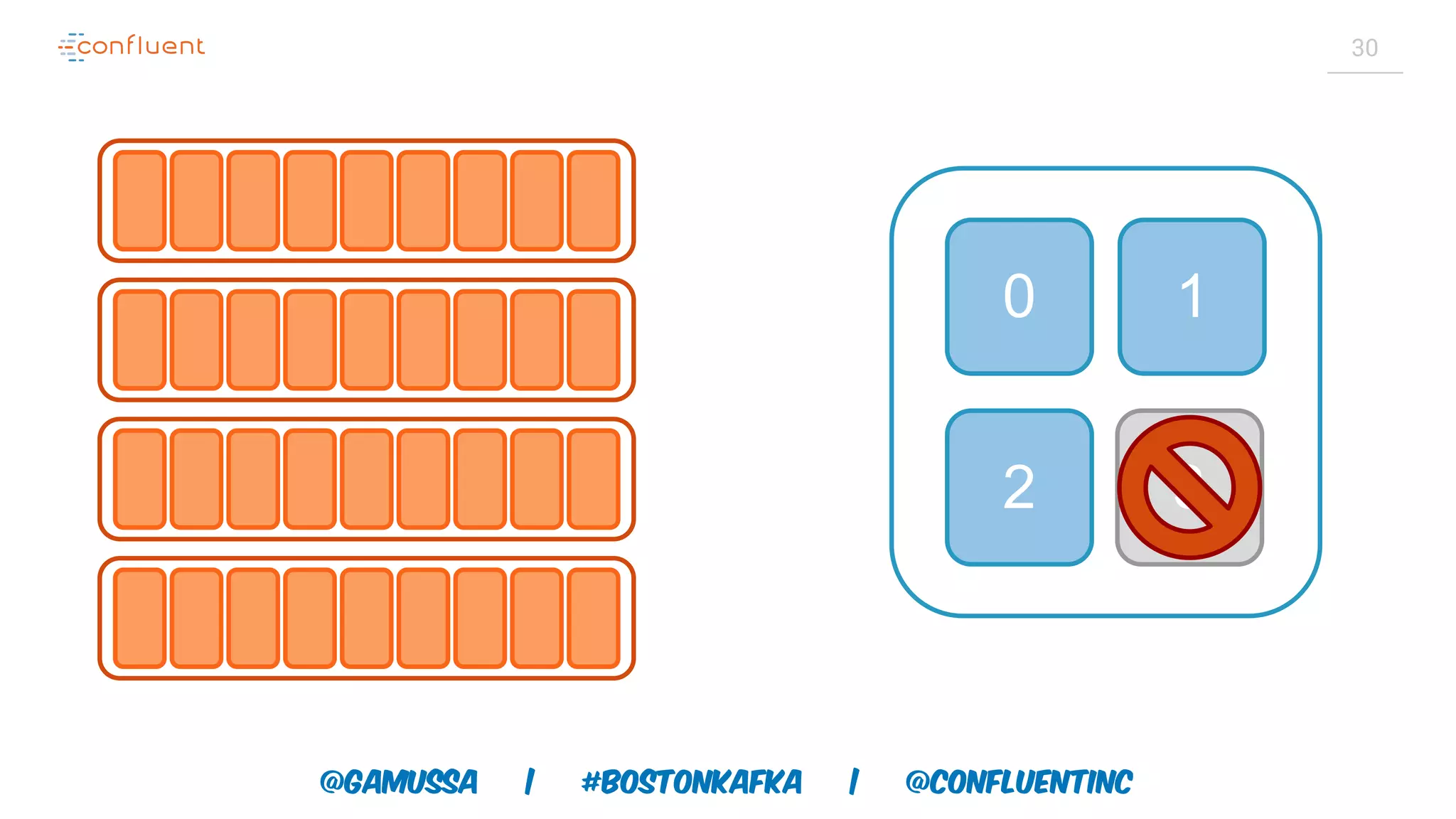

- 30. @gamussa | #BostonKafka| @ConfluentINc 30 0 1 2 3

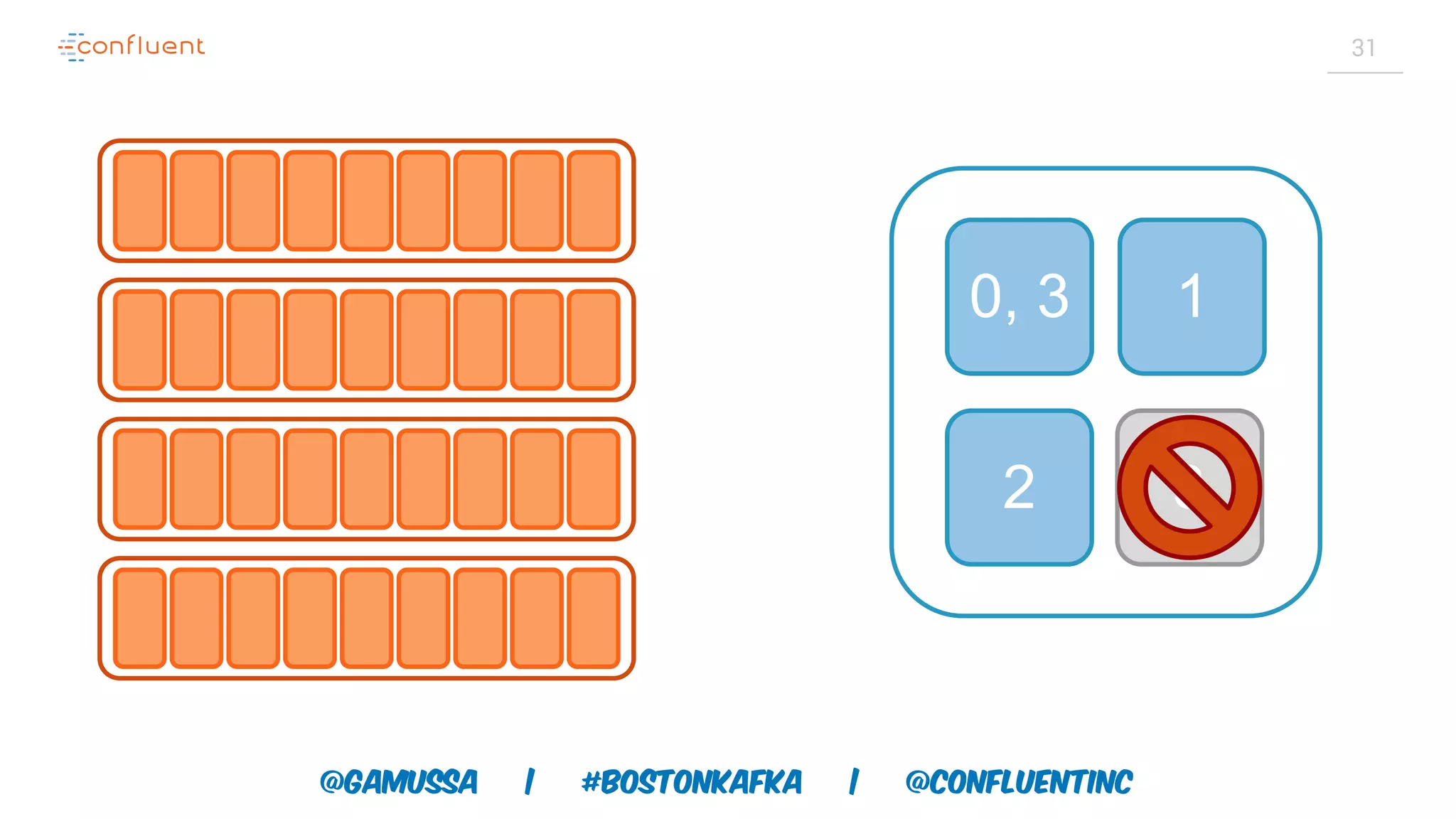

- 31. @gamussa | #BostonKafka| @ConfluentINc 31 0, 3 1 2 3

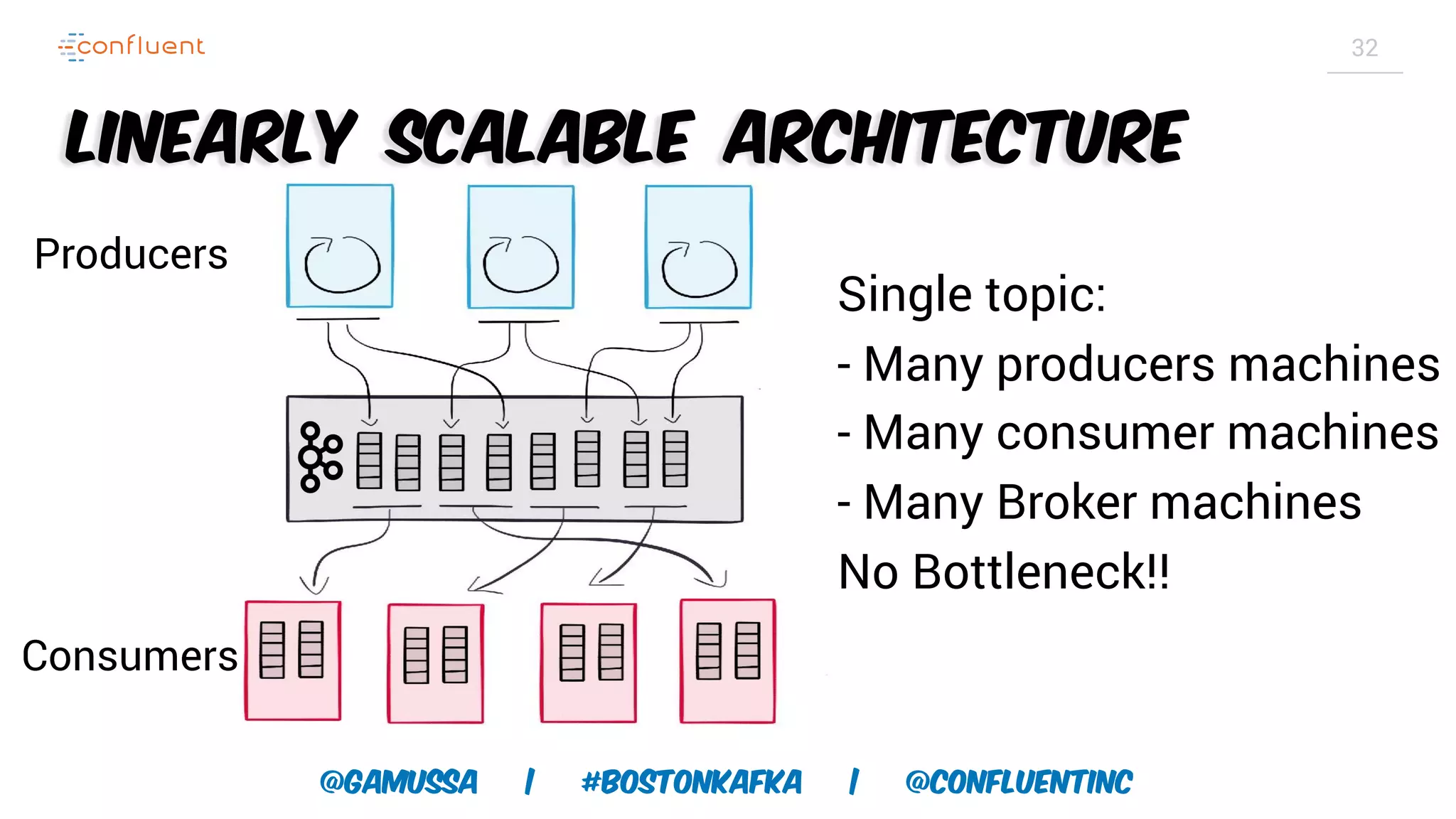

- 32. @gamussa | #BostonKafka| @ConfluentINc 32 Linearly Scalable Architecture Single topic: - Many producers machines - Many consumer machines - Many Broker machines No Bottleneck!! Producers Consumers

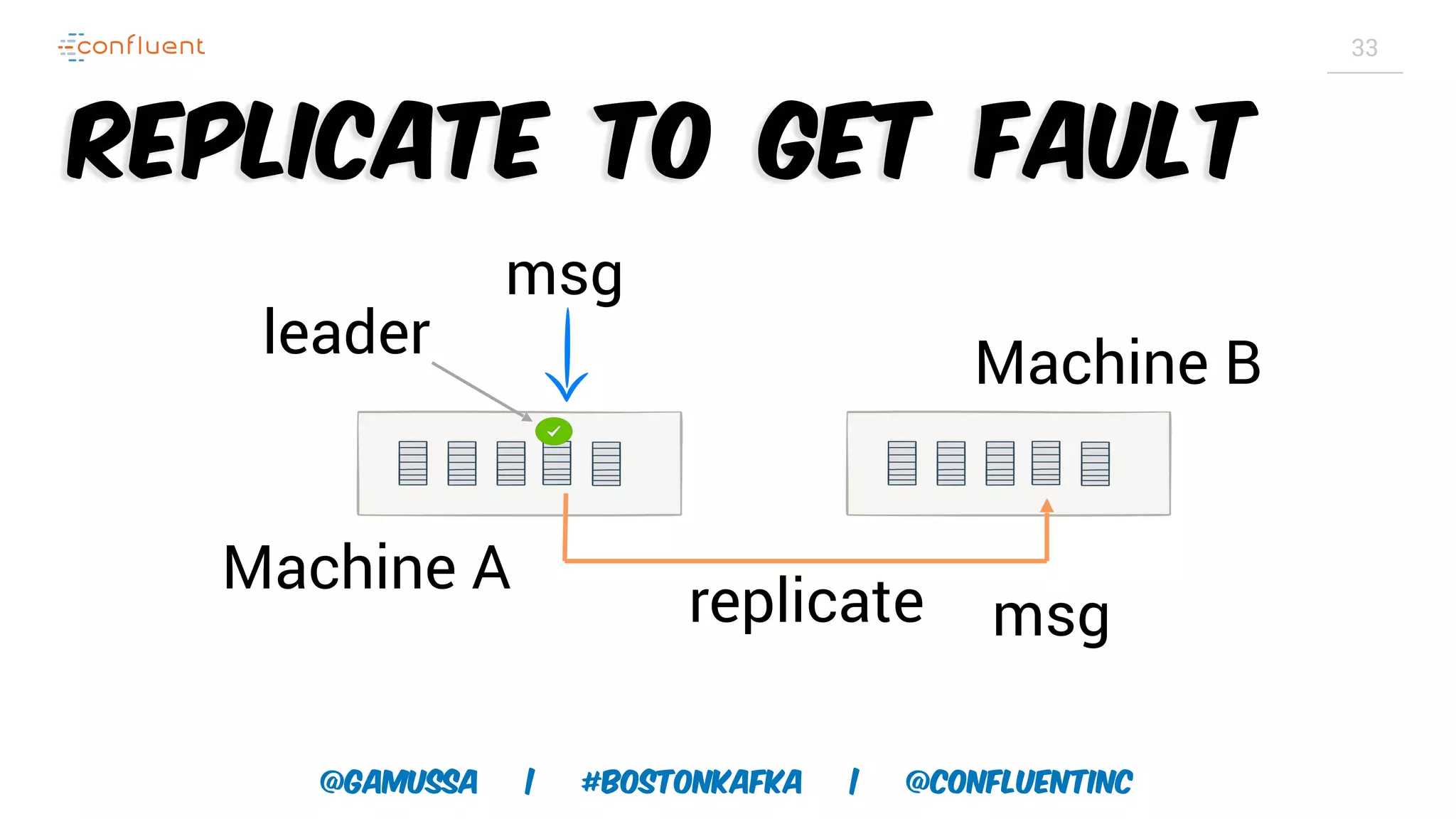

- 33. @gamussa | #BostonKafka| @ConfluentINc 33 Replicate to get fault replicate msg msg leader Machine A Machine B
- 34. @gamussa | #BostonKafka| @ConfluentINc 34 Partition Leadership and Replication Broker 1 Topic1 partition1 Broker 2 Broker 3 Broker 4 Topic1 partition1 Topic1 partition1 Leader Follower Topic1 partition2 Topic1 partition2 Topic1 partition2 Topic1 partition3 Topic1 partition4 Topic1 partition3 Topic1 partition3 Topic1 partition4 Topic1 partition4
- 35. @gamussa | #BostonKafka| @ConfluentINc 35 Replication provides resiliency A replica takes over on machine failure

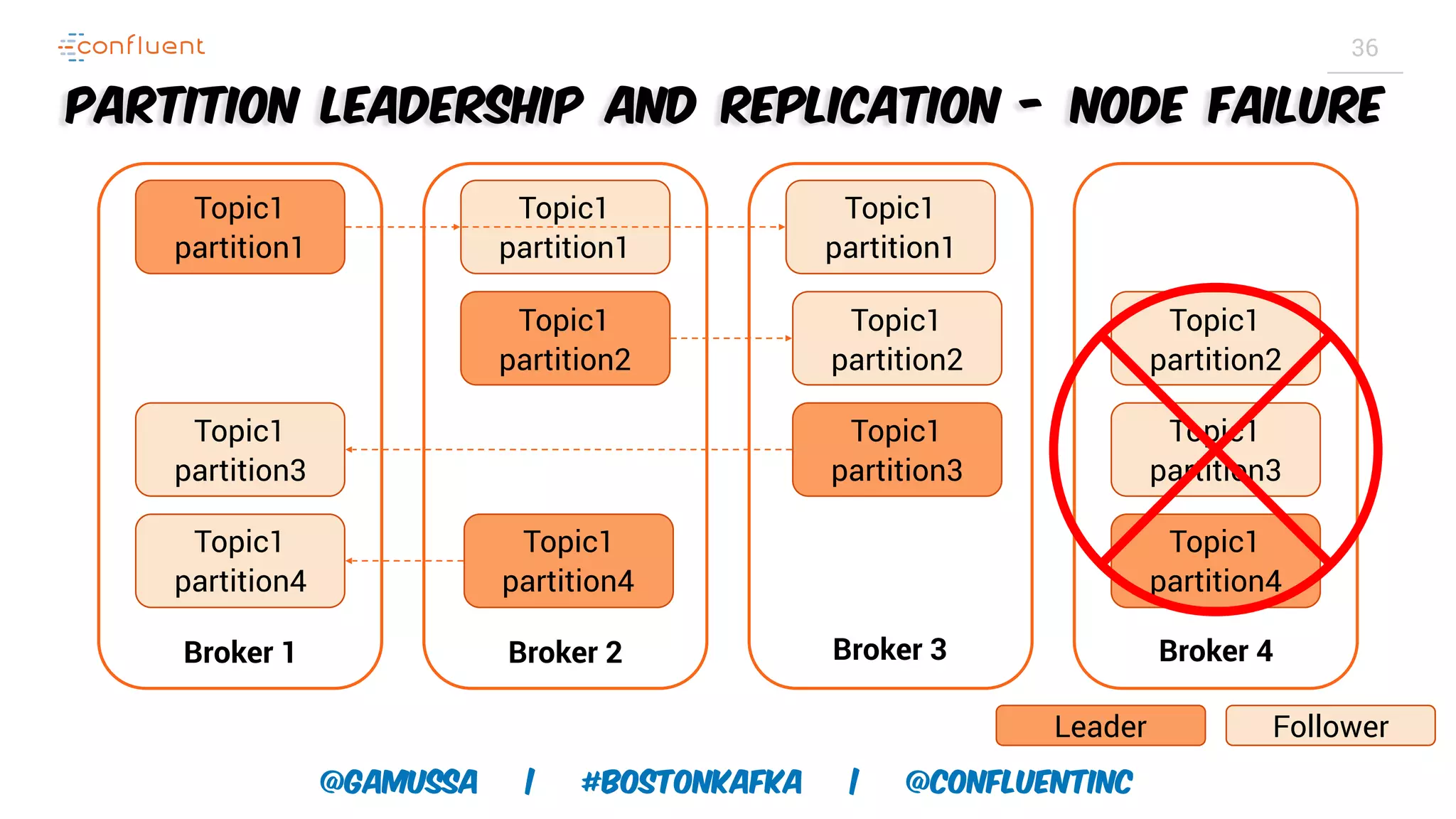

- 36. @gamussa | #BostonKafka| @ConfluentINc 36 Partition Leadership and Replication - node failure Broker 1 Topic1 partition1 Broker 2 Broker 3 Broker 4 Topic1 partition1 Topic1 partition1 Leader Follower Topic1 partition2 Topic1 partition2 Topic1 partition2 Topic1 partition3 Topic1 partition4 Topic1 partition3 Topic1 partition3 Topic1 partition4 Topic1 partition4
- 37. 37 Similar to atraditional messaging system (ActiveMQ, Rabbit etc) but with: (a) Far better scalability (b) Built in fault tolerance / HA (c) Storage The log is a type of durable messaging system
- 38. @gamussa | #BostonKafka| @ConfluentINc Stop! Demo time!
- 39. @gamussa | #BostonKafka| @ConfluentINc 39 Processing
- 40. @gamussa | #BostonKafka| @ConfluentINc 40 Streaming is the toolset for dealing with events as they move!

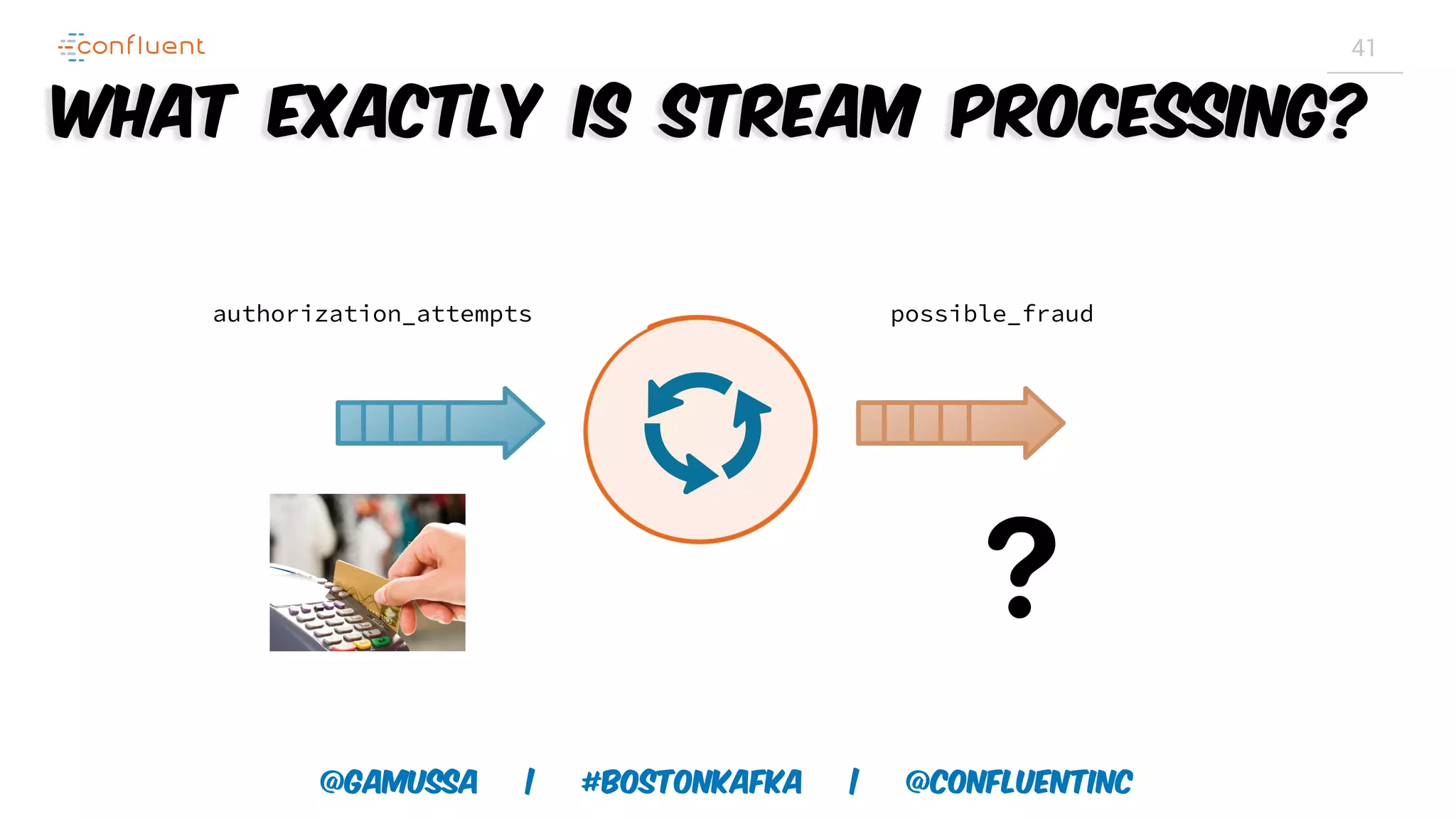

- 41. @gamussa | #BostonKafka| @ConfluentINc 41 authorization_attempts possible_fraud What exactly is Stream Processing?
- 42. @gamussa | #BostonKafka| @ConfluentINc 42 CREATE STREAM possible_fraud AS SELECT card_number, count(*) FROM authorization_attempts WINDOW TUMBLING (SIZE 5 MINUTE) GROUP BY card_number HAVING count(*) > 3; authorization_attempts possible_fraud What exactly is Stream Processing?

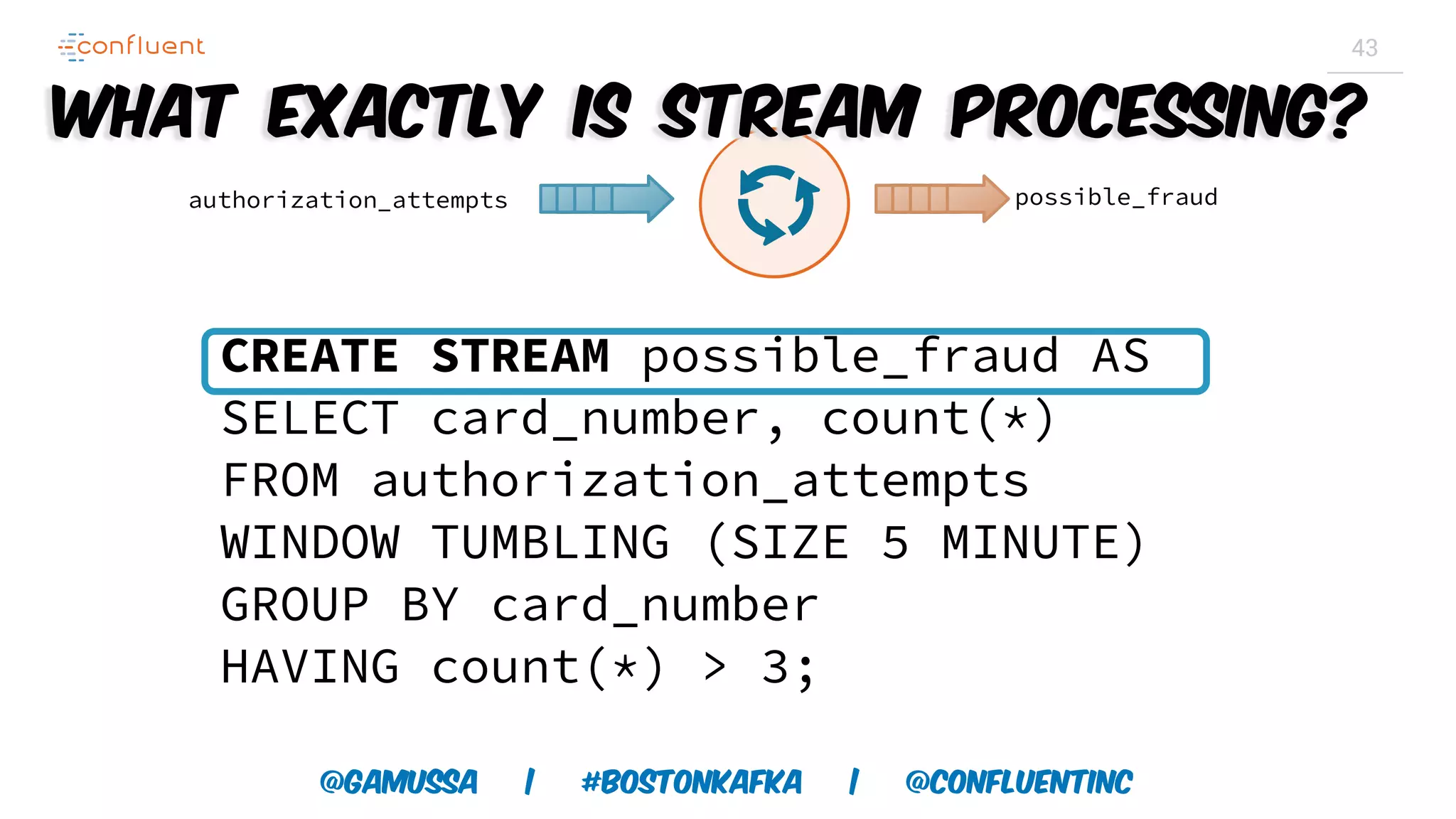

- 43. @gamussa | #BostonKafka| @ConfluentINc 43 CREATE STREAM possible_fraud AS SELECT card_number, count(*) FROM authorization_attempts WINDOW TUMBLING (SIZE 5 MINUTE) GROUP BY card_number HAVING count(*) > 3; authorization_attempts possible_fraud What exactly is Stream Processing?

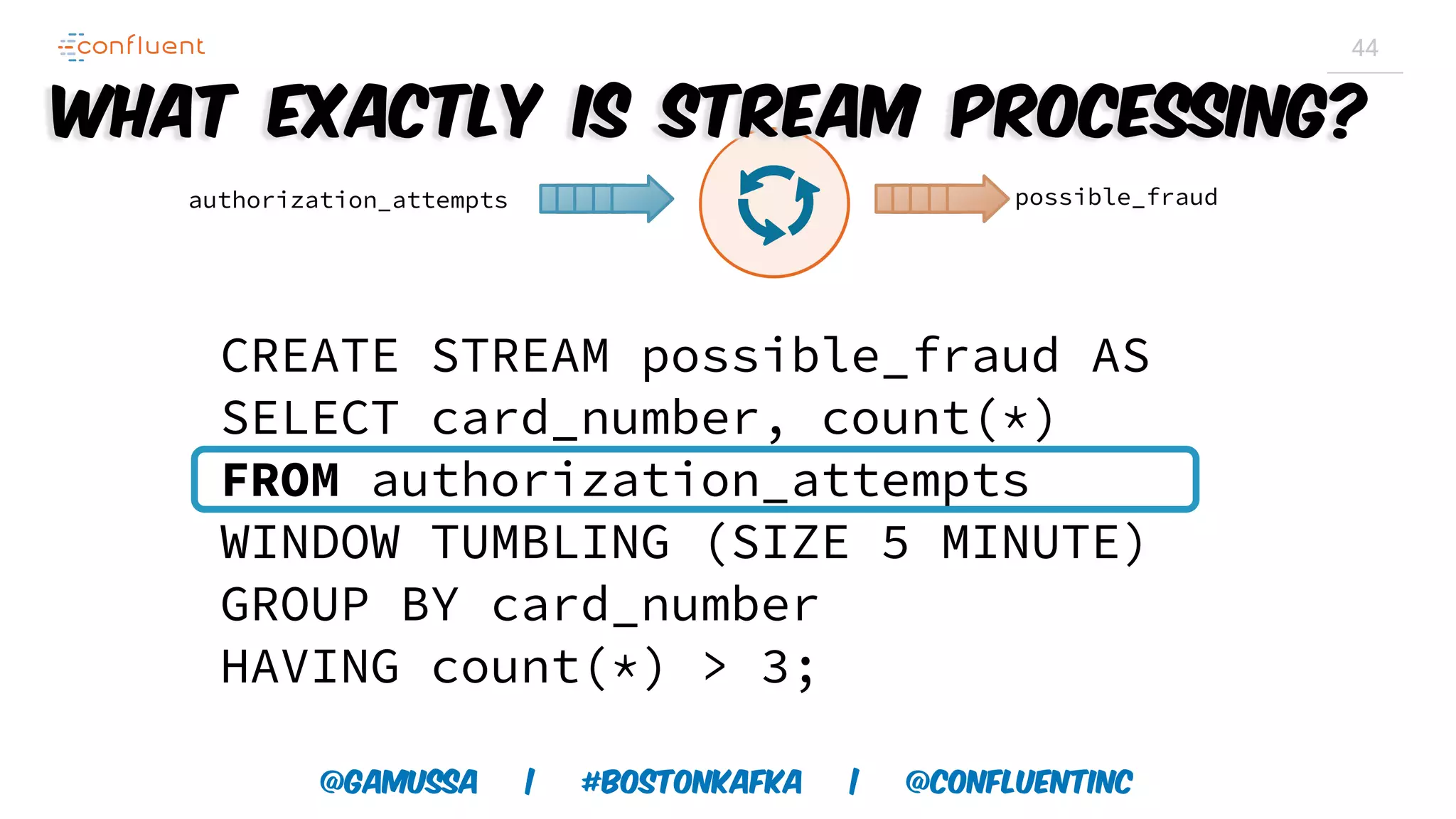

- 44. @gamussa | #BostonKafka| @ConfluentINc 44 CREATE STREAM possible_fraud AS SELECT card_number, count(*) FROM authorization_attempts WINDOW TUMBLING (SIZE 5 MINUTE) GROUP BY card_number HAVING count(*) > 3; authorization_attempts possible_fraud What exactly is Stream Processing?

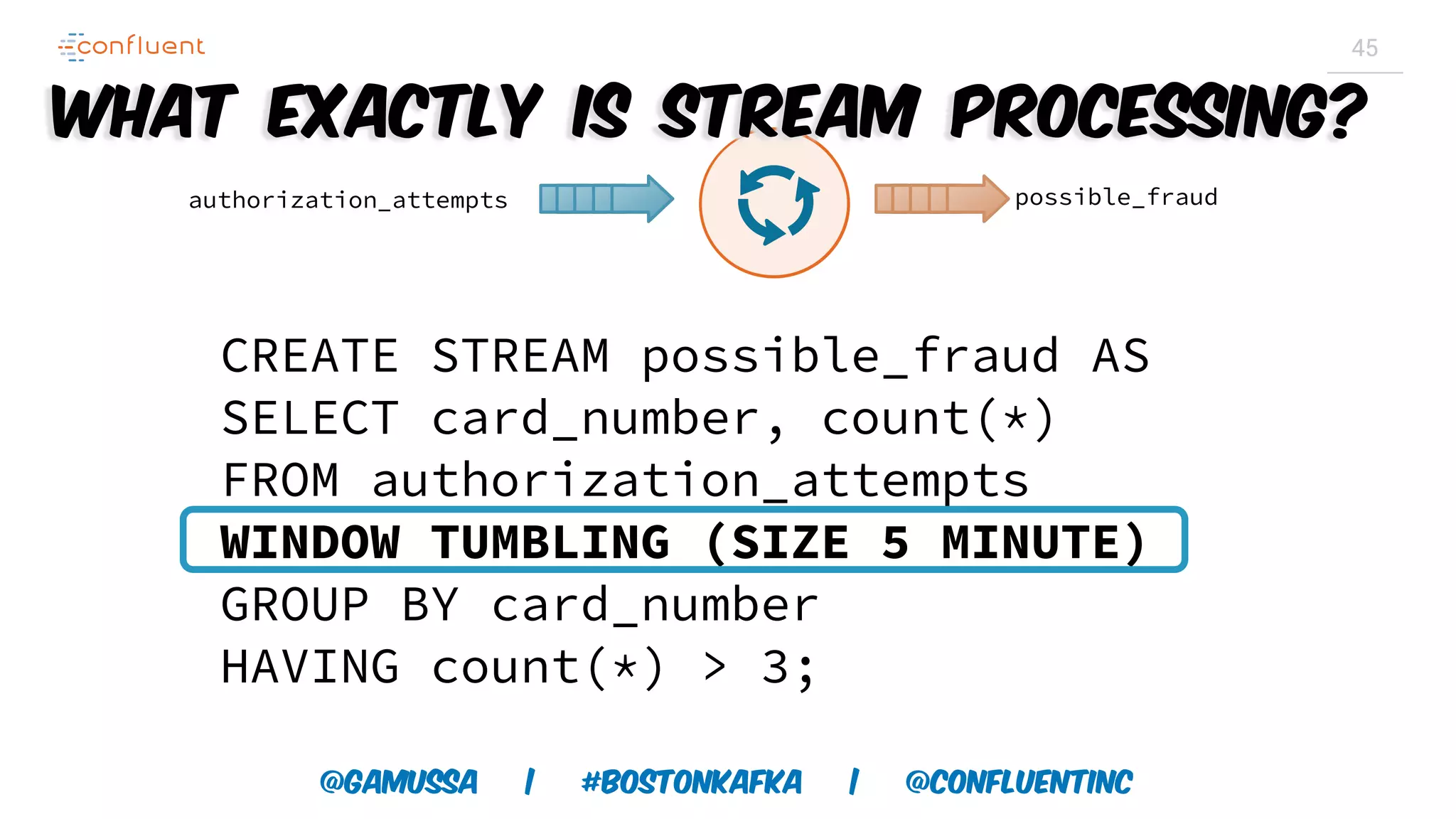

- 45. @gamussa | #BostonKafka| @ConfluentINc 45 CREATE STREAM possible_fraud AS SELECT card_number, count(*) FROM authorization_attempts WINDOW TUMBLING (SIZE 5 MINUTE) GROUP BY card_number HAVING count(*) > 3; authorization_attempts possible_fraud What exactly is Stream Processing?

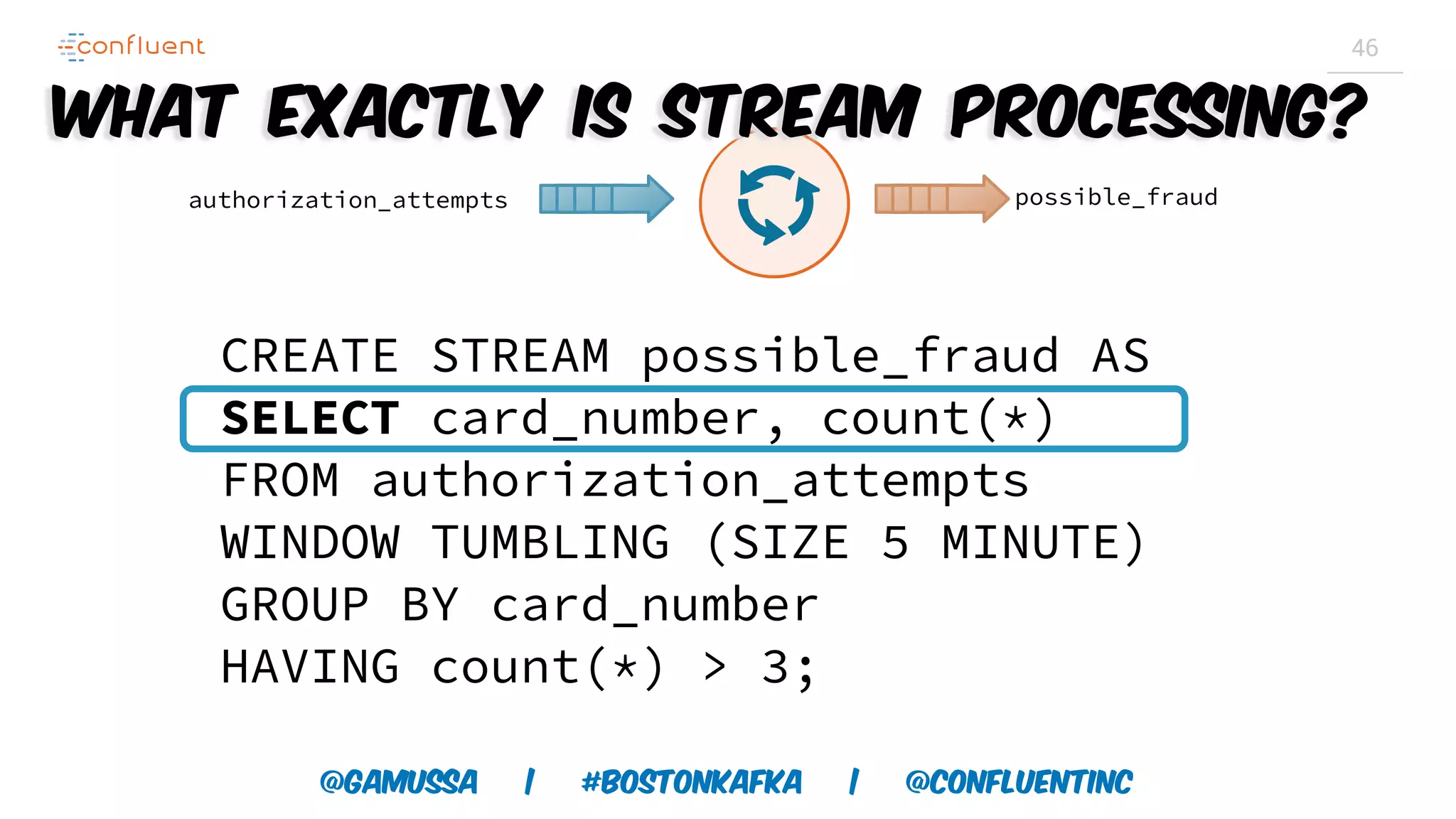

- 46. @gamussa | #BostonKafka| @ConfluentINc 46 CREATE STREAM possible_fraud AS SELECT card_number, count(*) FROM authorization_attempts WINDOW TUMBLING (SIZE 5 MINUTE) GROUP BY card_number HAVING count(*) > 3; authorization_attempts possible_fraud What exactly is Stream Processing?

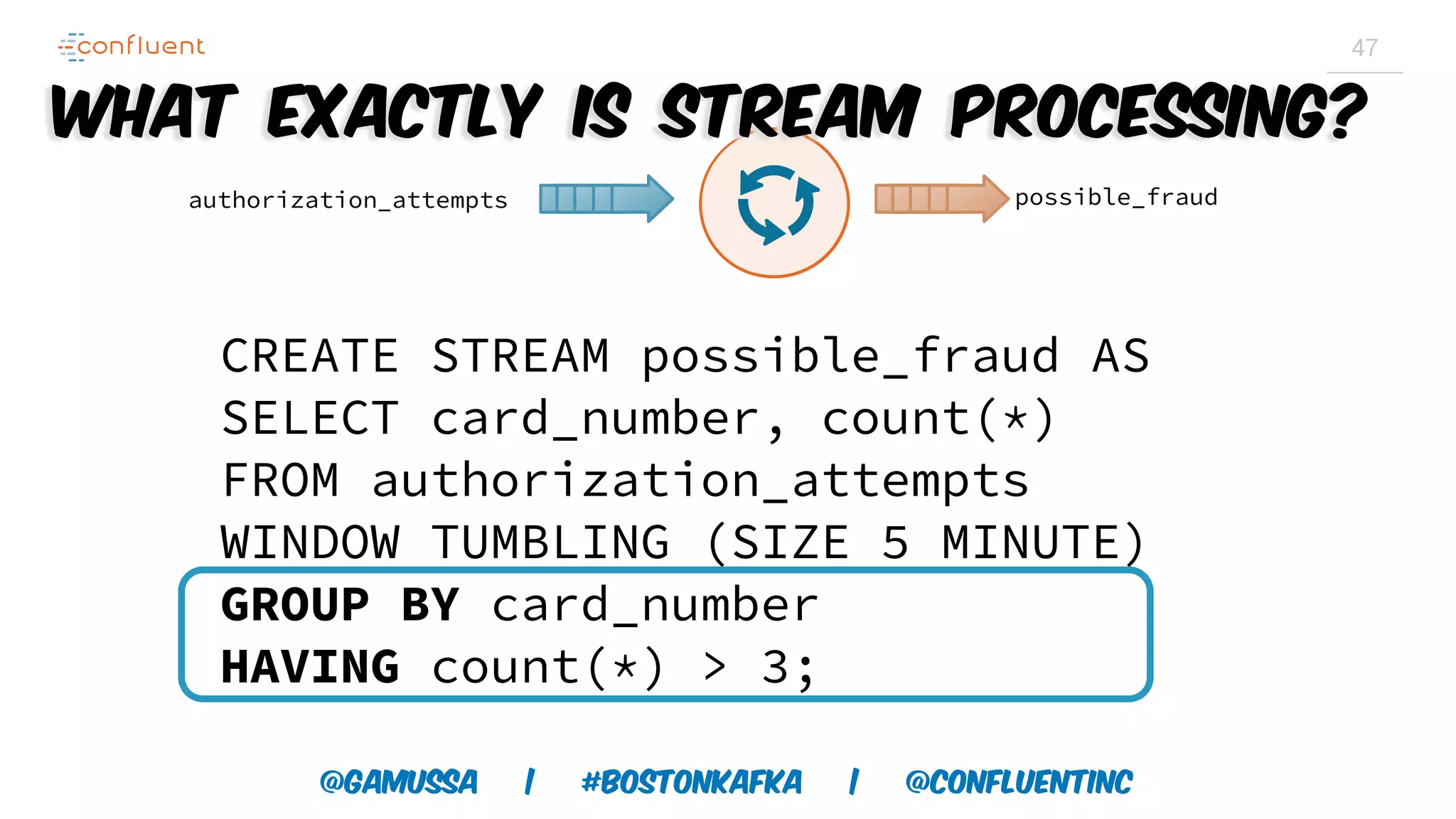

- 47. @gamussa | #BostonKafka| @ConfluentINc 47 CREATE STREAM possible_fraud AS SELECT card_number, count(*) FROM authorization_attempts WINDOW TUMBLING (SIZE 5 MINUTE) GROUP BY card_number HAVING count(*) > 3; authorization_attempts possible_fraud What exactly is Stream Processing?

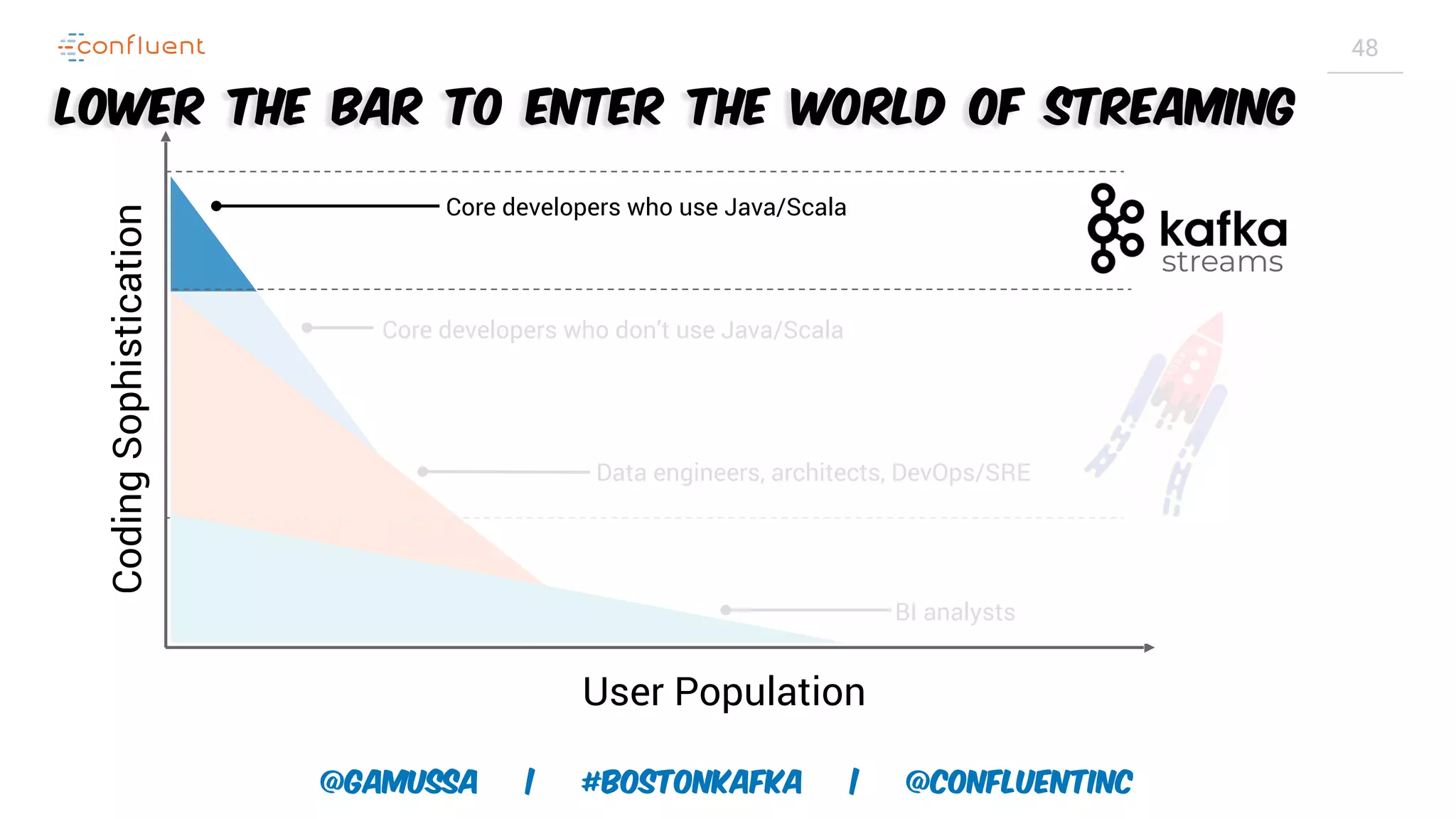

- 48. @gamussa | #BostonKafka| @ConfluentINc 48 Lower the bar to enter the world of streaming User Population CodingSophistication Core developers who use Java/Scala Core developers who don’t use Java/Scala Data engineers, architects, DevOps/SRE BI analysts streams

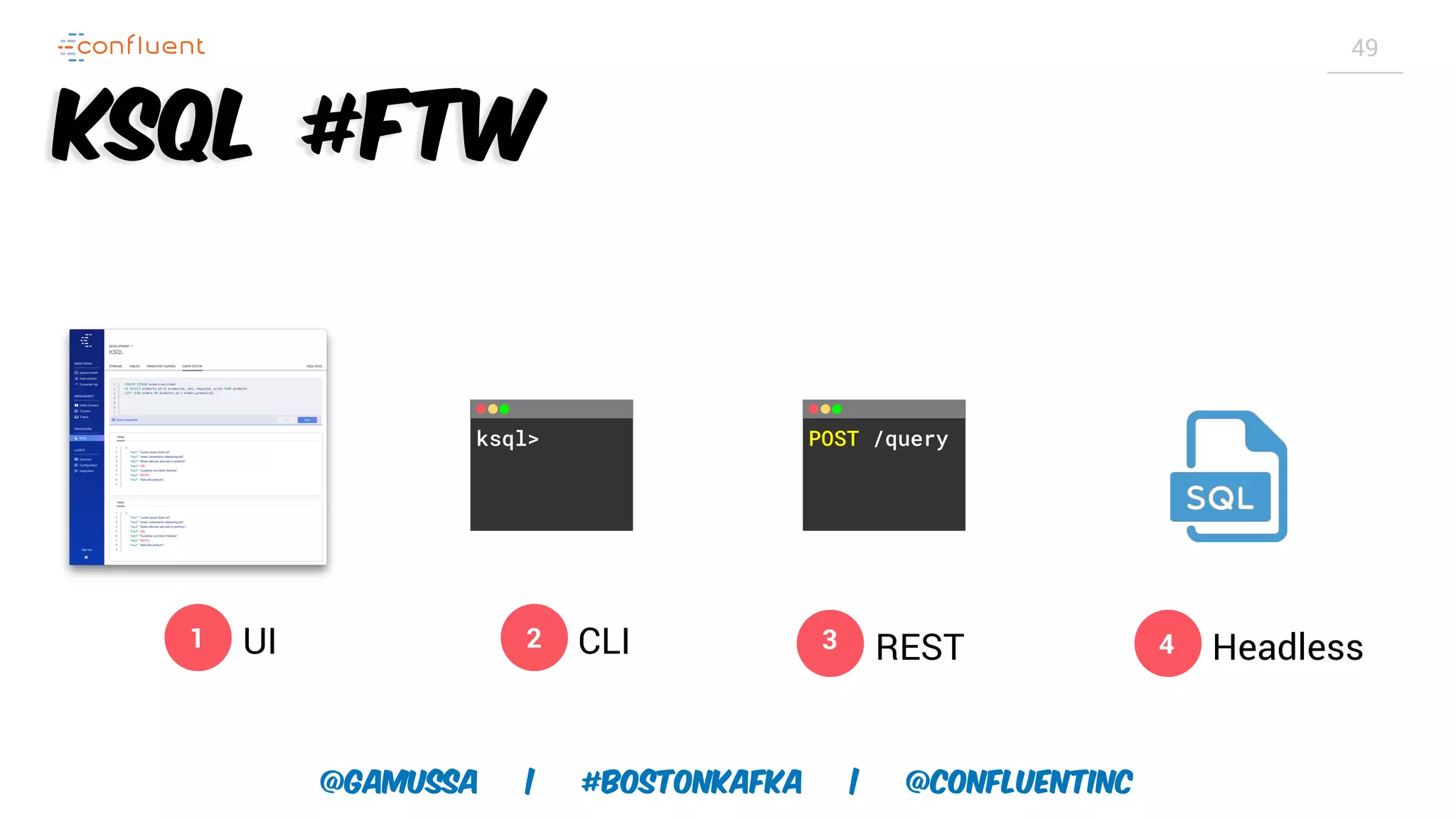

- 49. @gamussa | #BostonKafka| @ConfluentINc 49 KSQL #FTW 4 Headless1 UI 2 CLI ksql> 3 REST POST /query

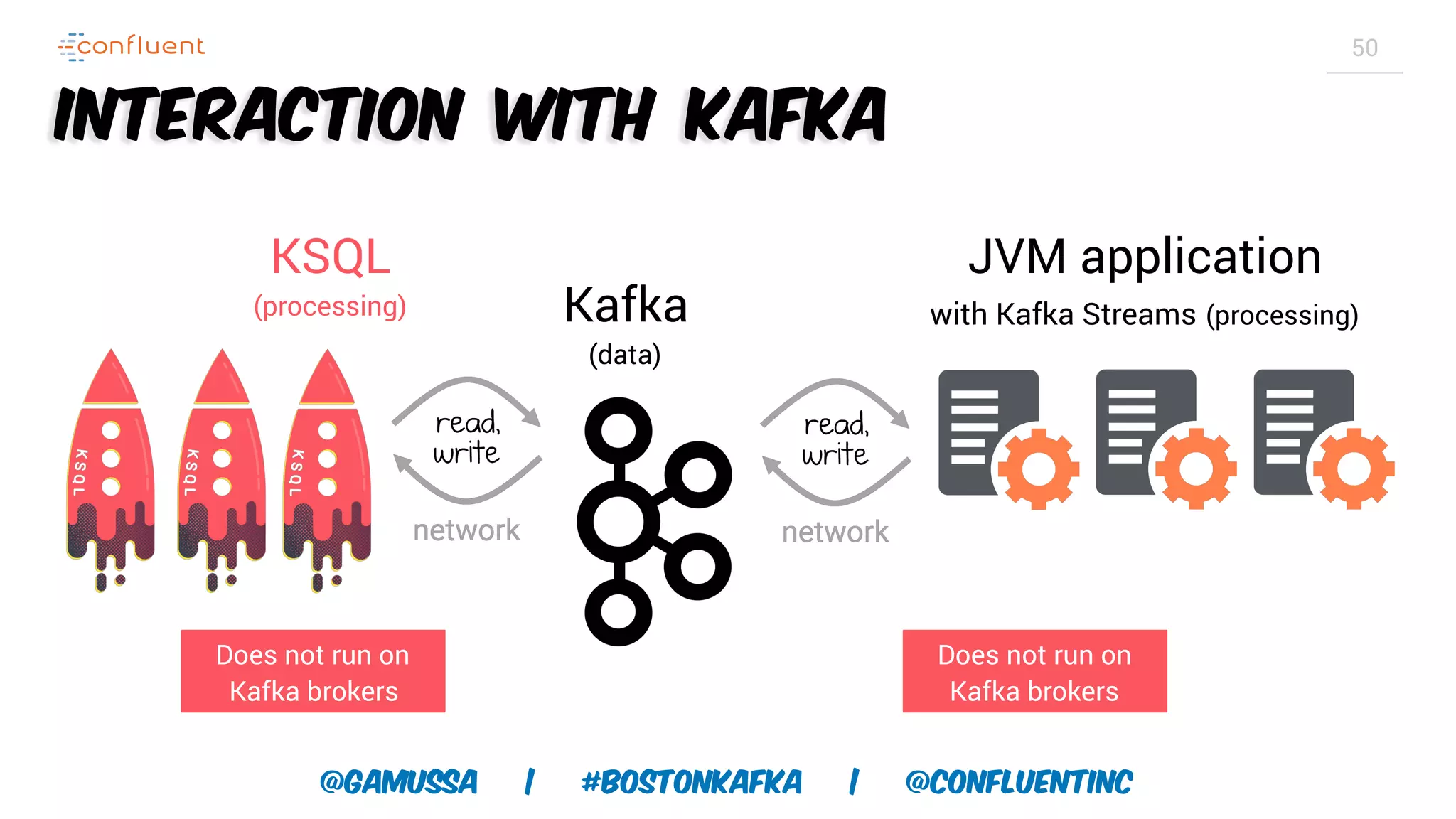

- 50. @gamussa | #BostonKafka| @ConfluentINc 50 Interaction with Kafka Kafka (data) KSQL (processing) JVM application with Kafka Streams (processing) Does not run on Kafka brokers Does not run on Kafka brokers

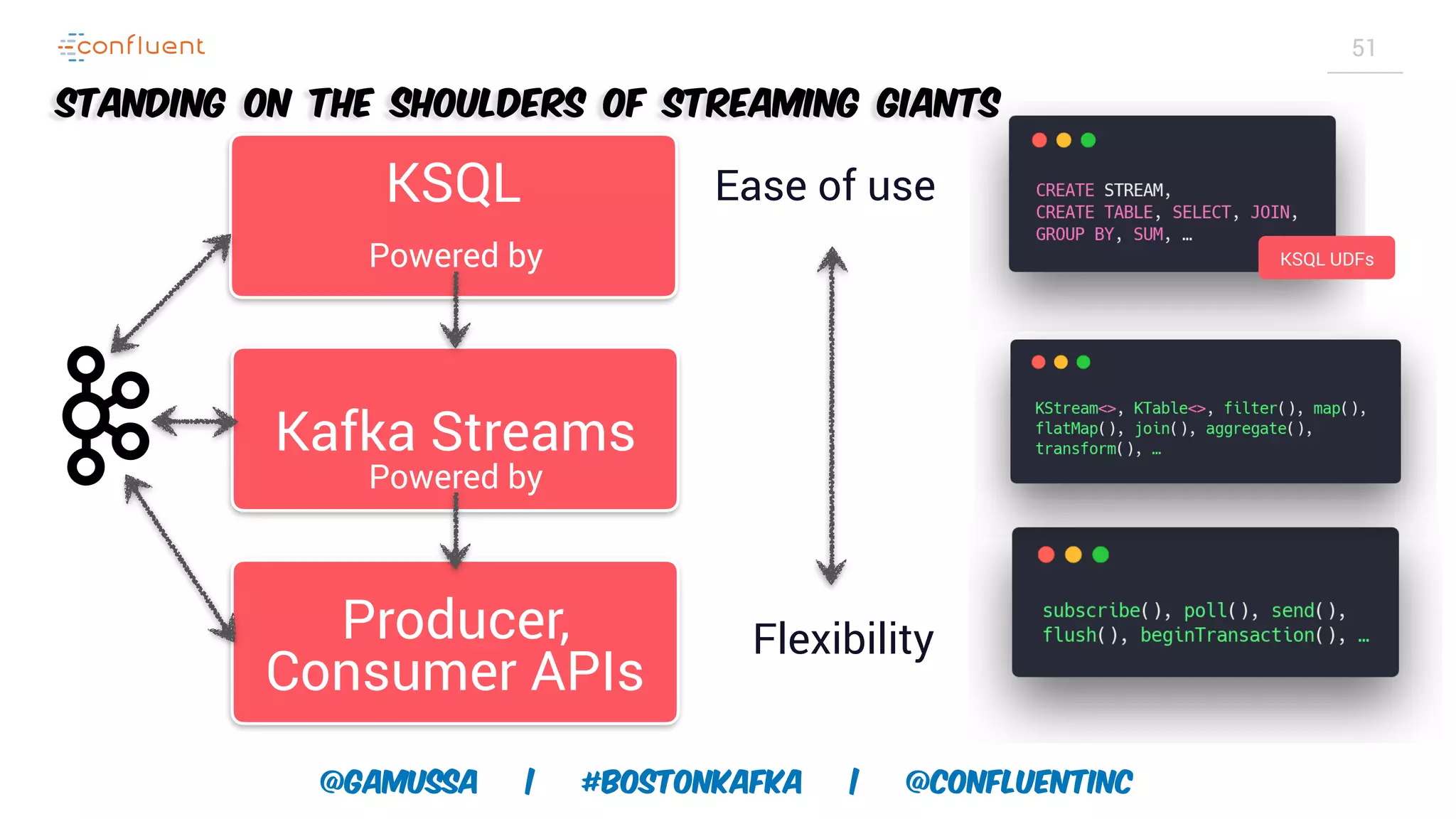

- 51. @gamussa | #BostonKafka| @ConfluentINc 51 Standing on the shoulders of Streaming Giants Producer, Consumer APIs Kafka Streams KSQL Ease of use Flexibility KSQL UDFs Powered by Powered by
- 52. @gamussa | #BostonKafka| @ConfluentINc 52 Find your local Meetup Group https://cnfl.io/kafka-meetups Join us in Slack http://cnfl.io/slack Grab Stream Processing books https://cnfl.io/book-bundle
- 53. @gamussa | #BostonKafka| @ConfluentINc 53 One more thing…
- 54. @gamussa | #BostonKafka| @ConfluentINc 54
- 55. @gamussa | #BostonKafka| @ConfluentINc 55
- 56. @@gamussa | @tlberglund| #DEVnexus https://kafka-summit.org Gamov30
- 57. @ @gamussa | #BostonKafka| @ConfluentINc Thanks! @gamussa viktor@confluent.io We are hiring! https://www.confluent.io/careers/
