AngularJS Data Binding

AngularJS Data Binding Ticore Shih 2013/08/05 https://github.com/Ticore/ng-data-binding-sample

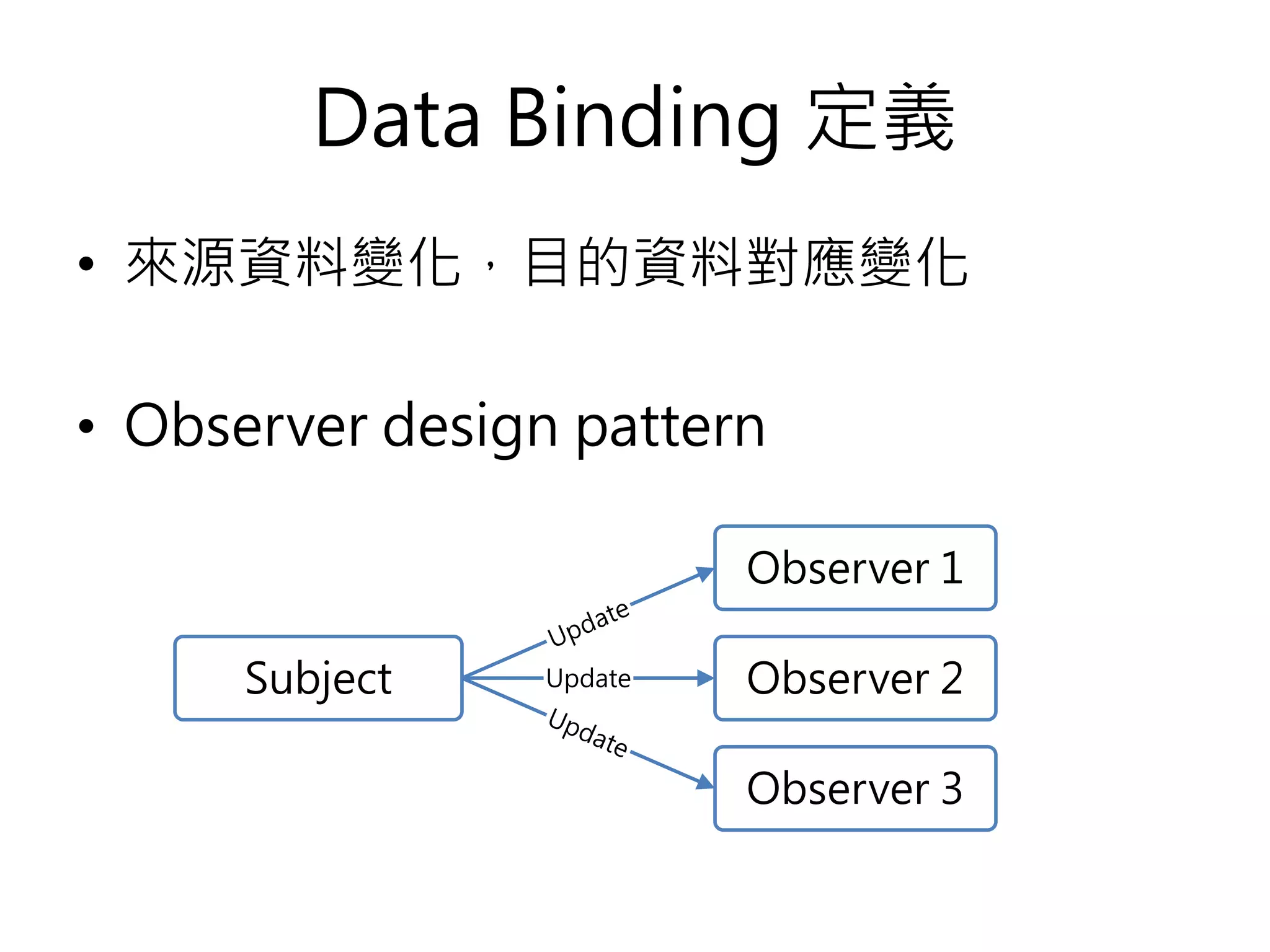

Data Binding 定義 • 來源資料變化，目的資料對應變化 • Observer design pattern Subject Observer 1 Update Observer 2 Observer 3

Data Binding 使用情境 • Frontend <-> Backend • View <-> Model MDV UI Data Binding

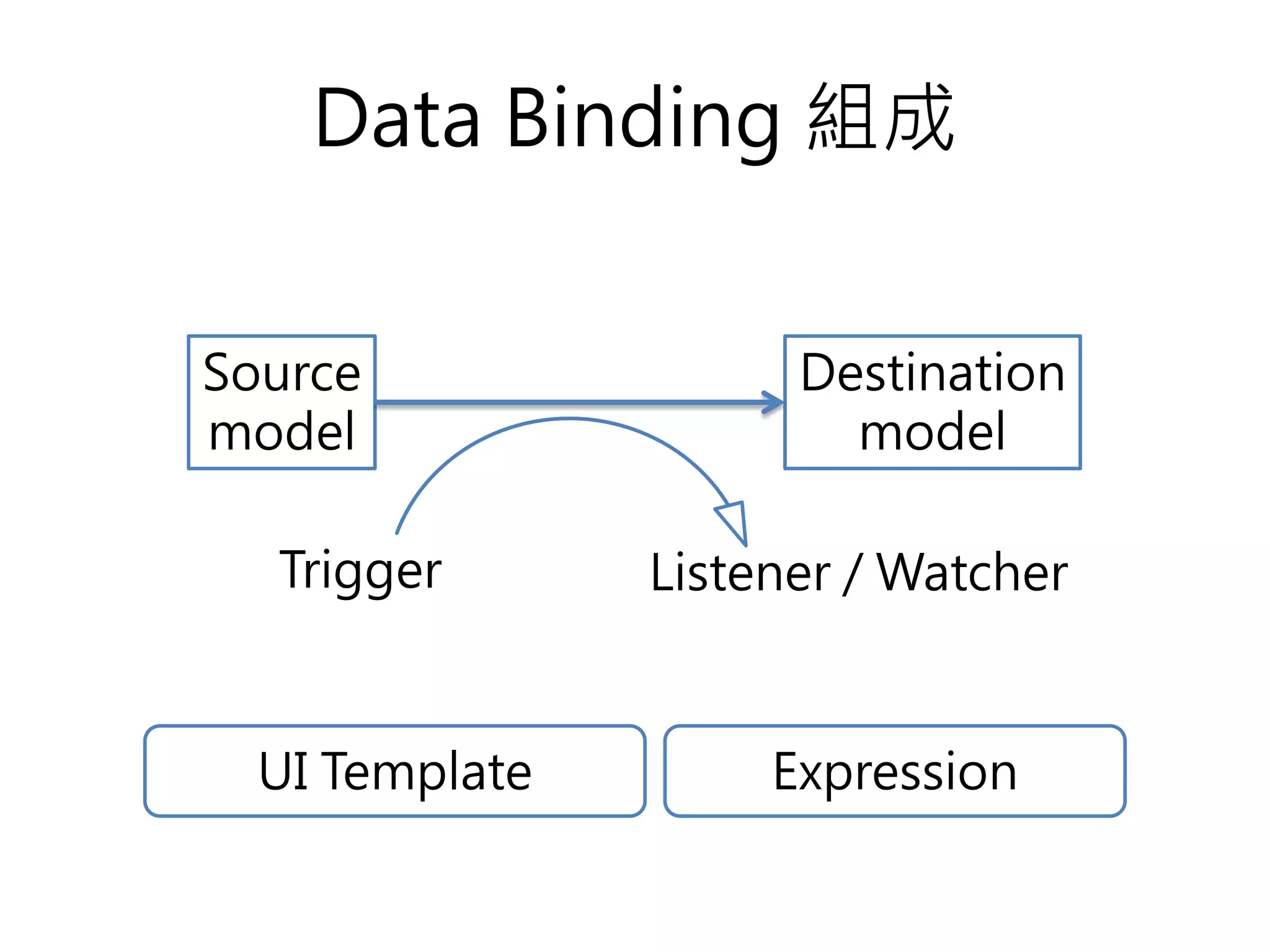

Data Binding 組成 Source model Destination model Trigger Listener / Watcher UI Template Expression

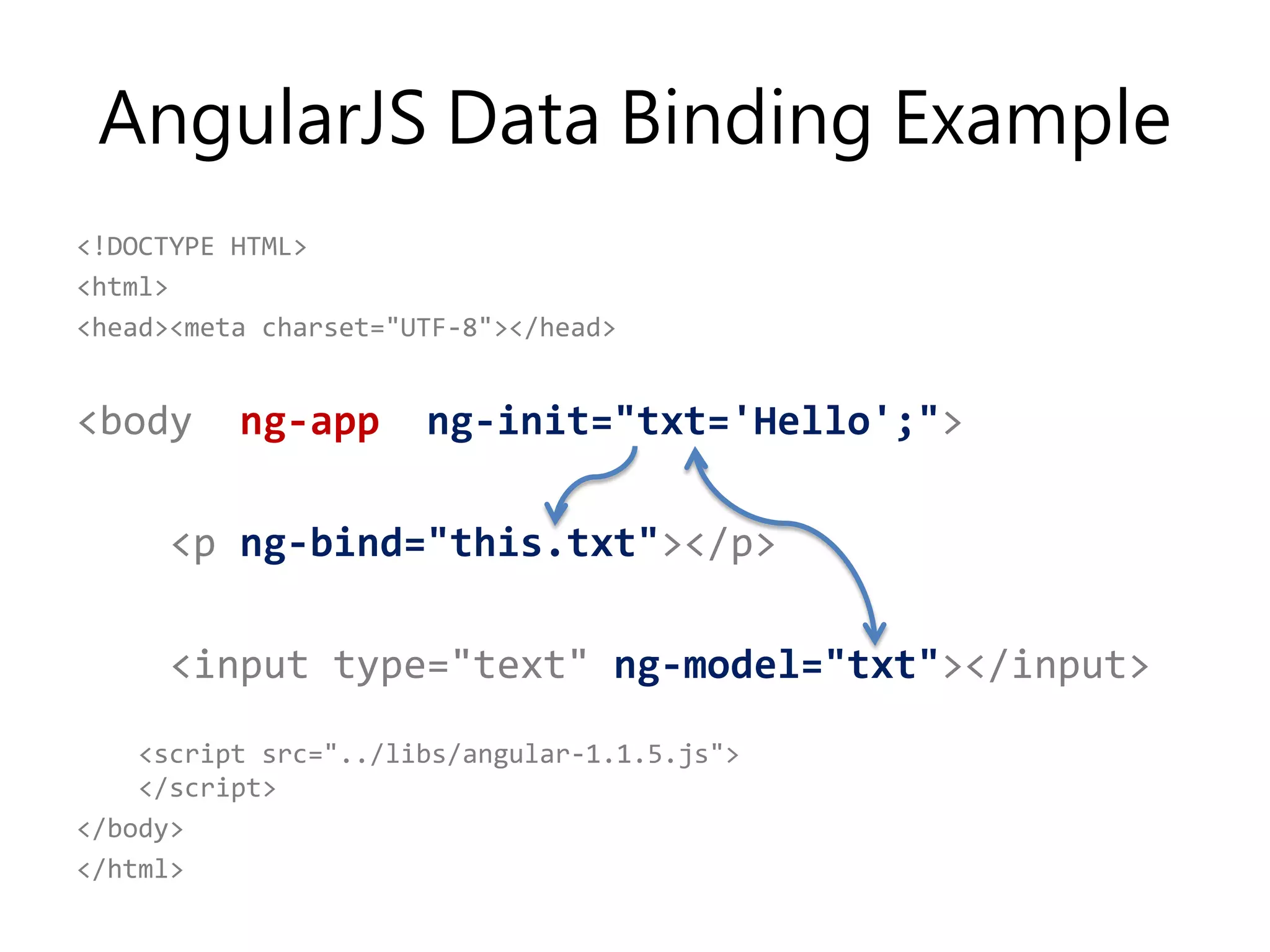

AngularJS Data Binding Example <!DOCTYPE HTML> <html> <head><meta charset="UTF-8"></head> <body ng-app ng-init="txt='Hello';"> <p ng-bind="this.txt"></p> <input type="text" ng-model="txt"></input> <script src="../libs/angular-1.1.5.js"> </script> </body> </html>

Data Binding 概念 • 語意簡單明確 • 宣告式而非命令式 – 無順序、無副作用 • 依賴反轉

太難寫的東西沒資格稱為「Data Binding」 Code-behind required Complex directive, expression

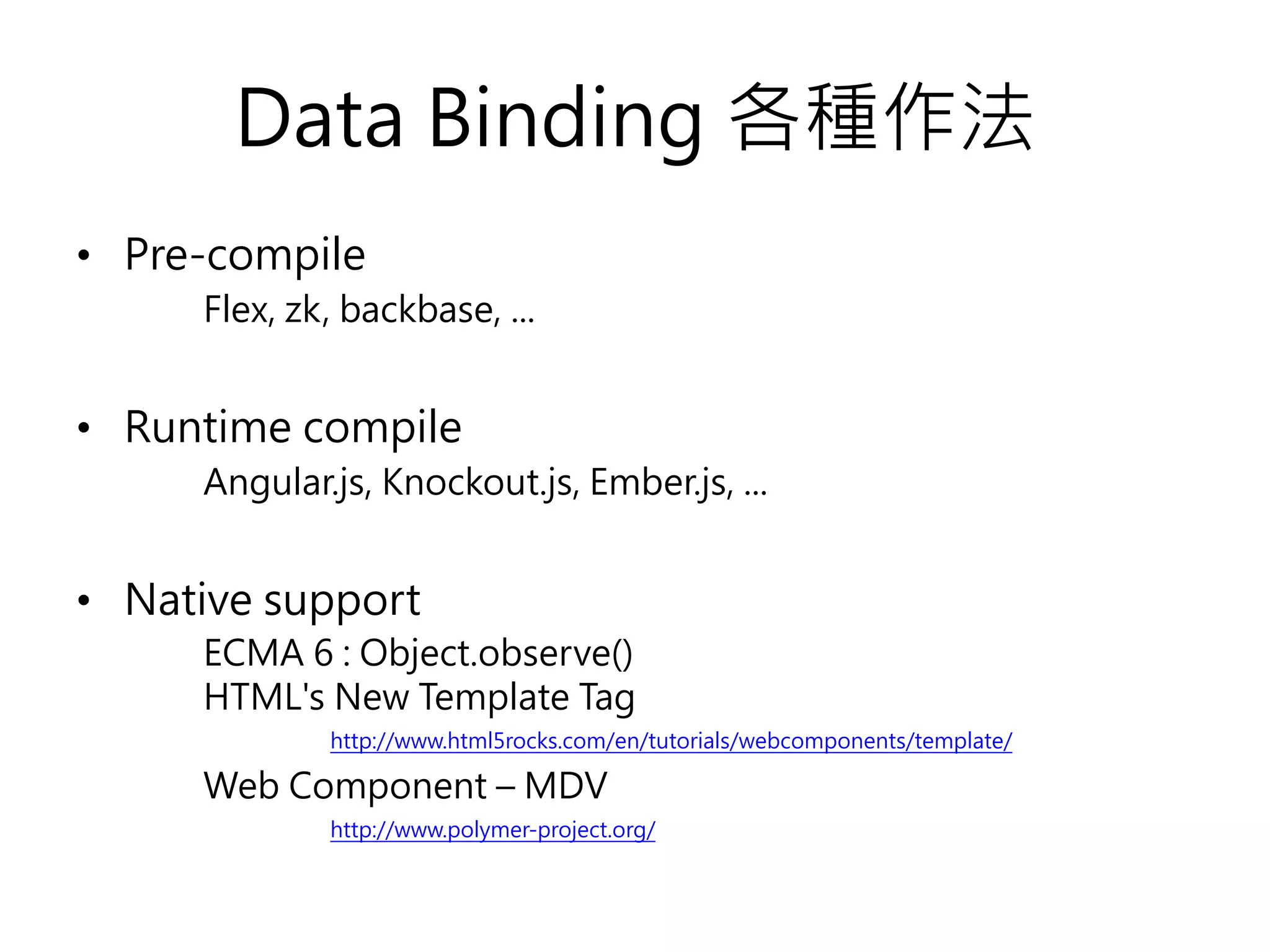

Data Binding 各種作法 • Pre-compile Flex, zk, backbase, ... • Runtime compile Angular.js, Knockout.js, Ember.js, ... • Native support ECMA 6 : Object.observe() HTML's New Template Tag http://www.html5rocks.com/en/tutorials/webcomponents/template/ Web Component – MDV http://www.polymer-project.org/

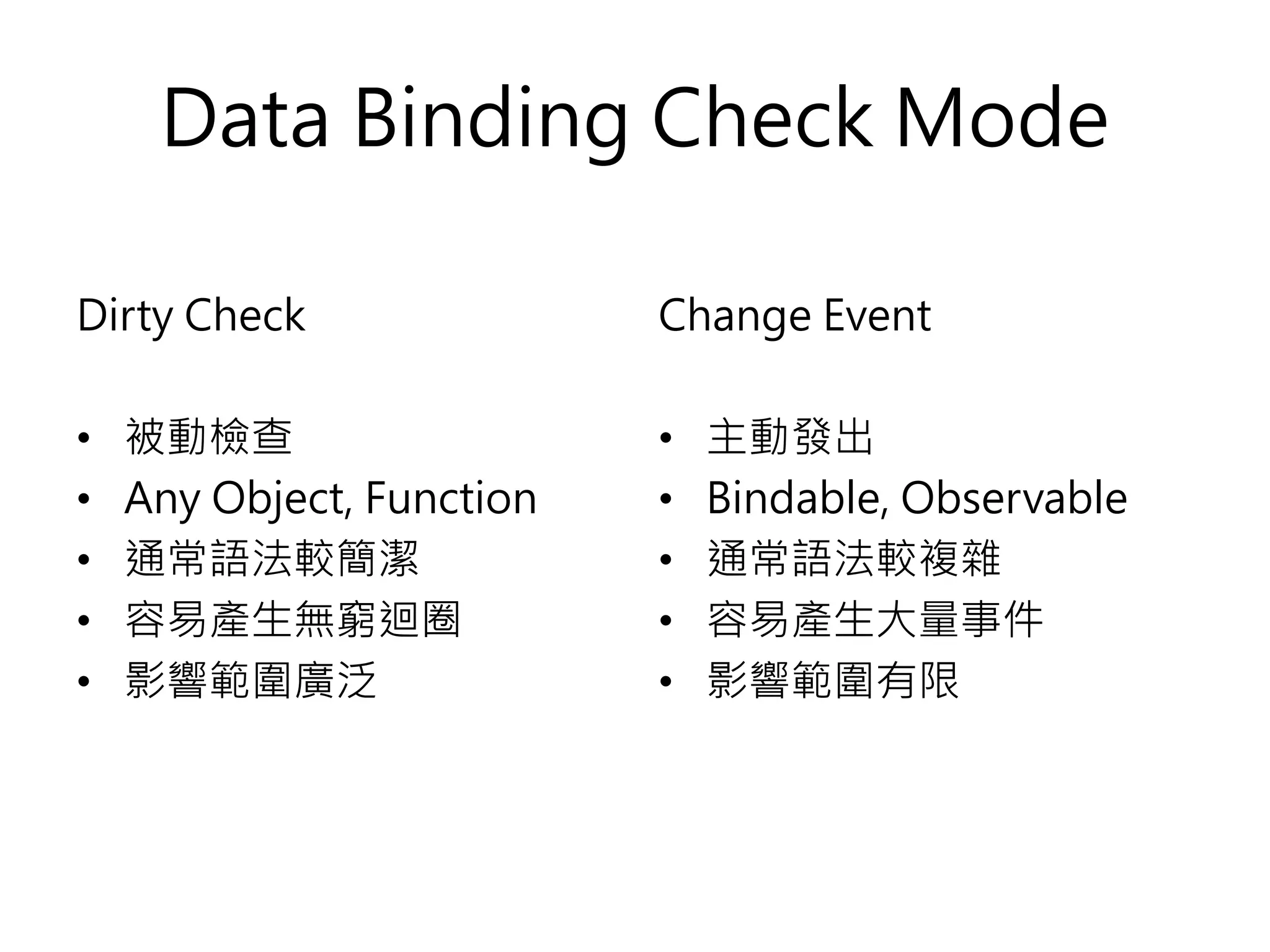

Data Binding Check Mode Dirty Check • 被動檢查 • Any Object, Function • 通常語法較簡潔 • 容易產生無窮迴圈 • 影響範圍廣泛 Change Event • 主動發出 • Bindable, Observable • 通常語法較複雜 • 容易產生大量事件 • 影響範圍有限

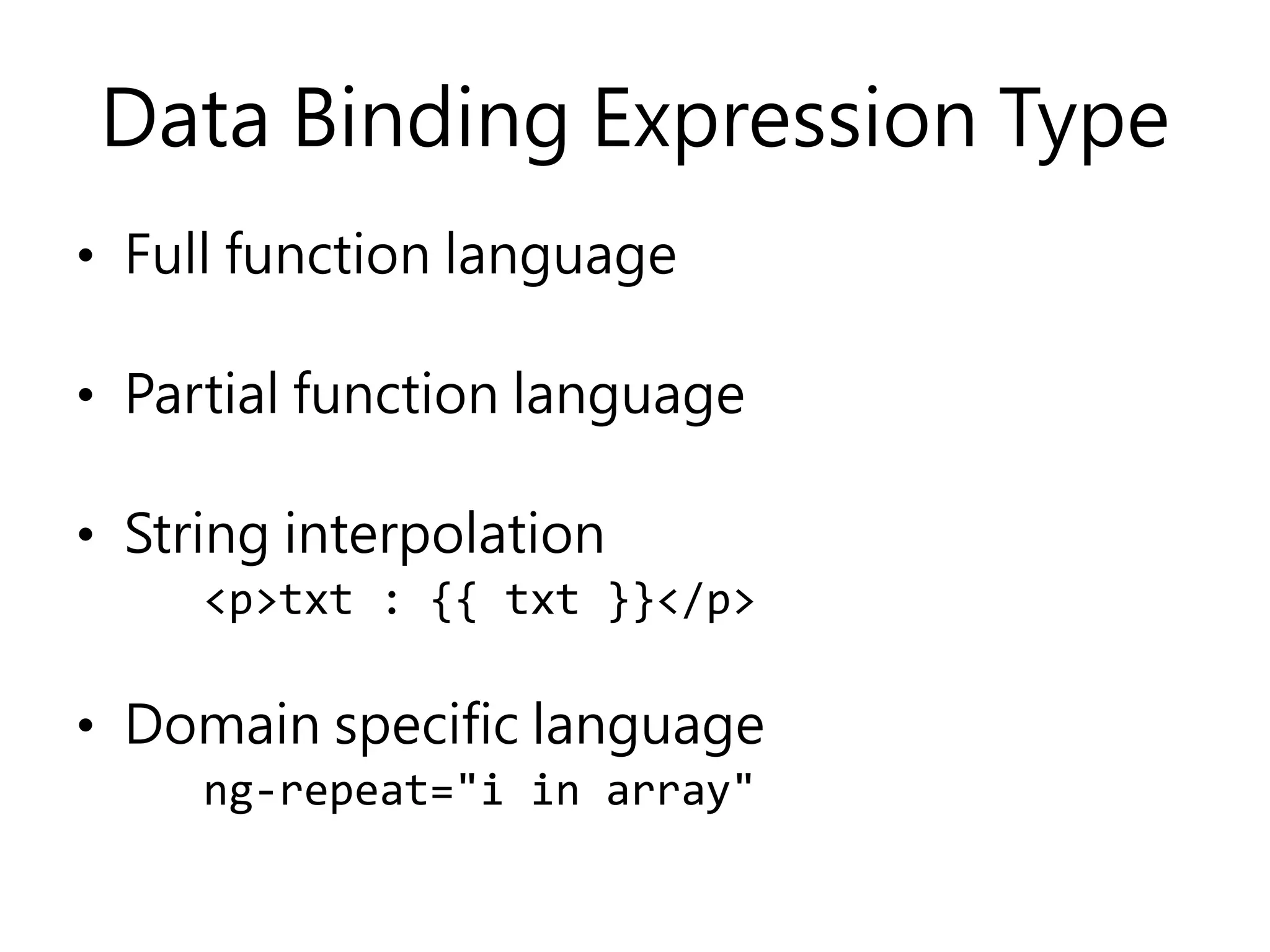

Data Binding Expression Type • Full function language • Partial function language • String interpolation <p>txt : {{ txt }}</p> • Domain specific language ng-repeat="i in array"

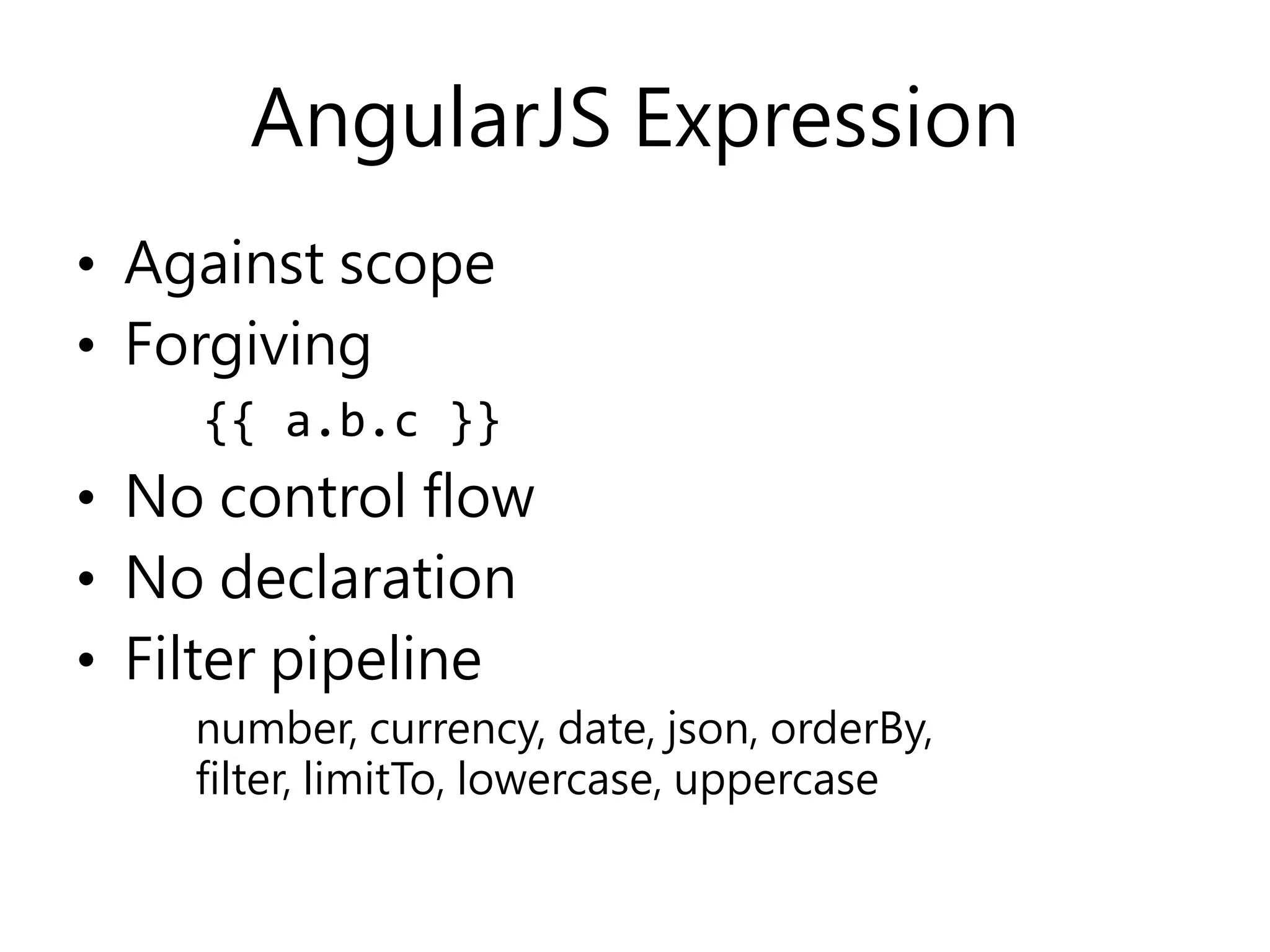

AngularJS Expression • Against scope • Forgiving {{ a.b.c }} • No control flow • No declaration • Filter pipeline number, currency, date, json, orderBy, filter, limitTo, lowercase, uppercase

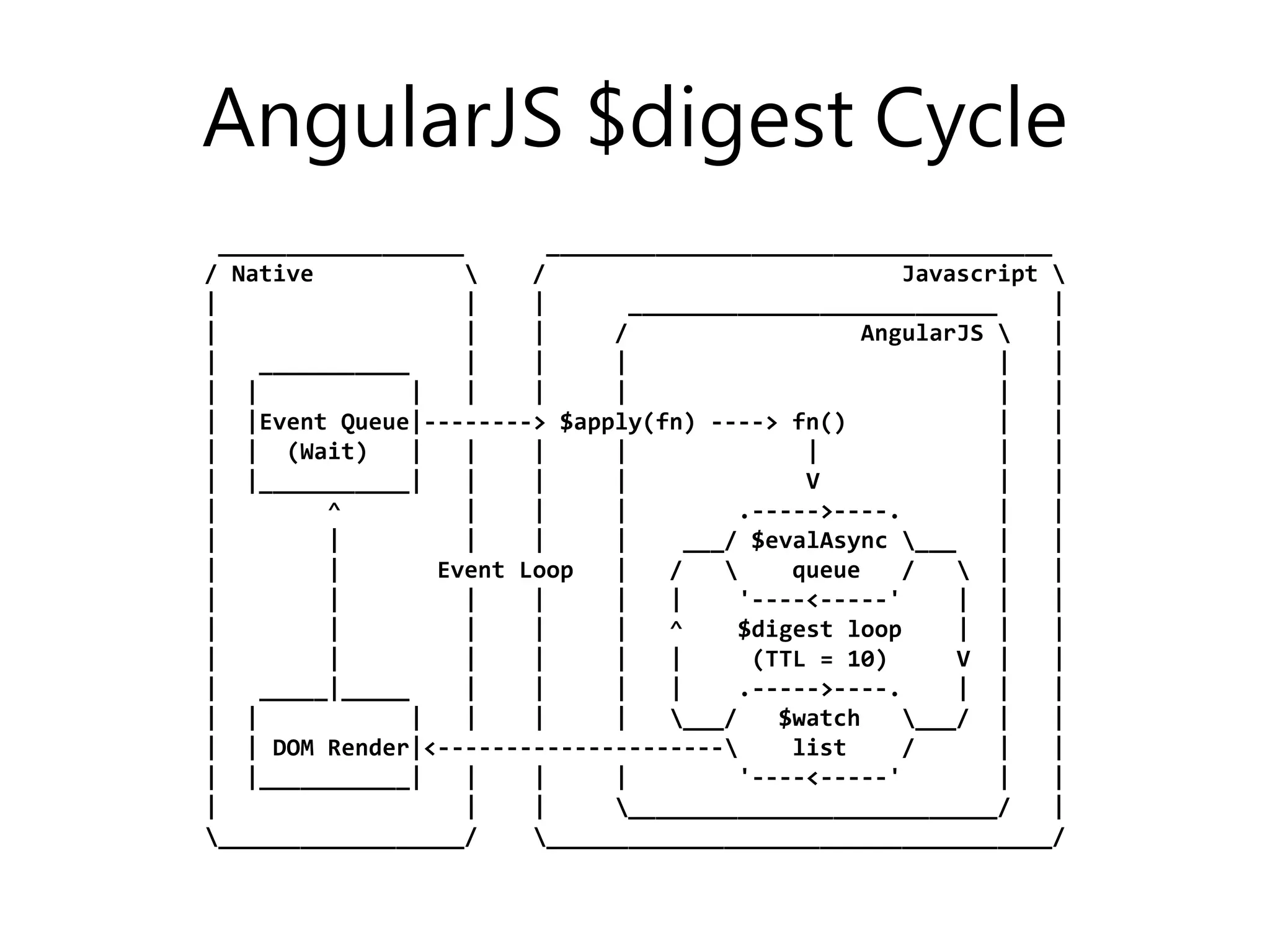

AngularJS $digest Cycle __________________ _____________________________________ / Native / Javascript | | | ___________________________ | | | | / AngularJS | | ___________ | | | | | | | | | | | | | | |Event Queue|--------> $apply(fn) ----> fn() | | | | (Wait) | | | | | | | | |___________| | | | V | | | ^ | | | .----->----. | | | | | | | ___/ $evalAsync ___ | | | | Event Loop | / queue / | | | | | | | | '----<-----' | | | | | | | | ^ $digest loop | | | | | | | | | (TTL = 10) V | | | _____|_____ | | | | .----->----. | | | | | | | | | ___/ $watch ___/ | | | | DOM Render|<--------------------- list / | | | |___________| | | | '----<-----' | | | | | ___________________________/ | __________________/ _____________________________________/

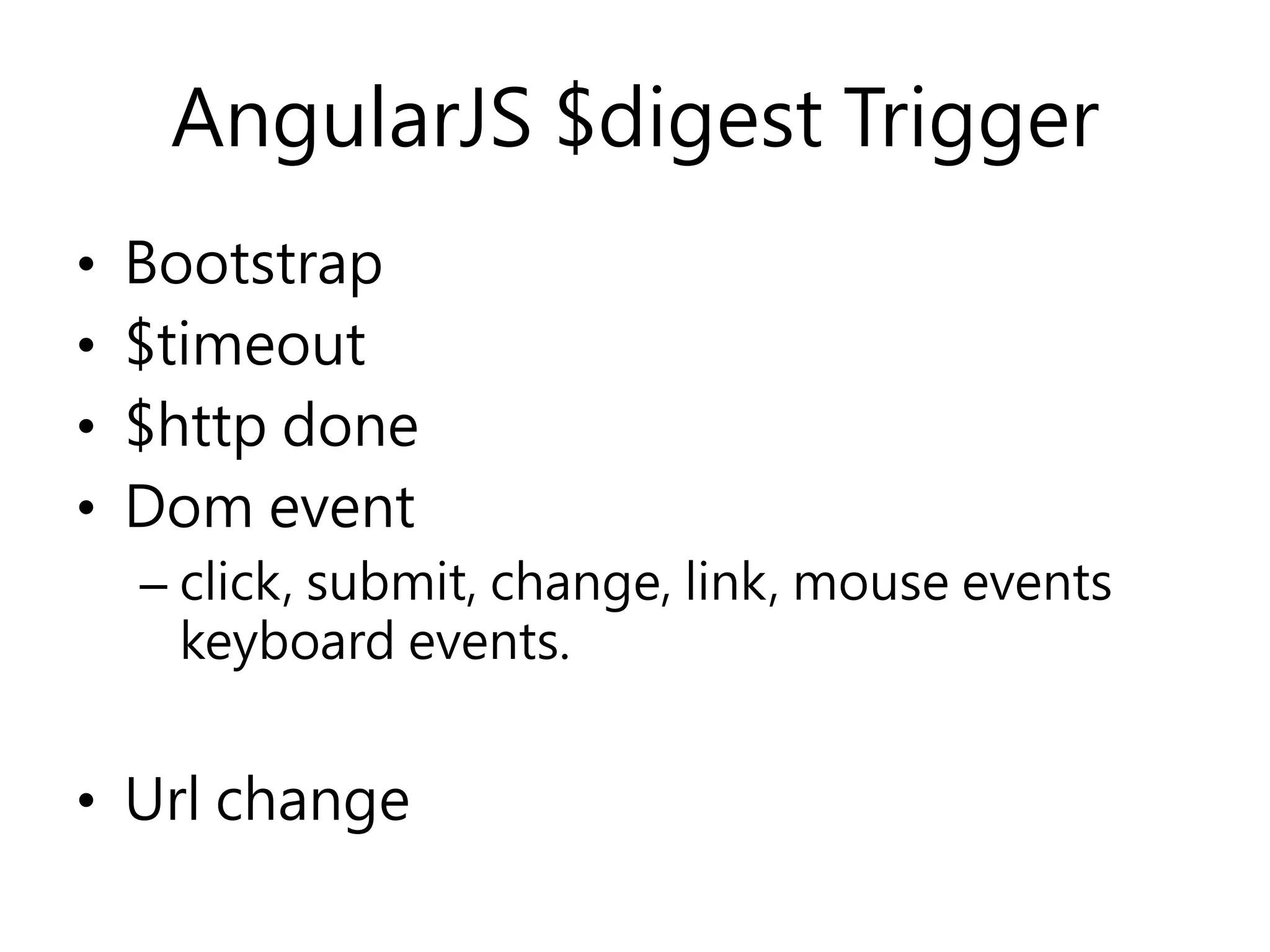

AngularJS $digest Trigger • Bootstrap • $timeout • $http done • Dom event – click, submit, change, link, mouse events keyboard events. • Url change

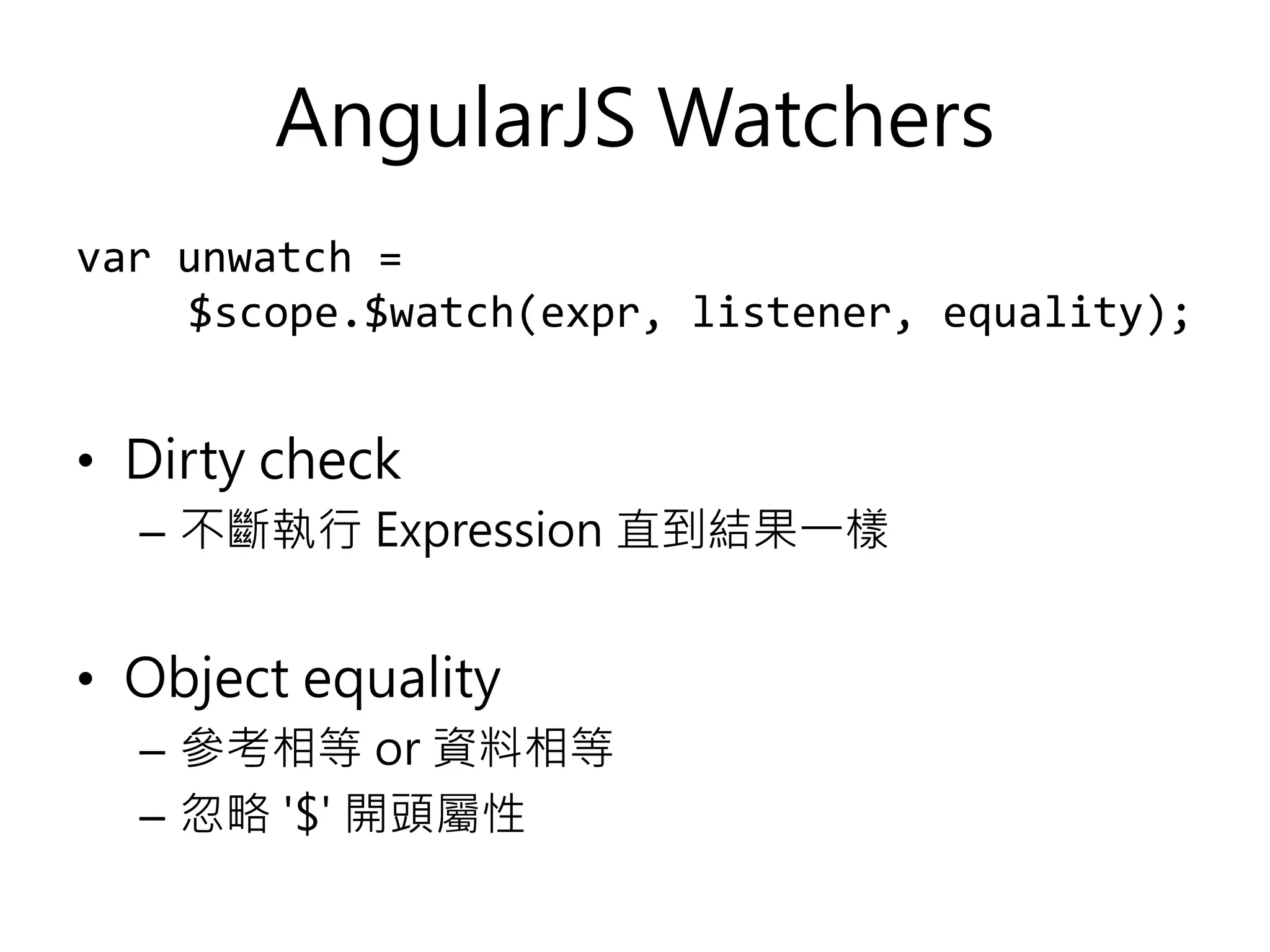

AngularJS Watchers var unwatch = $scope.$watch(expr, listener, equality); • Dirty check – 不斷執行 Expression 直到結果一樣 • Object equality – 參考相等 or 資料相等 – 忽略 '$' 開頭屬性

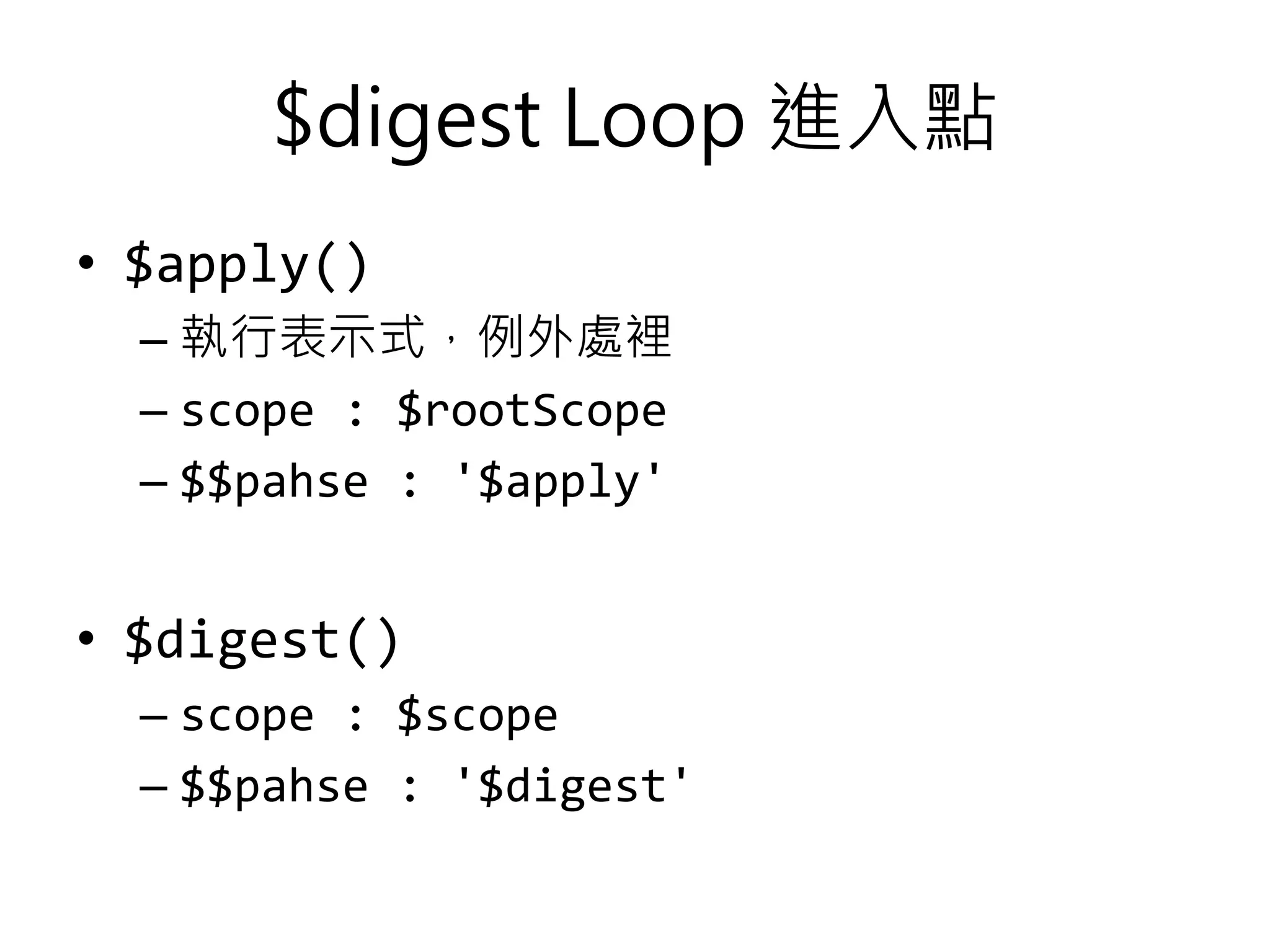

$digest Loop 進入點 • $apply() – 執行表示式，例外處裡 – scope : $rootScope – $$phase : '$apply' • $digest() – scope : $scope – $$phase : '$digest'

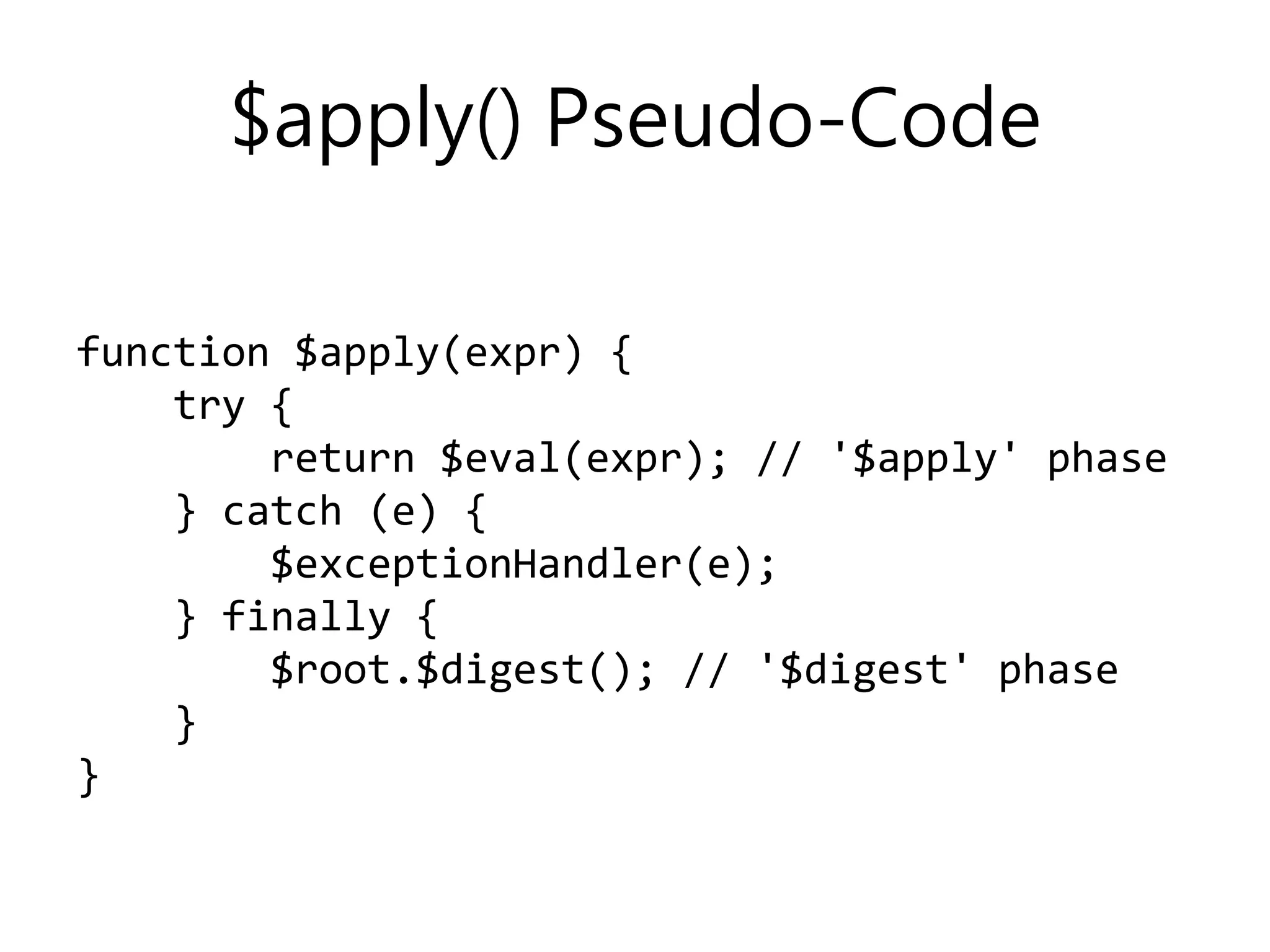

$apply() Pseudo-Code function $apply(expr) { try { return $eval(expr); // '$apply' phase } catch (e) { $exceptionHandler(e); } finally { $root.$digest(); // '$digest' phase } }

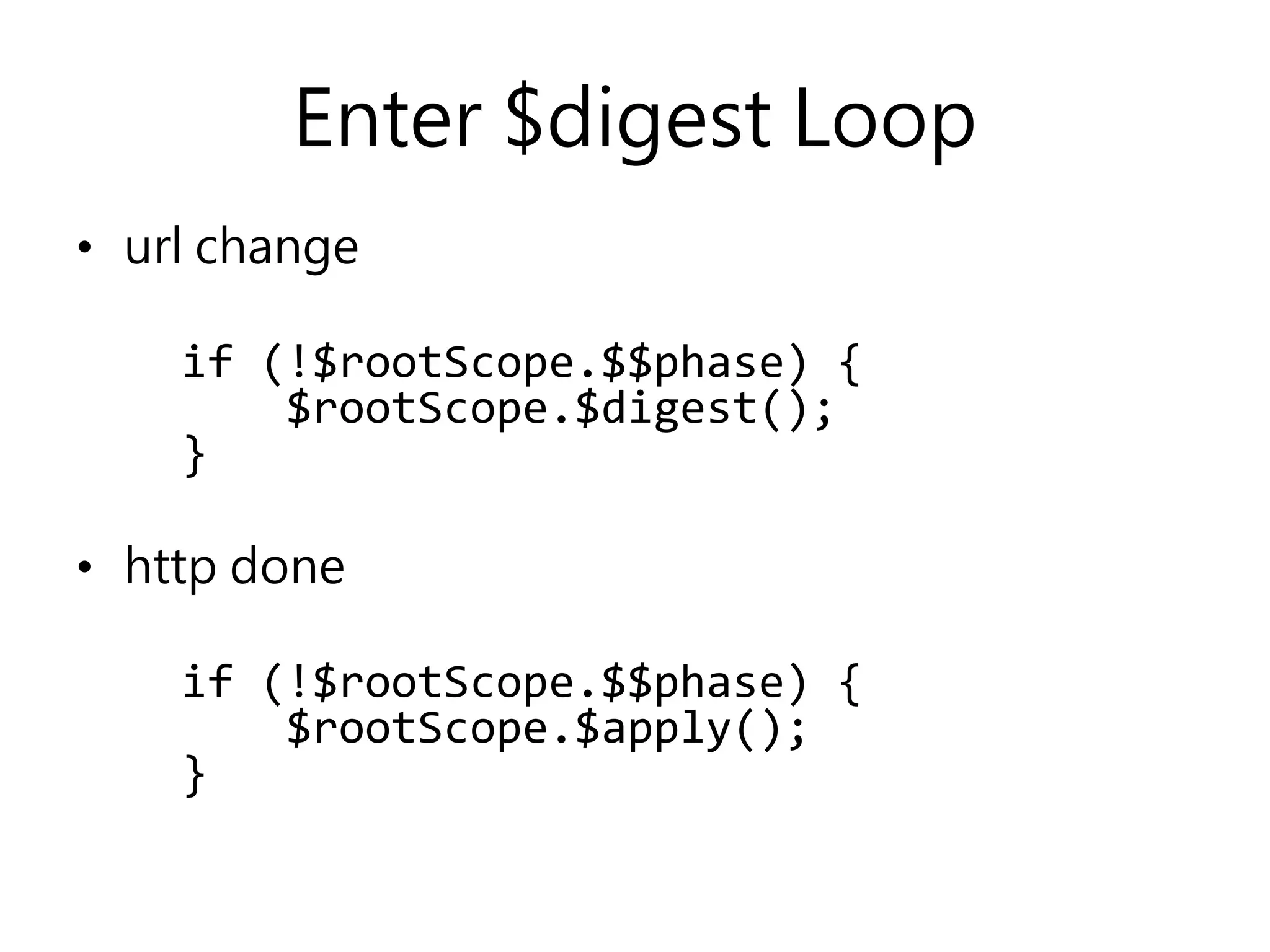

Enter $digest Loop • url change if (!$rootScope.$$phase) { $rootScope.$digest(); } • http done if (!$rootScope.$$phase) { $rootScope.$apply(); }

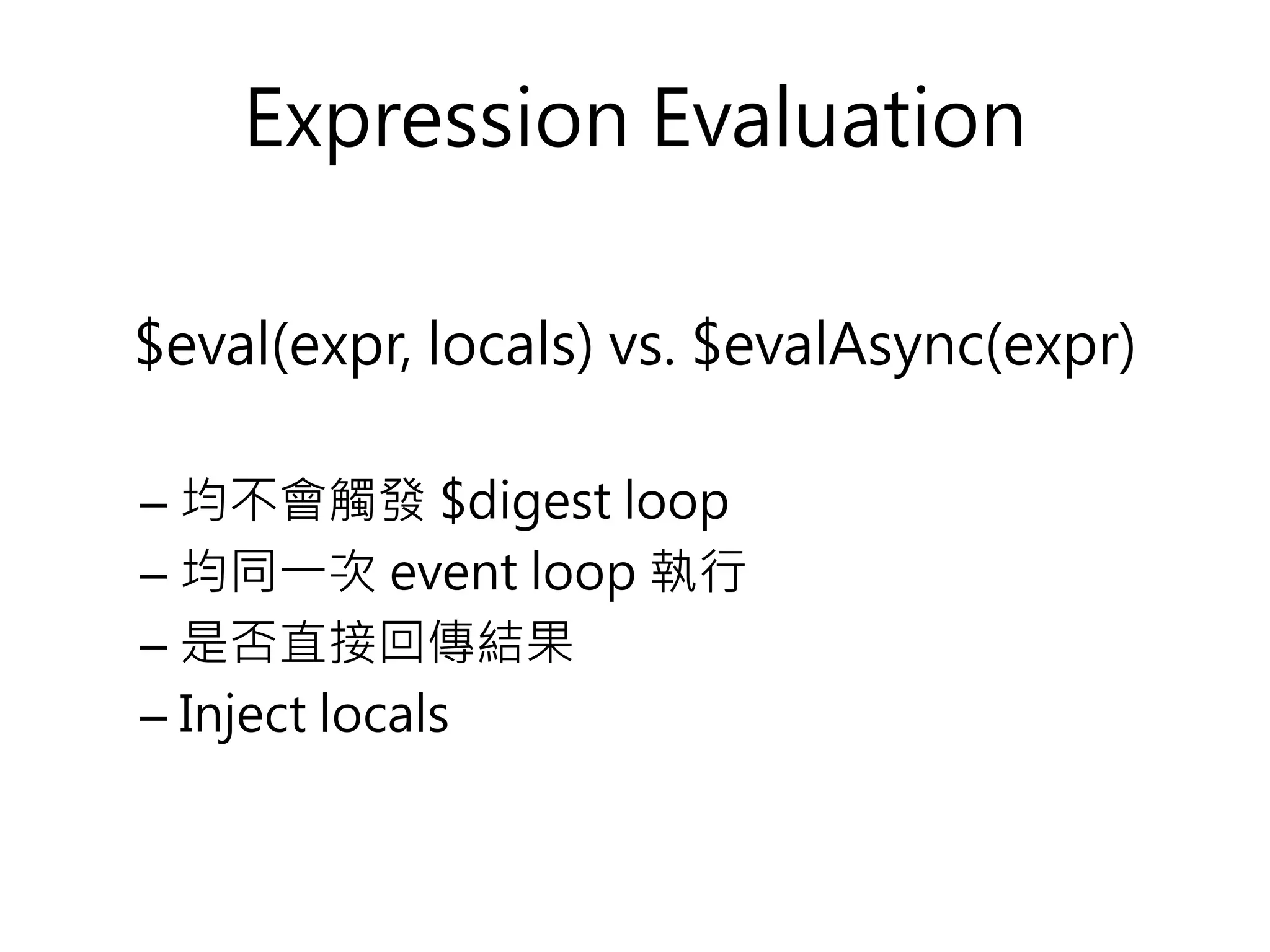

Expression Evaluation $eval(expr, locals) vs. $evalAsync(expr) – 均不會觸發 $digest loop – 均同一次 event loop 執行 – 是否直接回傳結果 – Inject locals

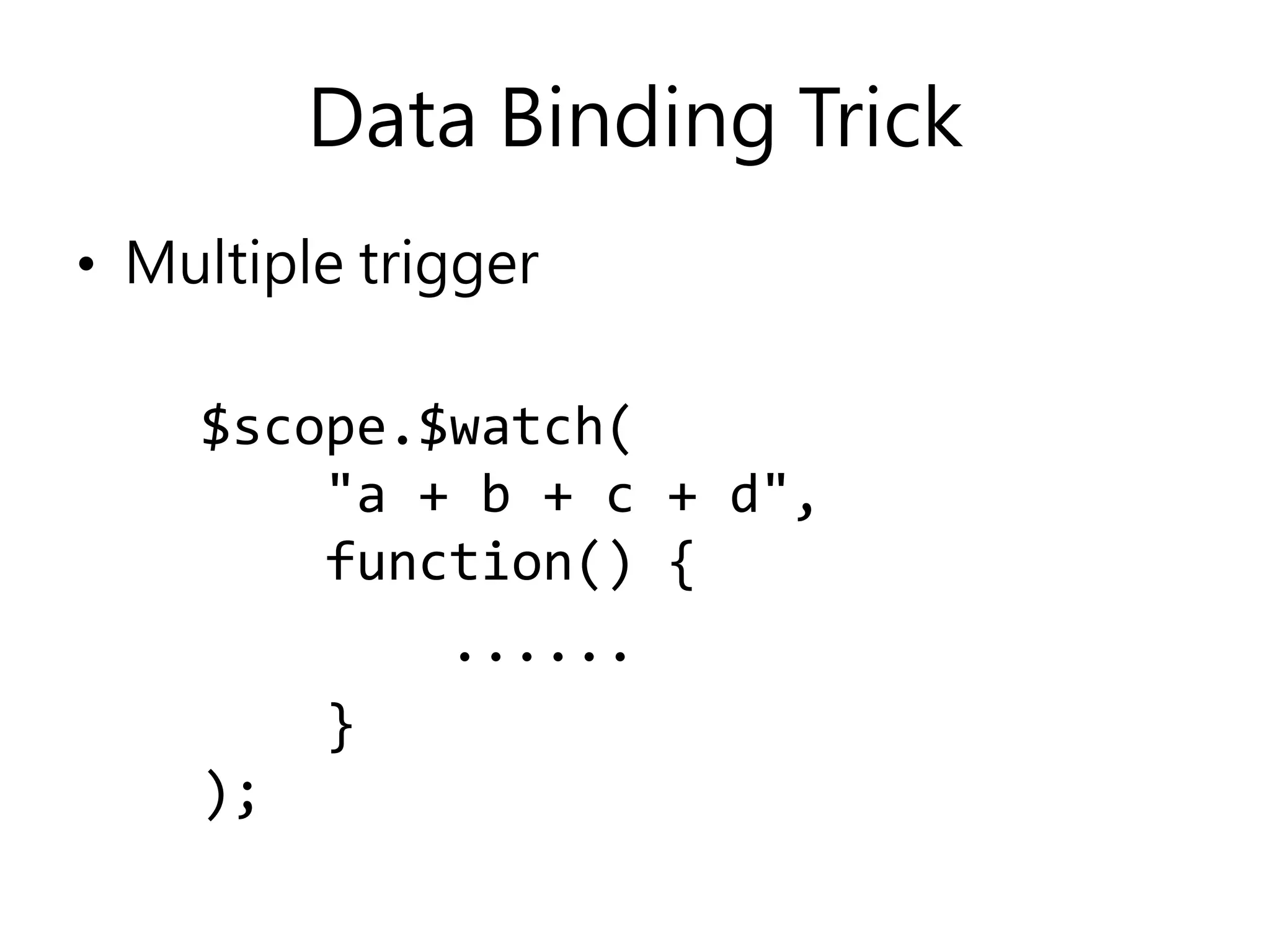

Data Binding Trick • Multiple trigger $scope.$watch( "a + b + c + d", function() { ...... } );

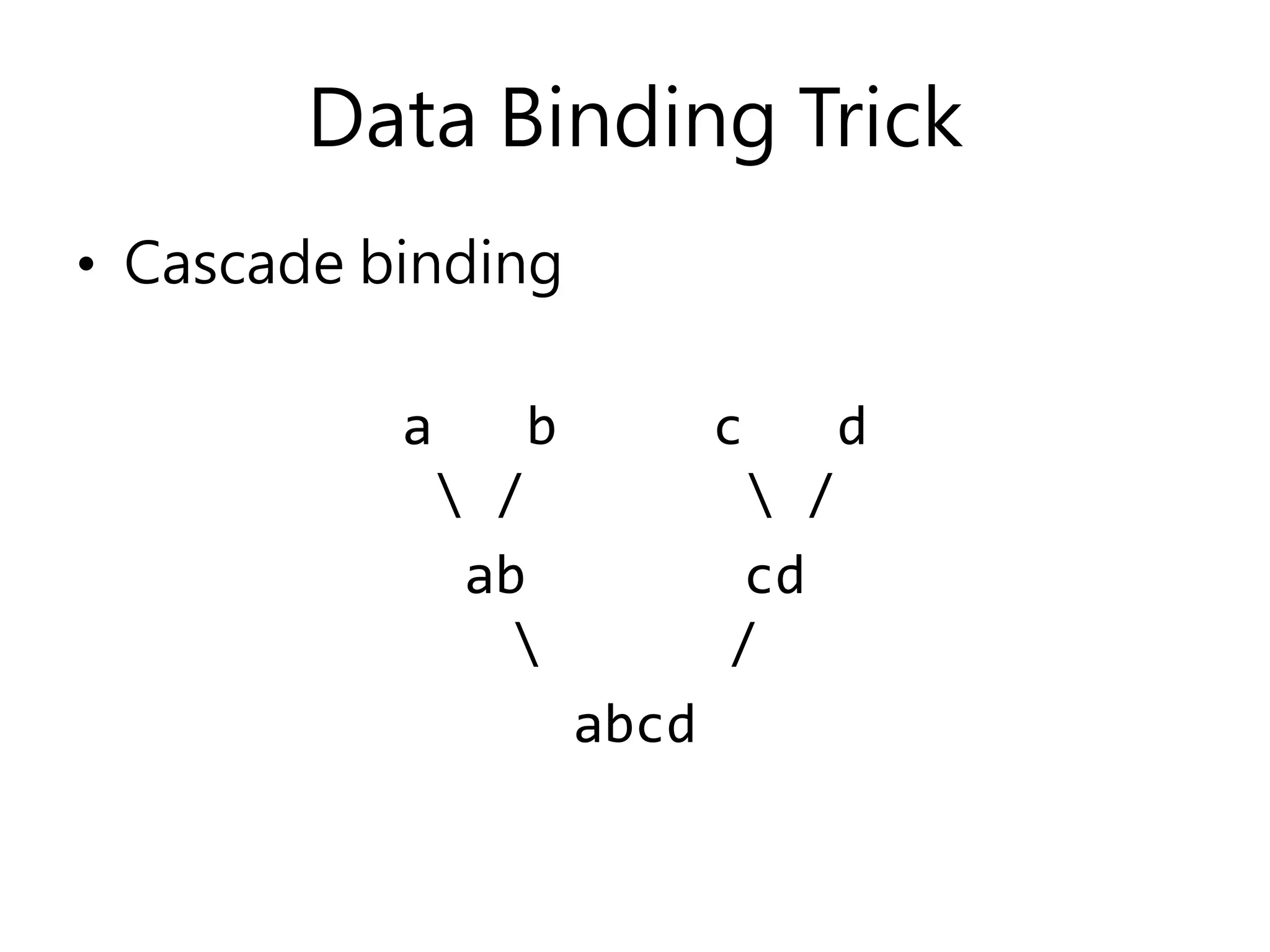

Data Binding Trick • Cascade binding a b c d / / ab cd / abcd

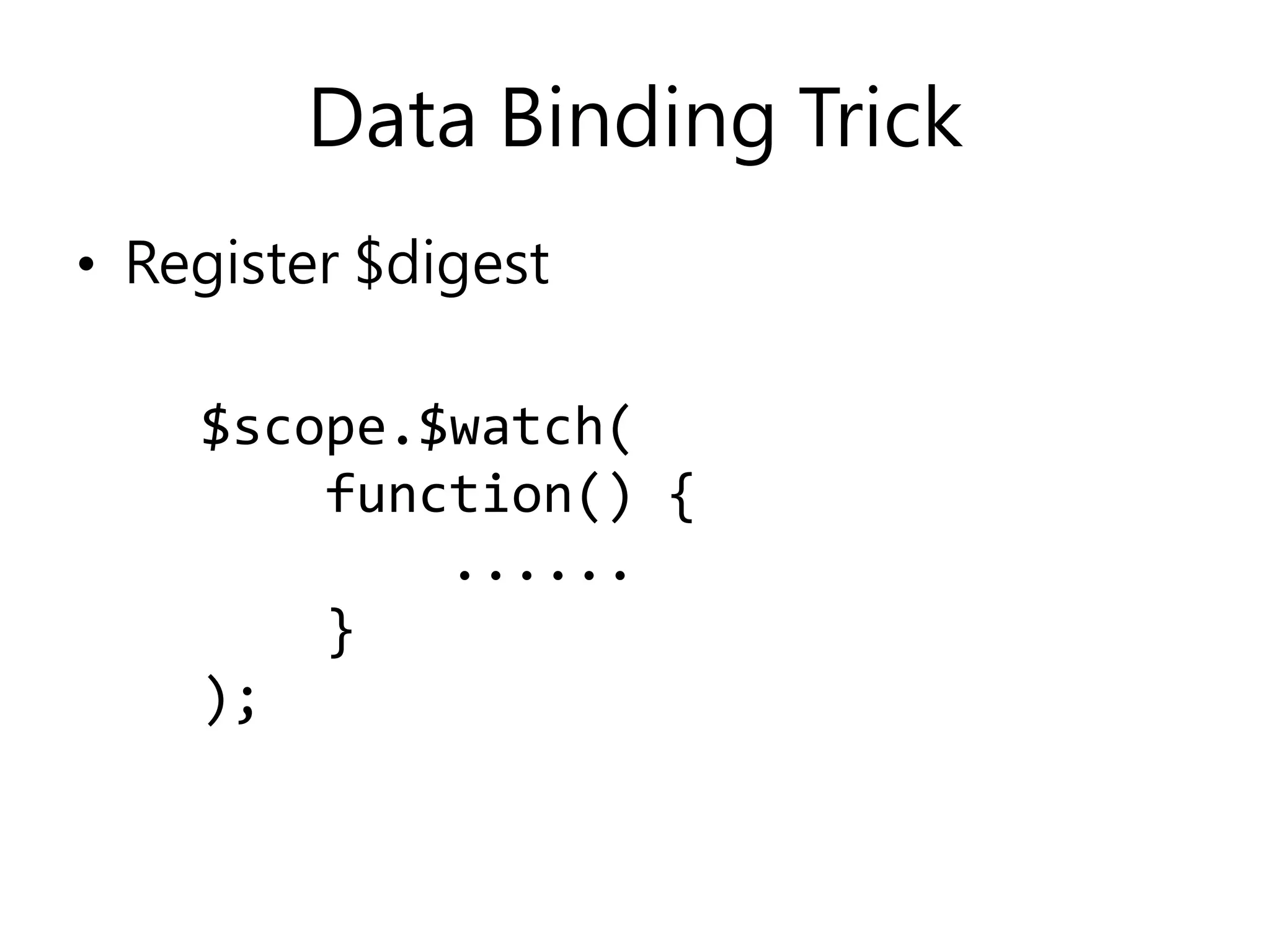

Data Binding Trick • Register $digest $scope.$watch( function() { ...... } );

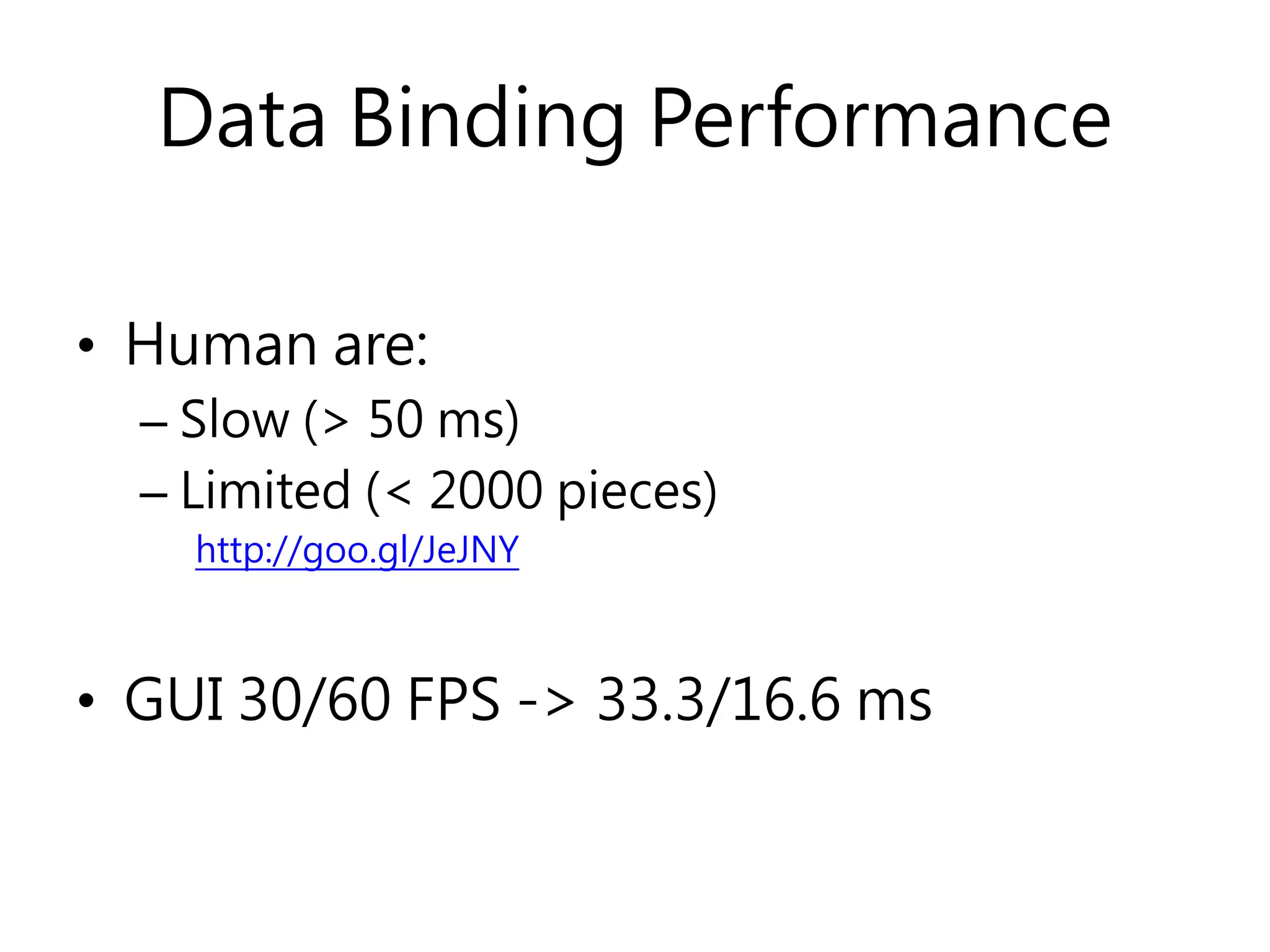

Data Binding Performance • Human are: – Slow (> 50 ms) – Limited (< 2000 pieces) http://goo.gl/JeJNY • GUI 30/60 FPS -> 33.3/16.6 ms

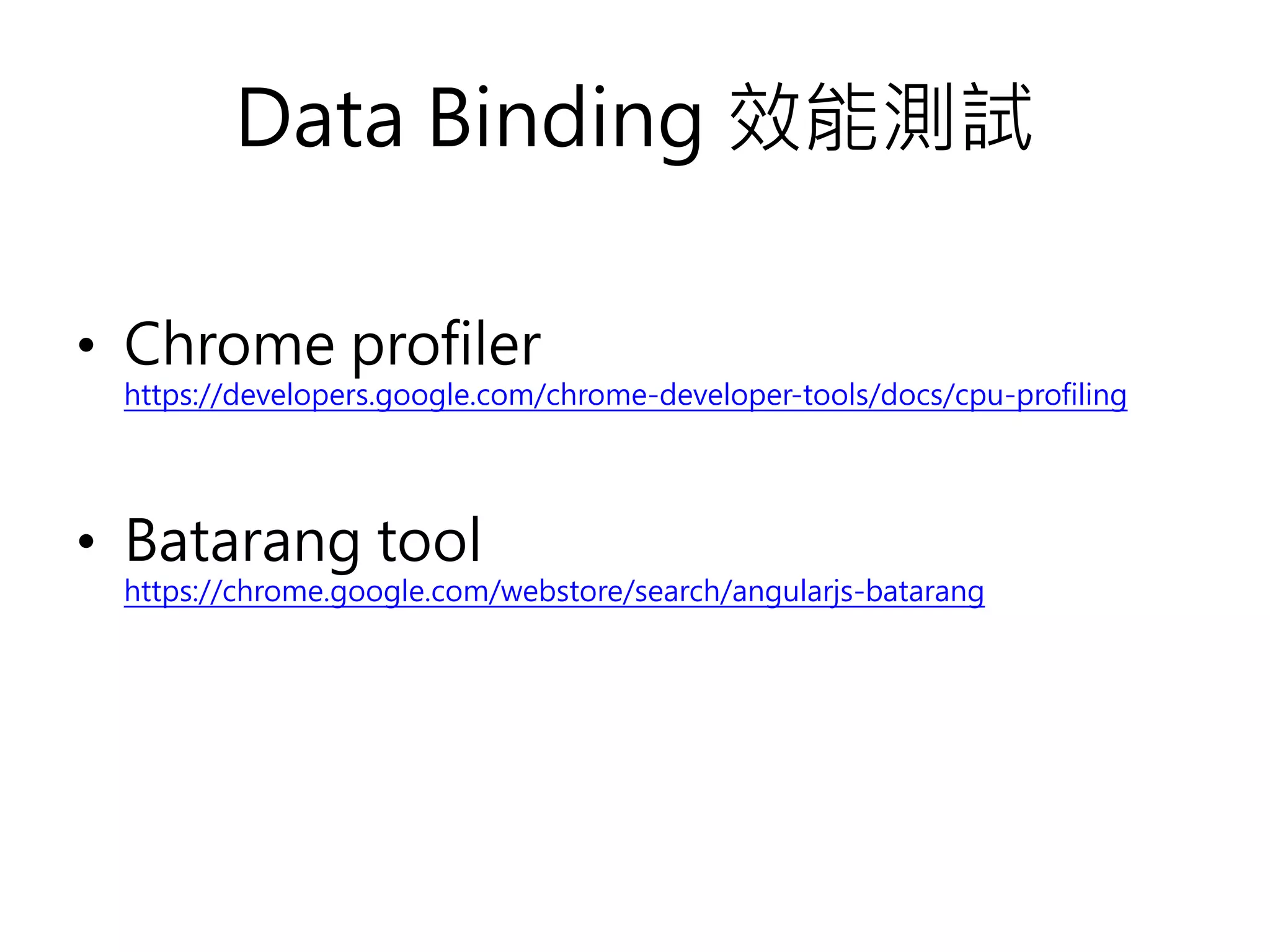

Data Binding 效能測試 • Chrome profiler https://developers.google.com/chrome-developer-tools/docs/cpu-profiling • Batarang tool https://chrome.google.com/webstore/search/angularjs-batarang

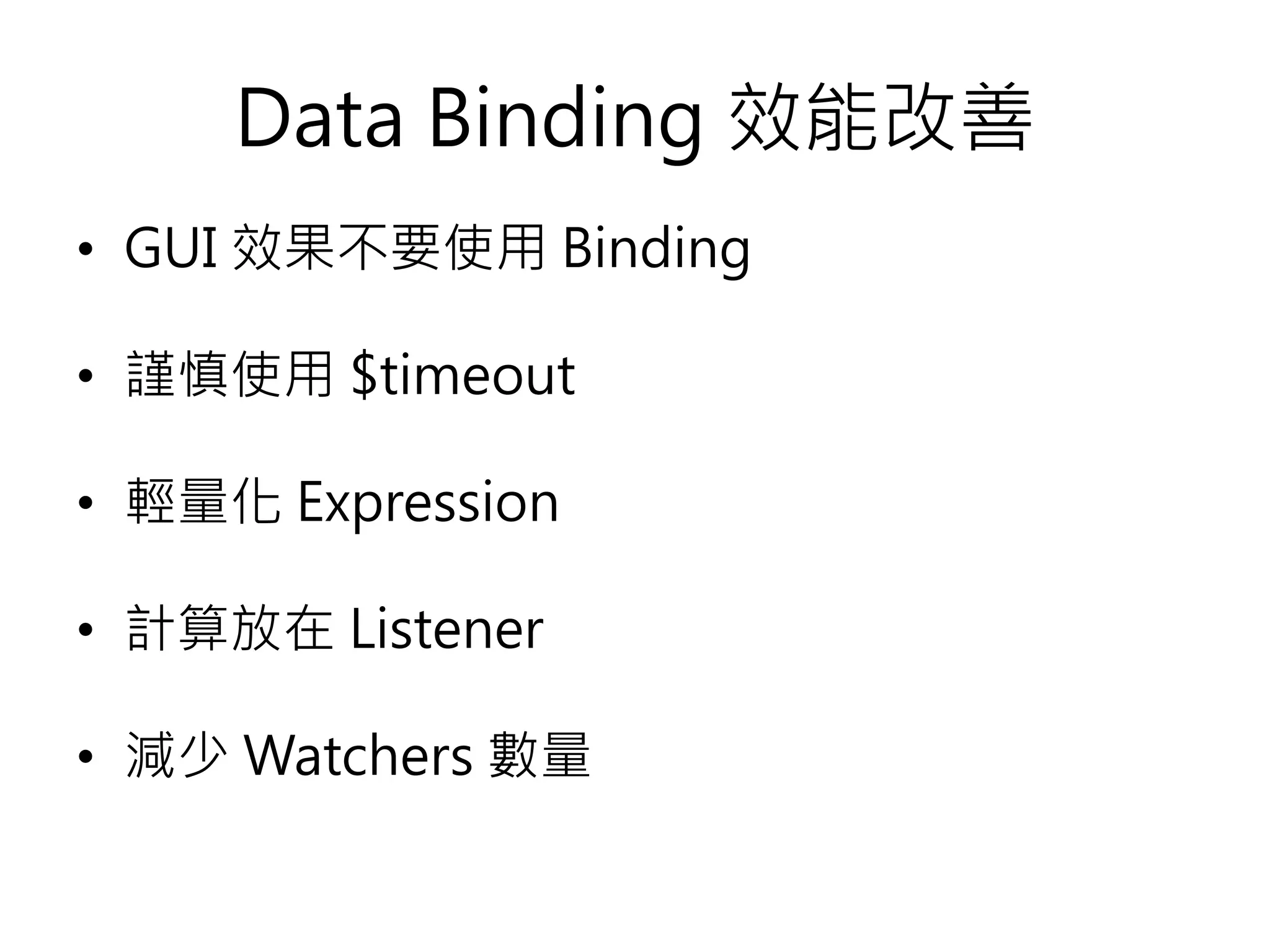

Data Binding 效能改善 • GUI 效果不要使用 Binding • 謹慎使用 $timeout • 輕量化 Expression • 計算放在 Listener • 減少 Watchers 數量

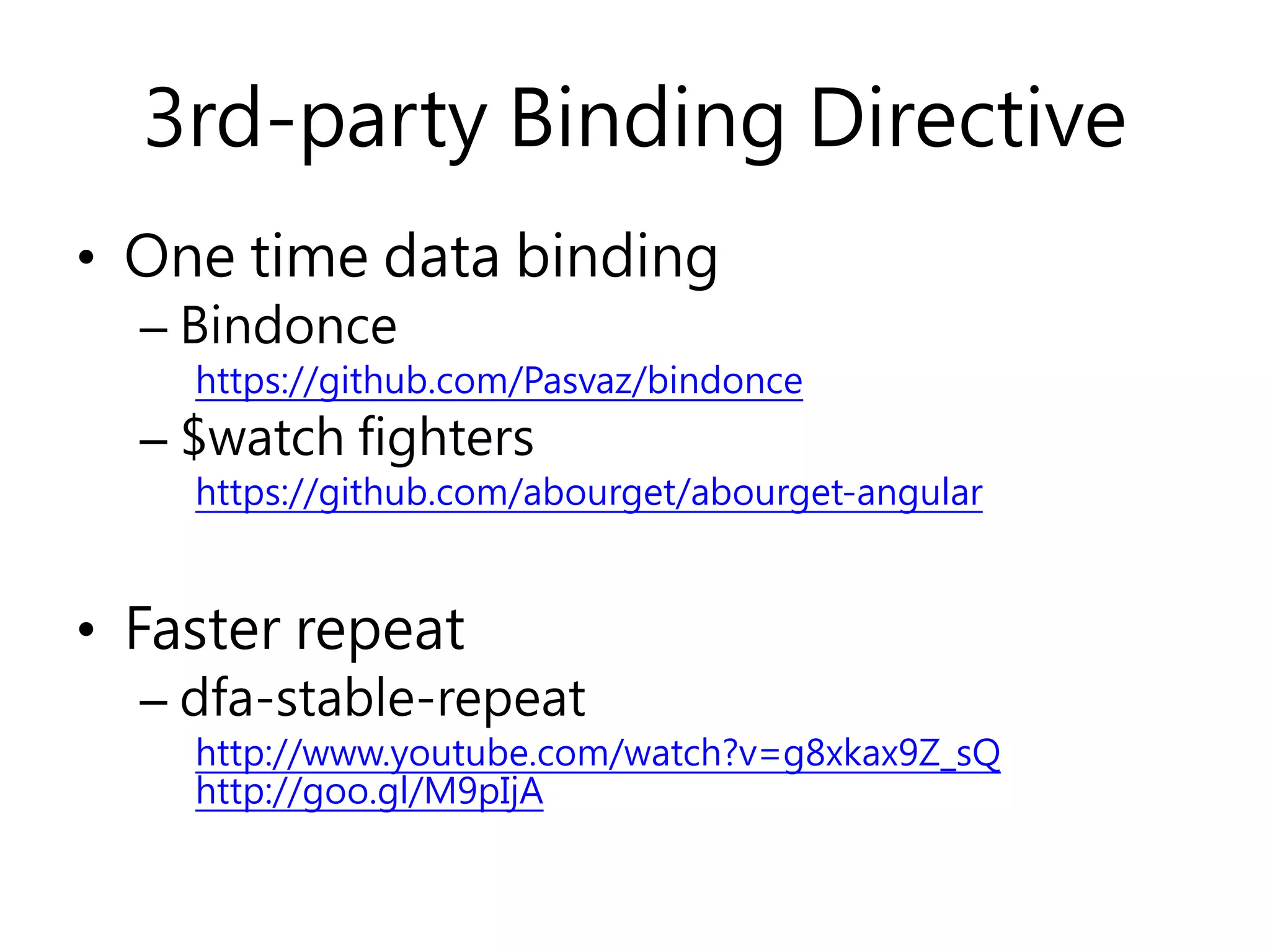

3rd-party Binding Directive • One time data binding – Bindonce https://github.com/Pasvaz/bindonce – $watch fighters https://github.com/abourget/abourget-angular • Faster repeat – dfa-stable-repeat http://www.youtube.com/watch?v=g8xkax9Z_sQ http://goo.gl/M9pIjA

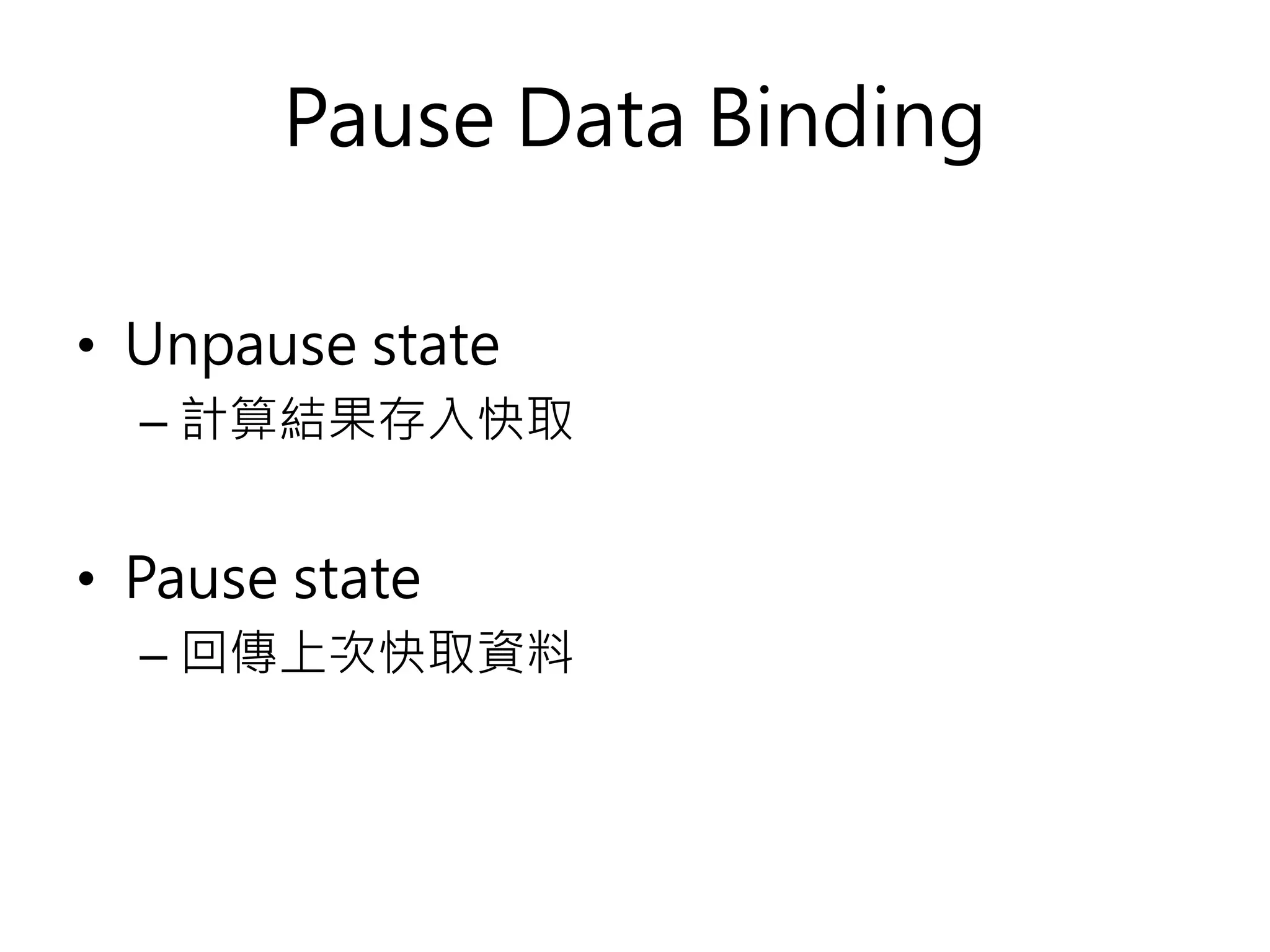

Pause Data Binding • Unpause state – 計算結果存入快取 • Pause state – 回傳上次快取資料

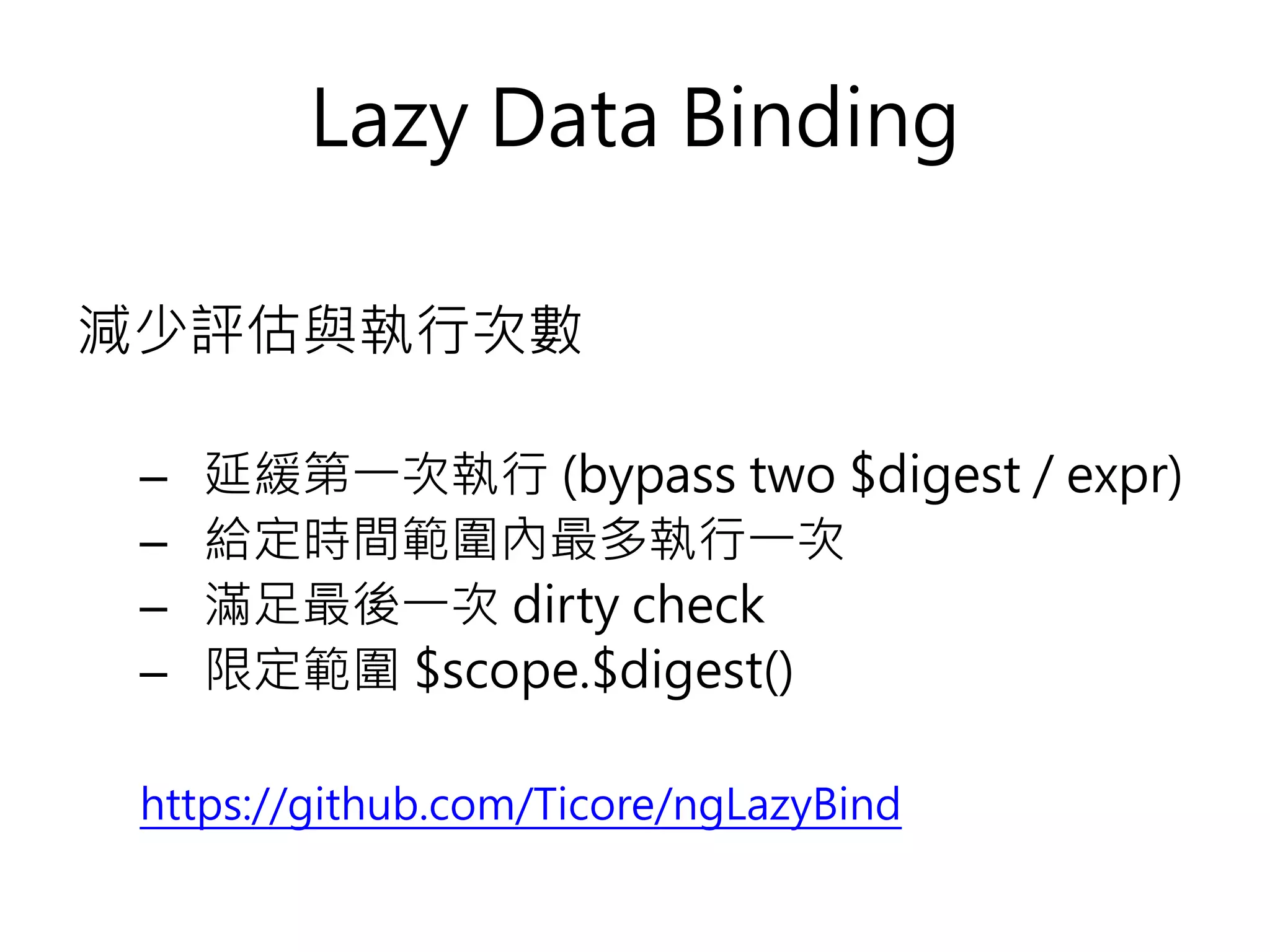

Lazy Data Binding 減少評估與執行次數 – 延緩第一次執行 (bypass two $digest / expr) – 給定時間範圍內最多執行一次 – 滿足最後一次 dirty check – 限定範圍 $scope.$digest() https://github.com/Ticore/ngLazyBind

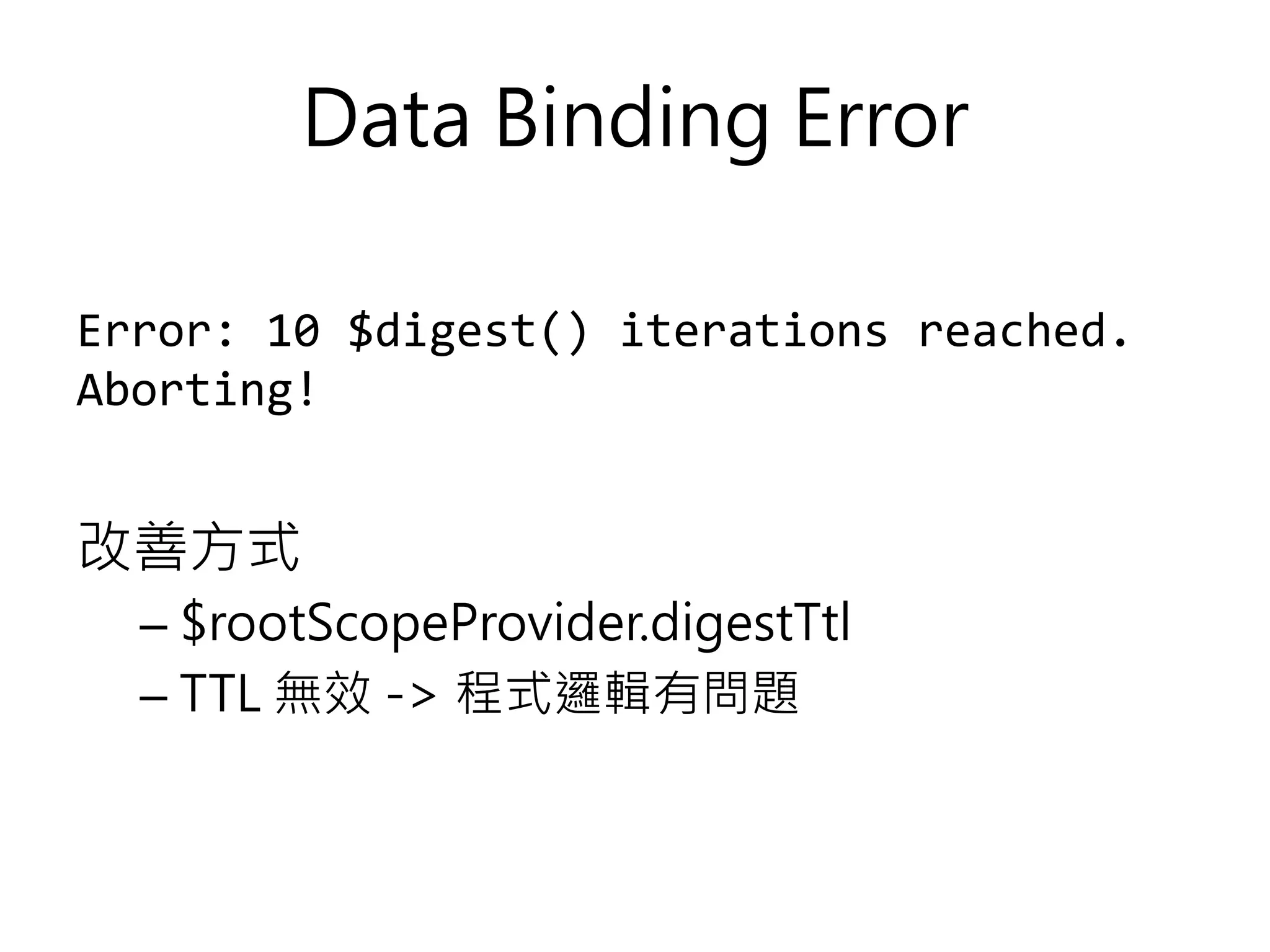

Data Binding Error Error: 10 $digest() iterations reached. Aborting! 改善方式 – $rootScopeProvider.digestTtl – TTL 無效 -> 程式邏輯有問題

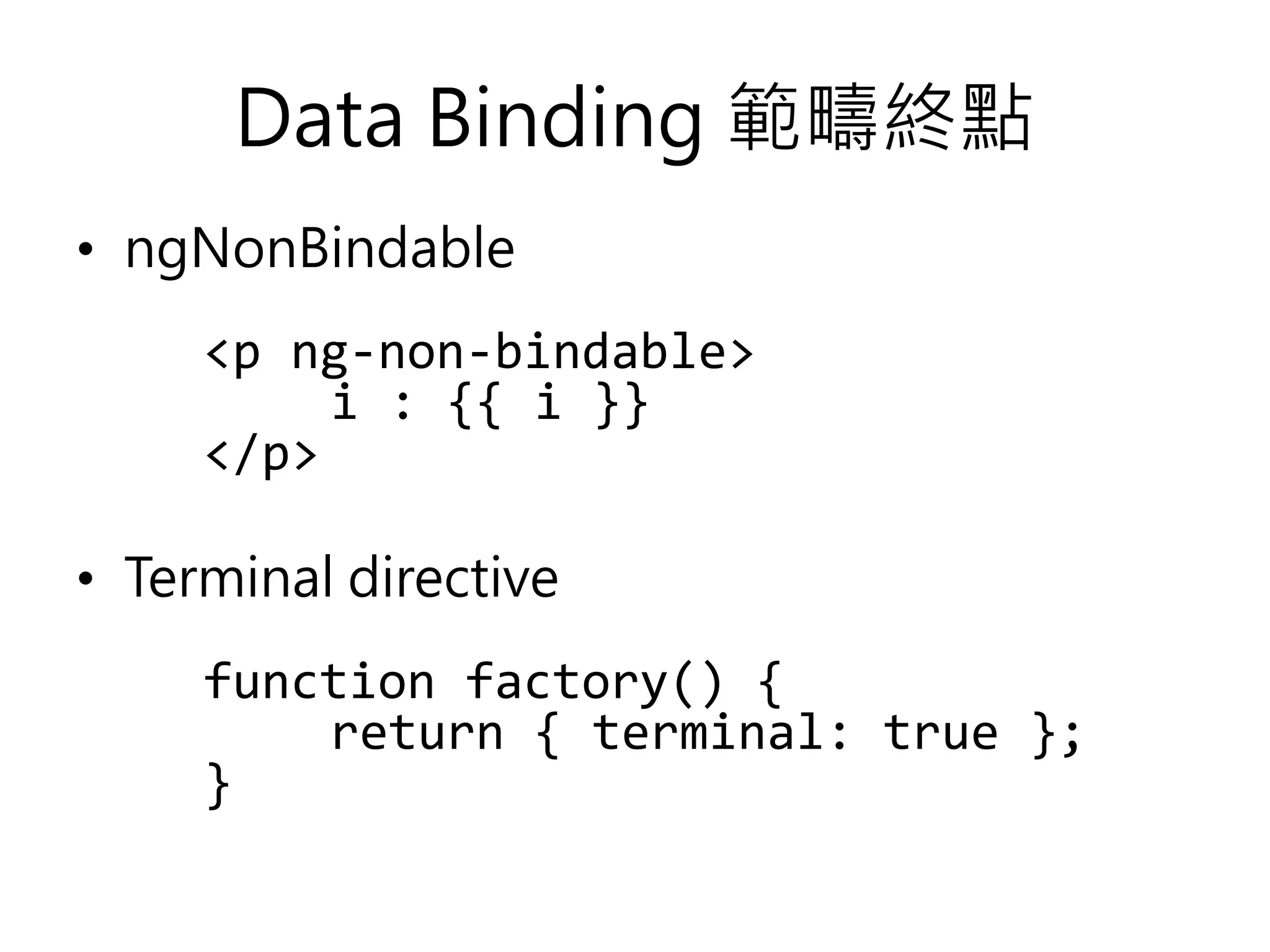

Data Binding 範疇終點 • ngNonBindable <p ng-non-bindable> i : {{ i }} </p> • Terminal directive function factory() { return { terminal: true }; }
