Android Application Development with Java

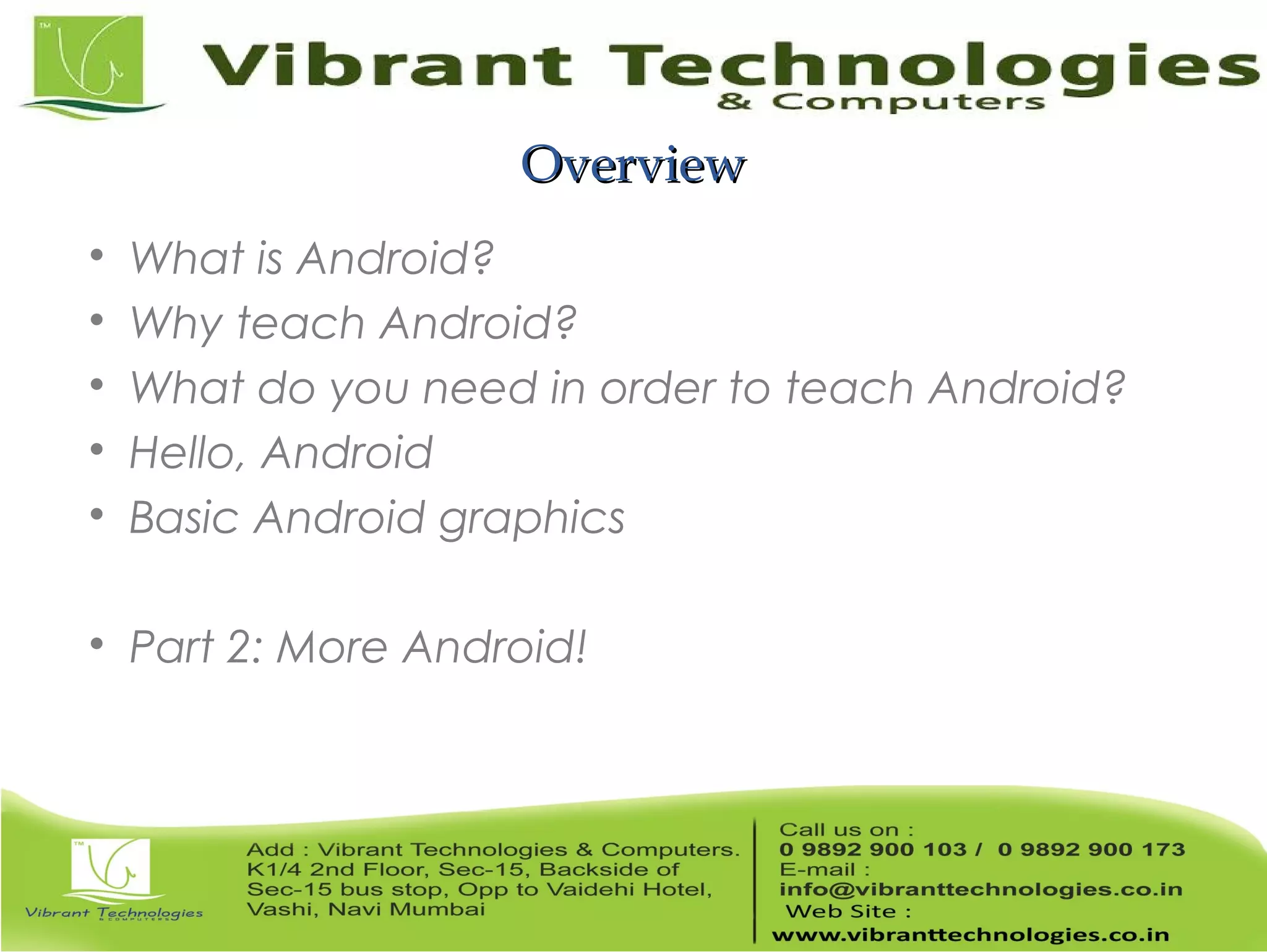

OverviewOverview  What is Android?  Why teach Android?  What do you need in order to teach Android?  Hello, Android  Basic Android graphics  Part 2: More Android!

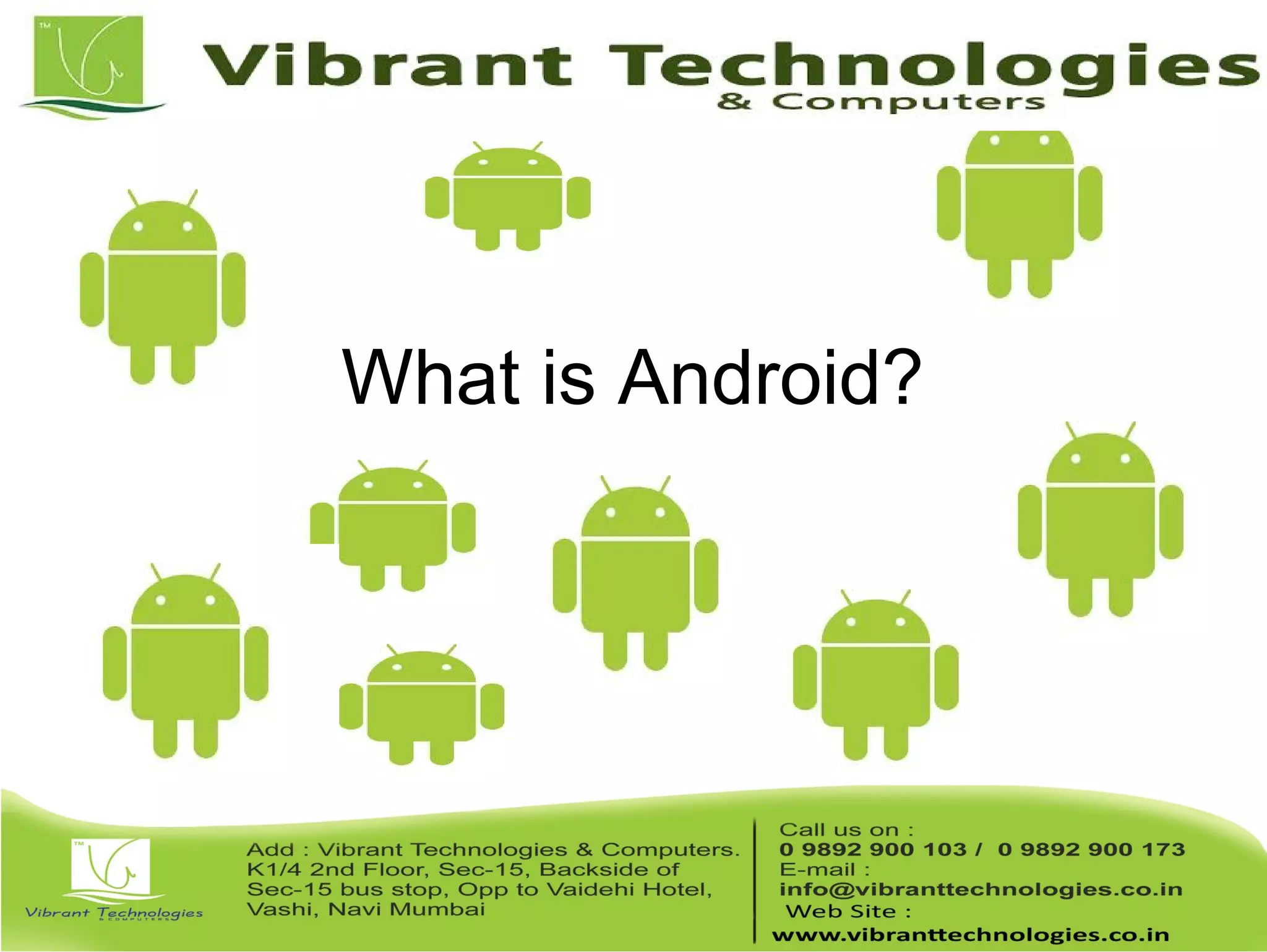

What is Android?

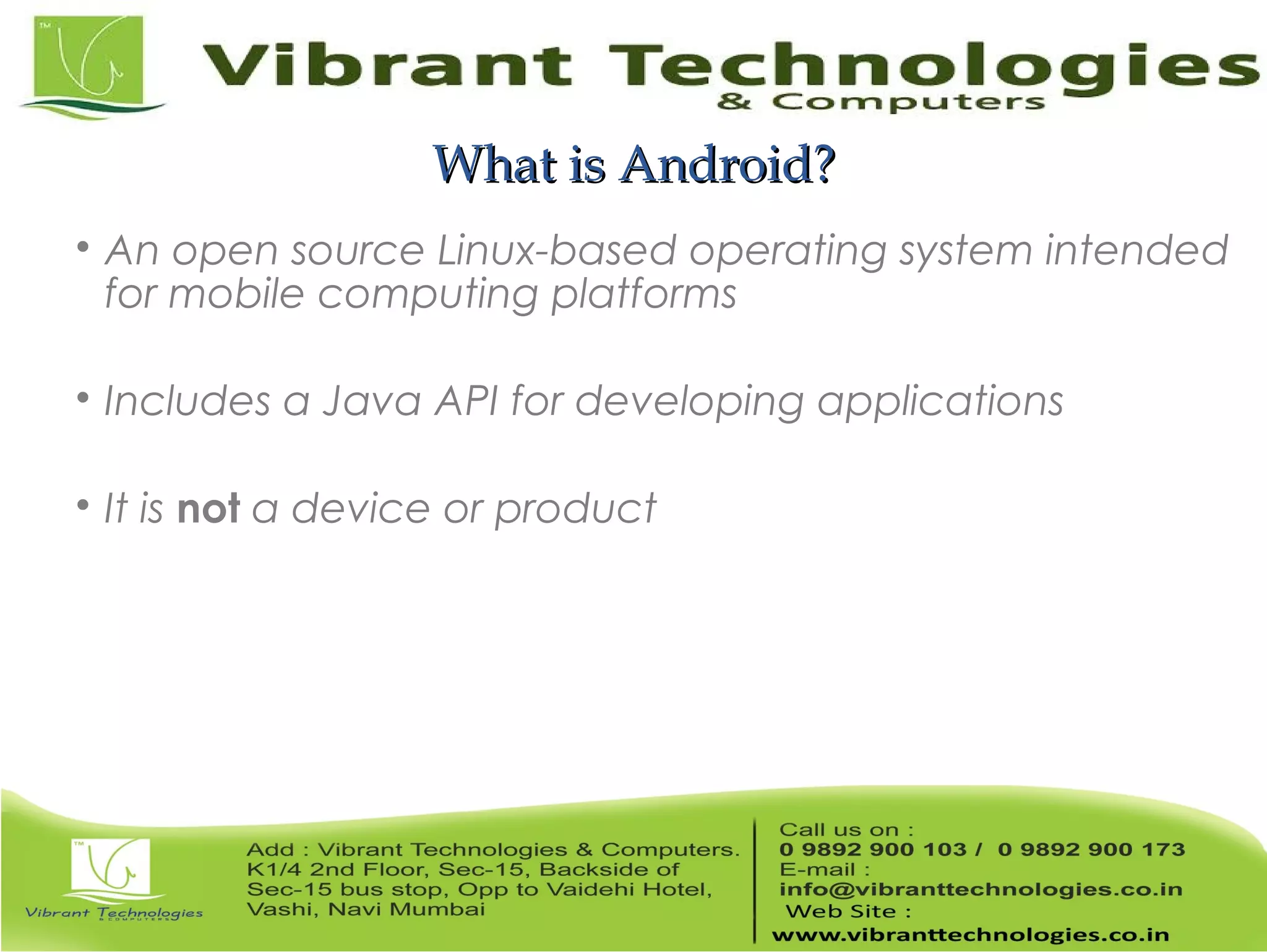

What is Android?What is Android?  An open source Linux-based operating system intended for mobile computing platforms  Includes a Java API for developing applications  It is not a device or product

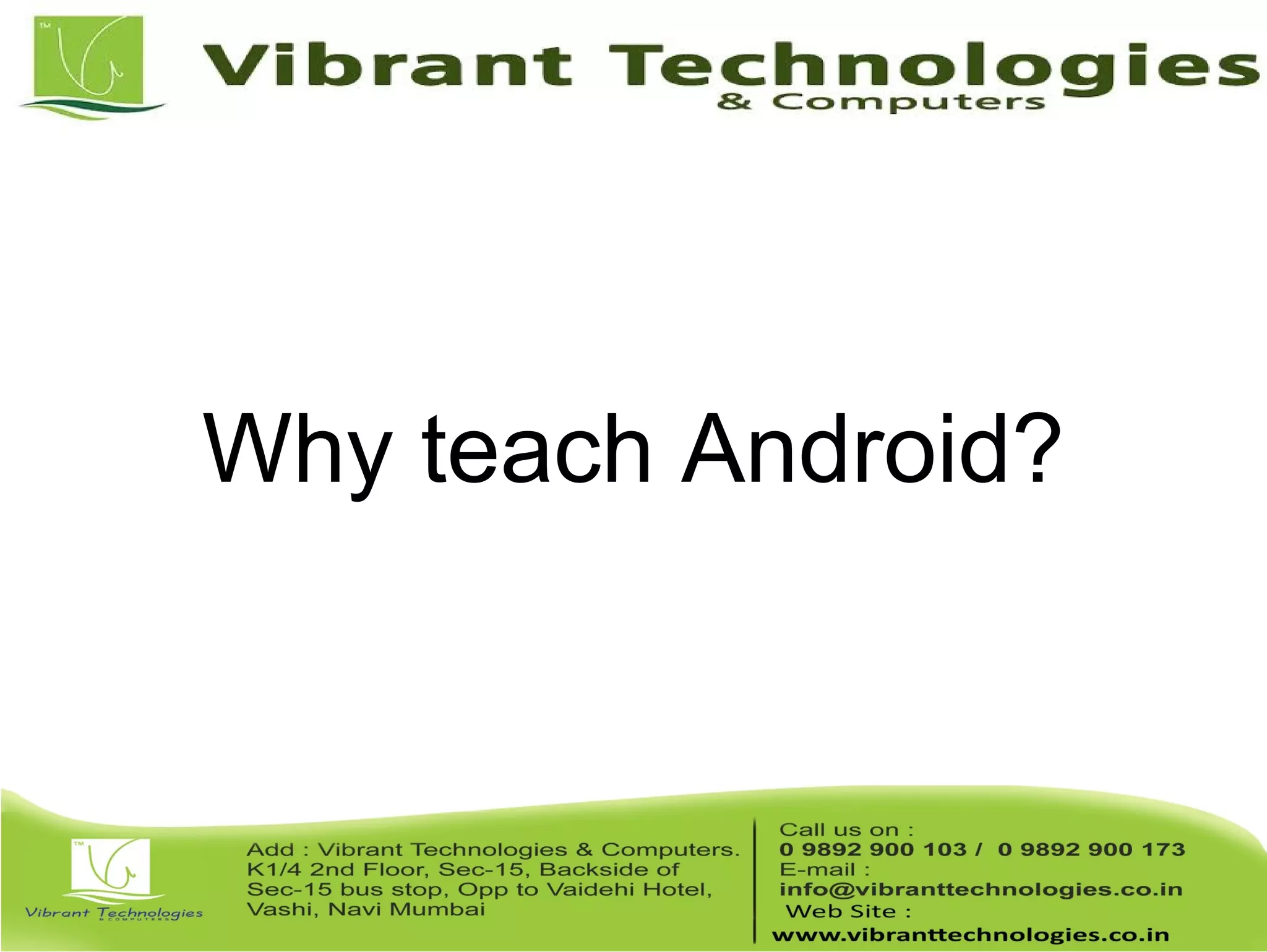

Why teach Android?

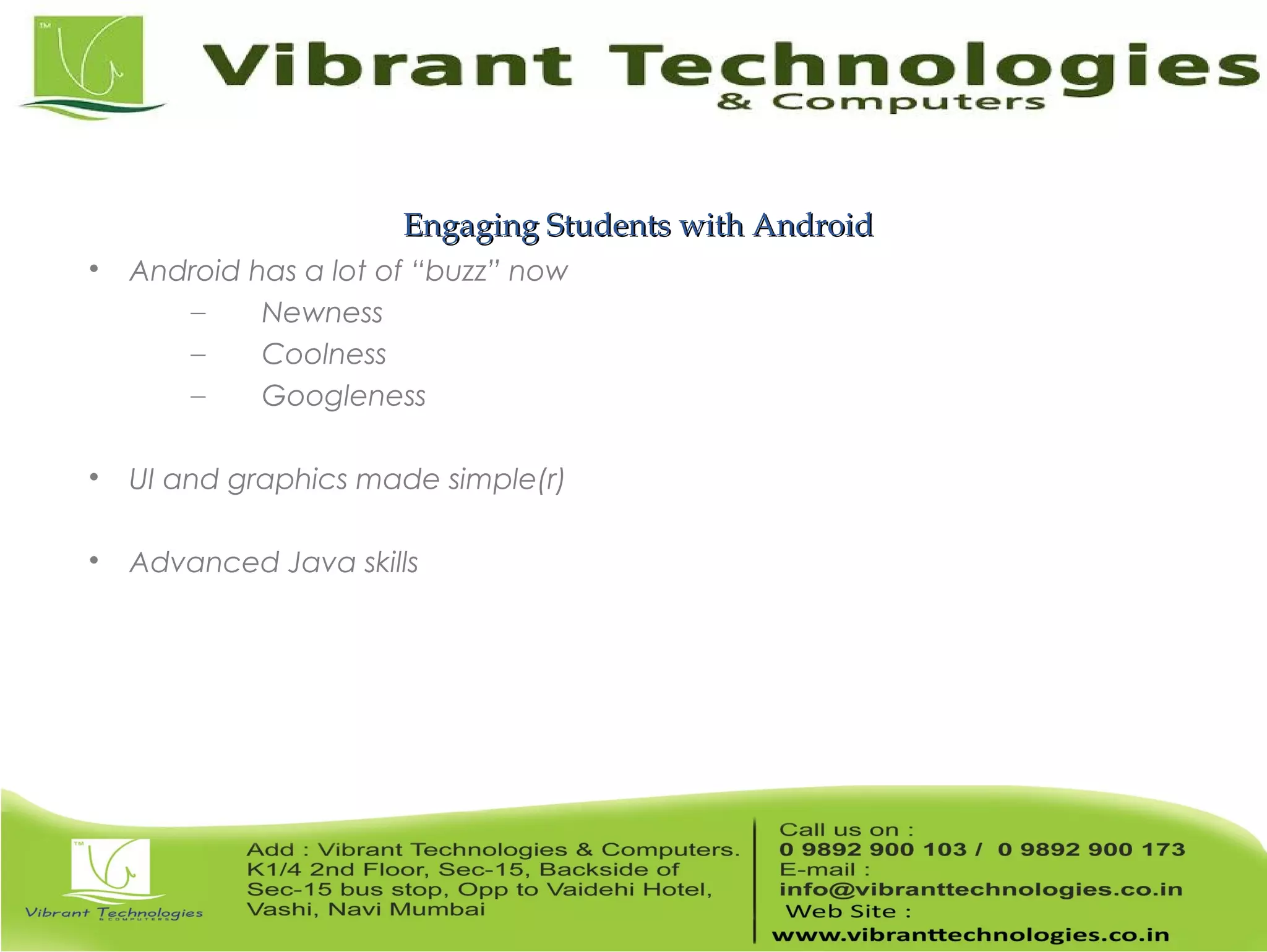

Engaging Students with AndroidEngaging Students with Android  Android has a lot of “buzz” now – Newness – Coolness – Googleness  UI and graphics made simple(r)  Advanced Java skills

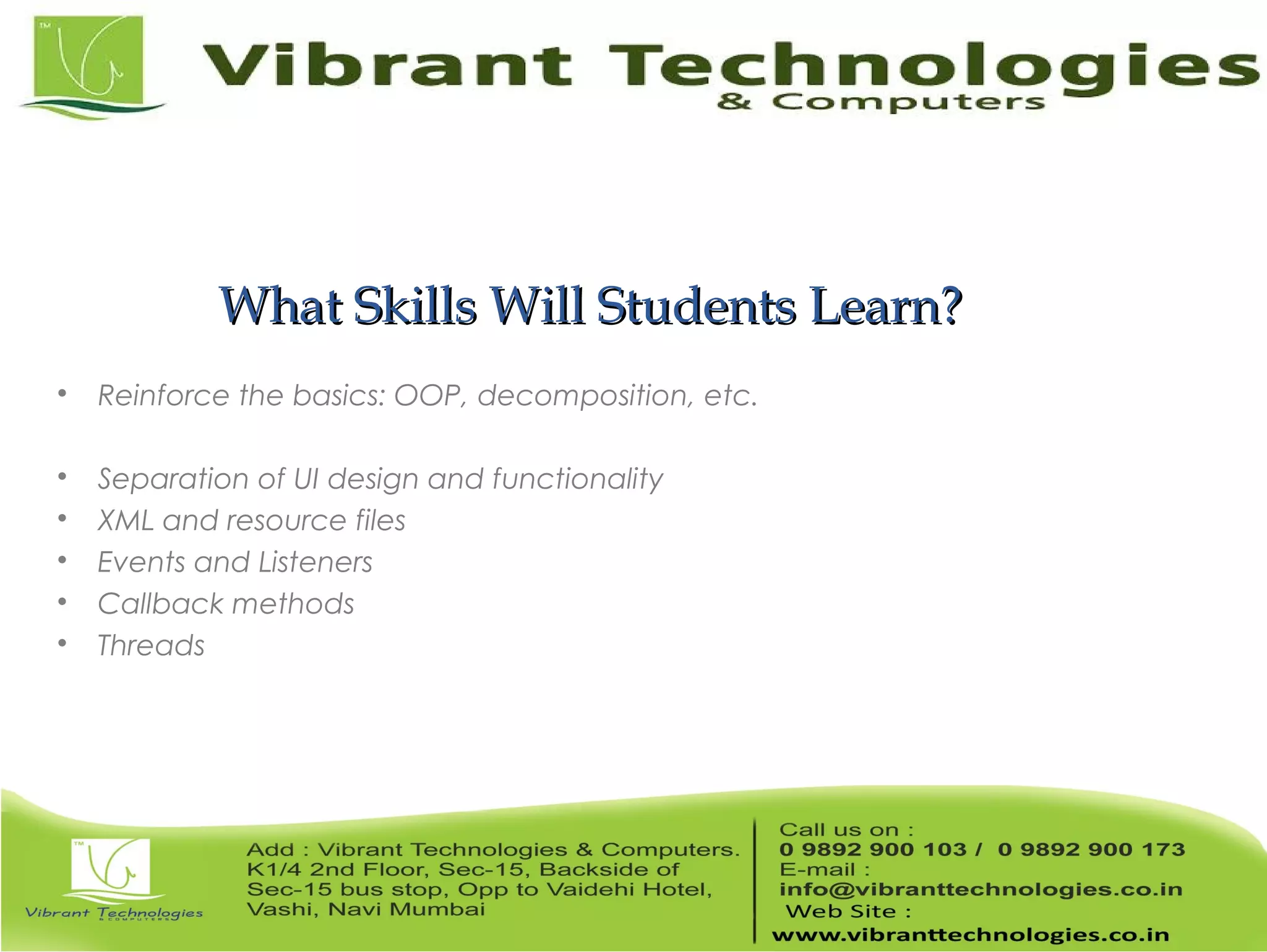

What Skills Will Students Learn?What Skills Will Students Learn?  Reinforce the basics: OOP, decomposition, etc.  Separation of UI design and functionality  XML and resource files  Events and Listeners  Callback methods  Threads

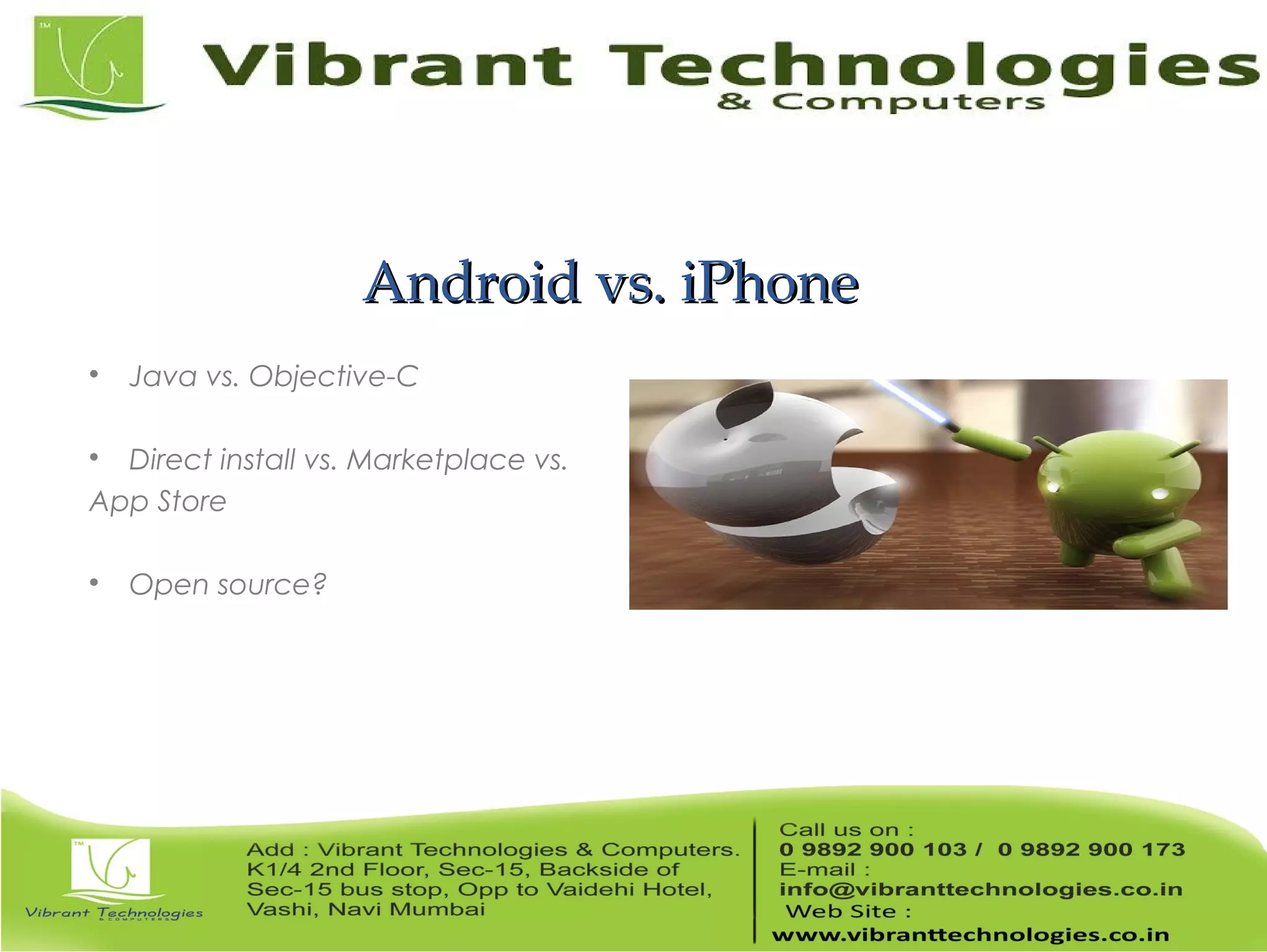

Android vs. iPhoneAndroid vs. iPhone  Java vs. Objective-C  Direct install vs. Marketplace vs. App Store  Open source?

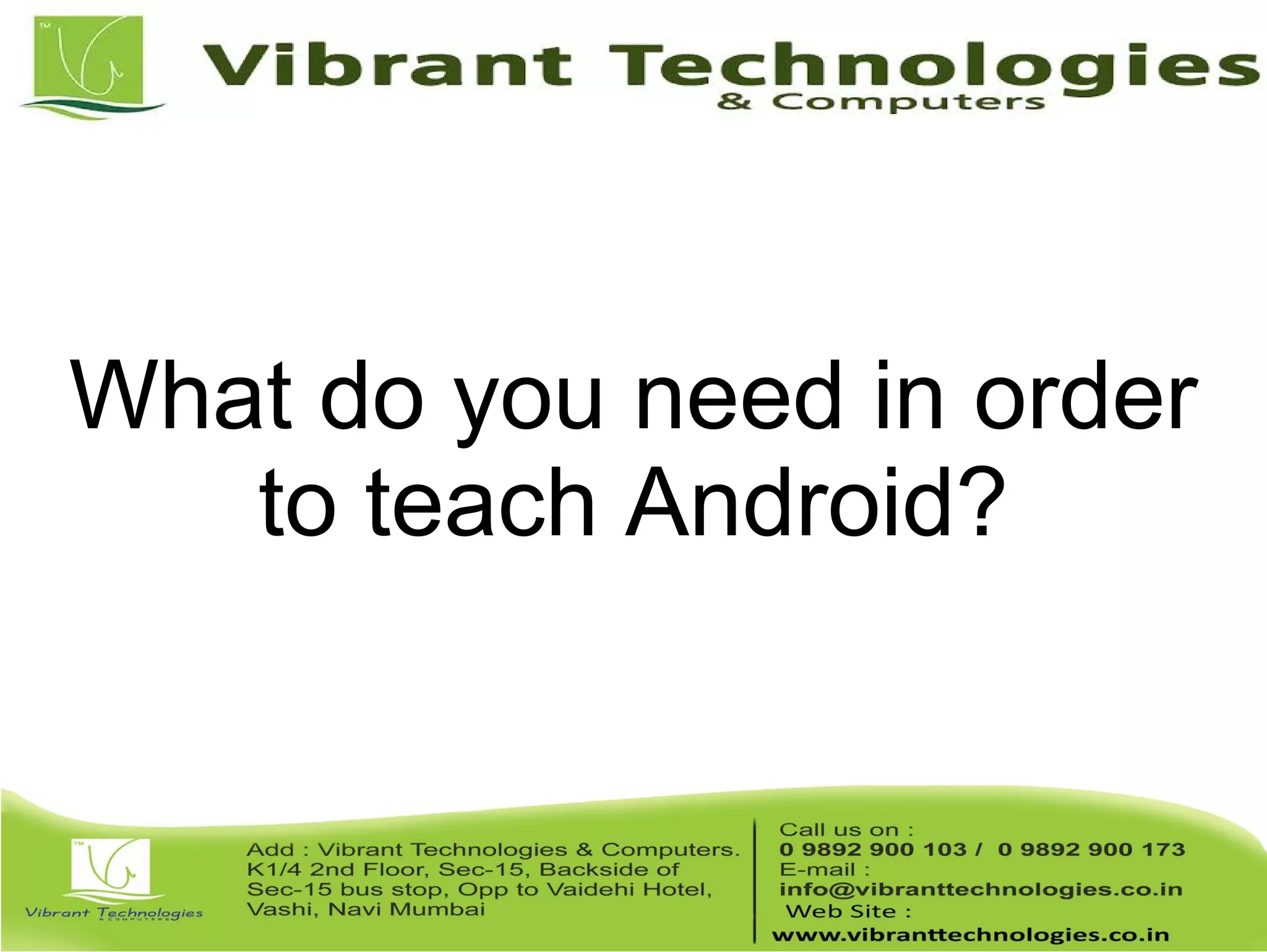

What do you need in order to teach Android?

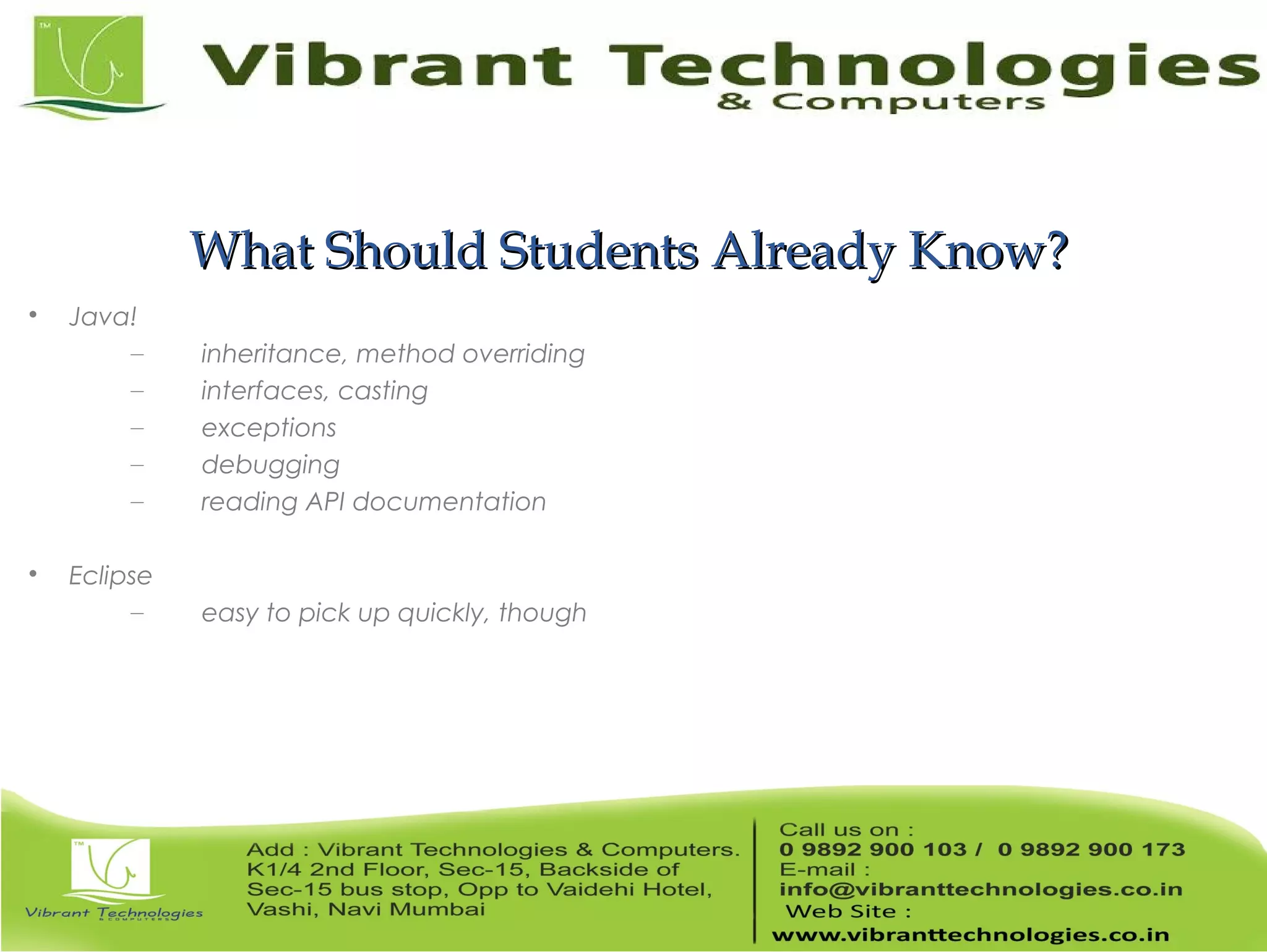

What Should Students Already Know?What Should Students Already Know?  Java! – inheritance, method overriding – interfaces, casting – exceptions – debugging – reading API documentation  Eclipse – easy to pick up quickly, though

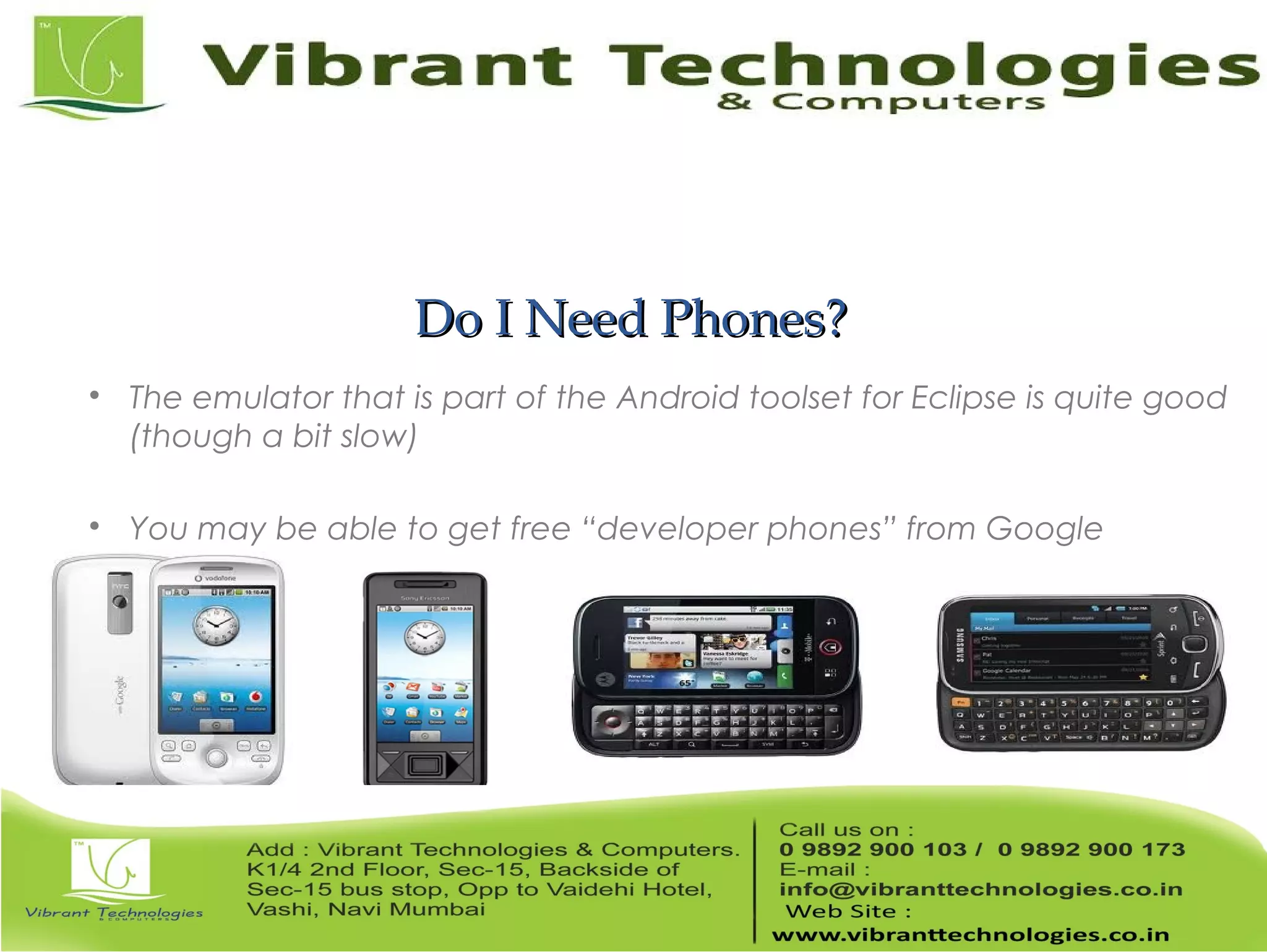

Do I Need Phones?Do I Need Phones?  The emulator that is part of the Android toolset for Eclipse is quite good (though a bit slow)  You may be able to get free “developer phones” from Google

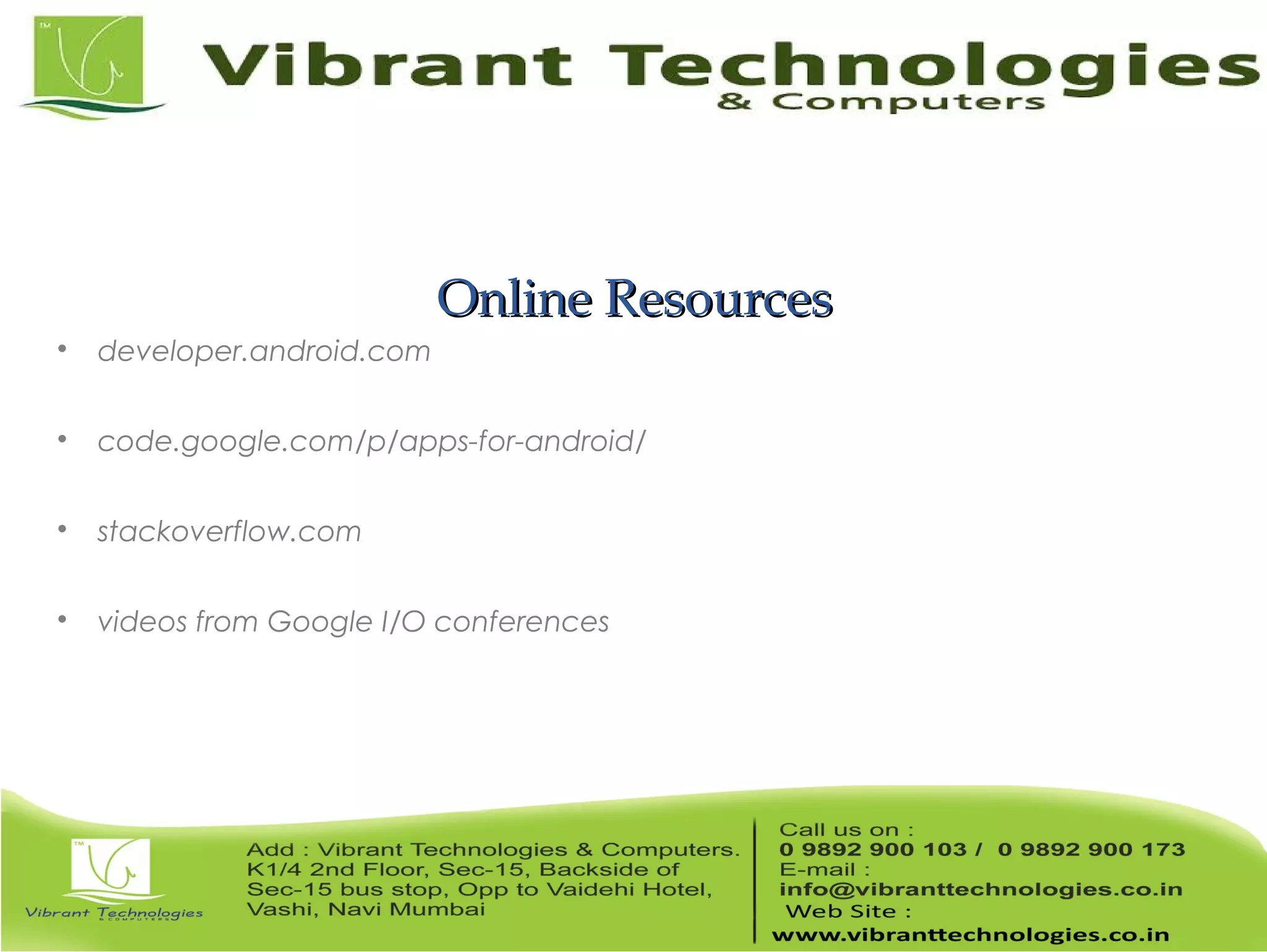

Online ResourcesOnline Resources  developer.android.com  code.google.com/p/apps-for-android/  stackoverflow.com  videos from Google I/O conferences

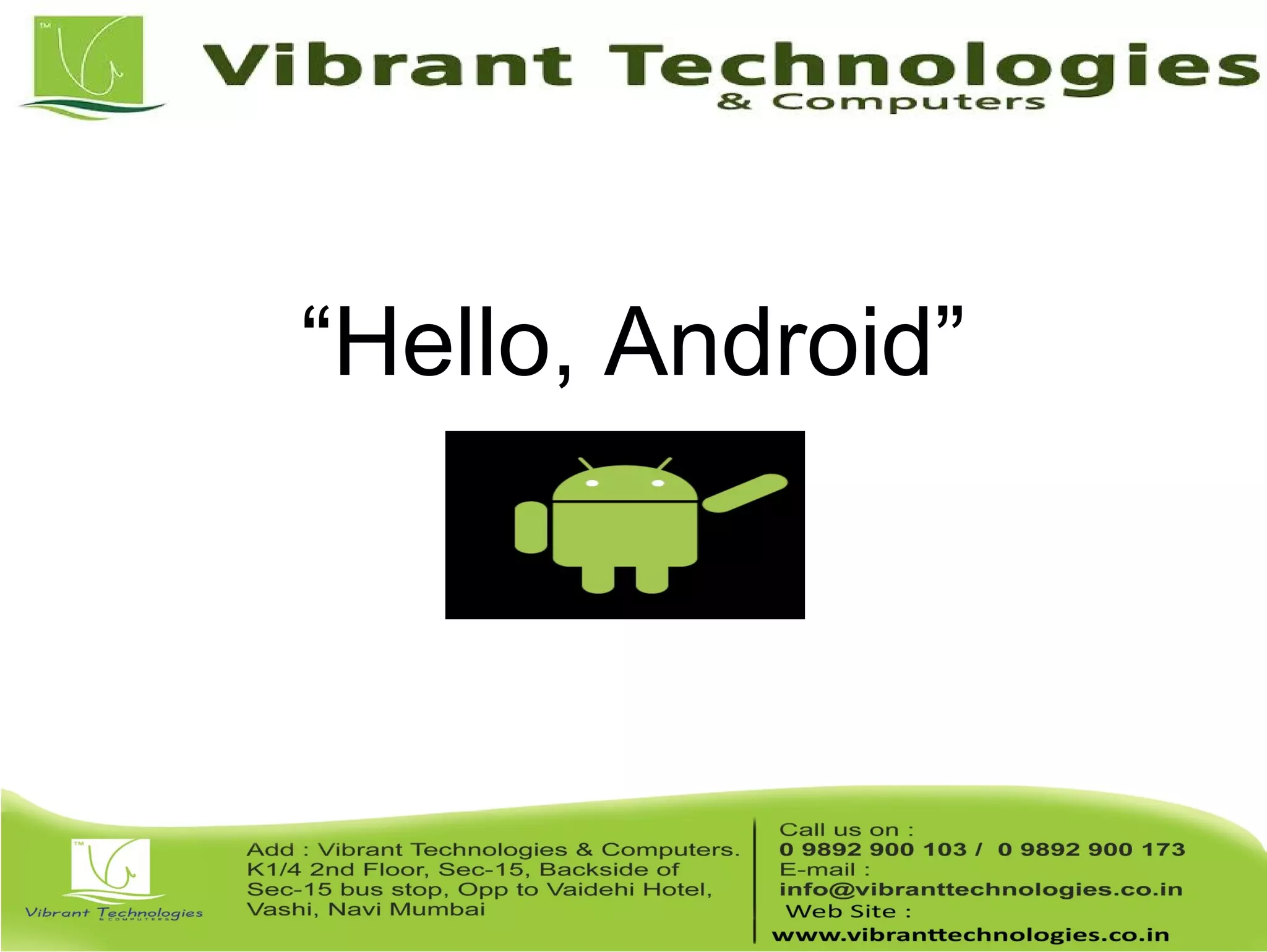

“Hello, Android”

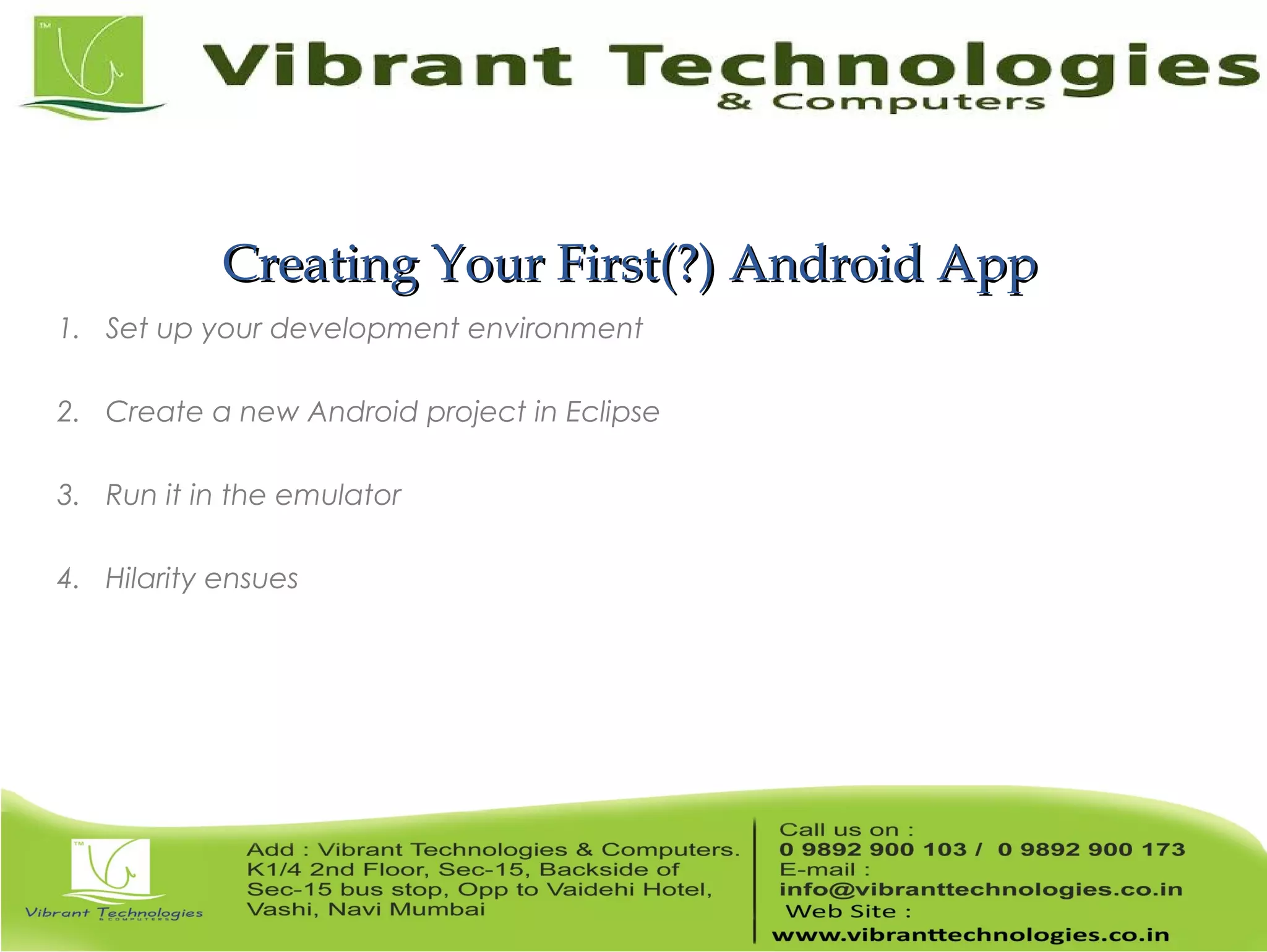

Creating Your First(?) Android AppCreating Your First(?) Android App 1. Set up your development environment 2. Create a new Android project in Eclipse 3. Run it in the emulator 4. Hilarity ensues

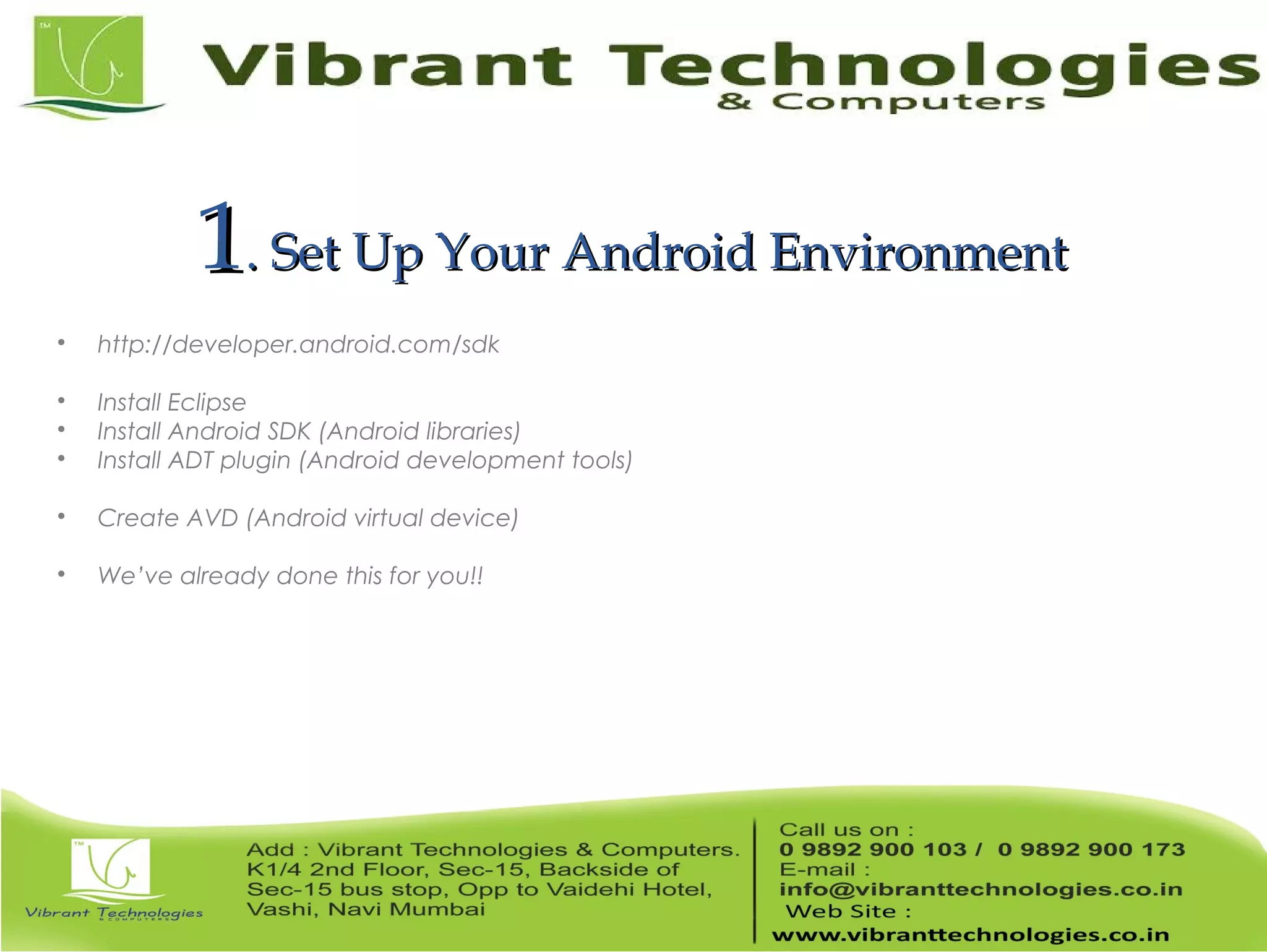

11. Set Up Your Android Environment. Set Up Your Android Environment  http://developer.android.com/sdk  Install Eclipse  Install Android SDK (Android libraries)  Install ADT plugin (Android development tools)  Create AVD (Android virtual device)  We’ve already done this for you!!

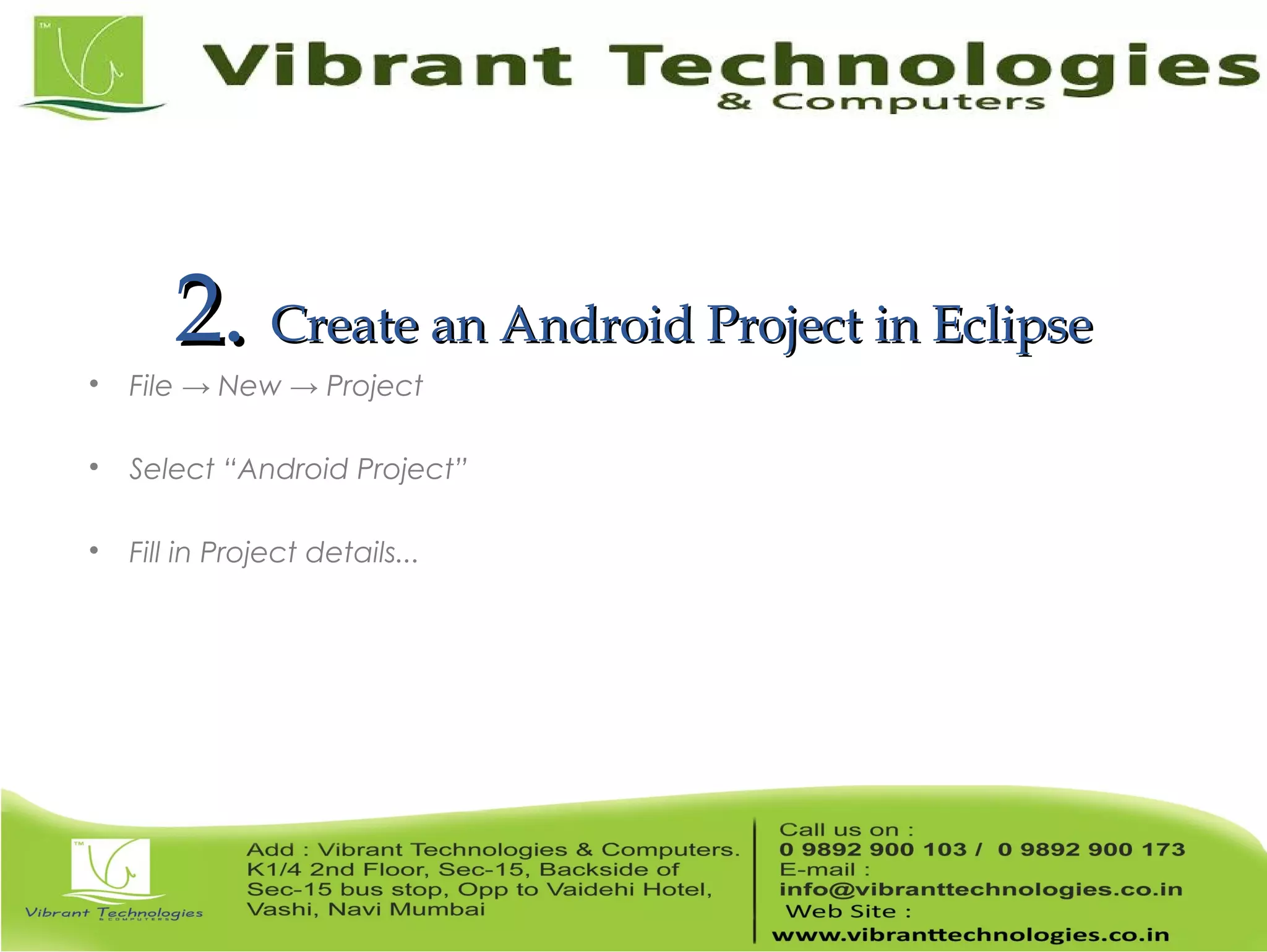

2.2. Create an Android Project in EclipseCreate an Android Project in Eclipse  File → New → Project  Select “Android Project”  Fill in Project details...

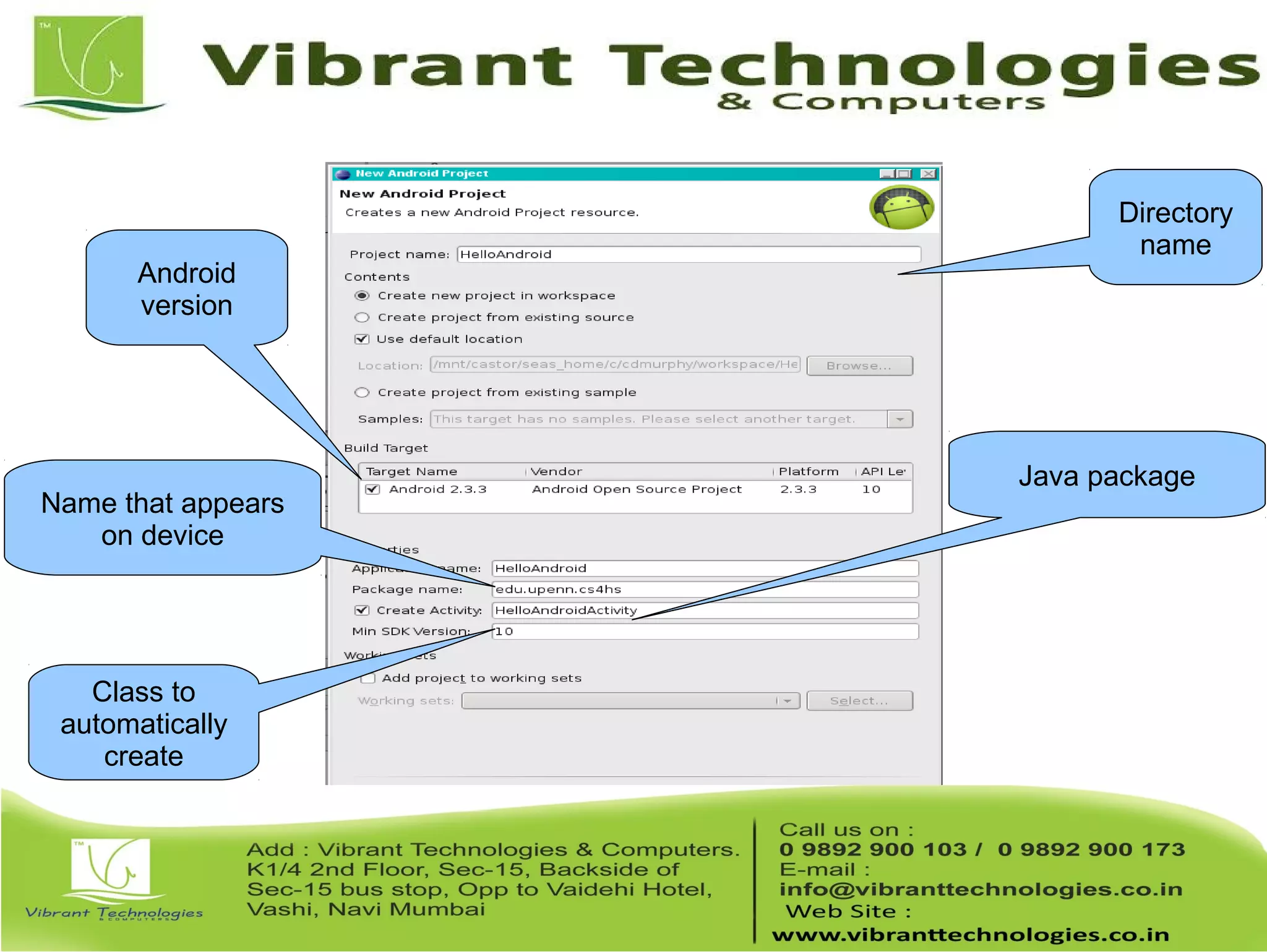

Name that appears on device Directory name Class to automatically create Java package Android version

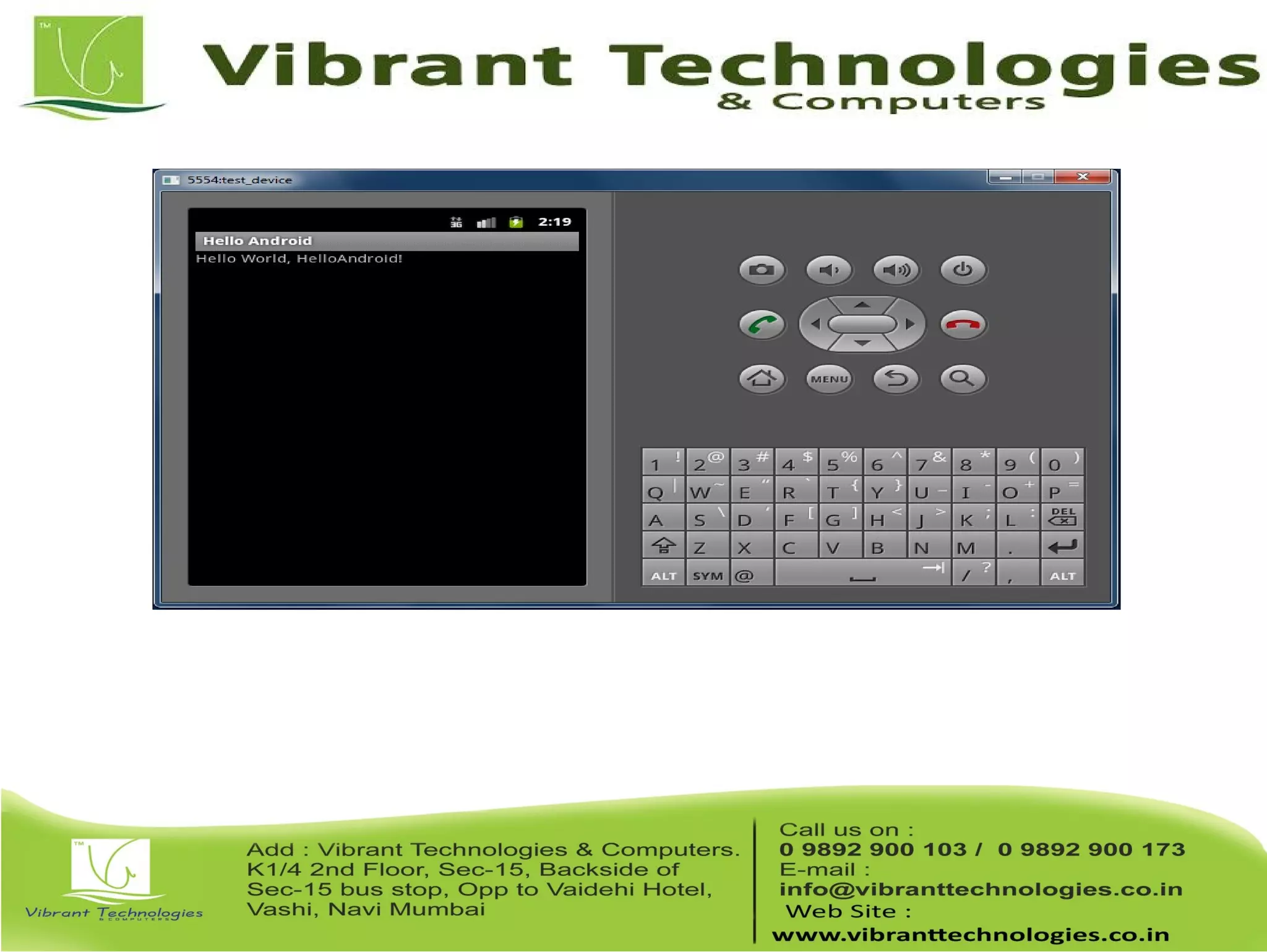

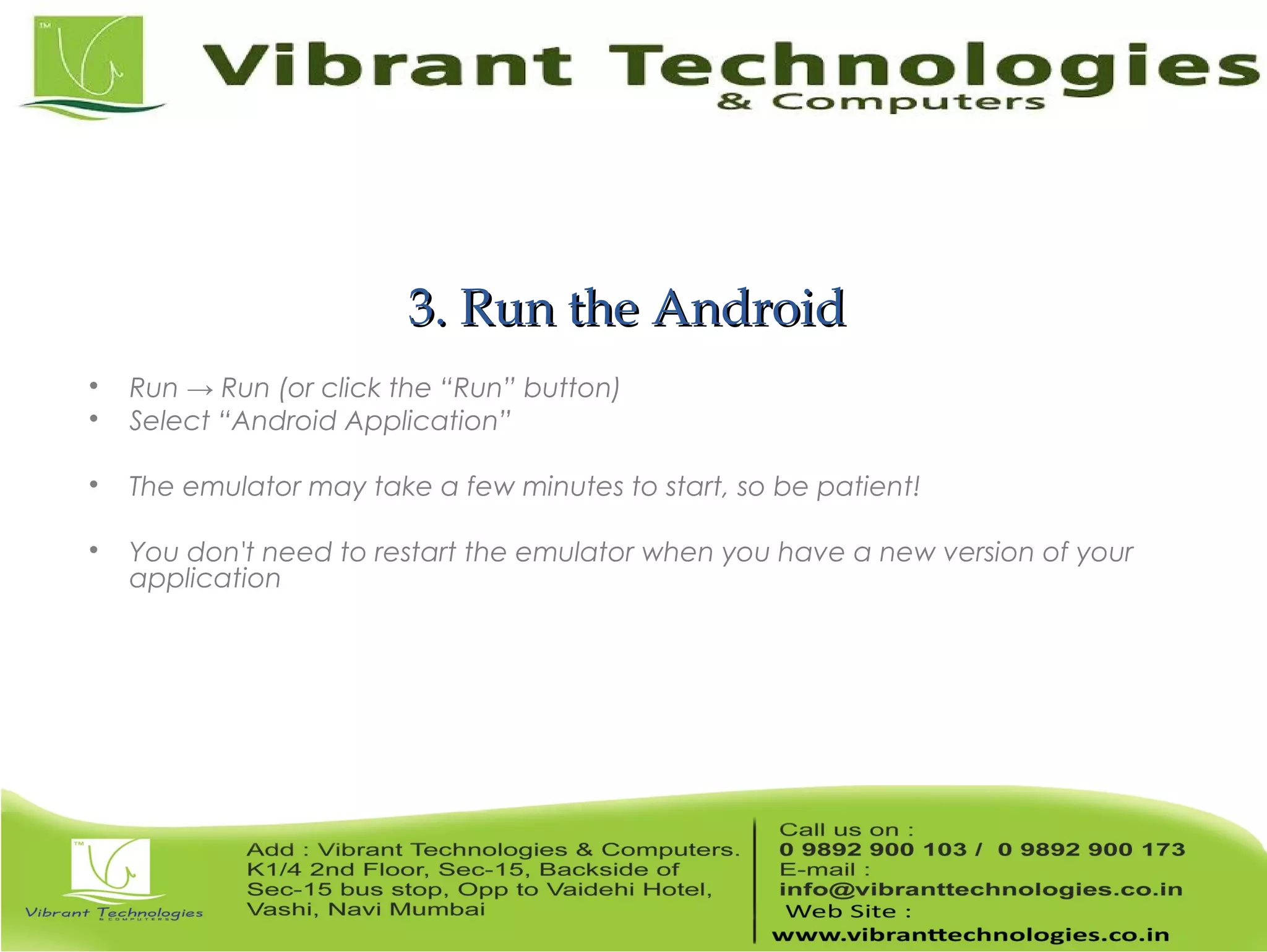

3. Run the Android3. Run the Android  Run → Run (or click the “Run” button)  Select “Android Application”  The emulator may take a few minutes to start, so be patient!  You don't need to restart the emulator when you have a new version of your application

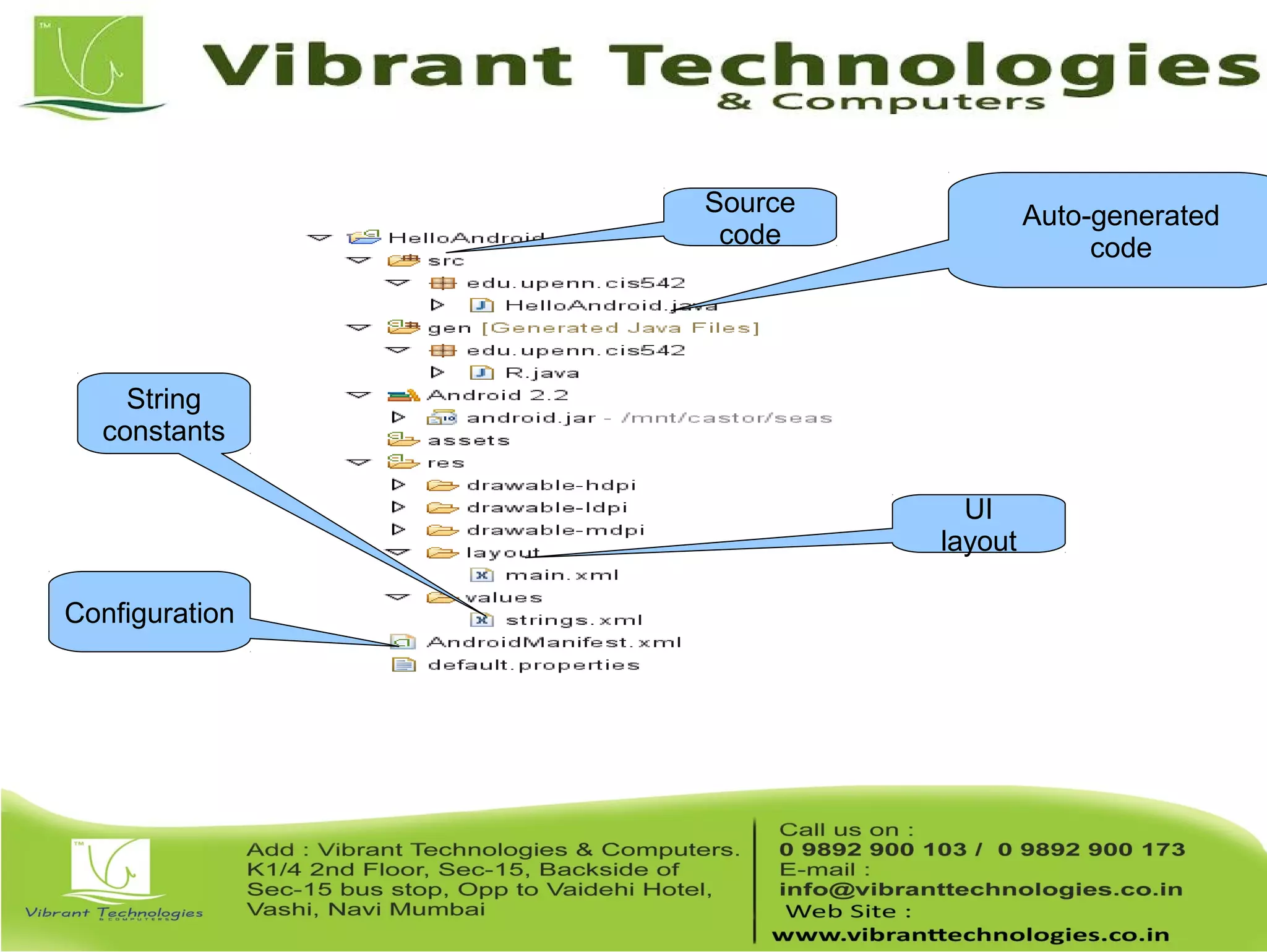

Source code Auto-generated code UI layout String constants Configuration

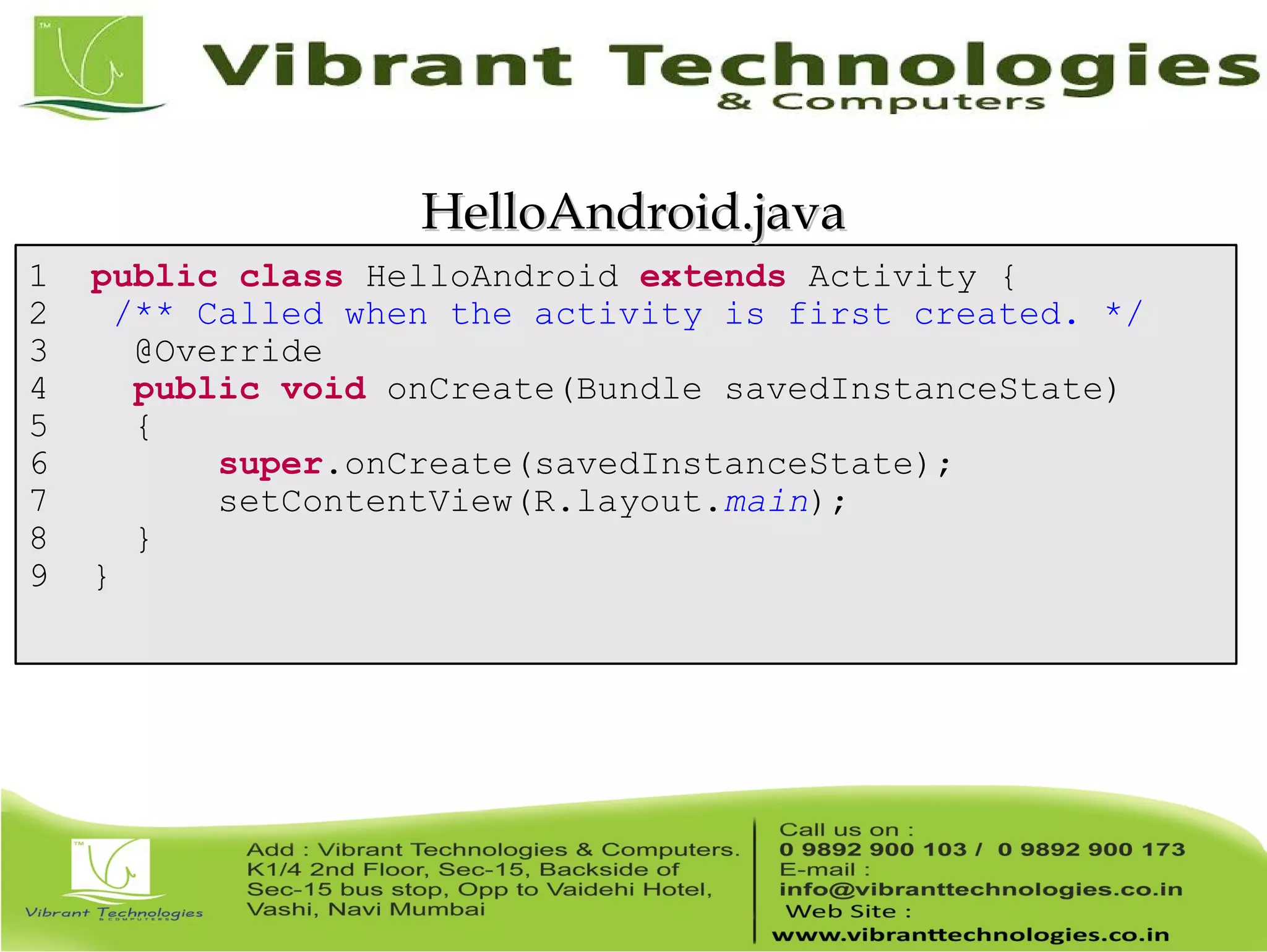

1 public class HelloAndroid extends Activity { 2 /** Called when the activity is first created. */ 3 @Override 4 public void onCreate(Bundle savedInstanceState) 5 { 6 super.onCreate(savedInstanceState); 7 setContentView(R.layout.main); 8 } 9 } HelloAndroid.javaHelloAndroid.java

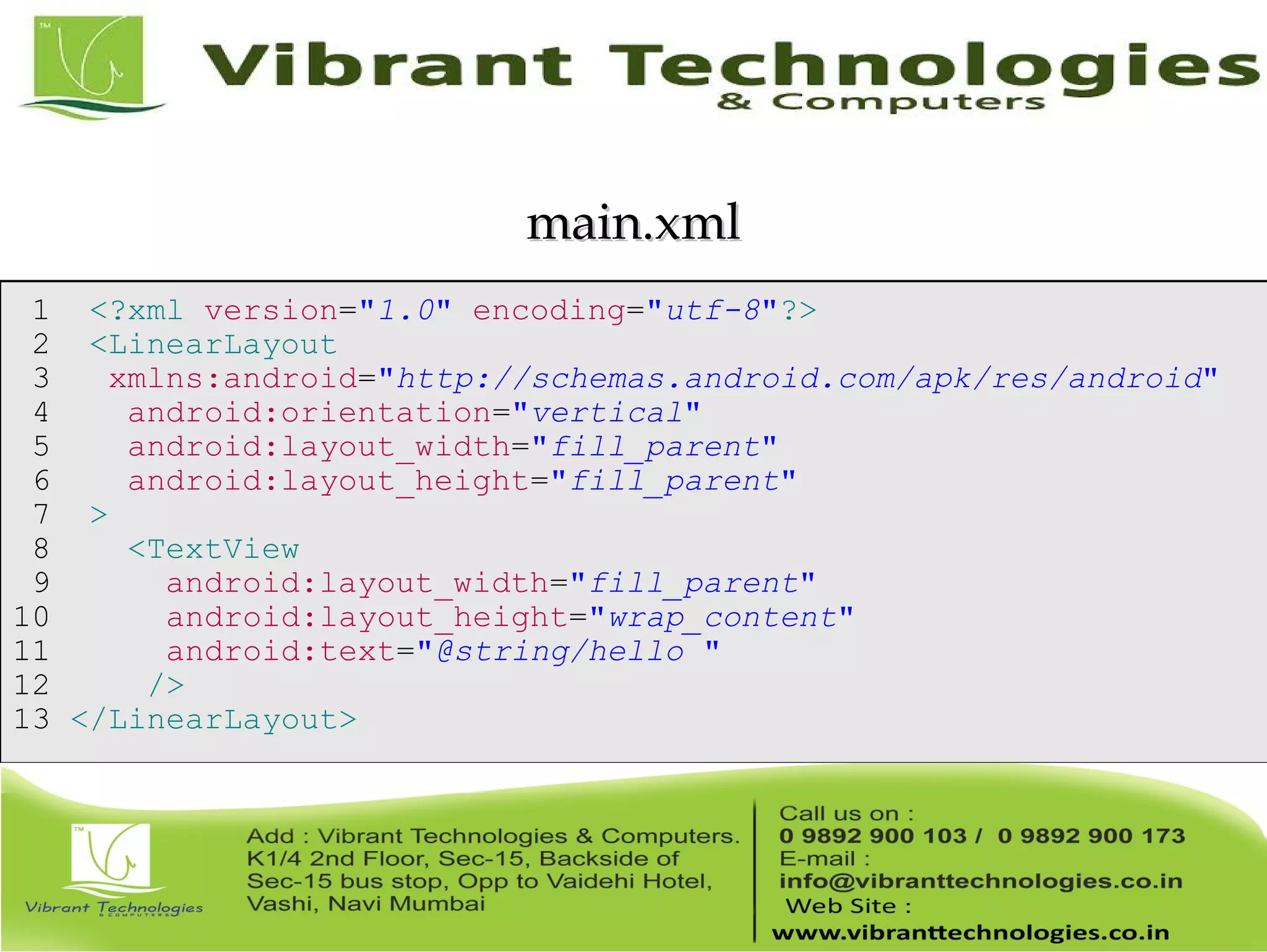

1 <?xml version="1.0" encoding="utf-8"?> 2 <LinearLayout 3 xmlns:android="http://schemas.android.com/apk/res/android" 4 android:orientation="vertical" 5 android:layout_width="fill_parent" 6 android:layout_height="fill_parent" 7 > 8 <TextView 9 android:layout_width="fill_parent" 10 android:layout_height="wrap_content" 11 android:text="@string/hello " 12 /> 13 </LinearLayout> main.xmlmain.xml

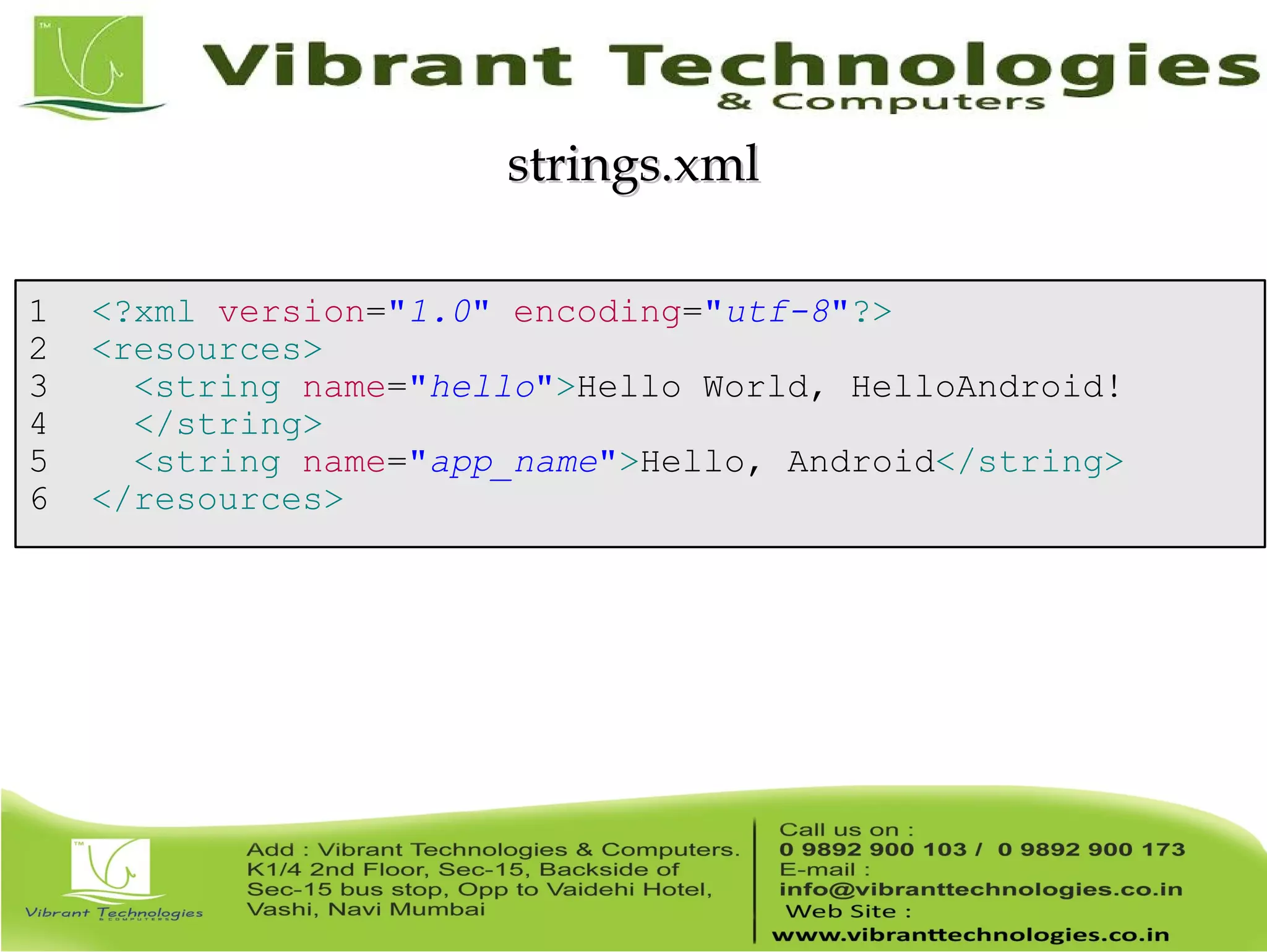

1 <?xml version="1.0" encoding="utf-8"?> 2 <resources> 3 <string name="hello">Hello World, HelloAndroid! 4 </string> 5 <string name="app_name">Hello, Android</string> 6 </resources> strings.xmlstrings.xml

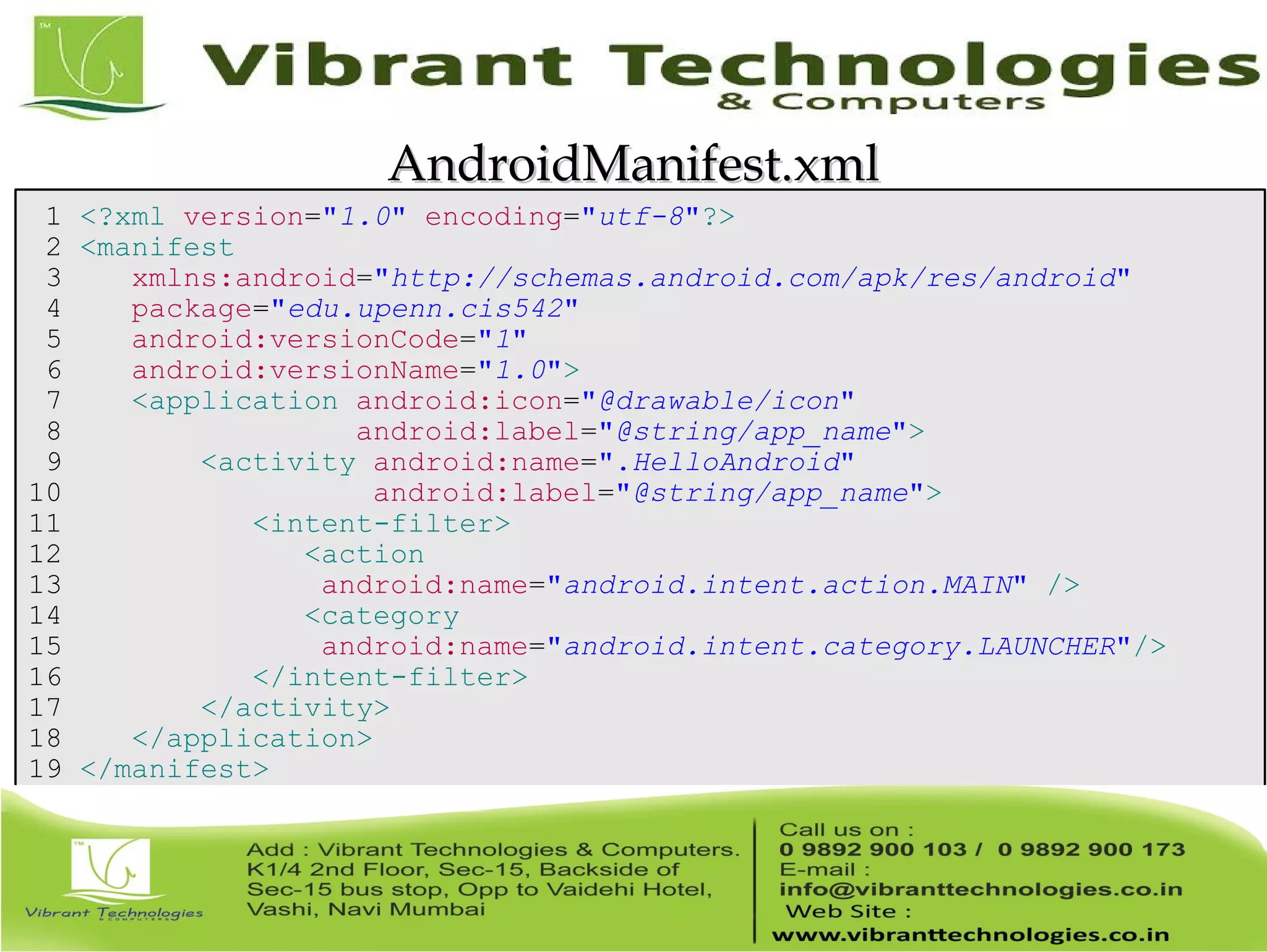

1 <?xml version="1.0" encoding="utf-8"?> 2 <manifest 3 xmlns:android="http://schemas.android.com/apk/res/android" 4 package="edu.upenn.cis542" 5 android:versionCode="1" 6 android:versionName="1.0"> 7 <application android:icon="@drawable/icon" 8 android:label="@string/app_name"> 9 <activity android:name=".HelloAndroid" 10 android:label="@string/app_name"> 11 <intent-filter> 12 <action 13 android:name="android.intent.action.MAIN" /> 14 <category 15 android:name="android.intent.category.LAUNCHER"/> 16 </intent-filter> 17 </activity> 18 </application> 19 </manifest> AndroidManifest.xmlAndroidManifest.xml
ThankThank You !!!You !!! •For More Information click below link: • •Follow Us on: • http://vibranttechnologies.co.in/android-classes-in-mumbai.html
