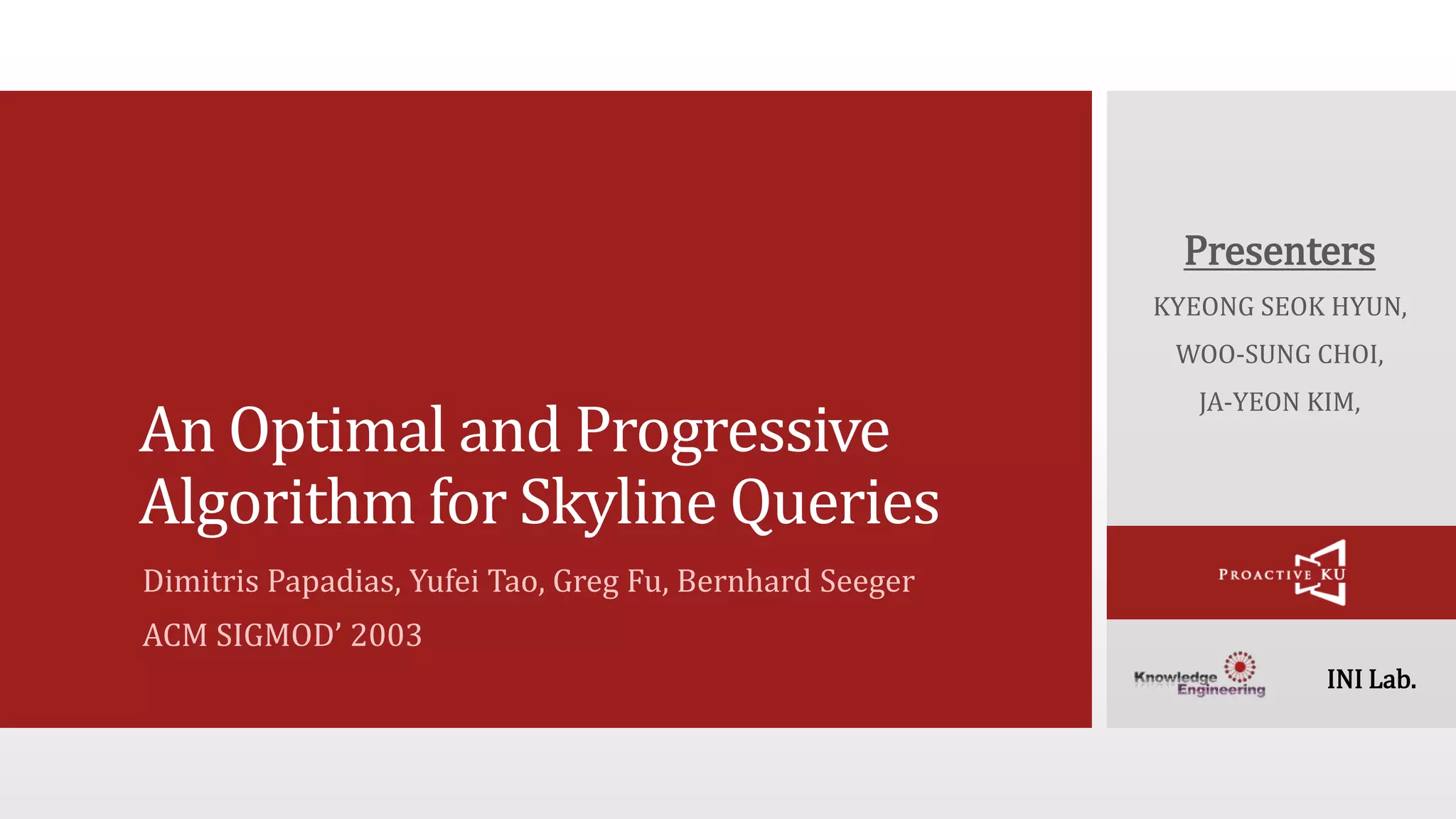

INI Lab. An Optimal and Progressive Algorithm for Skyline Queries Dimitris Papadias, Yufei Tao, Greg Fu, Bernhard Seeger ACM SIGMOD’ 2003 Presenters KYEONG SEOK HYUN, WOO-SUNG CHOI, JA-YEON KIM,

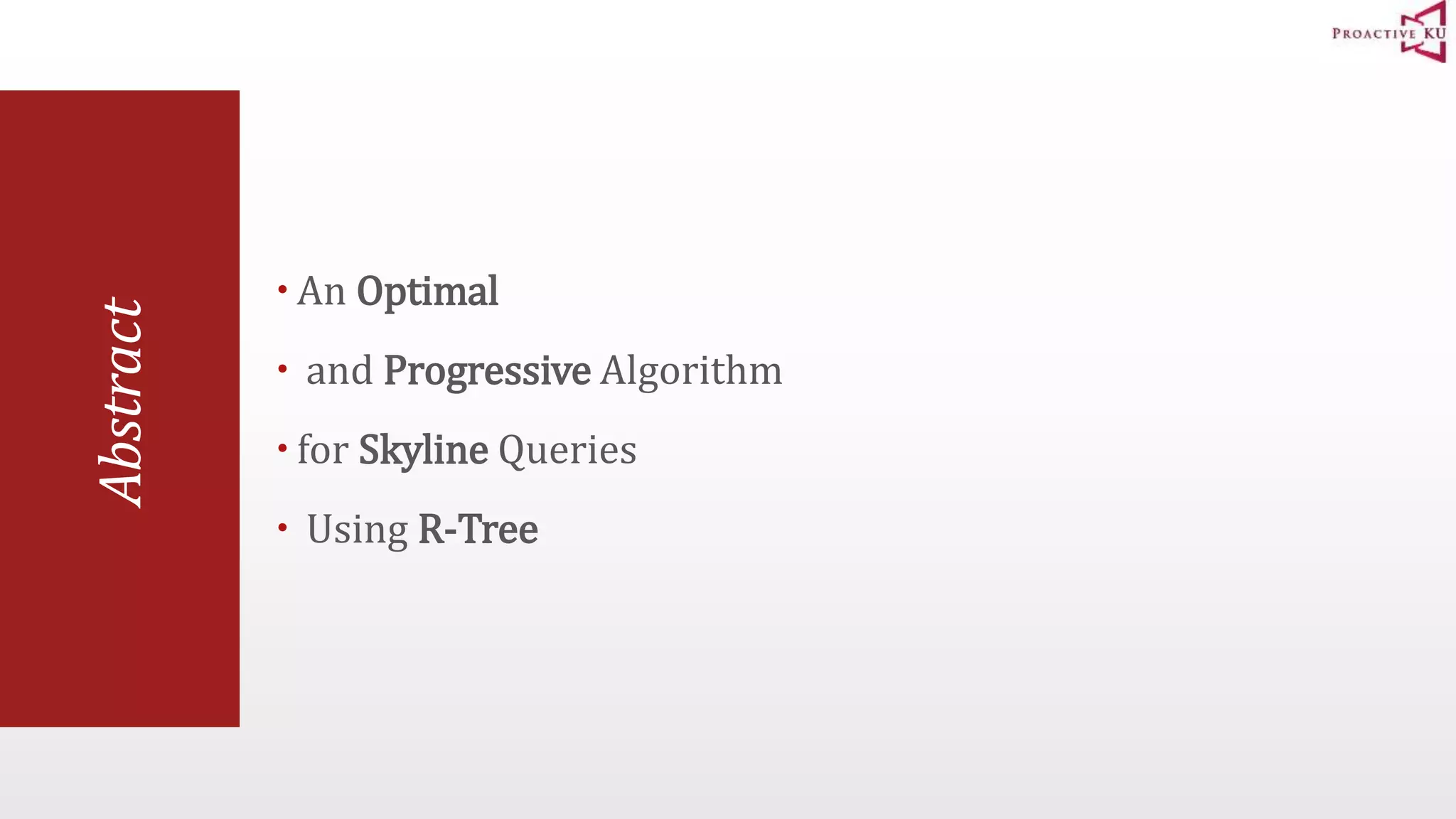

Abstract  An Optimal  and Progressive Algorithm  for Skyline Queries  Using R-Tree

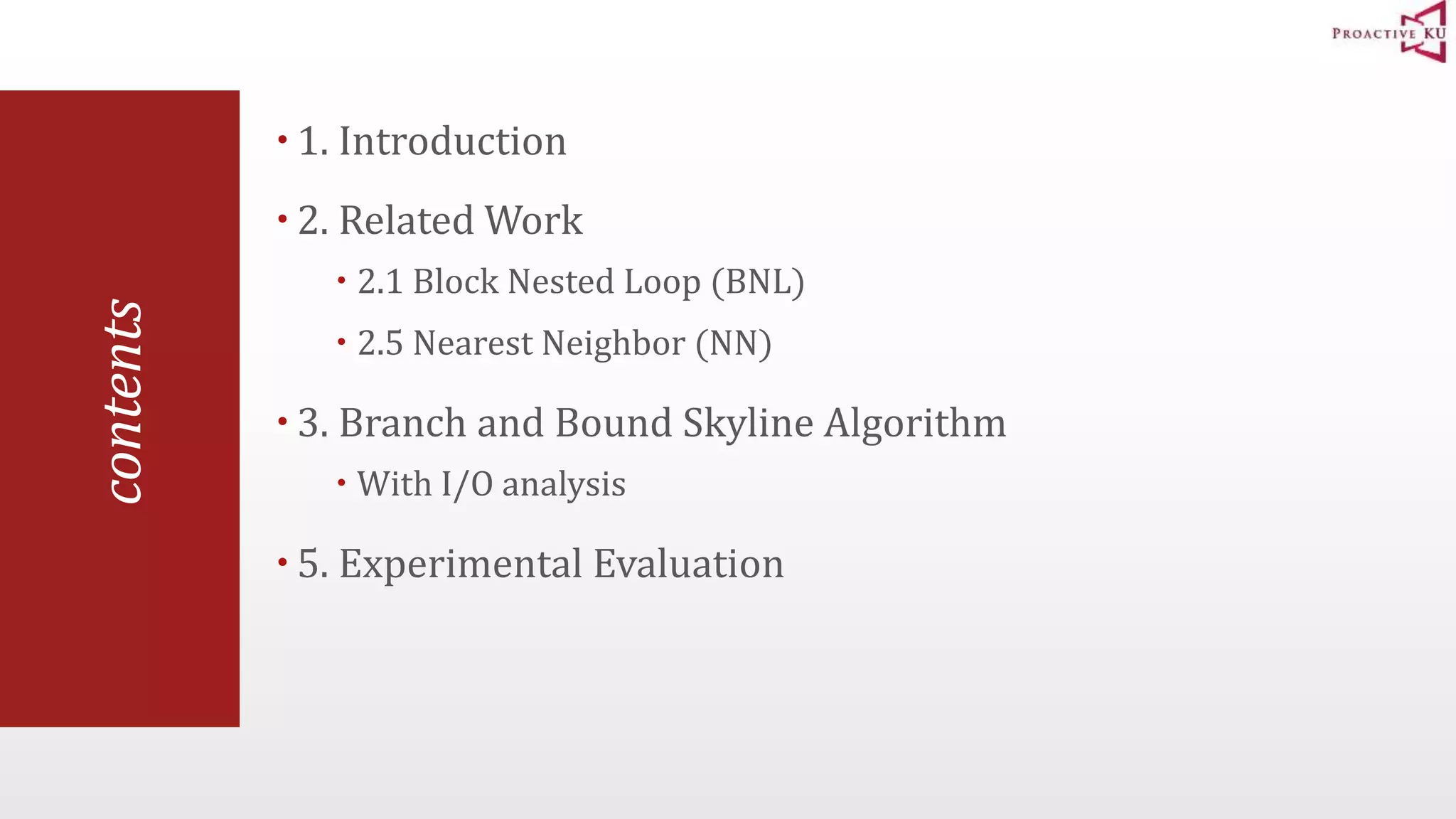

contents  1. Introduction  2. Related Work  2.1 Block Nested Loop (BNL)  2.5 Nearest Neighbor (NN)  3. Branch and Bound Skyline Algorithm  With I/O analysis  5. Experimental Evaluation

Which one do you prefer? http://emperia.egloos.com/m/2516211 http://drmoontv.blogspot.kr/2013/03/blog-post_17.html http://www.huffingtonpost.kr/2014/11/13/story_n_6150254.html 5,000 Won 40,000 Won 4,500 Won http://flickrhivemind.net/User/Trollface%20T-Shirts/Interesting 혜자 >> 창렬

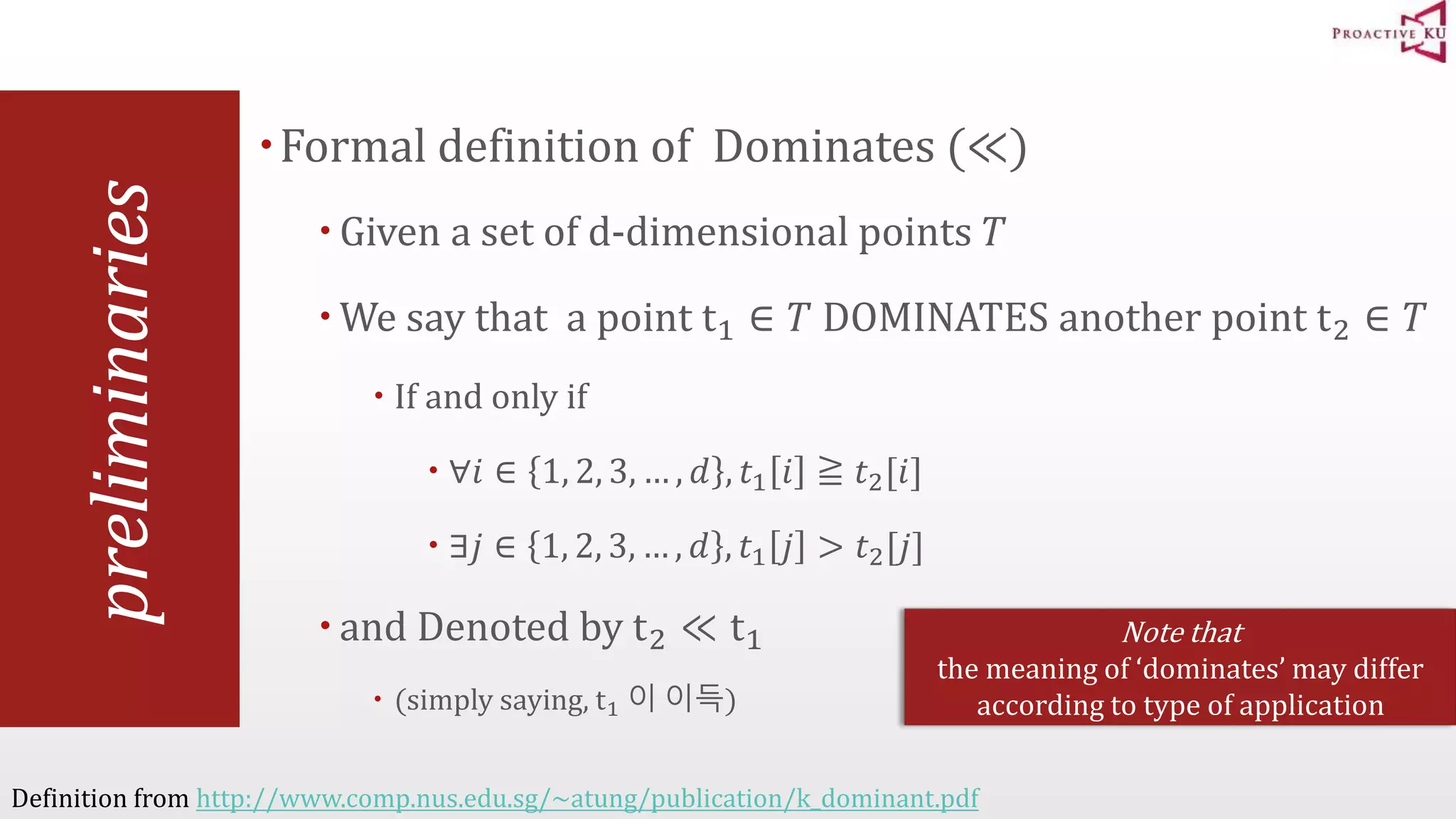

preliminaries Formal definition of Dominates (≪)  Given a set of d-dimensional points 푇 We say that a point t1 ∈ 푇 DOMINATES another point t2 ∈ 푇  If and only if  ∀푖 ∈ 1, 2, 3, … , 푑 , 푡1 푖 ≧ 푡2[푖]  ∃푗 ∈ 1, 2, 3, … , 푑 , 푡1 푗 > 푡2[푗]  and Denoted by t2 ≪ t1  (simply saying, t1 이 이득) Definition from http://www.comp.nus.edu.sg/~atung/publication/k_dominant.pdf Note that the meaning of ‘dominates’ may differ according to type of application

Which one do you prefer? http://emperia.egloos.com/m/2516211 http://drmoontv.blogspot.kr/2013/03/blog-post_17.html http://www.huffingtonpost.kr/2014/11/13/story_n_6150254.html 5,000 Won 40,000 Won 4,500 Won 4,500 Won http://flickrhivemind.net/User/Trollface%20T-Shirts/Interesting Still 혜자 >> 창렬

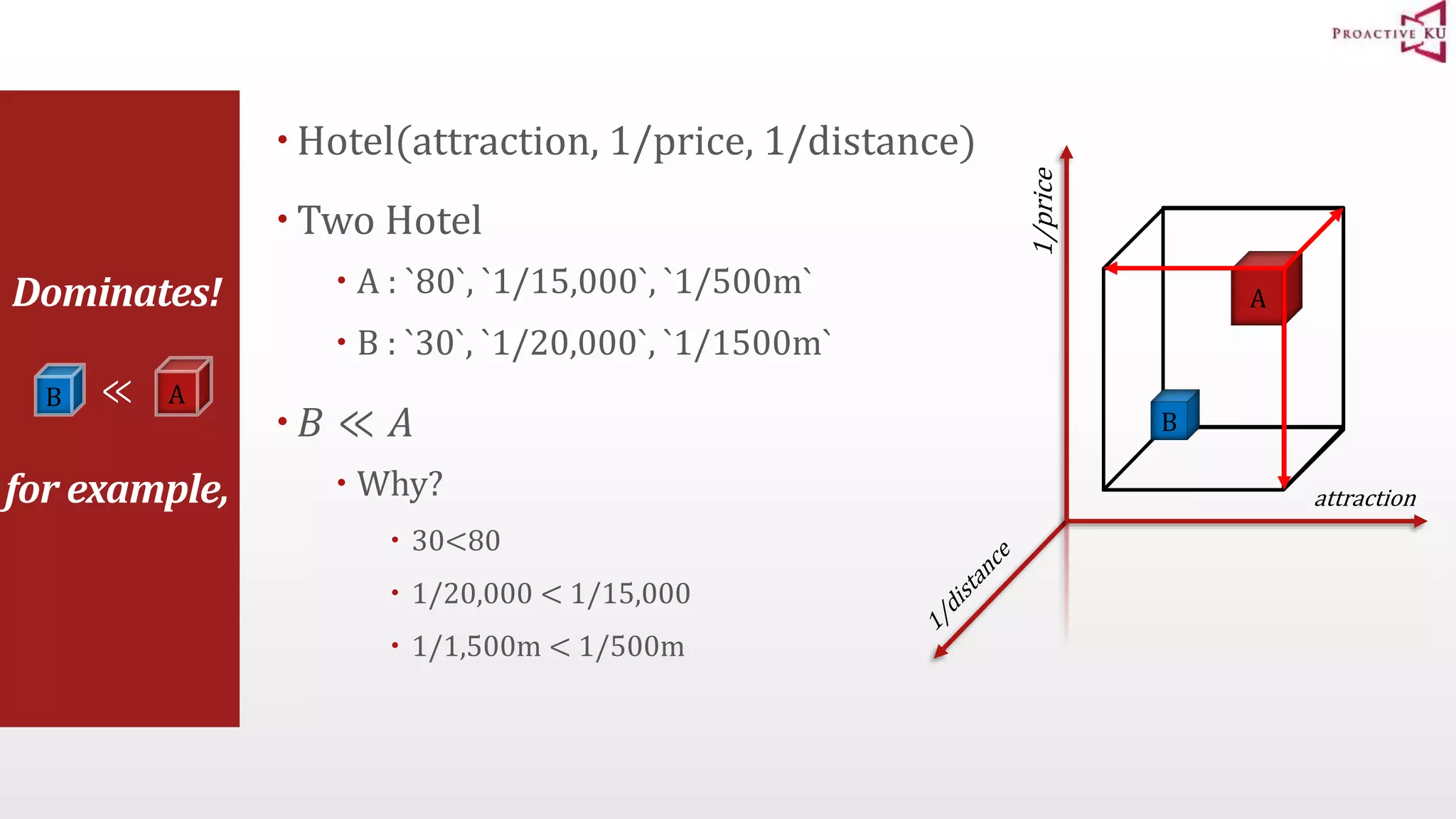

 Hotel(attraction, 1/price, 1/distance)  Two Hotel  A : `80`, `1/15,000`, `1/500m`  B : `30`, `1/20,000`, `1/1500m`  퐵 ≪ 퐴  Why?  30<80  1/20,000 < 1/15,000  1/1,500m < 1/500m A 1/price attraction B Dominates! ≪ B A for example,

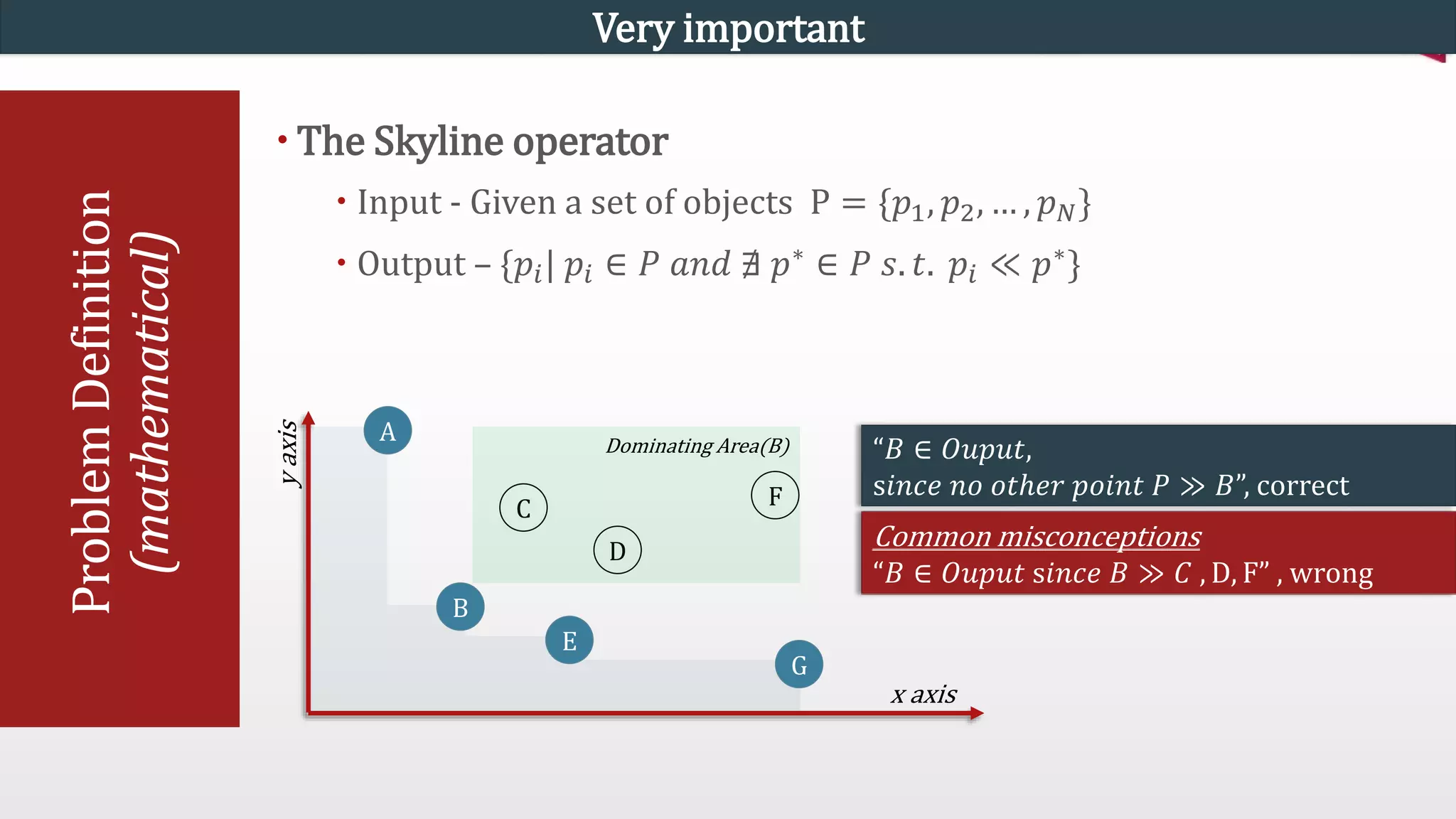

Very important Problem Definition (mathematical)  The Skyline operator  Input - Given a set of objects P = {푝1, 푝2, … , 푝푁}  Output – {푝푖 | 푝푖 ∈ 푃 푎푛푑 ∄ 푝∗ ∈ 푃 푠. 푡. 푝푖 ≪ 푝∗} A B C Dominating Area(B) D E F “퐵 ∈ 푂푢푝푢푡, s푖푛푐푒 푛표 표푡ℎ푒푟 푝표푖푛푡 푃 ≫ 퐵”, correct x axis y axis G Common misconceptions “퐵 ∈ 푂푢푝푢푡 s푖푛푐푒 퐵 ≫ 퐶 , D, F” , wrong

Naïve approach for processing skyline queries

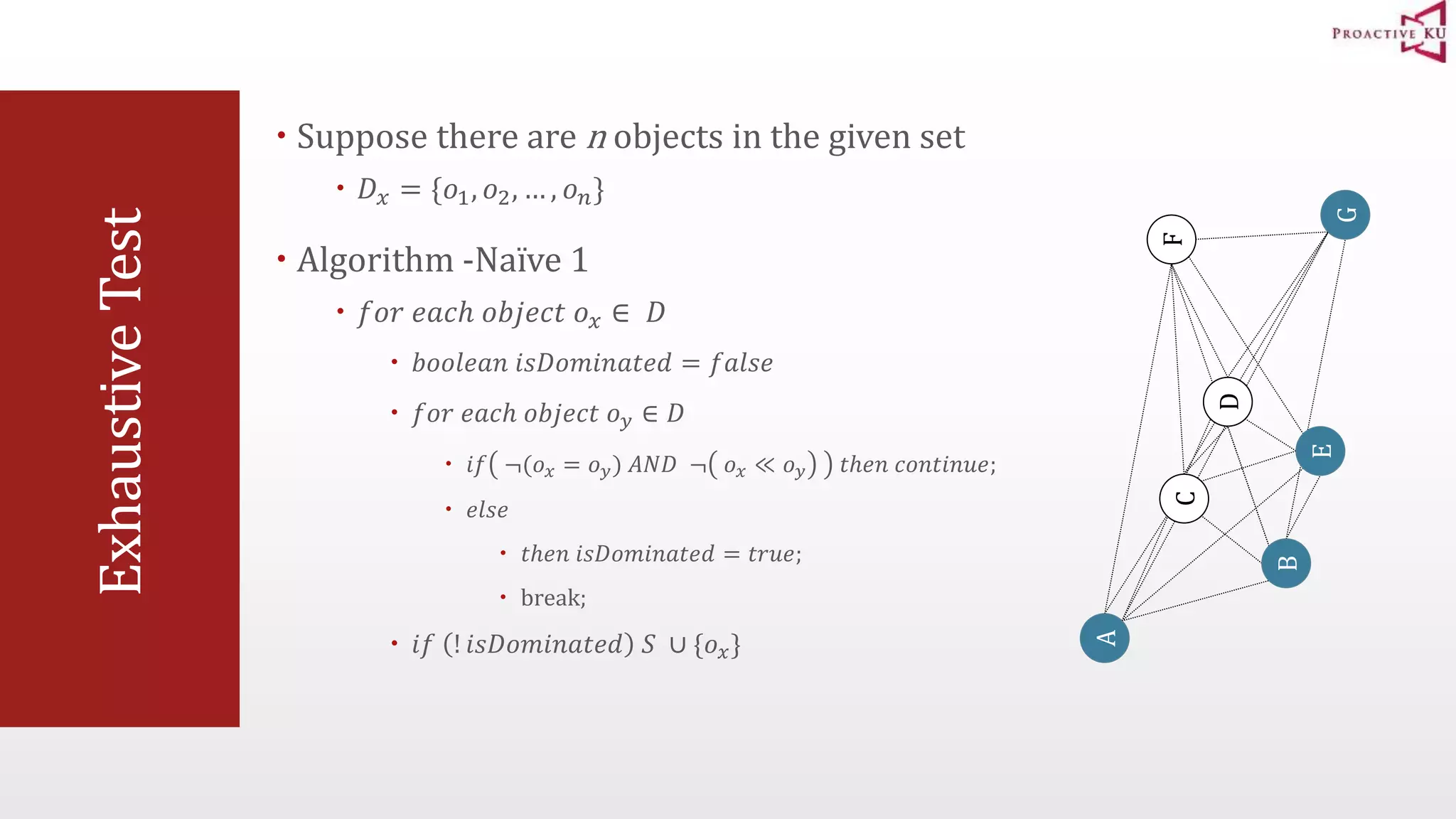

Exhaustive Test  Suppose there are n objects in the given set  퐷푥 = {표1, 표2, … , 표푛}  Algorithm -Naïve 1  푓표푟 푒푎푐ℎ 표푏푗푒푐푡 표푥 ∈ 퐷  푏표표푙푒푎푛 푖푠퐷표푚푖푛푎푡푒푑 = 푓푎푙푠푒  푓표푟 푒푎푐ℎ 표푏푗푒푐푡 표푦 ∈ 퐷  푖푓 ¬(표푥 = 표푦) 퐴푁퐷 ¬ 표푥 ≪ 표푦 푡ℎ푒푛 푐표푛푡푖푛푢푒;  푒푙푠푒  푡ℎ푒푛 푖푠퐷표푚푖푛푎푡푒푑 = 푡푟푢푒;  break;  푖푓 ! 푖푠퐷표푚푖푛푎푡푒푑 푆 ∪ {표푥} A B F C D G E

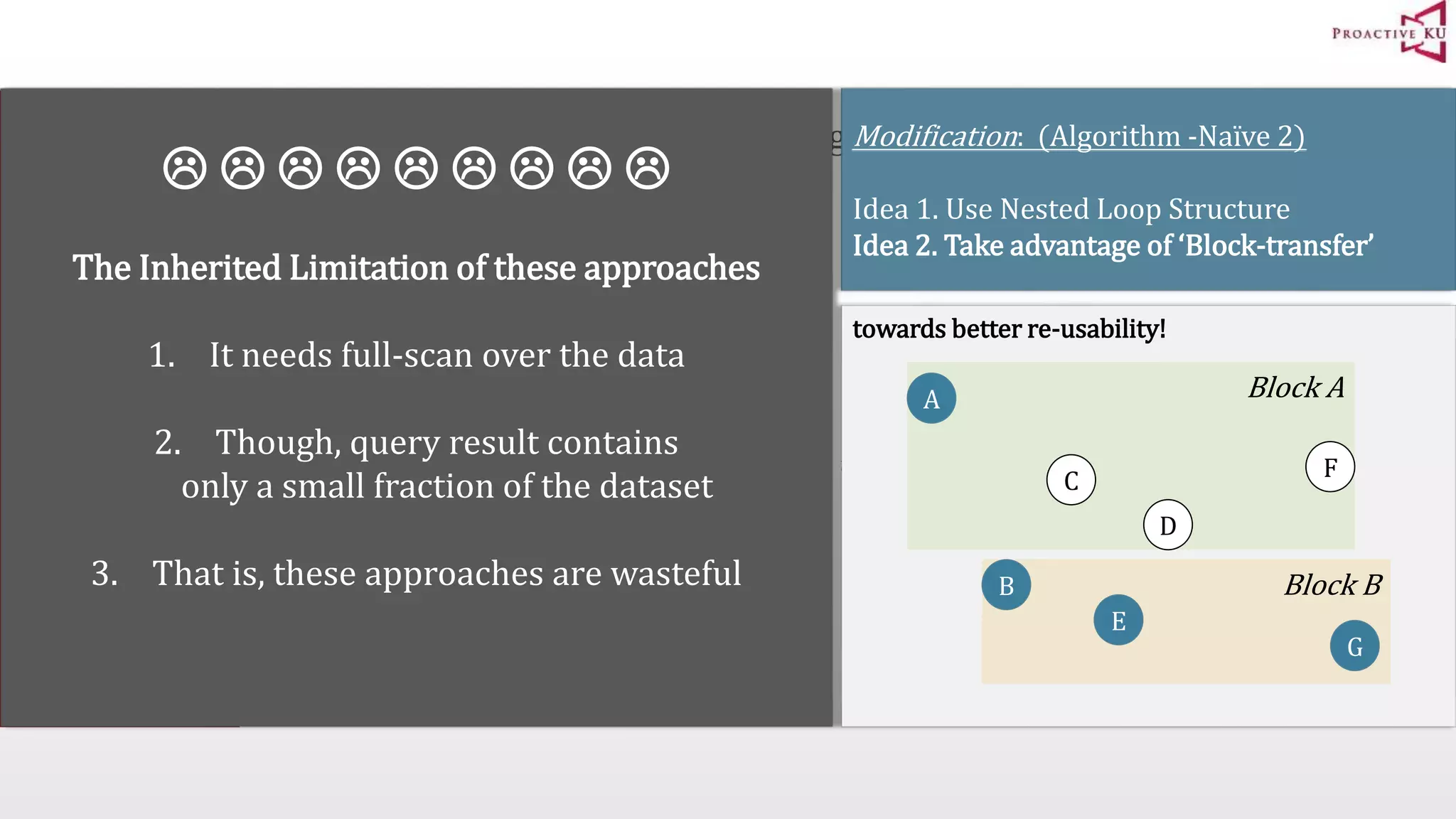

 Suppose there are n objects in the given set  퐷푥 = {표1, 표2, … , 표푛}  Algorithm -Naïve 1  푓표푟 푒푎푐ℎ 표푏푗푒푐푡 표푥 ∈ 퐷  푏표표푙푒푎푛 푖푠퐷표푚푖푛푎푡푒푑 = 푓푎푙푠푒  푓표푟 푒푎푐ℎ 표푏푗푒푐푡 표푦 ∈ 퐷  푖푓 ¬(표푥 = 표푦) 퐴푁퐷 ¬ 표푥 ≪ 표푦 푡ℎ푒푛 푐표푛푡푖푛푢푒;  푒푙푠푒  푡ℎ푒푛 푖푠퐷표푚푖푛푎푡푒푑 = 푡푟푢푒;  break;  푖푓 ! 푖푠퐷표푚푖푛푎푡푒푑 푆 ∪ {표푥} Exhaustive Test Nested Loop Structure Modification: (Algorithm -Naïve 2) Idea 1. Use Nested Loop Structure Idea 2. Take advantage of ‘Block-transfer’ towards better re-usability! Block A Block B A B C D E F G          The Inherited Limitation of these approaches 1. It needs full-scan over the data 2. Though, query result contains only a small fraction of the dataset 3. That is, these approaches are wasteful

R-Tree Index Approach for processing skyline queries

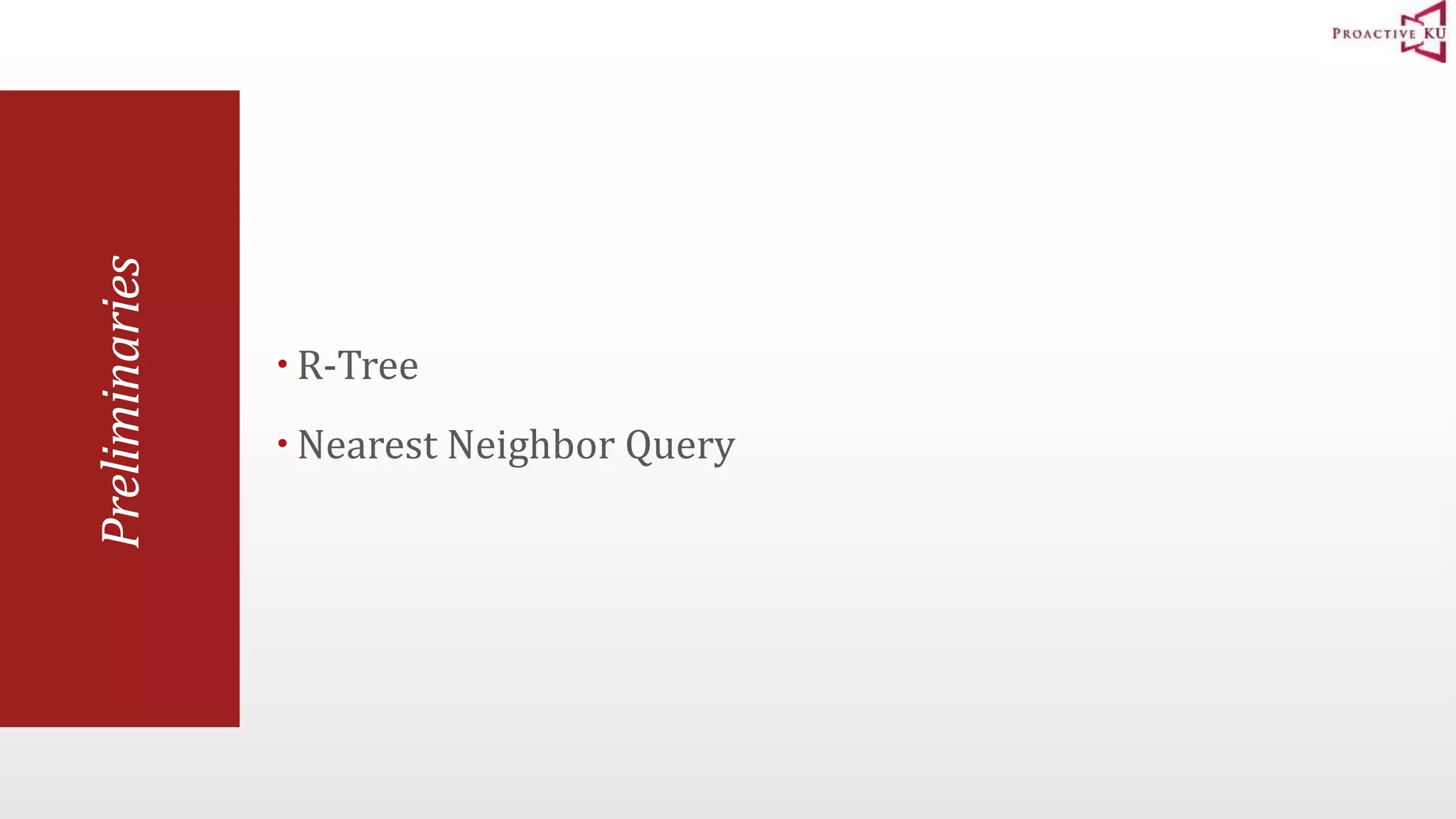

Preliminaries R-Tree  Nearest Neighbor Query

Preliminaries R-Tree: Balanced tree for indexing multi-dimensional object  Support Dynamic operation (insert, update, delete) R-Tree Index Approach

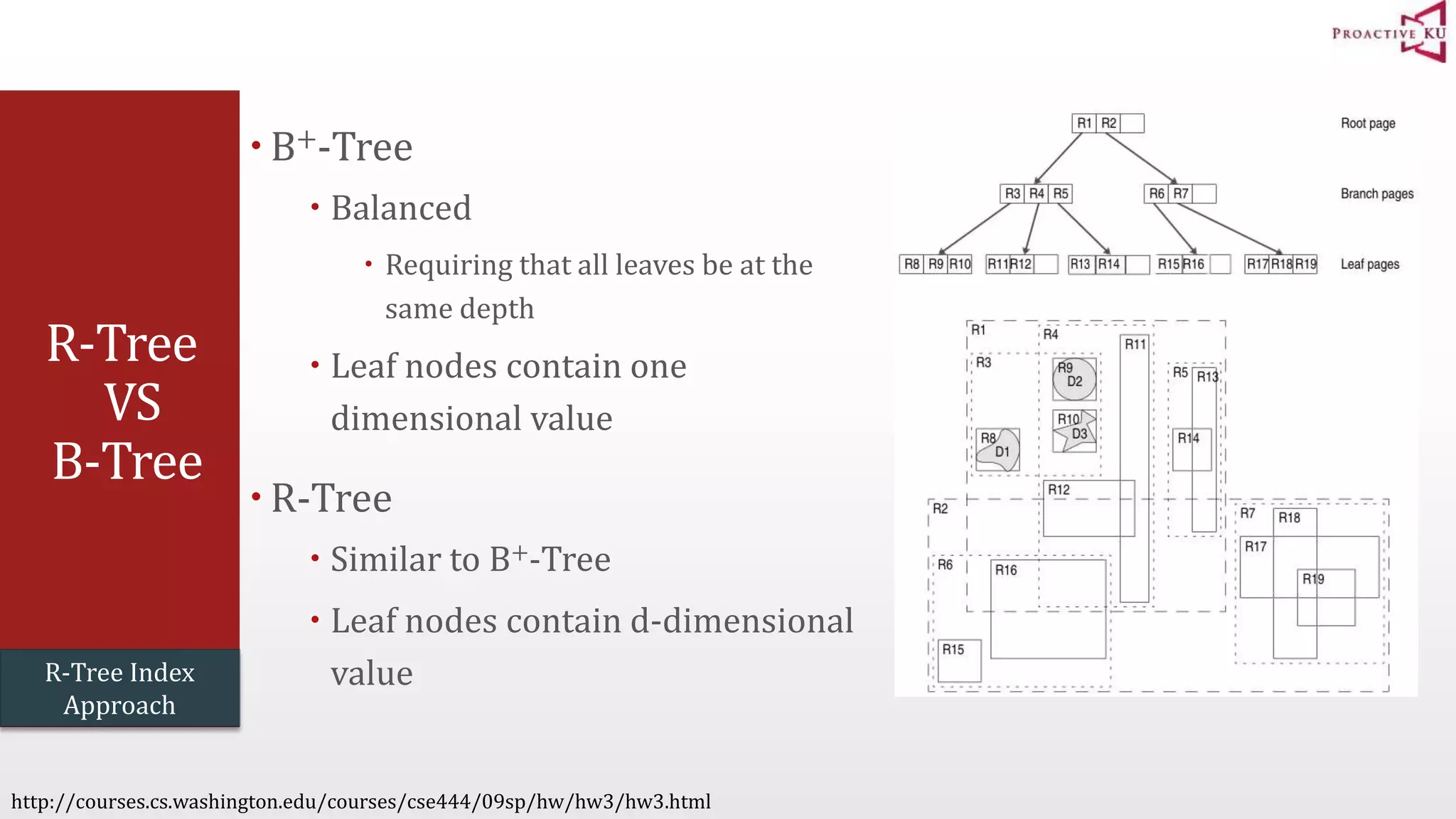

R-Tree VS B-Tree  B+-Tree  Balanced  Requiring that all leaves be at the same depth  Leaf nodes contain one dimensional value R-Tree  Similar to B+-Tree  Leaf nodes contain d-dimensional value R-Tree Index Approach http://courses.cs.washington.edu/courses/cse444/09sp/hw/hw3/hw3.html

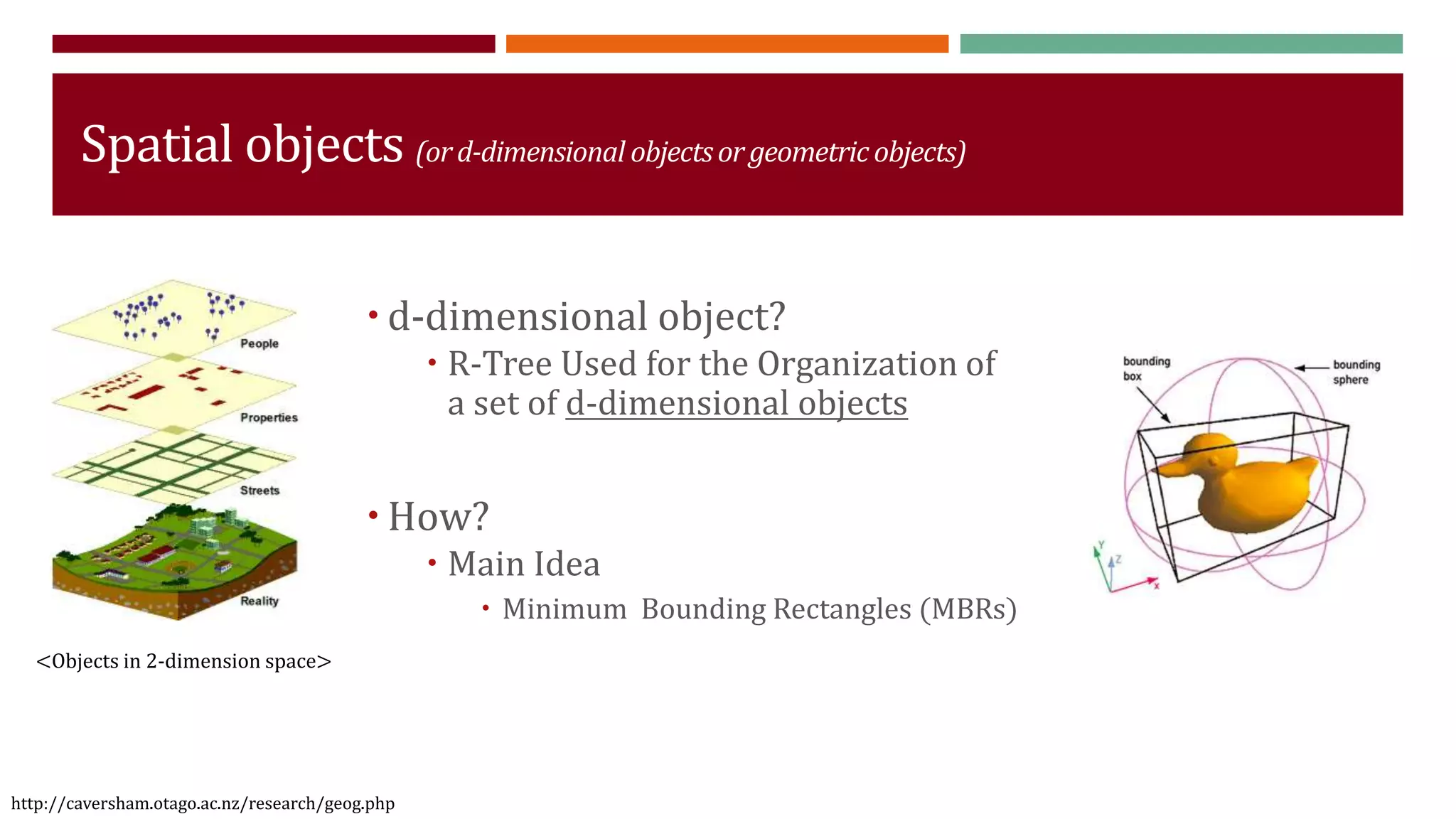

Spatial objects (or d-dimensional objects or geometric objects)  d-dimensional object?  R-Tree Used for the Organization of a set of d-dimensional objects  How?  Main Idea  Minimum Bounding Rectangles (MBRs) <Objects in 2-dimension space> http://caversham.otago.ac.nz/research/geog.php

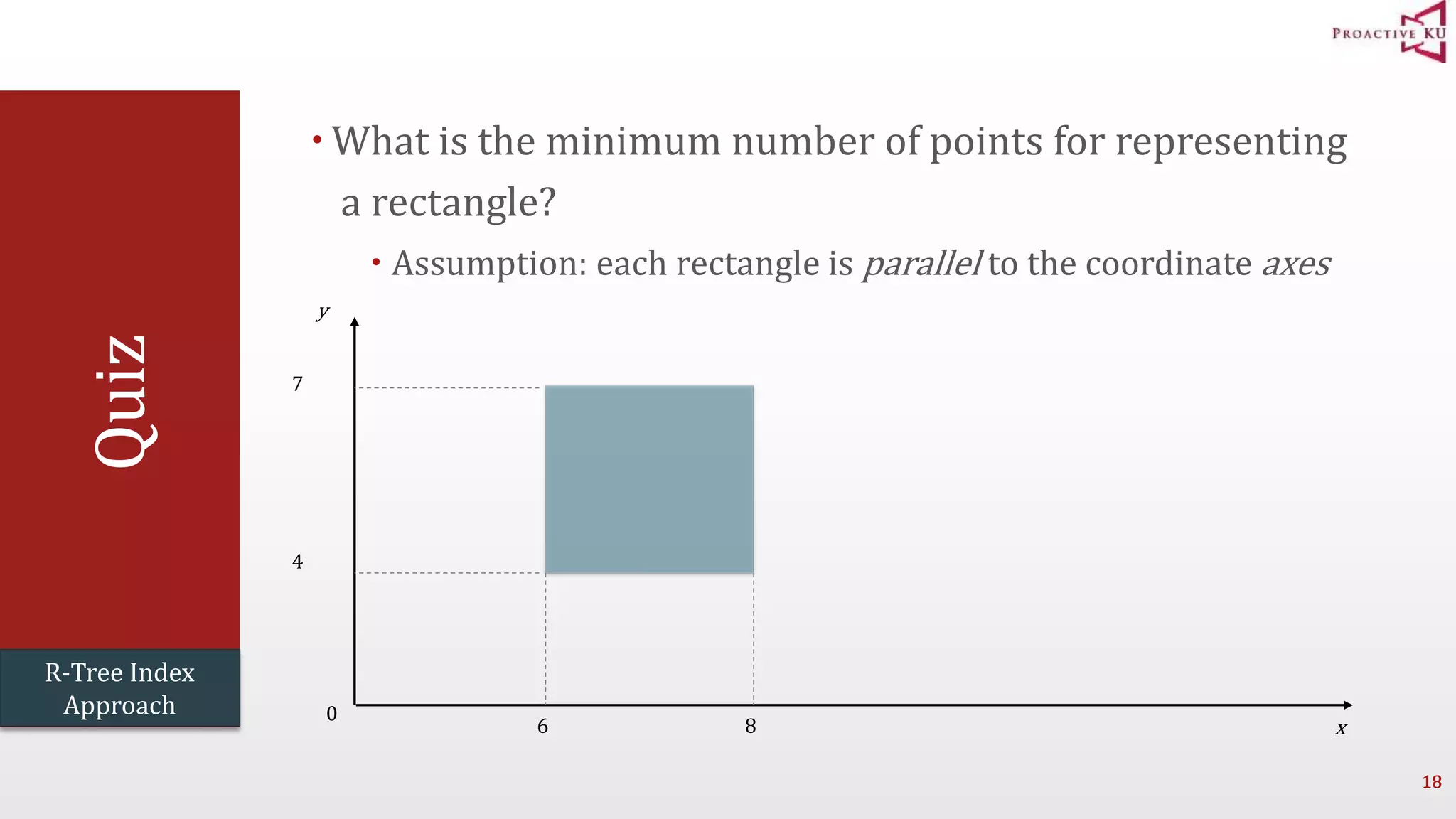

Quiz What is the minimum number of points for representing a rectangle?  Assumption: each rectangle is parallel to the coordinate axes 18 6 8 7 4 x y 0 R-Tree Index Approach

Demonstration R-Tree Simulator

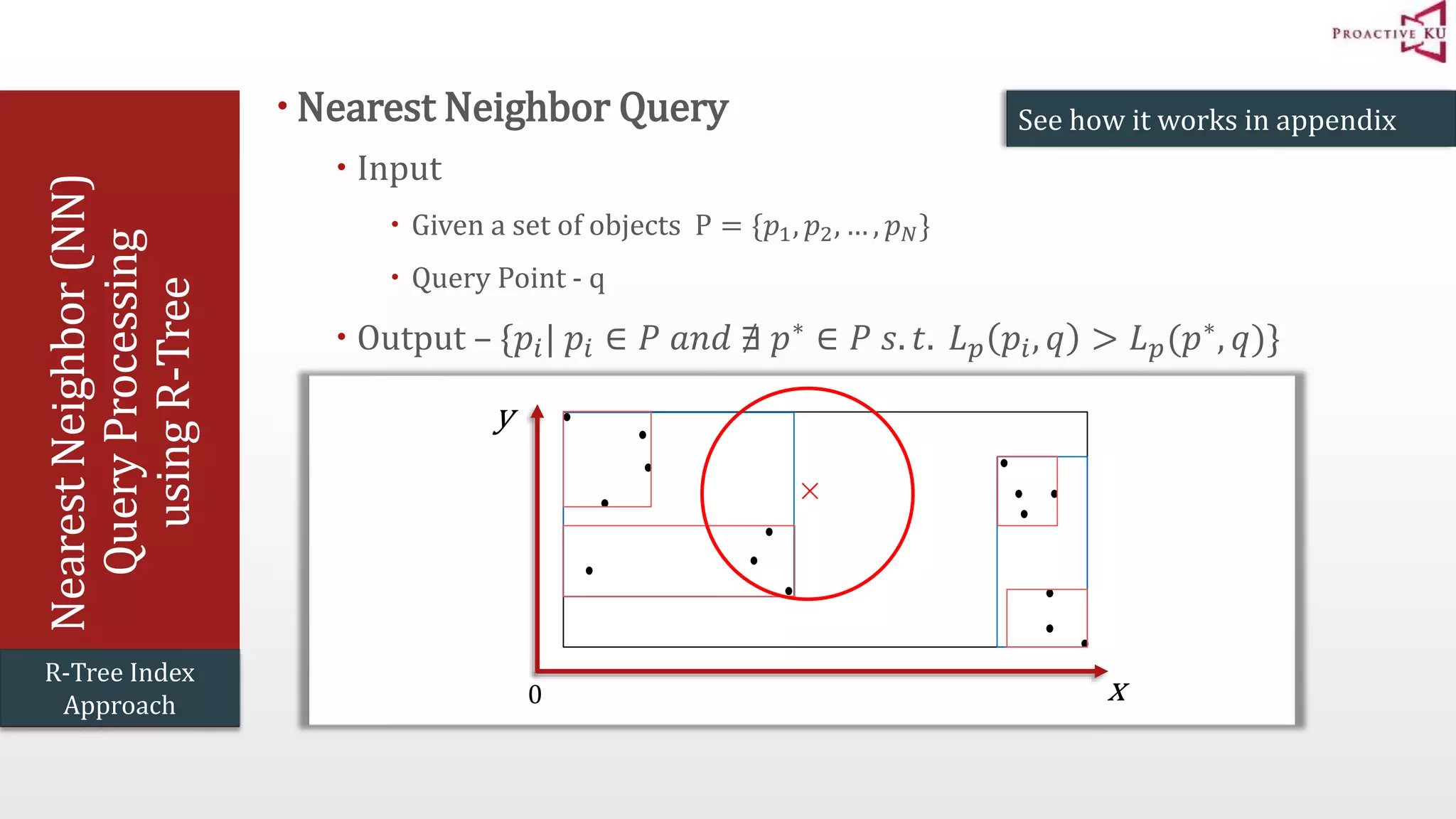

Nearest Neighbor (NN) Query Processing using R-Tree Nearest Neighbor Query  Input  Given a set of objects P = {푝1, 푝2, … , 푝푁}  Query Point - q  Output – {푝푖 | 푝푖 ∈ 푃 푎푛푑 ∄ 푝∗ ∈ 푃 푠. 푡. 퐿푝 푝푖 , 푞 > 퐿푝(푝∗, 푞)} 0 x y See how it works in appendix R-Tree Index Approach

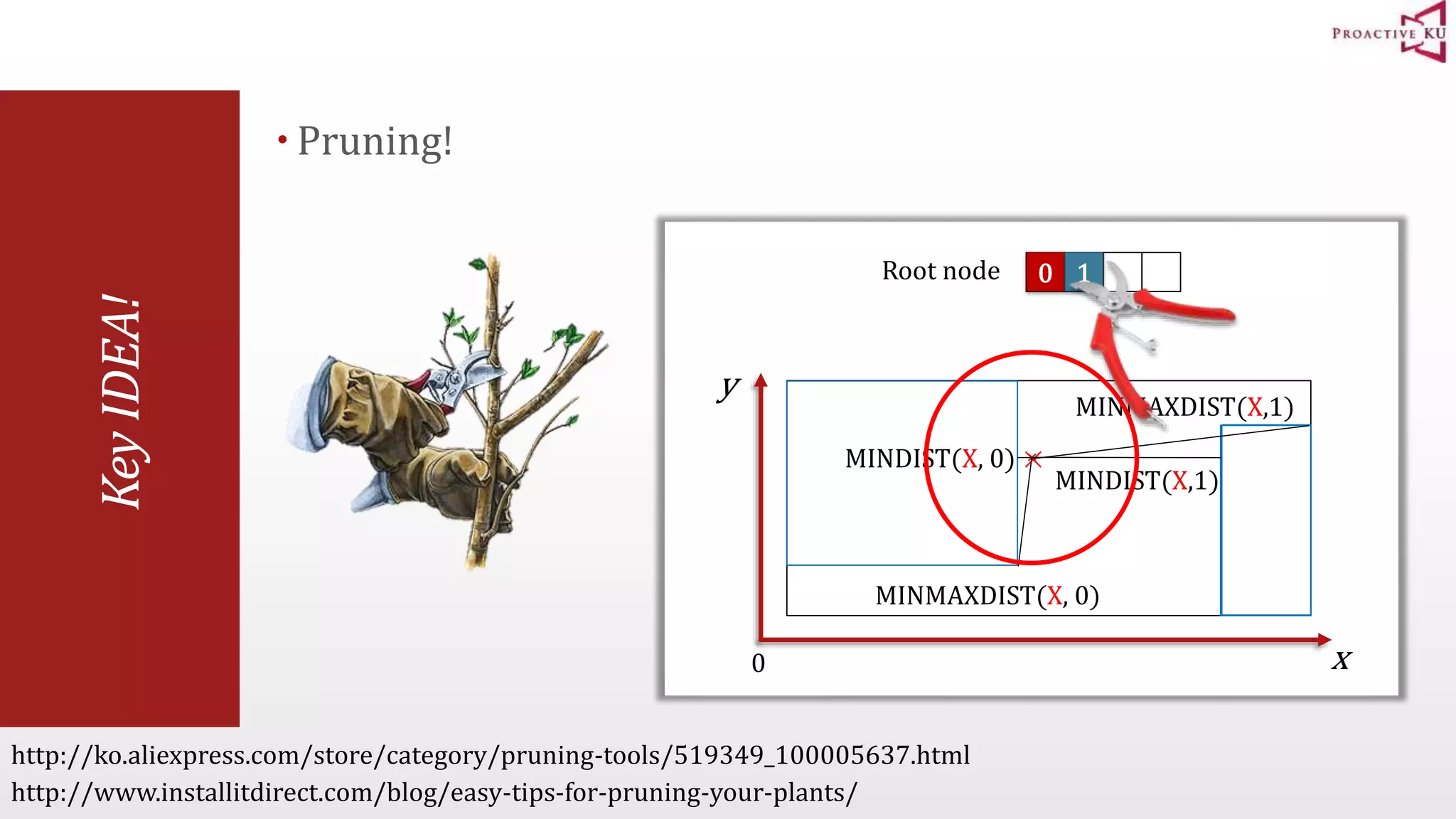

Root node 0 1 MINMAXDIST(X,1) 0 x y MINDIST(X, 0) MINDIST(X,1) MINMAXDIST(X, 0) Key IDEA!  Pruning! http://ko.aliexpress.com/store/category/pruning-tools/519349_100005637.html http://www.installitdirect.com/blog/easy-tips-for-pruning-your-plants/

Back to the original question Skyline with R-Tree

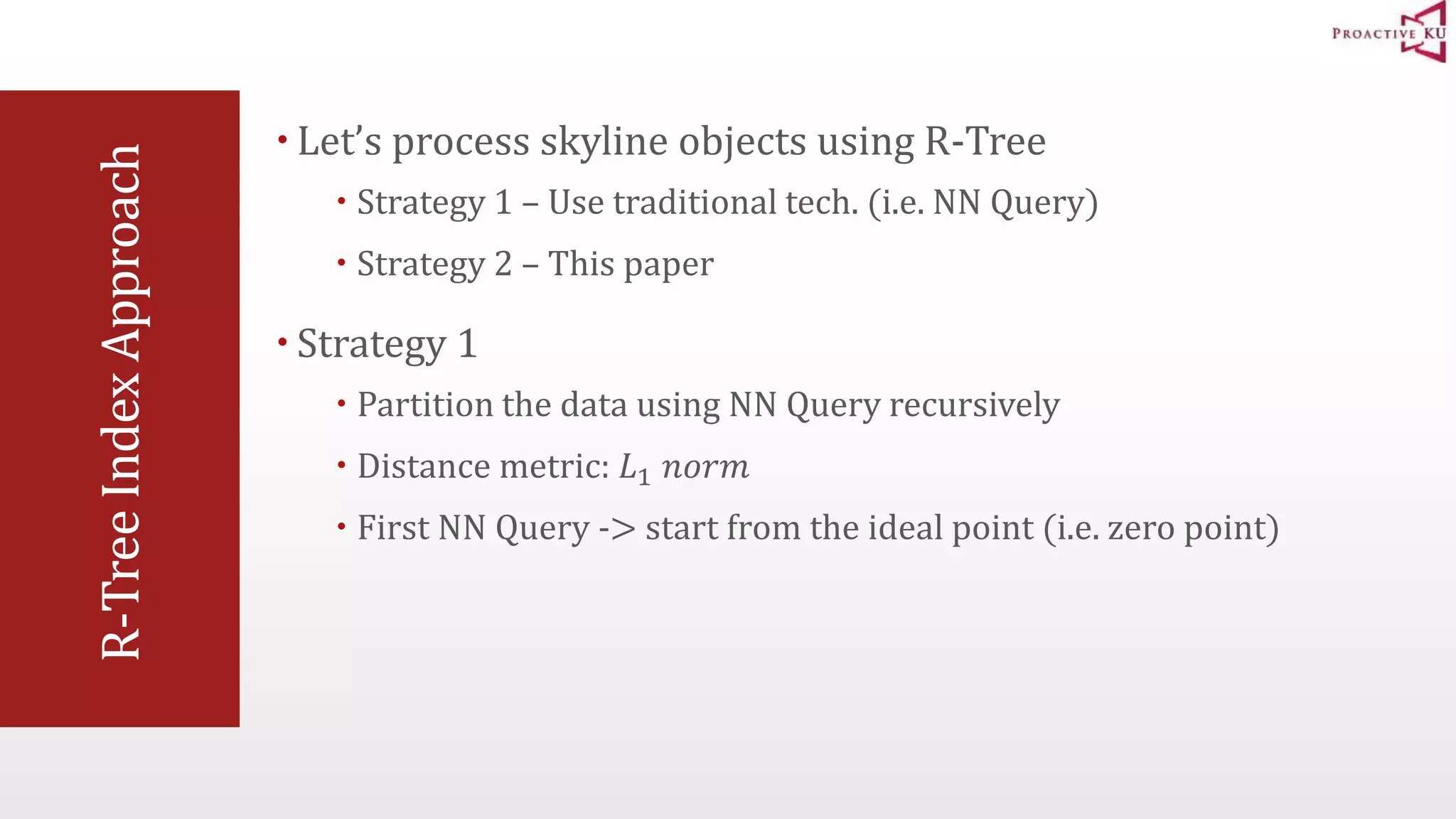

R-Tree Index Approach  Let’s process skyline objects using R-Tree  Strategy 1 – Use traditional tech. (i.e. NN Query)  Strategy 2 – This paper  Strategy 1  Partition the data using NN Query recursively  Distance metric: 퐿1 푛표푟푚  First NN Query -> start from the ideal point (i.e. zero point)

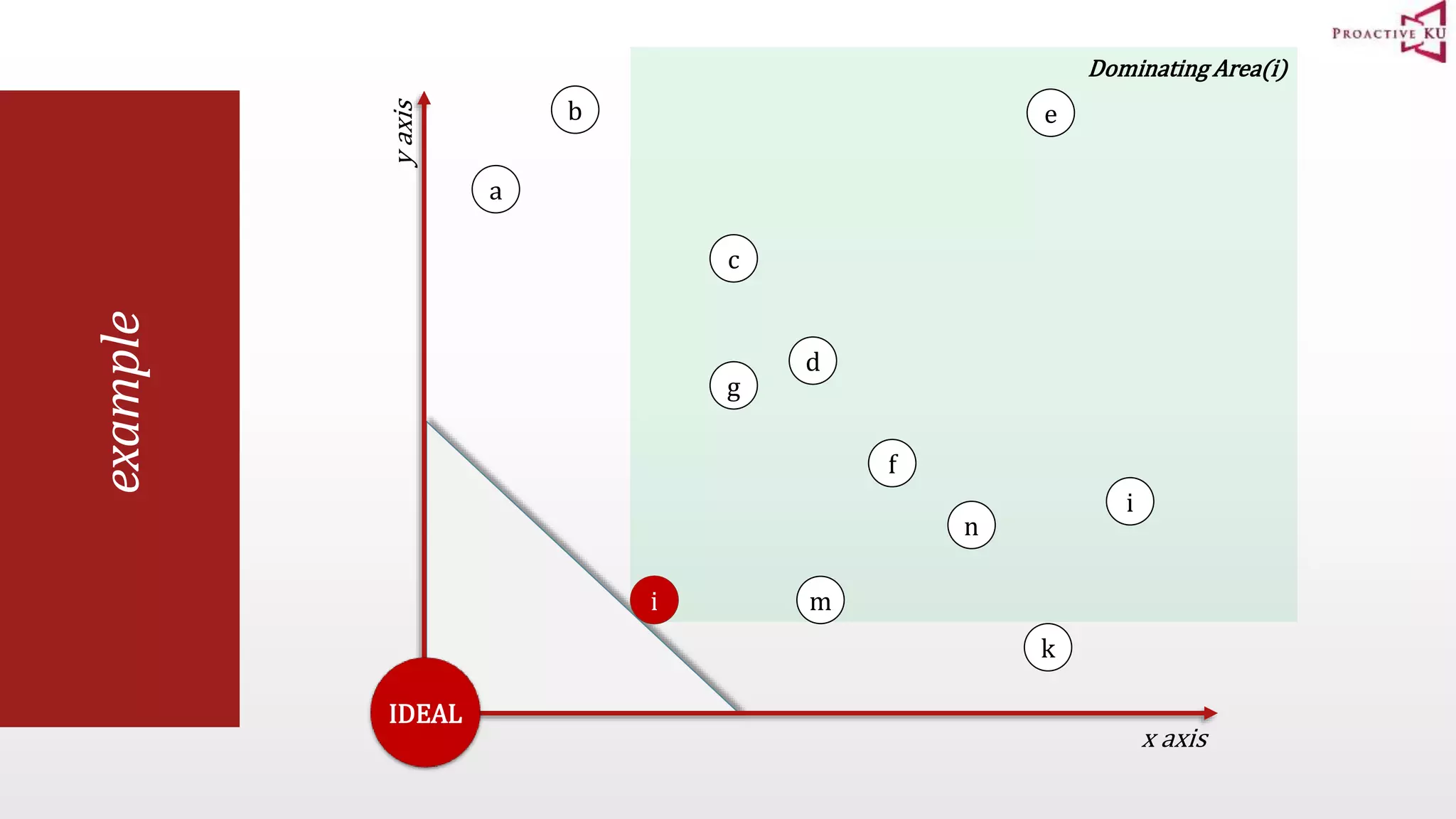

Dominating Area(i) example a x axis y axis b c d e f g i m n k i IDEAL

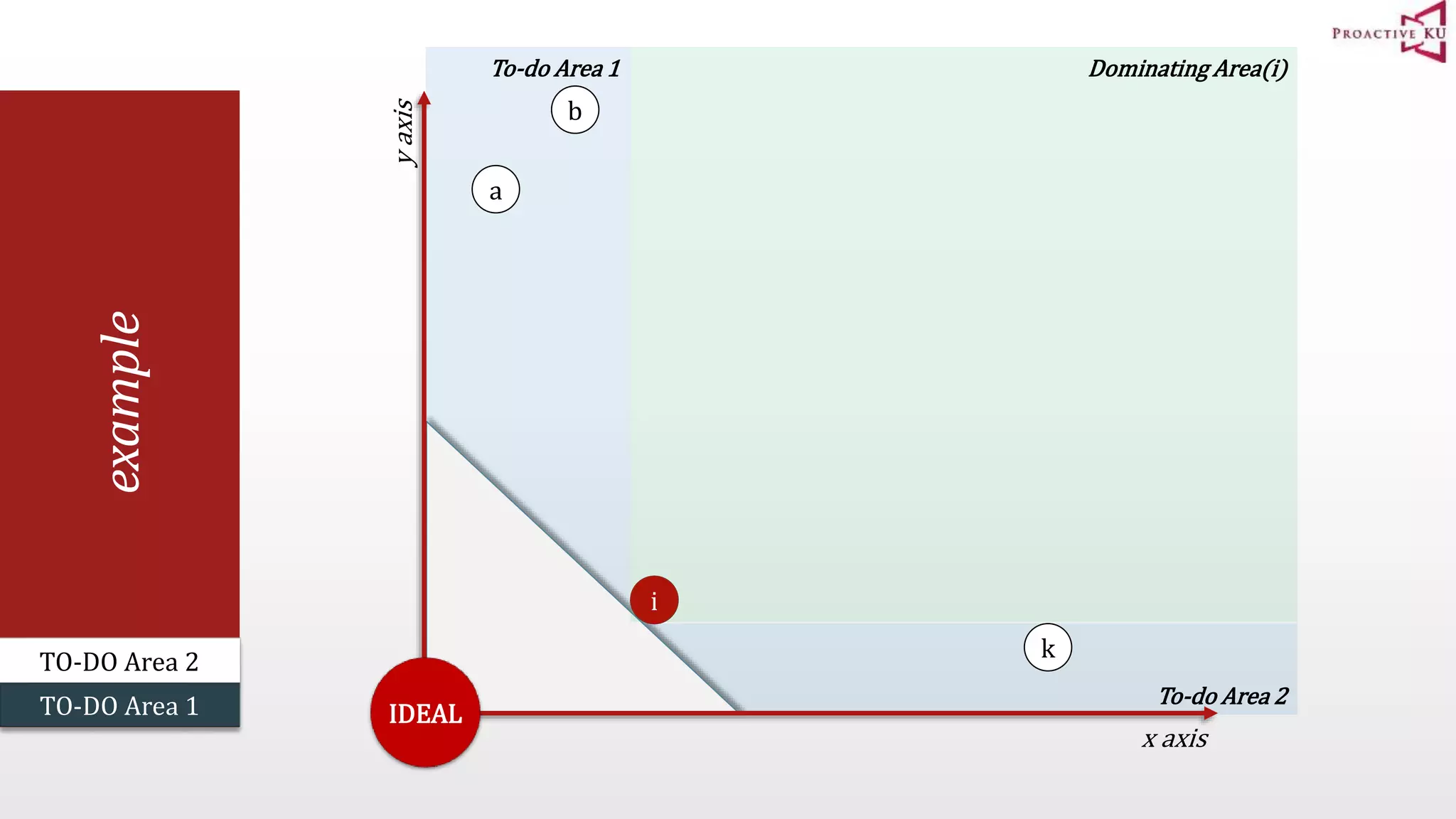

To-do Area 1 To-do Area 2 example a x axis y axis b i k IDEAL Dominating Area(i) TO-DO Area 2 TO-DO Area 1

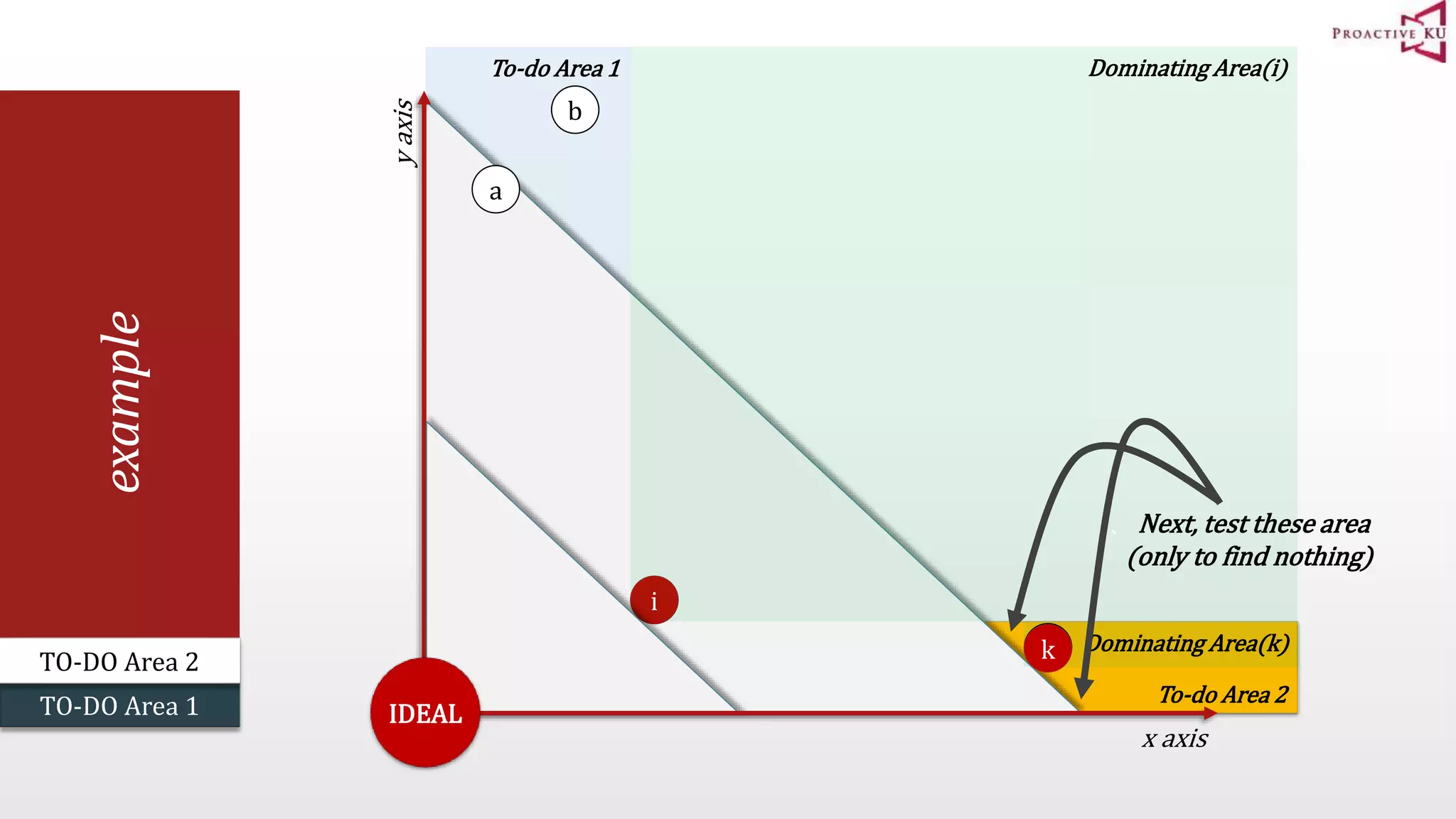

Next, test these area (only to find nothing) To--do Arrea 2 To-do Area 1 example a x axis y axis b i k Dominating Area(i) TO-DO Area 2 TO-DO Area 1 Dominating Area(k) IDEAL ` `

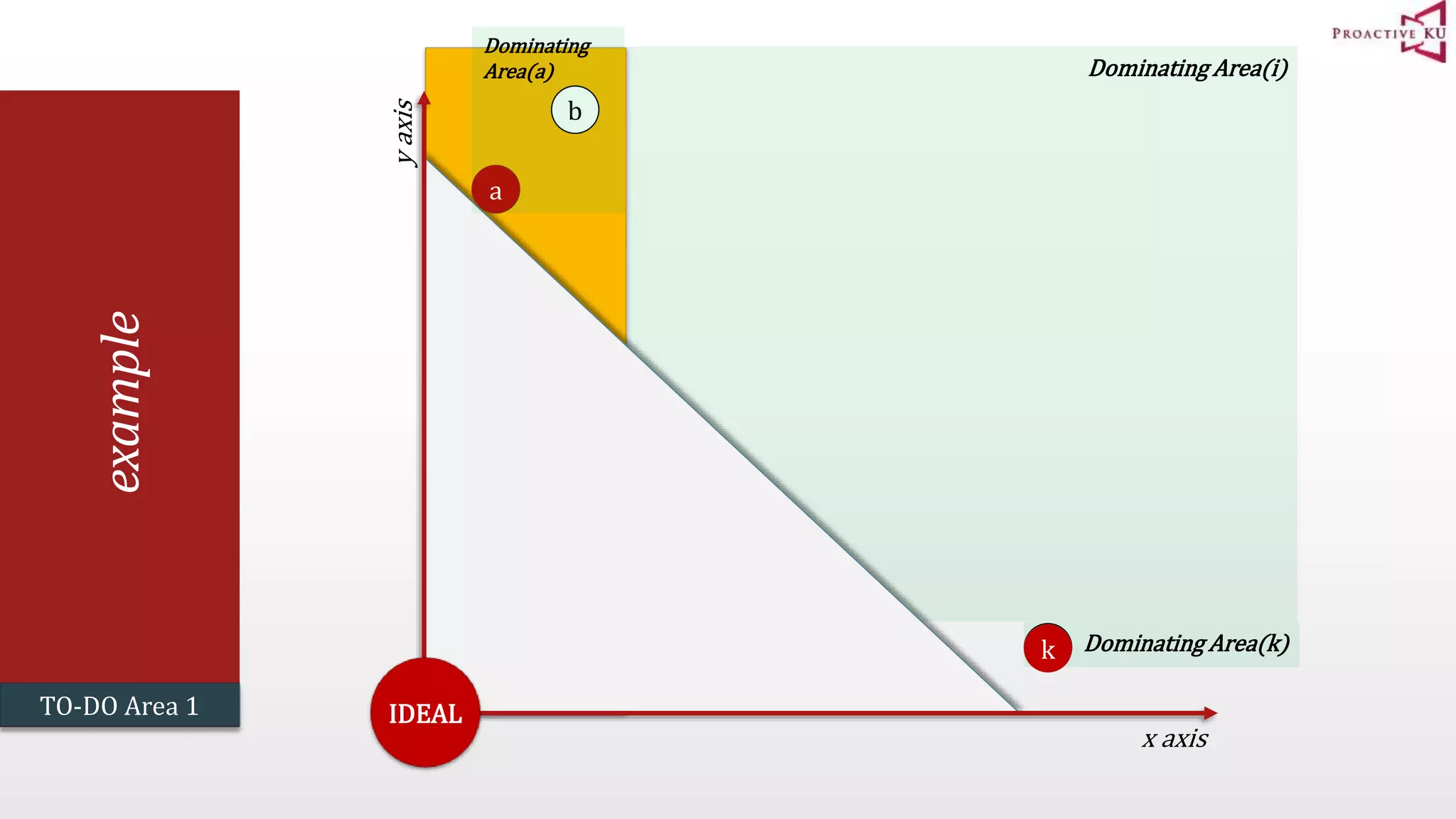

To-do Area 1 example x axis i k Dominating Area(i) TO-DO Area 1 Dominating Area(k) a To-do Area 1 y axis b IDEAL Dominating Area(a)

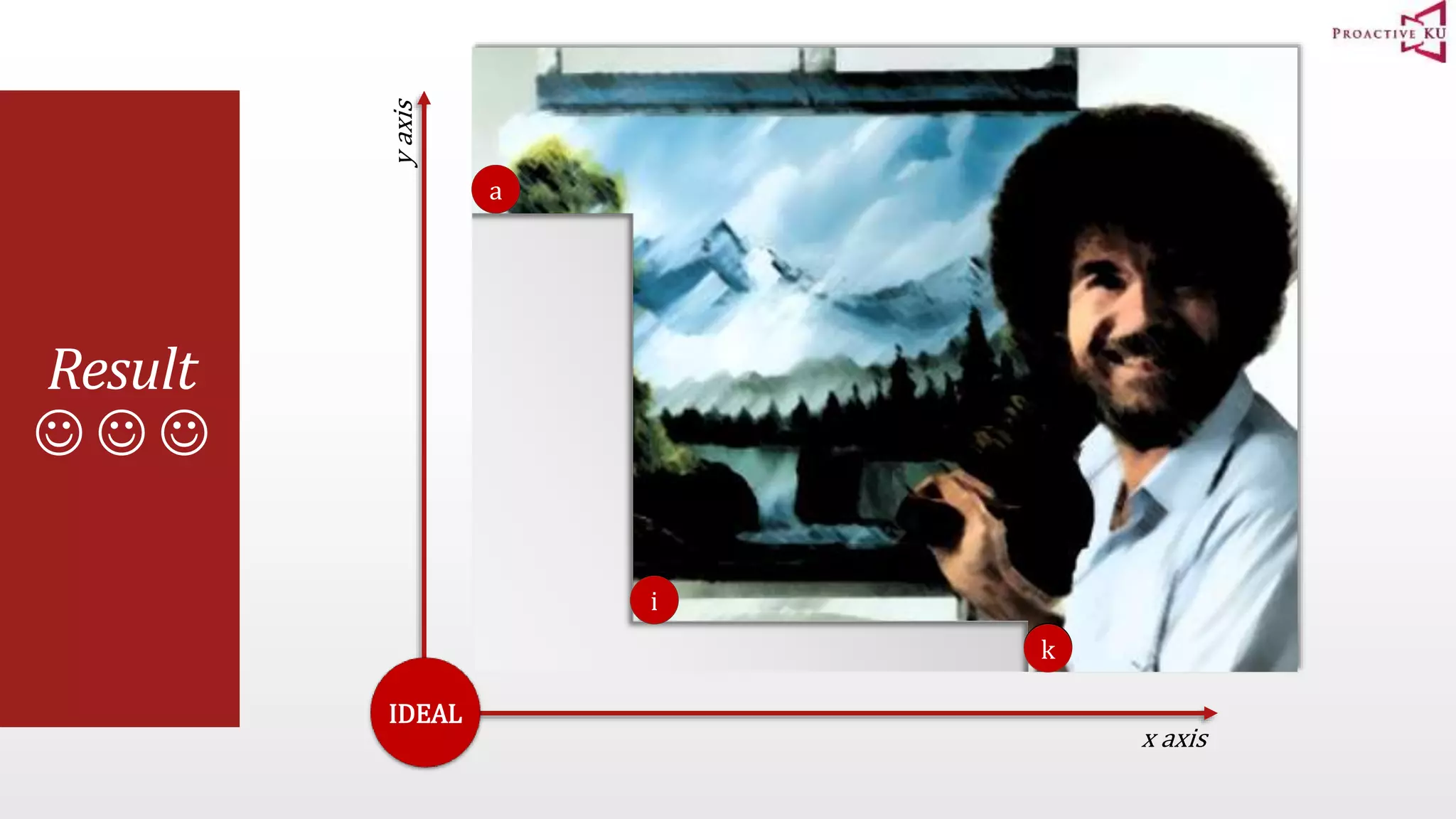

Dominating Area(k) Result    Dominating Area(i) IDEAL Dominating Area(a) x axis y axis i k a

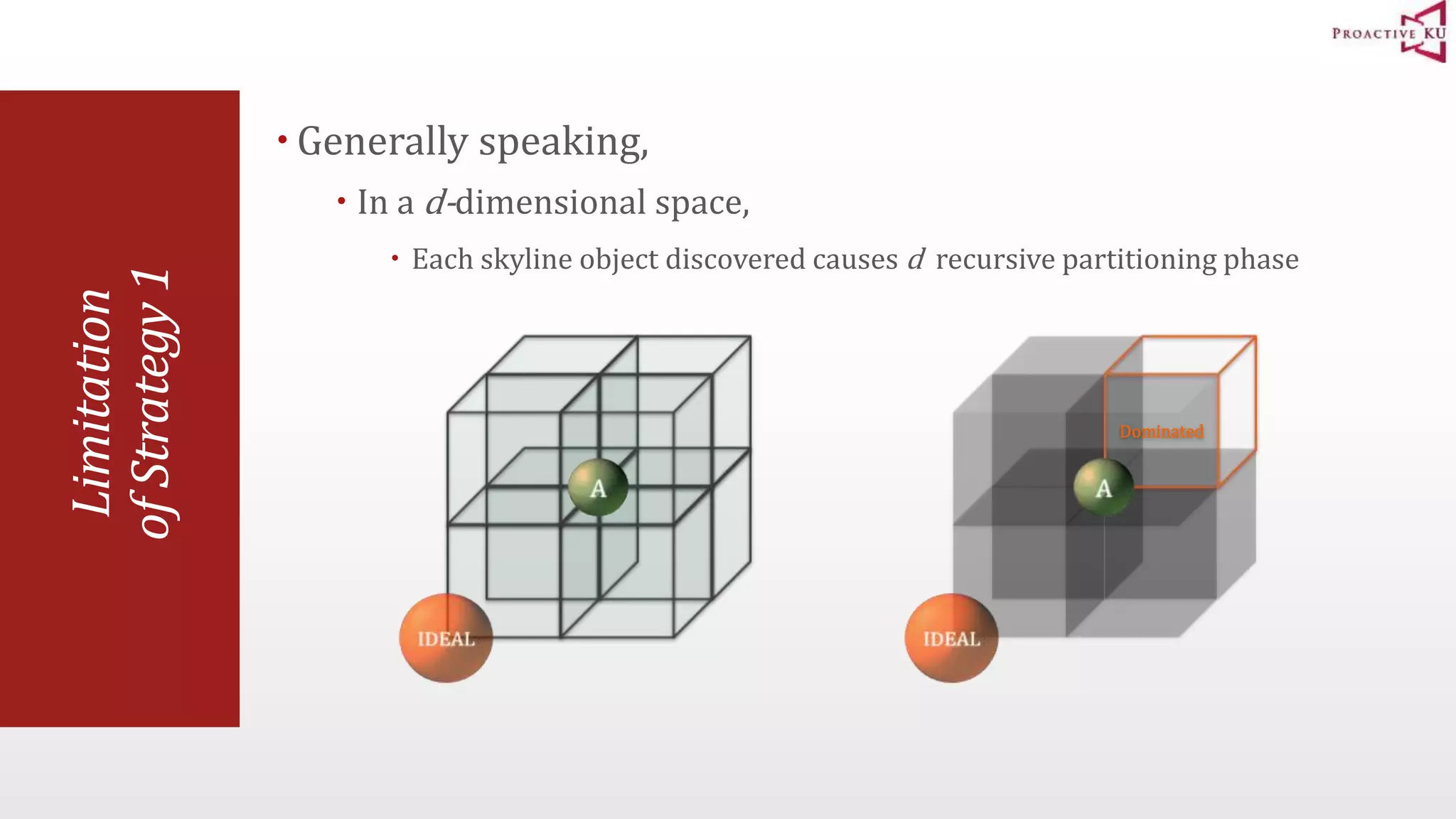

Limitation of Strategy 1  Generally speaking,  In a d-dimensional space,  Each skyline object discovered causes d recursive partitioning phase Dominated

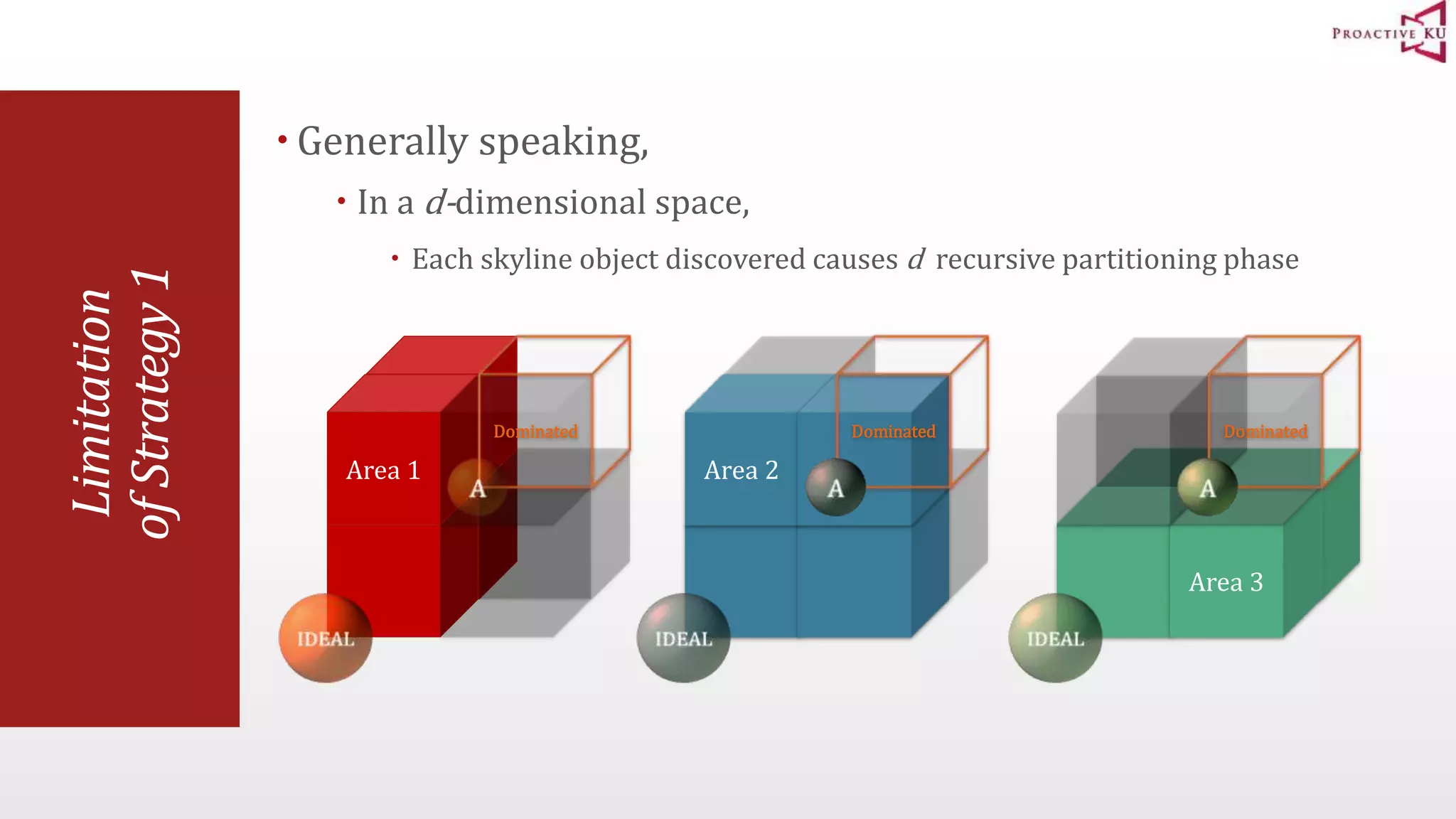

Limitation of Strategy 1  Generally speaking,  In a d-dimensional space,  Each skyline object discovered causes d recursive partitioning phase Area 1 Dominated Area 2 Dominated Dominated Area 3

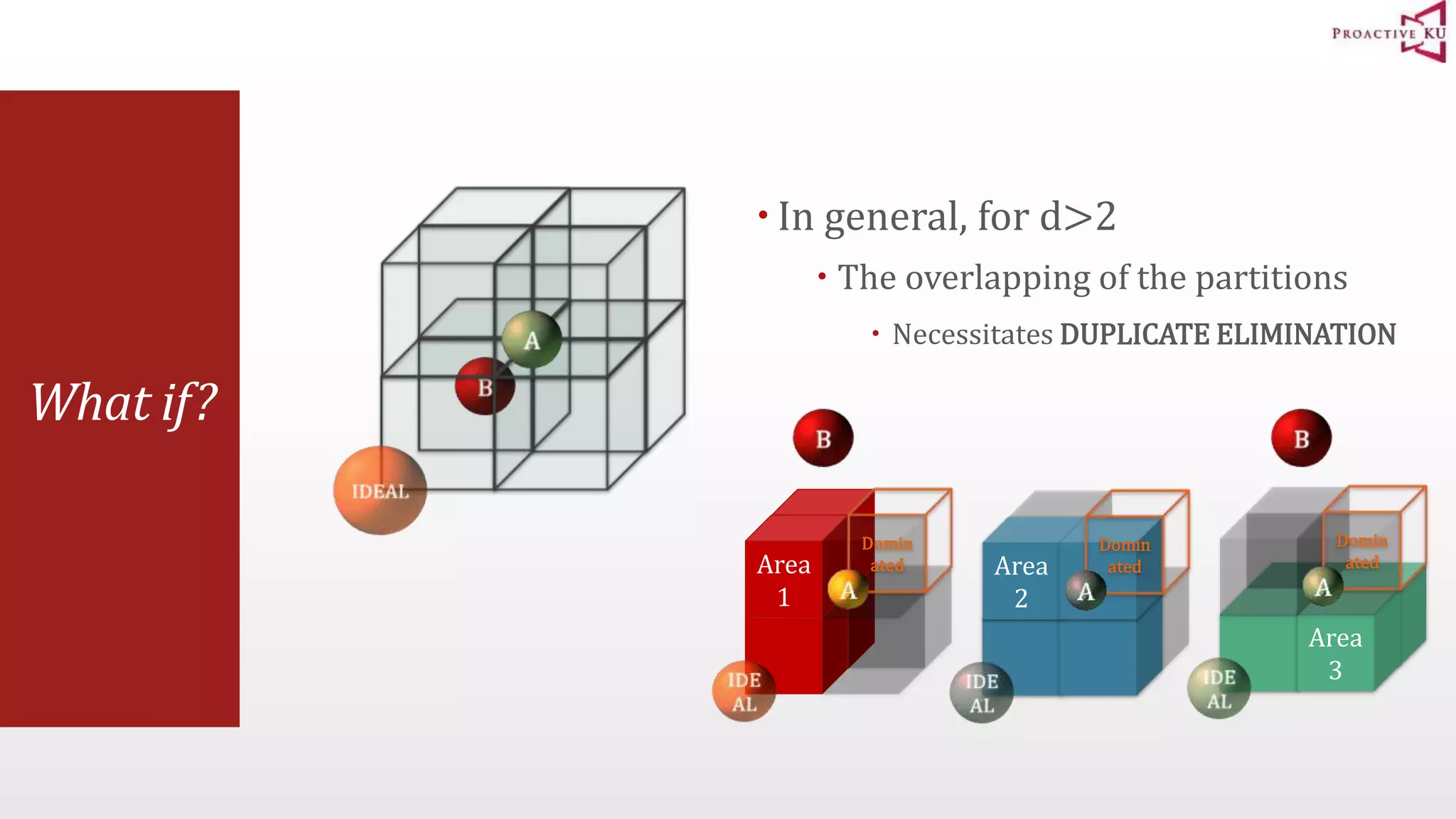

What if?  In general, for d>2  The overlapping of the partitions  Necessitates DUPLICATE ELIMINATION Area 1 Domin ated Area 2 Domin ated Domin ated Area 3

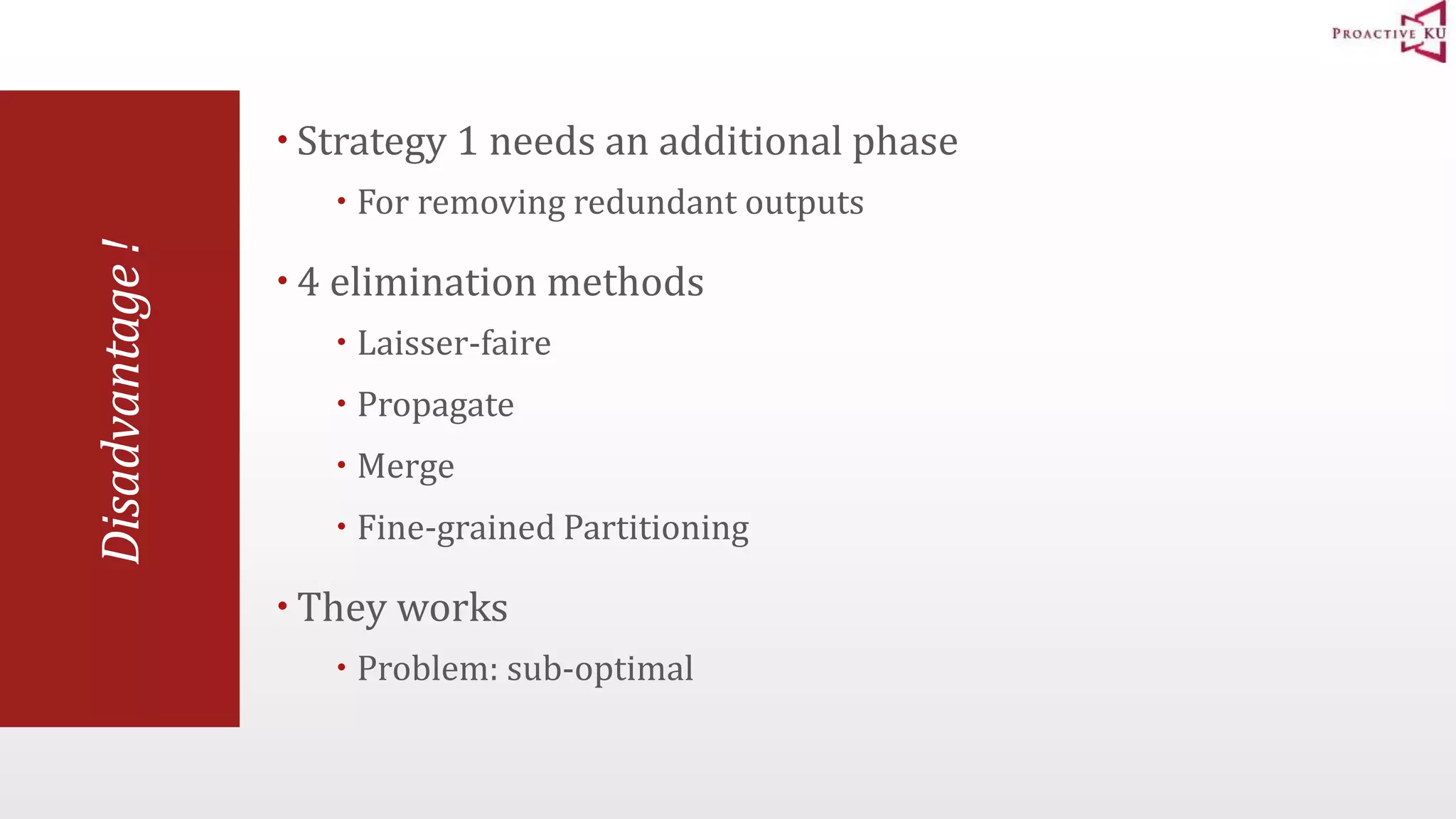

Disadvantage !  Strategy 1 needs an additional phase  For removing redundant outputs  4 elimination methods  Laisser-faire  Propagate  Merge  Fine-grained Partitioning  They works  Problem: sub-optimal

Strategy 2 Branch & Bound Skyline Algorithm

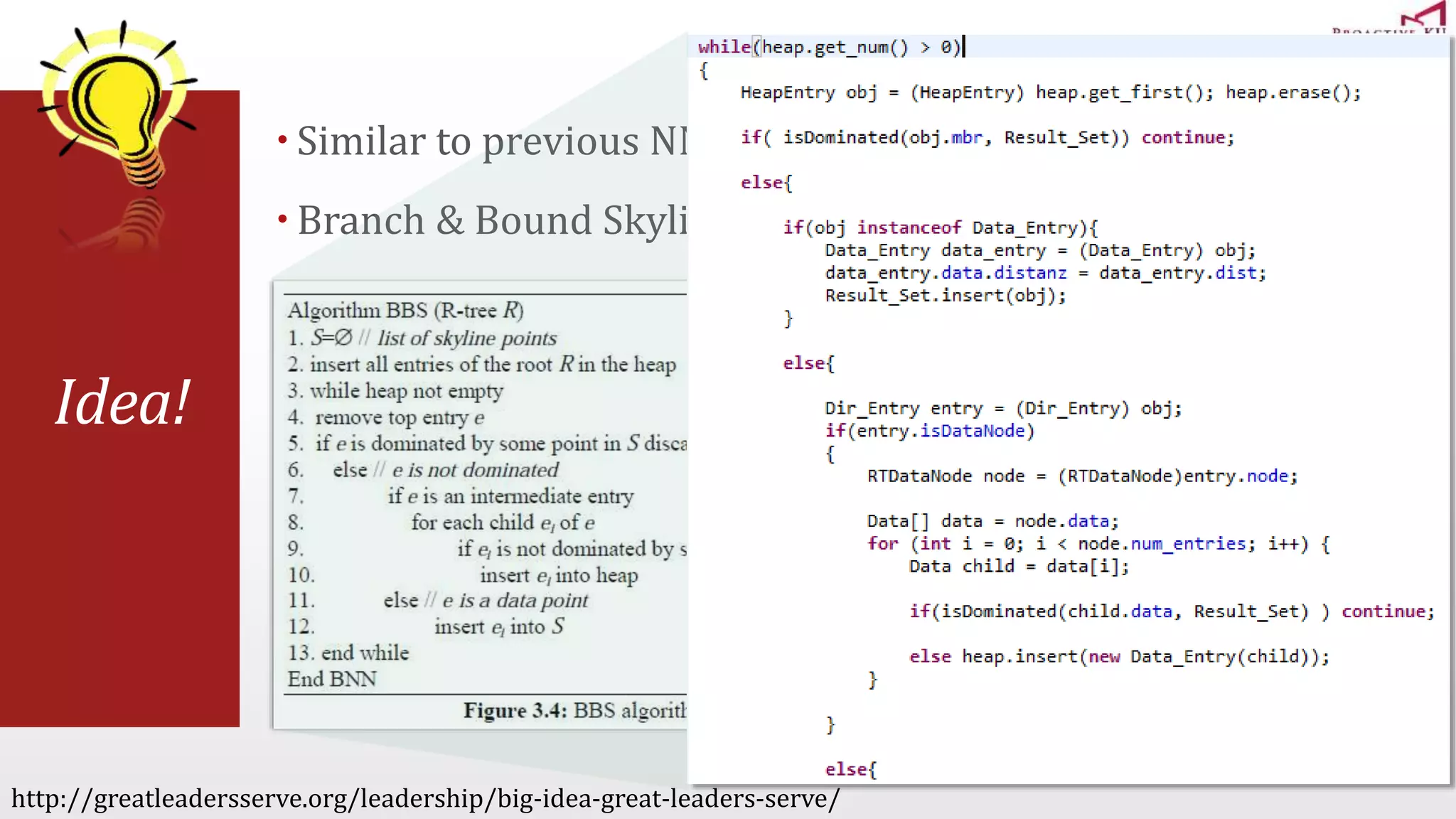

Idea!  Similar to previous NN Query  Branch & Bound Skyline (BBS) http://greatleadersserve.org/leadership/big-idea-great-leaders-serve/

h example a x axis y axis b c d e f g i m n k l IDEAL L1E2 L1E1 L2E4 L2E2 L2E3 L2E1 Root Ptr 1 Ptr 2 Ptr 3 Ptr 4 L1E1 Ptr 1 Ptr 2 Ptr 3 Ptr 4 L1E2 Ptr 1 Ptr 2 Ptr 3 Ptr 4 L2E1 a b c null L2E2 c h i null L2E3 d g m null L2E4 f k l n

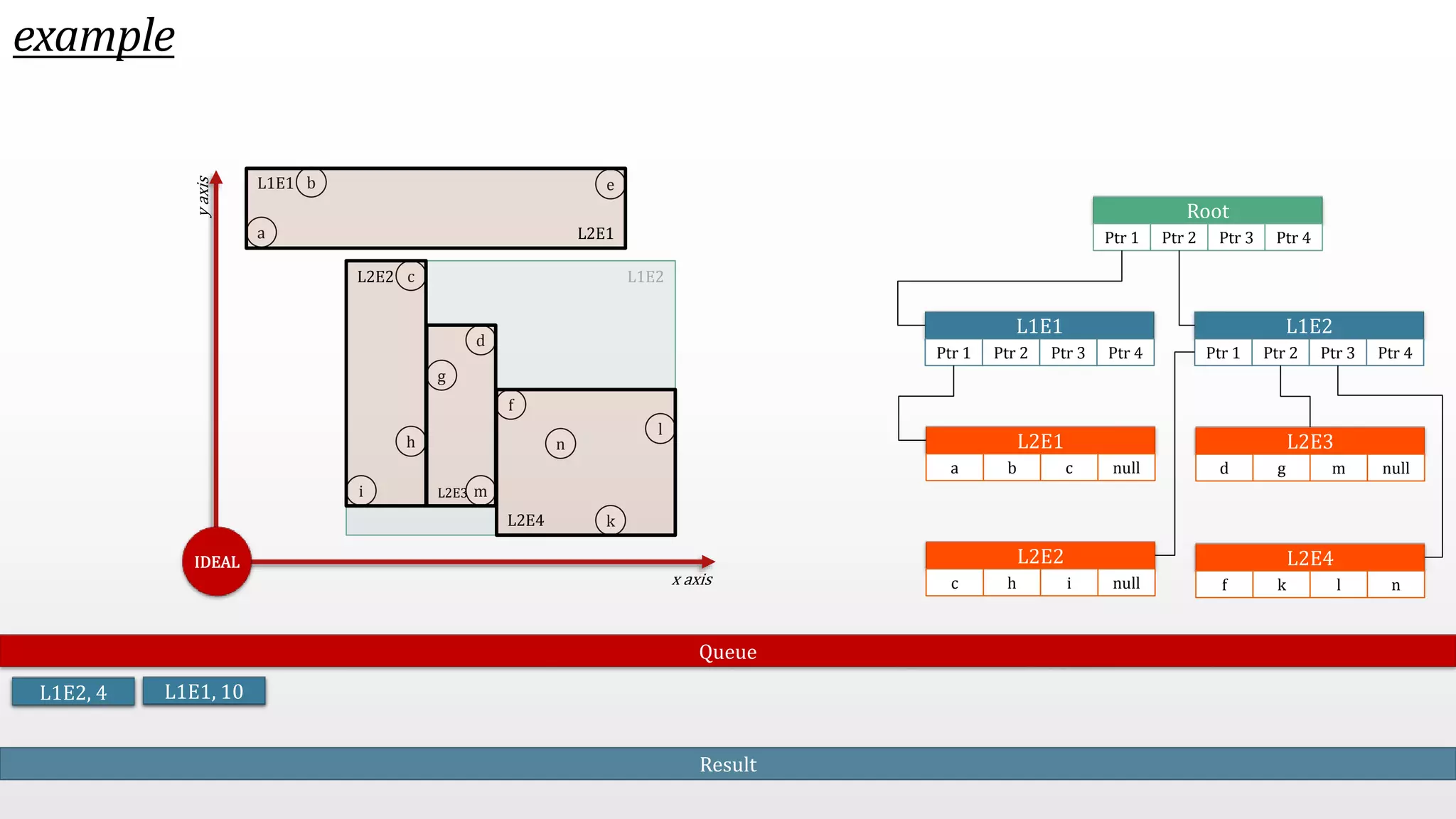

example h a x axis y axis b c d e f g i m n k l IDEAL L1E2 L1E1 L2E4 L2E2 L2E3 L2E1 L1E1 L1E2 Queue L1E2, 4 L1E1, 10 Root Ptr 1 Ptr 2 Ptr 3 Ptr 4 L1E1 Ptr 1 Ptr 2 Ptr 3 Ptr 4 L1E2 Ptr 1 Ptr 2 Ptr 3 Ptr 4 L2E1 a b c null L2E2 c h i null L2E3 d g m null L2E4 f k l n Result

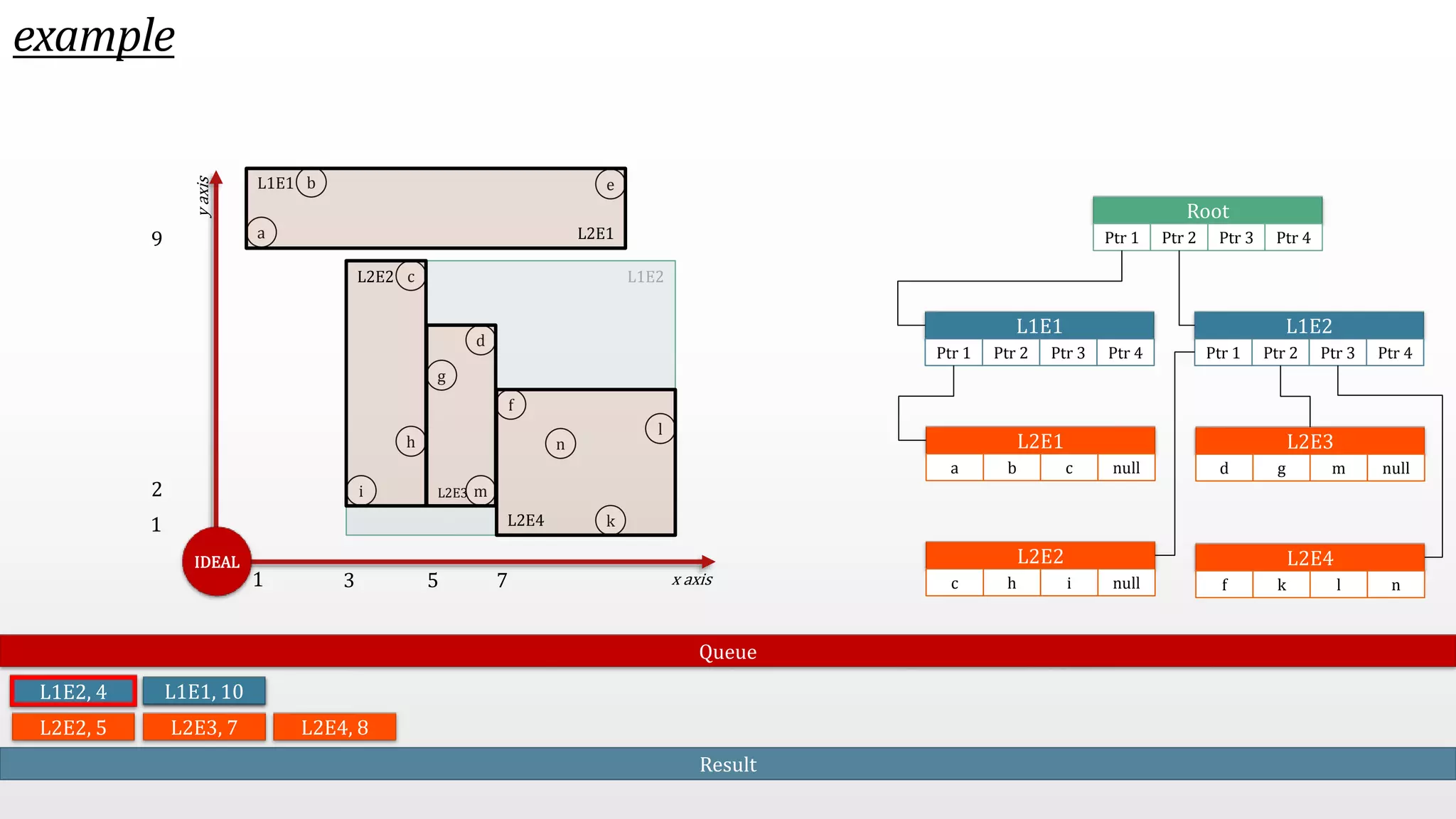

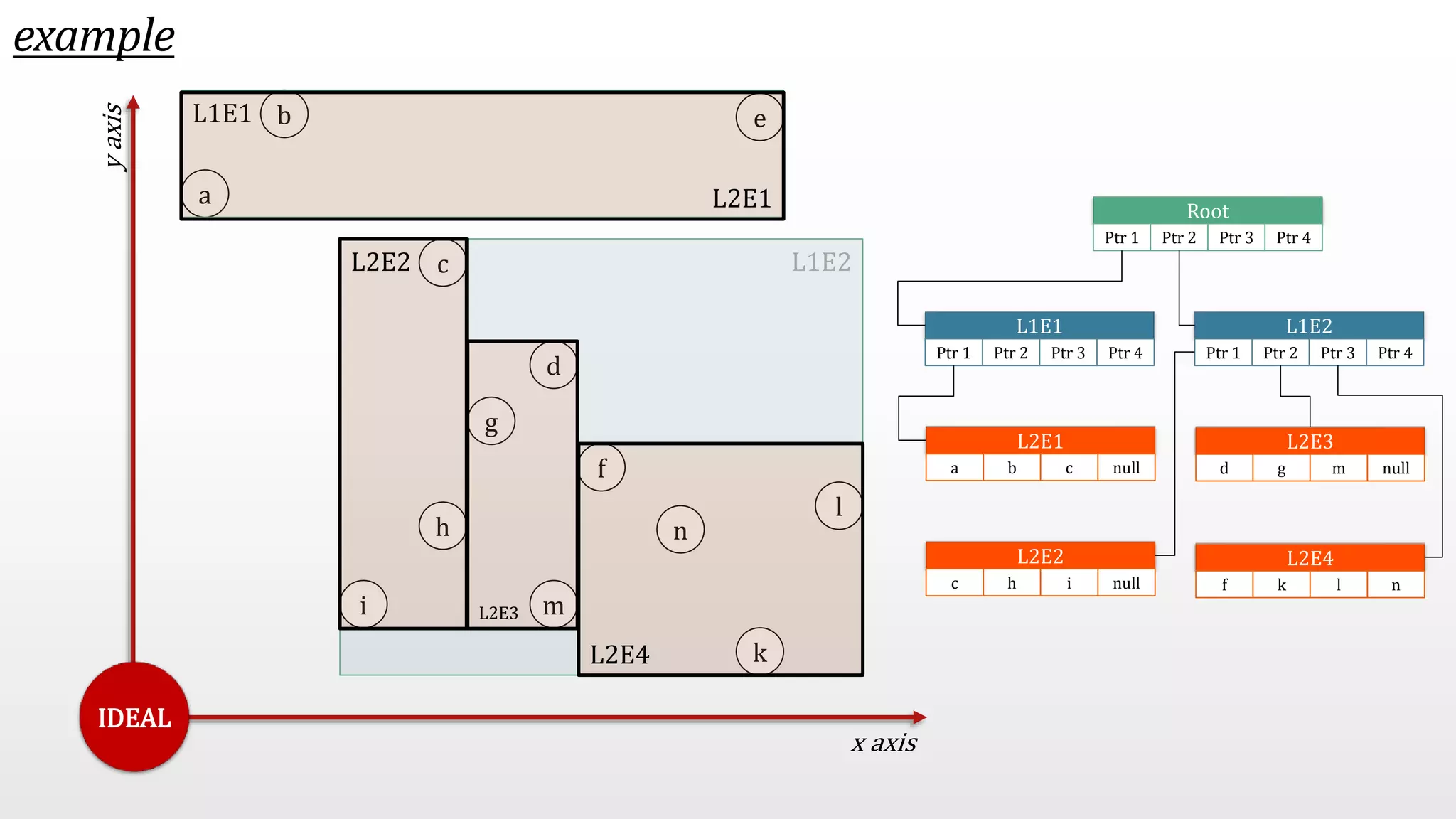

example h a x axis y axis b c d e f g i m n k l IDEAL L1E2 L1E1 L2E4 L2E2 L2E3 L2E1 9 L1E2, 4 L1E2 Queue L2E2, 5 3 5 7 L1E1, 10 L2E3, 7 L2E4, 8 2 1 1 Root Ptr 1 Ptr 2 Ptr 3 Ptr 4 L1E1 Ptr 1 Ptr 2 Ptr 3 Ptr 4 L1E2 Ptr 1 Ptr 2 Ptr 3 Ptr 4 L2E1 a b c null L2E2 c h i null L2E3 d g m null L2E4 f k l n Result

example h a x axis y axis b c d e f g i m n k l IDEAL L1E2 L1E1 L2E4 L2E2 L2E3 L2E1 Root Ptr 1 Ptr 2 Ptr 3 Ptr 4 L1E1 Ptr 1 Ptr 2 Ptr 3 Ptr 4 L1E2 Ptr 1 Ptr 2 Ptr 3 Ptr 4 L2E1 a b c null L2E2 c h i null L2E3 d g m null L2E4 f k l n Queue 3 5 7 9 2 1 1 L2E2, 5 L2E3, 7 L2E4, 8 L1E1, 10 c, 12 h, 7 i, 5 Result

example h a x axis y axis b c d e f g i m n k l IDEAL L1E2 L1E1 L2E4 L2E2 L2E3 L2E1 Root Ptr 1 Ptr 2 Ptr 3 Ptr 4 L1E1 Ptr 1 Ptr 2 Ptr 3 Ptr 4 L1E2 Ptr 1 Ptr 2 Ptr 3 Ptr 4 L2E1 a b c null L2E2 c h i null L2E3 d g m null L2E4 f k l n Queue 3 5 7 9 2 1 1 i, 5 h, 7 L2E4, 8 L1E1, 10 c, 12 Result L2E3, 7

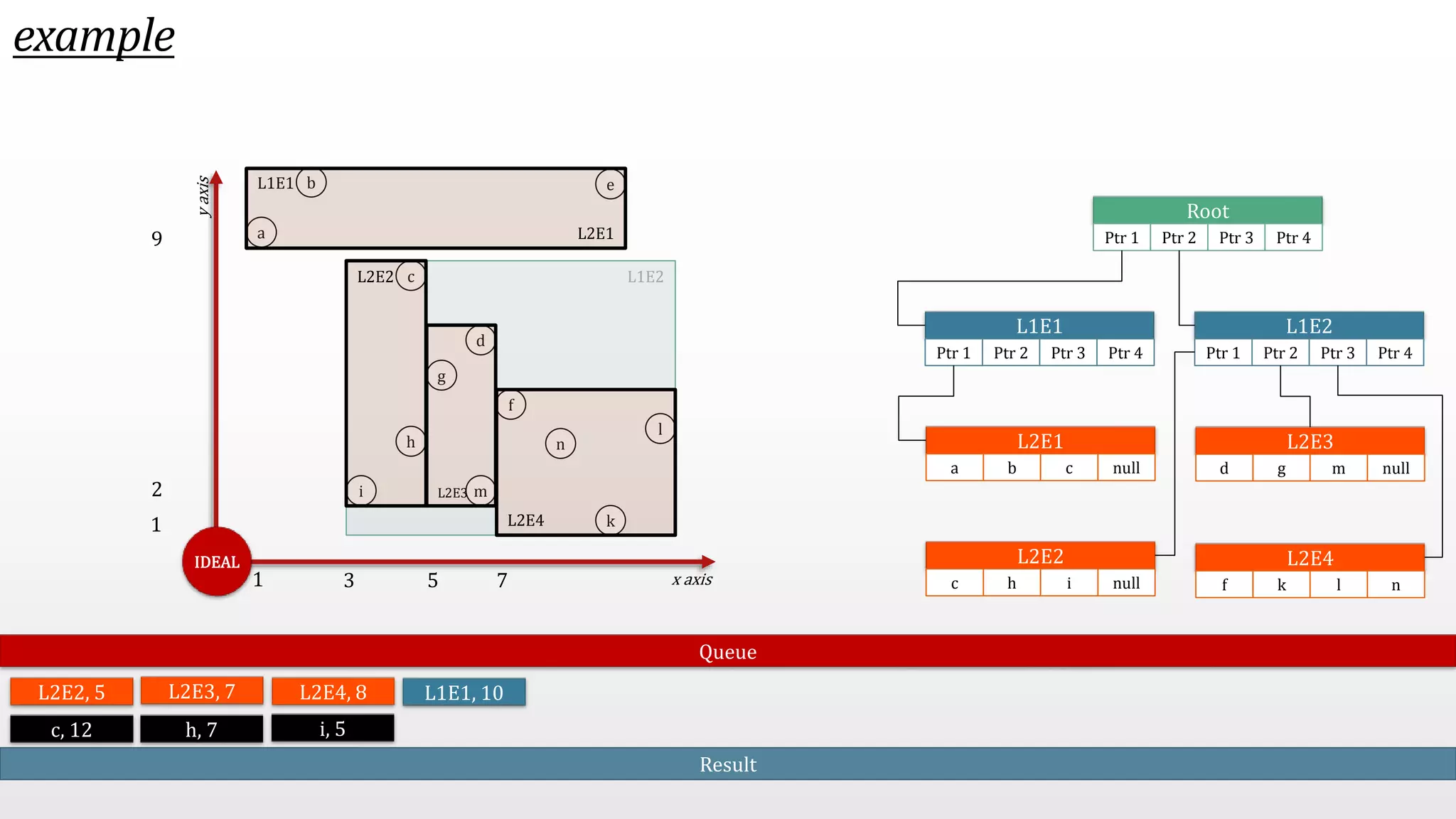

example h a x axis y axis b c d e f g i m n k l IDEAL L1E2 L1E1 L2E4 L2E2 L2E3 L2E1 Root Ptr 1 Ptr 2 Ptr 3 Ptr 4 L1E1 Ptr 1 Ptr 2 Ptr 3 Ptr 4 L1E2 Ptr 1 Ptr 2 Ptr 3 Ptr 4 L2E1 a b c null L2E2 c h i null L2E3 d g m null L2E4 f k l n Queue 3 5 7 9 2 1 1 h, 7 L2E4, 8 L1E1, 10 c, 12 i, 5 Result L2E3, 7

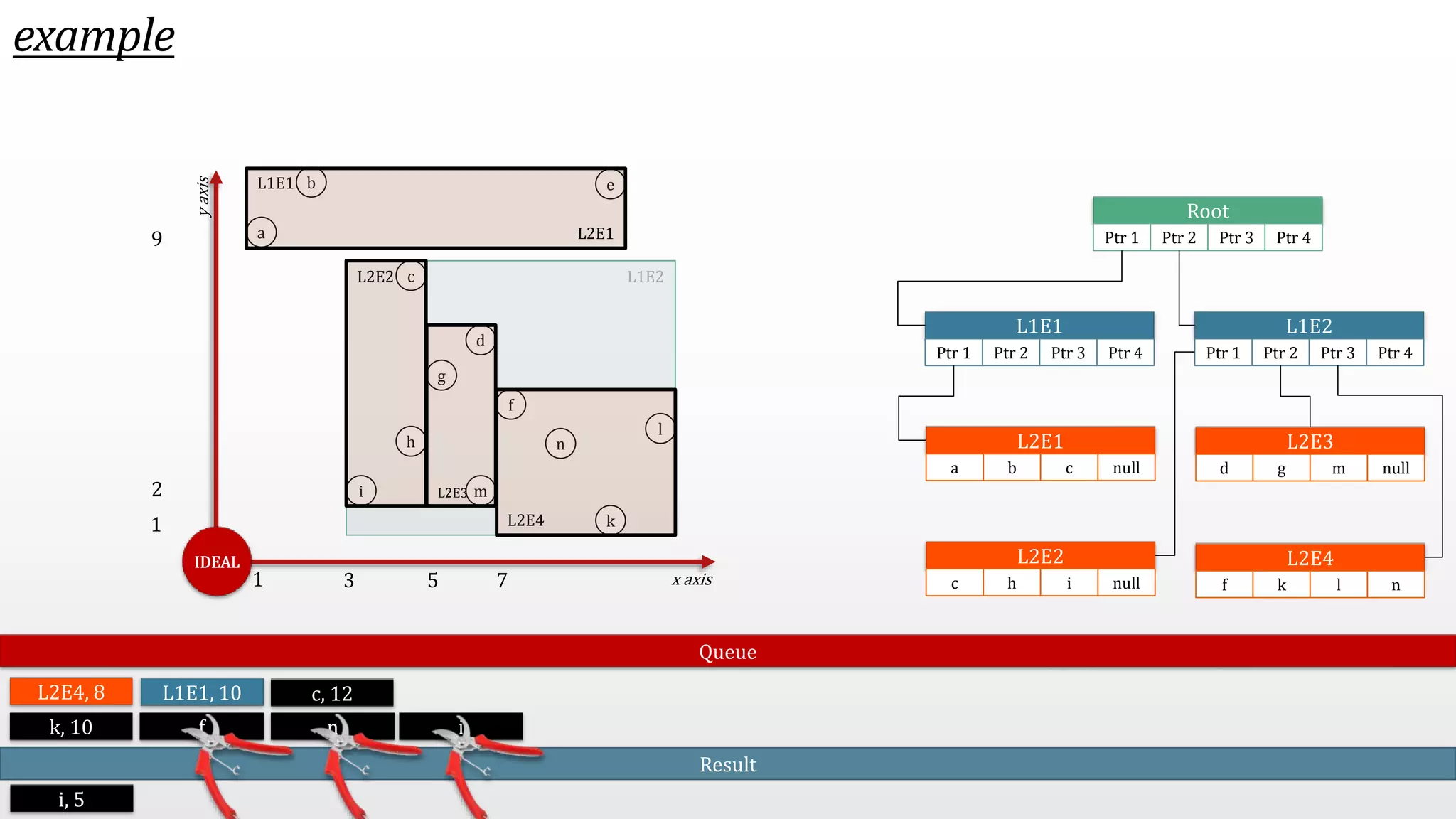

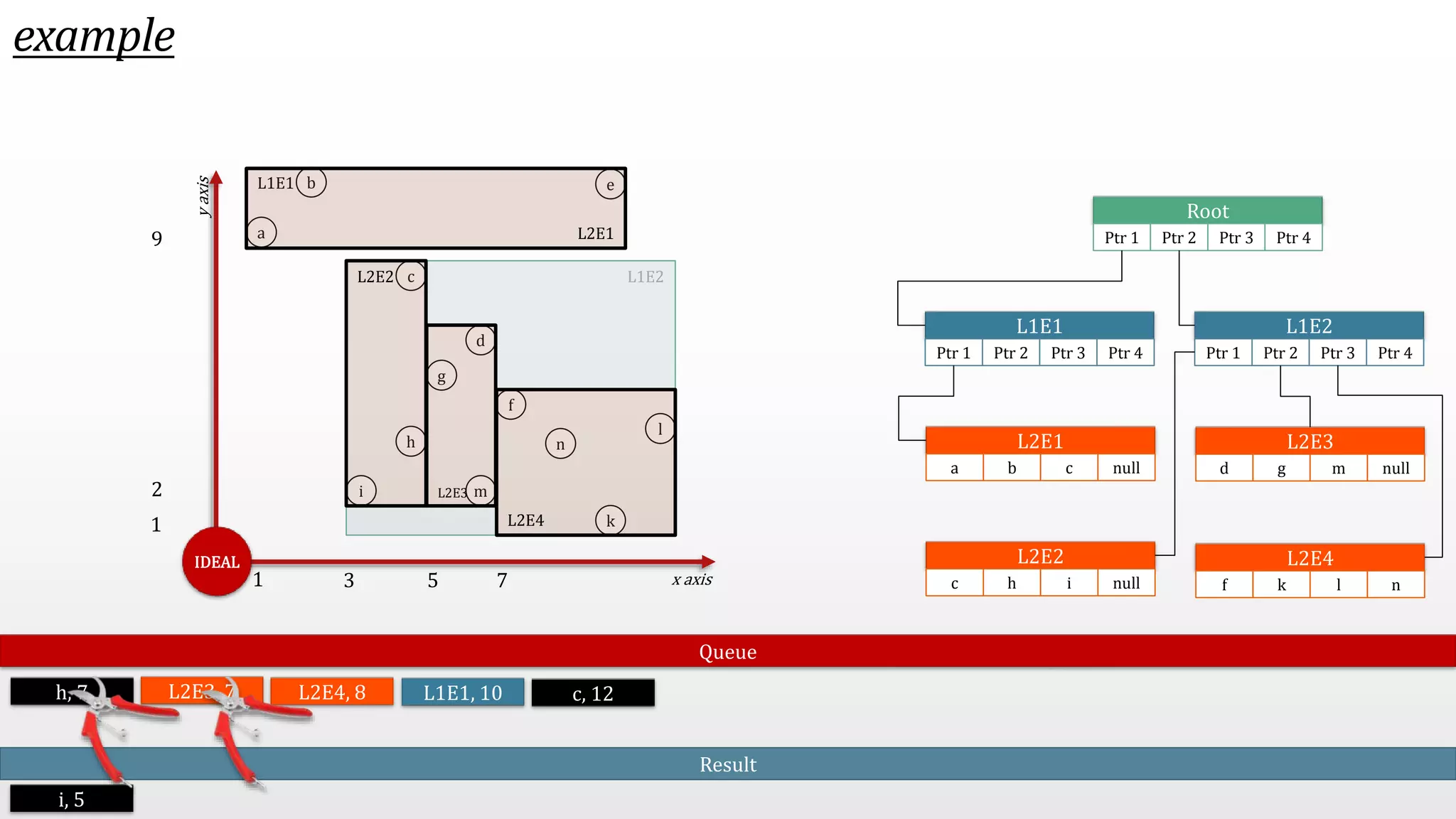

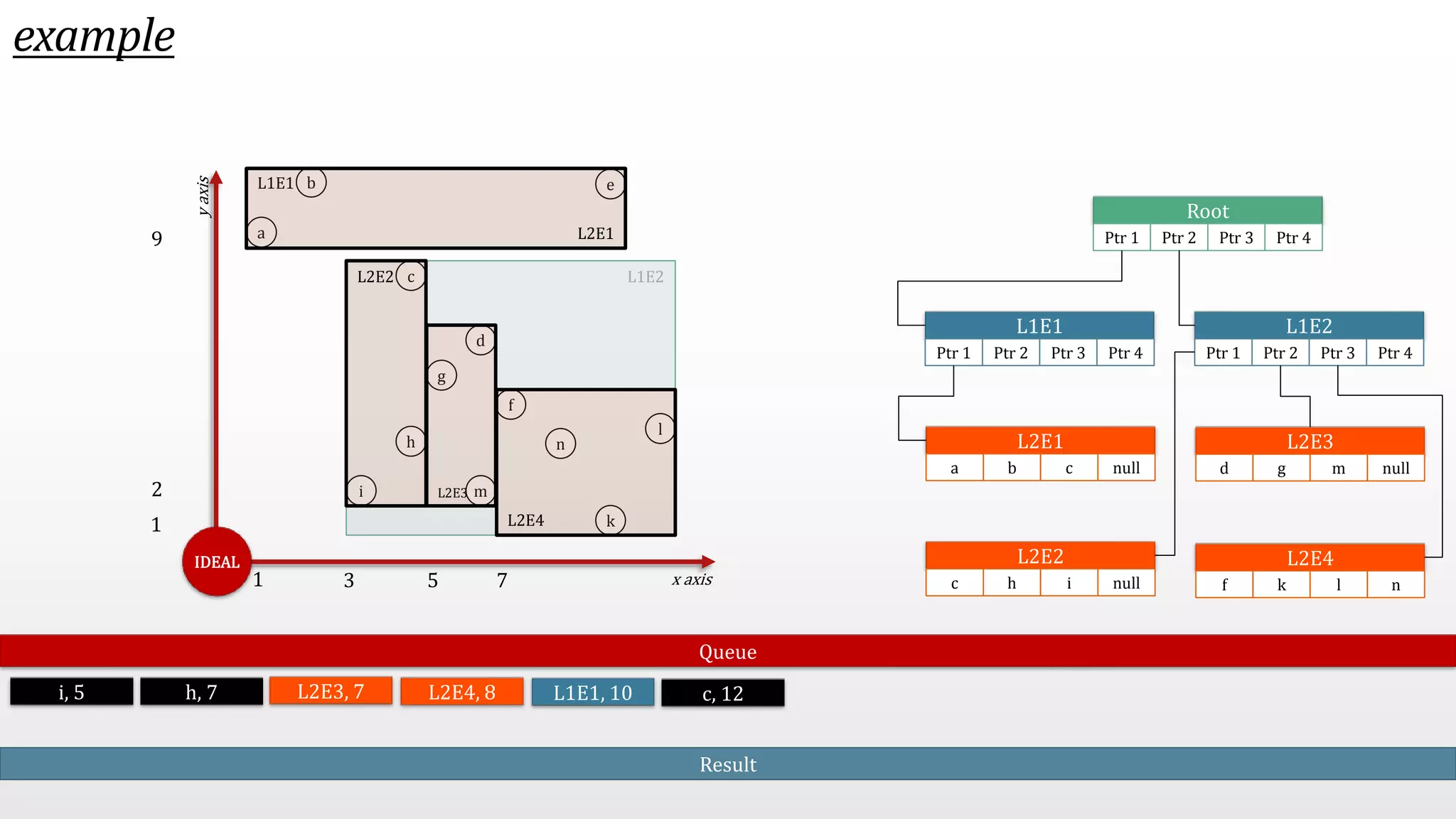

example h a x axis y axis b c d e f g i m n k l IDEAL L1E2 L1E1 L2E4 L2E2 L2E3 L2E1 Root Ptr 1 Ptr 2 Ptr 3 Ptr 4 L1E1 Ptr 1 Ptr 2 Ptr 3 Ptr 4 L1E2 Ptr 1 Ptr 2 Ptr 3 Ptr 4 L2E1 a b c null L2E2 c h i null L2E3 d g m null L2E4 f k l n Queue 3 5 7 9 2 1 1 L2E4, 8 L1E1, 10 c, 12 i, 5 Result k, 10 f n i

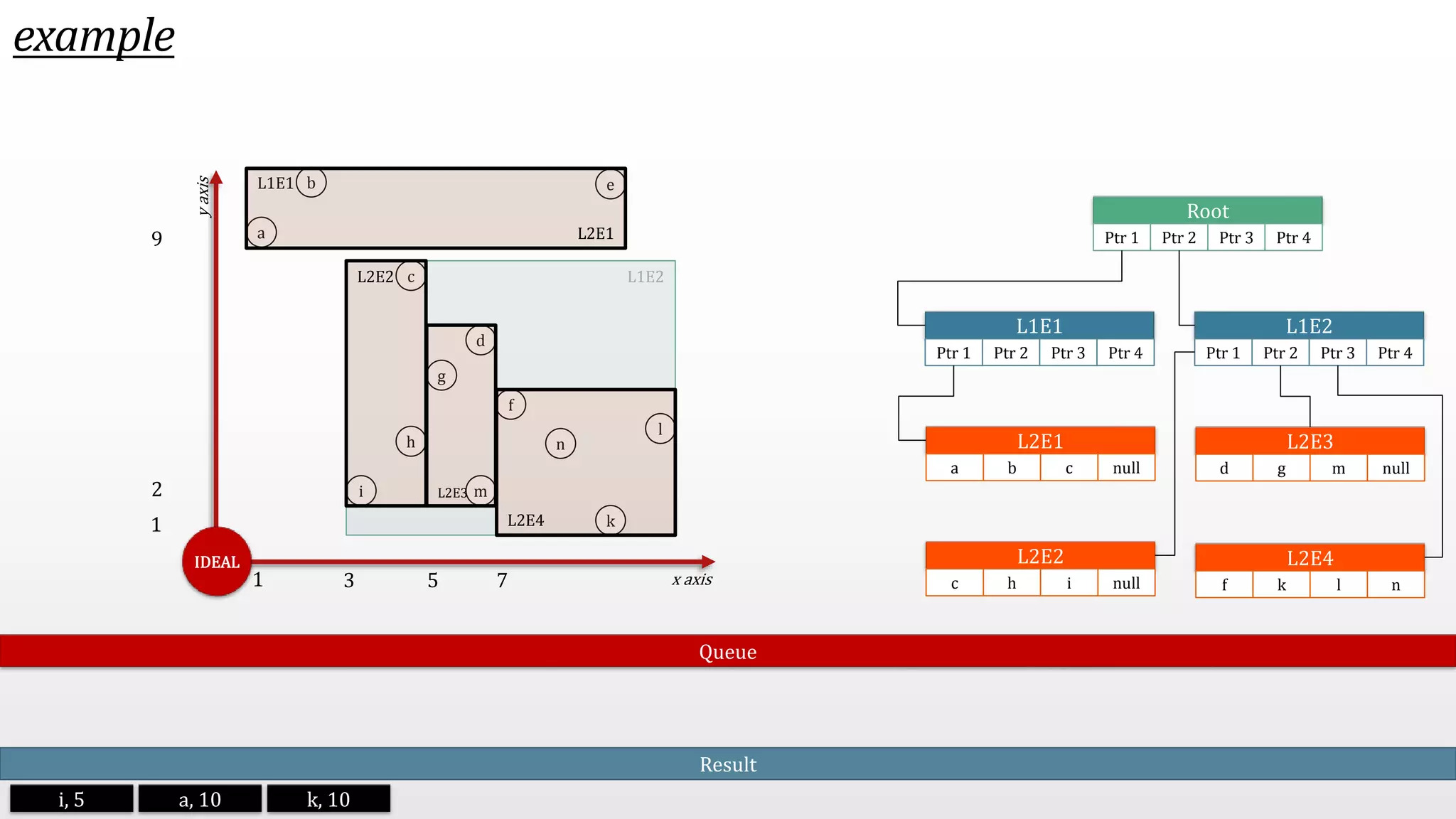

example h a x axis y axis b c d e f g i m n k l IDEAL L1E2 L1E1 L2E4 L2E2 L2E3 L2E1 Root Ptr 1 Ptr 2 Ptr 3 Ptr 4 L1E1 Ptr 1 Ptr 2 Ptr 3 Ptr 4 L1E2 Ptr 1 Ptr 2 Ptr 3 Ptr 4 L2E1 a b c null L2E2 c h i null L2E3 d g m null L2E4 f k l n Queue 3 5 7 9 2 1 1 i, 5 Result a, 10 k, 10

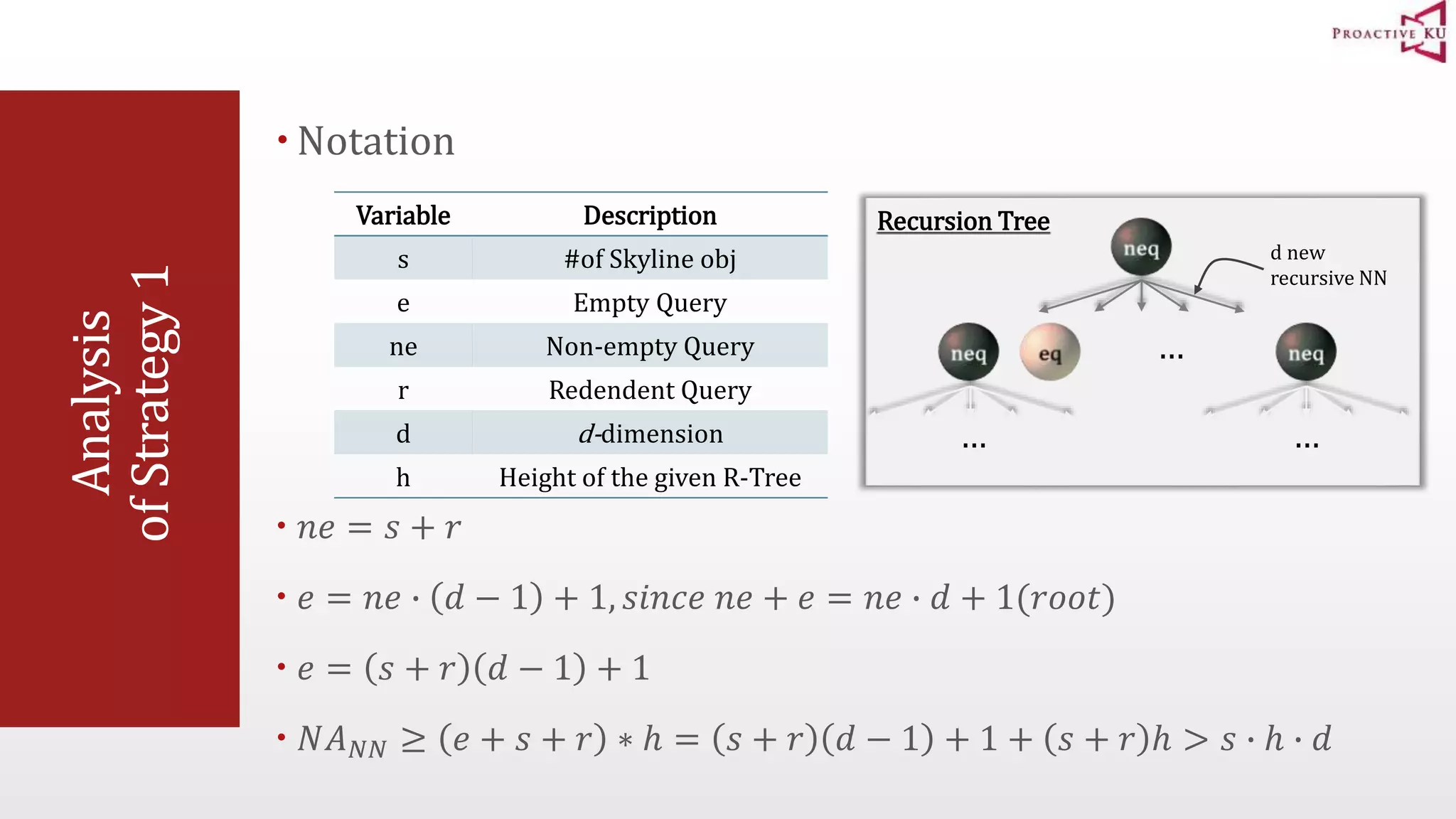

Analysis of Strategy 1  Notation Variable Description s #of Skyline obj e Empty Query ne Non-empty Query r Redendent Query d d-dimension h Height of the given R-Tree Recursion Tree … d new recursive NN … …  푛푒 = 푠 + 푟  푒 = 푛푒 ∙ 푑 − 1 + 1, 푠푖푛푐푒 푛푒 + 푒 = 푛푒 ∙ 푑 + 1(푟표표푡)  푒 = 푠 + 푟 푑 − 1 + 1  푁퐴푁푁 ≥ 푒 + 푠 + 푟 ∗ ℎ = 푠 + 푟 푑 − 1 + 1 + 푠 + 푟 ℎ > 푠 ∙ ℎ ∙ 푑

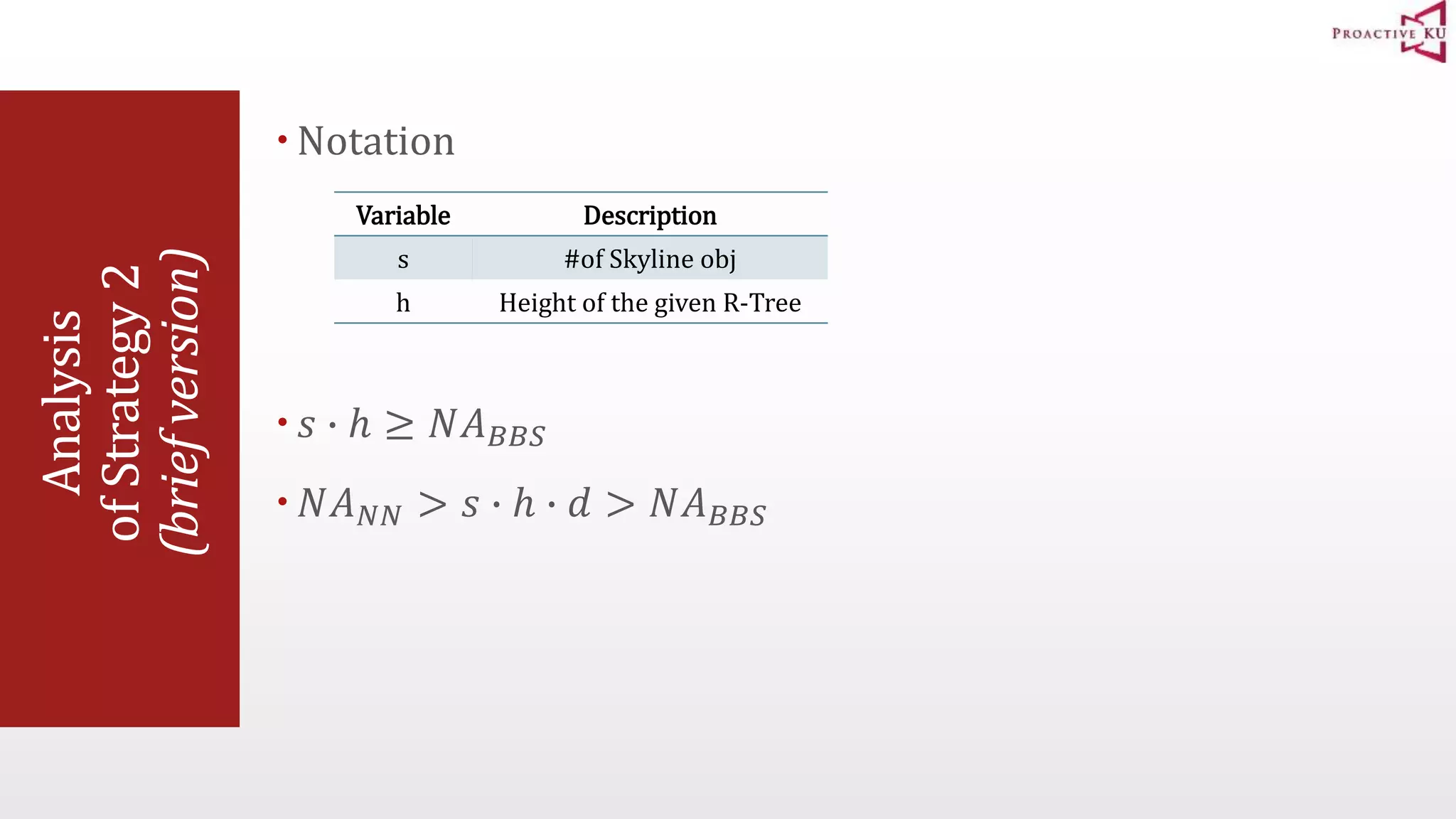

Analysis of Strategy 2 (brief version)  Notation Variable Description s #of Skyline obj h Height of the given R-Tree  푠 ∙ ℎ ≥ 푁퐴퐵퐵푆  푁퐴푁푁 > 푠 ∙ ℎ ∙ 푑 > 푁퐴퐵퐵푆

Is it the optimal solution? BBS Algorithm

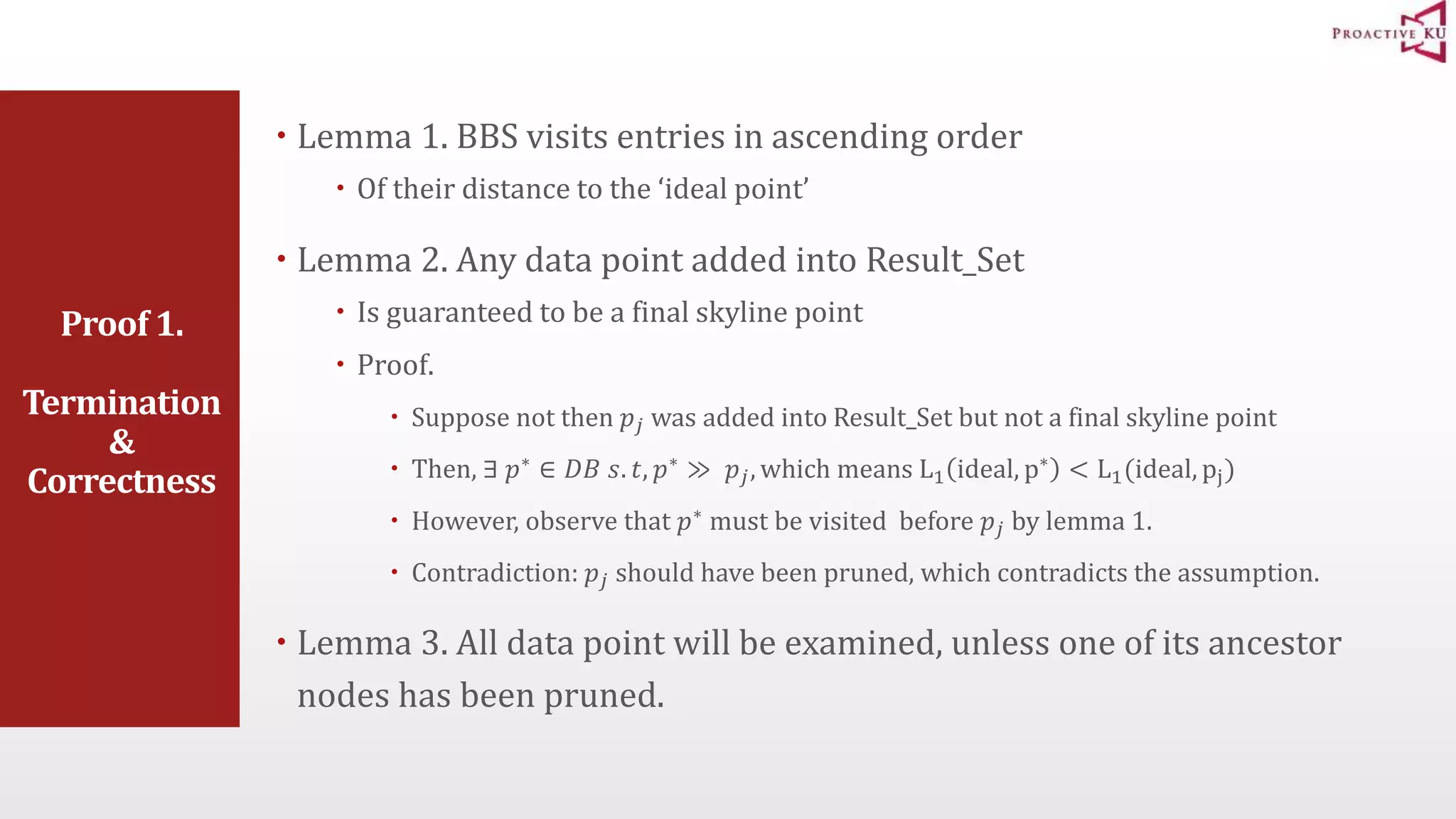

Proof 1. Termination & Correctness  Lemma 1. BBS visits entries in ascending order  Of their distance to the ‘ideal point’  Lemma 2. Any data point added into Result_Set  Is guaranteed to be a final skyline point  Proof.  Suppose not then 푝푗 was added into Result_Set but not a final skyline point  Then, ∃ 푝∗ ∈ 퐷퐵 푠. 푡, 푝∗ ≫ 푝푗 , which means L1 ideal, p∗ < L1(ideal, pj)  However, observe that 푝∗ must be visited before 푝푗 by lemma 1.  Contradiction: 푝푗 should have been pruned, which contradicts the assumption.  Lemma 3. All data point will be examined, unless one of its ancestor nodes has been pruned.

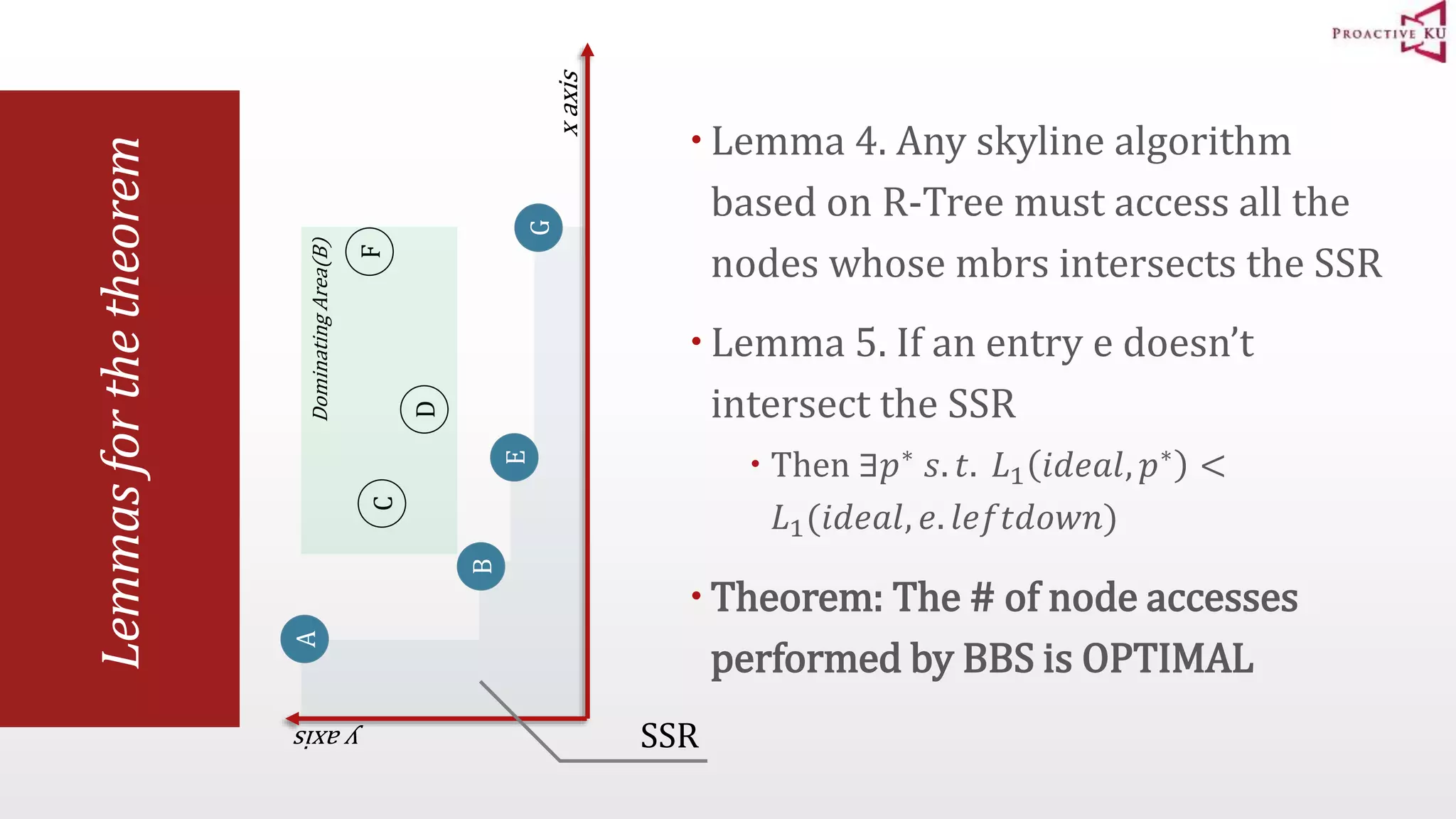

Lemmas for the theorem Lemma 4. Any skyline algorithm based on R-Tree must access all the nodes whose mbrs intersects the SSR  Lemma 5. If an entry e doesn’t intersect the SSR  Then ∃푝∗ 푠. 푡. 퐿1 푖푑푒푎푙, 푝∗ < 퐿1(푖푑푒푎푙, 푒. 푙푒푓푡푑표푤푛)  Theorem: The # of node accesses performed by BBS is OPTIMAL Dominating Area(B) A B F C D E x axis y axis G SSR

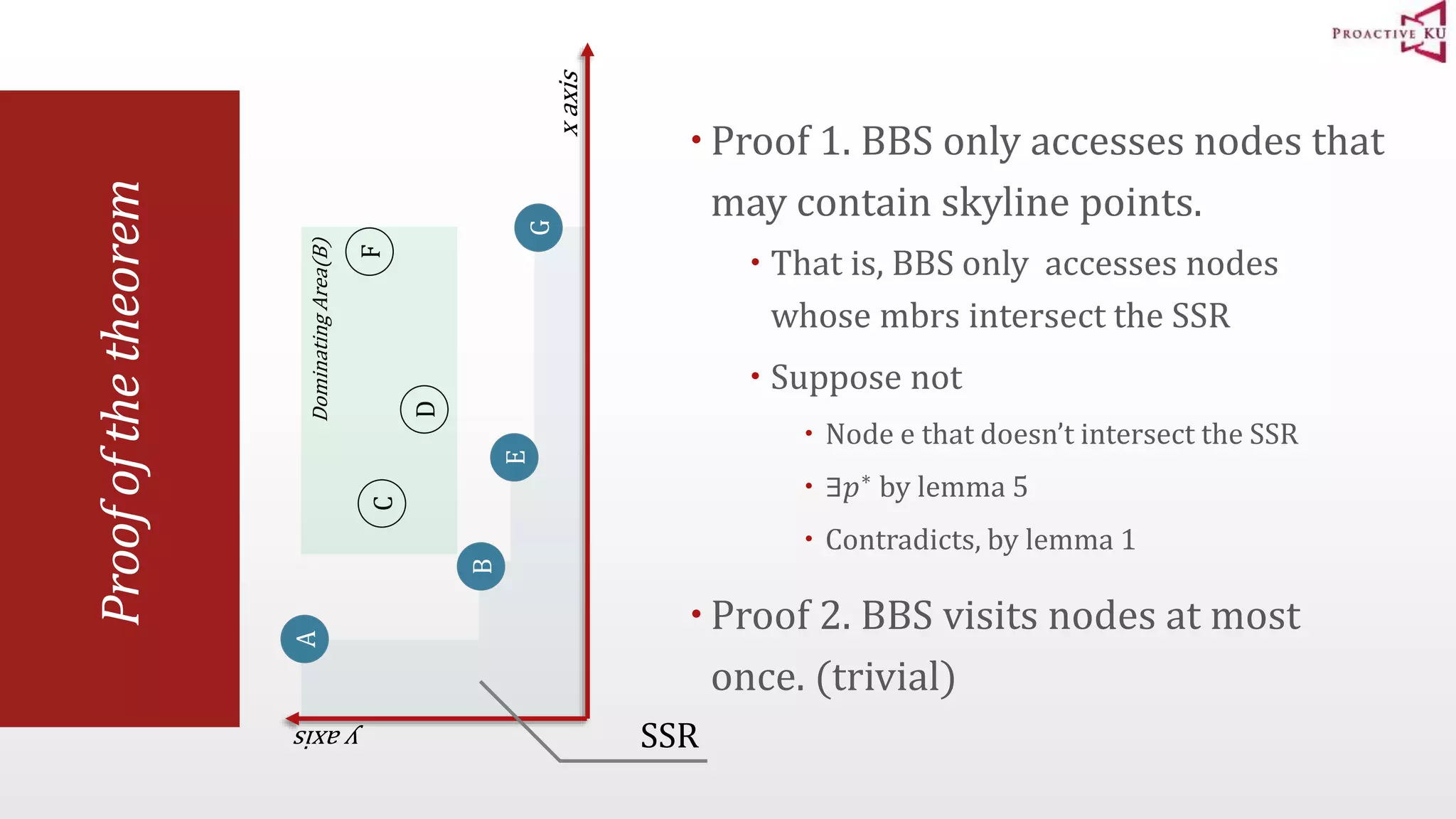

Proof of the theorem  Proof 1. BBS only accesses nodes that may contain skyline points.  That is, BBS only accesses nodes whose mbrs intersect the SSR  Suppose not  Node e that doesn’t intersect the SSR  ∃푝∗ by lemma 5  Contradicts, by lemma 1  Proof 2. BBS visits nodes at most once. (trivial) Dominating Area(B) A B F C D E x axis y axis G SSR

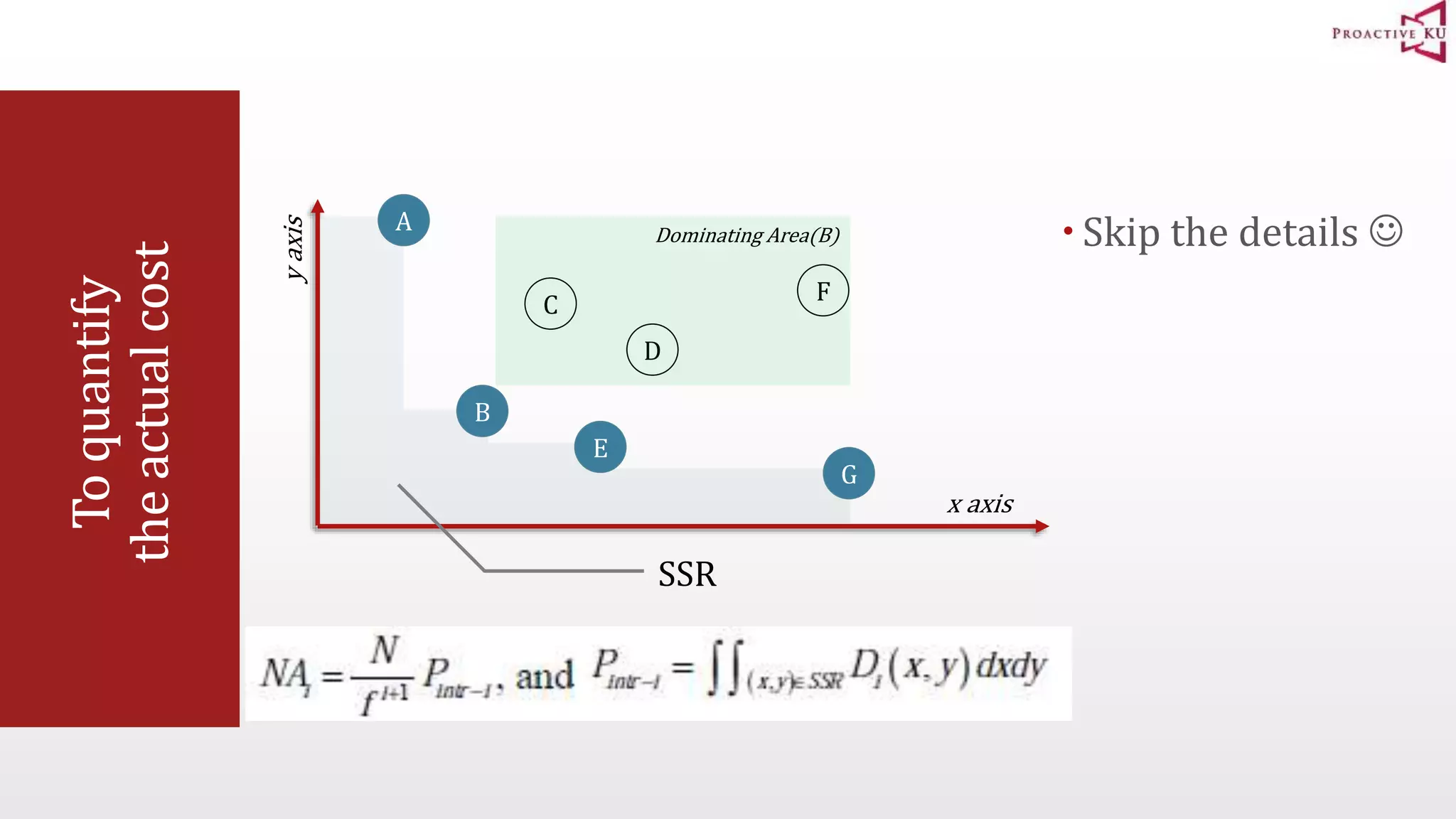

To quantify the actual cost A  Skip the details  B C Dominating Area(B) D E F x axis y axis G SSR

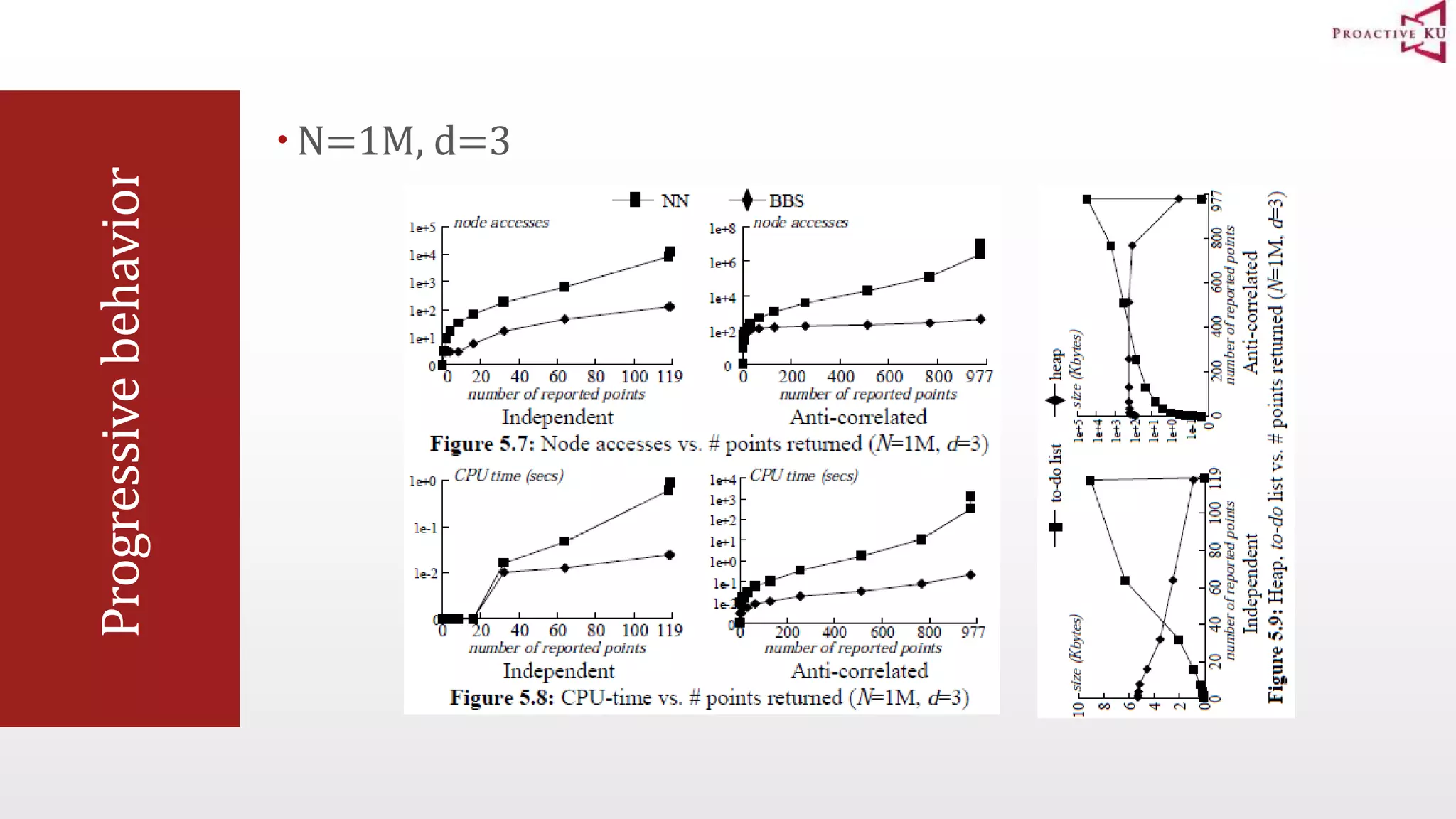

Progressive behavior  N=1M, d=3

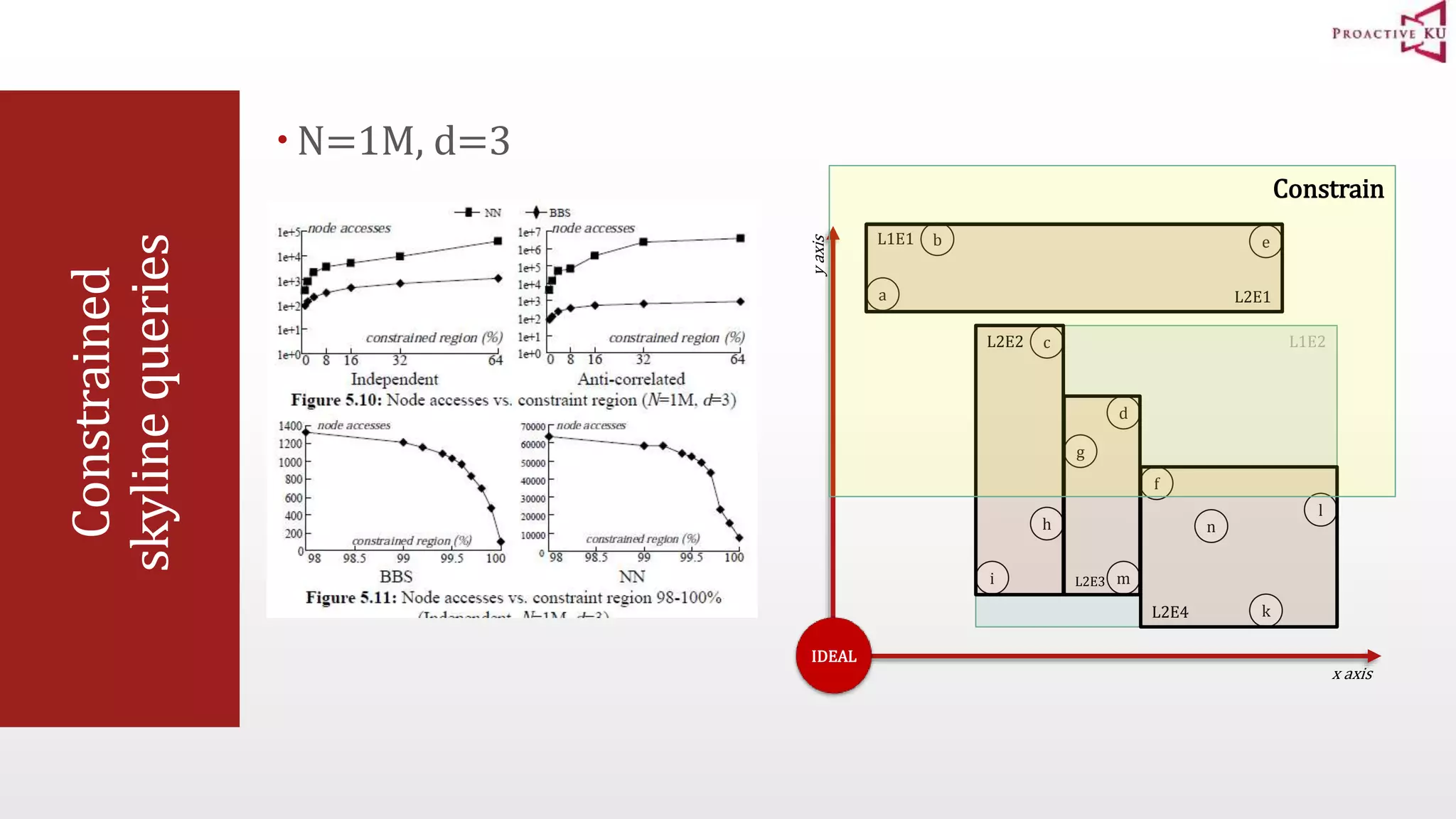

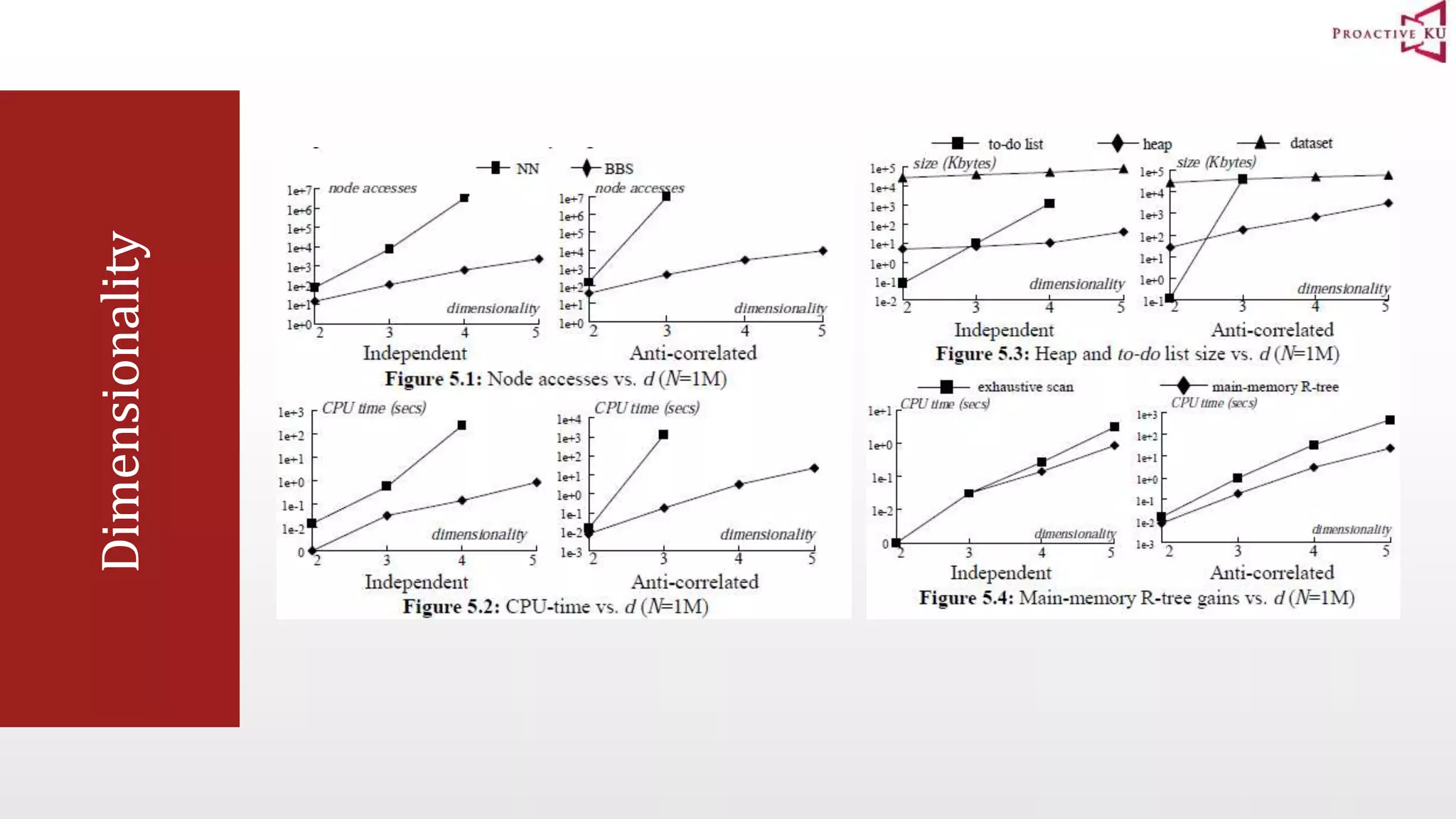

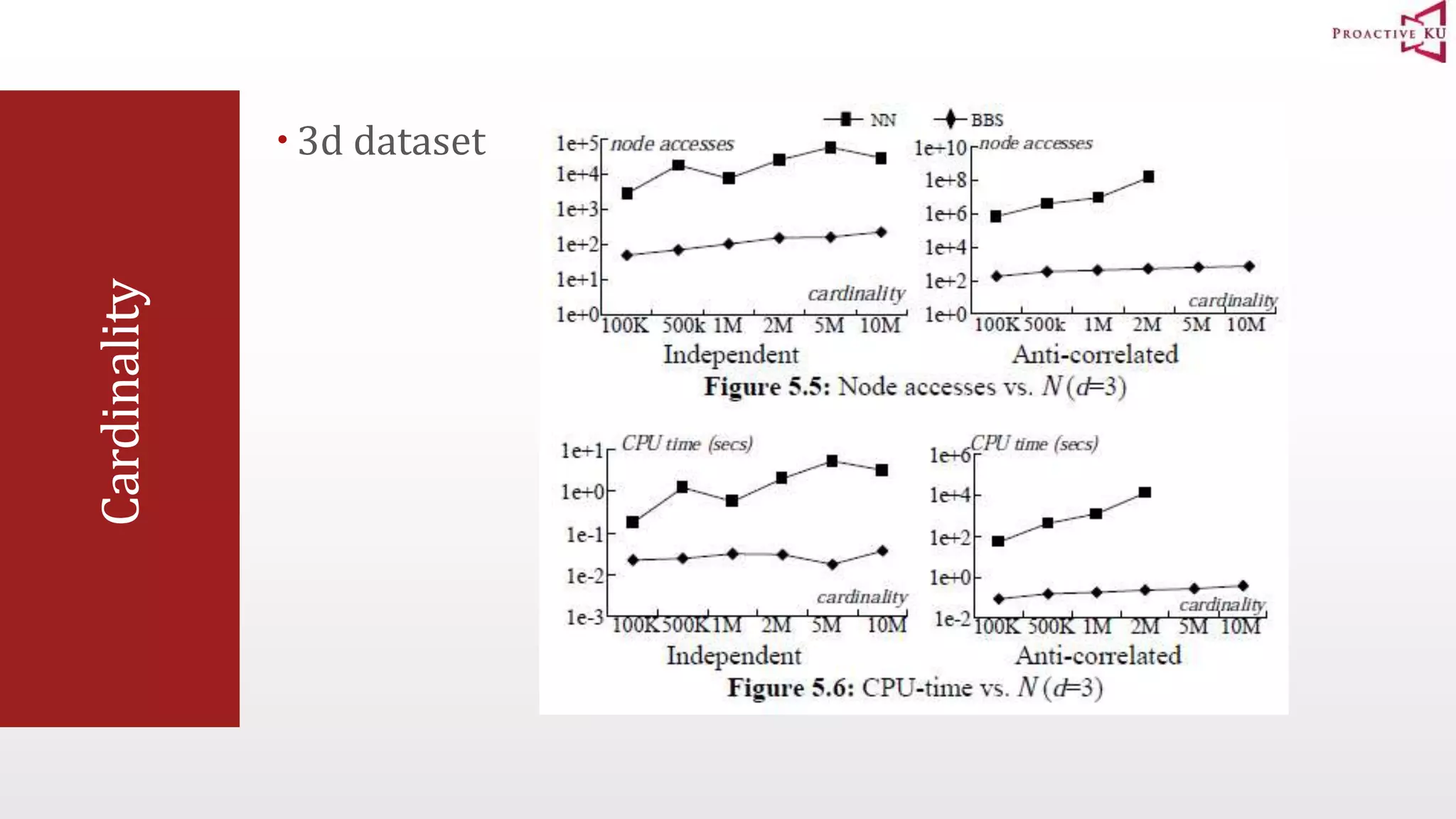

Constrained skyline queries  N=1M, d=3 h a x axis y axis b c d e f g i m n k l IDEAL L1E2 L1E1 L2E4 L2E2 L2E3 L2E1 Constrain
