CSE221: Algorithms Lecture 3 Muhammad Abul Hasan, PhD May 24, 2015

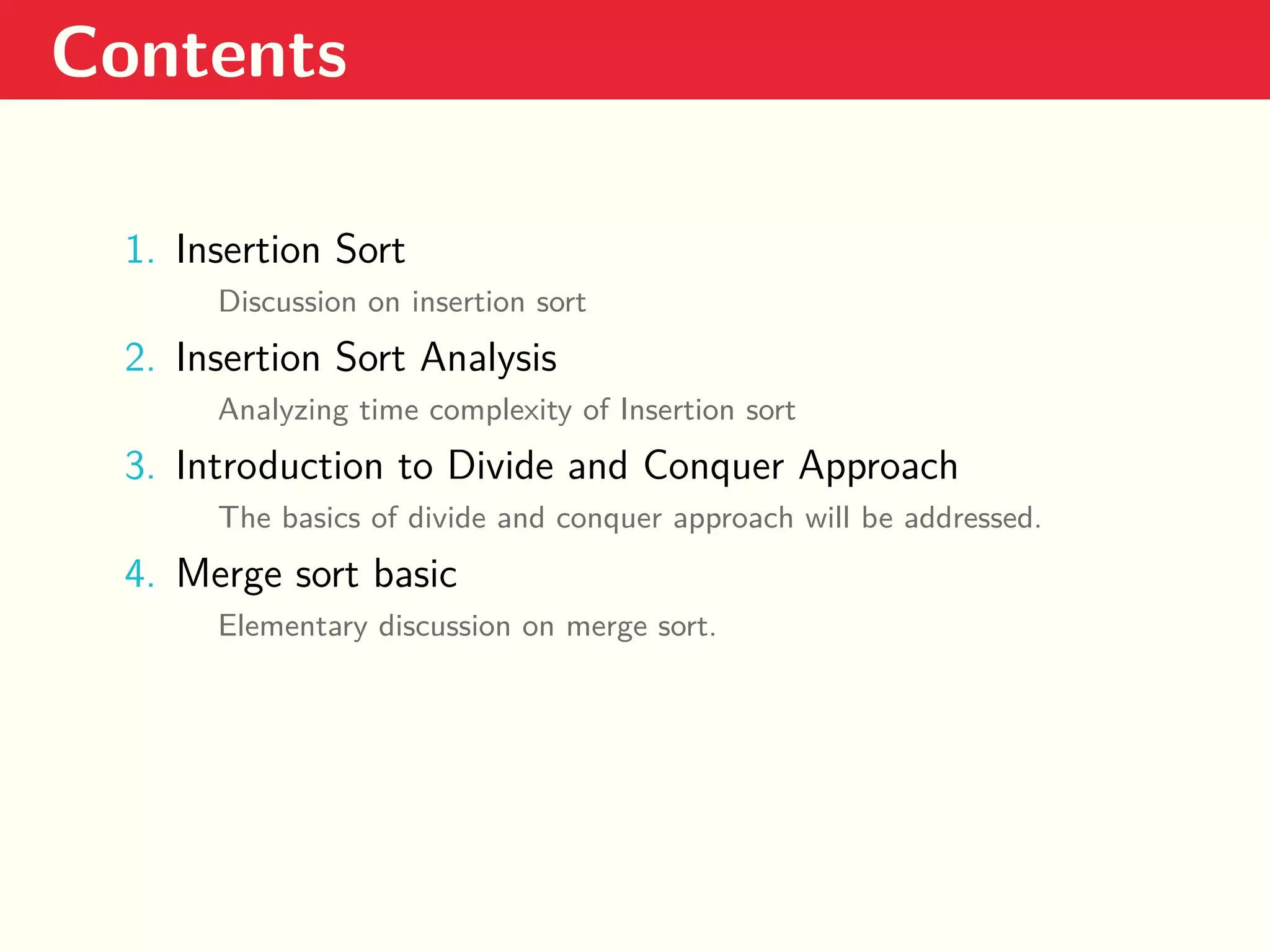

Contents 1. Insertion Sort Discussion on insertion sort 2. Insertion Sort Analysis Analyzing time complexity of Insertion sort 3. Introduction to Divide and Conquer Approach The basics of divide and conquer approach will be addressed. 4. Merge sort basic Elementary discussion on merge sort.
Insertion Sort 1/10 InsertionSort

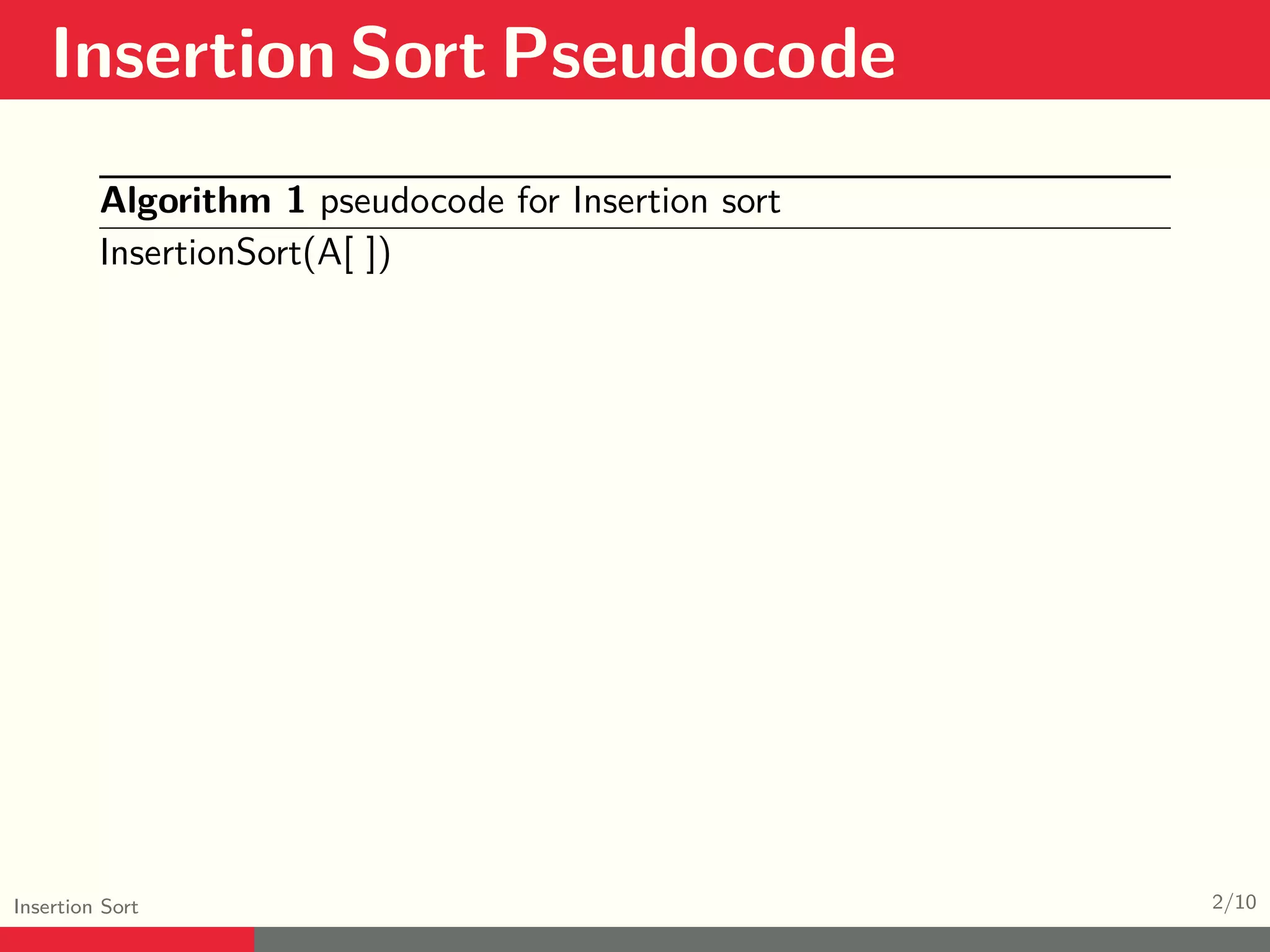

Insertion Sort Pseudocode Insertion Sort 2/10 Algorithm 1 pseudocode for Insertion sort InsertionSort(A[ ])

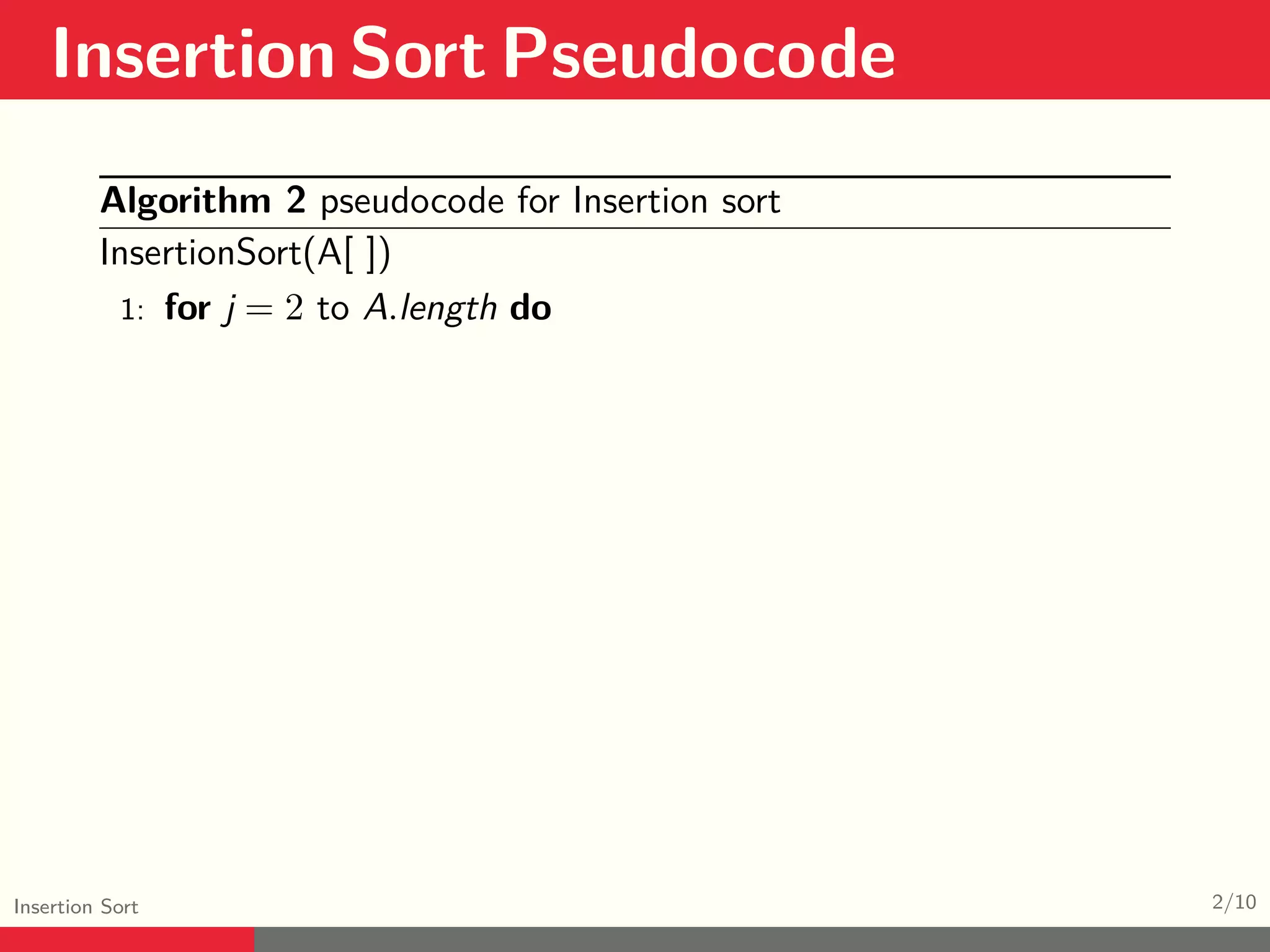

Insertion Sort Pseudocode Insertion Sort 2/10 Algorithm 2 pseudocode for Insertion sort InsertionSort(A[ ]) 1: for j = 2 to A.length do

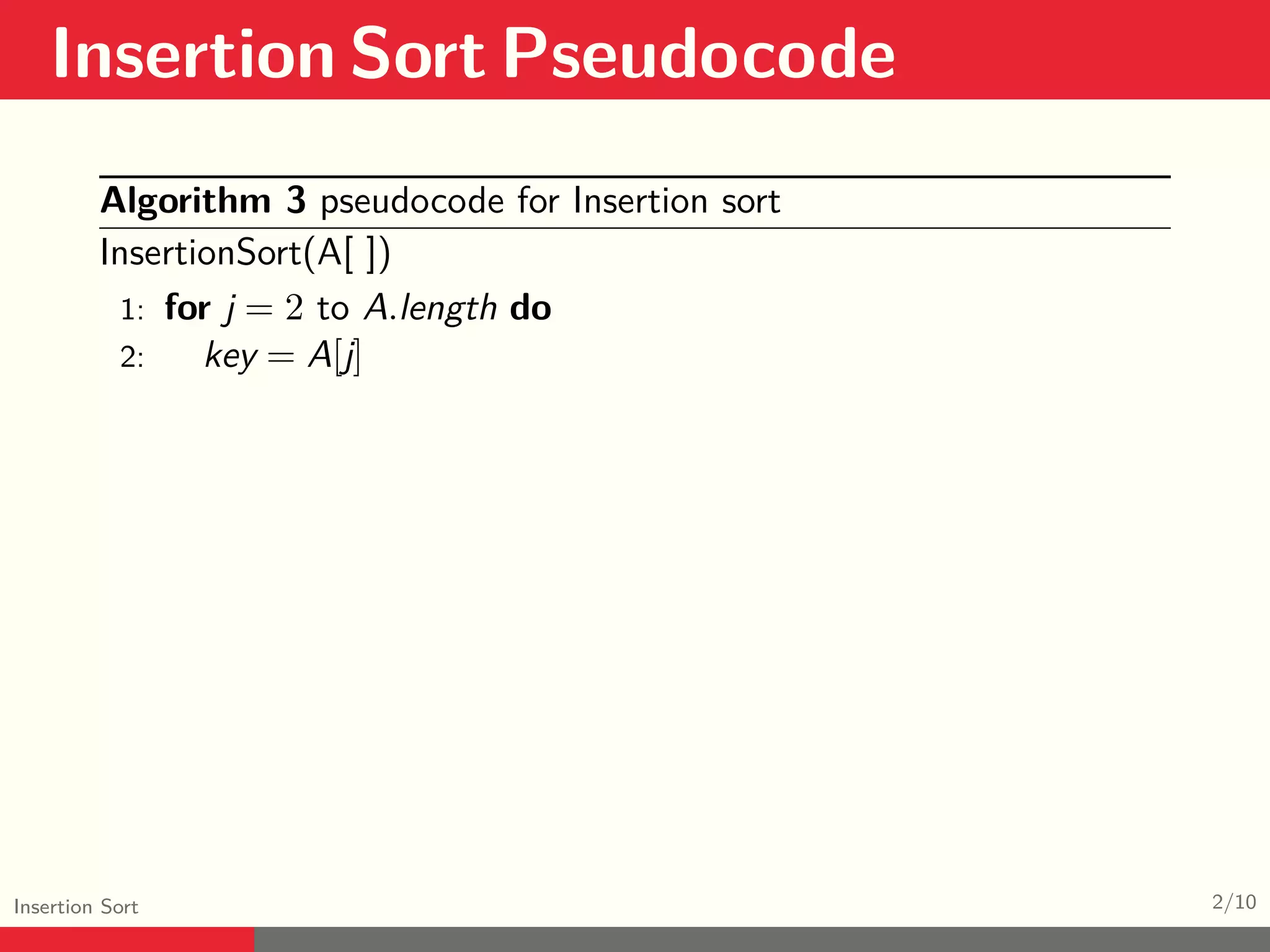

Insertion Sort Pseudocode Insertion Sort 2/10 Algorithm 3 pseudocode for Insertion sort InsertionSort(A[ ]) 1: for j = 2 to A.length do 2: key = A[j]

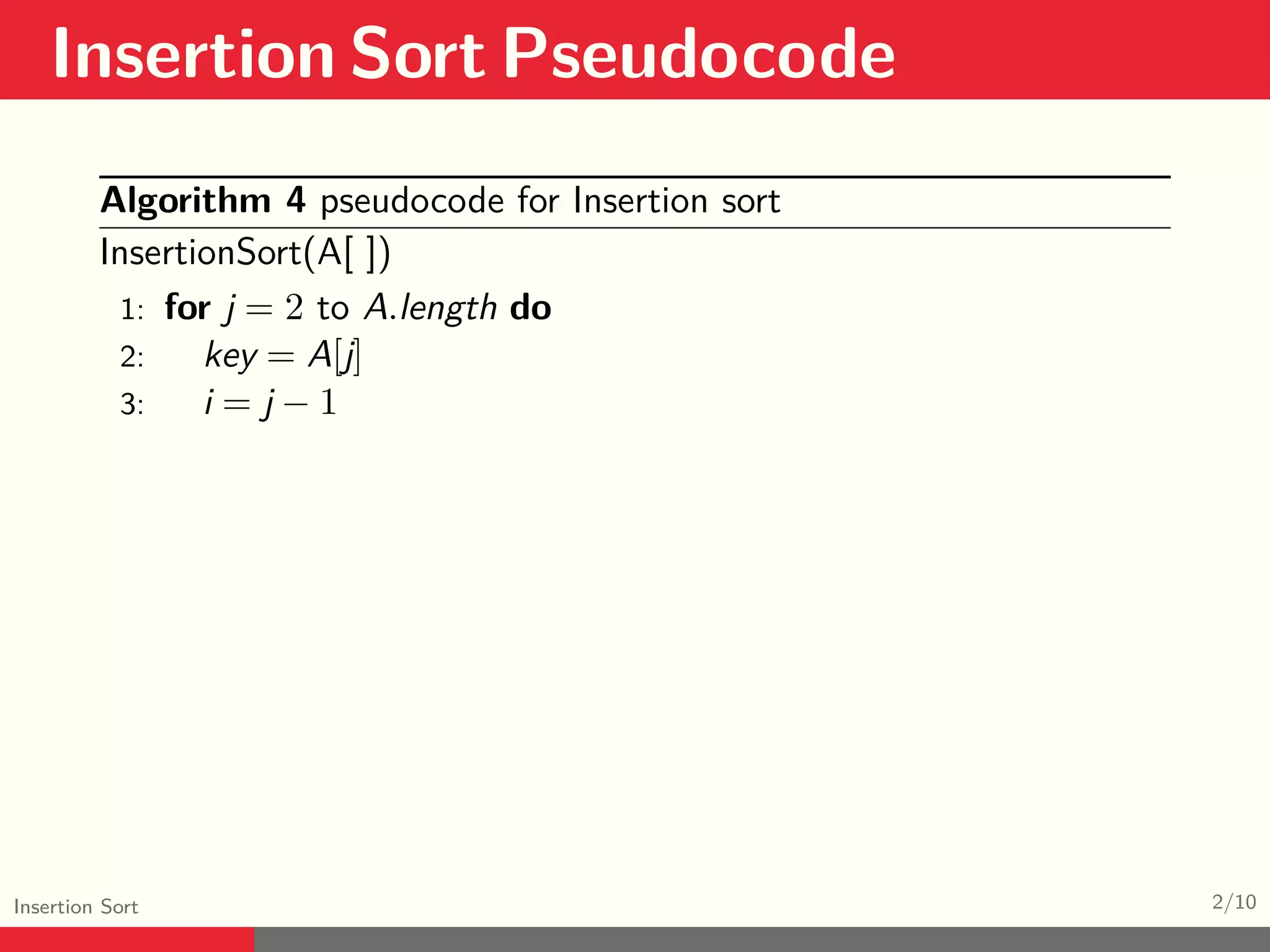

Insertion Sort Pseudocode Insertion Sort 2/10 Algorithm 4 pseudocode for Insertion sort InsertionSort(A[ ]) 1: for j = 2 to A.length do 2: key = A[j] 3: i = j − 1

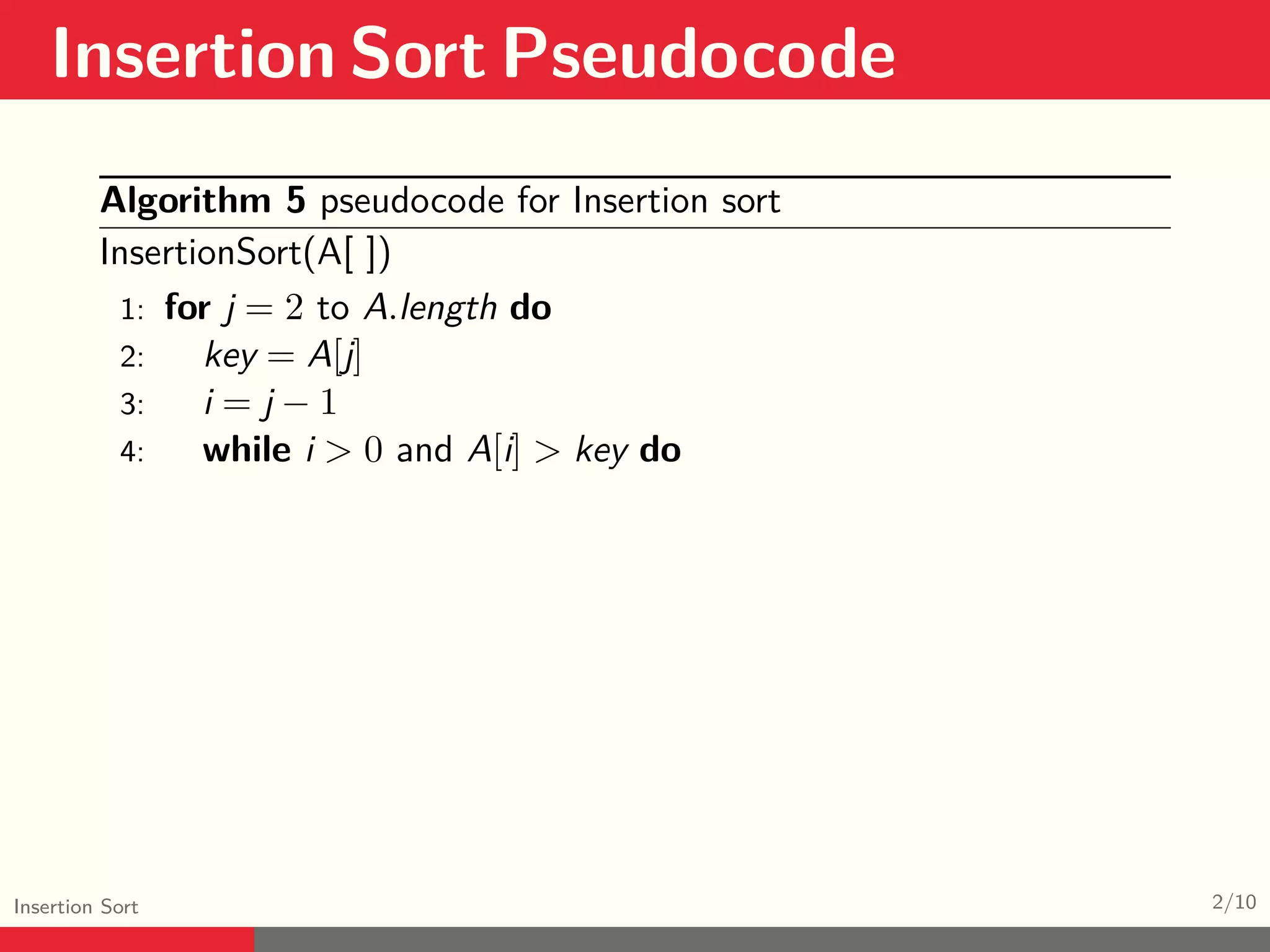

Insertion Sort Pseudocode Insertion Sort 2/10 Algorithm 5 pseudocode for Insertion sort InsertionSort(A[ ]) 1: for j = 2 to A.length do 2: key = A[j] 3: i = j − 1 4: while i > 0 and A[i] > key do

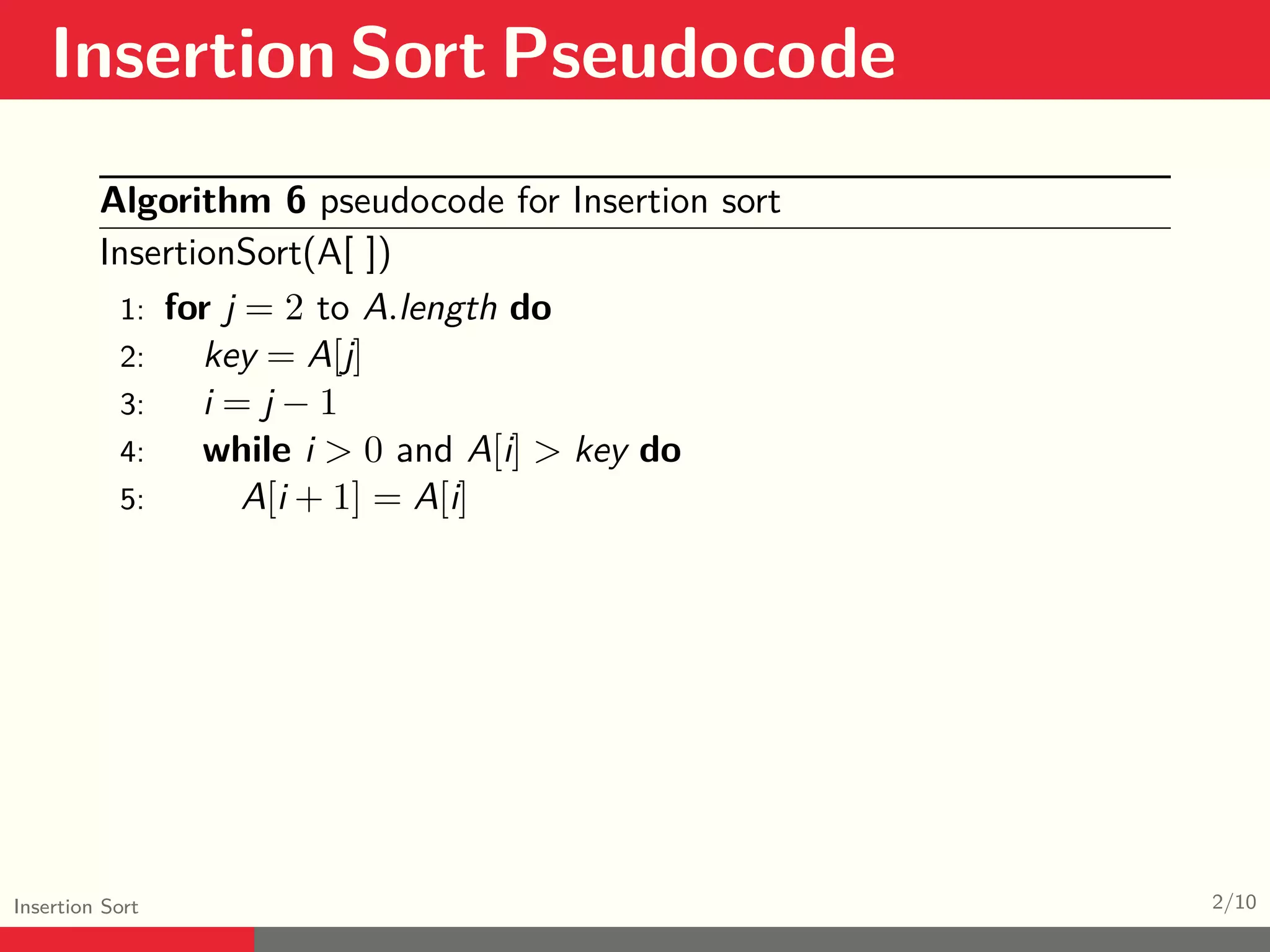

Insertion Sort Pseudocode Insertion Sort 2/10 Algorithm 6 pseudocode for Insertion sort InsertionSort(A[ ]) 1: for j = 2 to A.length do 2: key = A[j] 3: i = j − 1 4: while i > 0 and A[i] > key do 5: A[i + 1] = A[i]

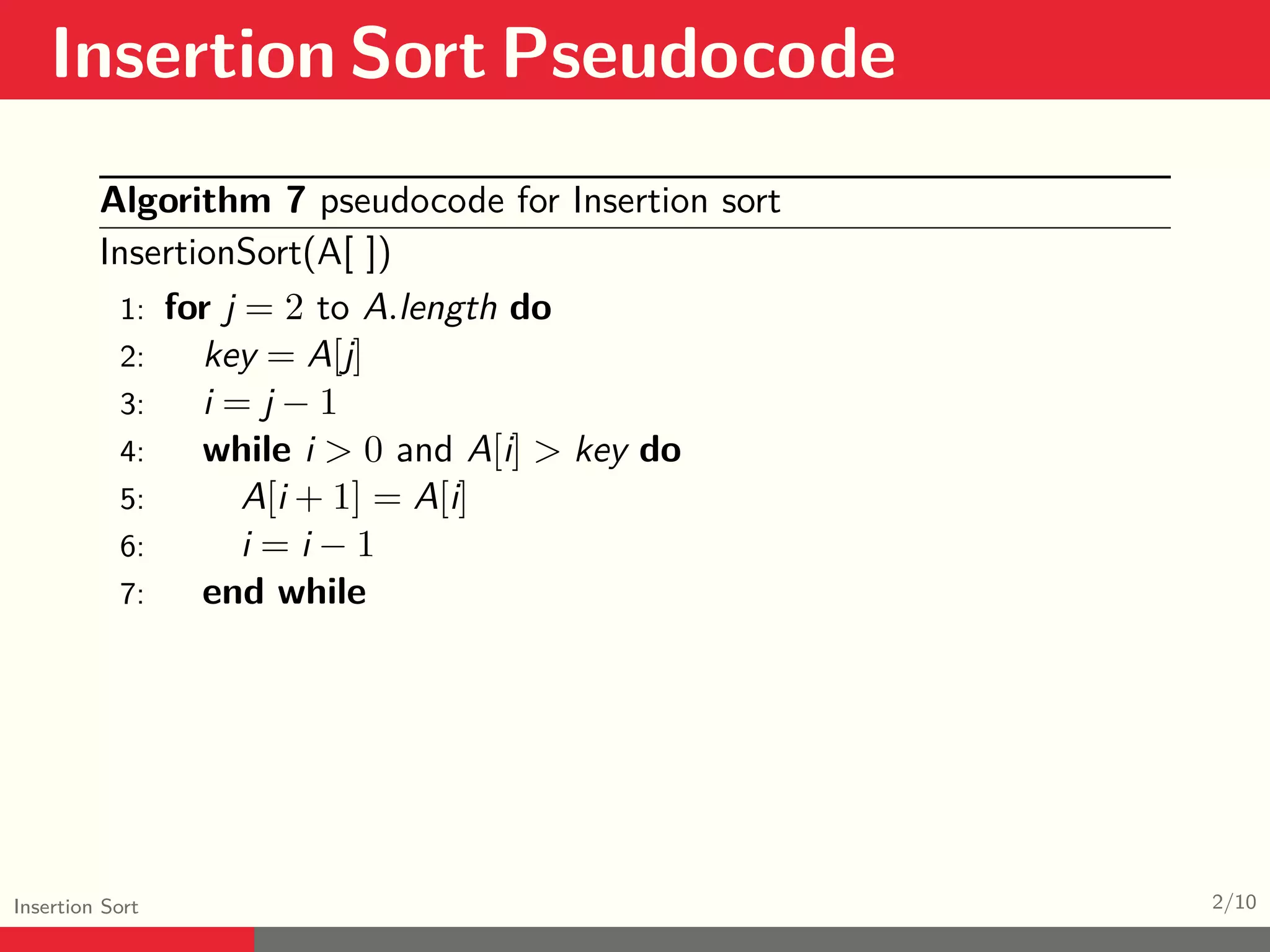

Insertion Sort Pseudocode Insertion Sort 2/10 Algorithm 7 pseudocode for Insertion sort InsertionSort(A[ ]) 1: for j = 2 to A.length do 2: key = A[j] 3: i = j − 1 4: while i > 0 and A[i] > key do 5: A[i + 1] = A[i] 6: i = i − 1 7: end while

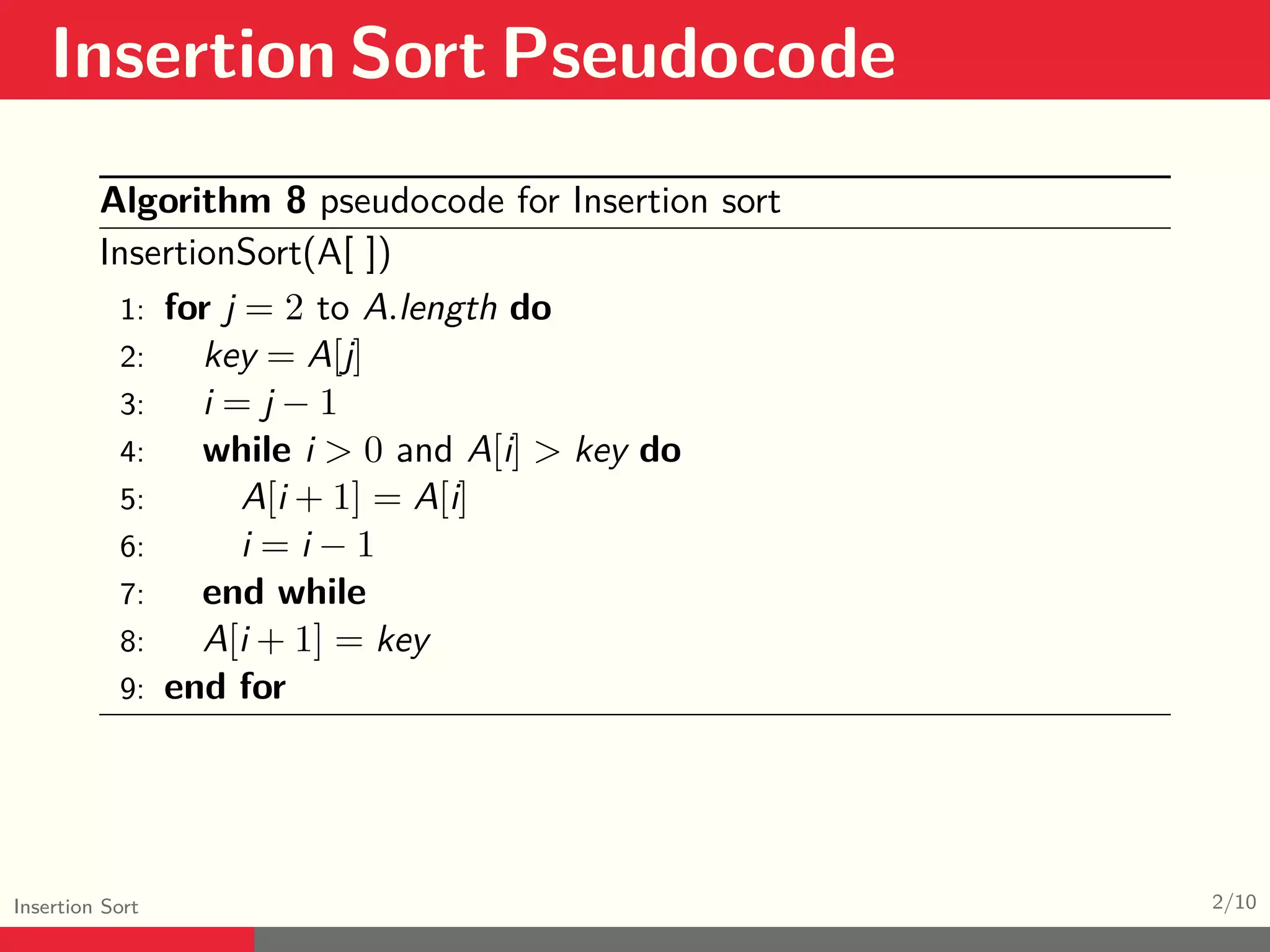

Insertion Sort Pseudocode Insertion Sort 2/10 Algorithm 8 pseudocode for Insertion sort InsertionSort(A[ ]) 1: for j = 2 to A.length do 2: key = A[j] 3: i = j − 1 4: while i > 0 and A[i] > key do 5: A[i + 1] = A[i] 6: i = i − 1 7: end while 8: A[i + 1] = key 9: end for

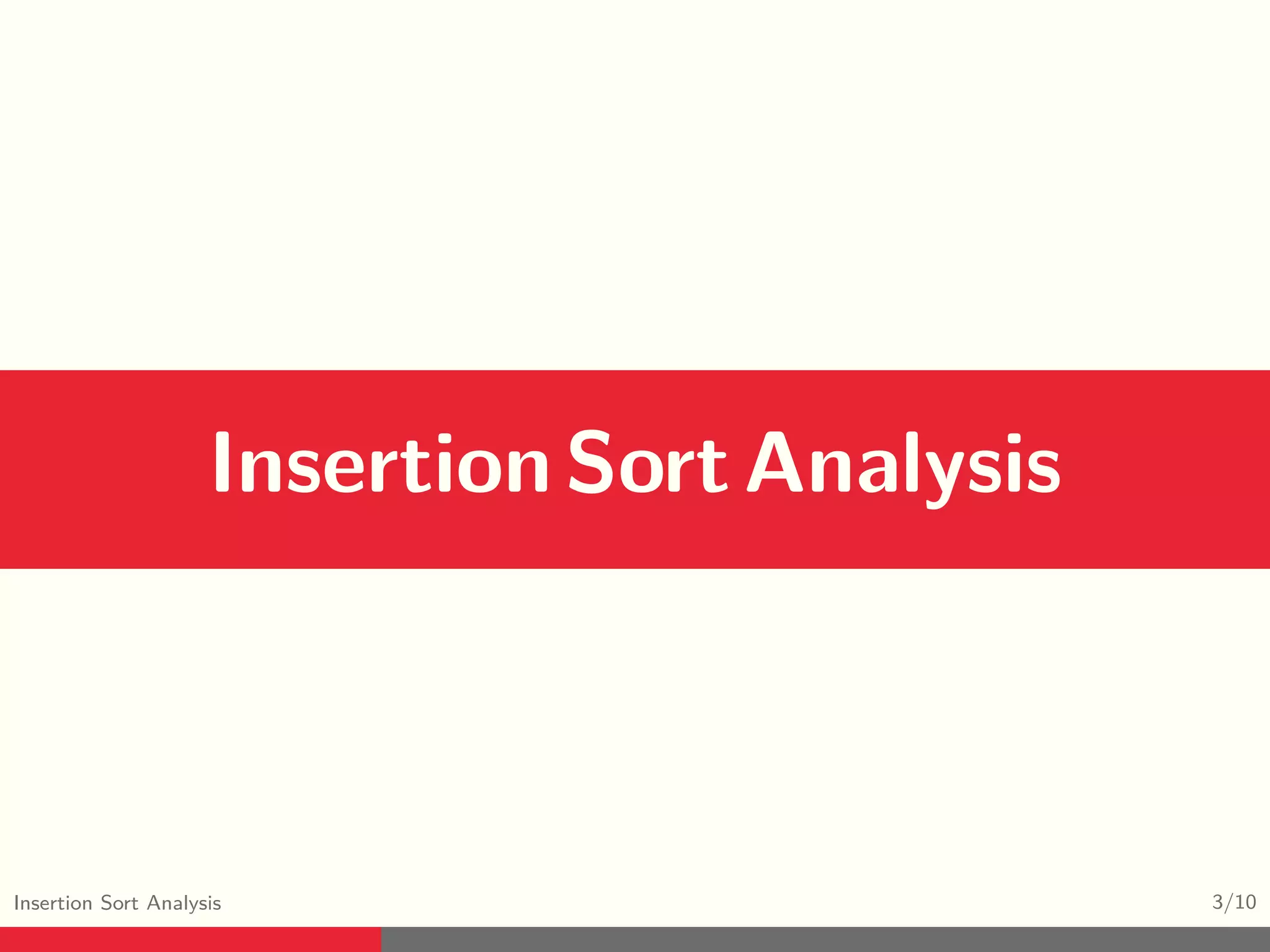

Insertion Sort Analysis 3/10 InsertionSortAnalysis

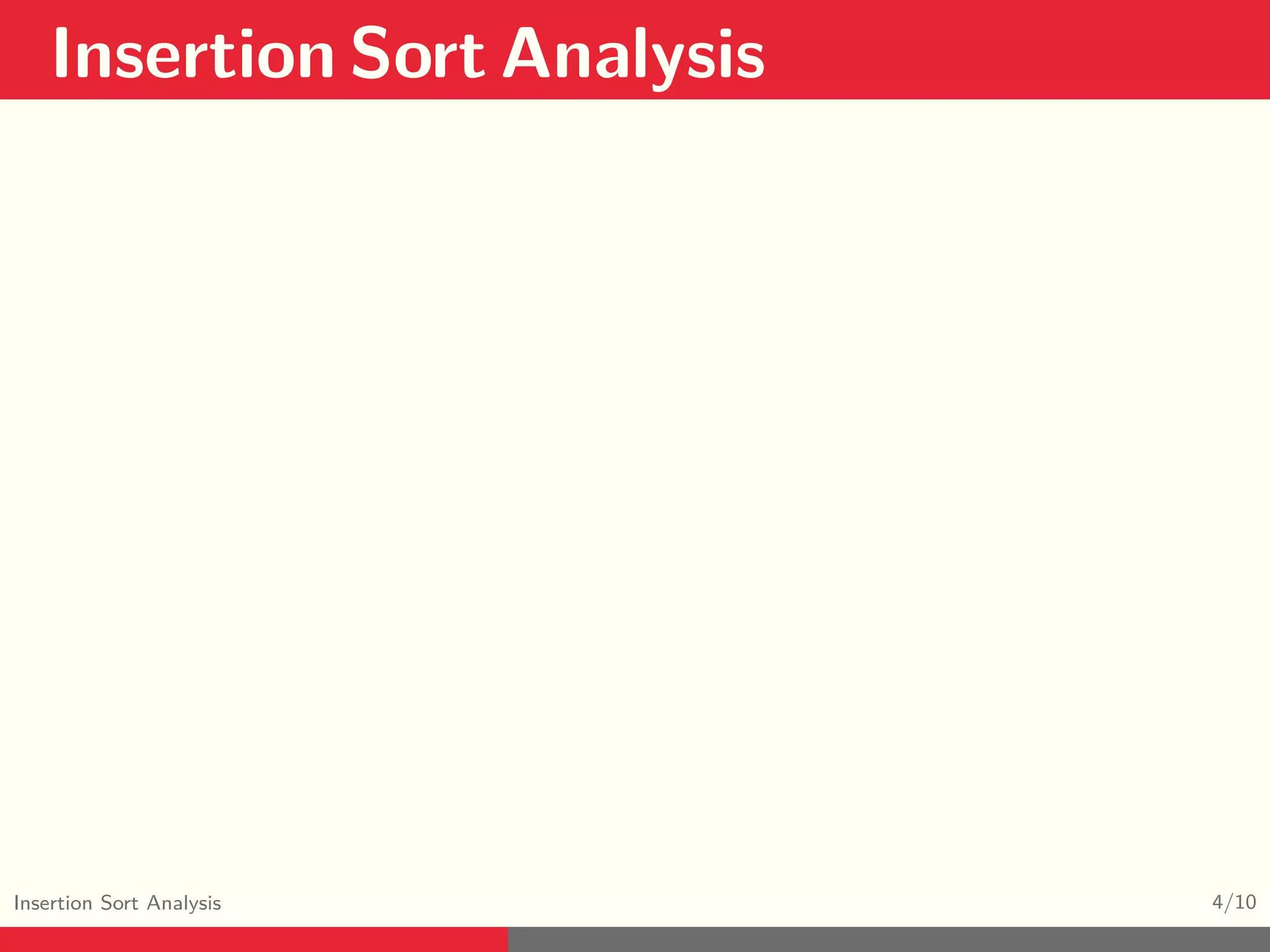

Insertion Sort Analysis Insertion Sort Analysis 4/10
Divide and Conquer Approach 5/10 DivideandConquerApproach

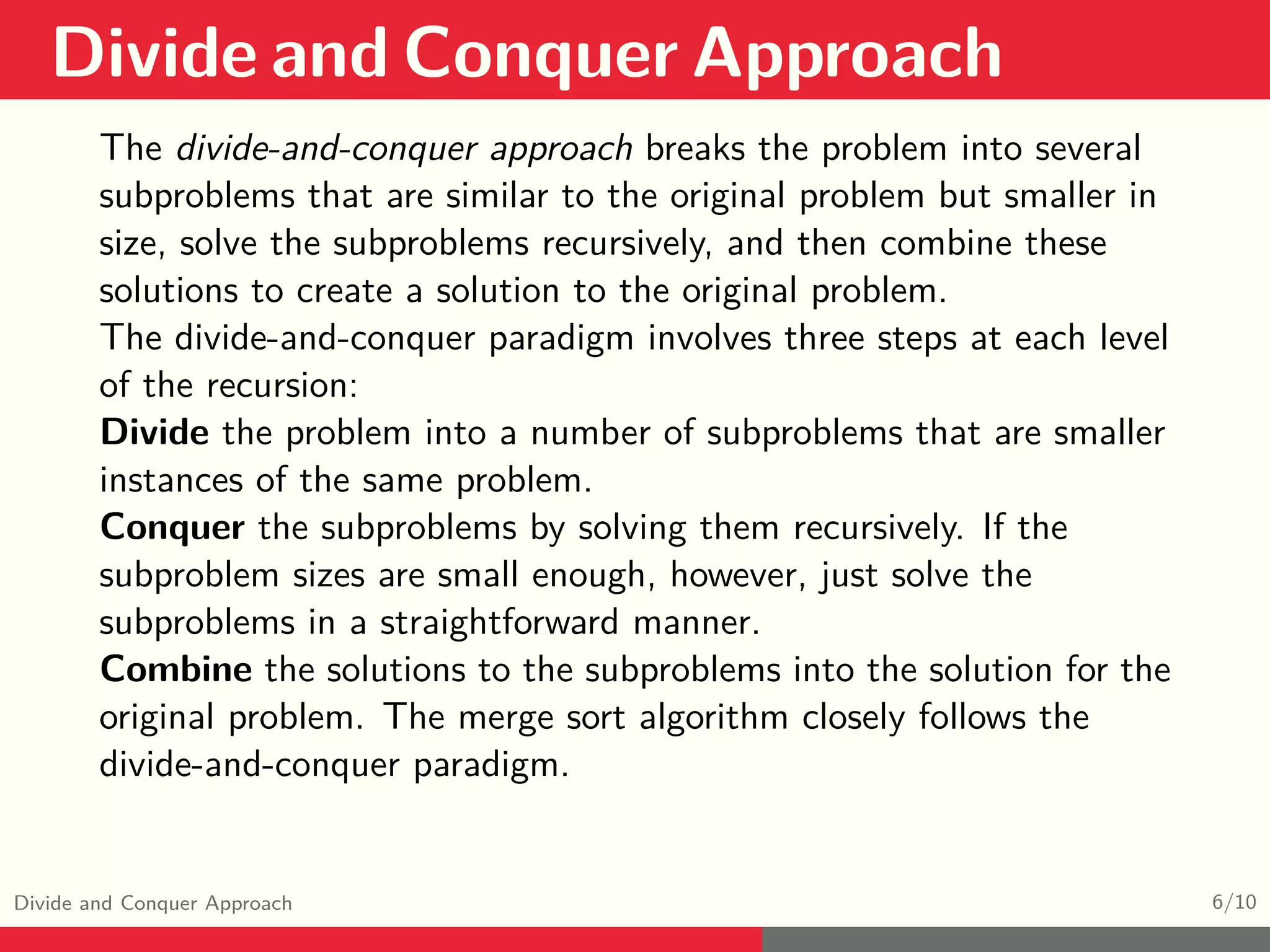

Divide and Conquer Approach Divide and Conquer Approach 6/10 The divide-and-conquer approach breaks the problem into several subproblems that are similar to the original problem but smaller in size, solve the subproblems recursively, and then combine these solutions to create a solution to the original problem. The divide-and-conquer paradigm involves three steps at each level of the recursion: Divide the problem into a number of subproblems that are smaller instances of the same problem. Conquer the subproblems by solving them recursively. If the subproblem sizes are small enough, however, just solve the subproblems in a straightforward manner. Combine the solutions to the subproblems into the solution for the original problem. The merge sort algorithm closely follows the divide-and-conquer paradigm.

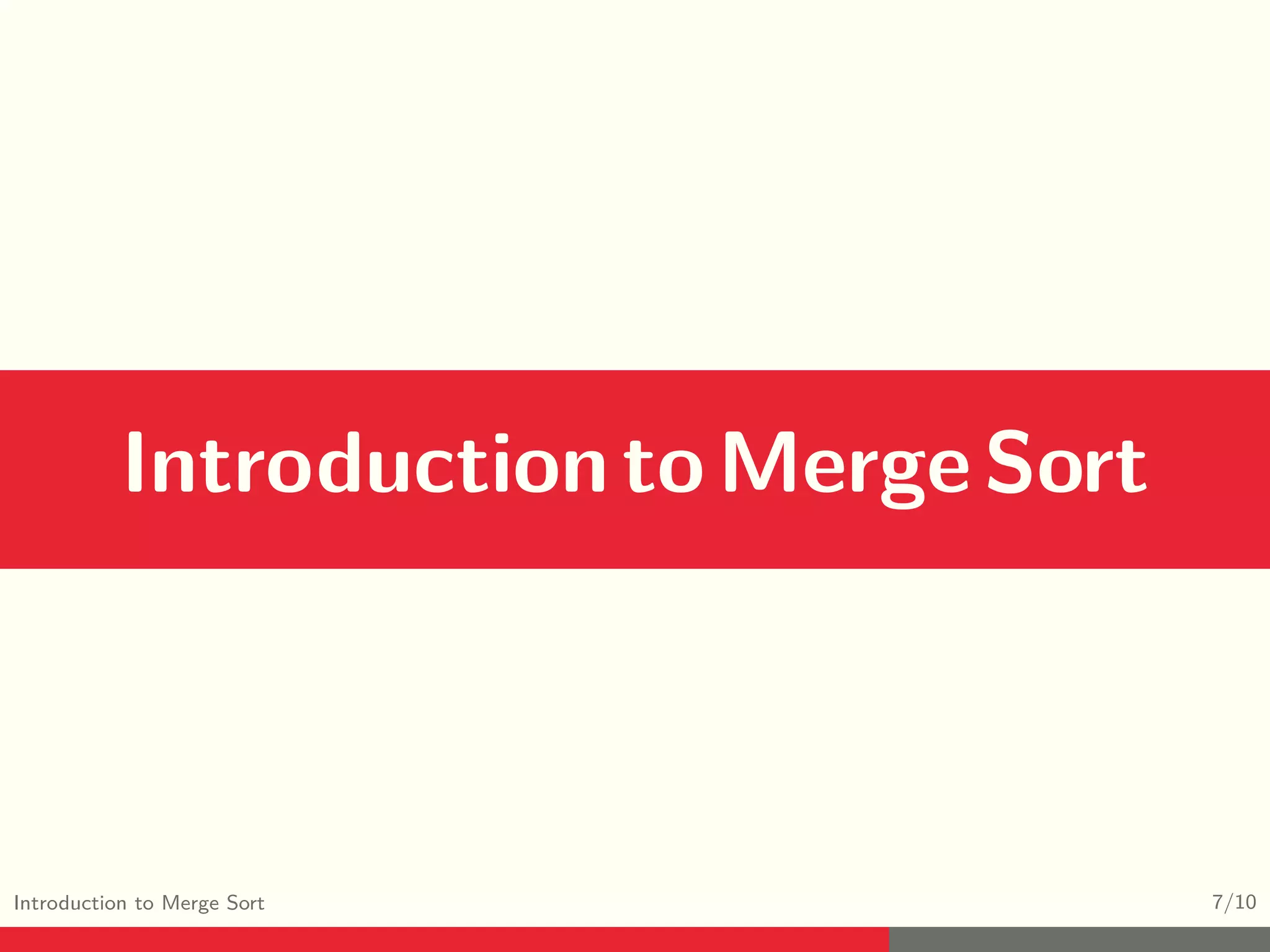

Introduction to Merge Sort 7/10 IntroductiontoMergeSort

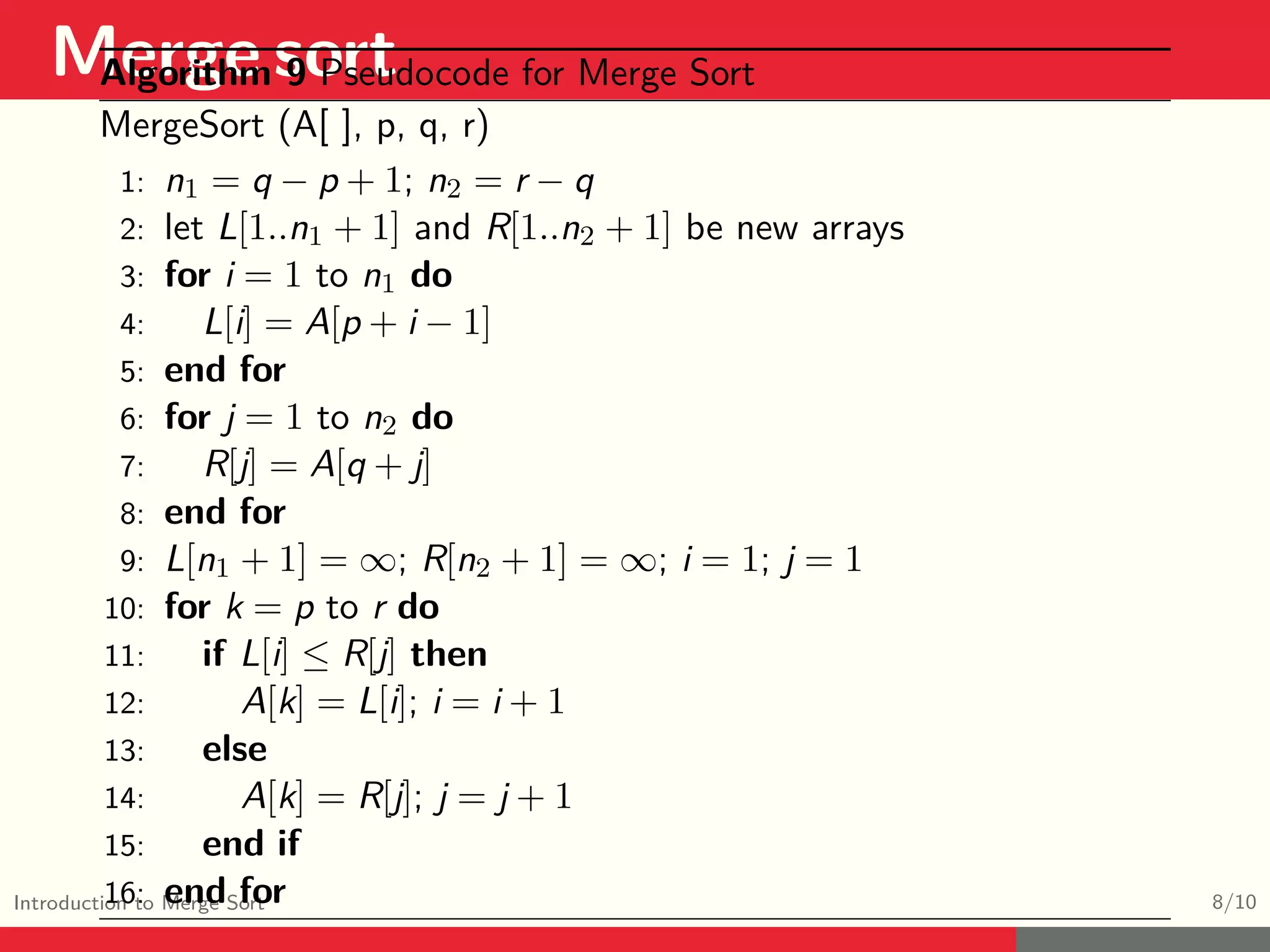

Merge sort Introduction to Merge Sort 8/10 Algorithm 9 Pseudocode for Merge Sort MergeSort (A[ ], p, q, r) 1: n1 = q − p + 1; n2 = r − q 2: let L[1..n1 + 1] and R[1..n2 + 1] be new arrays 3: for i = 1 to n1 do 4: L[i] = A[p + i − 1] 5: end for 6: for j = 1 to n2 do 7: R[j] = A[q + j] 8: end for 9: L[n1 + 1] = ∞; R[n2 + 1] = ∞; i = 1; j = 1 10: for k = p to r do 11: if L[i] ≤ R[j] then 12: A[k] = L[i]; i = i + 1 13: else 14: A[k] = R[j]; j = j + 1 15: end if 16: end for

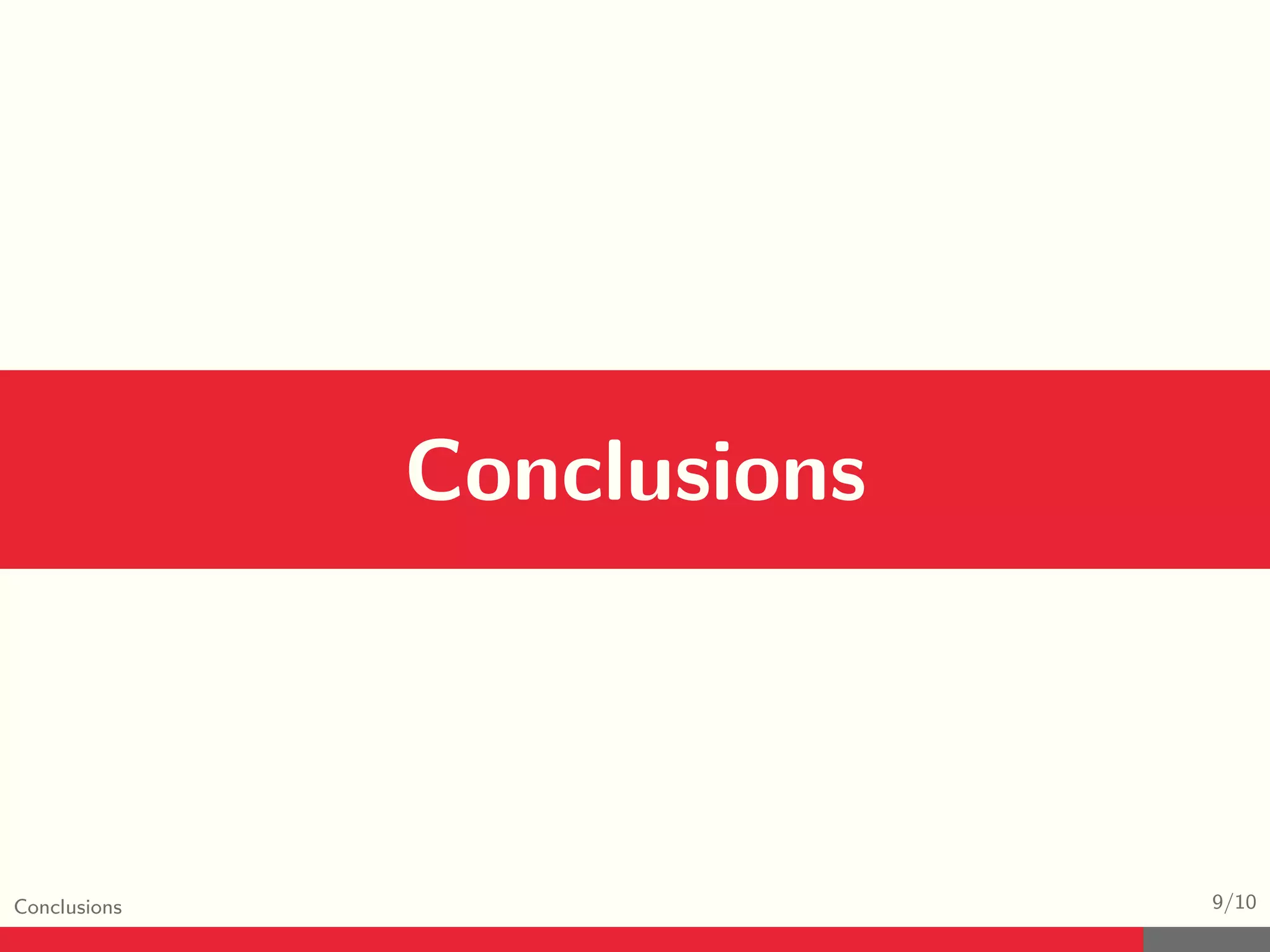

Conclusions 9/10 Conclusions

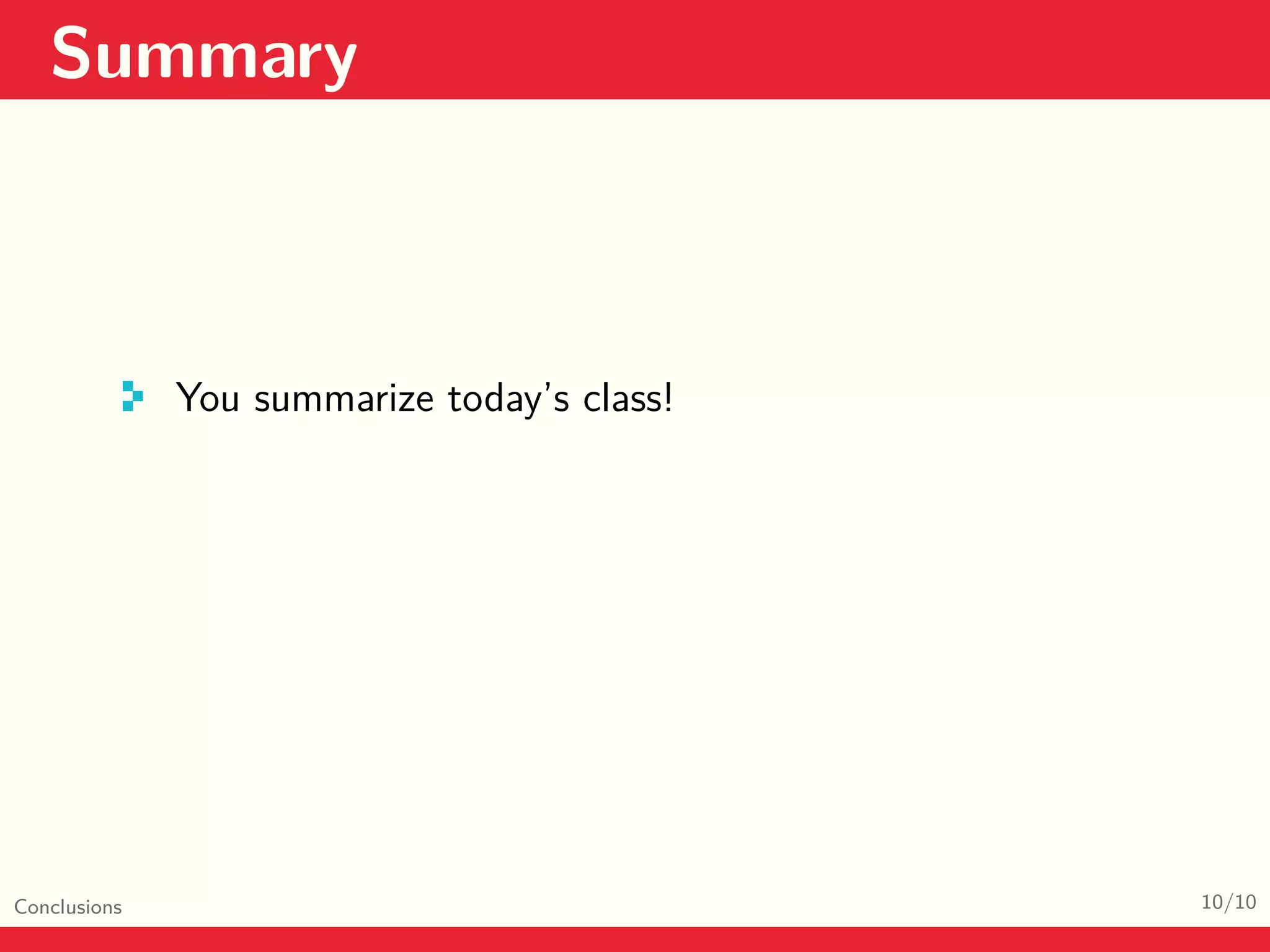

Summary Conclusions 10/10 You summarize today’s class!

Algorithms lecture 3

  • 1.
    CSE221: Algorithms Lecture 3 MuhammadAbul Hasan, PhD May 24, 2015
  • 2.
    Contents 1. Insertion Sort Discussionon insertion sort 2. Insertion Sort Analysis Analyzing time complexity of Insertion sort 3. Introduction to Divide and Conquer Approach The basics of divide and conquer approach will be addressed. 4. Merge sort basic Elementary discussion on merge sort.
  • 3.
  • 4.
    Insertion Sort Pseudocode InsertionSort 2/10 Algorithm 1 pseudocode for Insertion sort InsertionSort(A[ ])
  • 5.
    Insertion Sort Pseudocode InsertionSort 2/10 Algorithm 2 pseudocode for Insertion sort InsertionSort(A[ ]) 1: for j = 2 to A.length do
  • 6.
    Insertion Sort Pseudocode InsertionSort 2/10 Algorithm 3 pseudocode for Insertion sort InsertionSort(A[ ]) 1: for j = 2 to A.length do 2: key = A[j]
  • 7.
    Insertion Sort Pseudocode InsertionSort 2/10 Algorithm 4 pseudocode for Insertion sort InsertionSort(A[ ]) 1: for j = 2 to A.length do 2: key = A[j] 3: i = j − 1
  • 8.
    Insertion Sort Pseudocode InsertionSort 2/10 Algorithm 5 pseudocode for Insertion sort InsertionSort(A[ ]) 1: for j = 2 to A.length do 2: key = A[j] 3: i = j − 1 4: while i > 0 and A[i] > key do
  • 9.
    Insertion Sort Pseudocode InsertionSort 2/10 Algorithm 6 pseudocode for Insertion sort InsertionSort(A[ ]) 1: for j = 2 to A.length do 2: key = A[j] 3: i = j − 1 4: while i > 0 and A[i] > key do 5: A[i + 1] = A[i]
  • 10.
    Insertion Sort Pseudocode InsertionSort 2/10 Algorithm 7 pseudocode for Insertion sort InsertionSort(A[ ]) 1: for j = 2 to A.length do 2: key = A[j] 3: i = j − 1 4: while i > 0 and A[i] > key do 5: A[i + 1] = A[i] 6: i = i − 1 7: end while
  • 11.
    Insertion Sort Pseudocode InsertionSort 2/10 Algorithm 8 pseudocode for Insertion sort InsertionSort(A[ ]) 1: for j = 2 to A.length do 2: key = A[j] 3: i = j − 1 4: while i > 0 and A[i] > key do 5: A[i + 1] = A[i] 6: i = i − 1 7: end while 8: A[i + 1] = key 9: end for
  • 12.
    Insertion Sort Analysis3/10 InsertionSortAnalysis
  • 13.
  • 14.
    Divide and ConquerApproach 5/10 DivideandConquerApproach
  • 15.
    Divide and ConquerApproach Divide and Conquer Approach 6/10 The divide-and-conquer approach breaks the problem into several subproblems that are similar to the original problem but smaller in size, solve the subproblems recursively, and then combine these solutions to create a solution to the original problem. The divide-and-conquer paradigm involves three steps at each level of the recursion: Divide the problem into a number of subproblems that are smaller instances of the same problem. Conquer the subproblems by solving them recursively. If the subproblem sizes are small enough, however, just solve the subproblems in a straightforward manner. Combine the solutions to the subproblems into the solution for the original problem. The merge sort algorithm closely follows the divide-and-conquer paradigm.
  • 16.
    Introduction to MergeSort 7/10 IntroductiontoMergeSort
  • 17.
    Merge sort Introduction toMerge Sort 8/10 Algorithm 9 Pseudocode for Merge Sort MergeSort (A[ ], p, q, r) 1: n1 = q − p + 1; n2 = r − q 2: let L[1..n1 + 1] and R[1..n2 + 1] be new arrays 3: for i = 1 to n1 do 4: L[i] = A[p + i − 1] 5: end for 6: for j = 1 to n2 do 7: R[j] = A[q + j] 8: end for 9: L[n1 + 1] = ∞; R[n2 + 1] = ∞; i = 1; j = 1 10: for k = p to r do 11: if L[i] ≤ R[j] then 12: A[k] = L[i]; i = i + 1 13: else 14: A[k] = R[j]; j = j + 1 15: end if 16: end for
  • 18.
  • 19.
