Introduction to memcached

Tags memcached, performance, scalability, php, mySQL, caching techniques, #ikdoeict

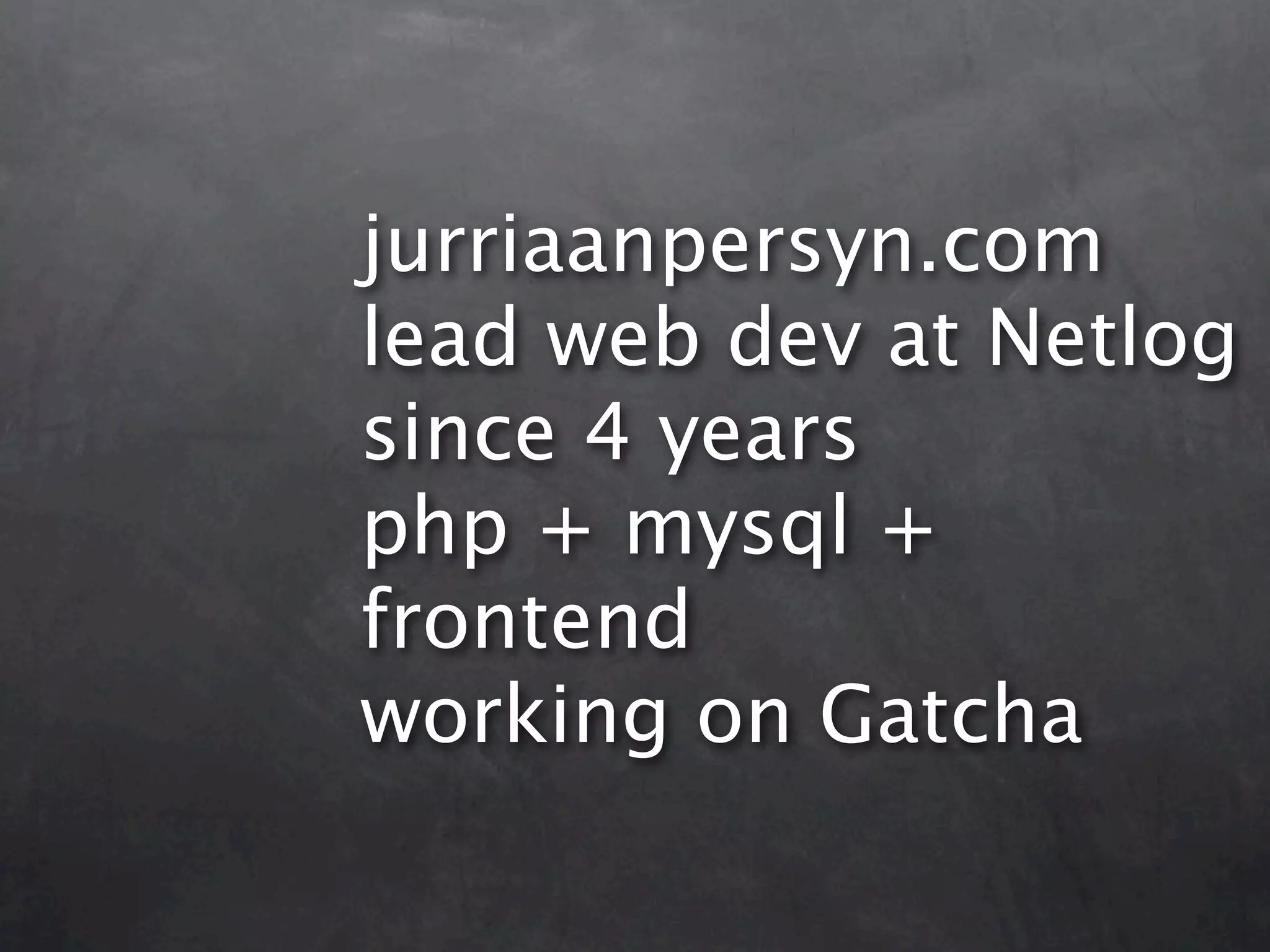

jurriaanpersyn.com lead web dev at Netlog since 4 years php + mysql + frontend working on Gatcha

For who? talk for students professional bachelor ICT www.ikdoeict.be

Why this talk? One of the ﬁrst things I’ve learnt at Netlog. Using it every single day.

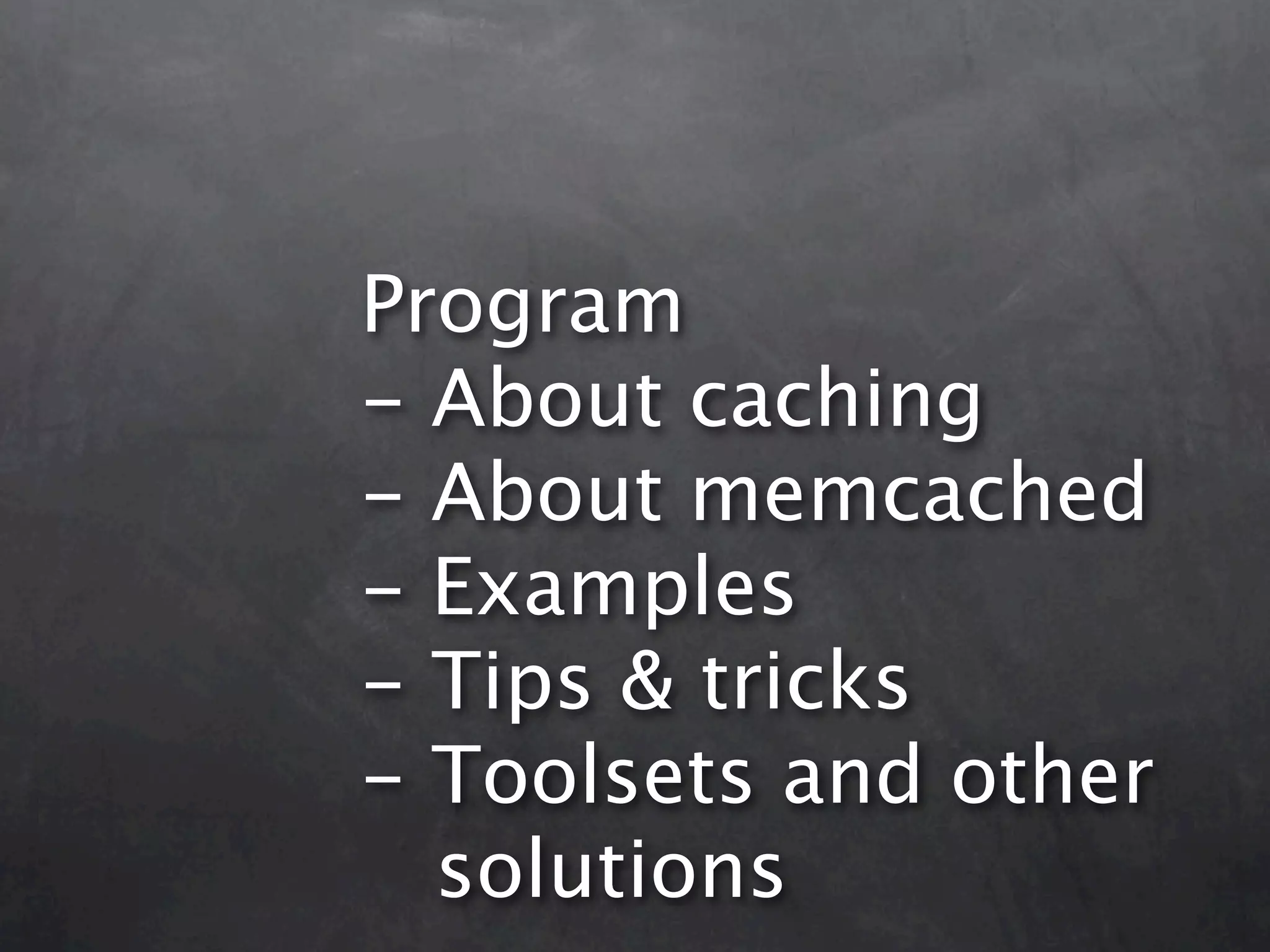

Program - About caching - About memcached - Examples - Tips & tricks - Toolsets and other solutions

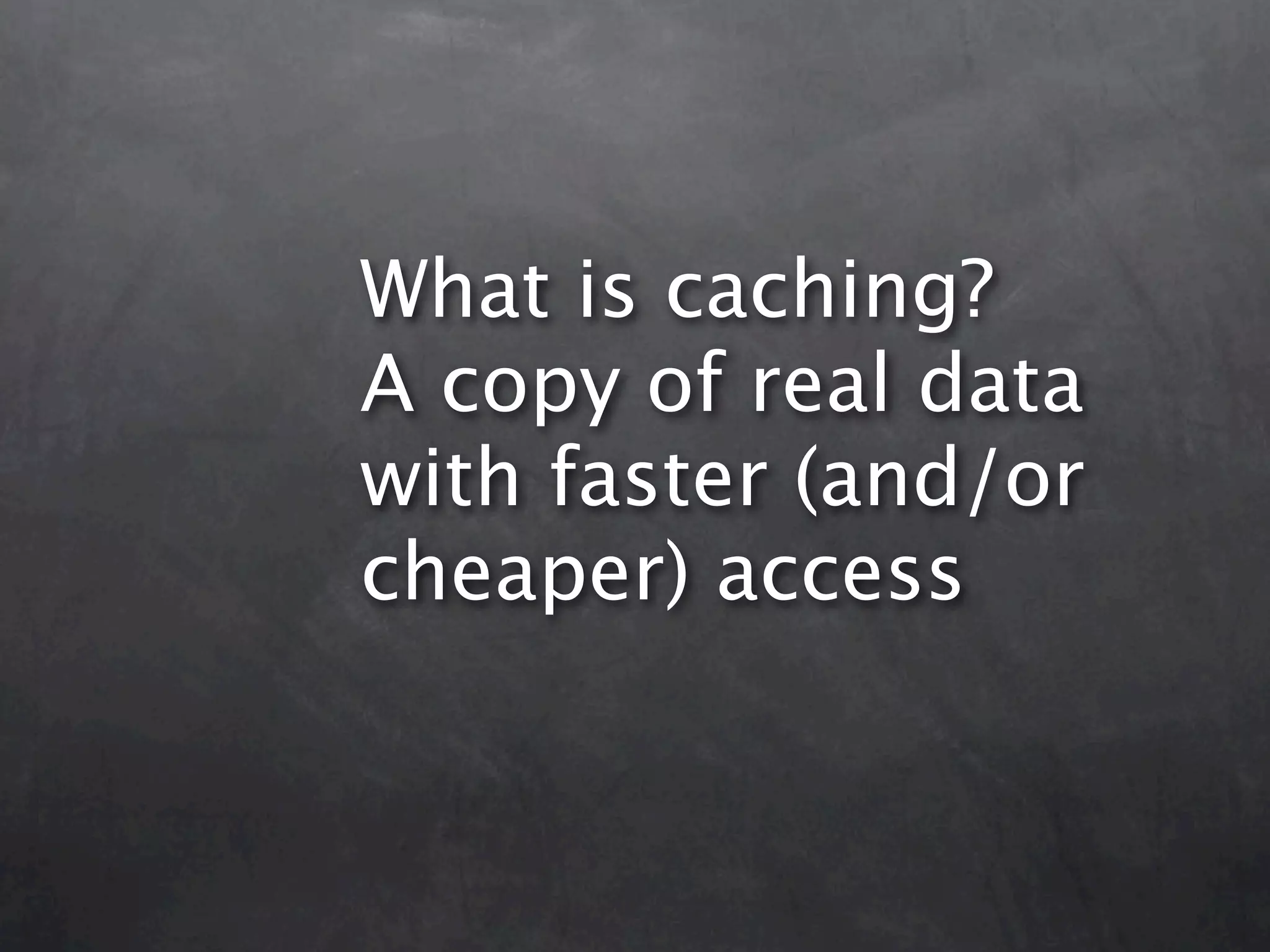

What is caching? A copy of real data with faster (and/or cheaper) access

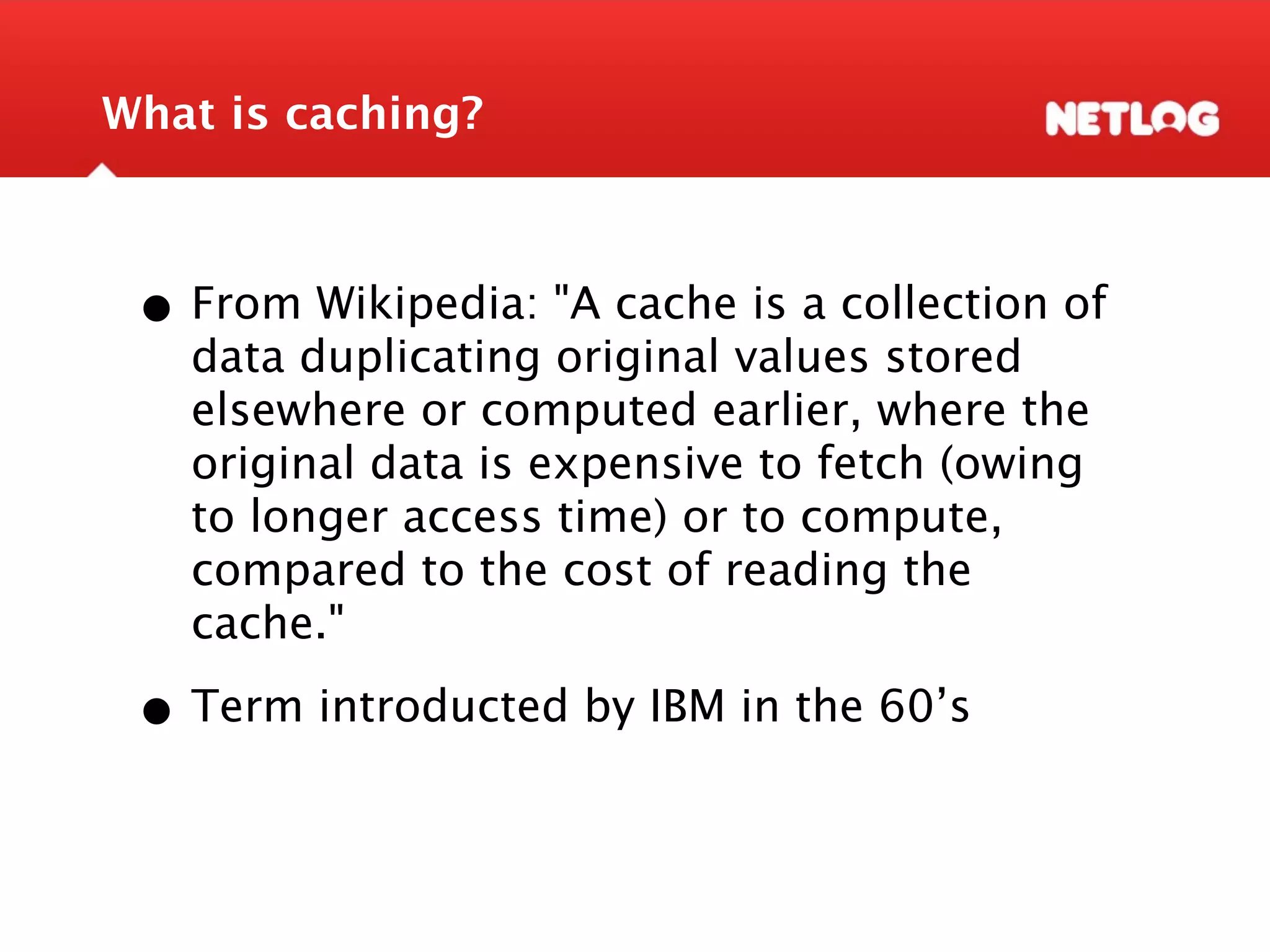

What is caching? • From Wikipedia: "A cache is a collection of data duplicating original values stored elsewhere or computed earlier, where the original data is expensive to fetch (owing to longer access time) or to compute, compared to the cost of reading the cache." • Term introducted by IBM in the 60’s

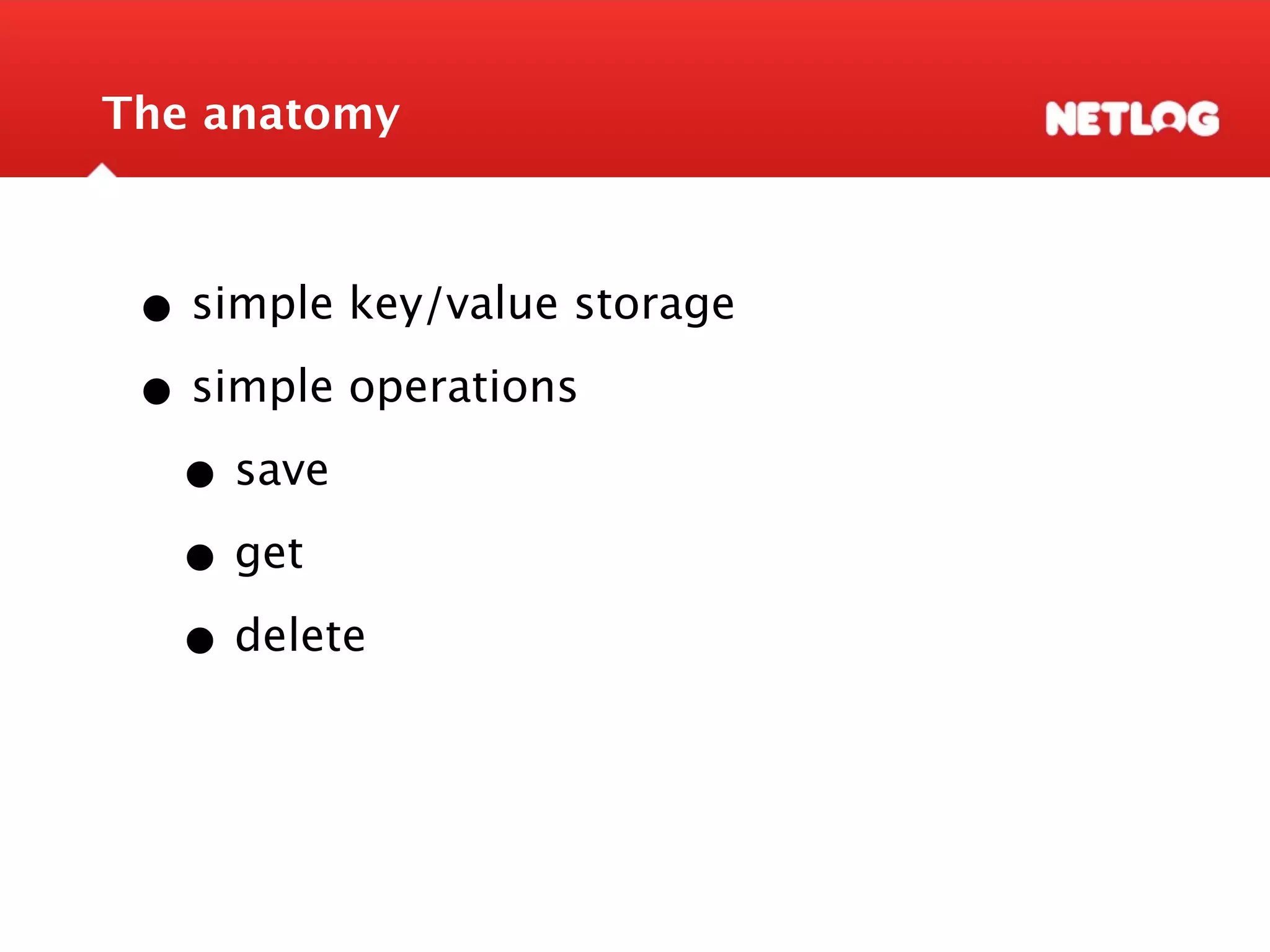

The anatomy • simple key/value storage • simple operations • save • get • delete

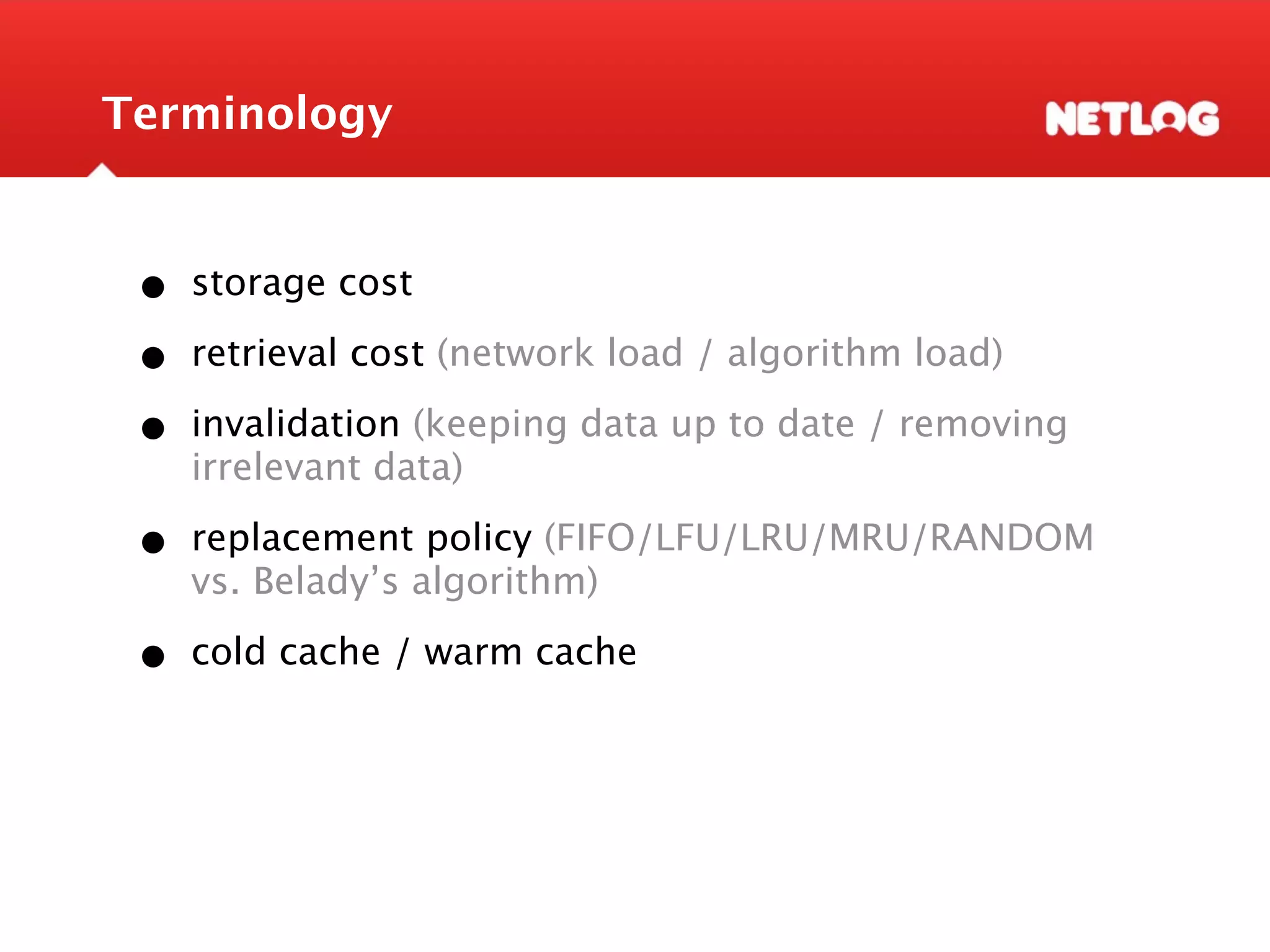

Terminology • storage cost • retrieval cost (network load / algorithm load) • invalidation (keeping data up to date / removing irrelevant data) • replacement policy (FIFO/LFU/LRU/MRU/RANDOM vs. Belady’s algorithm) • cold cache / warm cache

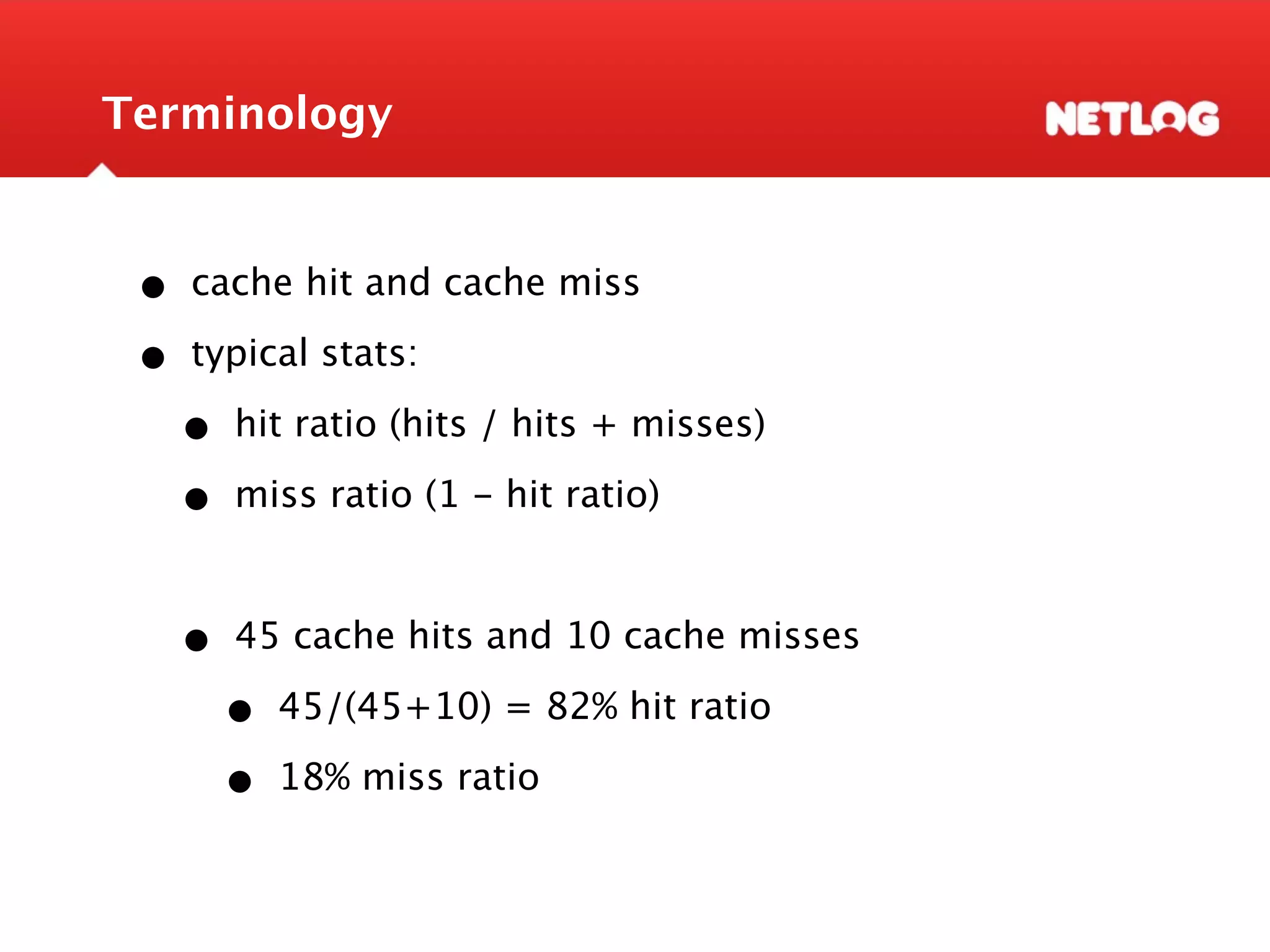

Terminology • cache hit and cache miss • typical stats: • hit ratio (hits / hits + misses) • miss ratio (1 - hit ratio) • 45 cache hits and 10 cache misses • 45/(45+10) = 82% hit ratio • 18% miss ratio

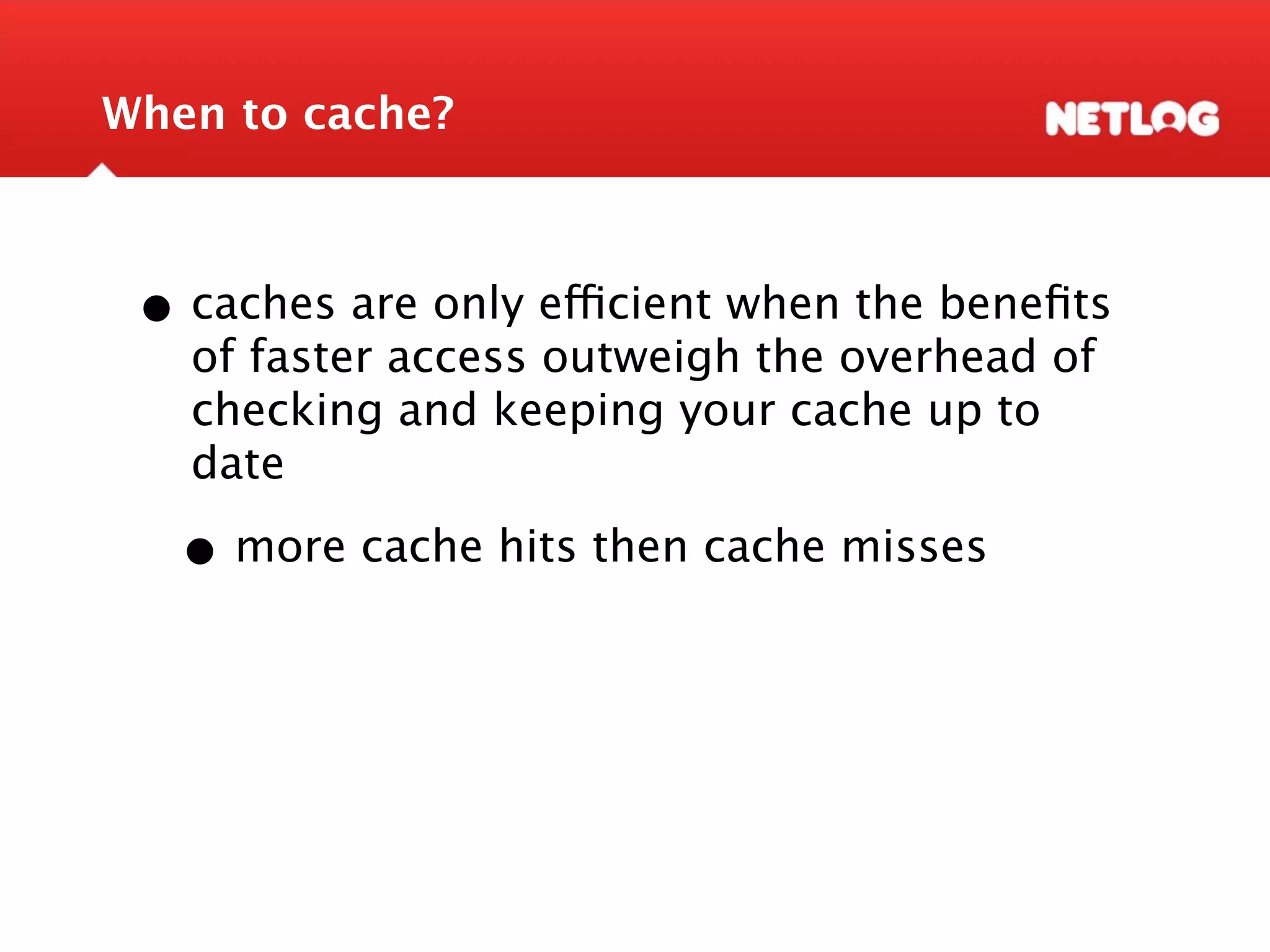

When to cache? • caches are only efficient when the beneﬁts of faster access outweigh the overhead of checking and keeping your cache up to date • more cache hits then cache misses

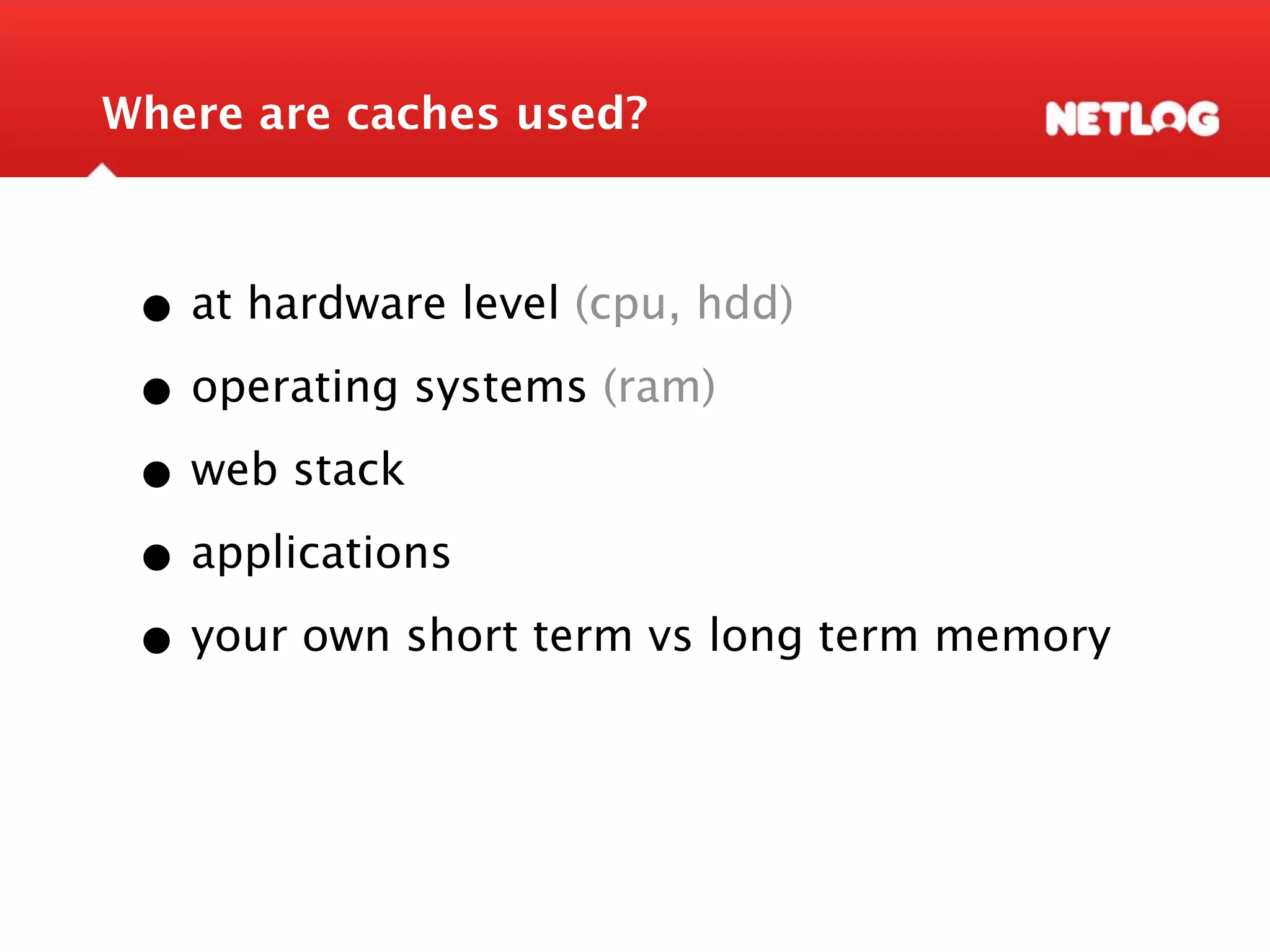

Where are caches used? • at hardware level (cpu, hdd) • operating systems (ram) • web stack • applications • your own short term vs long term memory

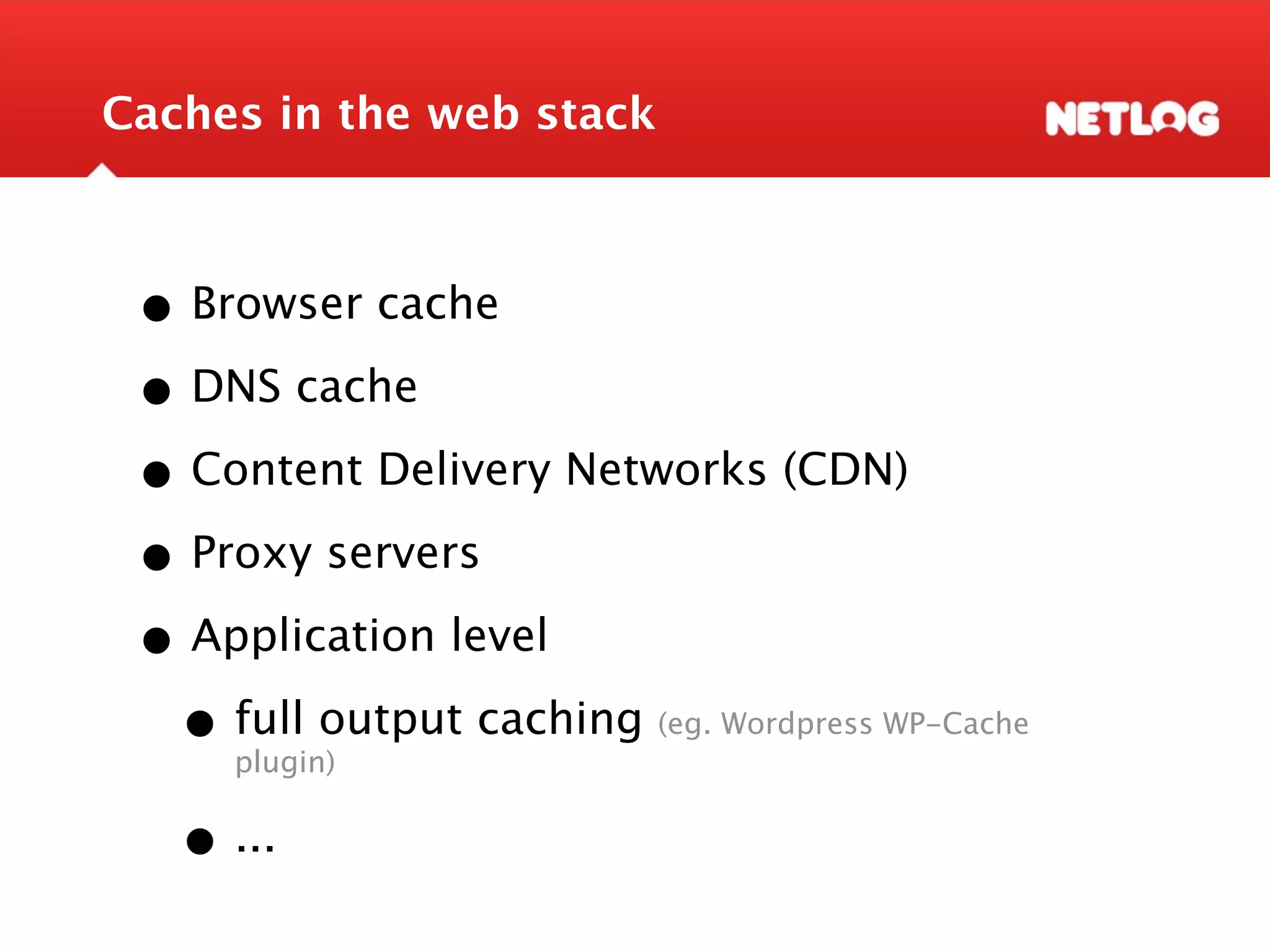

Caches in the web stack • Browser cache • DNS cache • Content Delivery Networks (CDN) • Proxy servers • Application level • full output caching plugin) (eg. Wordpress WP-Cache • ...

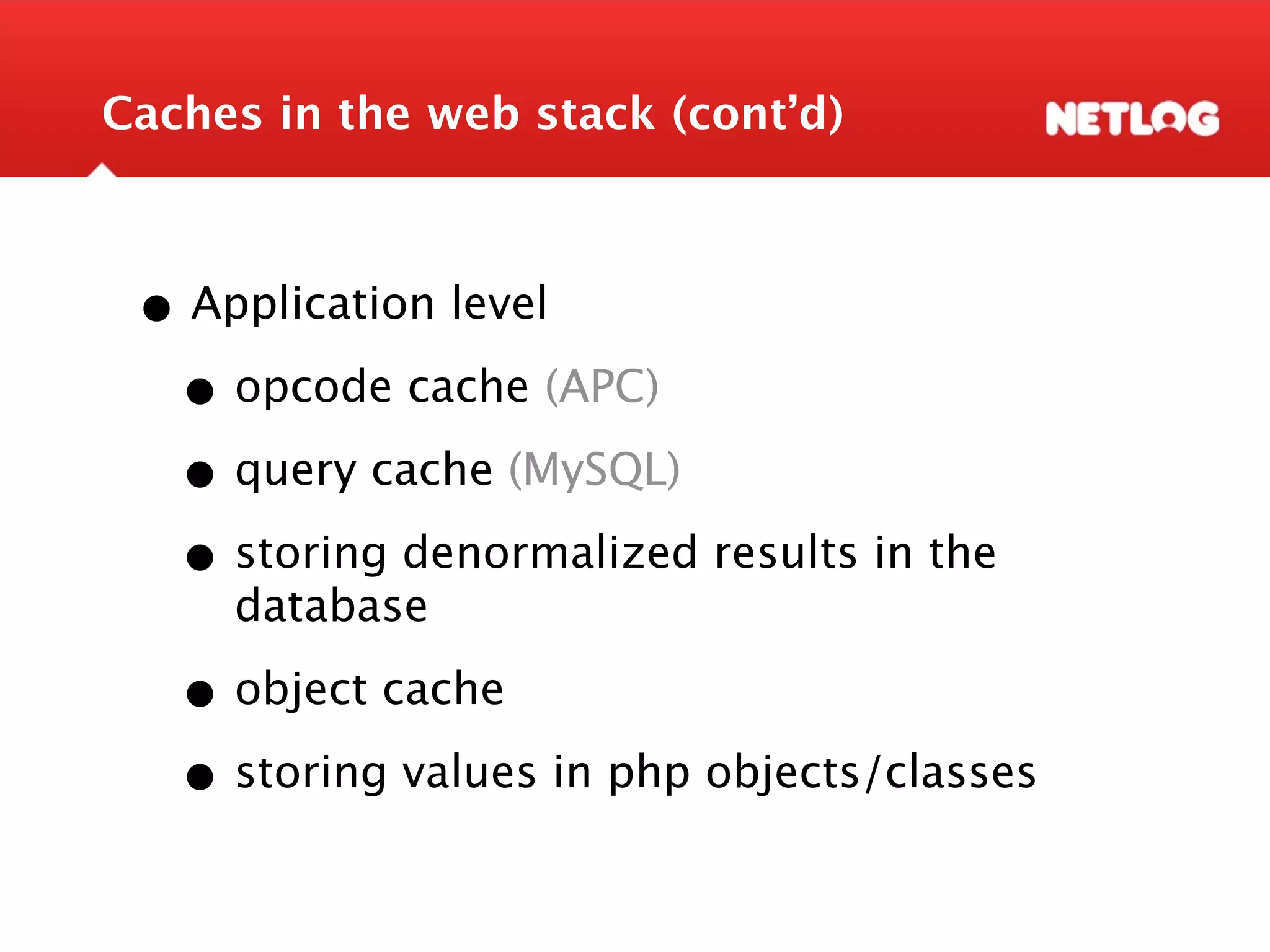

Caches in the web stack (cont’d) • Application level • opcode cache (APC) • query cache (MySQL) • storing denormalized results in the database • object cache • storing values in php objects/classes

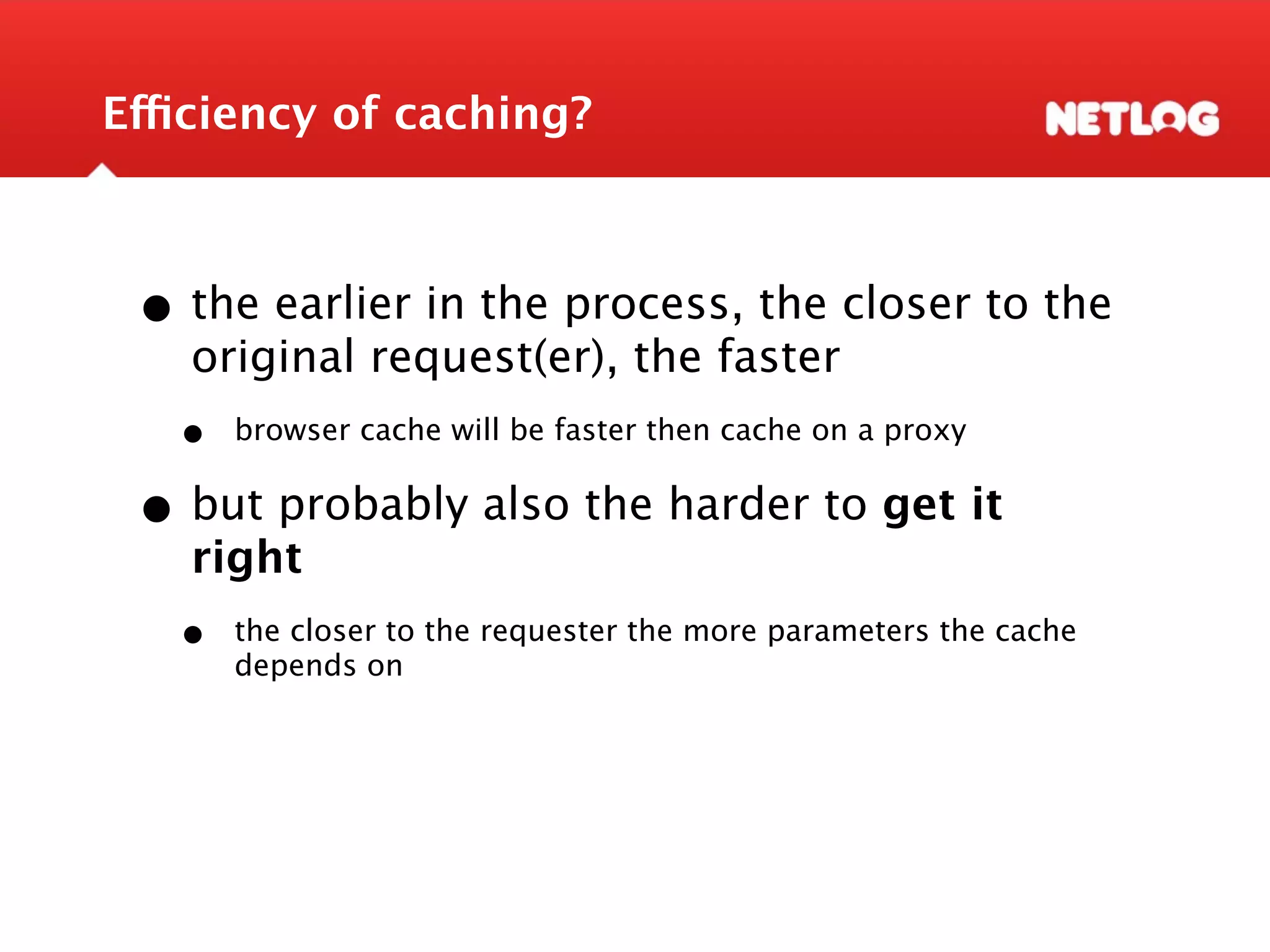

Efficiency of caching? • the earlier in the process, the closer to the original request(er), the faster • browser cache will be faster then cache on a proxy • but probably also the harder to get it right • the closer to the requester the more parameters the cache depends on

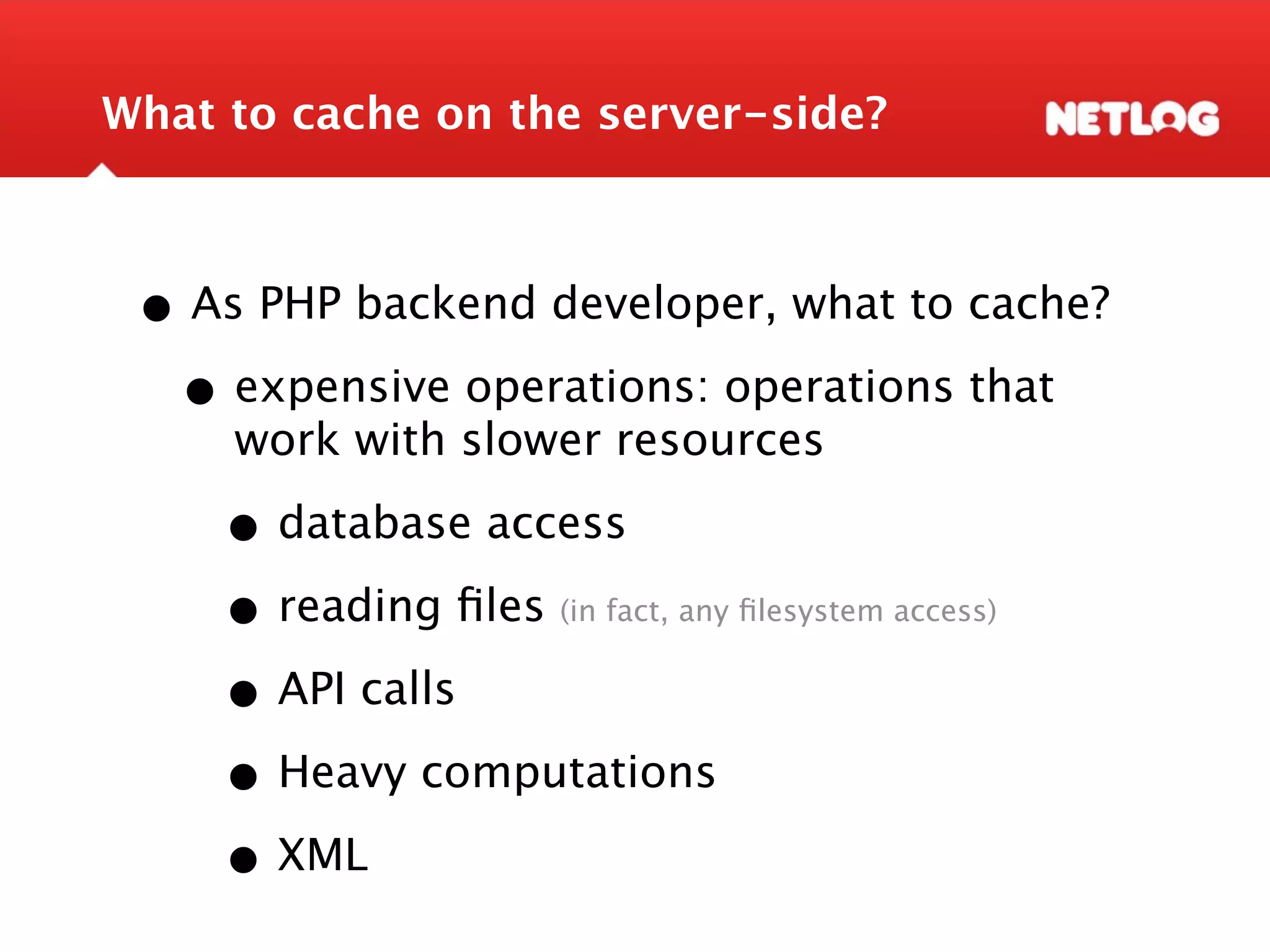

What to cache on the server-side? • As PHP backend developer, what to cache? • expensive operations: operations that work with slower resources • database access • reading ﬁles(in fact, any ﬁlesystem access) • API calls • Heavy computations • XML

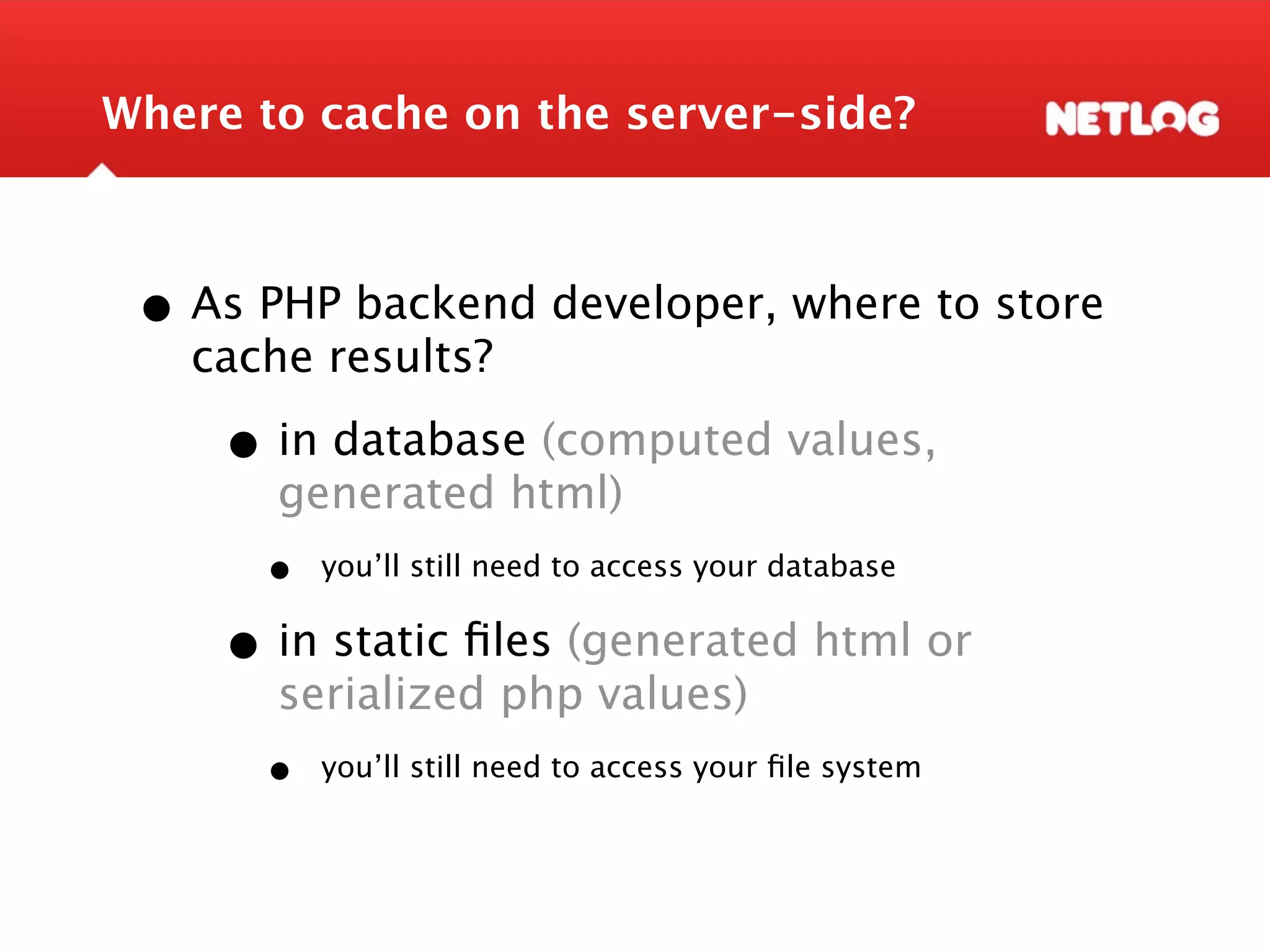

Where to cache on the server-side? • As PHP backend developer, where to store cache results? • in database (computed values, generated html) • you’ll still need to access your database • in static ﬁles (generated html or serialized php values) • you’ll still need to access your ﬁle system

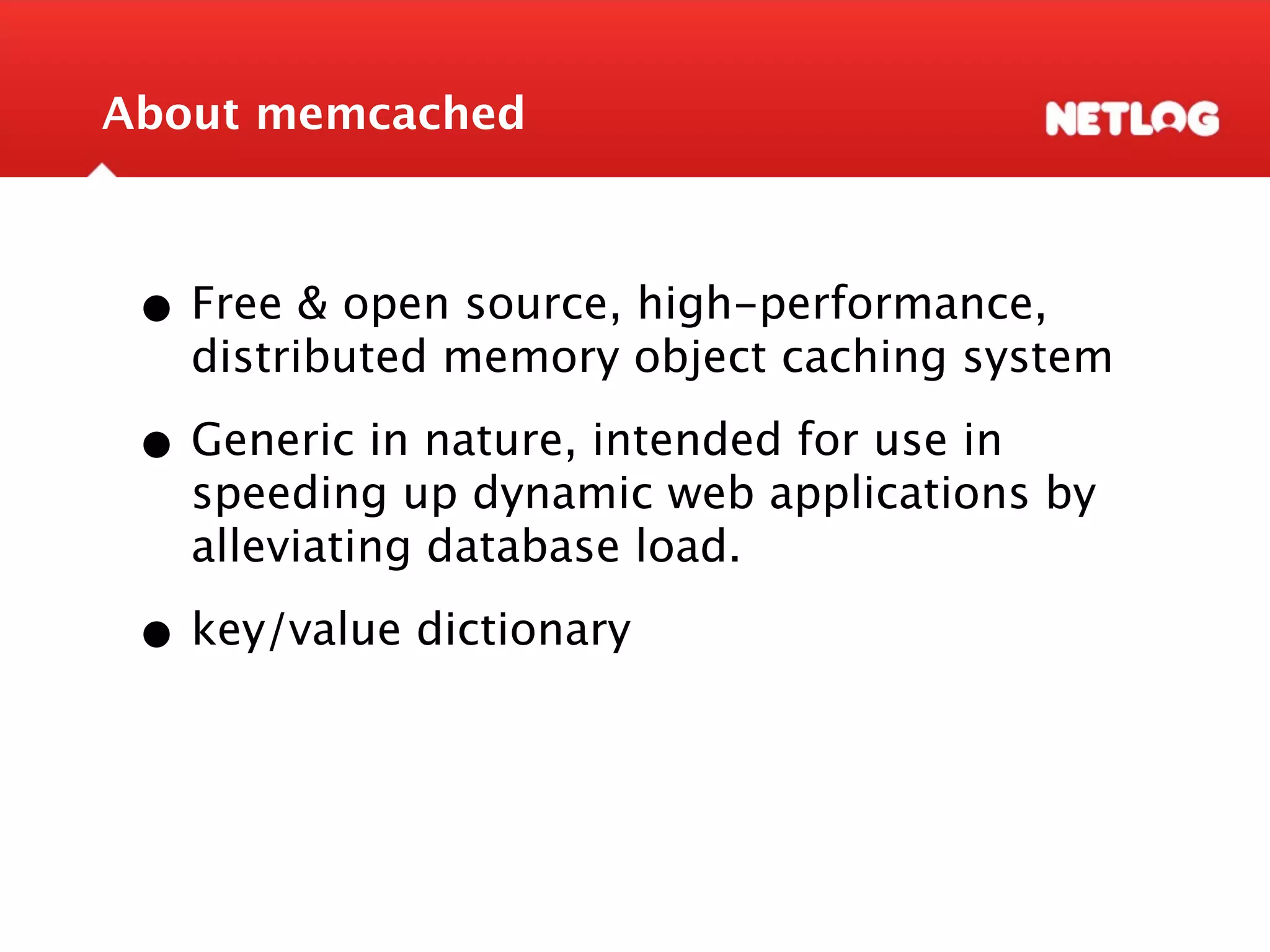

About memcached • Free & open source, high-performance, distributed memory object caching system • Generic in nature, intended for use in speeding up dynamic web applications by alleviating database load. • key/value dictionary

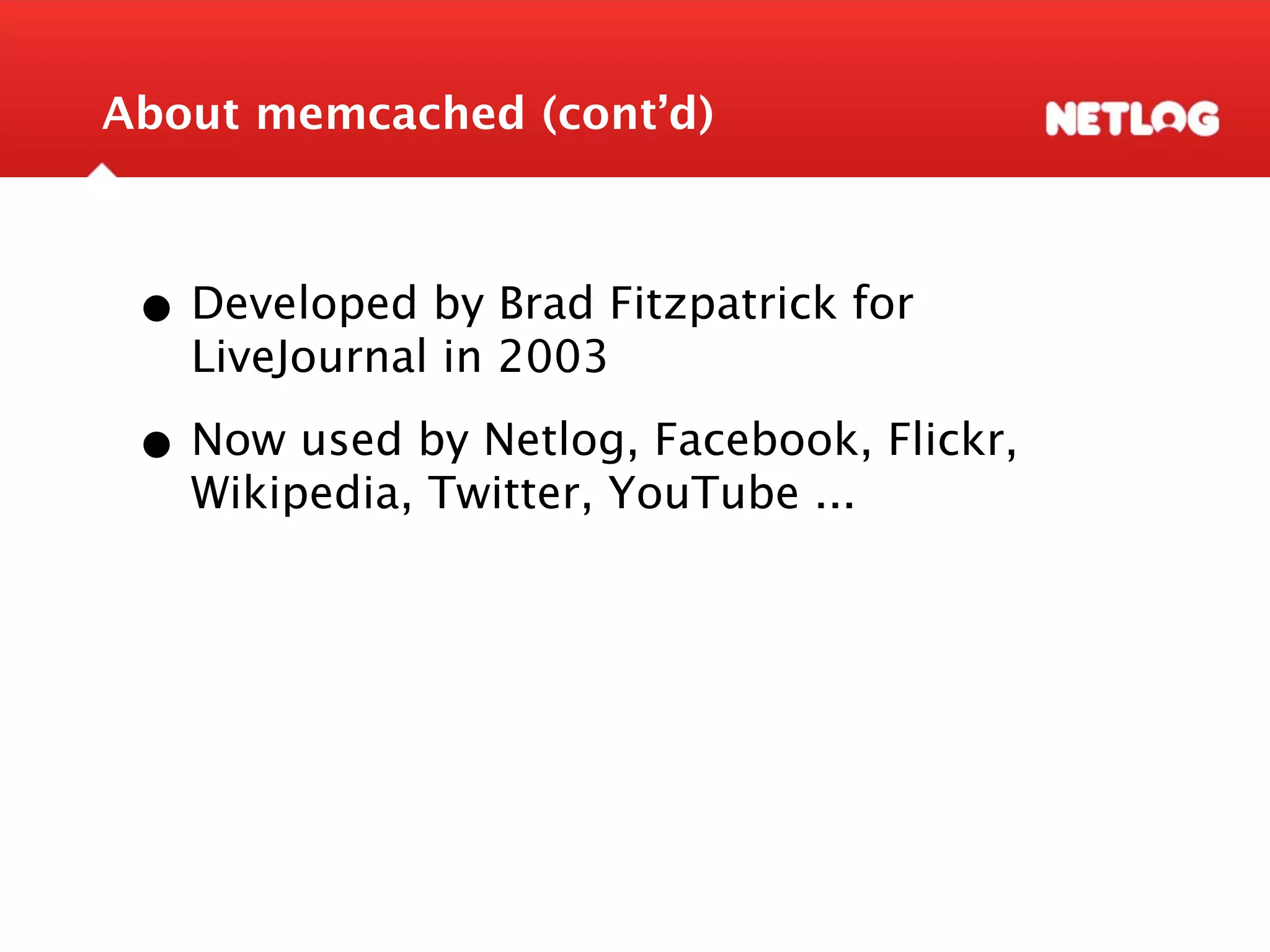

About memcached (cont’d) • Developed by Brad Fitzpatrick for LiveJournal in 2003 • Now used by Netlog, Facebook, Flickr, Wikipedia, Twitter, YouTube ...

Technically • It’s a server • Client access over TCP or UDP • Servers can run in pools • eg. 3 servers with 64GB mem each give you a single pool of 192GB storage for caching • Servers are independent, clients manage the pool

What to store in memcache? • high demand (used often) • expensive (hard to compute) • common (shared accross users) • Best? All three

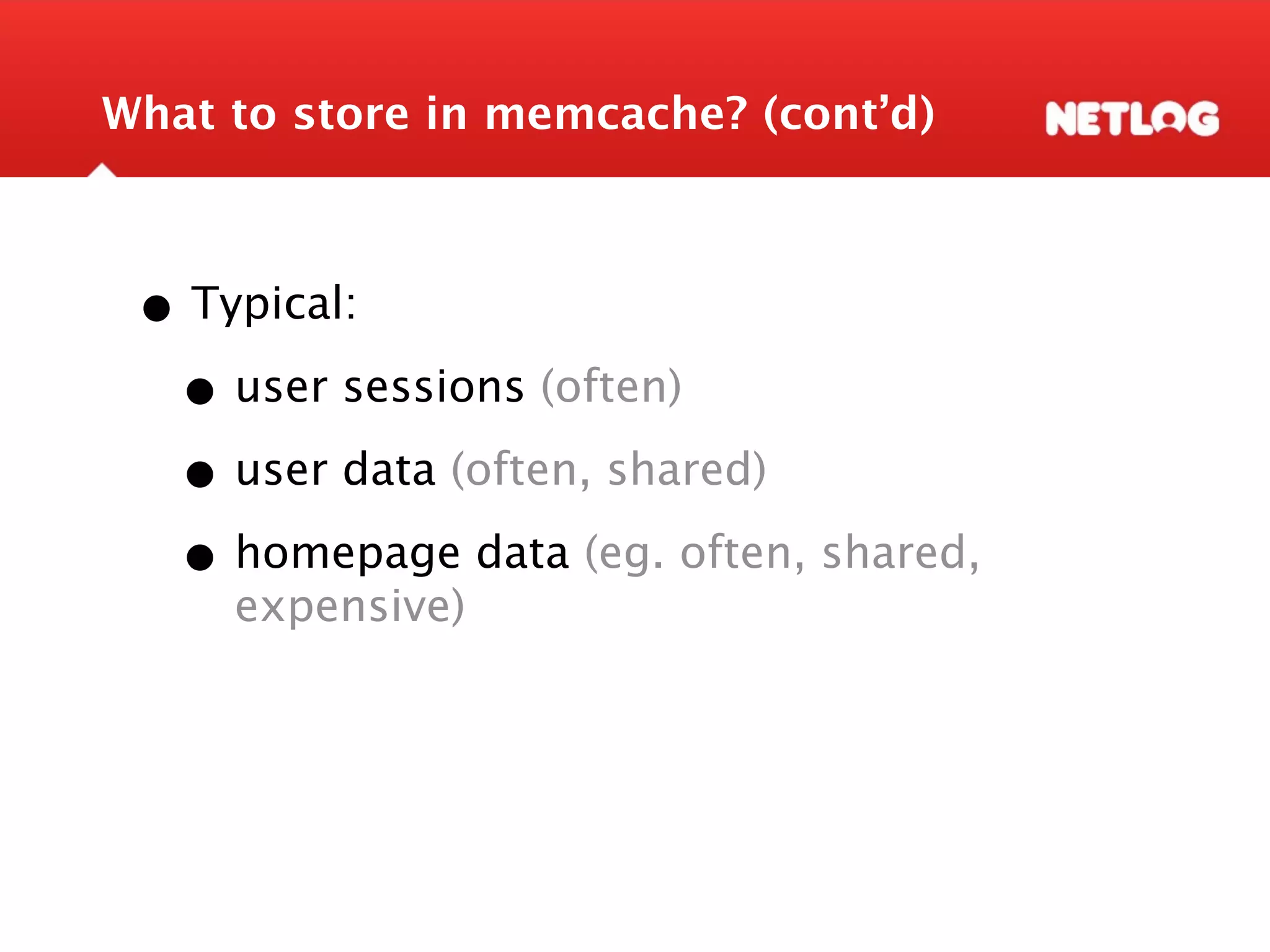

What to store in memcache? (cont’d) • Typical: • user sessions (often) • user data (often, shared) • homepage data (eg. often, shared, expensive)

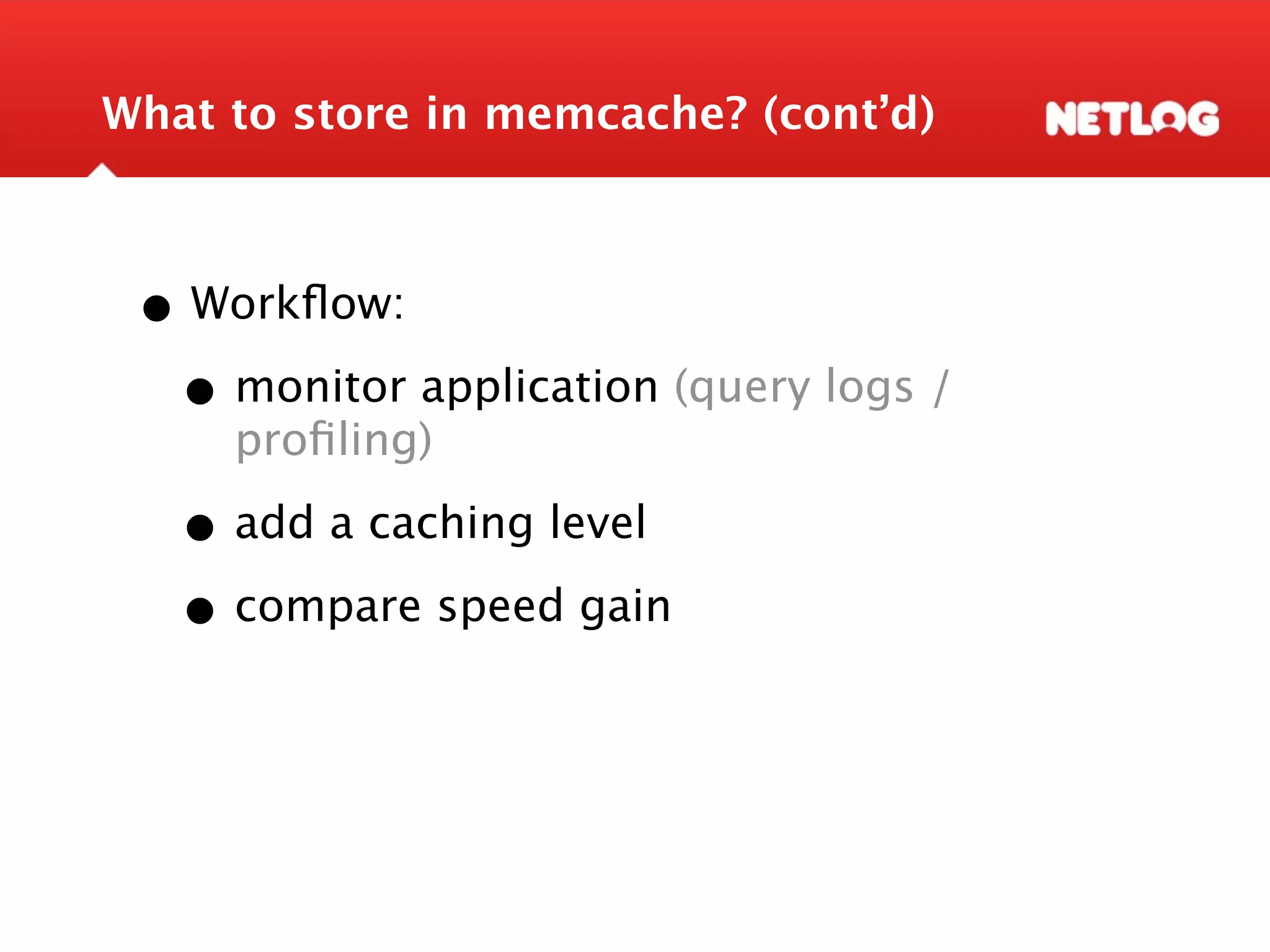

What to store in memcache? (cont’d) • Workﬂow: • monitor application (query logs / proﬁling) • add a caching level • compare speed gain

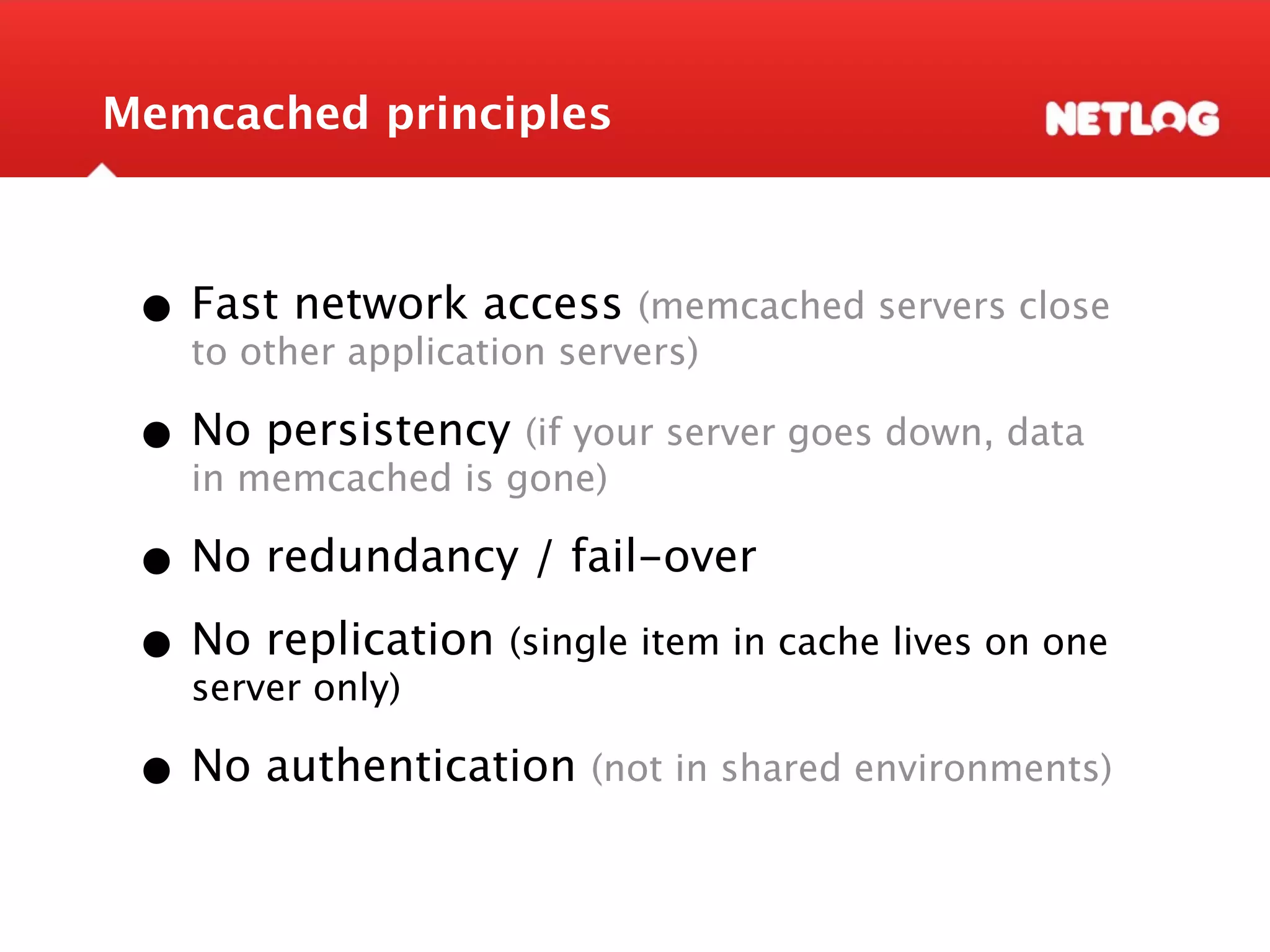

Memcached principles • Fast network access (memcached servers close to other application servers) • Nomemcached is gone) server goes down, data in persistency (if your • No redundancy / fail-over • No replication (single item in cache lives on one server only) • No authentication (not in shared environments)

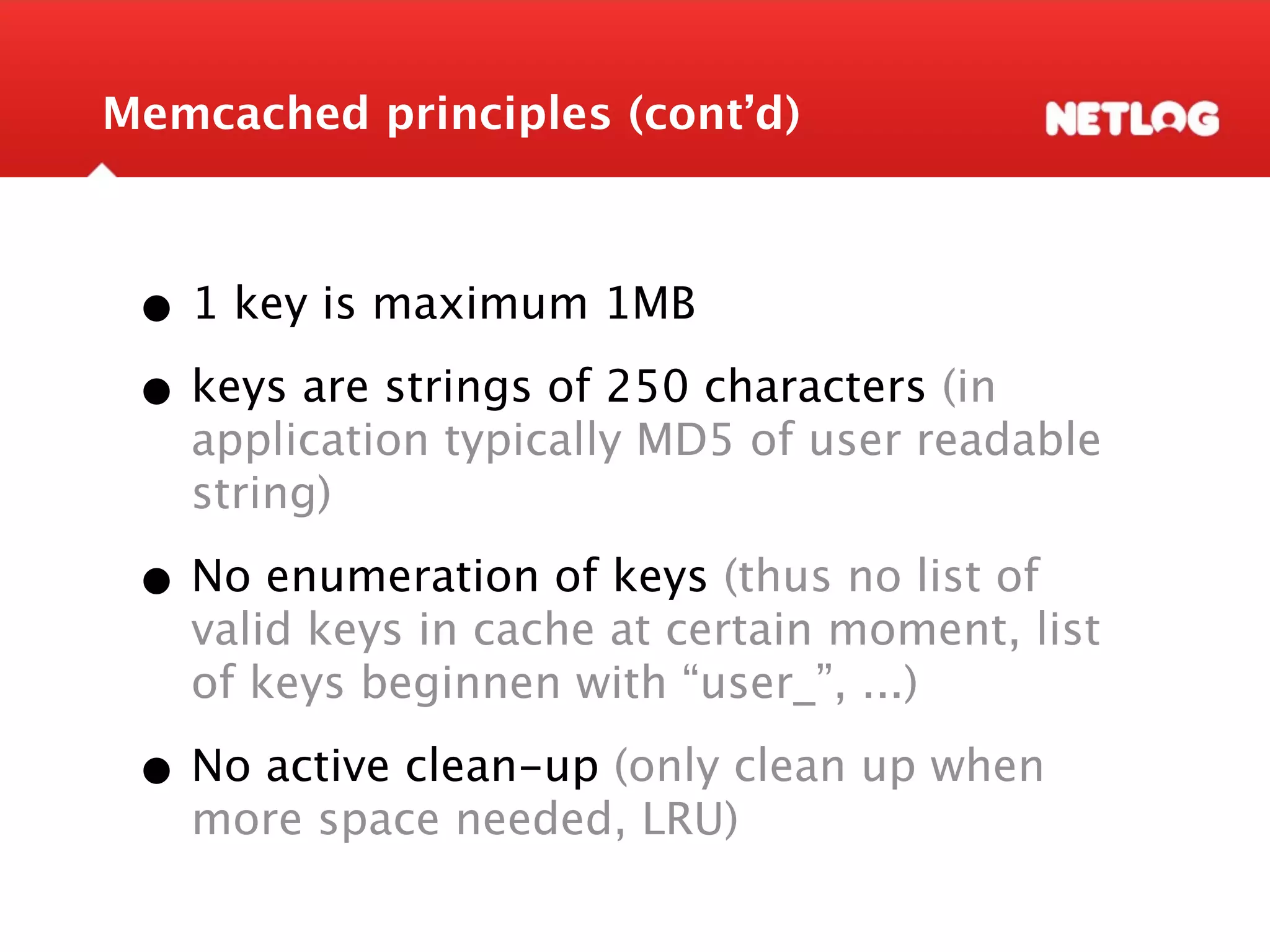

Memcached principles (cont’d) • 1 key is maximum 1MB • keys are strings of 250 characters (in application typically MD5 of user readable string) • No enumeration of keys (thus no list of valid keys in cache at certain moment, list of keys beginnen with “user_”, ...) • No active clean-up (only clean up when more space needed, LRU)

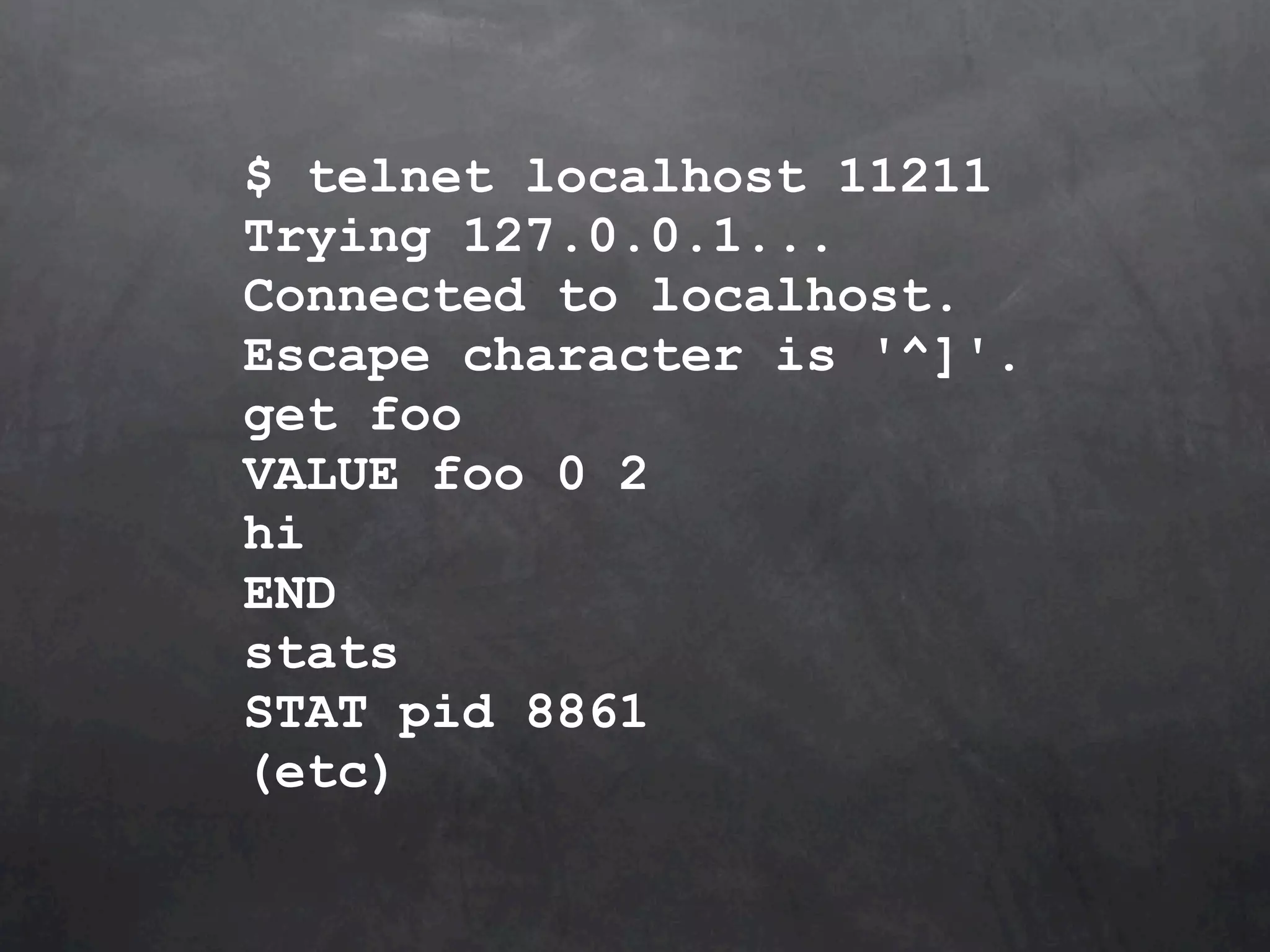

$ telnet localhost 11211 Trying 127.0.0.1... Connected to localhost. Escape character is '^]'. get foo VALUE foo 0 2 hi END stats STAT pid 8861 (etc)

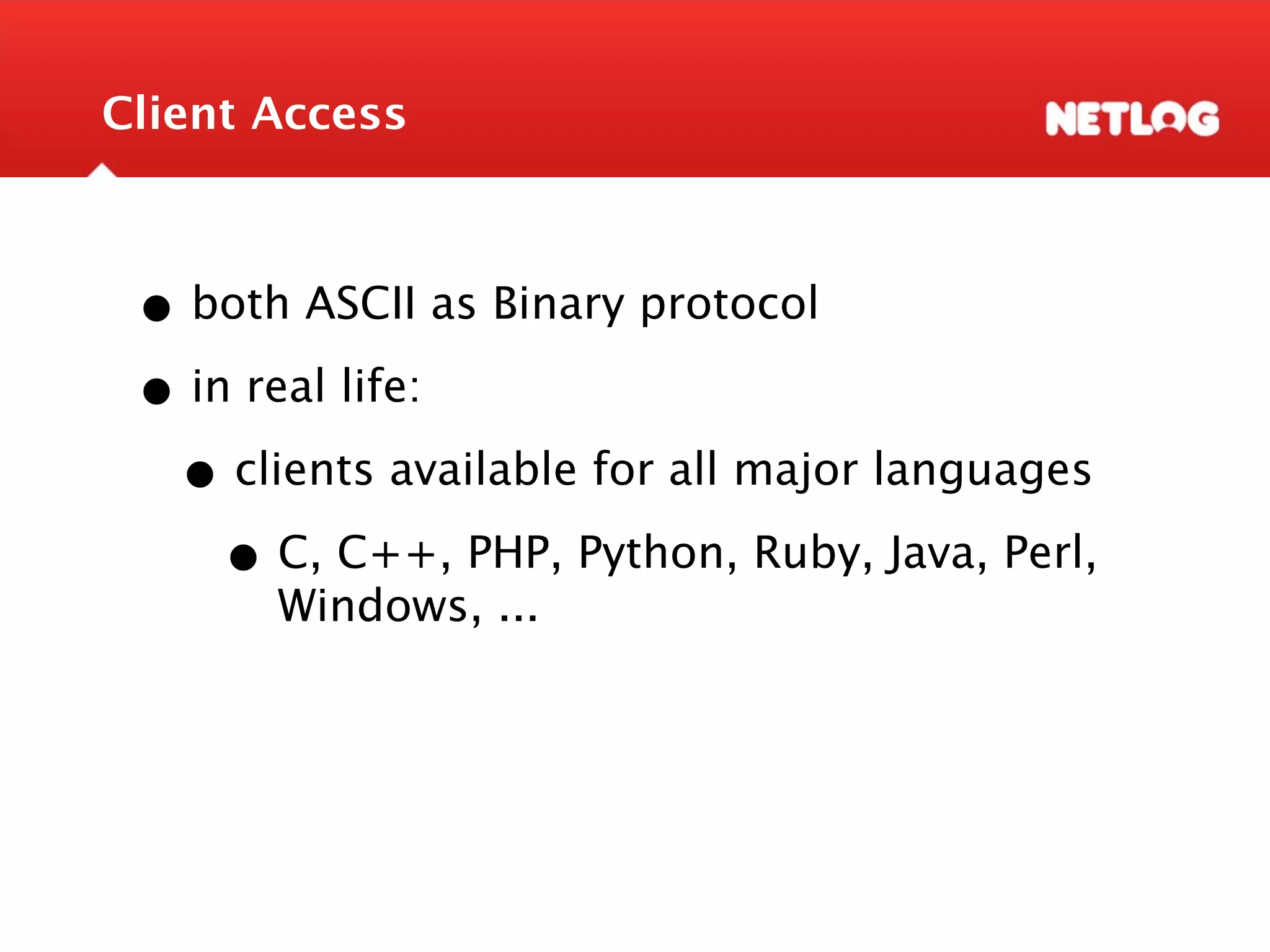

Client Access • both ASCII as Binary protocol • in real life: • clients available for all major languages • C, C++, PHP, Python, Ruby, Java, Perl, Windows, ...

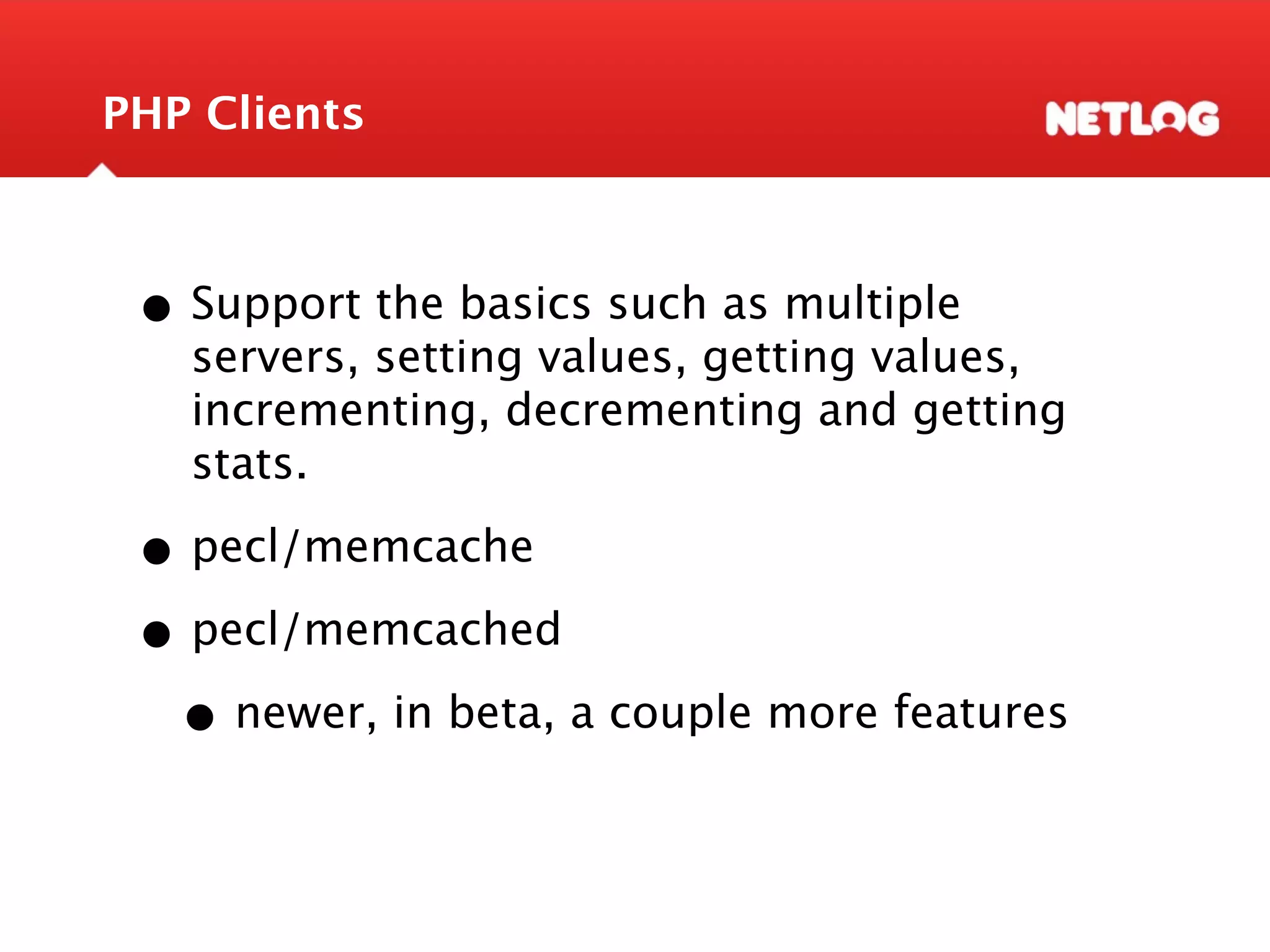

PHP Clients • Support the basics such as multiple servers, setting values, getting values, incrementing, decrementing and getting stats. • pecl/memcache • pecl/memcached • newer, in beta, a couple more features

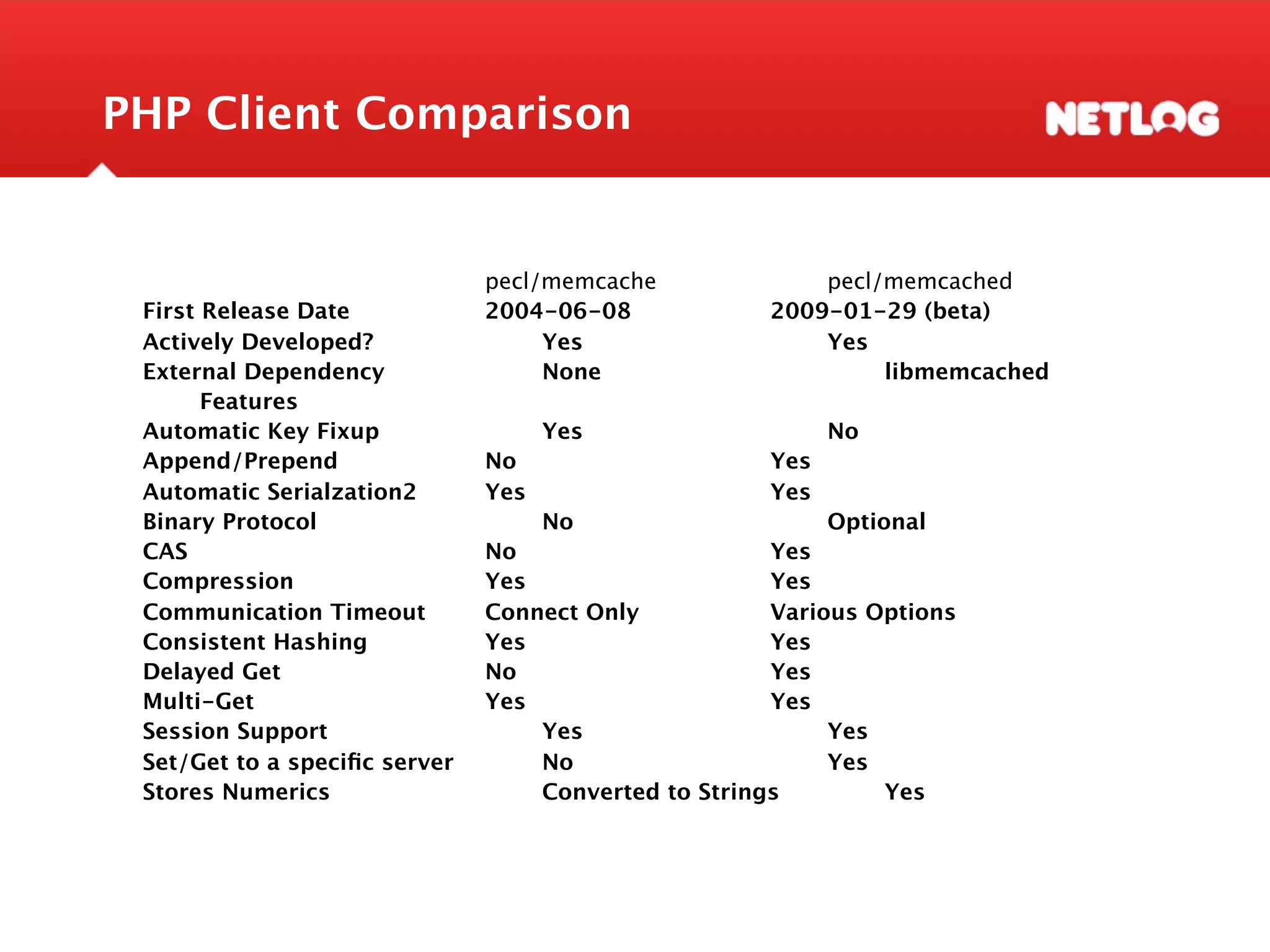

PHP Client Comparison pecl/memcache pecl/memcached First Release Date 2004-06-08 2009-01-29 (beta) Actively Developed? Yes Yes External Dependency None libmemcached Features Automatic Key Fixup Yes No Append/Prepend No Yes Automatic Serialzation2 Yes Yes Binary Protocol No Optional CAS No Yes Compression Yes Yes Communication Timeout Connect Only Various Options Consistent Hashing Yes Yes Delayed Get No Yes Multi-Get Yes Yes Session Support Yes Yes Set/Get to a speciﬁc server No Yes Stores Numerics Converted to Strings Yes

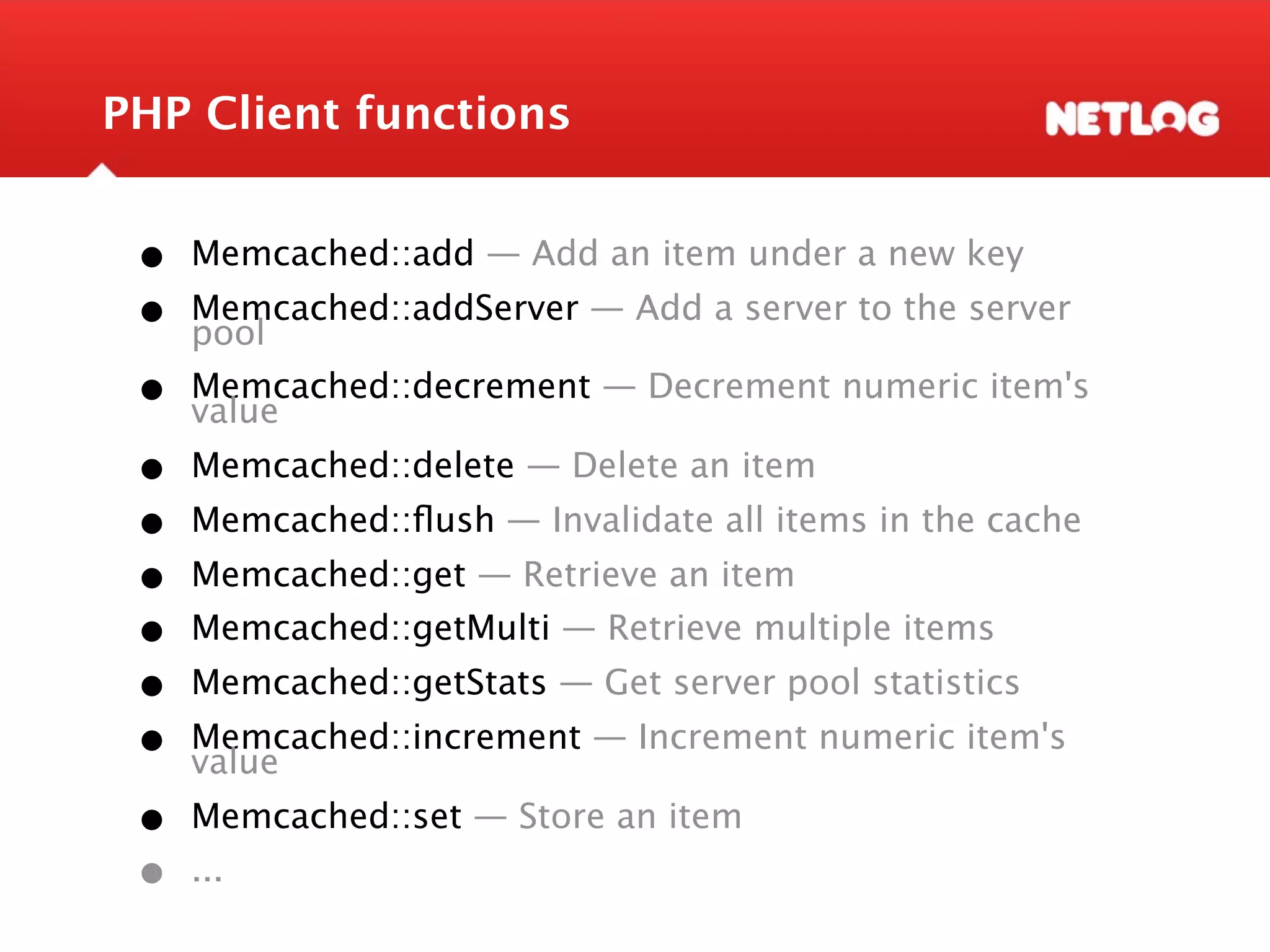

PHP Client functions • Memcached::add — Add an item under a new key • Memcached::addServer — Add a server to the server pool • Memcached::decrement — Decrement numeric item's value • Memcached::delete — Delete an item • Memcached::ﬂush — Invalidate all items in the cache • Memcached::get — Retrieve an item • Memcached::getMulti — Retrieve multiple items • Memcached::getStats — Get server pool statistics • Memcached::increment — Increment numeric item's value • Memcached::set — Store an item • ...

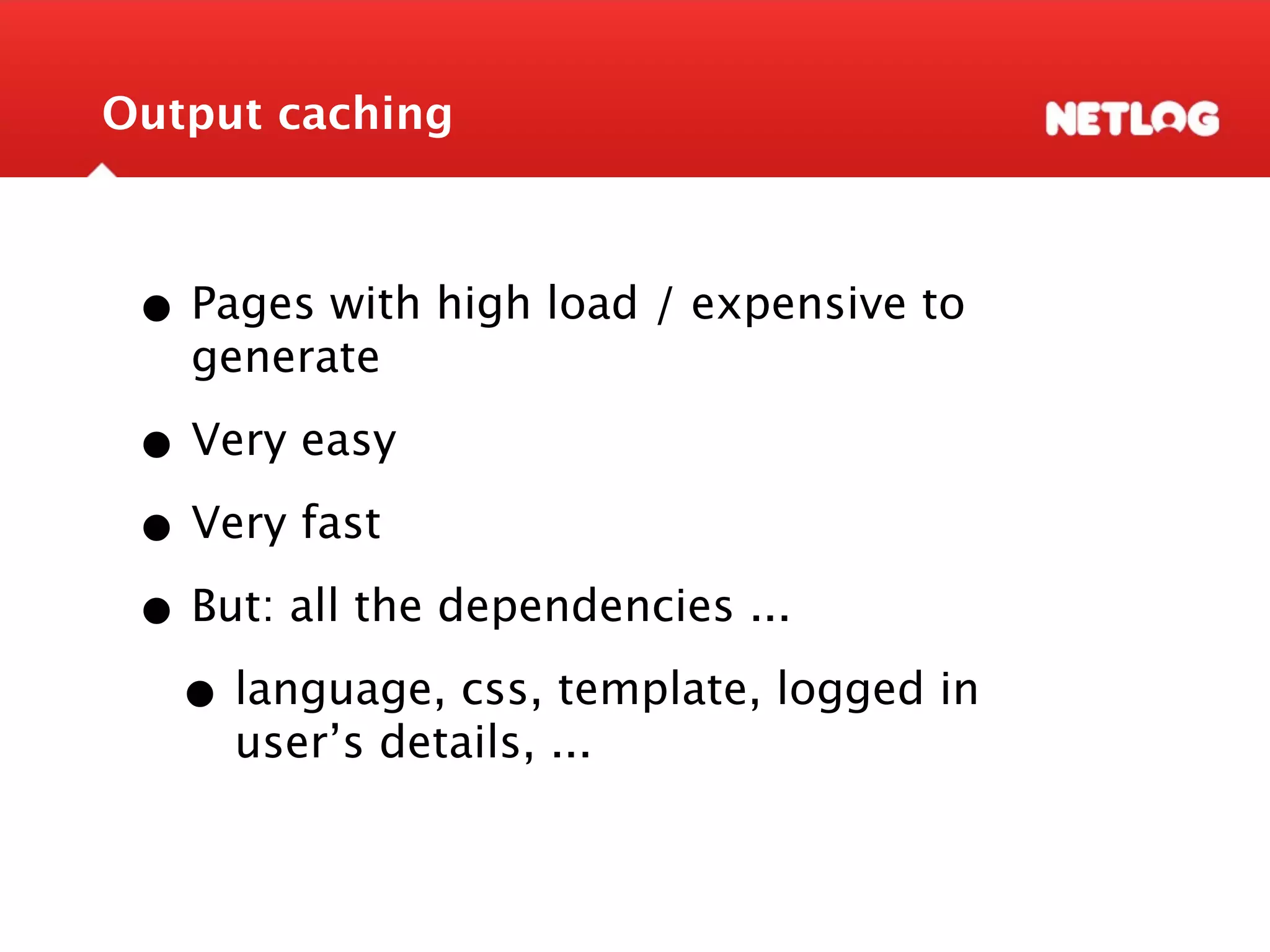

Output caching • Pages with high load / expensive to generate • Very easy • Very fast • But: all the dependencies ... • language, css, template, logged in user’s details, ...

<?php $html = $cache->get('mypage'); if (!$html) { ob_start(); echo "<html>"; // all the fancy stuff goes here echo "</html>"; $html = ob_get_contents(); ob_end_clean(); $cache->set('mypage', $html); } echo $html; ?>

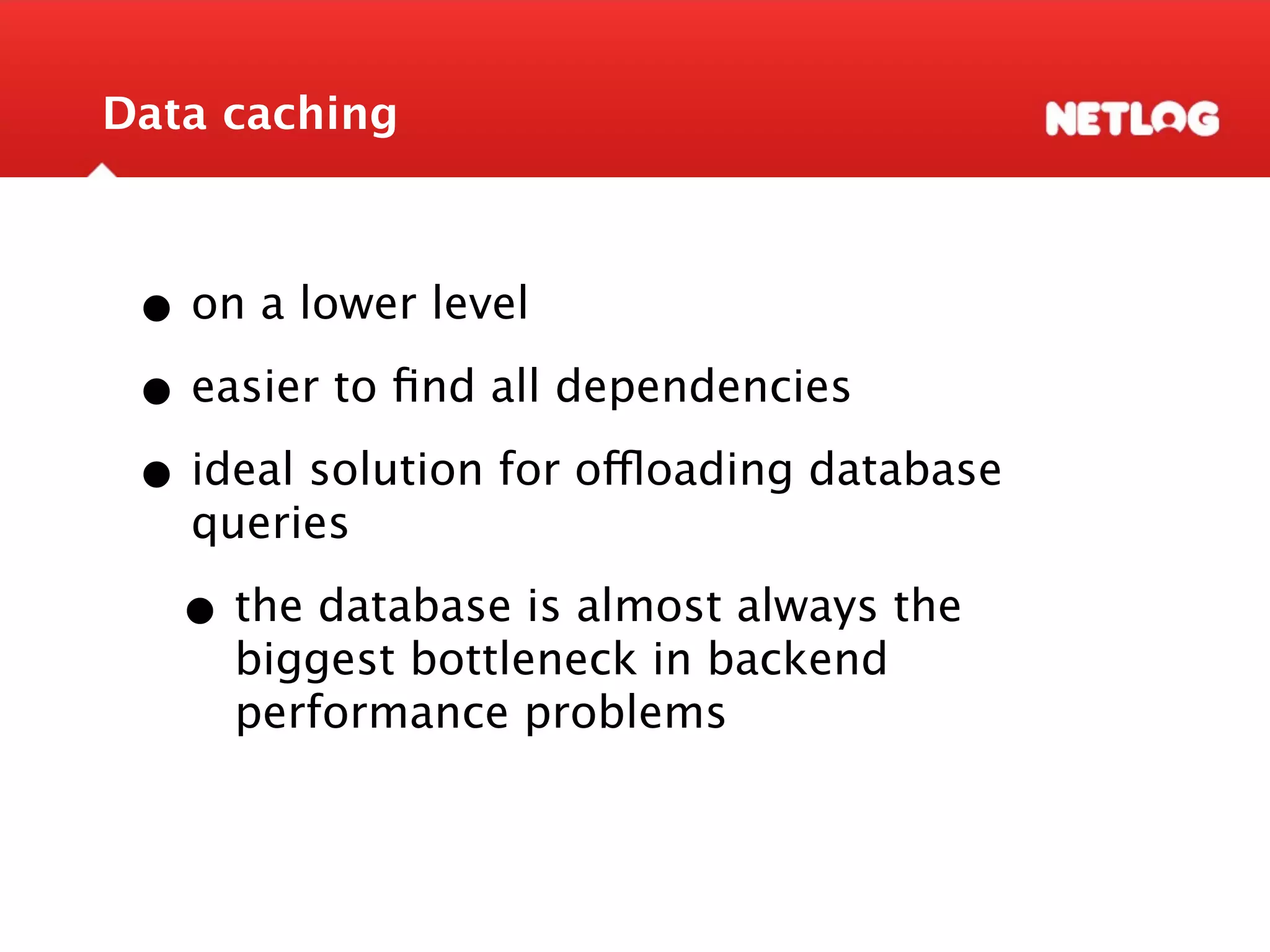

Data caching • on a lower level • easier to ﬁnd all dependencies • ideal solution for offloading database queries • the database is almost always the biggest bottleneck in backend performance problems

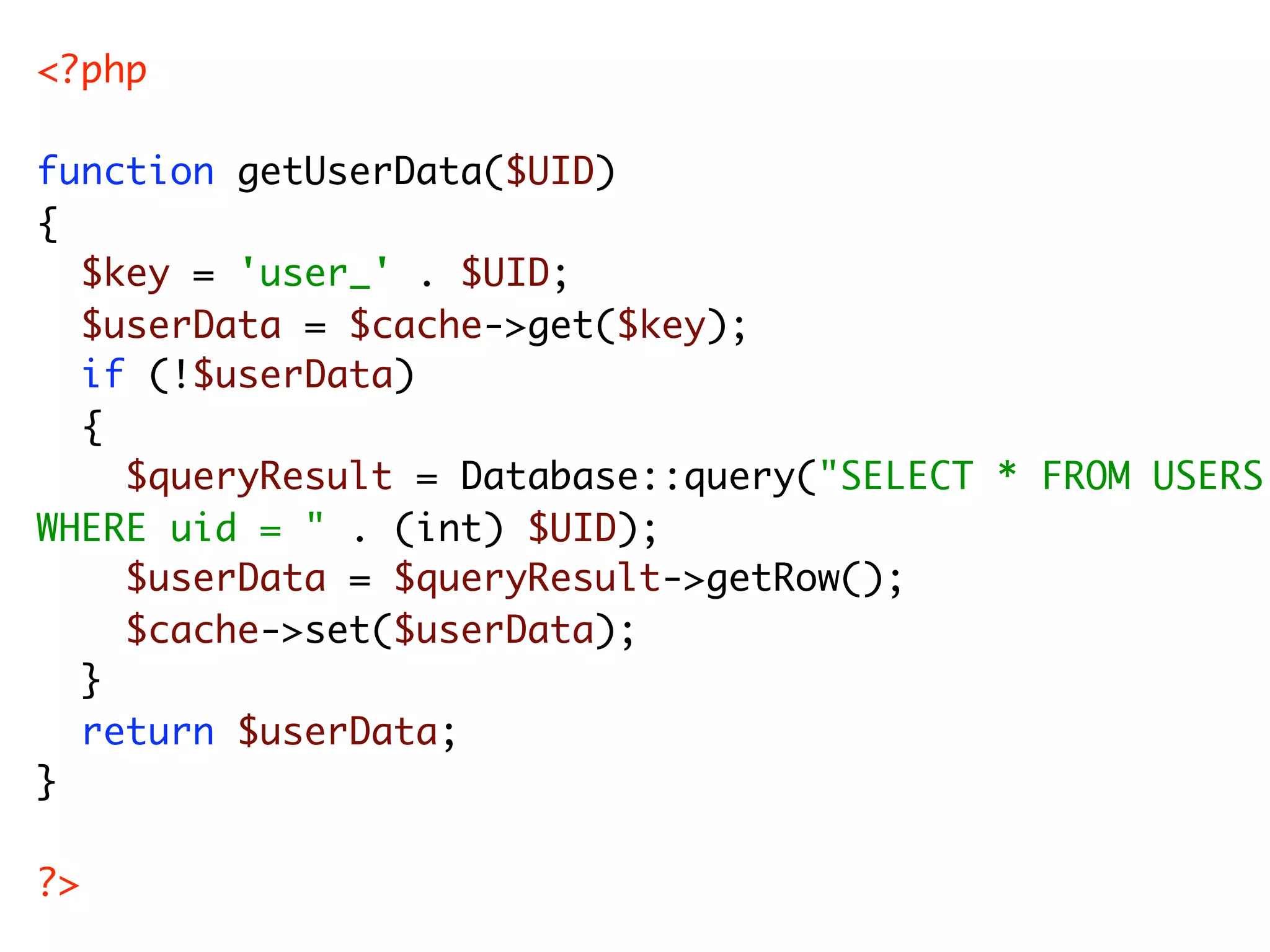

<?php function getUserData($UID) { $key = 'user_' . $UID; $userData = $cache->get($key); if (!$userData) { $queryResult = Database::query("SELECT * FROM USERS WHERE uid = " . (int) $UID); $userData = $queryResult->getRow(); $cache->set($userData); } return $userData; } ?>

“There are only two hard things in Computer Science: cache invalidation and naming things.” Phil Karlton

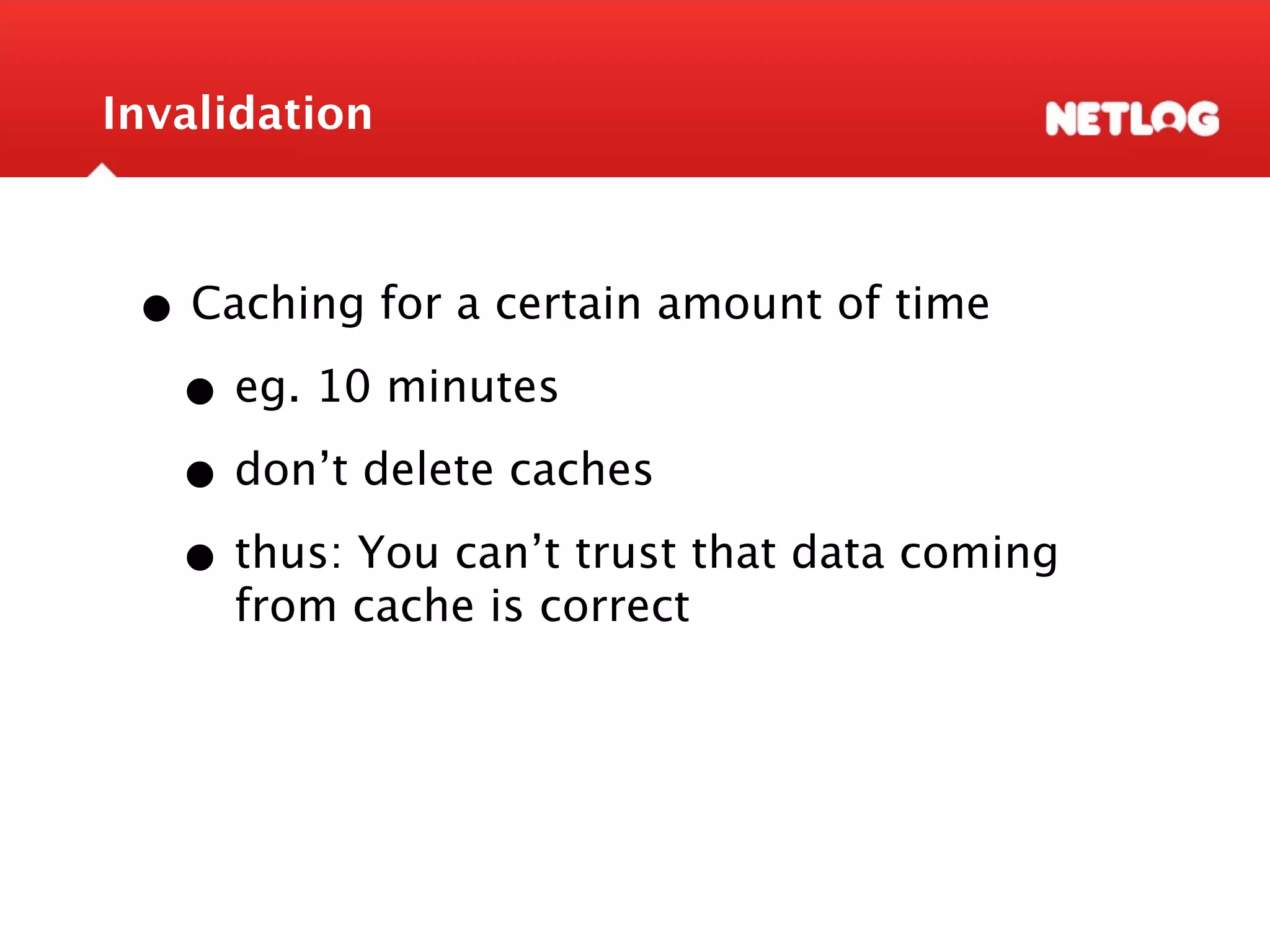

Invalidation • Caching for a certain amount of time • eg. 10 minutes • don’t delete caches • thus: You can’t trust that data coming from cache is correct

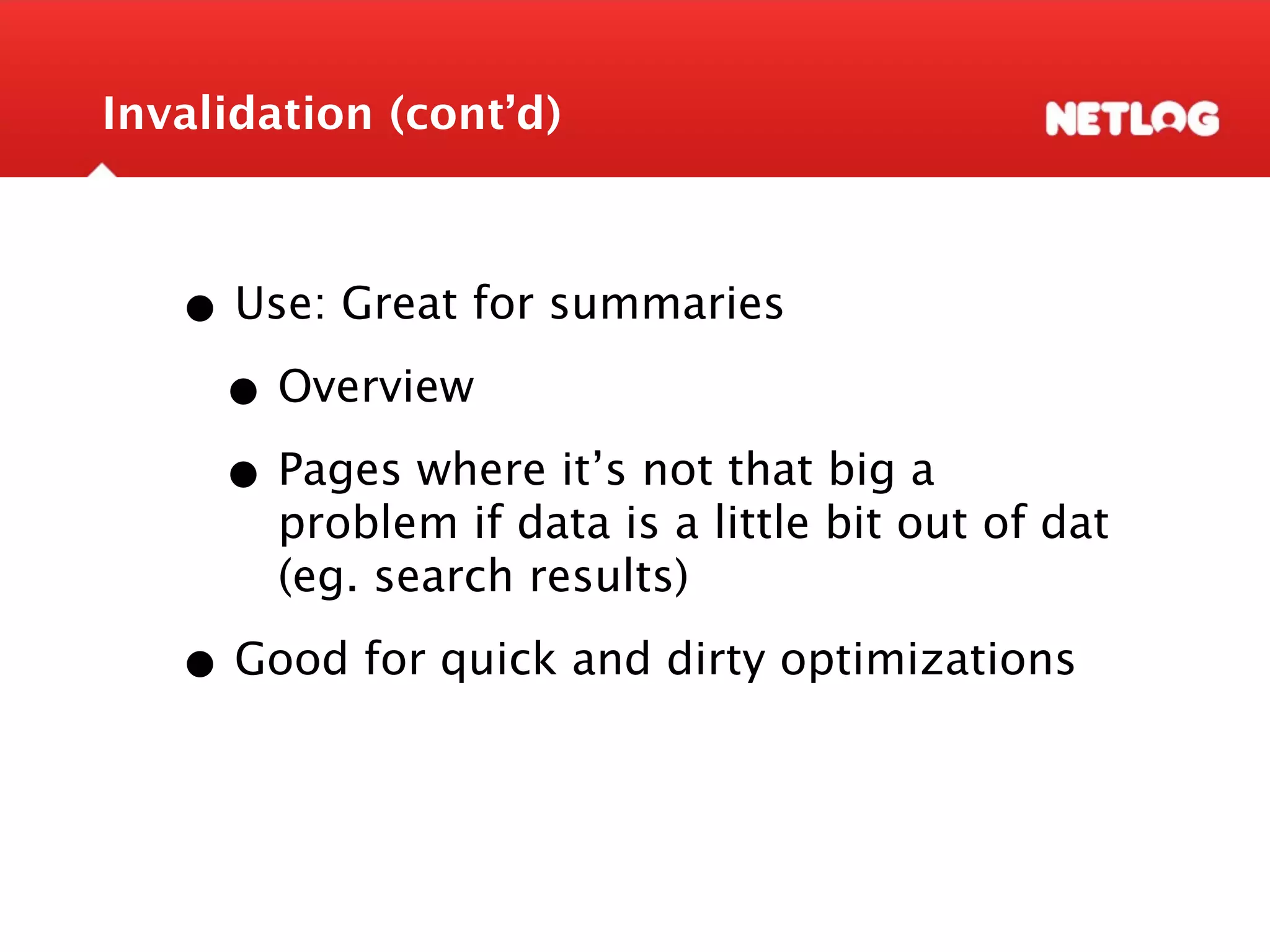

Invalidation (cont’d) • Use: Great for summaries • Overview • Pages where it’s not that big a problem if data is a little bit out of dat (eg. search results) • Good for quick and dirty optimizations

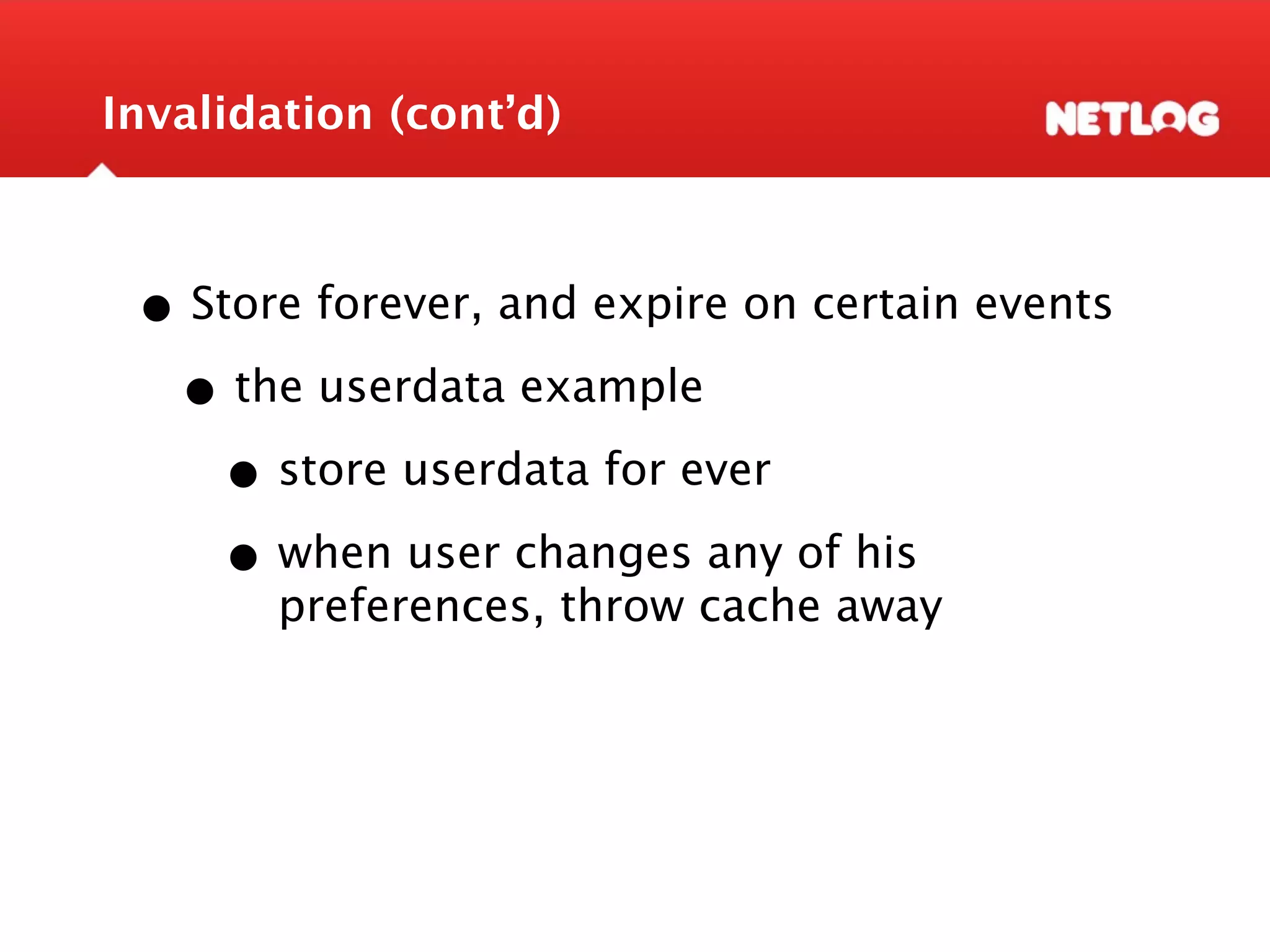

Invalidation (cont’d) • Store forever, and expire on certain events • the userdata example • store userdata for ever • when user changes any of his preferences, throw cache away

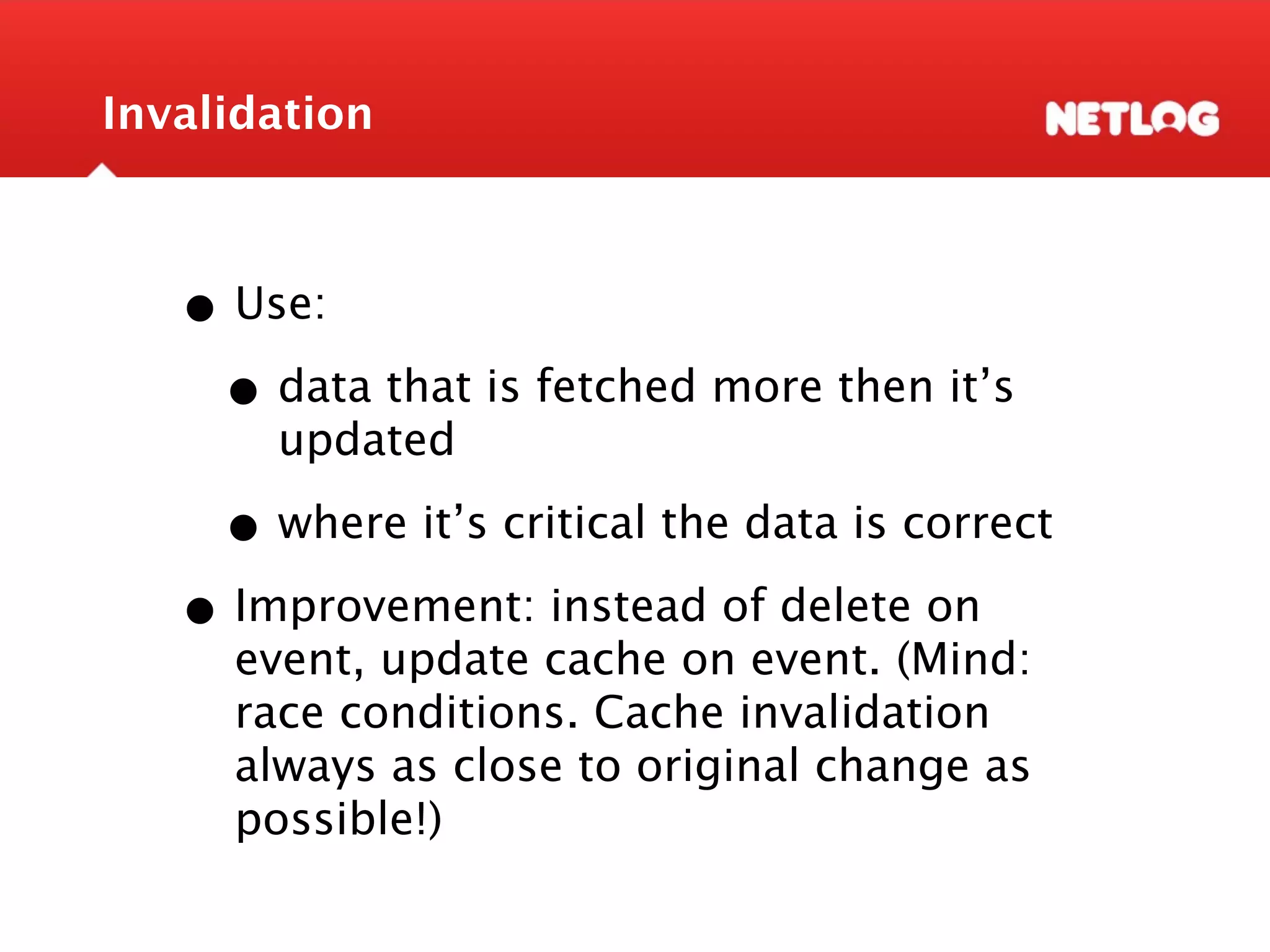

Invalidation • Use: • data that is fetched more then it’s updated • where it’s critical the data is correct • Improvement: instead of delete on event, update cache on event. (Mind: race conditions. Cache invalidation always as close to original change as possible!)

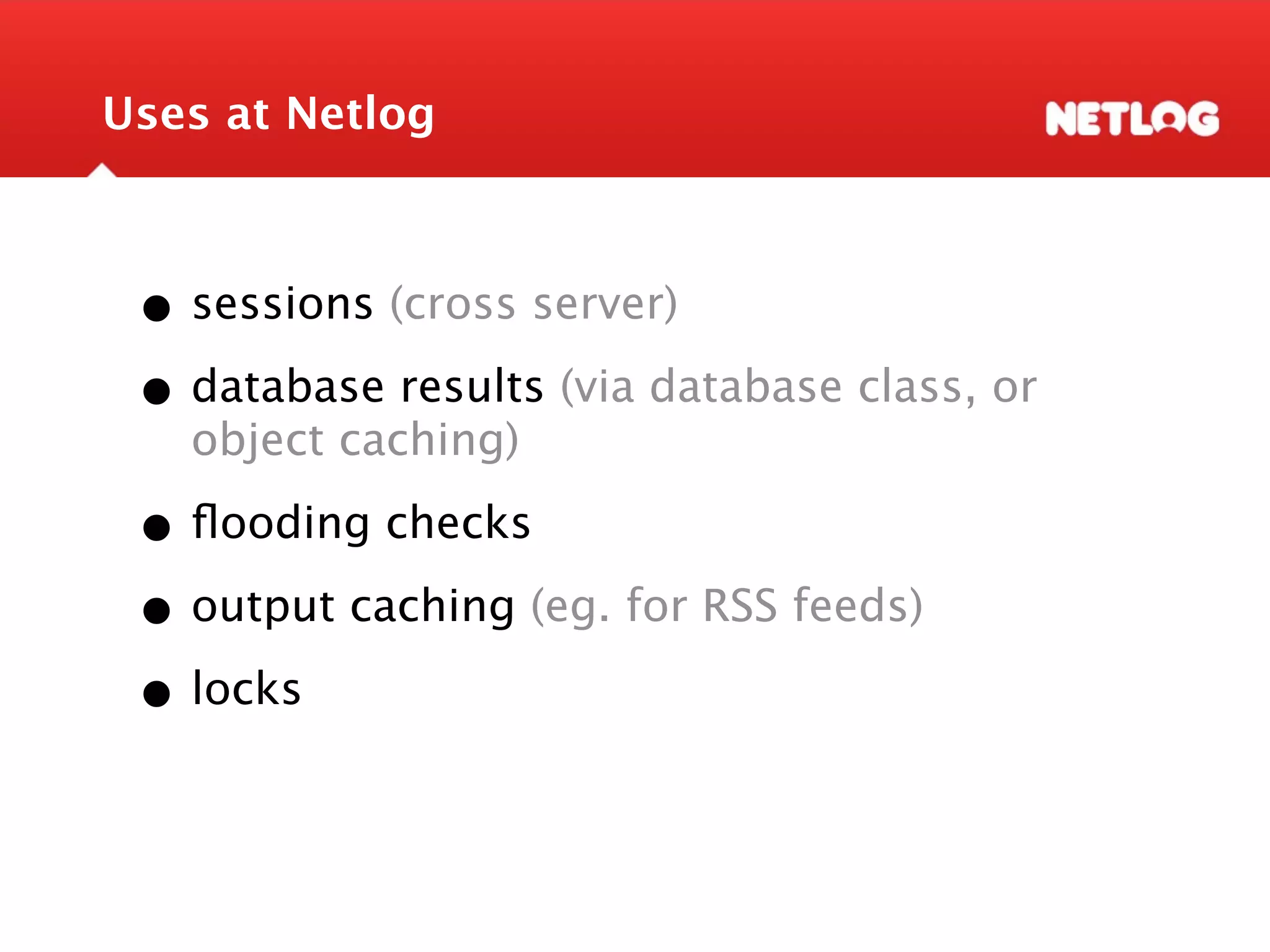

Uses at Netlog • sessions (cross server) • database results (via database class, or object caching) • ﬂooding checks • output caching (eg. for RSS feeds) • locks

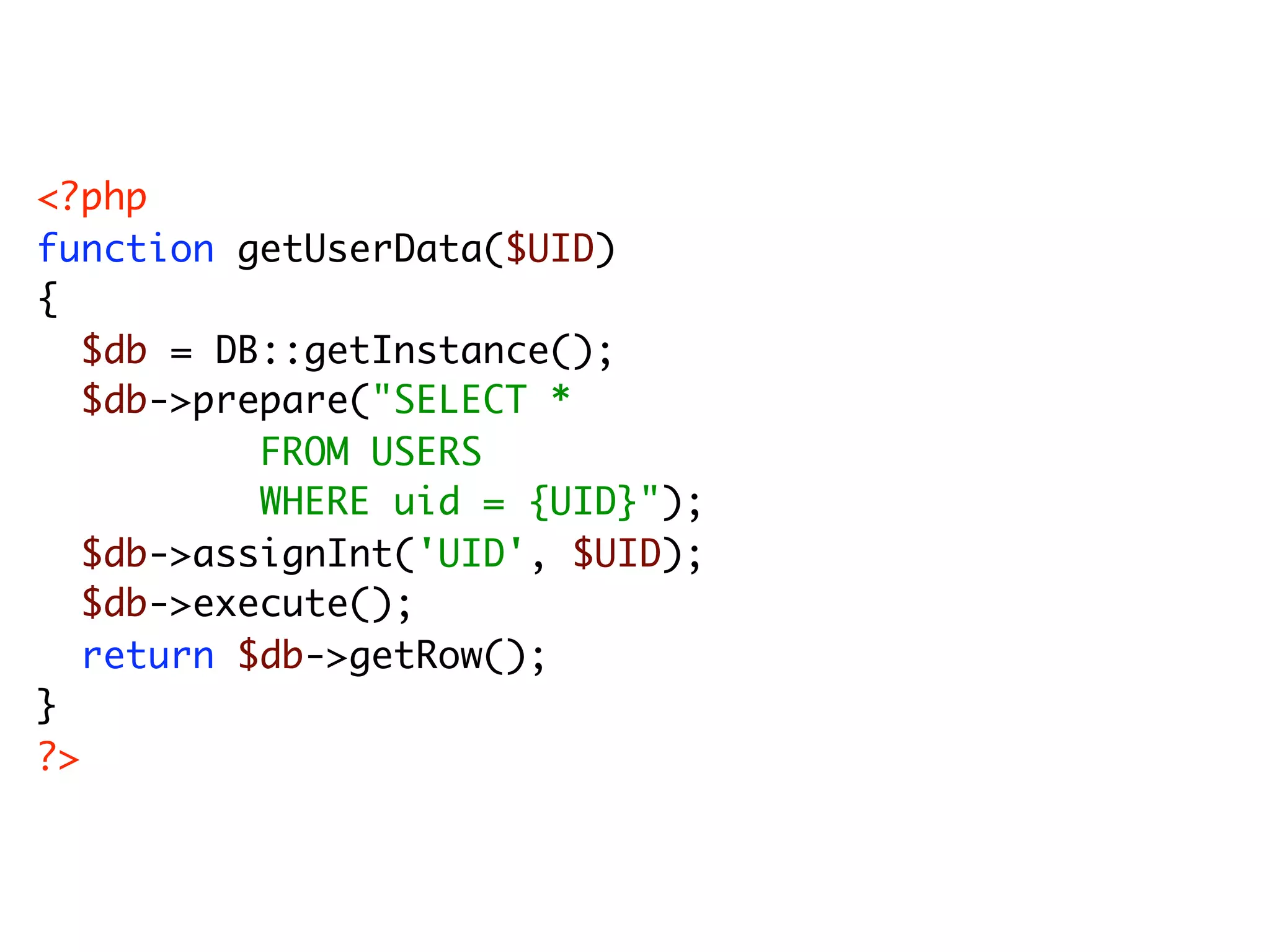

<?php function getUserData($UID) { $db = DB::getInstance(); $db->prepare("SELECT * FROM USERS WHERE uid = {UID}"); $db->assignInt('UID', $UID); $db->execute(); return $db->getRow(); } ?>

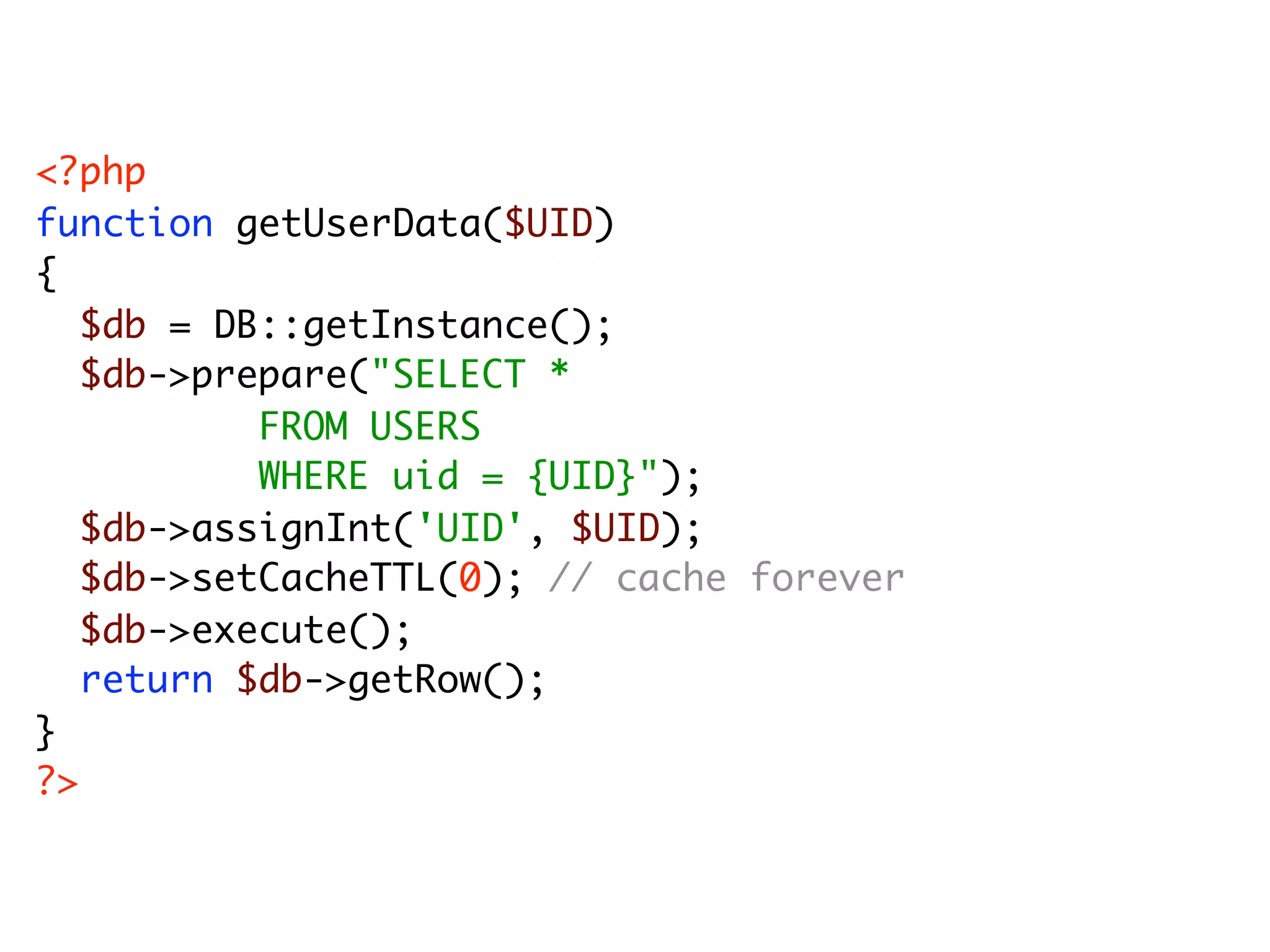

<?php function getUserData($UID) { $db = DB::getInstance(); $db->prepare("SELECT * FROM USERS WHERE uid = {UID}"); $db->assignInt('UID', $UID); $db->setCacheTTL(0); // cache forever $db->execute(); return $db->getRow(); } ?>

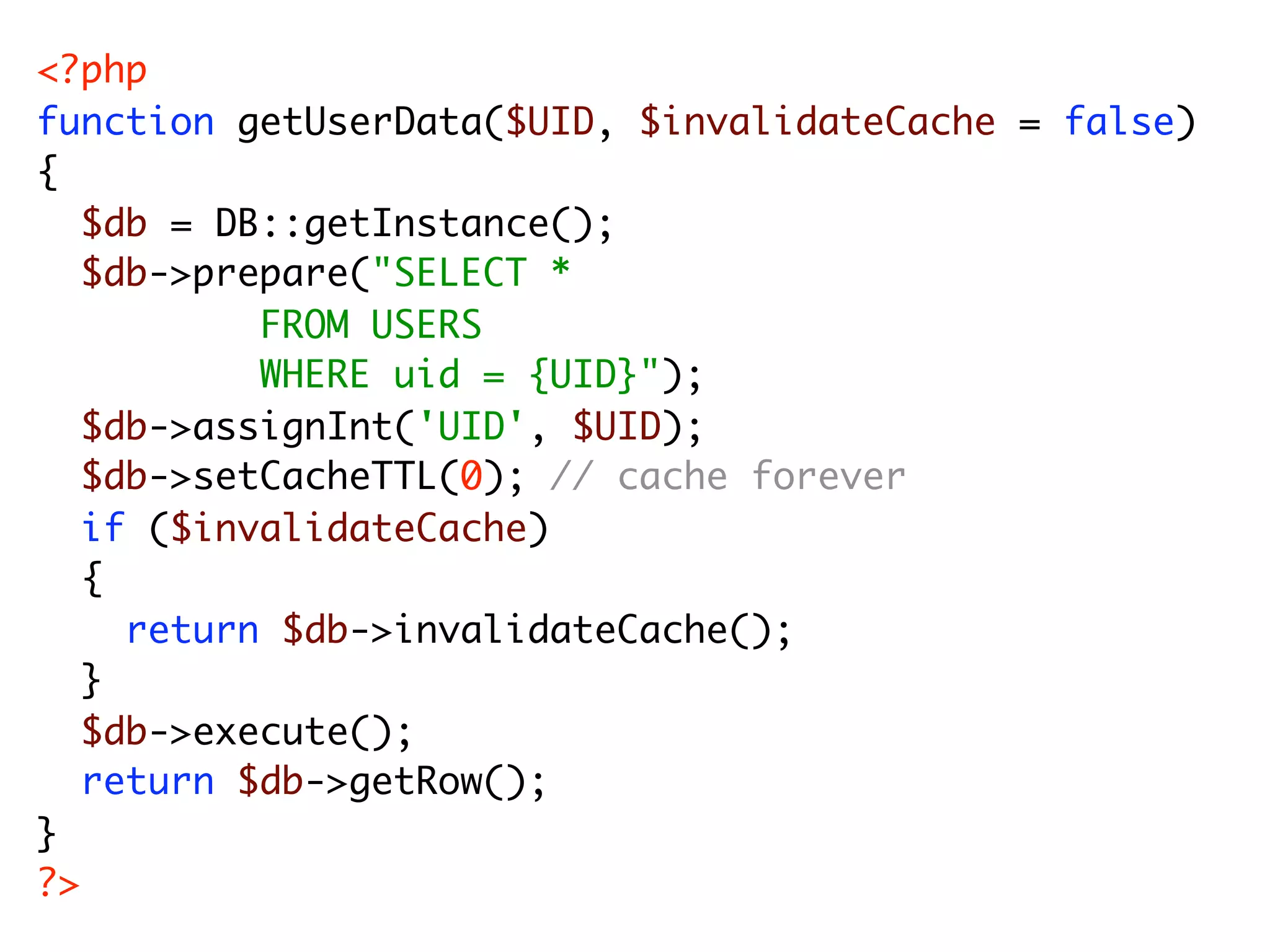

<?php function getUserData($UID, $invalidateCache = false) { $db = DB::getInstance(); $db->prepare("SELECT * FROM USERS WHERE uid = {UID}"); $db->assignInt('UID', $UID); $db->setCacheTTL(0); // cache forever if ($invalidateCache) { return $db->invalidateCache(); } $db->execute(); return $db->getRow(); } ?>

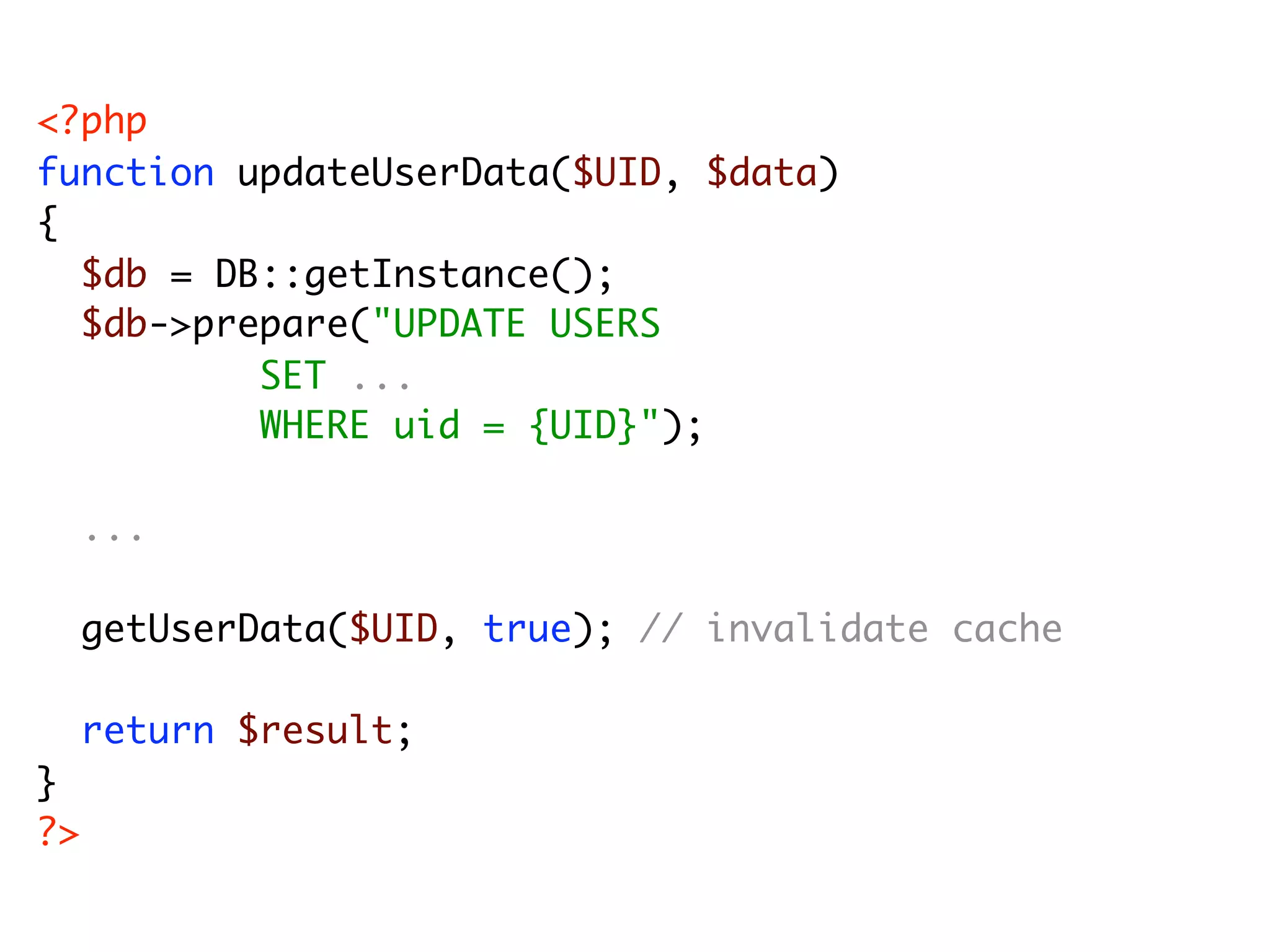

<?php function updateUserData($UID, $data) { $db = DB::getInstance(); $db->prepare("UPDATE USERS SET ... WHERE uid = {UID}"); ... getUserData($UID, true); // invalidate cache return $result; } ?>

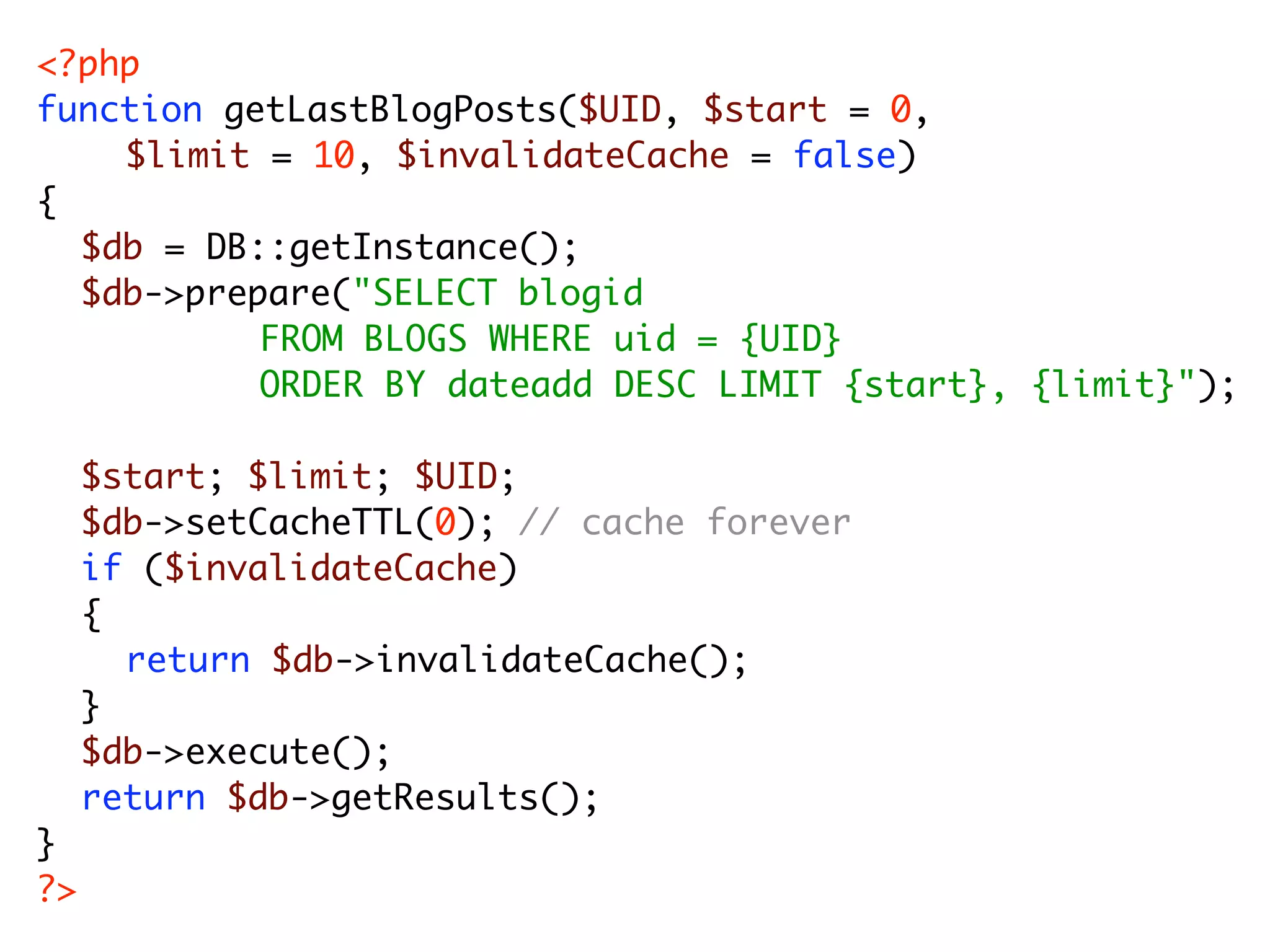

<?php function getLastBlogPosts($UID, $start = 0, $limit = 10, $invalidateCache = false) { $db = DB::getInstance(); $db->prepare("SELECT blogid FROM BLOGS WHERE uid = {UID} ORDER BY dateadd DESC LIMIT {start}, {limit}"); $start; $limit; $UID; $db->setCacheTTL(0); // cache forever if ($invalidateCache) { return $db->invalidateCache(); } $db->execute(); return $db->getResults(); } ?>

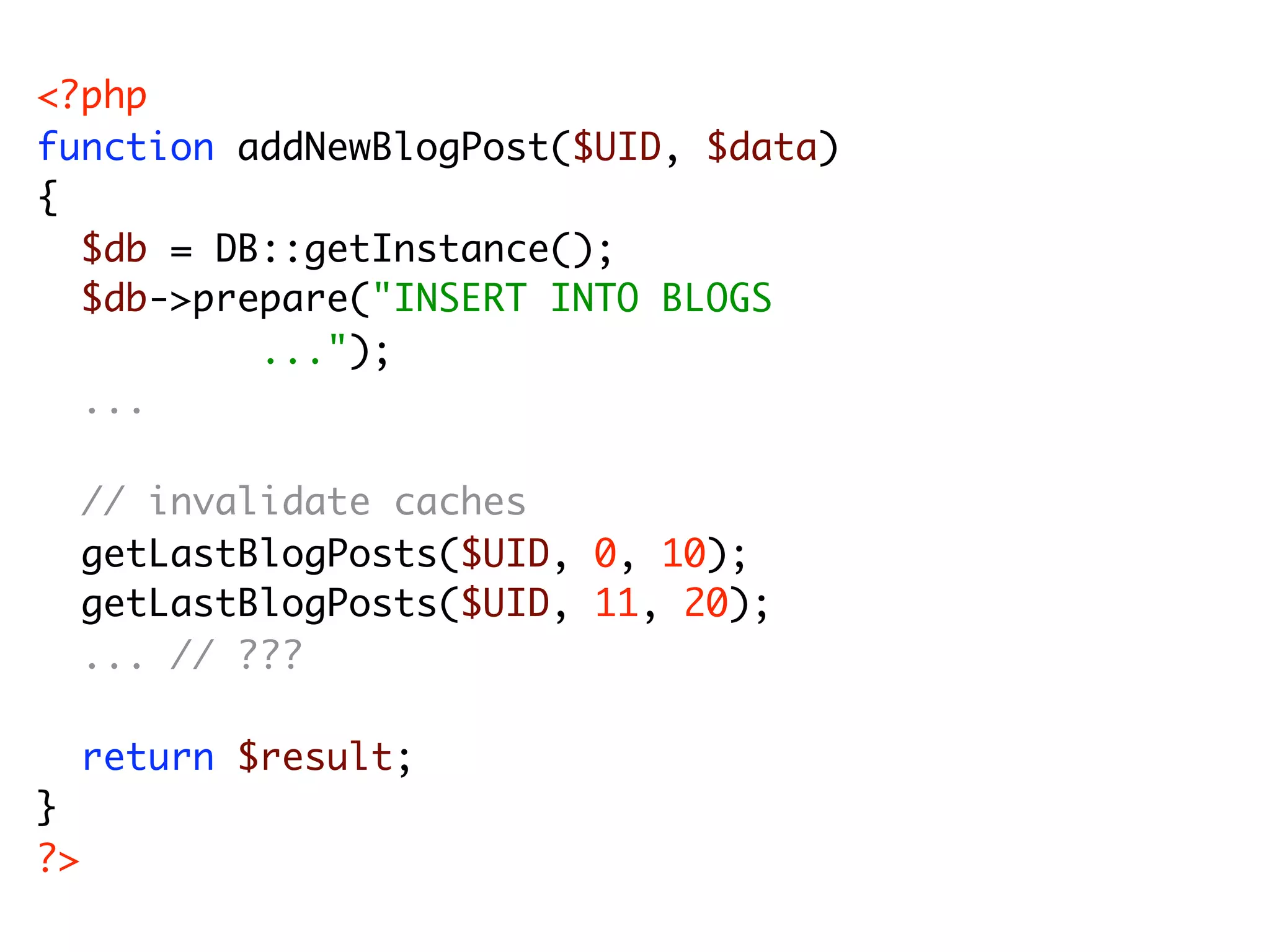

<?php function addNewBlogPost($UID, $data) { $db = DB::getInstance(); $db->prepare("INSERT INTO BLOGS ..."); ... // invalidate caches getLastBlogPosts($UID, 0, 10); getLastBlogPosts($UID, 11, 20); ... // ??? return $result; } ?>

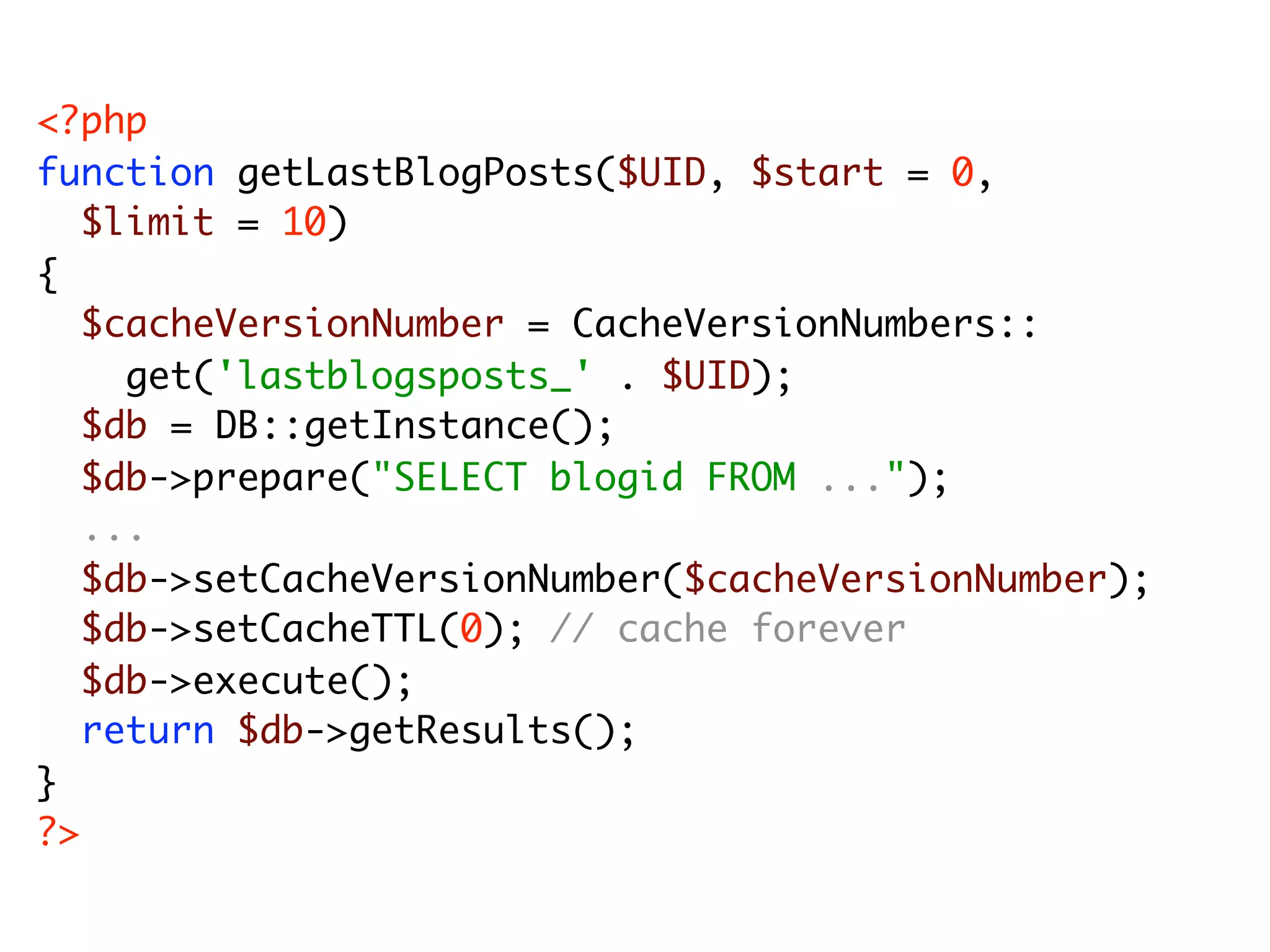

<?php function getLastBlogPosts($UID, $start = 0, $limit = 10) { $cacheVersionNumber = CacheVersionNumbers:: get('lastblogsposts_' . $UID); $db = DB::getInstance(); $db->prepare("SELECT blogid FROM ..."); ... $db->setCacheVersionNumber($cacheVersionNumber); $db->setCacheTTL(0); // cache forever $db->execute(); return $db->getResults(); } ?>

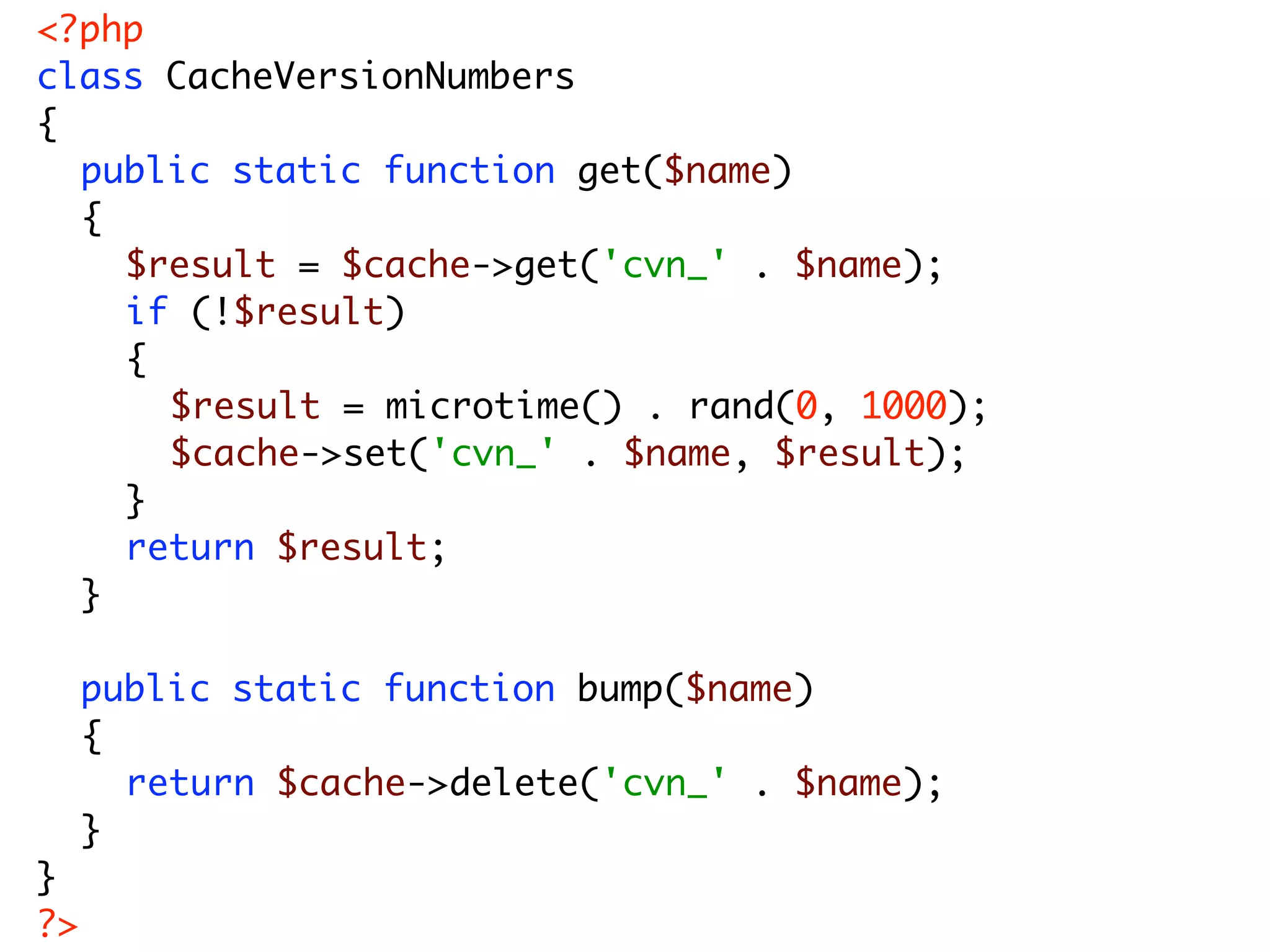

<?php class CacheVersionNumbers { public static function get($name) { $result = $cache->get('cvn_' . $name); if (!$result) { $result = microtime() . rand(0, 1000); $cache->set('cvn_' . $name, $result); } return $result; } public static function bump($name) { return $cache->delete('cvn_' . $name); } } ?>

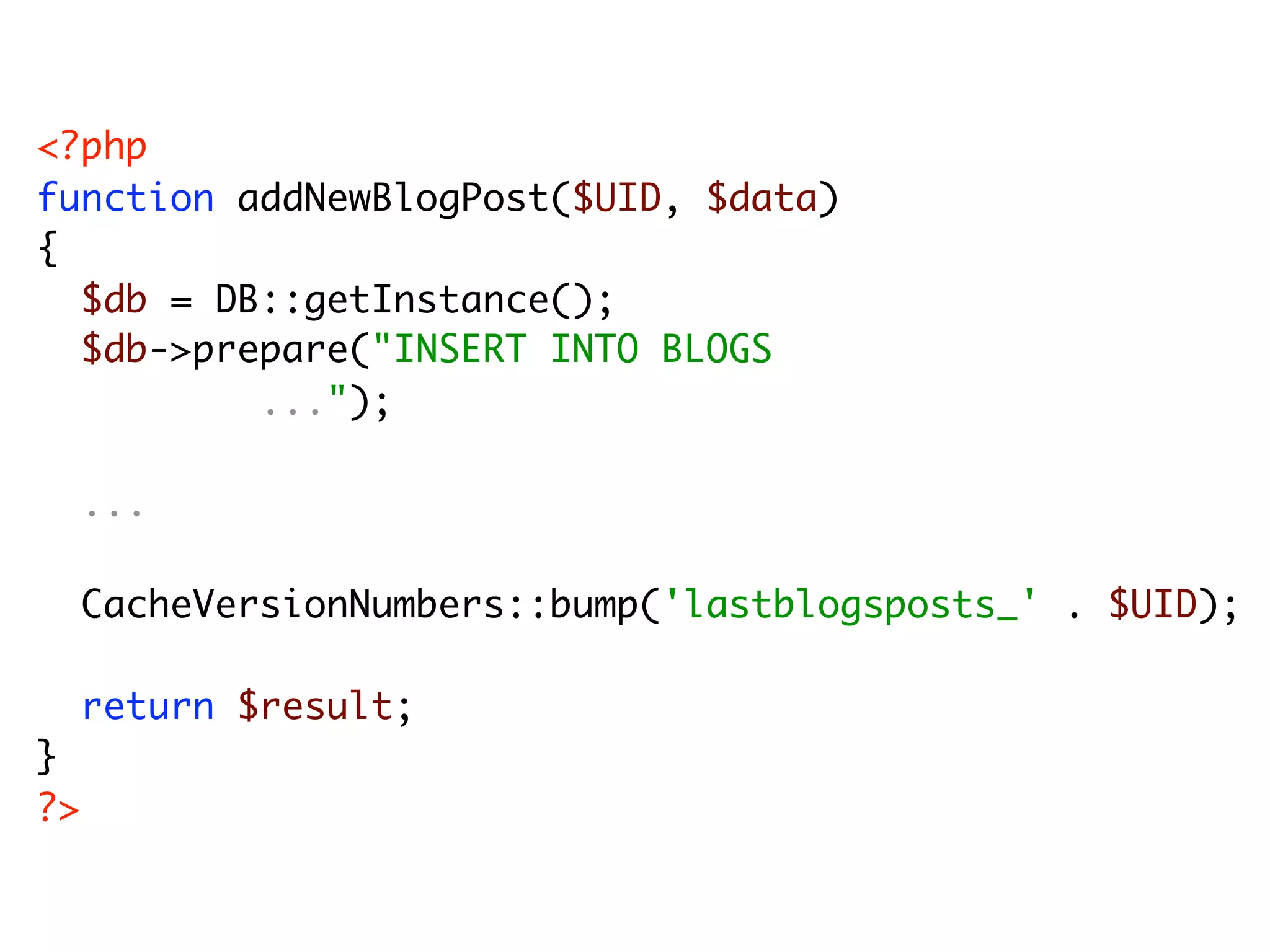

<?php function addNewBlogPost($UID, $data) { $db = DB::getInstance(); $db->prepare("INSERT INTO BLOGS ..."); ... CacheVersionNumbers::bump('lastblogsposts_' . $UID); return $result; } ?>

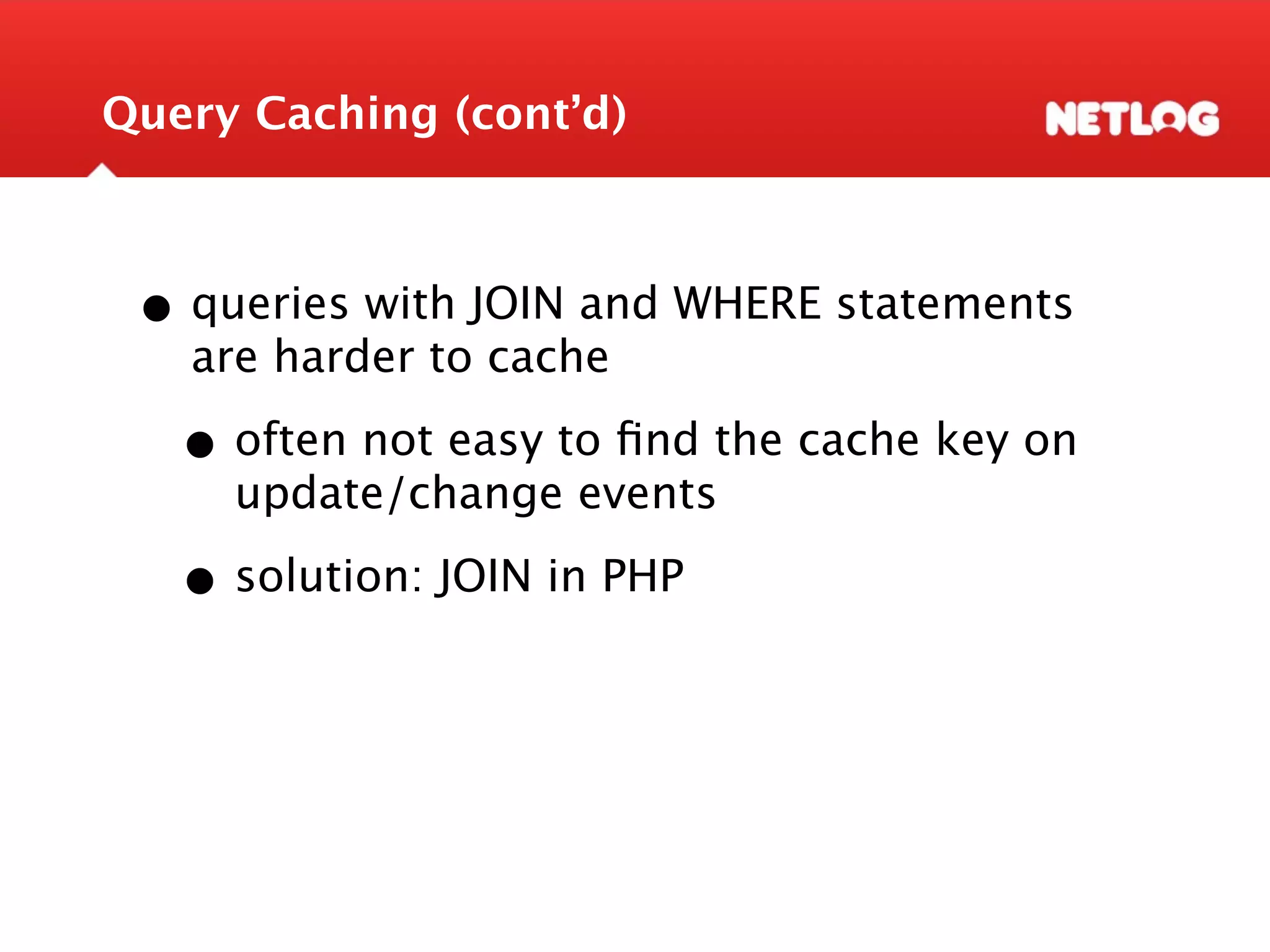

Query Caching (cont’d) • queries with JOIN and WHERE statements are harder to cache • often not easy to ﬁnd the cache key on update/change events • solution: JOIN in PHP

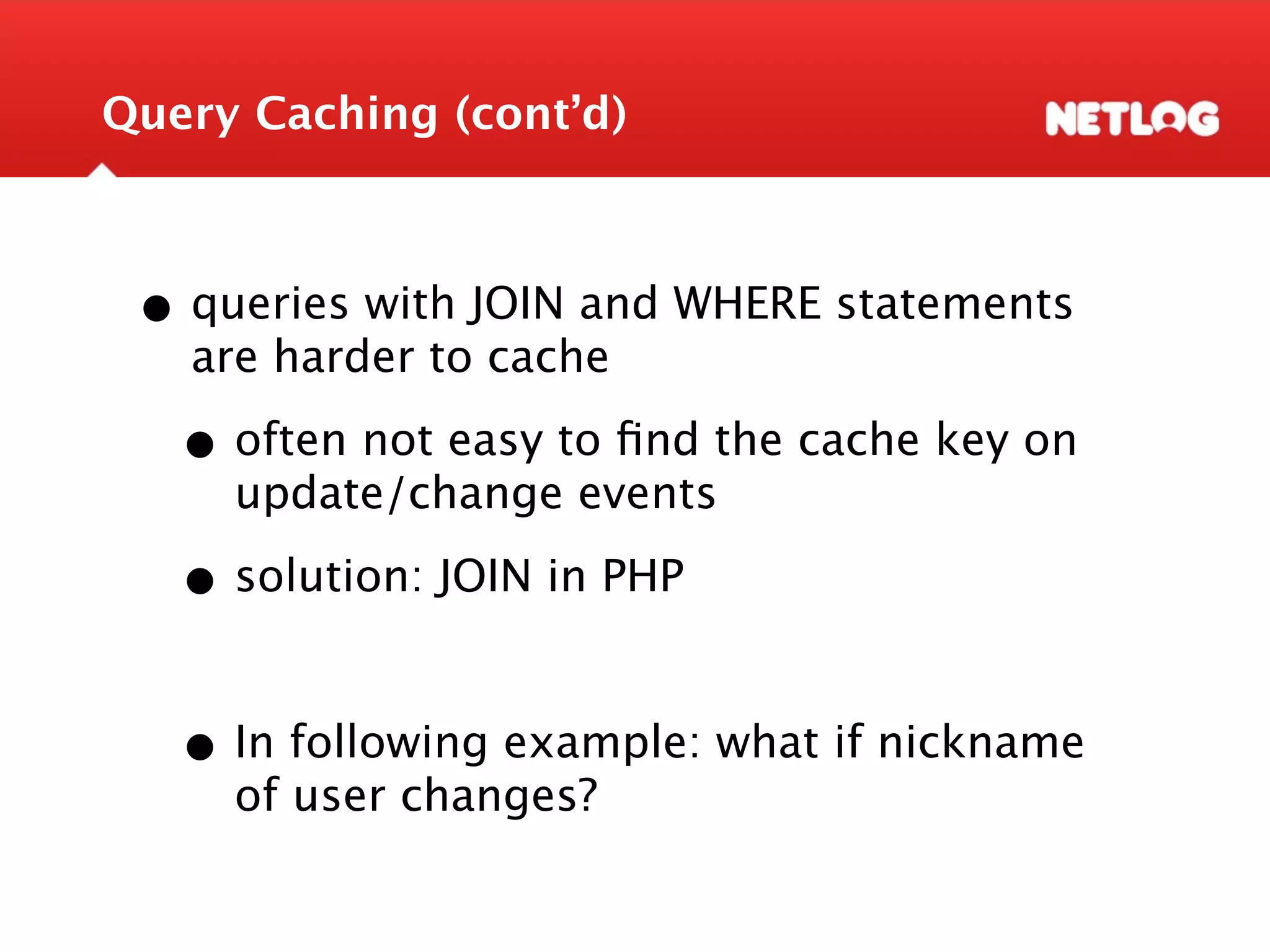

Query Caching (cont’d) • queries with JOIN and WHERE statements are harder to cache • often not easy to ﬁnd the cache key on update/change events • solution: JOIN in PHP • In following example: what if nickname of user changes?

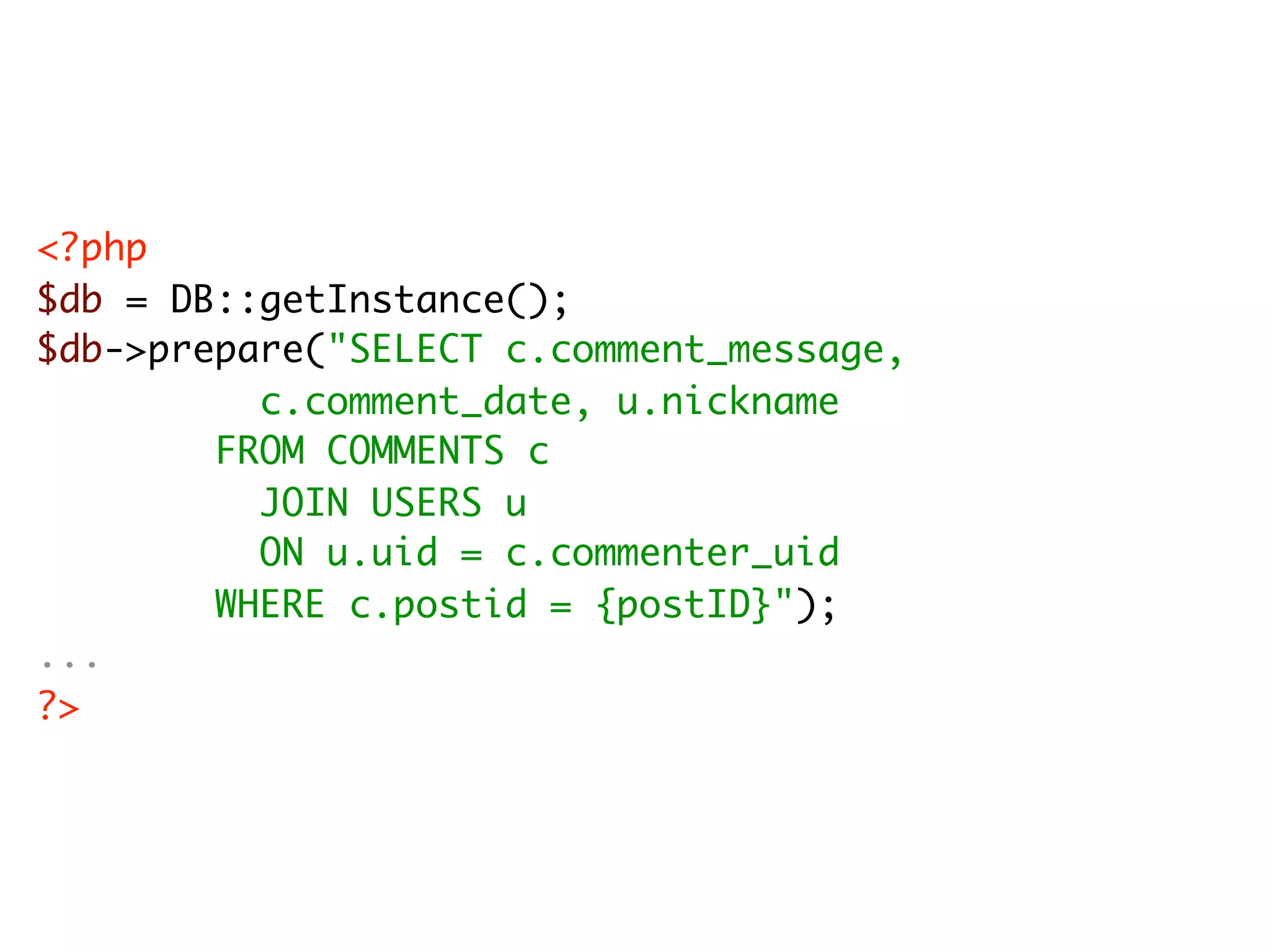

<?php $db = DB::getInstance(); $db->prepare("SELECT c.comment_message, c.comment_date, u.nickname FROM COMMENTS c JOIN USERS u ON u.uid = c.commenter_uid WHERE c.postid = {postID}"); ... ?>

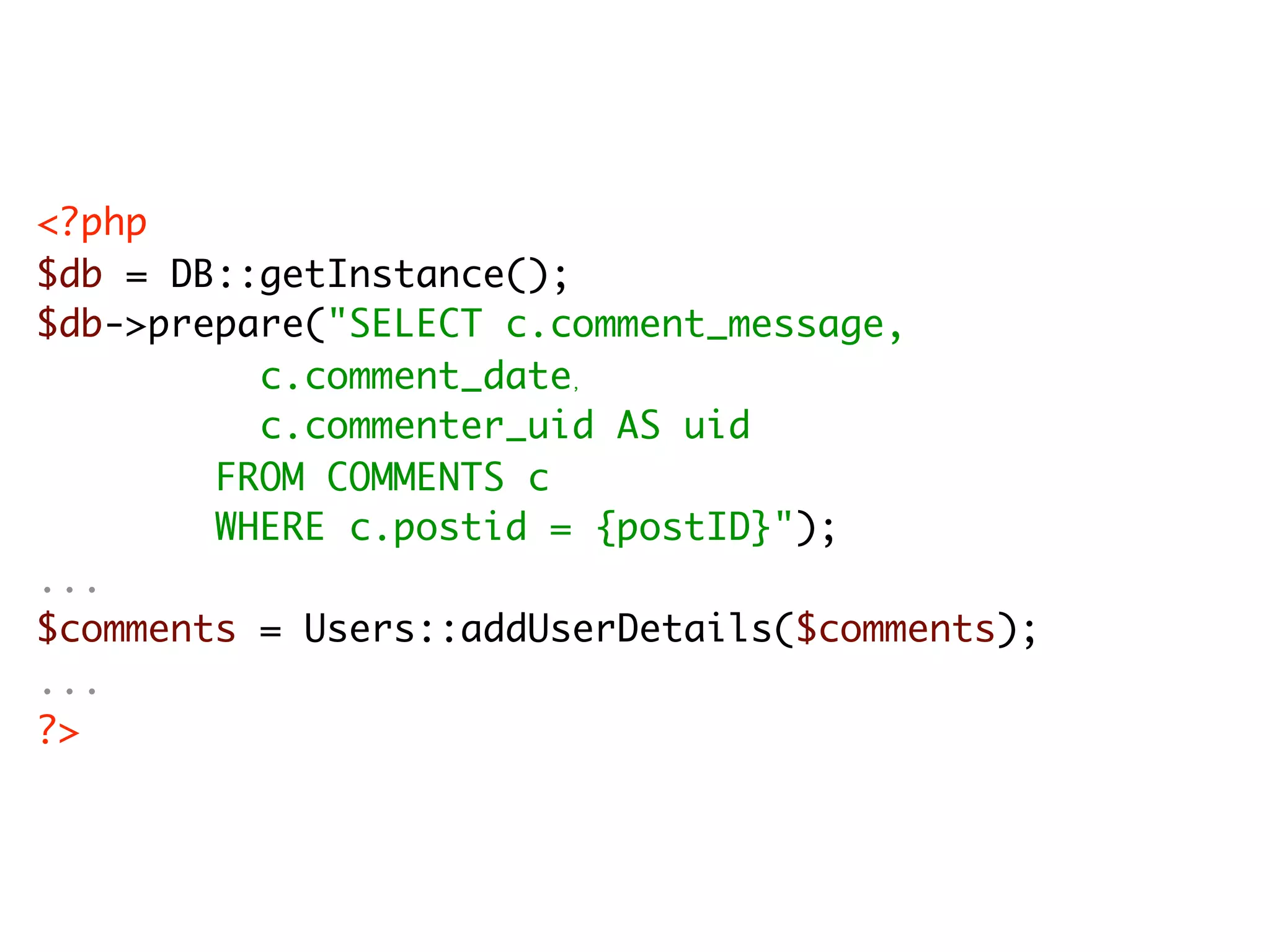

<?php $db = DB::getInstance(); $db->prepare("SELECT c.comment_message, c.comment_date , c.commenter_uid AS uid FROM COMMENTS c WHERE c.postid = {postID}"); ... $comments = Users::addUserDetails($comments); ... ?>

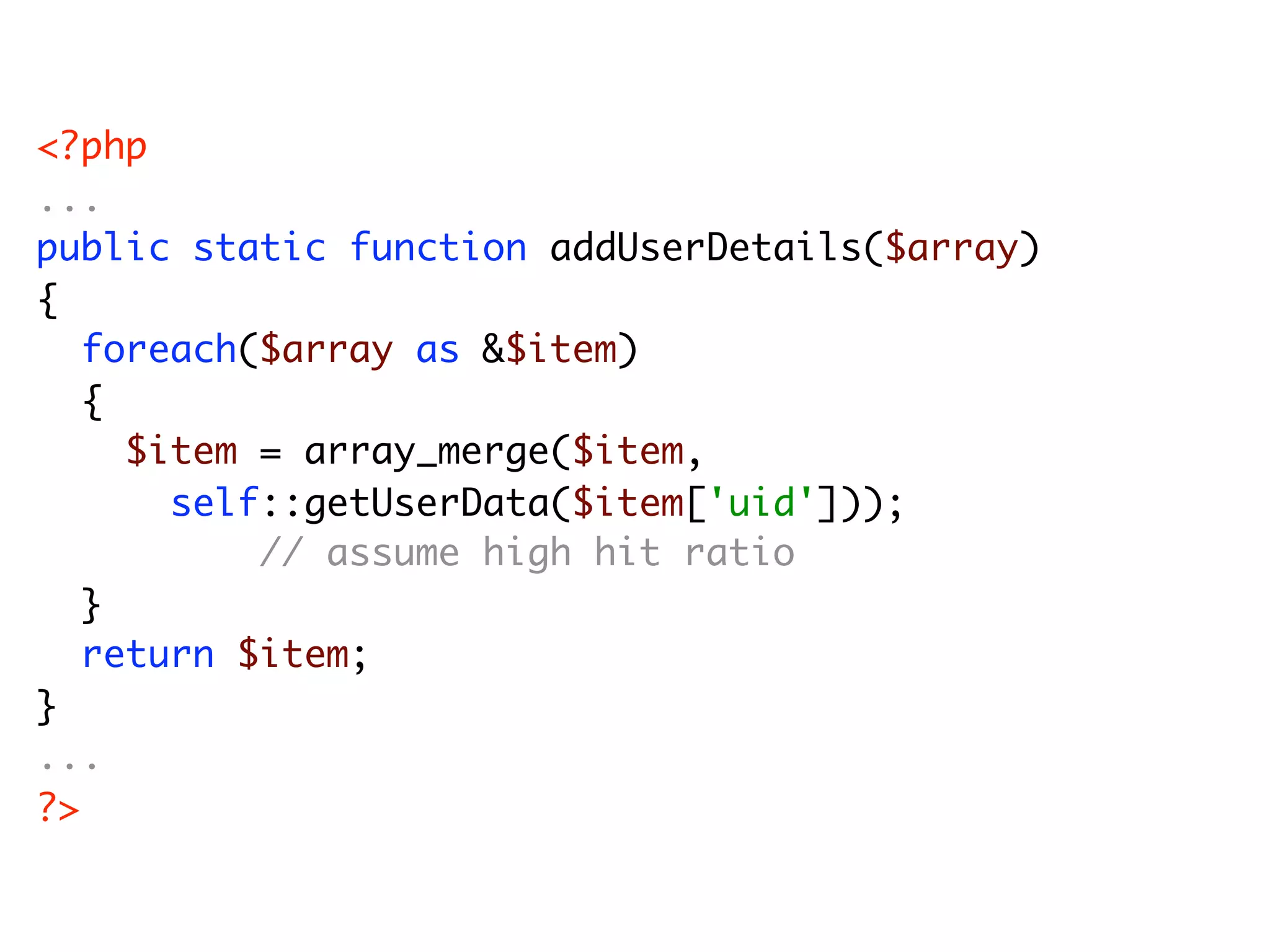

<?php ... public static function addUserDetails($array) { foreach($array as &$item) { $item = array_merge($item, self::getUserData($item['uid'])); // assume high hit ratio } return $item; } ... ?>

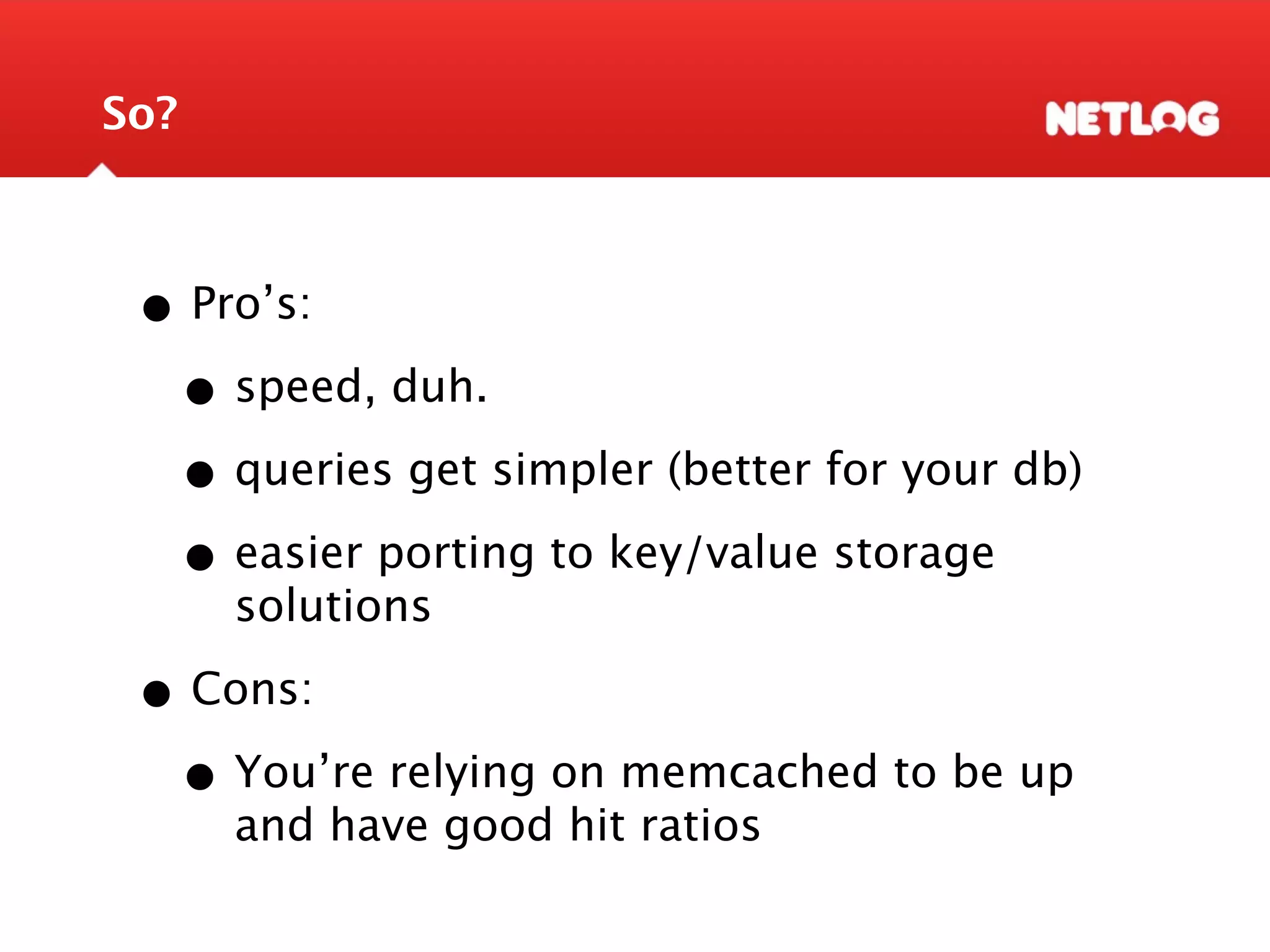

So? • Pro’s: • speed, duh. • queries get simpler (better for your db) • easier porting to key/value storage solutions • Cons: • You’re relying on memcached to be up and have good hit ratios

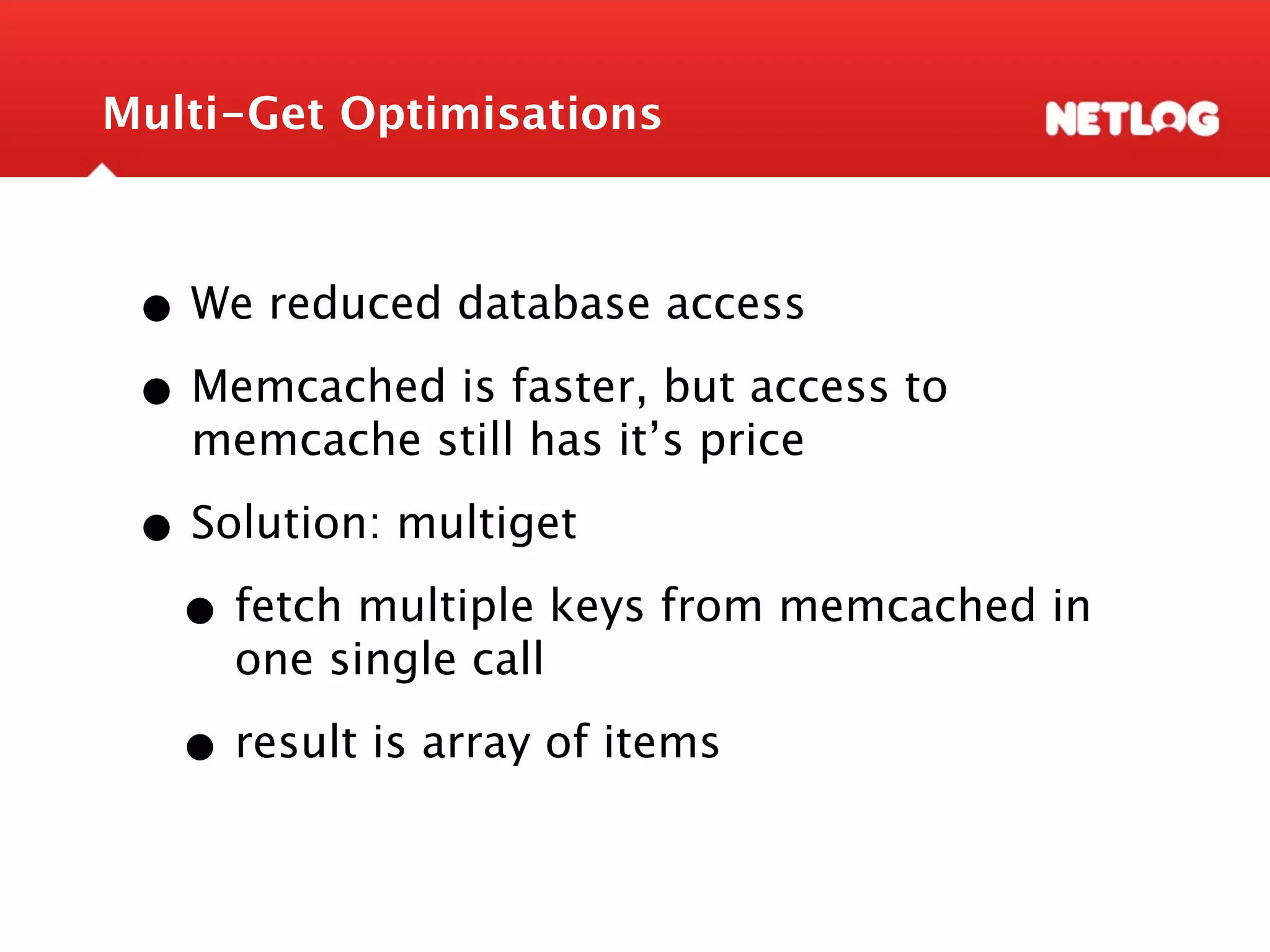

Multi-Get Optimisations • We reduced database access • Memcached is faster, but access to memcache still has it’s price • Solution: multiget • fetch multiple keys from memcached in one single call • result is array of items

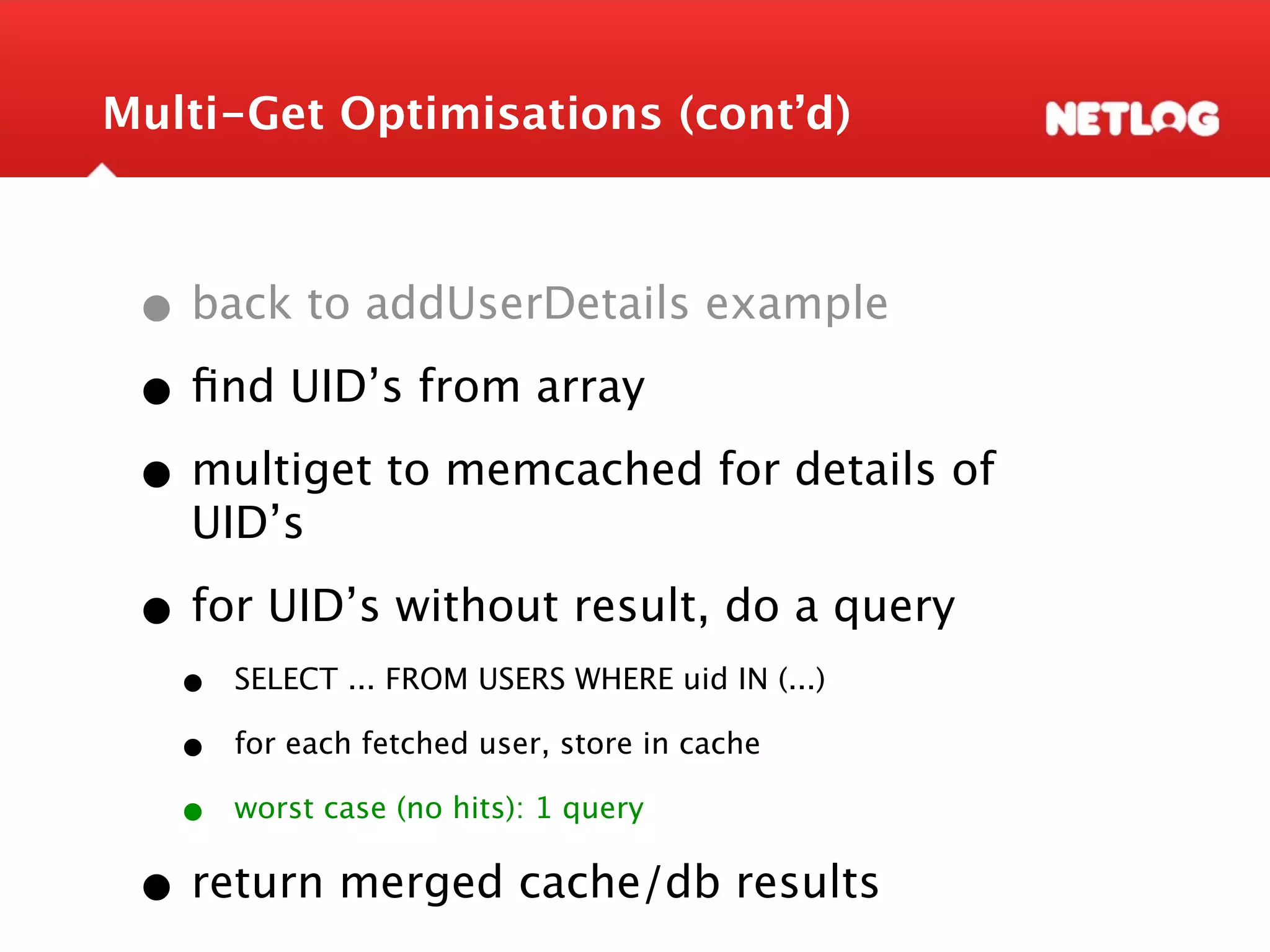

Multi-Get Optimisations (cont’d) • back to addUserDetails example • ﬁnd UID’s from array • multiget to memcached for details of UID’s • for UID’s without result, do a query • SELECT ... FROM USERS WHERE uid IN (...) • for each fetched user, store in cache • worst case (no hits): 1 query • return merged cache/db results

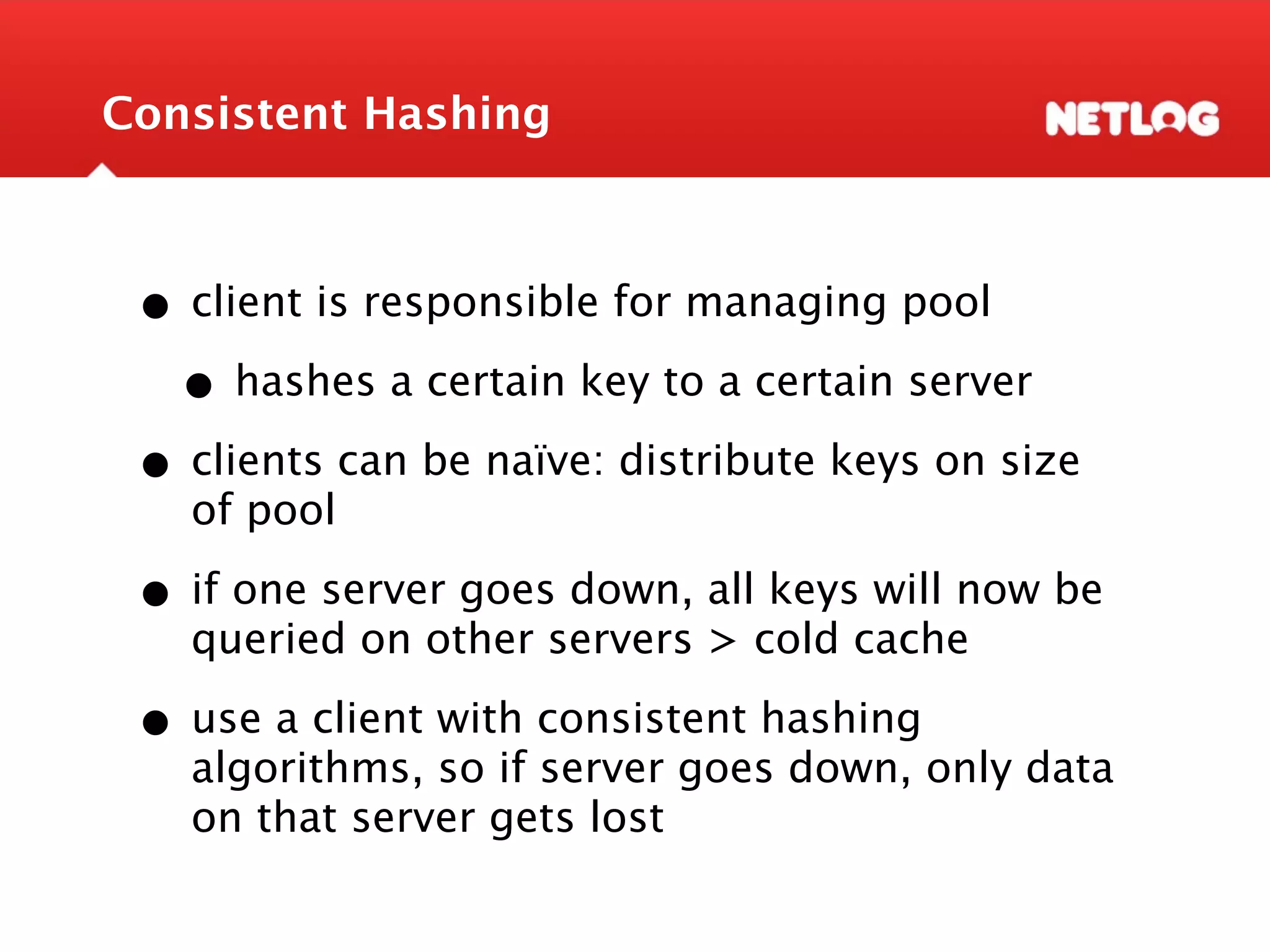

Consistent Hashing • client is responsible for managing pool • hashes a certain key to a certain server • clients can be naïve: distribute keys on size of pool • if one server goes down, all keys will now be queried on other servers > cold cache • use a client with consistent hashing algorithms, so if server goes down, only data on that server gets lost

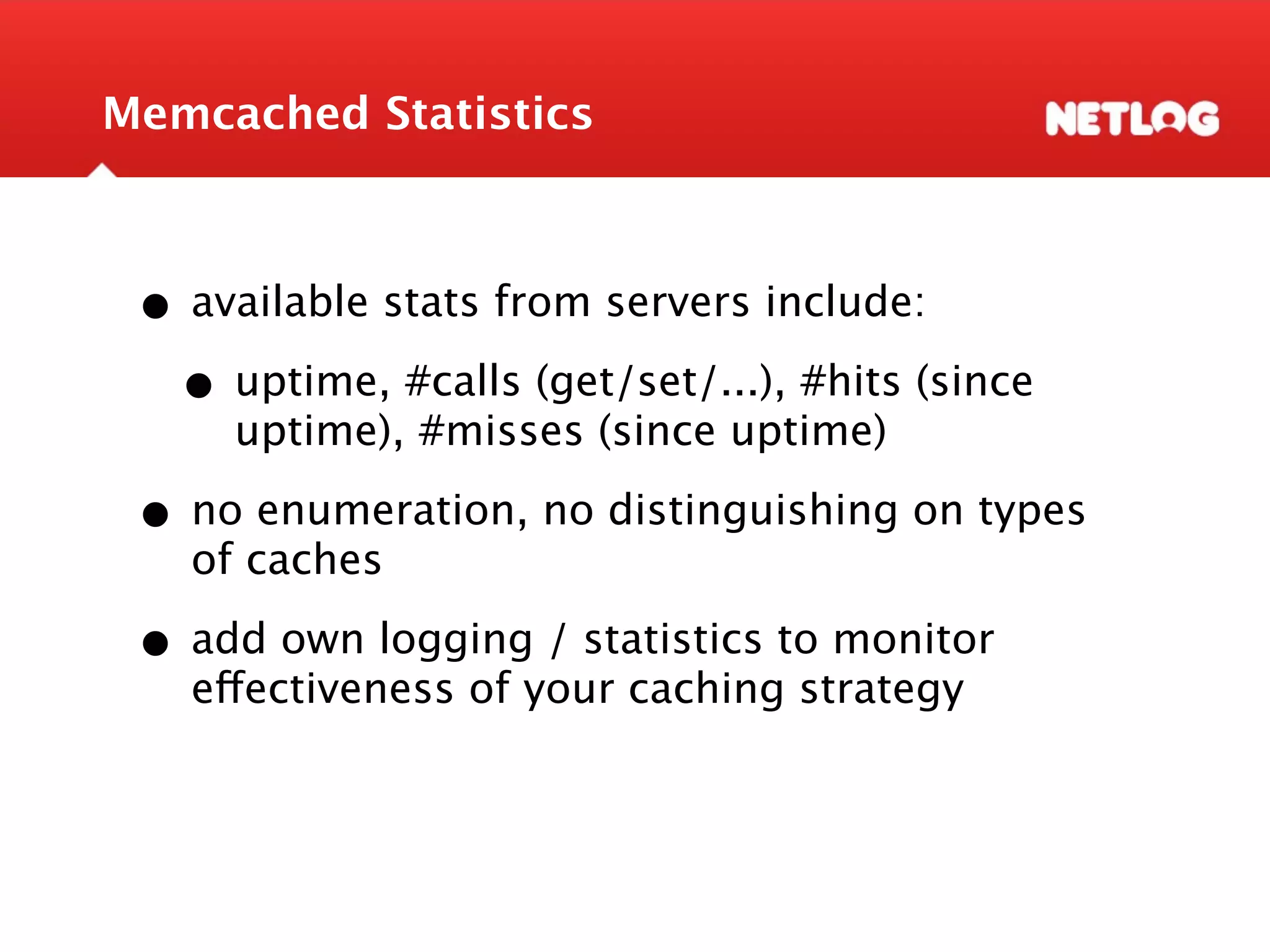

Memcached Statistics • available stats from servers include: • uptime, #calls (get/set/...), #hits (since uptime), #misses (since uptime) • no enumeration, no distinguishing on types of caches • add own logging / statistics to monitor effectiveness of your caching strategy

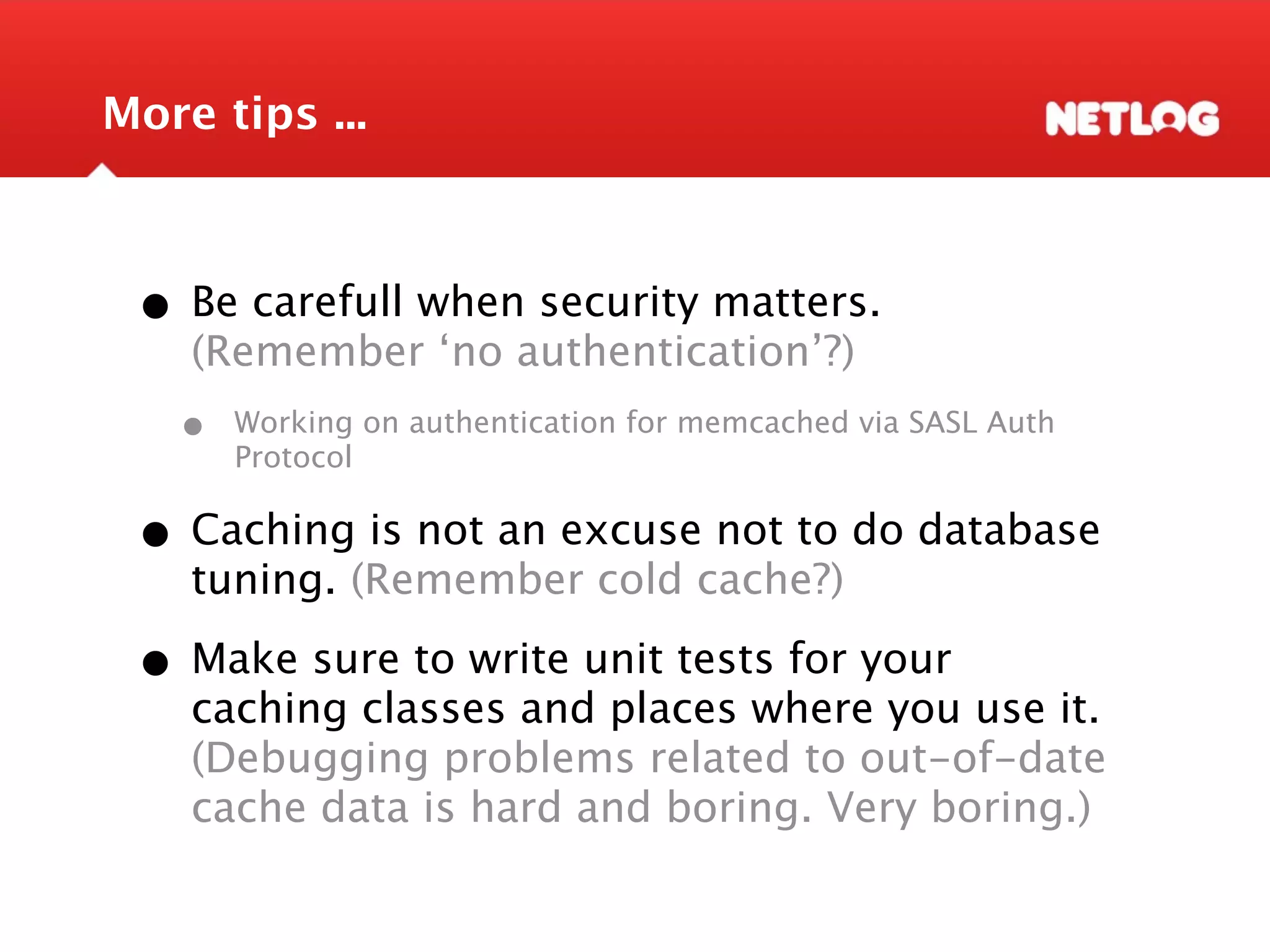

More tips ... • Be carefull when security matters. (Remember ‘no authentication’?) • Working on authentication for memcached via SASL Auth Protocol • Caching is not an excuse not to do database tuning. (Remember cold cache?) • Make sure to write unit tests for your caching classes and places where you use it. (Debugging problems related to out-of-date cache data is hard and boring. Very boring.)

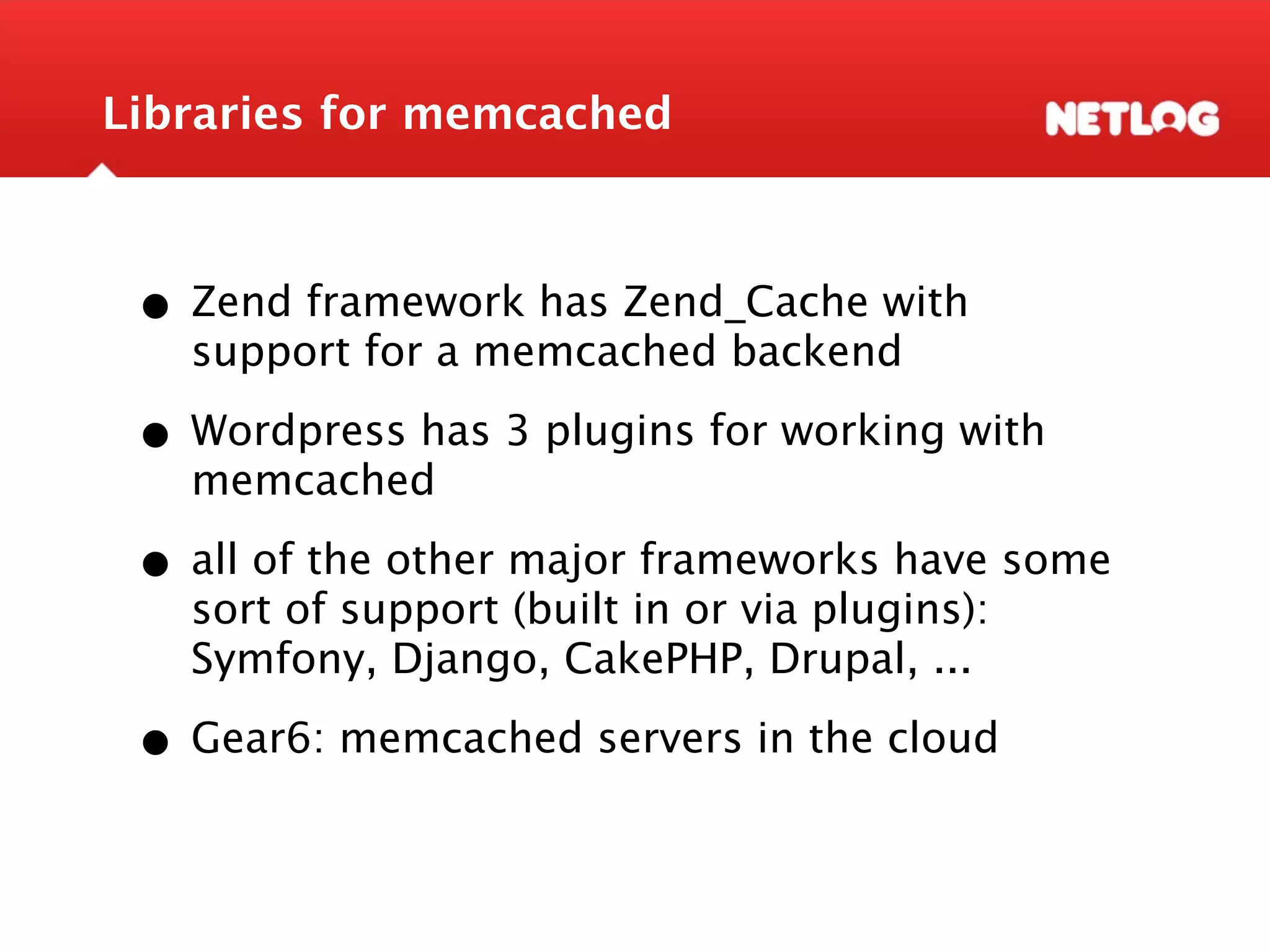

Libraries for memcached • Zend framework has Zend_Cache with support for a memcached backend • Wordpress has 3 plugins for working with memcached • all of the other major frameworks have some sort of support (built in or via plugins): Symfony, Django, CakePHP, Drupal, ... • Gear6: memcached servers in the cloud

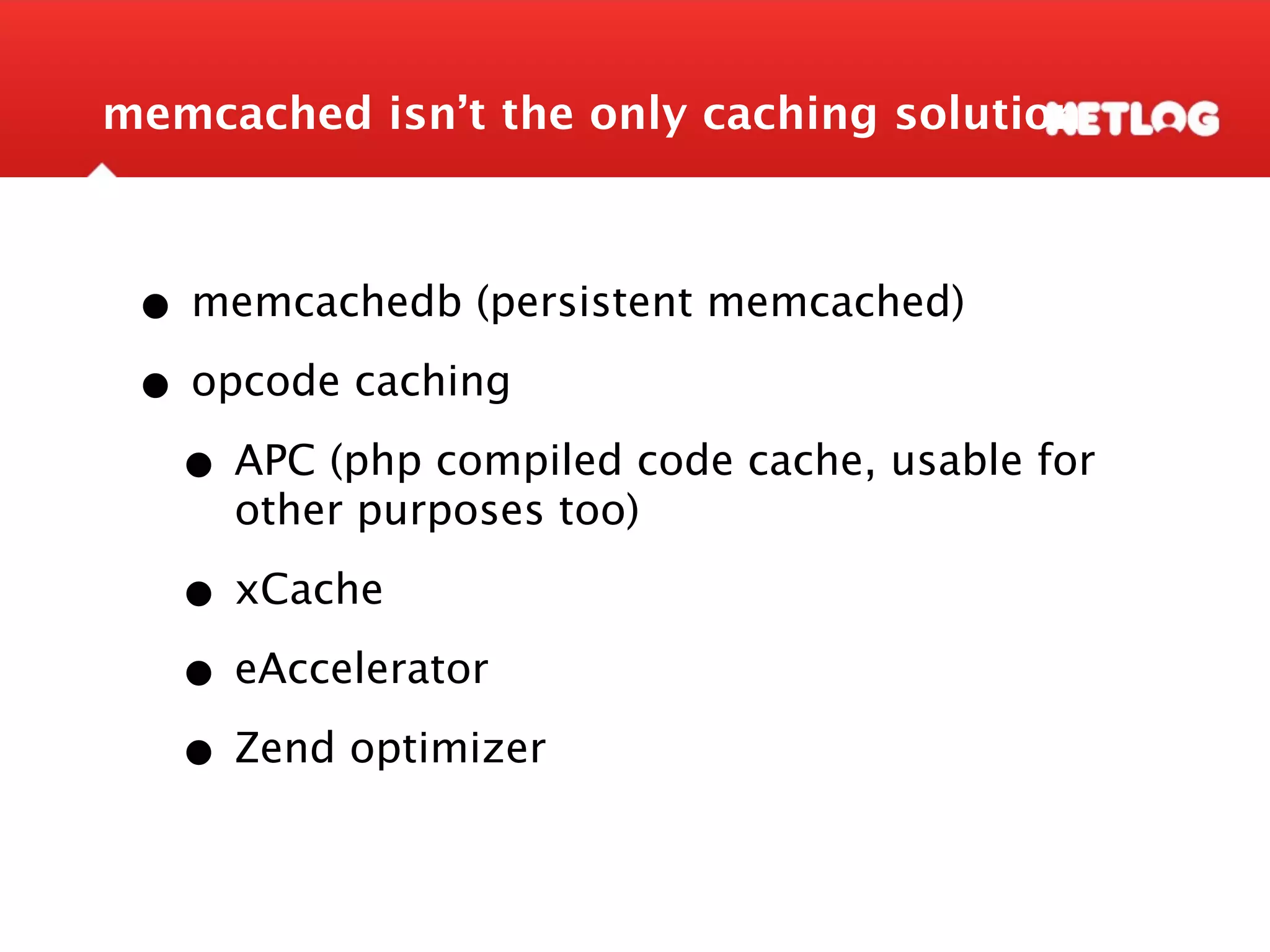

memcached isn’t the only caching solution • memcachedb (persistent memcached) • opcode caching • APC (php compiled code cache, usable for other purposes too) • xCache • eAccelerator • Zend optimizer

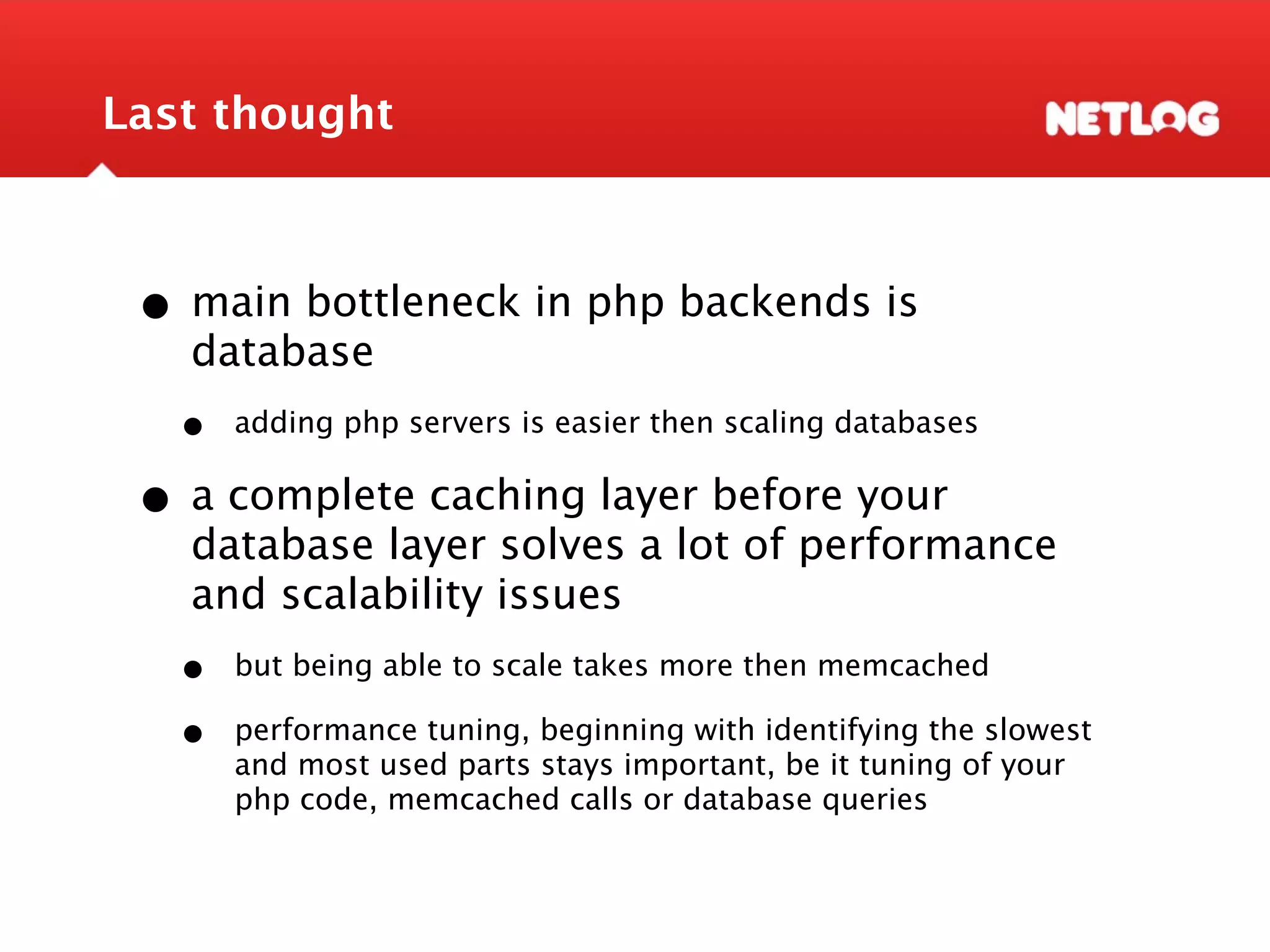

Last thought • main bottleneck in php backends is database • adding php servers is easier then scaling databases • a complete caching layer before your database layer solves a lot of performance and scalability issues • but being able to scale takes more then memcached • performance tuning, beginning with identifying the slowest and most used parts stays important, be it tuning of your php code, memcached calls or database queries

ME R GA High-score Handling YOU Tournaments A ME Challenge builder IA LG Achievements S OC OP AT Got an idea for a game? Great!

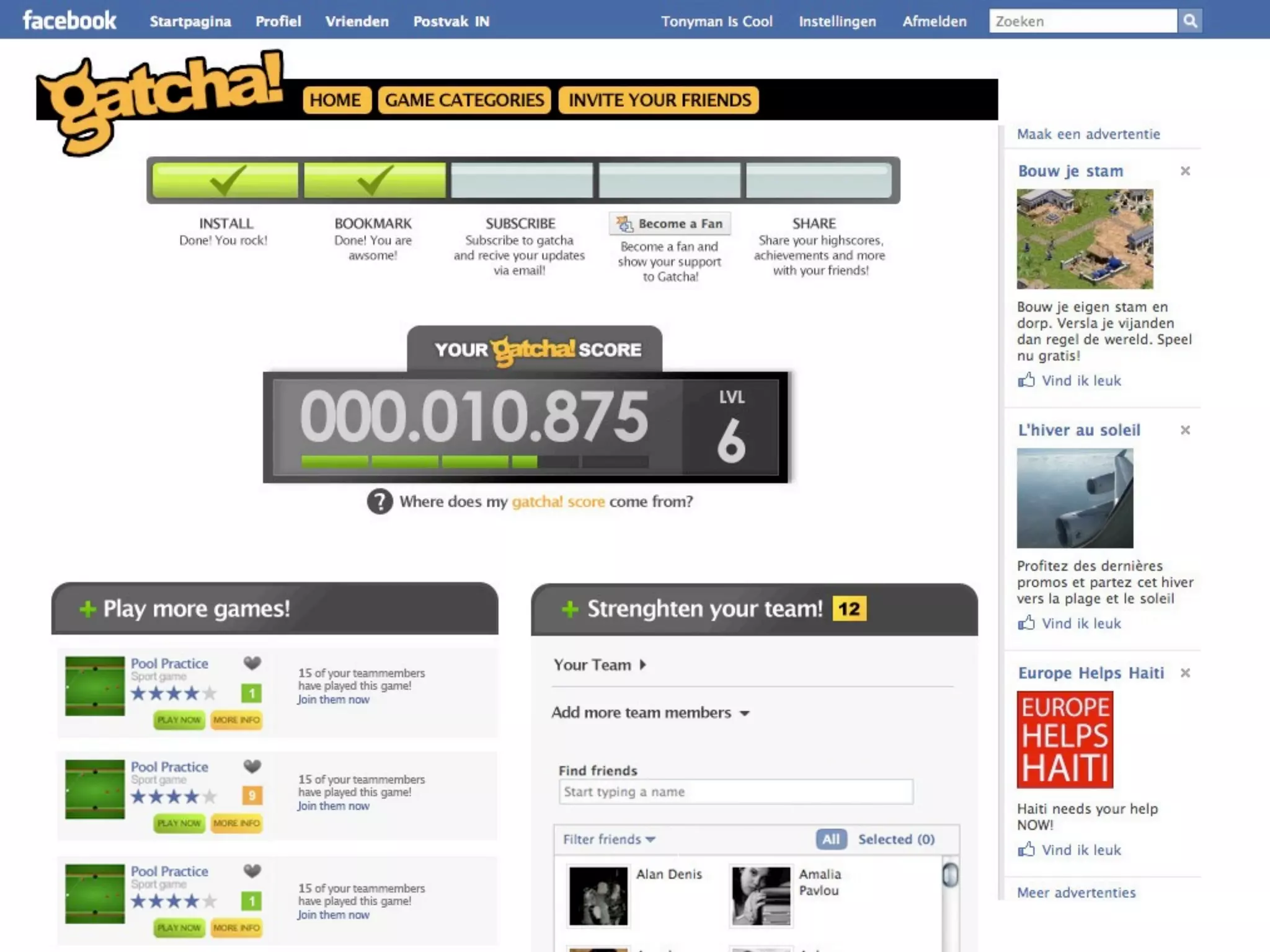

Gatcha For Game Developers Game tracking Start game and end game calls results in accurate gameplay tracking and allows us to show who is playing the game at any given moment, compute popularity, target games. High-scores You push your high-score to our API, we do the hard work of creating different types of leader boards and rankings. Achievements Pushing achievements reached in your game, just takes one API call, no conﬁguration needed.

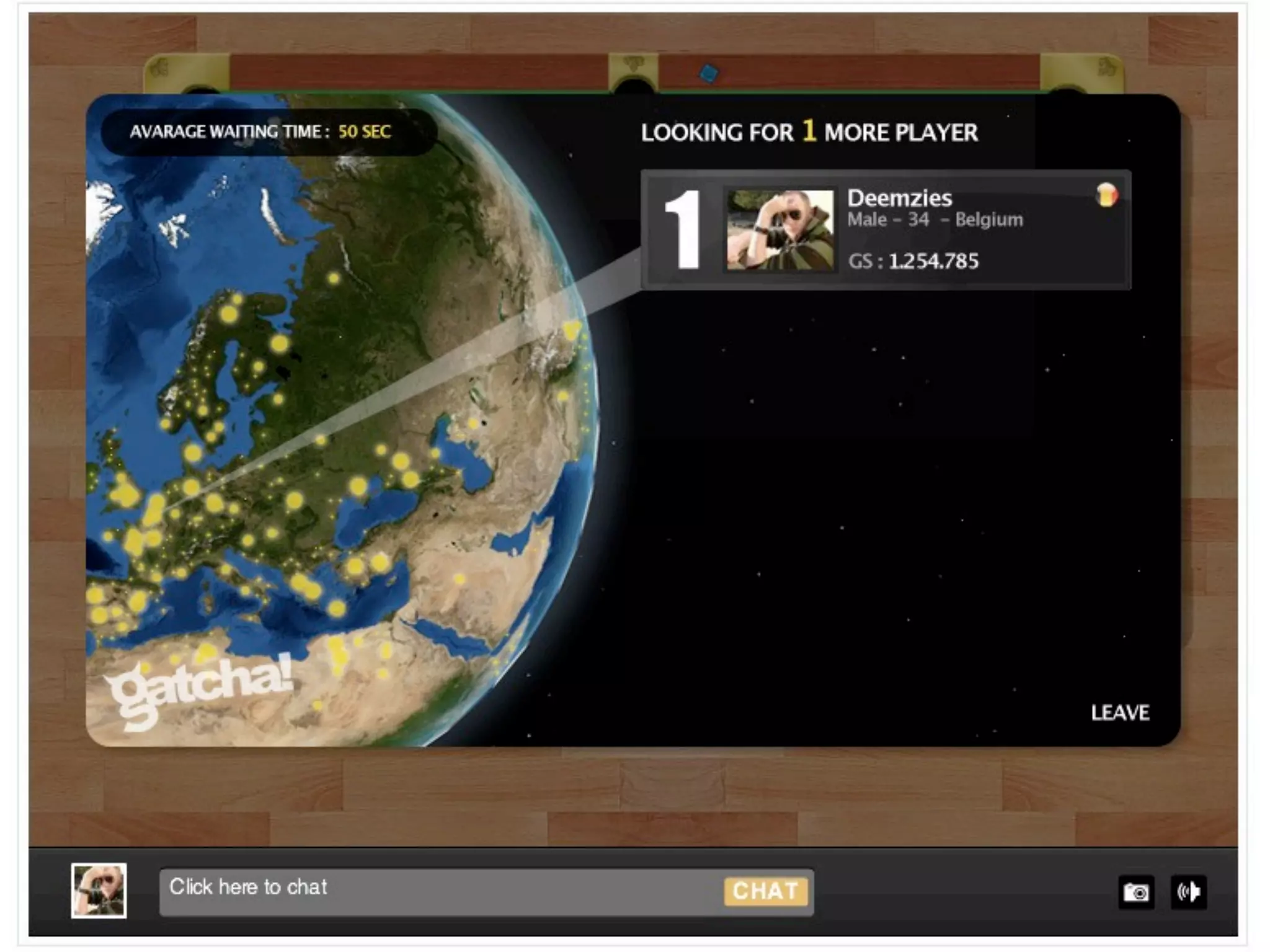

Gatcha For Game Developers Multiplayer Games We run SmartFox servers that enable you to build real-time multiplayer games, with e.g.. in game chat coming: Challenges & Tournaments Allow your game players to challenge each other, or build challenges & contests yourself.

Gatcha For Game Developers How to integrate? Flash Games We offer wrapper for AS3 and AS2 games with full implementation of our API Unity3D Games OpenSocial Games Talk to the supported containers via the Gatcha OpenSocial Extension Other Games Simple iframe implementation. PHP Client API available for the Gatcha API Start developing in our sandbox.

Job openings Weʼre searching for great developers! PHP Talents Working on integrations and the gaming platform Flash Developers Working on Flash Games and the gaming platform Design Artists Designing games and integrations

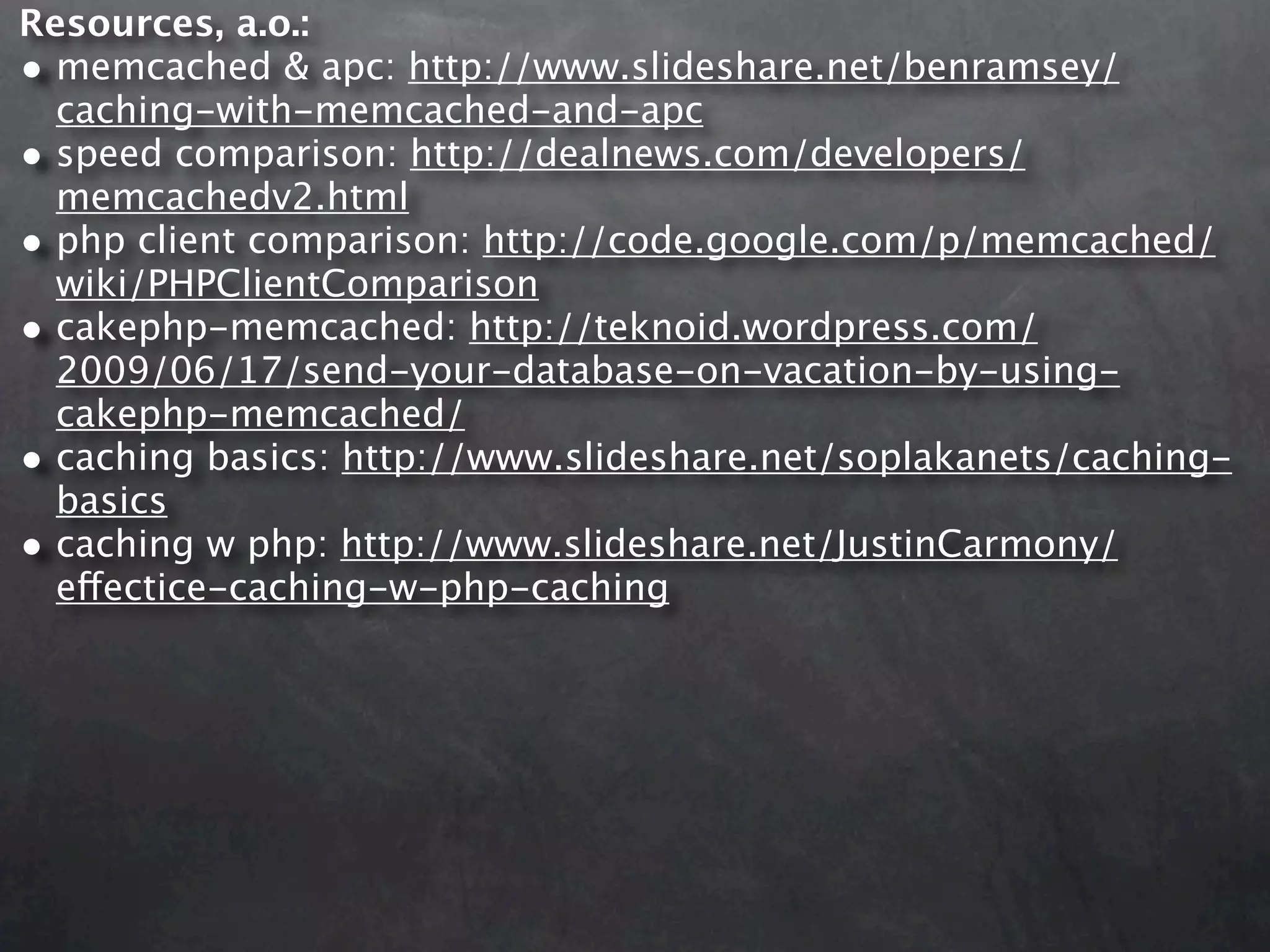

Resources, a.o.: • memcached & apc: http://www.slideshare.net/benramsey/ caching-with-memcached-and-apc • speed comparison: http://dealnews.com/developers/ memcachedv2.html • php client comparison: http://code.google.com/p/memcached/ wiki/PHPClientComparison • cakephp-memcached: http://teknoid.wordpress.com/ 2009/06/17/send-your-database-on-vacation-by-using- cakephp-memcached/ • caching basics: http://www.slideshare.net/soplakanets/caching- basics • caching w php: http://www.slideshare.net/JustinCarmony/ effectice-caching-w-php-caching
