WORKFLOW AUTOMATION FOR WEB APPLICATIONS

MAYANK PATEL APPLICATION ARCHITECT - OILDEX, A SERVICE OF TRANSZAP / Linked In @maxy_ermayank

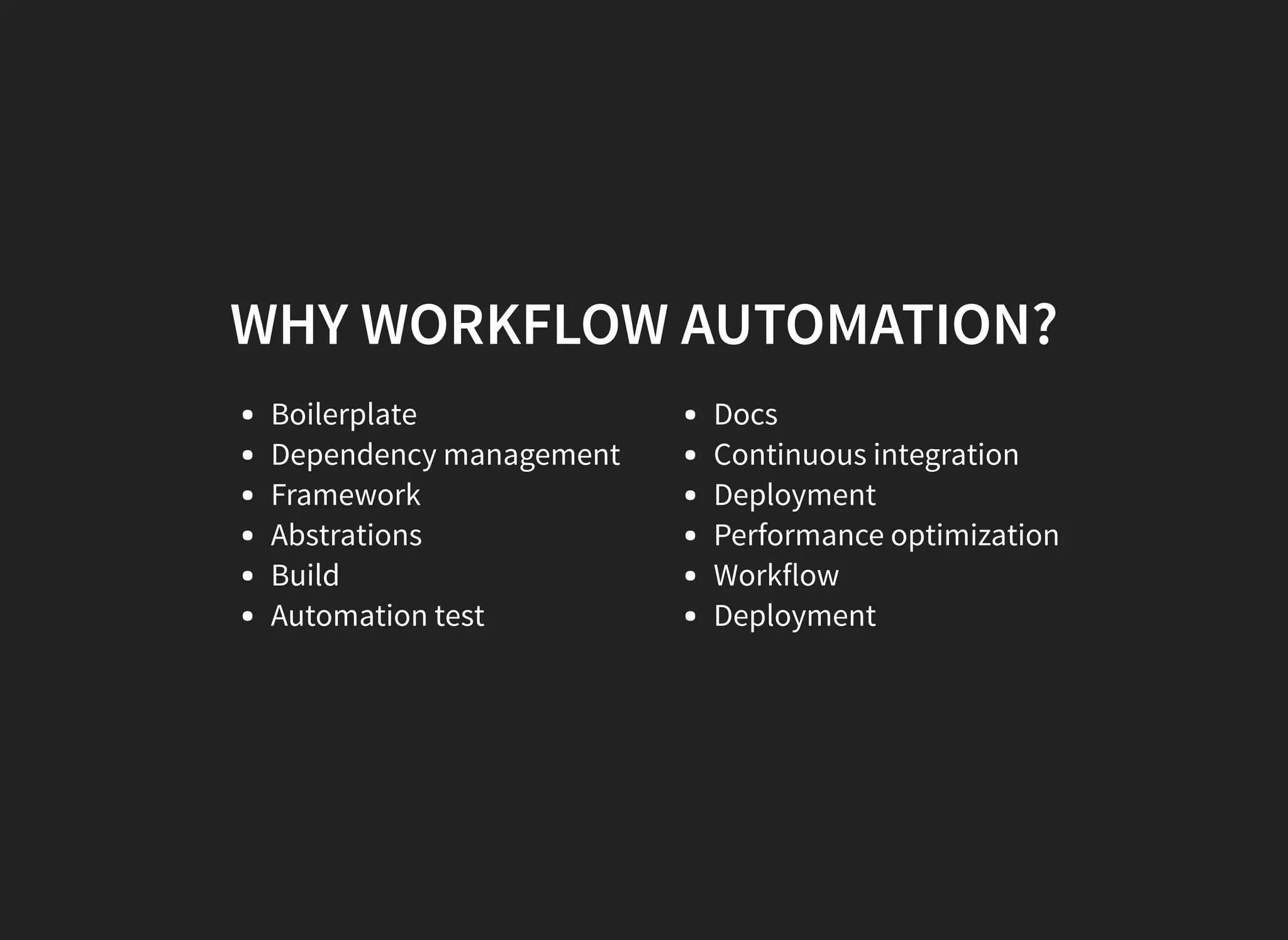

WHY WORKFLOW AUTOMATION? Boilerplate Dependency management Framework Abstrations Build Automation test Docs Continuous integration Deployment Performance optimization Workflow Deployment

WORK FLOW SETUP Download dependecies Download frameworks Download libraries Scaﬀolding DEVELOP Non minified Linting (HTML, JS) Seperated files Generate responsive images Optimize images Compilation (CoﬀeScript, SASS, LESS..) Test configuration Unit testing & e2e testing Generate test report Watchers Live reload BUILD Annotate (JS) Generate copyright and license information Sourcemap (JS, CSS) Concatenation (JS, CSS) Minification (HTML, JS, CSS) Uglification (HTML, JS, CSS) Compress (JS, CSS) Live configuration Compiled Renamed Cache templates (HTML) Inject resources in Template Optimize performance Deployment setup

DEPENDENCY MANAGEMENT TOOLS Downloads dependencies using Git, HTTPS, ZIP, npm npm Bower

NPM Package manager for the web Comes with node.js Default for node.js modules

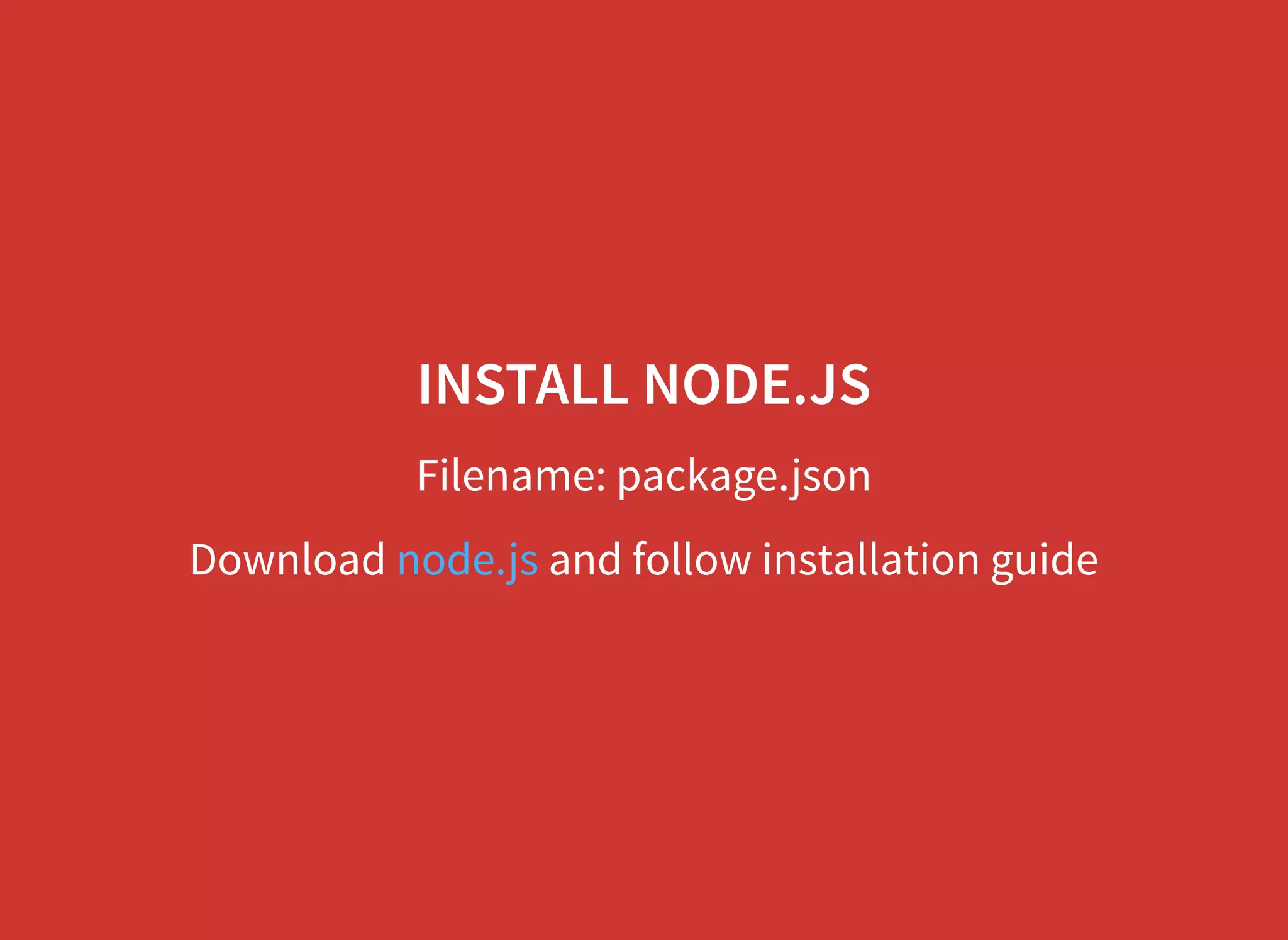

INSTALL NODE.JS Filename: package.json Download and follow installation guidenode.js

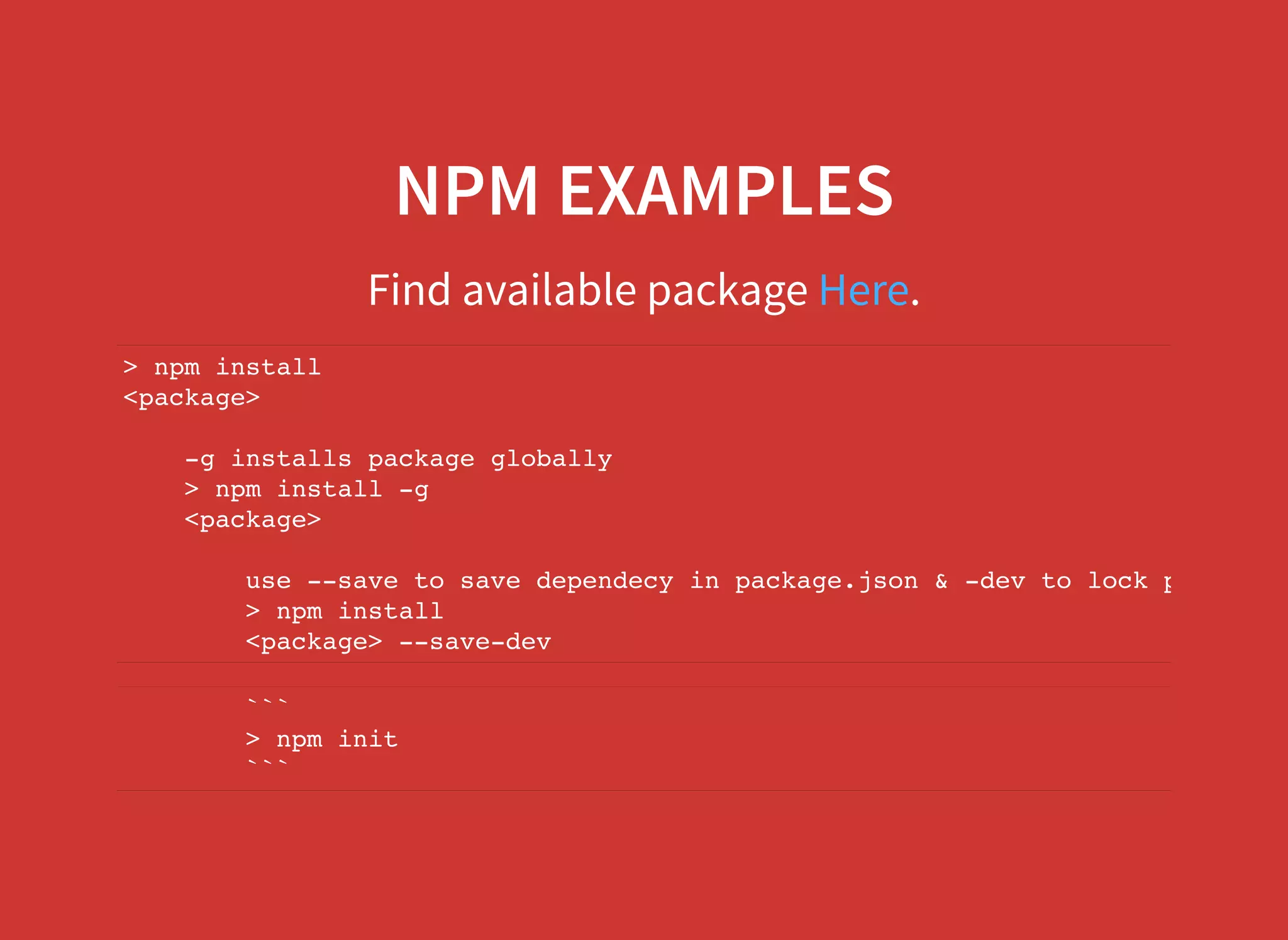

NPM EXAMPLES Find available package .Here > npm install <package> -g installs package globally > npm install -g <package> use --save to save dependecy in package.json & -dev to lock package v > npm install <package> --save-dev ``` > npm init ```

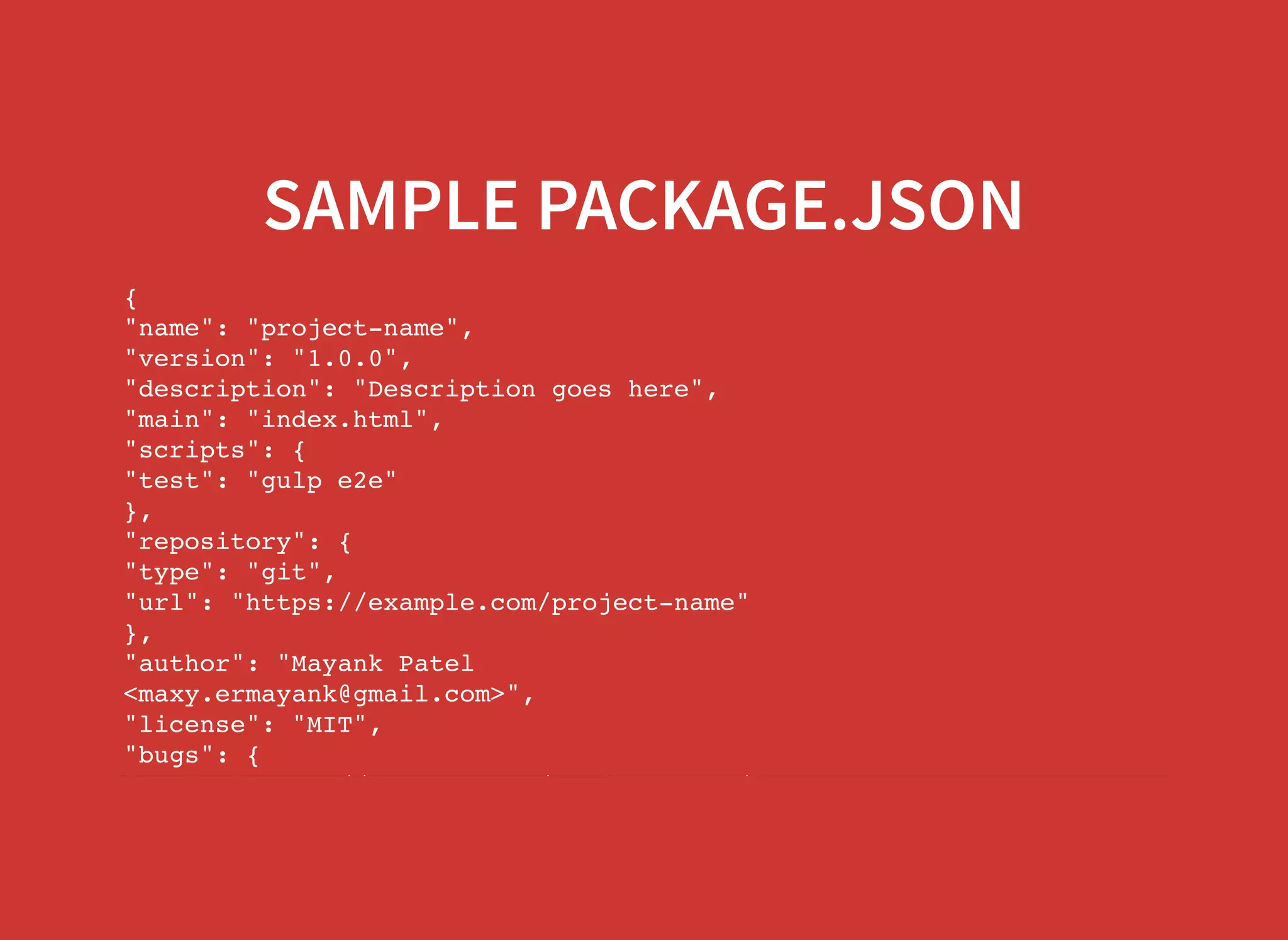

SAMPLE PACKAGE.JSON { "name": "project-name", "version": "1.0.0", "description": "Description goes here", "main": "index.html", "scripts": { "test": "gulp e2e" }, "repository": { "type": "git", "url": "https://example.com/project-name" }, "author": "Mayank Patel <maxy.ermayank@gmail.com>", "license": "MIT", "bugs": { "url": "https://example.com/project-name/issues"

BOWER Package manager for the web Designed solely for web and it is optimized with that in mind.

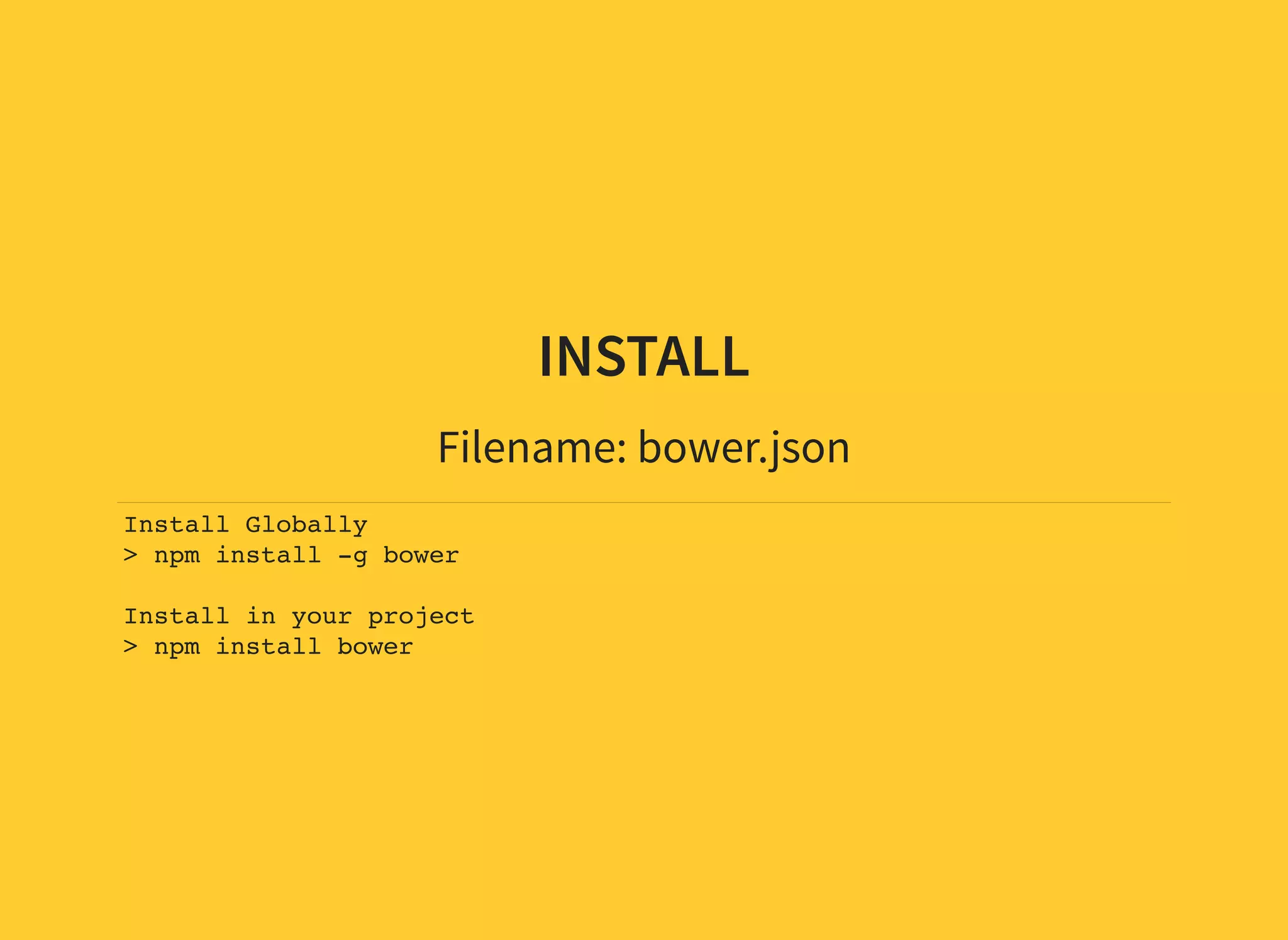

INSTALL Filename: bower.json Install Globally > npm install -g bower Install in your project > npm install bower

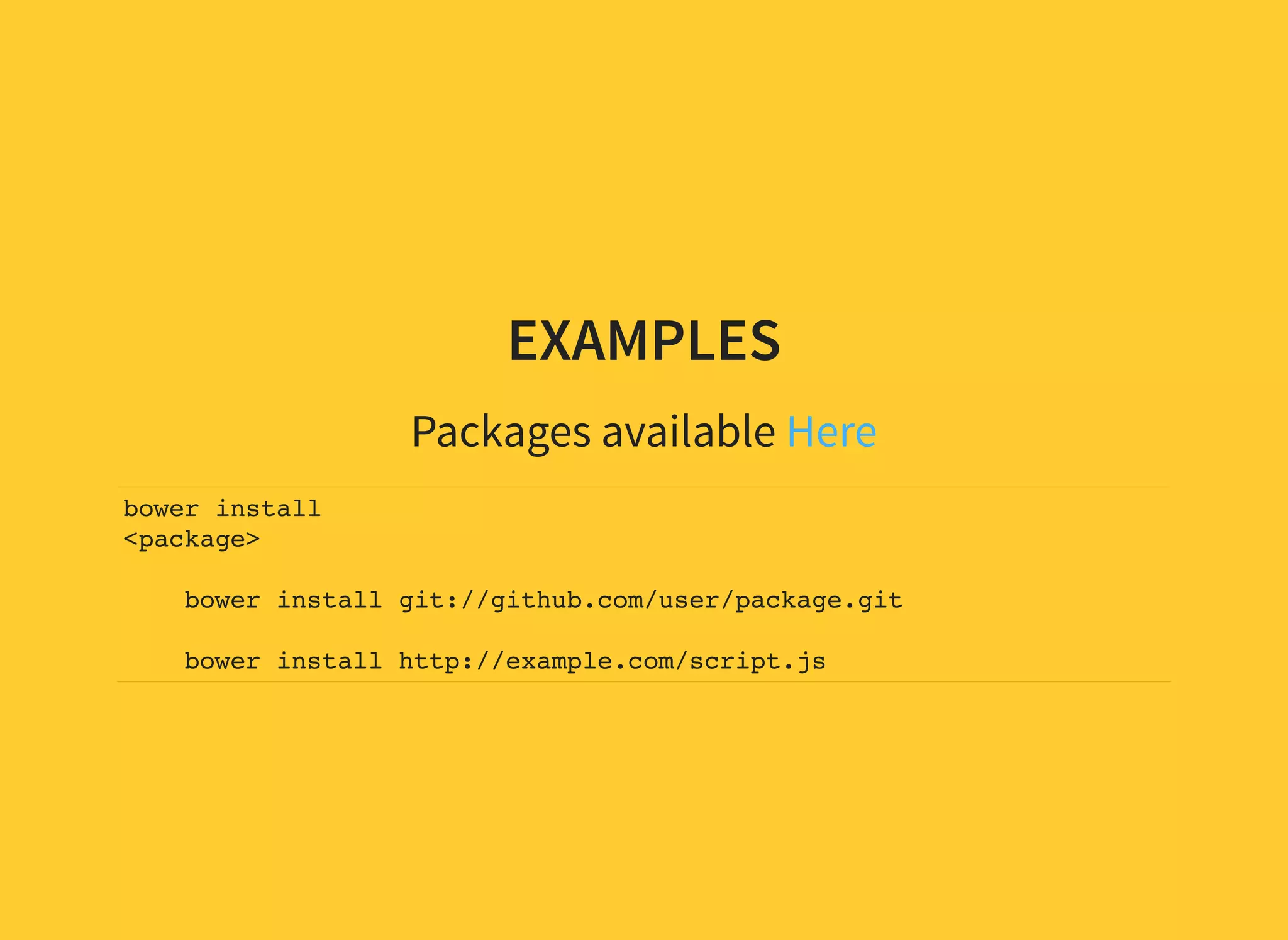

EXAMPLES Packages available Here bower install <package> bower install git://github.com/user/package.git bower install http://example.com/script.js

SAMPLE BOWER.JSON { "name": "project-name", "version": "1.0.0", "author": "Mayank Patel <maxy.ermayank@gmail.com>", "homepage": "https://example.com/project-name", "description": "Description goes here", "main": "index.html", "license": "apache 2", "dependencies": { "angular": "1.3.15", "json3": "~3.2.4", "es5-shim": "~2.0.8", "angular-resource": "1.3.15", "d3": "3.3.x" }, "devDependencies": {

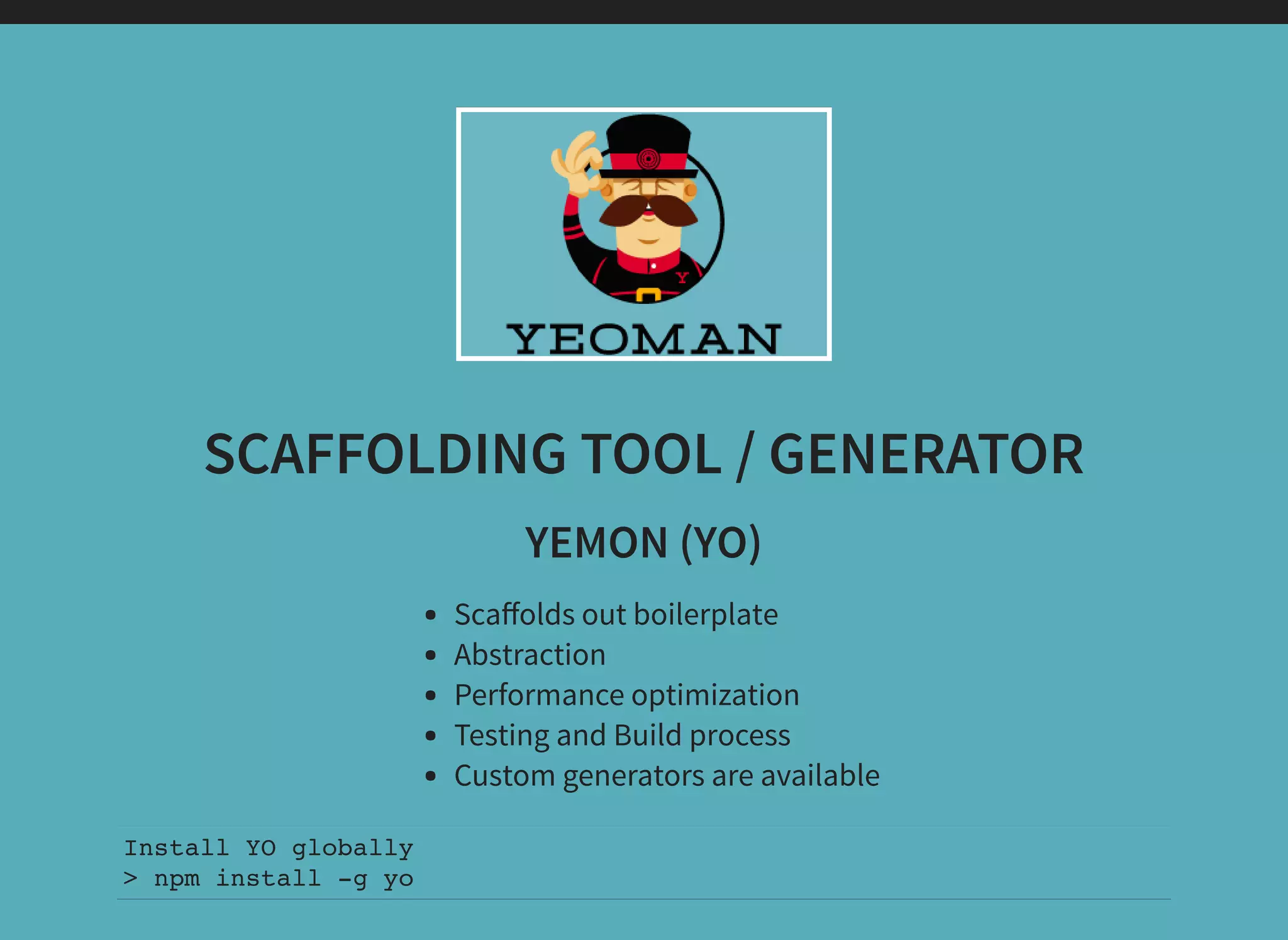

SCAFFOLDING TOOL / GENERATOR YEMON (YO) Scaﬀolds out boilerplate Abstraction Performance optimization Testing and Build process Custom generators are available Install YO globally > npm install -g yo

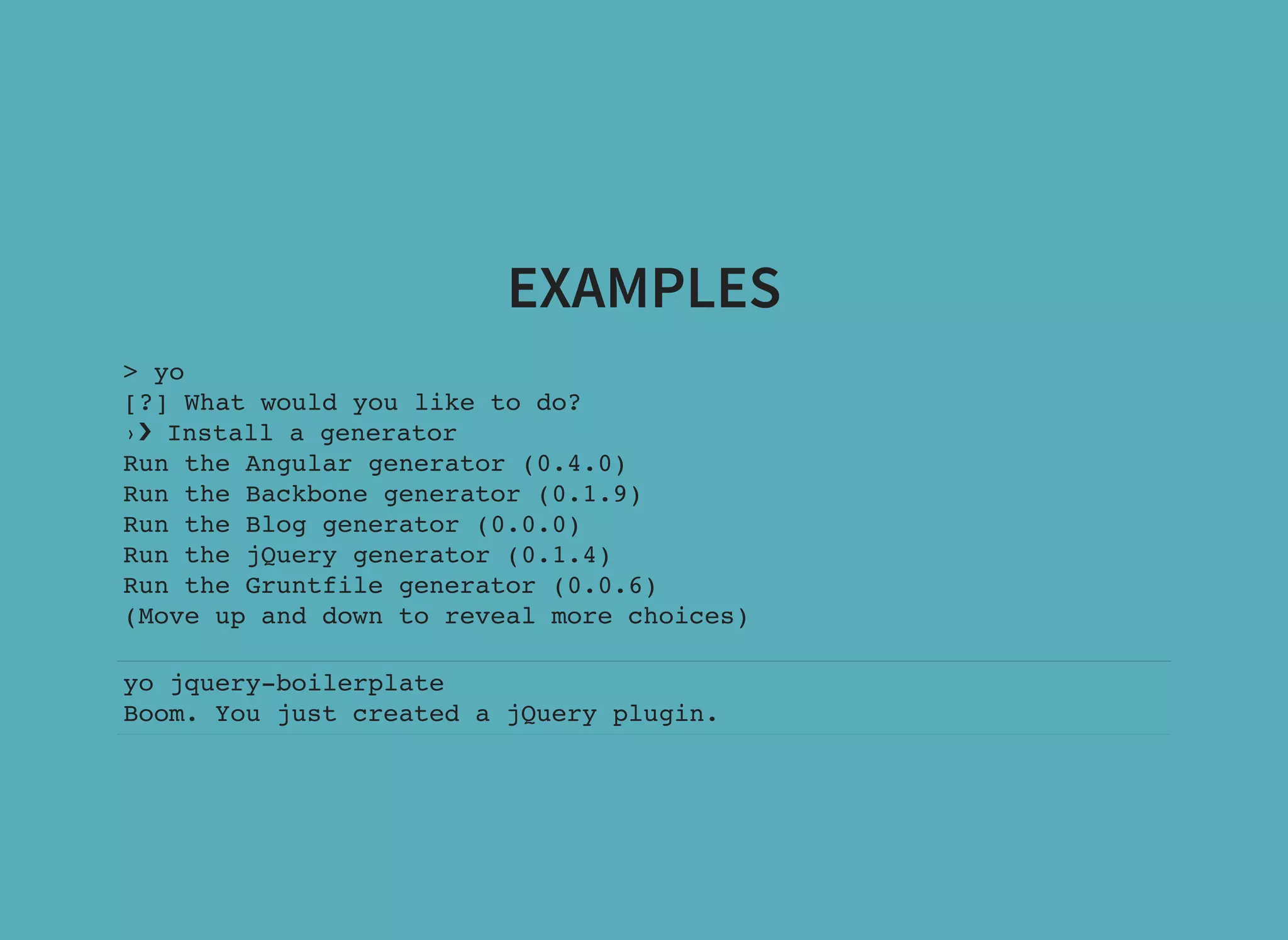

EXAMPLES > yo [?] What would you like to do? ›❯ Install a generator Run the Angular generator (0.4.0) Run the Backbone generator (0.1.9) Run the Blog generator (0.0.0) Run the jQuery generator (0.1.4) Run the Gruntfile generator (0.0.6) (Move up and down to reveal more choices) yo jquery-boilerplate Boom. You just created a jQuery plugin.

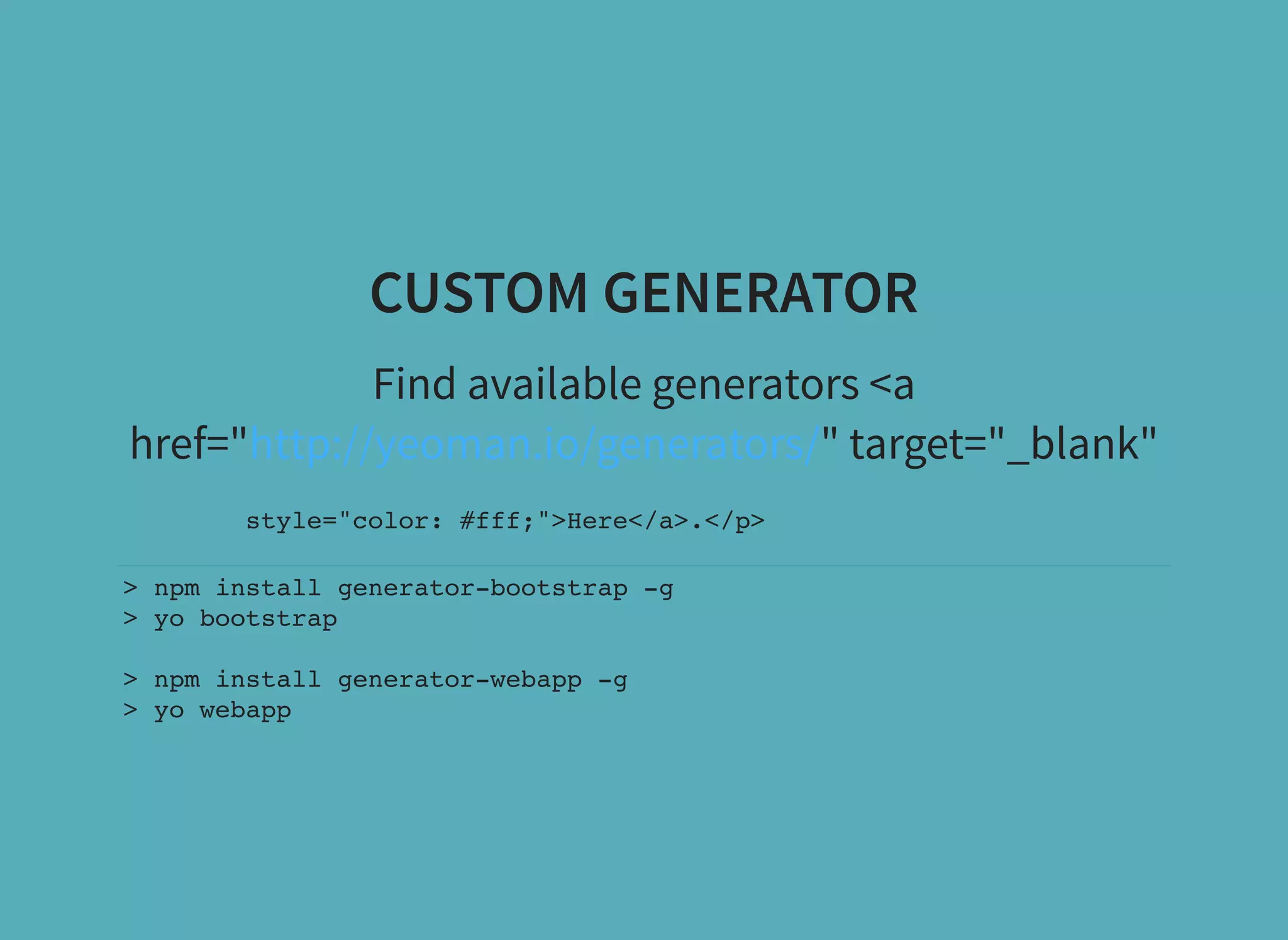

CUSTOM GENERATOR Find available generators <a href=" " target="_blank"http://yeoman.io/generators/ style="color: #fff;">Here</a>.</p> > npm install generator-bootstrap -g > yo bootstrap > npm install generator-webapp -g > yo webapp

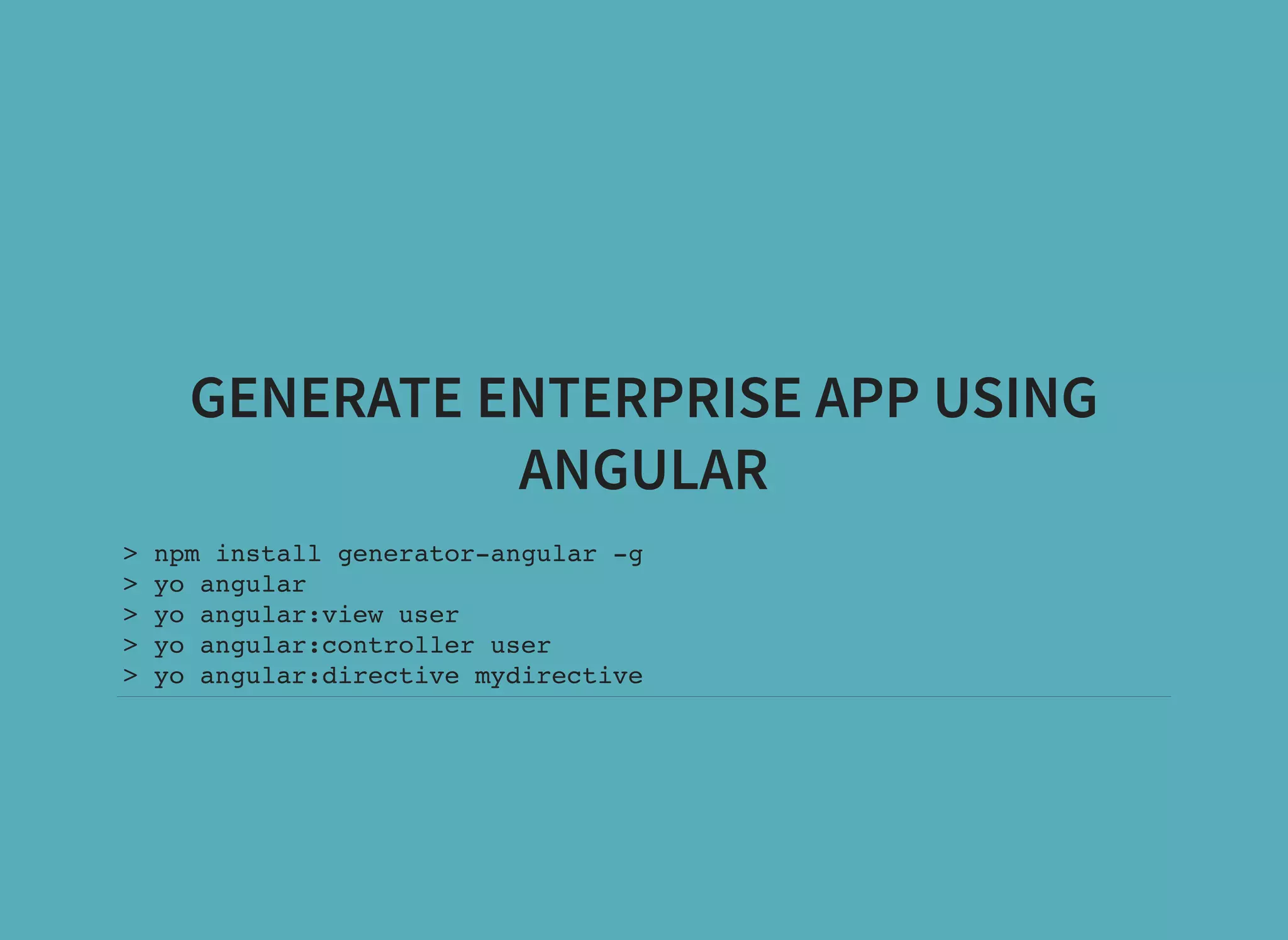

GENERATE ENTERPRISE APP USING ANGULAR > npm install generator-angular -g > yo angular > yo angular:view user > yo angular:controller user > yo angular:directive mydirective

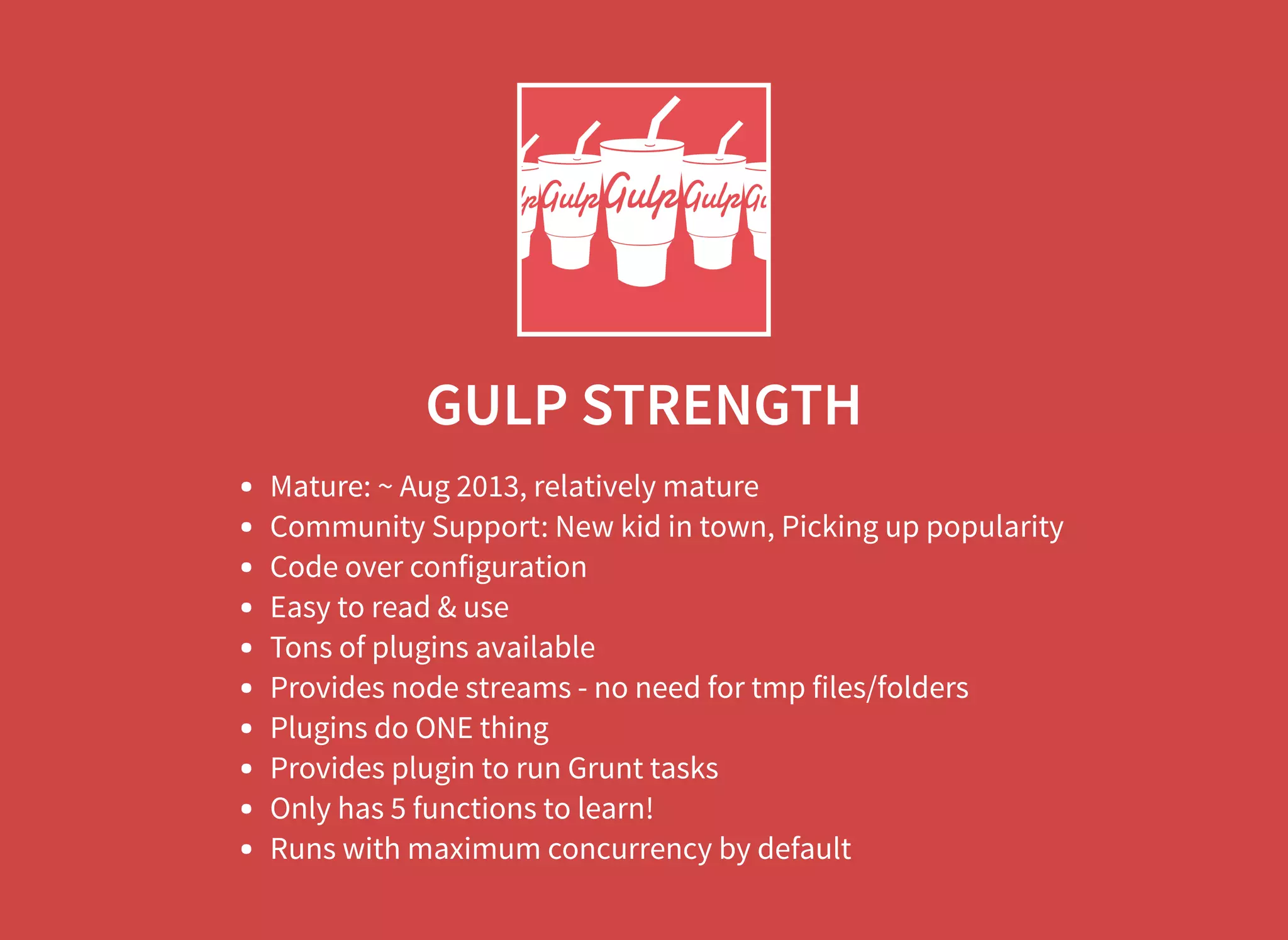

GULP STRENGTH Mature: ~ Aug 2013, relatively mature Community Support: New kid in town, Picking up popularity Code over configuration Easy to read & use Tons of plugins available Provides node streams - no need for tmp files/folders Plugins do ONE thing Provides plugin to run Grunt tasks Only has 5 functions to learn! Runs with maximum concurrency by default

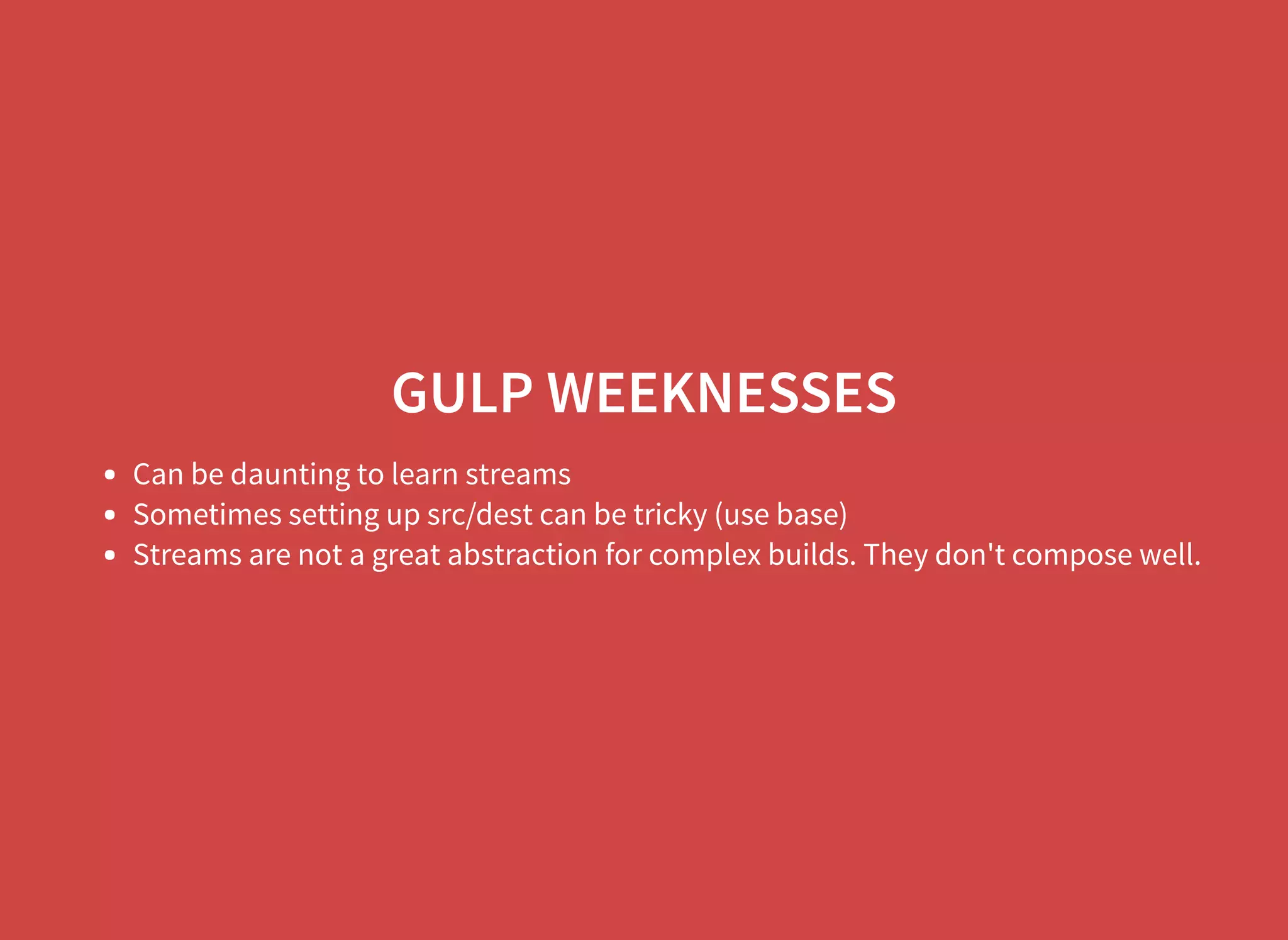

GULP WEEKNESSES Can be daunting to learn streams Sometimes setting up src/dest can be tricky (use base) Streams are not a great abstraction for complex builds. They don't compose well.

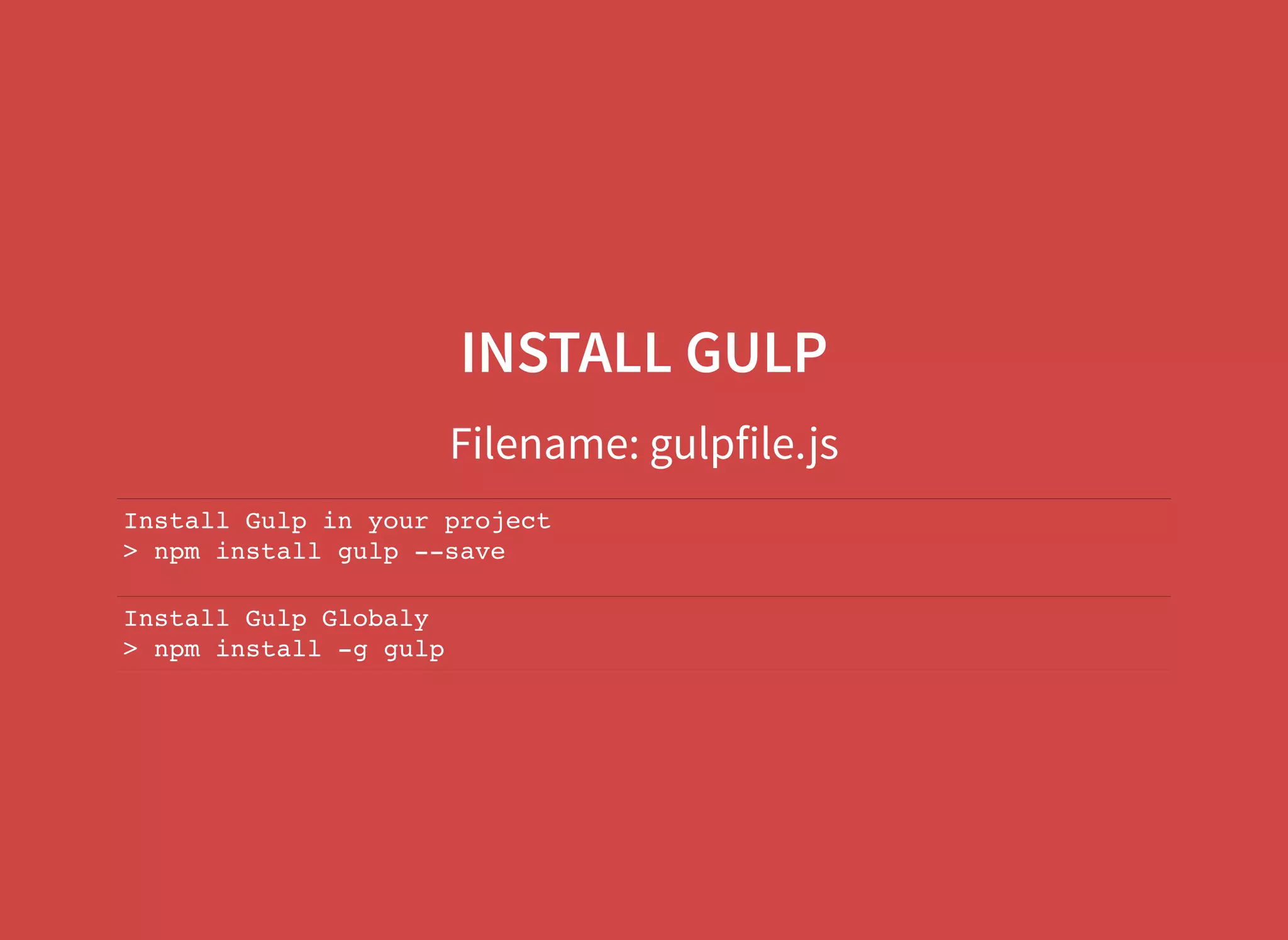

INSTALL GULP Filename: gulpfile.js Install Gulp in your project > npm install gulp --save Install Gulp Globaly > npm install -g gulp

THE GULP API gulp.task(name[, deps], fn) gulp.src(globs) gulp.dest(path) gulp.watch(glob[, opts], tasks) gulp.run(tasks...)

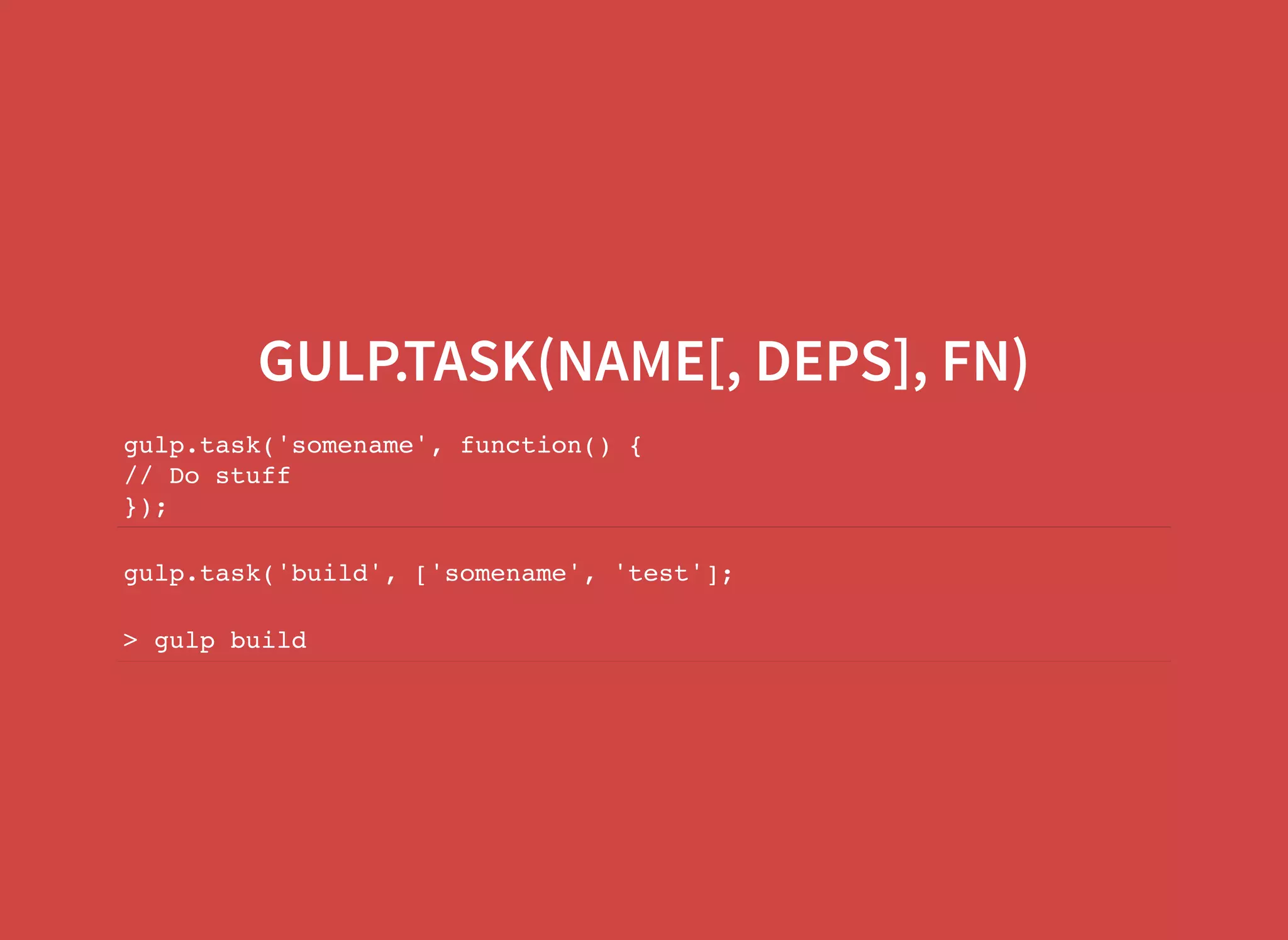

GULP.TASK(NAME[, DEPS], FN) gulp.task('somename', function() { // Do stuff }); gulp.task('build', ['somename', 'test']; > gulp build

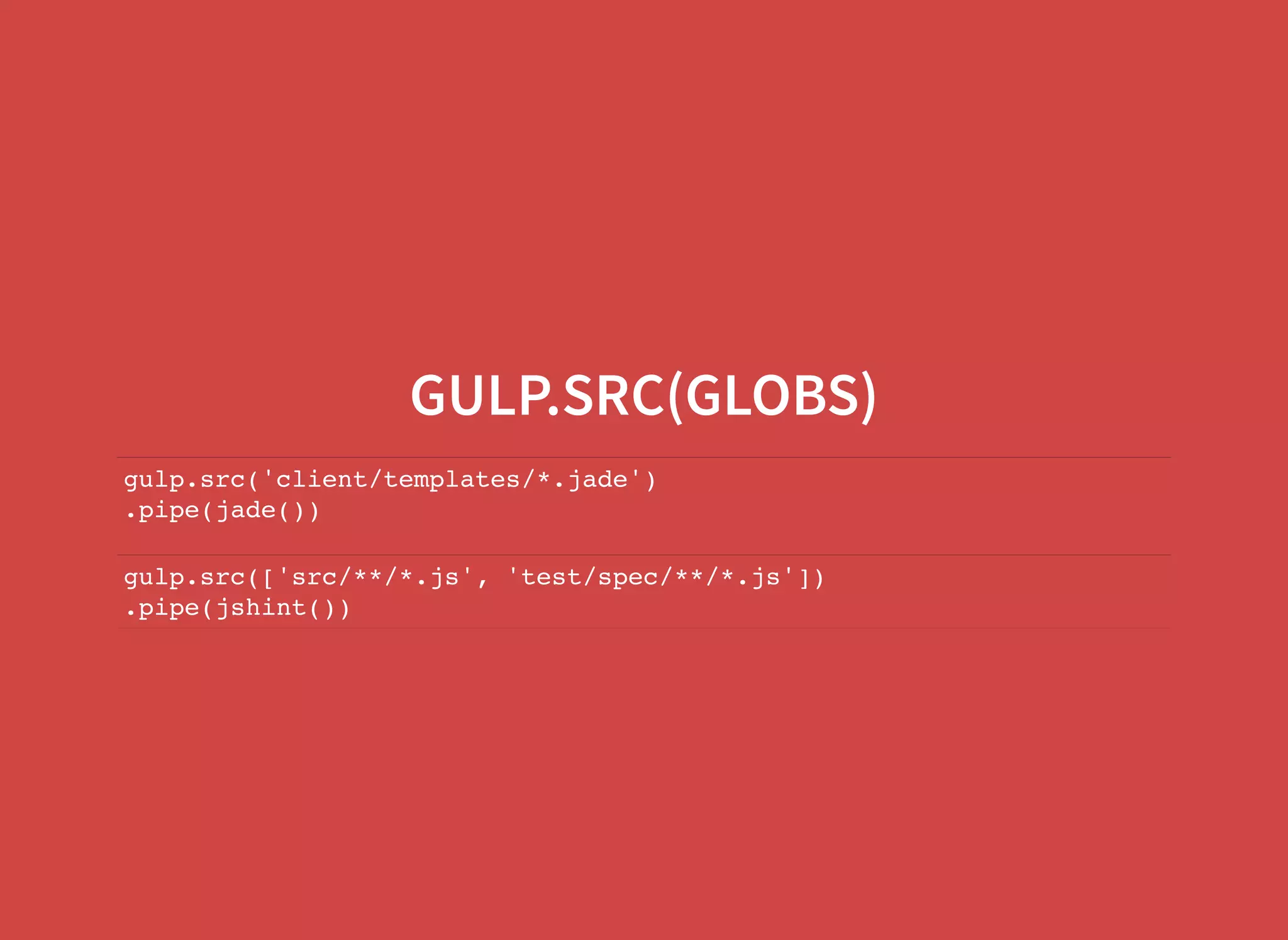

GULP.SRC(GLOBS) gulp.src('client/templates/*.jade') .pipe(jade()) gulp.src(['src/**/*.js', 'test/spec/**/*.js']) .pipe(jshint())

GULP.DEST(PATH) gulp.src('./client/templates/*.jade') .pipe(jade()) .pipe(gulp.dest('./build/templates')) .pipe(minify()) .pipe(gulp.dest('./build/minified_templates'));

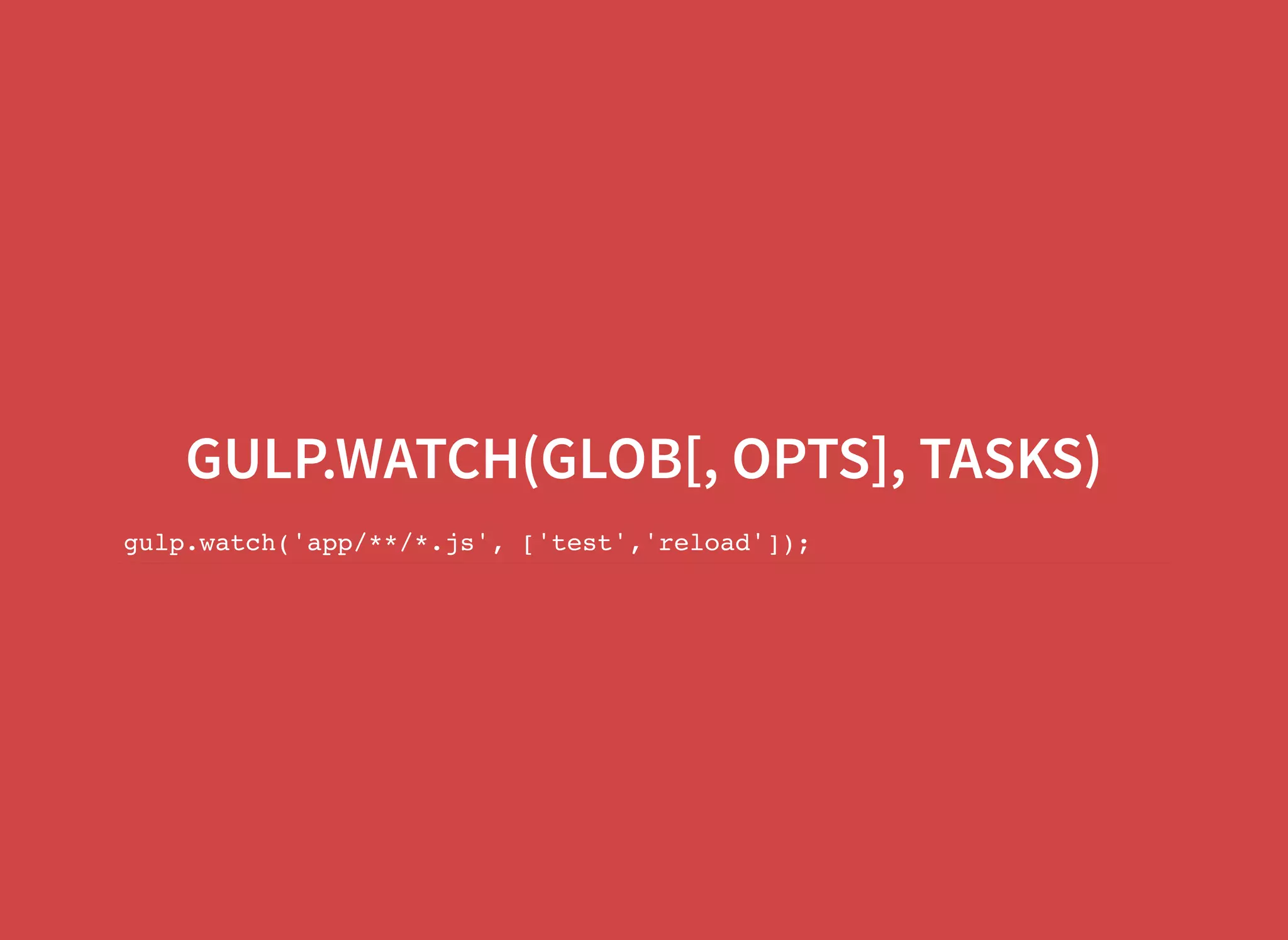

GULP.WATCH(GLOB[, OPTS], TASKS) gulp.watch('app/**/*.js', ['test','reload']);

GULP.RUN(TASKS...) gulp.task('hello-world', function () { run('echo Hello World').exec() // prints "[echo] Hello Worldn". .pipe(gulp.dest('build')) // Writes "Hello Worldn" to output/echo. })

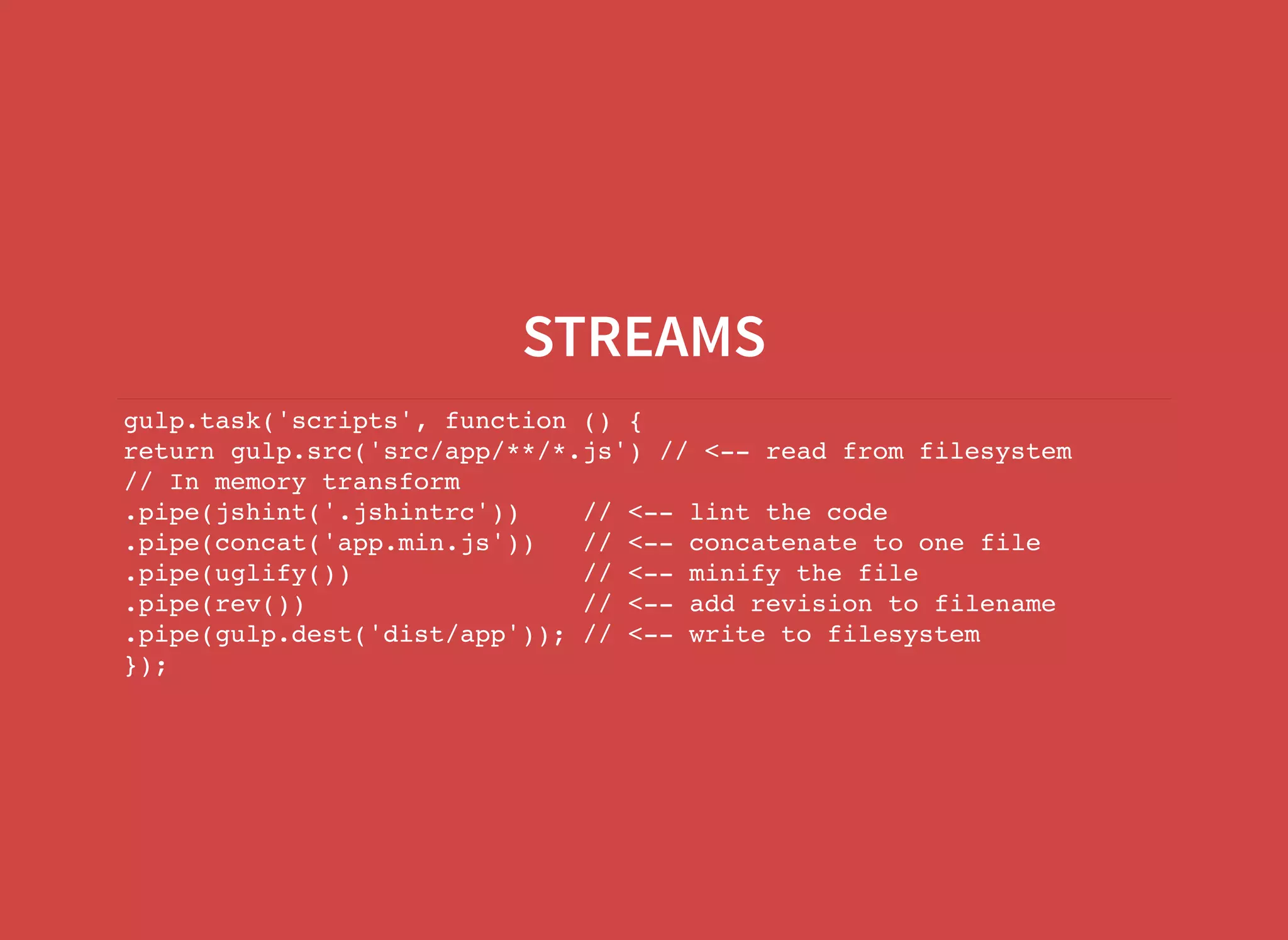

STREAMS gulp.task('scripts', function () { return gulp.src('src/app/**/*.js') // <-- read from filesystem // In memory transform .pipe(jshint('.jshintrc')) // <-- lint the code .pipe(concat('app.min.js')) // <-- concatenate to one file .pipe(uglify()) // <-- minify the file .pipe(rev()) // <-- add revision to filename .pipe(gulp.dest('dist/app')); // <-- write to filesystem });

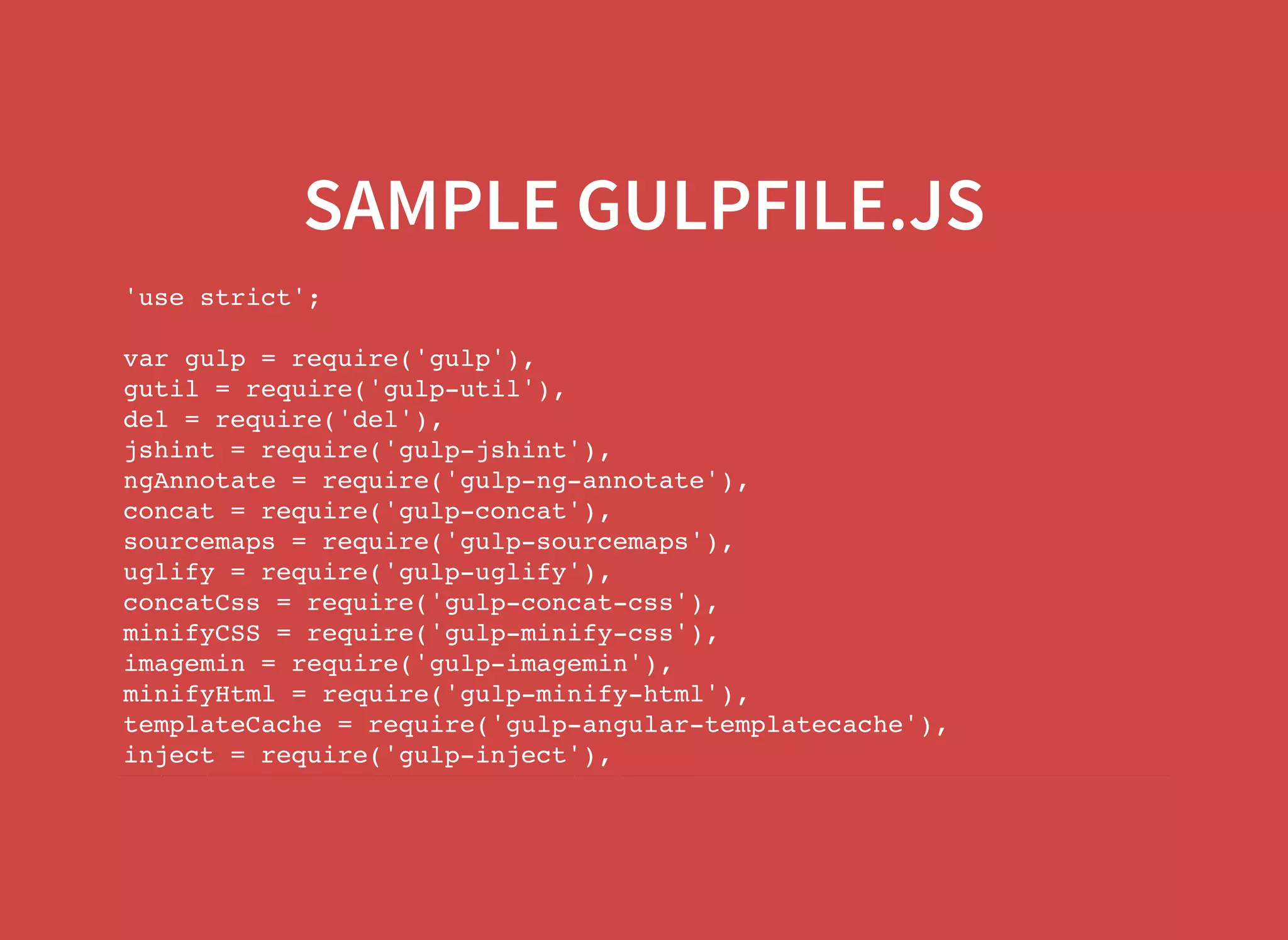

SAMPLE GULPFILE.JS 'use strict'; var gulp = require('gulp'), gutil = require('gulp-util'), del = require('del'), jshint = require('gulp-jshint'), ngAnnotate = require('gulp-ng-annotate'), concat = require('gulp-concat'), sourcemaps = require('gulp-sourcemaps'), uglify = require('gulp-uglify'), concatCss = require('gulp-concat-css'), minifyCSS = require('gulp-minify-css'), imagemin = require('gulp-imagemin'), minifyHtml = require('gulp-minify-html'), templateCache = require('gulp-angular-templatecache'), inject = require('gulp-inject'), arialinter = require('gulp-arialinter'),

GRUNT STRENGTH Mature: Mar 2012, very mature Community Support: Most Popular Configuration over code Based on files Tons of plugins available Flexibility Scaﬀolding is available through generators Provides plugin to run Gulp tasks

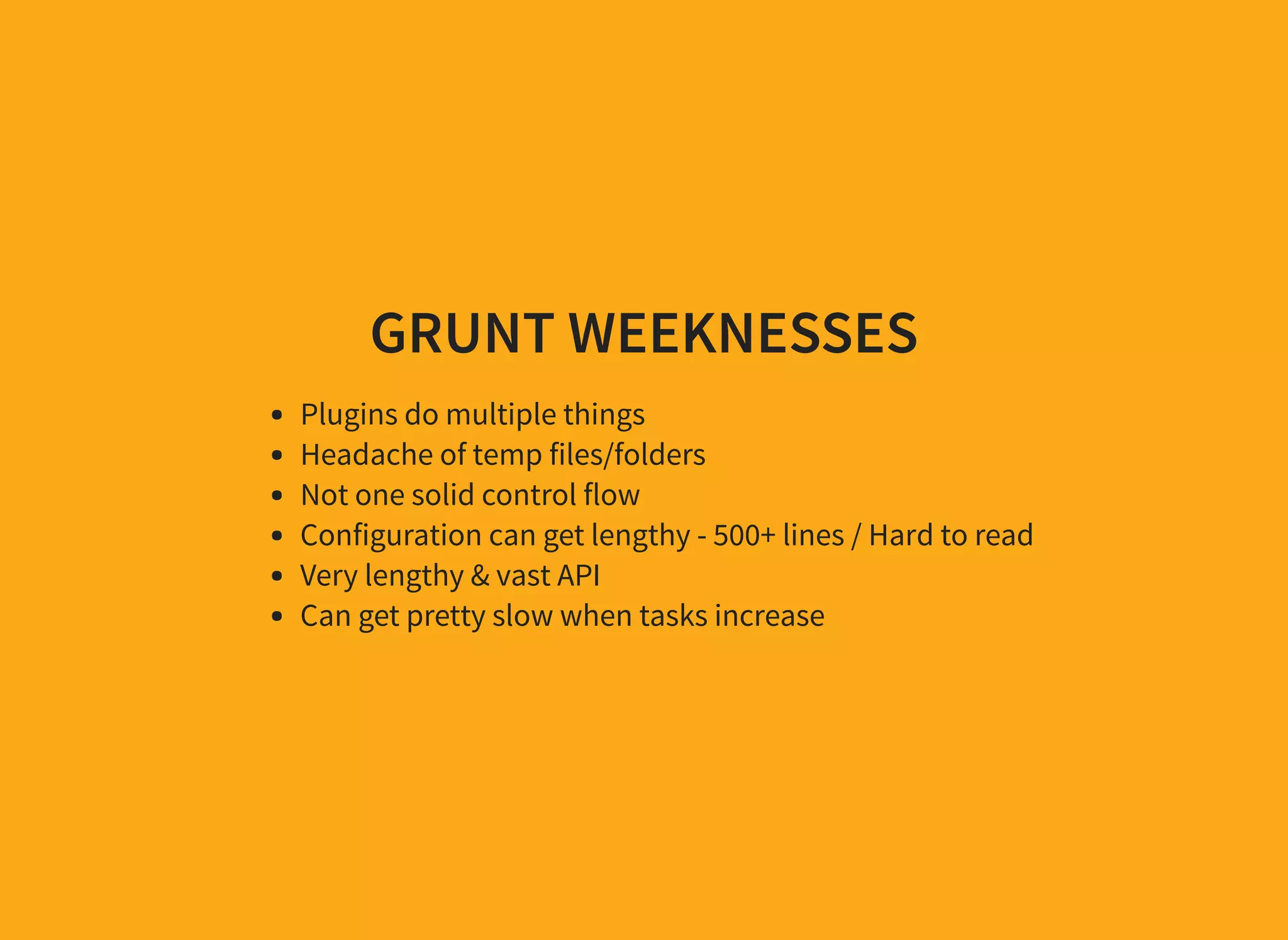

GRUNT WEEKNESSES Plugins do multiple things Headache of temp files/folders Not one solid control flow Configuration can get lengthy - 500+ lines / Hard to read Very lengthy & vast API Can get pretty slow when tasks increase

INSTALL GRUNT Filename: gruntfile.js Install Grunt in your project > npm install grunt --save Install Grunt-cli / Global install of Grunt command line > npm install -g grunt-cli

STRUCTURE module.exports = function(grunt) { grunt.initConfig({ // Configuration des tâches }); // Enregistrement d'une tâche grunt.registerTask(taskName, [description, ] taskFunction) // Chargement d'un plugin grunt.loadNpmTasks('package'); };

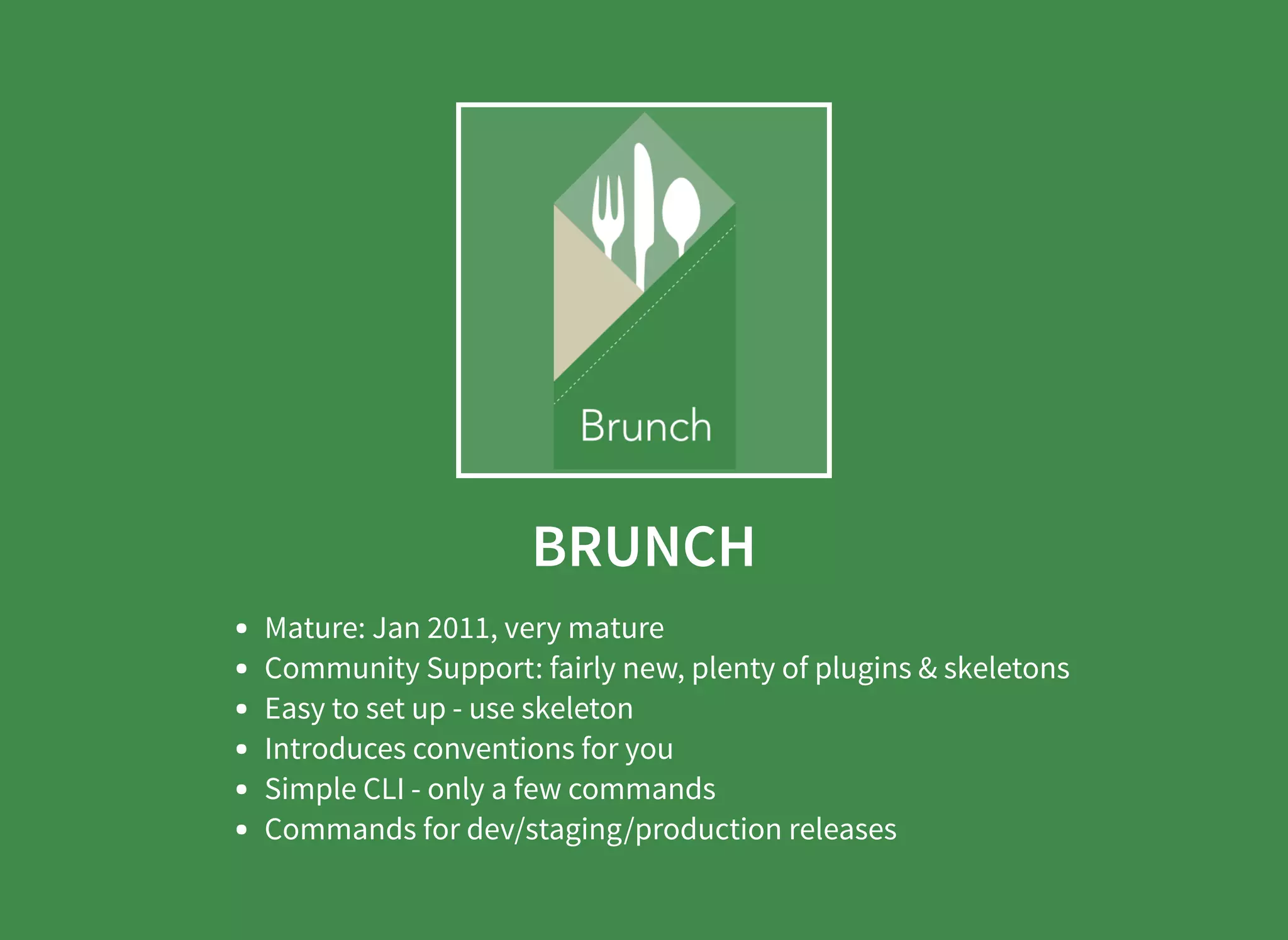

BRUNCH Mature: Jan 2011, very mature Community Support: fairly new, plenty of plugins & skeletons Easy to set up - use skeleton Introduces conventions for you Simple CLI - only a few commands Commands for dev/staging/production releases

BRUNCH WEEKNESSES Not using conventions causes headaches Not easy to set up with existing projects Skeleton set ups not maintained as fast as plugins Not as supported as Grunt/Gulp

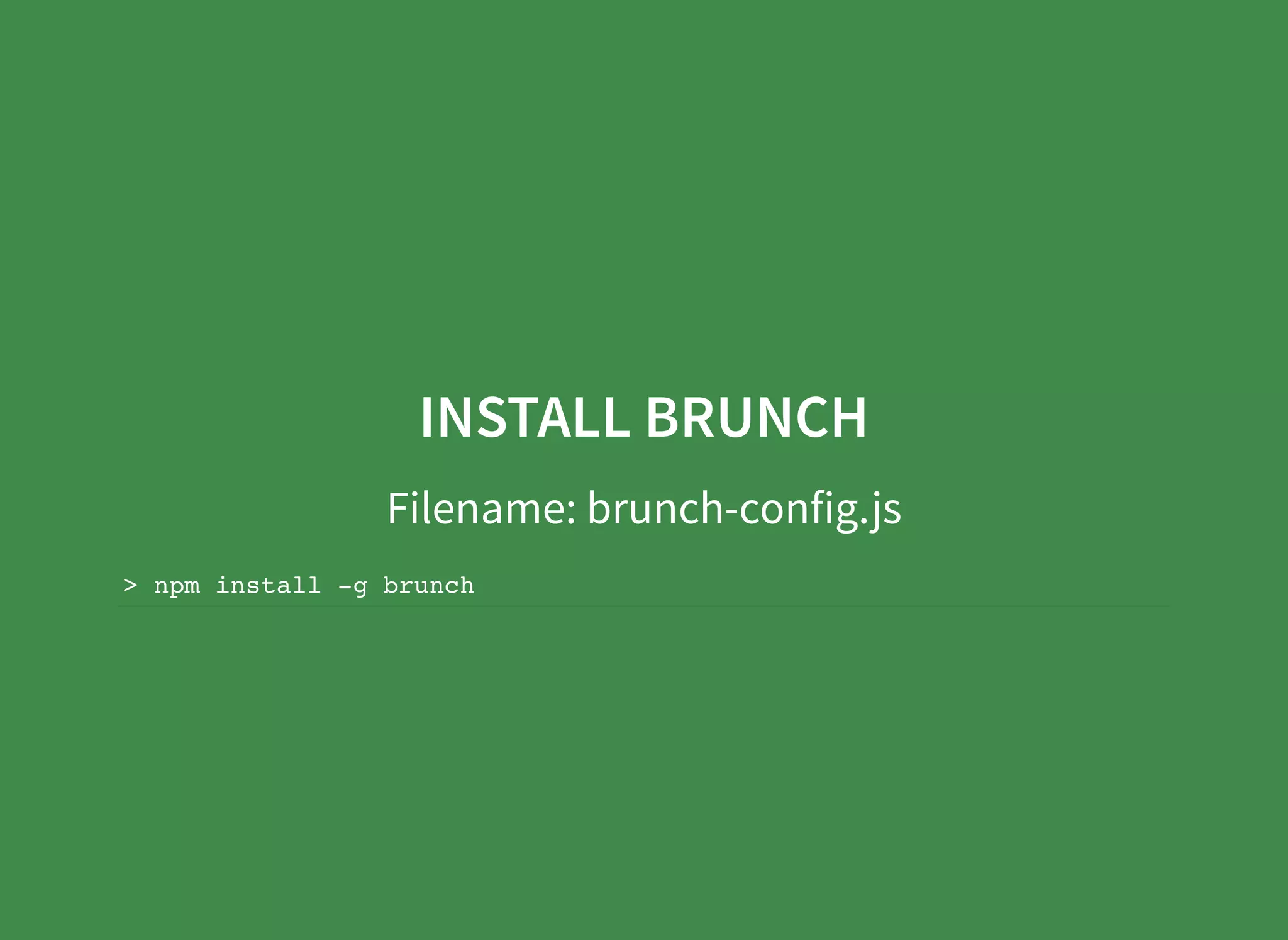

INSTALL BRUNCH Filename: brunch-config.js > npm install -g brunch

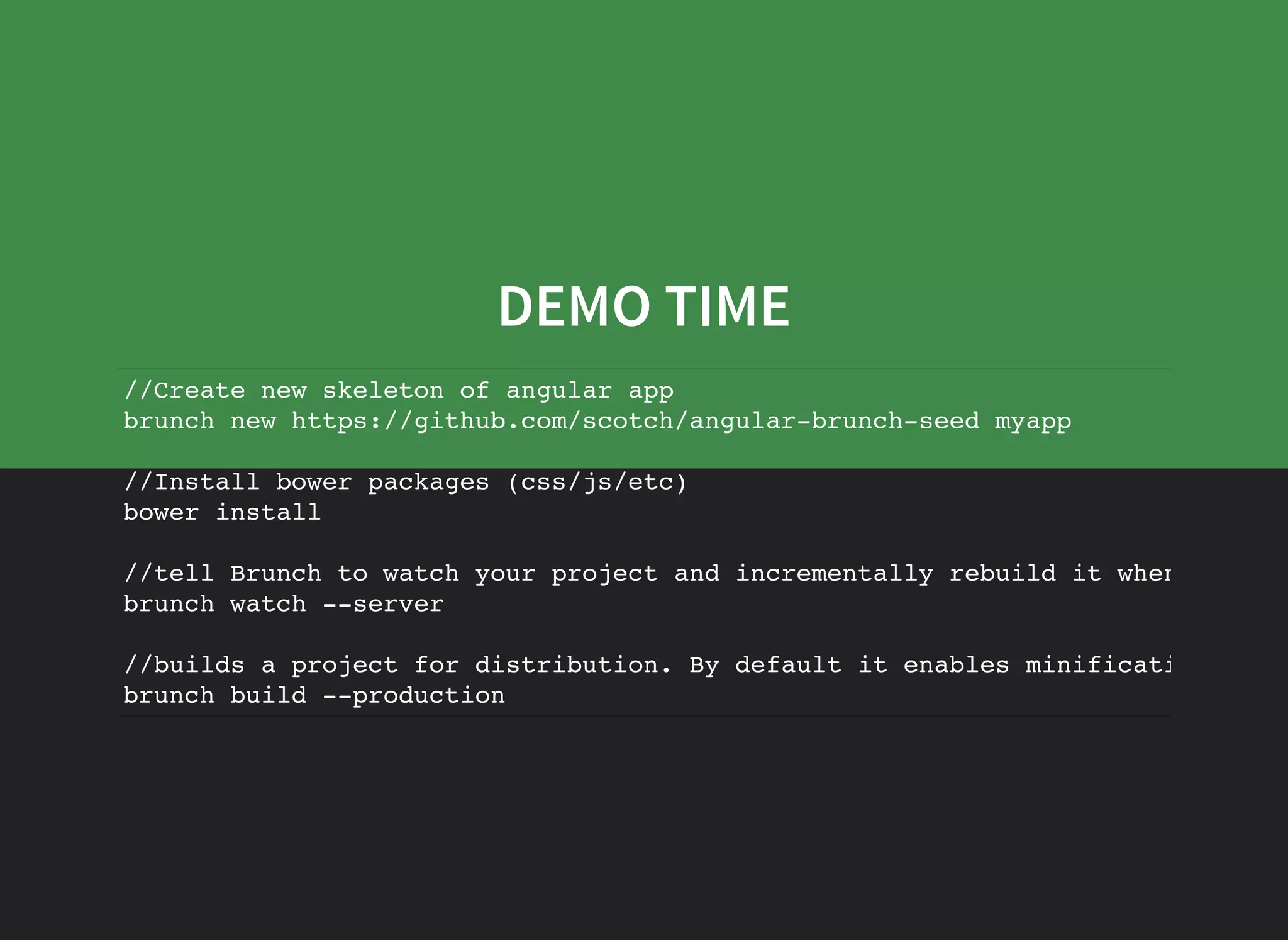

DEMO TIME //Create new skeleton of angular app brunch new https://github.com/scotch/angular-brunch-seed myapp //Install bower packages (css/js/etc) bower install //tell Brunch to watch your project and incrementally rebuild it when source brunch watch --server //builds a project for distribution. By default it enables minification brunch build --production

BROCCOLI Mature: Feb 2014, still in beta Community Support: in Beta Trees allow dev to think of assets Provides caching for map files Makes some conventions for you - assets Watching files handled by serve, only rebuilds whats needed Supported by trees that mirror filesystem Lets you have a transactional-style build pipeline Trees later in process can have more files than those previously Can do operations on multiple generated trees Can merge trees (output for ES5 from TypeScript & ES6 sources for example) Incremental builds by default Cacheing is built-in rather than manual

BROCCOLI WEEKNESSES No parallelism Mainstream usage only in ember-cli (and even then only used as a lib, not as a tool itself) Many rough edges - not forgiving for things oﬀ common path Some implementation flaws (though fixable) Some design decisions won’t scale from company to company, though it maps better to blaze (bazel) than does gulp

INSTALL BROCCOLI Filename: brocfile.js Install Broccoli globaly > npm install --g broccoli-cli Install Broccoli in your project > npm install --save-dev broccoli

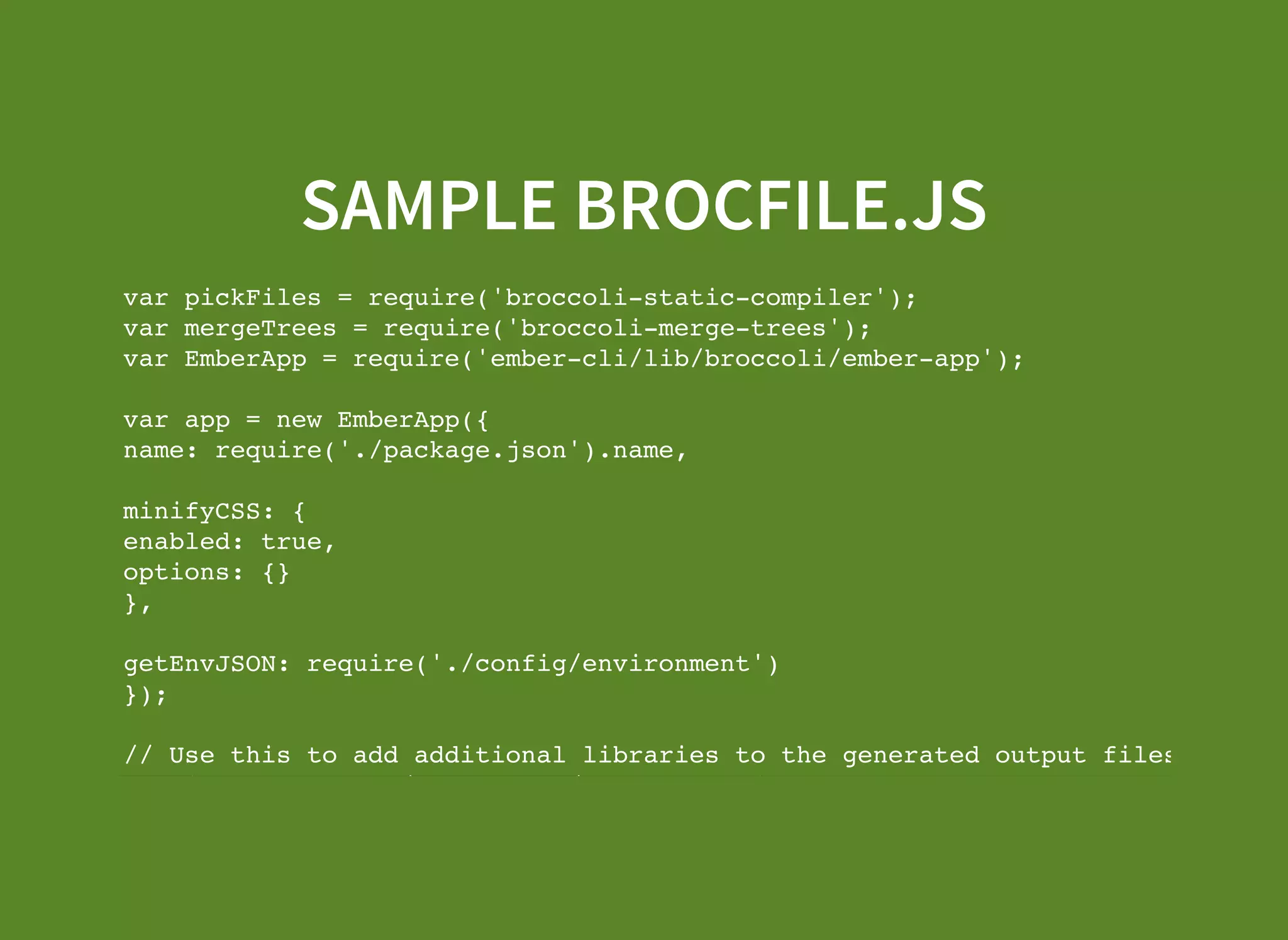

SAMPLE BROCFILE.JS var pickFiles = require('broccoli-static-compiler'); var mergeTrees = require('broccoli-merge-trees'); var EmberApp = require('ember-cli/lib/broccoli/ember-app'); var app = new EmberApp({ name: require('./package.json').name, minifyCSS: { enabled: true, options: {} }, getEnvJSON: require('./config/environment') }); // Use this to add additional libraries to the generated output files. app.import('vendor/ember-data/ember-data.js');

TEST FRAMEWORKS Jasmine Karma Istanbul Protractor

JASMINE Started in 2010 Huge community - Most popular Behavior-driven development framework for testing JavaScript code Doesn't require DOM, can be used serverside or in the browser Obvious syntax Easy to write tests Async Support Continuous Integration

INSTALL JASMINE Install jasmine globaly > npm install -g jasmine Install jasmine plugin for Grunt/Gulp > npm i grunt-jasmine-runner --save-dev > npm install gulp-jasmine --save-dev

BASICS describe("Test suite", function() { it("contains spec with an expectation", function() { expect(true).toBe(true); }); });

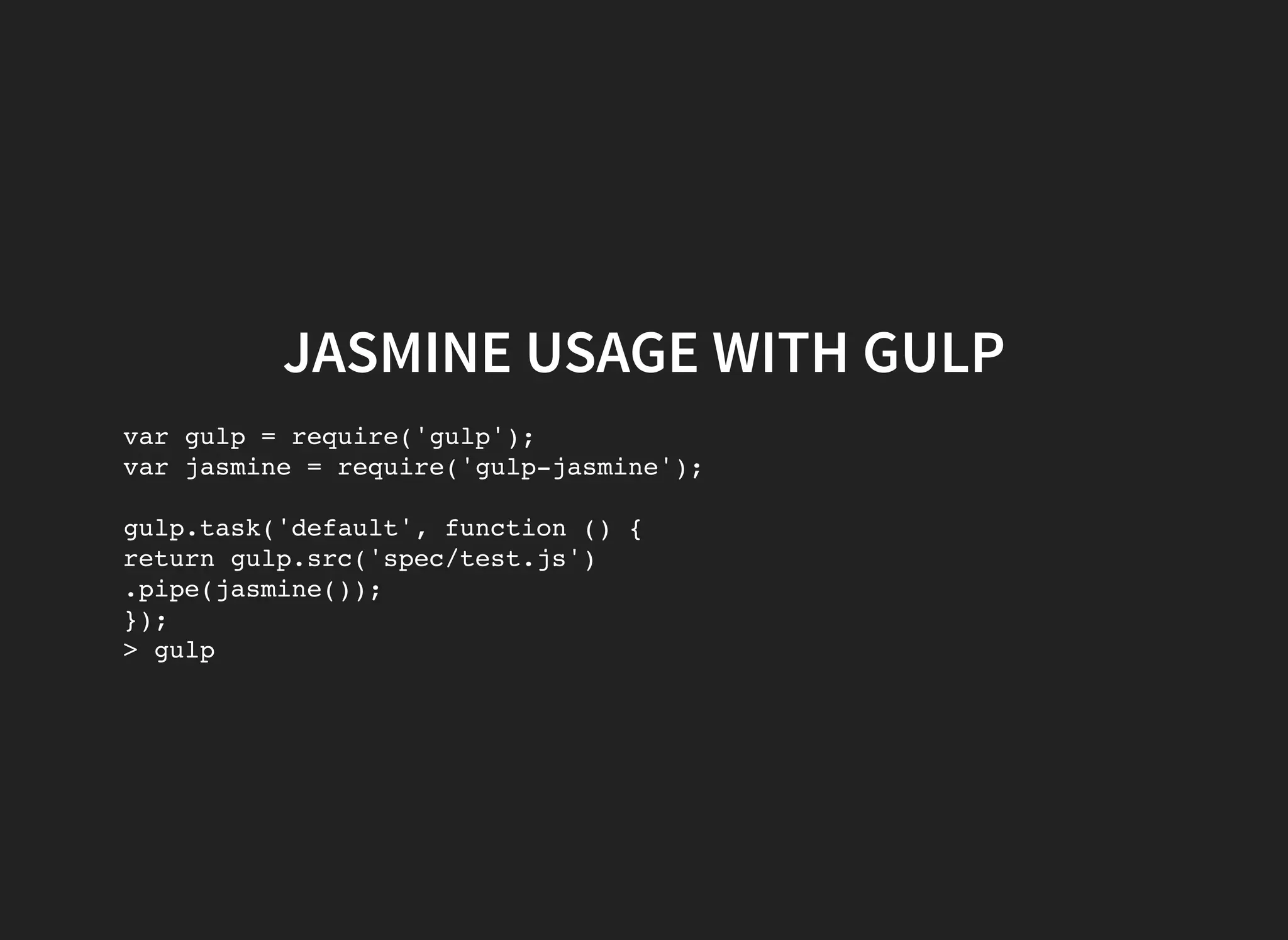

JASMINE USAGE WITH GULP var gulp = require('gulp'); var jasmine = require('gulp-jasmine'); gulp.task('default', function () { return gulp.src('spec/test.js') .pipe(jasmine()); }); > gulp

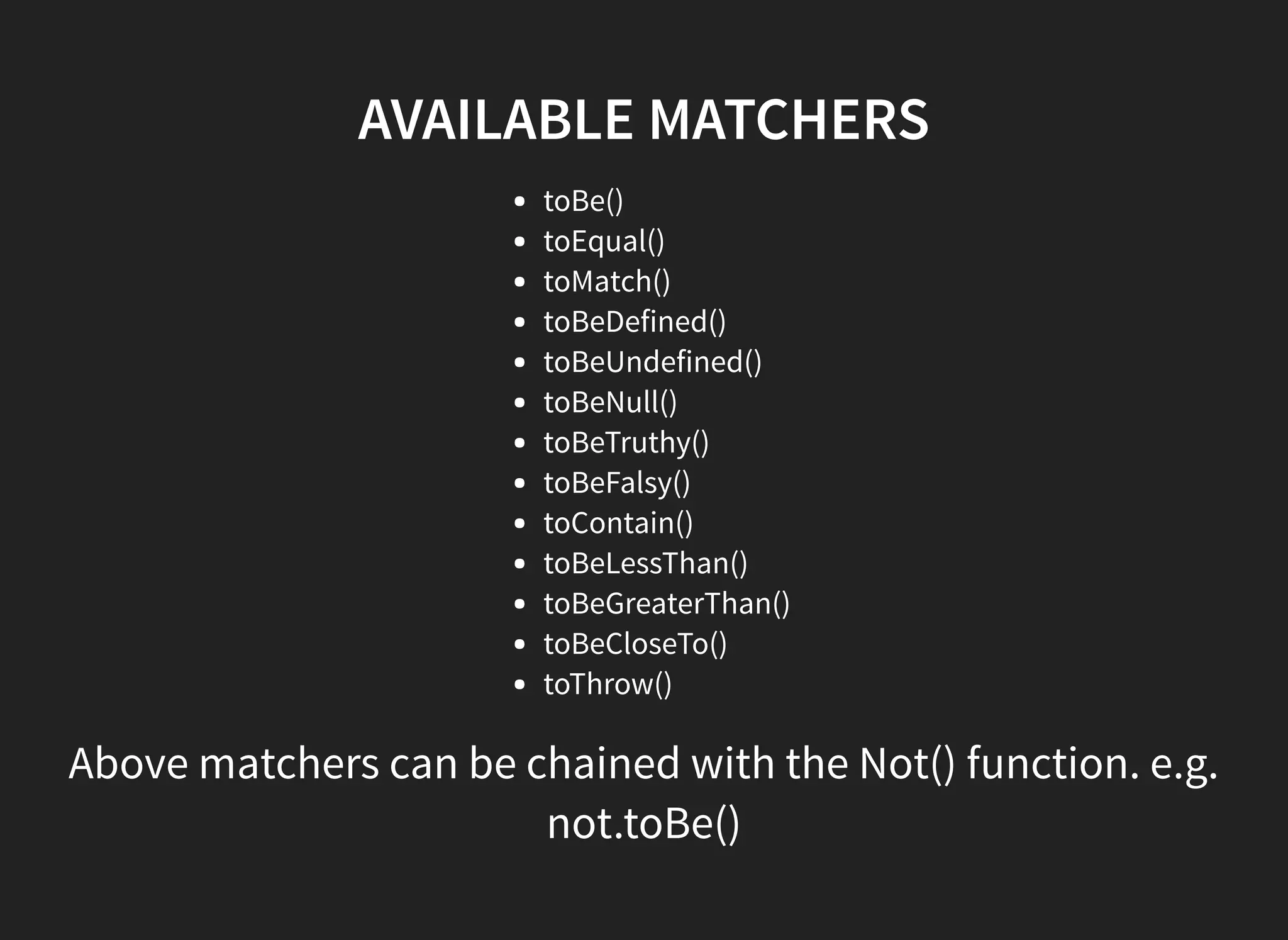

AVAILABLE MATCHERS toBe() toEqual() toMatch() toBeDefined() toBeUndefined() toBeNull() toBeTruthy() toBeFalsy() toContain() toBeLessThan() toBeGreaterThan() toBeCloseTo() toThrow() Above matchers can be chained with the Not() function. e.g. not.toBe()

KARMA Executes tests and source in a browser Lots of plugins available Can drive multiple browsers at once Built in JUnit reporter

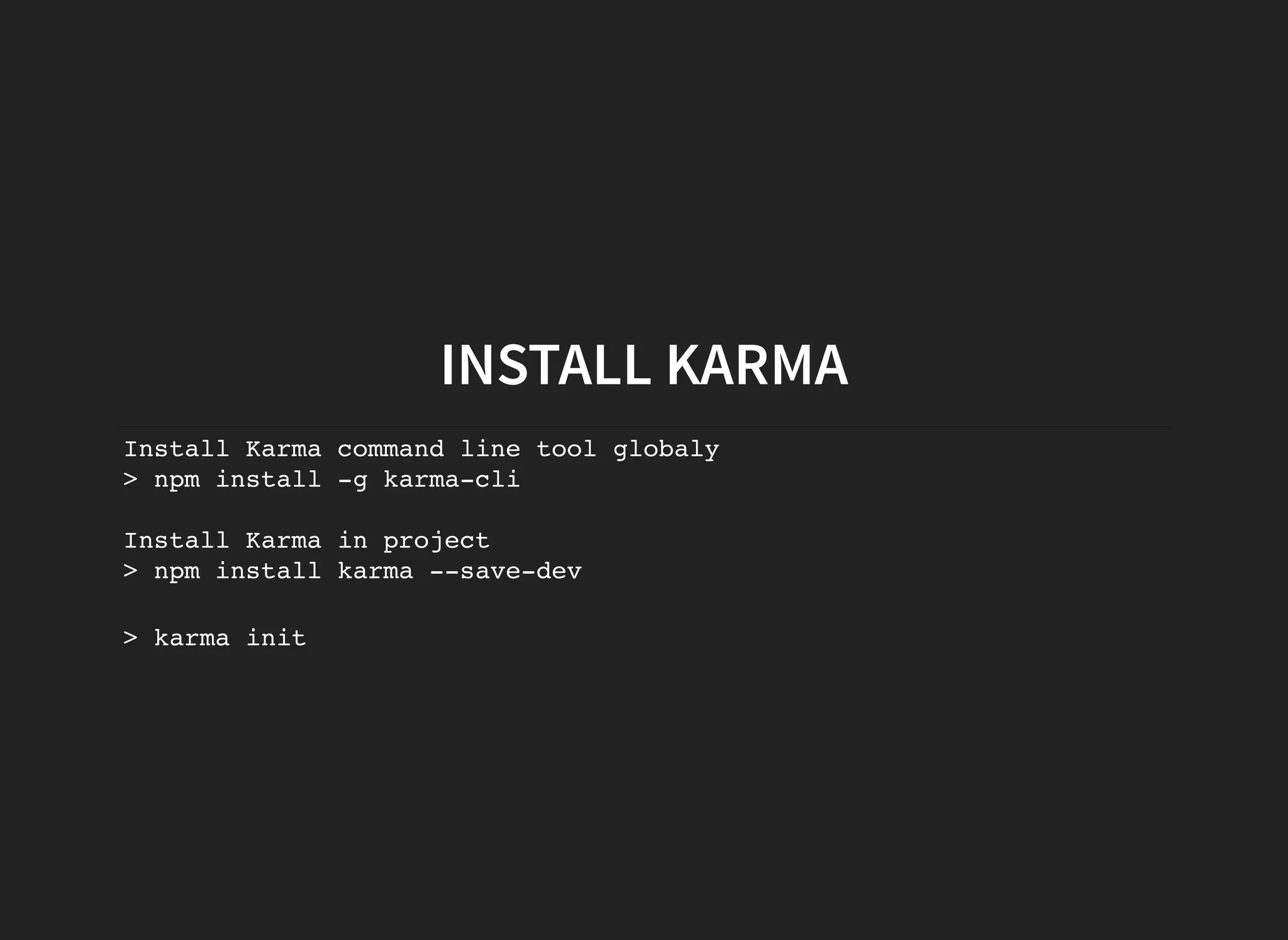

INSTALL KARMA Install Karma command line tool globaly > npm install -g karma-cli Install Karma in project > npm install karma --save-dev > karma init

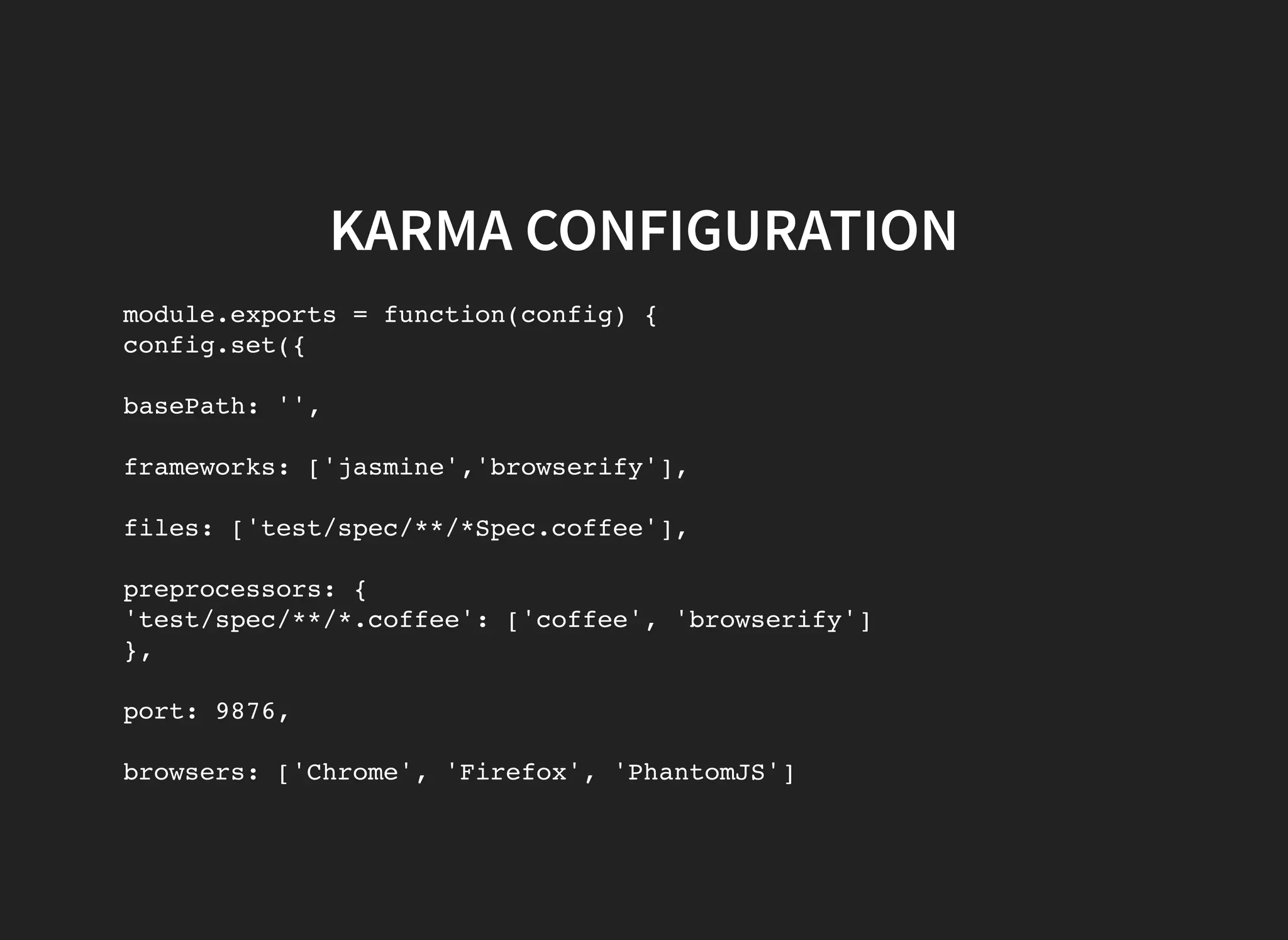

KARMA CONFIGURATION module.exports = function(config) { config.set({ basePath: '', frameworks: ['jasmine','browserify'], files: ['test/spec/**/*Spec.coffee'], preprocessors: { 'test/spec/**/*.coffee': ['coffee', 'browserify'] }, port: 9876, browsers: ['Chrome', 'Firefox', 'PhantomJS']

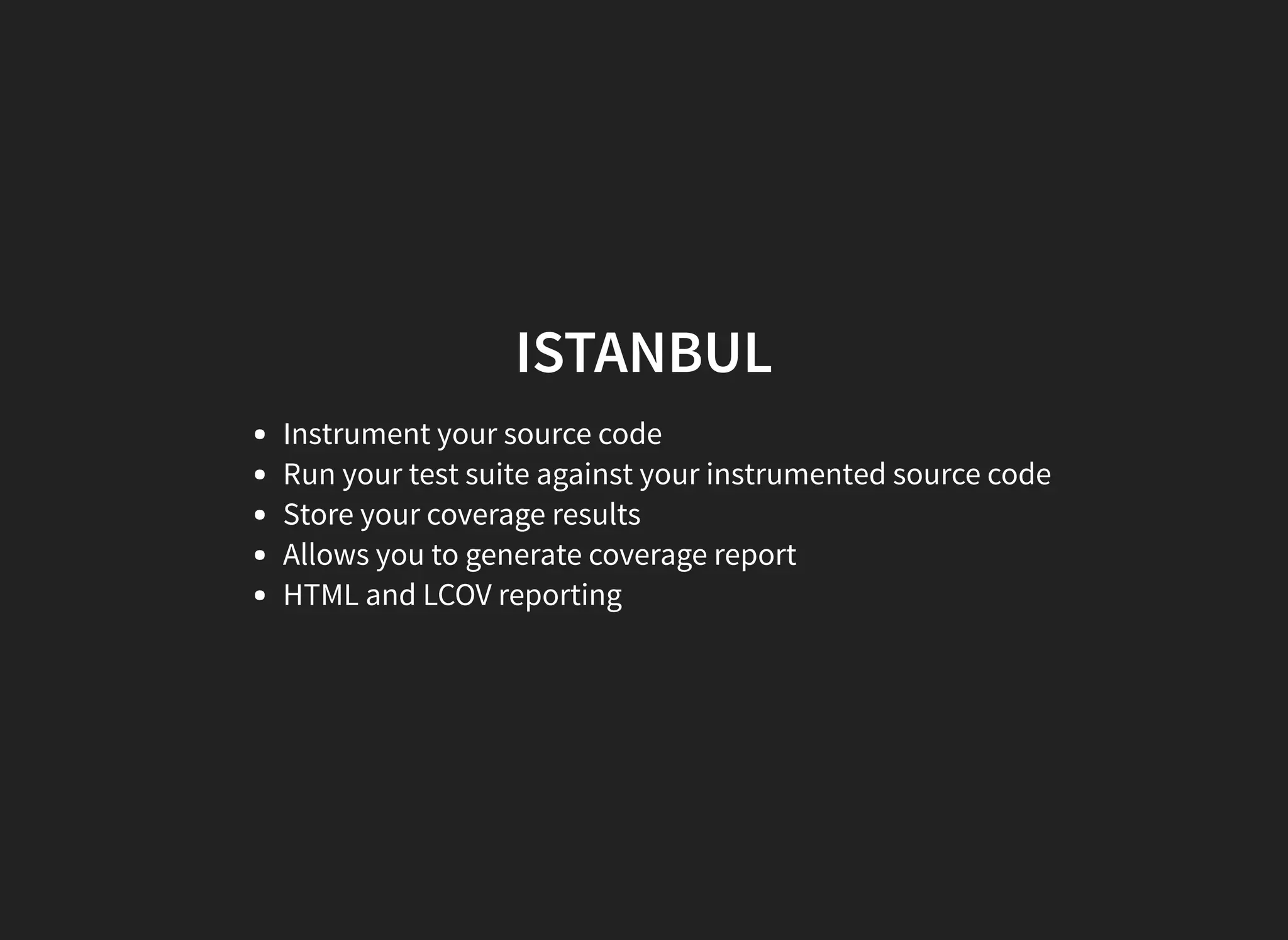

ISTANBUL Instrument your source code Run your test suite against your instrumented source code Store your coverage results Allows you to generate coverage report HTML and LCOV reporting

INSTALL > npm install istanbul > npm install grunt-istanbul --save-dev > npm install gulp-istanbul --save-dev

PROTRACTOR AngularJS E2E Testing Framework Built on Selenium's WebDriver API Built on top of Jasmine framework Extension for all browsers Every action is asynchronous. Rapid development. Allows to test your app the way end user will use it.

INSTALL PROTRACTOR Install protractor globally > npm install protractor -g Install protractor in your project using Grunt > npm i grunt-protractor-runner --save-dev Install protractor in your project using Gulp > npm install gulp-protractor --save-dev Scaffolding is available through YO as well > npm install -g generator-protractor > yo protractor Update WebDriver > webdriver-manager update

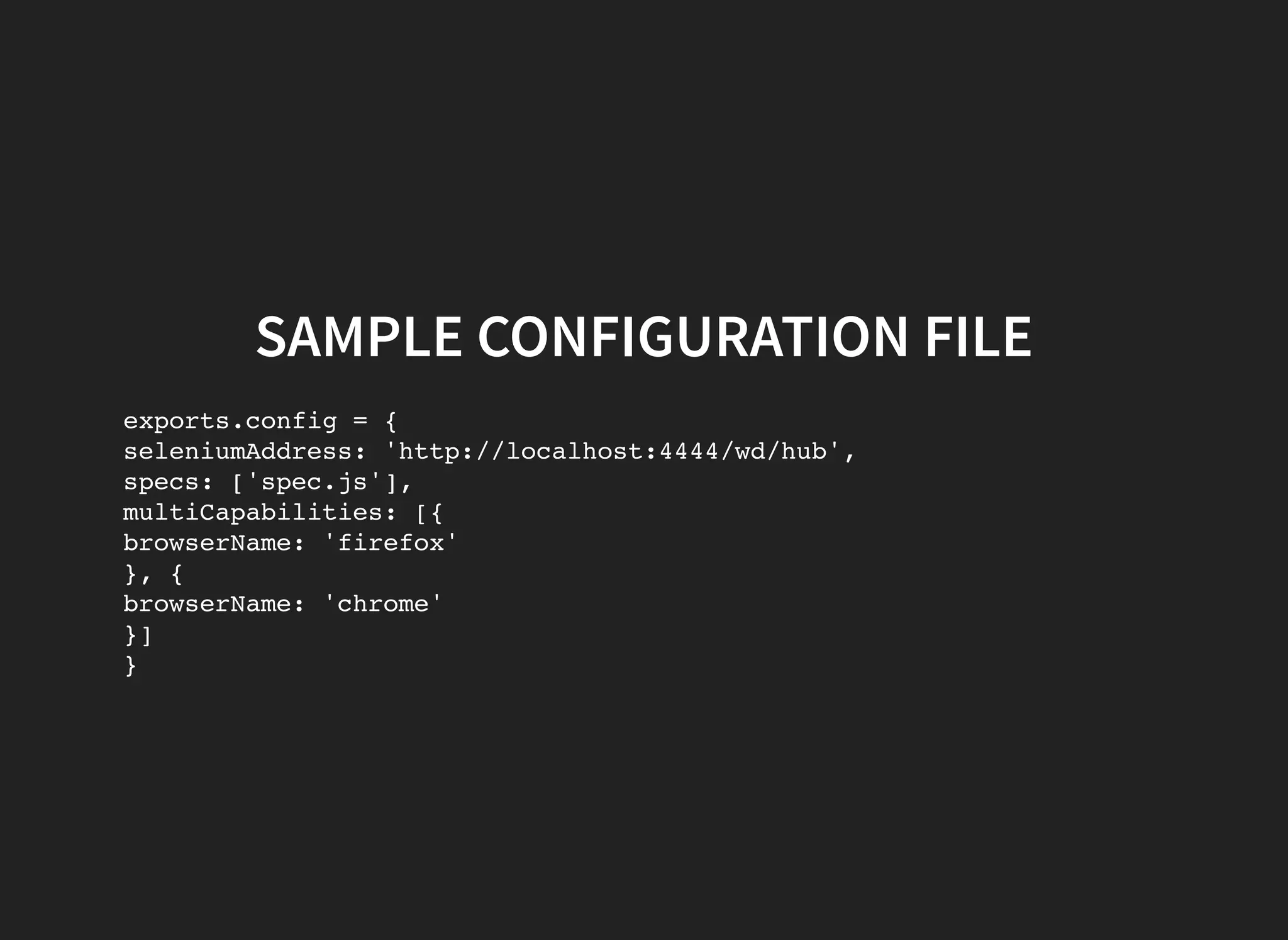

SAMPLE CONFIGURATION FILE exports.config = { seleniumAddress: 'http://localhost:4444/wd/hub', specs: ['spec.js'], multiCapabilities: [{ browserName: 'firefox' }, { browserName: 'chrome' }] }

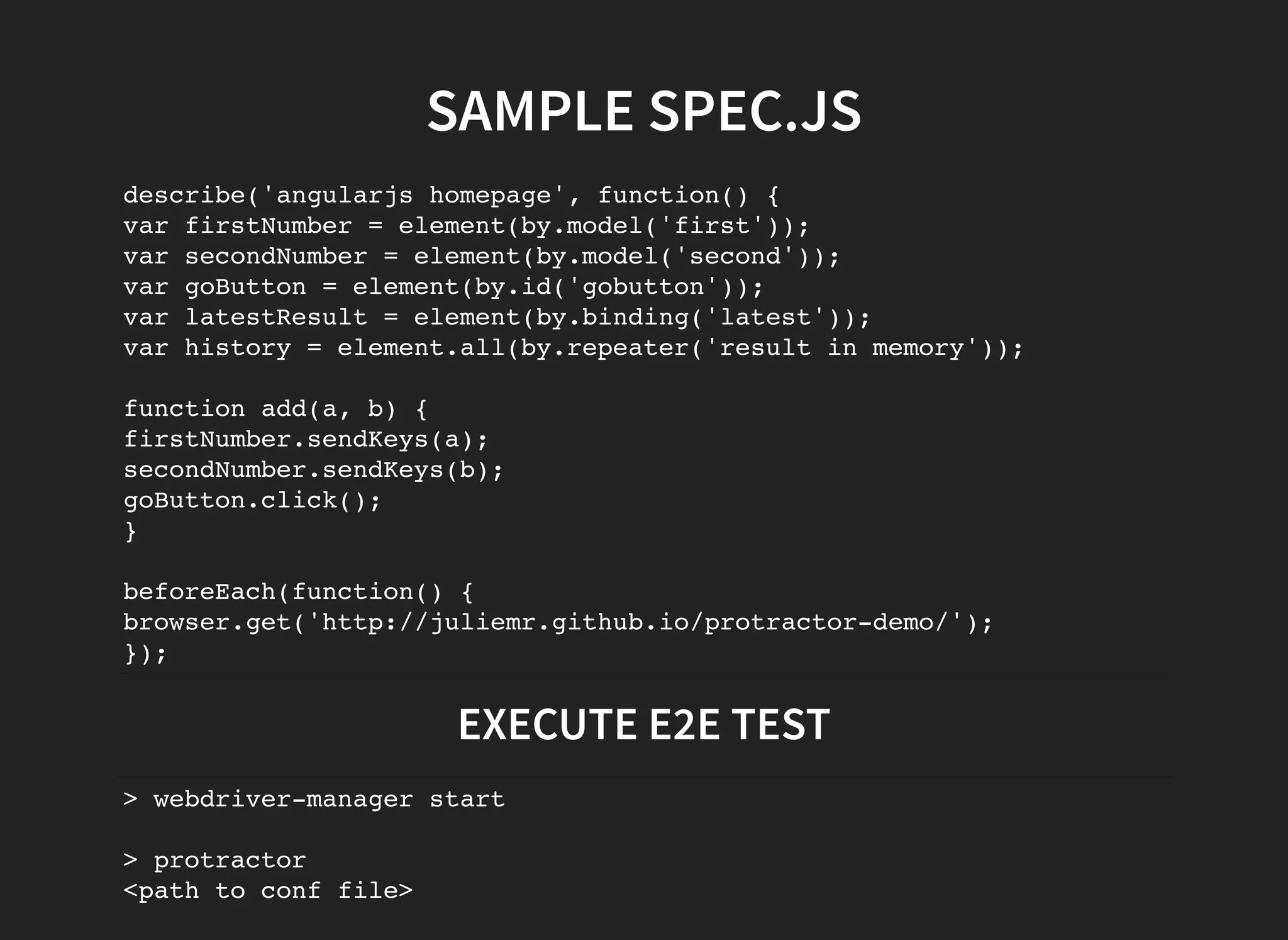

SAMPLE SPEC.JS describe('angularjs homepage', function() { var firstNumber = element(by.model('first')); var secondNumber = element(by.model('second')); var goButton = element(by.id('gobutton')); var latestResult = element(by.binding('latest')); var history = element.all(by.repeater('result in memory')); function add(a, b) { firstNumber.sendKeys(a); secondNumber.sendKeys(b); goButton.click(); } beforeEach(function() { browser.get('http://juliemr.github.io/protractor-demo/'); }); EXECUTE E2E TEST > webdriver-manager start > protractor <path to conf file>

PROTRACTOR API SELECTORS by class name by css by id by linkText by partialLinktext by name by xpath by binding by input by repeater by model METHODS clear() click() getAttribute(name) getCSSValue(propertyName) getLocation() getSize() getTagName() getText() isDisplayed() isEnabled() isSelected() sendKeys(keysToSend)

CHOOSING WORKFLOW AUTOMATION TOOL No tool is wrong, just diﬀerent approaches Each tool has strengths and weaknesses. Your job will be to identify which tool may be best suited for your needs.

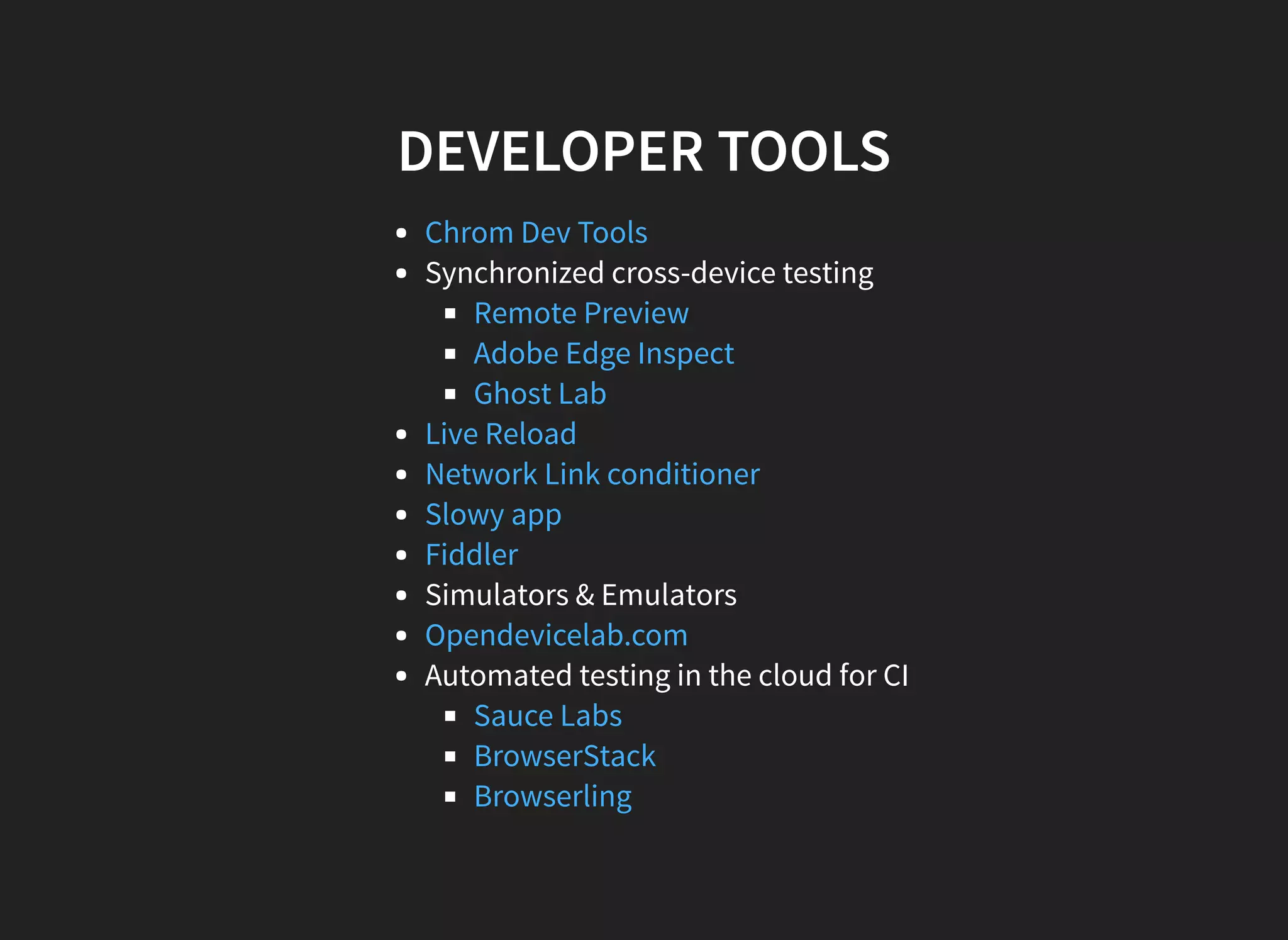

DEVELOPER TOOLS Synchronized cross-device testing Simulators & Emulators Automated testing in the cloud for CI Chrom Dev Tools Remote Preview Adobe Edge Inspect Ghost Lab Live Reload Network Link conditioner Slowy app Fiddler Opendevicelab.com Sauce Labs BrowserStack Browserling

ARIA (Accessible Rich Internet Applications specification) LET'S MAKE SMART APPLICATIONS W3C Standard WAVE (Web Accessibility Evaluation Tool) Plugin DEMO TIME

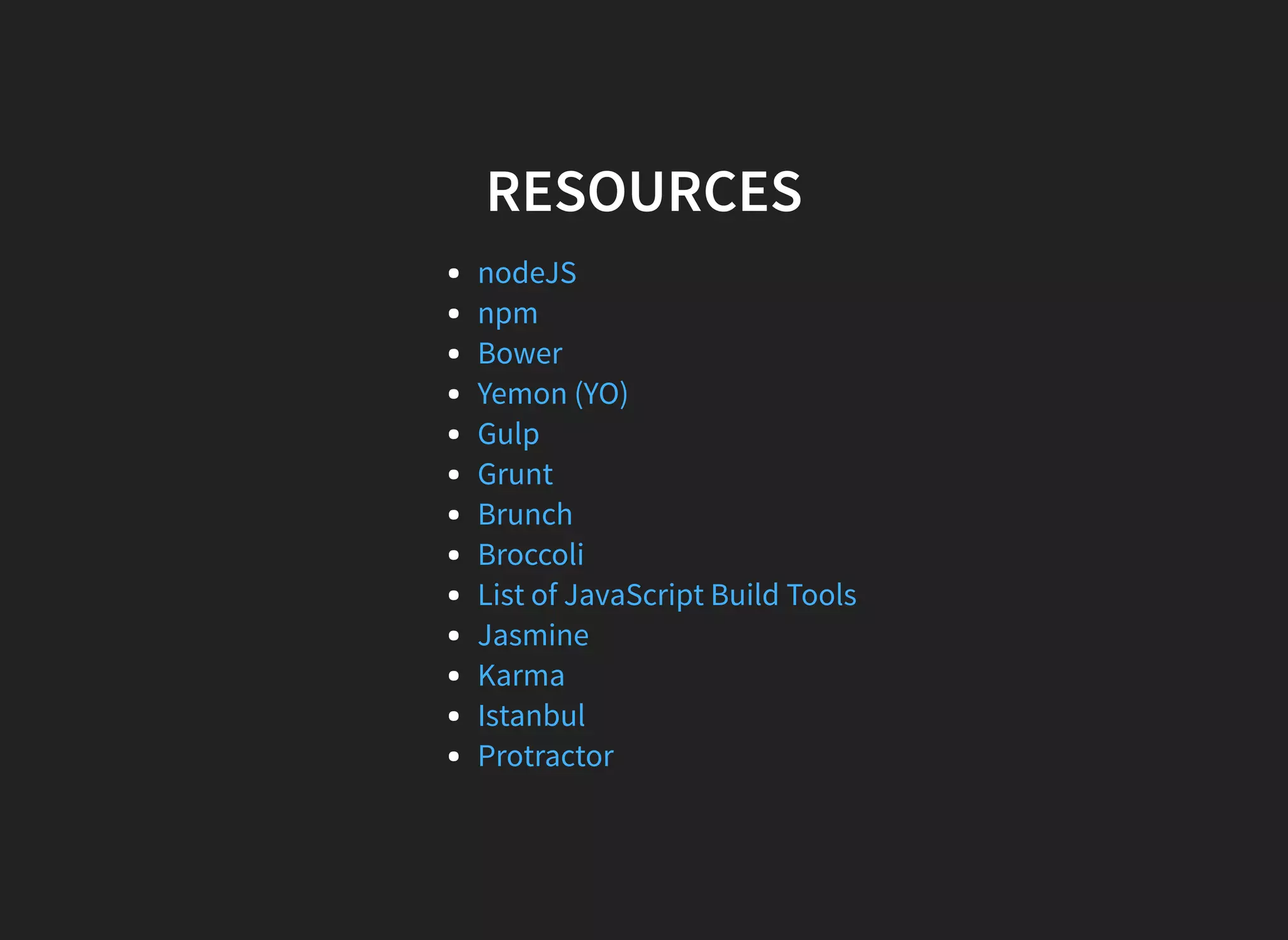

RESOURCES nodeJS npm Bower Yemon (YO) Gulp Grunt Brunch Broccoli List of JavaScript Build Tools Jasmine Karma Istanbul Protractor
