Waveform Generation Using TMS320C6745 DSP
This document discusses the generation of different types of waveforms using a TMS320C6745 DSP. It provides programs to generate sine waves, square waves, triangular waves, and sawtooth waves. For each waveform type, it gives the code to generate the waveform signal and output it to a specific memory location. It also notes the required plot settings to view each waveform type.
Waveform Generation Using TMS320C6745 DSP
- 1.

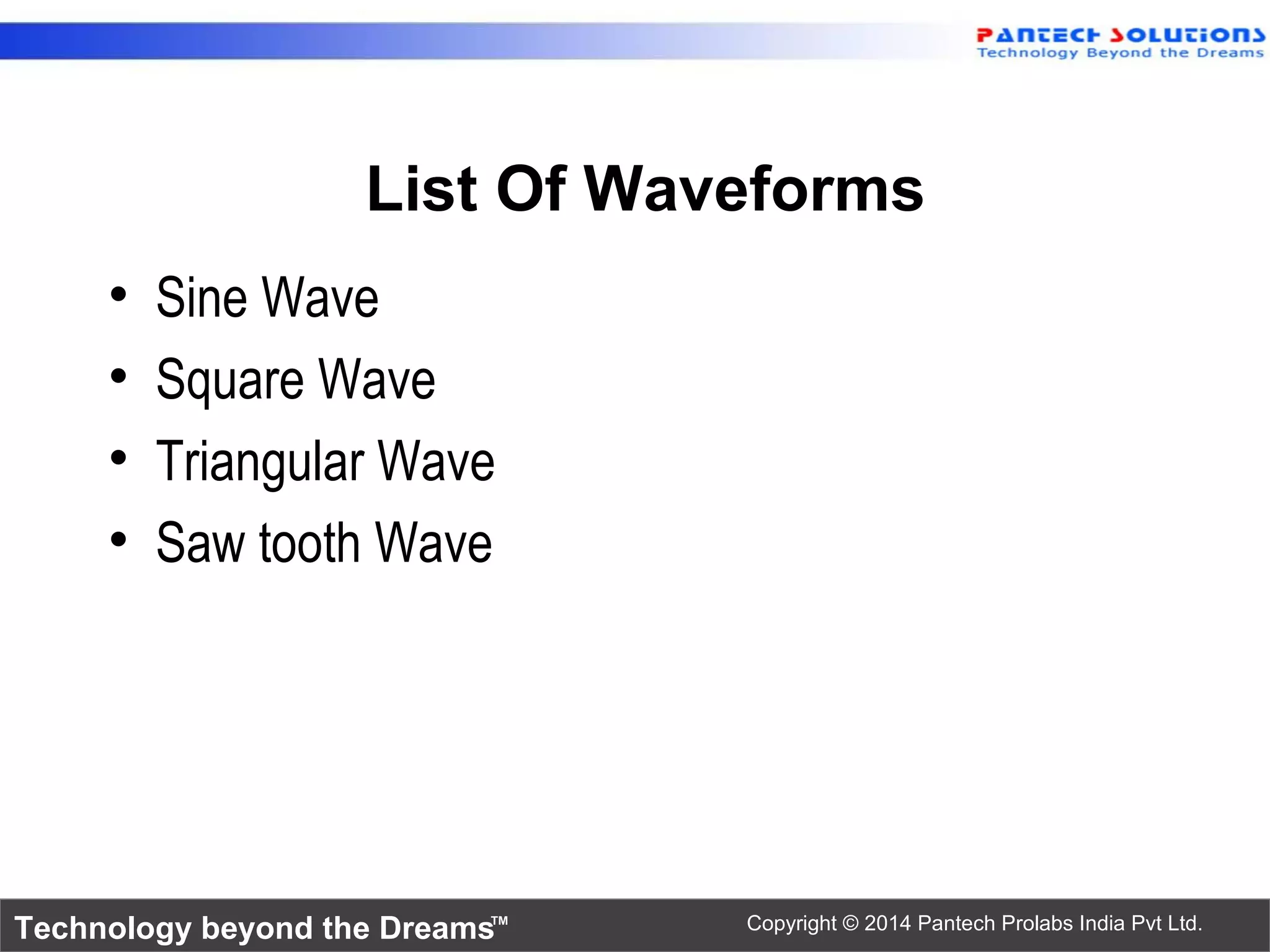

- 2. Technology beyond theDreams™ Copyright © 2014 Pantech Prolabs India Pvt Ltd. List Of Waveforms • Sine Wave • Square Wave • Triangular Wave • Saw tooth Wave

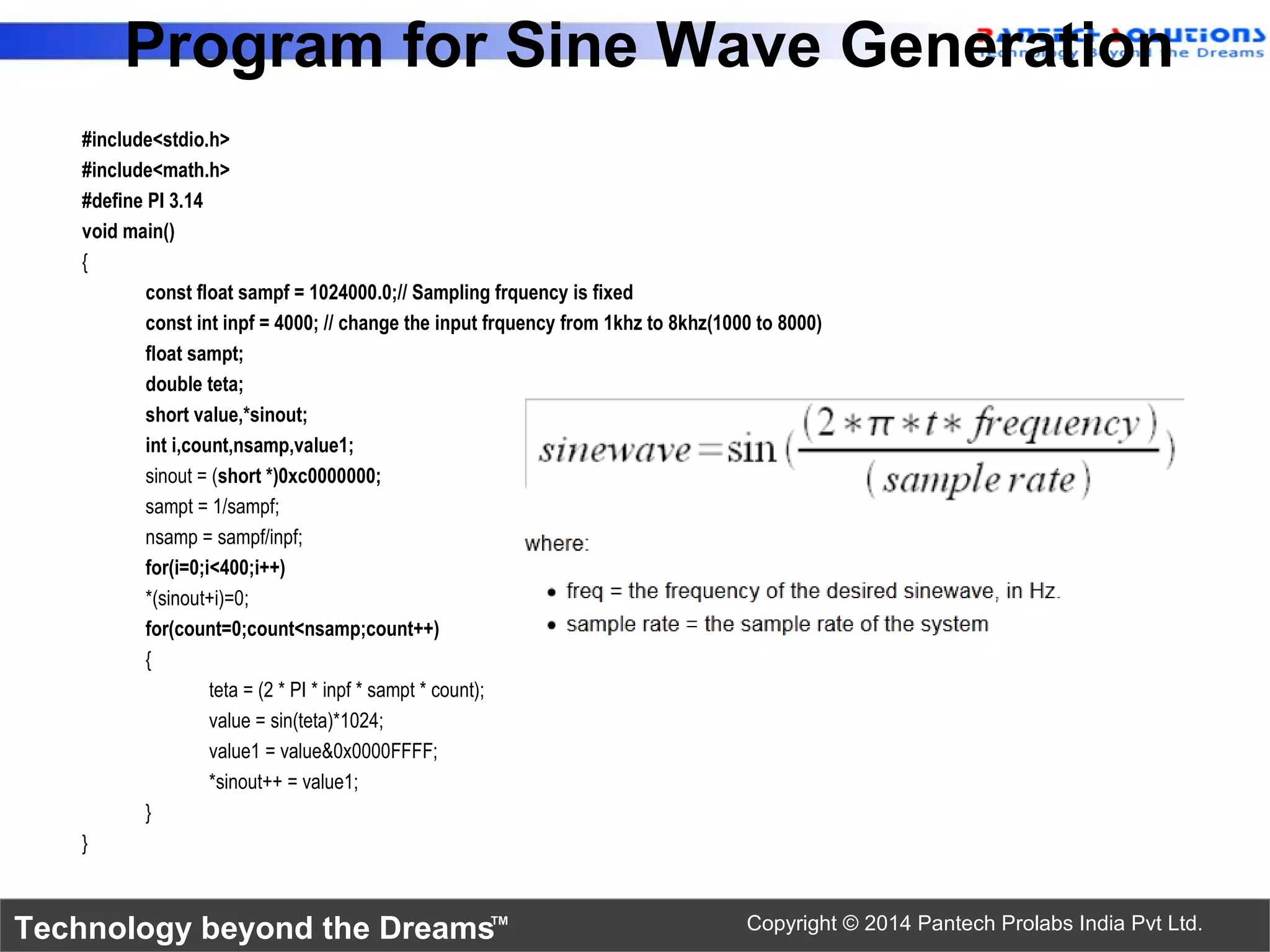

- 3. Technology beyond theDreams™ Copyright © 2014 Pantech Prolabs India Pvt Ltd. Program for Sine Wave Generation #include<stdio.h> #include<math.h> #define PI 3.14 void main() { const float sampf = 1024000.0;// Sampling frquency is fixed const int inpf = 4000; // change the input frquency from 1khz to 8khz(1000 to 8000) float sampt; double teta; short value,*sinout; int i,count,nsamp,value1; sinout = (short *)0xc0000000; sampt = 1/sampf; nsamp = sampf/inpf; for(i=0;i<400;i++) *(sinout+i)=0; for(count=0;count<nsamp;count++) { teta = (2 * PI * inpf * sampt * count); value = sin(teta)*1024; value1 = value&0x0000FFFF; *sinout++ = value1; } }

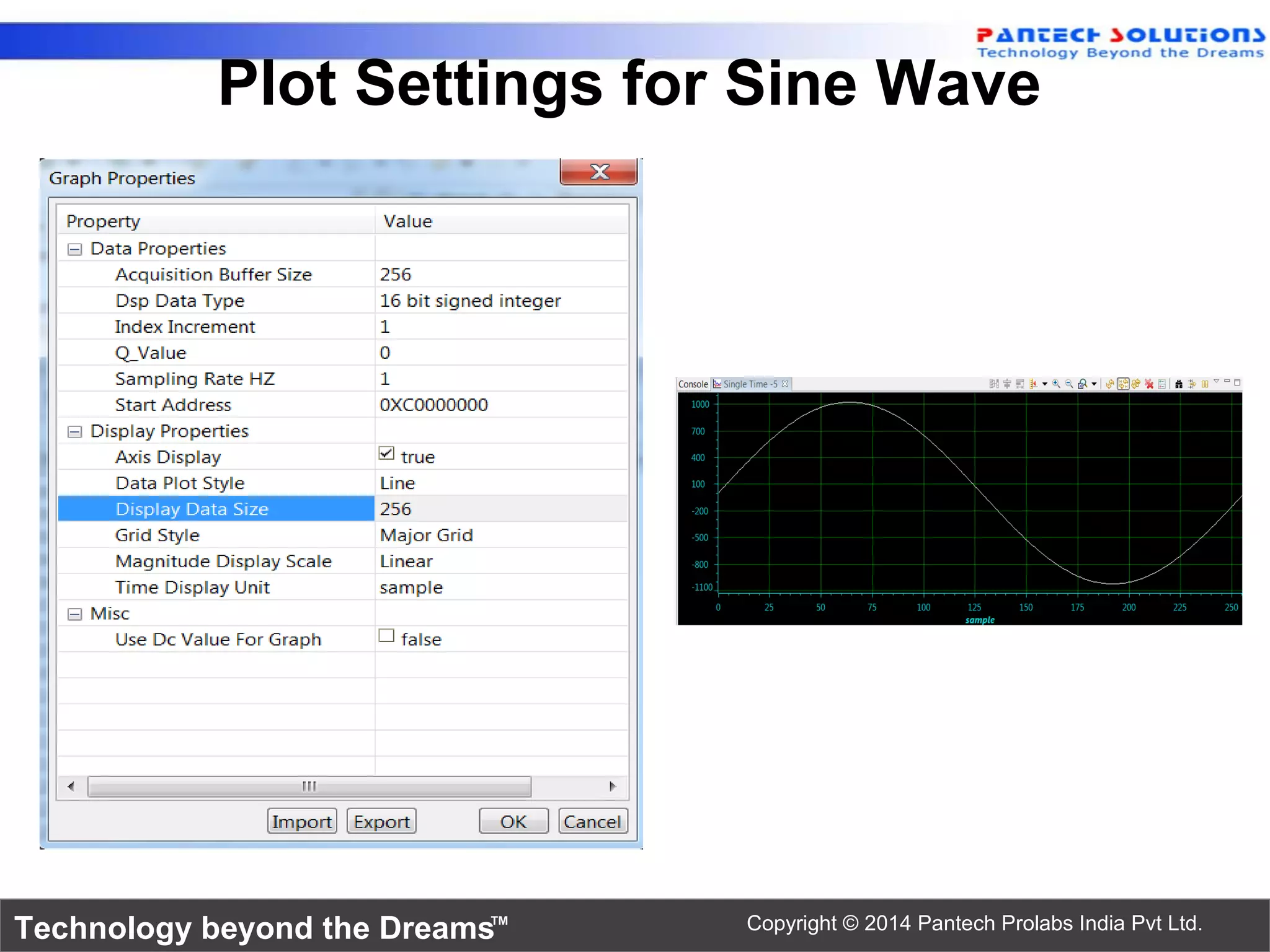

- 4. Technology beyond theDreams™ Copyright © 2014 Pantech Prolabs India Pvt Ltd. Plot Settings for Sine Wave

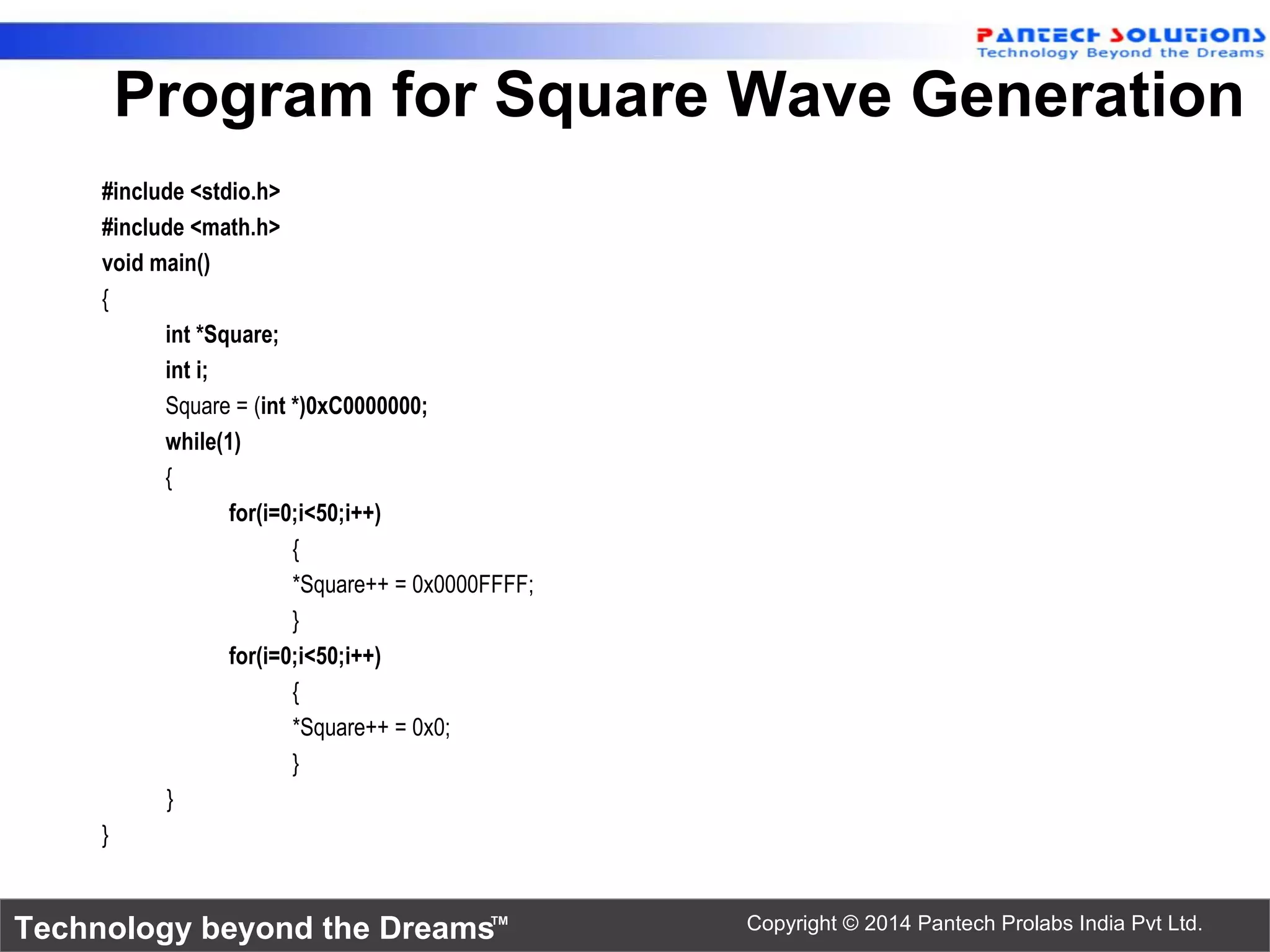

- 5. Technology beyond theDreams™ Copyright © 2014 Pantech Prolabs India Pvt Ltd. Program for Square Wave Generation #include <stdio.h> #include <math.h> void main() { int *Square; int i; Square = (int *)0xC0000000; while(1) { for(i=0;i<50;i++) { *Square++ = 0x0000FFFF; } for(i=0;i<50;i++) { *Square++ = 0x0; } } }

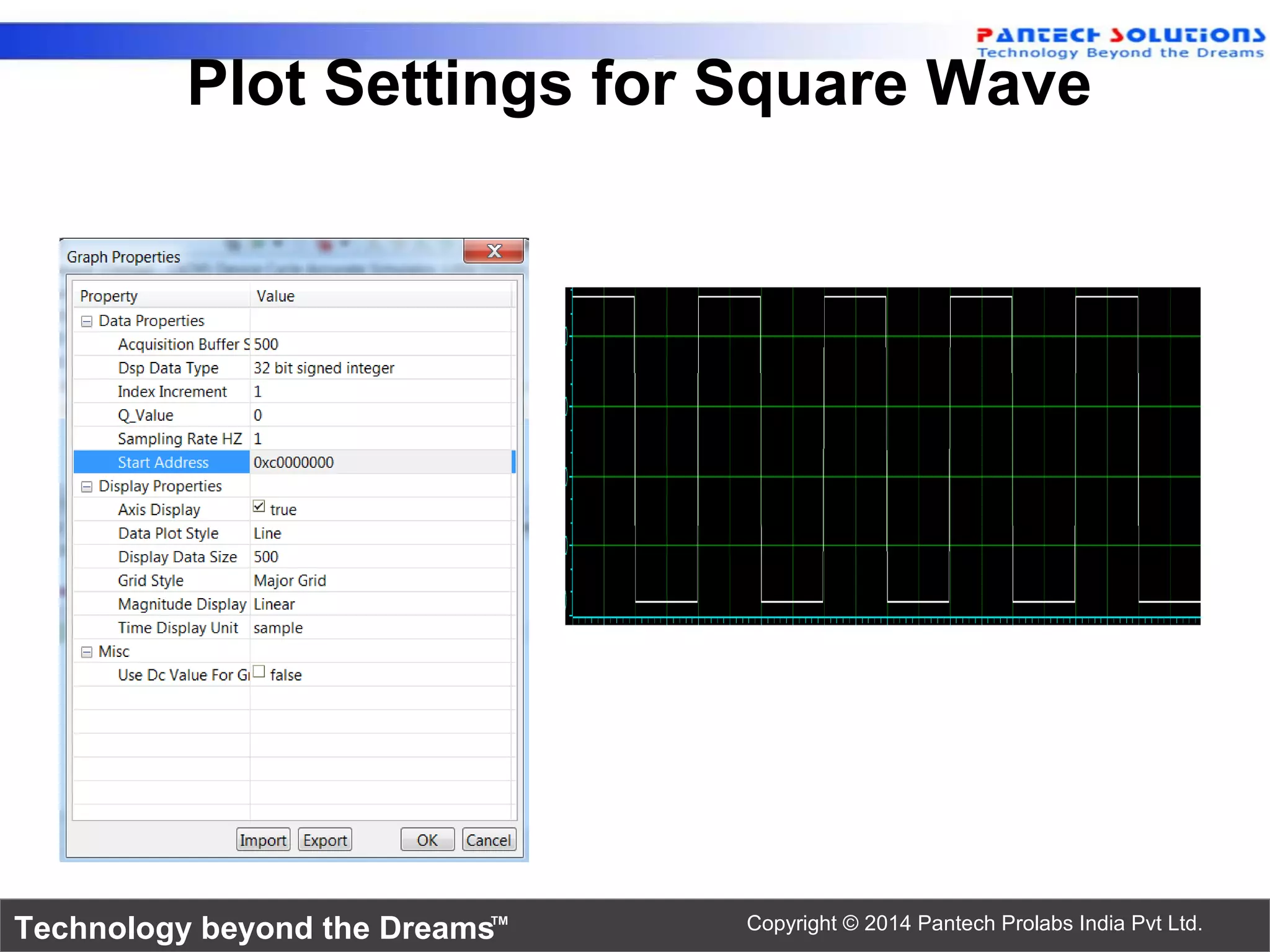

- 6. Technology beyond theDreams™ Copyright © 2014 Pantech Prolabs India Pvt Ltd. Plot Settings for Square Wave
- 7. Technology beyond theDreams™ Copyright © 2014 Pantech Prolabs India Pvt Ltd. Program for Triangular Wave Generation #include <stdio.h> #include <math.h> void main() { int *Triangle; int i=0,j=0; Triangle = (int *)0xC0000000; while(1) { for(i=0;i<50;i++) { j=j+1; *Triangle++ = j; } for(i=50;i>0;i--) { j=j-1; *Triangle++ = j; } } }

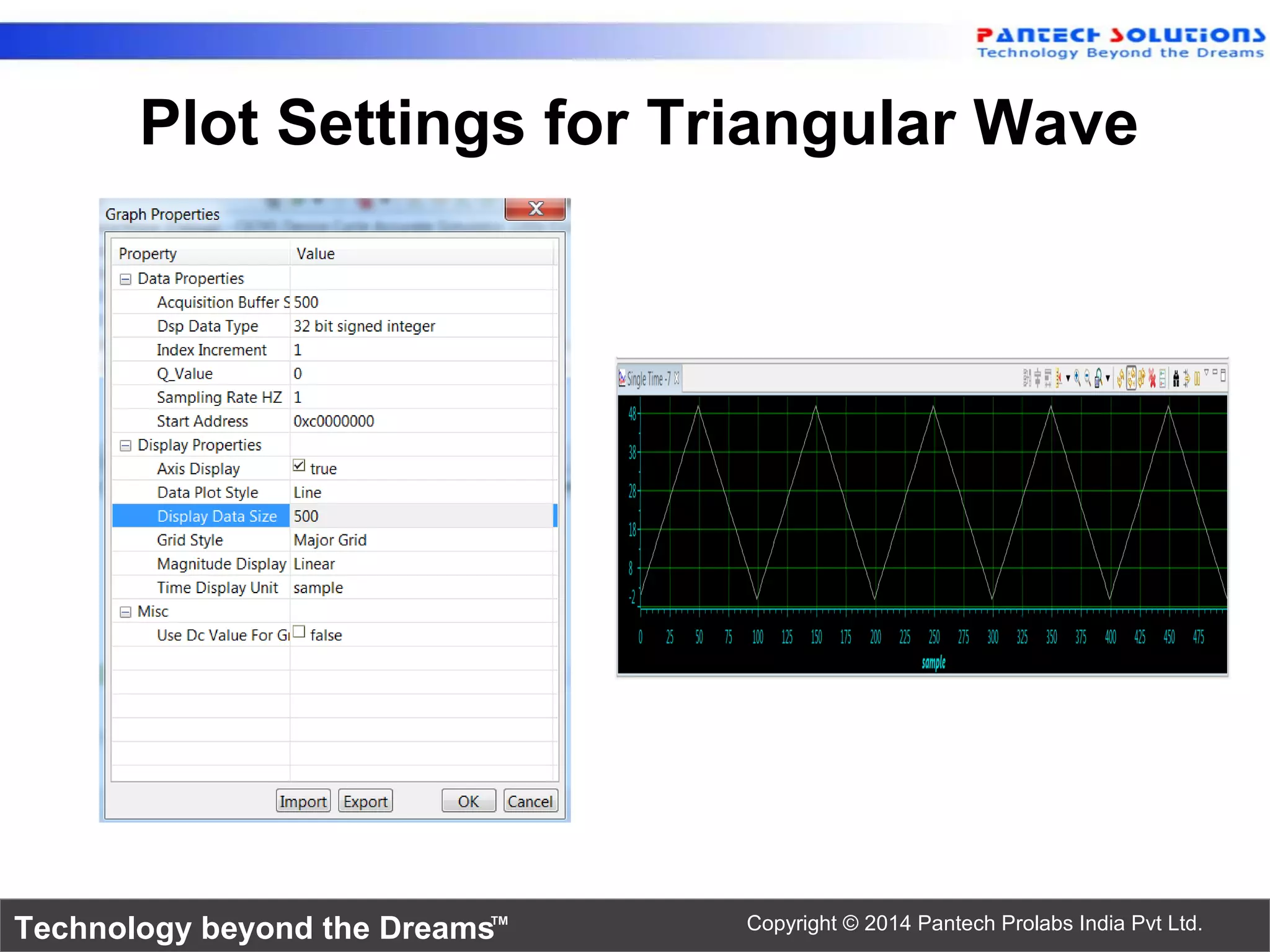

- 8. Technology beyond theDreams™ Copyright © 2014 Pantech Prolabs India Pvt Ltd. Plot Settings for Triangular Wave

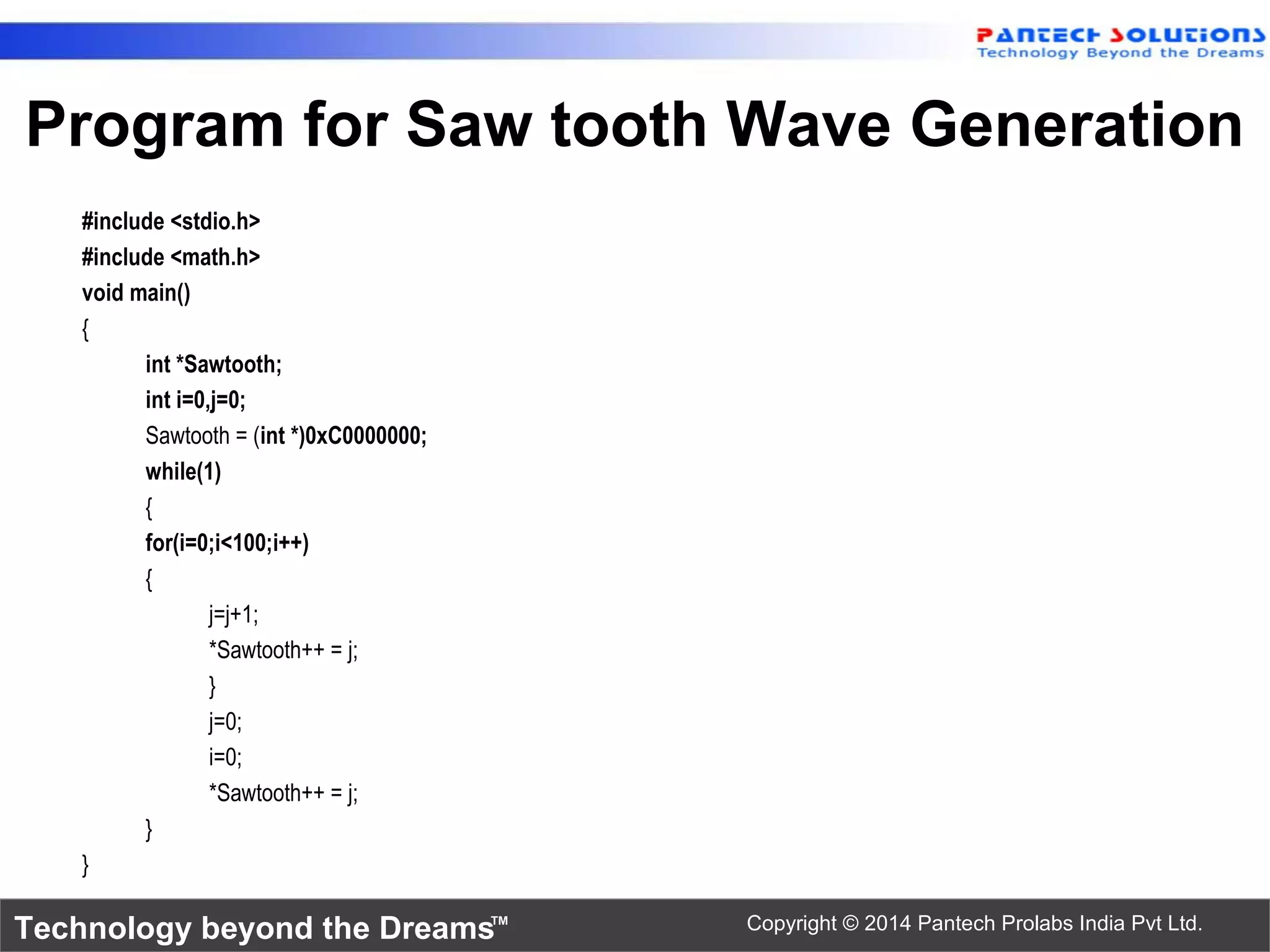

- 9. Technology beyond theDreams™ Copyright © 2014 Pantech Prolabs India Pvt Ltd. Program for Saw tooth Wave Generation #include <stdio.h> #include <math.h> void main() { int *Sawtooth; int i=0,j=0; Sawtooth = (int *)0xC0000000; while(1) { for(i=0;i<100;i++) { j=j+1; *Sawtooth++ = j; } j=0; i=0; *Sawtooth++ = j; } }

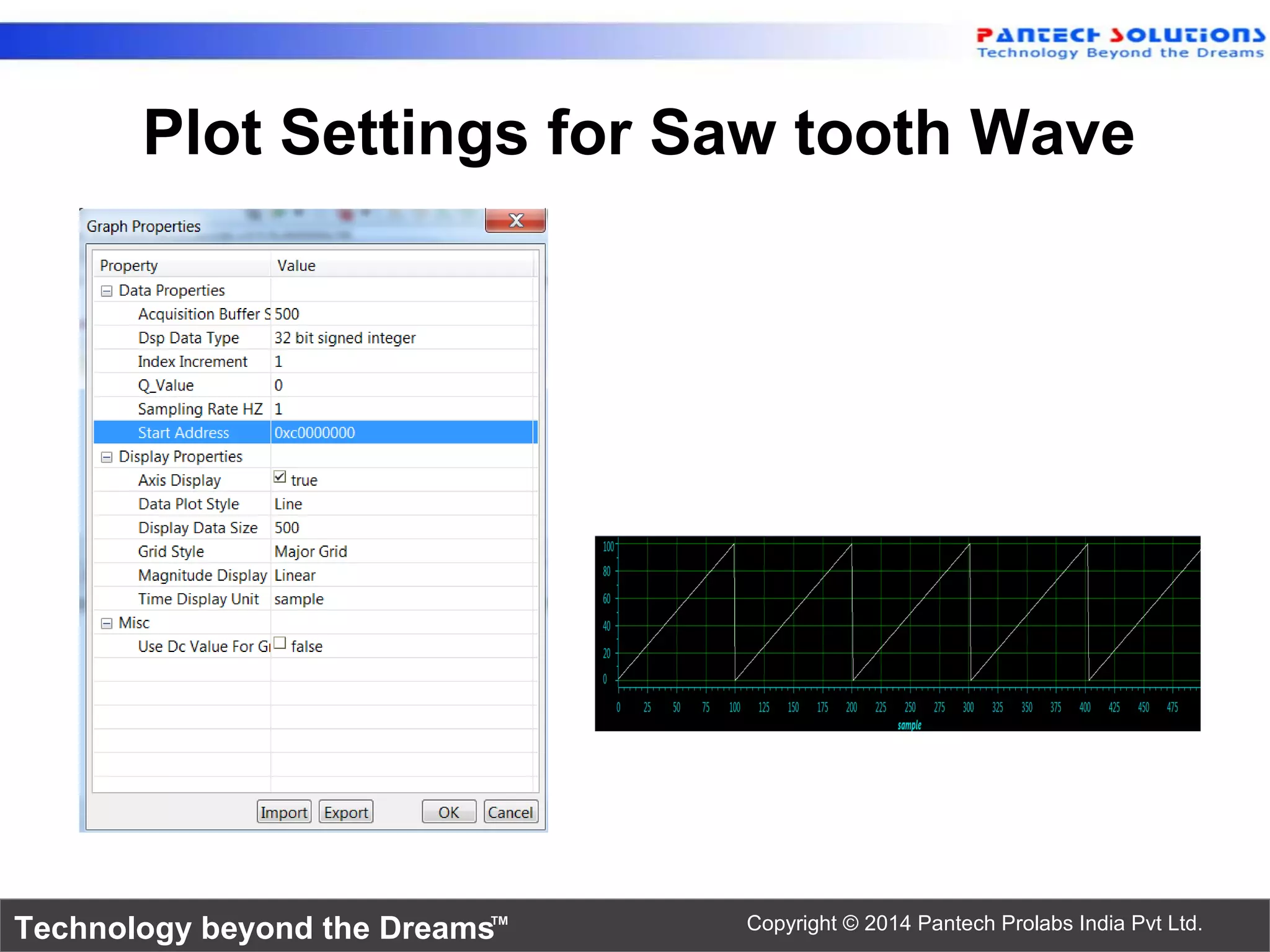

- 10. Technology beyond theDreams™ Copyright © 2014 Pantech Prolabs India Pvt Ltd. Plot Settings for Saw tooth Wave
