Tutorial: Using GoBGP as an IXP connecting router

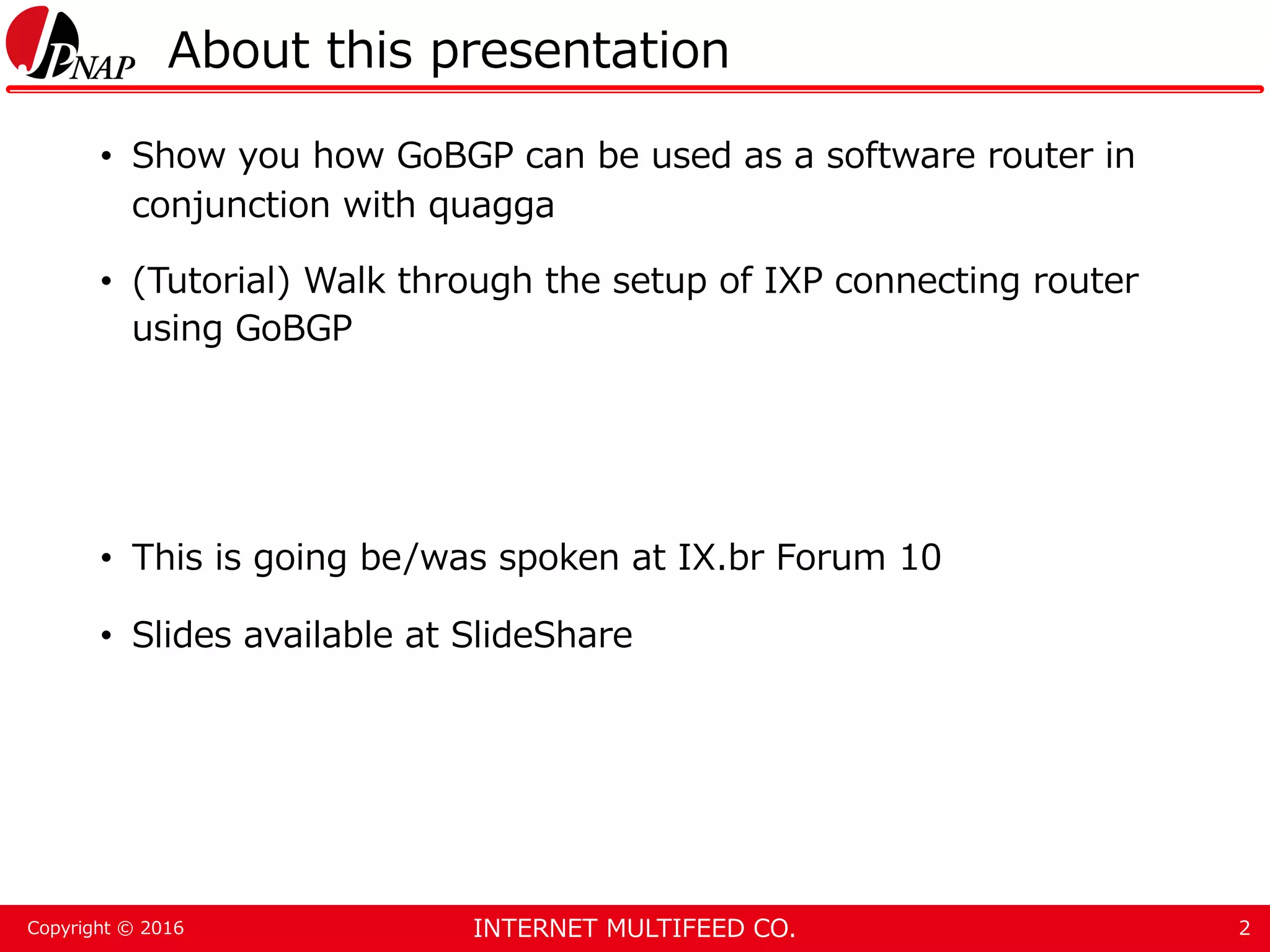

INTERNET MULTIFEED CO.Copyright © 2016 About this presentation • Show you how GoBGP can be used as a software router in conjunction with quagga • (Tutorial) Walk through the setup of IXP connecting router using GoBGP • This is going be/was spoken at IX.br Forum 10 • Slides available at SlideShare 2

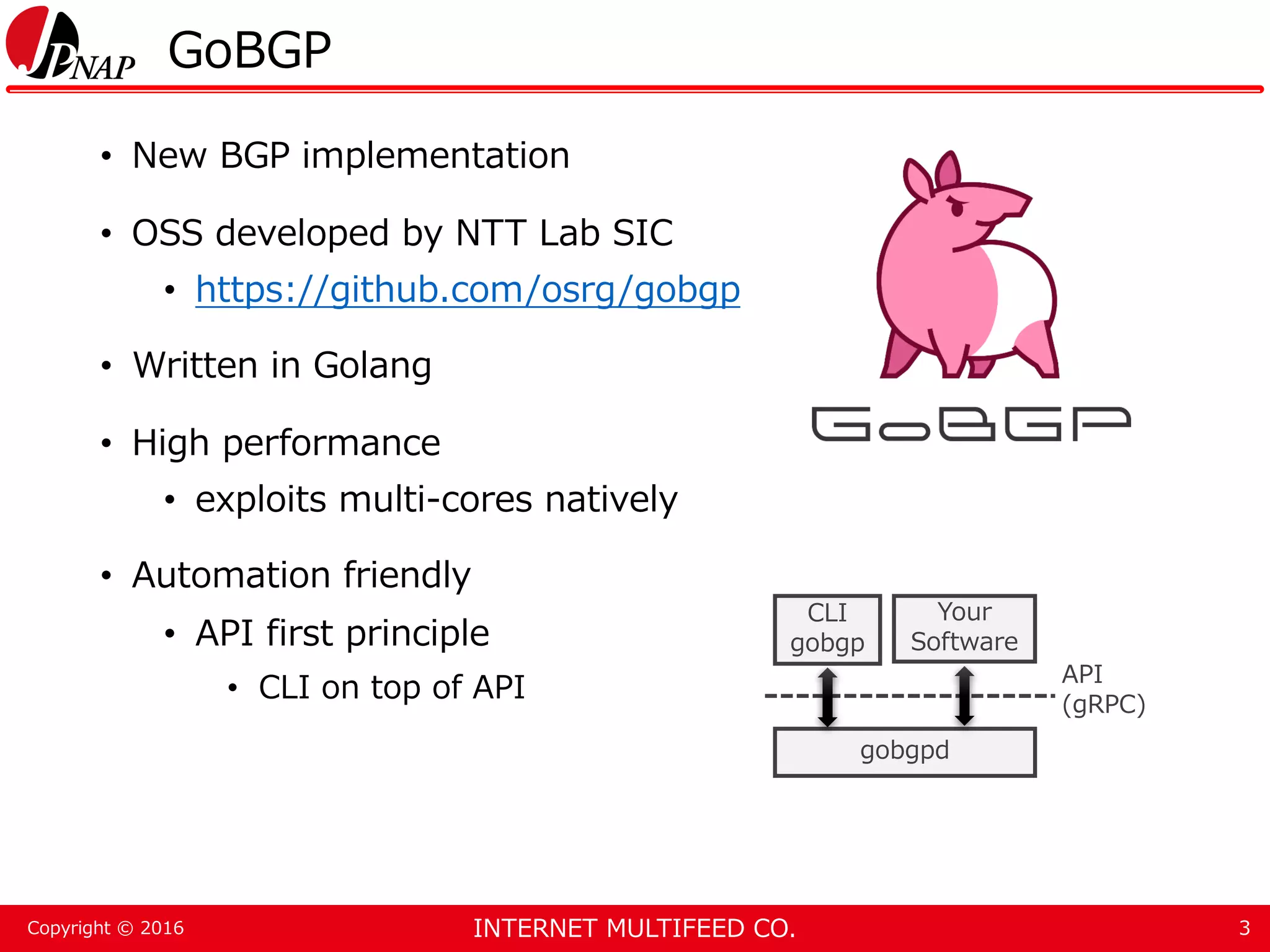

INTERNET MULTIFEED CO.Copyright © 2016 GoBGP • New BGP implementation • OSS developed by NTT Lab SIC • https://github.com/osrg/gobgp • Written in Golang • High performance • exploits multi-cores natively • Automation friendly • API first principle • CLI on top of API 3 gobgpd CLI gobgp Your Software API (gRPC)

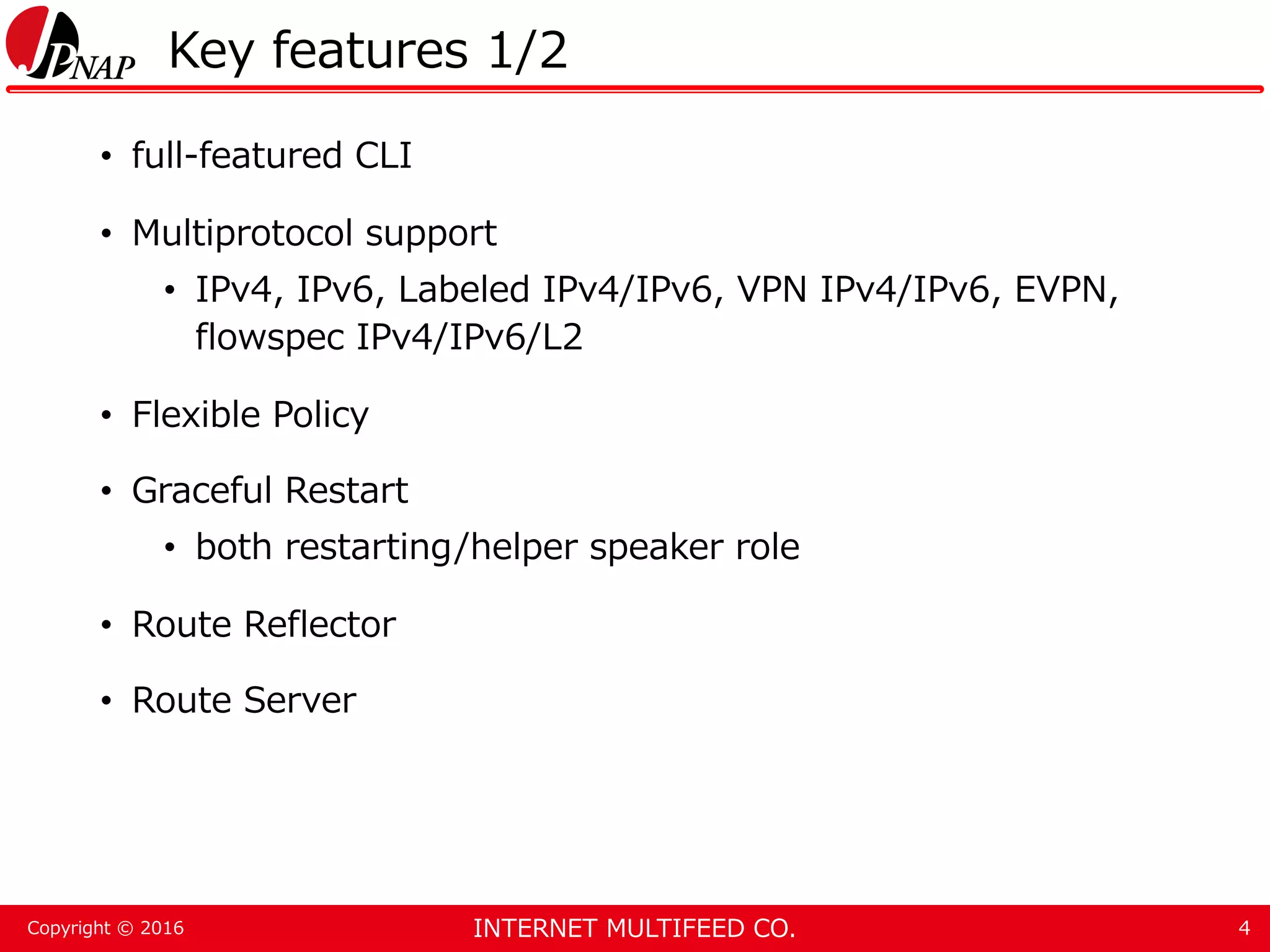

INTERNET MULTIFEED CO.Copyright © 2016 Key features 1/2 • full-featured CLI • Multiprotocol support • IPv4, IPv6, Labeled IPv4/IPv6, VPN IPv4/IPv6, EVPN, flowspec IPv4/IPv6/L2 • Flexible Policy • Graceful Restart • both restarting/helper speaker role • Route Reflector • Route Server 4

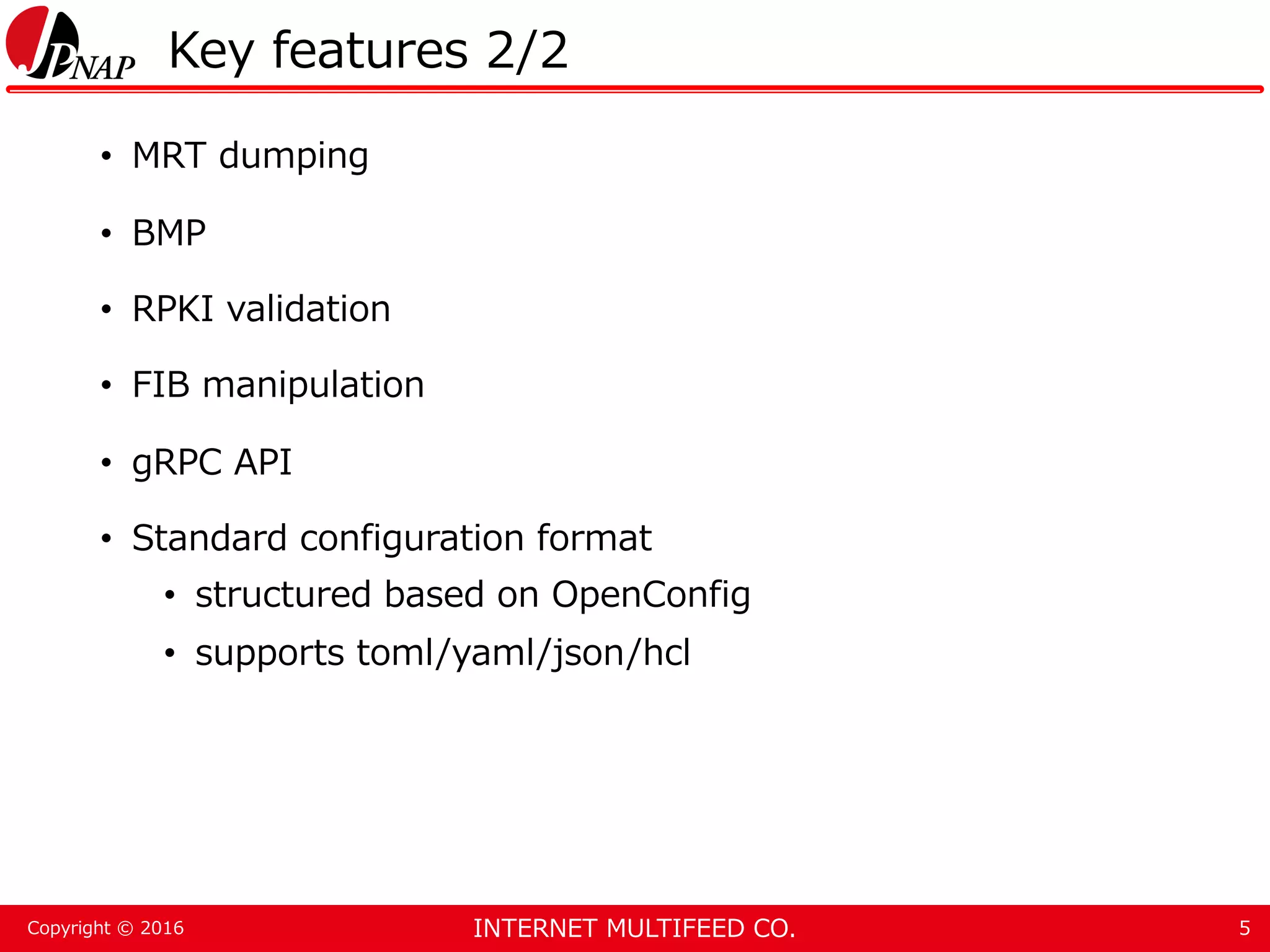

INTERNET MULTIFEED CO.Copyright © 2016 Key features 2/2 • MRT dumping • BMP • RPKI validation • FIB manipulation • gRPC API • Standard configuration format • structured based on OpenConfig • supports toml/yaml/json/hcl 5

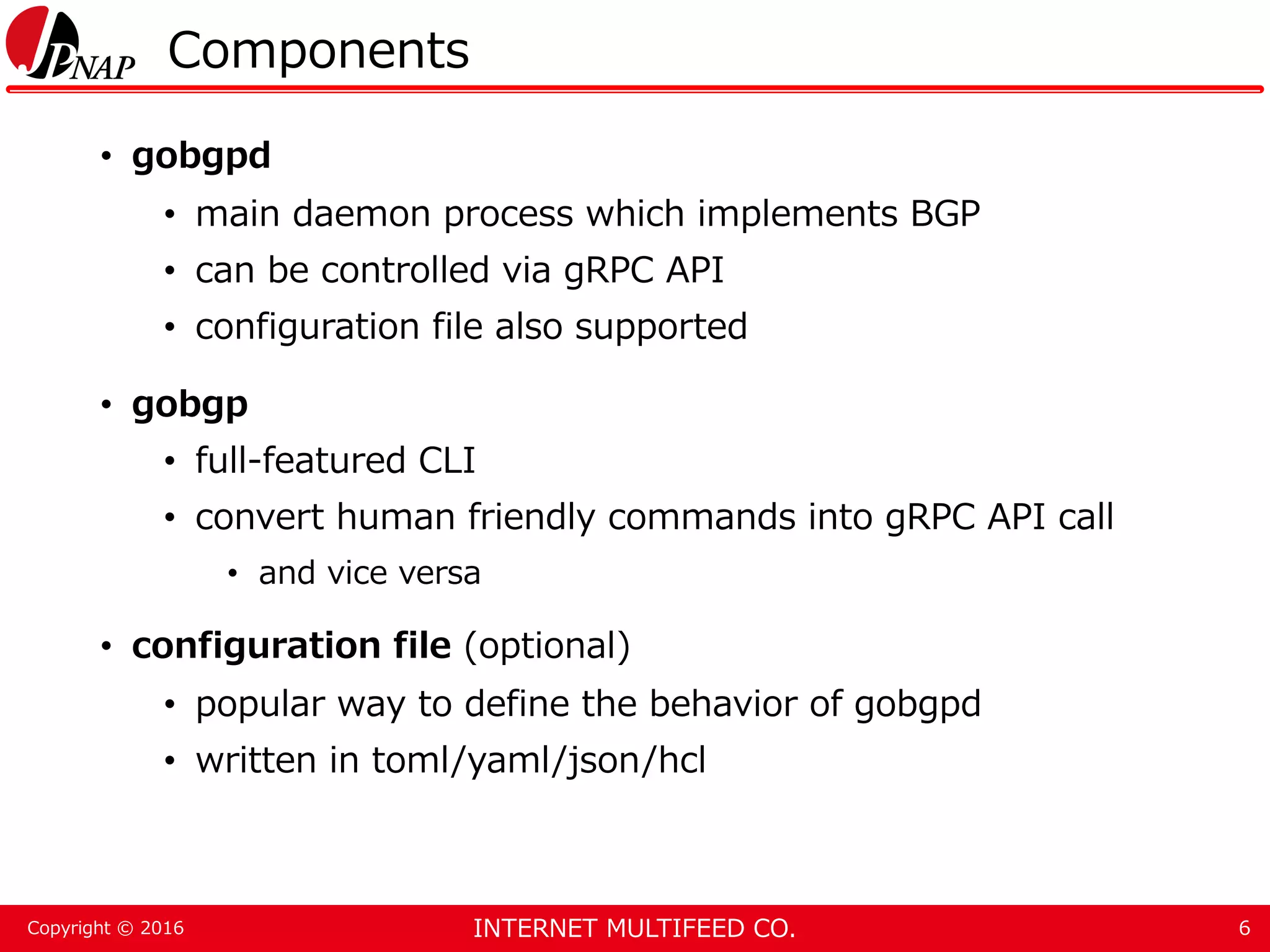

INTERNET MULTIFEED CO.Copyright © 2016 Components • gobgpd • main daemon process which implements BGP • can be controlled via gRPC API • configuration file also supported • gobgp • full-featured CLI • convert human friendly commands into gRPC API call • and vice versa • configuration file (optional) • popular way to define the behavior of gobgpd • written in toml/yaml/json/hcl 6

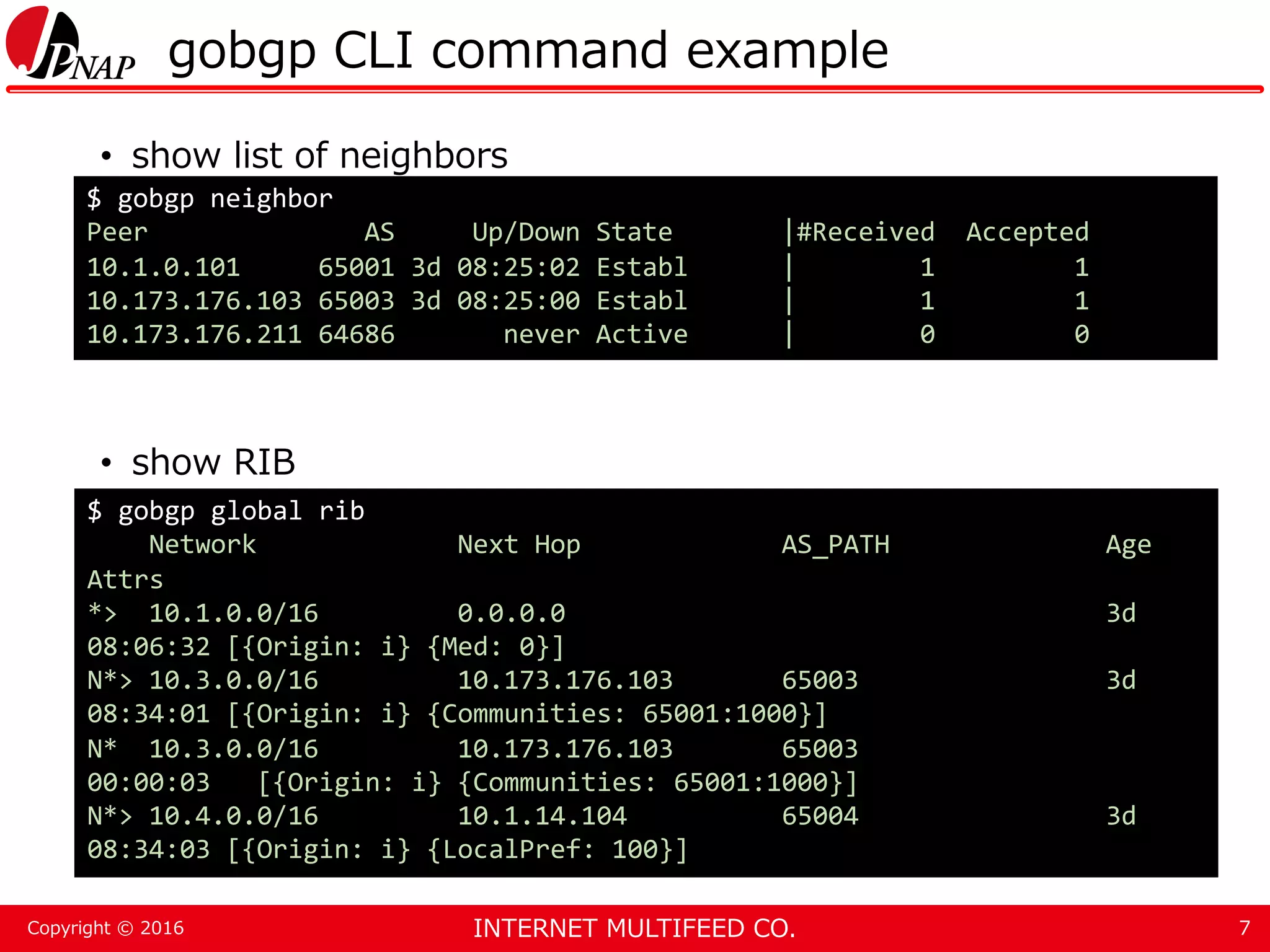

INTERNET MULTIFEED CO.Copyright © 2016 gobgp CLI command example • show list of neighbors • show RIB 7 $ gobgp neighbor Peer AS Up/Down State |#Received Accepted 10.1.0.101 65001 3d 08:25:02 Establ | 1 1 10.173.176.103 65003 3d 08:25:00 Establ | 1 1 10.173.176.211 64686 never Active | 0 0 $ gobgp global rib Network Next Hop AS_PATH Age Attrs *> 10.1.0.0/16 0.0.0.0 3d 08:06:32 [{Origin: i} {Med: 0}] N*> 10.3.0.0/16 10.173.176.103 65003 3d 08:34:01 [{Origin: i} {Communities: 65001:1000}] N* 10.3.0.0/16 10.173.176.103 65003 00:00:03 [{Origin: i} {Communities: 65001:1000}] N*> 10.4.0.0/16 10.1.14.104 65004 3d 08:34:03 [{Origin: i} {LocalPref: 100}]

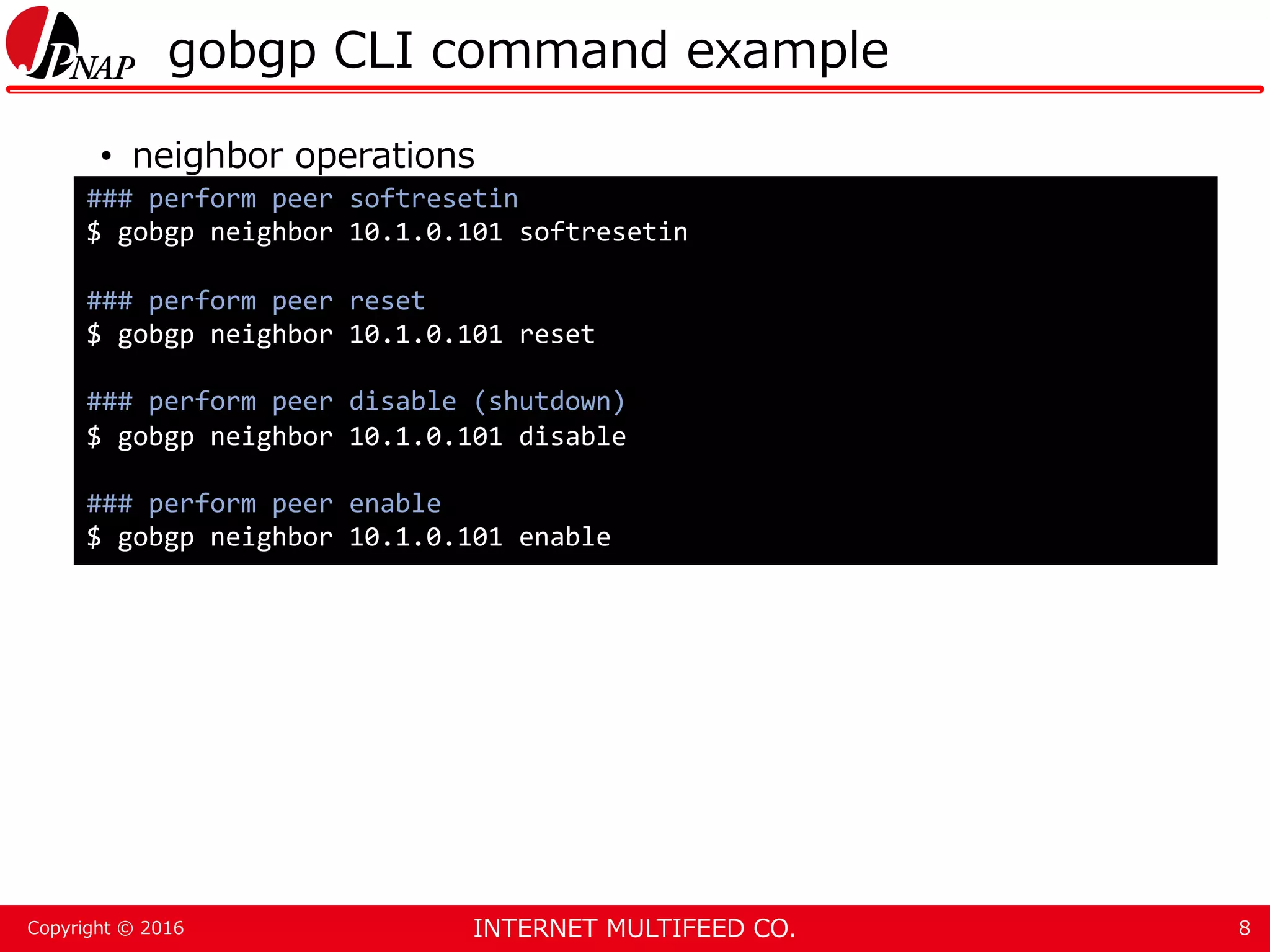

INTERNET MULTIFEED CO.Copyright © 2016 gobgp CLI command example • neighbor operations 8 ### perform peer softresetin $ gobgp neighbor 10.1.0.101 softresetin ### perform peer reset $ gobgp neighbor 10.1.0.101 reset ### perform peer disable (shutdown) $ gobgp neighbor 10.1.0.101 disable ### perform peer enable $ gobgp neighbor 10.1.0.101 enable

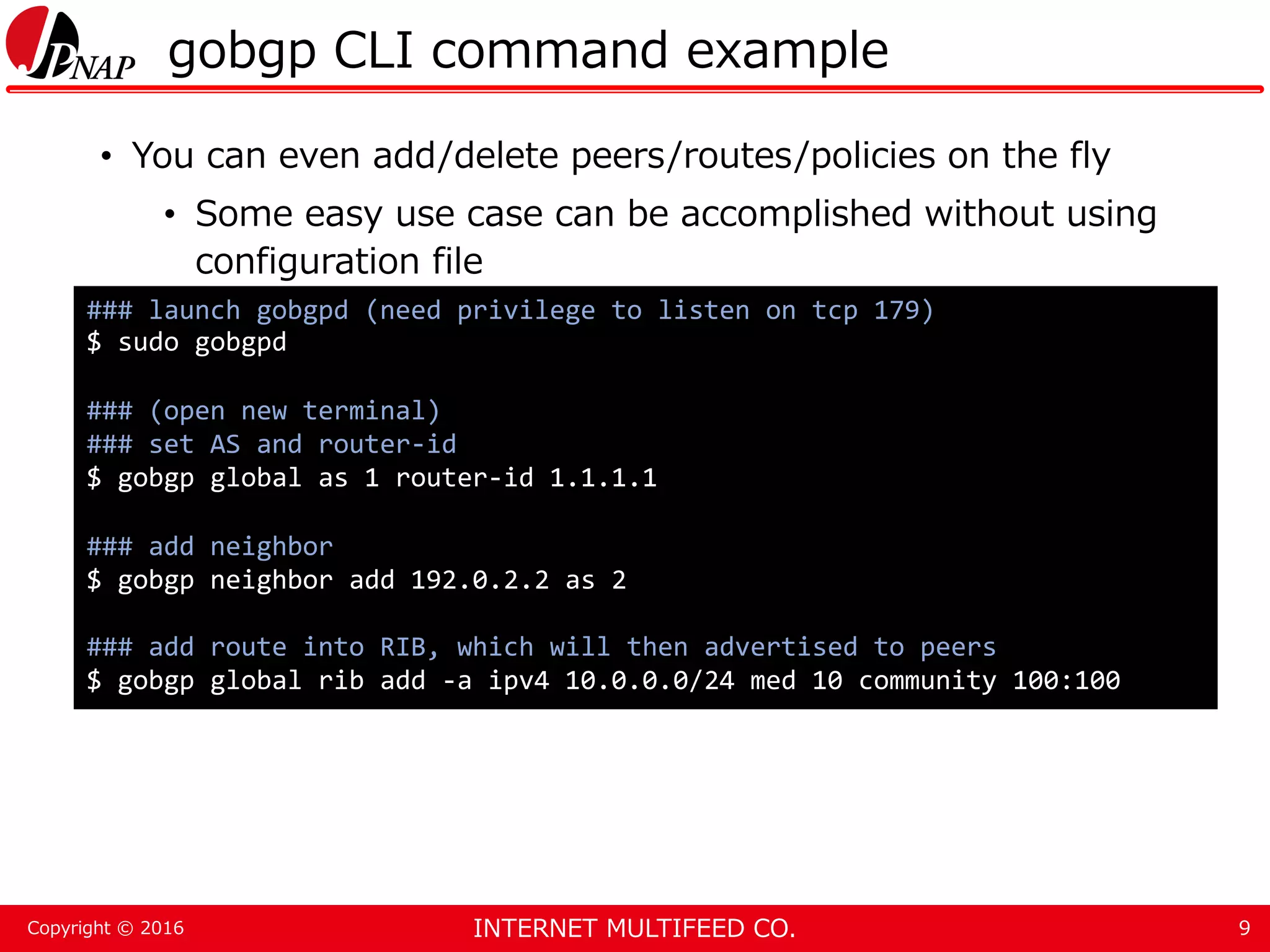

INTERNET MULTIFEED CO.Copyright © 2016 gobgp CLI command example • You can even add/delete peers/routes/policies on the fly • Some easy use case can be accomplished without using configuration file 9 ### launch gobgpd (need privilege to listen on tcp 179) $ sudo gobgpd ### (open new terminal) ### set AS and router-id $ gobgp global as 1 router-id 1.1.1.1 ### add neighbor $ gobgp neighbor add 192.0.2.2 as 2 ### add route into RIB, which will then advertised to peers $ gobgp global rib add -a ipv4 10.0.0.0/24 med 10 community 100:100

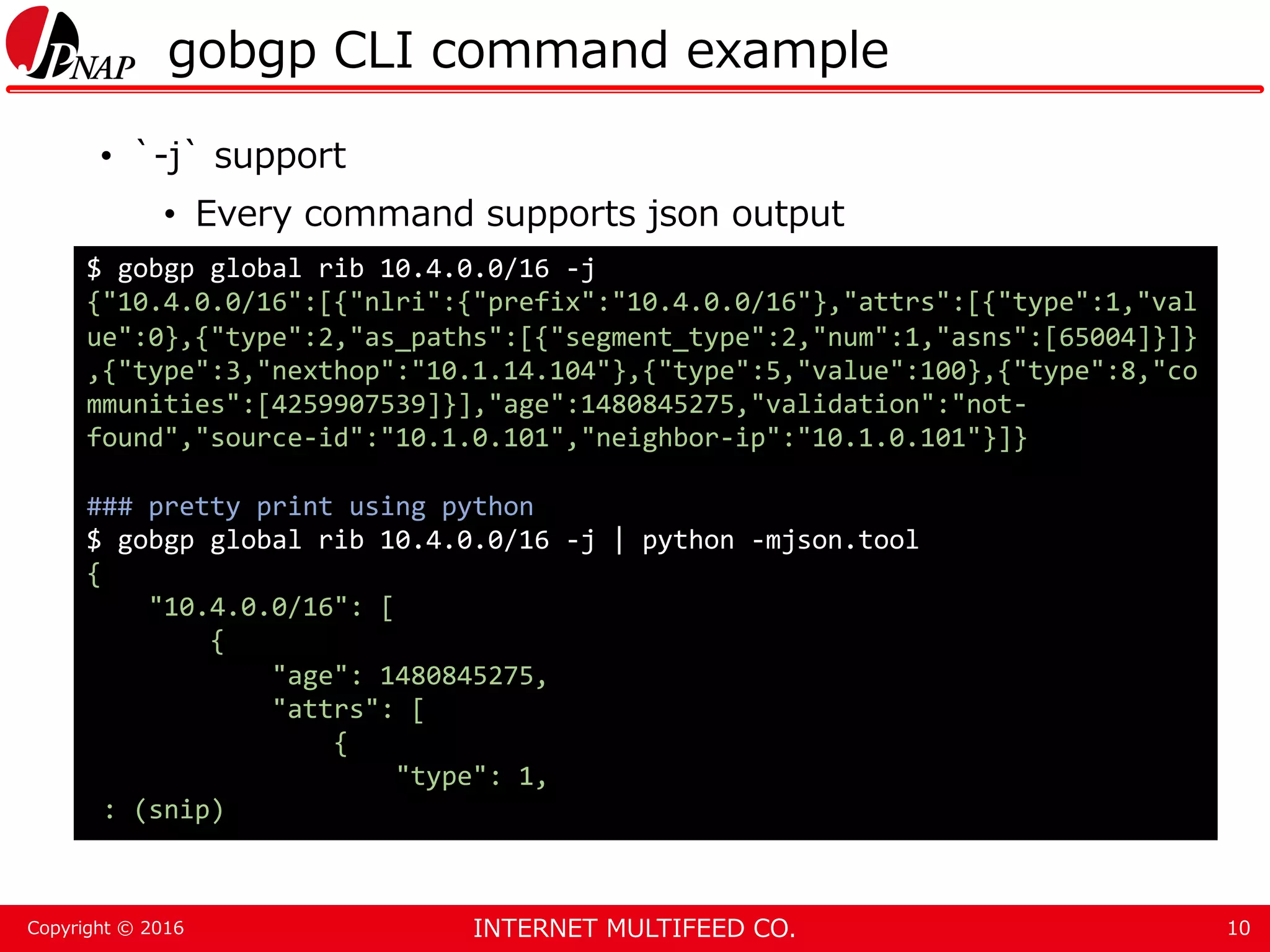

INTERNET MULTIFEED CO.Copyright © 2016 gobgp CLI command example • `-j` support • Every command supports json output 10 $ gobgp global rib 10.4.0.0/16 -j {"10.4.0.0/16":[{"nlri":{"prefix":"10.4.0.0/16"},"attrs":[{"type":1,"val ue":0},{"type":2,"as_paths":[{"segment_type":2,"num":1,"asns":[65004]}]} ,{"type":3,"nexthop":"10.1.14.104"},{"type":5,"value":100},{"type":8,"co mmunities":[4259907539]}],"age":1480845275,"validation":"not- found","source-id":"10.1.0.101","neighbor-ip":"10.1.0.101"}]} ### pretty print using python $ gobgp global rib 10.4.0.0/16 -j | python -mjson.tool { "10.4.0.0/16": [ { "age": 1480845275, "attrs": [ { "type": 1, : (snip)

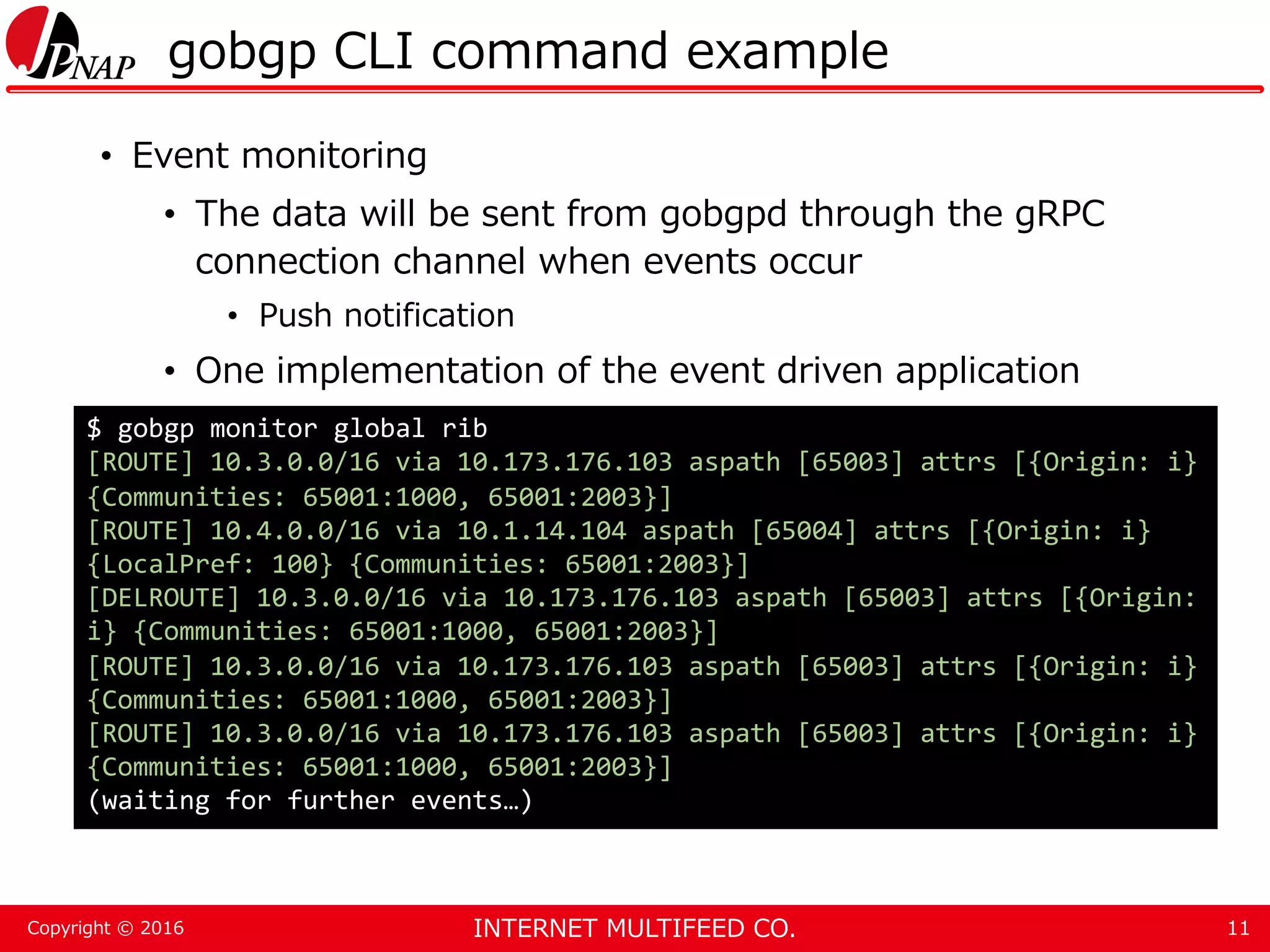

INTERNET MULTIFEED CO.Copyright © 2016 gobgp CLI command example • Event monitoring • The data will be sent from gobgpd through the gRPC connection channel when events occur • Push notification • One implementation of the event driven application 11 $ gobgp monitor global rib [ROUTE] 10.3.0.0/16 via 10.173.176.103 aspath [65003] attrs [{Origin: i} {Communities: 65001:1000, 65001:2003}] [ROUTE] 10.4.0.0/16 via 10.1.14.104 aspath [65004] attrs [{Origin: i} {LocalPref: 100} {Communities: 65001:2003}] [DELROUTE] 10.3.0.0/16 via 10.173.176.103 aspath [65003] attrs [{Origin: i} {Communities: 65001:1000, 65001:2003}] [ROUTE] 10.3.0.0/16 via 10.173.176.103 aspath [65003] attrs [{Origin: i} {Communities: 65001:1000, 65001:2003}] [ROUTE] 10.3.0.0/16 via 10.173.176.103 aspath [65003] attrs [{Origin: i} {Communities: 65001:1000, 65001:2003}] (waiting for further events…)

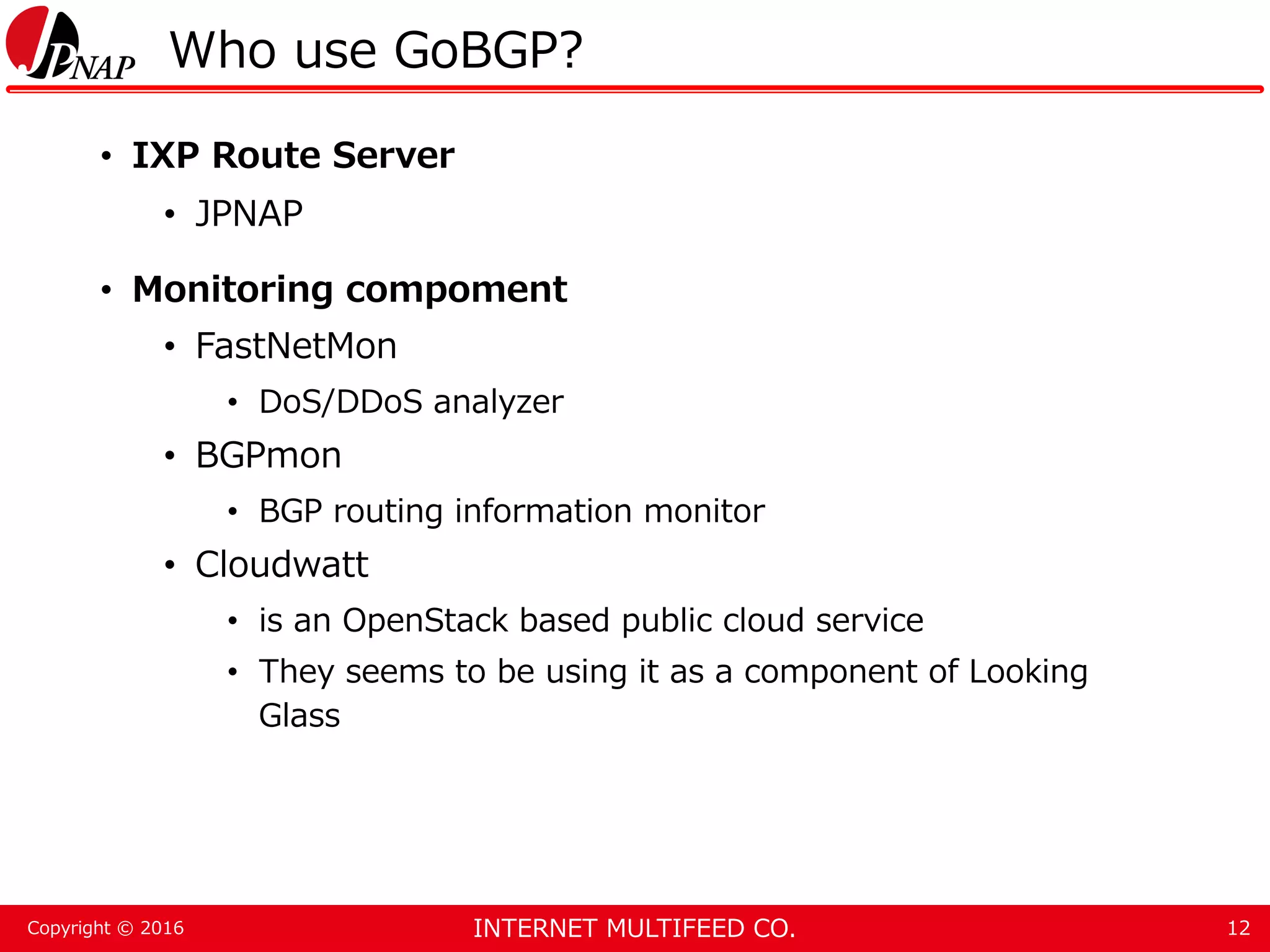

INTERNET MULTIFEED CO.Copyright © 2016 Who use GoBGP? • IXP Route Server • JPNAP • Monitoring compoment • FastNetMon • DoS/DDoS analyzer • BGPmon • BGP routing information monitor • Cloudwatt • is an OpenStack based public cloud service • They seems to be using it as a component of Looking Glass 12

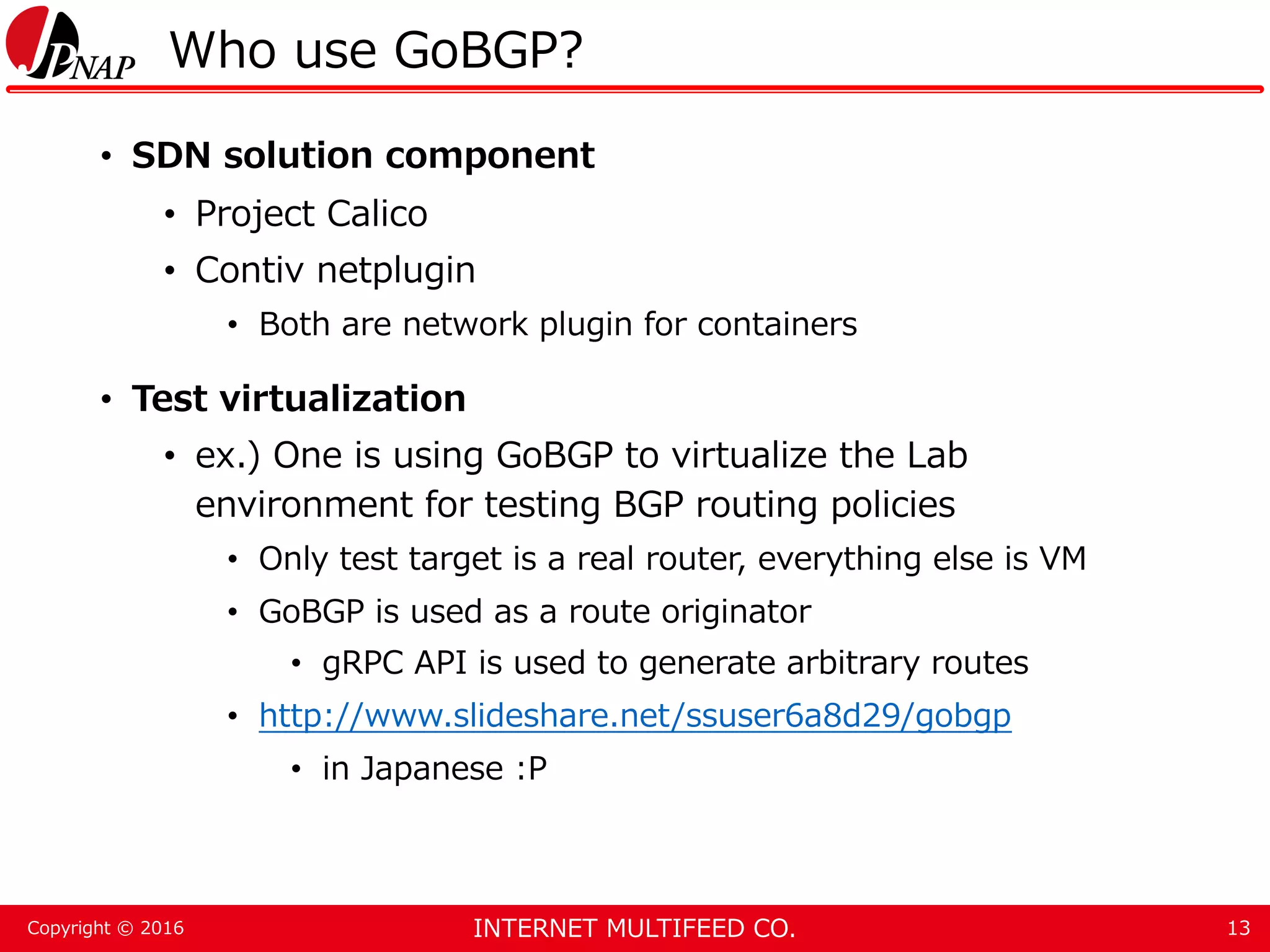

INTERNET MULTIFEED CO.Copyright © 2016 Who use GoBGP? • SDN solution component • Project Calico • Contiv netplugin • Both are network plugin for containers • Test virtualization • ex.) One is using GoBGP to virtualize the Lab environment for testing BGP routing policies • Only test target is a real router, everything else is VM • GoBGP is used as a route originator • gRPC API is used to generate arbitrary routes • http://www.slideshare.net/ssuser6a8d29/gobgp • in Japanese :P 13

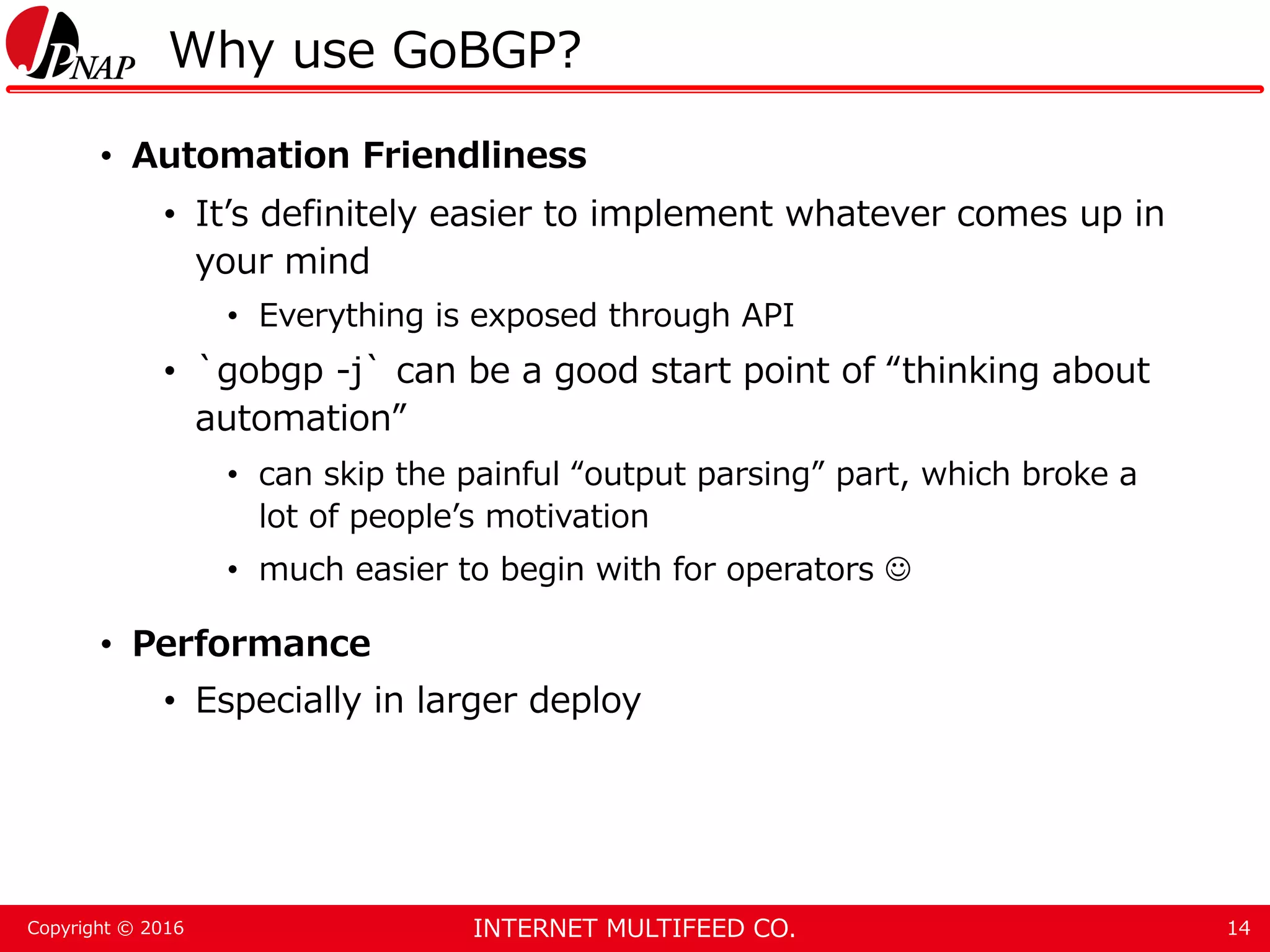

INTERNET MULTIFEED CO.Copyright © 2016 Why use GoBGP? • Automation Friendliness • It’s definitely easier to implement whatever comes up in your mind • Everything is exposed through API • `gobgp -j` can be a good start point of “thinking about automation” • can skip the painful “output parsing” part, which broke a lot of people’s motivation • much easier to begin with for operators  • Performance • Especially in larger deploy 14

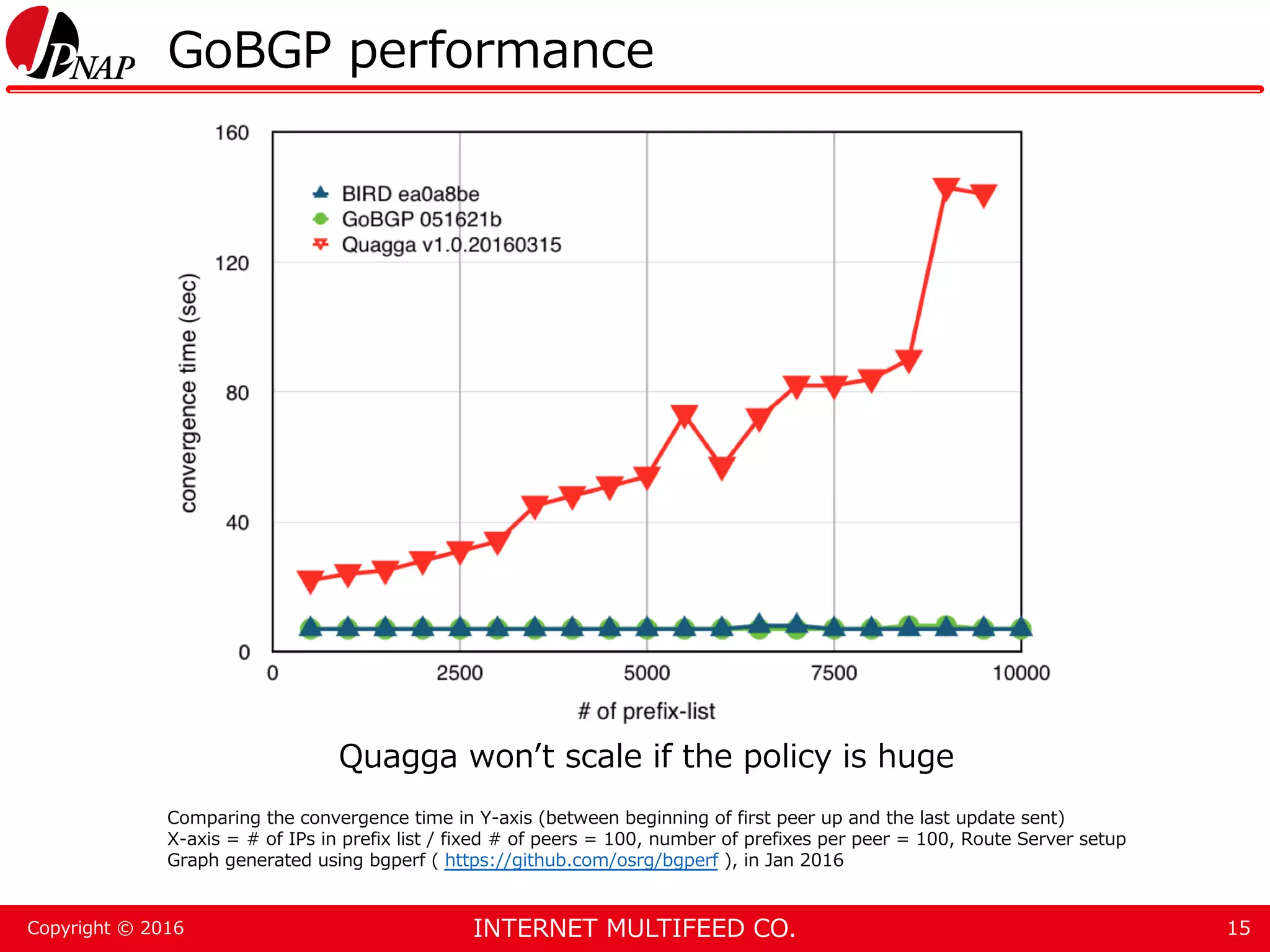

INTERNET MULTIFEED CO.Copyright © 2016 GoBGP performance 15 Quagga won’t scale if the policy is huge Comparing the convergence time in Y-axis (between beginning of first peer up and the last update sent) X-axis = # of IPs in prefix list / fixed # of peers = 100, number of prefixes per peer = 100, Route Server setup Graph generated using bgperf ( https://github.com/osrg/bgperf ), in Jan 2016

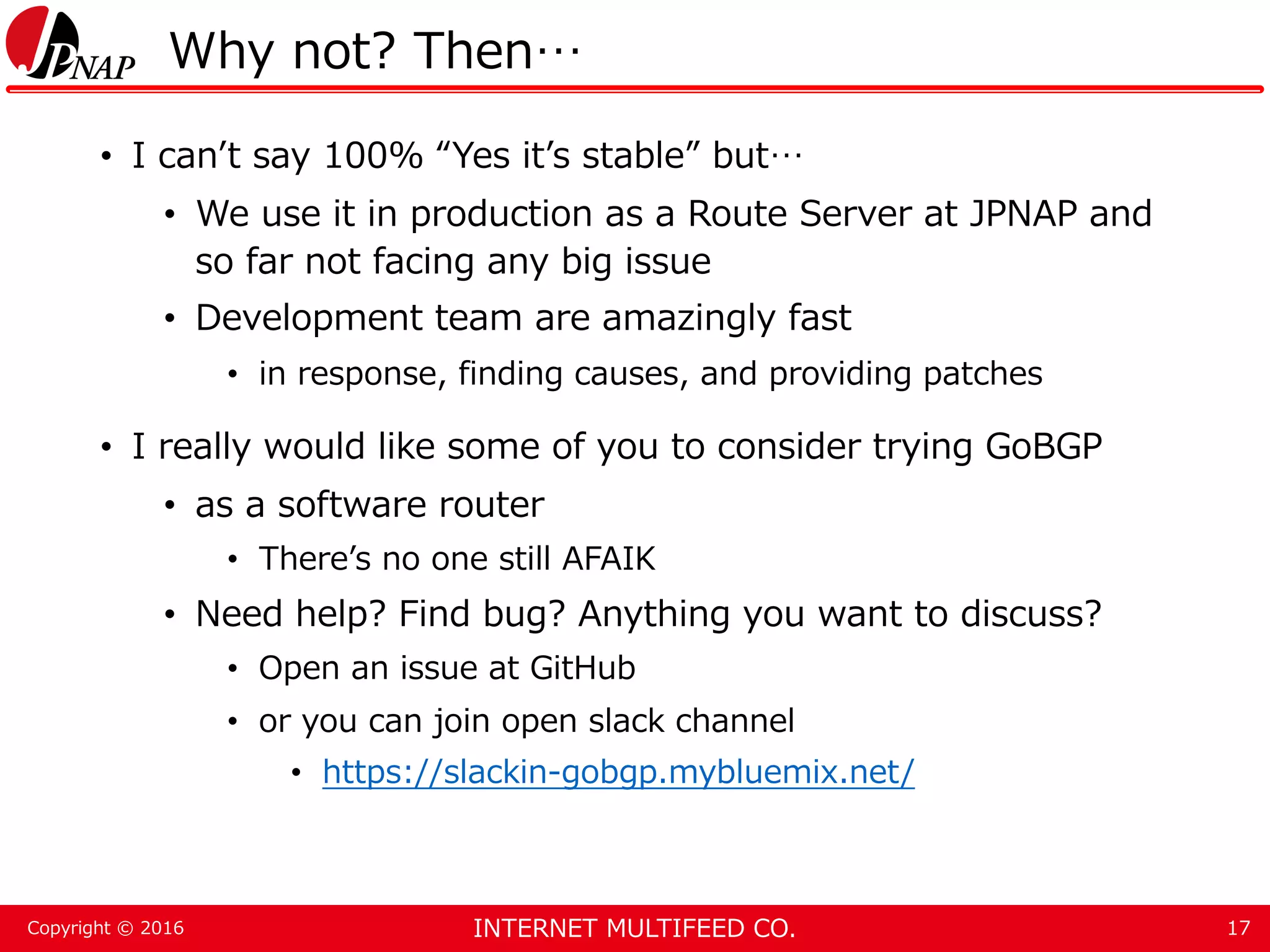

INTERNET MULTIFEED CO.Copyright © 2016 Why not? Then… • I can’t say 100% “Yes it’s stable” but… • We use it in production as a Route Server at JPNAP and so far not facing any big issue • Development team are amazingly fast • in response, finding causes, and providing patches • I really would like some of you to consider trying GoBGP • as a software router • There’s no one still AFAIK • Need help? Find bug? Anything you want to discuss? • Open an issue at GitHub • or you can join open slack channel • https://slackin-gobgp.mybluemix.net/ 17

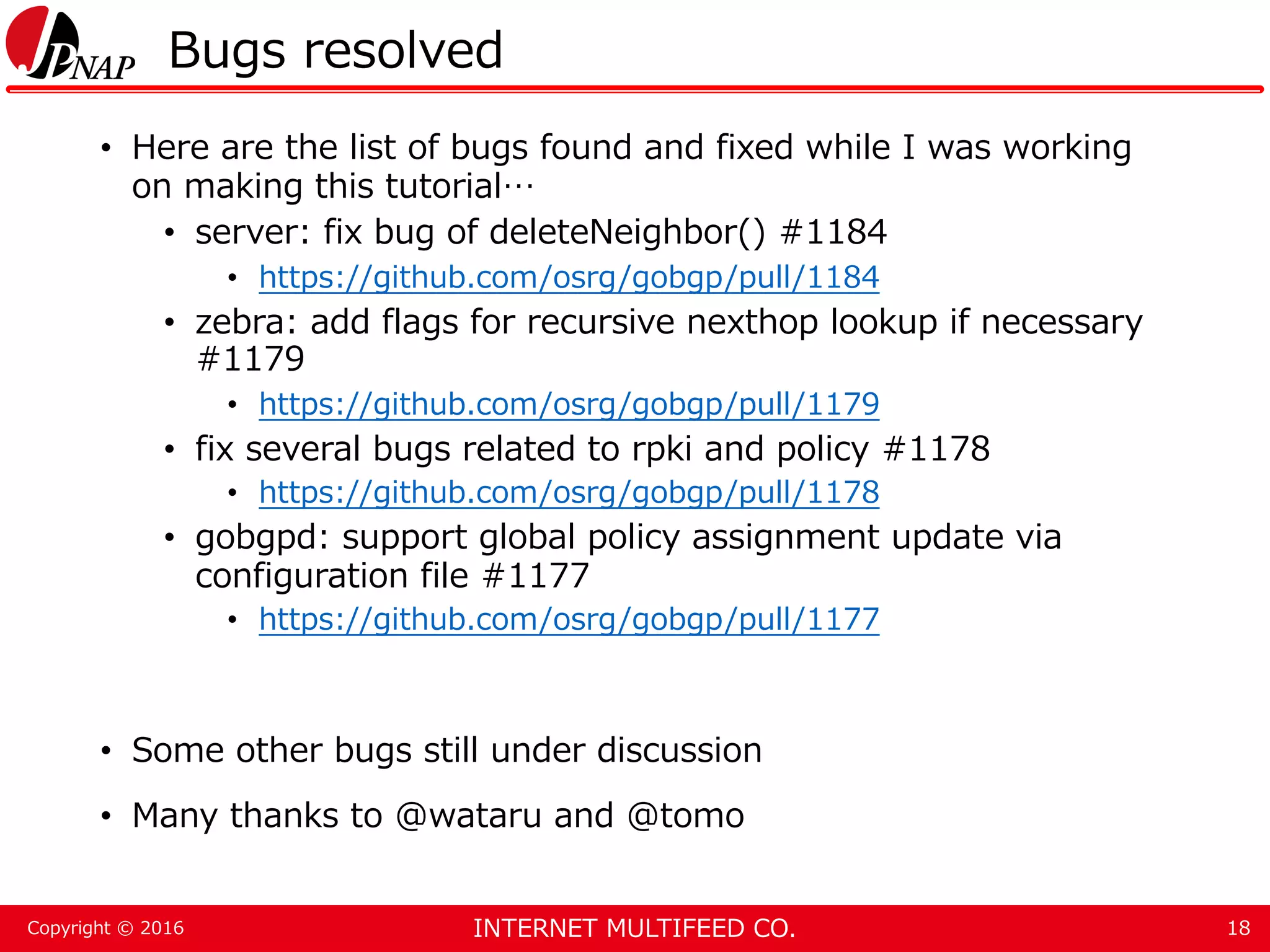

INTERNET MULTIFEED CO.Copyright © 2016 Bugs resolved • Here are the list of bugs found and fixed while I was working on making this tutorial… • server: fix bug of deleteNeighbor() #1184 • https://github.com/osrg/gobgp/pull/1184 • zebra: add flags for recursive nexthop lookup if necessary #1179 • https://github.com/osrg/gobgp/pull/1179 • fix several bugs related to rpki and policy #1178 • https://github.com/osrg/gobgp/pull/1178 • gobgpd: support global policy assignment update via configuration file #1177 • https://github.com/osrg/gobgp/pull/1177 • Some other bugs still under discussion • Many thanks to @wataru and @tomo 18

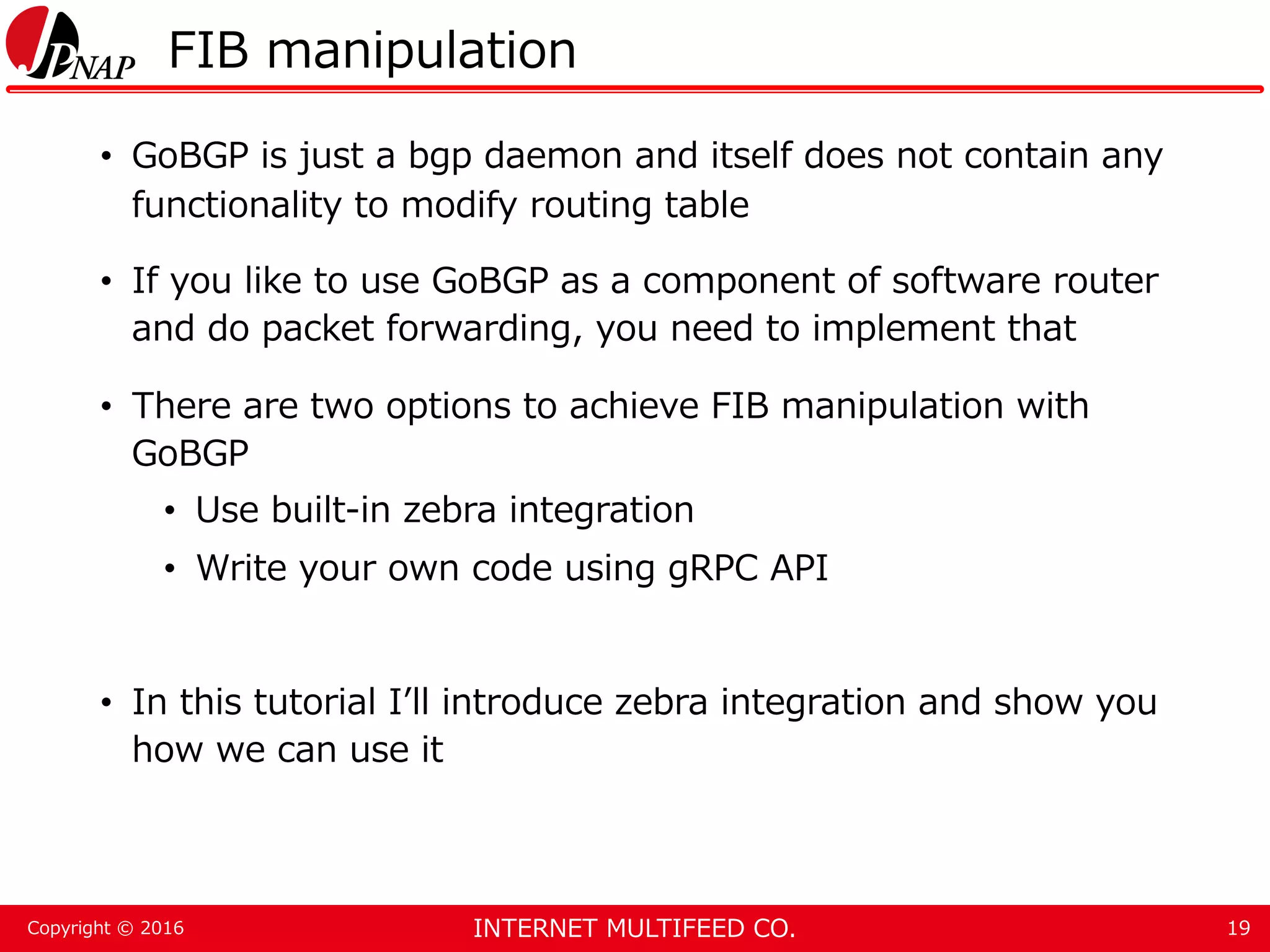

INTERNET MULTIFEED CO.Copyright © 2016 FIB manipulation • GoBGP is just a bgp daemon and itself does not contain any functionality to modify routing table • If you like to use GoBGP as a component of software router and do packet forwarding, you need to implement that • There are two options to achieve FIB manipulation with GoBGP • Use built-in zebra integration • Write your own code using gRPC API • In this tutorial I’ll introduce zebra integration and show you how we can use it 19

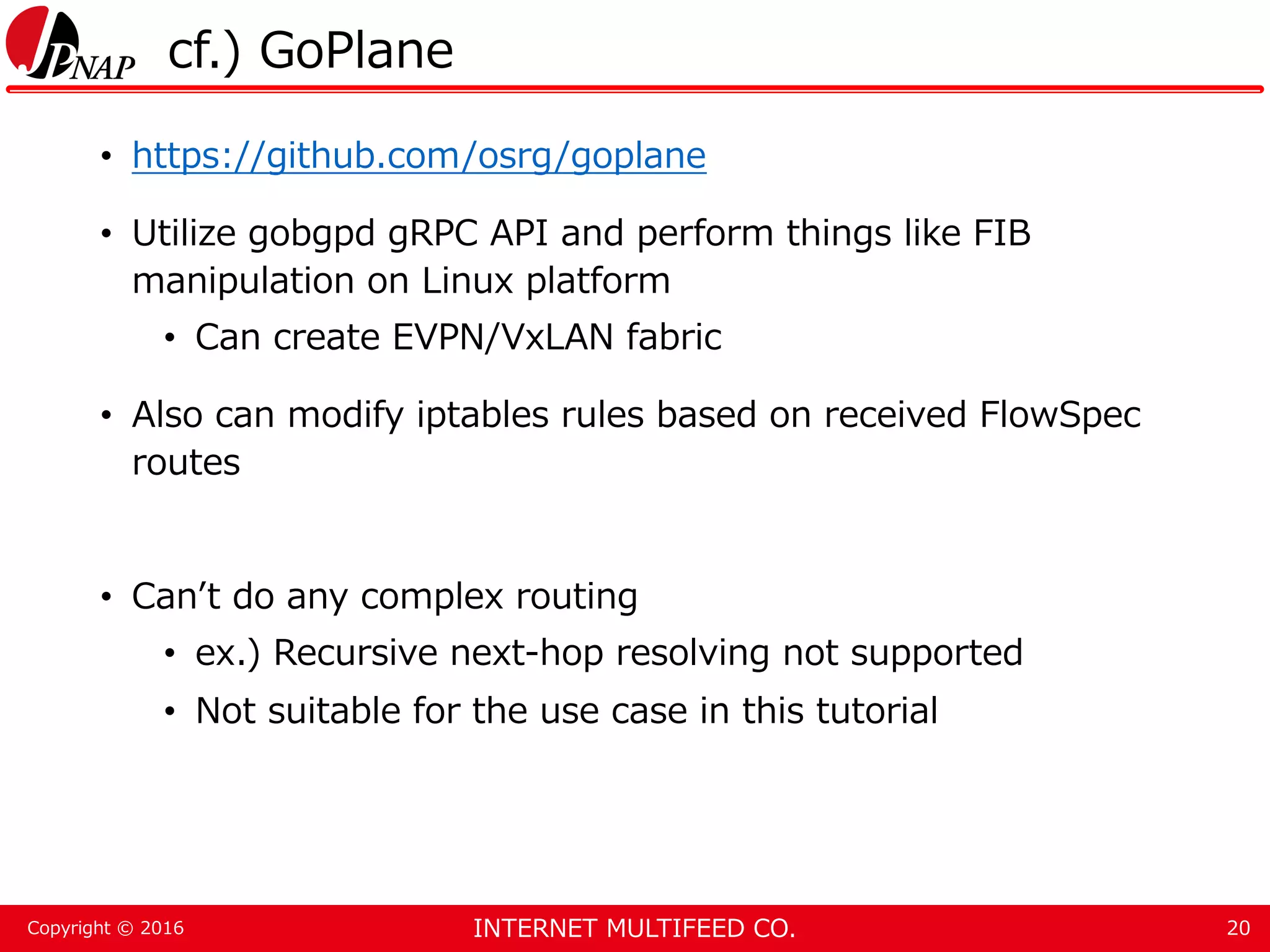

INTERNET MULTIFEED CO.Copyright © 2016 cf.) GoPlane • https://github.com/osrg/goplane • Utilize gobgpd gRPC API and perform things like FIB manipulation on Linux platform • Can create EVPN/VxLAN fabric • Also can modify iptables rules based on received FlowSpec routes • Can’t do any complex routing • ex.) Recursive next-hop resolving not supported • Not suitable for the use case in this tutorial 20

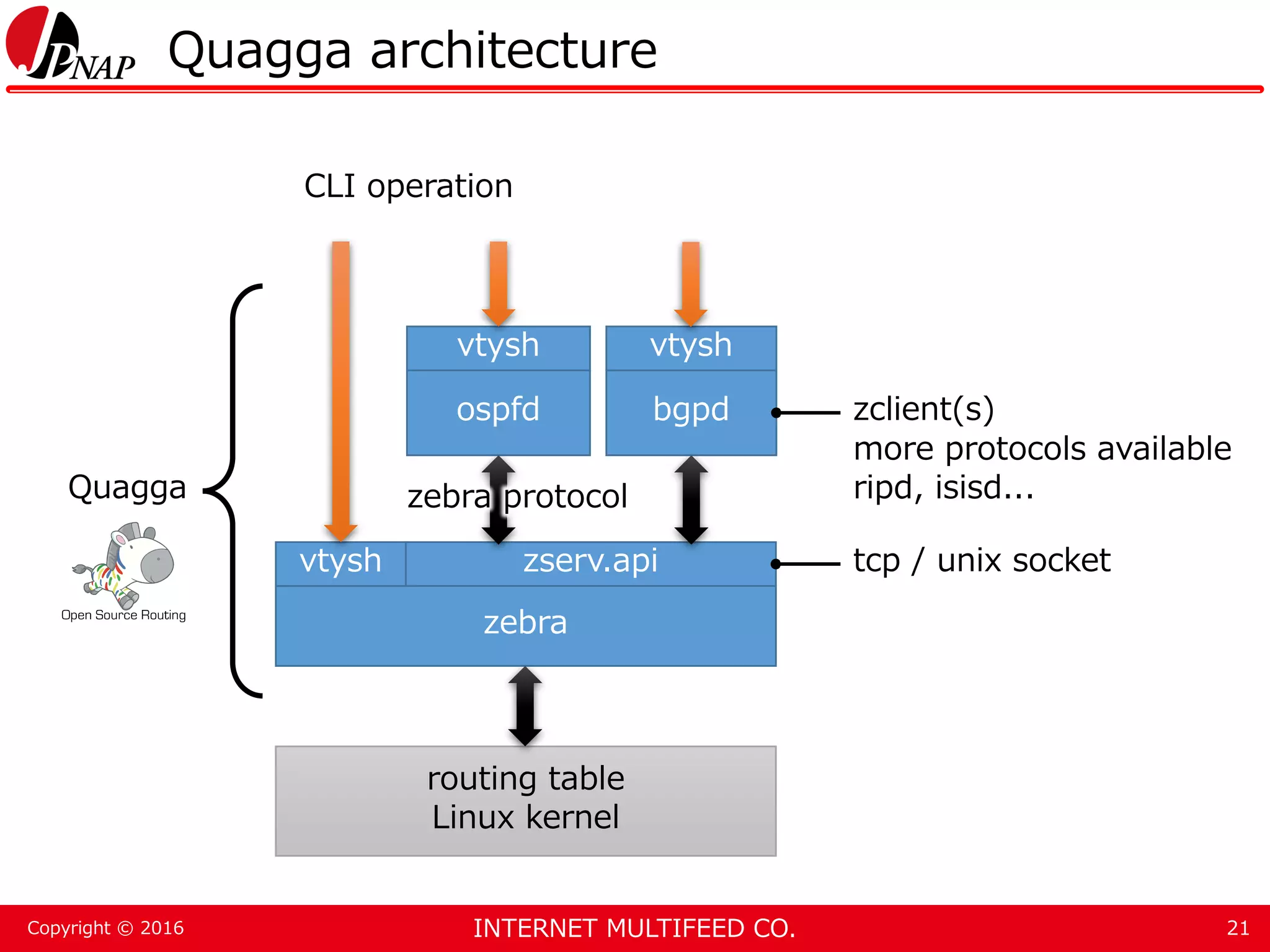

INTERNET MULTIFEED CO.Copyright © 2016 Quagga architecture 21 zserv.api zebra routing table Linux kernel bgpdospfd vtysh vtysh vtysh CLI operation tcp / unix socket zclient(s) more protocols available ripd, isisd...Quagga zebra protocol

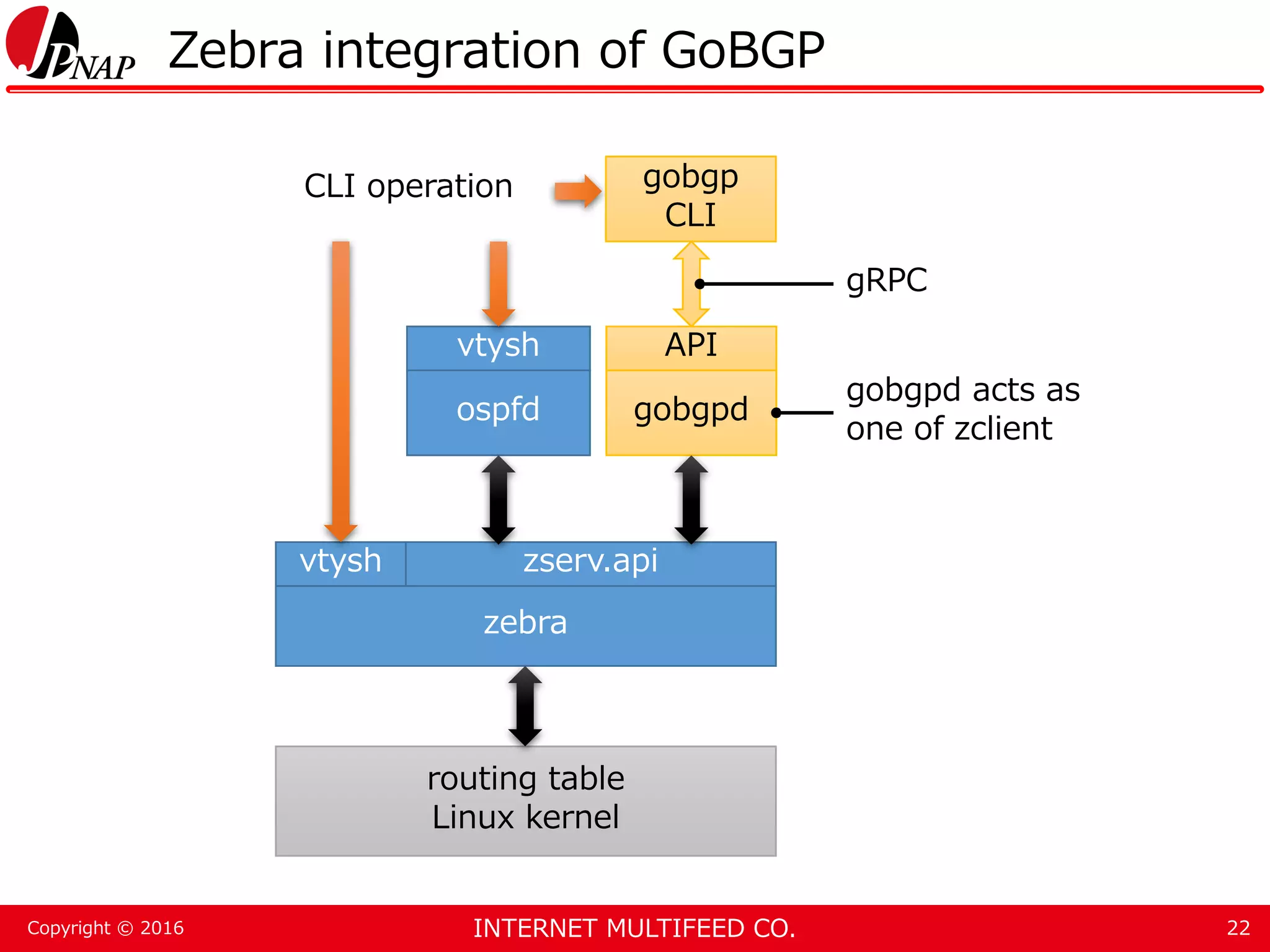

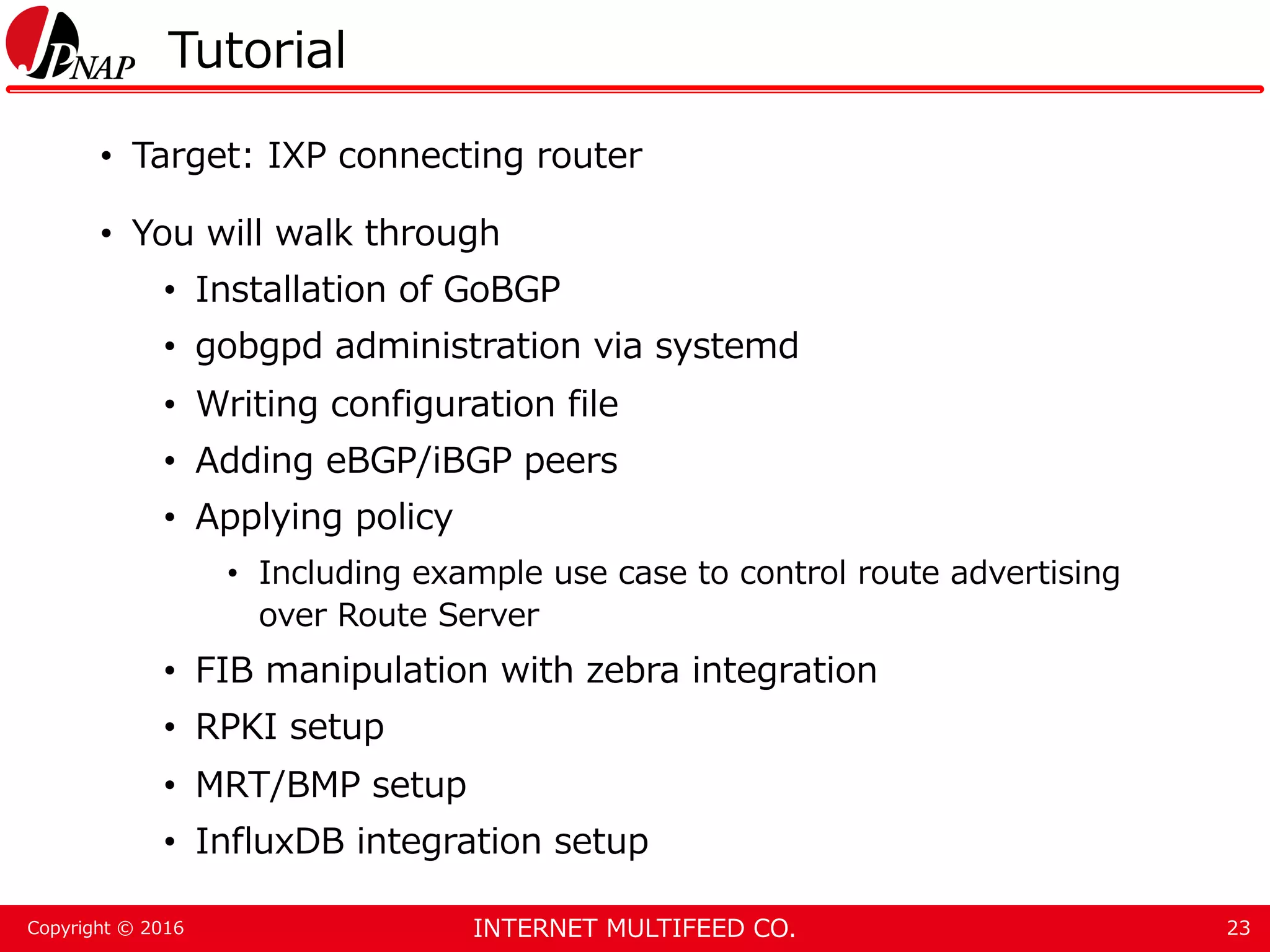

INTERNET MULTIFEED CO.Copyright © 2016 Tutorial • Target: IXP connecting router • You will walk through • Installation of GoBGP • gobgpd administration via systemd • Writing configuration file • Adding eBGP/iBGP peers • Applying policy • Including example use case to control route advertising over Route Server • FIB manipulation with zebra integration • RPKI setup • MRT/BMP setup • InfluxDB integration setup 23

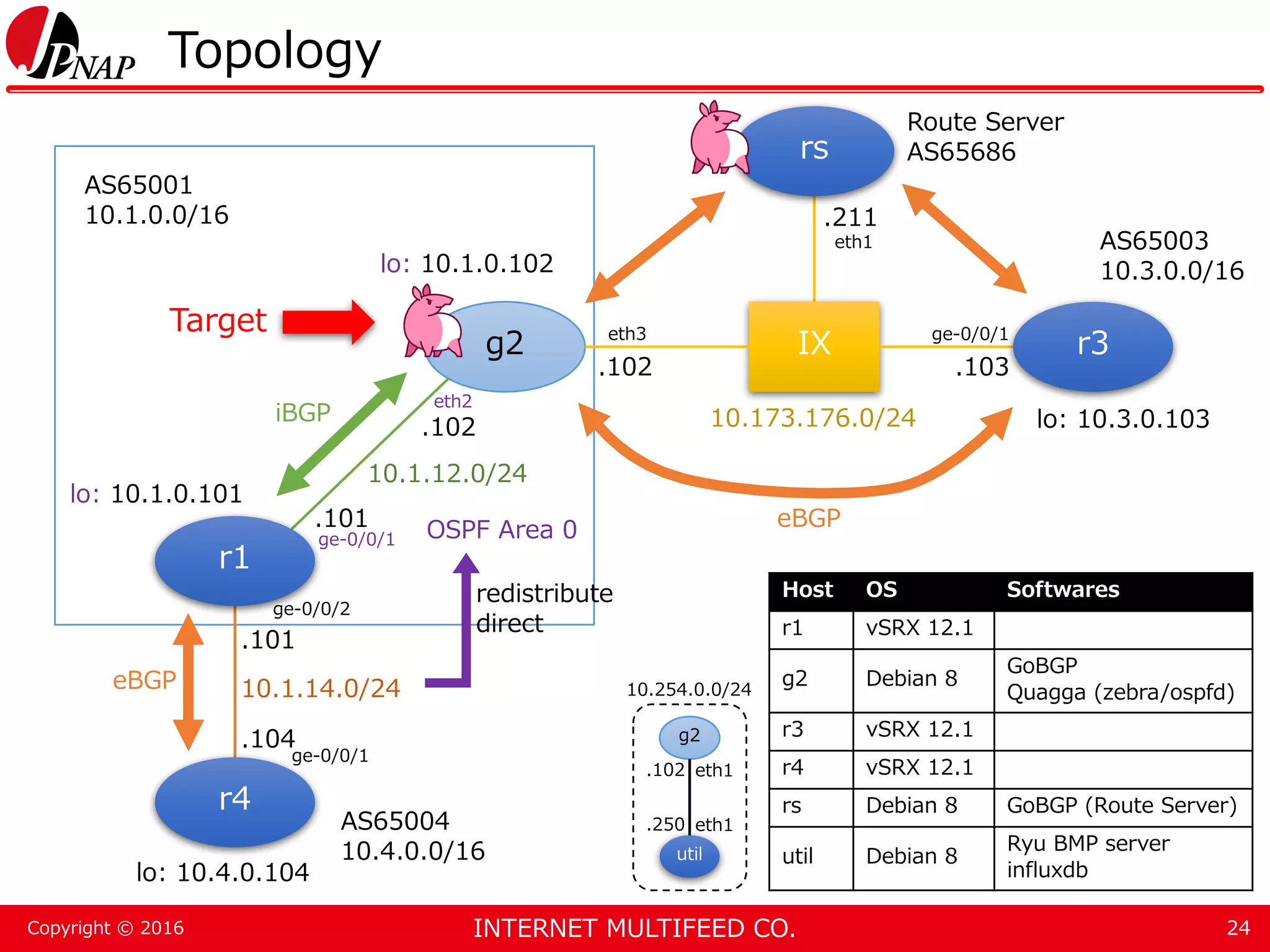

INTERNET MULTIFEED CO.Copyright © 2016 Topology 24 lo: 10.3.0.103 AS65004 10.4.0.0/16 AS65001 10.1.0.0/16 lo: 10.1.0.102 lo: 10.1.0.101 10.1.12.0/24 10.173.176.0/24 .211 .103.102 .102 .101 10.1.14.0/24 .101 .104 g2 IX r3 r1 r4 rs OSPF Area 0 eth2 eth3 eth1 ge-0/0/1 ge-0/0/1 ge-0/0/2 ge-0/0/1 redistribute direct lo: 10.4.0.104 AS65003 10.3.0.0/16 eBGP eBGP iBGP Route Server AS65686 Target Host OS Softwares r1 vSRX 12.1 g2 Debian 8 GoBGP Quagga (zebra/ospfd) r3 vSRX 12.1 r4 vSRX 12.1 rs Debian 8 GoBGP (Route Server) util Debian 8 Ryu BMP server influxdb g2 util eth1 eth1 .102 .250 10.254.0.0/24

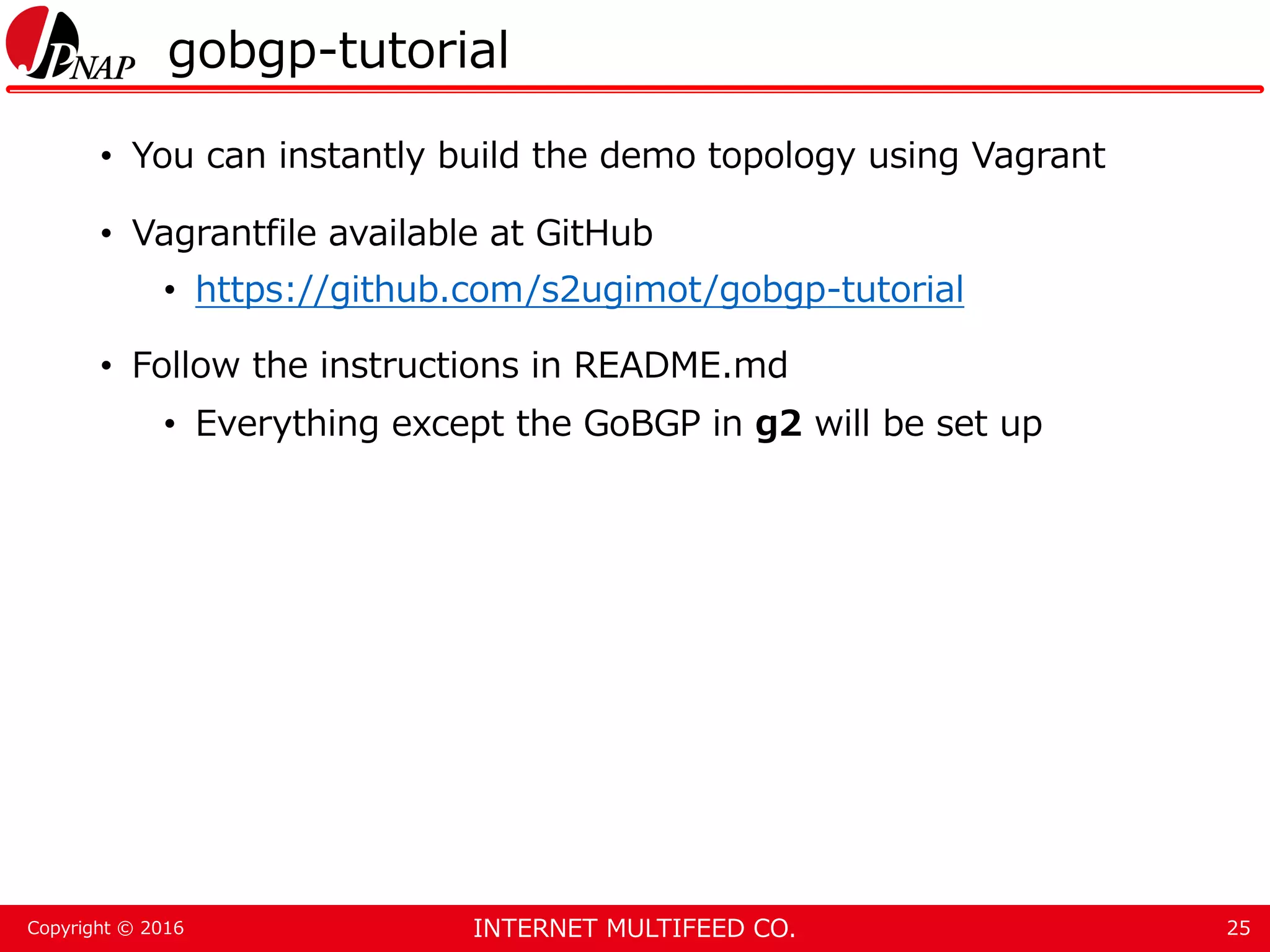

INTERNET MULTIFEED CO.Copyright © 2016 gobgp-tutorial • You can instantly build the demo topology using Vagrant • Vagrantfile available at GitHub • https://github.com/s2ugimot/gobgp-tutorial • Follow the instructions in README.md • Everything except the GoBGP in g2 will be set up 25

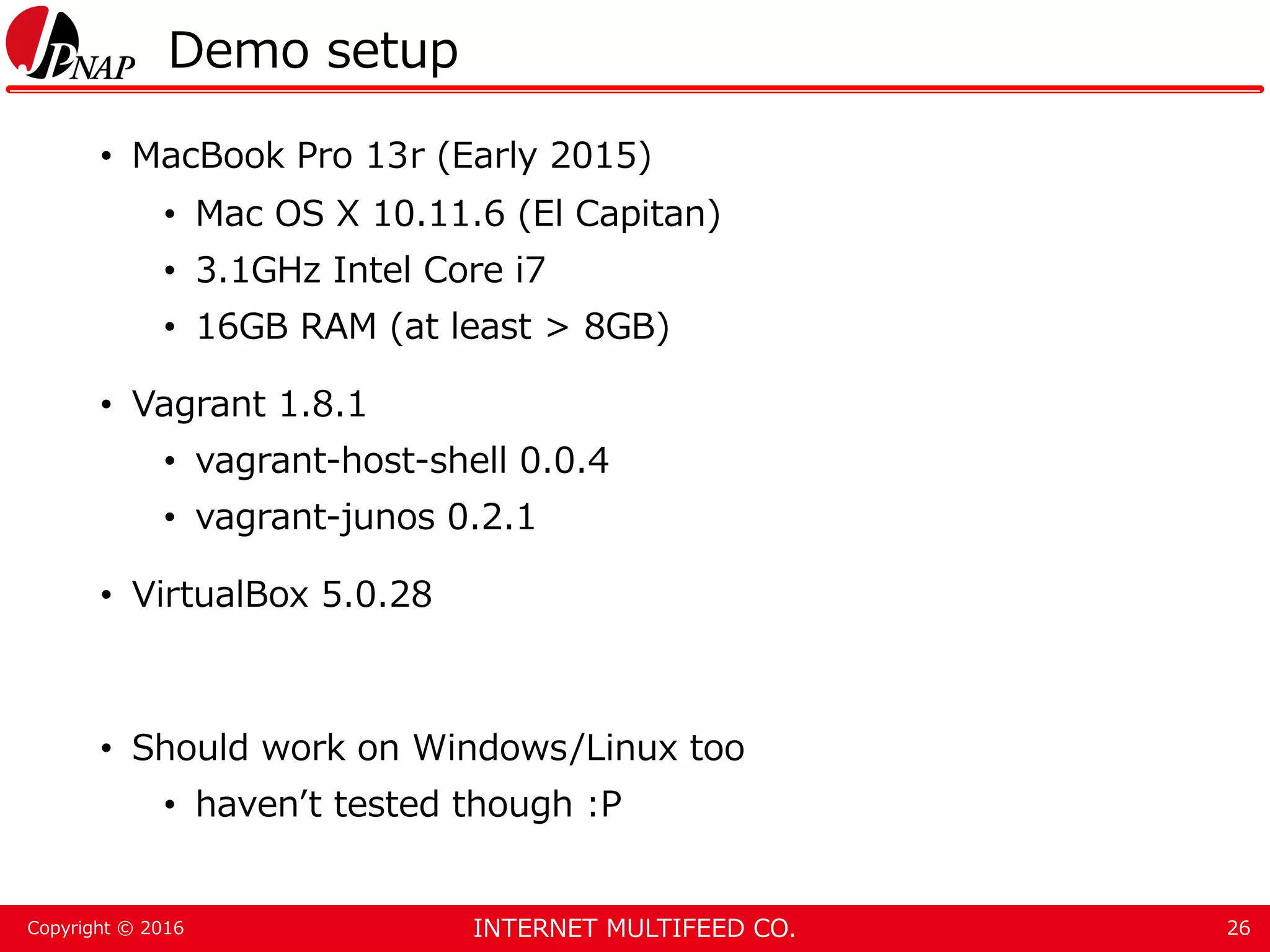

INTERNET MULTIFEED CO.Copyright © 2016 Demo setup • MacBook Pro 13r (Early 2015) • Mac OS X 10.11.6 (El Capitan) • 3.1GHz Intel Core i7 • 16GB RAM (at least > 8GB) • Vagrant 1.8.1 • vagrant-host-shell 0.0.4 • vagrant-junos 0.2.1 • VirtualBox 5.0.28 • Should work on Windows/Linux too • haven’t tested though :P 26

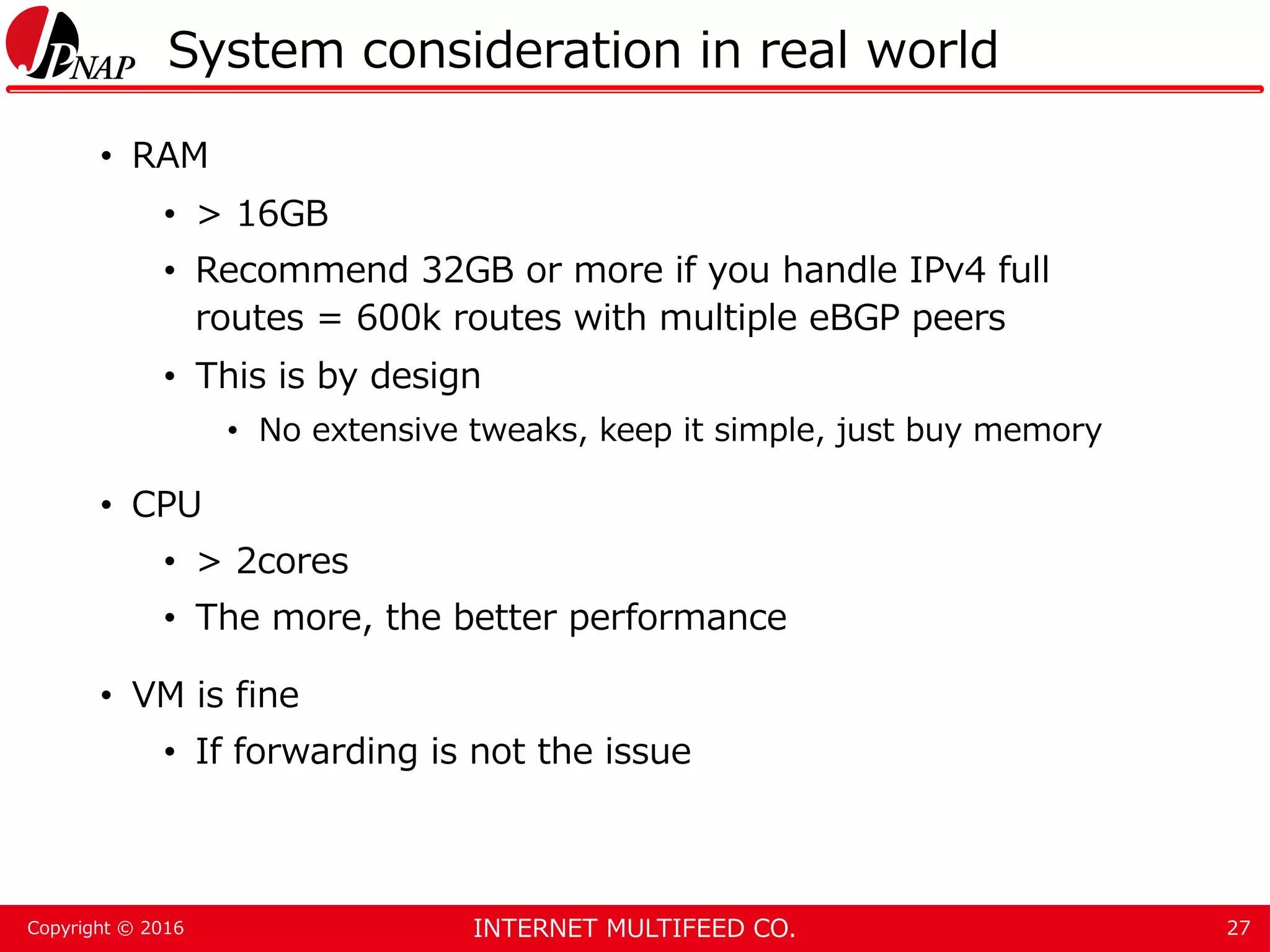

INTERNET MULTIFEED CO.Copyright © 2016 System consideration in real world • RAM • > 16GB • Recommend 32GB or more if you handle IPv4 full routes = 600k routes with multiple eBGP peers • This is by design • No extensive tweaks, keep it simple, just buy memory • CPU • > 2cores • The more, the better performance • VM is fine • If forwarding is not the issue 27

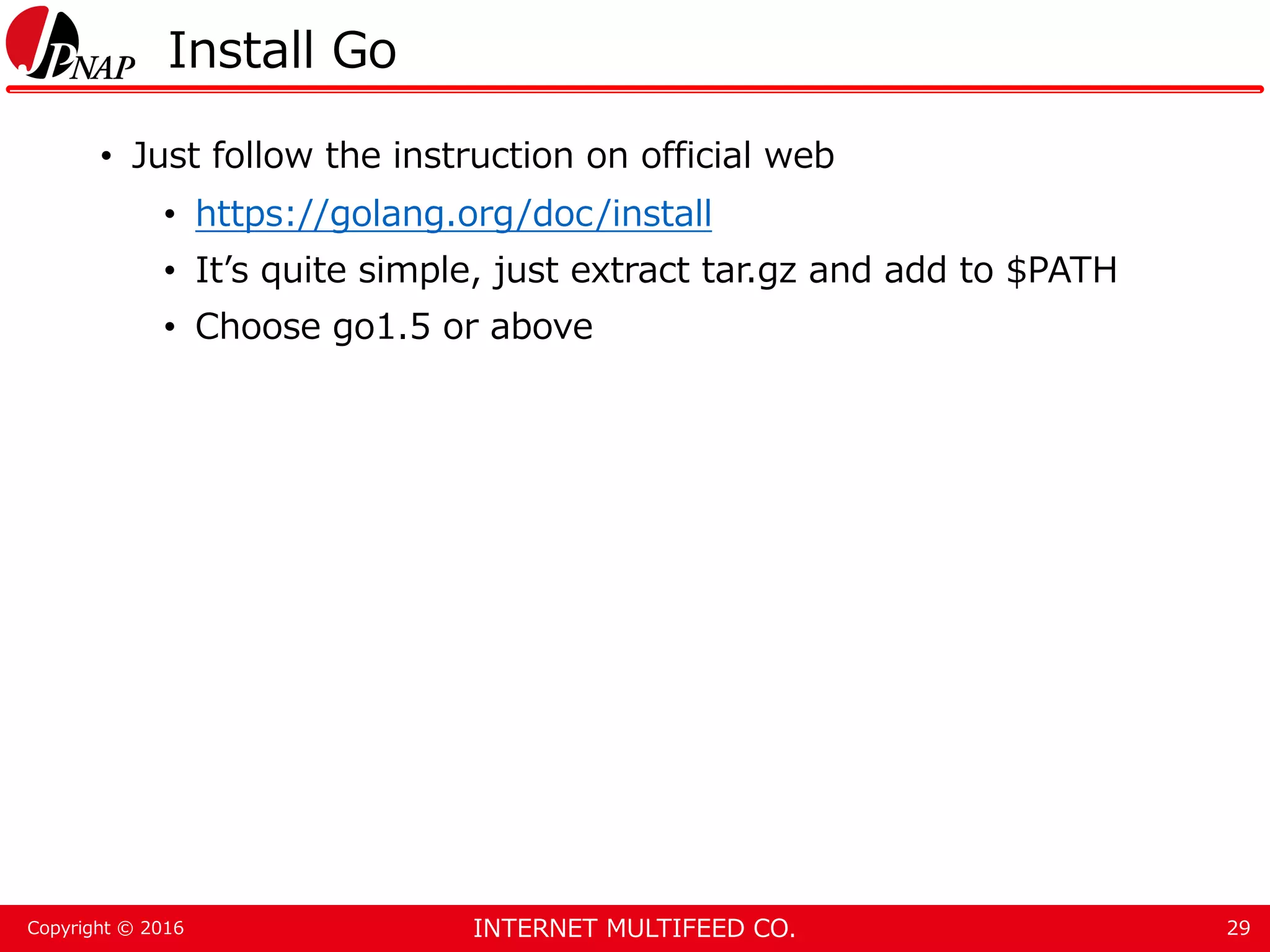

INTERNET MULTIFEED CO.Copyright © 2016 Install Go • Just follow the instruction on official web • https://golang.org/doc/install • It’s quite simple, just extract tar.gz and add to $PATH • Choose go1.5 or above 29

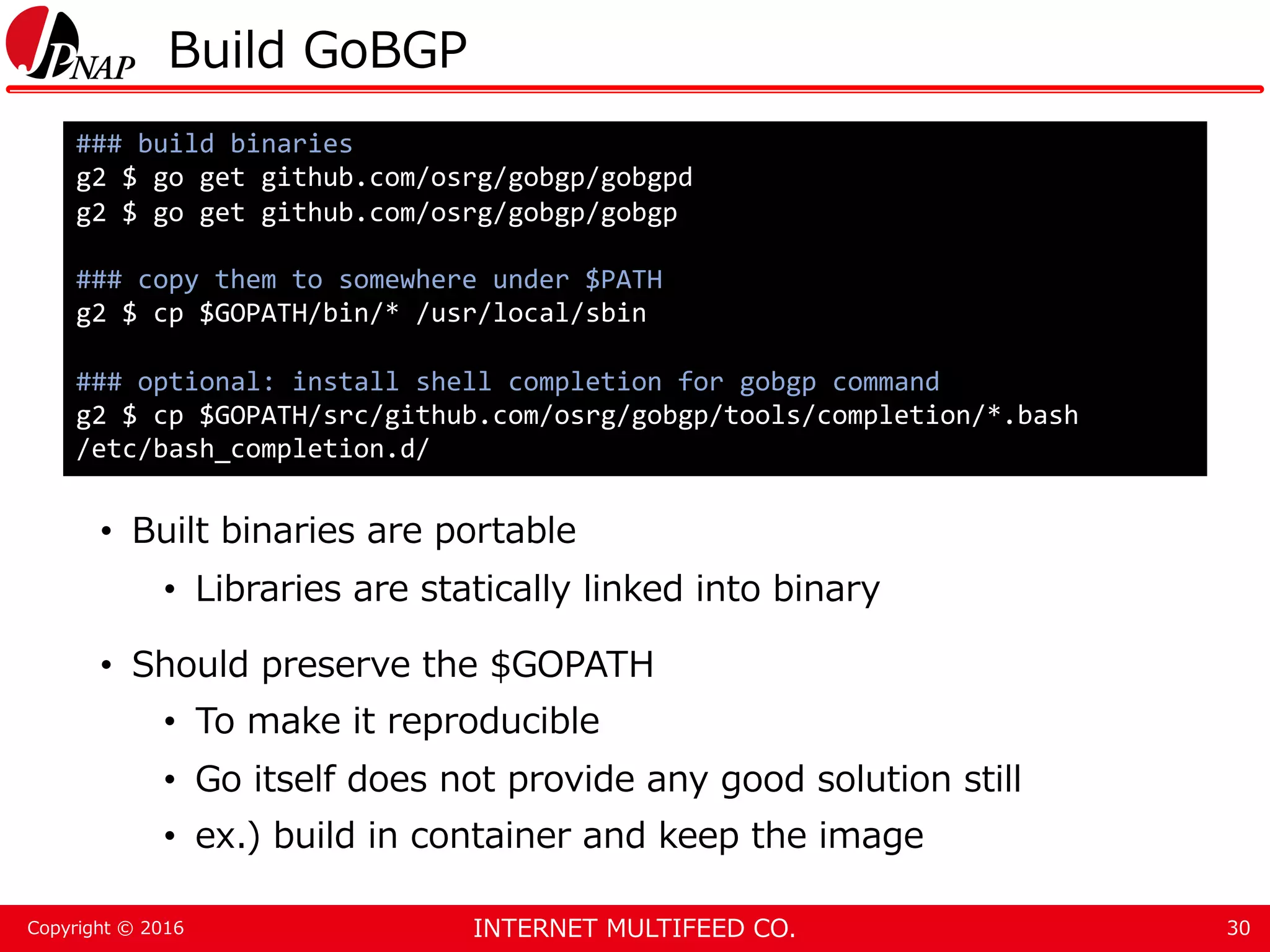

INTERNET MULTIFEED CO.Copyright © 2016 Build GoBGP • Built binaries are portable • Libraries are statically linked into binary • Should preserve the $GOPATH • To make it reproducible • Go itself does not provide any good solution still • ex.) build in container and keep the image 30 ### build binaries g2 $ go get github.com/osrg/gobgp/gobgpd g2 $ go get github.com/osrg/gobgp/gobgp ### copy them to somewhere under $PATH g2 $ cp $GOPATH/bin/* /usr/local/sbin ### optional: install shell completion for gobgp command g2 $ cp $GOPATH/src/github.com/osrg/gobgp/tools/completion/*.bash /etc/bash_completion.d/

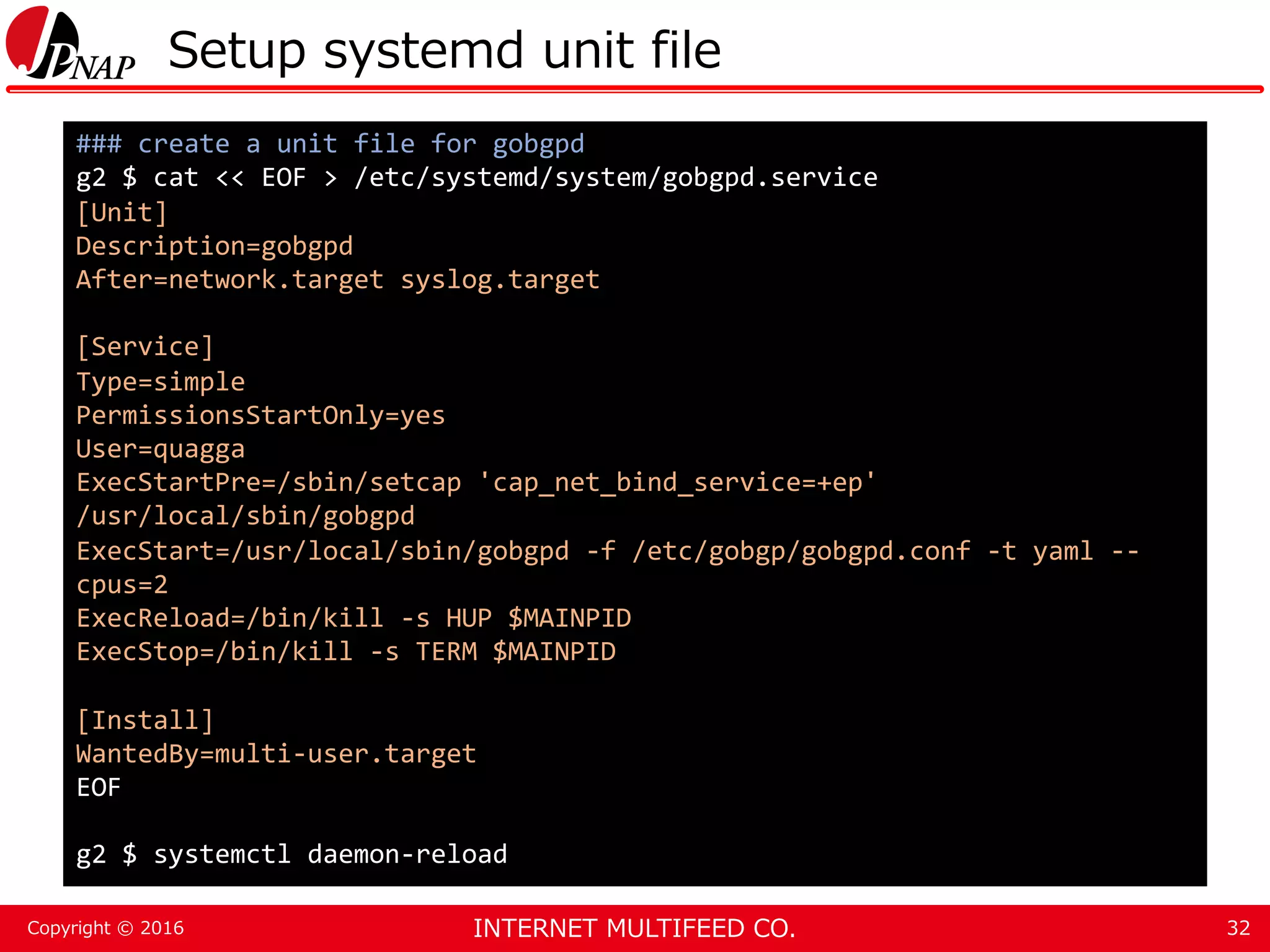

INTERNET MULTIFEED CO.Copyright © 2016 Setup systemd unit file 32 ### create a unit file for gobgpd g2 $ cat << EOF > /etc/systemd/system/gobgpd.service [Unit] Description=gobgpd After=network.target syslog.target [Service] Type=simple PermissionsStartOnly=yes User=quagga ExecStartPre=/sbin/setcap 'cap_net_bind_service=+ep' /usr/local/sbin/gobgpd ExecStart=/usr/local/sbin/gobgpd -f /etc/gobgp/gobgpd.conf -t yaml -- cpus=2 ExecReload=/bin/kill -s HUP $MAINPID ExecStop=/bin/kill -s TERM $MAINPID [Install] WantedBy=multi-user.target EOF g2 $ systemctl daemon-reload

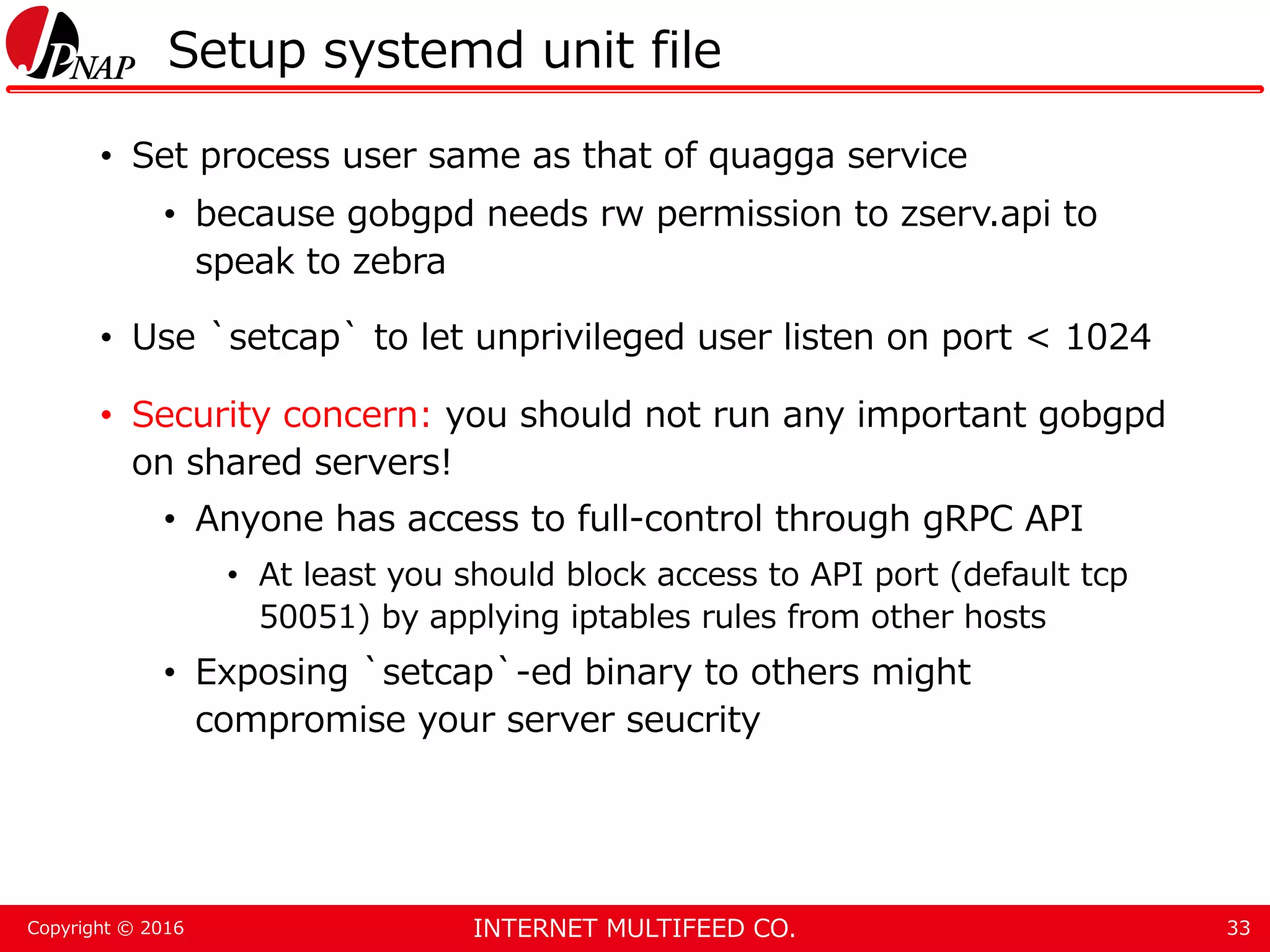

INTERNET MULTIFEED CO.Copyright © 2016 Setup systemd unit file • Set process user same as that of quagga service • because gobgpd needs rw permission to zserv.api to speak to zebra • Use `setcap` to let unprivileged user listen on port < 1024 • Security concern: you should not run any important gobgpd on shared servers! • Anyone has access to full-control through gRPC API • At least you should block access to API port (default tcp 50051) by applying iptables rules from other hosts • Exposing `setcap`-ed binary to others might compromise your server seucrity 33

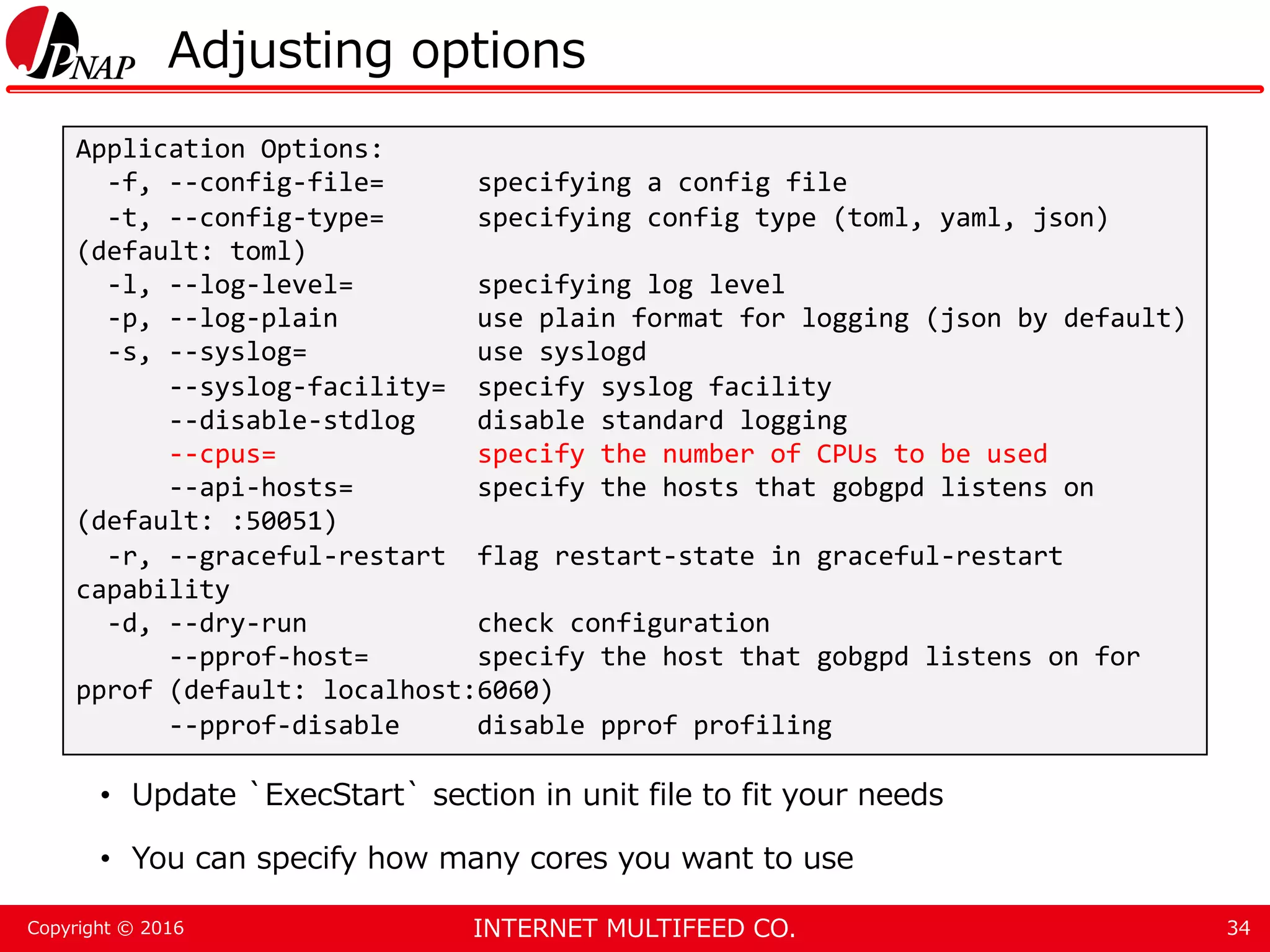

INTERNET MULTIFEED CO.Copyright © 2016 Adjusting options • Update `ExecStart` section in unit file to fit your needs • You can specify how many cores you want to use 34 Application Options: -f, --config-file= specifying a config file -t, --config-type= specifying config type (toml, yaml, json) (default: toml) -l, --log-level= specifying log level -p, --log-plain use plain format for logging (json by default) -s, --syslog= use syslogd --syslog-facility= specify syslog facility --disable-stdlog disable standard logging --cpus= specify the number of CPUs to be used --api-hosts= specify the hosts that gobgpd listens on (default: :50051) -r, --graceful-restart flag restart-state in graceful-restart capability -d, --dry-run check configuration --pprof-host= specify the host that gobgpd listens on for pprof (default: localhost:6060) --pprof-disable disable pprof profiling

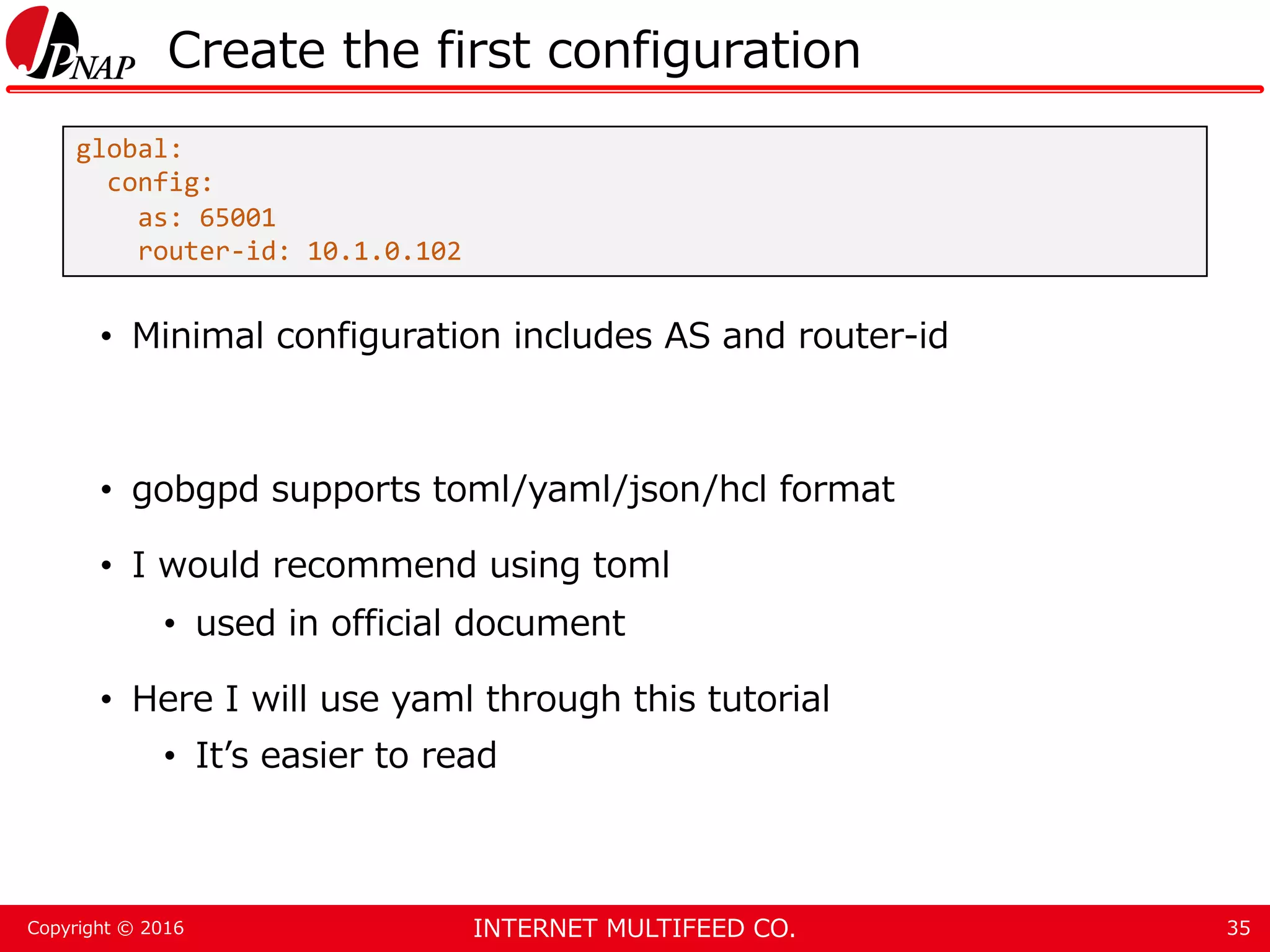

INTERNET MULTIFEED CO.Copyright © 2016 Create the first configuration • Minimal configuration includes AS and router-id • gobgpd supports toml/yaml/json/hcl format • I would recommend using toml • used in official document • Here I will use yaml through this tutorial • It’s easier to read 35 global: config: as: 65001 router-id: 10.1.0.102

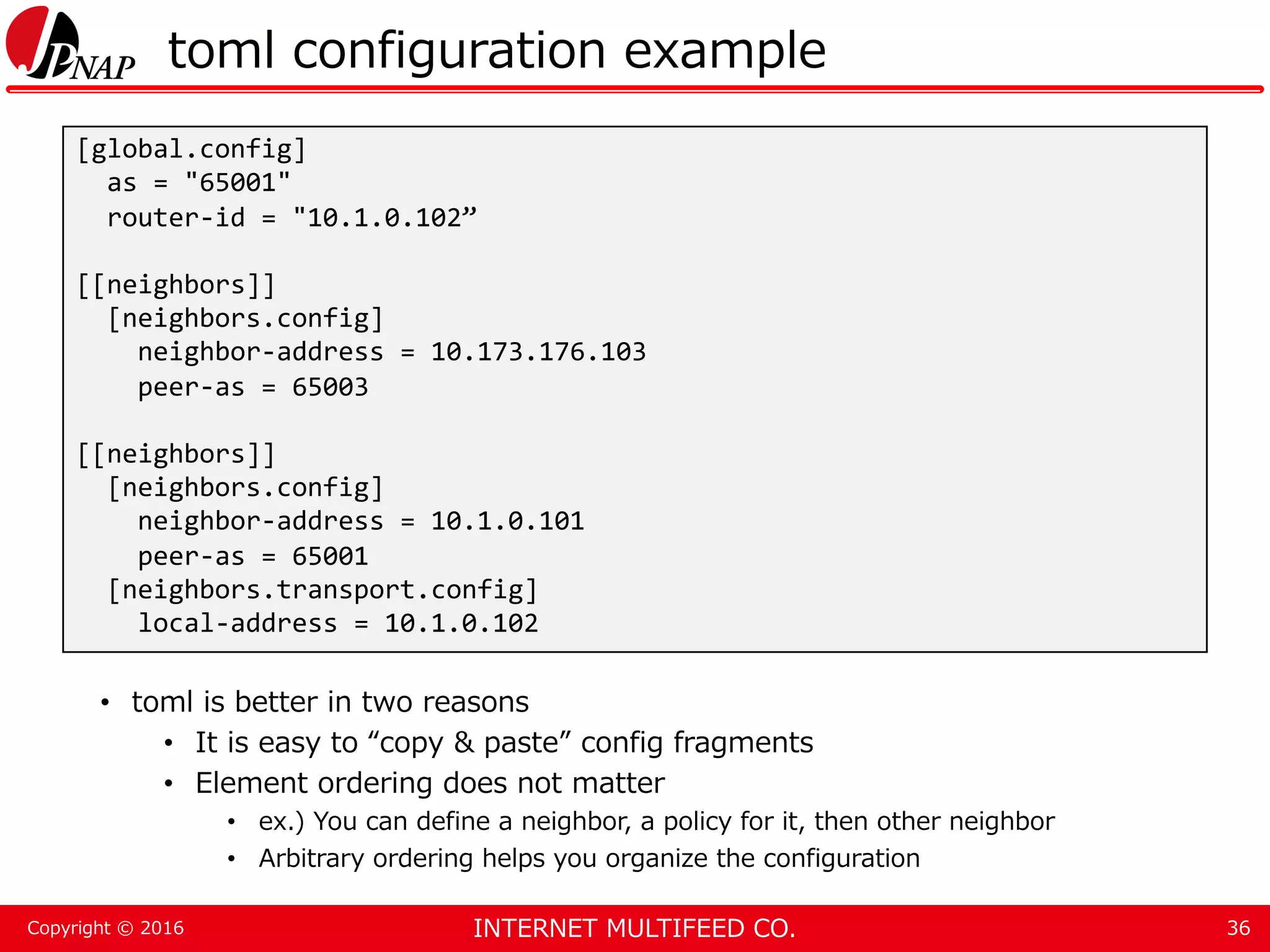

INTERNET MULTIFEED CO.Copyright © 2016 toml configuration example • toml is better in two reasons • It is easy to “copy & paste” config fragments • Element ordering does not matter • ex.) You can define a neighbor, a policy for it, then other neighbor • Arbitrary ordering helps you organize the configuration 36 [global.config] as = "65001" router-id = "10.1.0.102” [[neighbors]] [neighbors.config] neighbor-address = 10.173.176.103 peer-as = 65003 [[neighbors]] [neighbors.config] neighbor-address = 10.1.0.101 peer-as = 65001 [neighbors.transport.config] local-address = 10.1.0.102

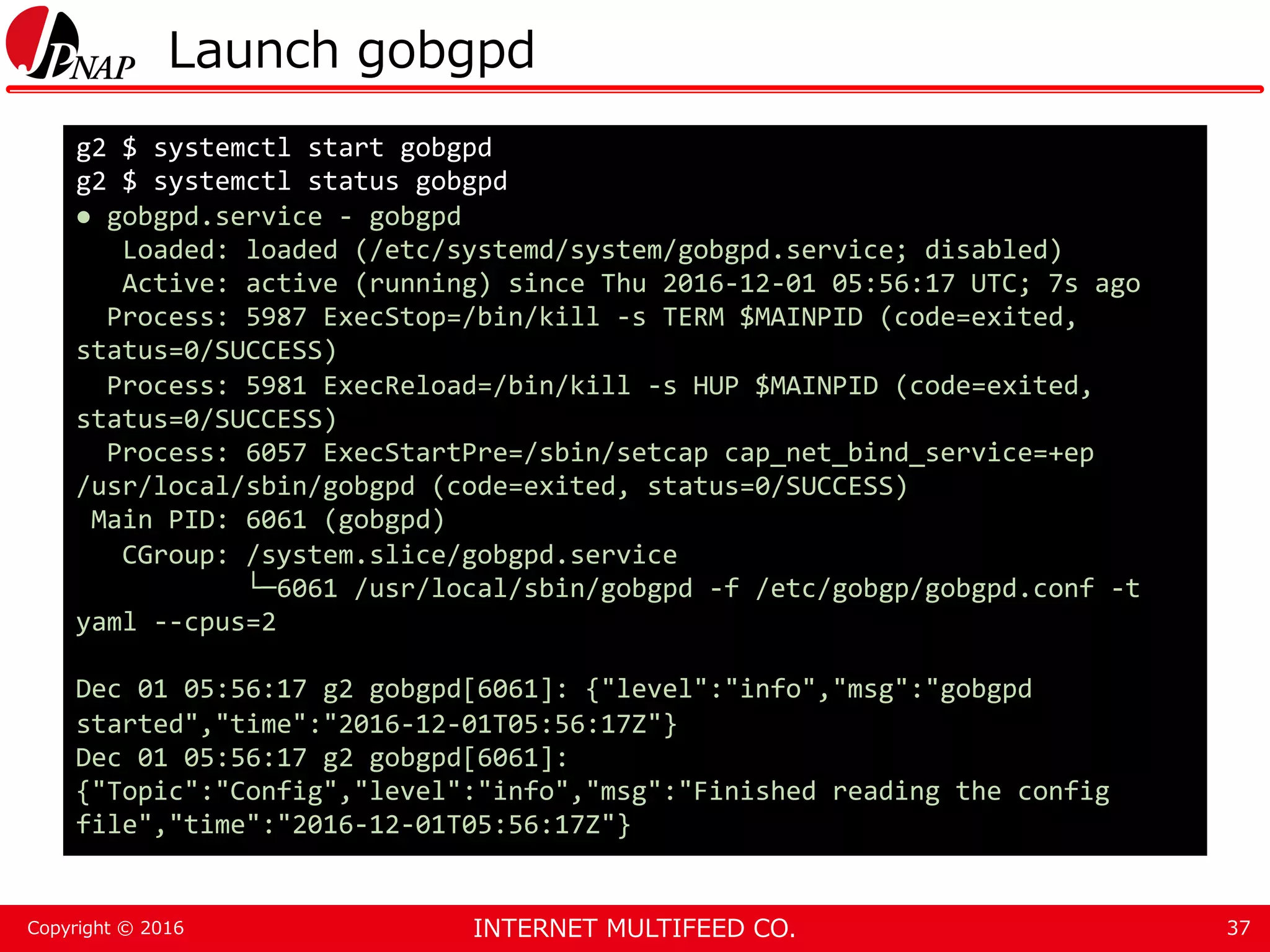

INTERNET MULTIFEED CO.Copyright © 2016 Launch gobgpd 37 g2 $ systemctl start gobgpd g2 $ systemctl status gobgpd ● gobgpd.service - gobgpd Loaded: loaded (/etc/systemd/system/gobgpd.service; disabled) Active: active (running) since Thu 2016-12-01 05:56:17 UTC; 7s ago Process: 5987 ExecStop=/bin/kill -s TERM $MAINPID (code=exited, status=0/SUCCESS) Process: 5981 ExecReload=/bin/kill -s HUP $MAINPID (code=exited, status=0/SUCCESS) Process: 6057 ExecStartPre=/sbin/setcap cap_net_bind_service=+ep /usr/local/sbin/gobgpd (code=exited, status=0/SUCCESS) Main PID: 6061 (gobgpd) CGroup: /system.slice/gobgpd.service └─6061 /usr/local/sbin/gobgpd -f /etc/gobgp/gobgpd.conf -t yaml --cpus=2 Dec 01 05:56:17 g2 gobgpd[6061]: {"level":"info","msg":"gobgpd started","time":"2016-12-01T05:56:17Z"} Dec 01 05:56:17 g2 gobgpd[6061]: {"Topic":"Config","level":"info","msg":"Finished reading the config file","time":"2016-12-01T05:56:17Z"}

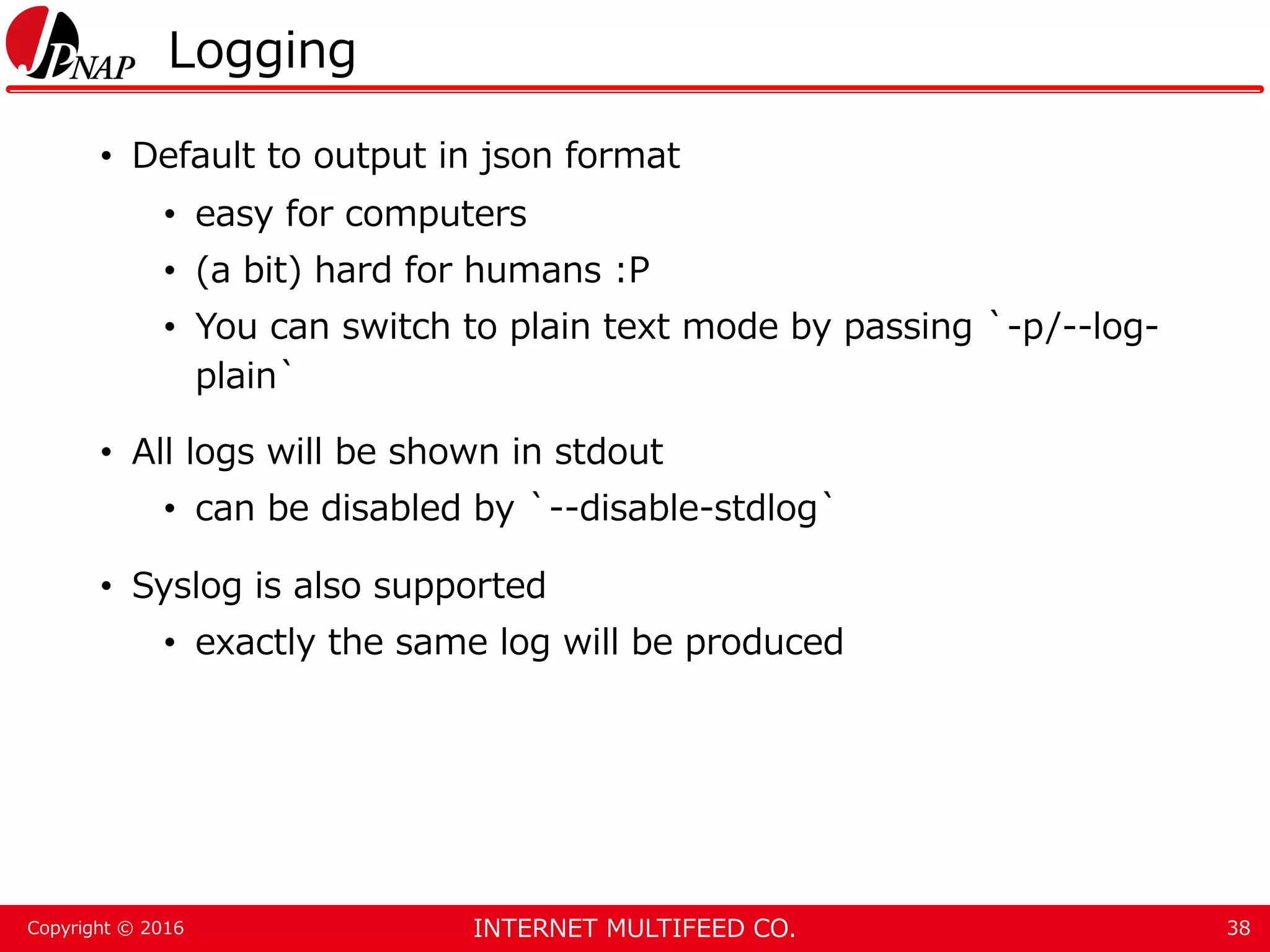

INTERNET MULTIFEED CO.Copyright © 2016 Logging • Default to output in json format • easy for computers • (a bit) hard for humans :P • You can switch to plain text mode by passing `-p/--log- plain` • All logs will be shown in stdout • can be disabled by `--disable-stdlog` • Syslog is also supported • exactly the same log will be produced 38

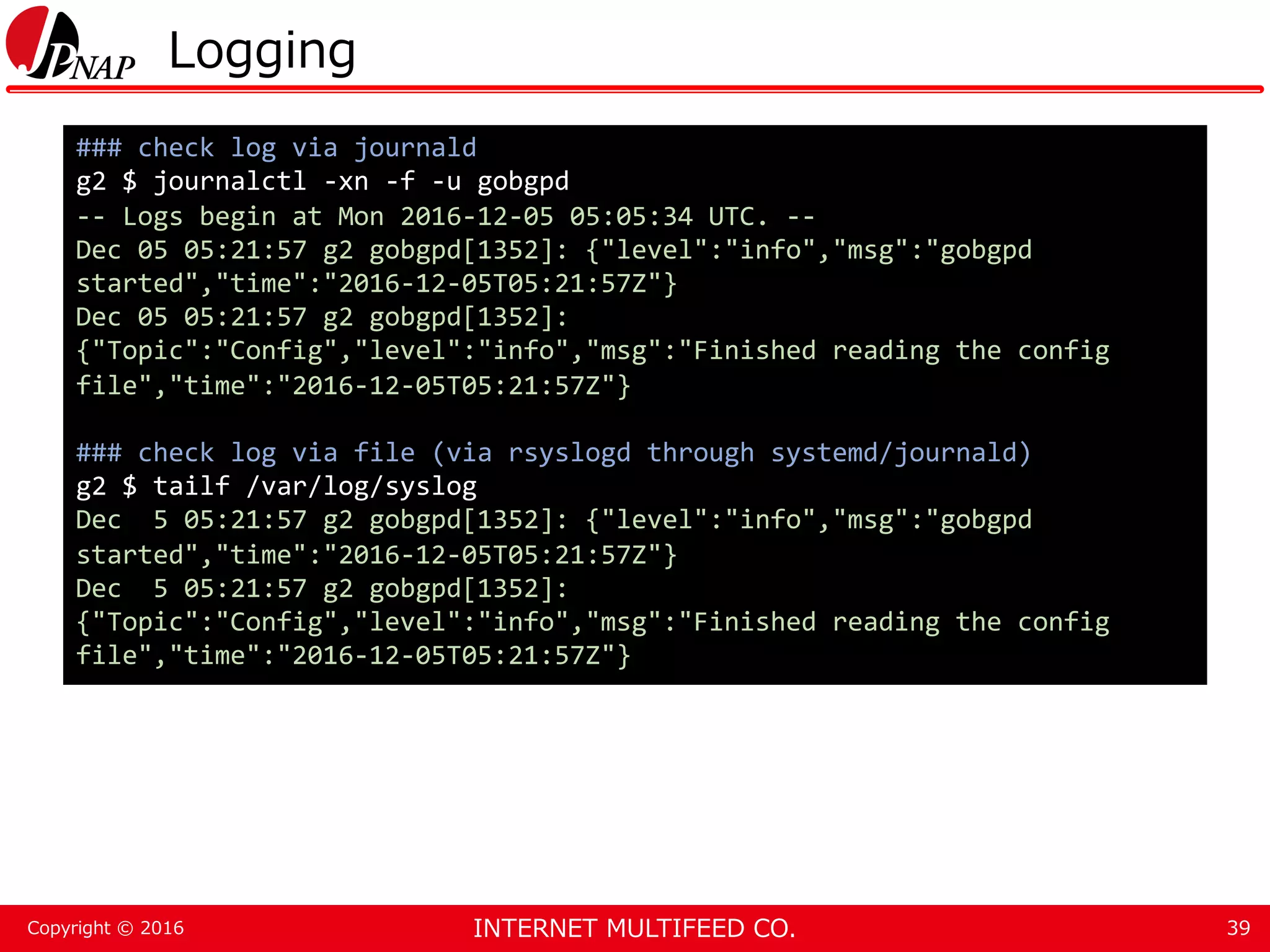

INTERNET MULTIFEED CO.Copyright © 2016 Logging 39 ### check log via journald g2 $ journalctl -xn -f -u gobgpd -- Logs begin at Mon 2016-12-05 05:05:34 UTC. -- Dec 05 05:21:57 g2 gobgpd[1352]: {"level":"info","msg":"gobgpd started","time":"2016-12-05T05:21:57Z"} Dec 05 05:21:57 g2 gobgpd[1352]: {"Topic":"Config","level":"info","msg":"Finished reading the config file","time":"2016-12-05T05:21:57Z"} ### check log via file (via rsyslogd through systemd/journald) g2 $ tailf /var/log/syslog Dec 5 05:21:57 g2 gobgpd[1352]: {"level":"info","msg":"gobgpd started","time":"2016-12-05T05:21:57Z"} Dec 5 05:21:57 g2 gobgpd[1352]: {"Topic":"Config","level":"info","msg":"Finished reading the config file","time":"2016-12-05T05:21:57Z"}

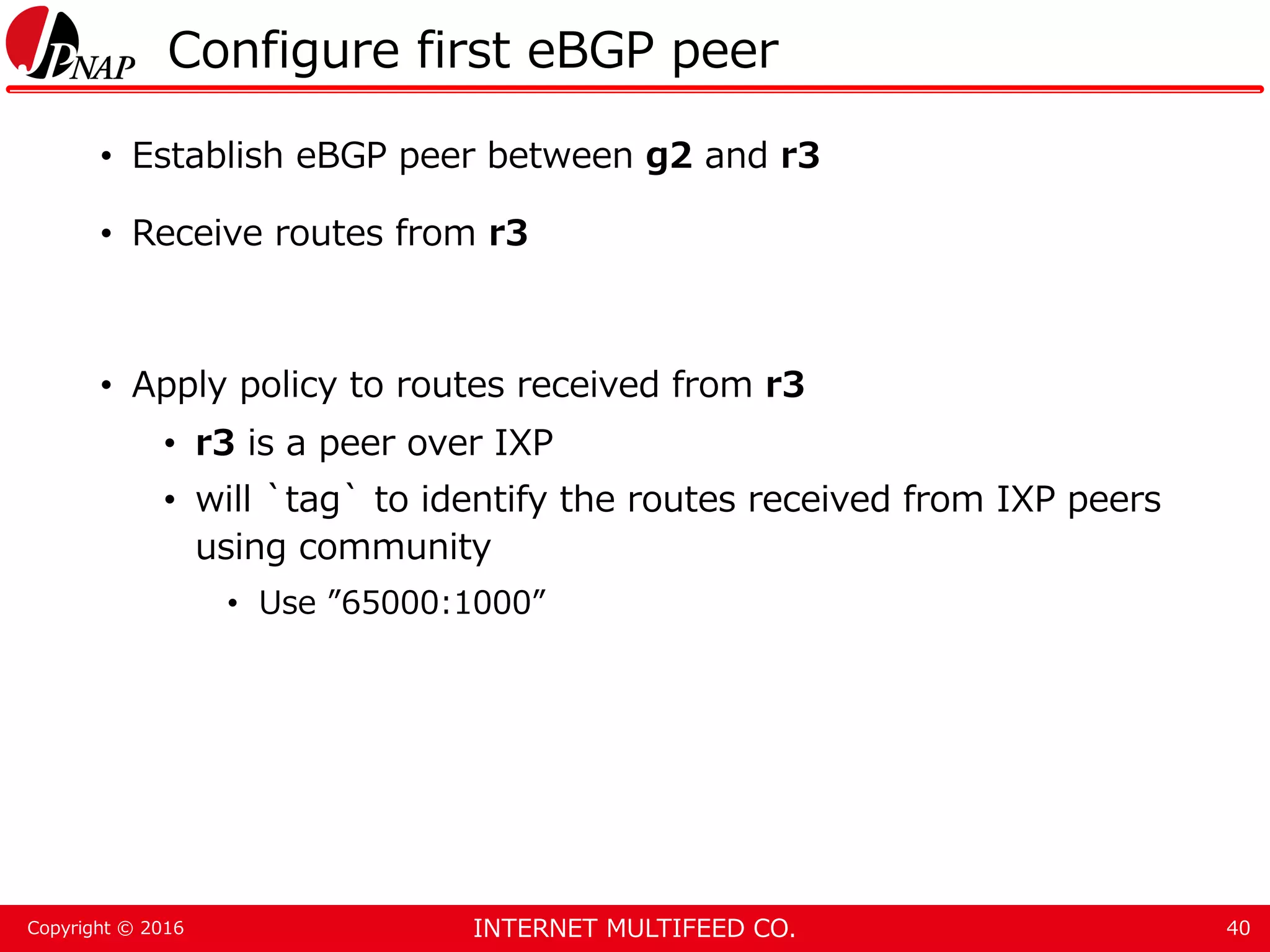

INTERNET MULTIFEED CO.Copyright © 2016 Configure first eBGP peer • Establish eBGP peer between g2 and r3 • Receive routes from r3 • Apply policy to routes received from r3 • r3 is a peer over IXP • will `tag` to identify the routes received from IXP peers using community • Use ”65000:1000” 40

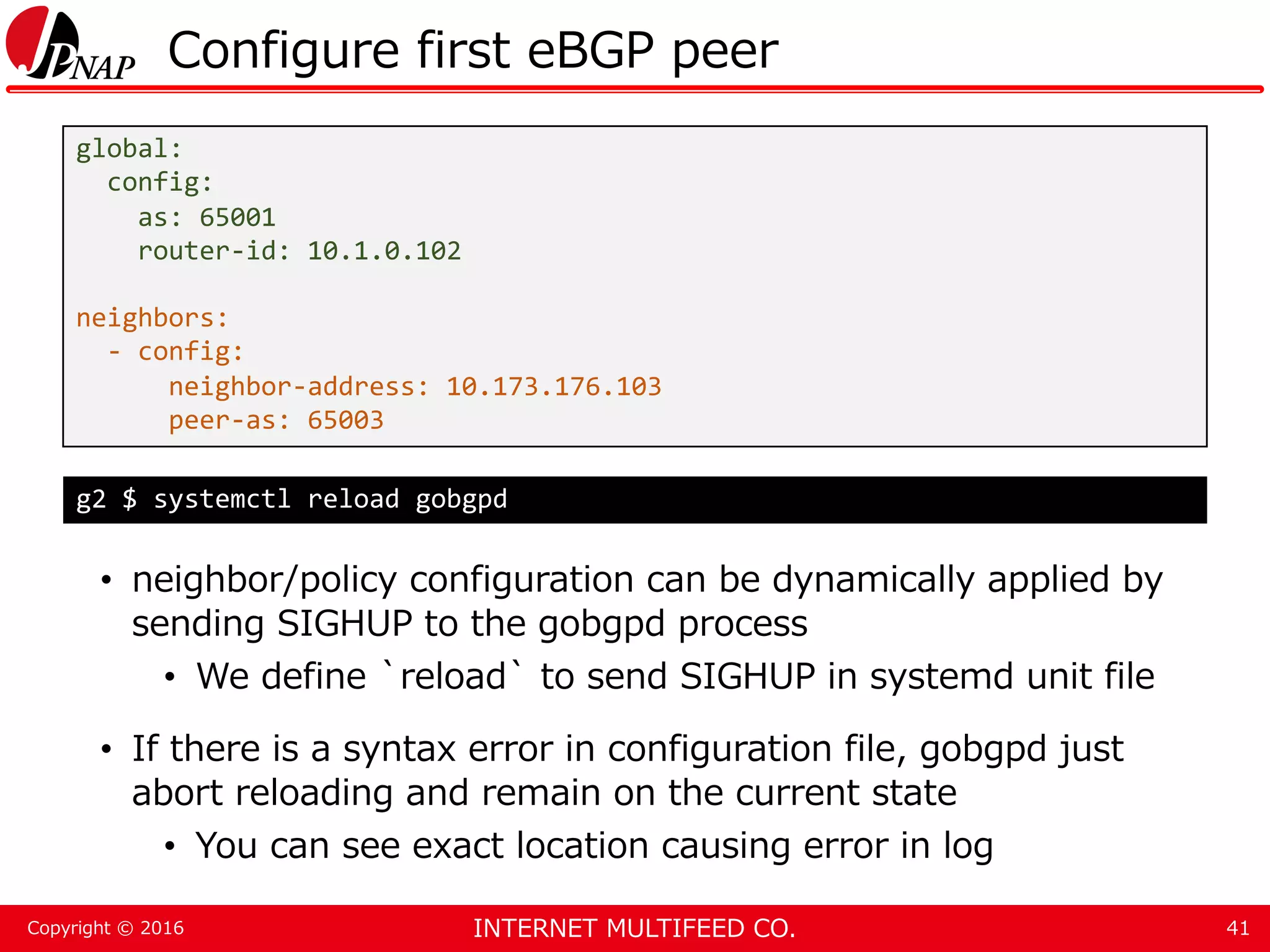

INTERNET MULTIFEED CO.Copyright © 2016 Configure first eBGP peer • neighbor/policy configuration can be dynamically applied by sending SIGHUP to the gobgpd process • We define `reload` to send SIGHUP in systemd unit file • If there is a syntax error in configuration file, gobgpd just abort reloading and remain on the current state • You can see exact location causing error in log 41 global: config: as: 65001 router-id: 10.1.0.102 neighbors: - config: neighbor-address: 10.173.176.103 peer-as: 65003 g2 $ systemctl reload gobgpd

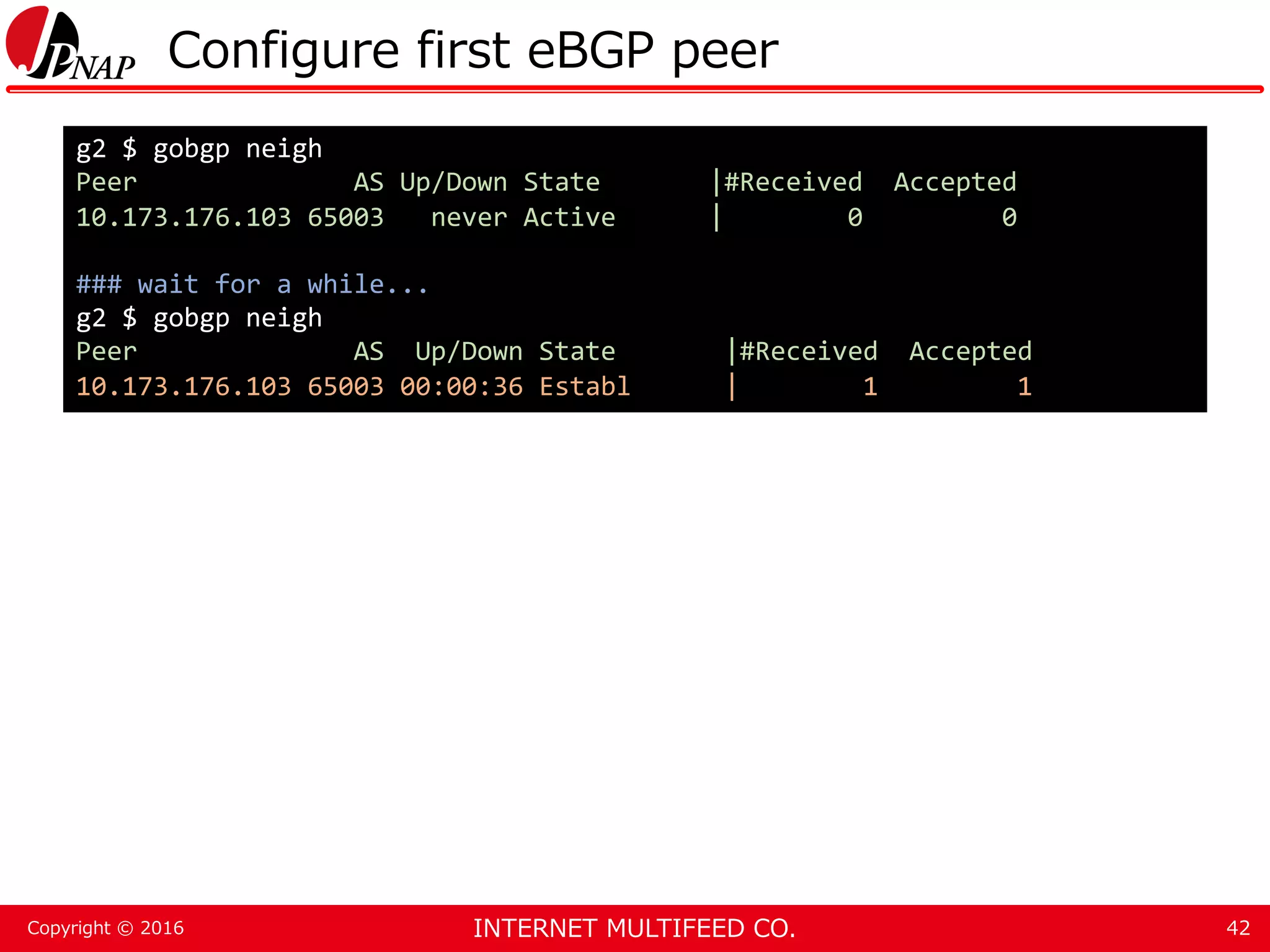

INTERNET MULTIFEED CO.Copyright © 2016 Configure first eBGP peer 42 g2 $ gobgp neigh Peer AS Up/Down State |#Received Accepted 10.173.176.103 65003 never Active | 0 0 ### wait for a while... g2 $ gobgp neigh Peer AS Up/Down State |#Received Accepted 10.173.176.103 65003 00:00:36 Establ | 1 1

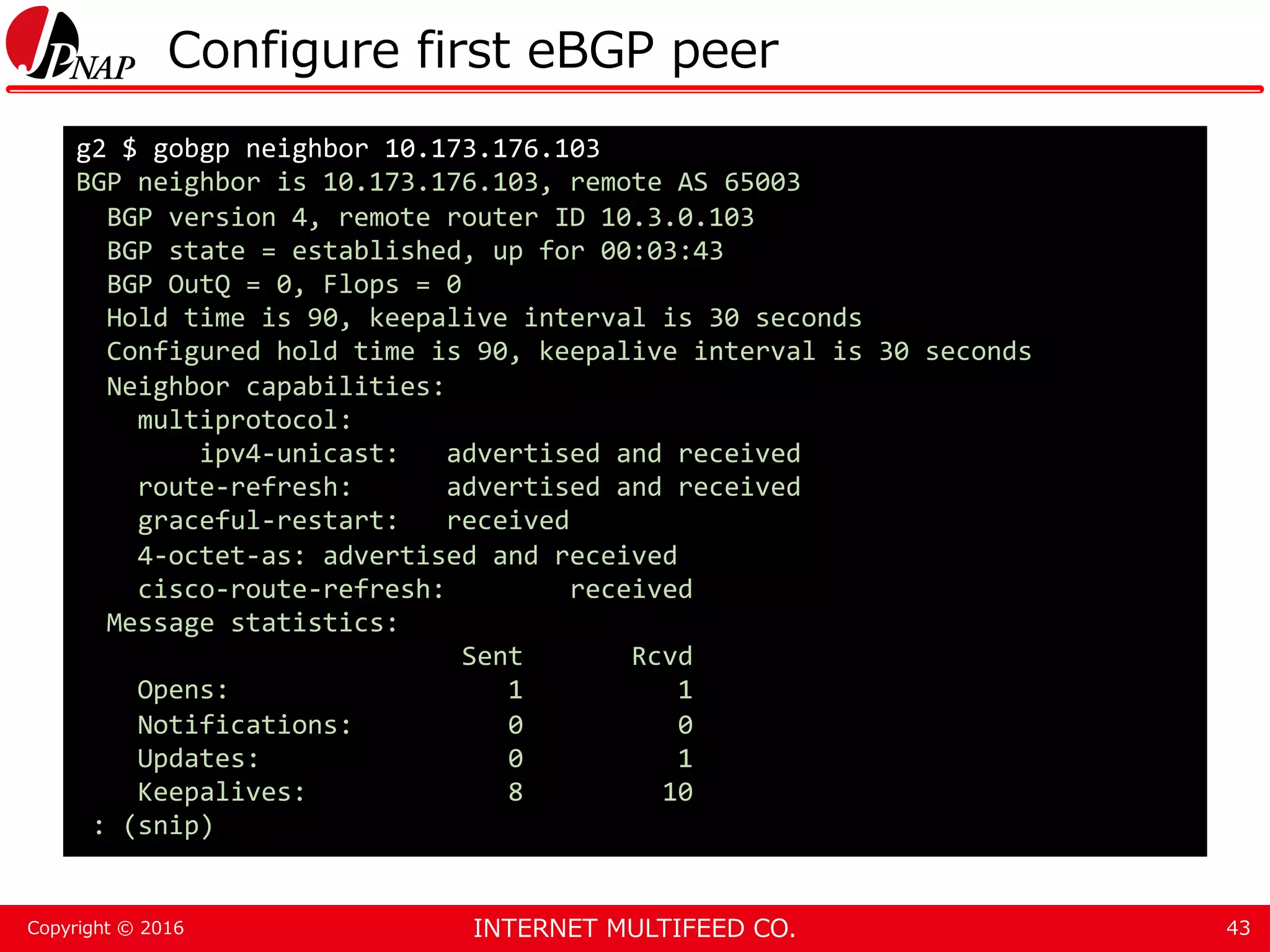

INTERNET MULTIFEED CO.Copyright © 2016 Configure first eBGP peer 43 g2 $ gobgp neighbor 10.173.176.103 BGP neighbor is 10.173.176.103, remote AS 65003 BGP version 4, remote router ID 10.3.0.103 BGP state = established, up for 00:03:43 BGP OutQ = 0, Flops = 0 Hold time is 90, keepalive interval is 30 seconds Configured hold time is 90, keepalive interval is 30 seconds Neighbor capabilities: multiprotocol: ipv4-unicast: advertised and received route-refresh: advertised and received graceful-restart: received 4-octet-as: advertised and received cisco-route-refresh: received Message statistics: Sent Rcvd Opens: 1 1 Notifications: 0 0 Updates: 0 1 Keepalives: 8 10 : (snip)

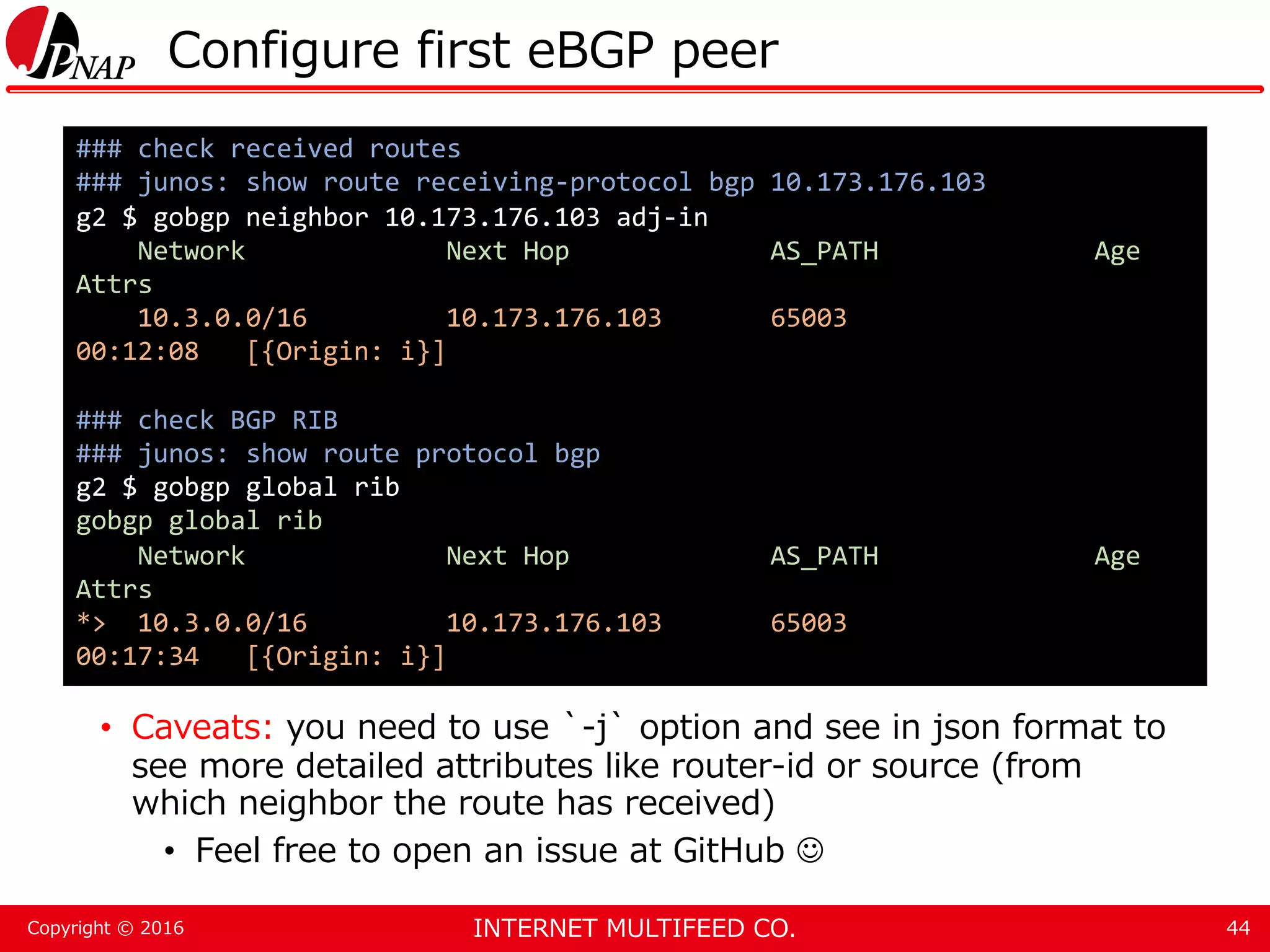

INTERNET MULTIFEED CO.Copyright © 2016 Configure first eBGP peer • Caveats: you need to use `-j` option and see in json format to see more detailed attributes like router-id or source (from which neighbor the route has received) • Feel free to open an issue at GitHub  44 ### check received routes ### junos: show route receiving-protocol bgp 10.173.176.103 g2 $ gobgp neighbor 10.173.176.103 adj-in Network Next Hop AS_PATH Age Attrs 10.3.0.0/16 10.173.176.103 65003 00:12:08 [{Origin: i}] ### check BGP RIB ### junos: show route protocol bgp g2 $ gobgp global rib gobgp global rib Network Next Hop AS_PATH Age Attrs *> 10.3.0.0/16 10.173.176.103 65003 00:17:34 [{Origin: i}]

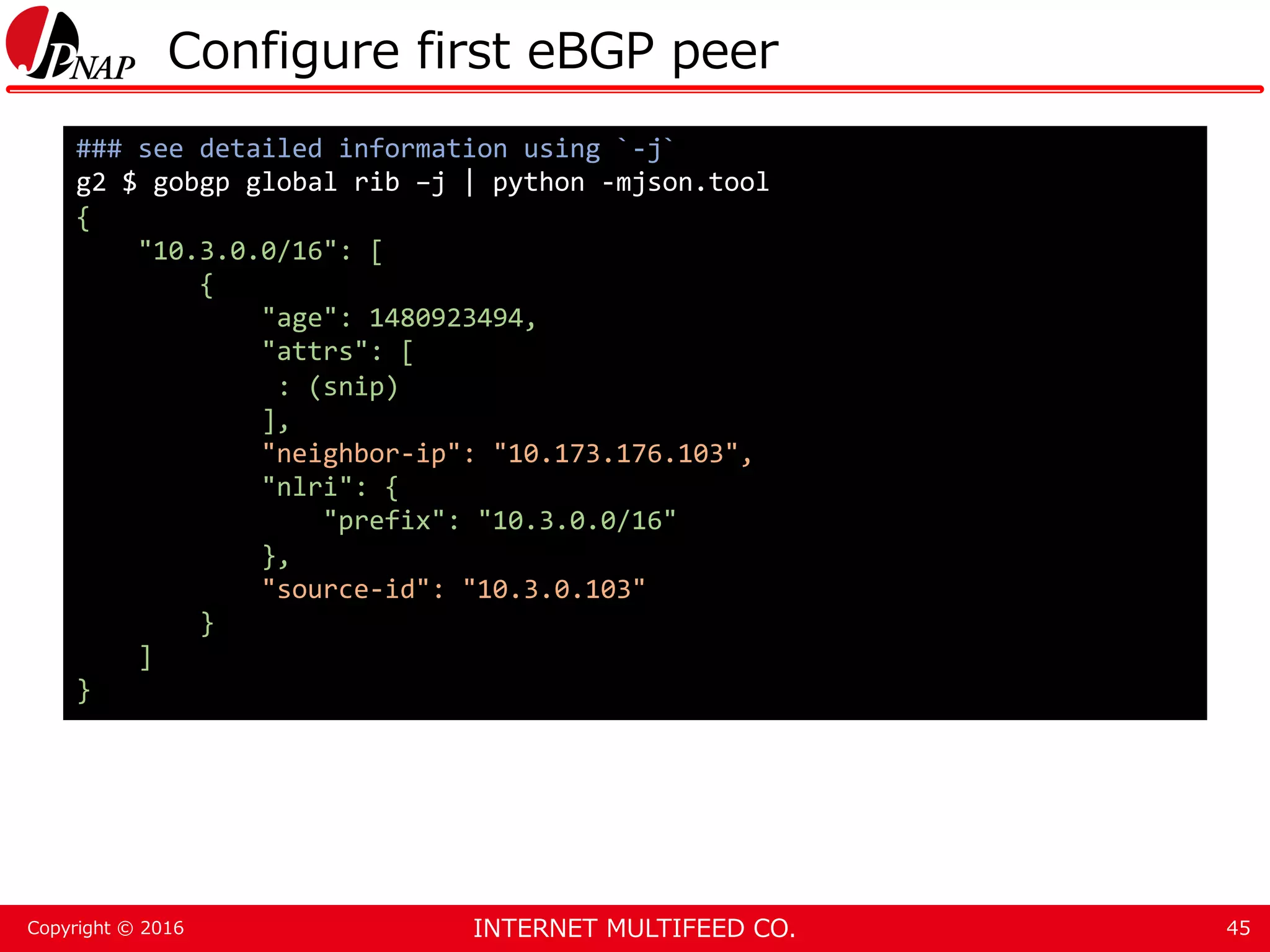

INTERNET MULTIFEED CO.Copyright © 2016 Configure first eBGP peer 45 ### see detailed information using `-j` g2 $ gobgp global rib –j | python -mjson.tool { "10.3.0.0/16": [ { "age": 1480923494, "attrs": [ : (snip) ], "neighbor-ip": "10.173.176.103", "nlri": { "prefix": "10.3.0.0/16" }, "source-id": "10.3.0.103" } ] }

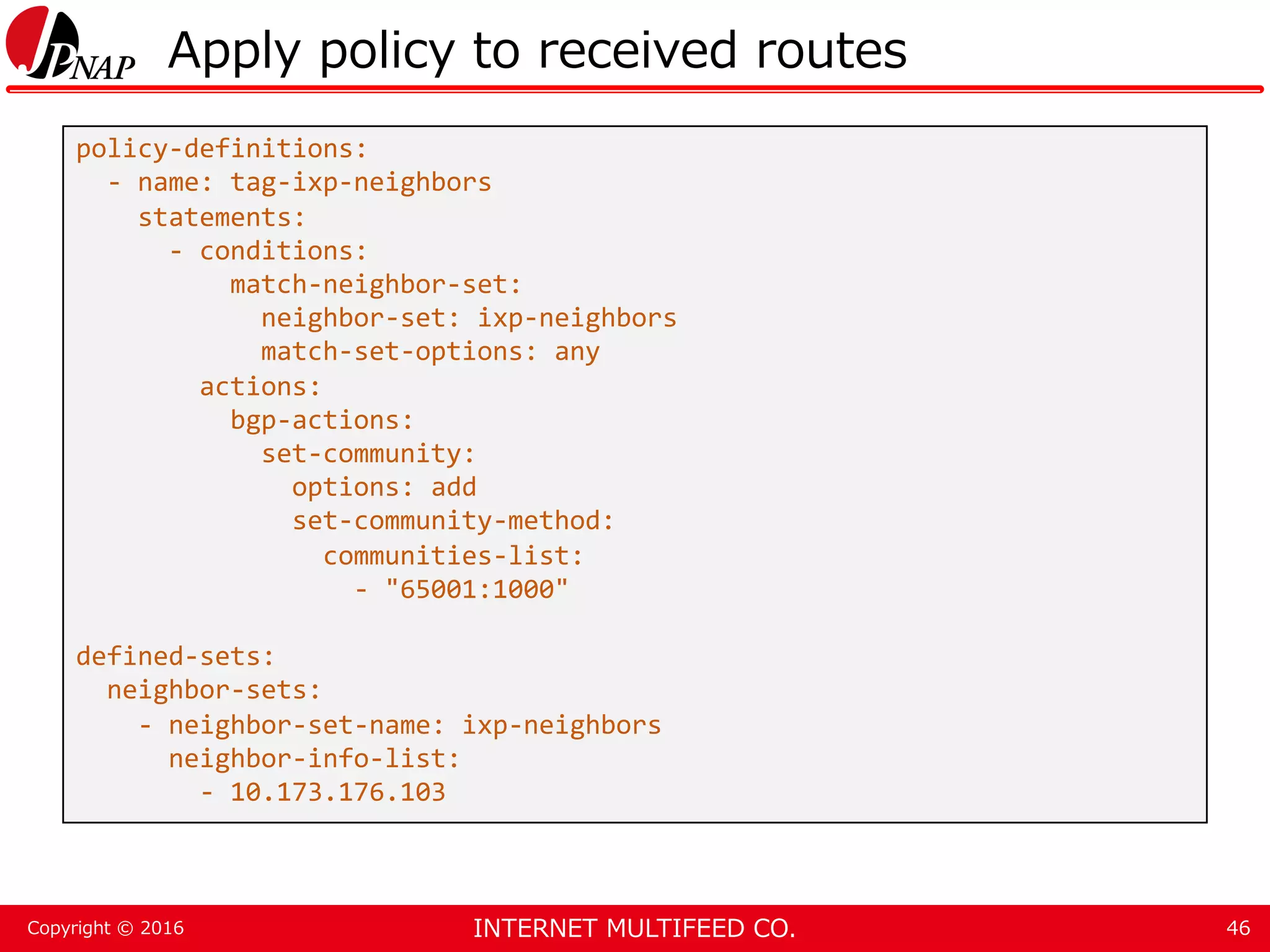

INTERNET MULTIFEED CO.Copyright © 2016 Apply policy to received routes 46 policy-definitions: - name: tag-ixp-neighbors statements: - conditions: match-neighbor-set: neighbor-set: ixp-neighbors match-set-options: any actions: bgp-actions: set-community: options: add set-community-method: communities-list: - "65001:1000" defined-sets: neighbor-sets: - neighbor-set-name: ixp-neighbors neighbor-info-list: - 10.173.176.103

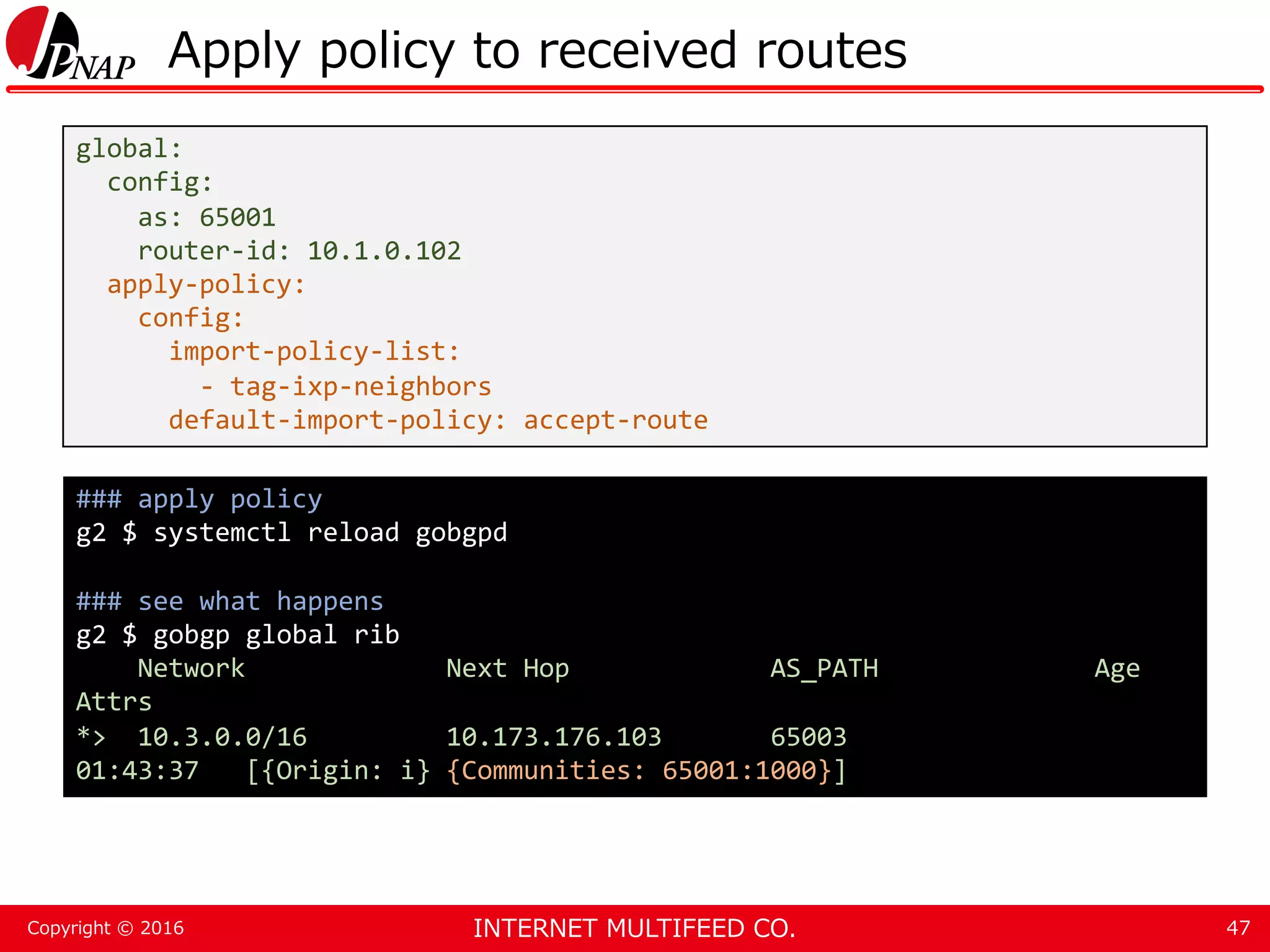

INTERNET MULTIFEED CO.Copyright © 2016 Apply policy to received routes 47 global: config: as: 65001 router-id: 10.1.0.102 apply-policy: config: import-policy-list: - tag-ixp-neighbors default-import-policy: accept-route ### apply policy g2 $ systemctl reload gobgpd ### see what happens g2 $ gobgp global rib Network Next Hop AS_PATH Age Attrs *> 10.3.0.0/16 10.173.176.103 65003 01:43:37 [{Origin: i} {Communities: 65001:1000}]

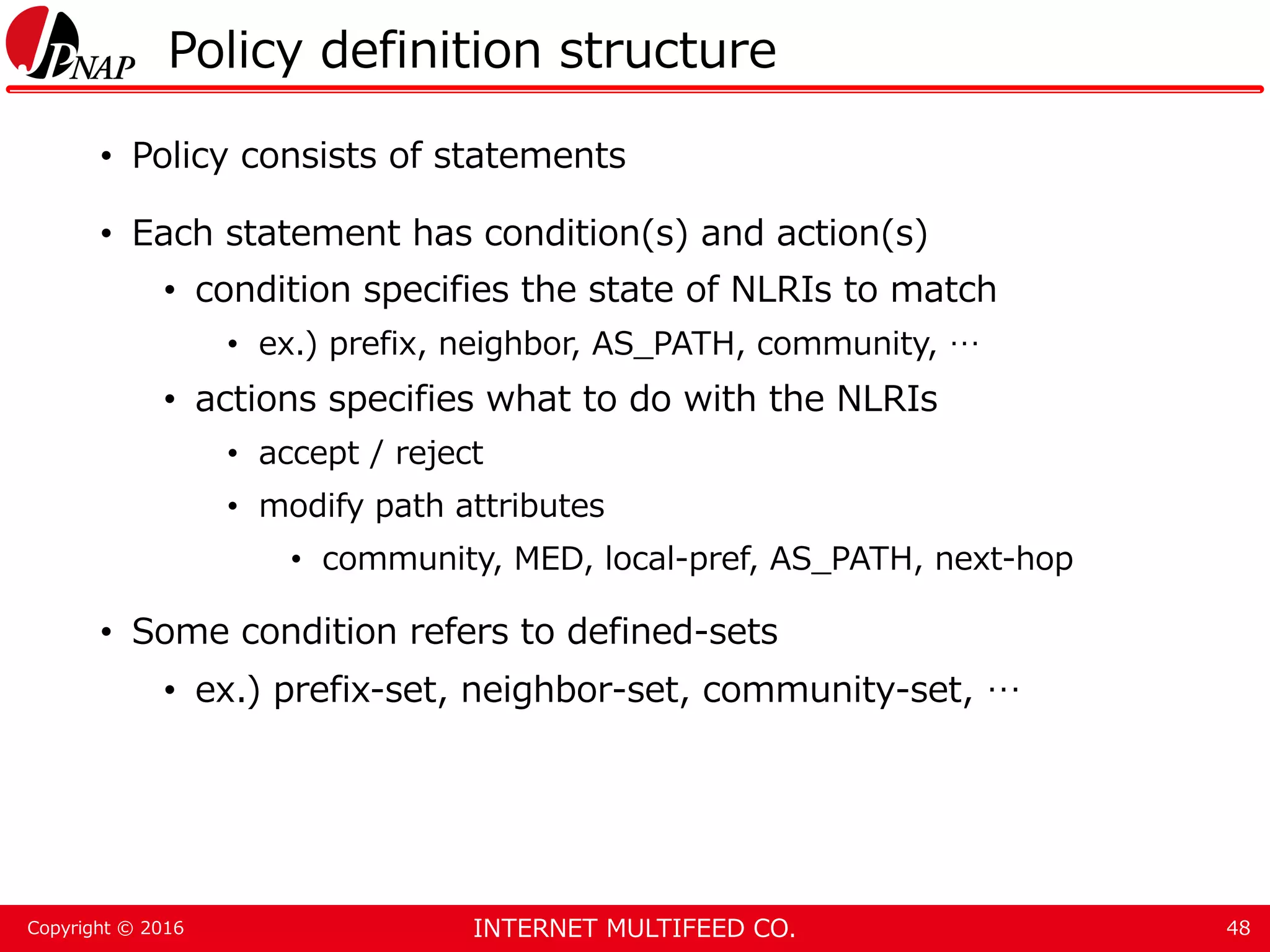

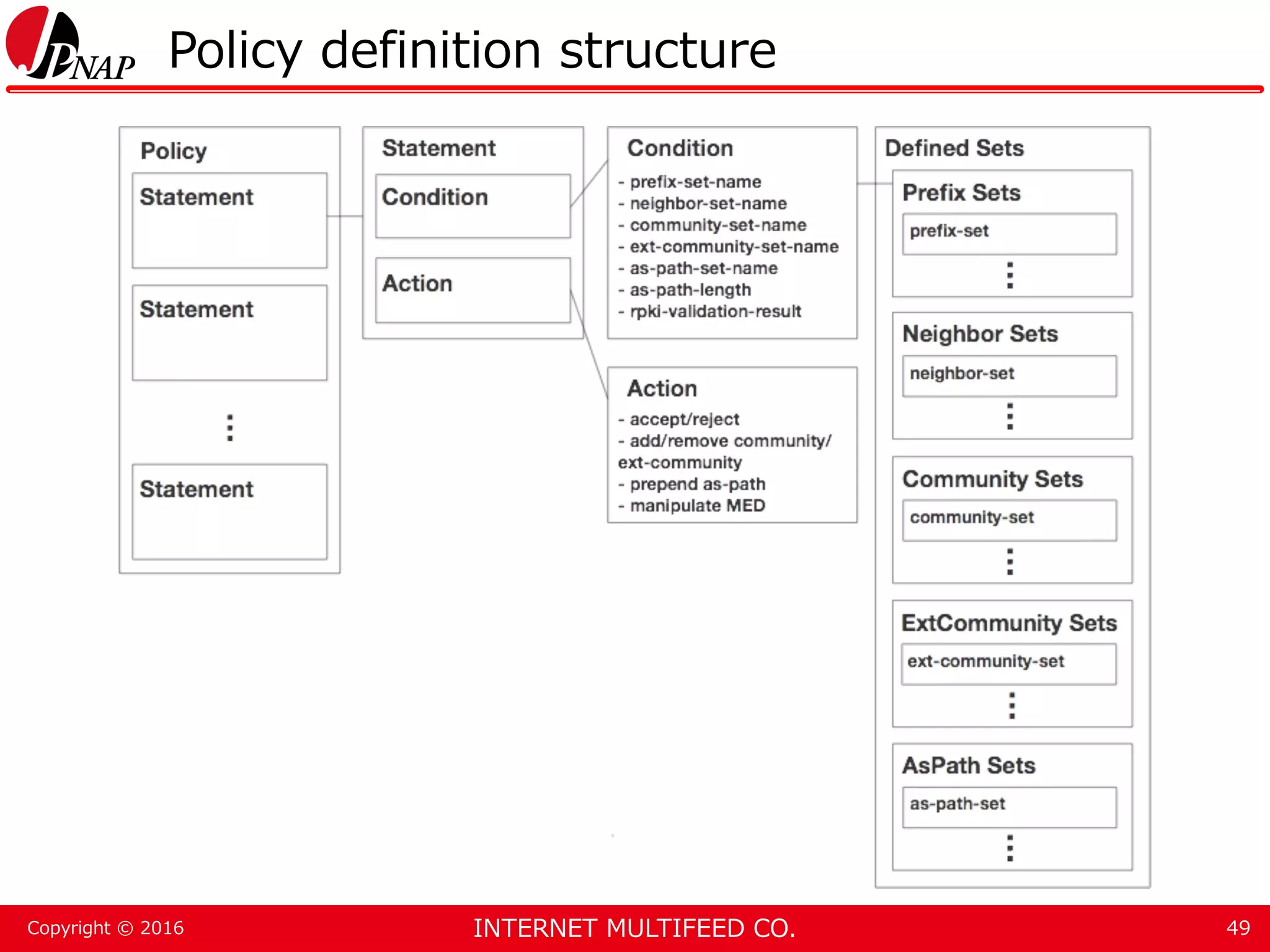

INTERNET MULTIFEED CO.Copyright © 2016 Policy definition structure • Policy consists of statements • Each statement has condition(s) and action(s) • condition specifies the state of NLRIs to match • ex.) prefix, neighbor, AS_PATH, community, … • actions specifies what to do with the NLRIs • accept / reject • modify path attributes • community, MED, local-pref, AS_PATH, next-hop • Some condition refers to defined-sets • ex.) prefix-set, neighbor-set, community-set, … 48

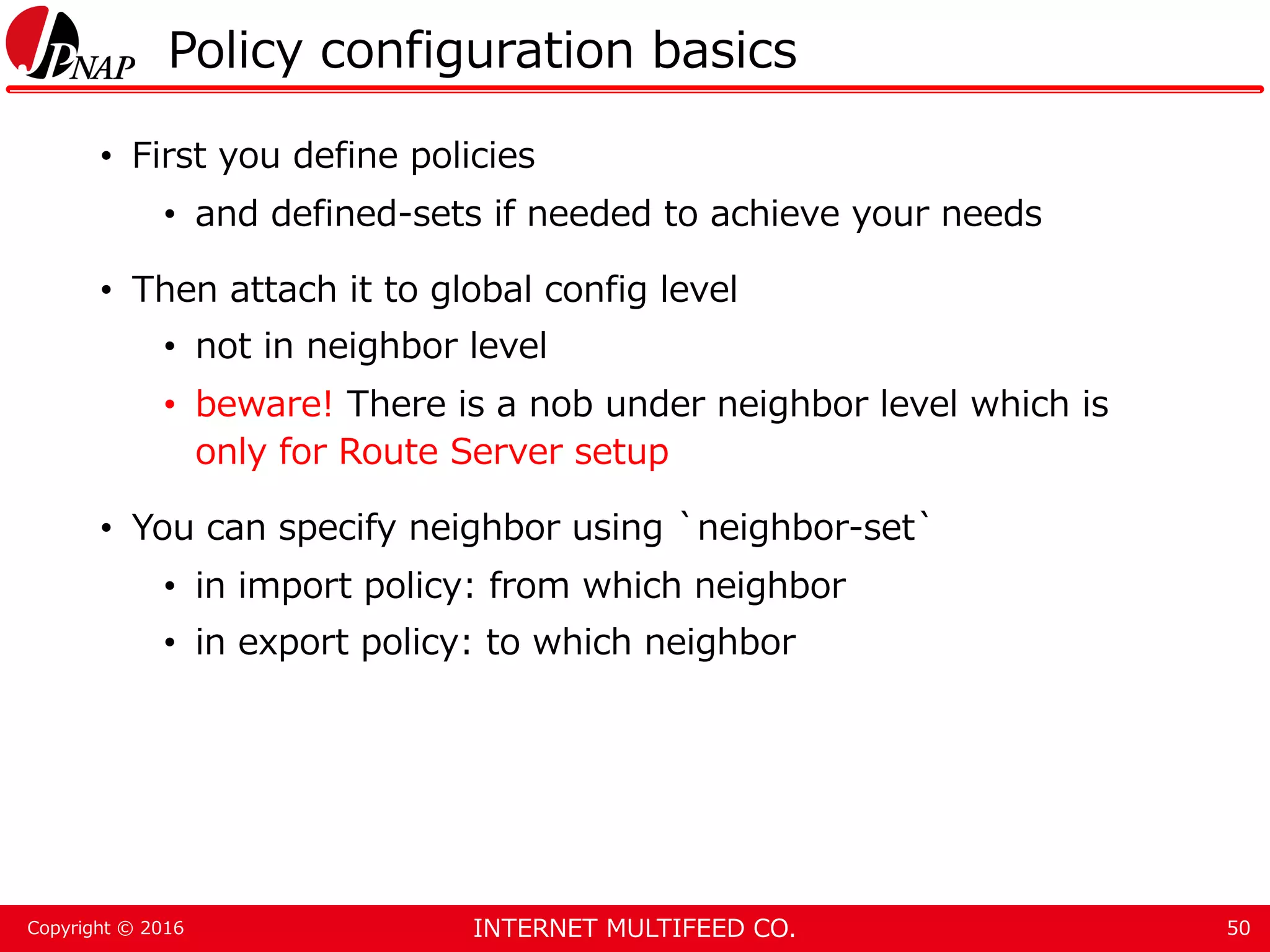

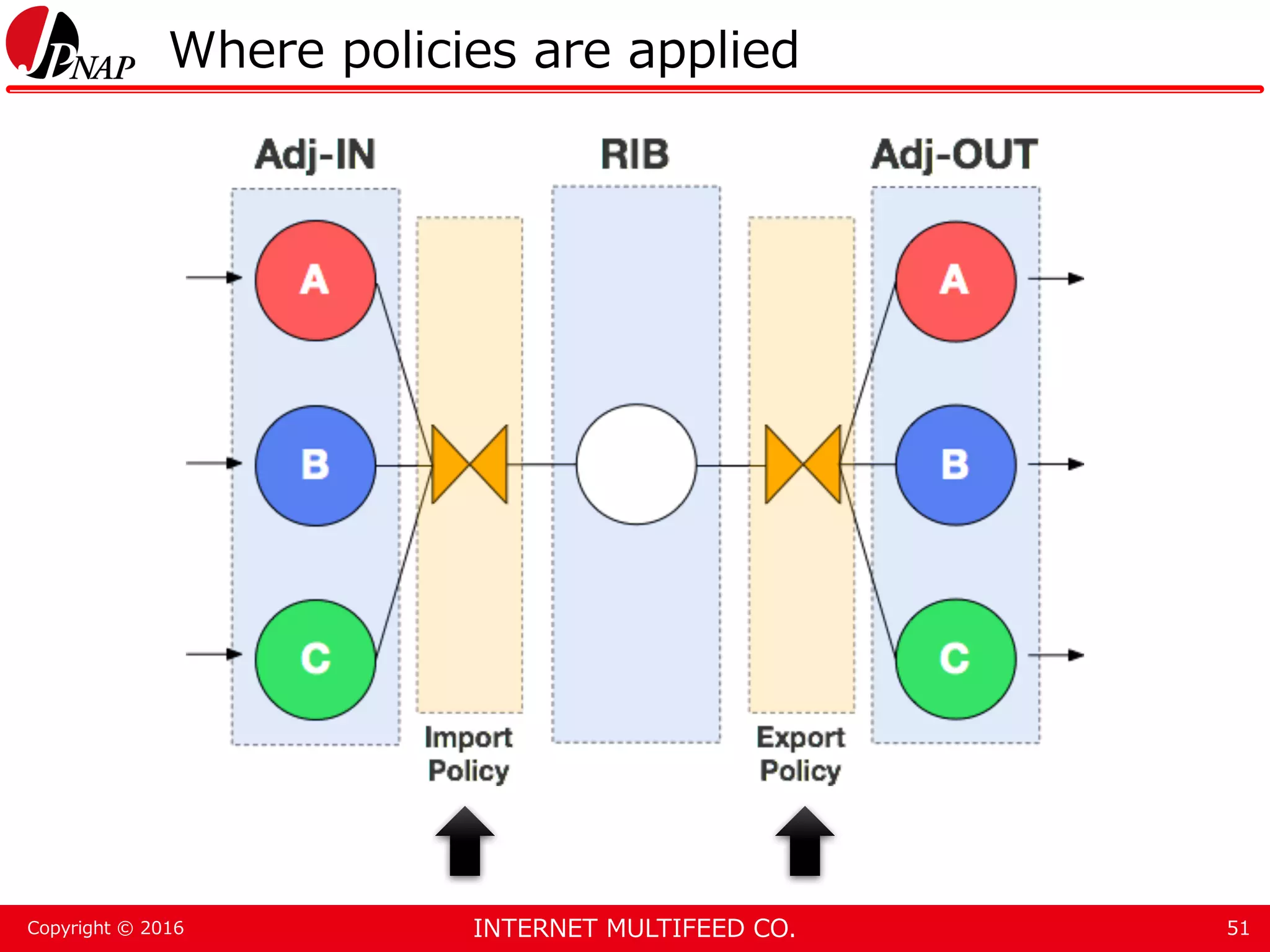

INTERNET MULTIFEED CO.Copyright © 2016 Policy configuration basics • First you define policies • and defined-sets if needed to achieve your needs • Then attach it to global config level • not in neighbor level • beware! There is a nob under neighbor level which is only for Route Server setup • You can specify neighbor using `neighbor-set` • in import policy: from which neighbor • in export policy: to which neighbor 50

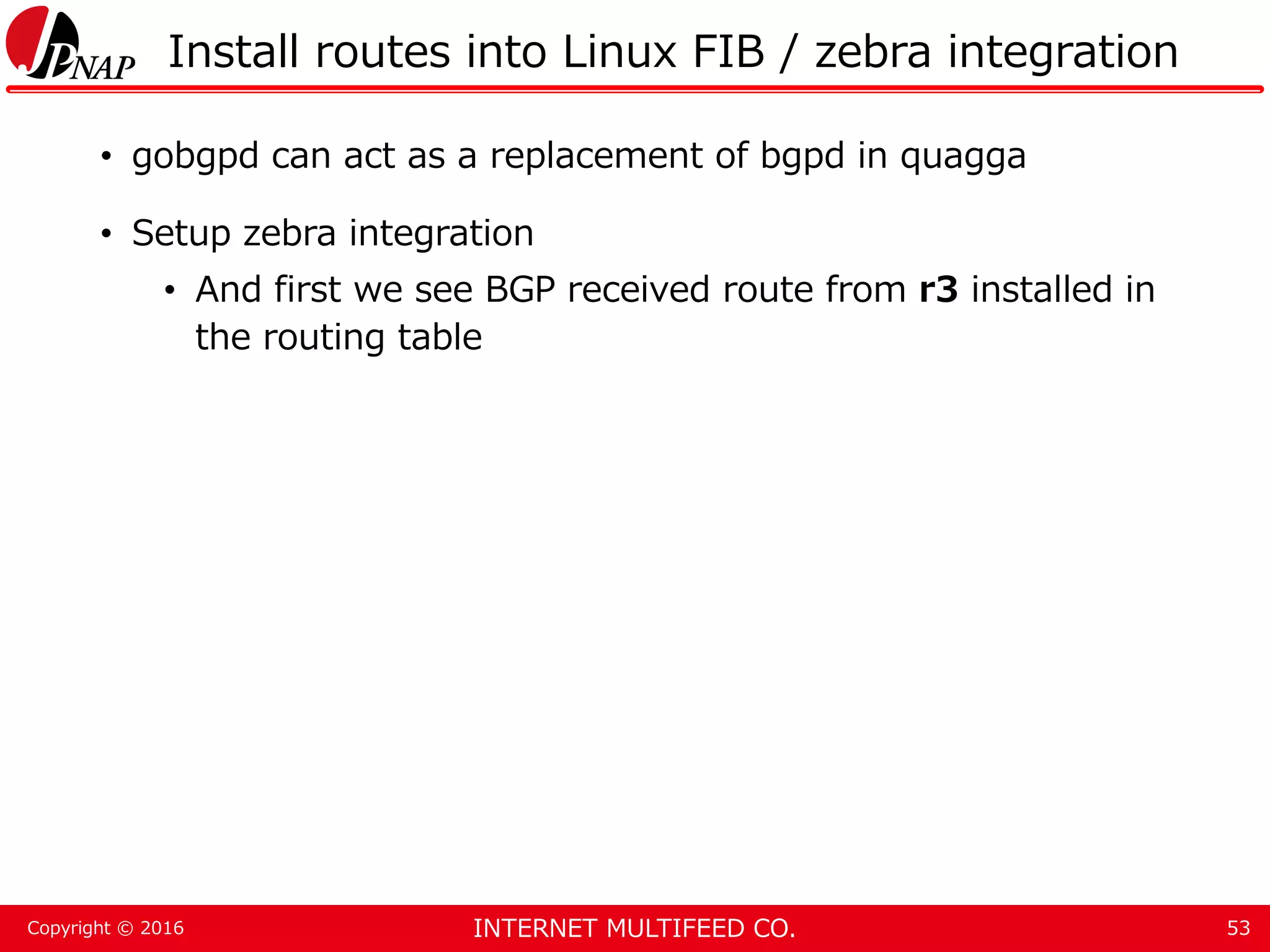

INTERNET MULTIFEED CO.Copyright © 2016 Install routes into Linux FIB / zebra integration • gobgpd can act as a replacement of bgpd in quagga • Setup zebra integration • And first we see BGP received route from r3 installed in the routing table 53

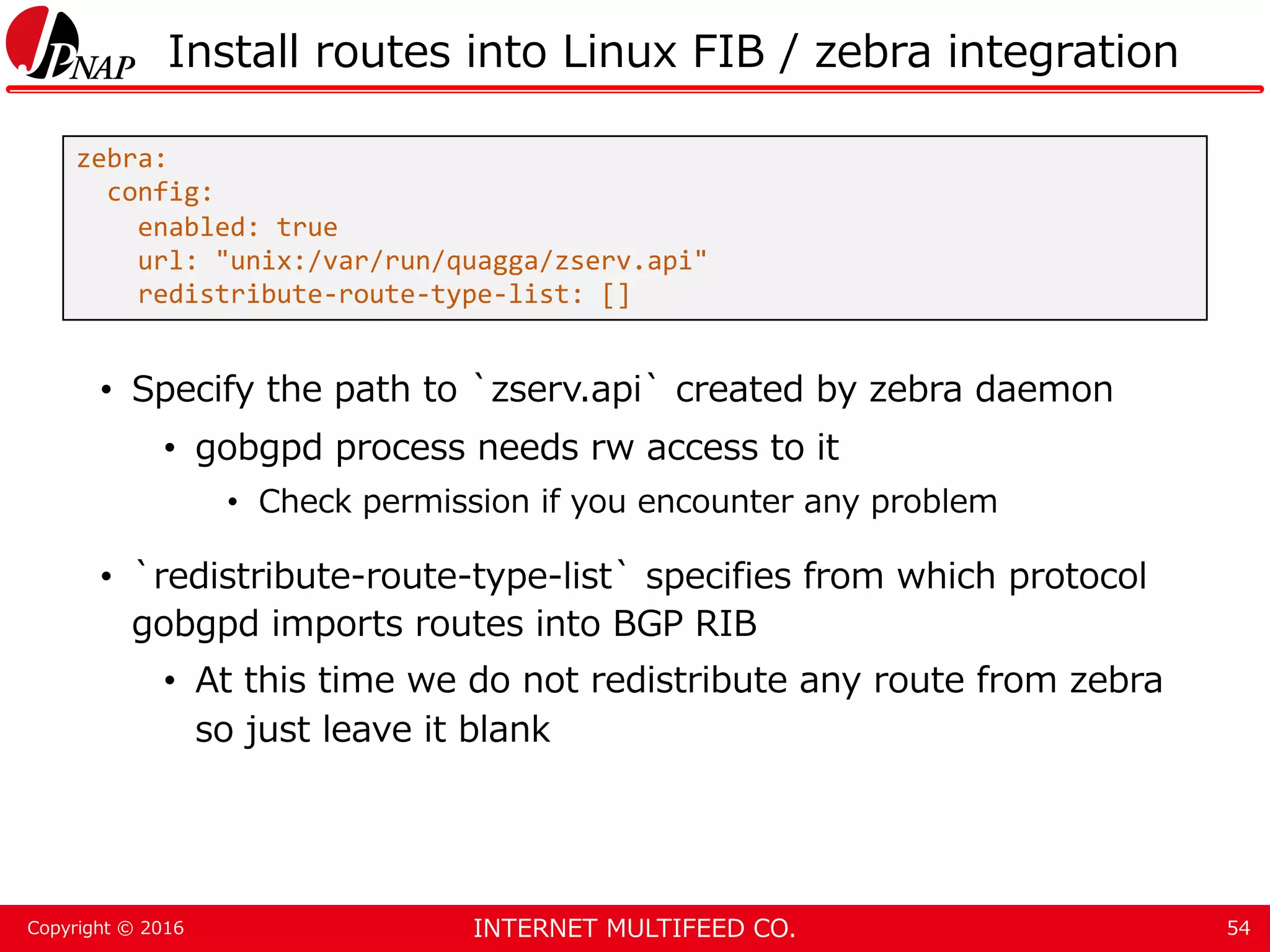

INTERNET MULTIFEED CO.Copyright © 2016 Install routes into Linux FIB / zebra integration • Specify the path to `zserv.api` created by zebra daemon • gobgpd process needs rw access to it • Check permission if you encounter any problem • `redistribute-route-type-list` specifies from which protocol gobgpd imports routes into BGP RIB • At this time we do not redistribute any route from zebra so just leave it blank 54 zebra: config: enabled: true url: "unix:/var/run/quagga/zserv.api" redistribute-route-type-list: []

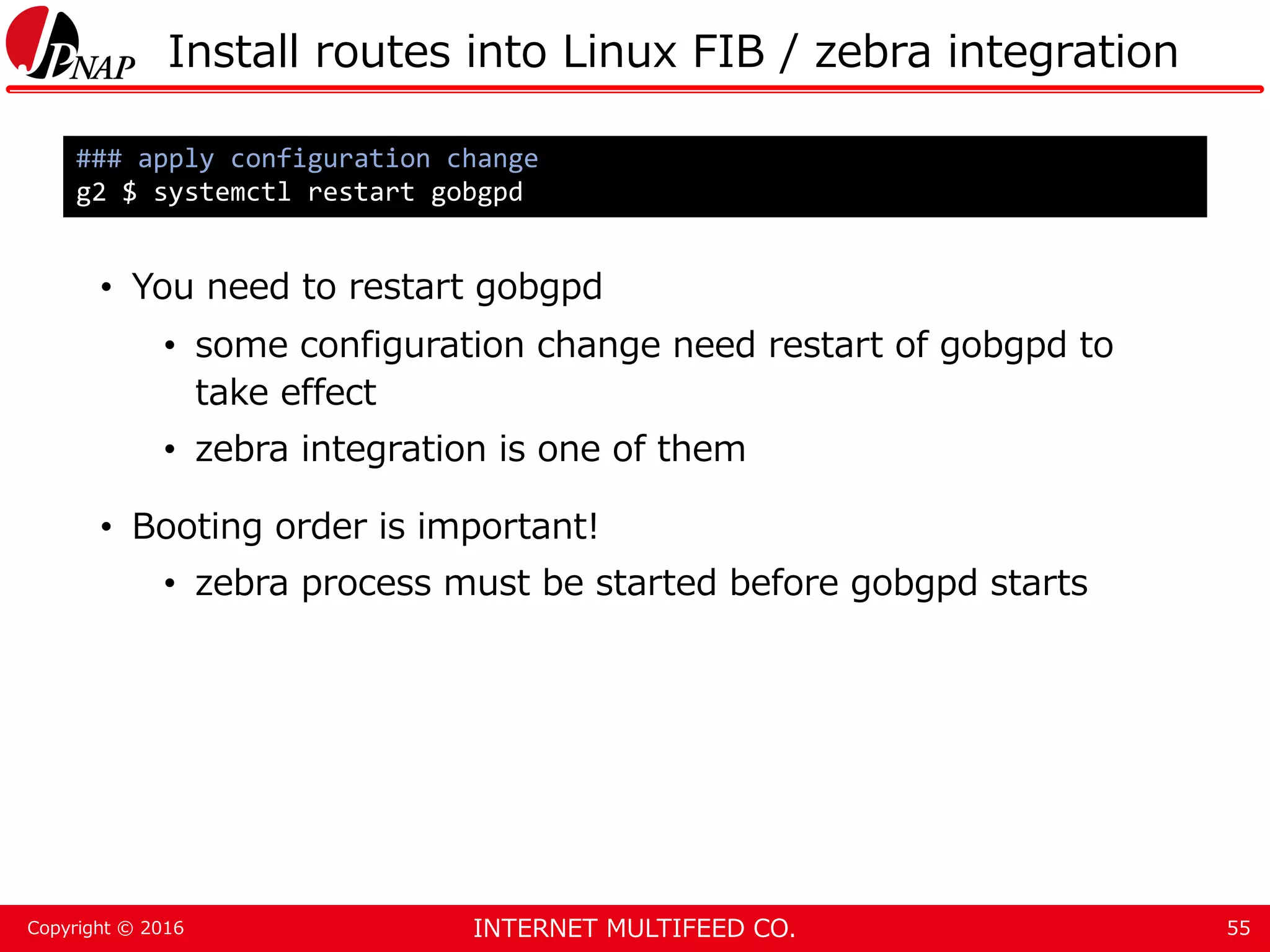

INTERNET MULTIFEED CO.Copyright © 2016 Install routes into Linux FIB / zebra integration • You need to restart gobgpd • some configuration change need restart of gobgpd to take effect • zebra integration is one of them • Booting order is important! • zebra process must be started before gobgpd starts 55 ### apply configuration change g2 $ systemctl restart gobgpd

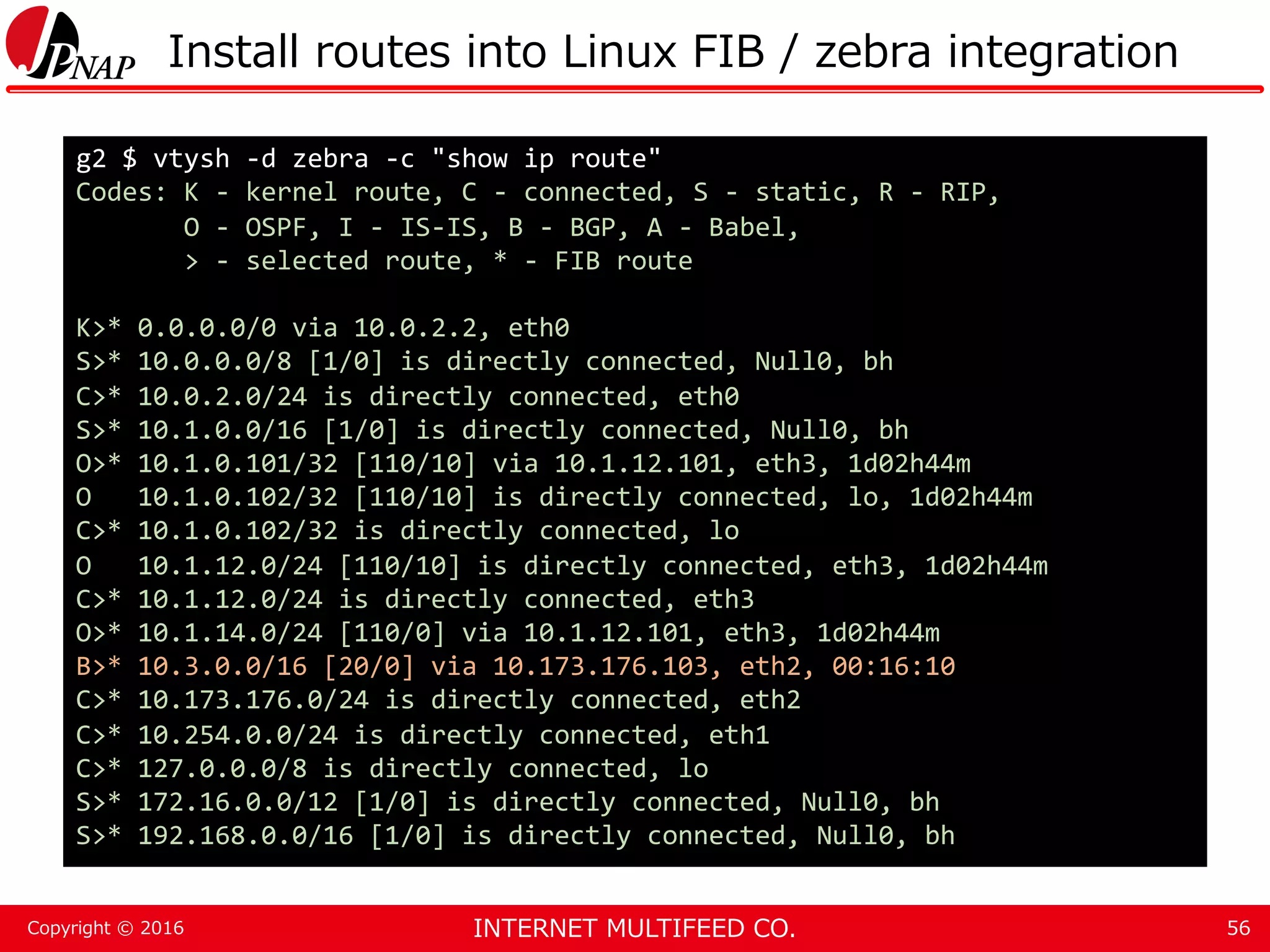

INTERNET MULTIFEED CO.Copyright © 2016 Install routes into Linux FIB / zebra integration 56 g2 $ vtysh -d zebra -c "show ip route" Codes: K - kernel route, C - connected, S - static, R - RIP, O - OSPF, I - IS-IS, B - BGP, A - Babel, > - selected route, * - FIB route K>* 0.0.0.0/0 via 10.0.2.2, eth0 S>* 10.0.0.0/8 [1/0] is directly connected, Null0, bh C>* 10.0.2.0/24 is directly connected, eth0 S>* 10.1.0.0/16 [1/0] is directly connected, Null0, bh O>* 10.1.0.101/32 [110/10] via 10.1.12.101, eth3, 1d02h44m O 10.1.0.102/32 [110/10] is directly connected, lo, 1d02h44m C>* 10.1.0.102/32 is directly connected, lo O 10.1.12.0/24 [110/10] is directly connected, eth3, 1d02h44m C>* 10.1.12.0/24 is directly connected, eth3 O>* 10.1.14.0/24 [110/0] via 10.1.12.101, eth3, 1d02h44m B>* 10.3.0.0/16 [20/0] via 10.173.176.103, eth2, 00:16:10 C>* 10.173.176.0/24 is directly connected, eth2 C>* 10.254.0.0/24 is directly connected, eth1 C>* 127.0.0.0/8 is directly connected, lo S>* 172.16.0.0/12 [1/0] is directly connected, Null0, bh S>* 192.168.0.0/16 [1/0] is directly connected, Null0, bh

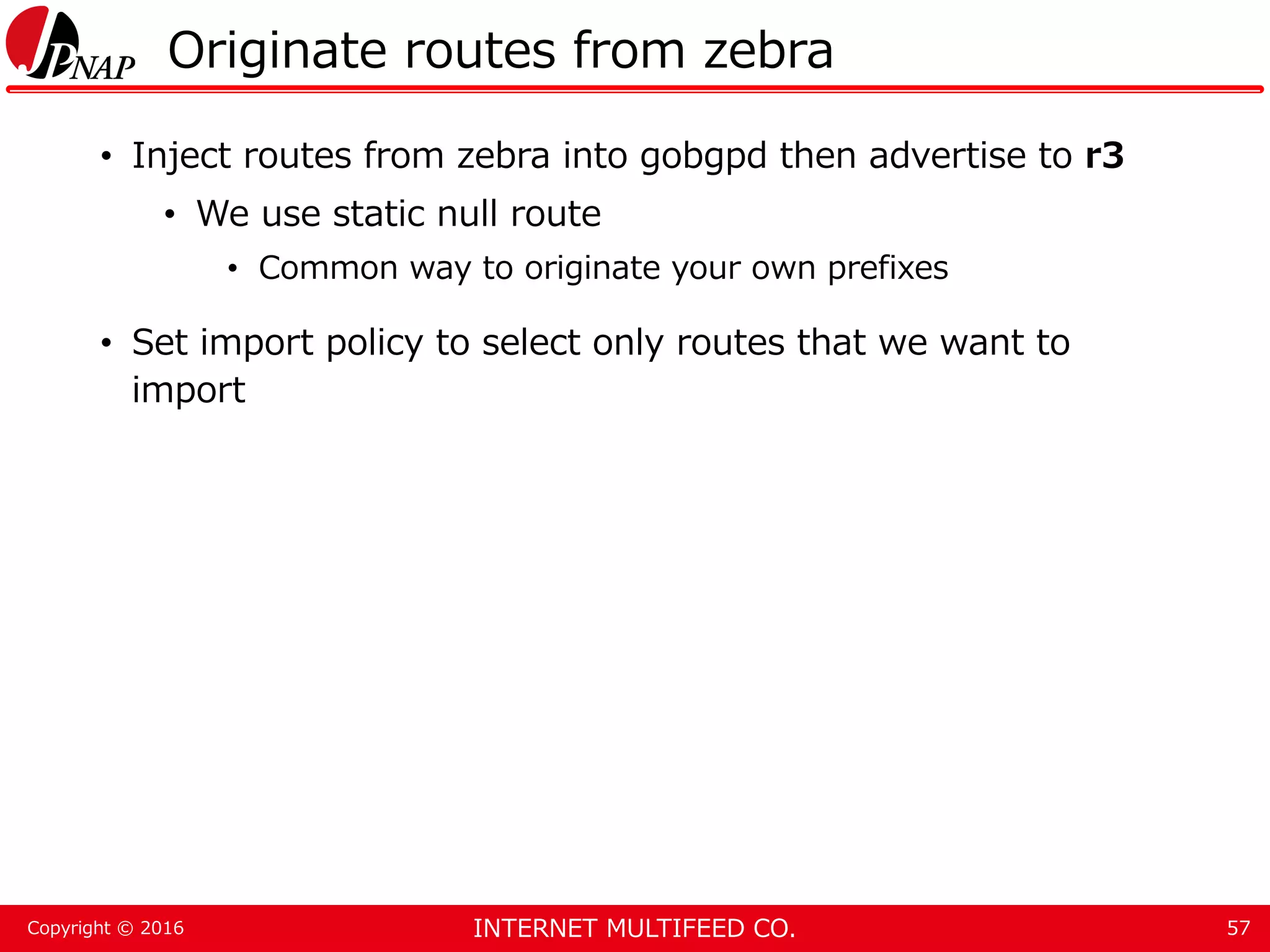

INTERNET MULTIFEED CO.Copyright © 2016 Originate routes from zebra • Inject routes from zebra into gobgpd then advertise to r3 • We use static null route • Common way to originate your own prefixes • Set import policy to select only routes that we want to import 57

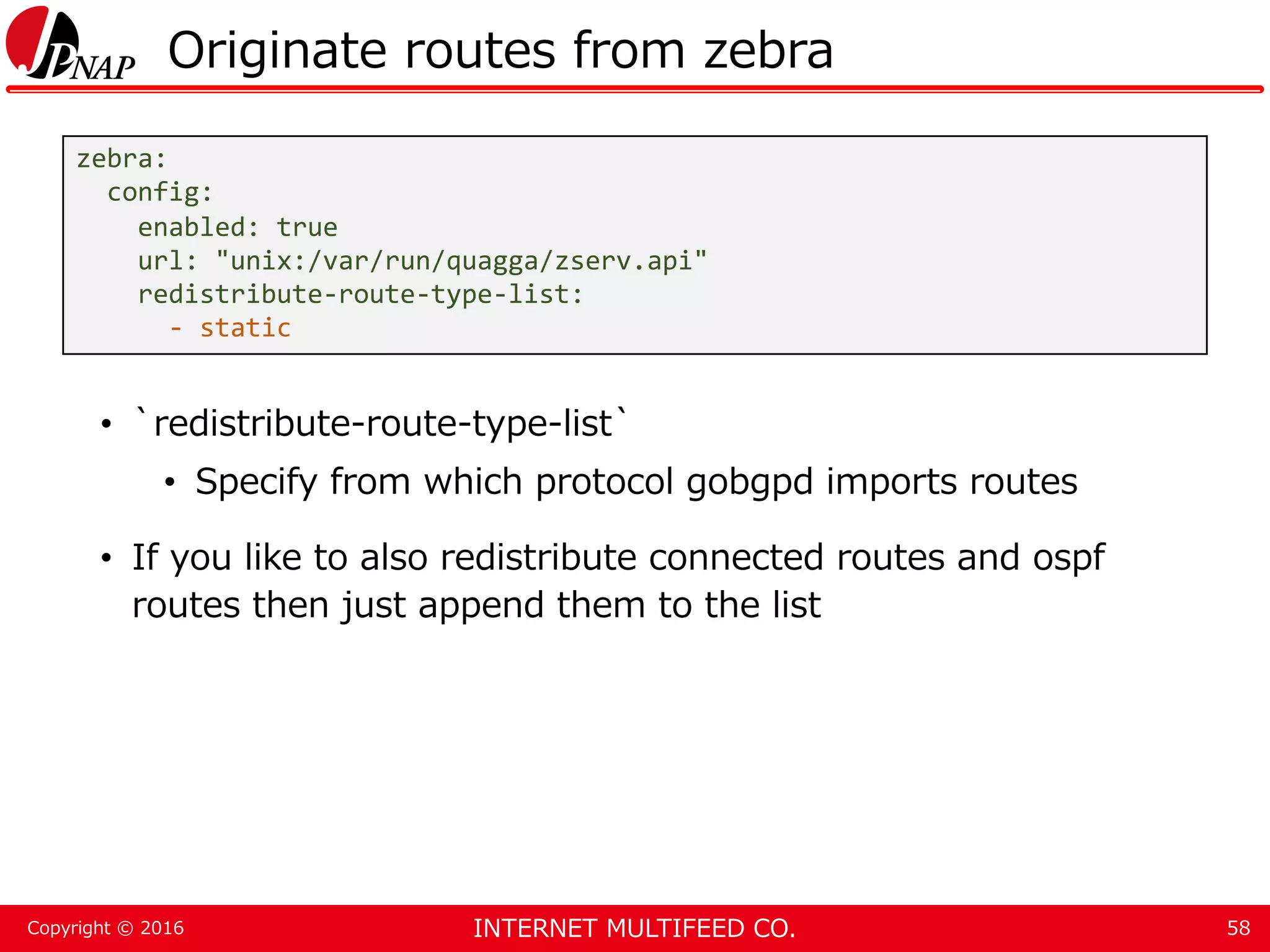

INTERNET MULTIFEED CO.Copyright © 2016 Originate routes from zebra • `redistribute-route-type-list` • Specify from which protocol gobgpd imports routes • If you like to also redistribute connected routes and ospf routes then just append them to the list 58 zebra: config: enabled: true url: "unix:/var/run/quagga/zserv.api" redistribute-route-type-list: - static

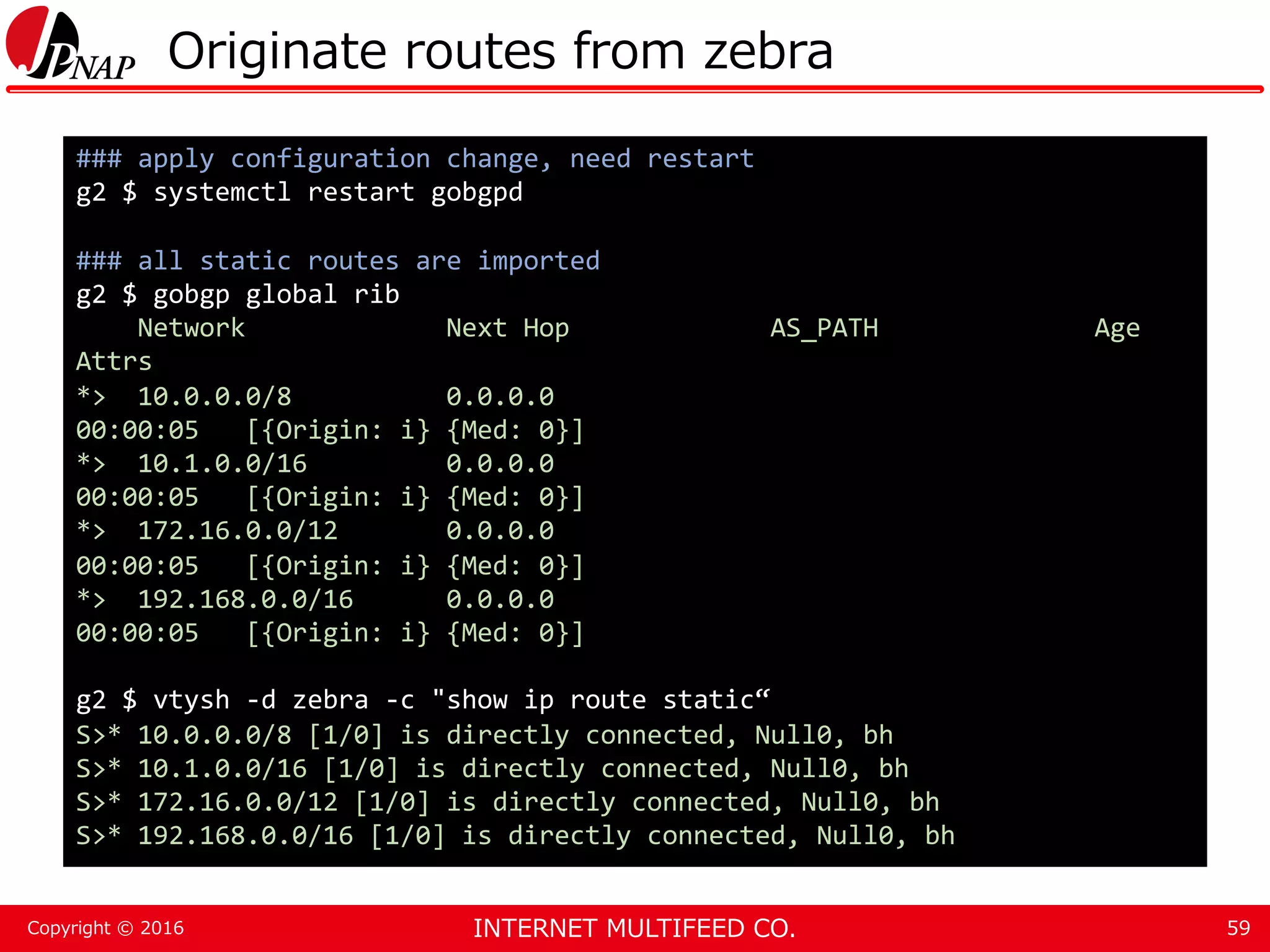

INTERNET MULTIFEED CO.Copyright © 2016 Originate routes from zebra 59 ### apply configuration change, need restart g2 $ systemctl restart gobgpd ### all static routes are imported g2 $ gobgp global rib Network Next Hop AS_PATH Age Attrs *> 10.0.0.0/8 0.0.0.0 00:00:05 [{Origin: i} {Med: 0}] *> 10.1.0.0/16 0.0.0.0 00:00:05 [{Origin: i} {Med: 0}] *> 172.16.0.0/12 0.0.0.0 00:00:05 [{Origin: i} {Med: 0}] *> 192.168.0.0/16 0.0.0.0 00:00:05 [{Origin: i} {Med: 0}] g2 $ vtysh -d zebra -c "show ip route static“ S>* 10.0.0.0/8 [1/0] is directly connected, Null0, bh S>* 10.1.0.0/16 [1/0] is directly connected, Null0, bh S>* 172.16.0.0/12 [1/0] is directly connected, Null0, bh S>* 192.168.0.0/16 [1/0] is directly connected, Null0, bh

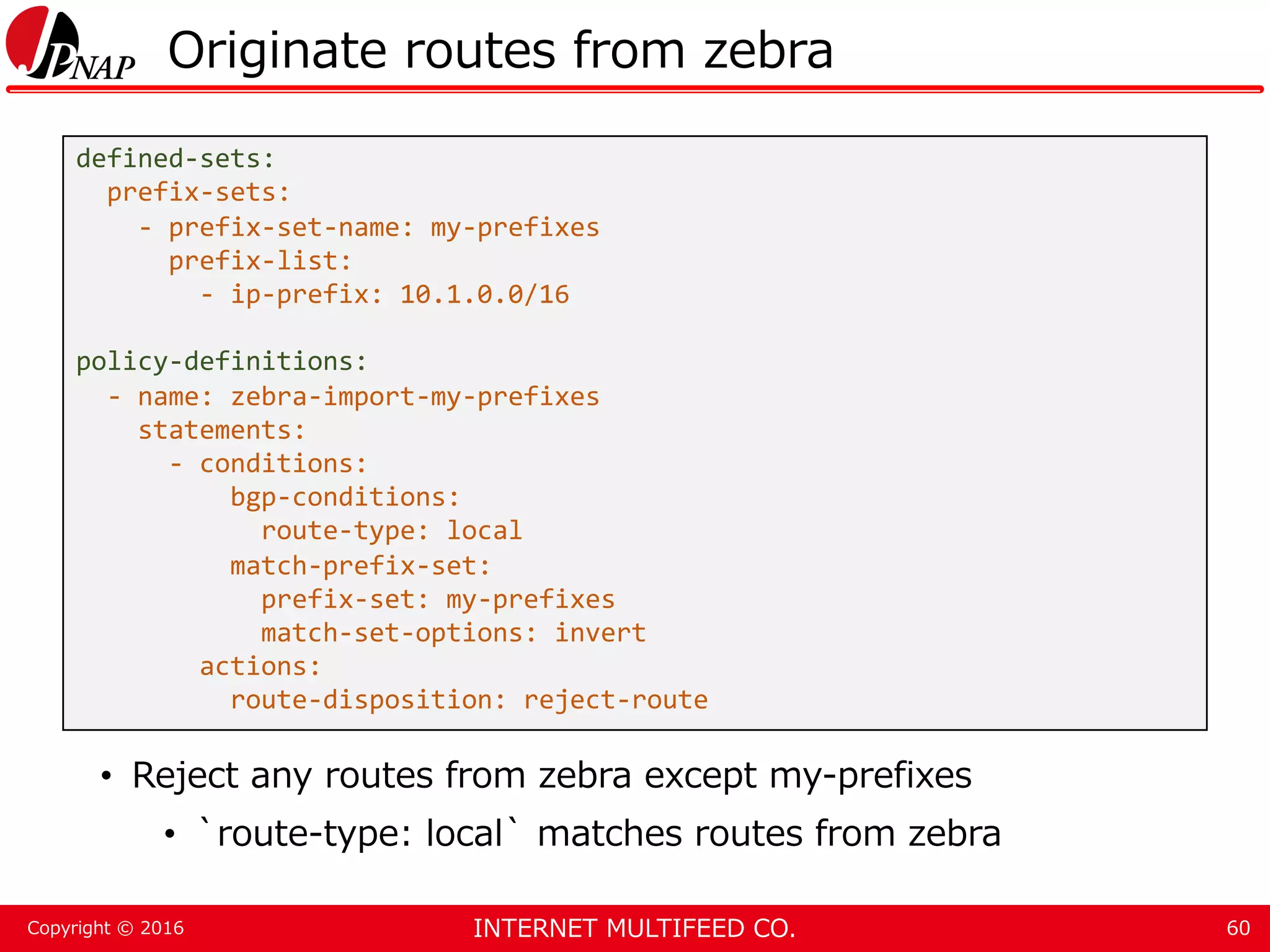

INTERNET MULTIFEED CO.Copyright © 2016 Originate routes from zebra • Reject any routes from zebra except my-prefixes • `route-type: local` matches routes from zebra 60 defined-sets: prefix-sets: - prefix-set-name: my-prefixes prefix-list: - ip-prefix: 10.1.0.0/16 policy-definitions: - name: zebra-import-my-prefixes statements: - conditions: bgp-conditions: route-type: local match-prefix-set: prefix-set: my-prefixes match-set-options: invert actions: route-disposition: reject-route

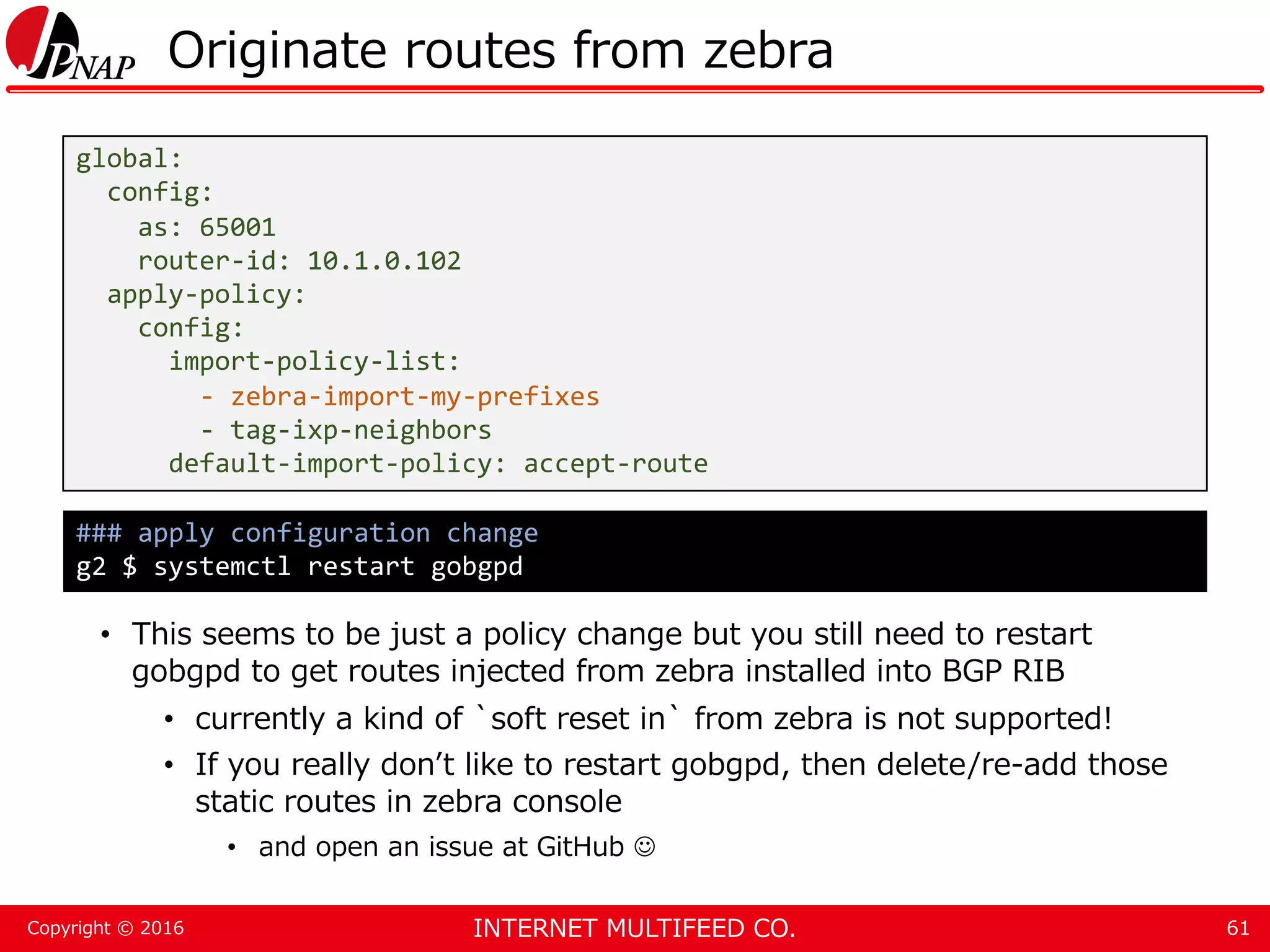

INTERNET MULTIFEED CO.Copyright © 2016 Originate routes from zebra • This seems to be just a policy change but you still need to restart gobgpd to get routes injected from zebra installed into BGP RIB • currently a kind of `soft reset in` from zebra is not supported! • If you really don’t like to restart gobgpd, then delete/re-add those static routes in zebra console • and open an issue at GitHub  61 global: config: as: 65001 router-id: 10.1.0.102 apply-policy: config: import-policy-list: - zebra-import-my-prefixes - tag-ixp-neighbors default-import-policy: accept-route ### apply configuration change g2 $ systemctl restart gobgpd

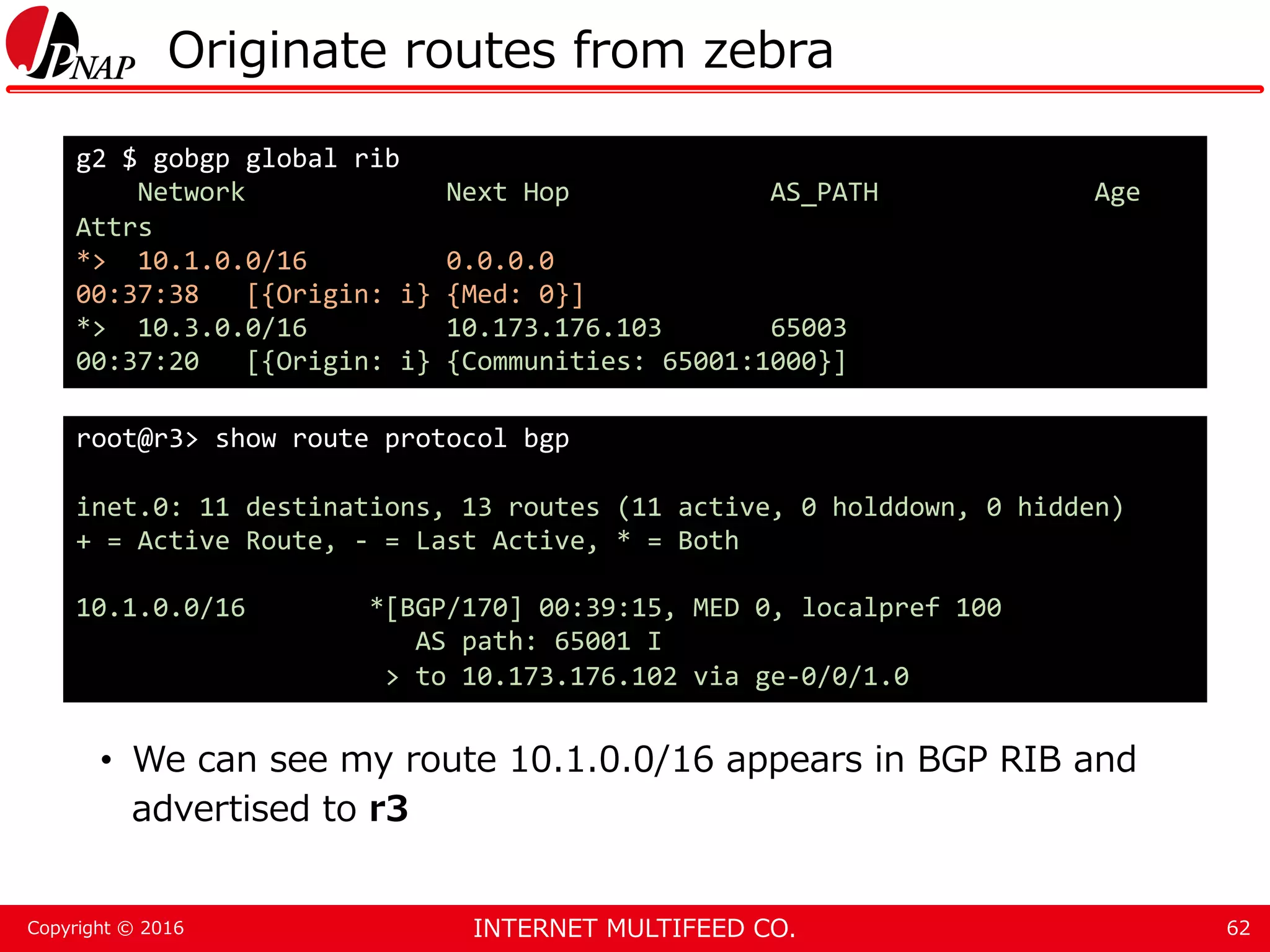

INTERNET MULTIFEED CO.Copyright © 2016 Originate routes from zebra • We can see my route 10.1.0.0/16 appears in BGP RIB and advertised to r3 62 g2 $ gobgp global rib Network Next Hop AS_PATH Age Attrs *> 10.1.0.0/16 0.0.0.0 00:37:38 [{Origin: i} {Med: 0}] *> 10.3.0.0/16 10.173.176.103 65003 00:37:20 [{Origin: i} {Communities: 65001:1000}] root@r3> show route protocol bgp inet.0: 11 destinations, 13 routes (11 active, 0 holddown, 0 hidden) + = Active Route, - = Last Active, * = Both 10.1.0.0/16 *[BGP/170] 00:39:15, MED 0, localpref 100 AS path: 65001 I > to 10.173.176.102 via ge-0/0/1.0

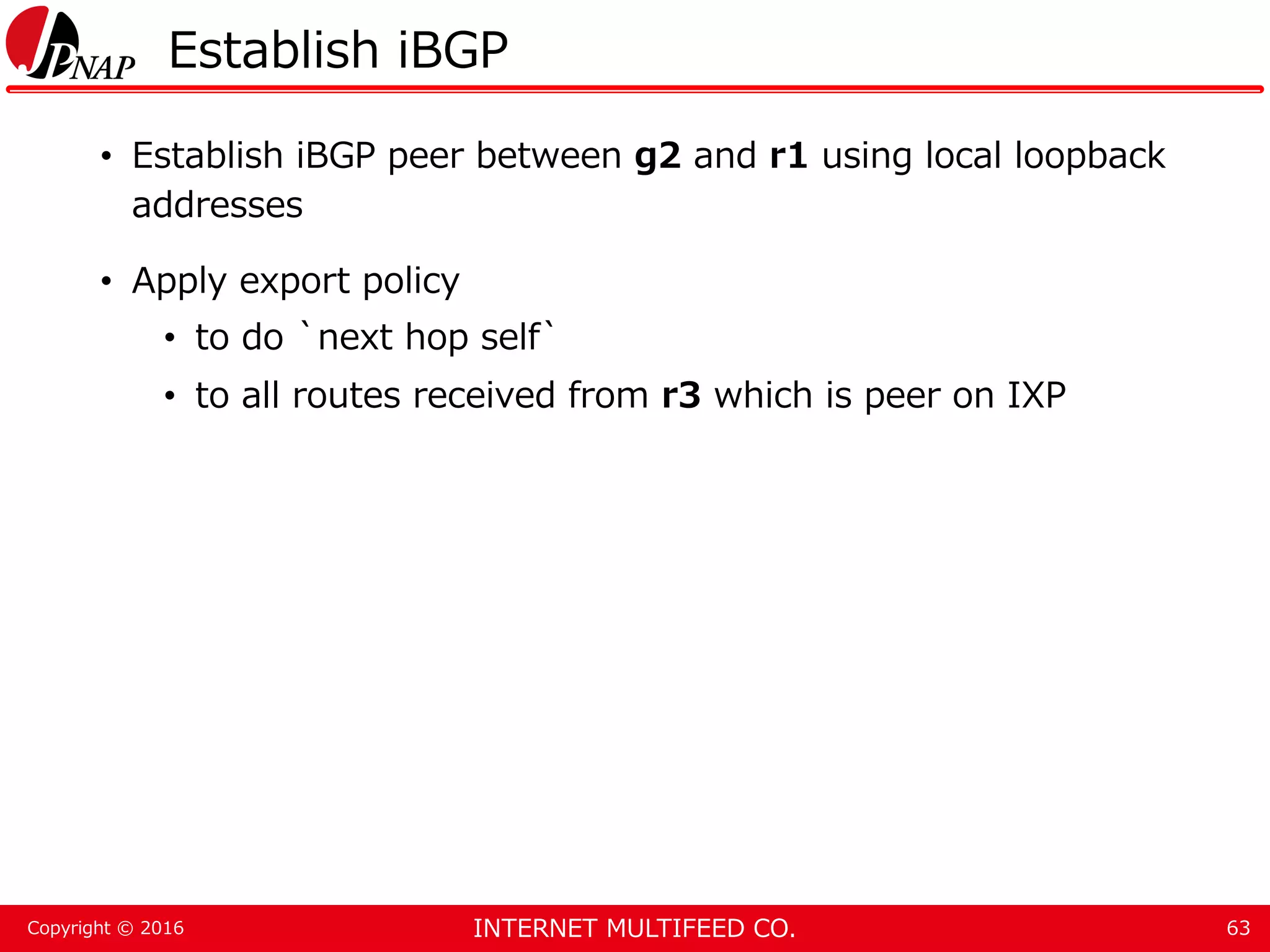

INTERNET MULTIFEED CO.Copyright © 2016 Establish iBGP • Establish iBGP peer between g2 and r1 using local loopback addresses • Apply export policy • to do `next hop self` • to all routes received from r3 which is peer on IXP 63

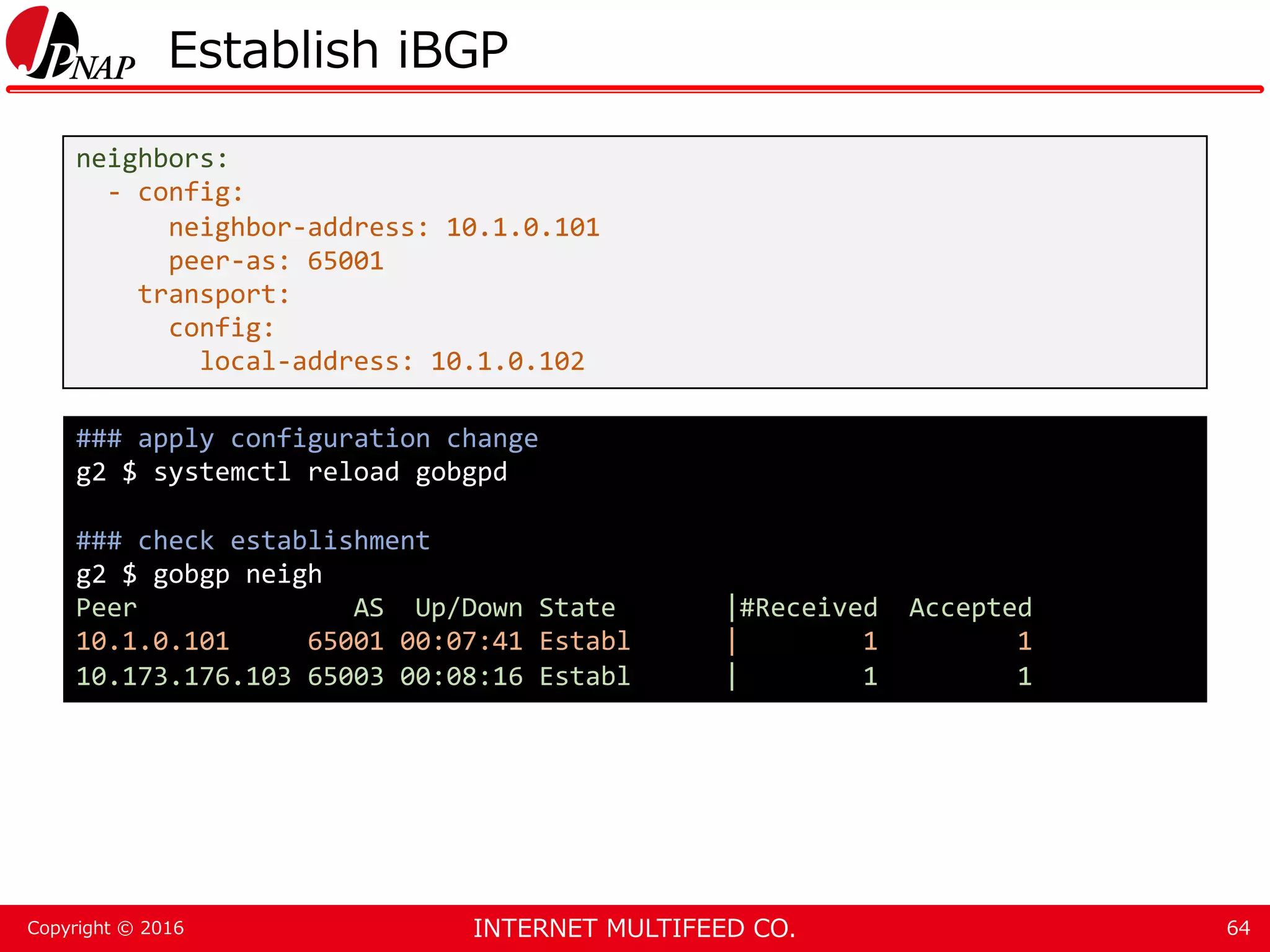

INTERNET MULTIFEED CO.Copyright © 2016 Establish iBGP 64 neighbors: - config: neighbor-address: 10.1.0.101 peer-as: 65001 transport: config: local-address: 10.1.0.102 ### apply configuration change g2 $ systemctl reload gobgpd ### check establishment g2 $ gobgp neigh Peer AS Up/Down State |#Received Accepted 10.1.0.101 65001 00:07:41 Establ | 1 1 10.173.176.103 65003 00:08:16 Establ | 1 1

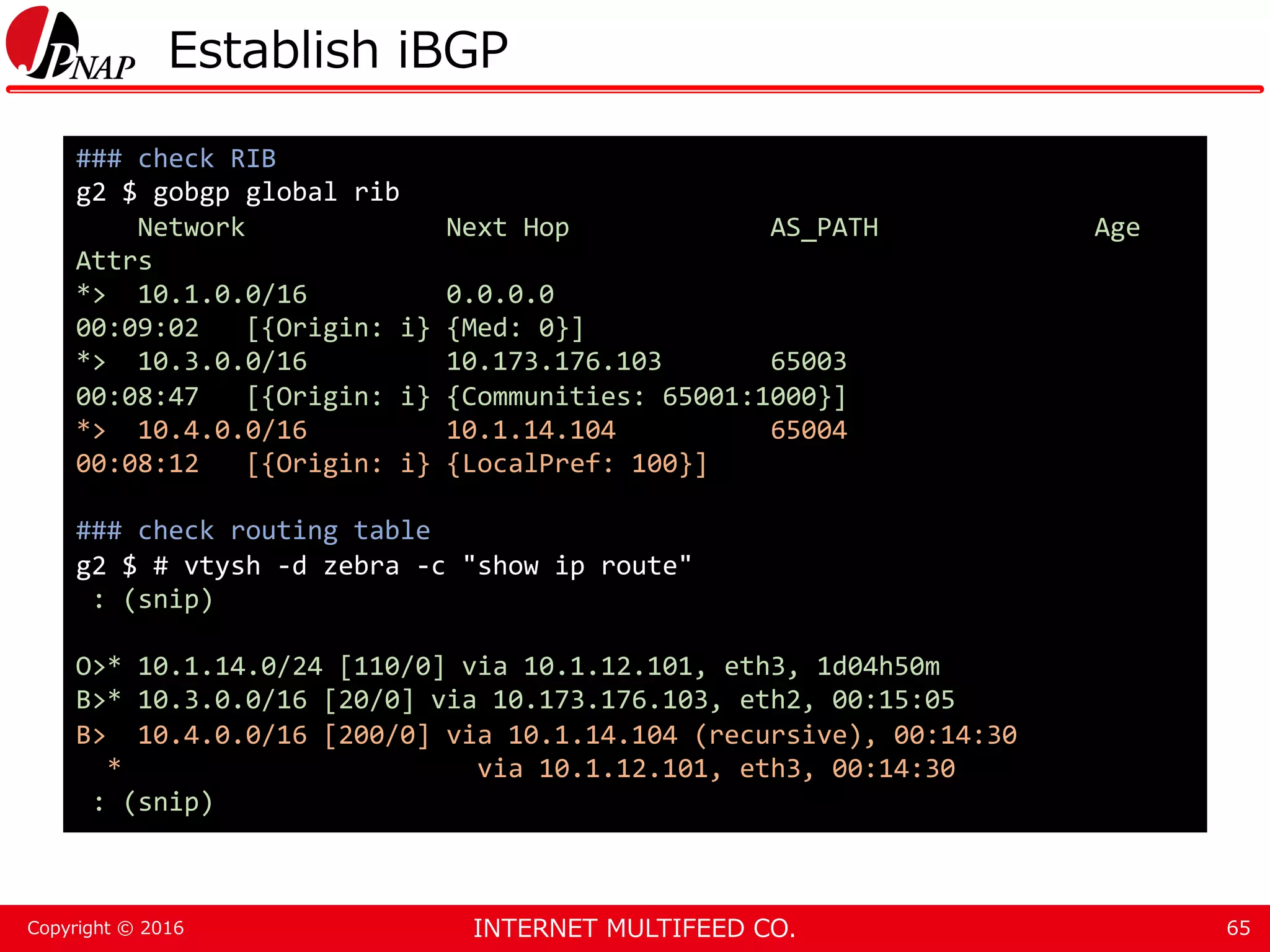

INTERNET MULTIFEED CO.Copyright © 2016 Establish iBGP 65 ### check RIB g2 $ gobgp global rib Network Next Hop AS_PATH Age Attrs *> 10.1.0.0/16 0.0.0.0 00:09:02 [{Origin: i} {Med: 0}] *> 10.3.0.0/16 10.173.176.103 65003 00:08:47 [{Origin: i} {Communities: 65001:1000}] *> 10.4.0.0/16 10.1.14.104 65004 00:08:12 [{Origin: i} {LocalPref: 100}] ### check routing table g2 $ # vtysh -d zebra -c "show ip route" : (snip) O>* 10.1.14.0/24 [110/0] via 10.1.12.101, eth3, 1d04h50m B>* 10.3.0.0/16 [20/0] via 10.173.176.103, eth2, 00:15:05 B> 10.4.0.0/16 [200/0] via 10.1.14.104 (recursive), 00:14:30 * via 10.1.12.101, eth3, 00:14:30 : (snip)

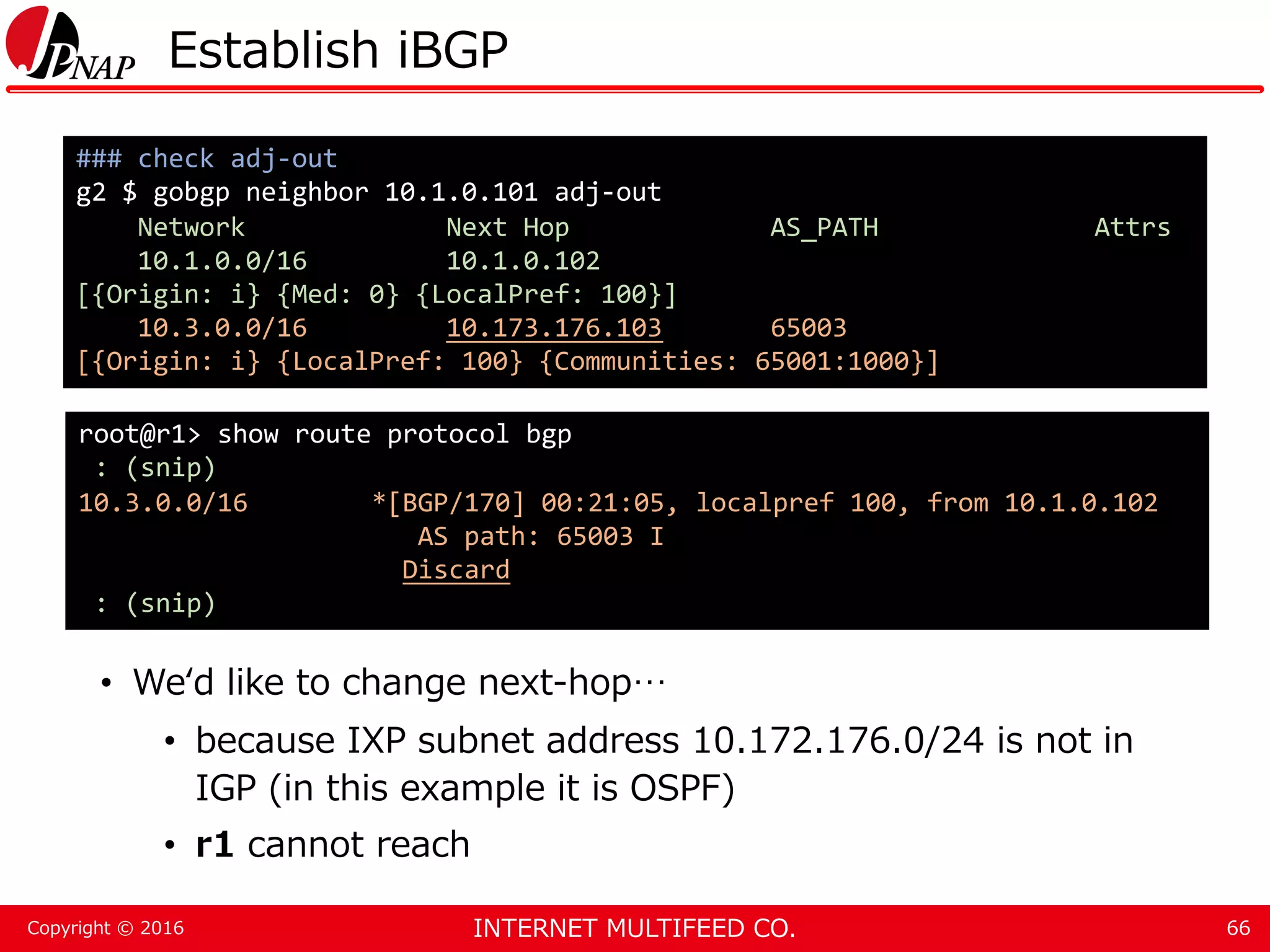

INTERNET MULTIFEED CO.Copyright © 2016 Establish iBGP • We‘d like to change next-hop… • because IXP subnet address 10.172.176.0/24 is not in IGP (in this example it is OSPF) • r1 cannot reach 66 ### check adj-out g2 $ gobgp neighbor 10.1.0.101 adj-out Network Next Hop AS_PATH Attrs 10.1.0.0/16 10.1.0.102 [{Origin: i} {Med: 0} {LocalPref: 100}] 10.3.0.0/16 10.173.176.103 65003 [{Origin: i} {LocalPref: 100} {Communities: 65001:1000}] root@r1> show route protocol bgp : (snip) 10.3.0.0/16 *[BGP/170] 00:21:05, localpref 100, from 10.1.0.102 AS path: 65003 I Discard : (snip)

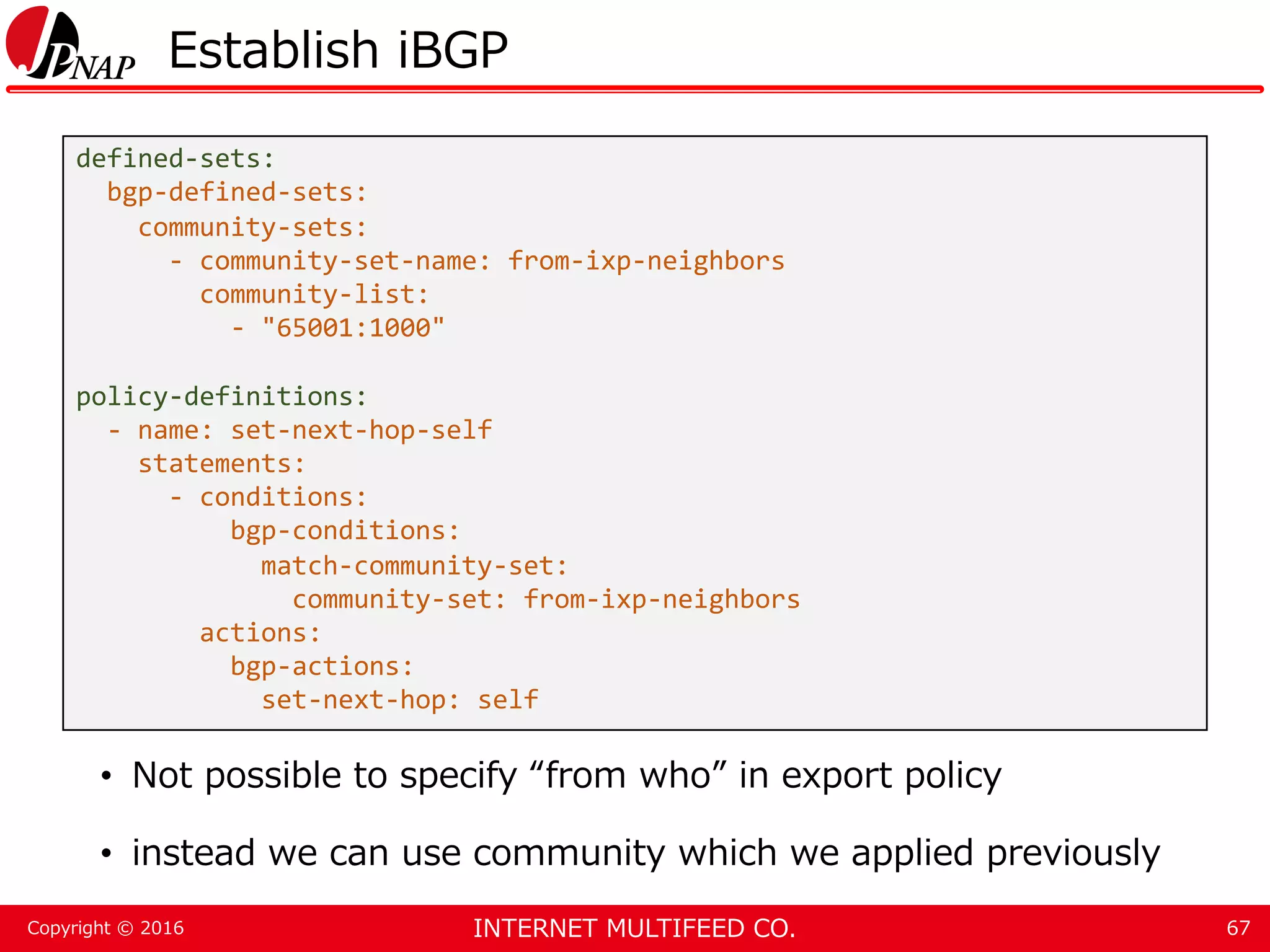

INTERNET MULTIFEED CO.Copyright © 2016 Establish iBGP • Not possible to specify “from who” in export policy • instead we can use community which we applied previously 67 defined-sets: bgp-defined-sets: community-sets: - community-set-name: from-ixp-neighbors community-list: - "65001:1000" policy-definitions: - name: set-next-hop-self statements: - conditions: bgp-conditions: match-community-set: community-set: from-ixp-neighbors actions: bgp-actions: set-next-hop: self

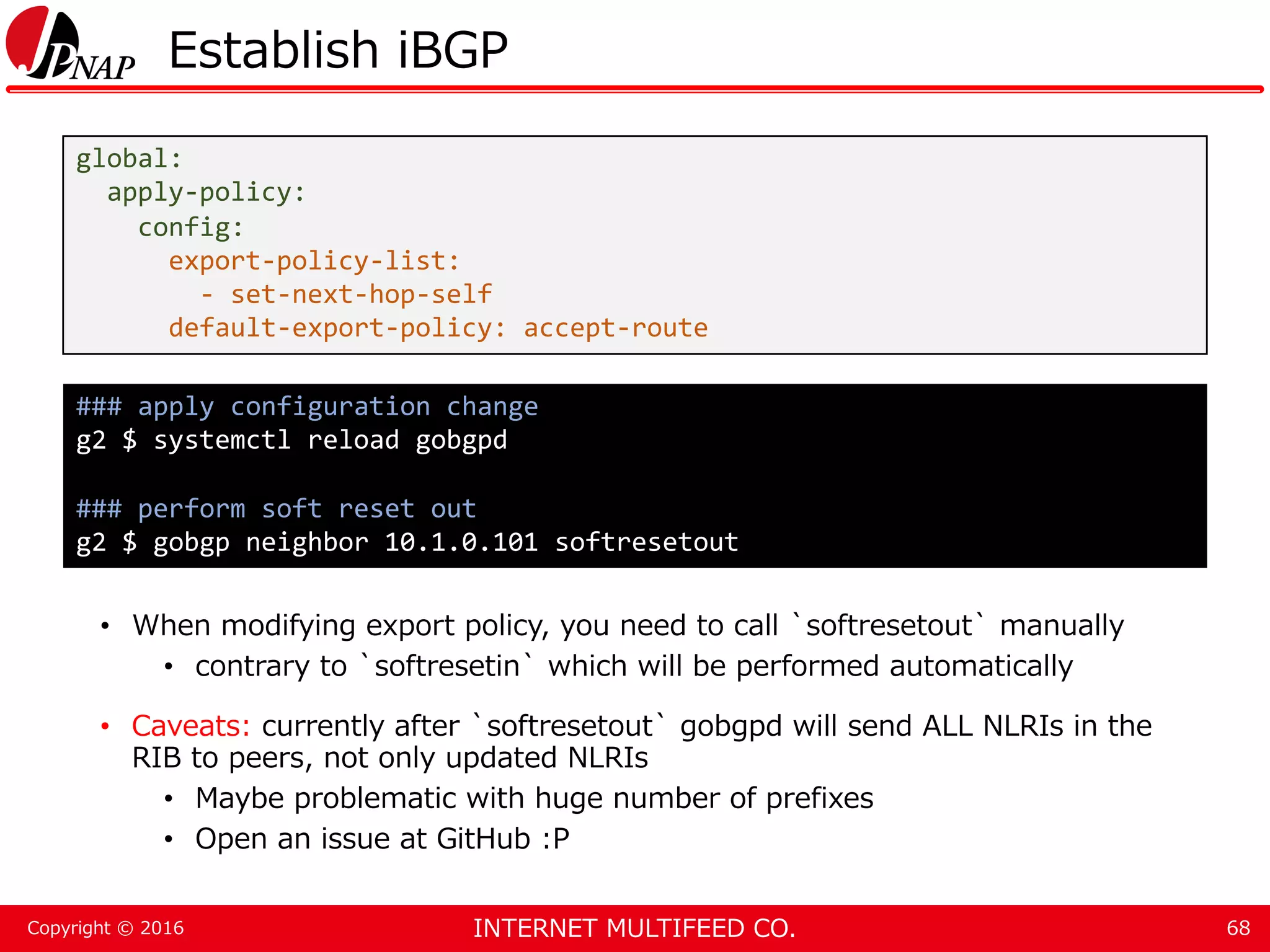

INTERNET MULTIFEED CO.Copyright © 2016 Establish iBGP • When modifying export policy, you need to call `softresetout` manually • contrary to `softresetin` which will be performed automatically • Caveats: currently after `softresetout` gobgpd will send ALL NLRIs in the RIB to peers, not only updated NLRIs • Maybe problematic with huge number of prefixes • Open an issue at GitHub :P 68 global: apply-policy: config: export-policy-list: - set-next-hop-self default-export-policy: accept-route ### apply configuration change g2 $ systemctl reload gobgpd ### perform soft reset out g2 $ gobgp neighbor 10.1.0.101 softresetout

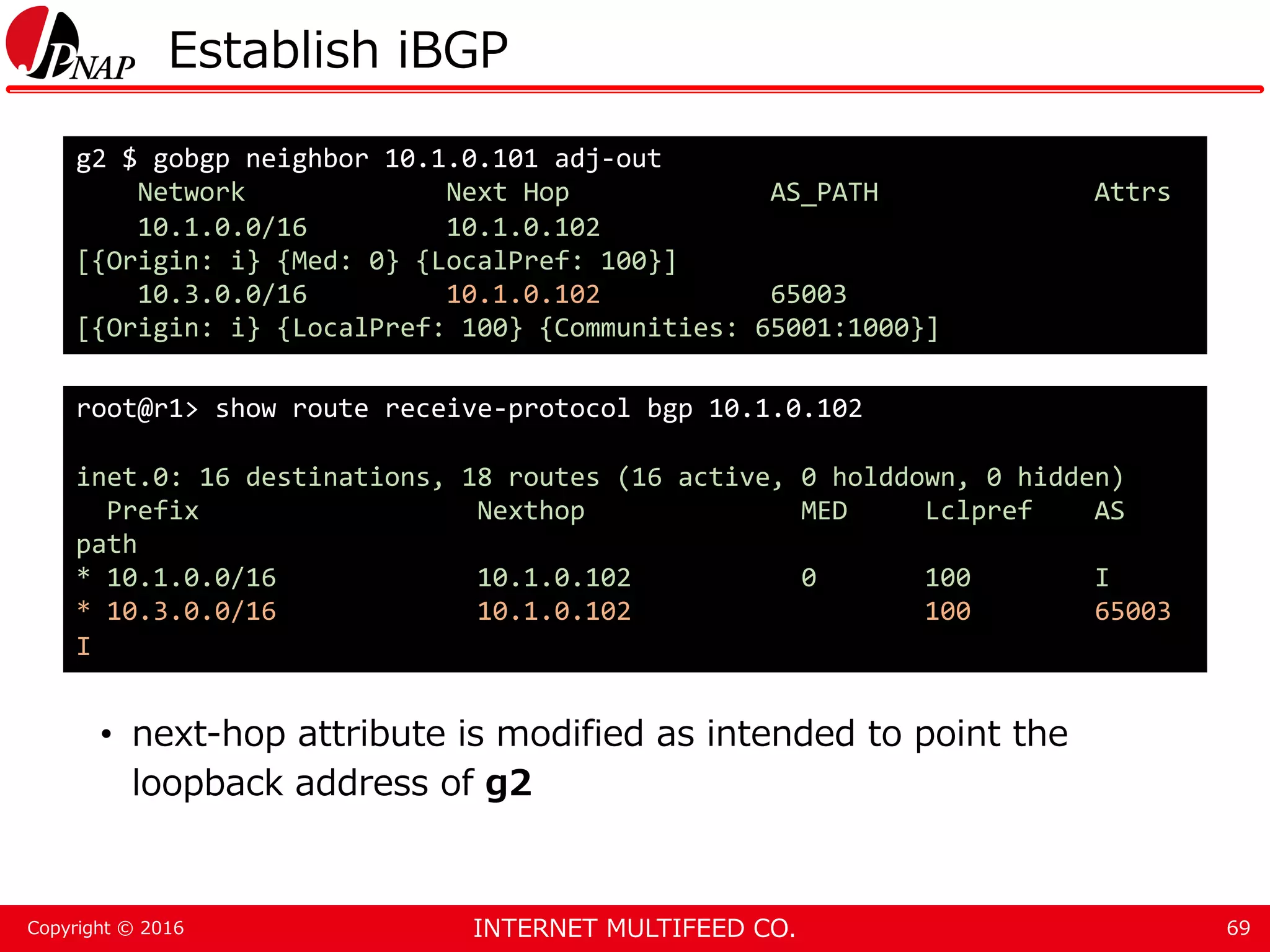

INTERNET MULTIFEED CO.Copyright © 2016 Establish iBGP • next-hop attribute is modified as intended to point the loopback address of g2 69 g2 $ gobgp neighbor 10.1.0.101 adj-out Network Next Hop AS_PATH Attrs 10.1.0.0/16 10.1.0.102 [{Origin: i} {Med: 0} {LocalPref: 100}] 10.3.0.0/16 10.1.0.102 65003 [{Origin: i} {LocalPref: 100} {Communities: 65001:1000}] root@r1> show route receive-protocol bgp 10.1.0.102 inet.0: 16 destinations, 18 routes (16 active, 0 holddown, 0 hidden) Prefix Nexthop MED Lclpref AS path * 10.1.0.0/16 10.1.0.102 0 100 I * 10.3.0.0/16 10.1.0.102 100 65003 I

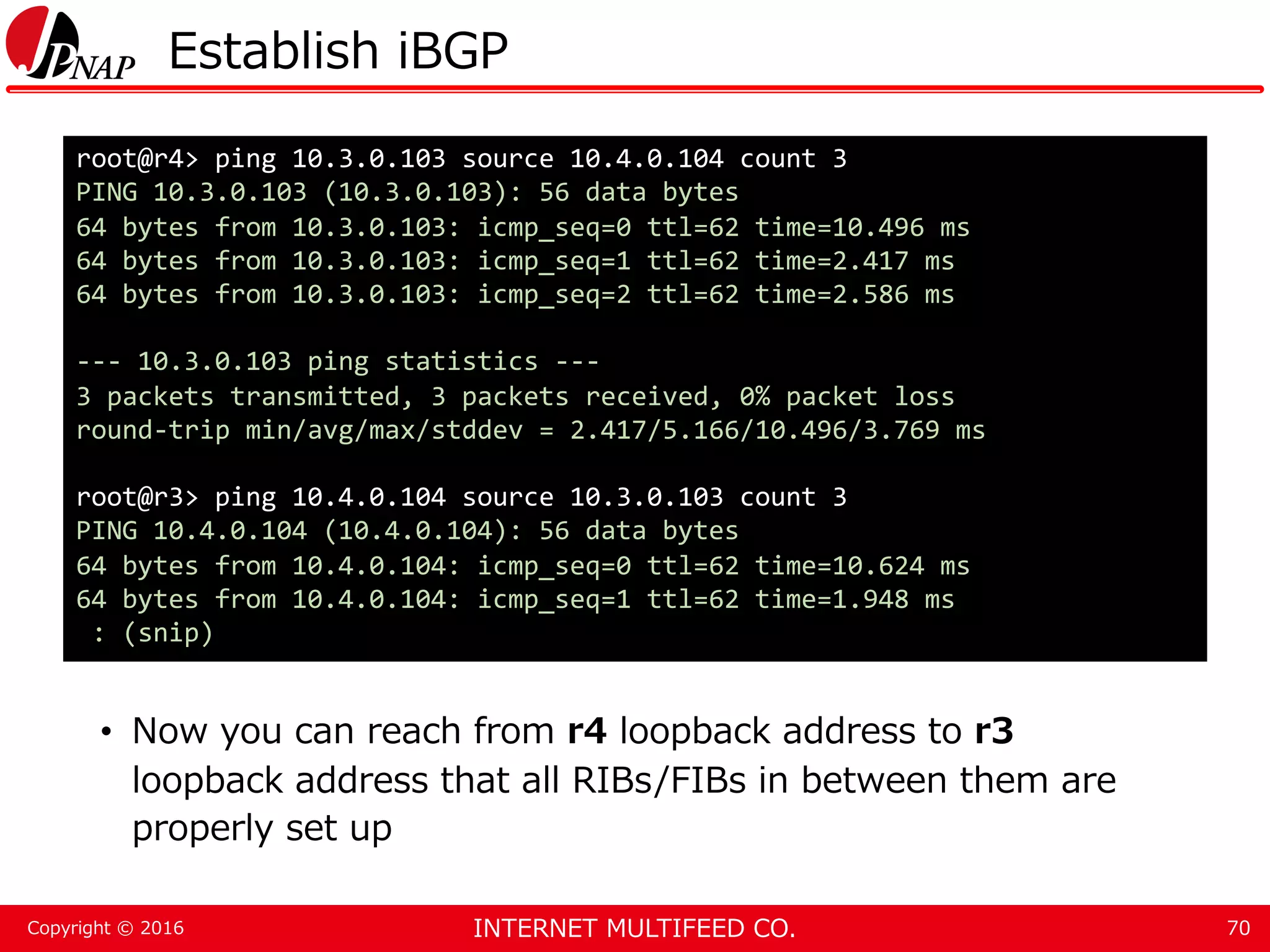

INTERNET MULTIFEED CO.Copyright © 2016 Establish iBGP • Now you can reach from r4 loopback address to r3 loopback address that all RIBs/FIBs in between them are properly set up 70 root@r4> ping 10.3.0.103 source 10.4.0.104 count 3 PING 10.3.0.103 (10.3.0.103): 56 data bytes 64 bytes from 10.3.0.103: icmp_seq=0 ttl=62 time=10.496 ms 64 bytes from 10.3.0.103: icmp_seq=1 ttl=62 time=2.417 ms 64 bytes from 10.3.0.103: icmp_seq=2 ttl=62 time=2.586 ms --- 10.3.0.103 ping statistics --- 3 packets transmitted, 3 packets received, 0% packet loss round-trip min/avg/max/stddev = 2.417/5.166/10.496/3.769 ms root@r3> ping 10.4.0.104 source 10.3.0.103 count 3 PING 10.4.0.104 (10.4.0.104): 56 data bytes 64 bytes from 10.4.0.104: icmp_seq=0 ttl=62 time=10.624 ms 64 bytes from 10.4.0.104: icmp_seq=1 ttl=62 time=1.948 ms : (snip)

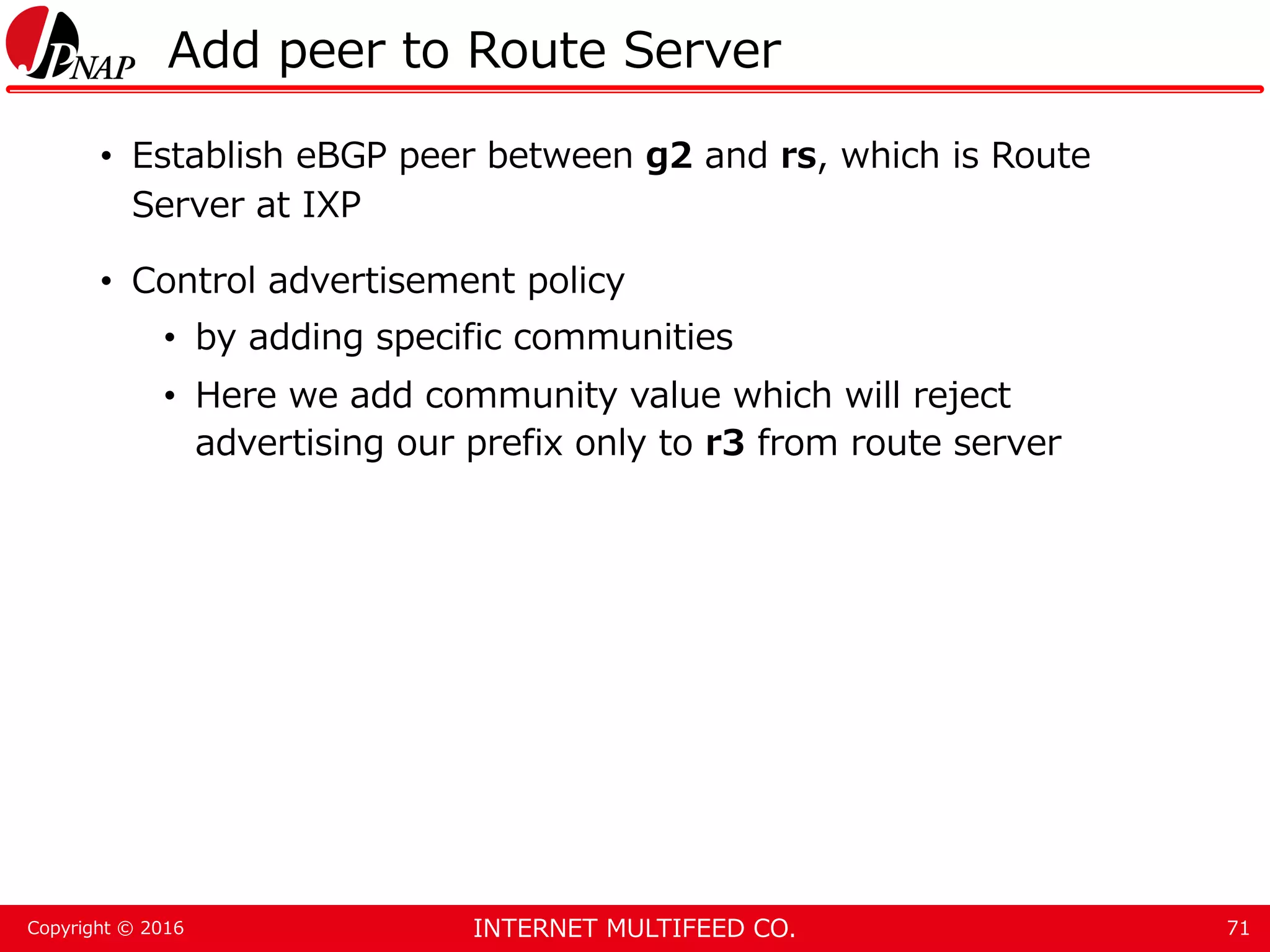

INTERNET MULTIFEED CO.Copyright © 2016 Add peer to Route Server • Establish eBGP peer between g2 and rs, which is Route Server at IXP • Control advertisement policy • by adding specific communities • Here we add community value which will reject advertising our prefix only to r3 from route server 71

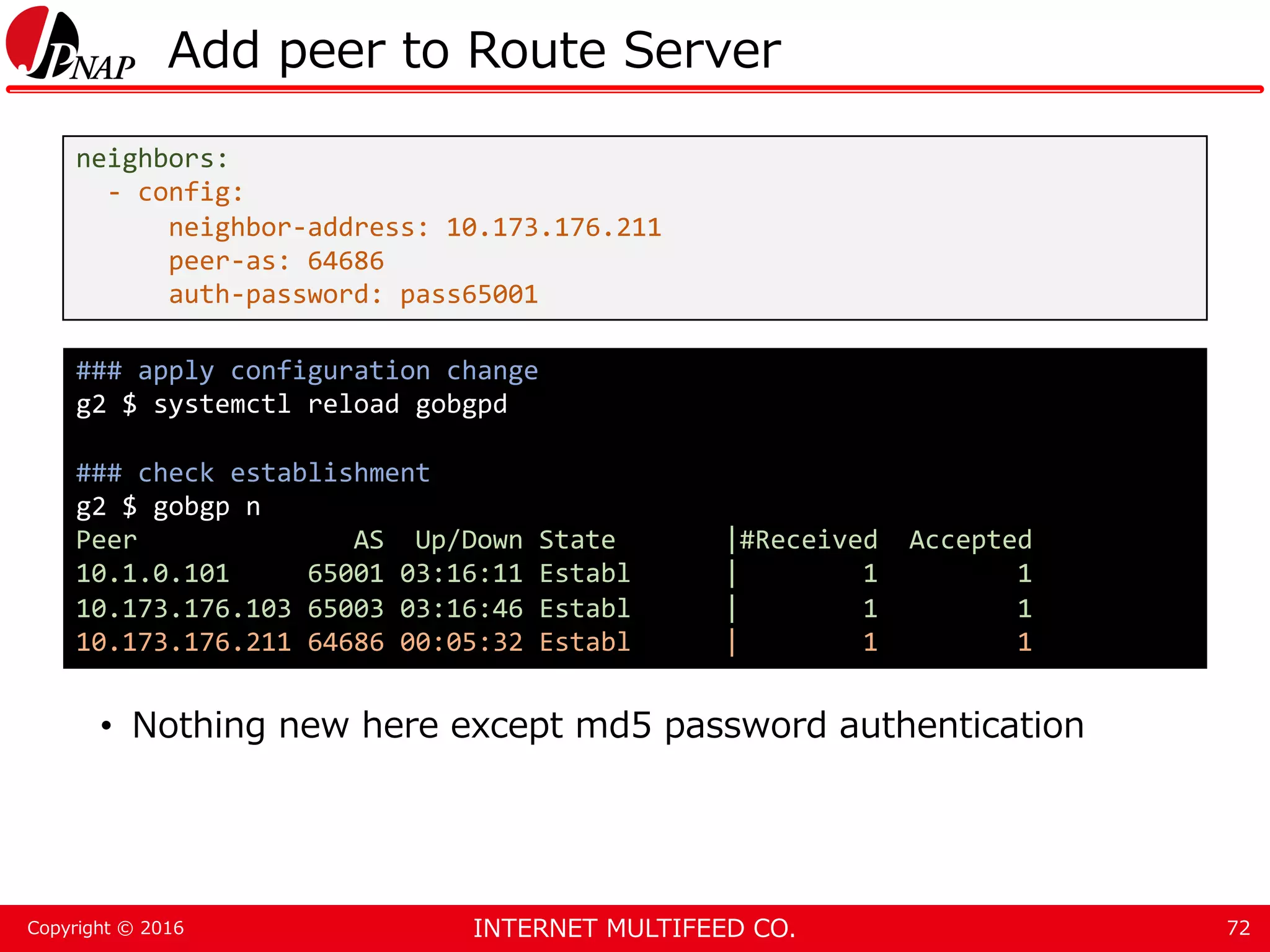

INTERNET MULTIFEED CO.Copyright © 2016 Add peer to Route Server • Nothing new here except md5 password authentication 72 neighbors: - config: neighbor-address: 10.173.176.211 peer-as: 64686 auth-password: pass65001 ### apply configuration change g2 $ systemctl reload gobgpd ### check establishment g2 $ gobgp n Peer AS Up/Down State |#Received Accepted 10.1.0.101 65001 03:16:11 Establ | 1 1 10.173.176.103 65003 03:16:46 Establ | 1 1 10.173.176.211 64686 00:05:32 Establ | 1 1

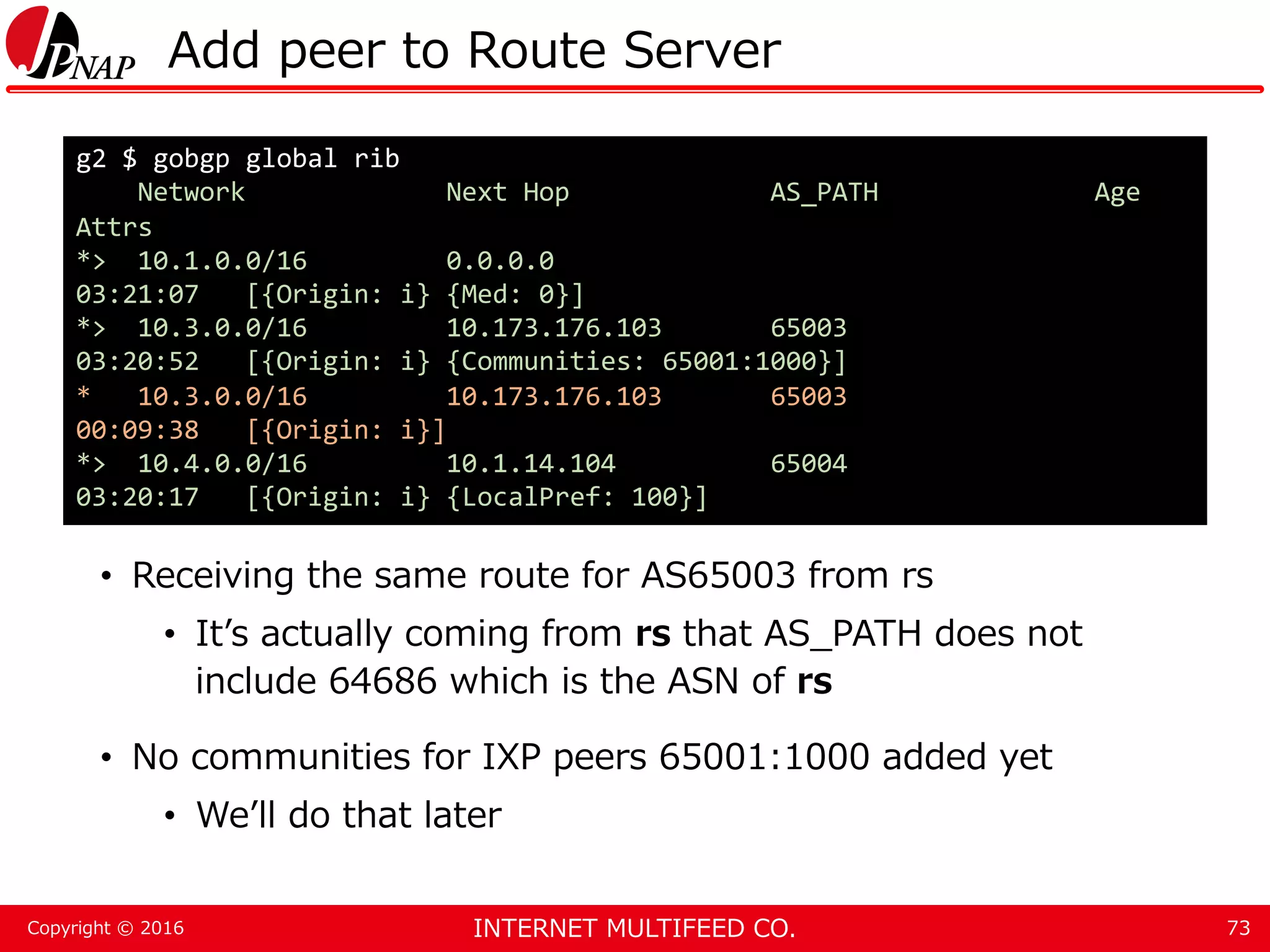

INTERNET MULTIFEED CO.Copyright © 2016 Add peer to Route Server • Receiving the same route for AS65003 from rs • It’s actually coming from rs that AS_PATH does not include 64686 which is the ASN of rs • No communities for IXP peers 65001:1000 added yet • We’ll do that later 73 g2 $ gobgp global rib Network Next Hop AS_PATH Age Attrs *> 10.1.0.0/16 0.0.0.0 03:21:07 [{Origin: i} {Med: 0}] *> 10.3.0.0/16 10.173.176.103 65003 03:20:52 [{Origin: i} {Communities: 65001:1000}] * 10.3.0.0/16 10.173.176.103 65003 00:09:38 [{Origin: i}] *> 10.4.0.0/16 10.1.14.104 65004 03:20:17 [{Origin: i} {LocalPref: 100}]

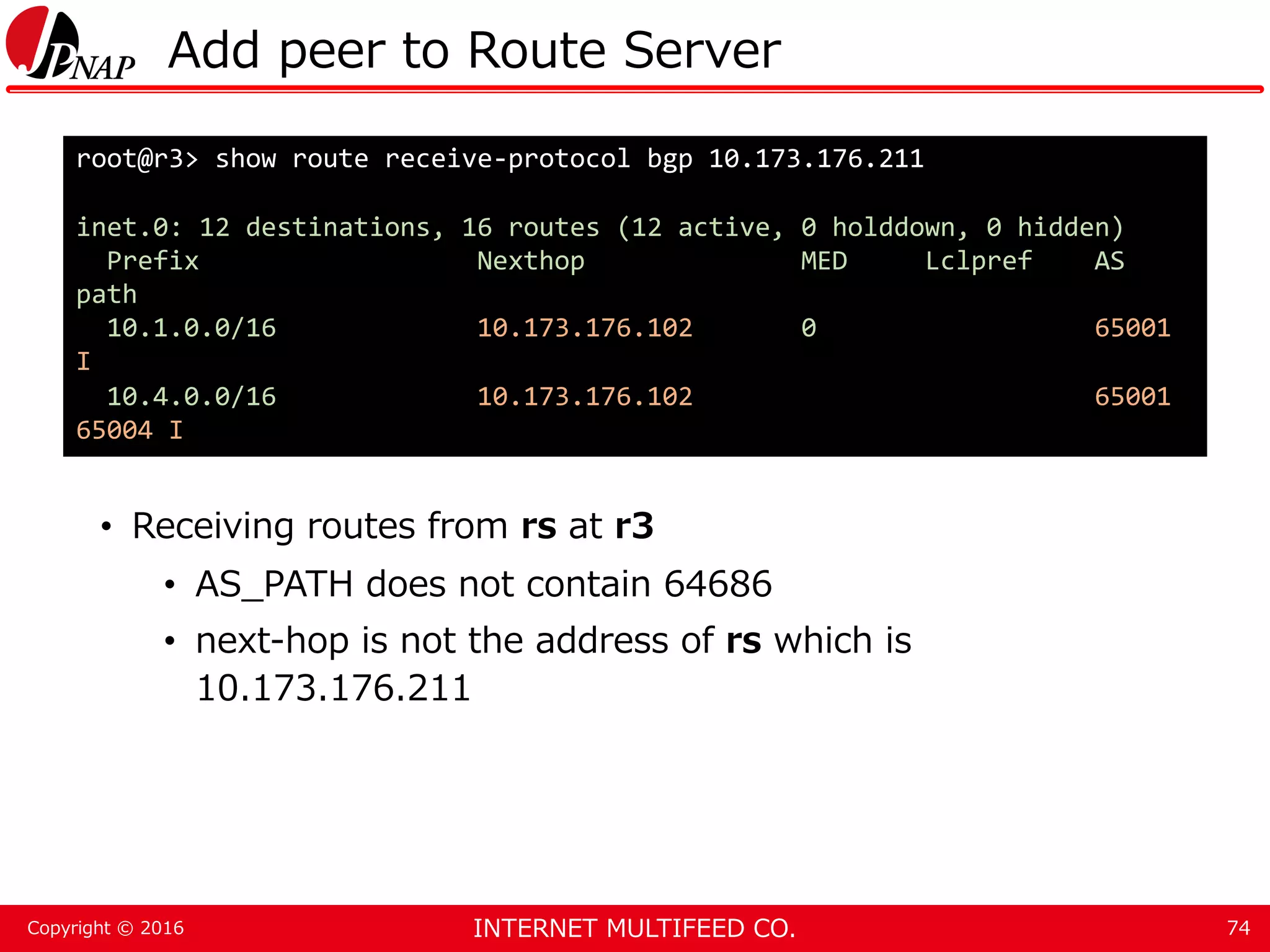

INTERNET MULTIFEED CO.Copyright © 2016 Add peer to Route Server • Receiving routes from rs at r3 • AS_PATH does not contain 64686 • next-hop is not the address of rs which is 10.173.176.211 74 root@r3> show route receive-protocol bgp 10.173.176.211 inet.0: 12 destinations, 16 routes (12 active, 0 holddown, 0 hidden) Prefix Nexthop MED Lclpref AS path 10.1.0.0/16 10.173.176.102 0 65001 I 10.4.0.0/16 10.173.176.102 65001 65004 I

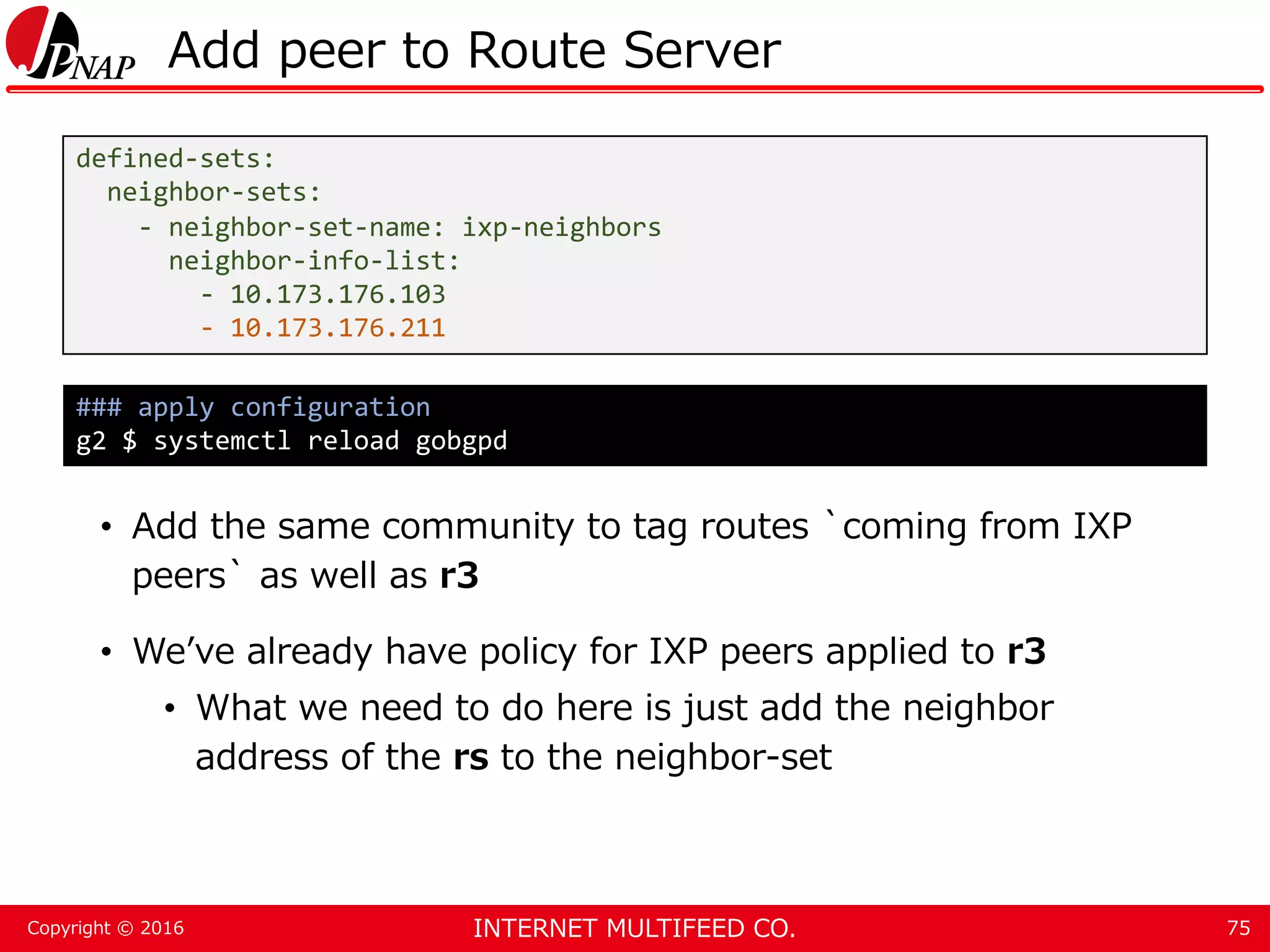

INTERNET MULTIFEED CO.Copyright © 2016 Add peer to Route Server • Add the same community to tag routes `coming from IXP peers` as well as r3 • We’ve already have policy for IXP peers applied to r3 • What we need to do here is just add the neighbor address of the rs to the neighbor-set 75 defined-sets: neighbor-sets: - neighbor-set-name: ixp-neighbors neighbor-info-list: - 10.173.176.103 - 10.173.176.211 ### apply configuration g2 $ systemctl reload gobgpd

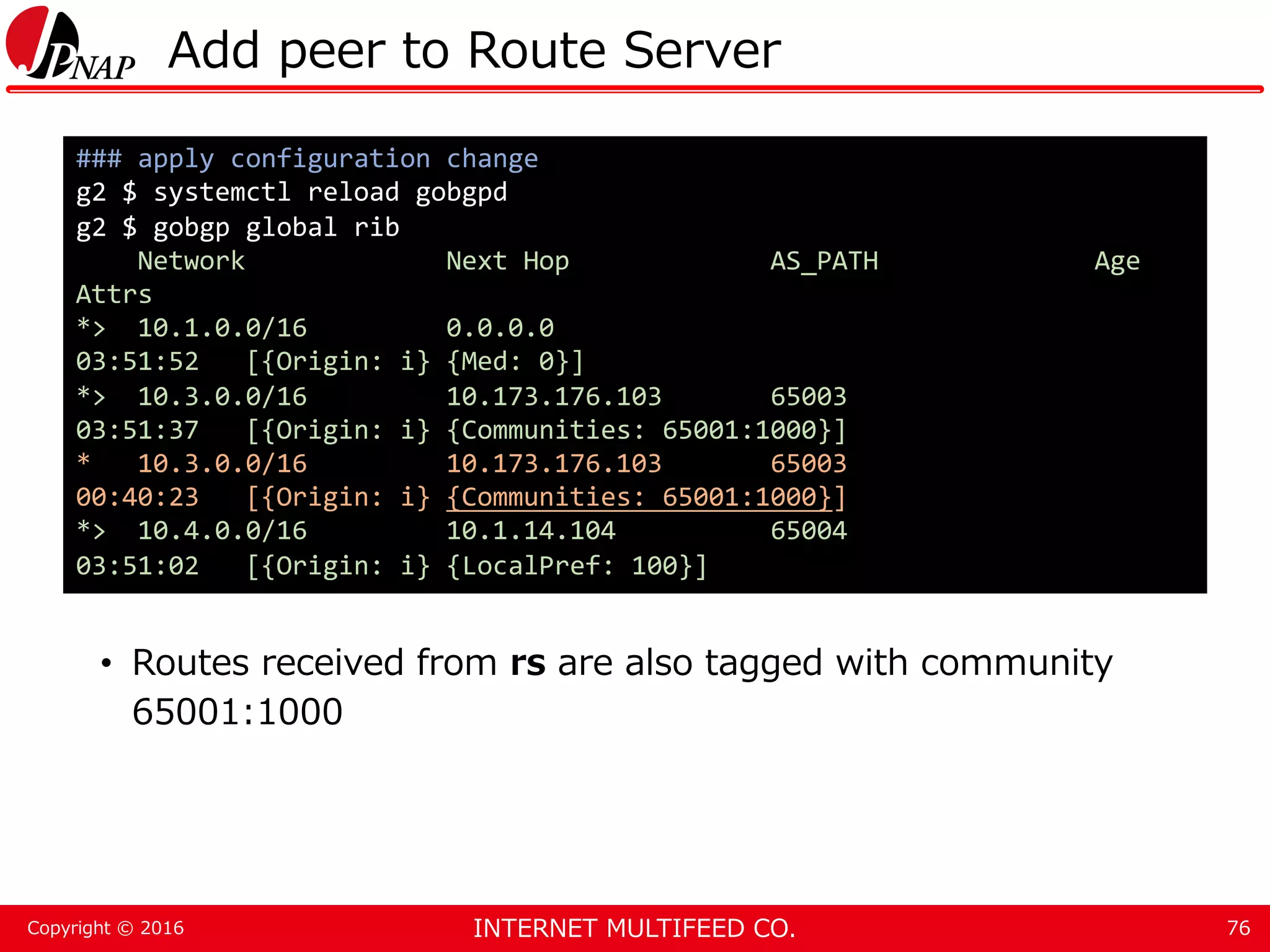

INTERNET MULTIFEED CO.Copyright © 2016 Add peer to Route Server • Routes received from rs are also tagged with community 65001:1000 76 ### apply configuration change g2 $ systemctl reload gobgpd g2 $ gobgp global rib Network Next Hop AS_PATH Age Attrs *> 10.1.0.0/16 0.0.0.0 03:51:52 [{Origin: i} {Med: 0}] *> 10.3.0.0/16 10.173.176.103 65003 03:51:37 [{Origin: i} {Communities: 65001:1000}] * 10.3.0.0/16 10.173.176.103 65003 00:40:23 [{Origin: i} {Communities: 65001:1000}] *> 10.4.0.0/16 10.1.14.104 65004 03:51:02 [{Origin: i} {LocalPref: 100}]

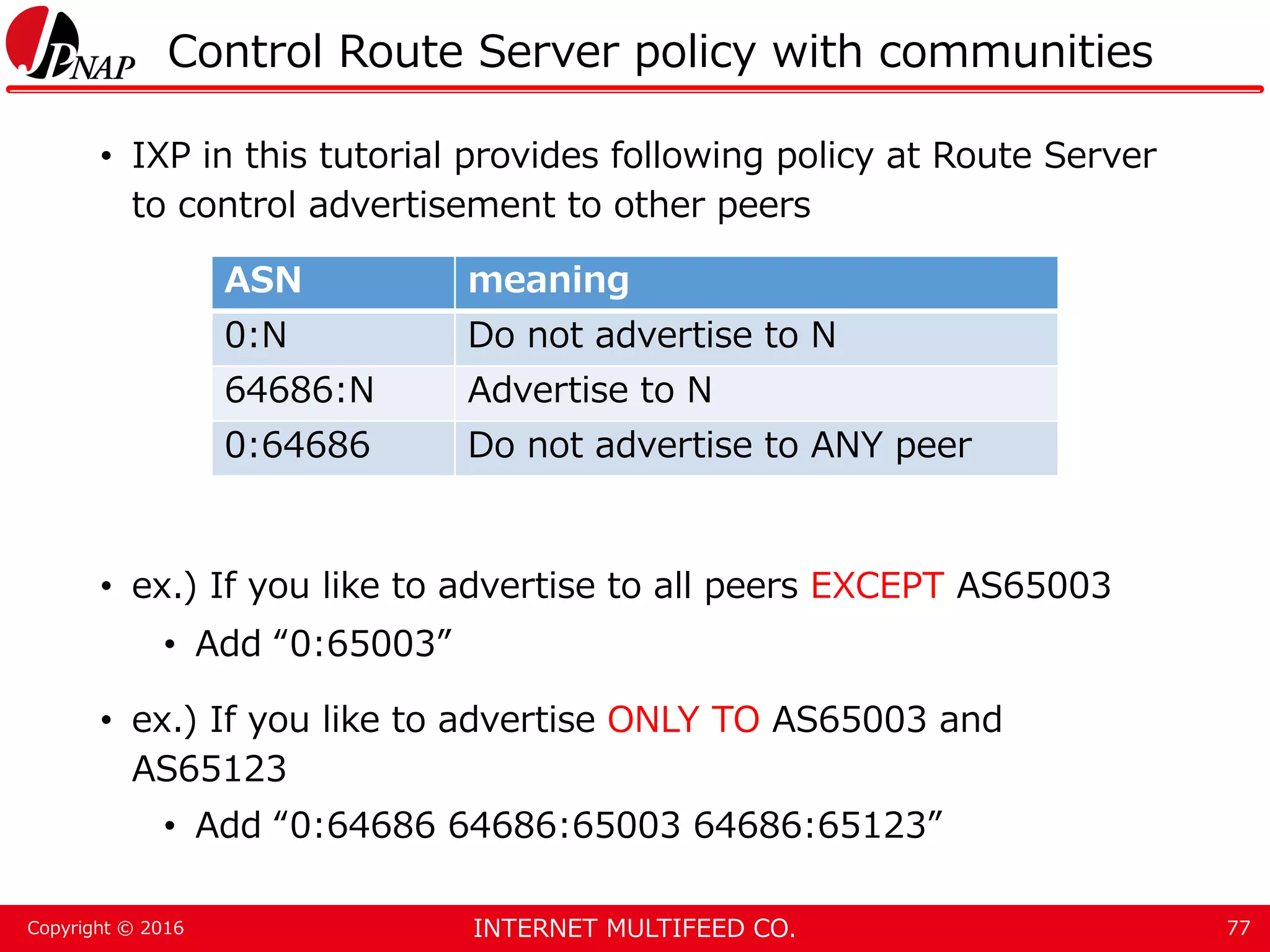

INTERNET MULTIFEED CO.Copyright © 2016 Control Route Server policy with communities • IXP in this tutorial provides following policy at Route Server to control advertisement to other peers • ex.) If you like to advertise to all peers EXCEPT AS65003 • Add “0:65003” • ex.) If you like to advertise ONLY TO AS65003 and AS65123 • Add “0:64686 64686:65003 64686:65123” 77 ASN meaning 0:N Do not advertise to N 64686:N Advertise to N 0:64686 Do not advertise to ANY peer

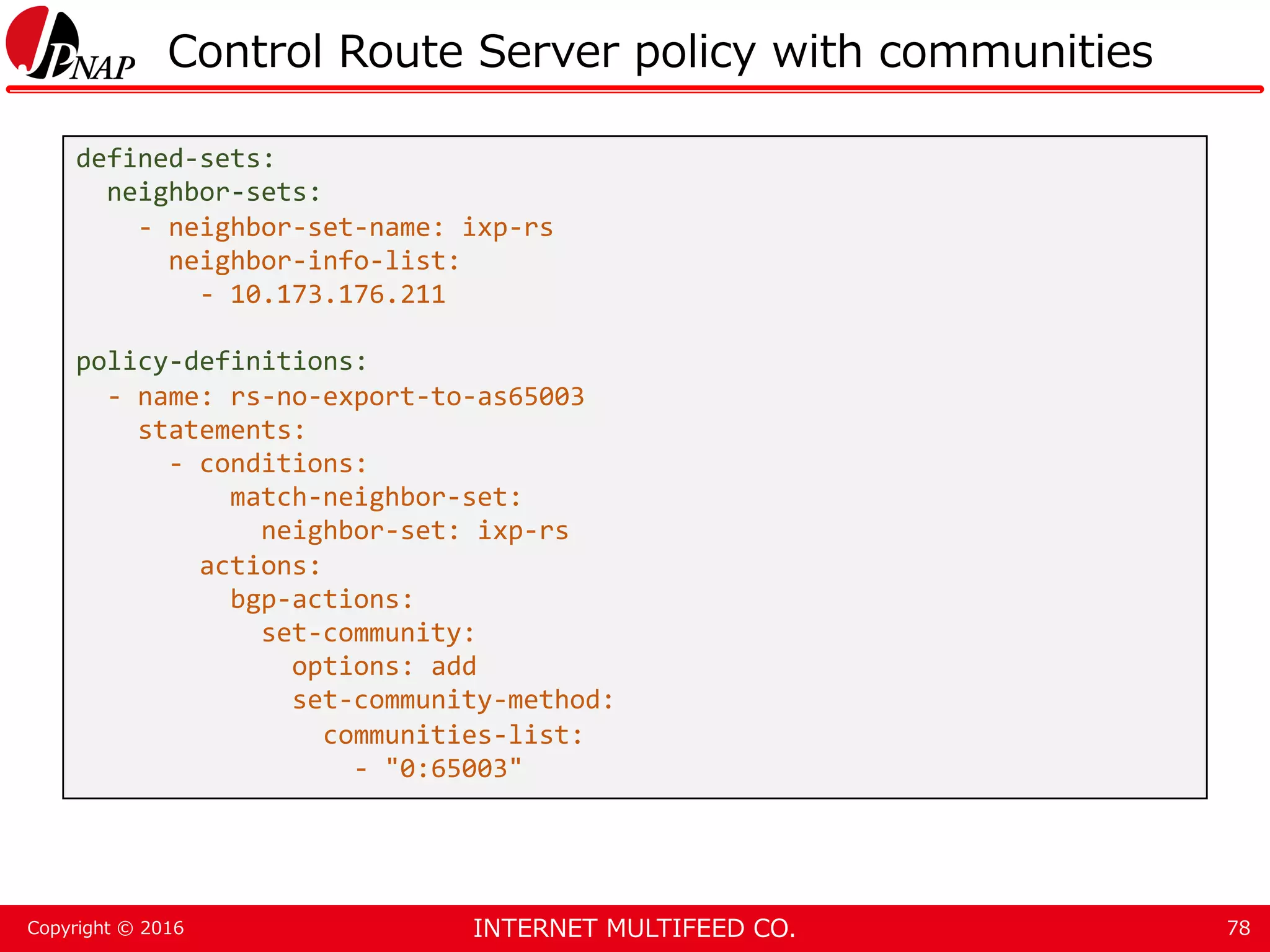

INTERNET MULTIFEED CO.Copyright © 2016 Control Route Server policy with communities 78 defined-sets: neighbor-sets: - neighbor-set-name: ixp-rs neighbor-info-list: - 10.173.176.211 policy-definitions: - name: rs-no-export-to-as65003 statements: - conditions: match-neighbor-set: neighbor-set: ixp-rs actions: bgp-actions: set-community: options: add set-community-method: communities-list: - "0:65003"

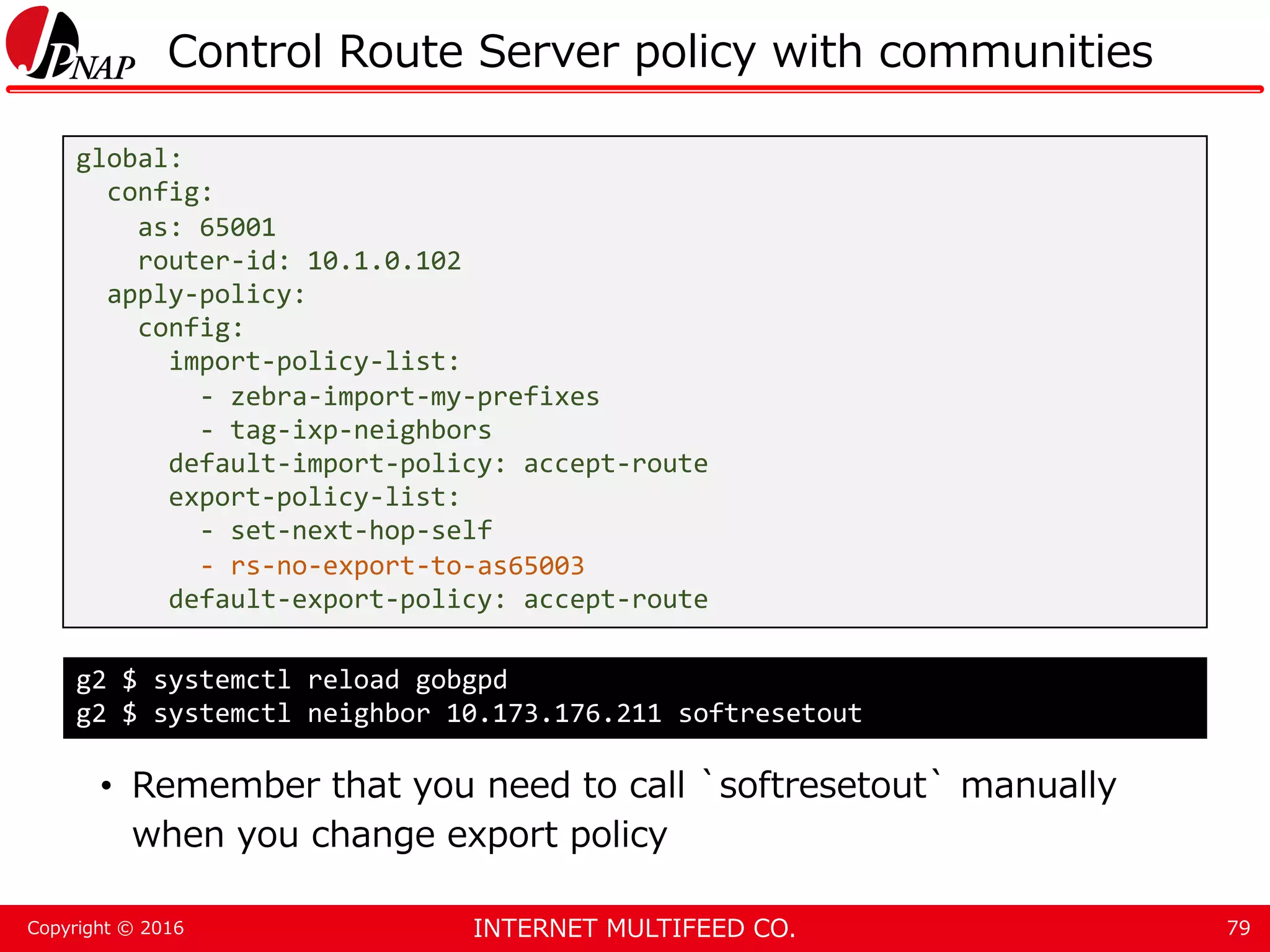

INTERNET MULTIFEED CO.Copyright © 2016 Control Route Server policy with communities • Remember that you need to call `softresetout` manually when you change export policy 79 global: config: as: 65001 router-id: 10.1.0.102 apply-policy: config: import-policy-list: - zebra-import-my-prefixes - tag-ixp-neighbors default-import-policy: accept-route export-policy-list: - set-next-hop-self - rs-no-export-to-as65003 default-export-policy: accept-route g2 $ systemctl reload gobgpd g2 $ systemctl neighbor 10.173.176.211 softresetout

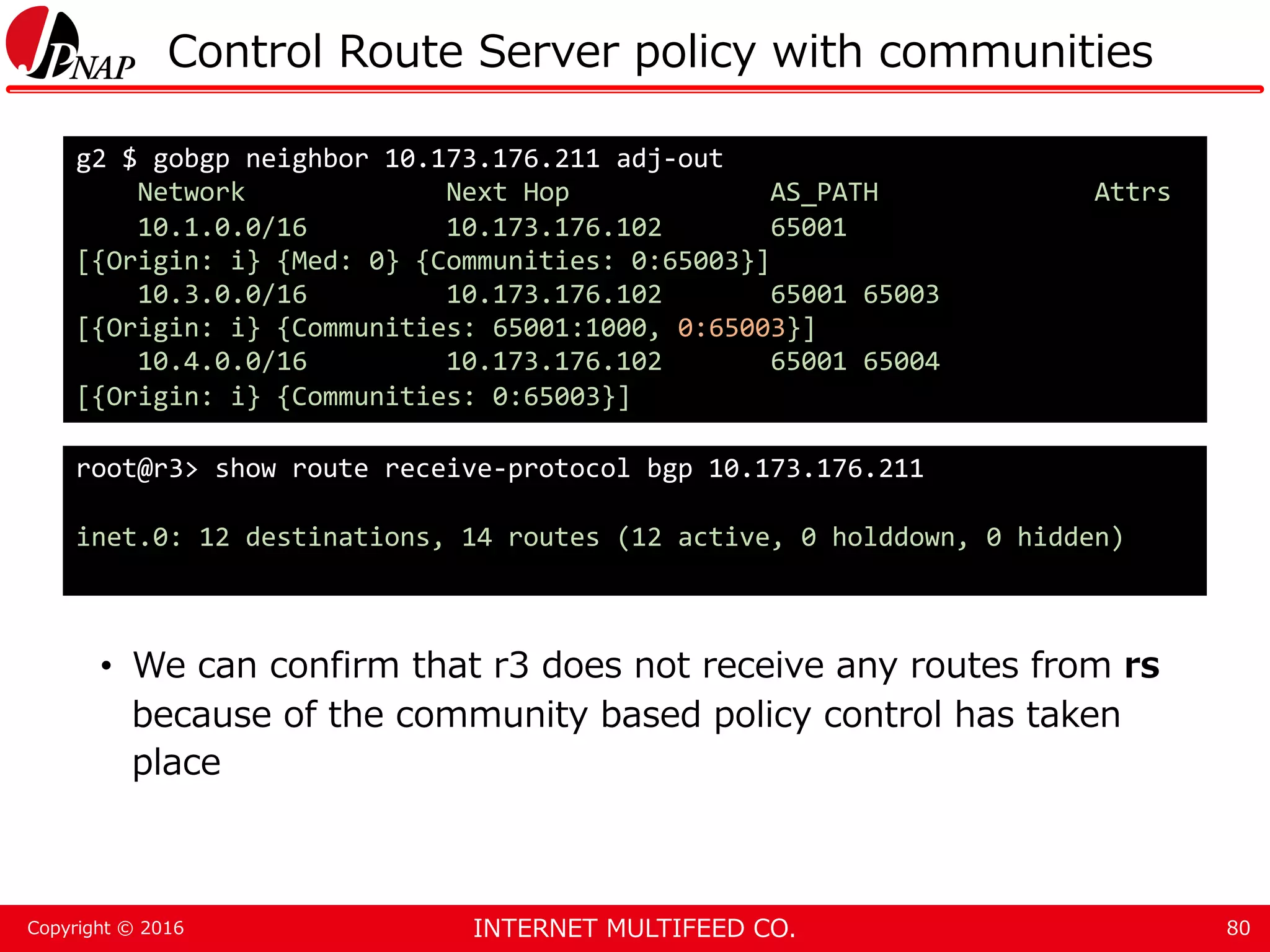

INTERNET MULTIFEED CO.Copyright © 2016 Control Route Server policy with communities • We can confirm that r3 does not receive any routes from rs because of the community based policy control has taken place 80 g2 $ gobgp neighbor 10.173.176.211 adj-out Network Next Hop AS_PATH Attrs 10.1.0.0/16 10.173.176.102 65001 [{Origin: i} {Med: 0} {Communities: 0:65003}] 10.3.0.0/16 10.173.176.102 65001 65003 [{Origin: i} {Communities: 65001:1000, 0:65003}] 10.4.0.0/16 10.173.176.102 65001 65004 [{Origin: i} {Communities: 0:65003}] root@r3> show route receive-protocol bgp 10.173.176.211 inet.0: 12 destinations, 14 routes (12 active, 0 holddown, 0 hidden)

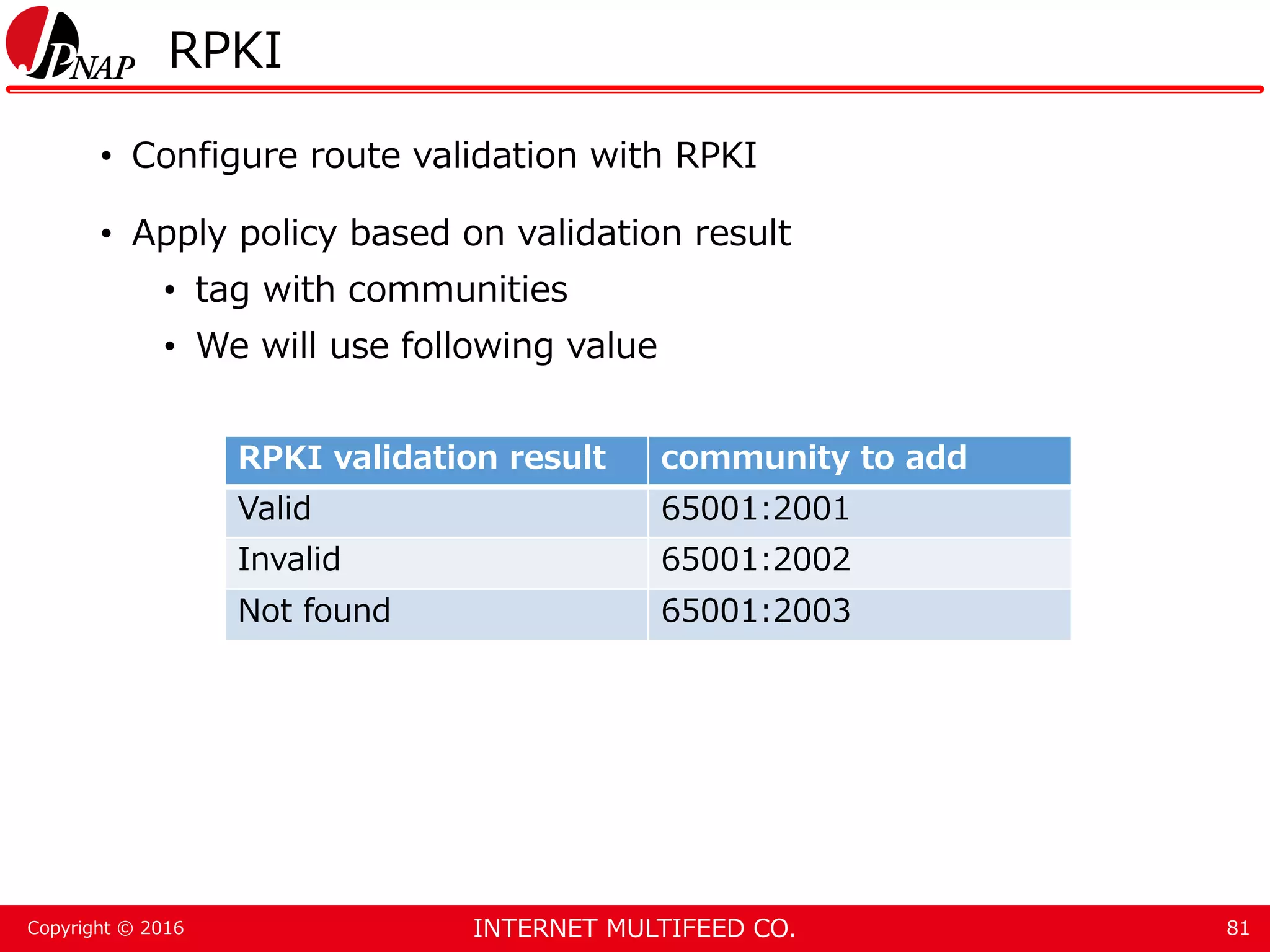

INTERNET MULTIFEED CO.Copyright © 2016 RPKI • Configure route validation with RPKI • Apply policy based on validation result • tag with communities • We will use following value 81 RPKI validation result community to add Valid 65001:2001 Invalid 65001:2002 Not found 65001:2003

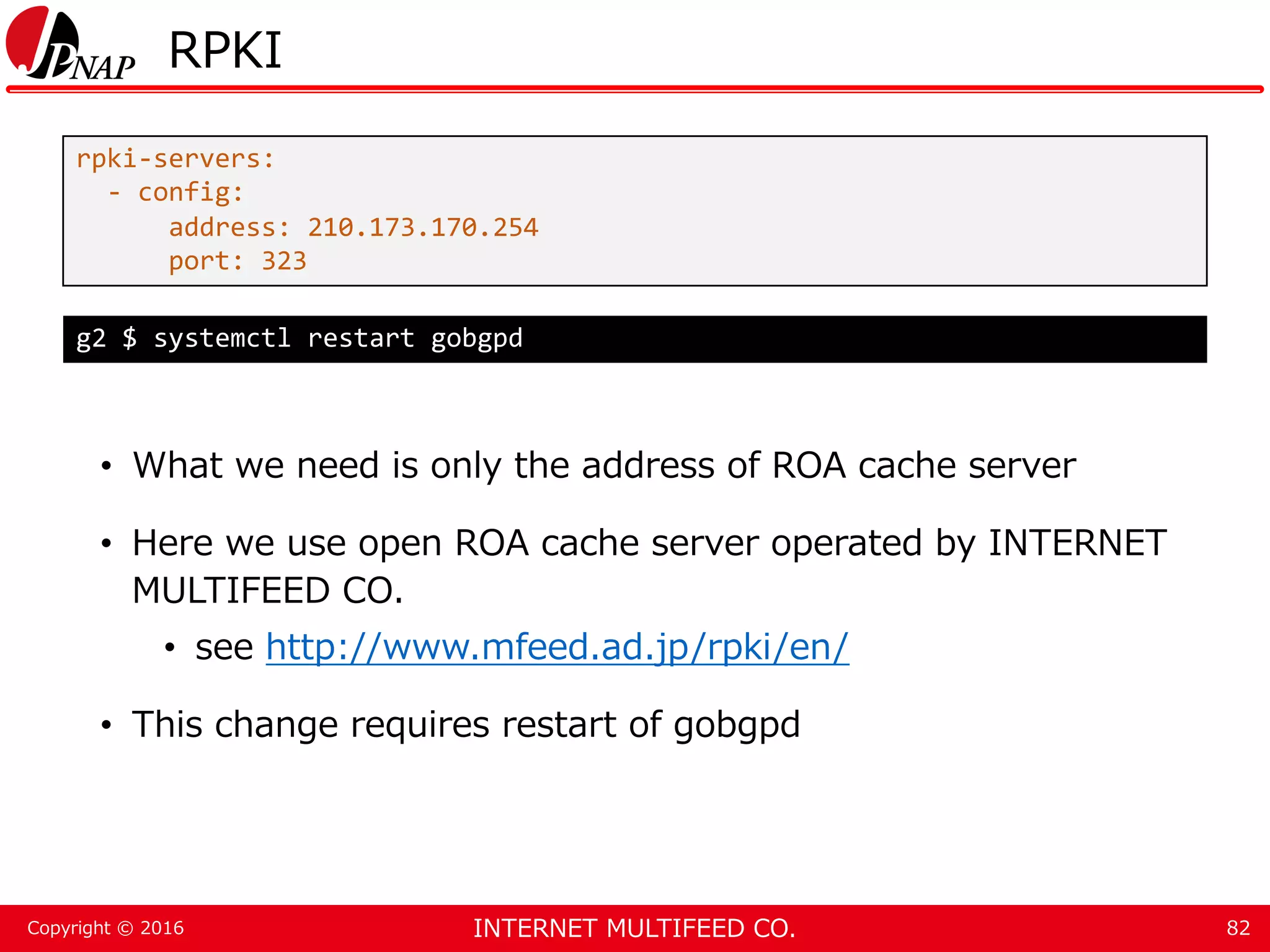

INTERNET MULTIFEED CO.Copyright © 2016 RPKI • What we need is only the address of ROA cache server • Here we use open ROA cache server operated by INTERNET MULTIFEED CO. • see http://www.mfeed.ad.jp/rpki/en/ • This change requires restart of gobgpd 82 rpki-servers: - config: address: 210.173.170.254 port: 323 g2 $ systemctl restart gobgpd

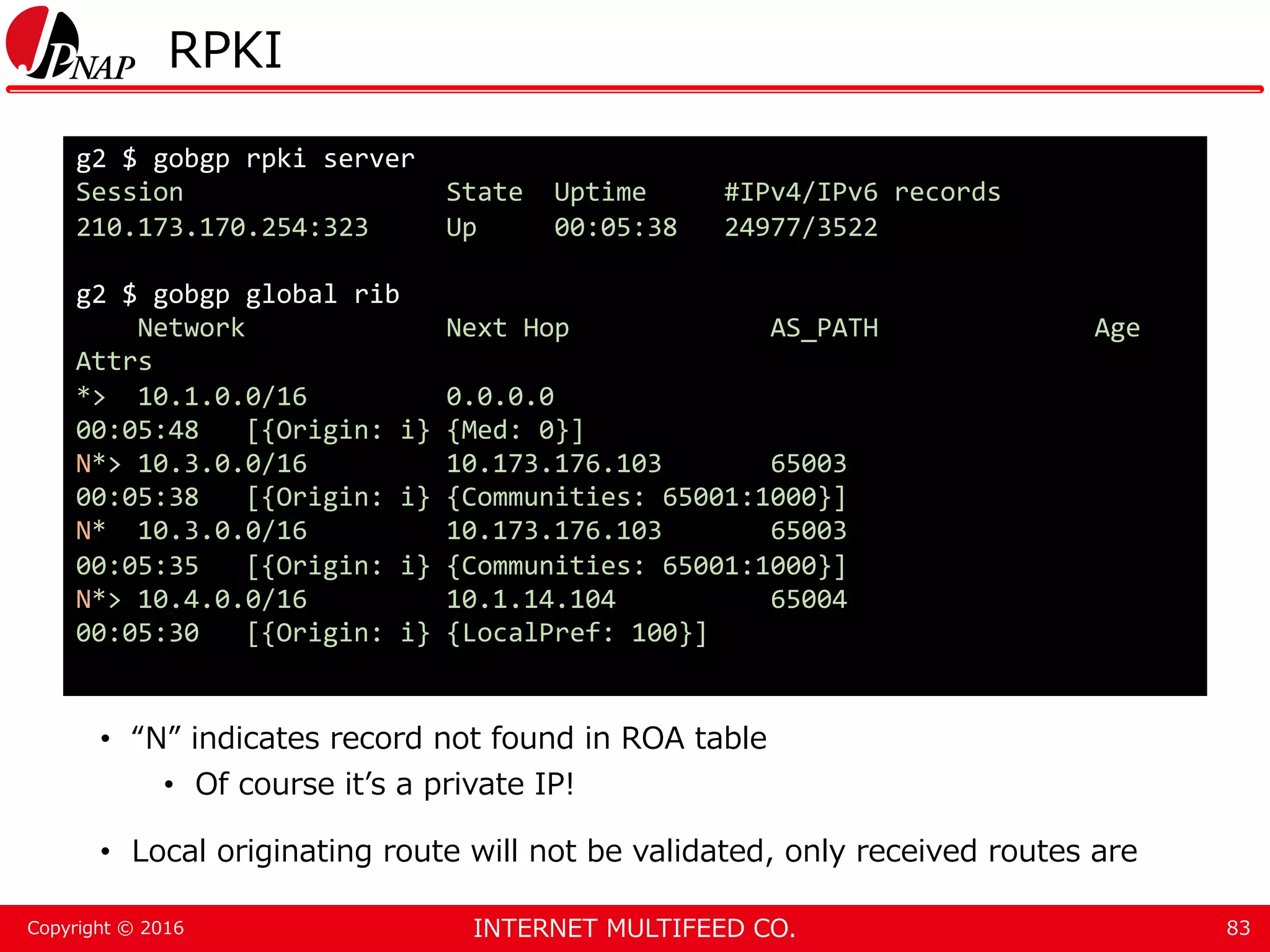

INTERNET MULTIFEED CO.Copyright © 2016 RPKI • “N” indicates record not found in ROA table • Of course it’s a private IP! • Local originating route will not be validated, only received routes are 83 g2 $ gobgp rpki server Session State Uptime #IPv4/IPv6 records 210.173.170.254:323 Up 00:05:38 24977/3522 g2 $ gobgp global rib Network Next Hop AS_PATH Age Attrs *> 10.1.0.0/16 0.0.0.0 00:05:48 [{Origin: i} {Med: 0}] N*> 10.3.0.0/16 10.173.176.103 65003 00:05:38 [{Origin: i} {Communities: 65001:1000}] N* 10.3.0.0/16 10.173.176.103 65003 00:05:35 [{Origin: i} {Communities: 65001:1000}] N*> 10.4.0.0/16 10.1.14.104 65004 00:05:30 [{Origin: i} {LocalPref: 100}]

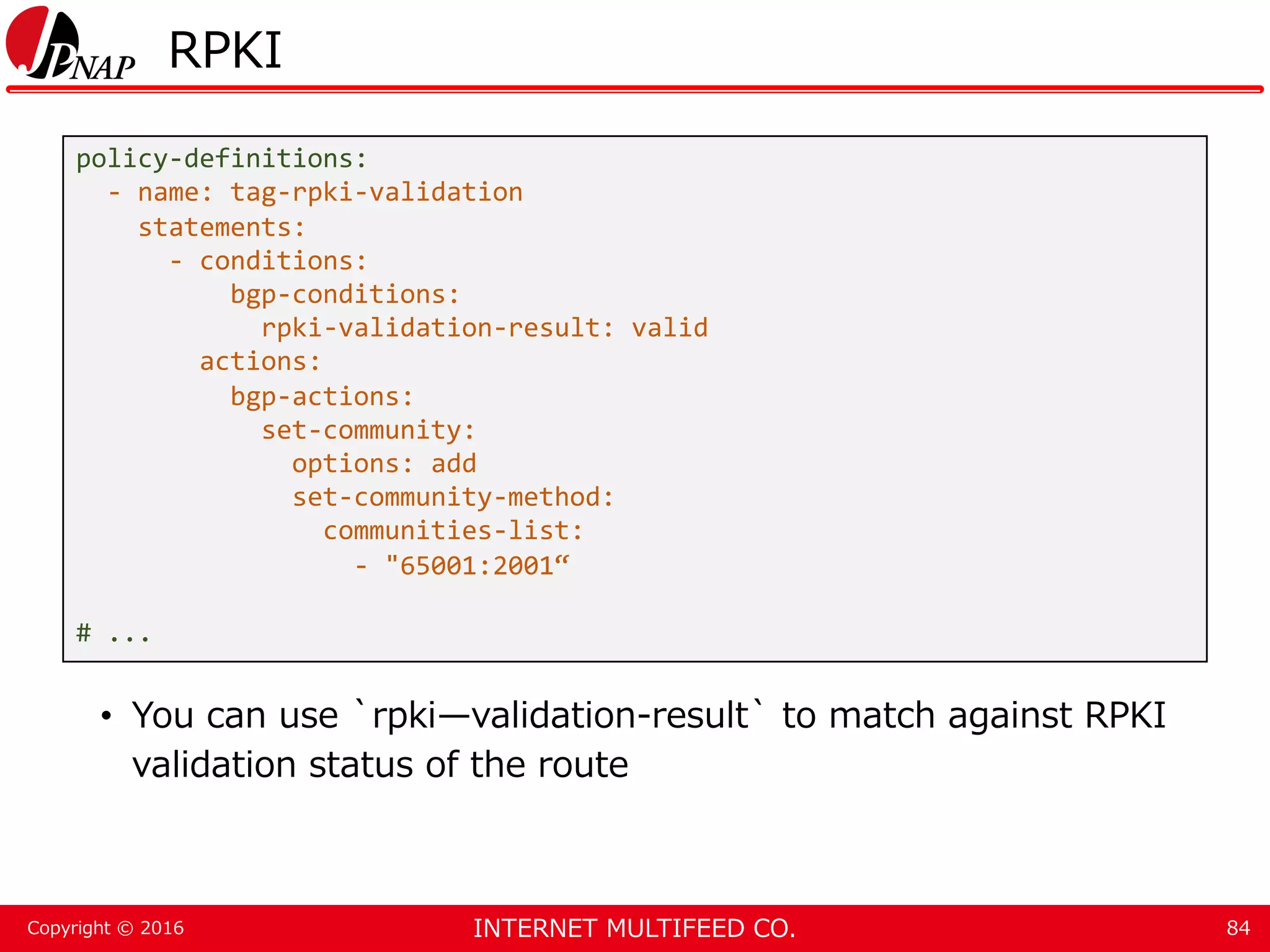

INTERNET MULTIFEED CO.Copyright © 2016 RPKI • You can use `rpki—validation-result` to match against RPKI validation status of the route 84 policy-definitions: - name: tag-rpki-validation statements: - conditions: bgp-conditions: rpki-validation-result: valid actions: bgp-actions: set-community: options: add set-community-method: communities-list: - "65001:2001“ # ...

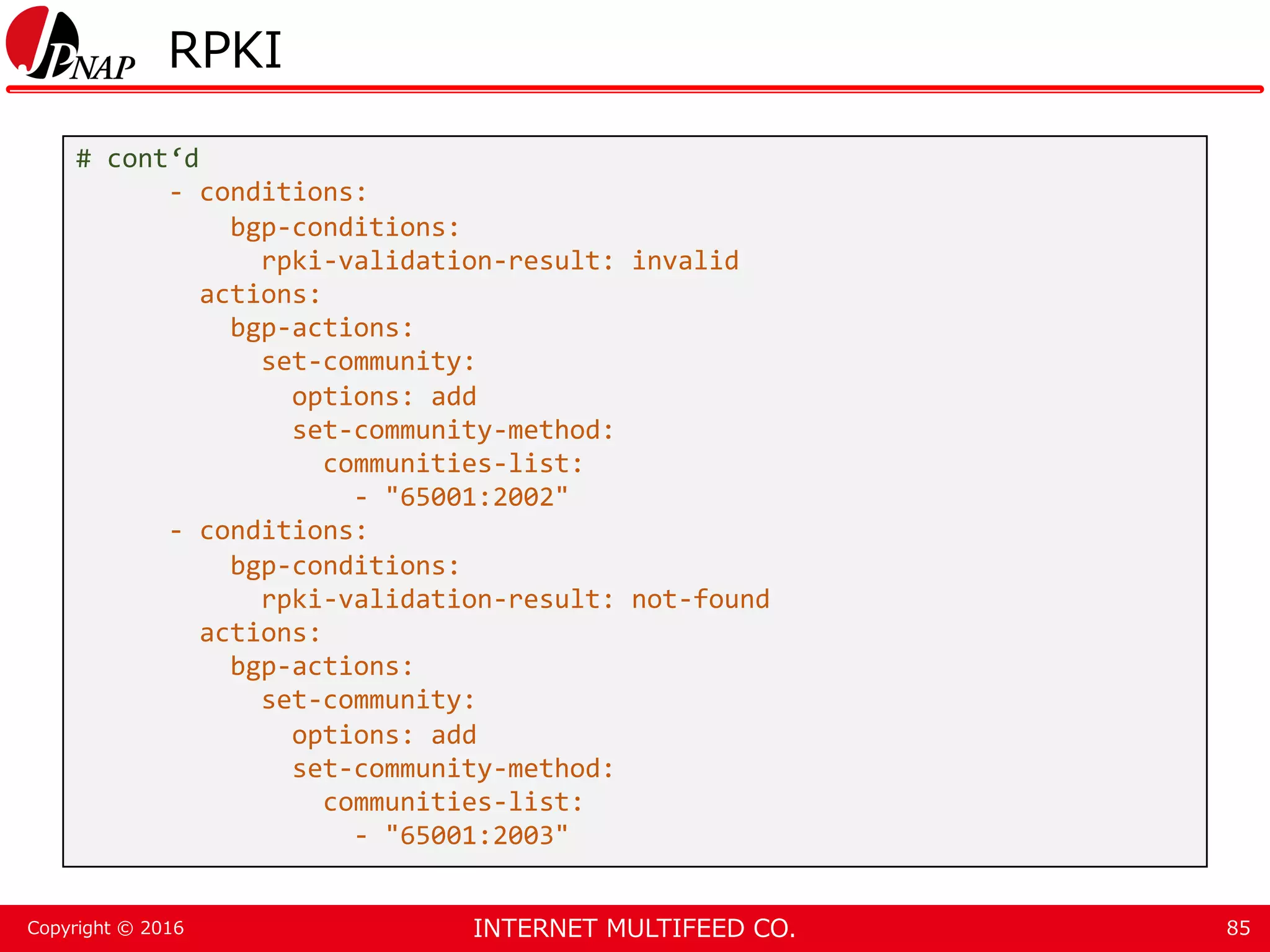

INTERNET MULTIFEED CO.Copyright © 2016 RPKI 85 # cont‘d - conditions: bgp-conditions: rpki-validation-result: invalid actions: bgp-actions: set-community: options: add set-community-method: communities-list: - "65001:2002" - conditions: bgp-conditions: rpki-validation-result: not-found actions: bgp-actions: set-community: options: add set-community-method: communities-list: - "65001:2003"

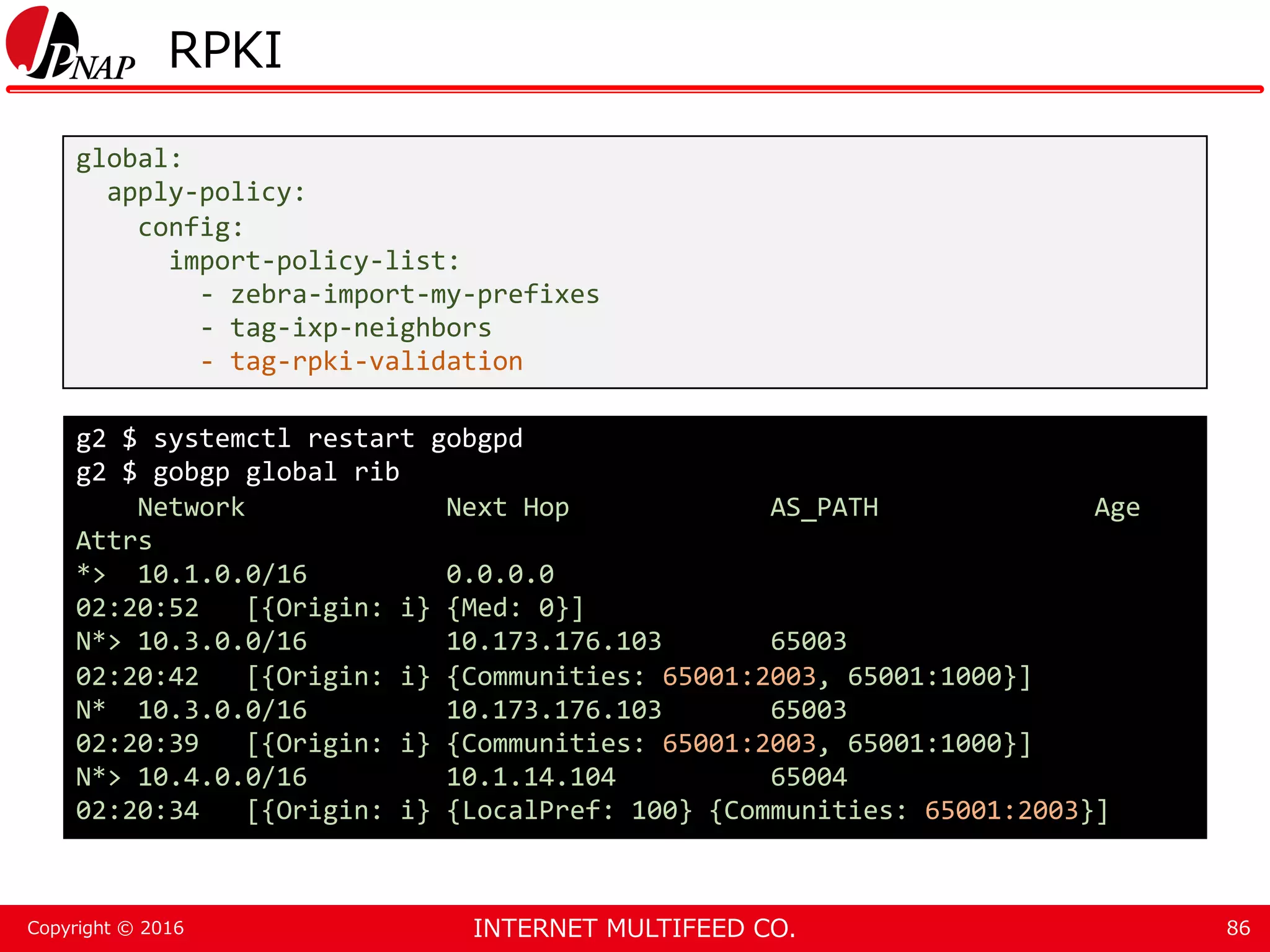

INTERNET MULTIFEED CO.Copyright © 2016 RPKI 86 global: apply-policy: config: import-policy-list: - zebra-import-my-prefixes - tag-ixp-neighbors - tag-rpki-validation g2 $ systemctl restart gobgpd g2 $ gobgp global rib Network Next Hop AS_PATH Age Attrs *> 10.1.0.0/16 0.0.0.0 02:20:52 [{Origin: i} {Med: 0}] N*> 10.3.0.0/16 10.173.176.103 65003 02:20:42 [{Origin: i} {Communities: 65001:2003, 65001:1000}] N* 10.3.0.0/16 10.173.176.103 65003 02:20:39 [{Origin: i} {Communities: 65001:2003, 65001:1000}] N*> 10.4.0.0/16 10.1.14.104 65004 02:20:34 [{Origin: i} {LocalPref: 100} {Communities: 65001:2003}]

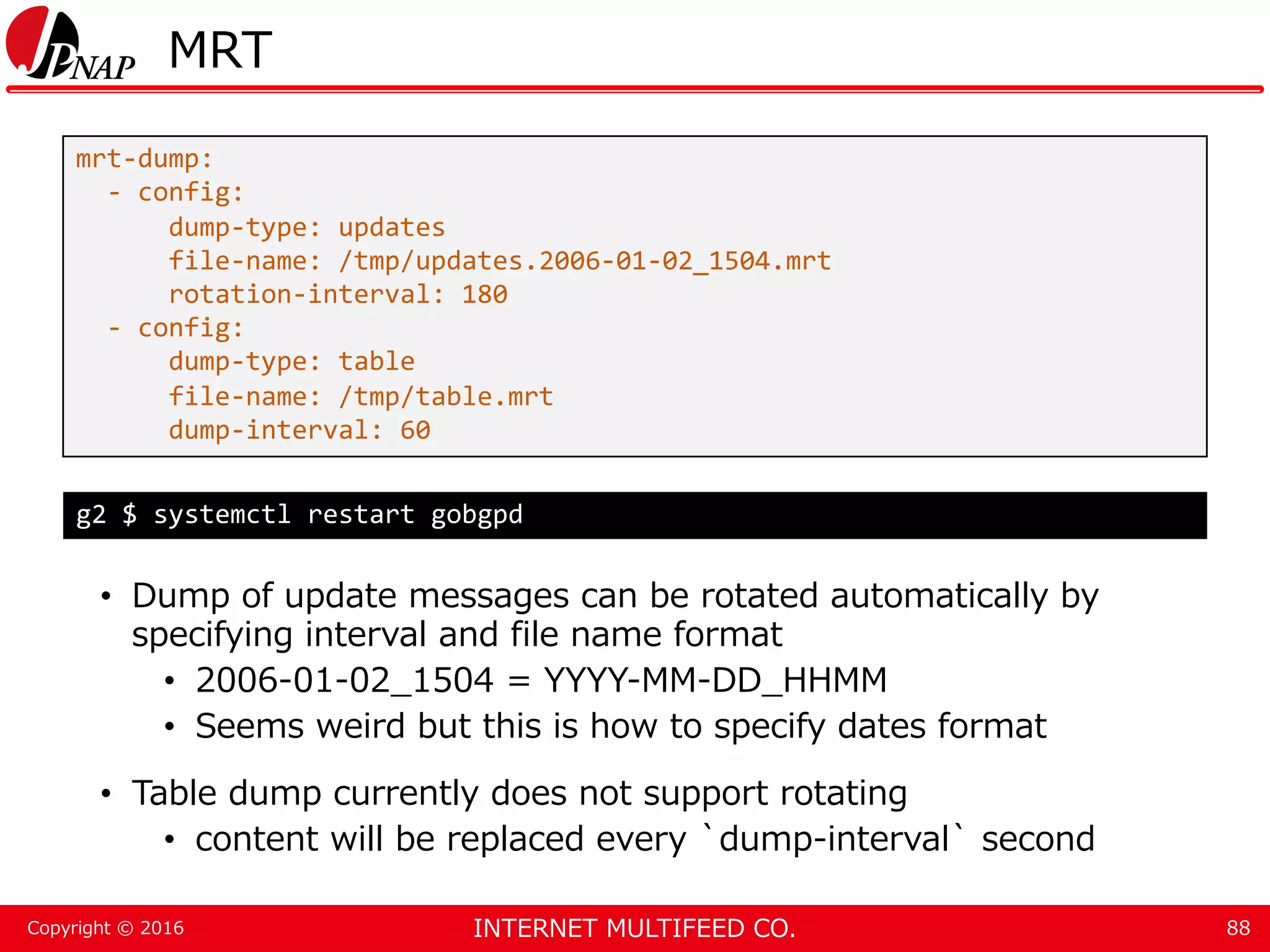

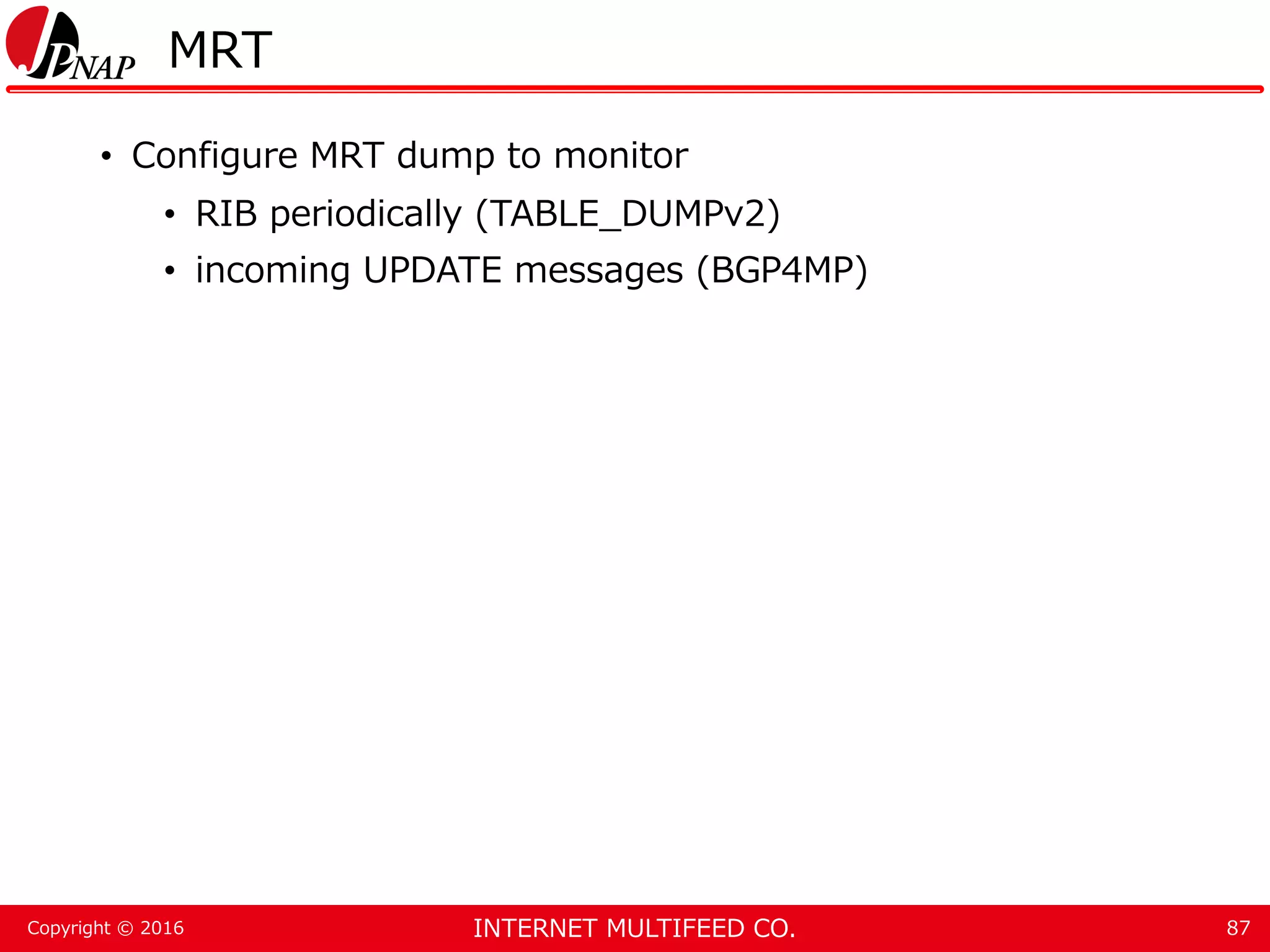

INTERNET MULTIFEED CO.Copyright © 2016 MRT • Dump of update messages can be rotated automatically by specifying interval and file name format • 2006-01-02_1504 = YYYY-MM-DD_HHMM • Seems weird but this is how to specify dates format • Table dump currently does not support rotating • content will be replaced every `dump-interval` second 88 mrt-dump: - config: dump-type: updates file-name: /tmp/updates.2006-01-02_1504.mrt rotation-interval: 180 - config: dump-type: table file-name: /tmp/table.mrt dump-interval: 60 g2 $ systemctl restart gobgpd

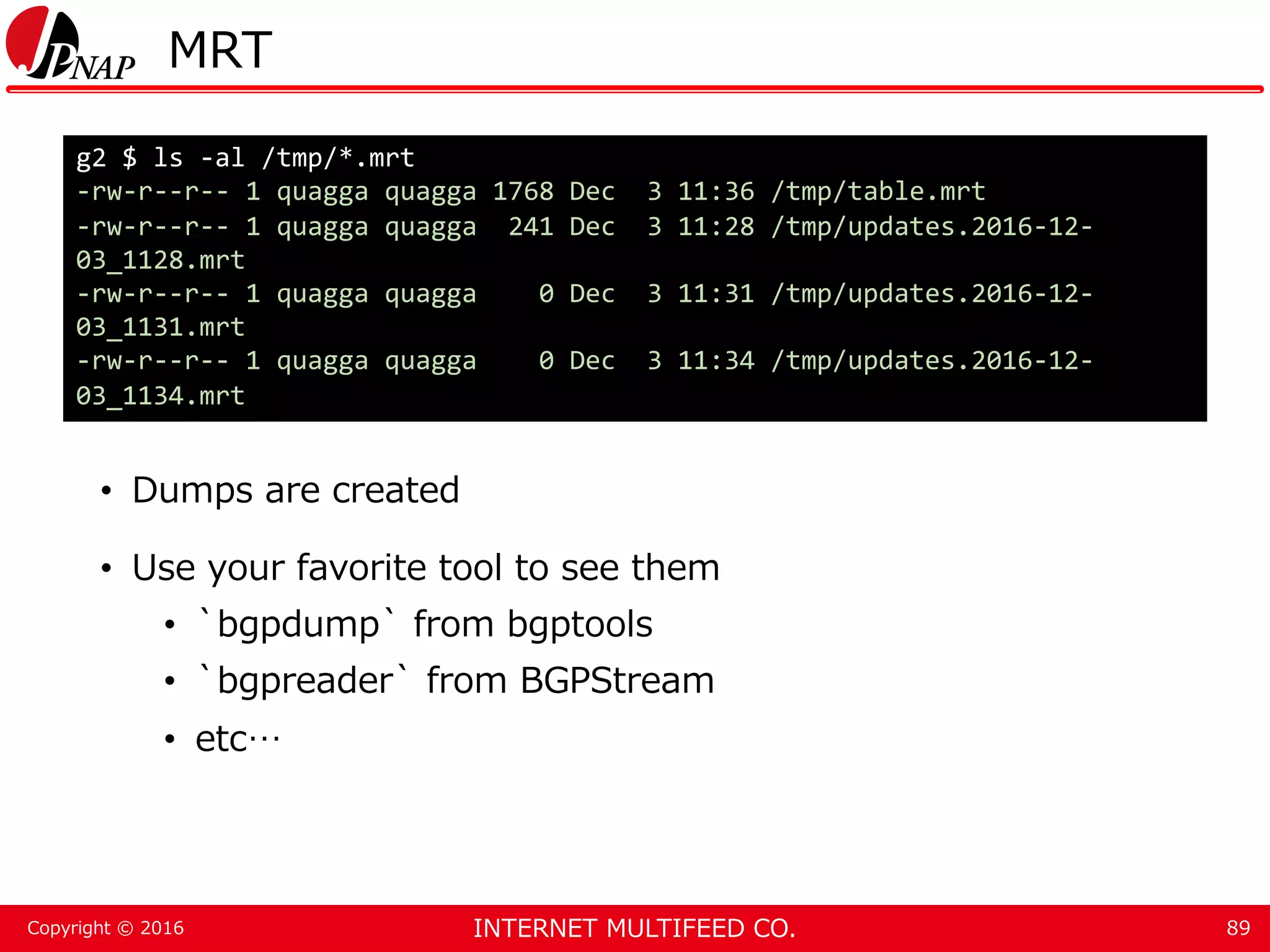

INTERNET MULTIFEED CO.Copyright © 2016 MRT • Dumps are created • Use your favorite tool to see them • `bgpdump` from bgptools • `bgpreader` from BGPStream • etc… 89 g2 $ ls -al /tmp/*.mrt -rw-r--r-- 1 quagga quagga 1768 Dec 3 11:36 /tmp/table.mrt -rw-r--r-- 1 quagga quagga 241 Dec 3 11:28 /tmp/updates.2016-12- 03_1128.mrt -rw-r--r-- 1 quagga quagga 0 Dec 3 11:31 /tmp/updates.2016-12- 03_1131.mrt -rw-r--r-- 1 quagga quagga 0 Dec 3 11:34 /tmp/updates.2016-12- 03_1134.mrt

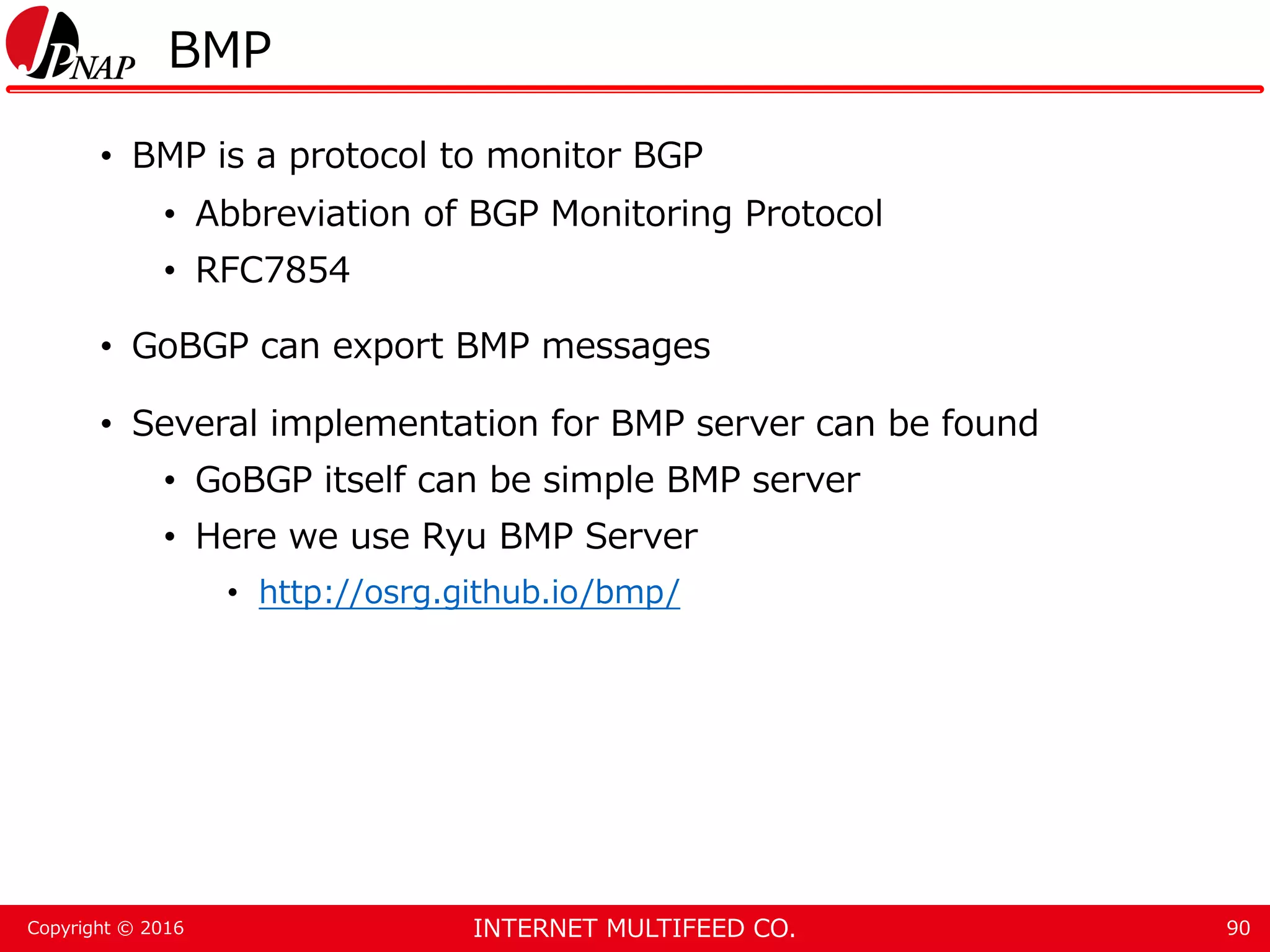

INTERNET MULTIFEED CO.Copyright © 2016 BMP • BMP is a protocol to monitor BGP • Abbreviation of BGP Monitoring Protocol • RFC7854 • GoBGP can export BMP messages • Several implementation for BMP server can be found • GoBGP itself can be simple BMP server • Here we use Ryu BMP Server • http://osrg.github.io/bmp/ 90

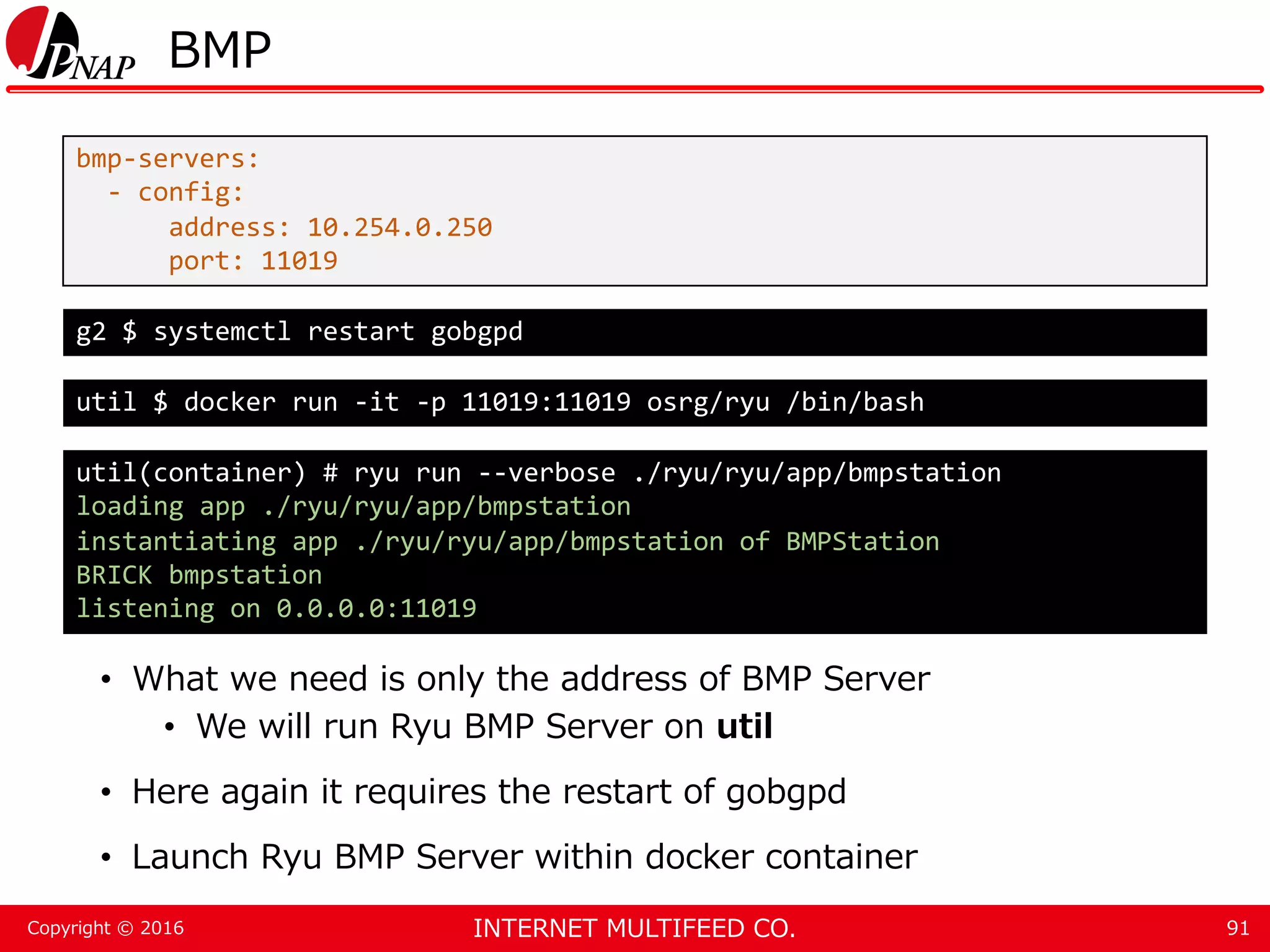

INTERNET MULTIFEED CO.Copyright © 2016 BMP • What we need is only the address of BMP Server • We will run Ryu BMP Server on util • Here again it requires the restart of gobgpd • Launch Ryu BMP Server within docker container 91 bmp-servers: - config: address: 10.254.0.250 port: 11019 g2 $ systemctl restart gobgpd util $ docker run -it -p 11019:11019 osrg/ryu /bin/bash util(container) # ryu run --verbose ./ryu/ryu/app/bmpstation loading app ./ryu/ryu/app/bmpstation instantiating app ./ryu/ryu/app/bmpstation of BMPStation BRICK bmpstation listening on 0.0.0.0:11019

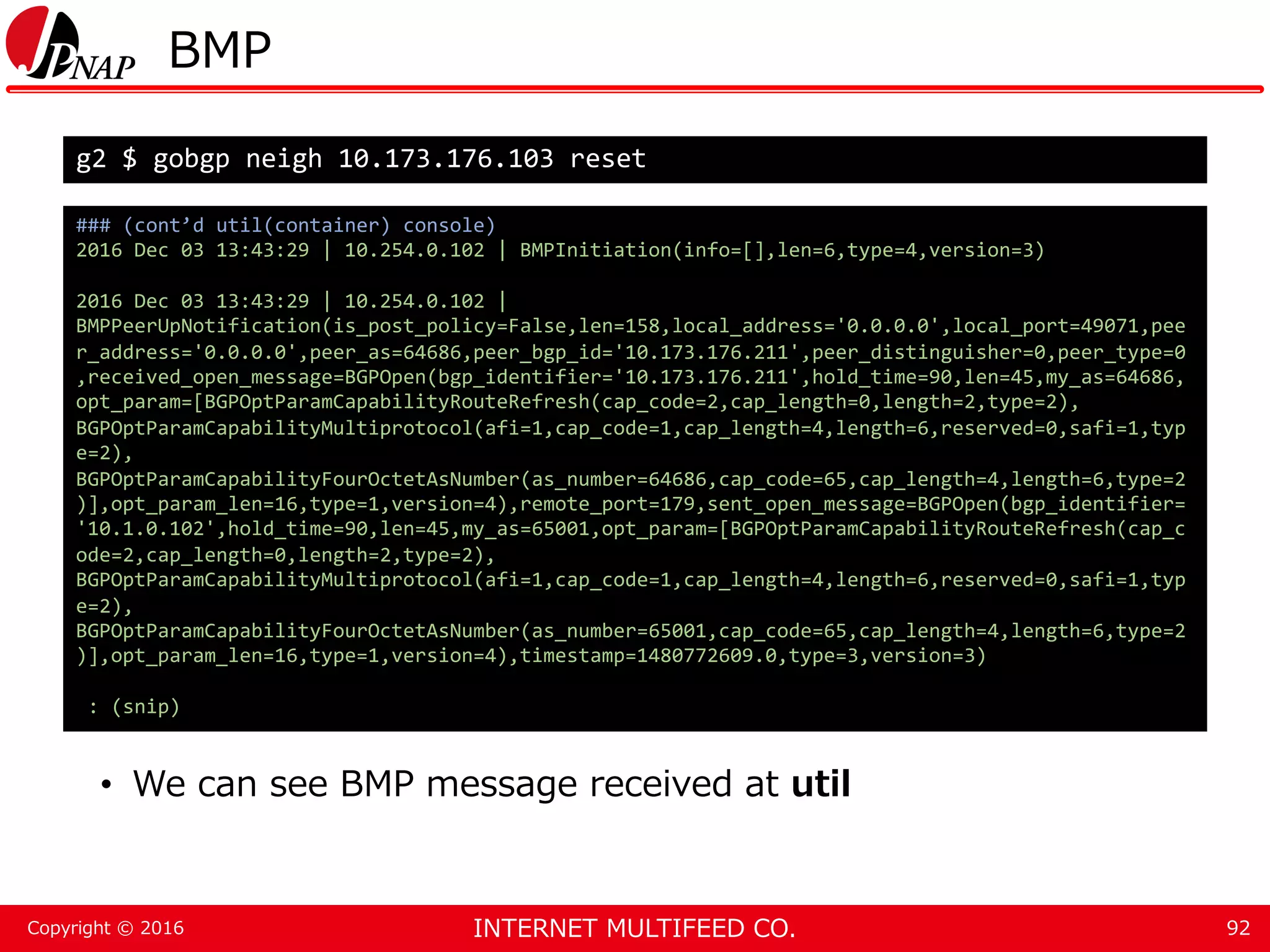

INTERNET MULTIFEED CO.Copyright © 2016 BMP • We can see BMP message received at util 92 g2 $ gobgp neigh 10.173.176.103 reset ### (cont’d util(container) console) 2016 Dec 03 13:43:29 | 10.254.0.102 | BMPInitiation(info=[],len=6,type=4,version=3) 2016 Dec 03 13:43:29 | 10.254.0.102 | BMPPeerUpNotification(is_post_policy=False,len=158,local_address='0.0.0.0',local_port=49071,pee r_address='0.0.0.0',peer_as=64686,peer_bgp_id='10.173.176.211',peer_distinguisher=0,peer_type=0 ,received_open_message=BGPOpen(bgp_identifier='10.173.176.211',hold_time=90,len=45,my_as=64686, opt_param=[BGPOptParamCapabilityRouteRefresh(cap_code=2,cap_length=0,length=2,type=2), BGPOptParamCapabilityMultiprotocol(afi=1,cap_code=1,cap_length=4,length=6,reserved=0,safi=1,typ e=2), BGPOptParamCapabilityFourOctetAsNumber(as_number=64686,cap_code=65,cap_length=4,length=6,type=2 )],opt_param_len=16,type=1,version=4),remote_port=179,sent_open_message=BGPOpen(bgp_identifier= '10.1.0.102',hold_time=90,len=45,my_as=65001,opt_param=[BGPOptParamCapabilityRouteRefresh(cap_c ode=2,cap_length=0,length=2,type=2), BGPOptParamCapabilityMultiprotocol(afi=1,cap_code=1,cap_length=4,length=6,reserved=0,safi=1,typ e=2), BGPOptParamCapabilityFourOctetAsNumber(as_number=65001,cap_code=65,cap_length=4,length=6,type=2 )],opt_param_len=16,type=1,version=4),timestamp=1480772609.0,type=3,version=3) : (snip)

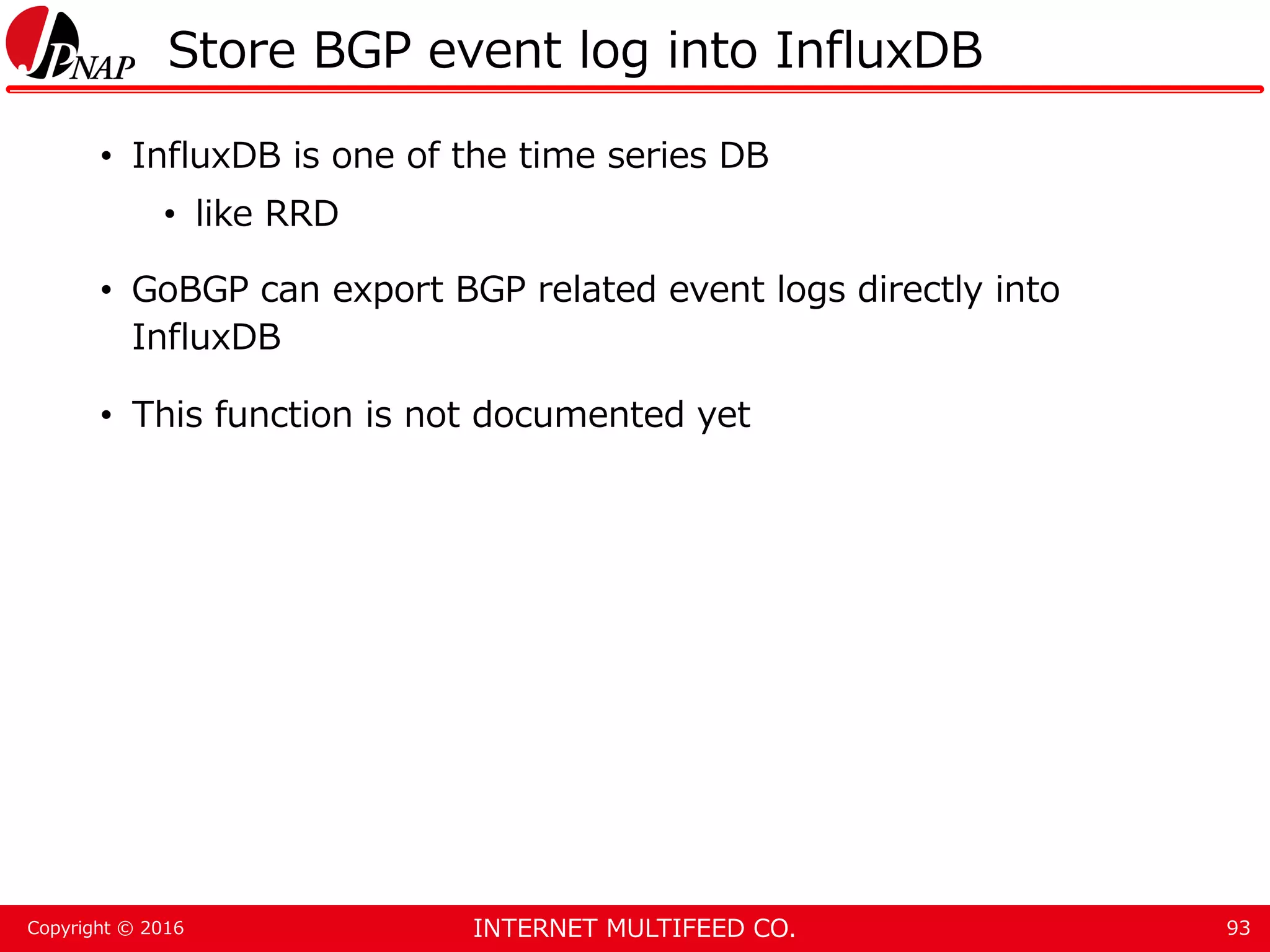

INTERNET MULTIFEED CO.Copyright © 2016 Store BGP event log into InfluxDB • InfluxDB is one of the time series DB • like RRD • GoBGP can export BGP related event logs directly into InfluxDB • This function is not documented yet 93

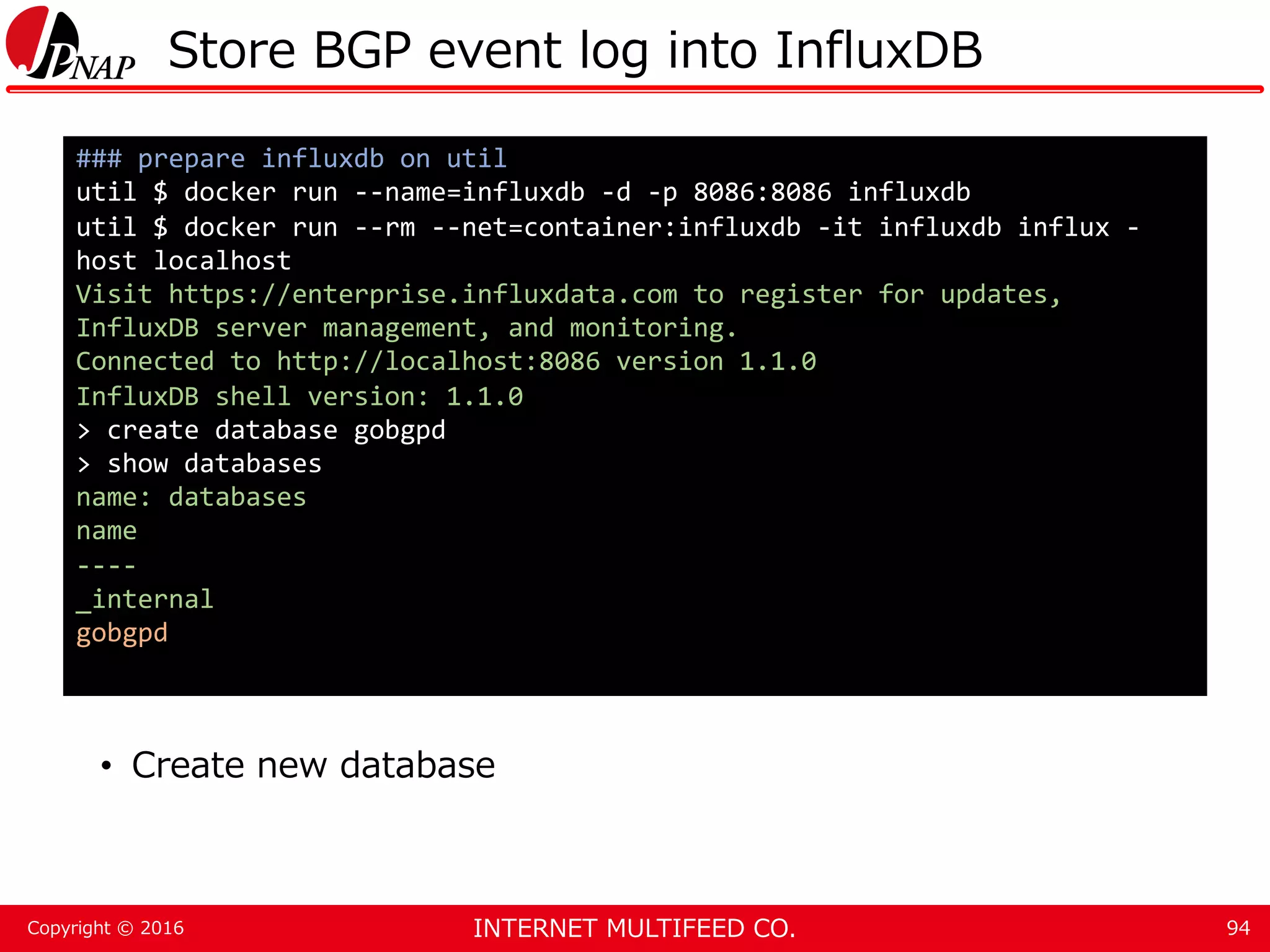

INTERNET MULTIFEED CO.Copyright © 2016 Store BGP event log into InfluxDB • Create new database 94 ### prepare influxdb on util util $ docker run --name=influxdb -d -p 8086:8086 influxdb util $ docker run --rm --net=container:influxdb -it influxdb influx - host localhost Visit https://enterprise.influxdata.com to register for updates, InfluxDB server management, and monitoring. Connected to http://localhost:8086 version 1.1.0 InfluxDB shell version: 1.1.0 > create database gobgpd > show databases name: databases name ---- _internal gobgpd

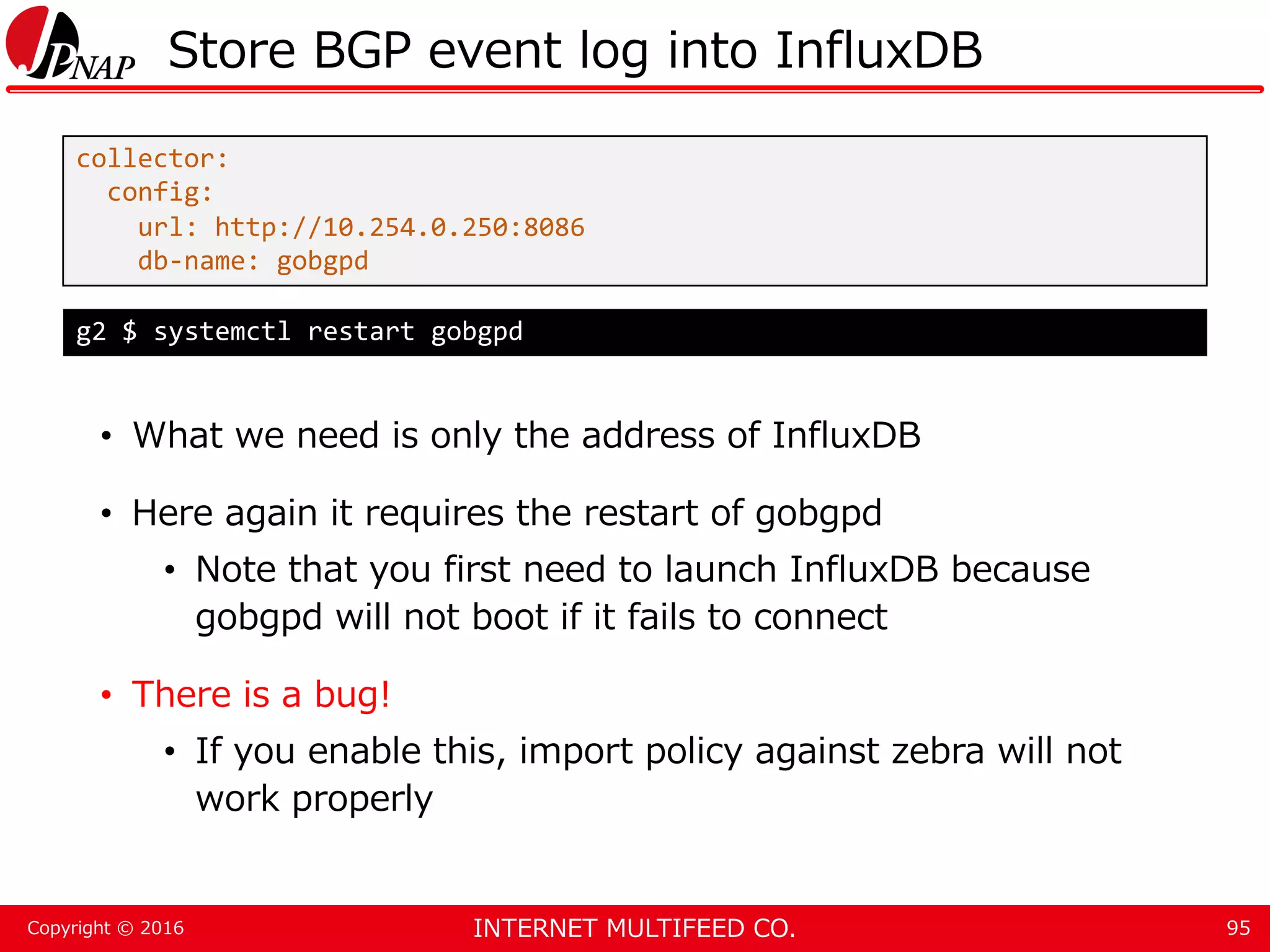

INTERNET MULTIFEED CO.Copyright © 2016 Store BGP event log into InfluxDB • What we need is only the address of InfluxDB • Here again it requires the restart of gobgpd • Note that you first need to launch InfluxDB because gobgpd will not boot if it fails to connect • There is a bug! • If you enable this, import policy against zebra will not work properly 95 collector: config: url: http://10.254.0.250:8086 db-name: gobgpd g2 $ systemctl restart gobgpd

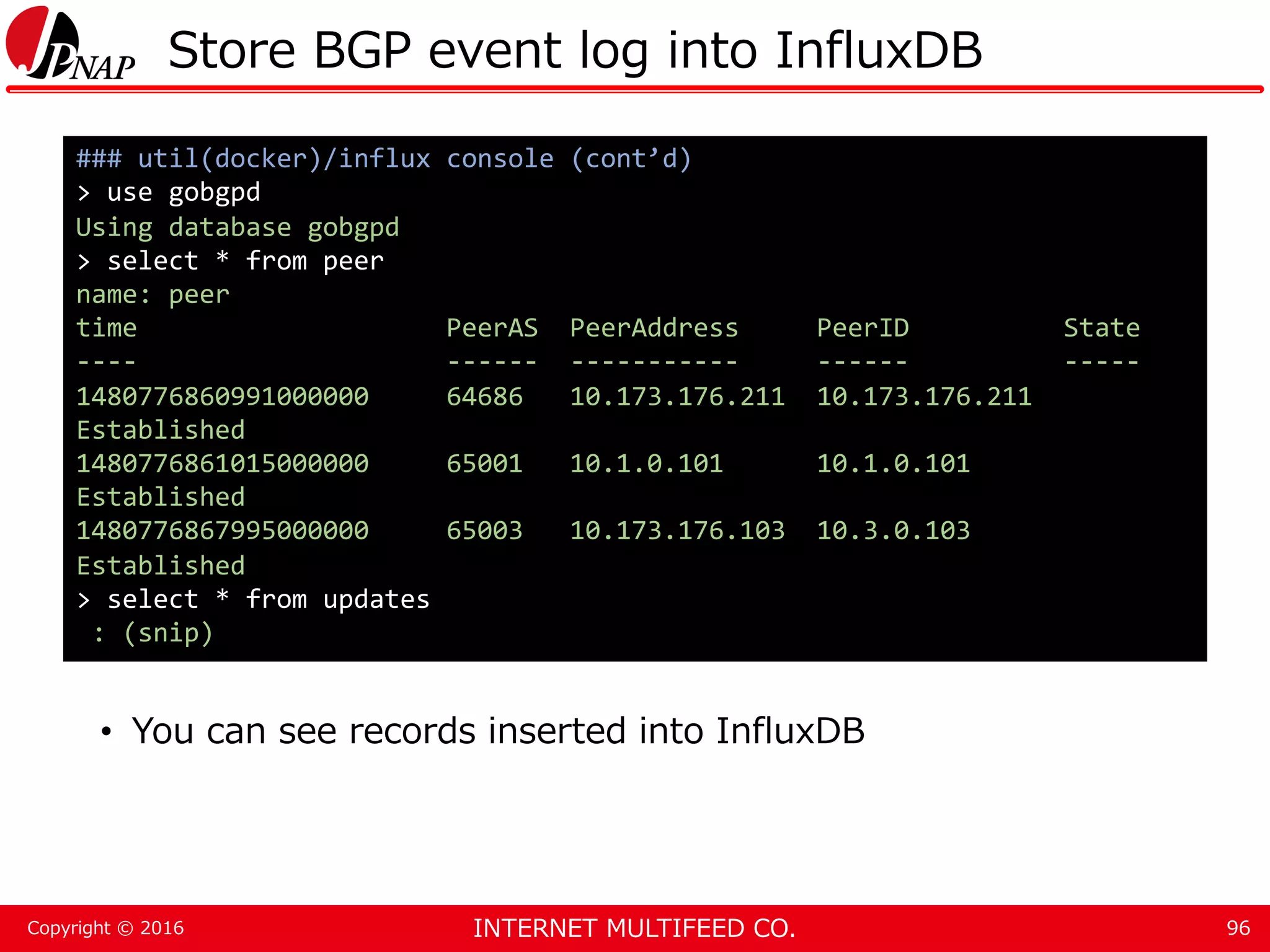

INTERNET MULTIFEED CO.Copyright © 2016 Store BGP event log into InfluxDB • You can see records inserted into InfluxDB 96 ### util(docker)/influx console (cont’d) > use gobgpd Using database gobgpd > select * from peer name: peer time PeerAS PeerAddress PeerID State ---- ------ ----------- ------ ----- 1480776860991000000 64686 10.173.176.211 10.173.176.211 Established 1480776861015000000 65001 10.1.0.101 10.1.0.101 Established 1480776867995000000 65003 10.173.176.103 10.3.0.103 Established > select * from updates : (snip)
