Deploying IPv6 on OpenStack
- 1. Deploying IPv6 on OpenStack TungNguyen Thanh - VCCloud Oct 7 - 2017
- 2. Agenda ● IPv6 Overview ●IPv6 address management ● IPv6 deployments options and consideration points in OpenStack ● Deploying and Troubleshooting
- 3. IPv4: Running Outof Addresses - Short term solutions included: + NAT (Network Address Translation) + Private address space + CIDR (Classless Inter-Domain Routing) - Long-term solution: IPv6

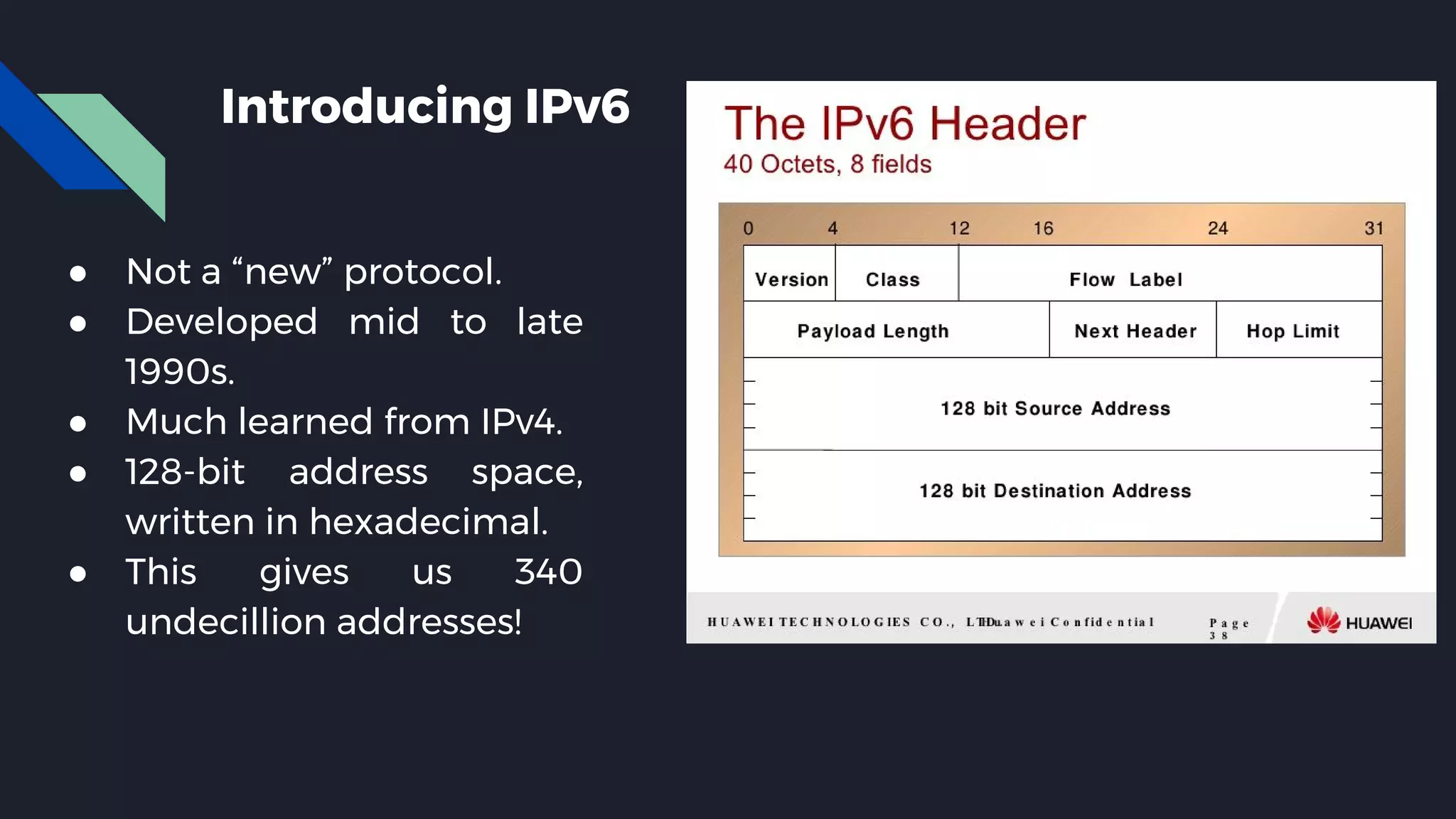

- 4. Introducing IPv6 ● Nota “new” protocol. ● Developed mid to late 1990s. ● Much learned from IPv4. ● 128-bit address space, written in hexadecimal. ● This gives us 340 undecillion addresses!
- 5.

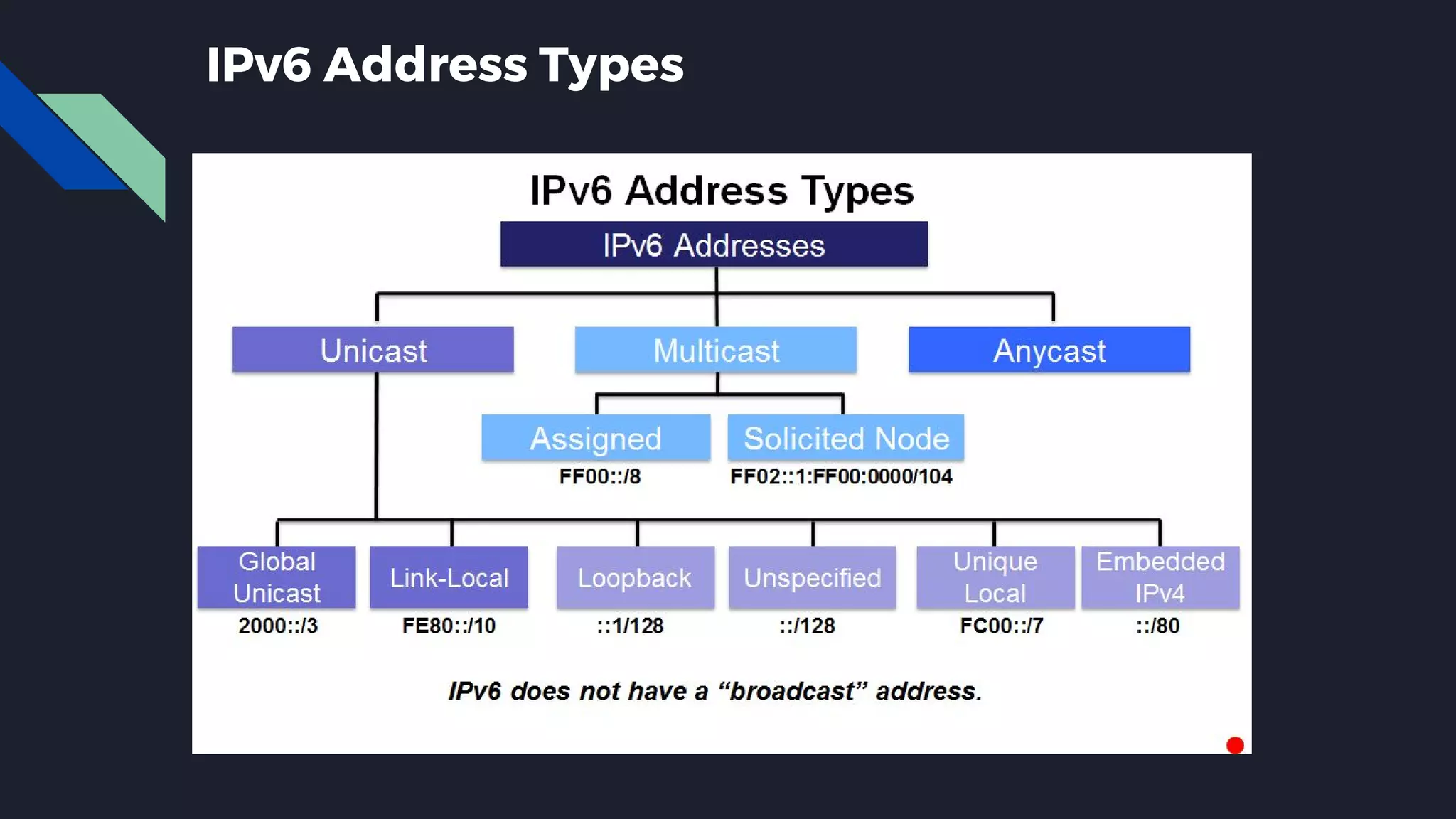

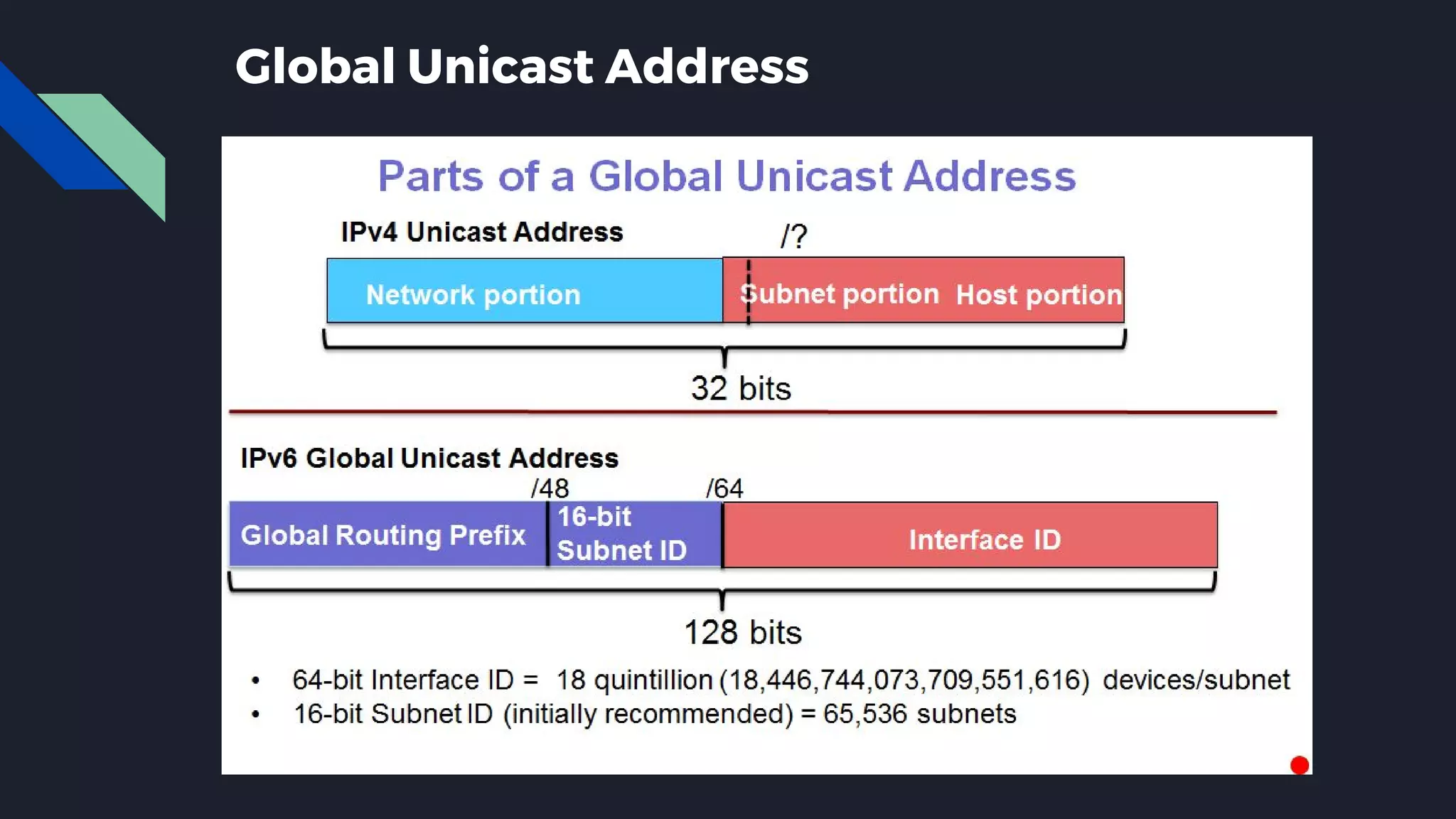

- 6.

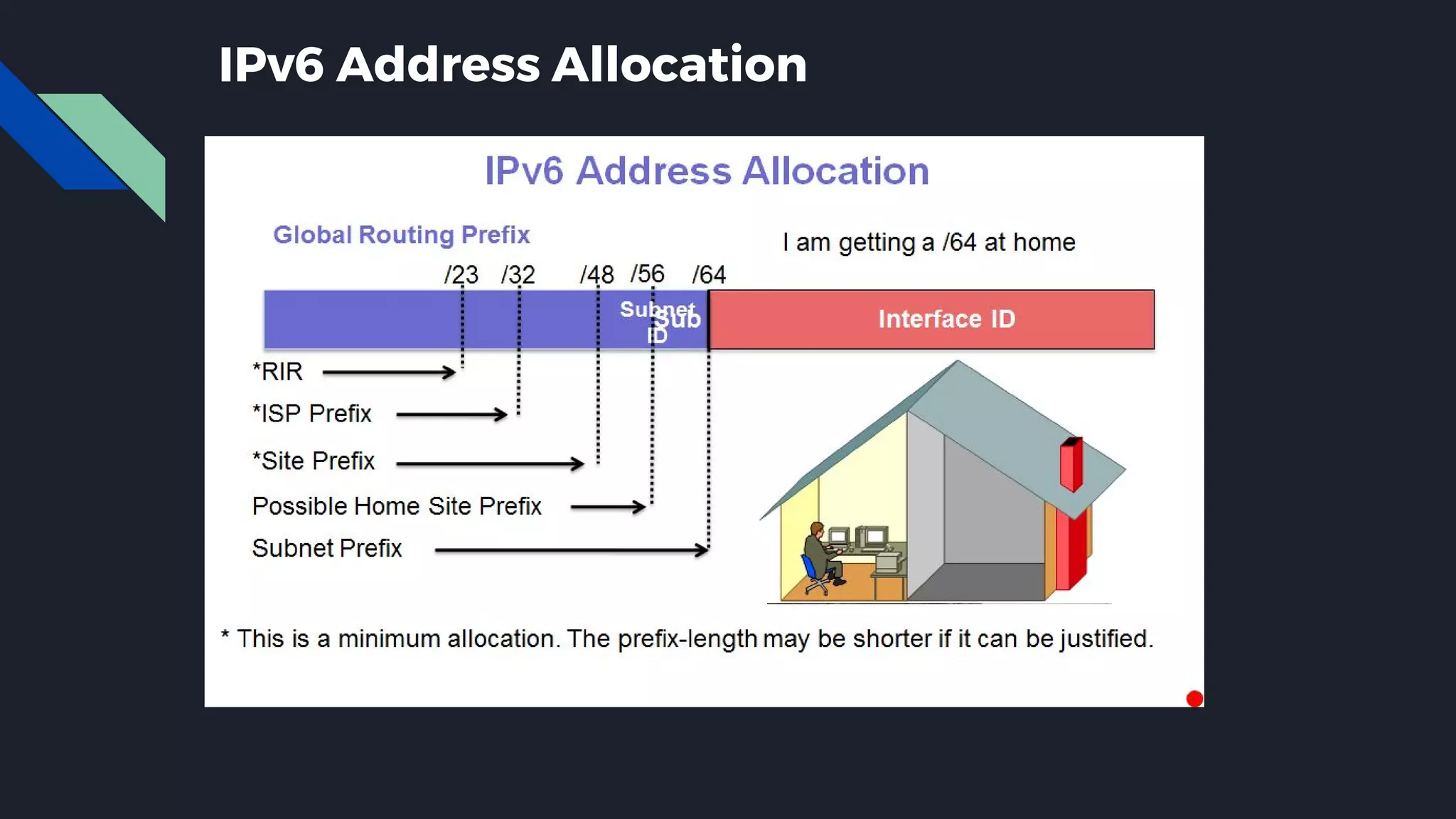

- 7.

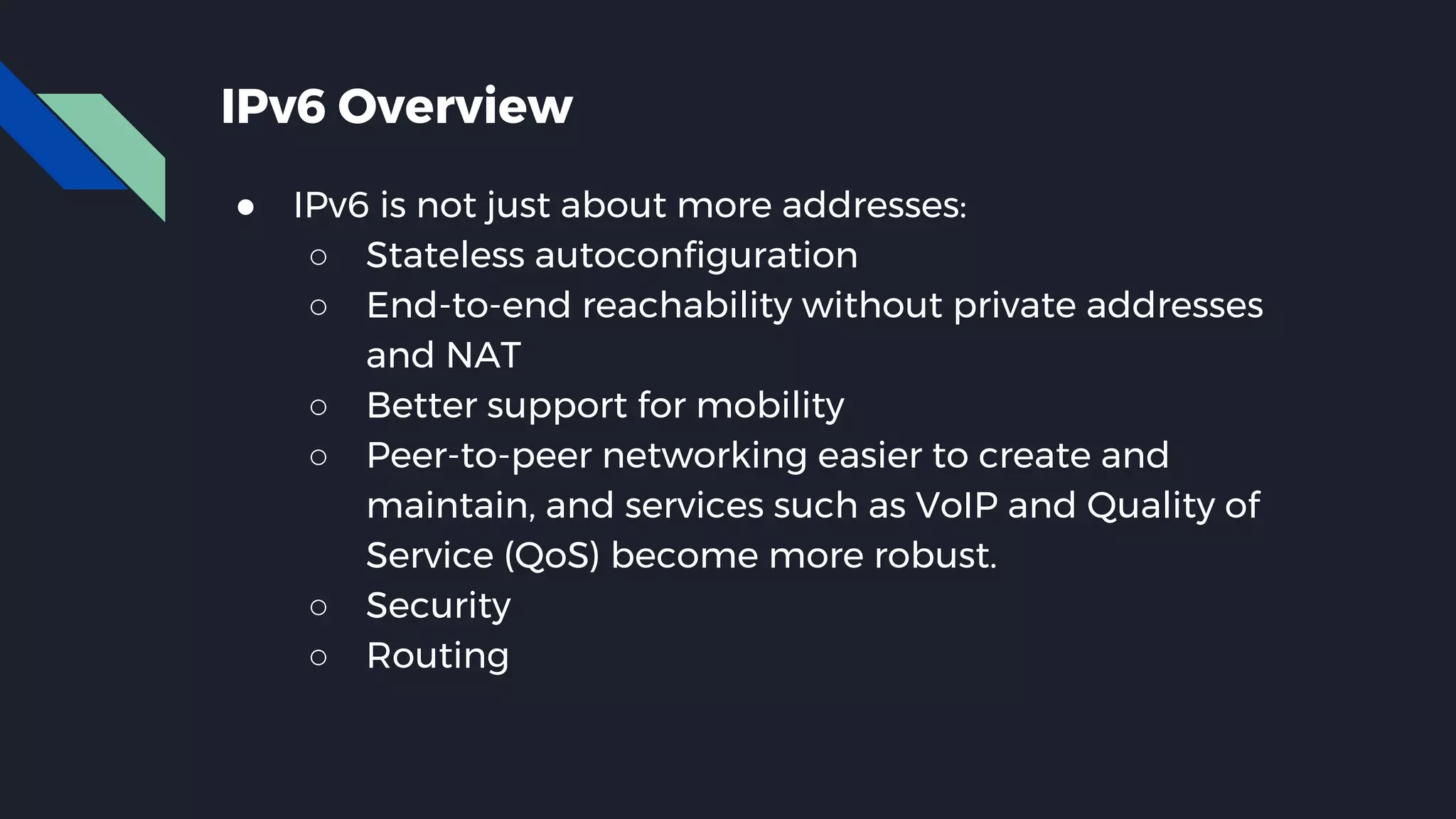

- 8. IPv6 Overview ● IPv6is not just about more addresses: ○ Stateless autoconfiguration ○ End-to-end reachability without private addresses and NAT ○ Better support for mobility ○ Peer-to-peer networking easier to create and maintain, and services such as VoIP and Quality of Service (QoS) become more robust. ○ Security ○ Routing
- 9. IPv5 ? IPv10 ? Is‘IPv6’ faster ?

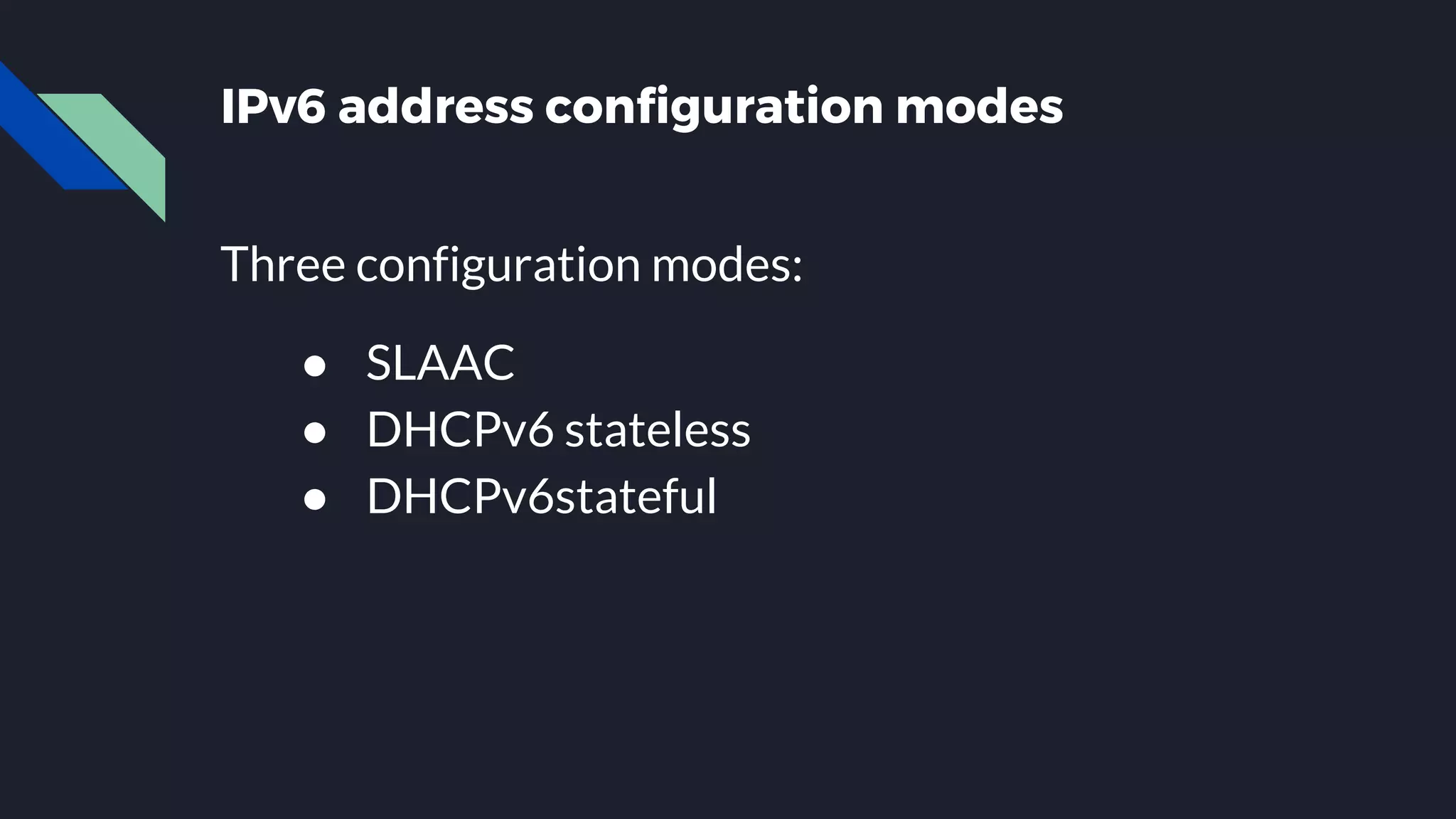

- 10. IPv6 address configurationmodes Three configuration modes: ● SLAAC ● DHCPv6 stateless ● DHCPv6stateful

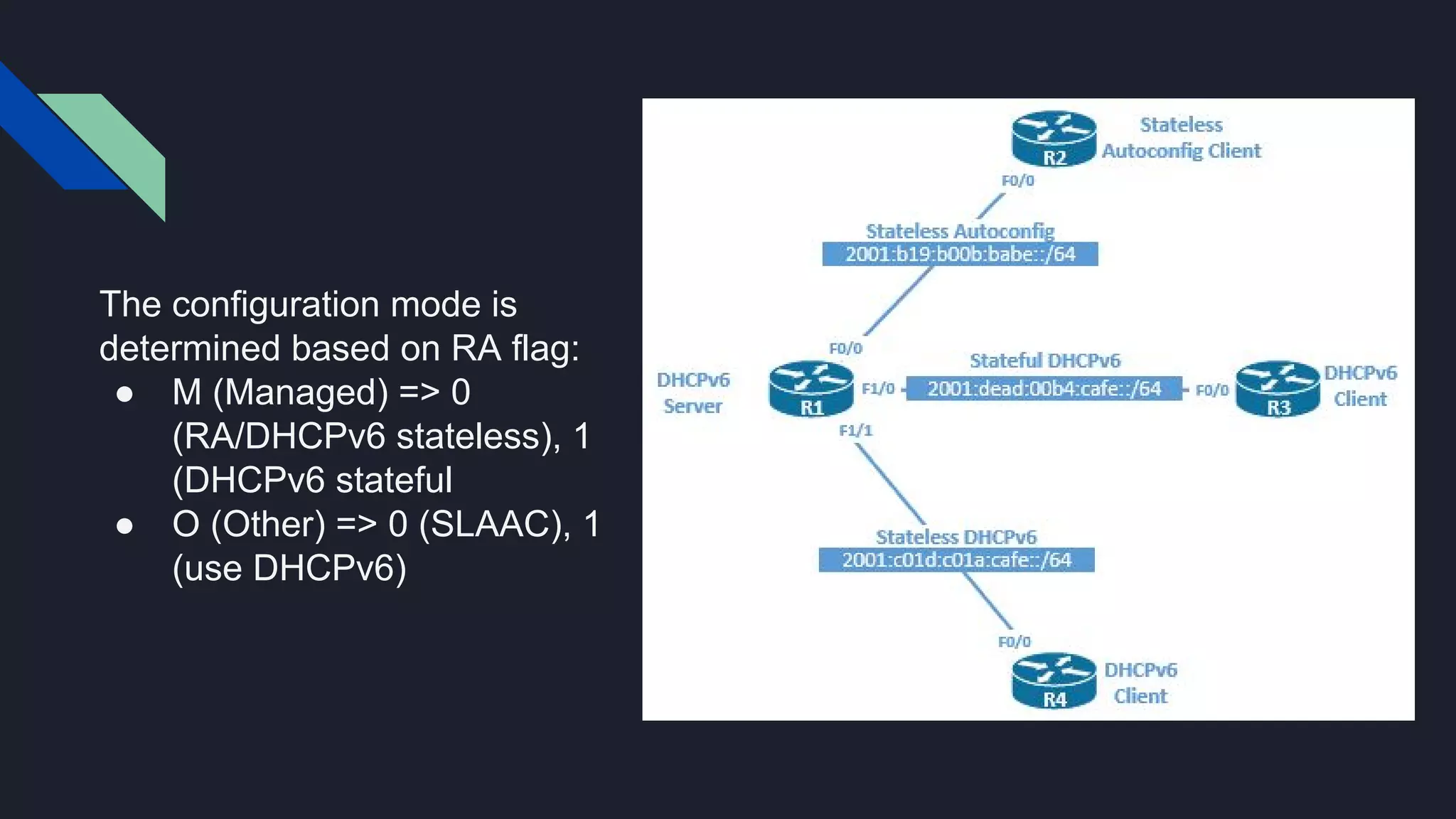

- 11. The configuration modeis determined based on RA flag: ● M (Managed) => 0 (RA/DHCPv6 stateless), 1 (DHCPv6 stateful ● O (Other) => 0 (SLAAC), 1 (use DHCPv6)

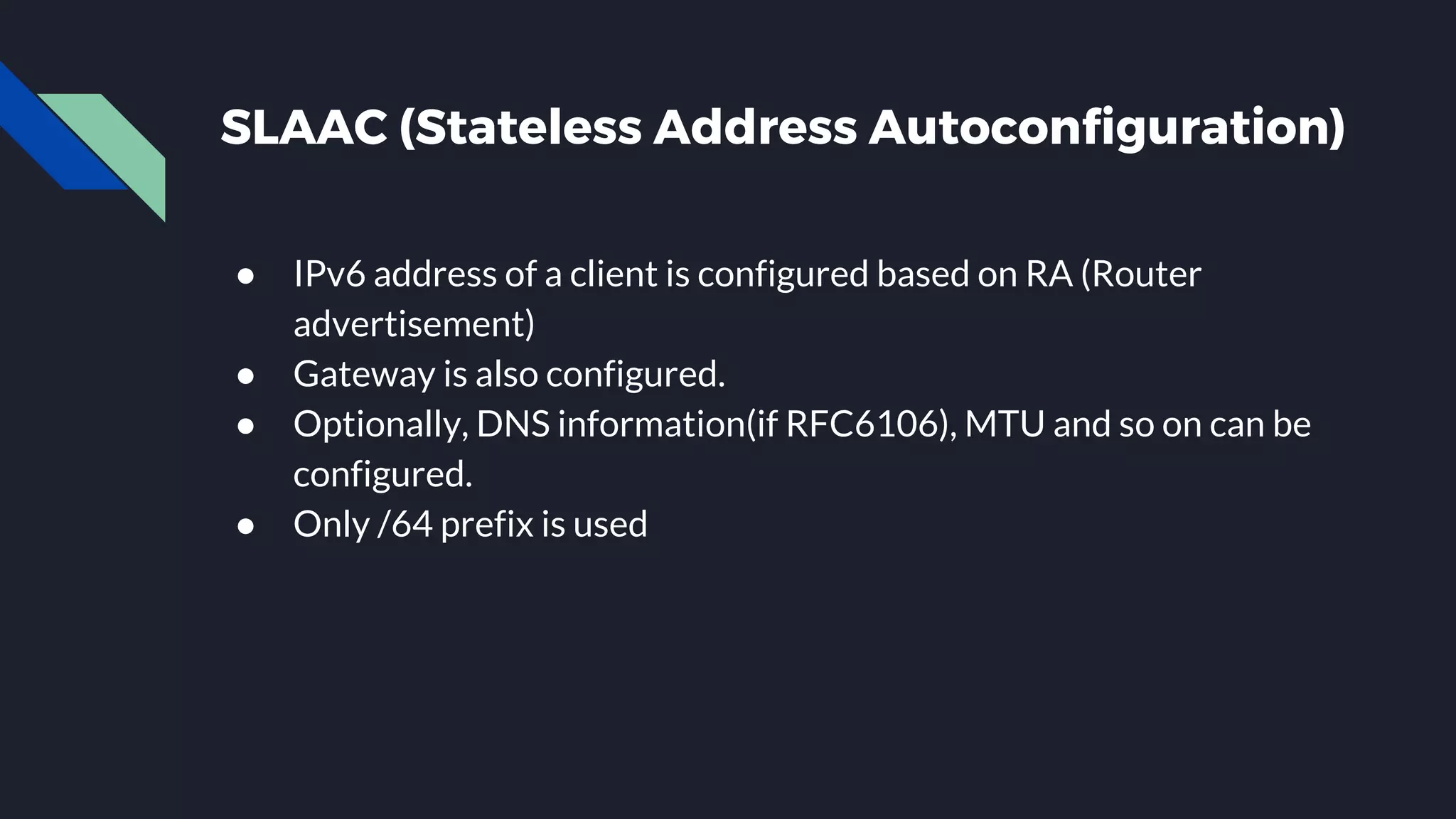

- 12. SLAAC (Stateless AddressAutoconfiguration) ● IPv6 address of a client is configured based on RA (Router advertisement) ● Gateway is also configured. ● Optionally, DNS information(if RFC6106), MTU and so on can be configured. ● Only /64 prefix is used

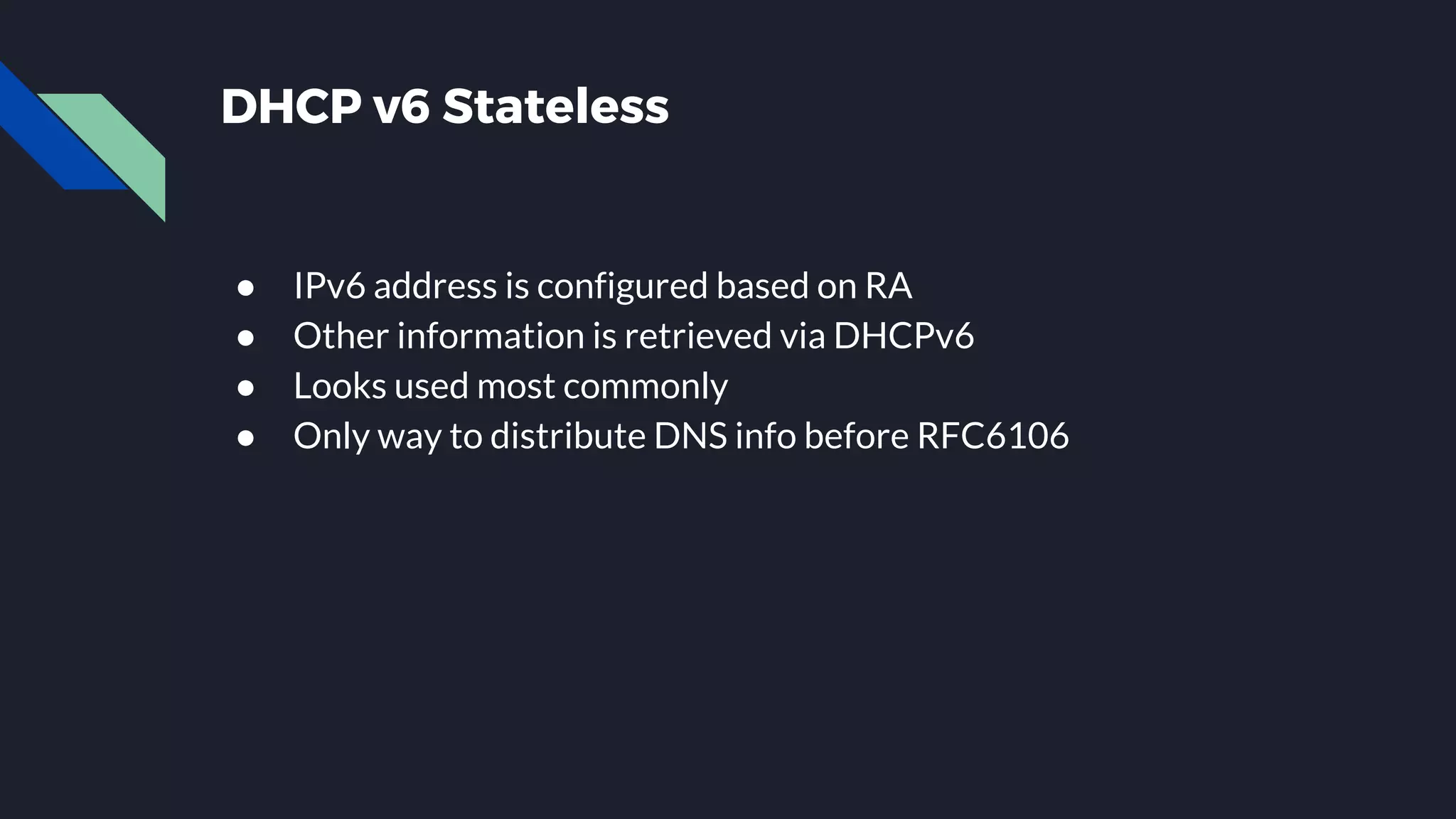

- 13. DHCP v6 Stateless ●IPv6 address is configured based on RA ● Other information is retrieved via DHCPv6 ● Looks used most commonly ● Only way to distribute DNS info before RFC6106

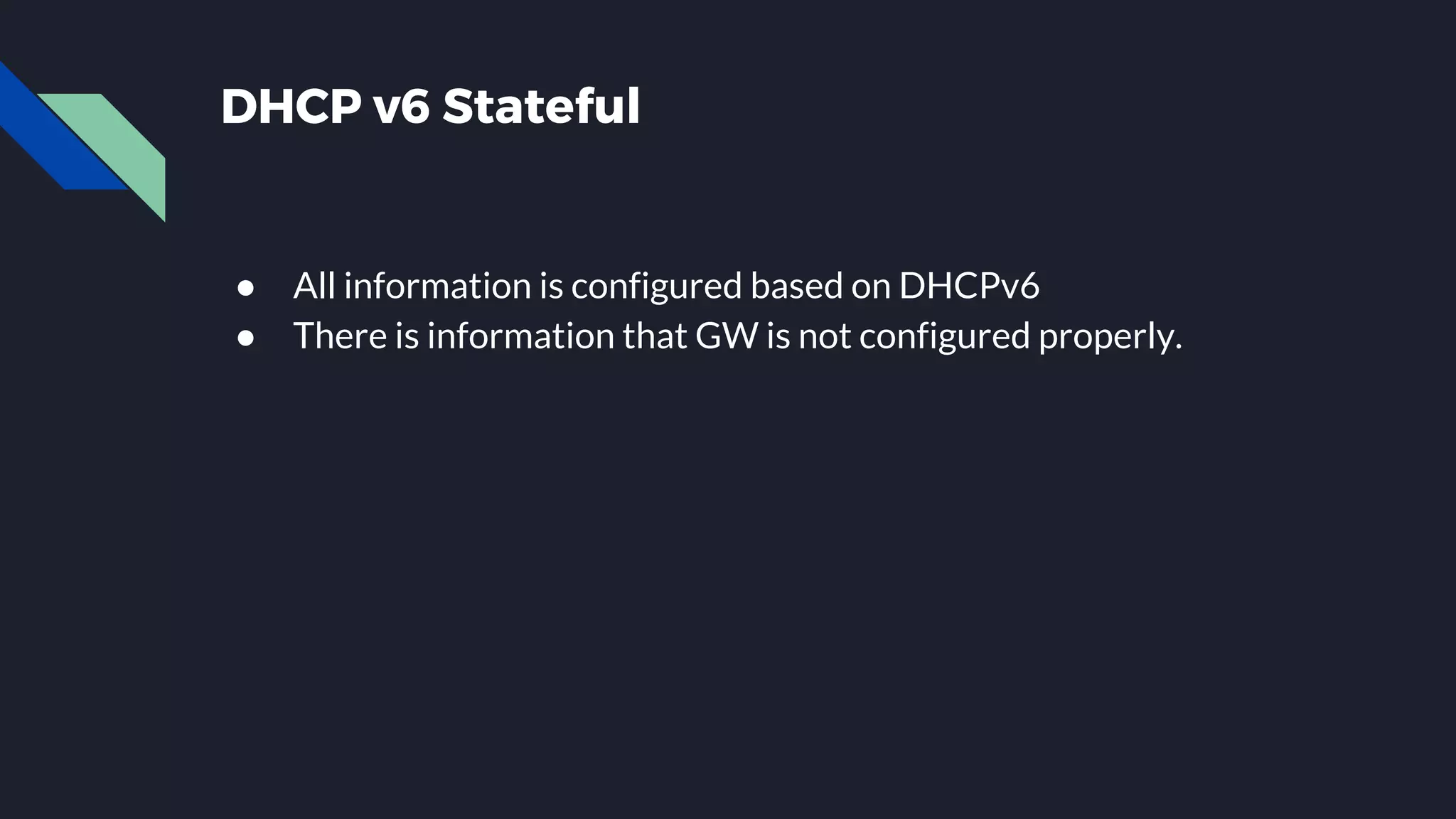

- 14. DHCP v6 Stateful ●All information is configured based on DHCPv6 ● There is information that GW is not configured properly.
- 15.

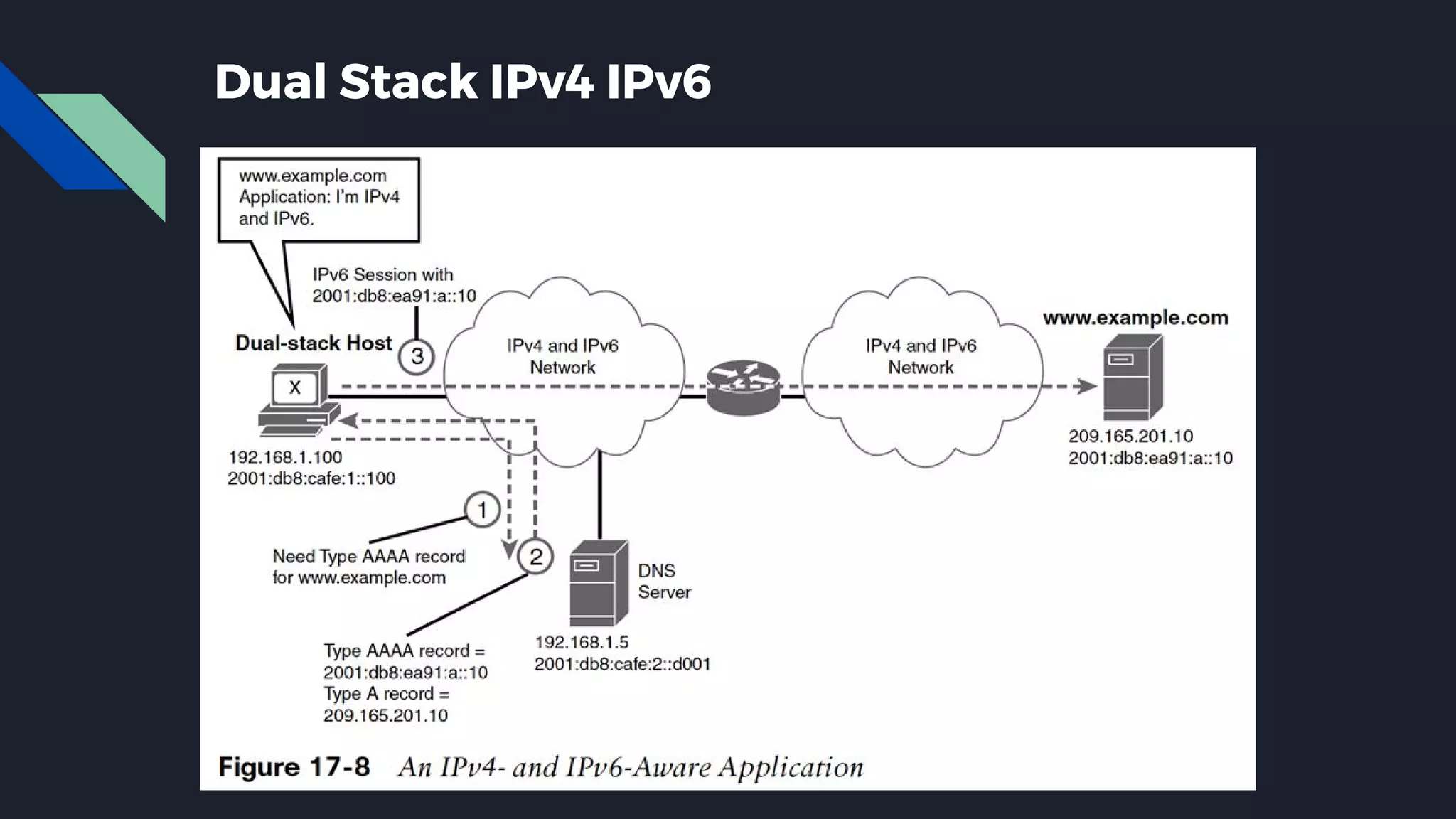

- 16. Dual Stack IPv4IPv6

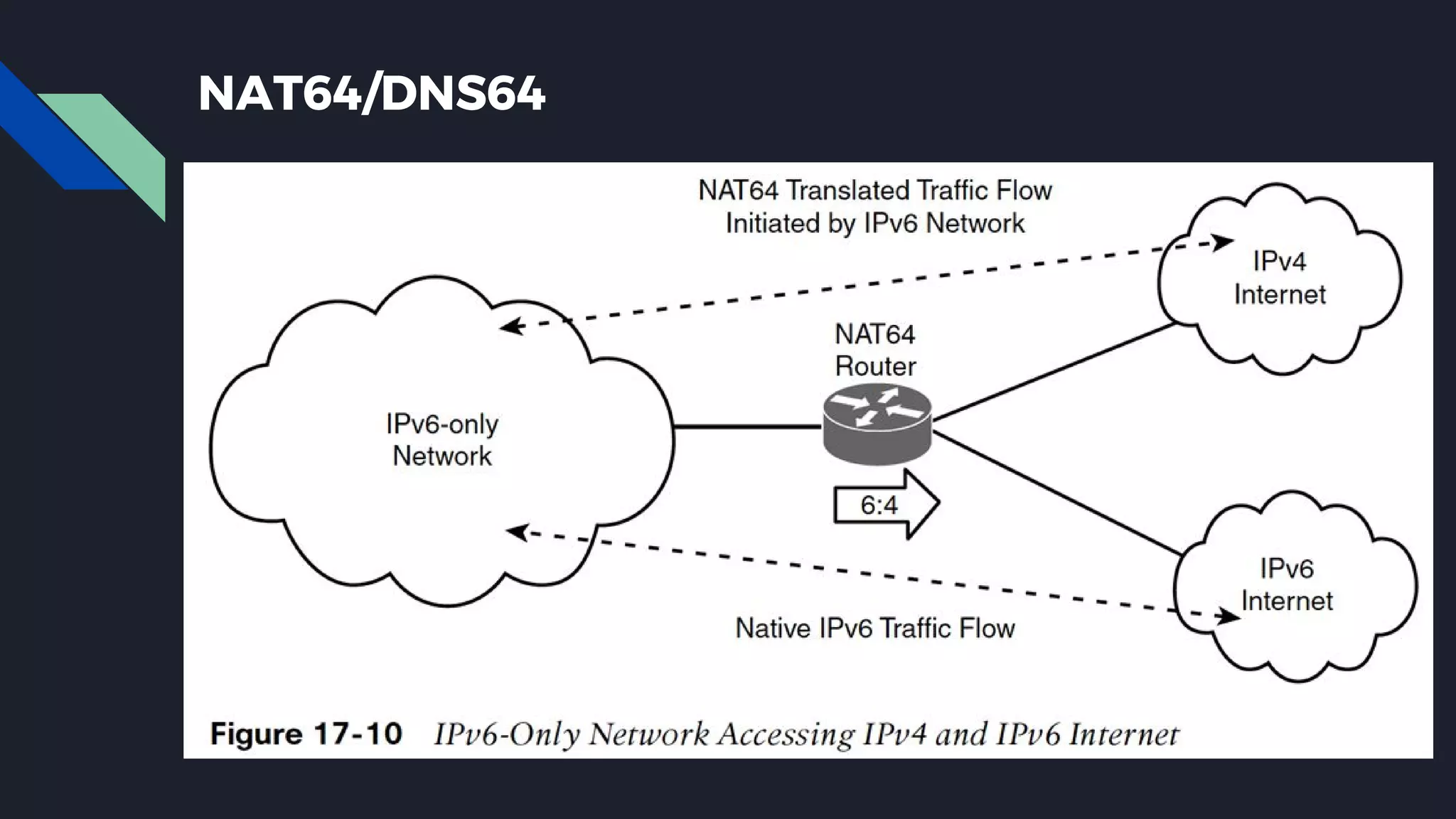

- 17.

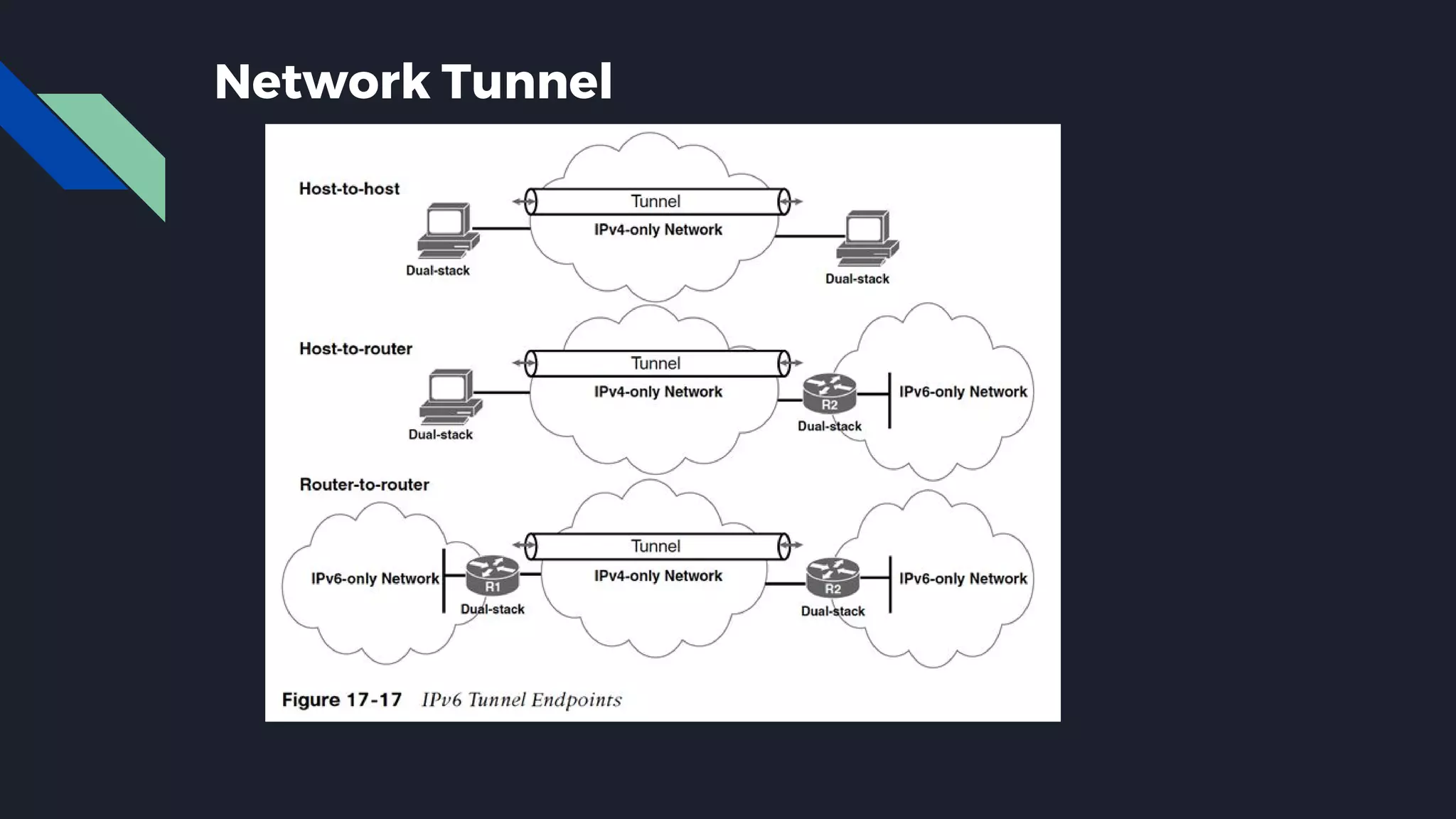

- 18.

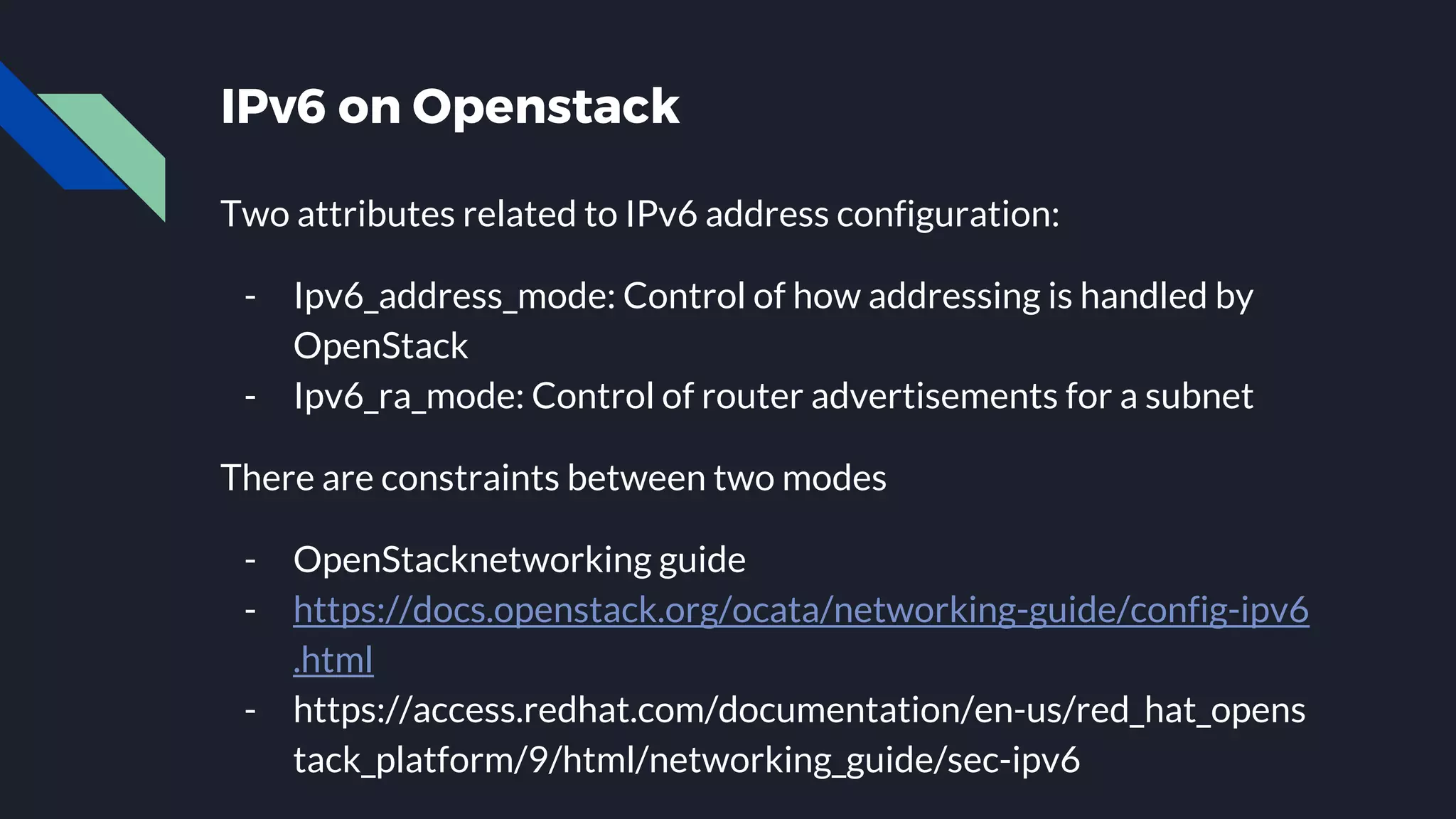

- 19. IPv6 on Openstack Twoattributes related to IPv6 address configuration: - Ipv6_address_mode: Control of how addressing is handled by OpenStack - Ipv6_ra_mode: Control of router advertisements for a subnet There are constraints between two modes - OpenStacknetworking guide - https://docs.openstack.org/ocata/networking-guide/config-ipv6 .html - https://access.redhat.com/documentation/en-us/red_hat_opens tack_platform/9/html/networking_guide/sec-ipv6

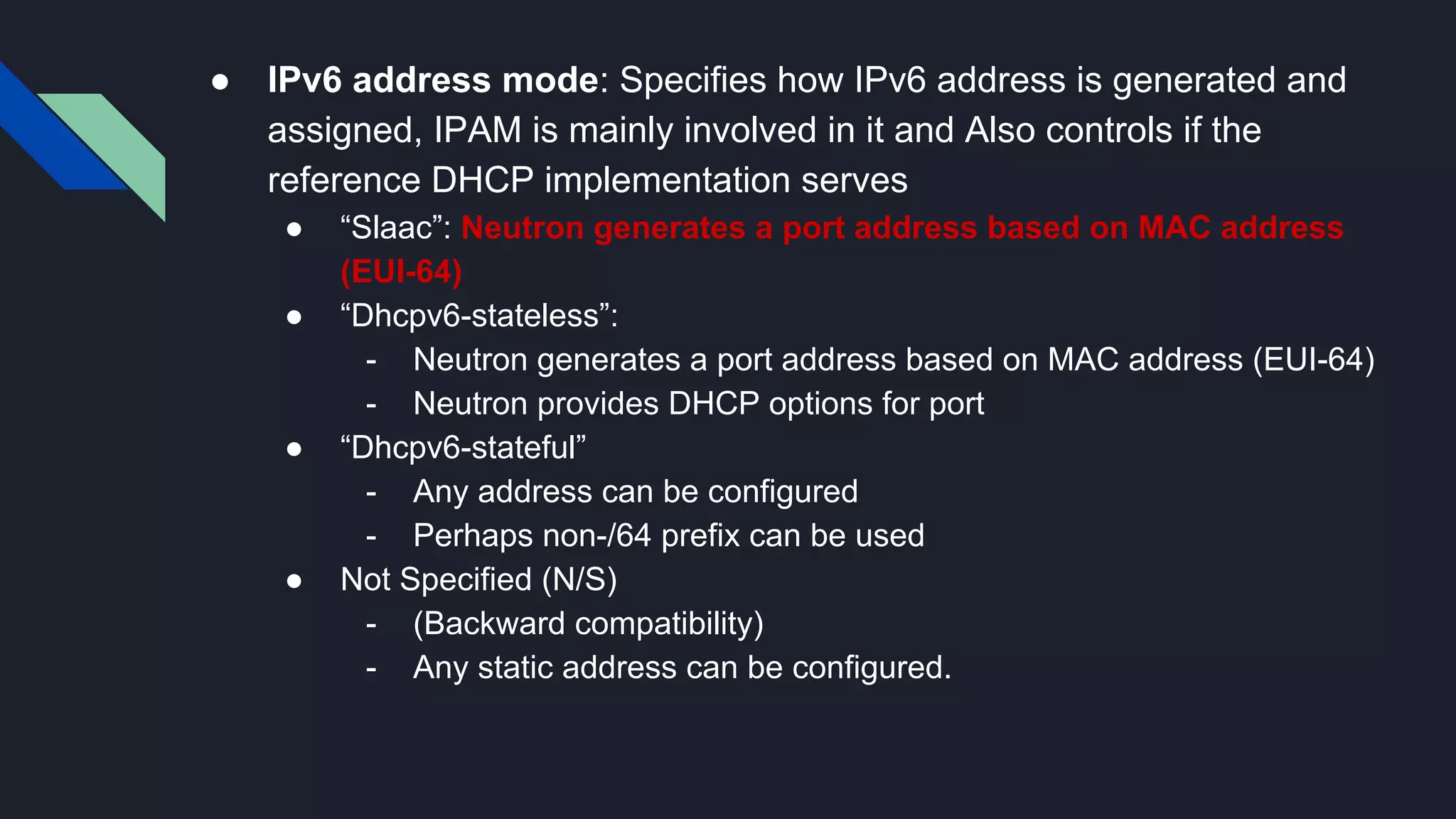

- 20. ● IPv6 addressmode: Specifies how IPv6 address is generated and assigned, IPAM is mainly involved in it and Also controls if the reference DHCP implementation serves ● “Slaac”: Neutron generates a port address based on MAC address (EUI-64) ● “Dhcpv6-stateless”: - Neutron generates a port address based on MAC address (EUI-64) - Neutron provides DHCP options for port ● “Dhcpv6-stateful” - Any address can be configured - Perhaps non-/64 prefix can be used ● Not Specified (N/S) - (Backward compatibility) - Any static address can be configured.

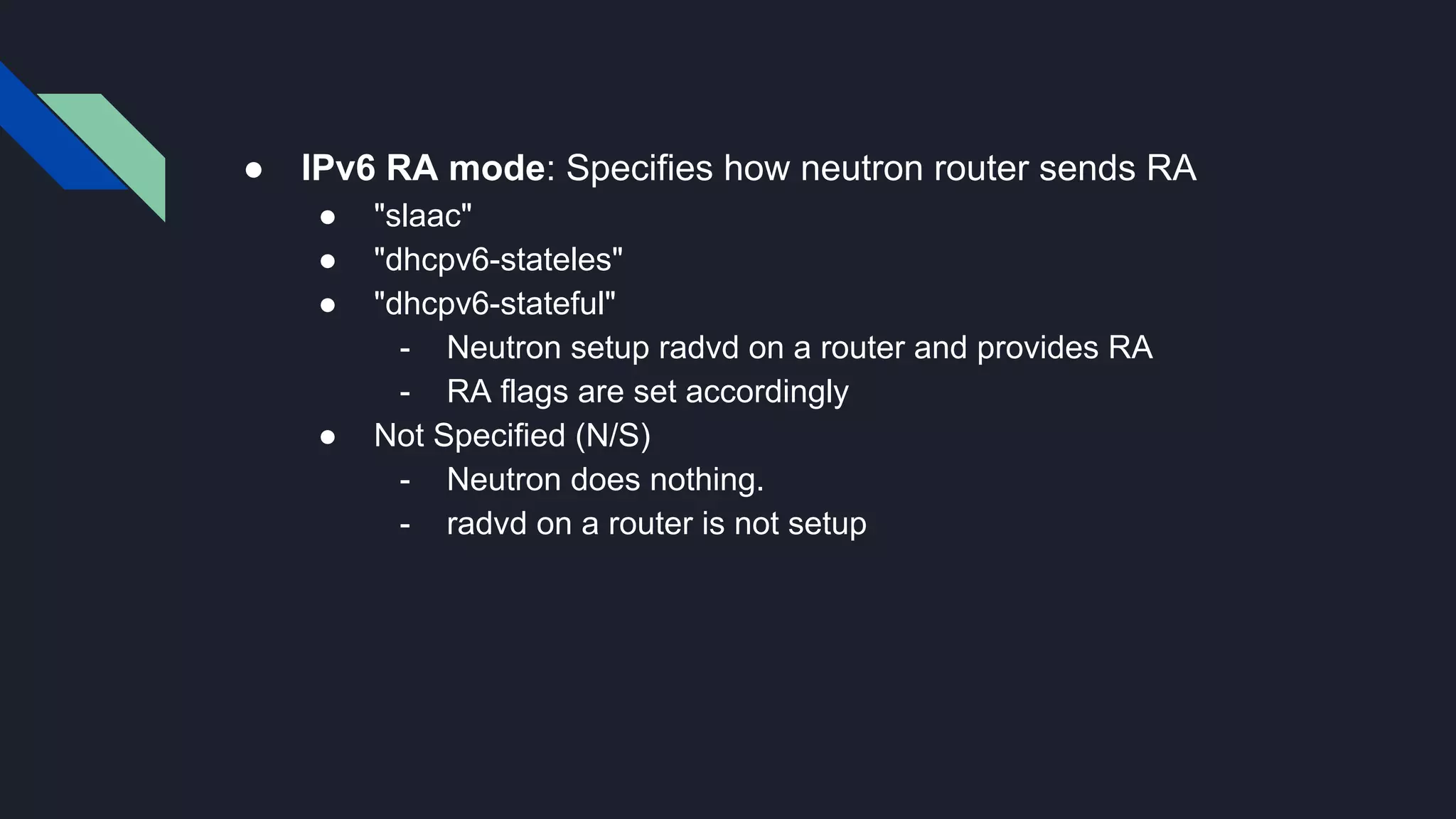

- 21. ● IPv6 RAmode: Specifies how neutron router sends RA ● "slaac" ● "dhcpv6-stateles" ● "dhcpv6-stateful" - Neutron setup radvd on a router and provides RA - RA flags are set accordingly ● Not Specified (N/S) - Neutron does nothing. - radvd on a router is not setup

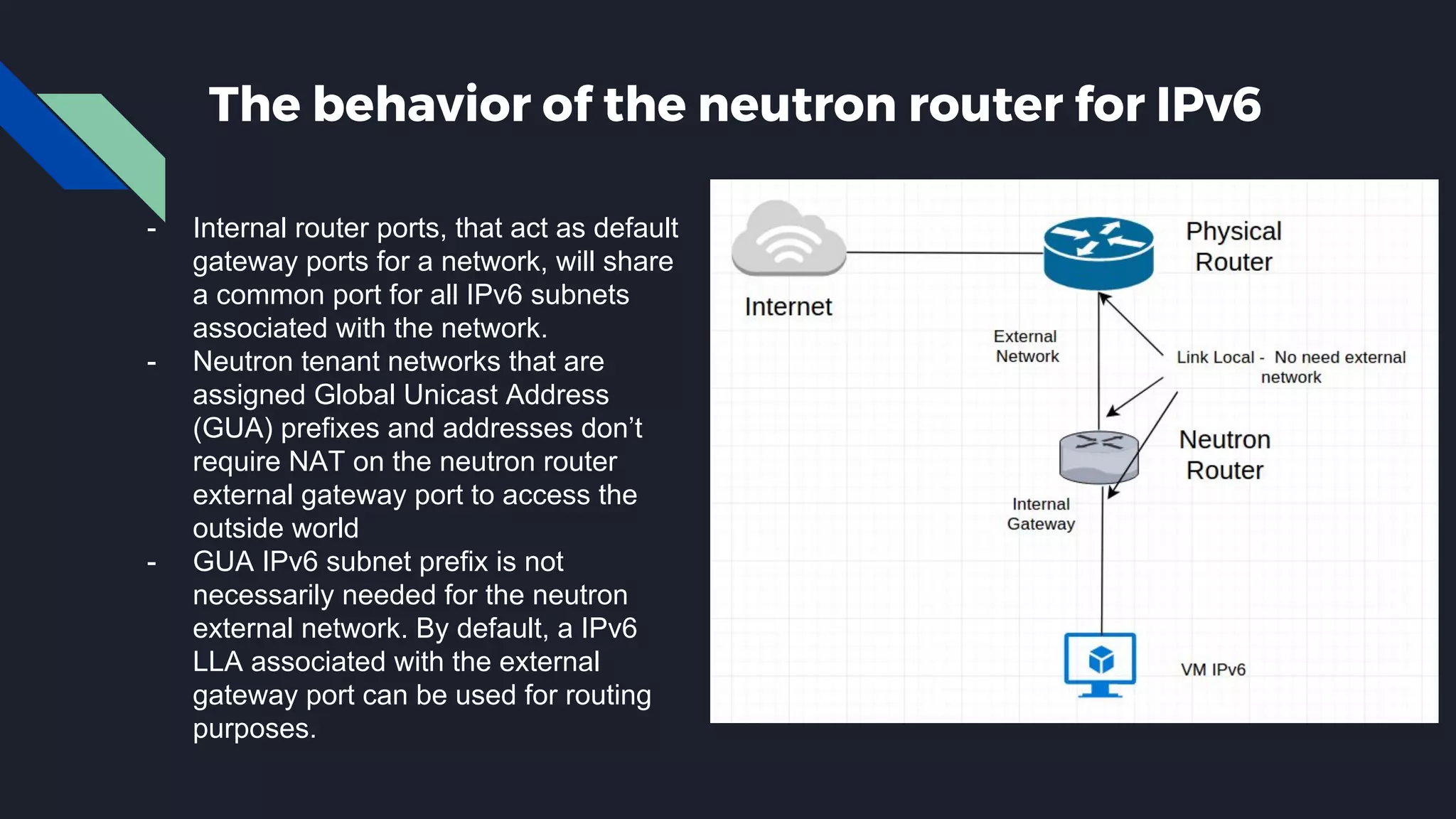

- 22. The behavior ofthe neutron router for IPv6 - Internal router ports, that act as default gateway ports for a network, will share a common port for all IPv6 subnets associated with the network. - Neutron tenant networks that are assigned Global Unicast Address (GUA) prefixes and addresses don’t require NAT on the neutron router external gateway port to access the outside world - GUA IPv6 subnet prefix is not necessarily needed for the neutron external network. By default, a IPv6 LLA associated with the external gateway port can be used for routing purposes.

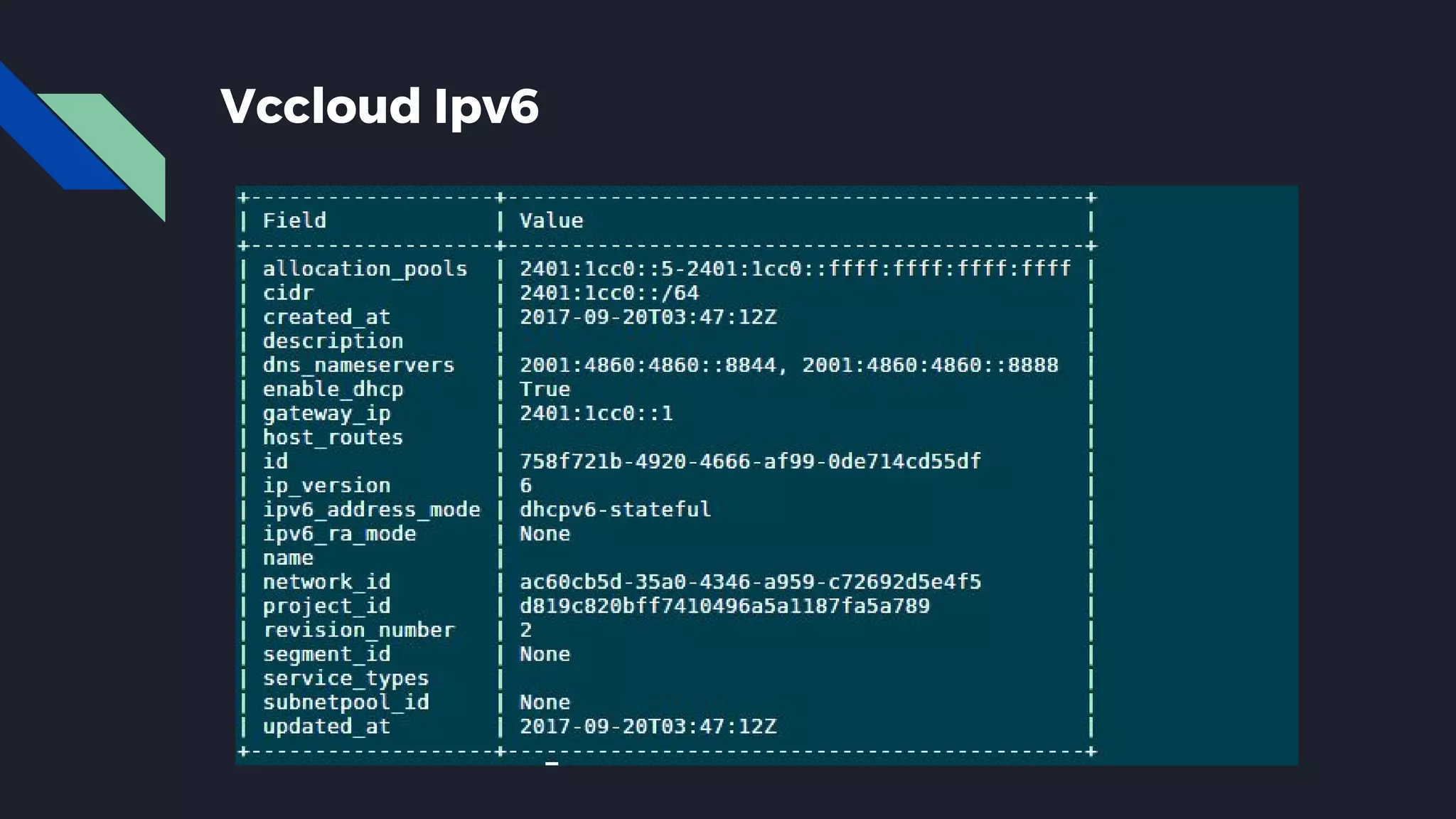

- 23.

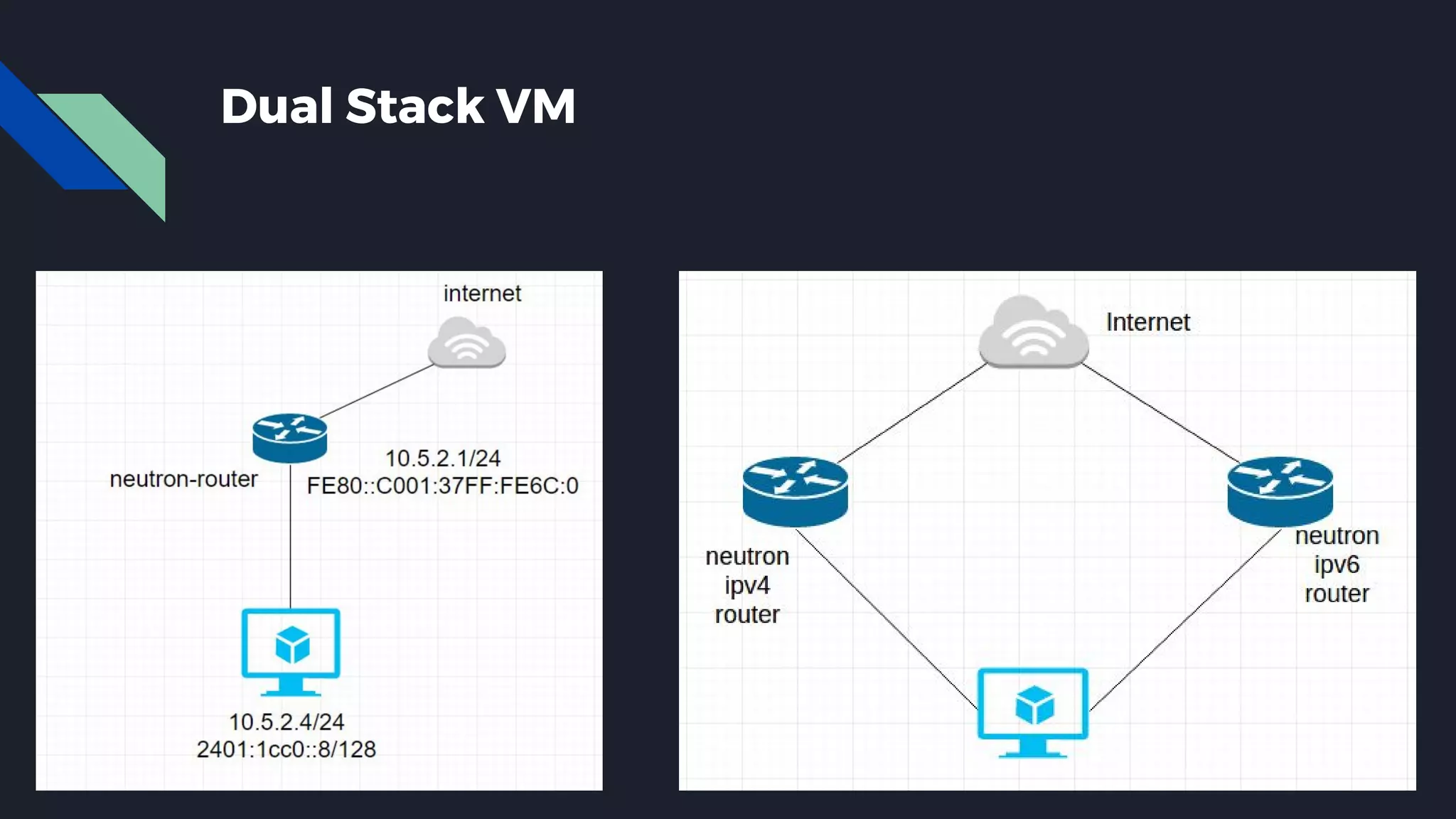

- 24.

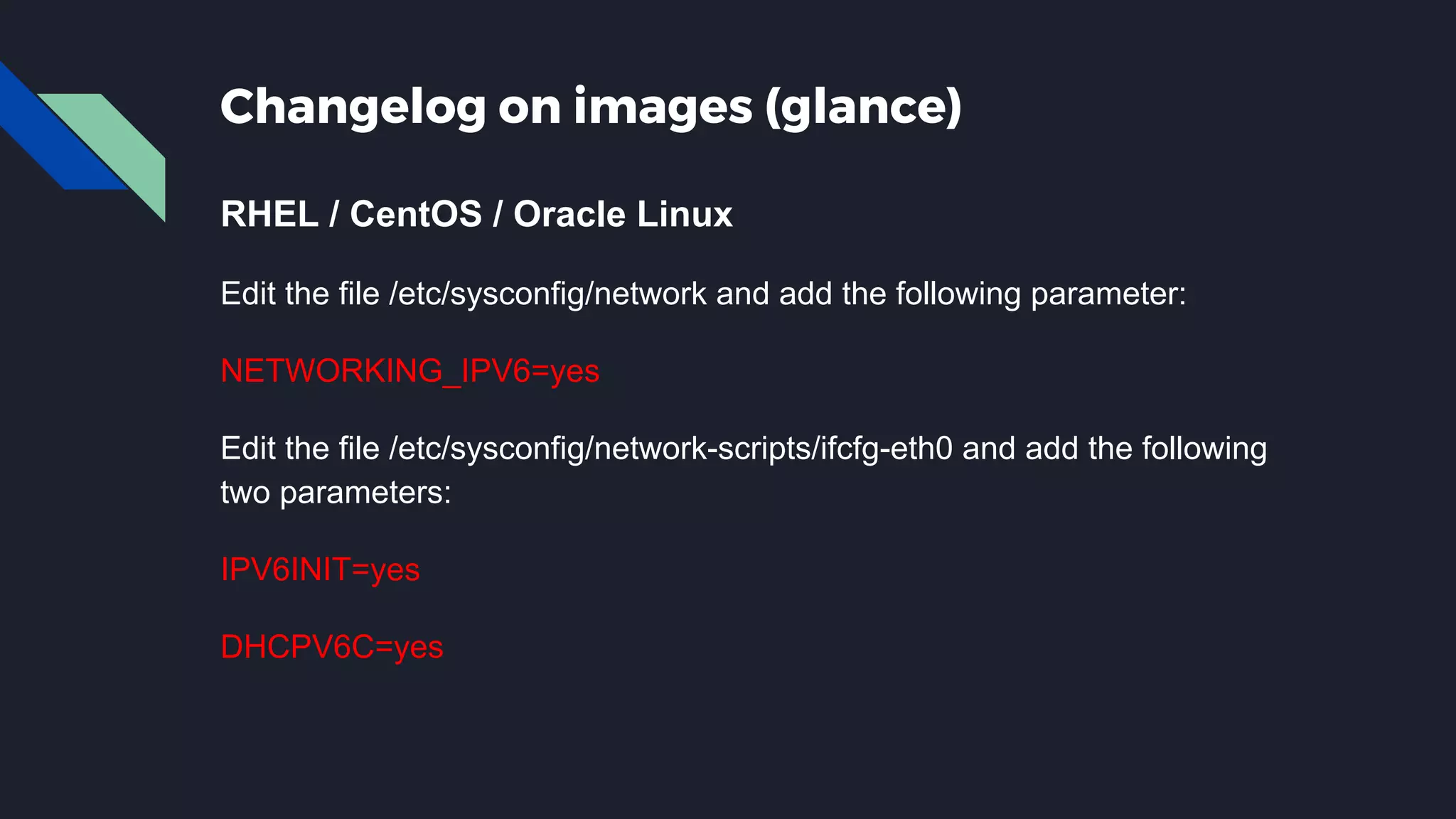

- 25. Changelog on images(glance) RHEL / CentOS / Oracle Linux Edit the file /etc/sysconfig/network and add the following parameter: NETWORKING_IPV6=yes Edit the file /etc/sysconfig/network-scripts/ifcfg-eth0 and add the following two parameters: IPV6INIT=yes DHCPV6C=yes

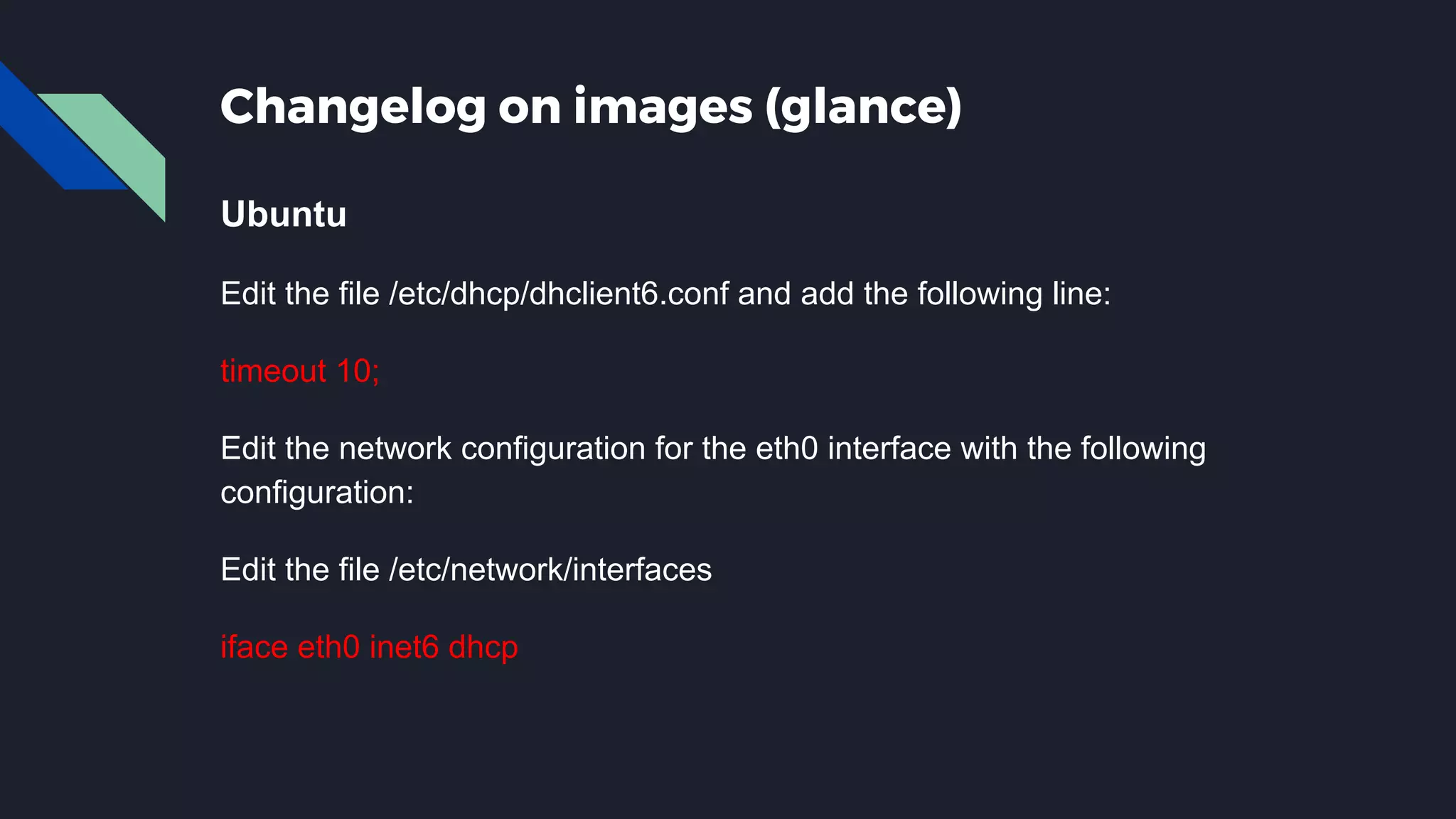

- 26. Changelog on images(glance) Ubuntu Edit the file /etc/dhcp/dhclient6.conf and add the following line: timeout 10; Edit the network configuration for the eth0 interface with the following configuration: Edit the file /etc/network/interfaces iface eth0 inet6 dhcp

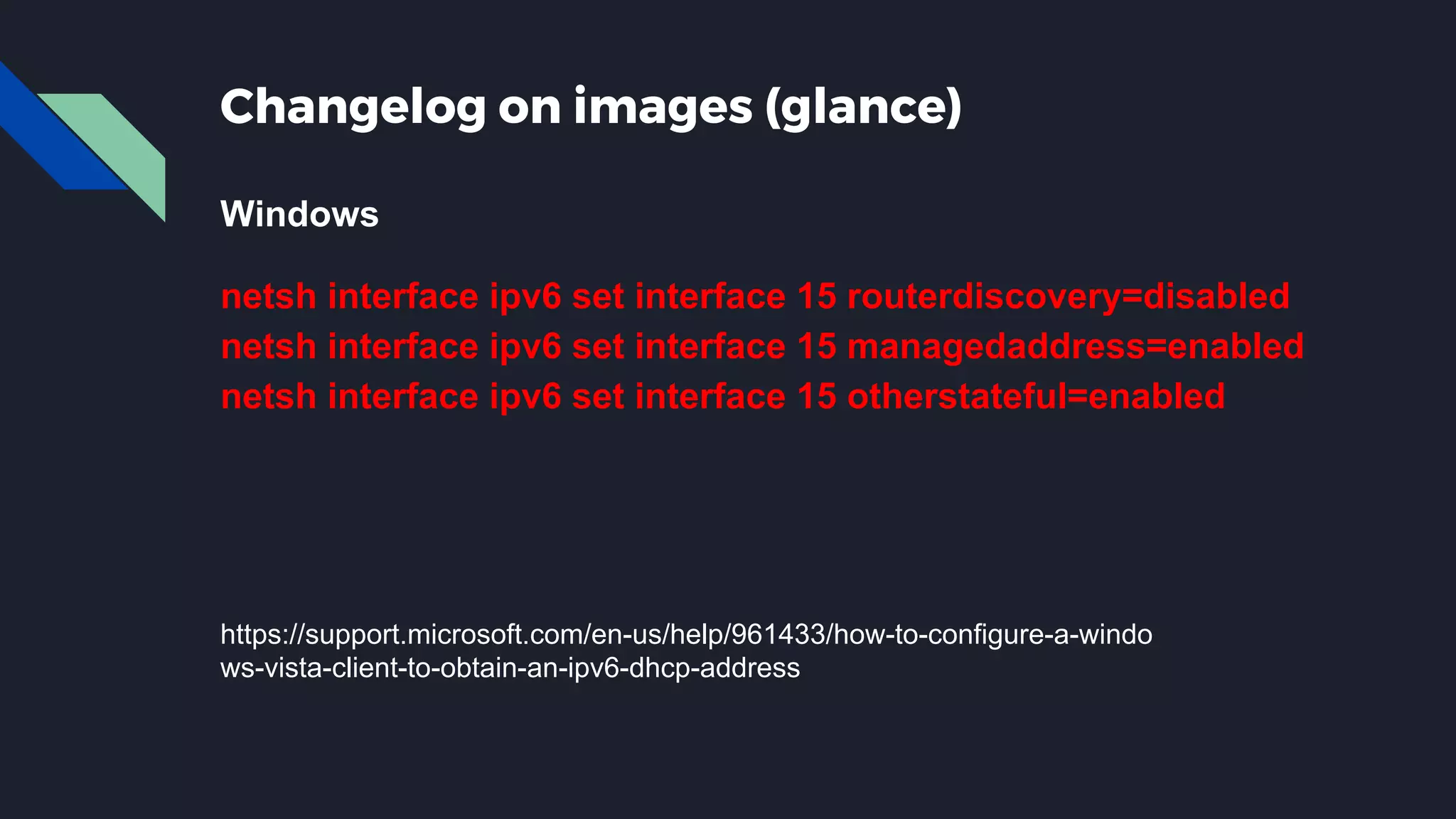

- 27. Changelog on images(glance) Windows netsh interface ipv6 set interface 15 routerdiscovery=disabled netsh interface ipv6 set interface 15 managedaddress=enabled netsh interface ipv6 set interface 15 otherstateful=enabled https://support.microsoft.com/en-us/help/961433/how-to-configure-a-windo ws-vista-client-to-obtain-an-ipv6-dhcp-address

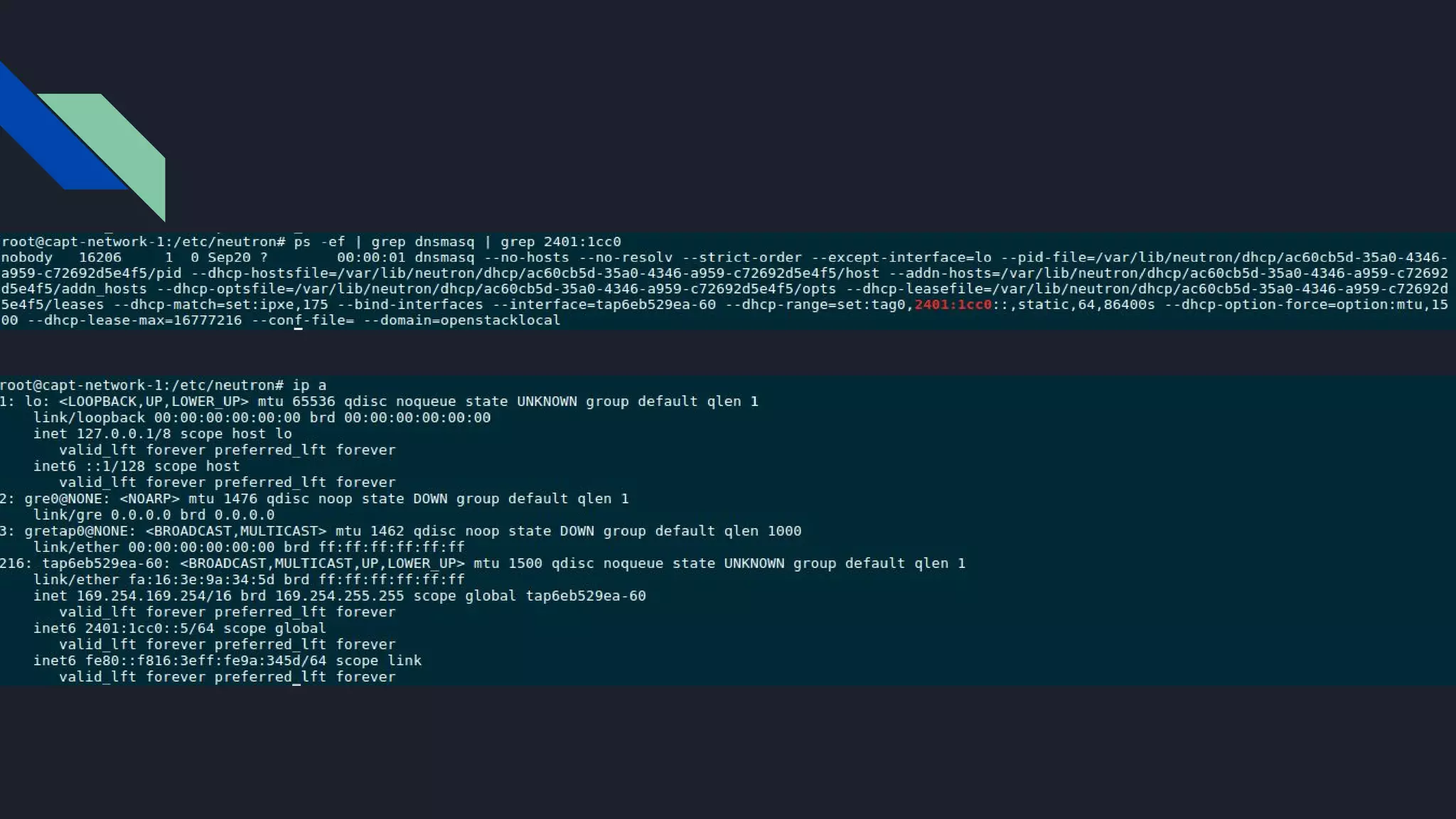

- 28.

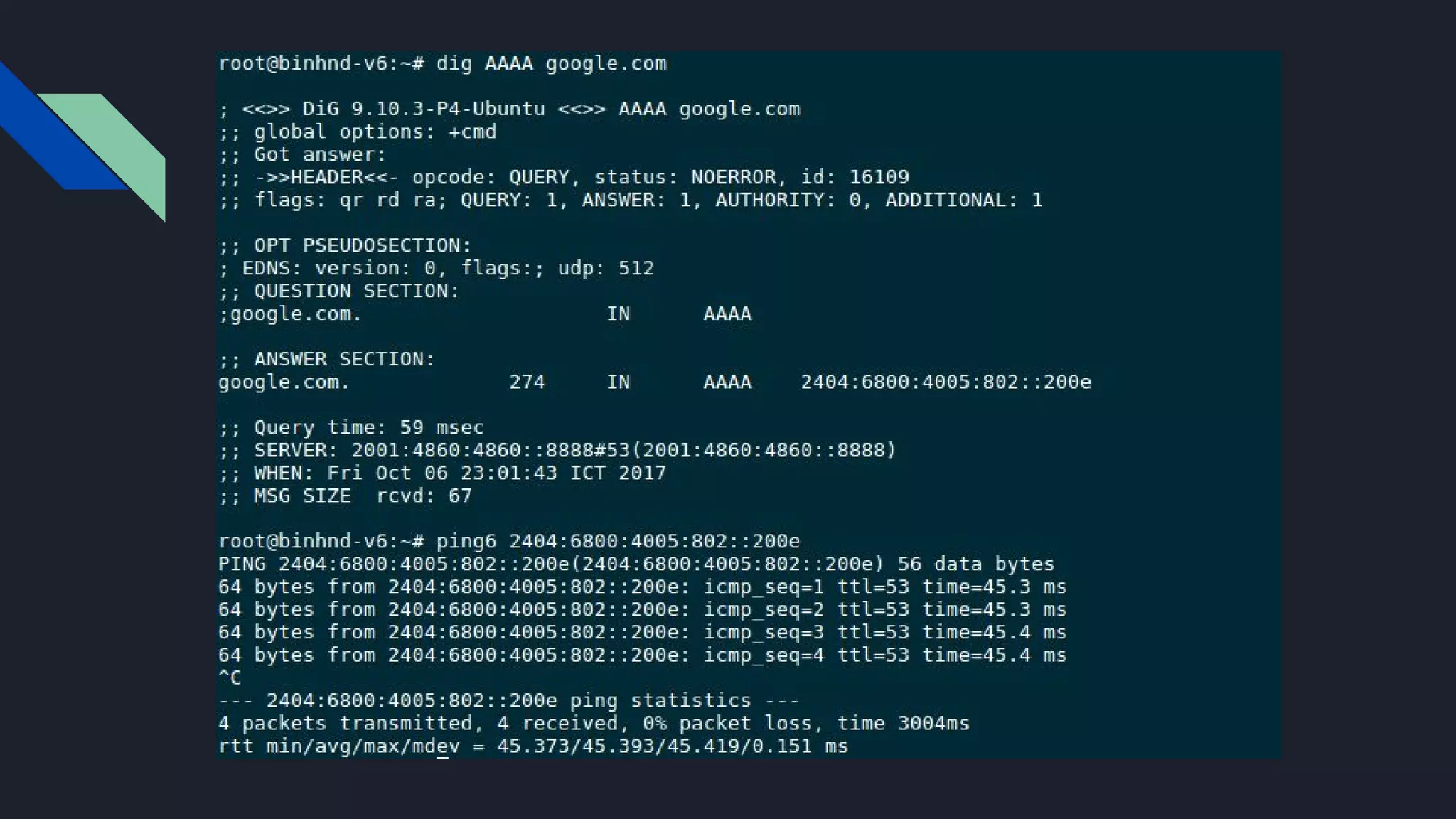

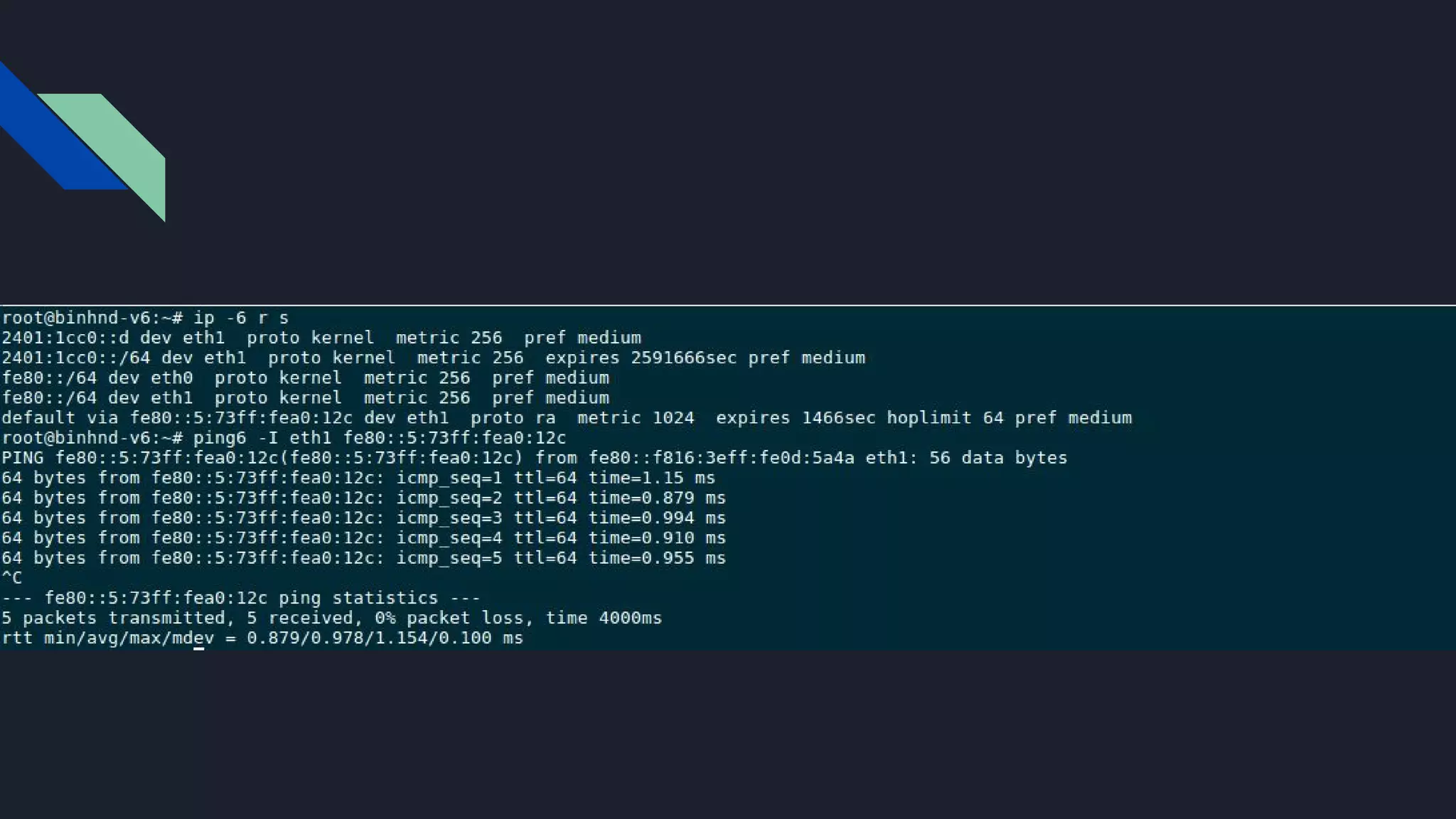

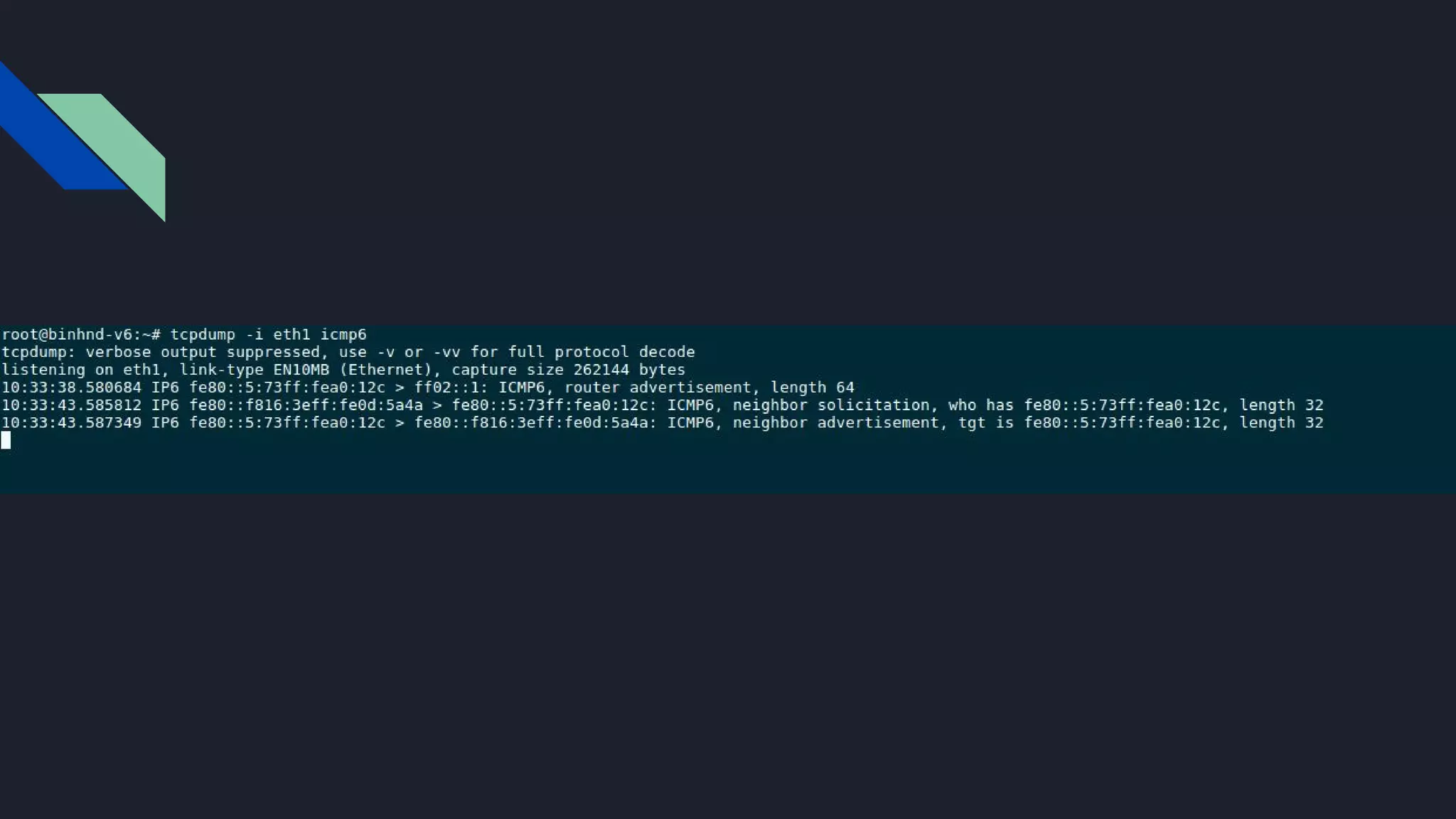

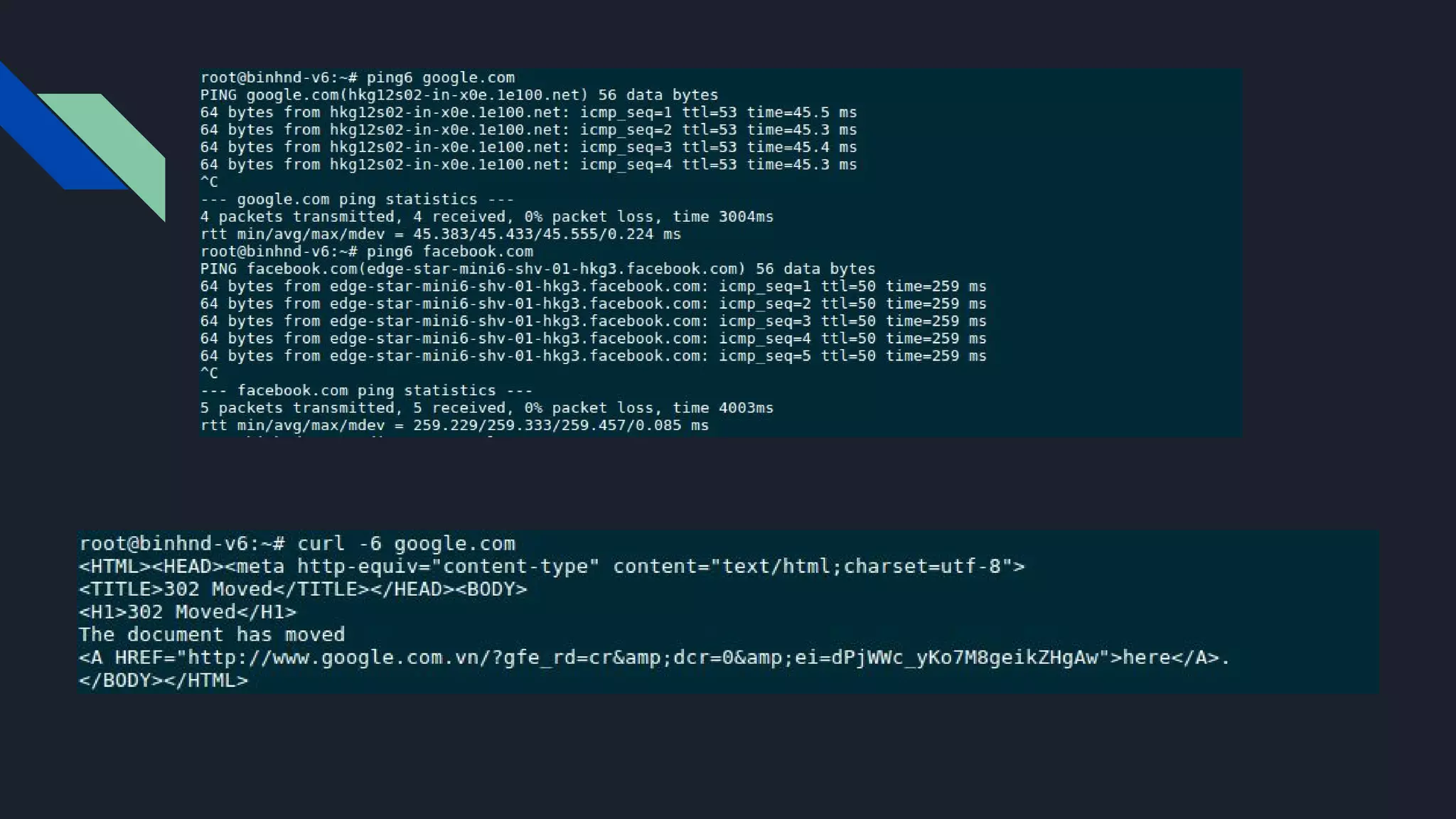

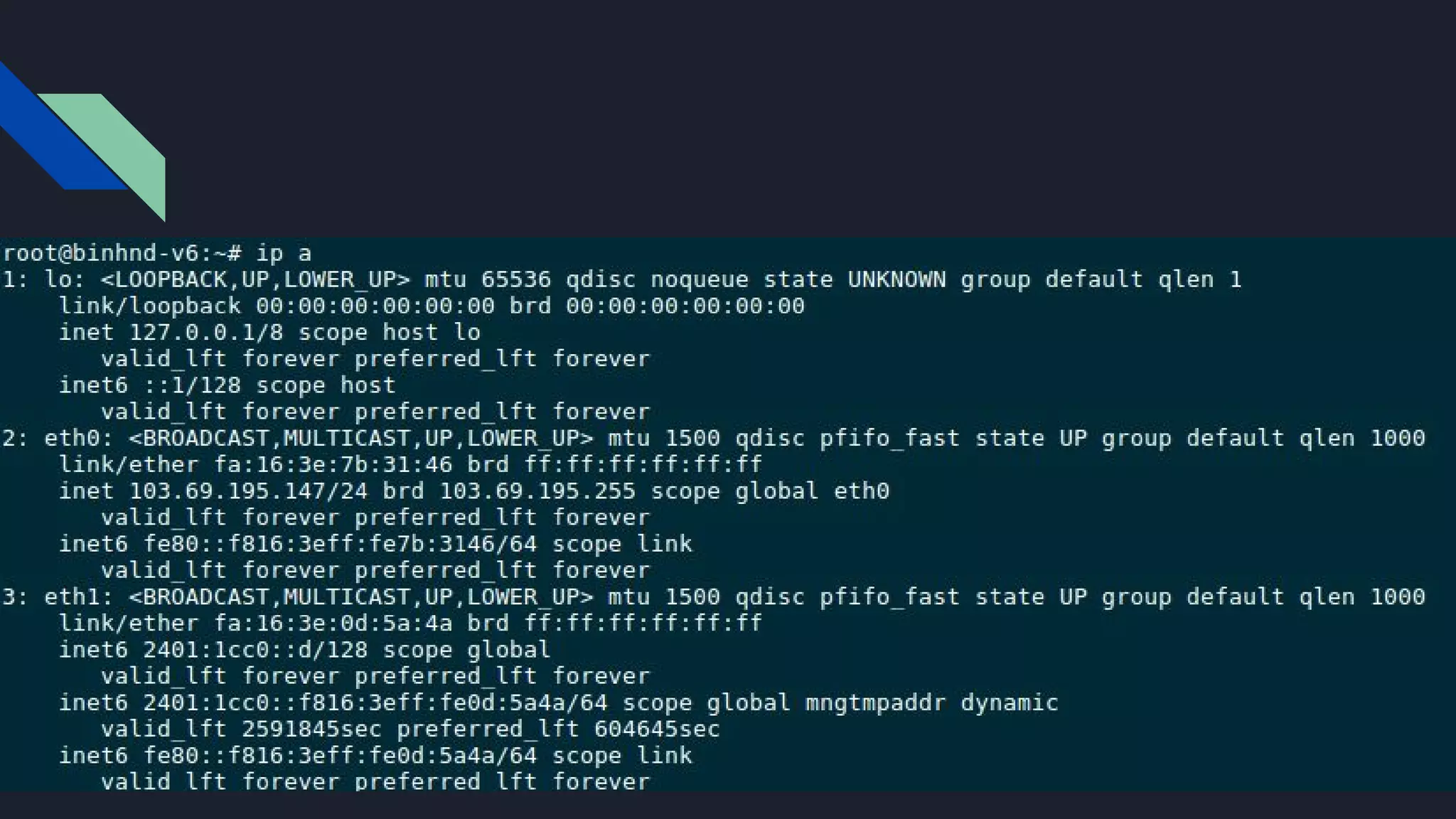

- 35.
- 36.
