- 1. The Power ofSnapshots Stateful Stream Processing with Apache Flink Stephan Ewen QCon San Francisco, 2017 1
- 2. InfoQ.com: News &Community Site • Over 1,000,000 software developers, architects and CTOs read the site world- wide every month • 250,000 senior developers subscribe to our weekly newsletter • Published in 4 languages (English, Chinese, Japanese and Brazilian Portuguese) • Post content from our QCon conferences • 2 dedicated podcast channels: The InfoQ Podcast, with a focus on Architecture and The Engineering Culture Podcast, with a focus on building • 96 deep dives on innovative topics packed as downloadable emags and minibooks • Over 40 new content items per week Watch the video with slide synchronization on InfoQ.com! https://www.infoq.com/presentations/ distributed-stream-processing-flink
- 3. Purpose of QCon -to empower software development by facilitating the spread of knowledge and innovation Strategy - practitioner-driven conference designed for YOU: influencers of change and innovation in your teams - speakers and topics driving the evolution and innovation - connecting and catalyzing the influencers and innovators Highlights - attended by more than 12,000 delegates since 2007 - held in 9 cities worldwide Presented at QCon San Francisco www.qconsf.com
- 4. 2 Original creators of ApacheFlink® dA Platform 2 Open Source Apache Flink + dA Application Manager
- 5.

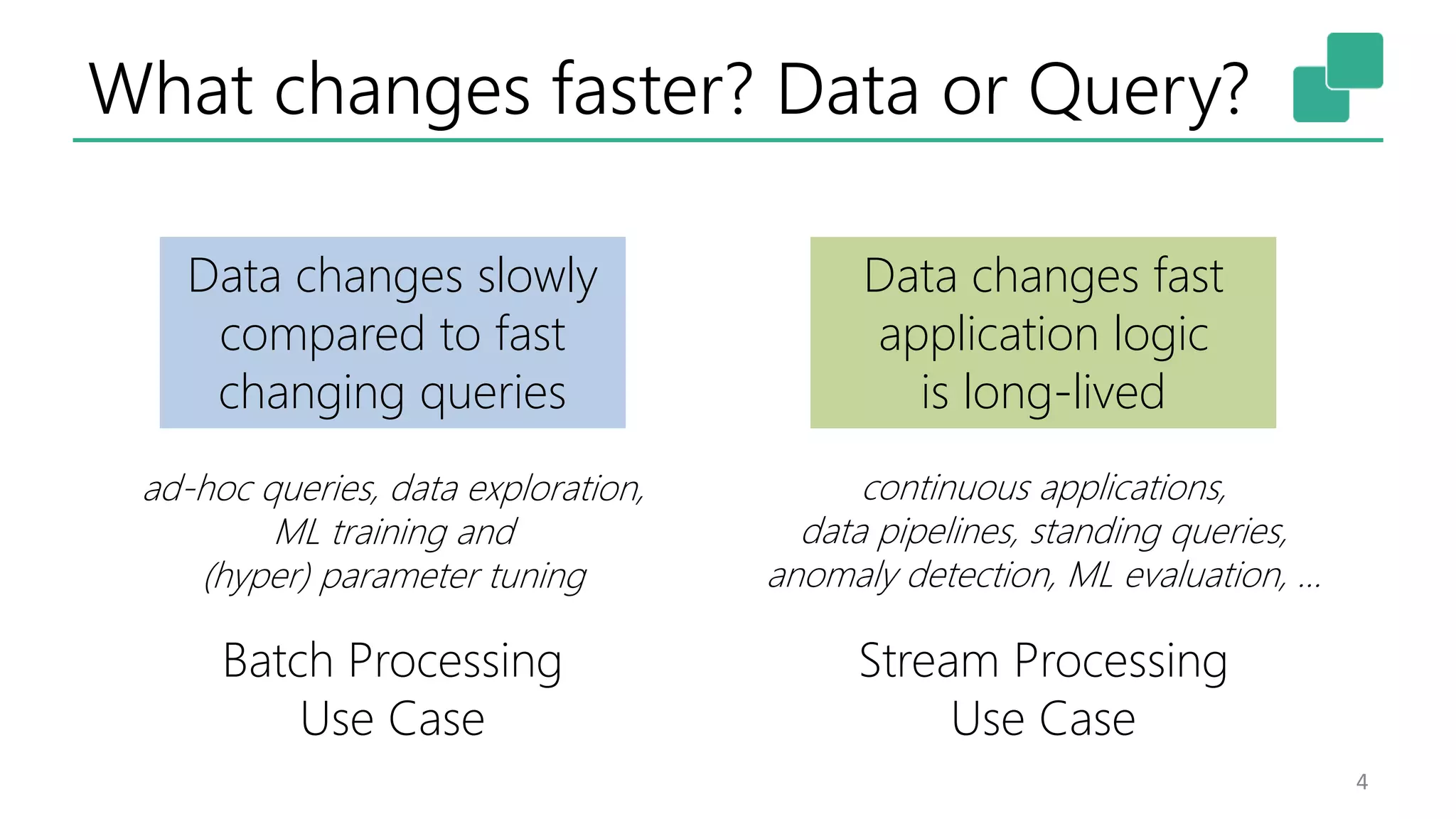

- 6. What changes faster?Data or Query? 4 Data changes slowly compared to fast changing queries ad-hoc queries, data exploration, ML training and (hyper) parameter tuning Batch Processing Use Case Data changes fast application logic is long-lived continuous applications, data pipelines, standing queries, anomaly detection, ML evaluation, … Stream Processing Use Case

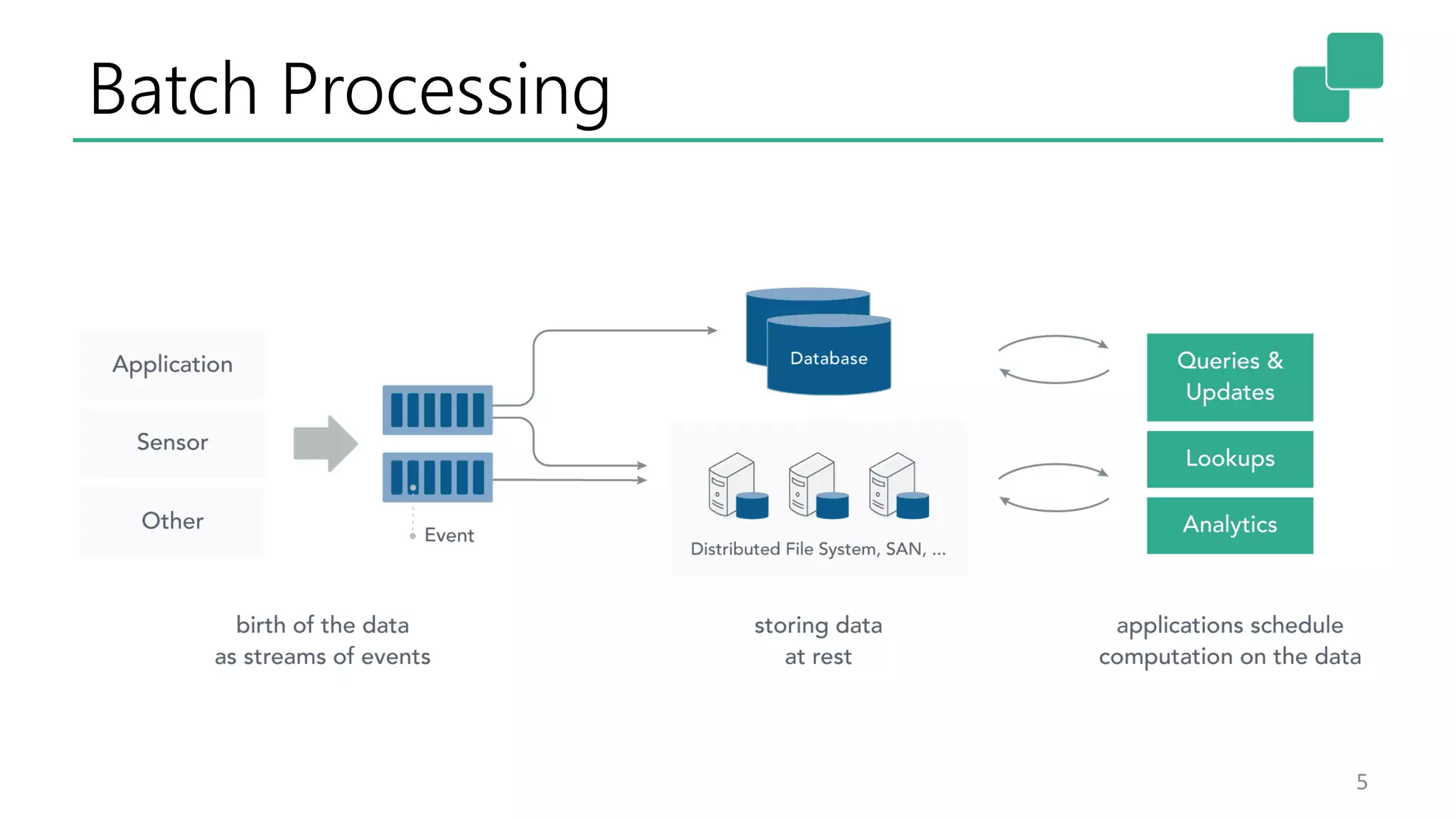

- 7.

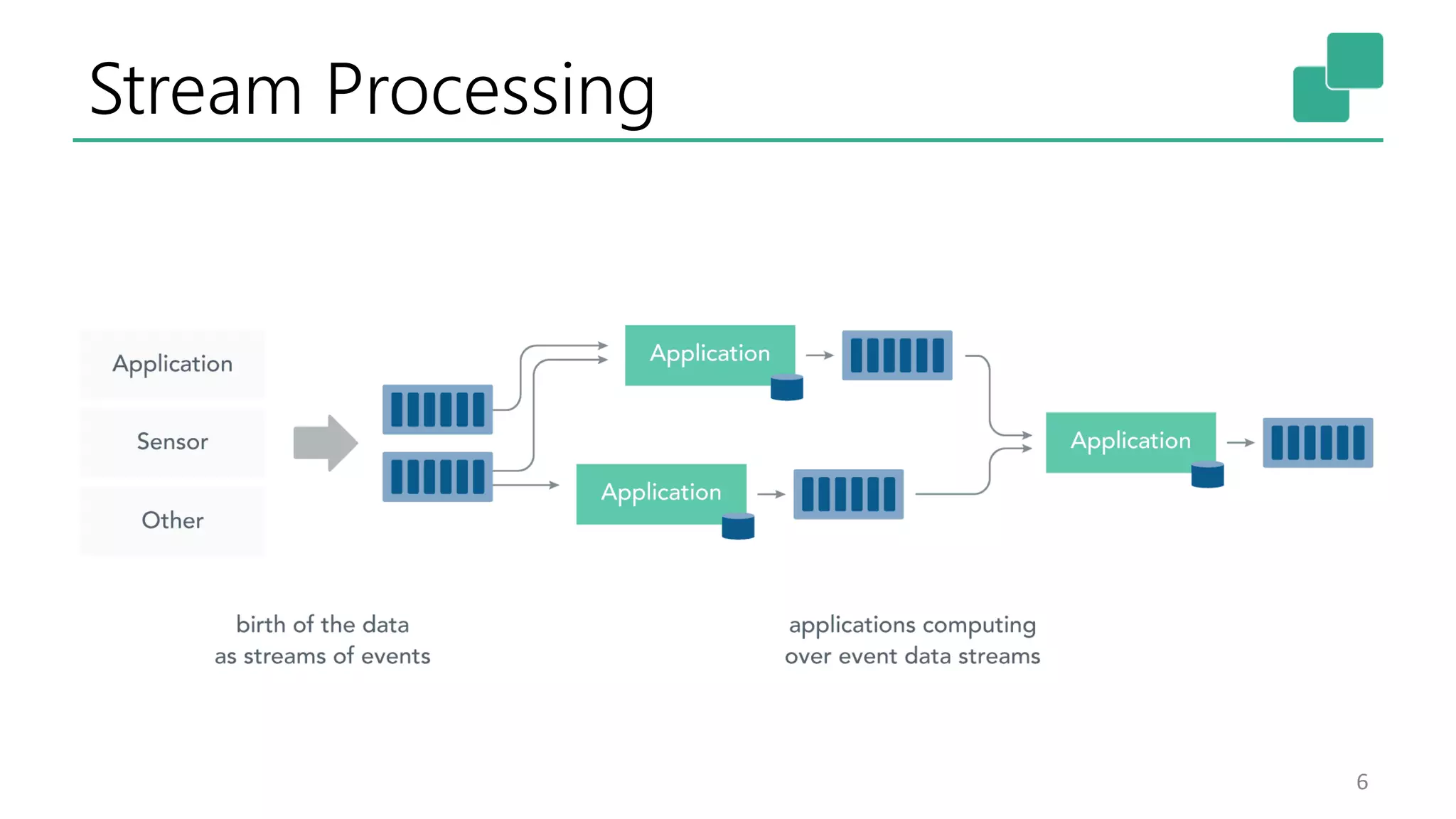

- 8.
- 9.

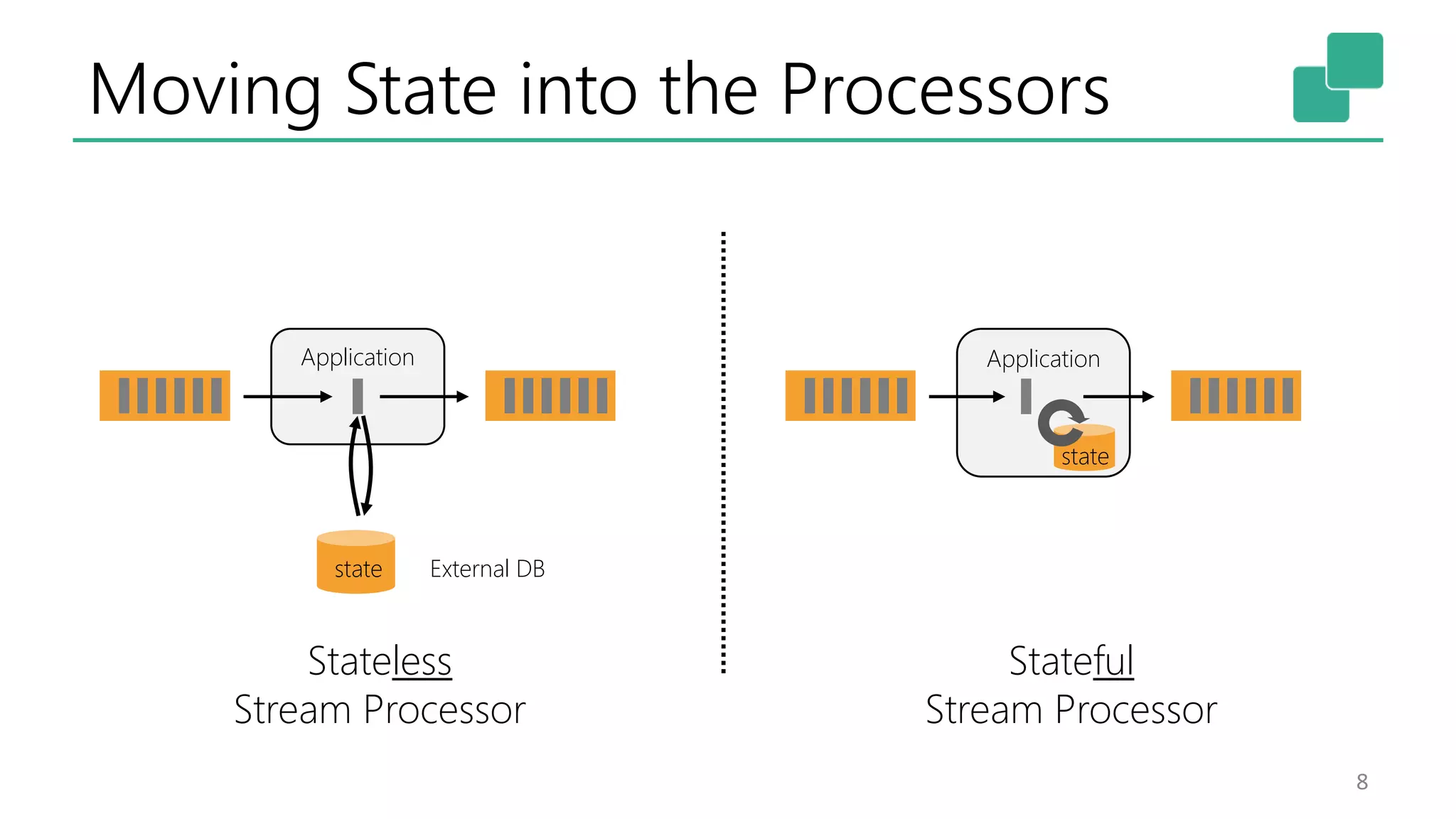

- 10. Moving State intothe Processors 8 Application External DBstate Stateless Stream Processor Stateful Stream Processor Application state
- 11.

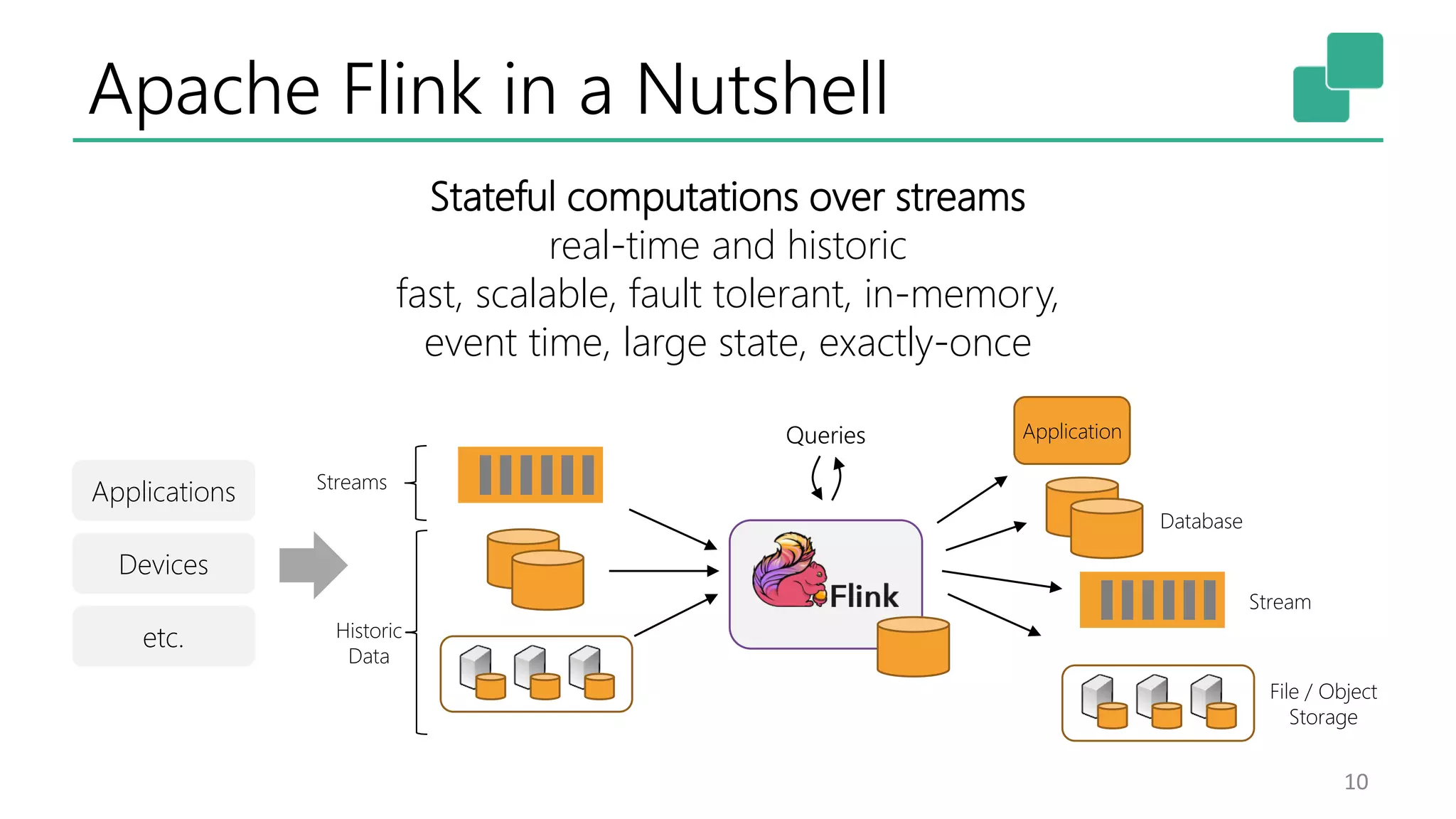

- 12. Apache Flink ina Nutshell 10 Queries Applications Devices etc. Database Stream File / Object Storage Stateful computations over streams real-time and historic fast, scalable, fault tolerant, in-memory, event time, large state, exactly-once Historic Data Streams Application

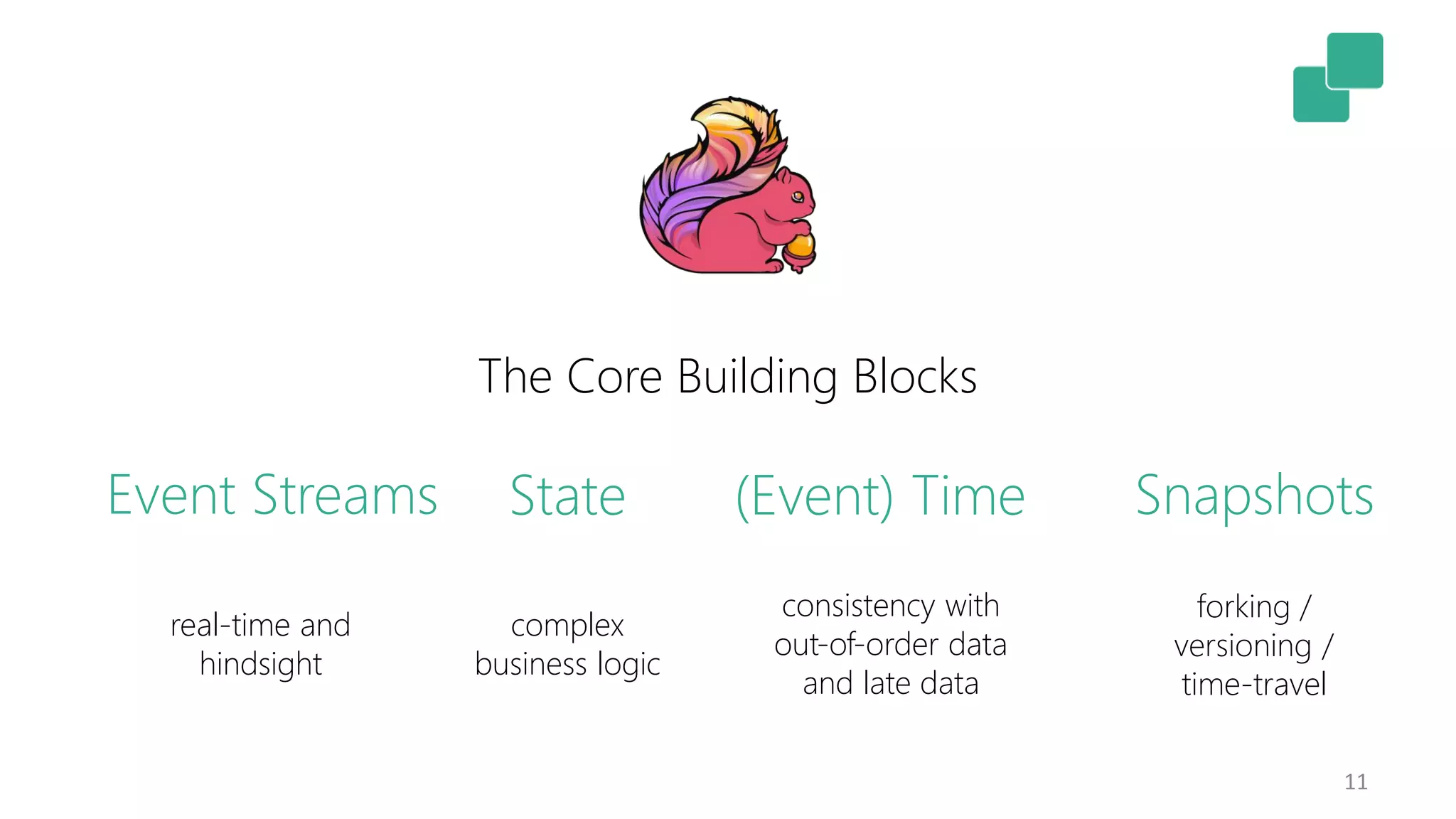

- 13. 11 Event Streams State(Event) Time Snapshots The Core Building Blocks real-time and hindsight complex business logic consistency with out-of-order data and late data forking / versioning / time-travel

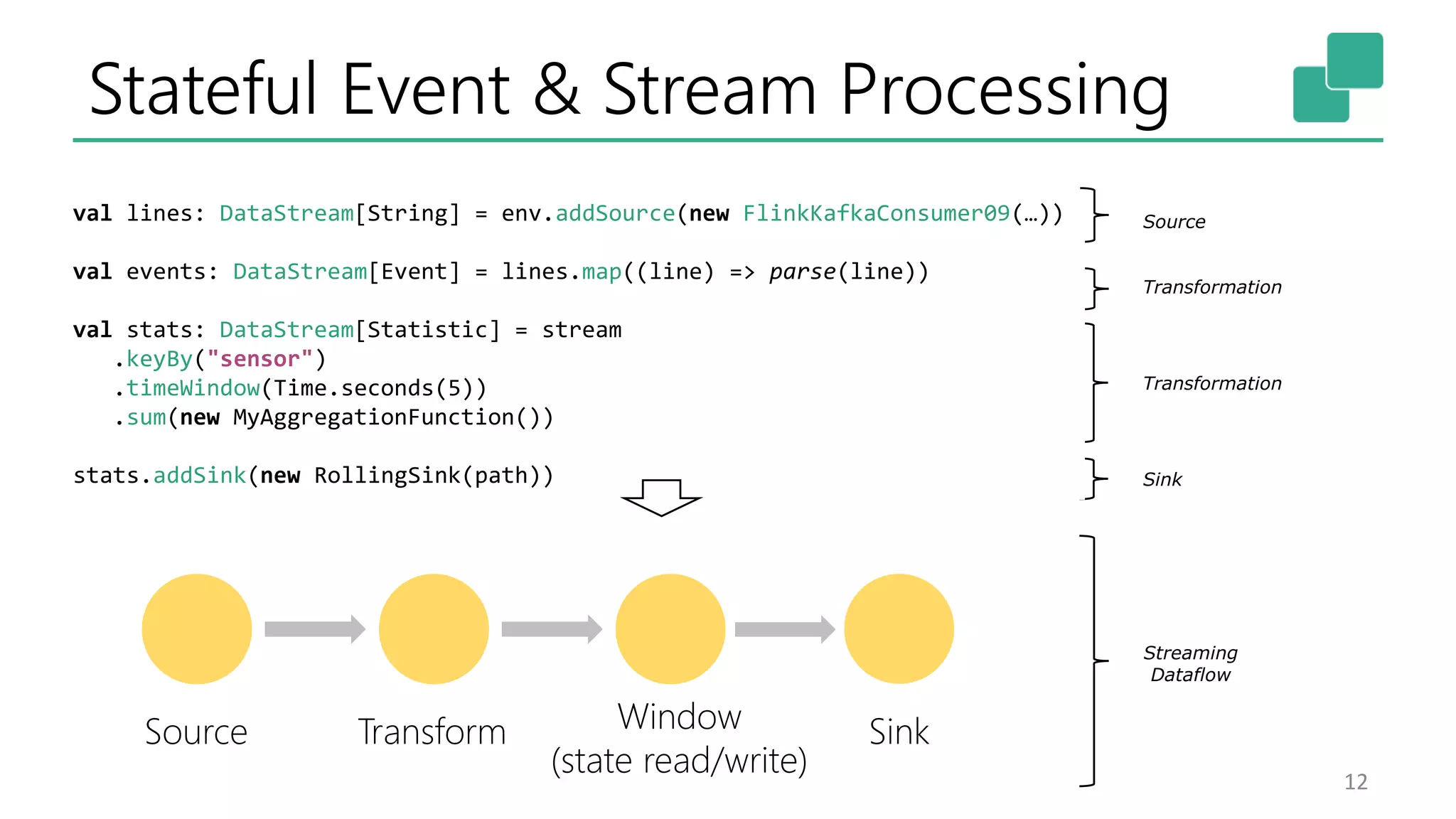

- 14. Stateful Event &Stream Processing 12 Source Transformation Transformation Sink val lines: DataStream[String] = env.addSource(new FlinkKafkaConsumer09(…)) val events: DataStream[Event] = lines.map((line) => parse(line)) val stats: DataStream[Statistic] = stream .keyBy("sensor") .timeWindow(Time.seconds(5)) .sum(new MyAggregationFunction()) stats.addSink(new RollingSink(path)) Streaming Dataflow Source Transform Window (state read/write) Sink

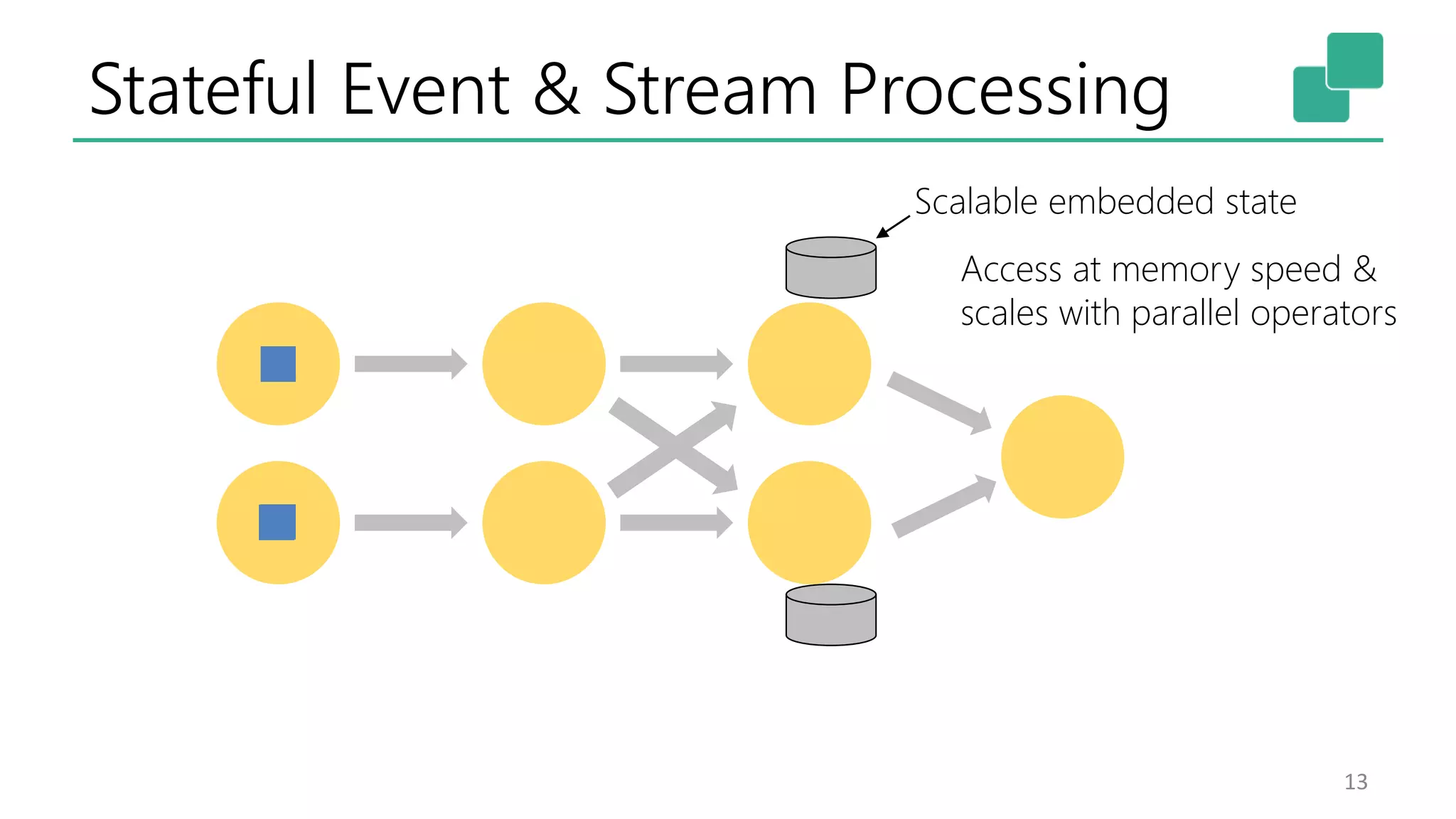

- 15. Stateful Event &Stream Processing 13 Scalable embedded state Access at memory speed & scales with parallel operators

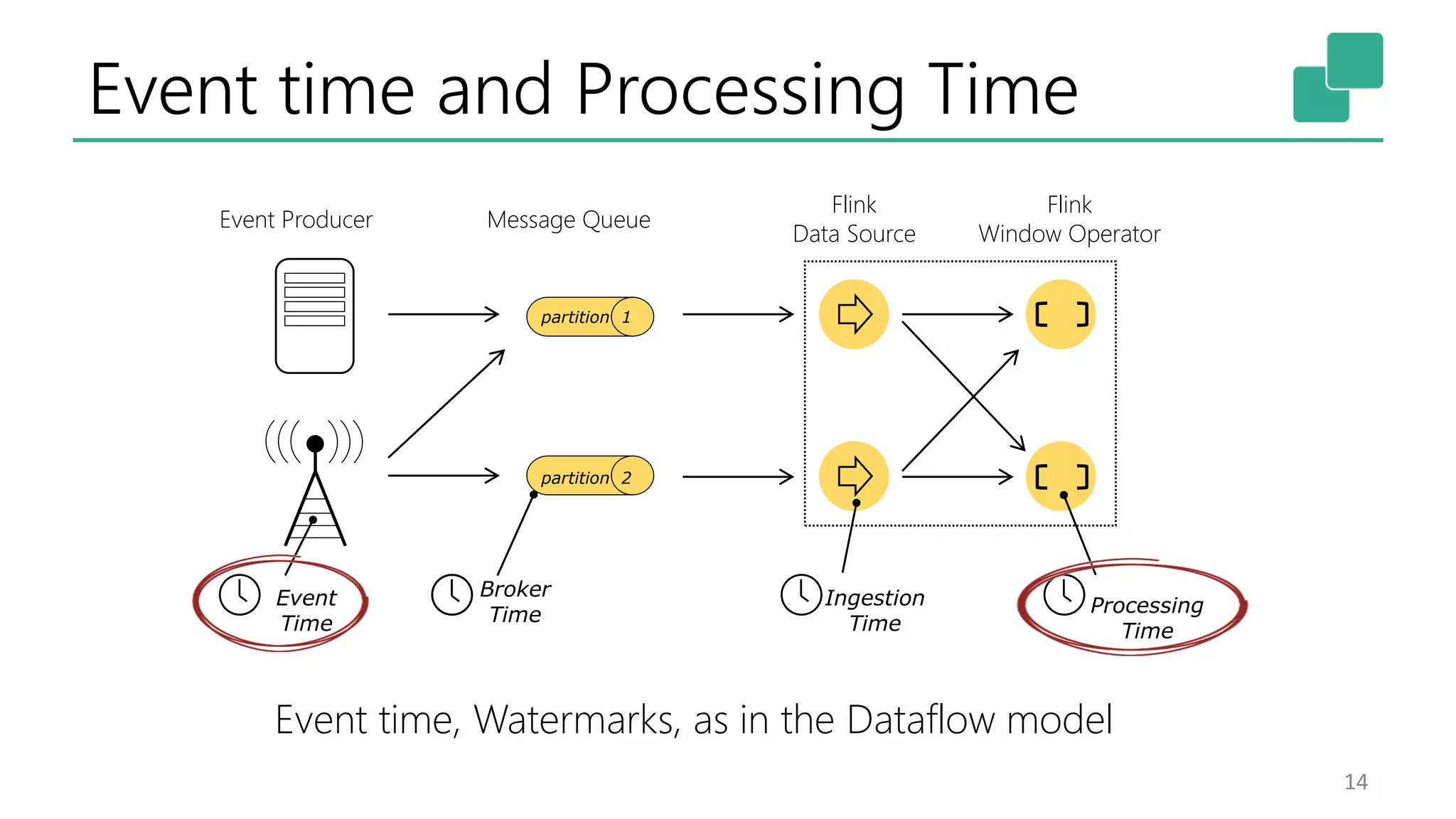

- 16. Event time andProcessing Time 14 Event Producer Message Queue Flink Data Source Flink Window Operator partition 1 partition 2 Event Time Ingestion Time Processing Time Broker Time Event time, Watermarks, as in the Dataflow model

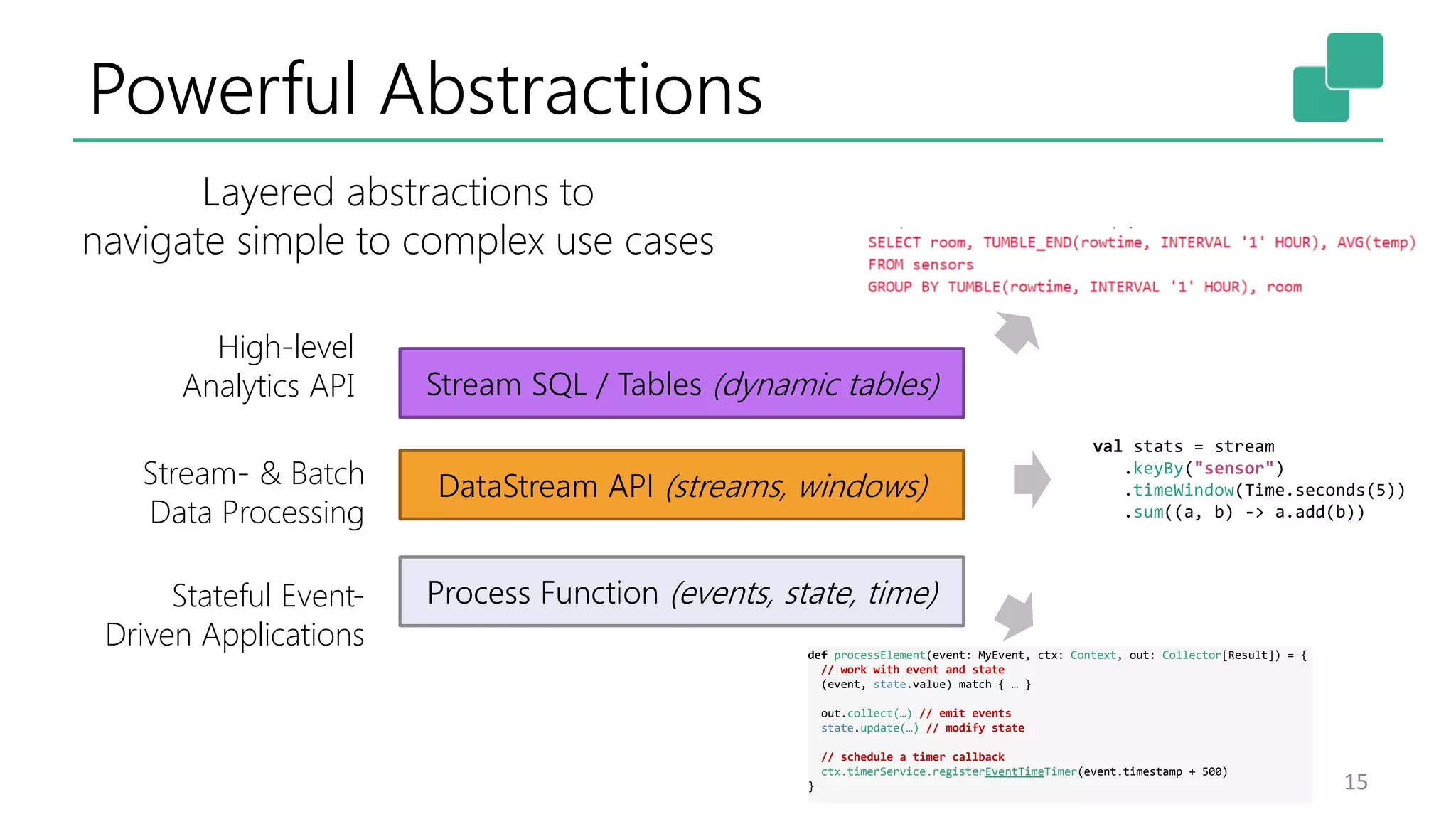

- 17. Powerful Abstractions 15 Process Function(events, state, time) DataStream API (streams, windows) Stream SQL / Tables (dynamic tables) Stream- & Batch Data Processing High-level Analytics API Stateful Event- Driven Applications val stats = stream .keyBy("sensor") .timeWindow(Time.seconds(5)) .sum((a, b) -> a.add(b)) def processElement(event: MyEvent, ctx: Context, out: Collector[Result]) = { // work with event and state (event, state.value) match { … } out.collect(…) // emit events state.update(…) // modify state // schedule a timer callback ctx.timerService.registerEventTimeTimer(event.timestamp + 500) } Layered abstractions to navigate simple to complex use cases
- 18.

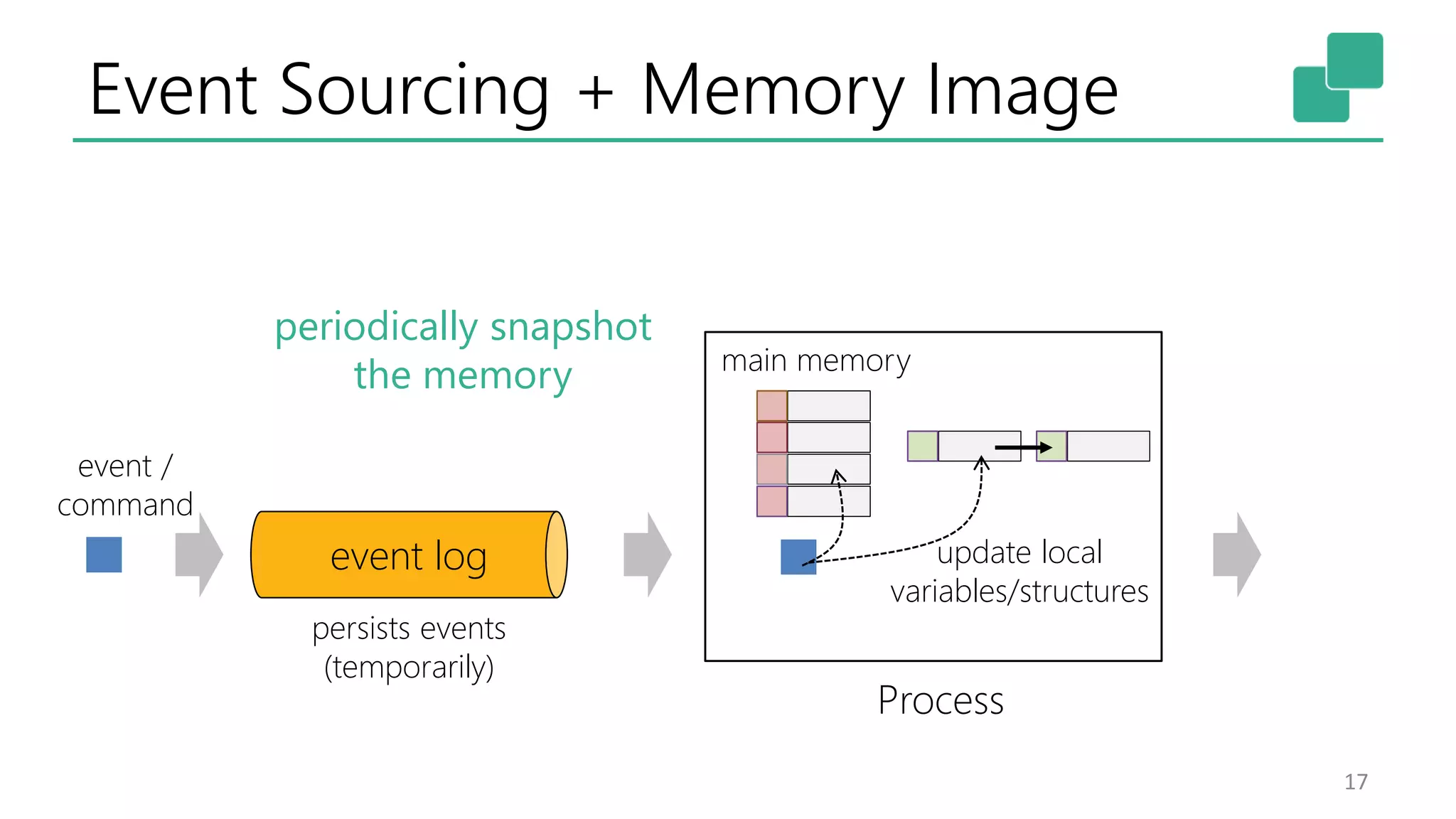

- 19. Event Sourcing +Memory Image 17 event log persists events (temporarily) event / command Process main memory update local variables/structures periodically snapshot the memory

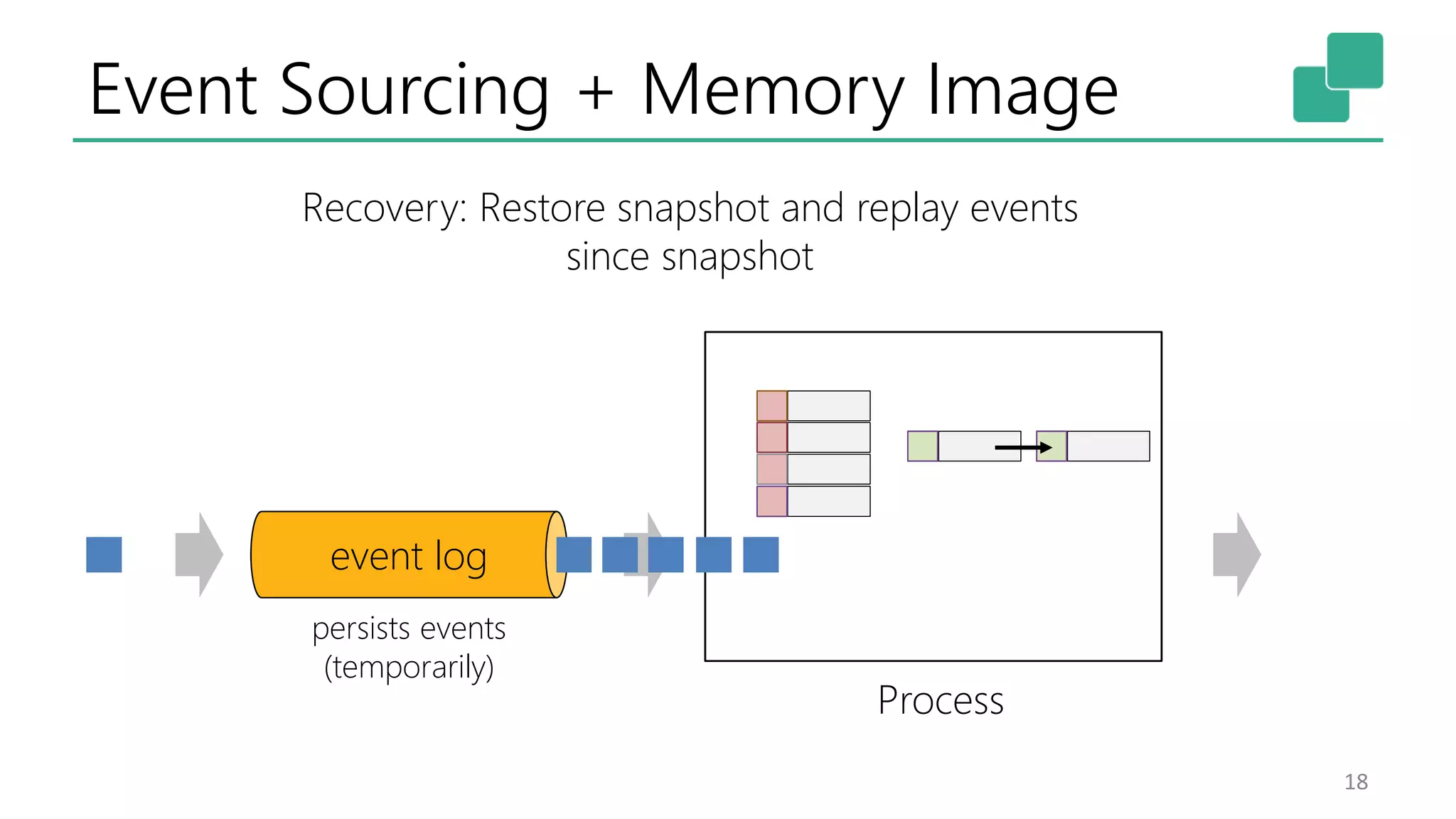

- 20. Event Sourcing +Memory Image 18 Recovery: Restore snapshot and replay events since snapshot event log persists events (temporarily) Process

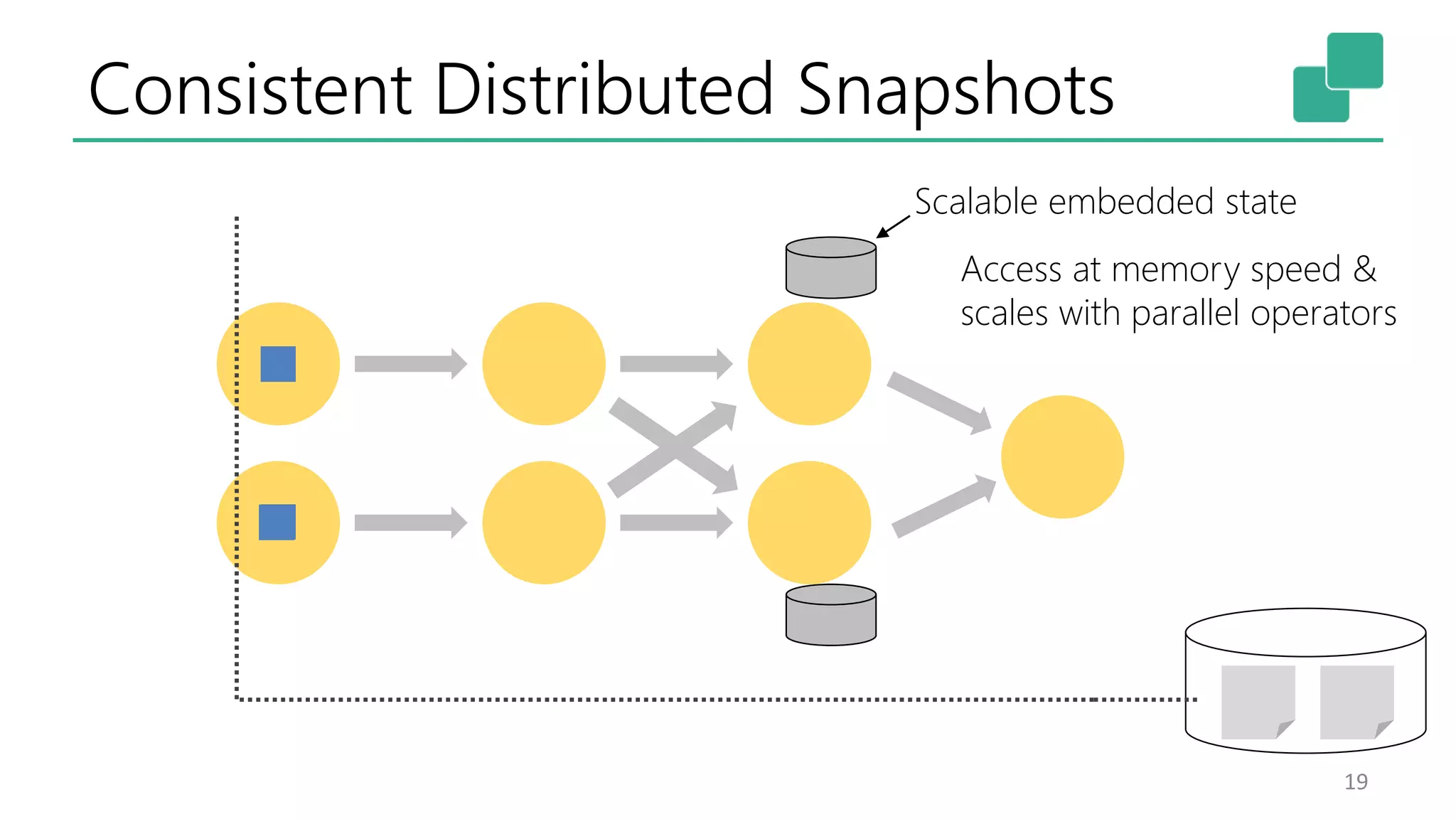

- 21. Consistent Distributed Snapshots 19 Scalableembedded state Access at memory speed & scales with parallel operators

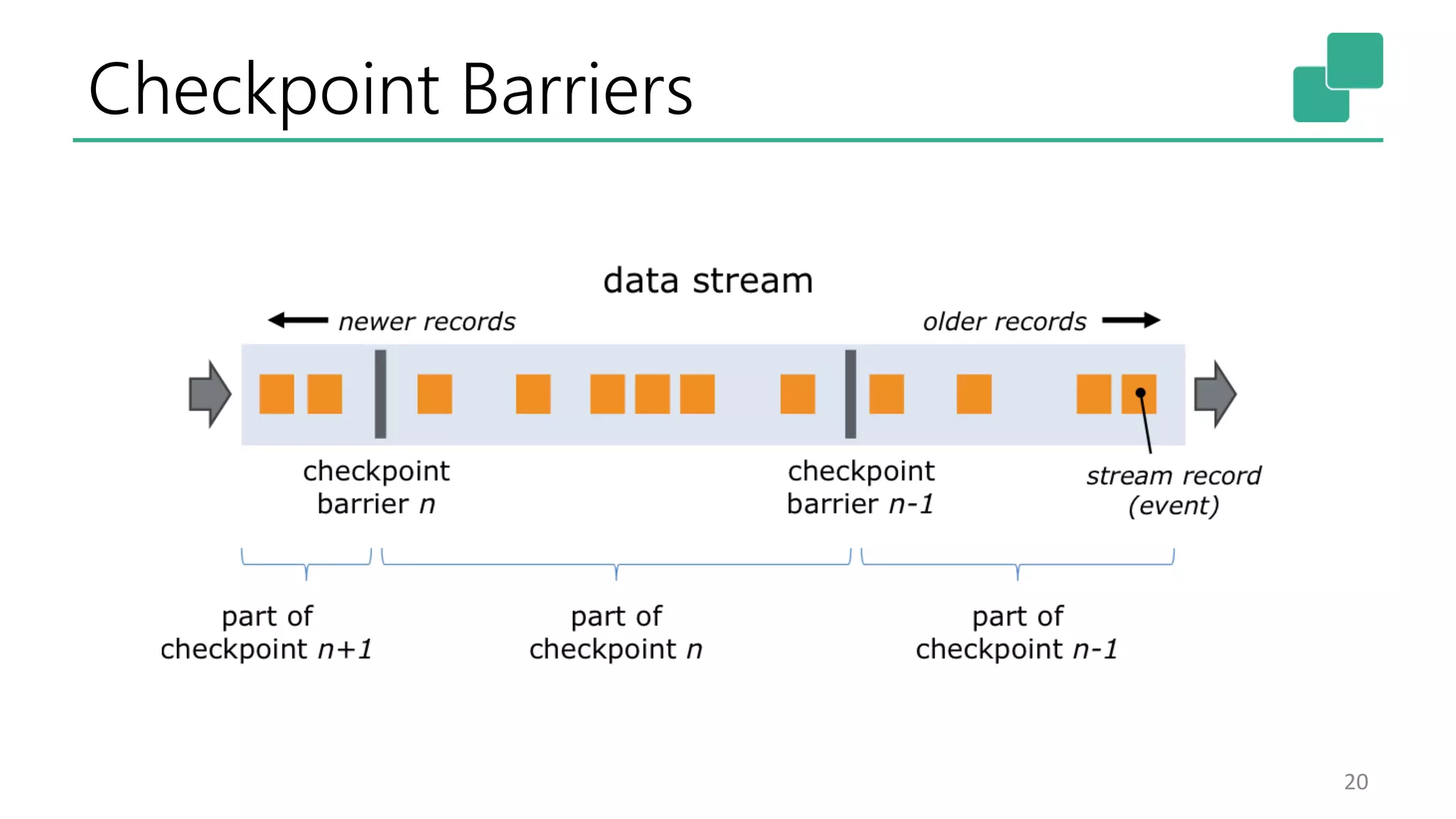

- 22.

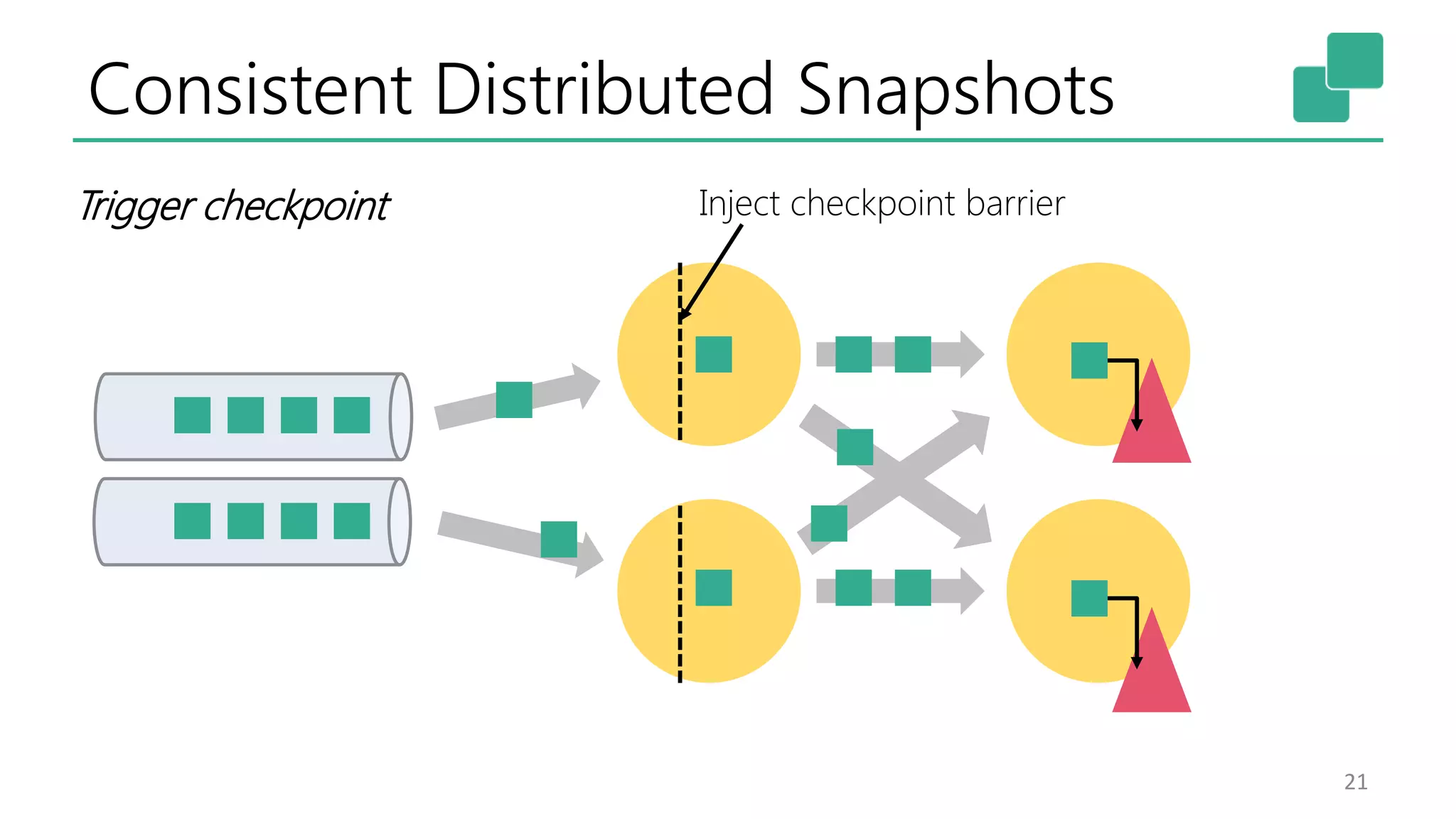

- 23. Consistent Distributed Snapshots 21 Triggercheckpoint Inject checkpoint barrier

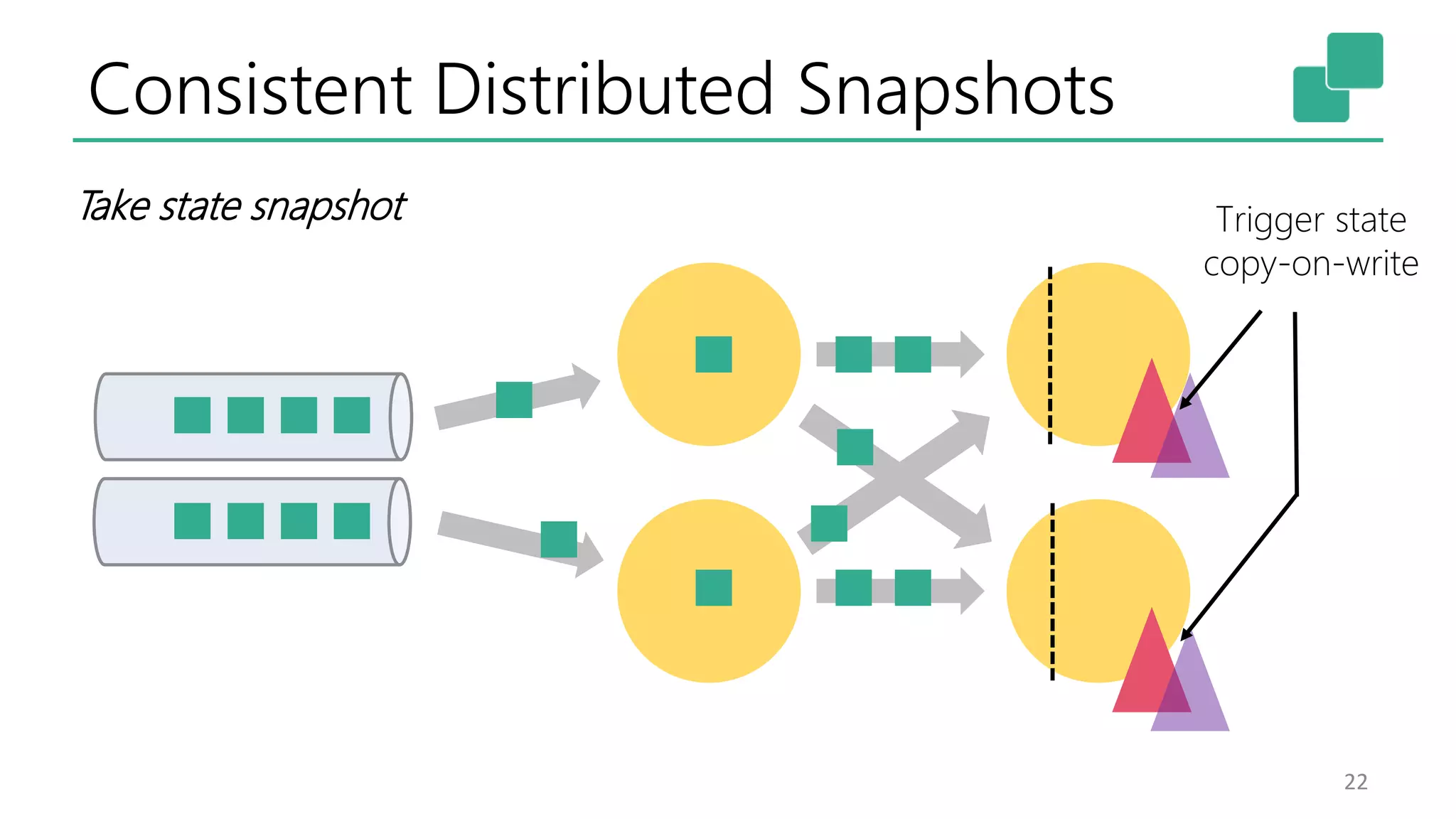

- 24. Consistent Distributed Snapshots 22 Takestate snapshot Trigger state copy-on-write

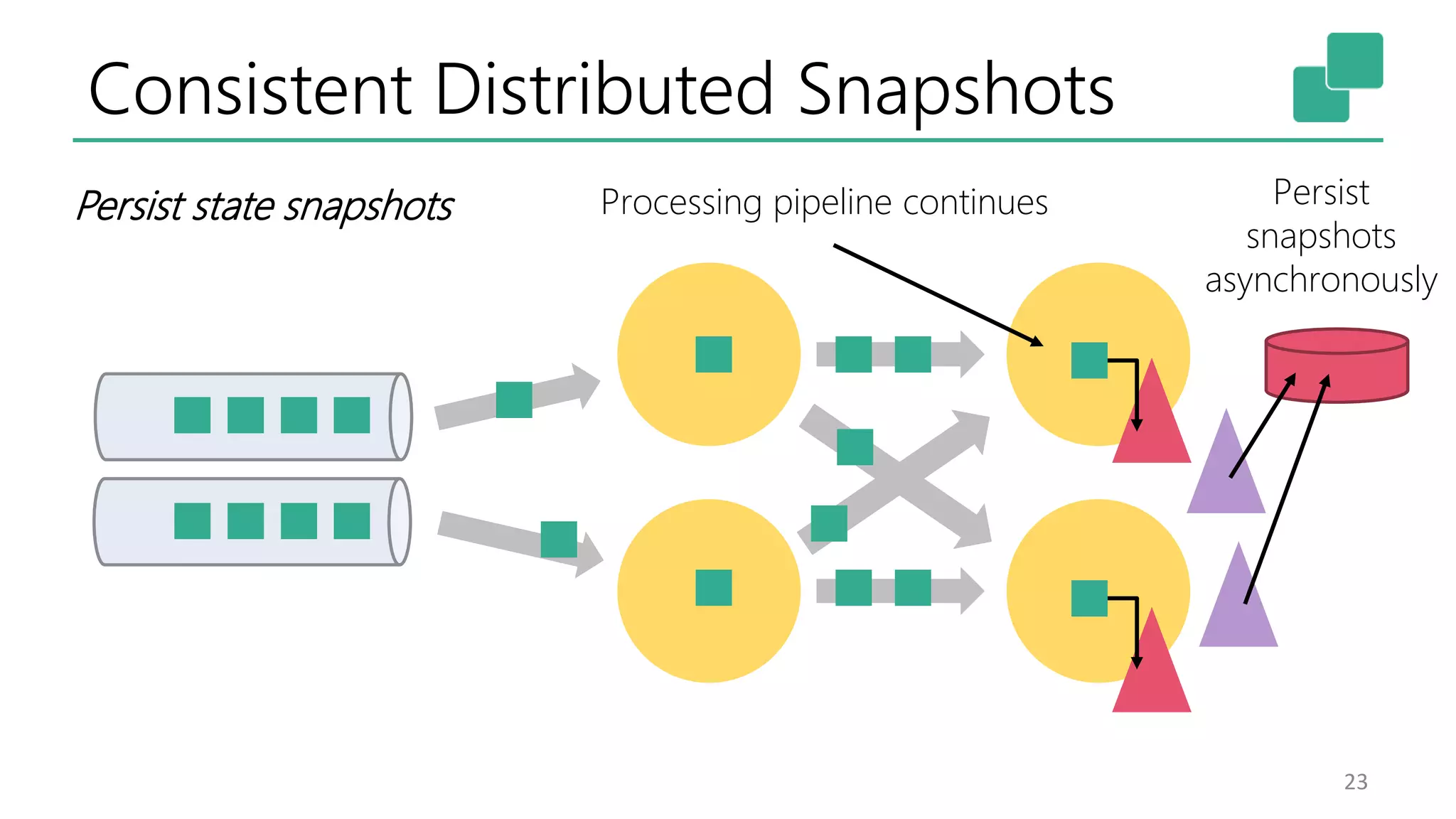

- 25. Consistent Distributed Snapshots 23 Persiststate snapshots Persist snapshots asynchronously Processing pipeline continues

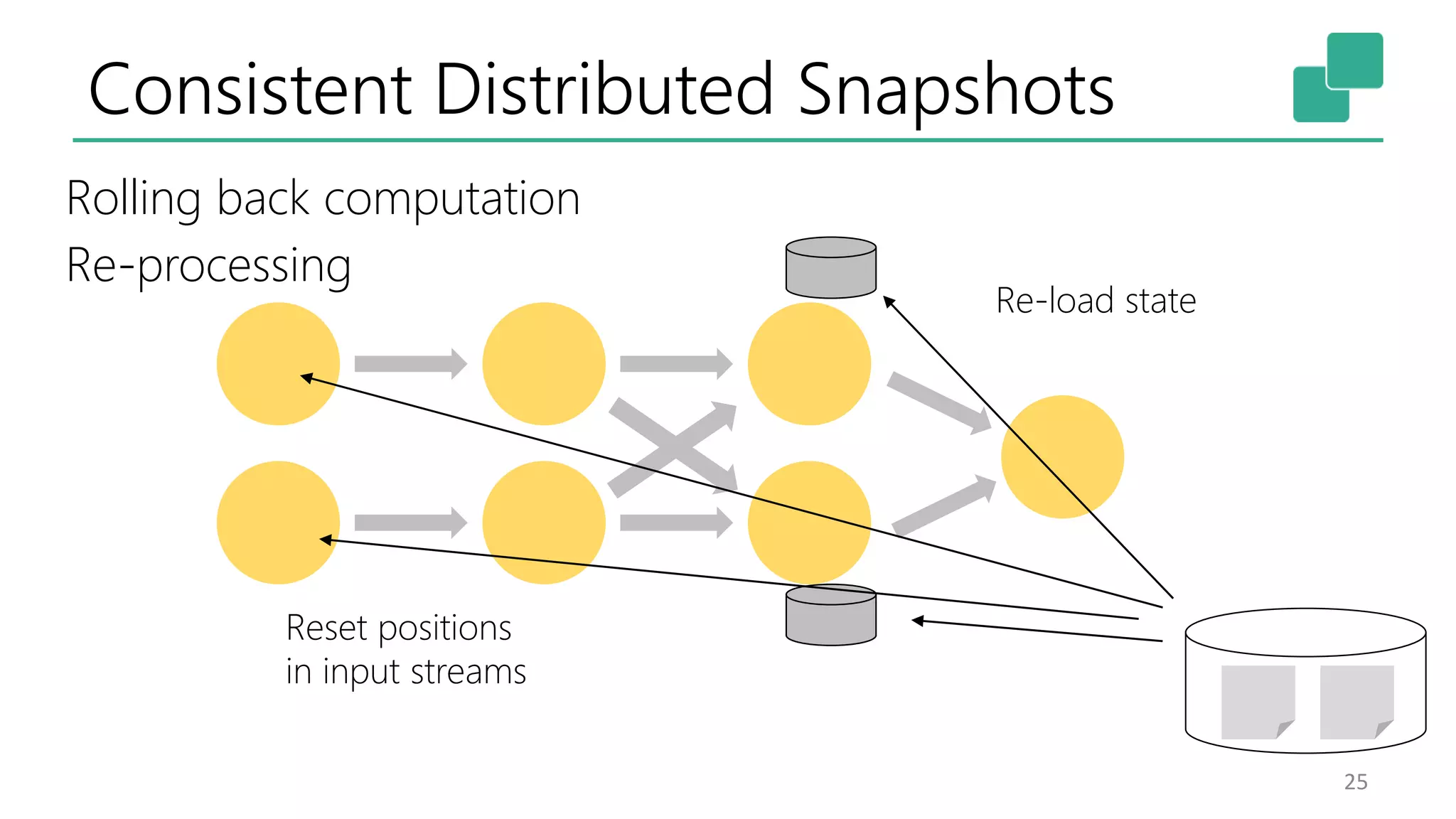

- 26. Consistent Distributed Snapshots 25 Re-loadstate Reset positions in input streams Rolling back computation Re-processing

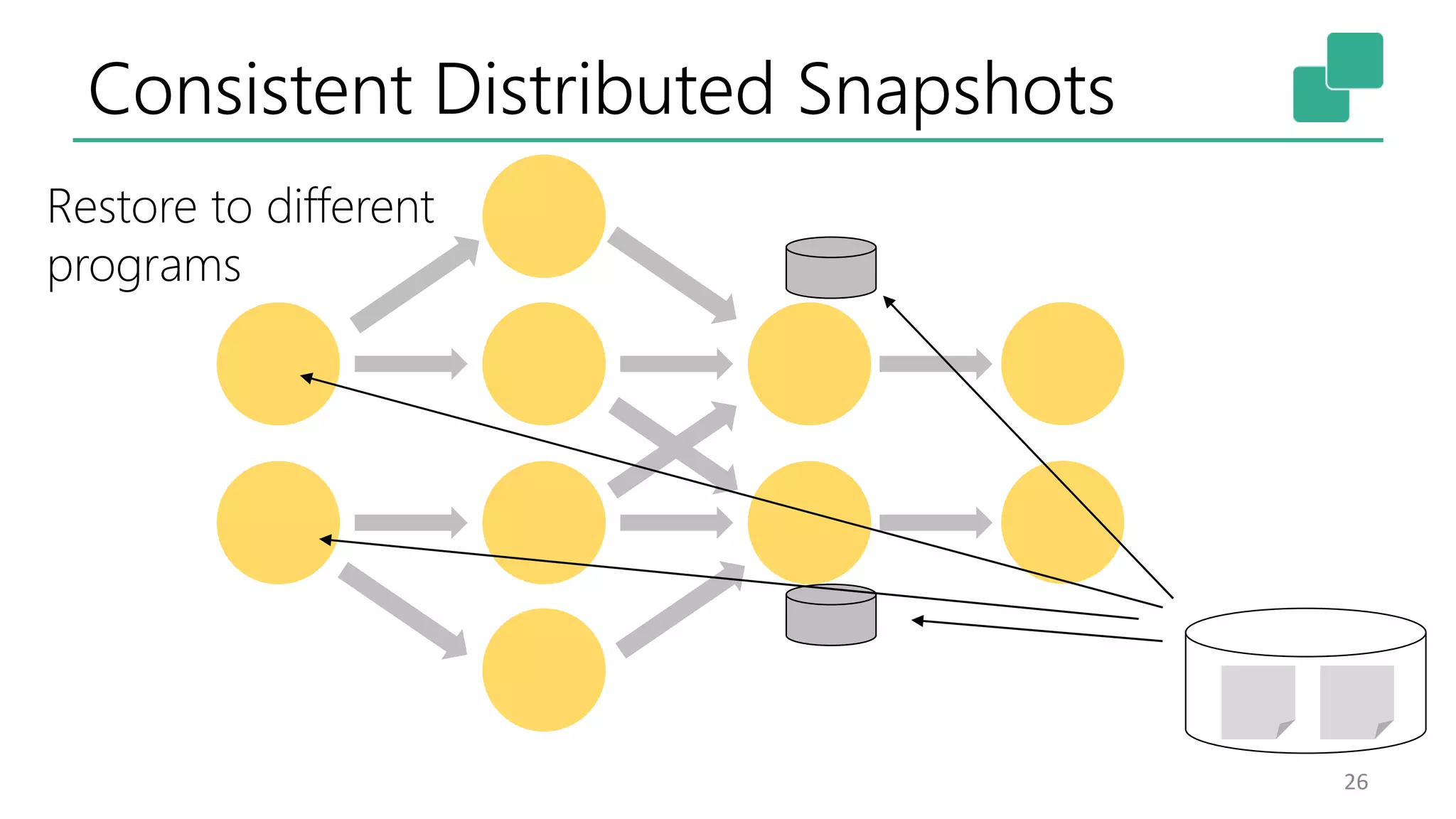

- 27. Consistent Distributed Snapshots 26 Restoreto different programs
- 28. 27 Checkpoints and Savepoints inApache Flink

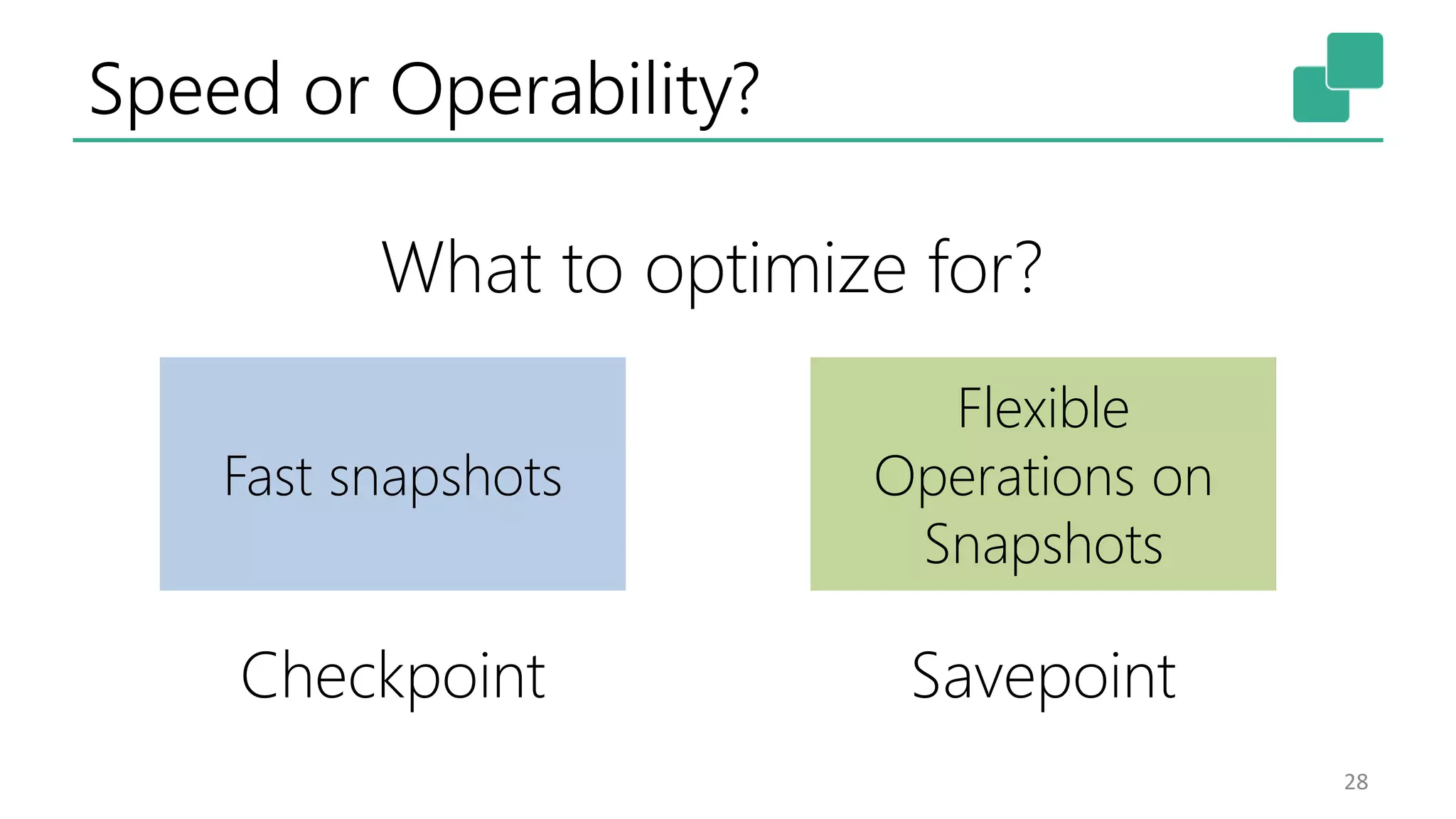

- 29. Speed or Operability? 28 Fastsnapshots Checkpoint Flexible Operations on Snapshots Savepoint What to optimize for?

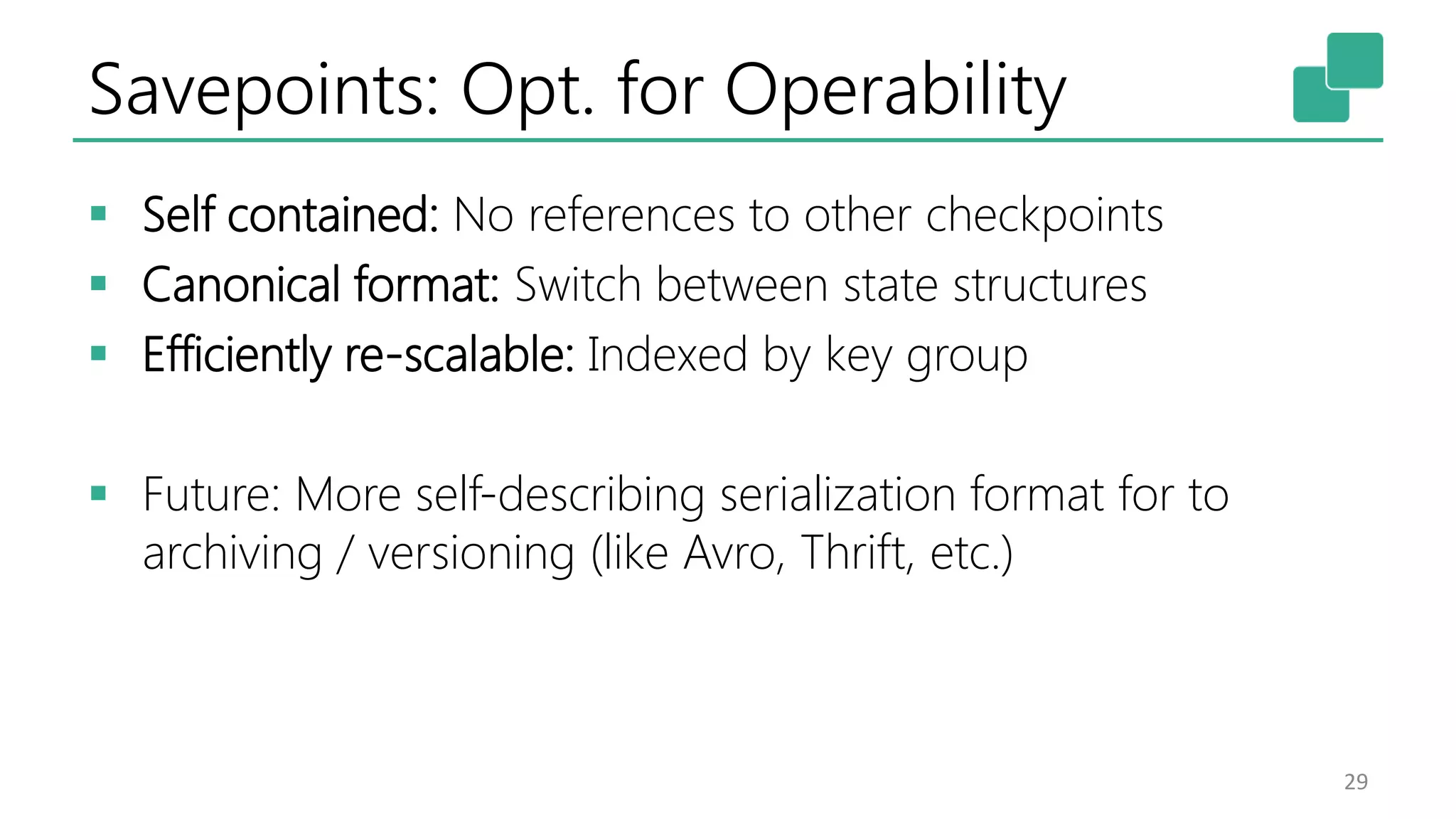

- 30. Savepoints: Opt. forOperability Self contained: No references to other checkpoints Canonical format: Switch between state structures Efficiently re-scalable: Indexed by key group Future: More self-describing serialization format for to archiving / versioning (like Avro, Thrift, etc.) 29

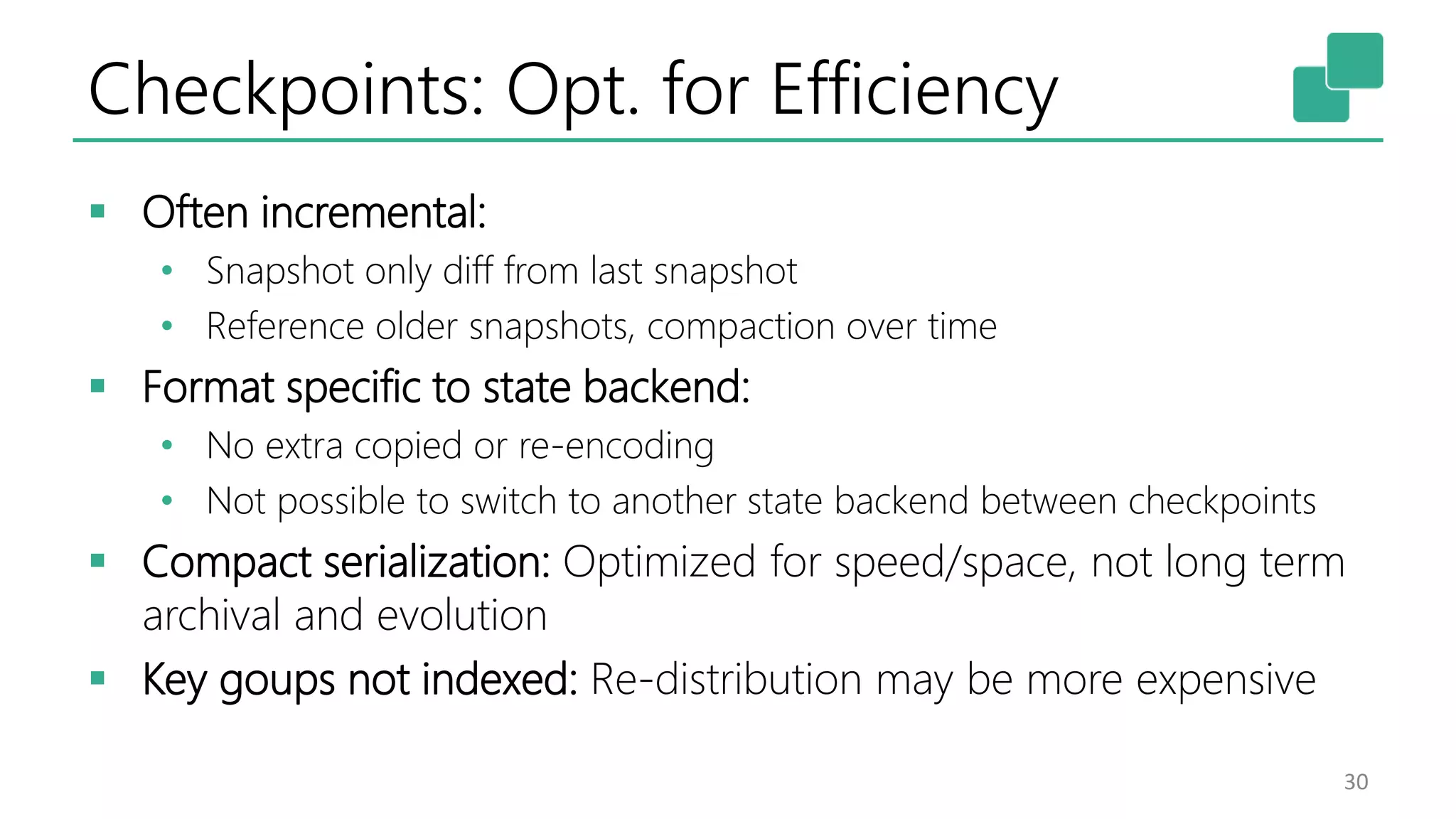

- 31. Checkpoints: Opt. forEfficiency Often incremental: • Snapshot only diff from last snapshot • Reference older snapshots, compaction over time Format specific to state backend: • No extra copied or re-encoding • Not possible to switch to another state backend between checkpoints Compact serialization: Optimized for speed/space, not long term archival and evolution Key goups not indexed: Re-distribution may be more expensive 30
- 32. 31 What else aresnapshots / checkpoints good for?

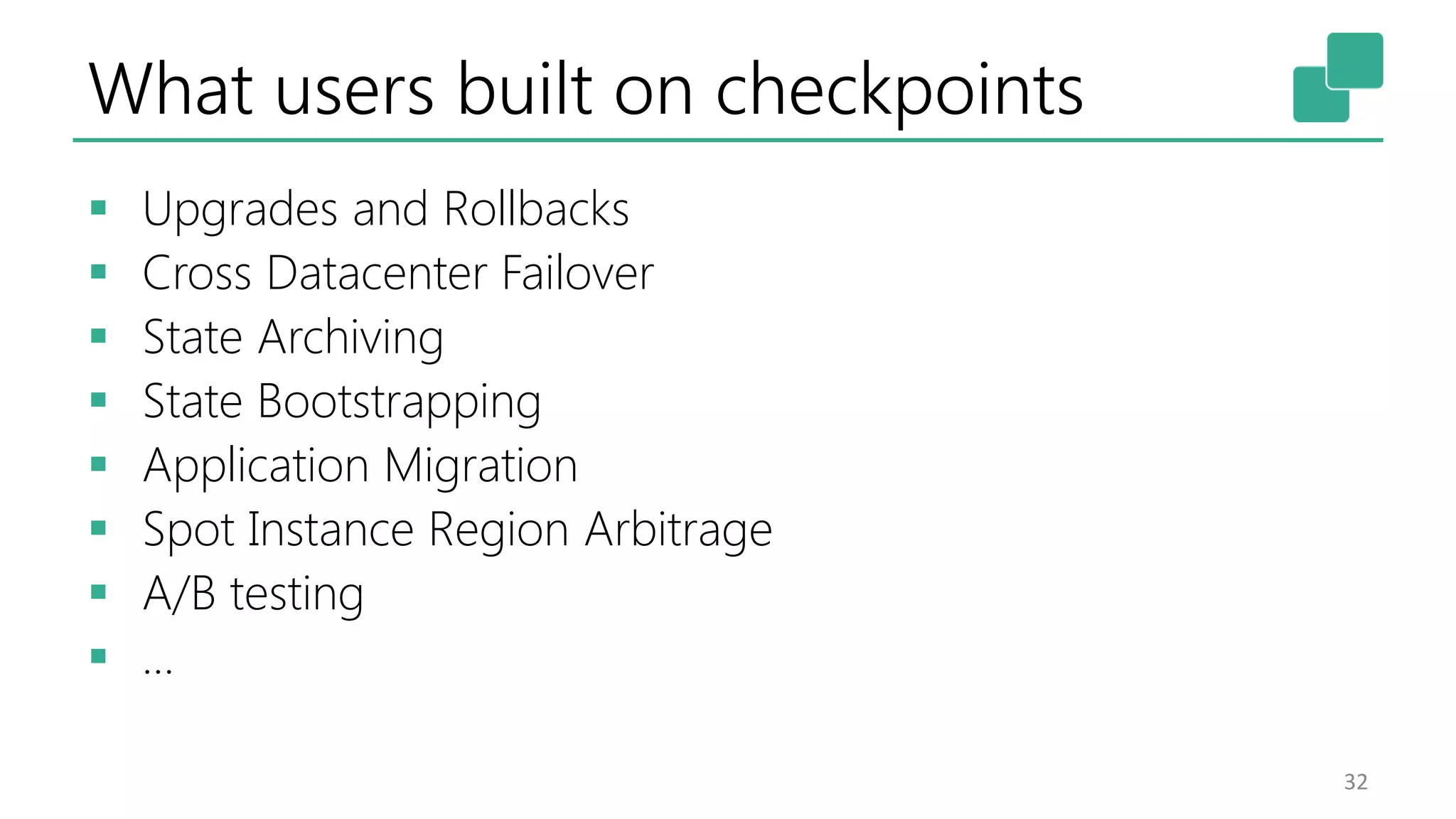

- 33. What users builton checkpoints Upgrades and Rollbacks Cross Datacenter Failover State Archiving State Bootstrapping Application Migration Spot Instance Region Arbitrage A/B testing … 32
- 34.

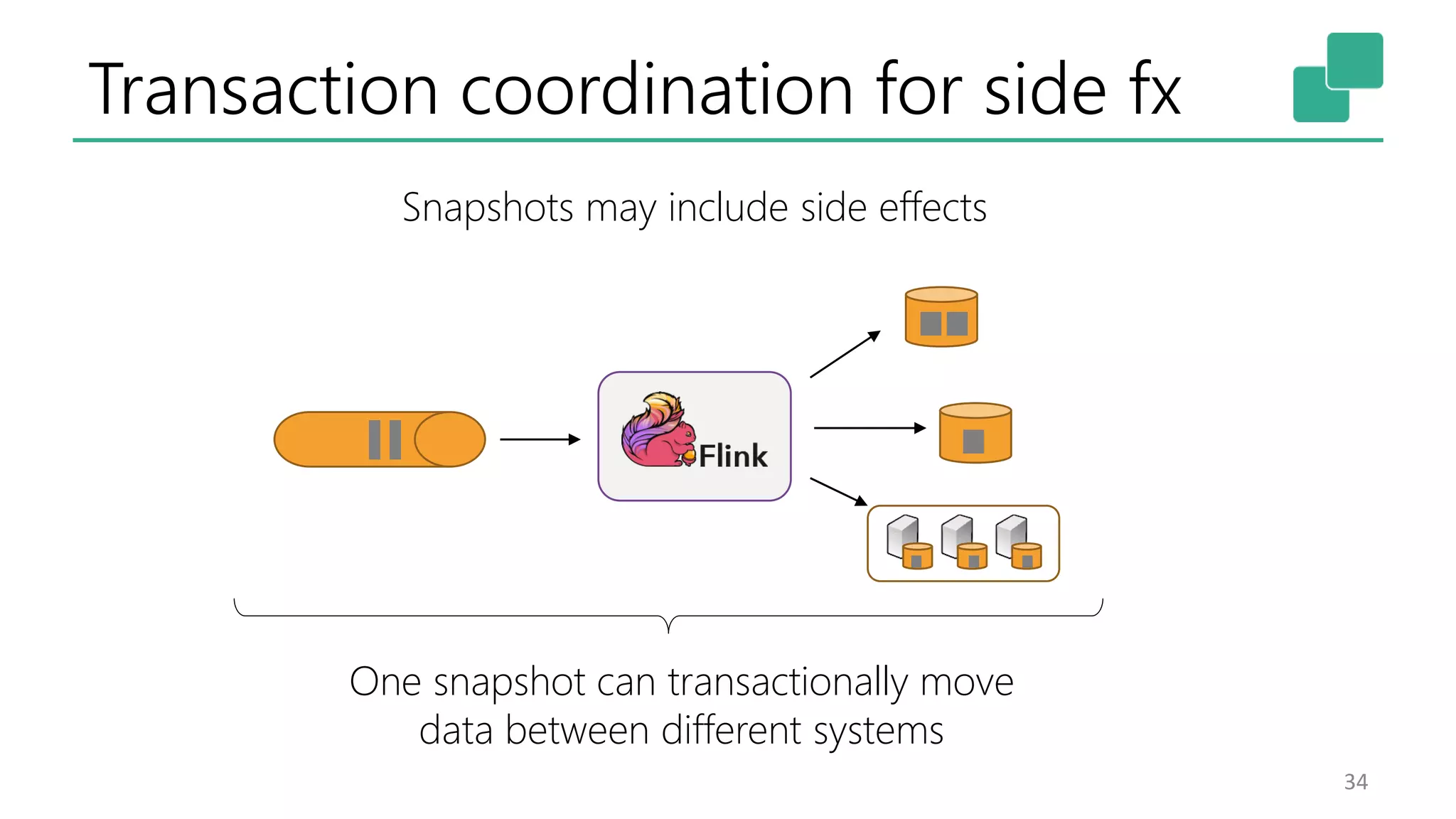

- 35. Transaction coordination forside fx 34 One snapshot can transactionally move data between different systems Snapshots may include side effects

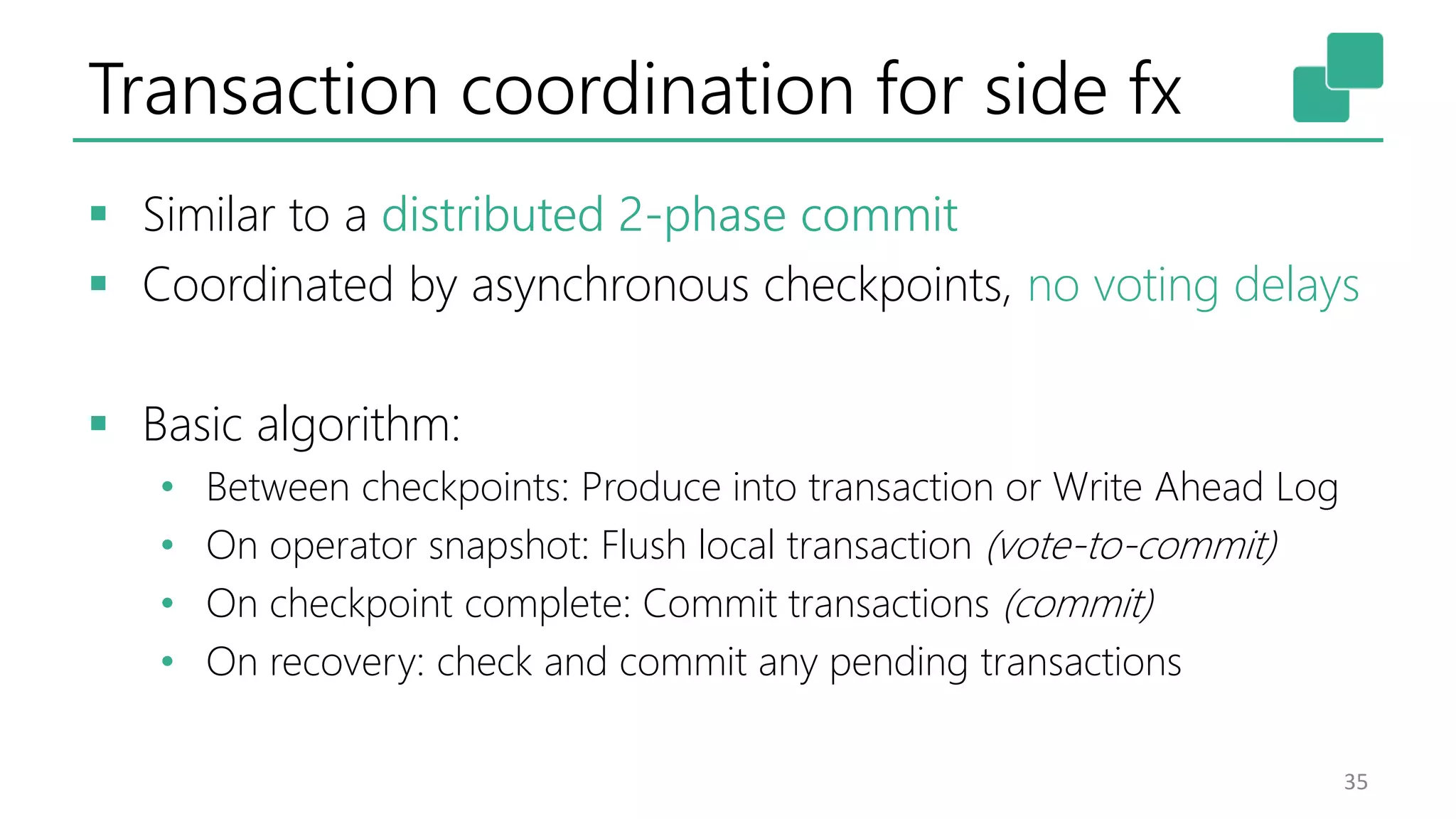

- 36. Transaction coordination forside fx Similar to a distributed 2-phase commit Coordinated by asynchronous checkpoints, no voting delays Basic algorithm: • Between checkpoints: Produce into transaction or Write Ahead Log • On operator snapshot: Flush local transaction (vote-to-commit) • On checkpoint complete: Commit transactions (commit) • On recovery: check and commit any pending transactions 35
- 37. 36 Distributed Snapshots and ApplicationArchitectures (A Philosophical Monologue)

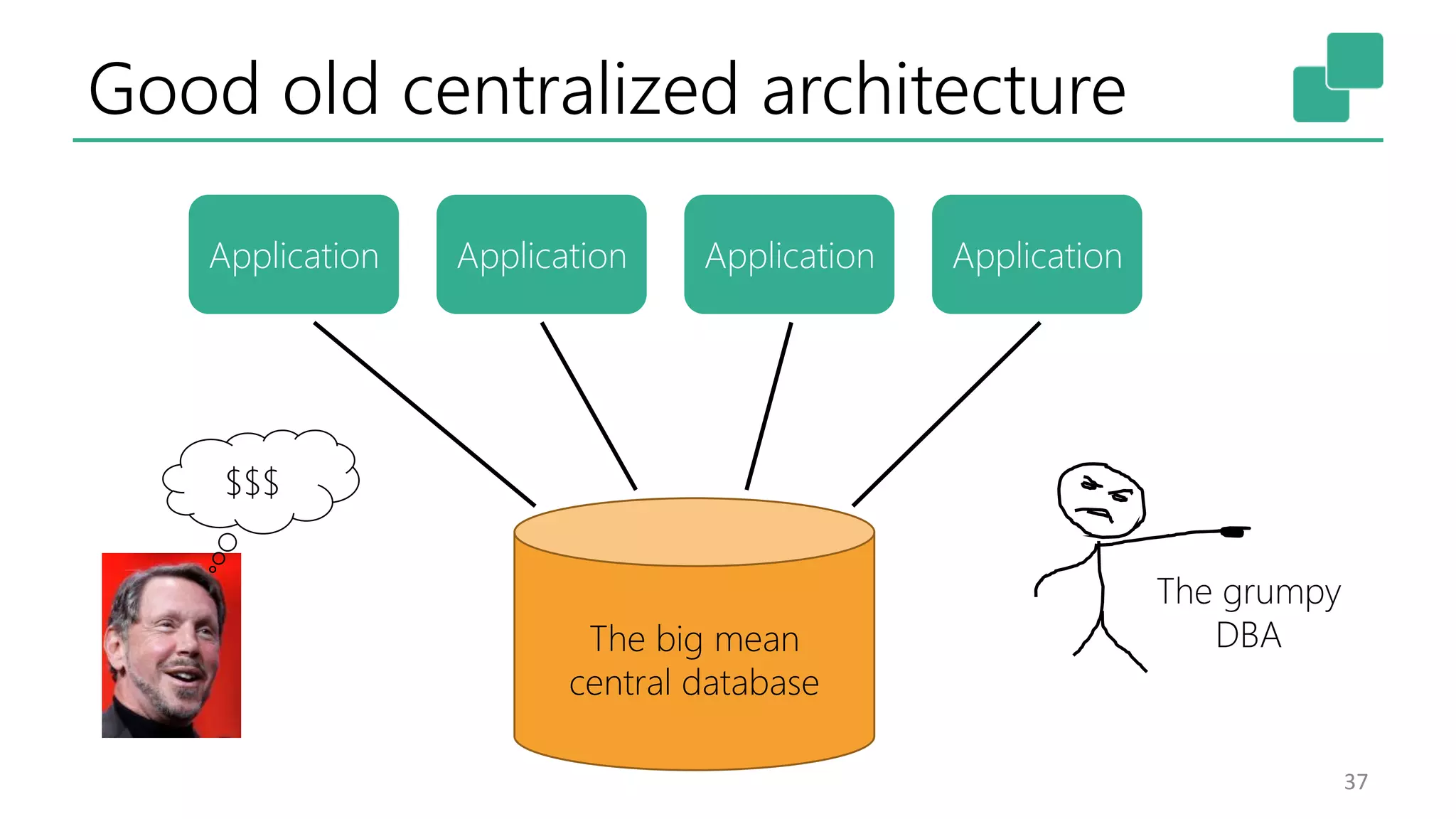

- 38. Good old centralizedarchitecture 37 The big mean central database $$$ The grumpy DBA Application Application Application Application

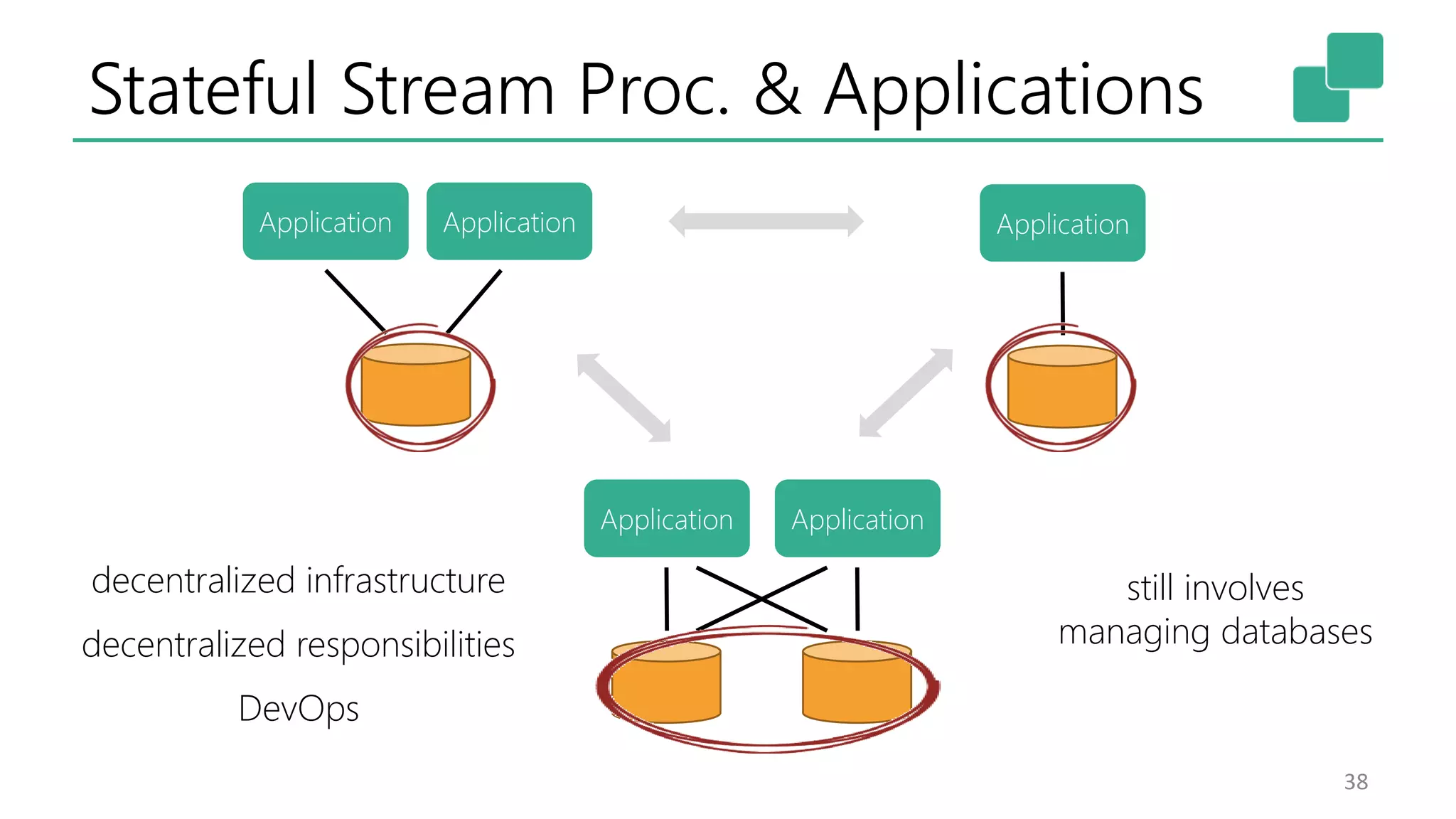

- 39. Stateful Stream Proc.& Applications 38 Application Application Application Application Application decentralized infrastructure DevOps decentralized responsibilities still involves managing databases
- 40. Stateless Application Containers 39 Statemanagement is nasty, let's pretend we don't have to do it
- 41. Stateless Application Containers 40 Kudosto Kiki Carter for the Broccoli Metaphor Broccoli (state management) is nasty, let's pretend we don't have to eat do it

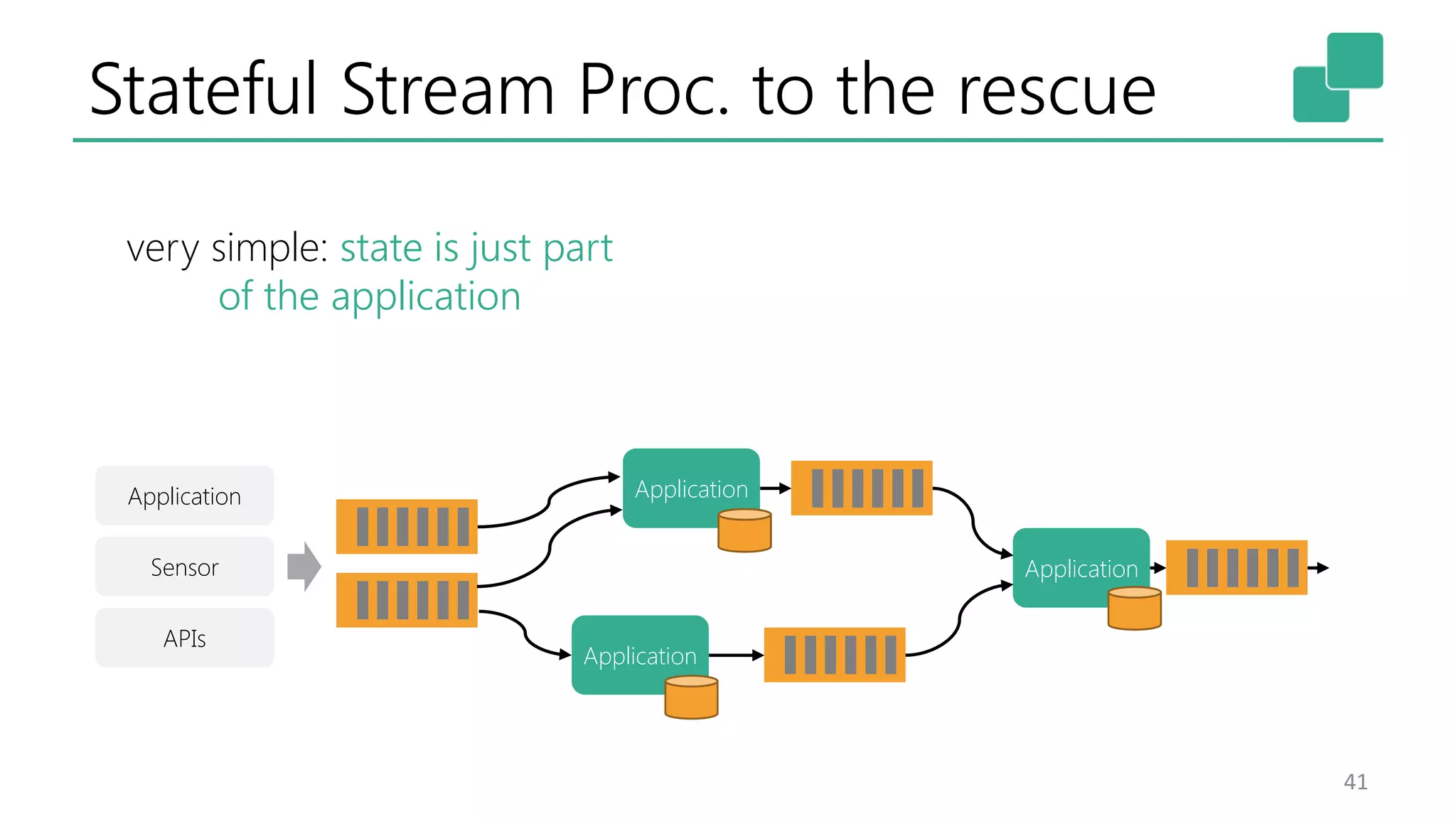

- 42. Stateful Stream Proc.to the rescue 41 Application Sensor APIs Application Application Application very simple: state is just part of the application

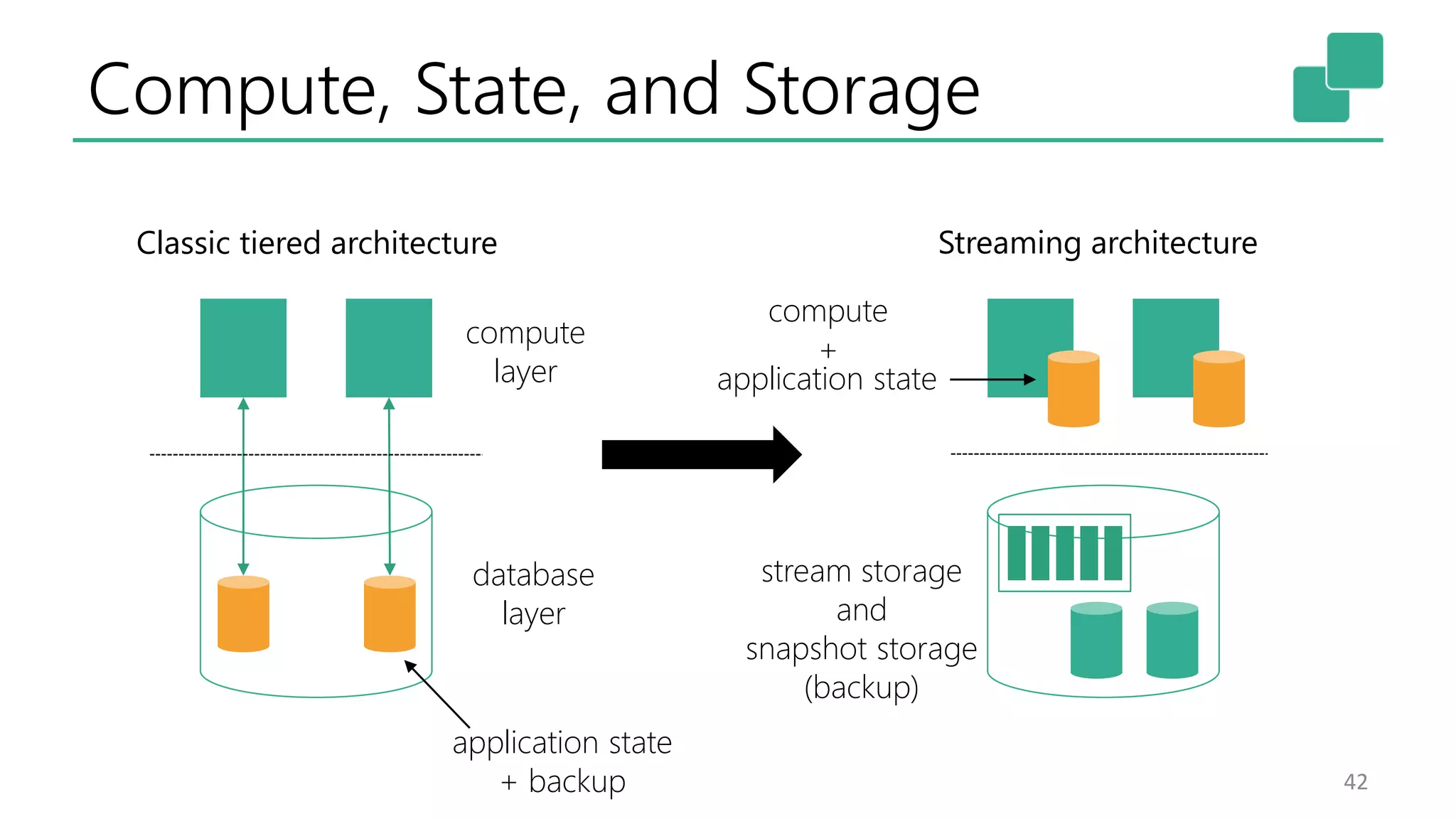

- 43. Compute, State, andStorage 42 Classic tiered architecture Streaming architecture database layer compute layer application state + backup compute + stream storage and snapshot storage (backup) application state

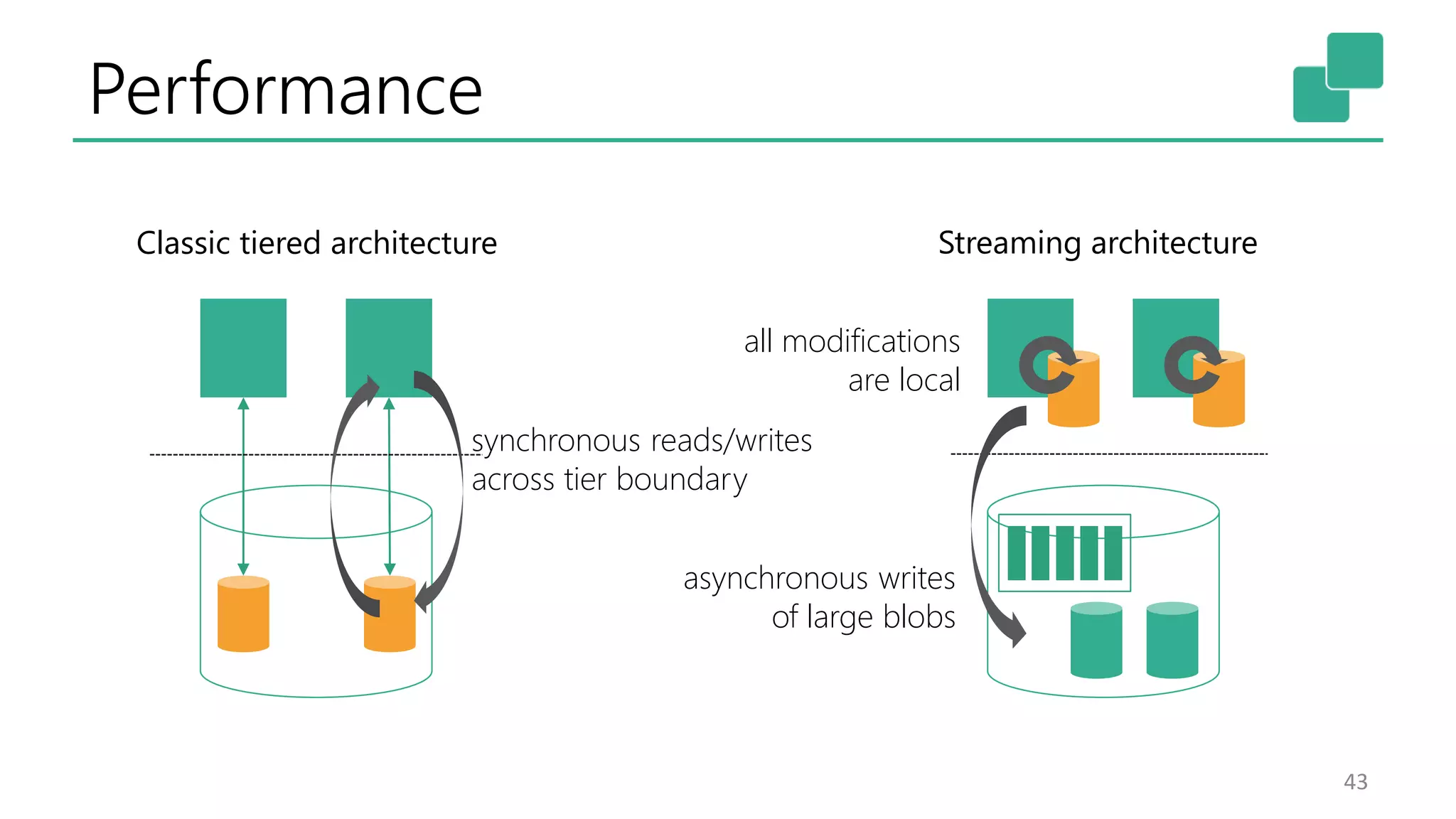

- 44. Performance 43 synchronous reads/writes across tierboundary asynchronous writes of large blobs all modifications are local Classic tiered architecture Streaming architecture

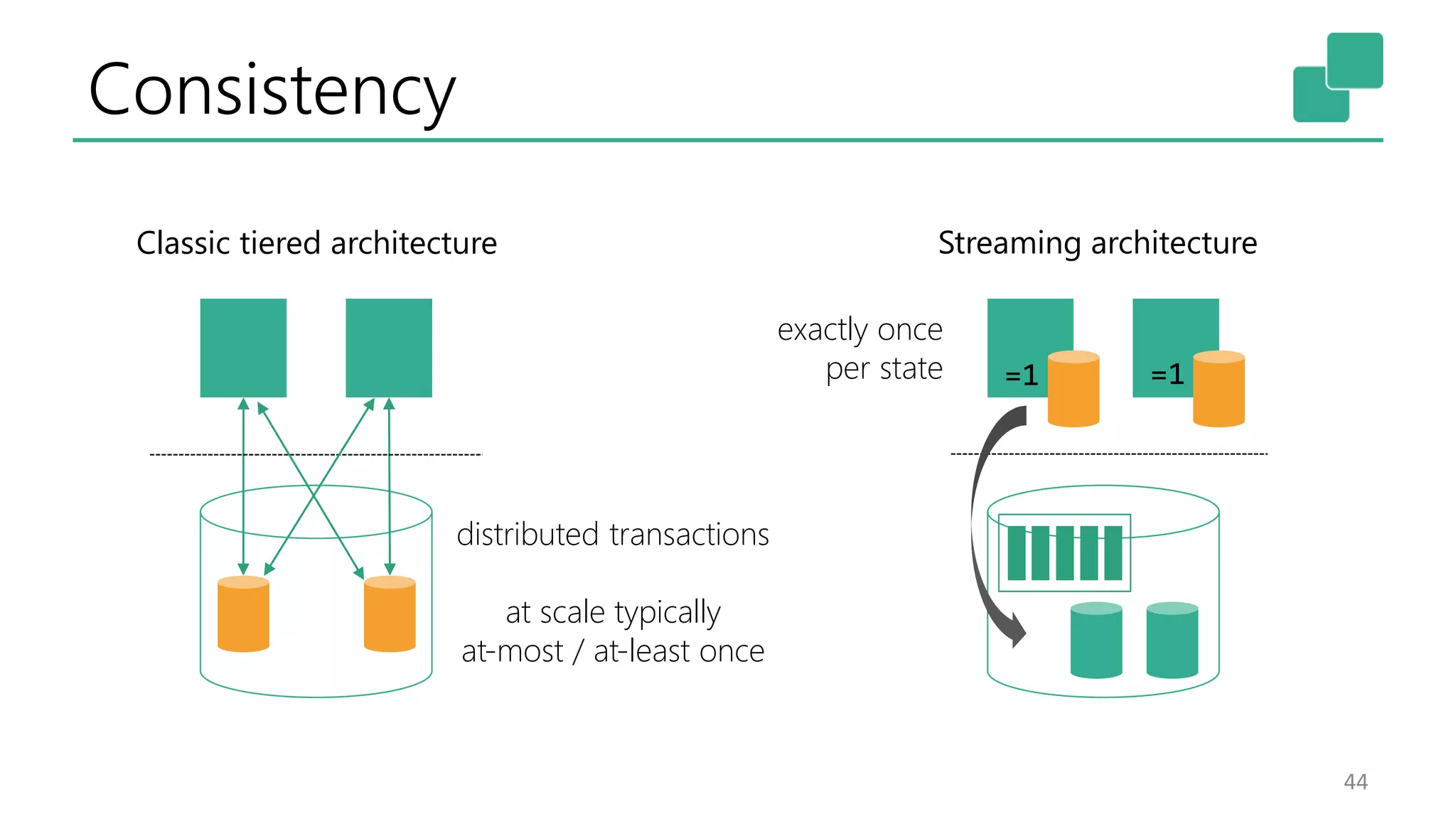

- 45. Consistency 44 distributed transactions at scaletypically at-most / at-least once exactly once per state =1 =1 Classic tiered architecture Streaming architecture

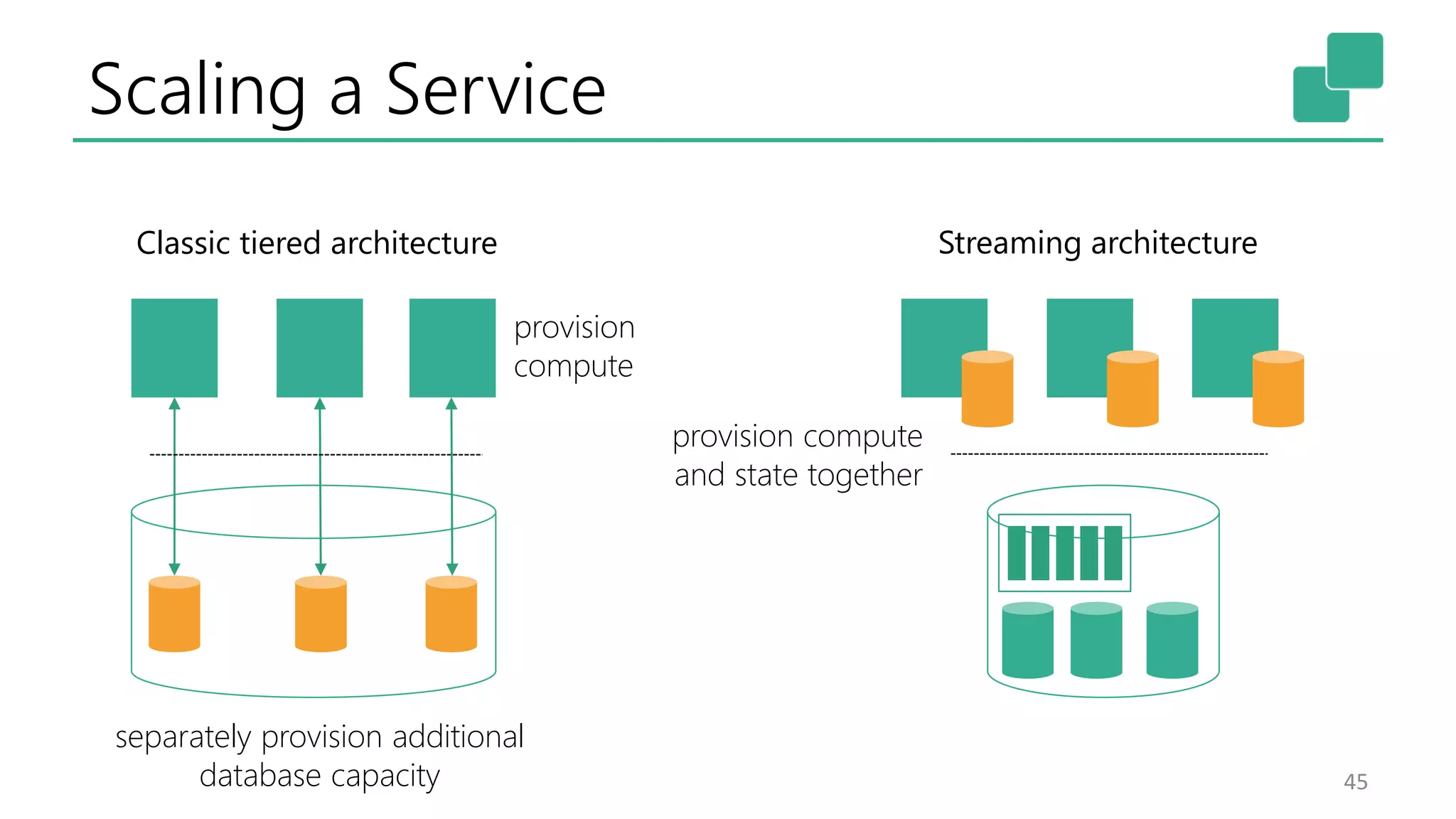

- 46. Scaling a Service 45 separatelyprovision additional database capacity provision compute and state together Classic tiered architecture Streaming architecture provision compute

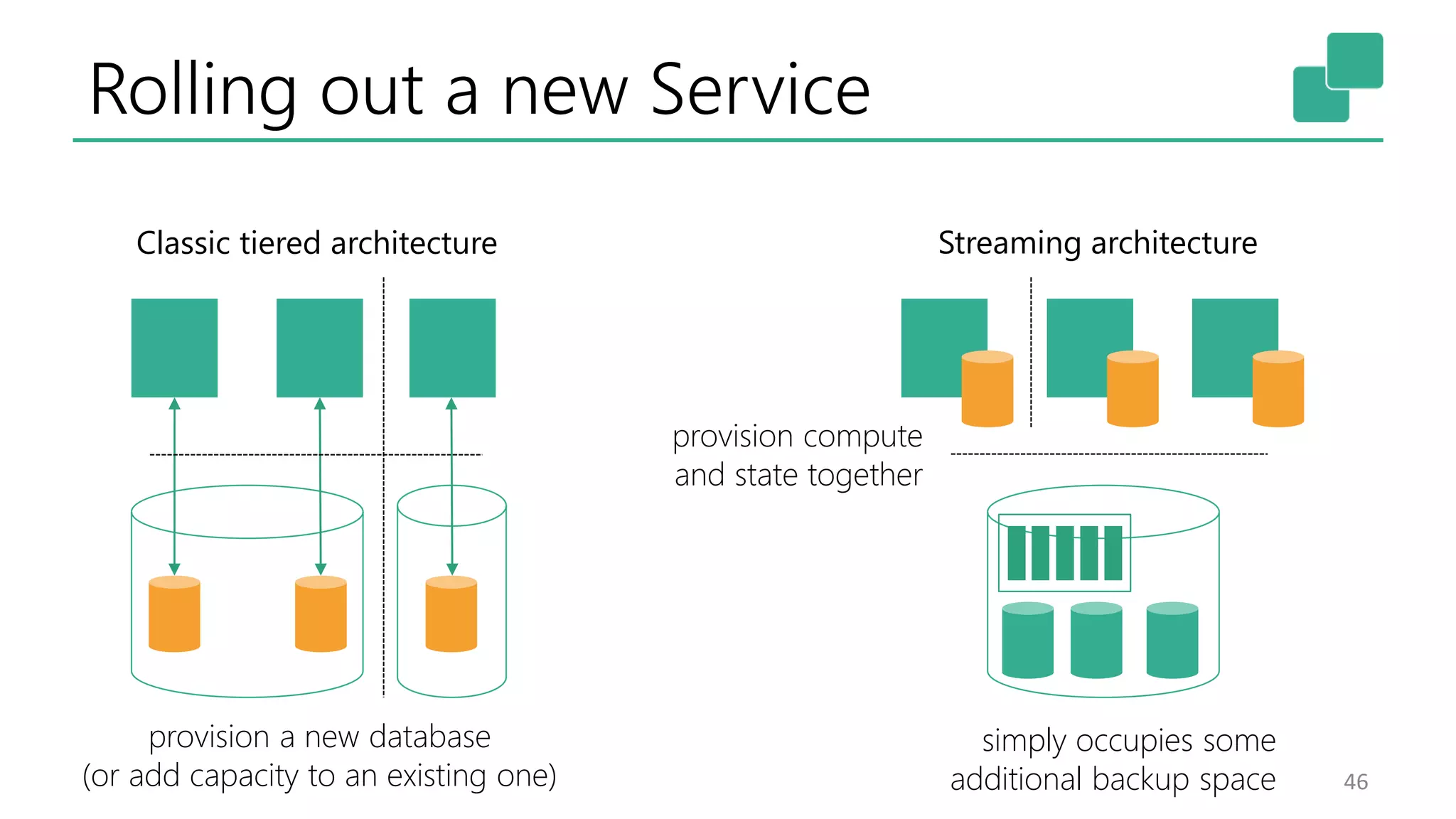

- 47. Rolling out anew Service 46 provision a new database (or add capacity to an existing one) simply occupies some additional backup space Classic tiered architecture Streaming architecture provision compute and state together

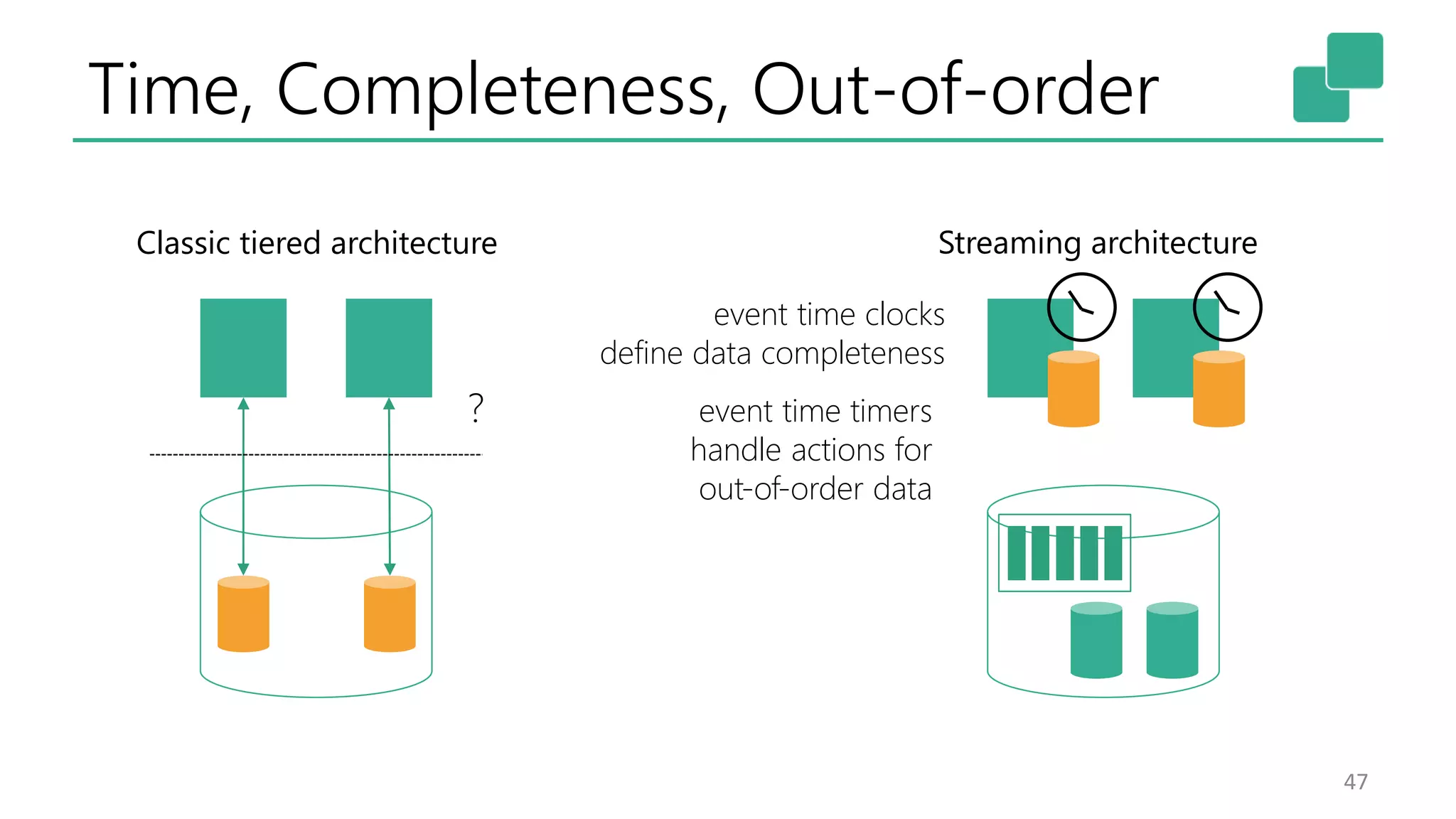

- 48. Time, Completeness, Out-of-order 47 ? eventtime clocks define data completeness event time timers handle actions for out-of-order data Classic tiered architecture Streaming architecture

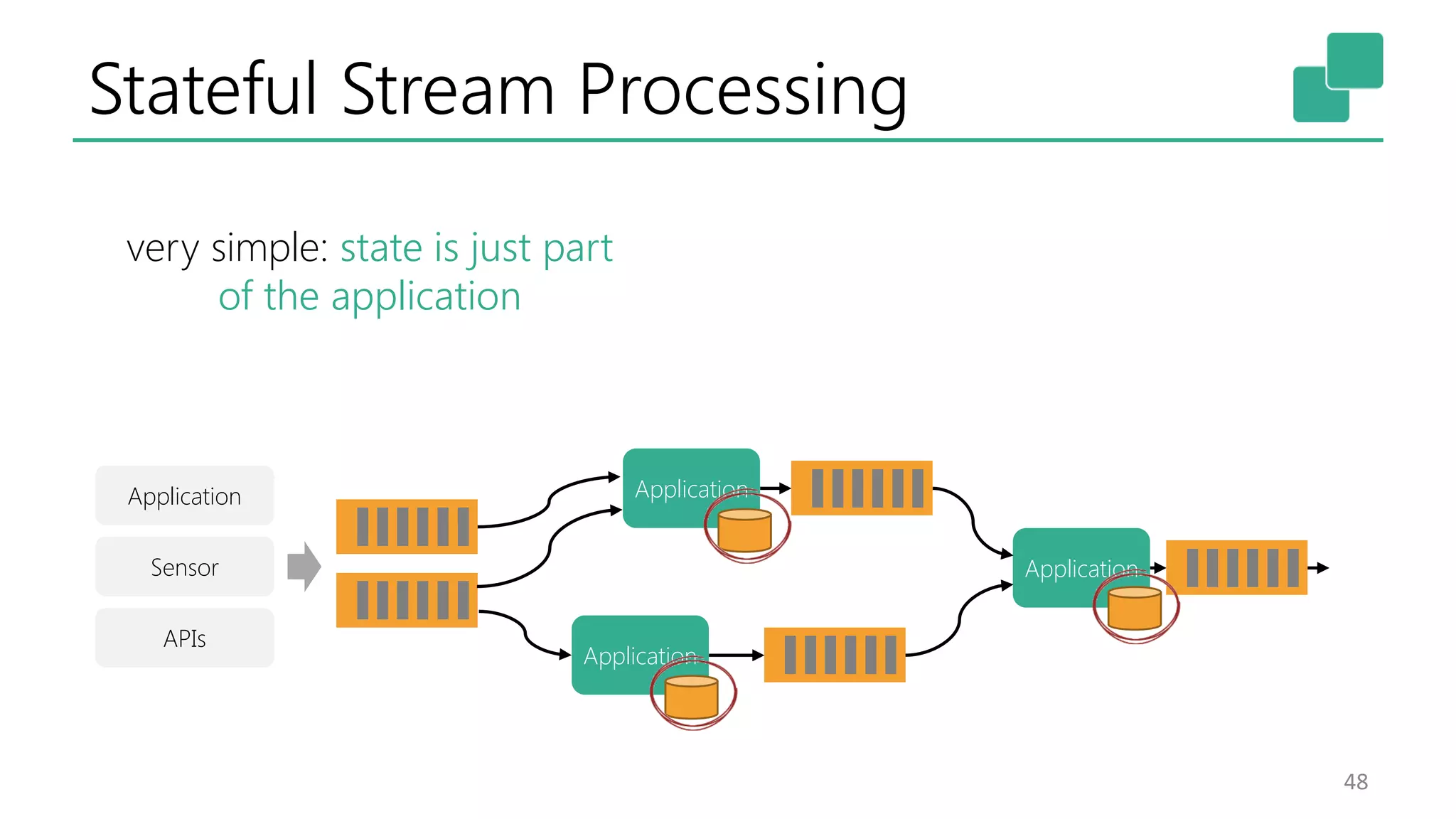

- 49. Stateful Stream Processing 48 Application Sensor APIs Application Application Application verysimple: state is just part of the application

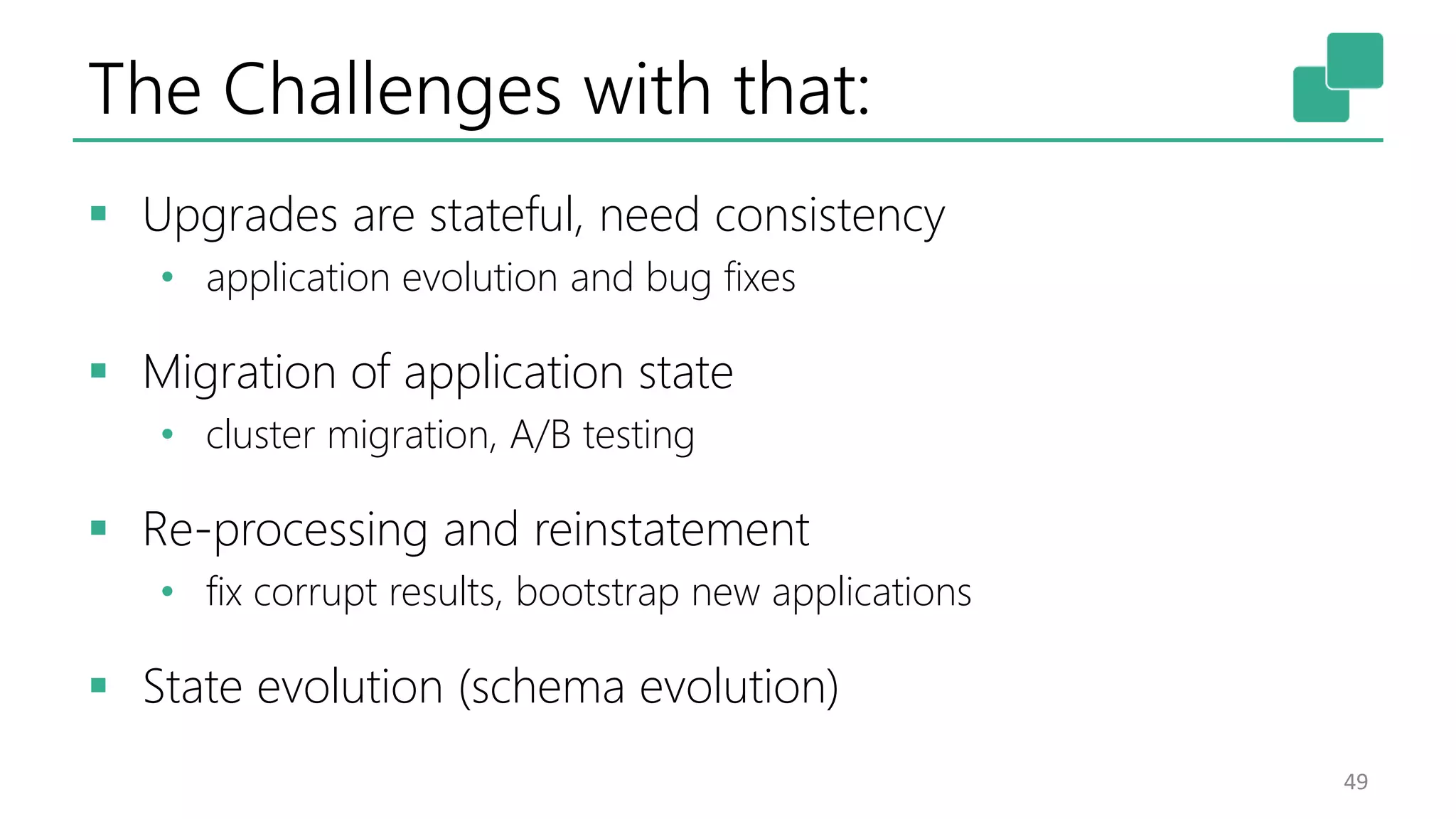

- 50. The Challenges withthat: Upgrades are stateful, need consistency • application evolution and bug fixes Migration of application state • cluster migration, A/B testing Re-processing and reinstatement • fix corrupt results, bootstrap new applications State evolution (schema evolution) 49
- 51. 50 Consistent Distributed Snapshots The answer (mypersonal and obviously biased take)

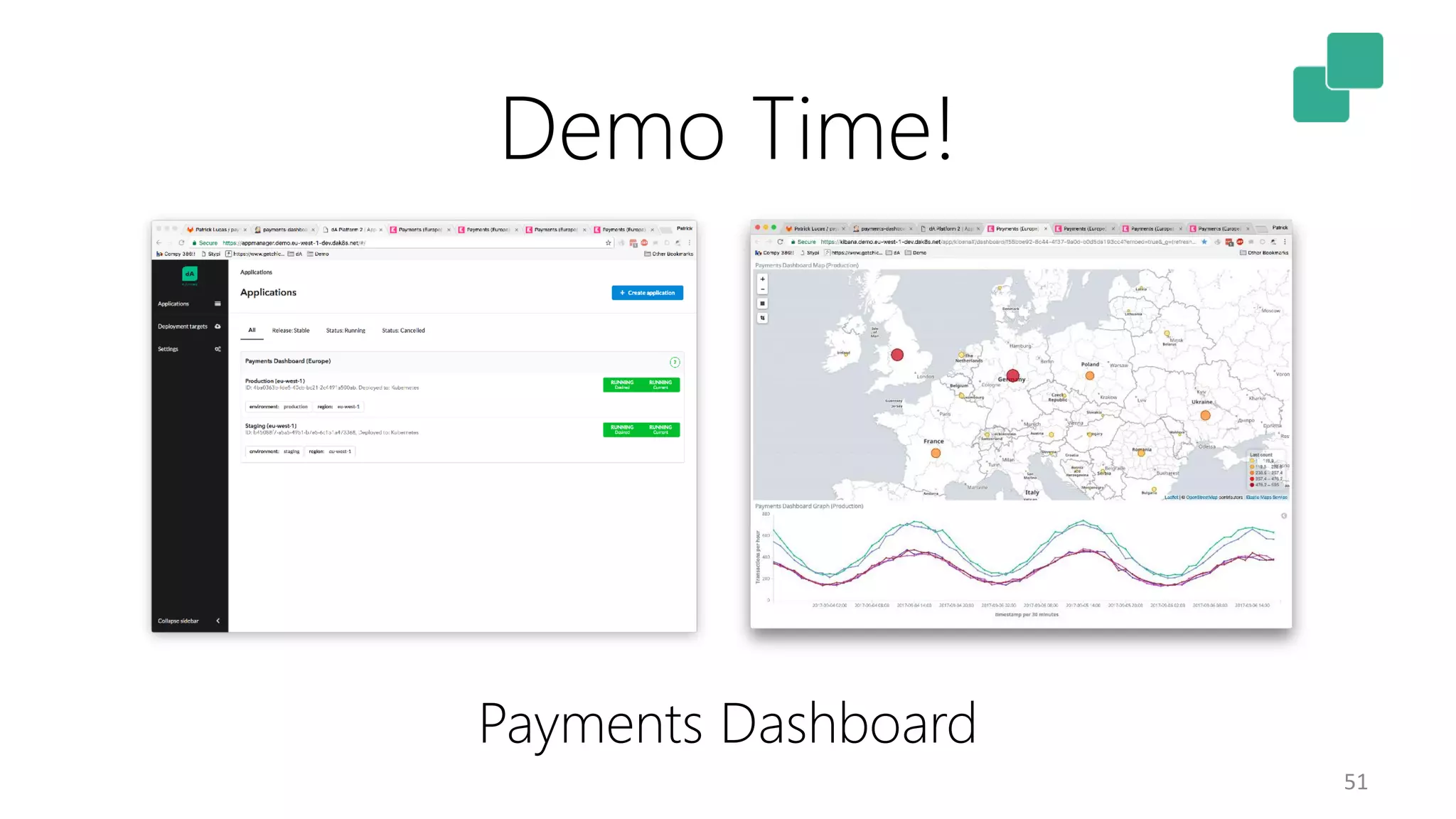

- 52.
- 53. 52 Thank you verymuch (shameless plug)
- 54.
- 55.
- 56. 55 Details about Snapshots andTransactional Side Effects

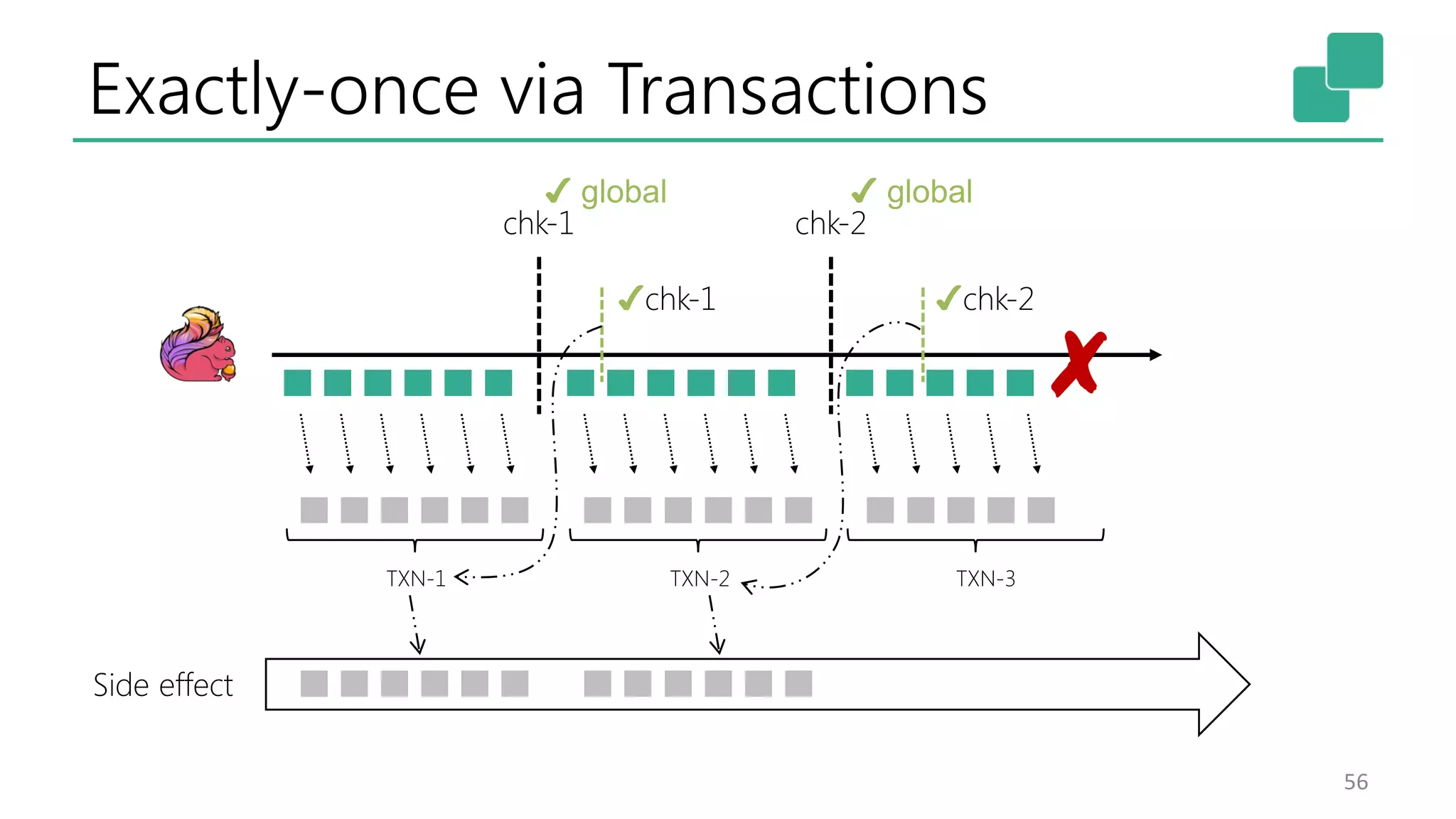

- 57. Exactly-once via Transactions 56 chk-1chk-2 TXN-1 ✔chk-1 ✔chk-2 TXN-2 ✘ TXN-3 Side effect ✔ global ✔ global

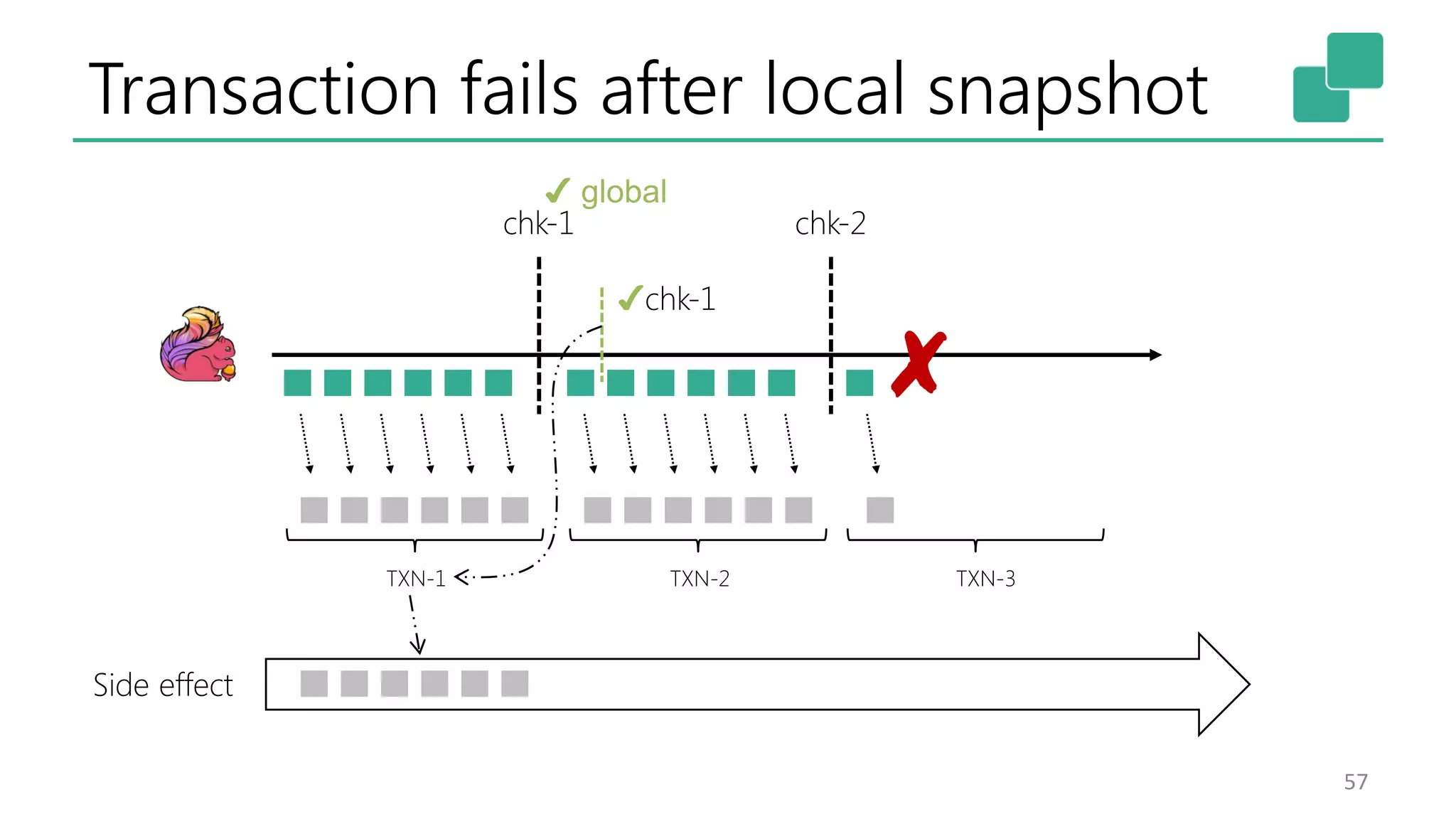

- 58. Transaction fails afterlocal snapshot 57 chk-1 chk-2 TXN-1 ✔chk-1 TXN-2 ✘ TXN-3 ✔ global Side effect

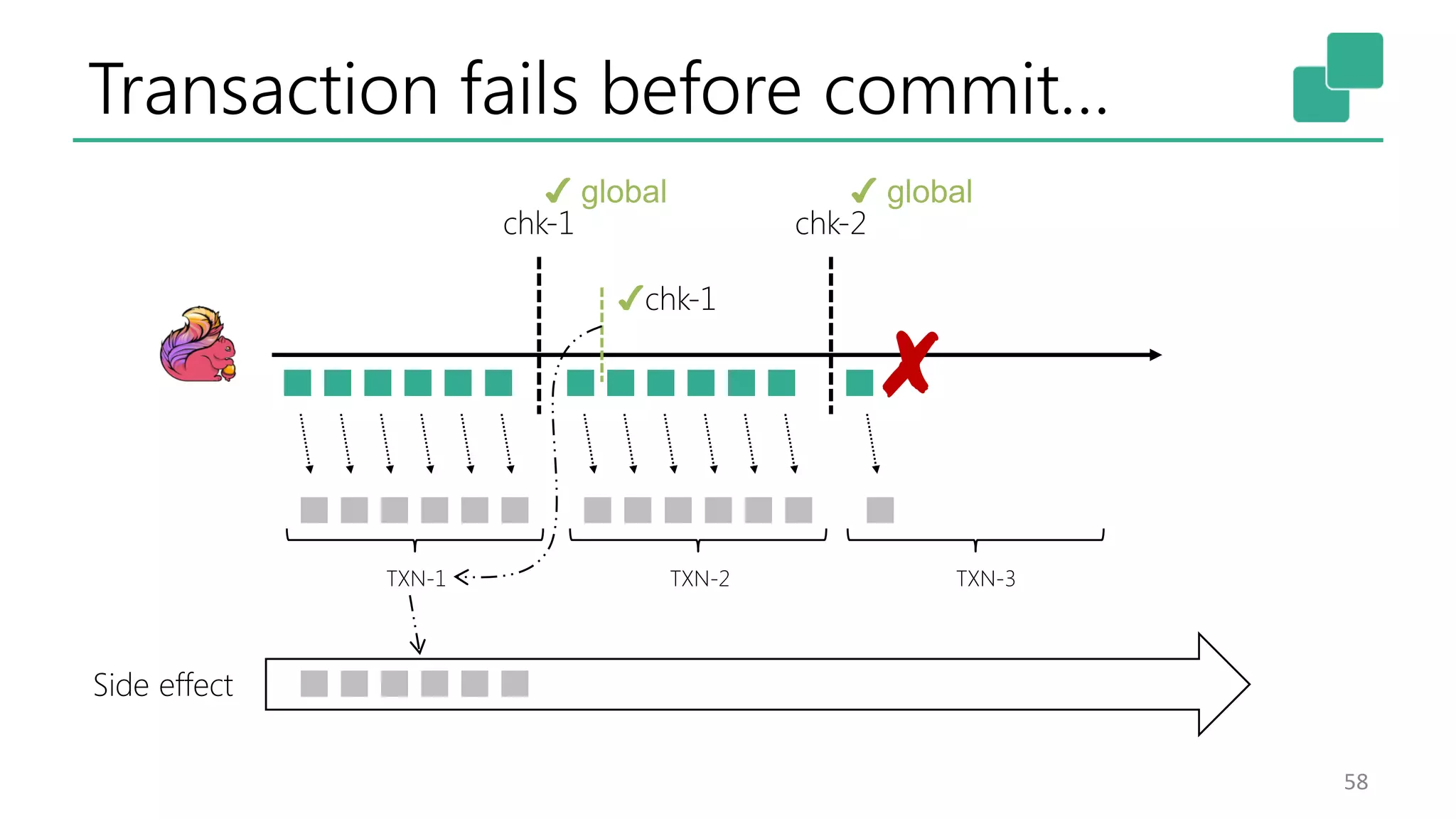

- 59. Transaction fails beforecommit… 58 chk-1 chk-2 TXN-1 ✔chk-1 TXN-2 ✘ TXN-3 ✔ global ✔ global Side effect

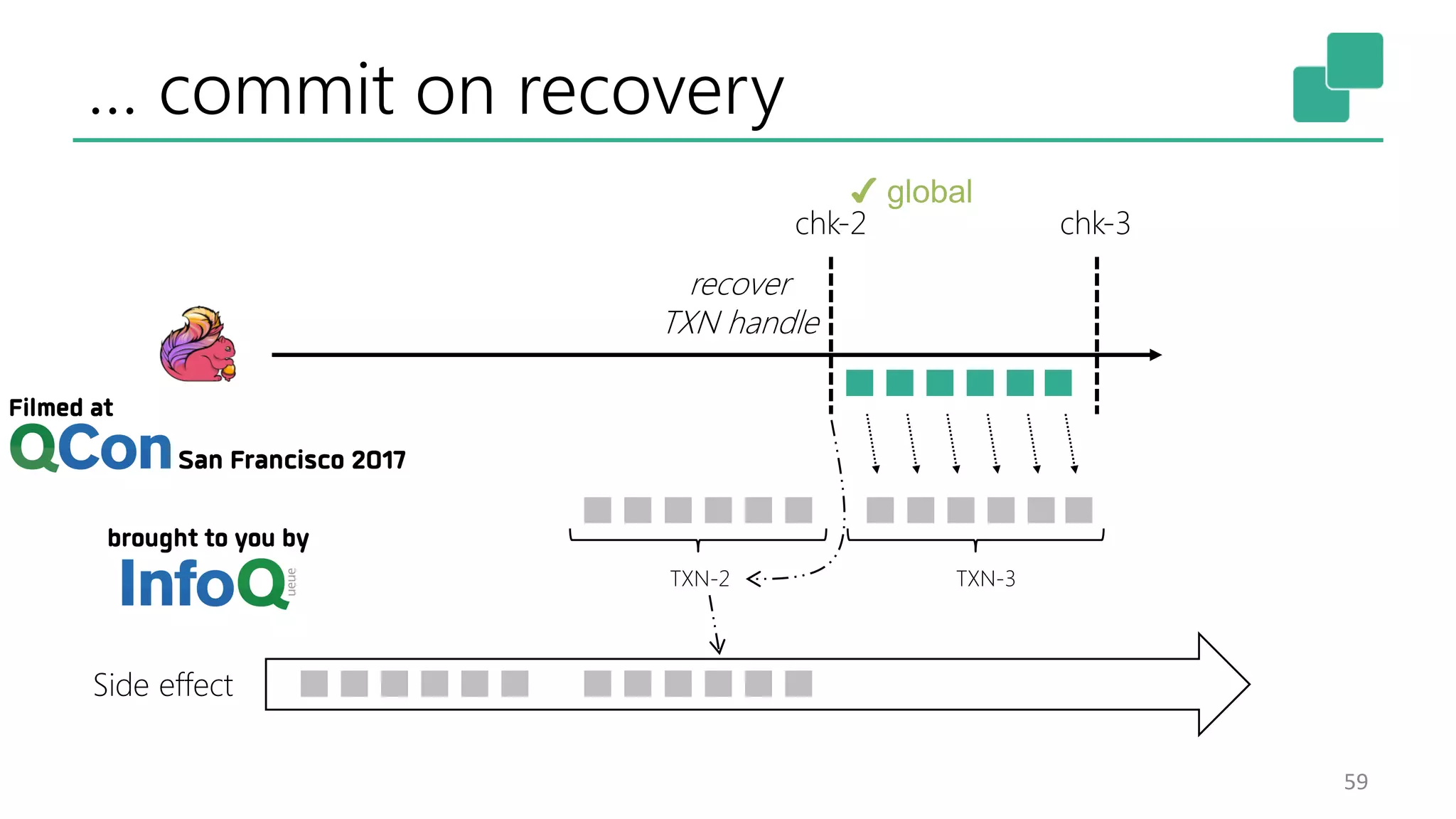

- 60. … commit onrecovery 59 chk-2 TXN-2 TXN-3 ✔ global recover TXN handle chk-3 Side effect
- 61. Watch the videowith slide synchronization on InfoQ.com! https://www.infoq.com/presentations/ distributed-stream-processing-flink
