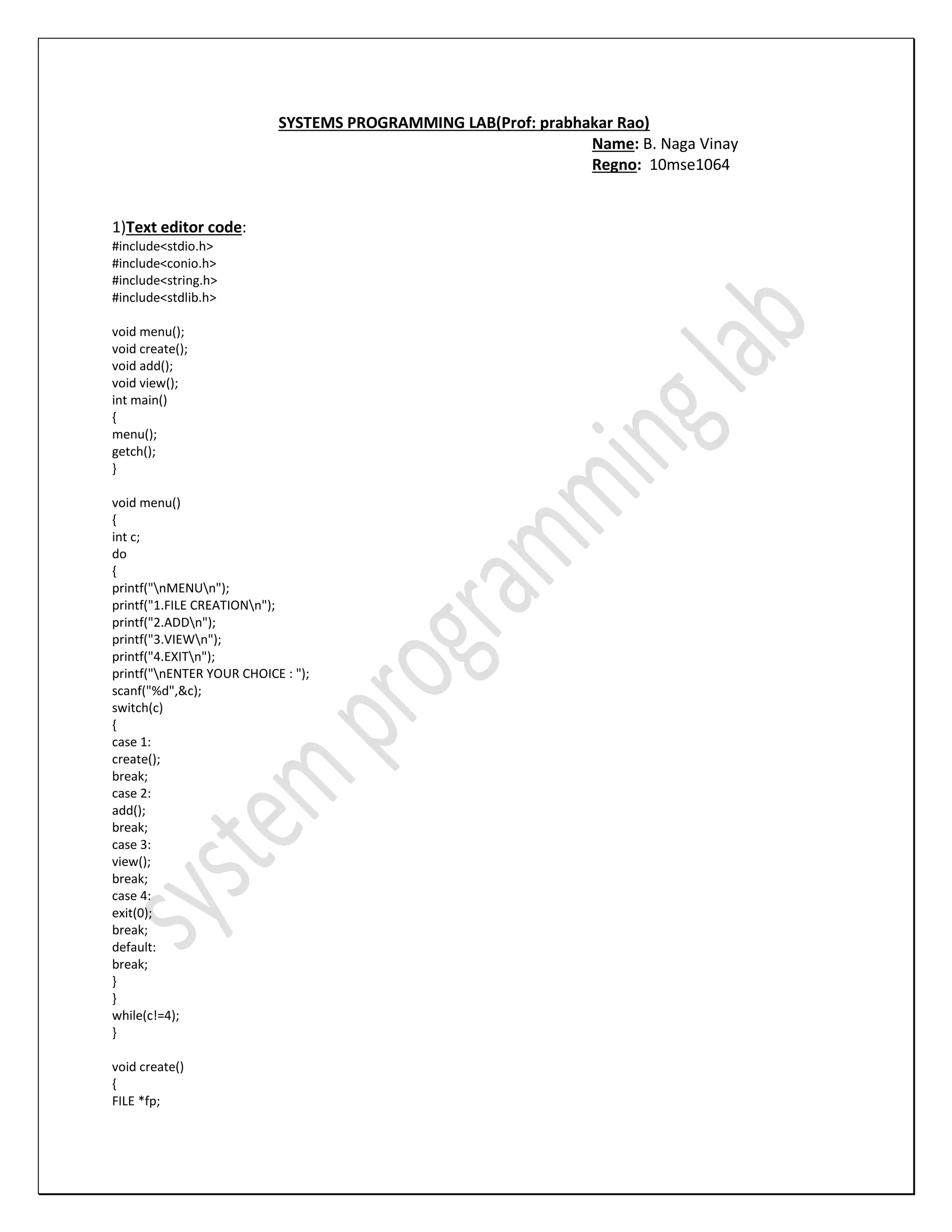

SYSTEMS PROGRAMMING LAB(Prof: prabhakar Rao) Name: B. Naga Vinay Regno: 10mse1064 1)Text editor code: #include<stdio.h> #include<conio.h> #include<string.h> #include<stdlib.h> void menu(); void create(); void add(); void view(); int main() { menu(); getch(); } void menu() { int c; do { printf("nMENUn"); printf("1.FILE CREATIONn"); printf("2.ADDn"); printf("3.VIEWn"); printf("4.EXITn"); printf("nENTER YOUR CHOICE : "); scanf("%d",&c); switch(c) { case 1: create(); break; case 2: add(); break; case 3: view(); break; case 4: exit(0); break; default: break; } } while(c!=4); } void create() { FILE *fp;

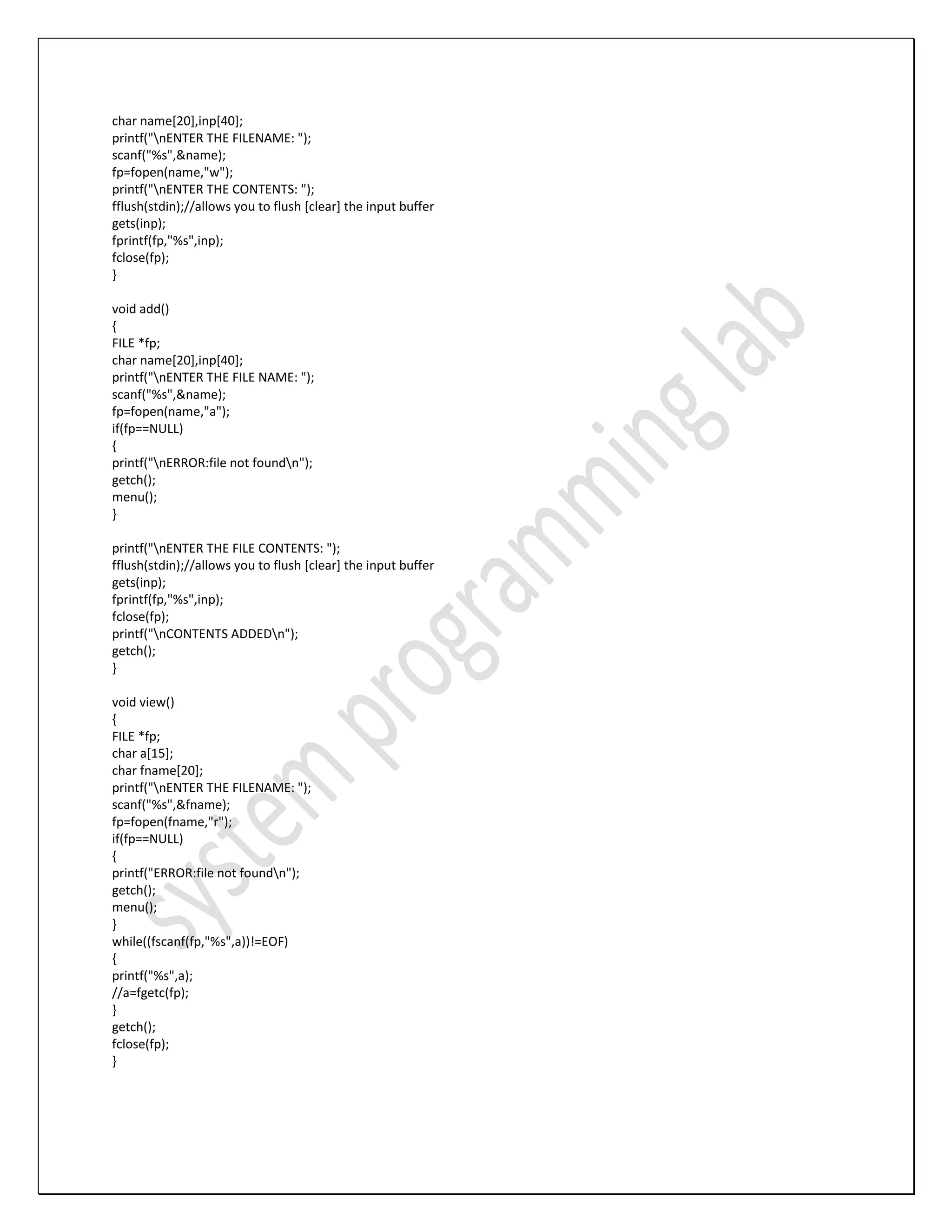

char name[20],inp[40]; printf("nENTER THE FILENAME: "); scanf("%s",&name); fp=fopen(name,"w"); printf("nENTER THE CONTENTS: "); fflush(stdin);//allows you to flush [clear] the input buffer gets(inp); fprintf(fp,"%s",inp); fclose(fp); } void add() { FILE *fp; char name[20],inp[40]; printf("nENTER THE FILE NAME: "); scanf("%s",&name); fp=fopen(name,"a"); if(fp==NULL) { printf("nERROR:file not foundn"); getch(); menu(); } printf("nENTER THE FILE CONTENTS: "); fflush(stdin);//allows you to flush [clear] the input buffer gets(inp); fprintf(fp,"%s",inp); fclose(fp); printf("nCONTENTS ADDEDn"); getch(); } void view() { FILE *fp; char a[15]; char fname[20]; printf("nENTER THE FILENAME: "); scanf("%s",&fname); fp=fopen(fname,"r"); if(fp==NULL) { printf("ERROR:file not foundn"); getch(); menu(); } while((fscanf(fp,"%s",a))!=EOF) { printf("%s",a); //a=fgetc(fp); } getch(); fclose(fp); }

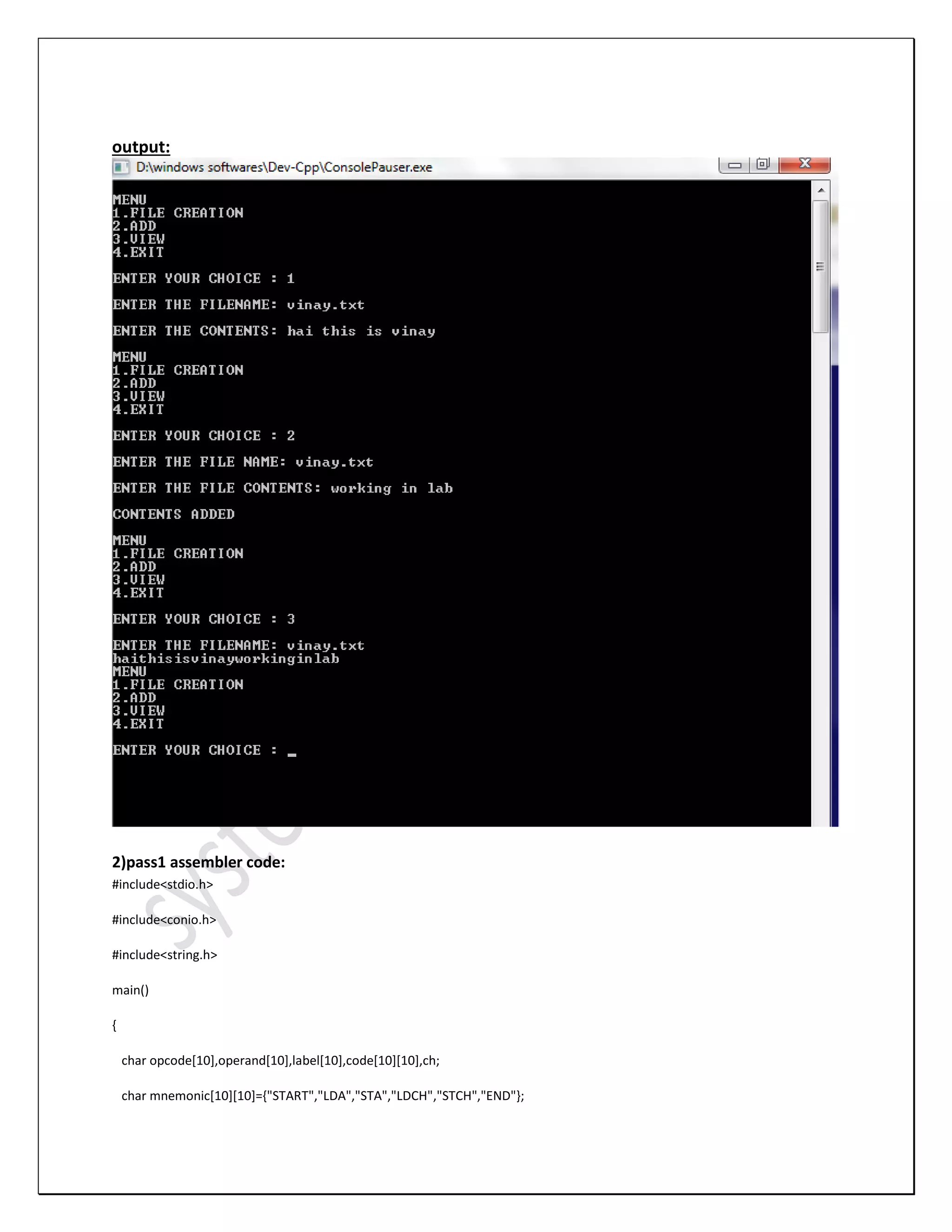

output: 2)pass1 assembler code: #include<stdio.h> #include<conio.h> #include<string.h> main() { char opcode[10],operand[10],label[10],code[10][10],ch; char mnemonic[10][10]={"START","LDA","STA","LDCH","STCH","END"};

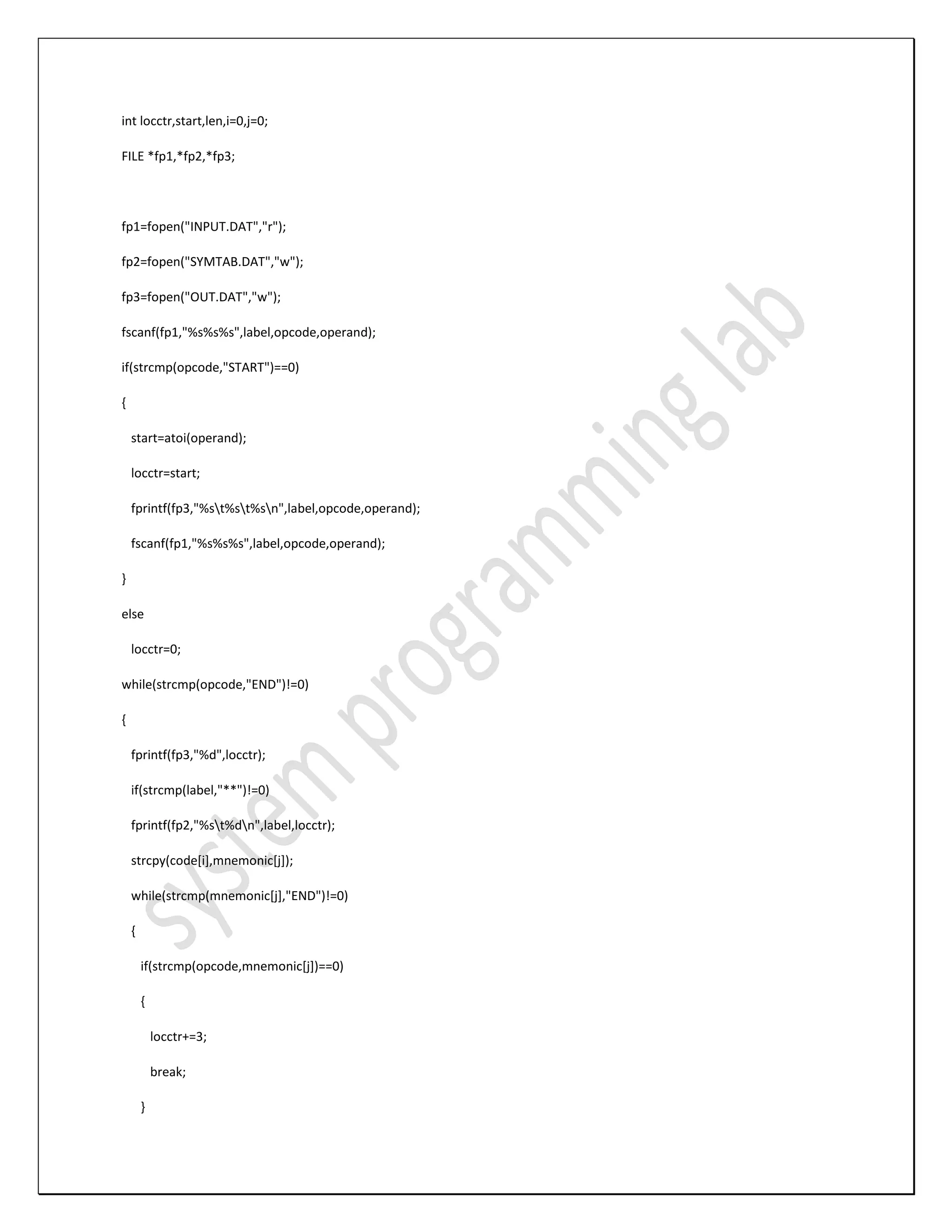

int locctr,start,len,i=0,j=0; FILE *fp1,*fp2,*fp3; fp1=fopen("INPUT.DAT","r"); fp2=fopen("SYMTAB.DAT","w"); fp3=fopen("OUT.DAT","w"); fscanf(fp1,"%s%s%s",label,opcode,operand); if(strcmp(opcode,"START")==0) { start=atoi(operand); locctr=start; fprintf(fp3,"%st%st%sn",label,opcode,operand); fscanf(fp1,"%s%s%s",label,opcode,operand); } else locctr=0; while(strcmp(opcode,"END")!=0) { fprintf(fp3,"%d",locctr); if(strcmp(label,"**")!=0) fprintf(fp2,"%st%dn",label,locctr); strcpy(code[i],mnemonic[j]); while(strcmp(mnemonic[j],"END")!=0) { if(strcmp(opcode,mnemonic[j])==0) { locctr+=3; break; }

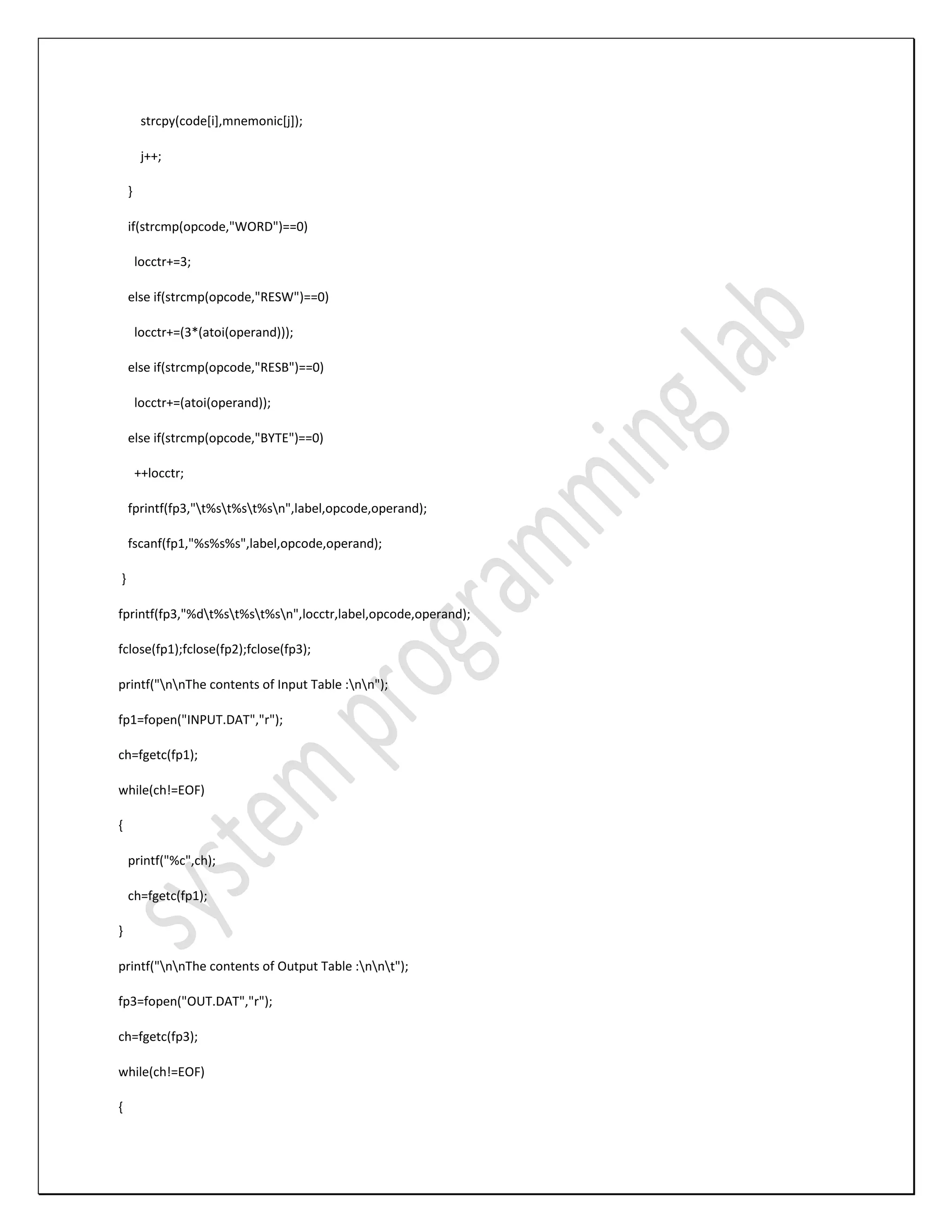

strcpy(code[i],mnemonic[j]); j++; } if(strcmp(opcode,"WORD")==0) locctr+=3; else if(strcmp(opcode,"RESW")==0) locctr+=(3*(atoi(operand))); else if(strcmp(opcode,"RESB")==0) locctr+=(atoi(operand)); else if(strcmp(opcode,"BYTE")==0) ++locctr; fprintf(fp3,"t%st%st%sn",label,opcode,operand); fscanf(fp1,"%s%s%s",label,opcode,operand); } fprintf(fp3,"%dt%st%st%sn",locctr,label,opcode,operand); fclose(fp1);fclose(fp2);fclose(fp3); printf("nnThe contents of Input Table :nn"); fp1=fopen("INPUT.DAT","r"); ch=fgetc(fp1); while(ch!=EOF) { printf("%c",ch); ch=fgetc(fp1); } printf("nnThe contents of Output Table :nnt"); fp3=fopen("OUT.DAT","r"); ch=fgetc(fp3); while(ch!=EOF) {

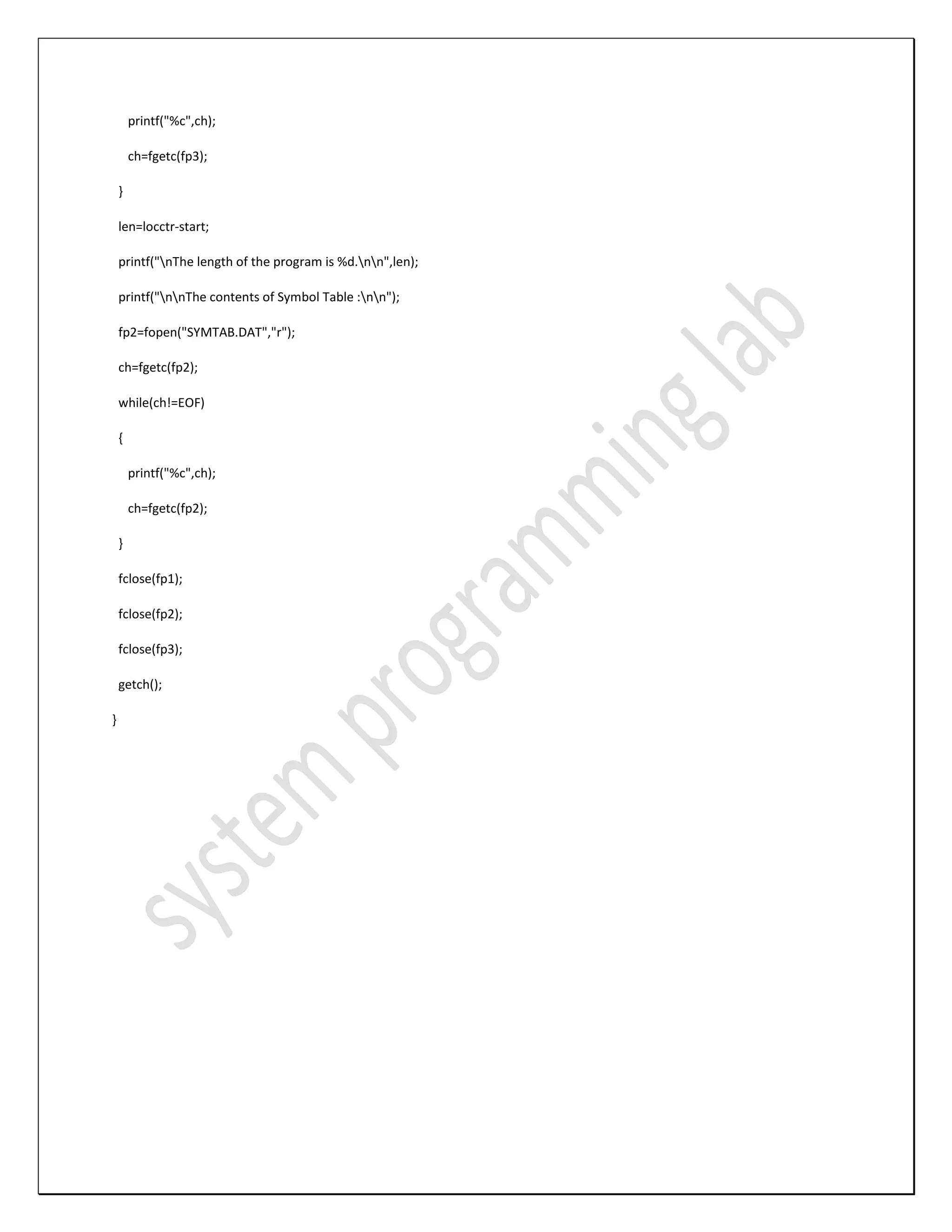

printf("%c",ch); ch=fgetc(fp3); } len=locctr-start; printf("nThe length of the program is %d.nn",len); printf("nnThe contents of Symbol Table :nn"); fp2=fopen("SYMTAB.DAT","r"); ch=fgetc(fp2); while(ch!=EOF) { printf("%c",ch); ch=fgetc(fp2); } fclose(fp1); fclose(fp2); fclose(fp3); getch(); }

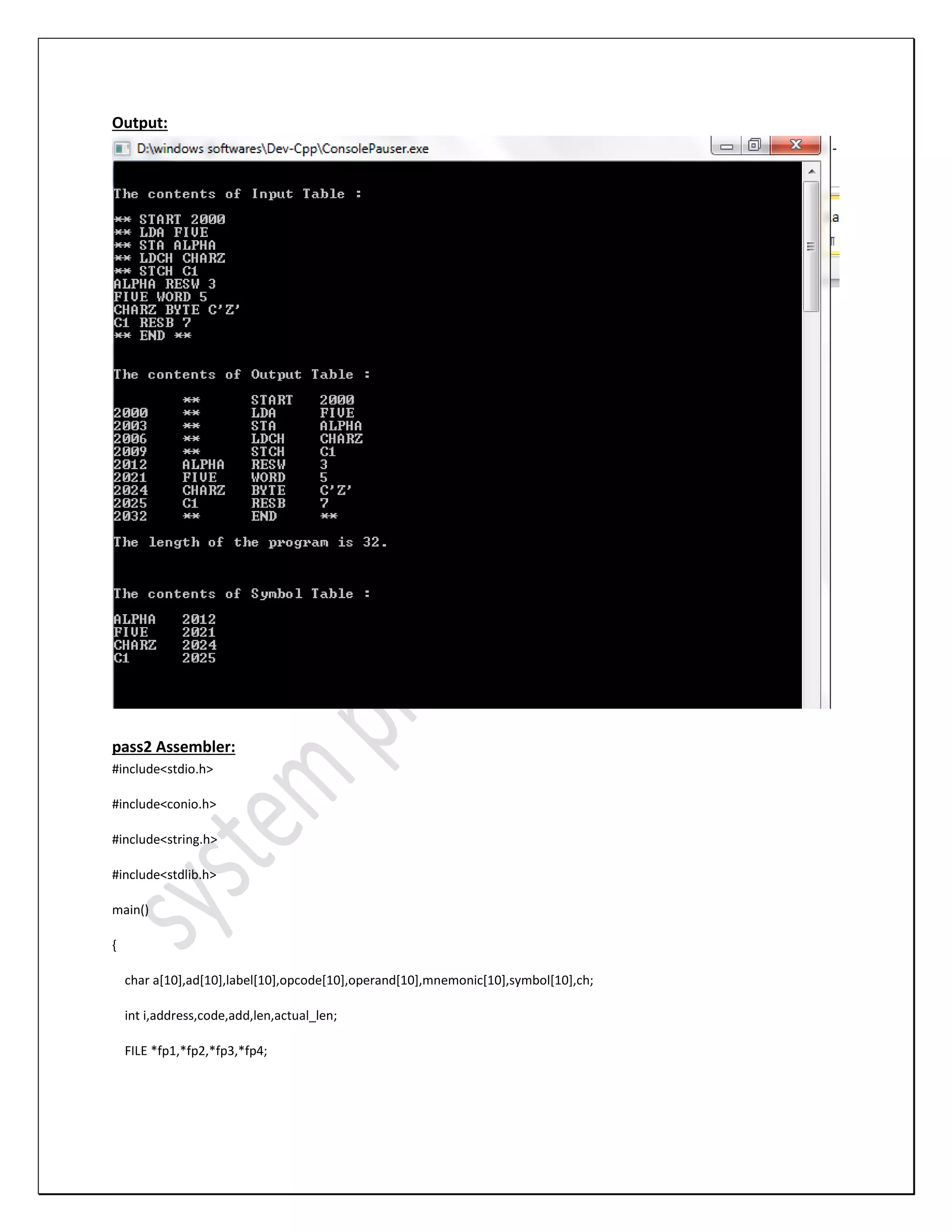

Output: pass2 Assembler: #include<stdio.h> #include<conio.h> #include<string.h> #include<stdlib.h> main() { char a[10],ad[10],label[10],opcode[10],operand[10],mnemonic[10],symbol[10],ch; int i,address,code,add,len,actual_len; FILE *fp1,*fp2,*fp3,*fp4;

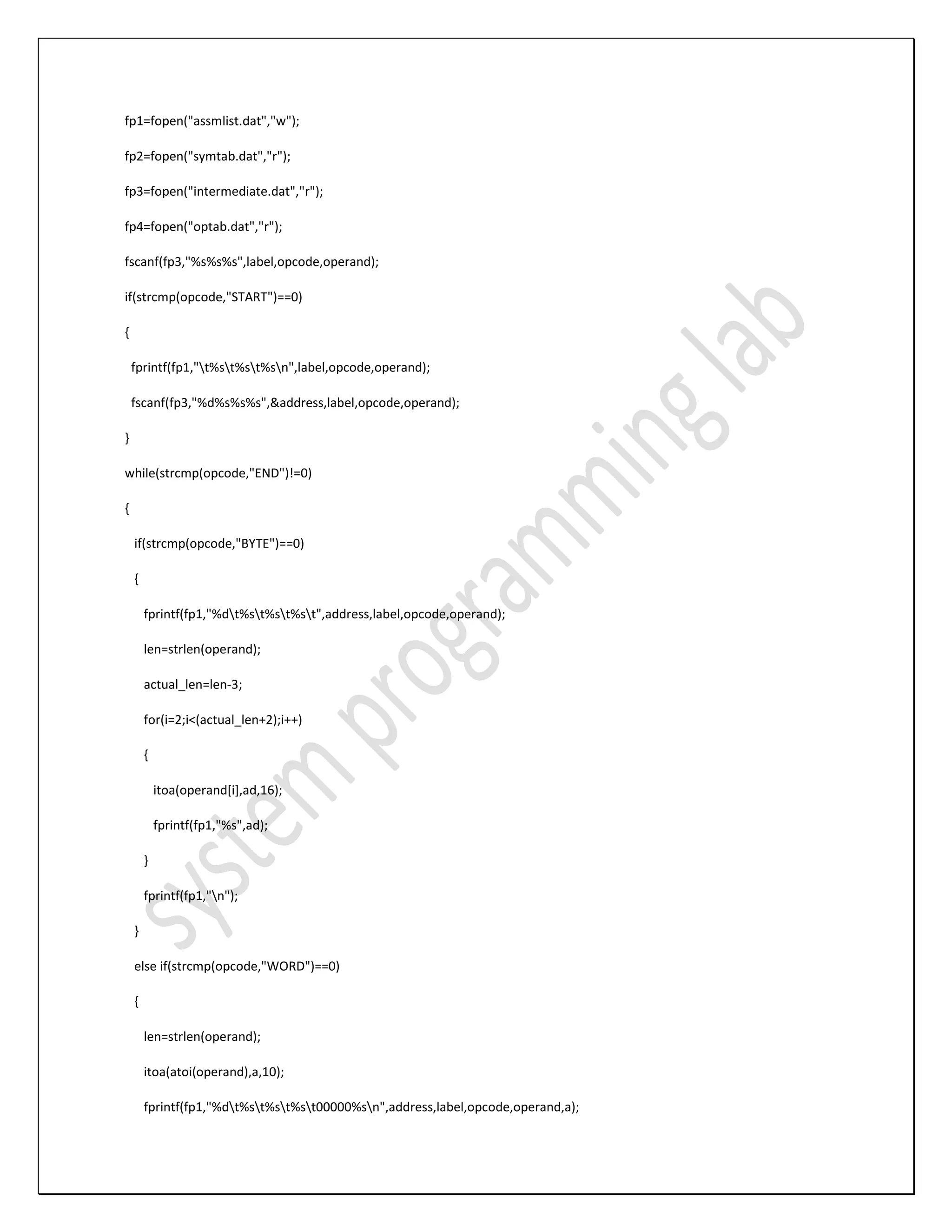

fp1=fopen("assmlist.dat","w"); fp2=fopen("symtab.dat","r"); fp3=fopen("intermediate.dat","r"); fp4=fopen("optab.dat","r"); fscanf(fp3,"%s%s%s",label,opcode,operand); if(strcmp(opcode,"START")==0) { fprintf(fp1,"t%st%st%sn",label,opcode,operand); fscanf(fp3,"%d%s%s%s",&address,label,opcode,operand); } while(strcmp(opcode,"END")!=0) { if(strcmp(opcode,"BYTE")==0) { fprintf(fp1,"%dt%st%st%st",address,label,opcode,operand); len=strlen(operand); actual_len=len-3; for(i=2;i<(actual_len+2);i++) { itoa(operand[i],ad,16); fprintf(fp1,"%s",ad); } fprintf(fp1,"n"); } else if(strcmp(opcode,"WORD")==0) { len=strlen(operand); itoa(atoi(operand),a,10); fprintf(fp1,"%dt%st%st%st00000%sn",address,label,opcode,operand,a);

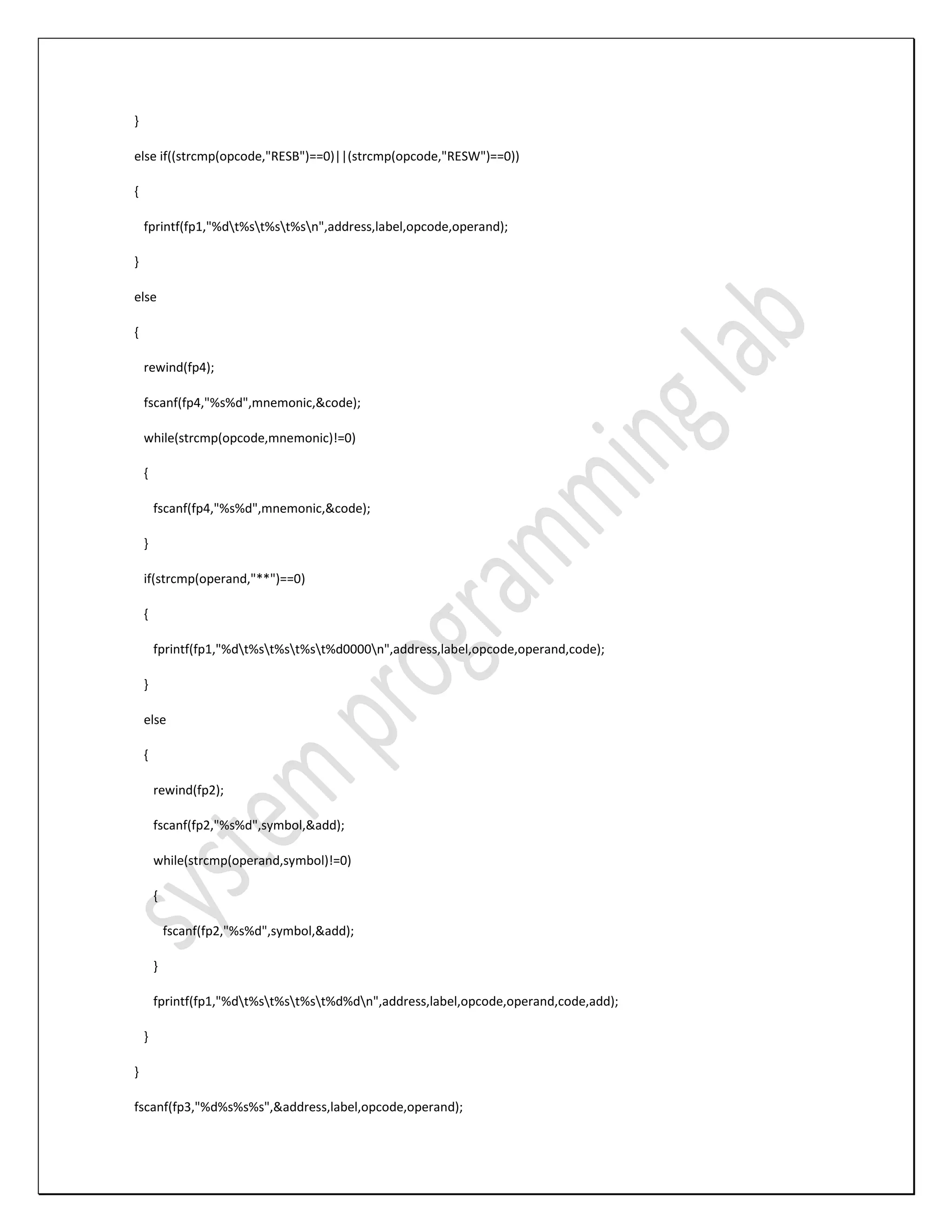

} else if((strcmp(opcode,"RESB")==0)||(strcmp(opcode,"RESW")==0)) { fprintf(fp1,"%dt%st%st%sn",address,label,opcode,operand); } else { rewind(fp4); fscanf(fp4,"%s%d",mnemonic,&code); while(strcmp(opcode,mnemonic)!=0) { fscanf(fp4,"%s%d",mnemonic,&code); } if(strcmp(operand,"**")==0) { fprintf(fp1,"%dt%st%st%st%d0000n",address,label,opcode,operand,code); } else { rewind(fp2); fscanf(fp2,"%s%d",symbol,&add); while(strcmp(operand,symbol)!=0) { fscanf(fp2,"%s%d",symbol,&add); } fprintf(fp1,"%dt%st%st%st%d%dn",address,label,opcode,operand,code,add); } } fscanf(fp3,"%d%s%s%s",&address,label,opcode,operand);

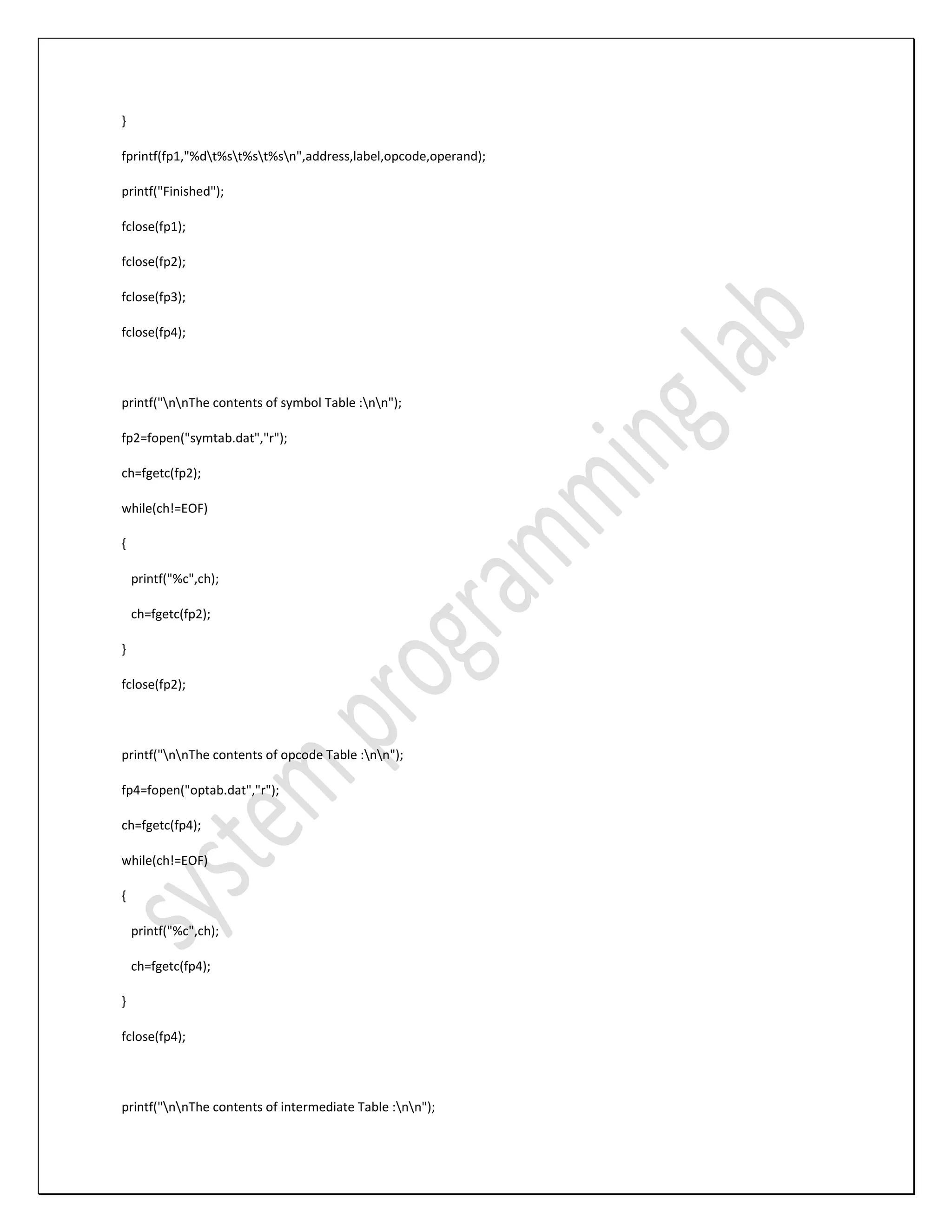

} fprintf(fp1,"%dt%st%st%sn",address,label,opcode,operand); printf("Finished"); fclose(fp1); fclose(fp2); fclose(fp3); fclose(fp4); printf("nnThe contents of symbol Table :nn"); fp2=fopen("symtab.dat","r"); ch=fgetc(fp2); while(ch!=EOF) { printf("%c",ch); ch=fgetc(fp2); } fclose(fp2); printf("nnThe contents of opcode Table :nn"); fp4=fopen("optab.dat","r"); ch=fgetc(fp4); while(ch!=EOF) { printf("%c",ch); ch=fgetc(fp4); } fclose(fp4); printf("nnThe contents of intermediate Table :nn");

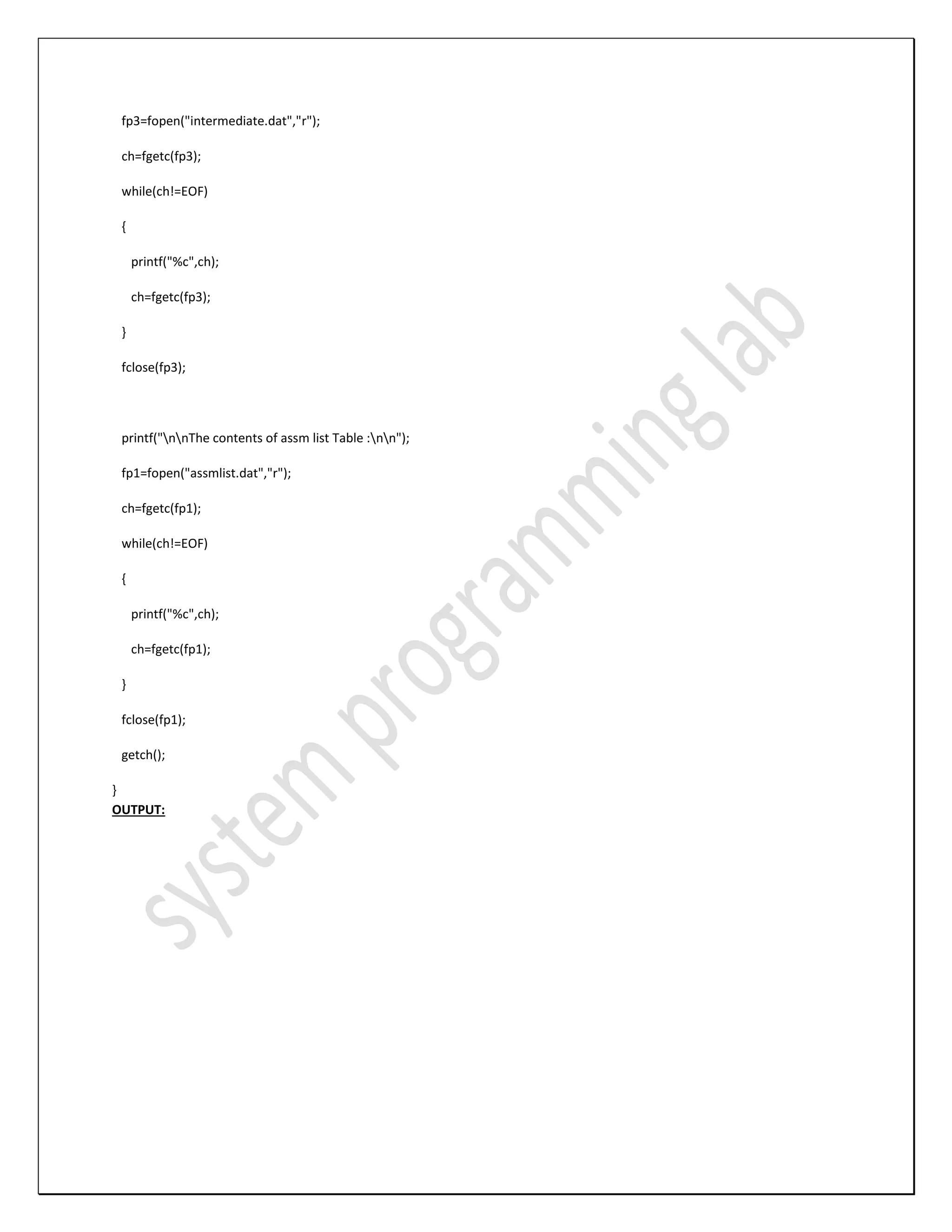

fp3=fopen("intermediate.dat","r"); ch=fgetc(fp3); while(ch!=EOF) { printf("%c",ch); ch=fgetc(fp3); } fclose(fp3); printf("nnThe contents of assm list Table :nn"); fp1=fopen("assmlist.dat","r"); ch=fgetc(fp1); while(ch!=EOF) { printf("%c",ch); ch=fgetc(fp1); } fclose(fp1); getch(); } OUTPUT:

SINGLE PASS ASSEMBLER CODE: #include<stdio.h> #include<string.h> #include<stdlib.h> #define q 11//no. of mnemonics in the array A int main() { int lc,ad,address,err=0; int s,num,l,i=0,j,n=0,line=1,f=0,f1=0,t=0,ni=0,m=0,t1; FILE *fp1,*fp2,*fp3,*fp4; char lab[10],op[10],val[10],code[10];

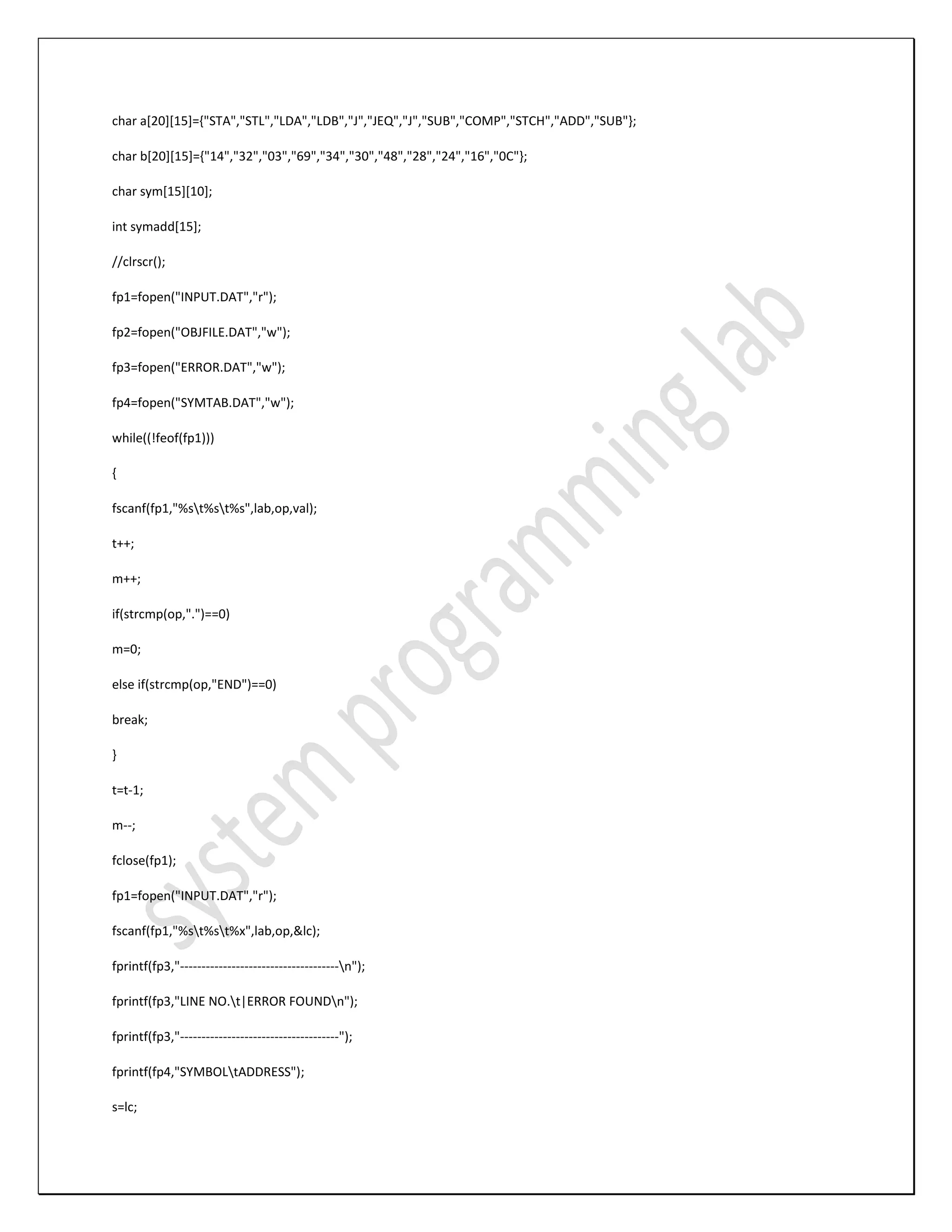

char a[20][15]={"STA","STL","LDA","LDB","J","JEQ","J","SUB","COMP","STCH","ADD","SUB"}; char b[20][15]={"14","32","03","69","34","30","48","28","24","16","0C"}; char sym[15][10]; int symadd[15]; //clrscr(); fp1=fopen("INPUT.DAT","r"); fp2=fopen("OBJFILE.DAT","w"); fp3=fopen("ERROR.DAT","w"); fp4=fopen("SYMTAB.DAT","w"); while((!feof(fp1))) { fscanf(fp1,"%st%st%s",lab,op,val); t++; m++; if(strcmp(op,".")==0) m=0; else if(strcmp(op,"END")==0) break; } t=t-1; m--; fclose(fp1); fp1=fopen("INPUT.DAT","r"); fscanf(fp1,"%st%st%x",lab,op,&lc); fprintf(fp3,"-------------------------------------n"); fprintf(fp3,"LINE NO.t|ERROR FOUNDn"); fprintf(fp3,"-------------------------------------"); fprintf(fp4,"SYMBOLtADDRESS"); s=lc;

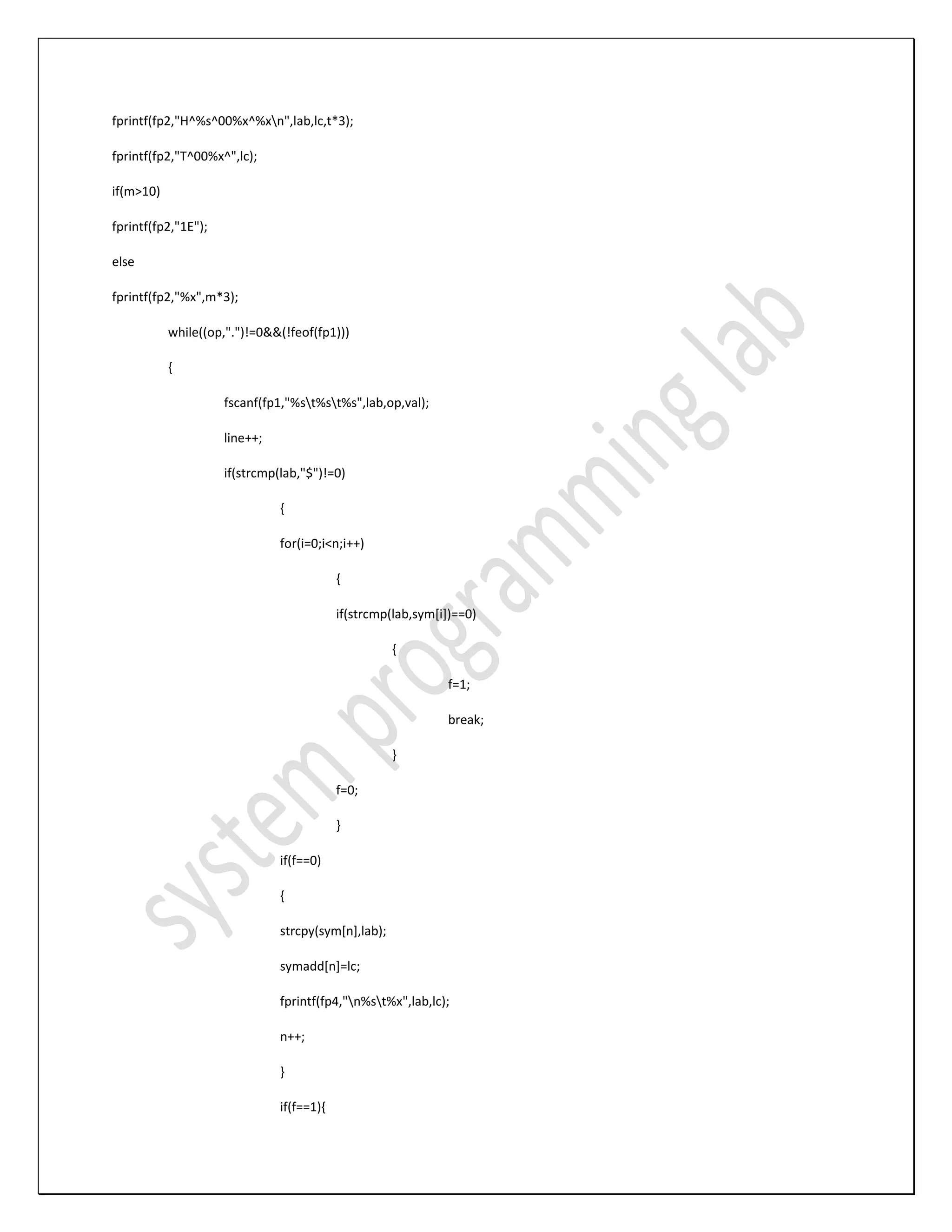

fprintf(fp2,"H^%s^00%x^%xn",lab,lc,t*3); fprintf(fp2,"T^00%x^",lc); if(m>10) fprintf(fp2,"1E"); else fprintf(fp2,"%x",m*3); while((op,".")!=0&&(!feof(fp1))) { fscanf(fp1,"%st%st%s",lab,op,val); line++; if(strcmp(lab,"$")!=0) { for(i=0;i<n;i++) { if(strcmp(lab,sym[i])==0) { f=1; break; } f=0; } if(f==0) { strcpy(sym[n],lab); symadd[n]=lc; fprintf(fp4,"n%st%x",lab,lc); n++; } if(f==1){

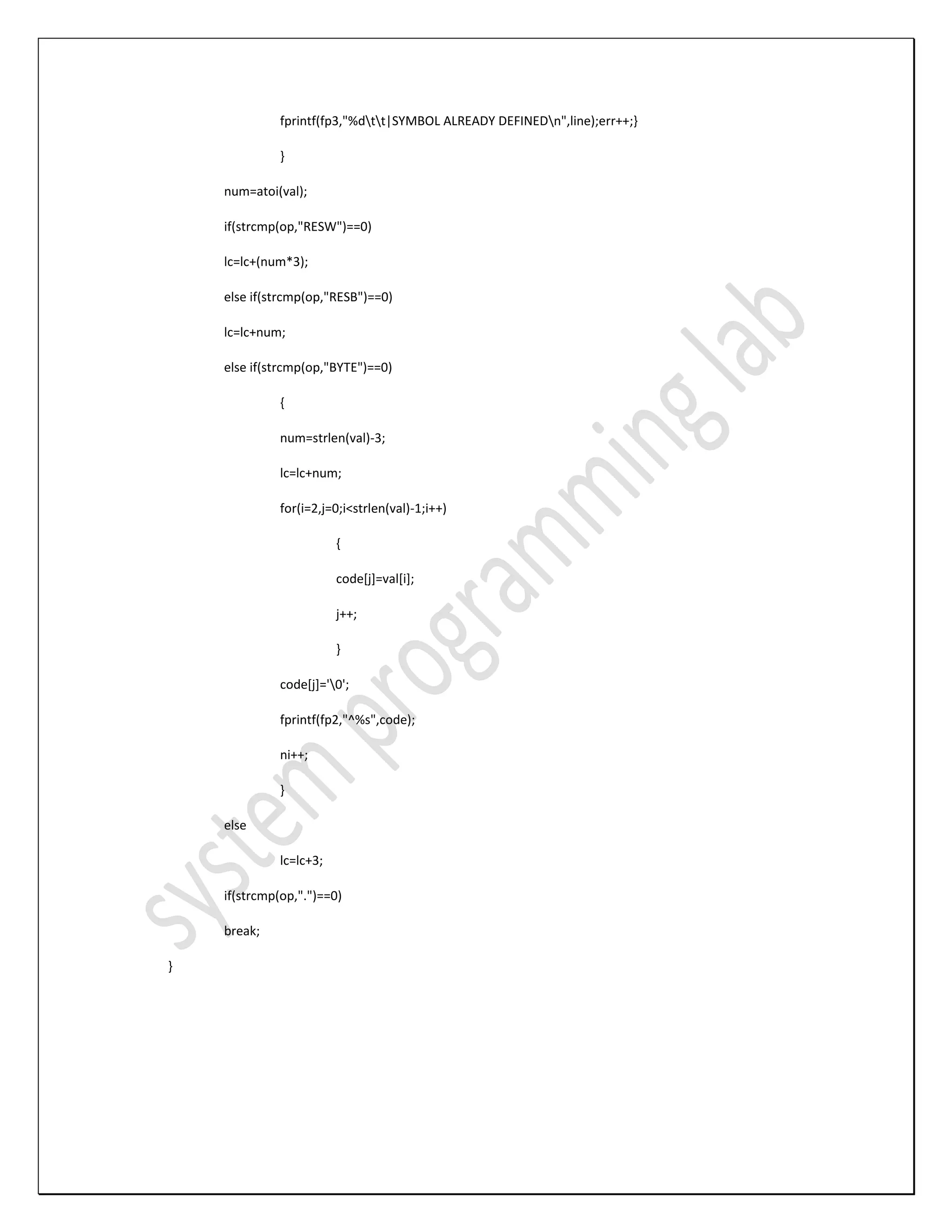

fprintf(fp3,"%dtt|SYMBOL ALREADY DEFINEDn",line);err++;} } num=atoi(val); if(strcmp(op,"RESW")==0) lc=lc+(num*3); else if(strcmp(op,"RESB")==0) lc=lc+num; else if(strcmp(op,"BYTE")==0) { num=strlen(val)-3; lc=lc+num; for(i=2,j=0;i<strlen(val)-1;i++) { code[j]=val[i]; j++; } code[j]='0'; fprintf(fp2,"^%s",code); ni++; } else lc=lc+3; if(strcmp(op,".")==0) break; }

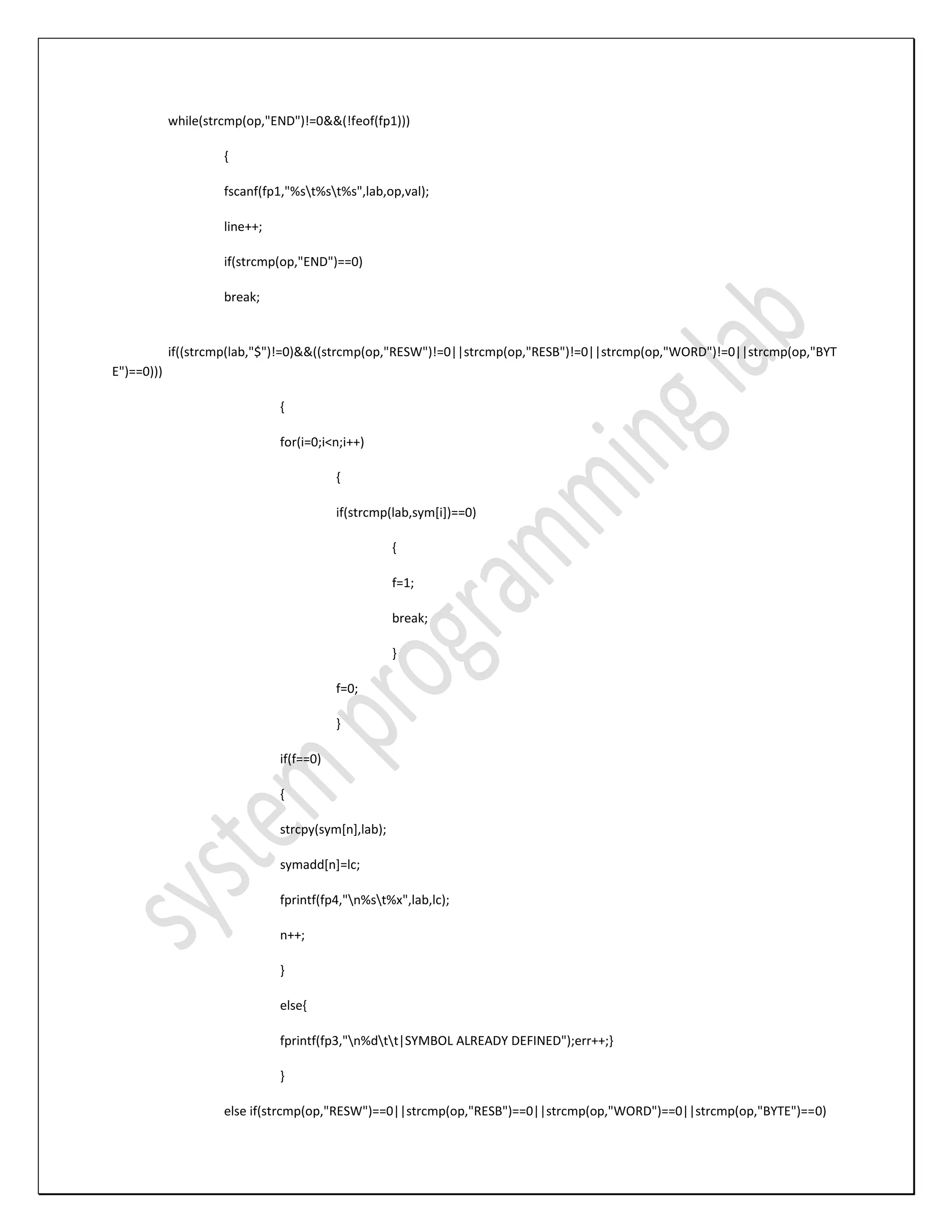

while(strcmp(op,"END")!=0&&(!feof(fp1))) { fscanf(fp1,"%st%st%s",lab,op,val); line++; if(strcmp(op,"END")==0) break; if((strcmp(lab,"$")!=0)&&((strcmp(op,"RESW")!=0||strcmp(op,"RESB")!=0||strcmp(op,"WORD")!=0||strcmp(op,"BYT E")==0))) { for(i=0;i<n;i++) { if(strcmp(lab,sym[i])==0) { f=1; break; } f=0; } if(f==0) { strcpy(sym[n],lab); symadd[n]=lc; fprintf(fp4,"n%st%x",lab,lc); n++; } else{ fprintf(fp3,"n%dtt|SYMBOL ALREADY DEFINED");err++;} } else if(strcmp(op,"RESW")==0||strcmp(op,"RESB")==0||strcmp(op,"WORD")==0||strcmp(op,"BYTE")==0)

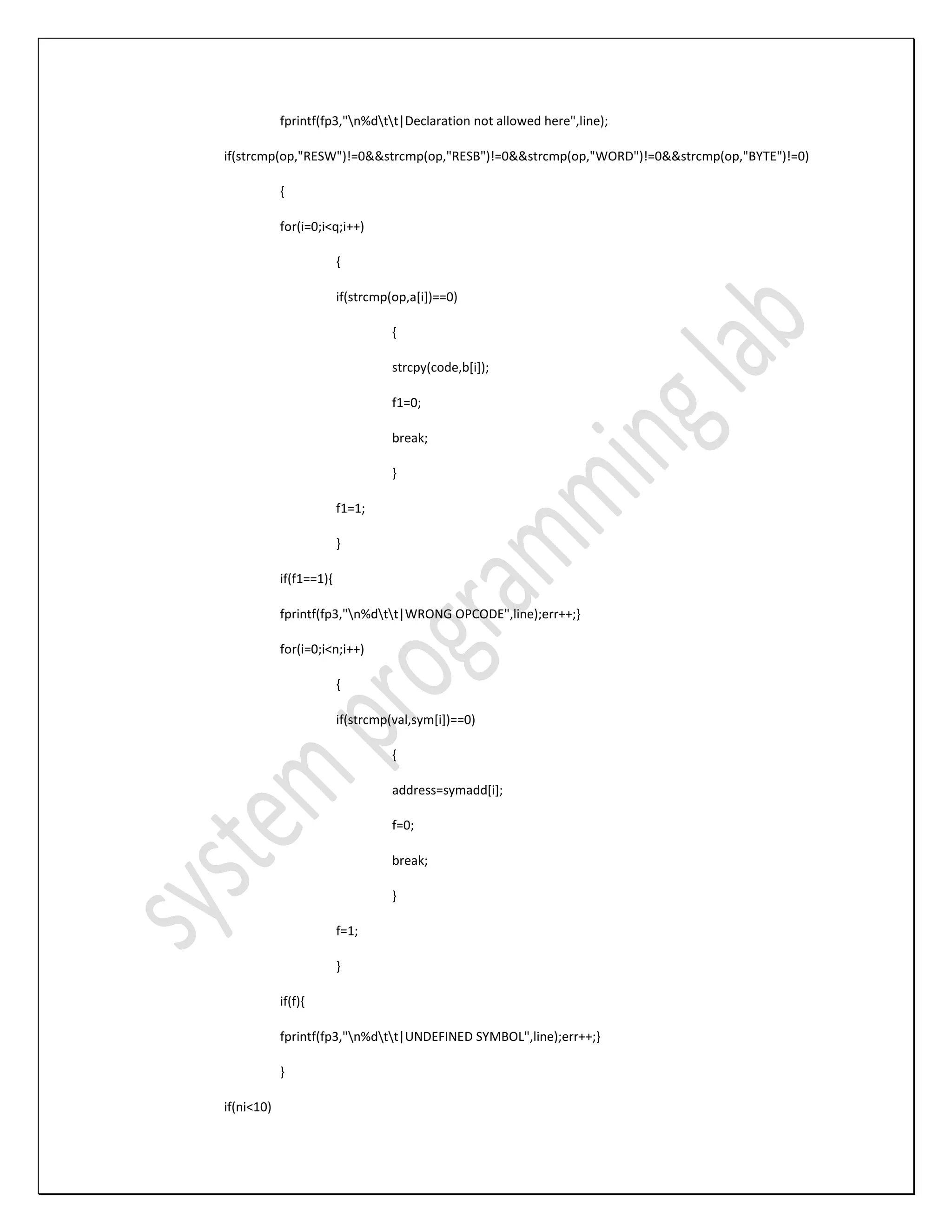

fprintf(fp3,"n%dtt|Declaration not allowed here",line); if(strcmp(op,"RESW")!=0&&strcmp(op,"RESB")!=0&&strcmp(op,"WORD")!=0&&strcmp(op,"BYTE")!=0) { for(i=0;i<q;i++) { if(strcmp(op,a[i])==0) { strcpy(code,b[i]); f1=0; break; } f1=1; } if(f1==1){ fprintf(fp3,"n%dtt|WRONG OPCODE",line);err++;} for(i=0;i<n;i++) { if(strcmp(val,sym[i])==0) { address=symadd[i]; f=0; break; } f=1; } if(f){ fprintf(fp3,"n%dtt|UNDEFINED SYMBOL",line);err++;} } if(ni<10)

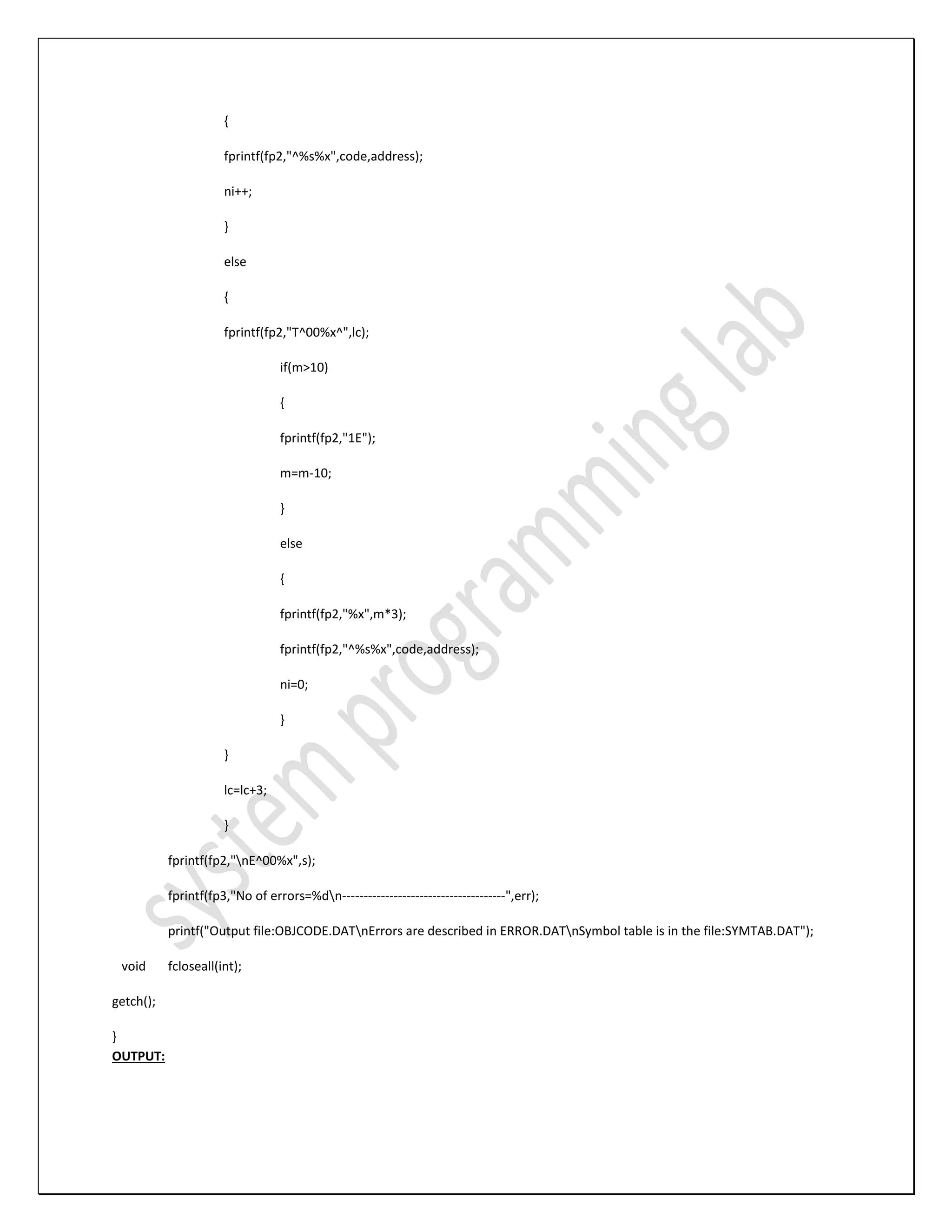

{ fprintf(fp2,"^%s%x",code,address); ni++; } else { fprintf(fp2,"T^00%x^",lc); if(m>10) { fprintf(fp2,"1E"); m=m-10; } else { fprintf(fp2,"%x",m*3); fprintf(fp2,"^%s%x",code,address); ni=0; } } lc=lc+3; } fprintf(fp2,"nE^00%x",s); fprintf(fp3,"No of errors=%dn--------------------------------------",err); printf("Output file:OBJCODE.DATnErrors are described in ERROR.DATnSymbol table is in the file:SYMTAB.DAT"); void fcloseall(int); getch(); } OUTPUT:

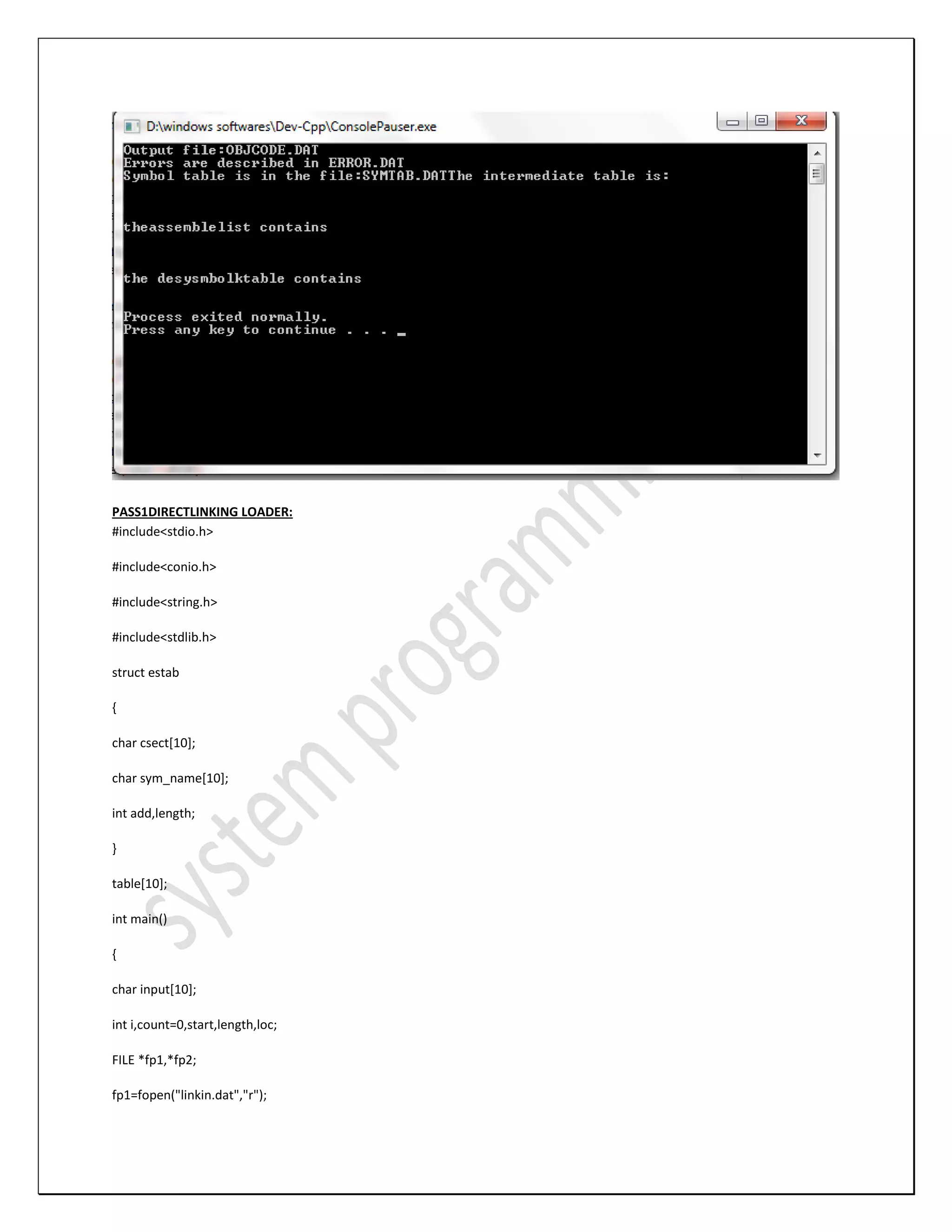

PASS1DIRECTLINKING LOADER: #include<stdio.h> #include<conio.h> #include<string.h> #include<stdlib.h> struct estab { char csect[10]; char sym_name[10]; int add,length; } table[10]; int main() { char input[10]; int i,count=0,start,length,loc; FILE *fp1,*fp2; fp1=fopen("linkin.dat","r");

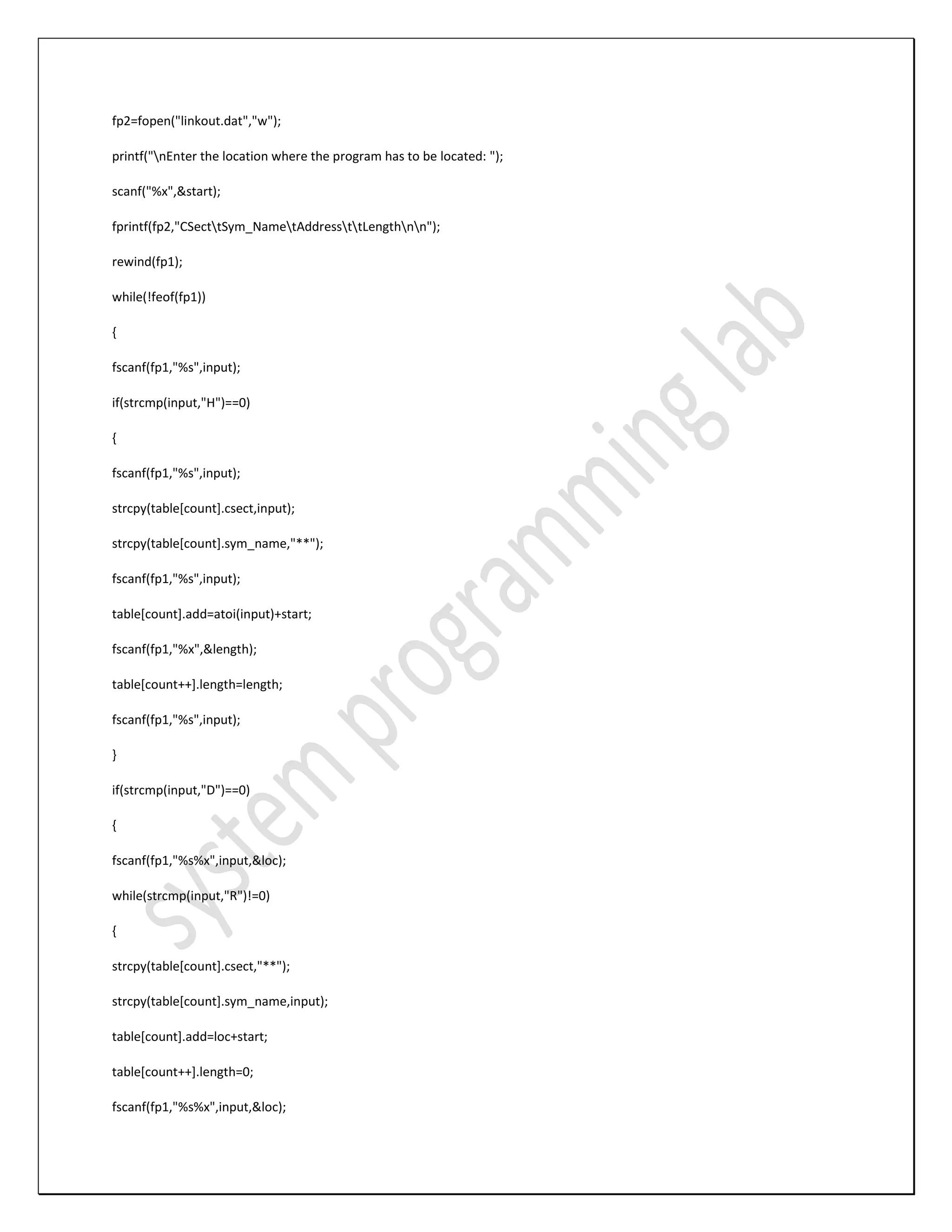

fp2=fopen("linkout.dat","w"); printf("nEnter the location where the program has to be located: "); scanf("%x",&start); fprintf(fp2,"CSecttSym_NametAddressttLengthnn"); rewind(fp1); while(!feof(fp1)) { fscanf(fp1,"%s",input); if(strcmp(input,"H")==0) { fscanf(fp1,"%s",input); strcpy(table[count].csect,input); strcpy(table[count].sym_name,"**"); fscanf(fp1,"%s",input); table[count].add=atoi(input)+start; fscanf(fp1,"%x",&length); table[count++].length=length; fscanf(fp1,"%s",input); } if(strcmp(input,"D")==0) { fscanf(fp1,"%s%x",input,&loc); while(strcmp(input,"R")!=0) { strcpy(table[count].csect,"**"); strcpy(table[count].sym_name,input); table[count].add=loc+start; table[count++].length=0; fscanf(fp1,"%s%x",input,&loc);

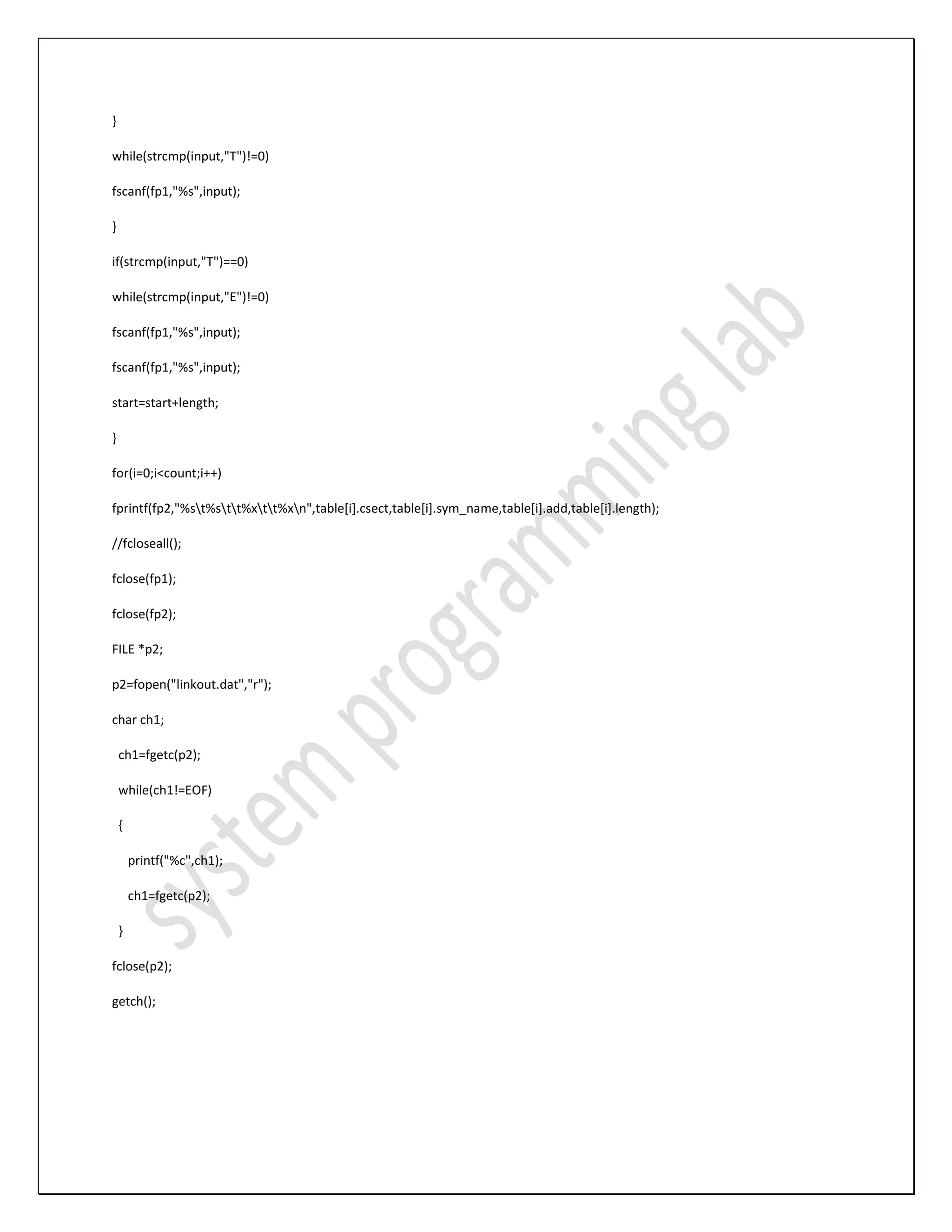

} while(strcmp(input,"T")!=0) fscanf(fp1,"%s",input); } if(strcmp(input,"T")==0) while(strcmp(input,"E")!=0) fscanf(fp1,"%s",input); fscanf(fp1,"%s",input); start=start+length; } for(i=0;i<count;i++) fprintf(fp2,"%st%stt%xtt%xn",table[i].csect,table[i].sym_name,table[i].add,table[i].length); //fcloseall(); fclose(fp1); fclose(fp2); FILE *p2; p2=fopen("linkout.dat","r"); char ch1; ch1=fgetc(p2); while(ch1!=EOF) { printf("%c",ch1); ch1=fgetc(p2); } fclose(p2); getch();

} PASS2 DIRECT LINKING LOADER: #include<stdio.h> #include<conio.h> #include<string.h> #include<stdlib.h> int main() { FILE *f1,*f2,*f3; int csaddr,progaddr,execaddr,cslen,i,j,k=0,staddr1,staddr2,addr2; int modadr,val1,adr2,outadr1,esadr; char outadr[10],adr1[10],name[20],val[10],pname[10],symname[10],adr[10]; char l[10],line[80],len[10],staddr[10],addr[10],addr1[10]; f3=fopen("estab.txt","r"); f2=fopen("dupout.txt","w"); //clrscr(); printf("Enter the starting addressn"); scanf("%d",&progaddr);

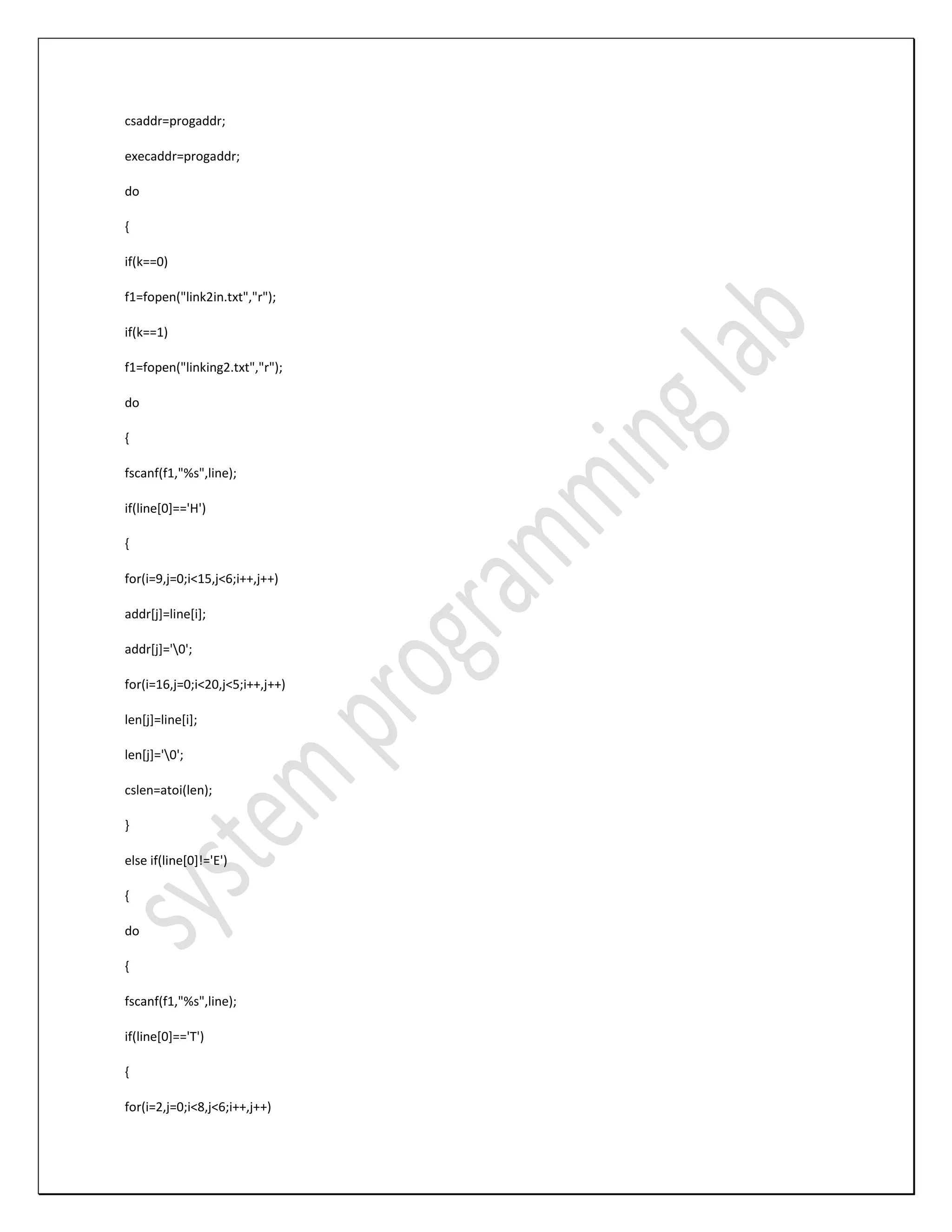

csaddr=progaddr; execaddr=progaddr; do { if(k==0) f1=fopen("link2in.txt","r"); if(k==1) f1=fopen("linking2.txt","r"); do { fscanf(f1,"%s",line); if(line[0]=='H') { for(i=9,j=0;i<15,j<6;i++,j++) addr[j]=line[i]; addr[j]='0'; for(i=16,j=0;i<20,j<5;i++,j++) len[j]=line[i]; len[j]='0'; cslen=atoi(len); } else if(line[0]!='E') { do { fscanf(f1,"%s",line); if(line[0]=='T') { for(i=2,j=0;i<8,j<6;i++,j++)

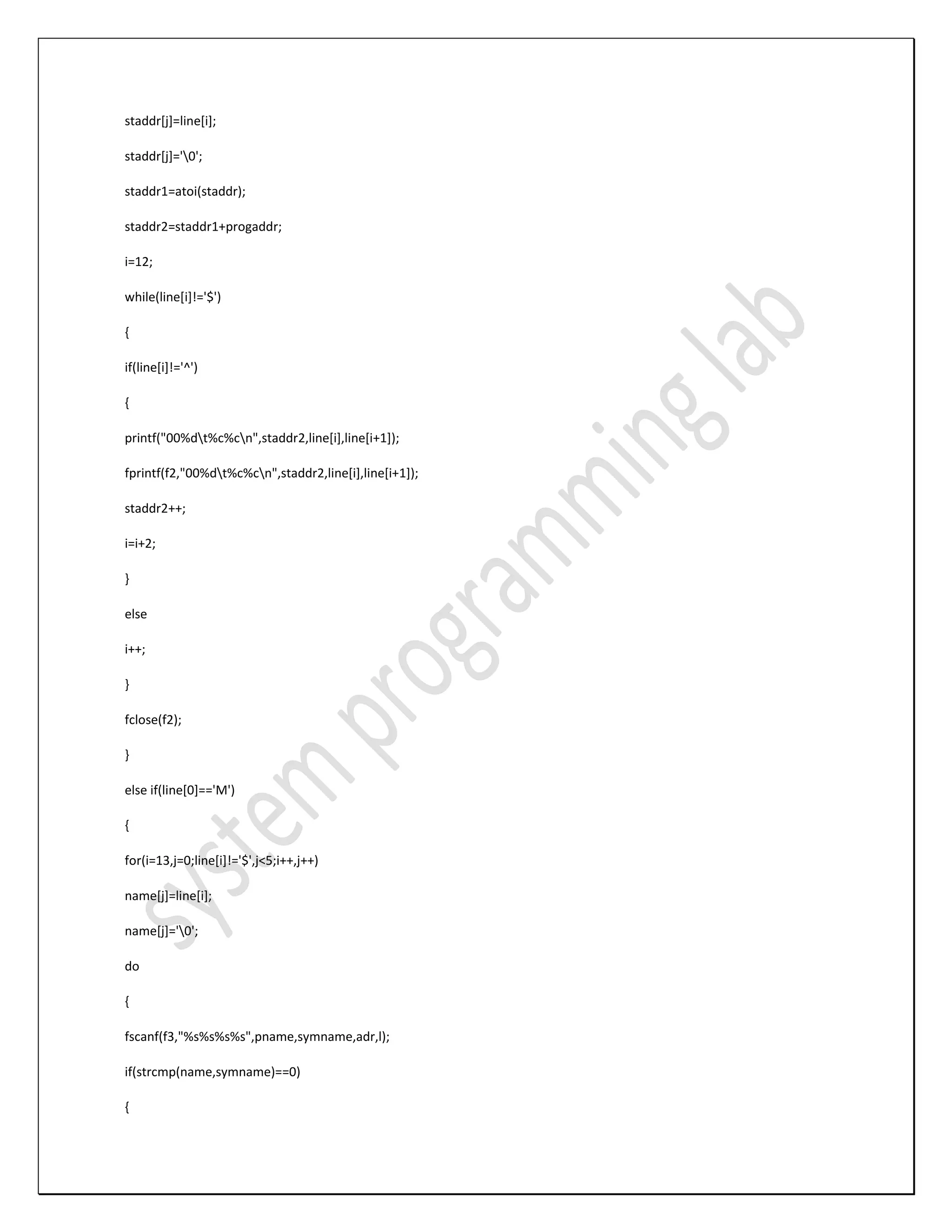

staddr[j]=line[i]; staddr[j]='0'; staddr1=atoi(staddr); staddr2=staddr1+progaddr; i=12; while(line[i]!='$') { if(line[i]!='^') { printf("00%dt%c%cn",staddr2,line[i],line[i+1]); fprintf(f2,"00%dt%c%cn",staddr2,line[i],line[i+1]); staddr2++; i=i+2; } else i++; } fclose(f2); } else if(line[0]=='M') { for(i=13,j=0;line[i]!='$',j<5;i++,j++) name[j]=line[i]; name[j]='0'; do { fscanf(f3,"%s%s%s%s",pname,symname,adr,l); if(strcmp(name,symname)==0) {

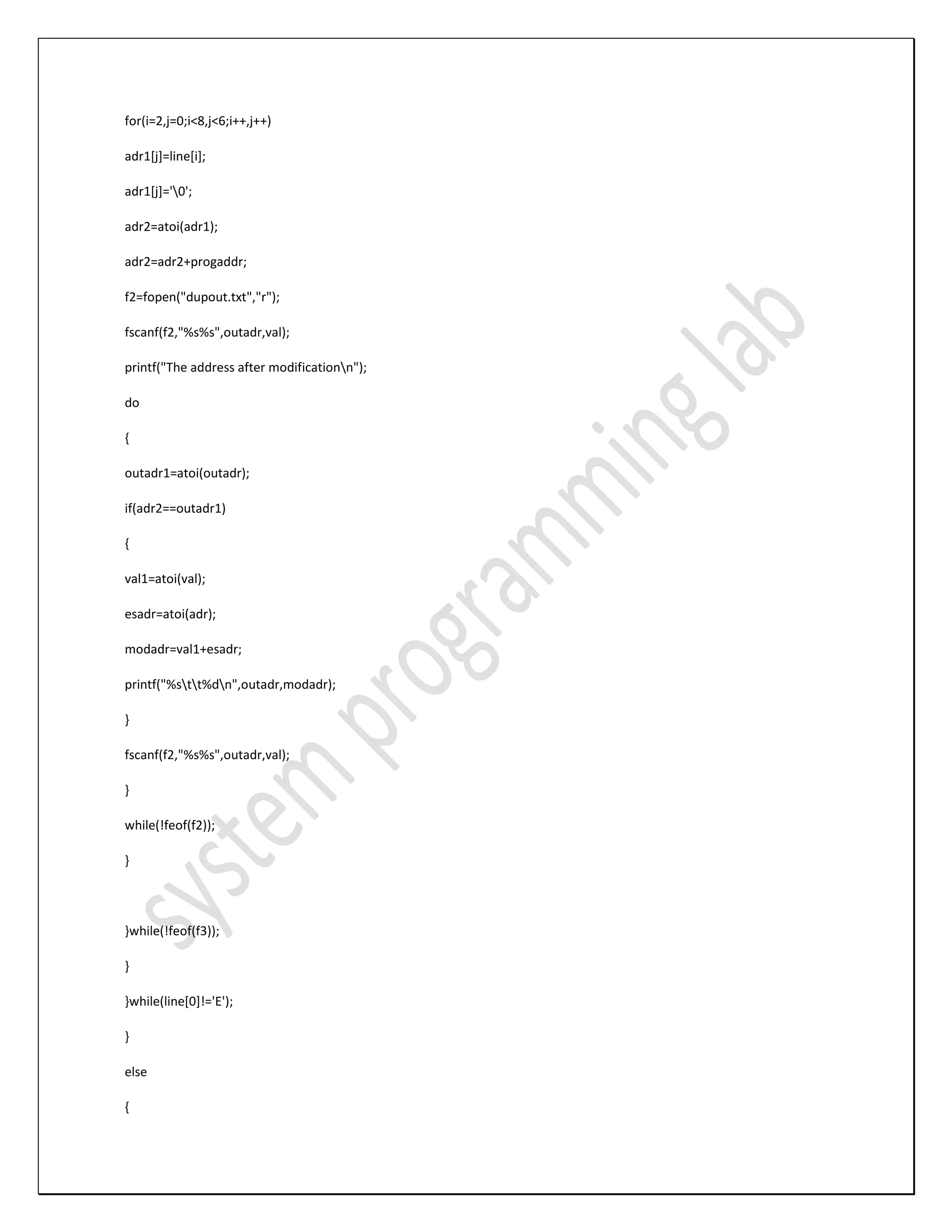

for(i=2,j=0;i<8,j<6;i++,j++) adr1[j]=line[i]; adr1[j]='0'; adr2=atoi(adr1); adr2=adr2+progaddr; f2=fopen("dupout.txt","r"); fscanf(f2,"%s%s",outadr,val); printf("The address after modificationn"); do { outadr1=atoi(outadr); if(adr2==outadr1) { val1=atoi(val); esadr=atoi(adr); modadr=val1+esadr; printf("%stt%dn",outadr,modadr); } fscanf(f2,"%s%s",outadr,val); } while(!feof(f2)); } }while(!feof(f3)); } }while(line[0]!='E'); } else {

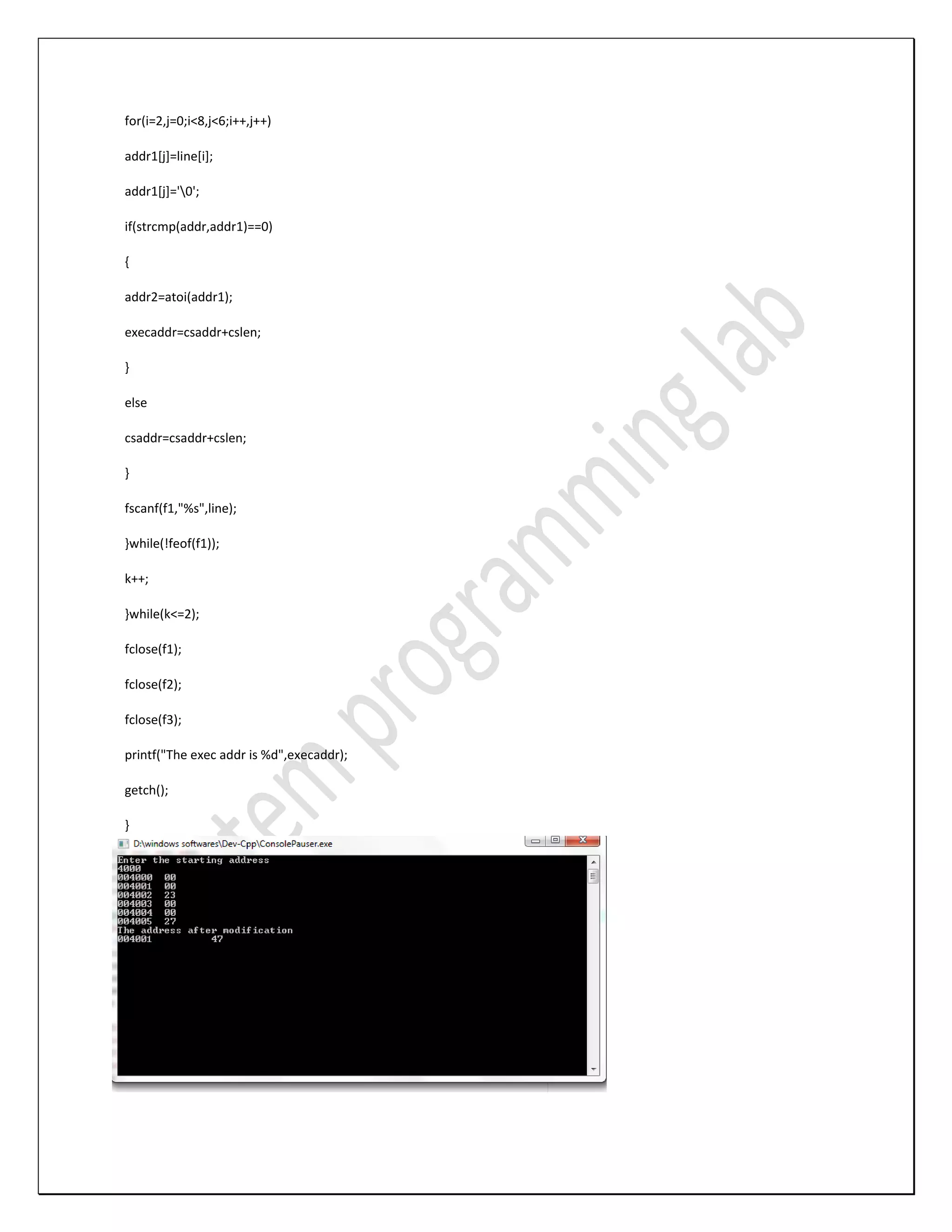

for(i=2,j=0;i<8,j<6;i++,j++) addr1[j]=line[i]; addr1[j]='0'; if(strcmp(addr,addr1)==0) { addr2=atoi(addr1); execaddr=csaddr+cslen; } else csaddr=csaddr+cslen; } fscanf(f1,"%s",line); }while(!feof(f1)); k++; }while(k<=2); fclose(f1); fclose(f2); fclose(f3); printf("The exec addr is %d",execaddr); getch(); }

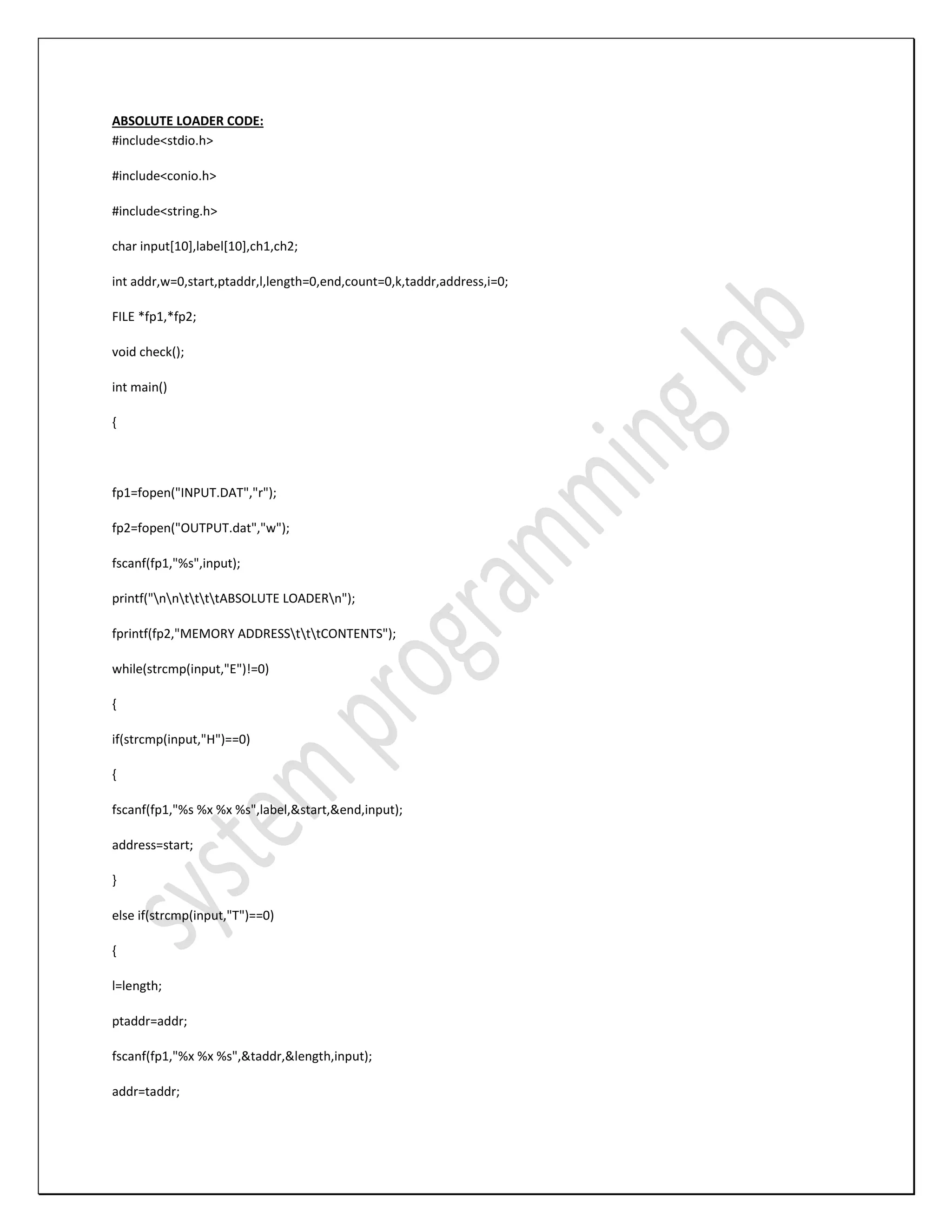

ABSOLUTE LOADER CODE: #include<stdio.h> #include<conio.h> #include<string.h> char input[10],label[10],ch1,ch2; int addr,w=0,start,ptaddr,l,length=0,end,count=0,k,taddr,address,i=0; FILE *fp1,*fp2; void check(); int main() { fp1=fopen("INPUT.DAT","r"); fp2=fopen("OUTPUT.dat","w"); fscanf(fp1,"%s",input); printf("nnttttABSOLUTE LOADERn"); fprintf(fp2,"MEMORY ADDRESStttCONTENTS"); while(strcmp(input,"E")!=0) { if(strcmp(input,"H")==0) { fscanf(fp1,"%s %x %x %s",label,&start,&end,input); address=start; } else if(strcmp(input,"T")==0) { l=length; ptaddr=addr; fscanf(fp1,"%x %x %s",&taddr,&length,input); addr=taddr;

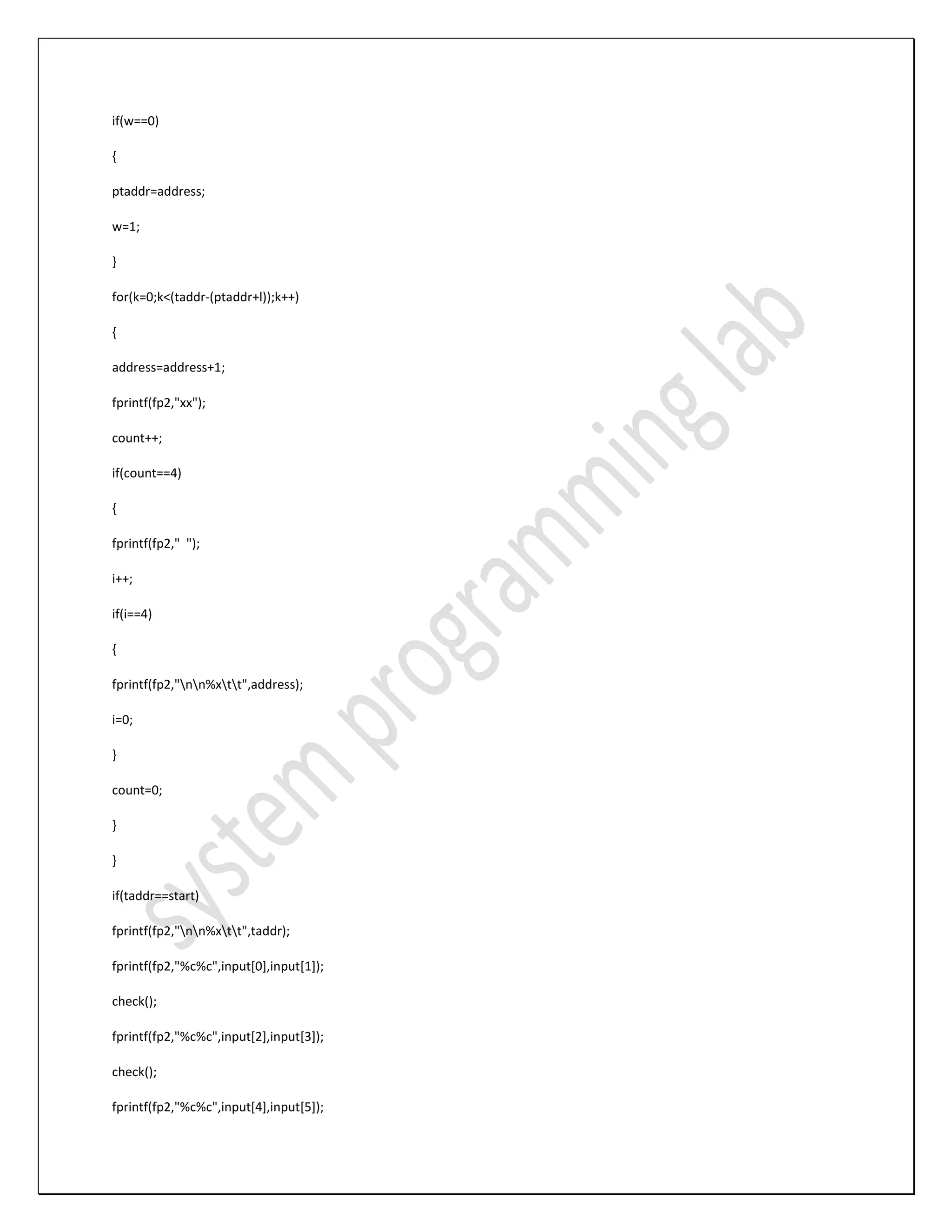

if(w==0) { ptaddr=address; w=1; } for(k=0;k<(taddr-(ptaddr+l));k++) { address=address+1; fprintf(fp2,"xx"); count++; if(count==4) { fprintf(fp2," "); i++; if(i==4) { fprintf(fp2,"nn%xtt",address); i=0; } count=0; } } if(taddr==start) fprintf(fp2,"nn%xtt",taddr); fprintf(fp2,"%c%c",input[0],input[1]); check(); fprintf(fp2,"%c%c",input[2],input[3]); check(); fprintf(fp2,"%c%c",input[4],input[5]);

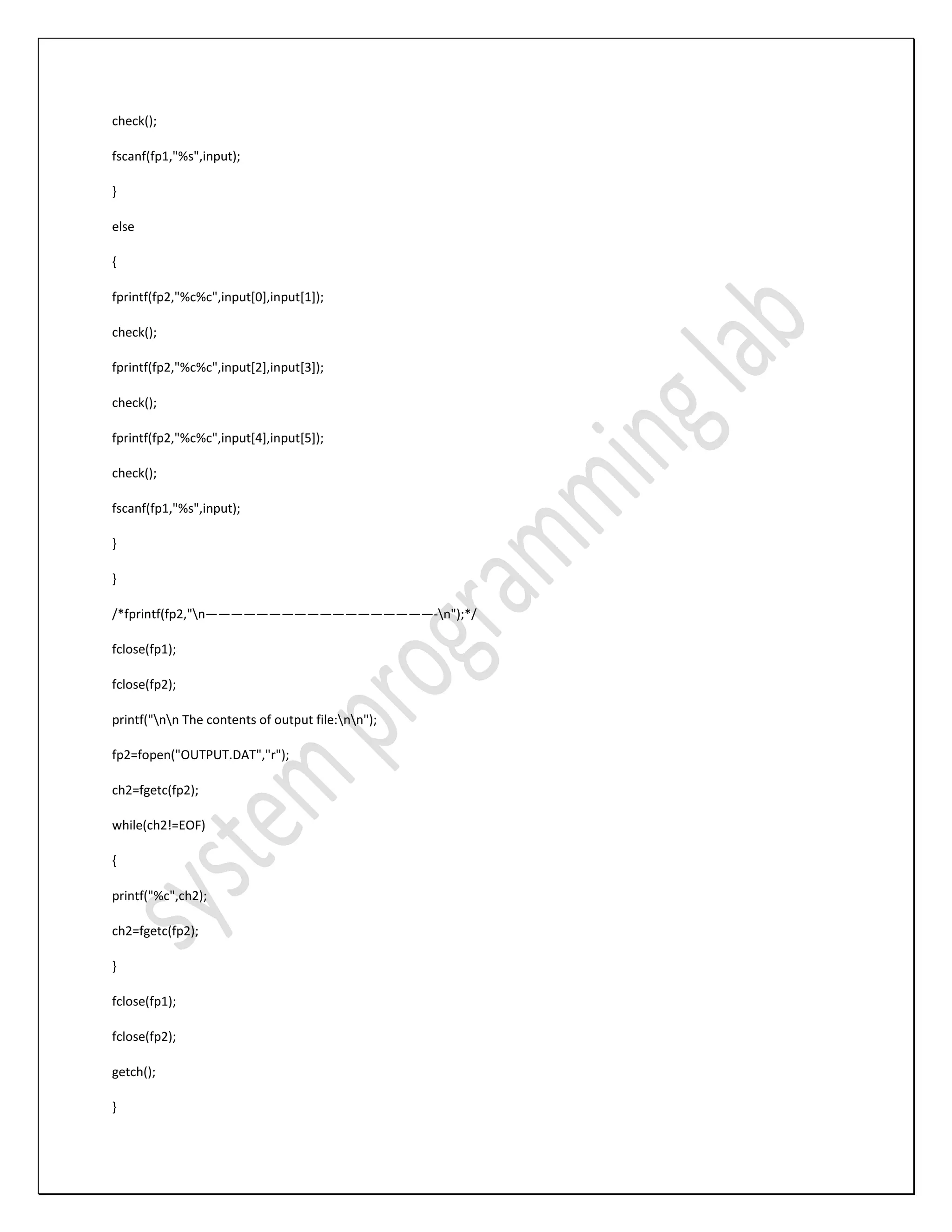

check(); fscanf(fp1,"%s",input); } else { fprintf(fp2,"%c%c",input[0],input[1]); check(); fprintf(fp2,"%c%c",input[2],input[3]); check(); fprintf(fp2,"%c%c",input[4],input[5]); check(); fscanf(fp1,"%s",input); } } /*fprintf(fp2,"n——————————————————-n");*/ fclose(fp1); fclose(fp2); printf("nn The contents of output file:nn"); fp2=fopen("OUTPUT.DAT","r"); ch2=fgetc(fp2); while(ch2!=EOF) { printf("%c",ch2); ch2=fgetc(fp2); } fclose(fp1); fclose(fp2); getch(); }

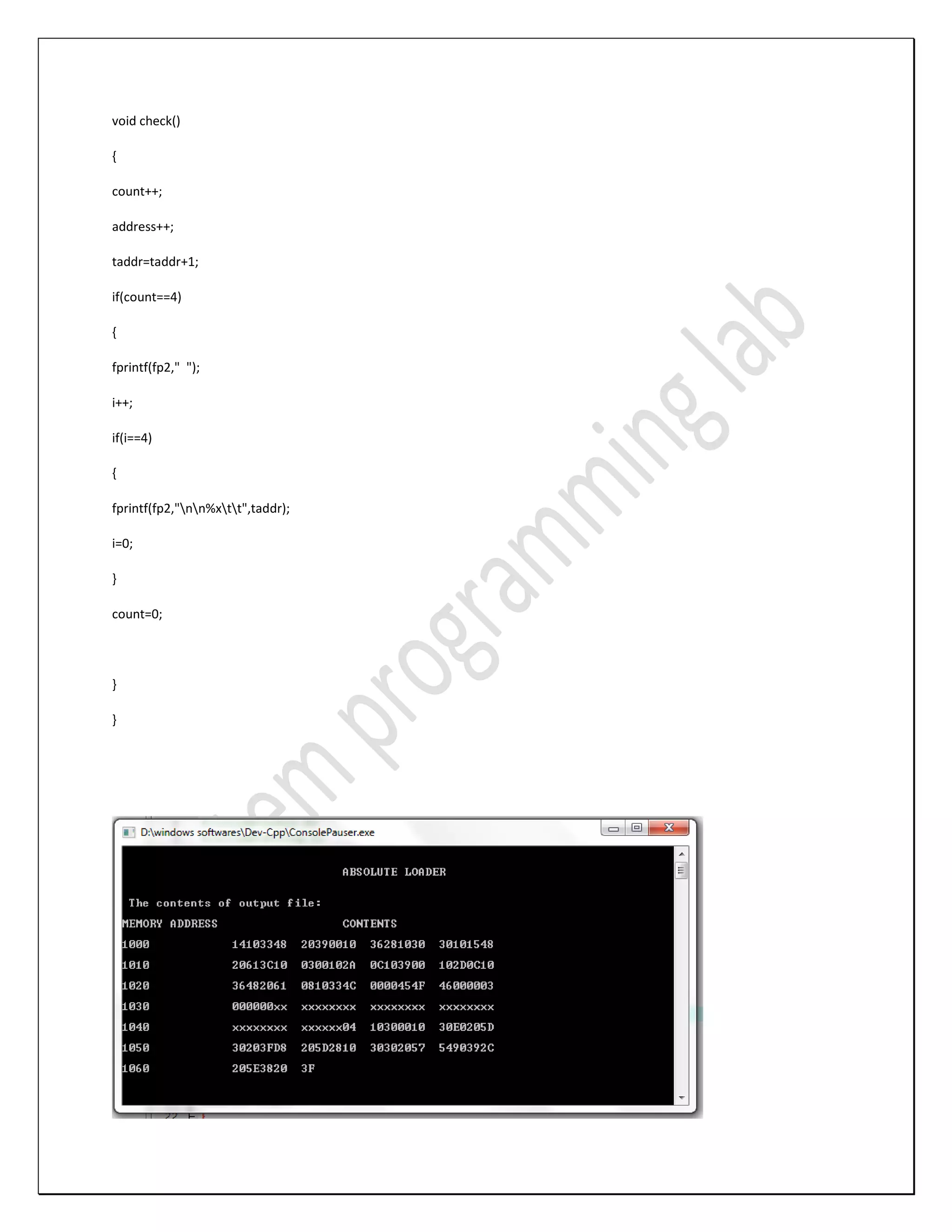

void check() { count++; address++; taddr=taddr+1; if(count==4) { fprintf(fp2," "); i++; if(i==4) { fprintf(fp2,"nn%xtt",taddr); i=0; } count=0; } }

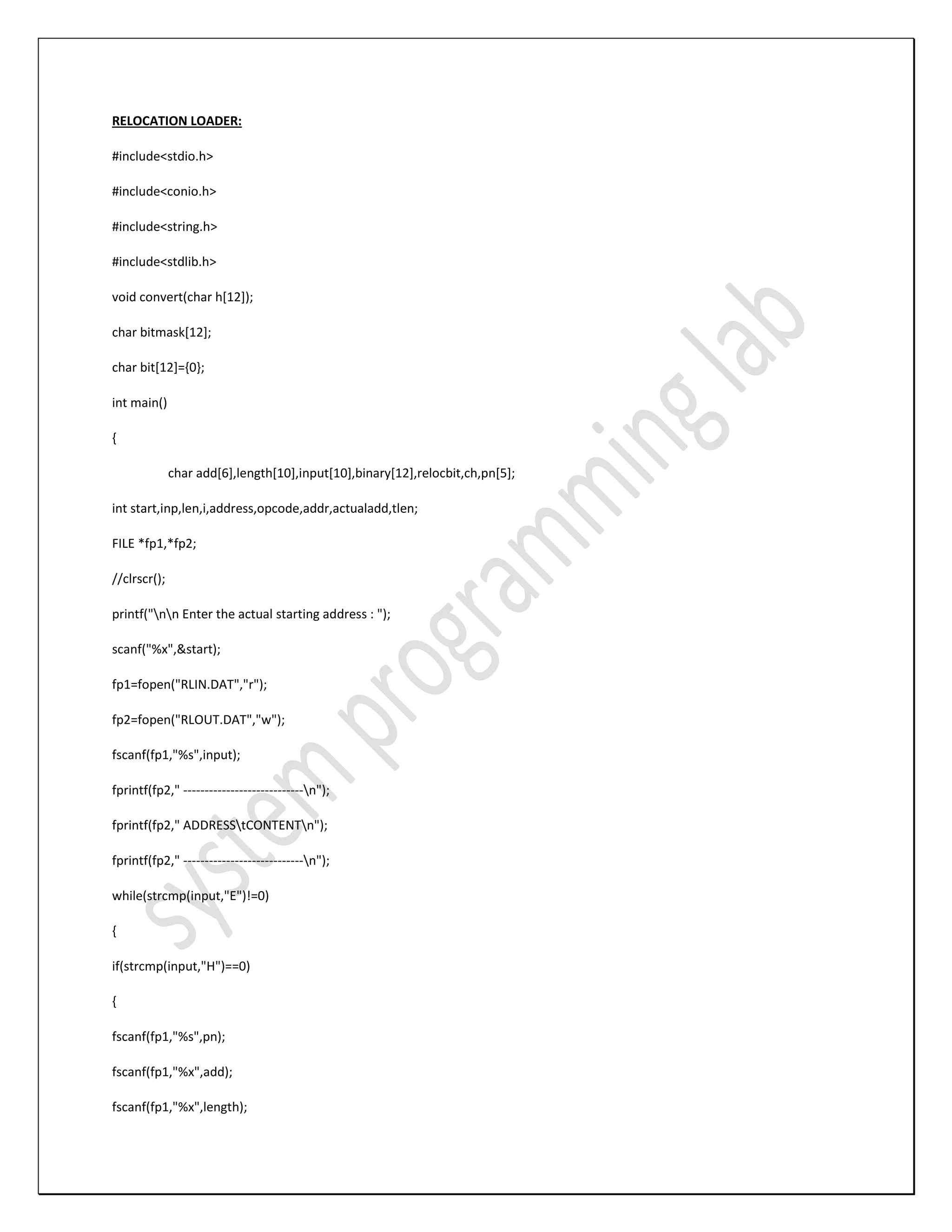

RELOCATION LOADER: #include<stdio.h> #include<conio.h> #include<string.h> #include<stdlib.h> void convert(char h[12]); char bitmask[12]; char bit[12]={0}; int main() { char add[6],length[10],input[10],binary[12],relocbit,ch,pn[5]; int start,inp,len,i,address,opcode,addr,actualadd,tlen; FILE *fp1,*fp2; //clrscr(); printf("nn Enter the actual starting address : "); scanf("%x",&start); fp1=fopen("RLIN.DAT","r"); fp2=fopen("RLOUT.DAT","w"); fscanf(fp1,"%s",input); fprintf(fp2," ----------------------------n"); fprintf(fp2," ADDRESStCONTENTn"); fprintf(fp2," ----------------------------n"); while(strcmp(input,"E")!=0) { if(strcmp(input,"H")==0) { fscanf(fp1,"%s",pn); fscanf(fp1,"%x",add); fscanf(fp1,"%x",length);

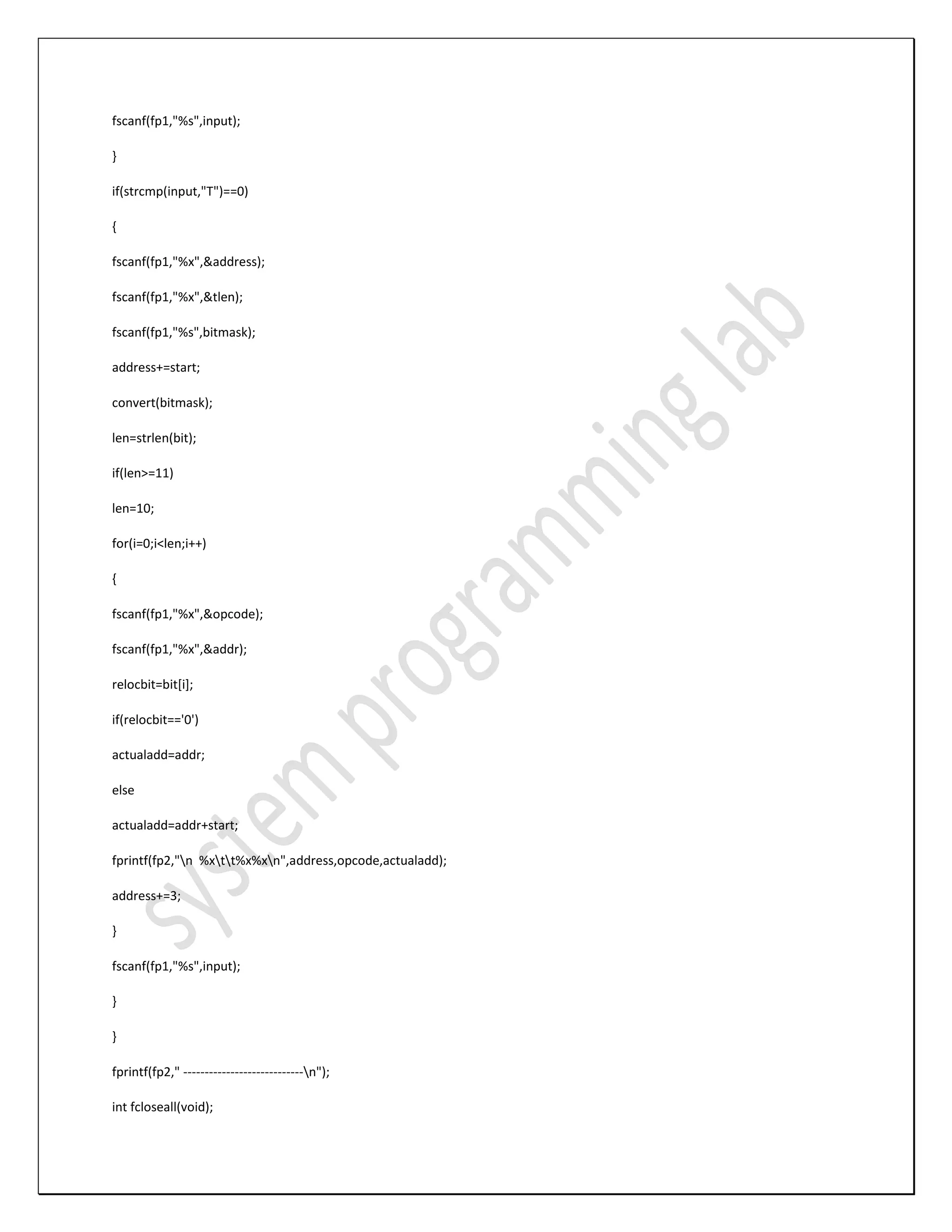

fscanf(fp1,"%s",input); } if(strcmp(input,"T")==0) { fscanf(fp1,"%x",&address); fscanf(fp1,"%x",&tlen); fscanf(fp1,"%s",bitmask); address+=start; convert(bitmask); len=strlen(bit); if(len>=11) len=10; for(i=0;i<len;i++) { fscanf(fp1,"%x",&opcode); fscanf(fp1,"%x",&addr); relocbit=bit[i]; if(relocbit=='0') actualadd=addr; else actualadd=addr+start; fprintf(fp2,"n %xtt%x%xn",address,opcode,actualadd); address+=3; } fscanf(fp1,"%s",input); } } fprintf(fp2," ----------------------------n"); int fcloseall(void);

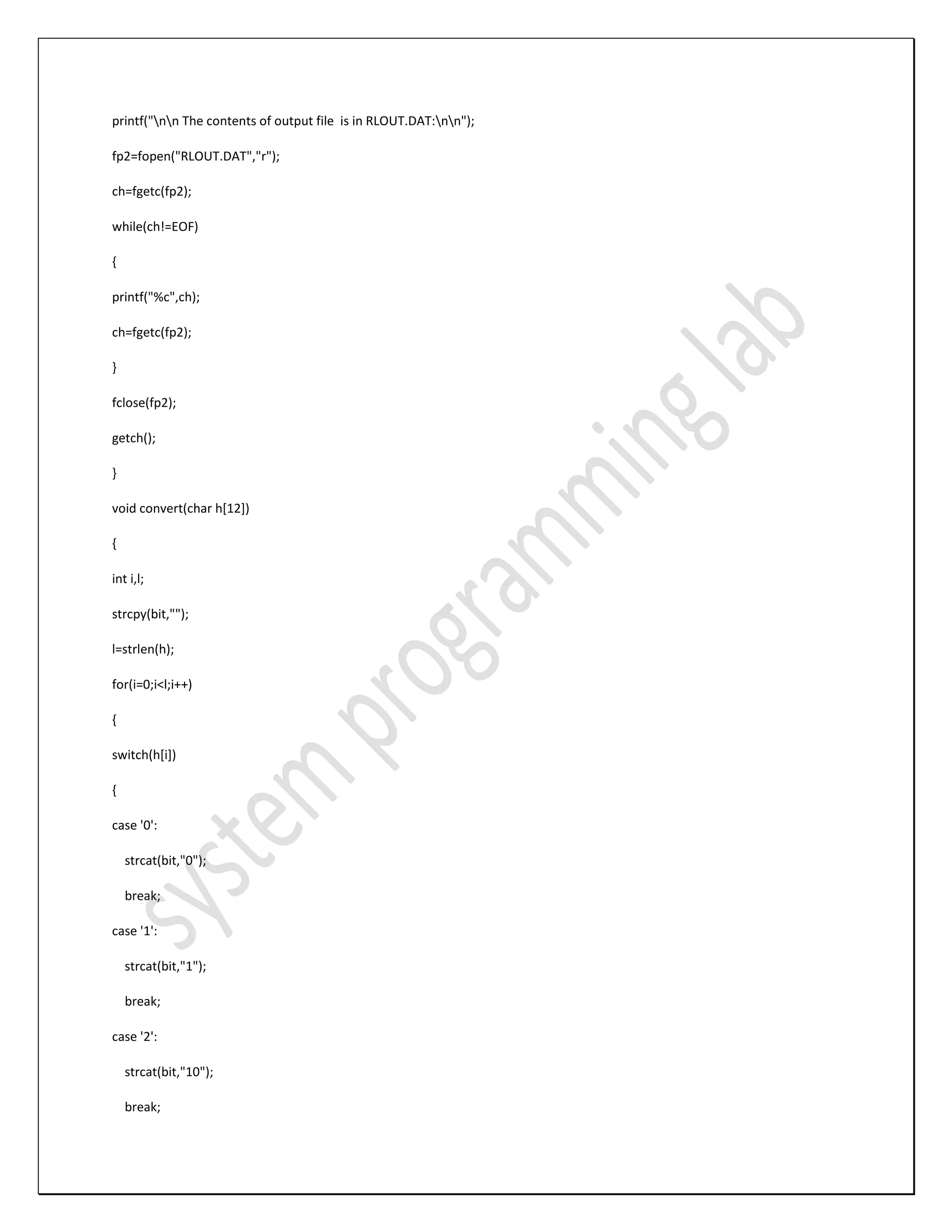

printf("nn The contents of output file is in RLOUT.DAT:nn"); fp2=fopen("RLOUT.DAT","r"); ch=fgetc(fp2); while(ch!=EOF) { printf("%c",ch); ch=fgetc(fp2); } fclose(fp2); getch(); } void convert(char h[12]) { int i,l; strcpy(bit,""); l=strlen(h); for(i=0;i<l;i++) { switch(h[i]) { case '0': strcat(bit,"0"); break; case '1': strcat(bit,"1"); break; case '2': strcat(bit,"10"); break;

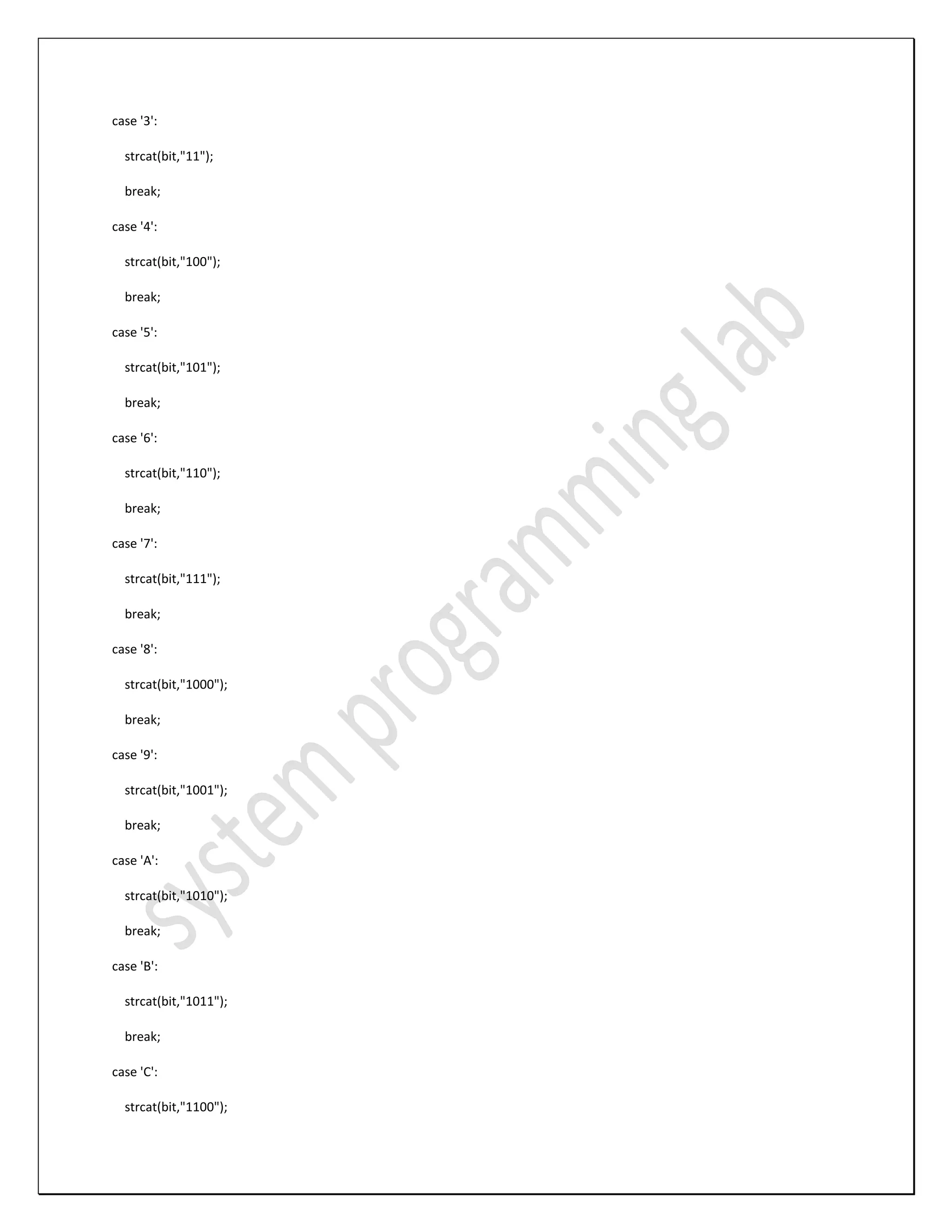

case '3': strcat(bit,"11"); break; case '4': strcat(bit,"100"); break; case '5': strcat(bit,"101"); break; case '6': strcat(bit,"110"); break; case '7': strcat(bit,"111"); break; case '8': strcat(bit,"1000"); break; case '9': strcat(bit,"1001"); break; case 'A': strcat(bit,"1010"); break; case 'B': strcat(bit,"1011"); break; case 'C': strcat(bit,"1100");

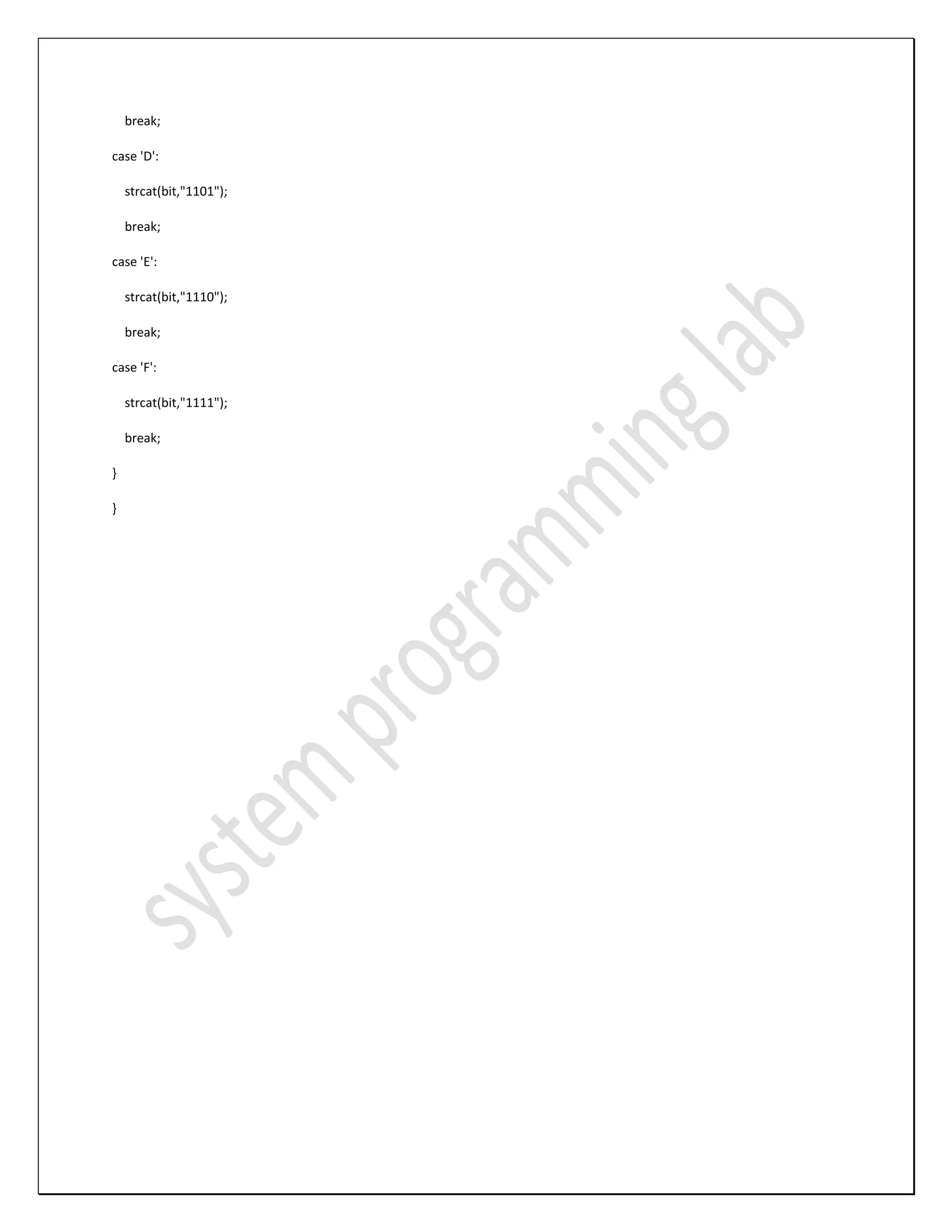

break; case 'D': strcat(bit,"1101"); break; case 'E': strcat(bit,"1110"); break; case 'F': strcat(bit,"1111"); break; } }

} OUTPUT: PASS1 MACROPROCESSOR: #include<stdio.h> #include<conio.h> #include<string.h> #include<stdlib.h> int main() {

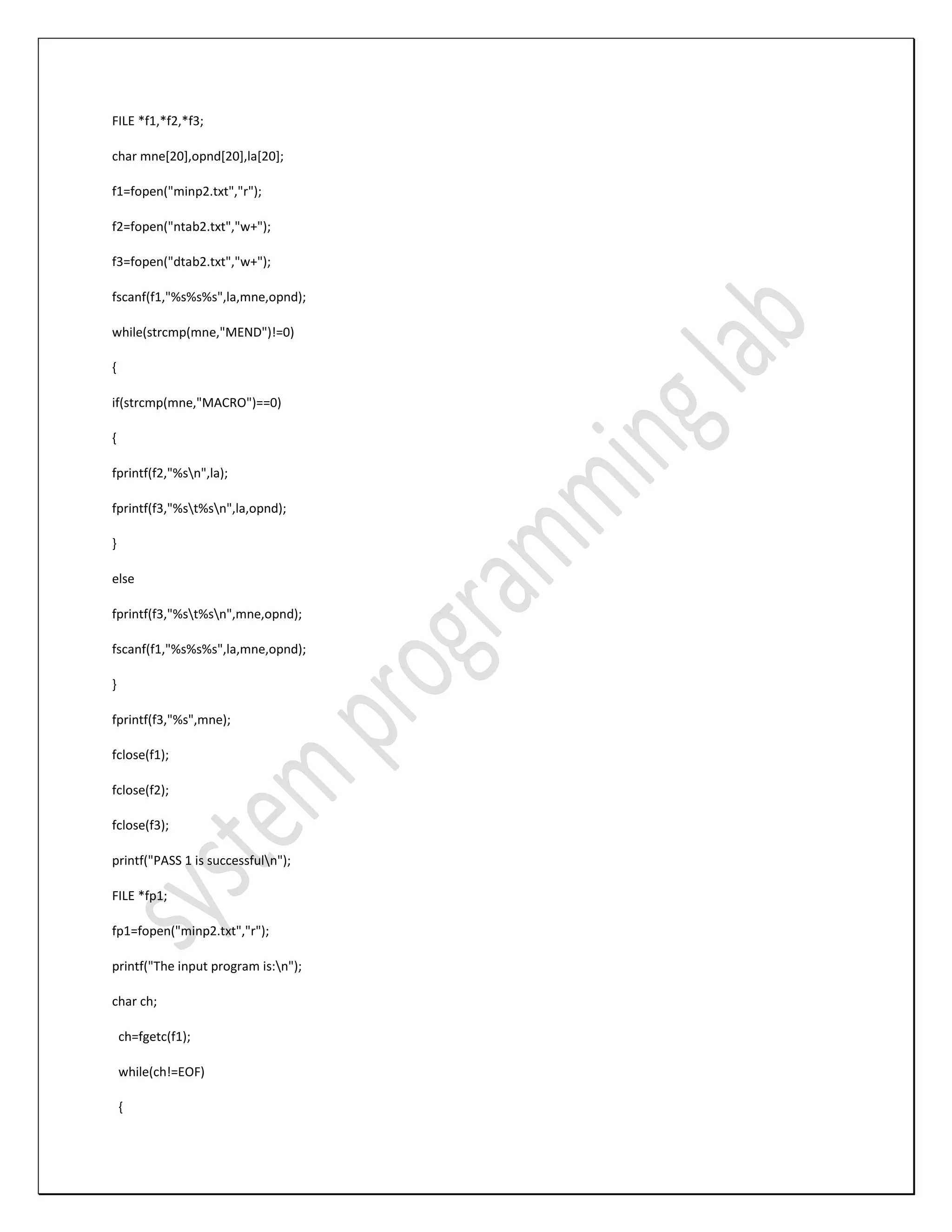

FILE *f1,*f2,*f3; char mne[20],opnd[20],la[20]; f1=fopen("minp2.txt","r"); f2=fopen("ntab2.txt","w+"); f3=fopen("dtab2.txt","w+"); fscanf(f1,"%s%s%s",la,mne,opnd); while(strcmp(mne,"MEND")!=0) { if(strcmp(mne,"MACRO")==0) { fprintf(f2,"%sn",la); fprintf(f3,"%st%sn",la,opnd); } else fprintf(f3,"%st%sn",mne,opnd); fscanf(f1,"%s%s%s",la,mne,opnd); } fprintf(f3,"%s",mne); fclose(f1); fclose(f2); fclose(f3); printf("PASS 1 is successfuln"); FILE *fp1; fp1=fopen("minp2.txt","r"); printf("The input program is:n"); char ch; ch=fgetc(f1); while(ch!=EOF) {

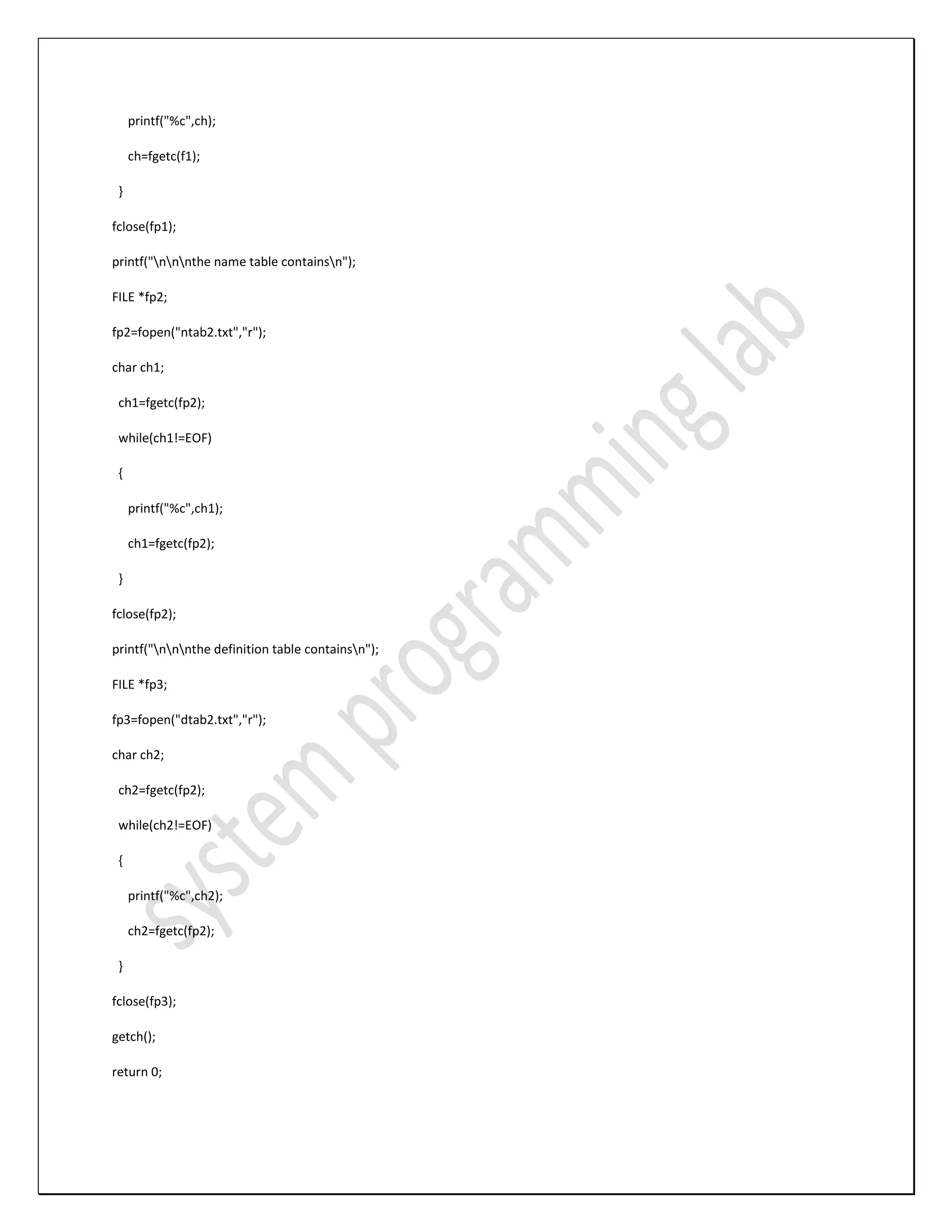

printf("%c",ch); ch=fgetc(f1); } fclose(fp1); printf("nnnthe name table containsn"); FILE *fp2; fp2=fopen("ntab2.txt","r"); char ch1; ch1=fgetc(fp2); while(ch1!=EOF) { printf("%c",ch1); ch1=fgetc(fp2); } fclose(fp2); printf("nnnthe definition table containsn"); FILE *fp3; fp3=fopen("dtab2.txt","r"); char ch2; ch2=fgetc(fp2); while(ch2!=EOF) { printf("%c",ch2); ch2=fgetc(fp2); } fclose(fp3); getch(); return 0;

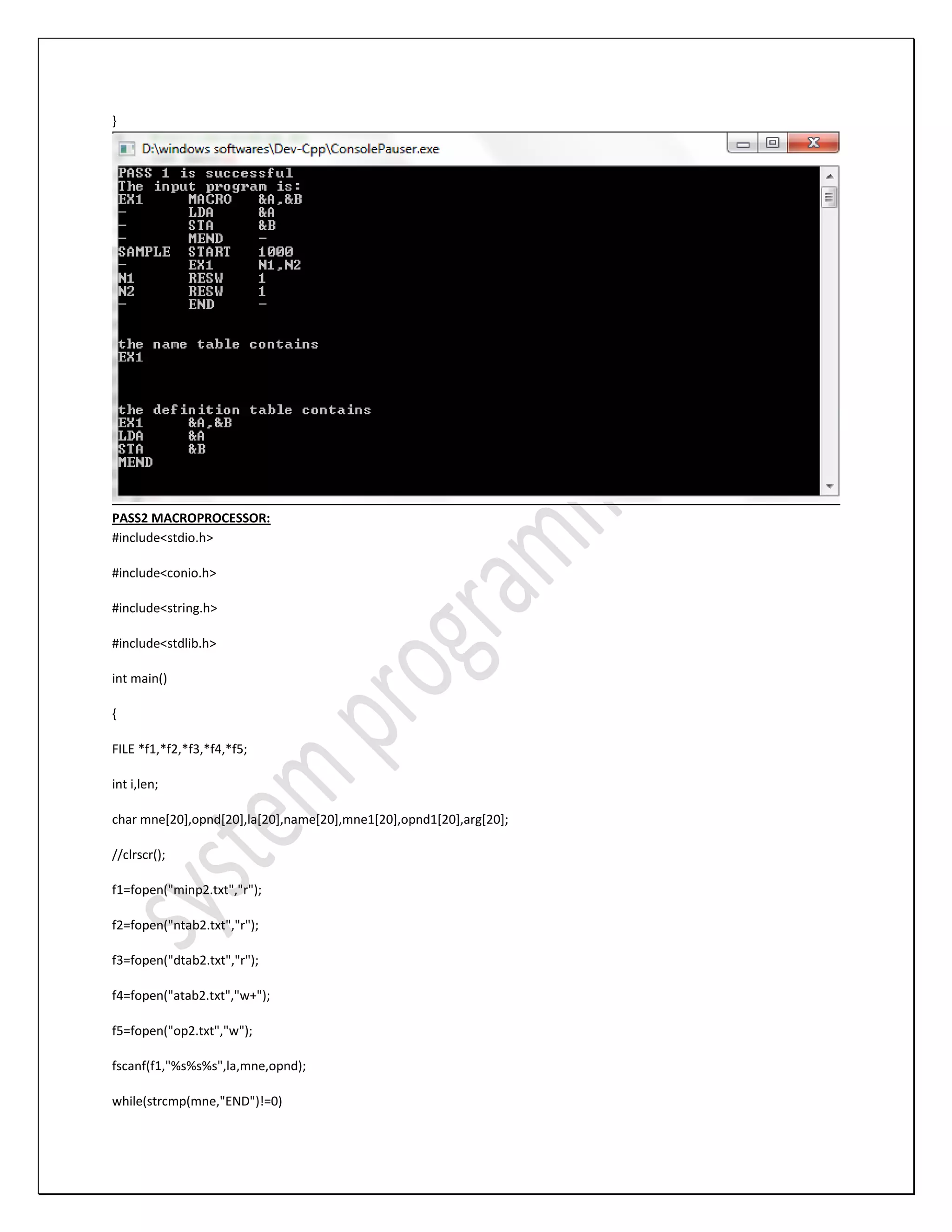

} PASS2 MACROPROCESSOR: #include<stdio.h> #include<conio.h> #include<string.h> #include<stdlib.h> int main() { FILE *f1,*f2,*f3,*f4,*f5; int i,len; char mne[20],opnd[20],la[20],name[20],mne1[20],opnd1[20],arg[20]; //clrscr(); f1=fopen("minp2.txt","r"); f2=fopen("ntab2.txt","r"); f3=fopen("dtab2.txt","r"); f4=fopen("atab2.txt","w+"); f5=fopen("op2.txt","w"); fscanf(f1,"%s%s%s",la,mne,opnd); while(strcmp(mne,"END")!=0)

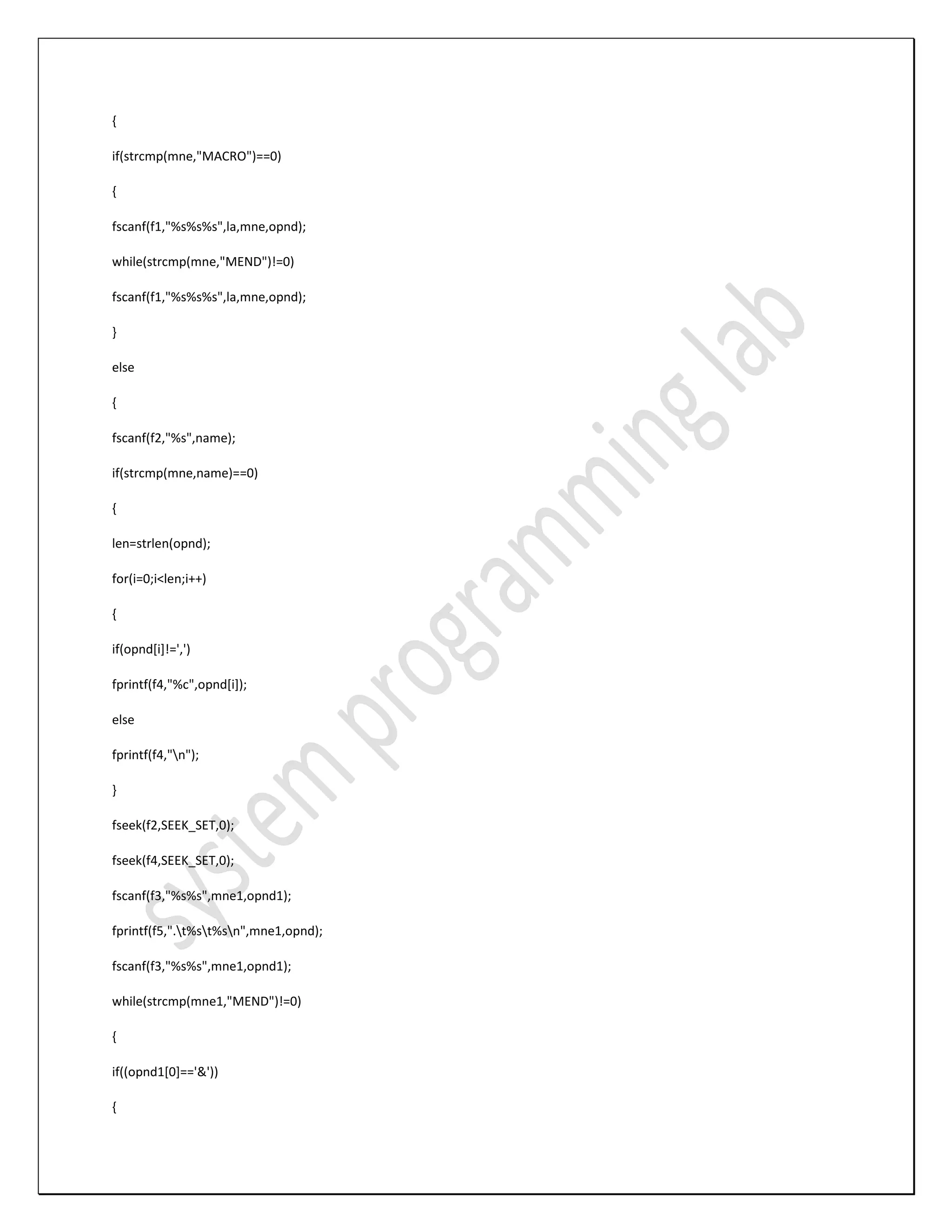

{ if(strcmp(mne,"MACRO")==0) { fscanf(f1,"%s%s%s",la,mne,opnd); while(strcmp(mne,"MEND")!=0) fscanf(f1,"%s%s%s",la,mne,opnd); } else { fscanf(f2,"%s",name); if(strcmp(mne,name)==0) { len=strlen(opnd); for(i=0;i<len;i++) { if(opnd[i]!=',') fprintf(f4,"%c",opnd[i]); else fprintf(f4,"n"); } fseek(f2,SEEK_SET,0); fseek(f4,SEEK_SET,0); fscanf(f3,"%s%s",mne1,opnd1); fprintf(f5,".t%st%sn",mne1,opnd); fscanf(f3,"%s%s",mne1,opnd1); while(strcmp(mne1,"MEND")!=0) { if((opnd1[0]=='&')) {

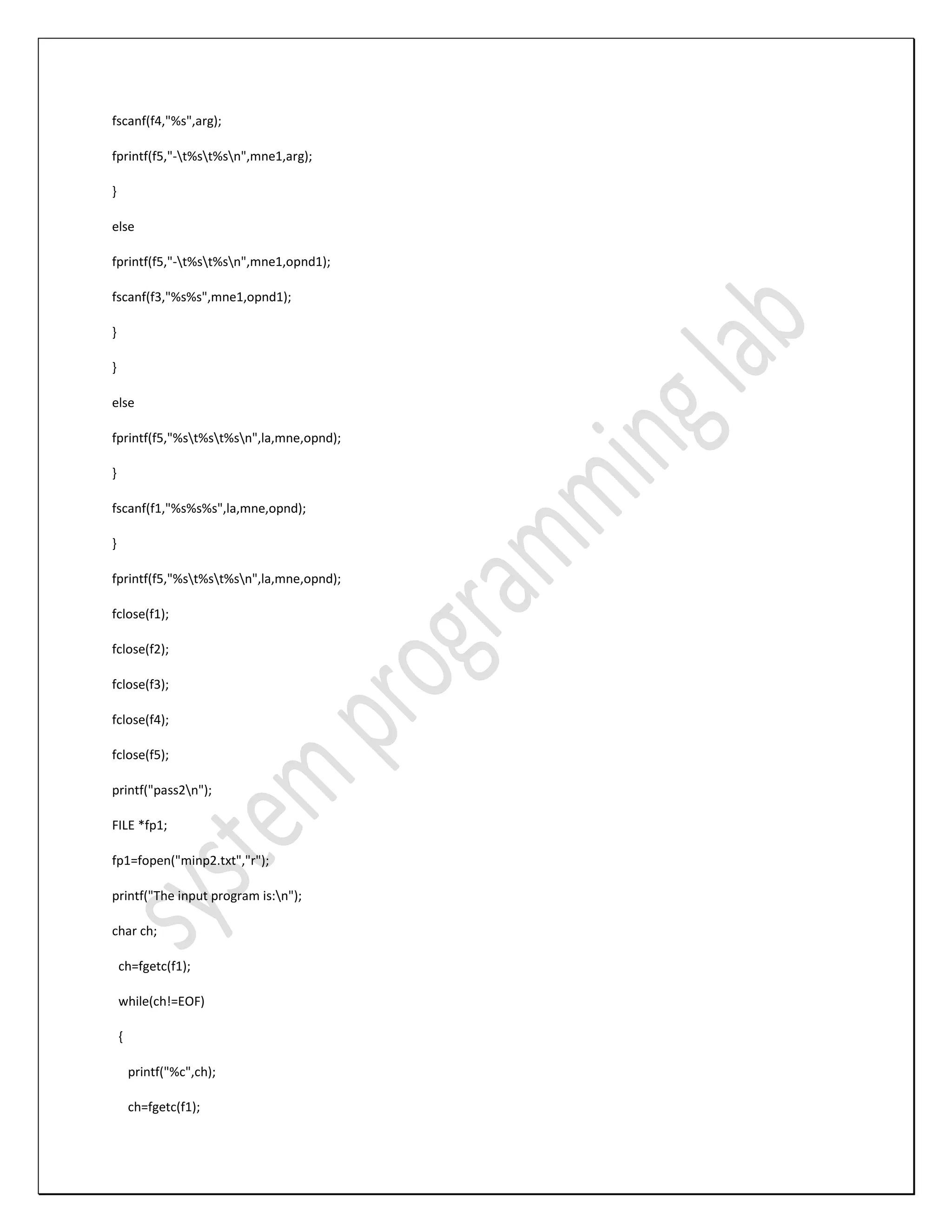

fscanf(f4,"%s",arg); fprintf(f5,"-t%st%sn",mne1,arg); } else fprintf(f5,"-t%st%sn",mne1,opnd1); fscanf(f3,"%s%s",mne1,opnd1); } } else fprintf(f5,"%st%st%sn",la,mne,opnd); } fscanf(f1,"%s%s%s",la,mne,opnd); } fprintf(f5,"%st%st%sn",la,mne,opnd); fclose(f1); fclose(f2); fclose(f3); fclose(f4); fclose(f5); printf("pass2n"); FILE *fp1; fp1=fopen("minp2.txt","r"); printf("The input program is:n"); char ch; ch=fgetc(f1); while(ch!=EOF) { printf("%c",ch); ch=fgetc(f1);

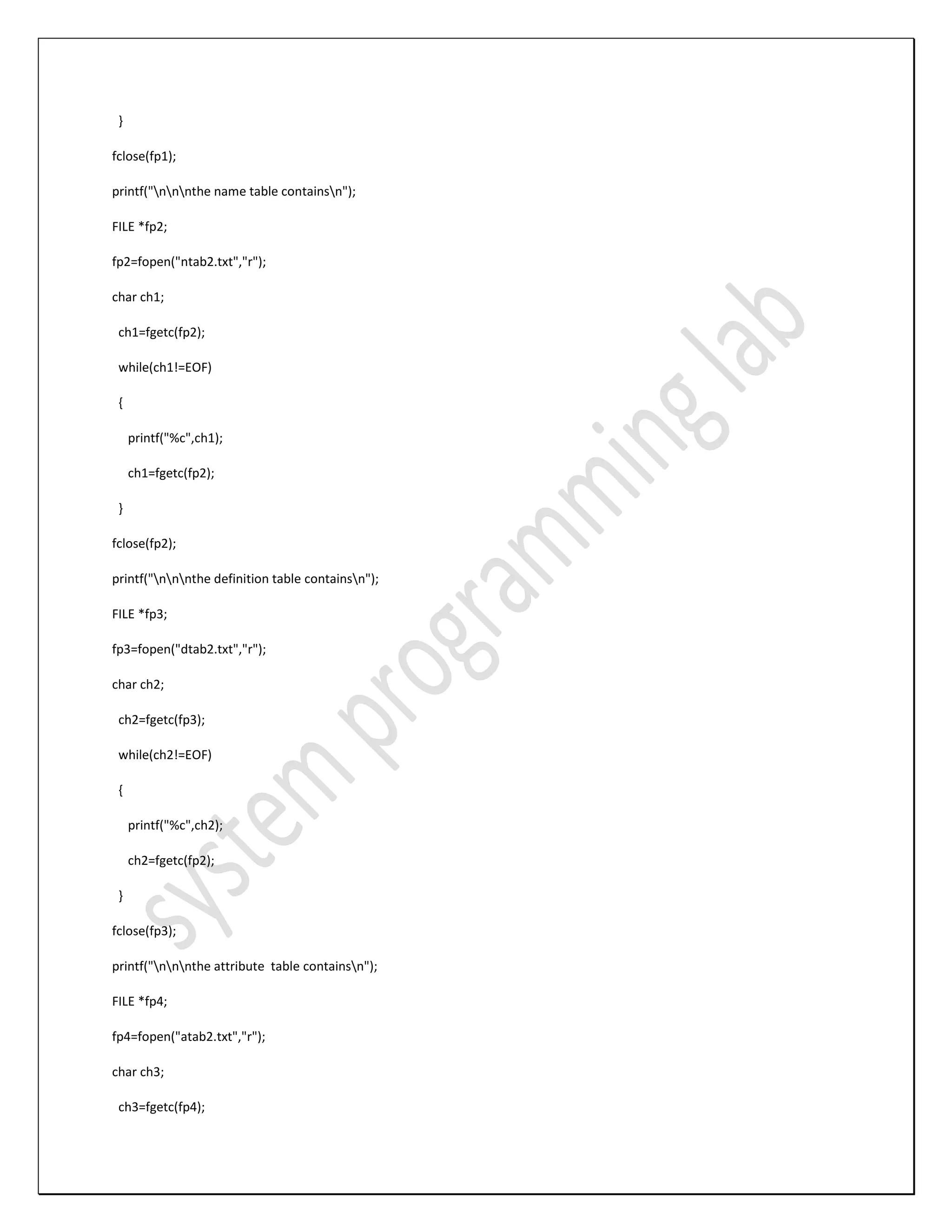

} fclose(fp1); printf("nnnthe name table containsn"); FILE *fp2; fp2=fopen("ntab2.txt","r"); char ch1; ch1=fgetc(fp2); while(ch1!=EOF) { printf("%c",ch1); ch1=fgetc(fp2); } fclose(fp2); printf("nnnthe definition table containsn"); FILE *fp3; fp3=fopen("dtab2.txt","r"); char ch2; ch2=fgetc(fp3); while(ch2!=EOF) { printf("%c",ch2); ch2=fgetc(fp2); } fclose(fp3); printf("nnnthe attribute table containsn"); FILE *fp4; fp4=fopen("atab2.txt","r"); char ch3; ch3=fgetc(fp4);

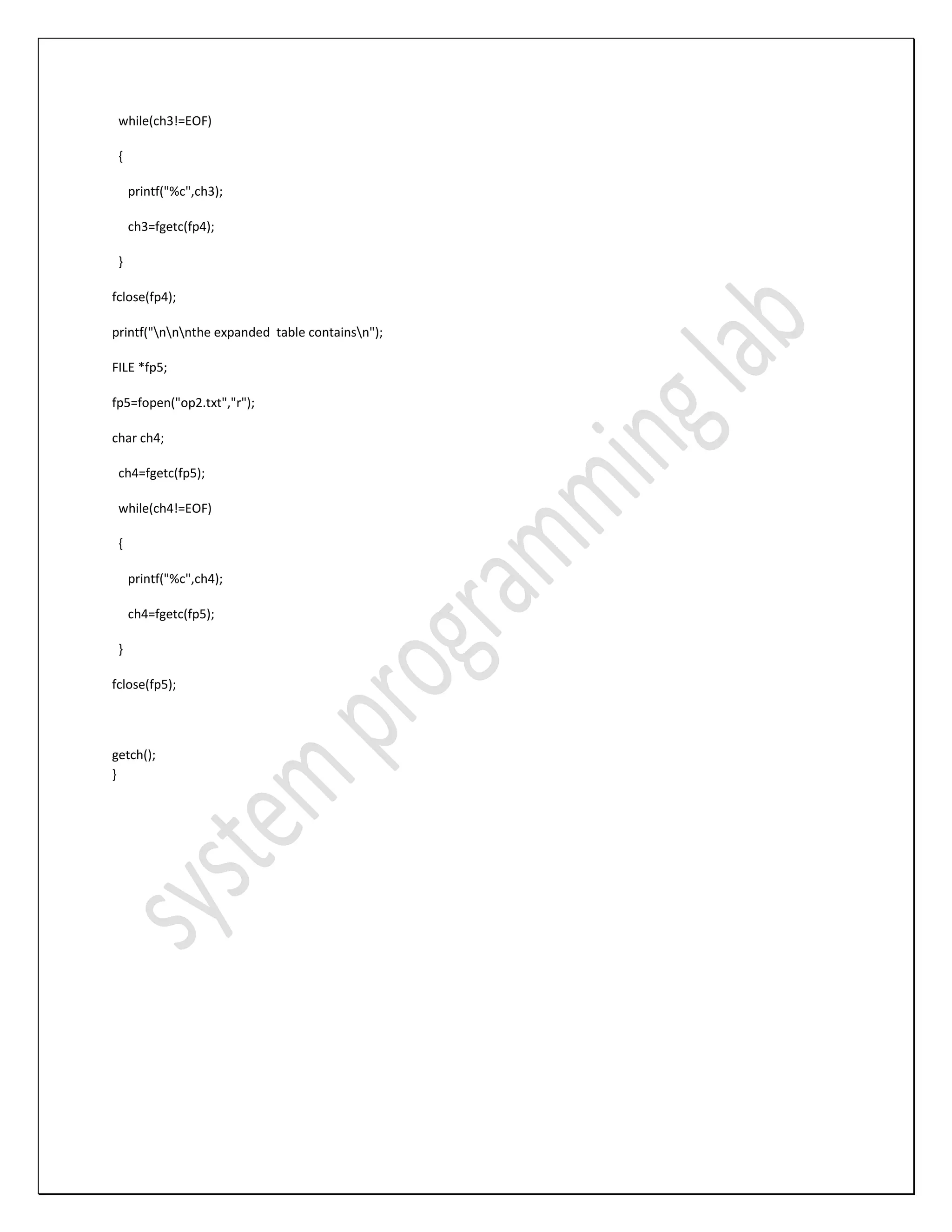

while(ch3!=EOF) { printf("%c",ch3); ch3=fgetc(fp4); } fclose(fp4); printf("nnnthe expanded table containsn"); FILE *fp5; fp5=fopen("op2.txt","r"); char ch4; ch4=fgetc(fp5); while(ch4!=EOF) { printf("%c",ch4); ch4=fgetc(fp5); } fclose(fp5); getch(); }

SINGLE PASS MACROPROCESSOR: #include<stdio.h> #include<conio.h> #include<string.h> #include<stdlib.h> int main() { int n,flag,i; char ilab[20],iopd[20],oper[20],NAMTAB[20][20]; FILE *fp1,*fp2,*DEFTAB; fp1=fopen("macroin.dat","r");

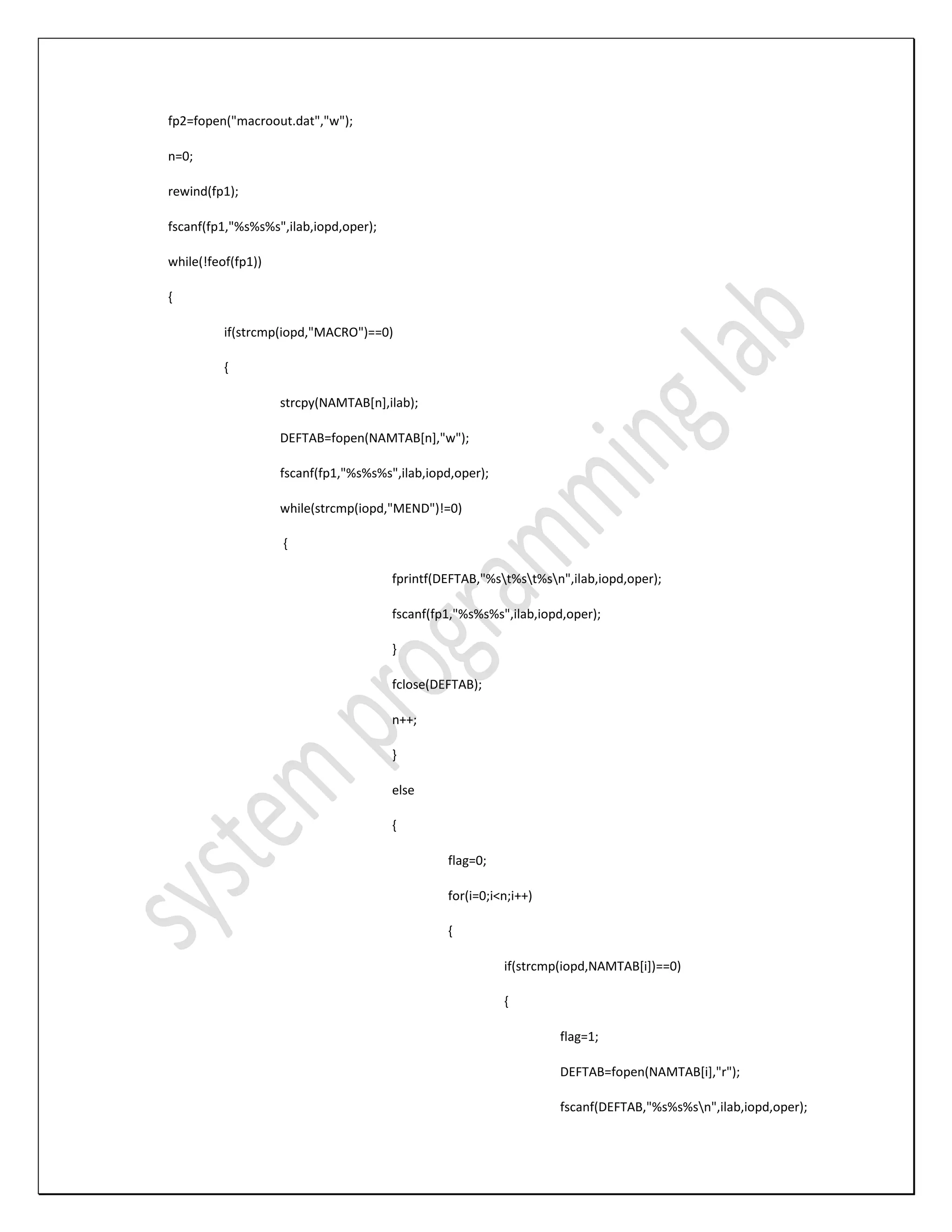

fp2=fopen("macroout.dat","w"); n=0; rewind(fp1); fscanf(fp1,"%s%s%s",ilab,iopd,oper); while(!feof(fp1)) { if(strcmp(iopd,"MACRO")==0) { strcpy(NAMTAB[n],ilab); DEFTAB=fopen(NAMTAB[n],"w"); fscanf(fp1,"%s%s%s",ilab,iopd,oper); while(strcmp(iopd,"MEND")!=0) { fprintf(DEFTAB,"%st%st%sn",ilab,iopd,oper); fscanf(fp1,"%s%s%s",ilab,iopd,oper); } fclose(DEFTAB); n++; } else { flag=0; for(i=0;i<n;i++) { if(strcmp(iopd,NAMTAB[i])==0) { flag=1; DEFTAB=fopen(NAMTAB[i],"r"); fscanf(DEFTAB,"%s%s%sn",ilab,iopd,oper);

while(!feof(DEFTAB)) { fprintf(fp2,"%st%st%sn",ilab,iopd,oper); fscanf(DEFTAB,"%s%s%s",ilab,iopd,oper); } break; } } if(flag==0) fprintf(fp2,"%st%st%sn",ilab,iopd,oper); } fscanf(fp1,"%s%s%s",ilab,iopd,oper); } fprintf(fp2,"%st%st%sn",ilab,iopd,oper); printf("n The input table for the single pass macro processorn"); FILE *f1; f1=fopen("MACROIN.DAT","r"); char ch; ch=fgetc(f1); while(ch!=EOF) { printf("%c",ch); ch=fgetc(f1); } fclose(f1);

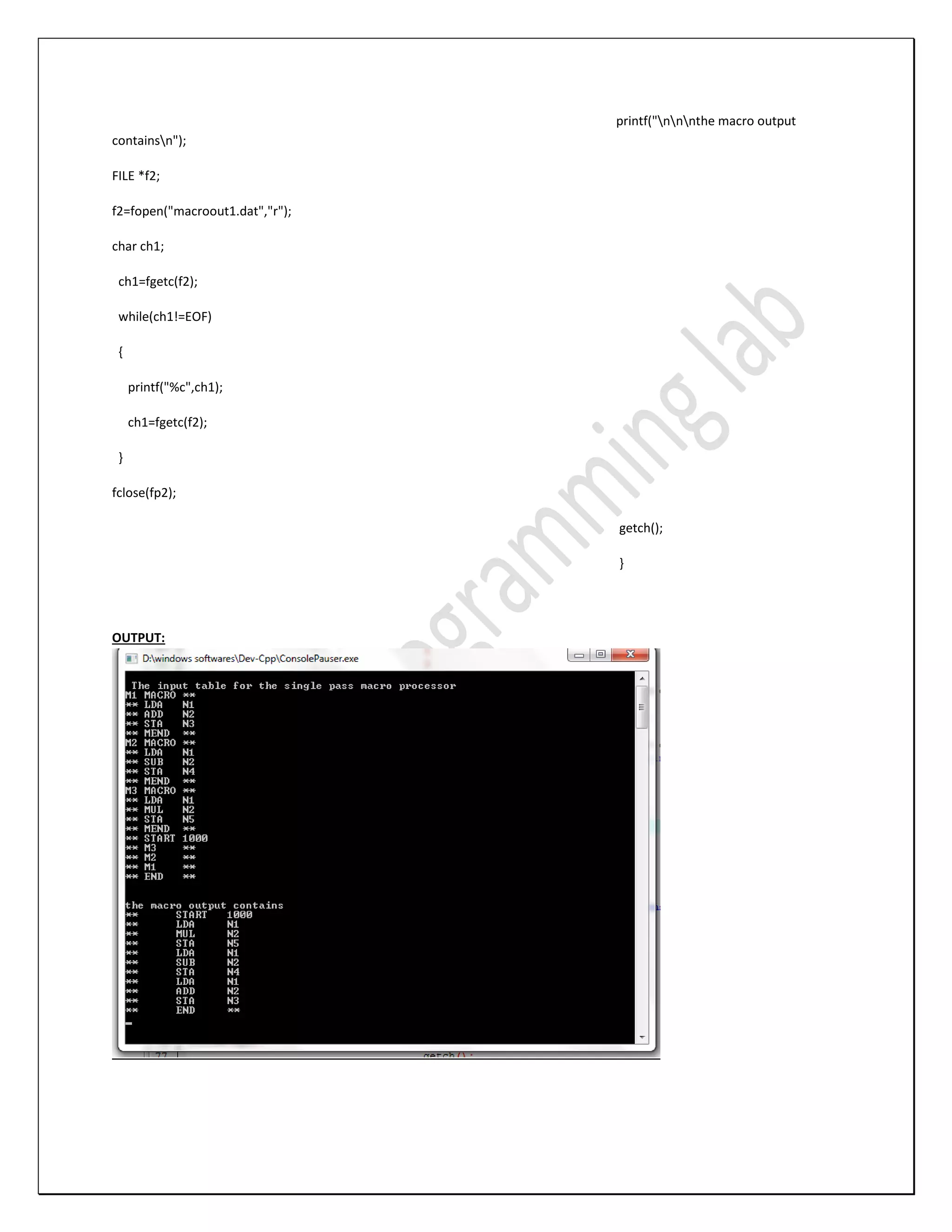

printf("nnnthe macro output containsn"); FILE *f2; f2=fopen("macroout1.dat","r"); char ch1; ch1=fgetc(f2); while(ch1!=EOF) { printf("%c",ch1); ch1=fgetc(f2); } fclose(fp2); getch(); } OUTPUT:

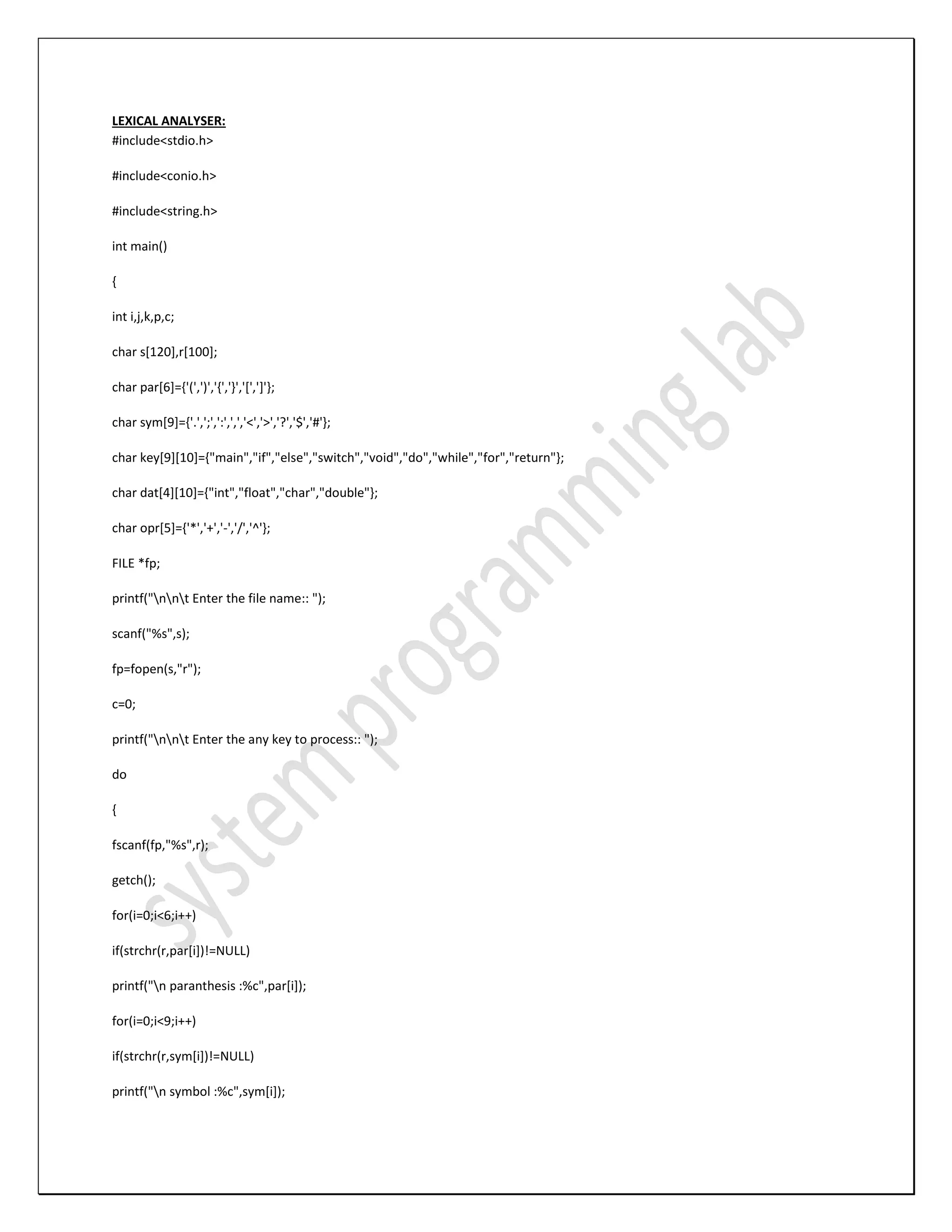

LEXICAL ANALYSER: #include<stdio.h> #include<conio.h> #include<string.h> int main() { int i,j,k,p,c; char s[120],r[100]; char par[6]={'(',')','{','}','[',']'}; char sym[9]={'.',';',':',',','<','>','?','$','#'}; char key[9][10]={"main","if","else","switch","void","do","while","for","return"}; char dat[4][10]={"int","float","char","double"}; char opr[5]={'*','+','-','/','^'}; FILE *fp; printf("nnt Enter the file name:: "); scanf("%s",s); fp=fopen(s,"r"); c=0; printf("nnt Enter the any key to process:: "); do { fscanf(fp,"%s",r); getch(); for(i=0;i<6;i++) if(strchr(r,par[i])!=NULL) printf("n paranthesis :%c",par[i]); for(i=0;i<9;i++) if(strchr(r,sym[i])!=NULL) printf("n symbol :%c",sym[i]);

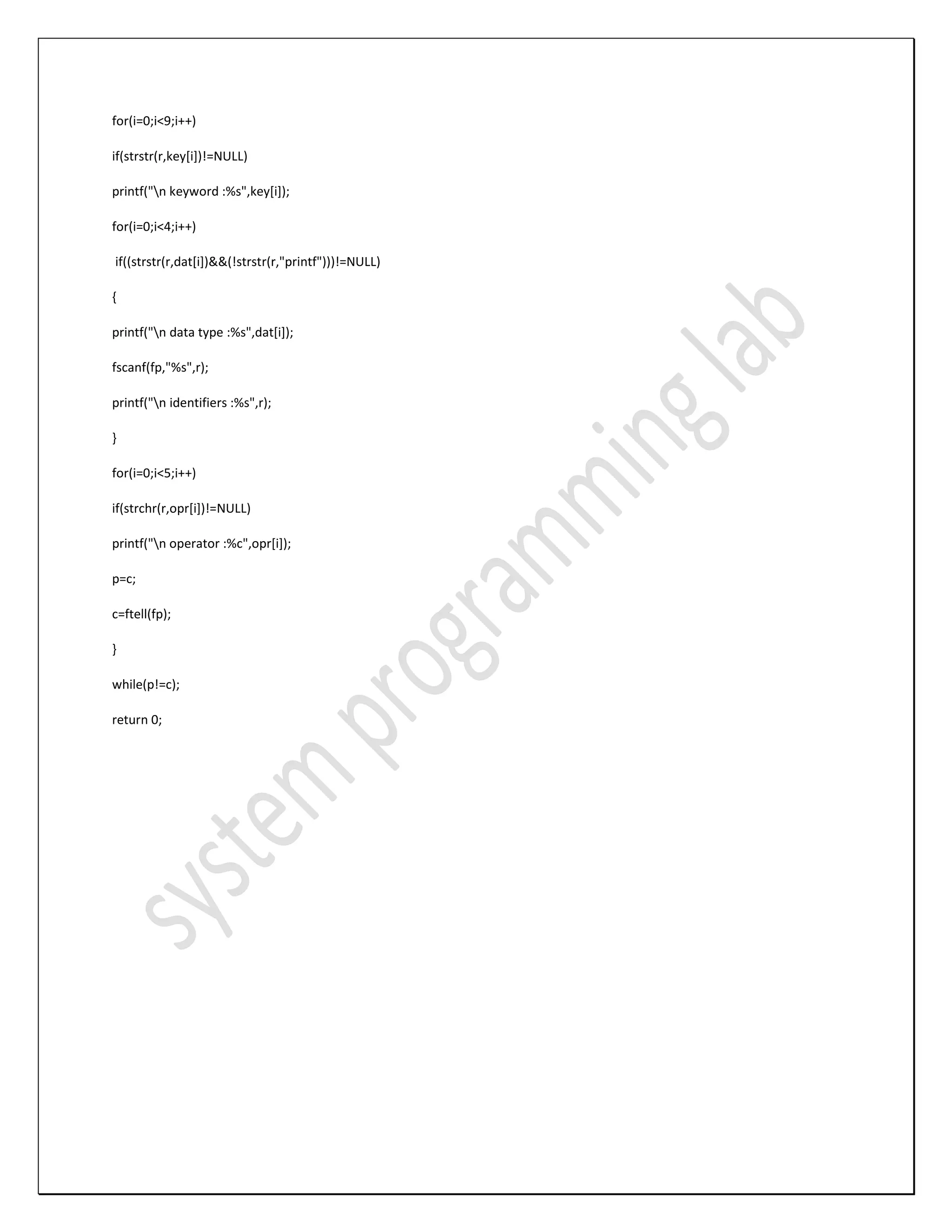

for(i=0;i<9;i++) if(strstr(r,key[i])!=NULL) printf("n keyword :%s",key[i]); for(i=0;i<4;i++) if((strstr(r,dat[i])&&(!strstr(r,"printf")))!=NULL) { printf("n data type :%s",dat[i]); fscanf(fp,"%s",r); printf("n identifiers :%s",r); } for(i=0;i<5;i++) if(strchr(r,opr[i])!=NULL) printf("n operator :%c",opr[i]); p=c; c=ftell(fp); } while(p!=c); return 0;

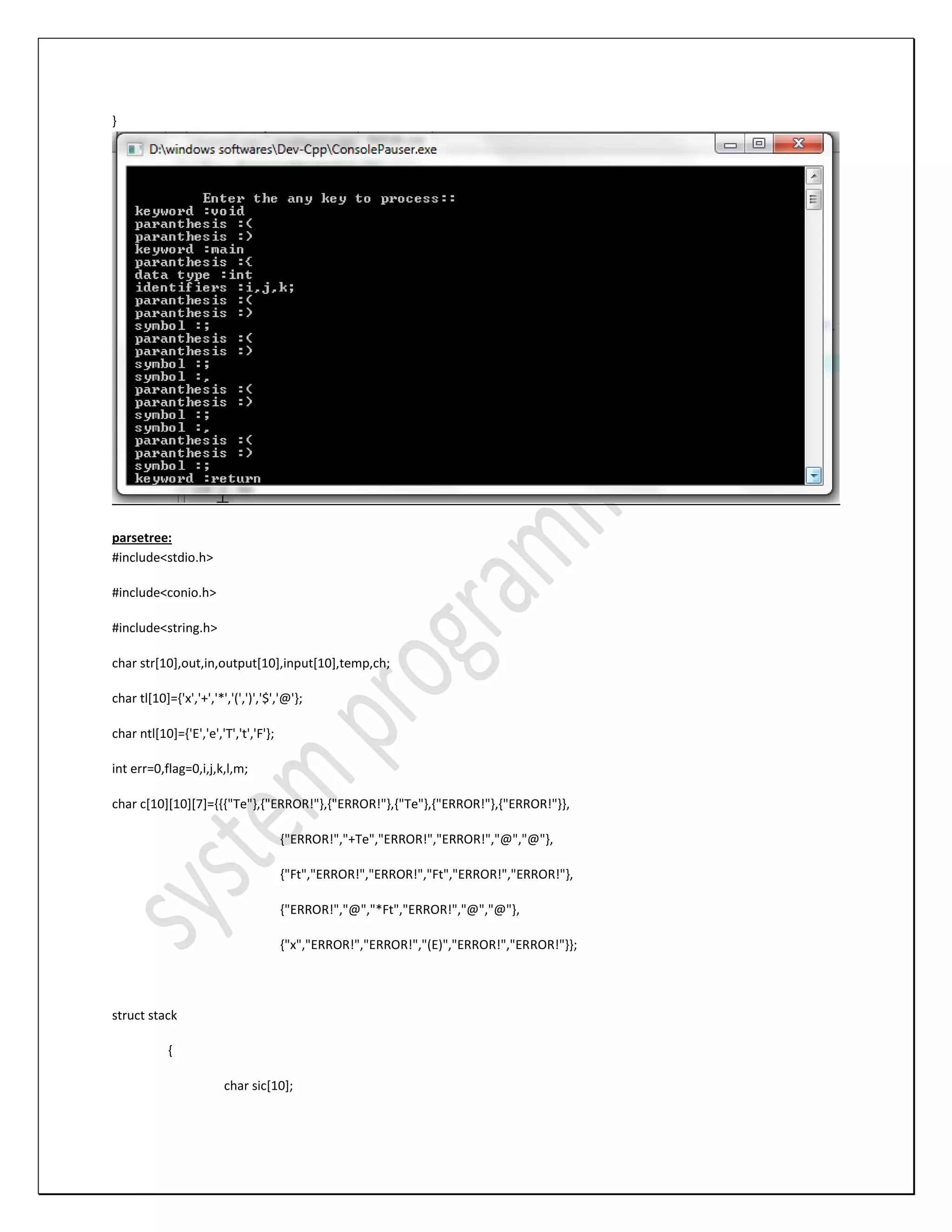

} parsetree: #include<stdio.h> #include<conio.h> #include<string.h> char str[10],out,in,output[10],input[10],temp,ch; char tl[10]={'x','+','*','(',')','$','@'}; char ntl[10]={'E','e','T','t','F'}; int err=0,flag=0,i,j,k,l,m; char c[10][10][7]={{{"Te"},{"ERROR!"},{"ERROR!"},{"Te"},{"ERROR!"},{"ERROR!"}}, {"ERROR!","+Te","ERROR!","ERROR!","@","@"}, {"Ft","ERROR!","ERROR!","Ft","ERROR!","ERROR!"}, {"ERROR!","@","*Ft","ERROR!","@","@"}, {"x","ERROR!","ERROR!","(E)","ERROR!","ERROR!"}}; struct stack { char sic[10];

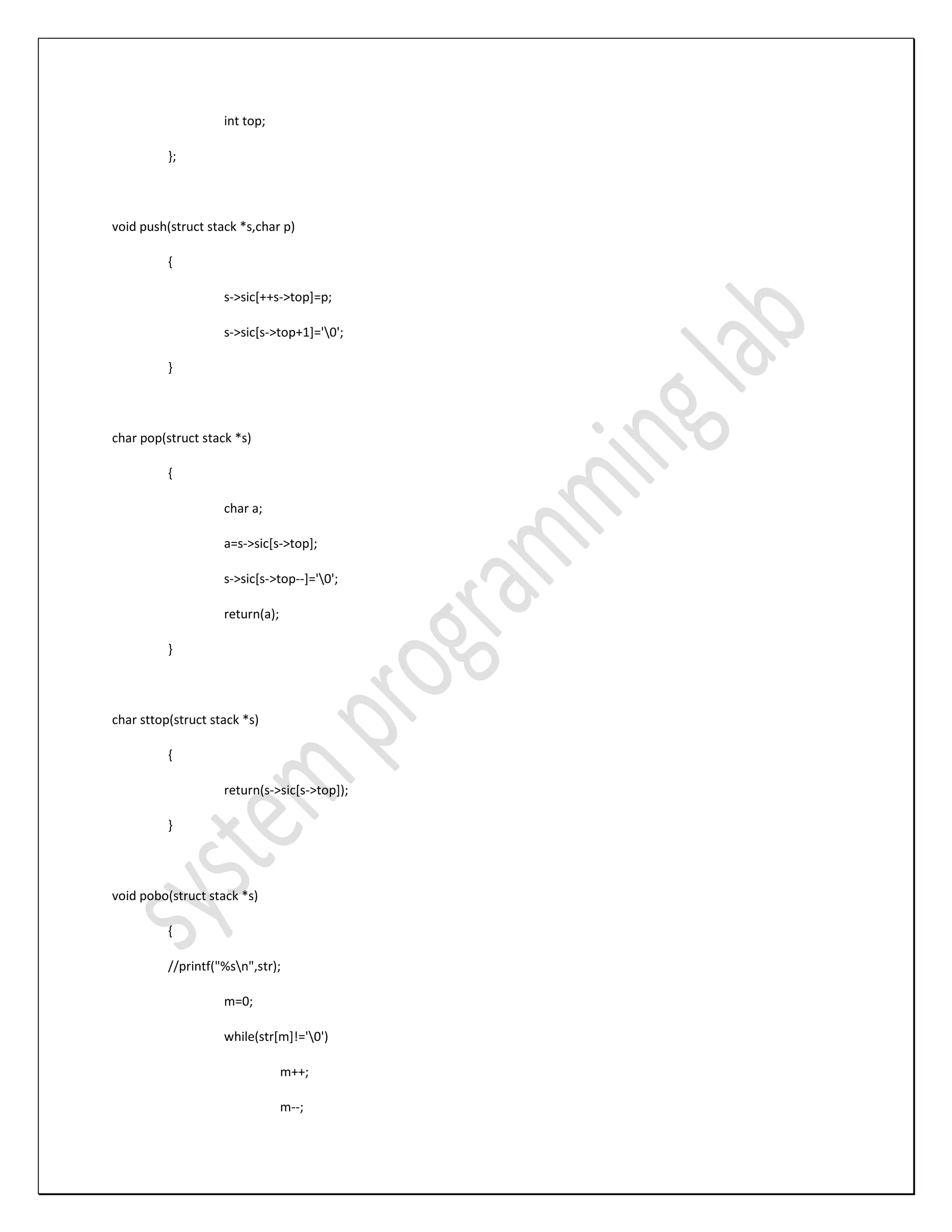

int top; }; void push(struct stack *s,char p) { s->sic[++s->top]=p; s->sic[s->top+1]='0'; } char pop(struct stack *s) { char a; a=s->sic[s->top]; s->sic[s->top--]='0'; return(a); } char sttop(struct stack *s) { return(s->sic[s->top]); } void pobo(struct stack *s) { //printf("%sn",str); m=0; while(str[m]!='0') m++; m--;

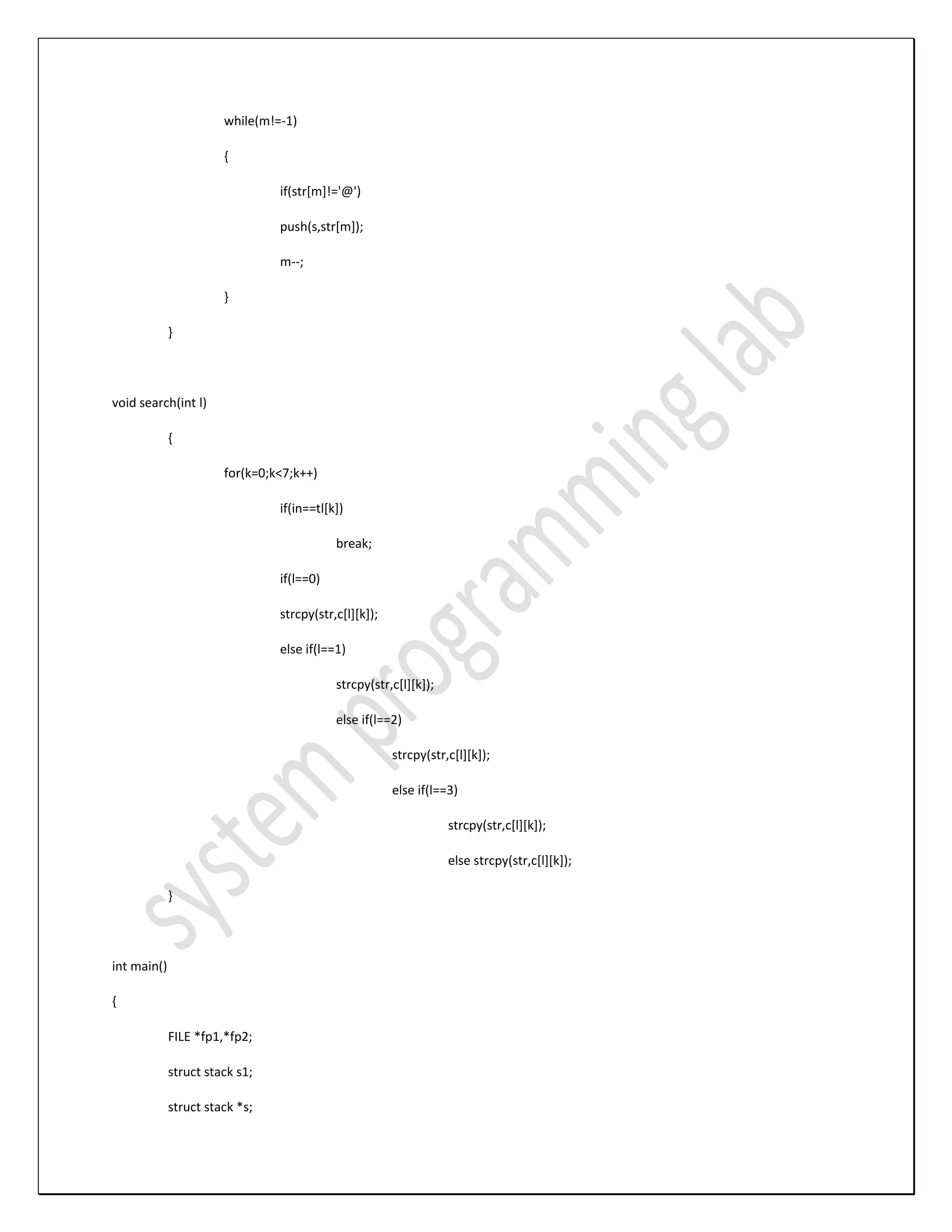

while(m!=-1) { if(str[m]!='@') push(s,str[m]); m--; } } void search(int l) { for(k=0;k<7;k++) if(in==tl[k]) break; if(l==0) strcpy(str,c[l][k]); else if(l==1) strcpy(str,c[l][k]); else if(l==2) strcpy(str,c[l][k]); else if(l==3) strcpy(str,c[l][k]); else strcpy(str,c[l][k]); } int main() { FILE *fp1,*fp2; struct stack s1; struct stack *s;

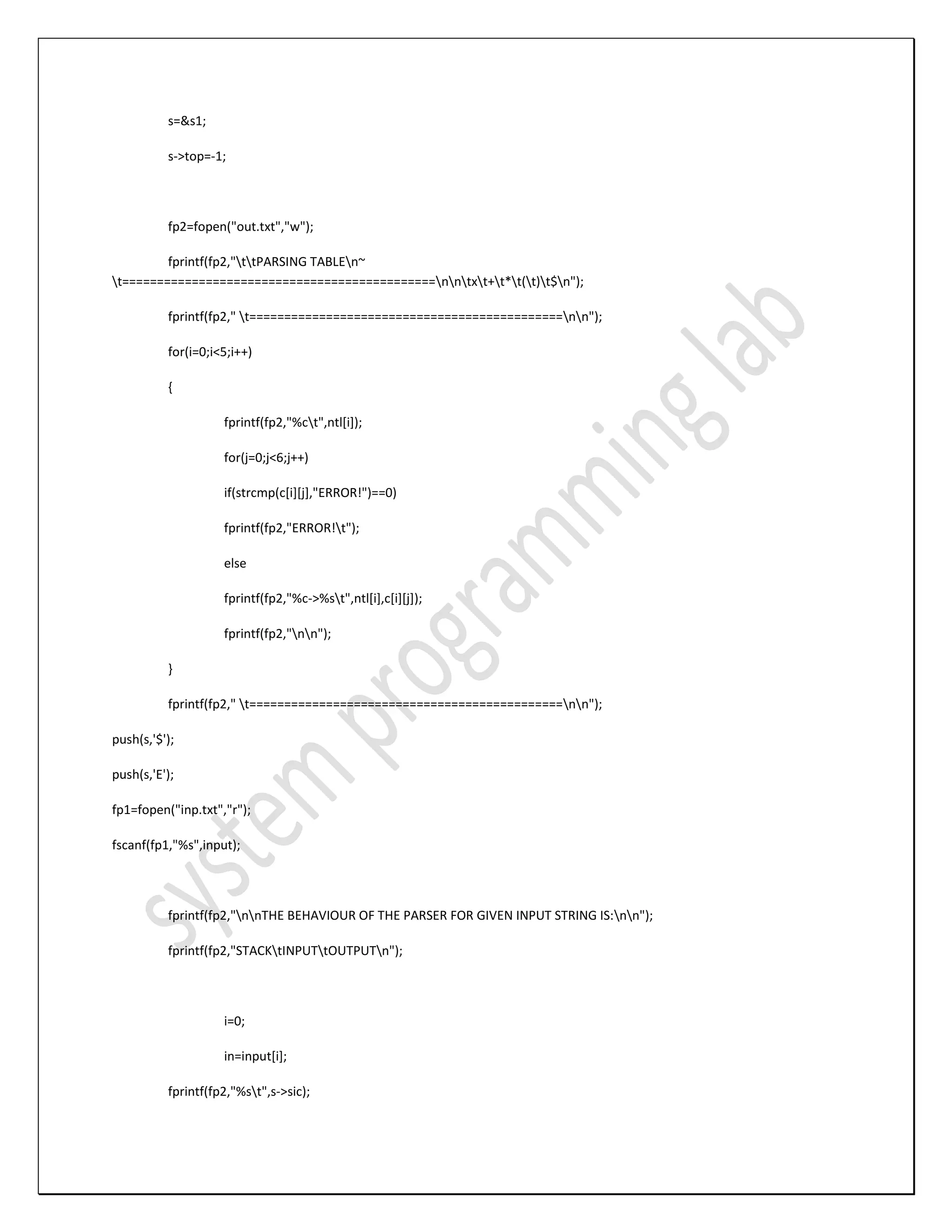

s=&s1; s->top=-1; fp2=fopen("out.txt","w"); fprintf(fp2,"ttPARSING TABLEn~ t=============================================nntxt+t*t(t)t$n"); fprintf(fp2," t=============================================nn"); for(i=0;i<5;i++) { fprintf(fp2,"%ct",ntl[i]); for(j=0;j<6;j++) if(strcmp(c[i][j],"ERROR!")==0) fprintf(fp2,"ERROR!t"); else fprintf(fp2,"%c->%st",ntl[i],c[i][j]); fprintf(fp2,"nn"); } fprintf(fp2," t=============================================nn"); push(s,'$'); push(s,'E'); fp1=fopen("inp.txt","r"); fscanf(fp1,"%s",input); fprintf(fp2,"nnTHE BEHAVIOUR OF THE PARSER FOR GIVEN INPUT STRING IS:nn"); fprintf(fp2,"STACKtINPUTtOUTPUTn"); i=0; in=input[i]; fprintf(fp2,"%st",s->sic);

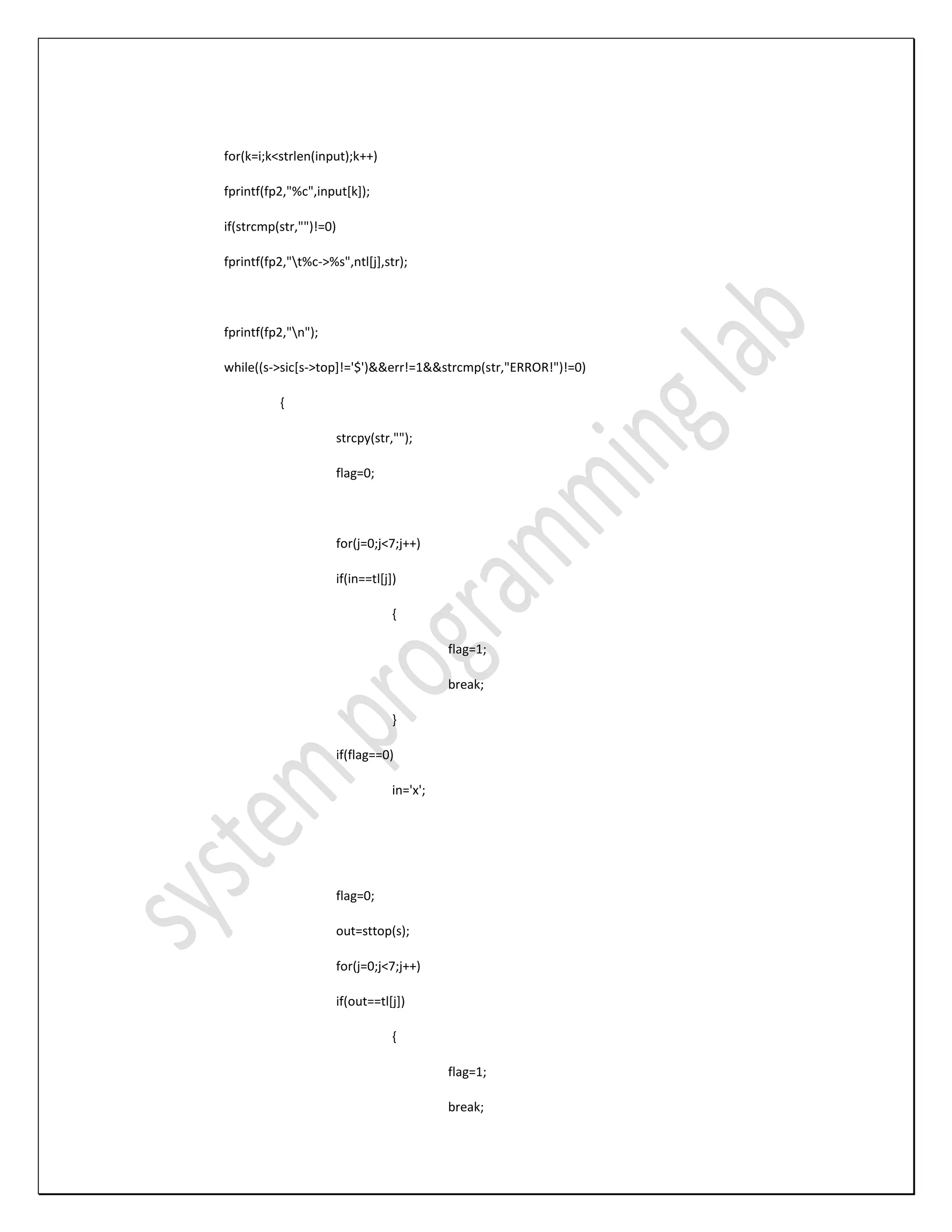

for(k=i;k<strlen(input);k++) fprintf(fp2,"%c",input[k]); if(strcmp(str,"")!=0) fprintf(fp2,"t%c->%s",ntl[j],str); fprintf(fp2,"n"); while((s->sic[s->top]!='$')&&err!=1&&strcmp(str,"ERROR!")!=0) { strcpy(str,""); flag=0; for(j=0;j<7;j++) if(in==tl[j]) { flag=1; break; } if(flag==0) in='x'; flag=0; out=sttop(s); for(j=0;j<7;j++) if(out==tl[j]) { flag=1; break;

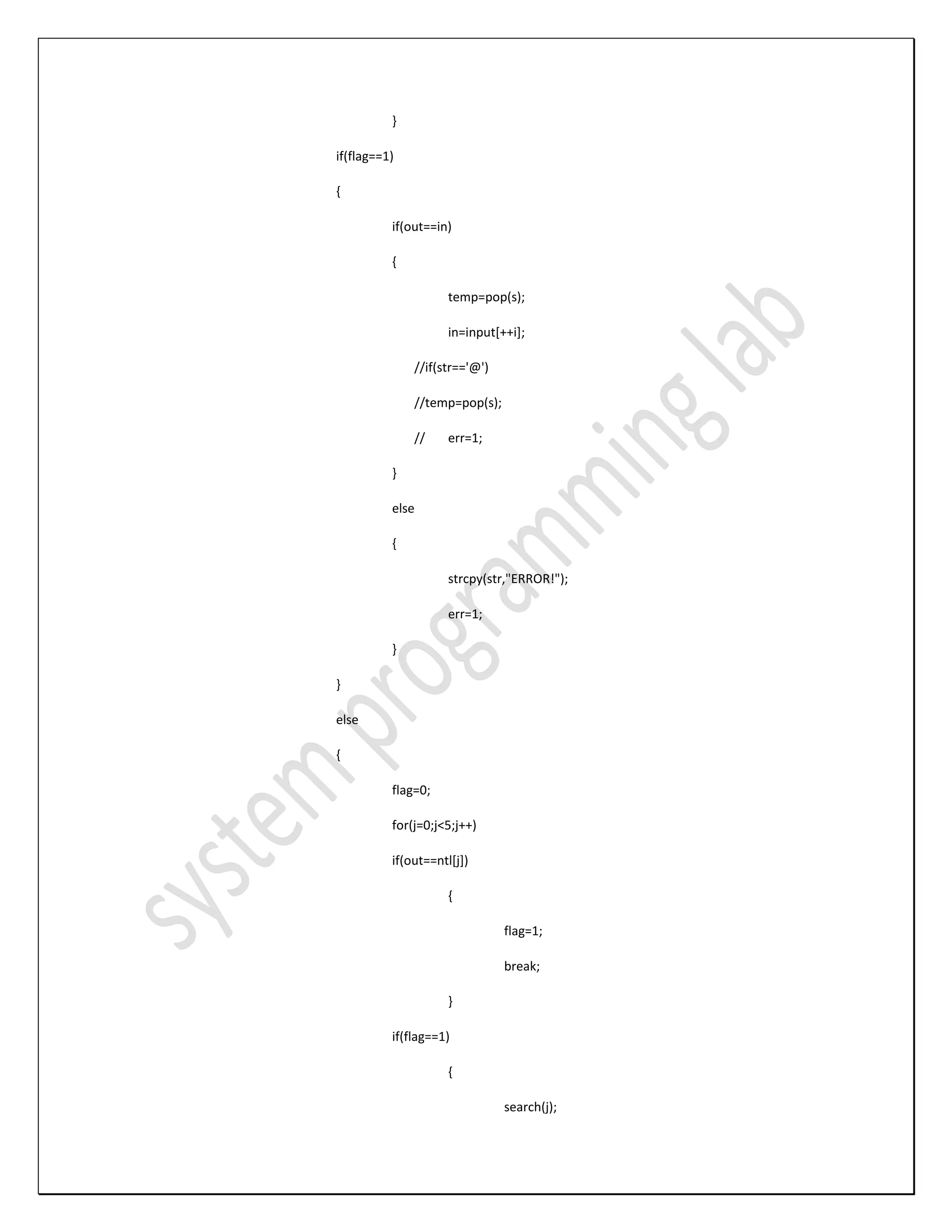

} if(flag==1) { if(out==in) { temp=pop(s); in=input[++i]; //if(str=='@') //temp=pop(s); // err=1; } else { strcpy(str,"ERROR!"); err=1; } } else { flag=0; for(j=0;j<5;j++) if(out==ntl[j]) { flag=1; break; } if(flag==1) { search(j);

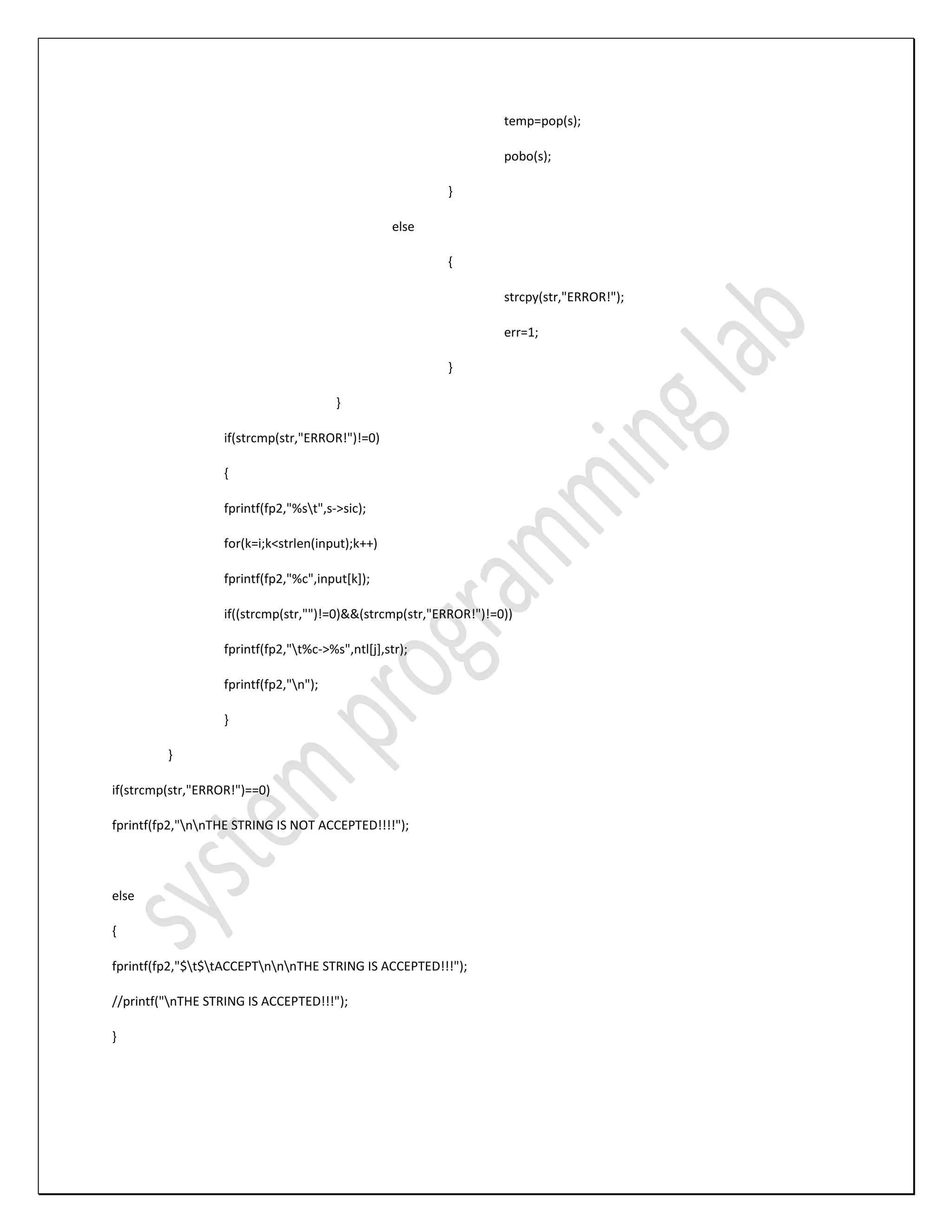

temp=pop(s); pobo(s); } else { strcpy(str,"ERROR!"); err=1; } } if(strcmp(str,"ERROR!")!=0) { fprintf(fp2,"%st",s->sic); for(k=i;k<strlen(input);k++) fprintf(fp2,"%c",input[k]); if((strcmp(str,"")!=0)&&(strcmp(str,"ERROR!")!=0)) fprintf(fp2,"t%c->%s",ntl[j],str); fprintf(fp2,"n"); } } if(strcmp(str,"ERROR!")==0) fprintf(fp2,"nnTHE STRING IS NOT ACCEPTED!!!!"); else { fprintf(fp2,"$t$tACCEPTnnnTHE STRING IS ACCEPTED!!!"); //printf("nTHE STRING IS ACCEPTED!!!"); }
