@alvaro_sanchez Stateless authentication with OAuth 2 and JWT Álvaro Sánchez-Mariscal Application Architect - 4finance IT

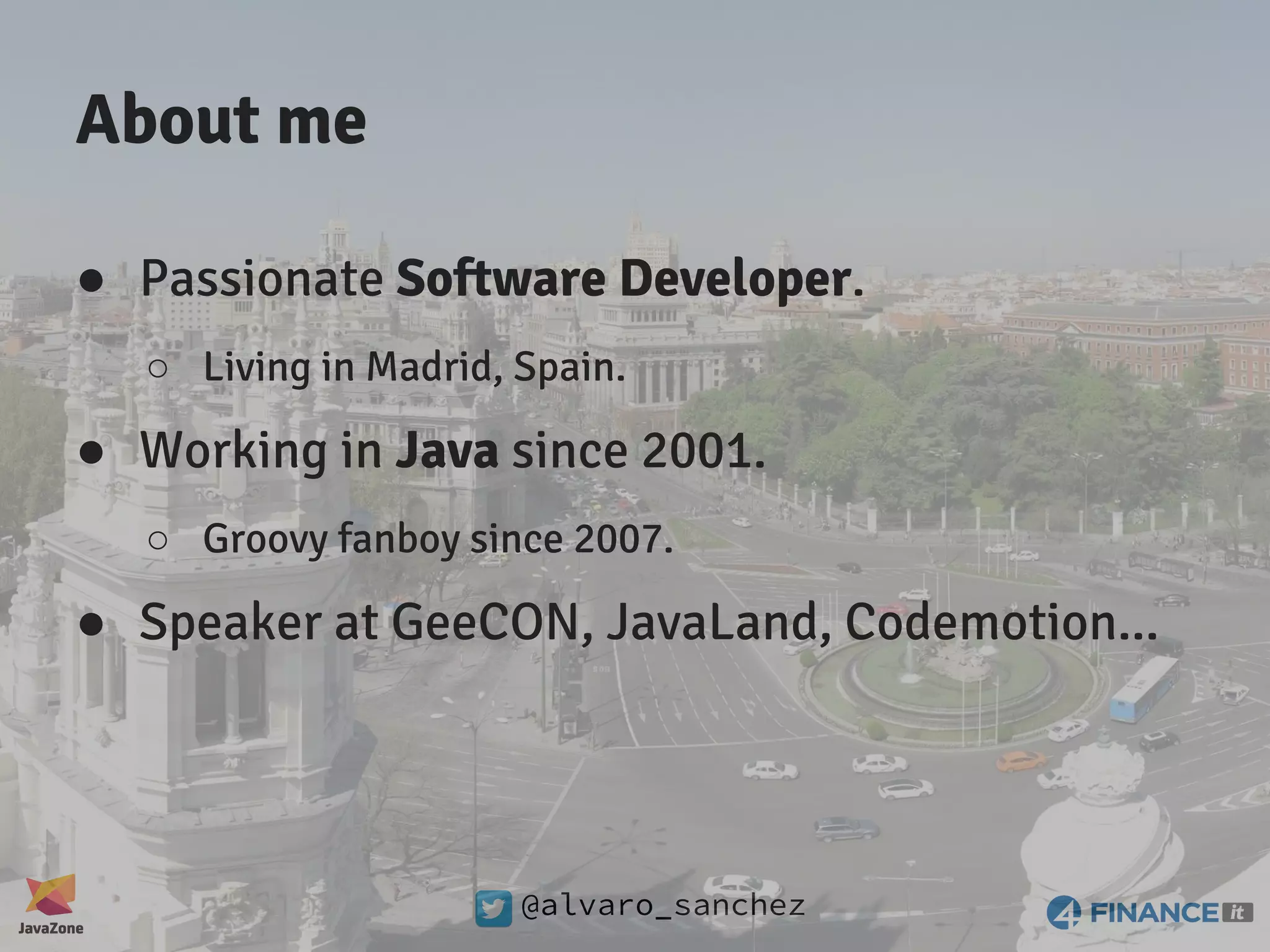

@alvaro_sanchez About me ● Passionate Software Developer. ○ Living in Madrid, Spain. ● Working in Java since 2001. ○ Groovy fanboy since 2007. ● Speaker at GeeCON, JavaLand, Codemotion...
@alvaro_sanchez About ● We build: ○ Consumer loan systems. ○ Lending platform. ○ Payment systems. ○ Personal budgeting. ○ Anti-fraud and risk system. ● We use: ○ Spring Boot. ○ Gradle. ○ Java 8. ○ Groovy. ○ Jenkins, Ansible, ... ● We hire the best talent: ○ In Warsaw, Prague, Riga, Vilnius and London. ○ At http://www.4financeit.com.

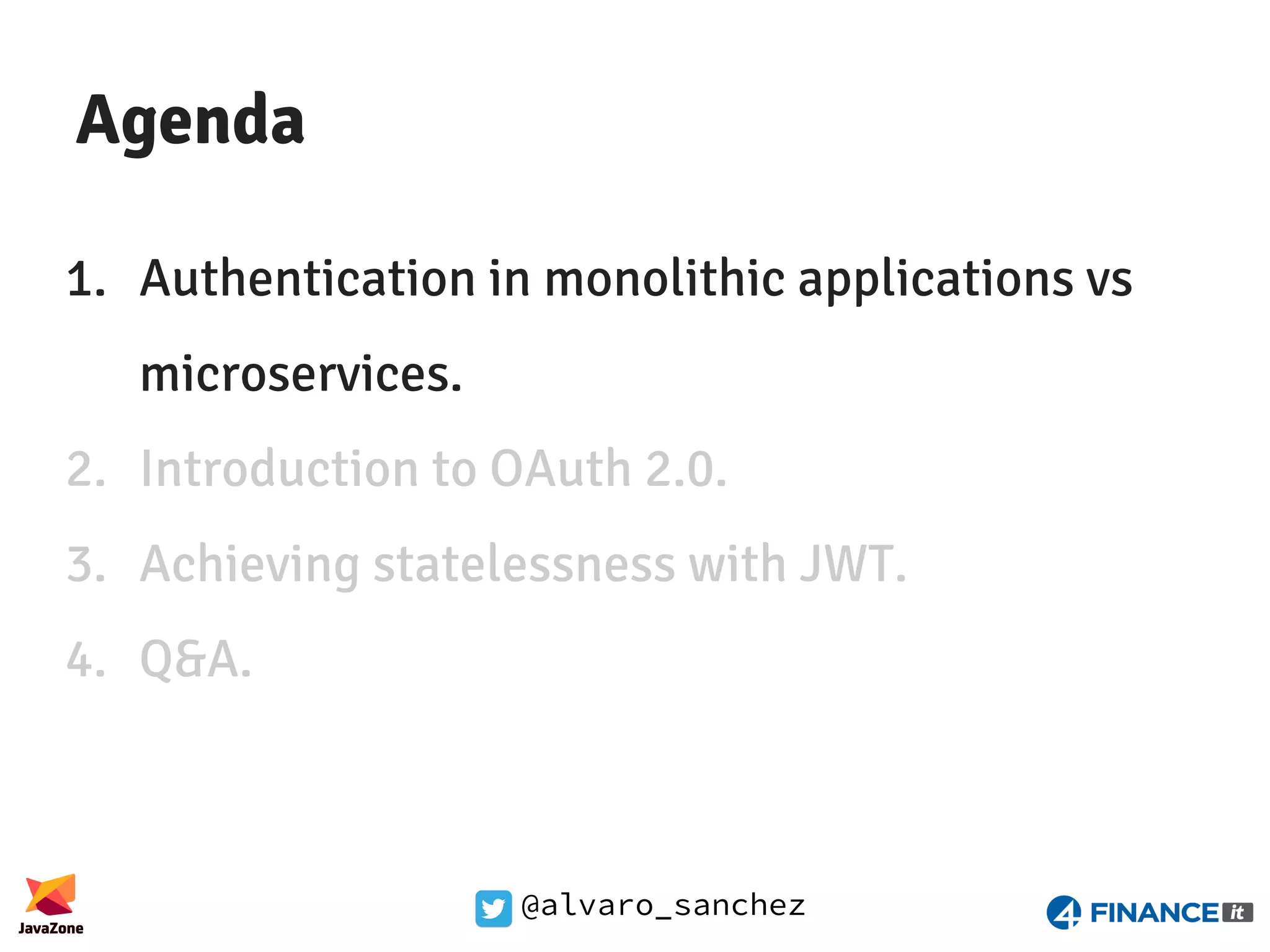

@alvaro_sanchez Agenda 1. Authentication in monolithic applications vs microservices. 2. Introduction to OAuth 2.0. 3. Achieving statelessness with JWT. 4. Q&A.

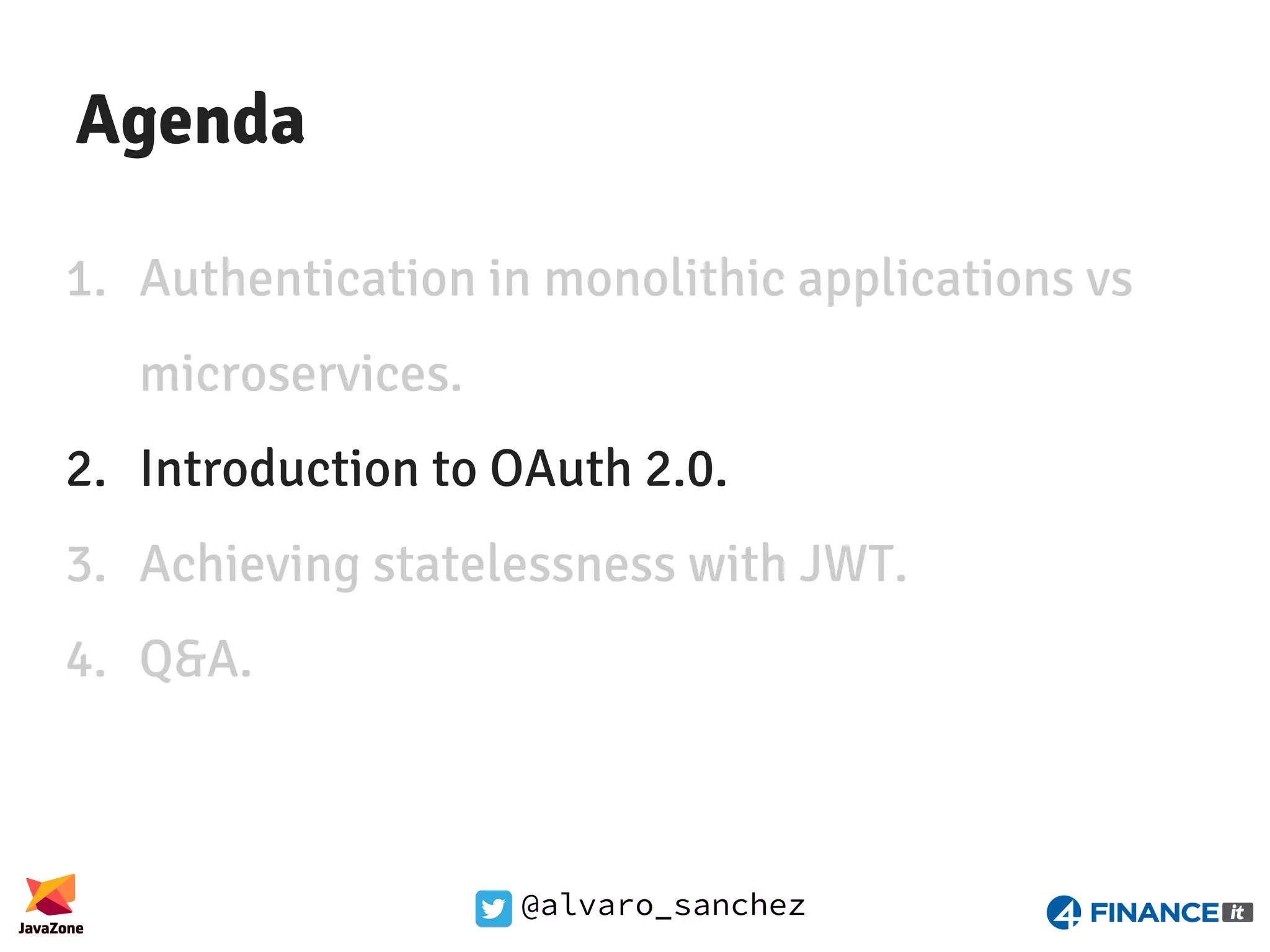

@alvaro_sanchez Agenda 1. Authentication in monolithic applications vs microservices. 2. Introduction to OAuth 2.0. 3. Achieving statelessness with JWT. 4. Q&A.
@alvaro_sanchez Agenda 1. Authentication in monolithic applications vs microservices. 2. Introduction to OAuth 2.0. 3. Achieving statelessness with JWT. 4. Q&A.
@alvaro_sanchez Agenda 1. Authentication in monolithic applications vs microservices. 2. Introduction to OAuth 2.0. 3. Achieving statelessness with JWT. 4. Q&A.

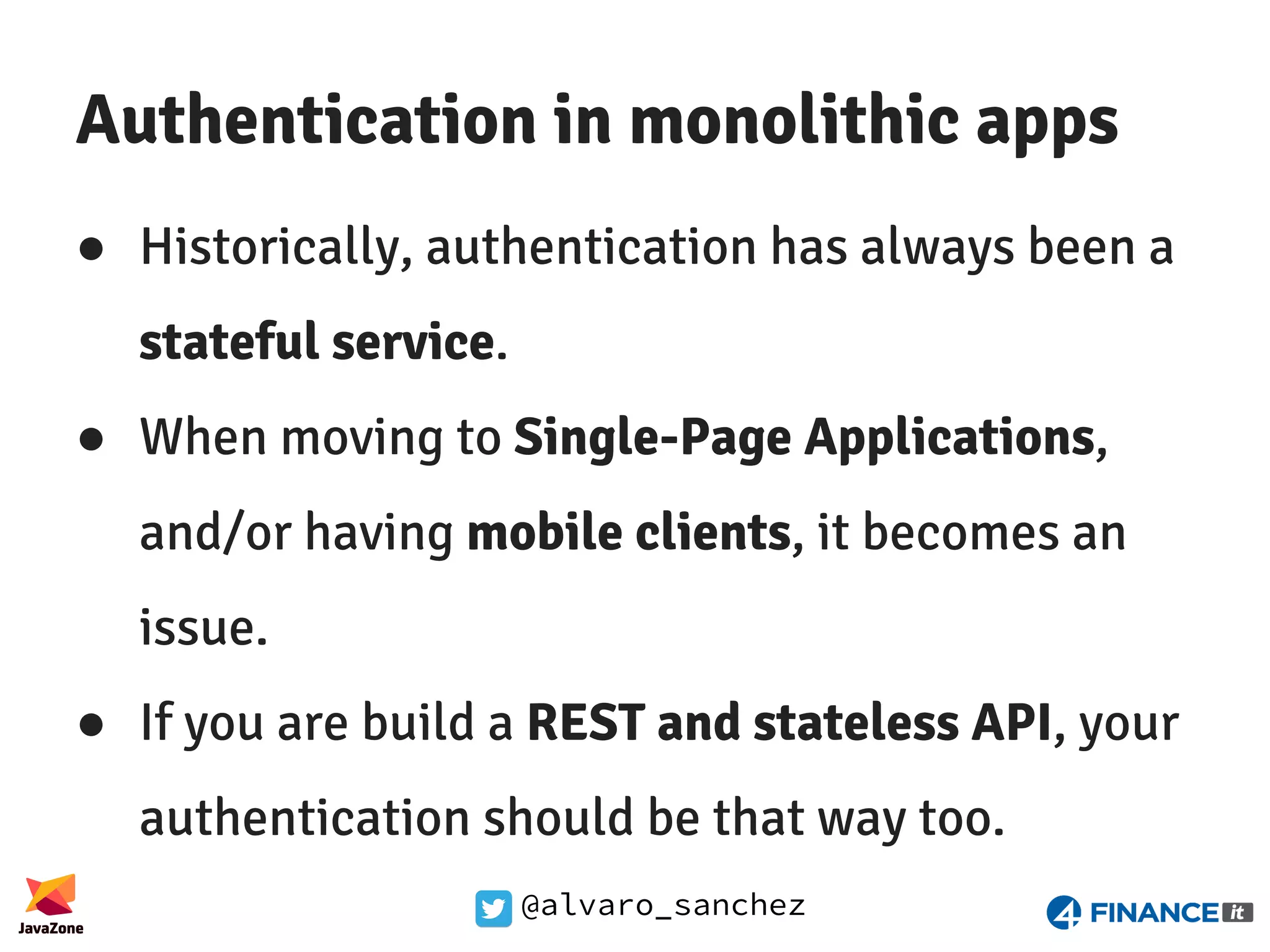

@alvaro_sanchez Authentication in monolithic apps ● Historically, authentication has always been a stateful service. ● When moving to Single-Page Applications, and/or having mobile clients, it becomes an issue. ● If you are build a REST and stateless API, your authentication should be that way too.

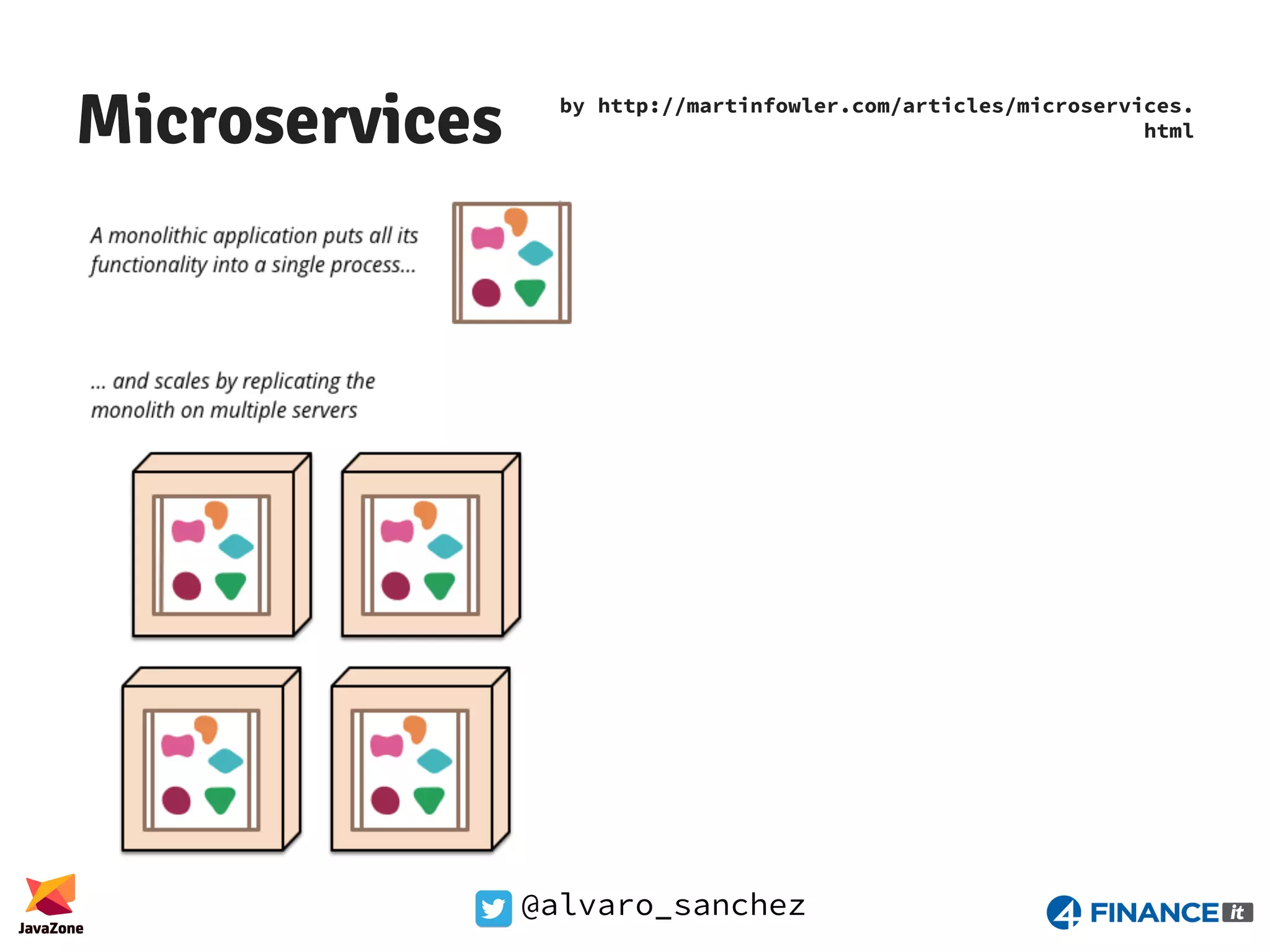

@alvaro_sanchez Microservices by http://martinfowler.com/articles/microservices. html
@alvaro_sanchez Microservices by http://martinfowler.com/articles/microservices. html
@alvaro_sanchez Monolithic vs Microservices Monolithic Microservices
@alvaro_sanchez The world-famous infographic

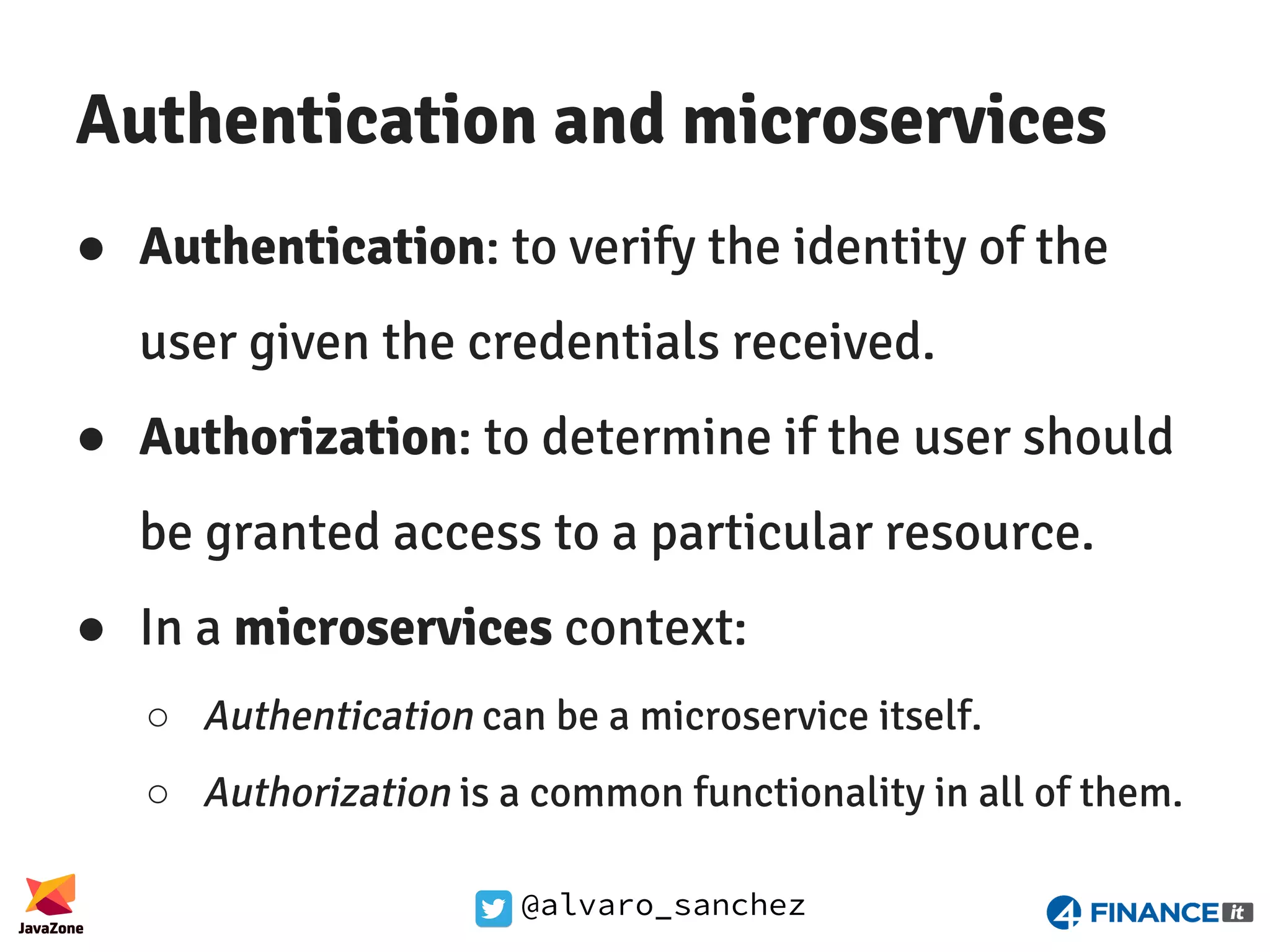

@alvaro_sanchez Authentication and microservices ● Authentication: to verify the identity of the user given the credentials received. ● Authorization: to determine if the user should be granted access to a particular resource. ● In a microservices context: ○ Authentication can be a microservice itself. ○ Authorization is a common functionality in all of them.

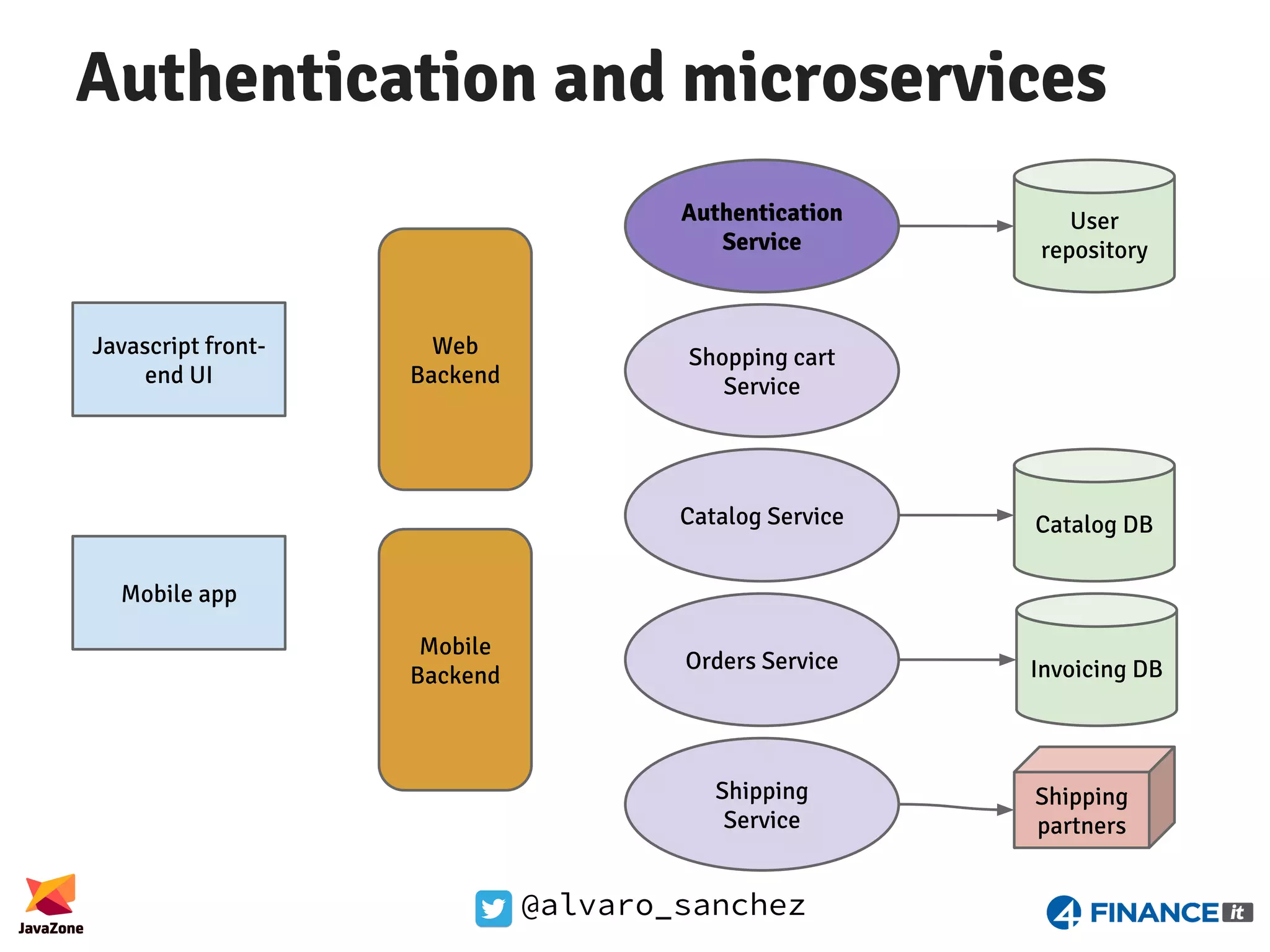

@alvaro_sanchez Authentication and microservices Javascript front- end UI Mobile app Shopping cart Service Catalog Service Authentication Service Orders Service Shipping Service User repository Shipping partners Catalog DB Invoicing DB Web Backend Mobile Backend
@alvaro_sanchez Agenda 1. Authentication in monolithic applications vs microservices. 2. Introduction to OAuth 2.0. 3. Achieving statelessness with JWT. 4. Q&A.

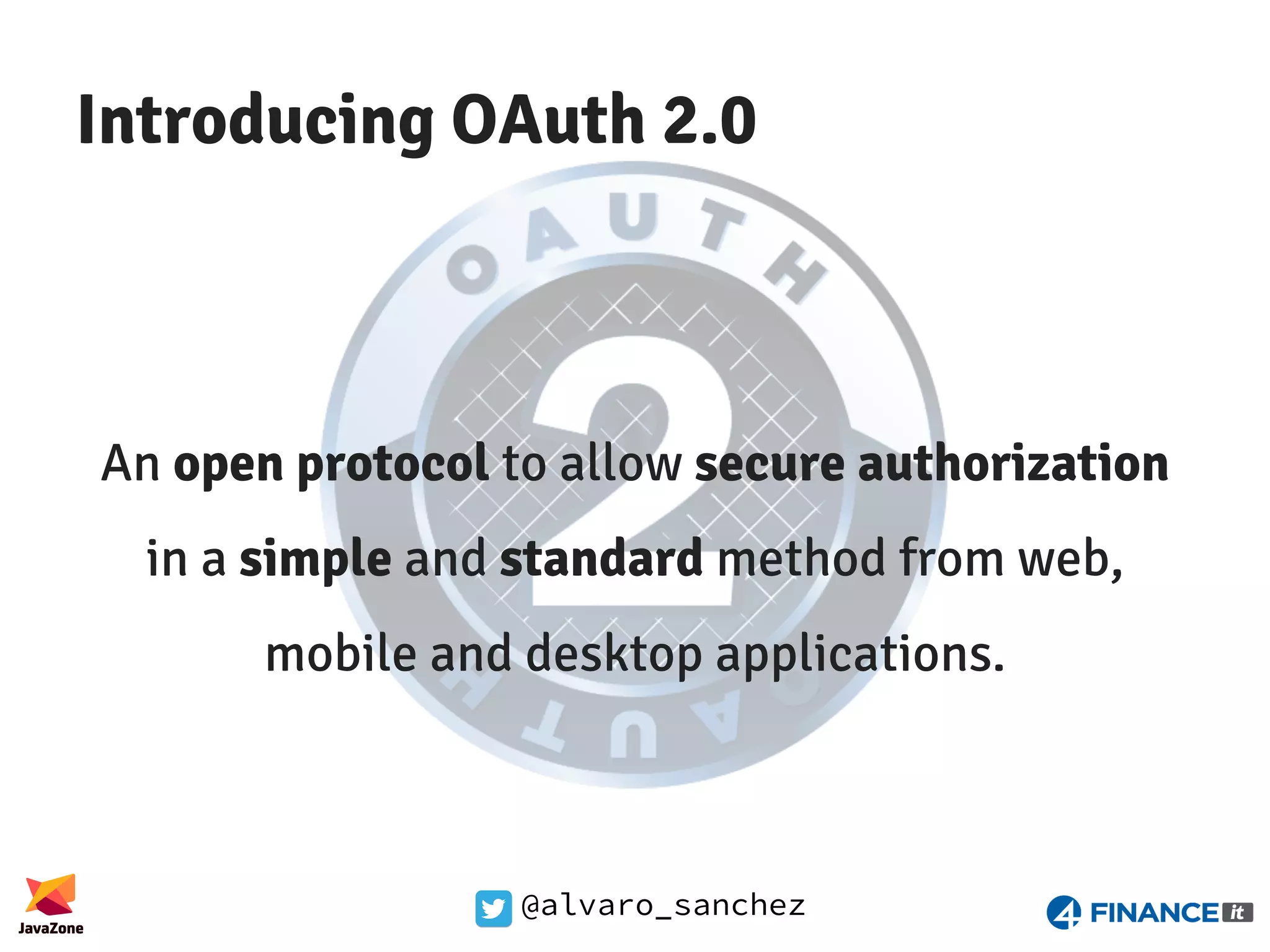

@alvaro_sanchez Introducing OAuth 2.0 An open protocol to allow secure authorization in a simple and standard method from web, mobile and desktop applications.

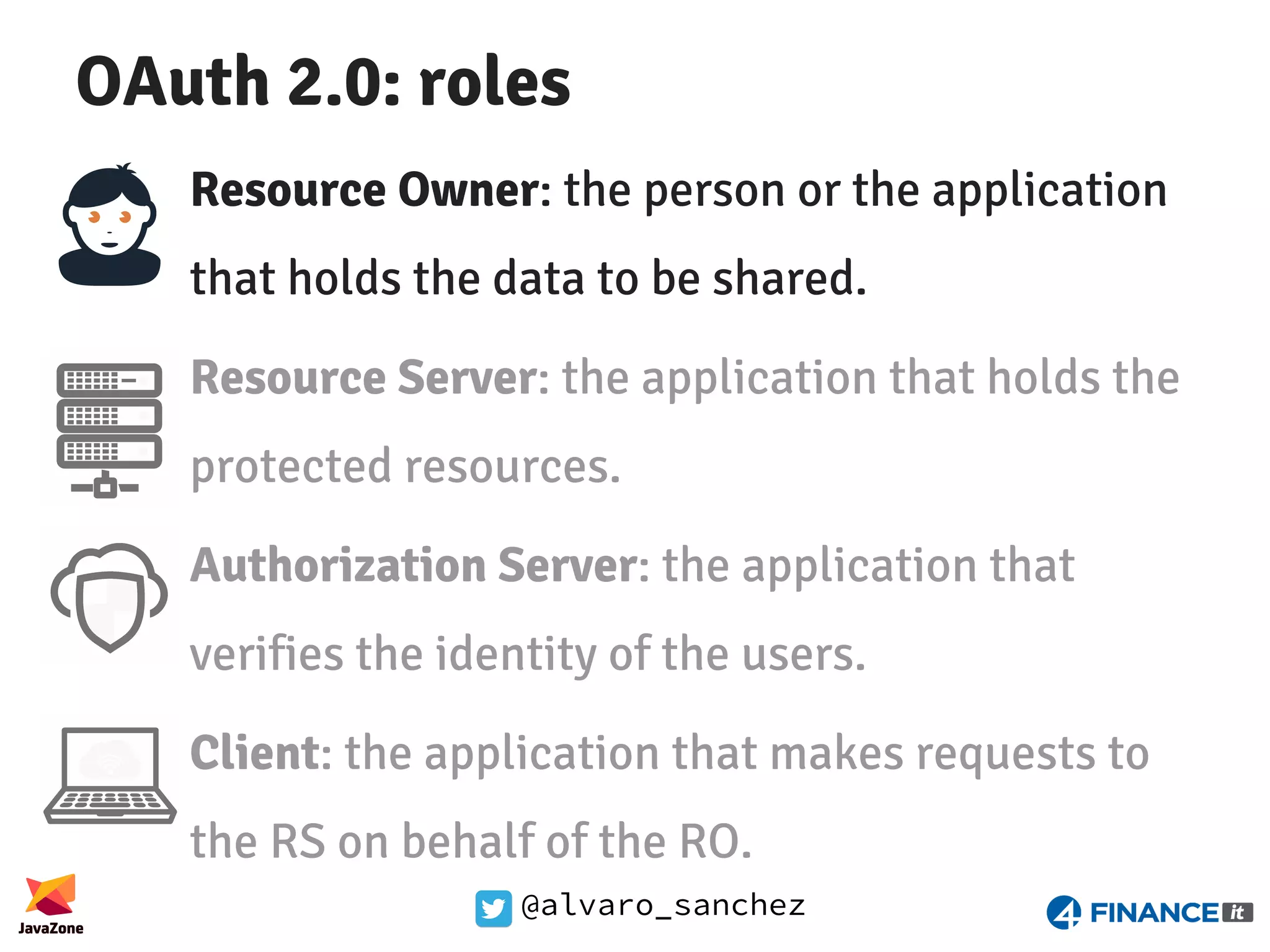

@alvaro_sanchez OAuth 2.0: roles Resource Owner: the person or the application that holds the data to be shared. Resource Server: the application that holds the protected resources. Authorization Server: the application that verifies the identity of the users. Client: the application that makes requests to the RS on behalf of the RO.

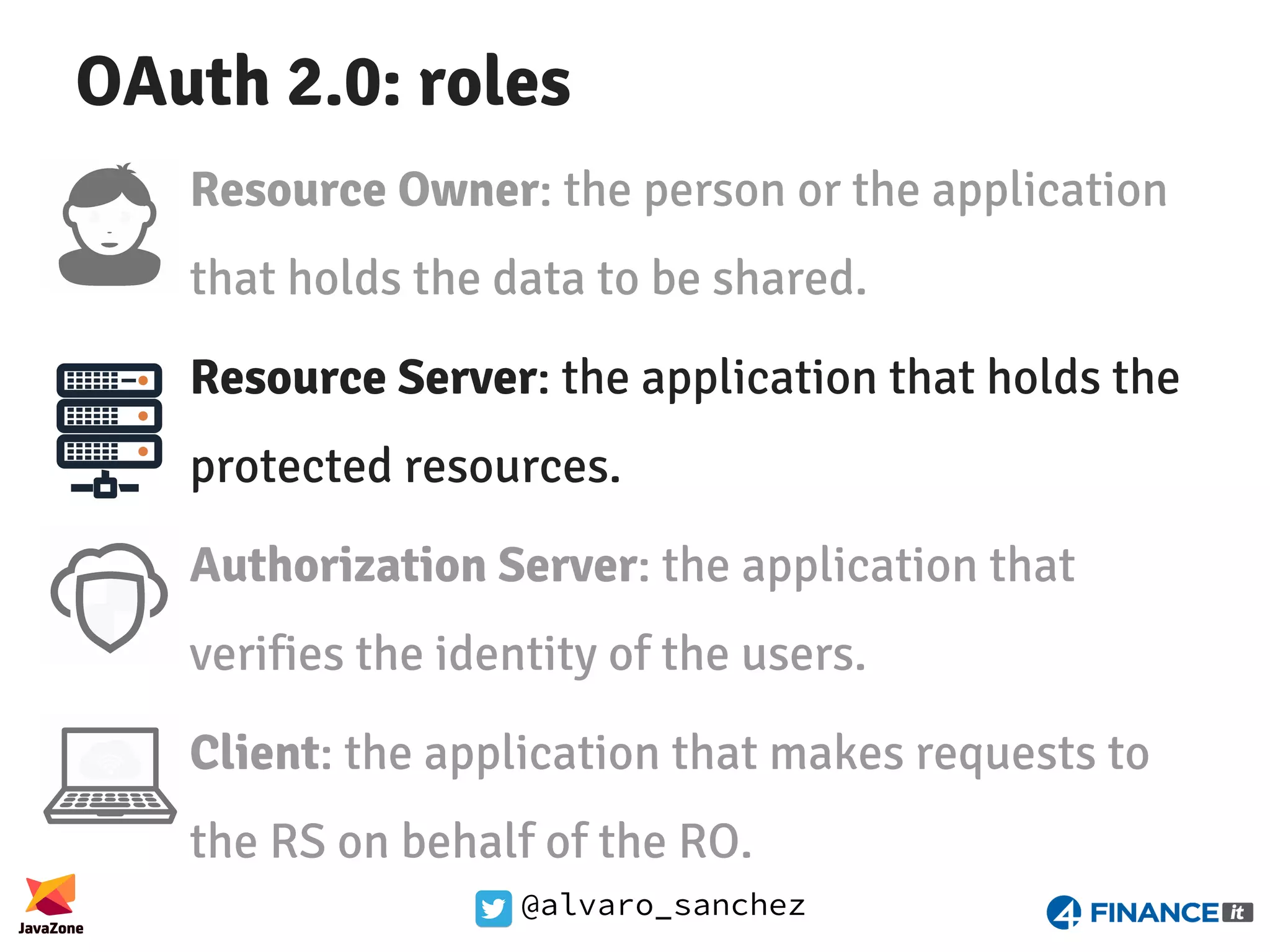

@alvaro_sanchez OAuth 2.0: roles Resource Owner: the person or the application that holds the data to be shared. Resource Server: the application that holds the protected resources. Authorization Server: the application that verifies the identity of the users. Client: the application that makes requests to the RS on behalf of the RO.

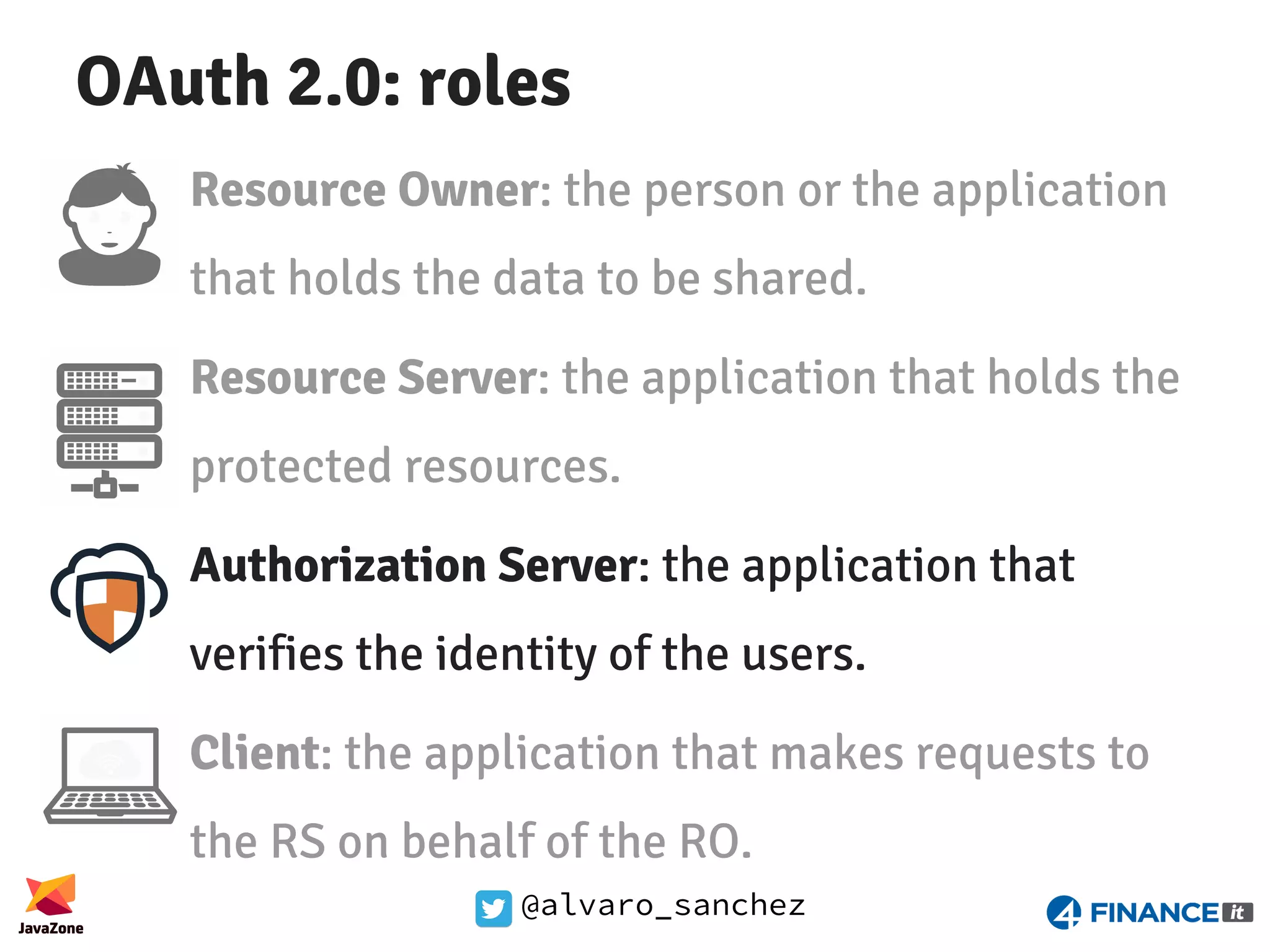

@alvaro_sanchez OAuth 2.0: roles Resource Owner: the person or the application that holds the data to be shared. Resource Server: the application that holds the protected resources. Authorization Server: the application that verifies the identity of the users. Client: the application that makes requests to the RS on behalf of the RO.

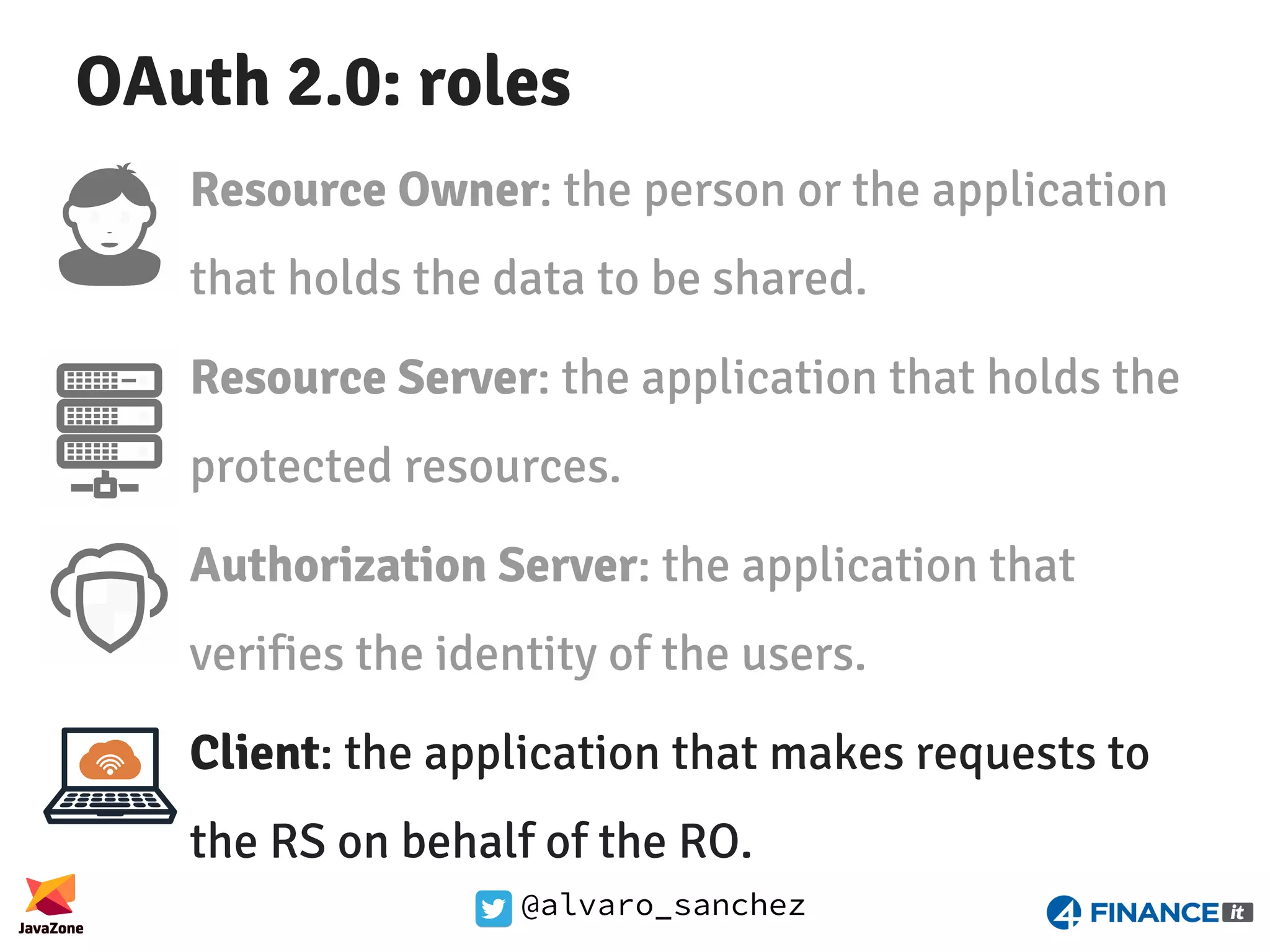

@alvaro_sanchez OAuth 2.0: roles Resource Owner: the person or the application that holds the data to be shared. Resource Server: the application that holds the protected resources. Authorization Server: the application that verifies the identity of the users. Client: the application that makes requests to the RS on behalf of the RO.

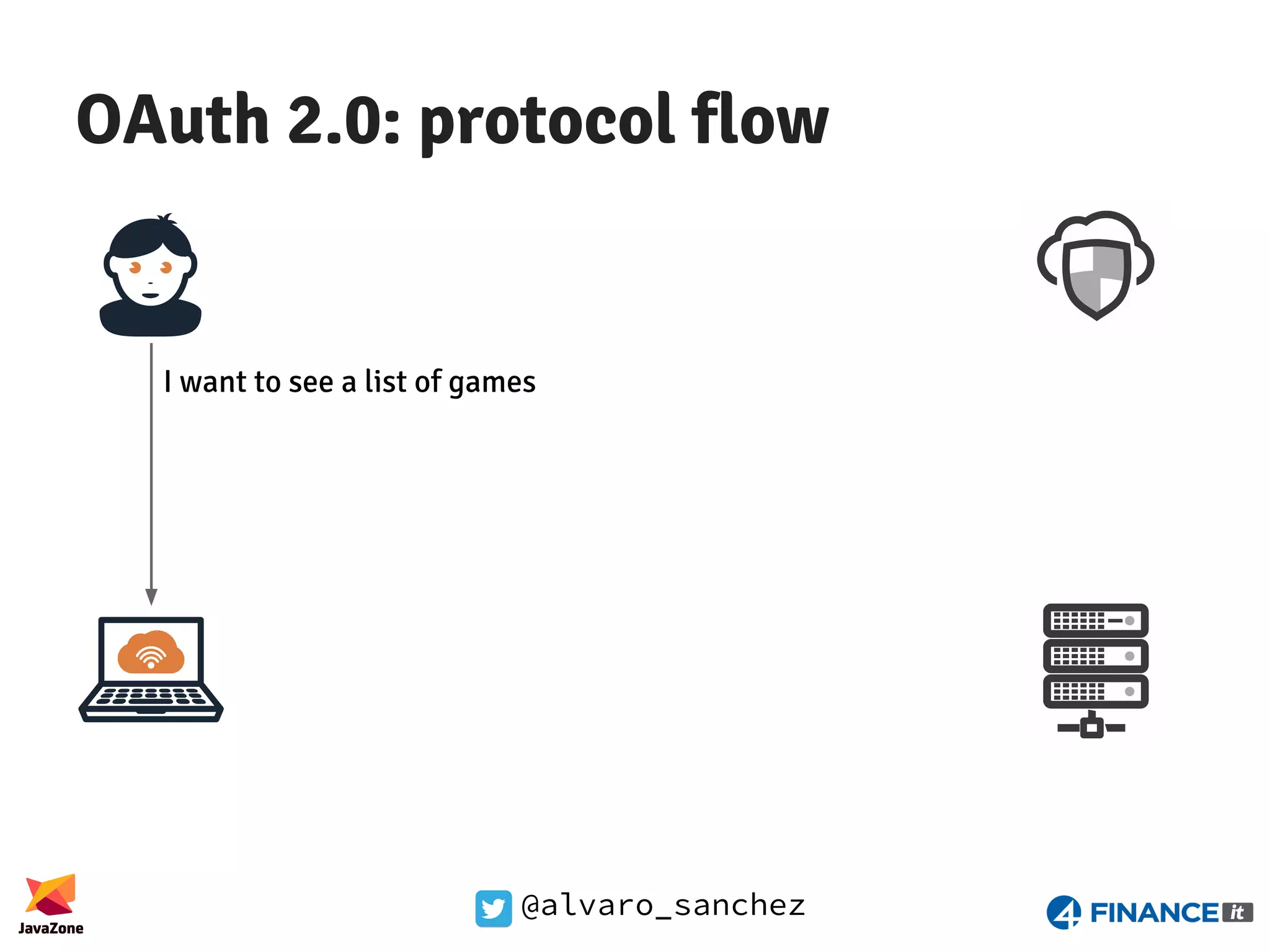

@alvaro_sanchez OAuth 2.0: protocol flow I want to see a list of games

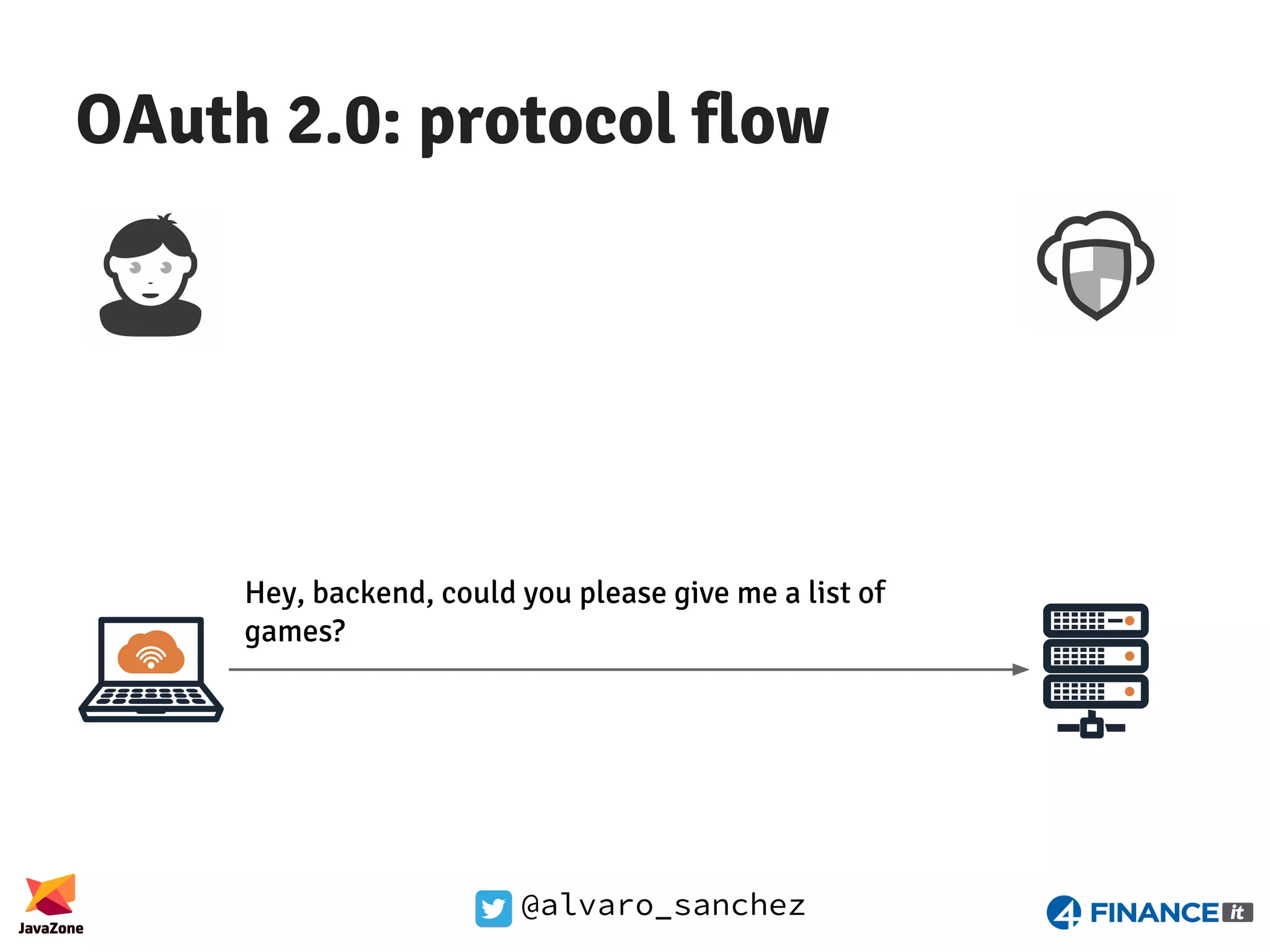

@alvaro_sanchez OAuth 2.0: protocol flow Hey, backend, could you please give me a list of games?

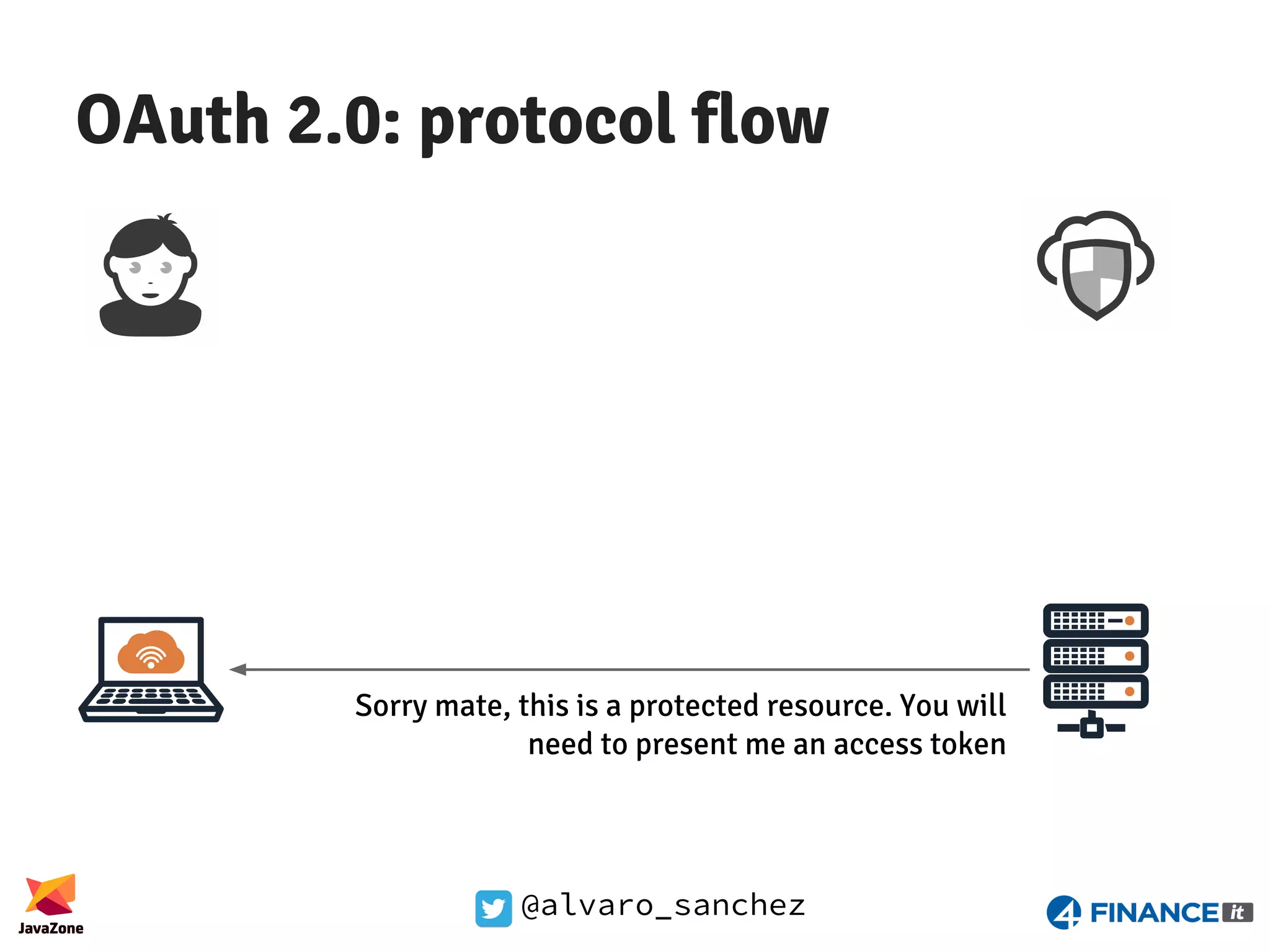

@alvaro_sanchez OAuth 2.0: protocol flow Sorry mate, this is a protected resource. You will need to present me an access token

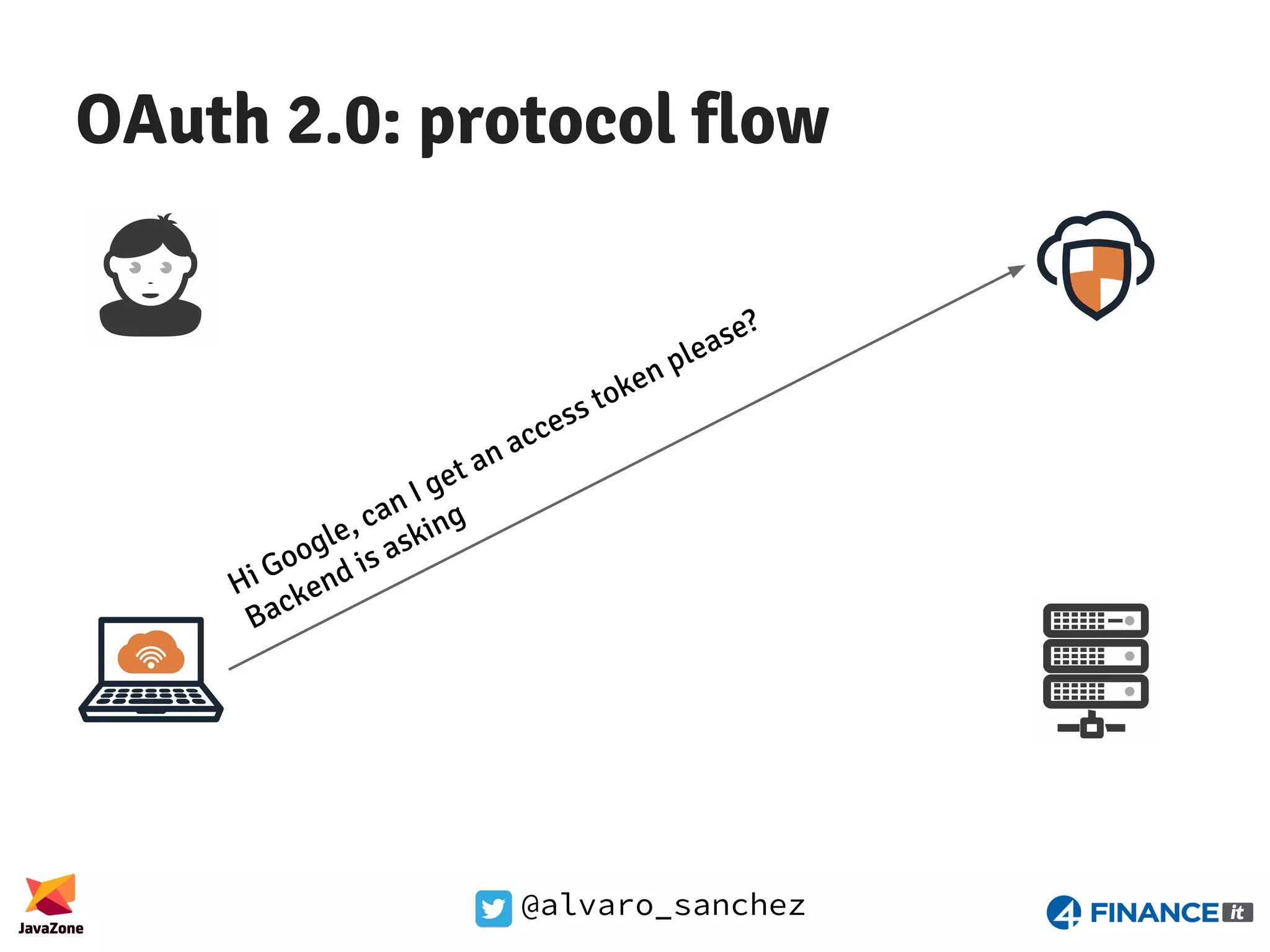

@alvaro_sanchez OAuth 2.0: protocol flow Hi Google, can I get an access token please? Backend is asking

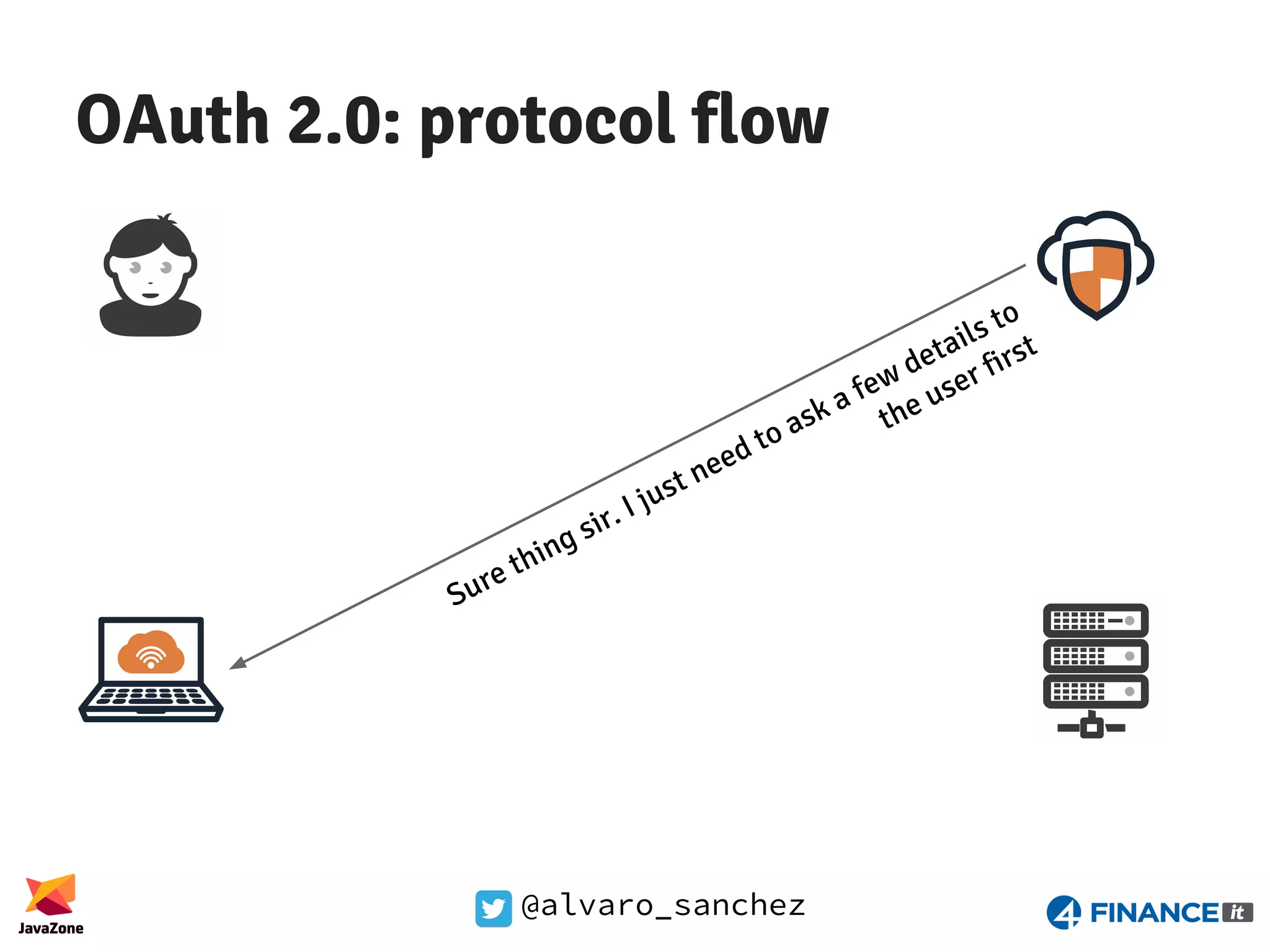

@alvaro_sanchez OAuth 2.0: protocol flow Sure thing sir. I just need to ask a few details to the user first

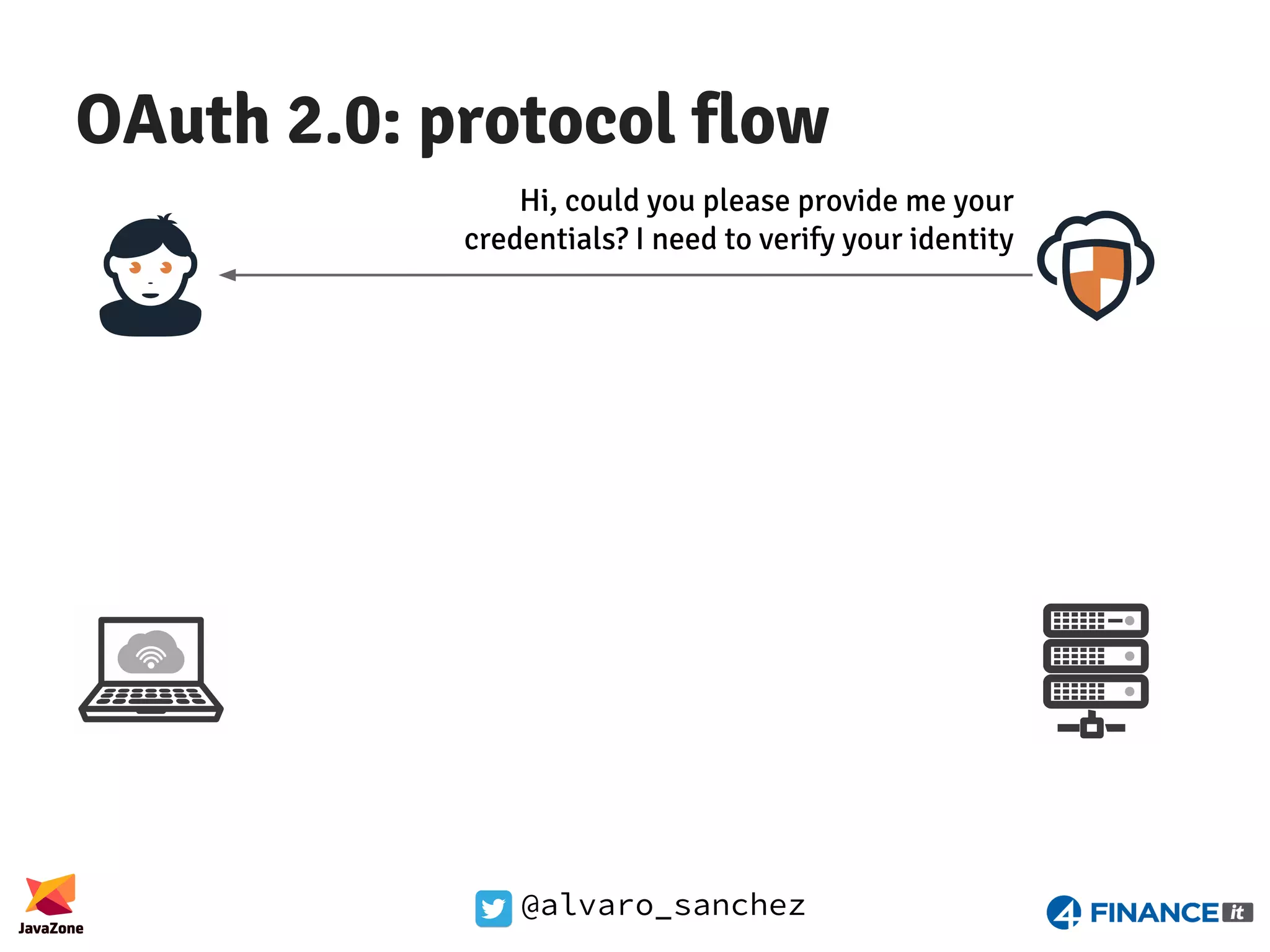

@alvaro_sanchez OAuth 2.0: protocol flow Hi, could you please provide me your credentials? I need to verify your identity

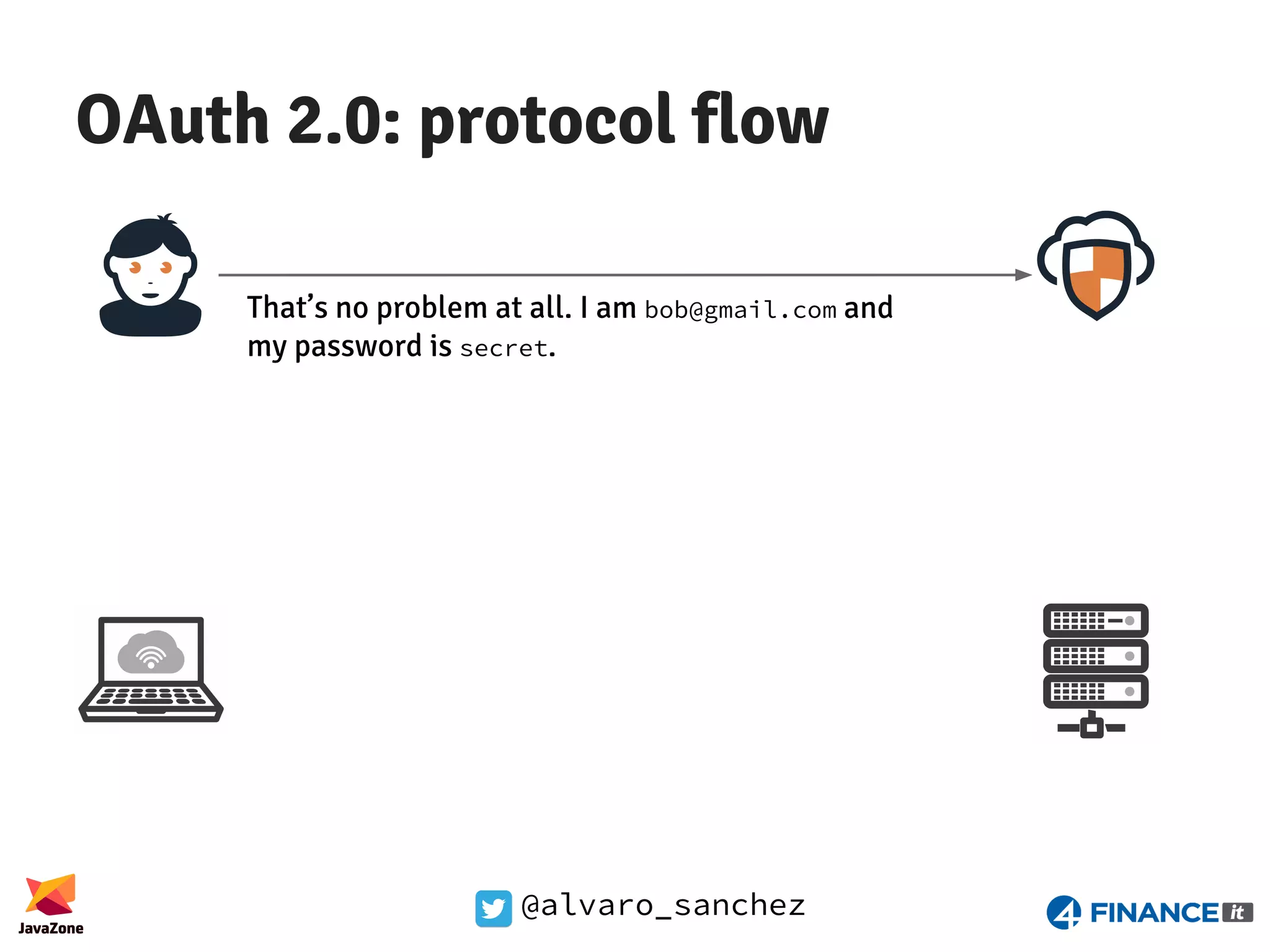

@alvaro_sanchez OAuth 2.0: protocol flow That’s no problem at all. I am bob@gmail.com and my password is secret.

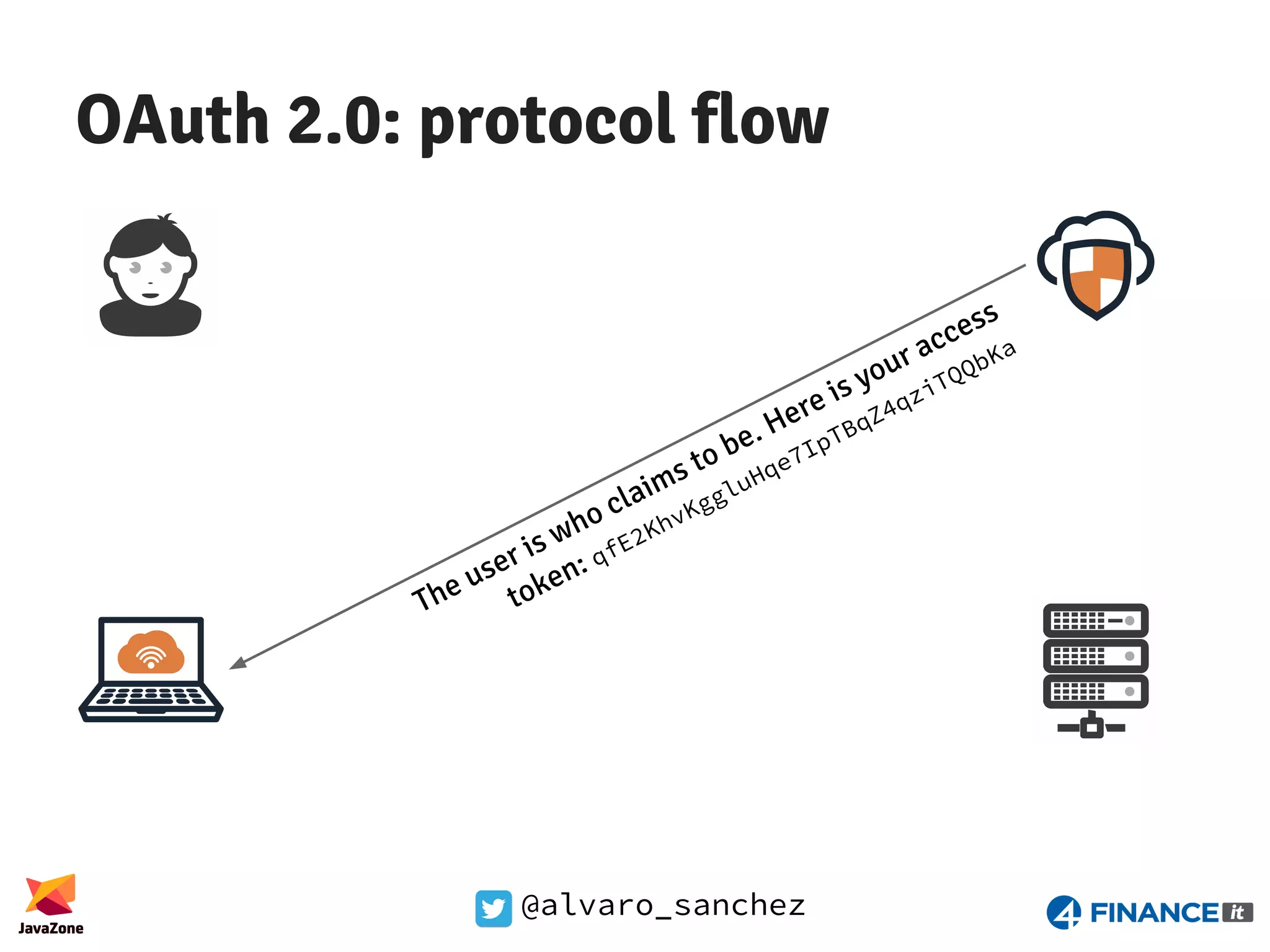

@alvaro_sanchez OAuth 2.0: protocol flow The user is who claims to be. Here is your access token: qfE2KhvKggluHqe7IpTBqZ4qziTQQbKa

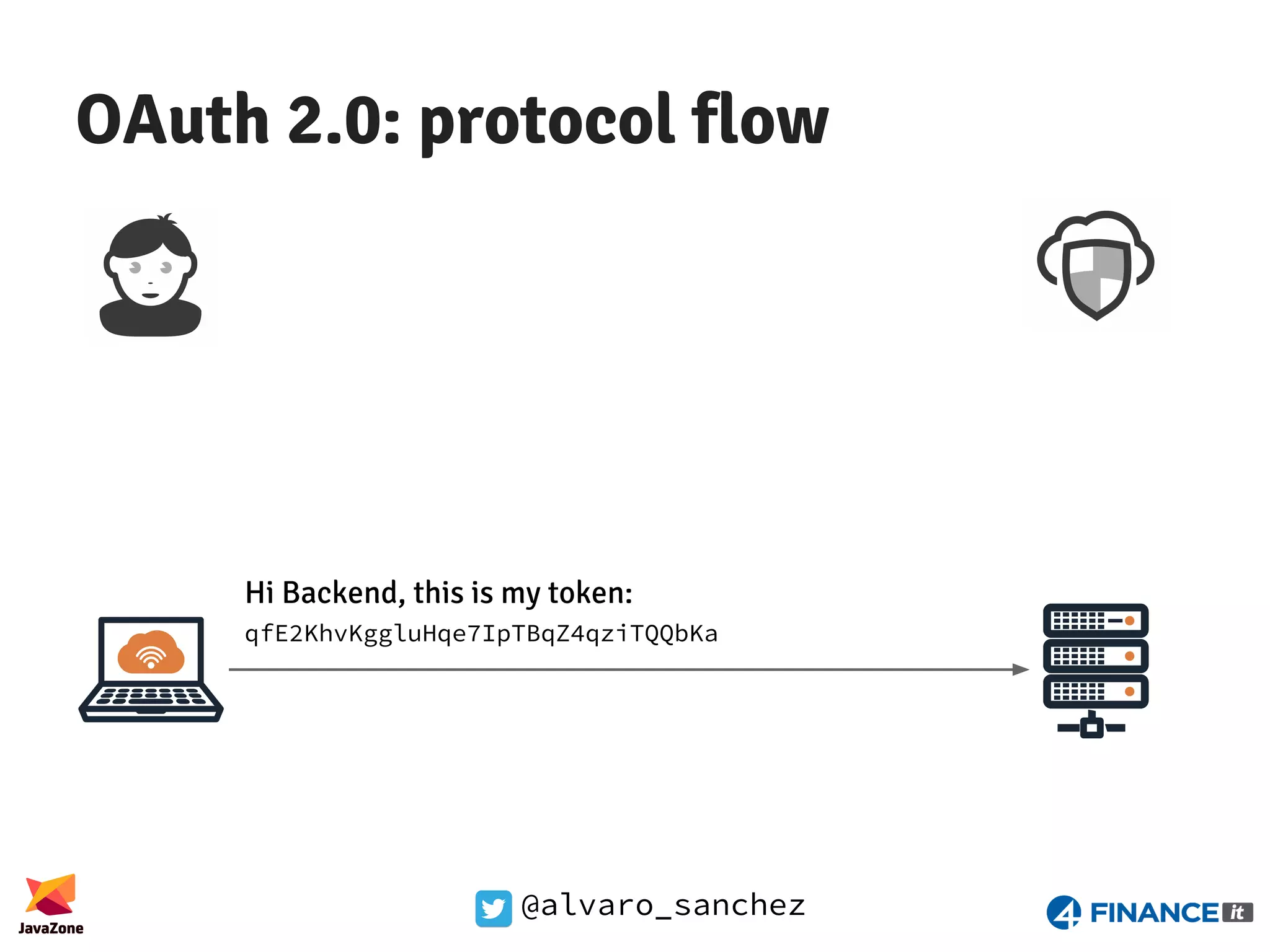

@alvaro_sanchez OAuth 2.0: protocol flow Hi Backend, this is my token: qfE2KhvKggluHqe7IpTBqZ4qziTQQbKa
@alvaro_sanchez OAuth 2.0: protocol flow Hi, I’ve been given qfE2KhvKggluHqe7IpTBqZ4qziTQQbKa. Could you please tell me who it belongs to?

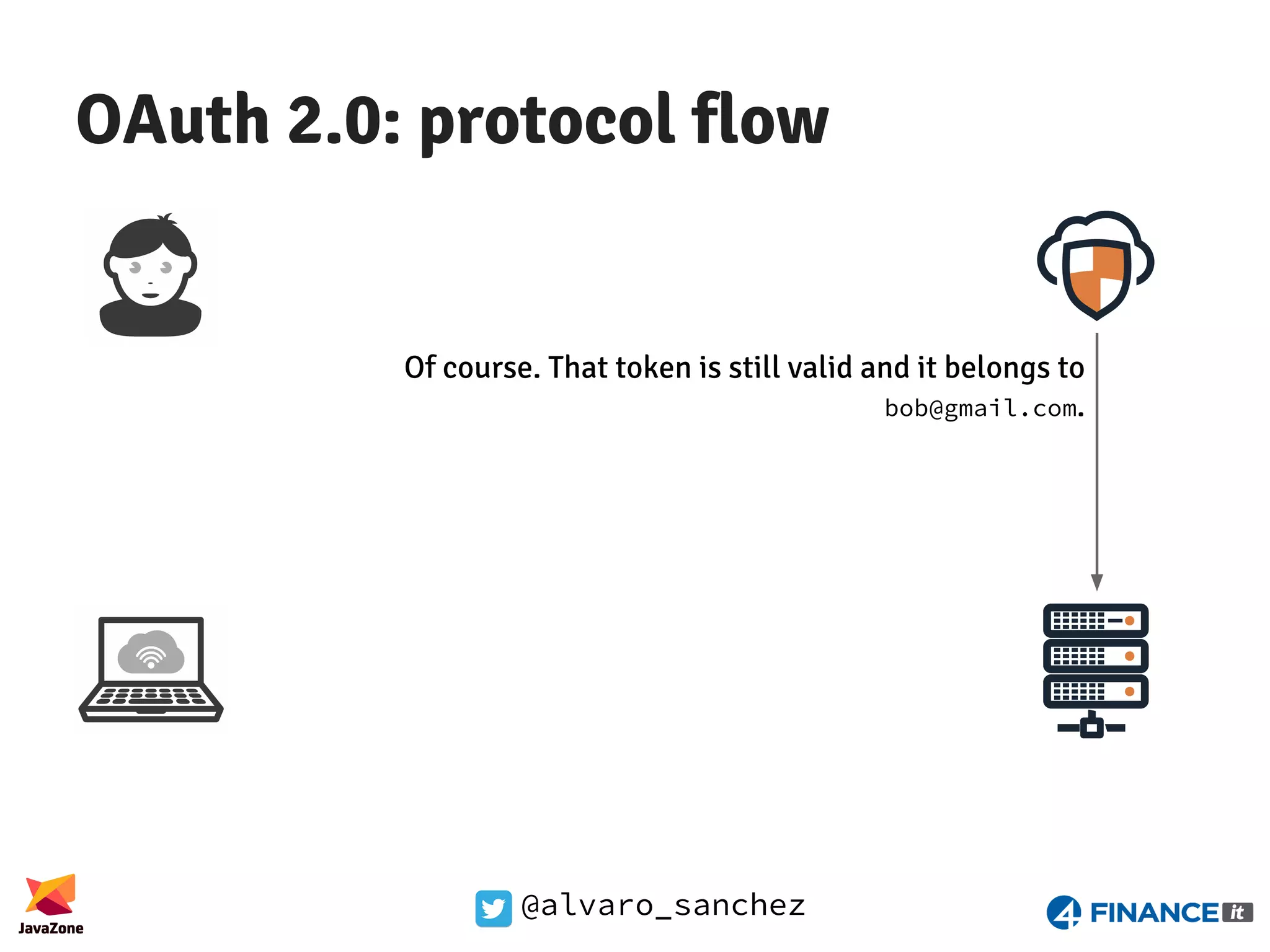

@alvaro_sanchez OAuth 2.0: protocol flow Of course. That token is still valid and it belongs to bob@gmail.com.

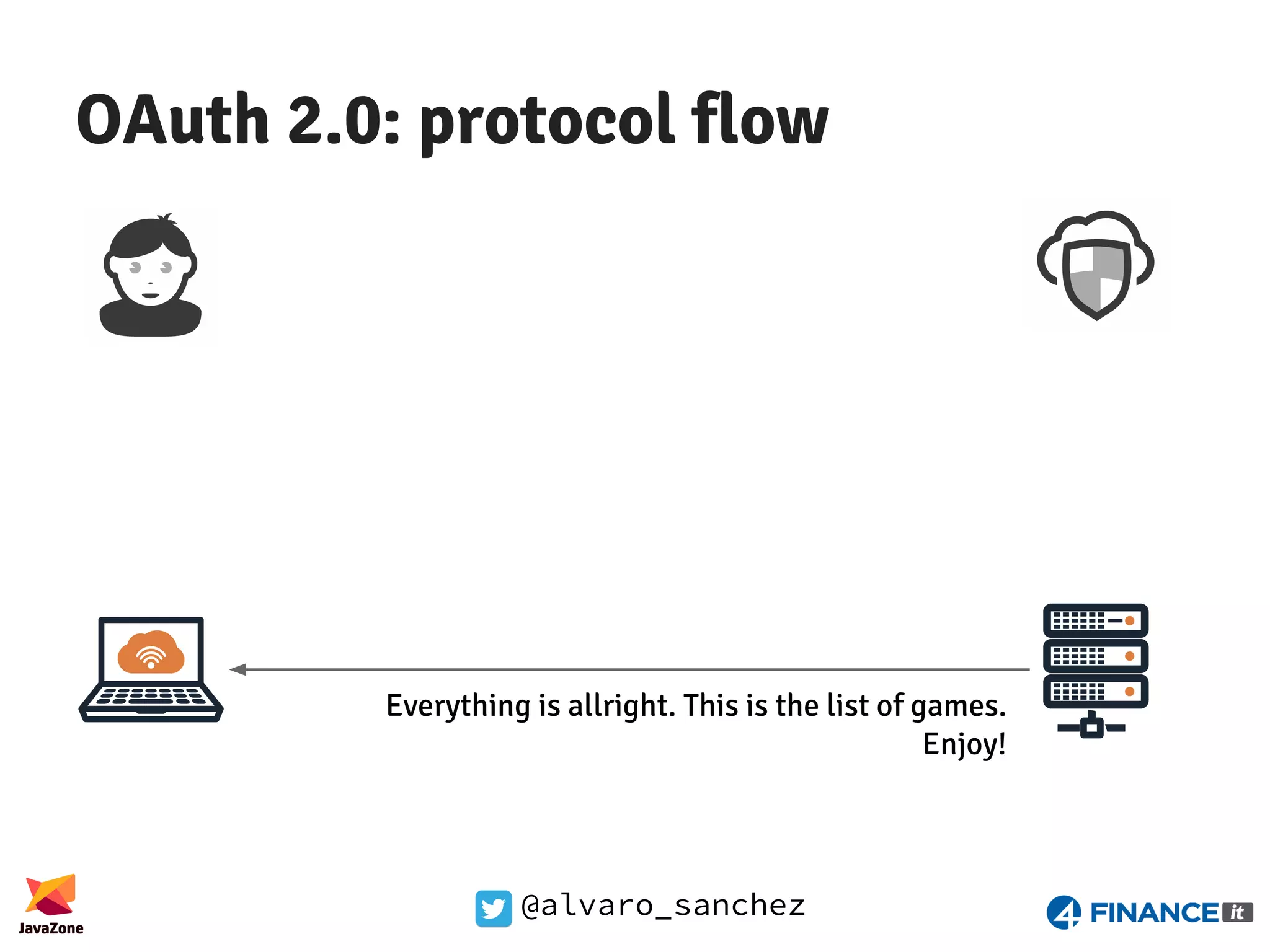

@alvaro_sanchez OAuth 2.0: protocol flow Everything is allright. This is the list of games. Enjoy!

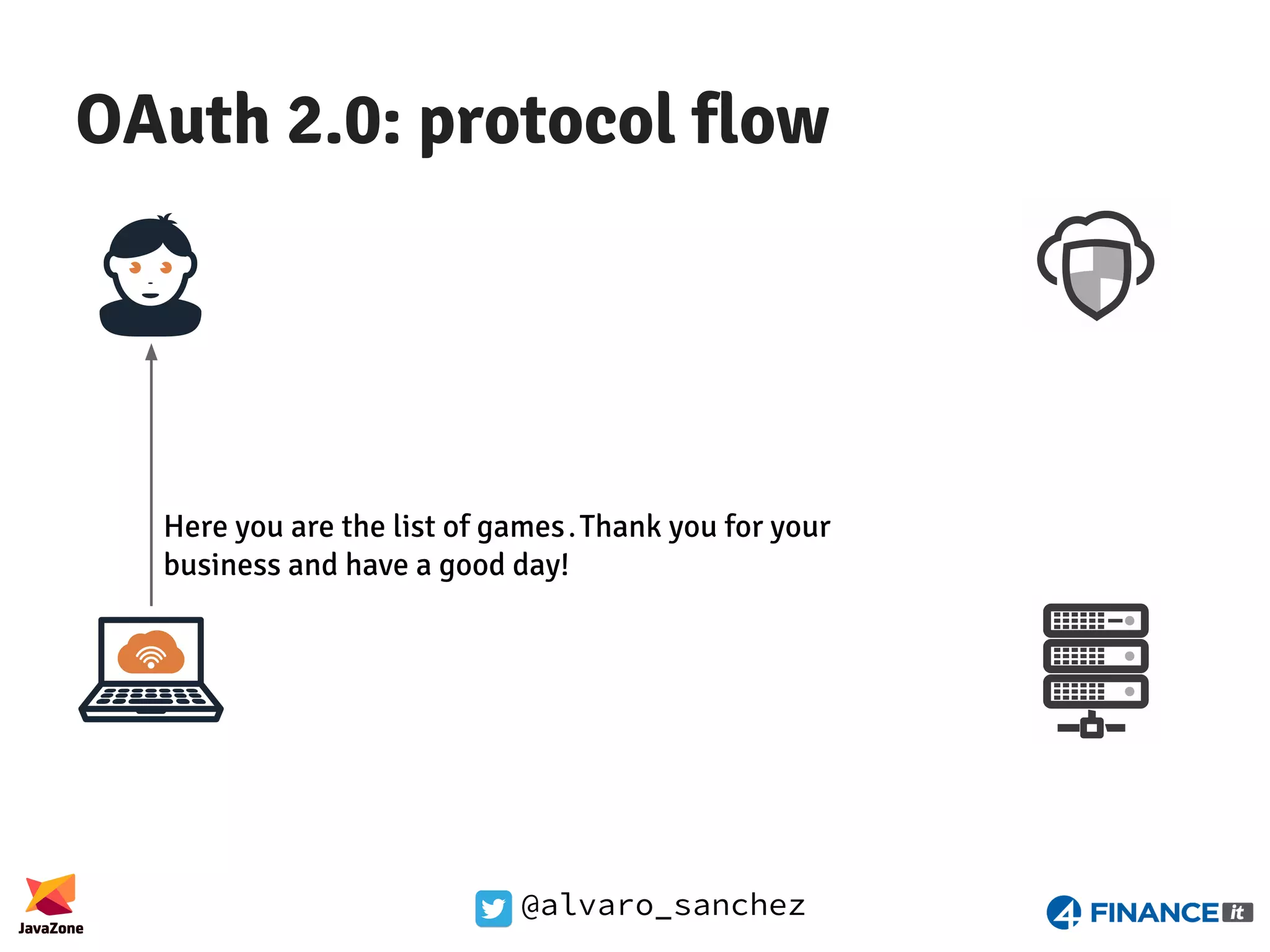

@alvaro_sanchez OAuth 2.0: protocol flow Here you are the list of games.Thank you for your business and have a good day!

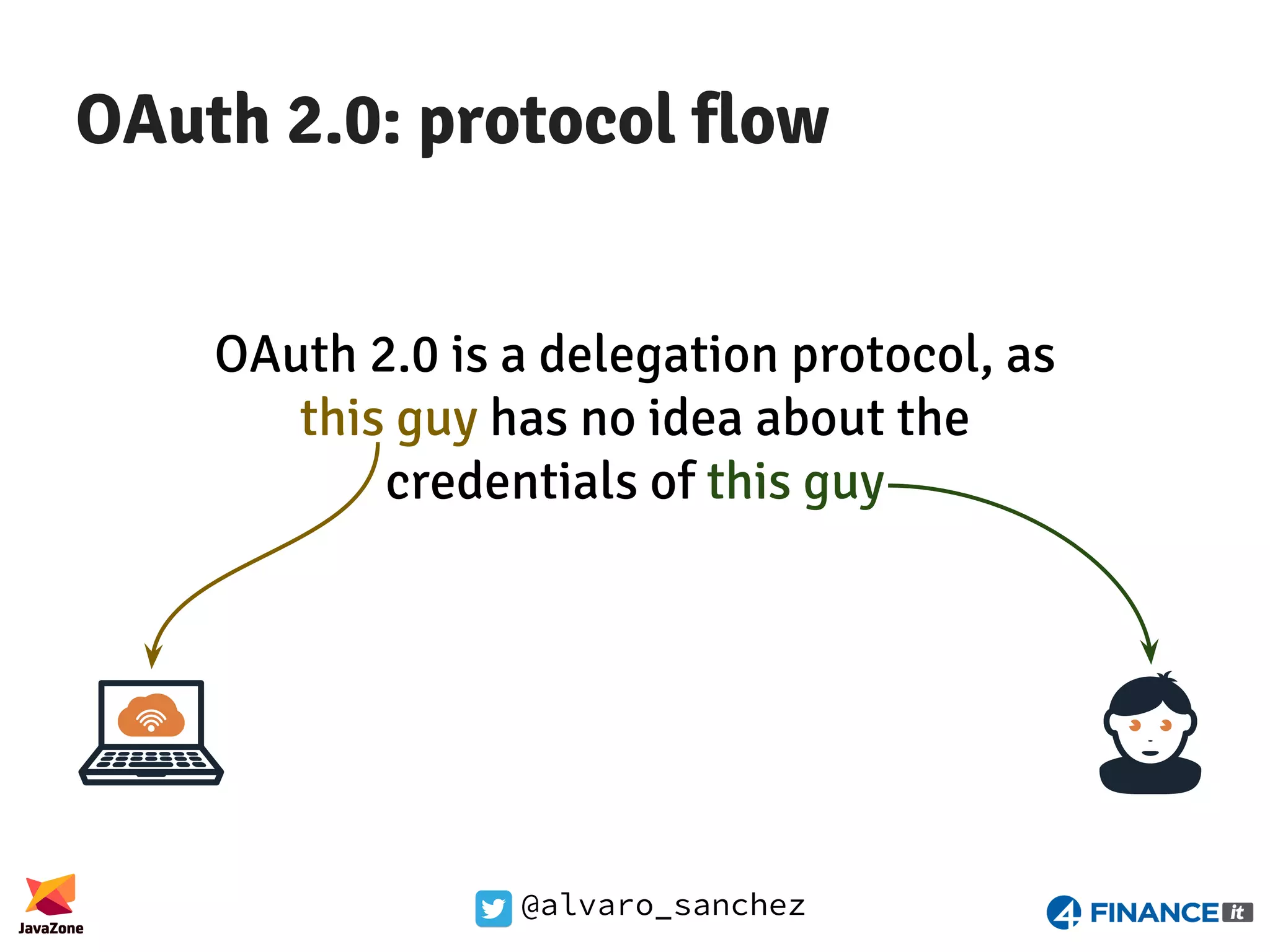

@alvaro_sanchez OAuth 2.0: protocol flow OAuth 2.0 is a delegation protocol, as this guy has no idea about the credentials of this guy

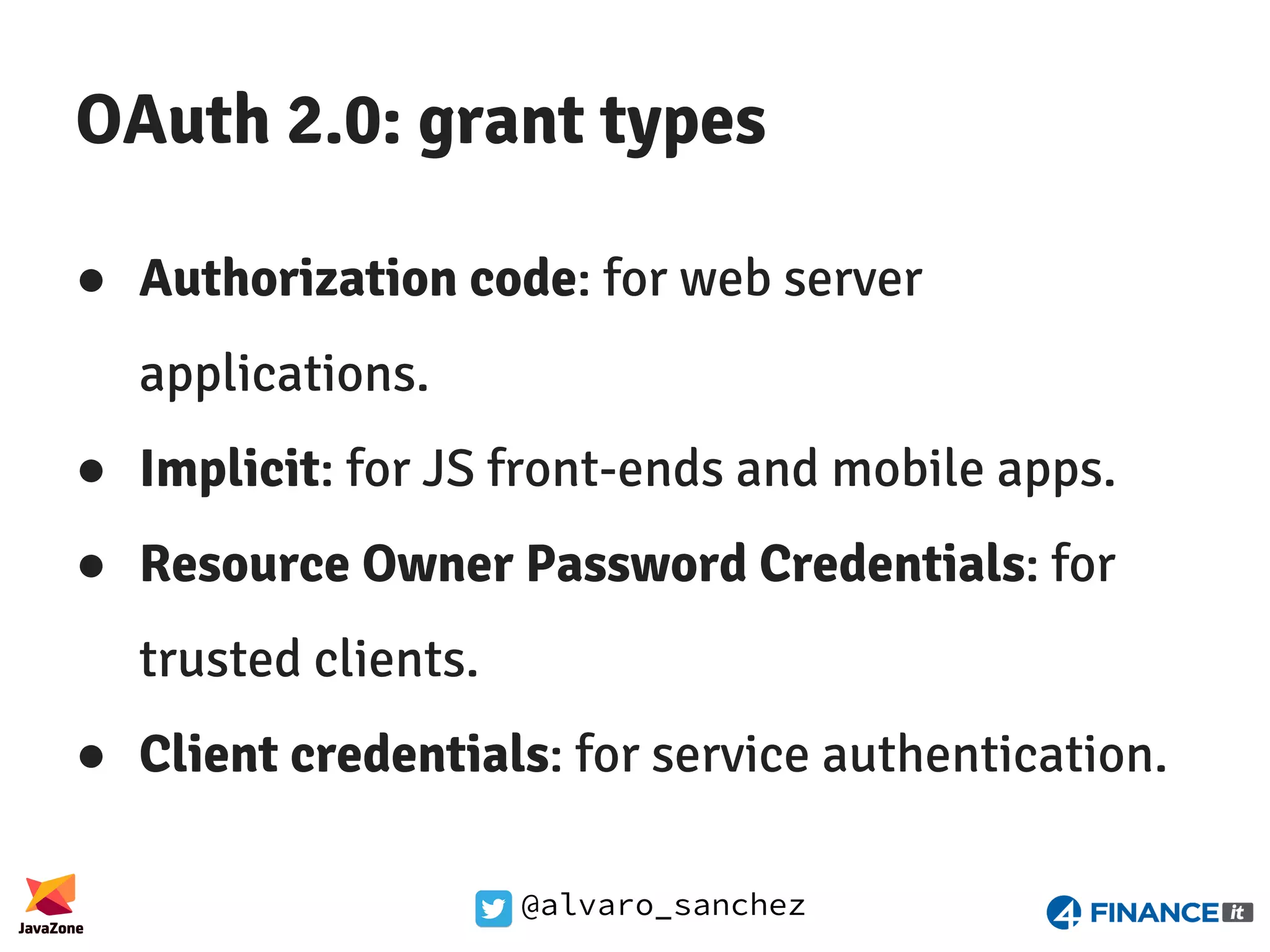

@alvaro_sanchez OAuth 2.0: grant types ● Authorization code: for web server applications. ● Implicit: for JS front-ends and mobile apps. ● Resource Owner Password Credentials: for trusted clients. ● Client credentials: for service authentication.

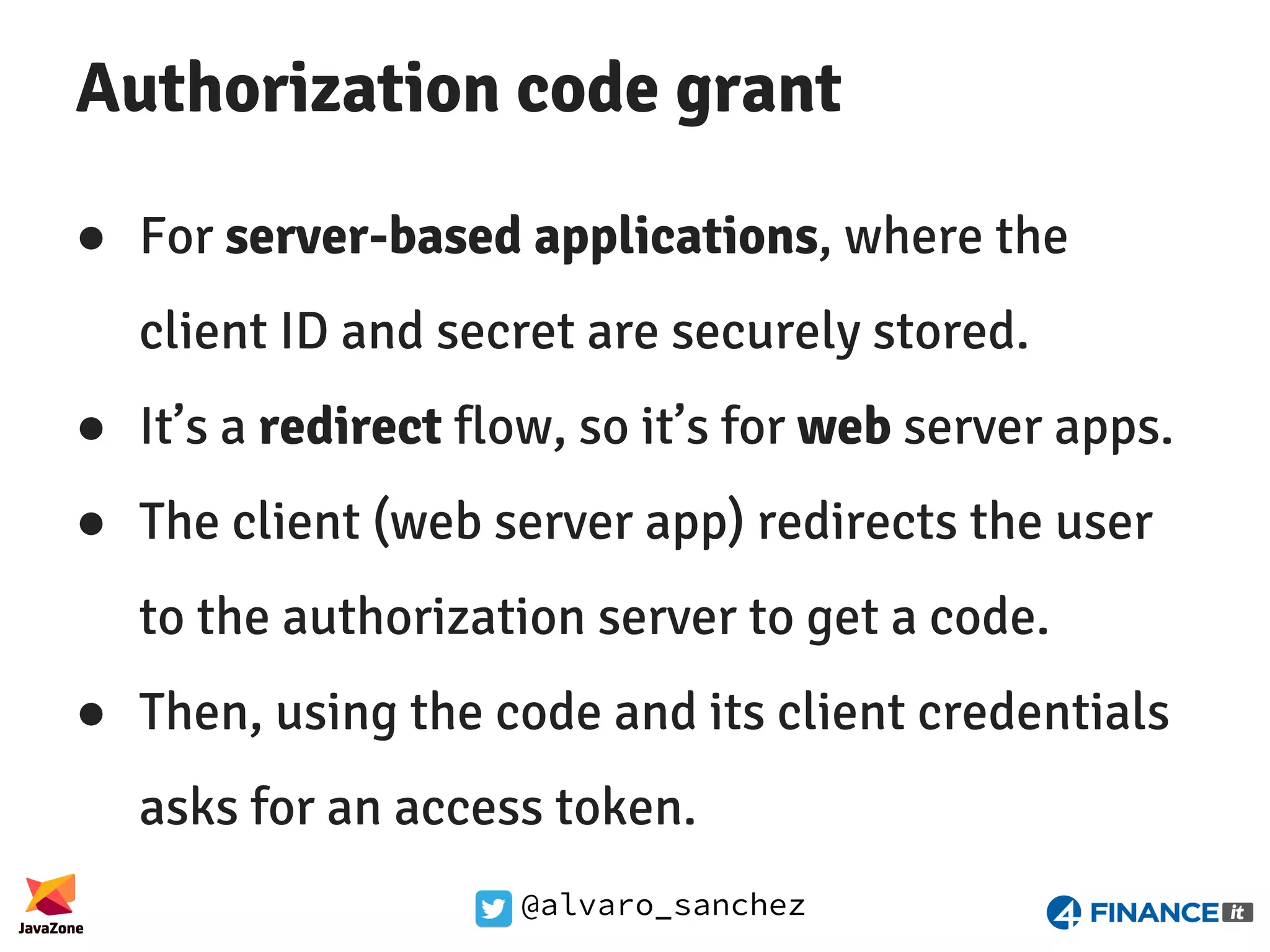

@alvaro_sanchez Authorization code grant ● For server-based applications, where the client ID and secret are securely stored. ● It’s a redirect flow, so it’s for web server apps. ● The client (web server app) redirects the user to the authorization server to get a code. ● Then, using the code and its client credentials asks for an access token.

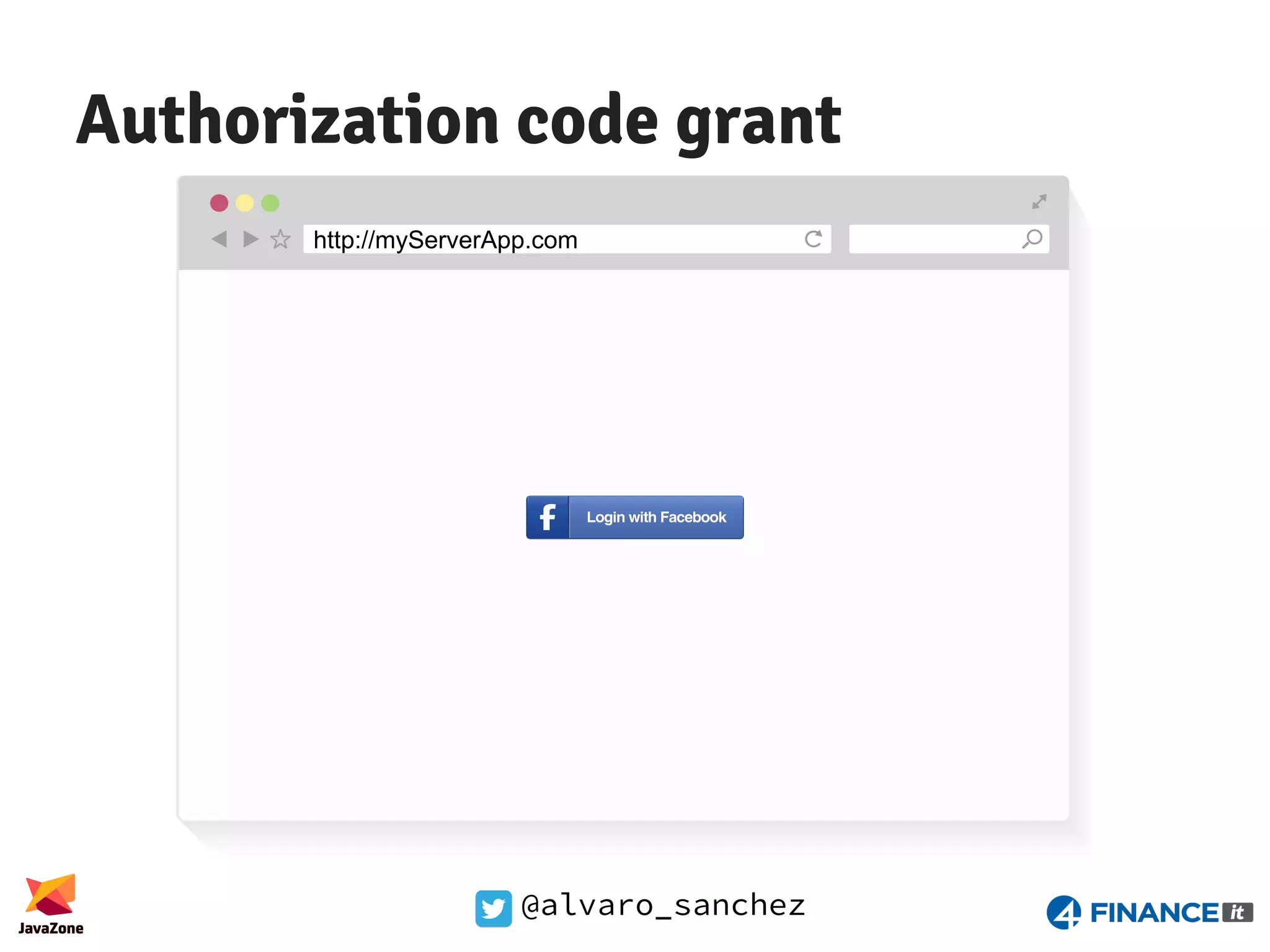

@alvaro_sanchez Authorization code grant http://myServerApp.com

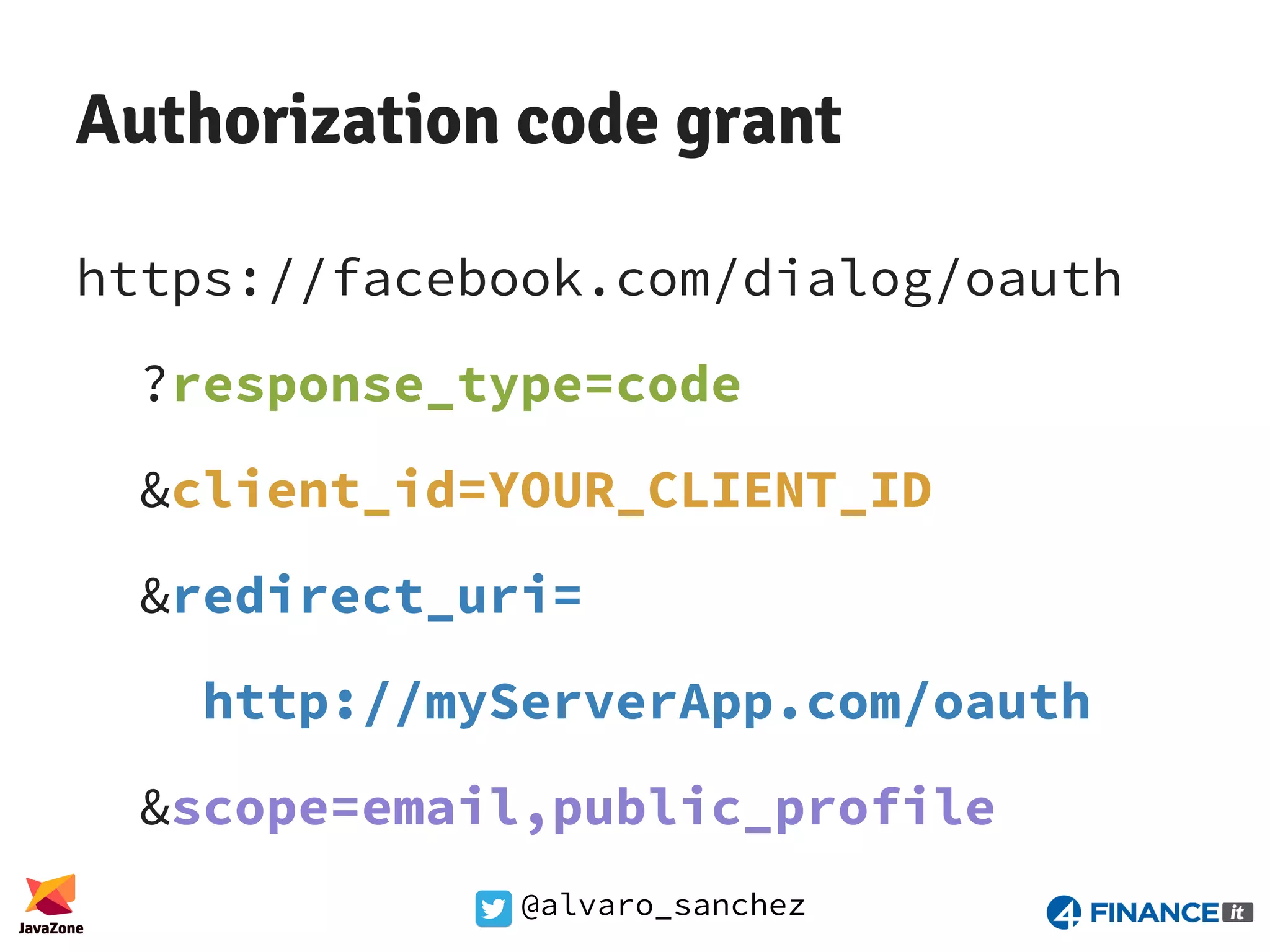

@alvaro_sanchez Authorization code grant https://facebook.com/dialog/oauth ?response_type=code &client_id=YOUR_CLIENT_ID &redirect_uri= http://myServerApp.com/oauth &scope=email,public_profile

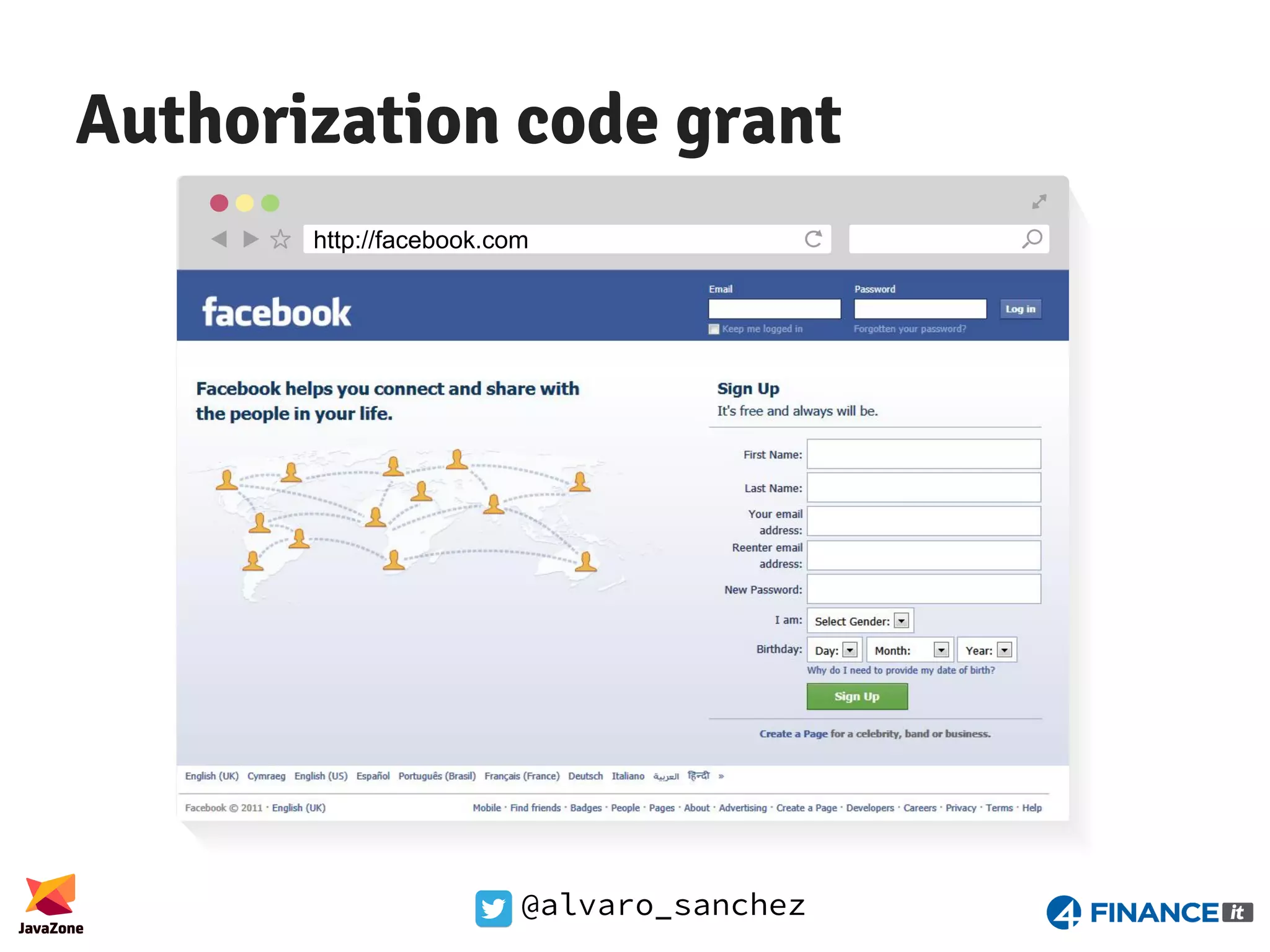

@alvaro_sanchez Authorization code grant http://myServerApp.comhttp://facebook.com

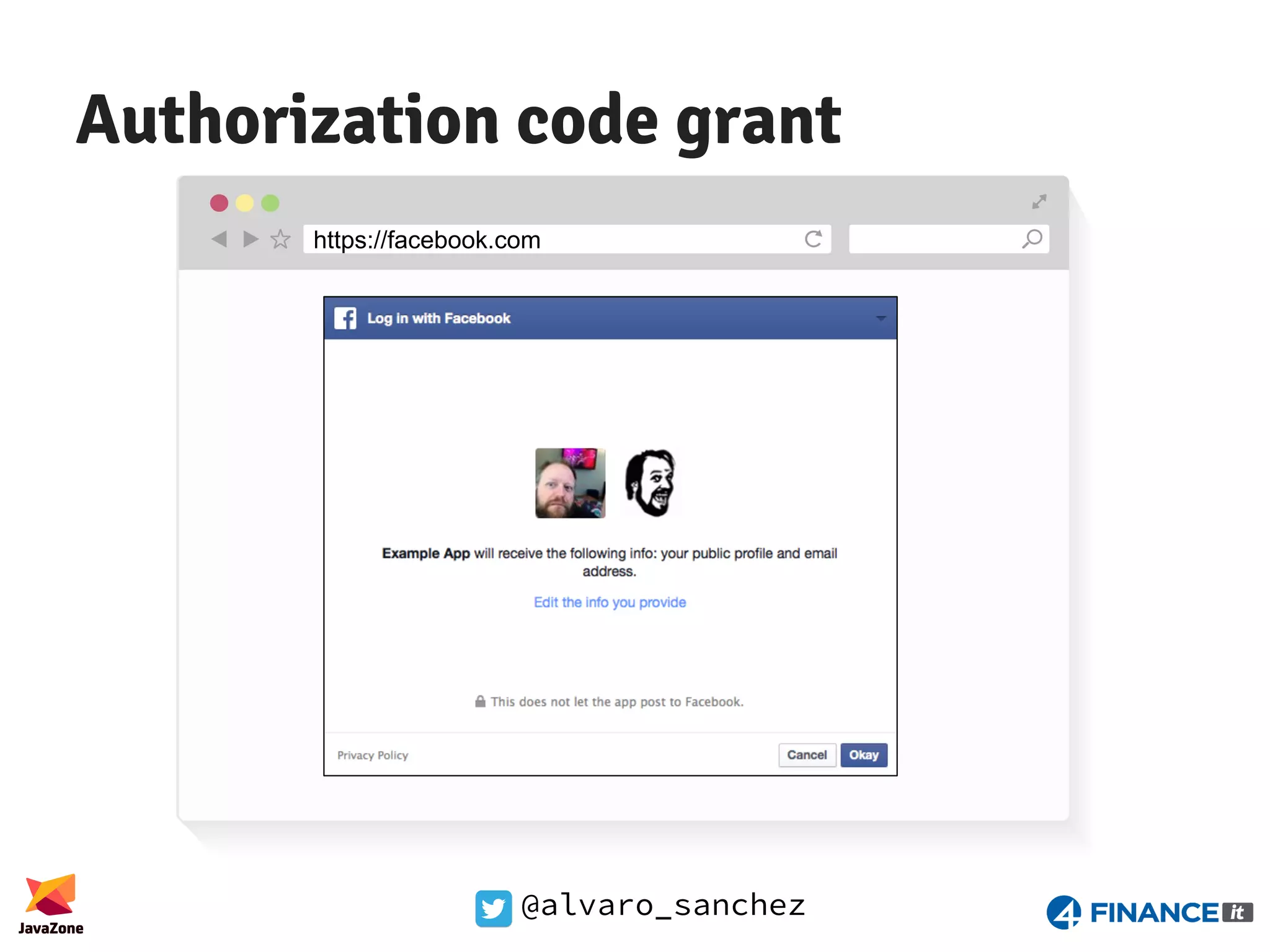

@alvaro_sanchez Authorization code grant http://myServerApp.comhttps://facebook.com

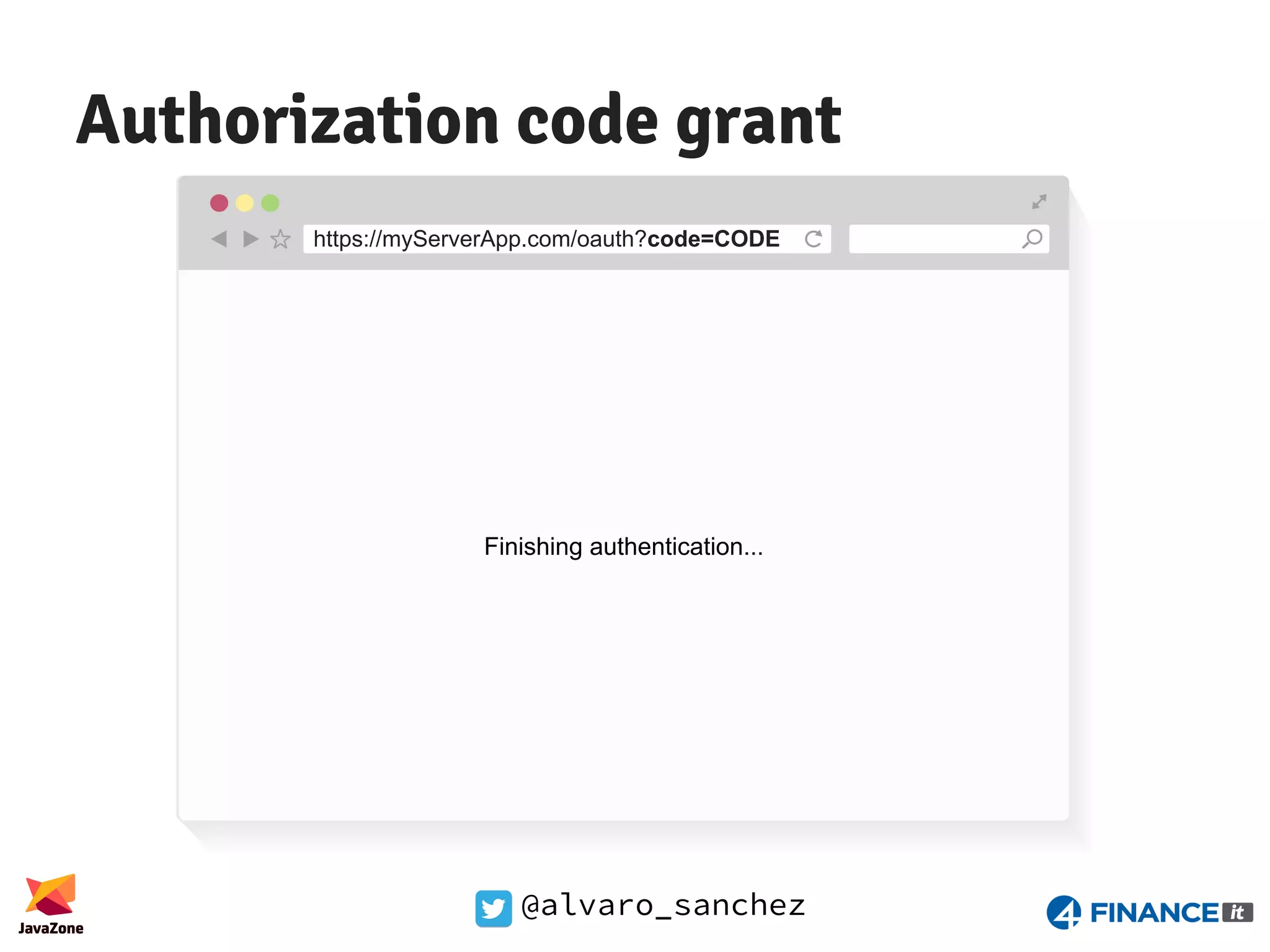

@alvaro_sanchez Authorization code grant https://myServerApp.com/oauth?code=CODE Finishing authentication...

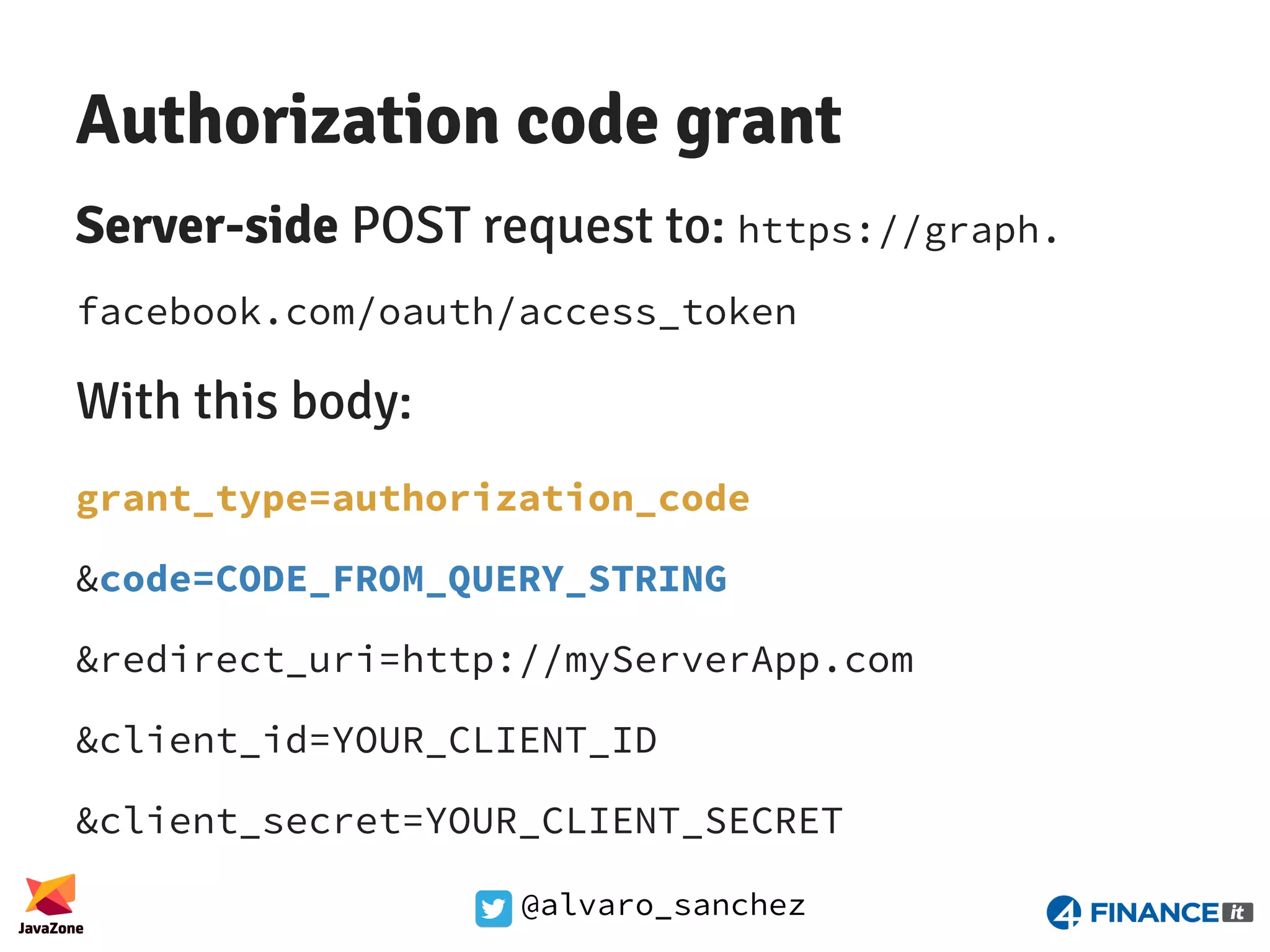

@alvaro_sanchez Authorization code grant Server-side POST request to: https://graph. facebook.com/oauth/access_token With this body: grant_type=authorization_code &code=CODE_FROM_QUERY_STRING &redirect_uri=http://myServerApp.com &client_id=YOUR_CLIENT_ID &client_secret=YOUR_CLIENT_SECRET
@alvaro_sanchez Authorization code grant Example response: { "access_token": "RsT5OjbzRn430zqMLgV3Ia", "token_type": "Bearer", "expires_in": 3600, "refresh_token": "e1qoXg7Ik2RRua48lXIV" }

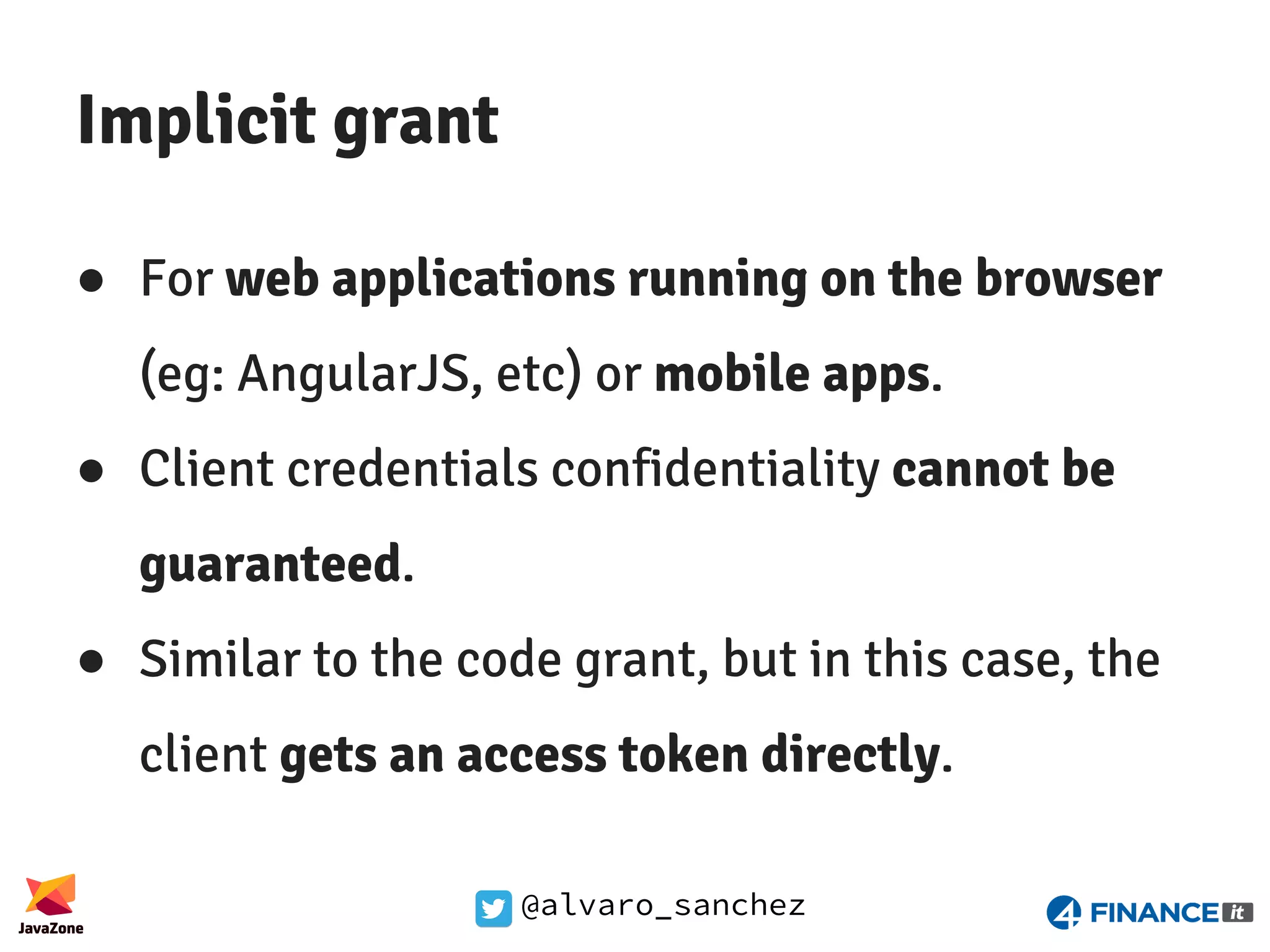

@alvaro_sanchez Implicit grant ● For web applications running on the browser (eg: AngularJS, etc) or mobile apps. ● Client credentials confidentiality cannot be guaranteed. ● Similar to the code grant, but in this case, the client gets an access token directly.

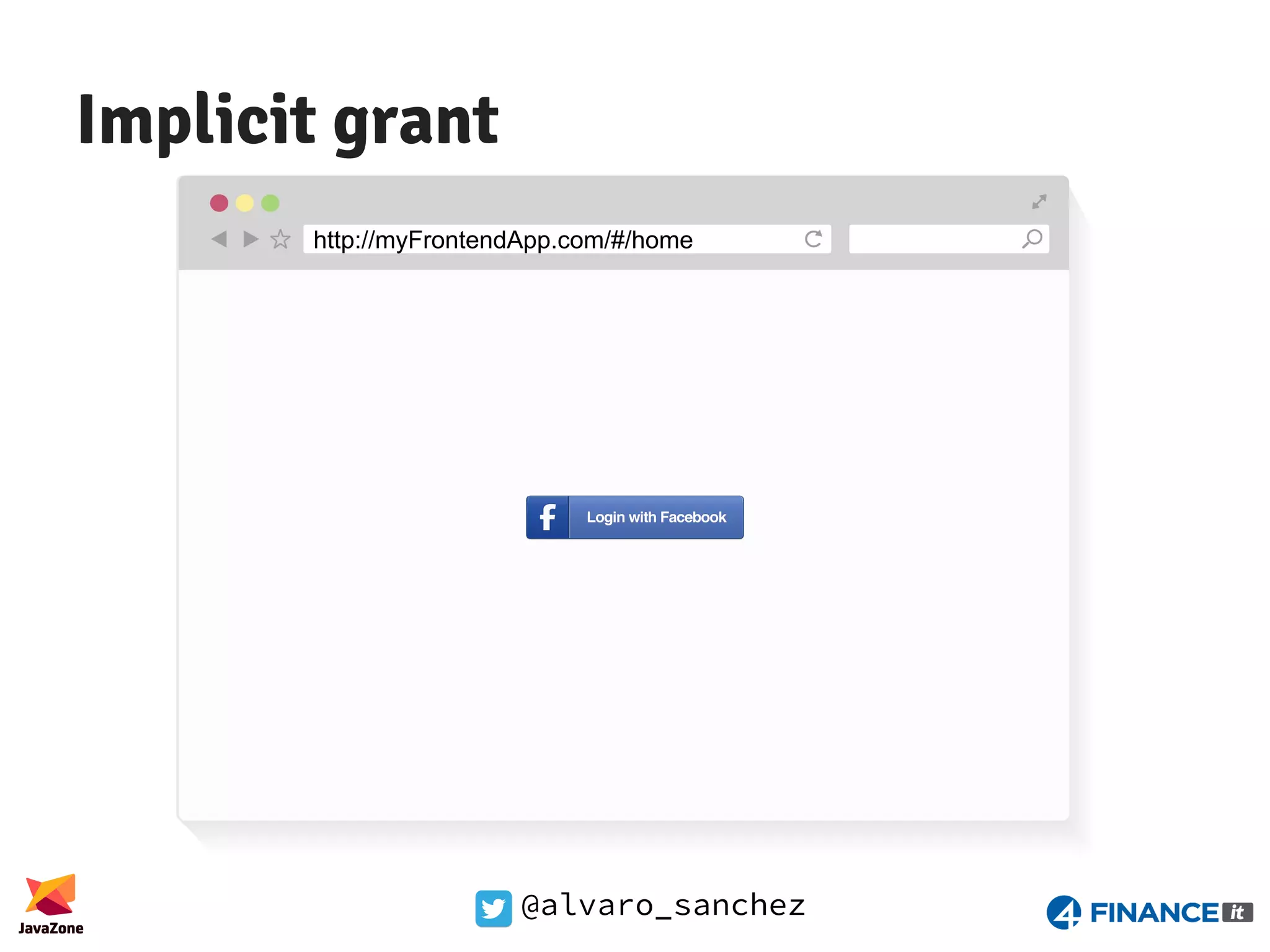

@alvaro_sanchez Implicit grant http://myFrontendApp.com/#/home

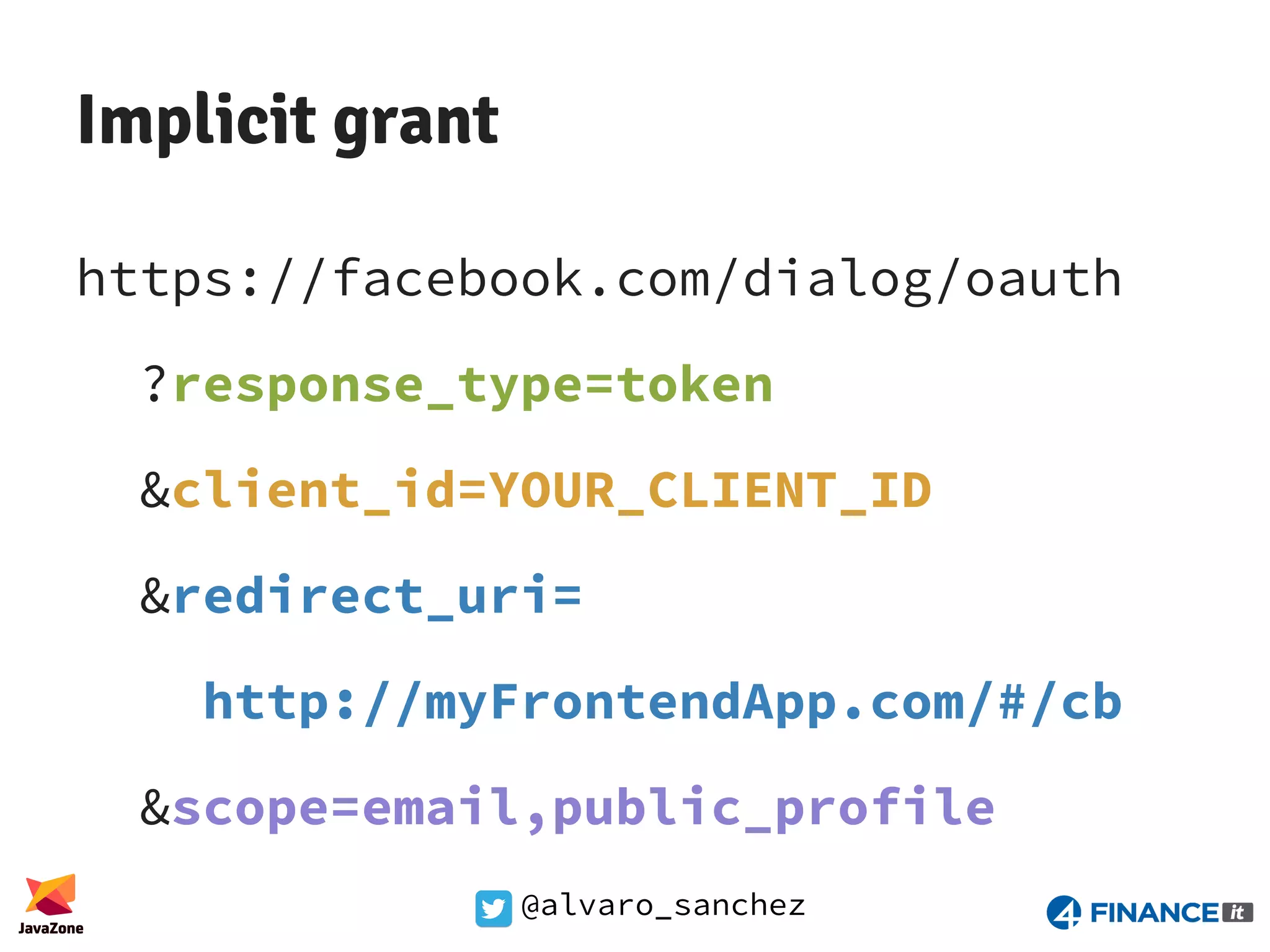

@alvaro_sanchez Implicit grant https://facebook.com/dialog/oauth ?response_type=token &client_id=YOUR_CLIENT_ID &redirect_uri= http://myFrontendApp.com/#/cb &scope=email,public_profile

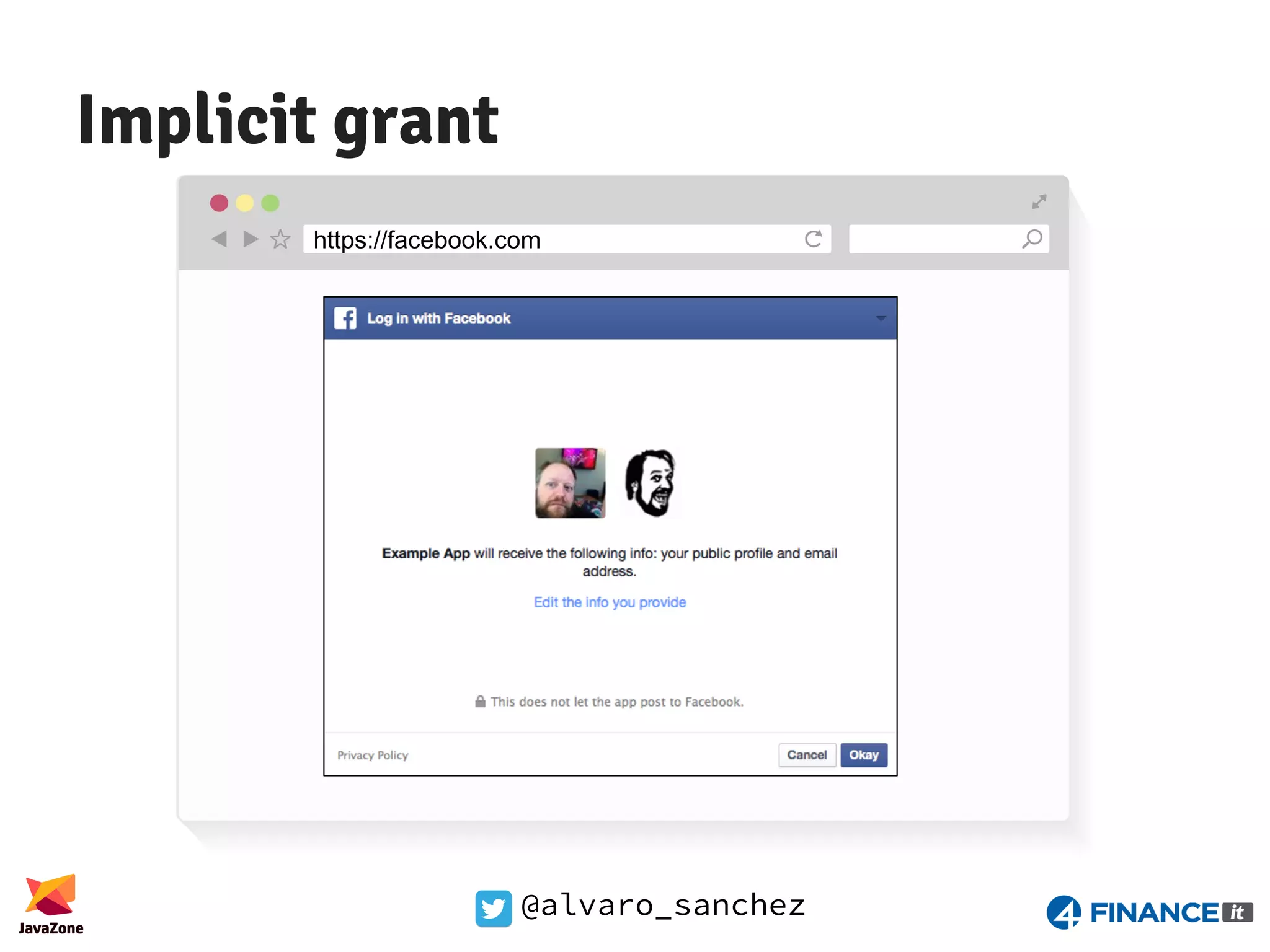

@alvaro_sanchez Implicit grant http://myServerApp.comhttps://facebook.com
@alvaro_sanchez Implicit grant https://myFrontendApp.com/#/cb?token=TOKEN Finishing authentication...

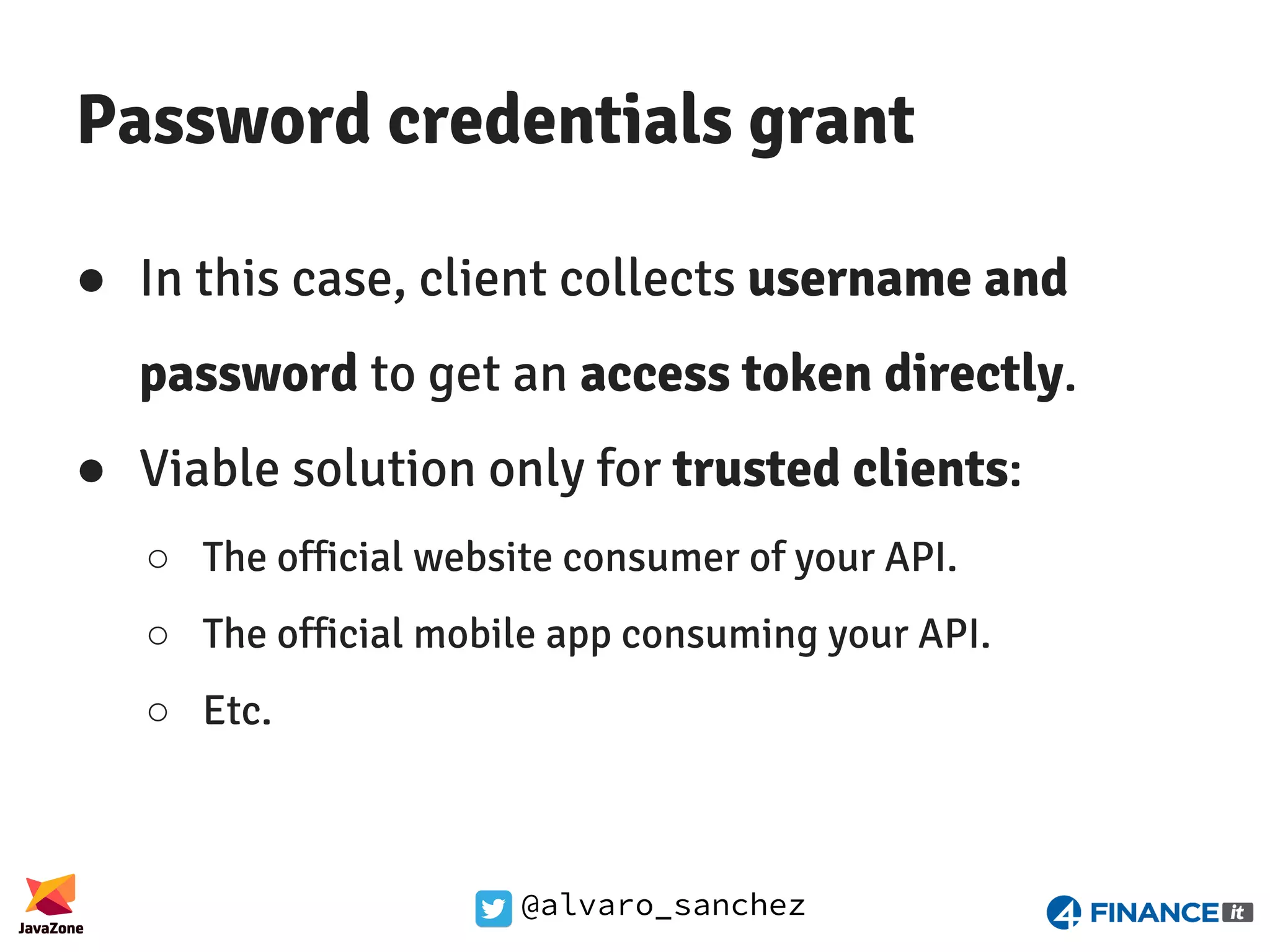

@alvaro_sanchez Password credentials grant ● In this case, client collects username and password to get an access token directly. ● Viable solution only for trusted clients: ○ The official website consumer of your API. ○ The official mobile app consuming your API. ○ Etc.

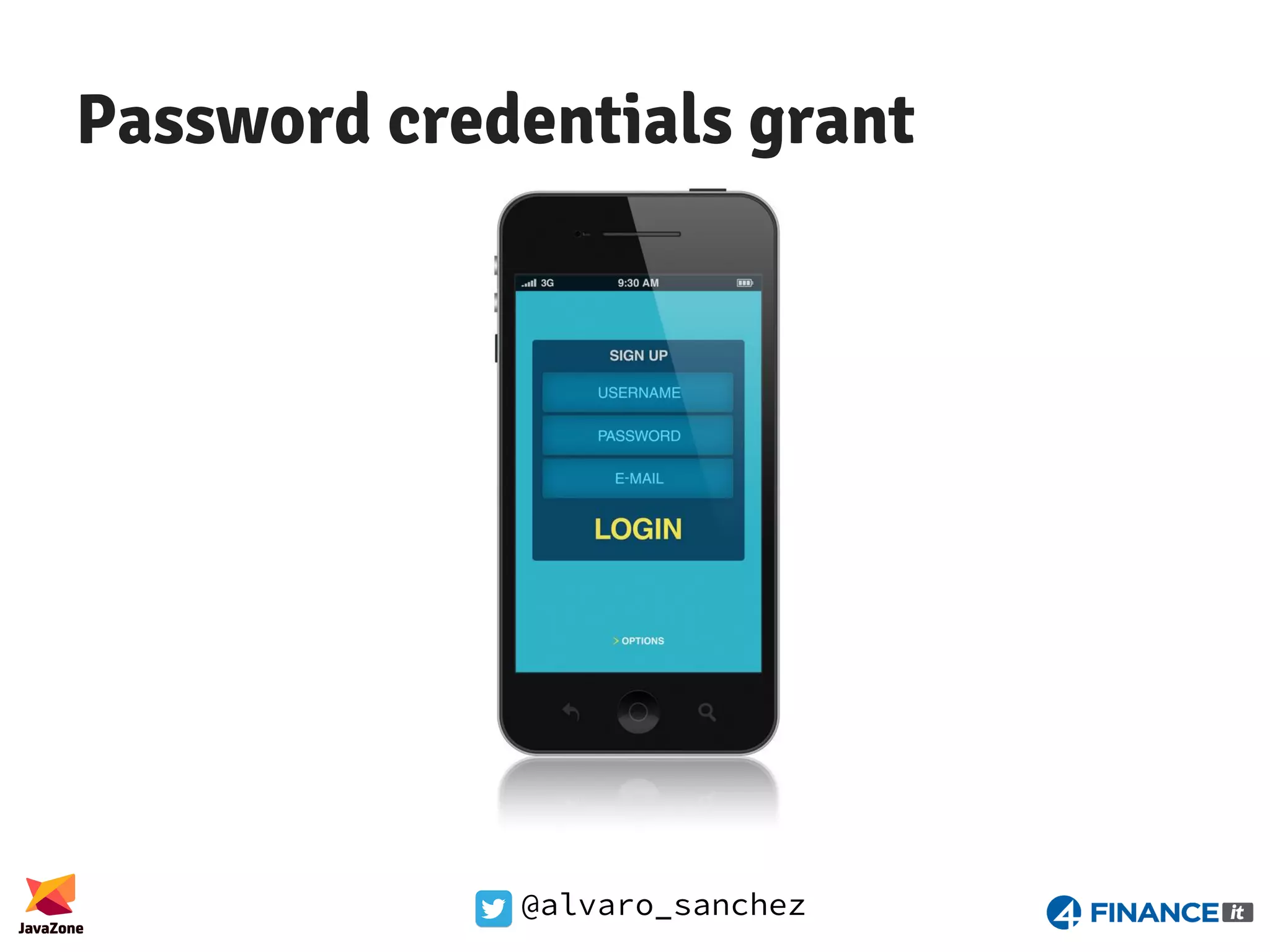

@alvaro_sanchez Password credentials grant

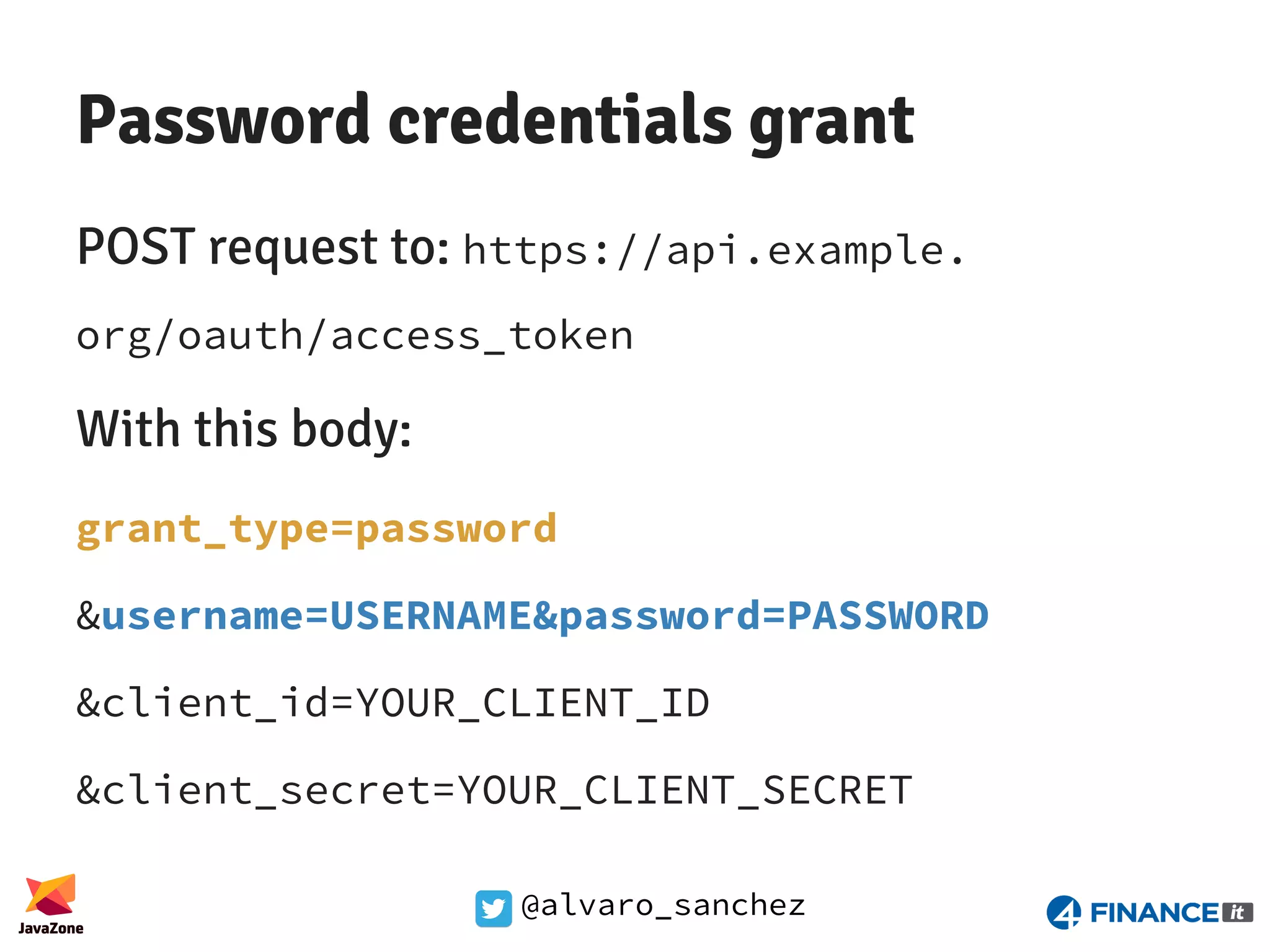

@alvaro_sanchez Password credentials grant POST request to: https://api.example. org/oauth/access_token With this body: grant_type=password &username=USERNAME&password=PASSWORD &client_id=YOUR_CLIENT_ID &client_secret=YOUR_CLIENT_SECRET

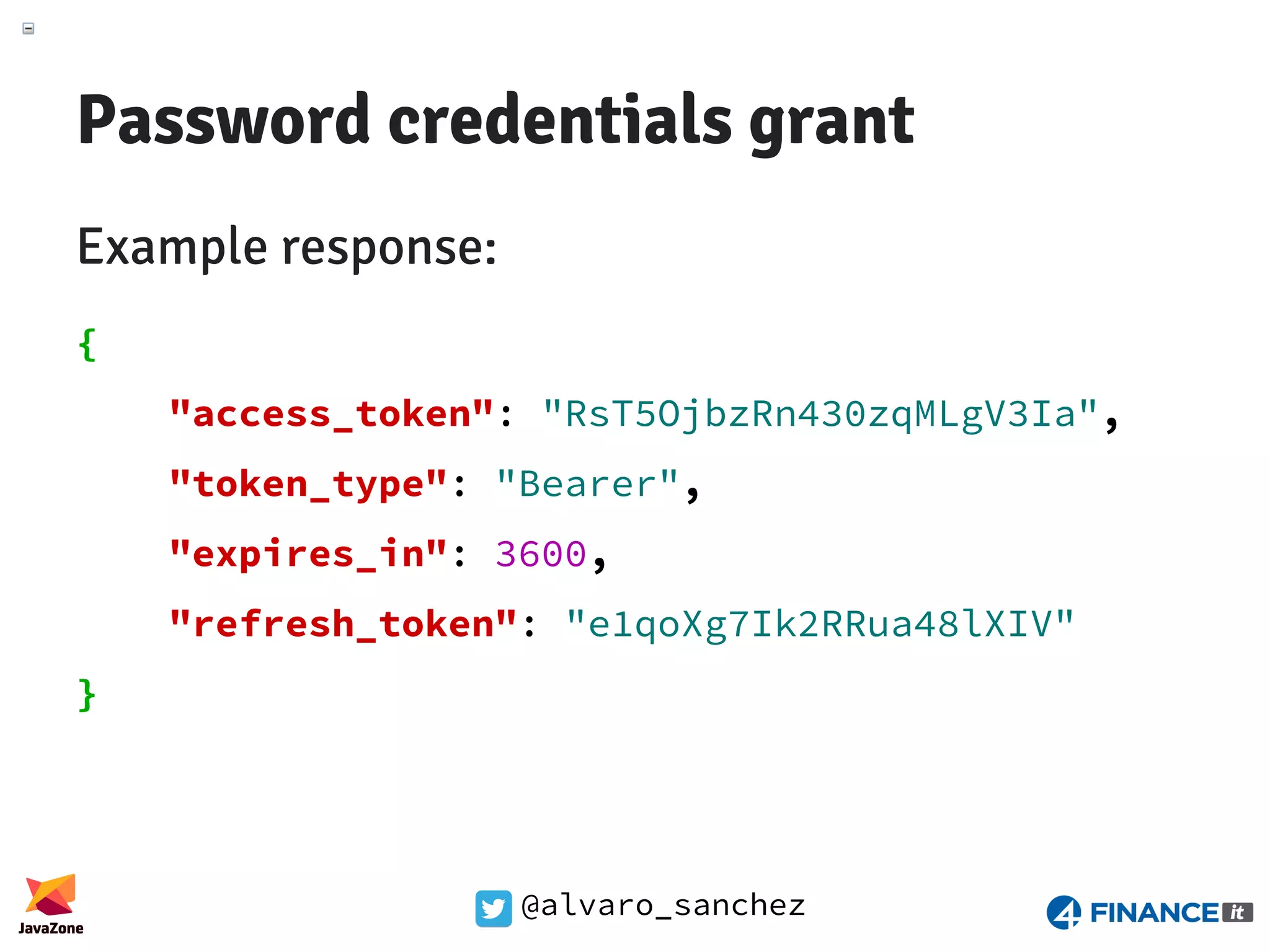

@alvaro_sanchez Password credentials grant Example response: { "access_token": "RsT5OjbzRn430zqMLgV3Ia", "token_type": "Bearer", "expires_in": 3600, "refresh_token": "e1qoXg7Ik2RRua48lXIV" }

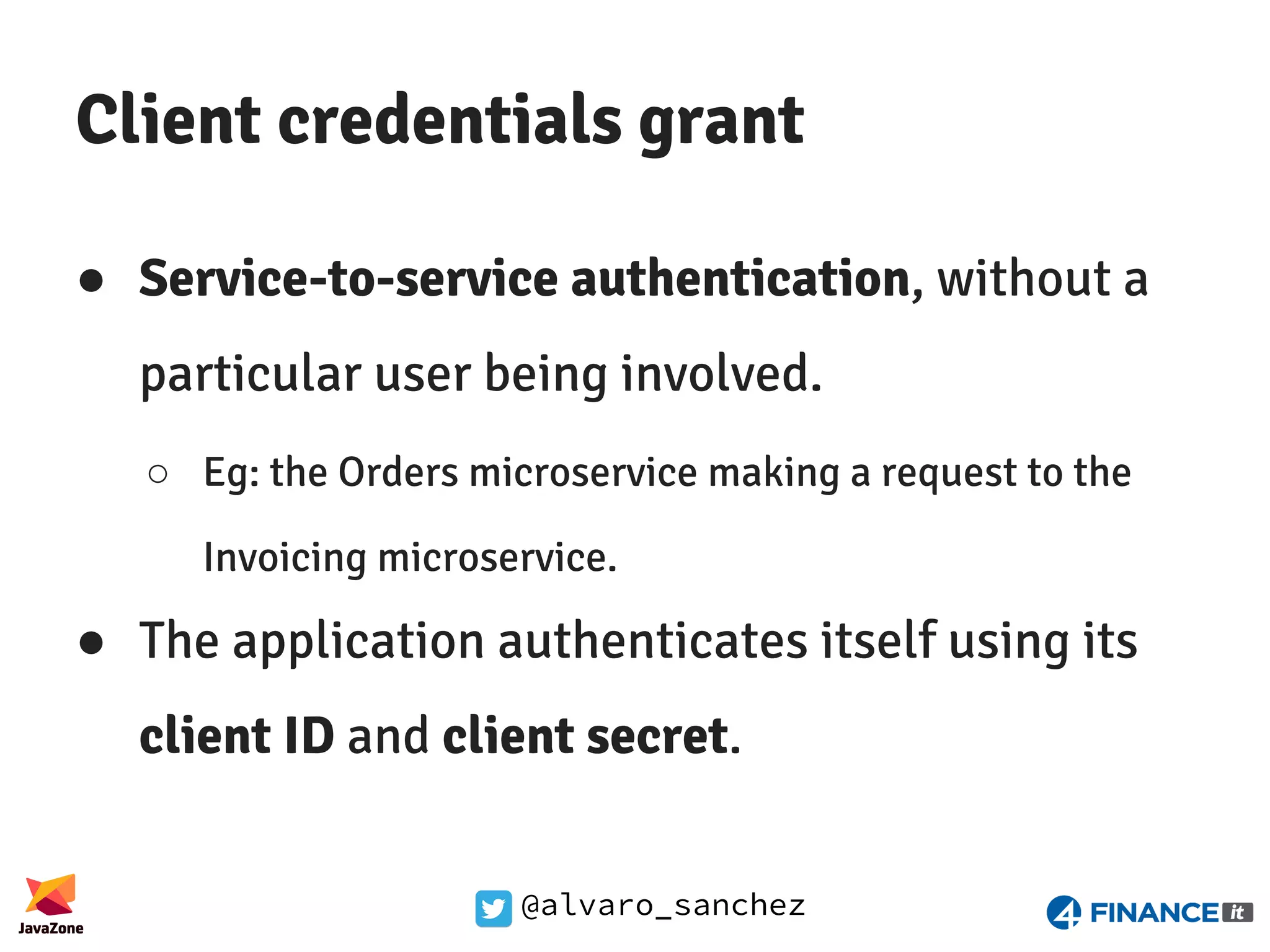

@alvaro_sanchez Client credentials grant ● Service-to-service authentication, without a particular user being involved. ○ Eg: the Orders microservice making a request to the Invoicing microservice. ● The application authenticates itself using its client ID and client secret.

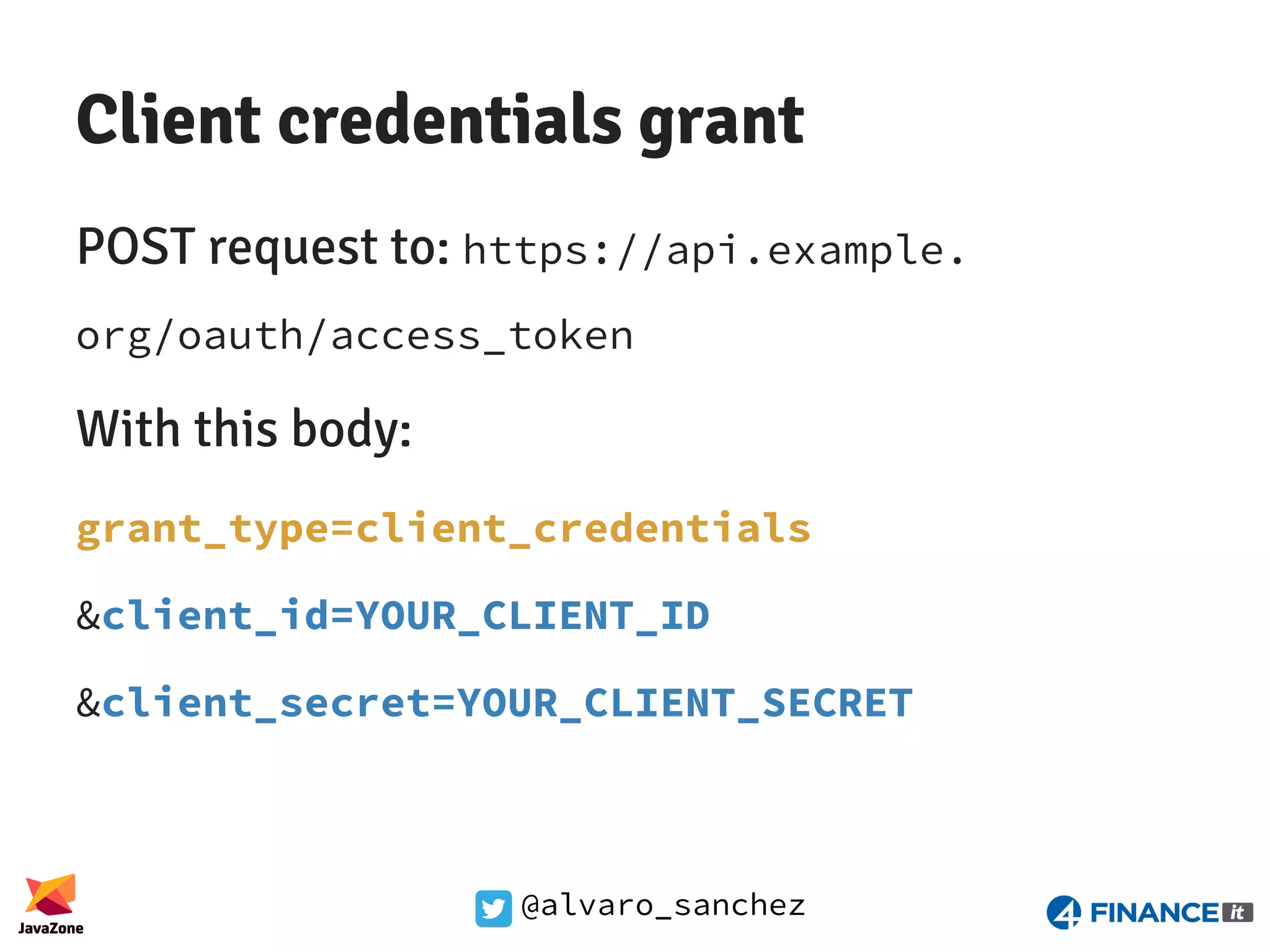

@alvaro_sanchez Client credentials grant POST request to: https://api.example. org/oauth/access_token With this body: grant_type=client_credentials &client_id=YOUR_CLIENT_ID &client_secret=YOUR_CLIENT_SECRET

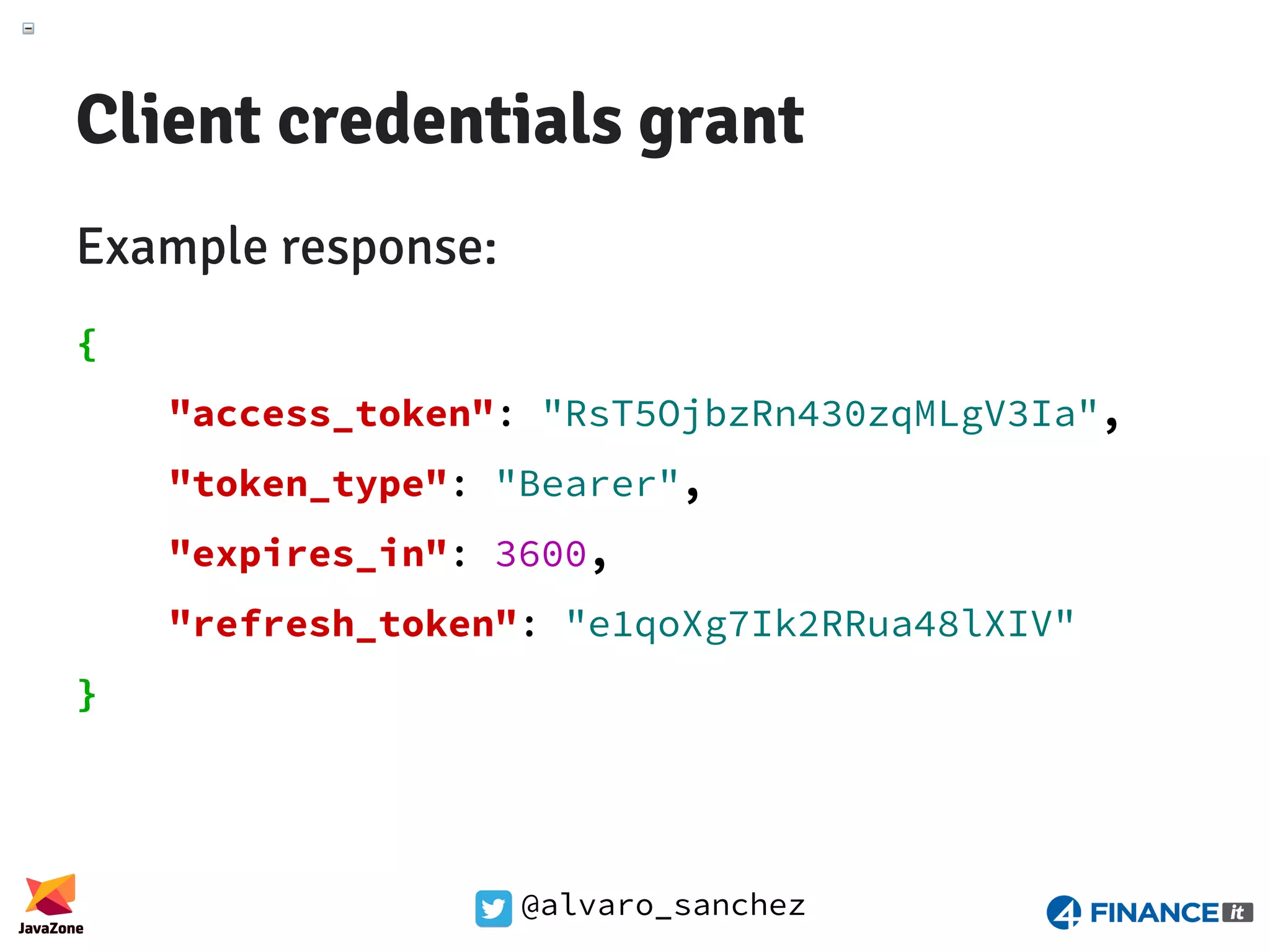

@alvaro_sanchez Client credentials grant Example response: { "access_token": "RsT5OjbzRn430zqMLgV3Ia", "token_type": "Bearer", "expires_in": 3600, "refresh_token": "e1qoXg7Ik2RRua48lXIV" }

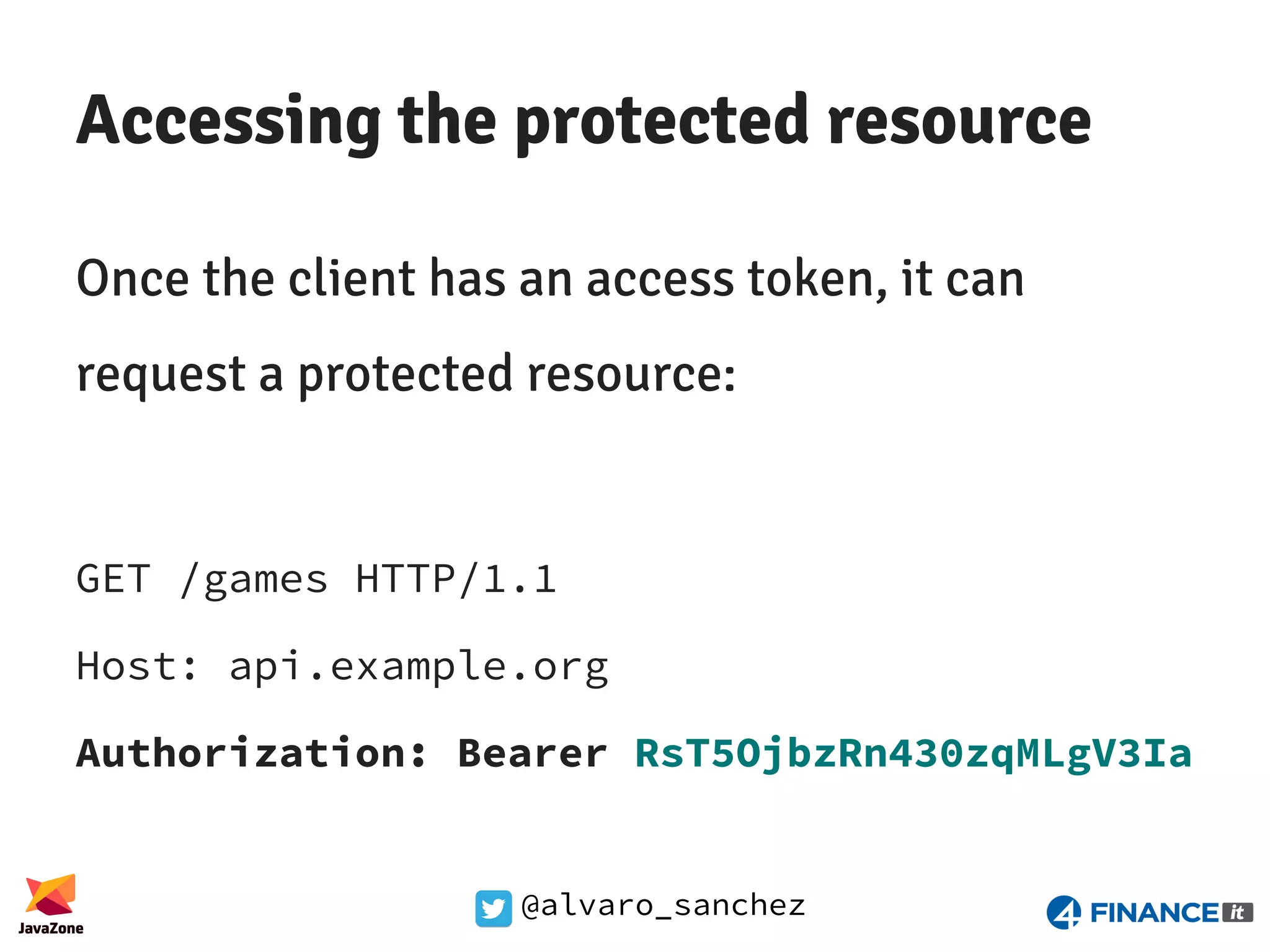

@alvaro_sanchez Accessing the protected resource Once the client has an access token, it can request a protected resource: GET /games HTTP/1.1 Host: api.example.org Authorization: Bearer RsT5OjbzRn430zqMLgV3Ia

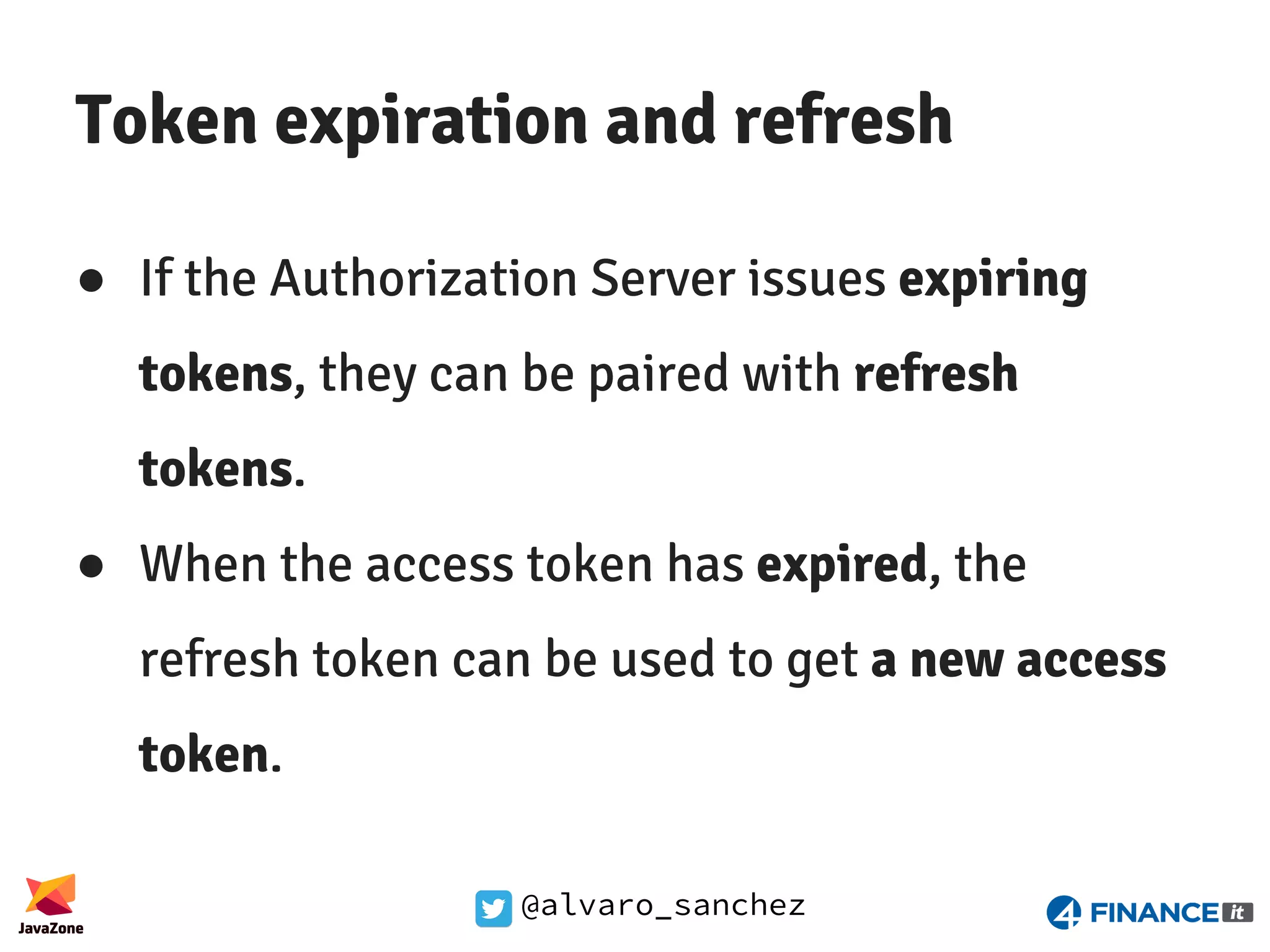

@alvaro_sanchez Token expiration and refresh ● If the Authorization Server issues expiring tokens, they can be paired with refresh tokens. ● When the access token has expired, the refresh token can be used to get a new access token.

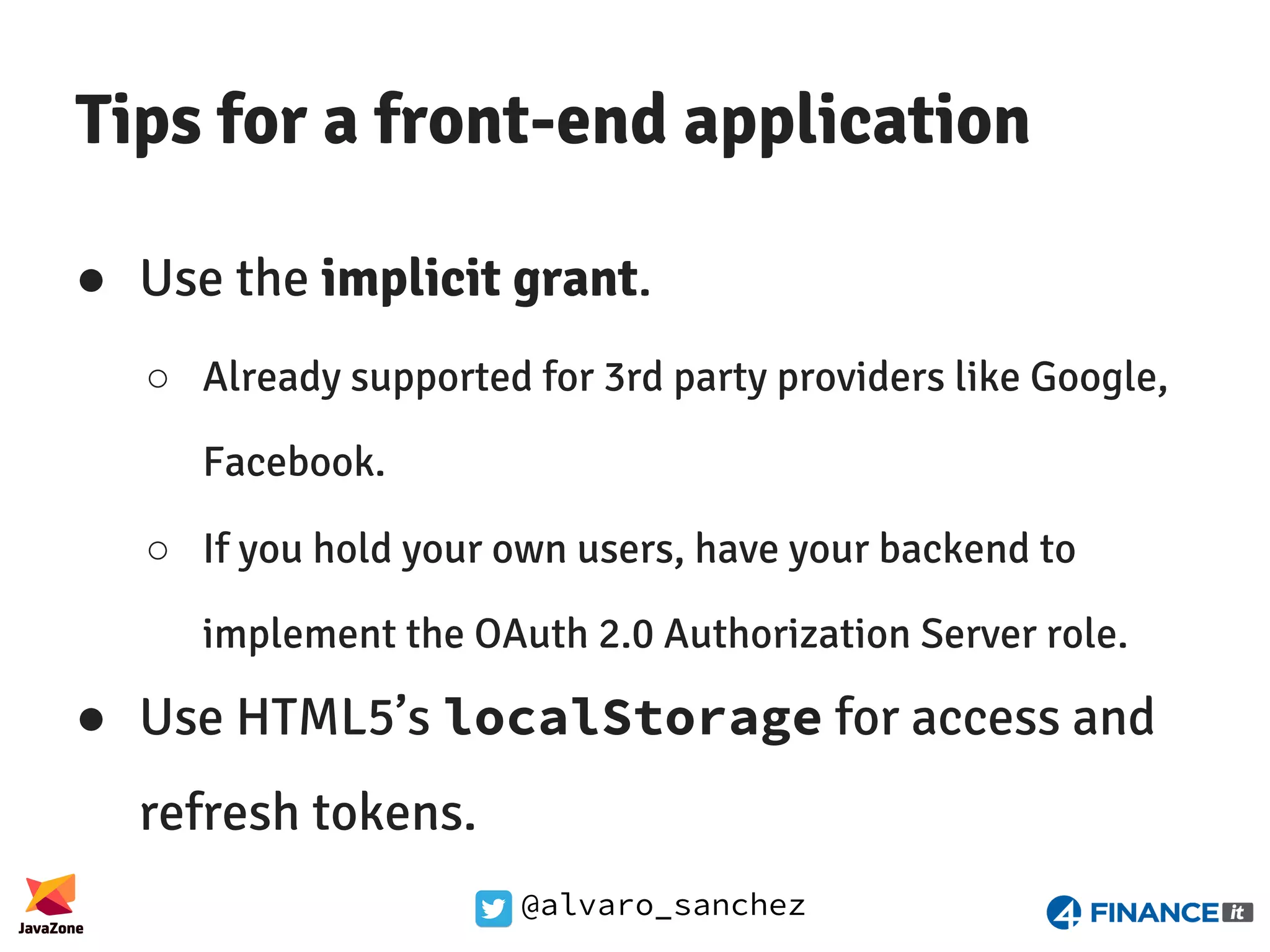

@alvaro_sanchez Tips for a front-end application ● Use the implicit grant. ○ Already supported for 3rd party providers like Google, Facebook. ○ If you hold your own users, have your backend to implement the OAuth 2.0 Authorization Server role. ● Use HTML5’s localStorage for access and refresh tokens.

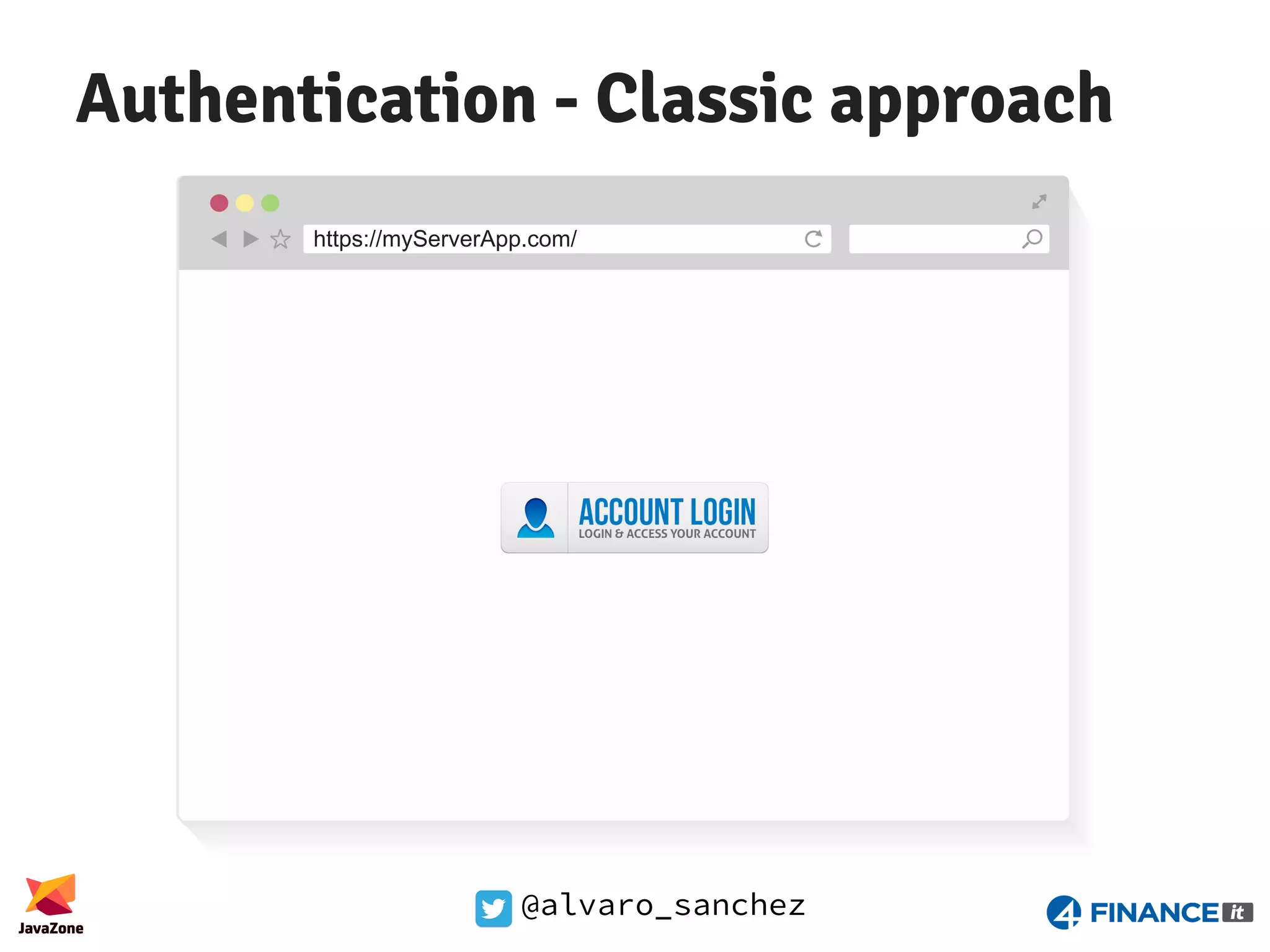

@alvaro_sanchez Authentication - Classic approach https://myServerApp.com/

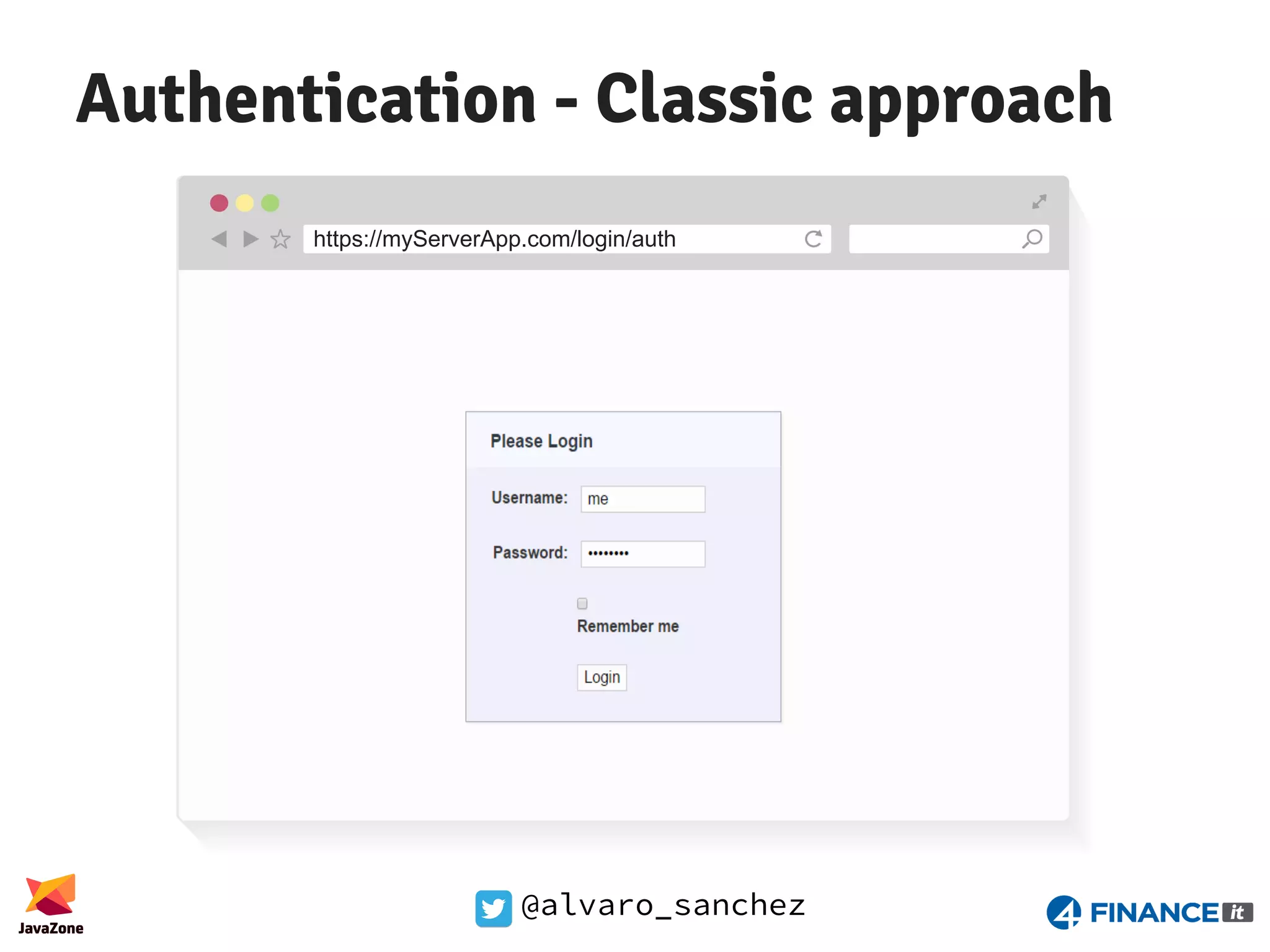

@alvaro_sanchez Authentication - Classic approach https://myServerApp.com/login/auth

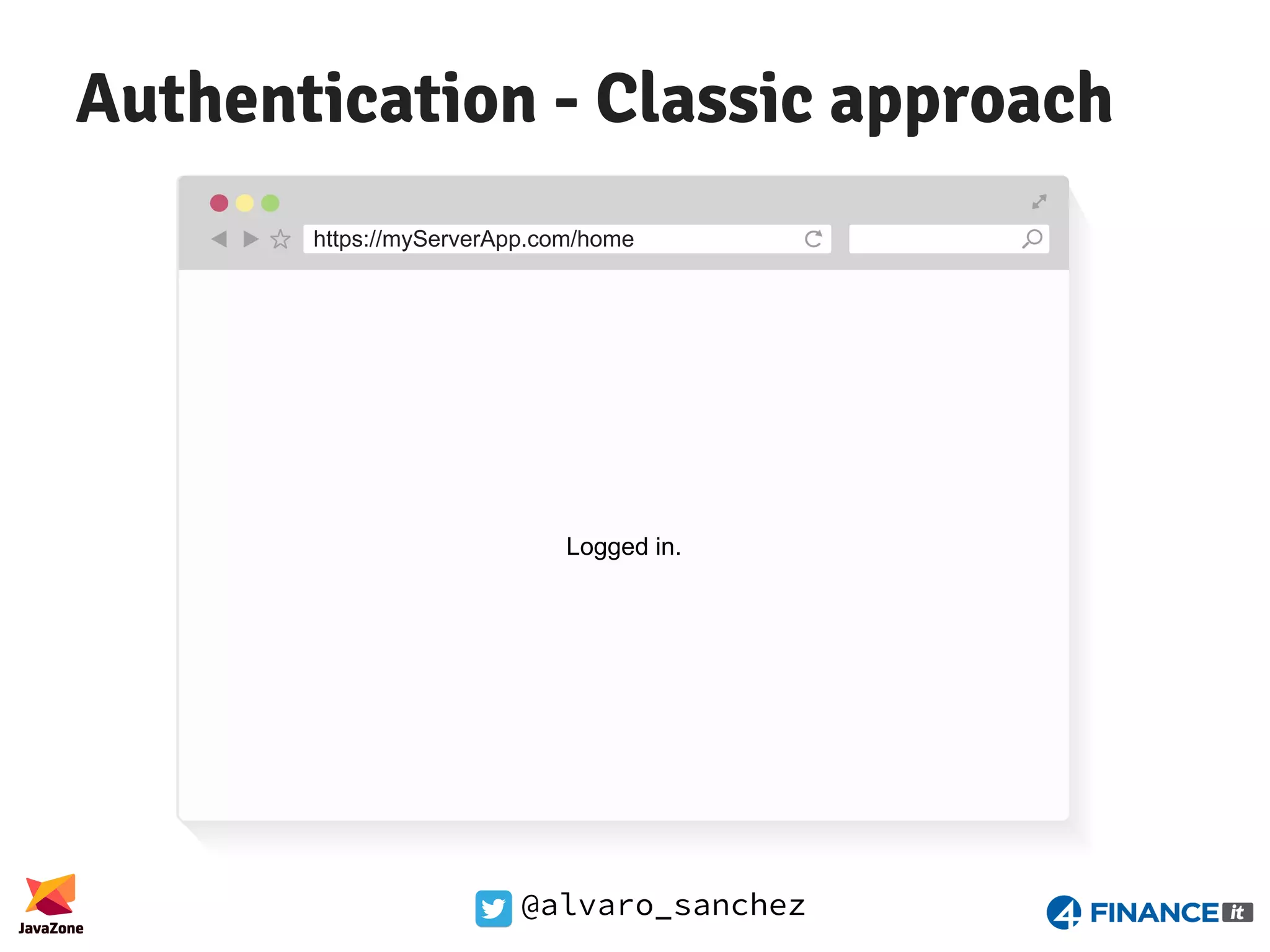

@alvaro_sanchez Authentication - Classic approach https://myServerApp.com/home Logged in.

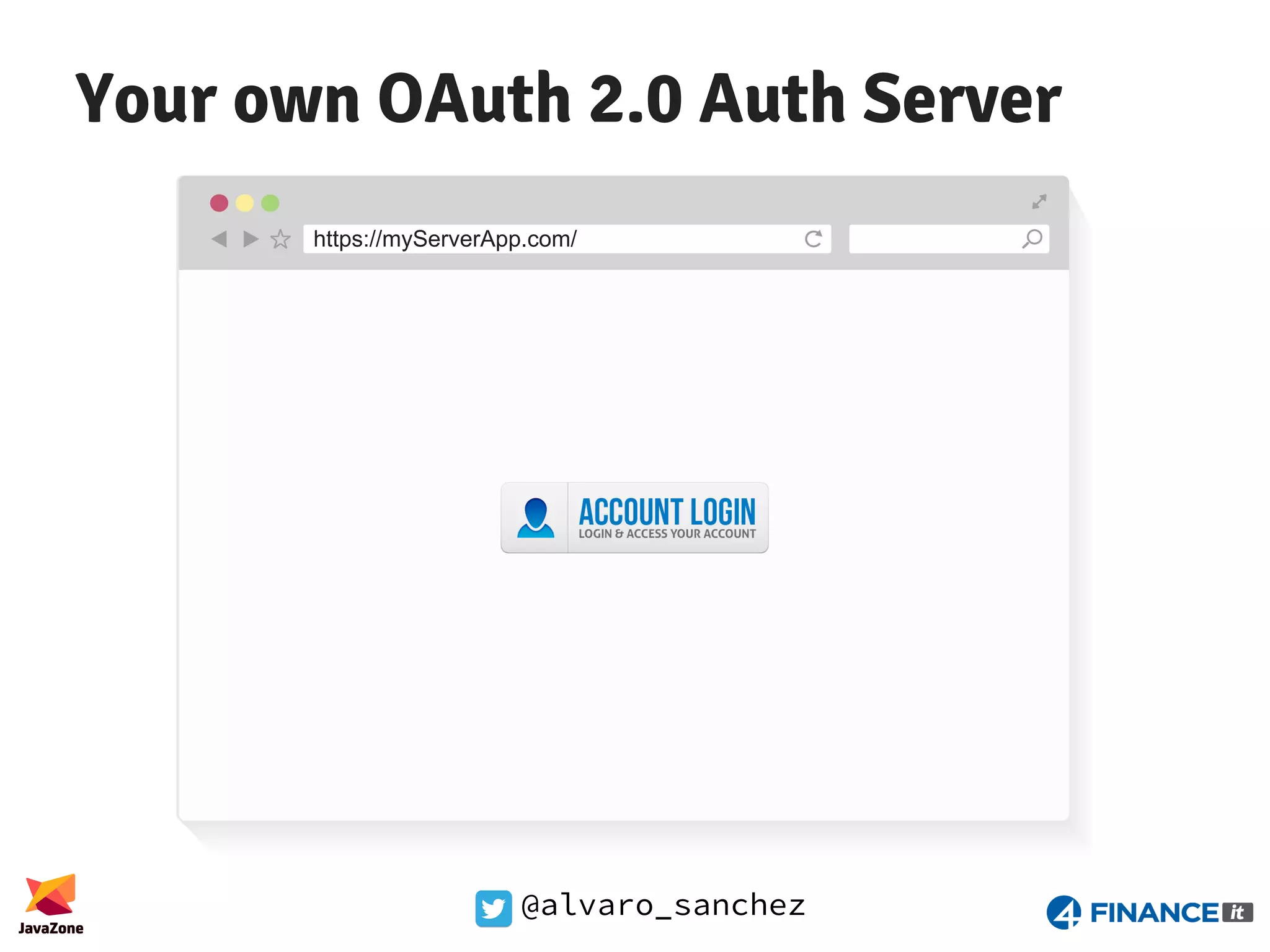

@alvaro_sanchez Your own OAuth 2.0 Auth Server https://myServerApp.com/

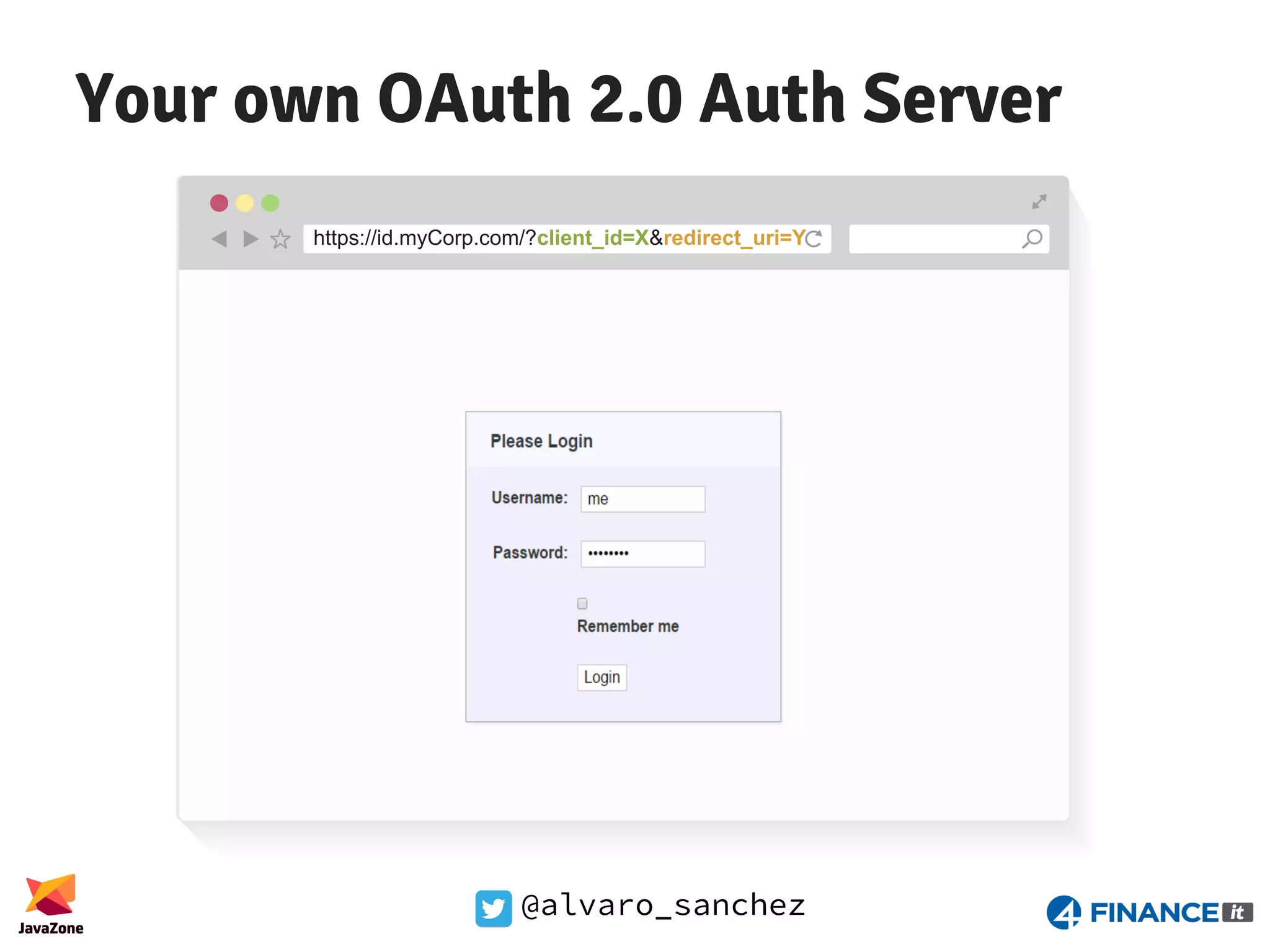

@alvaro_sanchez Your own OAuth 2.0 Auth Server https://id.myCorp.com/?client_id=X&redirect_uri=Y

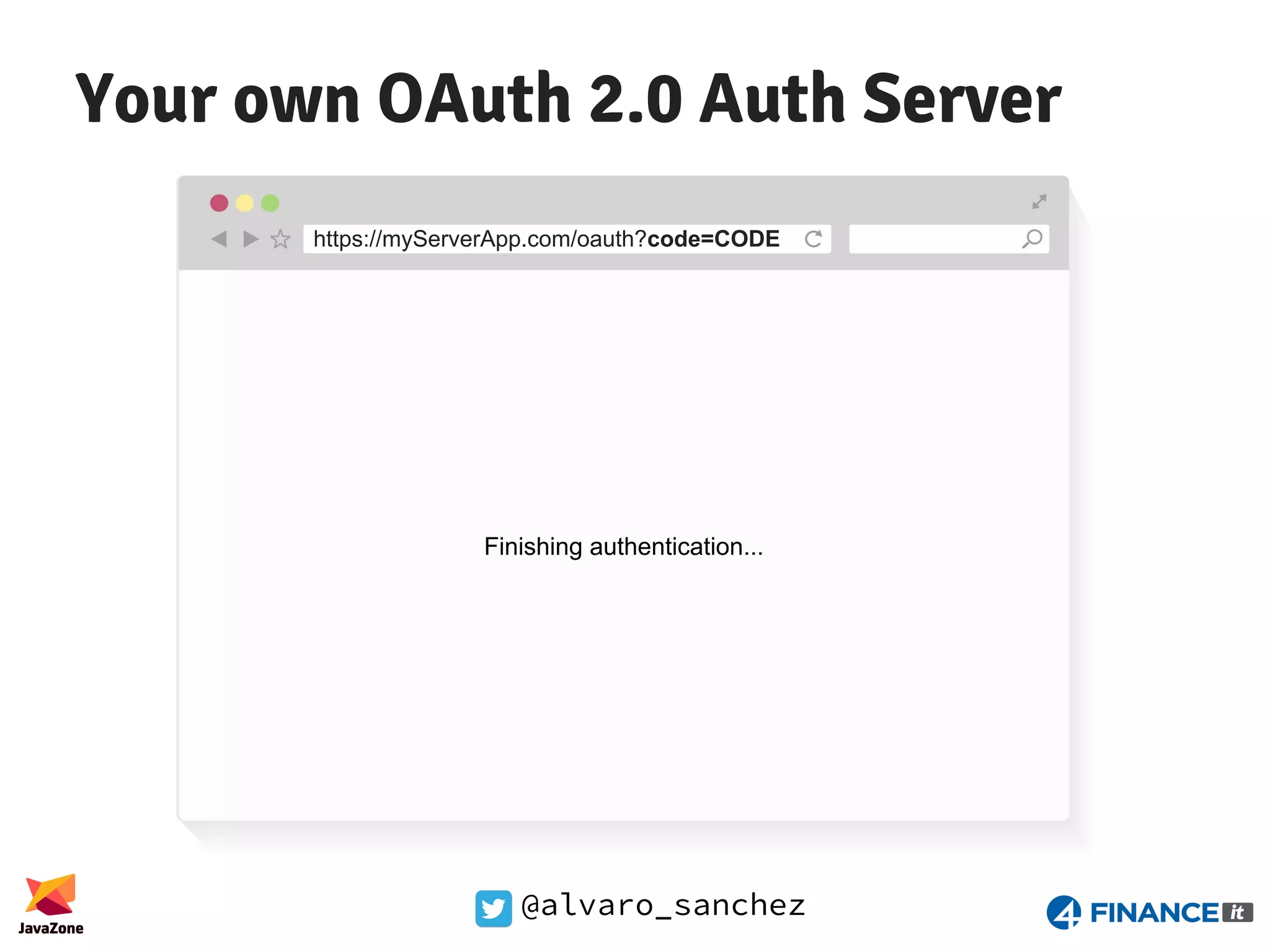

@alvaro_sanchez Your own OAuth 2.0 Auth Server https://myServerApp.com/oauth?code=CODE Finishing authentication...
@alvaro_sanchez Agenda 1. Authentication in monolithic applications vs microservices. 2. Introduction to OAuth 2.0. 3. Achieving statelessness with JWT. 4. Q&A.

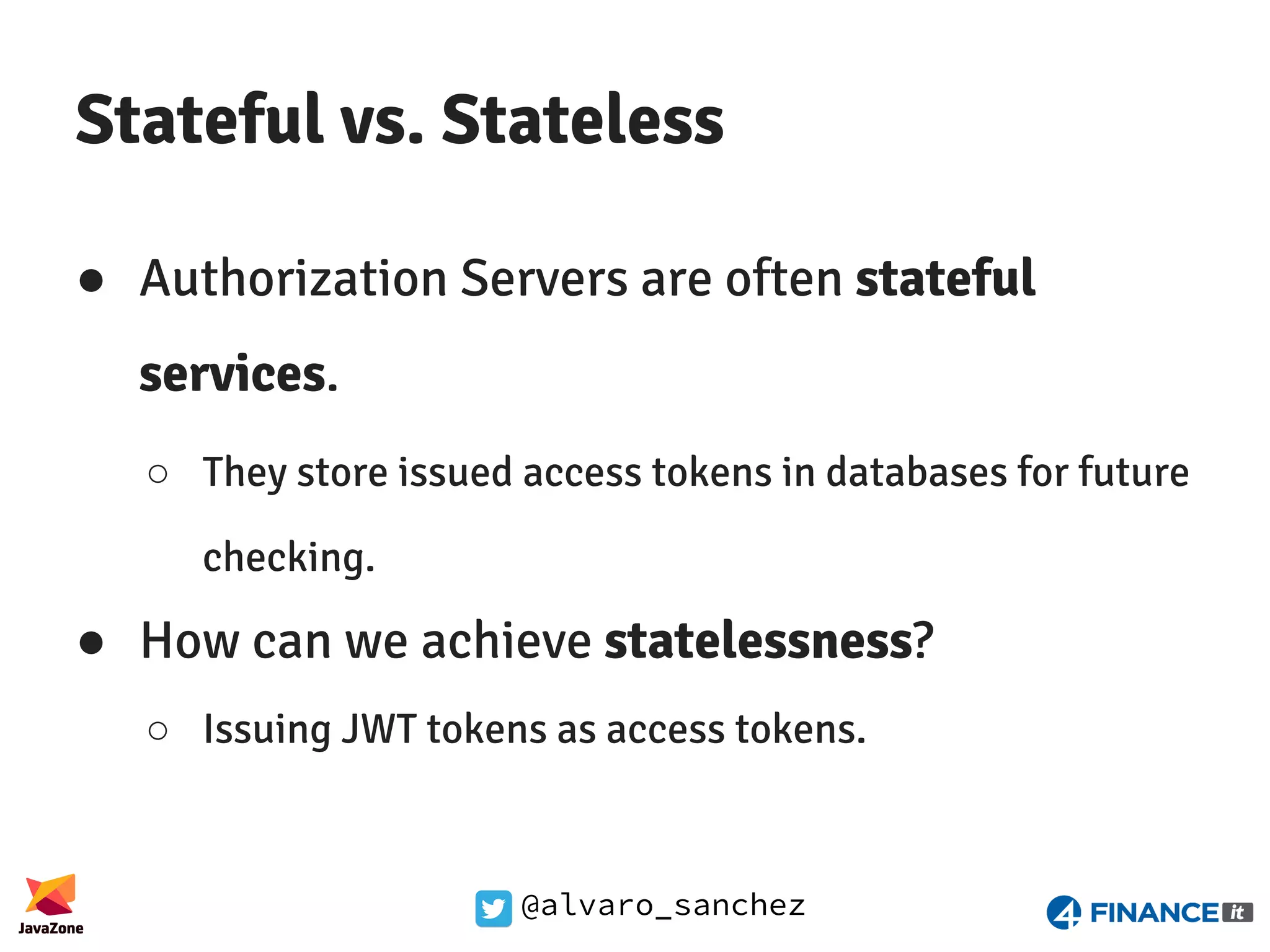

@alvaro_sanchez Stateful vs. Stateless ● Authorization Servers are often stateful services. ○ They store issued access tokens in databases for future checking. ● How can we achieve statelessness? ○ Issuing JWT tokens as access tokens.

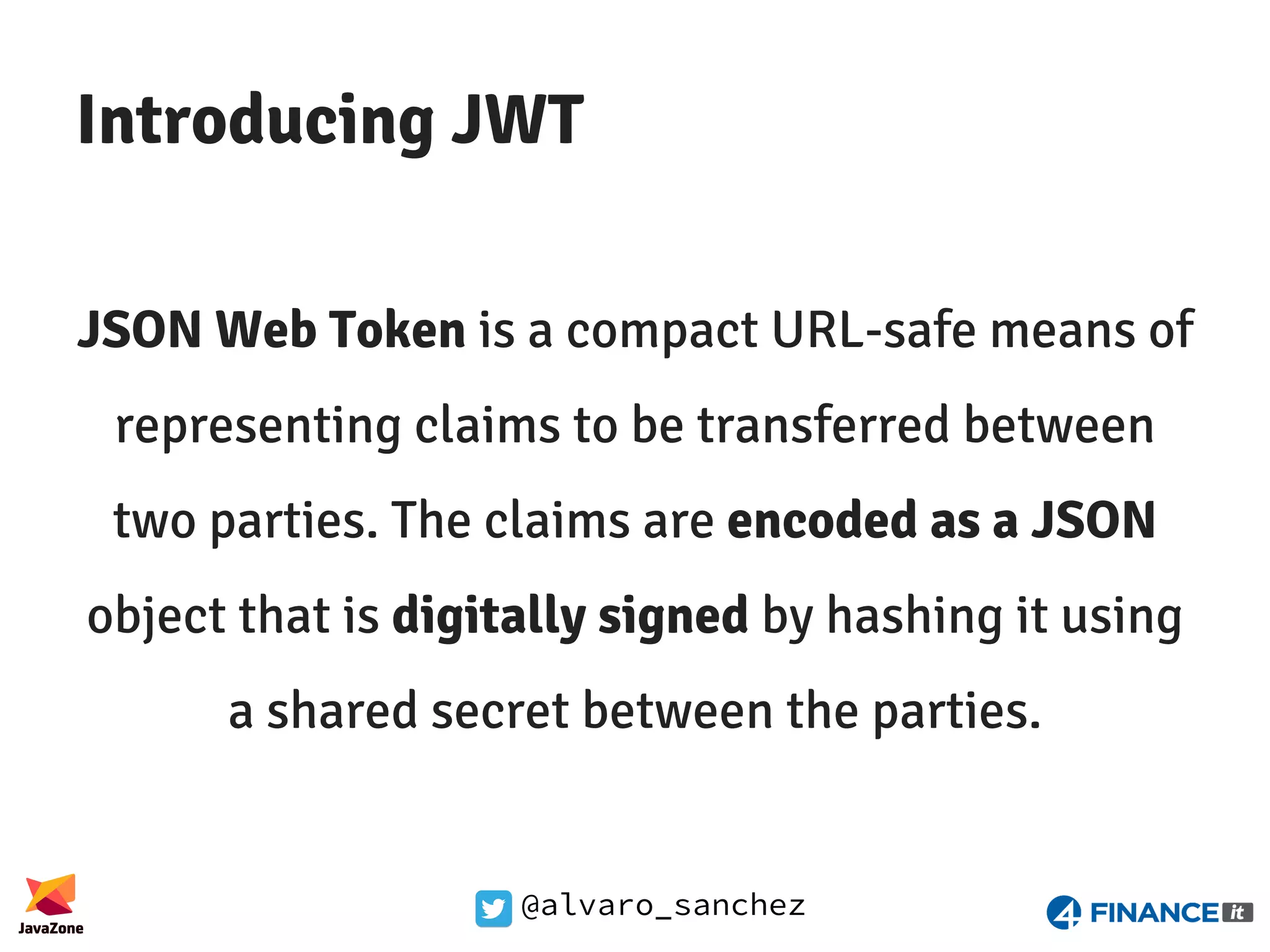

@alvaro_sanchez Introducing JWT JSON Web Token is a compact URL-safe means of representing claims to be transferred between two parties. The claims are encoded as a JSON object that is digitally signed by hashing it using a shared secret between the parties.

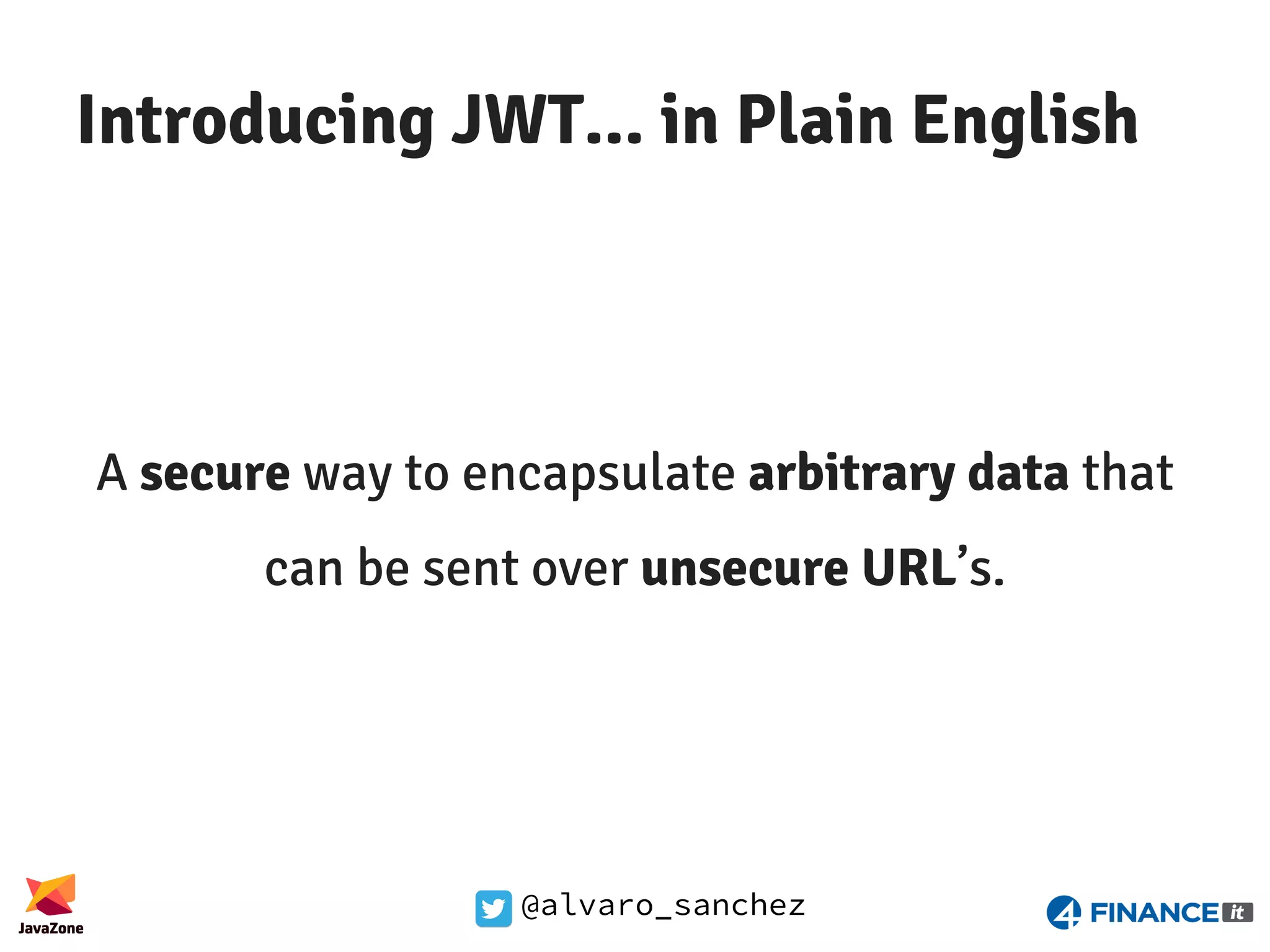

@alvaro_sanchez Introducing JWT... in Plain English A secure way to encapsulate arbitrary data that can be sent over unsecure URL’s.

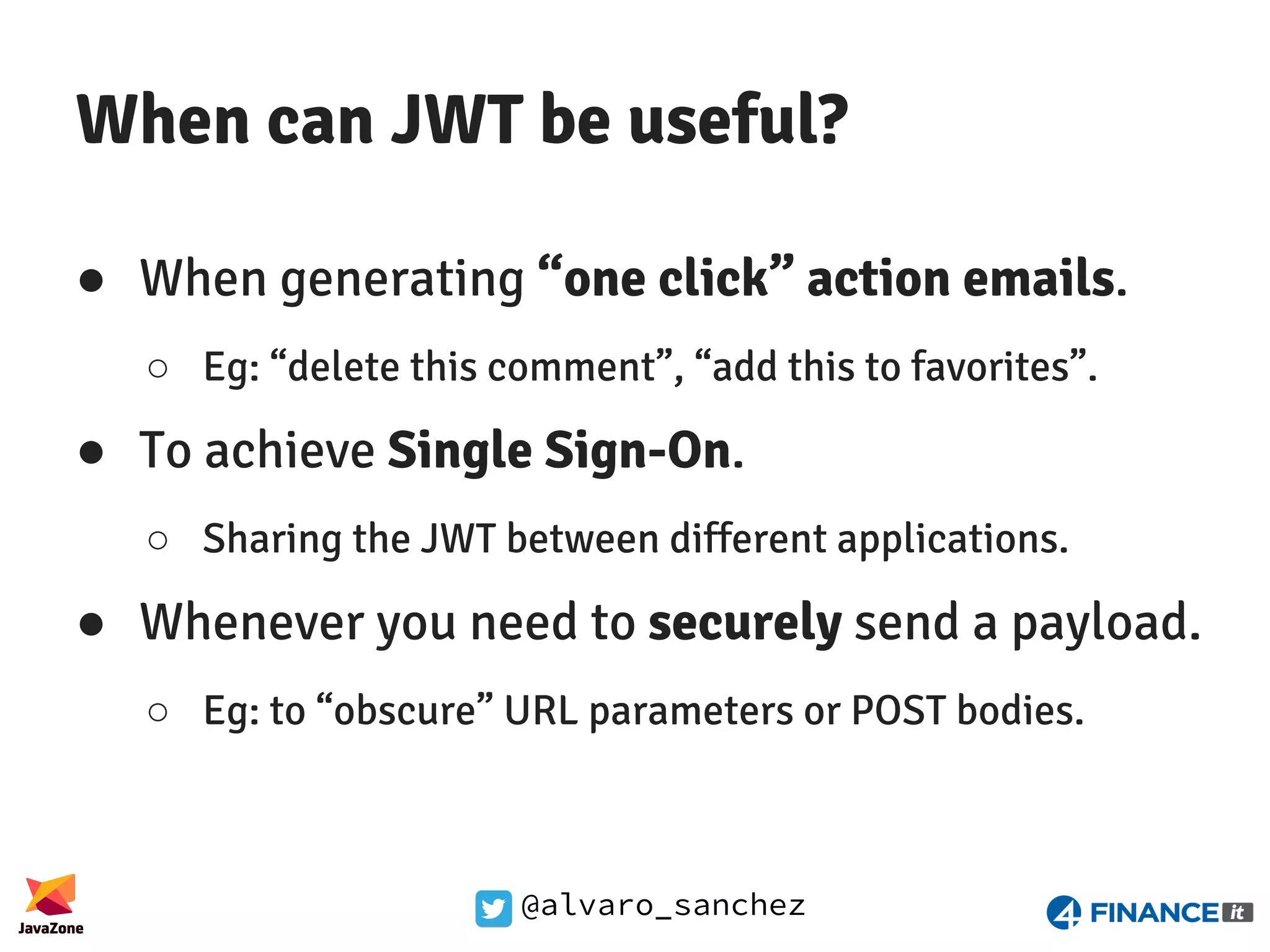

@alvaro_sanchez When can JWT be useful? ● When generating “one click” action emails. ○ Eg: “delete this comment”, “add this to favorites”. ● To achieve Single Sign-On. ○ Sharing the JWT between different applications. ● Whenever you need to securely send a payload. ○ Eg: to “obscure” URL parameters or POST bodies.

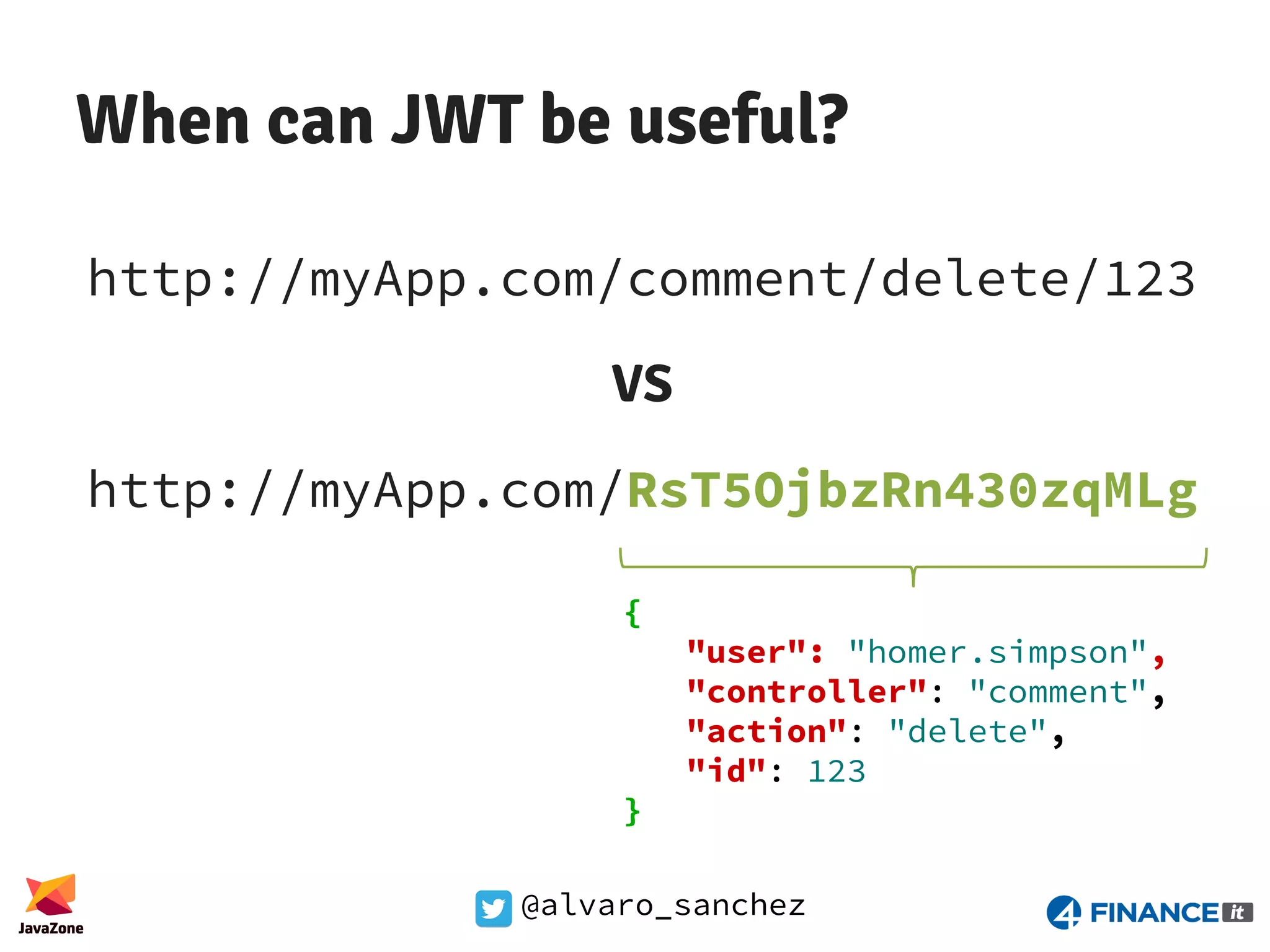

@alvaro_sanchez When can JWT be useful? http://myApp.com/comment/delete/123 VS http://myApp.com/RsT5OjbzRn430zqMLg { "user": "homer.simpson", "controller": "comment", "action": "delete", "id": 123 }

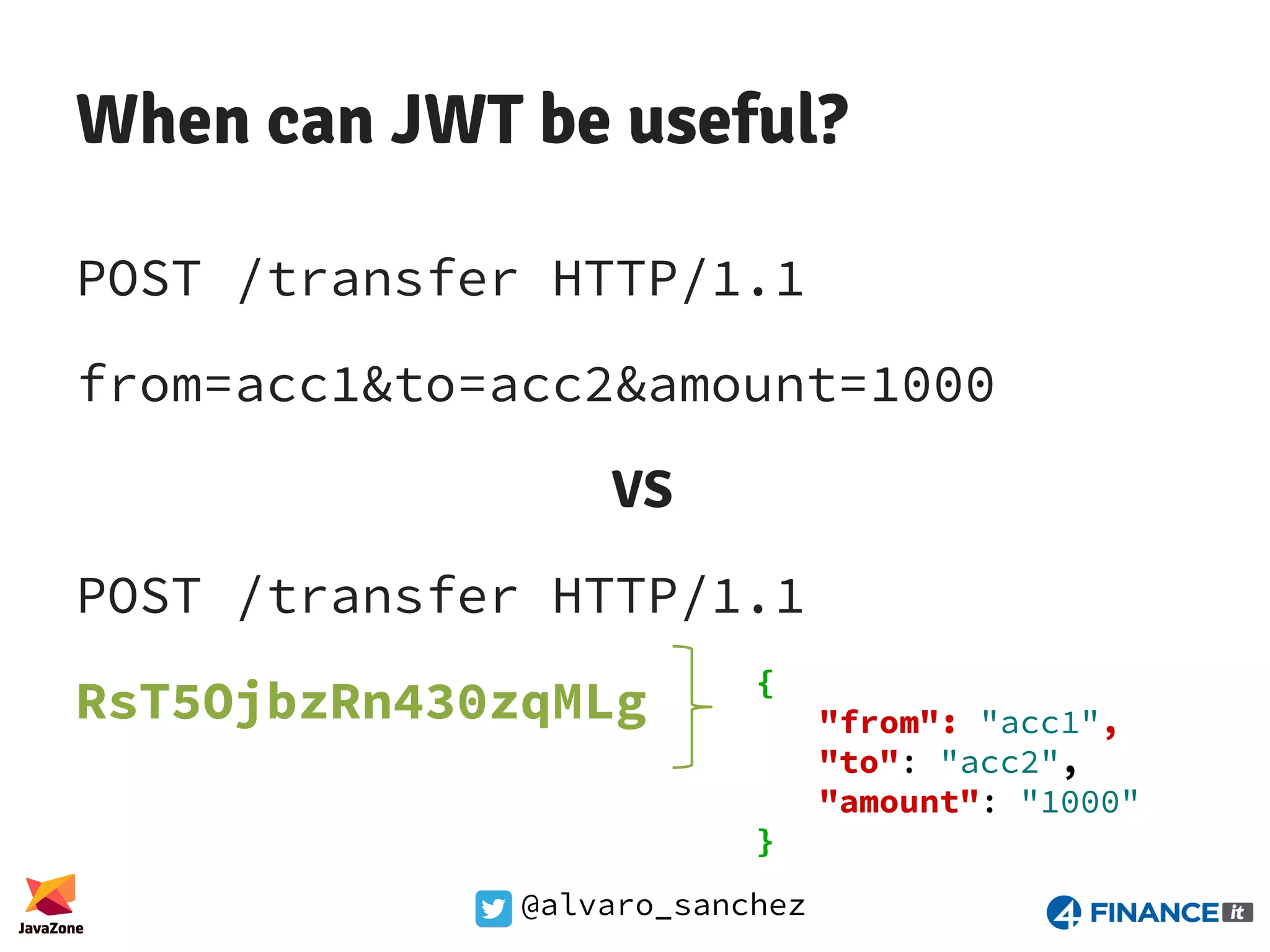

@alvaro_sanchez When can JWT be useful? POST /transfer HTTP/1.1 from=acc1&to=acc2&amount=1000 VS POST /transfer HTTP/1.1 RsT5OjbzRn430zqMLg { "from": "acc1", "to": "acc2", "amount": "1000" }

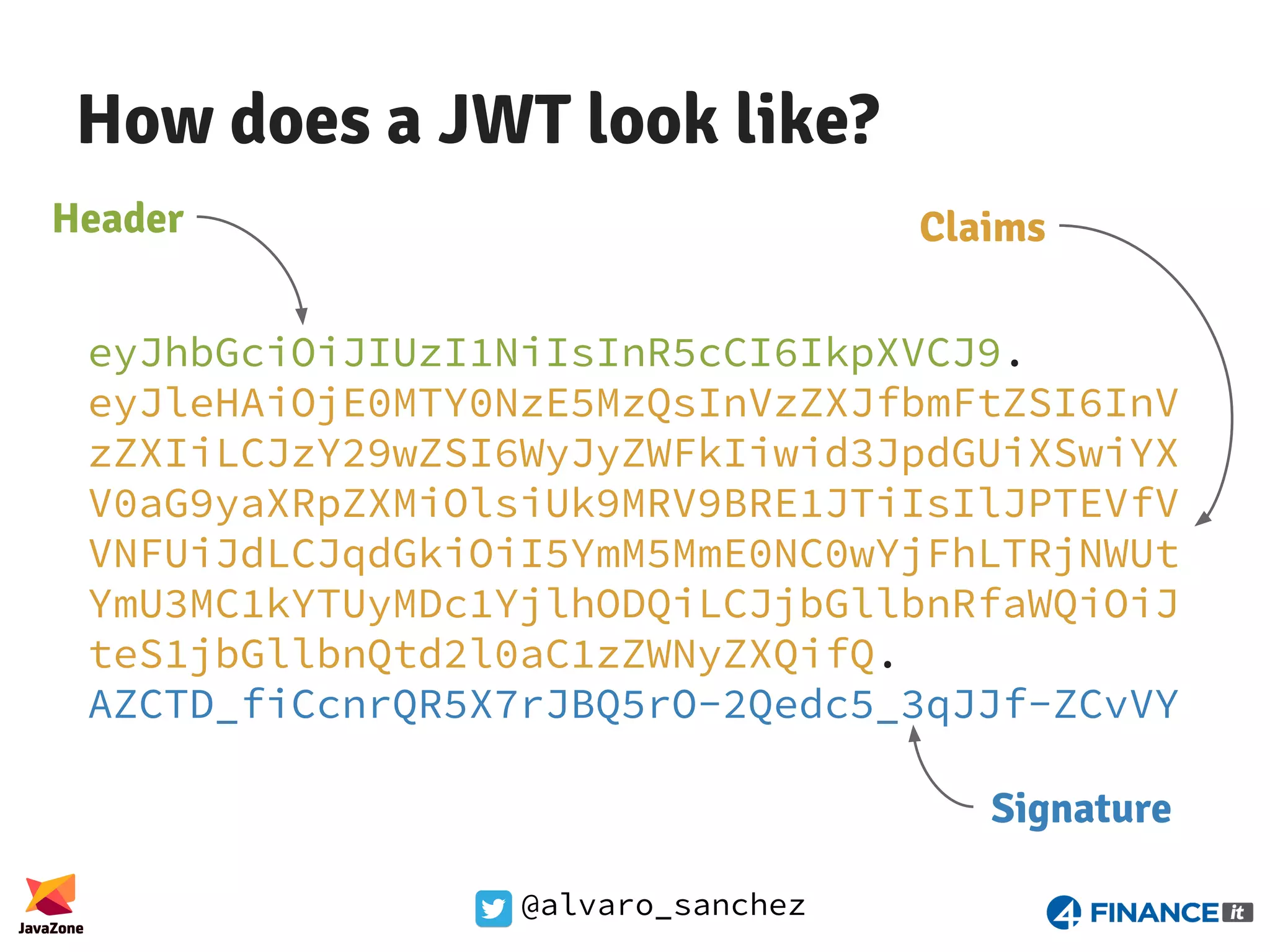

@alvaro_sanchez How does a JWT look like? eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9. eyJleHAiOjE0MTY0NzE5MzQsInVzZXJfbmFtZSI6InV zZXIiLCJzY29wZSI6WyJyZWFkIiwid3JpdGUiXSwiYX V0aG9yaXRpZXMiOlsiUk9MRV9BRE1JTiIsIlJPTEVfV VNFUiJdLCJqdGkiOiI5YmM5MmE0NC0wYjFhLTRjNWUt YmU3MC1kYTUyMDc1YjlhODQiLCJjbGllbnRfaWQiOiJ teS1jbGllbnQtd2l0aC1zZWNyZXQifQ. AZCTD_fiCcnrQR5X7rJBQ5rO-2Qedc5_3qJJf-ZCvVY Header Claims Signature

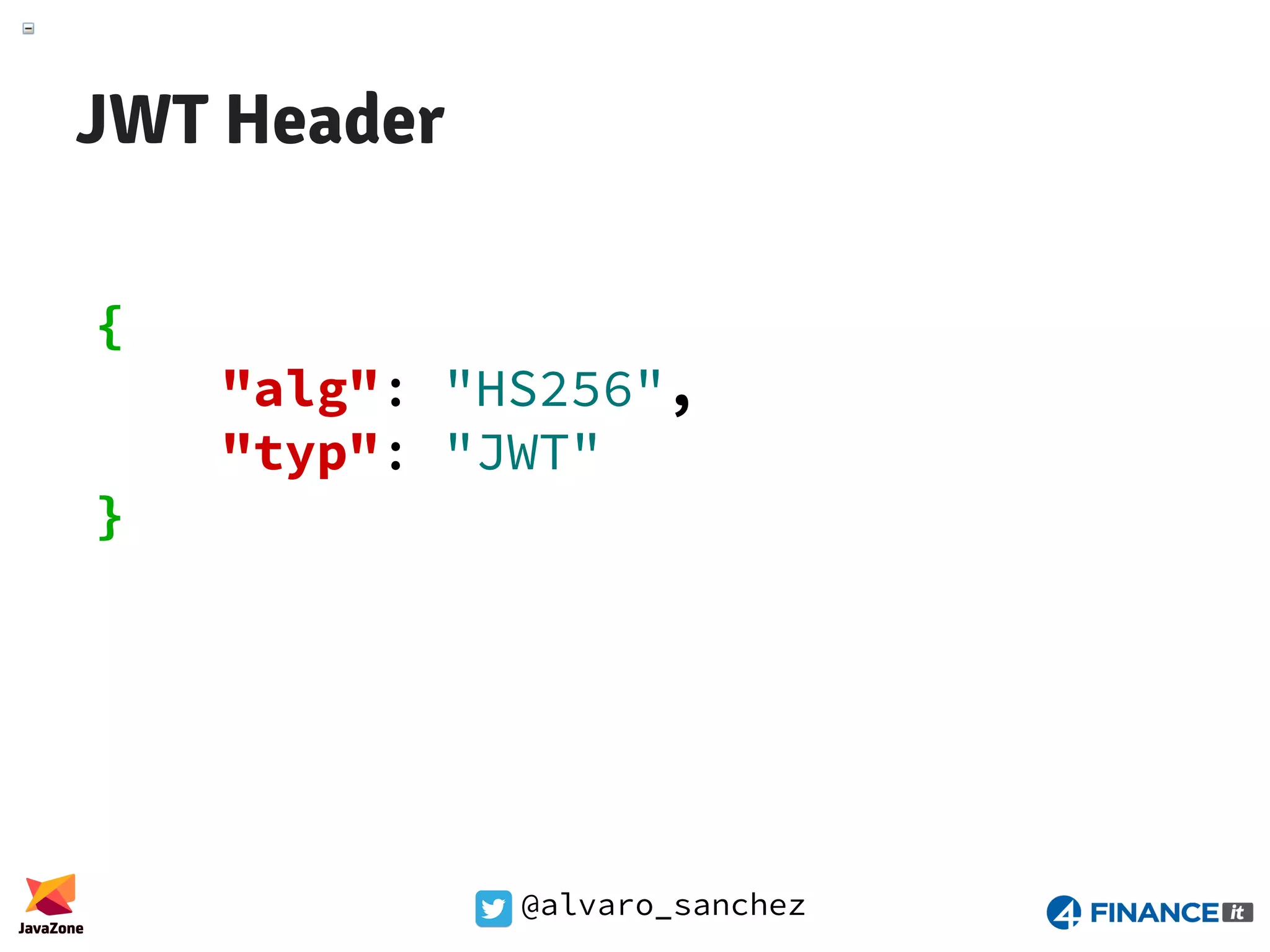

@alvaro_sanchez JWT Header { "alg": "HS256", "typ": "JWT" }

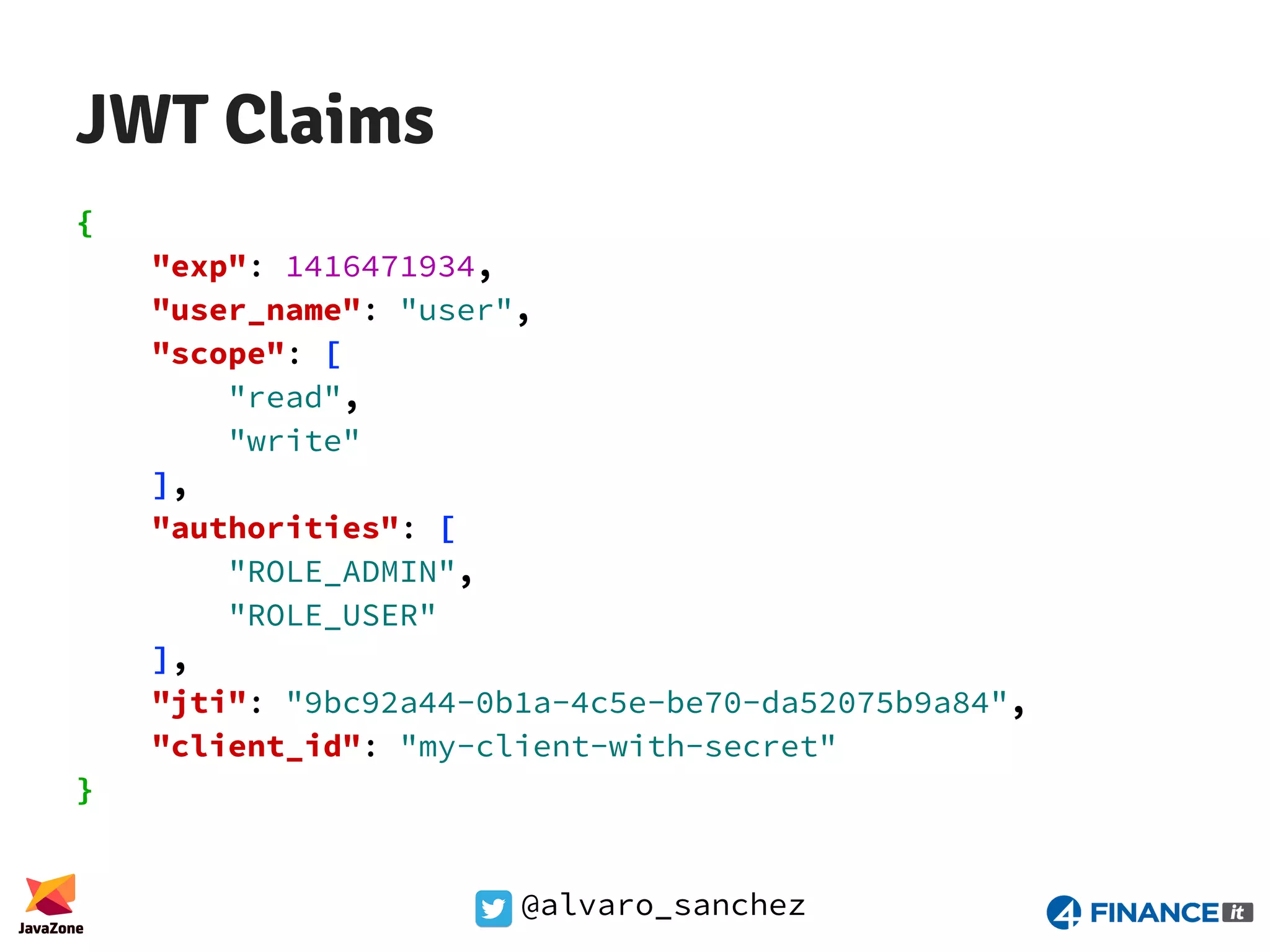

@alvaro_sanchez JWT Claims { "exp": 1416471934, "user_name": "user", "scope": [ "read", "write" ], "authorities": [ "ROLE_ADMIN", "ROLE_USER" ], "jti": "9bc92a44-0b1a-4c5e-be70-da52075b9a84", "client_id": "my-client-with-secret" }

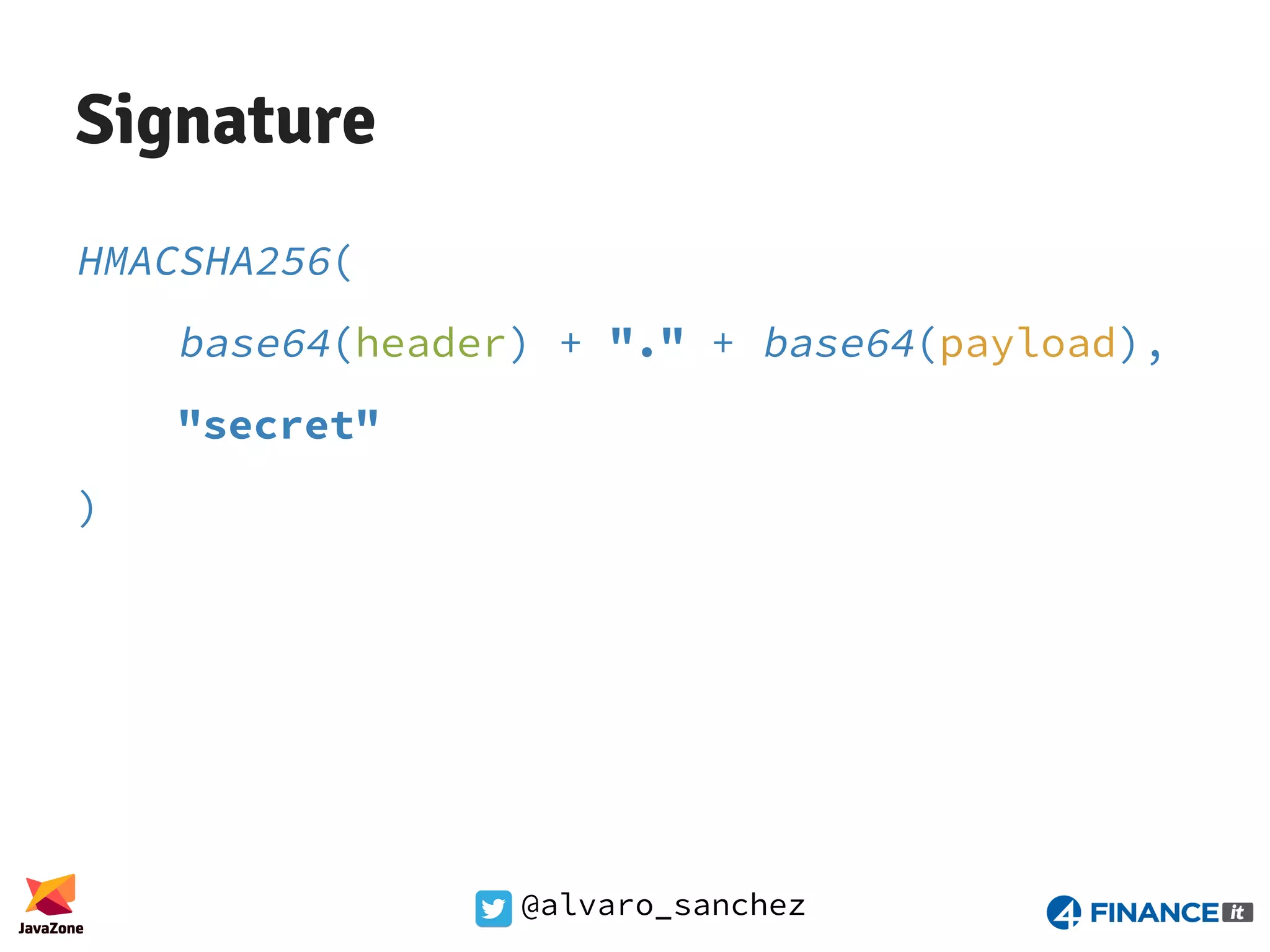

@alvaro_sanchez Signature HMACSHA256( base64(header) + "." + base64(payload), "secret" )

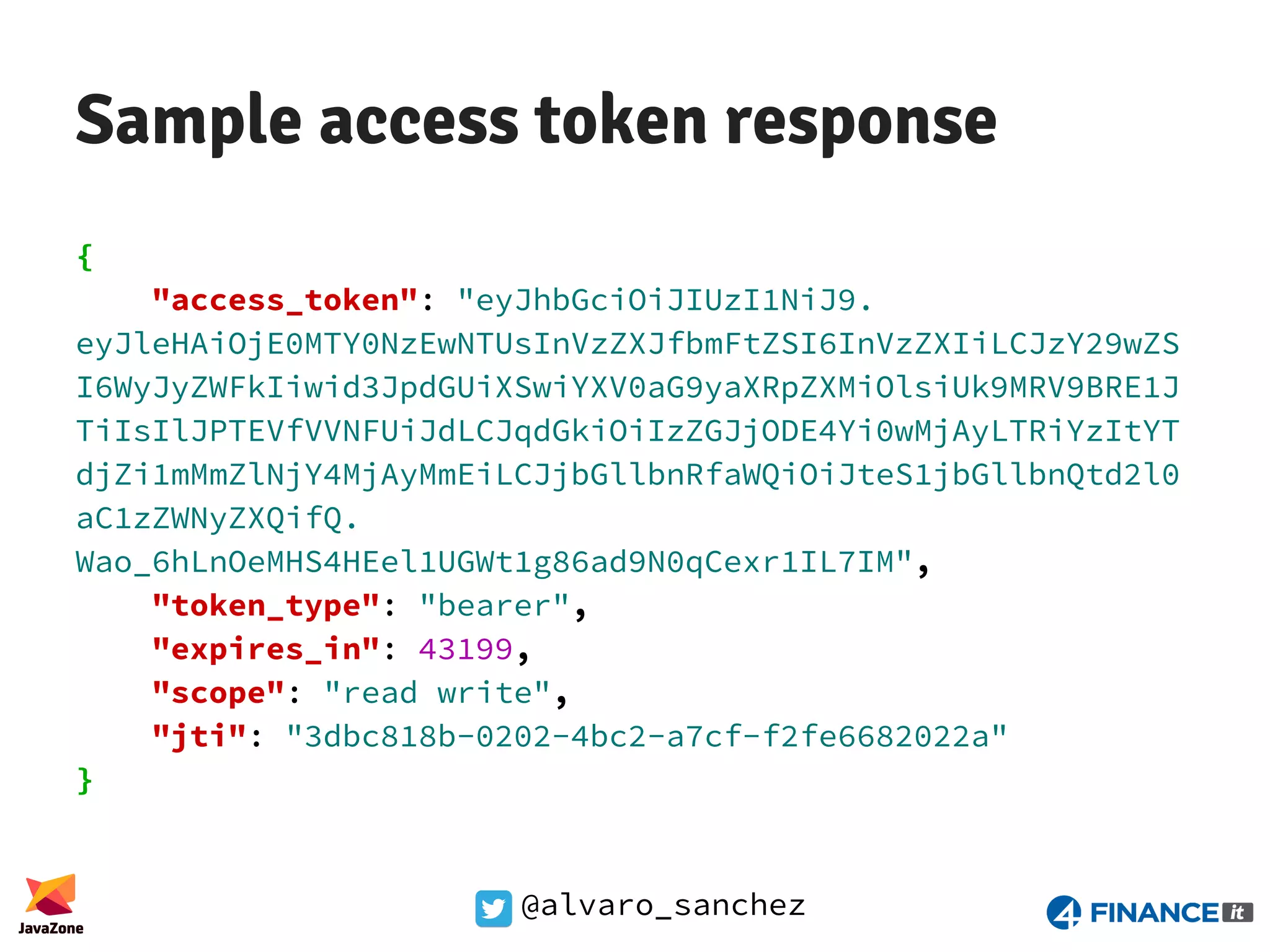

@alvaro_sanchez Sample access token response { "access_token": "eyJhbGciOiJIUzI1NiJ9. eyJleHAiOjE0MTY0NzEwNTUsInVzZXJfbmFtZSI6InVzZXIiLCJzY29wZS I6WyJyZWFkIiwid3JpdGUiXSwiYXV0aG9yaXRpZXMiOlsiUk9MRV9BRE1J TiIsIlJPTEVfVVNFUiJdLCJqdGkiOiIzZGJjODE4Yi0wMjAyLTRiYzItYT djZi1mMmZlNjY4MjAyMmEiLCJjbGllbnRfaWQiOiJteS1jbGllbnQtd2l0 aC1zZWNyZXQifQ. Wao_6hLnOeMHS4HEel1UGWt1g86ad9N0qCexr1IL7IM", "token_type": "bearer", "expires_in": 43199, "scope": "read write", "jti": "3dbc818b-0202-4bc2-a7cf-f2fe6682022a" }

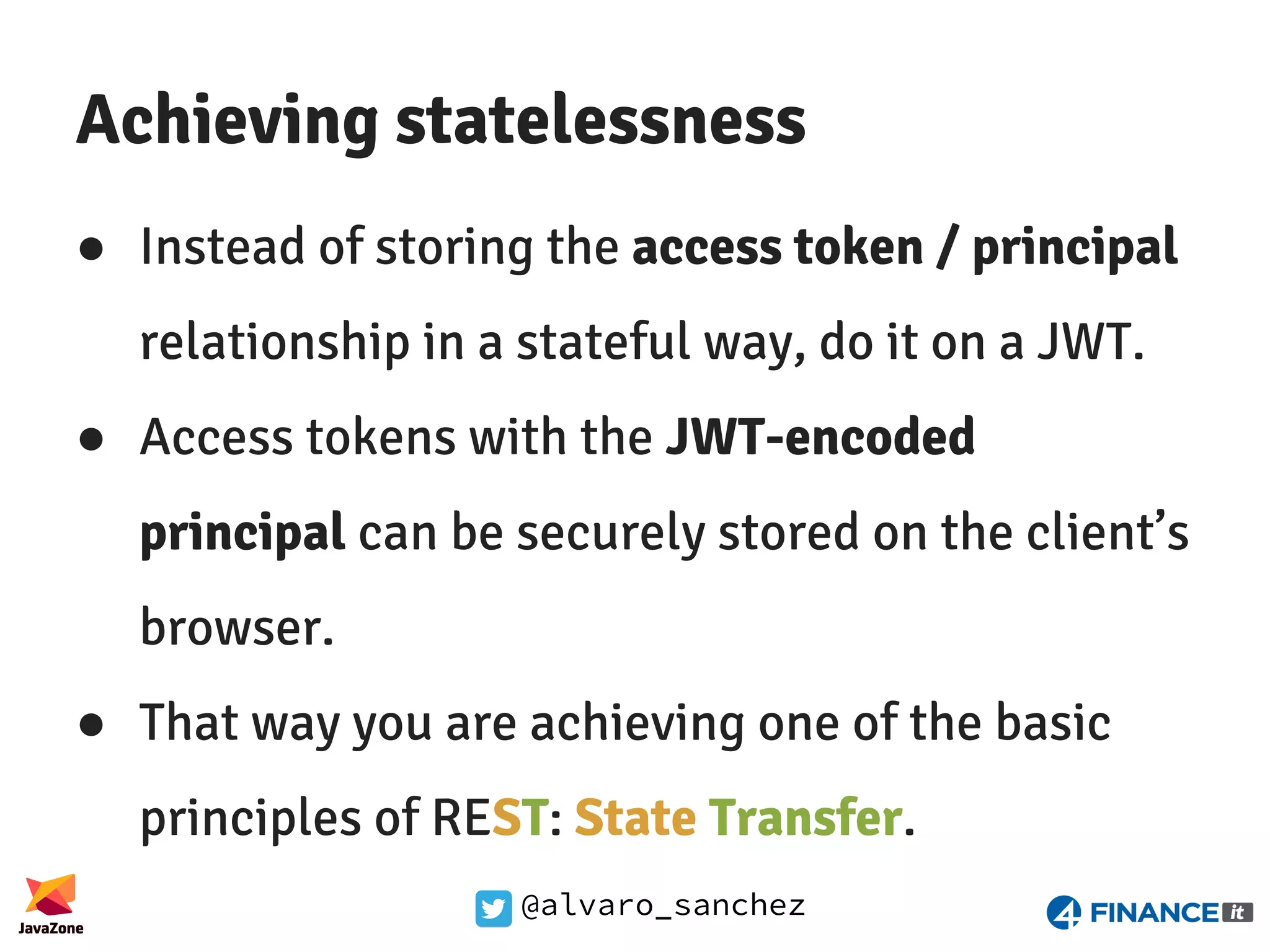

@alvaro_sanchez Achieving statelessness ● Instead of storing the access token / principal relationship in a stateful way, do it on a JWT. ● Access tokens with the JWT-encoded principal can be securely stored on the client’s browser. ● That way you are achieving one of the basic principles of REST: State Transfer.

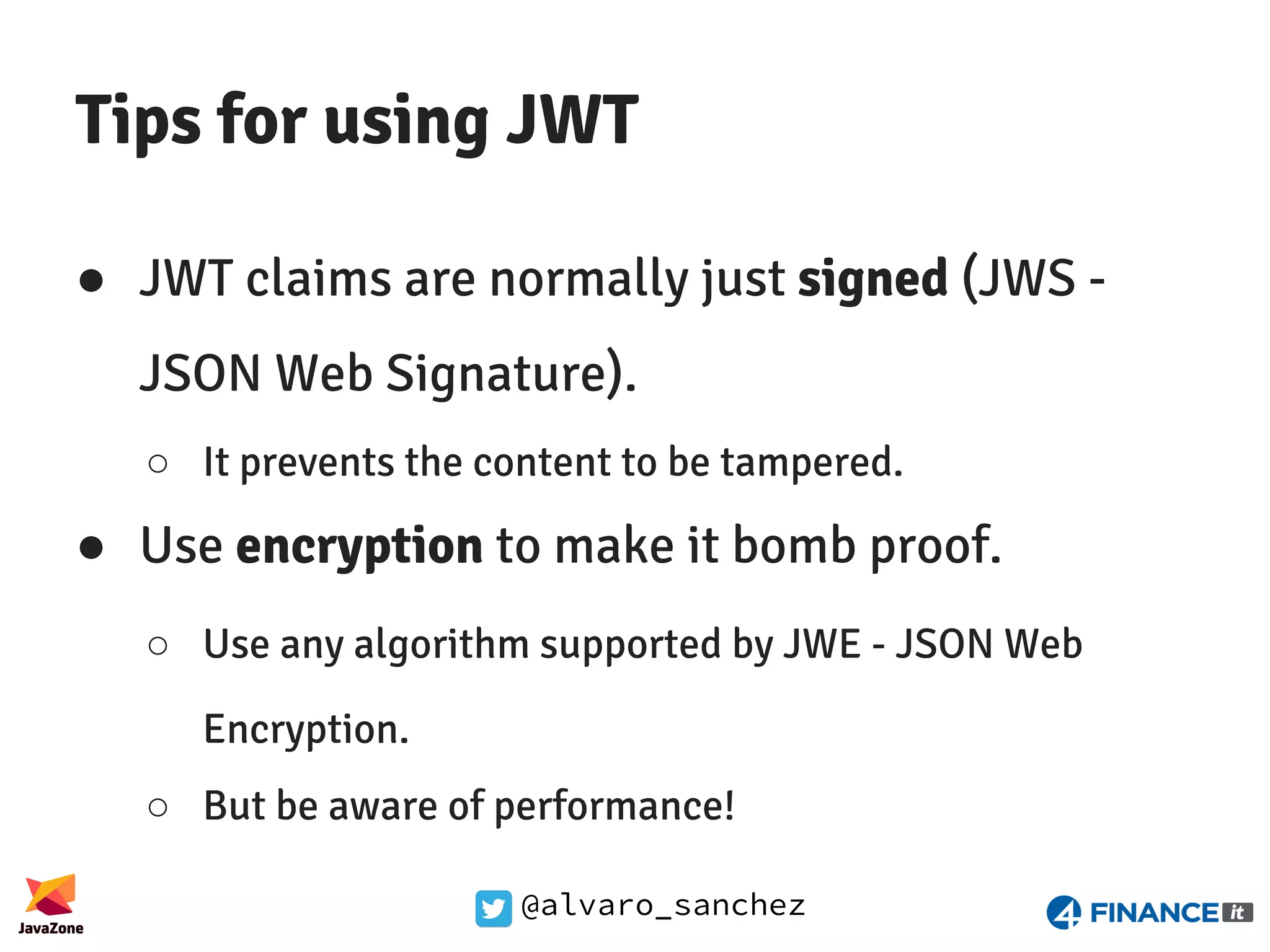

@alvaro_sanchez Tips for using JWT ● JWT claims are normally just signed (JWS - JSON Web Signature). ○ It prevents the content to be tampered. ● Use encryption to make it bomb proof. ○ Use any algorithm supported by JWE - JSON Web Encryption. ○ But be aware of performance!

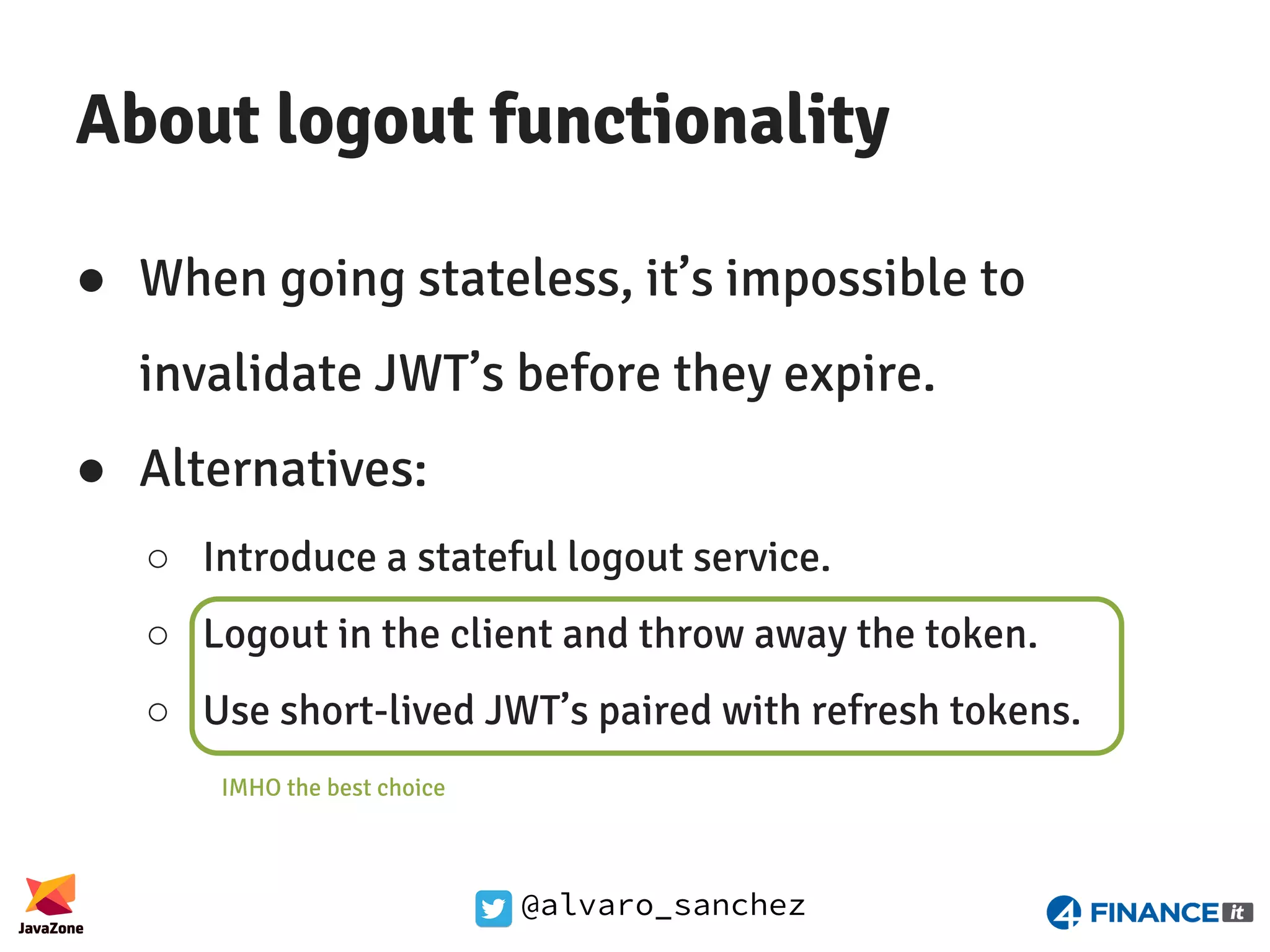

@alvaro_sanchez About logout functionality ● When going stateless, it’s impossible to invalidate JWT’s before they expire. ● Alternatives: ○ Introduce a stateful logout service. ○ Logout in the client and throw away the token. ○ Use short-lived JWT’s paired with refresh tokens. IMHO the best choice

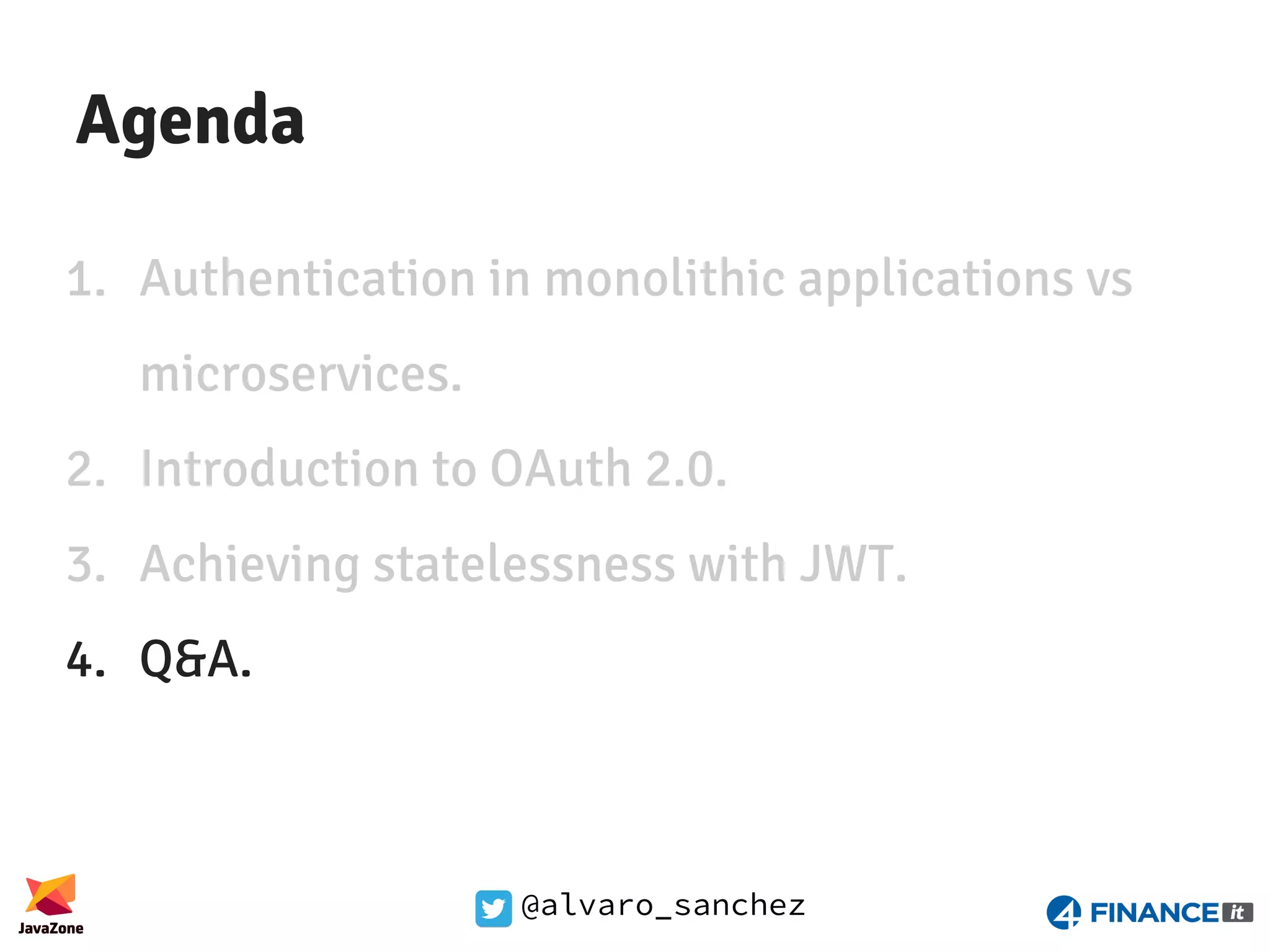

@alvaro_sanchez Agenda 1. Authentication in monolithic applications vs microservices. 2. Introduction to OAuth 2.0. 3. Achieving statelessness with JWT. 4. Q&A.
@alvaro_sanchez Álvaro Sánchez-Mariscal Application Architect - 4finance IT @alvaro_sanchez Images courtesy of Takk!
