UNIT-II SRAM- Programmab le FPGAs Introduction: SRAM-programmable FPGAs have become widely adopted in digital design since their inception. They enable flexible, fast design iterations and are highly preferred for prototyping and reconfigurable computing. This section focuses on three Xilinx FPGA families representing this class, all sharing a common structure: an array of configurable logic blocks (CLBs) surrounded by programmable interconnect.

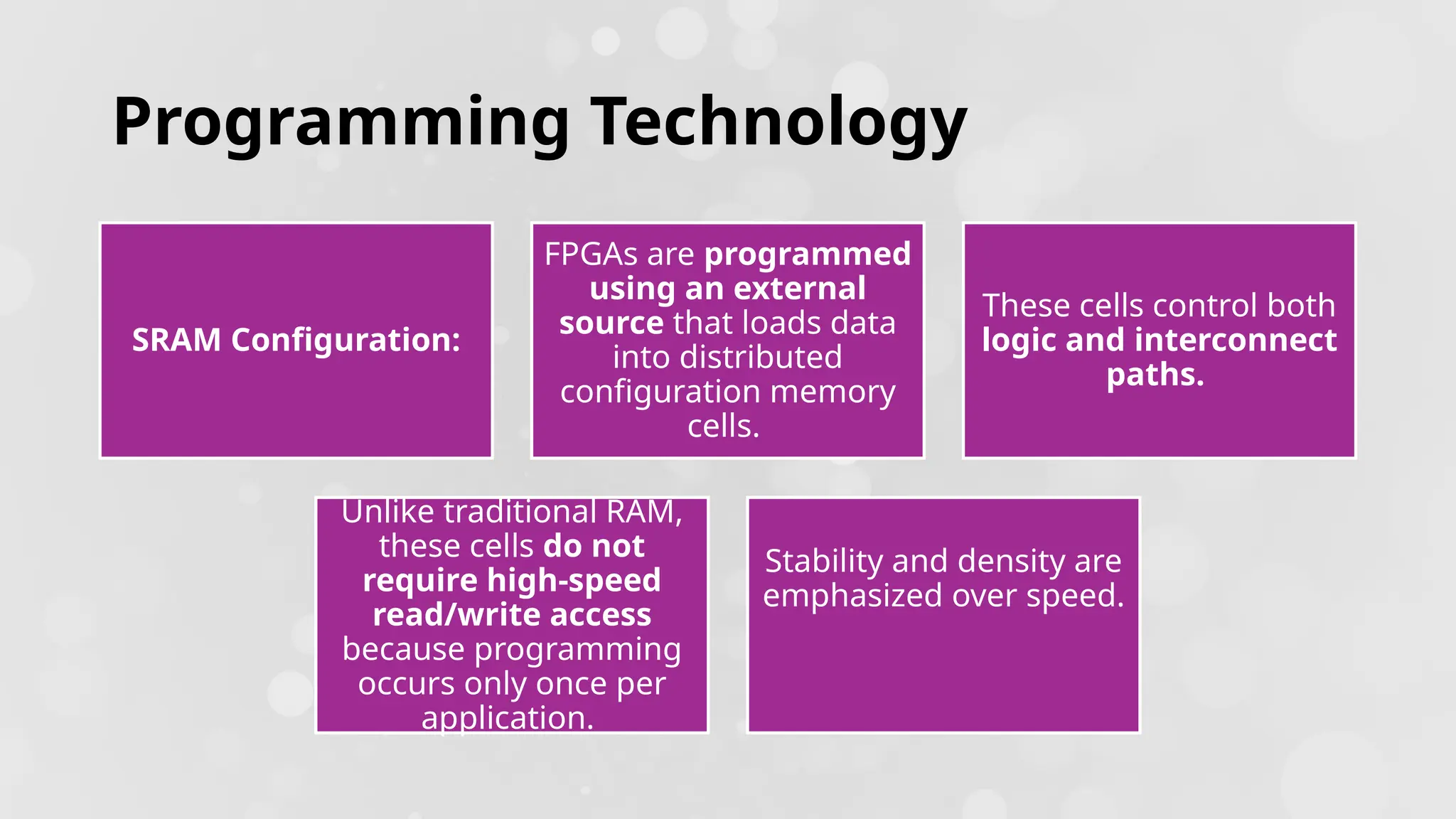

Programming Technology SRAM Configuration: FPGAs are programmed using an external source that loads data into distributed configuration memory cells. These cells control both logic and interconnect paths. Unlike traditional RAM, these cells do not require high-speed read/write access because programming occurs only once per application. Stability and density are emphasized over speed.

Types of SRAM Cells: Four-Transistor RAM Cell Five-Transistor RAM Cell Six-Transistor RAM Cell

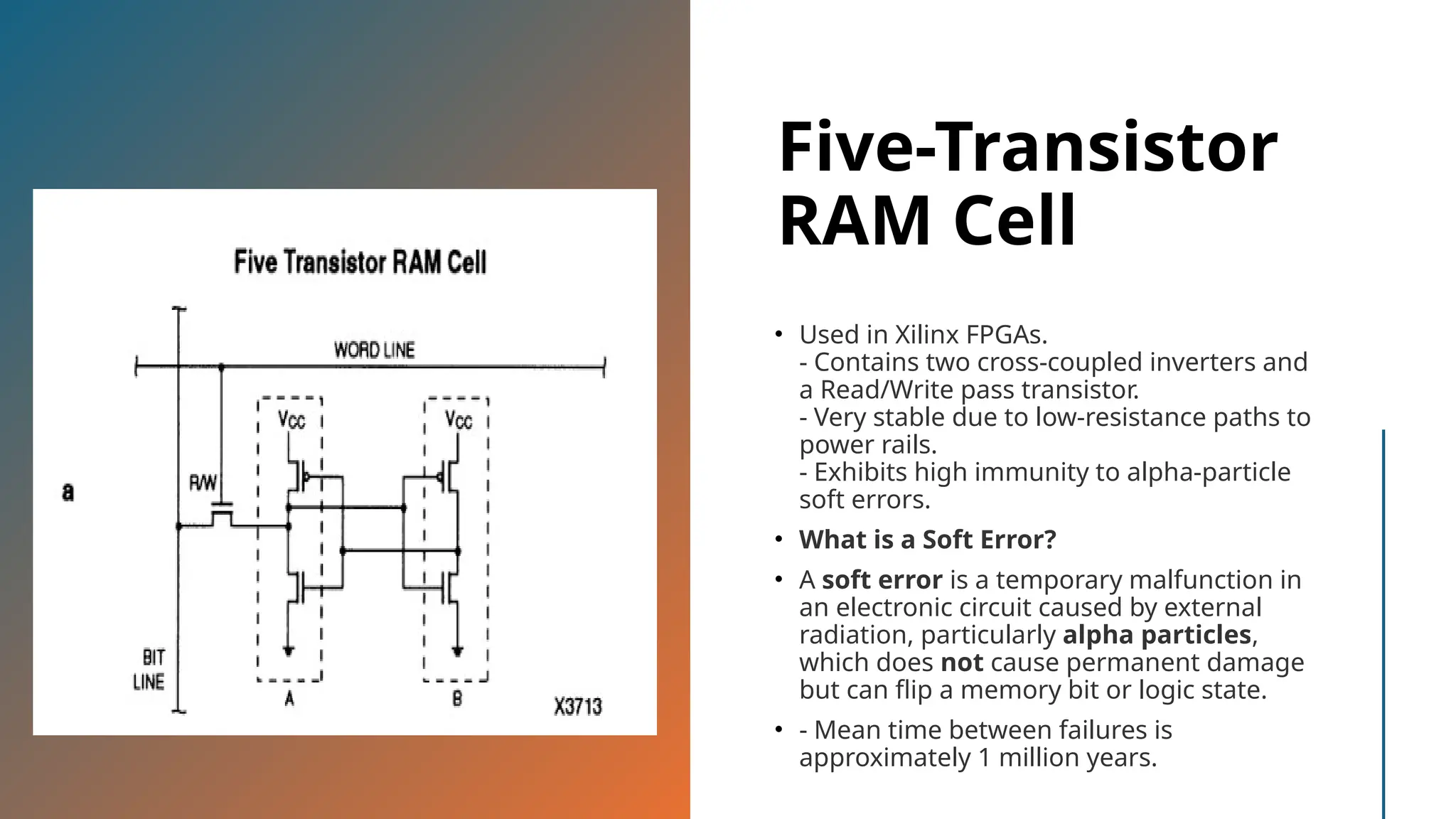

Five-Transistor RAM Cell • Used in Xilinx FPGAs. - Contains two cross-coupled inverters and a Read/Write pass transistor. - Very stable due to low-resistance paths to power rails. - Exhibits high immunity to alpha-particle soft errors. • What is a Soft Error? • A soft error is a temporary malfunction in an electronic circuit caused by external radiation, particularly alpha particles, which does not cause permanent damage but can flip a memory bit or logic state. • - Mean time between failures is approximately 1 million years.

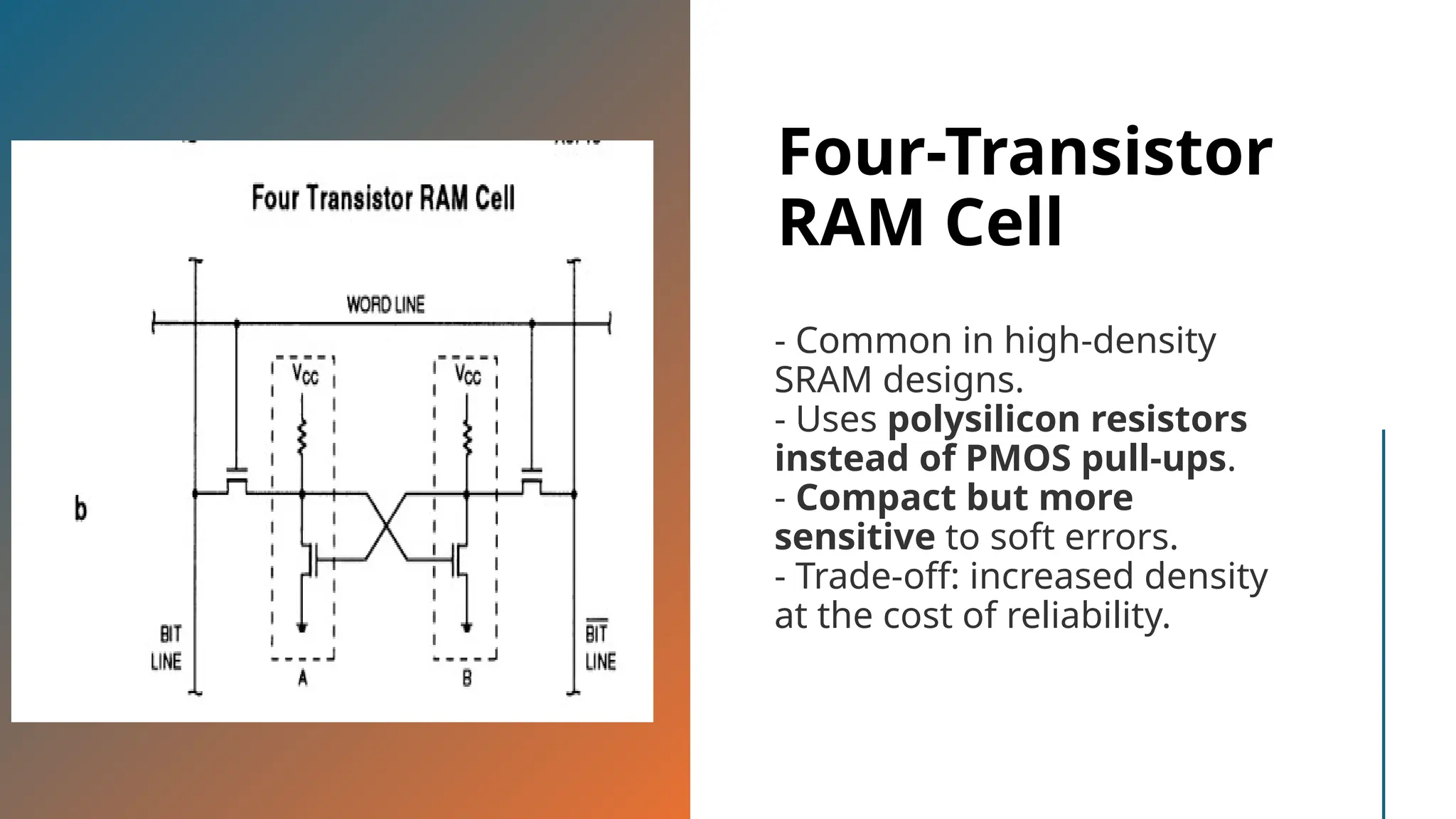

Four-Transistor RAM Cell - Common in high-density SRAM designs. - Uses polysilicon resistors instead of PMOS pull-ups. - Compact but more sensitive to soft errors. - Trade-off: increased density at the cost of reliability.

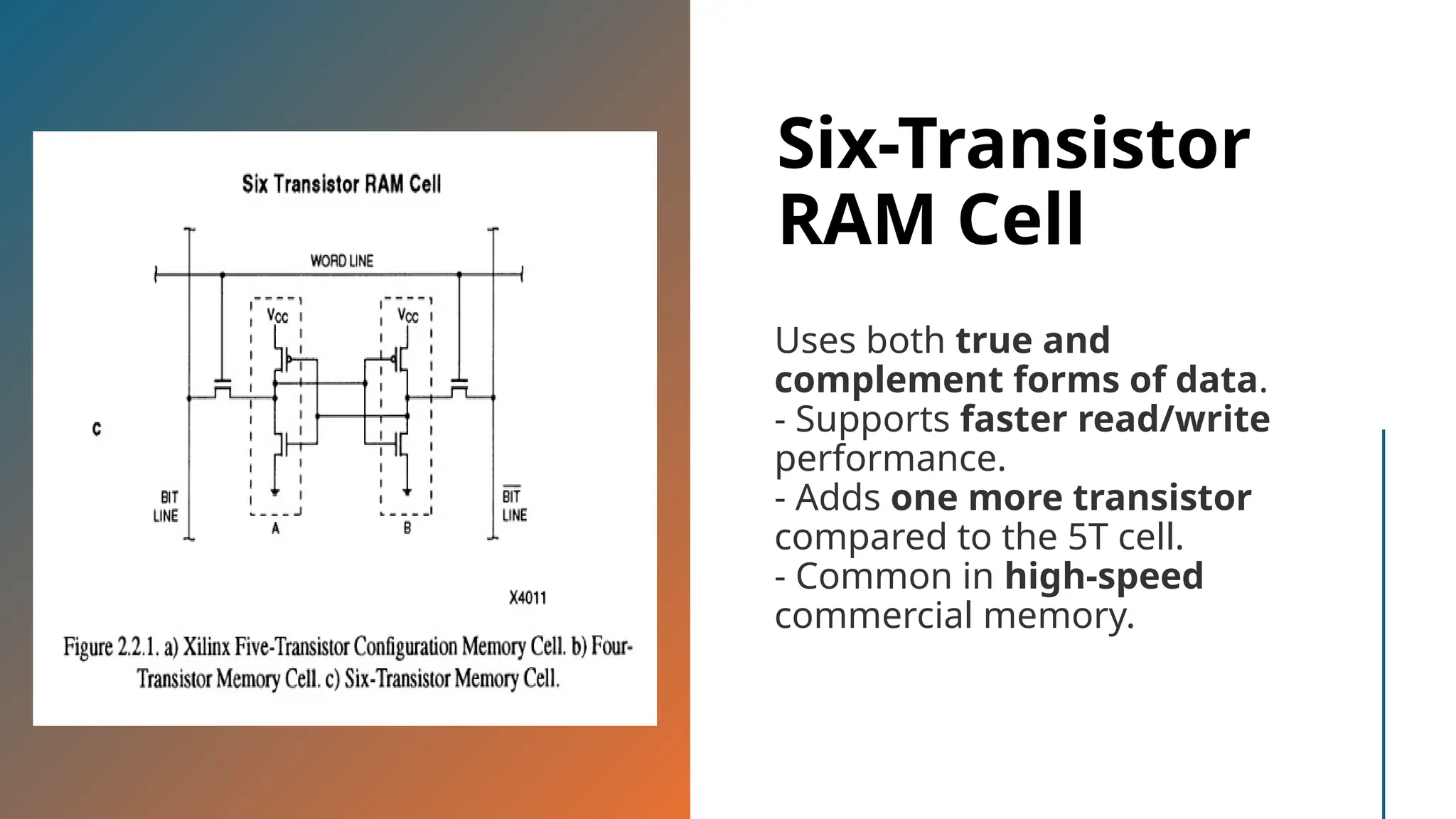

Six-Transistor RAM Cell Uses both true and complement forms of data. - Supports faster read/write performance. - Adds one more transistor compared to the 5T cell. - Common in high-speed commercial memory.

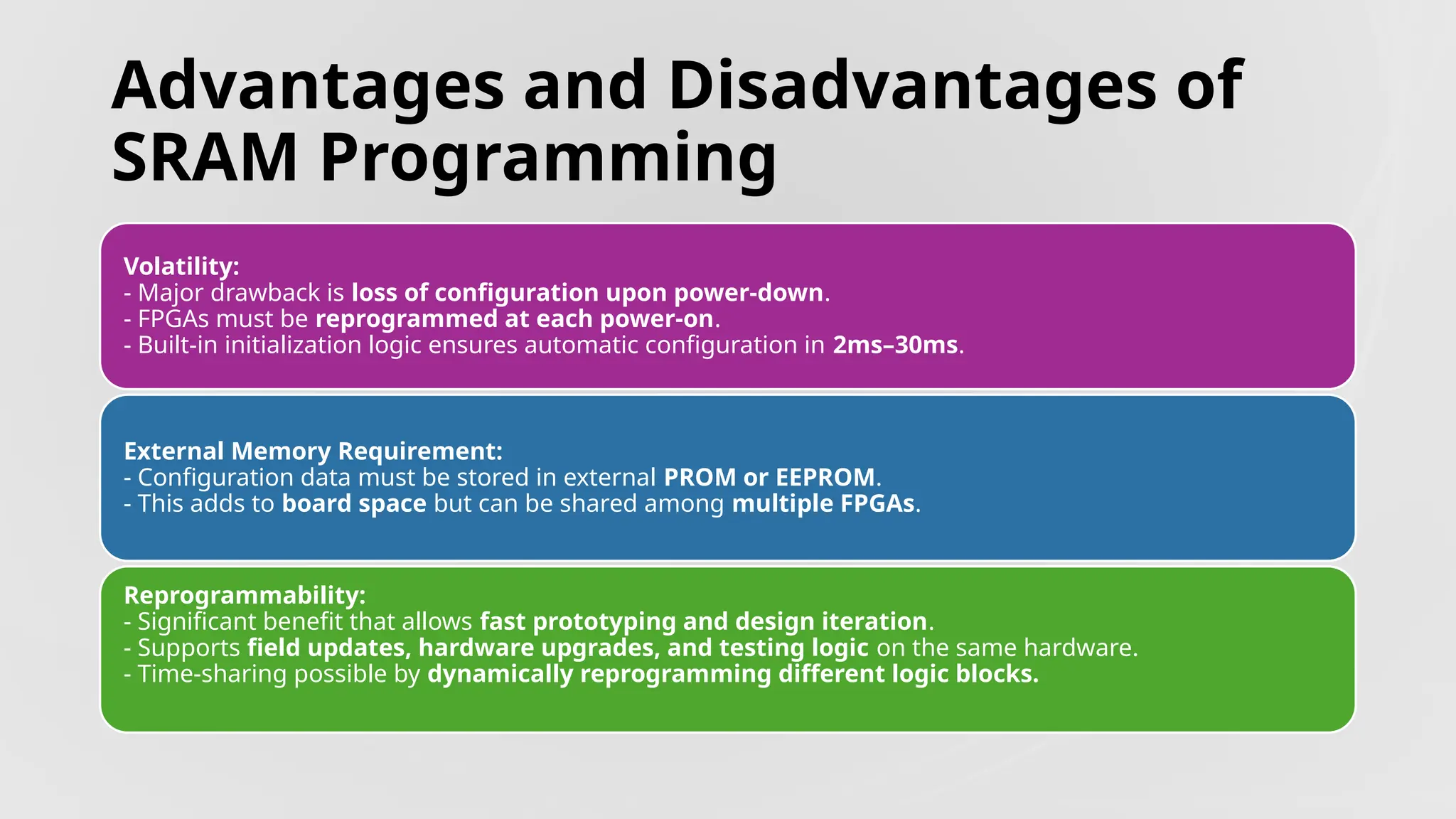

Advantages and Disadvantages of SRAM Programming Volatility: - Major drawback is loss of configuration upon power-down. - FPGAs must be reprogrammed at each power-on. - Built-in initialization logic ensures automatic configuration in 2ms–30ms. External Memory Requirement: - Configuration data must be stored in external PROM or EEPROM. - This adds to board space but can be shared among multiple FPGAs. Reprogrammability: - Significant benefit that allows fast prototyping and design iteration. - Supports field updates, hardware upgrades, and testing logic on the same hardware. - Time-sharing possible by dynamically reprogramming different logic blocks.

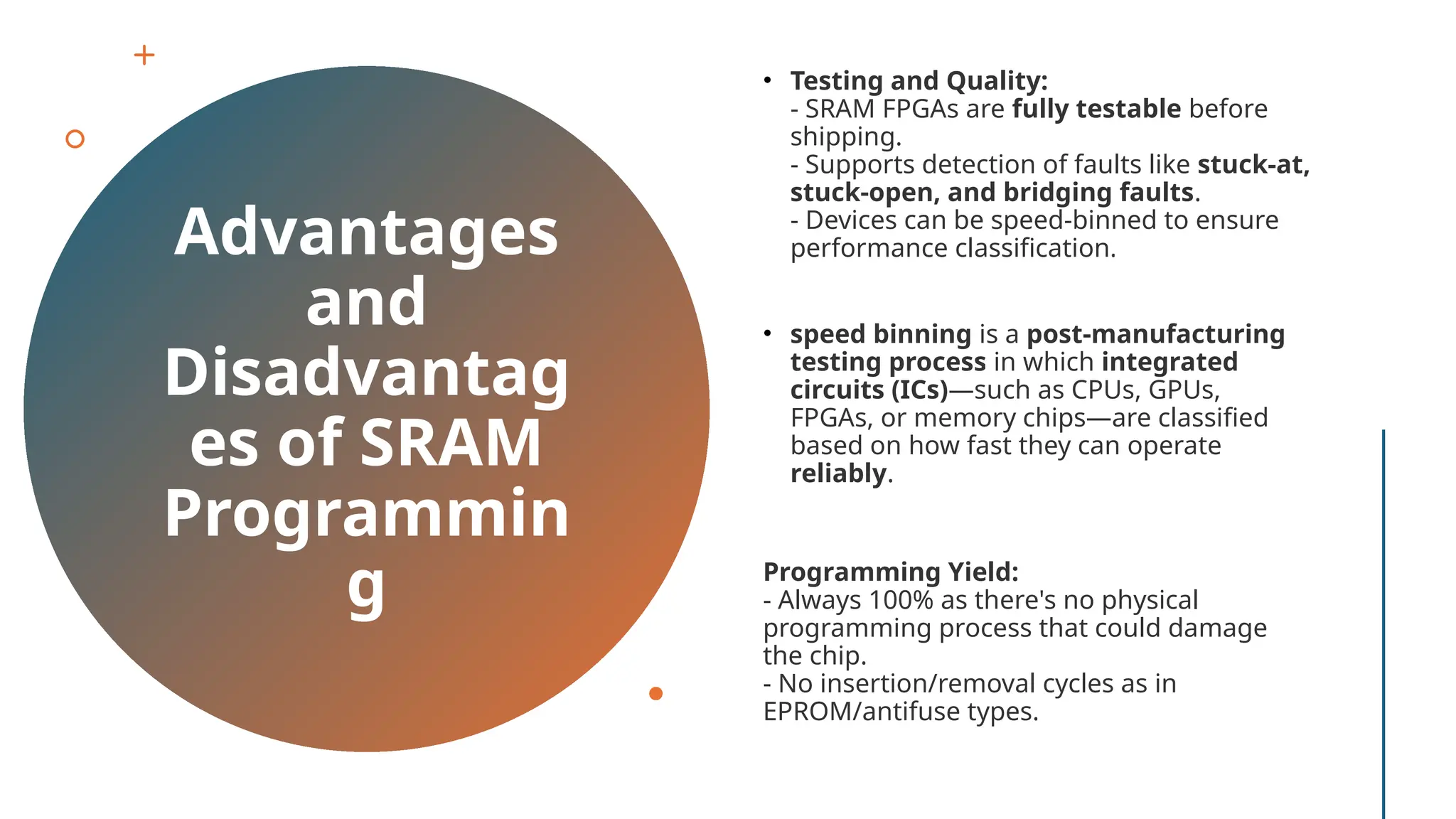

Advantages and Disadvantag es of SRAM Programmin g • Testing and Quality: - SRAM FPGAs are fully testable before shipping. - Supports detection of faults like stuck-at, stuck-open, and bridging faults. - Devices can be speed-binned to ensure performance classification. • speed binning is a post-manufacturing testing process in which integrated circuits (ICs)—such as CPUs, GPUs, FPGAs, or memory chips—are classified based on how fast they can operate reliably. Programming Yield: - Always 100% as there's no physical programming process that could damage the chip. - No insertion/removal cycles as in EPROM/antifuse types.

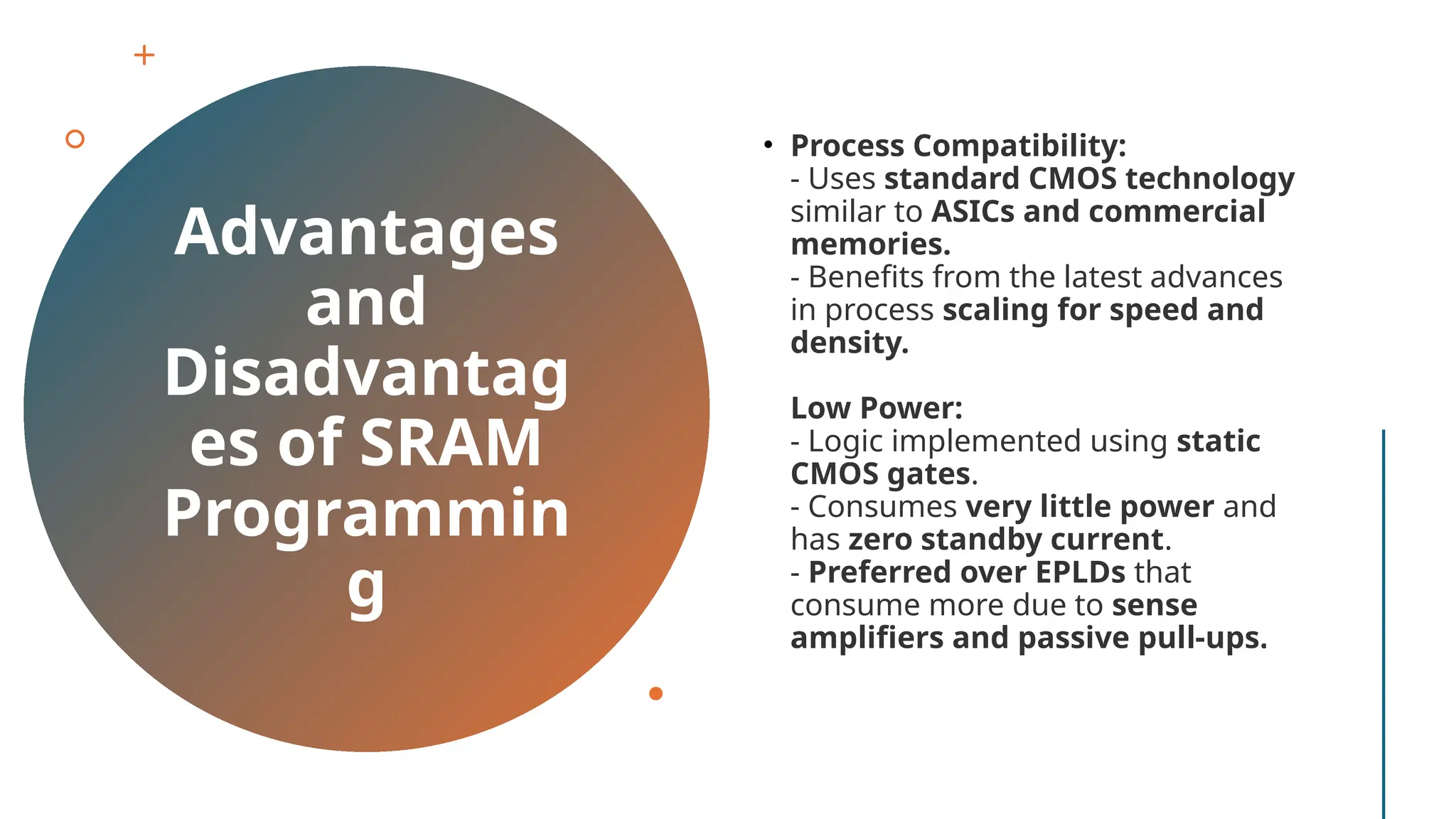

Advantages and Disadvantag es of SRAM Programmin g • Process Compatibility: - Uses standard CMOS technology similar to ASICs and commercial memories. - Benefits from the latest advances in process scaling for speed and density. Low Power: - Logic implemented using static CMOS gates. - Consumes very little power and has zero standby current. - Preferred over EPLDs that consume more due to sense amplifiers and passive pull-ups.

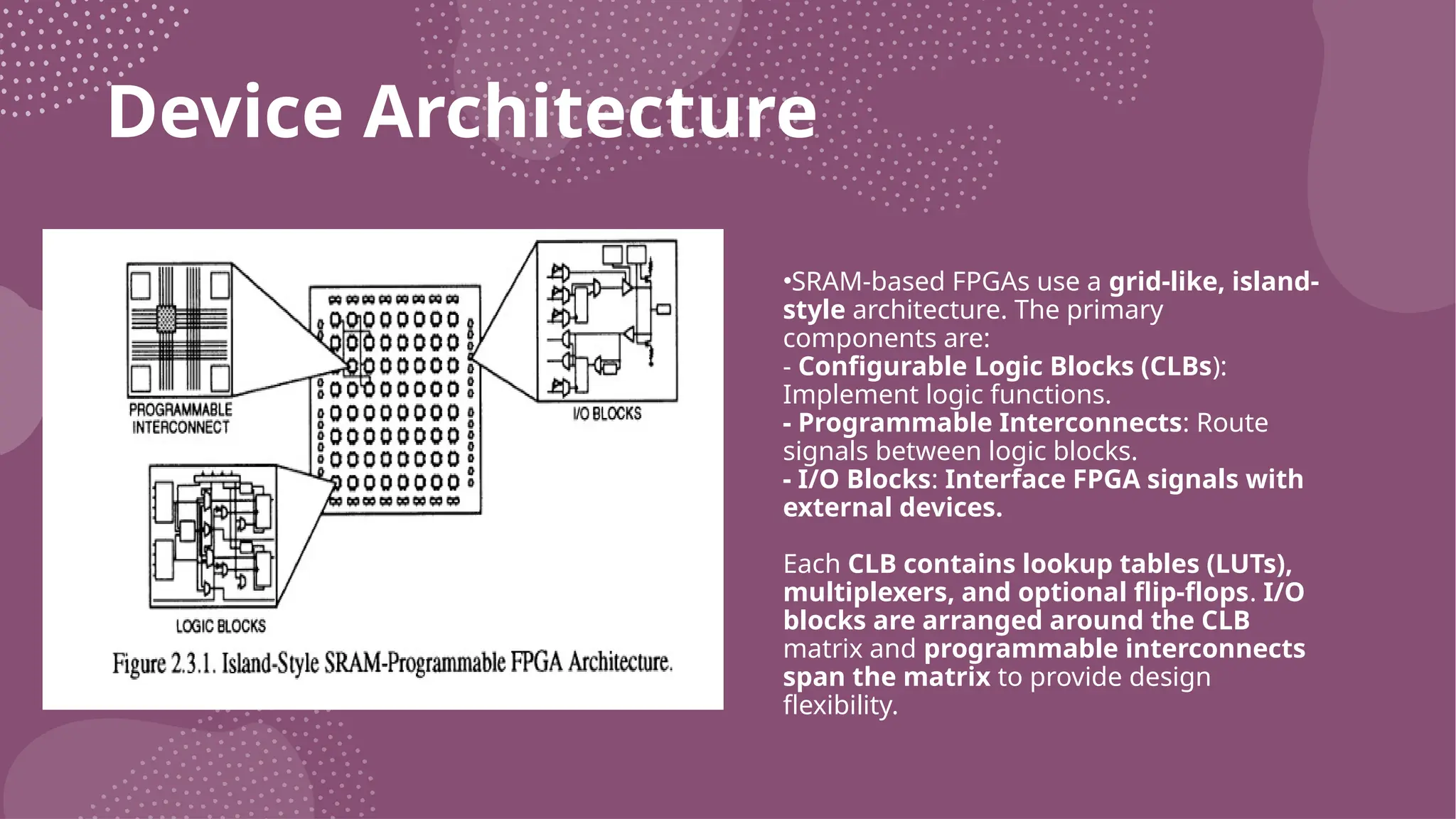

Device Architecture •SRAM-based FPGAs use a grid-like, island- style architecture. The primary components are: - Configurable Logic Blocks (CLBs): Implement logic functions. - Programmable Interconnects: Route signals between logic blocks. - I/O Blocks: Interface FPGA signals with external devices. Each CLB contains lookup tables (LUTs), multiplexers, and optional flip-flops. I/O blocks are arranged around the CLB matrix and programmable interconnects span the matrix to provide design flexibility.

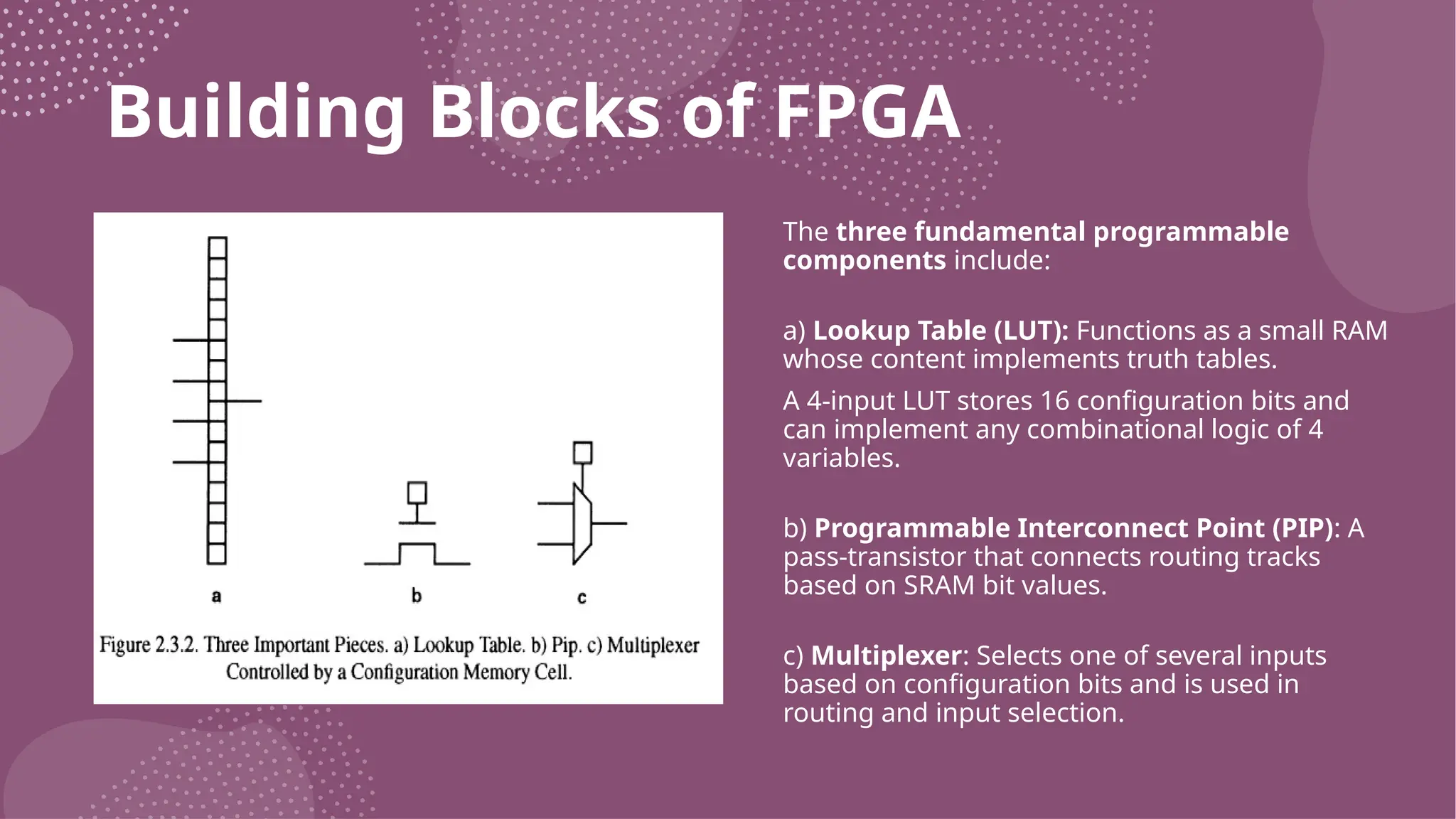

Building Blocks of FPGA The three fundamental programmable components include: a) Lookup Table (LUT): Functions as a small RAM whose content implements truth tables. A 4-input LUT stores 16 configuration bits and can implement any combinational logic of 4 variables. b) Programmable Interconnect Point (PIP): A pass-transistor that connects routing tracks based on SRAM bit values. c) Multiplexer: Selects one of several inputs based on configuration bits and is used in routing and input selection.

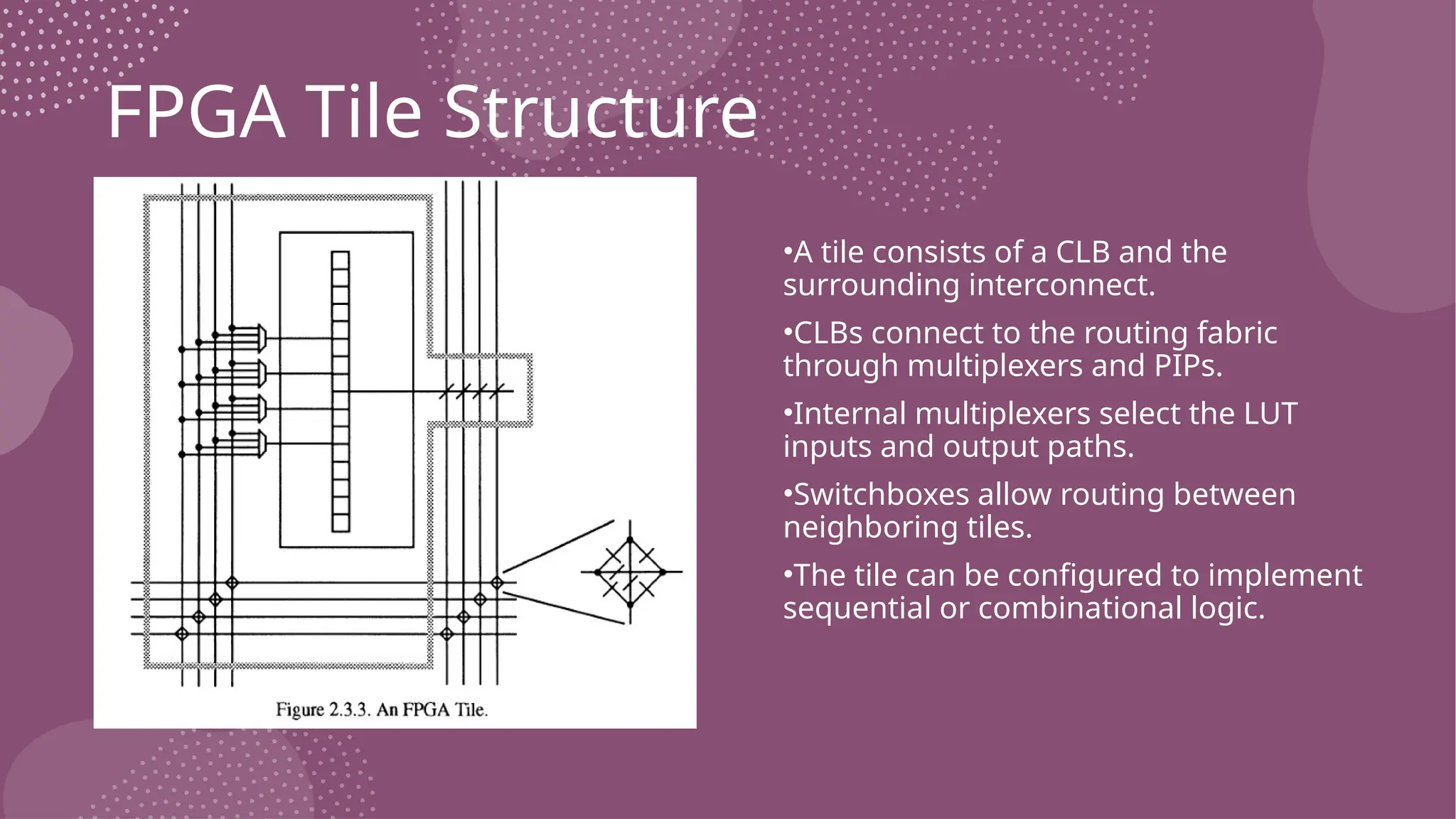

FPGA Tile Structure •A tile consists of a CLB and the surrounding interconnect. •CLBs connect to the routing fabric through multiplexers and PIPs. •Internal multiplexers select the LUT inputs and output paths. •Switchboxes allow routing between neighboring tiles. •The tile can be configured to implement sequential or combinational logic.

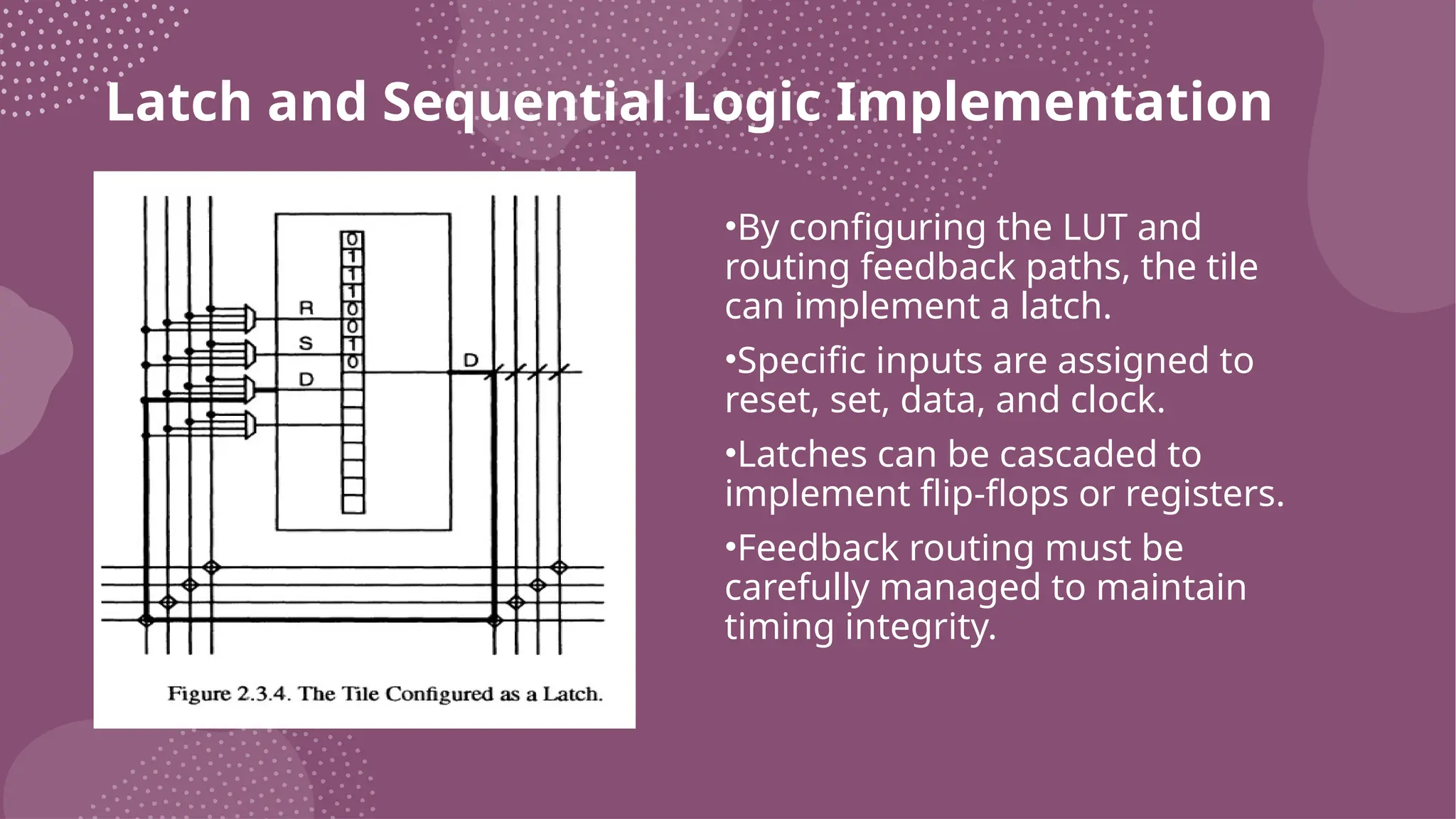

Latch and Sequential Logic Implementation •By configuring the LUT and routing feedback paths, the tile can implement a latch. •Specific inputs are assigned to reset, set, data, and clock. •Latches can be cascaded to implement flip-flops or registers. •Feedback routing must be carefully managed to maintain timing integrity.

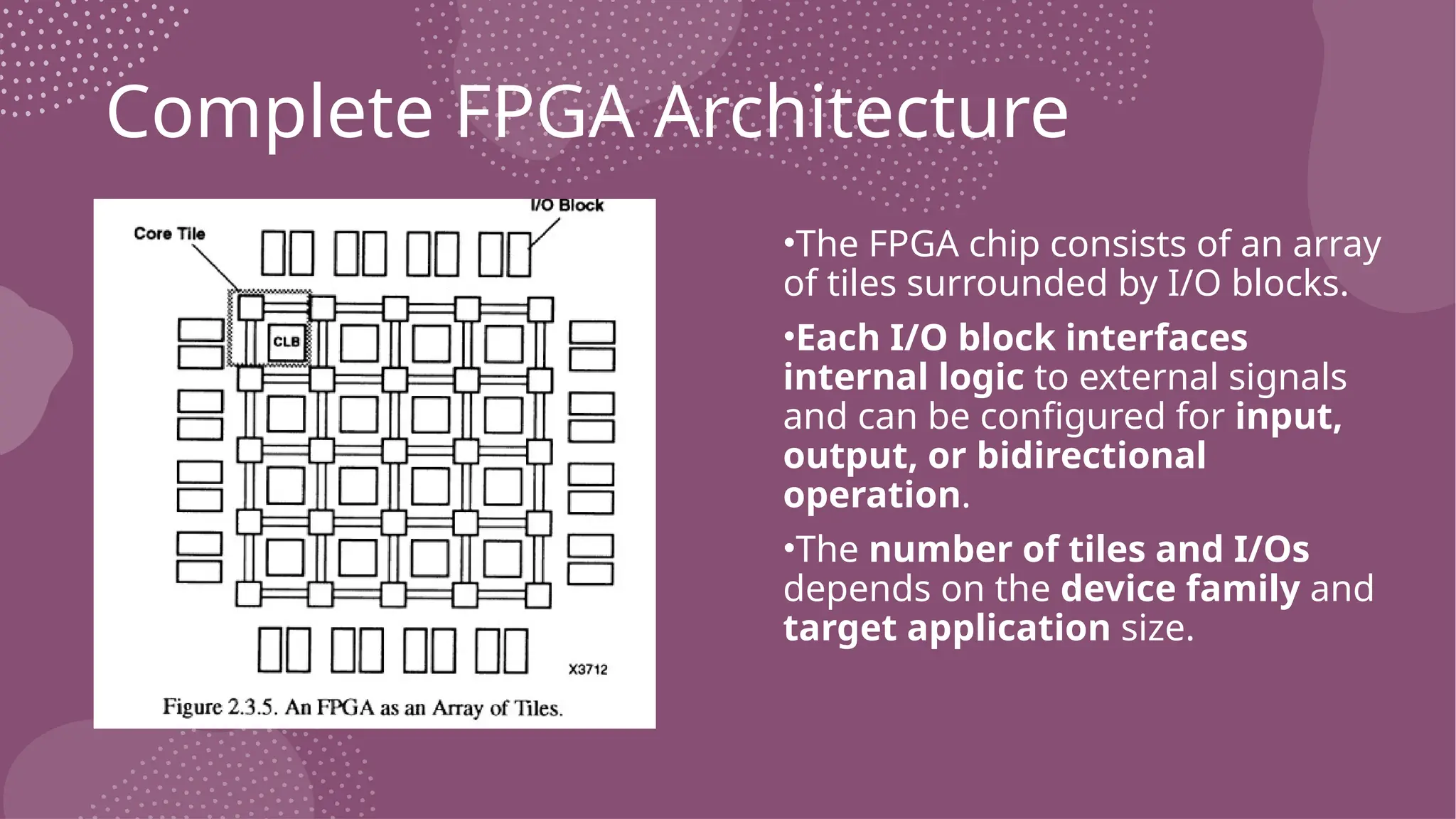

Complete FPGA Architecture •The FPGA chip consists of an array of tiles surrounded by I/O blocks. •Each I/O block interfaces internal logic to external signals and can be configured for input, output, or bidirectional operation. •The number of tiles and I/Os depends on the device family and target application size.

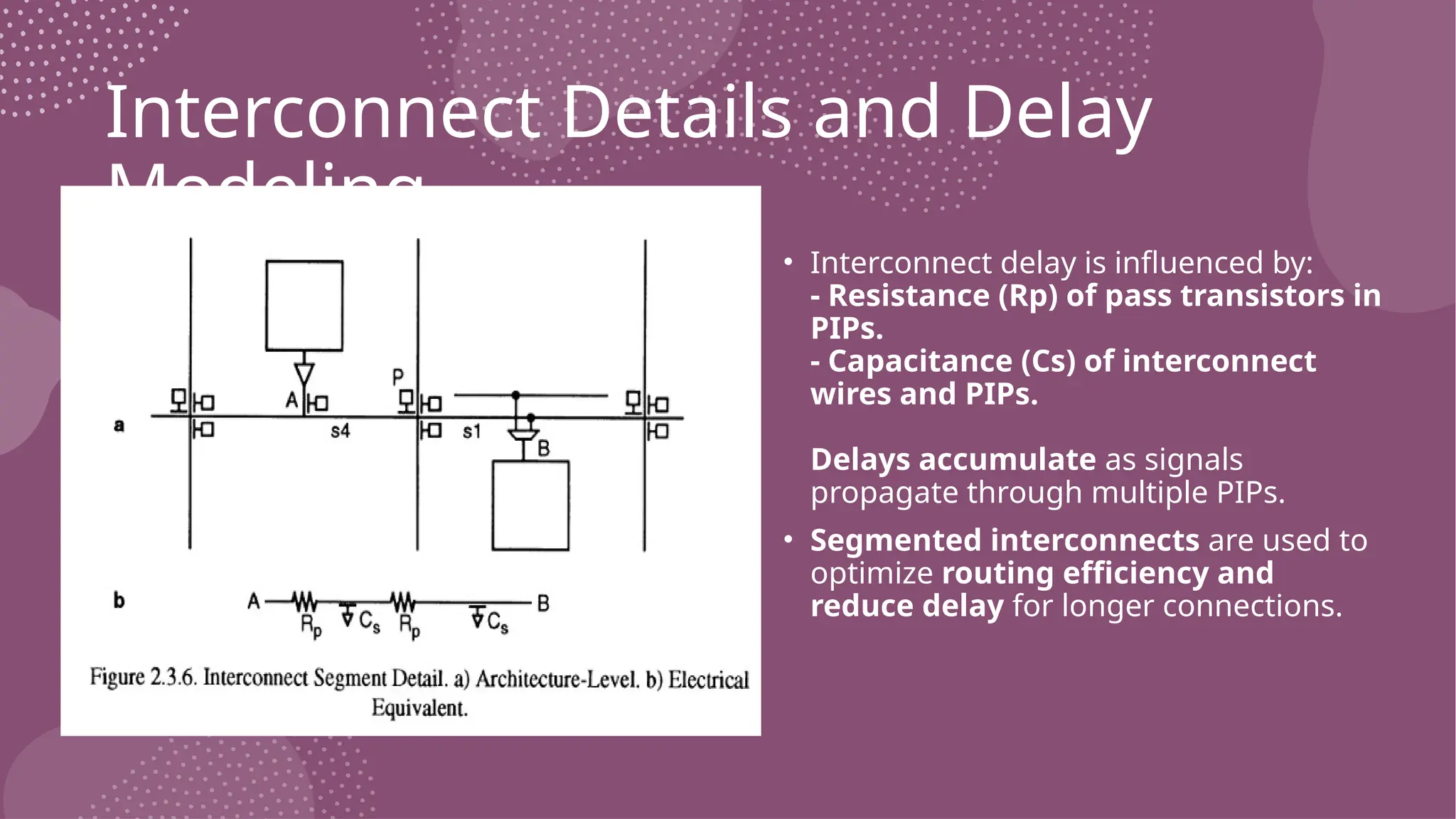

Interconnect Details and Delay Modeling • Interconnect delay is influenced by: - Resistance (Rp) of pass transistors in PIPs. - Capacitance (Cs) of interconnect wires and PIPs. Delays accumulate as signals propagate through multiple PIPs. • Segmented interconnects are used to optimize routing efficiency and reduce delay for longer connections.

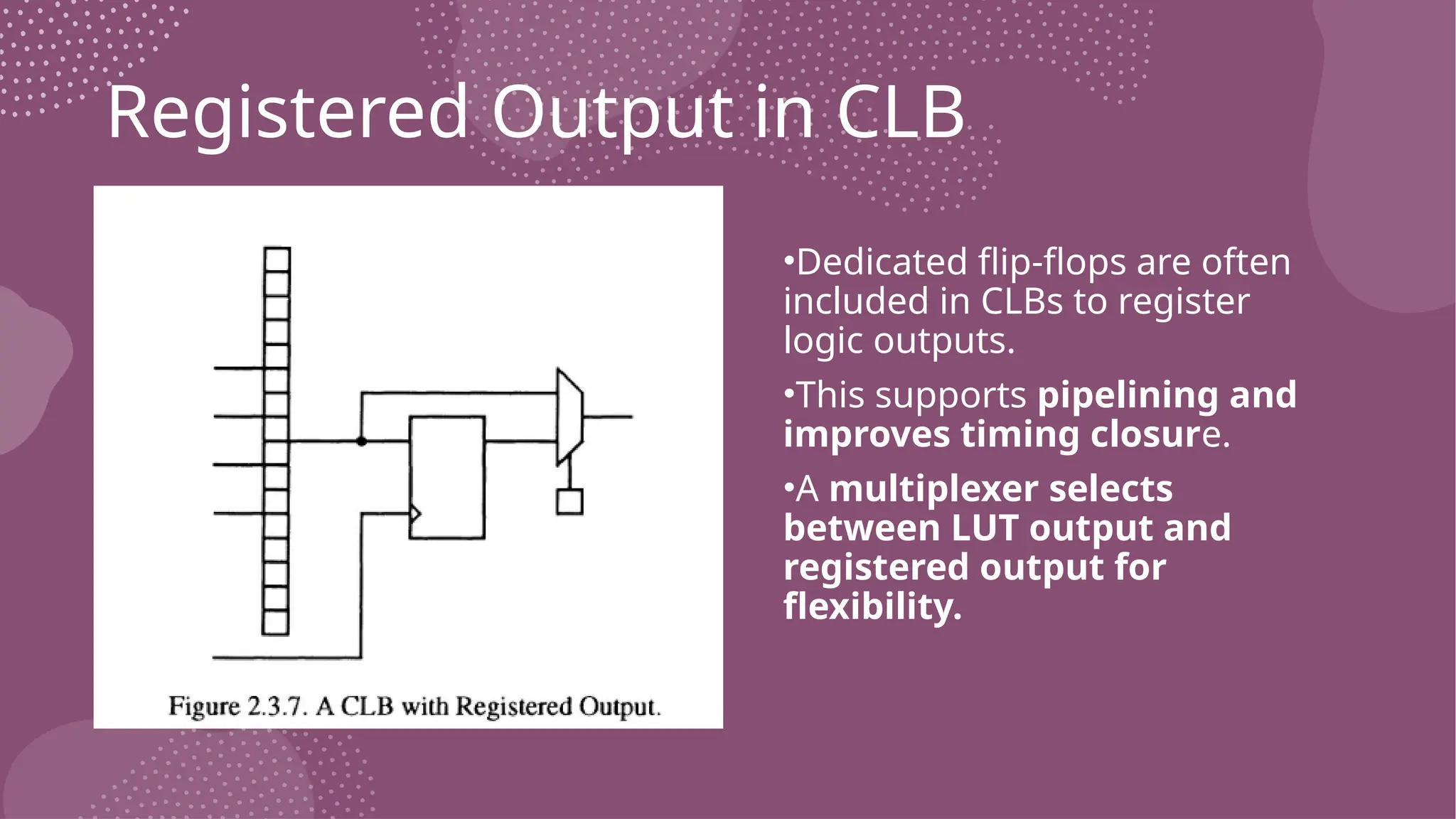

Registered Output in CLB •Dedicated flip-flops are often included in CLBs to register logic outputs. •This supports pipelining and improves timing closure. •A multiplexer selects between LUT output and registered output for flexibility.

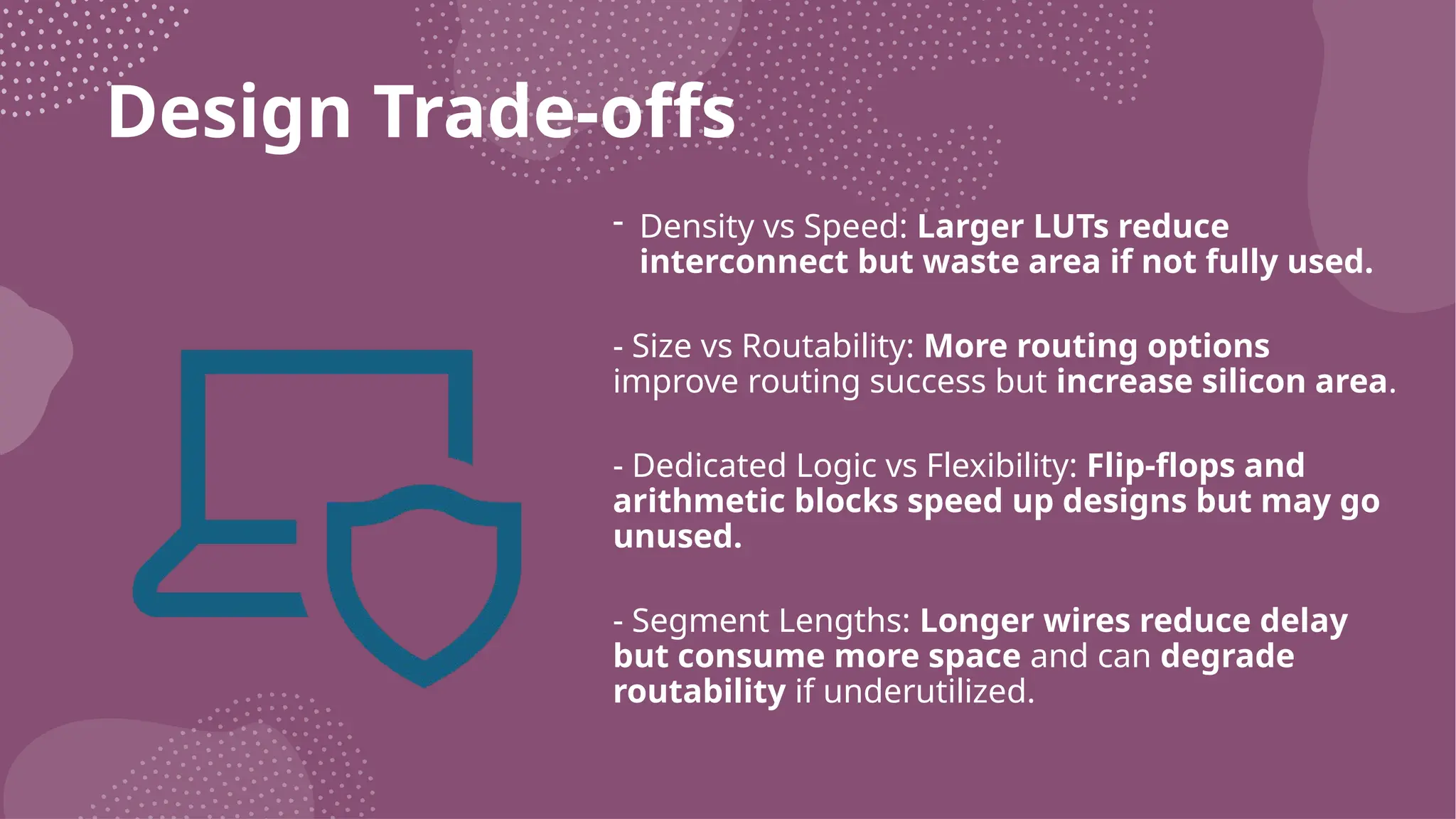

Design Trade-offs - Density vs Speed: Larger LUTs reduce interconnect but waste area if not fully used. - Size vs Routability: More routing options improve routing success but increase silicon area. - Dedicated Logic vs Flexibility: Flip-flops and arithmetic blocks speed up designs but may go unused. - Segment Lengths: Longer wires reduce delay but consume more space and can degrade routability if underutilized.

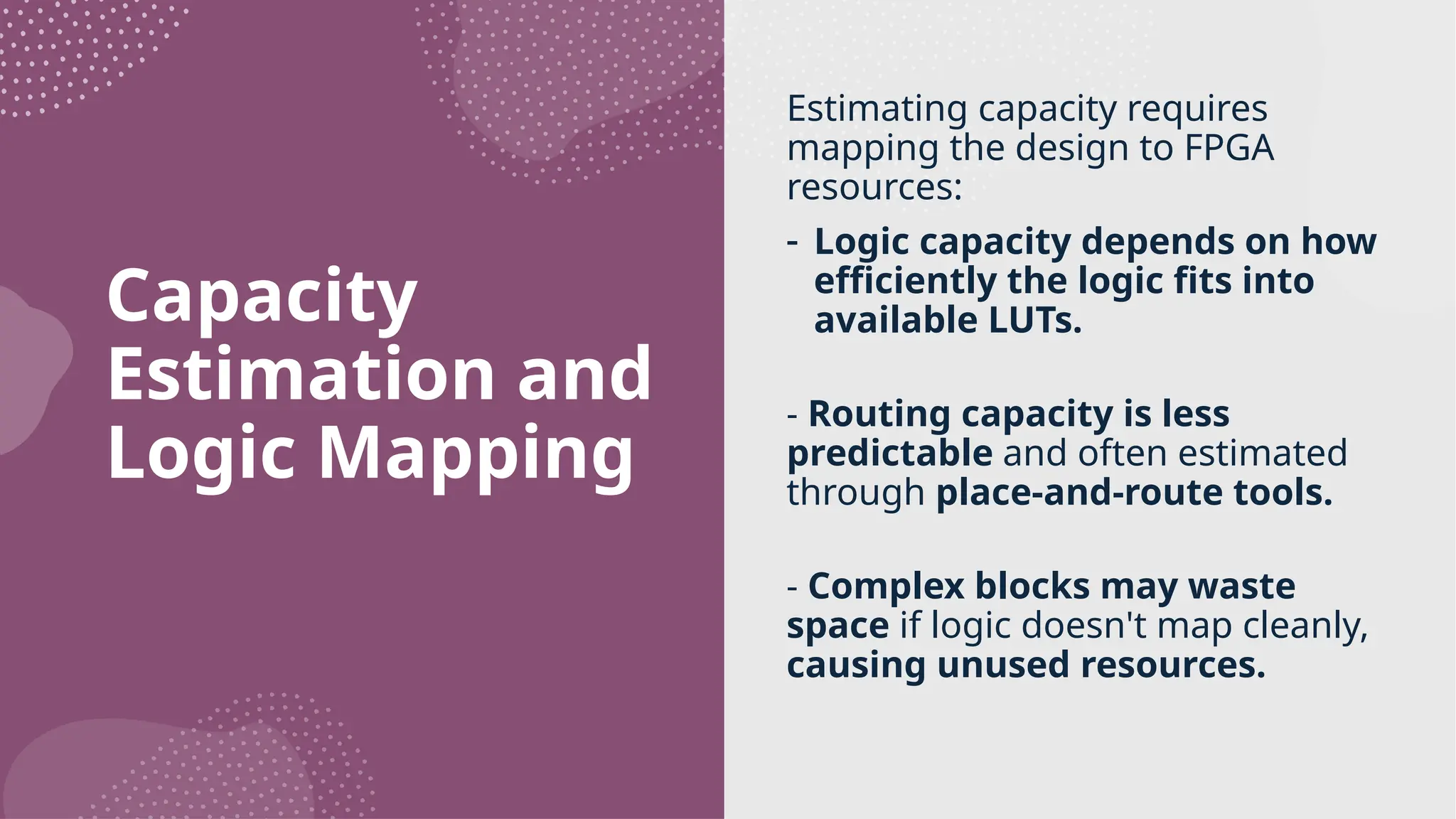

Capacity Estimation and Logic Mapping Estimating capacity requires mapping the design to FPGA resources: - Logic capacity depends on how efficiently the logic fits into available LUTs. - Routing capacity is less predictable and often estimated through place-and-route tools. - Complex blocks may waste space if logic doesn't map cleanly, causing unused resources.

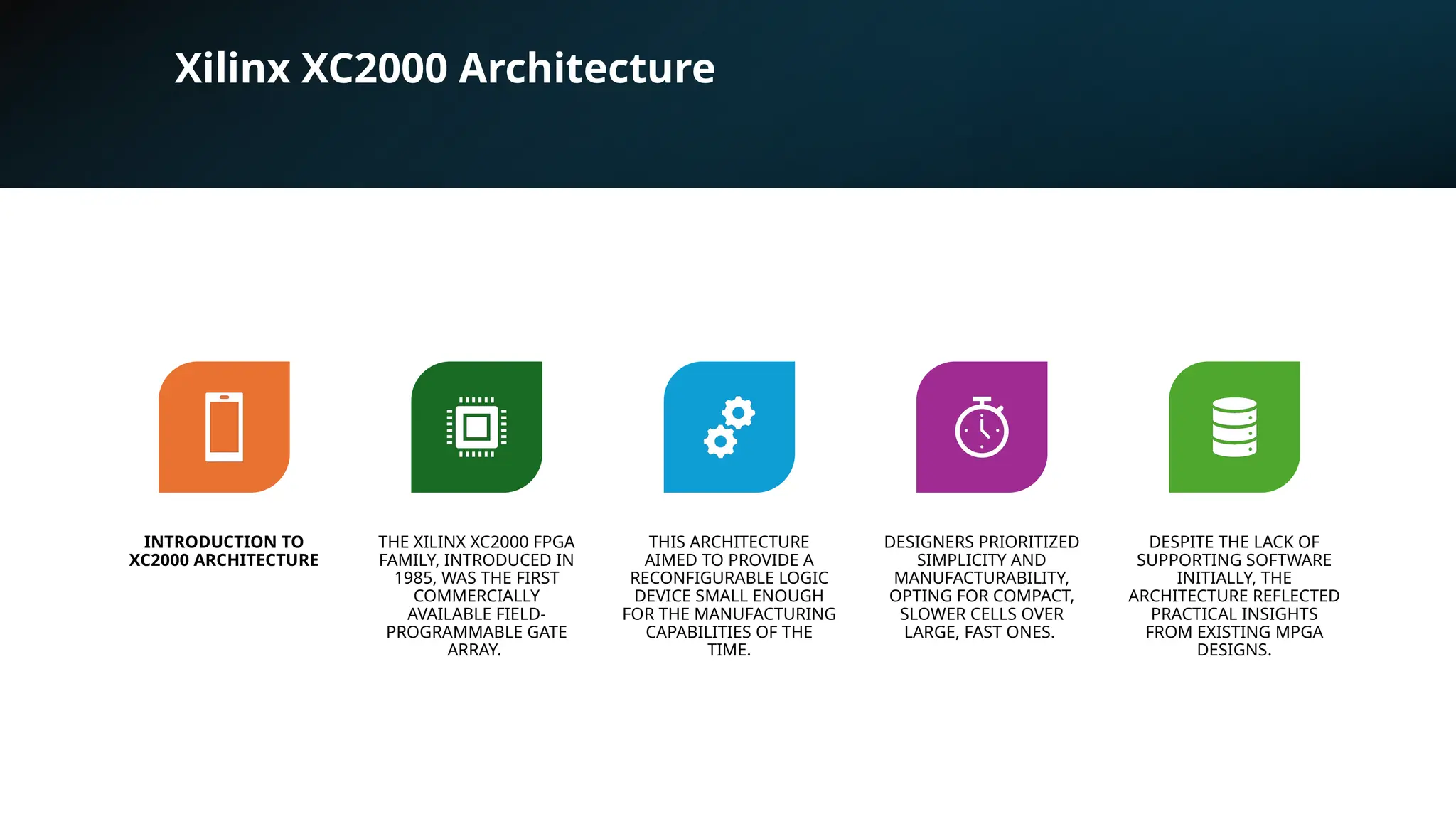

Xilinx XC2000 Architecture INTRODUCTION TO XC2000 ARCHITECTURE THE XILINX XC2000 FPGA FAMILY, INTRODUCED IN 1985, WAS THE FIRST COMMERCIALLY AVAILABLE FIELD- PROGRAMMABLE GATE ARRAY. THIS ARCHITECTURE AIMED TO PROVIDE A RECONFIGURABLE LOGIC DEVICE SMALL ENOUGH FOR THE MANUFACTURING CAPABILITIES OF THE TIME. DESIGNERS PRIORITIZED SIMPLICITY AND MANUFACTURABILITY, OPTING FOR COMPACT, SLOWER CELLS OVER LARGE, FAST ONES. DESPITE THE LACK OF SUPPORTING SOFTWARE INITIALLY, THE ARCHITECTURE REFLECTED PRACTICAL INSIGHTS FROM EXISTING MPGA DESIGNS.

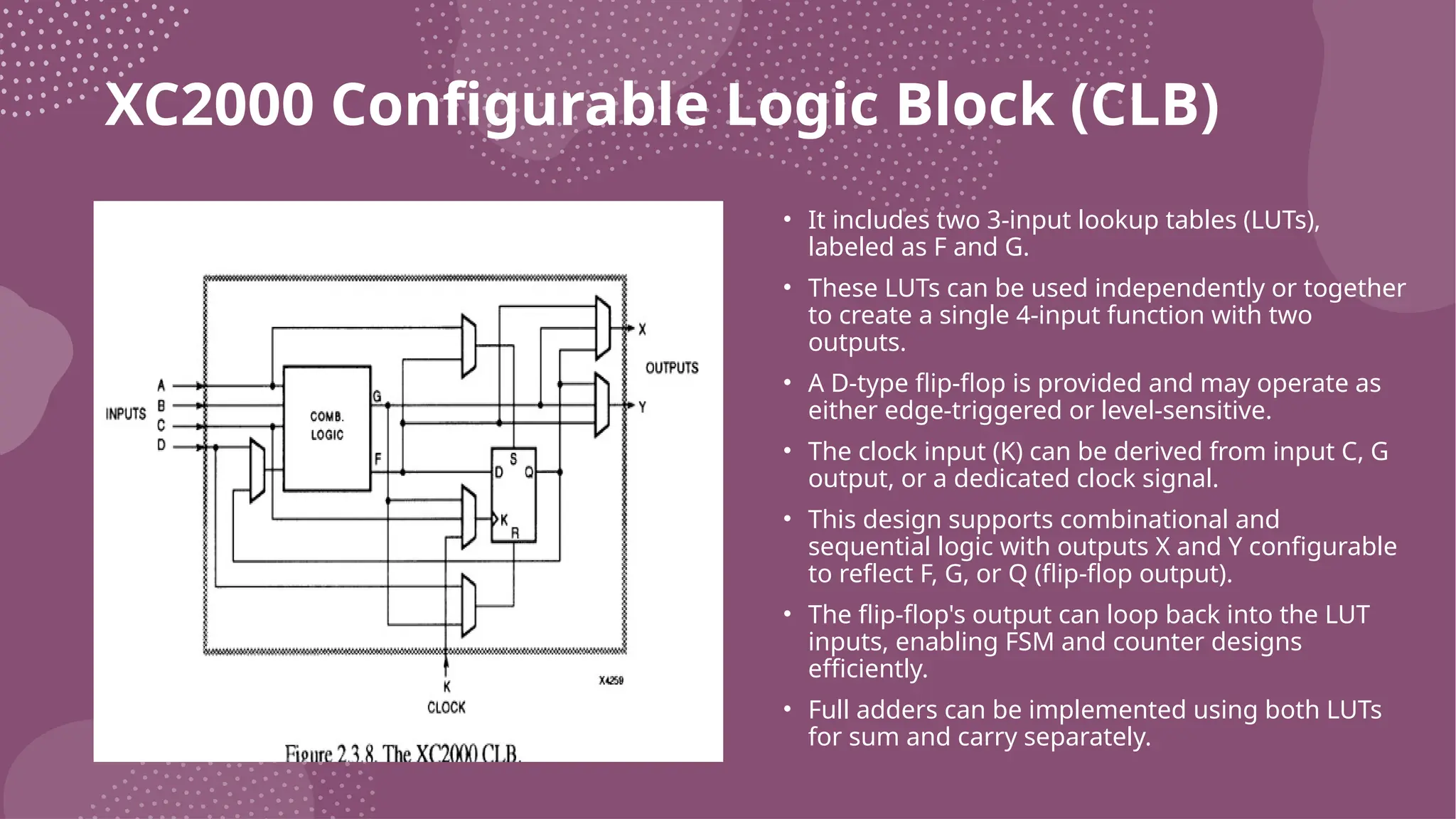

XC2000 Configurable Logic Block (CLB) • It includes two 3-input lookup tables (LUTs), labeled as F and G. • These LUTs can be used independently or together to create a single 4-input function with two outputs. • A D-type flip-flop is provided and may operate as either edge-triggered or level-sensitive. • The clock input (K) can be derived from input C, G output, or a dedicated clock signal. • This design supports combinational and sequential logic with outputs X and Y configurable to reflect F, G, or Q (flip-flop output). • The flip-flop's output can loop back into the LUT inputs, enabling FSM and counter designs efficiently. • Full adders can be implemented using both LUTs for sum and carry separately.

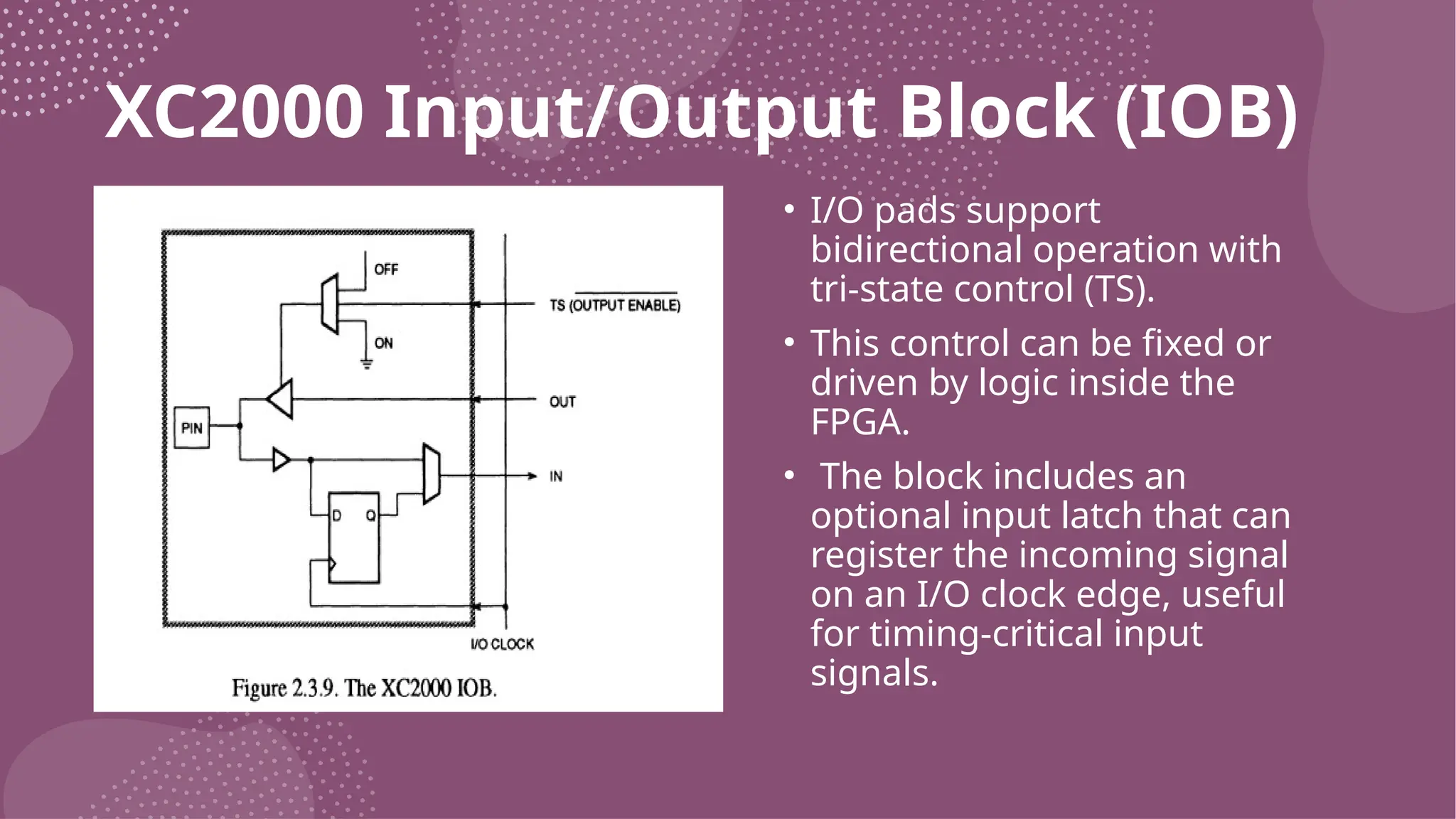

XC2000 Input/Output Block (IOB) • I/O pads support bidirectional operation with tri-state control (TS). • This control can be fixed or driven by logic inside the FPGA. • The block includes an optional input latch that can register the incoming signal on an I/O clock edge, useful for timing-critical input signals.

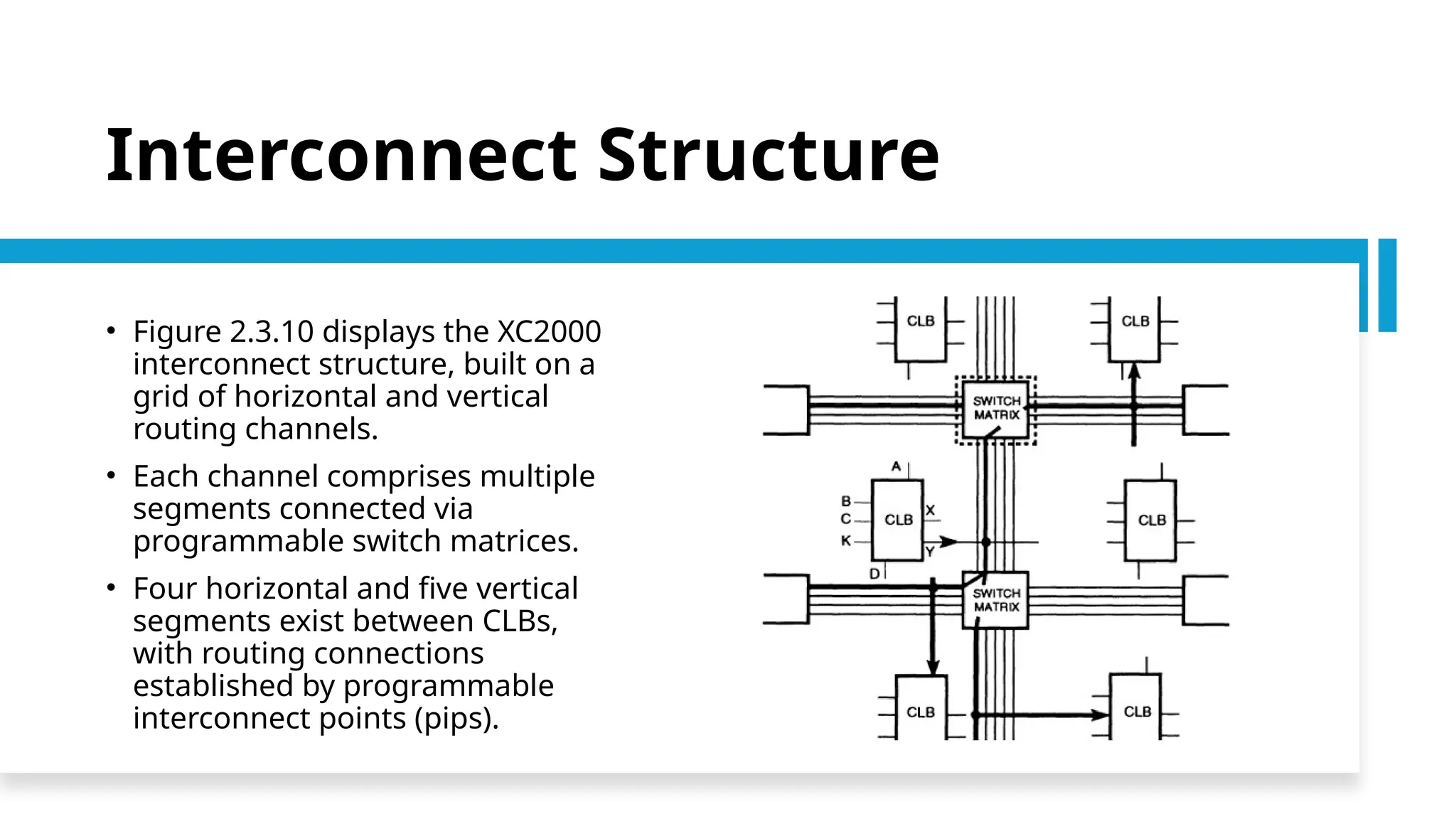

Interconnect Structure • Figure 2.3.10 displays the XC2000 interconnect structure, built on a grid of horizontal and vertical routing channels. • Each channel comprises multiple segments connected via programmable switch matrices. • Four horizontal and five vertical segments exist between CLBs, with routing connections established by programmable interconnect points (pips).

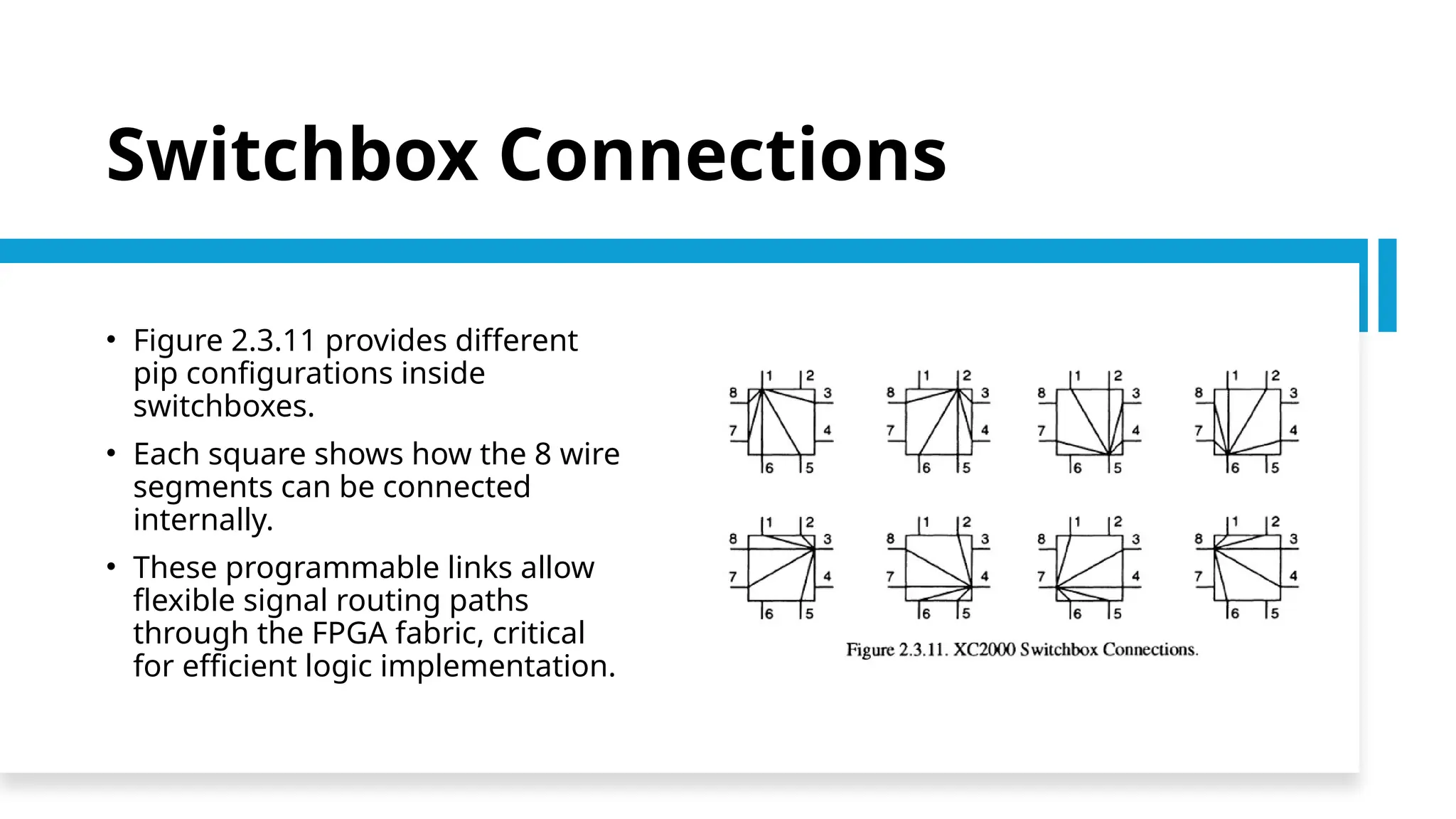

Switchbox Connections • Figure 2.3.11 provides different pip configurations inside switchboxes. • Each square shows how the 8 wire segments can be connected internally. • These programmable links allow flexible signal routing paths through the FPGA fabric, critical for efficient logic implementation.

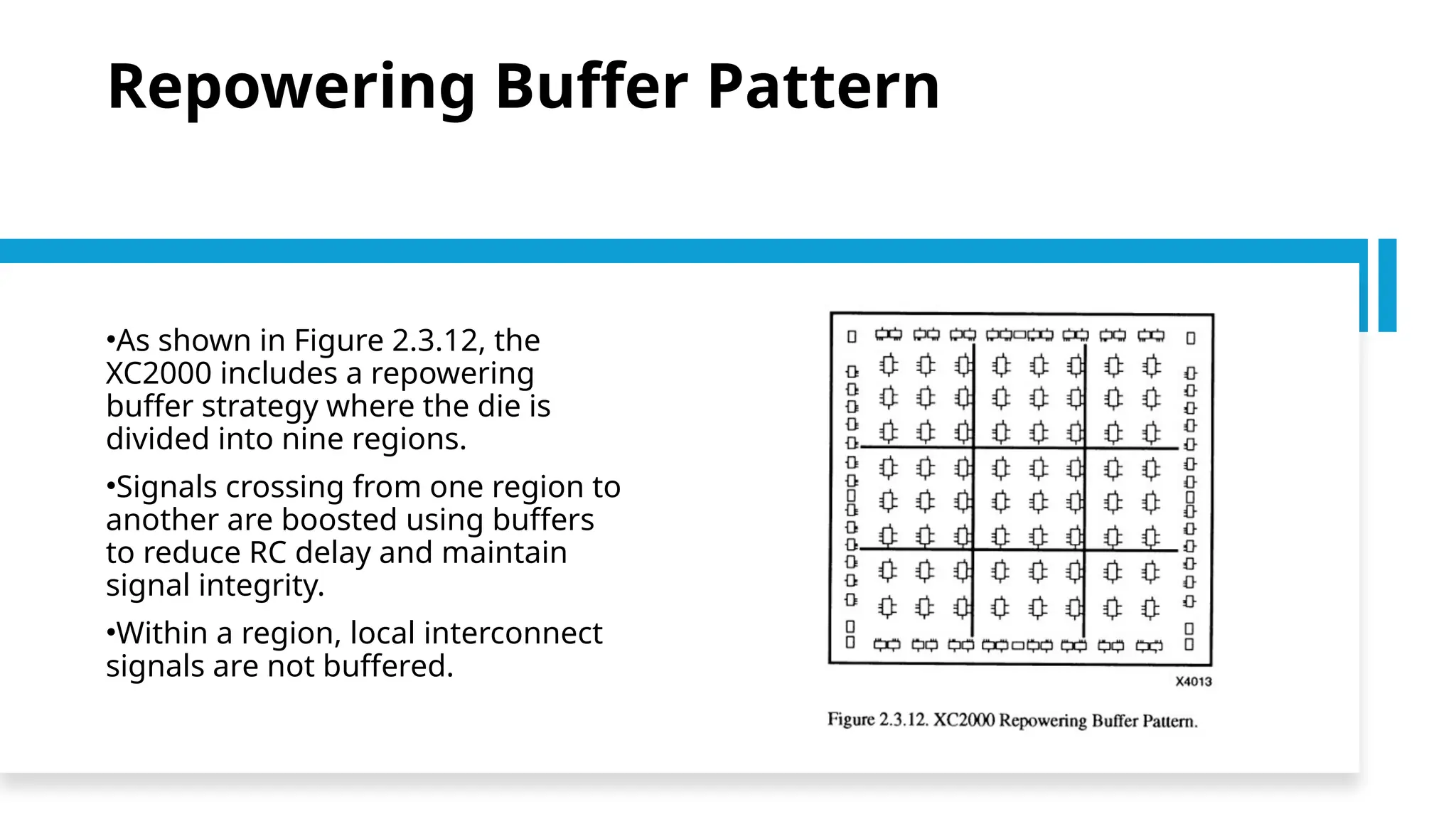

Repowering Buffer Pattern •As shown in Figure 2.3.12, the XC2000 includes a repowering buffer strategy where the die is divided into nine regions. •Signals crossing from one region to another are boosted using buffers to reduce RC delay and maintain signal integrity. •Within a region, local interconnect signals are not buffered.

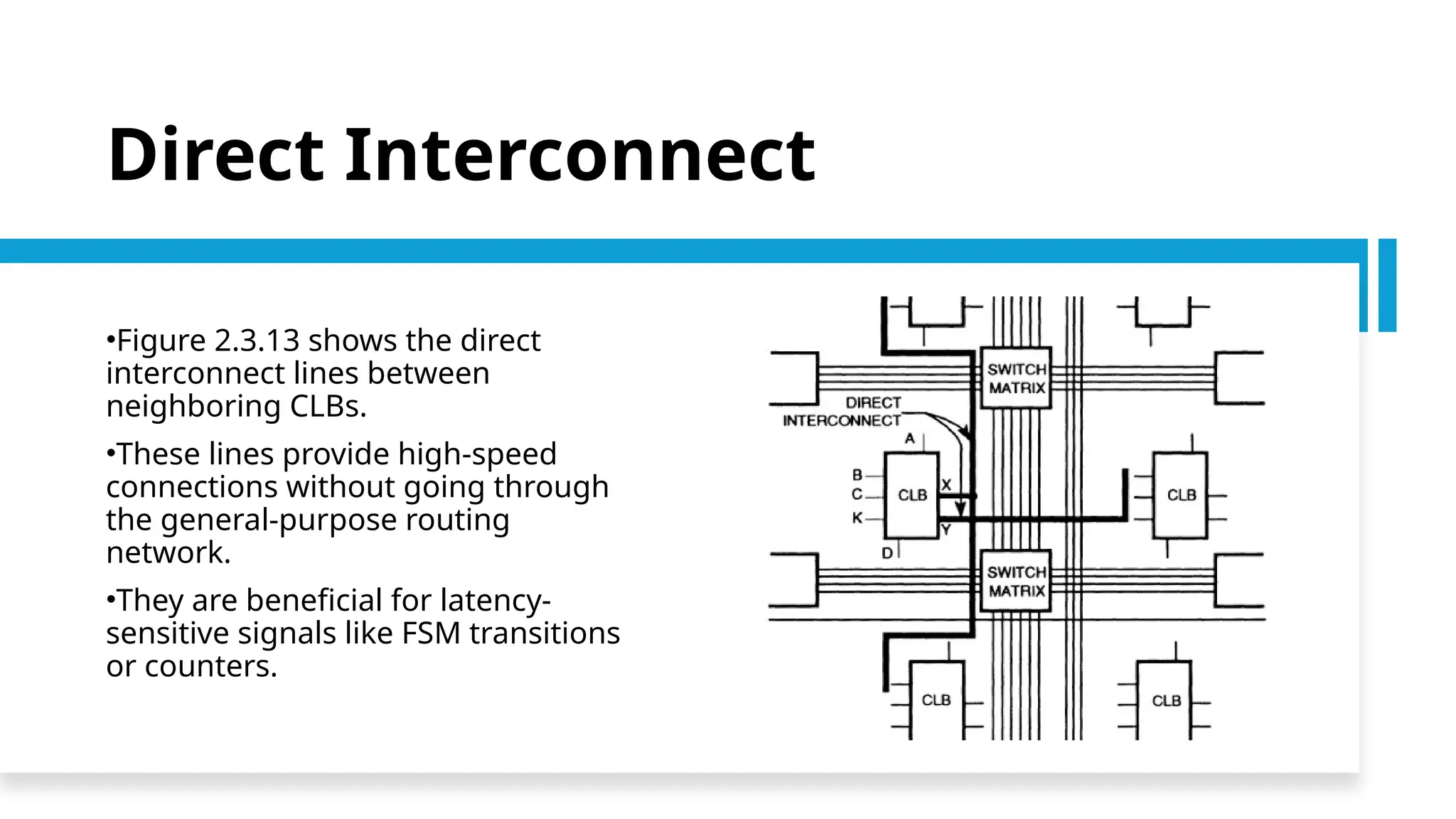

Direct Interconnect •Figure 2.3.13 shows the direct interconnect lines between neighboring CLBs. •These lines provide high-speed connections without going through the general-purpose routing network. •They are beneficial for latency- sensitive signals like FSM transitions or counters.

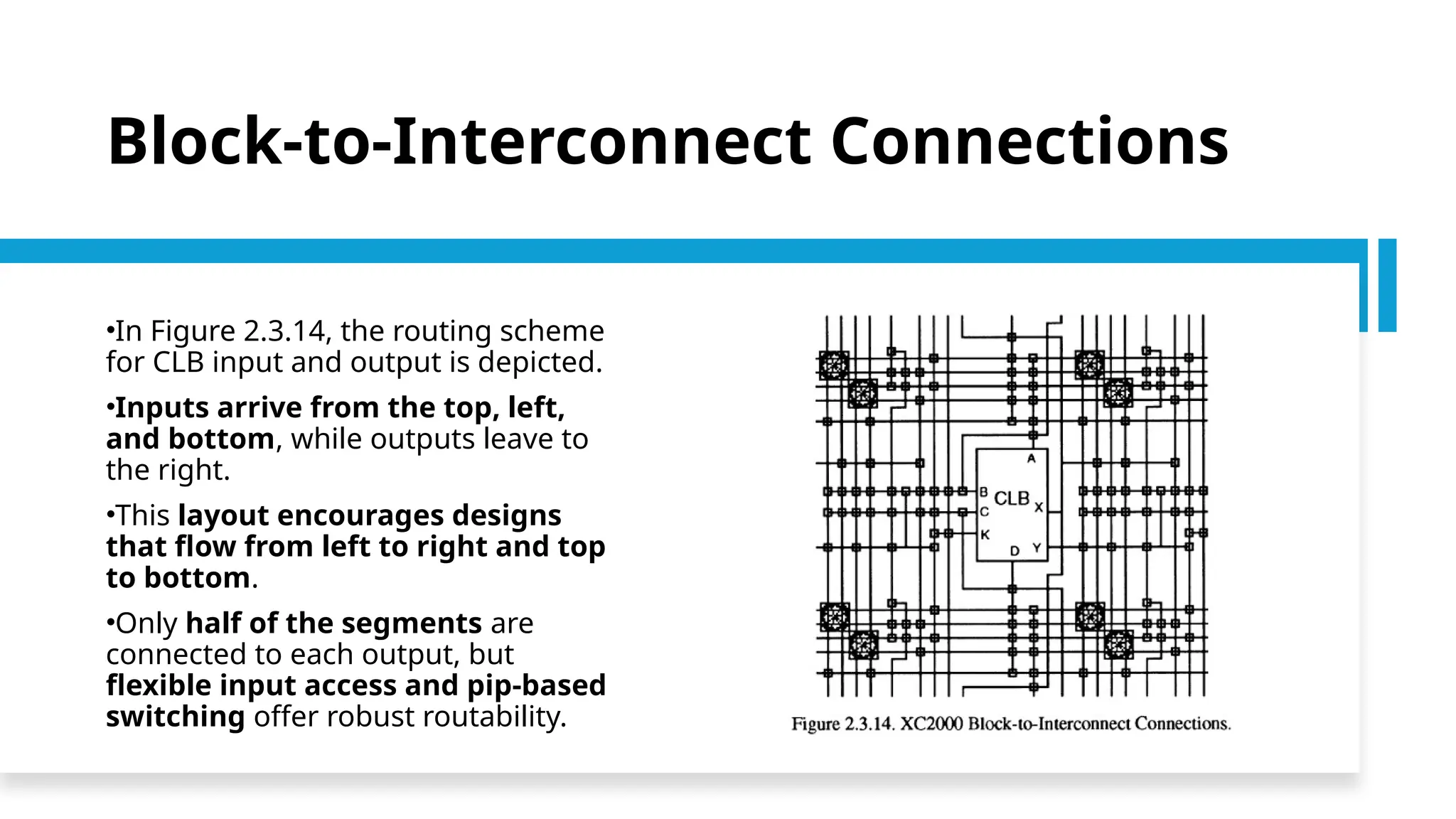

Block-to-Interconnect Connections •In Figure 2.3.14, the routing scheme for CLB input and output is depicted. •Inputs arrive from the top, left, and bottom, while outputs leave to the right. •This layout encourages designs that flow from left to right and top to bottom. •Only half of the segments are connected to each output, but flexible input access and pip-based switching offer robust routability.

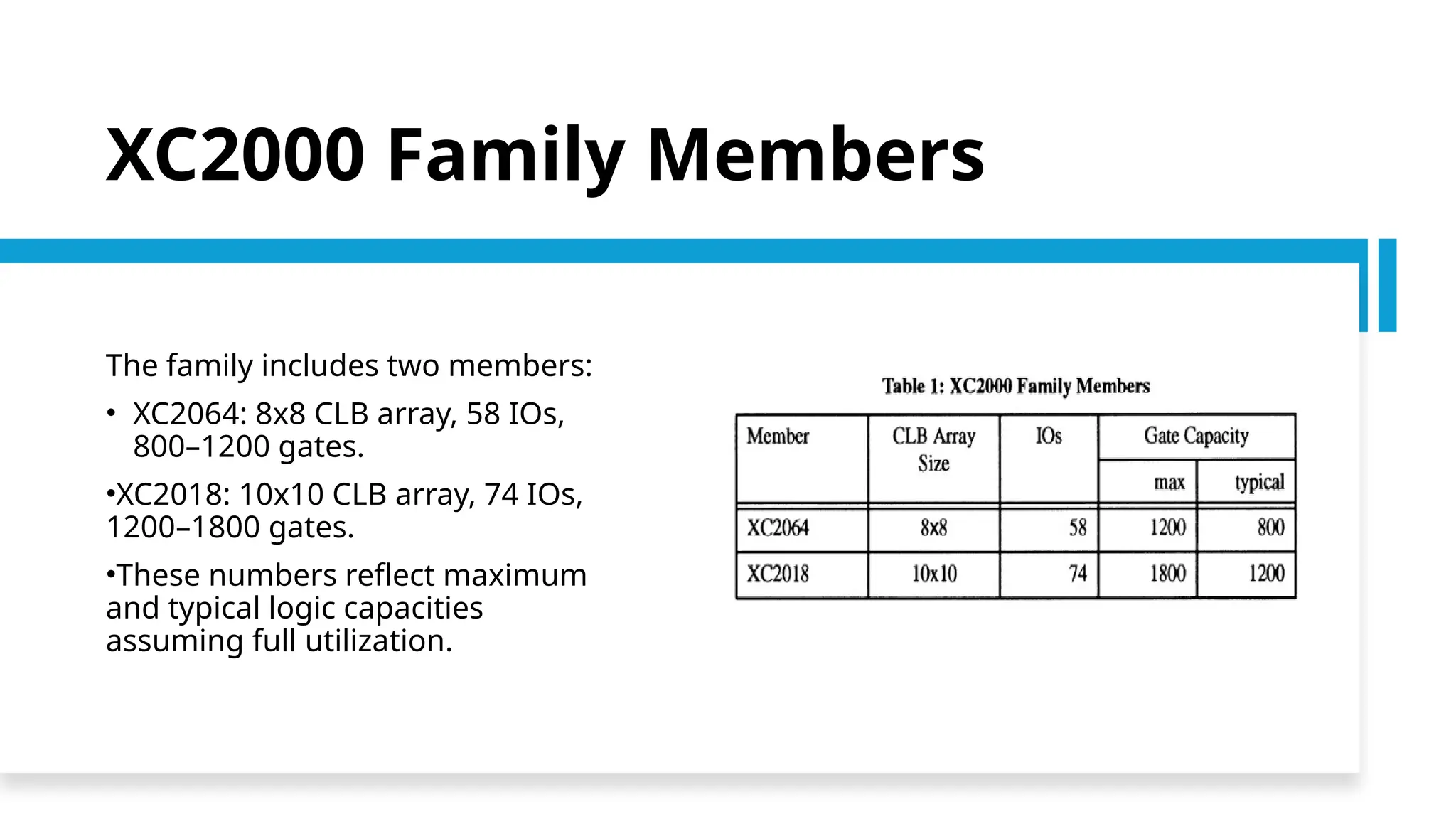

XC2000 Family Members The family includes two members: • XC2064: 8x8 CLB array, 58 IOs, 800–1200 gates. •XC2018: 10x10 CLB array, 74 IOs, 1200–1800 gates. •These numbers reflect maximum and typical logic capacities assuming full utilization.

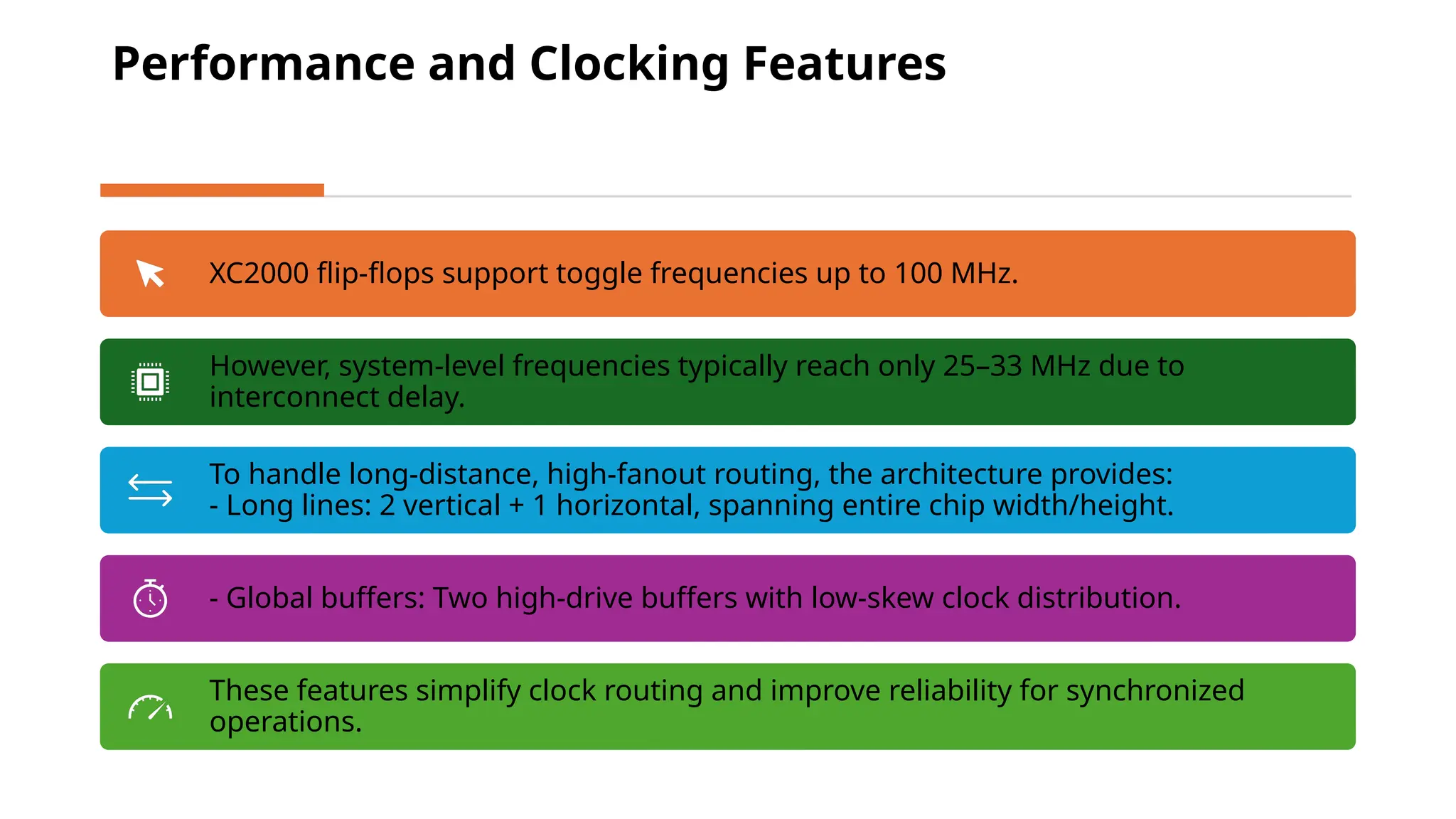

Performance and Clocking Features XC2000 flip-flops support toggle frequencies up to 100 MHz. However, system-level frequencies typically reach only 25–33 MHz due to interconnect delay. To handle long-distance, high-fanout routing, the architecture provides: - Long lines: 2 vertical + 1 horizontal, spanning entire chip width/height. - Global buffers: Two high-drive buffers with low-skew clock distribution. These features simplify clock routing and improve reliability for synchronized operations.

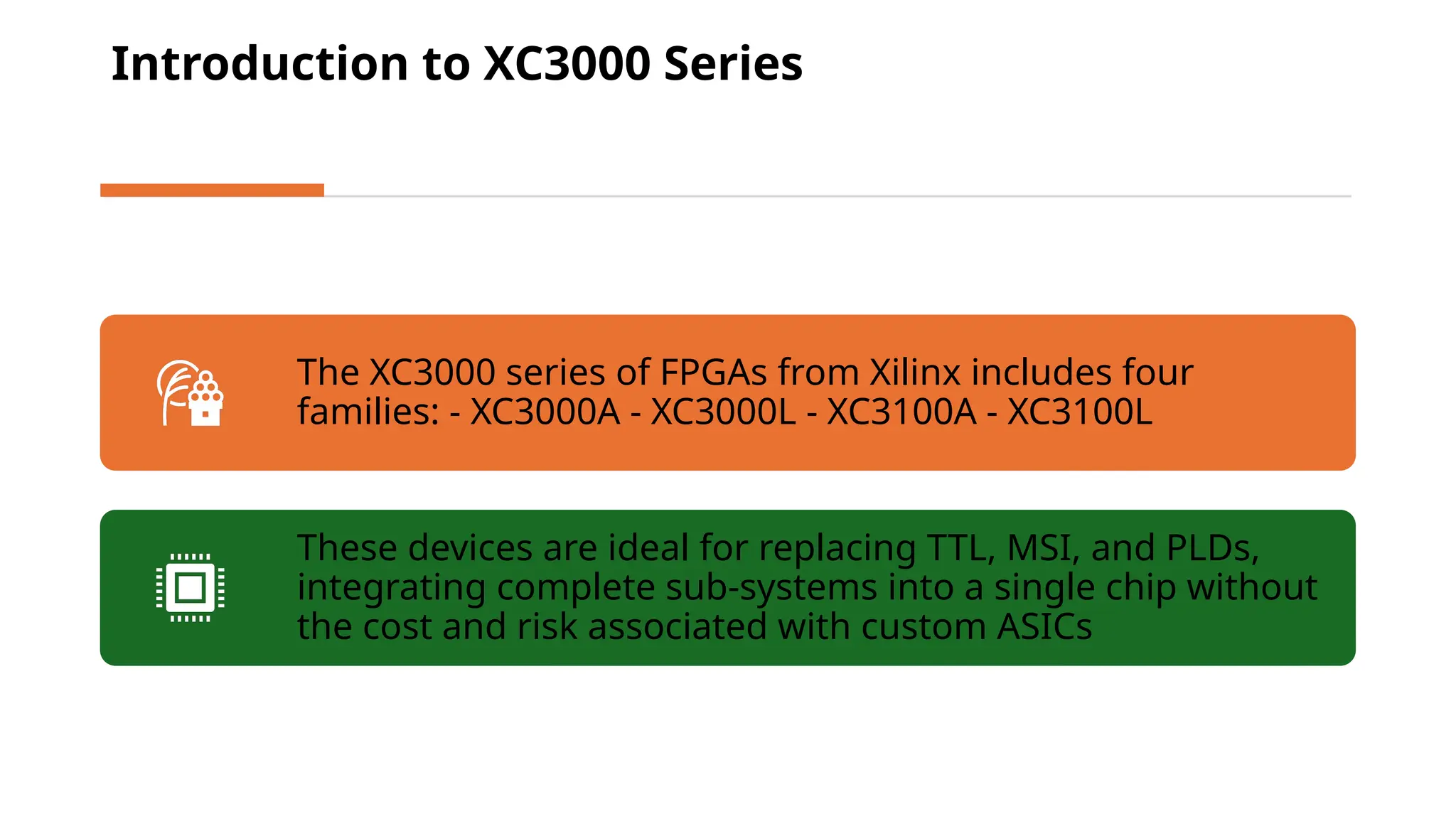

Introduction to XC3000 Series The XC3000 series of FPGAs from Xilinx includes four families: - XC3000A - XC3000L - XC3100A - XC3100L These devices are ideal for replacing TTL, MSI, and PLDs, integrating complete sub-systems into a single chip without the cost and risk associated with custom ASICs

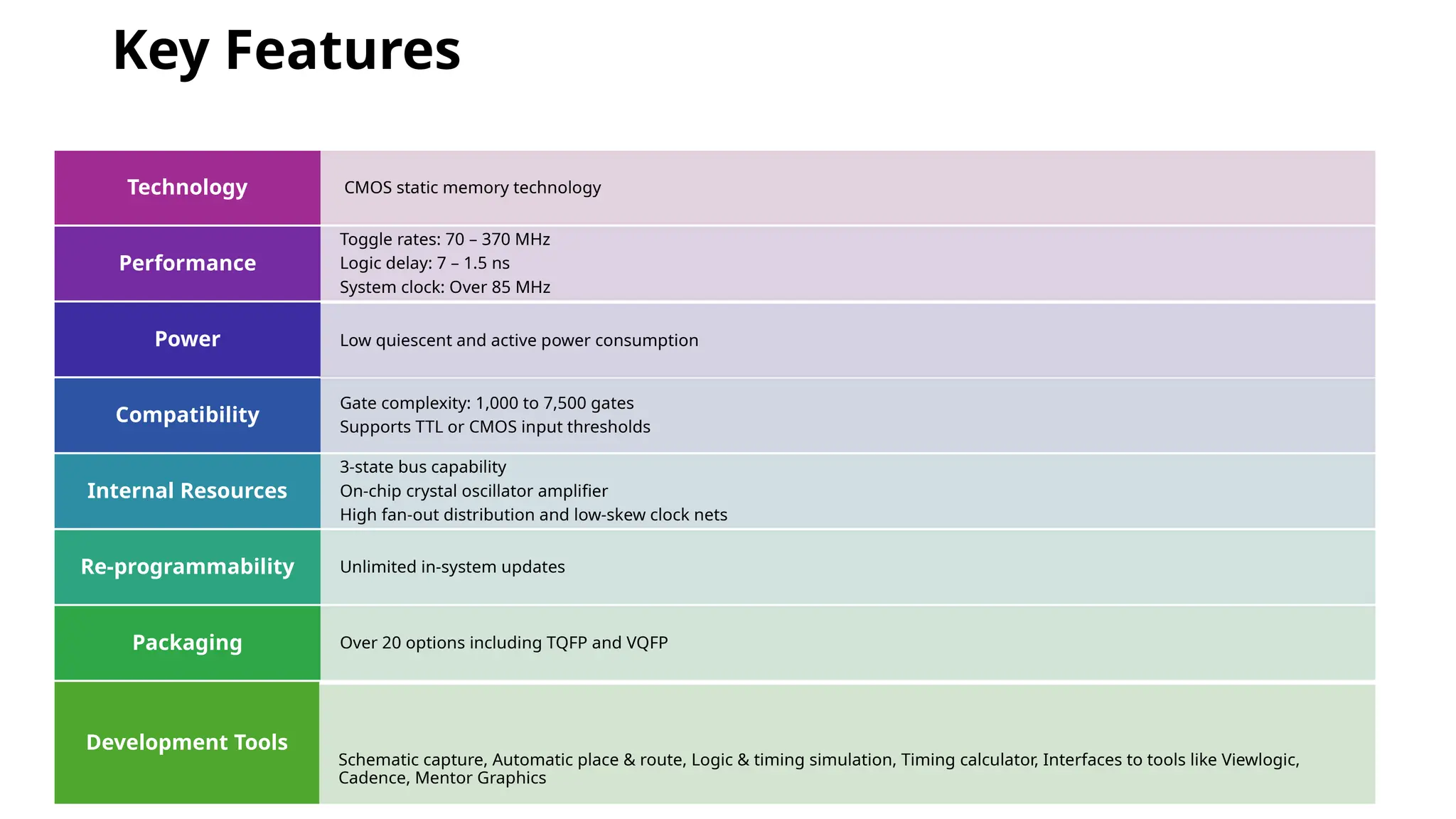

Key Features CMOS static memory technology Technology Toggle rates: 70 – 370 MHz Logic delay: 7 – 1.5 ns System clock: Over 85 MHz Performance Low quiescent and active power consumption Power Gate complexity: 1,000 to 7,500 gates Supports TTL or CMOS input thresholds Compatibility 3-state bus capability On-chip crystal oscillator amplifier High fan-out distribution and low-skew clock nets Internal Resources Unlimited in-system updates Re-programmability Over 20 options including TQFP and VQFP Packaging Schematic capture, Automatic place & route, Logic & timing simulation, Timing calculator, Interfaces to tools like Viewlogic, Cadence, Mentor Graphics Development Tools

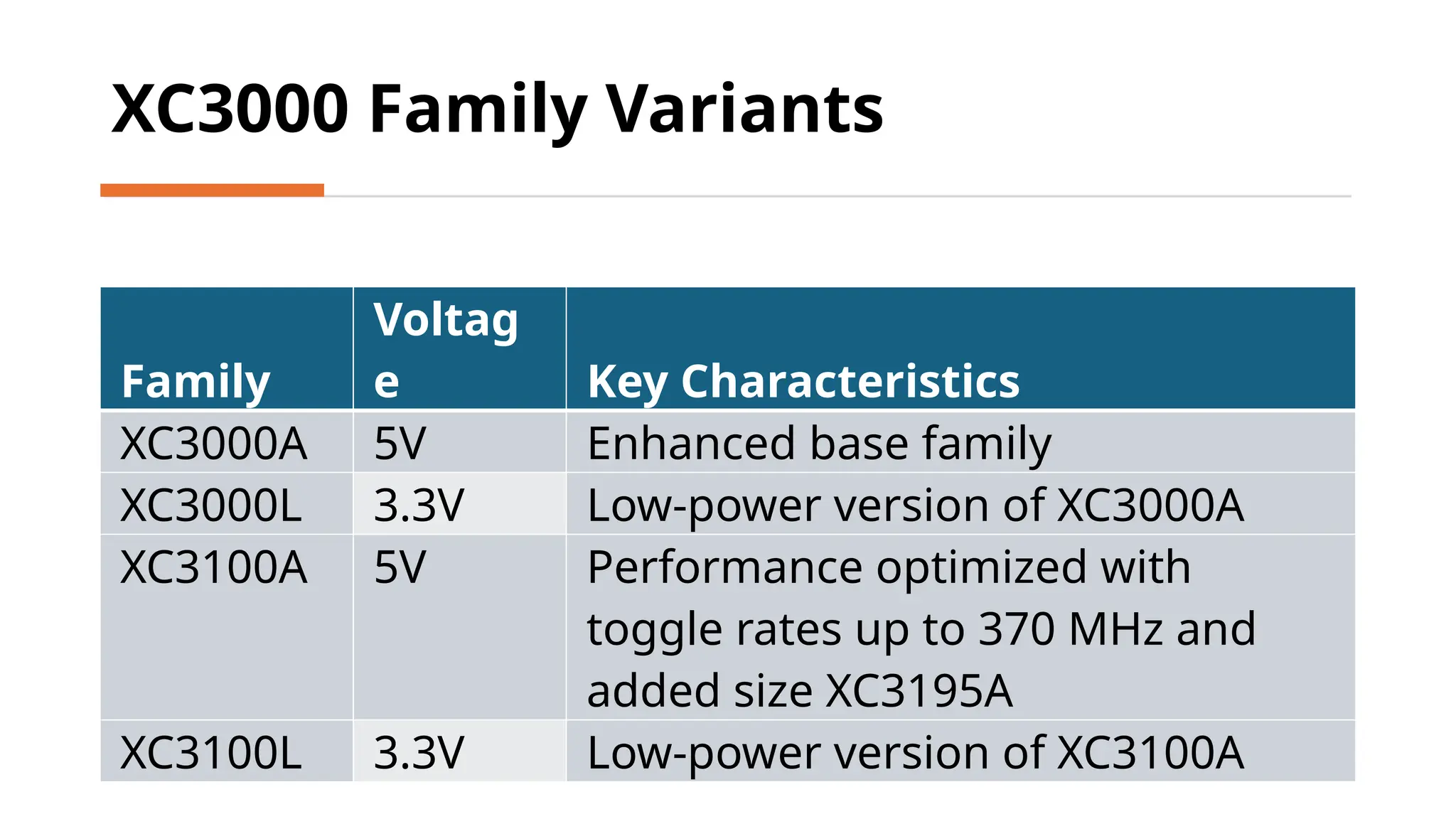

XC3000 Family Variants Family Voltag e Key Characteristics XC3000A 5V Enhanced base family XC3000L 3.3V Low-power version of XC3000A XC3100A 5V Performance optimized with toggle rates up to 370 MHz and added size XC3195A XC3100L 3.3V Low-power version of XC3100A

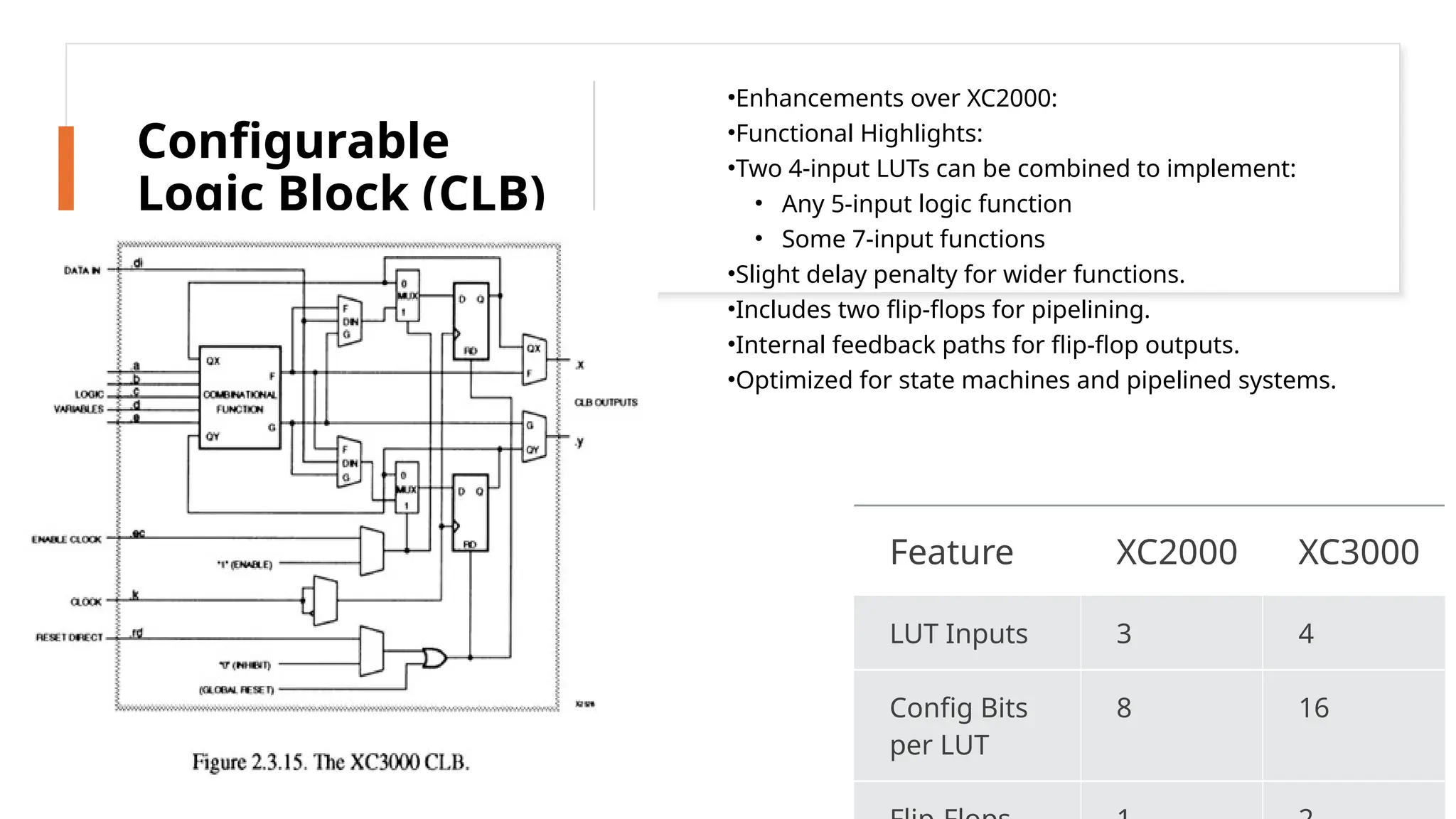

Configurable Logic Block (CLB) •Enhancements over XC2000: •Functional Highlights: •Two 4-input LUTs can be combined to implement: • Any 5-input logic function • Some 7-input functions •Slight delay penalty for wider functions. •Includes two flip-flops for pipelining. •Internal feedback paths for flip-flop outputs. •Optimized for state machines and pipelined systems. Feature XC2000 XC3000 LUT Inputs 3 4 Config Bits per LUT 8 16

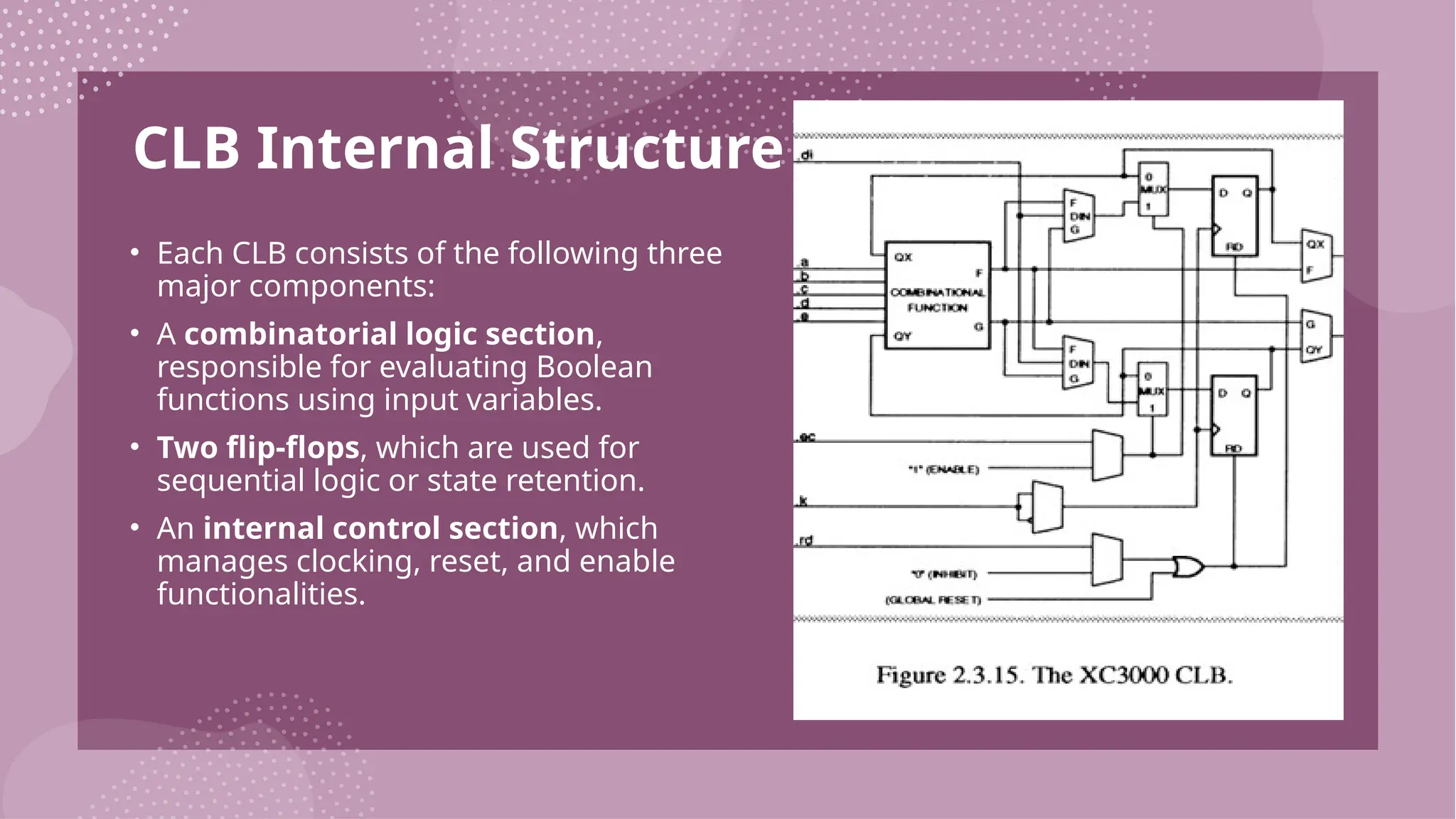

CLB Internal Structure • Each CLB consists of the following three major components: • A combinatorial logic section, responsible for evaluating Boolean functions using input variables. • Two flip-flops, which are used for sequential logic or state retention. • An internal control section, which manages clocking, reset, and enable functionalities.

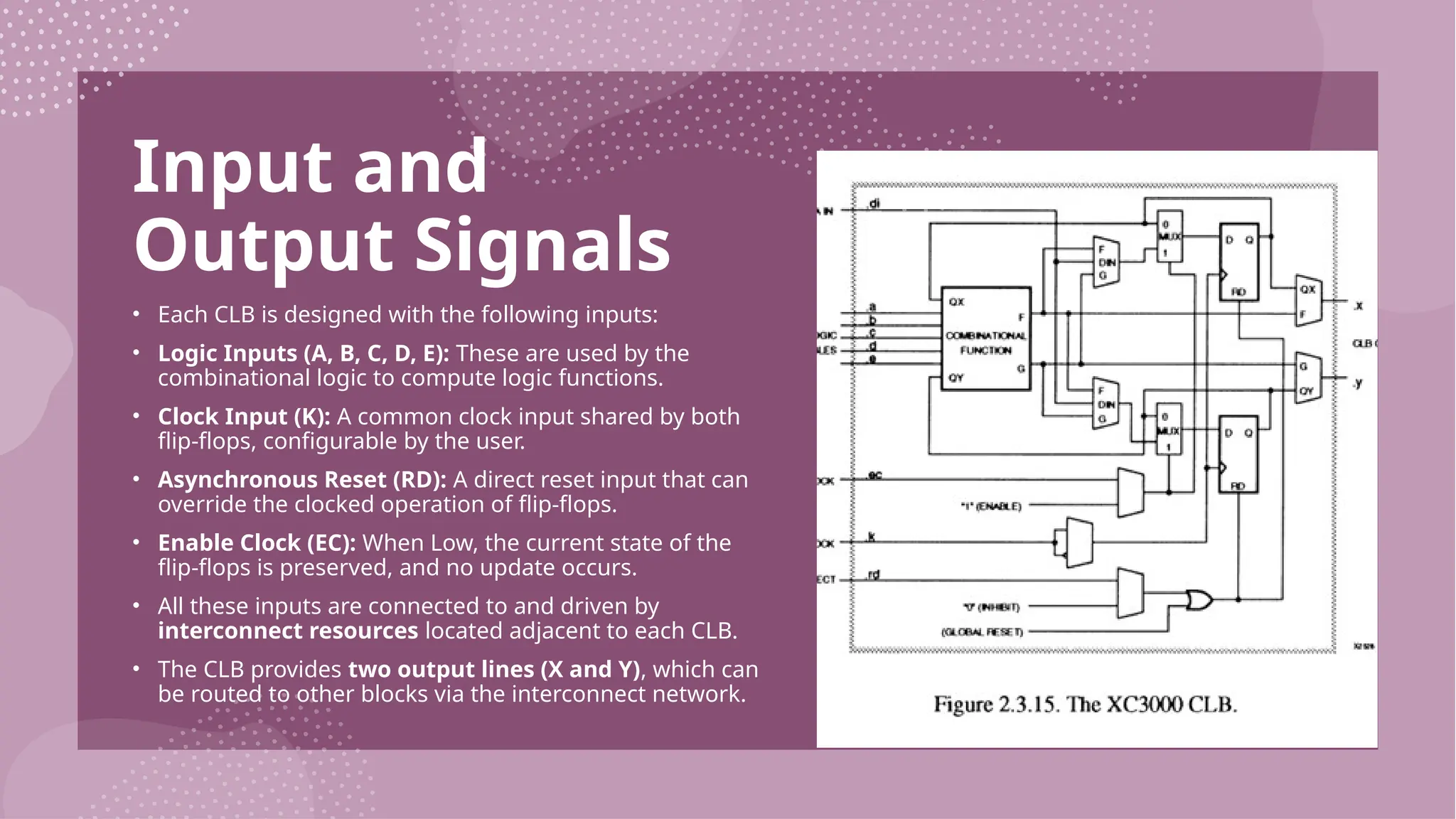

Input and Output Signals • Each CLB is designed with the following inputs: • Logic Inputs (A, B, C, D, E): These are used by the combinational logic to compute logic functions. • Clock Input (K): A common clock input shared by both flip-flops, configurable by the user. • Asynchronous Reset (RD): A direct reset input that can override the clocked operation of flip-flops. • Enable Clock (EC): When Low, the current state of the flip-flops is preserved, and no update occurs. • All these inputs are connected to and driven by interconnect resources located adjacent to each CLB. • The CLB provides two output lines (X and Y), which can be routed to other blocks via the interconnect network.

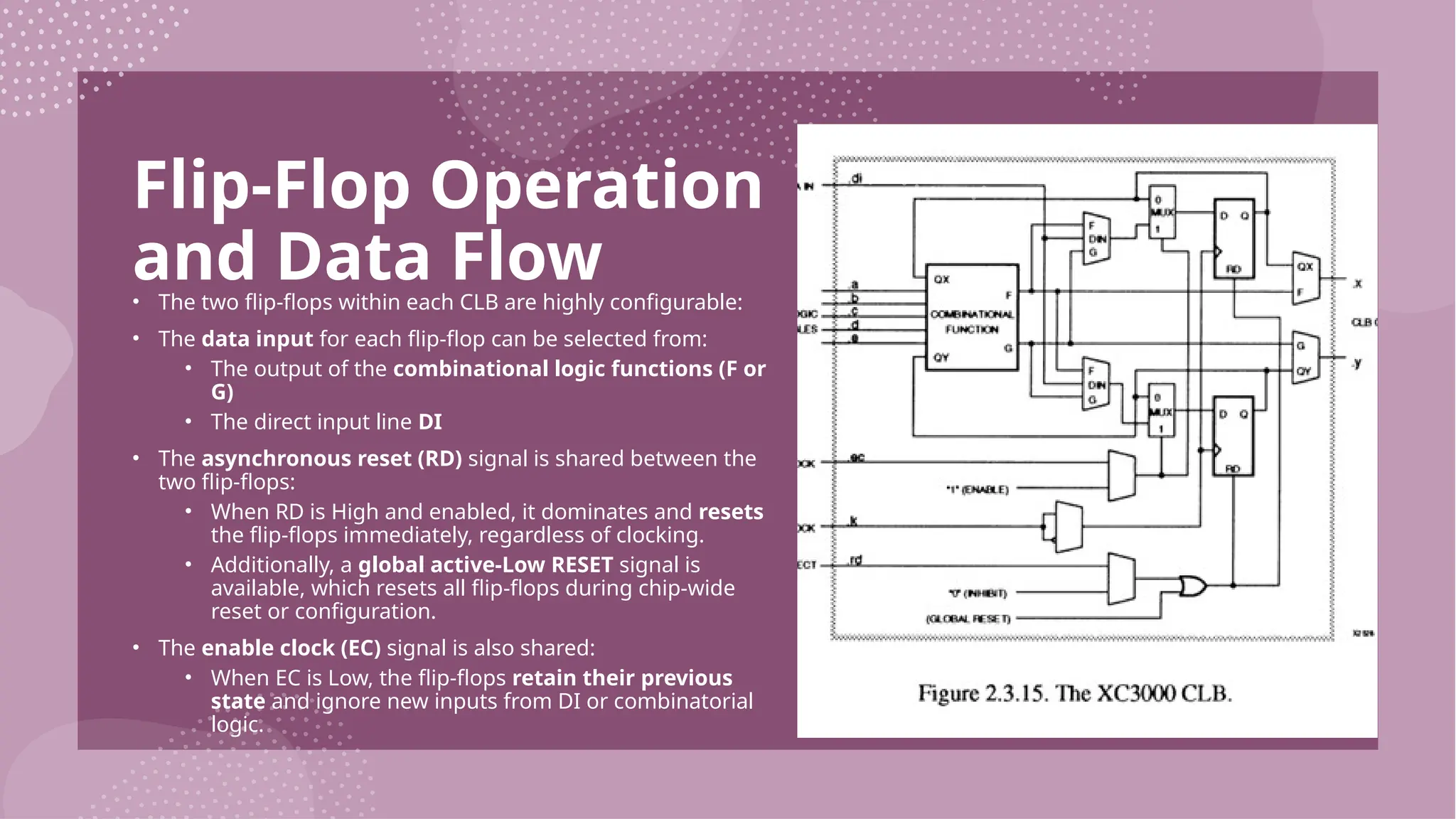

Flip-Flop Operation and Data Flow • The two flip-flops within each CLB are highly configurable: • The data input for each flip-flop can be selected from: • The output of the combinational logic functions (F or G) • The direct input line DI • The asynchronous reset (RD) signal is shared between the two flip-flops: • When RD is High and enabled, it dominates and resets the flip-flops immediately, regardless of clocking. • Additionally, a global active-Low RESET signal is available, which resets all flip-flops during chip-wide reset or configuration. • The enable clock (EC) signal is also shared: • When EC is Low, the flip-flops retain their previous state and ignore new inputs from DI or combinatorial logic.

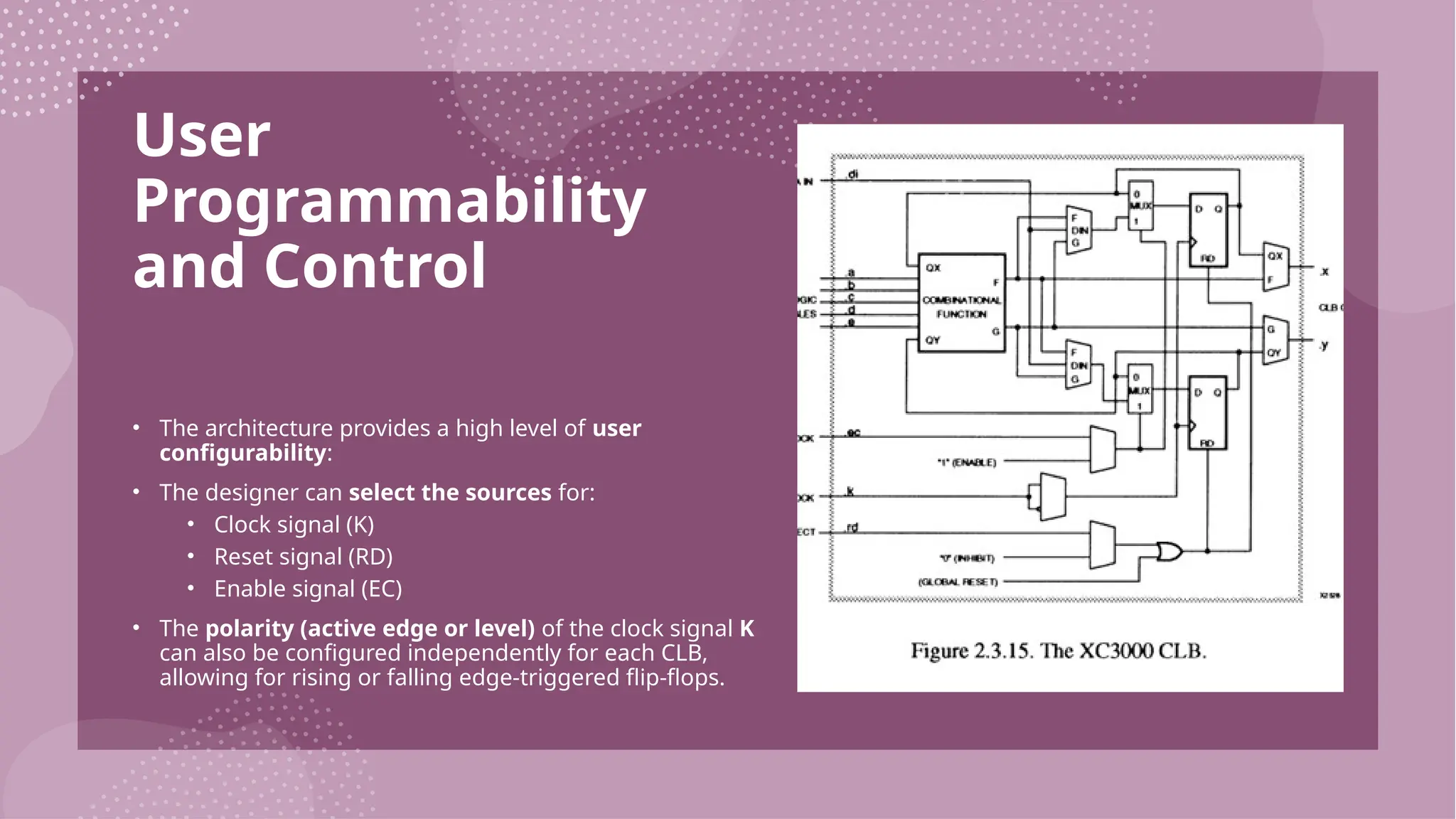

User Programmability and Control • The architecture provides a high level of user configurability: • The designer can select the sources for: • Clock signal (K) • Reset signal (RD) • Enable signal (EC) • The polarity (active edge or level) of the clock signal K can also be configured independently for each CLB, allowing for rising or falling edge-triggered flip-flops.

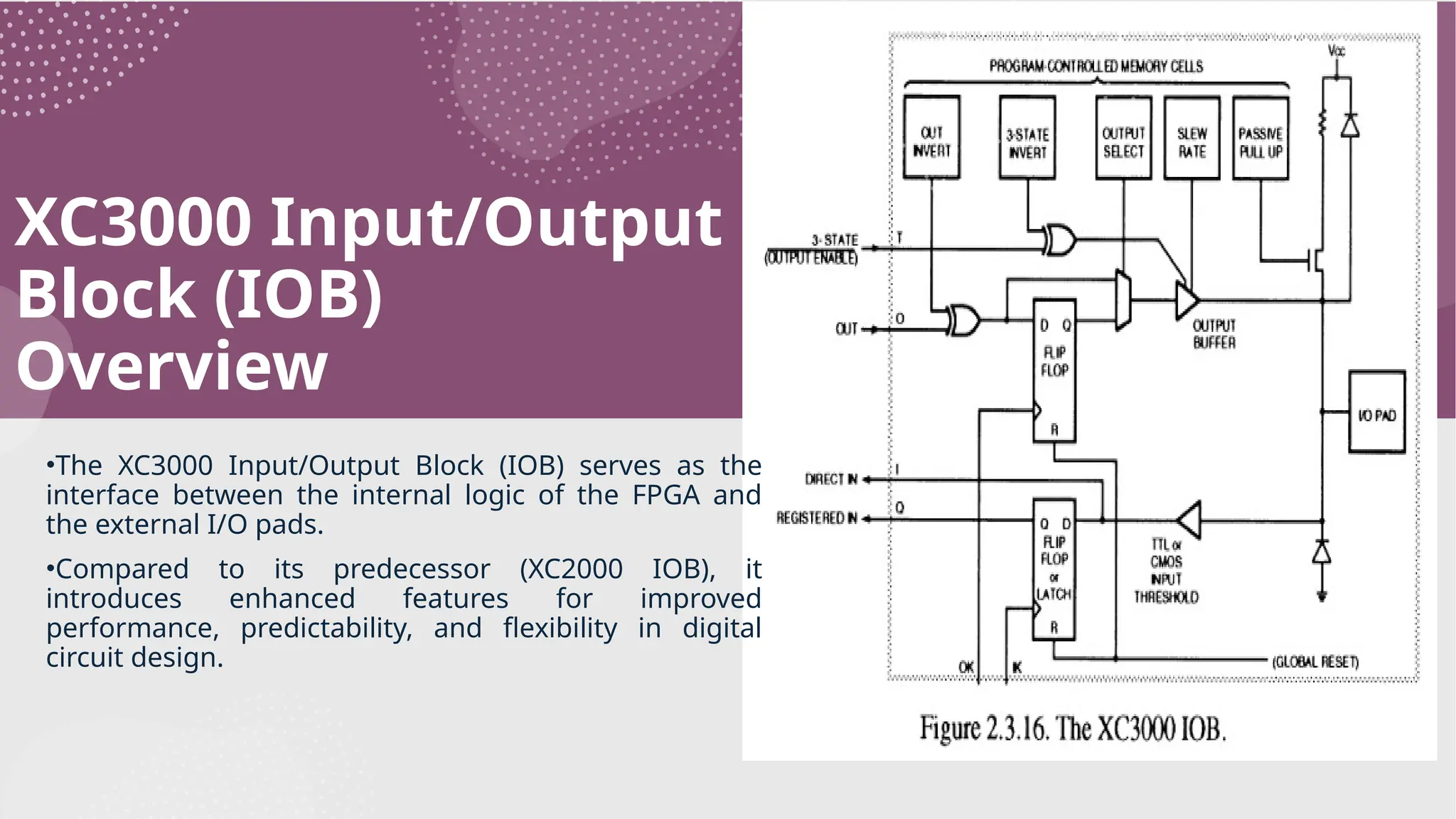

XC3000 Input/Output Block (IOB) Overview •The XC3000 Input/Output Block (IOB) serves as the interface between the internal logic of the FPGA and the external I/O pads. •Compared to its predecessor (XC2000 IOB), it introduces enhanced features for improved performance, predictability, and flexibility in digital circuit design.

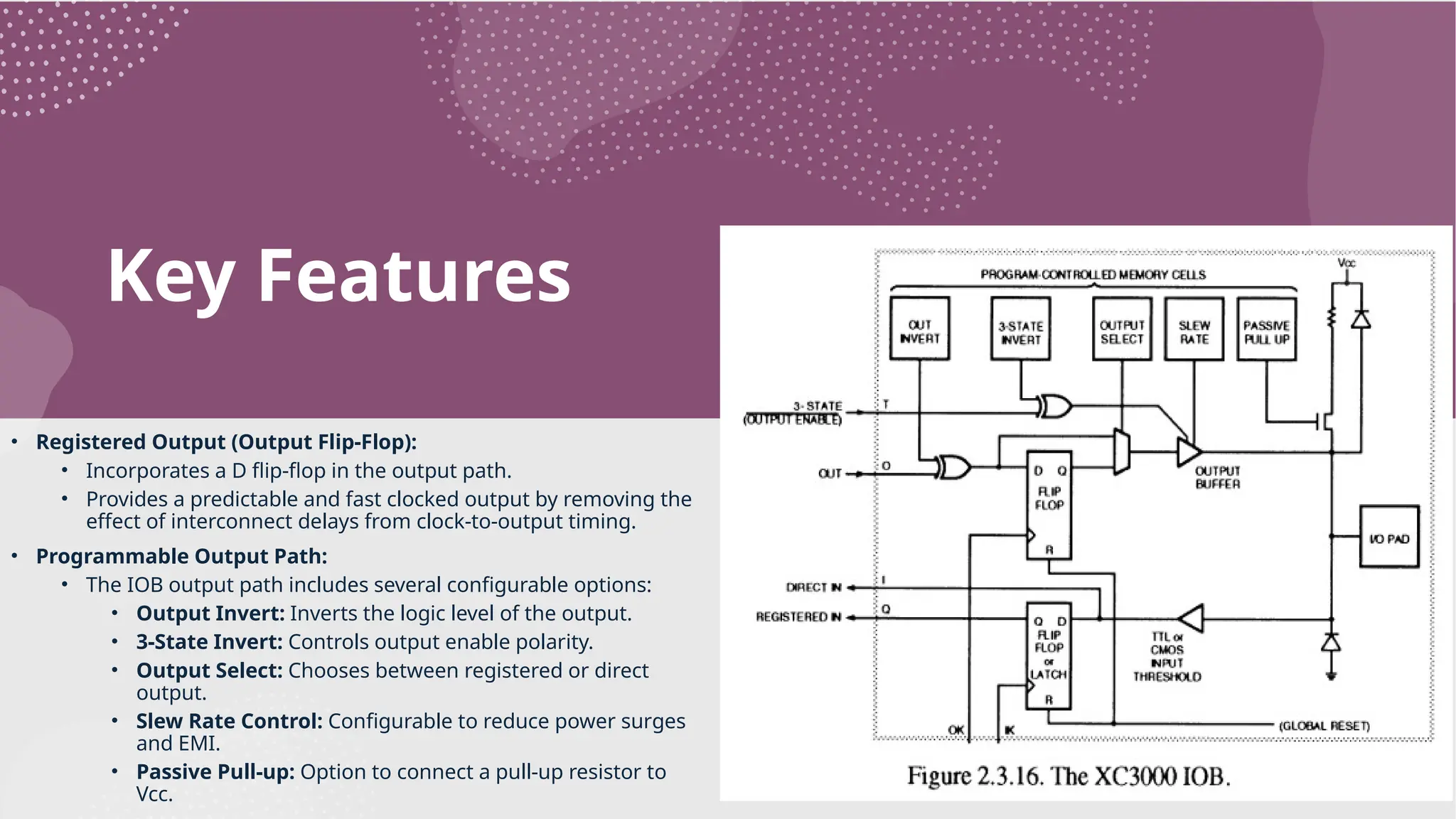

Key Features • Registered Output (Output Flip-Flop): • Incorporates a D flip-flop in the output path. • Provides a predictable and fast clocked output by removing the effect of interconnect delays from clock-to-output timing. • Programmable Output Path: • The IOB output path includes several configurable options: • Output Invert: Inverts the logic level of the output. • 3-State Invert: Controls output enable polarity. • Output Select: Chooses between registered or direct output. • Slew Rate Control: Configurable to reduce power surges and EMI. • Passive Pull-up: Option to connect a pull-up resistor to Vcc.

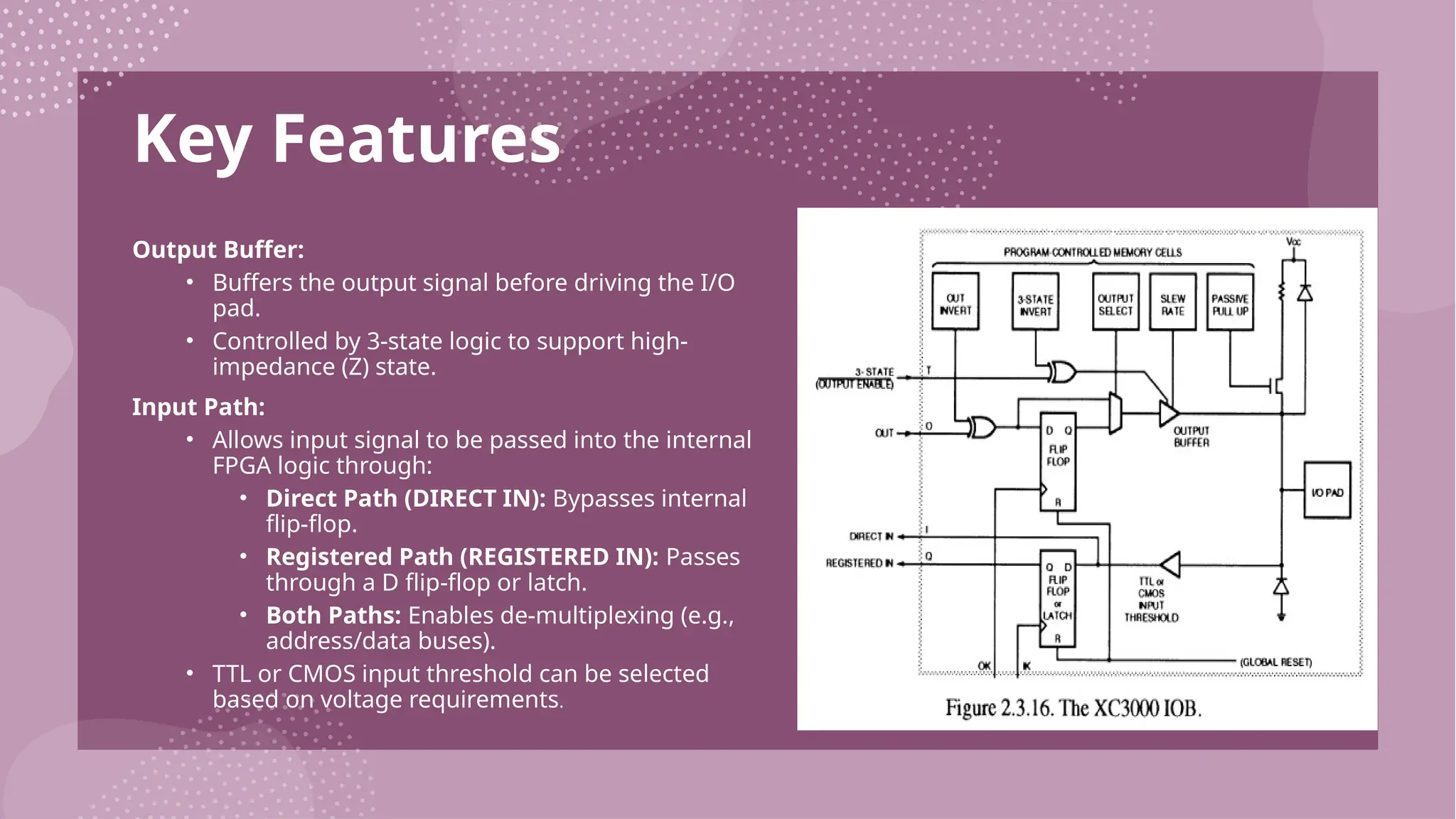

Key Features Output Buffer: • Buffers the output signal before driving the I/O pad. • Controlled by 3-state logic to support high- impedance (Z) state. Input Path: • Allows input signal to be passed into the internal FPGA logic through: • Direct Path (DIRECT IN): Bypasses internal flip-flop. • Registered Path (REGISTERED IN): Passes through a D flip-flop or latch. • Both Paths: Enables de-multiplexing (e.g., address/data buses). • TTL or CMOS input threshold can be selected based on voltage requirements.

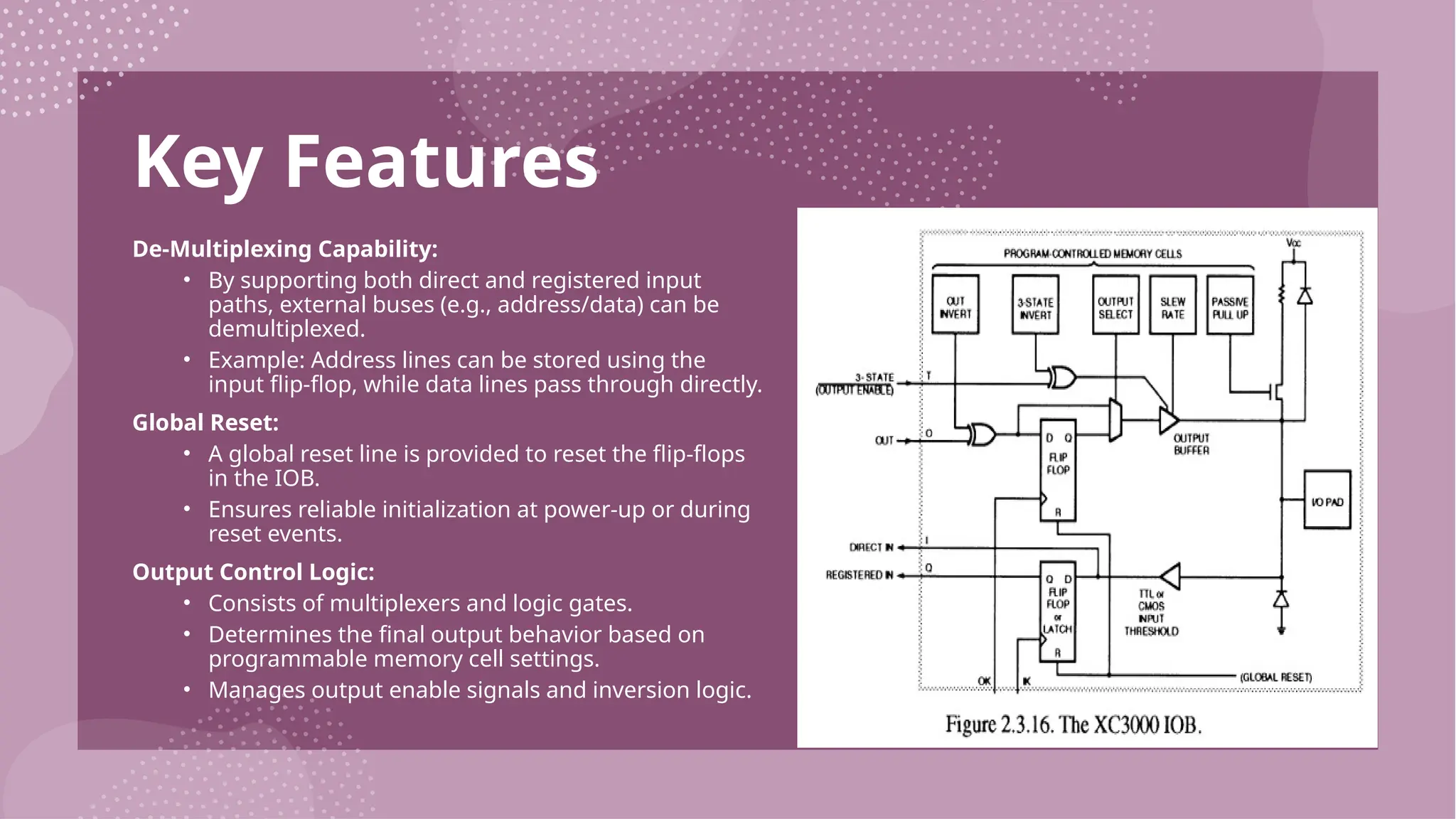

Key Features De-Multiplexing Capability: • By supporting both direct and registered input paths, external buses (e.g., address/data) can be demultiplexed. • Example: Address lines can be stored using the input flip-flop, while data lines pass through directly. Global Reset: • A global reset line is provided to reset the flip-flops in the IOB. • Ensures reliable initialization at power-up or during reset events. Output Control Logic: • Consists of multiplexers and logic gates. • Determines the final output behavior based on programmable memory cell settings. • Manages output enable signals and inversion logic.

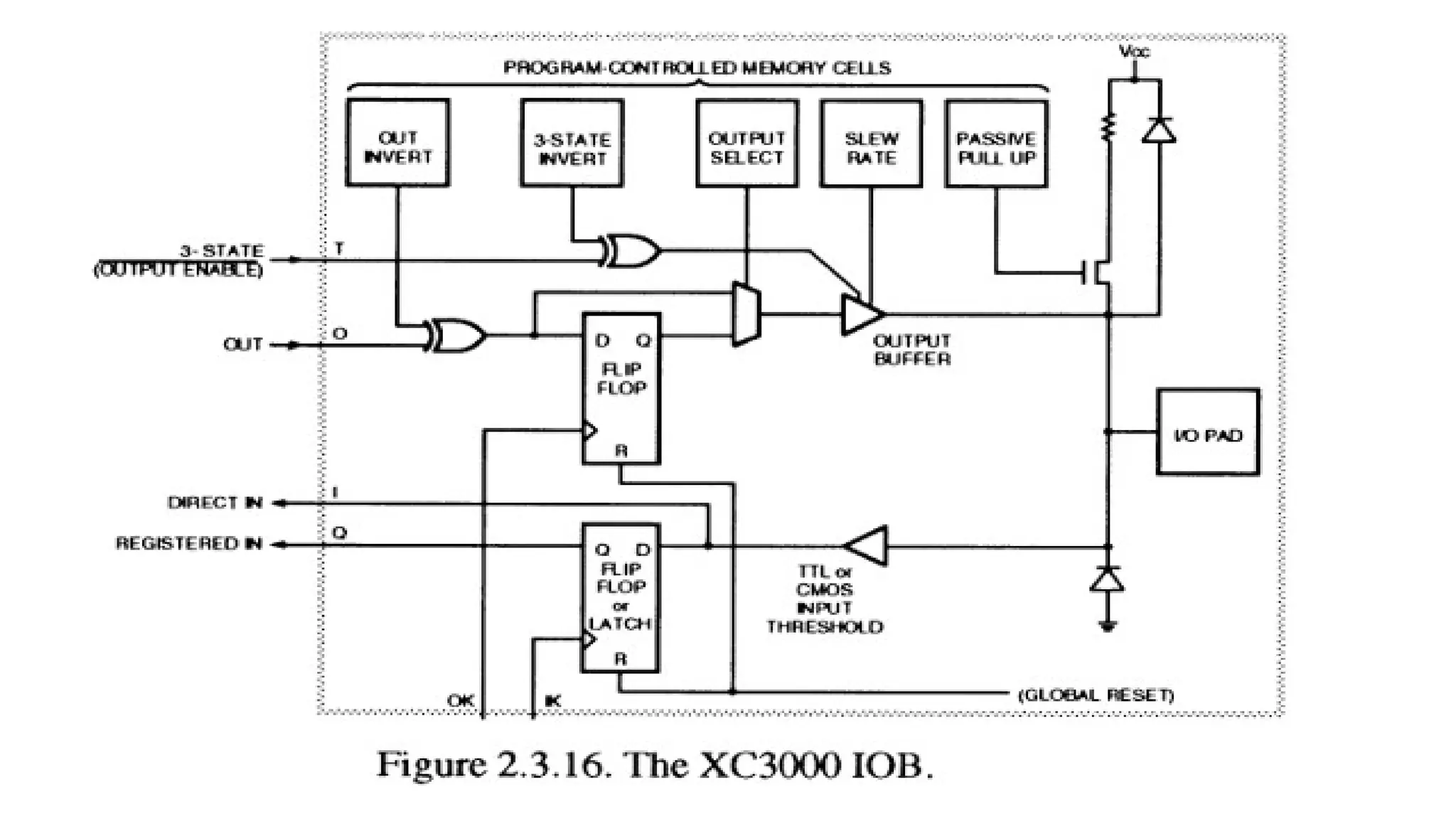

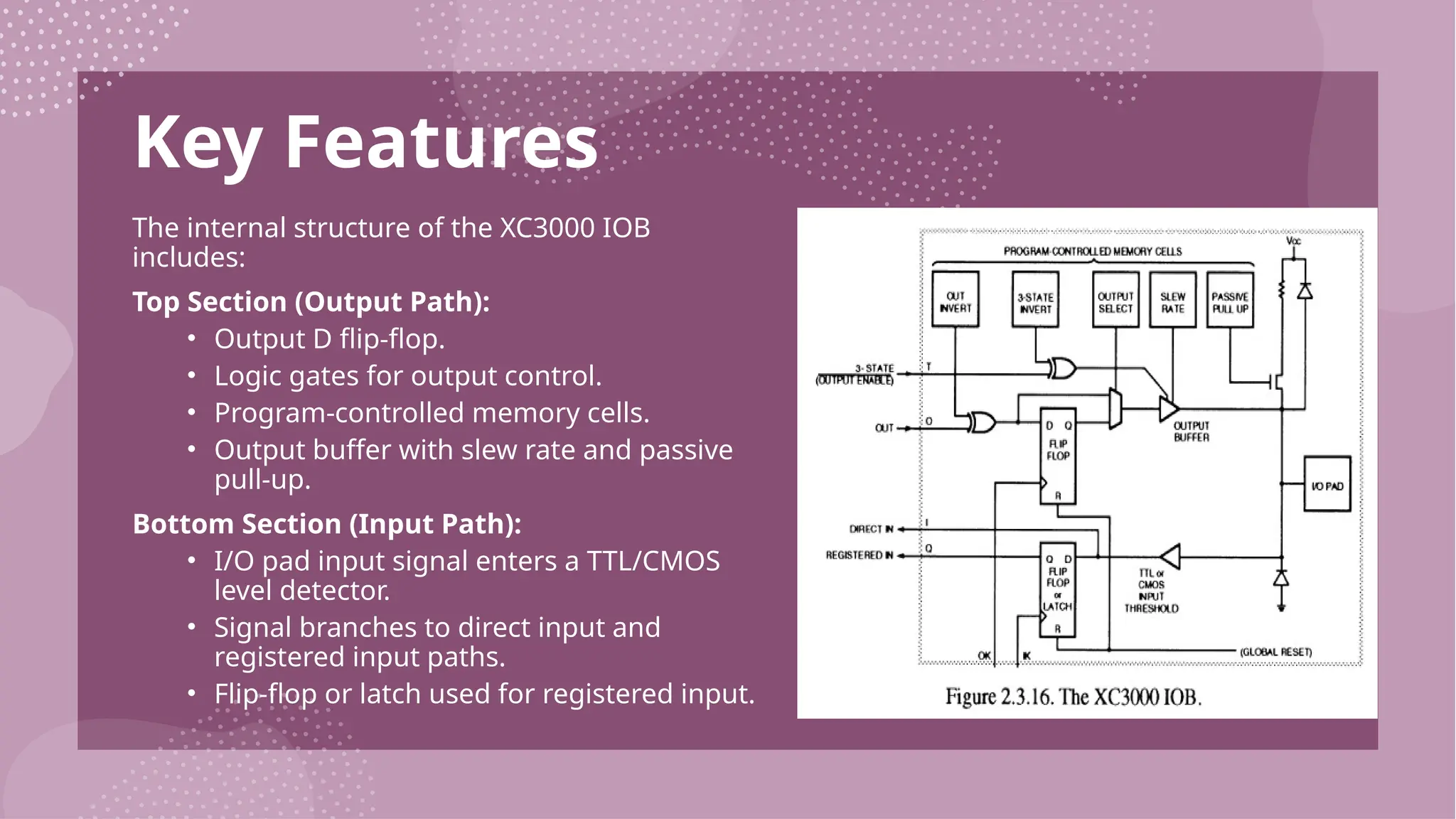

Key Features The internal structure of the XC3000 IOB includes: Top Section (Output Path): • Output D flip-flop. • Logic gates for output control. • Program-controlled memory cells. • Output buffer with slew rate and passive pull-up. Bottom Section (Input Path): • I/O pad input signal enters a TTL/CMOS level detector. • Signal branches to direct input and registered input paths. • Flip-flop or latch used for registered input.

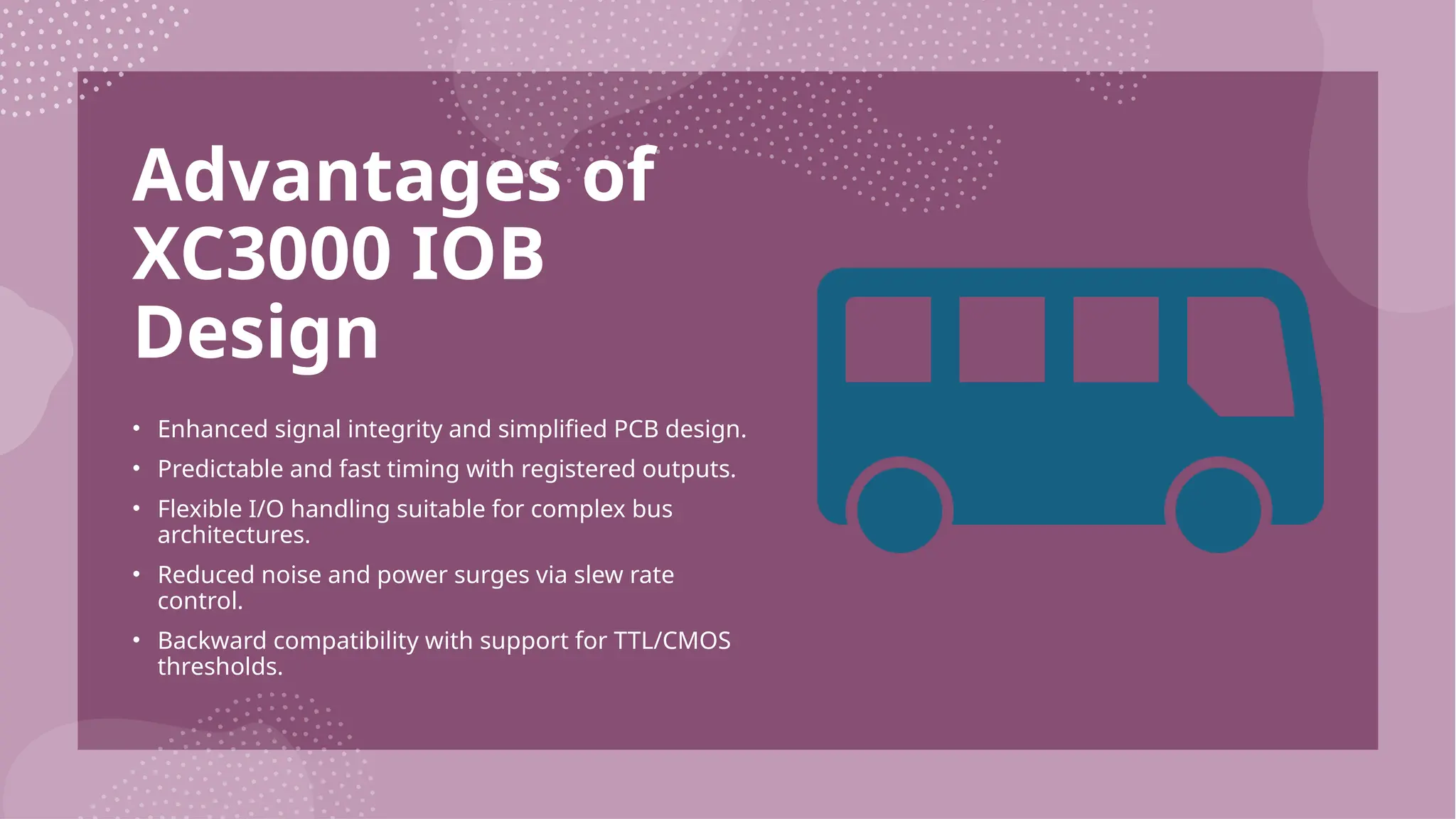

Advantages of XC3000 IOB Design • Enhanced signal integrity and simplified PCB design. • Predictable and fast timing with registered outputs. • Flexible I/O handling suitable for complex bus architectures. • Reduced noise and power surges via slew rate control. • Backward compatibility with support for TTL/CMOS thresholds.

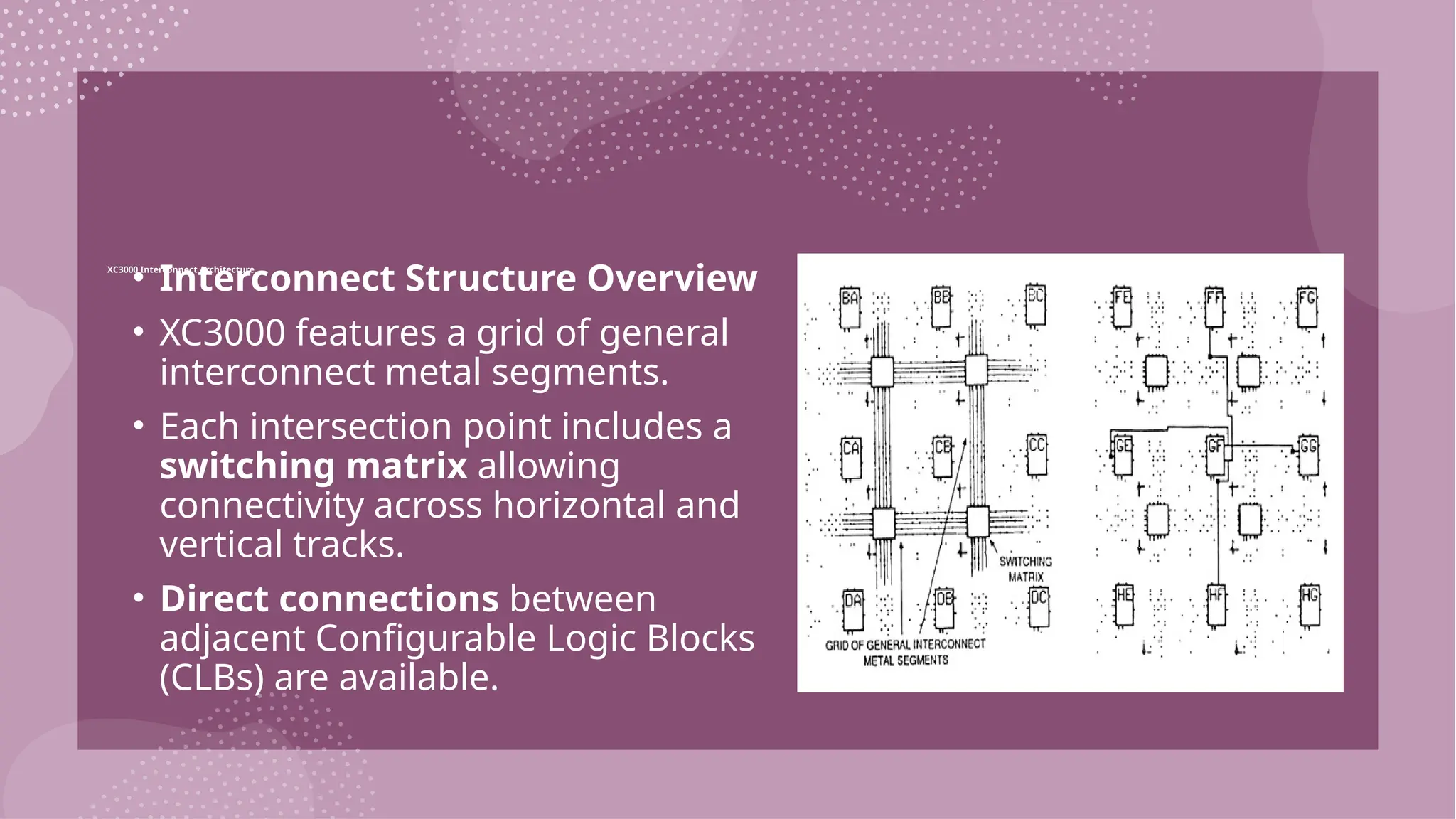

XC3000 Interconnect Architecture • Interconnect Structure Overview • XC3000 features a grid of general interconnect metal segments. • Each intersection point includes a switching matrix allowing connectivity across horizontal and vertical tracks. • Direct connections between adjacent Configurable Logic Blocks (CLBs) are available.

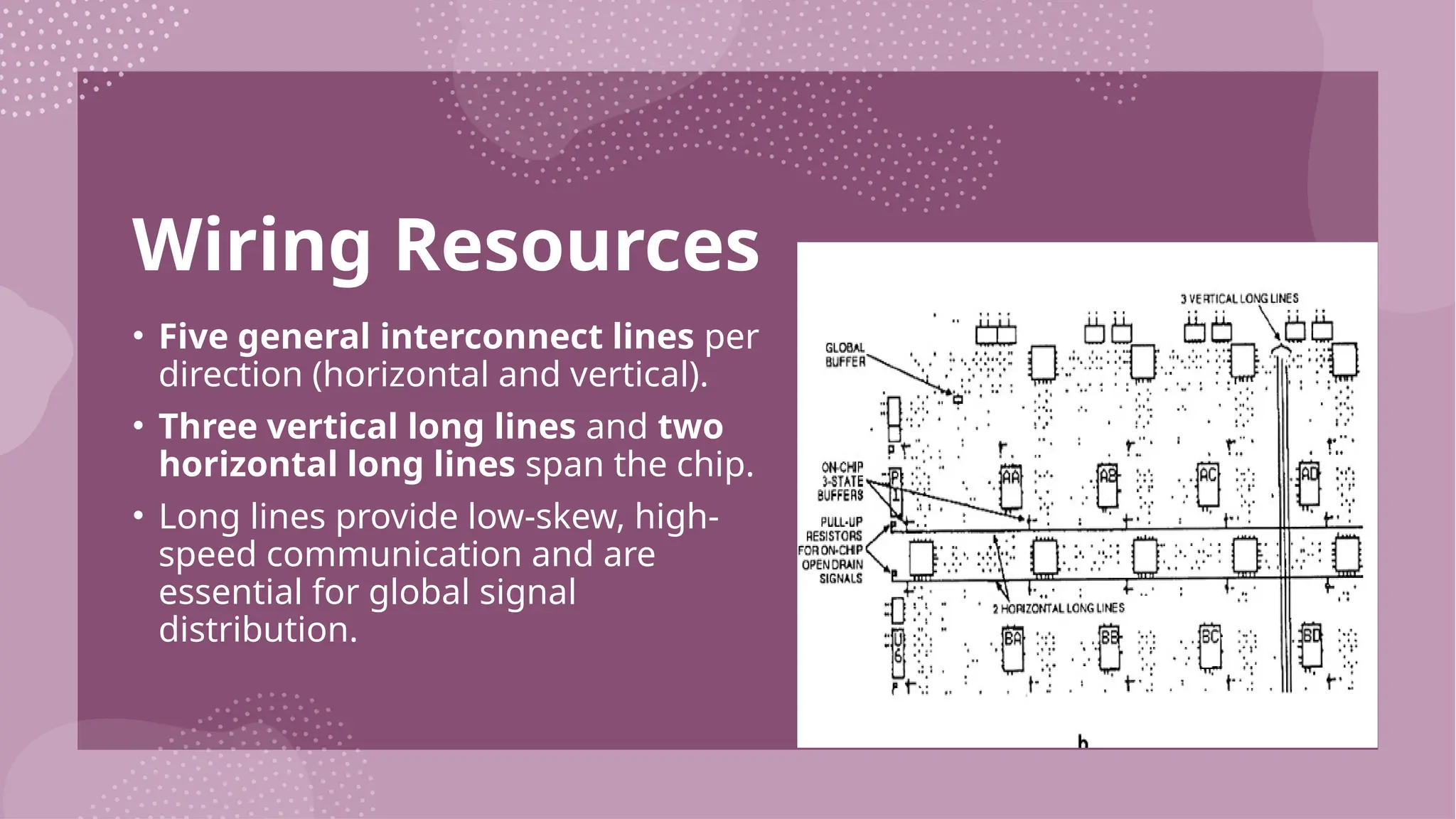

Wiring Resources • Five general interconnect lines per direction (horizontal and vertical). • Three vertical long lines and two horizontal long lines span the chip. • Long lines provide low-skew, high- speed communication and are essential for global signal distribution.

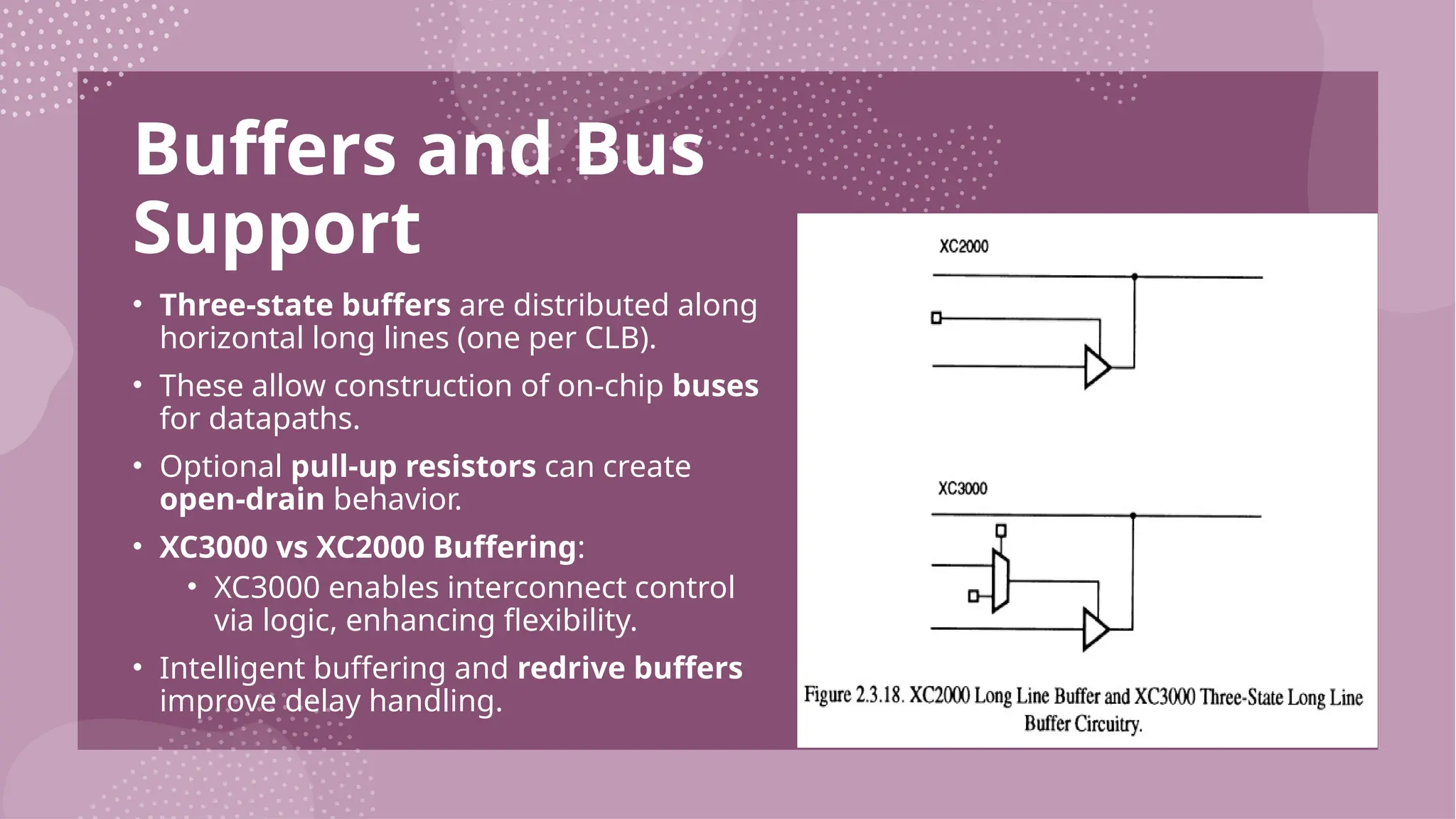

Buffers and Bus Support • Three-state buffers are distributed along horizontal long lines (one per CLB). • These allow construction of on-chip buses for datapaths. • Optional pull-up resistors can create open-drain behavior. • XC3000 vs XC2000 Buffering: • XC3000 enables interconnect control via logic, enhancing flexibility. • Intelligent buffering and redrive buffers improve delay handling.

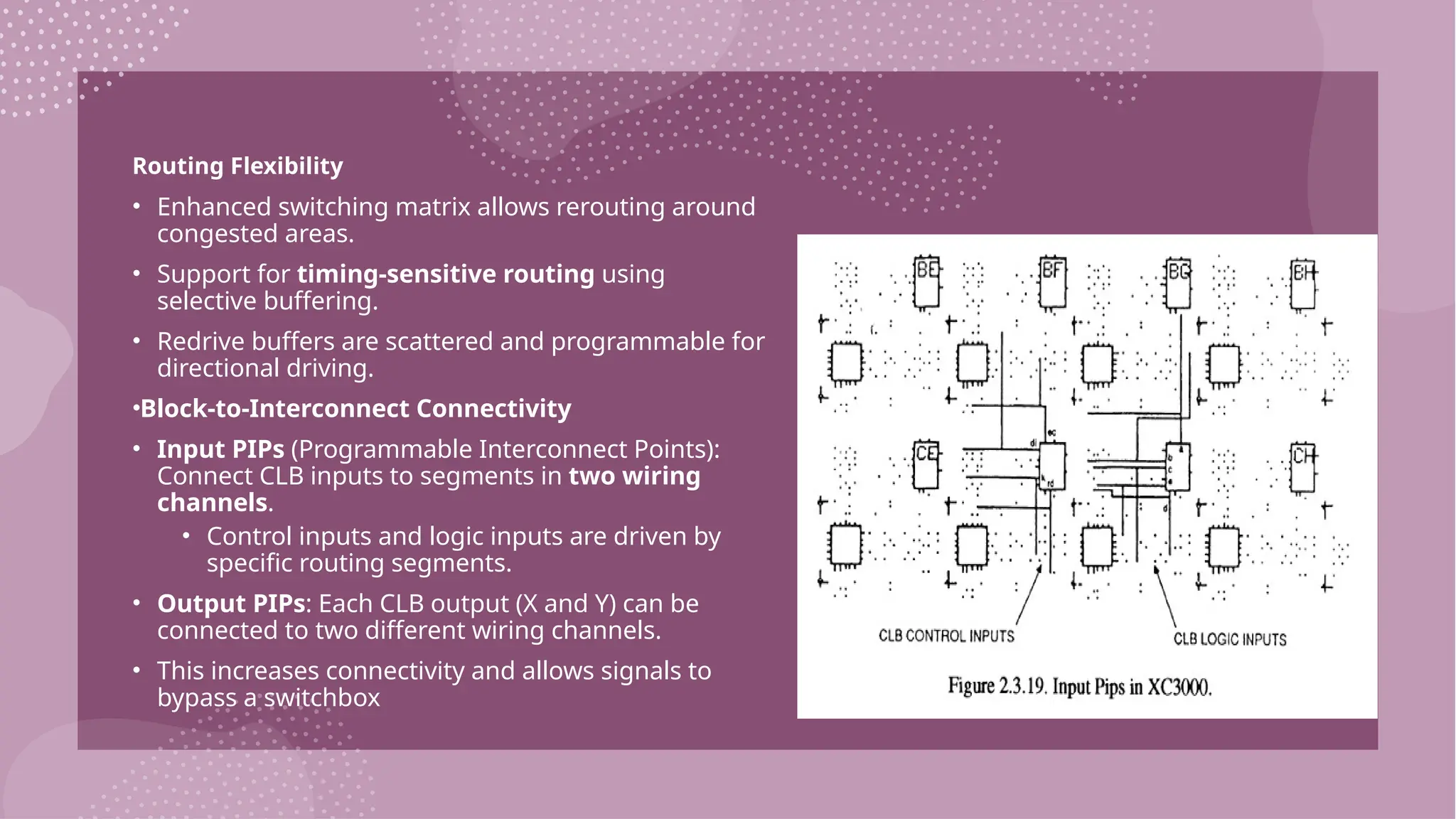

Routing Flexibility • Enhanced switching matrix allows rerouting around congested areas. • Support for timing-sensitive routing using selective buffering. • Redrive buffers are scattered and programmable for directional driving. •Block-to-Interconnect Connectivity • Input PIPs (Programmable Interconnect Points): Connect CLB inputs to segments in two wiring channels. • Control inputs and logic inputs are driven by specific routing segments. • Output PIPs: Each CLB output (X and Y) can be connected to two different wiring channels. • This increases connectivity and allows signals to bypass a switchbox

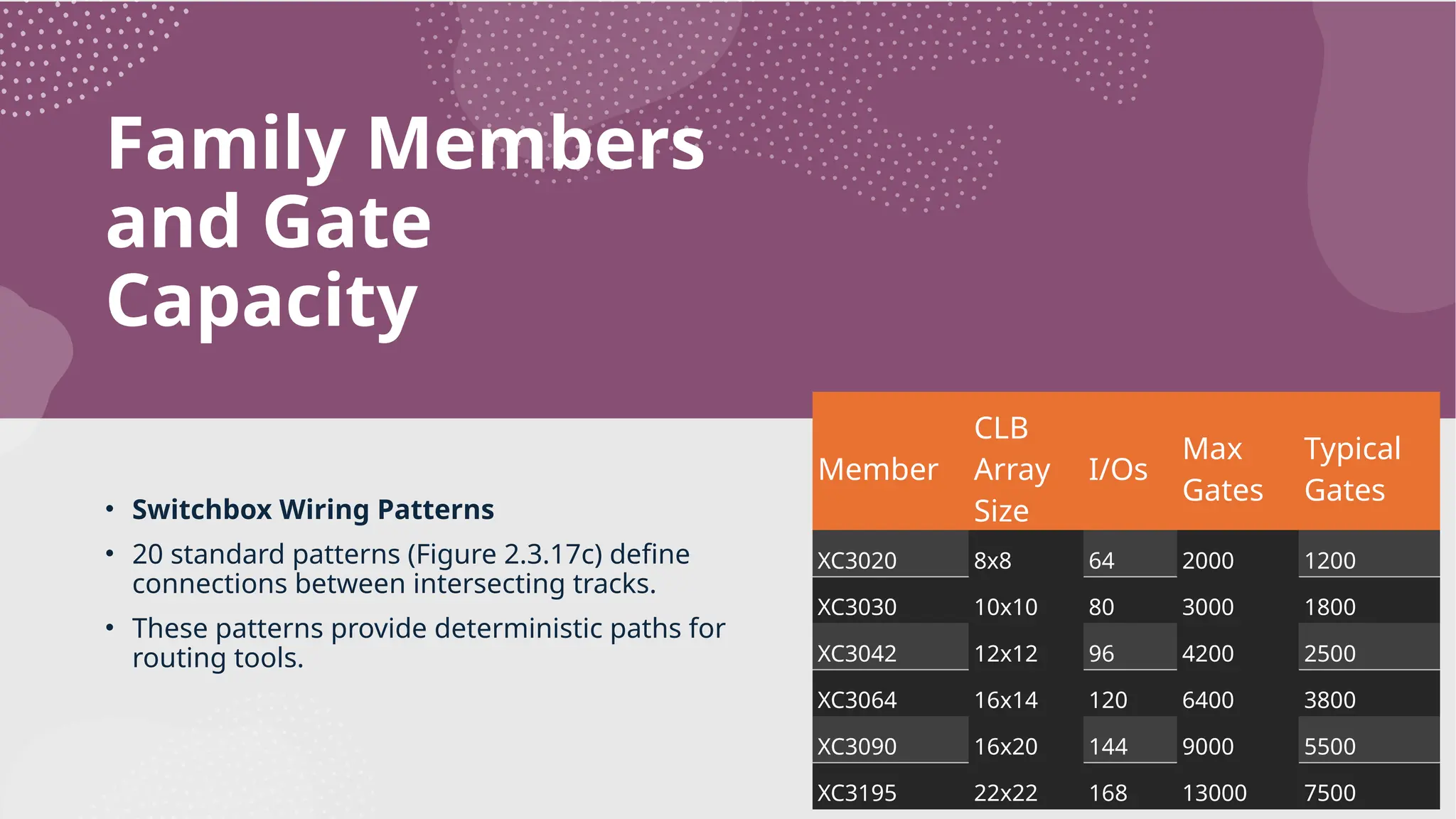

Family Members and Gate Capacity • Switchbox Wiring Patterns • 20 standard patterns (Figure 2.3.17c) define connections between intersecting tracks. • These patterns provide deterministic paths for routing tools. Member CLB Array Size I/Os Max Gates Typical Gates XC3020 8x8 64 2000 1200 XC3030 10x10 80 3000 1800 XC3042 12x12 96 4200 2500 XC3064 16x14 120 6400 3800 XC3090 16x20 144 9000 5500 XC3195 22x22 168 13000 7500

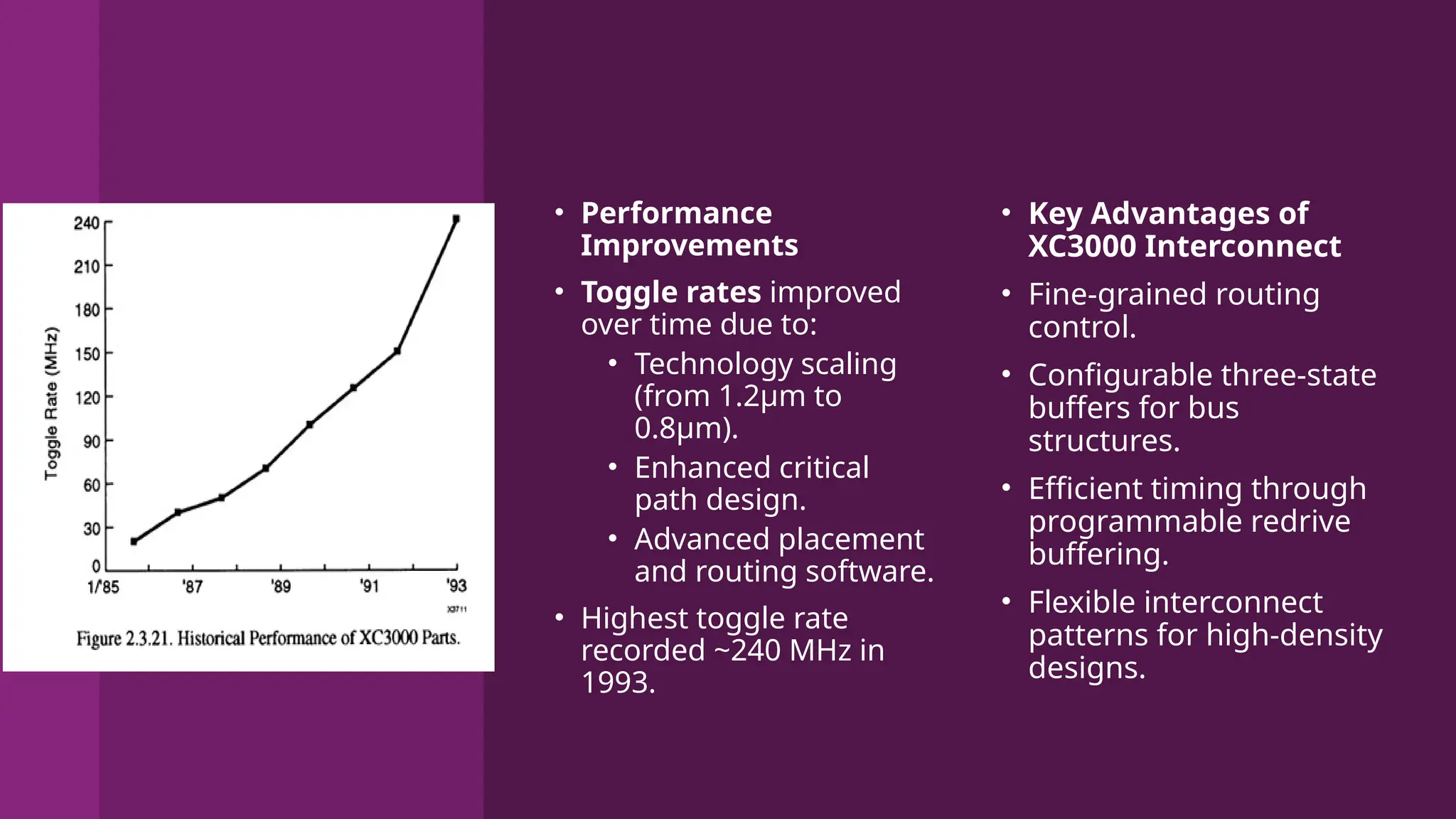

• Performance Improvements • Toggle rates improved over time due to: • Technology scaling (from 1.2μm to 0.8μm). • Enhanced critical path design. • Advanced placement and routing software. • Highest toggle rate recorded ~240 MHz in 1993. • Key Advantages of XC3000 Interconnect • Fine-grained routing control. • Configurable three-state buffers for bus structures. • Efficient timing through programmable redrive buffering. • Flexible interconnect patterns for high-density designs.

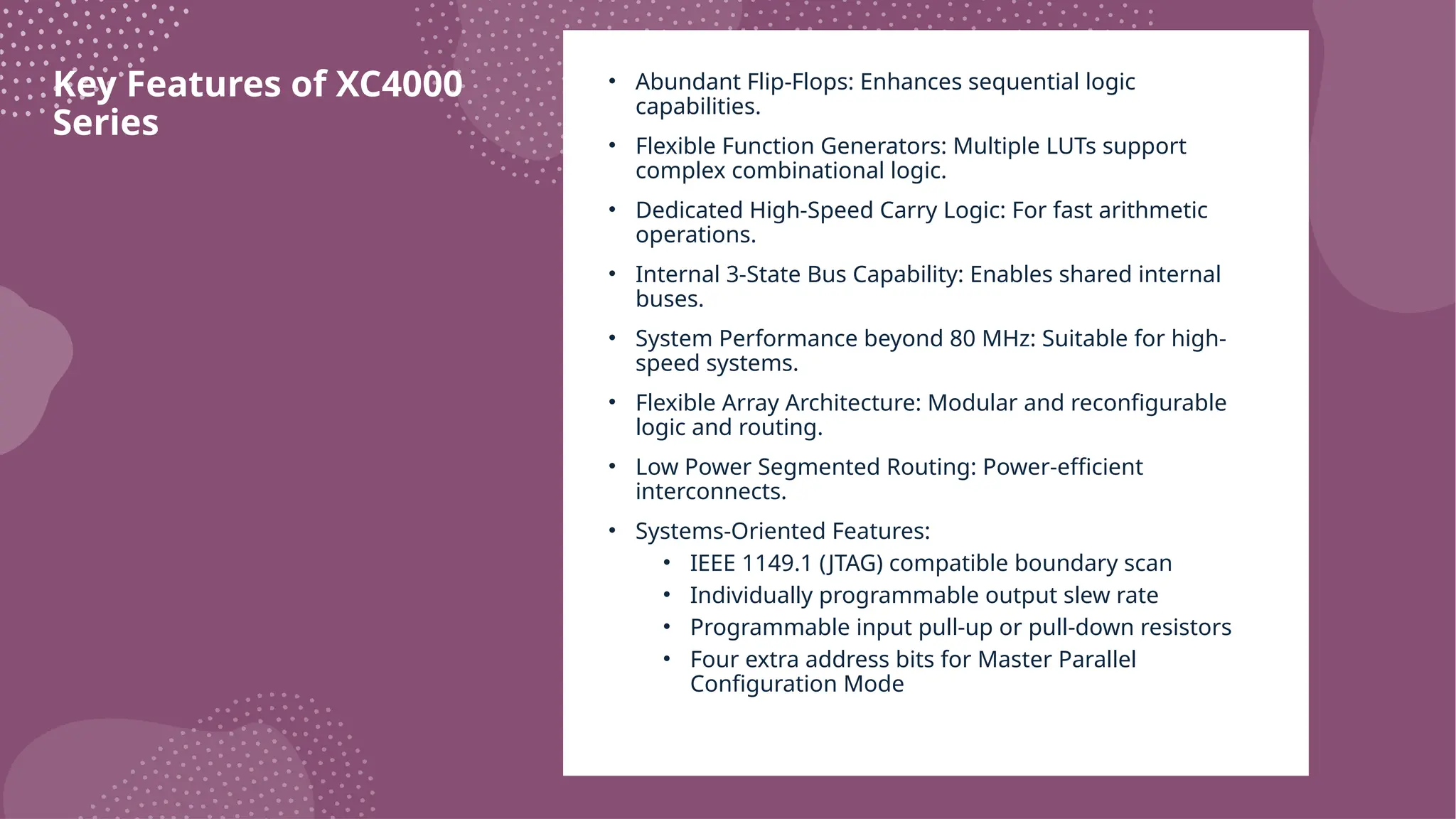

Key Features of XC4000 Series • Abundant Flip-Flops: Enhances sequential logic capabilities. • Flexible Function Generators: Multiple LUTs support complex combinational logic. • Dedicated High-Speed Carry Logic: For fast arithmetic operations. • Internal 3-State Bus Capability: Enables shared internal buses. • System Performance beyond 80 MHz: Suitable for high- speed systems. • Flexible Array Architecture: Modular and reconfigurable logic and routing. • Low Power Segmented Routing: Power-efficient interconnects. • Systems-Oriented Features: • IEEE 1149.1 (JTAG) compatible boundary scan • Individually programmable output slew rate • Programmable input pull-up or pull-down resistors • Four extra address bits for Master Parallel Configuration Mode

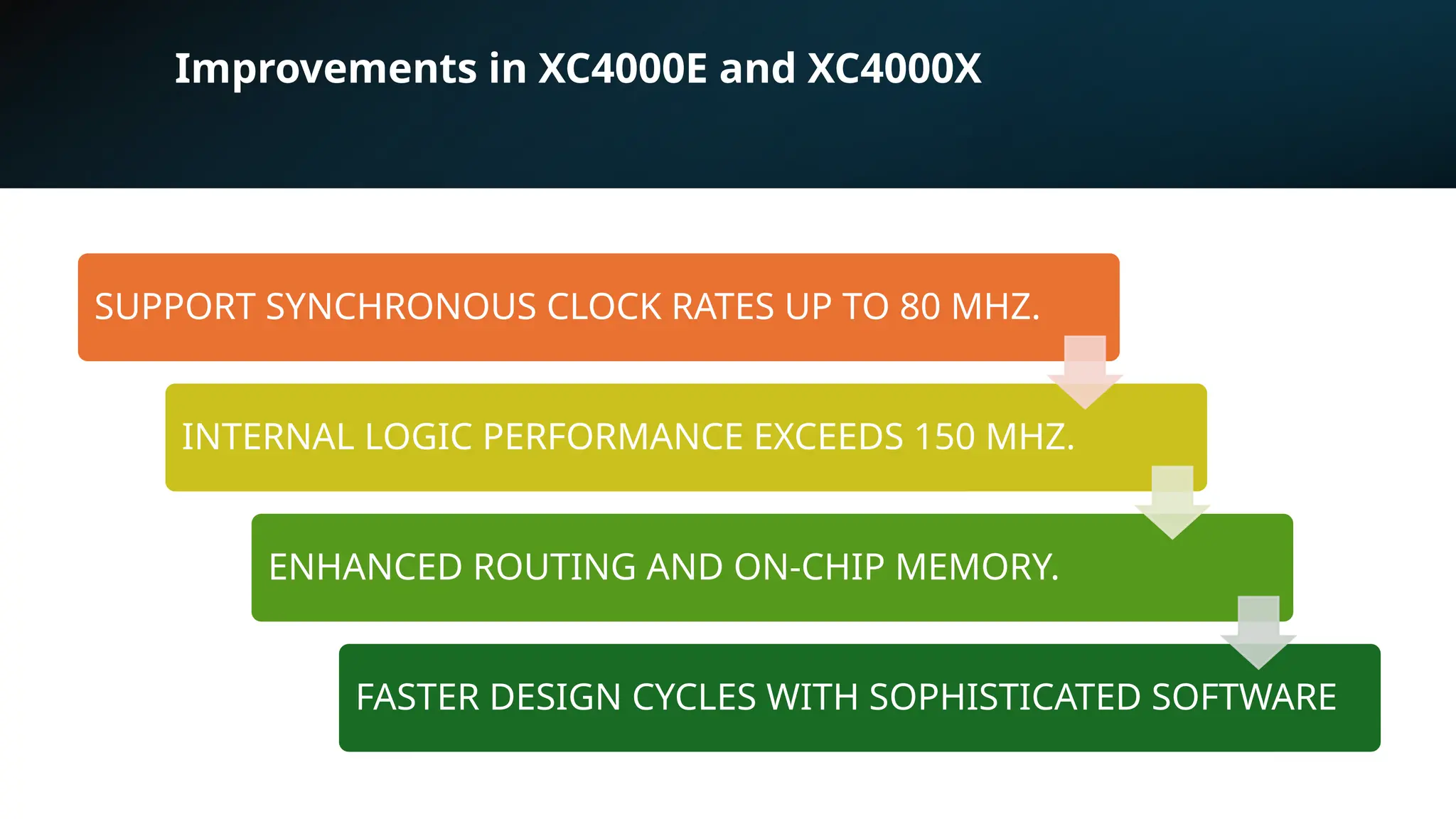

Improvements in XC4000E and XC4000X SUPPORT SYNCHRONOUS CLOCK RATES UP TO 80 MHZ. INTERNAL LOGIC PERFORMANCE EXCEEDS 150 MHZ. ENHANCED ROUTING AND ON-CHIP MEMORY. FASTER DESIGN CYCLES WITH SOPHISTICATED SOFTWARE

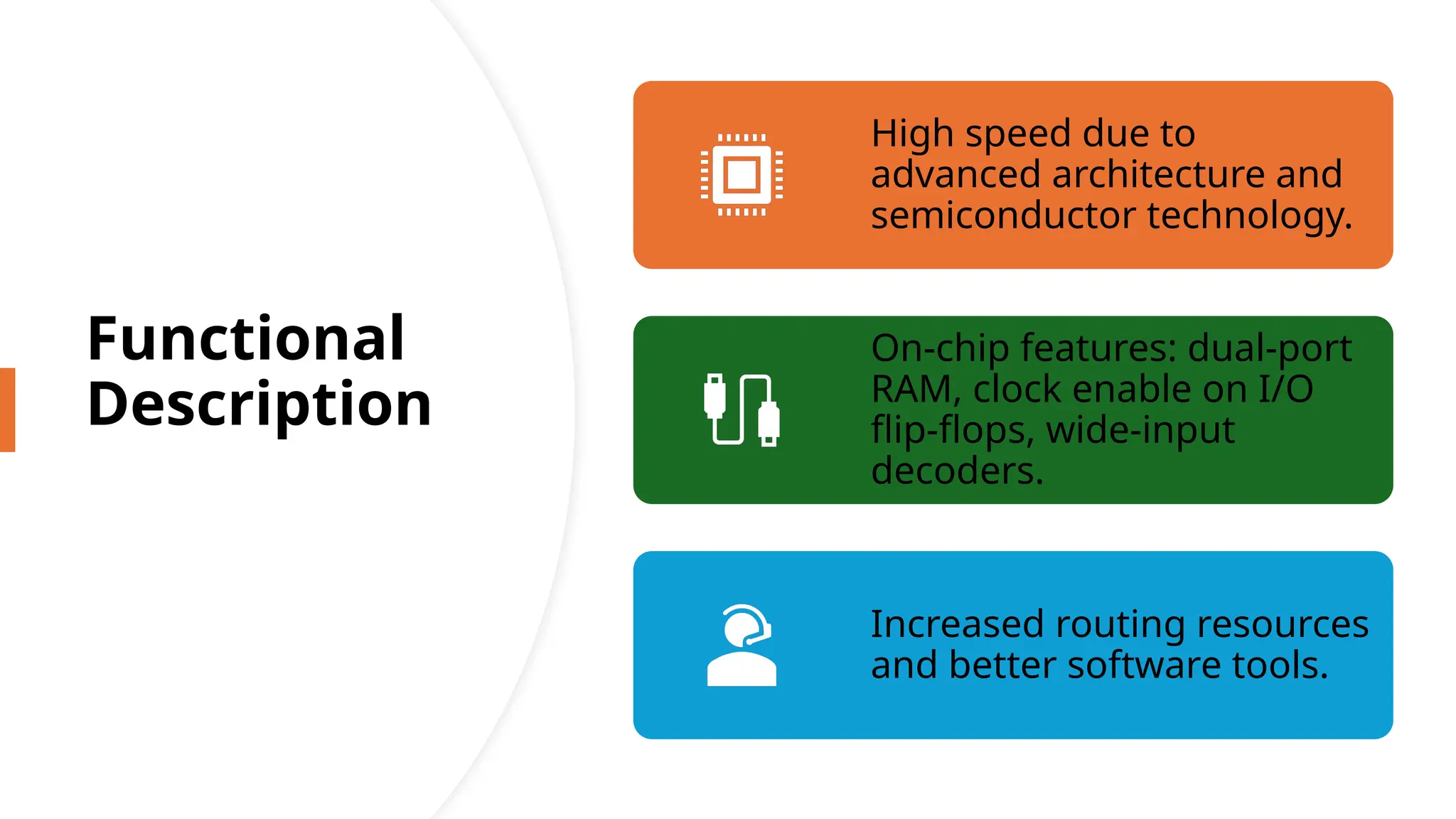

Functional Description High speed due to advanced architecture and semiconductor technology. On-chip features: dual-port RAM, clock enable on I/O flip-flops, wide-input decoders. Increased routing resources and better software tools.

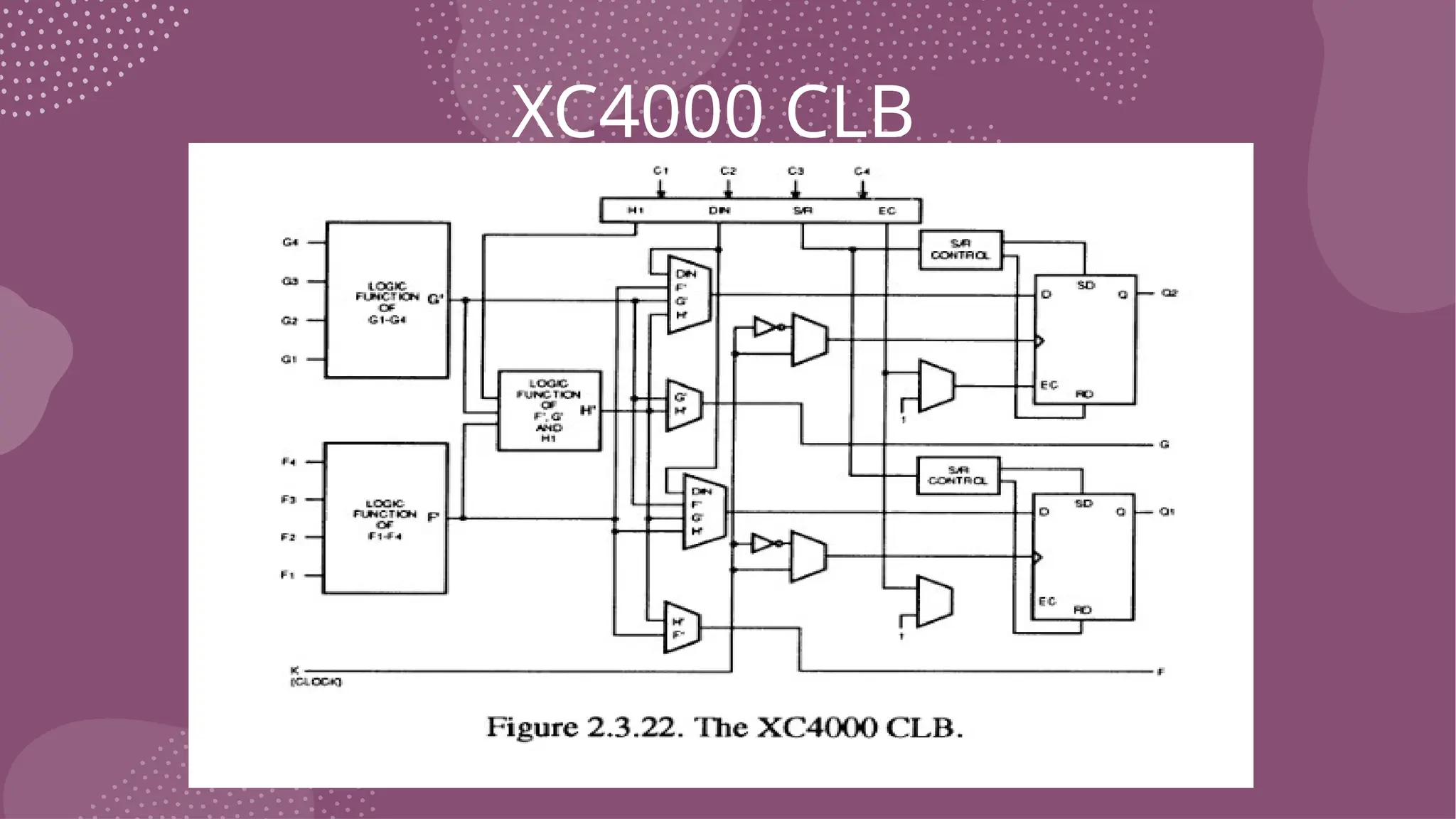

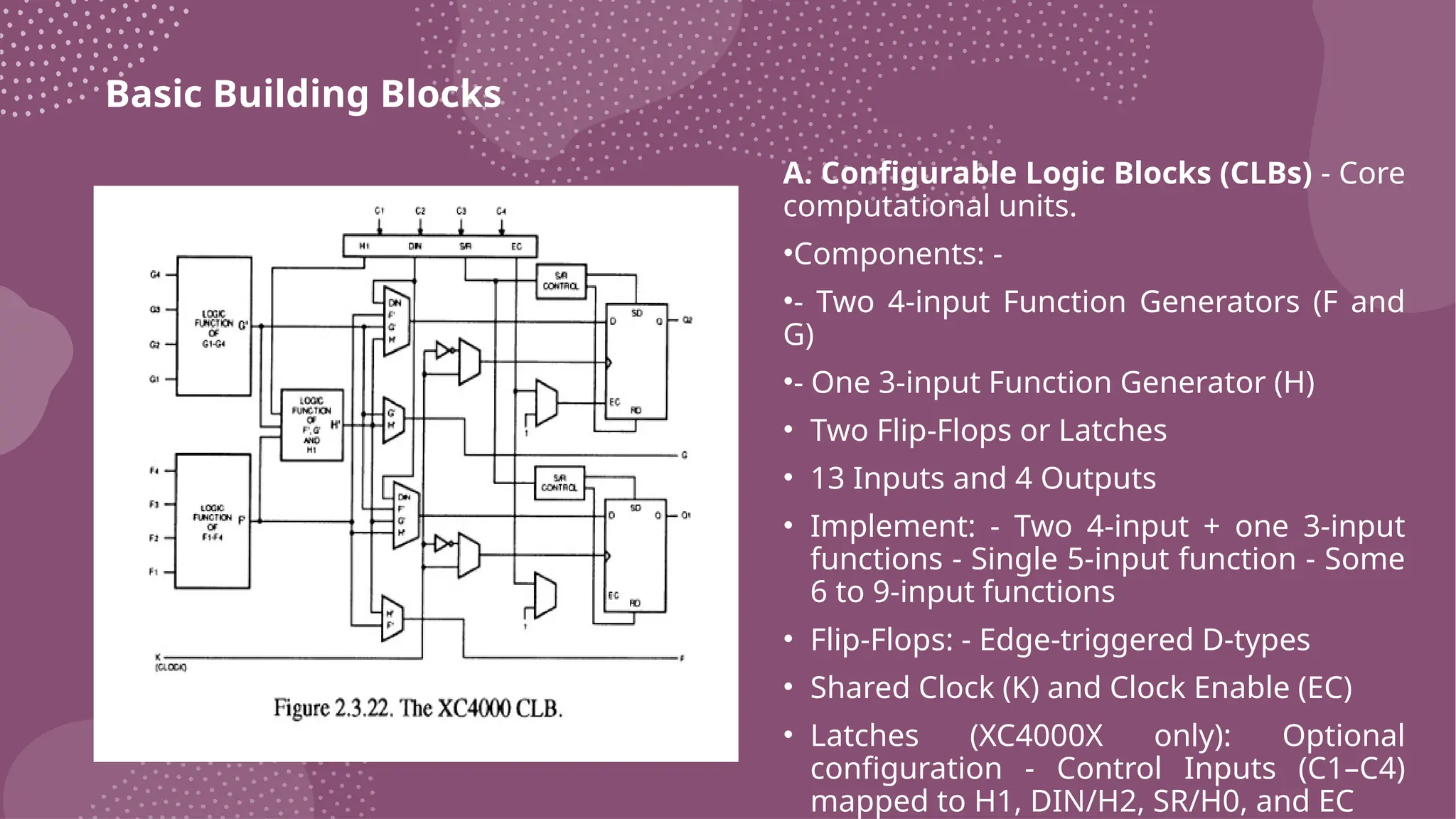

Basic Building Blocks A. Configurable Logic Blocks (CLBs) - Core computational units. •Components: - •- Two 4-input Function Generators (F and G) •- One 3-input Function Generator (H) • Two Flip-Flops or Latches • 13 Inputs and 4 Outputs • Implement: - Two 4-input + one 3-input functions - Single 5-input function - Some 6 to 9-input functions • Flip-Flops: - Edge-triggered D-types • Shared Clock (K) and Clock Enable (EC) • Latches (XC4000X only): Optional configuration - Control Inputs (C1–C4) mapped to H1, DIN/H2, SR/H0, and EC

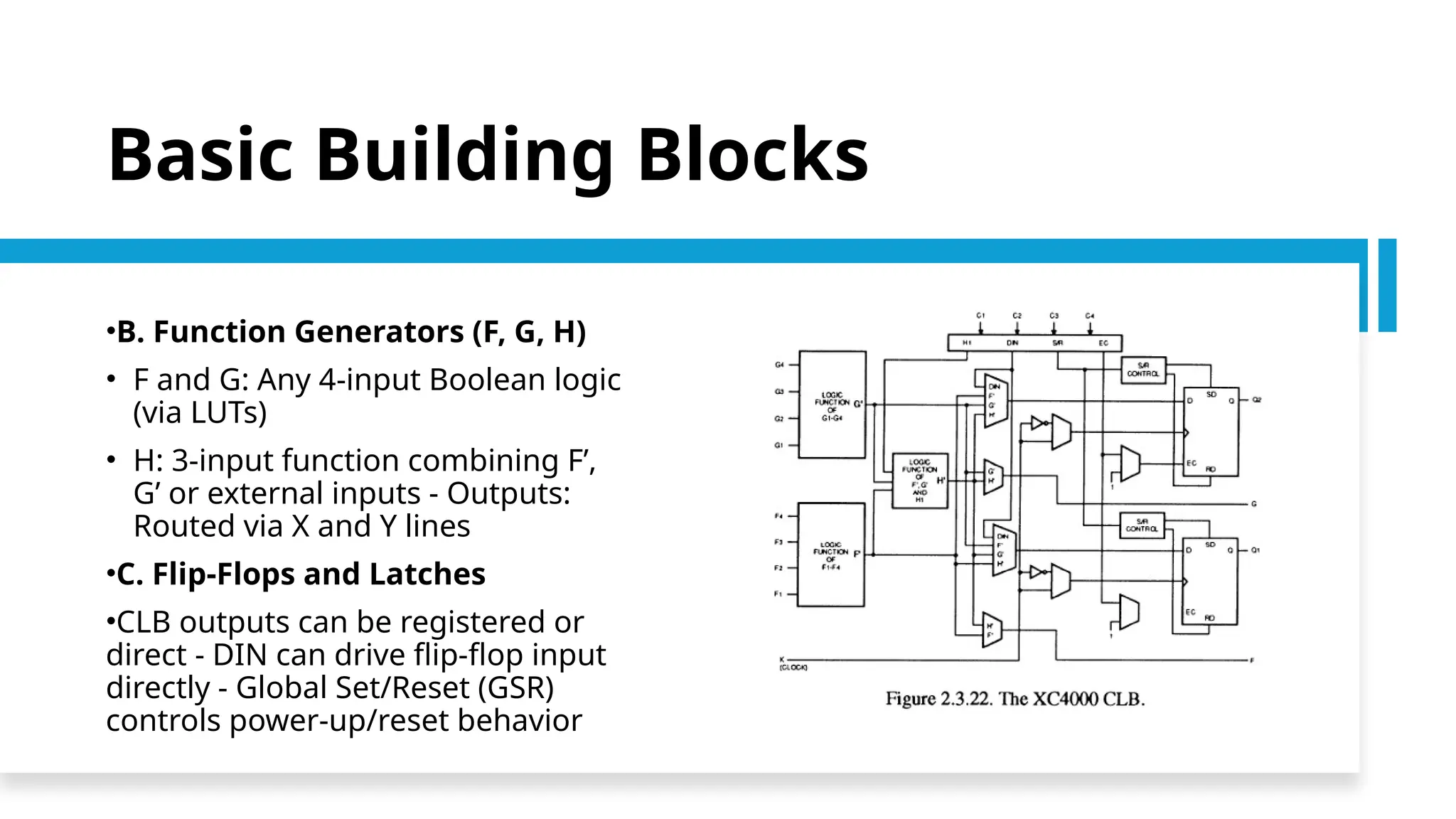

Basic Building Blocks •B. Function Generators (F, G, H) • F and G: Any 4-input Boolean logic (via LUTs) • H: 3-input function combining F’, G’ or external inputs - Outputs: Routed via X and Y lines •C. Flip-Flops and Latches •CLB outputs can be registered or direct - DIN can drive flip-flop input directly - Global Set/Reset (GSR) controls power-up/reset behavior

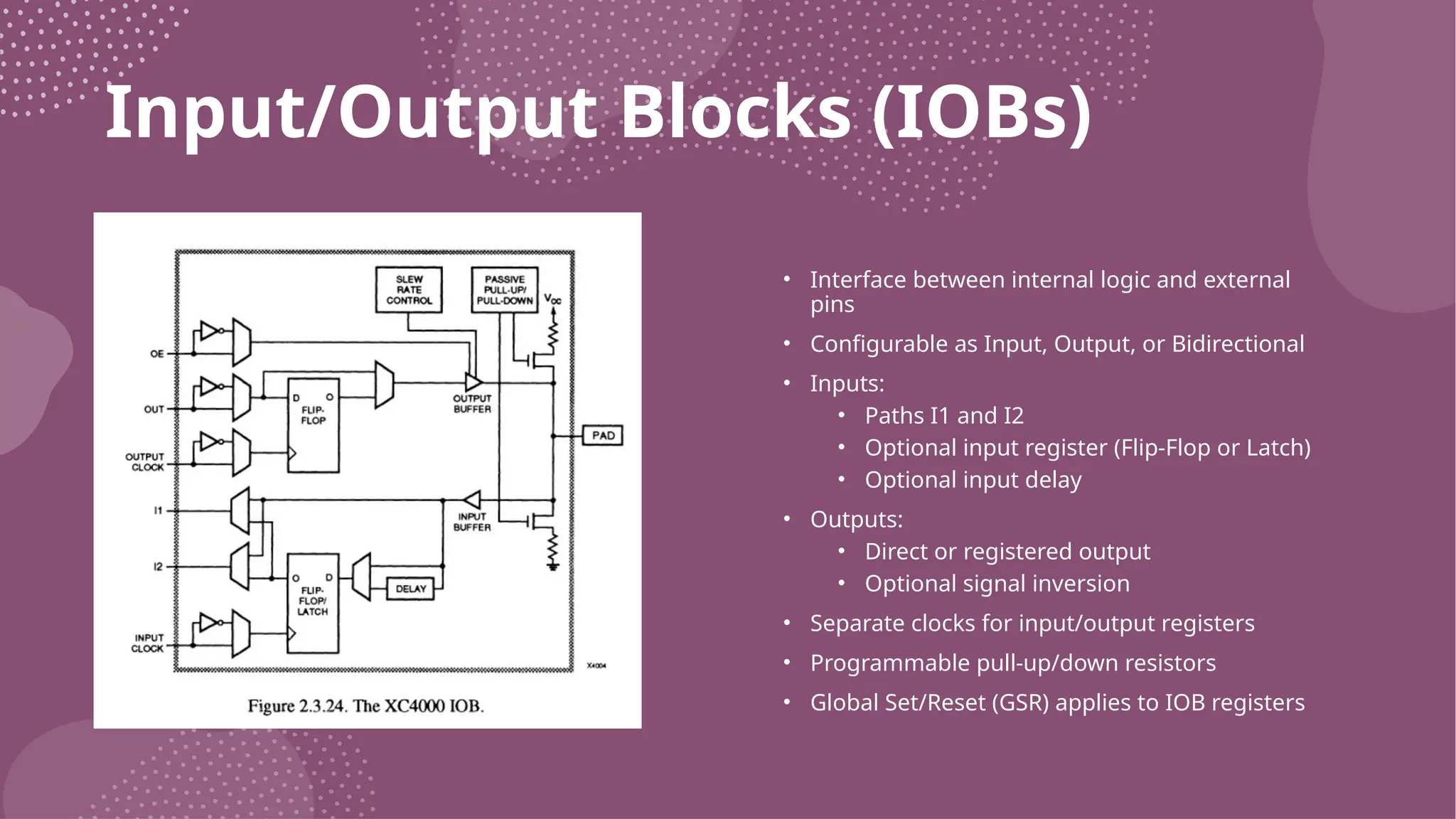

Input/Output Blocks (IOBs) • Interface between internal logic and external pins • Configurable as Input, Output, or Bidirectional • Inputs: • Paths I1 and I2 • Optional input register (Flip-Flop or Latch) • Optional input delay • Outputs: • Direct or registered output • Optional signal inversion • Separate clocks for input/output registers • Programmable pull-up/down resistors • Global Set/Reset (GSR) applies to IOB registers

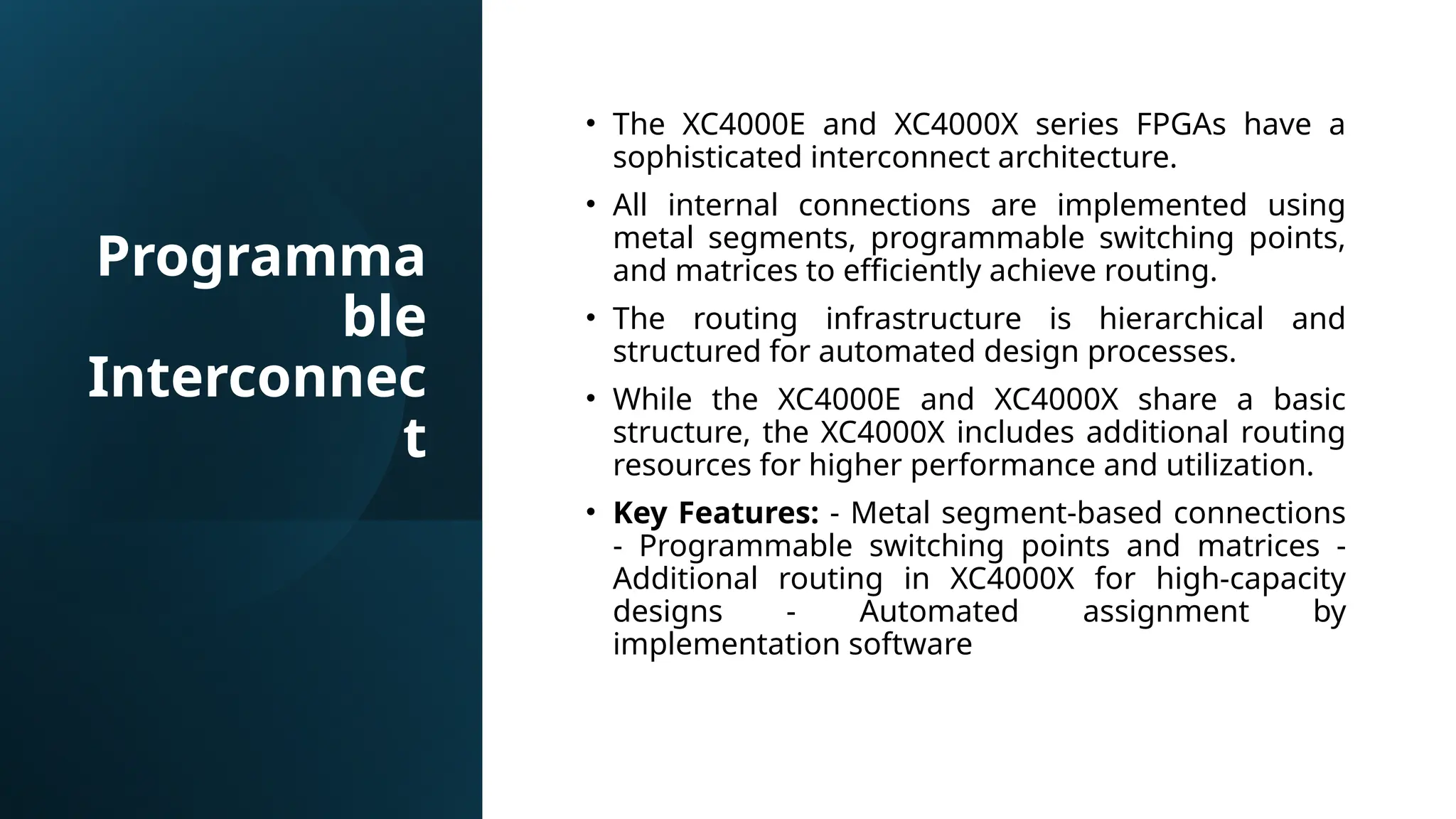

Programma ble Interconnec t • The XC4000E and XC4000X series FPGAs have a sophisticated interconnect architecture. • All internal connections are implemented using metal segments, programmable switching points, and matrices to efficiently achieve routing. • The routing infrastructure is hierarchical and structured for automated design processes. • While the XC4000E and XC4000X share a basic structure, the XC4000X includes additional routing resources for higher performance and utilization. • Key Features: - Metal segment-based connections - Programmable switching points and matrices - Additional routing in XC4000X for high-capacity designs - Automated assignment by implementation software

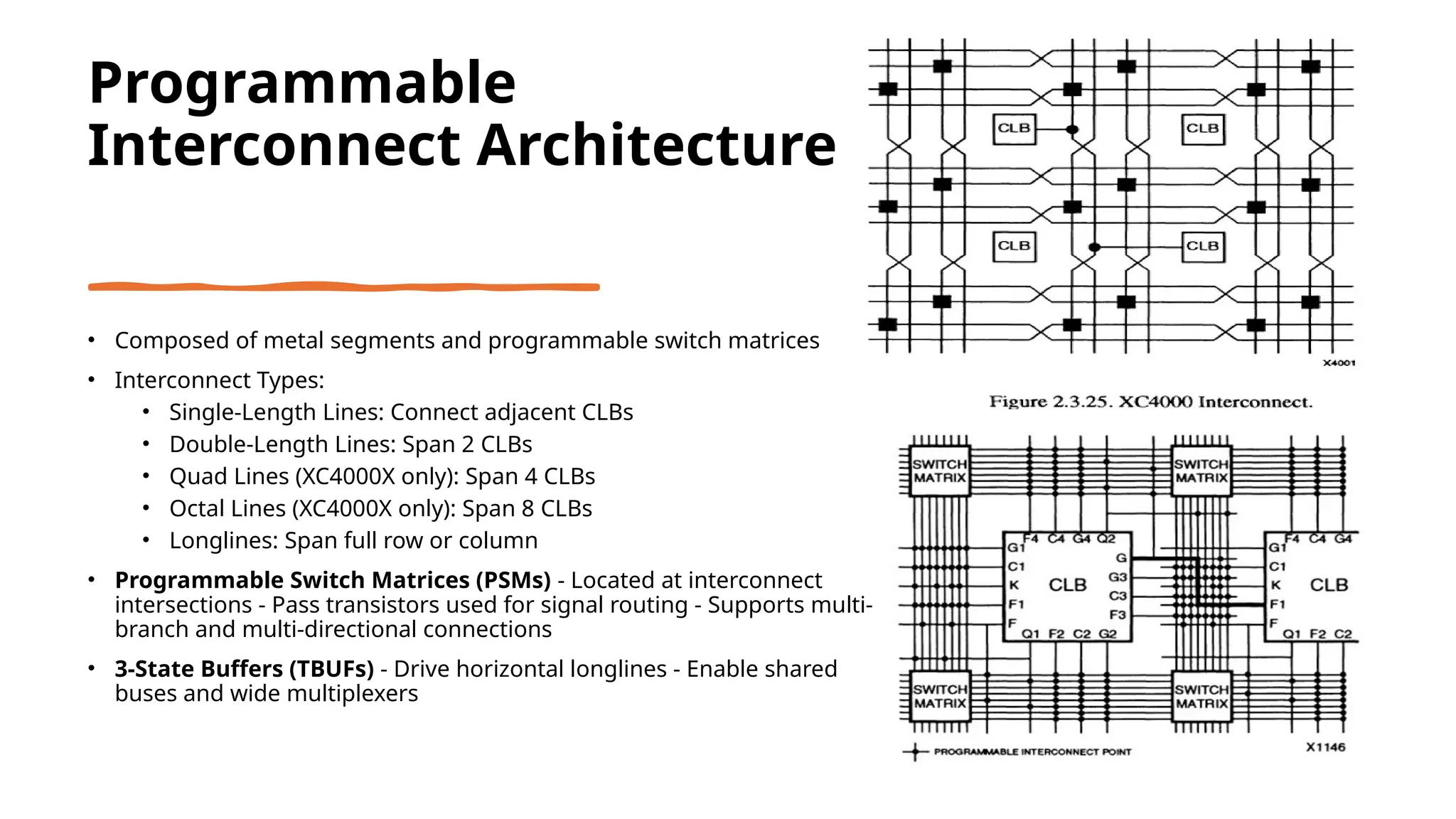

Programmable Interconnect Architecture • Composed of metal segments and programmable switch matrices • Interconnect Types: • Single-Length Lines: Connect adjacent CLBs • Double-Length Lines: Span 2 CLBs • Quad Lines (XC4000X only): Span 4 CLBs • Octal Lines (XC4000X only): Span 8 CLBs • Longlines: Span full row or column • Programmable Switch Matrices (PSMs) - Located at interconnect intersections - Pass transistors used for signal routing - Supports multi- branch and multi-directional connections • 3-State Buffers (TBUFs) - Drive horizontal longlines - Enable shared buses and wide multiplexers

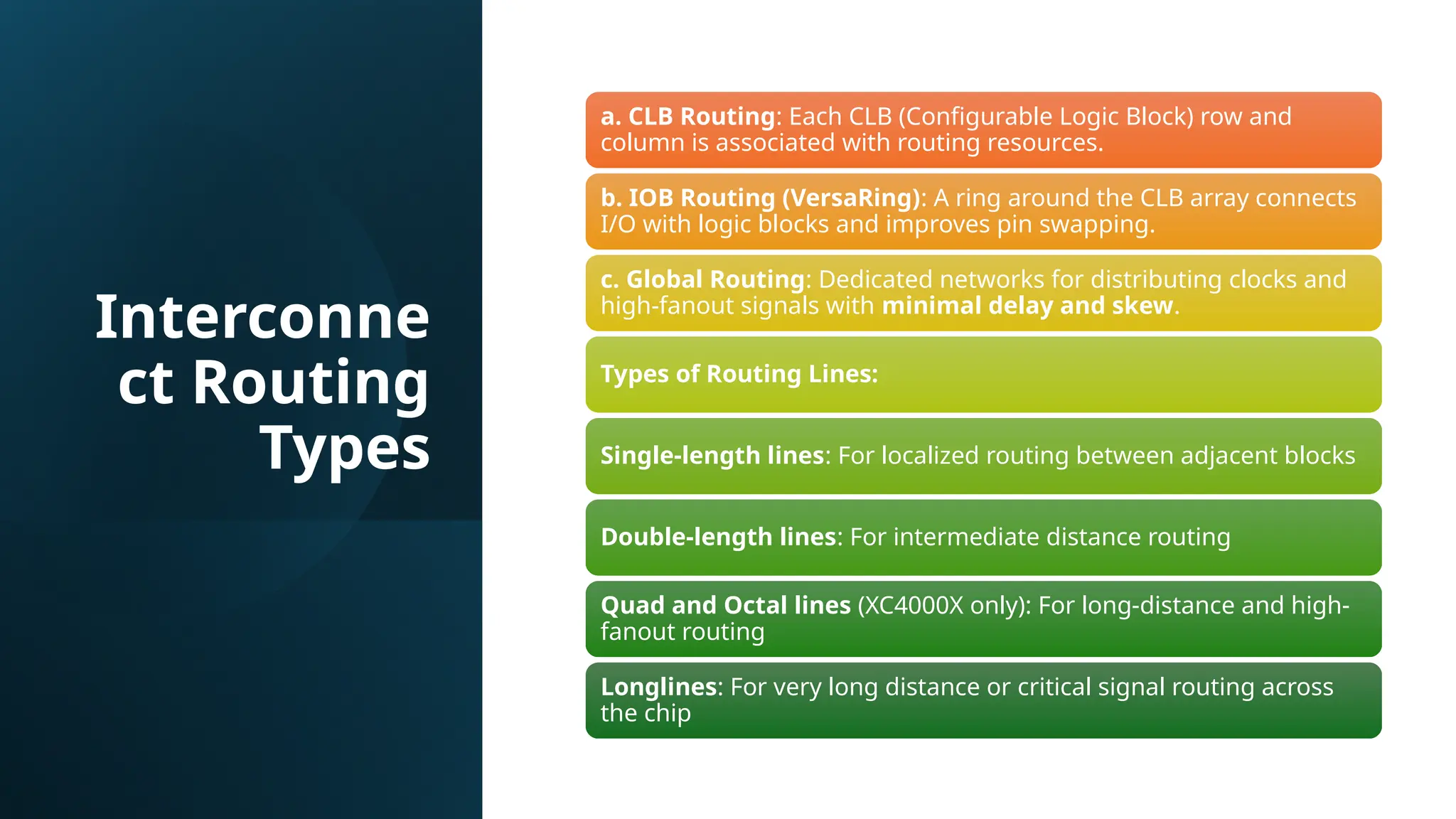

Interconne ct Routing Types a. CLB Routing: Each CLB (Configurable Logic Block) row and column is associated with routing resources. b. IOB Routing (VersaRing): A ring around the CLB array connects I/O with logic blocks and improves pin swapping. c. Global Routing: Dedicated networks for distributing clocks and high-fanout signals with minimal delay and skew. Types of Routing Lines: Single-length lines: For localized routing between adjacent blocks Double-length lines: For intermediate distance routing Quad and Octal lines (XC4000X only): For long-distance and high- fanout routing Longlines: For very long distance or critical signal routing across the chip

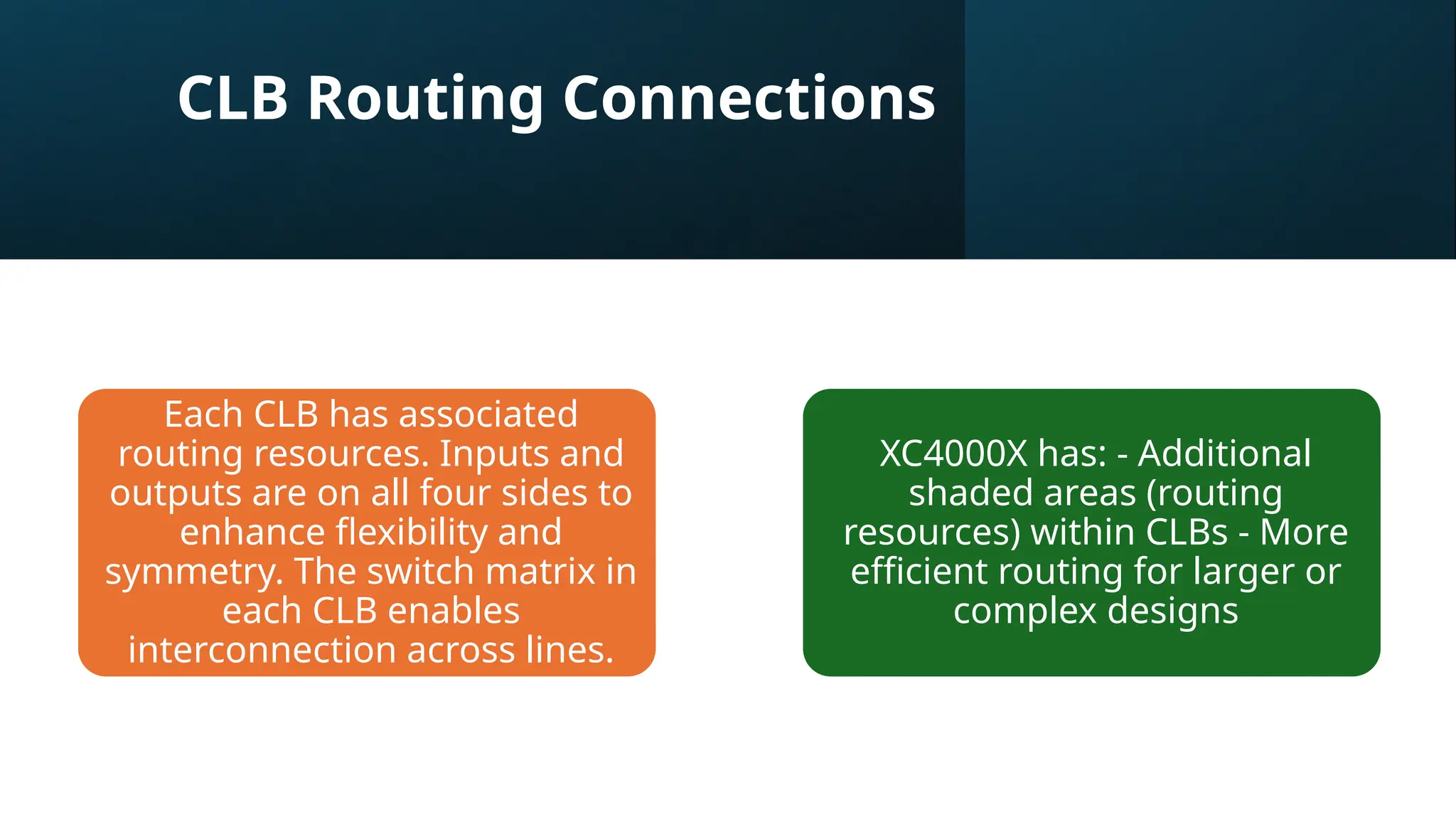

CLB Routing Connections Each CLB has associated routing resources. Inputs and outputs are on all four sides to enhance flexibility and symmetry. The switch matrix in each CLB enables interconnection across lines. XC4000X has: - Additional shaded areas (routing resources) within CLBs - More efficient routing for larger or complex designs

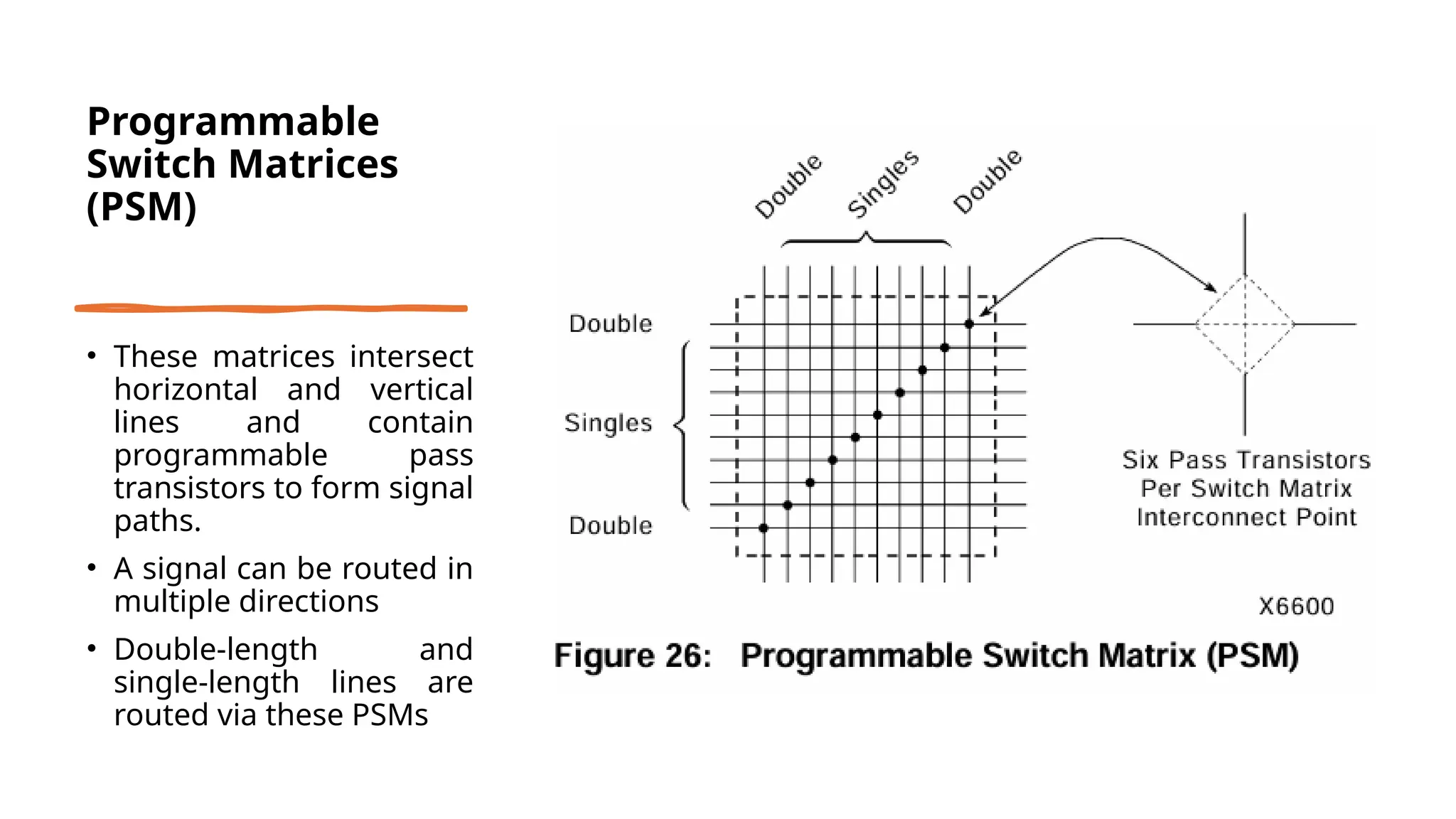

Programmable Switch Matrices (PSM) • These matrices intersect horizontal and vertical lines and contain programmable pass transistors to form signal paths. • A signal can be routed in multiple directions • Double-length and single-length lines are routed via these PSMs

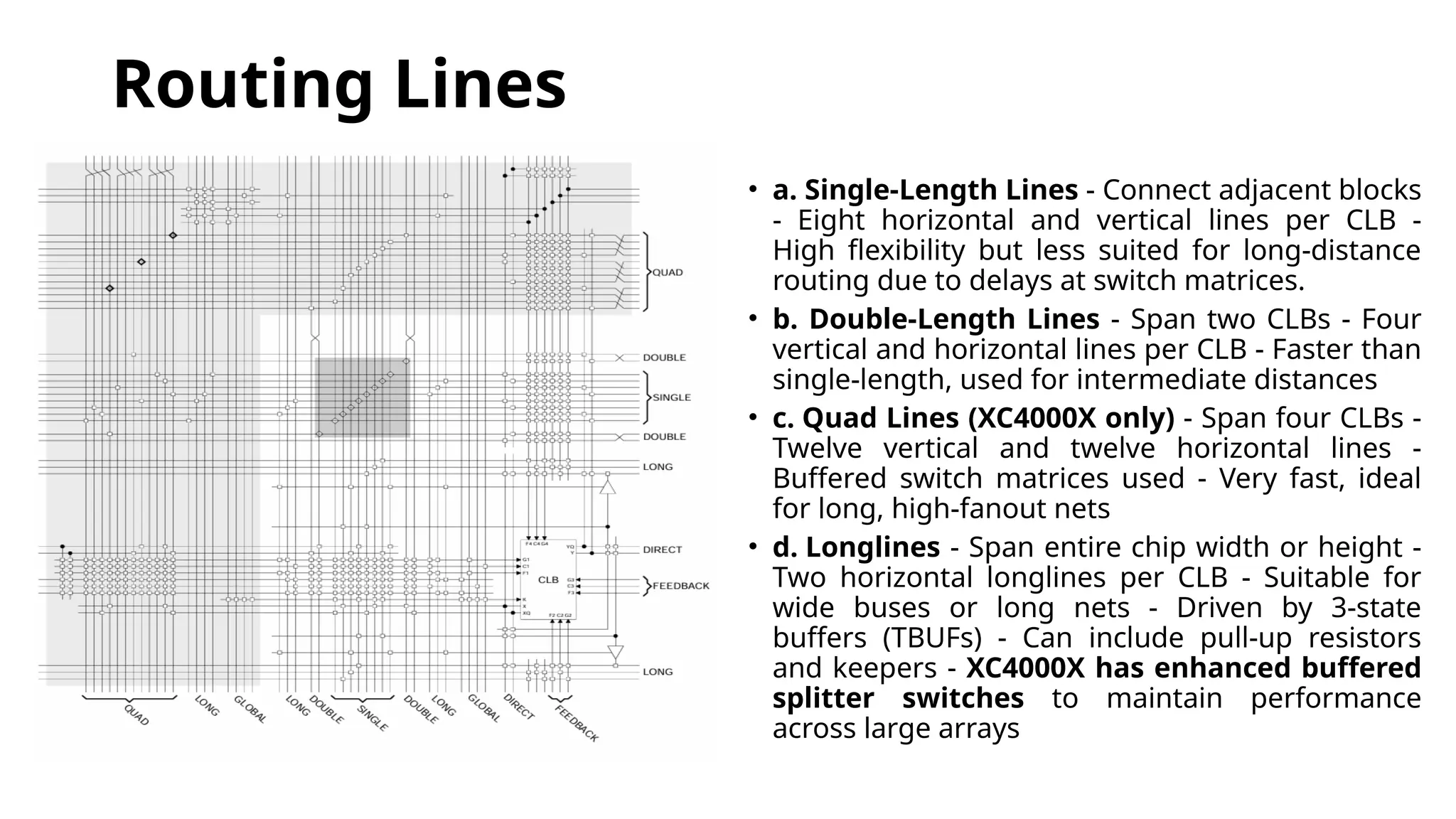

Routing Lines • a. Single-Length Lines - Connect adjacent blocks - Eight horizontal and vertical lines per CLB - High flexibility but less suited for long-distance routing due to delays at switch matrices. • b. Double-Length Lines - Span two CLBs - Four vertical and horizontal lines per CLB - Faster than single-length, used for intermediate distances • c. Quad Lines (XC4000X only) - Span four CLBs - Twelve vertical and twelve horizontal lines - Buffered switch matrices used - Very fast, ideal for long, high-fanout nets • d. Longlines - Span entire chip width or height - Two horizontal longlines per CLB - Suitable for wide buses or long nets - Driven by 3-state buffers (TBUFs) - Can include pull-up resistors and keepers - XC4000X has enhanced buffered splitter switches to maintain performance across large arrays

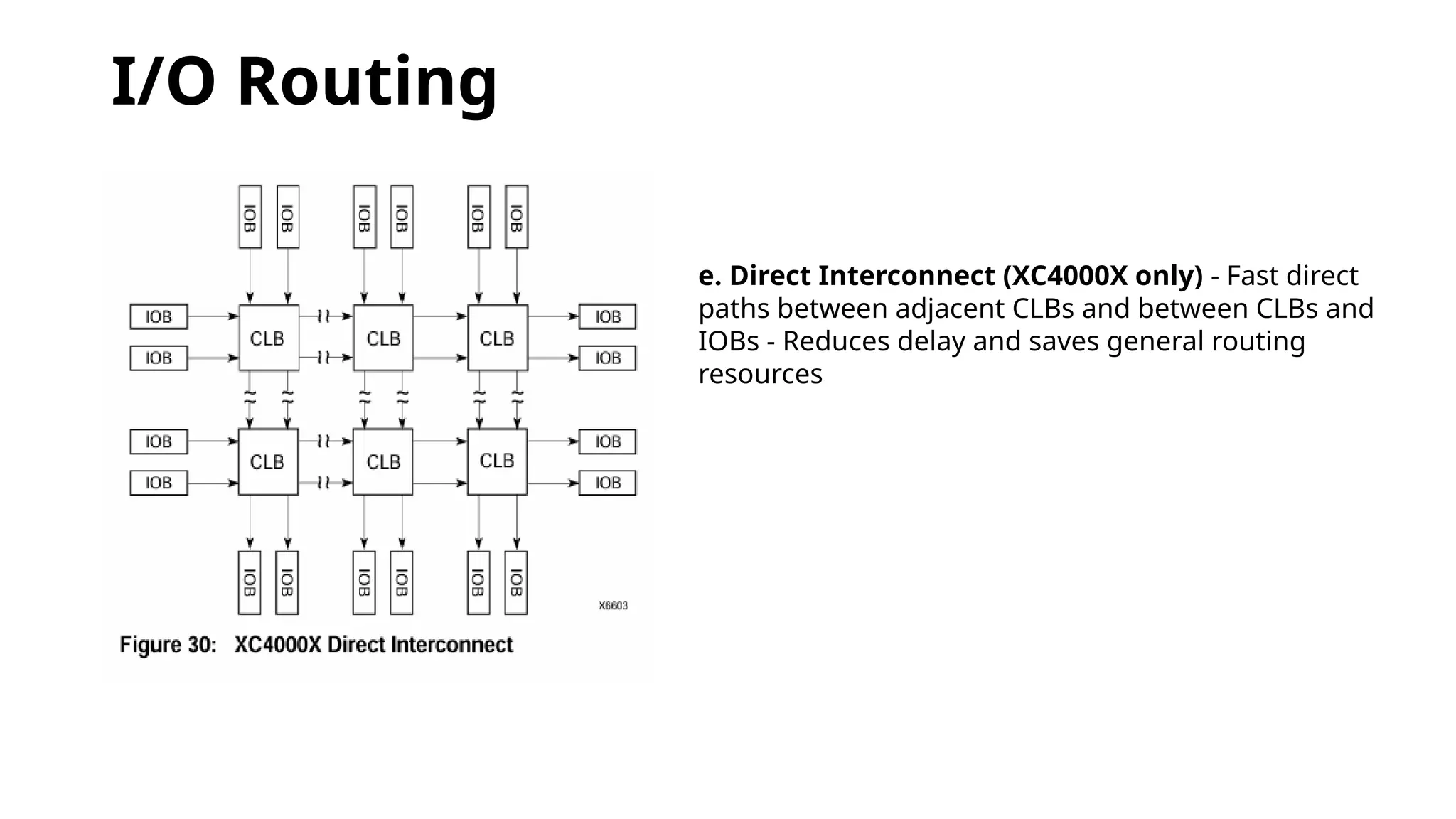

I/O Routing e. Direct Interconnect (XC4000X only) - Fast direct paths between adjacent CLBs and between CLBs and IOBs - Reduces delay and saves general routing resources

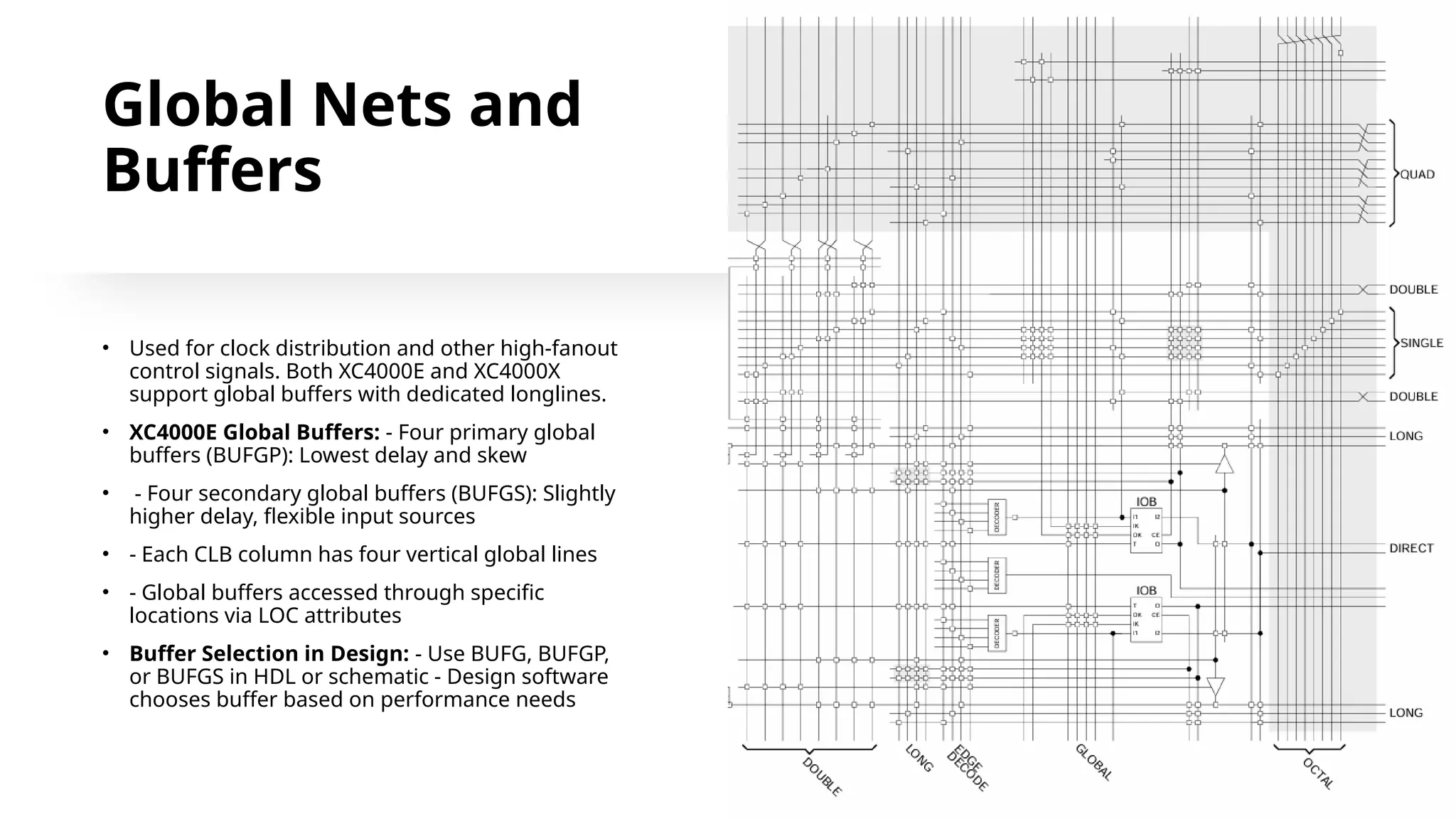

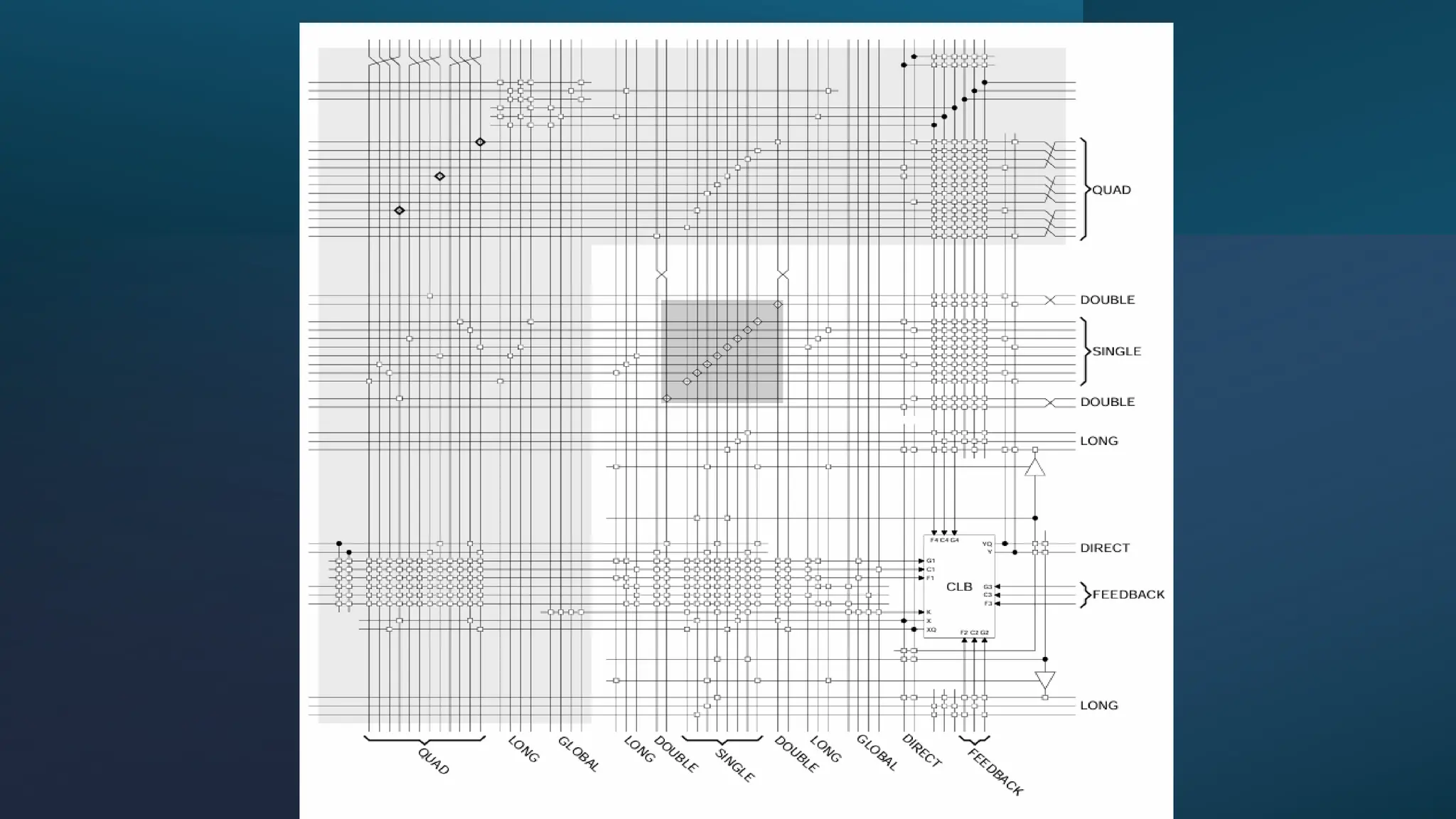

Global Nets and Buffers • Used for clock distribution and other high-fanout control signals. Both XC4000E and XC4000X support global buffers with dedicated longlines. • XC4000E Global Buffers: - Four primary global buffers (BUFGP): Lowest delay and skew • - Four secondary global buffers (BUFGS): Slightly higher delay, flexible input sources • - Each CLB column has four vertical global lines • - Global buffers accessed through specific locations via LOC attributes • Buffer Selection in Design: - Use BUFG, BUFGP, or BUFGS in HDL or schematic - Design software chooses buffer based on performance needs

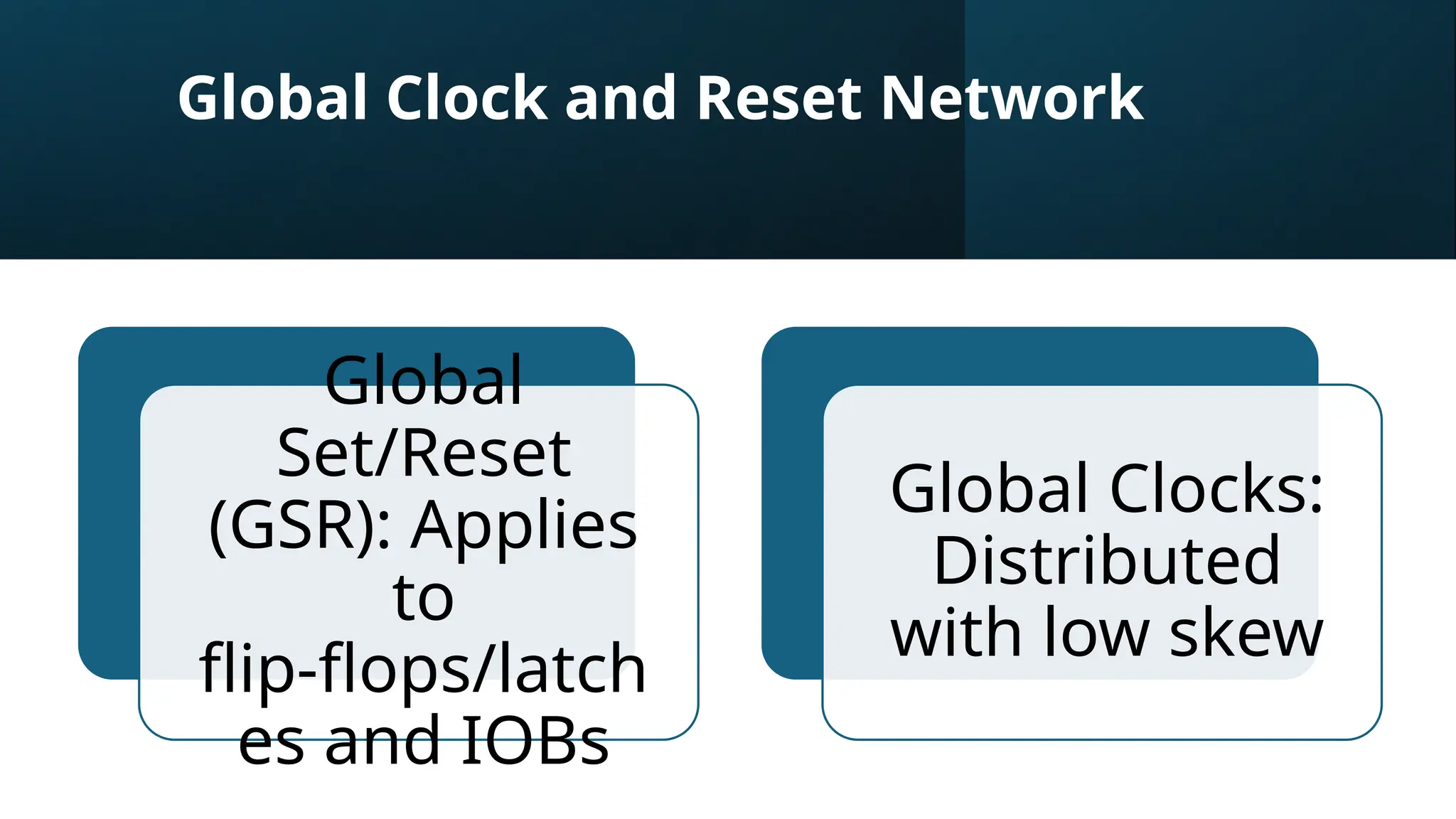

Global Clock and Reset Network Global Set/Reset (GSR): Applies to flip-flops/latch es and IOBs Global Clocks: Distributed with low skew

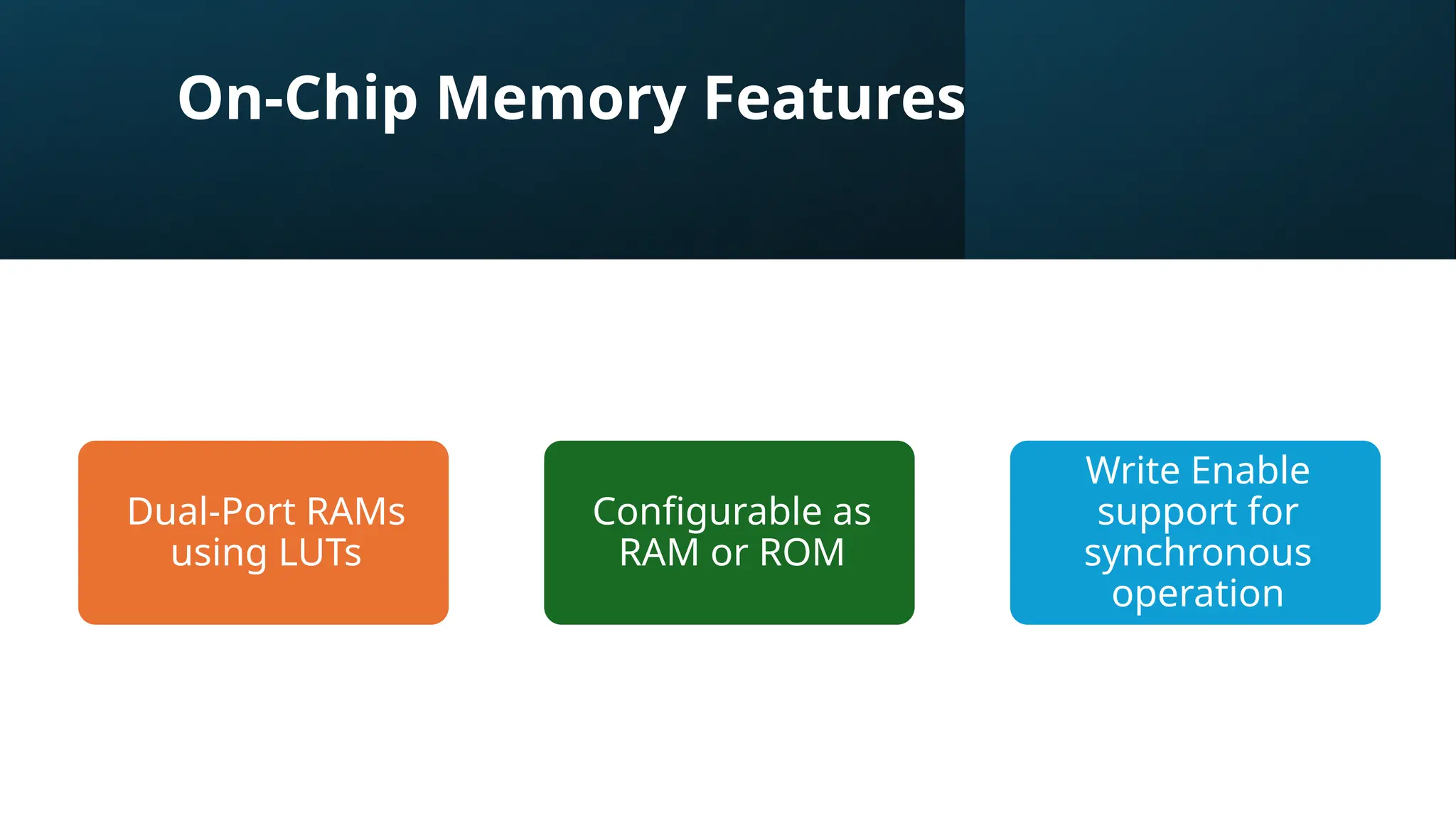

On-Chip Memory Features Dual-Port RAMs using LUTs Configurable as RAM or ROM Write Enable support for synchronous operation

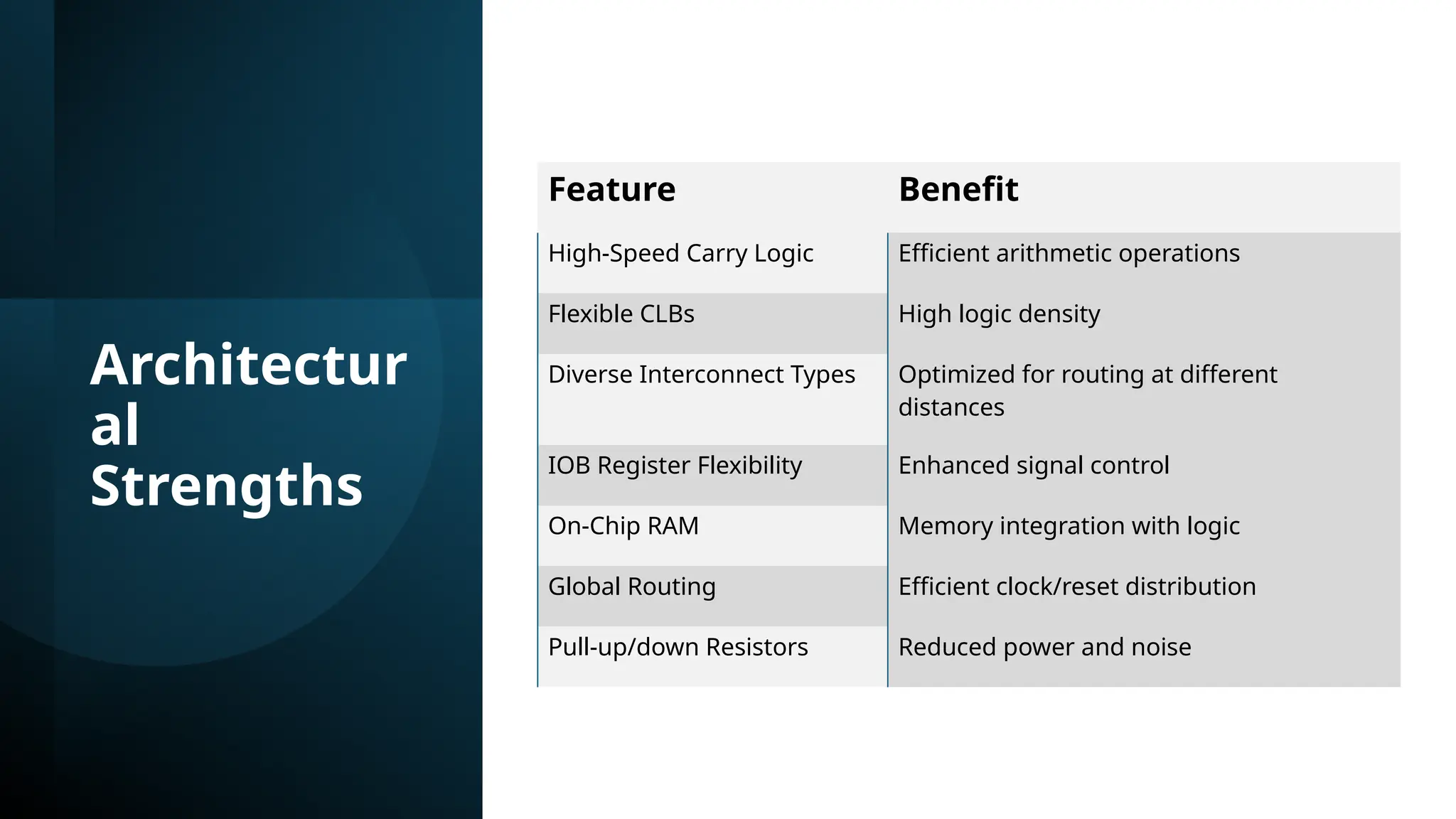

Architectur al Strengths Feature Benefit High-Speed Carry Logic Efficient arithmetic operations Flexible CLBs High logic density Diverse Interconnect Types Optimized for routing at different distances IOB Register Flexibility Enhanced signal control On-Chip RAM Memory integration with logic Global Routing Efficient clock/reset distribution Pull-up/down Resistors Reduced power and noise

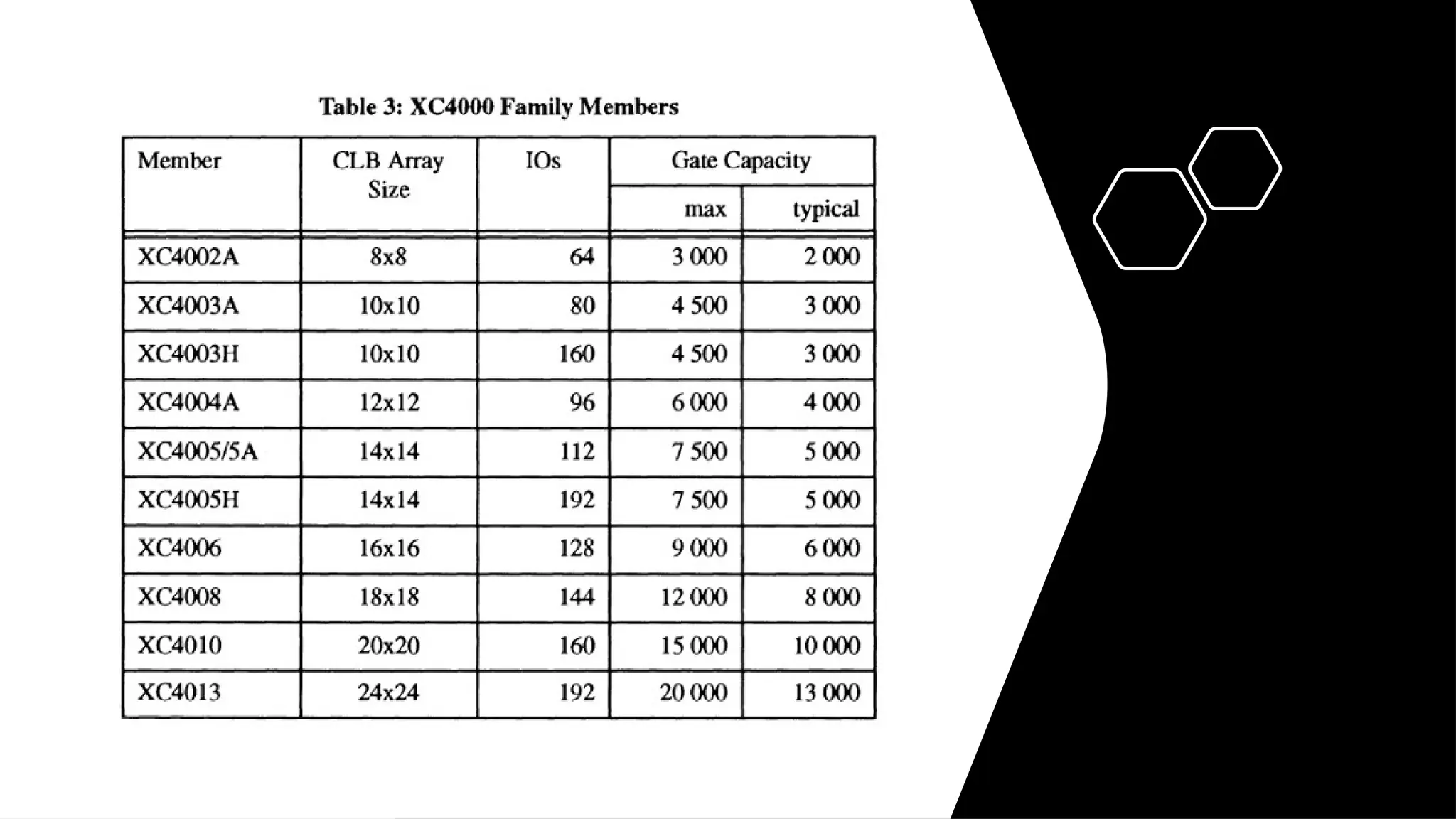

SRAM programming is the process of write

SRAM programming is the process of write
