Spark SQL Beyond Official Documentation David Vrba Ph.D. Senior ML Engineer

About Myself ▪ Senior ML Engineer at Socialbakers ▪ developing and optimizing Spark jobs ▪ productionalizing Spark applications and deploying ML models ▪ Spark Trainer ▪ 1-day, 2-days trainings ▪ reach out to me at https://www.linkedin.com/in/vrba- david/ ▪ Writer ▪ publishing articles at medium ▪ follow me at https://medium.com/@vrba.dave

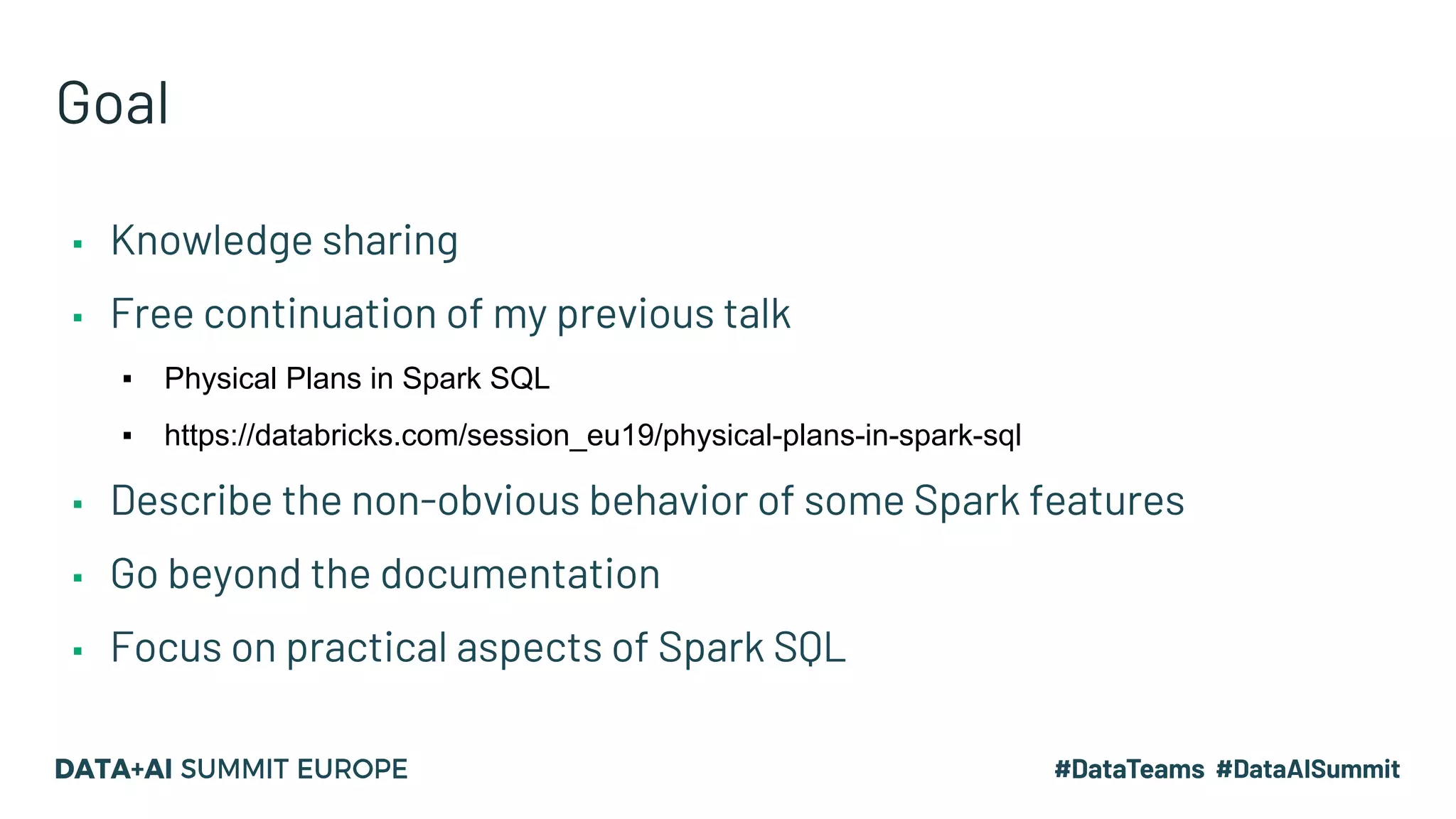

Goal ▪ Knowledge sharing ▪ Free continuation of my previous talk ▪ Physical Plans in Spark SQL ▪ https://databricks.com/session_eu19/physical-plans-in-spark-sql ▪ Describe the non-obvious behavior of some Spark features ▪ Go beyond the documentation ▪ Focus on practical aspects of Spark SQL

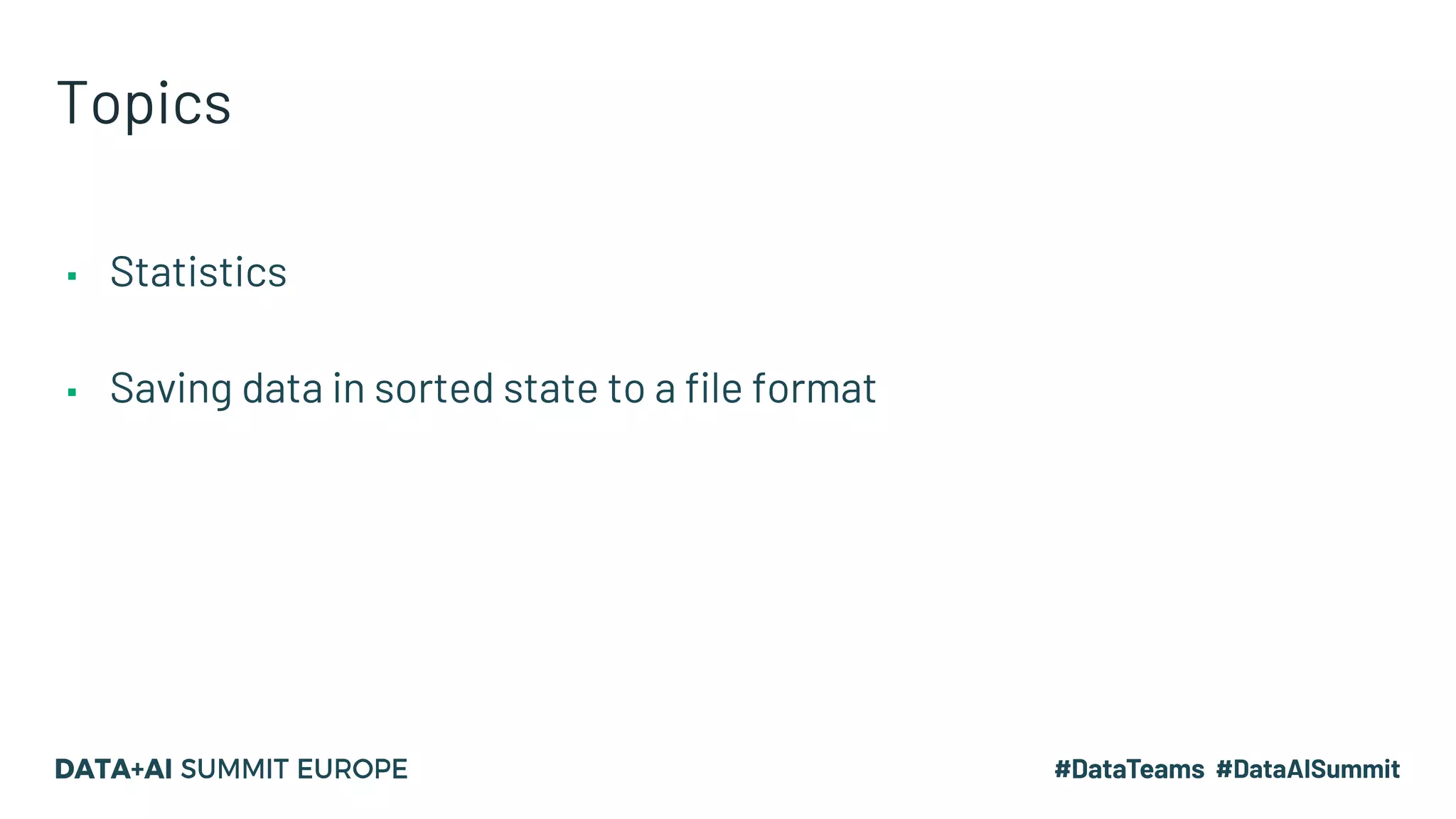

Topics ▪ Statistics ▪ Saving data in sorted state to a file format

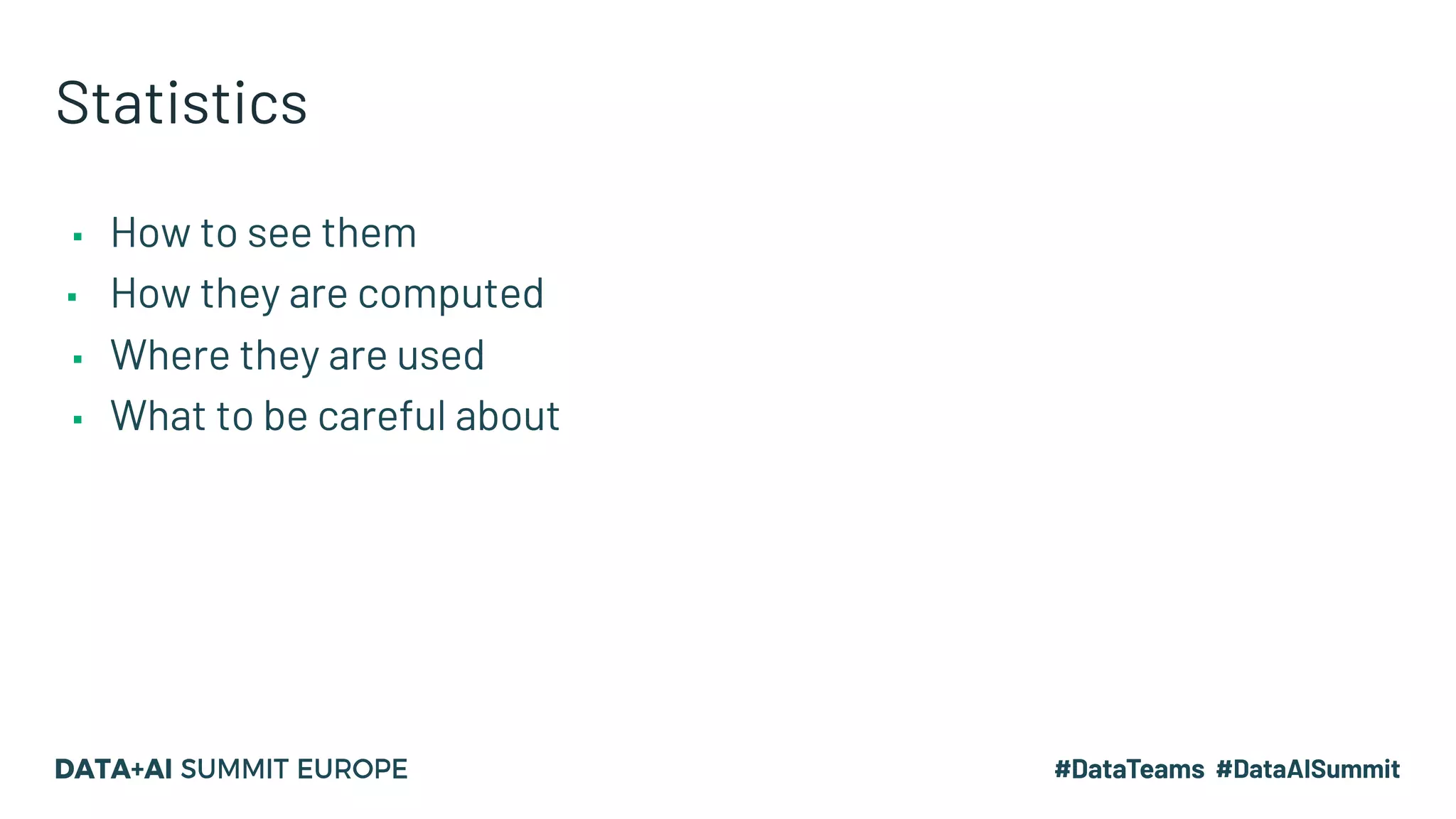

Statistics ▪ How to see them ▪ How they are computed ▪ Where they are used ▪ What to be careful about

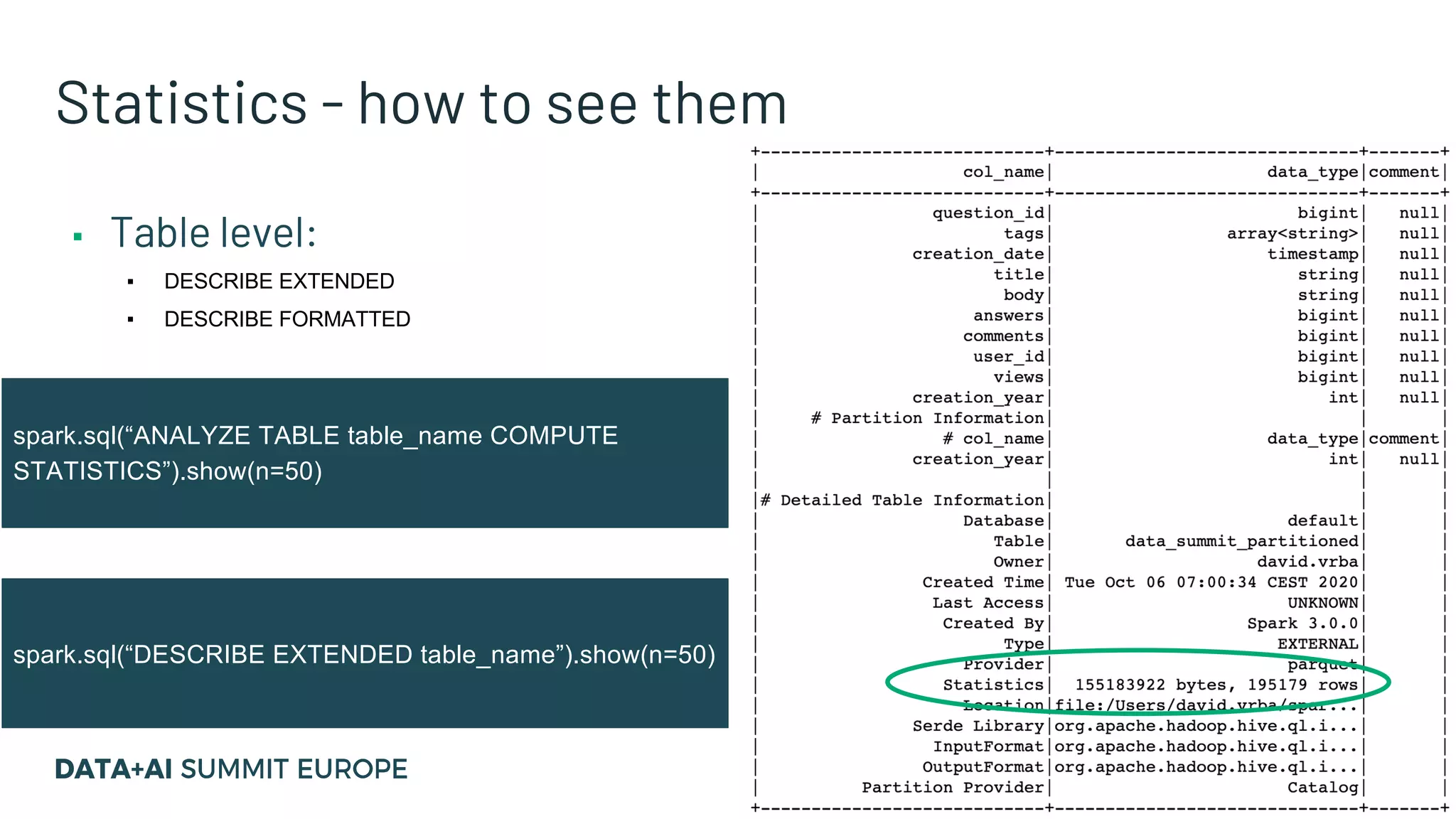

Statistics - how to see them ▪ Table level: ▪ DESCRIBE EXTENDED ▪ DESCRIBE FORMATTED spark.sql(“DESCRIBE EXTENDED table_name”).show(n=50) spark.sql(“ANALYZE TABLE table_name COMPUTE STATISTICS”).show(n=50)

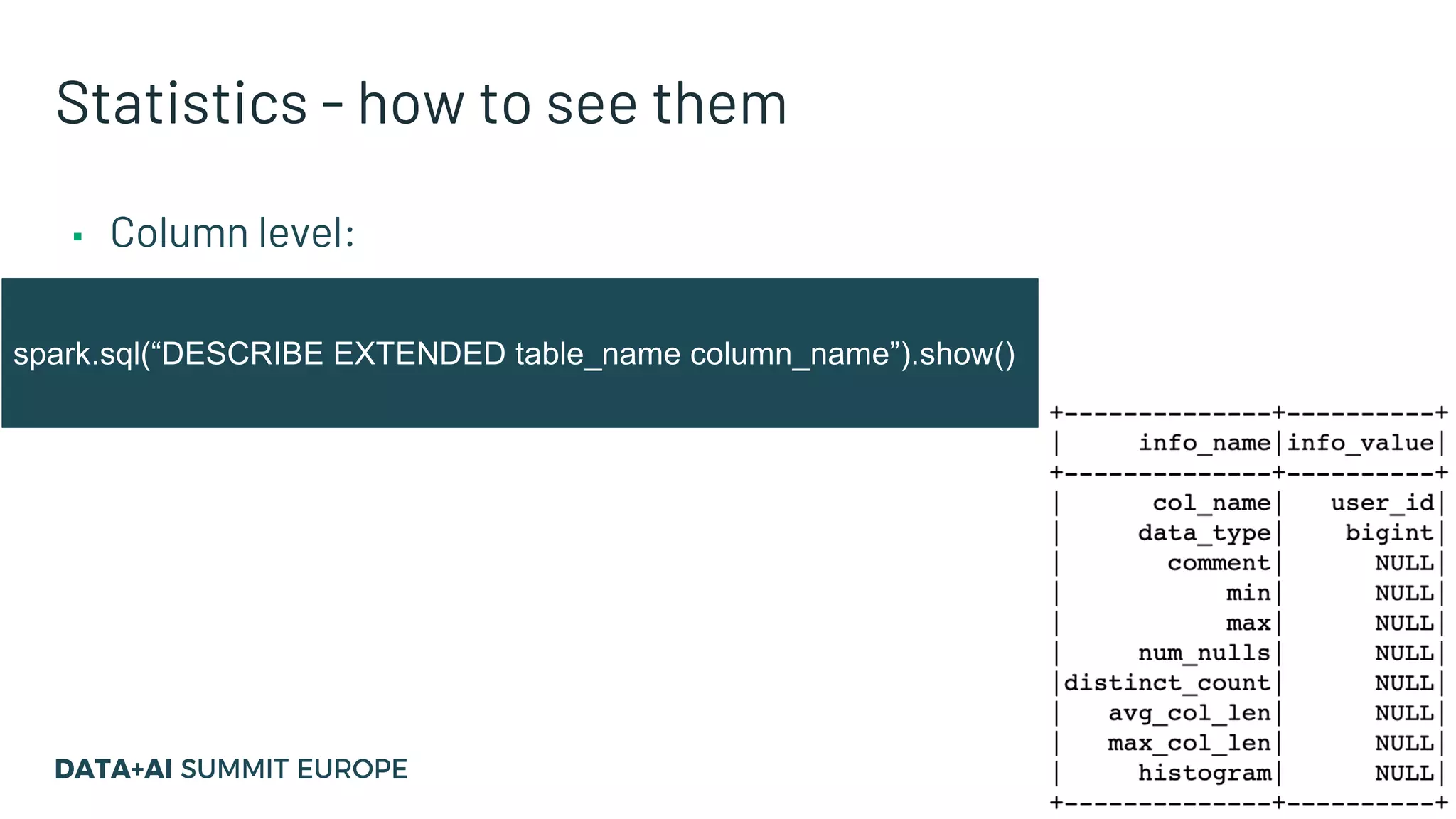

Statistics - how to see them ▪ Column level: spark.sql(“DESCRIBE EXTENDED table_name column_name”).show()

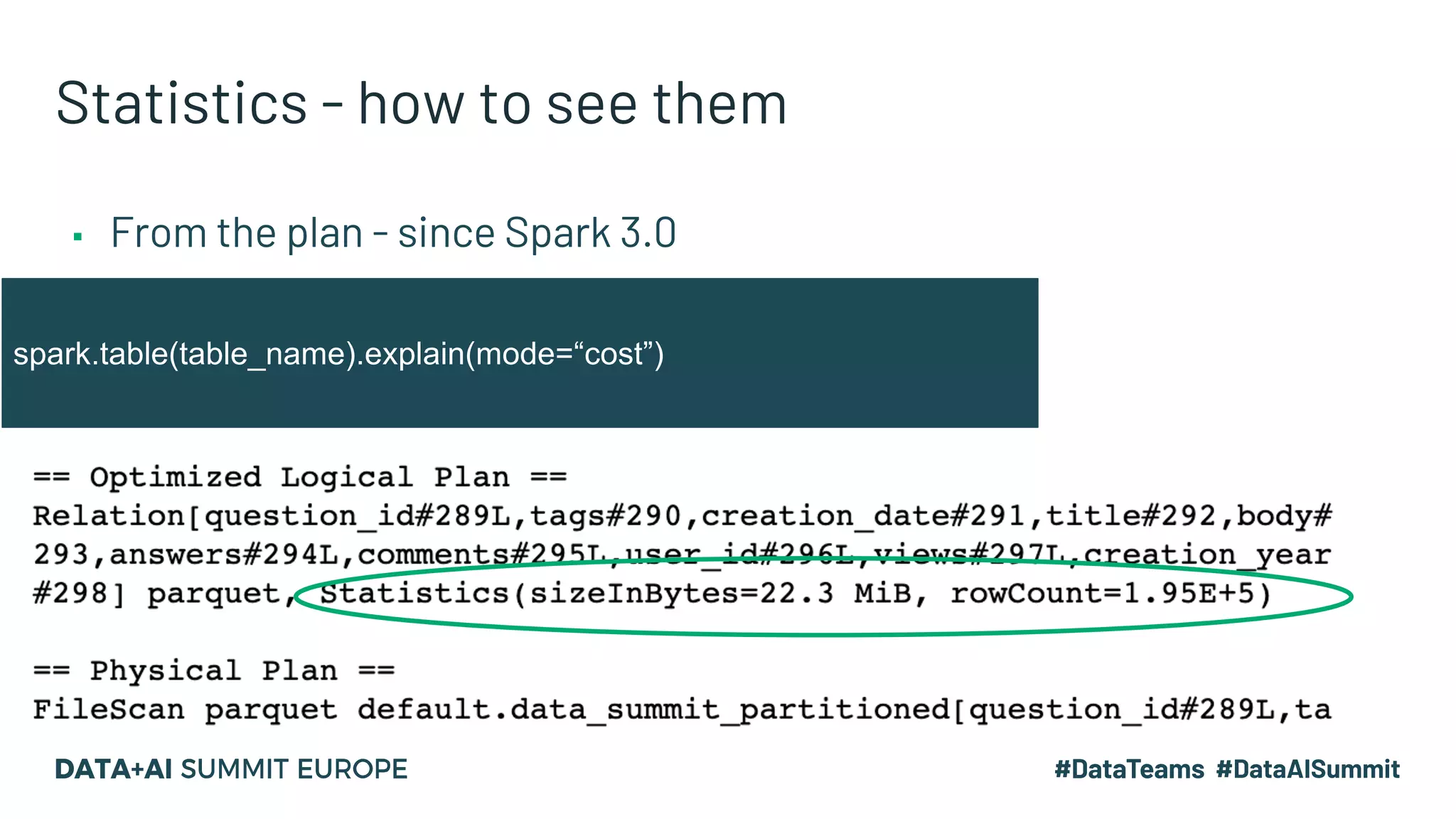

Statistics - how to see them ▪ From the plan - since Spark 3.0 spark.table(table_name).explain(mode=“cost”)

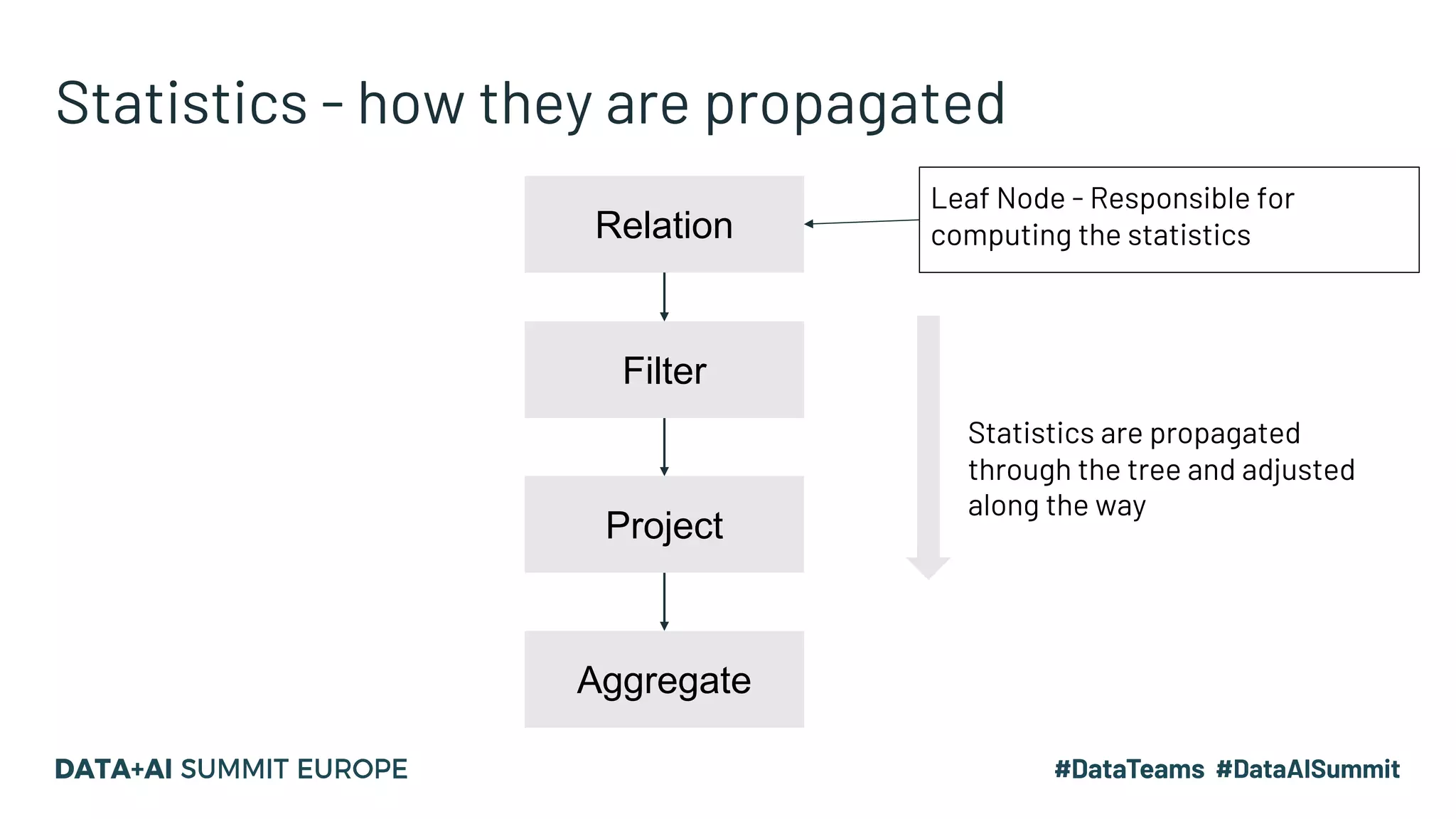

Statistics - how they are propagated Relation Filter Project Aggregate Leaf Node - Responsible for computing the statistics Statistics are propagated through the tree and adjusted along the way

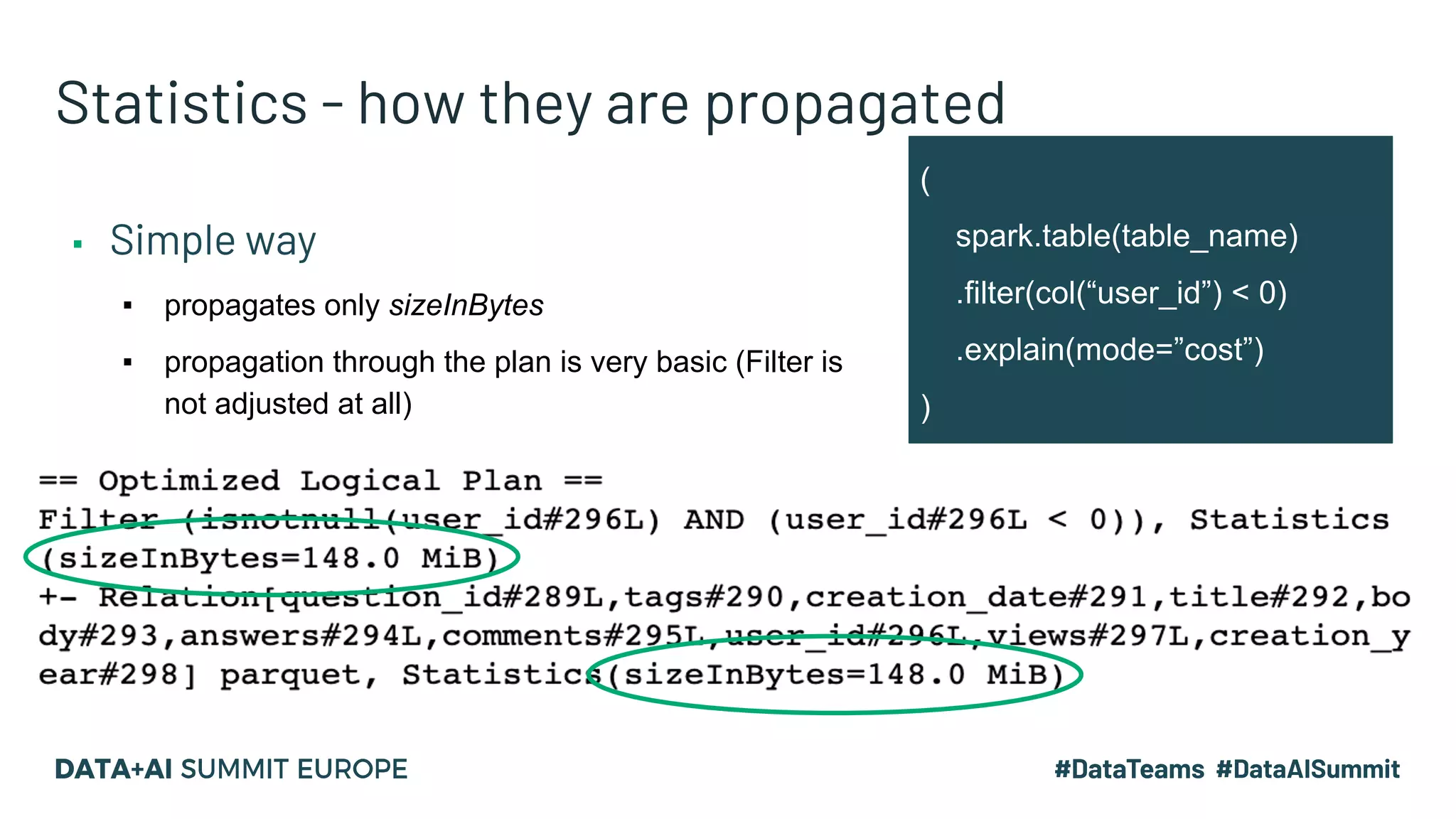

Statistics - how they are propagated ▪ Simple way ▪ propagates only sizeInBytes ▪ propagation through the plan is very basic (Filter is not adjusted at all) ( spark.table(table_name) .filter(col(“user_id”) < 0) .explain(mode=”cost”) )

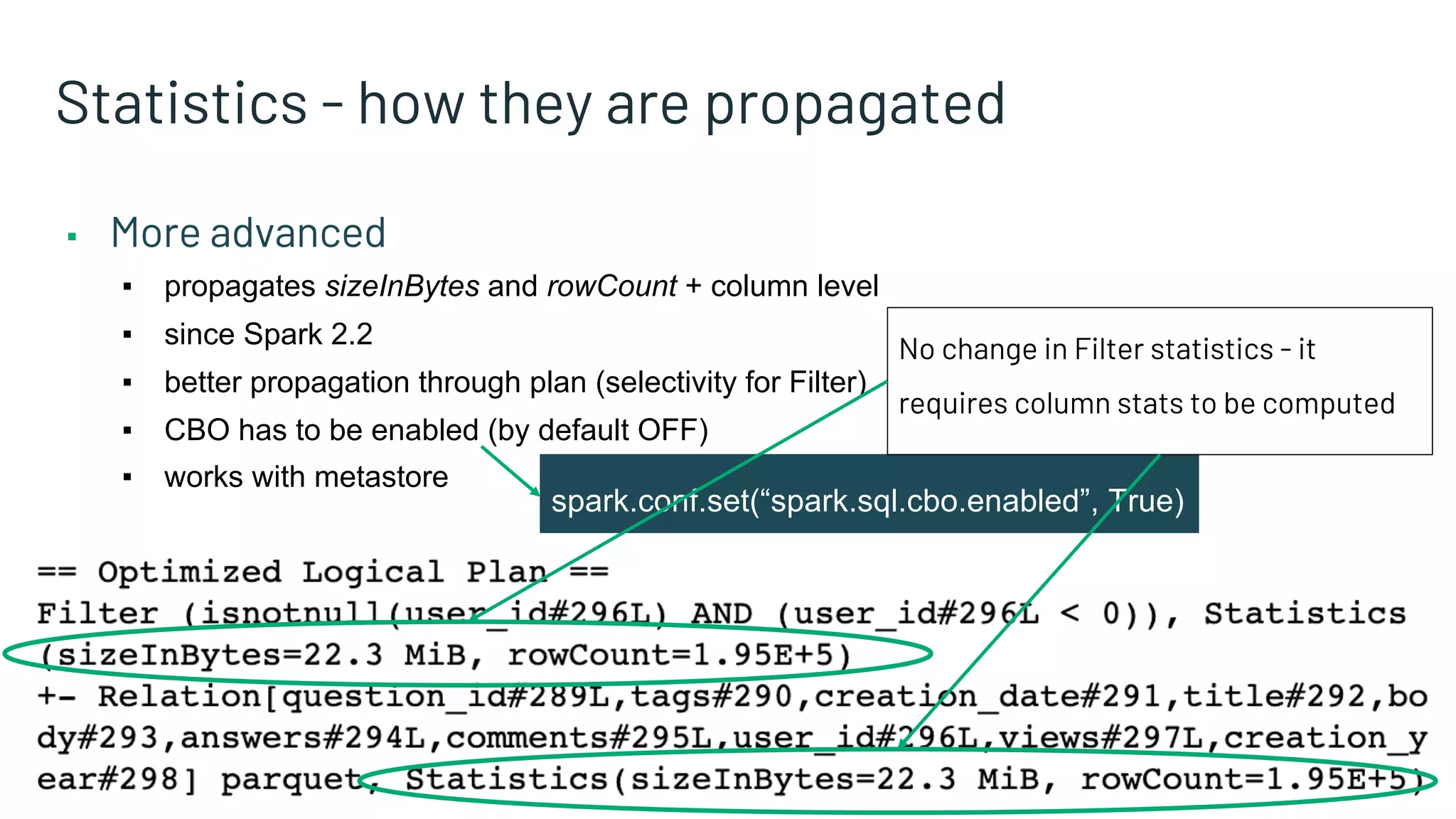

spark.conf.set(“spark.sql.cbo.enabled”, True) Statistics - how they are propagated ▪ More advanced ▪ propagates sizeInBytes and rowCount + column level ▪ since Spark 2.2 ▪ better propagation through plan (selectivity for Filter) ▪ CBO has to be enabled (by default OFF) ▪ works with metastore No change in Filter statistics - it requires column stats to be computed

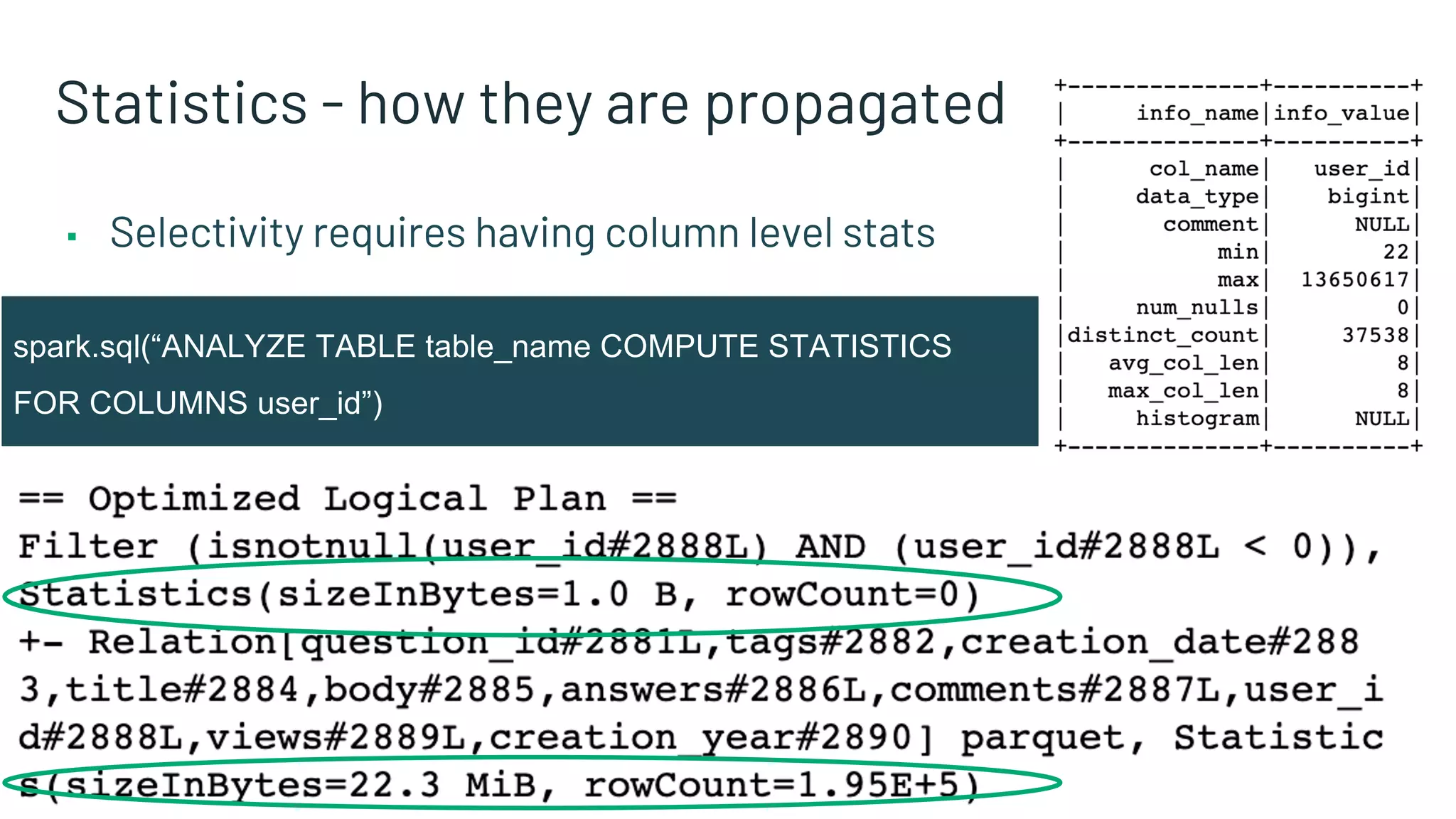

Statistics - how they are propagated ▪ Selectivity requires having column level stats spark.sql(“ANALYZE TABLE table_name COMPUTE STATISTICS FOR COLUMNS user_id”)

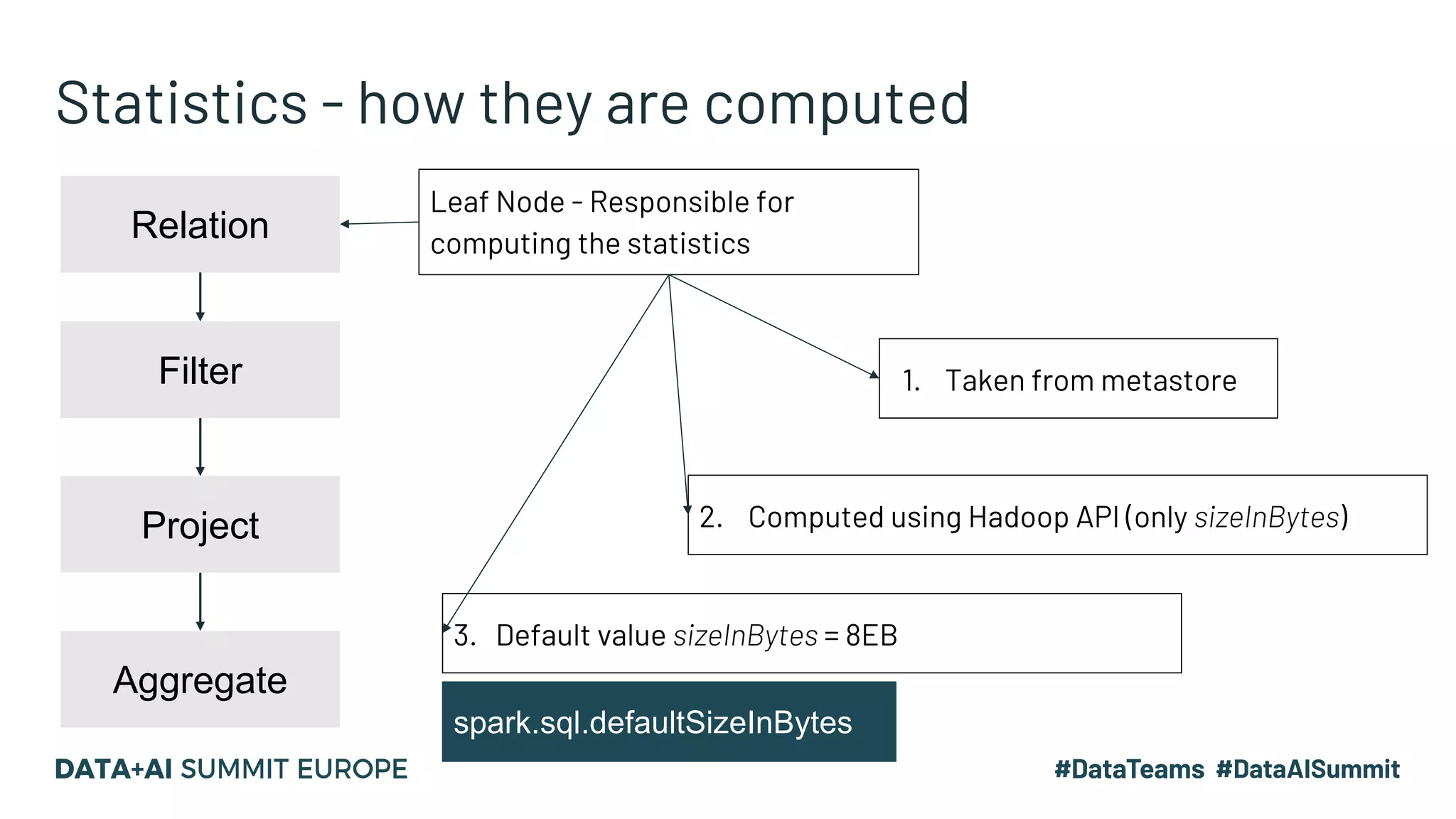

Statistics - how they are computed Relation Filter Project Aggregate Leaf Node - Responsible for computing the statistics 1. Taken from metastore 2. Computed using Hadoop API (only sizeInBytes) 3. Default value sizeInBytes = 8EB spark.sql.defaultSizeInBytes

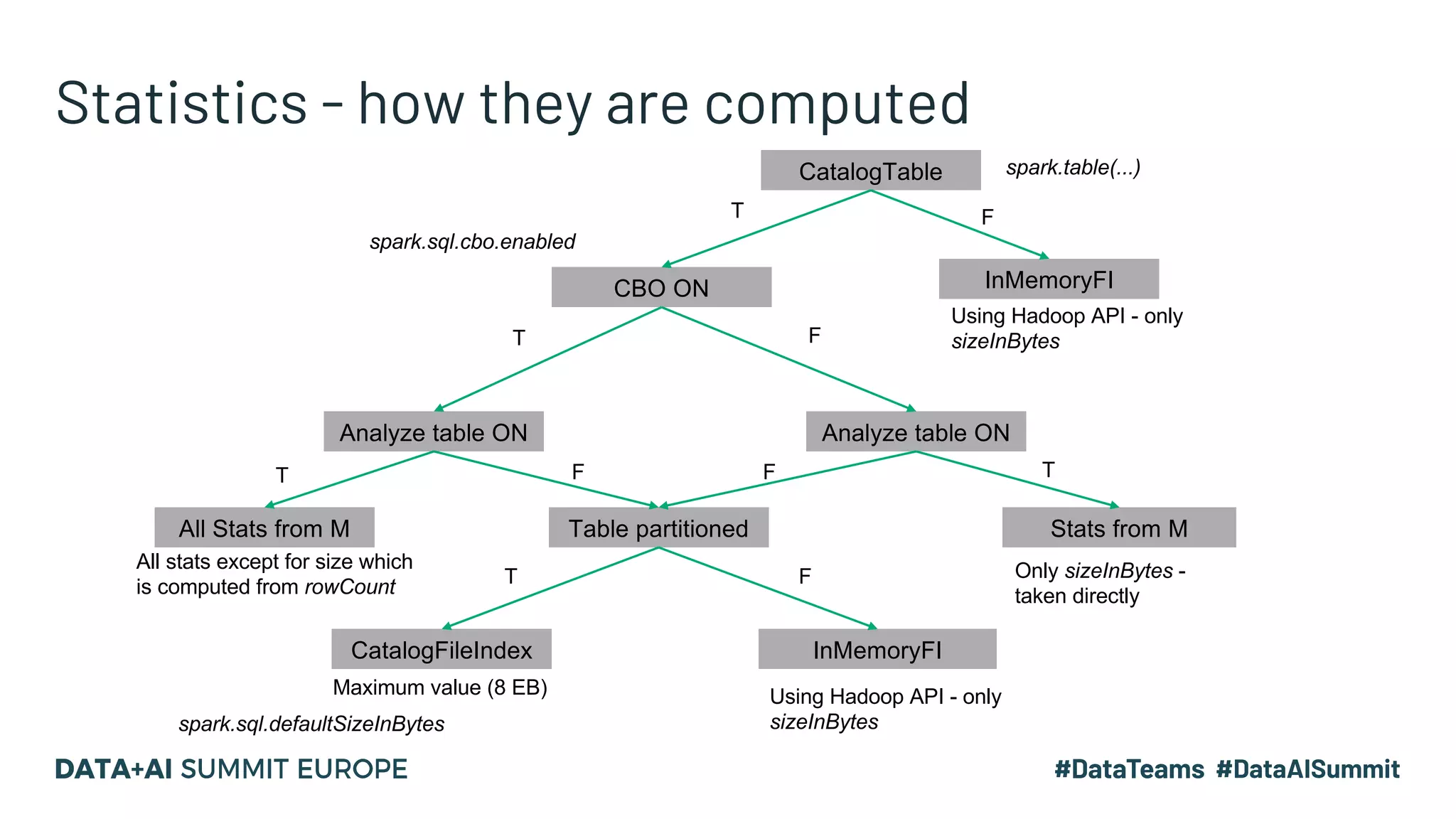

Statistics - how they are computed CBO ON Analyze table ON Table partitionedAll Stats from M CatalogFileIndex InMemoryFI T T T F F Analyze table ON Stats from M TF F CatalogTable InMemoryFI FT Using Hadoop API - only sizeInBytes Using Hadoop API - only sizeInBytes Only sizeInBytes - taken directly All stats except for size which is computed from rowCount Maximum value (8 EB) spark.table(...) spark.sql.defaultSizeInBytes spark.sql.cbo.enabled

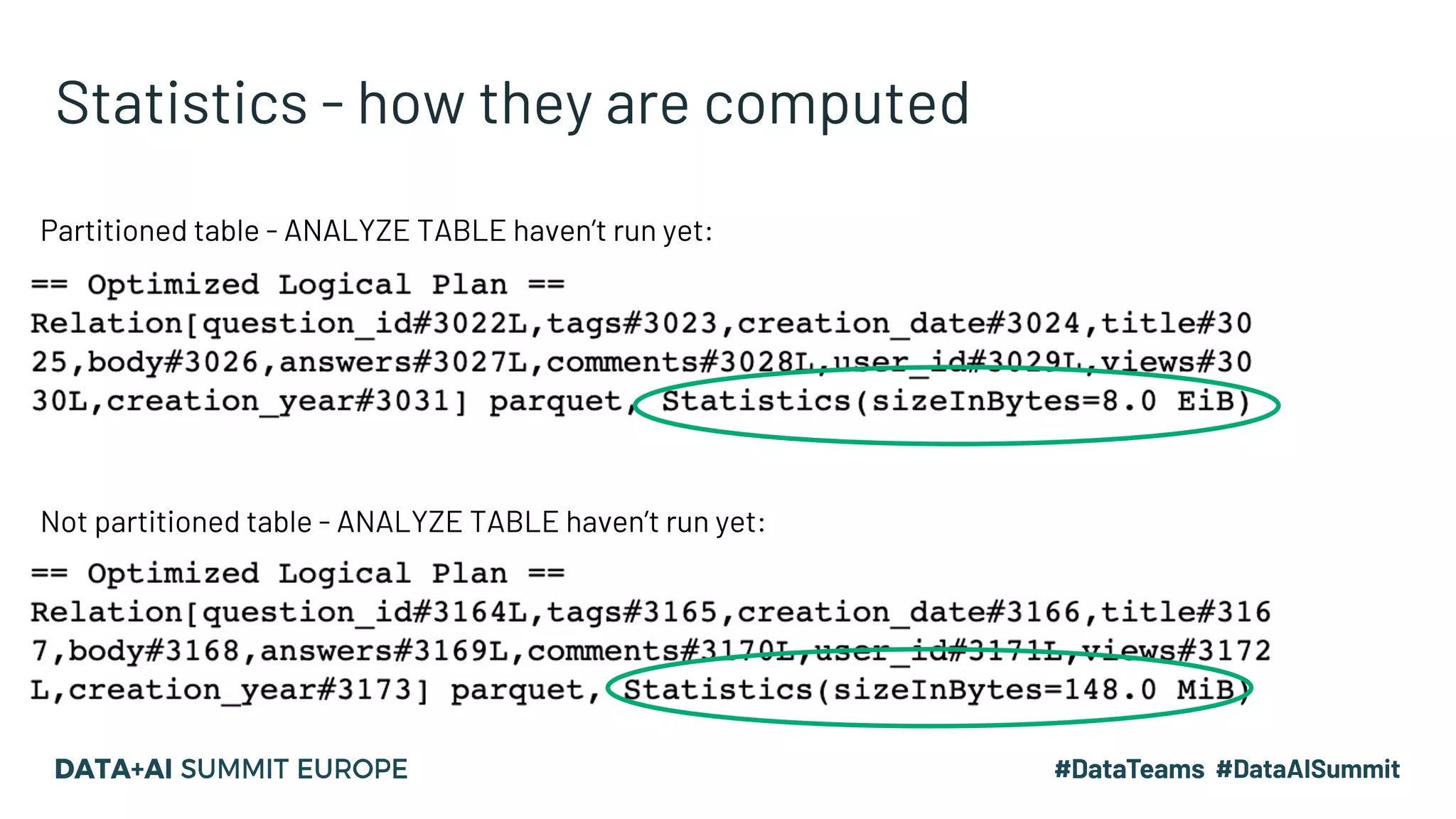

Statistics - how they are computed Partitioned table - ANALYZE TABLE haven’t run yet: Not partitioned table - ANALYZE TABLE haven’t run yet:

Statistics - where they are used ▪ joinReorder - in case you join more than two tables ▪ finds most optimal configuration for multiple joins ▪ by default it is OFF spark.conf.set(“spark.sql.cbo.joinReorder.enabled”, True) ▪ join selection - decide whether to use BroadcastHashJoin ▪ spark.sql.autoBroadcastJoinThreshold - 10MB default

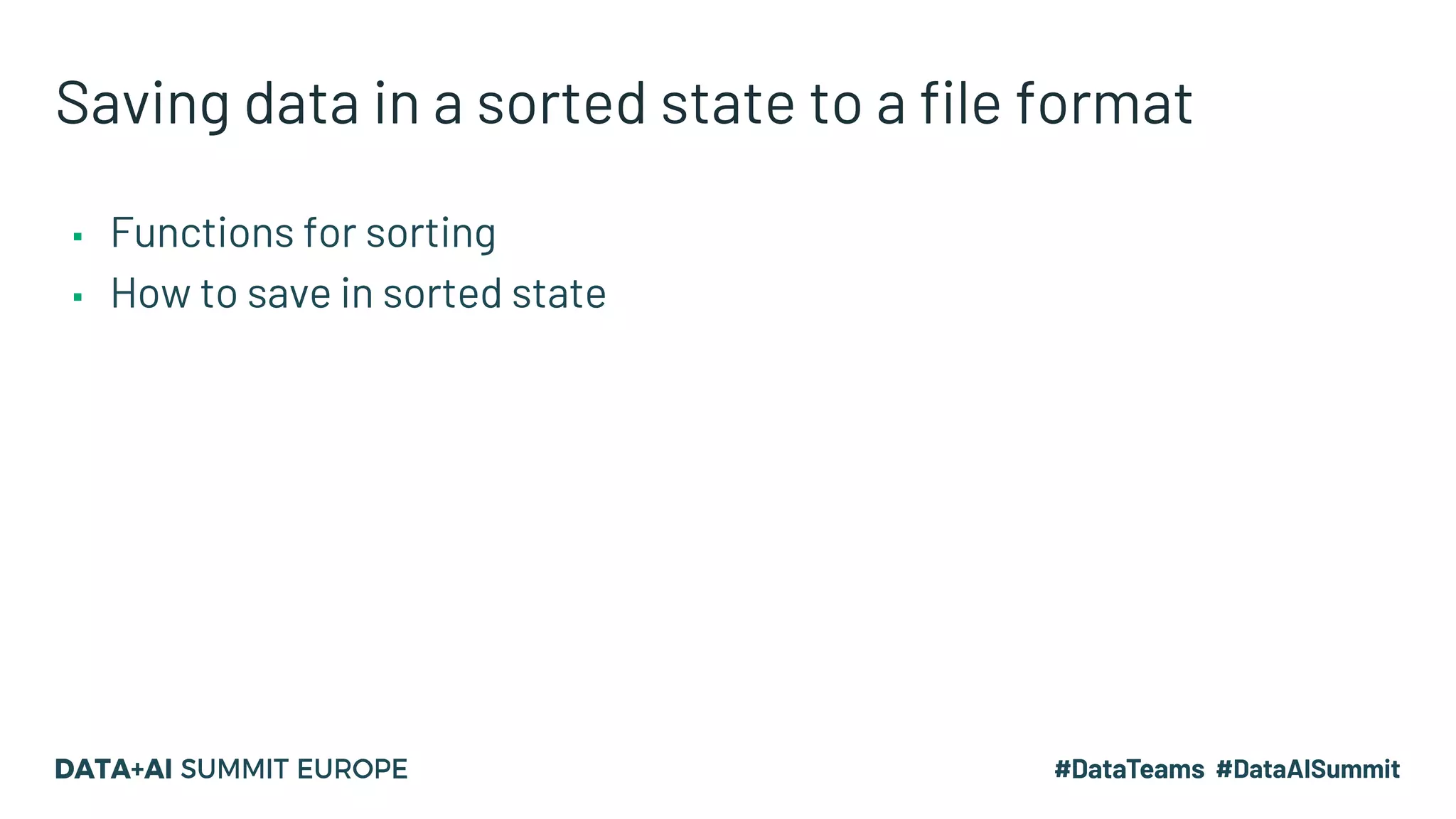

Saving data in a sorted state to a file format ▪ Functions for sorting ▪ How to save in sorted state

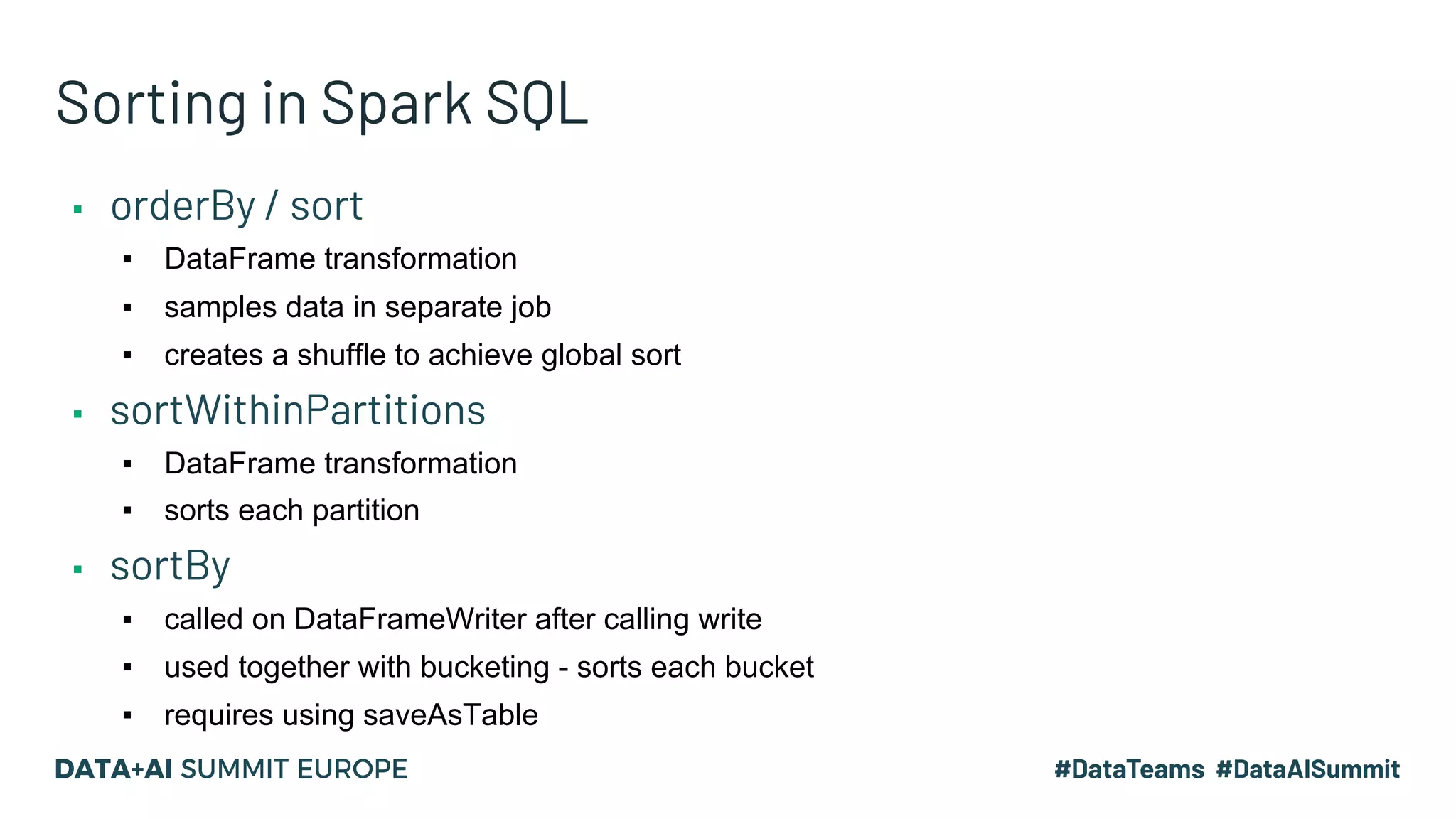

Sorting in Spark SQL ▪ orderBy / sort ▪ DataFrame transformation ▪ samples data in separate job ▪ creates a shuffle to achieve global sort ▪ sortWithinPartitions ▪ DataFrame transformation ▪ sorts each partition ▪ sortBy ▪ called on DataFrameWriter after calling write ▪ used together with bucketing - sorts each bucket ▪ requires using saveAsTable

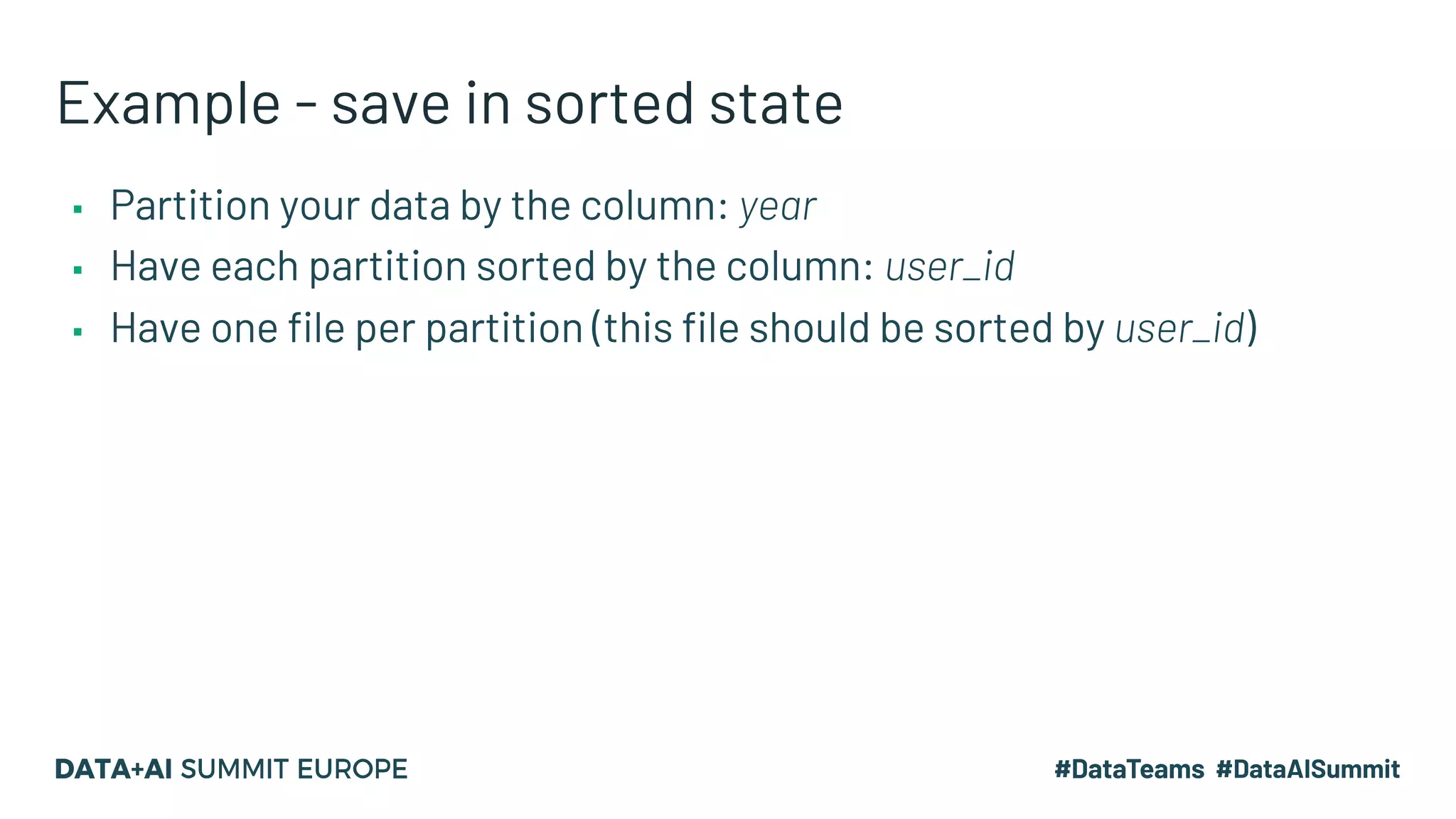

Example - save in sorted state ▪ Partition your data by the column: year ▪ Have each partition sorted by the column: user_id ▪ Have one file per partition (this file should be sorted by user_id)

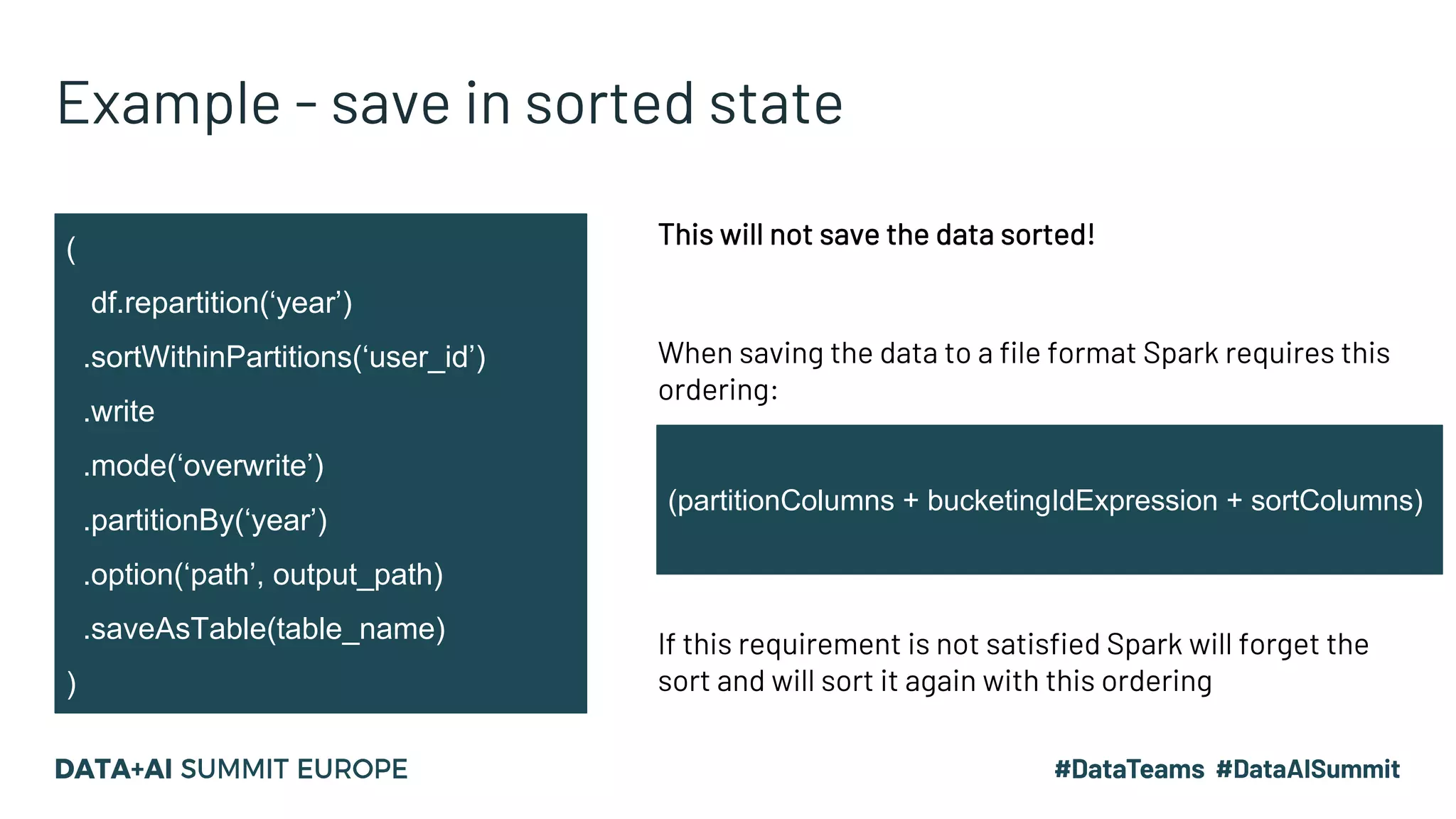

Example - save in sorted state ( df.repartition(‘year’) .sortWithinPartitions(‘user_id’) .write .mode(‘overwrite’) .partitionBy(‘year’) .option(‘path’, output_path) .saveAsTable(table_name) ) This will not save the data sorted! When saving the data to a file format Spark requires this ordering: (partitionColumns + bucketingIdExpression + sortColumns) If this requirement is not satisfied Spark will forget the sort and will sort it again with this ordering

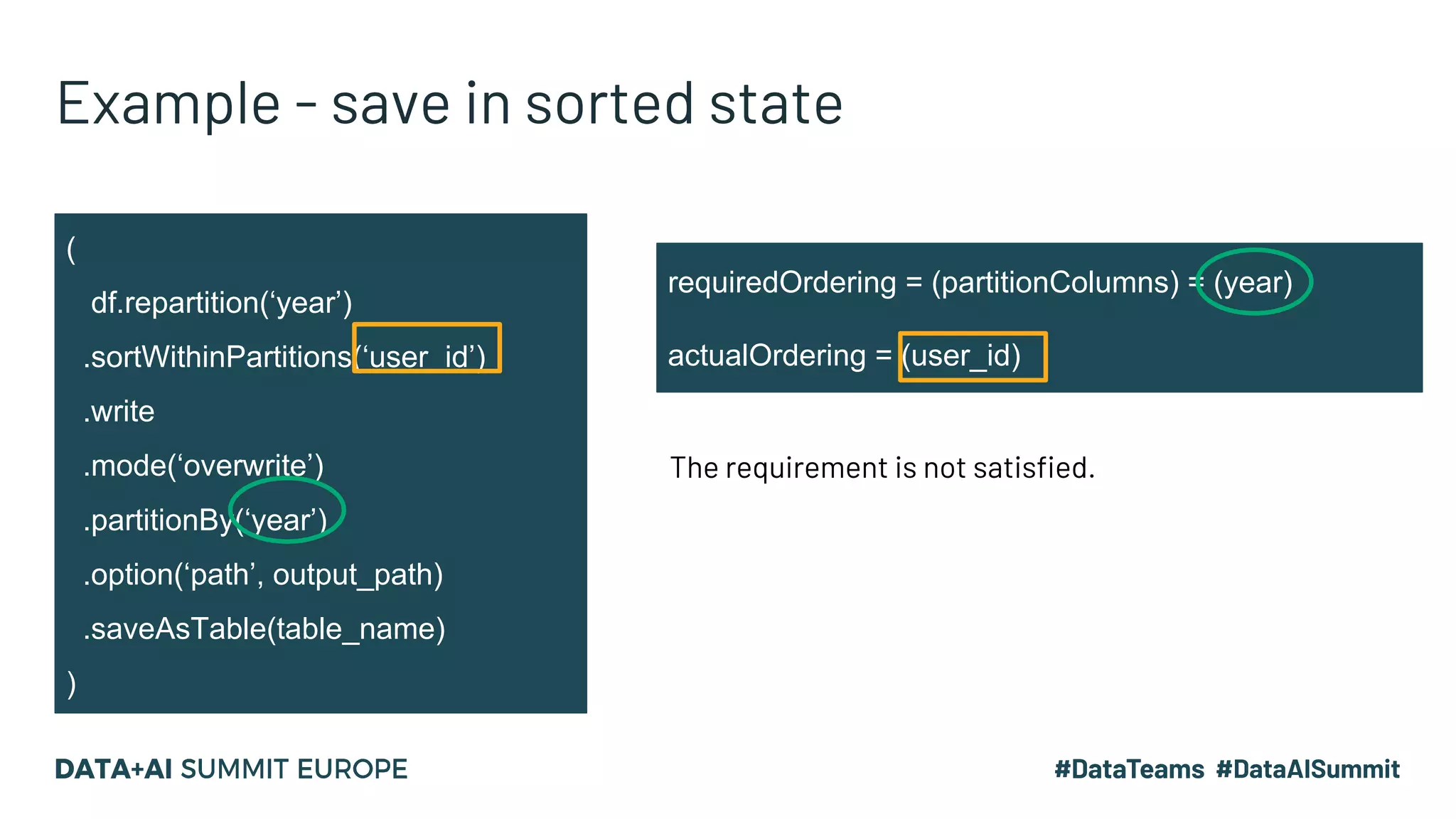

Example - save in sorted state ( df.repartition(‘year’) .sortWithinPartitions(‘user_id’) .write .mode(‘overwrite’) .partitionBy(‘year’) .option(‘path’, output_path) .saveAsTable(table_name) ) requiredOrdering = (partitionColumns) = (year) actualOrdering = (user_id) The requirement is not satisfied.

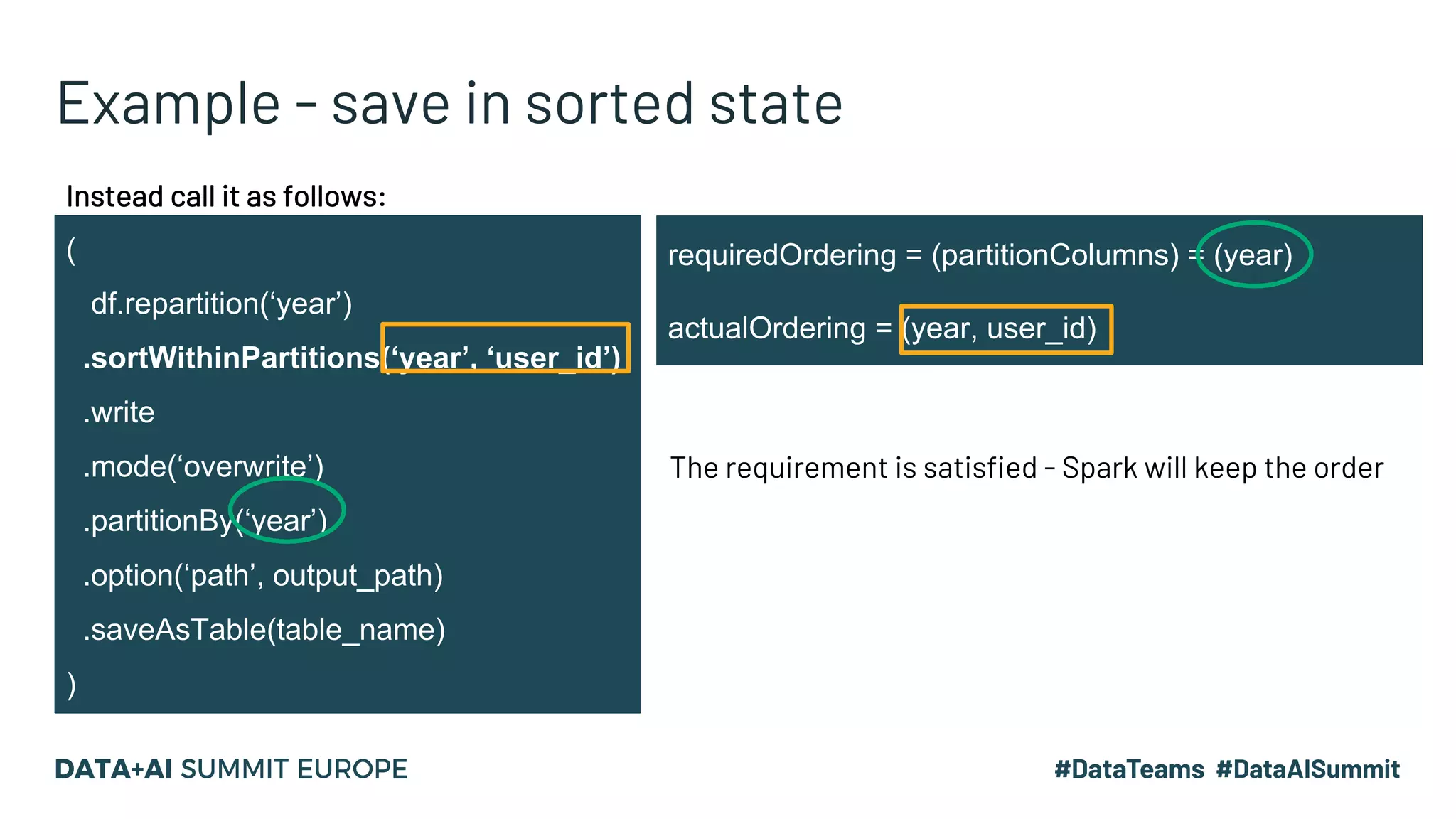

Example - save in sorted state ( df.repartition(‘year’) .sortWithinPartitions(‘year’, ‘user_id’) .write .mode(‘overwrite’) .partitionBy(‘year’) .option(‘path’, output_path) .saveAsTable(table_name) ) requiredOrdering = (partitionColumns) = (year) actualOrdering = (year, user_id) The requirement is satisfied - Spark will keep the order Instead call it as follows:

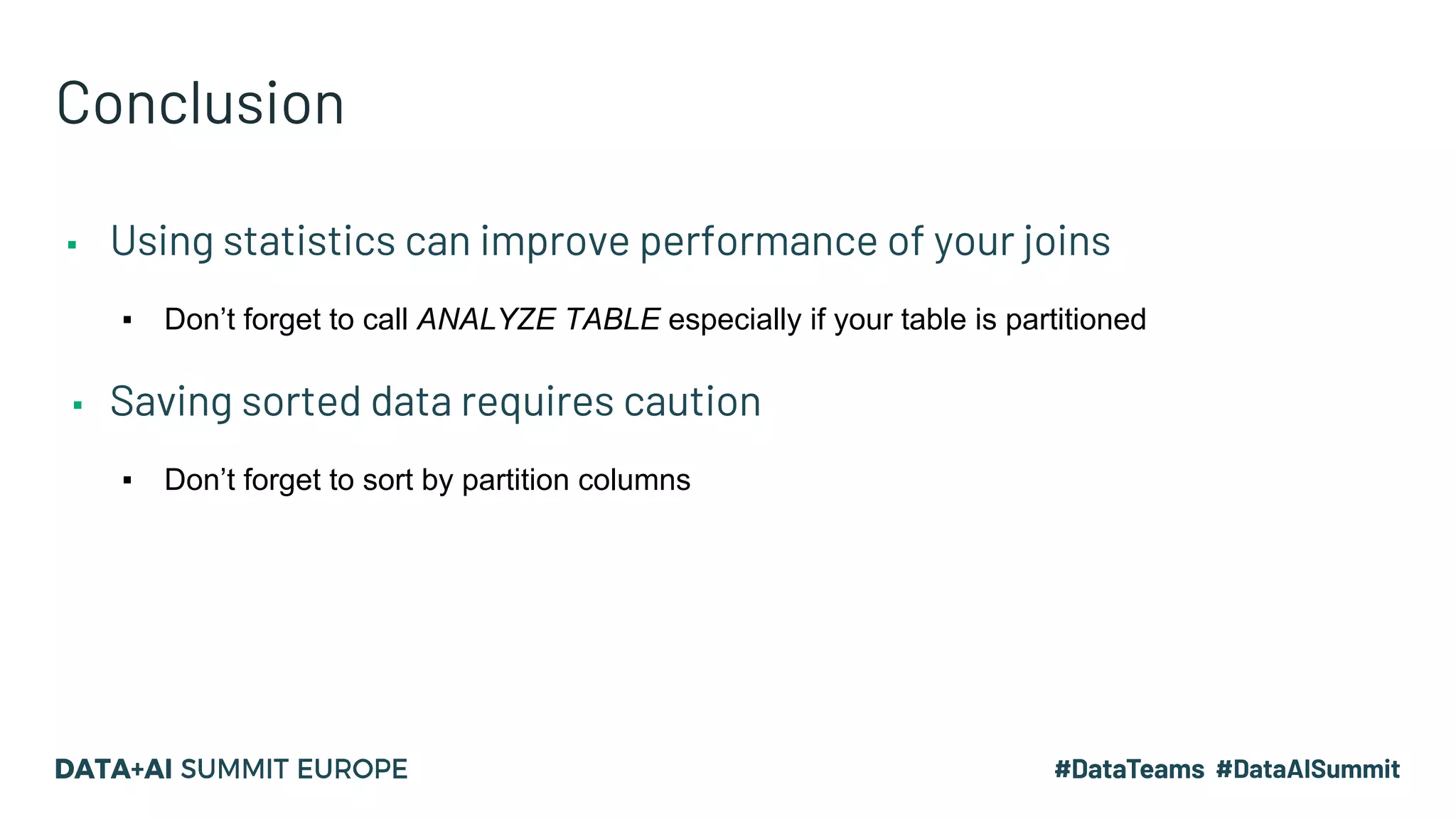

Conclusion ▪ Using statistics can improve performance of your joins ▪ Don’t forget to call ANALYZE TABLE especially if your table is partitioned ▪ Saving sorted data requires caution ▪ Don’t forget to sort by partition columns

Feedback Your feedback is important to us. Don’t forget to rate and review the sessions.
